Tennant/Nobles - 4040581 - Sleeve, P/M, 0.32B 0.50D 0.5L [430Ss] (Replaces Tennant 222460)

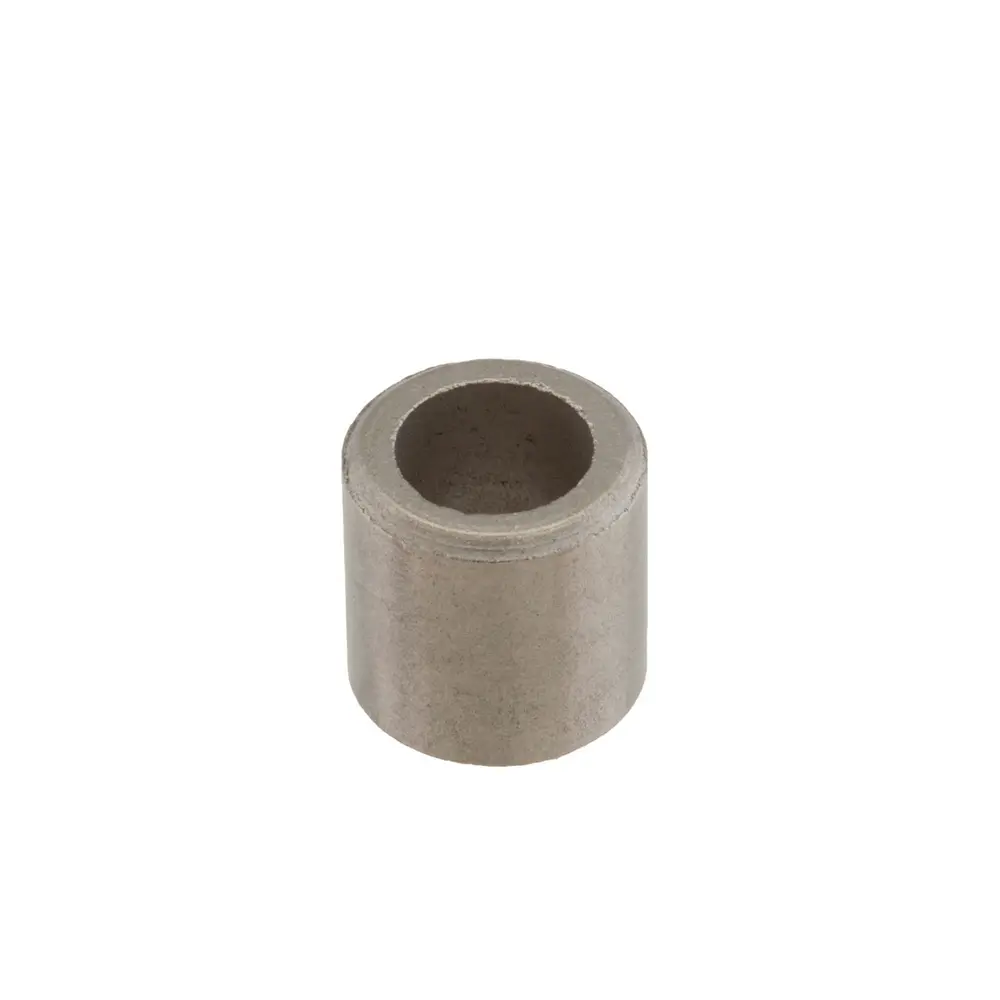

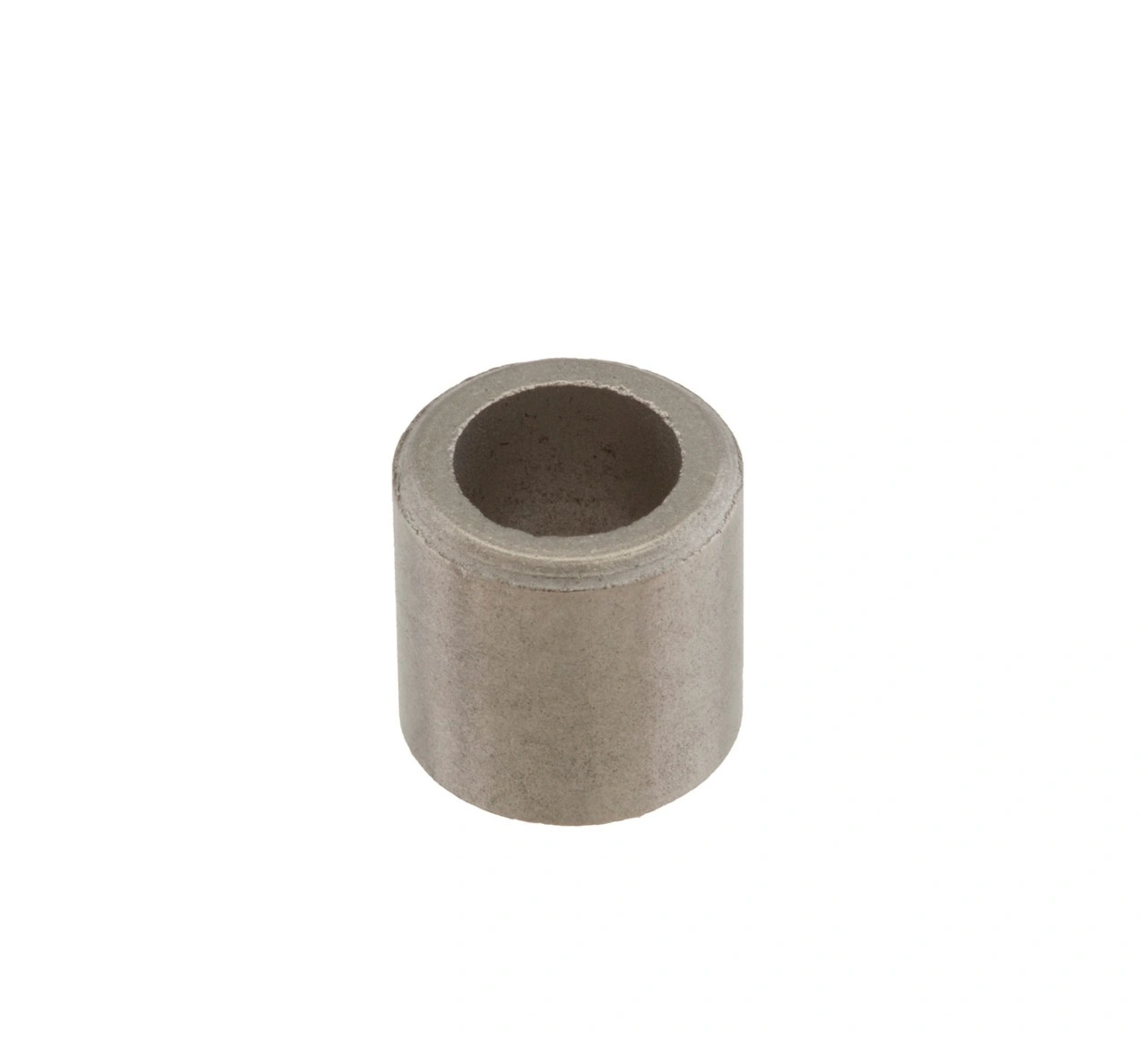

Tennant 4040581 is a 430 stainless steel sleeve, 0.32 in (8.1 mm) bore, 0.50 in (12.7 mm) outside diameter and 0.5 in (13 mm) long, also listed as 222460. The Tennant description reads Sleeve, P/M, 0.32B 0.50D 0.5L [430Ss], and P/M is not defined.

This sleeve is on a very large number of machines, so its job depends on the group. Tennant lists 3 in the Main Brush Group of the 3640 and 3640E sweepers, 1 in the Brush Idler Group of the 515SS, 1 in the Solution Tank Group of the 5680, and 1 in the 5680 Squeegee Lift Group. The manual fitment index also names the T12, S20, 6400, T291 and 355E. Count it on your drawing before ordering.
