Tennant T300e parts list and diagrams
Tap any part on Tennant's T300e drawings to see its current number, price and quantity. Every line from the parts manual for the Traditional Control Panel model, serial numbers 10000000 to 20000000, is here, crossed to Tennant's current part numbers.
Complete list: every line of the parts list in Tennant T300e Parts Manual 9022095 Rev. 00 (06-2022), Traditional Control Panel model, S/N 10000000-20000000, 360 printed part lines, with the parts numbered on its drawings. Checked .
New to your T300e? Start here → Manuals (free sign-in) →
- Scrubbing path
- 19.9 in (505 mm)
- Solution tank
- 11 gal (42 L)
- Recovery tank
- 14 gal (53 L)
- Batteries
- Two 12V: 130 Ah wet or 140 Ah sealed AGM
- Weight
- 230 lb (104 kg); 376 lb (171 kg) with batteries
Maintenance and wear parts for the T300e
Tennant's recommended maintenance items for the T300e. Keep these on the shelf.
Brush Assy, Disk, Scb, 20.0d, Abr (3-Lug)
$573.80/EABrush Assy, Disk, Scb, 20.0d, Nyl (3-Lug)
$333.60/EABrush Assy, Disk, Scb, 20.0d, Pyp (3-Lug)
$284.80/EAWasher, Flat, 92b 156d 2.6l, Pad Driver
$13.00/EAPad, Polish, 20.0d, White [1pick=1ctn]
$134.50/EAPad, Buff, 20.0d, Red [1pick=1ctn]
$29.20/EAPad, Scb, 20.0d, Blu [1pick=1ctn]
$134.50/EAPad, Stripping 20.0d, Brn [1pick=1ctn]
$134.50/EAPad, Strip, 20.0d Blk[Hi Prod1pick=1ctn]
$160.90/EAPad, Surf Prep, 20.0d Maroon[1pick=1ctn]
$164.32/EAPad, Polish, 20.0d, Yel [1pick=1ctn]
$221.80/EAWheel, Scrbr, 8.00d, W/ Brg (Push Model)
$161.20/EA
Source: Tennant T300e Parts Manual 9022095 Rev. 00 (06-2022), Traditional Control Panel model, S/N 10000000-20000000, page 7. SES ref PF-W2HB-KHVL
Your machine
How to tell which you have

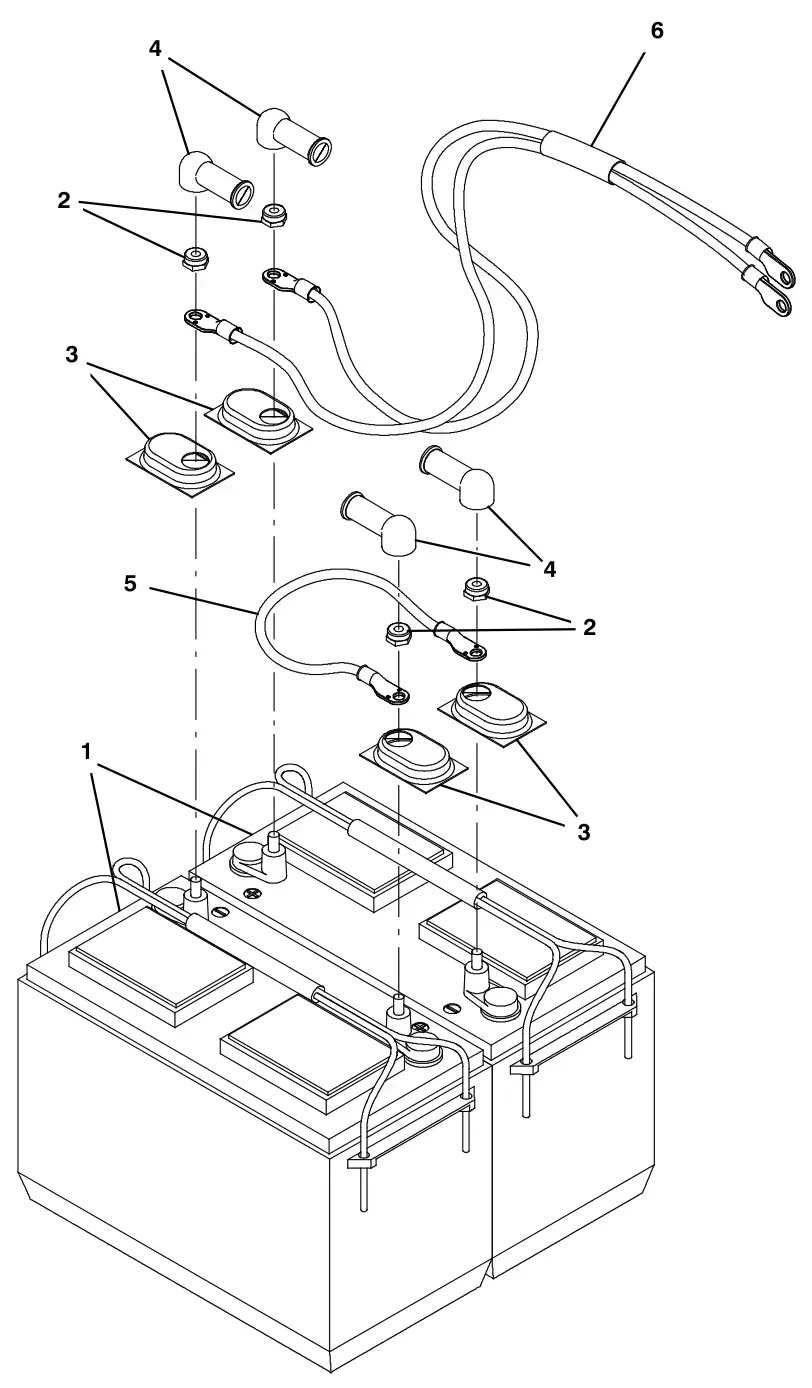

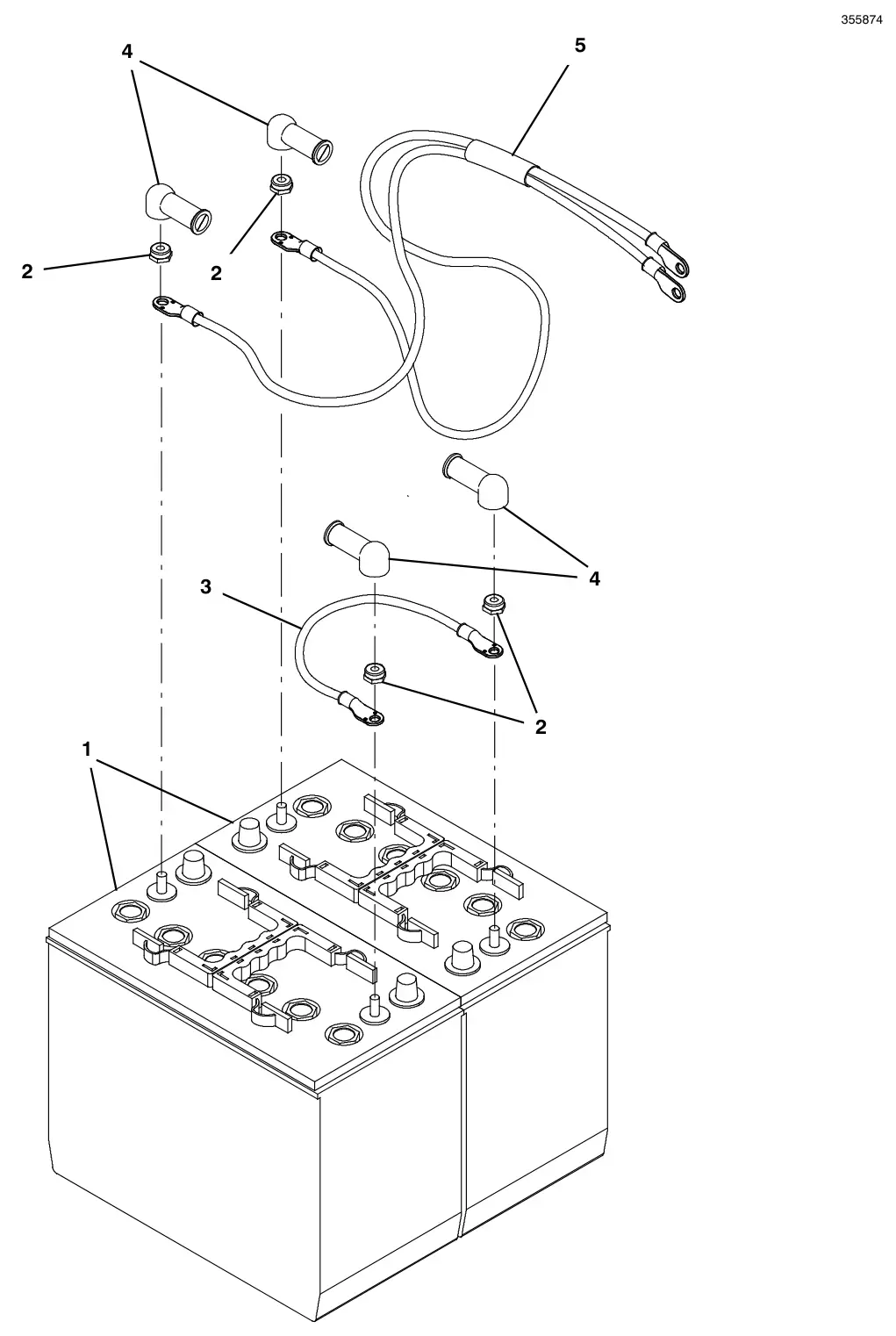

- Battery: Tennant's parts manual has separate parts groups for 130 Ah wet, 140 Ah AGM (manual pages 36, 38). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant T300e recommended maintenance items
Recommended maintenance items from Tennant's parts list. Manual page 7.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4035185Replaces Tennant 1016805 | 1 | Brush Assy, Disk, Scb, 20.0d, Abr (3-Lug)Serial 10000000 to 20000000. | $573.80/EA |
| – | TN4035186Replaces Tennant 1016810 | 1 | Brush Assy, Disk, Scb, 20.0d, Nyl (3-Lug)Serial 10000000 to 20000000. | $333.60/EA |
| – | TN4035187Replaces Tennant 1016811 | 1 | Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug)Serial 10000000 to 20000000. | $284.80/EA |
| – | TN4034144Replaces Tennant 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverSerial 10000000 to 20000000. | $13.00/EA |
| – | TN4034068Replaces Tennant 1243338 | 1 | Pad, Polish, 20.0d, White [1pick=1ctn]Serial 10000000 to 20000000. | $134.50/EA |
| – | TN4041862Replaces Tennant 1243339 | 1 | Pad, Buff, 20.0d, Red [1pick=1ctn]Serial 10000000 to 20000000. | $29.20/EA |
| – | TN4034070Replaces Tennant 1243340 | 1 | Pad, Scb, 20.0d, Blu [1pick=1ctn]Serial 10000000 to 20000000. | $134.50/EA |
| – | TN4034287Replaces Tennant 1243566 | 1 | Pad, Stripping 20.0d, Brn [1pick=1ctn]Serial 10000000 to 20000000. | $134.50/EA |
| – | TN4034297Replaces Tennant 1243661 | 1 | Pad, Strip, 20.0d Blk[Hi Prod1pick=1ctn]Serial 10000000 to 20000000. | $160.90/EA |
| – | TN4034299Replaces Tennant 1243670 | 1 | Pad, Surf Prep, 20.0d Maroon[1pick=1ctn]Serial 10000000 to 20000000. | $164.32/EA |
| – | TN4218996Replaces Tennant 1240393 | 1 | Pad, Polish, 20.0d, Yel [1pick=1ctn]Serial 10000000 to 20000000. | $221.80/EA |
| – | TN4037849Replaces Tennant 1223724 | 2 | Wheel, Scrbr, 8.00d, W/ Brg (Push Model)Serial 10000000 to 20000000. | $161.20/EA |
| – | TN4039272Replaces Tennant 1212422 | 1 | Caster, Swivel [Wicke 224051]Serial 10000000 to 20000000. | $75.60/EA |
| – | TN4039203Replaces Tennant 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. Serial 10000000 to 20000000. | $16.90/EA |
| – | TN4036880Replaces Tennant 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $2.70/EA |
| – | TN4036878Replaces Tennant 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4019615Replaces Tennant 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $18.20/EA |
| – | TN4026477Replaces Tennant 9014172 | 1 | Squeegee Kit, Linatex, Am [T300/E/Ss300]Complete assembly. Serial 10000000 to 20000000. | $667.30/EA |
| – | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $5.50/EA |
| – | TN4020804Replaces Tennant 630477 | 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4023953Replaces Tennant 9015731 | 1 | Blade Kit, 500mm, Linatex (Standard)Complete assembly. Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $58.40/EA |
| – | TN4040848Replaces Tennant 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). Serial 10000000 to 20000000. | $23.40/EA |
| – | TN4040849Replaces Tennant 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). Serial 10000000 to 20000000. | $20.70/EA |
| – | TN4023954Replaces Tennant 9015732 | 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $101.25/EA |
| – | TN4040136Replaces Tennant 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| – | TN4040138Replaces Tennant 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| – | TN4023952Replaces Tennant 9015730 | 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4040137Replaces Tennant 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |
| – | TN4040139Replaces Tennant 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |
| – | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-Marking (Disk Heads)Serial 10000000 to 20000000. | $5.50/EA |
| – | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk)Complete assembly. Serial 10978979 to 20000000. | $1,621.86/EA |
| – | TN8005800Replaces Tennant 1227273 | 1 | Vr, Brush Kit, Motor, Ele (4pc)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk) (1228117). Serial 10834387 to 20000000. | $40.20/EA |
| – | TN4036930Replaces Tennant 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. Serial 10000000 to 20000000. | $388.30/EA |
| – | TN8004151Replaces Tennant 372883 | 1 | Vr, Brush Kit, Motor, Ele (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). Serial 10000000 to 20000000. | $37.30/EA |
| – | TN4022697Replaces Tennant 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. Serial 10785189 to 20000000. | $60.80/EA |
| – | TN4038125Replaces Tennant 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.40/EA |
| – | TN4041448Replaces Tennant 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $33.00/EA |
| – | TN4022716Replaces Tennant 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss]Serial 10786729 to 20000000. | $72.80/EA |
| – | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75dSerial 10000000 to 20000000. | $76.00/EA |
| – | TN4031484Replaces Tennant 1251388 | 1 | Hose Assy, Drain, 1.5id X 13.0l [Pvc] (Black - Standard)Complete assembly. Serial 10988543 to 20000000. | $60.50/EA |
| – | TN4036892Replaces Tennant 1218955 | 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5id X 13.0l [Pvc] (Black - Standard) (1251388). Serial 10000000 to 20000000. | $8.60/EA |
| – | TN4038916Replaces Tennant 1211220 | 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc]Serial 10000000 to 20000000. | $30.10/EA |
| – | TN4038848Replaces Tennant 1210472 | 1 | Seal, Afmkt, Bulb, 0.50d .13grip, 05ft (Rec Tank Lid)Serial 10000000 to 20000000. | $56.90/EA |
| – | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft (Front Fill Cover)Serial 10000000 to 20000000. | $6.70/EA |

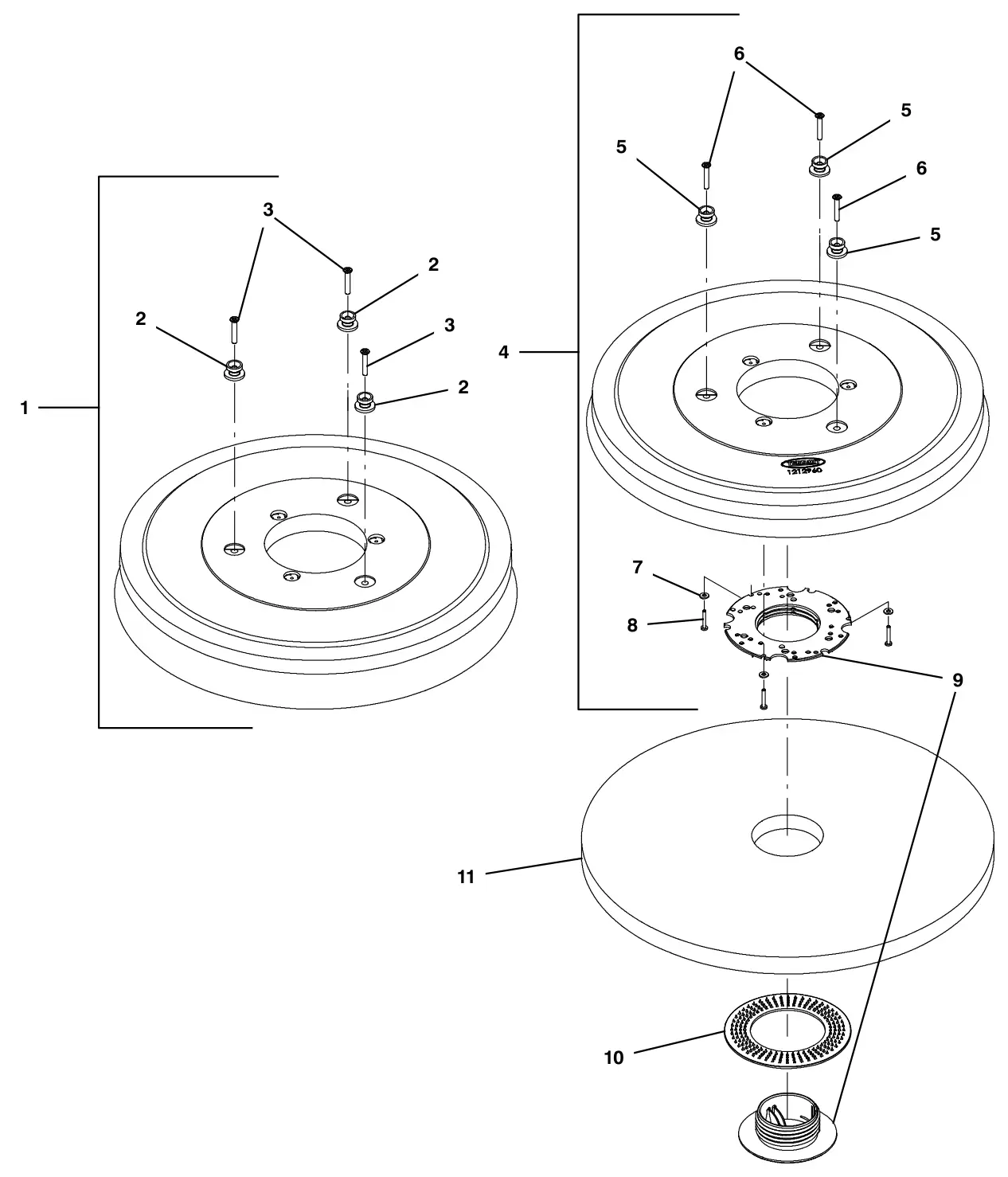

Tennant T300e brushes and pad driver group, 20 in (50 cm) disk parts
The parts Tennant numbers on its brushes and pad driver group, 20 in (50 cm) disk drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035185Replaces Tennant 1016805 | 1 | Brush Assy, Disk, Scb, 20.0d, AbrComplete assembly. Serial 10000000 to 20000000. | $573.80/EA |
| 1 | TN4035186Replaces Tennant 1016810 | 1 | Brush Assy, Disk, Scb, 20.0d, NylComplete assembly. Serial 10000000 to 20000000. | $333.60/EA |
| 1 | TN4035187Replaces Tennant 1016811 | 1 | Brush Assy, Disk, Scb, 20.0d, PypComplete assembly. Serial 10000000 to 20000000. | $284.80/EA |
| 2 | TN4037291Replaces Tennant 1013018 | 3 | Stud, Drive, Brush PadPart of Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug) (1016811). Serial 10000000 to 20000000. | $16.20/EA |
| 3 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug) (1016811). Serial 10000000 to 20000000. | $2.50/EA |
| 4 | TN4039514Replaces Tennant 1212960 | 1 | Driver Assy, Pad, 50cm, Brush, 3 LugComplete assembly. Serial 10000000 to 20000000. | $295.80/EA |
| 5 | TN4037291Replaces Tennant 1013018 | 3 | Stud, Drive, Brush PadPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $16.20/EA |
| 6 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $2.60/EA |
| 8 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $4.00/EA |
| 9 | TN4034145Replaces Tennant 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $32.30/EA |
| 10 | TN4034144Replaces Tennant 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverSerial 10000000 to 20000000. | $13.00/EA |
| 11 | TN4034068Replaces Tennant 1243338 | 1 | Pad, Polish, 20.0d, White [1pick=1ctn]Serial 10000000 to 20000000. | $134.50/EA |
| 11 | TN4041862Replaces Tennant 1243339 | 1 | Pad, Buff, 20.0d, Red [1pick=1ctn]Serial 10000000 to 20000000. | $29.20/EA |
| 11 | TN4034070Replaces Tennant 1243340 | 1 | Pad, Scb, 20.0d, Blu [1pick=1ctn]Serial 10000000 to 20000000. | $134.50/EA |
| 11 | TN4034287Replaces Tennant 1243566 | 1 | Pad, Stripping 20.0d, Brn [1pick=1ctn]Serial 10000000 to 20000000. | $134.50/EA |
| 11 | TN4034297Replaces Tennant 1243661 | 1 | Pad, Strip, 20.0d Blk[Hi Prod1pick=1ctn]Serial 10000000 to 20000000. | $160.90/EA |
| 11 | TN4034299Replaces Tennant 1243670 | 1 | Pad, Surf Prep, 20.0d Maroon[1pick=1ctn]Serial 10000000 to 20000000. | $164.32/EA |
| 11 | TN4218996Replaces Tennant 1240393 | 1 | Pad, Polish, 20.0d, Yel [1pick=1ctn]Serial 10000000 to 20000000. | $221.80/EA |

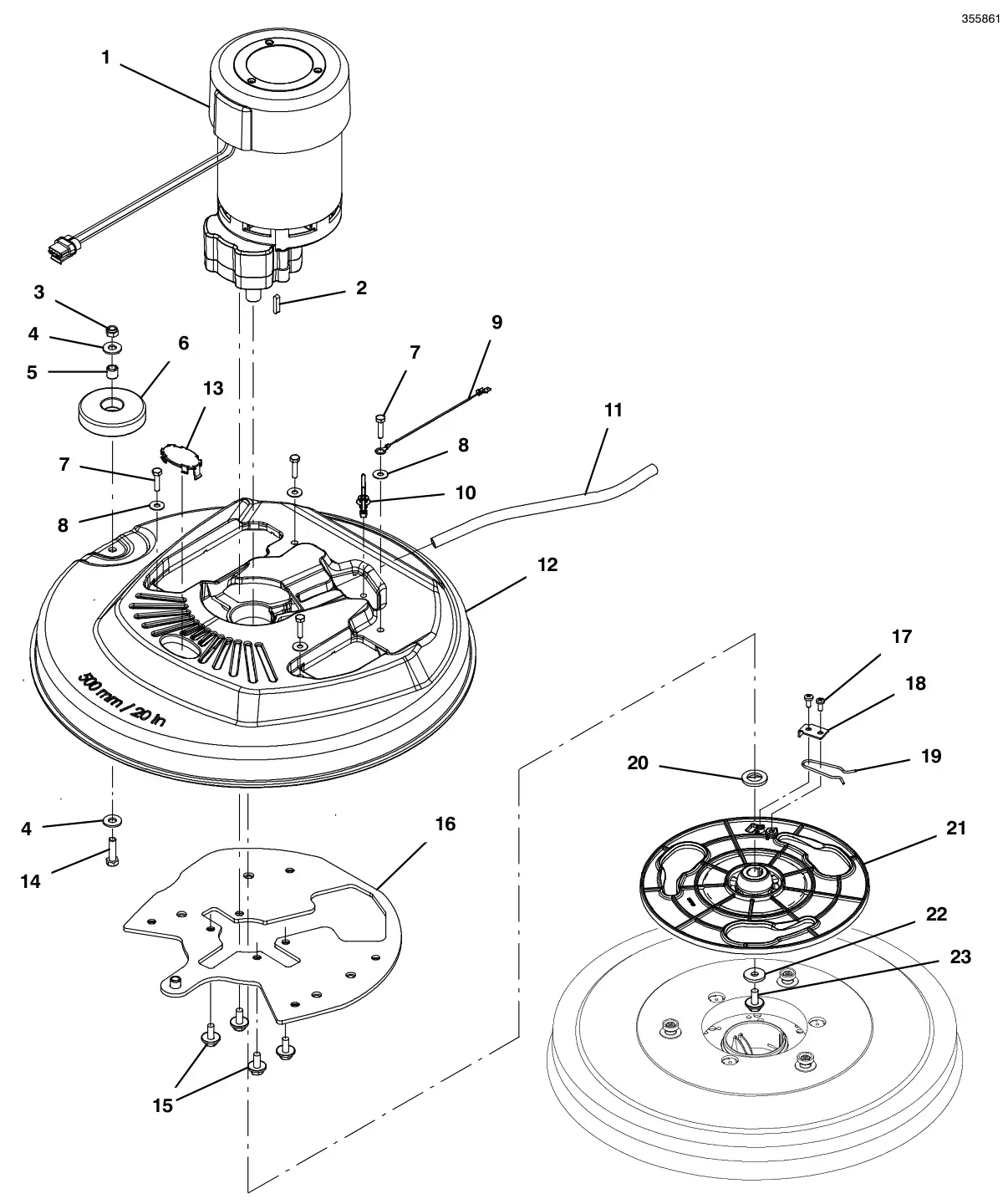

Tennant T300e scrub head group, 20 in (50 cm) disk parts
The parts Tennant numbers on its scrub head group, 20 in (50 cm) disk drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mmComplete assembly. Serial 10000000 to 20000000. | $1,621.86/EA |
| – | TN8005800Replaces Tennant 1227273 | 1 | Vr, Brush Kit, Motor, Ele (4pc)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk) (1228117). Serial 10000000 to 20000000. | $40.20/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk) (1228117). Serial 10000000 to 20000000. | $4.20/EA |
| 3 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 6 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingSerial 10000000 to 20000000. | $5.50/EA |
| 7 | TN4038624Replaces Tennant 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 8 | TN4043784Replaces Tennant 140053 | 4 | Washer, Flat, 0.28b 0.88d .12, SsSerial 10000000 to 20000000. | $4.80/EA |
| 9 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 11 | TN4037960Replaces Tennant 1014929 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 01ftSerial 10000000 to 20000000. | $21.00/EA |
| 12 | TN4041782Replaces Tennant 1208041 | 1 | Housing, Head, 50cmSerial 10000000 to 20000000. | $131.60/EA |
| 13 | TN4037476Replaces Tennant 1221972 | 1 | Plug, Hole, Oval, Head, Hsng, Abs [T300]Serial 10000000 to 20000000. | $58.90/EA |
| 14 | TN4035127Replaces Tennant 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 15 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 16 | TN4037862Replaces Tennant 1223980 | 1 | Plate Wldt, Head, WeightedSerial 10000000 to 20000000. | $96.80/EA |
| 17 | TN4043814Replaces Tennant 140197 | 2 | Screw, Trs, Phl, 10-24 X 0.38, Sems, SsSerial 10000000 to 20000000. | $4.00/EA |
| 18 | TN4036677Replaces Tennant 1011201 | 1 | Plate, Drive Hub, Release Clip [T3]Serial 10000000 to 20000000. | $21.70/EA |
| 19 | TN4037304Replaces Tennant 1013188 | 1 | Clip, Spring, Drive Hub, Release [T3]Serial 10000000 to 20000000. | $7.00/EA |
| 20 | TN4033193Replaces Tennant 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 21 | TN4029743Replaces Tennant 1219855 | 1 | Hub, Drive, 3lug, Alm-Nyl, 17mm[T2,T300]Serial 10000000 to 20000000. | $126.80/EA |
| 22 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 23 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |

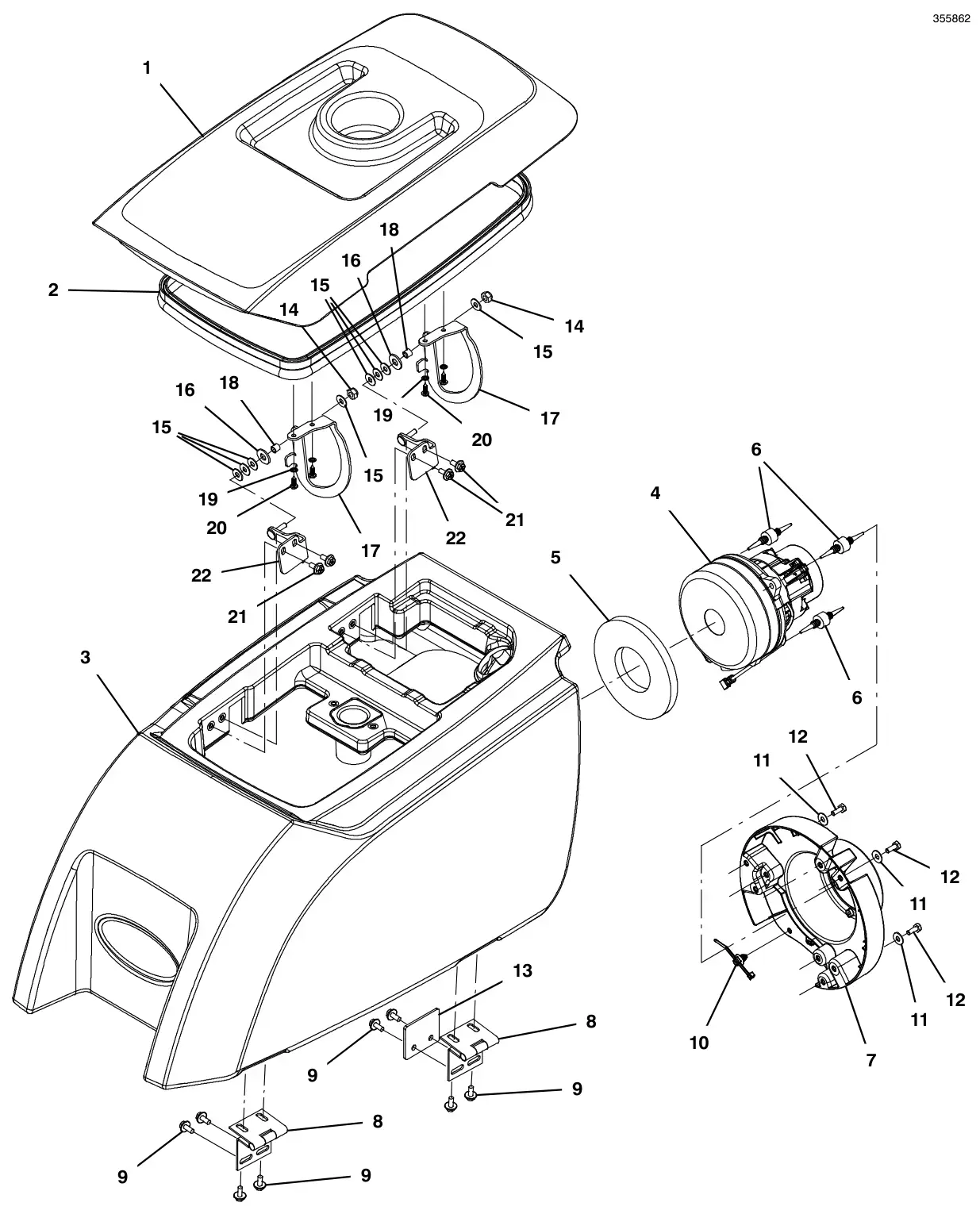

Tennant T300e recovery tank group parts
The parts Tennant numbers on its recovery tank group drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4022632Replaces Tennant 9014682 | 1 | Kit, Cover, Recvy, Ci [Na]Complete assembly. Serial 10000000 to 20000000. | $273.00/EA |
| 2 | TN4038848Replaces Tennant 1210472 | 1 | Seal, Afmkt, Bulb, 0.50d .13grip, 05ftPart of Kit, Cover, Recvy, Ci [Na] (9014682). Serial 10000000 to 20000000. | $56.90/EA |
| 3 | TN4026367Replaces Tennant 9014151 | 1 | Kit, Tank, Recvy, W/Labels [T300e]Serial 10000000 to 20000000. | $1,031.70/EA |
| 4 | TN4036930Replaces Tennant 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. Serial 10000000 to 20000000. | $388.30/EA |
| – | TN8004151Replaces Tennant 372883 | 1 | Vr, Brush Kit, Motor, Ele (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). Serial 10000000 to 20000000. | $37.30/EA |
| 5 | TN4042297Replaces Tennant 100038 | 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm]Serial 10000000 to 20000000. | $10.00/EA |
| 6 | TN4034906Replaces Tennant 1062016 | 3 | Isolator, Vib, .75dSerial 10000000 to 20000000. | $4.20/EA |
| 7 | TN4041450Replaces Tennant 1207368 | 1 | Mount, Vacfan, 5.7/6.6Serial 10000000 to 20000000. | $17.90/EA |
| 8 | TN4042345Replaces Tennant 1209466 | 2 | Hinge, 6mm Pin 2.5 73.5mmw 60.0mml, BentSerial 10000000 to 20000000. | $8.40/EA |
| 9 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 11 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 12 | TN4043365Replaces Tennant 11329 | 3 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4037209Replaces Tennant 1220553 | 1 | Plate, Hinge, DoublerSerial 10000000 to 20000000. | $11.60/EA |
| – | TN4026502Replaces Tennant 9014279 | 1 | Hinge, Kit, Lid, Ci, [T300]Complete assembly. Serial 10000000 to 20000000. | $108.50/EA |
| 14 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $2.50/EA |
| 15 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4035635Replaces Tennant 1231213 | 2 | Washer, Flat, 0.39b 1.00d .02, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $1.10/EA |
| 17 | TN4036951Replaces Tennant 1219440 | 2 | Hinge, Goose NeckPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $19.60/EA |
| 18 | TN4023520Replaces Tennant 80491 | 2 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Part of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $5.10/EA |
| 19 | TN4041589Replaces Tennant 07514 | 4 | Washer, Lock, Int, 10, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4035537Replaces Tennant 1018155 | 4 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $2.50/EA |
| 21 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $3.30/EA |
| 22 | TN4036957Replaces Tennant 1219473 | 2 | Hinge, Mount, WldtPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10000000 to 20000000. | $21.10/EA |

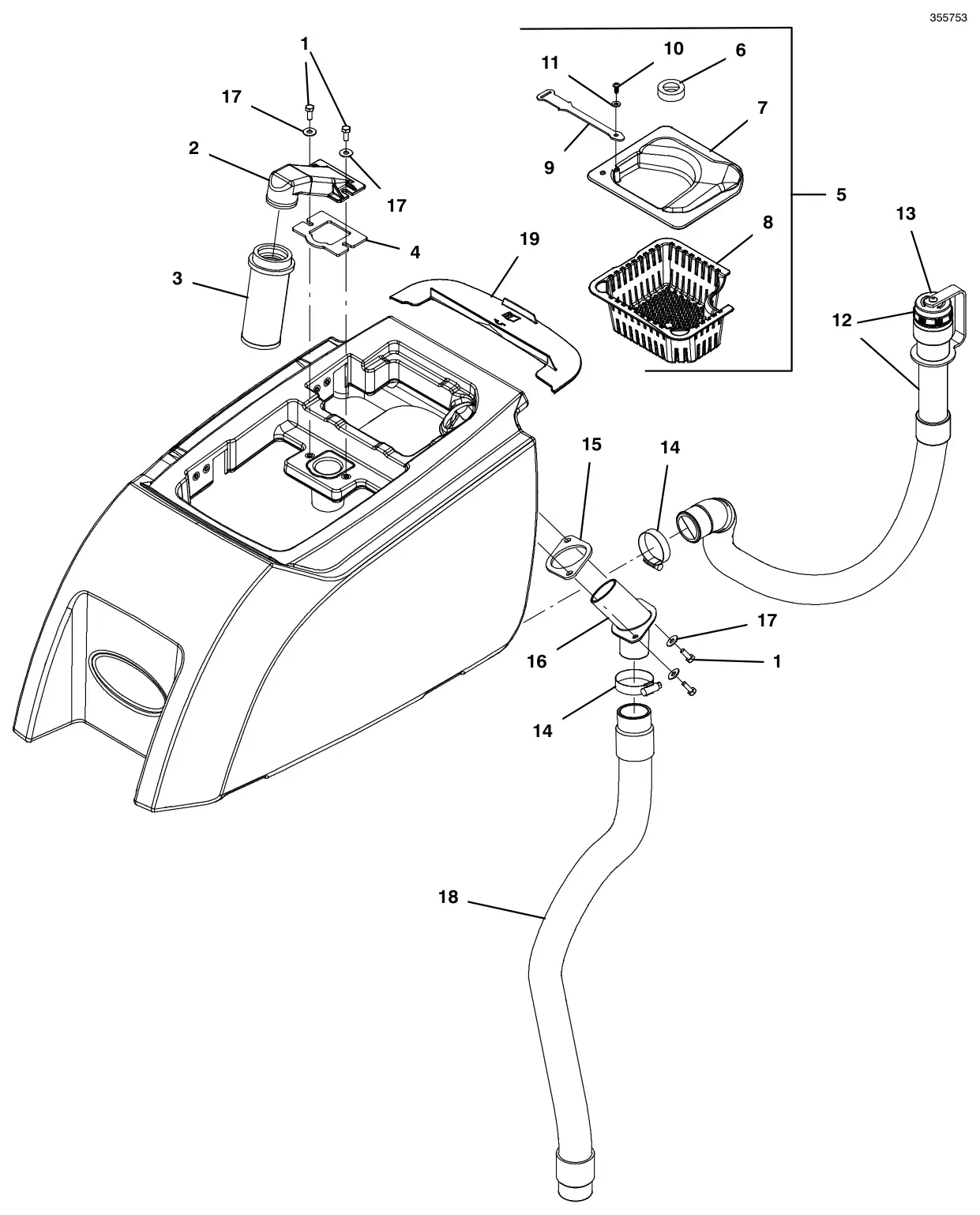

Tennant T300e recovery tank filter and hose group parts
The parts Tennant numbers on its recovery tank filter and hose group drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Tennant 11329 | 4 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 2 | TN4036905Replaces Tennant 1011777 | 1 | Mount, Float, MoldSerial 10000000 to 20000000. | $32.00/EA |
| 3 | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75dSerial 10000000 to 20000000. | $76.00/EA |
| 4 | TN4037554Replaces Tennant 1013628 | 1 | Gasket, Mtg, Float, .125th, Neo, AdhSerial 10000000 to 20000000. | $4.30/EA |
| 5 | TN4022697Replaces Tennant 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. Serial 10000000 to 20000000. | $60.80/EA |
| 6 | TN4038125Replaces Tennant 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $2.40/EA |
| 7 | TN4037917Replaces Tennant 1224899 | 1 | Deflector, Tray, DebrisPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $22.70/EA |
| 8 | TN4041448Replaces Tennant 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $33.00/EA |
| 9 | TN4038108Replaces Tennant 1225172 | 1 | Strap, Retaining, Deflector, 150.0LPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $4.30/EA |
| 10 | TN4035537Replaces Tennant 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $2.50/EA |
| 11 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $2.60/EA |
| 12 | TN4031484Replaces Tennant 1251388 | 1 | Hose Assy, Drain, 1.5id X 13.0l [Pvc] (Black - Standard)Complete assembly. Serial 10000000 to 20000000. | $60.50/EA |
| 13 | TN4036892Replaces Tennant 1218955 | 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5id X 13.0l [Pvc] (Black - Standard) (1251388). Serial 10000000 to 20000000. | $8.60/EA |
| 14 | TN4043377Replaces Tennant 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wSerial 10000000 to 20000000. | $5.30/EA |
| 15 | TN4045602Replaces Tennant 1037106 | 1 | Gasket, Adapter, Hose .13, NeoSerial 10000000 to 20000000. | $3.50/EA |
| 16 | TN4041434Replaces Tennant 1207196 | 1 | Tube, Hose, Adapter, 1.5d [T300]Serial 10000000 to 20000000. | $11.50/EA |
| 17 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 18 | TN4038916Replaces Tennant 1211220 | 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc]Serial 10000000 to 20000000. | $30.10/EA |
| 19 | TN4022716Replaces Tennant 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss]Serial 10000000 to 20000000. | $72.80/EA |

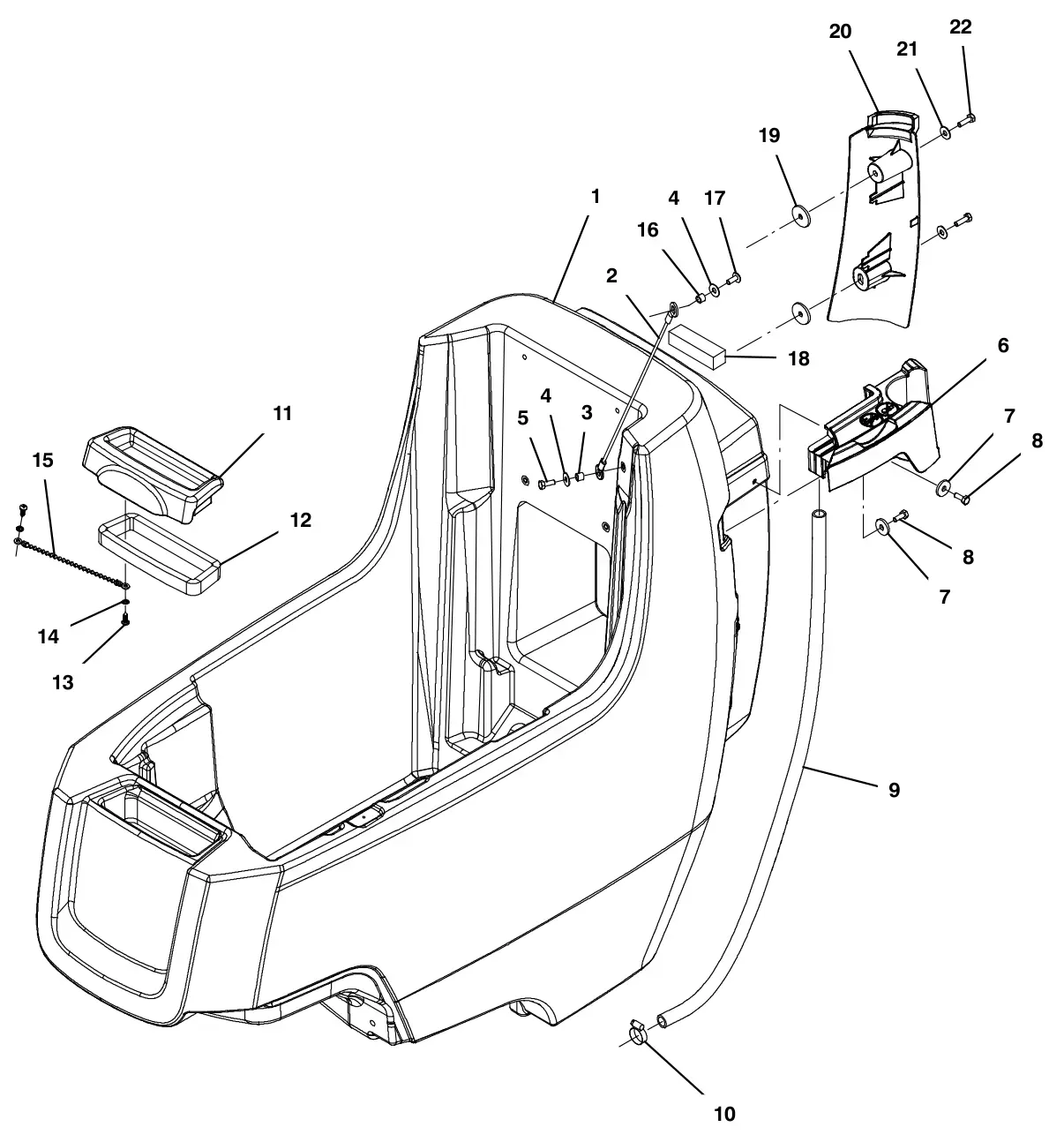

Tennant T300e solution tank group parts
The parts Tennant numbers on its solution tank group drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026368Replaces Tennant 9014156 | 1 | Kit, Tank, Soltn, [T300/T300e]Serial 10000000 to 20000000. | $1,275.40/EA |
| 2 | TN4019292Replaces Tennant 391368 | 1 | Cable, Glv .09d 016.5l .38eye /.38eyeSerial 10000000 to 20000000. | $33.50/EA |
| 3 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlSerial 10000000 to 20000000. | $4.10/EA |
| 4 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 6 | TN4039891Replaces Tennant 1214264 | 1 | Tray, Accssry, Lh, 16mm ScrewSerial 10000000 to 20000000. | $21.30/EA |
| 7 | TN4043784Replaces Tennant 140053 | 2 | Washer, Flat, 0.28b 0.88d .12, SsSerial 10000000 to 20000000. | $4.80/EA |
| 8 | TN4043365Replaces Tennant 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4039094Replaces Tennant 20778 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 030.0lSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 20000000. | $5.10/EA |
| 11 | TN4026515Replaces Tennant 9014410 | 1 | Kit, Cvr, Fill, Ci [Na/Jp]Serial 10000000 to 20000000. | $72.30/EA |
| 12 | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ftSerial 10000000 to 20000000. | $6.70/EA |
| 13 | TN4035537Replaces Tennant 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 20000000. | $2.50/EA |
| 14 | TN4041589Replaces Tennant 07514 | 2 | Washer, Lock, Int, 10, SsSerial 10000000 to 20000000. | $3.50/EA |
| 15 | TN4020247Replaces Tennant 621443 | 1 | Chain, Ball, 10, 0157mml, SsSerial 10000000 to 20000000. | $4.40/EA |
| 16 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |
| 17 | TN4230549Replaces Tennant 1202143 | 1 | Screw, Trs, M6 X 1.00 X 16, Phl, Nl, BlkSerial 10000000 to 20000000. | $2.50/EA |
| 19 | TN4038245Replaces Tennant 1225843 | 2 | Washer, Flat, M6 X 3 X 30, Retain, NylSerial 10000000 to 20000000. | $4.75/EA |
| 18 | TN4035308Replaces Tennant 1229734 | 1 | Seal, Neo, 0.88, 1.00w 3.6l AdhSerial 10000000 to 20000000. | $2.80/EA |
| 20 | TN4037885Replaces Tennant 1224289 | 1 | Cover, Tank, Rh, [T300/E/Ss]Serial 10000000 to 20000000. | $63.80/EA |
| 21 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 22 | TN4034958Replaces Tennant 12277 | 2 | Screw, Hex, M6 X 1.00 X 20, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |

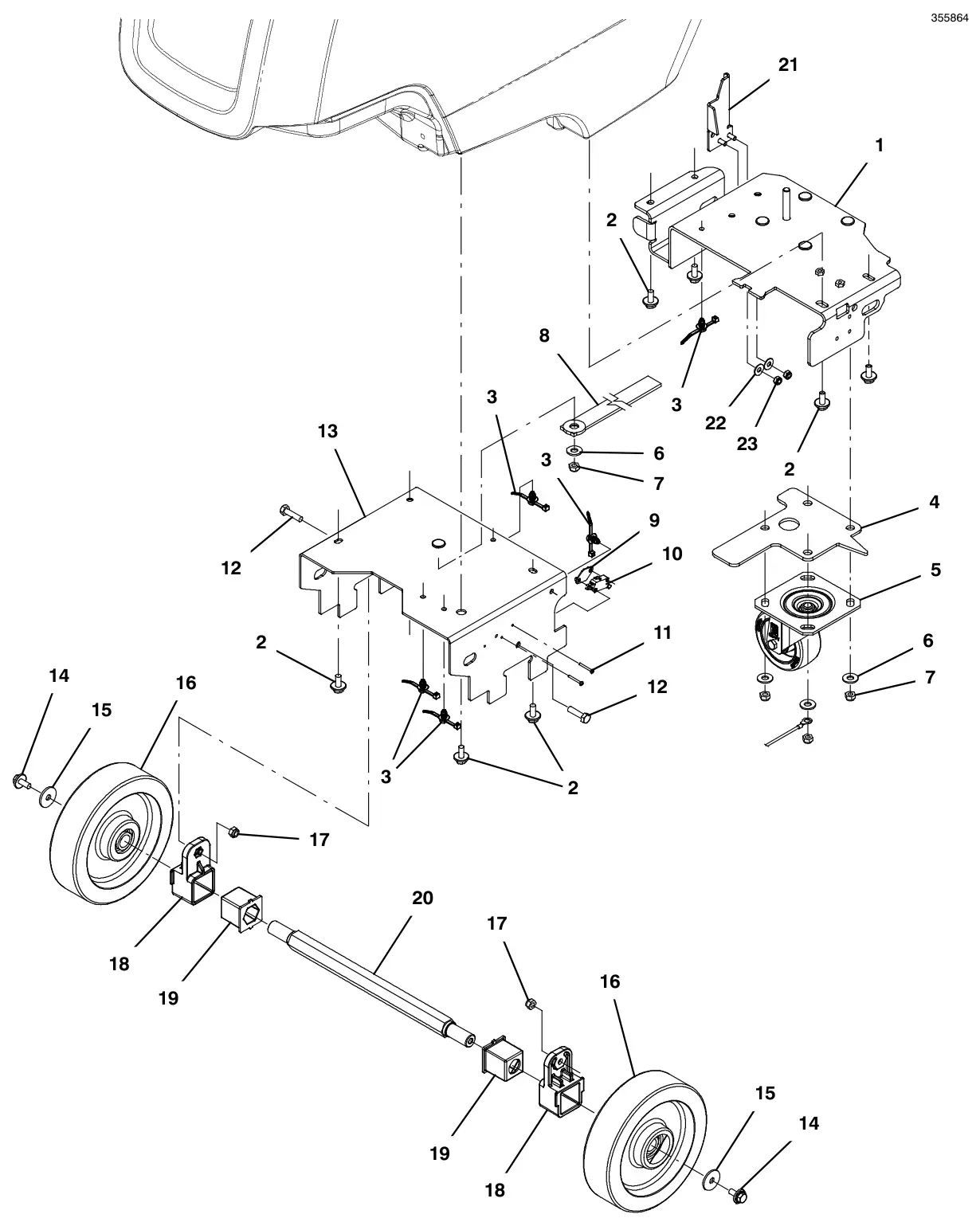

Tennant T300e frame group, push model parts
The parts Tennant numbers on its frame group, push model drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032678Replaces Tennant 1208498 | 1 | Frame Wldt, RearSerial 10000000 to 20000000. | $208.10/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 3 | TN4038889Replaces Tennant 1210807 | 5 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 4 | TN4040120Replaces Tennant 1215093 | 1 | Spacer, CasterSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4039272Replaces Tennant 1212422 | 1 | Caster, Swivel [Wicke 224051]Serial 10000000 to 20000000. | $75.60/EA |
| 6 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 7 | TN4041929Replaces Tennant 08713 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 8 | TN4015658Replaces Tennant 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0lSerial 10000000 to 20000000. | $25.90/EA |
| 9 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 10 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 11 | TN4031248Replaces Tennant 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4036539Replaces Tennant 1234032 | 1 | Frame Wldt, FrontSerial 10000000 to 20000000. | $71.00/EA |
| 14 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 15 | TN4034852Replaces Tennant 1016331 | 2 | Washer, Flat, 0.34b 1.25d .11, SsSerial 10000000 to 20000000. | $5.10/EA |
| 16 | TN4037849Replaces Tennant 1223724 | 2 | Wheel, Scrbr, 8.00d, W/ BrgSerial 10000000 to 20000000. | $161.20/EA |
| 17 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 18 | TN4030690Replaces Tennant 1028292 | 2 | Adapter, Mtg, Axle, Alm [T3]Serial 10000000 to 20000000. | $15.30/EA |
| 19 | TN4030696Replaces Tennant 1028381 | 2 | Grommet, Axle [Tpu, T3 Push]Serial 10000000 to 20000000. | $8.20/EA |
| 20 | TN4032382Replaces Tennant 1028382 | 1 | Axle, Wheel, Hex, Clr Zn [T3 Push]Serial 10000000 to 20000000. | $42.80/EA |
| 21 | TN4038207Replaces Tennant 1225500 | 1 | Bracket Wldt, Latch, Lift, Pl [T300]Serial 10000000 to 20000000. | $77.80/EA |
| 22 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 23 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |

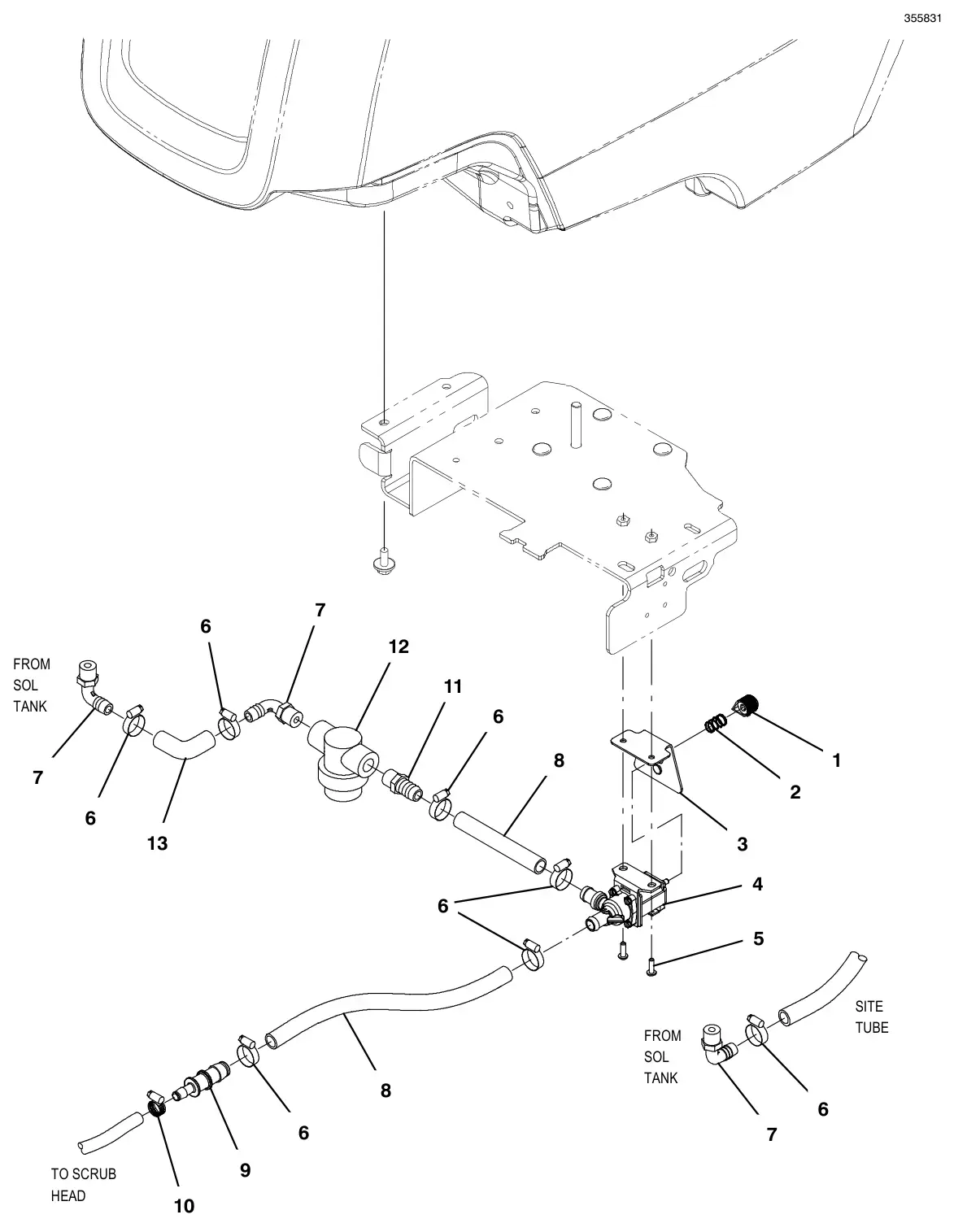

Tennant T300e solution group parts
The parts Tennant numbers on its solution group drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037335Replaces Tennant 1013442 | 1 | Knob, Valve, 0.70d 0.61l, 0.21bSerial 10000000 to 20000000. | $14.50/EA |
| 2 | TN4035235Replaces Tennant 1017091 | 1 | Spring, Cmpr, 0.50od .04wir 00.8lSerial 10000000 to 20000000. | $4.10/EA |
| 3 | TN4042405Replaces Tennant 1210041 | 1 | Bracket Wldt, Mtg, Valve, SoltnSerial 10000000 to 20000000. | $26.40/EA |
| 4 | TN4039832Replaces Tennant 1213803 | 1 | Valve, Water, Solenoid, 24vdc, Bm10/Bm10Serial 10000000 to 20000000. | $153.70/EA |
| 5 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 6 | TN4015366Replaces Tennant 54333 | 7 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 20000000. | $5.10/EA |
| 7 | TN4017647Replaces Tennant 64778 | 3 | Fitting, Plstc, E90, Bm08/Pm06Serial 10000000 to 20000000. | $8.70/EA |
| 8 | TN4045397Replaces Tennant 1035355 | 1 | Hose, Afmkt, Pvc, Clr, 0.62id, 02ftSerial 10000000 to 20000000. | $36.50/EA |
| 9 | TN4034059Replaces Tennant 1243167 | 1 | Fitting, Plstc, Str, Bm06/Bm10Serial 10000000 to 20000000. | $18.00/EA |
| 10 | TN4017396Replaces Tennant 43844 | 1 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10000000 to 20000000. | $4.20/EA |
| 11 | TN4037577Replaces Tennant 1013900 | 1 | Fitting, Plstc, Str, Bm10/Pm06, NylSerial 10000000 to 20000000. | $5.30/EA |
| 12 | TN4039203Replaces Tennant 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. Serial 10000000 to 20000000. | $16.90/EA |
| – | TN4036880Replaces Tennant 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $2.70/EA |
| – | TN4036878Replaces Tennant 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4019615Replaces Tennant 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $18.20/EA |
| 13 | TN4039694Replaces Tennant 1048278 | 1 | Hose, Pvc, Clr, E90 0.63id 0.75odSerial 10000000 to 20000000. | $13.00/EA |

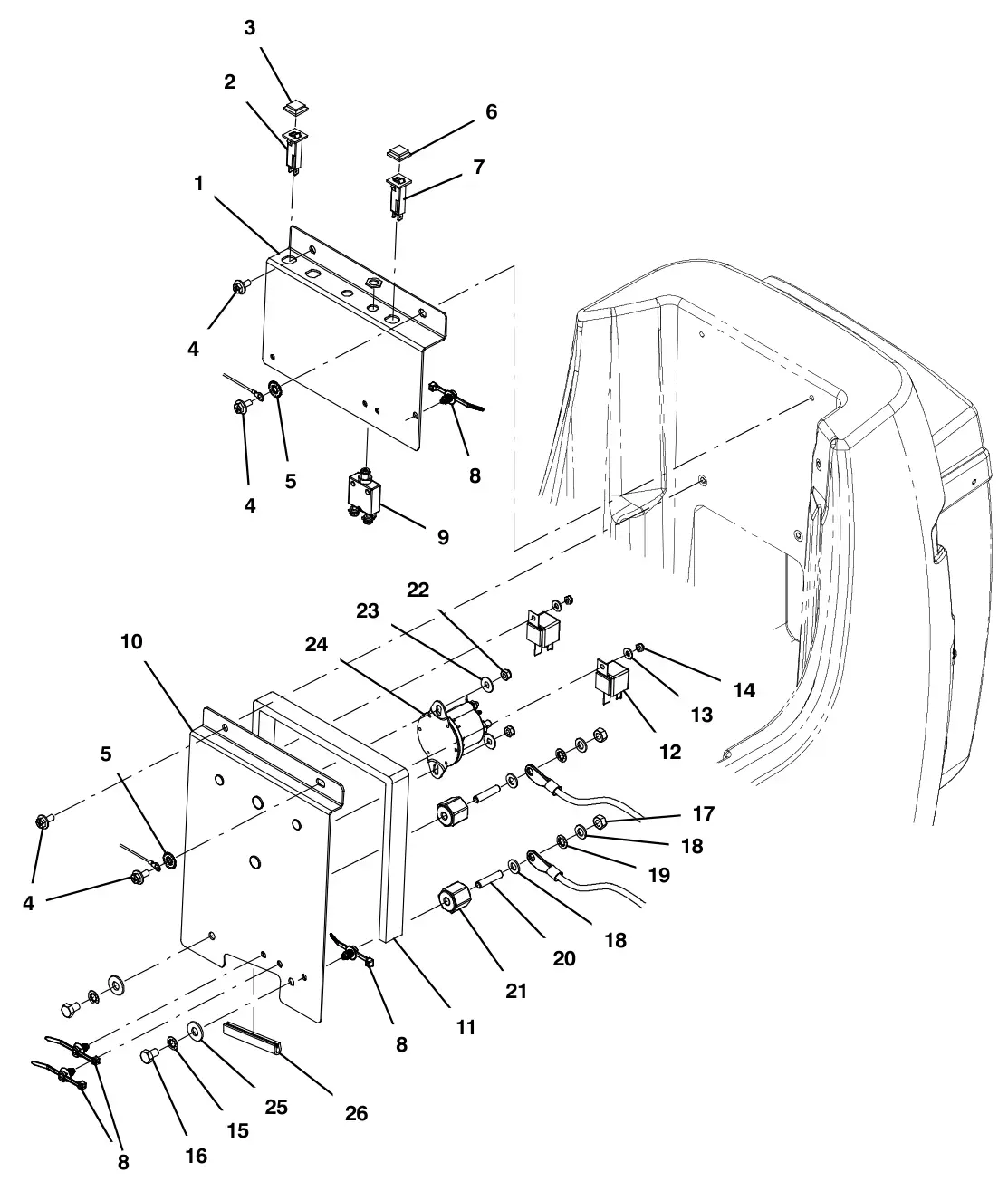

Tennant T300e electrical components group, push model parts
The parts Tennant numbers on its electrical components group, push model drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026481Replaces Tennant 9014188 | 1 | Bracket Wldt, Afmkt, Mtg [Circuitbrkrs]Serial 10000000 to 20000000. | $330.57/EA |
| 2 | TN4042042Replaces Tennant 1208816 | 1 | Circuitbreaker, 04.0a, ResetableSerial 10000000 to 20000000. | $8.70/EA |
| 3 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4016786Replaces Tennant 41140 | 2 | Washer, Lock, Int-Ext, 0.25Serial 10000000 to 20000000. | $3.40/EA |
| 6 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 7 | TN4032589Replaces Tennant 1064189 | 1 | Circuitbreaker, 20.0a, ResetableSerial 10000000 to 20000000. | $5.30/EA |
| 8 | TN4038889Replaces Tennant 1210807 | 4 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 9 | TN4044898Replaces Tennant 1074526 | 1 | Circuitbreaker, 37.0aSerial 10000000 to 20000000. | $49.70/EA |
| 10 | TN4042017Replaces Tennant 1208619 | 1 | Bracket Wldt, Mtg, EleSerial 10000000 to 20000000. | $87.87/EA |
| 11 | TN4042023Replaces Tennant 1208628 | 1 | Gasket, Cover, CircuitboardSerial 10000000 to 20000000. | $26.40/EA |
| 12 | TN4037225Replaces Tennant 1012216 | 2 | Relay, 24vdc, 070a, Spst No, Plug-InSerial 10000000 to 20000000. | $17.40/EA |
| 13 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 14 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4034657Replaces Tennant 32984 | 2 | Washer, Lock, Int, 0.31Serial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4022275Replaces Tennant 386868 | 2 | Screw, Hex, M8 X 1.25 X 12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4016814Replaces Tennant 41361 | 2 | Nut, Hex, Std, M8 X 1.25, BrsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4042096Replaces Tennant 1209373 | 4 | Washer, Flat, M8.4b X 16d X 1.6, BrsSerial 10000000 to 20000000. | $2.60/EA |
| 19 | TN4017399Replaces Tennant 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10000000 to 20000000. | $2.60/EA |
| 20 | TN4021889Replaces Tennant 607461 | 2 | Screw, Set, M8 X 1.25 X 35, NlSerial 10000000 to 20000000. | $4.00/EA |
| 21 | TN4041084Replaces Tennant 1205345 | 2 | Stand-Off, Wir, M8, Insulator, PanelSerial 10000000 to 20000000. | $13.00/EA |
| 22 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 23 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 24 | TN4032813Replaces Tennant 1066409 | 1 | Relay, 24vdc, 150a, No [Trombetta]Serial 10000000 to 20000000. | $46.60/EA |
| 25 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 26 | TN4036243Replaces Tennant 1020174 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 03ftSerial 10000000 to 20000000. | $66.70/EA |

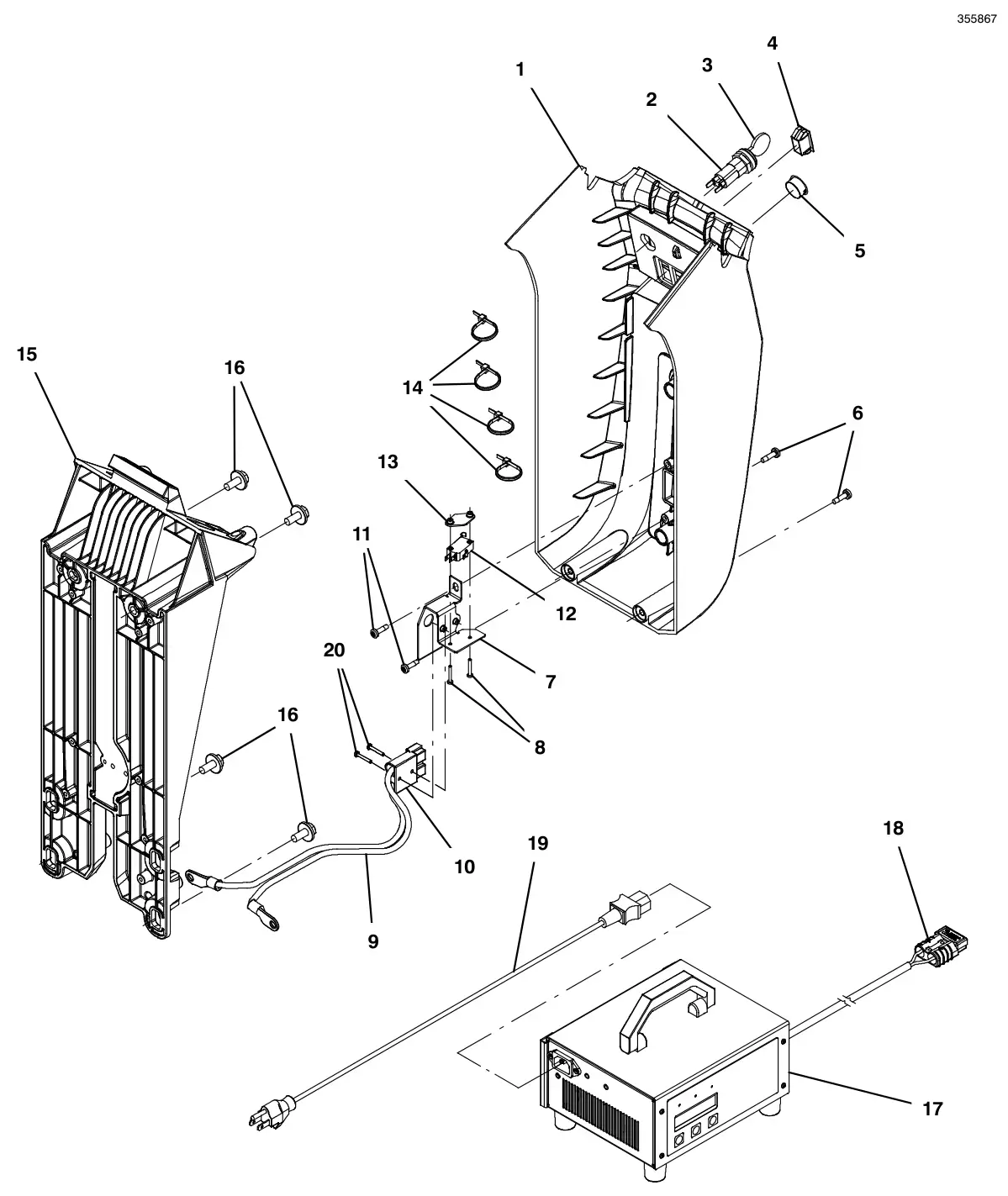

Tennant T300e lower console group, off-board charger parts
The parts Tennant numbers on its lower console group, off-board charger drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040843Replaces Tennant 1203802 | 1 | Cover, Column, CntrlSerial 10000000 to 20000000. | $151.10/EA |
| 2 | TN4036836Replaces Tennant 1011402 | 1 | Switch, KeyComplete assembly. Serial 10000000 to 20000000. | $54.40/EA |
| 3 | TN4129073Replaces Tennant 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). Serial 10000000 to 20000000. | $21.60/EA |
| 4 | TN4030595Replaces Tennant 130161 | 1 | Plug, Hole, Rnd, 0.88d, Blk (Push Model)Serial 10000000 to 20000000. | $4.00/EA |
| 5 | TN4029683Replaces Tennant 582150 | 1 | Plug, Hole, Rt, 1.23 X 1.12, Nyl (Standard Model)Serial 10000000 to 20000000. | $6.00/EA |
| 6 | TN4041694Replaces Tennant 1043573 | 2 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4042014Replaces Tennant 1208599 | 1 | Bracket Assy, Plug, ChargerSerial 10000000 to 20000000. | $31.00/EA |
| 8 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4044587Replaces Tennant 1073634 | 1 | Harness, Chrgr, 12ga [M8 Ring/M8 Ring]Complete assembly. Serial 10000000 to 20000000. | $49.00/EA |
| 10 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Harness, Chrgr, 12ga [M8 Ring/M8 Ring] (1073634). Serial 10000000 to 20000000. | $20.60/EA |
| 11 | TN4041694Replaces Tennant 1043573 | 2 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10000000 to 20000000. | $2.50/EA |
| 12 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 13 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 14 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 15 | TN4035945Replaces Tennant 1231373 | 1 | Frame, Column, Cntrl [Im], T600Serial 10000000 to 20000000. | $110.90/EA |
| 16 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 17 | TN4039495Replaces Tennant 1212837 | 1 | Charger, 24vdc, 13a 85-265vac [Offboard]Complete assembly. Serial 10000000 to 20000000. | $567.60/EA |
| 18 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 13a 85-265vac [Offboard] (1212837). Serial 10000000 to 20000000. | $20.60/EA |
| 19 | TN4034198Replaces Tennant 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us]Serial 10000000 to 20000000. | $49.60/EA |
| 20 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 to 20000000. | $3.40/EA |

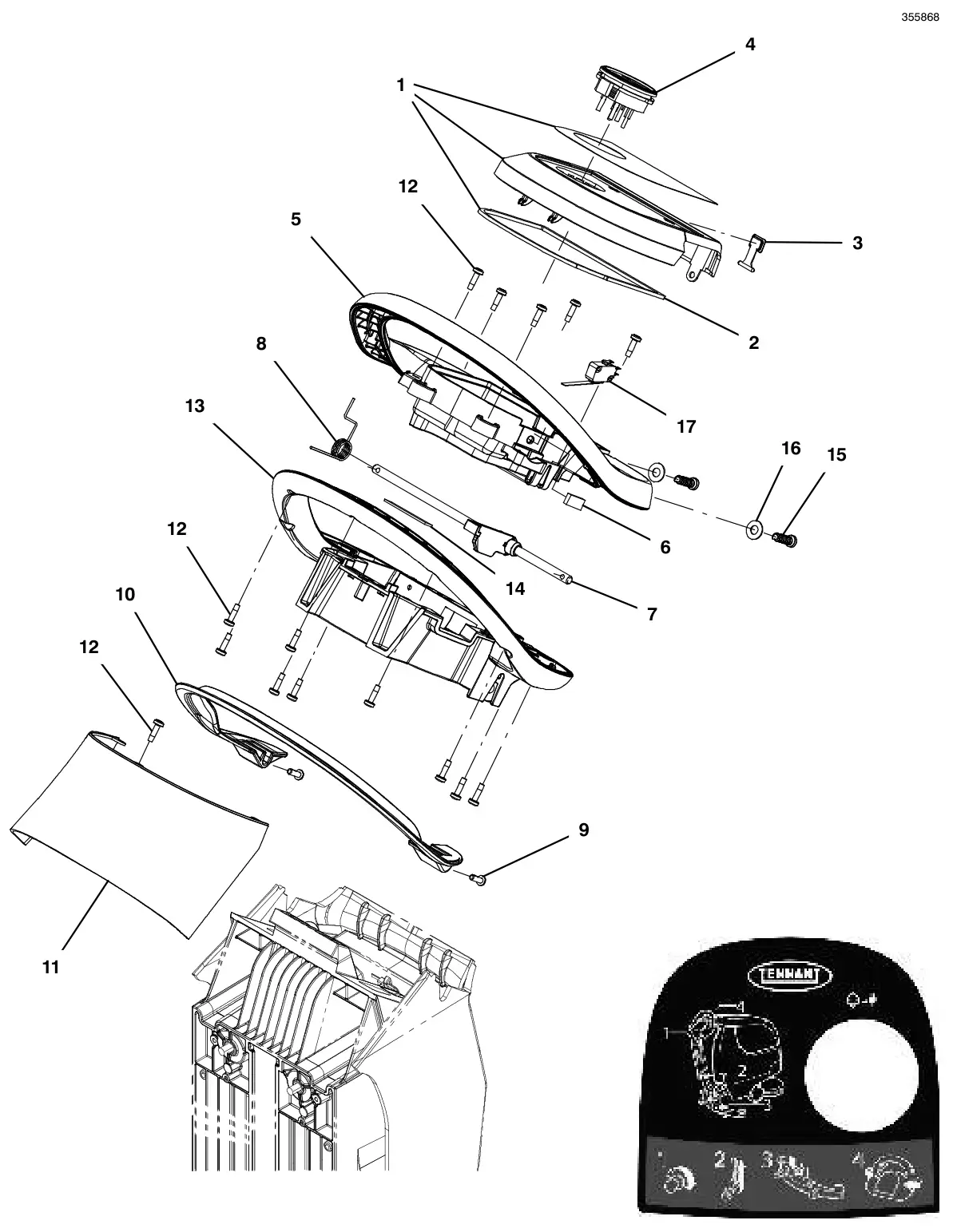

Tennant T300e handle group, push model parts
The parts Tennant numbers on its handle group, push model drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4187643Replaces Tennant 9022093 | 1 | Bezel Kit, Push, Ci [T300ex]Complete assembly. Serial 10000000 to 20000000. | $202.02/EA |
| 2 | TN4034345Replaces Tennant 1245824 | 1 | Gasket, ConsolePart of Bezel Kit, Push, Ci [T300ex] (9022093). Serial 10000000 to 20000000. | $36.60/EA |
| 3 | TN4041112Replaces Tennant 1205618 | 1 | Cap, UsbPart of Bezel Kit, Push, Ci [T300ex] (9022093). Serial 10000000 to 20000000. | $6.80/EA |
| 4 | TN4032676Replaces Tennant 1261637 | 1 | Gauge, Hour, BatterySerial 10000000 to 20000000. | $157.00/EA |
| 5 | TN4040841Replaces Tennant 1203787 | 1 | Housing, Handle, Cntrl, TopSerial 10000000 to 20000000. | $87.20/EA |
| 6 | TN4185799Replaces Tennant 1063909 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftSerial 10000000 to 20000000. | $2.70/EA |
| 7 | TN4041074Replaces Tennant 1205143 | 1 | Shaft Assy, Bail, HandleSerial 10000000 to 20000000. | $19.10/EA |
| 8 | TN4041137Replaces Tennant 1205781 | 1 | Spring, Return, BailSerial 10000000 to 20000000. | $29.40/EA |
| 9 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 10 | TN4041133Replaces Tennant 1205778 | 1 | Handle, Bail [Machined]Serial 10000000 to 20000000. | $45.60/EA |
| 11 | TN4041408Replaces Tennant 1207004 | 1 | Cover, Handle, CntrlSerial 10000000 to 20000000. | $18.50/EA |
| 12 | TN4041694Replaces Tennant 1043573 | 15 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10000000 to 20000000. | $2.50/EA |
| 13 | TN4037504Replaces Tennant 1222608 | 1 | Housing, Handle, Cntrl, Bottom, SlottedSerial 10000000 to 20000000. | $87.70/EA |
| 14 | TN4036250Replaces Tennant 1020280 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftSerial 10000000 to 20000000. | $26.40/EA |
| 15 | TN4040168Replaces Tennant 1215863 | 2 | Screw, Pan, Torx, M8 X 3.5 X 25[Remform]Serial 10000000 to 20000000. | $9.00/EA |
| 16 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsSerial 10000000 to 20000000. | $3.20/EA |
| 17 | TN4041083Replaces Tennant 1205323 | 1 | Switch, 0.1a, Spdt [Micro, Straight]Serial 10000000 to 20000000. | $9.70/EA |
| – | TN4030945Replaces Tennant 1072524 | 1 | Harness, Ele [Bail Switch]Serial 10000000 to 20000000. | $9.30/EA |

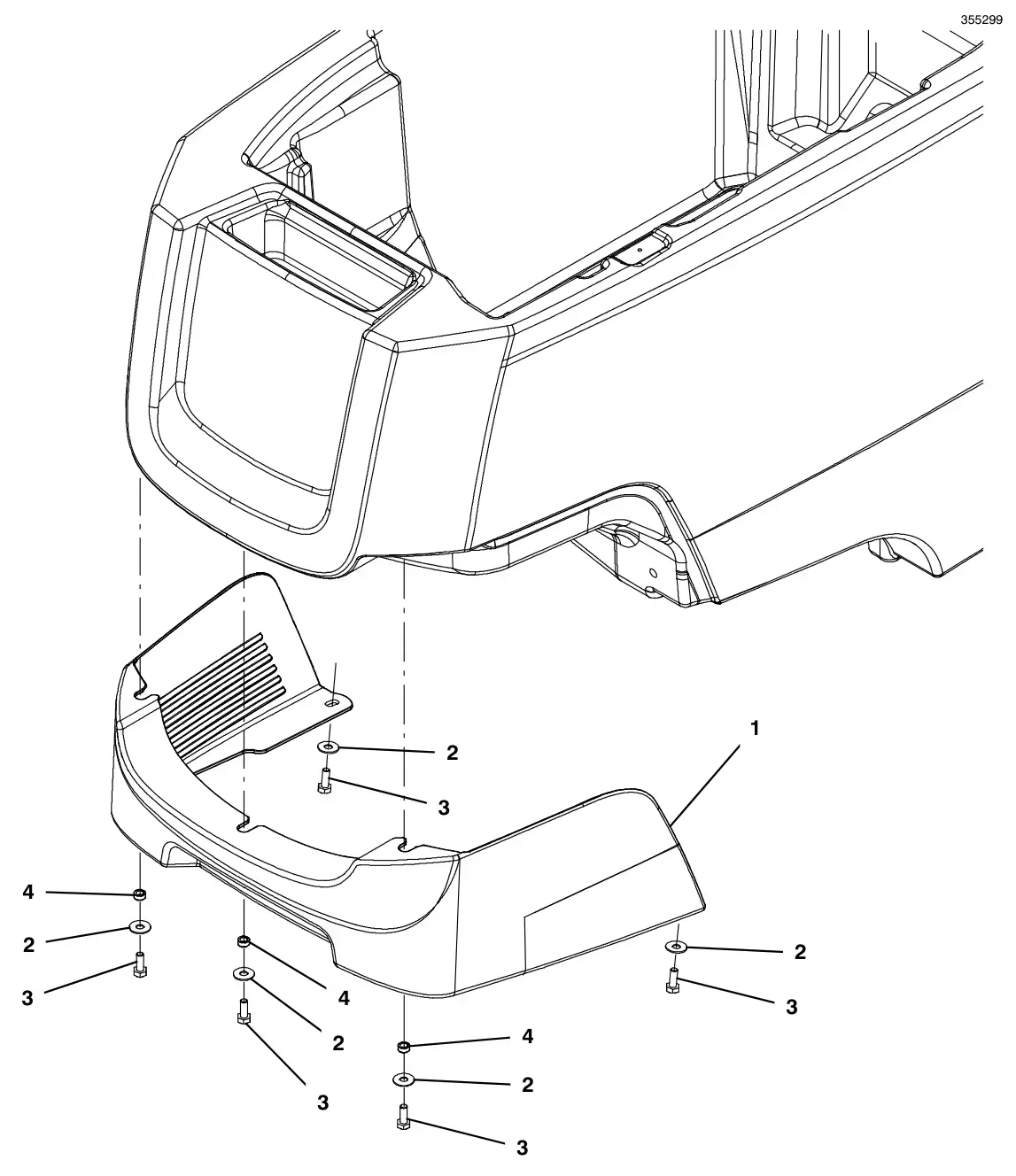

Tennant T300e shroud group, disk parts
The parts Tennant numbers on its shroud group, disk drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042404Replaces Tennant 1210029 | 1 | Cover, Head, Disk, Im-Hg [T300]Serial 10000000 to 20000000. | $49.00/EA |
| 2 | TN4042901Replaces Tennant 01684 | 5 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 3 | TN4043365Replaces Tennant 11329 | 5 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 4 | TN4023520Replaces Tennant 80491 | 3 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |

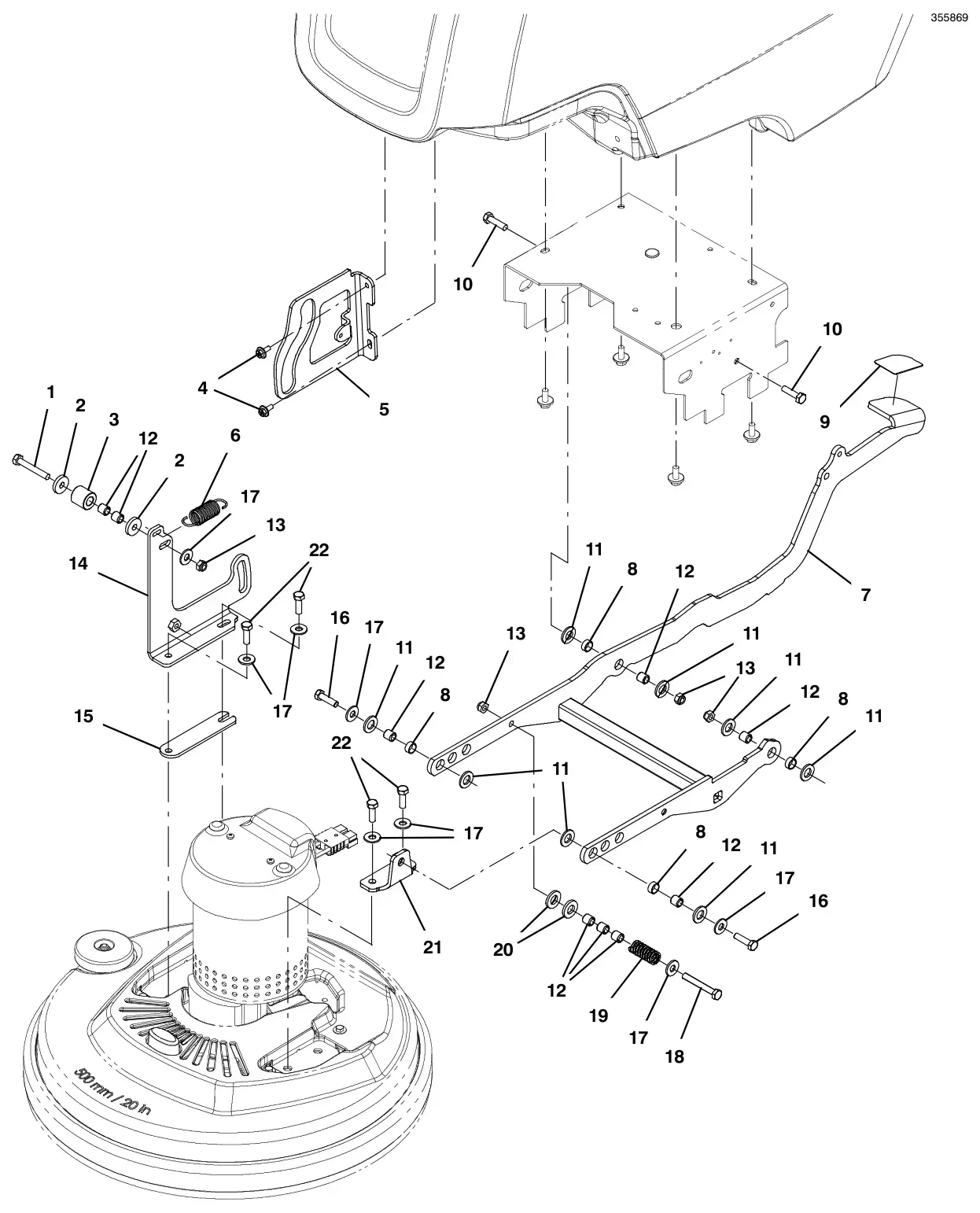

Tennant T300e scrub head lift group, 20 in (50 cm) disk parts
The parts Tennant numbers on its scrub head lift group, 20 in (50 cm) disk drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040606Replaces Tennant 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsSerial 10000000 to 20000000. | $4.00/EA |
| 2 | TN4030993Replaces Tennant 1028796 | 2 | Washer, Flat, 0.33b 1.00d .18, Stl, PlSerial 10000000 to 20000000. | $2.50/EA |
| 3 | TN4037586Replaces Tennant 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalSerial 10000000 to 20000000. | $9.80/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4039531Replaces Tennant 1213063 | 1 | Bracket, Guide, Head [Vw]Serial 10000000 to 20000000. | $34.00/EA |
| 6 | TN4032463Replaces Tennant 1032420 | 1 | Spring, Extn, 0.85od 0.09wir 02.9lSerial 10000000 to 20000000. | $6.90/EA |
| 7 | TN4020353Replaces Tennant 9016811 | 1 | Kit, Lift, Head, Ci [T300/T300e/Ss300]Complete assembly. Serial 10000000 to 20000000. | $261.10/EA |
| 8 | TN4020538Replaces Tennant 630188 | 8 | Bearing, Journal, .50id X .25lPart of Kit, Lift, Head, Ci [T300/T300e/Ss300] (9016811). Serial 10000000 to 20000000. | $9.90/EA |
| 9 | TN4036856Replaces Tennant 1218694 | 1 | Pad, Pedal, LiftSerial 10000000 to 20000000. | $4.14/EA |
| 10 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 11 | TN4037581Replaces Tennant 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4040581Replaces Tennant 222460 | 9 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 14 | TN4037859Replaces Tennant 1223962 | 1 | Bracket Wldt, Mtg, Head, 43d/50d, TallSerial 10000000 to 20000000. | $39.00/EA |
| 15 | TN4037864Replaces Tennant 1223982 | 1 | Spacer, Head, 4mm (Push Model)Serial 10000000 to 20000000. | $13.80/EA |
| 16 | TN4035127Replaces Tennant 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 18 | TN4037610Replaces Tennant 1014163 | 1 | Screw, Hex, M8 X 1.25 X 60, Fl, SsSerial 10000000 to 20000000. | $4.00/EA |
| 19 | TN4043988Replaces Tennant 140430 | 1 | Spring, Cmpr, 0.70od .10wir 01.7lSerial 10000000 to 20000000. | $9.60/EA |
| 20 | TN4043798Replaces Tennant 140127 | 2 | Washer, Thrust, 0.51b 1.00d 0.12w, BrzSerial 10000000 to 20000000. | $5.20/EA |
| 21 | TN4038830Replaces Tennant 1210258 | 1 | Bracket Wldt, Head Mtg, 43d/50d, ShortSerial 10000000 to 20000000. | $35.80/EA |
| 22 | TN4036504Replaces Tennant 12333 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss, NlSerial 10000000 to 20000000. | $4.00/EA |

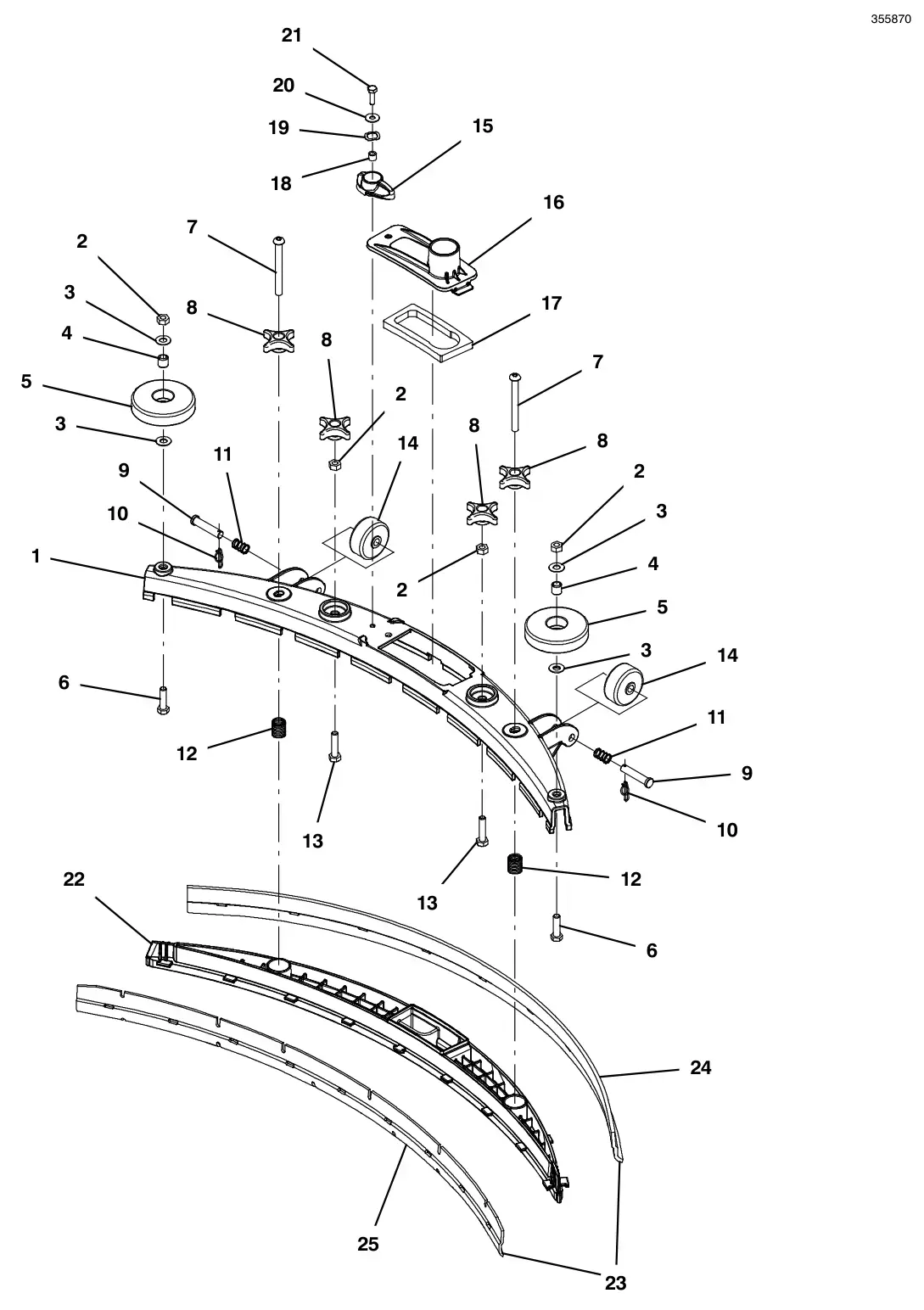

Tennant T300e squeegee assembly, 20 in (500 mm) parts
The parts Tennant numbers on its squeegee assembly, 20 in (500 mm) drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026477Replaces Tennant 9014172 | 1 | Squeegee Kit, Linatex, Ci [T300/E/Ss300]Complete assembly. Serial 10000000 to 20000000. | $667.30/EA |
| 1 | TN4035612Replaces Tennant 1230946 | 1 | Frame, Sqge, 50cm, Mach [T300]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $229.50/EA |
| 2 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 3 | TN4043649Replaces Tennant 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.20/EA |
| 4 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 5 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $5.50/EA |
| 6 | TN4035127Replaces Tennant 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4032161Replaces Tennant 1255358 | 2 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $16.90/EA |
| 8 | TN4039812Replaces Tennant 1213677 | 4 | Knob, Star, 2.00od 4ear M8x1.25 [Yel]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $9.90/EA |
| 9 | TN4041878Replaces Tennant 17461 | 2 | Pin, Clevis, 0.37d X 1.75lPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4040200Replaces Tennant 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $1.50/EA |
| 11 | TN4035235Replaces Tennant 1017091 | 2 | Spring, Cmpr, 0.50od .04wir 00.8lPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.10/EA |
| 12 | TN4037087Replaces Tennant 22290 | 2 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.10/EA |
| 13 | TN4041946Replaces Tennant 09026 | 2 | Screw, Hex, M8 X 1.25 X 40, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.00/EA |
| 14 | TN4020804Replaces Tennant 630477 | 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $9.50/EA |
| 15 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $5.40/EA |
| 16 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $8.20/EA |
| 17 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.10/EA |
| 19 | TN4043787Replaces Tennant 140060 | 1 | Washer, .505 X .750 X 0.45 WavePart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.90/EA |
| 20 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $2.60/EA |
| 21 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.30/EA |
| 22 | TN4040837Replaces Tennant 1203638 | 1 | Retainer, Sqge [T300]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $79.60/EA |
| 23 | TN4023953Replaces Tennant 9015731 | 1 | Blade Kit, 500mm, Linatex (Standard)Complete assembly. Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $58.40/EA |
| 24 | TN4040848Replaces Tennant 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). Serial 10000000 to 20000000. | $23.40/EA |
| 25 | TN4040849Replaces Tennant 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). Serial 10000000 to 20000000. | $20.70/EA |
| 23 | TN4023954Replaces Tennant 9015732 | 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $101.25/EA |
| 24 | TN4040136Replaces Tennant 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| 25 | TN4040138Replaces Tennant 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| 23 | TN4023952Replaces Tennant 9015730 | 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $22.00/EA |
| 24 | TN4040137Replaces Tennant 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |
| 25 | TN4040139Replaces Tennant 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |

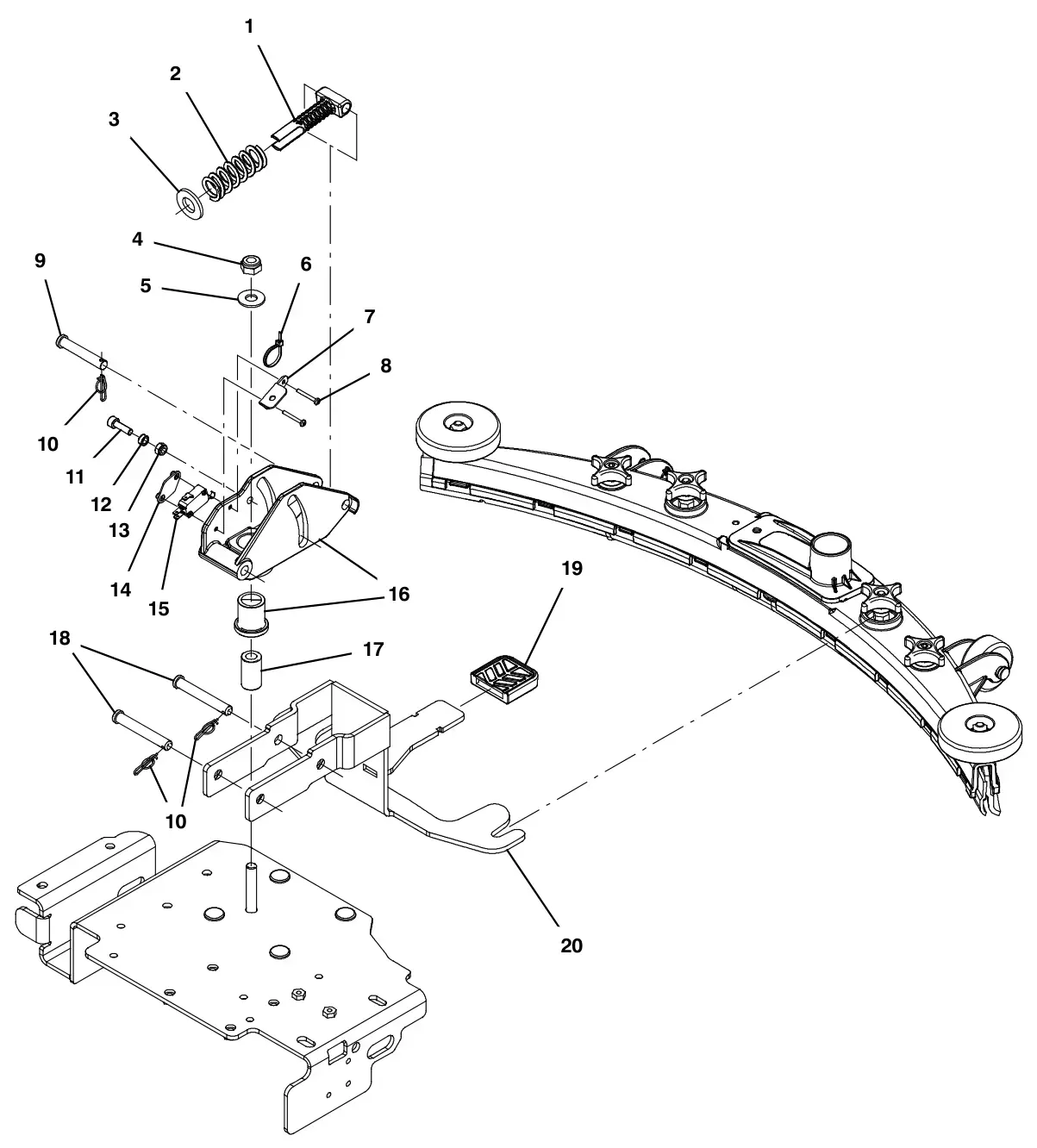

Tennant T300e squeegee lift group parts
The parts Tennant numbers on its squeegee lift group drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035570Replaces Tennant 1230485 | 1 | Pin, Guide, Spring [T300]Serial 10000000 to 20000000. | $5.80/EA |
| 2 | TN4040162Replaces Tennant 1215756 | 1 | Spring, Cmpr, 0.98od .146wir 02.5lSerial 10000000 to 20000000. | $12.40/EA |
| 3 | TN4018388Replaces Tennant 69954 | 1 | Washer, Thrust, 0.63b 1.25d 0.13wSerial 10000000 to 20000000. | $6.90/EA |
| 4 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 20000000. | $3.30/EA |
| 6 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 7 | TN4036525Replaces Tennant 1233709 | 1 | Bracket, Retaining, Wire [T300]Serial 10000000 to 20000000. | $10.70/EA |
| 8 | TN4031248Replaces Tennant 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4014599Replaces Tennant 51813 | 1 | Pin, Clevis, 0.37d X 2.12lSerial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4040200Replaces Tennant 1216647 | 3 | Pin, Cotter, Hair, 0.38d .054 WirSerial 10000000 to 20000000. | $1.50/EA |
| 11 | TN4031254Replaces Tennant 33951 | 1 | Screw, Soc, M6 X 1.00 X 20, 12.9Serial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |
| 13 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 14 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 15 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 16 | TN4026506Replaces Tennant 9014301 | 1 | Bracket Kit, Sqge, Lift [T300/E, Ss300]Serial 10000000 to 20000000. | $183.00/EA |
| 17 | TN4039910Replaces Tennant 1214467 | 1 | Sleeve, P/M, 0.41b 0.75d 1.3l [430ss]Serial 10000000 to 20000000. | $7.00/EA |
| 18 | TN4018939Replaces Tennant 391179 | 2 | Pin, Clevis, 0.37d X 2.62lSerial 10000000 to 20000000. | $4.00/EA |
| 19 | TN4039459Replaces Tennant 1212533 | 1 | Cover, Pedal, LiftSerial 10000000 to 20000000. | $11.60/EA |
| 20 | TN4026508Replaces Tennant 9014303 | 1 | Bracket Kit, Sqge, Wdt [T300/E, Ss300]Serial 10000000 to 20000000. | $184.50/EA |
Tennant T300e battery and cable group, 130 Ah wet parts
The parts Tennant numbers on its battery and cable group, 130 ah wet drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043519Replaces Tennant 130869 | 2 | Battery, Wet, 12vdc 0130ah [30xhs-Wnt]Complete assembly. Serial 10000000 to 20000000. | $434.80/EA |
| 2 | TN4022093Replaces Tennant 87435 | 4 | Nut, Hex, Flexlock, .31-18Part of Battery, Wet, 12vdc 0130ah [30xhs-Wnt] (130869). Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN4044457Replaces Tennant 1041030 | 4 | Cap, Battery, Black [For 155ah]Serial 10000000 to 20000000. | $3.20/EA |
| 4 | TN4022837Replaces Tennant 611221 | 4 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 20000000. | $4.90/EA |
| 5 | TN1073680Tennant 1073680 | 1 | Cable, 04ga 15.0l Blk [M8 Ring/M8 Ring]Serial 10000000 to 20000000. | $0.00/EA |
| 6 | TN4044952Replaces Tennant 1074847 | 1 | Cable, Assy [T300e]Serial 10000000 to 20000000. | $101.20/EA |
Tennant T300e battery and cable group, 140 Ah AGM parts
The parts Tennant numbers on its battery and cable group, 140 ah agm drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038188Replaces Tennant 1053408 | 2 | Battery, 12vdc 0140ah [Agm]Complete assembly. Serial 10000000 to 20000000. | $1,007.10/EA |
| 2 | TN4022093Replaces Tennant 87435 | 4 | Nut, Hex, Flexlock, .31-18Part of Battery, 12vdc 0140ah [Agm] (1053408). Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN1073680Tennant 1073680 | 1 | Cable, 04ga 15.0l Blk [M8 Ring/M8 Ring]Serial 10000000 to 20000000. | $0.00/EA |
| 4 | TN4022837Replaces Tennant 611221 | 4 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 20000000. | $4.90/EA |
| 5 | TN4044952Replaces Tennant 1074847 | 1 | Cable, Assy [T300e]Serial 10000000 to 20000000. | $101.20/EA |

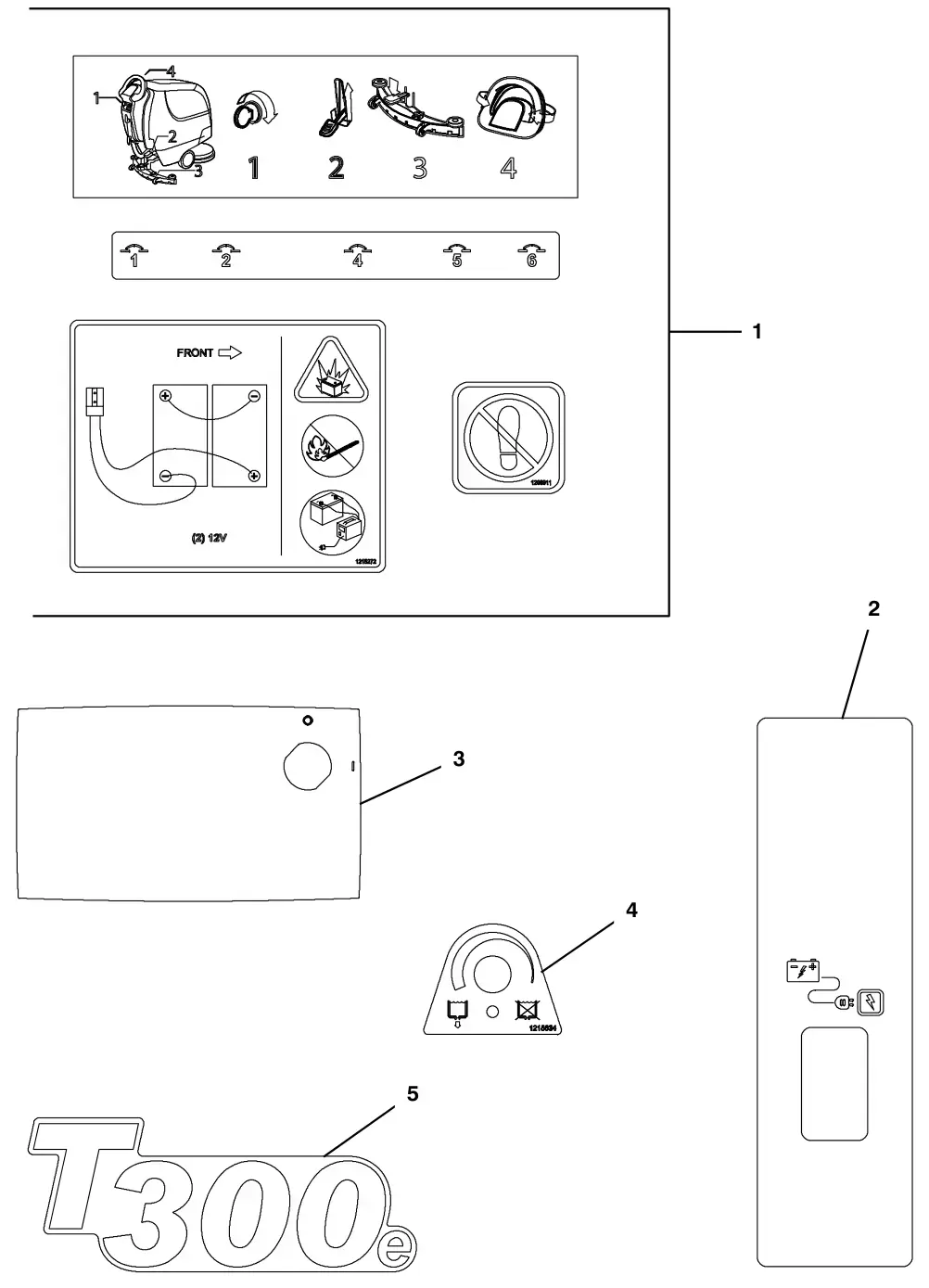

Tennant T300e label group parts
The parts Tennant numbers on its label group drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033286Replaces Tennant 1236088 | 1 | Label Sheet, Operational [T300/Ss300]Serial 10000000 to 20000000. | $71.00/EA |
| 2 | TN4038240Replaces Tennant 1225763 | 1 | Label, Decal, Charger, Off-BoardSerial 10000000 to 20000000. | $54.60/EA |
| 3 | TN4211674Replaces Tennant 1262134 | 1 | Label, Key Switch [Base T300e]Serial 10000000 to 20000000. | $6.87/EA |
| 4 | TN4040140Replaces Tennant 1215634 | 1 | Label, Opertnl, Solution Knob AdjSerial 10000000 to 20000000. | $8.48/EA |
| 5 | TN4040126Replaces Tennant 1215263 | 2 | Label, T300eSerial 10000000 to 20000000. | $15.00/EA |

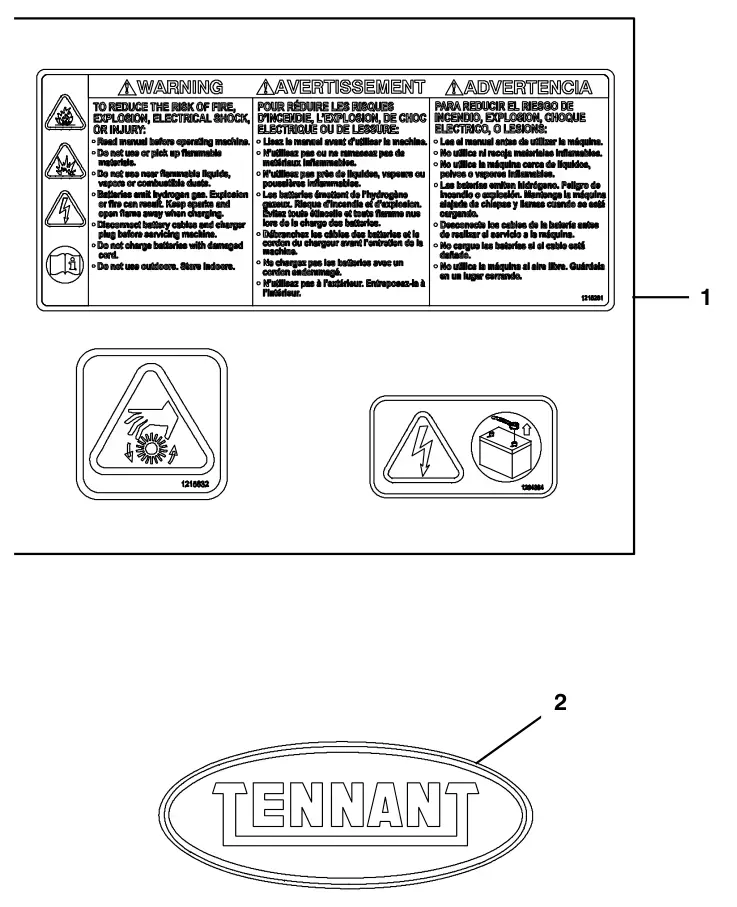

Tennant T300e label group (continued) parts
The parts Tennant numbers on its label group (continued) drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4226003Replaces Tennant 1220962 | 1 | Label Sheet, Info/Hzrd [T500, Na]Serial 10000000 to 20000000. | $98.80/EA |
| 2 | TN4039536Replaces Tennant 1213114 | 1 | Label, Logo, 05.5l, Blk/Sil [Tennant]Serial 10000000 to 20000000. | $37.00/EA |
Tennant T300e electrical harnesses parts
Electrical harnesses from Tennant's parts list. Manual page 46.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4232221Replaces Tennant 1077265 | 1 | Harness, Ele [T300ex Main]Serial 10000000 to 20000000. | $408.20/EA |
| – | TN4232222Replaces Tennant 1077266 | 1 | Harness, Ele [T300ex Op. Stat]Serial 10000000 to 20000000. | $28.06/EA |
| – | TN4232223Replaces Tennant 1077267 | 1 | Harness, Ele, Bdi Adapter [Base T300e]Serial 10000000 to 20000000. | $11.10/EA |
Tennant T300e documentation group (online only) parts
Documentation group (online only) from Tennant's parts list. Manual page 48.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN7007255Replaces Tennant 9022095 | 1 | Manual, Parts [T300e Base, Na]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4187640Replaces Tennant 9022081 | 1 | Manual, Oprtr [T300e Base, Na]Serial 10000000 to 20000000. | $24.48/EA |
| – | TN4194545Replaces Tennant 9014507 | 1 | Manual, Oprtr [T300e, Es, Na]Serial 10000000 to 20000000. | $94.68/EA |
| – | TN4194546Replaces Tennant 9014508 | 1 | Manual, Oprtr [T300e, Fr, Na]Serial 10000000 to 20000000. | $94.68/EA |
| – | TN7007254Replaces Tennant 9022094 | 1 | Instr, Wall Chart [T300e Base, Na]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4026526Replaces Tennant 9014510 | 1 | Manual, Service [T300/T300e, En]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |

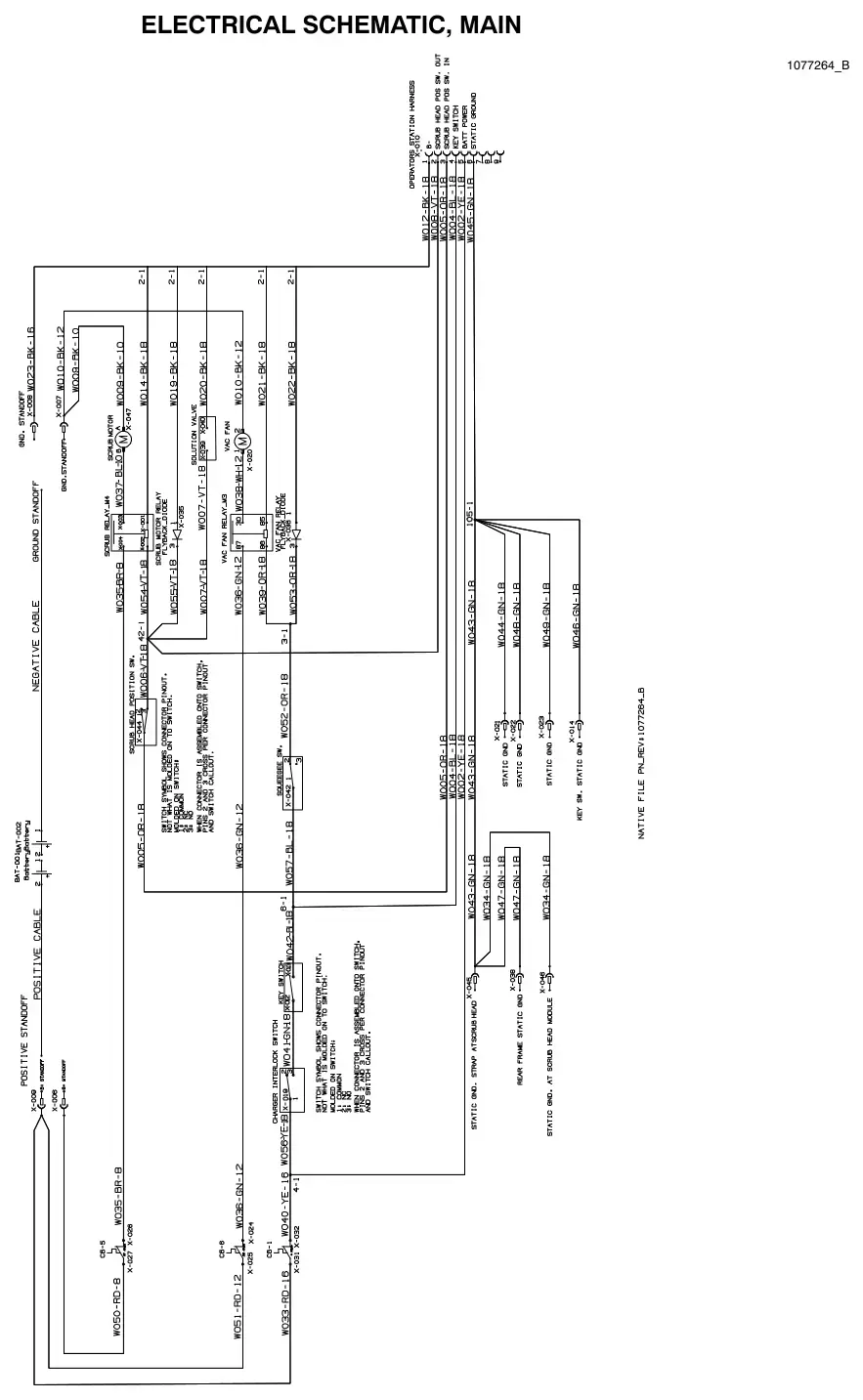

Tennant T300e electrical schematic, main
| What it shows | Electrical schematic, main, as printed in the manual |
|---|---|
| Manual page | 44 |

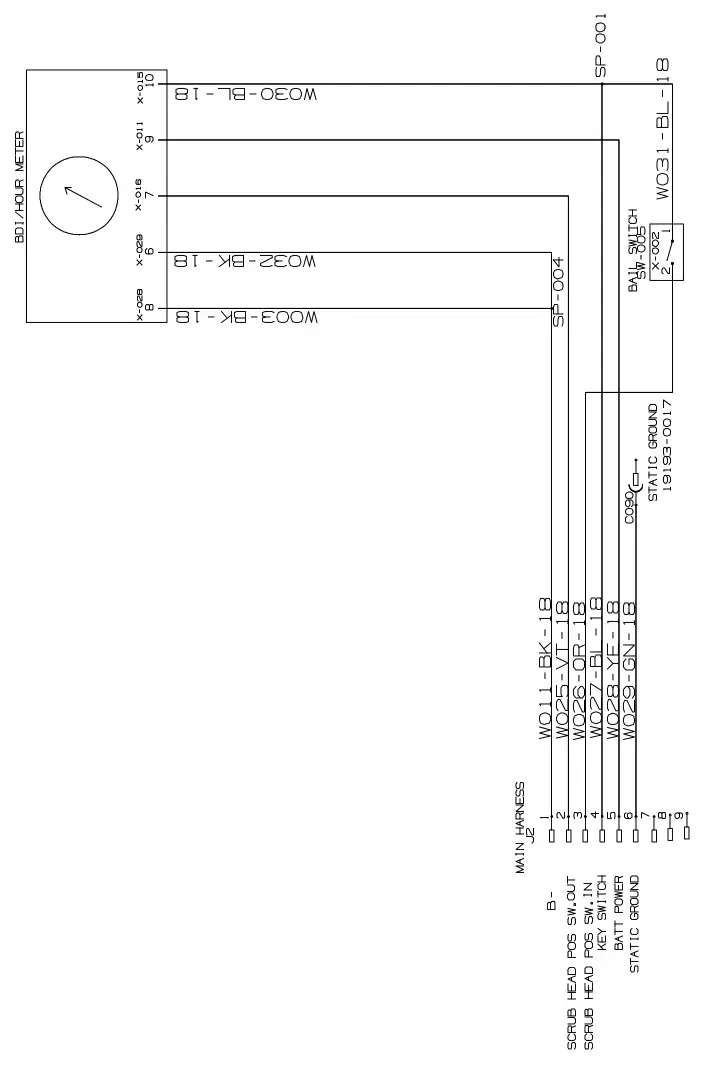

Tennant T300e electrical schematic, bdi adapter
| What it shows | Electrical schematic, BDI adapter, as printed in the manual |
|---|---|
| Manual page | 45 |
New to your Tennant T300e? Start here
Set up, run and look after your T300e. Everything here comes from Tennant's T300e operator manual for the Traditional Control Panel model, rewritten in plain steps, with the parts linked to the list above.
1Put the batteries in
- Turn the machine off, take the key out and lift the recovery tank to open the battery compartment.
- With a helper or a hoist, set the two 12V batteries in as the manual's figure shows: a 130 Ah wet battery (TN4043519) or a 140 Ah AGM battery (TN4038188).
- Connect the cables with the battery post boots (TN4022837), black (-) cable last. Use insulated tools.
- The off-board charger (TN4039495) comes set for wet batteries. With AGM batteries, change the charger setting first (see the charger's own manual).
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 9 and 19. SES ref PF-A6HL-L5HF
2Fit the squeegee and the pad
- Lift the squeegee mount bracket with your toe under the pedal. Hang the squeegee assembly (TN4026477) on it and tighten the knobs.
- Connect the vacuum hose to the squeegee.
- Step on the scrub head lift pedal to raise the head. Fix the pad to the pad driver (TN4039514) with its center lock.
- Line up the three lugs with the slots in the motor hub (look through the scrub head window) and give the driver or brush a quick counterclockwise turn.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 9 and 10. SES ref PF-A6HL-L5HF
3Fill it and start scrubbing
- Fill the solution tank up to the 3/3 mark on the level hose, with water no hotter than 140°F (60°C), and add detergent as its label says. Never put flammable materials in the tanks.
- Turn the key on. Step on the scrub head lift pedal to lower the head, then lower the squeegee with its foot pad. The vacuum starts when the squeegee goes down.
- Pull the start bail and push the machine forward slowly. The turning brush helps it along.
- Set the solution flow with the knob under the machine. Overlap each path by 2 in (5 cm) and keep moving.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 10 and 11. SES ref PF-A6HL-L5HF
4Stop and empty the tanks
- Let go of the start bail, raise the scrub head and the squeegee, and turn the key off.
- At the drain, hold the recovery drain hose (TN4031484) up, take the cap (TN4036892) off and lower the hose slowly.
- Clean the float shut-off screen (TN4020485), empty the debris tray (TN4041448) and rinse the recovery tank.
- Pull the solution hose off the accessory rail to drain the solution tank, rinse the tank and push the hose firmly back on.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 11, 13 and 14. SES ref PF-A6HL-L5HF
Questions about your T300e? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant T300e troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Machine won't run | ||
| Batteries run down, a loose cable or a bad battery | Charge the batteries and tighten loose cables. Replace a bad battery (TN4043519). | |
| A circuit breaker tripped | Disconnect the battery cable, let the breaker cool and press its reset button. Call service if it keeps tripping. | |
| Bad key switch or start bail switch | Call SES service. Part: key switch (TN4036836). | |
| Brush won't turn | ||
| Breaker tripped, or a bad motor, wiring or worn carbon brushes | Reset the brush motor breaker (TN4044898). Otherwise call SES service. Part: carbon brushes (TN8005800). | |
| Vacuum won't run | ||
| The squeegee is raised off the floor | Lower the squeegee. | |
| Breaker tripped, or a bad motor, wiring or worn carbon brushes | Reset the vacuum motor breaker (TN4032589). Otherwise call SES service. Parts: carbon brushes (TN8004151), vacuum fan (TN4036930). | |
| Poor scrubbing | ||
| Debris in the pad or brush, a worn pad or brush, the wrong type, or a low battery | Clear the debris, replace a worn pad or brush, use the right one for the job and charge the batteries. | |
| Water left behind | ||
| Full recovery tank, too much foam or a loose drain hose cap | Drain the recovery tank and put the drain hose cap (TN4036892) back on. | |
| Worn blades or a clogged drip trap or squeegee | Turn or replace the rear blade (TN4040848) and front blade (TN4040849). Take the drip trap cover (TN4042359) off and clean the trap and the squeegee. | |
| Vacuum hose loose, clogged or damaged | Reconnect, flush or replace the vacuum hose. | |
| Clogged float screen, lid not closed or a bad lid seal | Clean the float shut-off screen (TN4020485), check the lid for anything in the way and replace a bad lid seal (TN4038848). | |
| Little or no solution | ||
| Empty tank, flow set too low, clogged filter or a plugged supply line | Refill the tank, turn the flow up, clean the solution filter screen (TN4036878) and flush the supply line. | |
| Short run time | ||
| Low charge, batteries need care, a bad battery or a bad charger | Charge the batteries and see the battery care steps. Replace a worn-out battery or a bad charger (TN4039495). | |
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), page 22. SES ref PF-DZN2-HPAP
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant T300e maintenance schedule
Tennant's maintenance schedule for the T300e.
| Task | How often | Part |
|---|---|---|
| Drain and rinse the recovery tank, empty the debris tray (TN4041448) and clean the float shut-off screen (TN4020485). | After every use | |
| Drain and rinse the solution tank. | After every use | |
| Turn the pad over, or replace it when it's worn. Check and clean the brush. | After every use | |
| Wipe the squeegee blades clean and check them. Turn a worn blade to a new edge; replace the rear blade (TN4040848) or front blade (TN4040849) when all four edges are worn. | After every use | |
| Check the scrub head skirt for wear or damage, wipe the machine with an all-purpose cleaner and a damp cloth, and charge the batteries. | After every use | |
| Wet batteries: check the water level and add distilled water if it's low. Don't overfill. | Every week | |
| Take the drip trap cover (TN4042359) off the squeegee and clean the reservoir. | Every week | |
| Check the recovery tank lid seal (TN4038848) for wear. | Every week | |
| Drain the solution tank, turn the filter bowl counterclockwise and clean the solution filter screen (TN4036878). Tennant's chart says weekly; its maintenance pages say every 50 hours, so do it at whichever comes first. | Every week | |
| Check the battery connections for looseness. Clean the battery tops, terminals and cable clamps with a strong mix of baking soda and water. Leave the battery caps on. | Every 200 hours | |
| Have the vacuum motor's carbon brushes (TN8004151) replaced by trained service staff. SES service can do it: call 800-440-6723. | Every 750 hours | |
| Have the brush motor's carbon brushes (TN8005800) replaced by trained service staff. | Every 1,250 hours |
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 14, 15, 16, 17 and 18. SES ref PF-KZFZ-VG4H
Tennant T300e specifications
From Tennant's documents for the T300e.
| Scrubbing path | 19.9 in (505 mm) |
|---|---|
| Squeegee width | 30.4 in (772 mm) |
| Solution tank | 11 gal (42 L) |
| Recovery tank | 14 gal (53 L) |
| Down pressure | 52 lb (23.5 kg) |
| Solution flow | 0.5 gpm (1.9 L/min) maximum |
| Productivity, estimated actual | 11,208 sq ft (1,041 sq m) per hour |
| Brush motor | 24V DC, 1 hp (0.75 kW) |
| Vacuum motor | 24V DC, 0.5 hp (0.37 kW), water lift 34.5 in (876 mm) |
| Batteries | Two 12V: 130 Ah wet or 140 Ah sealed AGM |
| Charger | Smart off-board, 100-240V AC 50/60 Hz in, 24V DC 13 A out |
| Size | 54 × 22 × 43.1 in (1,372 × 559 × 1,095 mm), length × width × height |
| Weight | 230 lb (104 kg); 376 lb (171 kg) with batteries |
| Aisle turnaround | 54.5 in (1,384 mm) |
| Slopes | Scrub up to 9%, transport up to 21% |
| Operating temperature | 32°F to 110°F (0°C to 43°C) |
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), page 23. SES ref PF-G657-5AAT
Tennant T300e manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9022095 Rev. 00 (06-2022), Traditional Control Panel model, 49 pages | T300e | Rev. 00 (06-2022) | 49 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 9022081 Rev. 00 (07-2022), Traditional Control Panel model | T300e | Rev. 00 (07-2022) | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant T300e parts questions
How do I turn or change the T300e squeegee blades?
Each blade has four wiping edges. Take the squeegee off, fully loosen the two outside knobs, turn the blade end for end or top to bottom, line its slots up with the retainer tabs and tighten the knobs. Replace a blade when all four edges are worn.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), page 20. SES ref PF-6ZEV-5UJE
Which pad or brush should I use on the T300e?
The soft nylon brush cleans coated floors without removing finish, the polypropylene brush handles light soil, and the abrasive brush tackles buildup and stains. Pads run from white for polishing and red for light scrubbing to blue for heavier scrubbing, brown and black for stripping and maroon for chemical-free finish removal.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), page 8. SES ref PF-6ZEV-5UJE
How long does it take to charge the T300e batteries?
Up to 6 to 12 hours, depending on the battery type. Charge in a ventilated area, only after at least 15 minutes of use, and unplug the AC cord before you unplug the charger from the machine.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 18 and 19. SES ref PF-6ZEV-5UJE
Can the T300e run on AGM batteries?
Yes. It takes wet or sealed AGM batteries from Tennant. The off-board charger comes set for wet batteries, so its setting must be changed for AGM or the batteries can be damaged.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 18, 19 and 23. SES ref PF-6ZEV-5UJE
Why is my T300e leaving water behind?
Drain a full recovery tank, check the drain hose cap, turn or replace worn blades, clean the drip trap and float screen, and check the vacuum hose and the lid seal.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), page 22. SES ref PF-6ZEV-5UJE
How do I store a T300e where it can freeze?
Drain both tanks and the solution filter, pour 1 gal (4 L) of propylene glycol RV antifreeze into the solution tank and run the solution flow until it reaches the floor. Flush with clean water before you scrub again.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), page 21. SES ref PF-6ZEV-5UJE
How steep a slope can the T300e handle?
Scrub on slopes of up to 9% and transport on up to 21%. Use a winch to load it on a steeper ramp.
Source: Tennant T300e operator manual 9022081 Rev. 00 (07-2022), pages 4, 21 and 23. SES ref PF-6ZEV-5UJE
Does this parts list fit my T300e?
It covers the T300e Traditional Control Panel model, serial numbers 10000000 to 20000000, from Tennant's parts manual dated June 2022. If your machine has a different control panel, call us with the serial number.
Source: Tennant T300e parts manual 9022095 Rev. 00 (06-2022), page 1. SES ref PF-6ZEV-5UJE
Notes on this parts list
Places where Tennant's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Solution tank filter interval: Weekly (maintenance chart); Every 50 hours of use (draining and maintenance pages). This page shows weekly or every 50 hours, whichever comes first.
- Recovery tank lid seal check: Weekly: check for wear (maintenance chart); Every 50 hours: inspect, clean and replace if damaged (maintenance pages). This page shows a weekly check.
