Tennant T5 parts list and diagrams
Find any part on the Tennant T5 walk-behind scrubber by its area in Tennant's drawings. Every line of the parts manual is here, crossed to Tennant's current numbers with our price. Disk and cylindrical heads, squeegee sizes, batteries and kits each have their own section.
Complete list: every line of the parts list in Tennant T5 Automatic Scrubber Parts Manual 9002329 Rev. 16 (04-2016), North America / International, 1640 printed part lines, with the parts numbered on its drawings. Checked .
New to your T5? Start here → Manuals (free sign-in) →
- Cleaning path
- 24, 28 or 32 in (600, 700 or 800 mm) disk; 26 or 32 in (650 or 800 mm) cylindrical

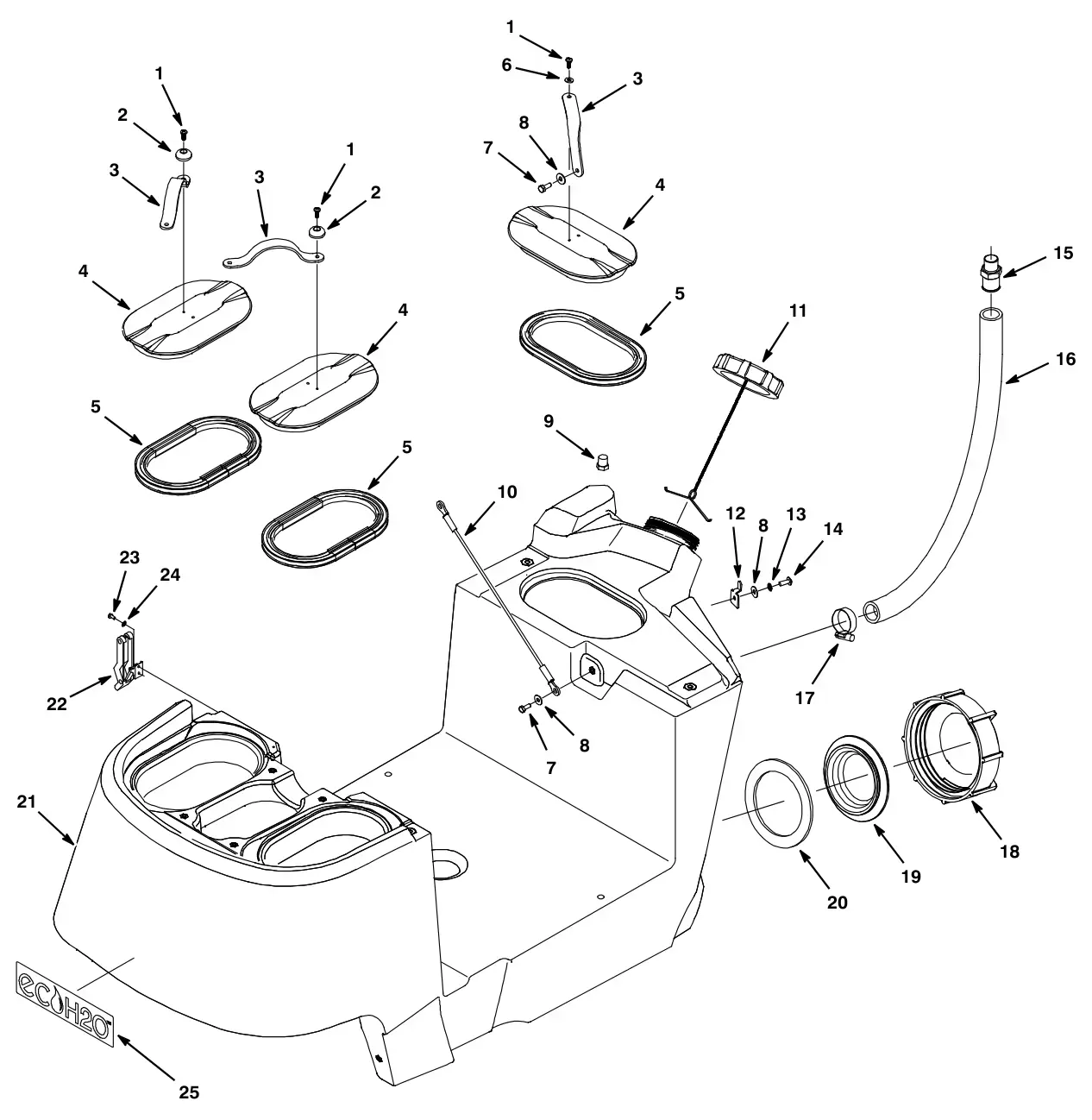

- Solution tank
- 22.5 gal (85 L)
- Recovery tank
- 27 gal (102 L)

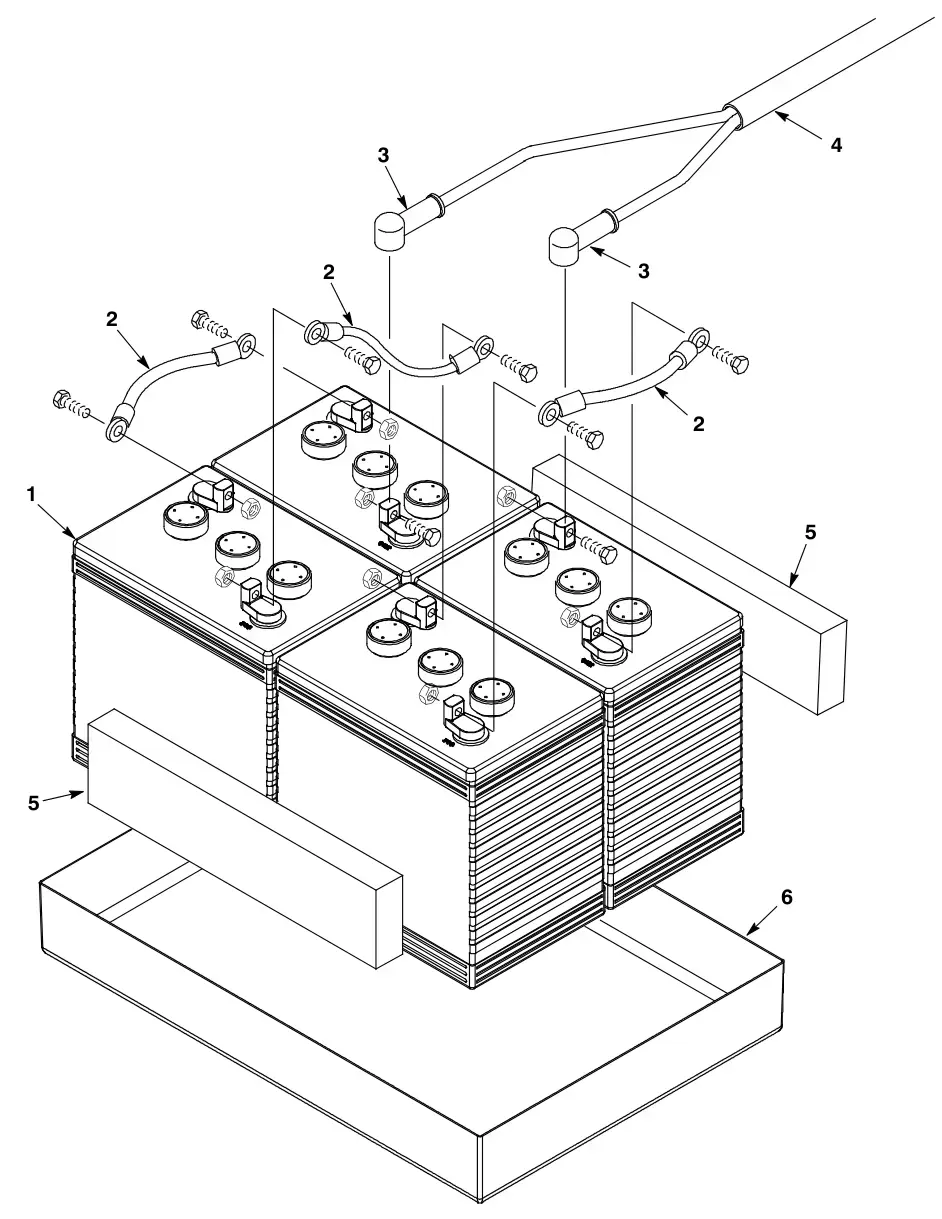

- Batteries
- Four 6V: 235 Ah wet or 200 Ah gel
- Run time per charge
- 5.5 hours wet, 4.5 hours gel
Maintenance and wear parts for the T5
Tennant's general recommended maintenance items for the T5. Keep these on the shelf.
Gasket, Snap-In, Dual-Durometer [T5]
$76.80/EAHose Assy, Drain, 1.50id X 29.5l, Blk
$103.20/EACap, Drain Assy
$20.20/EAStrap, Cap, Drain
$20.20/EASeal, Org, 1.48id 1.76od
$12.10/EAGasket, Mtg, Float, .125th, Neo, Adh
$4.30/EAFloat, Shut-Off, (2)Ball, 1.75d
$76.00/EAMotor Kit, Vacuum [T5]
$478.50/EABrush, Carbon, Motor, Ele [1pick=1pkg] (1Pkg = 2 Brushes)
$35.80/EAGasket, Vacuum Mtr 5.7 Epdm W/Psa
$10.00/EAFuse, 100a 125volt 0.88 X 3.2l
$58.00/EACaster, Swivel, 4.0d 1.4w, 4hole [400lb]
$105.40/EA
Source: Tennant T5 Automatic Scrubber Parts Manual 9002329 Rev. 16 (04-2016), North America / International, page 5. SES ref PF-TXYK-GHTN
Your machine
How to tell which you have

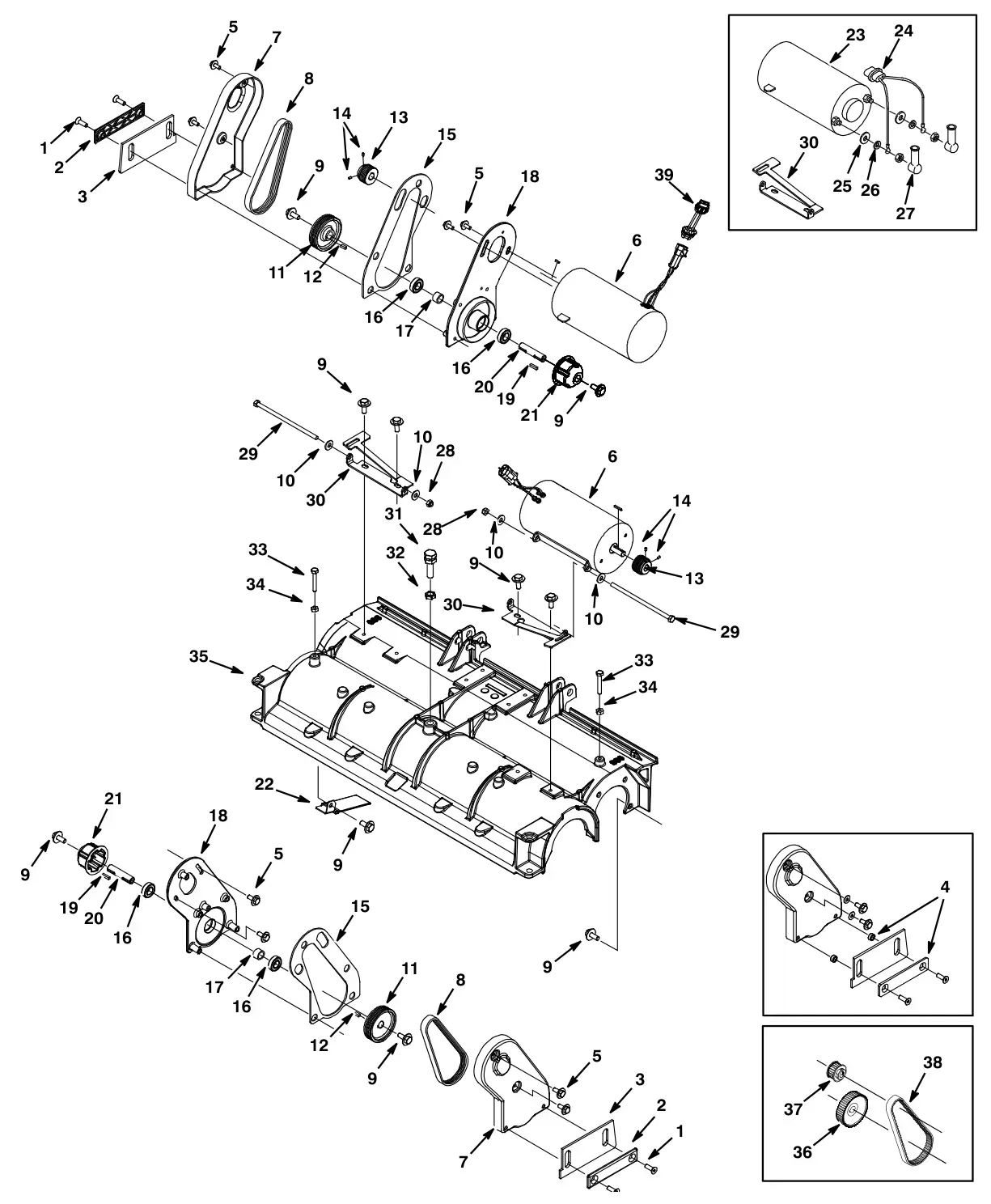

- Scrub head: Tennant's parts manual has separate parts groups for Cylindrical 26 in (650 mm), Cylindrical 32 in (800 mm), Disk 24 in (600 mm), Disk 28 in (700 mm), Disk 32 in (800 mm) (manual pages 7, 8, 12, 38, 40, 42, 44, 46, 48, 50, 52, 54…). Pick yours to see only its groups; parts every build shares always show.
- Squeegee width: Tennant's parts manual has separate parts groups for 20 in (500 mm), 24 in (600 mm), 26 in (650 mm), 28 in (700 mm), 32 in (800 mm) (manual pages 9, 10, 84, 86, 88, 90). Pick yours to see only its groups; parts every build shares always show.
- Battery: Tennant's parts manual has separate parts groups for Maintenance free 220 Ah, Lead-acid 235 Ah, Maintenance free 160 Ah (Japan), Lead acid 180 Ah (Japan) (manual pages 94, 95, 96, 97). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant T5 general recommended maintenance items
General recommended maintenance items from Tennant's parts list. Manual page 5.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4041653Replaces Tennant 1042937 | 1 | Gasket, Snap-In, Dual-Durometer [T5] | $76.80/EA |
| – | TN4041688Replaces Tennant 1043538 | 1 | Hose Assy, Drain, 1.50id X 29.5l, BlkComplete assembly. | $103.20/EA |
| – | TN4039939Replaces Tennant 1008639 | 1 | Cap, Drain AssyComplete assembly. Part of Hose Assy, Drain, 1.50id X 29.5l, Blk (1043538). | $20.20/EA |
| – | TN4039939Replaces Tennant 1019563 | 1 | Strap, Cap, DrainPart of Cap, Drain Assy (1008639). | $20.20/EA |
| – | TN4039938Replaces Tennant 1008637 | 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy (1008639). | $12.10/EA |
| – | TN4037554Replaces Tennant 1013628 | 1 | Gasket, Mtg, Float, .125th, Neo, Adh | $4.30/EA |
| – | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75d | $76.00/EA |

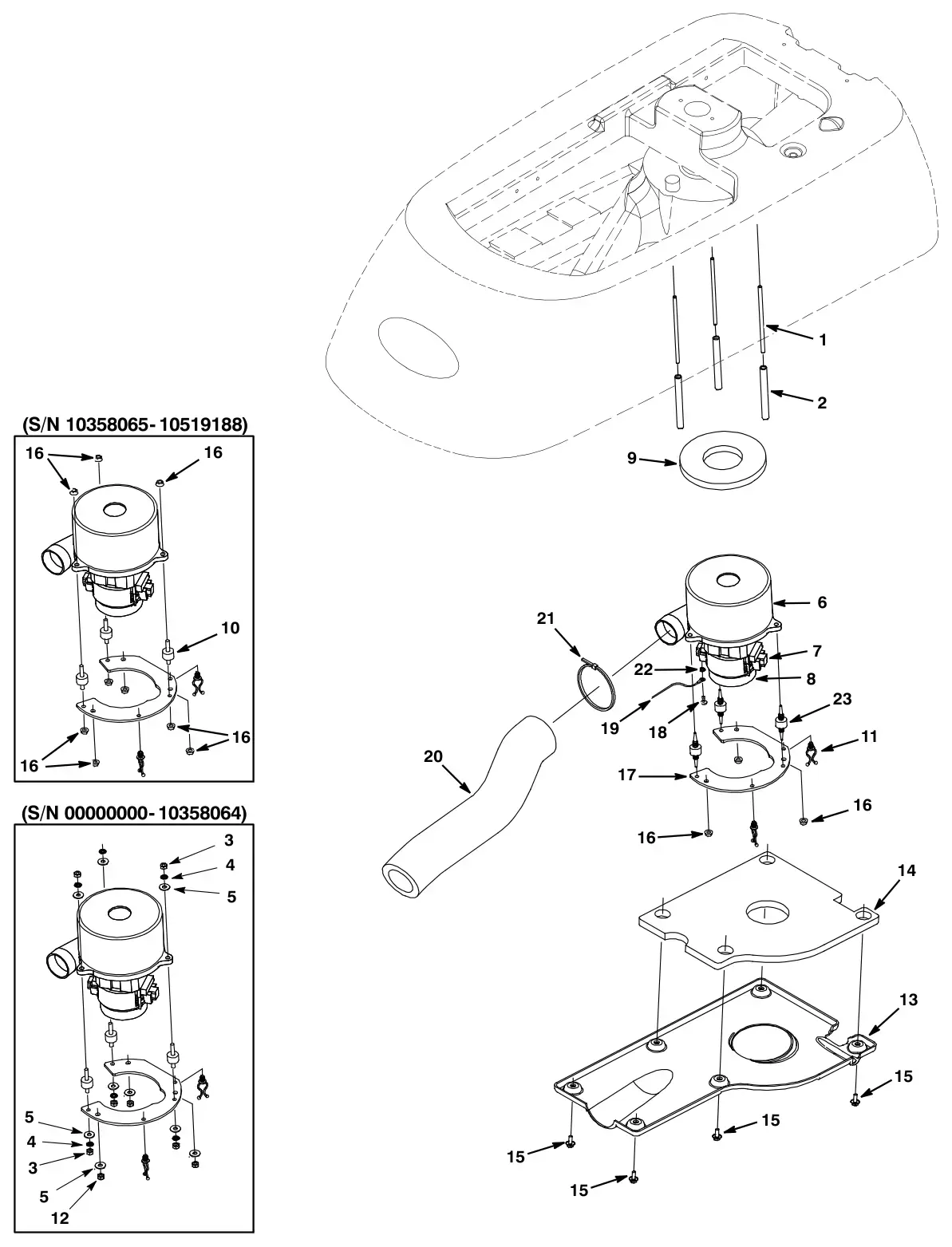

| – | TN4016169Replaces Tennant 9002562 | 1 | Motor Kit, Vacuum [T5]Complete assembly. | $478.50/EA |
| – | TN4044514Replaces Tennant 1073334 | 1 | Brush, Carbon, Motor, Ele [1pick=1pkg] (1Pkg = 2 Brushes)Part of Motor Kit, Vacuum [T5] (9002562). | $35.80/EA |
| – | TN4042297Replaces Tennant 100038 | 1 | Gasket, Vacuum Mtr 5.7 Epdm W/PsaPart of Motor Kit, Vacuum [T5] (9002562). | $10.00/EA |
| – | TN4021650Replaces Tennant 86379 | 1 | Fuse, 100a 125volt 0.88 X 3.2l | $58.00/EA |
| – | TN4040090Replaces Tennant 1049048 | 2 | Caster, Swivel, 4.0d 1.4w, 4hole [400lb] | $105.40/EA |
| – | TN4019997Replaces Tennant 614166 | 1 | Brush Kit, Carbon [Qty 4] (For Transaxle Motor 1031723) | $65.70/EA |
| – | TN4032140Replaces Tennant 1031775 | 1 | Brush, Brush-Motor, Afmkt (For Disk Scrub Head Motor 1023067) | $216.60/EA |
| – | TN4045455Replaces Tennant 1035888 | 2 | Belt, Drive, 6Grv, 508l X 14w, [6Pj]Serial 10338658 and later. | $35.20/EA |
| – | TN4025731Replaces Tennant 377500 | 2 | Belt,Synchronous, 500l,15mm [05p,Plychn]Serial up to 10338657. | $88.90/EA |
| – | TN4032931Replaces Tennant 1022401 | 2 | Gasket, Cover, Belt | $11.00/EA |
| – | TN4040440Replaces Tennant 1049739 | 2 | Brush Kit, Carbon, Motor, Replmt [4pcs]Serial 10419662 and later. | $108.70/EA |
| – | TN4042211Replaces Tennant 190152 | 2 | Brush, Carbon [Pk=4]Serial up to 10419661. | $27.37/EA |
| – | TN4033890Replaces Tennant 1025272 | 1 | Skirt, Tray, Debris, 65cm | $32.00/EA |
| – | TN4033891Replaces Tennant 1025273 | 1 | Skirt, Tray, Debris, 80cm | $33.00/EA |
| – | TN4035216Replaces Tennant 1017015 | 1 | Detergent, Pkg, 2 Liter, Sgl [365] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4035218Replaces Tennant 1017022 | 1 | Detergent, Pkg, 2 Liter, Sgl [665] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4039942Replaces Tennant 1008675 | 1 | Gasket, Edge, Foam, 24.00l [Fr] | $25.80/EA |
| – | TN4033574Replaces Tennant 1024105 | 1 | Cable, Lift, Sqge | $78.60/EA |
| – | TN4029459Replaces Tennant 578074000 | 2 | Blade, Sqge, 300.8mml, Wand (Optional Power Wand) | $62.92/EA |

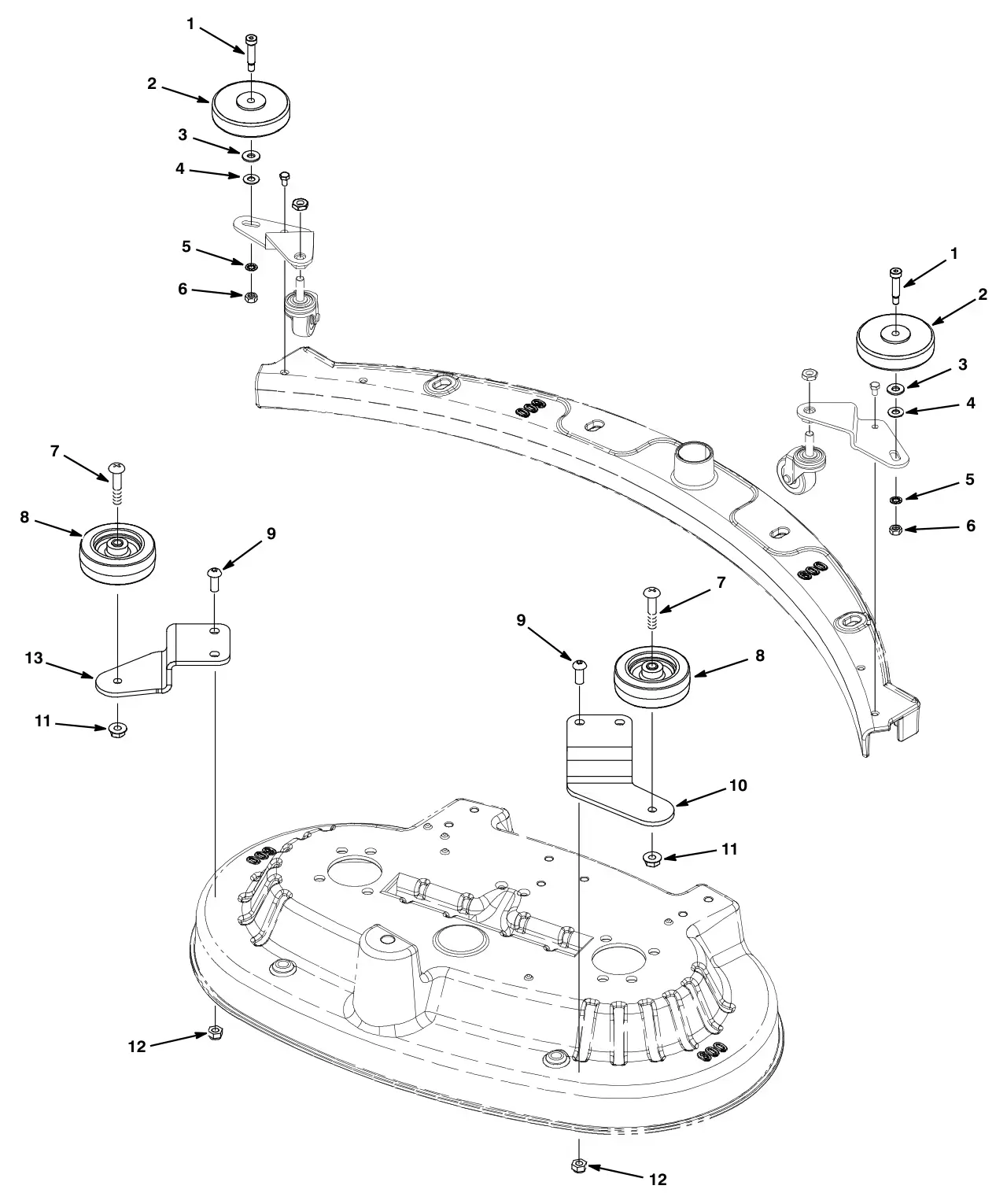

| – | TN4013699Replaces Tennant 9004459 | 1 | Wheel Kit, Bumper, Retrofit [T5]Complete assembly. | $171.80/EA |
| – | TN4020076Replaces Tennant 614317 | 2 | Wheel, 04.0d 1.00w 0.38b, Rbr, GrayPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $24.60/EA |
| – | TN4037957Replaces Tennant 1014918 | 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, RbrPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $0.00/EA |

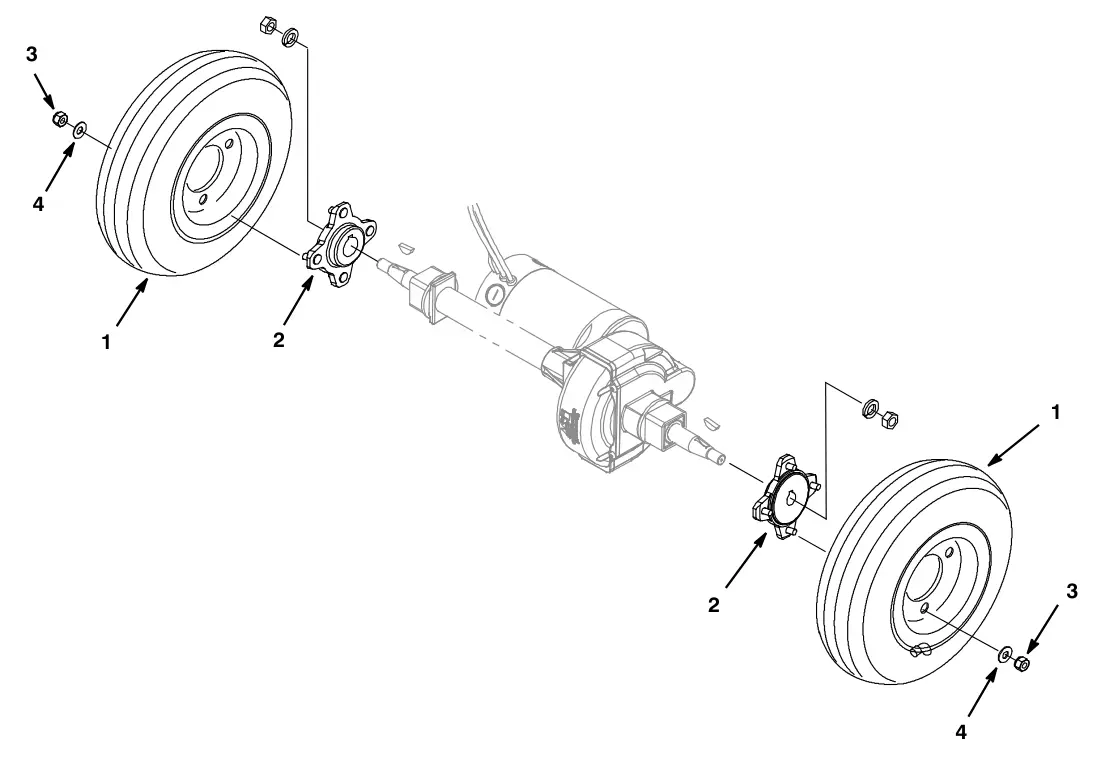

| – | TN4014049Replaces Tennant 9004903 | 1 | Wheel Kit, Pneumatic, Ci [T5 T5e Ss5]Complete assembly. | $537.20/EA |
| – | TN4033935Replaces Tennant 1059452 | 2 | Tire Assy, Pneu, Grey, 2.8/2.5-04 2.75bcPart of Wheel Kit, Pneumatic, Ci [T5 T5e Ss5] (9004903). | $49.80/EA |
| – | TN4037832Replaces Tennant 9004909 | 1 | Wheel Kit, Solid, Ci [T5 T5e Ss5]Complete assembly. | $153.10/EA |
| – | TN4037832Replaces Tennant 1218753 | 2 | Wheel, Scrbr, 213mm, W/ TaperPart of Wheel Kit, Solid, Ci [T5 T5e Ss5] (9004909). Serial 10771597 and later. | $153.10/EA |
| – | TN4037832Replaces Tennant 1020688 | 2 | Wheel, Scrbr, 213.00mm With Taper (Replaced by 9004909)Serial up to 10771596. | $153.10/EA |

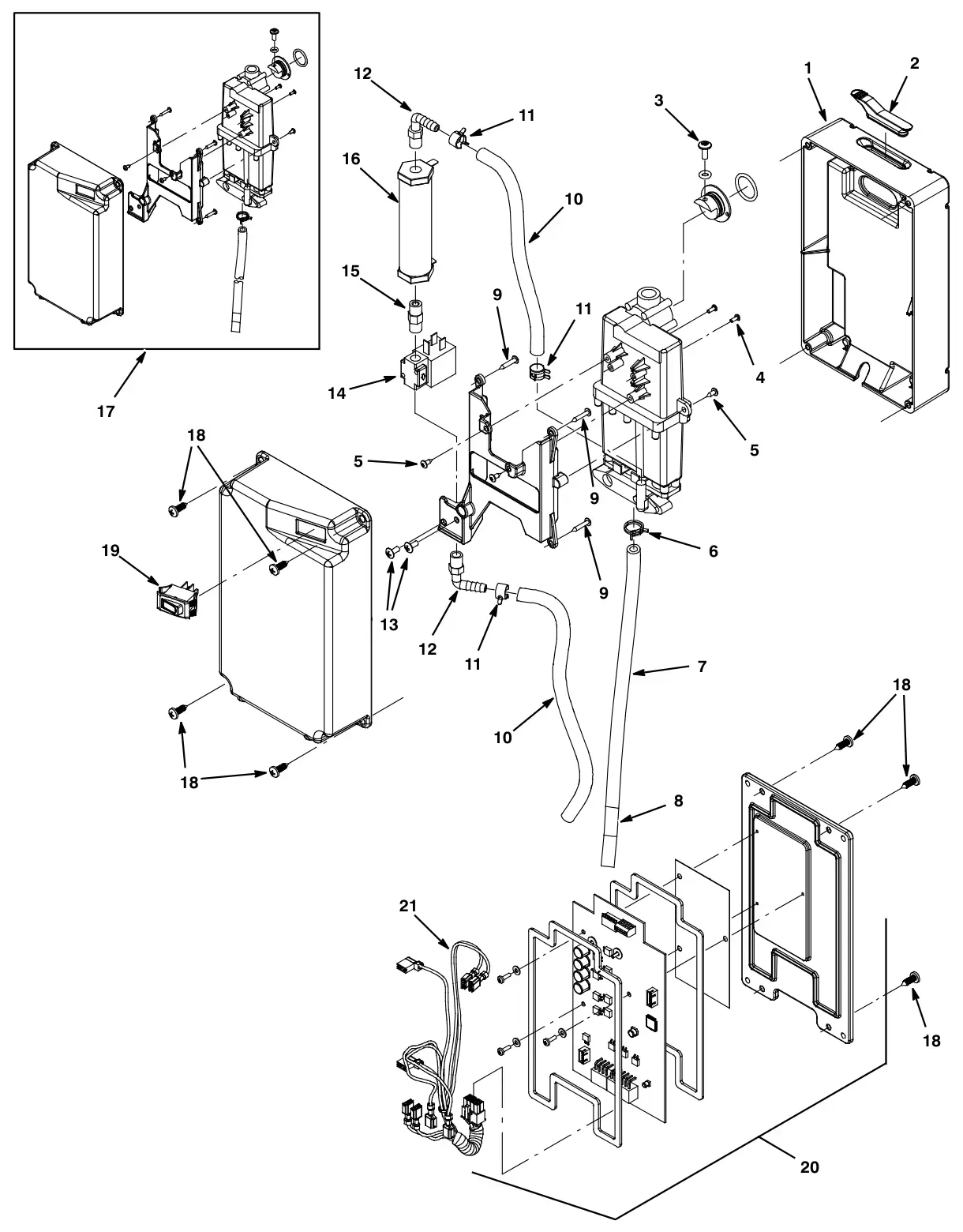

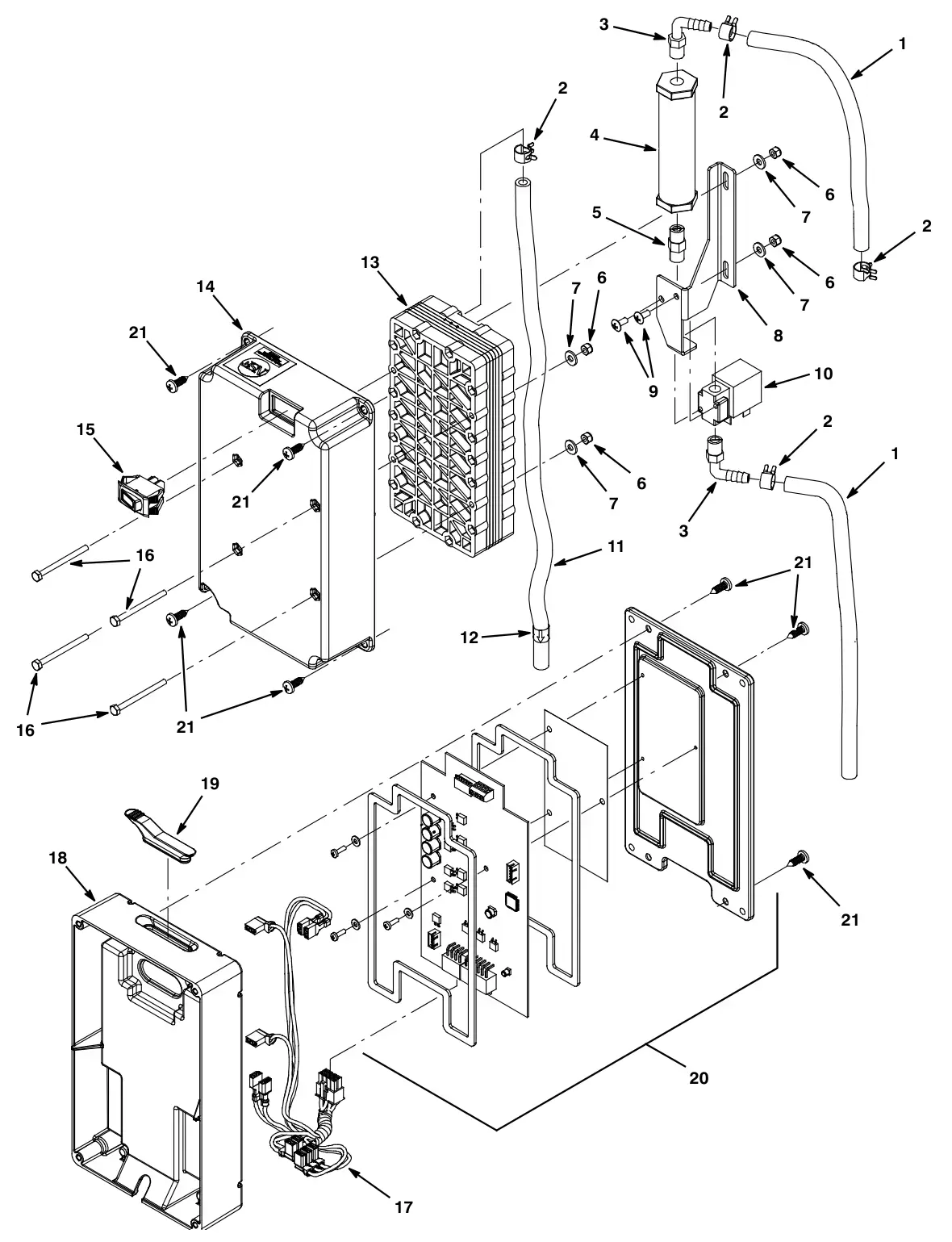

| – | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10378380 to 10448304. | $778.37/EA |
| – | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10448305 to 10742212. | $778.37/EA |

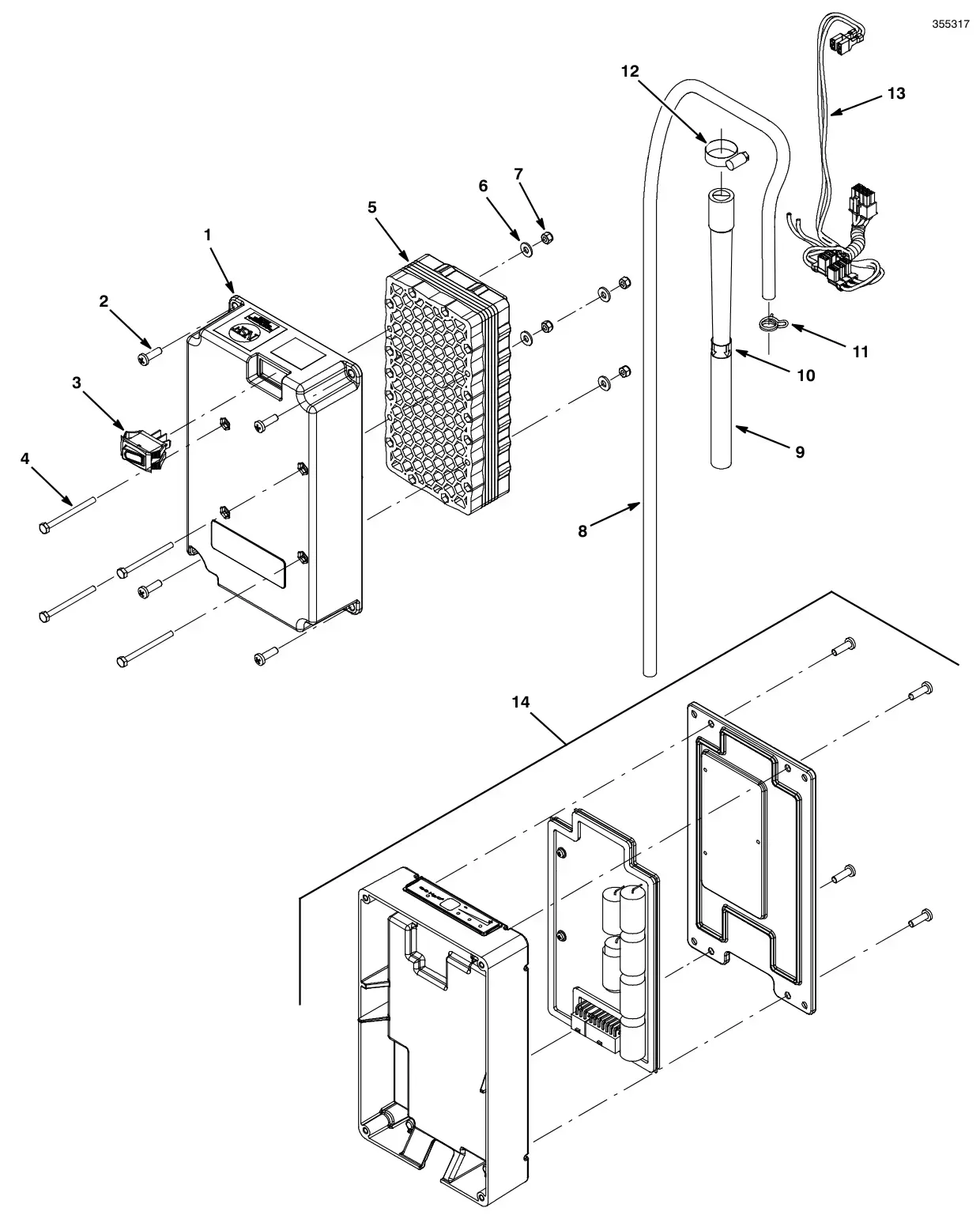

| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdown)Serial 10742213 and later. | $1,339.60/EA |

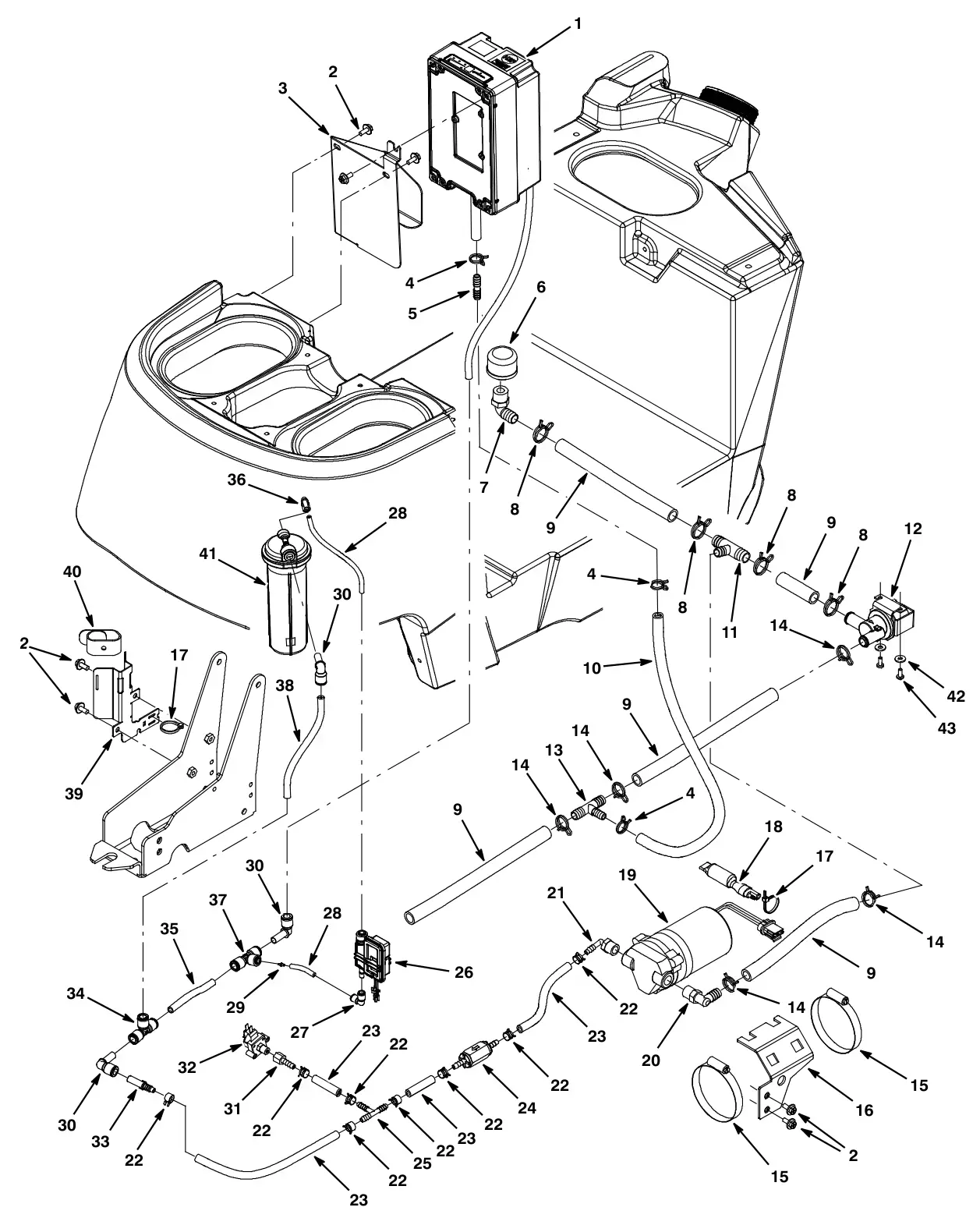

| – | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlSerial 10742213 and later. | $300.60/EA |
| – | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, DispenserSerial 10742213 and later. | $338.70/EA |
| – | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa]Serial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Intl]Serial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |

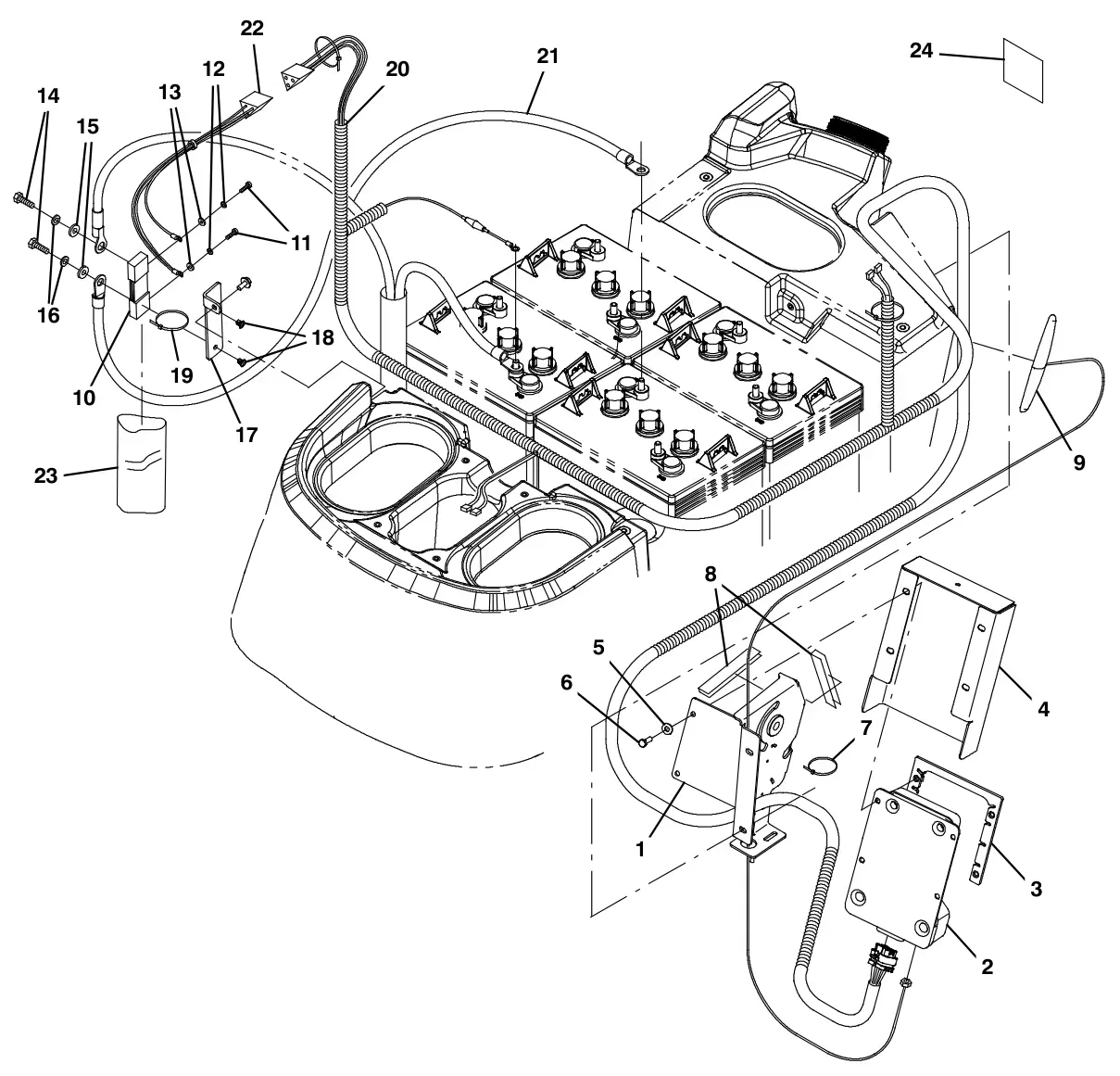

| – | TN4031064Replaces Tennant 1070659 | 1 | Antenna, Telem, 70 In [Gprs]Serial 10742213 and later. | $54.80/EA |

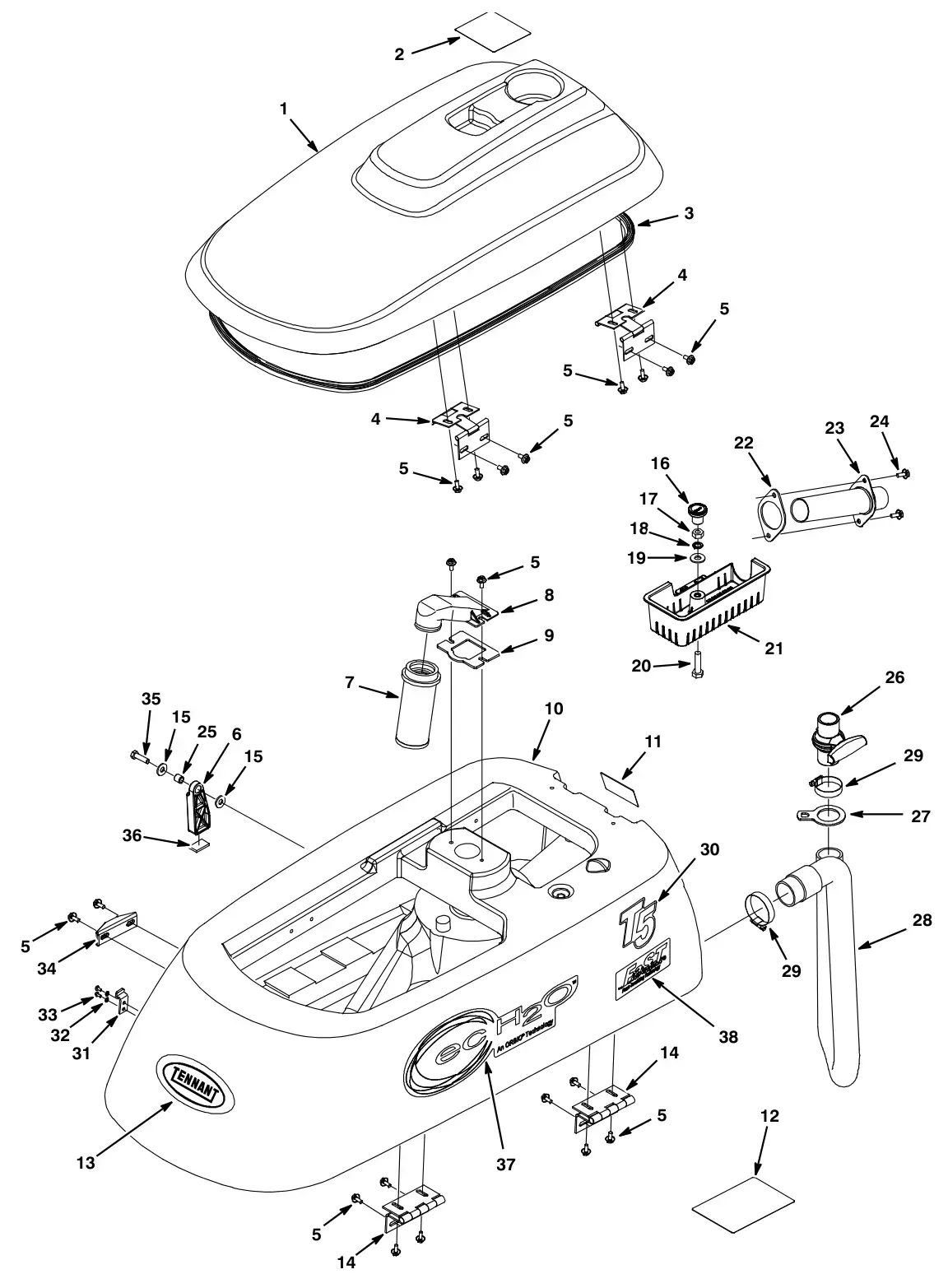

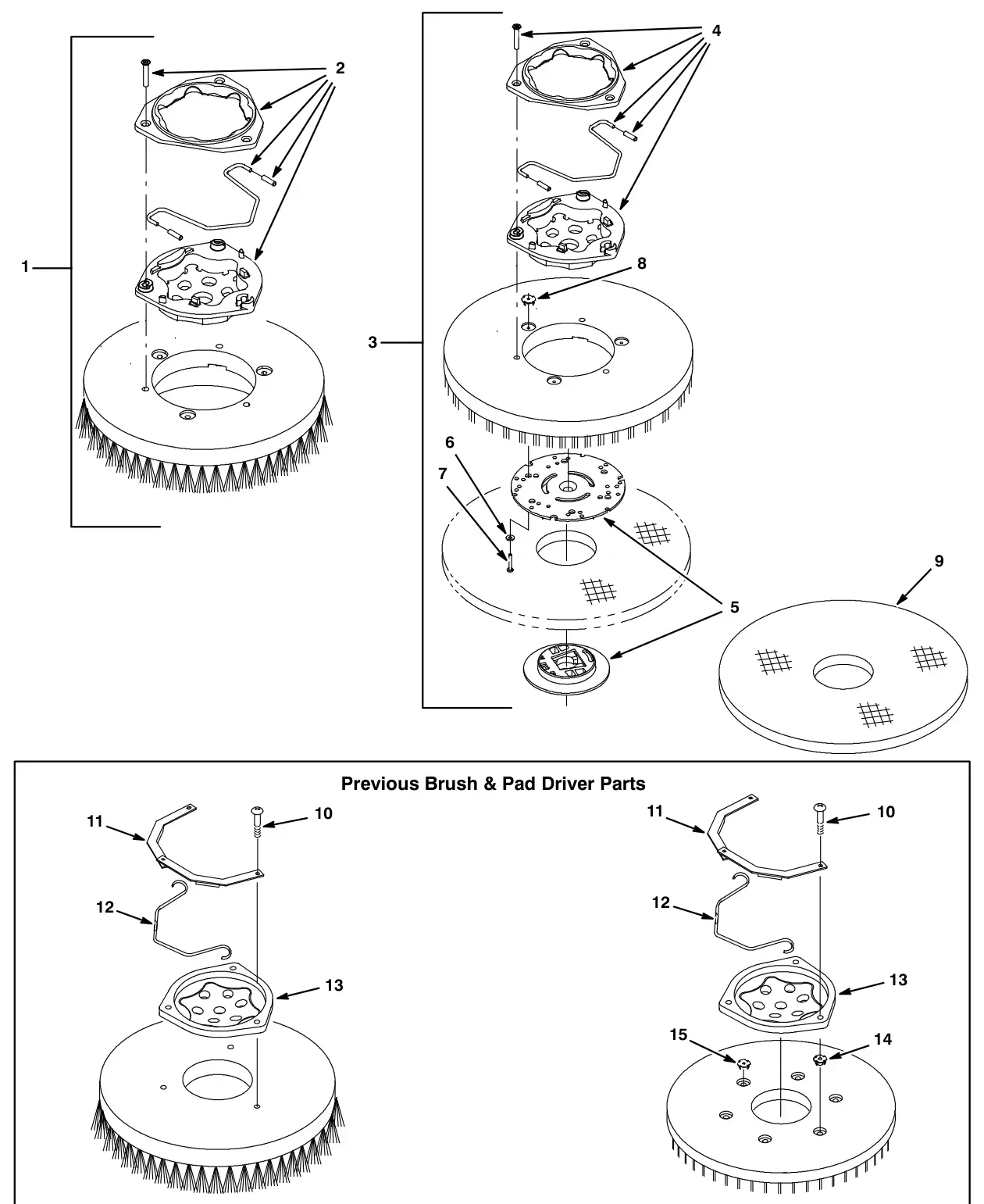

Tennant T5 general recommended maintenance items (Japan)
General recommended maintenance items (Japan) from Tennant's parts list. Manual page 6.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip-On, Teal, Gf Pp | $45.50/EA |
| – | TN989977Tennant 989977 | 2 | Pad, 12.00, Sapphire [5pc] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989813Tennant 989813 | 2 | Pad, Stripping, 12inch, Blk [5pc] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989973Tennant 989973 | 2 | Pad, 12.0, Brown [5pc] (Deep Scrubbing & Stripping) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989974Tennant 989974 | 2 | Pad, 12.0, Blu [5pc] (Blue) (Medium Scrubbing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989975Tennant 989975 | 2 | Pad, 12.0, Red [5pc] (Light Scrubbing & Buffing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989909Tennant 989909 | 2 | Jumbo Tan 12” | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989980Tennant 989980 | 2 | Pad, 12.0, White [5pc] (Polishing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630660Tennant 630660 | 2 | Pad, 14.0 [Sapphire, Case Of 5] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630653Tennant 630653 | 2 | Pad, 14.0, Brown [Case Of 5] (Deep Scrubbing & Stripping) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630654Tennant 630654 | 2 | Pad, 14.0, Blu [Case Of 5] (Blue) (Medium Scrubbing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630655Tennant 630655 | 2 | Pad, 14.0, Red [Case Of 5] (Light Scrubbing & Buffing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989806Tennant 989806 | 2 | Jumbo Tan 14” | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989981Tennant 989981 | 2 | Pad, 14.0, White [5pc] (Polishing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630642Tennant 630642 | 2 | Pad, Stripping, 16.0[Sapphire,Case Of 5] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989814Tennant 989814 | 2 | Pad, Stripping, 16inch, Blk | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630643Tennant 630643 | 2 | Pad, 16.0, Brown [Case Of 5] (Deep Scrubbing & Stripping) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630644Tennant 630644 | 2 | Pad, 16.0, Blu [Case Of 5] (Blue) (Medium Scrubbing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN630645Tennant 630645 | 2 | Pad, 16.0, Red [Case Of 5] (Light Scrubbing & Buffing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989807Tennant 989807 | 2 | Jumbo Tan 16” | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN989907Tennant 989907 | 2 | Pad, 16.0, White [5pc] (Polishing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4020670Replaces Tennant 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/HandleSerial 10581737 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4040776Replaces Tennant 1051504 | 1 | Strap, Hose, DrainSerial 10581737 and later. | $2.50/EA |
| – | TN4040774Replaces Tennant 1051438 | 1 | Hose, Drain, 1.50id X 19.3l, BlkSerial 10581737 and later. | $64.30/EA |

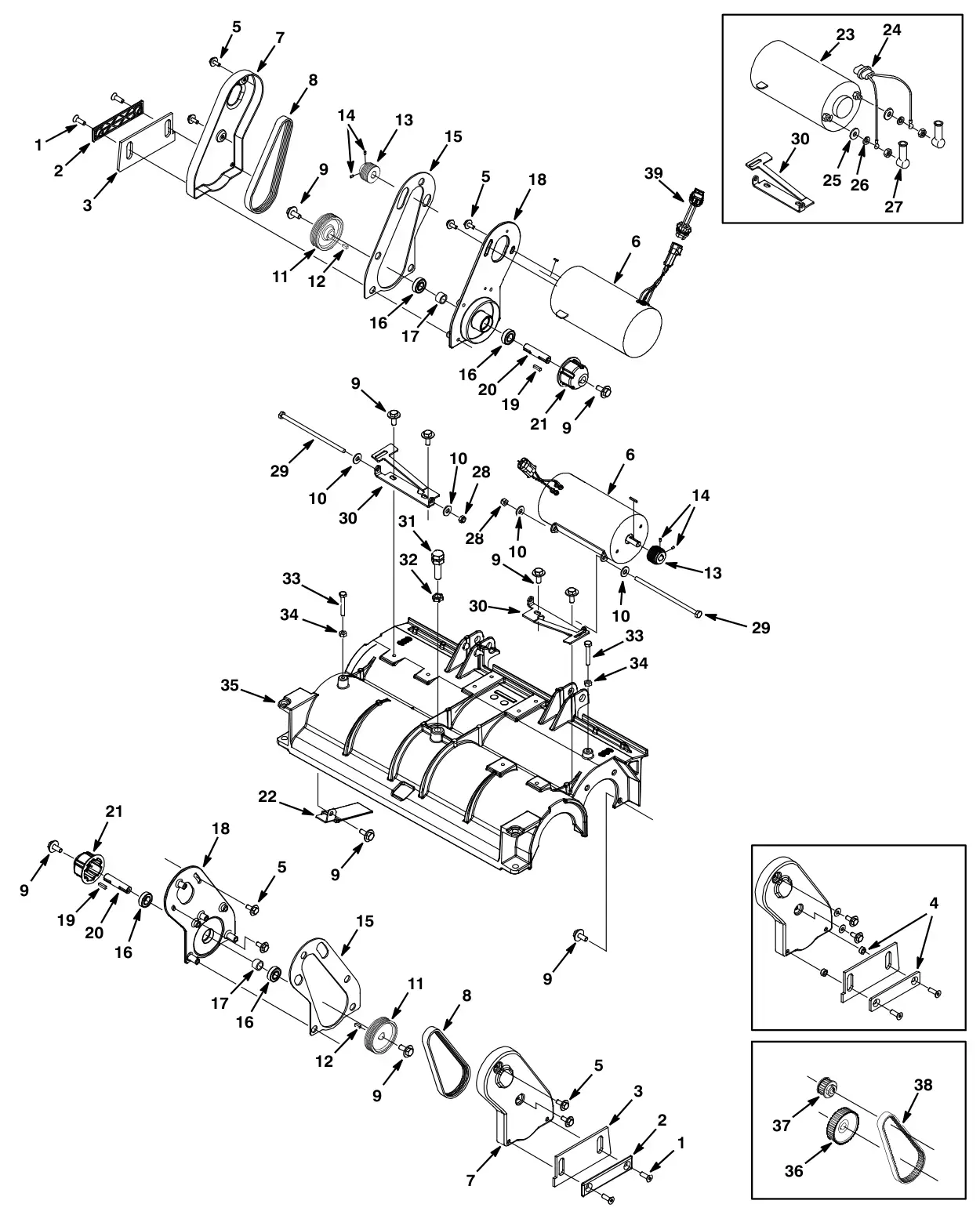

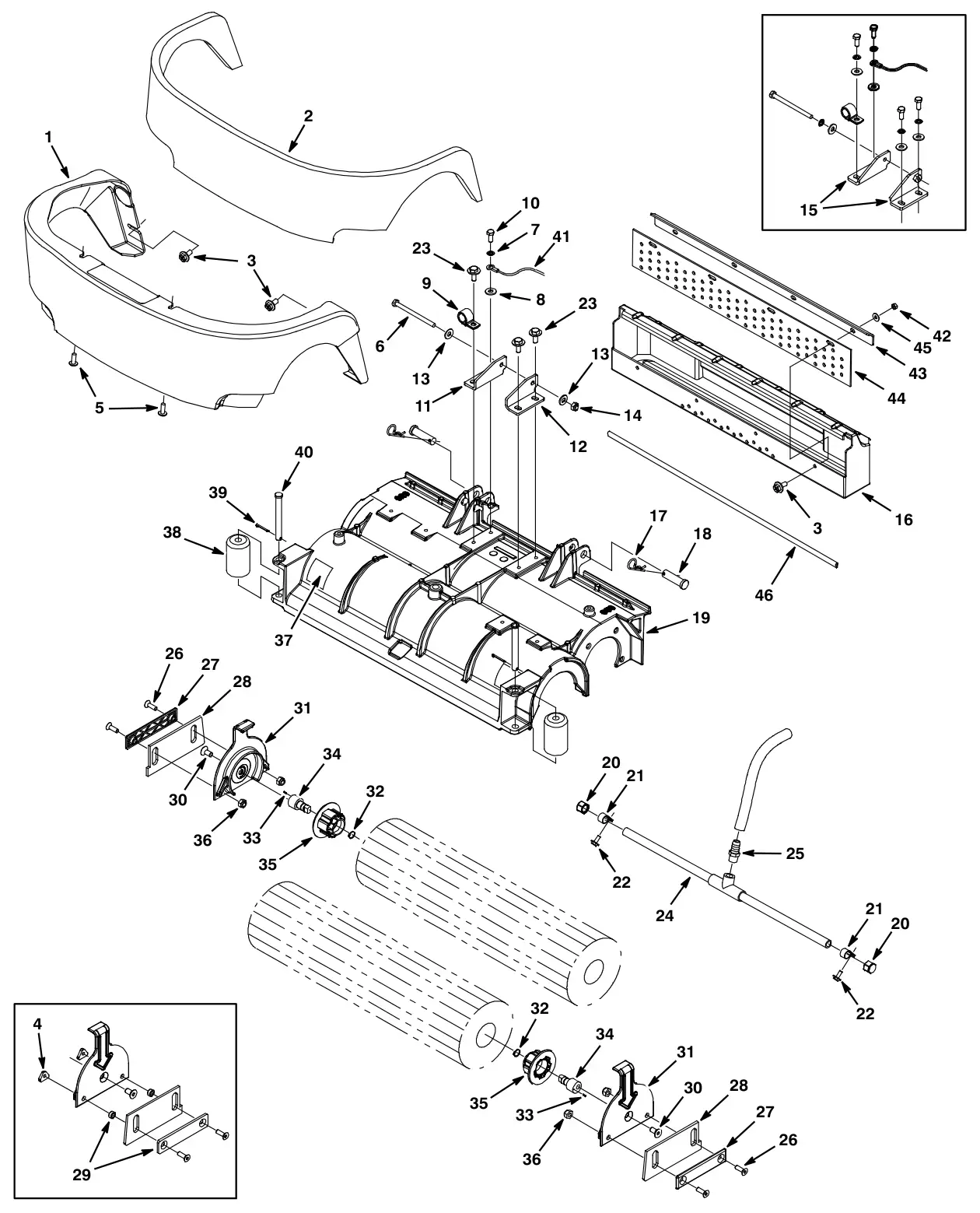

Tennant T5 cylindrical 26 in (650 mm) model recommended maintenance items
Cylindrical 26 in (650 mm) model recommended maintenance items from Tennant's parts list. Manual page 7.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

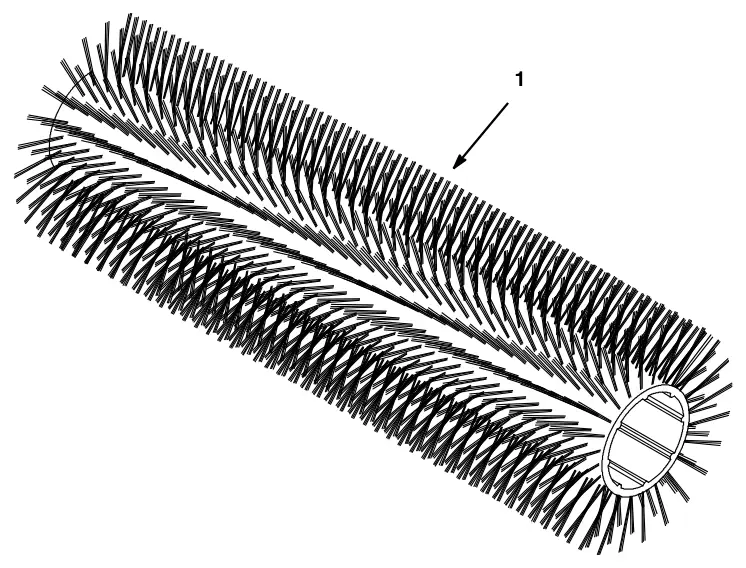

| – | TN4016562Replaces Tennant 399251 | 2 | Brush, Scb, Cyl, 26l, 18 Sr, Nyl (Soft Nylon) | $261.20/EA |
| – | TN4016563Replaces Tennant 399252 | 2 | Brush, Scb, Cyl, 26.0l, Poly (Medium Polypropylene) | $218.00/EA |
| – | TN4016564Replaces Tennant 399253 | 2 | Brush, Scb, Cyl, 26.0l, Hd Poly (Stiff Polypropylene) | $218.00/EA |
| – | TN4016565Replaces Tennant 399254 | 2 | Brush, Scb, Cyl, 26.0l, Abr (Abrasive) | $446.30/EA |
| – | TN4034645Replaces Tennant 1060864 | 2 | Brush, Scb, Cyl, 26l, 18sr, Abr, Spl (Abrasive-Light Duty) | $223.90/EA |
| – | TN4040249Replaces Tennant 222308 | 2 | Brush, Scb, Cyl, 32l, 18 Sr, Nyl, Spl (Soft Nylon) | $360.00/EA |
| – | TN4028635Replaces Tennant 374042 | 2 | Brush, Scb, Cyl, 32l, 18 Sr, Pyp (Medium Polypropylene) | $245.10/EA |
| – | TN4040248Replaces Tennant 222307 | 2 | Brush, Scb, Cyl, 32l, 18 Sr, Pyp Grout, Spl (Stiff Polypropylene) | $248.00/EA |
| – | TN4040250Replaces Tennant 222309 | 2 | Brush, Scb, Cyl, 32l, 18 Sr, Abr, Spl (Abrasive) | $533.90/EA |

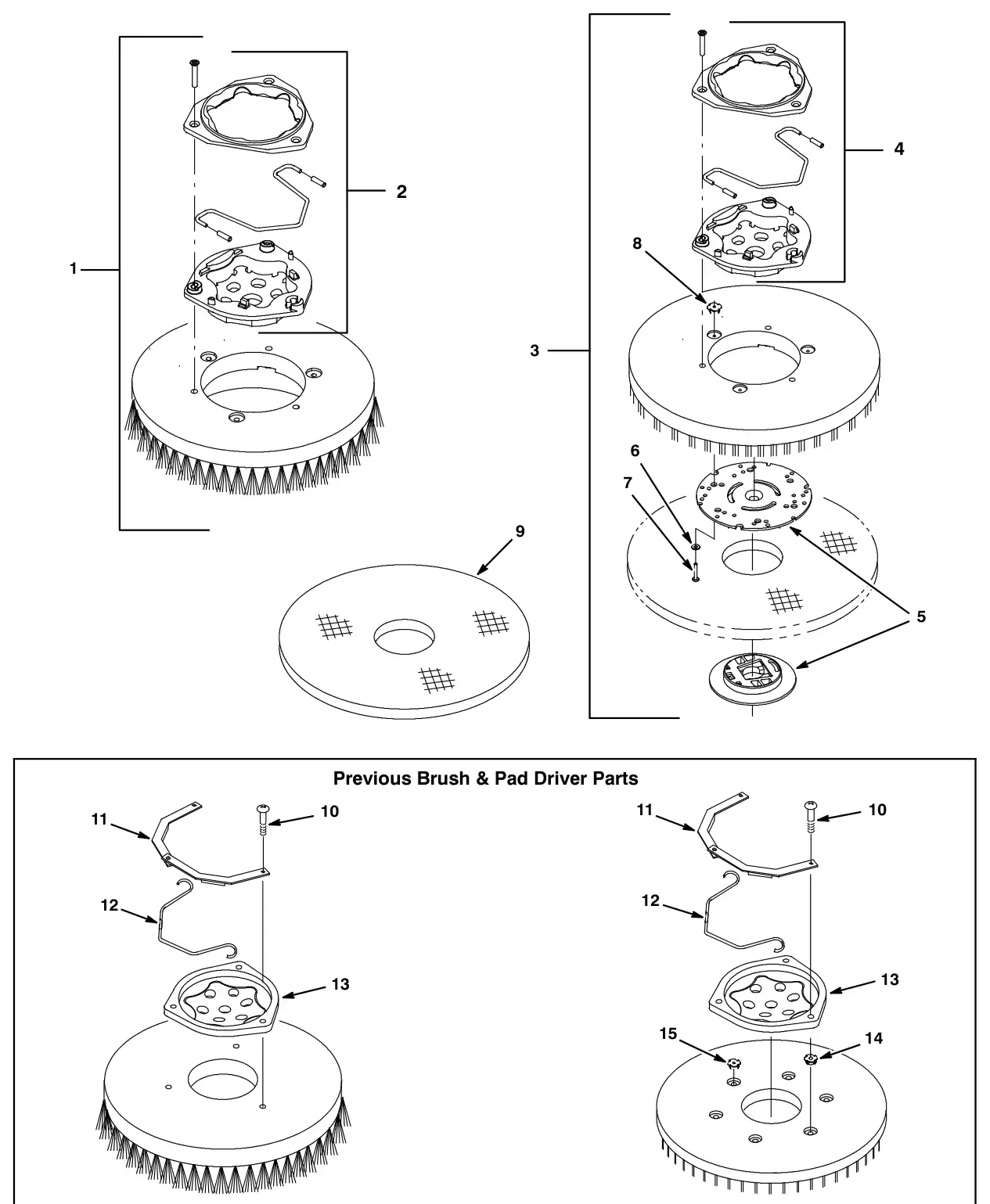

| – | TN4037166Replaces Tennant 1220203 | 2 | Brush Assy, Disk, Scb, 12.0d, Nyl (Soft Nylon) | $278.20/EA |
| – | TN4037167Replaces Tennant 1220204 | 2 | Brush Assy, Disk, Scb, 12.0d, Pyp (Med Polypropylene) | $239.70/EA |
| – | TN4037168Replaces Tennant 1220205 | 2 | Brush Assy, Disk, Scb, 12.0d, Sab (Super Abrasive) | $492.50/EA |
| – | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip-On, Teal, Gf Pp | $45.50/EA |
| – | TN4021337Replaces Tennant 385940 | 2 | Pad, Polish, 12.0d, White [1pad=1pc] (Polishing) | $16.10/EA |
| – | TN4021338Replaces Tennant 385941 | 2 | Pad, Buff, 12.0d, Red [1pad=1pc] (Light Scrub & Buff) | $16.10/EA |
| – | TN4021339Replaces Tennant 385942 | 2 | Pad, Scb, 12.0d, Blu [1pick = 1 Pad] (Blue) (Med Scrub) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021340Replaces Tennant 385943 | 2 | Pad, Stripping, 12.0d, Brown [1pad=1pc] (Scrub/Strip) | $16.10/EA |
| – | TN4040744Replaces Tennant 1051020 | 2 | Pad, Surf Prep, 12.0d [Mar, 1pick=1pad] (Maroon-Prep) | $19.30/EA |

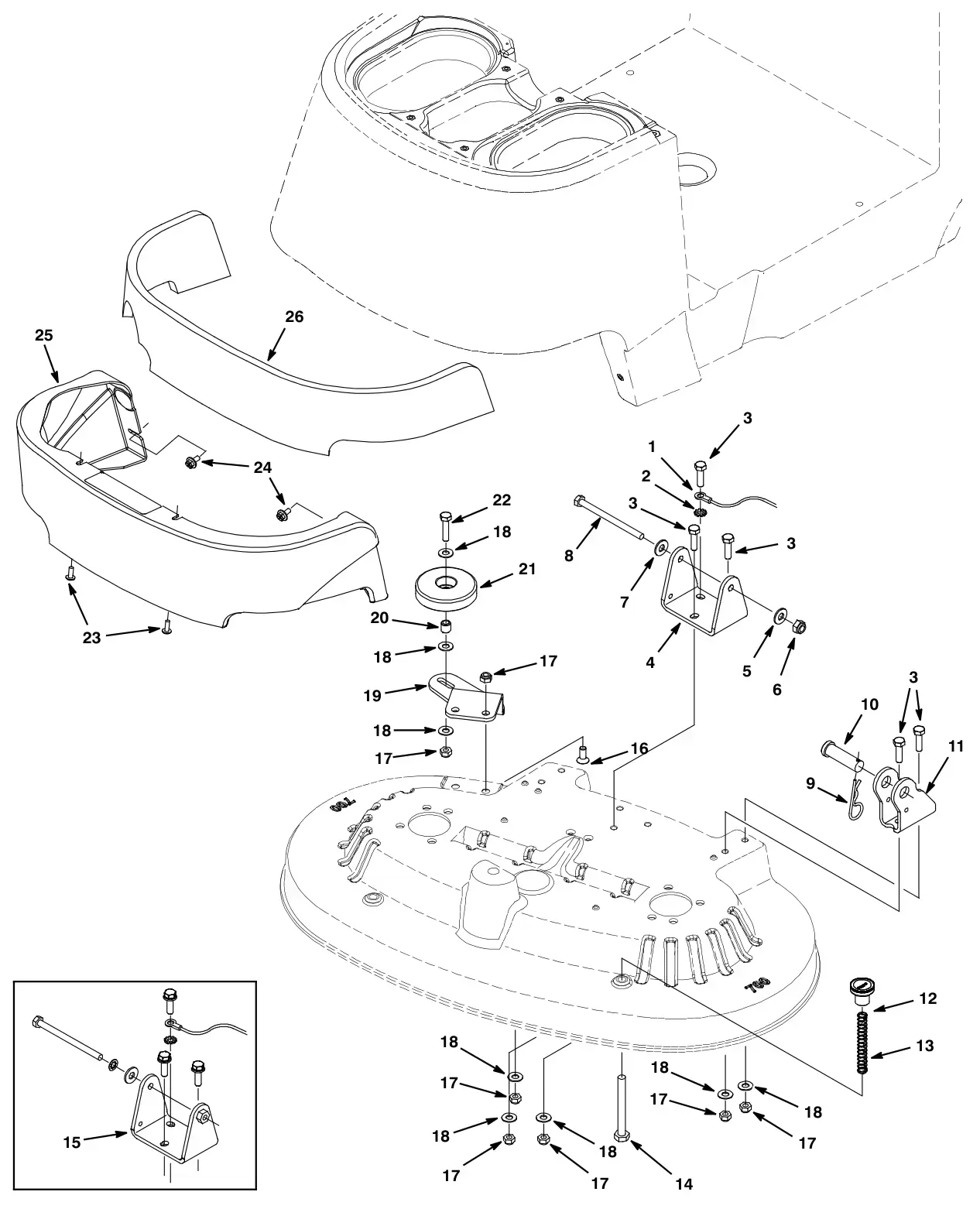

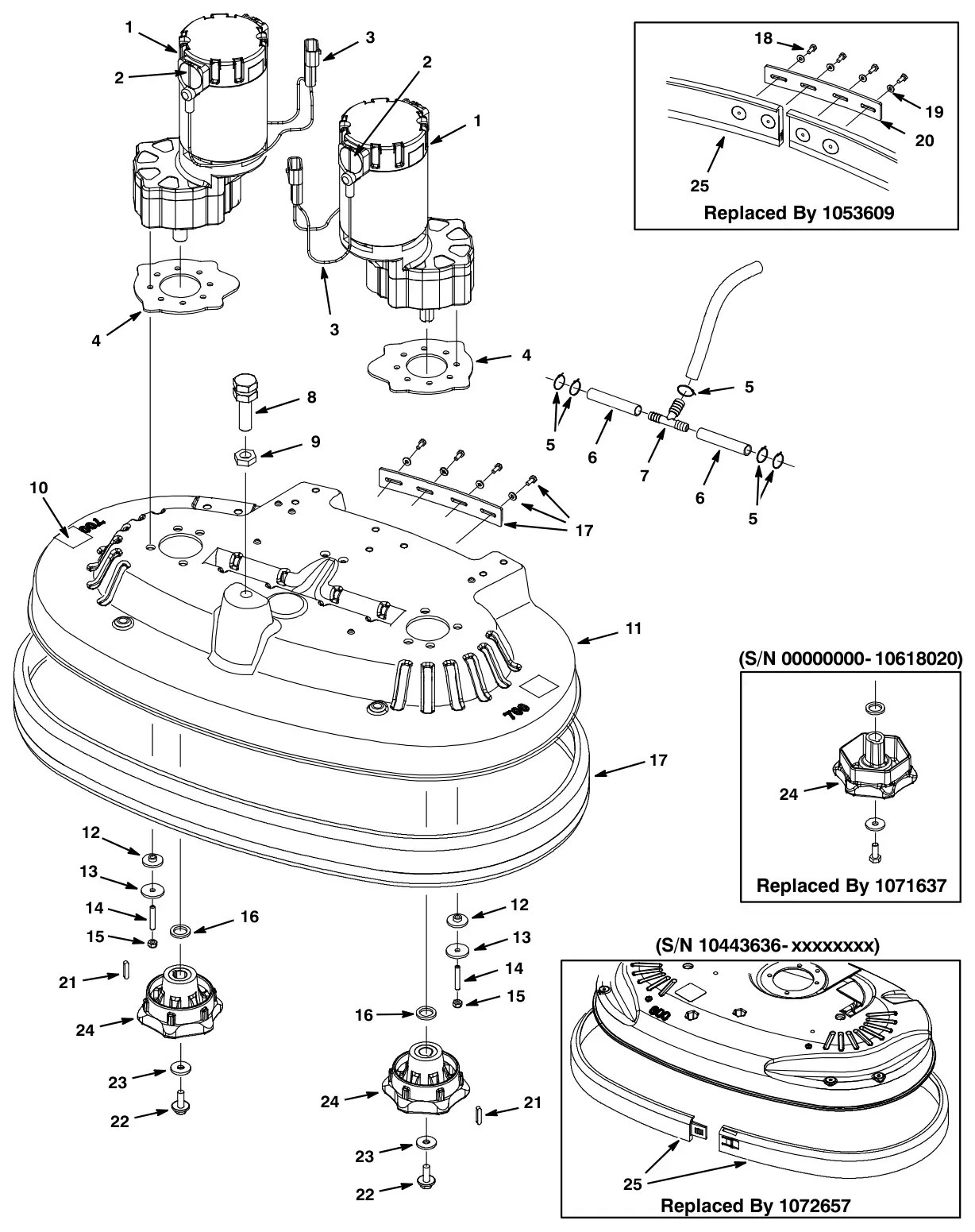

Tennant T5 disk 28 in (700 mm) model recommended maintenance items
Disk 28 in (700 mm) model recommended maintenance items from Tennant's parts list. Manual page 8.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4037454Replaces Tennant 1221541 | 2 | Brush Assy, Disk, Scb, 14.0d, Nyl (Soft Nylon) | $311.50/EA |
| – | TN4037173Replaces Tennant 1220218 | 2 | Brush Assy, Disk, Scb, 14.0d, Pyp (Med Polypropylene) | $260.00/EA |
| – | TN4037172Replaces Tennant 1220217 | 2 | Brush Assy, Disk, Scb, 14.0d, Sab (Super Abrasive) | $553.10/EA |
| – | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip-On, Teal, Gf Pp | $45.50/EA |
| – | TN4040257Replaces Tennant 222324 | 2 | Pad, Polish, 14.0d, White [1pad=1pc] (Polish) | $19.30/EA |
| – | TN4040258Replaces Tennant 222325 | 2 | Pad, Buff, 14.0d, Red (Light Scrub & Buff) | $19.30/EA |
| – | TN4040259Replaces Tennant 222326 | 2 | Pad, Scb, 14.0d, Blu [1pad=1pc] (Blue) (Med Scrub) | $19.30/EA |
| – | TN4040260Replaces Tennant 222327 | 2 | Pad, Stripping, 14.0d, Brown [1pad=1pc] (Scrub/Strip) | $19.30/EA |
| – | TN4040746Replaces Tennant 1051026 | 2 | Pad, Surf Prep, 14.0d [Mar, 1pick=1pad] (Maroon-Prep) | $21.30/EA |
| – | TN4037170Replaces Tennant 1220215 | 2 | Brush Assy, Disk, Scb, 16.0d, Nyl (Soft Nylon) | $401.30/EA |
| – | TN4037171Replaces Tennant 1220216 | 2 | Brush Assy, Disk, Scb, 16.0d, Pyp (Med Polypropylene) | $298.20/EA |
| – | TN4037169Replaces Tennant 1220214 | 2 | Brush Assy, Disk, Scb, 16.0d, Sab (Super Abrasive) | $553.10/EA |
| – | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip-On, Teal, Gf Pp | $45.50/EA |
| – | TN4021155Replaces Tennant 63248-4 | 2 | Pad, Polish, 16.0d, White [1pad=1pc] (Polish) | $22.00/EA |
| – | TN4021154Replaces Tennant 63248-3 | 2 | Pad, Buff, 16.0d, Red (Light Scrub & Buff) | $22.00/EA |
| – | TN4021153Replaces Tennant 63248-2 | 2 | Pad, Scb, 16.0d, Blu [1pad=1pc] (Blue) (Med Scrub) | $22.00/EA |
| – | TN4021152Replaces Tennant 63248-1 | 2 | Pad, Stripping, 16.0d, Brown [1pad=1pc] (Scrub/Strip) | $22.00/EA |
| – | TN4040747Replaces Tennant 1051027 | 2 | Pad, Surf Prep, 16.0d [Mar, 1pick=1pad] (Maroon-Prep) | $24.40/EA |

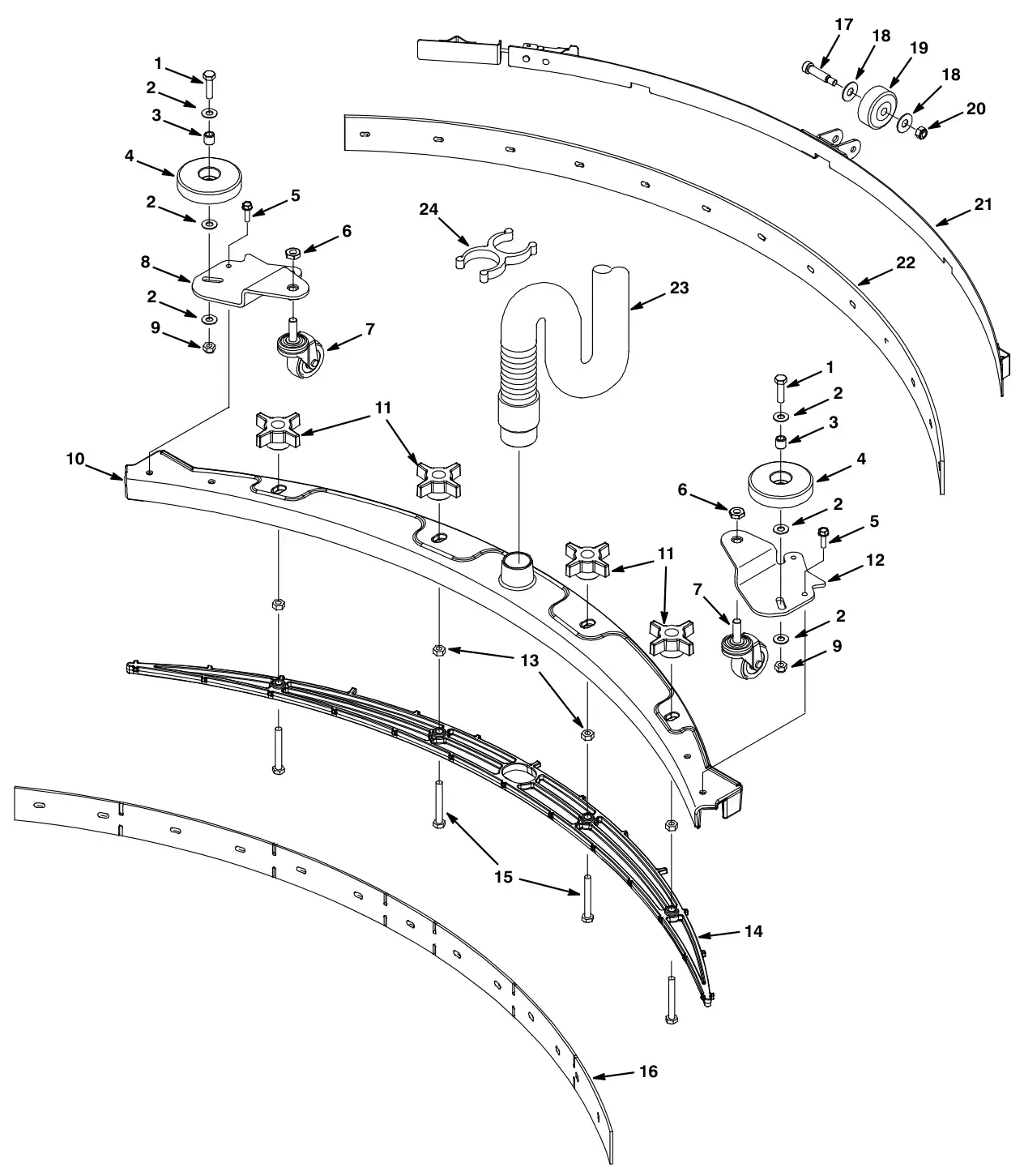

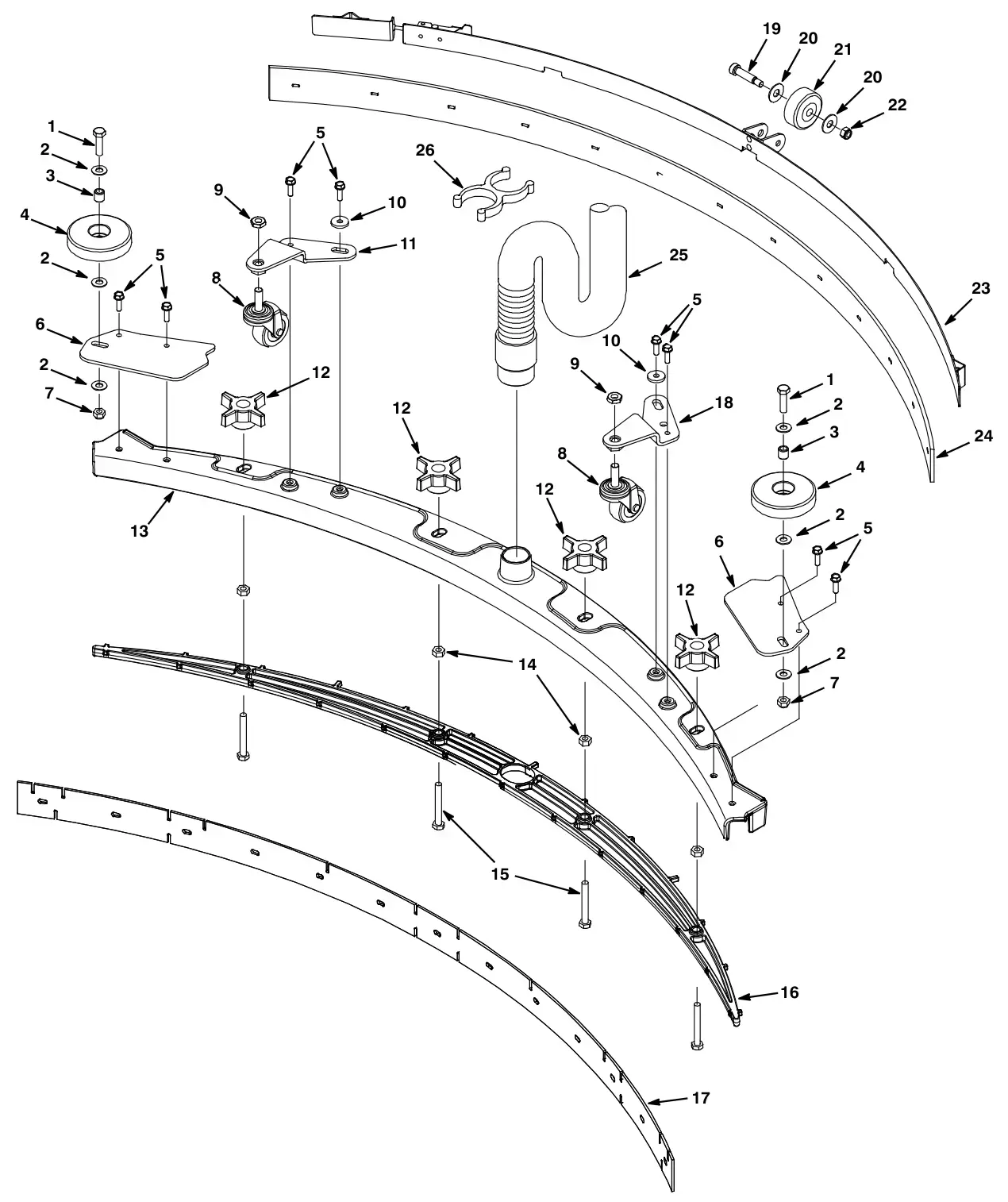

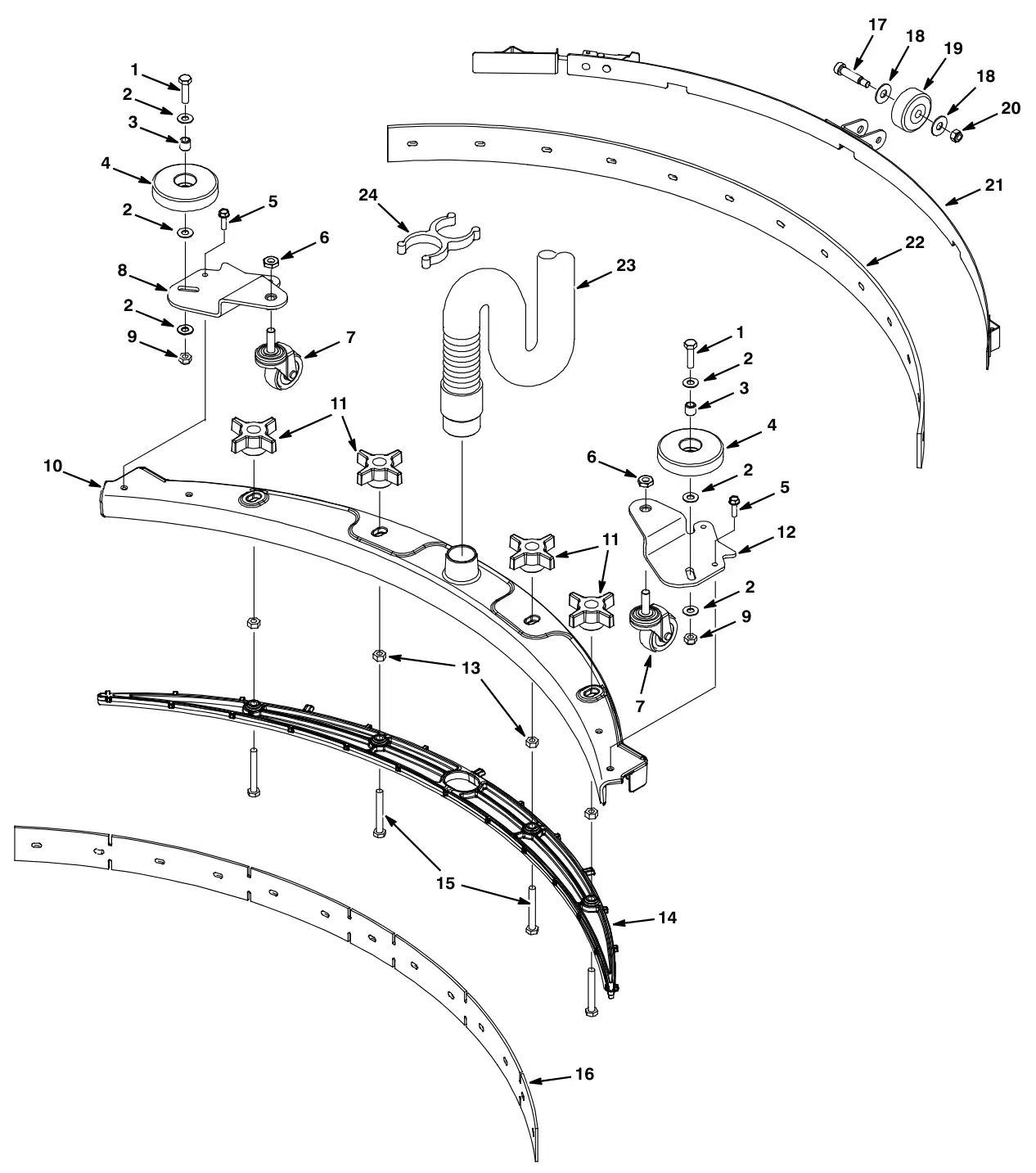

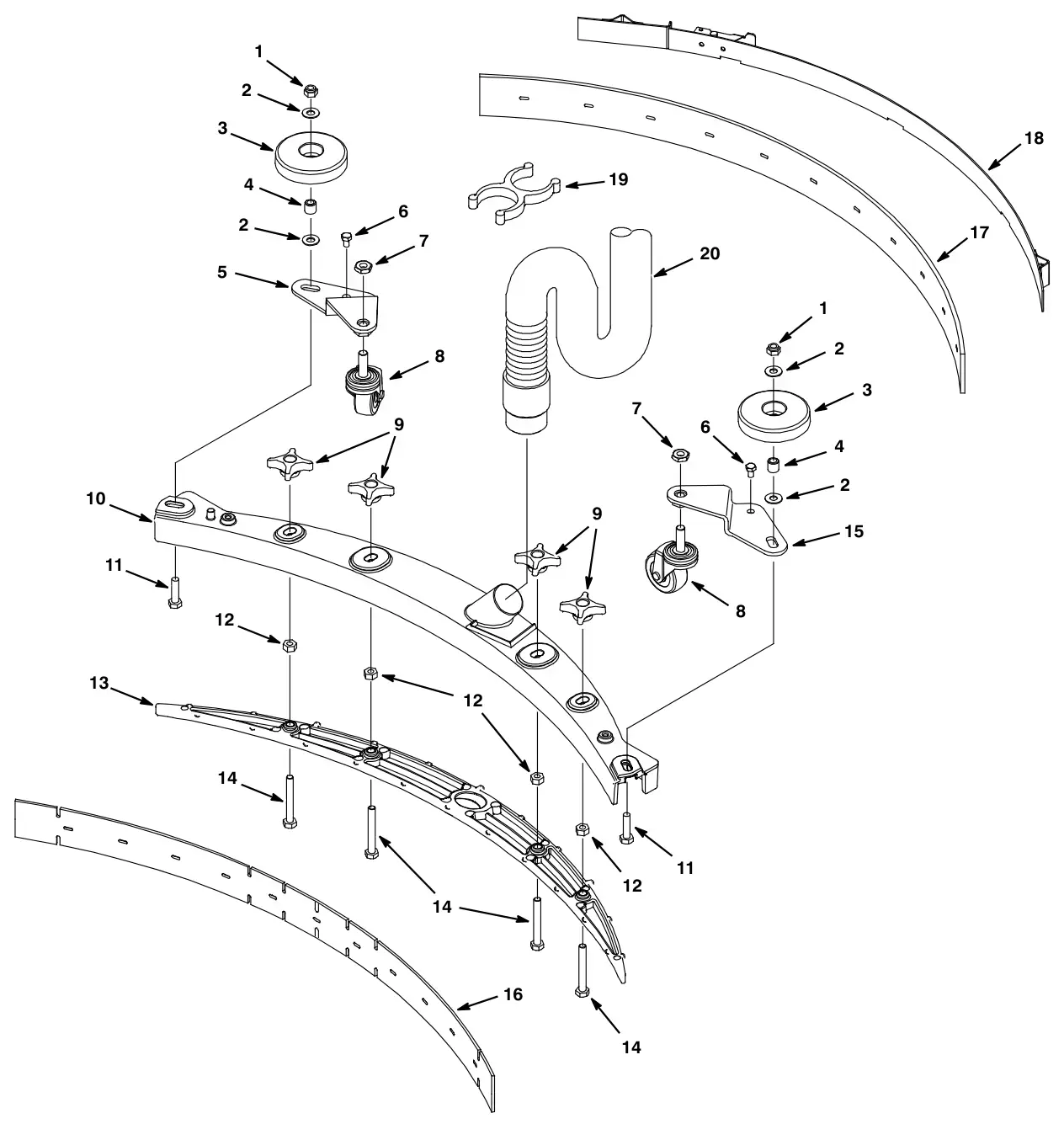

Tennant T5 squeegee group, 20 in (500 mm), recommended maintenance items
Squeegee group, 20 in (500 mm), recommended maintenance items from Tennant's parts list. Manual page 9.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019449Replaces Tennant 9001178 | 1 | Squeegee Assy Kit, 500mm, CiComplete assembly. | $437.30/EA |
| – | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $5.50/EA |
| – | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mmd, M10 X 30 Stem, PlPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $19.80/EA |
| – | TN4040368Replaces Tennant 1010558 | 4 | Knob, Star, 2.00d 4ear 0.7l M8x1.25 ThruPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $5.30/EA |
| – | TN4036811Replaces Tennant 1011232 | 1 | Blade, Sqge, Front, 500mml (Linatex Red Standard)Part of Squeegee Assy Kit, 500mm, Ci (9001178). | $20.16/EA |
| – | TN4037600Replaces Tennant 1014091 | 1 | Blade, Sqge, Front, 500mm, Gum (Gum Rubber Tan Optional) | $15.12/EA |
| – | TN4037601Replaces Tennant 1014092 | 1 | Blade, Sqge, Front, 500mml, Oil-Rstn (Polyurethane Natural Optional) | $59.50/EA |
| – | TN4036854Replaces Tennant 1011456 | 1 | Blade, Sqge, Rear, 500mm Linatex (Linatex Red Standard)Part of the assembly above. | $23.31/EA |
| – | TN4037602Replaces Tennant 1014093 | 1 | Blade, Sqge, Rear, 500mm Gum (Gum Rubber Tan Optional) | $17.48/EA |
| – | TN4037603Replaces Tennant 1014094 | 1 | Blade, Sqge, Rear, 500mm Oil-Rstn (Polyurethane Natural Optional) | $78.50/EA |
| – | TN4037580Replaces Tennant 1013933 | 1 | Strap Assy, Sqge, 500mmPart of the assembly above. | $185.90/EA |
| – | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
| – | TN4016429Replaces Tennant 9002679 | 1 | Kit, Squeegee, 600mm CiComplete assembly. | $575.70/EA |
| – | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Kit, Squeegee, 600mm Ci (9002679). | $5.50/EA |
| – | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mm D, M10 X 30 Stem,ZnPart of Kit, Squeegee, 600mm Ci (9002679). | $19.80/EA |
| – | TN4038491Replaces Tennant 1015911 | 4 | Knob, Star, 2.75d 4ear 1.1l M8x1.25 ThruPart of Kit, Squeegee, 600mm Ci (9002679). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4032848Replaces Tennant 1021804 | 1 | Blade, Sqge, Front, 88cml [Lnx, 60cm] (Linatex Red Standard)Part of Kit, Squeegee, 600mm Ci (9002679). | $28.25/EA |
| – | TN4033896Replaces Tennant 1025333 | 1 | Blade, Sqge, Front, 88cml, Gum [60cm] (Gum Rubber Tan Optional) | $21.18/EA |
| – | TN4033897Replaces Tennant 1025334 | 1 | Blade, Sqge, Front, 88cml, Ure [60cm] (Polyurethane Natural Optional) | $71.20/EA |
| – | TN4020804Replaces Tennant 630477 | 1 | Wheel, Pyu, 2.0d 0.38w, GrayPart of the assembly above. | $9.50/EA |
| – | TN4036639Replaces Tennant 1021333 | 1 | Blade, Sqge, Rear, 88cm,Linatex[60cm] (Linatex Red Standard)Part of the assembly above. | $38.75/EA |
| – | TN4033898Replaces Tennant 1025335 | 1 | Blade, Sqge, Rear, 88cml, Gum [60cm] (Gum Rubber Tan Optional) | $29.06/EA |
| – | TN4033899Replaces Tennant 1025336 | 1 | Blade, Sqge, Rear, 88cm, Ure [60cm] (Polyurethane Natural Optional) | $90.30/EA |
| – | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
Tennant T5 squeegee group, 26 in (650 mm) & 28 in (700 mm) parts
Squeegee group, 26 in (650 mm) & 28 in (700 mm) from Tennant's parts list. Manual page 10.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016430Replaces Tennant 9002680 | 1 | Kit, Squeegee, 700mm CiComplete assembly. | $640.34/EA |
| – | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Kit, Squeegee, 700mm Ci (9002680). | $5.50/EA |
| – | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mm D, M10 X 30 Stem,ZnPart of Kit, Squeegee, 700mm Ci (9002680). | $19.80/EA |
| – | TN4038491Replaces Tennant 1015911 | 4 | Knob, Star, 2.75d 4ear 1.1l M8x1.25 ThruPart of Kit, Squeegee, 700mm Ci (9002680). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4033248Replaces Tennant 1023327 | 1 | Blade, Sqge, Front, 98cml [Lnx, 70cm] (Linatex Red Standard)Part of Kit, Squeegee, 700mm Ci (9002680). | $32.66/EA |
| – | TN4033900Replaces Tennant 1025337 | 1 | Blade, Sqge, Front, 98cml, Gum [70cm] (Gum Rubber Tan Optional)Part of Kit, Squeegee, 700mm Ci (9002680). | $24.49/EA |
| – | TN4033901Replaces Tennant 1025339 | 1 | Blade, Sqge, Front, 98cml, Ure [70cm] (Polyurethane Natural Optional)Part of Kit, Squeegee, 700mm Ci (9002680). | $76.80/EA |
| – | TN4020804Replaces Tennant 630477 | 1 | Wheel, Pyu, 2.0d 0.38w, GrayPart of Kit, Squeegee, 700mm Ci (9002680). | $9.50/EA |
| – | TN4033249Replaces Tennant 1023329 | 1 | Blade, Sqge, Rear, 98cm,Linatex[70cm] (Linatex Red Standard)Part of Kit, Squeegee, 700mm Ci (9002680). | $45.57/EA |
| – | TN4033902Replaces Tennant 1025340 | 1 | Blade, Sqge, Rear, 98cml, Gum [70cm] (Gum Rubber Tan Optional) | $34.18/EA |
| – | TN4033903Replaces Tennant 1025341 | 1 | Blade, Sqge, Rear, 98cm, Ure [70cm] (Polyurethane Natural Optional) | $99.70/EA |
| – | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
| – | TN4016431Replaces Tennant 9002681 | 1 | Kit, Squeegee, 800mm CiComplete assembly. | $552.10/EA |
| – | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Kit, Squeegee, 800mm Ci (9002681). | $5.50/EA |
| – | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mm D, M10 X 30 Stem,ZnPart of Kit, Squeegee, 800mm Ci (9002681). | $19.80/EA |
| – | TN4038491Replaces Tennant 1015911 | 4 | Knob, Star, 2.75d 4ear 1.1l M8x1.25 ThruPart of Kit, Squeegee, 800mm Ci (9002681). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4033258Replaces Tennant 1023398 | 1 | Blade, Sqge, Front, 105cm [Linx 80cm] (Linatex Red Standard)Part of Kit, Squeegee, 800mm Ci (9002681). | $33.84/EA |
| – | TN4033904Replaces Tennant 1025342 | 1 | Blade, Sqge, Front, 105cml, Gum[80cm] (Gum Rubber Tan Optional) | $21.61/EA |
| – | TN4033905Replaces Tennant 1025343 | 1 | Blade, Sqge, Front, 105cm, Ure [80cm] (Polyurethane Natural Optional) | $74.74/EA |
| – | TN4020804Replaces Tennant 630477 | 1 | Wheel, Pyu, 2.0d 0.38w, GrayPart of the assembly above. | $9.50/EA |
| – | TN4033259Replaces Tennant 1023399 | 1 | Blade, Sqge, Rear, 105cml[Linx, 80cm] (Linatex Red Standard)Part of the assembly above. | $45.96/EA |
| – | TN4033906Replaces Tennant 1025344 | 1 | Blade, Sqge, Rear, 105cml, Gum [80cm] (Gum Rubber Tan Optional) | $25.65/EA |
| – | TN4033907Replaces Tennant 1025346 | 1 | Blade, Sqge, Rear, 105cml, Ure [80cm] (Polyurethane Natural Optional) | $101.81/EA |
| – | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
Tennant T5 replacement brushes, cylindrical parts
The parts Tennant numbers on its replacement brushes, cylindrical drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016562Replaces Tennant 399251 | 2 | Brush, Scb, 26l, 18 Sr, Nyl (Soft Nylon) | $261.20/EA |
| 1 | TN4016563Replaces Tennant 399252 | 2 | Brush, Scb, Cyl, 26.0l, Poly (Medium Polypropylene) | $218.00/EA |
| 1 | TN4016564Replaces Tennant 399253 | 2 | Brush, Scb, Cyl, 26.0l, Hd Poly (Stiff Polypropylene) | $218.00/EA |
| 1 | TN4016565Replaces Tennant 399254 | 2 | Brush, Scb, Cryl, 26.0l, Abr (Abrasive) | $446.30/EA |
| 1 | TN4034645Replaces Tennant 1060864 | 2 | Brush, Scb, 26l, 18sr, Abr, Spl (Abrasive-Light Duty) | $223.90/EA |
| 1 | TN4040249Replaces Tennant 222308 | 2 | Brush, Scb, 32l, 18 Sr, Nyl, Spl (Soft Nylon) | $360.00/EA |
| 1 | TN4028635Replaces Tennant 374042 | 2 | Brush, Scb, 32l, 18 Sr, Pyp, Spl (Medium Polypropylene) | $245.10/EA |
| 1 | TN4040248Replaces Tennant 222307 | 2 | Brush, Scb, 32l, 18 Sr, Pyp Grout, Spl (Stiff Polypropylene) | $248.00/EA |
| 1 | TN4040250Replaces Tennant 222309 | 2 | Brush, Scb, 32l, 18 Sr, Abr, Spl (Abrasive) | $533.90/EA |
| 1 | TN4034912Replaces Tennant 1062078 | 2 | Brush, Scb, 32l, 18sr, Abr, Spl (Abrasive-Light Duty) | $267.00/EA |
Tennant T5 replacement brushes and pad drivers parts
The parts Tennant numbers on its replacement brushes and pad drivers drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037166Replaces Tennant 1220203 | 2 | Brush Assy, Disk, Scb, 12.0d, Nyl (Soft Nylon)Complete assembly. | $278.20/EA |
| 1 | TN4037167Replaces Tennant 1220204 | 2 | Brush Assy, Disk, Scb, 12.0d, Pyp (Med Polypropylene)Complete assembly. | $239.70/EA |
| 1 | TN4037168Replaces Tennant 1220205 | 2 | Brush Assy, Disk, Scb, 12.0d, Sab (Super Abrasive)Complete assembly. | $492.50/EA |
| 1 | TN4037454Replaces Tennant 1221541 | 2 | Brush Assy, Disk, Scb, 14.0d, Nyl (Soft Nylon)Complete assembly. | $311.50/EA |
| 1 | TN4037173Replaces Tennant 1220218 | 2 | Brush Assy, Disk, Scb, 14.0d, Pyp (Med Polypropylene)Complete assembly. | $260.00/EA |
| 1 | TN4037172Replaces Tennant 1220217 | 2 | Brush Assy, Disk, Scb, 14.0d, Sab (Super Abrasive)Complete assembly. | $553.10/EA |
| 1 | TN4037170Replaces Tennant 1220215 | 2 | Brush Assy, Disk, Scb, 16.0d, Nyl (Soft Nylon)Complete assembly. | $401.30/EA |
| 1 | TN4037171Replaces Tennant 1220216 | 2 | Brush Assy, Disk, Scb, 16.0d, Pyp (Med Polypropylene)Complete assembly. | $298.20/EA |
| 1 | TN4037169Replaces Tennant 1220214 | 2 | Brush Assy, Disk, Scb, 16.0d, Sab (Super Abrasive)Complete assembly. | $553.10/EA |
| 2 | TN4022630Replaces Tennant 9014667 | 1 | Brush Kit, Hub Assy, Drive Ci [Comm]Part of Brush Assy, Disk, Scb, 16.0d, Sab (Super Abrasive) (1220214). | $65.10/EA |
| 3 | TN4037174Replaces Tennant 1220219 | 2 | Driver Assy, Pad, 12.0d, BrushComplete assembly. | $259.10/EA |
| 3 | TN4037176Replaces Tennant 1220221 | 2 | Driver Assy, Pad, 14.0d, BrushComplete assembly. | $357.30/EA |
| 3 | TN4037177Replaces Tennant 1220222 | 2 | Driver Assy, Pad, 16.0d, BrushComplete assembly. | $393.40/EA |
| 4 | TN4022630Replaces Tennant 9014667 | 2 | Brush Kit, Hub Assy, Drive Ci [Comm]Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $65.10/EA |
| 5 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip-On, Teal, Gf PpPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $45.50/EA |
| 6 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, #8, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $2.60/EA |
| 7 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, M4 X 0.7 X 25, Ss, NlPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $4.00/EA |
| 8 | TN4043114Replaces Tennant 10908 | 3 | Nut, T, M4 X 0.7Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $3.20/EA |
| 9 | TN4021337Replaces Tennant 385940 | 2 | Pad, Polish, 12.0d, White [1pad=1pc] (Polishing) | $16.10/EA |
| 9 | TN4021338Replaces Tennant 385941 | 2 | Pad, Buff, 12.0d, Red [1pad=1pc] (Light Scrub & Buff) | $16.10/EA |
| 9 | TN4021339Replaces Tennant 385942 | 2 | Pad, Scb, 12.0d, Blu [1pick = 1 Pad] (Blue) (Med Scrub) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4021340Replaces Tennant 385943 | 2 | Pad, Stripping, 12.0d, Brown [1pad=1pc] (Scrub/Strip) | $16.10/EA |
| 9 | TN4040744Replaces Tennant 1051020 | 2 | Pad, Surf Prep, 12.0d [Mar, 1pick=1pad] (Maroon-Prep) | $19.30/EA |
| 9 | TN4040257Replaces Tennant 222324 | 2 | Pad, Polish, 14.0d, White [1pad=1pc] (Polishing) | $19.30/EA |
| 9 | TN4040258Replaces Tennant 222325 | 2 | Pad, Buff, 14.0d, Red (Light Scrub & Buff) | $19.30/EA |
| 9 | TN4040259Replaces Tennant 222326 | 2 | Pad, Scb, 14.0d, Blu [1pad=1pc] (Blue) (Med Scrub) | $19.30/EA |
| 9 | TN4040260Replaces Tennant 222327 | 2 | Pad, Stripping, 14.0d, Brown [1pad=1pc] (Scrub/Strip) | $19.30/EA |
| 9 | TN4040746Replaces Tennant 1051026 | 2 | Pad, Surf Prep, 14.0d [Mar, 1pick=1pad] (Maroon-Prep) | $21.30/EA |
| 9 | TN4021155Replaces Tennant 63248-4 | 2 | Pad, Polish, 16.0d, White [1pad=1pc] (Polishing) | $22.00/EA |
| 9 | TN4021154Replaces Tennant 63248-3 | 2 | Pad, Buff, 16.0d, Red (Light Scrub & Buff) | $22.00/EA |
| 9 | TN4021153Replaces Tennant 63248-2 | 2 | Pad, Scb, 16.0d, Blu [1pad=1pc] (Blue) (Med Scrub) | $22.00/EA |
| 9 | TN4021152Replaces Tennant 63248-1 | 2 | Pad, Stripping, 16.0d, Brown [1pad=1pc] (Scrub/Strip) | $22.00/EA |
| 9 | TN4040747Replaces Tennant 1051027 | 2 | Pad, Surf Prep, 16.0d [Mar, 1pick=1pad] (Maroon-Prep) | $24.40/EA |
| 10 | TN4034481Replaces Tennant 32747 | 3 | Screw, Pan, M6 X 1.0 X 40, Ss | $4.00/EA |
| 11 | TN4039443Replaces Tennant 21852 | 2 | Bracket, Retainer, Spring | $18.60/EA |
| 12 | TN4039444Replaces Tennant 21853 | 1 | Spring, Wir, 0.16d, Brush Retaining (12” Brush) | $16.80/EA |
| 12 | TN4031013Replaces Tennant 1028905 | 1 | Spring, Wir, 0.16d, Brush Retaining,(14” & 16” Brush) | $14.10/EA |
| 13 | TN4035237Replaces Tennant 1017112 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bc | $12.60/EA |
| 14 | TN4040972Replaces Tennant 05709 | 3 | Nut, T, M6 X 1.00 | $3.20/EA |
| 15 | TN4043114Replaces Tennant 10908 | 3 | Nut, T, M4 X 0.7 | $3.20/EA |
| – | TN4037166Replaces Tennant 1025094 | 2 | Brush Assy, Disk, Scb, 11.90d, Nyl (Repld By 1220203) | $278.20/EA |
| – | TN4037167Replaces Tennant 1025095 | 2 | Brush Assy, Disk, Scb, 11.90d, Pyp (Repld By 1220204) | $239.70/EA |
| – | TN4037168Replaces Tennant 1025096 | 2 | Brush Assy, Disk, Scb, 11.9d, Sab (Repld By 1220205) | $492.50/EA |
| – | TN4037454Replaces Tennant 399246 | 2 | Brush, Disk, Scr, 13.90d, Assy, Nyl (Repld By 1221541) | $311.50/EA |
| – | TN4037173Replaces Tennant 399247 | 2 | Brush, Disk, Scr, 13.90d, Assy, Pyp (Repld By 1220218) | $260.00/EA |
| – | TN4037172Replaces Tennant 399245 | 2 | Brush, Disk, Scr, 13.90d, Assy, Sab (Repld By 1220217) | $553.10/EA |
| – | TN4037170Replaces Tennant 399243 | 2 | Brush, Disk, Scr, 15.9d, Assy, Nyl (Repld By 1220215) | $401.30/EA |
| – | TN4037171Replaces Tennant 399244 | 2 | Brush, Disk, Scr, 15.9d, Assy, Pyp (Repld By 1220216) | $298.20/EA |
| – | TN4037169Replaces Tennant 399242 | 2 | Brush, Disk, Scr, 15.9d, Assy, Sab (Repld By 1220214) | $553.10/EA |
| – | TN4037174Replaces Tennant 385944 | 2 | Driver Assy, Pad, 12.0d, Brush (Repld By 1220219) | $259.10/EA |
| – | TN4037176Replaces Tennant 399249 | 2 | Driver Assy, Pad, 14.0d, Brush (Repld By 1220221) | $357.30/EA |
| – | TN4037177Replaces Tennant 399250 | 2 | Driver Assy, Pad, 16.0d, Brush (Repld By 1220222) | $393.40/EA |
Tennant T5 replacement brushes and pad drivers (Japan) parts
The parts Tennant numbers on its replacement brushes and pad drivers (japan) drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037166Replaces Tennant 1220203 | 2 | Brush Assy, Disk, Scb, 12.0d, Nyl (Soft Nylon)Complete assembly. | $278.20/EA |
| 1 | TN4037167Replaces Tennant 1220204 | 2 | Brush Assy, Disk, Scb, 12.0d, Pyp (Med Polypropylene)Complete assembly. | $239.70/EA |
| 1 | TN4037168Replaces Tennant 1220205 | 2 | Brush Assy, Disk, Scb, 12.0d, Sab (Super Abrasive)Complete assembly. | $492.50/EA |
| 1 | TN4037454Replaces Tennant 1221541 | 2 | Brush Assy, Disk, Scb, 14.0d, Nyl (Soft Nylon)Complete assembly. | $311.50/EA |
| 1 | TN4037173Replaces Tennant 1220218 | 2 | Brush Assy, Disk, Scb, 14.0d, Pyp (Med Polypropylene)Complete assembly. | $260.00/EA |
| 1 | TN4037172Replaces Tennant 1220217 | 2 | Brush Assy, Disk, Scb, 14.0d, Sab (Super Abrasive)Complete assembly. | $553.10/EA |
| 1 | TN4037170Replaces Tennant 1220215 | 2 | Brush Assy, Disk, Scb, 16.0d, Nyl (Soft Nylon)Complete assembly. | $401.30/EA |
| 1 | TN4037171Replaces Tennant 1220216 | 2 | Brush Assy, Disk, Scb, 16.0d, Pyp (Med Polypropylene)Complete assembly. | $298.20/EA |
| 1 | TN4037169Replaces Tennant 1220214 | 2 | Brush Assy, Disk, Scb, 16.0d, Sab (Super Abrasive)Complete assembly. | $553.10/EA |
| 2 | TN4022630Replaces Tennant 9014667 | 1 | Brush Kit, Hub Assy, Drive Ci [Comm]Part of Brush Assy, Disk, Scb, 16.0d, Sab (Super Abrasive) (1220214). | $65.10/EA |
| 3 | TN4037174Replaces Tennant 1220219 | 2 | Driver Assy, Pad, 12.0d, BrushComplete assembly. | $259.10/EA |
| 3 | TN4037176Replaces Tennant 1220221 | 2 | Driver Assy, Pad, 14.0d, BrushComplete assembly. | $357.30/EA |
| 3 | TN4037177Replaces Tennant 1220222 | 2 | Driver Assy, Pad, 16.0d, BrushComplete assembly. | $393.40/EA |
| 4 | TN4022630Replaces Tennant 9014667 | 2 | Brush Kit, Hub Assy, Drive Ci [Comm]Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $65.10/EA |
| 5 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip-On, Teal, Gf PpPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $45.50/EA |
| 6 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, #8, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $2.60/EA |
| 7 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, M4 X 0.7 X 25, Ss, NlPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $4.00/EA |
| 8 | TN4043114Replaces Tennant 10908 | 3 | Nut, T, M4 X 0.7Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $3.20/EA |
| 9 | TN989977Tennant 989977 | 2 | Pad, 12.00, Sapphire [5pc] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989813Tennant 989813 | 2 | Pad, Stripping, 12inch, Blk [5pc] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989973Tennant 989973 | 2 | Pad, 12.0, Brown [5pc] (Scrub & Strip) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989974Tennant 989974 | 2 | Pad, 12.0, Blu [5pc] (Blue) (Med Scrub) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989975Tennant 989975 | 2 | Pad, 12.0, Red [5pc] (Light Scrub & Buff) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989909Tennant 989909 | 2 | Jumbo Tan 12” | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989980Tennant 989980 | 2 | Pad, 12.0, White [5pc] (Polish) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630660Tennant 630660 | 2 | Pad, 14.0 [Sapphire, Case Of 5] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630653Tennant 630653 | 2 | Pad, 14.0, Brown [Case Of 5] (Scrub & Strip) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630654Tennant 630654 | 2 | Pad, 14.0, Blu [Case Of 5] (Blue) (Med Scrubbing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630655Tennant 630655 | 2 | Pad, 14.0, Red [Case Of 5] (Light Scrub & Buff) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989806Tennant 989806 | 2 | Jumbo Tan 14” | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989981Tennant 989981 | 2 | Pad, 14.0, White [5pc] (Polish) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630642Tennant 630642 | 2 | Pad, Stripping, 16.0[Sapphire,Case Of 5] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989814Tennant 989814 | 2 | Pad, Stripping, 16inch, Blk | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630643Tennant 630643 | 2 | Pad, 16.0, Brown [Case Of 5] (Scrub & Strip) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630644Tennant 630644 | 2 | Pad, 16.0, Blu [Case Of 5] (Blue) (Med Scrub) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN630645Tennant 630645 | 2 | Pad, 16.0, Red [Case Of 5] (Light Scrub & Buff) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989807Tennant 989807 | 2 | Jumbo Tan 16” | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN989907Tennant 989907 | 2 | Pad, 16.0, White [5pc] (Polishing) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4034481Replaces Tennant 32747 | 3 | Screw, Pan, M6 X 1.0 X 40, Ss | $4.00/EA |
| 11 | TN4039443Replaces Tennant 21852 | 2 | Bracket, Retainer, Spring | $18.60/EA |
| 12 | TN4039444Replaces Tennant 21853 | 1 | Spring, Wir, 0.16d, Brush Retaining (12” Brush) | $16.80/EA |
| 12 | TN4031013Replaces Tennant 1028905 | 1 | Spring, Wir, 0.16d, Brush Retaining (14” & 16” Brush) | $14.10/EA |
| 13 | TN4035237Replaces Tennant 1017112 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bc | $12.60/EA |
| 14 | TN4040972Replaces Tennant 05709 | 3 | Nut, T, M6 X 1.00 | $3.20/EA |
| 15 | TN4043114Replaces Tennant 10908 | 3 | Nut, T, M4 X 0.7 | $3.20/EA |
| – | TN4037166Replaces Tennant 1025094 | 2 | Brush Assy, Disk, Scb, 11.90d, Nyl (Repld By 1220203) | $278.20/EA |
| – | TN4037167Replaces Tennant 1025095 | 2 | Brush Assy, Disk, Scb, 11.90d, Pyp (Repld By 1220204) | $239.70/EA |
| – | TN4037168Replaces Tennant 1025096 | 2 | Brush Assy, Disk, Scb, 11.90d, Sab (Repld By 1220205) | $492.50/EA |
| – | TN4037454Replaces Tennant 399246 | 2 | Brush, Disk, Scr, 13.90d, Assy, Nyl (Repld By 1221541) | $311.50/EA |
| – | TN4037173Replaces Tennant 399247 | 2 | Brush, Disk, Scr, 13.90d, Assy, Pyp (Repld By 1220218) | $260.00/EA |
| – | TN4037172Replaces Tennant 399245 | 2 | Brush, Disk, Scr, 13.90d, Assy, Sab (Repld By 1220217) | $553.10/EA |
| – | TN4037170Replaces Tennant 399243 | 2 | Brush, Disk, Scr, 15.9d, Assy, Nyl (Repld By 1220215) | $401.30/EA |
| – | TN4037171Replaces Tennant 399244 | 2 | Brush, Disk, Scr, 15.9d, Assy, Pyp (Repld By 1220216) | $298.20/EA |
| – | TN4037169Replaces Tennant 399242 | 2 | Brush, Disk, Scr, 15.9d, Assy, Sab (Repld By 1220214) | $553.10/EA |
| – | TN4037174Replaces Tennant 385944 | 2 | Driver Assy, Pad, 12.0d, Brush (Repld By 1220219) | $259.10/EA |
| – | TN4037176Replaces Tennant 399249 | 2 | Driver Assy, Pad, 14.0d, Brush (Repld By 1220221) | $357.30/EA |
| – | TN4037177Replaces Tennant 399250 | 2 | Driver Assy, Pad, 16.0d, Brush (Repld By 1220222) | $393.40/EA |

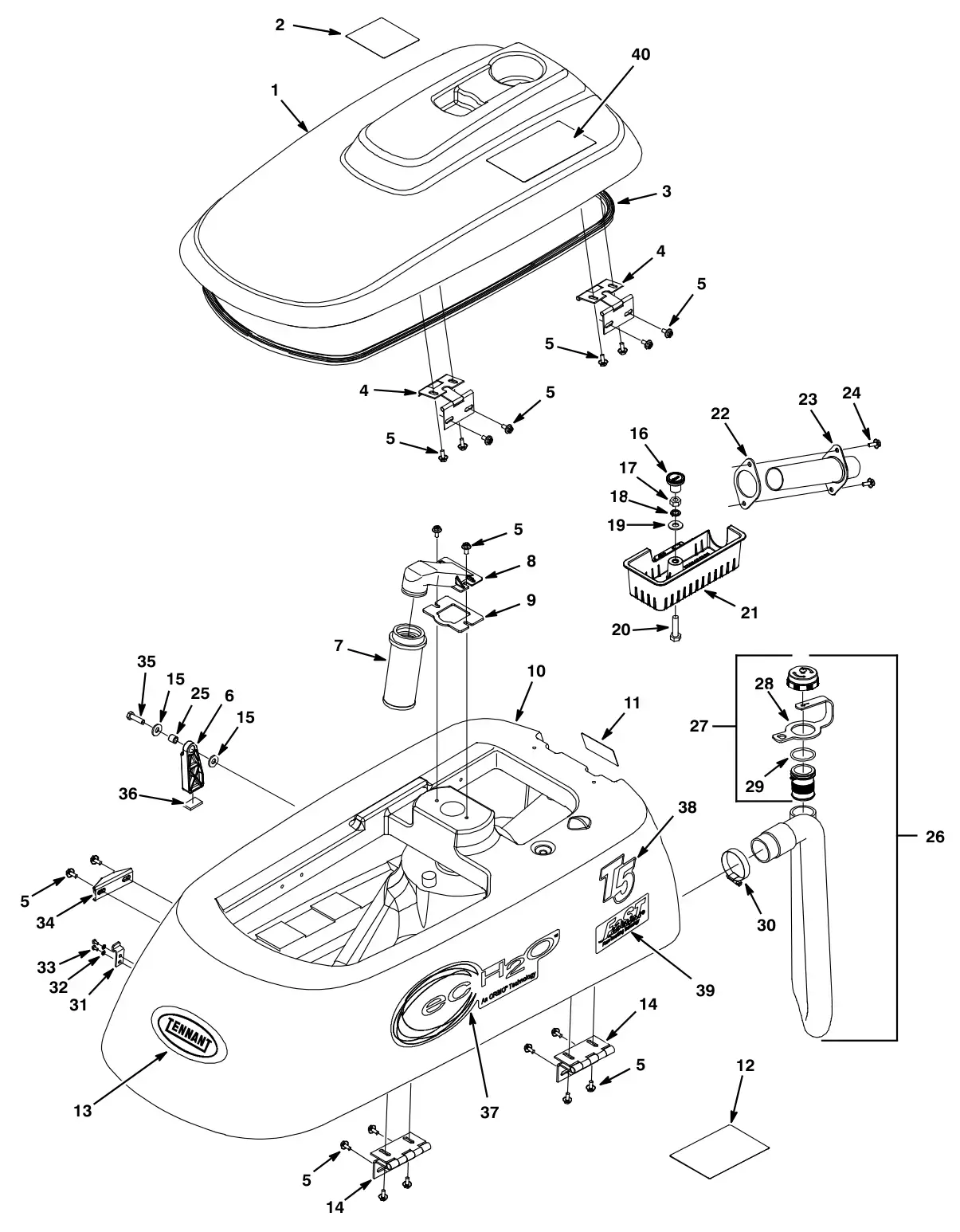

Tennant T5 recovery tank group parts
The parts Tennant numbers on its recovery tank group drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016170Replaces Tennant 9002563 | 1 | Kit, Cover, Recovery Tank (Na)Complete assembly. | $525.30/EA |
| 2 | TN4034255Replaces Tennant 1026387 | 1 | Label, Warn,4x4dc Scrb/Extr/Brn En/Fr/EsPart of Kit, Cover, Recovery Tank (Na) (9002563). | $11.10/EA |
| 3 | TN4041653Replaces Tennant 1042937 | 1 | Gasket, Snap-In, Dual-Durometer [T5]Part of Kit, Cover, Recovery Tank (Na) (9002563). | $76.80/EA |
| 4 | TN4036633Replaces Tennant 1021246 | 2 | Hinge, 6.0 Pin, 2.5 Thk,73.5 W, 3 Leaf | $32.30/EA |
| 5 | TN4045268Replaces Tennant 1034731 | 20 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 6 | TN4032930Replaces Tennant 1022399 | 1 | Support, Tank, Prop, Blk, Ny | $5.60/EA |
| 7 | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75d | $76.00/EA |
| 8 | TN4036905Replaces Tennant 1011777 | 1 | Mount, Float, Molded | $32.00/EA |
| 9 | TN4037554Replaces Tennant 1013628 | 1 | Gasket, Mtg, Float | $4.30/EA |
| 10 | TN4016171Replaces Tennant 9002564 | 1 | Kit, Tank, Recovery (Teal)Complete assembly. | $1,084.40/EA |
| 10 | TN4016436Replaces Tennant 9002714 | 1 | Kit, Tank, Recovery Hg (Gray)Complete assembly. | $751.10/EA |
| 11 | TN4019319Replaces Tennant 391451 | 1 | Label, Attention Fast Users (Fast Model)Part of Kit, Tank, Recovery Hg (Gray) (9002714). | $15.90/EA |
| 11 | TN4040474Replaces Tennant 1050003 | 1 | Label, User, Attention, Ec-H2o (ec-H2O Model)Part of Kit, Tank, Recovery Hg (Gray) (9002714). Serial 10378380 and later. | $4.34/EA |
| 12 | TN4033846Replaces Tennant 1024800 | 1 | Label, Instr, BatteryPart of Kit, Tank, Recovery Hg (Gray) (9002714). | $23.70/EA |
| 13 | TN4039651Replaces Tennant 1047746 | 1 | Label, Logo, 06.9l, White, [Tennant] (Teal)Part of Kit, Tank, Recovery Hg (Gray) (9002714). | $11.10/EA |
| 13 | TN4039652Replaces Tennant 1047747 | 1 | Label, Logo, 06.9l, White, Hg, [Tennant] (Gray)Part of Kit, Tank, Recovery Hg (Gray) (9002714). | $58.00/EA |
| 14 | TN4032929Replaces Tennant 1022380 | 2 | Hinge, 7mmpin 3mmthk 73.5mmw 100mml | $18.30/EA |
| 15 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 16 | TN4033581Replaces Tennant 1024179 | 1 | Knob, Knurled, M10 Thread | $11.80/EA |
| 17 | TN4041601Replaces Tennant 07787 | 1 | Nut, Hex, Std, M10 X 1.5, Ss | $4.00/EA |
| 18 | TN4043855Replaces Tennant 140333 | 1 | Washer M10 Spltlck Ss | $3.50/EA |
| 19 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 20 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10 X 1.5 X 40, Ss, Fl | $6.00/EA |
| 21 | TN4033908Replaces Tennant 1025349 | 1 | Tray, Debris | $20.80/EA |
| 22 | TN4033830Replaces Tennant 1024602 | 1 | Gasket, Adaptor, Hose | $3.50/EA |
| 23 | TN4036632Replaces Tennant 1021214 | 1 | Tube, Hose, Adapter, 1.5d | $9.90/EA |
| 24 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 25 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ss | $3.40/EA |
| 26 | TN4041688Replaces Tennant 1043538 | 1 | Hose Assy, Drain, 1.50id X 29.5l, BlkComplete assembly. | $103.20/EA |
| 27 | TN4039939Replaces Tennant 1008639 | 1 | Cap, Drain AssyComplete assembly. Part of Hose Assy, Drain, 1.50id X 29.5l, Blk (1043538). | $20.20/EA |
| 28 | TN4039939Replaces Tennant 1019563 | 1 | Strap, Drain CapPart of Cap, Drain Assy (1008639). | $20.20/EA |
| 29 | TN4039938Replaces Tennant 1008637 | 1 | O Ring, 1.48” Id, 1.76” OdPart of Cap, Drain Assy (1008639). | $12.10/EA |
| 30 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 31 | TN4014177Replaces Tennant 49800 | 1 | Latch | $40.40/EA |
| 32 | TN4043241Replaces Tennant 02938 | 2 | Washer, Lock, Int, 08 Ss | $2.60/EA |
| 33 | TN4019310Replaces Tennant 391403 | 2 | Screw, Pan, M4 X 0.7 X 8, Ss | $2.50/EA |
| 34 | TN4034723Replaces Tennant 1061143 | 1 | Bracket, Guide, Recvy Tank, [T5, Ss5] | $12.30/EA |
| 35 | TN4044008Replaces Tennant 1039118 | 1 | Screw, Btn, M8 X 1.25 X 30, Blk | $1.50/EA |
| 36 | TN4044726Replaces Tennant 1032763 | 1 | Gasket, Stand, Support | $4.30/EA |
| 37 | TN4040192Replaces Tennant 1216520 | 2 | Label, Logo [Ech2o Nano]Serial 10742213 and later. | $32.70/EA |
| 37 | TN4035178Replaces Tennant 1062813 | 2 | Label, Logo, 12.3l 4color [Ec-H2o]Serial up to 10742212. | $36.60/EA |
| 38 | TN4033843Replaces Tennant 1024779 | 2 | Label, Side [T5] | $14.50/EA |
| 39 | TN4035179Replaces Tennant 1062814 | 2 | Label, Logo, 06.1l White / Tl [Fast] | $15.55/EA |
| 40 | TN4040503Replaces Tennant 1217056 | 1 | Label, Instr [Ec-H20 Nc]Serial 10742213 and later. | $125.80/EA |
| 40 | TN4030701Replaces Tennant 1071570 | 1 | Label, Instr, Ec-H2o, 4.0x6.50Serial up to 10742212. | $22.80/EA |
Tennant T5 recovery tank group (Japan) parts
The parts Tennant numbers on its recovery tank group (japan) drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016488Replaces Tennant 9003133 | 1 | Cover Assy, Tank, Recvy [Japan]Complete assembly. | $113.12/EA |
| 2 | TN4035169Replaces Tennant 1016753 | 1 | Label, Warning, 4 X 3, Tj [Dcwb]Part of Cover Assy, Tank, Recvy [Japan] (9003133). | $55.60/EA |
| 3 | TN4041653Replaces Tennant 1042937 | 1 | Gasket, Snap-In, Dual-Durometer [T5]Part of Cover Assy, Tank, Recvy [Japan] (9003133). | $76.80/EA |
| 4 | TN4036633Replaces Tennant 1021246 | 2 | Hinge, 6.0 Pin, 2.5 Thk,73.5 W, 3 Leaf | $32.30/EA |
| 5 | TN4045268Replaces Tennant 1034731 | 20 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 6 | TN4032930Replaces Tennant 1022399 | 1 | Support, Tank, Prop, Blk, Ny | $5.60/EA |
| 7 | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75d | $76.00/EA |
| 8 | TN4036905Replaces Tennant 1011777 | 1 | Mount, Float, Molded | $32.00/EA |
| 9 | TN4037554Replaces Tennant 1013628 | 1 | Gasket, Mtg, Float | $4.30/EA |
| 10 | TN4016171Replaces Tennant 9002564 | 1 | Kit, Tank, Recovery (Teal)Complete assembly. | $1,084.40/EA |
| 11 | TN4019319Replaces Tennant 391451 | 1 | Label, Attention Fast Users (Fast Model)Part of Kit, Tank, Recovery (Teal) (9002564). | $15.90/EA |
| 11 | TN4040474Replaces Tennant 1050003 | 1 | Label, User, Attention, Ec-H2o (ec-H2O Model)Part of Kit, Tank, Recovery (Teal) (9002564). Serial 10378380 and later. | $4.34/EA |
| 12 | TN4033846Replaces Tennant 1024800 | 1 | Label, Instr, BatteryPart of Kit, Tank, Recovery (Teal) (9002564). | $23.70/EA |
| 13 | TN4039651Replaces Tennant 1047746 | 1 | Label, Logo, 06.9l, White, [Tennant] (Teal)Part of Kit, Tank, Recovery (Teal) (9002564). | $11.10/EA |
| 14 | TN4032929Replaces Tennant 1022380 | 2 | Hinge, 7mmpin 3mmthk 73.5mmw 100mml | $18.30/EA |
| 15 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 16 | TN4033581Replaces Tennant 1024179 | 1 | Knob, Knurled, M10 Thread | $11.80/EA |
| 17 | TN4041601Replaces Tennant 07787 | 1 | Nut, Hex, Std, M10 X 1.5, Ss | $4.00/EA |
| 18 | TN4043855Replaces Tennant 140333 | 1 | Washer M10 Spltlck Ss | $3.50/EA |
| 19 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 20 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10 X 1.5 X 40, Ss, Fl | $6.00/EA |
| 21 | TN4033908Replaces Tennant 1025349 | 1 | Tray, Debris | $20.80/EA |
| 22 | TN4033830Replaces Tennant 1024602 | 1 | Gasket, Adaptor, Hose | $3.50/EA |
| 23 | TN4036632Replaces Tennant 1021214 | 1 | Tube, Hose, Adapter, 1.5d | $9.90/EA |
| 24 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 25 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ss | $3.40/EA |
| 26 | TN4020670Replaces Tennant 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/HandleSerial 10581737 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | TN4040776Replaces Tennant 1051504 | 1 | Strap, Hose, DrainSerial 10581737 and later. | $2.50/EA |
| 28 | TN4040774Replaces Tennant 1051438 | 1 | Hose, Drain, 1.50id X 19.3l, BlkSerial 10581737 and later. | $64.30/EA |
| 29 | TN4043377Replaces Tennant 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wSerial 10581737 and later. | $5.30/EA |
| 30 | TN4033843Replaces Tennant 1024779 | 2 | Label, Side [T5] | $14.50/EA |
| 31 | TN4014177Replaces Tennant 49800 | 1 | Latch | $40.40/EA |
| 32 | TN4043241Replaces Tennant 02938 | 2 | Washer, Lock, Int, 08 Ss | $2.60/EA |
| 33 | TN4019310Replaces Tennant 391403 | 2 | Screw, Pan, M4 X 0.7 X 8, Ss | $2.50/EA |
| 34 | TN4034723Replaces Tennant 1061143 | 1 | Bracket, Guide, Recvy Tank, [T5, Ss5] | $12.30/EA |
| 35 | TN4044008Replaces Tennant 1039118 | 1 | Screw, Btn, M8 X 1.25 X 30, Blk | $1.50/EA |
| 36 | TN4044726Replaces Tennant 1032763 | 1 | Gasket, Stand, Support | $4.30/EA |
| 37 | TN4040192Replaces Tennant 1216520 | 2 | Label, Logo [Ech2o Nano]Serial 10742213 and later. | $32.70/EA |
| 37 | TN4035178Replaces Tennant 1062813 | 2 | Label, Logo, 12.3l 4color [Ec-H2o]Serial up to 10742212. | $36.60/EA |
| 38 | TN4035179Replaces Tennant 1062814 | 2 | Label, Logo, 06.1l White / Tl [Fast] | $15.55/EA |
Tennant T5 vacuum motor group parts
The parts Tennant numbers on its vacuum motor group drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038294Replaces Tennant 1015412 | 3 | Rod, Thrd, Full, M06 X 1.0 05.5l | $4.00/EA |
| 2 | TN4032933Replaces Tennant 1022406 | 3 | Tube, 0.43d 0.28b 04.2l, Stl, Pl | $18.20/EA |
| 3 | TN4041599Replaces Tennant 07785 | 6 | Nut, Hex, Std, M6 X 1.0, A2, SsSerial up to 10358064. | $2.50/EA |
| 4 | TN4041590Replaces Tennant 07515 | 6 | Washer, Lock, Int, 0.25 SsSerial up to 10358064. | $3.50/EA |
| 5 | TN4042901Replaces Tennant 01684 | 9 | Washer, Flat, 0.25 SsSerial up to 10358064. | $2.60/EA |
| 6 | TN4016169Replaces Tennant 9002562 | 1 | Kit, Motor, VacComplete assembly. | $478.50/EA |
| 7 | TN4044514Replaces Tennant 1073334 | 1 | Brush, Carbon, Motor, Ele [1pick=1pkg] (1Pkg = 2 Brushes)Part of Motor Kit, Vacuum [T5] (9002562). | $35.80/EA |
| 8 | TN4043328Replaces Tennant 130487 | 1 | Housing, Motor, Fan, VentPart of Motor Kit, Vacuum [T5] (9002562). | $25.50/EA |
| 9 | TN4042297Replaces Tennant 100038 | 1 | Gasket, Vacuum Mtr 5.7 Epdm W/PsaPart of Motor Kit, Vacuum [T5] (9002562). | $10.00/EA |
| 10 | TN4040545Replaces Tennant 1011093 | 3 | Isolator, Vib, .75d, M6 Stud Both EndsSerial up to 10519188. | $13.10/EA |
| 11 | TN4036442Replaces Tennant 30406 | 3 | Clip, Keeper | $3.40/EA |
| 12 | TN4041928Replaces Tennant 08712 | 3 | Nut, Hex, Lock, M6 X 1.0, Ss, NlSerial up to 10358064. | $2.50/EA |
| 13 | TN4016172Replaces Tennant 9002565 | 1 | Kit, Cover, Vac W/FoamComplete assembly. | $117.80/EA |
| 14 | TN4033576Replaces Tennant 1024112 | 1 | Pad, Foam, InsulatorPart of Kit, Cover, Vac W/Foam (9002565). | $24.04/EA |
| 15 | TN4045268Replaces Tennant 1034731 | 6 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 16 | TN4044306Replaces Tennant 1040381 | 3 | Nut, Hex, Flng, M6 X 1.0, Ss [Serrated]Serial 10519189 and later. | $2.50/EA |
| 16 | TN4044306Replaces Tennant 1040381 | 9 | Nut, Hex, Flng, M6 X 1.0, Ss [Serrated]Serial 10358065 to 10519188. | $2.50/EA |
| 17 | TN4032926Replaces Tennant 1022375 | 1 | Bracket, Mtg, Vacuum | $52.50/EA |
| 18 | TN4044157Replaces Tennant 140897 | 1 | Screw, Hex, #10-32 X 0.25, Sl [Ground] | $2.50/EA |
| 19 | TN4031998Replaces Tennant 1031368 | 1 | Wire, 12ga [Esd, Tubular Braid] | $30.90/EA |
| 20 | TN4018599Replaces Tennant 390677 | 1 | Muffler, Exhaust, Vacuum Fan, Long | $72.10/EA |
| 21 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 22 | TN4043783Replaces Tennant 140052 | 1 | Washer, Lock, Ext, 0.25 Ss | $3.30/EA |
| 23 | TN4034906Replaces Tennant 1062016 | 3 | Isolator, Vib, .75dSerial 10519189 and later. | $4.20/EA |
Tennant T5 solution tank group parts
The parts Tennant numbers on its solution tank group drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035537Replaces Tennant 1018155 | 1 | Screw, Pan, M5 X 0.8 X16, Ss, Tcut | $2.50/EA |
| 2 | TN4029947Replaces Tennant 361554 | 1 | Bumper, Rbr, 0.90d 0.38th 0.18h | $4.50/EA |
| 3 | TN4037565Replaces Tennant 1013768 | 3 | Strap, Retaining, 20mm X 159mm X 3.2,Blk | $4.80/EA |
| 4 | TN4016173Replaces Tennant 9002566 | 3 | Kit, Cover, Solution Tank FillComplete assembly. | $63.10/EA |
| 5 | TN4033850Replaces Tennant 1024868 | 3 | Gasket, Lip, Dual DurometerPart of Kit, Cover, Solution Tank Fill (9002566). | $15.50/EA |
| 6 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, #10 Ss | $2.60/EA |
| 7 | TN4043365Replaces Tennant 11329 | 13 | Screw, Hex, M6 X 1.0 X 16, Ss, Nl | $3.40/EA |
| 8 | TN4042901Replaces Tennant 01684 | 14 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 9 | TN4038093Replaces Tennant 22788 | 1 | Fitting, Plstc, Plug, Pm04 | $4.34/EA |
| 10 | TN4044219Replaces Tennant 140960 | 1 | Cable, Glv .13d 014.5l .34eye /.34eye | $25.80/EA |
| 11 | TN4030974Replaces Tennant 1028723 | 1 | Cap, Tank, 3.5”, Non-Vented | $64.50/EA |
| 12 | TN4027559Replaces Tennant 601460 | 1 | Clip, Hanger, Hose, .25d Hole, Clr Zn | $11.60/EA |
| 13 | TN4041590Replaces Tennant 07515 | 1 | Washer, Lock, Int, 0.25 Ss | $3.50/EA |
| 14 | TN4022347Replaces Tennant 608322 | 1 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 15 | TN4044464Replaces Tennant 1041082 | 1 | Fitting, Plstc, Str, Bm16/Pm12 | $4.20/EA |
| 16 | TN4033554Replaces Tennant 1023809 | 1 | Hose, Drain, Soltn Tank | $76.00/EA |
| 17 | TN4043367Replaces Tennant 11399 | 1 | Clamp, Hose, Wormdrive, 0.81-1.50d, .50w | $5.10/EA |
| 18 | TN4037584Replaces Tennant 1014001 | 1 | Cap, Tank, Drain, Thrd | $46.00/EA |
| 19 | TN4037588Replaces Tennant 1014029 | 1 | Plug, Cap, Gray | $18.90/EA |
| 20 | TN4029230Replaces Tennant 375206 | 1 | Gasket, Cap, Drain, Rbr .19 4.0b 05.5d. | $9.50/EA |
| 21 | TN4016980Replaces Tennant 9003655 | 1 | Tank Kit, Soltn [T5] (Teal) | $1,036.20/EA |
| 21 | TN4016981Replaces Tennant 9003656 | 1 | Tank Kit, Soltn, HG [T5] (Gray) | $573.72/EA |
| 22 | TN4014177Replaces Tennant 49800 | 1 | Latch | $40.40/EA |
| 23 | TN4019310Replaces Tennant 391403 | 2 | Screw, Pan, M4 X 0.7 X 8, Ss | $2.50/EA |
| 24 | TN4043241Replaces Tennant 02938 | 2 | Washer, Lock, Int, 08 Ss | $2.60/EA |
| 25 | TN4040476Replaces Tennant 1050008 | 1 | Label, Front, Ec-H2o [T5/T5e] (Teal) (NLA - No Longer Available)Serial 10378380 and later. | $20.50/EA |
| 25 | TN4190552Replaces Tennant 1050009 | 1 | Label, Front, Ec-H2o [T5 Gray] (NLA - No Longer Available)Serial 10378380 and later. | $23.33/EA |

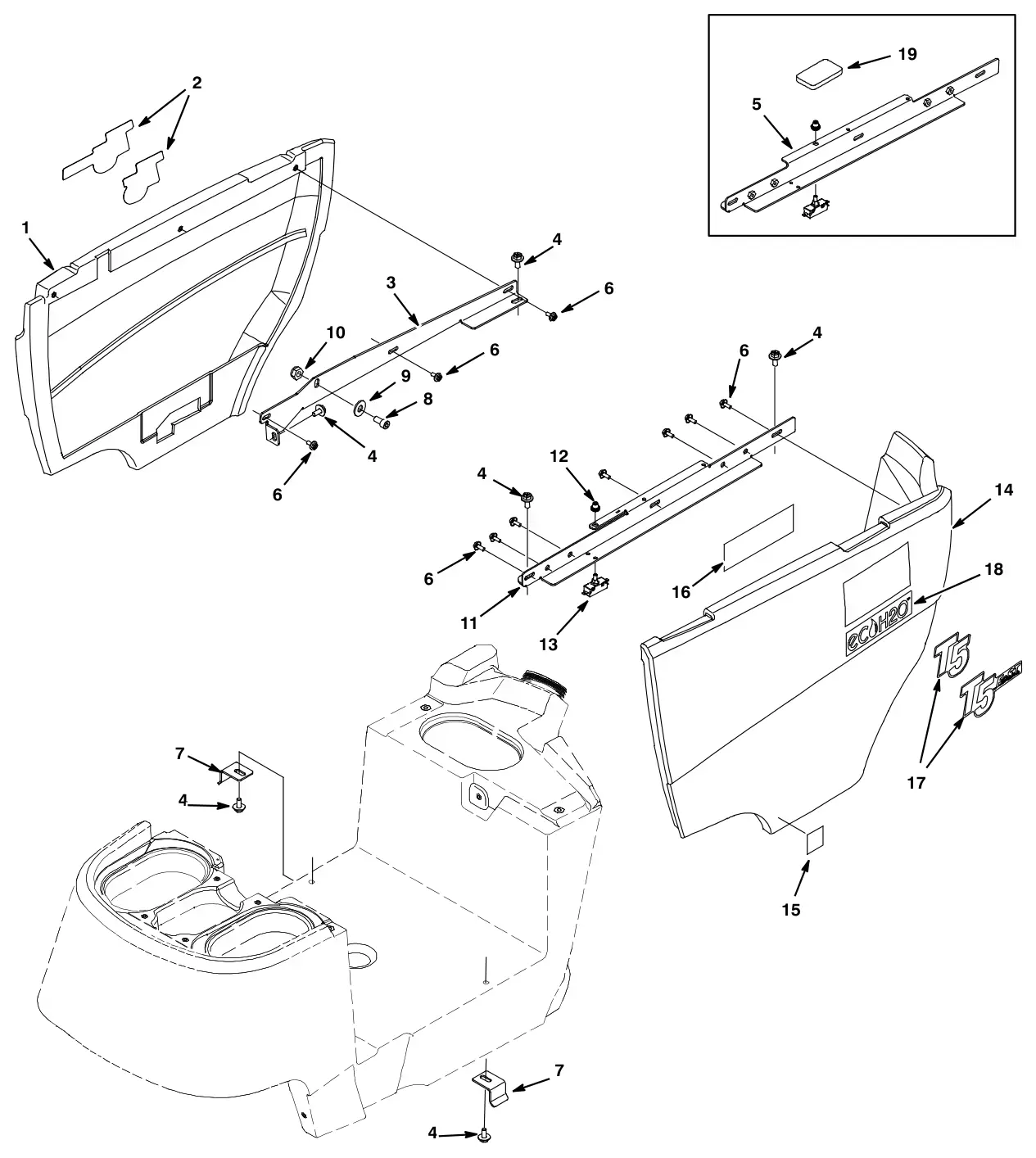

Tennant T5 side panel group parts
The parts Tennant numbers on its side panel group drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016176Replaces Tennant 9002569 | 1 | Kit, Panel, Rh Side (Teal) | $501.40/EA |
| 2 | TN4033843Replaces Tennant 1024779 | 1 | Label, Side [T5] (Teal) | $14.50/EA |
| 2 | TN1024780Tennant 1024780 | 1 | Label, Side [T5 Fast] (Teal) (NLA - No Longer Available) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN9002713Tennant 9002713 | 1 | Kit, Panel, Rh Side Hg (Gray) | $267.40/EA |
| 2 | TN1032802Tennant 1032802 | 1 | Label, Side, Gray [T5] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN1032803Tennant 1032803 | 1 | Label, Side, Gray [T5 Fast] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4036637Replaces Tennant 1021323 | 1 | Rail, Side, Rh | $93.32/EA |
| 4 | TN4036259Replaces Tennant 1020341 | 6 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 5 | TN1022301Tennant 1022301 | 1 | Rail, Side, Lh [T5]Serial up to 10332238. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4045268Replaces Tennant 1034731 | 14 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 7 | TN4033541Replaces Tennant 1023684 | 2 | Bracket, Shroud, Bottom | $26.60/EA |
| 8 | TN4026080Replaces Tennant 607010 | 1 | Screw, Soc, M10 X 1.5 X 20, Ss | $8.00/EA |
| 9 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 10 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 11 | TN4045365Replaces Tennant 1034954 | 1 | Rail, Side, Lh [T5]Serial 10332239 and later. | $125.24/EA |
| 12 | TN4045430Replaces Tennant 1035711 | 1 | Boot, Switch, Hex Nut, .38-32 Thd | $18.20/EA |
| 13 | TN4030889Replaces Tennant 1071996 | 1 | Switch, Push, Snap Action, 25a | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4016174Replaces Tennant 9002567 | 1 | Kit, Panel, Lh Side W/O Charger (Teal)Complete assembly. | $501.87/EA |
| 14 | TN4016175Replaces Tennant 9002568 | 1 | Kit, Panel, Lh Side W/Charger C/O (Teal)Complete assembly. | $545.40/EA |
| 15 | TN4027412Replaces Tennant 600624 | 1 | Label, Parking Brake, SymbolPart of Kit, Panel, Lh Side W/Charger C/O (Teal) (9002568). | $3.20/EA |
| 16 | TN4030680Replaces Tennant 1028175 | 1 | Label, Instr, Charger SettingPart of Kit, Panel, Lh Side W/Charger C/O (Teal) (9002568). | $8.05/EA |
| 17 | TN4033843Replaces Tennant 1024779 | 1 | Label, Side [T5] (Teal) | $14.50/EA |
| 17 | TN1024780Tennant 1024780 | 1 | Label, Side [T5 Fast] (Teal) (NLA - No Longer Available) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4035178Replaces Tennant 1050001 | 2 | Label, Side, Ec-H2o [T3/T3e/T5/T7 ] (Teal) (NLA - Replaced by 1062813 - see page 16)Serial 10378380 and later. | $36.60/EA |
| 14 | TN9002711Tennant 9002711 | 1 | Kit, Panel, Lh Side Hg W/O Charger (Gray)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN9002712Tennant 9002712 | 1 | Kit, Panel, Lh Side Hg W/ Chgr C/O (Gray)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN4027412Replaces Tennant 600624 | 1 | Label, Parking Brake, SymbolPart of Kit, Panel, Lh Side Hg W/ Chgr C/O (Gray) (9002712). | $3.20/EA |
| 16 | TN4030680Replaces Tennant 1028175 | 1 | Label, Instr, Charger SettingPart of Kit, Panel, Lh Side Hg W/ Chgr C/O (Gray) (9002712). | $8.05/EA |
| 17 | TN1032802Tennant 1032802 | 1 | Label, Side, Gray [T5] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN1032803Tennant 1032803 | 1 | Label, Side, Gray [T5 Fast] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN1050002Tennant 1050002 | 2 | Label, Side, Ec-H2o [T3/T5/T7 Gray] (NLA - Replaced by 1062813 - see page 16)Serial 10378380 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | TN4044726Replaces Tennant 1032763 | 1 | Gasket, Stand, SupportSerial up to 10332238. | $4.30/EA |

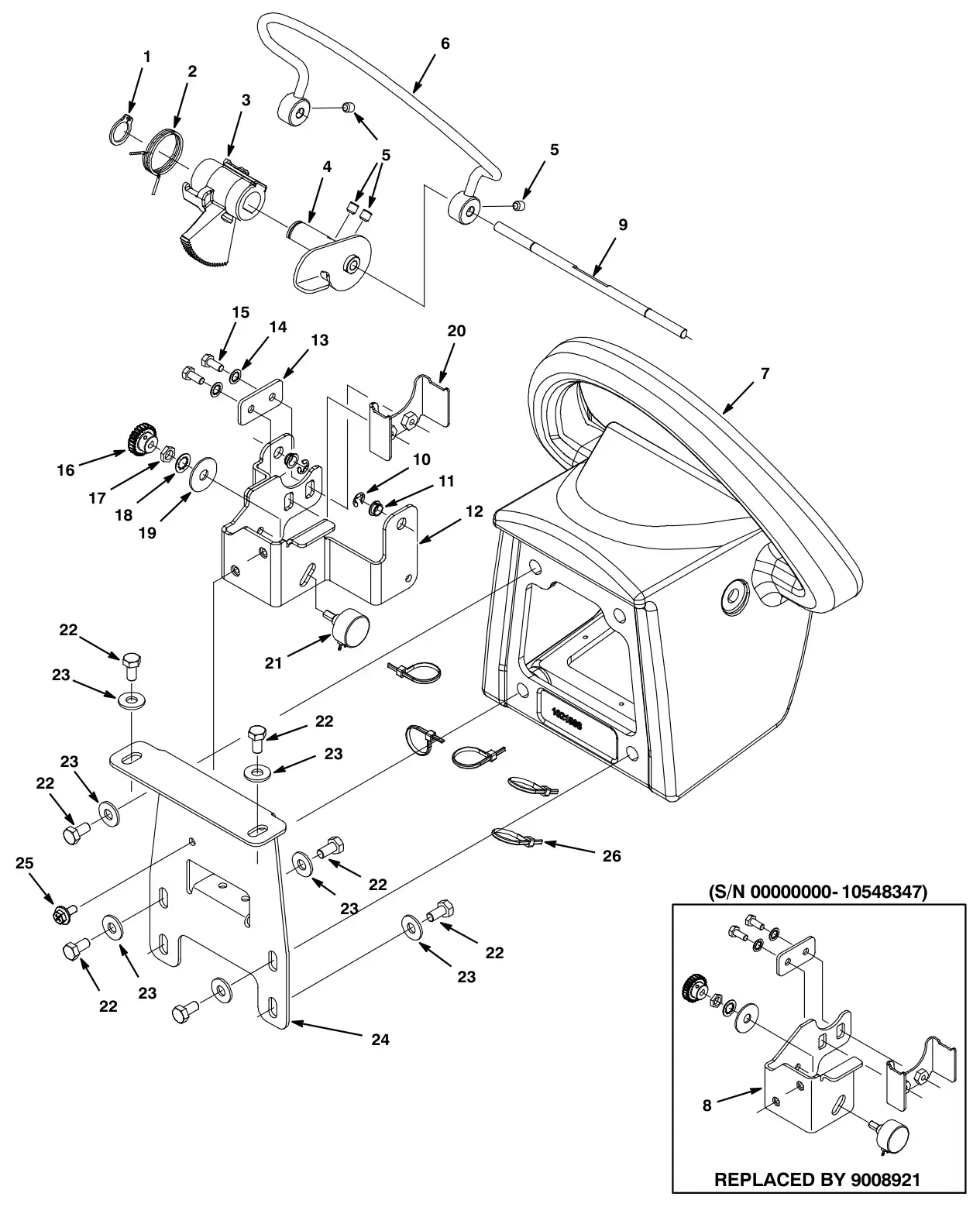

Tennant T5 control console group parts
The parts Tennant numbers on its control console group drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033875Replaces Tennant 1025121 | 1 | Ring, Retaining, Hd Ext 19d Shaft | $19.30/EA |
| 2 | TN4020497Replaces Tennant 630088 | 1 | Spring, Tors, Cntr, .072mw, Zn | $6.90/EA |
| 3 | TN4032857Replaces Tennant 1021904 | 1 | Actuator, Drive, Bail | $21.60/EA |
| 4 | TN4033560Replaces Tennant 1023869 | 1 | Shaft Wldt, Actuator, Bail | $146.90/EA |
| 5 | TN4038312Replaces Tennant 1015578 | 4 | Screw, Set, M8 X 1.25 X 8, Cuppt, Ss, Nl | $4.00/EA |
| 6 | TN4036280Replaces Tennant 1020748 | 1 | Lever Wldt, Bail, Console | $1,180.20/EA |
| 7 | TN4016446Replaces Tennant 9002787 | 1 | Housing Kit, Cntrl [T5] (Note: Before S/N 10548348 Also Order Kit 9008921) | $367.90/EA |
| 8 | TN4010363Replaces Tennant 9008921 | 1 | Console Brkt Kit, Replmt [T5]Complete assembly. Serial up to 10548347. | $128.30/EA |
| 9 | TN4032886Replaces Tennant 1067080 | 1 | Shaft, Actuator, Forward / Reverse, RevPart of Console Brkt Kit, Replmt [T5] (9008921). | $28.00/EA |
| 10 | TN4045384Replaces Tennant 1035139 | 2 | Ring, Retaining, Ext, 0.31d, E-TypePart of Console Brkt Kit, Replmt [T5] (9008921). Serial 10548348 and later. | $2.50/EA |
| 11 | TN4032968Replaces Tennant 1067122 | 2 | Spacer, Flanged, Nylon, 8mm IdPart of Console Brkt Kit, Replmt [T5] (9008921). Serial 10548348 and later. | $10.50/EA |
| 12 | TN4186047Replaces Tennant 1065445 | 1 | Bracket Wldt, Bail [T5]Part of Console Brkt Kit, Replmt [T5] (9008921). Serial 10548348 and later. | $53.76/EA |
| 13 | TN4038608Replaces Tennant 1015826 | 1 | Plate, Screw, Bail | $7.60/EA |
| 14 | TN4041590Replaces Tennant 07515 | 2 | Washer, Lock, Int, 0.25 Ss | $3.50/EA |
| 15 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M6 X 1.0 X 16, Ss | $3.20/EA |
| 16 | TN4036261Replaces Tennant 1020403 | 1 | Gear, Spur, 24p, 24t | $59.80/EA |
| 17 | TN4040631Replaces Tennant 222607 | 1 | Nut, Hex, Thin, .38-32 | $3.40/EA |
| 18 | TN4017410Replaces Tennant 43953 | 1 | Washer, Lock, Int, 0.38 Ss | $3.50/EA |
| 19 | TN4034466Replaces Tennant 32662 | 1 | Washer, Flat, 0.38b 1.22d .06, Ss | $4.00/EA |
| 20 | TN4038311Replaces Tennant 1015570 | 1 | Bracket, Spring, Balancer, Bail | $45.60/EA |
| 21 | TN4032853Replaces Tennant 1021853 | 1 | Potentiometer Assy, Throttle | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4014178Replaces Tennant 49826 | 8 | Screw, Hex, M8 X 1.25 X 16, Ss, Nl | $3.40/EA |
| 23 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 24 | TN4033203Replaces Tennant 1022657 | 1 | Bracket, Mtg, Console, T5 | $71.00/EA |
| 25 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 26 | TN4043510Replaces Tennant 130773 | 5 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |

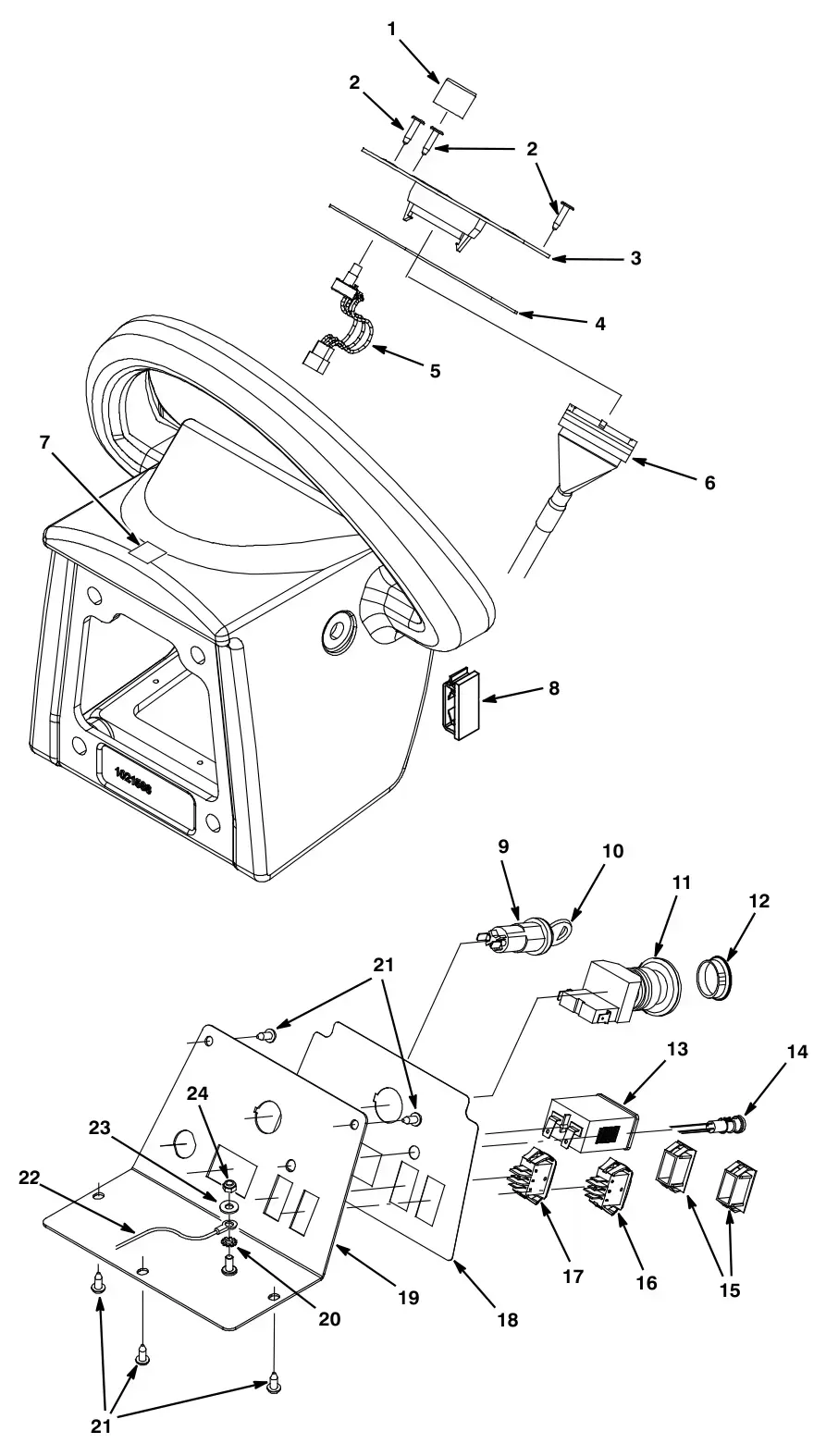

Tennant T5 control console group - continued parts
The parts Tennant numbers on its control console group - continued drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025821Replaces Tennant 606550 | 1 | Knob, Rnd, 0.92d 0.76l 0.25b Plstc | $39.90/EA |
| 2 | TN4016303Replaces Tennant 72969 | 3 | Rivet, Plstc, .181d X 0.720 | $4.00/EA |
| 3 | TN4016177Replaces Tennant 9002570 | 1 | Kit, Panel, Upper InstmtComplete assembly. | $290.60/EA |
| 4 | TN4033282Replaces Tennant 1023554 | 1 | Gasket, Panel, UpperPart of Kit, Panel, Upper Instmt (9002570). | $23.00/EA |
| 5 | TN4033210Replaces Tennant 1022706 | 1 | Potentiometer, Control, 0-20k Assy | $25.60/EA |
| 6 | TN4032842Replaces Tennant 1021778 | 1 | Cable, Ribbon [T5] | $162.50/EA |
| 7 | TN4035156Replaces Tennant 1016572 | 1 | Label, Dir | $44.66/EA |
| 8 | TN4040646Replaces Tennant 222666 | 1 | Clamp, Cable, Ribbon, 1.25w 0.25h, PlstcSerial up to 10548348. | $4.20/EA |
| 9 | TN4036836Replaces Tennant 1011402 | 1 | Switch, KeyComplete assembly. | $54.40/EA |
| 10 | TN4129073Replaces Tennant 1017696 | 1 | Key, Replmt, Set Of 2 [F/1011402]Part of Switch, Key (1011402). | $21.60/EA |
| 11 | TN4029938Replaces Tennant 1011735 | 1 | Switch, Safety, ShutoffSerial 10536688 and later. | $40.50/EA |
| 12 | TN4030595Replaces Tennant 130161 | 1 | Plug, Hole, Rnd, 0.875d, Blk (For Models Before S/N 10536688 w/out E- Stop Switch)Serial up to 10536687. | $4.00/EA |
| 13 | TN4036816Replaces Tennant 1011282 | 1 | Gauge, Hourmeter, 12-60vdc, Analog,Rt,.1 | $80.20/EA |
| 14 | TN4044628Replaces Tennant 1041822 | 1 | Light, Led, .312D, 5 Volt [Tri-Color] (ec-H2O Model)Serial 10378380 and later. | $104.60/EA |
| 15 | TN4029683Replaces Tennant 582150 | 2 | Button, Plug, Accssry Switch | $6.00/EA |
| 16 | TN4043516Replaces Tennant 130787 | 1 | Switch, Rocker, V C A Spdt (Optional Wand) | $17.70/EA |
| 17 | TN4043516Replaces Tennant 130787 | 1 | Switch, Rocker, V C A Spdt (Fast & ec-H2O Models) | $17.70/EA |
| 18 | TN4033562Replaces Tennant 1023883 | 1 | Label, Opertnl, Lower (Standard & Fast Models) | $29.90/EA |
| 18 | TN4040475Replaces Tennant 1050006 | 1 | Label, Console, Lower Ec-H2o [T5]Serial 10378380 and later. | $15.50/EA |
| 19 | TN4044606Replaces Tennant 1041619 | 1 | Panel, Instmt, Lower Bent [T5] | $60.80/EA |
| 20 | TN4043783Replaces Tennant 140052 | 1 | Washer, Lock, Ext, 0.25 Ss | $3.30/EA |
| 21 | TN4040005Replaces Tennant 1009324 | 5 | Screw, Pan, #10-16 X 0.50, Phl,Ty-17 Blk | $3.20/EA |
| 22 | TN4031998Replaces Tennant 1031368 | 1 | Wire, 12ga [Esd, Tubular Braid, T5] | $30.90/EA |
| 23 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, #10 Ss | $2.60/EA |
| 24 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.8, Nl, Ss | $3.30/EA |

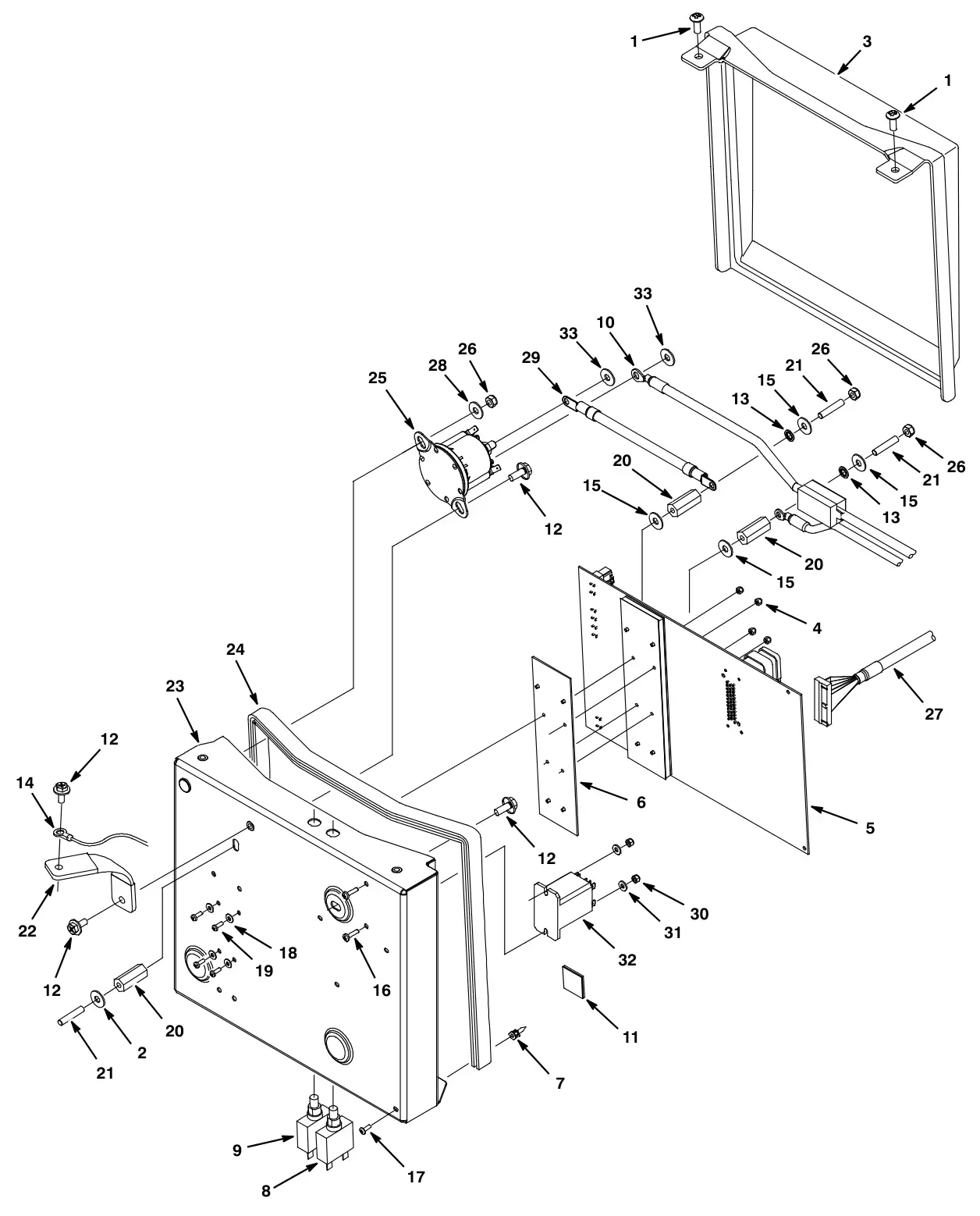

Tennant T5 component panel group (S/N 10632988 and later) parts
The parts Tennant numbers on its component panel group (s/n 10632988 and later) drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4022347Replaces Tennant 608322 | 2 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 2 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 3 | TN4033216Replaces Tennant 1022820 | 1 | Cover, Electronics | $127.80/EA |
| 4 | TN4029653Replaces Tennant 579211 | 4 | Nut, Hex, Lock, M3 X .5, Ss | $3.30/EA |
| 5 | TN4025024Replaces Tennant 9012721 | 1 | Circuitboard Kit, Logic [T5]Complete assembly. | $1,215.30/EA |
| – | TN4035725Replaces Tennant 27964 | 1 | Strap, Static Ground, DisposablePart of Circuitboard Kit, Logic [T5] (9012721). | $7.50/EA |
| 6 | TN4035190Replaces Tennant 1016816 | 1 | Pad, Thermal, Heat SinkPart of Circuitboard Kit, Logic [T5] (9012721). | $21.61/EA |
| 7 | TN4035191Replaces Tennant 1016825 | 4 | Support, CircuitboardPart of Circuitboard Kit, Logic [T5] (9012721). | $5.60/EA |
| 8 | TN4023149Replaces Tennant 383720 | 1 | Circuitbreaker, 05.0a | $15.90/EA |
| 9 | TN4023150Replaces Tennant 383721 | 1 | Circuitbreaker, 10.0a | $15.90/EA |
| 10 | TN4032990Replaces Tennant 1067443 | 1 | Harness, Battery, Fused, Us [T5]Serial 10632988 and later. | $117.50/EA |
| 11 | TN4028714Replaces Tennant 55248 | 3 | Mount, Cable Tie | $3.70/EA |
| 12 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 13 | TN4034655Replaces Tennant 32982 | 2 | Washer, Lock, Int, 0.25Serial 10632988 and later. | $2.60/EA |
| 14 | TN4031351Replaces Tennant 1029310 | 1 | Harness, Est | $12.65/EA |
| 15 | TN4036570Replaces Tennant 1057560 | 4 | Washer, Flat, M6.4b, X 16d X 1 Pl | $2.60/EA |
| 16 | TN4035372Replaces Tennant 24265 | 2 | Screw, Pan, M4 X 0.7 X 16, SsSerial 10306157 and later. | $3.00/EA |
| 17 | TN4032343Replaces Tennant 3701.6 | 4 | Screw, Pan, #06-32 X 0.38, Phl Ss Shtmtl | $3.40/EA |
| 18 | TN4035888Replaces Tennant 1019218 | 4 | Washer, Flat, 0.14b 0.31d, Nyl | $3.20/EA |
| 19 | TN4041015Replaces Tennant 06922 | 4 | Screw, Pan, M3 X 0.5 X 20, 4.8 | $3.40/EA |
| 20 | TN4042394Replaces Tennant 1002078 | 3 | Spacer, .50x X 1.25l, M6 Thread | $17.90/EA |
| 21 | TN4035815Replaces Tennant 1018559 | 3 | Screw, Set, M6 X 1.0 X 30, Ss | $4.00/EA |
| 22 | TN4031027Replaces Tennant 1029051 | 1 | Strap, Static, Controller | $7.85/EA |
| 23 | TN4199829Replaces Tennant 9010098 | 1 | Housing Kit, Ele [T5 New Relay]Complete assembly. Serial 10632988 and later. | $100.50/EA |
| 24 | TN4039942Replaces Tennant 1008675 | 1 | Gasket, Foam, Edge (Fr)Part of Housing Kit, Ele [T5 New Relay] (9010098). | $25.80/EA |
| 25 | TN4032813Replaces Tennant 1066409 | 1 | Relay, 24vdc, 150a, No [Trombetta]Serial 10632988 and later. | $46.60/EA |
| 26 | TN4016812Replaces Tennant 41359 | 3 | Nut, Hex, Std, M6 X 1.0, 8Serial 10632988 and later. | $3.40/EA |
| 27 | TN4032842Replaces Tennant 1021778 | 1 | Cable, Ribbon [T5] | $162.50/EA |
| 28 | TN4171131Replaces Tennant 32490 | 1 | Washer, Flat, 0.25, StdSerial 10632988 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | TN4184082Replaces Tennant 1067030 | 1 | Cable, Controller, 210mml, Red [T5]Serial 10632988 and later. | $62.30/EA |
| 30 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl, SsSerial 10306157 and later. | $3.40/EA |
| 31 | TN4042243Replaces Tennant 19065 | 2 | Washer, Flat, #08Serial 10306157 and later. | $3.20/EA |
| 32 | TN4042337Replaces Tennant 1001219 | 1 | Relay, 24vdc, DpdtSerial 10306157 and later. | $102.90/EA |
| 33 | TN4183816Replaces Tennant 1066493 | 2 | Washer, Flat, 0.35b 0.75d .04, PlSerial 10632988 and later. | $0.90/EA |

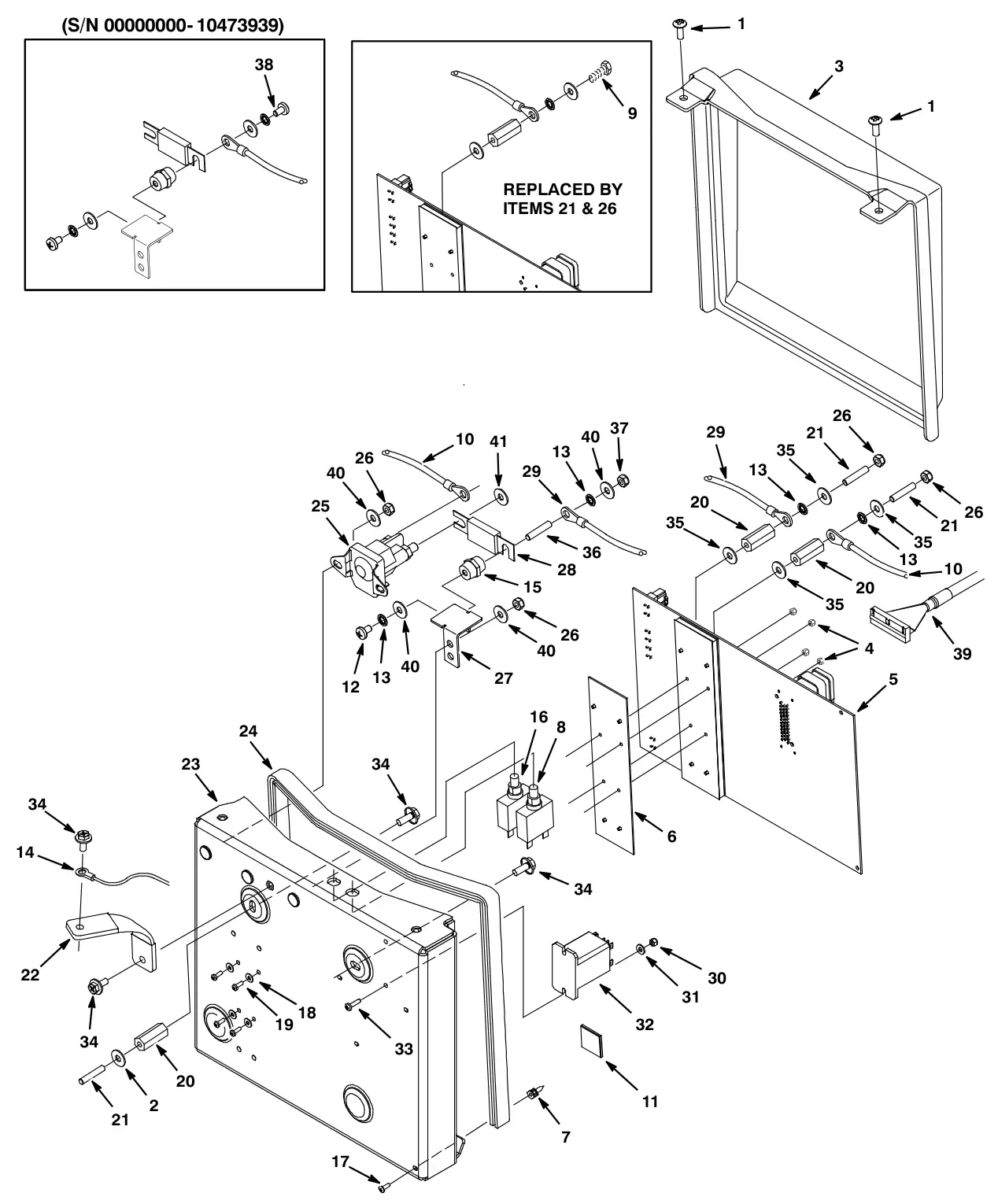

Tennant T5 component panel group (S/N 00000000-10632987) parts
The parts Tennant numbers on its component panel group (s/n 00000000-10632987) drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4022347Replaces Tennant 608322 | 2 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 2 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 3 | TN4033216Replaces Tennant 1022820 | 1 | Cover, Electronics | $127.80/EA |
| 4 | TN4029653Replaces Tennant 579211 | 4 | Nut, Hex, Lock, M3 X .5, Ss | $3.30/EA |
| 5 | TN4013064Replaces Tennant 9008406 | 1 | Circuitboard Kit, Logic [T5]Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4035725Replaces Tennant 27964 | 1 | Strap, Static Ground, DisposablePart of Circuitboard Kit, Logic [T5] (9008406). | $7.50/EA |
| 6 | TN4035190Replaces Tennant 1016816 | 1 | Pad, Thermal, Heat SinkPart of Circuitboard Kit, Logic [T5] (9008406). | $21.61/EA |
| 7 | TN4035191Replaces Tennant 1016825 | 4 | Support, CircuitboardPart of Circuitboard Kit, Logic [T5] (9008406). | $5.60/EA |
| 8 | TN4023149Replaces Tennant 383720 | 1 | Circuitbreaker, 05.0a | $15.90/EA |
| 9 | TN4043365Replaces Tennant 11329 | 1 | Screw, Hex, M6 X 1.0 X 16, Ss, Nl | $3.40/EA |
| 10 | TN4033614Replaces Tennant 1024479 | 1 | Harness, Battery, UsSerial up to 10632987. | $122.10/EA |
| 11 | TN4028714Replaces Tennant 55248 | 3 | Mount, Cable Tie | $3.70/EA |
| 12 | TN4013979Replaces Tennant 48732 | 1 | Screw, Pan, M6 X 1.0 X 10, SsSerial 10473940 to 10632987. | $4.00/EA |
| 13 | TN4034655Replaces Tennant 32982 | 4 | Washer, Lock, Int, 0.25Serial up to 10632987. | $2.60/EA |
| 14 | TN4031351Replaces Tennant 1029310 | 1 | Harness, Est | $12.65/EA |
| 15 | TN4037541Replaces Tennant 1013523 | 1 | Stand-Off, Wire, M6Serial up to 10632987. | $17.40/EA |
| 16 | TN4023150Replaces Tennant 383721 | 1 | Circuitbreaker, 10.0a | $15.90/EA |
| 17 | TN4032343Replaces Tennant 3701.6 | 4 | Screw, Pan, #06-32 X 0.38, Phl Ss Shtmtl | $3.40/EA |
| 18 | TN4035888Replaces Tennant 1019218 | 4 | Washer, Flat, 0.14b 0.31d, Nyl | $3.20/EA |
| 19 | TN4041015Replaces Tennant 06922 | 4 | Screw, Pan, M3 X 0.5 X 20, 4.8 | $3.40/EA |
| 20 | TN4042394Replaces Tennant 1002078 | 3 | Spacer, .50x X 1.25l, M6 Thread | $17.90/EA |
| 21 | TN4035815Replaces Tennant 1018559 | 3 | Screw, Set, M6 X 1.0 X 30, Ss | $4.00/EA |
| 22 | TN4031027Replaces Tennant 1029051 | 1 | Strap, Static, Controller | $7.85/EA |
| 23 | TN4016178Replaces Tennant 9002572 | 1 | Kit, Housing, ElectricalComplete assembly. Serial up to 10632987. | $169.28/EA |
| 24 | TN4039942Replaces Tennant 1008675 | 1 | Gasket, Foam, Edge (Fr)Part of Kit, Housing, Electrical (9002572). | $25.80/EA |
| 25 | TN4043672Replaces Tennant 1038490 | 1 | Relay, 24vdc, 100a, No [Trombetta]Serial up to 10632987. | $56.40/EA |
| 26 | TN4016812Replaces Tennant 41359 | 2 | Nut, Hex, Std, M6 X 1.0, 8Serial up to 10632987. | $3.40/EA |
| 27 | TN4033559Replaces Tennant 1023868 | 1 | Bracket, Stand-OffSerial up to 10632987. | $21.30/EA |
| 28 | TN4021650Replaces Tennant 86379 | 1 | Fuse, .88 X 3.2l 100a 125vacSerial up to 10632987. | $58.00/EA |
| 29 | TN4033617Replaces Tennant 1024511 | 1 | Cable, Cntrl RedSerial up to 10632987. | $19.40/EA |
| 30 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl, SsSerial 10306157 and later. | $3.40/EA |
| 31 | TN4042243Replaces Tennant 19065 | 2 | Washer, Flat, #08Serial 10306157 and later. | $3.20/EA |
| 32 | TN4042337Replaces Tennant 1001219 | 1 | Relay, 24vdc, DpdtSerial 10306157 and later. | $102.90/EA |
| 33 | TN4035372Replaces Tennant 24265 | 2 | Screw, Pan, M4 X 0.7 X 16, SsSerial 10306157 and later. | $3.00/EA |
| 34 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 35 | TN4036570Replaces Tennant 1057560 | 4 | Washer, Flat, M6.4b, X 16d X 1 Pl | $2.60/EA |
| 36 | TN4035815Replaces Tennant 1018559 | 1 | Screw, Set, M6 X 1.0 X 30, SsSerial 10473940 to 10632987. | $4.00/EA |
| 37 | TN4041599Replaces Tennant 07785 | 1 | Nut, Hex, Std, M6 X 1.00, SsSerial 10473940 to 10632987. | $2.50/EA |
| 38 | TN4013979Replaces Tennant 48732 | 1 | Screw, Pan, M6 X 1.0 X 10, Ss (Replaced By #36 & #37)Serial up to 10473939. | $4.00/EA |
| 39 | TN4032842Replaces Tennant 1021778 | 1 | Cable, Ribbon [T5] | $162.50/EA |
| 40 | TN4171131Replaces Tennant 32490 | 6 | Washer, Flat, 0.25, StdSerial up to 10632987. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 41 | TN4183816Replaces Tennant 1066493 | 1 | Washer, Flat, 0.35b 0.75d .04, Pl | $0.90/EA |

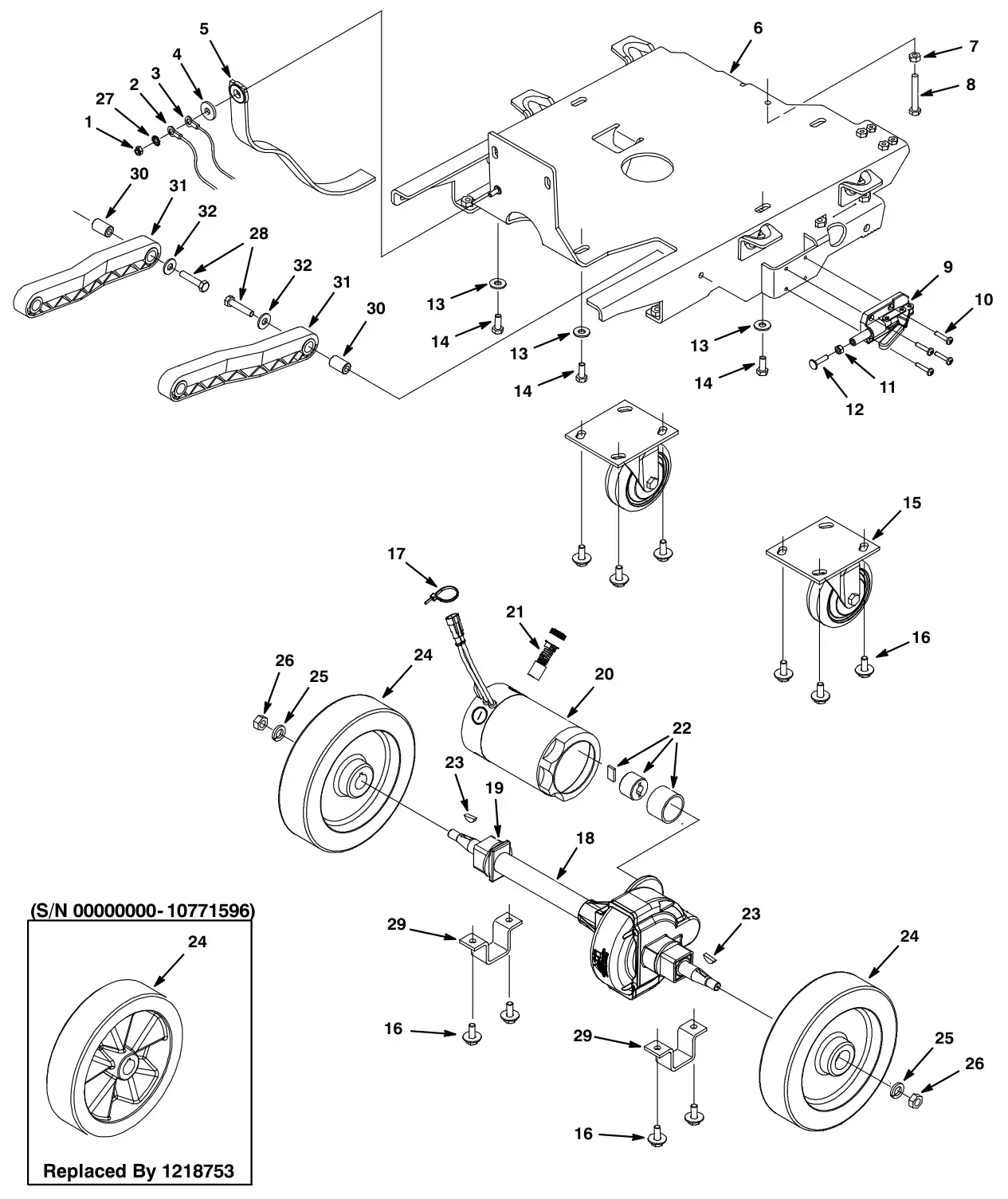

Tennant T5 drive group parts
The parts Tennant numbers on its drive group drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 2 | TN4032011Replaces Tennant 1031370 | 1 | Wire, 12 Awg X 250mm | $12.30/EA |
| 3 | TN4031351Replaces Tennant 1029310 | 1 | Harness, Ground, 12 Awg | $12.65/EA |
| 4 | TN4043784Replaces Tennant 140053 | 1 | Washer, Flat, 0.28b 0.88d .12, Ss | $4.80/EA |
| 5 | TN4031042Replaces Tennant 1029181 | 1 | Strap, Static | $41.90/EA |
| 6 | TN4036285Replaces Tennant 1020959 | 1 | Frame Wldt, Transaxle | $753.80/EA |
| 7 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 8 | TN4040606Replaces Tennant 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, Ss | $4.00/EA |
| 9 | TN4033221Replaces Tennant 1022878 | 1 | Clamp, Str, 30mm Strk (Optional) | $93.40/EA |
| 10 | TN4029085Replaces Tennant 55845 | 4 | Screw, Hex, M5 X 0.80 X 16, Fmg | $4.00/EA |
| 11 | TN4041599Replaces Tennant 07785 | 1 | Nut, Hex, Std, M6 X 1.0, A2, Ss | $2.50/EA |
| 12 | TN4035459Replaces Tennant 1017416 | 1 | Screw, Weld, M06 X 1.00 X 25, Thru, Ss | $5.40/EA |
| 13 | TN4034852Replaces Tennant 1016331 | 5 | Washer, Flat, 0.34b 1.25d .11, Ss | $5.10/EA |
| 14 | TN4034939Replaces Tennant 12273 | 5 | Screw, Hex, M8 X 1.25 X 20, Ss, Nl | $4.00/EA |
| 15 | TN4040090Replaces Tennant 1049048 | 2 | Caster, Swivel, 4.0d 1.4w, 4hole [400lb] | $105.40/EA |
| 16 | TN4036259Replaces Tennant 1020341 | 12 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 17 | TN4043510Replaces Tennant 130773 | 4 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 18 | TN4036548Replaces Tennant 1021168 | 1 | Transaxle, 24vdc, 110rpm [Asi]Complete assembly. | $2,443.00/EA |
| 19 | TN4023690Replaces Tennant 612880 | 2 | Sleeve, Transaxle, ReplmtPart of Transaxle, 24vdc, 110rpm [Asi] (1021168). | $10.60/EA |
| 20 | TN4032671Replaces Tennant 1031723 | 1 | Motor, Transaxle, 24vdc, Replmt, AsiComplete assembly. Part of Transaxle, 24vdc, 110rpm [Asi] (1021168). | $749.02/EA |
| 21 | TN4019997Replaces Tennant 614166 | 1 | Brush Kit, Carbon [Qty 4]Part of Motor, Transaxle, 24vdc, Replmt, Asi (1031723). | $65.70/EA |
| 22 | TN4035496Replaces Tennant 1017782 | 1 | Coupling Kit, Transaxle, Replmt [11057]Part of Transaxle, 24vdc, 110rpm [Asi] (1021168). | $34.30/EA |
| 23 | TN4036547Replaces Tennant 1021167 | 2 | Key, Woodruff, 5mmPart of Transaxle, 24vdc, 110rpm [Asi] (1021168). | $3.60/EA |
| – | TN4037832Replaces Tennant 9004909 | 1 | Wheel Kit, Solid, Ci [T5 T5e Ss5]Complete assembly. | $153.10/EA |
| 24 | TN4037832Replaces Tennant 1218753 | 2 | Wheel, Scrbr, 213mm, W/ TaperPart of Wheel Kit, Solid, Ci [T5 T5e Ss5] (9004909). Serial 10771597 and later. | $153.10/EA |
| 24 | TN4037832Replaces Tennant 1020688 | 2 | Wheel, Scrbr, 213.00mm With Taper (Replaced by 9004909)Serial up to 10771596. | $153.10/EA |
| 25 | TN4043647Replaces Tennant 140024 | 2 | Washer, Lock, Splt, 0.50, Ss | $4.00/EA |
| 26 | TN4041602Replaces Tennant 07788 | 2 | Nut, Hex, Std, M12 X 1.75, Ss | $3.40/EA |
| 27 | TN4043783Replaces Tennant 140052 | 1 | Washer, Lock, Ext, 0.25 Ss | $3.30/EA |
| 28 | TN4012778Replaces Tennant 74440 | 2 | Screw, Hex, M8 X 1.25 X 40, Ss, Nl | $4.90/EA |
| 29 | TN4025399Replaces Tennant 606001 | 2 | Bracket, Transaxle, Mtg, Ylw Zn | $38.30/EA |
| 30 | TN4025407Replaces Tennant 606056 | 2 | Tube, 00.62d 00.32b 01.0l Stl Plt | $6.60/EA |
| 31 | TN4039763Replaces Tennant 222027 | 2 | Arm, Lift, Head | $49.60/EA |
| 32 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31 Ss | $2.60/EA |
| – | TN4033627Replaces Tennant 1024588 | 1 | Harness, Chassis, Wire, Us | $242.70/EA |
Tennant T5 scrub head group, disk 24 in (600 mm) parts
The parts Tennant numbers on its scrub head group, disk 24 in (600 mm) drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652Replaces Tennant 1023067 | 2 | Motor, Gearbox,24vdc, 220rpm, 0.75hpComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4032140Replaces Tennant 1031775 | 1 | Brush, Brush-Motor, AfmktPart of Motor, Gearbox,24vdc, 220rpm, 0.75hp (1023067). | $216.60/EA |
| 3 | TN4032101Replaces Tennant 1031681 | 1 | Harness, Connector, Brush-Motor-UsPart of Motor, Gearbox,24vdc, 220rpm, 0.75hp (1023067). | $288.60/EA |
| 4 | TN4033599Replaces Tennant 1024321 | 2 | Spacer, Rbr, Motor | $7.90/EA |
| 5 | TN4043510Replaces Tennant 130773 | 7 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 6 | TN4025768Replaces Tennant 606362 | 2 | Hose 3/8IdX5/8OdX6.5 (611254) | $19.10/EA |
| 7 | TN4033195Replaces Tennant 1022556 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08 | $7.90/EA |
| 8 | TN4032935Replaces Tennant 1022424 | 1 | Stud, Adj, M16, Scrub Head | $25.50/EA |
| 9 | TN4011899Replaces Tennant 763066 | 1 | Nut, Hex, Jam, M16 X 2.0 | $3.40/EA |
| 10 | TN4029630Replaces Tennant 578769 | 2 | Label, Moving Parts | $5.40/EA |
| 11 | TN4032932Replaces Tennant 1022402 | 1 | Housing, Casting, Head, 60cm, Mach | $676.00/EA |
| 12 | TN4033884Replaces Tennant 1025160 | 8 | Grommet, Isolator, 6b X 10od X 26.0fl | $6.80/EA |
| 13 | TN4021350Replaces Tennant 386063 | 8 | Washer, Flat, 0.25b 1.12d .12, Ss | $5.80/EA |
| 14 | TN4034211Replaces Tennant 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Ss, Nl | $3.30/EA |
| 15 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 16 | TN4033193Replaces Tennant 1022549 | 2 | Spacer, Shaft, 17.15b, 25.0d, 3.0t | $8.20/EA |
| 17 | TN4030967Replaces Tennant 1072656 | 1 | Bumper, Head, 60cm, Bristle Skirt (Includes Mounting Hardware & Retaining Strap)Tennant prints the serial range as (xxxxxxxx- ). | $273.90/EA |
| 18 | TN4036249Replaces Tennant 1020234 | 4 | Screw, Hex, M4 X 0.7 X 10, SsSerial up to 10443635. | $3.30/EA |
| 19 | TN4016851Replaces Tennant 41578 | 4 | Washer, Flat, #06 SsSerial up to 10443635. | $3.30/EA |
| 20 | TN4028290Replaces Tennant 1023573 | 1 | Strap, Retaining, Skirt (Replaced by 1053609)Serial up to 10443635. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4037626Replaces Tennant 1014328 | 2 | Key, Sq, 05mm X 05mm, 25l | $4.20/EA |
| 22 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, Sems | $2.50/EA |
| 23 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 24 | TN4030707Replaces Tennant 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmbSerial 10618021 and later. | $129.00/EA |
| 24 | TN4030707Replaces Tennant 1022550 | 2 | Hub, Drive, Brush, Disk, 17mm (Replaced by 1071637)Serial up to 10618020. | $129.00/EA |
| 25 | TN4030967Replaces Tennant 1053609 | 1 | Bumper, Head, 60cm, Bristle Skirt (Replaced by 1072656)Serial 10443636 and later. Tennant prints the serial range as (10443636- xxxxxxxx). | $273.90/EA |
| 25 | TN4028288Replaces Tennant 1024938 | 1 | Bumper, Head, 60cm, Bristle Skirt, Assy (Replaced by 1053609)Serial up to 10443635. | $291.70/EA |
Tennant T5 scrub head group, disk 24 in (600 mm) - continued parts
The parts Tennant numbers on its scrub head group, disk 24 in (600 mm) - continued drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Ss, Fl | $3.30/EA |
| 2 | TN4043649Replaces Tennant 140027 | 10 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 3 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-Marking | $5.50/EA |
| 4 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ss | $3.40/EA |
| 5 | TN4041929Replaces Tennant 08713 | 10 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 6 | TN4032921Replaces Tennant 1022344 | 1 | Bracket, Roller, Wall, Scrubhead, 60cm | $56.80/EA |
| 7 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, M8 X 1.25 X 20, Ss 18-8 | $4.00/EA |
| 8 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 9 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62 D X 2.12l | $6.80/EA |
| 10 | TN4041944Replaces Tennant 09011 | 7 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 11 | TN4032909Replaces Tennant 1022227 | 2 | Bracket, Link, Scrubhead | $74.20/EA |
| 12 | TN4033581Replaces Tennant 1024179 | 2 | Knob, Knurled, M10 Thread | $11.80/EA |
| 13 | TN4020452Replaces Tennant 626081 | 2 | Spring, Cmpr, 12.1d, 0.9w, 90.0l | $5.20/EA |
| 14 | TN4041996Replaces Tennant 09746 | 2 | Screw, Hex, M10 X 1.5 X 90, Ss | $9.90/EA |
| 15 | N/A as printedTennant N/A | 1 | (Replaced By Items #16, 17, & 18)Serial up to 10325113. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4045466Replaces Tennant 1036022 | 1 | Bracket, Mtg, Actuator, Scb HeadSerial 10325114 and later. | $48.70/EA |
| 17 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 SsSerial 10325114 and later. | $2.60/EA |
| 18 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10325114 and later. | $3.30/EA |
| 19 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 20 | TN4027793Replaces Tennant 364441 | 1 | Screw, Hex, M8 X 1.25 X 110, Ss | $4.90/EA |
| 21 | TN4017399Replaces Tennant 43952 | 1 | Washer, Lock, Int, 0.31, Ss | $2.60/EA |
| 22 | TN4032011Replaces Tennant 1031370 | 1 | Wire, 12 Awg X 250mm | $12.30/EA |
| 23 | TN4022347Replaces Tennant 608322 | 2 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 24 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 25 | TN4016186Replaces Tennant 9002676 | 1 | Kit, Cover, Disc-HeadComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | TN4033609Replaces Tennant 1024437 | 1 | Insulation, Sound, FrontPart of Kit, Cover, Disc-Head (9002676). | $36.60/EA |
Tennant T5 scrub head group, disk 28 in (700 mm) parts
The parts Tennant numbers on its scrub head group, disk 28 in (700 mm) drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652Replaces Tennant 1023067 | 2 | Motor, Gearbox,24vdc, 220rpm, 0.75hpComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4032140Replaces Tennant 1031775 | 1 | Brush, Brush-Motor, AfmktPart of Motor, Gearbox,24vdc, 220rpm, 0.75hp (1023067). | $216.60/EA |
| 3 | TN4032101Replaces Tennant 1031681 | 1 | Harness, Connector, Brush-Motor-UsPart of Motor, Gearbox,24vdc, 220rpm, 0.75hp (1023067). | $288.60/EA |
| 4 | TN4033599Replaces Tennant 1024321 | 2 | Spacer, Rbr, Motor | $7.90/EA |
| 5 | TN4043510Replaces Tennant 130773 | 7 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 6 | TN4025768Replaces Tennant 606362 | 2 | Hose 3/8IdX5/8OdX6.5 (611254) | $19.10/EA |
| 7 | TN4033195Replaces Tennant 1022556 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08 | $7.90/EA |
| 8 | TN4032935Replaces Tennant 1022424 | 1 | Stud, Adj, M16, Scrub Head | $25.50/EA |
| 9 | TN4011899Replaces Tennant 763066 | 1 | Nut, Hex, Jam, M16 X 2.0 | $3.40/EA |
| 10 | TN4029630Replaces Tennant 578769 | 2 | Label, Moving Parts | $5.40/EA |
| 11 | TN4033237Replaces Tennant 1023182 | 1 | Housing, Casting, Head, 70cm, Mach | $828.10/EA |
| 12 | TN4033884Replaces Tennant 1025160 | 8 | Grommet, Isolator, 6b X 10od X 26.0fl | $6.80/EA |
| 13 | TN4021350Replaces Tennant 386063 | 8 | Washer, Flat, 0.25b 1.12d .12, Ss | $5.80/EA |
| 14 | TN4034211Replaces Tennant 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Ss, Nl | $3.30/EA |
| 15 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 16 | TN4033193Replaces Tennant 1022549 | 2 | Spacer, Shaft, 17.15b, 25.0d, 3.0t | $8.20/EA |
| 17 | TN4030968Replaces Tennant 1072657 | 1 | Bumper, Head, 70cm, Bristle Skirt (Includes Mounting Hardware & Retaining Strap)Tennant prints the serial range as (xxxxxxxx- ). | $346.80/EA |
| 18 | TN4036249Replaces Tennant 1020234 | 4 | Screw, Hex, M4 X 0.7 X 10, SsSerial up to 10446231. | $3.30/EA |
| 19 | TN4016851Replaces Tennant 41578 | 4 | Washer, Flat, #06 SsSerial up to 10446231. | $3.30/EA |
| 20 | TN4028290Replaces Tennant 1023573 | 1 | Strap, Retaining, Skirt (Replaced by 1053613)Serial up to 10446231. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4037626Replaces Tennant 1014328 | 2 | Key, Sq, 05mm X 05mm, 25l | $4.20/EA |
| 22 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, Sems | $2.50/EA |
| 23 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 24 | TN4030707Replaces Tennant 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmbSerial 10618021 and later. | $129.00/EA |
| 24 | TN4030707Replaces Tennant 1022550 | 2 | Hub, Drive, Brush, Disk, 17mm (Replaced by 1071637)Serial up to 10618020. | $129.00/EA |
| 25 | TN4030968Replaces Tennant 1053613 | 1 | Bumper, Head, 70cm, Bristle Skirt (Replaced by 1072657)Serial 10446232 and later. Tennant prints the serial range as (10446232- xxxxxxxx). | $346.80/EA |
| 25 | TN4028289Replaces Tennant 1023802 | 1 | Bumper, Head, 70cm, Bristle Skirt, Assy (Replaced by 1053613)Serial up to 10446231. | $346.80/EA |
Tennant T5 scrub head group, disk 28 in (700 mm) - continued parts
The parts Tennant numbers on its scrub head group, disk 28 in (700 mm) - continued drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032011Replaces Tennant 1031370 | 1 | Wire, 12 Awg X 250mm | $12.30/EA |
| 2 | TN4017399Replaces Tennant 43952 | 1 | Washer, Lock, Int, 0.31, Ss | $2.60/EA |
| 3 | TN4041944Replaces Tennant 09011 | 7 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 4 | TN4045466Replaces Tennant 1036022 | 1 | Bracket, Mtg, Actuator, Scb HeadSerial 10325114 and later. | $48.70/EA |
| 5 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 SsSerial 10325114 and later. | $2.60/EA |
| 6 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10325114 and later. | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 8 | TN4027793Replaces Tennant 364441 | 1 | Screw, Hex, M8 X 1.25 X 110, Ss | $4.90/EA |
| 9 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 10 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62 D X 2.12l | $6.80/EA |
| 11 | TN4032909Replaces Tennant 1022227 | 2 | Bracket, Link, Scrubhead | $74.20/EA |
| 12 | TN4033581Replaces Tennant 1024179 | 2 | Knob, Knurled, M10 Thread | $11.80/EA |
| 13 | TN4020452Replaces Tennant 626081 | 2 | Spring, Cmpr, 12.1d, 0.9w, 90.0l | $5.20/EA |
| 14 | TN4041996Replaces Tennant 09746 | 2 | Screw, Hex, M10 X 1.5 X 90, Ss | $9.90/EA |
| 15 | N/A as printedTennant N/A | 1 | (Replaced By Items #4, 5, & 6)Serial up to 10325113. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, M8 X 1.25 X 20, Ss 18-8 | $4.00/EA |
| 17 | TN4041929Replaces Tennant 08713 | 10 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 18 | TN4043649Replaces Tennant 140027 | 10 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 19 | TN4033240Replaces Tennant 1023268 | 1 | Bracket, Roller, Wall, Scb Head, 70cm | $56.80/EA |
| 20 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ss | $3.40/EA |
| 21 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-Marking | $5.50/EA |
| 22 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Ss, Fl | $3.30/EA |
| 23 | TN4022347Replaces Tennant 608322 | 2 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 24 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 25 | TN4016186Replaces Tennant 9002676 | 1 | Kit, Cover, Disc-HeadComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | TN4033609Replaces Tennant 1024437 | 1 | Insulation, Sound, FrontPart of Kit, Cover, Disc-Head (9002676). | $36.60/EA |
Tennant T5 scrub head group, disk 32 in (800 mm) parts
The parts Tennant numbers on its scrub head group, disk 32 in (800 mm) drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652Replaces Tennant 1023067 | 2 | Motor, Gearbox,24vdc, 220rpm, 0.75hpComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4032140Replaces Tennant 1031775 | 1 | Brush, Brush-Motor, AfmktPart of Motor, Gearbox,24vdc, 220rpm, 0.75hp (1023067). | $216.60/EA |
| 3 | TN4032101Replaces Tennant 1031681 | 1 | Harness, Connector, Brush-Motor-UsPart of Motor, Gearbox,24vdc, 220rpm, 0.75hp (1023067). | $288.60/EA |
| 4 | TN4033599Replaces Tennant 1024321 | 2 | Spacer, Rbr, Motor | $7.90/EA |
| 5 | TN4043510Replaces Tennant 130773 | 7 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 6 | TN4025870Replaces Tennant 606885 | 2 | Hose 3/8idx5/8odx7.75 (611254) | $14.40/EA |
| 7 | TN4033195Replaces Tennant 1022556 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08 | $7.90/EA |
| 8 | TN4032935Replaces Tennant 1022424 | 1 | Stud, Adj, M16, Scrub Head | $25.50/EA |
| 9 | TN4011899Replaces Tennant 763066 | 1 | Nut, Hex, Jam, M16 X 2.0 | $3.40/EA |
| 10 | TN4029630Replaces Tennant 578769 | 2 | Label, Moving Parts | $5.40/EA |
| 11 | TN4033544Replaces Tennant 1023697 | 1 | Housing, Casting, Head, 80cm, Mach | $1,061.90/EA |
| 12 | TN4033884Replaces Tennant 1025160 | 8 | Grommet, Isolator, 6b X 10od X 26.0fl | $6.80/EA |
| 13 | TN4021350Replaces Tennant 386063 | 8 | Washer, Flat, 0.25b 1.12d .12, Ss | $5.80/EA |
| 14 | TN4034211Replaces Tennant 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Ss, Nl | $3.30/EA |
| 15 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 16 | TN4033193Replaces Tennant 1022549 | 2 | Spacer, Shaft, 17.15b, 25.0d, 3.0t | $8.20/EA |
| 17 | TN4030969Replaces Tennant 1072658 | 1 | Bumper, Head, 80cm, Bristle Skirt (Includes Mounting Hardware & Retaining Strap)Tennant prints the serial range as (xxxxxxxx- ). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4037626Replaces Tennant 1014328 | 2 | Key, Sq, 05mm X 05mm, 25l | $4.20/EA |
| 19 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, Sems | $2.50/EA |
| 20 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 21 | TN4030707Replaces Tennant 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmbSerial 10618021 and later. | $129.00/EA |
| 21 | TN4030707Replaces Tennant 1022550 | 2 | Hub, Drive, Brush, Disk, 17mm (Replaced by 1071637)Serial up to 10618020. | $129.00/EA |
| 22 | TN4030969Replaces Tennant 1053618 | 1 | Bumper, Head, 80cm, Bristle Skirt (Replaced by 1072658)Serial 10423045 and later. Tennant prints the serial range as (10423045- xxxxxxxx). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN4038271Replaces Tennant 1024941 | 1 | Bumper Assy, Skirt, Scb Head, 80cm (Replaced by 1053618)Complete assembly. Serial up to 10423044. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4036249Replaces Tennant 1020234 | 4 | Screw, Hex, M4 X 0.7 X 10, SsPart of Bumper Assy, Skirt, Scb Head, 80cm (Replaced by 1053618) (1024941). Serial up to 10423044. | $3.30/EA |
| 25 | TN4016851Replaces Tennant 41578 | 4 | Washer, Flat, #06 SsPart of Bumper Assy, Skirt, Scb Head, 80cm (Replaced by 1053618) (1024941). Serial up to 10423044. | $3.30/EA |
| 26 | TN4028290Replaces Tennant 1023573 | 1 | Strap, Retaining, Skirt (Replaced by 1053618)Part of Bumper Assy, Skirt, Scb Head, 80cm (Replaced by 1053618) (1024941). Serial up to 10423044. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T5 scrub head group, disk 32 in (800 mm) - continued parts
The parts Tennant numbers on its scrub head group, disk 32 in (800 mm) - continued drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032011Replaces Tennant 1031370 | 1 | Wire, 12 Awg X 250mm | $12.30/EA |
| 2 | TN4017399Replaces Tennant 43952 | 1 | Washer, Lock, Int, 0.31, Ss | $2.60/EA |
| 3 | TN4041944Replaces Tennant 09011 | 7 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 4 | TN4045466Replaces Tennant 1036022 | 1 | Bracket, Mtg, Actuator, Scb HeadSerial 10325114 and later. | $48.70/EA |
| 5 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10325114 and later. | $2.60/EA |
| 6 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10325114 and later. | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 8 | TN4027793Replaces Tennant 364441 | 1 | Screw, Hex, M8 X 1.25 X 110, Ss | $4.90/EA |
| 9 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 10 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62 D X 2.12l | $6.80/EA |
| 11 | TN4032909Replaces Tennant 1022227 | 2 | Bracket, Link, Scrubhead | $74.20/EA |
| 12 | TN4033581Replaces Tennant 1024179 | 2 | Knob, Knurled, M10 Thread | $11.80/EA |
| 13 | TN4020452Replaces Tennant 626081 | 2 | Spring, Cmpr, 12.1d, 0.9w, 90.0l | $5.20/EA |
| 14 | TN4041996Replaces Tennant 09746 | 2 | Screw, Hex, M10 X 1.5 X 90, Ss | $9.90/EA |
| 15 | N/A as printedTennant N/A | 1 | (Replaced By Items #4, 5, & 6)Serial up to 10325113. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, M8 X 1.25 X 20, Ss 18-8 | $4.00/EA |
| 17 | TN4041929Replaces Tennant 08713 | 10 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 18 | TN4043649Replaces Tennant 140027 | 10 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 19 | TN4033240Replaces Tennant 1023268 | 1 | Bracket, Roller, Wall, Scb Head, 70cm | $56.80/EA |
| 20 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ss | $3.40/EA |
| 21 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-Marking | $5.50/EA |
| 22 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Ss, Fl | $3.30/EA |
| 23 | TN4022347Replaces Tennant 608322 | 2 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 24 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 25 | TN4016186Replaces Tennant 9002676 | 1 | Kit, Cover, Disc-HeadComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | TN4033609Replaces Tennant 1024437 | 1 | Insulation, Sound, FrontPart of Kit, Cover, Disc-Head (9002676). | $36.60/EA |
Tennant T5 scrub head group, cylindrical 26 in (650 mm) parts
The parts Tennant numbers on its scrub head group, cylindrical 26 in (650 mm) drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037012Replaces Tennant 222692 | 4 | Screw, Flt, M8 X1.25 X 25, Ss, 18-8, Nl | $4.00/EA |
| 2 | TN4045500Replaces Tennant 1036245 | 2 | Retainer, Blade, Sqge, Side, Blk, NylSerial 10383861 and later. | $5.50/EA |
| 3 | TN4034242Replaces Tennant 1026292 | 2 | Skirt, Side, Scb, Cyl | $40.70/EA |
| 4 | N/A as printedTennant N/A | 4 | (Replaced By Item #2)Serial up to 10383860. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 6 | TN4044671Replaces Tennant 1042228 | 2 | Motor, Ele, 24vdc 1500rpm 0.75hp 23.0aComplete assembly. Serial 10419662 and later. | $1,017.40/EA |
| – | TN4040440Replaces Tennant 1049739 | 2 | Brush Kit, Carbon, Motor, Replmt [4pcs]Part of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (1042228). Serial 10419662 and later. | $108.70/EA |
| 7 | TN4033215Replaces Tennant 1022807 | 2 | Cover, Belt | $76.80/EA |
| 8 | TN4045455Replaces Tennant 1035888 | 2 | Belt, Drive, 6Grv, 508l X 14w, [6Pj]Serial 10338658 and later. | $35.20/EA |
| 9 | TN4036259Replaces Tennant 1020341 | 16 | Screw, Hex, M8 X 1.25 X 20, Sems, Ss | $3.50/EA |
| 10 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 11 | TN4045389Replaces Tennant 1035173 | 2 | Sheave, 06Grv, 2.96pd, 0.59b, Alm [Pj]Serial 10338658 and later. | $112.10/EA |
| 12 | TN4042789Replaces Tennant 00961 | 2 | Key, Sq, 0.19 X 0.19, 0.50l | $4.20/EA |
| 13 | TN4045045Replaces Tennant 1033528 | 2 | Sheave, 06Grv, 1.33pd, 0.50b, Alm [Pj]Serial 10338658 and later. | $87.60/EA |
| 14 | TN4037061Replaces Tennant 222818 | 4 | Screw, Set, #08-32 X 0.25, Nl | $6.60/EA |
| 15 | TN4032931Replaces Tennant 1022401 | 2 | Gasket, Cover, Belt | $11.00/EA |
| 16 | TN4016813Replaces Tennant 41360 | 4 | Bearing, Ball, 0.59b 1.26d 0.35w [2seal] | $19.00/EA |
| 17 | TN4042392Replaces Tennant 1002077 | 2 | Spacer, 0.59b 0.81d 0.50l | $16.10/EA |
| 18 | TN4036304Replaces Tennant 1021036 | 2 | Bracket, Motor, Machined | $231.60/EA |
| 19 | TN4042777Replaces Tennant 00911 | 2 | Key, Sq, 0.19 X 0.19, 0.75l | $3.60/EA |
| 20 | TN4036306Replaces Tennant 1021050 | 2 | Shaft, Drive | $142.60/EA |
| 21 | TN4026292Replaces Tennant 378805 | 2 | Plug, Drive, Brush, Mach | $55.50/EA |
| 22 | TN4031352Replaces Tennant 1029358 | 1 | Deflector, Water, Cyl Head | $48.30/EA |
| 23 | TN4040679Replaces Tennant 604980 | 2 | Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (Replaced By 1050369)Complete assembly. Serial up to 10419661. | $1,197.30/EA |
| – | TN4042211Replaces Tennant 190152 | 2 | Brush, Carbon [Pk=4]Part of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (Replaced By 1050369) (604980). Serial up to 10419661. | $27.37/EA |
| – | TN4025348Replaces Tennant 605305 | 8 | Spring, Motor, F/ Carbon BrushPart of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (Replaced By 1050369) (604980). Serial up to 10419661. | $9.90/EA |
| 24 | TN4025865Replaces Tennant 606795 | 2 | Harness Motor Cyl-BrushSerial up to 10419661. | $34.40/EA |
| 25 | TN4043649Replaces Tennant 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsSerial up to 10419661. | $3.20/EA |
| 26 | TN4017399Replaces Tennant 43952 | 4 | Washer, Lock, Int, 0.31 SsSerial up to 10419661. | $2.60/EA |
| 27 | TN4022386Replaces Tennant 608964 | 4 | Boot, 90deg .27id 0.64id 1.79l, BlkSerial up to 10419661. | $25.80/EA |
| 28 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 29 | TN4033863Replaces Tennant 1025026 | 2 | Screw, Hex, M8 X 1.25 X 180, Ss | $9.75/EA |
| 30 | TN4042140Replaces Tennant 1044386 | 2 | Bracket, Mtg, Motor | $46.20/EA |
| 31 | TN4032935Replaces Tennant 1022424 | 1 | Stud, Adj, M16, Scrub Head | $25.50/EA |
| 32 | TN4011899Replaces Tennant 763066 | 1 | Nut, Hex, Jam, M16 X 2.0 | $3.40/EA |
| 33 | TN4029625Replaces Tennant 578717 | 2 | Screw, Hex, M8 X 1.25 X 50, Ss | $5.80/EA |
| 34 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 35 | TN4033202Replaces Tennant 1022624 | 1 | Housing, Head, 65cm Cyl, Mach | $384.18/EA |
| 36 | TN4044272Replaces Tennant 1024636 | 2 | Sprocket, 48t, 5p V2Serial up to 10338657. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | TN4029226Replaces Tennant 375195 | 2 | Sprocket, Timing, 22tooth, 0.50b, [Gt/2]Serial up to 10338657. | $68.20/EA |
| 38 | TN4025731Replaces Tennant 377500 | 2 | Belt,Synchronous, 500l,15mm [05p,Plychn]Serial up to 10338657. | $88.90/EA |
| 39 | TN4037767Replaces Tennant 1052895 | 1 | Harness, Adapter, Motor [T7/T5]Serial 10419662 and later. | $25.50/EA |
Tennant T5 scrub head group, cylindrical 26 in (650 mm) - continued parts
The parts Tennant numbers on its scrub head group, cylindrical 26 in (650 mm) - continued drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016187Replaces Tennant 9002677 | 1 | Kit, Cover, Cyl-HeadComplete assembly. | $276.10/EA |
| 2 | TN4033856Replaces Tennant 1024940 | 1 | Insulation, Sound, Front, Cyl HeadPart of Kit, Cover, Cyl-Head (9002677). | $24.04/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 6 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 4 | N/A as printedTennant N/A | 4 | (Replaced By Item #32)Serial up to 10383860. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4022347Replaces Tennant 608322 | 2 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 6 | TN4027793Replaces Tennant 364441 | 1 | Screw, Hex, M8 X 1.25 X 110, Ss | $4.90/EA |
| 7 | TN4017399Replaces Tennant 43952 | 1 | Washer, Lock, Int, 0.31 Ss | $2.60/EA |
| 8 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 9 | TN4043848Replaces Tennant 140314 | 1 | Clamp, Cable, Stl, 0.75d X 0.75w, 1h,Yl | $3.70/EA |
| 10 | TN4034939Replaces Tennant 12273 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, Nl | $4.00/EA |
| 11 | TN4045469Replaces Tennant 1036032 | 1 | Bracket, Lift, Head, RhSerial 10330480 and later. | $21.70/EA |
| 12 | TN4045467Replaces Tennant 1036025 | 1 | Bracket, Lift, Head, LhSerial 10330480 and later. | $18.10/EA |
| 13 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 14 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10330480 and later. | $3.30/EA |
| 15 | N/A as printedTennant N/A | 1 | (Replaced By Items #11, 12, 13, & 14)Serial up to 10330479. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4033267Replaces Tennant 1023465 | 1 | Hopper, 65cm, Rm-Blk | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 18 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62 D X 2.12l | $6.80/EA |
| 19 | TN4033202Replaces Tennant 1022624 | 1 | Housing, Head, 65cm Cyl, Mach | $384.18/EA |
| 20 | TN4034190Replaces Tennant 1025580 | 2 | Cap, Plstc, Pf12 | $8.70/EA |
| 21 | TN4031218Replaces Tennant 33584 | 2 | Clamp, Cable, Stl, 0.63d X 0.50w, 1h | $4.20/EA |
| 22 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 23 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Sems, Ss | $3.50/EA |
| 24 | TN4042723Replaces Tennant 1046049 | 1 | Tube Assy, Bar, Spray | $78.70/EA |
| 25 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06 | $6.20/EA |
| 26 | TN4037012Replaces Tennant 222692 | 4 | Screw, Flt, M8 X1.25 X 25, Ss, 18-8, Nl | $4.00/EA |
| 27 | TN4045500Replaces Tennant 1036245 | 2 | Retainer, Blade, Sqge, Side, Blk, NylSerial 10383861 and later. | $5.50/EA |
| 28 | TN4034242Replaces Tennant 1026292 | 2 | Skirt, Side, Scb, Cyl | $40.70/EA |
| 29 | N/A as printedTennant N/A | 4 | (Replaced By Item #27)Serial up to 10383860. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4036627Replaces Tennant 1057922 | 2 | Door Assy, Cyl HeadComplete assembly. | $138.20/EA |
| 30 | TN4018896Replaces Tennant 390996 | 1 | Screw, Flt, M10 X 1.5 X 20, 10.9, NlPart of Door Assy, Cyl Head (1057922). | $4.00/EA |
| 31 | TN4042114Replaces Tennant 1044145 | 1 | Door, BrushPart of Door Assy, Cyl Head (1057922). | $55.20/EA |
| 32 | TN4042879Replaces Tennant 01516 | 1 | Ring, Retaining, Ext, 0.59d, BasicPart of Door Assy, Cyl Head (1057922). | $2.50/EA |
| 33 | TN4039875Replaces Tennant 222184 | 1 | Pin, Roll, .094 D X 0.25l, .094/.097Part of Door Assy, Cyl Head (1057922). | $2.50/EA |
| 34 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Idler PlugPart of Door Assy, Cyl Head (1057922). | $73.40/EA |
| 35 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg]Part of Door Assy, Cyl Head (1057922). | $28.80/EA |
| 36 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10383861 and later. | $3.30/EA |
| 37 | TN4029630Replaces Tennant 578769 | 2 | Label, Moving Parts | $5.40/EA |
| 38 | TN4039867Replaces Tennant 222178 | 2 | Roller, Pyu, 1.88d 0.53b 3.05l | $15.20/EA |
| 39 | TN4029606Replaces Tennant 578421 | 2 | Pin, Cotter, .125d X 1.00l | $3.40/EA |
| 40 | TN4039888Replaces Tennant 222196 | 2 | Pin, Clevis, 0.50 D X 4.25l | $6.00/EA |
| 41 | TN4032011Replaces Tennant 1031370 | 1 | Wire, 12 Awg X 250mm | $12.30/EA |
| 42 | TN4041599Replaces Tennant 07785 | 4 | Nut, Hex, Std, M6 X 1.0, A2, Ss | $2.50/EA |
| 43 | TN4033278Replaces Tennant 1023536 | 1 | Lip,Tray, Debris, Scrubhead, 65cm | $86.00/EA |
| 44 | TN4033890Replaces Tennant 1025272 | 1 | Skirt, Tray, Debris, 65cm | $32.00/EA |
| 45 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 46 | TN4028601Replaces Tennant 374006 | 1 | Channel, Nyl, 0.5h 0.27w 29.0l | $27.40/EA |
Tennant T5 scrub head group, cylindrical 32 in (800 mm) parts
The parts Tennant numbers on its scrub head group, cylindrical 32 in (800 mm) drawing. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037012Replaces Tennant 222692 | 4 | Screw, Flt, M8 X1.25 X 25, Ss, 18-8, Nl | $4.00/EA |
| 2 | TN4045500Replaces Tennant 1036245 | 2 | Retainer, Blade, Sqge, Side, Blk, NylSerial 10353861 and later. | $5.50/EA |
| 3 | TN4034242Replaces Tennant 1026292 | 2 | Skirt, Side, Scb, Cyl | $40.70/EA |
| 4 | N/A as printedTennant N/A | 4 | (Replaced By Item #2)Serial up to 10353860. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 6 | TN4044671Replaces Tennant 1042228 | 2 | Motor, Ele, 24vdc 1500rpm 0.75hp 23.0aComplete assembly. Serial 10419662 and later. | $1,017.40/EA |
| – | TN4040440Replaces Tennant 1049739 | 2 | Brush Kit, Carbon, Motor, Replmt [4pcs]Part of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (1042228). Serial 10419662 and later. | $108.70/EA |
| 7 | TN4033215Replaces Tennant 1022807 | 2 | Cover, Belt | $76.80/EA |
| 8 | TN4045455Replaces Tennant 1035888 | 2 | Belt, Drive, 6Grv, 508l X 14w, [6Pj]Serial 10338658 and later. | $35.20/EA |
| 9 | TN4036259Replaces Tennant 1020341 | 16 | Screw, Hex, M8 X 1.25 X 20, Sems, Ss | $3.50/EA |
| 10 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 11 | TN4045389Replaces Tennant 1035173 | 2 | Sheave, 06Grv, 2.96pd, 0.59b, Alm [Pj]Serial 10338658 and later. | $112.10/EA |
| 12 | TN4042789Replaces Tennant 00961 | 2 | Key, Sq, 0.19 X 0.19, 0.50l | $4.20/EA |
| 13 | TN4045045Replaces Tennant 1033528 | 2 | Sheave, 06Grv, 1.33pd, 0.50b, Alm [Pj]Serial 10338658 and later. | $87.60/EA |
| 14 | TN4037061Replaces Tennant 222818 | 4 | Screw, Set, #08-32 X 0.25, Nl | $6.60/EA |
| 15 | TN4032931Replaces Tennant 1022401 | 2 | Gasket, Cover, Belt | $11.00/EA |
| 16 | TN4016813Replaces Tennant 41360 | 4 | Bearing, Ball, 0.59b 1.26d 0.35w [2seal] | $19.00/EA |
| 17 | TN4042392Replaces Tennant 1002077 | 2 | Spacer, 0.59b 0.81d 0.50l | $16.10/EA |
| 18 | TN4036304Replaces Tennant 1021036 | 2 | Bracket, Motor, Machined | $231.60/EA |
| 19 | TN4042777Replaces Tennant 00911 | 2 | Key, Sq, 0.19 X 0.19, 0.75l | $3.60/EA |
| 20 | TN4036306Replaces Tennant 1021050 | 2 | Shaft, Drive | $142.60/EA |
| 21 | TN4026292Replaces Tennant 378805 | 2 | Plug, Drive, Brush, Mach | $55.50/EA |
| 22 | TN4031352Replaces Tennant 1029358 | 1 | Deflector, Water, Cyl Head | $48.30/EA |
| 23 | TN4040679Replaces Tennant 604980 | 2 | Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (Replaced By 1050369)Complete assembly. Serial up to 10419661. | $1,197.30/EA |
| – | TN4042211Replaces Tennant 190152 | 2 | Brush, Carbon [Pk=4]Part of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (Replaced By 1050369) (604980). Serial up to 10419661. | $27.37/EA |
| – | TN4025348Replaces Tennant 605305 | 8 | Spring, Motor, F/ Carbon BrushPart of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (Replaced By 1050369) (604980). Serial up to 10419661. | $9.90/EA |
| 24 | TN4025865Replaces Tennant 606795 | 2 | Harness Motor Cyl-BrushSerial up to 10419661. | $34.40/EA |
| 25 | TN4043649Replaces Tennant 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsSerial up to 10419661. | $3.20/EA |
| 26 | TN4017399Replaces Tennant 43952 | 4 | Washer, Lock, Int, 0.31 SsSerial up to 10419661. | $2.60/EA |
| 27 | TN4022386Replaces Tennant 608964 | 4 | Boot, 90deg .27id 0.64id 1.79l, BlkSerial up to 10419661. | $25.80/EA |
| 28 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 29 | TN4033863Replaces Tennant 1025026 | 2 | Screw, Hex, M8 X 1.25 X 180, Ss | $9.75/EA |
| 30 | TN4042140Replaces Tennant 1044386 | 2 | Bracket, Mtg, Motor | $46.20/EA |
| 31 | TN4042140Replaces Tennant 1044386 | 1 | Stud, Adj, M16, Scrub Head | $46.20/EA |
| 32 | TN4011899Replaces Tennant 763066 | 1 | Nut, Hex, Jam, M16 X 2.0 | $3.40/EA |
| 33 | TN4029625Replaces Tennant 578717 | 2 | Screw, Hex, M8 X 1.25 X 50, Ss | $5.80/EA |
| 34 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 35 | TN4033864Replaces Tennant 1025039 | 1 | Housing, Head, 80cm Cyl, Mach | $1,380.10/EA |
| 36 | TN4044272Replaces Tennant 1024636 | 2 | Sprocket, 48t, 5p V2Serial up to 10338657. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | TN4029226Replaces Tennant 375195 | 2 | Sprocket, Timing, 22tooth, 0.50b, [Gt/2]Serial up to 10338657. | $68.20/EA |
| 38 | TN4025731Replaces Tennant 377500 | 2 | Belt,Synchronous, 500l,15mm [05p,Plychn]Serial up to 10338657. | $88.90/EA |
| 39 | TN4037767Replaces Tennant 1052895 | 1 | Harness, Adapter, Motor [T7/T5]Serial 10409662 and later. | $25.50/EA |
Tennant T5 scrub head group, cylindrical 32 in (800 mm) - continued parts
The parts Tennant numbers on its scrub head group, cylindrical 32 in (800 mm) - continued drawing. Manual pages 56, list 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016187Replaces Tennant 9002677 | 1 | Kit, Cover, Cyl-HeadComplete assembly. | $276.10/EA |
| 2 | TN4033856Replaces Tennant 1024940 | 1 | Insulation, Sound, Front, Cyl HeadPart of Kit, Cover, Cyl-Head (9002677). | $24.04/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 7 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 4 | N/A as printedTennant N/A | 4 | (Replaced By Item #32)Serial up to 10353860. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4022347Replaces Tennant 608322 | 2 | Screw, Trs, M6 X 1.0 X 16, Phl, Ss | $4.00/EA |
| 6 | TN4027793Replaces Tennant 364441 | 1 | Screw, Hex, M8 X 1.25 X 110, Ss | $4.90/EA |
| 7 | TN4017399Replaces Tennant 43952 | 1 | Washer, Lock, Int, 0.31 Ss | $2.60/EA |
| 8 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 9 | TN4043848Replaces Tennant 140314 | 1 | Clamp, Cable, Stl, 0.75d X 0.75w, 1h,Yl | $3.70/EA |
| 10 | TN4034939Replaces Tennant 12273 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, Nl | $4.00/EA |
| 11 | TN4045469Replaces Tennant 1036032 | 1 | Bracket, Lift, Head, RhSerial 10330480 and later. | $21.70/EA |
| 12 | TN4045467Replaces Tennant 1036025 | 1 | Bracket, Lift, Head, LhSerial 10330480 and later. | $18.10/EA |
| 13 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10330480 and later. | $2.60/EA |
| 14 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10330480 and later. | $3.30/EA |
| 15 | N/A as printedTennant N/A | 1 | (Replaced By Items #11, 12, 13, & 14)Serial up to 10330479. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4033876Replaces Tennant 1025127 | 1 | Hopper, 80cm [Rm] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 18 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62 D X 2.12l | $6.80/EA |
| 19 | TN4033864Replaces Tennant 1025039 | 1 | Housing, Head, 80cm Cyl, Mach | $1,380.10/EA |
| 20 | TN4034190Replaces Tennant 1025580 | 2 | Cap, Plstc, Pf12 | $8.70/EA |
| 21 | TN4031218Replaces Tennant 33584 | 2 | Clamp, Cable, Stl, 0.63d X 0.50w, 1h | $4.20/EA |
| 22 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 23 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Sems, Ss | $3.50/EA |
| 24 | TN4033892Replaces Tennant 1025276 | 1 | Tube Assy, Bar, Spray [85cm] | $133.60/EA |
| 25 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06 | $6.20/EA |
| 26 | TN4037012Replaces Tennant 222692 | 4 | Screw, Flt, M8 X1.25 X 25, Ss, 18-8, Nl | $4.00/EA |
| 27 | TN4045500Replaces Tennant 1036245 | 2 | Retainer, Blade, Sqge, Side, Blk, NylSerial 10353861 and later. | $5.50/EA |
| 28 | TN4034242Replaces Tennant 1026292 | 2 | Skirt, Side, Scb, Cyl | $40.70/EA |
| 29 | N/A as printedTennant N/A | 4 | (Replaced By Item #27)Serial up to 10353860. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4036627Replaces Tennant 1057922 | 2 | Door Assy, Cyl HeadComplete assembly. | $138.20/EA |
| 30 | TN4018896Replaces Tennant 390996 | 1 | Screw, Flt, M10 X 1.5 X 20, 10.9, NlPart of Door Assy, Cyl Head (1057922). | $4.00/EA |
| 31 | TN4042114Replaces Tennant 1044145 | 1 | Door, BrushPart of Door Assy, Cyl Head (1057922). | $55.20/EA |
| 32 | TN4042879Replaces Tennant 01516 | 1 | Ring, Retaining, Ext, 0.59d, BasicPart of Door Assy, Cyl Head (1057922). | $2.50/EA |
| 33 | TN4039875Replaces Tennant 222184 | 1 | Pin, Roll, .094 D X 0.25l, .094/.097Part of Door Assy, Cyl Head (1057922). | $2.50/EA |
| 34 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Idler PlugPart of Door Assy, Cyl Head (1057922). | $73.40/EA |
| 35 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg]Part of Door Assy, Cyl Head (1057922). | $28.80/EA |
| 36 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10383861 and later. | $3.30/EA |
| 37 | TN4029630Replaces Tennant 578769 | 2 | Label, Moving Parts | $5.40/EA |
| 38 | TN4039867Replaces Tennant 222178 | 2 | Roller, Pyu, 1.88d 0.53b 3.05l | $15.20/EA |
| 39 | TN4029606Replaces Tennant 578421 | 2 | Pin, Cotter, .125d X 1.00l | $3.40/EA |
| 40 | TN4039888Replaces Tennant 222196 | 2 | Pin, Clevis, 0.50 D X 4.25l | $6.00/EA |
| 41 | TN4032011Replaces Tennant 1031370 | 1 | Wire, 12 Awg X 250mm | $12.30/EA |
| 42 | TN4041599Replaces Tennant 07785 | 5 | Nut, Hex, Std, M6 X 1.0, A2, Ss | $2.50/EA |
| 43 | TN4033881Replaces Tennant 1025150 | 1 | Lip,Tray, Debris, Scrubhead, 80cm | $90.90/EA |
| 44 | TN4033891Replaces Tennant 1025273 | 1 | Skirt, Tray, Debris, 80cm | $33.00/EA |
| 45 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 46 | TN4028603Replaces Tennant 374007 | 1 | Channel, .18, 0.3w 0.5 33.0l | $29.10/EA |
Tennant T5 scrubhead lift group parts
The parts Tennant numbers on its scrubhead lift group drawing. Manual pages 58, list 59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Tennant 11329 | 1 | Screw, Hex, M6 X 1.0 X 16, Ss, Nl | $3.40/EA |
| 2 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 3 | TN4031351Replaces Tennant 1029310 | 1 | Harness, Ground, 12 Awg | $12.65/EA |
| 4 | TN4031027Replaces Tennant 1029051 | 1 | Strap, Static, Controller | $7.85/EA |
| 5 | TN4033226Replaces Tennant 1022913 | 1 | Bracket Wldt, Actuator, Upper | $139.90/EA |
| 6 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37 D X 1.50l | $3.90/EA |
| 7 | TN4044109Replaces Tennant 140626 | 2 | Pin, Hair Cotter, 0.25 D .125 Wir | $4.00/EA |
| 8 | TN4033230Replaces Tennant 1023035 | 1 | Actuator, 24vdc, 6.0 Strk, 600lb | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4040408Replaces Tennant 1049367 | 1 | Bracket, Sppt, Guide, Rlr | $151.20/EA |
| 10 | TN4016764Replaces Tennant 40678 | 1 | Clamp, Cable, Stl, 0.44d X 0.62w, 1h | $3.60/EA |
| 11 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 12 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Nl | $4.00/EA |
| 13 | TN4031218Replaces Tennant 33584 | 1 | Clamp, Cable, Stl, 0.63d X 0.50w, 1hole | $4.20/EA |
| 14 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, #10 Ss | $2.60/EA |
| 15 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.8, Nl, Ss | $3.30/EA |
| 16 | TN4041929Replaces Tennant 08713 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 17 | TN4033530Replaces Tennant 1023592 | 1 | Bracket, Guide, Rlr, Head Lift, Brz [T5] | $180.00/EA |
| 18 | TN4021969Replaces Tennant 607920 | 2 | Spring, Cmpr, 18.3d, 2.4w, 25.4l Mw | $4.10/EA |
| 19 | TN4021906Replaces Tennant 607568 | 2 | Washer, P/M, 1.500d, 0.500b 0.25l Bnz | $14.10/EA |
| 20 | TN4033538Replaces Tennant 1023658 | 1 | Roller, Linkage, Head Lift | $4.10/EA |
| 21 | TN4033537Replaces Tennant 1023653 | 1 | Shaft, Rlr, Head-Lift | $70.00/EA |
| 22 | TN4021718Replaces Tennant 386299 | 1 | Screw, Hex, M8 X 1.25 X 100, Ss | $5.10/EA |
| 23 | TN4033854Replaces Tennant 1024911 | 1 | Bracket, Roller, Scrubhead, Sheet Metal | $65.59/EA |
| 24 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, Ss | $4.00/EA |
| 25 | TN4021142Replaces Tennant 63185 | 2 | Spring, Cmpr, 0.85od .09wir 2.0l | $5.20/EA |
| 26 | TN4033284Replaces Tennant 1023575 | 1 | Bracket, Spring, Down Press | $19.85/EA |
| 27 | TN4014571Replaces Tennant 51534 | 1 | Pin, Clevis, 0.50 D X 2.00l | $4.90/EA |
| 28 | TN4034135Replaces Tennant 32486 | 4 | Washer, Flat, 0.50 Sae | $2.60/EA |
| 29 | TN4033858Replaces Tennant 1024969 | 2 | Sleeve, P/M, 0.629d 09.5 | $1.20/EA |
| 30 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 2.5l | $5.20/EA |
| 31 | TN4013444Replaces Tennant 45960 | 2 | Bolt, Shld, .50d X 4.25, .38-16 | $21.10/EA |
| 32 | TN4034852Replaces Tennant 1016331 | 2 | Washer, Flat, 0.34b 1.25d .11, Ss | $5.10/EA |
| 33 | TN4036504Replaces Tennant 12333 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, Nl | $4.00/EA |
| 34 | TN4018313Replaces Tennant 69461 | 2 | Washer, Flat, 0.38b 0.88d .12, Stl, Pl | $2.50/EA |
| 35 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
Tennant T5 solution group, fast model parts
The parts Tennant numbers on its solution group, fast model drawing. Manual pages 60, list 61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035537Replaces Tennant 1018155 | 2 | Screw, Pan, M5 X 0.8 X16, Ss, Tcut | $2.50/EA |
| 2 | TN4020247Replaces Tennant 621443 | 1 | Chain, Ball, #10 X 157l, Ss | $4.40/EA |
| 3 | TN4038978Replaces Tennant 1005435 | 1 | Fitting, Plstc, Cap, Pf04, Pipe | $4.20/EA |
| 4 | TN4038930Replaces Tennant 1002899 | 1 | Fitting, Plstc, Str, Pm04, Cplg, Mal | $31.30/EA |
| 5 | TN4031343Replaces Tennant 1029262 | 1 | Fitting, Plstc, Str, Pf04, Cplg, Fem | $58.28/EA |
| 6 | TN4030990Replaces Tennant 1028773 | 1 | Fitting, Brs, E90, Pf04/Bm04 | $28.60/EA |
| 7 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr 0.25id 3ft | $51.70/EA |
| 8 | TN4045510Replaces Tennant 1036339 | 1 | Bracket, Mtg, Detgt [T5] | $59.49/EA |
| 9 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10369603 and later. | $3.30/EA |
| 10 | TN4015366Replaces Tennant 54333 | 3 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 11 | TN4035216Replaces Tennant 1017015 | 1 | Detergent Pkg, 2 Liter, Sgl [365] (Standard) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4035218Replaces Tennant 1017022 | 1 | Detergent Pkg, 2 Liter, Sgl [665] (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4020030Replaces Tennant 9002021 | 1 | Fast 965 2 Ltr, Detergent (Optional) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4038306Replaces Tennant 1015522 | 1 | Filter, Screen, 080 Mesh, Pf08, Ss | $16.40/EA |
| 13 | TN4020775Replaces Tennant 630371 | 1 | Fitting, Plstc, E90, Bm10/Pm08 | $8.70/EA |
| 14 | TN4044647Replaces Tennant 1041978 | 5 | Clamp, Hose, Wir, .85 - .90, Silver | $2.60/EA |
| 15 | TN4045397Replaces Tennant 1035355 | 1 | Hose, Afmkt, Pvc, Clr, 0.62id, 02ft | $36.50/EA |
| 16 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm10/Bm08/Bm10 | $5.30/EA |
| 17 | TN4025143Replaces Tennant 605099 | 1 | Hose, Pvc, Clr, 0.62id 0.88od 3.0l | $16.00/EA |
| 18 | TN4039920Replaces Tennant 1059224 | 1 | Valve, Water, Solenoid, 24vdc, Bm10/Bm10 | $107.90/EA |
| 19 | TN4021947Replaces Tennant 607776 | 1 | Clamp, Hose, Wire, .73 - .77, Silver | $4.20/EA |
| 20 | TN4010342Replaces Tennant 9008847 | 1 | Fast Kit, Injector[T5 60/65cm, Fast Iii]Serial 10538043 and later. | $300.60/EA |
| 21 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsSerial 10347532 and later. | $3.40/EA |
| 21 | TN4031247Replaces Tennant 33932 | 3 | Nut, Hex, Lock, M4 X 0.7, Nl, SsSerial up to 10347531. | $3.40/EA |
| 22 | TN4029304Replaces Tennant 573073 | 2 | Clip, Grip, Hose, 1.00-1.38, Zn (600 mm Disk & 650 mm Cyl Models)Serial 10538043 and later. | $2.75/EA |
| 22 | TN4029304Replaces Tennant 573073 | 1 | Clip, Grip, Hose, 1.00-1.38, Zn (700 mm/800 mm Disk & 800 mm Cyl Models)Serial 10347532 and later. | $2.75/EA |
| 23 | TN4014173Replaces Tennant 49697 | 2 | Screw, Pan, M4 X 0.7 X 10, SsSerial 10347532 to 10369602. | $3.40/EA |
| 23 | TN4014173Replaces Tennant 49697 | 3 | Screw, Pan, M4 X 0.7 X 10, SsSerial up to 10347531. | $3.40/EA |
| 24 | N/A as printedTennant N/A | 1 | (Replaced By Item #30)Serial up to 10369602. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.25 SsSerial up to 10369602. | $2.60/EA |
| 26 | TN4043382Replaces Tennant 11635 | 2 | Screw, Hex, M6 X 1.0 X 12, Ss, NlSerial up to 10369602. | $6.60/EA |
| 27 | TN4010342Replaces Tennant 9003810 | 1 | Fast Kit, Conv, Ci[T5 60/65Cm, FaST II+] (600mm Disk & 650mm Cyl Models) (See Breakdowns)Serial up to 10348537. | $300.60/EA |
| 27 | TN4017016Replaces Tennant 9003812 | 1 | Fast Kit, Conv, Ci[T5 70/80Cm, Fast II+] (700mm/800mm Disk & 800mm Cyl Models) (See Breakdowns)Serial up to 10347531. | $204.03/EA |
| 28 | TN4021946Replaces Tennant 607775 | 1 | Clamp, Hose, Wir, .63 - .66, BlkSerial up to 10348537. | $4.20/EA |
| 29 | TN4037622Replaces Tennant 1014295 | 3 | Clip, Spring, Holder, Blk Vyl CoatedSerial up to 10347531. | $12.40/EA |
| 30 | TN4044451Replaces Tennant 1040982 | 1 | Plate, Mtg, Injector [T5/Ss5 Fast Ii+]Serial 10369603 and later. | $19.70/EA |
| 31 | TN4019547Replaces Tennant 613735 | 2 | Clamp, Hose, Wir, .40 - .42, Yel | $3.60/EA |
| 32 | TN4037622Replaces Tennant 1014295 | 1 | Clip, Grip, Hose, 0.75-1.12, Stl,Blk Vyl (700 mm/800 mm Disk & 800 mm Cyl Models) | $12.40/EA |
| 33 | TN4010342Replaces Tennant 9003907 | 1 | Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847)Serial 10348538 to 10538042. | $300.60/EA |
| 33 | TN4017033Replaces Tennant 9003908 | 1 | Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns)Serial 10347532 and later. | $198.75/EA |
| 34 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 35 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, Ss | $3.40/EA |
Tennant T5 solution group, fast model - continued parts
The parts Tennant numbers on its solution group, fast model - continued drawing. Manual pages 62, list 63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN9002542Tennant 9002542 | 1 | Hose, .38id X 0.6od Pvc 376720 Ft 3.5 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4017376Replaces Tennant 43555 | 2 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50w | $6.20/EA |
| 3 | TN4033265Replaces Tennant 1023463 | 1 | Bracket, Mtg, Pump | $26.54/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 5 | TN4013796Replaces Tennant 9004748 | 1 | Hose, Pyu, Clr, 0.38id 0.62od 42l | $71.40/EA |
| 6 | TN4019508Replaces Tennant 613521 | 1 | Tubing 1/2idx3/4od Vnyl 611259 Ft 1.000 | $23.90/EA |
| 7 | TN4021947Replaces Tennant 607776 | 3 | Clamp, Hose, Wire, .73 - .77, Silver | $4.20/EA |
| 8 | TN4035473Replaces Tennant 1017532 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $6.20/EA |
| 9 | TN4037620Replaces Tennant 1014282 | 1 | Pump, Soltn, Ele, 24vdc, 60psi, PackardComplete assembly. | $749.40/EA |
| 10 | TN4019656Replaces Tennant 9001240 | 1 | Pump Kit, Head, SoltnPart of Pump, Soltn, Ele, 24vdc, 60psi, Packard (1014282). | $456.00/EA |
| 11 | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 02cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 60psi, Packard (1014282). | $7.90/EA |
| 12 | TN4026210Replaces Tennant 78951 | 1 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of Pump, Soltn, Ele, 24vdc, 60psi, Packard (1014282). | $0.55/EA |
| 13 | TN4043117Replaces Tennant 10917 | 1 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of Pump, Soltn, Ele, 24vdc, 60psi, Packard (1014282). | $3.60/EA |
| 14 | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 60psi, Packard (1014282). | $4.20/EA |
| 15 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Air Vent, Float Type | $64.30/EA |
| 16 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06 | $8.70/EA |
| 17 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 18 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, Nyl | $7.00/EA |
| 19 | TN4027581Replaces Tennant 601483 | 1 | Fitting, Brs, Tee, Pm06/Pf06, Strt, T | $24.80/EA |
| 20 | TN4019511Replaces Tennant 613531 | 1 | Tubing 1/2idx3/4od Vinyl 611259 Ft 3.750 | $36.50/EA |
| 21 | TN4020776Replaces Tennant 630372 | 1 | Fitting, Plstc, Tee, Bm08/Bm06/Bm08 | $10.20/EA |
| 22 | TN4019508Replaces Tennant 613521 | 1 | Tubing 1/2idx3/4od Vnyl 611259 Ft 1.000 | $23.90/EA |
| 23 | TN4021946Replaces Tennant 607775 | 3 | Clamp, Hose, Wir, .63 - .66, Blk | $4.20/EA |
| 24 | TN4025768Replaces Tennant 606362 | 1 | Hose 3/8idx5/8odx6.5 (611254) | $19.10/EA |
| 25 | TN4038299Replaces Tennant 1015455 | 1 | Valve, Check, 0005 Psi, Bm06/Bm06 (600mm Disk & 650mm Cyl Models) | $93.60/EA |
| 25 | TN4038299Replaces Tennant 1015455 | 1 | Valve, Check, 0005 Psi, Bm06/Bm06 (700mm/800mm Disk & 800mm Cyl Models)Serial 10582617 and later. | $93.60/EA |
| 25 | TN4044402Replaces Tennant 1040501 | 1 | Valve, Check, 0015 Psi, Bm06/Bm06 (700mm/800mm Disk & 800mm Cyl Models)Serial 10347532 to 10582616. | $38.80/EA |
| 25 | TN4038299Replaces Tennant 1015455 | 1 | Valve, Check, 0005 Psi, Bm06/Bm06 (700mm/800mm Disk & 800mm Cyl Models)Serial up to 10347531. | $93.60/EA |
Tennant T5 9008847 fast injector assembly breakdown (S/N 10538043 and later), 600 mm disk & 650 mm cylindrical models parts
The parts Tennant numbers on its 9008847 fast injector assembly breakdown (s/n 10538043 and later), 600 mm disk & 650 mm cylindrical models drawing. Manual page 64.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010342Replaces Tennant 9008847 | 1 | Fast Kit, Injector[T5 60/65cm, Fast Iii]Complete assembly. Serial 10538043 and later. | $300.60/EA |
| 1 | TN4017015Replaces Tennant 9003811 | 1 | Fast Kit, Ci[Inj Rebld, T5 60/65cm, Ii+]Complete assembly. Part of Fast Kit, Injector[T5 60/65cm, Fast Iii] (9008847). Serial 10538043 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN9008848Tennant 9008848 | 1 | Fast Kit, Seal, Injector, Ci [Fast Iii]Part of Fast Kit, Ci[Inj Rebld, T5 60/65cm, Ii+] (9003811). Serial 10538043 and later. | $4.10/EA |
| 3 | TN4044253Replaces Tennant 1039989 | 1 | Plug, Orifice, 0.030, Ss [Fast Ii+]Part of Fast Kit, Ci[Inj Rebld, T5 60/65cm, Ii+] (9003811). Serial 10348538 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4186845Replaces Tennant 1059250 | 1 | Insert, Venturi, Medium, [Fast Iii]Part of Fast Kit, Ci[Inj Rebld, T5 60/65cm, Ii+] (9003811). Serial 10538043 and later. | $14.54/EA |
| 5 | TN4187091Replaces Tennant 1059869 | 1 | Plate Assy, Orifice, 0.007id, RedPart of Fast Kit, Ci[Inj Rebld, T5 60/65cm, Ii+] (9003811). Serial 10538043 and later. | $26.87/EA |
| 6 | TN4016470Replaces Tennant 9003009 | 1 | Fast Kit, Ci, Injector Filters[Fast Ii+]Part of Fast Kit, Injector[T5 60/65cm, Fast Iii] (9008847). Serial 10348538 and later. | $71.60/EA |
| 7 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi [Fast Ii+]Part of Fast Kit, Injector[T5 60/65cm, Fast Iii] (9008847). Serial 10348538 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi [Fast Ii+]Part of Fast Kit, Injector[T5 60/65cm, Fast Iii] (9008847). Serial 10348538 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4186474Replaces Tennant 1058126 | 1 | Housing, Fltr, Upper [Fast Iii]Part of Fast Kit, Injector[T5 60/65cm, Fast Iii] (9008847). Serial 10538043 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4186329Replaces Tennant 1057811 | 1 | Housing, Fltr, Lower [Fast Iii]Part of Fast Kit, Injector[T5 60/65cm, Fast Iii] (9008847). Serial 10538043 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4038250Replaces Tennant 1053564 | 1 | Housing, Body, Injector [Fast Iii]Part of Fast Kit, Injector[T5 60/65cm, Fast Iii] (9008847). Serial 10538043 and later. | $43.43/EA |
Tennant T5 9003907 fast injector assembly breakdown (S/N 10348538-10538042) 600 mm disk & 650 mm cylindrical models parts
The parts Tennant numbers on its 9003907 fast injector assembly breakdown (s/n 10348538-10538042) 600 mm disk & 650 mm cylindrical models drawing. Manual page 65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010342Replaces Tennant 9003907 | 1 | Fast Kit, Injector[T5 60/65cm, Fast Ii+]Complete assembly. Serial 10348538 to 10538042. | $300.60/EA |
| 1 | TN4017015Replaces Tennant 9003811 | 1 | Fast Kit, Ci[Inj Rebld, T5 60/65cm, Ii+]Part of Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847) (9003907). Serial 10348538 to 10538042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4016469Replaces Tennant 9003008 | 1 | Fast Kit, Ci, Injector Seals [Fast Ii+]Part of Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847) (9003907). Serial 10348538 to 10538042. | $65.80/EA |
| 3 | TN4016470Replaces Tennant 9003009 | 1 | Fast Kit, Ci, Injector Filters[Fast Ii+]Part of Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847) (9003907). Serial 10348538 and later. | $71.60/EA |
| 4 | TN4032256Replaces Tennant 1032284 | 1 | Plate Assy, Orifice, 0.007id, RedPart of Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847) (9003907). Serial 10348538 to 10538042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4044253Replaces Tennant 1039989 | 1 | Plug, Orifice, 0.030, Ss [Fast Ii+]Part of Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847) (9003907). Serial 10348538 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi [Fast Ii+]Part of Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847) (9003907). Serial 10348538 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi [Fast Ii+]Part of Fast Kit, Injector[T5 60/65Cm, Fast II+] (See Breakdowns) (Replaced by 9008847) (9003907). Serial 10348538 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T5 9003810 fast injector assembly breakdown (S/N 00000000-10348537) 600 mm disk & 650 mm cylindrical models parts
The parts Tennant numbers on its 9003810 fast injector assembly breakdown (s/n 00000000-10348537) 600 mm disk & 650 mm cylindrical models drawing. Manual page 66.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010342Replaces Tennant 9003810 | 1 | Fast Kit, Conv, Ci[T5 60/65cm, Fast Ii+]Complete assembly. Serial up to 10348537. | $300.60/EA |
| 1 | TN1013411Tennant 1013411 | 1 | Filter Assy, 050meshPart of Fast Kit, Conv, Ci[T5 60/65Cm, FaST II+] (600mm Disk & 650mm Cyl Models) (See Breakdowns) (9003810). Serial up to 10348537. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8005899Replaces Tennant 1006447 | 1 | Vr, Filter, Screen, 050 Mesh .59d .8l SsPart of Fast Kit, Conv, Ci[T5 60/65Cm, FaST II+] (600mm Disk & 650mm Cyl Models) (See Breakdowns) (9003810). Serial up to 10348537. | $13.00/EA |
| 3 | TN4044252Replaces Tennant 1039988 | 1 | Plug, Orifice, 0.027, Ss [Fast Ii+]Serial up to 10348537. | $28.18/EA |
| 4 | TN4037619Replaces Tennant 1014276 | 1 | Fitting, Brs, Str, Bm06/Pf08Serial up to 10348537. | $8.18/EA |
| 5 | TN4032256Replaces Tennant 1032284 | 1 | Plate Assy, Orifice, 0.007id, RedSerial up to 10348537. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8005500Replaces Tennant 1029355 | 1 | Vr, Filter, Screen, 200 Mesh .59d .8l SsSerial up to 10348537. | $27.80/EA |
| 7 | TN4038981Replaces Tennant 1005507 | 1 | Fitting, Plstc, Body, Spray, Pf04Serial up to 10348537. | $12.83/EA |
| 8 | TN4037615Replaces Tennant 1014254 | 1 | Valve, Check, 0002psi Bm04/Pm04Serial up to 10348537. | $32.30/EA |
Tennant T5 9008887 fast injector assembly breakdown (S/N 10582617 and later), 700 mm / 800 mm disk & 800 mm cylindrical models parts
The parts Tennant numbers on its 9008887 fast injector assembly breakdown (s/n 10582617 and later), 700 mm / 800 mm disk & 800 mm cylindrical models drawing. Manual page 67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010352Replaces Tennant 9008887 | 1 | Fast Kit, Injector[T5 70/80cm, Fast Iii]Complete assembly. Serial 10582617 and later. | $198.75/EA |
| 1 | TN4201689Replaces Tennant 9008888 | 1 | Fast Kit, Ci[Inj Rebld, T5 70/80cm, Iii]Complete assembly. Part of Fast Kit, Injector[T5 70/80cm, Fast Iii] (9008887). Serial 10582617 and later. | $176.14/EA |
| 2 | TN9008848Tennant 9008848 | 1 | Fast Kit, Seal, Injector, Ci [Fast Iii]Part of Fast Kit, Ci[Inj Rebld, T5 70/80cm, Iii] (9008888). Serial 10582617 and later. | $4.10/EA |
| 3 | TN4044221Replaces Tennant 1039579 | 1 | Plug, Orifice, 0.033, Ss [Fast Ii+]Part of Fast Kit, Ci[Inj Rebld, T5 70/80cm, Iii] (9008888). Serial 10347532 and later. | $17.10/EA |
| 4 | TN4186845Replaces Tennant 1059250 | 1 | Insert, Venturi, Medium, [Fast Iii]Part of Fast Kit, Ci[Inj Rebld, T5 70/80cm, Iii] (9008888). Serial 10582617 and later. | $14.54/EA |
| 5 | TN4187093Replaces Tennant 1059875 | 1 | Plate Assy, Orifice, 0.0075id, BluePart of Fast Kit, Ci[Inj Rebld, T5 70/80cm, Iii] (9008888). Serial 10582617 and later. | $39.39/EA |
| 6 | TN4016470Replaces Tennant 9003009 | 1 | Fast Kit, Ci, Injector Filters[Fast Ii+]Part of Fast Kit, Injector[T5 70/80cm, Fast Iii] (9008887). Serial 10347532 and later. | $71.60/EA |
| 7 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi [Fast Ii+]Part of Fast Kit, Injector[T5 70/80cm, Fast Iii] (9008887). Serial 10347532 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi [Fast Ii+]Part of Fast Kit, Injector[T5 70/80cm, Fast Iii] (9008887). Serial 10347532 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4186474Replaces Tennant 1058126 | 1 | Housing, Fltr, Upper [Fast Iii]Part of Fast Kit, Injector[T5 70/80cm, Fast Iii] (9008887). Serial 10582617 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4186329Replaces Tennant 1057811 | 1 | Housing, Fltr, Lower [Fast Iii]Part of Fast Kit, Injector[T5 70/80cm, Fast Iii] (9008887). Serial 10582617 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4038250Replaces Tennant 1053564 | 1 | Housing, Body, Injector [Fast Iii]Part of Fast Kit, Injector[T5 70/80cm, Fast Iii] (9008887). Serial 10582617 and later. | $43.43/EA |
Tennant T5 9003908 fast injector assembly breakdown (S/N 10347532-10582616) 700 mm / 800 mm disk & 800 mm cylindrical models parts
The parts Tennant numbers on its 9003908 fast injector assembly breakdown (s/n 10347532-10582616) 700 mm / 800 mm disk & 800 mm cylindrical models drawing. Manual page 68.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017033Replaces Tennant 9003908 | 1 | Fast Kit, Injector[T5 70/80cm, Fast Ii+]Complete assembly. Serial 10347532 to 10582616. | $198.75/EA |
| 1 | TN9003813Tennant 9003813 | 1 | Fast Kit, Ci[Inj Rebld, T5 70/80cm, Ii+]Part of Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns) (9003908). Serial 10347532 to 10582616. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4016469Replaces Tennant 9003008 | 1 | Fast Kit, Ci, Injector Seals [Fast Ii+]Part of Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns) (9003908). Serial 10347532 to 10582616. | $65.80/EA |
| 3 | TN4016470Replaces Tennant 9003009 | 1 | 3ast Kit, Ci, Injector Filters[Fast Ii+]Part of Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns) (9003908). Serial 10347532 and later. | $71.60/EA |
| 4 | TN4044250Replaces Tennant 1039978 | 1 | Plate Assy, Orifice, 0.0075id, BluPart of Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns) (9003908). Serial 10347532 to 10582616. | $24.25/EA |
| 5 | TN4044221Replaces Tennant 1039579 | 1 | Plug, Orifice, 0.033, Ss [Fast Ii+]Part of Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns) (9003908). Serial 10347532 and later. | $17.10/EA |
| 6 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi [Fast Ii+]Part of Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns) (9003908). Serial 10347532 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi [Fast Ii+]Part of Fast Kit, Injector[T5 70/80Cm, Fast II+] (See Breakdowns) (9003908). Serial 10347532 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T5 9003812 fast injector assembly breakdown (S/N 00000000-10347531) 700 mm / 800 mm disk & 800 mm cylindrical models parts
The parts Tennant numbers on its 9003812 fast injector assembly breakdown (s/n 00000000-10347531) 700 mm / 800 mm disk & 800 mm cylindrical models drawing. Manual page 69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017016Replaces Tennant 9003812 | 1 | Fast Kit, Conv, Ci[T5 70/80cm, Fast Ii+]Complete assembly. Serial up to 10347531. | $204.03/EA |
| 1 | TN1013411Tennant 1013411 | 1 | Filter Assy, 050meshPart of Fast Kit, Conv, Ci[T5 70/80Cm, Fast II+] (700mm/800mm Disk & 800mm Cyl Models) (See Breakdowns) (9003812). Serial up to 10347531. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8005899Replaces Tennant 1006447 | 1 | Vr, Filter, Screen, 050 Mesh .59d .8l SsPart of Fast Kit, Conv, Ci[T5 70/80Cm, Fast II+] (700mm/800mm Disk & 800mm Cyl Models) (See Breakdowns) (9003812). Serial up to 10347531. | $13.00/EA |
| 3 | TN4044221Replaces Tennant 1039579 | 1 | Plug, Orifice, 0.033, Ss [Fast Ii+]Serial up to 10347531. | $17.10/EA |
| 4 | TN4037619Replaces Tennant 1014276 | 1 | Fitting, Brs, Str, Bm06/Pf08Serial up to 10347531. | $8.18/EA |
| 5 | TN4044250Replaces Tennant 1039978 | 1 | Plate Assy, Orifice, 0.0075id, BluSerial up to 10347531. | $24.25/EA |
| 6 | TN8005500Replaces Tennant 1029355 | 1 | Vr, Filter, Screen, 200 Mesh .59d .8l SsSerial up to 10347531. | $27.80/EA |
| 7 | TN4038981Replaces Tennant 1005507 | 1 | Fitting, Plstc, Body, Spray, Pf04Serial up to 10347531. | $12.83/EA |
| 8 | TN4037615Replaces Tennant 1014254 | 1 | Valve, Check, 0002psi Bm04/Pm04Serial up to 10347531. | $32.30/EA |
Tennant T5 solution group, ec-H2O NanoClean model (S/N 10742213 and later) parts
The parts Tennant numbers on its solution group, ec-h2o nanoclean model (s/n 10742213 and later) drawing. Manual pages 70, list 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdown)Serial 10742213 and later. | $1,339.60/EA |
| 2 | TN4045268Replaces Tennant 1034731 | 7 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10742213 and later. | $3.30/EA |
| 3 | TN4044440Replaces Tennant 1040881 | 1 | Bracket, Mtg, Martini [T5]Serial 10742213 and later. | $38.08/EA |
| 4 | TN4021946Replaces Tennant 607775 | 3 | Clamp, Hose, Wir, .63 - .66, BlkSerial 10742213 and later. | $4.20/EA |
| 5 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06Serial 10742213 and later. | $4.20/EA |
| 6 | TN4038306Replaces Tennant 1015522 | 1 | Filter, Screen, 080mesh, Ss, Pf08Serial 10742213 and later. | $16.40/EA |
| 7 | TN4020775Replaces Tennant 630371 | 1 | Fitting, Plstc, E90, Bm10/Pm08Serial 10742213 and later. | $8.70/EA |
| 8 | TN4044647Replaces Tennant 1041978 | 4 | Clamp, Hose, Wir, .85 - .90, SilverSerial 10742213 and later. | $2.60/EA |
| 9 | TN4019508Replaces Tennant 613521 | 1 | Hose, Pvc, Clr, 0.50id 0.75od 012.0lSerial 10742213 and later. | $23.90/EA |
| 10 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10742213 and later. | $33.10/EA |
| 11 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 10742213 and later. | $5.30/EA |
| 12 | TN4037549Replaces Tennant 1013599 | 1 | Valve, Water, Solenoid, 24vdc Bm10/Bm10Serial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4020776Replaces Tennant 630372 | 1 | Fitting, Plstc, Tee, Bm06/Bm08/Bm08, BrSerial 10742213 and later. | $10.20/EA |
| 14 | TN4021947Replaces Tennant 607776 | 6 | Clamp, Hose, Wir, .73 - .77, SilverSerial 10742213 and later. | $4.20/EA |
| 15 | TN4017376Replaces Tennant 43555 | 2 | Clamp, Hose, Wormdrive, 2.62-3.50dSerial 10742213 and later. | $6.20/EA |
| 16 | TN4033265Replaces Tennant 1023463 | 1 | Bracket, Mtg, Pump [T5]Serial 10742213 and later. | $26.54/EA |
| 17 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10742213 and later. | $3.90/EA |
| 18 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v]Serial 10742213 and later. | $17.40/EA |
| 19 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiSerial 10742213 and later. | $434.80/EA |
| 20 | TN4035473Replaces Tennant 1017532 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 10742213 and later. | $6.20/EA |
| 21 | TN4044543Replaces Tennant 150417 | 1 | Fitting, Plstc, E90, Bm04/Pm06Serial 10742213 and later. | $7.00/EA |
| 22 | TN4024452Replaces Tennant 603654 | 8 | Clamp, Hose, Ear, .44d [Ctb]Serial 10742213 and later. | $4.20/EA |
| 23 | TN4026485Replaces Tennant 9014210 | 1 | Hose, Afmkt, Pvc, Brd .25id .44od, 05ftSerial 10742213 and later. | $57.80/EA |
| 24 | TN4040496Replaces Tennant 1216878 | 1 | Valve, Check, 0001psi Bm04/Bm04Serial 10742213 and later. | $24.00/EA |
| 25 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10742213 and later. | $10.60/EA |
| 26 | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, DispenserSerial 10742213 and later. | $338.70/EA |
| 27 | TN4040525Replaces Tennant 1217763 | 1 | Fitting, Plstc, E90, Qf04/Qf04Serial 10742213 and later. | $6.60/EA |
| 28 | TN4026486Replaces Tennant 9014211 | 1 | Hose, Afmkt, Pvc, Grn .06id .25od, 02ftSerial 10742213 and later. | $53.10/EA |
| 29 | TN4039919Replaces Tennant 1214972 | 1 | Fitting, Orifice, Str, Bm01/Bm/01Serial 10742213 and later. | $6.00/EA |
| 30 | TN4040123Replaces Tennant 1215186 | 3 | Fitting, Plstc, E90, Qf06/Qm06Serial 10742213 and later. | $18.30/EA |
| 31 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 10742213 and later. | $5.30/EA |
| 32 | TN4042144Replaces Tennant 1044414 | 1 | Switch, Press, 15psi, Pm02Serial 10742213 and later. | $86.30/EA |
| 33 | TN4039501Replaces Tennant 1212857 | 1 | Fitting, Plstc, Str, Qm06/Bm04Serial 10742213 and later. | $4.10/EA |
| 34 | TN4039467Replaces Tennant 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10742213 and later. | $19.10/EA |
| 35 | TN4037974Replaces Tennant 1014987 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 01ftSerial 10742213 and later. | $18.00/EA |
| 36 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10742213 and later. | $11.60/EA |
| 37 | TN4039499Replaces Tennant 1212855 | 1 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06Serial 10742213 and later. | $24.70/EA |
| 38 | TN4026487Replaces Tennant 9014212 | 1 | Hose, Afmkt, Pvc, Grn 0.06id .38od, 02ftSerial 10742213 and later. | $28.00/EA |
| 39 | TN4040161Replaces Tennant 1215755 | 1 | Bracket, Mtg, Ec-H20 Wcm [T5 Disk]Serial 10742213 and later. | $25.25/EA |
| 39 | TN4037212Replaces Tennant 1220598 | 1 | Bracket, Mtg, Ec-H20 Wcm [T5 Cyl]Serial 10742213 and later. | $20.91/EA |
| 40 | TN4033947Replaces Tennant 1059534 | 1 | Fastener, 09.00l [Hook & Loop]Serial 10742213 and later. | $6.00/EA |
| 41 | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlSerial 10742213 and later. | $300.60/EA |
| 42 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 10742213 and later. | $2.60/EA |
| 43 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial 10742213 and later. | $3.40/EA |
Tennant T5 ec-H2O NanoClean module breakdown, 9011810 (S/N 10742213 and later) parts
The parts Tennant numbers on its ec-h2o nanoclean module breakdown, 9011810 (s/n 10742213 and later) drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02]Complete assembly. Serial 10742213 and later. | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (See Breakdown) (9011810). Serial 10742213 and later. | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $0.25/EA |
| 5 | TN4032414Replaces Tennant 1208164 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $588.10/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10742213 and later. | $17.60/EA |
| 14 | TN4021577Replaces Tennant 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc]Part of Module Kit, Replmt [Ec-H2o, B 02] (See Breakdown) (9011810). Serial 10742213 and later. | $1,063.00/EA |
Tennant T5 solution group, ec-H2O model (S/N 10378380-10742212) parts
The parts Tennant numbers on its solution group, ec-h2o model (s/n 10378380-10742212) drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10448305 to 10742212. | $778.37/EA |
| 1 | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10378380 to 10448304. | $778.37/EA |
| 2 | TN4013781Replaces Tennant 9004606 | 1 | Hose, Pvc, Brd, .25id .45od 46l, ClrSerial 10378380 to 10742212. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrSerial 10378380 to 10742212. | $27.80/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 7 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial up to 10742212. | $3.30/EA |
| 5 | TN4044440Replaces Tennant 1040881 | 1 | Bracket, Mtg, Martini [T5]Serial 10378380 to 10742212. | $38.08/EA |
| 6 | TN4024452Replaces Tennant 603654 | 9 | Clamp, Hose, Ear, .44d [Ctb]Serial 10378380 to 10742212. | $4.20/EA |
| 7 | TN4041715Replaces Tennant 1043866 | 1 | Fitting Assy, Qd, Pf04Complete assembly. Serial 10378380 to 10742212. | $36.80/EA |
| 8 | TN4038980Replaces Tennant 1005506 | 1 | Fitting, Plstc, Cap, Spray, Pf04Part of Fitting Assy, Qd, Pf04 (1043866). Serial 10378380 to 10742212. | $25.15/EA |
| 9 | TN4043107Replaces Tennant 1047655 | 1 | Washer, Flat, 0.40b 0.75d .12 [Viton]Part of Fitting Assy, Qd, Pf04 (1043866). Serial 10378380 to 10742212. | $6.46/EA |
| 10 | TN4038981Replaces Tennant 1005507 | 1 | Fitting, Plstc, Body, Spray, Pf04Part of Fitting Assy, Qd, Pf04 (1043866). Serial 10378380 to 10742212. | $12.83/EA |
| 11 | TN4042917Replaces Tennant 01697 | 1 | Screw, Hex, .25-20 X 0.62, SsSerial 10378380 to 10742212. | $4.00/EA |
| 12 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10378380 to 10742212. | $2.60/EA |
| 13 | TN4042117Replaces Tennant 1044192 | 1 | Bracket, Mtg, Horn [Ec-H2o]Serial 10378380 to 10742212. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4035813Replaces Tennant 1018505 | 1 | Horn, 12-48vdc [88.5 Decibels]Serial 10446231 to 10742212. | $147.00/EA |
| 14 | TN4019777Replaces Tennant 392937 | 1 | Horn, 12-48vdc [94 Decibels]Serial 10378380 to 10446230. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN4042178Replaces Tennant 1044790 | 1 | Valve, Check, 0025psi Pm04/Pf04Serial 10378380 to 10742212. | $245.10/EA |
| 16 | TN4014520Replaces Tennant 50901 | 1 | Fitting, Plstc, Str, Bm04/Pm04Serial 10378380 to 10742212. | $3.60/EA |
| 17 | TN4042144Replaces Tennant 1044414 | 1 | Switch, Press, 12psi, Pm02Serial 10378380 to 10742212. | $86.30/EA |
| 18 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 10378380 to 10742212. | $5.30/EA |
| 19 | TN4037630Replaces Tennant 1014441 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm06, BrSerial 10378380 to 10742212. | $6.20/EA |
| 20 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10378380 to 10742212. | $5.10/EA |
| 21 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10378380 to 10742212. | $33.10/EA |
| 22 | TN4017376Replaces Tennant 43555 | 2 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50wSerial up to 10742212. | $6.20/EA |
| 23 | TN4033265Replaces Tennant 1023463 | 1 | Bracket, Mtg, Pump [T5]Serial up to 10742212. | $26.54/EA |
| 24 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, NylSerial up to 10742212. | $7.00/EA |
| 25 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float TypeSerial up to 10742212. | $64.30/EA |
| 26 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06Serial up to 10742212. | $8.70/EA |
| 27 | TN4027581Replaces Tennant 601483 | 1 | Fitting, Brs, Tee, Pf06/Pf06/Pm06, RunSerial up to 10742212. | $24.80/EA |
| 28 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psi (See Breakdown)Serial 10378380 to 10742212. | $434.80/EA |
| 29 | TN4043853Replaces Tennant 140328 | 1 | Clamp, Cable, Nyl, 0.38d, BlkSerial up to 10742212. | $3.60/EA |
| 30 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v]Serial 10378380 to 10742212. | $17.40/EA |
| 31 | TN4035473Replaces Tennant 1017532 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial up to 10742212. | $6.20/EA |
| 32 | TN4021947Replaces Tennant 607776 | 5 | Clamp, Hose, Wir, .73 - .77, SilverSerial up to 10742212. | $4.20/EA |
| 33 | TN4019508Replaces Tennant 613521 | 1 | Hose, Pvc, Clr, 0.50id 0.75od 012.0l (611259)Serial up to 10742212. | $23.90/EA |
| 34 | TN4019511Replaces Tennant 613531 | 1 | Hose, Pvc, Clr, 0.50id 0.75od 045.0l (611259)Serial up to 10742212. | $36.50/EA |
| 35 | TN4037549Replaces Tennant 1013599 | 1 | Valve, Water, Solenoid, 24vdc Bm10/Bm10Serial up to 10742212. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | TN4044647Replaces Tennant 1041978 | 4 | Clamp, Hose, Wir, .85 - .90, SilverSerial up to 10742212. | $2.60/EA |
| 37 | TN4025143Replaces Tennant 605099 | 1 | Hose, Pvc, Clr, 0.62id 0.88od 003.0l (611259)Serial up to 10742212. | $16.00/EA |
| 38 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial up to 10742212. | $5.30/EA |
| 39 | TN4045397Replaces Tennant 1035355 | 1 | Hose, Afmkt, Pvc, Clr, 0.62id, 02ft (611259)Serial up to 10742212. | $36.50/EA |
| 40 | TN4020775Replaces Tennant 630371 | 1 | Fitting, Plstc, E90, Bm10/Pm08Serial up to 10742212. | $8.70/EA |
| 41 | TN4038306Replaces Tennant 1015522 | 1 | Filter, Screen, 080mesh, Ss, Pf08Serial up to 10742212. | $16.40/EA |
| 42 | TN4019508Replaces Tennant 613521 | 1 | Hose, Pvc, Clr, 0.50id 0.75od 012.0l (611259)Serial up to 10742212. | $23.90/EA |
| 43 | TN4040384Replaces Tennant 1010791 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Pm04, BrSerial 10378380 to 10742212. | $8.80/EA |
| 44 | TN4030990Replaces Tennant 1028773 | 1 | Fitting, Brs, E90, Bm04/Pf04Serial 10378380 to 10742212. | $28.60/EA |
| 45 | TN4021856Replaces Tennant 607306 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Pm04, BrSerial 10378380 to 10742212. | $7.90/EA |
| 46 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10378380 to 10742212. | $10.60/EA |
| 47 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10378380 to 10742212. | $3.90/EA |
| 48 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelSerial 10378380 to 10742212. | $3.60/EA |
| 49 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial up to 10742212. | $2.60/EA |
| 50 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial up to 10742212. | $3.40/EA |
Tennant T5 ec-H2O module assembly breakdown, 9007970 (S/N 10448305-10742212) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9007970 (s/n 10448305-10742212) drawing. Manual pages 76, list 77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. Serial 10448305 to 10742212. | $778.37/EA |
| – | TN9006324Tennant 9006324 | 1 | Ec-H2o Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9007970). Serial 10448305 to 10742212. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $27.80/EA |
| 2 | TN4024452Replaces Tennant 603654 | 4 | Clamp, Hose, Ear, .44d [Ctb]Part of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $4.20/EA |
| 3 | TN4045657Replaces Tennant 1037595 | 2 | Fitting, Plstc, E90, Bm04/Pm02, NylPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $4.20/EA |
| 4 | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $753.50/EA |
| 5 | TN4042458Replaces Tennant 1045030 | 1 | Fitting, Brs, Str, Pm02/Pm02Part of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $15.15/EA |
| 6 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $3.40/EA |
| 7 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $2.60/EA |
| 8 | TN4039728Replaces Tennant 1048490 | 1 | Bracket, ValvePart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $15.05/EA |
| 9 | TN4044122Replaces Tennant 140801 | 2 | Screw, Trs, Phl, 08-32 X 0.38, SsPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $3.40/EA |
| 10 | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $162.50/EA |
| 11 | TN4015328Replaces Tennant 9006574 | 1 | Hose, Pvc, Brd, 0.25id 0.45od, 65l, ClrPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $97.97/EA |
| 12 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $3.23/EA |
| 13 | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $753.50/EA |
| 14 | TN4040777Replaces Tennant 1051519 | 1 | Housing, Upper, Module, High FlowPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $12.60/EA |
| 15 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, Mom,Part of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $7.70/EA |
| 16 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $0.25/EA |
| 17 | TN4040417Replaces Tennant 1049489 | 1 | Harness, Main, Controller [Ec-H2o, P3]Part of Ec-H2o Kit [Module B, Plumbing] (9006324). Serial 10448305 to 10742212. | $28.50/EA |
| 18 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9007970). Serial 10448305 to 10742212. | $10.60/EA |
| 19 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9007970). Serial 10448305 to 10742212. | $5.10/EA |
| 20 | TN4021577Replaces Tennant 9007969 | 1 | Controller Kit, Replmt [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9007970). Serial 10448305 to 10742212. | $1,063.00/EA |
| 21 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9007970). Serial 10448305 to 10742212. | $2.50/EA |
Tennant T5 ec-H2O module assembly breakdown, 9006161 (S/N 10378380-10448304) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9006161 (s/n 10378380-10448304) drawing. Manual pages 78, list 79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. Serial 10378380 to 10448304. | $778.37/EA |
| 1 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $10.60/EA |
| 2 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $5.10/EA |
| 3 | TN4022392Replaces Tennant 609062 | 1 | Screw, Trs, Phl, 08-32 X 0.38, SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | $3.20/EA |
| 4 | TN4029639Replaces Tennant 578860 | 2 | Screw, Pan, Phl, 04-40 X 0.31, PlPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4032343Replaces Tennant 3701.6 | 4 | Screw, Pan, Phl, 06-32 X 0.38, Shtmtl,SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | $3.40/EA |
| 6 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $3.60/EA |
| 7 | TN4013781Replaces Tennant 9004606 | 1 | Hose, Pvc, Brd, .25id .45od 46l, ClrPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $3.23/EA |
| 9 | TN4044129Replaces Tennant 140826 | 4 | Screw, Pan, 06-32 X 0.75, Fmg/Ab, SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | $3.40/EA |
| 10 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $27.80/EA |
| 11 | TN4024452Replaces Tennant 603654 | 4 | Clamp, Hose, Ear, .44d [Ctb]Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $4.20/EA |
| 12 | TN4045657Replaces Tennant 1037595 | 2 | Fitting, Plstc, E90, Bm04/Pm02, NylPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $4.20/EA |
| 13 | TN4044122Replaces Tennant 140801 | 2 | Screw, Trs, Phl, 08-32 X 0.38, SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | $3.40/EA |
| 14 | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $162.50/EA |
| 15 | TN4042458Replaces Tennant 1045030 | 1 | Fitting, Brs, Str, Pm02/Pm02Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $15.15/EA |
| 16 | TN4036516Replaces Tennant 1038159 | 1 | Electrode, CylindricalPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $753.50/EA |
| 17 | Not sold separatelyTennant N/A | 1 | Replaced By E-Cell Upgrade Kit P/N 9006324 (Includes Items 1- 17 On Page 63)Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | Not sold separately. Order Module Kit, Replmt [Ec-H2o] (See Breakdown) (TN4012505) |
| 18 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $2.50/EA |
| 19 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, Mom,Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $7.70/EA |
| 20 | TN4021577Replaces Tennant 9006159 | 1 | Controller Kit, Replmt [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 and later. | $1,063.00/EA |
| 21 | TN4042142Replaces Tennant 1044399 | 1 | Harness, Main, Controller [Ec-H2o, P3]Part of Module Kit, Replmt [Ec-H2o] (See Breakdown) (9006161). Serial 10378380 to 10448304. | $30.20/EA |
Tennant T5 1042495 solution pump breakdown parts
The parts Tennant numbers on its 1042495 solution pump breakdown drawing. Manual page 80.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiComplete assembly. Serial 10378380 and later. | $434.80/EA |
| 1 | TN4013798Replaces Tennant 9004759 | 1 | Pump Kit, Head, Soltn [Echo]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). Serial 10378380 and later. | $164.32/EA |
| 2 | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 02cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). Serial 10378380 and later. | $7.90/EA |
| 3 | TN4026210Replaces Tennant 78951 | 1 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). Serial 10378380 and later. | $0.55/EA |
| 4 | TN4043117Replaces Tennant 10917 | 1 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). Serial 10378380 and later. | $3.60/EA |
| 5 | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). Serial 10378380 and later. | $4.20/EA |
Tennant T5 solution group, standard model parts
The parts Tennant numbers on its solution group, standard model drawing. Manual page 81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038306Replaces Tennant 1015522 | 1 | Filter, Screen, 080 Mesh, Pf08, Ss | $16.40/EA |
| 2 | TN4020775Replaces Tennant 630371 | 1 | Fitting, Plstc, E90, Bm10/Pm08 | $8.70/EA |
| 3 | TN4044647Replaces Tennant 1041978 | 3 | Clamp, Hose, Wir, .85 - .90, Silver | $2.60/EA |
| 4 | TN4045397Replaces Tennant 1035355 | 1 | Hose, Afmkt, Pvc, Clr, 0.62id, 02ft | $36.50/EA |
| 5 | TN4037549Replaces Tennant 1013599 | 1 | Valve, Water, Solenoid, 24vdc, 10bm/10bm | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4019511Replaces Tennant 613531 | 1 | Tubing 1/2idx3/4od Vinyl 611259 Ft 3.750 | $36.50/EA |
| 7 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 8 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, Ss | $3.40/EA |
Tennant T5 squeegee lift group parts
The parts Tennant numbers on its squeegee lift group drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039942Replaces Tennant 1008675 | 1 | Gasket, Edge, Foam, 24.00l [Fr] | $25.80/EA |
| 2 | TN4029653Replaces Tennant 579211 | 2 | Nut, Hex, Lock, M3 X .5, Ss | $3.30/EA |
| 3 | TN4016851Replaces Tennant 41578 | 4 | Washer, Flat, #06, Ss | $3.30/EA |
| 4 | TN4037262Replaces Tennant 1012568 | 1 | Switch, Snap, 10a, Short | $25.90/EA |
| 5 | TN4041991Replaces Tennant 09739 | 3 | Nut, Hex, Lock, M5 X 0.8, Nl, Ss | $3.30/EA |
| 6 | TN4042888Replaces Tennant 01683 | 3 | Washer, Flat, #10, Ss | $2.60/EA |
| 7 | TN4033572Replaces Tennant 1024060 | 1 | Spring, Lever, Sqge, W/ 90_ Bend | $14.70/EA |
| 8 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 9 | TN4034852Replaces Tennant 1016331 | 1 | Washer, Flat, 0.34b 1.25d .11, Ss | $5.10/EA |
| 10 | TN4036283Replaces Tennant 1020922 | 1 | Bracket, Lift, Sqge | $161.50/EA |
| 11 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 12 | TN4043783Replaces Tennant 140052 | 1 | Washer, Lock, Ext, 0.25 Ss | $3.30/EA |
| 13 | TN4035240Replaces Tennant 1017156 | 1 | Knob, Ball, M8 Insert, 40mmd, Plstc | $24.40/EA |
| 14 | TN4033603Replaces Tennant 1024354 | 1 | Lever, Sqge | $60.60/EA |
| 15 | TN4037281Replaces Tennant 1012747 | 2 | Balljoint, M6 X 1.0 Fem, M6 X 1.0 Mal | $26.20/EA |
| 16 | TN4041599Replaces Tennant 07785 | 2 | Nut, Hex, Std, M6 X 1.00, A2, Ss | $2.50/EA |
| 17 | TN4033574Replaces Tennant 1024105 | 1 | Cable, Lift, Sqge | $78.60/EA |
| 18 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 19 | TN4037331Replaces Tennant 1013397 | 2 | Washer, Flat, M13 X 30 X 0.8, Nyl | $4.10/EA |
| 20 | TN4037627Replaces Tennant 1014336 | 1 | Sleeve, P/M, 8.40b 12.60d 14.5l, Pl | $4.20/EA |
| 21 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, M3 X 0.5 X 20, 4.8 | $3.40/EA |
| 22 | TN4040009Replaces Tennant 1009363 | 1 | Bushing, Cable | $6.20/EA |
| 23 | TN4020238Replaces Tennant 621236 | 1 | Ring, Retaining, Ext, 0.81d | $3.40/EA |
| 24 | TN4043674Replaces Tennant 1038515 | 1 | Bracket Kit, Sqge, Conversion [T5]Complete assembly. Serial 10387970 to 10535571. | $83.10/EA |
| 25 | TN4035608Replaces Tennant 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, SsPart of Bracket Kit, Sqge, Conversion [T5] (1038515). Serial 10387970 and later. | $6.00/EA |
| 26 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, SsPart of Bracket Kit, Sqge, Conversion [T5] (1038515). Serial 10387970 and later. | $5.80/EA |
| 27 | TN4045230Replaces Tennant 140045 | 7 | Washer, Flat, 0.51b 1.25d .06, SsPart of Bracket Kit, Sqge, Conversion [T5] (1038515). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | TN4037555Replaces Tennant 1013662 | 2 | Bushing, Sleeve, 12mm 16mm 6.5mml, Pm YwPart of Bracket Kit, Sqge, Conversion [T5] (1038515). | $4.20/EA |
| 29 | TN4036286Replaces Tennant 1020974 | 1 | Bracket Wldt, Pivot, Sqge | $229.00/EA |
| 30 | TN4025409Replaces Tennant 606058 | 2 | Bearing, Flng .505id .753od | $6.40/EA |
| 31 | TN4034239Replaces Tennant 1026232 | 1 | Pin, Clevis, 0.50 D X 9.25l | $15.40/EA |
| 32 | TN4044109Replaces Tennant 140626 | 1 | Pin, Hair Cotter, 0.25 D .125 Wir | $4.00/EA |
| 33 | TN4043873Replaces Tennant 140423 | 1 | Spring, Brush Press | $17.10/EA |
| 34 | TN4031351Replaces Tennant 1029310 | 1 | Harness, Ground, 12 Awg | $12.65/EA |
| 35 | TN4043674Replaces Tennant 1024215 | 1 | Bracket Wldt, Mtg, Sqg [T5] (REPLACED BY 1038515)Serial up to 10387969. | $83.10/EA |
| 36 | TN4043647Replaces Tennant 140024 | 2 | Washer, Lock, Split, 0.50, SsSerial up to 10387969. | $4.00/EA |
| 37 | TN4045014Replaces Tennant 1033003 | 2 | Screw, Hex, M12 X 1.75 X 25, Nl, SsSerial up to 10387969. | $8.08/EA |
| 38 | TN4032794Replaces Tennant 1066260 | 1 | Bracket, Mtg, Sqge, Stl [T5]Serial 10535572 and later. | $60.00/EA |
Tennant T5 squeegee group, 20 in (500 mm) parts
The parts Tennant numbers on its squeegee group, 20 in (500 mm) drawing. Manual pages 84, list 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019449Replaces Tennant 9001178 | 1 | Squeegee Assy Kit, 500mm, CiComplete assembly. | $437.30/EA |
| 1 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $3.30/EA |
| 2 | TN4043649Replaces Tennant 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $3.20/EA |
| 3 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $5.50/EA |
| 4 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.31b 0.50d 0.5l [430ss]Part of Squeegee Assy Kit, 500mm, Ci (9001178). | $3.40/EA |
| 5 | TN4036810Replaces Tennant 1011228 | 1 | Plate, Mtg, Caster, Sqge, RhPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $43.30/EA |
| 6 | TN4012782Replaces Tennant 74455 | 2 | Screw, Hex, M6 X 1.0 X 12, FmgPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $3.40/EA |
| 7 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $4.00/EA |
| 8 | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mmd, M10 X 30 Stem, PlPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $19.80/EA |
| 9 | TN4040368Replaces Tennant 1010558 | 4 | Knob, Star, 2.00d 4ear 0.7l M8x1.25 ThruPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $5.30/EA |
| 10 | TN4040556Replaces Tennant 1011163 | 1 | Frame, Sqge, 74cm, Die Cast [50cm]Part of Squeegee Assy Kit, 500mm, Ci (9001178). | $320.40/EA |
| 11 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $3.40/EA |
| 12 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $3.40/EA |
| 13 | TN4036221Replaces Tennant 1019919 | 1 | Retainer, Sqge, 76cm [50cm] Nyl, BlkPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $45.50/EA |
| 14 | TN4037610Replaces Tennant 1014163 | 4 | Screw, Hex, M8 X 1.25 X 60, Fl, SsPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $4.00/EA |
| 15 | TN4036952Replaces Tennant 1011956 | 1 | Plate, Mtg, Caster, Sqge, LhPart of Squeegee Assy Kit, 500mm, Ci (9001178). | $42.20/EA |
| 16 | TN4036811Replaces Tennant 1011232 | 1 | Blade, Sqge, Front, 500mml (Standard)Part of Squeegee Assy Kit, 500mm, Ci (9001178). | $20.16/EA |
| 16 | TN4037600Replaces Tennant 1014091 | 1 | Blade, Sqge, Front, 500mm, Gum (Optional) | $15.12/EA |
| 16 | TN4037601Replaces Tennant 1014092 | 1 | Blade, Sqge, Front, 500mml, Oil-Rstn (Optional) | $59.50/EA |
| 17 | TN4036854Replaces Tennant 1011456 | 1 | Blade, Sqge, Rear, 500mm Linatex (Standard)Part of the assembly above. | $23.31/EA |
| 17 | TN4037602Replaces Tennant 1014093 | 1 | Blade, Sqge, Rear, 500mm Gum (Optional) | $17.48/EA |
| 17 | TN4037603Replaces Tennant 1014094 | 1 | Blade, Sqge, Rear, 500mm Oil-Rstn (Optional) | $78.50/EA |
| 18 | TN4037580Replaces Tennant 1013933 | 1 | Strap Assy, Sqge, 500mmPart of the assembly above. | $185.90/EA |
| 19 | TN4037596Replaces Tennant 1014079 | 1 | Clip, Grip, Hose, 1.50id, Dbl, Blk Pyp | $4.20/EA |
| 20 | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
Tennant T5 squeegee group, 24 in (600 mm) parts
The parts Tennant numbers on its squeegee group, 24 in (600 mm) drawing. Manual pages 86, list 87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016429Replaces Tennant 9002679 | 1 | Kit, Squeegee, 600mm CiComplete assembly. | $575.70/EA |
| 1 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsPart of Kit, Squeegee, 600mm Ci (9002679). | $3.40/EA |
| 2 | TN4043649Replaces Tennant 140027 | 6 | Washer, Flat, 0.35b 0.75d .04, SsPart of Kit, Squeegee, 600mm Ci (9002679). | $3.20/EA |
| 3 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ssPart of Kit, Squeegee, 600mm Ci (9002679). | $3.40/EA |
| 4 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Kit, Squeegee, 600mm Ci (9002679). | $5.50/EA |
| 5 | TN4034348Replaces Tennant 12459 | 4 | Screw, Hex, M6 X 1.0 X 20, FmgPart of Kit, Squeegee, 600mm Ci (9002679). | $3.40/EA |
| 6 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Kit, Squeegee, 600mm Ci (9002679). | $4.00/EA |
| 7 | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mm D, M10 X 30 Stem,ZnPart of Kit, Squeegee, 600mm Ci (9002679). | $19.80/EA |
| 8 | TN4033242Replaces Tennant 1023273 | 1 | Plate, Caster, Mtg, Sgqe, RhPart of Kit, Squeegee, 600mm Ci (9002679). | $123.10/EA |
| 9 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Kit, Squeegee, 600mm Ci (9002679). | $3.30/EA |
| 10 | TN4032846Replaces Tennant 1021798 | 1 | Frame, Sqge, 89cm [60cm]Part of Kit, Squeegee, 600mm Ci (9002679). | $284.80/EA |
| 11 | TN4038491Replaces Tennant 1015911 | 4 | Knob, Star, 2.75d 4ear 1.1l M8x1.25 ThruPart of Kit, Squeegee, 600mm Ci (9002679). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4033243Replaces Tennant 1023291 | 1 | Plate, Caster, Mtg, Sqge, LhPart of Kit, Squeegee, 600mm Ci (9002679). | $62.90/EA |
| 13 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M8 X 1.25, SsPart of Kit, Squeegee, 600mm Ci (9002679). | $3.40/EA |
| 14 | TN4034248Replaces Tennant 1026354 | 1 | Retainer , Blade, Sqge, 600mm [Plstc]Part of Kit, Squeegee, 600mm Ci (9002679). | $36.50/EA |
| 15 | TN4037610Replaces Tennant 1014163 | 4 | Screw, Hex, M8 X 1.25 X 60, Fl, SsPart of Kit, Squeegee, 600mm Ci (9002679). | $4.00/EA |
| 16 | TN4032848Replaces Tennant 1021804 | 1 | Blade, Sqge, Front, 88cml [Lnx, 60cm] (Standard)Part of Kit, Squeegee, 600mm Ci (9002679). | $28.25/EA |
| 16 | TN4033896Replaces Tennant 1025333 | 1 | Blade, Sqge, Front, 88cml, Gum [60cm] (Optional) | $21.18/EA |
| 16 | TN4033897Replaces Tennant 1025334 | 1 | Blade, Sqge, Front, 88cml, Ure [60cm] (Optional) | $71.20/EA |
| 17 | TN4027257Replaces Tennant 600187 | 1 | Bolt, Shld, .38d X 1.25, .31-18Part of the assembly above. | $6.00/EA |
| 18 | TN4043660Replaces Tennant 140028 | 2 | Washer, Flat, 0.42b 1.00d .05, SsPart of the assembly above. | $3.20/EA |
| 19 | TN4020804Replaces Tennant 630477 | 1 | Wheel, Pyu, 2.0d 0.38w, GrayPart of the assembly above. | $9.50/EA |
| 20 | TN4034656Replaces Tennant 32983 | 1 | Nut, Hex, Lock, .31-18, NlPart of the assembly above. | $2.50/EA |
| 21 | TN4032937Replaces Tennant 1022456 | 1 | Retainer Assy, Blade, Sqge, 600mmPart of the assembly above. | $106.90/EA |
| 22 | TN4036639Replaces Tennant 1021333 | 1 | Blade, Sqge, Rear, 88cm,Linatex[60cm] (Standard)Part of the assembly above. | $38.75/EA |
| 22 | TN4033898Replaces Tennant 1025335 | 1 | Blade, Sqge, Rear, 88cml, Gum [60cm] (Optional) | $29.06/EA |
| 22 | TN4033899Replaces Tennant 1025336 | 1 | Blade, Sqge, Rear, 88cm, Ure [60cm] (Optional) | $90.30/EA |
| 23 | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
| 24 | TN4037596Replaces Tennant 1014079 | 1 | Clip, Hose, Gripper, 1.50id, Dbl, Blk Pp | $4.20/EA |
Tennant T5 squeegee group, 26 in (650 mm) & 28 in (700 mm) parts
The parts Tennant numbers on its squeegee group, 26 in (650 mm) & 28 in (700 mm) drawing. Manual pages 88, list 89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016430Replaces Tennant 9002680 | 1 | Kit, Squeegee, 700mm CiComplete assembly. | $640.34/EA |
| 1 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsPart of Kit, Squeegee, 700mm Ci (9002680). | $3.40/EA |
| 2 | TN4043649Replaces Tennant 140027 | 6 | Washer, Flat, 0.35b 0.75d .04, SsPart of Kit, Squeegee, 700mm Ci (9002680). | $3.20/EA |
| 3 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ssPart of Kit, Squeegee, 700mm Ci (9002680). | $3.40/EA |
| 4 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Kit, Squeegee, 700mm Ci (9002680). | $5.50/EA |
| 5 | TN4034348Replaces Tennant 12459 | 4 | Screw, Hex, M6 X 1.0 X 20, FmgPart of Kit, Squeegee, 700mm Ci (9002680). | $3.40/EA |
| 6 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Kit, Squeegee, 700mm Ci (9002680). | $4.00/EA |
| 7 | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mm D, M10 X 30 Stem,ZnPart of Kit, Squeegee, 700mm Ci (9002680). | $19.80/EA |
| 8 | TN4033242Replaces Tennant 1023273 | 1 | Plate, Caster, Mtg, Sgqe, RhPart of Kit, Squeegee, 700mm Ci (9002680). | $123.10/EA |
| 9 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Kit, Squeegee, 700mm Ci (9002680). | $3.30/EA |
| 10 | TN4033247Replaces Tennant 1023326 | 1 | Frame, Sqge, 104cm [70cm]Part of Kit, Squeegee, 700mm Ci (9002680). | $318.70/EA |
| 11 | TN4038491Replaces Tennant 1015911 | 4 | Knob, Star, 2.75d 4ear 1.1l M8x1.25 ThruPart of Kit, Squeegee, 700mm Ci (9002680). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4033243Replaces Tennant 1023291 | 1 | Plate, Caster, Mtg, Sqge, LhPart of Kit, Squeegee, 700mm Ci (9002680). | $62.90/EA |
| 13 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M8 X 1.25, SsPart of Kit, Squeegee, 700mm Ci (9002680). | $3.40/EA |
| 14 | TN4034257Replaces Tennant 1026416 | 1 | Retainer, Blade, Sqge, 700mm [Plstc]Part of Kit, Squeegee, 700mm Ci (9002680). | $49.50/EA |
| 15 | TN4037610Replaces Tennant 1014163 | 4 | Screw, Hex, M8 X 1.25 X 60, Fl, SsPart of Kit, Squeegee, 700mm Ci (9002680). | $4.00/EA |
| 16 | TN4033248Replaces Tennant 1023327 | 1 | Blade, Sqge, Front, 98cml [Lnx, 70cm] (Standard)Part of Kit, Squeegee, 700mm Ci (9002680). | $32.66/EA |
| 16 | TN4033900Replaces Tennant 1025337 | 1 | Blade, Sqge, Front, 98cml, Gum [70cm] (Optional) | $24.49/EA |
| 16 | TN4033901Replaces Tennant 1025339 | 1 | Blade, Sqge, Front, 98cml, Ure [70cm] (Optional) | $76.80/EA |
| 17 | TN4027257Replaces Tennant 600187 | 1 | Bolt, Shld, .38d X 1.25, .31-18Part of the assembly above. | $6.00/EA |
| 18 | TN4043660Replaces Tennant 140028 | 2 | Washer, Flat, 0.42b 1.00d .05, SsPart of the assembly above. | $3.20/EA |
| 19 | TN4020804Replaces Tennant 630477 | 1 | Wheel, Pyu, 2.0d 0.38w, GrayPart of the assembly above. | $9.50/EA |
| 20 | TN4034656Replaces Tennant 32983 | 1 | Nut, Hex, Lock, .31-18, NlPart of the assembly above. | $2.50/EA |
| 21 | TN4033251Replaces Tennant 1023335 | 1 | Bracket Wldt, Sqge, Band Clamp, 98cmPart of the assembly above. | $240.70/EA |
| 22 | TN4033249Replaces Tennant 1023329 | 1 | Blade, Sqge, Rear, 98cm,Linatex[70cm] (Standard)Part of the assembly above. | $45.57/EA |
| 22 | TN4033902Replaces Tennant 1025340 | 1 | Blade, Sqge, Rear, 98cml, Gum [70cm] (Optional) | $34.18/EA |
| 22 | TN4033903Replaces Tennant 1025341 | 1 | Blade, Sqge, Rear, 98cm, Ure [70cm] (Optional) | $99.70/EA |
| 23 | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
| 24 | TN4037596Replaces Tennant 1014079 | 1 | Clip, Hose, Gripper, 1.50id, Dbl, Blk Pp | $4.20/EA |
Tennant T5 squeegee group, 32 in (800 mm) parts
The parts Tennant numbers on its squeegee group, 32 in (800 mm) drawing. Manual pages 90, list 91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016431Replaces Tennant 9002681 | 1 | Kit, Squeegee, 800mm CiComplete assembly. | $552.10/EA |
| 1 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsPart of Kit, Squeegee, 800mm Ci (9002681). | $3.40/EA |
| 2 | TN4043649Replaces Tennant 140027 | 6 | Washer, Flat, 0.35b 0.75d .04, SsPart of Kit, Squeegee, 800mm Ci (9002681). | $3.20/EA |
| 3 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ssPart of Kit, Squeegee, 800mm Ci (9002681). | $3.40/EA |
| 4 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Kit, Squeegee, 800mm Ci (9002681). | $5.50/EA |
| 5 | TN4034348Replaces Tennant 12459 | 8 | Screw, Hex, M6 X 1.0 X 20, FmgPart of Kit, Squeegee, 800mm Ci (9002681). | $3.40/EA |
| 6 | TN4033261Replaces Tennant 1023426 | 2 | Bracket, Mtg, Sqge BumperPart of Kit, Squeegee, 800mm Ci (9002681). | $42.20/EA |
| 7 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Kit, Squeegee, 800mm Ci (9002681). | $3.30/EA |
| 8 | TN4039297Replaces Tennant 1006343 | 2 | Caster, Swivel, 50mm D, M10 X 30 Stem,ZnPart of Kit, Squeegee, 800mm Ci (9002681). | $19.80/EA |
| 9 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Kit, Squeegee, 800mm Ci (9002681). | $4.00/EA |
| 10 | TN4043784Replaces Tennant 140053 | 2 | Washer, Flat, 0.28b 0.88d .12, SsPart of Kit, Squeegee, 800mm Ci (9002681). | $4.80/EA |
| 11 | TN4036810Replaces Tennant 1011228 | 1 | Plate, Mtg, Caster, Sqge, RhPart of Kit, Squeegee, 800mm Ci (9002681). | $43.30/EA |
| 12 | TN4038491Replaces Tennant 1015911 | 4 | Knob, Star, 2.75d 4ear 1.1l M8x1.25 ThruPart of Kit, Squeegee, 800mm Ci (9002681). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4033257Replaces Tennant 1023396 | 1 | Frame, Sqge, 117cm [80cm]Part of Kit, Squeegee, 800mm Ci (9002681). | $354.30/EA |
| 14 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M8 X 1.25, SsPart of Kit, Squeegee, 800mm Ci (9002681). | $3.40/EA |
| 15 | TN4037610Replaces Tennant 1014163 | 4 | Screw, Hex, M8 X 1.25 X 60, Fl, SsPart of Kit, Squeegee, 800mm Ci (9002681). | $4.00/EA |
| 16 | TN4033859Replaces Tennant 1024970 | 1 | Retainer, Blade, Sqge, 800mm [Plstc]Part of Kit, Squeegee, 800mm Ci (9002681). | $45.50/EA |
| 17 | TN4033258Replaces Tennant 1023398 | 1 | Blade, Sqge, Front, 105cm [Linx 80cm] (Standard)Part of Kit, Squeegee, 800mm Ci (9002681). | $33.84/EA |
| 17 | TN4033904Replaces Tennant 1025342 | 1 | Blade, Sqge, Front, 105cml, Gum[80cm] (Optional) | $21.61/EA |
| 17 | TN4033905Replaces Tennant 1025343 | 1 | Blade, Sqge, Front, 105cm, Ure [80cm] (Optional) | $74.74/EA |
| 18 | TN4036952Replaces Tennant 1011956 | 1 | Plate, Mtg, Caster, Sqge, LhPart of the assembly above. | $42.20/EA |
| 19 | TN4027257Replaces Tennant 600187 | 1 | Bolt, Shld, .38d X 1.25, .31-18Part of the assembly above. | $6.00/EA |
| 20 | TN4043660Replaces Tennant 140028 | 2 | Washer, Flat, 0.42b 1.00d .05, SsPart of the assembly above. | $3.20/EA |
| 21 | TN4020804Replaces Tennant 630477 | 1 | Wheel, Pyu, 2.0d 0.38w, GrayPart of the assembly above. | $9.50/EA |
| 22 | TN4034656Replaces Tennant 32983 | 1 | Nut, Hex, Lock, .31-18, NlPart of the assembly above. | $2.50/EA |
| 23 | TN4033260Replaces Tennant 1023400 | 1 | Retainer Assy, Blade, Sqge, 800mmPart of the assembly above. | $240.70/EA |
| 24 | TN4033259Replaces Tennant 1023399 | 1 | Blade, Sqge, Rear, 105cml[Linx, 80cm] (Standard)Part of the assembly above. | $45.96/EA |
| 24 | TN4033906Replaces Tennant 1025344 | 1 | Blade, Sqge, Rear, 105cml, Gum [80cm] (Optional) | $25.65/EA |
| 24 | TN4033907Replaces Tennant 1025346 | 1 | Blade, Sqge, Rear, 105cml, Ure [80cm] (Optional) | $101.81/EA |
| 25 | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.5d X 57l, 2-Short Cuffs | $44.80/EA |
| 26 | TN4037596Replaces Tennant 1014079 | 1 | Clip, Hose, Gripper, 1.50id, Dbl, Blk Pp | $4.20/EA |
Tennant T5 telemetry group parts
The parts Tennant numbers on its telemetry group drawing. Manual pages 92, list 93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1216224Tennant 1216224 | 1 | Bracket Wldt, Lift, Sqge [T5]Serial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa]Serial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Intl]Serial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4228102Replaces Tennant 1216841 | 1 | Guard Wldt, ControlboxSerial 10742213 and later. | $45.75/EA |
| 4 | TN4228329Replaces Tennant 1217789 | 1 | Cover, GuardSerial 10742213 and later. | $89.69/EA |
| 5 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaeSerial 10742213 and later. | $2.50/EA |
| 6 | TN4041271Replaces Tennant 06943 | 4 | Screw, Hex, M6 X 1.00 X 20, 8.8Serial 10742213 and later. | $2.50/EA |
| 7 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10742213 and later. | $3.90/EA |
| 8 | TN4039293Replaces Tennant 1006267 | 1 | Seal, Edge, Foam, .37, .75w, BulkSerial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4031064Replaces Tennant 1070659 | 1 | Antenna, Telem, 70 In [Gprs]Serial 10742213 and later. | $54.80/EA |
| 10 | TN4040508Replaces Tennant 1217304 | 1 | Shunt [Empro, 250amp/50mv, Metric]Serial 10742213 and later. | $114.70/EA |
| 11 | TN4019310Replaces Tennant 391403 | 2 | Screw, Pan, Phl, M4 X 0.70 X 8, SsSerial 10742213 and later. | $2.50/EA |
| 12 | TN4043241Replaces Tennant 02938 | 2 | Washer, Lock, Int, 08, SsSerial 10742213 and later. | $2.60/EA |
| 13 | TN4016851Replaces Tennant 41578 | 2 | Washer, Flat, 06, SsSerial 10742213 and later. | $3.30/EA |
| 14 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10742213 and later. | $3.40/EA |
| 15 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10742213 and later. | $2.60/EA |
| 16 | TN4017399Replaces Tennant 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10742213 and later. | $2.60/EA |
| 17 | TN4227883Replaces Tennant 1215919 | 1 | Bracket, ShuntSerial 10742213 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4044189Replaces Tennant 1202868 | 2 | Clip, Tie, 0.25d, PlstcSerial 10742213 and later. | $1.52/EA |
| 19 | TN4043510Replaces Tennant 130773 | 9 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10742213 and later. | $3.90/EA |
| 20 | TN4178360Replaces Tennant 1074445 | 1 | Harness, Ele, Telem [T5]Complete assembly. Serial 10742213 and later. | $121.50/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Vr, Fuse, 002a, 250vdc, CartridgePart of Harness, Ele, Telem [T5] (1074445). Serial 10742213 and later. | $5.20/EA |
| 21 | TN4030320Replaces Tennant 1070498 | 1 | Cable, 4ga, Blk [6200e, Telemetry]Serial 10742213 and later. | $29.10/EA |
| 22 | TN4044907Replaces Tennant 1074595 | 1 | Harness, Ele, Telem, ShuntSerial 10742213 and later. | $13.70/EA |
| 23 | TN4040528Replaces Tennant 1217818 | 1 | Sleeve, Heatshrink, 1.50id, 07.0lSerial 10742213 and later. | $5.00/EA |
| 24 | TN4030121Replaces Tennant 1069580 | 1 | Label, Mach, Telem [Usa, Intl]Serial 10742213 and later. | $4.34/EA |
Tennant T5 battery group, maintenance free 220 Ah parts
The parts Tennant numbers on its battery group, maintenance free 220 ah drawing. Manual page 94.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4211694Replaces Tennant 1074042 | 4 | Battery, Agm, 06vdc, 220ah (Discover) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4043293Replaces Tennant 130364 | 3 | Cable, 06ga 15.0l Blk .31ring /.38ring | $23.80/EA |
| 3 | TN4022837Replaces Tennant 611221 | 8 | Boot, Terminal, Battery, 25.4mm, Blk | $4.90/EA |
| 4 | TN4032990Replaces Tennant 1067443 | 1 | Harness, Battery, Fused, Us [T5]Serial 10632988 and later. | $117.50/EA |
| 4 | TN4033614Replaces Tennant 1024479 | 1 | Harness, Battery, UsSerial up to 10632987. | $122.10/EA |
| 5 | TN4020777Replaces Tennant 630375 | 2 | Spacer, Battery, 1.25 X 3.25 X 13.7 Foam | $15.60/EA |
| 6 | TN4019607Replaces Tennant 613971 | 1 | Tray, Battery, Trimmed | $153.50/EA |
Tennant T5 battery group, lead-acid 235 Ah parts
The parts Tennant numbers on its battery group, lead-acid 235 ah drawing. Manual page 95.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040235Replaces Tennant 222280 | 4 | Battery, 06vdc, 235ah, Wet | $314.77/EA |
| 2 | TN4013445Replaces Tennant 45962 | 8 | Cap, Plstc, .04 1.38 X 2.30 0.5l (Tall Clear - Standard) | $4.00/EA |
| 2 | TN4044457Replaces Tennant 1041030 | 8 | Cap, Battery (Short Black - Optional) | $3.20/EA |
| 3 | TN4043293Replaces Tennant 130364 | 3 | Cable, 06ga 15.0l Blk .31ring /.38ring | $23.80/EA |
| 4 | TN4022837Replaces Tennant 611221 | 8 | Boot, Terminal, Battery, 25.4mm, Blk | $4.90/EA |
| 5 | TN4032990Replaces Tennant 1067443 | 1 | Harness, Battery, Fused, Us [T5]Serial 10632988 and later. | $117.50/EA |
| 5 | TN4033614Replaces Tennant 1024479 | 1 | Harness, Battery, UsSerial up to 10632987. | $122.10/EA |
| 6 | TN4020777Replaces Tennant 630375 | 2 | Spacer, Battery, 1.25 X 3.25 X 13.7 Foam | $15.60/EA |
| 7 | TN4019607Replaces Tennant 613971 | 1 | Tray, Battery, Trimmed | $153.50/EA |
Tennant T5 battery group, maintenance free 160 Ah (Japan) parts
The parts Tennant numbers on its battery group, maintenance free 160 ah (japan) drawing. Manual page 96.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4011650Replaces Tennant 994202 | 4 | Battery, 06vdc 165ah [5h, Gf061602] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4043293Replaces Tennant 130364 | 3 | Cable, 06ga 15.0l Blk .31ring /.38ring | $23.80/EA |
| 3 | TN4015456Replaces Tennant 989860 | 4 | Cover Set, Terminal, Battery | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4032990Replaces Tennant 1067443 | 1 | Harness, Battery, Fused, Us [T5]Serial 10632988 and later. | $117.50/EA |
| 4 | TN4033614Replaces Tennant 1024479 | 1 | Harness, Battery, UsSerial up to 10632987. | $122.10/EA |
| 5 | TN4020777Replaces Tennant 630375 | 2 | Spacer, Battery, 1.25 X 3.25 X 13.7 Foam | $15.60/EA |
| 6 | TN4019607Replaces Tennant 613971 | 1 | Tray, Battery, Trimmed | $153.50/EA |
| 7 | TN4017046Replaces Tennant 93580 | 4 | Clamp, Post, Battery, Positive | $15.15/EA |
| 7 | TN4017047Replaces Tennant 93581 | 4 | Clamp, Post, Battery, Negative | $15.15/EA |
Tennant T5 battery group, lead acid 180 Ah (Japan) parts
The parts Tennant numbers on its battery group, lead acid 180 ah (japan) drawing. Manual page 97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038304Replaces Tennant 10155 | 4 | Battery, Wet, 06vdc | $357.10/EA |
| 2 | TN4013445Replaces Tennant 45962 | 8 | Cap, Plstc, .04 1.38 X 2.30 0.5l (Tall Clear - Standard) | $4.00/EA |
| 2 | TN4044457Replaces Tennant 1041030 | 8 | Cap, Battery (Short Black - Optional) | $3.20/EA |
| 3 | TN4043293Replaces Tennant 130364 | 3 | Cable, 06ga 15.0l Blk .31ring /.38ring | $23.80/EA |
| 4 | TN4022837Replaces Tennant 611221 | 8 | Boot, Terminal, Battery, 25.4mm, Blk | $4.90/EA |
| 5 | TN4032990Replaces Tennant 1067443 | 1 | Harness, Battery, Fused, Us [T5]Serial 10632988 and later. | $117.50/EA |
| 5 | TN4033614Replaces Tennant 1024479 | 1 | Harness, Battery, UsSerial up to 10632987. | $122.10/EA |
| 6 | TN4020777Replaces Tennant 630375 | 2 | Spacer, Battery, 1.25 X 3.25 X 13.7 Foam | $15.60/EA |
| 7 | TN4019607Replaces Tennant 613971 | 1 | Tray, Battery, Trimmed | $153.50/EA |
Tennant T5 wire harness group, main (S/N 10632988 and later) - continued detail a - continued parts
The parts Tennant numbers on its wire harness group, main (s/n 10632988 and later) - continued detail a - continued drawing. Manual pages 110, list 111.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032863Replaces Tennant 1066855 | 1 | Harness, Main [T5, Na] (NA/JP)Serial 10632988 and later. | $433.90/EA |
| 2 | TN4040238Replaces Tennant 222290 | 2 | Diode, Ele, Plug | $13.00/EA |
| 3 | TN4037571Replaces Tennant 1013835 | 1 | Connector Body, Fem, 2 Recept.[Molex] | $18.00/EA |
Tennant T5 wire harness group, main (S/N 00000000-10632987) - continued detail a - continued parts
The parts Tennant numbers on its wire harness group, main (s/n 00000000-10632987) - continued detail a - continued drawing. Manual pages 112, list 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036270Replaces Tennant 1020488 | 1 | Harness, Main [T5] (NA/JP)Serial up to 10632987. | $565.80/EA |
| 2 | TN4040238Replaces Tennant 222290 | 2 | Diode, Ele, Plug | $13.00/EA |
| 3 | TN4037571Replaces Tennant 1013835 | 1 | Connector Body, Fem, 2 Recept.[Molex] | $18.00/EA |
Tennant T5 wire harness group, main australia (S/N 10632988 and later) - continued detail a - continued parts
The parts Tennant numbers on its wire harness group, main australia (s/n 10632988 and later) - continued detail a - continued drawing. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033317Replaces Tennant 1067933 | 1 | Harness, Main [T5, Aus]Serial 10632988 and later. | $515.94/EA |
| 2 | TN4040238Replaces Tennant 222290 | 2 | Diode, Ele, Plug | $13.00/EA |
| 3 | TN4037571Replaces Tennant 1013835 | 1 | Connector Body, Fem, 2 Recept.[Molex] | $18.00/EA |
Tennant T5 wire harness group, main australia (S/N 00000000-10632987) - continued detail a - continued parts
The parts Tennant numbers on its wire harness group, main australia (s/n 00000000-10632987) - continued detail a - continued drawing. Manual pages 116, list 117.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045280Replaces Tennant 1034771 | 1 | Harness, Main [T5, Aus]Serial up to 10632987. | $762.45/EA |
| 2 | TN4040238Replaces Tennant 222290 | 2 | Diode, Ele, Plug | $13.00/EA |
| 3 | TN4037571Replaces Tennant 1013835 | 1 | Connector Body, Fem, 2 Recept.[Molex] | $18.00/EA |
Tennant T5 wire harness group, ec-H2O NanoClean (S/N 10742213 and later) parts
The parts Tennant numbers on its wire harness group, ec-h2o nanoclean (s/n 10742213 and later) drawing. Manual pages 118, list 119.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044870Replaces Tennant 1074375 | 1 | Harness Assy, Wire [T5 Ec-H2o G2]Complete assembly. Serial 10742213 and later. | $95.70/EA |
| 2 | TN4043084Replaces Tennant 1047470 | 1 | Fuse, Blade, 010a, 32vdc, RedPart of Harness Assy, Wire [T5 Ec-H2o G2] (1074375). | $2.50/EA |
Tennant T5 wire harness group, ec-H2O (S/N 10632988-10742212) parts
The parts Tennant numbers on its wire harness group, ec-h2o (s/n 10632988-10742212) drawing. Manual pages 120, list 121.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032862Replaces Tennant 1066844 | 1 | Harness Assy, Wire [T5 Ec-H2o]Complete assembly. Serial 10632988 to 10742212. | $190.10/EA |
| 2 | TN4043084Replaces Tennant 1047470 | 1 | Fuse, Blade, 010a, 32vdc, RedPart of Harness Assy, Wire [T5 Ec-H2o] (1066844). | $2.50/EA |
Tennant T5 wire harness group, ec-H2O (S/N 10446231-10632987) parts
The parts Tennant numbers on its wire harness group, ec-h2o (s/n 10446231-10632987) drawing. Manual pages 122, list 123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038773Replaces Tennant 1055398 | 1 | Harness Assy, Wire [T5 Ec-H2o]Complete assembly. Serial 10446231 to 10632987. | $332.22/EA |
| 2 | TN4043084Replaces Tennant 1047470 | 1 | Fuse, Blade, 010a, 32vdc, RedPart of Harness Assy, Wire [T5 Ec-H2o] (1055398). | $2.50/EA |
Tennant T5 wire harness group, ec-H2O (S/N 00000000-10446230) parts
The parts Tennant numbers on its wire harness group, ec-h2o (s/n 00000000-10446230) drawing. Manual pages 124, list 125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042146Replaces Tennant 1044416 | 1 | Harness Assy, Wire [T5 Ec-H2o, P3]Complete assembly. Serial 10378380 to 10446320. | $162.79/EA |
| 2 | TN4043084Replaces Tennant 1047470 | 1 | Fuse, Blade, 010a, 32vdc, RedPart of Harness Assy, Wire [T5 Ec-H2o, P3] (1044416). | $2.50/EA |
Tennant T5 wire harness group, telemetry parts
The parts Tennant numbers on its wire harness group, telemetry drawing. Manual pages 126, list 127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4178360Replaces Tennant 1074445 | 1 | Harness, Ele, Telem [T5]Complete assembly. Serial 10742213 and later. | $121.50/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Vr, Fuse, 002a, 250vdc, CartridgePart of Harness, Ele, Telem [T5] (1074445). Serial 10742213 and later. | $5.20/EA |
Tennant T5 wire harness group, fast parts
Wire harness group, fast from Tennant's parts list. Manual page 128.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033550Replaces Tennant 1023757 | 1 | Harness [Fast, Option, T5] | $10.55/EA |
Tennant T5 wire harness group, brake parts
Wire harness group, brake from Tennant's parts list. Manual page 129.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045419Replaces Tennant 1035576 | 1 | Harness, Wire, Brake [T5, Na]Serial 10306157 and later. | $245.90/EA |
Tennant T5 wire harness group, chassis parts
Wire harness group, chassis from Tennant's parts list. Manual page 130.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033627Replaces Tennant 1024588 | 1 | Harness, Chassis, Wire, Us [T5] | $242.70/EA |
Tennant T5 power wand hose group parts
The parts Tennant numbers on its power wand hose group drawing. Manual page 131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017732Replaces Tennant 65341 | 1 | Hose Assy, Wand, PowerComplete assembly. | $288.70/EA |
| 1 | TN4029497Replaces Tennant 578318000 | 1 | Fitting, Stl, Qdc, Bm04Part of Hose Assy, Wand, Power (65341). | $19.09/EA |
| 2 | TN4029481Replaces Tennant 578160000 | 2 | Clamp, Hose, Ear, 11-13mm, SsPart of Hose Assy, Wand, Power (65341). | $4.24/EA |
| 3 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, 0.25id X 157lPart of Hose Assy, Wand, Power (65341). | $27.80/EA |
| 4 | TN4029457Replaces Tennant 578072000 | 2 | Cuff, Swivel, 1.5 BlkPart of Hose Assy, Wand, Power (65341). | $31.71/EA |
| 5 | TN4041029Replaces Tennant 1052212 | 1 | Hose, Vacuum, 1.50id X 10ft, GrayPart of Hose Assy, Wand, Power (65341). | $83.90/EA |
| 6 | TN4029456Replaces Tennant 578071000 | 1 | Fitting, Brs, Qdc, Bm04/Pf04Part of Hose Assy, Wand, Power (65341). | $52.02/EA |
| 7 | TN4030011Replaces Tennant 12694 | 1 | Fitting, Plstc, Str, Bm24/Bm24 | $25.20/EA |
Tennant T5 off-board charger group parts
The parts Tennant numbers on its off-board charger group drawing. Manual pages 132, list 133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029653Replaces Tennant 579211 | 4 | Nut, Hex, Lock, M3 X .5, Ss | $3.30/EA |
| 2 | TN4033618Replaces Tennant 1024514 | 1 | Harness, ChrgrComplete assembly. | $92.60/EA |
| 3 | TN4025359Replaces Tennant 605387 | 1 | Connector, 50a, Red W/O Contact[AndersonPart of Harness, Chrgr (1024514). | $20.60/EA |
| 4 | TN4028314Replaces Tennant 603331 | 1 | Spacer, Chrgr Plug | $6.80/EA |
| 5 | TN4016851Replaces Tennant 41578 | 6 | Washer, Flat, #06, Ss | $3.30/EA |
| 6 | TN4022803Replaces Tennant 611005 | 1 | Switch, Rlr, 16a, Micro | $14.80/EA |
| 7 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, M3 X 0.5 X 20, 4.8 | $3.40/EA |
| 8 | TN4031248Replaces Tennant 33933 | 2 | Screw, Pan, M3 X 0.5 X 25, Ss | $3.40/EA |
| 9 | TN4031341Replaces Tennant 1029256 | 1 | Charger, 24vdc, 19a Var Vac 1ph 50/60hzComplete assembly. | $1,044.80/EA |
| 10 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 50a,Red W/O ContactPart of Charger, 24vdc, 19a Var Vac 1ph 50/60hz (1029256). | $20.60/EA |
| 11 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 010ft [Sjt]Part of Charger, 24vdc, 19a Var Vac 1ph 50/60hz (1029256). | $15.10/EA |
| 12 | TN4041703Replaces Tennant 1043663 | 1 | Charger, 24vdc 25a 100-240vac 50/60hz (Japan)Complete assembly. | $901.50/EA |
| 13 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 50a,Red W/O ContactPart of Charger, 24vdc 25a 100-240vac 50/60hz (Japan) (1043663). | $20.60/EA |
| 14 | TN4014501Replaces Tennant 989584 | 1 | Power Cord With Plug, [125v12a]#4.5m (Japan) | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T5 on-board charger group parts
The parts Tennant numbers on its on-board charger group drawing. Manual pages 134, list 135.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016694Replaces Tennant 9003295 | 1 | Charger Kit, Battery, Ci [120v T5 Na] (North America) (Charger Not Available Separately)Complete assembly. Serial 10632988 and later. | $1,110.40/EA |
| 1 | TN9003296Tennant 9003296 | 1 | Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4041640Replaces Tennant 1042808 | 1 | Charger, 230vac [Onboard, Export] (Australia)Complete assembly. Part of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $961.00/EA |
| 3 | TN578768Tennant 578768 | 1 | Label, Hzrd, [Hazardous Voltage] TxtlsPart of Charger, 230vac [Onboard, Export] (Australia) (1042808). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con] (North America Charger Only)Part of Charger, 230vac [Onboard, Export] (Australia) (1042808). | $20.60/EA |
| 5 | TN4193626Replaces Tennant 1025158 | 1 | Label, Charger, AfmktPart of Charger, 230vac [Onboard, Export] (Australia) (1042808). | $37.50/EA |
| 6 | TN4022392Replaces Tennant 609062 | 3 | Screw, Pan, M5 X 0.80 X 16, Pozi, SsPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $3.20/EA |
| 7 | TN4035687Replaces Tennant 26395-2 | 1 | Clamp, Cable, Stl, 0.38d X 0.38w, 1hPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $4.20/EA |
| 8 | TN4034198Replaces Tennant 1025642 | 1 | Cord, Power, 16/3, 4.5 Meters, Blk [Us] (North America)Part of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $49.60/EA |
| 8 | TN4034245Replaces Tennant 1026325 | 1 | Cord, Power, 1.0mm2 X 2.5 Meters [Aus] (Australia)Part of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $31.00/EA |
| 9 | TN4030680Replaces Tennant 1028175 | 1 | Label, Instr [Charger Setting]Part of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $8.05/EA |
| 10 | TN4032892Replaces Tennant 1022059 | 1 | Panel, Side, Rm-Tl, Lh, Trimmed, W/ChrgrPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4033857Replaces Tennant 1024965 | 2 | Bolt, Shld, 8mmd X 30, M6x1.0Part of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $7.60/EA |
| 12 | TN4022845Replaces Tennant 611311 | 2 | Spring, Cmpr, 10.9d, 1.1w, 12.7l Mw ZnPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $3.50/EA |
| 13 | TN4022708Replaces Tennant 610906 | 2 | Hook, Cord ViperPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $8.70/EA |
| 14 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $2.60/EA |
| 15 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Ss, NlPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $2.50/EA |
| 16 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $2.60/EA |
| 17 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $2.60/EA |
| 18 | TN4043510Replaces Tennant 130773 | 6 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $3.90/EA |
| 19 | TN4027412Replaces Tennant 600624 | 1 | Label, Parking Brake, SymbolPart of Charger Kit, Batt, 230v, Fr/ [T5 Aust] (Australia) (9003296). | $3.20/EA |
| 20 | TN4201690Replaces Tennant 9008898 | 1 | Charger, 120vac [Onboard] (North America)Complete assembly. Serial up to 10632987. | $925.10/EA |
| 21 | TN8005508Replaces Tennant 1030692 | 1 | Vr, Fuse, Replmt, 15 Amp F/1022874 (North America) (For Chargers With External Fuse Re- placement On Bottom Of Charger)Part of Charger, 120vac [Onboard] (North America) (9008898). | $3.50/EA |
| 21 | TN8005509Replaces Tennant 1030746 | 1 | Vr, Fuse, 10a, F/1025146-1026909, Replmt (Australia) (For Chargers With External Fuse Replacement On Bottom Of Charger) | $2.95/EA |
Tennant T5 bumper wheel kit parts
The parts Tennant numbers on its bumper wheel kit drawing. Manual pages 136, list 137.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4013699Replaces Tennant 9004459 | 1 | Wheel Kit, Bumper, Retrofit [T5]Complete assembly. | $171.80/EA |
| 1 | TN4027257Replaces Tennant 600187 | 2 | Bolt, Shld, .38d X 1.25, .31-18Part of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $6.00/EA |
| 2 | TN4020076Replaces Tennant 614317 | 2 | Wheel, 04.0d 1.00w 0.38b, Rbr, GrayPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $24.60/EA |
| 3 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $2.60/EA |
| 4 | TN4041319Replaces Tennant 069762311 | 2 | Washer, Flat, M7.9b X 19d X 1.7 SsPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $2.60/EA |
| 5 | TN4017399Replaces Tennant 43952 | 2 | Washer, Lock, Int, 0.31, SsPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $2.60/EA |
| 6 | TN4044079Replaces Tennant 140506 | 2 | Nut, Hex, Std, .31-18, SsPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $3.40/EA |
| 7 | TN4026074Replaces Tennant 606983 | 2 | Screw, Trs, M8 X 1.25 X 40, Phl, PlPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $4.80/EA |
| 8 | TN4037957Replaces Tennant 1014918 | 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, RbrPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $0.00/EA |
| 9 | TN4019813Replaces Tennant 393135 | 4 | Screw, Btn, M8 X 1.25 X 20, BlkPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $3.30/EA |
| 10 | TN4033240Replaces Tennant 1023268 | 1 | Bracket, Roller, Wall, Scb Head, 70cmPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $56.80/EA |
| 11 | TN4041605Replaces Tennant 07791 | 2 | Nut, Hex, Flng, M8 X 1.25Part of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $2.50/EA |
| 12 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $3.30/EA |
| 13 | TN4032921Replaces Tennant 1022344 | 1 | Bracket, Roller, Wall, Scb Head, 60cmPart of Wheel Kit, Bumper, Retrofit [T5] (9004459). | $56.80/EA |
Tennant T5 wand pump kit parts
The parts Tennant numbers on its wand pump kit drawing. Manual pages 138, list 139.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016723Replaces Tennant 9003398 | 1 | Pump Kit, Wand, Power, Ci [T5]Complete assembly. | $769.12/EA |
| 1 | TN4022344Replaces Tennant 608292 | 1 | Connection, Quick, Fem .375” X .25” NptPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4026127Replaces Tennant 78122 | 1 | Fitting, Brs, Str, Pf04/Pf04, BhPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $30.50/EA |
| 3 | TN4044560Replaces Tennant 150516 | 1 | Fitting, Brs, Str, Pm04/Bm06Part of Pump Kit, Wand, Power, Ci [T5] (9003398). | $5.30/EA |
| 4 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $5.10/EA |
| 5 | TN4029353Replaces Tennant 575501000 | 1 | Hose 3/8idx5/8odx8” (376720)Part of Pump Kit, Wand, Power, Ci [T5] (9003398). | $20.20/EA |
| 6 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $3.30/EA |
| 7 | TN4044647Replaces Tennant 1041978 | 2 | Clamp, Hose, Wir, .85 - .90, SilverPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $2.60/EA |
| 8 | TN4025131Replaces Tennant 605064 | 1 | Cap, Vinyl, 1.38 D 1.6lPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $6.00/EA |
| 9 | TN4020522Replaces Tennant 630136 | 1 | Pump, Soltn, Ele, 24vdc, 3116” Term 3/4”Part of Pump Kit, Wand, Power, Ci [T5] (9003398). | $571.95/EA |
| 10 | TN4033277Replaces Tennant 1023515 | 1 | Bracket, Mtg, Pump, WandPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $57.57/EA |
| 11 | TN4044380Replaces Tennant 150017 | 1 | Fitting, Brs, Str, Pf08/Pf12, Cplg[Redr]Part of Pump Kit, Wand, Power, Ci [T5] (9003398). | $15.80/EA |
| 12 | TN4033285Replaces Tennant 1023581 | 1 | Fitting, Plstc, Str, Bm08/Pm08, NylPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $6.20/EA |
| 13 | TN4021947Replaces Tennant 607776 | 2 | Clamp, Hose, Wir, .73 - .77, SilverPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $4.20/EA |
| 14 | TN4019508Replaces Tennant 613521 | 1 | Hose, Pvc, Clr, 0.50id 0.75od 012.0lPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $23.90/EA |
| 15 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $5.30/EA |
| 16 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $3.90/EA |
| 17 | TN4043516Replaces Tennant 130787 | 1 | Switch, Rocker, SpdtPart of Pump Kit, Wand, Power, Ci [T5] (9003398). | $17.70/EA |
Tennant T5 deluxe power wand group parts
The parts Tennant numbers on its deluxe power wand group drawing. Manual pages 140, list 141.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017731Replaces Tennant 65340 | 1 | Wand Assy, PowerComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4029450Replaces Tennant 578060000 | 1 | Wand, Dbl Bend, 38.1mmdPart of Wand Assy, Power (65340). | $140.90/EA |
| 2 | TN4029460Replaces Tennant 578077000 | 1 | Bracket Valve Mounting WandPart of Wand Assy, Power (65340). | $67.47/EA |
| 3 | TN4029451Replaces Tennant 578061000 | 2 | Adapter, Head / WandPart of Wand Assy, Power (65340). | $22.12/EA |
| 4 | TN4045657Replaces Tennant 1037595 | 1 | Fitting, Plstc, E90, Bm04/Pm02, NylPart of Wand Assy, Power (65340). | $4.20/EA |
| 5 | TN4029645Replaces Tennant 579112 | 1 | Fitting Spray Nozzle AdapterPart of Wand Assy, Power (65340). | $12.52/EA |
| 6 | TN4027633Replaces Tennant 602036000 | 2 | Rivet, BlindPart of Wand Assy, Power (65340). | $3.03/EA |
| 7 | TN4029454Replaces Tennant 578066000 | 1 | Fitting, Brs, Tip [75, .125k-Jet]Part of Wand Assy, Power (65340). | $25.45/EA |
| 8 | TN4017760Replaces Tennant 65610 | 1 | Brush, Power Wand, W/ Fastener, PypPart of Wand Assy, Power (65340). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4029452Replaces Tennant 578063000 | 1 | Head, WandPart of Wand Assy, Power (65340). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4029461Replaces Tennant 578078000 | 2 | Retainer, Sqge, WandPart of Wand Assy, Power (65340). | $48.68/EA |
| 11 | TN4029459Replaces Tennant 578074000 | 2 | Blade, Sqge, 300.8mml, WandPart of Wand Assy, Power (65340). | $62.92/EA |
| 12 | TN4029473Replaces Tennant 578124000 | 1 | Bracket,Axle,1holePart of Wand Assy, Power (65340). | $9.90/EA |
| 13 | TN4029611Replaces Tennant 578439 | 1 | Nut, Thumb, M6 X 1.0, 30dPart of Wand Assy, Power (65340). | $6.60/EA |
| 14 | TN4019542Replaces Tennant 613732 | 1 | Spring, Cmpr, Conical 15mmPart of Wand Assy, Power (65340). | $20.30/EA |
| 15 | TN4029477Replaces Tennant 578143000 | 1 | Screw, Set, M6 X 1.0 X 40, Cuppt, SsPart of Wand Assy, Power (65340). | $6.97/EA |
| 16 | TN4029475Replaces Tennant 578126000 | 1 | Axle,WandPart of Wand Assy, Power (65340). | $37.17/EA |
| 17 | TN4029474Replaces Tennant 578125000 | 2 | Wheel, 41.3d, 19.1w, RbrPart of Wand Assy, Power (65340). | $10.71/EA |
| 18 | TN4029472Replaces Tennant 578123000 | 1 | Bracket,Axle,3holePart of Wand Assy, Power (65340). | $21.61/EA |
| 19 | TN4029480Replaces Tennant 578155000 | 1 | Handle Wldt, WandPart of Wand Assy, Power (65340). | $87.20/EA |
| 20 | TN4029479Replaces Tennant 578154000 | 1 | Bracket Handle WandPart of Wand Assy, Power (65340). | $24.64/EA |
| 21 | TN4029464Replaces Tennant 578091000 | 1 | Fitting, Brs, Qdc, Pm04, PlugPart of Wand Assy, Power (65340). | $20.91/EA |
| 22 | TN4029483Replaces Tennant 578164000 | 1 | Grommet,0.38”Id,0.62”Gd,.06”GwPart of Wand Assy, Power (65340). | $3.33/EA |
| 23 | TN4029634Replaces Tennant 578821000 | 1 | Hose 1/4id X 3/8od X 1.22mPart of Wand Assy, Power (65340). | $17.37/EA |
| 24 | TN4029482Replaces Tennant 578161000 | 1 | Clamp, Hose, Ear, 8-11mm, SsPart of Wand Assy, Power (65340). | $5.15/EA |
| 25 | TN4029465Replaces Tennant 578094000 | 1 | Fitting, Nyl, Str, Pm04/Bm04Part of Wand Assy, Power (65340). | $3.33/EA |
| 26 | TN4029453Replaces Tennant 578064000 | 1 | Valve, Cntrl, WaterPart of Wand Assy, Power (65340). | $81.10/EA |
| 27 | TN4044388Replaces Tennant 150208 | 1 | Fitting, Brs, Str, Pm02, Plug [Skhd]Part of Wand Assy, Power (65340). | $4.20/EA |
| 28 | TN4039089Replaces Tennant 20399 | 2 | Bolt, Carriage, .25-20 X 0.75Part of Wand Assy, Power (65340). | $2.83/EA |
| 29 | TN4042591Replaces Tennant 200304017 | 2 | Washer, Flat, M6.4 X 13 X 1.6, PlPart of Wand Assy, Power (65340). | $3.50/EA |
| 30 | TN4016793Replaces Tennant 41169 | 2 | Nut, Hex, Lock, .25-20, Nl, SsPart of Wand Assy, Power (65340). | $4.00/EA |
| 31 | TN4041599Replaces Tennant 07785 | 1 | Nut, Hex, Std, M6 X 1.0, A2, SsPart of Wand Assy, Power (65340). | $2.50/EA |
| 32 | TN4034259Replaces Tennant 1026454 | 4 | Screw, Pan, M5 X 0.8 X 10, SsPart of Wand Assy, Power (65340). | $2.50/EA |
| 33 | TN4041589Replaces Tennant 07514 | 8 | Washer, Lock, Int, #10, SsPart of Wand Assy, Power (65340). | $3.50/EA |
| 34 | TN4029478Replaces Tennant 578144000 | 4 | Screw, Pan, M5 X 0.8 X 16,Phl,Ss,Dn7985aPart of Wand Assy, Power (65340). | $3.30/EA |
| 35 | TN4029614Replaces Tennant 578566 | 2 | Screw 4x30 Fltphl SsPart of Wand Assy, Power (65340). | $2.93/EA |
| 36 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsPart of Wand Assy, Power (65340). | $3.40/EA |
| 37 | TN4044151Replaces Tennant 140885 | 2 | Screw, Trs, .25-20 X 0.50, Phl, SsPart of Wand Assy, Power (65340). | $4.00/EA |
| 38 | TN4017748Replaces Tennant 65582 | 1 | Brush, Power Wand, W/ Fastener, Abr (Optional) | $179.84/EA |
Tennant T5 optional wheel kit parts
The parts Tennant numbers on its optional wheel kit drawing. Manual page 142.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4014049Replaces Tennant 9004903 | 1 | Wheel Kit, Pneumatic, Ci [T5 T5e Ss5]Complete assembly. | $537.20/EA |
| 1 | TN4033935Replaces Tennant 1059452 | 2 | Tire Assy, Pneu, Grey, 2.8/2.5-04 2.75bcPart of Wheel Kit, Pneumatic, Ci [T5 T5e Ss5] (9004903). | $49.80/EA |
| 2 | TN4039676Replaces Tennant 1048125 | 2 | Hub, Wheel [Tapered Shaft]Part of Wheel Kit, Pneumatic, Ci [T5 T5e Ss5] (9004903). | $155.38/EA |
| 3 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Wheel Kit, Pneumatic, Ci [T5 T5e Ss5] (9004903). | $2.50/EA |
| 4 | TN4043628Replaces Tennant 140000 | 8 | Washer, Flat, 0.28b 0.62d .04, SsPart of Wheel Kit, Pneumatic, Ci [T5 T5e Ss5] (9004903). | $3.80/EA |
| – | TN4014051Replaces Tennant 9004904 | 1 | Wheel Kit, Foam Filled, Ci [T5 T5e Ss5]Complete assembly. | $658.80/EA |
| 1 | TN4030059Replaces Tennant 1068472 | 2 | Tire Assy, Foam, Hi-Dns, Grey,2.8/2.5-04Part of Wheel Kit, Foam Filled, Ci [T5 T5e Ss5] (9004904). | $193.30/EA |
| 2 | TN4039676Replaces Tennant 1048125 | 2 | Hub, Wheel [Tapered Shaft]Part of Wheel Kit, Foam Filled, Ci [T5 T5e Ss5] (9004904). | $155.38/EA |
| 3 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Wheel Kit, Foam Filled, Ci [T5 T5e Ss5] (9004904). | $2.50/EA |
| 4 | TN4043628Replaces Tennant 140000 | 8 | Washer, Flat, 0.28b 0.62d .04, SsPart of Wheel Kit, Foam Filled, Ci [T5 T5e Ss5] (9004904). | $3.80/EA |
Tennant T5 hydroLINK battery watering system kit parts
The parts Tennant numbers on its hydrolink battery watering system kit drawing. Manual page 143.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010Replaces Tennant 9010300 | 1 | Watering Kit, Battery, 24vdc, Ci [Trojan]Complete assembly. | $300.00/EA |
| 1 | TN4036778Replaces Tennant 1058939 | 1 | Kit, Pump, Fill, BatteryPart of Watering Kit, Battery, 24vdc, Ci [Trojan] (9010300). | $145.10/EA |
| 2 | TN4030313Replaces Tennant 1070394 | 1 | Hose Kit, Battery, 24vdc [J305h Snake]Part of Watering Kit, Battery, 24vdc, Ci [Trojan] (9010300). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040858Replaces Tennant 1204142 | 4 | Cap, Watering, Battery [Trojan]Part of Watering Kit, Battery, 24vdc, Ci [Trojan] (9010300). | $42.00/EA |
| 4 | TN4030488Replaces Tennant 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of Watering Kit, Battery, 24vdc, Ci [Trojan] (9010300). | $7.50/EA |
| 5 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Watering Kit, Battery, 24vdc, Ci [Trojan] (9010300). | $3.90/EA |
New to your Tennant T5? Start here
Set up, run and look after your T5. Everything here comes from Tennant's T5 operator manual, rewritten in plain steps, with the parts linked to the list above. Pick the parts that match your scrub head size.
1Put the squeegee on
- Park on a level surface, take the key out and set the parking brake if you have one.
- Lift the squeegee lift lever, mount the squeegee on the pivot bracket and tighten the knobs.
- Connect the vacuum hose to the squeegee and loop it through the hose clip.
- Check that the blades bend slightly as they touch the floor. Adjust the casters on a level surface if they don't.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), pages 10 and 11. SES ref PF-OFM4-PLOP
2Put the pads or brushes on
- Raise the scrub head and take the key out.
- Fasten the pad to the pad driver (TN4037174 / TN4037176 / TN4037177) with the center lock.
- Press the yellow spring clips down and out, line the driver or brush (TN4037166 / TN4037454 / TN4037170) up under the motor hub and push it up until it locks.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), page 11. SES ref PF-OFM4-PLOP
3Fill the solution tank
- Fill the solution tank with a hose or bucket to the MAX 85L mark.
- Conventional scrubbing: water no hotter than 140°F (60°C), plus a recommended detergent mixed as the bottle says.
- FaST or ec-H2O scrubbing: cool clean water only, below 70°F (21°C), and no detergent.
- Never put flammable materials in the tanks.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), page 13. SES ref PF-OFM4-PLOP
4Scrub and stop
- Release the parking brake if you have one and turn the key on.
- Lower the squeegee with the lift lever and press the 1-STEP scrub button.
- Pull the control handle bail to start scrubbing and set the speed knob.
- To stop, let go of the bail, press 1-STEP and raise the squeegee.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), pages 14 and 15. SES ref PF-OFM4-PLOP
Questions about your T5? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant T5 troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Machine won't run | ||
| Discharged batteries or a loose battery cable | Charge the batteries and tighten loose cables. | |
| Emergency stop button pressed | Turn the button clockwise to reset it. | |
| On-board charger won't charge | ||
| Plug not connected or a faulty charger fuse or cord | Check the plug. Replace the charger fuse or the power cord. | |
| Brush motors won't run | ||
| 1-STEP scrub button off or discharged batteries | Turn the 1-STEP button on and charge the batteries. | |
| Worn carbon brushes, or a broken or loose belt on cylindrical models | Replace or tighten the belt (TN4045455). For carbon brushes call SES service. Parts: brush motor carbon brushes (TN4032140). | |
| Machine won't propel | ||
| Parking brake set or the maximum incline exceeded | Release the parking brake. Avoid steep slopes and turn the key off and on. | |
| Vacuum motor won't run | ||
| Squeegee raised off the floor | Lower the squeegee. | |
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), pages 37, 38 and 39. SES ref PF-DPBN-ZQFY
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant T5 maintenance schedule
Tennant's maintenance schedule for the T5.
| Task | How often | Part |
|---|---|---|
| Drain the recovery tank, clean it out, and put the drain hose cap (TN4039939) back. | After every use | |
| Clean the float shut-off (TN4020485) screen and the debris tray (TN4033908) in the recovery tank. | After every use | |
| Drain the solution tank, rinse it through the clean-out ports and clean the solution tank filter. | After every use | |
| Check the squeegee, the brushes and pads, and the scrub head skirt for damage and wear. Check the machine for leaks. | After every use | |
| Check the electrolyte level in the battery cells. | Weekly | |
| 50 hours: check the cylindrical brush taper and rotate the brushes front to rear. | Every 50 and 100 hours | |
| 100 hours: check the cylindrical brush drive belt (TN4045455) tension. | Every 50 and 100 hours | |
| Check and clean the battery terminals and cables. | Every 200 hours | |
| 750 hours: have the carbon brushes replaced in the vacuum motor (vacuum motor brushes (TN4044514)), the disk brush motors (brush motor brushes (TN4032140)) and the propel motor (transaxle brushes (TN4019997)). | Every 750 and 1,000 hours | |
| 1,000 hours: have the cylindrical brush motor carbon brushes and the FaST water and air filters replaced. Tennant asks for trained personnel; SES service can do it: call 800-440-6723. | Every 750 and 1,000 hours |
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), pages 19 and 26. SES ref PF-LB3L-RJLL
Tennant T5 specifications
From Tennant's documents for the T5.
| Cleaning path | 24, 28 or 32 in (600, 700 or 800 mm) disk; 26 or 32 in (650 or 800 mm) cylindrical |
|---|---|
| Solution tank | 22.5 gal (85 L) |
| Recovery tank | 27 gal (102 L) |
| Brush pressure | 40, 80 or 120 lb (18, 36 or 54 kg) |
| Travel speed | 220 ft (67 m) per minute cleaning, 235 ft (72 m) per minute transporting |
| Batteries | Four 6V: 235 Ah wet or 200 Ah gel |
| Run time per charge | 5.5 hours wet, 4.5 hours gel |
| Vacuum motor | 24V, 0.85 hp (640 W), 3-stage, 26 A |
| Weight with batteries | 580 to 629 lb (263 to 285 kg), by scrub head |
| Slope | 5% scrubbing, 8% transporting |
| Sound level | 67 dB(A) disk, 68 dB(A) cylindrical |
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), page 41. SES ref PF-KGHM-IIFI
Tennant T5 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9002329 Rev. 16 (04-2016), North America / International, 143 pages | T5 | Rev. 16 (04-2016) | 143 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 9002326 Rev. 08 (10-2015), North America / International, 43 pages | T5 | Rev. 08 (10-2015) | 43 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant T5 parts questions
How do I change the pads on a Tennant T5?
Raise the scrub head and take the key out. Fasten the pad to the pad driver with the center lock, open the yellow spring clips, then push the driver up under the motor hub until it locks.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), page 11. SES ref PF-EYFK-CJVC
How much water does the T5 hold?
The solution tank holds 22.5 gal (85 L); fill it to the MAX 85L mark. The recovery tank holds 27 gal (102 L).
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), pages 13 and 41. SES ref PF-EYFK-CJVC
Can I use detergent with ec-H2O or FaST on the T5?
No. For FaST or ec-H2O scrubbing use cool clean water only. Detergent can make the system fail. Drain and rinse the tank before switching from conventional scrubbing.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), pages 13 and 14. SES ref PF-EYFK-CJVC
How long does a T5 run on a charge?
About 5.5 hours of continuous scrubbing on wet batteries and 4.5 hours on gel batteries.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), page 41. SES ref PF-EYFK-CJVC
Why won't the T5 vacuum turn on?
The vacuum motor runs only when the squeegee is lowered to the floor. Lower it with the squeegee lift lever.
Source: Tennant T5 operator manual 9002326 Rev. 08 (10-2015), pages 14 and 37. SES ref PF-EYFK-CJVC
Does this parts list fit my T5?
It covers the North America and International T5 in parts manual 9002329 Rev. 16. Some groups change at a serial number; each line shows its serial range. Call us with your serial number if you are unsure.
Source: Tennant T5 parts manual 9002329 Rev. 16 (04-2016), page 1. SES ref PF-EYFK-CJVC
