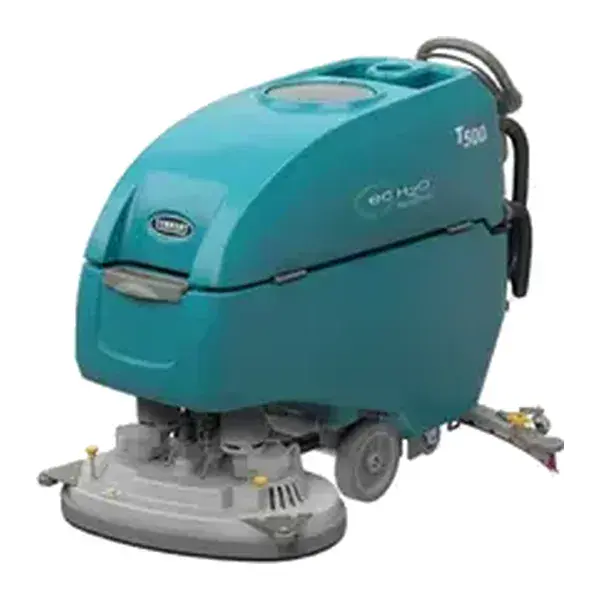

Tennant T500e (S/N 30000000-40000000) parts list and diagrams
Find any part on the Tennant T500e walk-behind scrubber built for China, International and Japan, serial numbers 30000000 to 40000000, by its area in Tennant's drawings. Every line of that parts manual is here, crossed to Tennant's current numbers with our price. T500e machines with serial numbers 10000000 to 20000000 have their own page.
Complete list: every line of the parts list in Tennant T500e Walk-Behind Floor Scrubber Parts Manual 4023671 Rev. 05 (12-2025), China / International / Japan, S/N 30000000-40000000, 1425 printed part lines, with the parts numbered on its drawings. Checked .
New to your T500e (S/N 30000000-40000000)? Start here → T500e with serial number 10000000 to 20000000? Its parts list is on its own page → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Scrubbing path
- 26, 28 or 32 in (650, 700 or 800 mm) disk
- Solution tank
- 22.5 gal (85 L)
- Recovery tank
- 27 gal (102 L)
- Machine voltage
- 24V DC
- Scrubbing speed
- 2.5 mph (4.0 km/h)
Maintenance and wear parts for the T500e (S/N 30000000-40000000)
Tennant's general recommended maintenance items for the T500e. Keep these on the shelf.
- No photo yet
Brush Assy, Disk, Scb, 13.0d, Pyp
$231.80/EA - No photo yet
Brush Assy, Disk, Scb, 13.0d, Nyl
$312.70/EA - No photo yet
Brush Assy, Disk, Scb, 13.0d, Sab

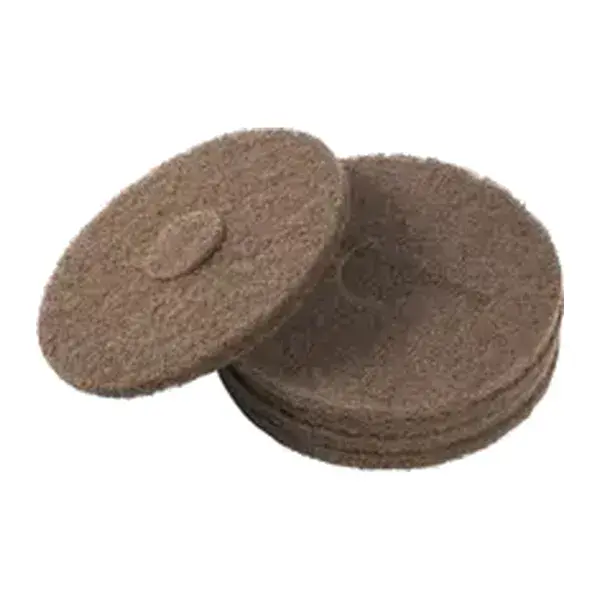

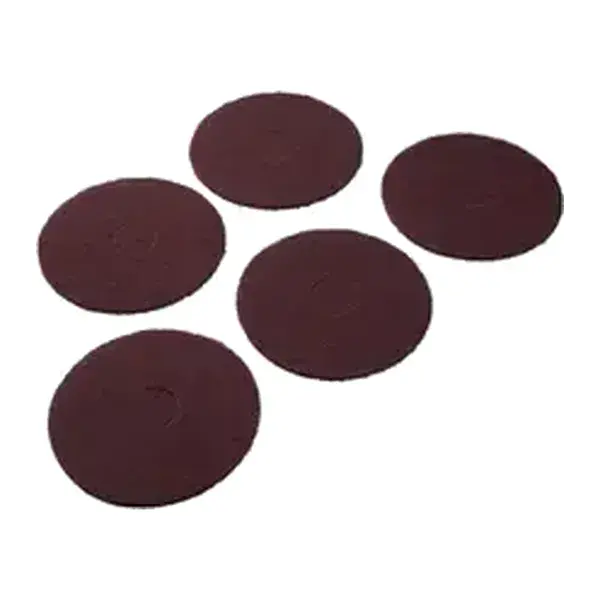

$363.10/EA Pad, Stripper, 13.0d, Brn [1pick=1ctn]

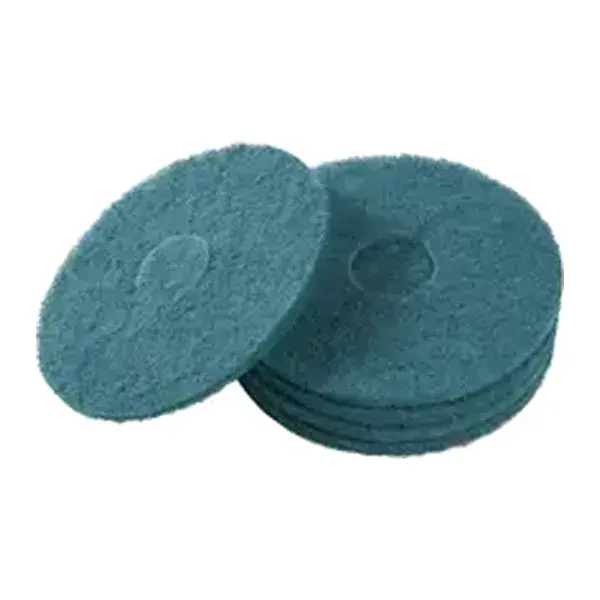

$80.10/EAPad, Scb, 13.0d Blu [1pick=1ctn]
$80.60/EA- No photo yet
Pad, Buff, 13.0d, Red [1pick=1ctn]
$80.10/EA Pad, Polish, 13.0d, White [1pick=1ctn]
$80.10/EAPad, Surf Prep, 13.0d Maroon[1pick=1ctn]
$94.50/EA- No photo yet
Brush Assy, Disk, Scb, 14.0d, Pyp
$260.00/EA - No photo yet
Brush Assy, Disk, Scb, 14.0d, Nyl
$311.50/EA - No photo yet
Brush Assy, Disk, Scb, 14.0d, Sab
$553.10/EA - No photo yet
Pad, Stripping, 14.0d Brown [1pick=1ctn]
$87.20/EA
Source: Tennant T500e Walk-Behind Floor Scrubber Parts Manual 4023671 Rev. 05 (12-2025), China / International / Japan, S/N 30000000-40000000, page 6. SES ref PF-7HFZ-UYCL
Your machine
How to tell which you have
- Scrub head: Tennant's parts manual has separate parts groups for Cylindrical 28 in (700 mm), Disk 26 in (650 mm), Disk 28 in (700 mm), Disk 32 in (800 mm), Orbital 28 in (700 mm) (manual pages 10, 12, 14, 15, 16, 18, 20, 22, 24, 26, 28, 44…). Pick yours to see only its groups; parts every build shares always show.
- Squeegee width: Tennant's parts manual has separate parts groups for 20 in (500 mm), 26 in (650 mm), 28 in (700 mm), 32 in (800 mm) (manual pages 62, 64, 66, 68, 70, 72). Pick yours to see only its groups; parts every build shares always show.

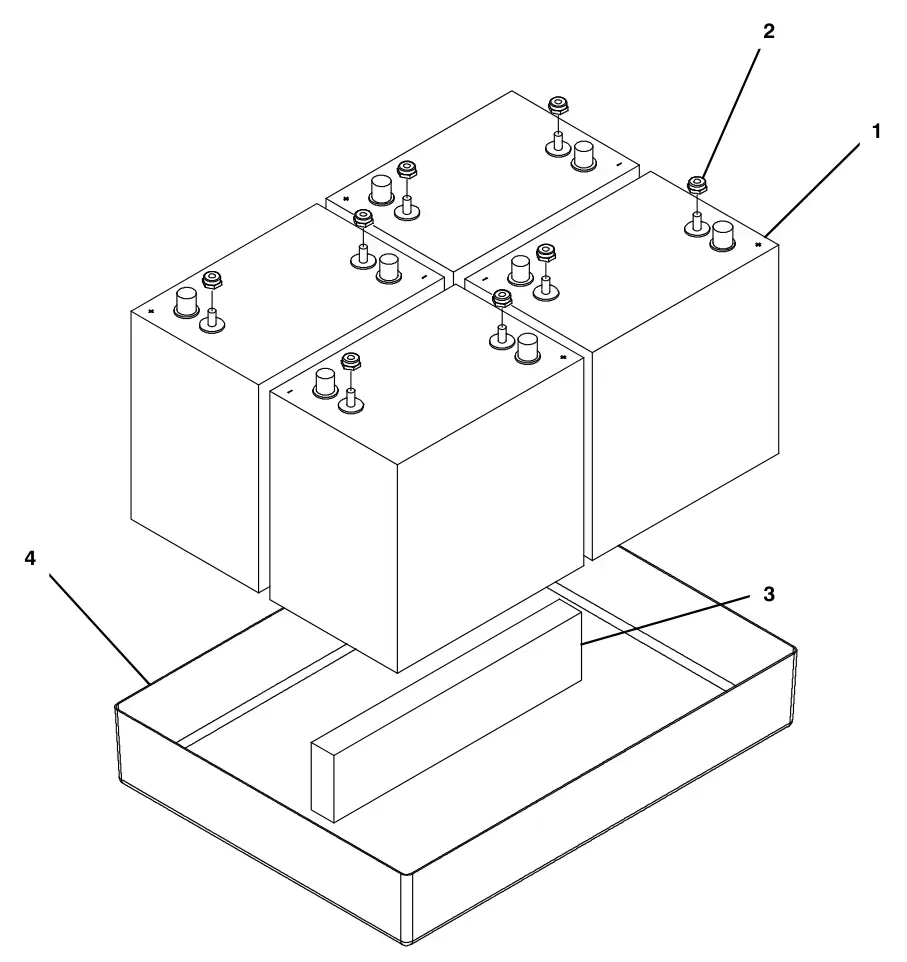

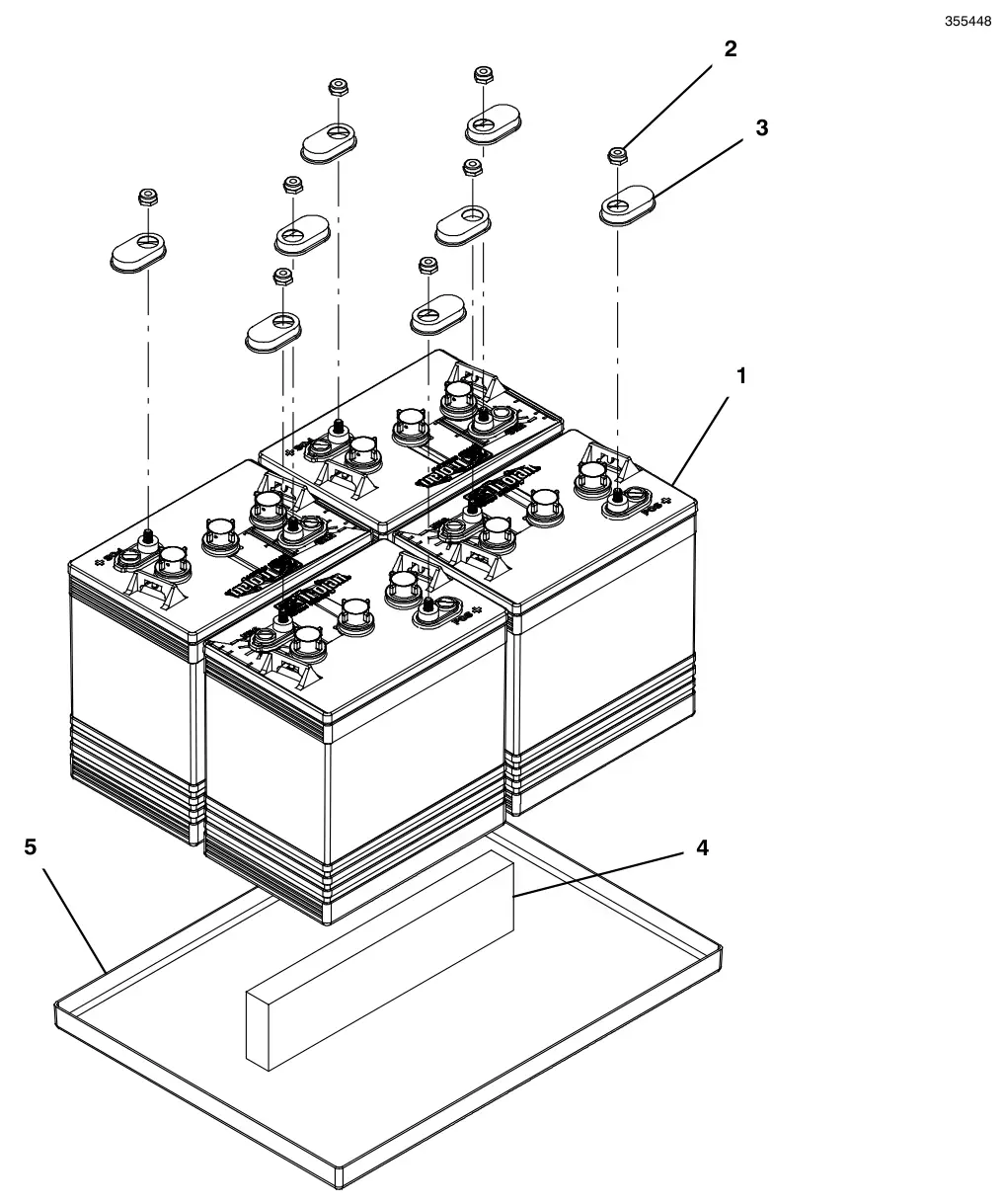

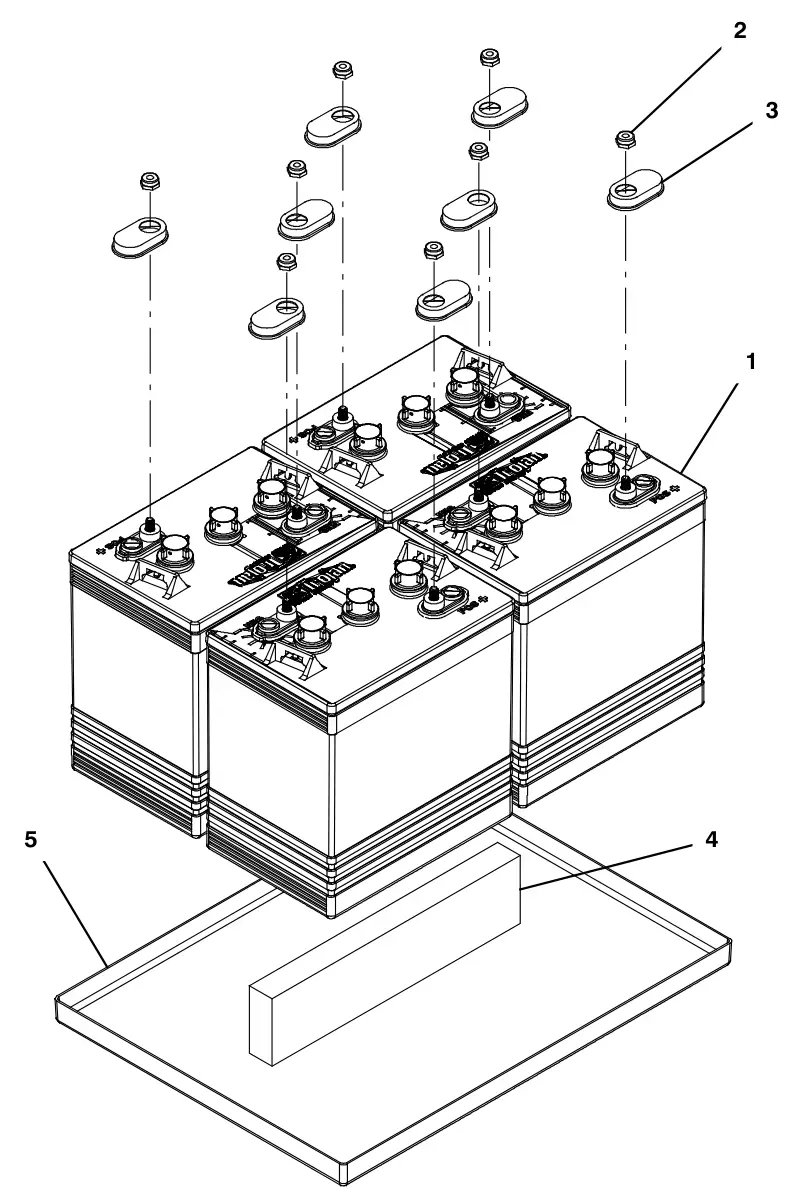

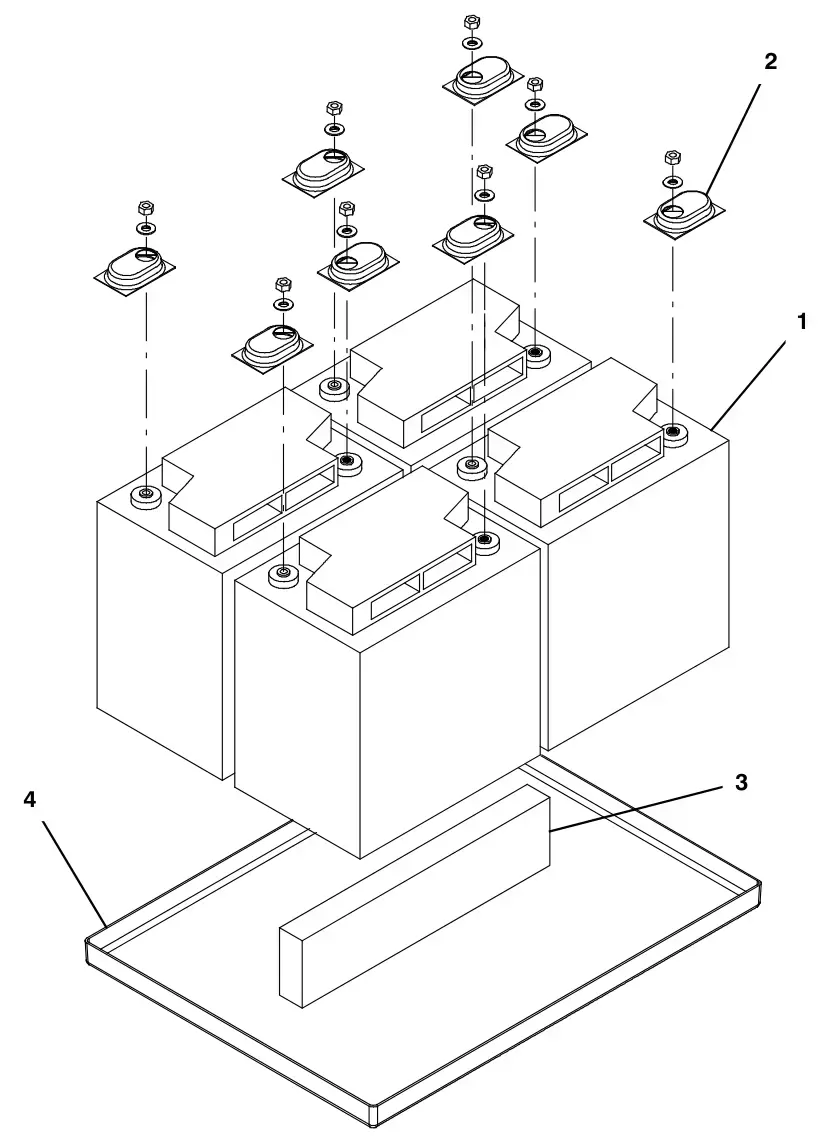

- Battery: Tennant's parts manual has separate parts groups for Wet 240Ah, AGM 220Ah, Wet 260Ah, AGM 170Ah (china), AGM 217Ah (china), Lithium-ion (china), AGM 220Ah (china) (manual pages 80, 81, 82, 83, 84, 85, 86, 87). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant T500e (S/N 30000000-40000000) General recommended maintenance items
General recommended maintenance items from Tennant's parts list. Manual page 6.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|

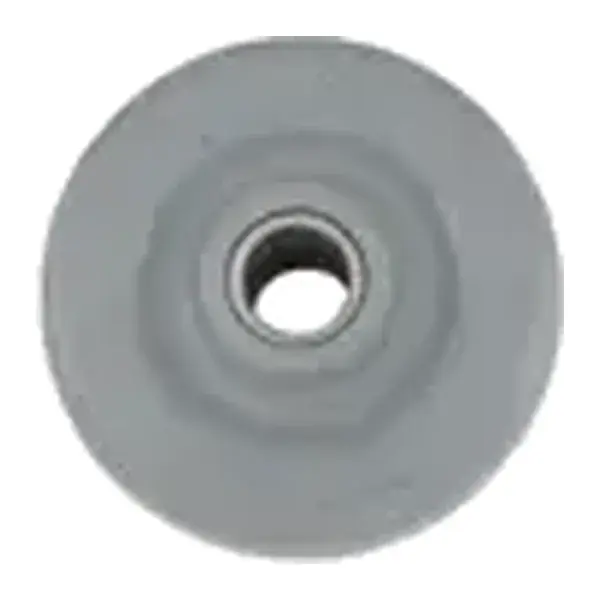

| – | TN4020804Replaces Tennant 630477 | Qty on machine: 6 | Wheel, Pyu, 02.0d 0.38w, Gray (Cylindrical Head) | $9.50/EA | ||

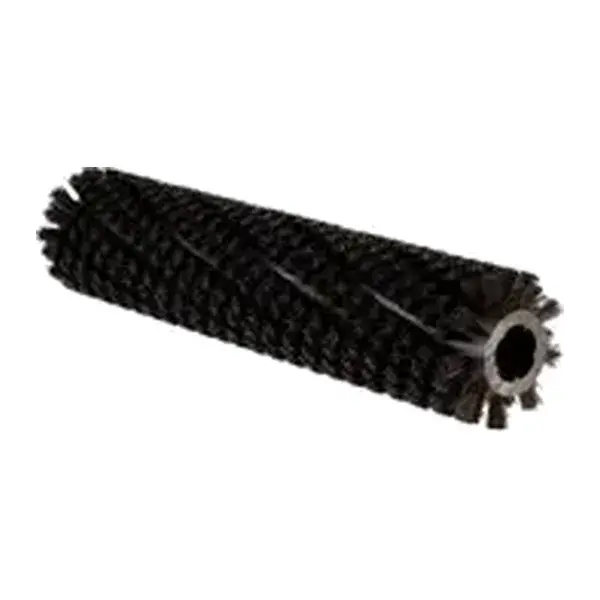

| – | TN4040245Replaces Tennant 222304 | Qty on machine: 2 | Brush, Scb, 28l, 18sr, Pyp, Spl | $220.00/EA | ||

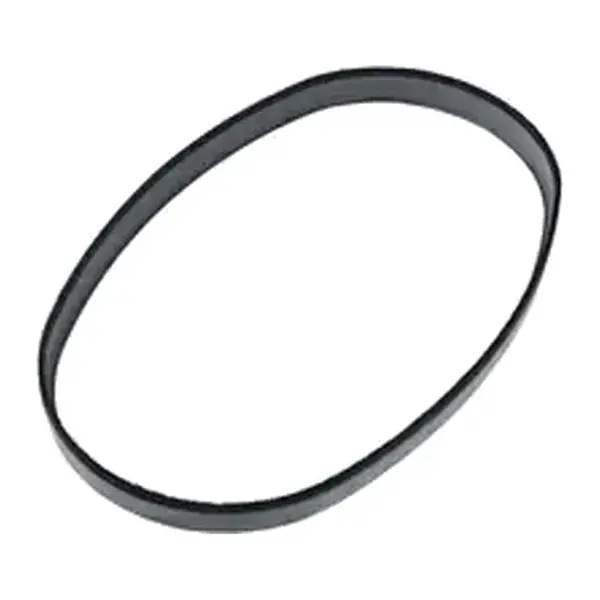

| – | TN4035994Replaces Tennant 1232326 | Qty on machine: 1 | Bumper, Head, 80cm, Skirt, Im | $145.40/EA | ||

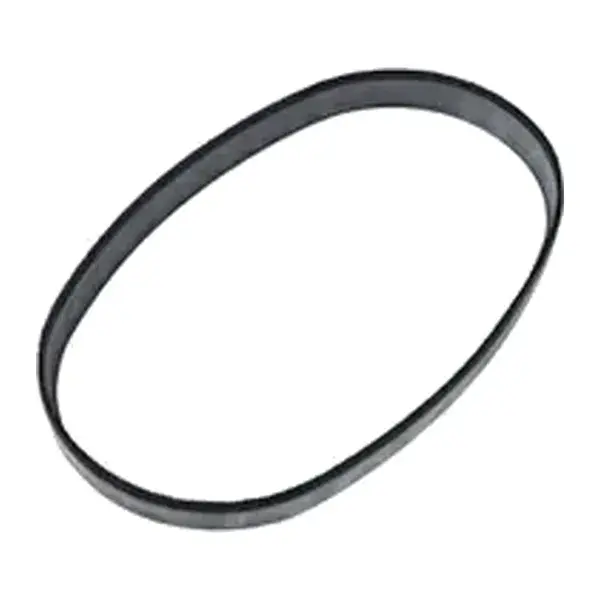

| – | TN4035993Replaces Tennant 1232325 | Qty on machine: 1 | Bumper, Head, 70cm, Skirt, Im | $155.00/EA | ||
| – | TN4035992Replaces Tennant 1232324 | Qty on machine: 1 | Bumper, Head, 65cm, Skirt, Im | $148.10/EA | ||

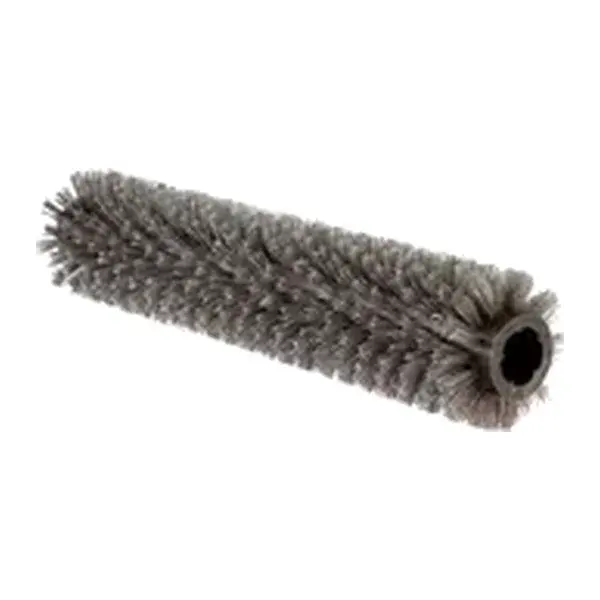

| – | TN4040247Replaces Tennant 222306 | Qty on machine: 2 | Brush, Scb, 28l, 18sr, Abr, Spl | $471.90/EA | ||
| – | TN4216882Replaces Tennant 1243567 | Qty on machine: 2 | Pad, Stripper, 13.0d, Brn [1pick=1ctn] | $80.10/EA | ||

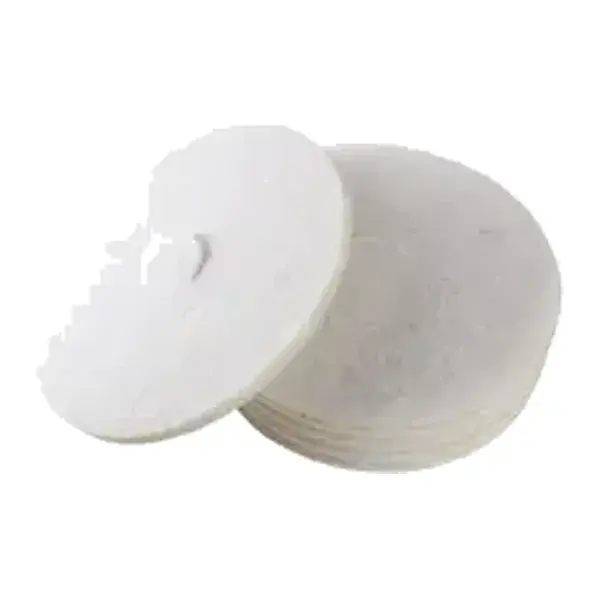

| – | TN4034079Replaces Tennant 1243356 | Qty on machine: 2 | Pad, Polish, 16.0d, White [1pick=1ctn] | $101.80/EA | ||

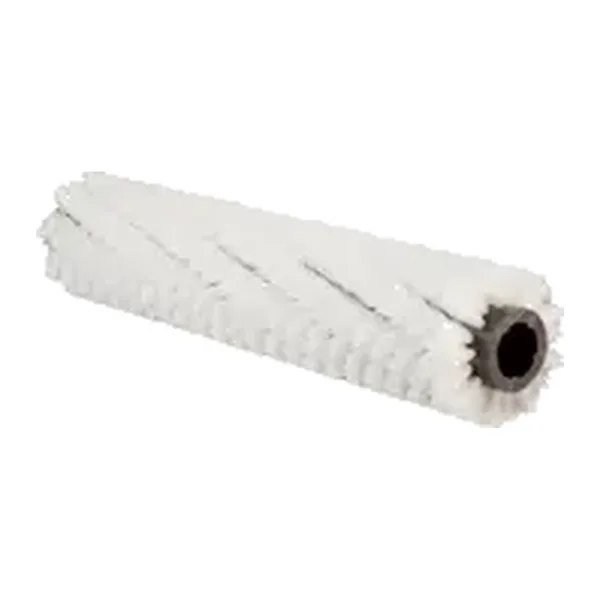

| – | TN4040246Replaces Tennant 222305 | Qty on machine: 2 | Brush, Scb, 28l, 18sr, Nyl, Spl | $321.80/EA | ||
| – | TN4034072Replaces Tennant 1243342 | Qty on machine: 2 | Pad, Polish, 13.0d, White [1pick=1ctn] | $80.10/EA | ||
| – | TN4216983Replaces Tennant 1243655 | Qty on machine: 2 | Pad, Scb, 13.0d Blu [1pick=1ctn] | $80.60/EA | ||
| – | TN4216987Replaces Tennant 1243666 | Qty on machine: 2 | Pad, Surf Prep, 13.0d Maroon[1pick=1ctn] | $94.50/EA | ||

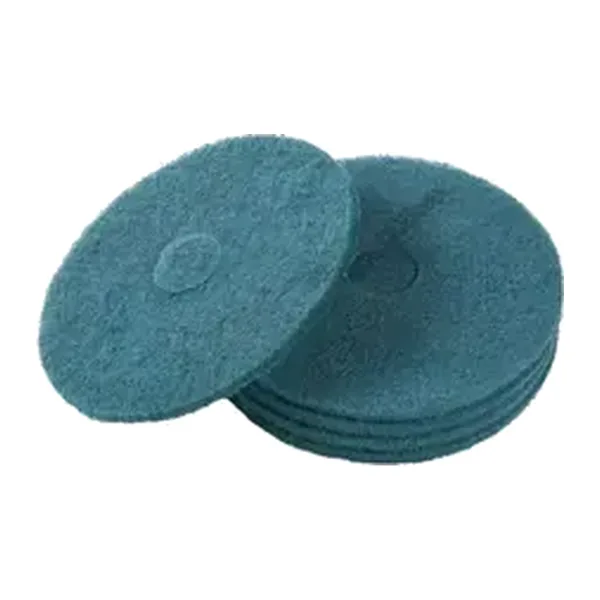

| – | TN4216870Replaces Tennant 1243354 | Qty on machine: 2 | Pad, Scb, 16.0d, Blu [1pick=1ctn] | $101.80/EA | ||

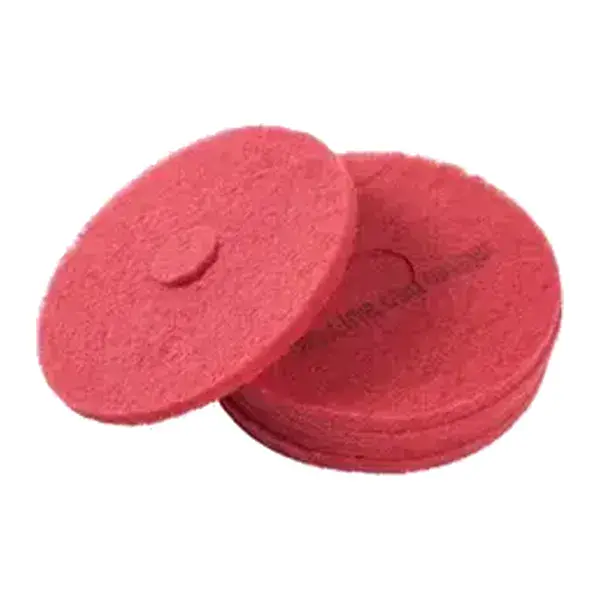

| – | TN4034078Replaces Tennant 1243355 | Qty on machine: 2 | Pad, Buff, 16.0d, Red [1pick=1ctn] | $122.70/EA | ||

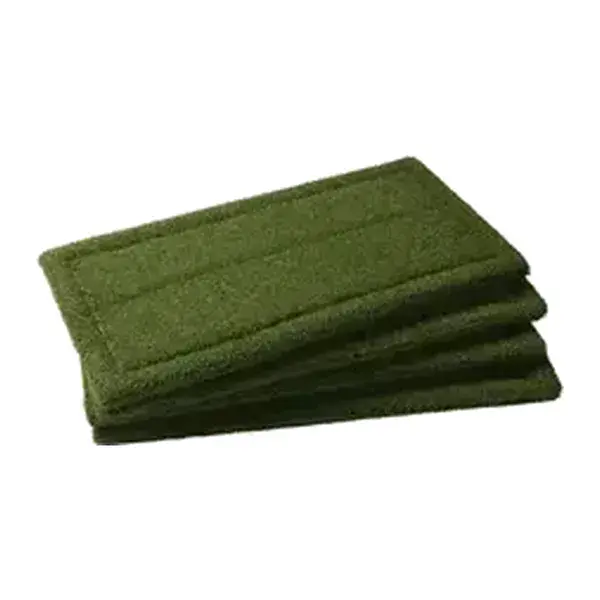

| – | TN4037530Replaces Tennant 1223250 | Qty on machine: 1 | Pad, Scb, 28 X 14, Green [1pick=1ctn] | $465.80/EA | ||
| – | TN4023976Replaces Tennant 9015765 | Qty on machine: 1 | Belt Kit, Motor, Ci (Cylindrical Head)Complete assembly. | $95.20/EA | ||

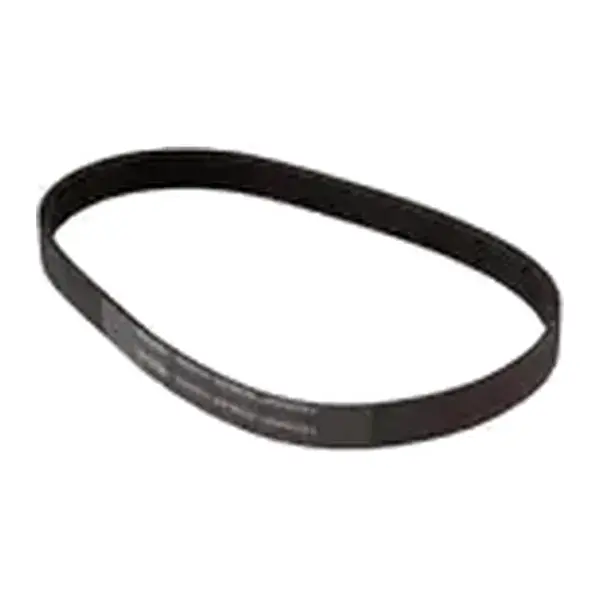

| – | TN4045455Replaces Tennant 1035888 | Qty on machine: 2 | Belt, Drive, 6grv, 508 L X 14 W, [6pj]Part of Belt Kit, Motor, Ci (Cylindrical Head) (9015765). | $35.20/EA | ||

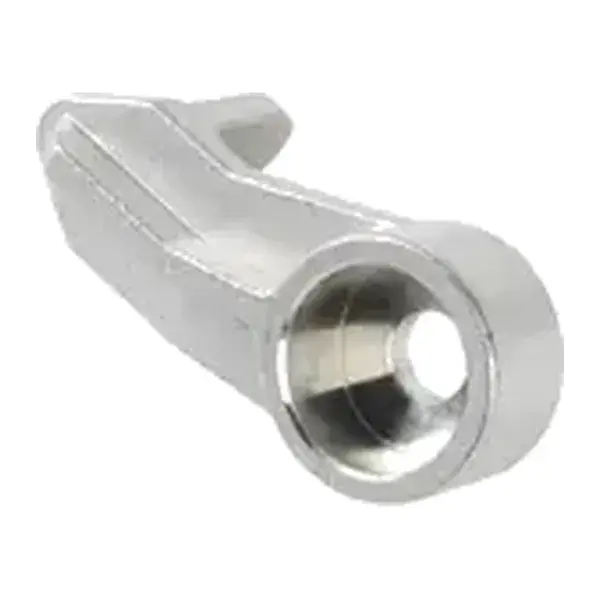

| – | TN4040839Replaces Tennant 1203758 | Qty on machine: 1 | Tool, Installation, BeltPart of Belt Kit, Motor, Ci (Cylindrical Head) (9015765). | $130.30/EA | ||
| – | TN4037171Replaces Tennant 1220216 | Qty on machine: 2 | Brush Assy, Disk, Scb, 16.0d, Pyp | $298.20/EA | ||
| – | TN4037865Replaces Tennant 1223989 | Qty on machine: 2 | Brush Assy, Disk, Scb, 13.0d, Pyp | $231.80/EA | ||
| – | TN4036849Replaces Tennant 1218573 | Qty on machine: 4 | Skirt, Side, Scrb, Cyl [T500] | $26.30/EA | ||
| – | TN4040294Replaces Tennant 222403 | Qty on machine: 2 | Wheel, 02.0d 0.88w 0.50b (Disk Head) | $9.80/EA | ||
| – | TN4037173Replaces Tennant 1220218 | Qty on machine: 2 | Brush Assy, Disk, Scb, 14.0d, Pyp | $260.00/EA | ||
| – | TN4034292Replaces Tennant 1243656 | Qty on machine: 2 | Pad, Buff, 14.0d Red [1pick=1ctn] | $85.40/EA | ||
| – | TN4037454Replaces Tennant 1221541 | Qty on machine: 2 | Brush Assy, Disk, Scb, 14.0d, Nyl | $311.50/EA | ||
| – | TN4037468Replaces Tennant 1221839 | Qty on machine: 1 | Pad, Backer, 28 X 14 | $234.50/EA | ||
| – | TN4034074Replaces Tennant 1243344 | Qty on machine: 2 | Pad, Scb, 14.0d, Blu [1pick=1ctn] | $87.20/EA | ||
| – | TN4034073Replaces Tennant 1243343 | Qty on machine: 2 | Pad, Polish, 14.0d, White [1pick=1ctn] | $87.20/EA | ||
| – | TN4037866Replaces Tennant 1223990 | Qty on machine: 2 | Brush Assy, Disk, Scb, 13.0d, Sab | $363.10/EA | ||
| – | TN4037170Replaces Tennant 1220215 | Qty on machine: 2 | Brush Assy, Disk, Scb, 16.0d, Nyl | $401.30/EA | ||
| – | TN4037169Replaces Tennant 1220214 | Qty on machine: 2 | Brush Assy, Disk, Scb, 16.0d, Sab | $553.10/EA | ||
| – | TN4217085Replaces Tennant 1243685 | Qty on machine: 2 | Pad, Stripping, 16.0d, Brn [1pick=1ctn] | $101.80/EA | ||
| – | TN4037957Replaces Tennant 1014918 | Qty on machine: 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4034071Replaces Tennant 1243341 | Qty on machine: 2 | Pad, Buff, 13.0d, Red [1pick=1ctn] | $80.10/EA | ||
| – | TN4216988Replaces Tennant 1243667 | Qty on machine: 2 | Pad, Surf Prep, 14.0d Maroon[1pick=1ctn] | $98.10/EA | ||
| – | TN4034324Replaces Tennant 1244690 | Qty on machine: 1 | Pad, Buff, 28 X 14, Red [1pick=1ctn] | $532.50/EA | ||
| – | TN4037867Replaces Tennant 1223991 | Qty on machine: 2 | Brush Assy, Disk, Scb, 13.0d, Nyl | $312.70/EA | ||
| – | TN4037172Replaces Tennant 1220217 | Qty on machine: 2 | Brush Assy, Disk, Scb, 14.0d, Sab | $553.10/EA | ||
| – | TN4034293Replaces Tennant 1243657 | Qty on machine: 2 | Pad, Stripping, 14.0d Brown [1pick=1ctn] | $87.20/EA | ||
| – | TN4034294Replaces Tennant 1243658 | Qty on machine: 2 | Pad, Strip, 14.0d Blk[Hi Prod1pick=1ctn] | $99.30/EA | ||
| – | TN4034295Replaces Tennant 1243659 | Qty on machine: 2 | Pad, Strip, 16.0d Blk[Hi Prod1pick=1ctn] | $176.30/EA | ||
| – | TN4216989Replaces Tennant 1243668 | Qty on machine: 2 | Pad, Surf Prep, 16.0d Maroon[1pick=1ctn] | $123.30/EA | ||
| – | TN4037527Replaces Tennant 1223247 | Qty on machine: 1 | Pad, Scb, 28 X 14, Blu [1pc=1pad] | $65.50/EA | ||
| – | TN4037526Replaces Tennant 1223246 | Qty on machine: 1 | Pad, Polish, 28 X 14, White [1pc=1pad] | $65.50/EA | ||
| – | TN4037528Replaces Tennant 1223248 | Qty on machine: 1 | Pad, Surf Prep, 28 X 14, Mar [1pc=1pad] | $55.02/EA | ||
| – | TN4034970Replaces Tennant 1228002 | Qty on machine: 1 | Pad, Melamine, 14” X 28” [Case Of 5] | $576.70/EA |
Tennant T500e (S/N 30000000-40000000) General recommended maintenance items
General recommended maintenance items from Tennant's parts list. Manual page 7.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|

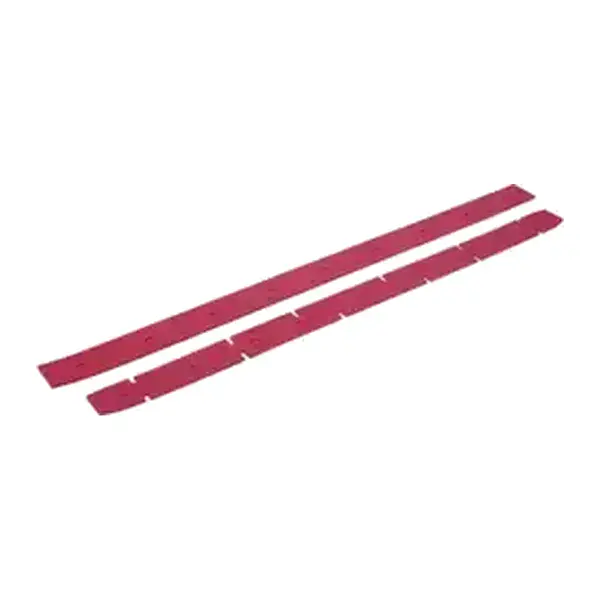

| – | TN4023953Replaces Tennant 9015731 | Qty on machine: 1 | Blade Kit, 500mm, Linatex (Standard)Complete assembly. | $58.40/EA | ||

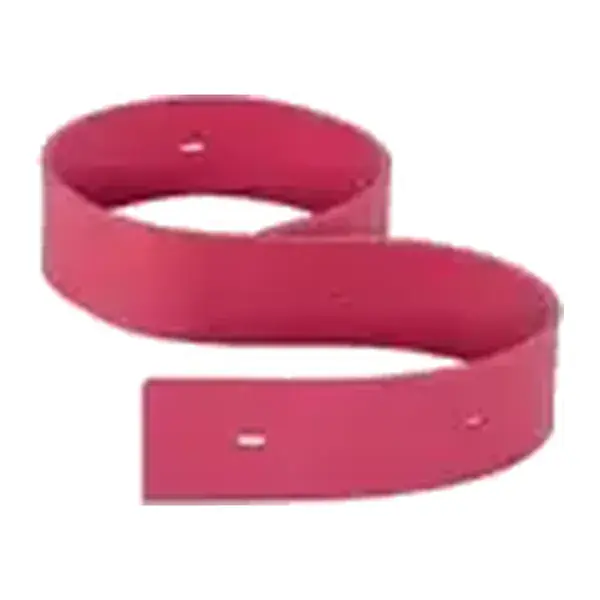

| – | TN4040848Replaces Tennant 1203953 | Qty on machine: 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $23.40/EA | ||

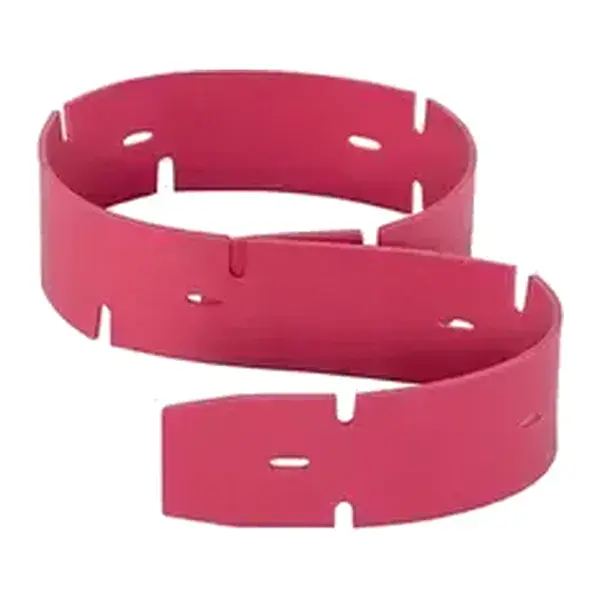

| – | TN4040849Replaces Tennant 1203954 | Qty on machine: 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $20.70/EA | ||

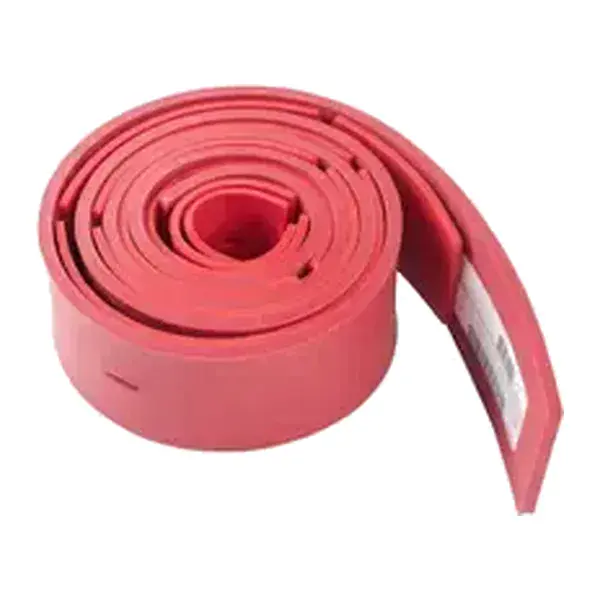

| – | TN4023959Replaces Tennant 9015737 | Qty on machine: 1 | Blade Kit, 700mm, Linatex (Standard)Complete assembly. | $86.00/EA | ||

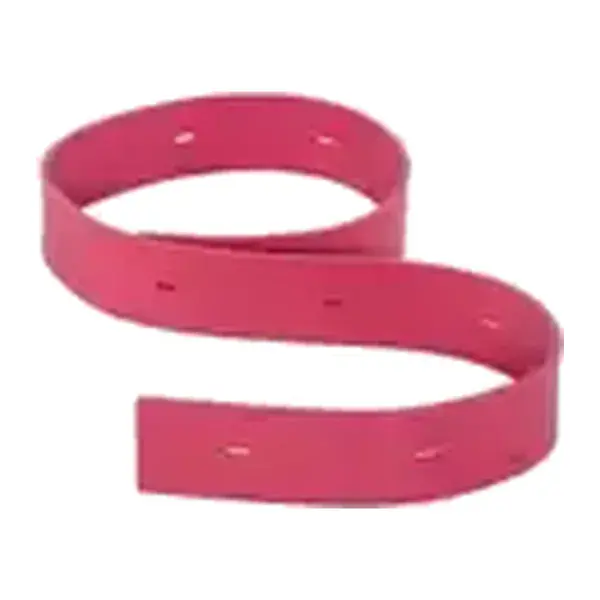

| – | TN4037458Replaces Tennant 1221572 | Qty on machine: 1 | Blade, Sqge, Rear, 1204l, Linatex[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). | $50.00/EA | ||

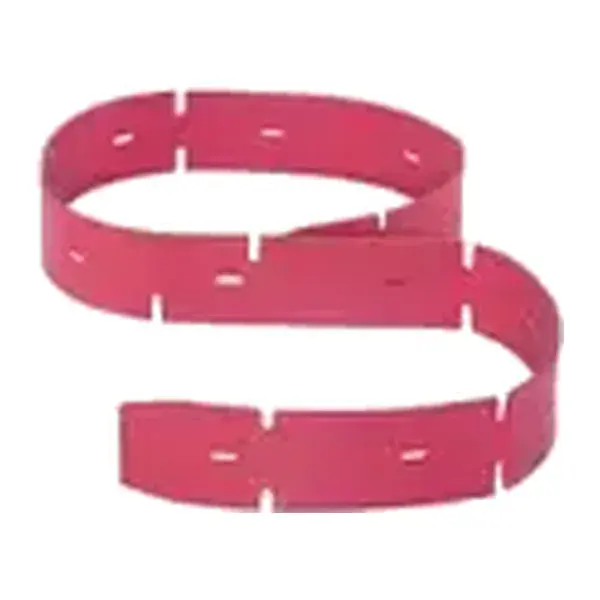

| – | TN4036158Replaces Tennant 1232679 | Qty on machine: 1 | Blade, Sqge, Front, 1148l Linard[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). | $36.00/EA | ||

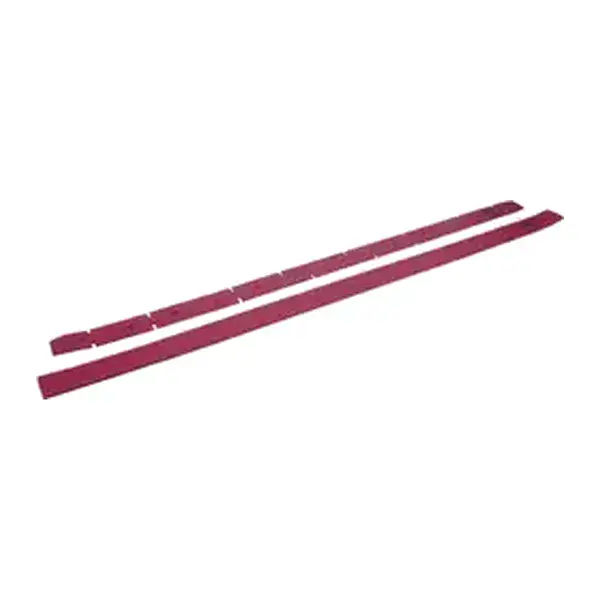

| – | TN4023956Replaces Tennant 9015734 | Qty on machine: 1 | Blade Kit, 650mm, Linatex (Standard)Complete assembly. | $76.00/EA | ||

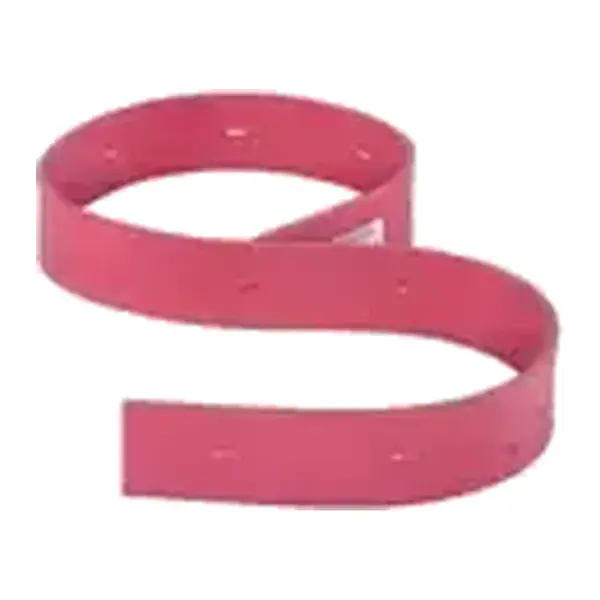

| – | TN4037460Replaces Tennant 1221585 | Qty on machine: 1 | Blade, Sqge, Rear, 1166l, Linatex[650mm] (Standard)Part of Blade Kit, 650mm, Linatex (Standard) (9015734). | $45.00/EA | ||

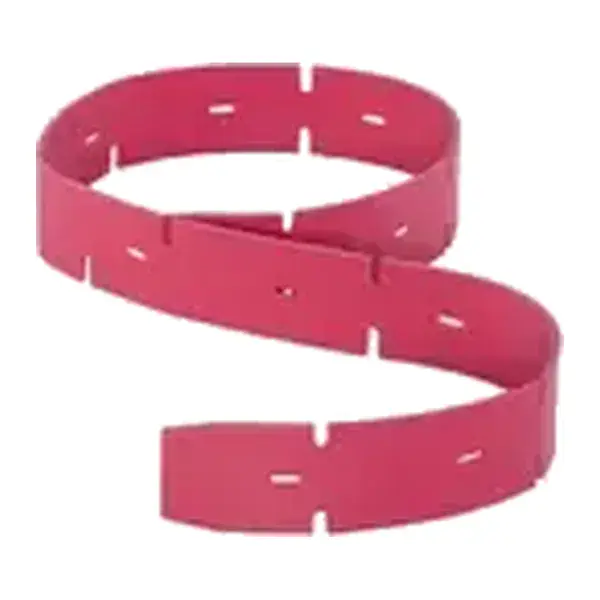

| – | TN4036159Replaces Tennant 1232680 | Qty on machine: 1 | Blade, Sqge, Front, 1072l Linard[650mm] (Standard)Part of Blade Kit, 650mm, Linatex (Standard) (9015734). | $31.00/EA | ||

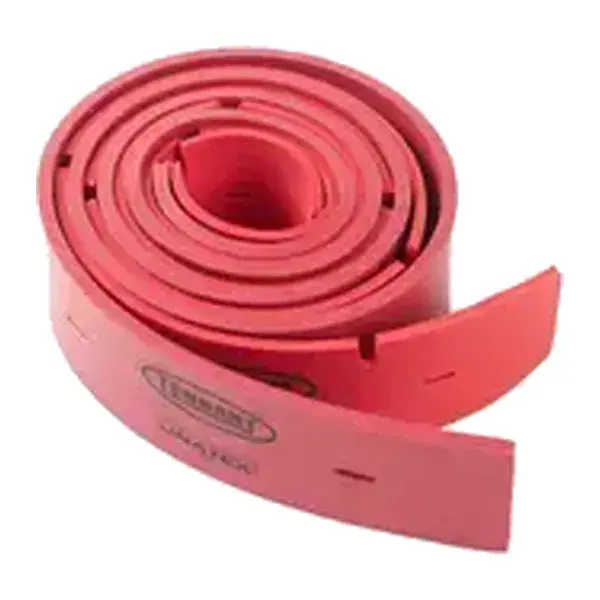

| – | TN4023962Replaces Tennant 9015740 | Qty on machine: 1 | Blade Kit, 800mm, Linatex (Standard)Complete assembly. | $106.60/EA | ||

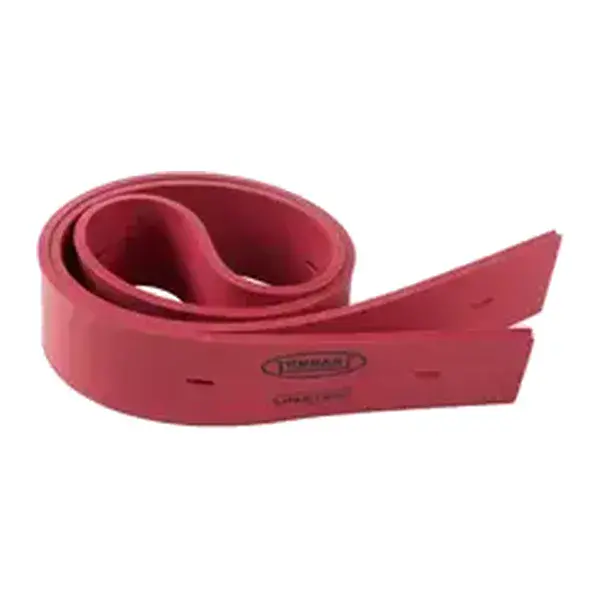

| – | TN4037251Replaces Tennant 1221115 | Qty on machine: 1 | Blade, Sqge, Rear, 1306l, Linatex[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). | $64.00/EA | ||

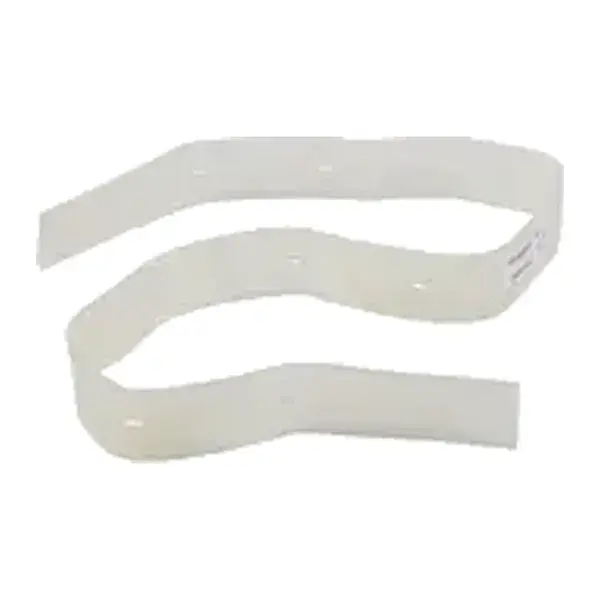

| – | TN4036160Replaces Tennant 1232681 | Qty on machine: 1 | Blade, Sqge, Front, 1256l Linard[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). | $42.60/EA | ||

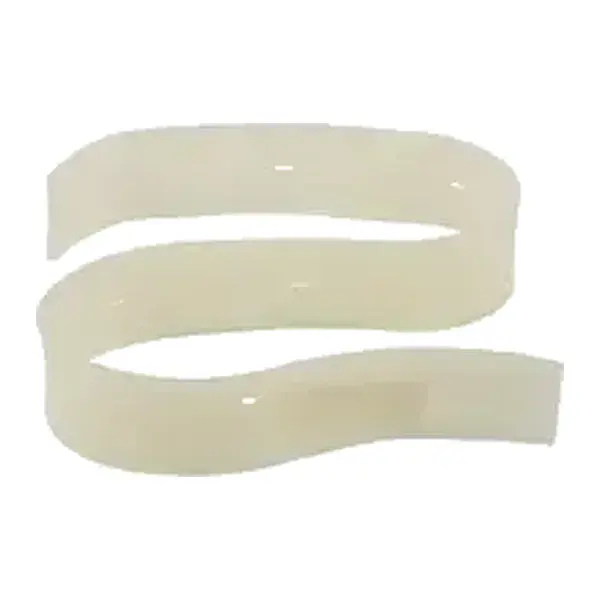

| – | TN4023954Replaces Tennant 9015732 | Qty on machine: 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. | $101.25/EA | ||

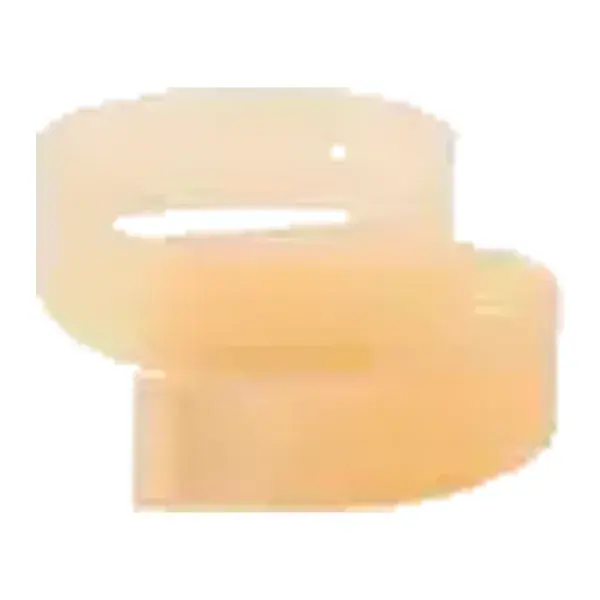

| – | TN4040136Replaces Tennant 1215609 | Qty on machine: 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA | ||

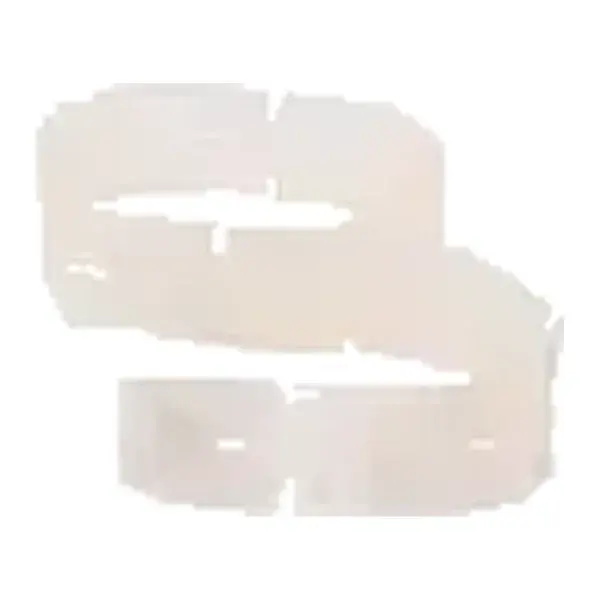

| – | TN4040138Replaces Tennant 1215611 | Qty on machine: 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA | ||

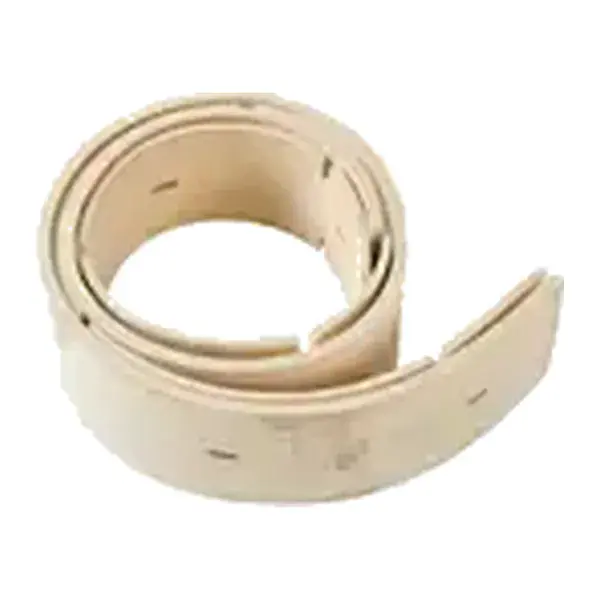

| – | TN4023952Replaces Tennant 9015730 | Qty on machine: 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. | $22.00/EA | ||

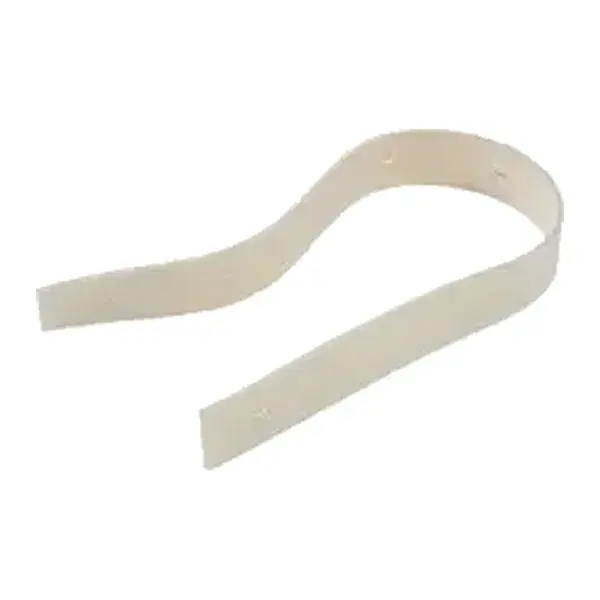

| – | TN4040137Replaces Tennant 1215610 | Qty on machine: 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA | ||
| – | TN4040139Replaces Tennant 1215612 | Qty on machine: 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA | ||

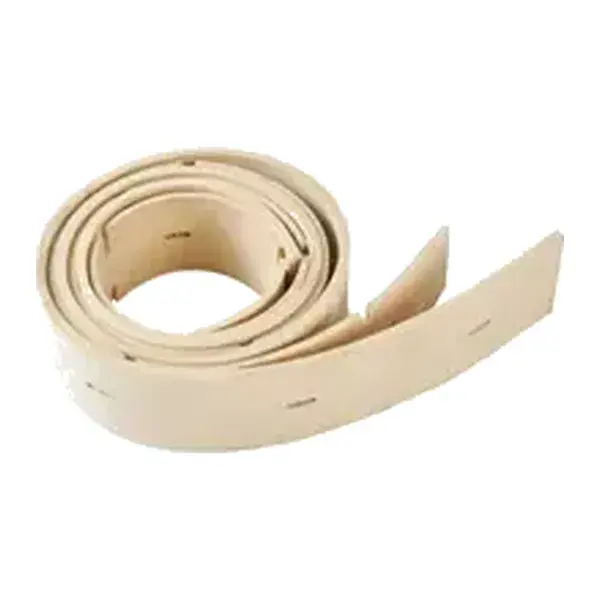

| – | TN4023955Replaces Tennant 9015733 | Qty on machine: 1 | Blade Kit, 650mm, Gum (Option)Complete assembly. | $25.00/EA | ||

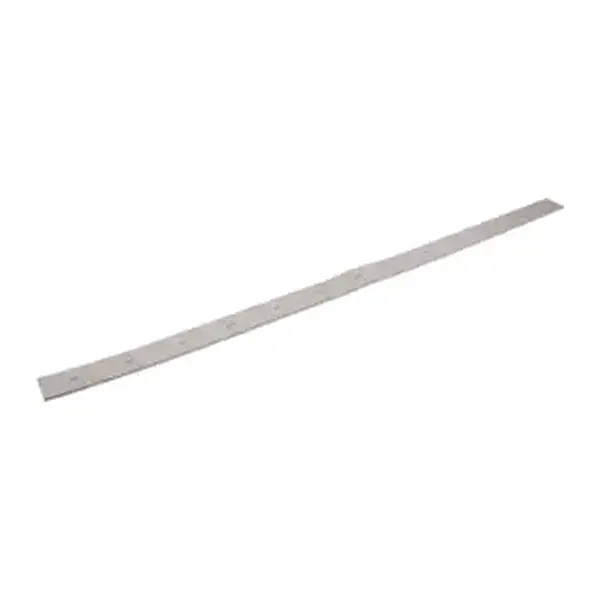

| – | TN4035018Replaces Tennant 1228910 | Qty on machine: 1 | Blade, Sqge, Rear, 1136l, Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). | $13.00/EA | ||

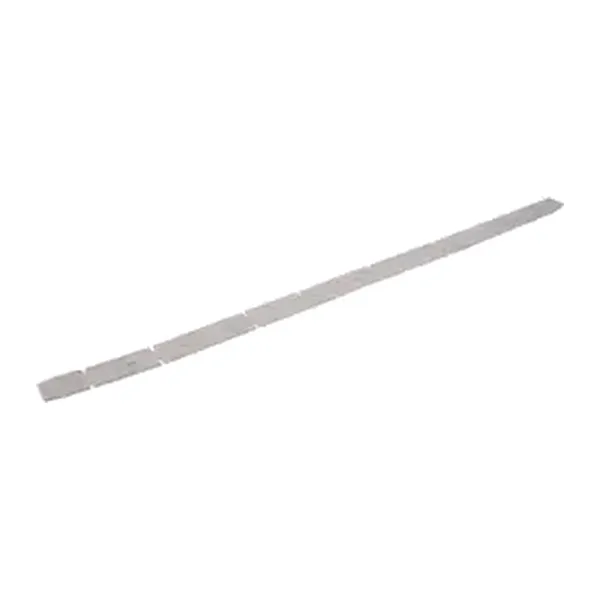

| – | TN4035020Replaces Tennant 1228919 | Qty on machine: 1 | Blade, Sqge, Front, 1072l Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). | $12.00/EA | ||

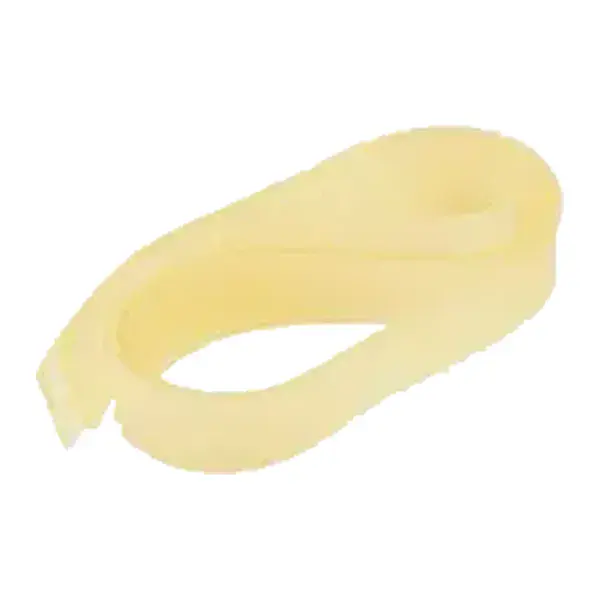

| – | TN4023960Replaces Tennant 9015738 | Qty on machine: 1 | Blade Kit, 700mm, Urethane (Option)Complete assembly. | $120.60/EA | ||

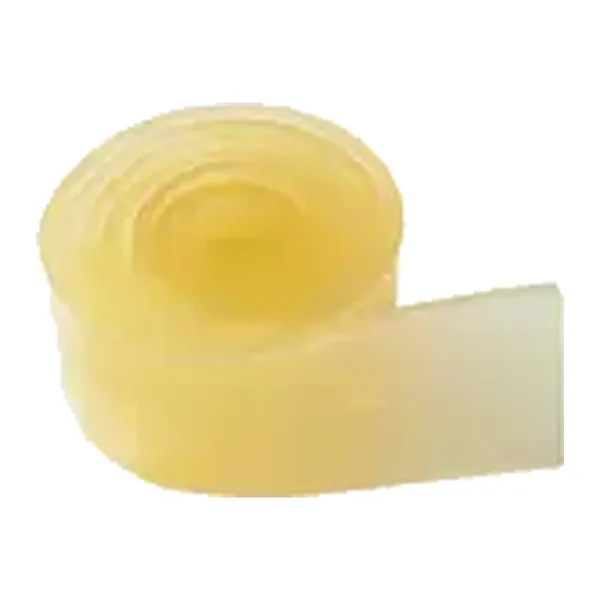

| – | TN4035013Replaces Tennant 1228904 | Qty on machine: 1 | Blade, Sqge, Rear, 1204l,Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). | $72.90/EA | ||

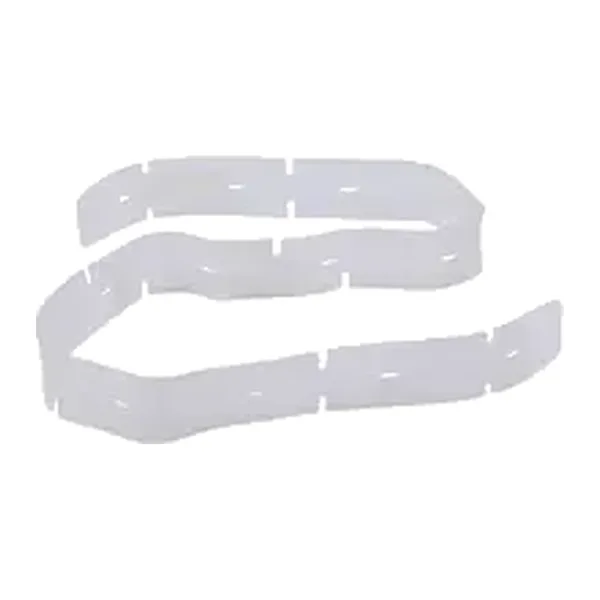

| – | TN4035015Replaces Tennant 1228906 | Qty on machine: 1 | Blade, Sqge, Front,1148l Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). | $47.70/EA | ||

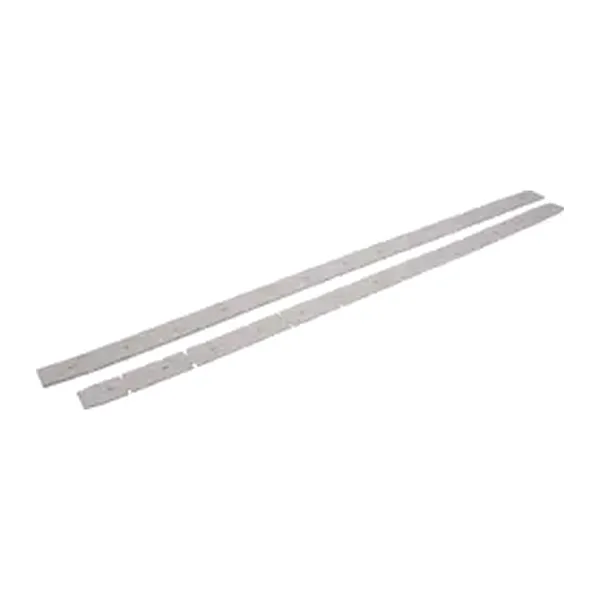

| – | TN4023958Replaces Tennant 9015736 | Qty on machine: 1 | Blade Kit, 700mm, Gum (Option)Complete assembly. | $28.90/EA | ||

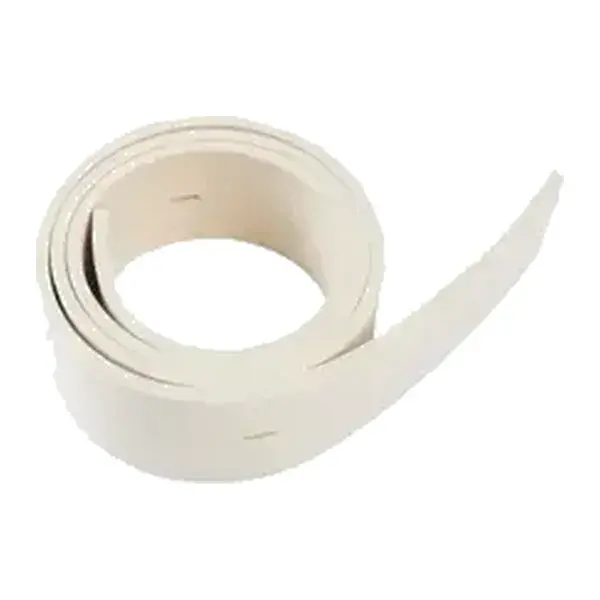

| – | TN4035014Replaces Tennant 1228905 | Qty on machine: 1 | Blade, Sqge, Rear, 1204l, Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). | $16.00/EA | ||

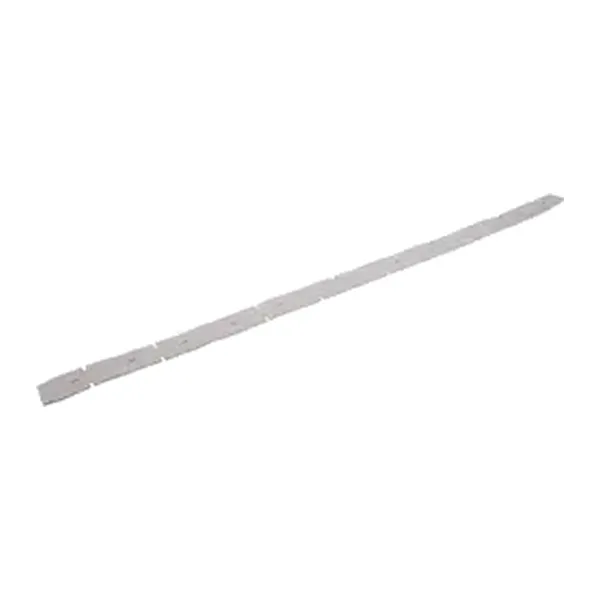

| – | TN4035016Replaces Tennant 1228907 | Qty on machine: 1 | Blade, Sqge, Front, 1148l Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). | $12.90/EA | ||

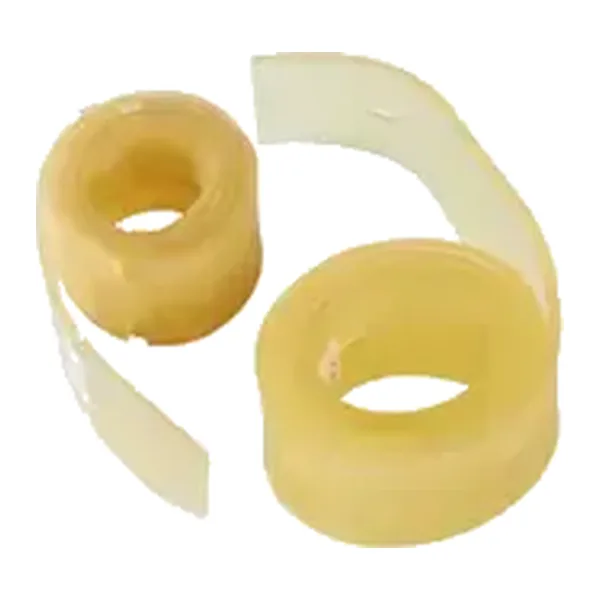

| – | TN4023957Replaces Tennant 9015735 | Qty on machine: 1 | Blade Kit, 650mm, Urethane (Option)Complete assembly. | $119.10/EA | ||

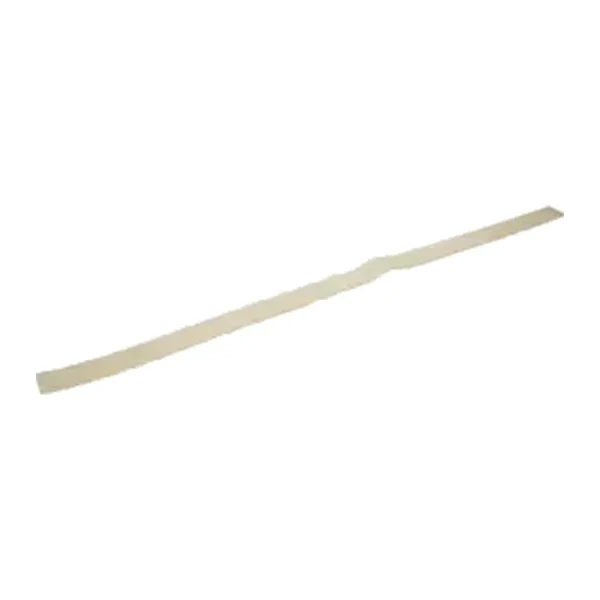

| – | TN4035017Replaces Tennant 1228909 | Qty on machine: 1 | Blade, Sqge, Rear, 1136l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). | $72.10/EA | ||

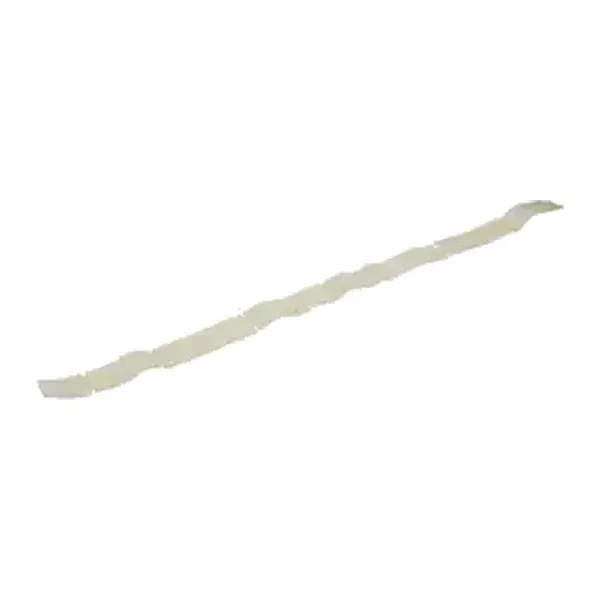

| – | TN4035019Replaces Tennant 1228915 | Qty on machine: 1 | Blade, Sqge, Front,1072l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). | $47.00/EA | ||

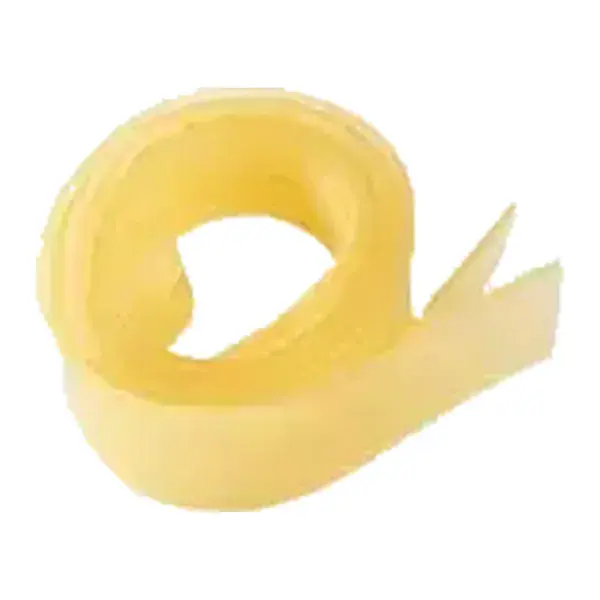

| – | TN4023963Replaces Tennant 9015741 | Qty on machine: 1 | Blade Kit, 800mm, Urethane (Option)Complete assembly. | $122.00/EA | ||

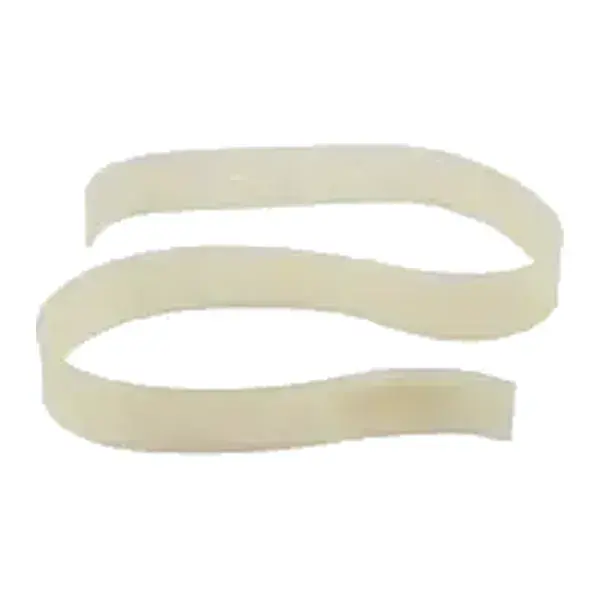

| – | TN4035252Replaces Tennant 1228920 | Qty on machine: 1 | Blade, Sqge, Rear, 1306l,Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). | $73.70/EA | ||

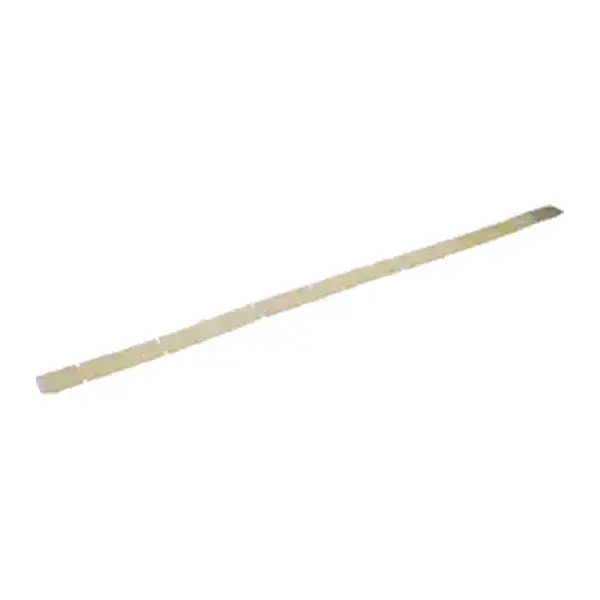

| – | TN4035254Replaces Tennant 1228922 | Qty on machine: 1 | Blade, Sqge, Front,1256l Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). | $48.30/EA | ||

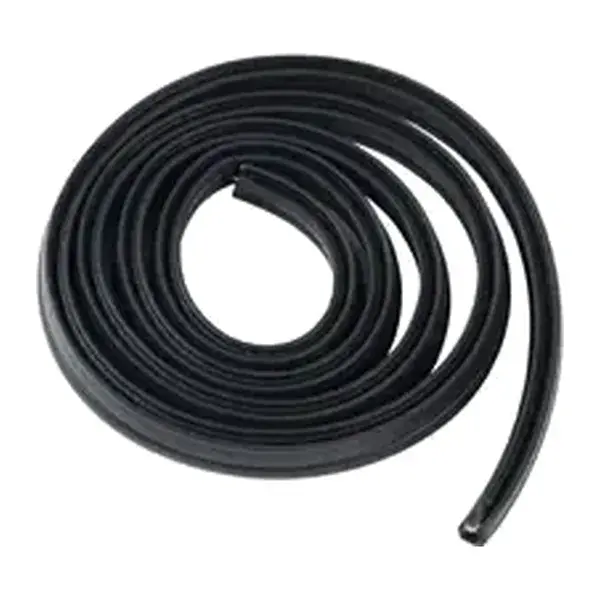

| – | TN4023969Replaces Tennant 9015756 | Qty on machine: 1 | Seal, Cover, Recvy, Ci [T500]Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $73.10/EA | ||

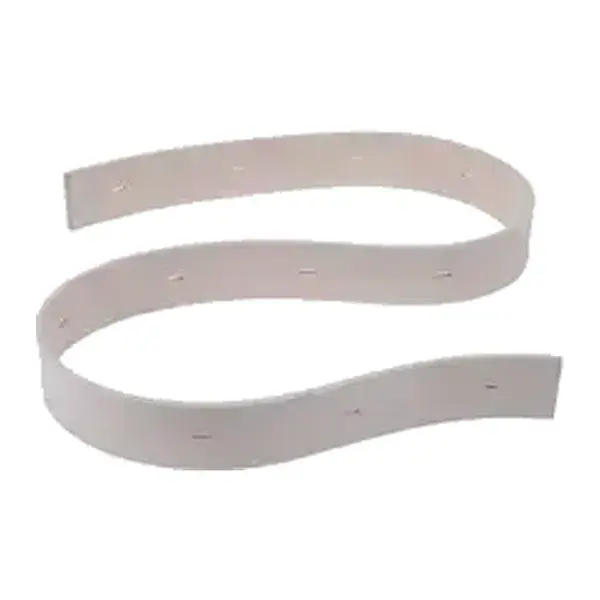

| – | TN4023961Replaces Tennant 9015739 | Qty on machine: 1 | Blade Kit, 800mm, Gum (Option)Complete assembly. | $31.80/EA | ||

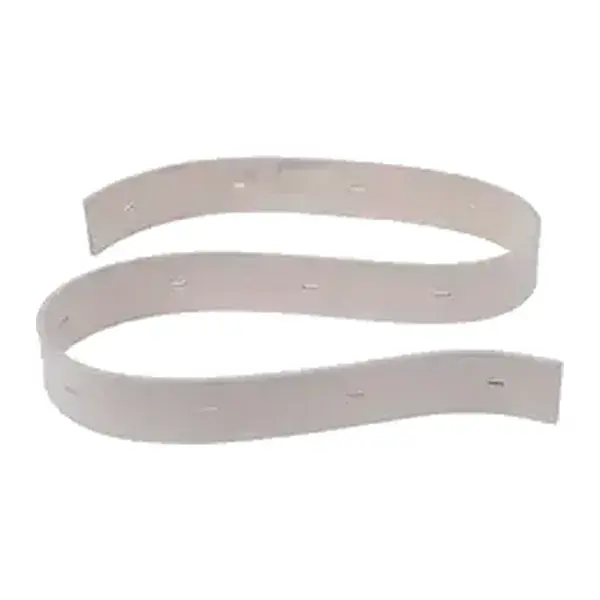

| – | TN4035253Replaces Tennant 1228921 | Qty on machine: 1 | Blade, Sqge, Rear, 1306l, Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). | $17.00/EA | ||

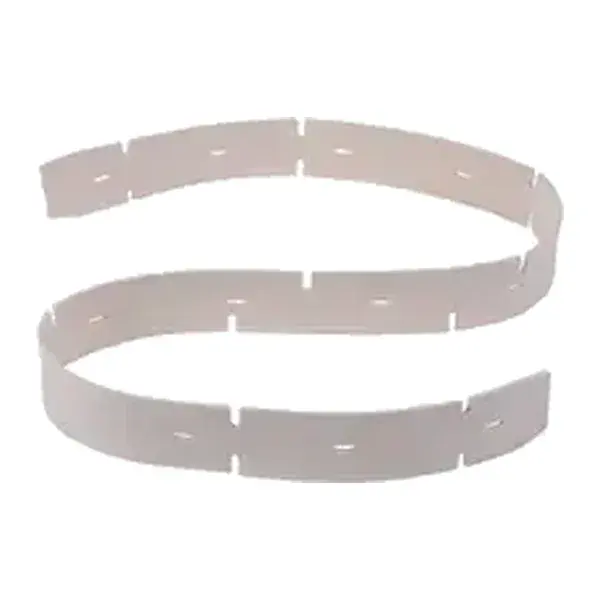

| – | TN4035255Replaces Tennant 1228923 | Qty on machine: 1 | Blade, Sqge, Front, 1256l Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). | $14.80/EA | ||
| – | TN4020485Replaces Tennant 630052 | Qty on machine: 1 | Float, Shut-Off, (2)Ball, 1.75d | $76.00/EA |
Tennant T500e (S/N 30000000-40000000) General recommended maintenance items
General recommended maintenance items from Tennant's parts list. Manual page 8.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|

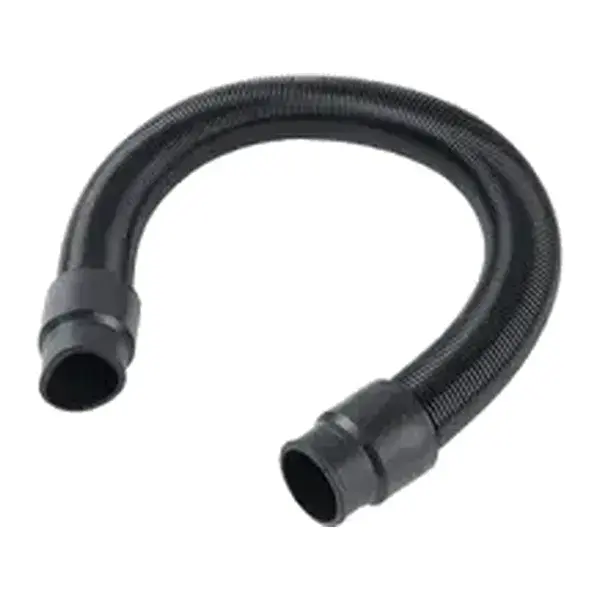

| – | TN4038916Replaces Tennant 1211220 | Qty on machine: 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc] (Black - Standard) | $30.10/EA | ||

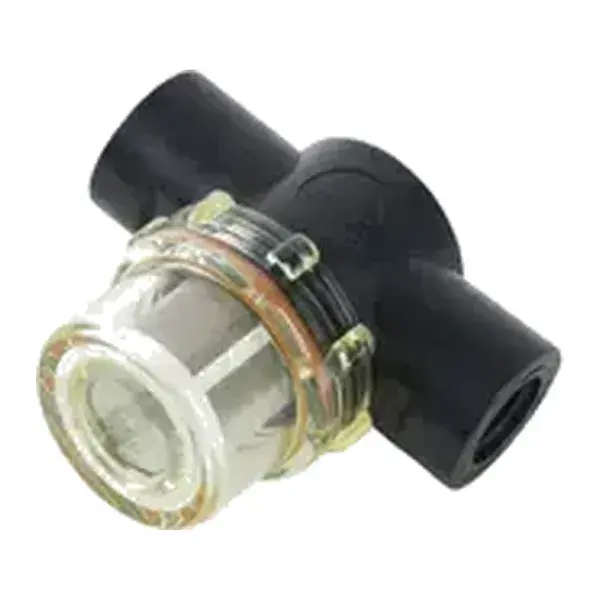

| – | TN4039203Replaces Tennant 1211537 | Qty on machine: 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. | $16.90/EA | ||

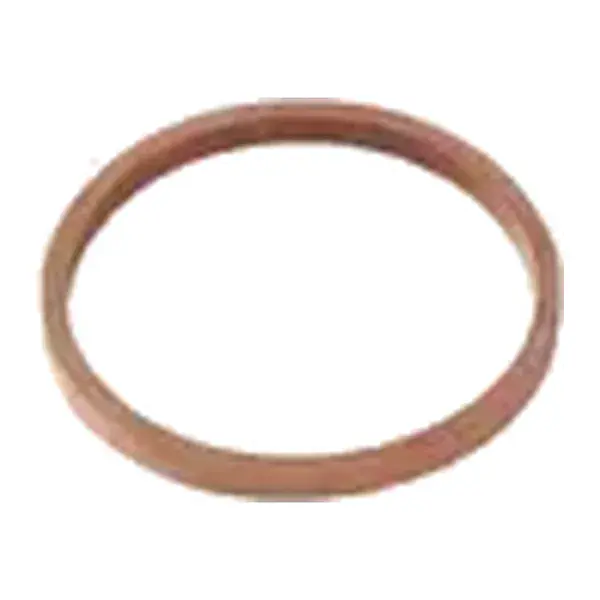

| – | TN4036880Replaces Tennant 1218885 | Qty on machine: 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $2.70/EA | ||

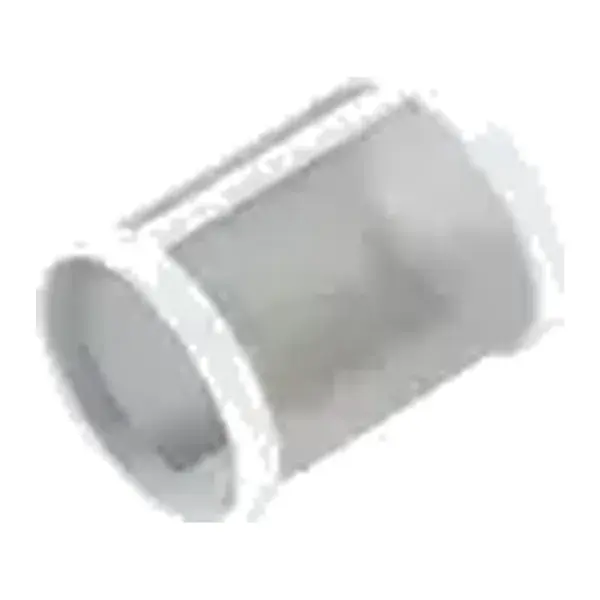

| – | TN4036878Replaces Tennant 1218883 | Qty on machine: 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $9.50/EA | ||

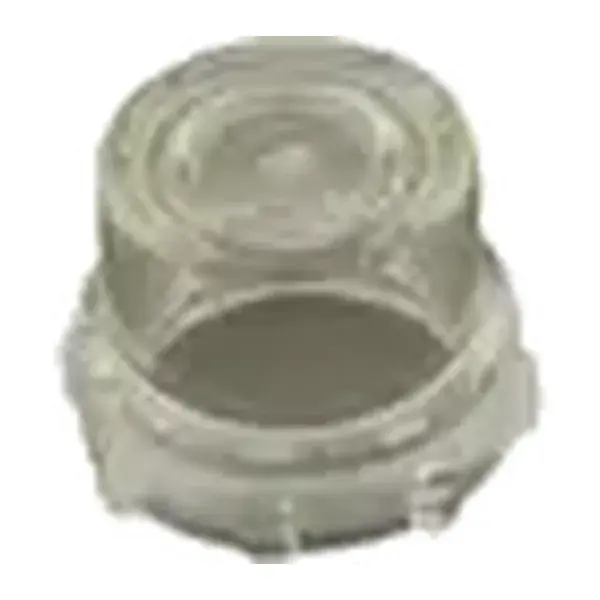

| – | TN4019615Replaces Tennant 613991 | Qty on machine: 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $18.20/EA | ||

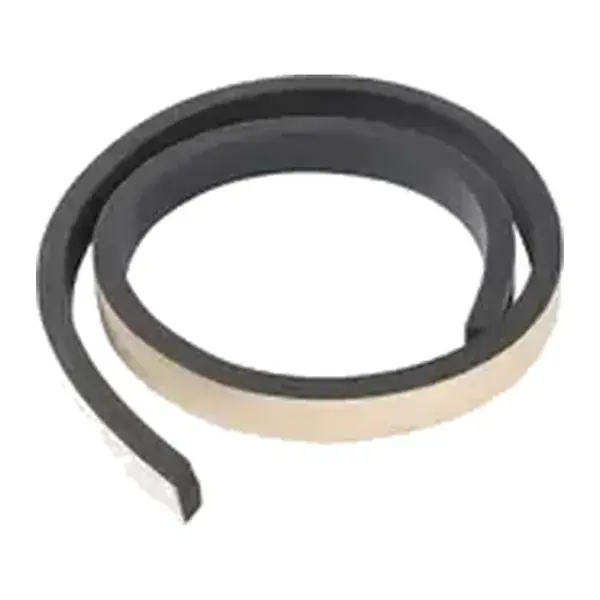

| – | TN4023971Replaces Tennant 9015758 | Qty on machine: 1 | Seal, Tank, Soltn, Ci [T500/T500e] | $37.00/EA | ||

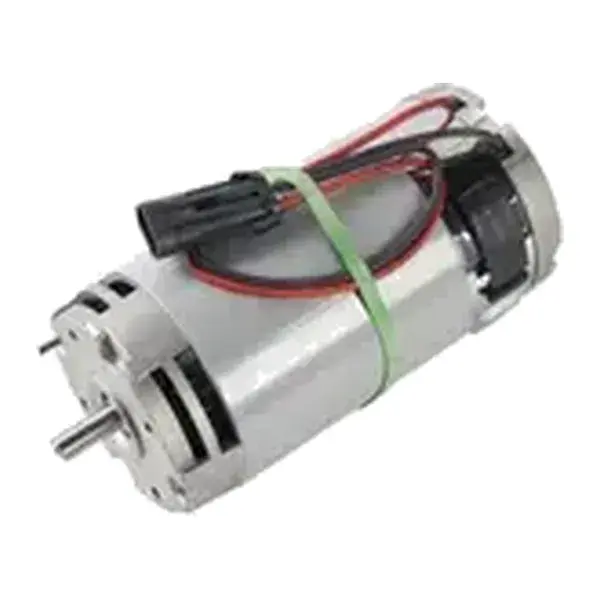

| – | TN4037825Replaces Tennant 1223429 | Qty on machine: 2 | Motor, Ele, 24vdc 1500rpm 0.60hp (Cylindrical Head)Complete assembly. | $1,051.20/EA | ||
| – | TN4032140Replaces Tennant 1031775 | Qty on machine: 1 | Brush Kit, Carbon, Motor, Replmt [T5] (Cylindrical Head)Part of Motor, Ele, 24vdc 1500rpm 0.60hp (Cylindrical Head) (1223429). | $216.60/EA | ||

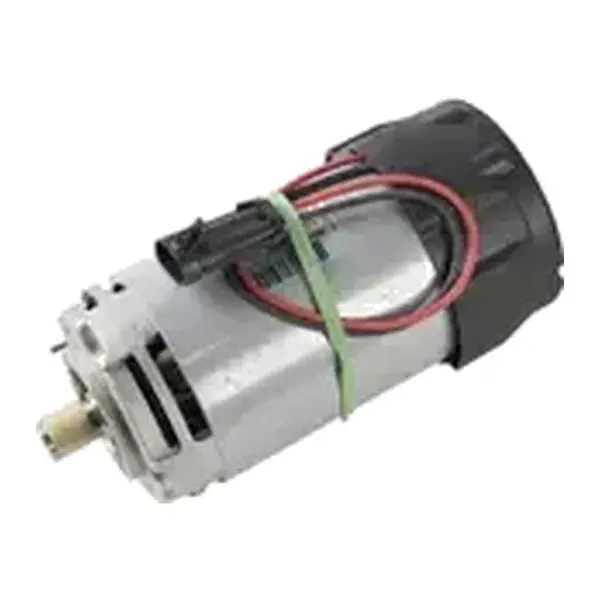

| – | TN4036998Replaces Tennant 1219913 | Qty on machine: 1 | Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head)Complete assembly. | $1,294.80/EA | ||
| – | TN4037142Replaces Tennant 1059370 | Qty on machine: 1 | Brush, Motor, Replmt [Bag Of 4) (Orbital Head)Part of Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head) (1219913). | Call to confirm part: 800-440-6723Call 800-440-6723 | ||

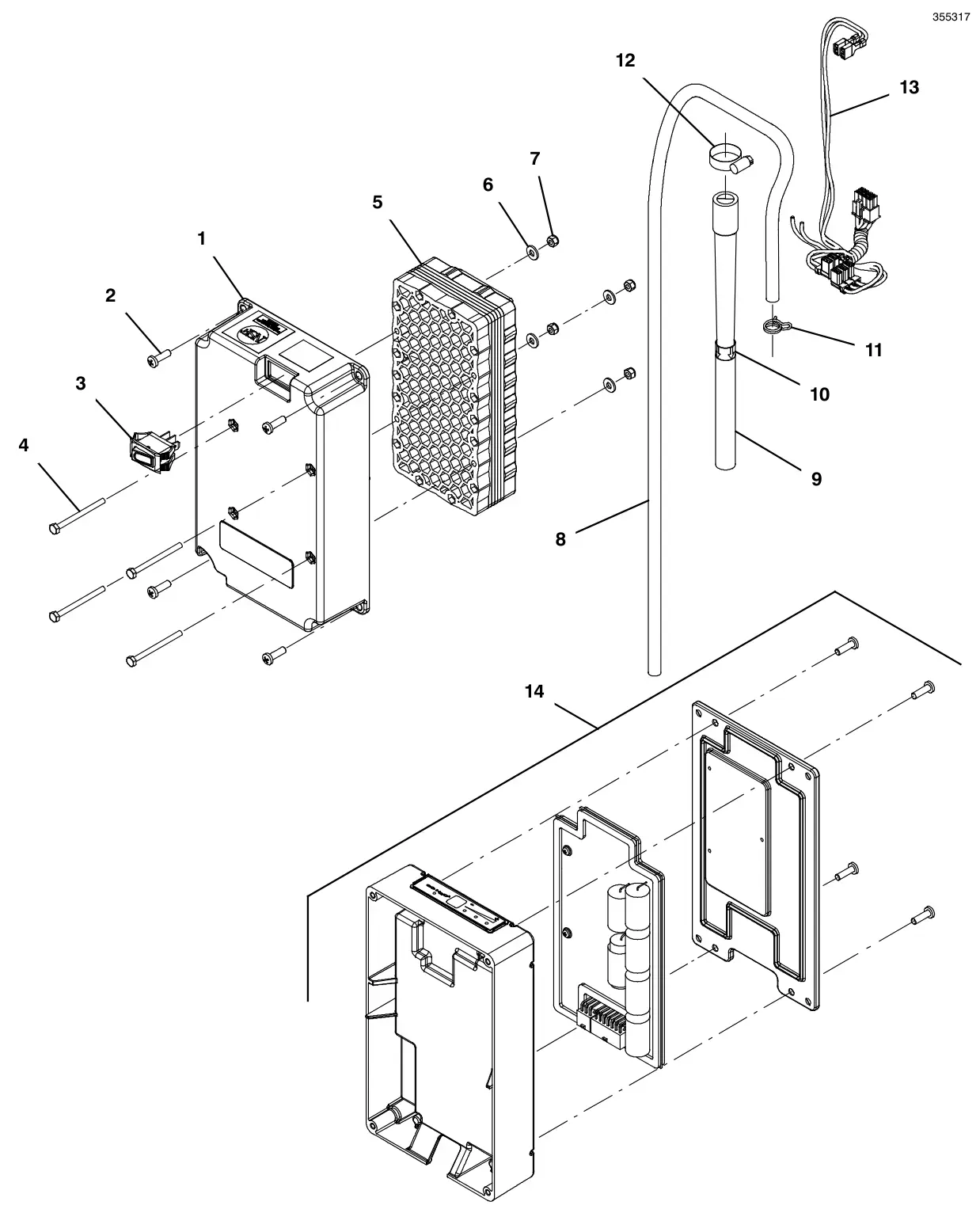

| – | TN4018163Replaces Tennant 9011810 | Qty on machine: 1 | Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2020). | $1,339.60/EA | ||
| – | TN4021577Replaces Tennant 9020642 | Qty on machine: 1 | Controller Kit, Replmt [Ec-H2o Nc]Part of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9011810). Tennant prints the serial range as (JUN2020- ). | $1,063.00/EA | ||
| – | TN4021577Replaces Tennant 9014127 | Qty on machine: 1 | Controller Kit, Replmt [Ec-H2o Nc](Repld By 9020642)Part of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9011810). Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2020). | $1,063.00/EA | ||
| – | TN4025507Replaces Tennant 9013646 | Qty on machine: 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlPart of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9011810). | $300.60/EA | ||
| – | TN4029759 | Qty on machine: 2 | Caster, Swivel, | $8.60/EA | ||
| – | TN4037832Replaces Tennant 4039916 | Qty on machine: 2 | Wheel, Scrbr, 8.00d, W/ Taper [Hi Trac]Serial 30158425 and later. | $153.10/EA | ||
| – | TN4037832Replaces Tennant 1223583 | Qty on machine: 2 | Wheel, Scrbr, 213mm, W/ TaperSerial 30000000 to 30158424. | $153.10/EA | ||
| – | TN4031082Manual prints Tennant 1228252 | Qty on machine: 1 | Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black - Standard)Complete assembly. Number from Tennant's current parts catalog. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | $85.90/EA | ||

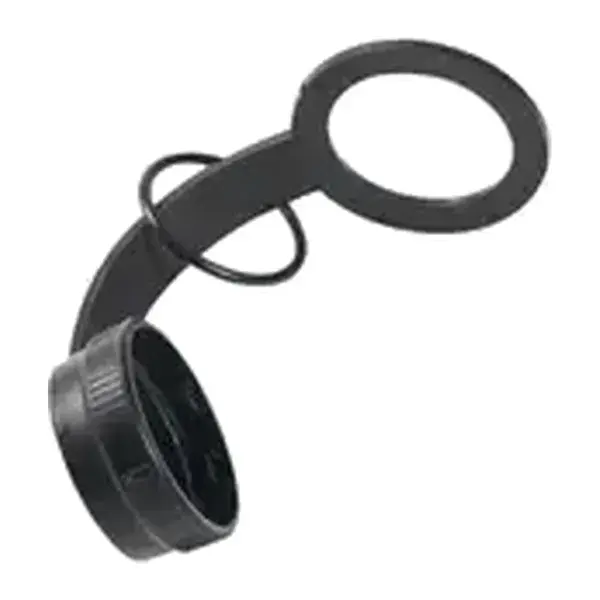

| – | TN4036892Replaces Tennant 1218955 | Qty on machine: 1 | Cap, Drain Assy [Black]Complete assembly. Part of Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black - Standard) (1228252). | $8.60/EA | ||
| – | TN4039938Replaces Tennant 1008637 | Qty on machine: 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Black] (1218955). | $12.10/EA | ||
| – | TN4042297Replaces Tennant 100038 | Qty on machine: 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm] | $10.00/EA | ||
| – | TN4031082Replaces Tennant 9015727 | Qty on machine: 1 | Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | $85.90/EA | ||
| – | TN4020670Manual prints Tennant 1051986 | Qty on machine: 1 | Valve, Ball, 2way, 1.0id Pvc, W/Handle (No Longer Available - Replaced by 1247144)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx); Number from Tennant's current parts catalog. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4034990Replaces Tennant 1228335 | Qty on machine: 1 | Hose Assy, W/2cuff,1.5d 022l 2.0/1.5[Pu] (Gray - Option) - (No Longer Available - Replaced by 1247144)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4035291Replaces Tennant 1229567 | Qty on machine: 1 | Strap, HangerPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). | $5.76/EA | ||
| – | TN4036930Replaces Tennant 1219312 | Qty on machine: 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. | $388.30/EA | ||
| – | TN8004151Replaces Tennant 372883 | Qty on machine: 1 | Vr, Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). | $37.30/EA | ||
| – | TN4018163 | Qty on machine: 1 | Module Kit, Replmt [Ec-H2o, B 02]Complete assembly. Tennant prints the serial range as (FEB2023- ). | $1,339.60/EA | ||

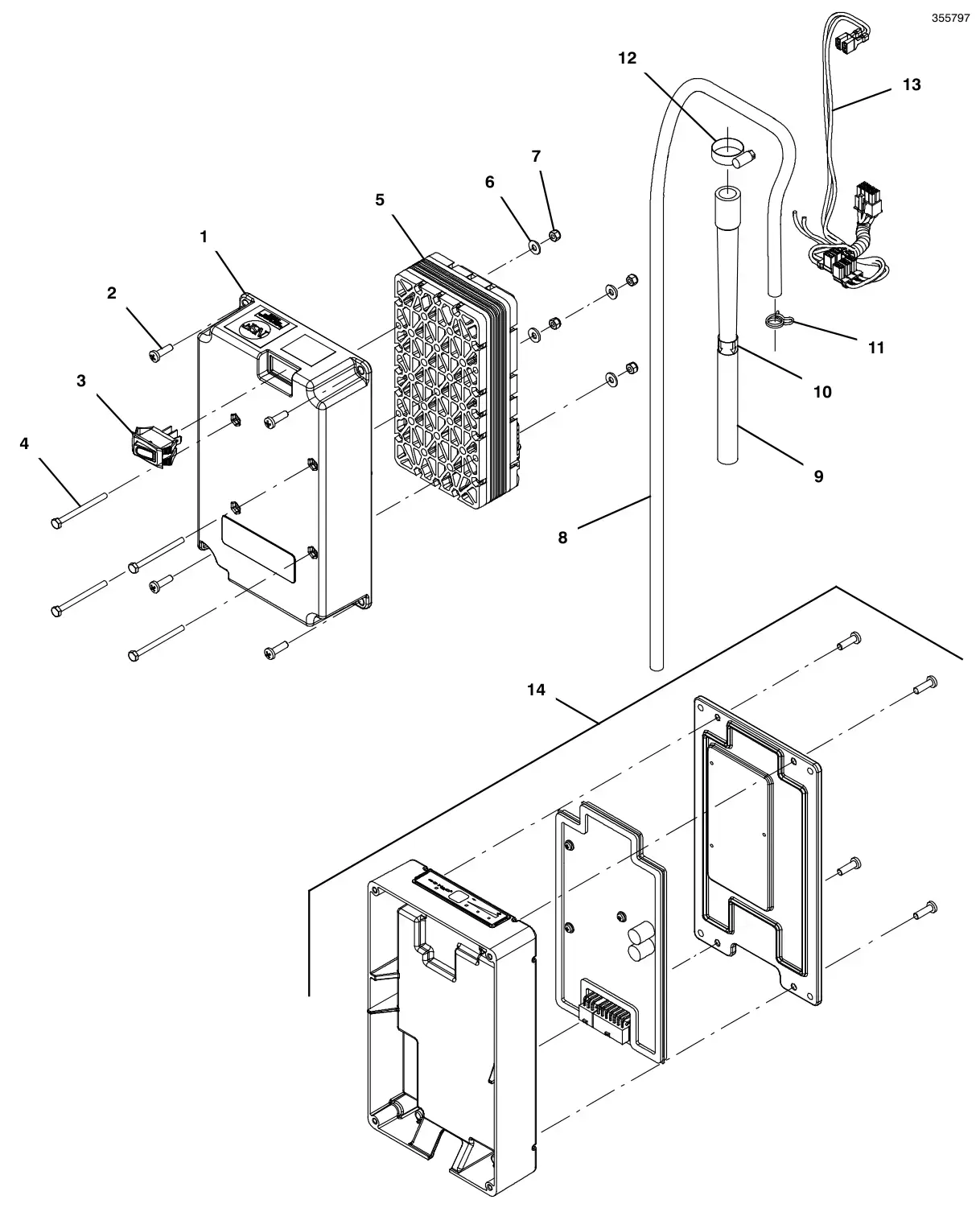

| – | TN4018163Replaces Tennant 9020643 | Qty on machine: 1 | Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163)Complete assembly. Tennant prints the serial range as (JUN2020- JAN2023). | $1,339.60/EA | ||
| – | TN4032276Replaces Tennant 1247144 | Qty on machine: 1 | Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray - Option) (Replaced By 4032276)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2022). | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4036917Replaces Tennant 1219134 | Qty on machine: 1 | Cap, Drain Assy [Gray]Complete assembly. Part of Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray - Option) (Replaced By 4032276) (1247144). | $8.60/EA | ||
| – | TN4039938Replaces Tennant 1008637 | Qty on machine: 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Gray] (1219134). | $12.10/EA | ||
| – | TN4032276Replaces Tennant 1228242 | Qty on machine: 1 | Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray - Option) (No Longer Available - Replaced by 4032276)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4036917Replaces Tennant 1219134 | Qty on machine: 1 | Cap, Drain Assy [Gray]Complete assembly. Part of Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray - Option) (No Longer Available - Replaced by 4032276) (1228242). | $8.60/EA | ||
| – | TN4039938Replaces Tennant 1008637 | Qty on machine: 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Gray] (1219134). | $12.10/EA | ||
| – | TN4032652 | Qty on machine: 2 | Motor, Ele, 24vdc, 0230rpmComplete assembly. Serial 30204928 and later. | $405.40/EA | ||
| – | TN4032652Replaces Tennant 1023067 | Qty on machine: 2 | Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652)Complete assembly. Serial 30000000 to 30204927. Tennant's online parts catalog gives this part different serial numbers (30000000 to 30204142, 30204143 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4032140Replaces Tennant 1031775 | Qty on machine: 1 | Brush Kit, Carbon, Motor, Replmt [T5] (Disk Head)Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $216.60/EA | ||
| – | TN4032671Replaces Tennant 1031723 | Qty on machine: 1 | Motor, Transaxle, 24vdc, Afmkt [T5]Complete assembly. | $749.02/EA | ||

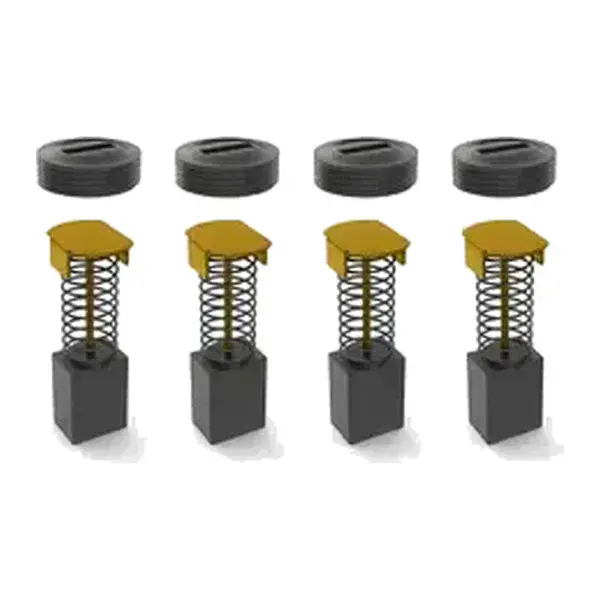

| – | TN4019997Replaces Tennant 614166 | Qty on machine: 1 | Brush Kit, Carbon, Transaxle, Replmt [4]Part of Motor, Transaxle, 24vdc, Afmkt [T5] (1031723). | $65.70/EA | ||
| – | TN4032781Replaces Tennant 1065665 | Qty on machine: 1 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA | ||
| – | TN4034964Replaces Tennant 1227867 | Qty on machine: 4 | Inductor, Ferrite [Split Case,407@100hz] (Australia Only) | $6.40/EA | ||
| – | TN4032781Replaces Tennant 1065665 | Qty on machine: 2 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA | ||
| – | TN4032781Replaces Tennant 1065665 | Qty on machine: 2 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA | ||
| – | TN4032781Replaces Tennant 1065665 | Qty on machine: 1 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA | ||
| – | TN121220Replaces Tennant 1224414 | Qty on machine: 1 | Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray - Option) | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4032276Tennant 4032276 | Qty on machine: 1 | Hose Assy, Drain, 1.5id X 18.1l [Pu] (Gray - Option)Complete assembly. Tennant prints the serial range as (JUL2022- ). | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4032816Replaces Tennant 1066431 | Qty on machine: 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap](Soltn Tank Front) | $16.70/EA |
Tennant T500e (S/N 30000000-40000000) General recommended maintenance items (Japan)
General recommended maintenance items (Japan) from Tennant's parts list. Manual page 9.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4040746Replaces Tennant 1051026 | Qty on machine: 2 | Pad, Surf Prep, 14.0d [Mar, 1pick=1pad] | $21.30/EA | |
| – | TN4037171Replaces Tennant 1220216 | Qty on machine: 2 | Brush Assy, Disk, Scb, 16.0d, Pyp | $298.20/EA | |
| – | TN4031082Replaces Tennant 9015727 | Qty on machine: 1 | Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 4032276)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | $85.90/EA | |
| – | TN4020670Manual prints Tennant 1051986 | Qty on machine: 1 | Valve, Ball, 2way, 1.0id Pvc, W/Handle (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 4032276)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx); Number from Tennant's current parts catalog. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4034990Replaces Tennant 1228335 | Hose Assy, W/2cuff,1.5d 022l 2.0/1.5[Pu] (Gray) (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 4032276)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 | ||
| – | TN4035291Replaces Tennant 1229567 | Qty on machine: 1 | Strap, HangerPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). | $5.76/EA | |
| – | TN4037865Replaces Tennant 1223989 | Qty on machine: 2 | Brush Assy, Disk, Scb, 13.0d, Pyp | $231.80/EA | |
| – | TN4037173Replaces Tennant 1220218 | Qty on machine: 2 | Brush Assy, Disk, Scb, 14.0d, Pyp | $260.00/EA | |
| – | TN4037454Replaces Tennant 1221541 | Qty on machine: 2 | Brush Assy, Disk, Scb, 14.0d, Nyl | $311.50/EA | |
| – | TN4037468Replaces Tennant 1221839 | Qty on machine: 1 | Pad, Backer, 28 X 14 | $234.50/EA | |
| – | TN4032276Replaces Tennant 1247144 | Qty on machine: 1 | Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray - Option) (Replaced By 4032276)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2022). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4036917Replaces Tennant 1219134 | Qty on machine: 1 | Cap, Drain Assy [Gray]Complete assembly. Part of Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray - Option) (Replaced By 4032276) (1247144). | $8.60/EA | |
| – | TN4039938Replaces Tennant 1008637 | Qty on machine: 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Gray] (1219134). | $12.10/EA | |
| – | TN4037866Replaces Tennant 1223990 | Qty on machine: 2 | Brush Assy, Disk, Scb, 13.0d, Sab | $363.10/EA | |
| – | TN4037170Replaces Tennant 1220215 | Qty on machine: 2 | Brush Assy, Disk, Scb, 16.0d, Nyl | $401.30/EA | |
| – | TN4037169Replaces Tennant 1220214 | Qty on machine: 2 | Brush Assy, Disk, Scb, 16.0d, Sab | $553.10/EA | |
| – | TN4037867Replaces Tennant 1223991 | Qty on machine: 2 | Brush Assy, Disk, Scb, 13.0d, Nyl | $312.70/EA | |
| – | TN4014804Replaces Tennant 989646 | Qty on machine: 2 | Pad Blown 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014819Replaces Tennant 989653 | Qty on machine: 2 | Pad Blue 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014828Replaces Tennant 989660 | Qty on machine: 2 | Pad Red 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014866Replaces Tennant 989674 | Qty on machine: 2 | Pad White 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4040745Replaces Tennant 1051024 | Qty on machine: 2 | Pad, Surf Prep, 13.0d [Mar, 1pick=1pad] | $21.88/EA | |
| – | TN4037172Replaces Tennant 1220217 | Qty on machine: 2 | Brush Assy, Disk, Scb, 14.0d, Sab | $553.10/EA | |
| – | TN4014807Replaces Tennant 989647 | Qty on machine: 2 | Pad Blown 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014821Replaces Tennant 989654 | Qty on machine: 2 | Pad Blue 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014830Replaces Tennant 989661 | Qty on machine: 2 | Pad Red 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4015076Replaces Tennant 989698 | Qty on machine: 2 | Pad White 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014788Replaces Tennant 989636 | Qty on machine: 2 | Pad Black Hi Pro 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014809Replaces Tennant 989648 | Qty on machine: 2 | Pad Blown 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014822Replaces Tennant 989655 | Qty on machine: 2 | Pad Blue 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014832Replaces Tennant 989662 | Qty on machine: 2 | Pad Red 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4014790Replaces Tennant 989637 | Qty on machine: 2 | Pad Black Hi Pro 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4017191Replaces Tennant 989041 | Qty on machine: 1 | Pad, Blue, Scrubbing (5pcs/1box) (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4017192Replaces Tennant 989042 | Qty on machine: 1 | Pad, Red, Cleaning (5pcs/1box) (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4017193Replaces Tennant 989043 | Qty on machine: 1 | Pad, White, Polishing (5pcs/1box) (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4017194Replaces Tennant 989044 | Qty on machine: 1 | Pad, Brown, Stripping (5pcs/1box) (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4017195Replaces Tennant 989045 | Qty on machine: 1 | Pad, Black, Stripping (5pcs/1box) (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4017196Replaces Tennant 989046 | Qty on machine: 1 | Pad, Light Blue, Ceramic Scrubbing (3pcs/1box) (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4017197Replaces Tennant 989047 | Qty on machine: 1 | Pad, White, Ceramic Scrubbing (3pcs/1box) (Orbital Head) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4034970Replaces Tennant 1228002 | Qty on machine: 1 | Pad, Melamine, 14” X 28” [Case Of 5] | $576.70/EA | |
| – | TN121220Replaces Tennant 1224414 | Qty on machine: 1 | Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray) | Call to confirm part: 800-440-6723Call 800-440-6723 |

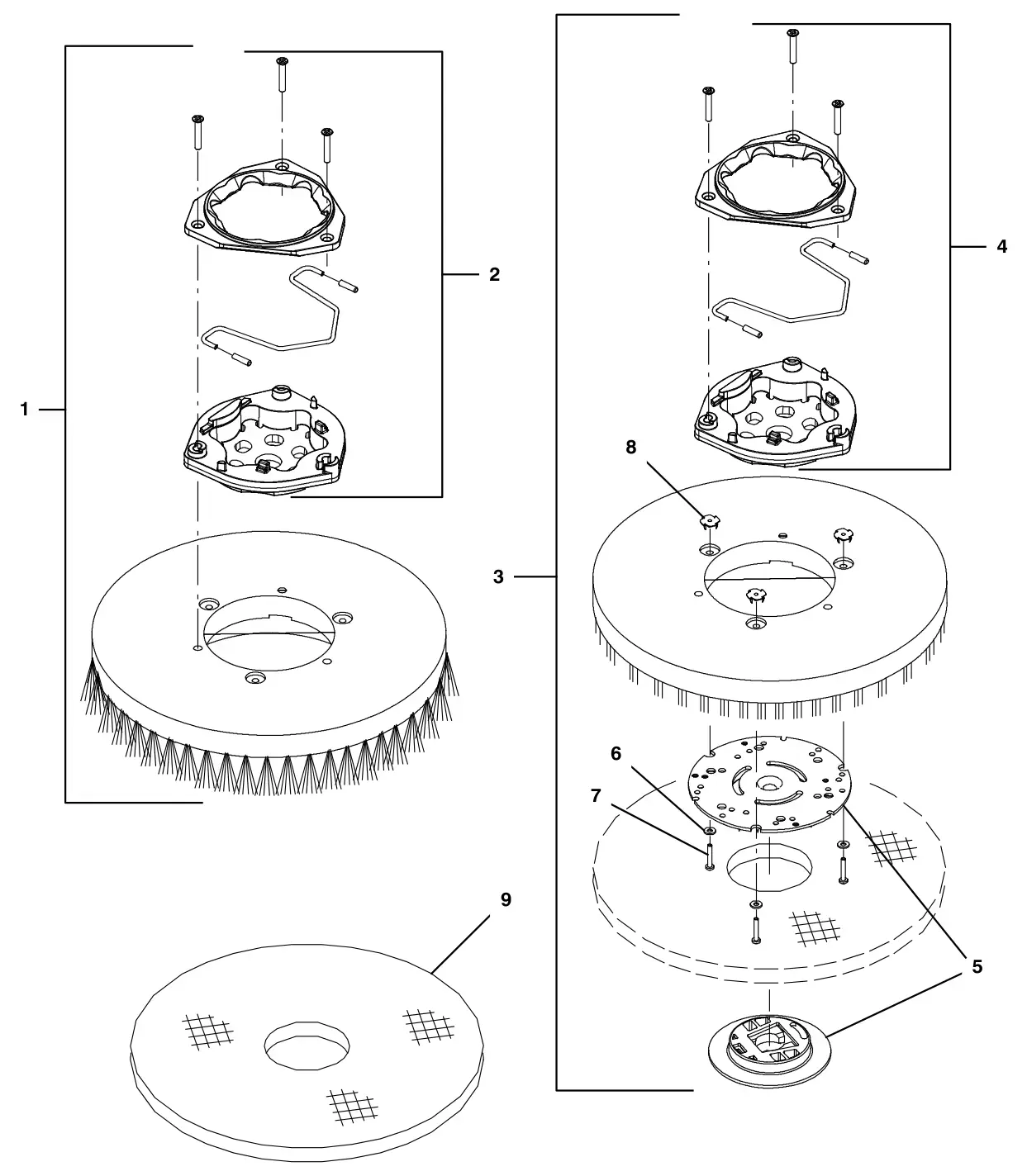

Tennant T500e (S/N 30000000-40000000) Replacement brushes and pad driver disk parts
The parts Tennant numbers on its replacement brushes and pad driver disk drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037865Replaces Tennant 1223989 | 2 | Brush Assy, Disk, Scb, 13.0d, PypComplete assembly. | $231.80/EA |
| 1 | TN4037867Replaces Tennant 1223991 | 2 | Brush Assy, Disk, Scb, 13.0d, NylComplete assembly. | $312.70/EA |
| 1 | TN4037866Replaces Tennant 1223990 | 2 | Brush Assy, Disk, Scb, 13.0d, SabComplete assembly. | $363.10/EA |
| 1 | TN4037173Replaces Tennant 1220218 | 2 | Brush Assy, Disk, Scb, 14.0d, PypComplete assembly. | $260.00/EA |
| 1 | TN4037454Replaces Tennant 1221541 | 2 | Brush Assy, Disk, Scb, 14.0d, NylComplete assembly. | $311.50/EA |
| 1 | TN4037172Replaces Tennant 1220217 | 2 | Brush Assy, Disk, Scb, 14.0d, SabComplete assembly. | $553.10/EA |
| 1 | TN4037171Replaces Tennant 1220216 | 2 | Brush Assy, Disk, Scb, 16.0d, PypComplete assembly. | $298.20/EA |
| 1 | TN4037170Replaces Tennant 1220215 | 2 | Brush Assy, Disk, Scb, 16.0d, NylComplete assembly. | $401.30/EA |
| 1 | TN4037169Replaces Tennant 1220214 | 2 | Brush Assy, Disk, Scb, 16.0d, SabComplete assembly. | $553.10/EA |
| 2 | TN4022630Replaces Tennant 9014667 | 1 | Brush Kit, Hub Assy, Drive, Ci [Comm]Part of Brush Assy, Disk, Scb, 16.0d, Sab (1220214). | $65.10/EA |
| 3 | TN4037175Replaces Tennant 1220220 | 2 | Driver Assy, Pad, 13.0d, BrushComplete assembly. | $351.00/EA |
| 3 | TN4037176Replaces Tennant 1220221 | 2 | Driver Assy, Pad, 14.0d, BrushComplete assembly. | $357.30/EA |
| 3 | TN4037177Replaces Tennant 1220222 | 2 | Driver Assy, Pad, 16.0d, BrushComplete assembly. | $393.40/EA |
| 4 | TN4022630Replaces Tennant 9014667 | 1 | Brush Kit, Hub Assy, Drive, Ci [Comm]Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $65.10/EA |
| 5 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $45.50/EA |
| 6 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $2.60/EA |
| 7 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $4.00/EA |
| 8 | TN4043114Replaces Tennant 10908 | 3 | Nut, T, M4 X 0.70Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $3.20/EA |
| 9 | TN4216882Replaces Tennant 1243567 | 2 | Pad, Stripper, 13.0d, Brn [1pick=1ctn] | $80.10/EA |
| 9 | TN4216983Replaces Tennant 1243655 | 2 | Pad, Scb, 13.0d Blu [1pick=1ctn] | $80.60/EA |
| 9 | TN4034071Replaces Tennant 1243341 | 2 | Pad, Buff, 13.0d, Red [1pick=1ctn] | $80.10/EA |
| 9 | TN4034072Replaces Tennant 1243342 | 2 | Pad, Polish, 13.0d, White [1pick=1ctn] | $80.10/EA |
| 9 | TN4216987Replaces Tennant 1243666 | 2 | Pad, Surf Prep, 13.0d Maroon[1pick=1ctn] | $94.50/EA |
| 9 | TN4218988Replaces Tennant 1240356 | 2 | Pad, Polish, 13.0d, Yel [1pick=1ctn]Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $136.90/EA |
| 9 | TN4034293Replaces Tennant 1243657 | 2 | Pad, Stripping, 14.0d Brown [1pick=1ctn] | $87.20/EA |
| 9 | TN4034074Replaces Tennant 1243344 | 2 | Pad, Scb, 14.0d, Blu [1pick=1ctn] | $87.20/EA |
| 9 | TN4034292Replaces Tennant 1243656 | 2 | Pad, Buff, 14.0d Red [1pick=1ctn] | $85.40/EA |
| 9 | TN4034073Replaces Tennant 1243343 | 2 | Pad, Polish, 14.0d, White [1pick=1ctn] | $87.20/EA |
| 9 | TN4034294Replaces Tennant 1243658 | 2 | Pad, Strip, 14.0d Blk[Hi Prod1pick=1ctn] | $99.30/EA |
| 9 | TN4216988Replaces Tennant 1243667 | 2 | Pad, Surf Prep, 14.0d Maroon[1pick=1ctn] | $98.10/EA |
| 9 | TN4033699Replaces Tennant 1240389 | 2 | Pad, Polish, 14.0d, Yel [1pick=1ctn]Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $143.80/EA |
| 9 | TN4217085Replaces Tennant 1243685 | 2 | Pad, Stripping, 16.0d, Brn [1pick=1ctn] | $101.80/EA |
| 9 | TN4216870Replaces Tennant 1243354 | 2 | Pad, Scb, 16.0d, Blu [1pick=1ctn] | $101.80/EA |
| 9 | TN4034078Replaces Tennant 1243355 | 2 | Pad, Buff, 16.0d, Red [1pick=1ctn] | $122.70/EA |
| 9 | TN4034079Replaces Tennant 1243356 | 2 | Pad, Polish, 16.0d, White [1pick=1ctn] | $101.80/EA |
| 9 | TN4034295Replaces Tennant 1243659 | 2 | Pad, Strip, 16.0d Blk[Hi Prod1pick=1ctn] | $176.30/EA |
| 9 | TN4216989Replaces Tennant 1243668 | 2 | Pad, Surf Prep, 16.0d Maroon[1pick=1ctn] | $123.30/EA |
Tennant T500e (S/N 30000000-40000000) Replacement brushes and pad driver disk (Japan) parts
The parts Tennant numbers on its replacement brushes and pad driver disk (japan) drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037865Replaces Tennant 1223989 | 2 | Brush Assy, Disk, Scb, 13.0d, PypComplete assembly. | $231.80/EA |
| 1 | TN4037867Replaces Tennant 1223991 | 2 | Brush Assy, Disk, Scb, 13.0d, NylComplete assembly. | $312.70/EA |
| 1 | TN4037866Replaces Tennant 1223990 | 2 | Brush Assy, Disk, Scb, 13.0d, SabComplete assembly. | $363.10/EA |
| 1 | TN4037173Replaces Tennant 1220218 | 2 | Brush Assy, Disk, Scb, 14.0d, PypComplete assembly. | $260.00/EA |
| 1 | TN4037454Replaces Tennant 1221541 | 2 | Brush Assy, Disk, Scb, 14.0d, NylComplete assembly. | $311.50/EA |
| 1 | TN4037172Replaces Tennant 1220217 | 2 | Brush Assy, Disk, Scb, 14.0d, SabComplete assembly. | $553.10/EA |
| 1 | TN4037171Replaces Tennant 1220216 | 2 | Brush Assy, Disk, Scb, 16.0d, PypComplete assembly. | $298.20/EA |
| 1 | TN4037170Replaces Tennant 1220215 | 2 | Brush Assy, Disk, Scb, 16.0d, NylComplete assembly. | $401.30/EA |
| 1 | TN4037169Replaces Tennant 1220214 | 2 | Brush Assy, Disk, Scb, 16.0d, SabComplete assembly. | $553.10/EA |
| 2 | TN4022630Replaces Tennant 9014667 | 1 | Brush Kit, Hub Assy, Drive, Ci [Comm]Part of Brush Assy, Disk, Scb, 16.0d, Sab (1220214). | $65.10/EA |
| 3 | TN4037175Replaces Tennant 1220220 | 2 | Driver Assy, Pad, 13.0d, BrushComplete assembly. | $351.00/EA |
| 3 | TN4037176Replaces Tennant 1220221 | 2 | Driver Assy, Pad, 14.0d, BrushComplete assembly. | $357.30/EA |
| 3 | TN4037177Replaces Tennant 1220222 | 2 | Driver Assy, Pad, 16.0d, BrushComplete assembly. | $393.40/EA |
| 4 | TN4022630Replaces Tennant 9014667 | 1 | Brush Kit, Hub Assy, Drive, Ci [Comm]Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $65.10/EA |
| 5 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $45.50/EA |
| 6 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $2.60/EA |
| 7 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). | $4.00/EA |
| 8 | TN4043114Replaces Tennant 10908 | 3 | Nut, T, M4 X 0.70Part of Driver Assy, Pad, 16.0d, Brush (1220222). | $3.20/EA |
| 9 | TN4014804Replaces Tennant 989646 | 2 | Pad Blown 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014819Replaces Tennant 989653 | 2 | Pad Blue 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014828Replaces Tennant 989660 | 2 | Pad Red 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014866Replaces Tennant 989674 | 2 | Pad White 13 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4040745Replaces Tennant 1051024 | 2 | Pad, Surf Prep, 13.0d [Mar, 1pick=1pad] | $21.88/EA |
| 9 | TN4014807Replaces Tennant 989647 | 2 | Pad Blown 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014821Replaces Tennant 989654 | 2 | Pad Blue 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014830Replaces Tennant 989661 | 2 | Pad Red 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4015076Replaces Tennant 989698 | 2 | Pad White 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014788Replaces Tennant 989636 | 2 | Pad Black Hi Pro 14 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |

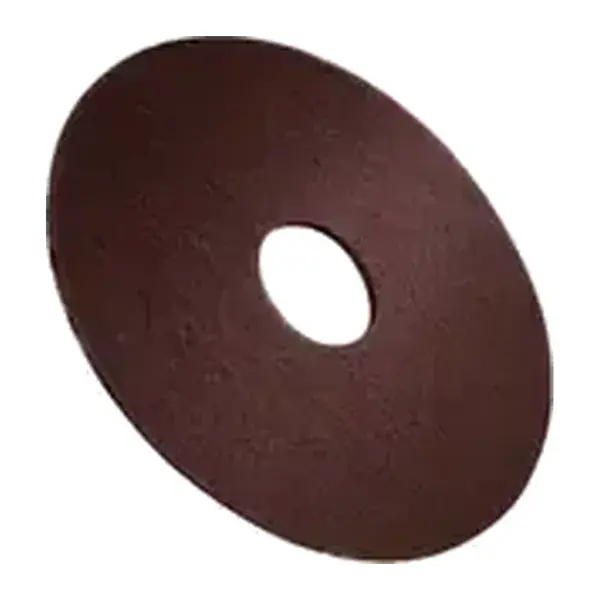

| 9 | TN4040746Replaces Tennant 1051026 | 2 | Pad, Surf Prep, 14.0d [Mar, 1pick=1pad] | $21.30/EA |
| 9 | TN4014809Replaces Tennant 989648 | 2 | Pad Blown 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014822Replaces Tennant 989655 | 2 | Pad Blue 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014832Replaces Tennant 989662 | 2 | Pad Red 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014790Replaces Tennant 989637 | 2 | Pad Black Hi Pro 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4014796Replaces Tennant 989642 | 2 | Pad Black 16 Inch | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T500e (S/N 30000000-40000000) Replacement brushes cylindrical parts
Replacement brushes cylindrical from Tennant's parts list. Manual page 14.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN4040245Replaces Tennant 222304 | Qty on machine: 2 | Brush, Scb, 28l, 18sr, Pyp, Spl | $220.00/EA | |
| 1 | TN4040247Replaces Tennant 222306 | Qty on machine: 2 | Brush, Scb, 28l, 18sr, Abr, Spl | $471.90/EA | |
| 1 | TN4040246Replaces Tennant 222305 | Qty on machine: 2 | Brush, Scb, 28l, 18sr, Nyl, Spl | $321.80/EA |
Tennant T500e (S/N 30000000-40000000) Replacement pads orbital parts
Replacement pads orbital from Tennant's parts list. Manual page 15.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN4037530Replaces Tennant 1223250 | Qty on machine: 1 | Pad, Scb, 28 X 14, Green [1pick=1ctn] | $465.80/EA | |
| 2 | TN4037468Replaces Tennant 1221839 | Qty on machine: 1 | Pad, Backer, 28 X 14 (Includes Velcro Fasteners) | $234.50/EA | |
| 1 | TN4034324Replaces Tennant 1244690 | Qty on machine: 1 | Pad, Buff, 28 X 14, Red [1pick=1ctn] | $532.50/EA | |
| 1 | TN4037527Replaces Tennant 1223247 | Qty on machine: 1 | Pad, Scb, 28 X 14, Blu [1pc=1pad] | $65.50/EA | |
| 1 | TN4037526Replaces Tennant 1223246 | Qty on machine: 1 | Pad, Polish, 28 X 14, White [1pc=1pad] | $65.50/EA | |
| 1 | TN4037528Replaces Tennant 1223248 | Qty on machine: 1 | Pad, Surf Prep, 28 X 14, Mar [1pc=1pad] | $55.02/EA | |
| 1 | TN4034970Replaces Tennant 1228002 | Qty on machine: 1 | Pad, Melamine, 14” X 28” [Case Of 5] | $576.70/EA |
Tennant T500e (S/N 30000000-40000000) Replacement pads orbital (Japan) parts
Replacement pads orbital (Japan) from Tennant's parts list. Manual page 16.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN4037468Replaces Tennant 1221839 | Qty on machine: 1 | Pad, Backer, 28 X 14 (Includes Velcro Fasteners) | $234.50/EA |
| 1 | TN4017191Replaces Tennant 989041 | Qty on machine: 1 | Pad, Blue, Scrubbing (5pcs/1box) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4017192Replaces Tennant 989042 | Qty on machine: 1 | Pad, Red, Cleaning (5pcs/1box) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4017193Replaces Tennant 989043 | Qty on machine: 1 | Pad, White, Polishing (5pcs/1box) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4017194Replaces Tennant 989044 | Qty on machine: 1 | Pad, Brown, Stripping (5pcs/1box) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4017195Replaces Tennant 989045 | Qty on machine: 1 | Pad, Black, Stripping (5pcs/1box) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4017196Replaces Tennant 989046 | Qty on machine: 1 | Pad, Light Blue, Ceramic Scrubbing (3pcs/1box) | Call to confirm part: 800-440-6723Call 800-440-6723 |

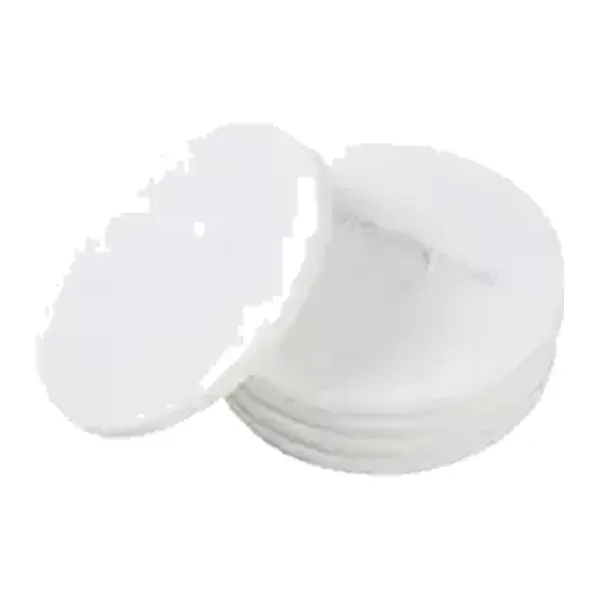

| 1 | TN4017197Replaces Tennant 989047 | Qty on machine: 1 | Pad, White, Ceramic Scrubbing (3pcs/1box) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4037528Replaces Tennant 1223248 | Qty on machine: 1 | Pad, Surf Prep, 28 X 14, Mar [1pick=1pc] | $55.02/EA |
| 1 | TN4034970Replaces Tennant 1228002 | Qty on machine: 1 | Pad, Melamine, 14” X 28” [Case Of 5] | $576.70/EA |

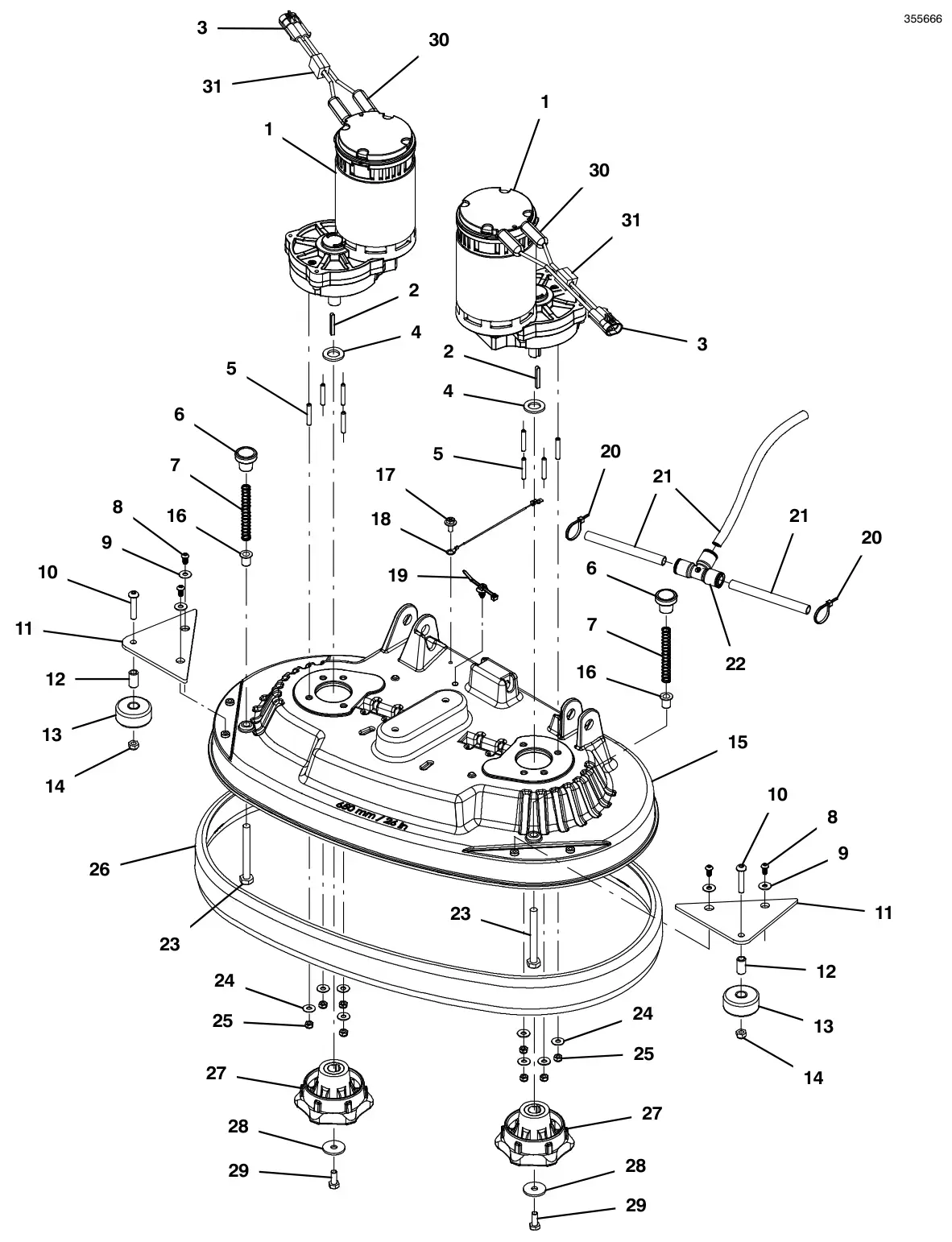

Tennant T500e (S/N 30000000-40000000) Scrub head group, disk 26 in (650 mm) parts
The parts Tennant numbers on its scrub head group, disk 26 in (650 mm) drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652 | 2 | Motor, Ele, 24vdc, 0230rpm (Australia Also Requires Qty 2 Ferrite #1227867 & Qty 1 #1065665)Complete assembly. Serial 30204928 to 40000000. | $405.40/EA |
| 1 | TN4032652Replaces Tennant 1023067 | 2 | Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652 - Australia Also Requires Ferrite Qty 2 #1227867 & Qty 1 #1065665)Complete assembly. Serial 30000000 to 30204927. Tennant's online parts catalog gives this part different serial numbers (30000000 to 30204142, 30204143 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4032140Replaces Tennant 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $216.60/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $4.20/EA |
| 3 | TN4032101Replaces Tennant 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $288.60/EA |
| 4 | TN4033193Replaces Tennant 1022549 | 2 | Spacer, Shaft, 17.15b 30.0d 3.0l, Ss | $8.20/EA |
| 5 | TN4034211Replaces Tennant 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Nl, Ss | $3.30/EA |
| 6 | TN4037514Replaces Tennant 1222988 | 2 | Knob, Rnd, 31.0d 27.0l M10, Plstc | $16.20/EA |
| 7 | TN4020452Replaces Tennant 626081 | 2 | Spring, Cmpr, 0.48od .04wir 03.5l | $5.20/EA |
| 8 | TN4034963Replaces Tennant 1227865 | 4 | Screw, Trs, M6 X 1.0 X 12, Phl, Ss, Nl | $1.50/EA |
| 9 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 10 | TN4016245Replaces Tennant 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, Ss | $4.00/EA |
| 11 | TN4034959Replaces Tennant 1227709 | 2 | Bracket, Roller, Wall | $23.70/EA |
| 12 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss] | $3.40/EA |
| 13 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 02.0d 0.88w 0.50b | $9.80/EA |
| 14 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 15 | TN4037496Replaces Tennant 1222365 | 1 | Housing, Disc, Dual, 65cm [Machined] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4034607 | 2 | Bushing, Flng, 10mmb 12mmd 17mml | $35.60/EA |
| 17 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 18 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail] | $6.70/EA |
| 19 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 20 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 21 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ft | $104.00/EA |
| 22 | TN4039502Replaces Tennant 1212858 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qf08 | $13.80/EA |
| 23 | TN4041996Replaces Tennant 09746 | 2 | Screw, Hex, M10 X 1.50 X 90, Ss | $9.90/EA |
| 24 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 25 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 26 | TN4035992Replaces Tennant 1232324 | 1 | Bumper, Head, 65cm, Skirt, Im | $148.10/EA |
| 27 | TN4030707Replaces Tennant 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmb | $129.00/EA |
| 28 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 29 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 30 | TN4034964Replaces Tennant 1227867 | 4 | Inductor, Ferrite [Split Case,407@100hz] (Australia Only) | $6.40/EA |
| 31 | TN4032781Replaces Tennant 1065665 | 2 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

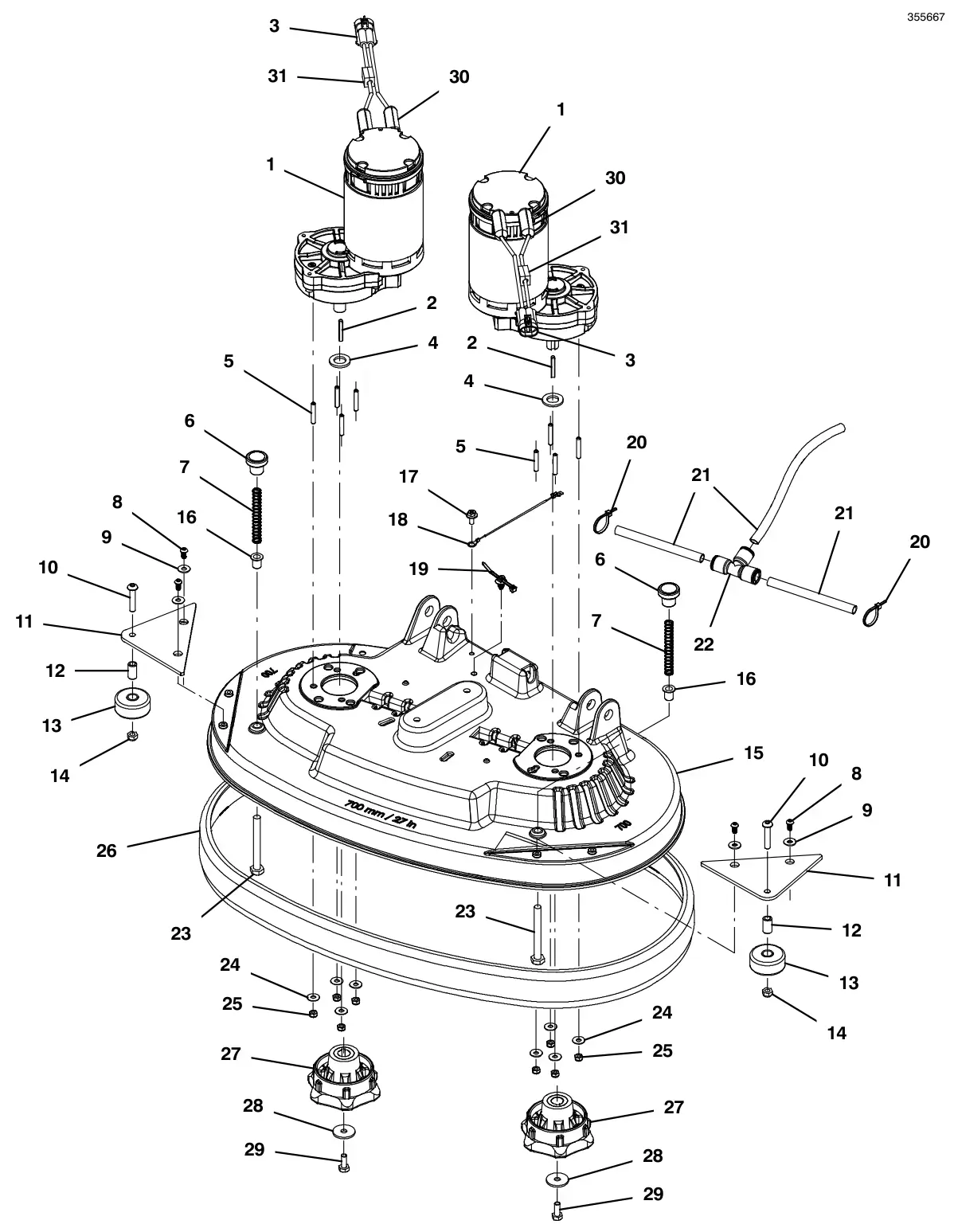

Tennant T500e (S/N 30000000-40000000) Scrub head group, disk 28 in (700 mm) parts
The parts Tennant numbers on its scrub head group, disk 28 in (700 mm) drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652 | 2 | Motor, Ele, 24vdc, 0230rpm (Australia Also Requires Qty 2 Ferrite #1227867 & Qty 1 #1065665)Complete assembly. Serial 30204928 to 40000000. | $405.40/EA |
| 1 | TN4032652Replaces Tennant 1023067 | 2 | Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652 - Australia Also Requires Ferrite Qty 2 #1227867 & Qty 1 #1065665)Complete assembly. Serial 30000000 to 30204927. Tennant's online parts catalog gives this part different serial numbers (30000000 to 30204142, 30204143 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4032140Replaces Tennant 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $216.60/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $4.20/EA |
| 3 | TN4032101Replaces Tennant 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $288.60/EA |
| 4 | TN4033193Replaces Tennant 1022549 | 2 | Spacer, Shaft, 17.15b 30.0d 3.0l, Ss | $8.20/EA |
| 5 | TN4034211Replaces Tennant 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Nl, Ss | $3.30/EA |
| 6 | TN4037514Replaces Tennant 1222988 | 2 | Knob, Rnd, 31.0d 27.0l M10, Plstc | $16.20/EA |
| 7 | TN4020452Replaces Tennant 626081 | 2 | Spring, Cmpr, 0.48od .04wir 03.5l | $5.20/EA |
| 8 | TN4034963Replaces Tennant 1227865 | 4 | Screw, Trs, M6 X 1.0 X 12, Phl, Ss, Nl | $1.50/EA |
| 9 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 10 | TN4016245Replaces Tennant 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, Ss | $4.00/EA |
| 11 | TN4034959Replaces Tennant 1227709 | 2 | Bracket, Roller, Wall | $23.70/EA |
| 12 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss] | $3.40/EA |
| 13 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 02.0d 0.88w 0.50b | $9.80/EA |
| 14 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 15 | TN4033012Replaces Tennant 1234331 | 1 | Housing, Disc, Dual, 70cm [Machined]Tennant's online parts catalog lists a quantity of 2. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4034607 | 2 | Bushing, Flng, 10mmb 12mmd 17mml | $35.60/EA |
| 17 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 18 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail] | $6.70/EA |
| 19 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 20 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 21 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ft | $104.00/EA |
| 22 | TN4039502Replaces Tennant 1212858 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qf08 | $13.80/EA |
| 23 | TN4041996Replaces Tennant 09746 | 2 | Screw, Hex, M10 X 1.50 X 90, Ss | $9.90/EA |
| 24 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 25 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 26 | TN4035993Replaces Tennant 1232325 | 1 | Bumper, Head, 70cm, Skirt, Im | $155.00/EA |
| 27 | TN4030707Replaces Tennant 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmb | $129.00/EA |
| 28 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 29 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 30 | TN4034964Replaces Tennant 1227867 | 4 | Inductor, Ferrite [Split Case,407@100hz] (Australia Only) | $6.40/EA |
| 31 | TN4032781Replaces Tennant 1065665 | 2 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

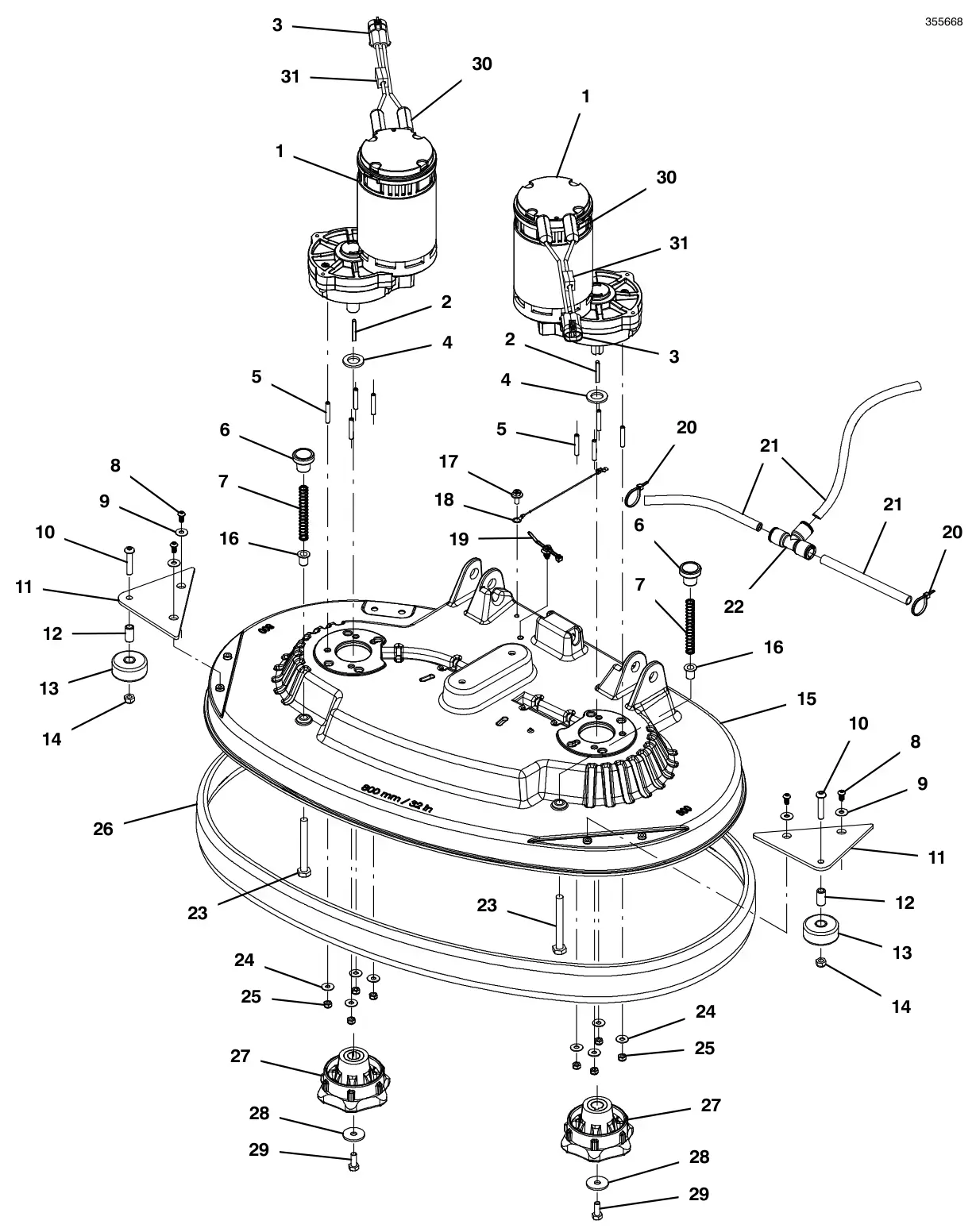

Tennant T500e (S/N 30000000-40000000) Scrub head group, disk 32 in (800 mm) parts
The parts Tennant numbers on its scrub head group, disk 32 in (800 mm) drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652 | 2 | Motor, Ele, 24vdc, 0230rpm (Australia Also Requires Qty 2 Ferrite #1227867 & Qty 1 #1065665)Complete assembly. Serial 30204928 to 40000000. | $405.40/EA |
| 1 | TN4032652Replaces Tennant 1023067 | 2 | Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652 - Australia Also Requires Ferrite Qty 2 #1227867 & Qty 1 #1065665)Complete assembly. Serial 30000000 to 30204927. Tennant's online parts catalog gives this part different serial numbers (30000000 to 30204142, 30204143 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4032140Replaces Tennant 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $216.60/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $4.20/EA |
| 3 | TN4032101Replaces Tennant 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Replaced By 4032652) (1023067). | $288.60/EA |
| 4 | TN4033193Replaces Tennant 1022549 | 2 | Spacer, Shaft, 17.15b 30.0d 3.0l, Ss | $8.20/EA |
| 5 | TN4034211Replaces Tennant 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Nl, Ss | $3.30/EA |
| 6 | TN4037514Replaces Tennant 1222988 | 2 | Knob, Rnd, 31.0d 27.0l M10, Plstc | $16.20/EA |
| 7 | TN4020452Replaces Tennant 626081 | 2 | Spring, Cmpr, 0.48od .04wir 03.5l | $5.20/EA |
| 8 | TN4034963Replaces Tennant 1227865 | 4 | Screw, Trs, M6 X 1.0 X 12, Phl, Ss, Nl | $1.50/EA |
| 9 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 10 | TN4016245Replaces Tennant 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, Ss | $4.00/EA |
| 11 | TN4034959Replaces Tennant 1227709 | 2 | Bracket, Roller, Wall | $23.70/EA |
| 12 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss] | $3.40/EA |
| 13 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 02.0d 0.88w 0.50b | $9.80/EA |
| 14 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 15 | TN4033013Replaces Tennant 1234333 | 1 | Housing, Disc, Dual, 80cm [Machined] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4034607 | 2 | Bushing, Flng, 10mmb 12mmd 17mml | $35.60/EA |
| 17 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 18 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail] | $6.70/EA |
| 19 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 20 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 21 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ft | $104.00/EA |
| 22 | TN4039502Replaces Tennant 1212858 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qf08 | $13.80/EA |
| 23 | TN4041996Replaces Tennant 09746 | 2 | Screw, Hex, M10 X 1.50 X 90, Ss | $9.90/EA |
| 24 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 25 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 26 | TN4035994Replaces Tennant 1232326 | 1 | Bumper, Head, 80cm, Skirt, Im | $145.40/EA |
| 27 | TN4030707Replaces Tennant 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmb | $129.00/EA |
| 28 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 29 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 30 | TN4034964Replaces Tennant 1227867 | 4 | Inductor, Ferrite [Split Case,407@100hz] (Australia Only) | $6.40/EA |
| 31 | TN4032781Replaces Tennant 1065665 | 2 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

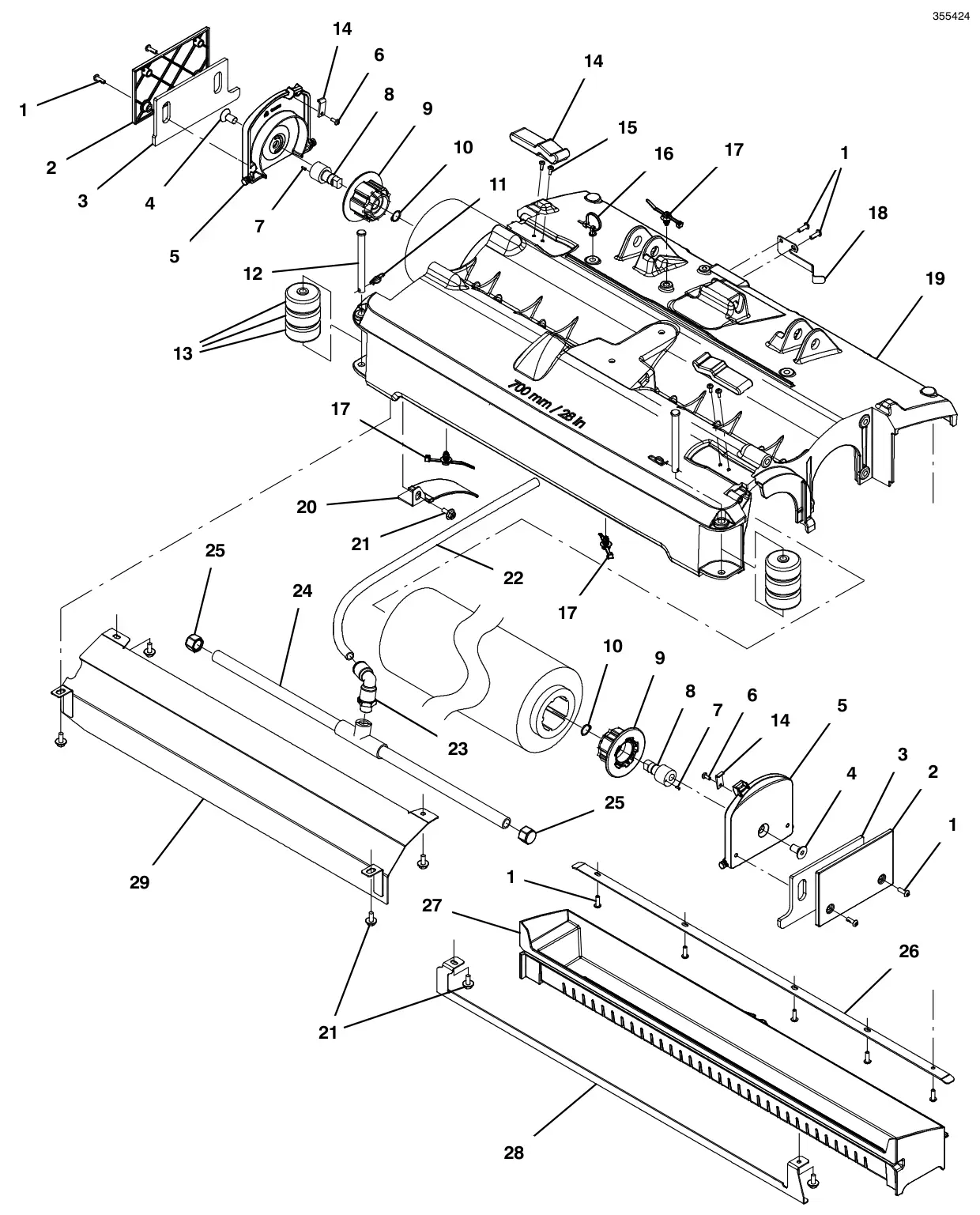

Tennant T500e (S/N 30000000-40000000) Scrub head group, cylindrical 28 in (700 mm) parts
The parts Tennant numbers on its scrub head group, cylindrical 28 in (700 mm) drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 2 | TN4040535Replaces Tennant 1218032 | 2 | Cover, Skirt, 2cyl [T500] | $10.70/EA |
| 3 | TN4036849Replaces Tennant 1218573 | 2 | Skirt, Side, Scrb, Cyl [T500] | $26.30/EA |
| 4 | TN4018896Replaces Tennant 390996 | 2 | Screw, Flt, Soc, M10 X 1.50 X 20,10.9,Nl | $4.00/EA |
| 5 | TN4036855Replaces Tennant 1218692 | 1 | Door, Brush, 2cyl [Machined, T500] | $54.30/EA |
| 6 | TN4014173Replaces Tennant 49697 | 6 | Screw, Pan, Phl, M4 X 0.70 X 10, Ss | $3.40/EA |
| 7 | TN4039875Replaces Tennant 222184 | 2 | Pin, Roll, .094d X 0.25l, .094/.097 | $2.50/EA |
| 8 | TN4039865Replaces Tennant 222177 | 2 | Shaft, Plug, Idler | $73.40/EA |
| 9 | TN4036583Replaces Tennant 1057629 | 2 | Plug, Idler, Brush [Sgl Brg] | $28.80/EA |
| 10 | TN4042879Replaces Tennant 01516 | 2 | Ring, Retaining, Ext, 0.59d, Basic | $2.50/EA |
| 11 | TN4040200Replaces Tennant 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 Wir | $1.50/EA |
| 12 | TN4034303Replaces Tennant 49914 | 2 | Pin, Clevis, 0.37d X 4.00l | $25.70/EA |
| 13 | TN4020804Replaces Tennant 630477 | 6 | Wheel, Pyu, 02.0d 0.38w, Gray | $9.50/EA |
| 14 | TN4041442Replaces Tennant 1207285 | 2 | Latch, Draw, Rbr, W/ Keeper, Yellow | $19.50/EA |
| 15 | TN4014173Replaces Tennant 49697 | 6 | Screw, Pan, Phl, M4 X 0.70 X 10, Ss | $3.40/EA |
| 16 | TN4037256Replaces Tennant 1221161 | 1 | Tie, Cable, Nyl, Push Mount, 76mm Max D | $6.00/EA |
| 17 | TN4038889Replaces Tennant 1210807 | 3 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 18 | TN4036822Replaces Tennant 1218242 | 1 | Bracket, Spring, Tray, Debris [T500] | $22.50/EA |
| 19 | TN4040531Replaces Tennant 1217942 | 1 | Housing, Cyl, 70cm [Machined] | $806.80/EA |
| 20 | TN4031352Replaces Tennant 1029358 | 1 | Deflector, Water, Cyl Head | $48.30/EA |
| 21 | TN4045268Replaces Tennant 1034731 | 7 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 22 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ft | $104.00/EA |
| 23 | TN4034290Replaces Tennant 1212987 | 1 | Fitting, Plstc, E90, Qf08/Pm06, Swivel | $17.60/EA |
| 24 | TN4042723Replaces Tennant 1046049 | 1 | Tube Assy, Bar, Spray, 70cm [T5, 5680] | $78.70/EA |
| 25 | TN4034190Replaces Tennant 1025580 | 2 | Fitting, Pipe, Cap, P06, Nyl | $8.70/EA |
| 26 | TN4036812Replaces Tennant 1218153 | 1 | Bracket, Tray, Debris [T500] | $18.30/EA |
| 27 | TN4036675Replaces Tennant 1218144 | 1 | Tray, Debris, 700mm [Im] [Rhine] | $45.90/EA |
| 28 | TN4036851Replaces Tennant 1218577 | 1 | Bracket, Slide, Tray, Debris | $64.90/EA |
| 29 | TN4037000Replaces Tennant 1219969 | 1 | Panel Wldt, Wrap, Brush [T500] | $235.30/EA |

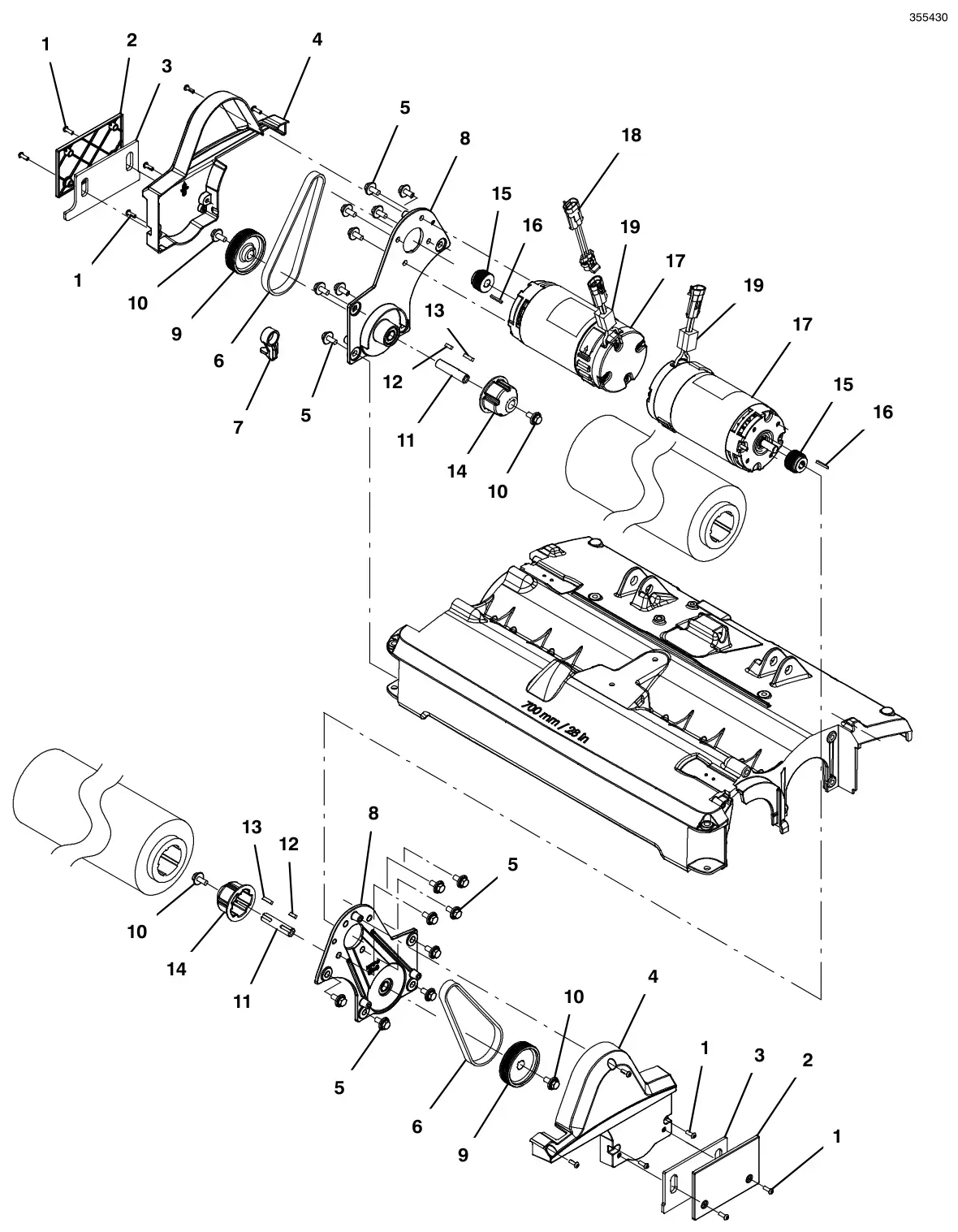

Tennant T500e (S/N 30000000-40000000) Scrub head group, cylindrical 28 in (700 mm) - continued parts
The parts Tennant numbers on its scrub head group, cylindrical 28 in (700 mm) - continued drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041143Replaces Tennant 1205799 | 12 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 2 | TN4040535Replaces Tennant 1218032 | 2 | Cover, Skirt, 2cyl [T500] | $10.70/EA |
| 3 | TN4036849Replaces Tennant 1218573 | 2 | Skirt, Side, Scrb, Cyl [T500] | $26.30/EA |
| 4 | TN4040534Replaces Tennant 1218012 | 2 | Cover, Belt, 2 Cyl [T500] | $50.20/EA |
| 5 | TN4036259Replaces Tennant 1020341 | 16 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 6 | TN4023976Replaces Tennant 9015765 | 1 | Belt Replacement Kit (Cylindrical)Complete assembly. | $95.20/EA |
| – | TN4045455Replaces Tennant 1035888 | 2 | Belt, Drive, 6grv, 508 L X 14 W, [6pj]Part of Belt Kit, Motor, Ci (Cylindrical Head) (9015765). | $35.20/EA |
| 7 | TN4040839Replaces Tennant 1203758 | 1 | Tool, Installation, BeltPart of Belt Kit, Motor, Ci (Cylindrical Head) (9015765). | $130.30/EA |
| 8 | TN4020930Replaces Tennant 9018012 | 2 | Bracket Assy, Motor, Ci (Includes Bearings And Tube - Not Available Separately)Complete assembly. | $401.60/EA |
| 9 | TN4045389Replaces Tennant 1035173 | 1 | Sheave, 06grv, 2.96pd 0.59b, Alm [Pj]Part of Bracket Assy, Motor, Ci (Includes Bearings And Tube - Not Available Separately) (9018012). | $112.10/EA |
| 10 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Bracket Assy, Motor, Ci (Includes Bearings And Tube - Not Available Separately) (9018012). | $3.50/EA |
| 11 | TN4036306Replaces Tennant 1021050 | 1 | Shaft, Drive, 15.0d X 65.5l [T5, 1610]Part of Bracket Assy, Motor, Ci (Includes Bearings And Tube - Not Available Separately) (9018012). | $142.60/EA |
| 12 | TN4042789Replaces Tennant 00961 | 1 | Key, Sq, 0.19 X 0.19, 0.50lPart of Bracket Assy, Motor, Ci (Includes Bearings And Tube - Not Available Separately) (9018012). | $4.20/EA |
| 13 | TN4042777Replaces Tennant 00911 | 1 | Key, Sq, 0.19 X 0.19, 0.75lPart of Bracket Assy, Motor, Ci (Includes Bearings And Tube - Not Available Separately) (9018012). | $3.60/EA |
| 14 | TN4026292Replaces Tennant 378805 | 1 | Plug, Drive, Brush, MachPart of Bracket Assy, Motor, Ci (Includes Bearings And Tube - Not Available Separately) (9018012). | $55.50/EA |
| 15 | TN4045045Replaces Tennant 1033528 | 2 | Sheave, 06grv, 1.33pd 0.50b, Alm [Pj] | $87.60/EA |
| 16 | TN4042787Replaces Tennant 00954 | 2 | Key, Sq, 0.12 X 0.12, 1.00l | $4.20/EA |
| 17 | TN4037825Replaces Tennant 1223429 | 2 | Motor, Ele, 24vdc 1500rpm 0.60hp (Australia Also Requires Qty 1 Ferrite #1065665)Complete assembly. | $1,051.20/EA |
| – | TN4032140Replaces Tennant 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 1500rpm 0.60hp (Cylindrical Head) (1223429). | $216.60/EA |
| 18 | TN4037767Replaces Tennant 1052895 | 1 | Harness, Adapter, Motor [T7/T5] | $25.50/EA |
| 19 | TN4032781Replaces Tennant 1065665 | 2 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

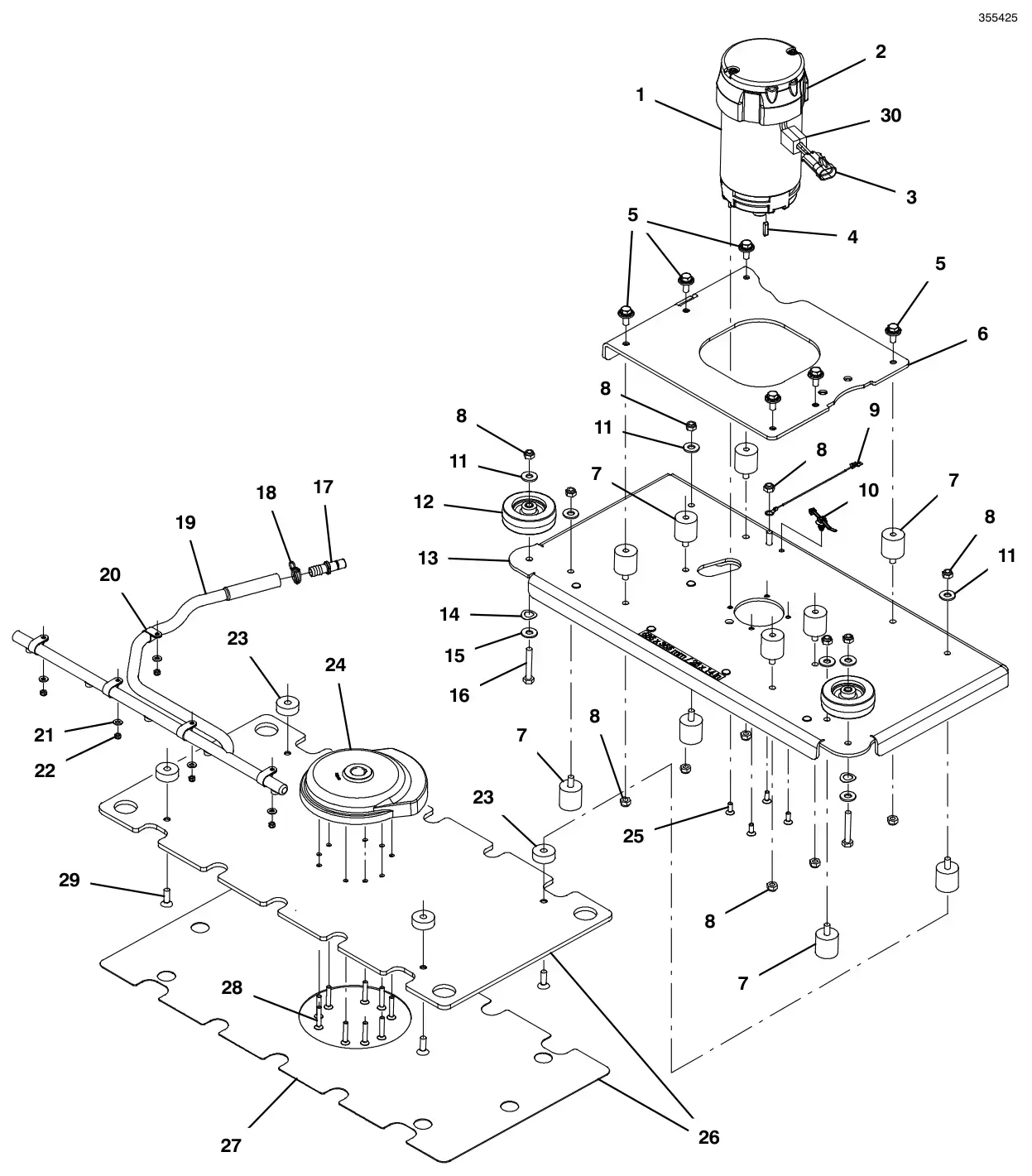

Tennant T500e (S/N 30000000-40000000) Scrub head group, orbital 28 in (700 mm) parts
The parts Tennant numbers on its scrub head group, orbital 28 in (700 mm) drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036998Replaces Tennant 1219913 | 1 | Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Australia Also Requires Qty 1 Ferrite #1065665)Complete assembly. | $1,294.80/EA |
| 2 | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head) (1219913). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4032101Replaces Tennant 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head) (1219913). | $288.60/EA |
| 4 | TN4035913Replaces Tennant 1231238 | 1 | Key, Sq, 5mm X 5mm X 22mm | $5.10/EA |
| 5 | TN4036259Replaces Tennant 1020341 | 6 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 6 | TN4037223Replaces Tennant 1220910 | 1 | Bracket Wldt, Mtg, Head | $58.03/EA |
| 7 | TN4039461Replaces Tennant 1212543 | 13 | Isolator, Neoprene, 1.25” X 1.25”, M8 | $15.10/EA |
| 8 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 9 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail] | $6.70/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 11 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 12 | TN4037957Replaces Tennant 1014918 | 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4037466Replaces Tennant 1221766 | 1 | Housing Wldt, Brush | $206.72/EA |
| 14 | TN4042420Replaces Tennant 1210221 | 2 | Washer, Wave, .515b, .875d, .013, Ss | $2.60/EA |
| 15 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 16 | TN4014172Replaces Tennant 49694 | 2 | Screw, Hex, M8 X 1.25 X 50, Ss | $6.60/EA |
| 17 | TN4039487Replaces Tennant 1212807 | 1 | Fitting, Plstc, Str, Qm08/Bm08 | $14.30/EA |
| 18 | TN4021947Replaces Tennant 607776 | 1 | Clamp, Hose, Wir, .73 - .77, Silver | $4.20/EA |
| 19 | TN4033048Replaces Tennant 1234853 | 1 | Manifold, Bar, Spray [28in] | $101.50/EA |
| 20 | TN4044164Replaces Tennant 140916 | 5 | Clamp, Cable, Nyl, 0.62d, Nat | $3.40/EA |
| 21 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, Ss | $2.60/EA |
| 22 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 23 | TN4037469Replaces Tennant 1221850 | 4 | Spacer, Head | $13.70/EA |

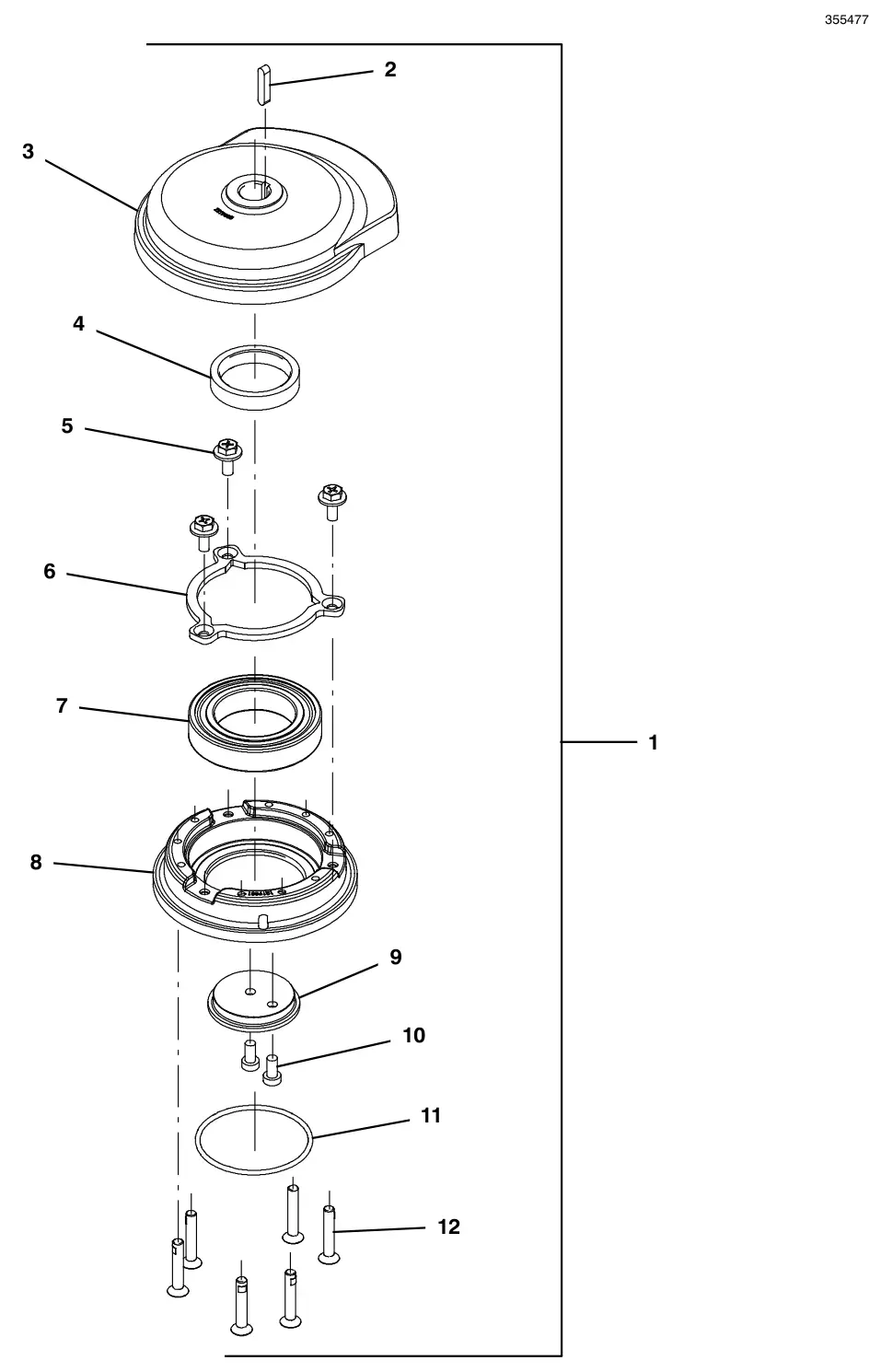

| 24 | TN4023979Replaces Tennant 9015774 | 1 | Eccentric Drive Kit, Orbital | $449.70/EA |
| 25 | TN4041961Replaces Tennant 09163 | 4 | Screw, Flt, Soc, M6 X 1.00 X 16, 18-8,Ss | $4.00/EA |
| 26 | TN4023350Replaces Tennant 9015416 | 1 | Driver Kit, Pad, Ci [T500] (Includes Driver Plate, Driver Face, & Red Buffing Pad)Complete assembly. | $331.00/EA |
| 27 | TN4037214Replaces Tennant 1220627 | 1 | Face, Pad DriverPart of Driver Kit, Pad, Ci [T500] (Includes Driver Plate, Driver Face, & Red Buffing Pad) (9015416). | $131.60/EA |
| 28 | TN4039478Replaces Tennant 1212710 | 6 | Screw, Flt, Soc, M6 X 1.00 X 35, 10.9,Nl | $1.50/EA |
| 29 | TN4012756Replaces Tennant 74077 | 4 | Screw, Flt, Soc, M8 X 1.25 X 25, Ss | $4.00/EA |
| 30 | TN4032781Replaces Tennant 1065665 | 1 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

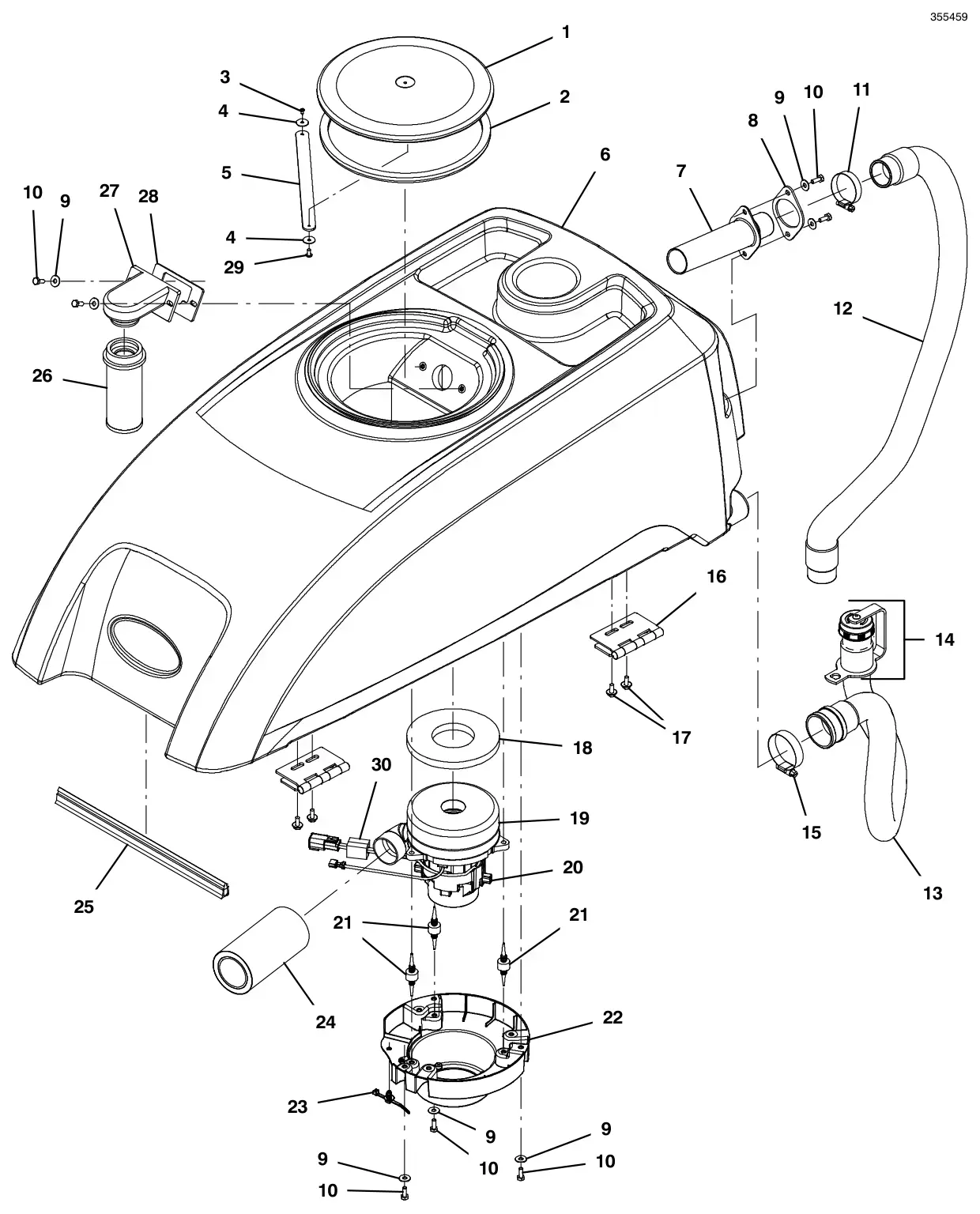

Tennant T500e (S/N 30000000-40000000) Recovery tank group, standard screw cap parts
The parts Tennant numbers on its recovery tank group, standard screw cap drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023967Replaces Tennant 9015754 | 1 | Kit, Cover, Recvy, Ci [Ce,T500e]Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4035522Replaces Tennant 1017959 | 1 | Seal, Bulb, Str, 0.50h .50w 032.0l, AdhPart of Kit, Cover, Recvy, Ci [Ce,T500e] (9015754). | $12.40/EA |
| 3 | TN4032343Replaces Tennant 3701.6 | 1 | Screw, Pan, Phl, 06-32 X 0.38, Shtmtl,Ss | $3.40/EA |
| 4 | TN4039982Replaces Tennant 1009168 | 2 | Washer, Flat, 0.17b 0.75d .04, Ss | $3.40/EA |
| 5 | TN4042322Replaces Tennant 1001005 | 1 | Strap, Retaining, Cover | $5.10/EA |
| 6 | TN4023974Replaces Tennant 9015761 | 1 | Kit, Tank, Recvy, Ci [T500e] | $1,298.00/EA |
| 7 | TN4036632Replaces Tennant 1021214 | 1 | Tube, Hose, Adapter, 1.5d [T5] | $9.90/EA |
| 8 | TN4033830Replaces Tennant 1024602 | 1 | Gasket, Neo, .13, 1.97id, 2/3.2bc, Adh | $3.50/EA |
| 9 | TN4042901Replaces Tennant 01684 | 7 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 10 | TN4043365Replaces Tennant 11329 | 7 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 11 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 12 | TN4038916Replaces Tennant 1211220 | 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc] (Black - Standard) | $30.10/EA |
| 12 | TN121220Replaces Tennant 1224414 | 1 | Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray - Option) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4031082Manual prints Tennant 1228252 | 1 | Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black - Standard) (Replaced by 1248221 - Pinch Cuff Screw Cap Style)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2020); Number from Tennant's current parts catalog. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | $85.90/EA |
| 14 | TN4036892Replaces Tennant 1218955 | 1 | Cap, Drain Assy [Black]Complete assembly. Part of Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black - Standard) (1228252). | $8.60/EA |
| – | TN4039938Replaces Tennant 1008637 | 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Black] (1218955). | $12.10/EA |
| 13 | TN4032276Replaces Tennant 1228242 | 1 | Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray - Option) (No Longer Available - Replaced by 1247144)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4036917Replaces Tennant 1219134 | 1 | Cap, Drain Assy [Gray]Complete assembly. Part of Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray - Option) (No Longer Available - Replaced by 4032276) (1228242). | $8.60/EA |
| – | TN4039938Replaces Tennant 1008637 | 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Gray] (1219134). | $12.10/EA |
| 15 | TN4037088Replaces Tennant 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50w | $4.20/EA |
| 16 | TN4040520Replaces Tennant 1217669 | 1 | Hinge Assy, 7.0 Pin, 11 Ga, 100l X 105w | $15.20/EA |
| 17 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 18 | TN4042297Replaces Tennant 100038 | 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm] | $10.00/EA |
| 19 | TN4036930Replaces Tennant 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 Stage (Australia Also Requires Qty 1 Ferrite #1065665)Complete assembly. | $388.30/EA |
| 20 | TN8004151Replaces Tennant 372883 | 1 | Vr, Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). | $37.30/EA |
| 21 | TN4034906Replaces Tennant 1062016 | 3 | Isolator, Vib, .75d | $4.20/EA |
| 22 | TN4041450Replaces Tennant 1207368 | 1 | Mount, Vacfan, 5.7/6.6 | $17.90/EA |
| 23 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 24 | TN4030068Replaces Tennant 1068577 | 1 | Muffler, Exhaust, Vacfan, 150mml [T2/T3] | $29.80/EA |
| 25 | TN4032816Replaces Tennant 1066431 | 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap] | $16.70/EA |
| 26 | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75d | $76.00/EA |
| 27 | TN4020486Replaces Tennant 630053 | 1 | Mount, Cage, Float [20.0 Scrubber] | $21.30/EA |
| 28 | TN4020730Replaces Tennant 630255 | 1 | Gasket, Float, Mount | $5.40/EA |
| 29 | TN4026071Replaces Tennant 606915 | 1 | Screw, Pan, Phl, 10-16 X 0.38, Tcut, Ss | $4.00/EA |
| 30 | TN4032781Replaces Tennant 1065665 | 1 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

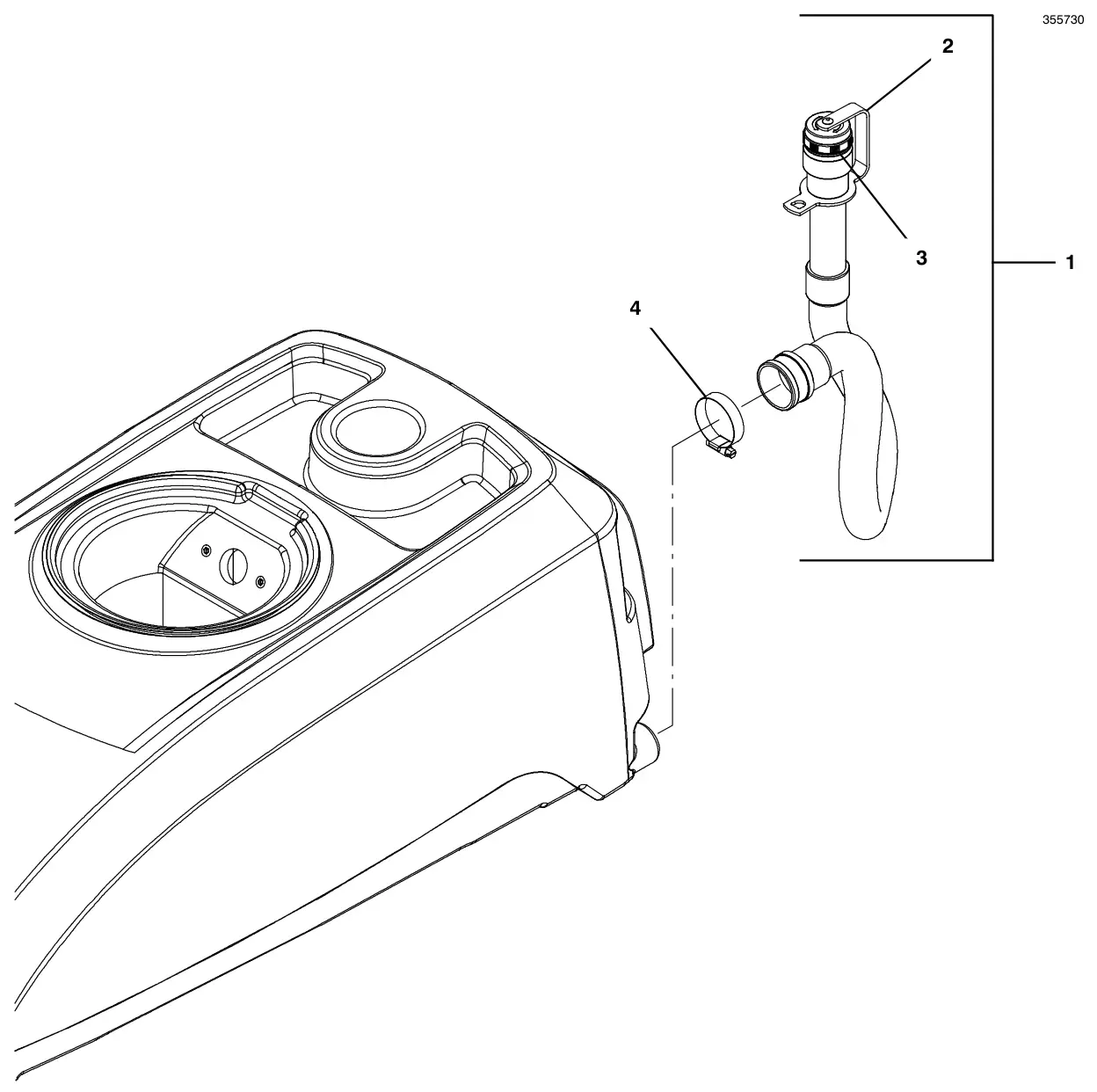

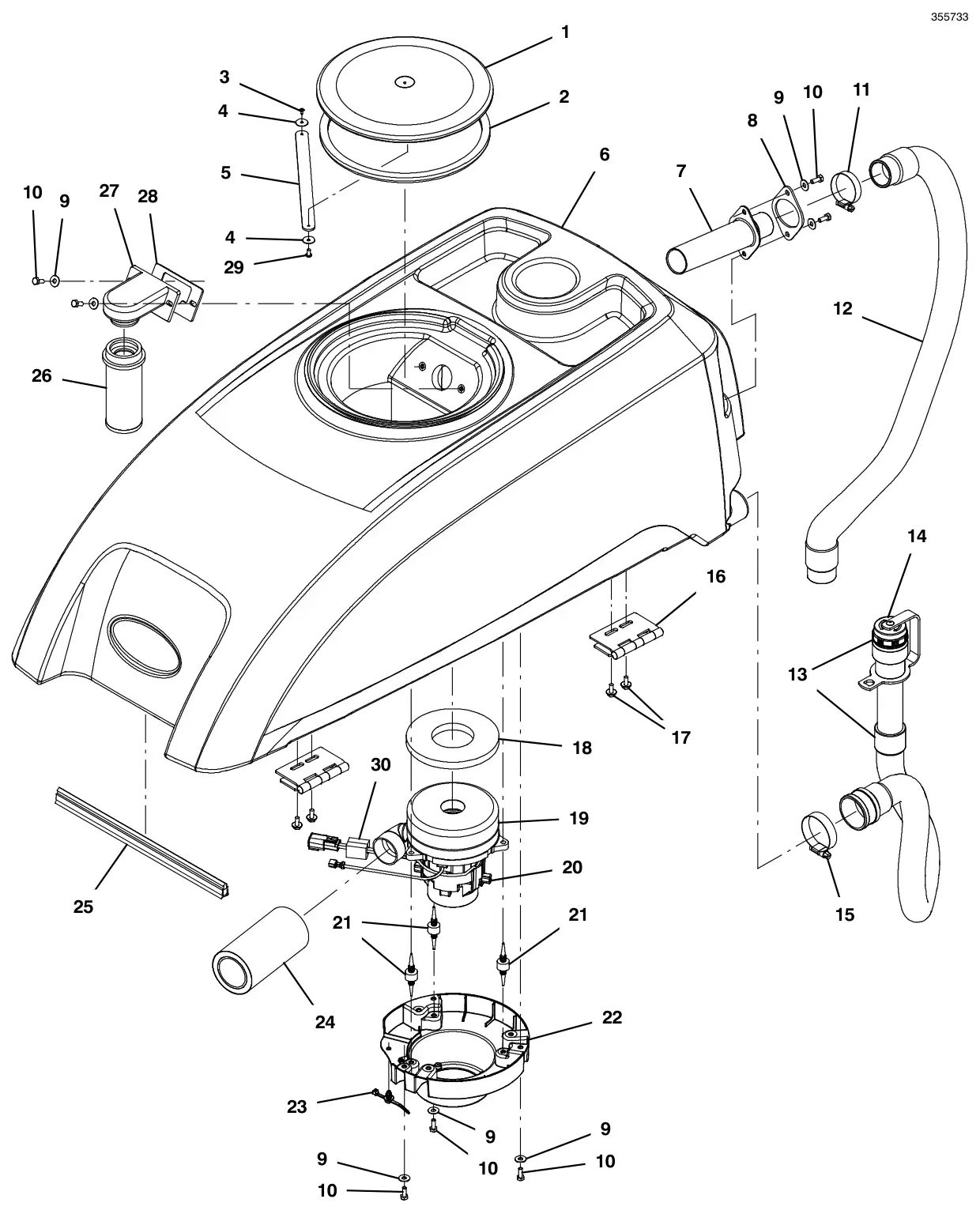

Tennant T500e (S/N 30000000-40000000) Recovery tank group, pinch cuff screw cap parts
The parts Tennant numbers on its recovery tank group, pinch cuff screw cap drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023967Replaces Tennant 9015754 | 1 | Kit, Cover, Recvy, Ci [Ce,T500e]Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4035522Replaces Tennant 1017959 | 1 | Seal, Bulb, Str, 0.50h .50w 032.0l, AdhPart of Kit, Cover, Recvy, Ci [Ce,T500e] (9015754). | $12.40/EA |
| 3 | TN4032343Replaces Tennant 3701.6 | 1 | Screw, Pan, Phl, 06-32 X 0.38, Shtmtl,Ss | $3.40/EA |
| 4 | TN4039982Replaces Tennant 1009168 | 2 | Washer, Flat, 0.17b 0.75d .04, Ss | $3.40/EA |
| 5 | TN4042322Replaces Tennant 1001005 | 1 | Strap, Retaining, Cover | $5.10/EA |
| 6 | TN4023974Replaces Tennant 9015761 | 1 | Kit, Tank, Recvy, Ci [T500e] | $1,298.00/EA |
| 7 | TN4036632Replaces Tennant 1021214 | 1 | Tube, Hose, Adapter, 1.5d [T5] | $9.90/EA |
| 8 | TN4033830Replaces Tennant 1024602 | 1 | Gasket, Neo, .13, 1.97id, 2/3.2bc, Adh | $3.50/EA |
| 9 | TN4042901Replaces Tennant 01684 | 7 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 10 | TN4043365Replaces Tennant 11329 | 7 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 11 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 12 | TN121220Replaces Tennant 1224414 | 1 | Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray - Option) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4032276Tennant 4032276 | 1 | Hose Assy, Drain, 1.5id X 18.1l [Pu] (Gray - Option)Complete assembly. Tennant prints the serial range as (JUL2022- ). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4036917 | 1 | Cap, Drain Assy [Gray]Complete assembly. Part of Hose Assy, Drain, 1.5id X 18.1l [Pu] (Gray - Option) (4032276). | $8.60/EA |
| – | TN4039938 | 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Gray] (4036917). | $12.10/EA |
| 13 | TN4032276Replaces Tennant 1247144 | 1 | Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray - Option) (Replaced By 4032276)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2022). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4036917Replaces Tennant 1219134 | 1 | Cap, Drain Assy [Gray]Complete assembly. Part of Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray - Option) (Replaced By 4032276) (1247144). | $8.60/EA |
| – | TN4039938Replaces Tennant 1008637 | 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy [Gray] (1219134). | $12.10/EA |
| 15 | TN4037088Replaces Tennant 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50w | $4.20/EA |
| 16 | TN4040520Replaces Tennant 1217669 | 1 | Hinge Assy, 7.0 Pin, 11 Ga, 100l X 105w | $15.20/EA |
| 17 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 18 | TN4042297Replaces Tennant 100038 | 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm] | $10.00/EA |
| 19 | TN4036930Replaces Tennant 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 Stage (Australia Also Requires Qty 1 Ferrite #1065665)Complete assembly. | $388.30/EA |
| 20 | TN8004151Replaces Tennant 372883 | 1 | Vr, Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). | $37.30/EA |
| 21 | TN4034906Replaces Tennant 1062016 | 3 | Isolator, Vib, .75d | $4.20/EA |
| 22 | TN4041450Replaces Tennant 1207368 | 1 | Mount, Vacfan, 5.7/6.6 | $17.90/EA |
| 23 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 24 | TN4030068Replaces Tennant 1068577 | 1 | Muffler, Exhaust, Vacfan, 150mml [T2/T3] | $29.80/EA |
| 25 | TN4032816Replaces Tennant 1066431 | 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap] | $16.70/EA |
| 26 | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75d | $76.00/EA |
| 27 | TN4020486Replaces Tennant 630053 | 1 | Mount, Cage, Float [20.0 Scrubber] | $21.30/EA |
| 28 | TN4020730Replaces Tennant 630255 | 1 | Gasket, Float, Mount | $5.40/EA |
| 29 | TN4026071Replaces Tennant 606915 | 1 | Screw, Pan, Phl, 10-16 X 0.38, Tcut, Ss | $4.00/EA |
| 30 | TN4032781Replaces Tennant 1065665 | 1 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

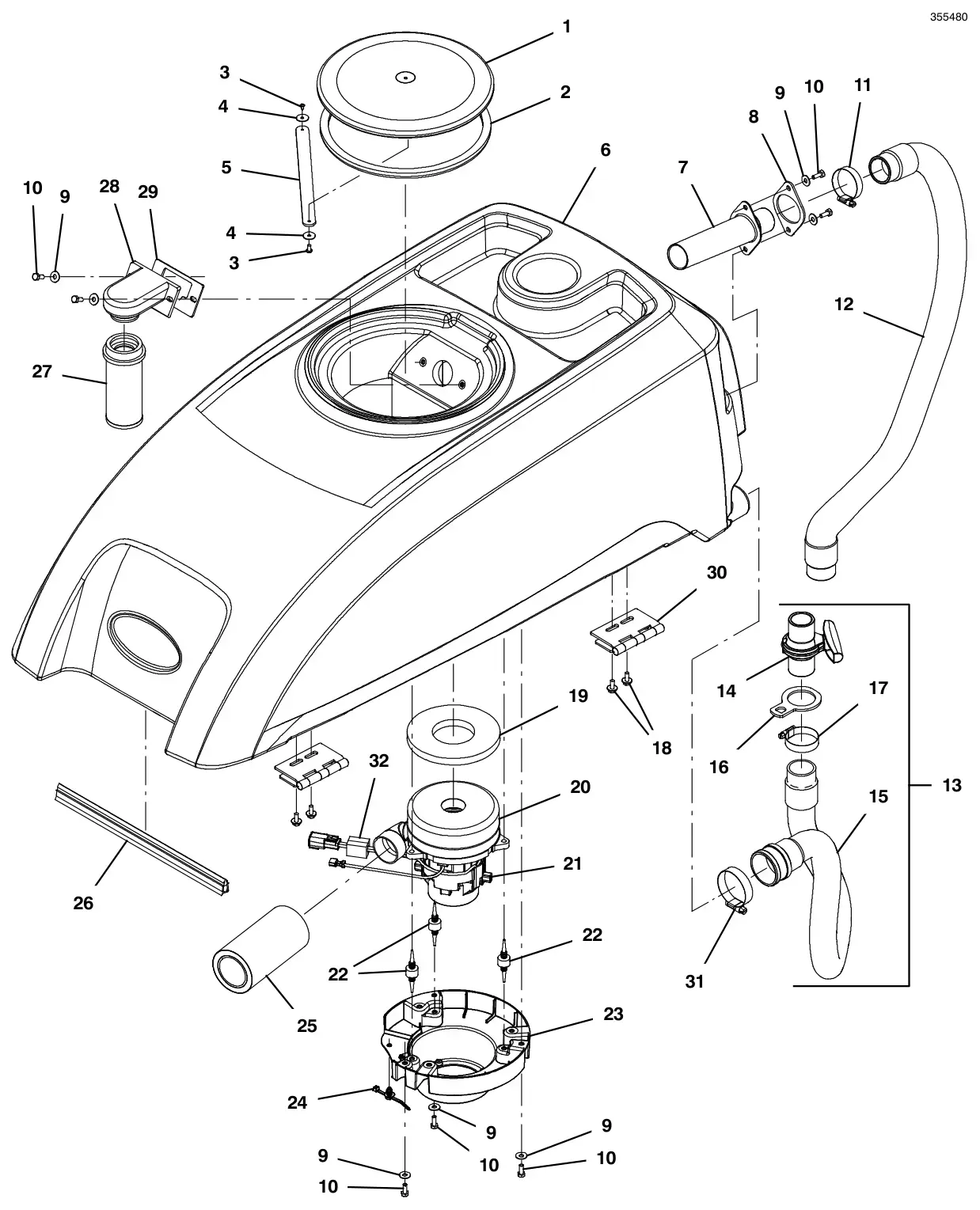

Tennant T500e (S/N 30000000-40000000) Recovery tank group, control valve (Japan) parts
The parts Tennant numbers on its recovery tank group, control valve (japan) drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023968Replaces Tennant 9015755 | 1 | Kit, Cover, Recvy, Ci [Jp,T500e]Complete assembly. Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4035522Replaces Tennant 1017959 | 1 | Seal, Bulb, Str, 0.50h .50w 032.0l, AdhPart of Kit, Cover, Recvy, Ci [Jp,T500e] (9015755). | $12.40/EA |
| 3 | TN4032343Replaces Tennant 3701.6 | 2 | Screw, Pan, Phl, 06-32 X 0.38, Shtmtl,Ss | $3.40/EA |
| 4 | TN4039982Replaces Tennant 1009168 | 2 | Washer, Flat, 0.17b 0.75d .04, Ss | $3.40/EA |
| 5 | TN4042322Replaces Tennant 1001005 | 1 | Strap, Retaining, Cover | $5.10/EA |
| 6 | TN4023974Replaces Tennant 9015761 | 1 | Kit, Tank, Recvy, Ci [T500e] | $1,298.00/EA |
| 7 | TN4036632Replaces Tennant 1021214 | 1 | Tube, Hose, Adapter, 1.5d [T5] | $9.90/EA |
| 8 | TN4033830Replaces Tennant 1024602 | 1 | Gasket, Neo, .13, 1.97id, 2/3.2bc, Adh | $3.50/EA |
| 9 | TN4042901Replaces Tennant 01684 | 7 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 10 | TN4043365Replaces Tennant 11329 | 7 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 11 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 12 | TN121220Replaces Tennant 1224414 | 1 | Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4031082Replaces Tennant 9015727 | 1 | Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 4032276)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | $85.90/EA |
| 14 | TN4020670Manual prints Tennant 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/Handle (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 4032276)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx); Number from Tennant's current parts catalog. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN4034990Replaces Tennant 1228335 | Hose Assy, W/2cuff,1.5d 022l 2.0/1.5[Pu] (Gray) (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 4032276)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 16 | TN4035291Replaces Tennant 1229567 | 1 | Strap, HangerPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). | $5.76/EA |
| 17 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). | $5.30/EA |
| 18 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 19 | TN4042297Replaces Tennant 100038 | 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm] | $10.00/EA |
| 20 | TN4036930Replaces Tennant 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 Stage (Australia Also Require Ferrite)Complete assembly. | $388.30/EA |
| 21 | TN8004151Replaces Tennant 372883 | 1 | Vr, Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). | $37.30/EA |
| 22 | TN4034906Replaces Tennant 1062016 | 3 | Isolator, Vib, .75d | $4.20/EA |
| 23 | TN4041450Replaces Tennant 1207368 | 1 | Mount, Vacfan, 5.7/6.6 | $17.90/EA |
| 24 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 25 | TN4030068Replaces Tennant 1068577 | 1 | Muffler, Exhaust, Vacfan, 150mml [T2/T3] | $29.80/EA |
| 26 | TN4032816Replaces Tennant 1066431 | 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap] | $16.70/EA |
| 27 | TN4020485Replaces Tennant 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75d | $76.00/EA |
| 28 | TN4020486Replaces Tennant 630053 | 1 | Mount, Cage, Float [20.0 Scrubber] | $21.30/EA |
| 29 | TN4020730Replaces Tennant 630255 | 1 | Gasket, Float, Mount | $5.40/EA |
| 30 | TN4040520Replaces Tennant 1217669 | 1 | Hinge Assy, 7.0 Pin, 11 Ga, 100l X 105w | $15.20/EA |
| 31 | TN4037088Replaces Tennant 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50w | $4.20/EA |
| 32 | TN4032781Replaces Tennant 1065665 | 1 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |

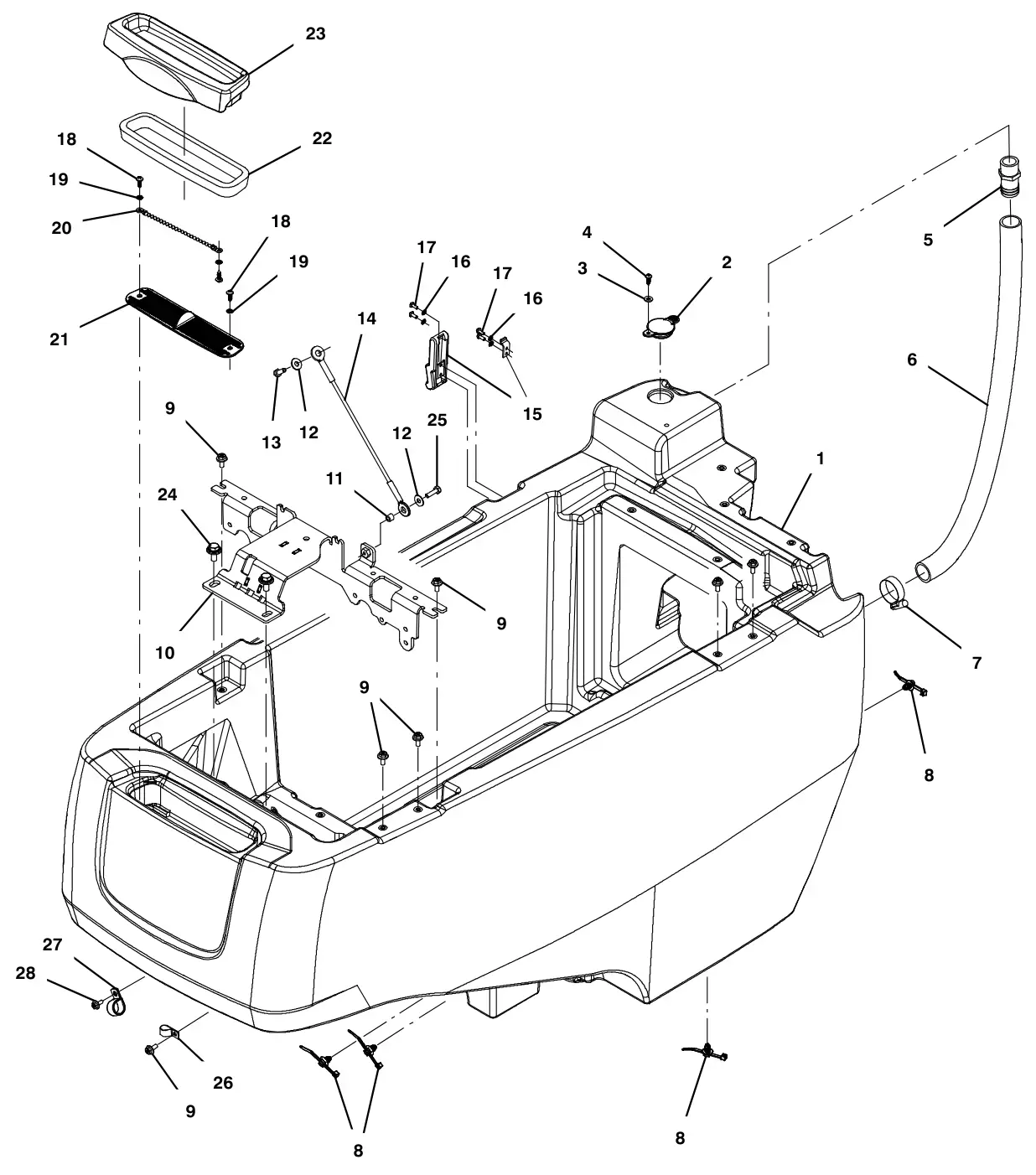

Tennant T500e (S/N 30000000-40000000) Solution tank group parts
The parts Tennant numbers on its solution tank group drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037856Replaces Tennant 1223932 | 1 | Tank, Solution, Trimmed [T500e] | $1,355.32/EA |
| 2 | TN4037289Replaces Tennant 1012965 | 1 | Cap, Port, Soltn Fill | $4.00/EA |
| 3 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, Ss | $2.60/EA |
| 4 | TN4035537Replaces Tennant 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,Ss | $2.50/EA |
| 5 | TN4044464Replaces Tennant 1041082 | 1 | Fitting, Plstc, Str, Bm16/Pm12 | $4.20/EA |
| 6 | TN4023951Replaces Tennant 9015728 | 1 | Hose Kit, Drain, Soln, Ci [T500/T500e] | $46.30/EA |
| 7 | TN4043367Replaces Tennant 11399 | 1 | Clamp, Hose, Wormdrive, 0.81-1.50d, .50w | $5.10/EA |
| 8 | TN4038889Replaces Tennant 1210807 | 4 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 9 | TN4045268Replaces Tennant 1034731 | 7 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 10 | TN4037237Replaces Tennant 1221012 | 1 | Bracket Wldt, Actuator | $114.90/EA |
| 11 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, Pl | $4.10/EA |
| 12 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 13 | TN4043365Replaces Tennant 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 14 | TN4037467Replaces Tennant 1221803 | 1 | Cable, Glv .13d 10.5l .38eye /.38eye | $16.60/EA |
| 15 | TN4041442Replaces Tennant 1207285 | 1 | Latch, Draw, Rbr, W/ Keeper, Yellow | $19.50/EA |
| 16 | TN4043241Replaces Tennant 02938 | 4 | Washer, Lock, Int, 08, Ss | $2.60/EA |
| 17 | TN4014173Replaces Tennant 49697 | 4 | Screw, Pan, Phl, M4 X 0.70 X 10, Ss | $3.40/EA |
| 18 | TN4035537Replaces Tennant 1018155 | 3 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,Ss | $2.50/EA |
| 19 | TN4041589Replaces Tennant 07514 | 3 | Washer, Lock, Int, 10, Ss | $3.50/EA |
| 20 | TN4020247Replaces Tennant 621443 | 1 | Chain, Ball, 10, 0157mml, Ss | $4.40/EA |
| 21 | TN4036999Replaces Tennant 1219917 | 1 | Screen, Fltr, 2.0 X 8.7 | $4.40/EA |
| 22 | TN4023971Replaces Tennant 9015758 | 1 | Seal, Tank, Soltn, Ci [T500/T500e] | $37.00/EA |
| 23 | TN4023988Replaces Tennant 9015788 | 1 | Kit, Cover, Fill [T500/T500e Ce] | $162.40/EA |
| 23 | TN4023989Replaces Tennant 9015789 | 1 | Kit, Cover, Fill [T500/T500e Ce][Ech2o] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN4040536Replaces Tennant 1218043 | 1 | Cover, Fill, Front (Japan Non ec-H2O Models) | $28.00/EA |
| 23 | TN4023972Replaces Tennant 9015759 | 1 | Kit, Cover, Fill [T500/T500e] (Japan ec-H2O Models) | $78.50/EA |
| 24 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 25 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, Ss | $3.30/EA |
| 26 | TN4043845Replaces Tennant 140300 | 1 | Clamp, Cable, Stl, 0.50d [Insulated] | $4.20/EA |
| 27 | TN4016765Replaces Tennant 40678-1 | 1 | Clamp, Cable, Stl, 0.88d X 0.62w, 1hole (Non ABW Models) | $4.20/EA |
| 28 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss (Non ABW Models) | $3.30/EA |
Tennant T500e (S/N 30000000-40000000) Standard electrical group parts
The parts Tennant numbers on its standard electrical group drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037868Replaces Tennant 1224001 | 1 | Bracket Wldt, Mtg, Ele [T500e] | $93.12/EA |
| 2 | TN4043840Replaces Tennant 140262 | 4 | Clip, Snap-In | $4.20/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 4 | TN4032813Replaces Tennant 1066409 | 1 | Relay, 24vdc, 150a, No [Trombetta] | $46.60/EA |
| 5 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 6 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 7 | TN4044571Replaces Tennant 1073600 | 2 | Screw, Pan, M4 X 0.7 X 25, Fmg | $1.50/EA |
| 8 | TN4023980Replaces Tennant 9015776 | 1 | Drive Module Kit, CiRequires Tennant True service or an authorized Tennant service provider. | $397.40/EA |
| 9 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 10 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, Ss | $2.60/EA |
| 11 | TN4034996Replaces Tennant 1228510 | 1 | Relay, 24vdc, 80a, Spst No, Plug-In | $19.90/EA |
| 12 | TN4016814Replaces Tennant 41361 | 1 | Nut, Hex, Std, M8 X 1.25, Brs | $3.40/EA |
| 13 | TN4042096Replaces Tennant 1209373 | 2 | Washer, Flat, M8.4b X 16d X 1.6, Brs | $2.60/EA |
| 14 | TN4017399Replaces Tennant 43952 | 4 | Washer, Lock, Int, 0.31, Ss | $2.60/EA |
| 15 | TN4021889Replaces Tennant 607461 | 2 | Screw, Set, M8 X 1.25 X 35, Nl | $4.00/EA |
| 16 | TN4041084Replaces Tennant 1205345 | 2 | Stand-Off, Wir, M8, Insulator, Panel | $13.00/EA |
| 17 | TN4030889Replaces Tennant 1071996 | 1 | Switch, Push, Snap Action, 25a | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 19 | TN4036243Replaces Tennant 1020174 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 03ft | $66.70/EA |
| 20 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 21 | TN4022275Replaces Tennant 386868 | 2 | Screw, Hex, M8 X 1.25 X 12, Ss | $3.40/EA |
| 22 | TN4036902Replaces Tennant 1219045 | 1 | Gasket, Cover, Circuitboard | $52.60/EA |
| 23 | TN4014151Replaces Tennant 49309 | 2 | Relay, 24vdc, 015a, Spdt No | $28.80/EA |
| 24 | TN4041846Replaces Tennant 16944 | 2 | Screw, Hex, M4 X 0.70 X 10, Fmg | $3.20/EA |
Tennant T500e (S/N 30000000-40000000) Frame and drive group (S/N 30182936 and later) parts
The parts Tennant numbers on its frame and drive group (s/n 30182936 and later) drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032257 | 1 | Frame Wldt, Front [T500]Serial 30158425 and later. Tennant's online parts catalog gives this part different serial numbers (30158425 to 40000000). Call 800-440-6723 to confirm before ordering. | $188.10/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 13 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 3 | TN4038889Replaces Tennant 1210807 | 6 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 4 | TN4042902 | 13 | Washer, Flat, 0.38b 0.88d .08, SsSerial 30182936 and later. | $2.60/EA |
| 5 | TN4041929Replaces Tennant 08713 | 9 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 6 | TN4015658Replaces Tennant 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0l | $25.90/EA |
| 7 | TN4032659 | 1 | Frame Wldt, Rear [T500]Serial 30182936 and later. | $201.09/EA |
| 8 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01ft | $44.40/EA |
| 9 | TN4039272Replaces Tennant 1212422 | 2 | Caster, Swivel [Wicke 224051] | $75.60/EA |
| 10 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, Ss | $5.80/EA |
| 11 | TN4043786Replaces Tennant 140058 | 2 | Washer, Flat, 0.54b 0.88d .06, Ss [Wand] | $4.00/EA |
| 12 | TN4037832Replaces Tennant 4039916 | 2 | Wheel, Scrbr, 8.00d, W/ Taper [Hi Trac]Serial 30158425 and later. | $153.10/EA |
| 13 | TN4025399Replaces Tennant 606001 | 2 | Bracket, Mtg, Transaxle, Pl [1510, T5] | $38.30/EA |
| 14 | TN4032671Replaces Tennant 1220970 | 1 | Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671)Complete assembly. Serial 30000000 to 30204142. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023456Replaces Tennant 612874 | 1 | Coupling, Transaxle, ReplmtPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). Serial 30000000 to 30204142. | $9.90/EA |
| – | TN4023690Replaces Tennant 612880 | 1 | Joint, Transaxle, ReplmtPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). Serial 30000000 to 30204142. | $10.60/EA |
| 15 | TN4032671Replaces Tennant 1031723 | 1 | Motor, Transaxle, 24vdc, Afmkt [T5] (Replaced By 4032671)Complete assembly. Part of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). Serial 30000000 to 30204142. | $749.02/EA |
| 16 | TN4019997Replaces Tennant 614166 | 1 | Brush Kit, Carbon, Transaxle, Replmt [4]Part of Motor, Transaxle, 24vdc, Afmkt [T5] (1031723). Serial 30000000 to 30204142. | $65.70/EA |
| 17 | TN4036547Replaces Tennant 1021167 | 2 | Key, Woodruff, 5mmPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). | $3.60/EA |
| 18 | TN4016551Replaces Tennant 39890 | 1 | Washer, Flat, M8, Fendr | $4.10/EA |
| 19 | TN4030961 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 30182936 and later. | $2.50/EA |
| 20 | TN4032426 | 1 | Bracket, Spanning Vert [T500]Serial 30182936 and later. | $36.66/EA |
| 21 | TN4044306 | 4 | Nut, Hex, Flng, M6 X 1.0, Ss [Serrated]Serial 30182936 and later. | $2.50/EA |
| 22 | TN4032427 | 1 | Bracket, Spanning Angle [T500]Serial 30182936 and later. | $34.14/EA |
| 23 | TN4032445 | 1 | Plate, Bracket, SpanningSerial 30182936 and later. | $26.16/EA |
| 24 | TN4042901 | 5 | Washer, Flat, 0.27b 0.69d .05, SsSerial 30182936 and later. | $2.60/EA |
| 25 | TN4041931 | 2 | Screw, Hex, M6 X 1.00 X 20, SsSerial 30182936 and later. | $3.20/EA |
| 26 | TN4041929 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 30182936 and later. | $3.30/EA |
| 27 | TN4032231 | 1 | Bracket, Spanning [T500]Serial 30182936 and later. | $40.91/EA |
| 28 | TN4041943 | 1 | Screw, Hex, M8 X 1.25 X 25, SsSerial 30182936 and later. | $3.30/EA |
| 29 | TN4041931 | 2 | Screw, Hex, M6 X 1.00 X 20, SsSerial 30182936 and later. | $3.20/EA |
| 30 | TN4032671 | 1 | Transaxle, Ele, 24vdc, 110rpmComplete assembly. Serial 30204143 and later. | $749.02/EA |
| 31 | TN4032672Tennant 4032672 | 1 | Brush Set, TransaxlePart of Transaxle, Ele, 24vdc, 110rpm (4032671). Serial 30204143 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | TN4036547 | 2 | Key, Woodruff, 5mmPart of Transaxle, Ele, 24vdc, 110rpm (4032671). | $3.60/EA |
Tennant T500e (S/N 30000000-40000000) Frame and drive group (S/N 30000000 - 30182935) (note: solution tank support bracket upgrade kit available, pages 108-109) parts
The parts Tennant numbers on its frame and drive group (s/n 30000000 - 30182935) (note: solution tank support bracket upgrade kit available, pages 108-109) drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032257 | 1 | Frame Wldt, Front [T500]Serial 30158425 to 30182195. Tennant's online parts catalog gives this part different serial numbers (30158425 to 40000000). Call 800-440-6723 to confirm before ordering. | $188.10/EA |
| 1 | TN4036915Replaces Tennant 1219118 | 1 | Frame Wldt, Front [T500]Serial 30000000 to 30158424. | $397.60/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 13 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 3 | TN4038889Replaces Tennant 1210807 | 6 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 4 | TN4042902Replaces Tennant 01685 | 9 | Washer, Flat, 0.38b 0.88d .08, SsSerial 30000000 to 30182935. | $2.60/EA |
| 5 | TN4041929Replaces Tennant 08713 | 9 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 6 | TN4015658Replaces Tennant 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0l | $25.90/EA |
| 7 | TN4036919Replaces Tennant 1219137 | 1 | Frame Wldt, Rear [T500]Serial 30000000 to 30182935. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | $296.20/EA |
| 8 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01ft | $44.40/EA |
| 9 | TN4039272Replaces Tennant 1212422 | 2 | Caster, Swivel [Wicke 224051] | $75.60/EA |
| 10 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, Ss | $5.80/EA |
| 11 | TN4043786Replaces Tennant 140058 | 2 | Washer, Flat, 0.54b 0.88d .06, Ss [Wand] | $4.00/EA |
| 12 | TN4037832Replaces Tennant 4039916 | 2 | Wheel, Scrbr, 8.00d, W/ Taper [Hi Trac]Serial 30158425 and later. | $153.10/EA |
| 12 | TN4037832Replaces Tennant 1223583 | 2 | Wheel, Scrbr, 213mm, W/ TaperSerial 30000000 to 30158424. | $153.10/EA |
| 13 | TN4025399Replaces Tennant 606001 | 2 | Bracket, Mtg, Transaxle, Pl [1510, T5] | $38.30/EA |
| 14 | TN4032671Replaces Tennant 1220970 | 1 | Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671)Complete assembly. Serial 30000000 to 30204927. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023456Replaces Tennant 612874 | 1 | Coupling, Transaxle, ReplmtPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). Serial 30000000 to 30204927. | $9.90/EA |
| – | TN4023690Replaces Tennant 612880 | 1 | Joint, Transaxle, ReplmtPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). Serial 30000000 to 30204927. | $10.60/EA |
| 15 | TN4032671Replaces Tennant 1031723 | 1 | Motor, Transaxle, 24vdc, Afmkt [T5] (Replaced By 4032671)Complete assembly. Part of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). Serial 30000000 to 30204927. | $749.02/EA |
| 16 | TN4019997Replaces Tennant 614166 | 1 | Brush Kit, Carbon, Transaxle, Replmt [4]Part of Motor, Transaxle, 24vdc, Afmkt [T5] (1031723). Serial 30000000 to 30204927. | $65.70/EA |
| 17 | TN4036547Replaces Tennant 1021167 | 2 | Key, Woodruff, 5mmPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (Replaced By 4032671) (1220970). | $3.60/EA |
| 18 | TN4016551Replaces Tennant 39890 | 1 | Washer, Flat, M8, Fendr | $4.10/EA |
Tennant T500e (S/N 30000000-40000000) Head lift group, disk parts
The parts Tennant numbers on its head lift group, disk drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018103Replaces Tennant 387431 | 2 | Screw, Hex, M8 X 1.25 X 130, Ss | $7.40/EA |
| 2 | TN4034466Replaces Tennant 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, Ss | $4.00/EA |
| 3 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 02.5l | $5.20/EA |
| 4 | TN4037889Replaces Tennant 1224334 | 2 | Sleeve, P/M, 0.51b 0.63d 1.5l, Pl | $2.60/EA |
| 5 | TN4036963Replaces Tennant 1219491 | 2 | Sleeve, 0.40id .50d 4.25l, Ss | $35.10/EA |
| 6 | TN4034135Replaces Tennant 32486 | 2 | Washer, Flat, 0.53b 1.06d .10, Stl, Pl | $2.60/EA |
| 7 | TN4019025Manual prints Tennant 4019026 | 1 | Actuator Kit, Replmt, 24vdc, 7.0 StrkNumber from Tennant's current parts catalog. | $238.87/EA |
| 8 | TN4014137Replaces Tennant 49263 | 5 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 9 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 10 | TN4044109Replaces Tennant 140626 | 1 | Pin, Cotter, Hair, 0.25d .125 Wir | $4.00/EA |
| 11 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37d X 1.50l | $3.90/EA |
| 12 | TN4036997Replaces Tennant 1219912 | 1 | Bracket, Guide, Head[T500] | $23.30/EA |
| 13 | TN4037197Replaces Tennant 1220305 | 1 | Tube, Plstc, 0.51id 0.98od 02.8l | $6.30/EA |
| 14 | TN4037447Replaces Tennant 1221507 | 1 | Pivot Wldt, Head, Scrub [T500] | $85.60/EA |
| 15 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 16 | TN4034951Replaces Tennant 1227530 | 1 | Screw, Leveler, M8x75 | $32.00/EA |
| 17 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od 0.15wir 06.5l | $13.70/EA |
| 18 | TN4025407Replaces Tennant 606056 | 2 | Tube, 0.32id 0.62od 01.0l, Stl, Pl | $6.60/EA |
| 19 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 20 | TN4012778Replaces Tennant 74440 | 2 | Screw, Hex, M8 X 1.25 X 40, Nl, Ss | $4.90/EA |
| 21 | TN4039763Replaces Tennant 222027 | 2 | Arm, Lift, Head | $49.60/EA |
| 22 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair, Cotter, 0.62d .120 Wir | $3.40/EA |
| 23 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62d X 2.12l | $6.80/EA |
| 24 | TN4034466Replaces Tennant 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, Ss | $4.00/EA |
| 25 | TN4021142Replaces Tennant 63185 | 2 | Spring, Cmpr, 0.85od .09wir 02.0l | $5.20/EA |
| 26 | TN4037881Replaces Tennant 1224191 | 1 | Bracket, Spring, Suspension, Head | $45.90/EA |
| 27 | TN4044109Replaces Tennant 140626 | 3 | Pin, Cotter, Hair, 0.25d .125 Wir | $4.00/EA |
| 28 | TN4028887Replaces Tennant 374225 | 2 | Pin, Clevis, 0.50d X 3.75l | $10.10/EA |
| 29 | TN4043171Replaces Tennant 11211 | 1 | Pin, Clevis, 0.50d X 2.25l | $4.00/EA |
| 30 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 31 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 32 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 33 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 34 | TN4037498Replaces Tennant 1222374 | 1 | Frame Wldt, Hardstop [T500] (No Longer Available)Serial 30000000 to 30104854. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 30000000 to 30104854. | $2.60/EA |
| 36 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 30000000 to 30104854. | $3.30/EA |
Tennant T500e (S/N 30000000-40000000) Head lift group, cylindrical parts
The parts Tennant numbers on its head lift group, cylindrical drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018103Replaces Tennant 387431 | 2 | Screw, Hex, M8 X 1.25 X 130, Ss | $7.40/EA |
| 2 | TN4034466Replaces Tennant 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, Ss | $4.00/EA |
| 3 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 02.5l | $5.20/EA |
| 4 | TN4037889Replaces Tennant 1224334 | 2 | Sleeve, P/M, 0.51b 0.63d 1.5l, Pl | $2.60/EA |
| 5 | TN4036963Replaces Tennant 1219491 | 2 | Sleeve, 0.40id .50d 4.25l, Ss | $35.10/EA |
| 6 | TN4034135Replaces Tennant 32486 | 2 | Washer, Flat, 0.53b 1.06d .10, Stl, Pl | $2.60/EA |
| 7 | TN4019025Manual prints Tennant 4019026 | 1 | Actuator Kit, Replmt, 24vdc, 7.0 StrkNumber from Tennant's current parts catalog. | $238.87/EA |
| 8 | TN4014137Replaces Tennant 49263 | 5 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 9 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 10 | TN4044109Replaces Tennant 140626 | 1 | Pin, Cotter, Hair, 0.25d .125 Wir | $4.00/EA |
| 11 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37d X 1.50l | $3.90/EA |
| 12 | TN4036997Replaces Tennant 1219912 | 1 | Bracket, Guide, Head[T500] | $23.30/EA |
| 13 | TN4037586Replaces Tennant 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, Acetal | $9.80/EA |
| 14 | TN4037447Replaces Tennant 1221507 | 1 | Pivot Wldt, Head, Scrub [T500] | $85.60/EA |
| 15 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 16 | TN4034951Replaces Tennant 1227530 | 1 | Screw, Leveler, M8x75 | $32.00/EA |
| 17 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od 0.15wir 06.5l | $13.70/EA |
| 18 | TN4025407Replaces Tennant 606056 | 2 | Tube, 0.32id 0.62od 01.0l, Stl, Pl | $6.60/EA |
| 19 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 20 | TN4012778Replaces Tennant 74440 | 2 | Screw, Hex, M8 X 1.25 X 40, Nl, Ss | $4.90/EA |
| 21 | TN4039763Replaces Tennant 222027 | 2 | Arm, Lift, Head | $49.60/EA |
| 22 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair, Cotter, 0.62d .120 Wir | $3.40/EA |
| 23 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62d X 2.12l | $6.80/EA |
| 24 | TN4034466Replaces Tennant 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, Ss | $4.00/EA |
| 25 | TN4021142Replaces Tennant 63185 | 2 | Spring, Cmpr, 0.85od .09wir 02.0l | $5.20/EA |
| 26 | TN4037881Replaces Tennant 1224191 | 1 | Bracket, Spring, Suspension, Head | $45.90/EA |
| 27 | TN4044109Replaces Tennant 140626 | 3 | Pin, Cotter, Hair, 0.25d .125 Wir | $4.00/EA |
| 28 | TN4028887Replaces Tennant 374225 | 2 | Pin, Clevis, 0.50d X 3.75l | $10.10/EA |
| 29 | TN4043171Replaces Tennant 11211 | 1 | Pin, Clevis, 0.50d X 2.25l | $4.00/EA |
| 30 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 31 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 32 | TN4021969Replaces Tennant 607920 | 2 | Spring, Cmpr, 0.70od .10wir 01.0l, Mw | $4.10/EA |
| 33 | TN4043779Replaces Tennant 140045 | 4 | Washer, Flat, 0.51b 1.25d .06, Ss | $4.00/EA |
| 34 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 35 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
Tennant T500e (S/N 30000000-40000000) Head lift group, orbital parts
The parts Tennant numbers on its head lift group, orbital drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019025Manual prints Tennant 4019026 | 1 | Actuator Kit, Replmt, 24vdc, 7.0 StrkNumber from Tennant's current parts catalog. | $238.87/EA |
| 2 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37d X 1.50l | $3.90/EA |
| 3 | TN4044109Replaces Tennant 140626 | 1 | Pin, Cotter, Hair, 0.25d .125 Wir | $4.00/EA |
| 4 | TN4038460Replaces Tennant 1226754 | 1 | Pin, Clevis, .50d X 7.00l | $29.30/EA |
| 5 | TN4038461Replaces Tennant 1226759 | 1 | Spacer, .500 Id X .875 Od | $12.90/EA |
| 6 | TN4037882Replaces Tennant 1224233 | 2 | Pin, Guide, Spring, Head | $6.10/EA |
| 7 | TN4037581Replaces Tennant 1013936 | 1 | Washer, Flat, 0.51b 0.94d .10, Nyl | $3.40/EA |
| 8 | TN4038445Replaces Tennant 1226640 | 1 | Spring, Wave, .512 Id X .709 Od X .375 | $19.60/EA |
| 9 | TN4034135Replaces Tennant 32486 | 1 | Washer, Flat, 0.53b 1.06d .10, Stl, Pl | $2.60/EA |
| 10 | TN4038269Replaces Tennant 1225960 | 2 | Washer, Thrust, 0.89b 1.50d 0.13w, Bnz | $3.60/EA |
| 11 | TN4038487Replaces Tennant 1227036 | 2 | Spring, Cmpr, 1.10od .085wir 03.0l | $6.80/EA |
| 12 | TN4033989Replaces Tennant 1059990 | 3 | Sleeve, Flng, 0.32b 1.00/0.50d 0.6l, Ss | $3.60/EA |
| 13 | TN4022362Replaces Tennant 608562 | 6 | Washer, Flat, 0.51b 0.94d .06, Nyl | $3.50/EA |
| 14 | TN4020538Replaces Tennant 630188 | 3 | Bearing, Journal, .50id X .25l | $9.90/EA |
| 15 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 16 | TN4012778Replaces Tennant 74440 | 2 | Screw, Hex, M8 X 1.25 X 40, Nl, Ss | $4.90/EA |
| 17 | TN4035127Replaces Tennant 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, Ss | $3.40/EA |
| 18 | TN4039461Replaces Tennant 1212543 | 2 | Isolator, Neoprene, 1.25” X 1.25”, M8 | $15.10/EA |
| 19 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 20 | TN4037886Replaces Tennant 1224295 | 1 | Brkt Wldt, Lift | $24.53/EA |
| 21 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 22 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 23 | TN4031248Replaces Tennant 33933 | 6 | Screw, Pan, Phl, M3 X 0.50 X 25, Ss | $3.40/EA |
| 24 | TN4040158Replaces Tennant 1215716 | 2 | Switch, 0.1a, Spdt[Micro, Gold Contacts] | $11.60/EA |
| 25 | TN4037558Replaces Tennant 1013705 | 2 | Plate, Thread, Switch, M3 Nut, 96hr Pl | $33.10/EA |
| 26 | TN4037244Replaces Tennant 1221043 | 1 | Arm Wldt, Lift | $147.80/EA |
| 27 | TN4014137Replaces Tennant 49263 | 5 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 28 | TN4038430Replaces Tennant 1225990 | 1 | Bracket Wldt, Mount, Actuator[T500e] | $55.76/EA |
| 29 | TN4042834Replaces Tennant 1076557 | 1 | Harness, Ele [Adaptor, Delphi, 4pos.]Tennant prints the serial range as (xxxxxxxx- ). | $66.00/EA |
Tennant T500e (S/N 30000000-40000000) Lower console group, on-board charger parts
The parts Tennant numbers on its lower console group, on-board charger drawing. Manual pages 50, list 51.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038168Replaces Tennant 1225401 | 1 | Bracket, Cover, Charger | $53.60/EA |
| 2 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 3 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 4 | TN4042042Replaces Tennant 1208816 | 1 | Circuitbreaker, 04.0a, Resetable (Key Switch) | $8.70/EA |
| 5 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 6 | TN4032587Replaces Tennant 1064187 | 1 | Circuitbreaker, 10.0a, Resetable (Actuator) | $5.30/EA |
| 7 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 8 | TN4032589Replaces Tennant 1064189 | 1 | Circuitbreaker, 20.0a, Resetable (Vacuum Fan) | $5.30/EA |
| 9 | TN4041143Replaces Tennant 1205799 | 5 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 10 | TN4041094Replaces Tennant 1205496 | 2 | Hook, Cord | $2.80/EA |
| 11 | TN4031447Manual prints Tennant 1250046 | 1 | Charger, 24vdc 25a 100-240vac [On-Board]Complete assembly. Number from Tennant's current parts catalog. | $591.10/EA |
| 12 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc 25a 100-240vac [On-Board] (1250046). | $20.60/EA |
| 13 | TN4034198Replaces Tennant 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us] | $49.60/EA |
| 13 | TN4034246Replaces Tennant 1026330 | 1 | Cord, Power, 1.0mm2 [2.5meter] (China) | $31.00/EA |
| 13 | TN4034245Replaces Tennant 1026325 | 1 | Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus] | $31.00/EA |
| 13 | TN4039700Replaces Tennant 1048304 | 1 | Cord, Power [4.5meter, India, S.Africa] | $39.00/EA |
| 14 | TN4044189Replaces Tennant 1202868 | 2 | Clip, Tie, 0.25d, Plstc | $1.52/EA |
| 15 | TN4038097Replaces Tennant 1225019 | 1 | Bracket Wldt, Charger | $101.81/EA |
| 16 | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft | $6.70/EA |
| 17 | TN4037931Replaces Tennant 1014668 | 2 | Bushing, Sleeve, 8mmb 12mmd 6mml | $4.20/EA |
| 18 | TN4022845Replaces Tennant 611311 | 1 | Spring, Cmpr, 0.40od .05wir 00.5l, Pl,MwTennant prints the serial range as (AUG2020- ). | $3.50/EA |
| 18 | TN4022845Replaces Tennant 611311 | 2 | Spring, Cmpr, 0.40od .05wir 00.5l, Pl,MwSerial 30000000 and later. Tennant prints the serial range as (30000000- JUL2020). | $3.50/EA |
| 19 | TN4033857Replaces Tennant 1024965 | 1 | Bolt, Shld, 08mmd X 030mm, M06 X 1.0Tennant prints the serial range as (AUG2020- ). | $7.60/EA |
| 19 | TN4033857Replaces Tennant 1024965 | 2 | Bolt, Shld, 08mmd X 030mm, M06 X 1.0Serial 30000000 and later. Tennant prints the serial range as (30000000- JUL2020). | $7.60/EA |
| 20 | TN4023158Replaces Tennant 383729 | 1 | Circuitbreaker, 60.0a (I-Drive) | $26.80/EA |
| 21 | TN4023153Replaces Tennant 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Left Scrub Motor) | $15.40/EA |
| 22 | TN4023153Replaces Tennant 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Right Scrub Motor) | $15.40/EA |
| 23 | TN4035687Replaces Tennant 26395-2 | 1 | Clamp, Cable, Stl, 0.38d X 0.38w, 1hole | $4.20/EA |
| 24 | TN4043840Replaces Tennant 140262 | 1 | Clip, Snap-In | $4.20/EA |
| 25 | TN4033947Replaces Tennant 1059534 | 1 | Fastener, 09.00l [Hook & Loop] | $6.00/EA |
| 26 | TN4037901Replaces Tennant 1224589 | 1 | Bracket, Cover, Charger Cables | $56.80/EA |
| 27 | TN4031074Replaces Tennant 1248098 | 1 | Screw, Btn, Flng, M6 X 1.0 X 30, 10.9Tennant prints the serial range as (AUG2020- ). | $1.10/EA |
| 28 | TN4044587Replaces Tennant 1073634 | 1 | Harness, Chrgr, 12ga [M8 Ring/M8 Ring]Complete assembly. | $49.00/EA |
| 29 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Harness, Chrgr, 12ga [M8 Ring/M8 Ring] (1073634). | $20.60/EA |
| 30 | TN4036717Replaces Tennant 1058340 | 1 | Plug, Hole, Rnd, 0.63h 0.1l, Blk (Models w/out ec-H2O / ABW Option) | $0.30/EA |
Tennant T500e (S/N 30000000-40000000) Lower console group, off-board charger parts
The parts Tennant numbers on its lower console group, off-board charger drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038168Replaces Tennant 1225401 | 1 | Bracket, Cover, Charger | $53.60/EA |
| 2 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 3 | TN4036717Replaces Tennant 1058340 | 1 | Plug, Hole, Rnd, 0.63h 0.1l, Blk (Models w/out ec-H2O / ABW Option) | $0.30/EA |
| 4 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 5 | TN4042042Replaces Tennant 1208816 | 1 | Circuitbreaker, 04.0a, Resetable (Key Switch) | $8.70/EA |
| 6 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 7 | TN4032587Replaces Tennant 1064187 | 1 | Circuitbreaker, 10.0a, Resetable (Actuator) | $5.30/EA |
| 8 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 9 | TN4032589Replaces Tennant 1064189 | 1 | Circuitbreaker, 20.0a, Resetable (Vacuum Fan) | $5.30/EA |
| 10 | TN4016225Replaces Tennant 397780 | 5 | Plug, Hole, Rnd, 0.19h 0.7l, Brb, Plstc | $3.20/EA |
| 11 | TN4044189Replaces Tennant 1202868 | 2 | Clip, Tie, 0.25d, Plstc | $1.52/EA |
| 12 | TN4038097Replaces Tennant 1225019 | 1 | Bracket Wldt, Charger | $101.81/EA |
| 13 | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft | $6.70/EA |
| 14 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr Pl | $33.10/EA |
| 15 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts] | $11.60/EA |
| 16 | TN4038104Replaces Tennant 1225158 | 1 | Bracket Assy, Charger Plug | $41.60/EA |
| 17 | TN4044587Replaces Tennant 1073634 | 1 | Harness, Chrgr, 12ga [M8 Ring/M8 Ring]Complete assembly. | $49.00/EA |
| 18 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Harness, Chrgr, 12ga [M8 Ring/M8 Ring] (1073634). | $20.60/EA |
| 19 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 20 | TN4041015Replaces Tennant 06922 | 4 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8 | $3.40/EA |
| 21 | TN4023158Replaces Tennant 383729 | 1 | Circuitbreaker, 60.0a (I-Drive) | $26.80/EA |
| 22 | TN4023153Replaces Tennant 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Left Scrub Motor) | $15.40/EA |
| 23 | TN4023153Replaces Tennant 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Right Scrub Motor) | $15.40/EA |
Tennant T500e (S/N 30000000-40000000) Off-board charger group parts
The parts Tennant numbers on its off-board charger group drawing. Manual pages 54, list 55.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029969Tennant 4029969 | 1 | Charger, 24vdc 36a 100-240vac, Cn (China)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc 36a 100-240vac, Cn (China) (4029969). | $20.60/EA |
| 3 | TN4032683Replaces Tennant 1242383 | 1 | Charger, 24vdc, 196-264vac,Off-Brd (China - Lithium- Ion Batteries)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 196-264vac,Off-Brd (China - Lithium- Ion Batteries) (1242383). | $20.60/EA |
| 5 | TN4031829Replaces Tennant 1252745 | 1 | Charger, 24vdc/25a, 220vac [Off Board]Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc/25a, 220vac [Off Board] (1252745). | $20.60/EA |
| 7 | TN4032683Tennant 4032683 | 1 | Charger, 24vdc, Li-Ion, Off-Board (Lithium-Ion Batteries)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4025359 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, Li-Ion, Off-Board (Lithium-Ion Batteries) (4032683). | $20.60/EA |
| 9 | TN4032280 | 1 | Charger, 24vdc, 650w,100-240vac[Off Brd] (AGM Batteries)Complete assembly. | $578.40/EA |
| 10 | TN4025359 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 650w,100-240vac[Off Brd] (AGM Batteries) (4032280). | $20.60/EA |
| 11 | TN4034198Replaces Tennant 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us] | $49.60/EA |
| 11 | TN4034246Replaces Tennant 1026330 | 1 | Cord, Power, 1.0mm2 [2.5meter] (China) | $31.00/EA |
| 11 | TN4034245Replaces Tennant 1026325 | 1 | Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus] | $31.00/EA |
| 11 | TN4039700Replaces Tennant 1048304 | 1 | Cord, Power [4.5meter, India, S.Africa] | $39.00/EA |
| 12 | TN4029996Tennant 4029996 | 1 | Charger, 24vdc/30a, Agm, Off-BoardComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4029753Tennant 4029753 | 1 | Charger, 24vdc/30a, 90-264vac[Off Board] (China - AGM Batteries)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4034246 | 1 | Cord, Power, 1.0mm2 [2.5meter, China]Part of Charger, 24vdc/30a, 90-264vac[Off Board] (China - AGM Batteries) (4029753). | $31.00/EA |
Tennant T500e (S/N 30000000-40000000) Console group, propel parts
The parts Tennant numbers on its console group, propel drawing. Manual pages 56, list 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041083Replaces Tennant 1205323 | 1 | Switch, 0.1a, Spdt [Micro, Straight] | $9.70/EA |
| 2 | TN4033019Replaces Tennant 1234365 | 1 | Dial, Range, Speed | $8.10/EA |
| 3 | TN4032266Replaces Tennant 1256757 | 1 | Potentiometer [100k, 1 Turn, Multi-Mach]Serial 30129060 and later. | $80.40/EA |
| 3 | TN4032266Replaces Tennant 1246392 | 1 | Potentiometer [100k, 1 Turn, B5/B7] (Rpld by 1256757)Serial 30094929 to 30129059. | $80.40/EA |
| 3 | TN4032266Replaces Tennant 1204930 | 1 | Potentiometer [100k, 1 Turn, B5/B7] (Rpld by 1256757)Serial 30000000 to 30094928. Tennant's online parts catalog gives this part different serial numbers (30000000 to 30094928, 30094929 to 30129059, 30094929 to 40000000 and others). Call 800-440-6723 to confirm before ordering. | $80.40/EA |
| 4 | TN4042373Replaces Tennant 1209730 | 1 | Cap, Toggle, Direction | $6.80/EA |
| 5 | TN4042365Replaces Tennant 1209673 | 1 | Switch Assy, Toggle, Direction | $75.10/EA |
| 6 | TN4040841Replaces Tennant 1203787 | 2 | Housing, Handle, Cntrl, Top | $87.20/EA |
| 7 | TN4040168Replaces Tennant 1215863 | 2 | Screw, Pan, Torx, M8 X 3.5 X 25[Remform] | $9.00/EA |
| 8 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 9 | TN4041074Replaces Tennant 1205143 | 1 | Shaft Assy, Bail, Handle | $19.10/EA |
| 10 | TN4041137Replaces Tennant 1205781 | 1 | Spring, Return, Bail | $29.40/EA |
| 11 | TN4037504Replaces Tennant 1222608 | 1 | Housing, Handle, Cntrl, Bottom, Slotted | $87.70/EA |
| 12 | TN4041133Replaces Tennant 1205778 | 1 | Handle, Bail [Machined] | $45.60/EA |
| 13 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 14 | TN4041408Replaces Tennant 1207004 | 1 | Cover, Handle, Cntrl | $18.50/EA |
| 15 | TN4036836Replaces Tennant 1011402 | 1 | Switch, KeyComplete assembly. | $54.40/EA |
| 16 | TN4129073Replaces Tennant 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). | $21.60/EA |
| 17 | TN4029683Replaces Tennant 582150 | 2 | Plug, Hole, Rt, 1.23 X 1.12, NylSerial 30000000 and later. Tennant prints the serial range as (30000000- OCT2024). | $6.00/EA |
| 18 | TN4029938Replaces Tennant 1011735 | 1 | Switch, Safety, Shutoff | $40.50/EA |
| 19 | TN4032366Replaces Tennant 1064038 | 1 | Gauge, Hourmeter, 05-277 Volt, Ac / Dc | $52.90/EA |
| 20 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 21 | TN4037517Replaces Tennant 1223019 | 1 | Cover, Console, Lower [T500e] | $111.10/EA |
| 22 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 23 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 24 | TN4038436Replaces Tennant 1226368 | 1 | Frame, Console, Short, Simplified [Im] | $35.80/EA |
| 25 | TN4041694Replaces Tennant 1043573 | 15 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap] | $2.50/EA |
| 26 | TN4185799Replaces Tennant 1063909 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftTennant prints the serial range as (JUN2020- ). | $2.70/EA |
Tennant T500e (S/N 30000000-40000000) Console panel, membrane, without telemetry parts
The parts Tennant numbers on its console panel, membrane, without telemetry drawing. Manual pages 58, list 59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018522 | 1 | Bezel Kit, Memb, Ci [T500e/Ss500/T600e]Complete assembly. Tennant prints the serial range as (JUN2024- ) Requires Tennant True service or an authorized Tennant service provider. | $596.40/EA |
| 2 | TN4018524 | 1 | Screen Kit, Memb, Ci [T500e/Ss500/T600e]Complete assembly. Part of Bezel Kit, Memb, Ci [T500e/Ss500/T600e] (4018522). Tennant prints the serial range as (JUN2024- ) Before Ordering Screen Kit Confirm Screen Visually Matches Correct Screen Image. | $207.70/EA |
| 3 | TN4034345 | 1 | Gasket, ConsolePart of Screen Kit, Memb, Ci [T500e/Ss500/T600e] (4018524). Tennant prints the serial range as (JUN2020- ). | $36.60/EA |
| 4 | TN4041112 | 1 | Cap, UsbPart of Screen Kit, Memb, Ci [T500e/Ss500/T600e] (4018524). | $6.80/EA |
| 5 | TN4030522 | 1 | Cable [Usb, 2m, A-Male To Mini-B- Male] | $15.60/EA |
| 1 | TN4019012Replaces Tennant 9015780 | 1 | Bezel Kit, Membrane [T500e, T600e] (Replaced By 4018522*)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2024) Requires Tennant True service or an authorized Tennant service provider. | $451.77/EA |
| 2 | TN4019012Replaces Tennant 9015781 | 1 | Screen Kit, Memebrane, CI [T500e, T600e] (Replaced By 4018522*)Complete assembly. Part of Bezel Kit, Membrane [T500e, T600e] (Replaced By 4018522*) (9015780). Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2024). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4034345Replaces Tennant 1245824 | 1 | Gasket, ConsolePart of Screen Kit, Memebrane, CI [T500e, T600e] (Replaced By 4018522*) (9015781). Tennant prints the serial range as (JUN2020- ). | $36.60/EA |
| 4 | TN4041112Replaces Tennant 1205618 | 1 | Cap, UsbPart of Screen Kit, Memebrane, CI [T500e, T600e] (Replaced By 4018522*) (9015781). | $6.80/EA |
| 5 | TN4030522Replaces Tennant 1071235 | 1 | Cable [Usb, 2m, A-Male To Mini-B- Male] | $15.60/EA |
Tennant T500e (S/N 30000000-40000000) Squeegee lift group parts
The parts Tennant numbers on its squeegee lift group drawing. Manual pages 60, list 61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 2 | TN4032451 | 1 | Bracket, Wldt, Lift, Sqge [T500]Serial 30158425 and later. | $65.55/EA |
| 3 | TN4037474Replaces Tennant 1221959 | 1 | Bracket, Wldt, Lift, Sqge [T500]Serial 30000000 to 30158424. | $61.50/EA |
| 4 | TN4040200Replaces Tennant 1216647 | 3 | Pin, Cotter, Hair, 0.38d .054 Wir | $1.50/EA |
| 5 | TN4018939Replaces Tennant 391179 | 1 | Pin, Clevis, 0.37d X 2.62l | $4.00/EA |
| 6 | TN4020408Replaces Tennant 1230368 | 1 | Guide, Spring (Replaced by 9016898)Serial 30000000 to 30081251. | $35.60/EA |
| 7 | TN4038269Replaces Tennant 1225960 | 1 | Washer, Thrust, 0.89b 1.50d 0.13w, BnzSerial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | $3.60/EA |
| 8 | TN4031851Replaces Tennant 1253245 | 1 | Spring, Cmpr, 1.4od, .874id, .263d, 2.0lTennant prints the serial range as (MAY2021- ). | $28.00/EA |
| 7 | TN4031851Replaces Tennant 1228773 | 1 | Spring, Cmpr, 1.25od, .625id, 2.0l (Replaced By 1253245)Serial 30000000 and later. Tennant prints the serial range as (30000000- APR2021). | $28.00/EA |
| 9 | TN4035608Replaces Tennant 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, Ss | $6.00/EA |
| 10 | TN4043779Replaces Tennant 140045 | 5 | Washer, Flat, 0.51b 1.25d .06, Ss | $4.00/EA |
| 11 | TN4032181Replaces Tennant 1255528 | 1 | Bracket, Pivot, Sqge [T500]Tennant prints the serial range as (DEC2021- ). | $88.80/EA |
| 10 | TN4036955Replaces Tennant 1219466 | 1 | Bracket, Pivot, Sqge [T500]Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $63.00/EA |
| 12 | TN4037555Replaces Tennant 1013662 | 2 | Bushing, Sleeve, 12mmb 16mmd 7mml,Pm Yel | $4.20/EA |
| 13 | TN4029373Replaces Tennant 57598 | 2 | Pin, Clevis, 0.37d X 3.25l | $9.40/EA |
| 14 | TN4039459Replaces Tennant 1212533 | 1 | Cover, Pedal, Lift | $11.60/EA |
| 15 | TN4034586Replaces Tennant 1246993 | 1 | Bracket Wldt, Mtg, Sqge [T500]Tennant prints the serial range as (DEC2021- ). | $118.20/EA |
| 14 | TN4037205Replaces Tennant 1220505 | 1 | Bracket Wldt, Mtg, Sqge [T500]Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $87.00/EA |
| 16 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, Ss | $5.80/EA |
| 17 | TN4043798Replaces Tennant 140127 | 1 | Washer, Thrust, 0.51b 1.00d 0.12w, Brz | $5.20/EA |
| 18 | TN4024287Replaces Tennant 82226 | 2 | Washer, Flat, 0.91b 1.38d .06, Stl, PlSerial up to 30081251. Tennant prints the serial range as (xxxxxxxx- 30081251). Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | $4.10/EA |
| 19 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr Pl | $33.10/EA |
| 20 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts] | $11.60/EA |
| 21 | TN4031248Replaces Tennant 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, Ss | $3.40/EA |
| 22 | TN4033088Replaces Tennant 1235860 | 1 | Guide, SpringSerial 30081252 and later. | $11.30/EA |
Tennant T500e (S/N 30000000-40000000) Squeegee assembly, 20 in (500 mm) parts
The parts Tennant numbers on its squeegee assembly, 20 in (500 mm) drawing. Manual pages 62, list 63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026477Replaces Tennant 9014172 | 1 | Squeegee Kit, Linatex, Ci [T300/E/Ss300]Complete assembly. | $667.30/EA |
| 1 | TN4035612Replaces Tennant 1230946 | 1 | Frame, Sqge, 50cm, Mach [T300]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $229.50/EA |
| 2 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $3.40/EA |
| 3 | TN4043649Replaces Tennant 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $3.20/EA |
| 4 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $3.40/EA |
| 5 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $5.50/EA |
| 6 | TN4035127Replaces Tennant 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $3.40/EA |
| 7 | TN4032161Replaces Tennant 1255358 | 2 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $16.90/EA |
| 8 | TN4039812Replaces Tennant 1213677 | 4 | Knob, Star, 2.00od 4ear M8x1.25 [Yel]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $9.90/EA |
| 9 | TN4041878Replaces Tennant 17461 | 2 | Pin, Clevis, 0.37d X 1.75lPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $4.00/EA |
| 10 | TN4040200Replaces Tennant 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $1.50/EA |
| 11 | TN4035235Replaces Tennant 1017091 | 2 | Spring, Cmpr, 0.50od .04wir 00.8lPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $4.10/EA |
| 12 | TN4037087Replaces Tennant 22290 | 2 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $4.10/EA |
| 13 | TN4041946Replaces Tennant 09026 | 2 | Screw, Hex, M8 X 1.25 X 40, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $4.00/EA |
| 14 | TN4020804Replaces Tennant 630477 | 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $9.50/EA |
| 15 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Tennant prints the serial range as (xxxxxxxx- ). | $5.40/EA |
| 16 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $8.20/EA |
| 17 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $3.40/EA |
| 18 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Tennant prints the serial range as (xxxxxxxx- ). | $4.10/EA |
| 19 | TN4043787Replaces Tennant 140060 | 1 | Washer, .505 X .750 X 0.45 WavePart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Tennant prints the serial range as (xxxxxxxx- ). | $3.90/EA |
| 20 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Tennant prints the serial range as (xxxxxxxx- ). | $2.60/EA |
| 21 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Tennant prints the serial range as (xxxxxxxx- ). | $3.30/EA |
| 22 | TN4040837Replaces Tennant 1203638 | 1 | Retainer, Sqge [T300]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $79.60/EA |
| 23 | TN4023953Replaces Tennant 9015731 | 1 | Blade Kit, 500mm, Linatex (Standard)Complete assembly. Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). | $58.40/EA |
| 24 | TN4040848Replaces Tennant 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $23.40/EA |
| 25 | TN4040849Replaces Tennant 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $20.70/EA |
| 23 | TN4023954Replaces Tennant 9015732 | 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. | $101.25/EA |
| 24 | TN4040136Replaces Tennant 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA |
| 25 | TN4040138Replaces Tennant 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA |
| 23 | TN4023952Replaces Tennant 9015730 | 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. | $22.00/EA |
| 24 | TN4040137Replaces Tennant 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA |
| 25 | TN4040139Replaces Tennant 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA |
| 26 | TN4039475Replaces Tennant 1212683 | 1 | Screw, Captive, M5, Knurled [Snap In]Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | $8.40/EA |
Tennant T500e (S/N 30000000-40000000) Squeegee assembly, 26 in (650 mm) (original style 9015301) parts
The parts Tennant numbers on its squeegee assembly, 26 in (650 mm) (original style 9015301) drawing. Manual pages 64, list 65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021012Replaces Tennant 9015301 | 1 | Squeegee Kit, 650mm, CiComplete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $426.02/EA |
| 1 | TN4034284Replaces Tennant 1243537 | 1 | Frame, Sqge, 65cm, Mach [T500/T600]Part of Squeegee Kit, 650mm, Ci (9015301). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $217.40/EA |
| 2 | TN4026847Replaces Tennant 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 650mm, Ci (9015301). | $4.00/EA |
| 3 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 650mm, Ci (9015301). | $3.40/EA |
| 4 | TN4039789Replaces Tennant 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 650mm, Ci (9015301). | $10.80/EA |
| 5 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 650mm, Ci (9015301). | $3.40/EA |
| 6 | TN4032161Replaces Tennant 1255358 | 4 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, 650mm, Ci (9015301). | $16.90/EA |
| 7 | TN4044825Replaces Tennant 1074204 | 4 | Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,YPart of Squeegee Kit, 650mm, Ci (9015301). | $33.00/EA |
| 8 | TN4037087Replaces Tennant 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 650mm, Ci (9015301). | $4.10/EA |
| 9 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $4.00/EA |
| 10 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $3.30/EA |
| 11 | TN4037491Replaces Tennant 1222236 | 1 | Bracket Wldt, Caster, Rh Sqge[T500]Part of Squeegee Kit, 650mm, Ci (9015301). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $42.60/EA |
| 12 | TN4029759 | 2 | Caster, Swivel,Part of Squeegee Kit, 650mm, Ci (9015301). | $8.60/EA |
| 13 | TN4037477Replaces Tennant 1222001 | 1 | Bracket Wldt, Caster, Lh Sqge [T500]Part of Squeegee Kit, 650mm, Ci (9015301). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $42.60/EA |
| 14 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 650mm, Ci (9015301). | $3.30/EA |
| 15 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 650mm, Ci (9015301). | $2.60/EA |
| 16 | TN4043787Replaces Tennant 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 650mm, Ci (9015301). | $3.90/EA |
| 17 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 650mm, Ci (9015301). | $4.10/EA |
| 18 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 650mm, Ci (9015301). | $5.40/EA |
| 19 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 650mm, Ci (9015301). | $8.20/EA |
| 20 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 650mm, Ci (9015301). | $3.40/EA |
| 21 | TN4023956Replaces Tennant 9015734 | 1 | Blade Kit, 650mm, Linatex (Standard)Complete assembly. Part of Squeegee Kit, 650mm, Ci (9015301). | $76.00/EA |
| 22 | TN4037460Replaces Tennant 1221585 | 1 | Blade, Sqge, Rear, 1166l, Linatex[650mm] (Standard)Part of Blade Kit, 650mm, Linatex (Standard) (9015734). | $45.00/EA |
| 23 | TN4036159Replaces Tennant 1232680 | 1 | Blade, Sqge, Front, 1072l Linard[650mm] (Standard)Part of Blade Kit, 650mm, Linatex (Standard) (9015734). | $31.00/EA |
| 24 | TN4037438Replaces Tennant 1221260 | 1 | Retainer, Sqge, 65cm [T500]Part of Squeegee Kit, 650mm, Ci (9015301). | $85.90/EA |
| 25 | TN4035587Replaces Tennant 1230738 | 2 | Bracket, Sqge BumperPart of Squeegee Kit, 650mm, Ci (9015301). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $10.60/EA |
| 21 | TN4023957Replaces Tennant 9015735 | 1 | Blade Kit, 650mm, Urethane (Option)Complete assembly. | $119.10/EA |
| 22 | TN4035017Replaces Tennant 1228909 | 1 | Blade, Sqge, Rear, 1136l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). | $72.10/EA |
| 23 | TN4035019Replaces Tennant 1228915 | 1 | Blade, Sqge, Front,1072l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). | $47.00/EA |
| 21 | TN4023955Replaces Tennant 9015733 | 1 | Blade Kit, 650mm, Gum (Option)Complete assembly. | $25.00/EA |
| 22 | TN4035018Replaces Tennant 1228910 | 1 | Blade, Sqge, Rear, 1136l, Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). | $13.00/EA |
| 23 | TN4035020Replaces Tennant 1228919 | 1 | Blade, Sqge, Front, 1072l Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). | $12.00/EA |
Tennant T500e (S/N 30000000-40000000) Squeegee assembly, 28 in (700 mm) (new style 9021742) parts
The parts Tennant numbers on its squeegee assembly, 28 in (700 mm) (new style 9021742) drawing. Manual pages 66, list 67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018210Replaces Tennant 9021742 | 1 | Squeegee Kit, 700mmComplete assembly. Tennant prints the serial range as (DEC2021- ). | $382.29/EA |
| 1 | TN4033997Replaces Tennant 1241632 | 1 | Frame, Sqge, 70cm, Mach [T500/T600]Part of Squeegee Kit, 700mm (9021742). Tennant prints the serial range as (DEC2021- ). | $236.90/EA |
| 2 | TN4026847Replaces Tennant 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 700mm (9021742). | $4.00/EA |
| 3 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 700mm (9021742). | $3.40/EA |
| 4 | TN4039789Replaces Tennant 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 700mm (9021742). | $10.80/EA |
| 5 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 700mm (9021742). | $3.40/EA |
| 6 | TN4032161Replaces Tennant 1255358 | 4 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, 700mm (9021742). | $16.90/EA |
| 7 | TN4044825Replaces Tennant 1074204 | 4 | Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,YPart of Squeegee Kit, 700mm (9021742). | $33.00/EA |
| 8 | TN4037087Replaces Tennant 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 700mm (9021742). | $4.10/EA |
| 9 | TN4034476Replaces Tennant 32716 | 4 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 700mm (9021742). Tennant prints the serial range as (DEC2021- ). | $4.00/EA |
| 10 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 700mm (9021742). Tennant prints the serial range as (DEC2021- ). | $3.30/EA |
| 11 | TN4029759 | 2 | Caster, Swivel,Part of Squeegee Kit, 700mm (9021742). | $8.60/EA |
| 12 | TN4034080Replaces Tennant 1243364 | 2 | Plate, Caster, SqgePart of Squeegee Kit, 700mm (9021742). Tennant prints the serial range as (DEC2021- ). | $13.10/EA |
| 13 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 700mm (9021742). | $3.30/EA |
| 14 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 700mm (9021742). | $2.60/EA |
| 15 | TN4043787Replaces Tennant 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 700mm (9021742). | $3.90/EA |
| 16 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 700mm (9021742). | $4.10/EA |
| 17 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 700mm (9021742). | $5.40/EA |
| 18 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 700mm (9021742). | $8.20/EA |
| 19 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 700mm (9021742). | $3.40/EA |
| 20 | TN4023959Replaces Tennant 9015737 | 1 | Blade Kit, 700mm, Linatex/Linard (Standard)Complete assembly. Part of Squeegee Kit, 700mm (9021742). | $86.00/EA |
| 21 | TN4037458Replaces Tennant 1221572 | 1 | Blade, Sqge, Rear, 1204l, Linatex[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). | $50.00/EA |
| 22 | TN4036158Replaces Tennant 1232679 | 1 | Blade, Sqge, Front, 1148l Linard[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). | $36.00/EA |
| 23 | TN4037216Replaces Tennant 1220783 | 1 | Retainer, Sqge, 70cm [T500]Part of Squeegee Kit, 700mm (9021742). | $106.70/EA |
| 20 | TN4023960Replaces Tennant 9015738 | 1 | Blade Kit, 700mm, Urethane (Option)Complete assembly. | $120.60/EA |
| 21 | TN4035013Replaces Tennant 1228904 | 1 | Blade, Sqge, Rear, 1204l,Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). | $72.90/EA |
| 22 | TN4035015Replaces Tennant 1228906 | 1 | Blade, Sqge, Front,1148l Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). | $47.70/EA |
| 20 | TN4023958Replaces Tennant 9015736 | 1 | Blade Kit, 700mm, Gum (Option)Complete assembly. | $28.90/EA |
| 21 | TN4035014Replaces Tennant 1228905 | 1 | Blade, Sqge, Rear, 1204l, Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). | $16.00/EA |
| 22 | TN4035016Replaces Tennant 1228907 | 1 | Blade, Sqge, Front, 1148l Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). | $12.90/EA |
Tennant T500e (S/N 30000000-40000000) Squeegee assembly, 28 in (700 mm) (original style 9015302 - replaced by 9021742) parts
The parts Tennant numbers on its squeegee assembly, 28 in (700 mm) (original style 9015302 - replaced by 9021742) drawing. Manual pages 68, list 69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021014Replaces Tennant 9015302 | 1 | Squeegee Kit, 700mm, CiComplete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $434.50/EA |
| 1 | TN4033997Replaces Tennant 1241632 | 1 | Frame, Sqge, 70cm, Mach [T500/T600]Part of Squeegee Kit, 700mm, Ci (9015302). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $236.90/EA |
| 2 | TN4026847Replaces Tennant 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 700mm, Ci (9015302). | $4.00/EA |
| 3 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 700mm, Ci (9015302). | $3.40/EA |
| 4 | TN4039789Replaces Tennant 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 700mm, Ci (9015302). | $10.80/EA |
| 5 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 700mm, Ci (9015302). | $3.40/EA |
| 6 | TN4032161Replaces Tennant 1255358 | 4 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, 700mm, Ci (9015302). | $16.90/EA |
| 7 | TN4044825Replaces Tennant 1074204 | 4 | Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,YPart of Squeegee Kit, 700mm, Ci (9015302). | $33.00/EA |
| 8 | TN4037087Replaces Tennant 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 700mm, Ci (9015302). | $4.10/EA |
| 9 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $4.00/EA |
| 10 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $3.30/EA |
| 11 | TN4037491Replaces Tennant 1222236 | 1 | Bracket Wldt, Caster, Rh Sqge[T500]Part of Squeegee Kit, 700mm, Ci (9015302). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $42.60/EA |
| 12 | TN4029759 | 2 | Caster, Swivel,Part of Squeegee Kit, 700mm, Ci (9015302). | $8.60/EA |
| 13 | TN4037477Replaces Tennant 1222001 | 1 | Bracket Wldt, Caster, Lh Sqge [T500]Part of Squeegee Kit, 700mm, Ci (9015302). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $42.60/EA |
| 14 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 700mm, Ci (9015302). | $3.30/EA |
| 15 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 700mm, Ci (9015302). | $2.60/EA |
| 16 | TN4043787Replaces Tennant 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 700mm, Ci (9015302). | $3.90/EA |
| 17 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 700mm, Ci (9015302). | $4.10/EA |
| 18 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 700mm, Ci (9015302). | $5.40/EA |
| 19 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 700mm, Ci (9015302). | $8.20/EA |
| 20 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 700mm, Ci (9015302). | $3.40/EA |
| 21 | TN4023959Replaces Tennant 9015737 | 1 | Blade Kit, 700mm, Linatex (Standard)Complete assembly. Part of Squeegee Kit, 700mm, Ci (9015302). | $86.00/EA |
| 22 | TN4037458Replaces Tennant 1221572 | 1 | Blade, Sqge, Rear, 1204l, Linatex[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). | $50.00/EA |
| 23 | TN4036158Replaces Tennant 1232679 | 1 | Blade, Sqge, Front, 1148l Linard[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). | $36.00/EA |
| 24 | TN4037216Replaces Tennant 1220783 | 1 | Retainer, Sqge, 70cm [T500]Part of Squeegee Kit, 700mm, Ci (9015302). | $106.70/EA |
| 25 | TN4035587Replaces Tennant 1230738 | 2 | Bracket, Sqge BumperPart of Squeegee Kit, 700mm, Ci (9015302). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $10.60/EA |
| 21 | TN4023960Replaces Tennant 9015738 | 1 | Blade Kit, 700mm, Urethane (Option)Complete assembly. | $120.60/EA |
| 22 | TN4035013Replaces Tennant 1228904 | 1 | Blade, Sqge, Rear, 1204l,Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). | $72.90/EA |
| 23 | TN4035015Replaces Tennant 1228906 | 1 | Blade, Sqge, Front,1148l Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). | $47.70/EA |
| 21 | TN4023958Replaces Tennant 9015736 | 1 | Blade Kit, 700mm, Gum (Option)Complete assembly. | $28.90/EA |
| 22 | TN4035014Replaces Tennant 1228905 | 1 | Blade, Sqge, Rear, 1204l, Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). | $16.00/EA |
| 23 | TN4035016Replaces Tennant 1228907 | 1 | Blade, Sqge, Front, 1148l Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). | $12.90/EA |
Tennant T500e (S/N 30000000-40000000) Squeegee assembly, 32 in (800 mm) (new style 9021743) parts
The parts Tennant numbers on its squeegee assembly, 32 in (800 mm) (new style 9021743) drawing. Manual pages 70, list 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018211Replaces Tennant 9021743 | 1 | Squeegee Kit, 800mmComplete assembly. Tennant prints the serial range as (DEC2021- ). | $418.75/EA |
| 1 | TN4034285Replaces Tennant 1243538 | 1 | Frame, Sqge, 80cm, Mach [T500/T600]Part of Squeegee Kit, 800mm (9021743). Tennant prints the serial range as (DEC2021- ). | $285.40/EA |
| 2 | TN4026847Replaces Tennant 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 800mm (9021743). | $4.00/EA |
| 3 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 800mm (9021743). | $3.40/EA |
| 4 | TN4039789Replaces Tennant 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 800mm (9021743). | $10.80/EA |
| 5 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 800mm (9021743). | $3.40/EA |
| 6 | TN4032161Replaces Tennant 1255358 | 4 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, 800mm (9021743). | $16.90/EA |
| 7 | TN4044825Replaces Tennant 1074204 | 4 | Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,YPart of Squeegee Kit, 800mm (9021743). | $33.00/EA |
| 8 | TN4037087Replaces Tennant 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 800mm (9021743). | $4.10/EA |
| 9 | TN4034476Replaces Tennant 32716 | 4 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 800mm (9021743). Tennant prints the serial range as (DEC2021- ). | $4.00/EA |
| 10 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 800mm (9021743). Tennant prints the serial range as (DEC2021- ). | $3.30/EA |
| 11 | TN4029759 | 2 | Caster, Swivel,Part of Squeegee Kit, 800mm (9021743). | $8.60/EA |
| 12 | TN4034080Replaces Tennant 1243364 | 2 | Plate, Caster, SqgePart of Squeegee Kit, 800mm (9021743). Tennant prints the serial range as (DEC2021- ). | $13.10/EA |
| 13 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 800mm (9021743). | $3.30/EA |
| 14 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 800mm (9021743). | $2.60/EA |
| 15 | TN4043787Replaces Tennant 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 800mm (9021743). | $3.90/EA |
| 16 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 800mm (9021743). | $4.10/EA |
| 17 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 800mm (9021743). | $5.40/EA |
| 18 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 800mm (9021743). | $8.20/EA |
| 19 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 800mm (9021743). | $3.40/EA |
| 20 | TN4023962Replaces Tennant 9015740 | 1 | Blade Kit, 800mm, Linatex/Linard (Standard)Complete assembly. Part of Squeegee Kit, 800mm (9021743). | $106.60/EA |
| 21 | TN4037251Replaces Tennant 1221115 | 1 | Blade, Sqge, Rear, 1306l, Linatex[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). | $64.00/EA |
| 22 | TN4036160Replaces Tennant 1232681 | 1 | Blade, Sqge, Front, 1256l Linard[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). | $42.60/EA |
| 23 | TN4036945Replaces Tennant 1219405 | 1 | Retainer, Sqge, 80cm [T500]Part of Squeegee Kit, 800mm (9021743). | $97.20/EA |
| 20 | TN4023963Replaces Tennant 9015741 | 1 | Blade Kit, 800mm, Urethane (Option)Complete assembly. | $122.00/EA |
| 21 | TN4035252Replaces Tennant 1228920 | 1 | Blade, Sqge, Rear, 1306l,Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). | $73.70/EA |
| 22 | TN4035254Replaces Tennant 1228922 | 1 | Blade, Sqge, Front,1256l Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). | $48.30/EA |
| 20 | TN4023961Replaces Tennant 9015739 | 1 | Blade Kit, 800mm, Gum (Option)Complete assembly. | $31.80/EA |
| 21 | TN4035253Replaces Tennant 1228921 | 1 | Blade, Sqge, Rear, 1306l, Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). | $17.00/EA |
| 22 | TN4035255Replaces Tennant 1228923 | 1 | Blade, Sqge, Front, 1256l Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). | $14.80/EA |
Tennant T500e (S/N 30000000-40000000) Squeegee assembly, 32 in (800 mm) (original style 9015303 - replaced by 9021743) parts
The parts Tennant numbers on its squeegee assembly, 32 in (800 mm) (original style 9015303 - replaced by 9021743) drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021016Replaces Tennant 9015303 | 1 | Squeegee Kit, 800mm, CiComplete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $491.57/EA |
| 1 | TN4034285Replaces Tennant 1243538 | 1 | Frame, Sqge, 80cm, Mach [T500/T600]Part of Squeegee Kit, 800mm, Ci (9015303). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $285.40/EA |
| 2 | TN4026847Replaces Tennant 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 800mm, Ci (9015303). | $4.00/EA |
| 3 | TN4040603Replaces Tennant 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 800mm, Ci (9015303). | $3.40/EA |
| 4 | TN4039789Replaces Tennant 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 800mm, Ci (9015303). | $10.80/EA |
| 5 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 800mm, Ci (9015303). | $3.40/EA |
| 6 | TN4032161Replaces Tennant 1255358 | 4 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, 800mm, Ci (9015303). | $16.90/EA |
| 7 | TN4044825Replaces Tennant 1074204 | 4 | Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,YPart of Squeegee Kit, 800mm, Ci (9015303). | $33.00/EA |
| 8 | TN4037087Replaces Tennant 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 800mm, Ci (9015303). | $4.10/EA |
| 9 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $4.00/EA |
| 10 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $3.30/EA |
| 11 | TN4037491Replaces Tennant 1222236 | 1 | Bracket Wldt, Caster, Rh Sqge[T500]Part of Squeegee Kit, 800mm, Ci (9015303). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $42.60/EA |
| 12 | TN4029759 | 2 | Caster, Swivel,Part of Squeegee Kit, 800mm, Ci (9015303). | $8.60/EA |
| 13 | TN4037477Replaces Tennant 1222001 | 1 | Bracket Wldt, Caster, Lh Sqge [T500]Part of Squeegee Kit, 800mm, Ci (9015303). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $42.60/EA |
| 14 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 800mm, Ci (9015303). | $3.30/EA |
| 15 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 800mm, Ci (9015303). | $2.60/EA |
| 16 | TN4043787Replaces Tennant 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 800mm, Ci (9015303). | $3.90/EA |
| 17 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 800mm, Ci (9015303). | $4.10/EA |
| 18 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 800mm, Ci (9015303). | $5.40/EA |
| 19 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 800mm, Ci (9015303). | $8.20/EA |
| 20 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 800mm, Ci (9015303). | $3.40/EA |
| 21 | TN4023962Replaces Tennant 9015740 | 1 | Blade Kit, 800mm, Linatex (Standard)Complete assembly. Part of Squeegee Kit, 800mm, Ci (9015303). | $106.60/EA |
| 22 | TN4037251Replaces Tennant 1221115 | 1 | Blade, Sqge, Rear, 1306l, Linatex[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). | $64.00/EA |
| 23 | TN4036160Replaces Tennant 1232681 | 1 | Blade, Sqge, Front, 1256l Linard[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). | $42.60/EA |
| 24 | TN4034285Replaces Tennant 1219894 | 1 | Frame, Sqge, 80cm, Mach [T500]Part of Squeegee Kit, 800mm, Ci (9015303). | $285.40/EA |
| 25 | TN4035587Replaces Tennant 1230738 | 2 | Bracket, Sqge BumperPart of Squeegee Kit, 800mm, Ci (9015303). Serial 30000000 and later. Tennant prints the serial range as (30000000- NOV2021). | $10.60/EA |
| 21 | TN4023963Replaces Tennant 9015741 | 1 | Blade Kit, 800mm, Urethane (Option)Complete assembly. | $122.00/EA |
| 22 | TN4035252Replaces Tennant 1228920 | 1 | Blade, Sqge, Rear, 1306l,Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). | $73.70/EA |
| 23 | TN4035254Replaces Tennant 1228922 | 1 | Blade, Sqge, Front,1256l Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). | $48.30/EA |
| 21 | TN4023961Replaces Tennant 9015739 | 1 | Blade Kit, 800mm, Gum (Option)Complete assembly. | $31.80/EA |
| 22 | TN4035253Replaces Tennant 1228921 | 1 | Blade, Sqge, Rear, 1306l, Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). | $17.00/EA |
| 23 | TN4035255Replaces Tennant 1228923 | 1 | Blade, Sqge, Front, 1256l Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). | $14.80/EA |
Tennant T500e (S/N 30000000-40000000) Standard solution group parts
The parts Tennant numbers on its standard solution group drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039194Replaces Tennant 1211424 | 1 | Valve, Water, Solenoid, 24vdc Qf08/Qf08 | $195.10/EA |
| 2 | TN4039489Replaces Tennant 1212809 | 3 | Fitting, Plstc, E90, Qf08/Qm08Tennant prints the serial range as (xxxxxxxx- ). | $21.90/EA |
| 2 | TN4039489Replaces Tennant 1212809 | 4 | Fitting, Plstc, E90, Qf08/Qm08Serial 30000000 and later. Tennant prints the serial range as (30000000- xxxxxxxx). | $21.90/EA |
| 3 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 4 | TN4039503Replaces Tennant 1212859 | 1 | Fitting, Plstc, Str, Qf08/Qf08 | $16.60/EA |
| 5 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ft | $104.00/EA |
| 6 | TN4034952Replaces Tennant 1227552 | 1 | Fitting, Plstc, Str, Qm08/Pm06 | $6.30/EA |
| 7 | TN4039492Replaces Tennant 1212813 | 1 | Fitting, Plstc, Str, Qf08/Pm06 | $19.40/EA |
| 8 | TN4039203Replaces Tennant 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. | $16.90/EA |
| – | TN4036880Replaces Tennant 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $2.70/EA |
| – | TN4036878Replaces Tennant 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $9.50/EA |
| – | TN4019615Replaces Tennant 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $18.20/EA |
| 9 | TN4034290Replaces Tennant 1212987 | 1 | Fitting, Plstc, E90, Qf08/Pm06, Swivel | $17.60/EA |
| 10 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 11 | TN4037472Replaces Tennant 1221945 | 1 | Fitting, Plstc, E90, Qf08/Qf08Tennant prints the serial range as (xxxxxxxx- ). | $11.80/EA |
| 12 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Tennant prints the serial range as (xxxxxxxx- ). | $1.90/EA |
| 13 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
Tennant T500e (S/N 30000000-40000000) Label group 10 disk & cylindrical head orbital head parts
The parts Tennant numbers on its label group 10 disk & cylindrical head orbital head drawing. Manual page 76.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038072Replaces Tennant 1224984 | 2 | Label, T500e | $12.70/EA |
| 2 | TN4040192Replaces Tennant 1216520 | 2 | Label, Logo [Ech2o Nano] | $32.70/EA |
| 3 | TN4039536Replaces Tennant 1213114 | 1 | Label, Logo, 05.5l, Blk/Sil [Tennant] | $37.00/EA |
| 4 | TN4037230Replaces Tennant 1220963 | 1 | Label Sheet, Info/Hzrd [T500, Ce] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4032428 | 1 | Label Sheet, Operational [T500/E/Ss500]Serial up to 40000000. Tennant prints the serial range as (NOV2024- 40000000). | $77.16/EA |
| 5 | TN4037232Replaces Tennant 1220965 | 1 | Label Sheet, Operational [T500]Serial 30000000 and later. Tennant prints the serial range as (30000000- OCT2024). | $227.90/EA |
| 6 | TN4038078Replaces Tennant 1224995 | 1 | Label, Orbital, Size, 70cm | $8.90/EA |
| 7 | TN4038240Replaces Tennant 1225763 | 1 | Label, Decal, Charger, Off-Board | $54.60/EA |
| 7 | TN4031049Replaces Tennant 1247344 | 1 | Label, Decal, Charger, Off-Board (China - Lithium- Ion Model) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN7005113Replaces Tennant 1231798 | 1 | Label, Info, FilterTennant prints the serial range as (xxxxxxxx- ). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4035307Replaces Tennant 1229725 | 1 | Label, Warning [Do Not Spray] (Australia Only) | $14.70/EA |
| 10 | TN4034032Replaces Tennant 1242515 | 1 | Label, Logo, Lithium-Ion (China - Lithium-Ion Model)Tennant's online parts catalog lists a quantity of 2. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN1248893Tennant 1248893 | 1 | Label, Instr, Battery [Ch] (China - Lithium-Ion Model) | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T500e (S/N 30000000-40000000) Label group (Japan) disk & cylindrical head 5 orbital head parts
The parts Tennant numbers on its label group (japan) disk & cylindrical head 5 orbital head drawing. Manual page 77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038072Replaces Tennant 1224984 | 2 | Label, T500e | $12.70/EA |
| 2 | TN4040192Replaces Tennant 1216520 | 2 | Label, Logo [Ech2o Nano] | $32.70/EA |
| 3 | TN4039536Replaces Tennant 1213114 | 1 | Label, Logo, 05.5l, Blk/Sil [Tennant] | $37.00/EA |
| 4 | TN4037235Replaces Tennant 1220966 | 1 | Label Sheet, Data [T500, Jp] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4032428 | 1 | Label Sheet, Operational [T500/E/Ss500]Serial up to 40000000. Tennant prints the serial range as (NOV2024- 40000000). | $77.16/EA |
| 5 | TN4037232Replaces Tennant 1220965 | 1 | Label Sheet, Operational [T500]Serial 30000000 and later. Tennant prints the serial range as (30000000- OCT2024). | $227.90/EA |
| 6 | TN4038078Replaces Tennant 1224995 | 1 | Label, Orbital, Size, 70cm | $8.90/EA |
| 7 | TN4038240Replaces Tennant 1225763 | 1 | Label, Decal, Charger, Off-Board | $54.60/EA |
| 8 | TN7005113Replaces Tennant 1231798 | 1 | Label, Info, FilterTennant prints the serial range as (xxxxxxxx- ). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T500e (S/N 30000000-40000000) Standard battery cables group parts
The parts Tennant numbers on its standard battery cables group drawing. Manual page 78.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044963Replaces Tennant 1074942 | 1 | Cable, Assy [T500,T500e] | $87.10/EA |
| 2 | TN4022837Replaces Tennant 611221 | 8 | Boot, Terminal, Battery, 25.4mm, Blk | $4.90/EA |
| 3 | TN4037638 | 3 | Cable, 04ga 18.0l Blk .34ring /.34ring | $35.80/EA |
Tennant T500e (S/N 30000000-40000000) Wire harness group parts
Wire harness group from Tennant's parts list. Manual page 79.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | TN4030945 | Qty on machine: 1 | Harness, Ele [Bail Switch] | $9.30/EA | ||
| – | TN4014151 | Qty on machine: 2 | Relay, 24vdc, 015a, Spdt No | $28.80/EA | ||
| – | TN4043019 | Qty on machine: 1 | Harness, Main, Ele [T500e]Tennant prints the serial range as (JUN2021- ). | $539.74/EA | ||
| – | TN4045129 | Qty on machine: 1 | Harness, Main, Ele [T500e]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $815.10/EA | ||
| – | TN4043031 | Qty on machine: 1 | Harness, Ele [Op. Station, T500e]Tennant prints the serial range as (JUN2024- ). | $98.07/EA | ||
| – | TN4018526Replaces Tennant 4045130 | Qty on machine: 1 | Harness, Ele [Op. Station, T500e] (Replaced By Kit 9022186)Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2024). | $761.84/EA |
Tennant T500e (S/N 30000000-40000000) Battery group, wet 240Ah parts
The parts Tennant numbers on its battery group, wet 240ah drawing. Manual page 80.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040235Replaces Tennant 222280 | 4 | Battery, Wet, 06vdc 0240ahComplete assembly. | $314.77/EA |
| 2 | TN4022093Replaces Tennant 87435 | 2 | Nut, Hex, Flexlock, .31-18Part of Battery, Wet, 06vdc 0240ah (222280). | $3.20/EA |
| 3 | TN4044457Replaces Tennant 1041030 | 2 | Cap, Battery, Black [For 155ah]Part of Battery, Wet, 06vdc 0240ah (222280). | $3.20/EA |
| 4 | TN4020777Replaces Tennant 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 | $15.60/EA |
| 5 | TN4037493Replaces Tennant 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick] | $46.50/EA |
Tennant T500e (S/N 30000000-40000000) Battery group, AGM 220Ah parts
The parts Tennant numbers on its battery group, agm 220ah drawing. Manual page 81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4211694Replaces Tennant 1074042 | 4 | Battery, Agm, 06vdc, 220ah (Discover)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4022093Replaces Tennant 87435 | 2 | Nut, Hex, Flexlock, .31-18Part of Battery, Agm, 06vdc, 220ah (Discover) (1074042). | $3.20/EA |
| 3 | TN4020777Replaces Tennant 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 | $15.60/EA |
| 4 | TN4037493Replaces Tennant 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick] | $46.50/EA |
Tennant T500e (S/N 30000000-40000000) Battery group, wet 260Ah parts
The parts Tennant numbers on its battery group, wet 260ah drawing. Manual page 82.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018860Replaces Tennant 390825 | 4 | Battery, Wet, 06vdc 0244ahComplete assembly. | $434.52/EA |
| 2 | TN4022093Replaces Tennant 87435 | 2 | Nut, Hex, Flexlock, .31-18Part of Battery, Wet, 06vdc 0244ah (390825). | $3.20/EA |
| 3 | TN4044457Replaces Tennant 1041030 | 2 | Cap, Battery, Black [For 155ah]Part of Battery, Wet, 06vdc 0244ah (390825). | $3.20/EA |
| 4 | TN4020777Replaces Tennant 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 | $15.60/EA |
| 5 | TN4037493Replaces Tennant 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick] | $46.50/EA |
Tennant T500e (S/N 30000000-40000000) Battery group, AGM 170Ah (china) parts
The parts Tennant numbers on its battery group, agm 170ah (china) drawing. Manual page 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029994Tennant 4029994 | 4 | Battery, Agm, 6vdc, 170ah C5, Cn | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4013445Replaces Tennant 45962 | 2 | Cap, Battery, White [For 105ah & 130ah] | $4.00/EA |
| 3 | TN4020777Replaces Tennant 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 | $15.60/EA |
| 4 | TN4037493Replaces Tennant 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick] | $46.50/EA |
Tennant T500e (S/N 30000000-40000000) Battery group, AGM 217Ah (china) parts
The parts Tennant numbers on its battery group, agm 217ah (china) drawing. Manual page 84.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029752Tennant 4029752 | 4 | Battery, Agm, 06vdc, 217ah C20, CnComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | Not sold separatelyTennant N/A | 2 | Screw, Hex M8Part of Battery, Agm, 06vdc, 217ah C20, Cn (4029752). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes itCall 800-440-6723 |
| 3 | TN4020777 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 | $15.60/EA |
| 4 | TN4037493 | 1 | Tray, Battery, Trimmed [T500, Thick] | $46.50/EA |
Tennant T500e (S/N 30000000-40000000) Battery group, lithium-ion (china) parts
The parts Tennant numbers on its battery group, lithium-ion (china) drawing. Manual page 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029738Manual prints Tennant 1248832 | 1 | Battery, Lithium Ion, 24vdc 0160ahComplete assembly. Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4021590Replaces Tennant 9020683 | 2 | Screw, Hex, M8 X 1.25 X 16Part of Battery, Lithium Ion, 24vdc 0160ah (1248832). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4031111Replaces Tennant 1248842 | 1 | Spacer, Battery[Cn] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4020777Replaces Tennant 630375 | 3 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 | $15.60/EA |
| 5 | TN4037493Replaces Tennant 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick] | $46.50/EA |
Tennant T500e (S/N 30000000-40000000) Battery group, AGM 220Ah (china) parts
The parts Tennant numbers on its battery group, agm 220ah (china) drawing. Manual page 86.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031475Replaces Tennant 1251239 | 4 | Battery, Agm, 06vdc 0260ah, Cn (Includes Qty 2 Screws)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | Not sold separatelyTennant N/A | 2 | Screw, M8 X 18, Ss, 8.8 (Not Available Separately)Part of Battery, Agm, 06vdc 0260ah, Cn (Includes Qty 2 Screws) (1251239). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes itCall 800-440-6723 |
| 3 | TN4020777Replaces Tennant 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7 | $15.60/EA |
| 4 | TN4037493Replaces Tennant 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick] | $46.50/EA |
Tennant T500e (S/N 30000000-40000000) Lithium-ion battery cables group (china) parts
Lithium-ion battery cables group (china) from Tennant's parts list. Manual page 87.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 2 | TN4018304Replaces Tennant 68872 | Qty on machine: 1 | Boot, Terminal, Battery, 02-01ga, Blk | $6.60/EA | |
| 1 | TN4044963Replaces Tennant 1074942 | Qty on machine: 1 | Cable, Assy [T500,T500e] | $87.10/EA | |
| 3 | TN4018305Replaces Tennant 68873 | Qty on machine: 1 | Boot, Terminal, Battery, 02-01ga, Red | $6.70/EA |
Tennant T500e (S/N 30000000-40000000) Manual battery watering system parts
The parts Tennant numbers on its manual battery watering system drawing. Manual pages 88, list 89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010 | 1 | Fill Kit, Battery, manual, Ci [Trojan]Complete assembly. Tennant prints the serial range as (JUL2021- ) THIS KIT IS INTENDED FOR USE WITH TROJANR LEAD ACID BATTERIES ONLY. | $300.00/EA |
| 1 | TN4033340 | 1 | Pump, Hand, BatteryPart of Fill Kit, Battery, manual, Ci [Trojan] (4022010). Tennant prints the serial range as (JUL2021- ). | $93.20/EA |
| 2 | TN4189222 | 1 | Manifold Kit, Water, 4 Btry [Trojan]Part of Fill Kit, Battery, manual, Ci [Trojan] (4022010). Tennant prints the serial range as (JUL2021- ). | $283.90/EA |
| 3 | TN4031852Tennant 4031852 | 1 | Label, Tag, Battery [Bwt Watering]Part of Fill Kit, Battery, manual, Ci [Trojan] (4022010). Tennant prints the serial range as (JUL2021- ). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4043510 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Fill Kit, Battery, manual, Ci [Trojan] (4022010). Tennant prints the serial range as (JUL2021- ). | $3.90/EA |
Tennant T500e (S/N 30000000-40000000) HydroLINK manual battery watering kit parts
The parts Tennant numbers on its hydrolink manual battery watering kit drawing. Manual pages 90, list 91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010Replaces Tennant 4027104 | 1 | Battery Fill Kit, 24v, Ci [Hydrolink] (Replaced By 4022010)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2021) THIS KIT IS INTENDED FOR USE WITH TROJANR LEAD ACID BATTERIES ONLY. | $300.00/EA |
| 1 | TN4036778Replaces Tennant 1058939 | 1 | Pump Kit, Fill, Hand, BatteryPart of Battery Fill Kit, 24v, Ci [Hydrolink] (Replaced By 4022010) (4027104). Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2021). | $145.10/EA |
| 2 | TN4035289Replaces Tennant 1229544 | 1 | Tube, Water, Battery, 24vdc [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (Replaced By 4022010) (4027104). Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2021). | $176.50/EA |
| 3 | TN4040858Replaces Tennant 1204142 | 4 | Cap, Fill, Battery [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (Replaced By 4022010) (4027104). Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2021). | $42.00/EA |
| 4 | TN4030488Replaces Tennant 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (Replaced By 4022010) (4027104). Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2021). | $7.50/EA |
| 5 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Battery Fill Kit, 24v, Ci [Hydrolink] (Replaced By 4022010) (4027104). Serial 30000000 and later. Tennant prints the serial range as (30000000- JUN2021). | $3.90/EA |
Tennant T500e (S/N 30000000-40000000) Battery box lift out group parts
The parts Tennant numbers on its battery box lift out group drawing. Manual pages 92, list 93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036843Replaces Tennant 1218564 | 1 | Box, Battery [Lift-Out] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4036845Replaces Tennant 1218566 | 1 | Strap, Pyp, Buckle, Friction, 80.7l | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4039476Replaces Tennant 1212689 | 4 | Pad, Box, Battery | $5.35/EA |
| 4 | TN4037200Replaces Tennant 1220341 | 1 | Bracket, Deflector, Battery | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 6 | TN4044999Replaces Tennant 1075214 | 1 | Cable, Battery, Fuse [Sb120, 100a] | $66.50/EA |
| 7 | TN4044585Replaces Tennant 1073629 | 1 | Cable, Battery, 4ga [M8 Ring/M8 Ring] | $117.60/EA |
| 8 | TN4031246Replaces Tennant 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, Ss | $3.20/EA |
| 9 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 10 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss | $3.40/EA |
| 11 | TN4044944Replaces Tennant 1074798 | 1 | Cable, Adaptor, Batt [Sb120-Sb50, Red] | $54.92/EA |
| 12 | TN4044963Replaces Tennant 1074942 | 1 | Cable, Assy [T500,T500e] | $87.10/EA |
Tennant T500e (S/N 30000000-40000000) Extra battery box lift out kit parts
The parts Tennant numbers on its extra battery box lift out kit drawing. Manual pages 94, list 95.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023975Replaces Tennant 9015763 | 1 | Box Kit, Lift, Batt, Am [T500e] (See Note Below)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4036843Replaces Tennant 1218564 | 1 | Box, Battery [Lift-Out]Part of Box Kit, Lift, Batt, Am [T500e] (See Note Below) (9015763). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4036845Replaces Tennant 1218566 | 1 | Strap, Pyp, Buckle, Friction, 80.7lPart of Box Kit, Lift, Batt, Am [T500e] (See Note Below) (9015763). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4039476Replaces Tennant 1212689 | 4 | Pad, Box, BatteryPart of Box Kit, Lift, Batt, Am [T500e] (See Note Below) (9015763). | $5.35/EA |
| 4 | TN4044617Manual prints Tennant 1073680 | 1 | Cable, 04ga 15.0l Blk [M8 Ring/M8 Ring]Part of Box Kit, Lift, Batt, Am [T500e] (See Note Below) (9015763). Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4044999Replaces Tennant 1075214 | 1 | Cable, Battery, Fuse [Sb120, 100a]Part of Box Kit, Lift, Batt, Am [T500e] (See Note Below) (9015763). | $66.50/EA |
| 6 | TN4044944Replaces Tennant 1074798 | 1 | Cable, Adaptor, Batt [Sb120-Sb50, Red]Part of Box Kit, Lift, Batt, Am [T500e] (See Note Below) (9015763). | $54.92/EA |
Tennant T500e (S/N 30000000-40000000) Smart-Fill automatic battery watering system (S/N JUN2021 - ) parts
The parts Tennant numbers on its smart-fill automatic battery watering system (s/n jun2021 - ) drawing. Manual pages 96, list 97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022011Replaces Tennant 9021125 | 1 | Fill Kit, Battery, Auto, Ci [Trojan]Complete assembly. Tennant prints the serial range as (JUN2021- ) Requires Tennant True service or an authorized Tennant service provider. | $971.60/EA |
| 1 | TN4034996Replaces Tennant 1228510 | 1 | Relay, 24vdc, 80a, Spst No, Plug-InPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $19.90/EA |
| 2 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $2.60/EA |
| 3 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $3.30/EA |
| 4 | TN4192568Replaces Tennant 9018989 | 1 | Delivery Kit, Water, BatteryPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). Tennant prints the serial range as (JUN2021- ). | $345.80/EA |
| 5 | TN4189222Replaces Tennant 9018988 | 1 | Distribution Kit, Water, BatteryPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). Tennant prints the serial range as (JUN2021- ). | $283.90/EA |
| 6 | TN4020331Replaces Tennant 9016770 | 1 | Controller Kit, Battery, 24vdc, Ci [Abw] (See Breakdowns)Part of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). Tennant prints the serial range as (JUN2021- ) Requires Tennant True service or an authorized Tennant service provider. | $335.60/EA |
| 7 | TN4016765Replaces Tennant 40678-1 | 1 | Clamp, Cable, Stl, 0.88d X 0.62w, 1holePart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). Tennant prints the serial range as (JUN2021- ). | $4.20/EA |
| 8 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $2.60/EA |
| 9 | TN4038624Replaces Tennant 1016005 | 2 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $3.30/EA |
| 10 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $3.90/EA |
| 11 | TN4035537Replaces Tennant 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $2.50/EA |
| 12 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $2.60/EA |
| 13 | TN4031836Replaces Tennant 1252827 | 1 | Bracket, Mtg, AbwPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). Tennant prints the serial range as (JUN2021- ). | $8.90/EA |
| 14 | TN4022014Replaces Tennant 9021131 | 1 | Tank Kit, Battery Fill, Ci [W/ Pump]Complete assembly. Part of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). Tennant prints the serial range as (JUN2021- ). | $127.70/EA |
| 15 | TN4037903Replaces Tennant 1224600 | 1 | Cap, Snap, 2.17d [Blue]Part of Tank Kit, Battery Fill, Ci [W/ Pump] (9021131). | $9.60/EA |
| 16 | TN4038074Replaces Tennant 1224988 | 1 | Label, Automated Battery WateringPart of Tank Kit, Battery Fill, Ci [W/ Pump] (9021131). | $30.10/EA |
| 17 | TN4036521Replaces Tennant 1233633 | 1 | Label, Detgt [Do Not Add]Part of Tank Kit, Battery Fill, Ci [W/ Pump] (9021131). | $20.30/EA |
| 18 | TN4020528Replaces Tennant 630146 | 1 | Fitting, Plug, Pm06, HdpePart of Tank Kit, Battery Fill, Ci [W/ Pump] (9021131). | $4.00/EA |
| 19 | TN4035937Replaces Tennant 1231338 | 1 | Grommet, PumpPart of Tank Kit, Battery Fill, Ci [W/ Pump] (9021131). Tennant prints the serial range as (JUN2021- ). | $1.80/EA |
| 20 | TN4035623Replaces Tennant 1231018 | 1 | Pump, In-Tank, 13.5vdc 3.5lpmPart of Tank Kit, Battery Fill, Ci [W/ Pump] (9021131). Tennant prints the serial range as (JUN2021- ). | $42.30/EA |
| 21 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01ftPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $44.40/EA |
| 22 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerPart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $12.60/EA |
| 23 | TN4032587Replaces Tennant 1064187 | 1 | Circuitbreaker, 10.0a, ResetablePart of Fill Kit, Battery, Auto, Ci [Trojan] (9021125). | $5.30/EA |
Tennant T500e (S/N 30000000-40000000) Smart-Fill automatic battery watering system (S/N 30000000 - MAY2021) parts
The parts Tennant numbers on its smart-fill automatic battery watering system (s/n 30000000 - may2021) drawing. Manual pages 98, list 99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037462Replaces Tennant 1221589 | 1 | Fitting, Plstc, Str, Bm06, Cplg, Fem[Hl]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $42.80/EA |
| 2 | TN4039305Replaces Tennant 1006416 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 03ftSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $18.70/EA |
| 3 | TN4038122Replaces Tennant 1225185 | 1 | Valve, Check, 0002psi Bm04/Bm06Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $18.80/EA |
| 4 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $51.70/EA |
| 5 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $10.60/EA |
| 6 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 7 | TN4018784 | 1 | Service Kit, Meter, FlowSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $142.31/EA |
| 8 | TN4038074Replaces Tennant 1224988 | 1 | Label, Automated Battery Watering | $30.10/EA |
| 9 | TN4039274Replaces Tennant 1212430 | 1 | Sensor, Level, Liq, 30watt, SpstSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $81.30/EA |
| 10 | TN4037903Replaces Tennant 1224600 | 1 | Cap, Snap, 2.17d [Blue] | $9.60/EA |
| 11 | TN4031824 | 1 | Tank, 2.3l, Trimmed, SeTennant prints the serial range as (JUN2021- ). | $71.20/EA |
| 11 | TN4036521Replaces Tennant 1217453 | 1 | Tank [2.5 Liter] (Replaced By 4031824)Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4036521 | 1 | Label, Detgt [Do Not Add]Tennant prints the serial range as (JUN2021- ). | $20.30/EA |
| 12 | TN4036521Replaces Tennant 1228813 | 1 | Label, Warning, No Detgt (Replaced By 4036521)Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $20.30/EA |
| 13 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $51.70/EA |
| 14 | TN4039491Replaces Tennant 1212812 | 1 | Fitting, Plstc, E90, Qf06/Pm06, SwivelSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $18.00/EA |
| 15 | TN4037875Replaces Tennant 1224108 | 1 | Hose, Mold, Bm04/Bm06Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $22.00/EA |
| 16 | TN4035537Replaces Tennant 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,Ss | $2.50/EA |
| 17 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 18 | TN4034972Replaces Tennant 1228042 | 1 | Fitting, Plstc, Cap, Bm03 [T500]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $2.80/EA |
| 19 | TN4034973Replaces Tennant 1228043 | 1 | Strap, Retaining, Cap [T500]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $2.50/EA |
| 20 | TN4037869Replaces Tennant 1224016 | 1 | Hose, Molded, Bm04/Bm06Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $32.30/EA |
| 21 | TN4037103Replaces Tennant 1220042 | 1 | Pump, Fill, BatterySerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $231.90/EA |
| 22 | TN4037511Replaces Tennant 1222924 | 1 | Filter, In-Line, Bm04/Bm04, 100mic, 2.0lSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $27.20/EA |
| 23 | TN4038624Replaces Tennant 1016005 | 2 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, Ss | $3.30/EA |
| 24 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 25 | TN4020331Replaces Tennant 9018008 | 1 | Kit, Module, Abw, Ci (See Breakdowns) (Replaced By 9016770)Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021) Requires Tennant True service or an authorized Tennant service provider. | $335.60/EA |
| 26 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01ft | $44.40/EA |
| 27 | TN4044535Replaces Tennant 150407 | 1 | Fitting, Brs, E90, Pf02/Pm02 [Street]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $5.30/EA |
| 28 | TN4044292Replaces Tennant 1040254 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $20.10/EA |
| 29 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float TypeSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $64.30/EA |
| 30 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $1.90/EA |
| 31 | TN4040858Replaces Tennant 1204142 | 4 | Cap, Fill, Battery [Trojan]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $42.00/EA |
| 32 | TN4035289Replaces Tennant 1229544 | 1 | Tube, Water, Battery, 24vdc [Trojan]Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $176.50/EA |
| 33 | TN4032587Replaces Tennant 1064187 | 1 | Circuitbreaker, 10.0a, Resetable | $5.30/EA |
| 34 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 35 | TN4034996Replaces Tennant 1228510 | 1 | Relay, 24vdc, 80a, Spst No, Plug-In | $19.90/EA |
| 36 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, Ss | $2.60/EA |
| 37 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 38 | TN4039501Replaces Tennant 1212857 | 1 | Fitting, Plstc, Str, Qm06/Bm04Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $4.10/EA |
| 39 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $3.60/EA |
| 40 | TN4034056Replaces Tennant 1243106 | 1 | Plate, Shield, SwitchSerial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021). | $24.90/EA |
Tennant T500e (S/N 30000000-40000000) Pinch cuff screw cap drain hose group parts
The parts Tennant numbers on its pinch cuff screw cap drain hose group drawing. Manual page 100.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032276Replaces Tennant 1247144 | 1 | Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray)Complete assembly. Tennant prints the serial range as (xxxxxxxx- ). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4031082Replaces Tennant 1247319 | 1 | Cap, Drain Assy, D-Ring [Gray]Complete assembly. Part of Hose Assy, Drain, 1.5id X 21.0l [Pu] (Gray - Option) (Replaced By 4032276) (1247144). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4039938Replaces Tennant 1008637 | 1 | Seal, Org, 1.48id 1.76odPart of Cap, Drain Assy, D-Ring [Gray] (1247319). | $12.10/EA |
| 4 | TN4037088Replaces Tennant 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50w | $4.20/EA |
Tennant T500e (S/N 30000000-40000000) Control valve drain hose group parts
The parts Tennant numbers on its control valve drain hose group drawing. Manual page 101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031082Replaces Tennant 9015727 | 1 | Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 1247144)Complete assembly. Serial 30000000 to 30182935. | $85.90/EA |
| 2 | TN4020670Manual prints Tennant 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/Handle (No Longer Avail- able - Replaced by Gray Pinch Cuff Screw Cap 1247144)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 to 30182935. Number from Tennant's current parts catalog. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4034990Replaces Tennant 1228335 | 1 | Hose Assy, W/2cuff,1.5d 022l 2.0/1.5[Pu] (Gray) (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 1247144)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). Serial 30000000 to 30182935. Tennant's online parts catalog gives this part different serial numbers (30000000 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4035291Replaces Tennant 1229567 | 1 | Strap, HangerPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). | $5.76/EA |
| 5 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray - Option) (No Longer Available - Replaced by 1247144) (9015727). | $5.30/EA |
| 6 | TN4037088Replaces Tennant 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50w | $4.20/EA |
Tennant T500e (S/N 30000000-40000000) ec-H2O solution group parts
The parts Tennant numbers on its ec-h2o solution group drawing. Manual pages 102, list 103.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018163 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Australia Also Requires Qty 1 Ferrite #1065665)Complete assembly. Tennant prints the serial range as (FEB2023- ). | $1,339.60/EA |
| 1 | TN4018163Replaces Tennant 9020643 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (Australia Also Requires Qty 1 Ferrite #1065665) (Replaced By 4018163)Complete assembly. Tennant prints the serial range as (JUN2020- JAN2023). | $1,339.60/EA |
| 1 | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (Australia Also Requires Qty 1 Ferrite #1065665) (Replaced By 4018163)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2020). | $1,339.60/EA |
| 2 | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlPart of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9011810). | $300.60/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 4 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06 | $18.30/EA |
| 5 | TN4026363Replaces Tennant 9014146 | 1 | Hose, Afmkt, Pvc, 0.06id .38od, 05ft | $113.90/EA |
| 6 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04 | $11.60/EA |
| 7 | TN4026364Replaces Tennant 9014147 | 1 | Hose, Afmkt, Pvc, 0.06id .25od, 05ft | $103.40/EA |
| 8 | TN4037471Replaces Tennant 1221926 | 1 | Bracket Wldt, Mtg, Ec-H20 [T500] | $40.32/EA |
| 9 | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, Dispenser | $338.70/EA |
| 10 | TN4043510Replaces Tennant 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 11 | TN4039467Replaces Tennant 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06 | $19.10/EA |
| 12 | TN4026365Replaces Tennant 9014148 | 1 | Hose, Afmkt, Nat, 0.25id 0.375od, 06ft | $102.00/EA |
| 13 | TN4039499Replaces Tennant 1212855 | 2 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06 | $24.70/EA |
| 14 | TN4039500Replaces Tennant 1212856 | 1 | Fitting, Plstc, E90, Qf06/Qf06Serial 30000000 to 30087306. | $18.60/EA |
| 15 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06 | $18.30/EA |
| 16 | TN4040170Replaces Tennant 1216185 | 1 | Fitting, Plstc, Str, Qm04/Pm02 | $5.30/EA |
| 17 | TN4044394Replaces Tennant 150307 | 1 | Fitting, Brs, Cplg, Pf02/Pf02 | $4.20/EA |
| 18 | TN4042144Replaces Tennant 1044414 | 1 | Switch, Press, 15psi, Pm02 | $86.30/EA |
| 19 | TN4040132Replaces Tennant 1215527 | 1 | Valve, Check, 1.0 Psi Qf06/Qf06 | $44.80/EA |
| 20 | TN4039489Replaces Tennant 1212809 | 1 | Fitting, Plstc, E90, Qf08/Qm08 | $21.90/EA |
| 21 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ft | $104.00/EA |
| 22 | TN4039506Replaces Tennant 1212875 | 1 | Fitting, Plstc, Tee, Qf06/Qf08/Qf08 | $26.40/EA |
| 23 | TN4037972Replaces Tennant 1014985 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 08ft | $62.50/EA |
| 24 | TN4029767Manual prints Tennant 4133121 | 1 | Pump, Soltn, Ele, 24vdc, 35 PsiNumber from Tennant's current parts catalog. | $351.68/EA |
| 25 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.62-3.50d | $6.20/EA |
| 26 | TN4039491Replaces Tennant 1212812 | 2 | Fitting, Plstc, E90, Qf06/Pm06, Swivel | $18.00/EA |
| 27 | TN4039506Replaces Tennant 1212875 | 1 | Fitting, Plstc, Tee, Qf06/Qf08/Qf08 | $26.40/EA |
| 28 | TN4019547Replaces Tennant 613735 | 3 | Clamp, Hose, Wir, .40 - .42, Yel | $3.60/EA |
| 29 | TN4044069Replaces Tennant 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06 | $2.60/EA |
| 30 | TN4021946Replaces Tennant 607775 | 1 | Clamp, Hose, Wir, .63 - .66, Blk | $4.20/EA |
| 31 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomSerial 30000000 and later. Tennant prints the serial range as (30000000- OCT2024). | $7.70/EA |
| 32 | TN4032587Replaces Tennant 1064187 | 1 | Circuitbreaker, 10.0a, Resetable | $5.30/EA |
| 33 | TN4032601Replaces Tennant 1064191 | 1 | Boot, Circuitbreaker | $12.60/EA |
| 34 | TN4034996Replaces Tennant 1228510 | 1 | Relay, 24vdc, 80a, Spst No, Plug-In | $19.90/EA |
| 35 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, Ss | $2.60/EA |
| 36 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 37 | TN4039501Replaces Tennant 1212857 | 2 | Fitting, Plstc, Str, Qm06/Bm04 | $4.10/EA |
| 38 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 39 | TN4016786Replaces Tennant 41140 | 1 | Washer, Lock, Int-Ext, 0.25 | $3.40/EA |
| 40 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Tennant prints the serial range as (xxxxxxxx- ). | $1.90/EA |
| 41 | TN4032781Replaces Tennant 1065665 | 1 | Inductor, 32.3mml [Ferrite 10-250mhz] (Australia Only) | $5.60/EA |
| 42 | TN4034964 | 2 | Inductor, Ferrite [Split Case,407@100hz] | $6.40/EA |
Tennant T500e (S/N 30000000-40000000) Parking brake group (S/N 30182936 and later) parts
The parts Tennant numbers on its parking brake group (s/n 30182936 and later) drawing. Manual pages 104, list 105.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037464Replaces Tennant 1221694 | 1 | Clamp, Brake, Parking [T500] | $64.80/EA |
| 2 | TN4041599Replaces Tennant 07785 | 1 | Nut, Hex, Std, M6 X 1.00, Ss | $2.50/EA |
| 3 | TN4035459Replaces Tennant 1017416 | 1 | Screw, Weld, M6 X 1.00 X 25, Thru, Ss | $5.40/EA |
| 4 | TN4035991Replaces Tennant 12323 | 4 | Screw, Pan, Phl, M4 X 0.70 X 20, Ss | $3.30/EA |
| 5 | TN4037465Replaces Tennant 1221695 | 1 | Plate Wldt, Brake [T500] | $32.00/EA |
| 6 | TN4044425 | 2 | Screw, Hex, M6 X 1.00 X 30mm, SsSerial 30182936 and later. | $1.50/EA |
| 7 | TN4032591Replaces Tennant 360801 | 2 | Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss | $4.00/EA |
| 8 | TN4032261 | 1 | Shoe, Brake, ParkingSerial 30182936 and later. Tennant's online parts catalog gives this part different serial numbers (30182936 to 40000000). Call 800-440-6723 to confirm before ordering. | $40.10/EA |
| 9 | TN4042901 | 9 | Washer, Flat, 0.27b 0.69d .05, SsSerial 30182936 and later. | $2.60/EA |
| 10 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 11 | TN4013519Replaces Tennant 75575 | 1 | Spring, Extn, 0.50od 0.06wir 02.5l | $7.70/EA |
| 12 | TN4038077Replaces Tennant 1224990 | 1 | Label, Opertnl, Parking Brake | $3.75/EA |
| 13 | TN4032426 | 1 | Bracket, Spanning Vert [T500]Serial 30182936 and later. | $36.66/EA |
| 14 | TN4032427 | 1 | Bracket, Spanning Angle [T500]Serial 30182936 and later. | $34.14/EA |
| 15 | TN4032445 | 1 | Plate, Bracket, SpanningSerial 30182936 and later. | $26.16/EA |
| 16 | TN4030961 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 30182936 and later. | $2.50/EA |
| 17 | TN4044306 | 2 | Nut, Hex, Flng, M6 X 1.0, Ss [Serrated]Serial 30182936 and later. | $2.50/EA |
| 18 | TN4042902 | 4 | Washer, Flat, 0.38b 0.88d .08, SsSerial 30182936 and later. | $2.60/EA |
| 19 | TN4041929 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 30182936 and later. | $3.30/EA |
| 20 | TN4041931 | 4 | Screw, Hex, M6 X 1.00 X 20, SsSerial 30182936 and later. | $3.20/EA |
| 21 | TN4032231 | 1 | Bracket, Spanning [T500]Serial 30182936 and later. | $40.91/EA |
| 22 | TN4041943 | 1 | Screw, Hex, M8 X 1.25 X 25, SsSerial 30182936 and later. | $3.30/EA |
Tennant T500e (S/N 30000000-40000000) Parking brake group (S/N 30000000-30182935) parts
The parts Tennant numbers on its parking brake group (s/n 30000000-30182935) drawing. Manual pages 106, list 107.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037464Replaces Tennant 1221694 | 1 | Clamp, Brake, Parking [T500] | $64.80/EA |
| 2 | TN4041599Replaces Tennant 07785 | 1 | Nut, Hex, Std, M6 X 1.00, Ss | $2.50/EA |
| 3 | TN4035459Replaces Tennant 1017416 | 1 | Screw, Weld, M6 X 1.00 X 25, Thru, Ss | $5.40/EA |
| 4 | TN4035991Replaces Tennant 12323 | 4 | Screw, Pan, Phl, M4 X 0.70 X 20, Ss | $3.30/EA |
| 5 | TN4037465Replaces Tennant 1221695 | 1 | Plate Wldt, Brake [T500] | $32.00/EA |
| 6 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M6 X 1.00 X 20, SsSerial 30000000 to 30182935. | $3.20/EA |
| 7 | TN4032591Replaces Tennant 360801 | 2 | Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss | $4.00/EA |
| 8 | TN4037442Replaces Tennant 1221423 | 1 | Shoe, Brake, ParkingSerial 30000000 to 30182935. | $25.60/EA |
| 9 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 30000000 to 30182935. | $2.60/EA |
| 10 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 11 | TN4013519Replaces Tennant 75575 | 1 | Spring, Extn, 0.50od 0.06wir 02.5l | $7.70/EA |
| 12 | TN4038077Replaces Tennant 1224990 | 1 | Label, Opertnl, Parking Brake | $3.75/EA |
Tennant T500e (S/N 30000000-40000000) Bracket kit, solution tank support (S/N 30000000-30182935) parts
The parts Tennant numbers on its bracket kit, solution tank support (s/n 30000000-30182935) drawing. Manual pages 108, list 109.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018218 | 1 | Solution Tank Support Kit Afmkt [T500/E]Complete assembly. Serial 30000000 to 30182935. | $160.40/EA |
| 1 | TN4030961 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsPart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $2.50/EA |
| 2 | TN4032217 | 1 | Bracket, Spanning [T500]Part of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $42.52/EA |
| 3 | TN4032215 | 1 | Bracket, Spanning [T500]Part of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $39.09/EA |
| 4 | TN4042901 | 9 | Washer, Flat, 0.27b 0.69d .05, SsPart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $2.60/EA |
| 5 | TN4041931 | 2 | Screw, Hex, M6 X 1.00 X 20, SsPart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $3.20/EA |
| 6 | TN4044306 | 4 | Nut, Hex, Flng, M6 X 1.0, Ss [Serrated]Part of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $2.50/EA |
| 7 | TN4042902 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $2.60/EA |
| 8 | TN4041929 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $3.30/EA |
| 9 | TN4032261 | 1 | Shoe, Brake, ParkingPart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. Tennant's online parts catalog gives this part different serial numbers (30182936 to 40000000). Call 800-440-6723 to confirm before ordering. | $40.10/EA |
| 10 | TN4038077 | 1 | Label, Opertnl, Parking BrakePart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $3.75/EA |
| 11 | TN4044425 | 2 | Screw, Hex, M6 X 1.00 X 30mm, SsPart of Solution Tank Support Kit Afmkt [T500/E] (4018218). Serial 30000000 to 30182935. | $1.50/EA |
| 12 | TN4032591 | 2 | Sleeve, 0.32b 0.50d 0.3l, 2cham, Ss (Existing Part - Not Included In Upgrade Kit 4018218) | $4.00/EA |
| 13 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of the assembly above. Serial 30000000 to 30182935. | $2.50/EA |
| 14 | TN4038889 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Part of the assembly above. Serial 30000000 to 30182935. | $1.90/EA |
| 15 | TN4032231 | 1 | Bracket, Spanning [T500]Part of the assembly above. Serial 30000000 to 30182935. | $40.91/EA |
| 15 | TN4032438 | 1 | Bracket, Spanning Old Frames [T500]Part of the assembly above. Serial 30000000 to 30182935. | $41.51/EA |
| 16 | TN4041943 | 1 | Screw, Hex, M8 X 1.25 X 25, SsPart of the assembly above. Serial 30000000 to 30182935. | $3.30/EA |
Tennant T500e (S/N 30000000-40000000) Documentation group (online only) parts
Documentation group (online only) from Tennant's parts list. Manual page 110.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023671Tennant 4023671 | Qty on machine: 1 | Manual, Parts [T500e, Cn Plnt] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023662Replaces Tennant 9015506 | Qty on machine: 1 | Manual, Oprtr [T500e, En, Na/Intl] | $218.04/EA |
| – | TN4023672Replaces Tennant 9015526 | Qty on machine: 1 | Manual, Oprtr [T500e, Cn] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023673Replaces Tennant 9015527 | Qty on machine: 1 | Manual, Oprtr [T500e, Kr] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023674Replaces Tennant 9015528 | Qty on machine: 1 | Manual, Oprtr [T500e, Jp] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4195236Replaces Tennant 9015510 | Qty on machine: 1 | Instr, Wall Chart [T500e, Na] | $8.40/EA |
| – | TN4023663Replaces Tennant 9015511 | Qty on machine: 1 | Manual, Service [T500e, En] | $92.76/EA |
Tennant T500e (S/N 30000000-40000000) Breakdowns ec-H2O NanoClean module breakdown 9020643, 9021553 (S/N JUN2020 - ) parts
The parts Tennant numbers on its breakdowns ec-h2o nanoclean module breakdown 9020643, 9021553 (s/n jun2020 - ) drawing. Manual pages 112, list 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9021553 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec- H2O NanoClean Cartridge)Complete assembly. Tennant prints the serial range as (FEB2023- ). | $1,339.60/EA |
| – | TN4018163Replaces Tennant 9020643 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553)Complete assembly. Tennant prints the serial range as (JUN2020- JAN2023). | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9020643). | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $0.25/EA |
| 5 | TN4036516Replaces Tennant 1233516 | 1 | Electrode, 5 Plate [De Nora Tech]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Tennant prints the serial range as (MAY2019- ). | $753.50/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.60/EA |
| 14 | TN4021577Replaces Tennant 9020642 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec- H2O NanoClean Cartridge)Part of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9020643). Tennant prints the serial range as (JUN2020- ). | $1,063.00/EA |
Tennant T500e (S/N 30000000-40000000) Breakdowns ec-H2O NanoClean module breakdown 9011810 (S/N 30000000 - MAY2020) parts
The parts Tennant numbers on its breakdowns ec-h2o nanoclean module breakdown 9011810 (s/n 30000000 - may2020) drawing. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02](Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553)Complete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2020). | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9011810). | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $0.25/EA |
| 5 | TN4032414Replaces Tennant 1208164 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 30000000 and later. Tennant prints the serial range as (30000000- APR2019). | $588.10/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.60/EA |
| 14 | TN4021577Replaces Tennant 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9020642)Part of Module Kit, Replmt [Ec-H2o, B 02] (Repld By 4018163) (9011810). Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2020). | $1,063.00/EA |
Tennant T500e (S/N 30000000-40000000) Breakdowns orbital head eccentric drive breakdown parts
The parts Tennant numbers on its breakdowns orbital head eccentric drive breakdown drawing. Manual pages 116, list 117.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023979Replaces Tennant 9015774 | 1 | Eccentric Drive Kit, OrbitalComplete assembly. | $449.70/EA |
| 2 | TN4035913Replaces Tennant 1231238 | 1 | Key, Sq, 5mm X 5mm X 22mmPart of Eccentric Drive Kit, Orbital (9015774). | $5.10/EA |
| 3 | Not sold separatelyTennant N/A | 1 | Balance, Eccentric, Step [Machined]Part of Eccentric Drive Kit, Orbital (9015774). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 4 | Not sold separatelyTennant N/A | 1 | Spacer, EccentricPart of Eccentric Drive Kit, Orbital (9015774). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 5 | Not sold separatelyTennant N/A | 3 | Screw, Hex, M6 X 1.00 X 16, SemsPart of Eccentric Drive Kit, Orbital (9015774). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 6 | Not sold separatelyTennant N/A | 1 | Plate, Retainer, Brg, OuterPart of Eccentric Drive Kit, Orbital (9015774). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 7 | TN4037201Replaces Tennant 1220452 | 1 | Bearing, Ball, 2.17b 3.54d .71wPart of Eccentric Drive Kit, Orbital (9015774). | $68.48/EA |
| 8 | Not sold separatelyTennant N/A | 1 | Housing, Bearing, Outer [Machined]Part of Eccentric Drive Kit, Orbital (9015774). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 9 | Not sold separatelyTennant N/A | 1 | Retainer, Bearing, Inner [Qpq]Part of Eccentric Drive Kit, Orbital (9015774). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 10 | Not sold separatelyTennant N/A | 2 | Screw, Soc, M6 X 1.00 X 12, 8.8, LowPart of Eccentric Drive Kit, Orbital (9015774). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 11 | TN4037441Replaces Tennant 1221394 | 1 | Seal, Org, .125 X 02.63idPart of Eccentric Drive Kit, Orbital (9015774). | $13.74/EA |
| 12 | TN4039478Replaces Tennant 1212710 | 6 | Screw, Flt, Soc, M6 X 1.00 X 35, 10.9,NlPart of Eccentric Drive Kit, Orbital (9015774). | $1.50/EA |
Tennant T500e (S/N 30000000-40000000) Breakdowns automatic battery watering module breakdown parts
The parts Tennant numbers on its breakdowns automatic battery watering module breakdown drawing. Manual page 118.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4020331Replaces Tennant 9016770 | 1 | Controller Kit, Battery, 24vdc, Ci [Abw]Complete assembly. Tennant prints the serial range as (JUN2021- ) Requires Tennant True service or an authorized Tennant service provider. | $335.60/EA |
| 1 | TN4020331Replaces Tennant 9018008 | 1 | Kit, Module, Abw, CiComplete assembly. Serial 30000000 and later. Tennant prints the serial range as (30000000- MAY2021) Requires Tennant True service or an authorized Tennant service provider. | $335.60/EA |
| 2 | TN4035537Replaces Tennant 1018155 | 4 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Module, Abw, Ci (See Breakdowns) (Replaced By 9016770) (9018008). | $2.50/EA |
| 3 | TN4037518Replaces Tennant 1223055 | 1 | Panel, Mtg, Fill, Auto, BatteryPart of Kit, Module, Abw, Ci (See Breakdowns) (Replaced By 9016770) (9018008). | $15.40/EA |
| 4 | TN4037533Replaces Tennant 1223286 | 2 | Seal, Cover, Board, Battery WateringPart of Kit, Module, Abw, Ci (See Breakdowns) (Replaced By 9016770) (9018008). | $2.83/EA |
| 5 | TN4037228Replaces Tennant 1220931 | 1 | Circuitboard Assy [Abw Module]Part of Kit, Module, Abw, Ci (See Breakdowns) (Replaced By 9016770) (9018008). | $324.40/EA |
| 6 | TN4037532Replaces Tennant 1223261 | 1 | Cover, Circuitboard, Battery WateringPart of Kit, Module, Abw, Ci (See Breakdowns) (Replaced By 9016770) (9018008). | $22.10/EA |
New to your Tennant T500e (S/N 30000000-40000000)? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your T500e. Everything here comes from Tennant's T500e operator manual, rewritten in plain steps, with the parts linked to the list above. Pick the parts that match your scrub head and squeegee size.
1Put the squeegee on
- Charge lithium-ion batteries before the first use.
- Lift the squeegee mount bracket with your foot under the pedal.
- Mount the squeegee on the bracket, tighten the knobs and connect the vacuum hose.
- Check that the squeegee blades (TN4023953 / TN4023956 / TN4023959 / TN4023962) bend slightly as they touch the floor. To adjust, loosen the jam nut and turn each caster until it sits 1/16 in (2 mm) off the floor.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 13. SES ref PF-XGHD-JGHZ
2Put the pads or brushes on
- Raise the scrub head, turn the machine off and take the key out.
- Fasten the pad to the pad driver (TN4037175 / TN4037176 / TN4037177) with the center lock.
- Press the yellow spring clips down and out, line the driver or brush (TN4037867 / TN4037454 / TN4037170) up under the motor hub and push it up until it locks.
- To take a driver off, raise the head and press the yellow release plunger. Replace brushes when the bristles wear down to the yellow line.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 14. SES ref PF-XGHD-JGHZ
3Fill the solution tank
- Fill through the front bucket port or the rear hose port to the 3/3 mark on the solution level hose.
- Conventional scrubbing: water no hotter than 140°F (60°C), plus a recommended detergent mixed as the bottle says.
- ec-H2O scrubbing: cool clean water only, below 70°F (21°C), and no detergent, or the ec-H2O system faults.
- Put both fill-port covers back. Never put flammable materials in the tanks.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 16. SES ref PF-XGHD-JGHZ
4Scrub and stop
- Step on the pedal to lower the squeegee. The vacuum starts on its own.
- Press the 1-STEP button to lower the scrub head, then pull the start bail. Set the speed with the speed dial.
- To stop, let go of the bail, press 1-STEP and raise the squeegee.
- Drive forward with the squeegee down first to pick up the last water, then turn the key off.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), pages 20 and 21. SES ref PF-XGHD-JGHZ
Questions about your T500e (S/N 30000000-40000000)? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant T500e (S/N 30000000-40000000) troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Machine won't run | ||
| Emergency shut-off button pressed | Turn the red button clockwise to reset it, then restart with the key. | |
| Batteries discharged or loose battery cables | Charge the batteries and tighten loose cables. | |
| Circuit breaker tripped | Disconnect the battery cable, let the breaker cool and press its reset button. Breakers: 4 A key switch (TN4042042), 10 A (TN4032587), 20 A vacuum (TN4032589), 25 A brush motor (TN4023153), 60 A propel (TN4023158). Call SES service if it keeps tripping. | |
| On-board charger won't charge | ||
| Plug not connected, batteries over-discharged or a faulty charger | Check the plug. Replace over-discharged batteries or a faulty on-board charger (TN4031447). | |
| Brush motor won't run | ||
| Tripped breaker, worn carbon brushes, or a broken or loose belt on cylindrical heads | Reset the brush motor breaker (TN4023153). If it still won't run, call SES service. Parts: carbon brushes (TN4032140), cylindrical brush belt (TN4023976). | |
| Vacuum motor won't run | ||
| Squeegee raised off the floor or a tripped breaker | Lower the squeegee. Reset the vacuum breaker (TN4032589) if it tripped. | |
| Poor scrubbing | ||
| Debris in the pad, a worn pad or brush, or the wrong type | Clear the debris and replace the brush (TN4037867 / TN4037454 / TN4037170) or pad with the right type for the floor. | |
| Water left behind | ||
| Full recovery tank, too much foam or a loose drain cap | Drain the recovery tank and put the drain hose cap (TN4036892) back on tight. | |
| Worn blades, a clogged squeegee, a clogged float screen or a worn lid seal | Clean the squeegee and the float (TN4020485) screen. Rotate or replace the blades (TN4023953 / TN4023956 / TN4023959 / TN4023962) and replace a worn cover seal (TN4023969). | |
| Little or no solution | ||
| Empty tank, low flow setting or a clogged filter | Refill the tank, raise the flow setting and clean the solution tank filter (TN4036999). | |
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), pages 22, 42 and 43. SES ref PF-4XNX-HRMI
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant T500e (S/N 30000000-40000000) maintenance schedule
Tennant's maintenance schedule for the T500e (S/N 30000000-40000000).
| Task | How often | Part |
|---|---|---|
| Drain and rinse the recovery tank and put the drain hose cap (TN4036892) back. Clean the shut-off float (TN4020485) screen and the debris tray. | After every use | |
| Drain and rinse the solution tank. | After every use | |
| Turn pads over or replace them. Clean brushes and replace them when worn to the yellow line. | After every use | |
| Clean the squeegee and check it for wear. Rotate or replace worn blades (TN4023953 / TN4023956 / TN4023959 / TN4023962). | After every use | |
| Check the scrub head skirt (TN4035992 / TN4035993 / TN4035994) for wear and charge the batteries if they need it. | After every use | |
| Check the electrolyte level in wet batteries. | Weekly | |
| Clean the squeegee drip trap reservoir. | Weekly | |
| Rotate cylindrical brushes and clean under the cylindrical scrub head. | Every 50 hours | |
| Check the recovery tank cover seal (TN4023969) for wear. | Every 50 hours | |
| Drain the solution tank, then take out and clean the solution tank filter (TN4036999) under the rear of the machine. | Every 50 hours | |
| Check and clean the batteries, terminals and cables. | Every 200 hours | |
| 750 hours: have the vacuum motor's carbon brushes (TN8004151) replaced. | Every 750 and 1,250 hours | |
| 1,250 hours: have the propel motor carbon brushes (TN4019997), the brush motor carbon brushes (TN4032140) and the cylindrical head brush belt (TN4023976) replaced. Tennant asks for trained personnel; SES service can do it: call 800-440-6723. | Every 750 and 1,250 hours |
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), pages 22, 23 and 26. SES ref PF-2YHJ-INGD
Tennant T500e (S/N 30000000-40000000) specifications
From Tennant's documents for the T500e (S/N 30000000-40000000).
| Scrubbing path | 26, 28 or 32 in (650, 700 or 800 mm) disk |
|---|---|
| Solution tank | 22.5 gal (85 L) |
| Recovery tank | 27 gal (102 L) |
| Scrubbing speed | 2.5 mph (4.0 km/h) |
| Solution flow | 0.30, 0.40 or 0.50 gpm (1.1, 1.5 or 1.9 L/min) |
| Vacuum motor | 24V DC, 0.46 hp (0.34 kW), 14.3 A |
| Machine voltage | 24V DC |
| Batteries | Wet 225 or 260 Ah, AGM 220 Ah, TPPL 183 Ah, or one or two 24V 90 Ah lithium-ion |
| Weight with batteries | 610, 620 or 645 lb (277, 281 or 293 kg) for the 26, 28 or 32 in disk |
| Sound level | 67.4 dB(A) |
| Operating temperature | 36°F to 110°F (2°C to 43°C) |
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 44. SES ref PF-Y57Q-JV4P
Tennant T500e (S/N 30000000-40000000) manuals and source documents
The documents this page was built from. View any of them in our manual viewer and tap a part number to look it up and add it to the cart. Sign in with a free account to download.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESParts manualTennant 4023671 Rev. 05 (12-2025), China / International / Japan, S/N 30000000-40000000, 119 pages | T500e (S/N 30000000-40000000) | Rev. 05 (12-2025) | 119 pages | ViewSign in to download |
| PDFby SESOperator manualTennant 9015506 Rev. 05 (02-2024), North America / International, 47 pages | T500e (S/N 30000000-40000000) | Rev. 05 (02-2024) | 47 pages | ViewSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant T500e (S/N 30000000-40000000) parts questions
How do I change the pads on a Tennant T500e?
Raise the scrub head and take the key out. Press the yellow release plunger and the pad driver drops. Fasten a new pad to the driver with the center lock, then push the driver up under the motor hub until it locks.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 14. SES ref PF-NMOF-ZJ7Y
Why is my T500e leaving water behind?
Drain the recovery tank if it is full or foamy and tighten the drain hose cap. Then clean the squeegee and the float screen, and rotate or replace worn squeegee blades.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 43. SES ref PF-NMOF-ZJ7Y
Can I use detergent with ec-H2O on the T500e?
No. On ec-H2O models fill the solution tank with cool clean water only. Detergent causes an ec-H2O system fault. Drain and rinse the tank before switching back to ec-H2O.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 16. SES ref PF-NMOF-ZJ7Y
How often should I clean the T500e solution filter?
Every 50 hours of use. Drain the solution tank first, then take the filter out from under the rear of the machine and clean the screen.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 23. SES ref PF-NMOF-ZJ7Y
Why won't my T500e vacuum turn on?
The vacuum runs only when the squeegee is lowered to the floor. If it still won't run, reset the vacuum circuit breaker and check the service indicator, then call SES service.
Source: Tennant T500e operator manual 9015506 Rev. 05 (02-2024), page 42. SES ref PF-NMOF-ZJ7Y
Does this parts list fit my T500e?
It covers the T500e built for China, International and Japan, serial numbers 30000000 to 40000000. T500e machines with serial numbers 10000000 to 20000000 have their own page. Some groups change partway through that range; each line shows its serial range. Call us with your serial number if you are unsure.
Source: Tennant T500e parts manual 4023671 Rev. 05 (12-2025), page 1. SES ref PF-NMOF-ZJ7Y
Notes on this parts list
Places where Tennant's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
Tennant's online parts catalog also lists 5 parts in groups this printed manual doesn't have: Label Group; Label Group (Japan); Squeegee Assembly, 650mm / 26in; Squeegee Assembly, 700mm / 28in; Squeegee Assembly, 800mm / 32in. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
