Tennant 5680 parts list and diagrams
Find any part on the Tennant 5680 walk-behind scrubber in Tennant's own drawings, crossed to Tennant's current numbers with our price. It covers the 28, 32 and 36 in (700, 800 and 900 mm) disk and cylindrical scrub heads, plus the FaST and ec-H2O options. Each line shows the serial range it fits.
Complete list: every line of the parts list in Tennant 5680 Walk-Behind Scrubber Parts Manual 331178 Rev. 13 (04-2016), North America / International, S/N 10000000 and later, 1691 printed part lines, with the parts numbered on its drawings. Checked .
New to your 5680? Start here → Manuals (free sign-in) →
- Scrubbing path
- 28, 32 or 36 in (700, 800 or 900 mm), disk or cylindrical
- Solution tank
- 30 gal (114 L) recommended, 35 gal (133 L) maximum
- Recovery tank
- 30 gal (114 L) to the full sensor, 40 gal (152 L) to the top
- Squeegee width
- 37.5, 42 or 45.5 in (950, 1,065 or 1,155 mm), by head

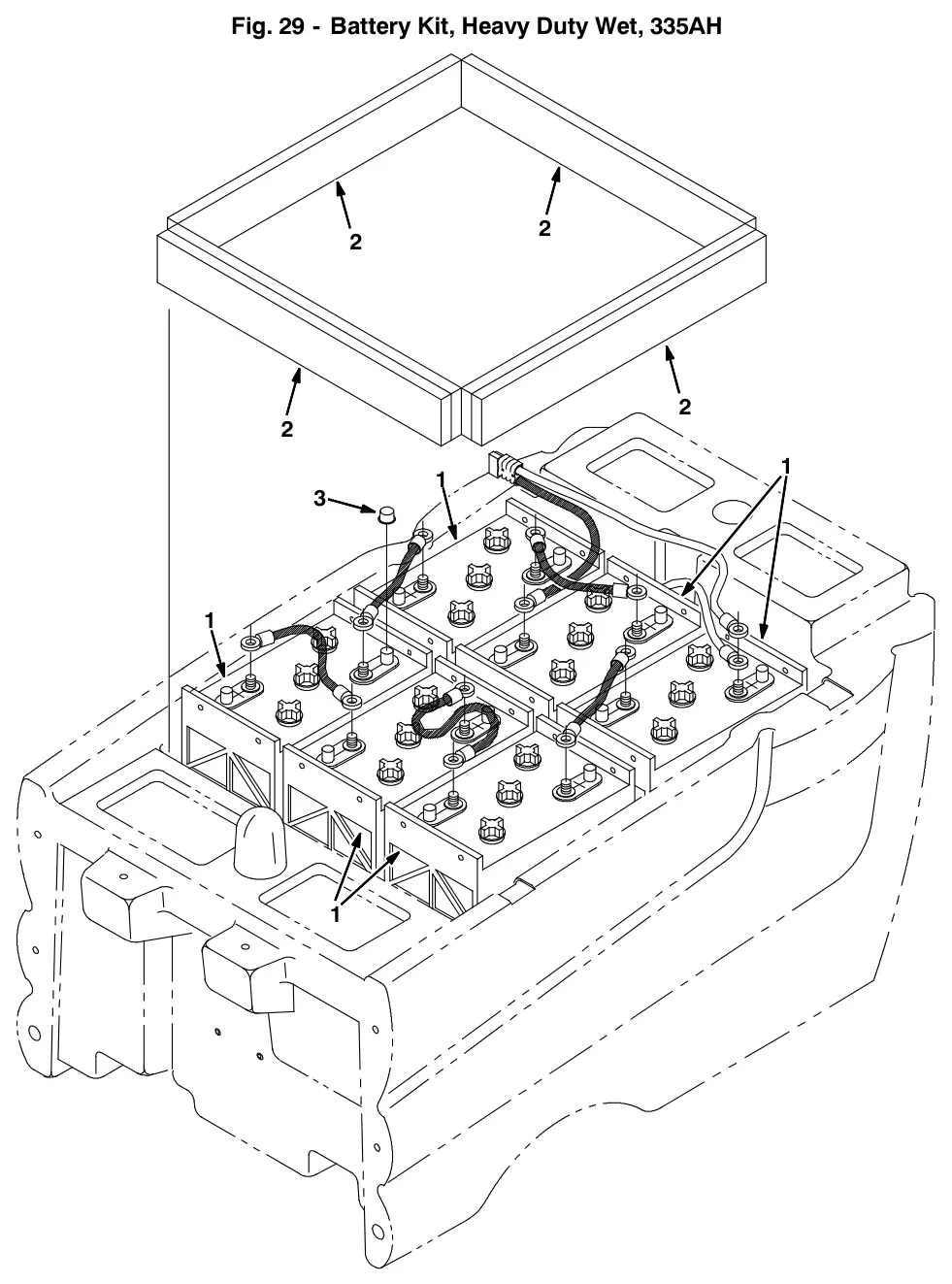

- Batteries
- Six 6 V (36 V system), 235 Ah or 335 Ah at the 20 hour rate
Maintenance and wear parts for the 5680
Tennant's general recommended maintenance items for the 5680. Keep these on the shelf.
Blade, Sqge, Front, 38.97l Rbr [700mm]
$27.41/EABlade, Sqge, Rear, 40.93l Linatex[700mm]
$44.21/EABlade Kit, Sqge, Rbr [700]
$65.35/EABlade, Sqge, Tile, 38.97l [Linard, 28”]
$28.88/EABlade, Sqge, Rear, 40.93l Gum [28”]
$33.15/EASqge Kit, Oil Res Ure [700]
$173.50/EABlade, Sqge, Front, 38.97l [700mm]
$66.50/EABlade, Sqge, Rear, 40.93l Pyu [28”]
$93.20/EABlade, Sqge, Front, 43.66l Rbr [800mm]
$30.35/EABlade, Sqge, Rear, 45.65l Linatex [32”]
$44.10/EABlade Kit, Sqge, Rbr [800]
$81.51/EABlade, Sqge, Tile, 43.66l [Linard, 32”]
$32.93/EA
Source: Tennant 5680 Walk-Behind Scrubber Parts Manual 331178 Rev. 13 (04-2016), North America / International, S/N 10000000 and later, page 3. SES ref PF-TC6D-Z5TF
Your machine
How to tell which you have
- Scrub head: Tennant's parts manual has separate parts groups for Cylindrical 28 in (700 mm), Cylindrical 32 in (800 mm), Cylindrical 36 in (900 mm), Disk 28 in (700 mm), Disk 32 in (800 mm), Disk 36 in (900 mm) (manual pages 6, 8, 10, 12, 20, 22, 24, 26, 28, 30, 86, 88…). Pick yours to see only its groups; parts every build shares always show.
- Squeegee width: Tennant's parts manual has separate parts groups for 28 in (700 mm), 32 in (800 mm), 36 in (900 mm) (manual pages 52, 54, 56). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant 5680 general recommended maintenance parts
General recommended maintenance from Tennant's parts list. Manual page 3.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4040281Replaces Tennant 222381 | 1 | Blade, Sqge, Front, 38.97l Rbr [700mm]Serial 10000000 and later. | $27.41/EA |
| – | TN4040282Replaces Tennant 222382 | 1 | Blade, Sqge, Rear, 40.93l Linatex[700mm]Serial 10000000 and later. | $44.21/EA |
| – | TN4040563Replaces Tennant 222422 | 1 | Blade Kit, Sqge, Rbr [700]Complete assembly. Serial 10000000 and later. | $65.35/EA |
| – | TN4040285Replaces Tennant 222385 | 1 | Blade, Sqge, Tile, 38.97l [Linard, 28”]Part of Blade Kit, Sqge, Rbr [700] (222422). Serial 10000000 and later. | $28.88/EA |
| – | TN4040287Replaces Tennant 222387 | 1 | Blade, Sqge, Rear, 40.93l Gum [28”]Part of Blade Kit, Sqge, Rbr [700] (222422). Serial 10000000 and later. | $33.15/EA |
| – | TN4040566Replaces Tennant 222428 | 1 | Sqge Kit, Oil Res Ure [700]Complete assembly. Serial 10000000 and later. | $173.50/EA |
| – | TN4040290Replaces Tennant 222391 | 1 | Blade, Sqge, Front, 38.97l [700mm]Part of Sqge Kit, Oil Res Ure [700] (222428). Serial 10000000 and later. | $66.50/EA |
| – | TN4040289Replaces Tennant 222389 | 1 | Blade, Sqge, Rear, 40.93l Pyu [28”]Part of Sqge Kit, Oil Res Ure [700] (222428). Serial 10000000 and later. | $93.20/EA |
| – | TN4040216Replaces Tennant 222241 | 1 | Blade, Sqge, Front, 43.66l Rbr [800mm]Serial 10000000 and later. | $30.35/EA |
| – | TN4040217Replaces Tennant 222242 | 1 | Blade, Sqge, Rear, 45.65l Linatex [32”]Serial 10000000 and later. | $44.10/EA |
| – | TN4040564Replaces Tennant 222423 | 1 | Blade Kit, Sqge, Rbr [800]Complete assembly. Serial 10000000 and later. | $81.51/EA |
| – | TN4040284Replaces Tennant 222384 | 1 | Blade, Sqge, Tile, 43.66l [Linard, 32”]Part of Blade Kit, Sqge, Rbr [800] (222423). Serial 10000000 and later. | $32.93/EA |
| – | TN4040286Replaces Tennant 222386 | 1 | Blade, Sqge, Rear, 45.65l Gum [32”]Part of Blade Kit, Sqge, Rbr [800] (222423). Serial 10000000 and later. | $33.08/EA |
| – | TN4040567Replaces Tennant 222429 | 1 | Blade Kit, Sqge, Pyu [800]Complete assembly. Serial 10000000 and later. | $212.10/EA |
| – | TN4040291Replaces Tennant 222392 | 1 | Blade, Sqge, Front, 43.66l Pyu [32”]Part of Blade Kit, Sqge, Pyu [800] (222429). Serial 10000000 and later. | $68.70/EA |
| – | TN4040288Replaces Tennant 222388 | 1 | Blade, Sqge, Rear, 45.65l Pyu [32”]Part of Blade Kit, Sqge, Pyu [800] (222429). Serial 10000000 and later. | $105.50/EA |
| – | TN4040300Replaces Tennant 222413 | 1 | Blade, Sqge, Front, 47.41l Rbr [900mm]Serial 10000000 and later. | $42.63/EA |
| – | TN4040557Replaces Tennant 222415 | 1 | Blade, Sqge, Rear, 49.37l Linatex[900mm]Serial 10000000 and later. | $60.48/EA |
| – | TN4040565Replaces Tennant 222424 | 1 | Blade Kit, Sqge, Rbr [900]Complete assembly. Serial 10000000 and later. | $97.16/EA |
| – | TN4040554Replaces Tennant 222414 | 1 | Blade, Sqge, Tile, 47.41l [Linard, 36”]Part of Blade Kit, Sqge, Rbr [900] (222424). Serial 10000000 and later. | $40.50/EA |
| – | TN4040560Replaces Tennant 222416 | 1 | Blade, Sqge, Rear, 49.37l Gum [36”]Part of Blade Kit, Sqge, Rbr [900] (222424). Serial 10000000 and later. | $45.36/EA |
| – | TN4040571Replaces Tennant 222433 | 1 | Sqge Kit, Ure [900mm]Complete assembly. Serial 10000000 and later. | $208.40/EA |
| – | TN4040572Replaces Tennant 222434 | 1 | Blade, Sqge, Front, 47.41l Ure, 5sl[36”]Part of Sqge Kit, Ure [900mm] (222433). Serial 10000000 and later. | $71.50/EA |
| – | TN4040573Replaces Tennant 222435 | 1 | Blade, Sqge, Rear, 49.37l Ure [36”]Part of Sqge Kit, Ure [900mm] (222433). Serial 10000000 and later. | $93.90/EA |
| – | TN4039789Replaces Tennant 222066 | 4 | Wheel, 3.0 DiaSerial 10000000 and later. | $10.80/EA |
| – | TN4024280Replaces Tennant 82138 | 2 | Nut Speed,Retainer, .25-20 ThdSerial 10000000 and later. | $3.30/EA |
| – | TN4039867Replaces Tennant 222178 | 2 | Roller, BumperSerial 10000000 and later. | $15.20/EA |
| – | TN4040294Replaces Tennant 222403 | 2 | Wheel, 2.0 DiaSerial 10000000 and later. | $9.80/EA |
| – | TN4032858Replaces Tennant 1021919 | 1 | Skirt, Head, Disk, 28.0/700mmSerial 10000000 and later. | $115.10/EA |
| – | TN4032878Replaces Tennant 1022013 | 1 | Skirt, Head, Disk, 32.0/800mmSerial 10000000 and later. | $118.40/EA |
| – | TN4032891Replaces Tennant 1022042 | 1 | Skirt, Head, Disk, 36.0/900mmSerial 10000000 and later. | $112.90/EA |

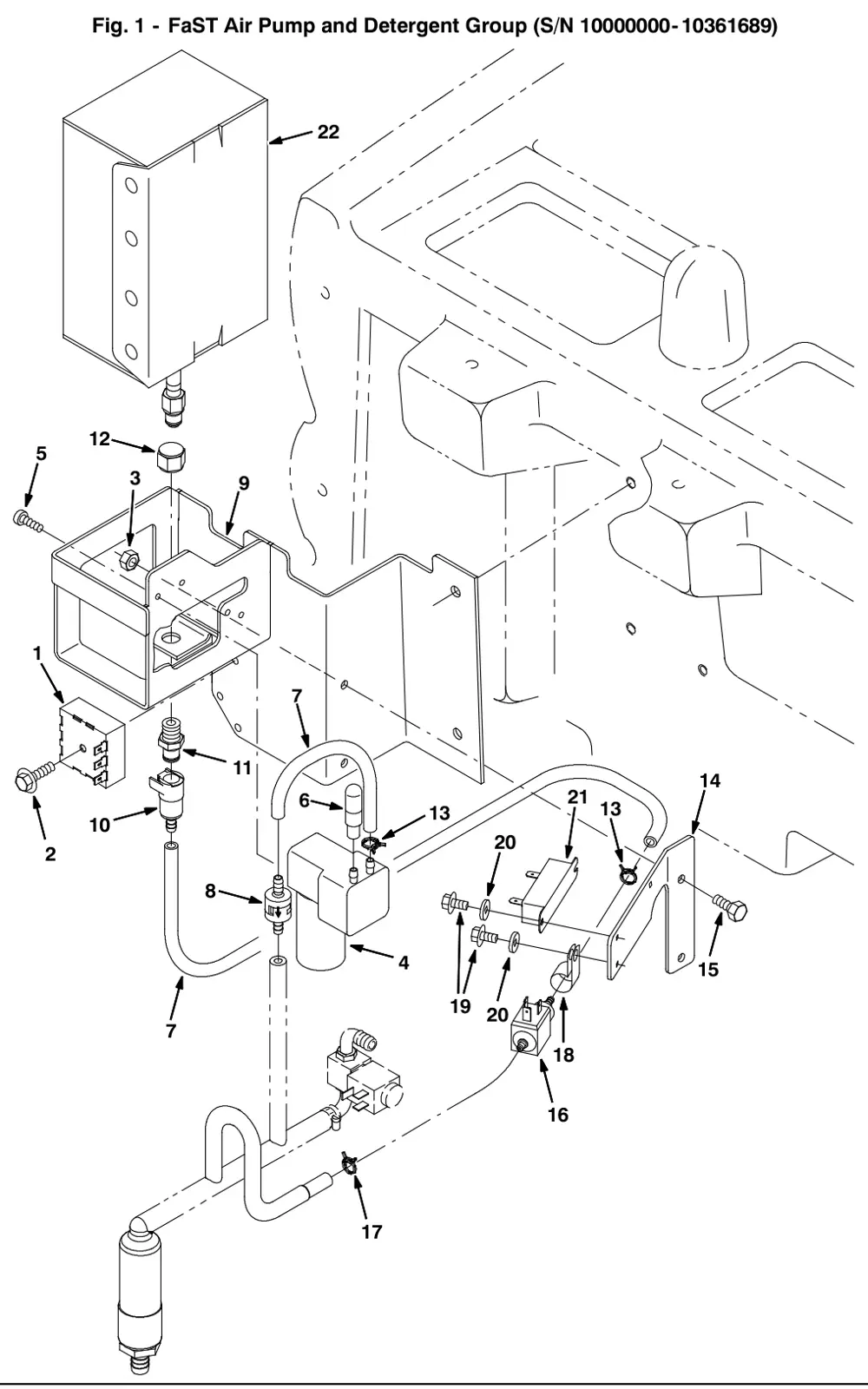

| – | TN4035216Replaces Tennant 1017015 | Detergent Pkg, 2 Liter, Sgl, 365 -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4035218Replaces Tennant 1017022 | Detergent Pkg, 2 Liter, Sgl, 665 -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4020030Replaces Tennant 9002021 | Detergent, 2 Liter [Fast 965] -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |

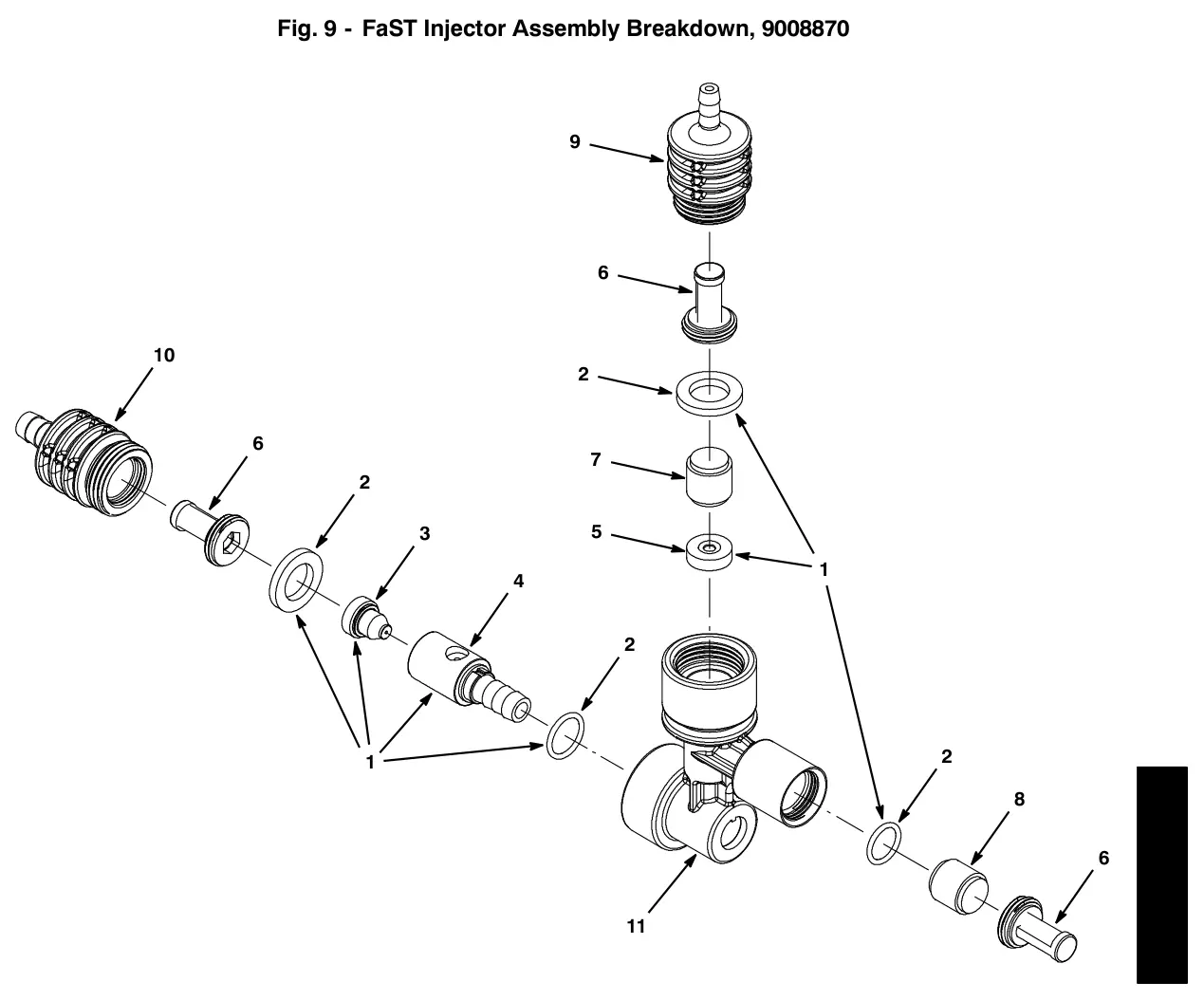

| – | TN4010350Replaces Tennant 9008870 | 1 | Fast Kit, Injector [5680/5700, Fast Iii]Complete assembly. Serial 10536782 and later. | $300.60/EA |
| – | TN4201664Replaces Tennant 9008750 | 1 | Fast Kit, Ci [Inj Rebld, 5680/5700]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. | $119.18/EA |
| – | TN9008848Tennant 9008848 | 1 | Fast Kit, Seal, Injector, Ci [Fast Iii]Part of the assembly above. Serial 10536782 and later. | $4.10/EA |
| – | TN4016470Replaces Tennant 9003009 | 1 | Fast Kit, Ci, Injector Filters[Fast Ii+]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. | $71.60/EA |

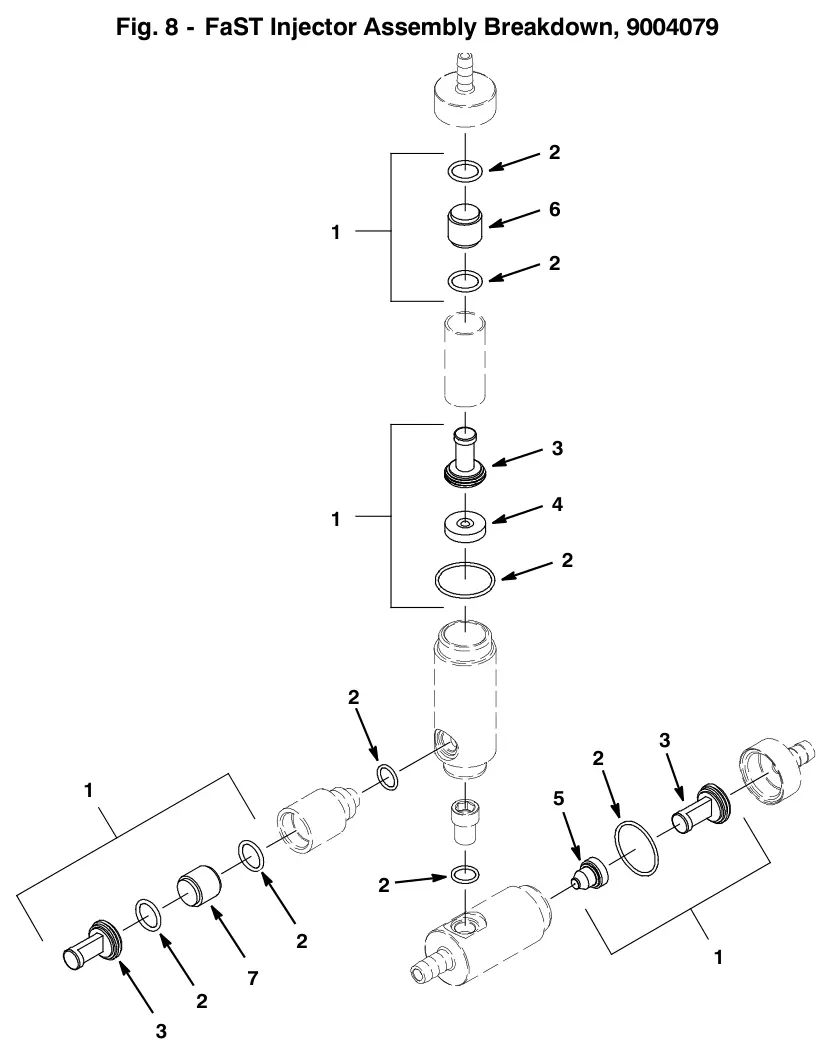

| – | TN4010350Replaces Tennant 9004079 | 1 | Fast Kit, Injector [5680/5700, FaST II+]Complete assembly. Serial 10346875 to 10536781. | $300.60/EA |
| – | TN9004084Tennant 9004084 | 1 | FaST Kit, Ci, [Inj Rebld, 5680/5700]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4016469Replaces Tennant 9003008 | 1 | FaST Kit, Ci, Injector Seals [FaST II+]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | $65.80/EA |
| – | TN4016470Replaces Tennant 9003009 | 1 | FaST Kit, Ci, Injector Filters [FaST II+]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | $71.60/EA |

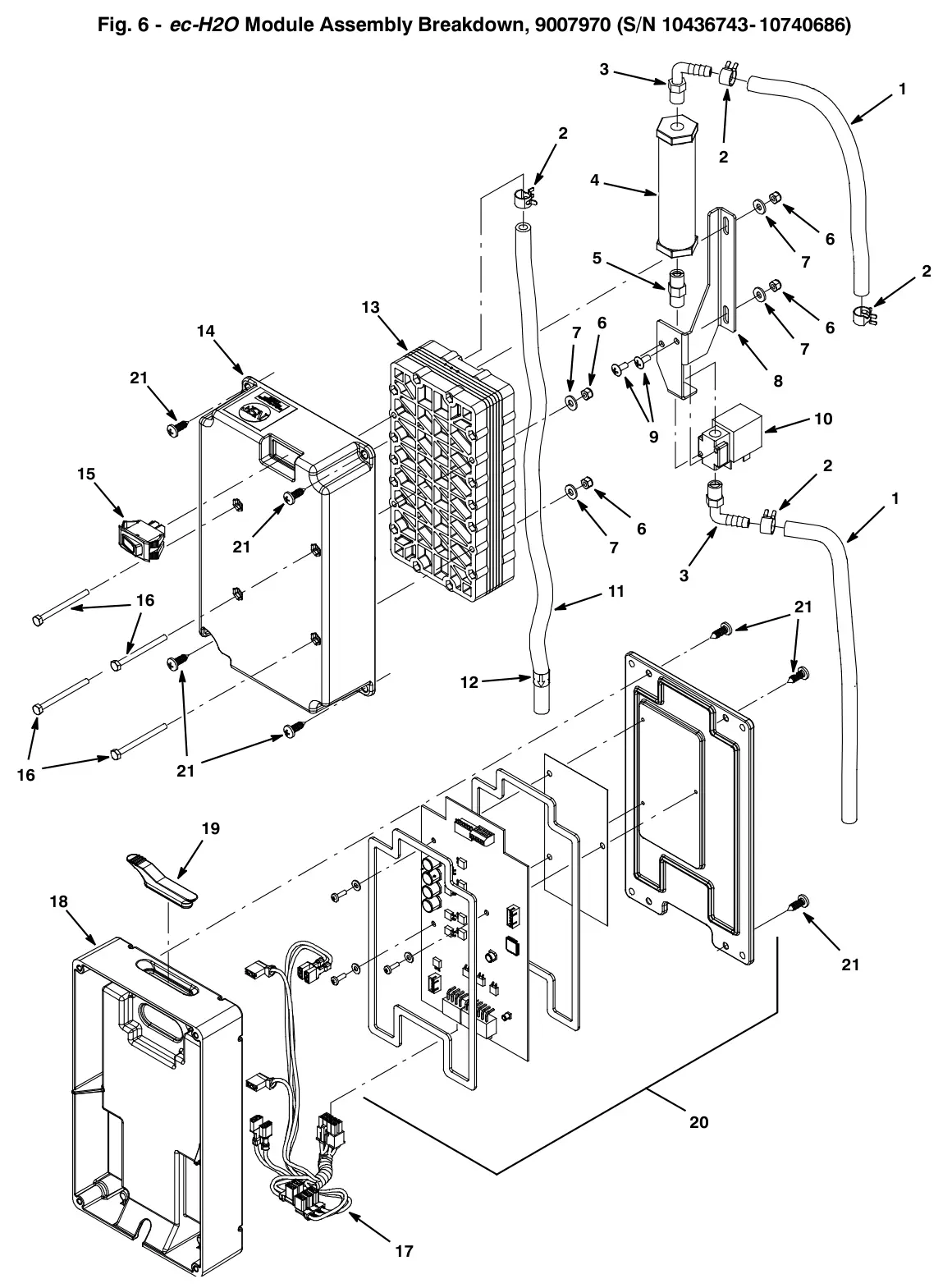

Tennant 5680 general recommended maintenance parts
General recommended maintenance from Tennant's parts list. Manual page 4.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. Serial 10436743 to 10740686. | $778.37/EA |
| – | TN9006324Tennant 9006324 | 1 | Ec-H2o Kit, Module B, PlumbingComplete assembly. Part of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10436743 to 10740686. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $753.50/EA |
| – | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $162.50/EA |
| – | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $753.50/EA |
| – | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, Mom,Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $7.70/EA |

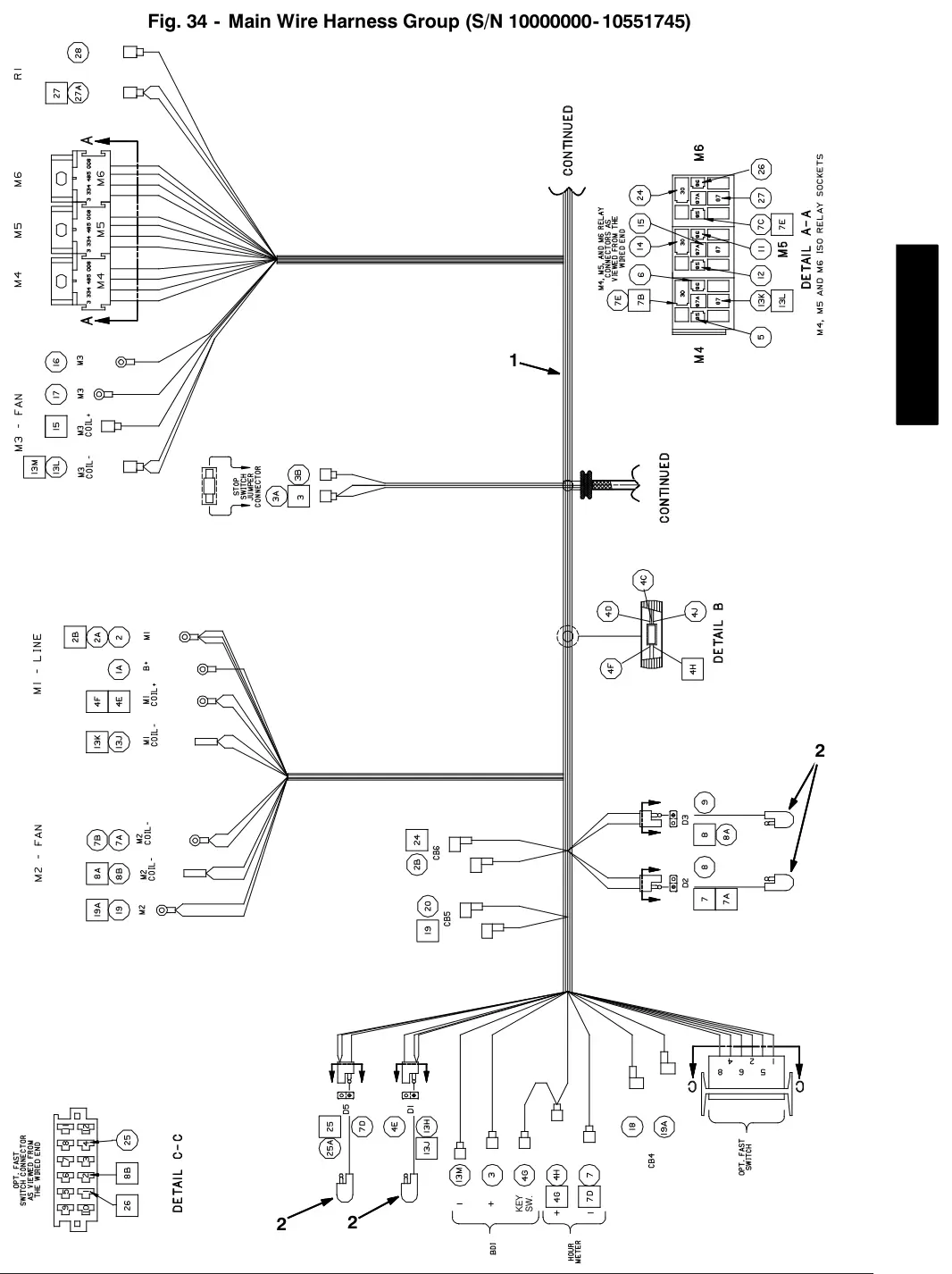

| – | TN4040417Replaces Tennant 1049489 | 1 | Harness, Main,Controlboard[Ec-H2o 5cell]Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $28.50/EA |
| – | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10403557 to 10740686. | $5.10/EA |
| – | TN4021577Replaces Tennant 9007969 | 1 | Controller Kit, Replmt [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10403557 to 10740686. | $1,063.00/EA |
| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02]Complete assembly. Serial 10740687 and later. | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (9011810). Serial 10740687 and later. | $691.04/EA |
| – | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $7.70/EA |
| – | TN4032414Replaces Tennant 1208164 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $588.10/EA |
| – | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $17.60/EA |
| – | TN4021577Replaces Tennant 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc]Part of Module Kit, Replmt [Ec-H2o, B 02] (9011810). Serial 10740687 and later. | $1,063.00/EA |
| – | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlSerial 10740687 and later. | $300.60/EA |
| – | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa]Serial 10740687 and later. | $1,809.92/EA |
| – | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Intl]Serial 10740687 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |

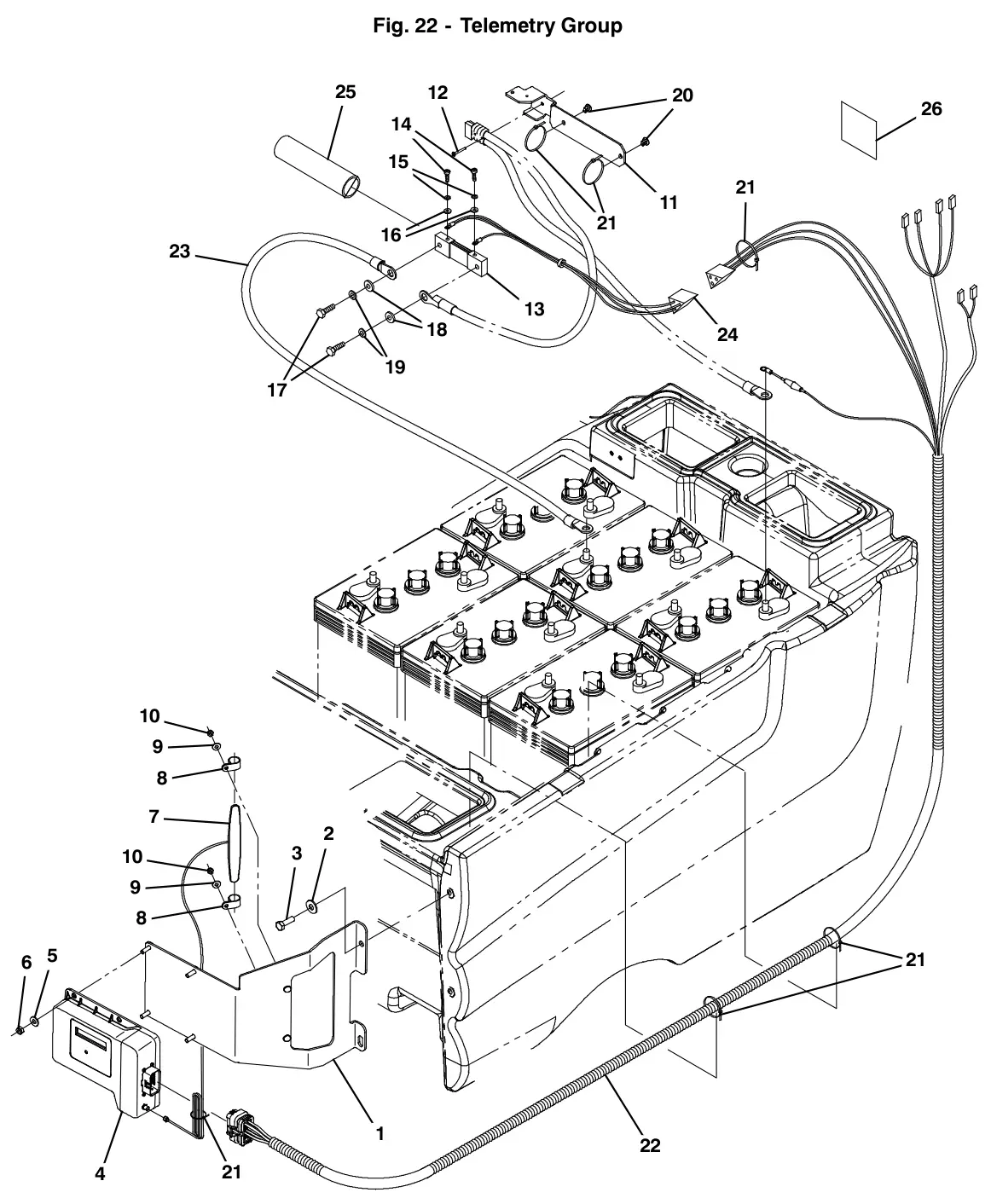

| – | TN4031064Replaces Tennant 315724 | 1 | Cs, Antenna, Telem, 18.0 In [Gprs]Serial 10740687 and later. | $54.80/EA |

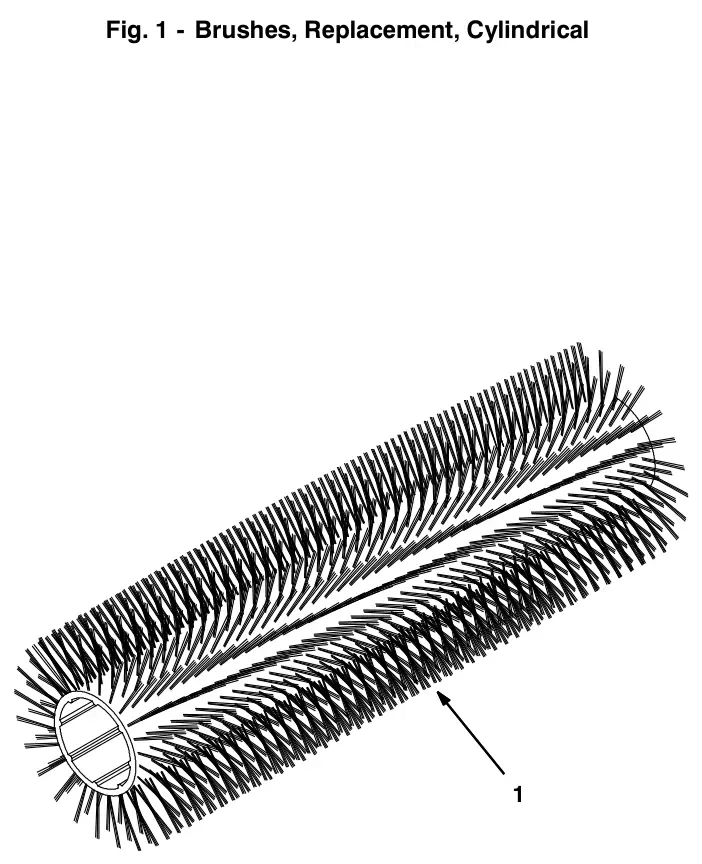

Tennant 5680 brushes, replacement, cylindrical parts
The parts Tennant numbers on its brushes, replacement, cylindrical drawing. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040245Replaces Tennant 222304 | 2 | Brush, Scb, 28l, 18sr, Pyp, SplSerial 10000000 and later. | $220.00/EA |
| 1 | TN4028633Replaces Tennant 374041 | 2 | Brush, Scb, 28l, 18sr, Hd Pyp, SplSerial 10000000 and later. | $215.70/EA |
| 1 | TN4040246Replaces Tennant 222305 | 2 | Brush, Scb, 28l, 18sr, Nyl, SplSerial 10000000 and later. | $321.80/EA |
| 1 | TN4040247Replaces Tennant 222306 | 2 | Brush, Scb, 28l, 18sr, Abr, SplSerial 10000000 and later. | $471.90/EA |
| 1 | TN4040248Replaces Tennant 222307 | 2 | Brush, Scb, 32l, 18sr, Pyp, Spl [Grout]Serial 10000000 and later. | $248.00/EA |
| 1 | TN4028635Replaces Tennant 374042 | 2 | Brush, Scb, 32l, 18sr, Hd Pyp, SplSerial 10000000 and later. | $245.10/EA |
| 1 | TN4040249Replaces Tennant 222308 | 2 | Brush, Scb, 32l, 18sr, Nyl, SplSerial 10000000 and later. | $360.00/EA |
| 1 | TN4040250Replaces Tennant 222309 | 2 | Brush, Scb, 32l, 18sr, Abr, SplSerial 10000000 and later. | $533.90/EA |
| 1 | TN4040251Replaces Tennant 222310 | 2 | Brush, Scb, 36l, 18sr, Pyp, SplSerial 10000000 and later. | $315.20/EA |
| 1 | TN4028636Replaces Tennant 374043 | 2 | Brush, Scb, 36l, 18sr, Hd Pyp, SplSerial 10000000 and later. | $295.10/EA |
| 1 | TN4040252Replaces Tennant 222311 | 2 | Brush, Scb, 36l, 18sr, Nyl, SplSerial 10000000 and later. | $422.90/EA |
| 1 | TN4040253Replaces Tennant 222312 | 2 | Brush, Scb, 36l, 18sr, Abr, SplSerial 10000000 and later. | $751.60/EA |

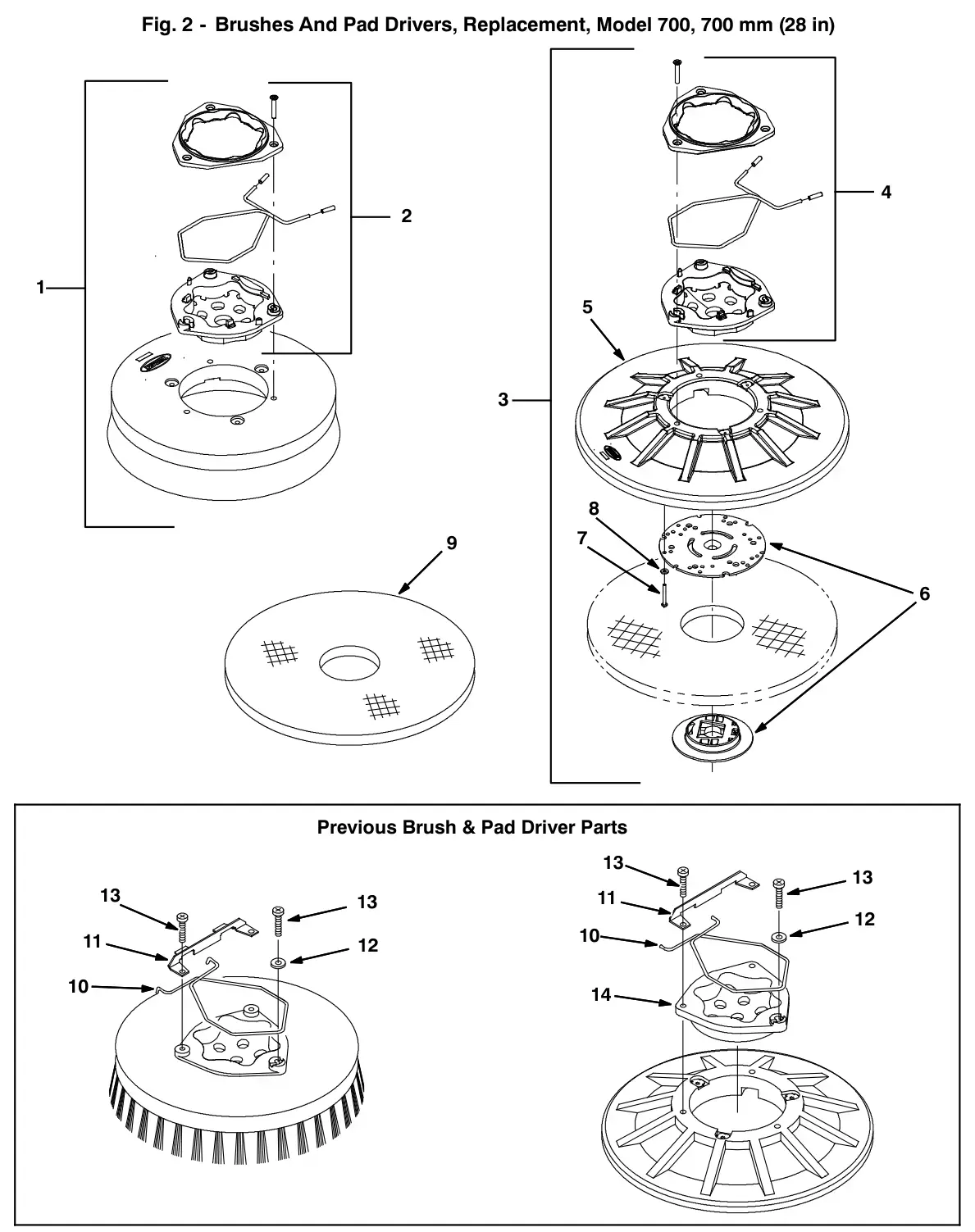

Tennant 5680 disk brushes and pad drivers, replacement, model 700, 28 in (700 mm) parts
The parts Tennant numbers on its disk brushes and pad drivers, replacement, model 700, 28 in (700 mm) drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037190Replaces Tennant 1220238 | 2 | Brush Assy, Disk, Scb, 14.0d, NylComplete assembly. Serial 10000000 and later. | $311.50/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 14.0d, Nyl (1220238). Serial 10000000 and later. | $64.00/EA |
| 1 | TN4037189Replaces Tennant 1220237 | 2 | Brush Assy, Disk, Scb, 14.0d, PypComplete assembly. Serial 10000000 and later. | $205.30/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 14.0d, Pyp (1220237). Serial 10000000 and later. | $64.00/EA |
| 1 | TN4037191Replaces Tennant 1220239 | 2 | Brush Assy, Disk, Scb, 14.0d, SabComplete assembly. Serial 10000000 and later. | $542.70/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 14.0d, Sab (1220239). Serial 10000000 and later. | $64.00/EA |
| 3 | TN4037162Replaces Tennant 1220198 | 2 | Driver Assy, Pad, 14.0dComplete assembly. Serial 10000000 and later. | $424.60/EA |
| 4 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Driver Assy, Pad, 14.0d (1220198). Serial 10000000 and later. | $64.00/EA |
| 5 | TN4016270Replaces Tennant 397974 | 1 | Disk, Driver, Pad, W/ Face, 14.0dPart of Driver Assy, Pad, 14.0d (1220198). Serial 10000000 and later. | $140.10/EA |
| 6 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 14.0d (1220198). Serial 10000000 and later. | $45.50/EA |
| 7 | TN4041964Replaces Tennant 09198 | 3 | Screw, Pan, Phl, M4 X 0.70 X 35, SsPart of Driver Assy, Pad, 14.0d (1220198). Serial 10000000 and later. | $3.20/EA |
| 8 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 14.0d (1220198). Serial 10000000 and later. | $2.60/EA |
| 9 | TN4040257Replaces Tennant 222324 | 2 | Pad, Polish, 14.0d, White [1pick=1pad]Serial 10000000 and later. | $19.30/EA |
| 9 | TN4040258Replaces Tennant 222325 | 2 | Pad, Buff, 14.0d, RedSerial 10000000 and later. | $19.30/EA |
| 9 | TN4040259Replaces Tennant 222326 | 2 | Pad, Scb, 14.0d, Blu [1pick=1pad]Serial 10000000 and later. | $19.30/EA |
| 9 | TN4040260Replaces Tennant 222327 | 2 | Pad, Stripping, 14.0d, Brown[1pick=1pad]Serial 10000000 and later. | $19.30/EA |
| 9 | TN4032338Replaces Tennant 370091 | 2 | Pad, Stripping, 14.0d, Blk [Hi Prod]Serial 10000000 and later. | $22.00/EA |
| 9 | TN4040746Replaces Tennant 1051026 | 2 | Pad, Surf Prep, 14.0d [Mar, 1pick=1pad]Serial 10000000 and later. | $21.30/EA |
| 10 | TN4044356Replaces Tennant 14838 | 1 | Spring, Brush RetainingSerial 10000000 and later. | $20.90/EA |
| 11 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Spring RetainerSerial 10000000 and later. | $30.20/EA |
| 12 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 SsSerial 10000000 and later. | $2.60/EA |
| 13 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M6 X 1.0 X 35, SsSerial 10000000 and later. | $3.20/EA |
| 14 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, BrushSerial 10000000 and later. | $114.70/EA |
| – | TN4037190Replaces Tennant 222321 | 2 | Brush-Disk Scr 14 D Assy-Nylon (Replaced By 1220238)Serial 10000000 and later. | $311.50/EA |
| – | TN4037189Replaces Tennant 222320 | 2 | Brush-Disk Scr 14 D Assy-Poly (Replaced By 1220237)Serial 10000000 and later. | $205.30/EA |
| – | TN4037191Replaces Tennant 222322 | 2 | Brush-Disk Scr 14 D-Assy-Ab (Replaced By 1220239)Serial 10000000 and later. | $542.70/EA |
| – | TN4037162Replaces Tennant 397914 | 2 | Driver Assy, Pad, 14d (Replaced By 1220198)Serial 10000000 and later. | $424.60/EA |

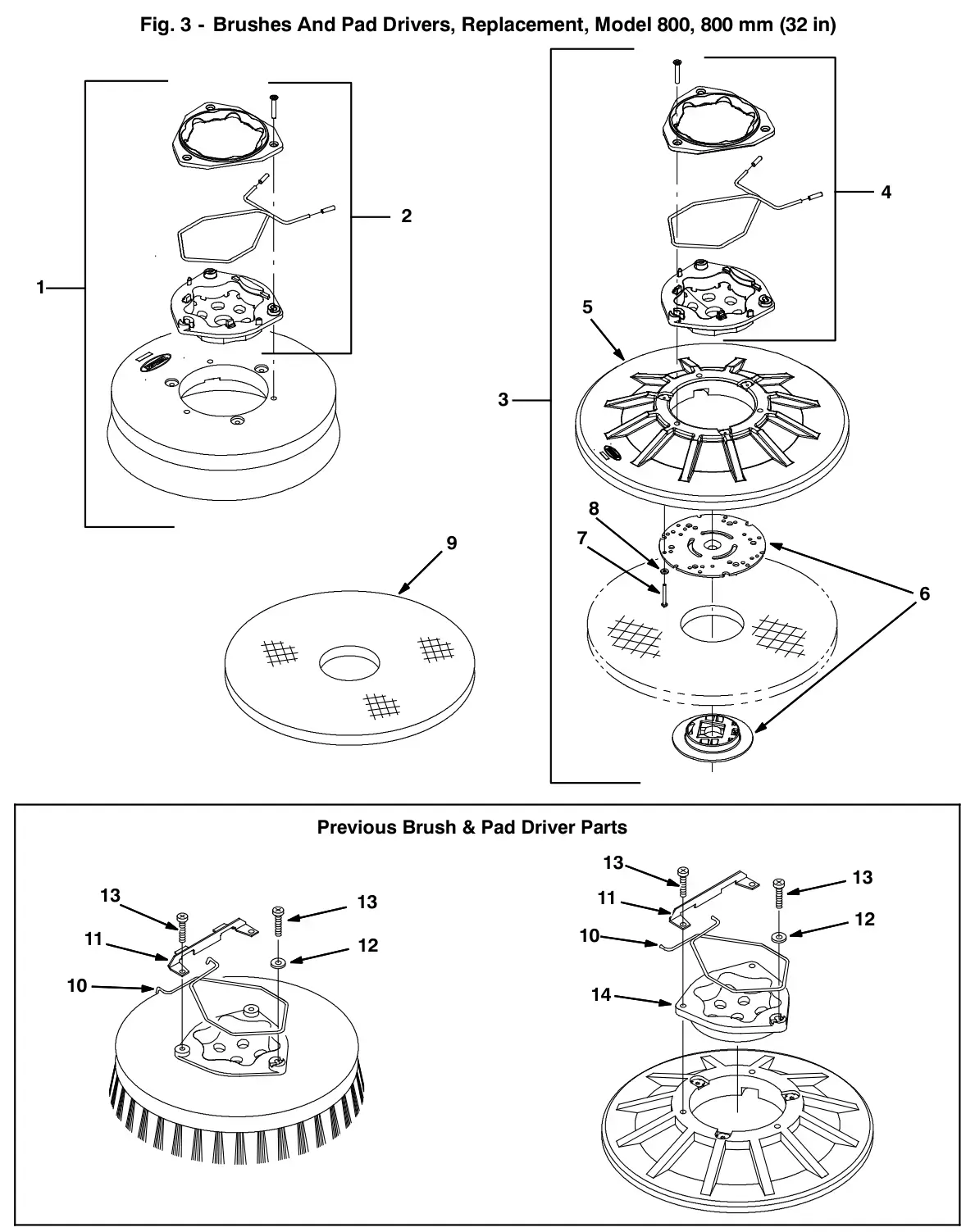

Tennant 5680 disk brushes and pad drivers, replacement, model 800, 32 in (800 mm) parts
The parts Tennant numbers on its disk brushes and pad drivers, replacement, model 800, 32 in (800 mm) drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037187Replaces Tennant 1220235 | 2 | Brush Assy, Disk, Scb, 16.0d, NylComplete assembly. Serial 10000000 and later. | $416.00/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 16.0d, Nyl (1220235). Serial 10000000 and later. | $64.00/EA |
| 1 | TN4037193Replaces Tennant 1220241 | 2 | Brush Assy, Disk, Scb, 16.0d, PypComplete assembly. Serial 10000000 and later. | $255.40/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 16.0d, Pyp (1220241). Serial 10000000 and later. | $64.00/EA |
| 1 | TN4037455Replaces Tennant 1221543 | 2 | Brush Assy, Disk, Scb, 16.0d, SabComplete assembly. Serial 10000000 and later. | $545.70/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 16.0d, Sab (1221543). Serial 10000000 and later. | $64.00/EA |
| 3 | TN4037163Replaces Tennant 1220199 | 2 | Driver Assy, Pad, 16.0dComplete assembly. Serial 10000000 and later. | $468.70/EA |
| 4 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Driver Assy, Pad, 16.0d (1220199). Serial 10000000 and later. | $64.00/EA |
| 5 | TN4016271Replaces Tennant 397976 | 1 | Disk, Driver, Pad, W/ Face, 16.0dPart of Driver Assy, Pad, 16.0d (1220199). Serial 10000000 and later. | $221.80/EA |
| 6 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 16.0d (1220199). Serial 10000000 and later. | $45.50/EA |
| 7 | TN4041964Replaces Tennant 09198 | 3 | Screw, Pan, Phl, M4 X 0.70 X 35, SsPart of Driver Assy, Pad, 16.0d (1220199). Serial 10000000 and later. | $3.20/EA |
| 8 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 16.0d (1220199). Serial 10000000 and later. | $2.60/EA |
| 9 | TN4021152Replaces Tennant 63248-1 | 2 | Pad, Strip 16D BrownSerial 10000000 and later. | $22.00/EA |
| 9 | TN4021153Replaces Tennant 63248-2 | 2 | Pad, Scrub 16D BlueSerial 10000000 and later. | $22.00/EA |
| 9 | TN4021154Replaces Tennant 63248-3 | 2 | Pad, Buff 16D RedSerial 10000000 and later. | $22.00/EA |
| 9 | TN4021155Replaces Tennant 63248-4 | 2 | Pad, Polish 16D WhiteSerial 10000000 and later. | $22.00/EA |
| 9 | TN4032339Replaces Tennant 370092 | 2 | Pad, Strip-Hd 16D BlackSerial 10000000 and later. | $36.20/EA |
| 9 | TN4040747Replaces Tennant 1051027 | 2 | Pad, Surf Prep, 16.0d [Mar, 1pick=1pad]Serial 10000000 and later. | $24.40/EA |
| 10 | TN4044356Replaces Tennant 14838 | 1 | Spring, Brush RetainingSerial 10000000 and later. | $20.90/EA |
| 11 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Spring RetainerSerial 10000000 and later. | $30.20/EA |
| 12 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 SsSerial 10000000 and later. | $2.60/EA |
| 13 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M6 X 1.0 X 35, SsSerial 10000000 and later. | $3.20/EA |
| 14 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, BrushSerial 10000000 and later. | $114.70/EA |
| – | TN4037187Replaces Tennant 1042499 | 2 | Brush Assy, Disk, Scb, 16.0d, Nyl (Replaced By 1220235)Serial 10000000 and later. | $416.00/EA |
| – | TN4037193Replaces Tennant 30241 | 2 | Brush-Disk Scr 16 D Assy Poly (Replaced By 1220241)Serial 10000000 and later. | $255.40/EA |
| – | TN4037455Replaces Tennant 1042504 | 2 | Brush Assy, Disk, Scb, 16.0d, Sab (Replaced By 1221543)Serial 10000000 and later. | $545.70/EA |
| – | TN4037163Replaces Tennant 397916 | 2 | Driver Assy, Pad, 16d (Replaced By 1220199)Serial 10000000 and later. | $468.70/EA |
Tennant 5680 disk brushes and pad drivers, replacement, model 900, 36 in (900 mm) parts
The parts Tennant numbers on its disk brushes and pad drivers, replacement, model 900, 36 in (900 mm) drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037157Replaces Tennant 1220191 | 2 | Brush Assy, Disk, Scb, 18.0d, NylComplete assembly. Serial 10000000 and later. | $477.70/EA |
| 2 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Brush Assy, Disk, Scb, 18.0d, Nyl (1220191). Serial 10000000 and later. | $109.90/EA |
| 1 | TN4037155Replaces Tennant 1220188 | 2 | Brush Assy, Disk, Scb, 18.0d, PypComplete assembly. Serial 10000000 and later. | $373.30/EA |
| 2 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Brush Assy, Disk, Scb, 18.0d, Pyp (1220188). Serial 10000000 and later. | $109.90/EA |
| 1 | TN4037156Replaces Tennant 1220190 | 2 | Brush Assy, Disk, Scb, 18.0d, SabComplete assembly. Serial 10000000 and later. | $741.70/EA |
| 2 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Brush Assy, Disk, Scb, 18.0d, Sab (1220190). Serial 10000000 and later. | $109.90/EA |
| 3 | TN4037164Replaces Tennant 1220200 | 2 | Driver Assy, Pad, 18.0dComplete assembly. Serial 10000000 and later. | $478.00/EA |
| 4 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Driver Assy, Pad, 18.0d (1220200). Serial 10000000 and later. | $109.90/EA |
| 5 | TN4016272Replaces Tennant 397978 | 1 | Disk, Driver, Pad, W/ Face, 18.0dPart of Driver Assy, Pad, 18.0d (1220200). Serial 10000000 and later. | $184.80/EA |
| 6 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 18.0d (1220200). Serial 10000000 and later. | $45.50/EA |
| 7 | TN4041964Replaces Tennant 09198 | 3 | Screw, Pan, Phl, M4 X 0.70 X 35, SsPart of Driver Assy, Pad, 18.0d (1220200). Serial 10000000 and later. | $3.20/EA |
| 8 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 18.0d (1220200). Serial 10000000 and later. | $2.60/EA |
| 9 | TN4043391Replaces Tennant 11777 | 2 | Pad, Stripping, 18.0d, Brown[1pick=1pad]Serial 10000000 and later. | $25.40/EA |
| 9 | TN4032340Replaces Tennant 370093 | 2 | Pad, Stripping, 18.0d, Blk [1pick=1pad]Serial 10000000 and later. | $27.50/EA |
| 9 | TN4043392Replaces Tennant 11778 | 2 | Pad, Scb, 18.0d, Blu [1pick=1pad]Serial 10000000 and later. | $22.15/EA |
| 9 | TN4034066Replaces Tennant 11780 | 2 | Pad, Buff, 18.0d, Red [1pick=1pad]Serial 10000000 and later. | $116.30/EA |
| 9 | TN4043394Replaces Tennant 11781 | 2 | Pad, Polish, 18.0d, White [1pick=1pad]Serial 10000000 and later. | $22.15/EA |
| 9 | TN4040749Replaces Tennant 1051029 | 2 | Pad, Surf Prep, 18.0d [Mar, 1pick=1pad]Serial 10000000 and later. | $33.56/EA |
| 10 | TN4044356Replaces Tennant 14838 | 1 | Spring, Brush RetainingSerial 10000000 and later. | $20.90/EA |
| 11 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Spring RetainerSerial 10000000 and later. | $30.20/EA |
| 12 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 SsSerial 10000000 and later. | $2.60/EA |
| 13 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M6 X 1.0 X 35, SsSerial 10000000 and later. | $3.20/EA |
| 14 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, BrushSerial 10000000 and later. | $114.70/EA |
| – | TN4037157Replaces Tennant 11773 | 2 | Brush-Disk Scr 18 D Assy Nylon (Replaced By 1220191)Serial 10000000 and later. | $477.70/EA |
| – | TN4037155Replaces Tennant 11771 | 2 | Brush-Disk Scr-18 D-Assy-Poly (Replaced By 1220188)Serial 10000000 and later. | $373.30/EA |
| – | TN4037156Replaces Tennant 11772 | 2 | Brush-Disk Scr-18 D Assy Ab (Replaced By 1220190)Serial 10000000 and later. | $741.70/EA |
| – | TN4037164Replaces Tennant 397918 | 2 | Driver Assy, Pad, 18d (Replaced By 1220200)Serial 10000000 and later. | $478.00/EA |

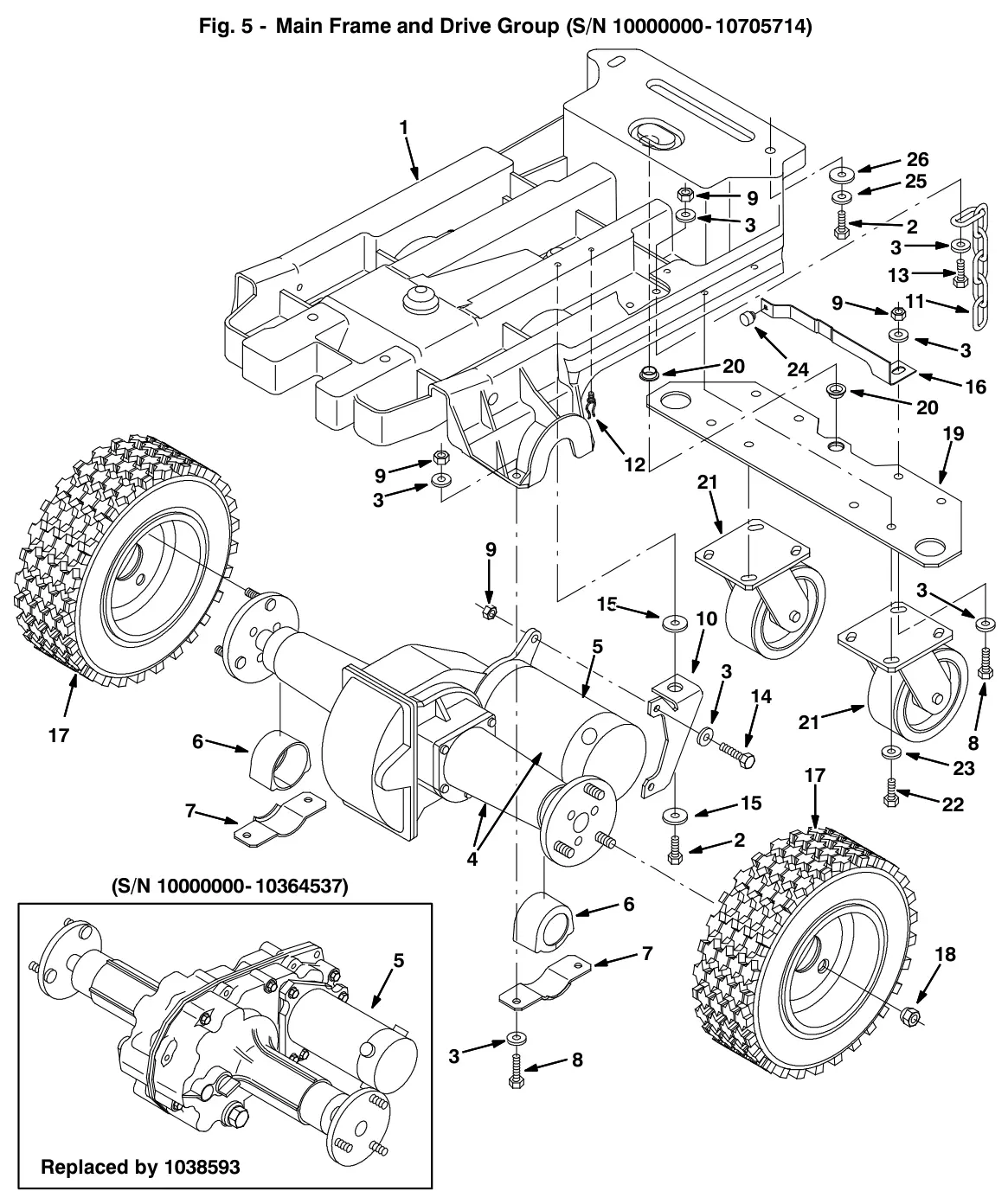

Tennant 5680 main frame and drive group (S/N 10000000-10705714) parts
The parts Tennant numbers on its main frame and drive group (s/n 10000000-10705714) drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016515Replaces Tennant 398311 | 1 | Frame, Main [5700]Serial 10000000 and later. | $692.90/EA |
| 2 | TN4034939Replaces Tennant 12273 | 5 | Screw, Hex, M08 X 1.25 X 20, Ss, NlSerial 10000000 to 10705714. | $4.00/EA |
| 3 | TN4042902Replaces Tennant 01685 | 16 | Washer, Flt, .31 SsSerial 10000000 and later. | $2.60/EA |
| 4 | TN8004301Replaces Tennant 1038593 | 1 | Transaxle, Assy, w/Motor [W/O Park Lock] (Replaced by 9011941 - Breakdown Parts Not Available)Complete assembly. Serial 10000000 to 10705714. | $1,251.20/EA |
| 5 | TN8005794Replaces Tennant 1040886 | 1 | Motor, Ele, 36Vdc 2000Rpm 0.50Hp (Breakdown Parts Not Available)Complete assembly. Part of Transaxle, Assy, w/Motor [W/O Park Lock] (Replaced by 9011941 - Breakdown Parts Not Available) (1038593). Serial 10364538 to 10705714. | $428.30/EA |
| – | TN8006172Replaces Tennant 1040891 | 1 | Brush, Motor, Transaxle [Pk of 4]Part of Motor, Ele, 36Vdc 2000Rpm 0.50Hp (Breakdown Parts Not Available) (1040886). Serial 10364538 to 10705714. | $81.80/EA |
| 5 | TN8004301Replaces Tennant 1031761 | 1 | Motor, Ele, 36Vdc 2000Rpm 0.50Hp (See Breakdowns)Serial 10000000 to 10364537. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4039769Replaces Tennant 222035 | 2 | Isolator, Vib, TransaxleSerial 10000000 and later. | $15.50/EA |
| 7 | TN4039771Replaces Tennant 222036 | 2 | Bracket, Mtg, IsolatorSerial 10000000 and later. | $19.50/EA |
| 8 | TN4041944Replaces Tennant 09011 | 6 | Screw, Hex, M08 X 1.25 X 30, SsSerial 10000000 and later. | $3.40/EA |
| 9 | TN4041929Replaces Tennant 08713 | 9 | Nut, Hex, Lock, M08 X 1.25,Nl, SsSerial 10000000 and later. | $3.30/EA |
| 10 | TN4030980Replaces Tennant 222039 | 1 | Bracket, Mtg, TransaxleSerial 10000000 to 10705714. | $26.60/EA |
| 11 | TN4017375Replaces Tennant 43500 | 1 | Chain, Coil, Str, #210, 09.0l 07 LinkSerial 10000000 and later. | $8.30/EA |
| 12 | TN4036442Replaces Tennant 30406 | 1 | Clip, KeeperSerial 10000000 and later. | $3.40/EA |
| 13 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M08 X 1.25 X 25, SsSerial 10000000 and later. | $3.30/EA |
| 14 | TN4041946Replaces Tennant 09026 | 2 | Screw, Hex, M08 X 1.25 X 40, SsSerial 10000000 to 10364537. | $4.00/EA |
| 14 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M08 X 1.25 X 30, SsSerial 10364538 and later. | $3.40/EA |
| 15 | TN4034466Replaces Tennant 32662 | 2 | Washer, 0.38b 1.22d .06, SsSerial 10000000 to 10705714. | $4.00/EA |
| 16 | TN4040589Replaces Tennant 222469 | 1 | Spring, Flat, CenteringSerial 10000000 and later. | $38.80/EA |
| 17 | TN4044509Replaces Tennant 1052672 | 2 | Tire Assy, Foam, 4.10/3.5-06 3bolt Grey (Replaced by 1073298 - Order Qty 2)Serial 10000000 to 10668617. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4044509Replaces Tennant 1073298 | 2 | Tire Assy, Foam, 4.10/3.5-06 3.5bc/3boltSerial 10668618 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4043163Replaces Tennant 11109 | 6 | Nut, Wheel, .44-20 X 60 AngleSerial 10000000 and later. | $3.30/EA |
| 19 | TN4016236Replaces Tennant 397805 | 1 | Plate, CasterSerial 10000000 and later. | $98.30/EA |
| 20 | TN4040946Replaces Tennant 04843 | 2 | Bushing, Flng, 0.63b 0.72d 0.25lSerial 10000000 and later. | $9.60/EA |
| 21 | TN4040089Replaces Tennant 1049046 | 2 | Caster, Swivel, 5.0D 2.0W, 4 Hole, GraySerial 10000000 and later. | $109.50/EA |
| 22 | TN4036504Replaces Tennant 12333 | 6 | Screw, Hex, M08 X 1.25 X 25, Ss, NlSerial 10000000 and later. | $4.00/EA |
| 23 | TN4016796Replaces Tennant 41186 | 6 | Washer, Belleville, .31Serial 10000000 and later. | $3.50/EA |
| 24 | TN4014594Replaces Tennant 51787 | 1 | Bumper, RbrSerial 10000000 and later. | $3.70/EA |
| 25 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flt, 0.321b 1.00d .12, SsSerial 10000000 and later. | $3.40/EA |
| 26 | TN4037922Replaces Tennant 1014563 | 4 | Washer, Flt, 0.40b 1.12d .12, SsSerial 10000000 and later. | $5.80/EA |

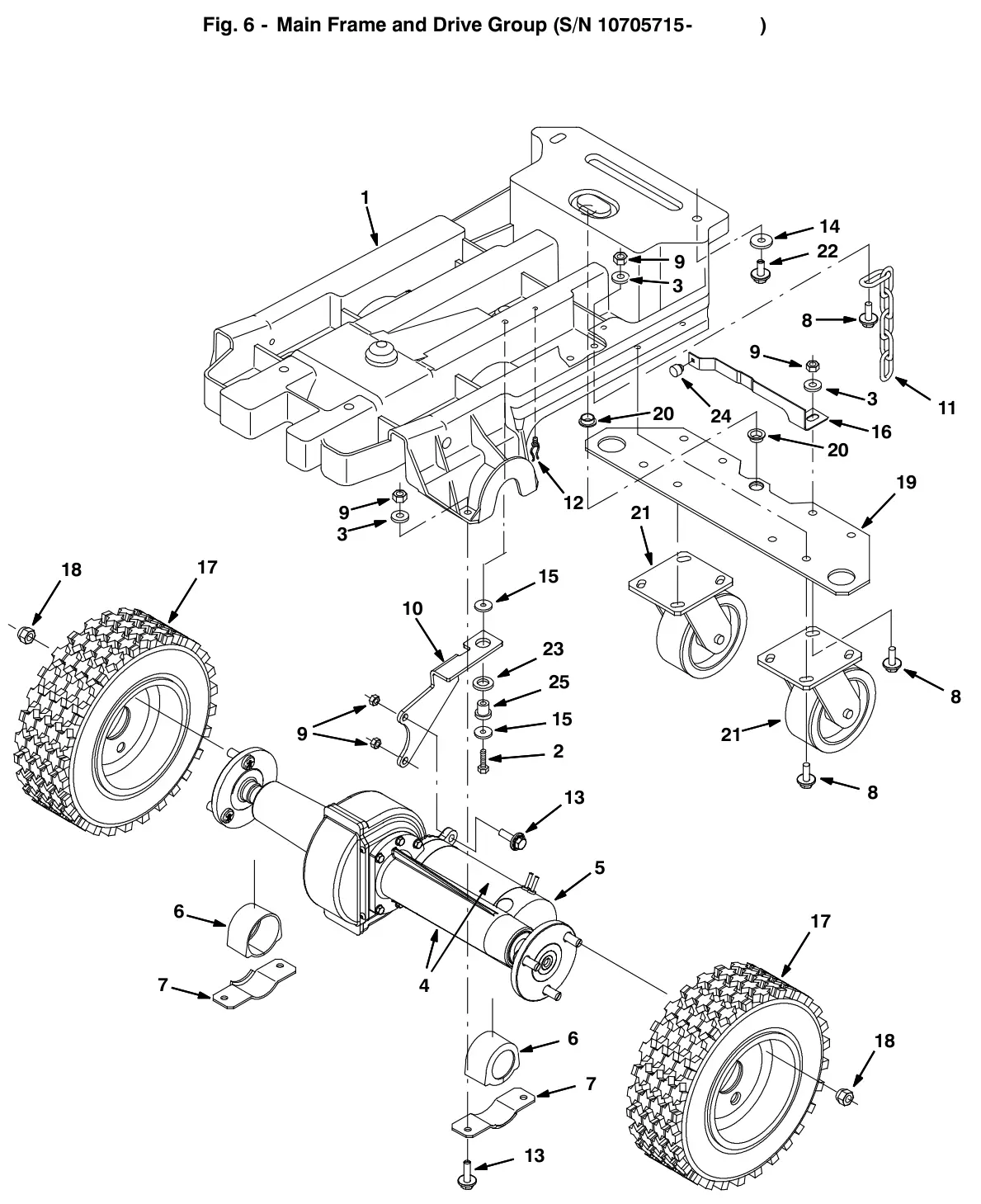

Tennant 5680 main frame and drive group (S/N 10705715 and later) parts
The parts Tennant numbers on its main frame and drive group (s/n 10705715 and later) drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016515Replaces Tennant 398311 | 1 | Frame, Main [5700]Serial 10000000 and later. | $692.90/EA |
| 2 | TN4026847Replaces Tennant 59658 | 1 | Screw, Hex, M8 X 1.25 X 35, Nl, SsSerial 10000000 and later. | $4.00/EA |
| 3 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flt, .31 SsSerial 10000000 and later. | $2.60/EA |
| 4 | TN4030940Replaces Tennant 1072422 | 1 | Transaxle Assy, W/ Motor [W/O Park Lock]Complete assembly. Serial 10705715 and later. | $2,013.30/EA |
| 5 | TN8005443Replaces Tennant 1072554 | 1 | Vr, Motor Kit, Transaxle [5680/5700] (Breakdown Parts Not Available)Complete assembly. Part of Transaxle Assy, W/ Motor [W/O Park Lock] (1072422). Serial 10705715 and later. | $599.70/EA |
| – | TN8005444Replaces Tennant 1072555 | 1 | Vr, Brush Kit, Motor 1072554Part of Vr, Motor Kit, Transaxle [5680/5700] (Breakdown Parts Not Available) (1072554). Serial 10705715 and later. | $65.30/EA |
| 6 | TN4039769Replaces Tennant 222035 | 2 | Isolator, Vib, TransaxleSerial 10000000 and later. | $15.50/EA |
| 7 | TN4039771Replaces Tennant 222036 | 2 | Bracket, Mtg, IsolatorSerial 10000000 and later. | $19.50/EA |
| 8 | TN4030961Replaces Tennant 1072628 | 9 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 10000000 and later. | $2.50/EA |
| 9 | TN4041929Replaces Tennant 08713 | 9 | Nut, Hex, Lock, M08 X 1.25,Nl, SsSerial 10000000 and later. | $3.30/EA |
| 10 | TN4030980Replaces Tennant 1072660 | 1 | Bracket, Mtg, TransaxleSerial 10705715 and later. | $26.60/EA |
| 11 | TN4017375Replaces Tennant 43500 | 1 | Chain, Coil, Str, #210, 09.0l 07 LinkSerial 10000000 and later. | $8.30/EA |
| 12 | TN4036442Replaces Tennant 30406 | 1 | Clip, KeeperSerial 10000000 and later. | $3.40/EA |
| 13 | TN4031197Replaces Tennant 1072816 | 8 | Screw, Hex, M8 X 1.25 X 30, Ss, SemsSerial 10000000 and later. | $2.50/EA |
| 14 | TN4037922Replaces Tennant 1014563 | 4 | Washer, Flt, 0.40b 1.12d .12, SsSerial 10000000 and later. | $5.80/EA |
| 15 | TN4037922Replaces Tennant 1014563 | 2 | Washer, Flat, 0.40b 1.12d .12, SsSerial 10705715 and later. | $5.80/EA |
| 16 | TN4040589Replaces Tennant 222469 | 1 | Spring, Flat, CenteringSerial 10000000 and later. | $38.80/EA |
| 17 | TN4044509Replaces Tennant 1073298 | 2 | Tire Assy, Foam, 4.10/3.5-06 3.5bc/3boltSerial 10668618 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4034313Replaces Tennant 1059450 | 2 | Tire Assy, Pneu, Blk, 4.10/3.5-06 3.5bc (Not For Use With Cylindrical Head Models)Serial 10000000 and later. | $100.70/EA |
| 18 | TN4043163Replaces Tennant 11109 | 6 | Nut, Wheel, .44-20 X 60 AngleSerial 10000000 and later. | $3.30/EA |
| 19 | TN4016236Replaces Tennant 397805 | 1 | Plate, CasterSerial 10000000 and later. | $98.30/EA |
| 20 | TN4040946Replaces Tennant 04843 | 2 | Bushing, Flng, 0.63b 0.72d 0.25lSerial 10000000 and later. | $9.60/EA |
| 21 | TN4040089Replaces Tennant 1049046 | 2 | Caster, Swivel, 5.0D 2.0W, 4 Hole, GraySerial 10000000 and later. | $109.50/EA |
| 22 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 and later. | $3.50/EA |
| 23 | TN4015596Replaces Tennant 39350 | 1 | Washer, Flat, 0.75, SaeSerial 10705715 and later. | $4.10/EA |
| 24 | TN4014594Replaces Tennant 51787 | 1 | Bumper, RbrSerial 10000000 and later. | $3.70/EA |
| 25 | TN4015364Replaces Tennant 54274 | 1 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hSerial 10705715 and later. | $14.70/EA |

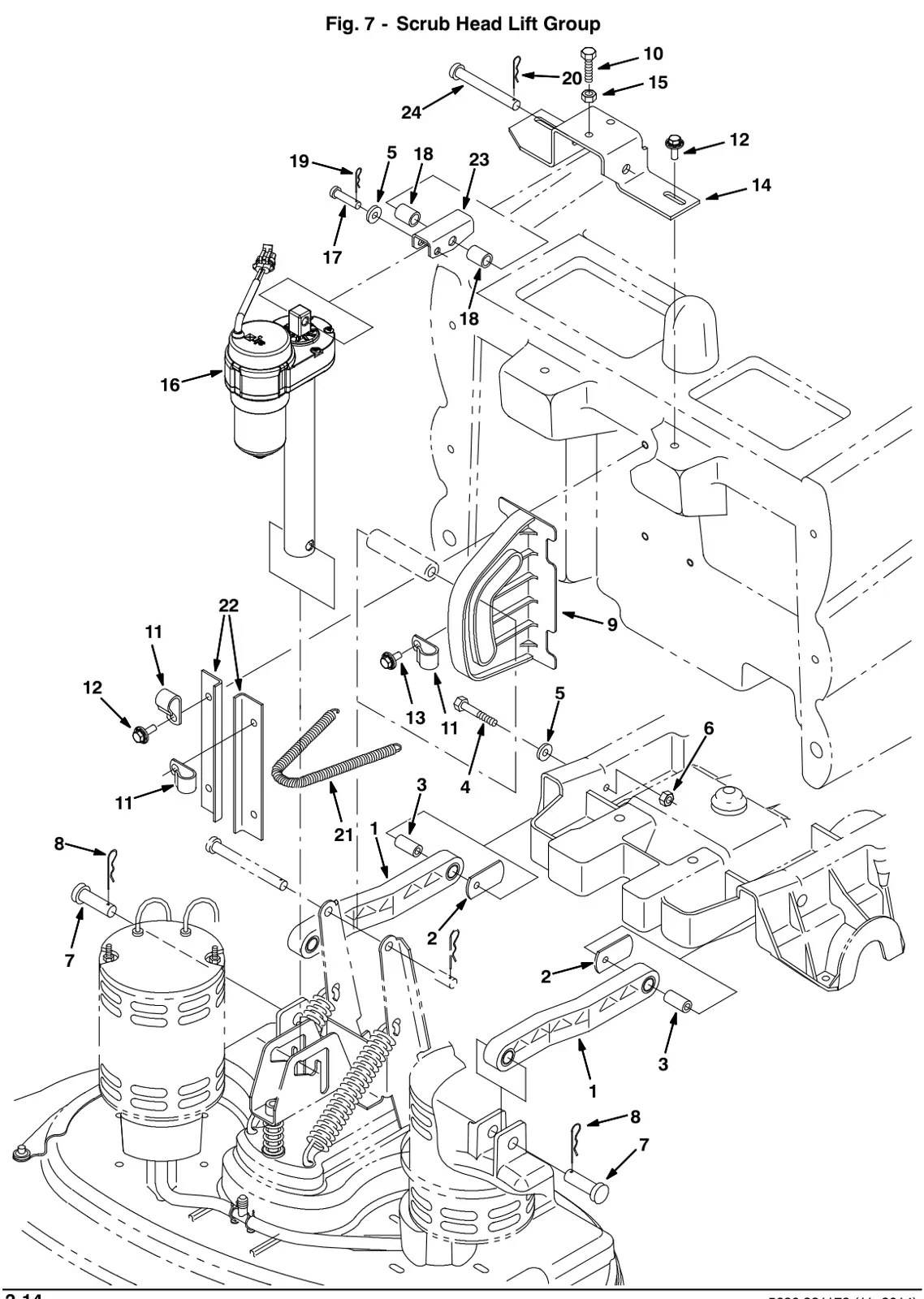

Tennant 5680 scrub head lift group parts
The parts Tennant numbers on its scrub head lift group drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039763Replaces Tennant 222027 | 2 | Arm, Lift, HeadSerial 10000000 and later. | $49.60/EA |
| 2 | TN4039813Replaces Tennant 222099 | 2 | Spacer, Lift ArmSerial 10000000 and later. | $18.80/EA |
| 3 | TN4039765Replaces Tennant 222028 | 2 | Sleeve, .344B .62D1.3 BronzeSerial 10000000 and later. | $6.00/EA |
| 4 | TN4040606Replaces Tennant 222504 | 2 | Screw, Hex, M08 X 1.25 X 55, SsSerial 10000000 and later. | $4.00/EA |
| 5 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flt, .31 SsSerial 10000000 and later. | $2.60/EA |
| 6 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsSerial 10000000 and later. | $3.30/EA |
| 7 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62 D X 2.12lSerial 10000000 and later. | $6.80/EA |
| 8 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 WirSerial 10000000 and later. | $3.40/EA |
| 9 | TN4039766Replaces Tennant 222034 | 1 | Bracket, Guide, RollerSerial 10000000 and later. | $47.60/EA |
| 10 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, SsSerial 10000000 and later. | $3.30/EA |
| 11 | TN4036443Replaces Tennant 30407 | 3 | Clip, Keeper, OpenSerial 10000000 and later. | $1.70/EA |
| 12 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 10000000 and later. | $2.50/EA |
| 13 | TN4036259Replaces Tennant 1020341 | 5 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 and later. | $3.50/EA |
| 14 | TN4016220Replaces Tennant 397765 | 1 | Bracket, Mtg, ActuatorSerial 10000000 and later. | $63.90/EA |
| 15 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M08 X 1.25, SsSerial 10000000 and later. | $3.40/EA |
| 16 | TN4014455Replaces Tennant 9005784 | 1 | Actuator Kit, F/1050461, Replmt [5680]Serial 10000000 and later. | $454.70/EA |
| 17 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37 D X 1.50lSerial 10000000 and later. | $3.90/EA |
| 18 | TN4016222Replaces Tennant 397768 | 2 | Spacer, .532Id X .75Od X 1.00LSerial 10000000 and later. | $5.60/EA |
| 19 | TN4022048Replaces Tennant 86866 | 1 | Pin, Hair Cotter, 0.38 D .072 WirSerial 10000000 and later. | $2.50/EA |
| 20 | TN4017779Replaces Tennant 44906 | 1 | Pin, Hair Cotter, 0.69 D .092 WirSerial 10000000 and later. | $4.00/EA |
| 21 | TN4016241Replaces Tennant 397818 | 1 | Spring, Extn, 0.25 Od .02 Wire 8.0 LSerial 10000000 and later. | $12.80/EA |
| 22 | TN4039782Replaces Tennant 222054 | 2 | Bracket, Roller GuideSerial 10000000 and later. | $27.10/EA |
| 23 | TN4016221Replaces Tennant 397766 | 1 | Channel, Mtg, ActuatorSerial 10000000 and later. | $27.80/EA |
| 24 | TN4039888Replaces Tennant 222196 | 1 | Pin, Clevis, 0.50 D X 4.00lSerial 10000000 and later. | $6.00/EA |

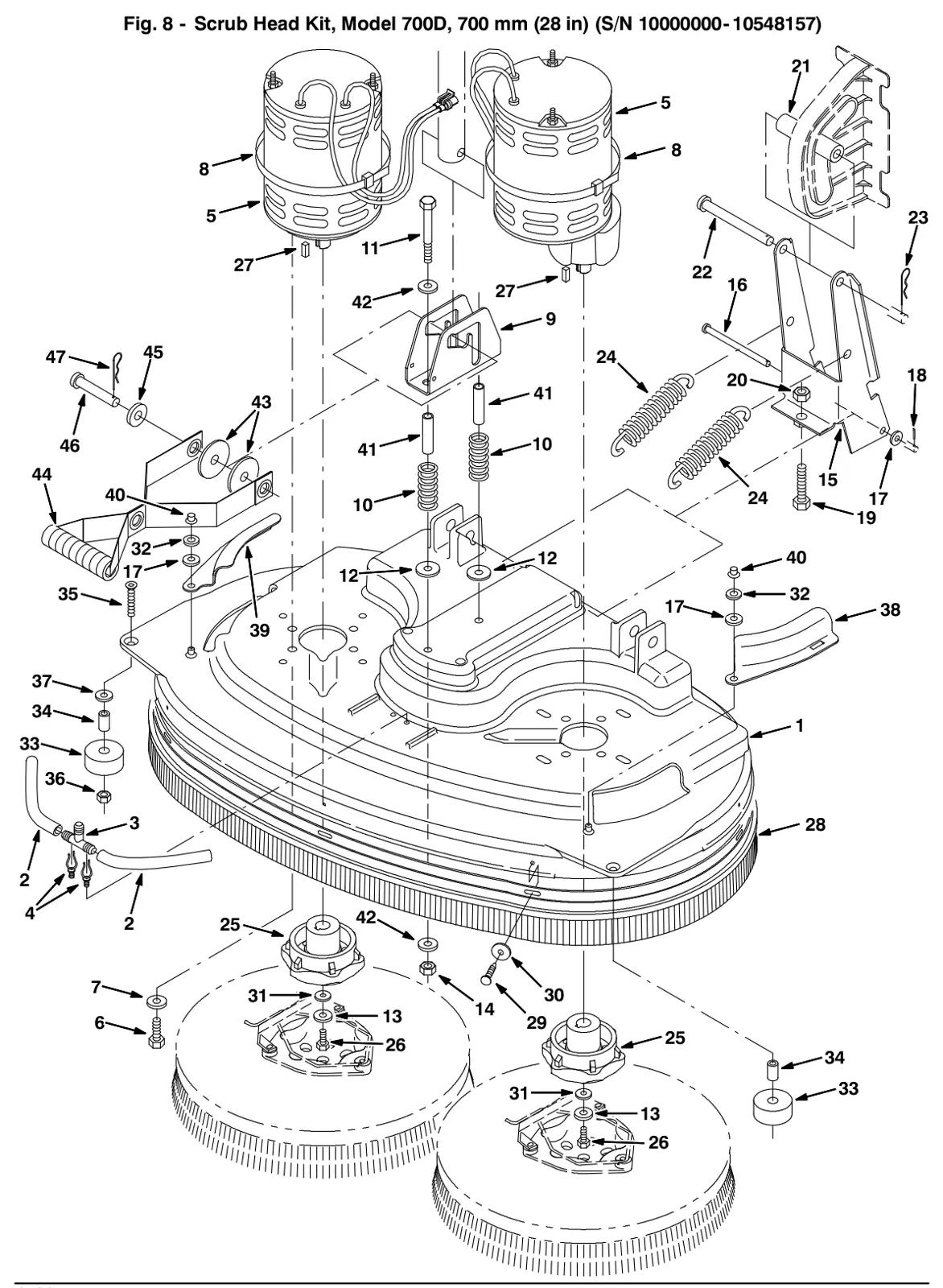

Tennant 5680 scrub head kit, model 700D, 28 in (700 mm) disk (S/N 10000000-10548157) parts
The parts Tennant numbers on its scrub head kit, model 700d, 28 in (700 mm) disk (s/n 10000000-10548157) drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016211Replaces Tennant 397745 | 1 | Kit, Ci, Head, Scrbr, [5680] [700d]Complete assembly. Serial 10000000 and later. | $6,828.21/EA |
| 1 | TN4031762Replaces Tennant 1030877 | 1 | Cover, Head, Scb, Disc, Mach [28] [28.0/700mm]Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $305.10/EA |
| 2 | TN4040616Replaces Tennant 222535 | 2 | Hose, Pvc, Clr, 0.38id 0.56od 08.00lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040617Replaces Tennant 222536 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $6.40/EA |
| 4 | TN4036442Replaces Tennant 30406 | 2 | Clip, KeeperPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 5 | TN4032797Replaces Tennant 397815 | 2 | Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328)Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 to 10548157. | $1,211.90/EA |
| 6 | TN4035960Replaces Tennant 12317 | 8 | Screw, Hex, M10 X 1.5 X 30, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 to 10548157. | $4.90/EA |
| 7 | TN4016797Replaces Tennant 41187 | 8 | Washer, Belleville, .38Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.10/EA |
| 8 | TN4013410Replaces Tennant 44961 | 4 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 9 | TN4016237Replaces Tennant 397813 | 1 | Bracket, Head, ActuatorPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $123.30/EA |
| 10 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 2.5lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $5.20/EA |
| 11 | TN4031661Replaces Tennant 35709 | 2 | Screw, Hex, .38-16 X 3.50, G5Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 12 | TN4034466Replaces Tennant 32662 | 2 | Washer, 0.38b 1.22d .06, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 13 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.30/EA |
| 14 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 15 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $60.30/EA |
| 16 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31 D X 4.74lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 17 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.60/EA |
| 18 | TN4041921Replaces Tennant 08346 | 1 | Pin, Cotter, .125 X 0.75Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.50/EA |
| 19 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10-1.5 X 40, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $6.00/EA |
| 20 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 21 | TN4039784Replaces Tennant 222055 | 1 | Roller, Linkage, HeadPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $13.00/EA |
| 22 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis, 0.50 D X 4.75lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $5.10/EA |
| 23 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 24 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od X 0.15wir, 6.5lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $13.70/EA |
| 25 | TN4041656Replaces Tennant 1042966 | 2 | Hub, Drive, Brush, Disk, 0.75B [6T]Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $176.60/EA |
| 26 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M08 X 1.25 X 30, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 27 | TN4042783Replaces Tennant 00926 | 2 | Key, Sq, 0.25 X 0.25, 00.75lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 to 10548157. | $3.60/EA |
| – | TN4016246Replaces Tennant 397828 | 1 | Kit, Ci, Skirt, 700 mm, [5680]Complete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $196.60/EA |
| 28 | TN4032858Replaces Tennant 1021919 | 1 | Skirt, Head, Disk, 28.0/700mmPart of Kit, Ci, Skirt, 700 mm, [5680] (397828). Serial 10000000 and later. | $115.10/EA |
| 29 | TN4016225Replaces Tennant 397780 | 7 | Plug, PlstcPart of Kit, Ci, Skirt, 700 mm, [5680] (397828). Serial 10000000 and later. | $3.20/EA |
| 30 | TN4016224Replaces Tennant 397779 | 7 | Washer, 0.28b 1.00d .06t, Stl, Blk, ZncPart of Kit, Ci, Skirt, 700 mm, [5680] (397828). Serial 10000000 and later. | $3.20/EA |
| 31 | TN4016796Replaces Tennant 41186 | 2 | Washer, Belleville, .31Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.50/EA |
| 32 | TN4034475Replaces Tennant 32713 | 2 | Washer, 0.41b 0.81d .09, UrePart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.90/EA |
| 33 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 2.0d 0.88w 0.50bPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $9.80/EA |
| 34 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 35 | TN4031250Replaces Tennant 33943 | 2 | Screw, Flat, M08 X 1.25 X 40, 10.9Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.30/EA |
| 36 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.30/EA |
| 37 | TN4034136Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.50/EA |
| 38 | TN4040295Replaces Tennant 222404 | 1 | Door, Scb Head, LhPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $58.90/EA |
| 39 | TN4040296Replaces Tennant 222405 | 1 | Door, Scb Head, RhPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $56.50/EA |
| 40 | TN4027201Replaces Tennant 59849 | 2 | Nut, Retainer, .312 DiaPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.30/EA |
| 41 | TN4031358Replaces Tennant 1029425 | 2 | Tube, Rnd, 0.40id 0.50od 02.3l, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $11.30/EA |
| 42 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.60/EA |
| 43 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, PlPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.50/EA |
| 44 | TN4016239Replaces Tennant 397816 | 1 | Strap Assy, HandlePart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $33.60/EA |
| 45 | TN4035057Replaces Tennant 23996 | 1 | Washer, Flat, 0.53b 0.84d .06, Stl, PlPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $8.20/EA |
| 46 | TN4016240Replaces Tennant 397817 | 1 | Pin, Clevis, 0.50 D X 2.88lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $10.10/EA |
| 47 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
Tennant 5680 scrub head kit, model 700D, 28 in (700 mm) disk (S/N 10548158 and later) parts
The parts Tennant numbers on its scrub head kit, model 700d, 28 in (700 mm) disk (s/n 10548158 and later) drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016211Replaces Tennant 397745 | 1 | Kit, Ci, Head, Scrbr, [5680] [700d]Complete assembly. Serial 10000000 and later. | $6,828.21/EA |
| 1 | TN4031762Replaces Tennant 1030877 | 1 | Cover, Head, Scb, Disc, Mach [28] [28.0/700mm]Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $305.10/EA |
| 2 | TN4040616Replaces Tennant 222535 | 2 | Hose, Pvc, Clr, 0.38id 0.56od 08.00lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040617Replaces Tennant 222536 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $6.40/EA |
| 4 | TN4036442Replaces Tennant 30406 | 2 | Clip, KeeperPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 5 | TN4029987Replaces Tennant 1063103 | 2 | Motor, Ele, 36vdc 200rpm .75hp GearComplete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10548158 and later. | $402.38/EA |
| – | TN8005758Replaces Tennant 1066573 | 2 | Vr, Brush Kit, MotorPart of Motor, Ele, 36vdc 200rpm .75hp Gear (1063103). Serial 10548158 and later. | $116.80/EA |
| 6 | TN4041974Replaces Tennant 09291 | 8 | Screw, Hex, M10 X 1.50 X 20, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10548158 and later. | $5.80/EA |
| 7 | TN4016797Replaces Tennant 41187 | 8 | Washer, Belleville, .38Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.10/EA |
| 8 | TN4013410Replaces Tennant 44961 | 4 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 9 | TN4016237Replaces Tennant 397813 | 1 | Bracket, Head, ActuatorPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $123.30/EA |
| 10 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 2.5lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $5.20/EA |
| 11 | TN4031661Replaces Tennant 35709 | 2 | Screw, Hex, .38-16 X 3.50, G5Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 12 | TN4034466Replaces Tennant 32662 | 2 | Washer, 0.38b 1.22d .06, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 13 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 14 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 15 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $60.30/EA |
| 16 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31 D X 4.74lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.00/EA |
| 17 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.60/EA |
| 18 | TN4041921Replaces Tennant 08346 | 1 | Pin, Cotter, .125 X 0.75Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.50/EA |
| 19 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10-1.5 X 40, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $6.00/EA |
| 20 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 21 | TN4039784Replaces Tennant 222055 | 1 | Roller, Linkage, HeadPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $13.00/EA |
| 22 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis, 0.50 D X 4.75lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $5.10/EA |
| 23 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 24 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od X 0.15wir, 6.5lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $13.70/EA |
| 25 | TN4041656Replaces Tennant 1042966 | 2 | Hub, Drive, Brush, Disk, 0.75B [6T]Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $176.60/EA |
| 26 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.50/EA |
| 27 | TN4042785Replaces Tennant 00928 | 2 | Key, Sq, 0.25 X 0.25, 1.00lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10548158 and later. | $3.60/EA |
| – | TN4016246Replaces Tennant 397828 | 1 | Kit, Ci, Skirt, 700 mm, [5680]Complete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $196.60/EA |
| 28 | TN4032858Replaces Tennant 1021919 | 1 | Skirt, Head, Disk, 28.0/700mmPart of Kit, Ci, Skirt, 700 mm, [5680] (397828). Serial 10000000 and later. | $115.10/EA |
| 29 | TN4016225Replaces Tennant 397780 | 7 | Plug, PlstcPart of Kit, Ci, Skirt, 700 mm, [5680] (397828). Serial 10000000 and later. | $3.20/EA |
| 30 | TN4016224Replaces Tennant 397779 | 7 | Washer, 0.28b 1.00d .06t, Stl, Blk, ZncPart of Kit, Ci, Skirt, 700 mm, [5680] (397828). Serial 10000000 and later. | $3.20/EA |
| 31 | TN4032838Replaces Tennant 1066734 | 2 | Harness, Adapter, MotorPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10548158 and later. | $42.50/EA |
| 32 | TN4034475Replaces Tennant 32713 | 2 | Washer, 0.41b 0.81d .09, UrePart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.90/EA |
| 33 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 2.0d 0.88w 0.50bPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $9.80/EA |
| 34 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |
| 35 | TN4031250Replaces Tennant 33943 | 2 | Screw, Flat, M08 X 1.25 X 40, 10.9Part of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $4.30/EA |
| 36 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.30/EA |
| 37 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.20/EA |
| 38 | TN4040295Replaces Tennant 222404 | 1 | Door, Scb Head, LhPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $58.90/EA |
| 39 | TN4040296Replaces Tennant 222405 | 1 | Door, Scb Head, RhPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $56.50/EA |
| 40 | TN4027201Replaces Tennant 59849 | 2 | Nut, Retainer, .312 DiaPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.30/EA |
| 41 | TN4031358Replaces Tennant 1029425 | 2 | Tube, Rnd, 0.40id 0.50od 02.3l, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $11.30/EA |
| 42 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $2.60/EA |
| 43 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, PlPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.50/EA |
| 44 | TN4016239Replaces Tennant 397816 | 1 | Strap Assy, HandlePart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $33.60/EA |
| 45 | TN4035057Replaces Tennant 23996 | 1 | Washer, Flat, 0.53b 0.84d .06, Stl, PlPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $8.20/EA |
| 46 | TN4016240Replaces Tennant 397817 | 1 | Pin, Clevis, 0.50 D X 2.88lPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $10.10/EA |
| 47 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [700d] (397745). Serial 10000000 and later. | $3.40/EA |

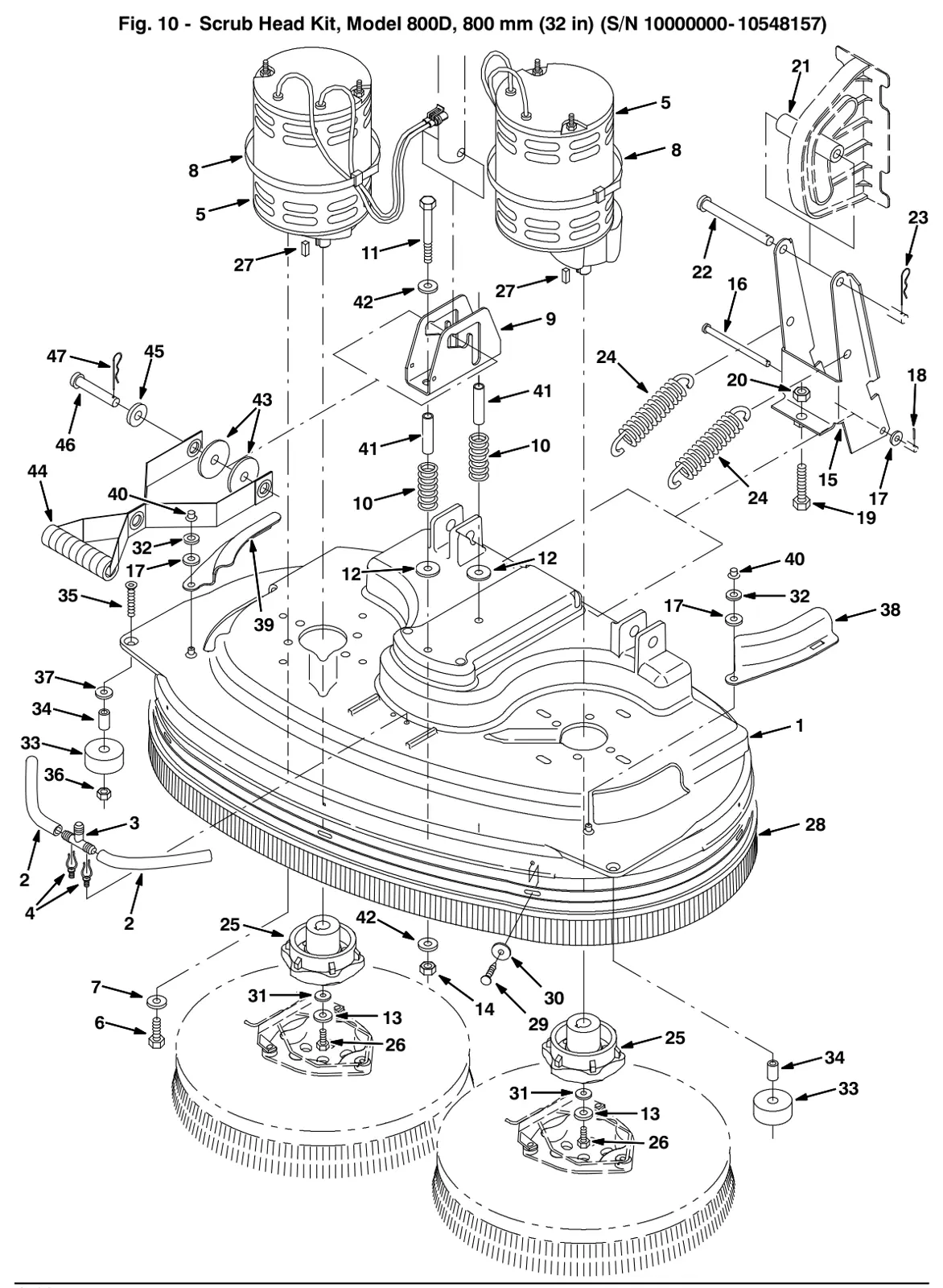

Tennant 5680 scrub head kit, model 800D, 32 in (800 mm) disk (S/N 10000000-10548157) parts
The parts Tennant numbers on its scrub head kit, model 800d, 32 in (800 mm) disk (s/n 10000000-10548157) drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016209Replaces Tennant 397740 | 1 | Kit, Ci, Head, Scrbr, [5680] [800d]Complete assembly. Serial 10000000 and later. | $7,524.90/EA |
| 1 | TN4031761Replaces Tennant 1030875 | 1 | Cover, Head, Scb, Disc, Mach [32] [32.0/800mm]Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $338.90/EA |
| 2 | TN4040616Replaces Tennant 222535 | 2 | Hose, Pvc, Clr, 0.38id 0.56od 08.00lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040617Replaces Tennant 222536 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $6.40/EA |
| 4 | TN4036442Replaces Tennant 30406 | 2 | Clip, KeeperPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 5 | TN4032797Replaces Tennant 397815 | 2 | Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328)Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 to 10548157. | $1,211.90/EA |
| 6 | TN4035960Replaces Tennant 12317 | 8 | Screw, Hex, M10 X 1.5 X 30, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 to 10548157. | $4.90/EA |
| 7 | TN4016797Replaces Tennant 41187 | 8 | Washer, Belleville, .38Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.10/EA |
| 8 | TN4013410Replaces Tennant 44961 | 4 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 9 | TN4016237Replaces Tennant 397813 | 1 | Bracket, Head, ActuatorPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $123.30/EA |
| 10 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 2.5lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $5.20/EA |
| 11 | TN4031661Replaces Tennant 35709 | 2 | Screw, Hex, .38-16 X 3.50, G5Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 12 | TN4034466Replaces Tennant 32662 | 2 | Washer, 0.38b 1.22d .06, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 13 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.30/EA |
| 14 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 15 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $60.30/EA |
| 16 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31 D X 4.74lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 17 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.60/EA |
| 18 | TN4041921Replaces Tennant 08346 | 1 | Pin, Cotter, .125 X 0.75Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.50/EA |
| 19 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10-1.5 X 40, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $6.00/EA |
| 20 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 21 | TN4039784Replaces Tennant 222055 | 1 | Roller, Linkage, HeadPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $13.00/EA |
| 22 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis, 0.50 D X 4.75lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $5.10/EA |
| 23 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 24 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od X 0.15wir, 6.5lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $13.70/EA |
| 25 | TN4041656Replaces Tennant 1042966 | 2 | Hub, Drive, Brush, Disk, 0.75B [6T]Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $176.60/EA |
| 26 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M08 X 1.25 X 30, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 27 | TN4042783Replaces Tennant 00926 | 2 | Key, Sq, 0.25 X 0.25, 00.75lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 to 10548157. | $3.60/EA |
| – | TN4016247Replaces Tennant 397832 | 1 | Kit, Ci, Skirt, 800 mm, [5680]Complete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $120.30/EA |
| 28 | TN4032878Replaces Tennant 1022013 | 1 | Skirt, Head, Disk, 32.0/800mmPart of Kit, Ci, Skirt, 800 mm, [5680] (397832). Serial 10000000 and later. | $118.40/EA |
| 29 | TN4016225Replaces Tennant 397780 | 7 | Plug, PlstcPart of Kit, Ci, Skirt, 800 mm, [5680] (397832). Serial 10000000 and later. | $3.20/EA |
| 30 | TN4016224Replaces Tennant 397779 | 7 | Washer, 0.28b 1.00d .06t, Stl, Blk, ZncPart of Kit, Ci, Skirt, 800 mm, [5680] (397832). Serial 10000000 and later. | $3.20/EA |
| 31 | TN4016796Replaces Tennant 41186 | 2 | Washer, Belleville, .31Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.50/EA |
| 32 | TN4034475Replaces Tennant 32713 | 2 | Washer, 0.41b 0.81d .09, UrePart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.90/EA |
| 33 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 2.0d 0.88w 0.50bPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $9.80/EA |
| 34 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 35 | TN4031250Replaces Tennant 33943 | 2 | Screw, Flat, M08 X 1.25 X 40, 10.9Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.30/EA |
| 36 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.30/EA |
| 37 | TN4034136Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.50/EA |
| 38 | TN4040295Replaces Tennant 222404 | 1 | Door, Scb Head, LhPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $58.90/EA |
| 39 | TN4040296Replaces Tennant 222405 | 1 | Door, Scb Head, RhPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $56.50/EA |
| 40 | TN4027201Replaces Tennant 59849 | 2 | Nut, Retainer, .312 DiaPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.30/EA |
| 41 | TN4031358Replaces Tennant 1029425 | 2 | Tube, Rnd, 0.40id 0.50od 02.3l, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $11.30/EA |
| 42 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.60/EA |
| 43 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, PlSerial 10000000 and later. | $3.50/EA |
| 44 | TN4016239Replaces Tennant 397816 | 1 | Strap Assy, HandleSerial 10000000 and later. | $33.60/EA |
| 45 | TN4035057Replaces Tennant 23996 | 1 | Washer, Flat, 0.53b 0.84d .06, Stl, PlSerial 10000000 and later. | $8.20/EA |
| 46 | TN4016240Replaces Tennant 397817 | 1 | Pin, Clevis, 0.50 D X 2.88lSerial 10000000 and later. | $10.10/EA |
| 47 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirSerial 10000000 and later. | $3.40/EA |
Tennant 5680 scrub head kit, model 800D, 32 in (800 mm) disk (S/N 10548158 and later) parts
The parts Tennant numbers on its scrub head kit, model 800d, 32 in (800 mm) disk (s/n 10548158 and later) drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016209Replaces Tennant 397740 | 1 | Kit, Ci, Head, Scrbr, [5680] [800d]Complete assembly. Serial 10000000 and later. | $7,524.90/EA |
| 1 | TN4031761Replaces Tennant 1030875 | 1 | Cover, Head, Scb, Disc, Mach [32] [32.0/800mm]Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $338.90/EA |
| 2 | TN4040616Replaces Tennant 222535 | 2 | Hose, Pvc, Clr, 0.38id 0.56od 08.00lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040617Replaces Tennant 222536 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $6.40/EA |
| 4 | TN4036442Replaces Tennant 30406 | 2 | Clip, KeeperPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 5 | TN4029987Replaces Tennant 1063103 | 2 | Motor, Ele, 36vdc 200rpm .75hp GearComplete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10548158 and later. | $402.38/EA |
| – | TN8005758Replaces Tennant 1066573 | 2 | Vr, Brush Kit, MotorPart of Motor, Ele, 36vdc 200rpm .75hp Gear (1063103). Serial 10548158 and later. | $116.80/EA |
| 6 | TN4041974Replaces Tennant 09291 | 8 | Screw, Hex, M10 X 1.50 X 20, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10548158 and later. | $5.80/EA |
| 7 | TN4016797Replaces Tennant 41187 | 8 | Washer, Belleville, .38Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.10/EA |
| 8 | TN4013410Replaces Tennant 44961 | 4 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 9 | TN4016237Replaces Tennant 397813 | 1 | Bracket, Head, ActuatorPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $123.30/EA |
| 10 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 2.5lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $5.20/EA |
| 11 | TN4031661Replaces Tennant 35709 | 2 | Screw, Hex, .38-16 X 3.50, G5Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 12 | TN4034466Replaces Tennant 32662 | 2 | Washer, 0.38b 1.22d .06, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 13 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 14 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 15 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $60.30/EA |
| 16 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31 D X 4.74lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.00/EA |
| 17 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.60/EA |
| 18 | TN4041921Replaces Tennant 08346 | 1 | Pin, Cotter, .125 X 0.75Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.50/EA |
| 19 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10-1.5 X 40, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $6.00/EA |
| 20 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 21 | TN4039784Replaces Tennant 222055 | 1 | Roller, Linkage, HeadPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $13.00/EA |
| 22 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis, 0.50 D X 4.75lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $5.10/EA |
| 23 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 24 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od X 0.15wir, 6.5lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $13.70/EA |
| 25 | TN4041656Replaces Tennant 1042966 | 2 | Hub, Drive, Brush, Disk, 0.75B [6T]Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $176.60/EA |
| 26 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.50/EA |
| 27 | TN4042785Replaces Tennant 00928 | 2 | Key, Sq, 0.25 X 0.25, 1.00lPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10548158 and later. | $3.60/EA |
| – | TN4016247Replaces Tennant 397832 | 1 | Kit, Ci, Skirt, 800 mm, [5680]Complete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $120.30/EA |
| 28 | TN4032878Replaces Tennant 1022013 | 1 | Skirt, Head, Disk, 32.0/800mmPart of Kit, Ci, Skirt, 800 mm, [5680] (397832). Serial 10000000 and later. | $118.40/EA |
| 29 | TN4016225Replaces Tennant 397780 | 7 | Plug, PlstcPart of Kit, Ci, Skirt, 800 mm, [5680] (397832). Serial 10000000 and later. | $3.20/EA |
| 30 | TN4016224Replaces Tennant 397779 | 7 | Washer, 0.28b 1.00d .06t, Stl, Blk, ZncPart of Kit, Ci, Skirt, 800 mm, [5680] (397832). Serial 10000000 and later. | $3.20/EA |
| 31 | TN4032838Replaces Tennant 1066734 | 2 | Harness, Adapter, MotorPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10548158 and later. | $42.50/EA |
| 32 | TN4034475Replaces Tennant 32713 | 2 | Washer, 0.41b 0.81d .09, UrePart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.90/EA |
| 33 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 2.0d 0.88w 0.50bPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $9.80/EA |
| 34 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.40/EA |
| 35 | TN4031250Replaces Tennant 33943 | 2 | Screw, Flat, M08 X 1.25 X 40, 10.9Part of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $4.30/EA |
| 36 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.30/EA |
| 37 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.20/EA |
| 38 | TN4040295Replaces Tennant 222404 | 1 | Door, Scb Head, LhPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $58.90/EA |
| 39 | TN4040296Replaces Tennant 222405 | 1 | Door, Scb Head, RhPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $56.50/EA |
| 40 | TN4027201Replaces Tennant 59849 | 2 | Nut, Retainer, .312 DiaPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $3.30/EA |
| 41 | TN4031358Replaces Tennant 1029425 | 2 | Tube, Rnd, 0.40id 0.50od 02.3l, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $11.30/EA |
| 42 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [800d] (397740). Serial 10000000 and later. | $2.60/EA |
| 43 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, PlSerial 10000000 and later. | $3.50/EA |
| 44 | TN4016239Replaces Tennant 397816 | 1 | Strap Assy, HandleSerial 10000000 and later. | $33.60/EA |
| 45 | TN4035057Replaces Tennant 23996 | 1 | Washer, Flat, 0.53b 0.84d .06, Stl, PlSerial 10000000 and later. | $8.20/EA |
| 46 | TN4016240Replaces Tennant 397817 | 1 | Pin, Clevis, 0.50 D X 2.88lSerial 10000000 and later. | $10.10/EA |
| 47 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirSerial 10000000 and later. | $3.40/EA |

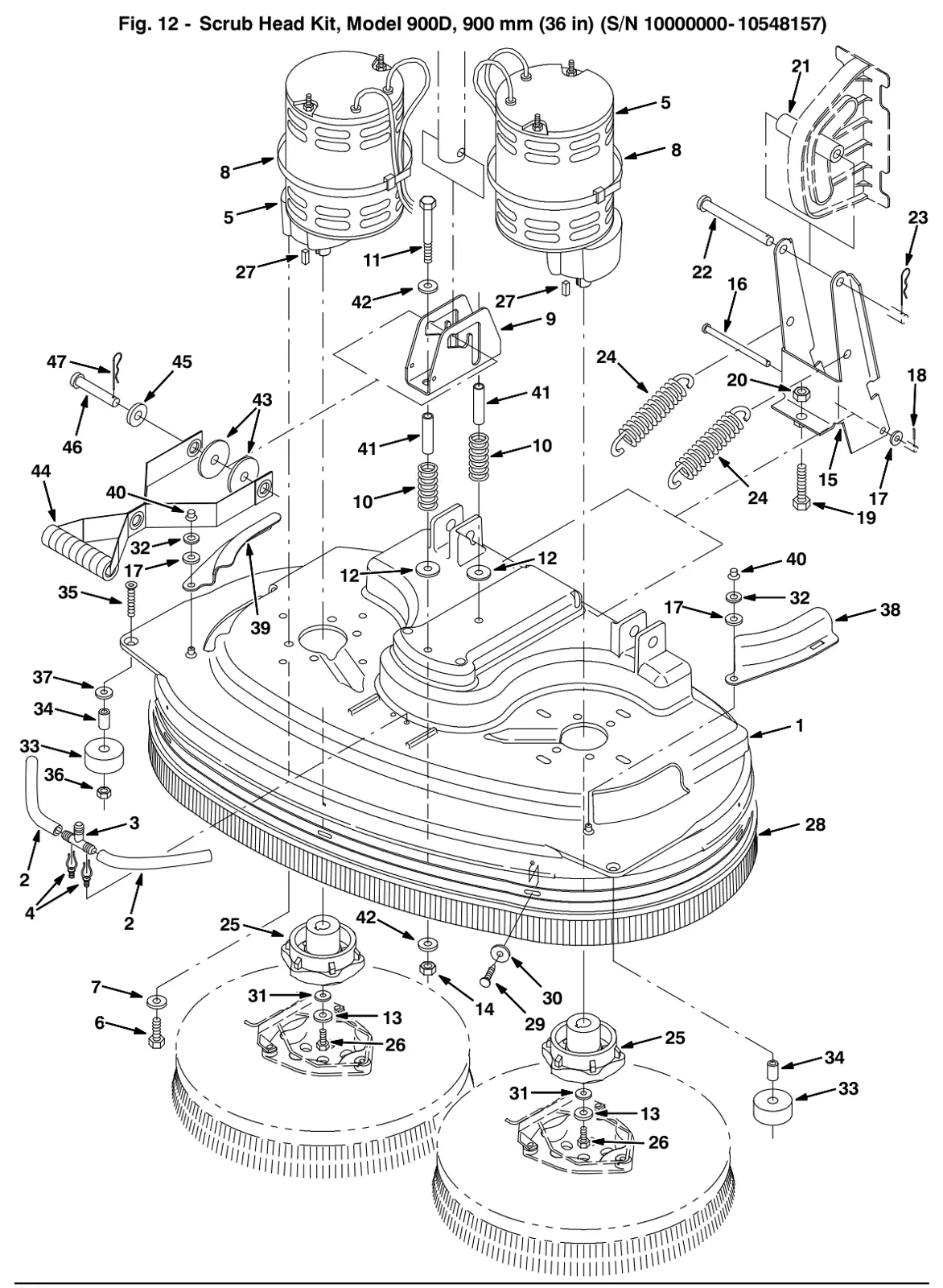

Tennant 5680 scrub head kit, model 900D, 36 in (900 mm) disk (S/N 10000000-10548157) parts
The parts Tennant numbers on its scrub head kit, model 900d, 36 in (900 mm) disk (s/n 10000000-10548157) drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016210Replaces Tennant 397744 | 1 | Kit, Ci, Head, Scrbr, [5680] [900d]Complete assembly. Serial 10000000 and later. | $7,077.47/EA |
| 1 | TN4040206Replaces Tennant 222223 | 1 | Cover, Head, Scrbr, Disc [36]Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3,565.80/EA |
| 2 | TN4040616Replaces Tennant 222535 | 2 | Hose, Pvc, Clr, 0.38id 0.56od 08.00lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040617Replaces Tennant 222536 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $6.40/EA |
| 4 | TN4036442Replaces Tennant 30406 | 2 | Clip, KeeperPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 5 | TN4032797Replaces Tennant 397815 | 2 | Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328)Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 to 10548157. | $1,211.90/EA |
| 6 | TN4035960Replaces Tennant 12317 | 8 | Screw, Hex, M10 X 1.5 X 30, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 to 10548157. | $4.90/EA |
| 7 | TN4016797Replaces Tennant 41187 | 8 | Washer, Belleville, .38Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.10/EA |
| 8 | TN4013410Replaces Tennant 44961 | 4 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 9 | TN4016237Replaces Tennant 397813 | 1 | Bracket, Head, ActuatorPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $123.30/EA |
| 10 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 2.5lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $5.20/EA |
| 11 | TN4031661Replaces Tennant 35709 | 2 | Screw, Hex, .38-16 X 3.50, G5Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 12 | TN4034466Replaces Tennant 32662 | 2 | Washer, 0.38b 1.22d .06, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 13 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.30/EA |
| 14 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 15 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $60.30/EA |
| 16 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31 D X 4.74lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 17 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.60/EA |
| 18 | TN4041921Replaces Tennant 08346 | 1 | Pin, Cotter, .125 X 0.75Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.50/EA |
| 19 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10-1.5 X 40, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $6.00/EA |
| 20 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 21 | TN4039784Replaces Tennant 222055 | 1 | Roller, Linkage, HeadPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $13.00/EA |
| 22 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis, 0.50 D X 4.75lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $5.10/EA |
| 23 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 24 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od X 0.15wir, 6.5lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $13.70/EA |
| 25 | TN4041656Replaces Tennant 1042966 | 2 | Hub, Drive, Brush, Disk, 0.75B [6T]Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $176.60/EA |
| 26 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M08 X 1.25 X 30, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 27 | TN4042783Replaces Tennant 00926 | 2 | Key, Sq, 0.25 X 0.25, 00.75lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 to 10548157. | $3.60/EA |
| – | TN4016248Replaces Tennant 397836 | 1 | Kit, Ci, Skirt, 900 mm, [5680]Complete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $156.30/EA |
| 28 | TN4032891Replaces Tennant 1022042 | 1 | Skirt, Head, Disk, 36.0/900mmPart of Kit, Ci, Skirt, 900 mm, [5680] (397836). Serial 10000000 and later. | $112.90/EA |
| 29 | TN4016225Replaces Tennant 397780 | 7 | Plug, PlstcPart of Kit, Ci, Skirt, 900 mm, [5680] (397836). Serial 10000000 and later. | $3.20/EA |
| 30 | TN4016224Replaces Tennant 397779 | 7 | Washer, 0.28b 1.00d .06t, Stl, Blk, ZncPart of Kit, Ci, Skirt, 900 mm, [5680] (397836). Serial 10000000 and later. | $3.20/EA |
| 31 | TN4016796Replaces Tennant 41186 | 2 | Washer, Belleville, .31Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.50/EA |
| 32 | TN4034475Replaces Tennant 32713 | 2 | Washer, 0.41b 0.81d .09, UrePart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.90/EA |
| 33 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 2.0d 0.88w 0.50bPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $9.80/EA |
| 34 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 35 | TN4031250Replaces Tennant 33943 | 2 | Screw, Flat, M08 X 1.25 X 40, 10.9Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.30/EA |
| 36 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.30/EA |
| 37 | TN4034136Replaces Tennant 32490 | 2 | Washer, Flt, .25 StdPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.50/EA |
| 38 | TN4040295Replaces Tennant 222404 | 1 | Door, Scb Head, LhPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $58.90/EA |
| 39 | TN4040296Replaces Tennant 222405 | 1 | Door, Scb Head, RhPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $56.50/EA |
| 40 | TN4027201Replaces Tennant 59849 | 2 | Nut, Retainer, .312 DiaPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.30/EA |
| 41 | TN4031358Replaces Tennant 1029425 | 2 | Tube, Rnd, 0.40id 0.50od 02.3l, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $11.30/EA |
| 42 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.60/EA |
| 43 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, PlSerial 10000000 and later. | $3.50/EA |
| 44 | TN4016239Replaces Tennant 397816 | 1 | Strap Assy, HandleSerial 10000000 and later. | $33.60/EA |
| 45 | TN4035057Replaces Tennant 23996 | 1 | Washer, Flat, 0.53b 0.84d .06, Stl, PlSerial 10000000 and later. | $8.20/EA |
| 46 | TN4016240Replaces Tennant 397817 | 1 | Pin, Clevis, 0.50 D X 2.88lSerial 10000000 and later. | $10.10/EA |
| 47 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirSerial 10000000 and later. | $3.40/EA |

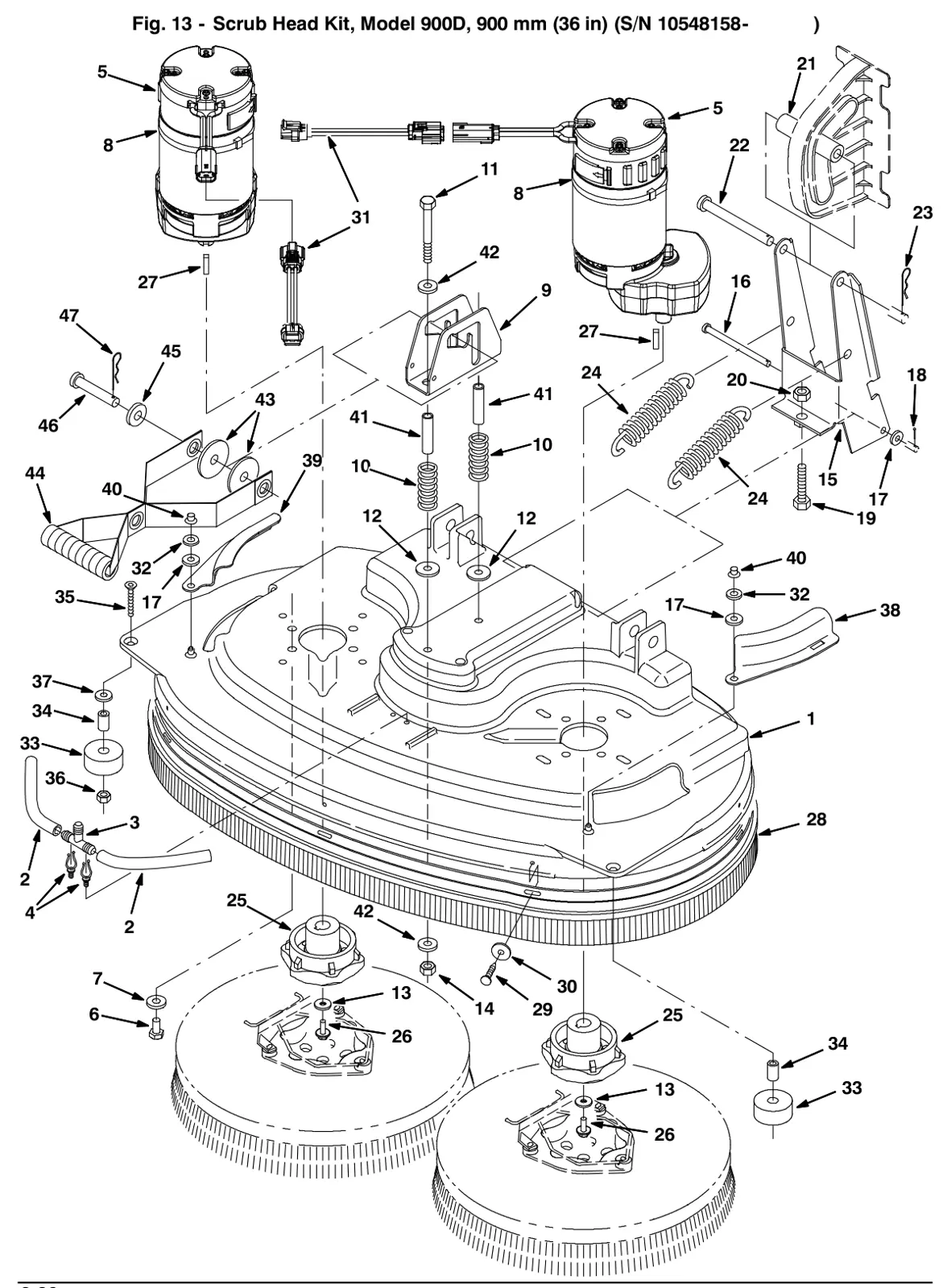

Tennant 5680 scrub head kit, model 900D, 36 in (900 mm) disk (S/N 10548158 and later) parts
The parts Tennant numbers on its scrub head kit, model 900d, 36 in (900 mm) disk (s/n 10548158 and later) drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016210Replaces Tennant 397744 | 1 | Kit, Ci, Head, Scrbr, [5680] [900d]Complete assembly. Serial 10000000 and later. | $7,077.47/EA |
| 1 | TN4040206Replaces Tennant 222223 | 1 | Cover, Head, Scrbr, Disc [36]Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3,565.80/EA |
| 2 | TN4040616Replaces Tennant 222535 | 2 | Hose, Pvc, Clr, 0.38id 0.56od 08.00lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040617Replaces Tennant 222536 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm08Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $6.40/EA |
| 4 | TN4036442Replaces Tennant 30406 | 2 | Clip, KeeperPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 5 | TN4029987Replaces Tennant 1063103 | 2 | Motor, Ele, 36vdc 200rpm .75hp GearComplete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10548158 and later. | $402.38/EA |
| – | TN8005758Replaces Tennant 1066573 | 2 | Vr, Brush Kit, MotorPart of Motor, Ele, 36vdc 200rpm .75hp Gear (1063103). Serial 10548158 and later. | $116.80/EA |
| 6 | TN4041974Replaces Tennant 09291 | 8 | Screw, Hex, M10 X 1.50 X 20, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10548158 and later. | $5.80/EA |
| 7 | TN4016797Replaces Tennant 41187 | 8 | Washer, Belleville, .38Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.10/EA |
| 8 | TN4013410Replaces Tennant 44961 | 4 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 9 | TN4016237Replaces Tennant 397813 | 1 | Bracket, Head, ActuatorPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $123.30/EA |
| 10 | TN4013421Replaces Tennant 45261 | 2 | Spring, Cmpr, 0.97od .11wir 2.5lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $5.20/EA |
| 11 | TN4031661Replaces Tennant 35709 | 2 | Screw, Hex, .38-16 X 3.50, G5Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 12 | TN4034466Replaces Tennant 32662 | 2 | Washer, 0.38b 1.22d .06, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 13 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 14 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 15 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $60.30/EA |
| 16 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31 D X 4.74lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.00/EA |
| 17 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.60/EA |
| 18 | TN4041921Replaces Tennant 08346 | 1 | Pin, Cotter, .125 X 0.75Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.50/EA |
| 19 | TN4040974Replaces Tennant 05720 | 1 | Screw, Hex, M10-1.5 X 40, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $6.00/EA |
| 20 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 21 | TN4039784Replaces Tennant 222055 | 1 | Roller, Linkage, HeadPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $13.00/EA |
| 22 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis, 0.50 D X 4.75lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $5.10/EA |
| 23 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 24 | TN4040273Replaces Tennant 222363 | 2 | Spring, Extn, 1.23od X 0.15wir, 6.5lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $13.70/EA |
| 25 | TN4041656Replaces Tennant 1042966 | 2 | Hub, Drive, Brush, Disk, 0.75B [6T]Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $176.60/EA |
| 26 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.50/EA |
| 27 | TN4042785Replaces Tennant 00928 | 2 | Key, Sq, 0.25 X 0.25, 1.00lPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10548158 and later. | $3.60/EA |
| – | TN4016248Replaces Tennant 397836 | 1 | Kit, Ci, Skirt, 900 mm, [5680]Complete assembly. Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $156.30/EA |
| 28 | TN4032891Replaces Tennant 1022042 | 1 | Skirt, Head, Disk, 36.0/900mmPart of Kit, Ci, Skirt, 900 mm, [5680] (397836). Serial 10000000 and later. | $112.90/EA |
| 29 | TN4016225Replaces Tennant 397780 | 7 | Plug, PlstcPart of Kit, Ci, Skirt, 900 mm, [5680] (397836). Serial 10000000 and later. | $3.20/EA |
| 30 | TN4016224Replaces Tennant 397779 | 7 | Washer, 0.28b 1.00d .06t, Stl, Blk, ZncPart of Kit, Ci, Skirt, 900 mm, [5680] (397836). Serial 10000000 and later. | $3.20/EA |
| 31 | TN4032838Replaces Tennant 1066734 | 2 | Harness, Adapter, MotorPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10548158 and later. | $42.50/EA |
| 32 | TN4034475Replaces Tennant 32713 | 2 | Washer, 0.41b 0.81d .09, UrePart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.90/EA |
| 33 | TN4040294Replaces Tennant 222403 | 2 | Wheel, 2.0d 0.88w 0.50bPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $9.80/EA |
| 34 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.40/EA |
| 35 | TN4031250Replaces Tennant 33943 | 2 | Screw, Flat, M08 X 1.25 X 40, 10.9Part of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $4.30/EA |
| 36 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.30/EA |
| 37 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.20/EA |
| 38 | TN4040295Replaces Tennant 222404 | 1 | Door, Scb Head, LhPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $58.90/EA |
| 39 | TN4040296Replaces Tennant 222405 | 1 | Door, Scb Head, RhPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $56.50/EA |
| 40 | TN4027201Replaces Tennant 59849 | 2 | Nut, Retainer, .312 DiaPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $3.30/EA |
| 41 | TN4031358Replaces Tennant 1029425 | 2 | Tube, Rnd, 0.40id 0.50od 02.3l, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $11.30/EA |
| 42 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Head, Scrbr, [5680] [900d] (397744). Serial 10000000 and later. | $2.60/EA |
| 43 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, PlSerial 10000000 and later. | $3.50/EA |
| 44 | TN4016239Replaces Tennant 397816 | 1 | Strap Assy, HandleSerial 10000000 and later. | $33.60/EA |
| 45 | TN4035057Replaces Tennant 23996 | 1 | Washer, Flat, 0.53b 0.84d .06, Stl, PlSerial 10000000 and later. | $8.20/EA |
| 46 | TN4016240Replaces Tennant 397817 | 1 | Pin, Clevis, 0.50 D X 2.88lSerial 10000000 and later. | $10.10/EA |
| 47 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirSerial 10000000 and later. | $3.40/EA |

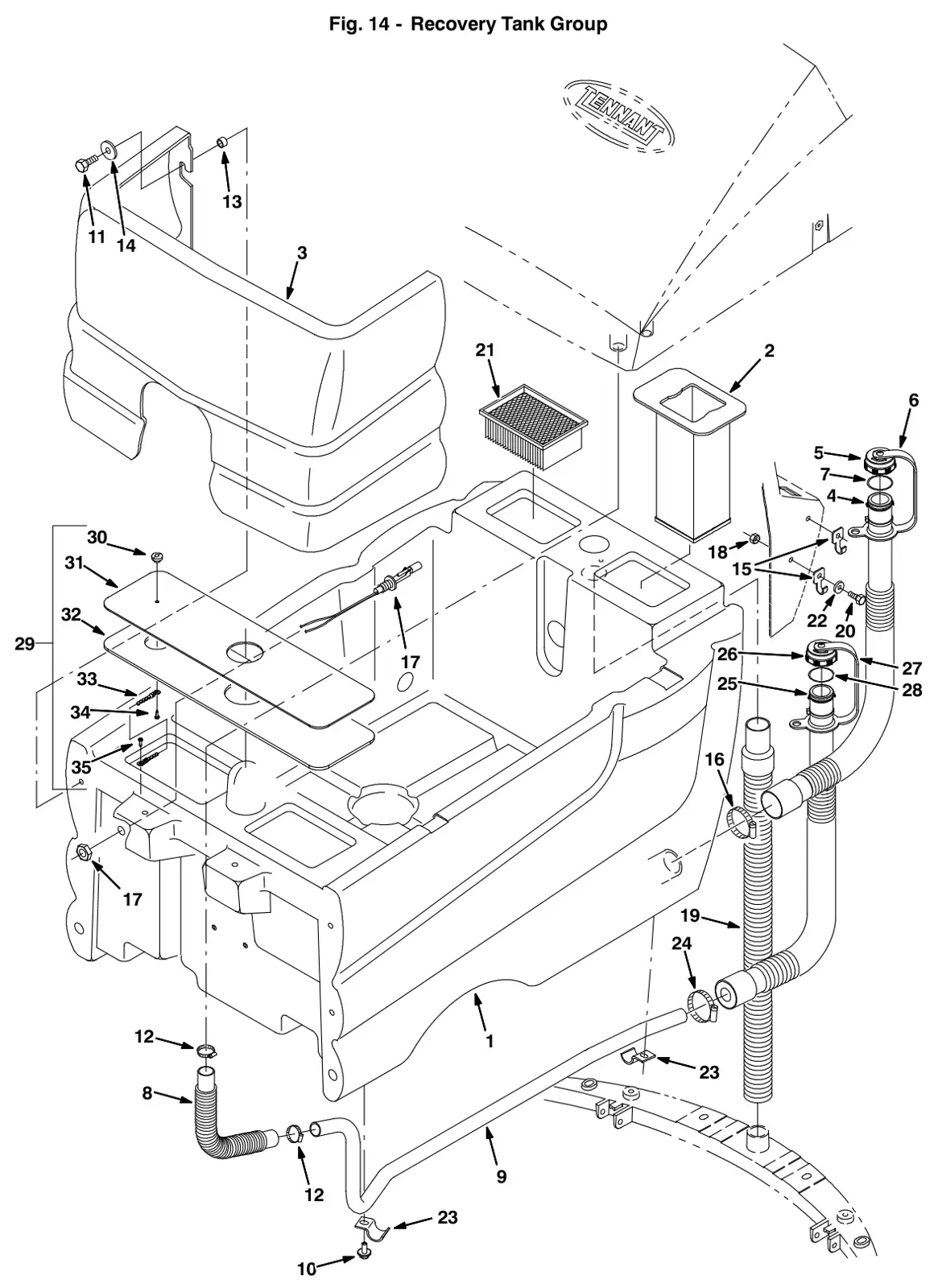

Tennant 5680 recovery tank group parts
The parts Tennant numbers on its recovery tank group drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016525Replaces Tennant 398440 | 1 | Tank, Recvy [5680/5700]Complete assembly. Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4041660Replaces Tennant 1042996 | 1 | Screen, Debris, [5680/5700] (Optional)Serial 10000000 and later. | $140.60/EA |
| 3 | TN4014470Replaces Tennant 9005799 | 1 | Cover, Front, Teal, Afmkt [5680 Disk]Serial 10000000 and later. | $455.30/EA |
| 4 | TN4040559Replaces Tennant 1011168 | 1 | Hose, Assembly, Drain, 25.7Complete assembly. Serial 10000000 and later. | $81.20/EA |
| 5 | TN4039939Replaces Tennant 1008639 | 1 | Cap, Drain AssemblyComplete assembly. Part of Hose, Assembly, Drain, 25.7 (1011168). Serial 10000000 and later. | $20.20/EA |
| 6 | TN4039939Replaces Tennant 1019563 | 1 | Strap, Drain CapPart of Cap, Drain Assembly (1008639). Serial 10000000 and later. | $20.20/EA |
| 7 | TN4039938Replaces Tennant 1008637 | 1 | O Ring, 1.48” ID, 1.76” OdPart of Cap, Drain Assembly (1008639). Serial 10000000 and later. | $12.10/EA |
| 8 | TN4039886Replaces Tennant 222194 | 1 | Hose, Drain, FlexSerial 10000000 and later. | $29.90/EA |
| 9 | TN4039847Replaces Tennant 222151 | 1 | Tube, DrainSerial 10000000 and later. | $87.50/EA |
| 10 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 and later. | $3.50/EA |
| 11 | TN4034939Replaces Tennant 12273 | 4 | Screw, Hex, M08 X 1.25 X 20, Ss, NlSerial 10000000 and later. | $4.00/EA |
| 12 | TN4043367Replaces Tennant 11399 | 2 | Clamp-Wormdrive, 0.81-1.50DSerial 10000000 and later. | $5.10/EA |
| 13 | TN4040610Replaces Tennant 222516 | 4 | Sleeve, P/M, 0.496d 0.318b 0.31l 430ssSerial 10000000 and later. | $3.40/EA |
| 14 | TN4036089Replaces Tennant 30013 | 4 | Washer, Flat, .31 FenderSerial 10000000 and later. | $2.40/EA |
| 15 | TN4037049Replaces Tennant 222793 | 2 | Clip, Hose, HangerSerial 10000000 and later. | $7.00/EA |
| 16 | TN4037088Replaces Tennant 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50dSerial 10000000 and later. | $4.20/EA |
| 17 | TN4037064Replaces Tennant 222822 | 1 | Switch, FloatSerial 10000000 and later. | $154.60/EA |
| 18 | TN4041929Replaces Tennant 08713 | 2 | Nut-Hxlocnyln M 8X1.25 Reg SsSerial 10000000 and later. | $3.30/EA |
| 19 | TN4028649Replaces Tennant 374060 | 1 | Hose & Cuff Assy, Vacuum 1.51D 32LSerial 10000000 and later. | $44.70/EA |
| 20 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 and later. | $3.40/EA |
| 21 | TN4043531Replaces Tennant 1037821 | 1 | Filter, Panl, Dust, 2.3 X 04.5 X 06.4Serial 10000000 and later. | $20.40/EA |
| 22 | TN4042902Replaces Tennant 01685 | 2 | Washer Flt .31 SsSerial 10000000 and later. | $2.60/EA |
| 23 | TN4018310Replaces Tennant 69234 | 2 | Clamp, Cable, 1.00D 0.62W StlSerial 10000000 and later. | $4.20/EA |
| 24 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00dSerial 10000000 and later. | $5.30/EA |
| 25 | TN4040558Replaces Tennant 1011167 | 1 | Hose, Assembly, Drain, 26.7Complete assembly. Serial 10000000 and later. | $64.00/EA |
| 26 | TN4039939Replaces Tennant 1008639 | 1 | Cap, Drain AssemblyComplete assembly. Part of Hose, Assembly, Drain, 26.7 (1011167). Serial 10000000 and later. | $20.20/EA |
| 27 | TN4039939Replaces Tennant 1019563 | 1 | Strap, Drain CapPart of Cap, Drain Assembly (1008639). Serial 10000000 and later. | $20.20/EA |
| 28 | TN4039938Replaces Tennant 1008637 | 1 | O Ring, 1.48” ID, 1.76” OdPart of Cap, Drain Assembly (1008639). Serial 10000000 and later. | $12.10/EA |
| 29 | TN4012936Replaces Tennant 9008164 | 1 | Cover Kit, Recvy Tank, Retro[5680/5700]Complete assembly. Serial 10000000 and later. | $415.00/EA |
| 30 | TN4035114Replaces Tennant 240239 | 1 | Knob, Rnd, 0.75d 0.50l, 10-24 FemPart of Cover Kit, Recvy Tank, Retro[5680/5700] (9008164). Serial 10480874 and later. | $5.30/EA |
| 31 | TN4035177Replaces Tennant 1062741 | 1 | Cover, Tank, Recvy [5680/5700]Part of Cover Kit, Recvy Tank, Retro[5680/5700] (9008164). Serial 10480874 and later. | $28.50/EA |
| 32 | TN4035201Replaces Tennant 1062846 | 1 | Gasket, Cover [5680/5700]Part of Cover Kit, Recvy Tank, Retro[5680/5700] (9008164). Serial 10480874 and later. | $10.10/EA |
| 33 | TN4020247Replaces Tennant 621443 | 1 | Chain, Ball, 10, 0157mml, SsPart of Cover Kit, Recvy Tank, Retro[5680/5700] (9008164). Serial 10480874 and later. | $4.40/EA |
| 34 | TN4025389Replaces Tennant 605975 | 1 | Screw, Trs, Phl, 10-24 X 0.50, Sems, SsPart of Cover Kit, Recvy Tank, Retro[5680/5700] (9008164). Serial 10480874 and later. | $4.80/EA |
| 35 | TN4040232Replaces Tennant 222267 | 1 | Screw, Pan, Phl, 06-20 X 0.50, Fmg/AbPart of Cover Kit, Recvy Tank, Retro[5680/5700] (9008164). Serial 10480874 and later. | $2.50/EA |

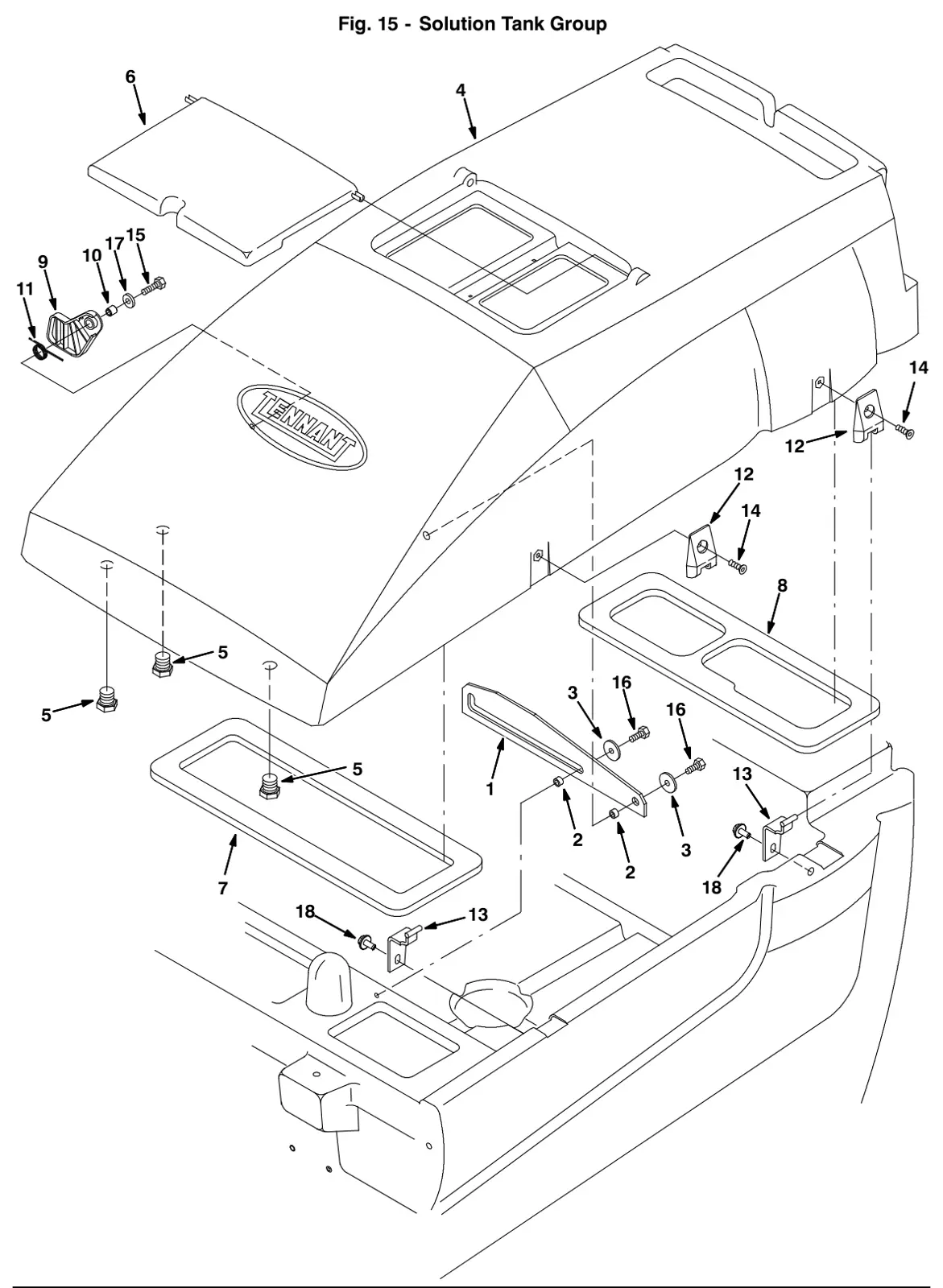

Tennant 5680 solution tank group parts
The parts Tennant numbers on its solution tank group drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016204Replaces Tennant 397705 | 1 | Bracket, Prop, ArmSerial 10000000 and later. | $33.20/EA |
| 2 | TN4040610Replaces Tennant 222516 | 2 | Sleeve, .318B .496D .312 SsSerial 10000000 and later. | $3.40/EA |
| 3 | TN4036089Replaces Tennant 30013 | 2 | Washer-Flt .31 Fender PltdSerial 10000000 and later. | $2.40/EA |
| 4 | TN4016522Replaces Tennant 398430 | 1 | Tank, Soltn [5680/5700]Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4013527Replaces Tennant 75611 | 3 | Ftg-Plug Npt 12Pm Rd Hd Plstc.Serial 10000000 and later. | $9.60/EA |
| 6 | TN4037019Replaces Tennant 222712 | 1 | Cover, Solution Tank, w/LabelSerial 10000000 and later. | $145.50/EA |
| 7 | TN4039826Replaces Tennant 222120 | 1 | Gasket, Tank, FrontSerial 10000000 and later. | $53.10/EA |
| 8 | TN4039828Replaces Tennant 222121 | 1 | Gasket, Tank, RearSerial 10000000 and later. | $46.80/EA |
| 9 | TN4040297Replaces Tennant 222406 | 1 | Stop, TankSerial 10000000 and later. | $18.60/EA |
| 10 | TN4040581Replaces Tennant 222460 | 1 | SleeveSerial 10000000 and later. | $3.40/EA |
| 11 | TN4040583Replaces Tennant 222462 | 1 | Spring, TorsionSerial 10000000 and later. | $6.10/EA |
| 12 | TN4040702Replaces Tennant 1050554 | 2 | Hinge, Leaf [T7, 5680/5700]Serial 10000000 and later. | $25.30/EA |
| 13 | TN4016535Replaces Tennant 398485 | 2 | Hinge Wldt, Leaf [5680/5700]Serial 10000000 and later. | $36.80/EA |
| 14 | TN4040584Replaces Tennant 222463 | 2 | Scr-Flt M 8X1.25 20 Blk NylocSerial 10000000 and later. | $3.30/EA |
| 15 | TN4036504Replaces Tennant 12333 | 1 | Scr-Hexssm 8X1.25 25 NylnlocSerial 10000000 and later. | $4.00/EA |
| 16 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M08 X 1.25 X 20, Ss, NlSerial 10000000 and later. | $4.00/EA |
| 17 | TN4042902Replaces Tennant 01685 | 1 | Washer Flt .31 SsSerial 10000000 and later. | $2.60/EA |
| 18 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 and later. | $3.50/EA |
Tennant 5680 vacuum fan group parts
The parts Tennant numbers on its vacuum fan group drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017438Replaces Tennant 9004054 | 1 | Motor Kit, Vacuum, ReplmtComplete assembly. Serial 10355629 and later. | $369.40/EA |
| 2 | TN4037412Replaces Tennant 223264 | 1 | Seal, Vac FanPart of Motor Kit, Vacuum, Replmt (9004054). Serial 10355629 and later. | $6.70/EA |
| 3 | TN8006200Replaces Tennant 1041772 | 1 | Brush Kit, Motor, Fan [1 Kit = 2 Brsh]Part of Motor Kit, Vacuum, Replmt (9004054). Serial 10355629 and later. | $31.00/EA |
| 4 | TN8006179Replaces Tennant 1041766 | 1 | Cover, Cooling FanPart of Motor Kit, Vacuum, Replmt (9004054). Serial 10355629 and later. | $19.20/EA |
| 1 | TN9004050Replaces Tennant 398520 | 1 | Fan Assy, Vacuum, 5.7d, 036vdc, 3 StageComplete assembly. Serial 10000000 to 10355628. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4037412Replaces Tennant 223264 | 1 | Seal, Vac FanPart of Fan Assy, Vacuum, 5.7d, 036vdc, 3 Stage (398520). Serial 10000000 to 10355628. | $6.70/EA |
| 3 | TN8002700Replaces Tennant 398513 | 1 | Brush Kit, Motor, Fan [1 Kit = 2 Brsh]Part of Fan Assy, Vacuum, 5.7d, 036vdc, 3 Stage (398520). Serial 10000000 to 10355628. | $14.90/EA |
| 4 | TN8002698Replaces Tennant 398511 | 1 | HousingPart of Fan Assy, Vacuum, 5.7d, 036vdc, 3 Stage (398520). Serial 10000000 to 10355628. | $21.60/EA |
| 5 | TN4016764Replaces Tennant 40678 | 1 | Clamp-Cable, 0.44D 0.62WSerial 10000000 and later. | $3.60/EA |
| 6 | TN4014138Replaces Tennant 49266 | 2 | Tie, Cable 1.75D Max 7.50LgSerial 10000000 and later. | $2.50/EA |
| 7 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 and later. | $3.50/EA |
| 8 | TN4039831Replaces Tennant 222122 | 3 | Bracket, Mounting, Vac FanSerial 10000000 and later. | $36.50/EA |
| 9 | TN4040272Replaces Tennant 222361 | 1 | Hose, Inlet Recovery TankSerial 10000000 and later. | $37.30/EA |
| 10 | TN4014137Replaces Tennant 49263 | 1 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DSerial 10000000 and later. | $3.40/EA |
| 11 | TN4040647Replaces Tennant 222667 | 1 | Cable, .06d, 06.8l, .25ball/.25ballSerial 10000000 and later. | $14.10/EA |
| 12 | TN1072823Tennant 1072823 | 1 | Screw, Hex, M8 X 1.25 X 16, Ss, SemsSerial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 solution control group parts
The parts Tennant numbers on its solution control group drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039877Replaces Tennant 222185 | 1 | Lever, ControlSerial 10000000 and later. | $24.40/EA |
| 2 | TN4039882Replaces Tennant 222190 | 1 | Grip, HandleSerial 10000000 and later. | $5.10/EA |
| 3 | TN4039879Replaces Tennant 222186 | 1 | Housing, Cntrl LeverSerial 10000000 and later. | $18.60/EA |
| 4 | TN4017359Replaces Tennant 43242 | 2 | SwivelSerial 10000000 and later. | $6.20/EA |
| 5 | TN4034150Replaces Tennant 32515 | 2 | Screw, Pan, #08-32 X 0.38, 1Serial 10000000 and later. | $3.40/EA |
| 6 | TN4017372Replaces Tennant 43454 | 2 | Washer, 0.34b 0.69d .06, NylSerial 10000000 and later. | $3.40/EA |
| 7 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M08 X 1.25 X 30, SsSerial 10000000 and later. | $3.40/EA |
| 8 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M08 X 1.25,Nl, SsSerial 10000000 and later. | $3.30/EA |
| 9 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 and later. | $3.40/EA |
| 10 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 11 | TN4039881Replaces Tennant 222188 | 1 | Cable, Push/Pull, 51.5L, 1.3 .075Serial 10000000 and later. | $54.00/EA |
| 12 | TN4016230Replaces Tennant 397787 | 1 | Bracket, Mtg, ValveSerial 10000000 and later. | $35.70/EA |
| 13 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 and later. | $3.50/EA |
| 14 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DSerial 10000000 and later. | $2.50/EA |
| 15 | TN4035141Replaces Tennant 1062393 | 1 | Valve, Water, Solenoid, 36vdc Bm10/Bm10Serial 10000000 and later. | $123.60/EA |
| 16 | TN4033588Replaces Tennant 1024237 | 1 | Hose, Afmkt, Pvc, Wir, 0.50id, 03ft, ClrSerial 10000000 and later. | $27.20/EA |
| 17 | TN4016223Replaces Tennant 397777 | 1 | Hose, Rbr, E90, 0.62ID 0.81ID (Valve)Serial 10000000 and later. | $21.00/EA |
| 18 | TN4017089Replaces Tennant 63810 | 1 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 10000000 and later. | $6.80/EA |
| 19 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88dSerial 10000000 and later. | $5.10/EA |
| 20 | TN4039809Replaces Tennant 222097 | 1 | Lever, ValveSerial 10000000 and later. | $22.50/EA |
| 21 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M08 X 1.25 X 20, SsSerial 10000000 and later. | $3.30/EA |
| 22 | TN4037030Replaces Tennant 222742 | 1 | Screen, DrainSerial 10000000 and later. | $15.80/EA |
| 23 | TN4037025Replaces Tennant 222728 | 1 | Fitting, Plstc, Str, Bm08/FlngSerial 10000000 and later. | $5.30/EA |
Tennant 5680 battery group parts
The parts Tennant numbers on its battery group drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040204Replaces Tennant 222218 | 1 | Cable, BatterySerial 10000000 and later. | $24.80/EA |
| 2 | TN4017085Replaces Tennant 63735 | 5 | Wire, 06ga 11.0l Blk .38ring /.38ringSerial 10000000 and later. | $18.80/EA |
| 3 | TN4042965Replaces Tennant 01757 | 2 | Washer, Lock, Int, M03, SsSerial 10000000 and later. | $2.60/EA |
| 4 | TN4013445Replaces Tennant 45962 | 12 | Cover, Terminal,Poly (Standard - Tall Clear)Serial 10000000 and later. | $4.00/EA |
| 4 | TN4044457Replaces Tennant 1041030 | 12 | Cap, Battery (Optional - Short Black)Serial 10000000 and later. | $3.20/EA |
| 5 | TN4043187Replaces Tennant 02076 | 12 | Boot, 90Deg .50D .57X .84Serial 10000000 and later. | $4.00/EA |
| 6 | TN4040203Replaces Tennant 222217 | 1 | Harness, Cable, BatteryComplete assembly. Serial 10000000 and later. | $115.00/EA |
| 7 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Harness, Cable, Battery (222217). Serial 10000000 and later. | $24.00/EA |
| – | TN4037045Replaces Tennant 222778 | 1 | Battery Kit 36V 235Ah WetComplete assembly. Serial 10000000 and later. | $2,161.36/EA |
| 8 | TN4040592Replaces Tennant 222473 | 3 | Spacer, Battery .62X1.5X21.0Part of Battery Kit 36V 235Ah Wet (222778). Serial 10000000 and later. | $6.60/EA |
| 9 | TN4040593Replaces Tennant 222474 | 1 | Spacer, Battery 3.0X4.3X21.0Part of Battery Kit 36V 235Ah Wet (222778). Serial 10000000 and later. | $17.40/EA |
| 10 | TN4040235Replaces Tennant 222280 | 6 | Battery, 6V, Res Cap: 129 Wet (Standard)Part of Battery Kit 36V 235Ah Wet (222778). Serial 10000000 and later. | $314.77/EA |
| 10 | TN4018825Replaces Tennant 390764 | 6 | Battery, 06vdc 0180ah [Maint Free] (Optional)Serial 10000000 and later. | $628.62/EA |
| 10 | TN4211694Replaces Tennant 1074042 | 6 | Battery, Agm, 06vdc, 220ah (Discover)Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4037006Replaces Tennant 222682 | 1 | Strap, Poly, Webbing, 100” LSerial 10000000 and later. | $33.50/EA |
| 12 | TN4042963Replaces Tennant 01754 | 2 | Nut, Hex, Std, M3 X 0.50, 8Serial 10000000 and later. | $2.50/EA |
| 13 | TN4022093Replaces Tennant 87435 | 12 | Nut, Hex, Flexlock, .31-18Serial 10000000 and later. | $3.20/EA |
| 14 | TN4041016Replaces Tennant 06923 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, 4.8Serial 10000000 and later. | $3.30/EA |
| 15 | TN4031014Replaces Tennant 1028907 | 1 | Bracket, Connector [5700xp]Serial 10000000 and later. | $25.00/EA |
| 16 | TN4031416Replaces Tennant 1030332 | 1 | Plate, Switch, GuardSerial 10000000 and later. | $8.00/EA |
| 17 | TN4022804Replaces Tennant 611006 | 1 | Switch Kit, Rlr, ReplmtSerial 10000000 and later. | $37.40/EA |
| 18 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 and later. | $3.40/EA |
| 19 | TN4042965Replaces Tennant 01757 | 2 | Washer, Lock, Int, M3, SsSerial 10000000 and later. | $2.60/EA |
| 20 | TN4036616Replaces Tennant 1057853 | 1 | Tray, Battery, [5680/5700]Serial 10486126 and later. | $127.40/EA |
| 21 | TN4194625Replaces Tennant 1029442 | 1 | Harness, Adapter [Interlock]Serial 10000000 and later. | $57.40/EA |
Tennant 5680 steering control group parts
The parts Tennant numbers on its steering control group drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037029Replaces Tennant 222740 | 1 | Handle, Speed ControlSerial 10000000 and later. | $150.50/EA |
| 2 | TN4032833Replaces Tennant 1066506 | 2 | Grip, Handle, RndSerial 10000000 and later. | $4.10/EA |
| 3 | TN4039799Replaces Tennant 222079 | 1 | Gear, Speed ControlSerial 10000000 and later. | $17.60/EA |
| 4 | TN4040605Replaces Tennant 222501 | 1 | Washer, Spacer, Speed ControlSerial 10000000 and later. | $3.50/EA |
| 5 | TN4014157Replaces Tennant 49514 | 2 | Bearing, Snap .875 BoreSerial 10000000 and later. | $7.70/EA |
| 6 | TN4039801Replaces Tennant 222081 | 1 | Spring, Torsion CenteringSerial 10000000 and later. | $5.20/EA |
| 7 | TN4016208Replaces Tennant 397736 | 1 | Harness, Switch, PotentiometerSerial 10000000 to 10714324. | $134.50/EA |
| 7 | TN4025913Replaces Tennant 9013714 | 1 | Potentiometer Kit, Drive [5680]Serial 10714325 and later. | $121.10/EA |
| 8 | TN4040631Replaces Tennant 222607 | 1 | Nut-Hx Thin .38-32Serial 10000000 and later. | $3.40/EA |
| 9 | TN4035726Replaces Tennant 27974 | 1 | Gear, 28 T. 24PSerial 10000000 and later. | $28.70/EA |
| 10 | TN4041275Replaces Tennant 06947 | 1 | Screw, Hex, M06 X 1.0 X 40, 8.8Serial 10000000 and later. | $3.40/EA |
| 11 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flt, .25 SaeSerial 10000000 and later. | $2.50/EA |
| 12 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M06 X 1.0, NlSerial 10000000 and later. | $2.50/EA |
| 13 | TN4034661Replaces Tennant 32988 | 1 | Washer, Lock, Int, .38Serial 10000000 and later. | $2.60/EA |
| 14 | TN4039803Replaces Tennant 222083 | 1 | Plate, ShieldSerial 10000000 and later. | $29.60/EA |
| 15 | TN4040586Replaces Tennant 222465 | 2 | Screw, Flt, M03 X 0.5 X 06, SsSerial 10000000 and later. | $2.50/EA |
Tennant 5680 operator console group parts
The parts Tennant numbers on its operator console group drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041695Replaces Tennant 1043581 | 1 | Shroud, Steering, Adj, Rwk [UL]Serial 10000000 and later. | $292.70/EA |
| 2 | TN4016219Replaces Tennant 397761 | 1 | Cover, Ele, RhSerial 10000000 and later. | $36.10/EA |
| 3 | TN4016218Replaces Tennant 397760 | 1 | Cover, Ele, LhSerial 10000000 and later. | $51.00/EA |
| 4 | TN4040232Replaces Tennant 222267 | 12 | Screw, Pan, #06-20 X 0.50, Fmg, [Ab]Serial 10000000 and later. | $2.50/EA |
| 5 | TN4036388Replaces Tennant 370100 | 1 | Knob, 4-Prong W/.31-18, InsertSerial 10000000 and later. | $5.20/EA |
| 6 | TN4016206Replaces Tennant 397717 | 1 | Bracket, Shroud, AdjSerial 10000000 and later. | $40.40/EA |
| 7 | TN4034509Replaces Tennant 32968 | 1 | Bolt, Carriage, .31-18 X 2.00Serial 10000000 and later. | $3.30/EA |
| 8 | TN4040221Replaces Tennant 222248 | 1 | SleeveSerial 10000000 and later. | $5.10/EA |
| 9 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M08 X 1.25 X 16, SsSerial 10000000 and later. | $3.40/EA |
| 10 | TN4041605Replaces Tennant 07791 | 4 | Nut, Hex, Flng, M08 X 1.25Serial 10000000 and later. | $2.50/EA |
| 11 | TN4028623Replaces Tennant 76888 | 1 | Button, Plug, 1.25h .00- .12 [Black Nyl]Serial 10000000 and later. | $3.40/EA |
| 12 | TN4031601Replaces Tennant 368591 | 1 | Kit, Ci, Replmt, Rear Panel, [5680]Serial 10000000 and later. | $514.70/EA |
| 13 | TN4040236Replaces Tennant 222282 | 1 | SwitchComplete assembly. Serial 10000000 and later. | $46.20/EA |
| 14 | TN8005852Replaces Tennant 222684 | 1 | Key, Set Of TwoPart of Switch (222282). Serial 10000000 and later. | $24.50/EA |
| 15 | TN4023154Replaces Tennant 383725 | 2 | Circuitbreaker, 30.0aSerial 10000000 and later. | $15.90/EA |
| 16 | TN4023153Replaces Tennant 383724 | 2 | Circuitbreaker, 25.0aSerial 10000000 and later. | $15.40/EA |
| 17 | TN4026311Replaces Tennant 379000 | 1 | Button, Plug, 0.22h .00- .06 [Black Nyl]Serial 10000000 and later. | $2.50/EA |
| 18 | TN4023150Replaces Tennant 383721 | 1 | Circuitbreaker, 10.0aSerial 10000000 and later. | $15.90/EA |
| 19 | TN4025707Replaces Tennant 377433 | 1 | Gauge, Hourmeter, 12-80vdc, Analog,Rt,.1Serial 10000000 and later. | $77.80/EA |
| 20 | TN4037007Replaces Tennant 222683 | 1 | Gasket, HourmeterSerial 10000000 and later. | $4.30/EA |
| 21 | TN4043958Replaces Tennant 1038957 | 1 | Gauge, Discharge, Battery, 36Vdc, LedComplete assembly. Serial 10000000 to 10714324. | $0.00/EA |
| 21 | TN4019767Replaces Tennant 392894 | 1 | Gauge, Discharge, Batt, 24-48vdc, Rt,LedComplete assembly. Serial 10714325 and later. | $89.40/EA |
| 22 | TN4037007Replaces Tennant 222683 | 1 | Gasket, HourmeterPart of Gauge, Discharge, Batt, 24-48vdc, Rt,Led (392894). Serial 10000000 and later. | $4.30/EA |
| 23 | TN4037042Replaces Tennant 222768 | 3 | Pushnut, FastenerSerial 10000000 and later. | $2.60/EA |
| 24 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, SsSerial 10000000 and later. | $3.30/EA |
| 25 | TN4036089Replaces Tennant 30013 | 3 | Washer, Flat, .31 FenderSerial 10000000 and later. | $2.40/EA |
| 26 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flt, .31 SsSerial 10000000 and later. | $2.60/EA |
| 27 | TN4040639Replaces Tennant 222639 | 1 | Seal, RubberSerial 10000000 and later. | $19.50/EA |
| 28 | TN4016250Replaces Tennant 397889 | 1 | Switch, Rocker, DpstSerial 10000000 and later. | $43.70/EA |
| 29 | TN4029160Replaces Tennant 56992 | 1 | Button, Plug, 0.50h .03- .12 [Black Nyl]Serial 10000000 and later. | $3.40/EA |
| 30 | TN4040238Replaces Tennant 222290 | 2 | Diode, Ele, PlugSerial 10000000 and later. | $13.00/EA |
Tennant 5680 electrical panel group parts
The parts Tennant numbers on its electrical panel group drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038922Replaces Tennant 1002660 | 1 | Plate, Mtg, ElectronicSerial 10000000 and later. | $62.37/EA |
| 2 | TN4013750Replaces Tennant 9004538 | 1 | Contactor, Kit [383731 Replmt]Serial 10000000 and later. | $69.00/EA |
| 3 | TN4013432Replaces Tennant 45405 | 2 | Contactor, 36vdcSerial 10000000 and later. | $106.90/EA |
| 4 | TN4034657Replaces Tennant 32984 | 6 | Washer, Lock, Int, .31Serial 10000000 and later. | $2.60/EA |
| 5 | TN4039080Replaces Tennant 20170 | 6 | Nut, Hex, Jam, .31-24Serial 10000000 and later. | $2.50/EA |
| 6 | TN4013999Replaces Tennant 49047 | 1 | Module, DelaySerial 10000000 and later. | $199.10/EA |
| 7 | TN4028427Replaces Tennant 397785 | 1 | Controller, Propel, 40 Amp (Replaced by 9011905)Serial 10000000 to 10714324. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4039819Replaces Tennant 222104 | 2 | SpacerSerial 10000000 to 10714324. | $7.30/EA |
| 9 | TN4028932Replaces Tennant 769251 | 1 | Busbar, ContactorSerial 10000000 and later. | $11.80/EA |
| 10 | TN4016544Replaces Tennant 398526 | 2 | Relay, 36vdc, 5a, SpdtSerial 10000000 and later. | $16.30/EA |
| 11 | TN4031957Replaces Tennant 10632-13 | 1 | Grommet, Rbr, 1.50id, F/ 1.8h, .31matlSerial 10000000 and later. | $6.00/EA |
| 12 | TN4043561Replaces Tennant 13248 | 8 | Washer, 0.40b 1.12d .12, Stl, PlSerial 10000000 and later. | $3.00/EA |
| 13 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flt, .31 SaeSerial 10000000 and later. | $2.50/EA |
| 14 | TN4030961Replaces Tennant 1072628 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 10000000 and later. | $2.50/EA |
| 15 | TN4042939Replaces Tennant 01713 | 2 | Nut, Hex, Std, #10-32, 2Serial 10000000 and later. | $2.50/EA |
| 16 | TN4034653Replaces Tennant 32980 | 2 | Washer, Lock, Int, #10Serial 10000000 and later. | $2.60/EA |
| 17 | TN4037042Replaces Tennant 222768 | 4 | Pushnut, FastenerSerial 10000000 and later. | $2.60/EA |
| 18 | TN4040591Replaces Tennant 222472 | 1 | Cover, Electronic BoardSerial 10000000 to 10714324. | $92.00/EA |
| 19 | TN4041846Replaces Tennant 16944 | 7 | Screw, Hex, M04 X 0.7 X 10, FmgSerial 10000000 to 10714324. | $3.20/EA |
| 20 | TN4042837Replaces Tennant 01314 | 1 | Button, Plug, 0.38h .03- .12 [Black Nyl]Serial 10000000 to 10714324. | $3.40/EA |
| 21 | TN4039851Replaces Tennant 222158 | 5 | Screw, Hex, M06 X 1.0 X 10, FmgSerial 10000000 and later. | $3.40/EA |
| 22 | TN4039853Replaces Tennant 222159 | 1 | Screw, Hex, M06 X 1.0 X 25, FmgSerial 10000000 and later. | $6.00/EA |
| 23 | TN4015332Replaces Tennant 71026 | 2 | Screw, Hex, Fmg, M04-0.7 X 20Serial 10000000 to 10714324. | $4.04/EA |
| 24 | TN4040578Replaces Tennant 222450 | 1 | StrapSerial 10000000 and later. | $21.90/EA |
| 25 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M06 X 1.0, Nl, SsSerial 10000000 and later. | $2.50/EA |
| 26 | TN4016794Replaces Tennant 41178 | 1 | Washer, Flat, .25 FenderSerial 10000000 and later. | $2.50/EA |
| 27 | TN4041961Replaces Tennant 09163 | 1 | Screw, Flt, M06 X 1.0 X 16, SsSerial 10000000 and later. | $4.00/EA |
| 28 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flt, .25 SsSerial 10000000 and later. | $2.60/EA |
| 29 | TN4039462Replaces Tennant 1212548 | 1 | Module, DriveSerial 10714325 and later. | $388.50/EA |
| 30 | TN4044571Replaces Tennant 1073600 | 2 | Screw, Pan, M4 X 0.7 X 25, FmgSerial 10714325 and later. | $1.50/EA |
Tennant 5680 squeegee lift group parts
The parts Tennant numbers on its squeegee lift group drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040581Replaces Tennant 222460 | 1 | SleeveSerial 10000000 and later. | $3.40/EA |
| 2 | TN4039843Replaces Tennant 222139 | 1 | Lever, Squeegee LiftSerial 10000000 and later. | $16.90/EA |
| 3 | TN4032833Replaces Tennant 222647 | 1 | Grip, Handle [Oblong] (Replaced By 1066506)Serial 10000000 to 10536097. | $4.10/EA |
| 3 | TN4032833Replaces Tennant 1066506 | 1 | Grip, Handle, RndSerial 10536098 and later. | $4.10/EA |
| 4 | TN4040645Replaces Tennant 222665 | 1 | Bumper, HandleSerial 10000000 and later. | $7.70/EA |
| 5 | TN4026590Replaces Tennant 79506 | 1 | Screw, Flat, M08-1.25x 30, SsSerial 10000000 and later. | $4.00/EA |
| 6 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flt, .31 SsSerial 10000000 and later. | $2.60/EA |
| 7 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl, SsSerial 10000000 and later. | $3.30/EA |
| 8 | TN4040576Replaces Tennant 222448 | 1 | Lever, Squeegee Lift, UpperSerial 10000000 and later. | $22.50/EA |
| 9 | TN4042480Replaces Tennant 1045175 | 1 | Switch, Snap Actn, 250vacSerial 10000000 and later. | $36.40/EA |
| 10 | TN4040293Replaces Tennant 222402 | 1 | Bracket, Switch, FanSerial 10000000 and later. | $22.50/EA |
| 11 | TN4041016Replaces Tennant 06923 | 2 | Screw, Pan, M03 X 0.5 X 25, 4.8Serial 10000000 and later. | $3.30/EA |
| 12 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flt, #06Serial 10000000 and later. | $3.40/EA |
| 13 | TN4042965Replaces Tennant 01757 | 2 | Washer, Lock, Int, M03, SsSerial 10000000 and later. | $2.60/EA |
| 14 | TN4042963Replaces Tennant 01754 | 2 | Nut, Hex, Std, M03 X 0.5Serial 10000000 and later. | $2.50/EA |
| 15 | TN4029189Replaces Tennant 374745 | 1 | PivotSerial 10000000 and later. | $10.00/EA |
| 16 | TN4040292Replaces Tennant 222400 | 1 | Cam, Switch, FanSerial 10000000 and later. | $9.50/EA |
| 17 | TN4037084Replaces Tennant 222868 | 1 | Bushing, Flng, 0.75b 1.00d 0.28l, BnzSerial 10000000 and later. | $6.20/EA |
| 18 | TN4037083Replaces Tennant 222867 | 1 | Plate, Sqge, PivotSerial 10000000 and later. | $26.60/EA |
| 19 | TN4029640Replaces Tennant 57889 | 1 | Spring, Cmpr, 0.69od .05wir 0.6lSerial 10000000 and later. | $5.20/EA |
| 20 | TN4041276Replaces Tennant 06948 | 1 | Screw, Hex, M06 X 1.0 X 45, 8.8Serial 10000000 and later. | $4.00/EA |
| 21 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 and later. | $3.30/EA |
| 22 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M06 X 1.0, NlSerial 10000000 and later. | $2.50/EA |
| 23 | TN4016794Replaces Tennant 41178 | 2 | Washer, Flat, .25 FenderSerial 10000000 and later. | $2.50/EA |
| 24 | TN4039841Replaces Tennant 222138 | 1 | Bracket, CatchSerial 10000000 and later. | $17.50/EA |
| 25 | TN4031627Replaces Tennant 34738 | 2 | Rivet, Blind, .125d X 0.32 X .25d, StlSerial 10000000 and later. | $3.40/EA |
| 26 | TN4040208Replaces Tennant 222227 | 1 | Cable, .13d, 26.7l, .50eye /.25eyeSerial 10000000 and later. | $34.30/EA |
| 27 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 and later. | $2.60/EA |
| 28 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M06 X 1.0, Nl, SsSerial 10000000 and later. | $2.50/EA |
| 29 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 and later. | $2.60/EA |
| 30 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.00 X 20, SsSerial 10000000 and later. | $3.20/EA |
Tennant 5680 squeegee linkage group parts
The parts Tennant numbers on its squeegee linkage group drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031760Replaces Tennant 1030870 | 1 | Block, Pivot, MachSerial 10000000 and later. | $93.40/EA |
| 2 | TN4040214Replaces Tennant 222239 | 1 | Pin, 0.62d 05.4l 1/16h 2/ChamSerial 10000000 and later. | $22.30/EA |
| 3 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 WirSerial 10000000 and later. | $3.40/EA |
| 4 | TN4040588Replaces Tennant 222468 | 2 | RollerSerial 10000000 and later. | $3.50/EA |
| 5 | TN4041633Replaces Tennant 08178 | 2 | Pin, Cotter, .062 X 0.75Serial 10000000 and later. | $2.50/EA |
| 6 | TN4040963Replaces Tennant 05283 | 2 | Pin, Clevis, 6mm D X 40mmSerial 10000000 and later. | $11.60/EA |
| 7 | TN4016242Replaces Tennant 397820 | 1 | Link, Sqge, UpperSerial 10000000 and later. | $13.50/EA |
| 8 | TN4016243Replaces Tennant 397821 | 1 | Link, Sqge, Lower, RhSerial 10000000 and later. | $24.50/EA |
| 9 | TN4016244Replaces Tennant 397822 | 1 | Link, Sqge, Lower, LhSerial 10000000 and later. | $27.70/EA |
| 10 | TN4023753Replaces Tennant 80950 | 6 | Bushing, Flng, 0.32b 0.50d 0.26l, BnzSerial 10000000 and later. | $6.00/EA |
| 11 | TN4040581Replaces Tennant 222460 | 2 | SleeveSerial 10000000 and later. | $3.40/EA |
| 12 | TN4040209Replaces Tennant 222230 | 1 | Bracket, Linkage, LowerSerial 10000000 and later. | $88.00/EA |
| 13 | TN4041945Replaces Tennant 09023 | 4 | Screw, Hex, M08 X 1.25 X 35, SsSerial 10000000 and later. | $3.30/EA |
| 14 | TN4041946Replaces Tennant 09026 | 1 | Screw, Hex, M08 X 1.25 X 40, SsSerial 10000000 and later. | $4.00/EA |
| 15 | TN4041929Replaces Tennant 08713 | 7 | Nut, Hex, Lock, M08 X 1.25,Nl, SsSerial 10000000 and later. | $3.30/EA |
| 16 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flt, .31 SsSerial 10000000 and later. | $2.60/EA |
| 17 | TN4040213Replaces Tennant 222236 | 2 | Spring, Extn, 1.00od X 0.12wir, 5.0lSerial 10000000 and later. | $10.10/EA |
| 18 | TN4040210Replaces Tennant 222231 | 1 | Bracket, Linkage, UpperSerial 10000000 and later. | $63.10/EA |
| 19 | TN4040211Replaces Tennant 222233 | 1 | Block, Sqge, AdjSerial 10000000 and later. | $12.90/EA |
| 20 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M08 X 1.25, SsSerial 10000000 and later. | $3.40/EA |
| 21 | TN4039849Replaces Tennant 49883 | 1 | Screw, Hex, M08 X 1.25 X 120, FlSerial 10000000 to 10768291. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4032509Replaces Tennant 360460 | 2 | SpacerSerial 10000000 and later. | $4.90/EA |
| 23 | TN4035819Replaces Tennant 1018718 | 1 | Link, Sqge, Upper, LhSerial 10000000 and later. | $20.50/EA |
| 24 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M08 X 1.25 X 25, SsSerial 10000000 and later. | $3.30/EA |
| 25 | TN4039849Replaces Tennant 222153 | 1 | Knob, Star, 2.00d 3ear, M8 X 4.9l StudSerial 10768292 and later. | $27.10/EA |
| 26 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10768292 and later. | $3.30/EA |
| 27 | TN4017054Replaces Tennant 63416 | 1 | Washer, Flat, 0.31b 0.88d .12, RbrSerial 10768292 and later. | $3.40/EA |
Tennant 5680 squeegee group, model 700, 28 in (700 mm) parts
The parts Tennant numbers on its squeegee group, model 700, 28 in (700 mm) drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016216Replaces Tennant 397751 | 1 | Kit, Ci, Sqge, Assy, [5680] [700d]Complete assembly. Serial 10000000 and later. | $844.00/EA |
| 1 | TN4044057Replaces Tennant 222131 | 1 | Frame, Sqge 28”Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $101.50/EA |
| 2 | TN4040276Replaces Tennant 222368 | 1 | Plate, Blade Retainer 28”Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $87.40/EA |
| 3 | TN4040281Replaces Tennant 222381 | 1 | Blade, Sqge, Front, 38.97l Rbr [700mm]Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $27.41/EA |
| 4 | TN4040282Replaces Tennant 222382 | 1 | Blade, Sqge, Rear, 40.93l Linatex[700mm]Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $44.21/EA |
| 5 | TN4040280Replaces Tennant 222378 | 1 | Band Wldt, Sqge 28Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $66.60/EA |
| 6 | TN4037050Replaces Tennant 222794 | 2 | Knob, W1.25-20X1.5Lg StudPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $6.20/EA |
| 7 | TN4024280Replaces Tennant 82138 | 2 | Nut Speed,Retainer, .25-20 ThdPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $3.30/EA |
| 8 | TN4039789Replaces Tennant 222066 | 4 | Wheel, 3.0 DiaPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $10.80/EA |
| 9 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $3.40/EA |
| 10 | TN4040233Replaces Tennant 222268 | 2 | Washer, .375B 1.25D .12NeoprePart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $4.00/EA |
| 11 | TN4040219Replaces Tennant 222244 | 2 | Cam, Adj, SqgePart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $8.30/EA |
| 12 | TN4040220Replaces Tennant 222245 | 2 | Bracket, Mtg, WheelPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $26.60/EA |
| 13 | TN4040229Replaces Tennant 222260 | 2 | Pin, Clevis, 0.37 Dia 2.25LgPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $3.30/EA |
| 14 | TN4039839Replaces Tennant 222130 | 2 | Spring, Torsion, WheelPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $4.10/EA |
| 15 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter .094X0.75Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $2.50/EA |
| 16 | TN4040604Replaces Tennant 222497 | 2 | SleevePart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $5.70/EA |
| 17 | TN4036388Replaces Tennant 370100 | 4 | Knob, 4 Prongs w/.31-8 InsertPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $5.20/EA |
| 18 | TN4016245Replaces Tennant 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, Ss18-8Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $4.00/EA |
| 19 | TN4042902Replaces Tennant 01685 | 8 | Washer Flt .31 SsPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $2.60/EA |
| 20 | TN4041929Replaces Tennant 08713 | 6 | Nut-Hxlocnyln M 8X1.25 Reg SsPart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $3.30/EA |
| 21 | TN4042001Replaces Tennant 09767 | 2 | Scr Hexssm 8X1.25 70Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $6.70/EA |
| 22 | TN4014172Replaces Tennant 49694 | 2 | Scr Hex Ssm 8X1.25 50Part of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $6.60/EA |
| 23 | TN4034135Replaces Tennant 32486 | 4 | Washer, Flt, .50 SaePart of Kit, Ci, Sqge, Assy, [5680] [700d] (397751). Serial 10000000 and later. | $2.60/EA |
| – | TN4040563Replaces Tennant 222422 | 1 | Blade Kit, Sqge, Rbr [700]Complete assembly. Serial 10000000 and later. | $65.35/EA |
| 24 | TN4040285Replaces Tennant 222385 | 1 | Blade, Sqge, Tile, 38.97l [Linard, 28”]Part of Blade Kit, Sqge, Rbr [700] (222422). Serial 10000000 and later. | $28.88/EA |
| 25 | TN4040287Replaces Tennant 222387 | 1 | Blade, Sqge, Rear, 40.93l Gum [28”]Part of Blade Kit, Sqge, Rbr [700] (222422). Serial 10000000 and later. | $33.15/EA |
| – | TN4040566Replaces Tennant 222428 | 1 | Sqge Kit, Oil Res Ure [700]Complete assembly. Serial 10000000 and later. | $173.50/EA |
| 26 | TN4040290Replaces Tennant 222391 | 1 | Blade, Sqge, Front, 38.97l [700mm]Part of Sqge Kit, Oil Res Ure [700] (222428). Serial 10000000 and later. | $66.50/EA |
| 27 | TN4040289Replaces Tennant 222389 | 1 | Blade, Sqge, Rear, 40.93l Pyu [28”]Part of Sqge Kit, Oil Res Ure [700] (222428). Serial 10000000 and later. | $93.20/EA |
Tennant 5680 squeegee group, model 800, 32 in (800 mm) parts
The parts Tennant numbers on its squeegee group, model 800, 32 in (800 mm) drawing. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016214Replaces Tennant 397749 | 1 | Kit, Ci, Sqge, Assy, [5680] [800d]Complete assembly. Serial 10000000 and later. | $896.70/EA |
| 1 | TN4044058Replaces Tennant 222134 | 1 | Frame, Squeegee 32”Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $114.40/EA |
| 2 | TN4040215Replaces Tennant 222240 | 1 | Plate, Blade Retainer 32Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $79.40/EA |
| 3 | TN4040216Replaces Tennant 222241 | 1 | Blade, Sqge, Front, 43.66l Rbr [800mm]Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $30.35/EA |
| 4 | TN4040217Replaces Tennant 222242 | 1 | Blade, Sqge, Rear, 45.65l Linatex [32”]Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $44.10/EA |
| 5 | TN4040218Replaces Tennant 222243 | 1 | Band Wldt, Sqge 32Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $65.70/EA |
| 6 | TN4037050Replaces Tennant 222794 | 2 | Knob, W1.25-20X1.5Lg StudPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $6.20/EA |
| 7 | TN4024280Replaces Tennant 82138 | 2 | Nut Speed,Retainer, .25-20 ThdPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $3.30/EA |
| 8 | TN4039789Replaces Tennant 222066 | 4 | Wheel, 3.0 DiaPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $10.80/EA |
| 9 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $3.40/EA |
| 10 | TN4040233Replaces Tennant 222268 | 2 | Washer, .375B 1.25D .12NeoprePart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $4.00/EA |
| 11 | TN4040219Replaces Tennant 222244 | 2 | Cam, Adj, SqgePart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $8.30/EA |
| 12 | TN4040220Replaces Tennant 222245 | 2 | Bracket, Mtg, WheelPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $26.60/EA |
| 13 | TN4040229Replaces Tennant 222260 | 2 | Pin, Clevis, 0.37 Dia 2.25LgPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $3.30/EA |
| 14 | TN4039839Replaces Tennant 222130 | 2 | Spring, Torsion, WheelPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $4.10/EA |
| 15 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter .094X0.75Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $2.50/EA |
| 16 | TN4040604Replaces Tennant 222497 | 2 | SleevePart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $5.70/EA |
| 17 | TN4036388Replaces Tennant 370100 | 4 | Knob, 4 Prongs w/.31-8 InsertPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $5.20/EA |
| 18 | TN4016245Replaces Tennant 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, Ss18-8Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $4.00/EA |
| 19 | TN4042902Replaces Tennant 01685 | 8 | Washer Flt .31 SsPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $2.60/EA |
| 20 | TN4041929Replaces Tennant 08713 | 6 | Nut-Hxlocnyln M 8X1.25 Reg SsPart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $3.30/EA |
| 21 | TN4042001Replaces Tennant 09767 | 2 | Scr Hexssm 8X1.25 70Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $6.70/EA |
| 22 | TN4014172Replaces Tennant 49694 | 2 | Scr Hex Ssm 8X1.25 50Part of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $6.60/EA |
| 23 | TN4034135Replaces Tennant 32486 | 4 | Washer, Flt, .50 SaePart of Kit, Ci, Sqge, Assy, [5680] [800d] (397749). Serial 10000000 and later. | $2.60/EA |
| – | TN4040564Replaces Tennant 222423 | 1 | Blade Kit, Sqge, Rbr [800]Complete assembly. Serial 10000000 and later. | $81.51/EA |
| 24 | TN4040284Replaces Tennant 222384 | 1 | Blade, Sqge, Tile, 43.66l [Linard, 32”]Part of Blade Kit, Sqge, Rbr [800] (222423). Serial 10000000 and later. | $32.93/EA |
| 25 | TN4040286Replaces Tennant 222386 | 1 | Blade, Sqge, Rear, 45.65l Gum [32”]Part of Blade Kit, Sqge, Rbr [800] (222423). Serial 10000000 and later. | $33.08/EA |
| – | TN4040567Replaces Tennant 222429 | 1 | Blade Kit, Sqge, Pyu [800]Complete assembly. Serial 10000000 and later. | $212.10/EA |
| 26 | TN4040291Replaces Tennant 222392 | 1 | Blade, Sqge, Front, 43.66l Pyu [32”]Part of Blade Kit, Sqge, Pyu [800] (222429). Serial 10000000 and later. | $68.70/EA |
| 27 | TN4040288Replaces Tennant 222388 | 1 | Blade, Sqge, Rear, 45.65l Pyu [32”]Part of Blade Kit, Sqge, Pyu [800] (222429). Serial 10000000 and later. | $105.50/EA |
Tennant 5680 squeegee group, model 900, 36 in (900 mm) parts
The parts Tennant numbers on its squeegee group, model 900, 36 in (900 mm) drawing. Manual pages 56, list 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016215Replaces Tennant 397750 | 1 | Kit, Ci, Sqge, Assy, [5680] [900d]Complete assembly. Serial 10000000 and later. | $917.60/EA |
| 1 | TN4030665Replaces Tennant 1028029 | 1 | Frame, Sqge, 114cm [90cm/36]Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $120.60/EA |
| 2 | TN4019735Replaces Tennant 392211 | 1 | Plate, Blade Retainer 36”Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $136.70/EA |
| 3 | TN4040300Replaces Tennant 222413 | 1 | Blade, Sqge, Front, 47.41l Rbr [900mm]Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $42.63/EA |
| 4 | TN4040557Replaces Tennant 222415 | 1 | Blade, Sqge, Rear, 49.37l Linatex[900mm]Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $60.48/EA |
| 5 | TN4040562Replaces Tennant 222417 | 1 | Band Wldt, Sqge 36Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $78.90/EA |
| 6 | TN4037050Replaces Tennant 222794 | 2 | Knob, W1.25-20X1.5Lg StudPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $6.20/EA |
| 7 | TN4024280Replaces Tennant 82138 | 2 | Nut Speed,Retainer, .25-20 ThdPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $3.30/EA |
| 8 | TN4039789Replaces Tennant 222066 | 4 | Wheel, 3.0 DiaPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $10.80/EA |
| 9 | TN4040603Replaces Tennant 222496 | 2 | SleevePart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $3.40/EA |
| 10 | TN4040233Replaces Tennant 222268 | 2 | Washer, .375B 1.25D .12NeoprePart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $4.00/EA |
| 11 | TN4040219Replaces Tennant 222244 | 2 | Cam, Adj, SqgePart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $8.30/EA |
| 12 | TN4040220Replaces Tennant 222245 | 2 | Bracket, Mtg, WheelPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $26.60/EA |
| 13 | TN4040229Replaces Tennant 222260 | 2 | Pin, Clevis, 0.37 Dia 2.25LgPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $3.30/EA |
| 14 | TN4039839Replaces Tennant 222130 | 2 | Spring, Torsion, WheelPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $4.10/EA |
| 15 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter .094X0.75Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $2.50/EA |
| 16 | TN4040604Replaces Tennant 222497 | 2 | SleevePart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $5.70/EA |
| 17 | TN4036388Replaces Tennant 370100 | 4 | Knob, 4 Prongs w/.31-8 InsertPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $5.20/EA |
| 18 | TN4016245Replaces Tennant 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, Ss18-8Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $4.00/EA |
| 19 | TN4042902Replaces Tennant 01685 | 8 | Washer Flt .31 SsPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $2.60/EA |
| 20 | TN4041929Replaces Tennant 08713 | 6 | Nut-Hxlocnyln M 8X1.25 Reg SsPart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $3.30/EA |
| 21 | TN4042001Replaces Tennant 09767 | 2 | Scr Hexssm 8X1.25 70Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $6.70/EA |
| 22 | TN4014172Replaces Tennant 49694 | 2 | Scr Hex Ssm 8X1.25 50Part of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $6.60/EA |
| 23 | TN4034135Replaces Tennant 32486 | 4 | Washer, Flt, .50 SaePart of Kit, Ci, Sqge, Assy, [5680] [900d] (397750). Serial 10000000 and later. | $2.60/EA |
| – | TN4040565Replaces Tennant 222424 | 1 | Blade Kit, Sqge, Rbr [900]Complete assembly. Serial 10000000 and later. | $97.16/EA |
| 24 | TN4040554Replaces Tennant 222414 | 1 | Blade, Sqge, Tile, 47.41l [Linard, 36”]Part of Blade Kit, Sqge, Rbr [900] (222424). Serial 10000000 and later. | $40.50/EA |
| 25 | TN4040560Replaces Tennant 222416 | 1 | Blade, Sqge, Rear, 49.37l Gum [36”]Part of Blade Kit, Sqge, Rbr [900] (222424). Serial 10000000 and later. | $45.36/EA |
| – | TN4040571Replaces Tennant 222433 | 1 | Sqge Kit, Ure [900mm]Complete assembly. Serial 10000000 and later. | $208.40/EA |
| 26 | TN4040572Replaces Tennant 222434 | 1 | Blade, Sqge, Front, 47.41l Ure, 5sl[36”]Part of Sqge Kit, Ure [900mm] (222433). Serial 10000000 and later. | $71.50/EA |
| 27 | TN4040573Replaces Tennant 222435 | 1 | Blade, Sqge, Rear, 49.37l Ure [36”]Part of Sqge Kit, Ure [900mm] (222433). Serial 10000000 and later. | $93.90/EA |
Tennant 5680 main wire harness group (S/N 10000000-10551745) parts
The parts Tennant numbers on its main wire harness group (s/n 10000000-10551745) drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4010404Replaces Tennant 374221 | 1 | Harness, Main, [5680] (Replaced By 9009109)Complete assembly. Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4040238Replaces Tennant 222290 | 5 | Diode, Elec, PlugPart of Harness, Main, [5680] (Replaced By 9009109) (374221). Serial 10000000 and later. | $13.00/EA |
| 3 | TN4040238Replaces Tennant 222290 | 1 | Diode, Elec, Plug [FaST Only]Part of Harness, Main, [5680] (Replaced By 9009109) (374221). Serial 10000000 to 10361689. | $13.00/EA |
| 4 | TN4041678Replaces Tennant 1043311 | 1 | Harness, Jumper, Pump, FaST, 36vdcPart of Harness, Main, [5680] (Replaced By 9009109) (374221). Serial 10361690 and later. | $30.20/EA |
| – | TN4040646Replaces Tennant 222666 | 2 | Clamp, Cable, Ribbon, 1.25w 0.25h PlstcSerial 10000000 and later. | $4.20/EA |
Tennant 5680 main wire harness group (S/N 10551746 and later) parts
The parts Tennant numbers on its main wire harness group (s/n 10551746 and later) drawing. Manual pages 77, list 78.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030089Replaces Tennant 1068900 | 1 | Harness, Main [5680]Complete assembly. Serial 10551746 and later. | $516.80/EA |
| 2 | TN4040238Replaces Tennant 222290 | 5 | Diode, Elec, PlugPart of Harness, Main [5680] (1068900). Serial 10000000 and later. | $13.00/EA |
| 3 | TN4038627Replaces Tennant 1016039 | 1 | Fuse, Blade, 007.5a, 32vdcPart of Harness, Main [5680] (1068900). Serial 10551746 and later. | $3.70/EA |
| 4 | TN4041678Replaces Tennant 1043311 | 1 | Harness, Jumper, Pump, FaST, 36vdcPart of Harness, Main [5680] (1068900). Serial 10361690 and later. | $30.20/EA |
| – | TN4040646Replaces Tennant 222666 | 2 | Clamp, Cable, Ribbon, 1.25w 0.25h PlstcSerial 10000000 and later. | $4.20/EA |
Tennant 5680 drive adapter, wire harness group (S/N 10714325 and later) parts
Drive adapter, wire harness group (S/N 10714325 and later) from Tennant's parts list. Manual page 79.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041384Replaces Tennant 1206698 | 1 | Harness, Drive, Adapter [5680]Serial 10714325 and later. | $210.20/EA |
Tennant 5680 label group parts
The parts Tennant numbers on its label group drawing. Manual page 80.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032720Replaces Tennant 1064816 | 2 | Label, Model [5680]Serial 10000000 and later. | $8.60/EA |
| 2 | TN4040625Replaces Tennant 222578 | 1 | Label Set, Info/Hzrd [5680/5700]Serial 10000000 and later. | $61.60/EA |
| 2 | TN4040626Replaces Tennant 222579 | 1 | Label Set, Info/Hzrd, Tj [5680/5700] (Japan)Serial 10000000 and later. | $211.33/EA |
| 3 | TN4042444Replaces Tennant 1044942 | 1 | Label Set, Opertnl [5680]Serial 10000000 and later. | $22.80/EA |
| 4 | TN4039650Replaces Tennant 1047741 | 1 | Label, Logo, 264Mml, [Tennant]Serial 10000000 and later. | $17.80/EA |
| – | TN4028598Replaces Tennant 374000 | 6 | Label [Caution, Battery] Tj (Japan)Serial 10000000 and later. | $8.60/EA |
Tennant 5680 fast air pump and detergent group (S/N 10000000-10361689) parts
The parts Tennant numbers on its fast air pump and detergent group (s/n 10000000-10361689) drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030914Replaces Tennant 1028487 | 1 | Timer, 36vdc, Detgt [.35on/1.38off]Serial 10000000 to 10361689. | $61.99/EA |
| 2 | TN4039853Replaces Tennant 222159 | 1 | Screw, Hex, M6 X 1.0 X 25, FmgSerial 10000000 to 10361689. | $6.00/EA |
| 3 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M06 X 1.0, NlSerial 10000000 to 10361689. | $2.50/EA |
| 4 | TN4039617Replaces Tennant 1008211 | 1 | Pump, Air, Ele, 36vdcComplete assembly. Serial 10000000 to 10361689. | $928.90/EA |
| – | TN4019318Replaces Tennant 391449 | 1 | Kit, Repair, Diaphragm, Air CompressorPart of Pump, Air, Ele, 36vdc (1008211). Serial 10000000 to 10361689. | $290.50/EA |
| 5 | TN4014131Replaces Tennant 49162 | 2 | Screw, Pan, #08-10 X 0.50, F/PlstcSerial 10000000 to 10361689. | $4.00/EA |
| 6 | TN4038960Replaces Tennant 1005255 | 1 | Filter Assy, Air, Molded UreSerial 10000000 to 10361689. | $28.10/EA |
| 7 | TN4037972Replaces Tennant 1014985 | 1 | Hose, Afmkt, Pvc, Clr 0.25id 8ftSerial 10000000 to 10361689. | $62.50/EA |
| 8 | TN4037578Replaces Tennant 1013902 | 1 | Valve, Check, 2 Gpm 2 Psi Bm04/Bm04Serial 10000000 to 10361689. | $84.00/EA |
| 9 | TN4039644Replaces Tennant 1008349 | 1 | Brkt Wldt, Box, DtrgtSerial 10000000 and later. | $118.37/EA |
| 10 | TN4038929Replaces Tennant 1002898 | 1 | Coupling, Fem, W/ Valve, .25 BrbSerial 10000000 and later. | $58.00/EA |
| 11 | TN4038930Replaces Tennant 1002899 | 1 | Coupling, Mal, .25 NptSerial 10000000 and later. | $31.30/EA |
| 12 | TN4038978Replaces Tennant 1005435 | 1 | Fitting, Plstc, Piep, Cap, Pf04Serial 10000000 and later. | $4.20/EA |
| 13 | TN4019547Replaces Tennant 613735 | 2 | Clamp, Hose, Wire, .40 - .42Serial 10000000 to 10361689. | $3.60/EA |
| 14 | TN4197210Replaces Tennant 1015042 | 1 | Plate, Mtg, Detgt PumpSerial 10000000 to 10361689. | $15.76/EA |
| 15 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M06 X 1.0 X 20, SsSerial 10000000 to 10361689. | $3.20/EA |
| 16 | TN4038975Replaces Tennant 1005413 | 1 | Pump, Detgt, [560s]Serial 10000000 to 10361689. | $147.30/EA |
| 17 | TN4192124Replaces Tennant 1031375 | 1 | Clamp, Hose, Wir, .29 - .31 [Dbl Wire]Serial 10000000 to 10361689. | $3.23/EA |
| 18 | TN4017933Replaces Tennant 67767 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1hSerial 10000000 to 10361689. | $4.20/EA |
| 19 | TN4041846Replaces Tennant 16944 | 3 | Screw, Hex, M4 X 0.7 X 10, FmgSerial 10000000 to 10361689. | $3.20/EA |
| 20 | TN4042243Replaces Tennant 19065 | 3 | Washer, Flat, #08Serial 10000000 to 10361689. | $3.20/EA |
| 21 | TN4035225Replaces Tennant 1020542 | 1 | Resistor, 011.00ohm, 40wattSerial 10000000 to 10361689. | $113.50/EA |
| 22 | TN4035216Replaces Tennant 1017015 | Detergent Pkg, 2 Liter, Sgl, 365 -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 22 | TN4035218Replaces Tennant 1017022 | Detergent Pkg, 2 Liter, Sgl, 665 -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 22 | TN4020030Replaces Tennant 9002021 | Detergent, 2 Liter [Fast 965] -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 fast detergent group (S/N 10361690 and later) parts
The parts Tennant numbers on its fast detergent group (s/n 10361690 and later) drawing. Manual pages 84, list 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019597Replaces Tennant 613947 | 1 | Hose, Pvc, Clr, 0.25id 0.38od 026.0lSerial 10361690 and later. | $18.70/EA |
| 2 | TN4039644Replaces Tennant 1008349 | 1 | Brkt Wldt, Box, DtrgtSerial 10000000 and later. | $118.37/EA |
| 3 | TN4038929Replaces Tennant 1002898 | 1 | Coupling, Fem, W/ Valve, .25 BrbSerial 10000000 and later. | $58.00/EA |
| 4 | TN4038930Replaces Tennant 1002899 | 1 | Coupling, Mal, .25 NptSerial 10000000 and later. | $31.30/EA |
| 5 | TN4038978Replaces Tennant 1005435 | 1 | Fitting, Plstc, Piep, Cap, Pf04Serial 10000000 and later. | $4.20/EA |
| 6 | TN4035216Replaces Tennant 1017015 | Detergent Pkg, 2 Liter, Sgl, 365 -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 6 | TN4035218Replaces Tennant 1017022 | Detergent Pkg, 2 Liter, Sgl, 665 -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 6 | TN4020030Replaces Tennant 9002021 | Detergent, 2 Liter [Fast 965] -Serial 10000000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 7 | TN4019547Replaces Tennant 613735 | 2 | Clamp, Hose, Wir, .40 - .42, YelSerial 10000000 and later. | $3.60/EA |
Tennant 5680 fast solution supply group, disk scrub head (S/N 10000000-10361689) parts
The parts Tennant numbers on its fast solution supply group, disk scrub head (s/n 10000000-10361689) drawing. Manual pages 86, list 87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039302Replaces Tennant 1006401 | 1 | Hose, Afmkt, Replmt, Brd, 0.50Id 3FtSerial 10000000 to 10361689. | $32.10/EA |
| 2 | TN4021151Replaces Tennant 63245-1 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Bm08Serial 10000000 and later. | $6.20/EA |
| 3 | TN4015366Replaces Tennant 54333 | 4 | Clamp, Hose, Wormdrive, 0.31-0.88DSerial 10000000 and later. | $5.10/EA |
Tennant 5680 fast solution supply group, disk scrub head (S/N 10361690 and later) parts
The parts Tennant numbers on its fast solution supply group, disk scrub head (s/n 10361690 and later) drawing. Manual pages 88, list 89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019740Replaces Tennant 392256 | 2 | Hose, Pvc, Brd, 0.50id 0.73od 002.0l,ClrSerial 10361690 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4021151Replaces Tennant 63245-1 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Bm08Serial 10000000 and later. | $6.20/EA |
| 3 | TN4015366Replaces Tennant 54333 | 3 | Clamp, Hose, Wormdrive, 0.31-0.88DSerial 10000000 and later. | $5.10/EA |
| 4 | TN4045437Replaces Tennant 1035794 | 1 | Valve, Check, 0005psi Bm06/Bm08Serial 10541114 and later. | $35.90/EA |
| 4 | TN4041679Replaces Tennant 1043317 | 1 | Valve, Check, 0015Psi Bm06/Bm08Serial 10361690 to 10541113. | $97.90/EA |
| 5 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10361690 and later. | $4.20/EA |
| 6 | TN4025749Replaces Tennant 606317 | 1 | Hose, Pvc, Brd, 0.38id 0.60od 019.5l,ClrSerial 10361690 and later. | $19.80/EA |
| 7 | TN4036443Replaces Tennant 30407 | 1 | Clip, Keeper, OpenSerial 10361690 and later. | $1.70/EA |
| 8 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25, SaeSerial 10361690 and later. | $2.50/EA |
| 9 | TN4029085Replaces Tennant 55845 | 1 | Screw, Hex, M5 X 0.80 X 16, FmgSerial 10361690 and later. | $4.00/EA |
Tennant 5680 fast solution supply group, model 700C / 800C, 28 in (700 mm) and 32 in (800 mm) cylindrical scrub head (S/N 10000000-10361689) parts
The parts Tennant numbers on its fast solution supply group, model 700c / 800c, 28 in (700 mm) and 32 in (800 mm) cylindrical scrub head (s/n 10000000-10361689) drawing. Manual pages 90, list 91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039302Replaces Tennant 1006401 | 1 | Hose, Afmkt, Replmt, Brd, 0.50Id 3FtSerial 10000000 to 10361689. | $32.10/EA |
| 2 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 and later. | $5.10/EA |
| 3 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06Serial 10000000 and later. | $6.20/EA |
| 4 | TN1019314Tennant 1019314 | 1 | Angle, Head, Cyl, 700mmSerial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN1019440Tennant 1019440 | 1 | Angle, Head, Cyl, 800mmSerial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4013943Replaces Tennant 76099 | 4 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 10000000 and later. | $4.00/EA |
| 6 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.31 SsSerial 10000000 and later. | $2.60/EA |
| 7 | TN4037975Replaces Tennant 1014993 | 1 | Bracket Wldt, Bar, Spray, 700mmSerial 10000000 and later. | $143.85/EA |
| 7 | TN4037963Replaces Tennant 1014957 | 1 | Bracket Wldt, Bar, Spray, 800mmSerial 10000000 and later. | $155.82/EA |
| 8 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, NlSerial 10000000 and later. | $4.00/EA |
| 9 | TN4037932Replaces Tennant 1014673 | 3 | Bracket, Bar, SpraySerial 10000000 and later. | $10.45/EA |
| 10 | TN4043382Replaces Tennant 11635 | 3 | Screw, Hex, M6 X 1.0 X 12, Ss, NlSerial 10000000 and later. | $6.60/EA |
| 11 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.25 SsSerial 10000000 and later. | $2.60/EA |
| 12 | TN4037943Replaces Tennant 1014791 | 1 | Tube Assy, Bar, Spray 700mmSerial 10000000 and later. | $352.90/EA |
| 12 | TN4037295Replaces Tennant 1013079 | 1 | Tube Assy, Spray, Cyl, 800mmSerial 10000000 and later. | $245.03/EA |
Tennant 5680 fast solution supply group, model 700C / 800C, 28 in (700 mm) and 32 in (800 mm) cylindrical scrub head (S/N 10361690 and later) parts
The parts Tennant numbers on its fast solution supply group, model 700c / 800c, 28 in (700 mm) and 32 in (800 mm) cylindrical scrub head (s/n 10361690 and later) drawing. Manual pages 92, list 93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036839Replaces Tennant 1011403 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrSerial 10361690 and later. | $19.40/EA |
| 2 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10361690 and later. | $5.10/EA |
| 3 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06Serial 10000000 and later. | $6.20/EA |
| 4 | TN4042713Replaces Tennant 1046020 | 1 | Angle, Head, Cylrcl, 700mmSerial 10000000 and later. | $69.80/EA |
| 4 | TN4042714Replaces Tennant 1046023 | 1 | Angle, Head, Cylrcl, 800mmSerial 10000000 and later. | $63.95/EA |
| 5 | TN4013943Replaces Tennant 76099 | 4 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 10000000 and later. | $4.00/EA |
| 6 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.31 SsSerial 10000000 and later. | $2.60/EA |
| 7 | TN4037975Replaces Tennant 1014993 | 1 | Bracket Wldt, Bar, Spray, 700mmSerial 10000000 and later. | $143.85/EA |
| 7 | TN4037963Replaces Tennant 1014957 | 1 | Bracket Wldt, Bar, Spray, 800mmSerial 10000000 and later. | $155.82/EA |
| 8 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 and later. | $3.50/EA |
| 9 | TN4037932Replaces Tennant 1014673 | 3 | Bracket, Bar, SpraySerial 10000000 and later. | $10.45/EA |
| 10 | TN4043382Replaces Tennant 11635 | 3 | Screw, Hex, M6 X 1.0 X 12, Ss, NlSerial 10000000 and later. | $6.60/EA |
| 11 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.25 SsSerial 10000000 and later. | $2.60/EA |
| 12 | TN4042723Replaces Tennant 1046049 | 1 | Tube Assy, Bar, Spray (700mm)Serial 10000000 and later. | $78.70/EA |
| 12 | TN4033892Replaces Tennant 1025276 | 1 | Tube Assy, Bar, Spray [85cm] (800mm)Serial 10000000 and later. | $133.60/EA |
| 13 | TN4041679Replaces Tennant 1043317 | 1 | Valve, Check, 0015Psi Bm06/Bm08Serial 10361690 to 10541113. | $97.90/EA |
| 13 | TN4045437Replaces Tennant 1035794 | 1 | Valve, Check, 0005psi Bm06/Bm08Serial 10541114 and later. | $35.90/EA |
| 14 | TN4025749Replaces Tennant 606317 | 1 | Hose, Pvc, Brd, 0.38id 0.60od 019.5l,ClrSerial 10361690 and later. | $19.80/EA |
| 15 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10361690 and later. | $4.20/EA |
| 16 | TN4034190Replaces Tennant 1025580 | 2 | Fitting, Pipe, Cap, P06, NylSerial 10000000 and later. | $8.70/EA |
Tennant 5680 fast foam filter group (S/N 10000000-10361689) parts
The parts Tennant numbers on its fast foam filter group (s/n 10000000-10361689) drawing. Manual pages 94, list 95.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030935Replaces Tennant 1028578 | 1 | Valve, Water, Solenoid, 36vdc Pf02Serial 10000000 to 10361689. | $199.07/EA |
| 2 | TN4014131Replaces Tennant 49162 | 2 | Screw, Pan, #08-10 X 0.50, F/PlstcSerial 10000000 to 10361689. | $4.00/EA |
| 3 | TN4038990Replaces Tennant 1005564 | 2 | Fitting, Plstc, E90, Bm06/Pm02, NylSerial 10000000 to 10361689. | $6.00/EA |
| 4 | TN4017396Replaces Tennant 43844 | 1 | Clamp, Hose, Wormdrive, 0.25-0.62D, .31WSerial 10000000 to 10361689. | $4.20/EA |
| 5 | TN4036260Replaces Tennant 1020364 | 1 | ManifoldSerial 10000000 to 10361689. | $102.41/EA |
Tennant 5680 fast solution pump group (S/N 10000000-10361689) parts
The parts Tennant numbers on its fast solution pump group (s/n 10000000-10361689) drawing. Manual pages 96, list 97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038955Replaces Tennant 1005218 | 1 | Fitting, Plstc, Str, Pm08/Pm12Serial 10000000 and later. | $5.30/EA |
| 2 | TN4038973Replaces Tennant 1005388 | 1 | Filter, Inline, Pf08/Pf08, 80 MeshComplete assembly. Serial 10000000 and later. | $19.70/EA |
| 3 | TN4038962Replaces Tennant 1005304 | 1 | Screen, Filter, 80 MeshPart of Filter, Inline, Pf08/Pf08, 80 Mesh (1005388). Serial 10000000 and later. | $12.20/EA |
| 4 | TN4026536Replaces Tennant 79273 | 1 | Fitting, Plstc, Str, Bm06/Pm08Serial 10000000 and later. | $6.40/EA |
| 5 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10000000 to 10361689. | $33.10/EA |
| 6 | TN4042629Replaces Tennant 1002603 | 1 | Brkt, Pump, SolutionSerial 10000000 and later. | $27.27/EA |
| 7 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 1.62-3.50dSerial 10000000 and later. | $6.20/EA |
| 8 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, NylSerial 10000000 and later. | $7.00/EA |
| 9 | TN4039006Replaces Tennant 1005866 | 1 | Pump, Solution, Ele, 36vdcComplete assembly. Serial 10000000 to 10361689. | $438.90/EA |
| – | TN8002945Replaces Tennant 391433 | 1 | Head, Pump, KitPart of Pump, Solution, Ele, 36vdc (1005866). Serial 10000000 to 10361689. | $162.11/EA |
| 10 | TN4038965Replaces Tennant 1005318 | 1 | Fitting, Plstc, E90, Pf06/Pm06, NylSerial 10000000 to 10361689. | $12.40/EA |
| 11 | TN4038956Replaces Tennant 1005219 | 1 | Fitting, Plstc, Str, Pm04/Pm06Serial 10000000 to 10361689. | $4.20/EA |
| 12 | TN4038986Replaces Tennant 1005522 | 1 | Fitting, Plstc, Cap Assy, 0.040b, Pf04Complete assembly. Serial 10000000 to 10361689. | $23.94/EA |
| 13 | TN4038980Replaces Tennant 1005506 | 1 | Fitting, Plstc, Cap, Spray, Pf04Part of Fitting, Plstc, Cap Assy, 0.040b, Pf04 (1005522). Serial 10000000 to 10361689. | $25.15/EA |
| 14 | TN4038981Replaces Tennant 1005507 | 1 | Fitting, Plstc, Body, Spray, Pf04Part of Fitting, Plstc, Cap Assy, 0.040b, Pf04 (1005522). Serial 10000000 to 10361689. | $12.83/EA |
| 15 | TN4038982Replaces Tennant 1005508 | 1 | Washer, 0.34b 0.75d 0.12, EpdmPart of Fitting, Plstc, Cap Assy, 0.040b, Pf04 (1005522). Serial 10000000 to 10361689. | $13.00/EA |
| 16 | TN4038984Replaces Tennant 1005510 | 1 | Plate, Orifice, 0.040idPart of Fitting, Plstc, Cap Assy, 0.040b, Pf04 (1005522). Serial 10000000 to 10361689. | $10.00/EA |
| 17 | TN8005899Replaces Tennant 1006447 | 1 | Screen, 50 Mesh, SsPart of Fitting, Plstc, Cap Assy, 0.040b, Pf04 (1005522). Serial 10000000 to 10361689. | $13.00/EA |
| 18 | TN4014133Replaces Tennant 49186 | 1 | Fitting, Plstc, Str, Bm06/Pm04Serial 10000000 to 10361689. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62dSerial 10000000 and later. | $4.20/EA |
Tennant 5680 fast solution pump group (S/N 10361690-10581880) parts
The parts Tennant numbers on its fast solution pump group (s/n 10361690-10581880) drawing. Manual pages 98, list 99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038955Replaces Tennant 1005218 | 1 | Fitting, Plstc, Str, Pm08/Pm12Serial 10000000 to 10581880. | $5.30/EA |
| 2 | TN4038973Replaces Tennant 1005388 | 1 | Filter, Inline, Pf08/Pf08, 80 MeshComplete assembly. Serial 10000000 and later. | $19.70/EA |
| 3 | TN4038962Replaces Tennant 1005304 | 1 | Screen, Filter, 80 MeshPart of Filter, Inline, Pf08/Pf08, 80 Mesh (1005388). Serial 10000000 and later. | $12.20/EA |
| 4 | TN4026536Replaces Tennant 79273 | 1 | Fitting, Plstc, Str, Bm06/Pm08Serial 10000000 and later. | $6.40/EA |
| 5 | TN4025761Replaces Tennant 606325 | 1 | Hose, Pvc, Brd, 0.38id 0.60od 024.0l,ClrSerial 10361690 and later. | $21.00/EA |
| 6 | TN4042629Replaces Tennant 1002603 | 1 | Brkt, Pump, SolutionSerial 10000000 and later. | $27.27/EA |
| 7 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 1.62-3.50dSerial 10000000 and later. | $6.20/EA |
| 8 | TN4022806Replaces Tennant 611010 | 2 | Fitting, Plstc, E90, Bm06/Pf08, SwivelSerial 10361690 to 10581880. | $5.30/EA |
| 9 | TN4041680Replaces Tennant 1043318 | 1 | Pump, Soltn, Ele, 36Vdc, 60Psi [Deutsch]Serial 10361690 and later. | $591.10/EA |
| 10 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10000000 and later. | $4.20/EA |
| 11 | TN4025749Replaces Tennant 606317 | 1 | Hose, Pvc, Brd, 0.38id 0.60od 019.5l,ClrSerial 10361690 and later. | $19.80/EA |
| 12 | TN4010350Replaces Tennant 9008870 | 1 | Fast Kit, Injector [5680/5700, Fast Iii] (See Breakdown)Serial 10536782 and later. | $300.60/EA |
| 12 | TN4010350Replaces Tennant 9004079 | 1 | FaST Kit, Injector [5680/5700, FaST II+] (See Breakdown)Serial 10361690 to 10536781. | $300.60/EA |
| 13 | TN4029304Replaces Tennant 573073 | 2 | Clip, Grip, Hose, 1.00-1.38, ZnSerial 10361690 and later. | $2.75/EA |
| 14 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl, SsSerial 10361690 and later. | $3.40/EA |
| 15 | TN4014173Replaces Tennant 49697 | 2 | Screw, Pan, Phl, M4 X 0.70 X 10, SsSerial 10361690 and later. | $3.40/EA |
Tennant 5680 fast solution pump group (S/N 10581881 and later) parts
The parts Tennant numbers on its fast solution pump group (s/n 10581881 and later) drawing. Manual pages 100, list 101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016342Replaces Tennant 73467 | 1 | Fitting, Plstc, Str, Bm06/Pm12, NylSerial 10581881 and later. | $6.00/EA |
| 2 | TN4038973Replaces Tennant 1005388 | 1 | Filter, Inline, Pf08/Pf08, 80 MeshComplete assembly. Serial 10000000 and later. | $19.70/EA |
| 3 | TN4038962Replaces Tennant 1005304 | 1 | Screen, Filter, 80 MeshPart of Filter, Inline, Pf08/Pf08, 80 Mesh (1005388). Serial 10000000 and later. | $12.20/EA |
| 4 | TN4026536Replaces Tennant 79273 | 1 | Fitting, Plstc, Str, Bm06/Pm08Serial 10000000 and later. | $6.40/EA |
| 5 | TN4025761Replaces Tennant 606325 | 1 | Hose, Pvc, Brd, 0.38id 0.60od 024.0l,ClrSerial 10361690 and later. | $21.00/EA |
| 6 | TN4042629Replaces Tennant 1002603 | 1 | Brkt, Pump, SolutionSerial 10000000 and later. | $27.27/EA |
| 7 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 1.62-3.50dSerial 10000000 and later. | $6.20/EA |
| 8 | TN4022806Replaces Tennant 611010 | 1 | Fitting, Plstc, E90, Bm06/Pf08, SwivelSerial 10581881 and later. | $5.30/EA |
| 9 | TN4041680Replaces Tennant 1043318 | 1 | Pump, Soltn, Ele, 36Vdc, 60Psi [Deutsch]Serial 10361690 and later. | $591.10/EA |
| 10 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10000000 and later. | $4.20/EA |
| 11 | TN4025749Replaces Tennant 606317 | 1 | Hose, Pvc, Brd, 0.38id 0.60od 019.5l,ClrSerial 10361690 and later. | $19.80/EA |
| 12 | TN4010350Replaces Tennant 9008870 | 1 | Fast Kit, Injector [5680/5700, Fast Iii] (See Breakdown)Serial 10536782 and later. | $300.60/EA |
| 13 | TN4029304Replaces Tennant 573073 | 2 | Clip, Grip, Hose, 1.00-1.38, ZnSerial 10361690 and later. | $2.75/EA |
| 14 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl, SsSerial 10361690 and later. | $3.40/EA |
| 15 | TN4014173Replaces Tennant 49697 | 2 | Screw, Pan, Phl, M4 X 0.70 X 10, SsSerial 10361690 and later. | $3.40/EA |
| 16 | TN4045628Replaces Tennant 1037264 | 1 | Fitting, Plstc, E90, Pm08/Pf08s, SwivelSerial 10581881 and later. | $5.00/EA |
Tennant 5680 fast operator console group parts
The parts Tennant numbers on its fast operator console group drawing. Manual page 102.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4200977Replaces Tennant 1002326 | 1 | Plate, Ele, CoverSerial 10000000 and later. | $13.40/EA |
| 2 | TN4016250Replaces Tennant 397889 | 1 | Switch, Rocker, 36vdc 05a Dpst On/N/OnSerial 10000000 and later. | $43.70/EA |
| 3 | TN4023150Replaces Tennant 383721 | 1 | Circuitbreaker, 10.0aSerial 10000000 and later. | $15.90/EA |
| 4 | TN4016544Replaces Tennant 398526 | 1 | Relay, 36vdc, 05a, Spdt N/OSerial 10000000 and later. | $16.30/EA |
| 5 | TN4015650Replaces Tennant 71539 | 1 | Resistor, 022.00ohm, 40wattSerial 10000000 to 10361689. | $59.40/EA |
| 6 | TN4041846Replaces Tennant 16944 | 2 | Screw, Hex, M04 X 0.7 X 10, FmgSerial 10000000 to 10361689. | $3.20/EA |
| 7 | TN4038977Replaces Tennant 1005425 | 1 | Label Set, Fast [5680]Serial 10000000 and later. | $3.20/EA |
Tennant 5680 fast label group parts
Fast label group from Tennant's parts list. Manual page 103.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019319Replaces Tennant 391451 | 1 | Label, Attention, FastSerial 10000000 and later. | $15.90/EA |
| 2 | TN4035179Replaces Tennant 1062497 | 2 | Label, Logo, Tl/Wht 4.00L [FaST]Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 ec-H2O solution pump group (S/N 10000000-10581869) parts
The parts Tennant numbers on its ec-h2o solution pump group (s/n 10000000-10581869) drawing. Manual pages 104, list 105.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdowns)Serial 10436743 and later. | $778.37/EA |
| 1 | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdowns)Serial 10403557 to 10436742. | $778.37/EA |
| 2 | TN4042917Replaces Tennant 01697 | 1 | Screw, Hex, .25-20 X 0.62, SsSerial 10403557 and later. | $4.00/EA |
| 3 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10403557 and later. | $2.60/EA |
| 4 | TN4041243Replaces Tennant 15675 | 1 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10403557 and later. | $3.40/EA |
| 5 | TN4018310Replaces Tennant 69234 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeSerial 10403557 and later. | $4.20/EA |
| 6 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10403557 and later. | $3.30/EA |
| 7 | TN4035813Replaces Tennant 1018505 | 1 | Horn, 12-48vdc [88.5 Decibels]Serial 10446384 and later. | $147.00/EA |
| 7 | TN4019777Replaces Tennant 392937 | 1 | Horn, 12-48vdc [94 Decibels]Serial 10403557 to 10446383. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4015029Replaces Tennant 53466 | 2 | Clamp, Cable, Stl, 1.50d X 1.00w, 1holeSerial 10403557 and later. | $4.20/EA |
| 9 | TN4038973Replaces Tennant 1005388 | 1 | Filter, In-Line, Pf08/Pf08 080mesh 02.6lComplete assembly. Serial 10403557 and later. | $19.70/EA |
| 10 | TN4038962Replaces Tennant 1005304 | 1 | Screen, Fltr, 80 Mesh, SsPart of Filter, Inline, Pf08/Pf08, 80 Mesh (1005388). Serial 10403557 and later. | $12.20/EA |
| 11 | TN4042180Replaces Tennant 1044803 | 1 | Bracket, Echo Module [5680/5700]Serial 10403557 and later. | $50.30/EA |
| 12 | TN4034939Replaces Tennant 12273 | 4 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 10403557 and later. | $4.00/EA |
| 13 | TN4026536Replaces Tennant 79273 | 1 | Fitting, Plstc, Str, Bm06/Pm08Serial 10403557 and later. | $6.40/EA |
| 14 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10403557 and later. | $4.20/EA |
| 15 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10403557 and later. | $33.10/EA |
| 16 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, NylSerial 10403557 to 10581869. | $7.00/EA |
| 17 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiSerial 10403557 and later. | $434.80/EA |
| 18 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50wSerial 10403557 and later. | $6.20/EA |
| 19 | TN4042629Replaces Tennant 1002603 | 1 | Bracket, Pump, SoltnSerial 10403557 and later. | $27.27/EA |
| 20 | TN4038955Replaces Tennant 1005218 | 1 | Fitting, Plstc, Str, Pm08/Pm12, NylSerial 10403557 to 10581869. | $5.30/EA |
Tennant 5680 ec-H2O solution pump group (S/N 10581870-10740686) parts
The parts Tennant numbers on its ec-h2o solution pump group (s/n 10581870-10740686) drawing. Manual pages 106, list 107.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdowns)Serial 10436743 to 10740686. | $778.37/EA |
| 2 | TN4042917Replaces Tennant 01697 | 1 | Screw, Hex, .25-20 X 0.62, SsSerial 10403557 to 10740686. | $4.00/EA |
| 3 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10403557 to 10740686. | $2.60/EA |
| 4 | TN1072823Tennant 1072823 | 1 | Screw, Hex, M8 X 1.25 X 16, Ss, SemsSerial 10403557 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4018310Replaces Tennant 69234 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeSerial 10403557 to 10740686. | $4.20/EA |
| 6 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10403557 to 10740686. | $3.30/EA |
| 7 | TN4035813Replaces Tennant 1018505 | 1 | Horn, 12-48vdc [88.5 Decibels]Serial 10446384 to 10740686. | $147.00/EA |
| 8 | TN4015029Replaces Tennant 53466 | 2 | Clamp, Cable, Stl, 1.50d X 1.00w, 1holeSerial 10403557 and later. | $4.20/EA |
| 9 | TN4016342Replaces Tennant 73467 | 1 | Fitting, Plstc, Str, Bm06/Pm12, NylSerial 10581870 and later. | $6.00/EA |
| 10 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10403557 and later. | $4.20/EA |
| 11 | TN4042180Replaces Tennant 1044803 | 1 | Bracket, Echo Module [5680/5700]Serial 10403557 to 10740686. | $50.30/EA |
| 12 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10403557 and later. | $3.50/EA |
| 13 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10403557 and later. | $33.10/EA |
| 14 | TN4026536Replaces Tennant 79273 | 1 | Fitting, Plstc, Str, Bm06/Pm08Serial 10403557 to 10740686. | $6.40/EA |
| 15 | TN4038973Replaces Tennant 1005388 | 1 | Filter, In-Line, Pf08/Pf08 080mesh 02.6lComplete assembly. Serial 10403557 and later. | $19.70/EA |
| 16 | TN4038962Replaces Tennant 1005304 | 1 | Screen, Fltr, 80 Mesh, SsPart of Filter, Inline, Pf08/Pf08, 80 Mesh (1005388). Serial 10403557 and later. | $12.20/EA |
| 17 | TN4022805Replaces Tennant 611009 | 1 | Fitting, Plstc, Str, Pm06/Pm08, ReducerSerial 10581870 and later. | $7.90/EA |
| 18 | TN4038965Replaces Tennant 1005318 | 1 | Fitting, Plstc, E90, Pf06/Pm06, NylSerial 10581870 and later. | $12.40/EA |
| 19 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiSerial 10403557 and later. | $434.80/EA |
| 20 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50wSerial 10403557 and later. | $6.20/EA |
| 21 | TN4042629Replaces Tennant 1002603 | 1 | Bracket, Pump, SoltnSerial 10403557 and later. | $27.27/EA |
Tennant 5680 ec-H2O NanoClean solution pump group (S/N 10740687 and later) parts
The parts Tennant numbers on its ec-h2o nanoclean solution pump group (s/n 10740687 and later) drawing. Manual pages 108, list 109.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns)Serial 10740687 and later. | $1,339.60/EA |
| 2 | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlSerial 10740687 and later. | $300.60/EA |
| 3 | TN4042629Replaces Tennant 1002603 | 1 | Bracket, Pump, SoltnSerial 10403557 and later. | $27.27/EA |
| 4 | TN1072823Tennant 1072823 | 1 | Screw, Hex, M8 X 1.25 X 16, Ss, SemsSerial 10403557 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4018310Replaces Tennant 69234 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeSerial 10403557 and later. | $4.20/EA |
| 6 | TN4045268Replaces Tennant 1034731 | 3 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10740687 and later. | $3.30/EA |
| 7 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10740687 and later. | $3.90/EA |
| 8 | TN4015029Replaces Tennant 53466 | 2 | Clamp, Cable, Stl, 1.50d X 1.00w, 1holeSerial 10403557 and later. | $4.20/EA |
| 9 | TN4016342Replaces Tennant 73467 | 1 | Fitting, Plstc, Str, Bm06/Pm12, NylSerial 10581870 and later. | $6.00/EA |
| 10 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10403557 and later. | $4.20/EA |
| 11 | TN4227891Replaces Tennant 1216007 | 1 | Bracket Assy, Mtg, Ec-H20 Module [5680]Serial 10740687 and later. | $61.61/EA |
| 12 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10403557 and later. | $3.50/EA |
| 13 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10403557 and later. | $33.10/EA |
| 14 | TN4043263Replaces Tennant 03394 | 1 | Fitting, Plstc, E90, Bm06/Pm08Serial 10740687 and later. | $5.40/EA |
| 15 | TN4038973Replaces Tennant 1005388 | 1 | Filter, In-Line, Pf08/Pf08 080mesh 02.6lComplete assembly. Serial 10403557 and later. | $19.70/EA |
| 16 | TN4038962Replaces Tennant 1005304 | 1 | Screen, Fltr, 80 Mesh, SsPart of Filter, Inline, Pf08/Pf08, 80 Mesh (1005388). Serial 10403557 and later. | $12.20/EA |
| 17 | TN4022805Replaces Tennant 611009 | 1 | Fitting, Plstc, Str, Pm06/Pm08, ReducerSerial 10581870 and later. | $7.90/EA |
| 18 | TN4038965Replaces Tennant 1005318 | 1 | Fitting, Plstc, E90, Pf06/Pm06, NylSerial 10581870 and later. | $12.40/EA |
| 19 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiSerial 10403557 and later. | $434.80/EA |
| 20 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50wSerial 10403557 and later. | $6.20/EA |
| 21 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 10403557 and later. | $2.50/EA |
Tennant 5680 ec-H2O solution supply group, disk scrub head (S/N 10403557-10740686) parts
The parts Tennant numbers on its ec-h2o solution supply group, disk scrub head (s/n 10403557-10740686) drawing. Manual pages 110, list 111.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024452Replaces Tennant 603654 | 10 | Clamp, Hose, Ear, .44d [Ctb]Serial 10403557 and later. | $4.20/EA |
| 2 | TN4021856Replaces Tennant 607306 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Pm04, BrSerial 10403557 to 10740686. | $7.90/EA |
| 3 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrSerial 10403557 to 10740686. | $27.80/EA |
| 4 | TN4014520Replaces Tennant 50901 | 1 | Fitting, Plstc, Str, Bm04/Pm04Serial 10403557 to 10740686. | $3.60/EA |
| 5 | TN4041715Replaces Tennant 1043866 | 1 | Fitting Assy, Qd, Pf04Serial 10403557 to 10740686. | $36.80/EA |
| 6 | TN4040383Replaces Tennant 1010775 | 1 | Fitting, Plstc, Str, Bm08/Pm04, NylSerial 10403557 to 10740686. | $6.20/EA |
| 7 | TN4015366Replaces Tennant 54333 | 3 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 and later. | $5.10/EA |
| 8 | TN4039302Replaces Tennant 1006401 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 03ft, ClrSerial 10000000 to 10740686. | $32.10/EA |
| 9 | TN4021151Replaces Tennant 63245-1 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Bm08Serial 10000000 to 10740686. | $6.20/EA |
| 10 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 18psi, Pm02Serial 10403557 and later. | $92.80/EA |
| 11 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 10403557 and later. | $5.30/EA |
| 12 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10403557 and later. | $3.90/EA |
| 13 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10403557 and later. | $10.60/EA |
| 14 | TN4044377Replaces Tennant 150006 | 1 | Fitting, Brs, Str, Pf04/Pm06, BshgSerial 10403557 to 10740686. | $5.30/EA |
| 15 | TN4041151Replaces Tennant 150709 | 1 | Fitting, Brs, Tee, Pm04/Pf04/Pf04, RunSerial 10403557 to 10740686. | $14.40/EA |
| 16 | TN4044558Replaces Tennant 150515 | 1 | Fitting, Brs, Str, Bm04/Pm04 [Taped]Serial 10403557 to 10740686. | $5.30/EA |
| 17 | TN4044545Replaces Tennant 150418 | 1 | Fitting, Brs, E90, Bm04/Pm04Serial 10403557 to 10740686. | $12.60/EA |
| 18 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v]Serial 10403557 and later. | $17.40/EA |
| 19 | TN4044556Replaces Tennant 150510 | 1 | Fitting, Brs, Str, Bm04/Pf04Serial 10403557 to 10740686. | $3.00/EA |
| 20 | TN4042178Replaces Tennant 1044790 | 1 | Valve, Check, 0025psi Pm04/Pf04Serial 10403557 to 10740686. | $245.10/EA |
| 21 | TN4013781Replaces Tennant 9004606 | 1 | Hose, Pvc, Brd, .25id .45od 46l, ClrSerial 10403557 to 10740686. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4036443Replaces Tennant 30407 | 1 | Clip, Keeper, OpenSerial 10403557 and later. | $1.70/EA |
| 23 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25, SaeSerial 10403557 and later. | $2.50/EA |
| 24 | TN4029085Replaces Tennant 55845 | 1 | Screw, Hex, M5 X 0.80 X 16, FmgSerial 10403557 and later. | $4.00/EA |
Tennant 5680 ec-H2O NanoClean solution supply group, disk scrub head (S/N 10740687 and later) parts
The parts Tennant numbers on its ec-h2o nanoclean solution supply group, disk scrub head (s/n 10740687 and later) drawing. Manual pages 112, list 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024452Replaces Tennant 603654 | 8 | Clamp, Hose, Ear, .44d [Ctb]Serial 10740687 and later. | $4.20/EA |
| 2 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Serial 10740687 and later. | $23.60/EA |
| 3 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 10740687 and later. | $51.70/EA |
| 4 | TN4044543Replaces Tennant 150417 | 1 | Fitting, Plstc, E90, Bm04/Pm06Serial 10740687 and later. | $7.00/EA |
| 5 | TN4019547Replaces Tennant 613735 | 3 | Clamp, Hose, Wir, .40 - .42, YelSerial 10740687 and later. | $3.60/EA |
| 6 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06Serial 10740687 and later. | $4.20/EA |
| 7 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10740687 and later. | $5.10/EA |
| 8 | TN4037994Replaces Tennant 1015071 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 01ftSerial 10740687 and later. | $21.50/EA |
| 9 | TN4020776Replaces Tennant 630372 | 1 | Fitting, Plstc, Tee, Bm06/Bm08/Bm08, BrSerial 10740687 and later. | $10.20/EA |
| 10 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 18psi, Pm02Serial 10403557 and later. | $92.80/EA |
| 11 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 10403557 and later. | $5.30/EA |
| 12 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10740687 and later. | $33.10/EA |
| 13 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10403557 and later. | $10.60/EA |
| 14 | TN4040497Replaces Tennant 1216879 | 1 | Valve, Check, 0005psi Bm04/Bm04Serial 10740687 and later. | $34.10/EA |
| 15 | TN4026485Replaces Tennant 9014210 | 1 | Hose, Afmkt, Pvs, Brd .25id .44od, 05ftSerial 10740687 and later. | $57.80/EA |
| 16 | TN4037974Replaces Tennant 1014987 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 01ftSerial 10740687 and later. | $18.00/EA |
| 17 | TN4039501Replaces Tennant 1212857 | 1 | Fitting, Plstc, Str, Qm06/Bm04Serial 10740687 and later. | $4.10/EA |
| 18 | TN4039467Replaces Tennant 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10740687 and later. | $19.10/EA |
| 19 | TN4026363Replaces Tennant 9014146 | 1 | Hose, Afmkt, Pvc, 0.06id .38od, 05ftSerial 10740687 and later. | $113.90/EA |
| 20 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10740687 and later. | $18.30/EA |
| 21 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10740687 and later. | $11.60/EA |
| 22 | TN4026364Replaces Tennant 9014147 | 1 | Hose, Afmkt, Pvc, 0.06id .25od, 05ftSerial 10740687 and later. | $103.40/EA |
| 23 | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, DispenserSerial 10740687 and later. | $338.70/EA |
| 24 | TN4039499Replaces Tennant 1212855 | 1 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06Serial 10740687 and later. | $24.70/EA |
| 25 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v]Serial 10403557 and later. | $17.40/EA |
| 26 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10403557 and later. | $3.90/EA |
| 27 | TN4036443Replaces Tennant 30407 | 1 | Clip, Keeper, OpenSerial 10403557 and later. | $1.70/EA |
| 28 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25, SaeSerial 10403557 and later. | $2.50/EA |
| 29 | TN4029085Replaces Tennant 55845 | 1 | Screw, Hex, M5 X 0.80 X 16, FmgSerial 10403557 and later. | $4.00/EA |
Tennant 5680 ec-H2O solution supply group, model 700C / 800C / 900C cylindrical scrub head parts
The parts Tennant numbers on its ec-h2o solution supply group, model 700c / 800c / 900c cylindrical scrub head drawing. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024452Replaces Tennant 603654 | 10 | Clamp, Hose, Ear, .44d [Ctb]Serial 10403557 to 10740686. | $4.20/EA |
| 2 | TN4021856Replaces Tennant 607306 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Pm04, BrSerial 10403557 to 10740686. | $7.90/EA |
| 3 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrSerial 10403557 to 10740686. | $27.80/EA |
| 4 | TN4014520Replaces Tennant 50901 | 1 | Fitting, Plstc, Str, Bm04/Pm04Serial 10403557 to 10740686. | $3.60/EA |
| 5 | TN4041715Replaces Tennant 1043866 | 1 | Fitting Assy, Qd, Pf04Serial 10403557 to 10740686. | $36.80/EA |
| 6 | TN4040383Replaces Tennant 1010775 | 1 | Fitting, Plstc, Str, Bm08/Pm04, NylSerial 10403557 to 10740686. | $6.20/EA |
| 7 | TN4015366Replaces Tennant 54333 | 3 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 and later. | $5.10/EA |
| 8 | TN4039302Replaces Tennant 1006401 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 03ft, ClrSerial 10000000 to 10740686. | $32.10/EA |
| 9 | TN4021151Replaces Tennant 63245-1 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Bm08Serial 10000000 to 10740686. | $6.20/EA |
| 10 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06Serial 10000000 and later. | $6.20/EA |
| 11 | TN4042713Replaces Tennant 1046020 | 1 | Angle, Head, Cylrcl, 700mmSerial 10000000 and later. | $69.80/EA |
| 11 | TN4042714Replaces Tennant 1046023 | 1 | Angle, Head, Cylrcl, 800mmSerial 10000000 and later. | $63.95/EA |
| 11 | TN4043105Replaces Tennant 1047642 | 1 | Angle, Head, Cylrcl, 900mmSerial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4037975Replaces Tennant 1014993 | 1 | Bracket Wldt, Bar, Spray, 700mm [7100]Serial 10000000 and later. | $143.85/EA |
| 12 | TN4037963Replaces Tennant 1014957 | 1 | Bracket Wldt, Bar, Spray, 800mm & 900mm [7100]Serial 10000000 and later. | $155.82/EA |
| 13 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 14 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 10000000 and later. | $4.00/EA |
| 15 | TN4034190Replaces Tennant 1025580 | 2 | Fitting, Pipe, Cap, P06, NylSerial 10000000 and later. | $8.70/EA |
| 16 | TN4042723Replaces Tennant 1046049 | 1 | Tube Assy, Bar, Spray (700mm)Serial 10000000 and later. | $78.70/EA |
| 16 | TN4033892Replaces Tennant 1025276 | 1 | Tube Assy, Bar, Spray [85cm] (800mm & 900mm)Serial 10000000 and later. | $133.60/EA |
| 17 | TN4037932Replaces Tennant 1014673 | 3 | Bracket, Bar, SpraySerial 10000000 and later. | $10.45/EA |
| 18 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 and later. | $2.60/EA |
| 19 | TN4043382Replaces Tennant 11635 | 3 | Screw, Hex, M6 X 1.00 X 12, Nl, SsSerial 10000000 and later. | $6.60/EA |
| 20 | TN4013943Replaces Tennant 76099 | 4 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 10000000 and later. | $4.00/EA |
| 21 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 18psi, Pm02Serial 10403557 and later. | $92.80/EA |
| 22 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 10403557 and later. | $5.30/EA |
| 23 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10403557 and later. | $3.90/EA |
| 24 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10403557 and later. | $10.60/EA |
| 25 | TN4044558Replaces Tennant 150515 | 1 | Fitting, Brs, Str, Bm04/Pm04 [Taped]Serial 10403557 to 10740686. | $5.30/EA |
| 26 | TN4044377Replaces Tennant 150006 | 1 | Fitting, Brs, Str, Pf04/Pm06, BshgSerial 10403557 to 10740686. | $5.30/EA |
| 27 | TN4041151Replaces Tennant 150709 | 1 | Fitting, Brs, Tee, Pm04/Pf04/Pf04, RunSerial 10403557 to 10740686. | $14.40/EA |
| 28 | TN4044545Replaces Tennant 150418 | 1 | Fitting, Brs, E90, Bm04/Pm04Serial 10403557 to 10740686. | $12.60/EA |
| 29 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v]Serial 10403557 and later. | $17.40/EA |
| 30 | TN4044556Replaces Tennant 150510 | 1 | Fitting, Brs, Str, Bm04/Pf04Serial 10403557 to 10740686. | $3.00/EA |
| 31 | TN4042178Replaces Tennant 1044790 | 1 | Valve, Check, 0025psi Pm04/Pf04Serial 10403557 to 10740686. | $245.10/EA |
| 32 | TN4013781Replaces Tennant 9004606 | 1 | Hose, Pvc, Brd, .25id .45od 46l, ClrSerial 10403557 to 10740686. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 ec-H2O NanoClean solution supply group, model 700C / 800C / 900C cylindrical scrub head parts
The parts Tennant numbers on its ec-h2o nanoclean solution supply group, model 700c / 800c / 900c cylindrical scrub head drawing. Manual pages 116, list 117.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024452Replaces Tennant 603654 | 8 | Clamp, Hose, Ear, .44d [Ctb]Serial 10740687 and later. | $4.20/EA |
| 2 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Serial 10740687 and later. | $23.60/EA |
| 3 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 10740687 and later. | $51.70/EA |
| 4 | TN4044543Replaces Tennant 150417 | 1 | Fitting, Plstc, E90, Bm04/Pm06Serial 10740687 and later. | $7.00/EA |
| 5 | TN4019547Replaces Tennant 613735 | 3 | Clamp, Hose, Wir, .40 - .42, YelSerial 10740687 and later. | $3.60/EA |
| 6 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06Serial 10740687 and later. | $4.20/EA |
| 7 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10740687 and later. | $5.10/EA |
| 8 | TN4037994Replaces Tennant 1015071 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 01ftSerial 10740687 and later. | $21.50/EA |
| 9 | TN4020776Replaces Tennant 630372 | 1 | Fitting, Plstc, Tee, Bm06/Bm08/Bm08, BrSerial 10740687 and later. | $10.20/EA |
| 10 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 18psi, Pm02Serial 10403557 and later. | $92.80/EA |
| 11 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 10403557 and later. | $5.30/EA |
| 12 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10740687 and later. | $33.10/EA |
| 13 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10403557 and later. | $10.60/EA |
| 14 | TN4040497Replaces Tennant 1216879 | 1 | Valve, Check, 0005psi Bm04/Bm04Serial 10740687 and later. | $34.10/EA |
| 15 | TN4026485Replaces Tennant 9014210 | 1 | Hose, Afmkt, Pvs, Brd .25id .44od, 05ftSerial 10740687 and later. | $57.80/EA |
| 16 | TN4037974Replaces Tennant 1014987 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 01ftSerial 10740687 and later. | $18.00/EA |
| 17 | TN4039501Replaces Tennant 1212857 | 1 | Fitting, Plstc, Str, Qm06/Bm04Serial 10740687 and later. | $4.10/EA |
| 18 | TN4039467Replaces Tennant 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10740687 and later. | $19.10/EA |
| 19 | TN4026363Replaces Tennant 9014146 | 1 | Hose, Afmkt, Pvc, 0.06id .38od, 05ftSerial 10740687 and later. | $113.90/EA |
| 20 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10740687 and later. | $18.30/EA |
| 21 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10740687 and later. | $11.60/EA |
| 22 | TN4026364Replaces Tennant 9014147 | 1 | Hose, Afmkt, Pvc, 0.06id .25od, 05ftSerial 10740687 and later. | $103.40/EA |
| 23 | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, DispenserSerial 10740687 and later. | $338.70/EA |
| 24 | TN4039499Replaces Tennant 1212855 | 1 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06Serial 10740687 and later. | $24.70/EA |
| 25 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v]Serial 10403557 and later. | $17.40/EA |
| 26 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10403557 and later. | $3.90/EA |
| 27 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06Serial 10000000 and later. | $6.20/EA |
| 28 | TN4013943Replaces Tennant 76099 | 4 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 10000000 and later. | $4.00/EA |
| 29 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 30 | TN4043382Replaces Tennant 11635 | 3 | Screw, Hex, M6 X 1.00 X 12, Nl, SsSerial 10000000 and later. | $6.60/EA |
| 31 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 and later. | $2.60/EA |
| 32 | TN4037932Replaces Tennant 1014673 | 3 | Bracket, Bar, SpraySerial 10000000 and later. | $10.45/EA |
| 33 | TN4037975Replaces Tennant 1014993 | 1 | Bracket Wldt, Bar, Spray, 700mm [7100]Serial 10000000 and later. | $143.85/EA |
| 33 | TN4037963Replaces Tennant 1014957 | 1 | Bracket Wldt, Bar, Spray, 800mm & 900mm [7100]Serial 10000000 and later. | $155.82/EA |
| 34 | TN4042713Replaces Tennant 1046020 | 1 | Angle, Head, Cylrcl, 700mmSerial 10000000 and later. | $69.80/EA |
| 34 | TN4042714Replaces Tennant 1046023 | 1 | Angle, Head, Cylrcl, 800mmSerial 10000000 and later. | $63.95/EA |
| 34 | TN4043105Replaces Tennant 1047642 | 1 | Angle, Head, Cylrcl, 900mmSerial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | TN4034190Replaces Tennant 1025580 | 2 | Fitting, Pipe, Cap, P06, NylSerial 10000000 and later. | $8.70/EA |
| 36 | TN4042723Replaces Tennant 1046049 | 1 | Tube Assy, Bar, Spray (700mm)Serial 10000000 and later. | $78.70/EA |
| 36 | TN4033892Replaces Tennant 1025276 | 1 | Tube Assy, Bar, Spray [85cm] (800mm & 900mm)Serial 10000000 and later. | $133.60/EA |
| 37 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 10000000 and later. | $4.00/EA |
Tennant 5680 ec-H2O operator console group parts
The parts Tennant numbers on its ec-h2o operator console group drawing. Manual page 118.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044622Replaces Tennant 1041757 | 1 | Plate, Cover, EleSerial 10403557 and later. | $12.55/EA |
| 2 | TN4027715Replaces Tennant 363607 | 1 | Switch, Rocker, Dpdt, On / None / OnSerial 10403557 and later. | $49.60/EA |
| 3 | TN4044628Replaces Tennant 1041822 | 1 | Light, Led, .312d, 5 Volt [Tri-Color]Serial 10403557 and later. | $104.60/EA |
| 4 | TN4040479Replaces Tennant 1050012 | 1 | Label, Switch, ec-H2O [5680]Serial 10403557 and later. | $10.80/EA |
| 5 | TN4023150Replaces Tennant 383721 | 1 | Circuitbreaker, 10.0a, ResetableSerial 10403557 and later. | $15.90/EA |
| 6 | TN4040482Replaces Tennant 1050015 | 1 | Label, Circuitbreaker, ec-H2O [5680/5700]Serial 10403557 and later. | $13.23/EA |
Tennant 5680 ec-H2O label group parts
The parts Tennant numbers on its ec-h2o label group drawing. Manual page 119.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040474Replaces Tennant 1050003 | 1 | Label, User, Attention, ec-H2OSerial 10403557 and later. | $4.34/EA |
| 2 | TN4035178Replaces Tennant 1062813 | 2 | Label, Logo, 12.3l 4color [Ec-H2o]Serial 10403557 to 10740686. | $36.60/EA |
| 2 | TN4040192Replaces Tennant 1216520 | 2 | Label, Logo [Ech2o Nano]Serial 10740687 and later. | $32.70/EA |
| 3 | TN4030701Replaces Tennant 1071570 | 1 | Label, Instr, Ec-H2o, 4.0x6.50Serial 10611329 to 10740686. | $22.80/EA |
| 3 | TN4040503Replaces Tennant 1217056 | 1 | Label, Instr [Ec-H20 Nc]Serial 10740687 and later. | $125.80/EA |
Tennant 5680 telemetry group parts
The parts Tennant numbers on its telemetry group drawing. Manual pages 120, list 121.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1216199Tennant 1216199 | 1 | Bracket, Mtg, ModuleSerial 10740687 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10740687 and later. | $2.60/EA |
| 3 | TN4036504Replaces Tennant 12333 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, NlSerial 10740687 and later. | $4.00/EA |
| 4 | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa]Serial 10740687 and later. | $1,809.92/EA |
| 4 | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Intl]Serial 10740687 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaeSerial 10740687 and later. | $2.50/EA |
| 6 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.00, NlSerial 10740687 and later. | $2.50/EA |
| 7 | TN4031064Replaces Tennant 315724 | 1 | Cs, Antenna, Telem, 18.0 In [Gprs]Serial 10740687 and later. | $54.80/EA |
| 8 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62d, NatSerial 10740687 and later. | $3.40/EA |
| 9 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 10740687 and later. | $2.60/EA |
| 10 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlSerial 10740687 and later. | $2.50/EA |
| 11 | TN4227960Replaces Tennant 1216530 | 1 | Bracket, Connector [5680]Serial 10740687 and later. | $23.03/EA |
| 12 | TN4041016Replaces Tennant 06923 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, 4.8Serial 10740687 and later. | $3.30/EA |
| 13 | TN4040508Replaces Tennant 1217304 | 1 | Shunt [Empro, 250amp/50mv, Metric]Serial 10740687 and later. | $114.70/EA |
| 14 | TN4019310Replaces Tennant 391403 | 2 | Screw, Pan, Phl, M4 X 0.70 X 8, SsSerial 10740687 and later. | $2.50/EA |
| 15 | TN4043241Replaces Tennant 02938 | 2 | Washer, Lock, Int, 08, SsSerial 10740687 and later. | $2.60/EA |
| 16 | TN4016851Replaces Tennant 41578 | 2 | Washer, Flat, 06, SsSerial 10740687 and later. | $3.30/EA |
| 17 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10740687 and later. | $3.40/EA |
| 18 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10740687 and later. | $2.60/EA |
| 19 | TN4017399Replaces Tennant 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10740687 and later. | $2.60/EA |
| 20 | TN4044189Replaces Tennant 1202868 | 2 | Clip, Tie, 0.25D, PlstcSerial 10740687 and later. | $1.52/EA |
| 21 | TN4043510Replaces Tennant 130773 | 15 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10740687 and later. | $3.90/EA |
| 22 | TN1074420Tennant 1074420 | 1 | Harness, Ele, [Telem, Iris, 5680/5700]Complete assembly. Serial 10740687 and later. | $128.10/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Fuse, 002a, 250vdc, CartridgePart of Harness, Ele, [Telem, Iris, 5680/5700] (1074420). Serial 10740687 and later. | $5.20/EA |
| 23 | TN4044896Replaces Tennant 1074487 | 1 | Cable, 04ga, 28.2l, Blk .31ring/.31ringSerial 10740687 and later. | $118.20/EA |
| 24 | TN4044907Replaces Tennant 1074595 | 1 | Harness, Ele [Telem Shunt]Serial 10740687 and later. | $13.70/EA |
| 25 | TN4040528Replaces Tennant 1217818 | 1 | Heatshrink [1.5” Dia., 7.0” Sections]Serial 10740687 and later. | $5.00/EA |
| 26 | TN4030121Replaces Tennant 1069580 | 1 | Label, Machine, Telem [Usa, Intl]Serial 10740687 and later. | $4.34/EA |
Tennant 5680 scrub head drive group, model 700C, 28 in (700 mm) cylindrical parts
The parts Tennant numbers on its scrub head drive group, model 700c, 28 in (700 mm) cylindrical drawing. Manual pages 122, list 123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043659Replaces Tennant 1038426 | 2 | Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns)Serial 10355043 and later. | $727.20/EA |
| – | TN4043670Replaces Tennant 375175 | 2 | Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns)Serial 10000000 to 10355042. | $1,008.10/EA |
| 2 | TN4037795Replaces Tennant 223564 | 2 | Bracket, Mounting, MotorSerial 10000000 and later. | $20.50/EA |
| 3 | TN4029226Replaces Tennant 375195 | 2 | Sprocket, DriveSerial 10000000 and later. | $68.20/EA |
| 4 | TN4041929Replaces Tennant 08713 | 4 | Nut-Hxlocnyln M 8X1.25 Reg SsSerial 10000000 and later. | $3.30/EA |
| 5 | TN4025733Replaces Tennant 377505 | 2 | Belt, Replmt, Brush Drive, F/222201Serial 10000000 and later. | $103.00/EA |
| – | TN4037035Replaces Tennant 222751 | 2 | Plug Drive AssyComplete assembly. Serial 10000000 and later. | $215.40/EA |
| 6 | TN4039863Replaces Tennant 222176 | 1 | Shaft, Drive PlugPart of Plug Drive Assy (222751). Serial 10000000 and later. | $98.00/EA |
| 7 | TN4044447Replaces Tennant 1040931 | 1 | Plug, Drive, BrushPart of Plug Drive Assy (222751). Serial 10000000 and later. | $100.70/EA |
| 8 | TN4016813Replaces Tennant 41360 | 2 | Bearing, Ball, 0.59b 1.26d 0.35wPart of Plug Drive Assy (222751). Serial 10000000 and later. | $19.00/EA |
| 9 | TN4042879Replaces Tennant 01516 | 1 | Ring,Retain,Ex,0.59Od,BasicPart of Plug Drive Assy (222751). Serial 10000000 and later. | $2.50/EA |
| – | TN4028847Replaces Tennant 374082 | 2 | Door Assy, BrushComplete assembly. Serial 10000000 and later. | $248.20/EA |
| 10 | TN4042114Replaces Tennant 1044145 | 1 | Door, BrushPart of Door Assy, Brush (374082). Serial 10000000 and later. | $55.20/EA |
| – | TN4037036Replaces Tennant 222752 | 1 | Plug Idler AssyComplete assembly. Part of Door Assy, Brush (374082). Serial 10000000 and later. | $107.70/EA |
| 11 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Idler PlugPart of Plug Idler Assy (222752). Serial 10000000 and later. | $73.40/EA |
| 12 | TN4039875Replaces Tennant 222184 | 1 | Pin, RollPart of Plug Idler Assy (222752). Serial 10000000 and later. | $2.50/EA |
| 13 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg]Part of Plug Idler Assy (222752). Serial 10000000 and later. | $28.80/EA |
| 14 | TN4042879Replaces Tennant 01516 | 1 | Ring,Retain,Ex,0.59Od,BasicPart of Plug Idler Assy (222752). Serial 10000000 and later. | $2.50/EA |
| 15 | TN4039871Replaces Tennant 222180 | 1 | Skirt, Scrub HeadPart of Door Assy, Brush (374082). Serial 10000000 and later. | $16.20/EA |
| 16 | TN4041929Replaces Tennant 08713 | 2 | Nut-Hxlocnylon M 8X1.25 Reg SsPart of Door Assy, Brush (374082). Serial 10000000 and later. | $3.30/EA |
| 17 | TN4039873Replaces Tennant 222182 | 1 | Bar, SupportPart of Door Assy, Brush (374082). Serial 10000000 and later. | $9.90/EA |
| 18 | TN4012756Replaces Tennant 74077 | 2 | Scr-Flt M8 X 1.25 25 SsPart of Door Assy, Brush (374082). Serial 10000000 and later. | $4.00/EA |
| 19 | TN4018896Replaces Tennant 390996 | 1 | Scr-Flt M10 X 1.5 20, Ss NlPart of Door Assy, Brush (374082). Serial 10000000 and later. | $4.00/EA |
| 20 | TN4041611Replaces Tennant 07810 | 4 | Scr Flt M8 x 1.25 25Serial 10000000 and later. | $4.80/EA |
| 21 | TN4013410Replaces Tennant 44961 | 2 | Tie, Cable 4.00D Max 14.50 LgSerial 10000000 and later. | $3.40/EA |
| 22 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 and later. | $3.30/EA |
| 23 | TN4012756Replaces Tennant 74077 | 2 | Screw, Flat,M 8X1.25 SsSerial 10000000 and later. | $4.00/EA |
| 24 | TN4041992Replaces Tennant 09740 | 2 | Scr Hexssm 8X1.25Serial 10000000 and later. | $3.30/EA |
| 25 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 26 | TN4039902Replaces Tennant 222209 | 2 | Spring, DoorSerial 10000000 and later. | $26.70/EA |
| 27 | TN4037061Replaces Tennant 222818 | 4 | Scr-Set 8-32 X .25 Nylon LocSerial 10000000 and later. | $6.60/EA |
| 28 | TN4037797Replaces Tennant 223568 | 2 | Skirt, DeflectorSerial 10000000 and later. | $41.90/EA |
| 29 | TN4037796Replaces Tennant 223566 | 2 | Bracket, ShieldSerial 10000000 and later. | $19.50/EA |
| 30 | TN4037798Replaces Tennant 223569 | 2 | Gasket, ShieldSerial 10000000 and later. | $4.30/EA |
| 31 | TN4037794Replaces Tennant 223563 | 2 | Shield, BeltSerial 10000000 and later. | $13.00/EA |
| 32 | TN4041243Replaces Tennant 15675 | 4 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 and later. | $3.40/EA |
| 33 | TN4037792Replaces Tennant 223560 | 1 | Guard, Belt, RhSerial 10000000 and later. | $59.10/EA |
| 34 | TN4037793Replaces Tennant 223561 | 1 | Guard, Belt, LhSerial 10000000 and later. | $59.10/EA |
| 35 | TN4013943Replaces Tennant 76099 | 4 | Scr-Hxfmg M8 X 1.25 25Serial 10000000 and later. | $4.00/EA |
| 36 | TN4039871Replaces Tennant 222180 | 2 | Skirt, Scrub HeadSerial 10000000 and later. | $16.20/EA |
| 37 | TN4039873Replaces Tennant 222182 | 2 | Bar, SupportSerial 10000000 and later. | $9.90/EA |
| 38 | TN4037063Replaces Tennant 222820 | 2 | Seal, RingSerial 10000000 and later. | $56.80/EA |
| 39 | TN4040362Replaces Tennant 1010506 | 1 | Tool, Removal, Shaft, F/ 222176Serial 10000000 and later. | $309.60/EA |
| 40 | TN4033865Replaces Tennant 1025065 | 1 | Harness, Motor, BrushSerial 10000000 and later. | $31.50/EA |
Tennant 5680 scrub head frame group, model 700C, 28 in (700 mm) cylindrical parts
The parts Tennant numbers on its scrub head frame group, model 700c, 28 in (700 mm) cylindrical drawing. Manual pages 124, list 125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032913Replaces Tennant 1022254 | 1 | Housing, Cyl, Mach, 700mmSerial 10000000 and later. | $1,839.20/EA |
| 2 | TN4036973Replaces Tennant 1012088 | 1 | Bracket, Mtg, SpringSerial 10000000 and later. | $34.30/EA |
| 3 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsSerial 10000000 and later. | $4.00/EA |
| 4 | TN4021142Replaces Tennant 63185 | 2 | Spring,Comp,.84Odx.10Wire 2.0LSerial 10000000 and later. | $5.20/EA |
| 5 | TN4013421Replaces Tennant 45261 | 2 | Sprng,Comp,0.74Idx.11Wire 2.5LSerial 10000000 and later. | $5.20/EA |
| 6 | TN4039084Replaces Tennant 20178 | 2 | Screw, Hex, .38-16 X 5.50, 5Serial 10000000 and later. | $8.30/EA |
| 7 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotSerial 10000000 and later. | $60.30/EA |
| 8 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31Dia X4.5LgSerial 10000000 and later. | $4.00/EA |
| 9 | TN4041921Replaces Tennant 08346 | 3 | Pin, Cotter .125X0.75Serial 10000000 and later. | $2.50/EA |
| 10 | TN4040273Replaces Tennant 222363 | 2 | Spring, TensionSerial 10000000 and later. | $13.70/EA |
| 11 | TN4039867Replaces Tennant 222178 | 2 | Roller, BumperSerial 10000000 and later. | $15.20/EA |
| 12 | TN4039869Replaces Tennant 222179 | 2 | Bracket, Mounting, RollerSerial 10000000 and later. | $19.20/EA |
| 13 | TN4039888Replaces Tennant 222196 | 2 | Pin, RollerSerial 10000000 and later. | $6.00/EA |
| 14 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Serial 10000000 and later. | $3.40/EA |
| – | TN4037065Replaces Tennant 222824 | 1 | Debris Tray Kit, 28 inComplete assembly. Serial 10000000 and later. | $397.40/EA |
| 15 | TN4014435Replaces Tennant 9005726 | 1 | Tray, Debris, 28.0l, Afmkt, [5680/5700]Part of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $272.70/EA |
| 16 | TN4039894Replaces Tennant 222203 | 1 | Lip, Debris Tray, 28”Part of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $51.10/EA |
| 17 | TN4040648Replaces Tennant 222669 | 1 | Skirt, Debris TrayPart of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $36.40/EA |
| 18 | TN4040649Replaces Tennant 222670 | 1 | Strip, Debris TrayPart of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $45.30/EA |
| 19 | TN4041942Replaces Tennant 09007 | 4 | Scr-Hexssm6X1.0 25Part of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $3.30/EA |
| 20 | TN4042901Replaces Tennant 01684 | 8 | Washer Flt .25 SsPart of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $2.60/EA |
| 21 | TN4012782Replaces Tennant 74455 | 2 | Scr-Hxfmg M6 X 1.0 20Part of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $3.40/EA |
| 22 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.0, NlPart of Debris Tray Kit, 28 in (222824). Serial 10000000 and later. | $2.50/EA |
| 23 | TN4043243Replaces Tennant 02942 | 2 | Pin, Cotter, Hair, 0.62d .120 WirSerial 10000000 and later. | $3.40/EA |
| 24 | TN4040974Replaces Tennant 05720 | 1 | Scr-Hexssm10X1.5 40 Full ThdSerial 10000000 and later. | $6.00/EA |
| 25 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 26 | TN4034466Replaces Tennant 32662 | 3 | Washer, Flat, 0.38b 1.22d .06, SsSerial 10000000 and later. | $4.00/EA |
| 27 | TN4028601Replaces Tennant 374006 | 1 | ChannelSerial 10000000 and later. | $27.40/EA |
| 28 | TN4014474Replaces Tennant 9005801 | 1 | Cover, Front, Teal, Afmkt [5680/5700 Cyl]Serial 10000000 and later. | $455.30/EA |
| 29 | TN4040617Replaces Tennant 222536 | 1 | Fitting-Plastic Tee 06Bm/06Bm/Serial 10000000 and later. | $6.40/EA |
| 30 | TN4040612Replaces Tennant 222523 | 1 | Bracket, Hose GuideSerial 10000000 and later. | $23.70/EA |
| 31 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, SsSerial 10000000 and later. | $3.30/EA |
| 32 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25, Nl, SsSerial 10000000 and later. | $3.30/EA |
| 33 | TN4028867Replaces Tennant 374162 | 1 | Roller, RwkSerial 10000000 and later. | $32.20/EA |
| 34 | TN4014580Replaces Tennant 51564 | 2 | Washer, 0.53b 1.75d .12, Stl, PlSerial 10000000 and later. | $3.50/EA |
| 35 | TN4016192Replaces Tennant 397255 | 2 | Spring, Cmpr, 0.85od .08wir 2.0lSerial 10000000 and later. | $5.20/EA |
| 36 | TN4031359Replaces Tennant 1029426 | 2 | ube, Rnd, 0.50d 0.40b 04.3l, SsSerial 10000000 and later. | $24.00/EA |
| 37 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis 0.50 Dia X 4.75LgSerial 10000000 and later. | $5.10/EA |
| 38 | TN4013943Replaces Tennant 76099 | 2 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 10000000 and later. | $4.00/EA |
| 39 | TN4014571Replaces Tennant 51534 | 1 | Pin, Clevis, 0.50 D X 2.00lSerial 10000000 and later. | $4.90/EA |
| 40 | TN4043808Replaces Tennant 140148 | 2 | Sleeve, P/M, 0.50b 0.63d 1.4l, Stl PlSerial 10000000 and later. | $4.10/EA |
| 41 | TN4034135Replaces Tennant 32486 | 2 | Washer, Flat, 0.50 SaeSerial 10000000 and later. | $2.60/EA |
Tennant 5680 scrub head drive group, model 800C, 32 in (800 mm) cylindrical parts
The parts Tennant numbers on its scrub head drive group, model 800c, 32 in (800 mm) cylindrical drawing. Manual pages 126, list 127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043659Replaces Tennant 1038426 | 2 | Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns)Serial 10355043 and later. | $727.20/EA |
| – | TN4043670Replaces Tennant 375175 | 2 | Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns)Serial 10000000 to 10355042. | $1,008.10/EA |
| 2 | TN4037795Replaces Tennant 223564 | 2 | Bracket, Mounting, MotorSerial 10000000 and later. | $20.50/EA |
| 3 | TN4029226Replaces Tennant 375195 | 2 | Sprocket, DriveSerial 10000000 and later. | $68.20/EA |
| 4 | TN4041929Replaces Tennant 08713 | 4 | Nut-Hxlocnyln M 8X1.25 Reg SsSerial 10000000 and later. | $3.30/EA |
| 5 | TN4025733Replaces Tennant 377505 | 2 | Belt, Replmt, Brush Drive, F/222201Serial 10000000 and later. | $103.00/EA |
| – | TN4037035Replaces Tennant 222751 | 2 | Plug Drive AssyComplete assembly. Serial 10000000 and later. | $215.40/EA |
| 6 | TN4039863Replaces Tennant 222176 | 1 | Shaft, Drive PlugPart of Plug Drive Assy (222751). Serial 10000000 and later. | $98.00/EA |
| 7 | TN4044447Replaces Tennant 1040931 | 1 | Plug, Drive, BrushPart of Plug Drive Assy (222751). Serial 10000000 and later. | $100.70/EA |
| 8 | TN4016813Replaces Tennant 41360 | 2 | Bearing-Ball,0.59B 1.26D 0.35WPart of Plug Drive Assy (222751). Serial 10000000 and later. | $19.00/EA |
| 9 | TN4042879Replaces Tennant 01516 | 1 | Ring,Retain,Ex,0.59Od,BasicPart of Plug Drive Assy (222751). Serial 10000000 and later. | $2.50/EA |
| – | TN4028847Replaces Tennant 374082 | 2 | Door Assy, BrushComplete assembly. Serial 10000000 and later. | $248.20/EA |
| 10 | TN4042114Replaces Tennant 1044145 | 1 | Door, BrushPart of Door Assy, Brush (374082). Serial 10000000 and later. | $55.20/EA |
| – | TN4037036Replaces Tennant 222752 | 1 | Plug Idler AssyComplete assembly. Part of Door Assy, Brush (374082). Serial 10000000 and later. | $107.70/EA |
| 11 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Idler PlugPart of Plug Idler Assy (222752). Serial 10000000 and later. | $73.40/EA |
| 12 | TN4039875Replaces Tennant 222184 | 1 | Pin, RollPart of Plug Idler Assy (222752). Serial 10000000 and later. | $2.50/EA |
| 13 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg]Part of Plug Idler Assy (222752). Serial 10000000 and later. | $28.80/EA |
| 14 | TN4042879Replaces Tennant 01516 | 1 | Ring,Retain,Ex,0.59Od,BasicPart of Plug Idler Assy (222752). Serial 10000000 and later. | $2.50/EA |
| 15 | TN4039871Replaces Tennant 222180 | 1 | Skirt, Scrub HeadPart of Door Assy, Brush (374082). Serial 10000000 and later. | $16.20/EA |
| 16 | TN4041929Replaces Tennant 08713 | 2 | Nut-Hxlocnylon M 8X1.25 Reg SsPart of Door Assy, Brush (374082). Serial 10000000 and later. | $3.30/EA |
| 17 | TN4039873Replaces Tennant 222182 | 1 | Bar, SupportPart of Door Assy, Brush (374082). Serial 10000000 and later. | $9.90/EA |
| 18 | TN4012756Replaces Tennant 74077 | 2 | Scr-Flt M8 X 1.25 25 SsPart of Door Assy, Brush (374082). Serial 10000000 and later. | $4.00/EA |
| 19 | TN4018896Replaces Tennant 390996 | 1 | Scr-Flt M10 X 1.5 20, Ss NlPart of Door Assy, Brush (374082). Serial 10000000 and later. | $4.00/EA |
| 20 | TN4041611Replaces Tennant 07810 | 4 | Scr Flt M8 x 1.25 25Serial 10000000 and later. | $4.80/EA |
| 21 | TN4013410Replaces Tennant 44961 | 2 | Tie, Cable 4.00D Max 14.50 LgSerial 10000000 and later. | $3.40/EA |
| 22 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 and later. | $3.30/EA |
| 23 | TN4012756Replaces Tennant 74077 | 2 | Screw, Flat,M 8X1.25 SsSerial 10000000 and later. | $4.00/EA |
| 24 | TN4041992Replaces Tennant 09740 | 2 | Scr Hexssm 8X1.25Serial 10000000 and later. | $3.30/EA |
| 25 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 26 | TN4039902Replaces Tennant 222209 | 2 | Spring, DoorSerial 10000000 and later. | $26.70/EA |
| 27 | TN4037061Replaces Tennant 222818 | 4 | Scr-Set 8-32 X .25 Nylon LocSerial 10000000 and later. | $6.60/EA |
| 28 | TN4037797Replaces Tennant 223568 | 2 | Skirt, DeflectorSerial 10000000 and later. | $41.90/EA |
| 29 | TN4037796Replaces Tennant 223566 | 2 | Bracket, ShieldSerial 10000000 and later. | $19.50/EA |
| 30 | TN4037798Replaces Tennant 223569 | 2 | Gasket, ShieldSerial 10000000 and later. | $4.30/EA |
| 31 | TN4037794Replaces Tennant 223563 | 2 | Shield, BeltSerial 10000000 and later. | $13.00/EA |
| 32 | TN4041243Replaces Tennant 15675 | 4 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 and later. | $3.40/EA |
| 33 | TN4037792Replaces Tennant 223560 | 1 | Guard, Belt, RhSerial 10000000 and later. | $59.10/EA |
| 34 | TN4037793Replaces Tennant 223561 | 1 | Guard, Belt, LhSerial 10000000 and later. | $59.10/EA |
| 35 | TN4013943Replaces Tennant 76099 | 4 | Scr-Hxfmg M8 X 1.25 25Serial 10000000 and later. | $4.00/EA |
| 36 | TN4039871Replaces Tennant 222180 | 2 | Skirt, Scrub HeadSerial 10000000 and later. | $16.20/EA |
| 37 | TN4039873Replaces Tennant 222182 | 2 | Bar, SupportSerial 10000000 and later. | $9.90/EA |
| 38 | TN4037063Replaces Tennant 222820 | 2 | Seal, RingSerial 10000000 and later. | $56.80/EA |
| 39 | TN4040362Replaces Tennant 1010506 | 1 | Tool, Removal, Shaft, F/ 222176Serial 10000000 and later. | $309.60/EA |
| 40 | TN4033865Replaces Tennant 1025065 | 1 | Harness, Motor, BrushSerial 10000000 and later. | $31.50/EA |
Tennant 5680 scrub head frame group, model 800C, 32 in (800 mm) cylindrical parts
The parts Tennant numbers on its scrub head frame group, model 800c, 32 in (800 mm) cylindrical drawing. Manual pages 128, list 129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032912Replaces Tennant 1022253 | 1 | Housing, Cyl, Mach, 800mmSerial 10000000 and later. | $1,752.30/EA |
| 2 | TN4036973Replaces Tennant 1012088 | 1 | Bracket, Mtg, SpringSerial 10000000 and later. | $34.30/EA |
| 3 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsSerial 10000000 and later. | $4.00/EA |
| 4 | TN4021142Replaces Tennant 63185 | 2 | Spring,Comp,.84Odx.10Wire 2.0LSerial 10000000 and later. | $5.20/EA |
| 5 | TN4013421Replaces Tennant 45261 | 2 | Sprng,Comp,0.74Idx.11Wire 2.5LSerial 10000000 and later. | $5.20/EA |
| 6 | TN4039084Replaces Tennant 20178 | 2 | Screw, Hex, .38-16 X 5.50, 5Serial 10000000 and later. | $8.30/EA |
| 7 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotSerial 10000000 and later. | $60.30/EA |
| 8 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31Dia X4.5LgSerial 10000000 and later. | $4.00/EA |
| 9 | TN4041921Replaces Tennant 08346 | 3 | Pin, Cotter .125X0.75Serial 10000000 and later. | $2.50/EA |
| 10 | TN4040273Replaces Tennant 222363 | 2 | Spring, TensionSerial 10000000 and later. | $13.70/EA |
| 11 | TN4039867Replaces Tennant 222178 | 2 | Roller, BumperSerial 10000000 and later. | $15.20/EA |
| 12 | TN4039869Replaces Tennant 222179 | 2 | Bracket, Mounting, RollerSerial 10000000 and later. | $19.20/EA |
| 13 | TN4039888Replaces Tennant 222196 | 2 | Pin, RollerSerial 10000000 and later. | $6.00/EA |
| 14 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Serial 10000000 and later. | $3.40/EA |
| – | TN4037066Replaces Tennant 222825 | 1 | Debris Tray Kit, 32 inComplete assembly. Serial 10000000 and later. | $387.30/EA |
| 15 | TN4014437Replaces Tennant 9005727 | 1 | Tray, Debris, 32.0l, Afmkt, [5680/5700]Part of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $276.20/EA |
| 16 | TN4039896Replaces Tennant 222204 | 1 | Lip, Debris Tray, 32”Part of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $39.00/EA |
| 17 | TN4040648Replaces Tennant 222669 | 1 | Skirt, Debris TrayPart of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $36.40/EA |
| 18 | TN4040649Replaces Tennant 222670 | 1 | Strip, Debris TrayPart of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $45.30/EA |
| 19 | TN4041942Replaces Tennant 09007 | 4 | Scr-Hexssm6X1.0 25Part of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $3.30/EA |
| 20 | TN4042901Replaces Tennant 01684 | 8 | Washer Flt .25 SsPart of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $2.60/EA |
| 21 | TN4012782Replaces Tennant 74455 | 2 | Scr-Hxfmg M6 X 1.0 20Part of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $3.40/EA |
| 22 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.0, NlPart of Debris Tray Kit, 32 in (222825). Serial 10000000 and later. | $2.50/EA |
| 23 | TN4043243Replaces Tennant 02942 | 2 | Pin, Cotter, Hair, 0.62d .120 WiSerial 10000000 and later. | $3.40/EA |
| 24 | TN4040974Replaces Tennant 05720 | 1 | Scr-Hexssm10X1.5 40 Full ThdSerial 10000000 and later. | $6.00/EA |
| 25 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 26 | TN4034466Replaces Tennant 32662 | 3 | Washer, Flat, 0.38b 1.22d .06, SsSerial 10000000 and later. | $4.00/EA |
| 27 | TN4028601Replaces Tennant 374006 | 1 | ChannelSerial 10000000 and later. | $27.40/EA |
| 28 | TN4014474Replaces Tennant 9005801 | 1 | Cover, Front, Teal, Afmkt [5680/5700 Cyl]Serial 10000000 and later. | $455.30/EA |
| 29 | TN4040617Replaces Tennant 222536 | 1 | Fitting-Plastic Tee 06Bm/06Bm/Serial 10000000 and later. | $6.40/EA |
| 30 | TN4040612Replaces Tennant 222523 | 1 | Bracket, Hose GuideSerial 10000000 and later. | $23.70/EA |
| 31 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, SsSerial 10000000 and later. | $3.30/EA |
| 32 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25, Nl, SsSerial 10000000 and later. | $3.30/EA |
| 33 | TN4028867Replaces Tennant 374162 | 1 | Roller, RwkSerial 10000000 and later. | $32.20/EA |
| 34 | TN4014580Replaces Tennant 51564 | 2 | Washer, 0.53b 1.75d .12, Stl, PlSerial 10000000 and later. | $3.50/EA |
| 35 | TN4016192Replaces Tennant 397255 | 2 | Spring, Cmpr, 0.85od .08wir 2.0lSerial 10000000 and later. | $5.20/EA |
| 36 | TN4031359Replaces Tennant 1029426 | 2 | Tube, Rnd, 0.50d 0.40b 04.3l, SsSerial 10000000 and later. | $24.00/EA |
| 37 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis 0.50 Dia X 4.75LgSerial 10000000 and later. | $5.10/EA |
| 38 | TN4013943Replaces Tennant 76099 | 2 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 10000000 and later. | $4.00/EA |
| 39 | TN4014571Replaces Tennant 51534 | 1 | Pin, Clevis, 0.50 D X 2.00lSerial 10000000 and later. | $4.90/EA |
| 40 | TN4043808Replaces Tennant 140148 | 2 | Sleeve, P/M, 0.50b 0.63d 1.4l, Stl PlSerial 10000000 and later. | $4.10/EA |
| 41 | TN4034135Replaces Tennant 32486 | 2 | Washer, Flat, 0.50 SaeSerial 10000000 and later. | $2.60/EA |
Tennant 5680 scrub head drive group, model 900C, 36 in (900 mm) cylindrical parts
The parts Tennant numbers on its scrub head drive group, model 900c, 36 in (900 mm) cylindrical drawing. Manual pages 130, list 131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043659Replaces Tennant 1038426 | 2 | Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns)Serial 10355043 and later. | $727.20/EA |
| – | TN4043670Replaces Tennant 375175 | 2 | Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns)Serial 10000000 to 10355042. | $1,008.10/EA |
| 2 | TN4037795Replaces Tennant 223564 | 2 | Bracket, Mounting, MotorSerial 10000000 and later. | $20.50/EA |
| 3 | TN4029226Replaces Tennant 375195 | 2 | Sprocket, DriveSerial 10000000 and later. | $68.20/EA |
| 4 | TN4041929Replaces Tennant 08713 | 4 | Nut-Hxlocnyln M 8X1.25 Reg SsSerial 10000000 and later. | $3.30/EA |
| 5 | TN4025733Replaces Tennant 377505 | 2 | Belt, Replmt, Brush Drive, F/222201Serial 10000000 and later. | $103.00/EA |
| – | TN4037035Replaces Tennant 222751 | 2 | Plug Drive AssyComplete assembly. Serial 10000000 and later. | $215.40/EA |
| 6 | TN4039863Replaces Tennant 222176 | 1 | Shaft, Drive PlugPart of Plug Drive Assy (222751). Serial 10000000 and later. | $98.00/EA |
| 7 | TN4044447Replaces Tennant 1040931 | 1 | Plug, Drive, BrushPart of Plug Drive Assy (222751). Serial 10000000 and later. | $100.70/EA |
| 8 | TN4016813Replaces Tennant 41360 | 2 | Bearing-Ball,0.59B 1.26D 0.35WPart of Plug Drive Assy (222751). Serial 10000000 and later. | $19.00/EA |
| 9 | TN4042879Replaces Tennant 01516 | 1 | Ring,Retain,Ex,0.59Od,BasicPart of Plug Drive Assy (222751). Serial 10000000 and later. | $2.50/EA |
| – | TN4028847Replaces Tennant 374082 | 2 | Door Assy, BrushComplete assembly. Serial 10000000 and later. | $248.20/EA |
| 10 | TN4042114Replaces Tennant 1044145 | 1 | Door, BrushPart of Door Assy, Brush (374082). Serial 10000000 and later. | $55.20/EA |
| – | TN4037036Replaces Tennant 222752 | 1 | Plug Idler AssyComplete assembly. Part of Door Assy, Brush (374082). Serial 10000000 and later. | $107.70/EA |
| 11 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Idler PlugPart of Plug Idler Assy (222752). Serial 10000000 and later. | $73.40/EA |
| 12 | TN4039875Replaces Tennant 222184 | 1 | Pin, RollPart of Plug Idler Assy (222752). Serial 10000000 and later. | $2.50/EA |
| 13 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg]Part of Plug Idler Assy (222752). Serial 10000000 and later. | $28.80/EA |
| 14 | TN4042879Replaces Tennant 01516 | 1 | Ring,Retain,Ex,0.59Od,BasicPart of Plug Idler Assy (222752). Serial 10000000 and later. | $2.50/EA |
| 15 | TN4039871Replaces Tennant 222180 | 1 | Skirt, Scrub HeadPart of Door Assy, Brush (374082). Serial 10000000 and later. | $16.20/EA |
| 16 | TN4041929Replaces Tennant 08713 | 2 | Nut-Hxlocnylon M 8X1.25 Reg SsPart of Door Assy, Brush (374082). Serial 10000000 and later. | $3.30/EA |
| 17 | TN4039873Replaces Tennant 222182 | 1 | Bar, SupportPart of Door Assy, Brush (374082). Serial 10000000 and later. | $9.90/EA |
| 18 | TN4012756Replaces Tennant 74077 | 2 | Scr-Flt M8 X 1.25 25 SsPart of Door Assy, Brush (374082). Serial 10000000 and later. | $4.00/EA |
| 19 | TN4018896Replaces Tennant 390996 | 1 | Scr-Flt M10 X 1.5 20, Ss NlPart of Door Assy, Brush (374082). Serial 10000000 and later. | $4.00/EA |
| 20 | TN4041611Replaces Tennant 07810 | 4 | Scr Flt M8 x 1.25 25Serial 10000000 and later. | $4.80/EA |
| 21 | TN4013410Replaces Tennant 44961 | 2 | Tie, Cable 4.00D Max 14.50 LgSerial 10000000 and later. | $3.40/EA |
| 22 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 and later. | $3.30/EA |
| 23 | TN4012756Replaces Tennant 74077 | 2 | Screw, Flat,M 8X1.25 SsSerial 10000000 and later. | $4.00/EA |
| 24 | TN4041992Replaces Tennant 09740 | 2 | Scr Hexssm 8X1.25Serial 10000000 and later. | $3.30/EA |
| 25 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 26 | TN4039902Replaces Tennant 222209 | 2 | Spring, DoorSerial 10000000 and later. | $26.70/EA |
| 27 | TN4037061Replaces Tennant 222818 | 4 | Scr-Set 8-32 X .25 Nylon LocSerial 10000000 and later. | $6.60/EA |
| 28 | TN4037797Replaces Tennant 223568 | 2 | Skirt, DeflectorSerial 10000000 and later. | $41.90/EA |
| 29 | TN4037796Replaces Tennant 223566 | 2 | Bracket, ShieldSerial 10000000 and later. | $19.50/EA |
| 30 | TN4037798Replaces Tennant 223569 | 2 | Gasket, ShieldSerial 10000000 and later. | $4.30/EA |
| 31 | TN4037794Replaces Tennant 223563 | 2 | Shield, BeltSerial 10000000 and later. | $13.00/EA |
| 32 | TN4041243Replaces Tennant 15675 | 4 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 and later. | $3.40/EA |
| 33 | TN4037792Replaces Tennant 223560 | 1 | Guard, Belt, RhSerial 10000000 and later. | $59.10/EA |
| 34 | TN4037793Replaces Tennant 223561 | 1 | Guard, Belt, LhSerial 10000000 and later. | $59.10/EA |
| 35 | TN4013943Replaces Tennant 76099 | 4 | Scr-Hxfmg M8 X 1.25 25Serial 10000000 and later. | $4.00/EA |
| 36 | TN4039871Replaces Tennant 222180 | 2 | Skirt, Scrub HeadSerial 10000000 and later. | $16.20/EA |
| 37 | TN4039873Replaces Tennant 222182 | 2 | Bar, SupportSerial 10000000 and later. | $9.90/EA |
| 38 | TN4037063Replaces Tennant 222820 | 2 | Seal, RingSerial 10000000 and later. | $56.80/EA |
| 39 | TN4040362Replaces Tennant 1010506 | 1 | Tool, Removal, Shaft, F/ 222176Serial 10000000 and later. | $309.60/EA |
| 40 | TN4033865Replaces Tennant 1025065 | 1 | Harness, Motor, BrushSerial 10000000 and later. | $31.50/EA |
Tennant 5680 scrub head frame group, model 900C, 36 in (900 mm) cylindrical parts
The parts Tennant numbers on its scrub head frame group, model 900c, 36 in (900 mm) cylindrical drawing. Manual pages 132, list 133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032911Replaces Tennant 1022252 | 1 | Housing, Cyl, Mach, 900mmSerial 10000000 and later. | $2,656.60/EA |
| 2 | TN4036973Replaces Tennant 1012088 | 1 | Bracket, Mtg, SpringSerial 10000000 and later. | $34.30/EA |
| 3 | TN4026793Replaces Tennant 59156 | 2 | Nut, Hex, Lock, .38-16, Nl, SsSerial 10000000 and later. | $4.00/EA |
| 4 | TN4021142Replaces Tennant 63185 | 2 | Spring,Comp,.84Odx.10Wire 2.0LSerial 10000000 and later. | $5.20/EA |
| 5 | TN4013421Replaces Tennant 45261 | 2 | Sprng,Comp,0.74Idx.11Wire 2.5LSerial 10000000 and later. | $5.20/EA |
| 6 | TN4039084Replaces Tennant 20178 | 2 | Screw, Hex, .38-16 X 5.50, 5Serial 10000000 and later. | $8.30/EA |
| 7 | TN4037074Replaces Tennant 222838 | 1 | Bracket, PivotSerial 10000000 and later. | $60.30/EA |
| 8 | TN4039900Replaces Tennant 222207 | 1 | Pin, Clevis, 0.31Dia X4.5LgSerial 10000000 and later. | $4.00/EA |
| 9 | TN4041921Replaces Tennant 08346 | 3 | Pin, Cotter .125X0.75Serial 10000000 and later. | $2.50/EA |
| 10 | TN4040273Replaces Tennant 222363 | 2 | Spring, TensionSerial 10000000 and later. | $13.70/EA |
| 11 | TN4039867Replaces Tennant 222178 | 2 | Roller, BumperSerial 10000000 and later. | $15.20/EA |
| 12 | TN4039869Replaces Tennant 222179 | 2 | Bracket, Mounting, RollerSerial 10000000 and later. | $19.20/EA |
| 13 | TN4039888Replaces Tennant 222196 | 2 | Pin, RollerSerial 10000000 and later. | $6.00/EA |
| 14 | TN4019809Replaces Tennant 39312 | 1 | Nut, Hex, Std, M10 X 1.5Serial 10000000 and later. | $3.40/EA |
| – | TN4037067Replaces Tennant 222826 | 1 | Debris Tray Kit, 36 inComplete assembly. Serial 10000000 and later. | $437.20/EA |
| 15 | TN4014439Replaces Tennant 9005728 | 1 | Tray, Debris, 36.0l, Afmkt, [5680/5700]Part of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $294.30/EA |
| 16 | TN4039898Replaces Tennant 222205 | 1 | Lip, Debris Tray, 36”Part of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $45.30/EA |
| 17 | TN4040648Replaces Tennant 222669 | 1 | Skirt, Debris TrayPart of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $36.40/EA |
| 18 | TN4040649Replaces Tennant 222670 | 1 | Strip, Debris TrayPart of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $45.30/EA |
| 19 | TN4041942Replaces Tennant 09007 | 4 | Scr-Hexssm6X1.0 25Part of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $3.30/EA |
| 20 | TN4042901Replaces Tennant 01684 | 8 | Washer Flt .25 SsPart of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $2.60/EA |
| 21 | TN4012782Replaces Tennant 74455 | 2 | Scr-Hxfmg M6 X 1.0 20Part of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $3.40/EA |
| 22 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.0, NlPart of Debris Tray Kit, 36 in (222826). Serial 10000000 and later. | $2.50/EA |
| 23 | TN4043243Replaces Tennant 02942 | 2 | Pin, Cotter, Hair, 0.62d .120 WiSerial 10000000 and later. | $3.40/EA |
| 24 | TN4040974Replaces Tennant 05720 | 1 | Scr-Hexssm10X1.5 40 Full ThdSerial 10000000 and later. | $6.00/EA |
| 25 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 and later. | $2.60/EA |
| 26 | TN4034466Replaces Tennant 32662 | 3 | Washer, Flat, 0.38b 1.22d .06, SsSerial 10000000 and later. | $4.00/EA |
| 27 | TN4028601Replaces Tennant 374006 | 1 | ChannelSerial 10000000 and later. | $27.40/EA |
| 28 | TN4014474Replaces Tennant 9005801 | 1 | Cover, Front, Teal, Afmkt [5680/5700 Cyl]Serial 10000000 and later. | $455.30/EA |
| 29 | TN4040617Replaces Tennant 222536 | 1 | Fitting-Plastic Tee 06Bm/06Bm/Serial 10000000 and later. | $6.40/EA |
| 30 | TN4040612Replaces Tennant 222523 | 1 | Bracket, Hose GuideSerial 10000000 and later. | $23.70/EA |
| 31 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, SsSerial 10000000 and later. | $3.30/EA |
| 32 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25, Nl, SsSerial 10000000 and later. | $3.30/EA |
| 33 | TN4028867Replaces Tennant 374162 | 1 | Roller, RwkSerial 10000000 and later. | $32.20/EA |
| 34 | TN4014580Replaces Tennant 51564 | 2 | Washer, 0.53b 1.75d .12, Stl, PlSerial 10000000 and later. | $3.50/EA |
| 35 | TN4016192Replaces Tennant 397255 | 2 | Spring, Cmpr, 0.85od .08wir 2.0lSerial 10000000 and later. | $5.20/EA |
| 36 | TN4031359Replaces Tennant 1029426 | 2 | Tube, Rnd, 0.50d 0.40b 04.3l, SsSerial 10000000 and later. | $24.00/EA |
| 37 | TN4039890Replaces Tennant 222197 | 1 | Pin, Clevis 0.50 Dia X 4.75LgSerial 10000000 and later. | $5.10/EA |
| 38 | TN4013943Replaces Tennant 76099 | 2 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 10000000 and later. | $4.00/EA |
| 39 | TN4014571Replaces Tennant 51534 | 1 | Pin, Clevis, 0.50 D X 2.00lSerial 10000000 and later. | $4.90/EA |
| 40 | TN4043808Replaces Tennant 140148 | 2 | Sleeve, P/M, 0.50b 0.63d 1.4l, Stl PlSerial 10000000 and later. | $4.10/EA |
| 41 | TN4034135Replaces Tennant 32486 | 2 | Washer, Flat, 0.50 SaeSerial 10000000 and later. | $2.60/EA |
Tennant 5680 battery kit, heavy duty wet, 335Ah parts
The parts Tennant numbers on its battery kit, heavy duty wet, 335ah drawing. Manual page 134.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4037044Replaces Tennant 222777 | 1 | Battery Kit 36V 335Ah WetComplete assembly. Serial 10000000 and later. | $3,389.88/EA |
| 1 | TN4030324Replaces Tennant 1070587 | 6 | Battery, Wet, 06vdc 0360ah, W/ CartonPart of Battery Kit 36V 335Ah Wet (222777). Serial 10000000 and later. | $613.02/EA |
| 2 | TN4040592Replaces Tennant 222473 | 6 | Spacer, Battery .62X1.5X21.0Part of Battery Kit 36V 335Ah Wet (222777). Serial 10000000 and later. | $6.60/EA |
| 3 | TN8005880Replaces Tennant 223641 | 6 | Cap, BatteryPart of Battery Kit 36V 335Ah Wet (222777). Serial 10000000 and later. | $2.90/EA |
Tennant 5680 battery charger group parts
The parts Tennant numbers on its battery charger group drawing. Manual page 135.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019240Replaces Tennant 9001055 | 1 | Charger Kit, 36vdc 021a, 1ph,Domestic,Ci (Lead Acid)Complete assembly. Serial 10000000 and later. | $848.80/EA |
| 2 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 10ft [Sjt]Part of Charger Kit, 36vdc 021a, 1ph,Domestic,Ci (Lead Acid) (9001055). Serial 10000000 and later. | $15.10/EA |
| 3 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger Kit, 36vdc 021a, 1ph,Domestic,Ci (Lead Acid) (9001055). Serial 10000000 and later. | $24.00/EA |
| 1 | TN4013017Replaces Tennant 9008266 | 1 | Charger, 36vdc 21a 85-265vac [Gel]Complete assembly. Serial 10000000 and later. | $905.90/EA |
| 2 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 10ft [Sjt]Part of Charger, 36vdc 21a 85-265vac [Gel] (9008266). Serial 10000000 and later. | $15.10/EA |
| 3 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger, 36vdc 21a 85-265vac [Gel] (9008266). Serial 10000000 and later. | $24.00/EA |
| 1 | TN4013019Replaces Tennant 9008267 | 1 | Charger, 36vdc 21a 85-265vac [Agm]Complete assembly. Serial 10000000 and later. | $905.90/EA |
| 2 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 10ft [Sjt]Part of Charger, 36vdc 21a 85-265vac [Agm] (9008267). Serial 10000000 and later. | $15.10/EA |
| 3 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger, 36vdc 21a 85-265vac [Agm] (9008267). Serial 10000000 and later. | $24.00/EA |
| 1 | TN4024986Replaces Tennant 9012531 | 1 | Charger Kit, 36vdc 21a 85-265vac [Discv] (For Discover Batteries)Complete assembly. Serial 10000000 and later. | $615.02/EA |
| 2 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 10ft [Sjt]Part of Charger Kit, 36vdc 21a 85-265vac [Discv] (For Discover Batteries) (9012531). Serial 10000000 and later. | $15.10/EA |
| 3 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger Kit, 36vdc 21a 85-265vac [Discv] (For Discover Batteries) (9012531). Serial 10000000 and later. | $24.00/EA |
| 4 | TN4019239Replaces Tennant 9001054 | 1 | Charger Kit, Ci [Export/Euro/Asia]Complete assembly. Serial 10000000 and later. | $789.60/EA |
| 5 | TN4035901Replaces Tennant 1019242 | 1 | Cord, Ele, Chrgr [European]Part of Charger Kit, Ci [Export/Euro/Asia] (9001054). Serial 10000000 and later. | $14.75/EA |
| 6 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger Kit, Ci [Export/Euro/Asia] (9001054). Serial 10000000 and later. | $24.00/EA |
Tennant 5680 transport group parts
Transport group from Tennant's parts list. Manual page 136.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4230621Replaces Tennant 398030 | 1 | Kit, Ci, Demo, [5680]Complete assembly. Serial 10000000 and later. | $46.26/EA |
| 1 | TN4043383Replaces Tennant 11636 | 1 | Latch, Draw, FlexiblePart of Kit, Ci, Demo, [5680] (398030). Serial 10000000 and later. | $18.50/EA |
| 2 | TN4042855Replaces Tennant 01335 | 4 | Rivet, Pop- .125Dx.44X.25Dhd AlPart of Kit, Ci, Demo, [5680] (398030). Serial 10000000 and later. | $3.40/EA |
Tennant 5680 hydroLINK battery watering system kit parts
The parts Tennant numbers on its hydrolink battery watering system kit drawing. Manual page 137.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016108Replaces Tennant 9010301 | 1 | Battery Fill Kit, 36v, Ci [Hydrolink]Complete assembly. Serial 10606608 and later. | $263.10/EA |
| 1 | TN4036778Replaces Tennant 1058939 | 1 | Pump Kit, Fill, BatteryPart of Battery Fill Kit, 36v, Ci [Hydrolink] (9010301). Serial 10606608 and later. | $145.10/EA |
| 2 | TN4043946Replaces Tennant 1201997 | 1 | Tube, Water, Battery, 36vdc [Trojan]Part of Battery Fill Kit, 36v, Ci [Hydrolink] (9010301). Serial 10606608 and later. | $139.10/EA |
| 3 | TN4040858Replaces Tennant 1204142 | 6 | Cap, Fill, Battery [Trojan]Part of Battery Fill Kit, 36v, Ci [Hydrolink] (9010301). Serial 10606608 and later. | $42.00/EA |
| 4 | TN4030488Replaces Tennant 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of Battery Fill Kit, 36v, Ci [Hydrolink] (9010301). Serial 10606608 and later. | $7.50/EA |
| 5 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Battery Fill Kit, 36v, Ci [Hydrolink] (9010301). Serial 10606608 and later. | $3.90/EA |
Tennant 5680 tire assembly, solid parts
Tire assembly, solid from Tennant's parts list. Manual page 138.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031917Replaces Tennant 369345 | 2 | Tire & Rim Assy 12.3 Dia SolidSerial 10000000 and later. | $206.70/EA |
Tennant 5680 tire assembly, foam filled parts
Tire assembly, foam filled from Tennant's parts list. Manual page 139.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034314Replaces Tennant 1052674 | 2 | Tire Assy, Foam, 4.10/3.5-06 3bolt BlkSerial 10000000 and later. | $242.50/EA |
| 1 | TN4044509Replaces Tennant 1073298 | 2 | Tire Assy, Foam, 4.10/3.5-06 3.5bc/3boltSerial 10668618 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4044509Replaces Tennant 1052672 | 2 | Tire Assy, Foam, 4.10/3.5-06 3bolt Grey (Replaced by 1073298 - Order Qty 2)Serial 10000000 to 10668617. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 tire assembly, air filled, gray parts
Tire assembly, air filled, gray from Tennant's parts list. Manual page 140.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033932Replaces Tennant 1059448 | 2 | Tire Assy, Pneu, Grey, 4.10/3.5-06 3.5bc (Not For Use With Cylindrical Head Models)Complete assembly. Serial 10000000 and later. | $84.70/EA |
| – | TN4020207Replaces Tennant 61596 | 1 | Tire, Non-Marking, 410/350x06, 4ply [Cs]Part of Tire Assy, Pneu, Grey, 4.10/3.5-06 3.5bc (Not For Use With Cylindrical Head Models) (1059448). Serial 10000000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 ec-H2O wire harness group (S/N 10403557-10489541) parts
ec-H2O wire harness group (S/N 10403557-10489541) from Tennant's parts list. Manual page 141.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4189693Replaces Tennant 1044831 | 1 | Harness Assy, Wire, Ec-H2o [5680 Na]Serial 10403557 to 10489541. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 ec-H2O main control board harness group (S/N 10489542-10740686) parts
ec-H2O main control board harness group (S/N 10489542-10740686) from Tennant's parts list. Manual page 142.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040417Replaces Tennant 1049489 | 1 | Harness, Main,Controlboard[Ec-H2o 5cell]Serial 10489542 to 10740686. | $28.50/EA |
Tennant 5680 ec-H2O NanoClean main control board harness group (S/N 10740687 and later) parts
ec-H2O NanoClean main control board harness group (S/N 10740687 and later) from Tennant's parts list. Manual page 143.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Serial 10740687 and later. | $17.60/EA |
Tennant 5680 ec-H2O wire harness group (S/N 10489542-10740686) parts
ec-H2O wire harness group (S/N 10489542-10740686) from Tennant's parts list. Manual page 144.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4188627Replaces Tennant 1055461 | 1 | Harness Assy, Wire, Ec-H2o [5680 Na]Serial 10489542 to 10740686. | $71.84/EA |
Tennant 5680 ec-H2O NanoClean wire harness group (S/N 10740687 and later) parts
ec-H2O NanoClean wire harness group (S/N 10740687 and later) from Tennant's parts list. Manual page 145.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4181536Replaces Tennant 1074377 | 1 | Harness Assy, Wire [5680 Ec-H2o G2]Serial 10740687 and later. | $86.76/EA |
Tennant 5680 telemetry wire harness group parts
The parts Tennant numbers on its telemetry wire harness group drawing. Manual pages 146, list 147.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1074420Tennant 1074420 | 1 | Harness, Ele, Telem [5680/5700]Complete assembly. Serial 10740687 and later. | $128.10/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Vr, Fuse, 002a, 250vdc, CartridgePart of Harness, Ele, [Telem, Iris, 5680/5700] (1074420). Serial 10740687 and later. | $5.20/EA |
Tennant 5680 electric motor breakdown, 397815 parts
The parts Tennant numbers on its electric motor breakdown, 397815 drawing. Manual pages 149, list 150.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032797Replaces Tennant 397815 | 1 | Motor, Ele, 36vdc 0.75hp 0200rpm. AComplete assembly. Serial 10000000 to 10548157. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN8005967Replaces Tennant 222606 | 1 | Brush KitPart of Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328) (397815). Serial 10000000 to 10548157. | $188.70/EA |
| 2 | TN8005972Replaces Tennant 222618 | 1 | BearingPart of Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328) (397815). Serial 10000000 to 10548157. | $47.70/EA |
| 3 | TN8005971Replaces Tennant 222617 | 1 | BearingPart of Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328) (397815). Serial 10000000 to 10548157. | $48.90/EA |
| 4 | TN4043124Replaces Tennant 10925 | 1 | Connector, Fem, 2cav [Mp630 Sealed]Part of Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328) (397815). Serial 10000000 to 10548157. | $10.50/EA |
| 5 | TN4035380Replaces Tennant 24537 | 2 | Terminal, Fem, 10/12ga [Mp630 P2s]Part of Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328) (397815). Serial 10000000 to 10548157. | $3.20/EA |
| 6 | TN4042785Replaces Tennant 00928 | 1 | Key Square 0.25 0.25 01.00 LgPart of Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328) (397815). Serial 10000000 to 10548157. | $3.60/EA |
| 7 | TN8004411Replaces Tennant 374005 | 1 | Gearbox, MotorPart of Motor, Ele, 36vdc .75hp Gear (See Breakdowns) (Replaced By 1066328) (397815). Serial 10000000 to 10548157. | $996.70/EA |
Tennant 5680 electric motor breakdown, 1038426 parts
The parts Tennant numbers on its electric motor breakdown, 1038426 drawing. Manual page 151.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4043659Replaces Tennant 1038426 | 1 | Motor, Ele, 36Vdc 1700Rpm 0.75HpComplete assembly. Serial 10355043 and later. | $727.20/EA |
| 1 | TN8046917Replaces Tennant 1039816 | 1 | Bearing Kit, Motor, ElePart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (1038426). Serial 10355043 and later. | $32.40/EA |
| 2 | TN8006162Replaces Tennant 1039818 | 1 | Cap Assy, Brush, Ele MotorPart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (1038426). Serial 10355043 and later. | $227.00/EA |
| 3 | TN8006161Replaces Tennant 1039817 | 1 | Brush Kit, Motor, ElePart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (1038426). Serial 10355043 and later. | $91.60/EA |
| 4 | TN4039092Replaces Tennant 20536-2 | 1 | Washer, 0.47b 1.19d .03, NylPart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (1038426). Serial 10355043 and later. | $4.10/EA |
| 5 | TN4042787Replaces Tennant 00954 | 1 | Key, Sq, 0.12 X 0.12, 01.00lPart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (1038426). Serial 10355043 and later. | $4.20/EA |
Tennant 5680 electric motor breakdown, 375175 parts
The parts Tennant numbers on its electric motor breakdown, 375175 drawing. Manual page 152.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4043670Replaces Tennant 375175 | 1 | Motor Assy, Ele, 36Vdc, 0.75Hp, 1700RpmComplete assembly. Serial 10000000 to 10355042. | $1,008.10/EA |
| 1 | TN375176Tennant 375176 | 1 | Kit, Motor BearingComplete assembly. Part of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (375175). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN222635Tennant 222635 | 1 | BearingPart of Kit, Motor Bearing (375176). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN222637Tennant 222637 | 1 | Ring, SnapPart of Kit, Motor Bearing (375176). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN375177Tennant 375177 | 1 | Washer, SpringPart of Kit, Motor Bearing (375176). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN375178Tennant 375178 | 1 | Bearing, Drive EndPart of Kit, Motor Bearing (375176). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN375179Tennant 375179 | 1 | SealPart of Kit, Motor Bearing (375176). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN374004Tennant 374004 | 1 | Endbell, Brush End, Motor-EleComplete assembly. Part of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (375175). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4043124Replaces Tennant 10925 | 1 | Connector, 2-ConductorPart of Endbell, Brush End, Motor-Ele (374004). Serial 10000000 to 10355042. | $10.50/EA |
| 9 | TN4035380Replaces Tennant 24537 | 2 | Terminal, FemalePart of Endbell, Brush End, Motor-Ele (374004). Serial 10000000 to 10355042. | $3.20/EA |
| 10 | TN8005975Replaces Tennant 222625 | 1 | Kit, BrushComplete assembly. Part of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (375175). Serial 10000000 to 10355042. | $83.20/EA |
| 11 | TN8005976Replaces Tennant 222629 | 4 | Cap, Brush HolderPart of Kit, Brush (222625). Serial 10000000 to 10355042. | $24.60/EA |
| 12 | TN4039092Replaces Tennant 20536-2 | 1 | Washer, 0.47b 1.19d .03, NylPart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (375175). Serial 10000000 to 10355042. | $4.10/EA |
| 13 | TN4042787Replaces Tennant 00954 | 1 | Key, Sq, 0.12 X 0.12, 01.00lPart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (375175). Serial 10000000 to 10355042. | $4.20/EA |
| 14 | TN4037085Replaces Tennant 222877 | 1 | Kit, BracePart of Motor, Ele, 36Vdc 1700Rpm 0.75Hp (See Breakdowns) (375175). Serial 10000000 to 10355042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 transaxle motor breakdown, 1031761 parts
The parts Tennant numbers on its transaxle motor breakdown, 1031761 drawing. Manual page 153.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN8004301Replaces Tennant 1031761 | 1 | Motor, Ele, 36vdc 2000rpm 0.50hpComplete assembly. Serial 10000000 to 10364537. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN374271Tennant 374271 | 1 | Bearing Kit, Motor, EleComplete assembly. Part of Motor, Ele, 36Vdc 2000Rpm 0.50Hp (See Breakdowns) (1031761). Serial 10000000 to 10306808. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8047312Replaces Tennant 1034372 | 1 | Bearing Kit, Motor, EleSerial 10306809 to 10364537. | $80.90/EA |
| 2 | TN374003Tennant 374003 | 1 | End Ass’y, BrushComplete assembly. Part of the assembly above. Serial 10000000 to 10364537. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4043124Replaces Tennant 10925 | 1 | Connector, 2 ConductorPart of End Ass’y, Brush (374003). Serial 10000000 to 10364537. | $10.50/EA |
| 4 | TN4035380Replaces Tennant 24537 | 2 | Terminal, FemalePart of End Ass’y, Brush (374003). Serial 10000000 to 10364537. | $3.20/EA |
| 5 | TN8005975Replaces Tennant 222625 | 1 | Brush KitComplete assembly. Part of the assembly above. Serial 10000000 to 10306808. | $83.20/EA |
| – | TN8006225Replaces Tennant 1034373 | 1 | Brush KitSerial 10306809 to 10364537. | $109.50/EA |
| 6 | TN8005976Replaces Tennant 222629 | 4 | Brush Holder CapPart of the assembly above. Serial 10000000 to 10306808. | $24.60/EA |
| – | TN8047313Replaces Tennant 1034375 | 4 | Brush Cap AssySerial 10306809 to 10364537. | $155.54/EA |
Tennant 5680 ec-H2O module assembly breakdown, 9006161 (S/N 10403557-10436742) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9006161 (s/n 10403557-10436742) drawing. Manual pages 154, list 155.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. Serial 10403557 to 10436742. | $778.37/EA |
| 1 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $10.60/EA |
| 2 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $5.10/EA |
| 3 | TN4022392Replaces Tennant 609062 | 1 | Screw, Trs, M5 X 0.80 X 12, Phl, SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | $3.20/EA |
| 4 | TN4029639Replaces Tennant 578860 | 2 | Screw, Pan, Phl, 04-40 X 0.31, PlPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4032343Replaces Tennant 3701.6 | 4 | Screw, Pan, Phl, 06-32 X 0.38, Shtmtl,SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | $3.40/EA |
| 6 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | $3.60/EA |
| 7 | TN4013781Replaces Tennant 9004606 | 1 | Hose, Pvc, Clr, 0.25id 0.38od 064.0lPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $3.23/EA |
| 9 | TN4044129Replaces Tennant 140826 | 4 | Screw, Pan, Phl, 06-20 X 0.75, Fmg/Ab,SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | $3.40/EA |
| 10 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $27.80/EA |
| 11 | TN4024452Replaces Tennant 603654 | 3 | Clamp, Hose, Ear, .44d [Ctb]Part of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $4.20/EA |
| 12 | TN4045657Replaces Tennant 1037595 | 2 | Fitting, Plstc, E90, Bm04/Pm02, NylPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $4.20/EA |
| 13 | TN4044122Replaces Tennant 140801 | 2 | Screw, Trs, Phl, 08-32 X 0.38, SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | $3.40/EA |
| 14 | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $162.50/EA |
| 15 | TN4042458Replaces Tennant 1045030 | 1 | Fitting, Brs, Str, Pm02/Pm02Part of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $15.15/EA |
| 16 | TN4036516Replaces Tennant 1038159 | 1 | Electrode, CylindricalPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $753.50/EA |
| 17 | Not sold separatelyTennant N/A | 1 | Replaced By E-Cell Upgrade Kit P/N 9006324 (Parts not sold seperately)Part of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Module Kit, Replmt [Ec-H2o] (See Breakdowns) (TN4012505) |
| 18 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $2.50/EA |
| 19 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $7.70/EA |
| 20 | TN4021577Replaces Tennant 9007969 | 1 | Controller Kit, Replmt [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 and later. | $1,063.00/EA |
| 21 | TN4042142Replaces Tennant 1044399 | 1 | Harness, Main, Controller [Ec-H2o, P3]Part of Module Kit, Replmt [Ec-H2o] (See Breakdowns) (9006161). Serial 10403557 to 10436742. | $30.20/EA |
Tennant 5680 ec-H2O module assembly breakdown, 9007970 (S/N 10436743-10740686) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9007970 (s/n 10436743-10740686) drawing. Manual pages 156, list 157.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. Serial 10436743 to 10740686. | $778.37/EA |
| – | TN9006324Tennant 9006324 | 1 | Ec-H2o Kit, Module B, PlumbingComplete assembly. Part of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10436743 to 10740686. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $27.80/EA |
| 2 | TN4024452Replaces Tennant 603654 | 4 | Clamp, Hose, Ear, .44d [Ctb]Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $4.20/EA |
| 3 | TN4045657Replaces Tennant 1037595 | 2 | Fitting, Plstc, E90, Bm04/Pm02, NylPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $4.20/EA |
| 4 | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $753.50/EA |
| 5 | TN4042458Replaces Tennant 1045030 | 1 | Fitting, Brs, Str, Pm02/Pm02Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $15.15/EA |
| 6 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $3.40/EA |
| 7 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $2.60/EA |
| 8 | TN4039728Replaces Tennant 1048490 | 1 | Bracket, ValvePart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $15.05/EA |
| 9 | TN4044122Replaces Tennant 140801 | 2 | Screw, Trs, Phl, 08-32 X 0.38, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $3.40/EA |
| 10 | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $162.50/EA |
| 11 | TN4015328Replaces Tennant 9006574 | 1 | Hose, Pvc, Brd, 0.25id 0.45od, 65l, ClrPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $97.97/EA |
| 12 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $3.23/EA |
| 13 | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $753.50/EA |
| 14 | TN4040777Replaces Tennant 1051519 | 1 | Housing, Upper, Module, High FlowPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $12.60/EA |
| 15 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10403557 to 10740686. | $7.70/EA |
| 16 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $0.25/EA |
| 17 | TN4040417Replaces Tennant 1049489 | 1 | Harness, Main,Controlboard[Ec-H2o 5cell]Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10436743 to 10740686. | $28.50/EA |
| 18 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10403557 to 10740686. | $10.60/EA |
| 19 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10403557 to 10740686. | $5.10/EA |
| 20 | TN4021577Replaces Tennant 9007969 | 1 | Controller Kit, Replmt [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10403557 to 10740686. | $1,063.00/EA |
| 21 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10403557 to 10740686. | $2.50/EA |
Tennant 5680 ec-H2O NanoClean module breakdown, 9011810 (S/N 10740687 and later) parts
The parts Tennant numbers on its ec-h2o nanoclean module breakdown, 9011810 (s/n 10740687 and later) drawing. Manual pages 158, list 159.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02]Complete assembly. Serial 10740687 and later. | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (9011810). Serial 10740687 and later. | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $0.25/EA |
| 5 | TN4032414Replaces Tennant 1208164 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $588.10/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740687 and later. | $17.60/EA |
| 14 | TN4021577Replaces Tennant 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc]Part of Module Kit, Replmt [Ec-H2o, B 02] (9011810). Serial 10740687 and later. | $1,063.00/EA |
Tennant 5680 fast injector assembly breakdown, 9004079 parts
The parts Tennant numbers on its fast injector assembly breakdown, 9004079 drawing. Manual page 160.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010350Replaces Tennant 9004079 | 1 | Fast Kit, Injector [5680/5700, Fast Ii+] (Replaced By 9008870)Complete assembly. Serial 10346875 to 10536781. | $300.60/EA |
| 1 | TN9004084Tennant 9004084 | 1 | FaST Kit, Ci, [Inj Rebld, 5680/5700]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4016469Replaces Tennant 9003008 | 1 | FaST Kit, Ci, Injector Seals [FaST II+]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | $65.80/EA |
| 3 | TN4016470Replaces Tennant 9003009 | 1 | FaST Kit, Ci, Injector Filters [FaST II+]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | $71.60/EA |
| 4 | TN4189299Replaces Tennant 1043313 | 1 | Plate Assy, Orifice, 0.0082id, GrayPart of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | $39.09/EA |
| 5 | TN4044221Replaces Tennant 1039579 | 1 | Plug, Orifice, 0.033, Ss {[FaST II+]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. | $17.10/EA |
| 6 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi, White, [FaST II+]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi, Brown, [FaST II+]Part of Fast Kit, Injector [5680/5700, FaST II+] (9004079). Serial 10346875 to 10536781. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 5680 fast injector assembly breakdown, 9008870 parts
The parts Tennant numbers on its fast injector assembly breakdown, 9008870 drawing. Manual page 161.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010350Replaces Tennant 9008870 | 1 | Fast Kit, Injector [5680/5700, Fast Iii]Complete assembly. Serial 10536782 and later. | $300.60/EA |
| 1 | TN4201664Replaces Tennant 9008750 | 1 | Fast Kit, Ci [Inj Rebld, 5680/5700]Complete assembly. Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. | $119.18/EA |
| 2 | TN9008848Tennant 9008848 | 1 | Fast Kit, Seal, Injector, Ci [Fast Iii]Part of Fast Kit, Ci [Inj Rebld, 5680/5700] (9008750). Serial 10536782 and later. | $4.10/EA |
| 3 | TN4044221Replaces Tennant 1039579 | 1 | Plug, Orifice, 0.033, Ss [Fast Ii+]Part of Fast Kit, Ci [Inj Rebld, 5680/5700] (9008750). Serial 10536782 and later. | $17.10/EA |
| 4 | TN4186845Replaces Tennant 1059250 | 1 | Insert, Venturi, Medium, [Fast Iii]Part of Fast Kit, Ci [Inj Rebld, 5680/5700] (9008750). Serial 10536782 and later. | $14.54/EA |
| 5 | TN1059876Tennant 1059876 | 1 | Plate Assy, Orifice, 0.0082id, GrayPart of Fast Kit, Ci [Inj Rebld, 5680/5700] (9008750). Serial 10536782 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4016470Replaces Tennant 9003009 | 1 | Fast Kit, Ci, Injector Filters[Fast Ii+]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. | $71.60/EA |
| 7 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi [Fast Ii+]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi [Fast Ii+]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4186474Replaces Tennant 1058126 | 1 | Housing, Fltr, Upper [Fast Iii]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4186329Replaces Tennant 1057811 | 1 | Housing, Fltr, Lower [Fast Iii]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4038250Replaces Tennant 1053564 | 1 | Housing, Body, Injector [Fast Iii]Part of Fast Kit, Injector [5680/5700, Fast Iii] (9008870). Serial 10536782 and later. | $43.43/EA |
Tennant 5680 main wire harness group (s/n 10000000-10551745), first drawing page
| What it shows | Main wire harness group (S/N 10000000-10551745), first drawing page, as printed in the manual |
|---|---|
| Manual page | 73 |
Tennant 5680 main wire harness group (s/n 10551746 and later), first drawing page
| What it shows | Main wire harness group (S/N 10551746 and later), first drawing page, as printed in the manual |
|---|---|
| Manual page | 76 |
New to your Tennant 5680? Start here
Set up, run and look after your 5680. Everything here comes from Tennant's 5680 operator manual, rewritten in plain steps, with the parts linked to the list above. Pick the parts that match your scrub head width and type.
1Fill the solution tank
- Drive to the fill spot, turn the machine off and take the key out.
- Conventional scrubbing: partly fill with water, pour in the detergent, then keep filling to 1 in (25 mm) below the bottom of the fill opening channel.
- FaST or ec-H2O scrubbing: clear cool water only, with no detergent. Detergent can make those systems fail.
- Never put flammable materials in the tanks.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 24 and 25. SES ref PF-SQBH-QZQR
2Change the disk brushes or pads
- Raise the scrub head, turn the machine off and open the access cover at the corner of the scrub head.
- Turn the brush or pad driver (TN4037162 / TN4037163 / TN4037164) until you see the spring clip, squeeze the clip and let the driver drop off the hub.
- Pad drivers: take off the center disk, flip or replace the pad, center it and put the disk back.
- Push the new brush (TN4037189 / TN4037193 / TN4037155) or driver up onto the motor hub until it holds, close the cover and do the other side. Replace brushes and pads in pairs.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 51, 52 and 53. SES ref PF-SQBH-QZQR
3Scrub and stop
- Turn the key on. For the FaST or ec-H2O option, press the top of its switch.
- Press the top of the scrub switch to lower the scrub head, then lower the squeegee with the squeegee lever.
- Rotate the steering handles forward to move and scrub; set the solution flow lever as needed. Go slowly on slopes.
- To stop, release the handles, press the bottom of the scrub switch, drive forward to pick up the last water, then raise the squeegee.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 26, 28 and 30. SES ref PF-SQBH-QZQR
4Drain and clean the tanks
- Park by a floor drain, turn the machine off and drain any solution left with the solution tank hose.
- Lift the solution tank, take the recovery drain hose off its clip, pull the drain plug (TN4039939) and lower the hose to drain. Flush the tank with clean water, never steam.
- Rinse the float sensor (TN4037064), and take out and clean the vacuum fan filter (TN4043531). Let it dry before it goes back.
- Put the plugs back, lower the solution tank, and on cylindrical heads empty and clean the debris trough.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 31, 32, 33 and 34. SES ref PF-SQBH-QZQR
Questions about your 5680? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant 5680 troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Water left behind | ||
| Worn squeegee blades, squeegee out of adjustment, or debris on the squeegee | Clear the debris, adjust the squeegee, and rotate or replace the rear blades (TN4040282 / TN4040217 / TN4040557) and front blades (TN4040281 / TN4040216 / TN4040300). | |
| Clogged vacuum hose or a dirty vacuum fan filter | Flush the vacuum hoses and clean the vacuum fan filter (TN4043531). | |
| Solution tank not fully closed or torn seals | Check for anything keeping the tank from closing. Replace torn seals such as the recovery tank cover gasket (TN4035201). | |
| Vacuum fan won't turn on | ||
| Recovery tank full or full of foam, or a dirty or stuck tank sensor | Drain the recovery tank and use less detergent or a defoamer. Clean or replace the float switch (TN4037064). | |
| Vacuum fan circuit breaker tripped | Reset the 25 A breaker (TN4023153) once it has cooled. | |
| Little or no solution | ||
| Empty tank, flow turned off, or a dirty supply line filter | Fill the tank, turn the flow on, and flush the supply lines and clean the filter. | |
| Poor scrubbing | ||
| Debris on the brushes, worn brushes or pads, or a tripped brush motor breaker | Clear the debris, replace worn brushes (TN4037189 / TN4037193 / TN4037155) or pads, and reset the 30 A brush motor breakers (TN4023154). | |
| ec-H2O light blinks green and red | ||
| Water conditioning cartridge used up (NanoClean models) | Replace the water conditioning cartridge (TN4025507) and reset the module timer. | |
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 36 and 37. SES ref PF-UALK-BRZ5
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant 5680 maintenance schedule
Tennant's maintenance schedule for the 5680.
| Task | How often | Part |
|---|---|---|
| Check the squeegee for damage, wear, deflection and leveling. Rotate or replace worn rear blades (TN4040282 / TN4040217 / TN4040557) and front blades (TN4040281 / TN4040216 / TN4040300). | Daily | |
| Check the brushes or pads for damage and wear. Replace a worn disk brush (TN4037189 / TN4037193 / TN4037155) or cylindrical brush (TN4040245 / TN4040248 / TN4040251). | Daily | |
| Clean the recovery tank, the float sensor (TN4037064), the vacuum fan filter (TN4043531) and the debris screen (TN4041660) if fitted, and clean the solution tank. | Daily | |
| Check the disk scrub head skirt (TN4032858 / TN4032878 / TN4032891) or the four cylindrical head skirts, and look under the machine for leaks. | Daily | |
| FaST option: clean the supply hose connector and park it on the storing plug when not in use. | Daily | |
| Check the electrolyte level in wet batteries and top up with distilled water. Tennant lists this for trained personnel. Skip it if a battery watering system is fitted. | Weekly | |
| FaST option: clean the filter screen under the solution tank. | Every 50 hours | |
| Cylindrical heads: check the brush taper and rotate the brushes front to rear. | Every 50 hours | |
| 100 hours: grease the fitting on each rear caster (TN4040089) swivel with Lubriplate EMB grease. | Every 100 and 200 hours | |
| 100 hours: have the cylindrical brush drive belt (TN4025733) tension and wear checked. | Every 100 and 200 hours | |
| 200 hours: check the battery connections and clean the batteries, terminals and cables with baking soda and water. | Every 100 and 200 hours | |
| 500 hours: have the vacuum fan motor carbon brushes (TN8006200) checked, and check the tires (TN4044509) for damage and wear. | Every 500 and 1,000 hours | TN4044509Tire Assy, Foam, 4.10/3.5-06 3.5bc/3boltCall to confirm part: 800-440-6723Call 800-440-6723 |
| 1,000 hours: have the scrub brush motor carbon brushes (TN8006161) and the propel motor carbon brushes (TN8005444 / TN8006172) checked, and the transaxle gear lube level checked (SAE 90). | Every 500 and 1,000 hours | |
| 1,000 hours, FaST option: replace the injector water and air filters (filter kit (TN4016470)). Tennant lists these for trained personnel; SES service can do them: call 800-440-6723. | Every 500 and 1,000 hours |
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 38, 39, 40, 41, 42, 45, 54, 58, 59, 63, 70 and 71. SES ref PF-QEFH-MQSF
Tennant 5680 specifications
From Tennant's documents for the 5680.
| Scrubbing path | 28, 32 or 36 in (700, 800 or 900 mm), disk or cylindrical |
|---|---|
| Disk brush diameter | 14, 16 or 18 in (355, 405 or 455 mm), two per head |
| Solution tank | 30 gal (114 L) recommended, 35 gal (133 L) maximum |
| Recovery tank | 30 gal (114 L) to the full sensor, 40 gal (152 L) to the top |
| Squeegee width | 37.5, 42 or 45.5 in (950, 1,065 or 1,155 mm), by head |
| Batteries | Six 6 V (36 V system), 235 Ah or 335 Ah at the 20 hour rate |
| Motors | 36 V DC: scrub brush 0.75 hp (0.56 kW), vacuum fan 0.85 hp (0.63 kW), propel 0.50 hp (0.37 kW) |
| Slope | 14.1% with empty tanks, 10.5% with full tanks |
| Gross vehicle weight rating | 1,520 lb (690 kg) |
| Length | 63 in (1,600 mm) cylindrical to 66.5 in (1,690 mm) with the 36 in (900 mm) disk head |
| Height | 43 in (1,090 mm) |
| Battery charger | 36 V smart charger, 20 or 30 A, 115 V AC |
| Front tires | Foam filled, non-marking, 4.10/3.5-6 |
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 76, 77 and 78. SES ref PF-M3ZK-H4EA
Tennant 5680 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 331178 Rev. 13 (04-2016), 5680 (Electric), North America / International, S/N 10000000 and later, 161 pages (current) | 5680 | Rev. 13 (04-2016) | 161 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 331176 Rev. 05 (10-2015), 5680 (Battery), North America / International, S/N 10000000 and later, 80 pages | 5680 | Rev. 05 (10-2015) | 80 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant 5680 parts questions
Why is my Tennant 5680 leaving water behind?
Most often the squeegee blades are worn or out of adjustment, or the vacuum hose or vacuum fan filter is clogged. Clear the squeegee, flush the hose, clean the filter, and rotate or replace the blades. Also check that the solution tank closes fully.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), page 36. SES ref PF-HD6F-JWU5
Why won't the 5680 vacuum fan turn on?
The recovery tank may be full or full of foam, or its float switch may be dirty or stuck. Drain the tank, use less detergent, and clean the switch. If those are fine, reset the vacuum fan circuit breaker.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 36 and 45. SES ref PF-HD6F-JWU5
Can I use detergent with FaST or ec-H2O on the 5680?
No. Both systems run on clear cool water only. Detergent or restorer in the solution tank can make them fail. Drain and rinse the tank and refill with clean water before you switch over.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 12, 13 and 25. SES ref PF-HD6F-JWU5
How often should I rotate the 5680 squeegee blades?
Check them every day. Each blade has four wiping edges: turn it end for end, then top to bottom, then end for end again. Rotate or replace a blade once its edge is torn or worn halfway through.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 63 and 67. SES ref PF-HD6F-JWU5
How do I set the 5680 squeegee deflection?
Drive forward with the squeegee down and watch the rear blade curl. Aim for about 0.50 in (12 mm) on smooth floors and 0.62 in (15 mm) on rough floors. Turn the deflection cams clockwise for more, counterclockwise for less.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), page 66. SES ref PF-HD6F-JWU5
What slope can the 5680 handle?
Tennant rates it for slopes up to 14.1% with empty tanks and 10.5% with full tanks. Go slowly on slopes and scrub uphill rather than downhill.
Source: Tennant 5680 operator manual 331176 Rev. 05 (10-2015), pages 19 and 77. SES ref PF-HD6F-JWU5
Does this parts list fit my 5680?
It covers the 5680 in Tennant parts manual 331178 Rev. 13, serial numbers 10000000 and later, North America and International. Many lines change partway through that range; each line shows its serial range. Call us with your serial number if you are unsure.
Source: Tennant 5680 parts manual 331178 Rev. 13 (04-2016), page 1. SES ref PF-HD6F-JWU5
