Nobles Speed Scrub 300 parts list and diagrams
Find any part on the Nobles Speed Scrub 300 by tapping it on the drawings. Every line from the parts manual for serial numbers 10000000 to 20000000 is here, for the disk, dual disk, cylindrical and orbital heads, push and drive models, crossed to Tennant's current part numbers with our price.
Complete list: every line of the parts list in Nobles Speed Scrub 300 Parts Manual 9014511 Rev. 04 (07-2016), S/N 10000000-20000000, 1168 printed part lines, with the parts numbered on its drawings. Checked .
New to your Speed Scrub 300? Start here → Manuals (free sign-in) →
- Solution tank
- 11 gal (42 L)
- Recovery tank
- 14 gal (53 L)
- Squeegee width
- 30.4 in (772 mm)
- Batteries
- Two 12V: 105, 130 or 155 Ah wet, or 140 Ah sealed AGM (C/20)
- Weight, 20 in disk drive
- 240 lb (109 kg); 400 lb (181 kg) with batteries
Maintenance and wear parts for the Speed Scrub 300
Nobles' recommended maintenance items for the Speed Scrub 300. Keep these on the shelf.
Brush Assy, Disk, Scb, 17.0d, Abr (3-Lug)
$416.00/EABrush Assy, Disk, Scb, 17.0d, Nyl (3-Lug)
$304.10/EABrush Assy, Disk, Scb, 17.0d, Pyp (3-Lug)
$246.40/EABrush Assy, Disk, Scb, 43cm, Mag, Nyl
$404.20/EABrush Assy, Disk, Scb, 43cm, Mag, Pyp
$332.20/EABrush Assy, Disk, Scb, 43cm, Mag, Ab
$532.40/EAPad, Polish, 17.0d, White [1pick=1pad]
$22.00/EAPad, Buff, 17.0d, Red [1pick=1pad]
$22.00/EAPad, Scb, 17.0d, Blue [1pick=1pad]
$20.00/EAPad, Stripping, 17.0d, Brown[1pick=1pad]
$21.25/EAPad, Stripping, 17.0d[Hi Pro,1pick=1pad]
Call to confirm part: 800-440-6723Pad, Surf Prep, 17.0d [Mar, 1pick=1pad]
$31.00/EA
Source: Nobles Speed Scrub 300 Parts Manual 9014511 Rev. 04 (07-2016), S/N 10000000-20000000, page 5. SES ref PF-3PC6-FACK
Your machine
How to tell which you have
- Scrub head: Nobles's parts manual has separate parts groups for Cylindrical 20 in (50 cm), Disk 17 in (43 cm), Disk 20 in (50 cm), Disk 24 in (60 cm), Orbital 20 in (50 cm) (manual pages 8, 10, 12, 14, 16, 18, 20, 21, 22, 24, 26, 28…). Pick yours to see only its groups; parts every build shares always show.

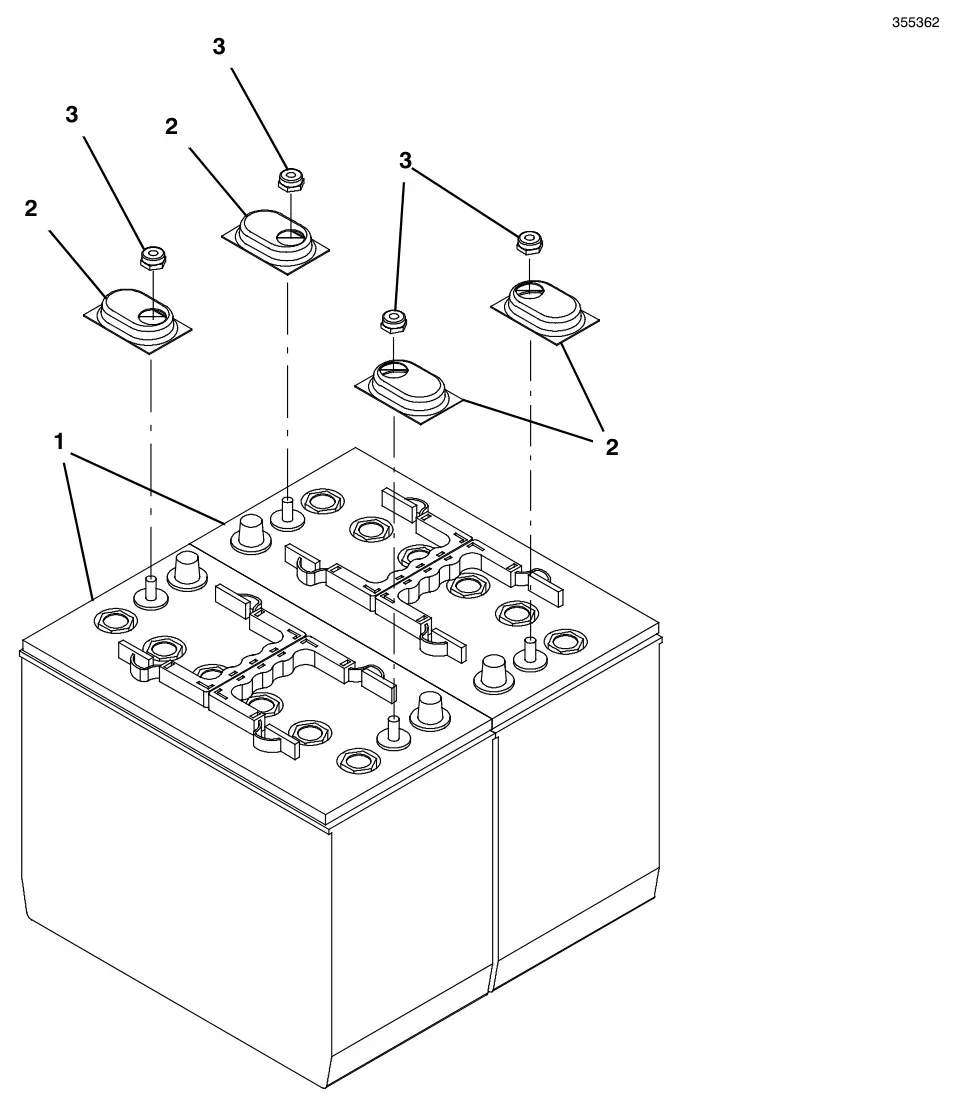

- Battery: Nobles's parts manual has separate parts groups for 105Ah c20 wet, 130Ah c20 wet, 155Ah c20 wet, 140Ah c20 AGM (manual pages 92, 93, 94, 95). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front (Nobles is a Tennant brand). Where Tennant has replaced the number printed in the manual, the line says Replaces Nobles and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Nobles Speed Scrub 300 recommended maintenance items
Nobles' recommended maintenance items: the wear parts and filters to keep on the shelf. Manual page 5.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4035181Replaces Nobles 1016763 | 1 | Brush Assy, Disk, Scb, 17.0d, Abr (3-Lug)Serial 10000000 to 20000000. | $416.00/EA |
| – | TN4035182Replaces Nobles 1016764 | 1 | Brush Assy, Disk, Scb, 17.0d, Nyl (3-Lug)Serial 10000000 to 20000000. | $304.10/EA |
| – | TN4035183Replaces Nobles 1016765 | 1 | Brush Assy, Disk, Scb, 17.0d, Pyp (3-Lug)Serial 10000000 to 20000000. | $246.40/EA |
| – | TN4039523Replaces Nobles 1213034 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, NylSerial 10000000 to 20000000. | $404.20/EA |
| – | TN4039524Replaces Nobles 1213035 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, PypSerial 10000000 to 20000000. | $332.20/EA |
| – | TN4039525Replaces Nobles 1213037 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, AbSerial 10000000 to 20000000. | $532.40/EA |
| – | TN4040669Replaces Nobles 1050273 | 1 | Pad, Polish, 17.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4040668Replaces Nobles 1050271 | 1 | Pad, Buff, 17.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4040667Replaces Nobles 1050270 | 1 | Pad, Scb, 17.0d, Blue [1pick=1pad]Serial 10000000 to 20000000. | $20.00/EA |
| – | TN4040665Replaces Nobles 1050267 | 1 | Pad, Stripping, 17.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $21.25/EA |
| – | TN4040663Replaces Nobles 1050262 | 1 | Pad, Stripping, 17.0d[Hi Pro,1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4040748Replaces Nobles 1051028 | 1 | Pad, Surf Prep, 17.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $31.00/EA |
| – | TN4035185Replaces Nobles 1016805 | 1 | Brush Assy, Disk, Scb, 20.0d, Abr (3-Lug)Serial 10000000 to 20000000. | $573.80/EA |
| – | TN4035186Replaces Nobles 1016810 | 1 | Brush Assy, Disk, Scb, 20.0d, Nyl (3-Lug)Serial 10000000 to 20000000. | $333.60/EA |
| – | TN4035187Replaces Nobles 1016811 | 1 | Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug)Serial 10000000 to 20000000. | $284.80/EA |
| – | TN4038841Replaces Nobles 1210386 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, NylSerial 10000000 to 20000000. | $426.30/EA |
| – | TN4039521Replaces Nobles 1213032 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, PypSerial 10000000 to 20000000. | $398.20/EA |
| – | TN4039522Replaces Nobles 1213033 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, AbSerial 10000000 to 20000000. | $690.20/EA |
| – | TN4034144Replaces Nobles 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverSerial 10000000 to 20000000. | $13.00/EA |
| – | TN4041861Replaces Nobles 17260 | 1 | Pad, Polish, 20.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| – | TN4041862Replaces Nobles 17261 | 1 | Pad, Buff, 20.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| – | TN4041863Replaces Nobles 17262 | 1 | Pad, Scb, 20.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4041864Replaces Nobles 17263 | 1 | Pad, Stripping, 20.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| – | TN4032341Replaces Nobles 370094 | 1 | Pad, Stripping, 20.0d[Hi Prod,1pick=1padSerial 10000000 to 20000000. | $32.20/EA |
| – | TN4040750Replaces Nobles 1051030 | 1 | Pad, Surf Prep, 20.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $33.80/EA |
| – | TN4039107Replaces Nobles 1056306 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, NylSerial 10000000 to 20000000. | $268.40/EA |
| – | TN4039108Replaces Nobles 1056313 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, PypSerial 10000000 to 20000000. | $210.30/EA |
| – | TN4032071Replaces Nobles 1063297 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, AbrSerial 10000000 to 20000000. | $339.40/EA |
| – | TN4042413Replaces Nobles 1210136 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, NylSerial 10000000 to 20000000. | $351.20/EA |
| – | TN4039527Replaces Nobles 1213040 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, PypSerial 10000000 to 20000000. | $274.50/EA |
| – | TN4039528Replaces Nobles 1213041 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, AbSerial 10000000 to 20000000. | $435.10/EA |
| – | TN4021337Replaces Nobles 385940 | 2 | Pad, Polish, 12.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| – | TN4021338Replaces Nobles 385941 | 2 | Pad, Buff, 12.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| – | TN4021339Replaces Nobles 385942 | 2 | Pad, Scb, 12.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021340Replaces Nobles 385943 | 2 | Pad, Stripping, 12.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| – | TN4032073Replaces Nobles 1063334 | 2 | Pad, Stripping, 12.0d [Hi-Prod] BlkSerial 10000000 to 20000000. | $24.65/EA |
| – | TN4040744Replaces Nobles 1051020 | 2 | Pad, Surf Prep, 12.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
| – | TN4042084Replaces Nobles 1209188 | 2 | Brush, Scb, 21l, 20sr, Nyl (Cylindrical Model)Serial 10000000 to 20000000. | $320.20/EA |
| – | TN4039481Replaces Nobles 1212762 | 2 | Brush, Scb, 21l, 20sr, Pyp (Cylindrical Model)Serial 10000000 to 20000000. | $192.00/EA |
| – | TN4041095Replaces Nobles 1205512 | 1 | Pad, Polish, 20 X 14, White [1pick=1pc] (Orbital Model)Serial 10000000 to 20000000. | $28.50/EA |
| – | TN4041096Replaces Nobles 1205513 | 1 | Pad, Buff, 20 X 14, Red [1pick=1pc] (Orbital Model)Serial 10000000 to 20000000. | $28.50/EA |
| – | TN4041097Replaces Nobles 1205514 | 1 | Pad, Scb, 20 X 14, Blu [1pick=1pc] (Orbital Model)Serial 10000000 to 20000000. | $28.50/EA |
| – | TN4041098Replaces Nobles 1205515 | 1 | Pad, Surf Prep, 20 X 14[Mar, 1pick=1pad] (Orbital Model)Serial 10000000 to 20000000. | $69.70/EA |
| – | TN4040529Replaces Nobles 1217830 | 1 | Pad, Backer, 20 X 14 (Orbital Model)Serial 10000000 to 20000000. | $102.80/EA |
| – | TN4037832Replaces Nobles 1214595 | 2 | Wheel, Scrbr, 8.00d, W/ Taper [Hi Trac] (Propel Model)Serial 10000000 to 20000000. | $153.10/EA |
| – | TN4039915Replaces Nobles 1214586 | 2 | Wheel, Scrbr, 8.00d, W/ Brg [Hi Trac] (Push Model)Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4039272Replaces Nobles 1212422 | 1 | Caster, Swivel [Wicke 224051]Serial 10000000 to 20000000. | $75.60/EA |
| – | TN4039203Replaces Nobles 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. Serial 10000000 to 20000000. | $16.90/EA |
| – | TN4036880Replaces Nobles 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $2.70/EA |
| – | TN4036878Replaces Nobles 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4019615Replaces Nobles 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $18.20/EA |
Nobles Speed Scrub 300 recommended maintenance items (continued)
Nobles' recommended maintenance items, continued: the wear parts and filters to keep on the shelf. Manual page 6.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026477Replaces Nobles 9014172 | 1 | Squeegee Kit, Linatex, Am [T300/E/Ss300]Complete assembly. Serial 10000000 to 20000000. | $667.30/EA |
| – | TN4040849Replaces Nobles 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $20.70/EA |
| – | TN4040138Replaces Nobles 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Serial 10000000 to 20000000. | $50.62/EA |
| – | TN4040139Replaces Nobles 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Serial 10000000 to 20000000. | $11.00/EA |
| – | TN4040848Replaces Nobles 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of the assembly above. Serial 10000000 to 20000000. | $23.40/EA |
| – | TN4040136Replaces Nobles 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Serial 10000000 to 20000000. | $50.62/EA |
| – | TN4040137Replaces Nobles 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Serial 10000000 to 20000000. | $11.00/EA |
| – | TN4040369Replaces Nobles 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of the assembly above. Serial 10000000 to 20000000. | $5.50/EA |
| – | TN4020804Replaces Nobles 630477 | 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of the assembly above. Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4038702Replaces Nobles 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, ImSerial 10000000 to 20000000. | $94.10/EA |
| – | TN4038704Replaces Nobles 1055025 | 1 | Bumper, Head, 50cm, W/ Bristle Skirt, ImSerial 10000000 to 20000000. | $147.90/EA |
| – | TN4030967Replaces Nobles 1072656 | 1 | Bumper, Head, 60cm, Bristle SkirtSerial 10000000 to 20000000. | $273.90/EA |
| – | TN4040369Replaces Nobles 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-Marking (Disk Heads)Serial 10000000 to 20000000. | $5.50/EA |
| – | TN4018163Replaces Nobles 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns)Complete assembly. Serial 10000000 to 20000000. | $1,339.60/EA |

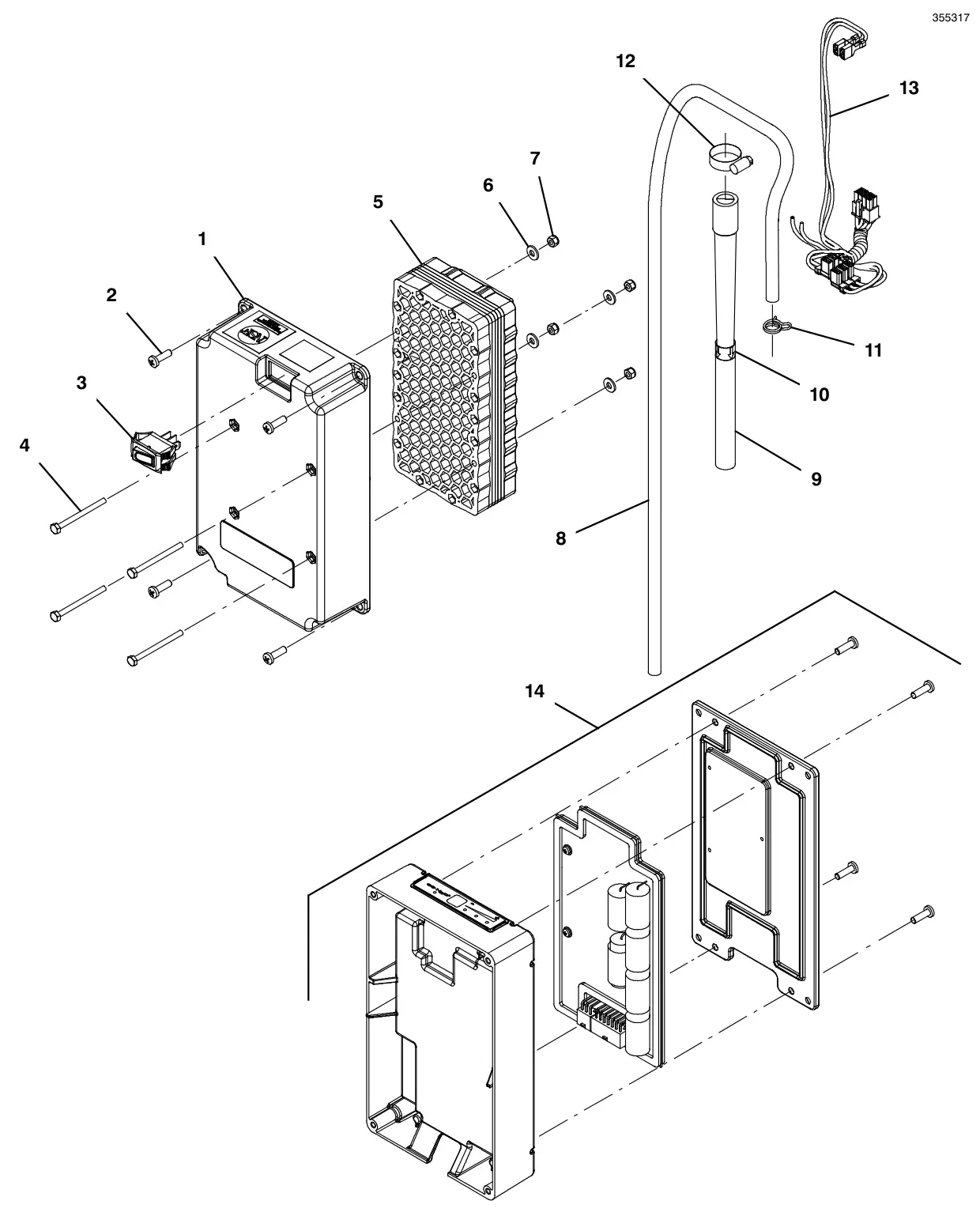

| – | TN4025507Replaces Nobles 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlPart of Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (9011810). Serial 10000000 to 20000000. | $300.60/EA |
| – | TN4023231Replaces Nobles 1210703 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mmComplete assembly. Serial 10000000 to 20000000. | $1,584.50/EA |
| – | TN8005967Replaces Nobles 222606 | 1 | Vr, Brush Kit, Motor, Ele [Ip] (4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $188.70/EA |
| – | TN4042671Replaces Nobles 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $20.10/EA |
| – | TN4023232Replaces Nobles 1210212 | 1 | Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head)Complete assembly. Serial 10000000 to 20000000. | $1,259.00/EA |
| – | TN4037142Replaces Nobles 1059370 | 2 | Brush, Motor, Replmt [Bag Of 4) (60CM Disk Head)Part of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (1210212). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4042417Replaces Nobles 1210202 | 1 | Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023234Replaces Nobles 1212669 | 1 | Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head)Complete assembly. Serial 10000000 to 20000000. | $1,430.40/EA |
| – | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4) (Orbital Head)Part of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head) (1212669). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4018508Replaces Nobles 1055305 | 1 | Belt, Drive, 6pj, Ej139 [T3] (60CM Disk Head)Serial 10000000 to 20000000. | $55.15/EA |
| – | TN4026472Replaces Nobles 9014166 | 1 | Kit, Belt, Motor (Includes Installation Tool) (Cyld Head)Complete assembly. Serial 10000000 to 20000000. | $173.70/EA |
| – | TN4039539Replaces Nobles 1213132 | 1 | Tool, Installation, BeltPart of Kit, Belt, Motor (Includes Installation Tool) (Cyld Head) (9014166). Serial 10000000 to 20000000. | $14.50/EA |
| – | TN4040147Replaces Nobles 1215666 | 2 | Skirt, Side, Cyl, Floating (Cylindrical Head)Serial 10000000 to 20000000. | $21.10/EA |
| – | TN4020804Replaces Nobles 630477 | 4 | Wheel, Pyu, 02.0d 0.38w, Gray (Cylindrical Head)Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4038480Replaces Nobles 1202880 | 1 | Fan, Vacuum, 6.6d, 024vdc, 2 StageComplete assembly. Serial 10000000 to 20000000. | $449.20/EA |
| – | TN8006040Replaces Nobles 1206774 | 1 | Vr, Brush Kit, Motor, Fan (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 6.6d, 024vdc, 2 Stage (1202880). Serial 10000000 to 20000000. | $28.00/EA |
| – | TN4022697Replaces Nobles 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. Serial 10785189 to 20000000. | $60.80/EA |
| – | TN4038125Replaces Nobles 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.40/EA |
| – | TN4041448Replaces Nobles 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $33.00/EA |
| – | TN4022716Replaces Nobles 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss]Serial 10786729 to 20000000. | $72.80/EA |
| – | TN4020485Replaces Nobles 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75dSerial 10000000 to 20000000. | $76.00/EA |
| – | TN4031859Replaces Nobles 1213008 | 1 | Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4036917Replaces Nobles 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray) (1213008). Serial 10000000 to 20000000. | $8.60/EA |
| – | TN4039520Replaces Nobles 1213010 | 1 | Hose Assy, Drain, 1.5d 017l 1.5/Cap[Pvc] (Black)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4036892Replaces Nobles 1218955 | 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5d 017l 1.5/Cap[Pvc] (Black) (1213010). Serial 10000000 to 20000000. | $8.60/EA |
| – | TN4038916Replaces Nobles 1204663 | 1 | Hose Assy, W/2cuff,1.5d 026l 1.5/1.5[Pu] (Gray)Serial 10000000 to 20000000. | $30.10/EA |
| – | TN4038916Replaces Nobles 1211220 | 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc] (Black)Serial 10000000 to 20000000. | $30.10/EA |
| – | TN4026476Replaces Nobles 9014171 | 1 | Hose Assy, With ValveComplete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4020670Replaces Nobles 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/HandlePart of Hose Assy, With Valve (9014171). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4037503Replaces Nobles 1222591 | 1 | Hose Assy, 45cuff,1.5d 021l 1.5/1.5[Pu] (Gray)Part of Hose Assy, With Valve (9014171). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4038848Replaces Nobles 1210472 | 1 | Seal, Afmkt, Bulb, 0.50d .13grip, 05ft (Rec Tank Lid)Serial 10000000 to 20000000. | $56.90/EA |
| – | TN4042866Replaces Nobles 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft (Front Fill Cover)Serial 10000000 to 20000000. | $6.70/EA |
| – | TN4040187Replaces Nobles 1216386 | 1 | Motor, Transaxle, 24vdc, Replmt [Ul, Ce]Complete assembly. Serial 10000000 to 20000000. | $653.20/EA |
| – | TN4039262Replaces Nobles 1212351 | 1 | Brush Kit, Carbon, Transaxle, Ul (1 Kit = 4 Pcs)Part of Motor, Transaxle, 24vdc, Replmt [Ul, Ce] (1216386). Serial 10000000 to 20000000. | $125.90/EA |
| – | TN4036930Replaces Nobles 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. Serial 10000000 to 20000000. | $388.30/EA |
| – | TN8004151Replaces Nobles 372883 | 1 | Vr, Brush Kit, Motor, Ele (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). Serial 10000000 to 20000000. | $37.30/EA |

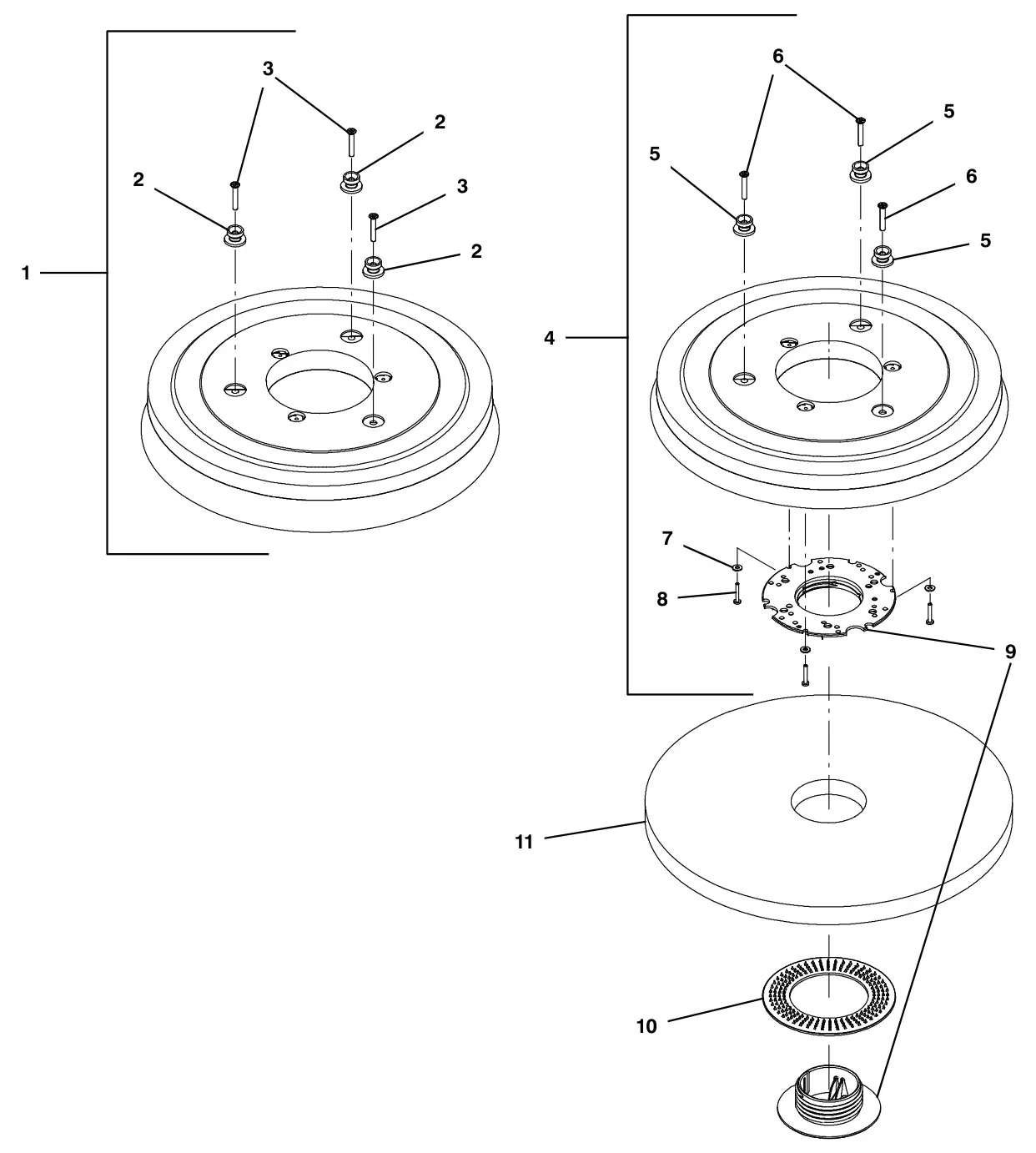

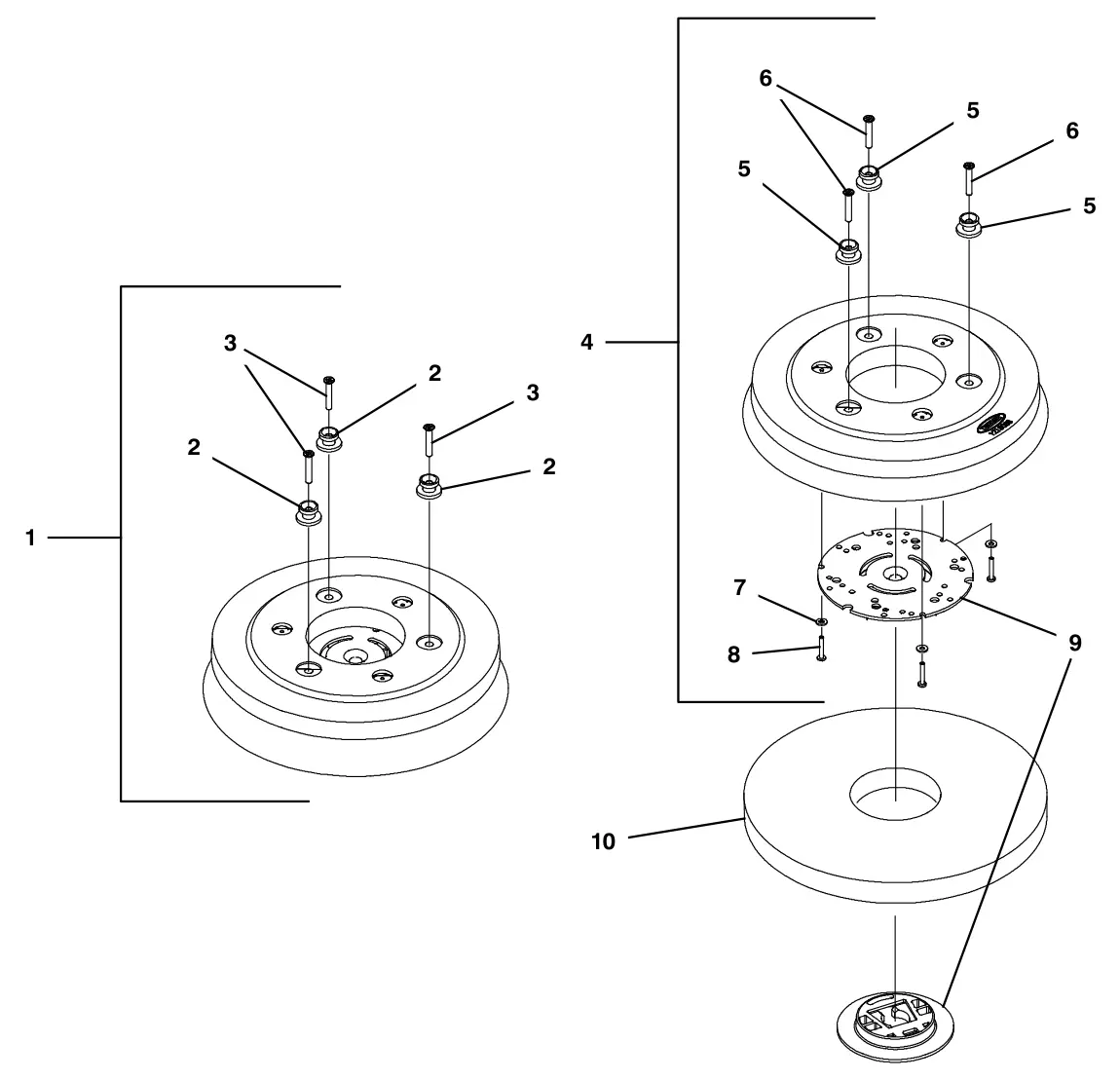

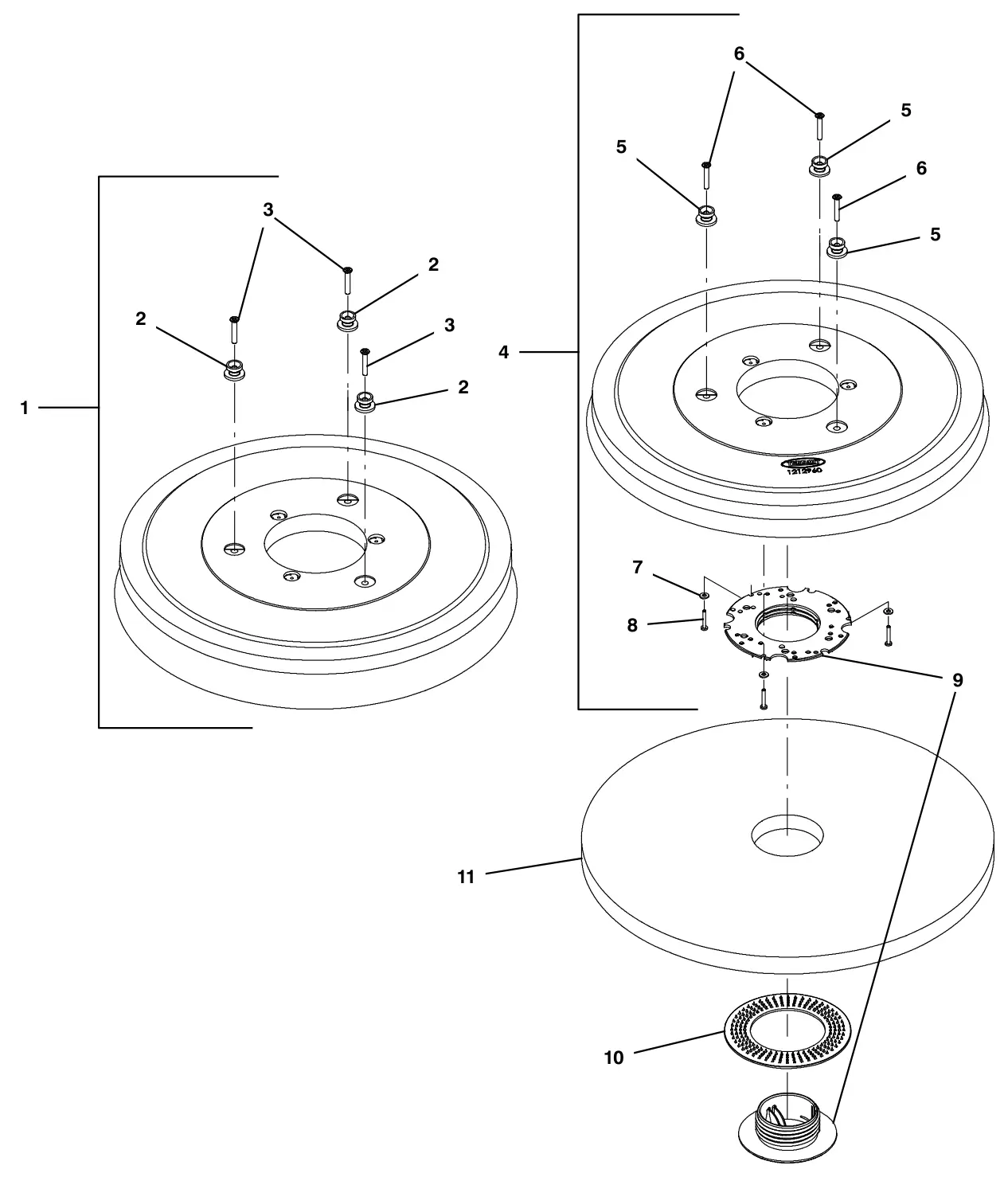

Nobles Speed Scrub 300 brushes and pad driver group, 17 in (43 cm) disk 3-lug hub parts
The parts Nobles numbers on the brushes and pad driver group, 17 in (43 cm) disk 3-lug hub drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035181Replaces Nobles 1016763 | 1 | Brush Assy, Disk, Scb, 17.0d, AbrComplete assembly. Serial 10000000 to 20000000. | $416.00/EA |
| 1 | TN4035182Replaces Nobles 1016764 | 1 | Brush Assy, Disk, Scb, 17.0d, NylComplete assembly. Serial 10000000 to 20000000. | $304.10/EA |
| 1 | TN4035183Replaces Nobles 1016765 | 1 | Brush Assy, Disk, Scb, 17.0d, PypComplete assembly. Serial 10000000 to 20000000. | $246.40/EA |
| 2 | TN4037291Replaces Nobles 1013018 | 3 | Stud, Drive, Brush PadPart of Brush Assy, Disk, Scb, 17.0d, Pyp (3-Lug) (1016765). Serial 10000000 to 20000000. | $16.20/EA |
| 3 | TN4036636Replaces Nobles 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Brush Assy, Disk, Scb, 17.0d, Pyp (3-Lug) (1016765). Serial 10000000 to 20000000. | $2.50/EA |
| 4 | TN4039516Replaces Nobles 1212965 | 1 | Driver Assy, Pad, 43cm, Brush, 3 LugComplete assembly. Serial 10000000 to 20000000. | $250.30/EA |
| 5 | TN4037291Replaces Nobles 1013018 | 3 | Stud, Drive, Brush PadPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Serial 10000000 to 20000000. | $16.20/EA |
| 6 | TN4036636Replaces Nobles 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Serial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4016852Replaces Nobles 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Serial 10000000 to 20000000. | $2.60/EA |
| 8 | TN4040926Replaces Nobles 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Serial 10000000 to 20000000. | $4.00/EA |
| 9 | TN4034145Replaces Nobles 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Serial 10000000 to 20000000. | $32.30/EA |
| 10 | TN4034144Replaces Nobles 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverSerial 10000000 to 20000000. | $13.00/EA |
| 11 | TN4040669Replaces Nobles 1050273 | 1 | Pad, Polish, 17.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 11 | TN4040668Replaces Nobles 1050271 | 1 | Pad, Buff, 17.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 11 | TN4040667Replaces Nobles 1050270 | 1 | Pad, Scb, 17.0d, Blue [1pick=1pad]Serial 10000000 to 20000000. | $20.00/EA |
| 11 | TN4040665Replaces Nobles 1050267 | 1 | Pad, Stripping, 17.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $21.25/EA |
| 11 | TN4040663Replaces Nobles 1050262 | 1 | Pad, Stripping, 17.0d[Hi Pro,1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4040748Replaces Nobles 1051028 | 1 | Pad, Surf Prep, 17.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $31.00/EA |

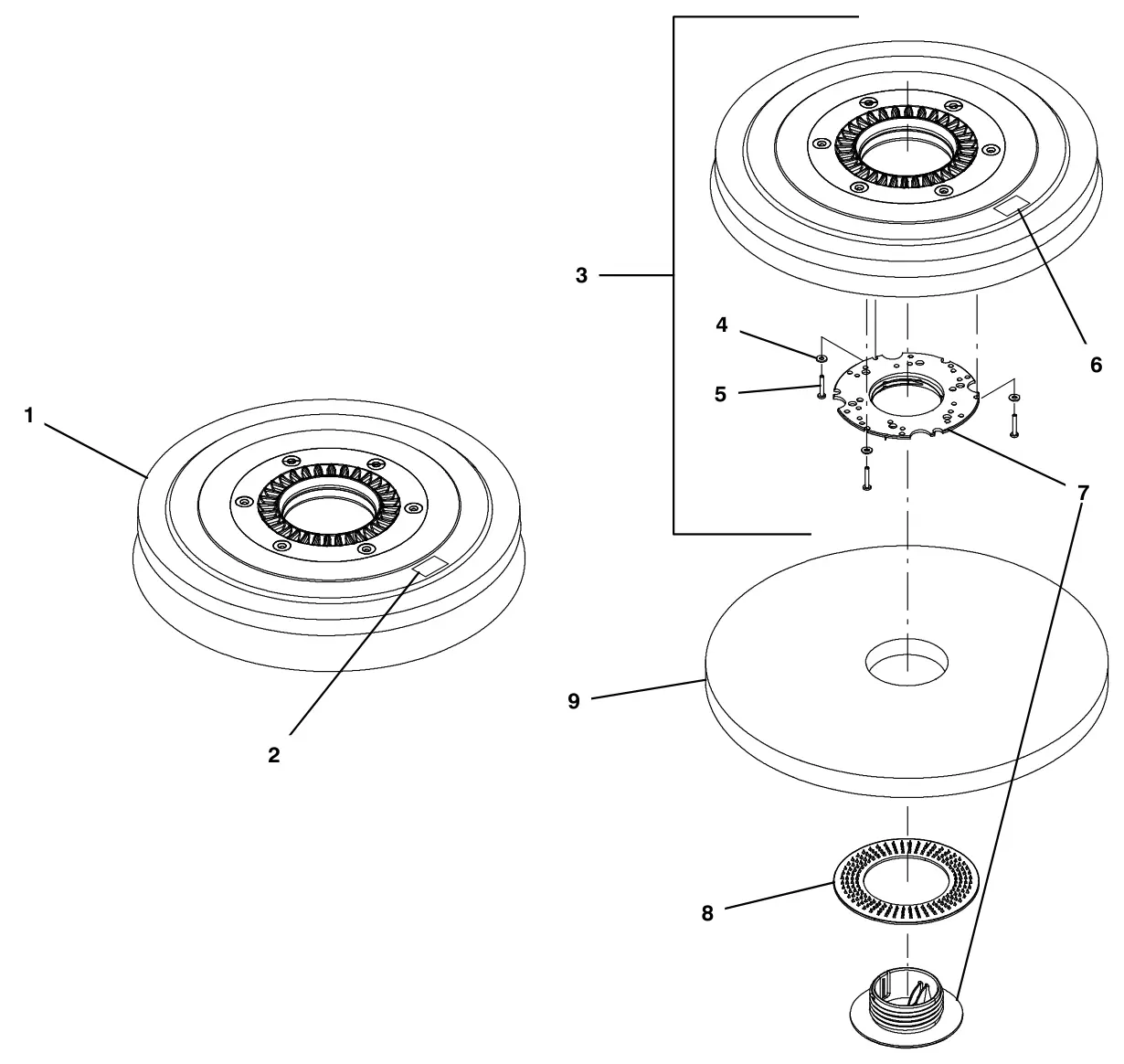

Nobles Speed Scrub 300 brushes and pad driver group, 17 in (43 cm) disk magnetic hub parts
The parts Nobles numbers on the brushes and pad driver group, 17 in (43 cm) disk magnetic hub drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039523Replaces Nobles 1213034 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, NylComplete assembly. Serial 10000000 to 20000000. | $404.20/EA |
| 1 | TN4039524Replaces Nobles 1213035 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, PypComplete assembly. Serial 10000000 to 20000000. | $332.20/EA |
| 1 | TN4039525Replaces Nobles 1213037 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, AbComplete assembly. Serial 10000000 to 20000000. | $532.40/EA |

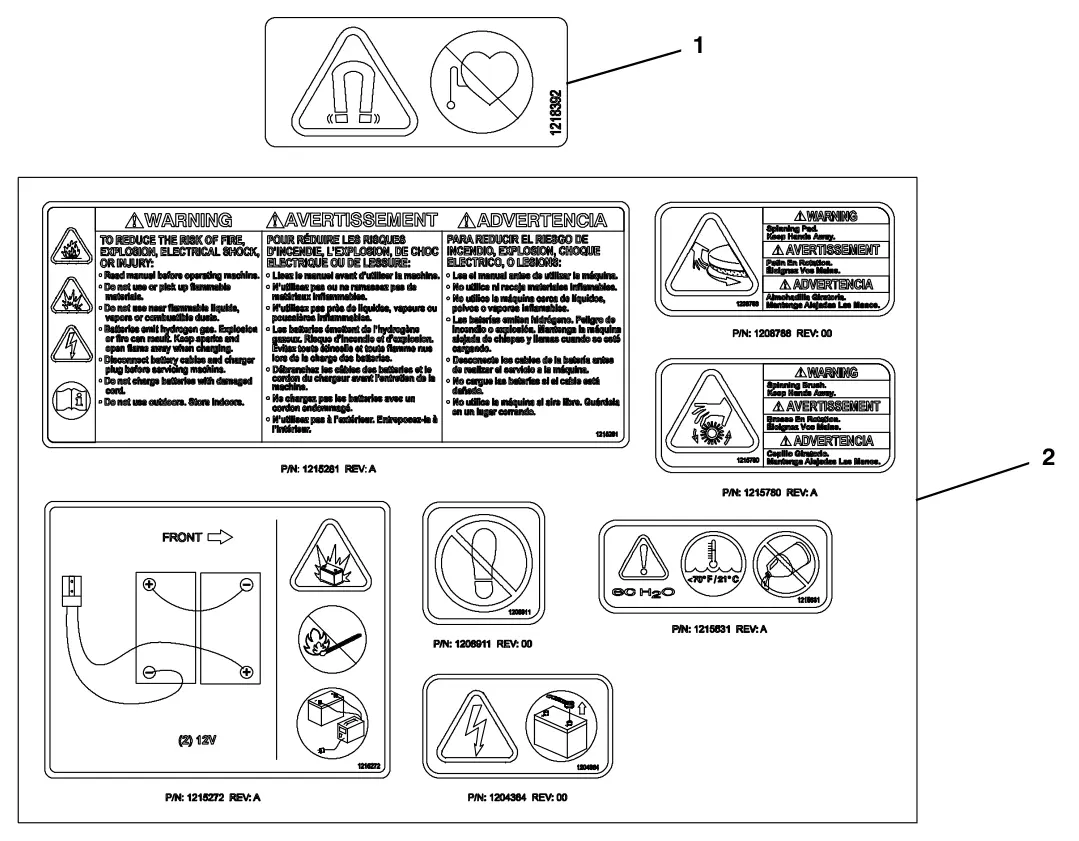

| 2 | TN4036828Replaces Nobles 1218392 | 1 | Label, Safety, Magnet, MedPart of Brush Assy, Disk, Scb, 43cm, Mag, Ab (1213037). Serial 10000000 to 20000000. | $4.10/EA |
| 3 | TN4039222Replaces Nobles 1211869 | 1 | Driver Assy, Pad, 43cm, Brush, MagneticComplete assembly. Serial 10000000 to 20000000. | $361.50/EA |
| 4 | TN4016852Replaces Nobles 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Serial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4039460Replaces Nobles 1212542 | 3 | Screw, Pan, Phl, M4 X 0.70 X 12, Nl, SsPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Serial 10000000 to 20000000. | $1.00/EA |
| 6 | TN4036828Replaces Nobles 1218392 | 1 | Label, Safety, Magnet, MedPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Serial 10000000 to 20000000. | $4.10/EA |
| 7 | TN4034145Replaces Nobles 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Serial 10000000 to 20000000. | $32.30/EA |
| 8 | TN4034144Replaces Nobles 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverSerial 10000000 to 20000000. | $13.00/EA |
| 9 | TN4040669Replaces Nobles 1050273 | 1 | Pad, Polish, 17.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 9 | TN4040668Replaces Nobles 1050271 | 1 | Pad, Buff, 17.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 9 | TN4040667Replaces Nobles 1050270 | 1 | Pad, Scb, 17.0d, Blue [1pick=1pad]Serial 10000000 to 20000000. | $20.00/EA |
| 9 | TN4040665Replaces Nobles 1050267 | 1 | Pad, Stripping, 17.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $21.25/EA |
| 9 | TN4040663Replaces Nobles 1050262 | 1 | Pad, Stripping, 17.0d[Hi Pro,1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4040748Replaces Nobles 1051028 | 1 | Pad, Surf Prep, 17.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $31.00/EA |
Nobles Speed Scrub 300 brushes and pad driver group, 20 in (50 cm) disk 3-lug hub parts
The parts Nobles numbers on the brushes and pad driver group, 20 in (50 cm) disk 3-lug hub drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035185Replaces Nobles 1016805 | 1 | Brush Assy, Disk, Scb, 20.0d, AbrComplete assembly. Serial 10000000 to 20000000. | $573.80/EA |
| 1 | TN4035186Replaces Nobles 1016810 | 1 | Brush Assy, Disk, Scb, 20.0d, NylComplete assembly. Serial 10000000 to 20000000. | $333.60/EA |
| 1 | TN4035187Replaces Nobles 1016811 | 1 | Brush Assy, Disk, Scb, 20.0d, PypComplete assembly. Serial 10000000 to 20000000. | $284.80/EA |
| 2 | TN4037291Replaces Nobles 1013018 | 3 | Stud, Drive, Brush PadPart of Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug) (1016811). Serial 10000000 to 20000000. | $16.20/EA |
| 3 | TN4036636Replaces Nobles 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug) (1016811). Serial 10000000 to 20000000. | $2.50/EA |
| 4 | TN4039514Replaces Nobles 1212960 | 1 | Driver Assy, Pad, 50cm, Brush, 3 LugComplete assembly. Serial 10000000 to 20000000. | $295.80/EA |
| 5 | TN4037291Replaces Nobles 1013018 | 3 | Stud, Drive, Brush PadPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $16.20/EA |
| 6 | TN4036636Replaces Nobles 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4016852Replaces Nobles 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $2.60/EA |
| 8 | TN4040926Replaces Nobles 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $4.00/EA |
| 9 | TN4034145Replaces Nobles 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Serial 10000000 to 20000000. | $32.30/EA |
| 10 | TN4034144Replaces Nobles 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverSerial 10000000 to 20000000. | $13.00/EA |
| 11 | TN4041861Replaces Nobles 17260 | 1 | Pad, Polish, 20.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| 11 | TN4041862Replaces Nobles 17261 | 1 | Pad, Buff, 20.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| 11 | TN4041863Replaces Nobles 17262 | 1 | Pad, Scb, 20.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4041864Replaces Nobles 17263 | 1 | Pad, Stripping, 20.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| 11 | TN4032341Replaces Nobles 370094 | 1 | Pad, Stripping, 20.0d[Hi Prod,1pick=1padSerial 10000000 to 20000000. | $32.20/EA |
| 11 | TN4040750Replaces Nobles 1051030 | 1 | Pad, Surf Prep, 20.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $33.80/EA |
Nobles Speed Scrub 300 brushes and pad driver group, 20 in (50 cm) disk magnetic hub parts
The parts Nobles numbers on the brushes and pad driver group, 20 in (50 cm) disk magnetic hub drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038841Replaces Nobles 1210386 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, NylComplete assembly. Serial 10000000 to 20000000. | $426.30/EA |
| 1 | TN4039521Replaces Nobles 1213032 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, PypComplete assembly. Serial 10000000 to 20000000. | $398.20/EA |
| 1 | TN4039522Replaces Nobles 1213033 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, AbComplete assembly. Serial 10000000 to 20000000. | $690.20/EA |
| 2 | TN4036828Replaces Nobles 1218392 | 1 | Label, Safety, Magnet, MedPart of Brush Assy, Disk, Scb, 50cm, Mag, Ab (1213033). Serial 10000000 to 20000000. | $4.10/EA |
| 3 | TN4042087Replaces Nobles 1209197 | 1 | Driver Assy, Pad, 50cm, Brush, MagneticComplete assembly. Serial 10000000 to 20000000. | $387.40/EA |
| 4 | TN4016852Replaces Nobles 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Serial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4039460Replaces Nobles 1212542 | 3 | Screw, Pan, Phl, M4 X 0.70 X 12, Nl, SsPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Serial 10000000 to 20000000. | $1.00/EA |
| 6 | TN4036828Replaces Nobles 1218392 | 1 | Label, Safety, Magnet, MedPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Serial 10000000 to 20000000. | $4.10/EA |
| 7 | TN4034145Replaces Nobles 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Serial 10000000 to 20000000. | $32.30/EA |
| 8 | TN4034144Replaces Nobles 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverSerial 10000000 to 20000000. | $13.00/EA |
| 9 | TN4041861Replaces Nobles 17260 | 1 | Pad, Polish, 20.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| 9 | TN4041862Replaces Nobles 17261 | 1 | Pad, Buff, 20.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| 9 | TN4041863Replaces Nobles 17262 | 1 | Pad, Scb, 20.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4041864Replaces Nobles 17263 | 1 | Pad, Stripping, 20.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $29.20/EA |
| 9 | TN4032341Replaces Nobles 370094 | 1 | Pad, Stripping, 20.0d[Hi Prod,1pick=1padSerial 10000000 to 20000000. | $32.20/EA |
| 9 | TN4040750Replaces Nobles 1051030 | 1 | Pad, Surf Prep, 20.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $33.80/EA |
Nobles Speed Scrub 300 brushes and pad driver group, 24 in (60 cm) dual disk 3-lug hub parts
The parts Nobles numbers on the brushes and pad driver group, 24 in (60 cm) dual disk 3-lug hub drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039107Replaces Nobles 1056306 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, NylComplete assembly. Serial 10000000 to 20000000. | $268.40/EA |
| 1 | TN4039108Replaces Nobles 1056313 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, PypComplete assembly. Serial 10000000 to 20000000. | $210.30/EA |
| 1 | TN4032071Replaces Nobles 1063297 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, AbrComplete assembly. Serial 10000000 to 20000000. | $339.40/EA |
| 2 | TN4038791Replaces Nobles 1055558 | 3 | Mount, Lug, Pad-Driver [T3]Part of Brush Assy, Disk, Scb, 12.0d, 3-Lug, Abr (1063297). Serial 10000000 to 20000000. | $10.00/EA |
| 3 | TN4036636Replaces Nobles 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Brush Assy, Disk, Scb, 12.0d, 3-Lug, Abr (1063297). Serial 10000000 to 20000000. | $2.50/EA |
| 4 | TN4039526Replaces Nobles 1213038 | 2 | Driver Assy, Pad, 30cm, Brush, 3 LugComplete assembly. Serial 10000000 to 20000000. | $243.20/EA |
| 5 | TN4038791Replaces Nobles 1055558 | 3 | Mount, Lug, Pad-Driver [T3]Part of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Serial 10000000 to 20000000. | $10.00/EA |
| 6 | TN4036636Replaces Nobles 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Serial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4016852Replaces Nobles 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Serial 10000000 to 20000000. | $2.60/EA |
| 8 | TN4040926Replaces Nobles 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Serial 10000000 to 20000000. | $4.00/EA |
| 9 | TN4032342Replaces Nobles 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Serial 10000000 to 20000000. | $45.50/EA |
| 10 | TN4021337Replaces Nobles 385940 | 2 | Pad, Polish, 12.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| 10 | TN4021338Replaces Nobles 385941 | 2 | Pad, Buff, 12.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| 10 | TN4021339Replaces Nobles 385942 | 2 | Pad, Scb, 12.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4021340Replaces Nobles 385943 | 2 | Pad, Stripping, 12.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| 10 | TN4032073Replaces Nobles 1063334 | 2 | Pad, Stripping, 12.0d [Hi-Prod] BlkSerial 10000000 to 20000000. | $24.65/EA |
| 10 | TN4040744Replaces Nobles 1051020 | 2 | Pad, Surf Prep, 12.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
Nobles Speed Scrub 300 brushes and pad driver group, 24 in (60 cm) dual disk magnetic hub parts
The parts Nobles numbers on the brushes and pad driver group, 24 in (60 cm) dual disk magnetic hub drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042413Replaces Nobles 1210136 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, NylComplete assembly. Serial 10000000 to 20000000. | $351.20/EA |
| 1 | TN4039527Replaces Nobles 1213040 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, PypComplete assembly. Serial 10000000 to 20000000. | $274.50/EA |
| 1 | TN4039528Replaces Nobles 1213041 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, AbComplete assembly. Serial 10000000 to 20000000. | $435.10/EA |
| 2 | TN4036828Replaces Nobles 1218392 | 1 | Label, Safety, Magnet, MedPart of Brush Assy, Disk, Scb, 30cm, Mag, Ab (1213041). Serial 10000000 to 20000000. | $4.10/EA |
| 3 | TN4042083Replaces Nobles 1209160 | 2 | Driver Assy, Pad, 30cm, [Magnetic]Complete assembly. Serial 10000000 to 20000000. | $321.40/EA |
| 4 | TN4016852Replaces Nobles 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Serial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4039460Replaces Nobles 1212542 | 3 | Screw, Pan, Phl, M4 X 0.70 X 12, Nl, SsPart of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Serial 10000000 to 20000000. | $1.00/EA |
| 6 | TN4036828Replaces Nobles 1218392 | 1 | Label, Safety, Magnet, MedPart of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Serial 10000000 to 20000000. | $4.10/EA |
| 7 | TN4032342Replaces Nobles 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Serial 10000000 to 20000000. | $45.50/EA |
| 8 | TN4021337Replaces Nobles 385940 | 2 | Pad, Polish, 12.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| 8 | TN4021338Replaces Nobles 385941 | 2 | Pad, Buff, 12.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| 8 | TN4021339Replaces Nobles 385942 | 2 | Pad, Scb, 12.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4021340Replaces Nobles 385943 | 2 | Pad, Stripping, 12.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $16.10/EA |
| 8 | TN4032073Replaces Nobles 1063334 | 2 | Pad, Stripping, 12.0d [Hi-Prod] BlkSerial 10000000 to 20000000. | $24.65/EA |
| 8 | TN4040744Replaces Nobles 1051020 | 2 | Pad, Surf Prep, 12.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
Nobles Speed Scrub 300 brushes group, 20 in (50 cm) cylindrical parts
Brushes group, 20 in (50 cm) cylindrical, from the Nobles parts list. Manual page 20.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042084Replaces Nobles 1209188 | 2 | Brush, Scb, 21l, 20sr, NylSerial 10000000 to 20000000. | $320.20/EA |
| 1 | TN4039481Replaces Nobles 1212762 | 2 | Brush, Scb, 21l, 20sr, PypSerial 10000000 to 20000000. | $192.00/EA |

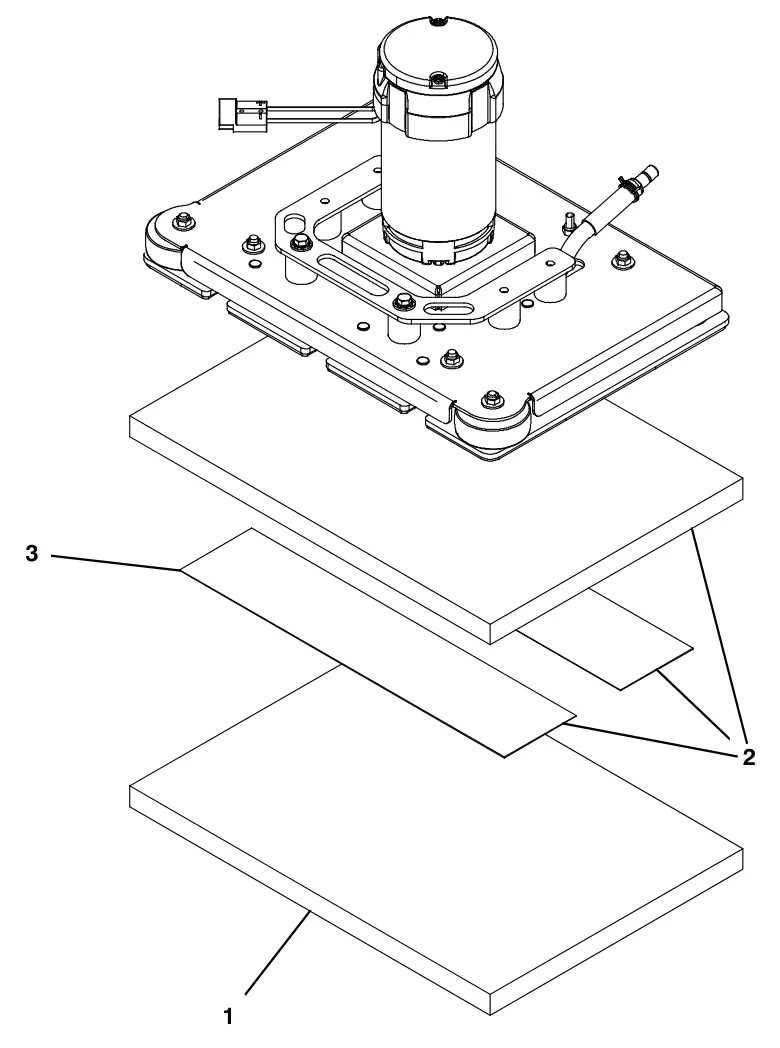

Nobles Speed Scrub 300 pad group, 20 in (50 cm) orbital parts
The parts Nobles numbers on the pad group, 20 in (50 cm) orbital drawing. Manual page 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041095Replaces Nobles 1205512 | 1 | Pad, Polish, 20 X 14, White [1pick=1pc]Serial 10000000 to 20000000. | $28.50/EA |
| 1 | TN4041096Replaces Nobles 1205513 | 1 | Pad, Buff, 20 X 14, Red [1pick=1pc]Serial 10000000 to 20000000. | $28.50/EA |
| 1 | TN4041097Replaces Nobles 1205514 | 1 | Pad, Scb, 20 X 14, Blu [1pick=1pc]Serial 10000000 to 20000000. | $28.50/EA |
| 1 | TN4041098Replaces Nobles 1205515 | 1 | Pad, Surf Prep, 20 X 14[Mar, 1pick=1pad]Serial 10000000 to 20000000. | $69.70/EA |
| 2 | TN4040529Replaces Nobles 1217830 | 1 | Pad, Backer, 20 X 14 (Includes Hook & Loop Fastener)Complete assembly. Serial 10000000 to 20000000. | $102.80/EA |
| 3 | TN1217945Nobles 1217945 | 2 | Fastener, [Hook & Loop], Hook, 4w X 18lPart of Pad, Backer, 20 X 14 (Orbital Model) (1217830). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |

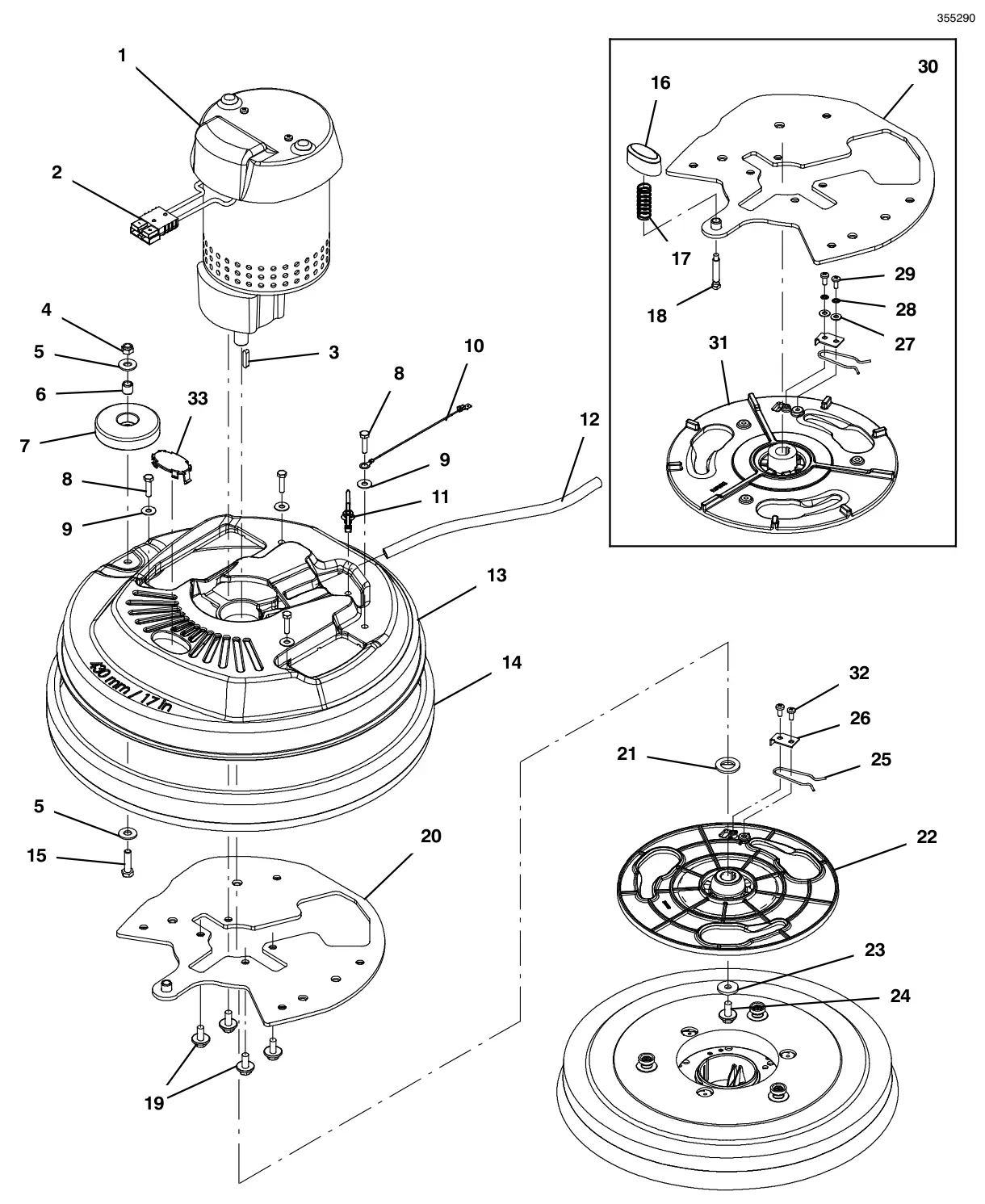

Nobles Speed Scrub 300 scrub head group, 17 in (43 cm) disk, 3-lug hub parts
The parts Nobles numbers on the scrub head group, 17 in (43 cm) disk, 3-lug hub drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023231Replaces Nobles 1210703 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mmComplete assembly. Serial 10000000 to 20000000. | $1,584.50/EA |
| – | TN8005967Replaces Nobles 222606 | 1 | Vr, Brush Kit, Motor, Ele [Ip] (4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $188.70/EA |
| – | TN4042671Replaces Nobles 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $20.10/EA |
| 2 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $29.70/EA |
| 3 | TN4037626Replaces Nobles 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $4.20/EA |
| 4 | TN4041929Replaces Nobles 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 6 | TN4040581Replaces Nobles 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4040369Replaces Nobles 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingSerial 10000000 to 20000000. | $5.50/EA |
| 8 | TN4038624Replaces Nobles 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 11 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 12 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 13 | TN4039259Replaces Nobles 1212324 | 1 | Housing, Head, 43cmSerial 10000000 to 20000000. | $128.60/EA |
| 14 | TN4038702Replaces Nobles 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, ImSerial 10000000 to 20000000. | $94.10/EA |
| 15 | TN4035127Replaces Nobles 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 16 | TN4038920Replaces Nobles 1211242 | 1 | Button, Plunger, PadSerial 10000000 to 10791637. | $11.60/EA |
| 17 | TN4039485Replaces Nobles 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsSerial 10000000 to 10791637. | $11.50/EA |
| 18 | TN4039226Replaces Nobles 1211907 | 1 | Pin, Stop, ShortSerial 10000000 to 10791637. | $21.60/EA |
| 19 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4037862Replaces Nobles 1223980 | 1 | Plate Wldt, Head, WeightedSerial 10802498 to 20000000. | $96.80/EA |
| 21 | TN4033193Replaces Nobles 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 22 | TN4029743Replaces Nobles 1219855 | 1 | Hub, Drive, 3lug, Alm-Nyl, 17mm[T2,T300]Serial 10791638 to 20000000. | $126.80/EA |
| 23 | TN4035242Replaces Nobles 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 24 | TN4036259Replaces Nobles 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 25 | TN4037304Replaces Nobles 1013188 | 1 | Clip, Spring, Drive Hub, Release [T3]Serial 10748031 to 20000000. | $7.00/EA |
| 26 | TN4036677Replaces Nobles 1011201 | 1 | Plate, Drive Hub, Release Clip [T3]Serial 10748031 to 20000000. | $21.70/EA |
| 27 | TN4042888Replaces Nobles 01683 | 2 | Washer, Flat, 10, SsSerial 10748031 to 10791637. | $2.60/EA |
| 28 | TN4041589Replaces Nobles 07514 | 2 | Washer, Lock, Int, 10, SsSerial 10748031 to 10791637. | $3.50/EA |
| 29 | TN4041965Replaces Nobles 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial 10748031 to 10791637. | $3.40/EA |
| 30 | TN4022671Replaces Nobles 1210590 | 1 | Plate Wldt, Head, Weighted (Replaced By Kit 9014801)Serial 10000000 to 10802497. | $204.40/EA |
| 31 | TN4022588Replaces Nobles 1210676 | 1 | Hub, Drive, 3 Lug [Machined] (Replaced By Kit 9014623)Serial 10000000 to 10791637. | $240.10/EA |
| 32 | TN4043814Replaces Nobles 140197 | 2 | Screw, Trs, Phl, 10-24 X 0.38, Sems, SsSerial 10791638 to 20000000. | $4.00/EA |
| 33 | TN4037476Replaces Nobles 1221972 | 1 | Plug, Hole, Oval, Head, Hsng, Abs [T300]Serial 10791638 to 20000000. | $58.90/EA |
Nobles Speed Scrub 300 scrub head group, 17 in (43 cm) disk, magnetic hub parts
The parts Nobles numbers on the scrub head group, 17 in (43 cm) disk, magnetic hub drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023231Replaces Nobles 1210703 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mmComplete assembly. Serial 10000000 to 20000000. | $1,584.50/EA |
| – | TN8005967Replaces Nobles 222606 | 1 | Vr, Brush Kit, Motor, Ele [Ip] (4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $188.70/EA |
| – | TN4042671Replaces Nobles 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $20.10/EA |
| 2 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $29.70/EA |
| 3 | TN4037626Replaces Nobles 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $4.20/EA |
| 4 | TN4041929Replaces Nobles 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 6 | TN4040581Replaces Nobles 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4040369Replaces Nobles 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingSerial 10000000 to 20000000. | $5.50/EA |
| 8 | TN4038624Replaces Nobles 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 11 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 12 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 13 | TN4039259Replaces Nobles 1212324 | 1 | Housing, Head, 43cmSerial 10000000 to 20000000. | $128.60/EA |
| 14 | TN4038702Replaces Nobles 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, ImSerial 10000000 to 20000000. | $94.10/EA |
| 15 | TN4035127Replaces Nobles 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 16 | TN4038920Replaces Nobles 1211242 | 1 | Button, Plunger, PadSerial 10000000 to 20000000. | $11.60/EA |
| 17 | TN4039485Replaces Nobles 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsSerial 10000000 to 20000000. | $11.50/EA |
| 18 | TN4038921Replaces Nobles 1211256 | 1 | Pin, Stop, LongSerial 10000000 to 20000000. | $25.30/EA |
| 19 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4022671Replaces Nobles 1210590 | 1 | Plate Wldt, Head, WeightedSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4033193Replaces Nobles 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 22 | TN4018790Replaces Nobles 1212312 | 1 | Hub, Drive, Magnetic [Machined]Serial 10000000 to 20000000. | $140.69/EA |
| 23 | TN4040922Replaces Nobles 1205043 | 1 | Ring, Hub, MagneticSerial 10000000 to 20000000. | $24.20/EA |
| 24 | TN4035242Replaces Nobles 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 25 | TN4036259Replaces Nobles 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 26 | TN4020510Replaces Nobles 630114 | 3 | Screw, Flt, Phl, M4 X 0.70 X 8, 4.8Serial 10000000 to 20000000. | $3.30/EA |

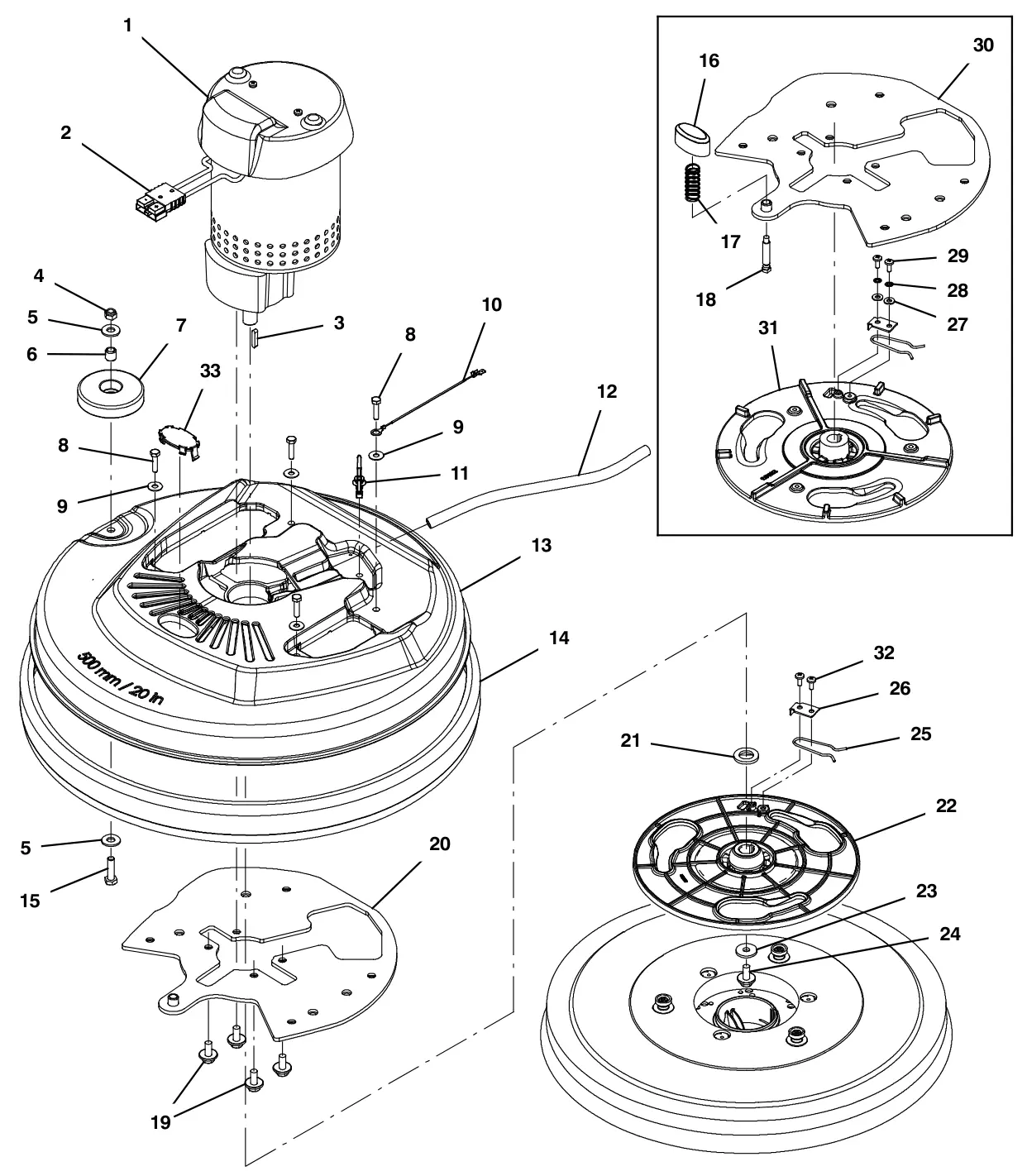

Nobles Speed Scrub 300 scrub head group, 20 in (50 cm) disk, 3-lug hub parts
The parts Nobles numbers on the scrub head group, 20 in (50 cm) disk, 3-lug hub drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023231Replaces Nobles 1210703 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mmComplete assembly. Serial 10000000 to 20000000. | $1,584.50/EA |
| – | TN8005967Replaces Nobles 222606 | 1 | Vr, Brush Kit, Motor, Ele [Ip] (4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $188.70/EA |
| – | TN4042671Replaces Nobles 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $20.10/EA |
| 2 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $29.70/EA |
| 3 | TN4037626Replaces Nobles 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $4.20/EA |
| 4 | TN4041929Replaces Nobles 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 6 | TN4040581Replaces Nobles 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4040369Replaces Nobles 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingSerial 10000000 to 20000000. | $5.50/EA |
| 8 | TN4038624Replaces Nobles 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 11 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 12 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 13 | TN4041782Replaces Nobles 1208041 | 1 | Housing, Head, 50cmSerial 10000000 to 20000000. | $131.60/EA |
| 14 | TN4038704Replaces Nobles 1055025 | 1 | Bumper, Head, 50cm, W/ Bristle Skirt, ImSerial 10000000 to 20000000. | $147.90/EA |
| 15 | TN4035127Replaces Nobles 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 16 | TN4038920Replaces Nobles 1211242 | 1 | Button, Plunger, PadSerial 10000000 to 10791637. | $11.60/EA |
| 17 | TN4039485Replaces Nobles 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsSerial 10000000 to 10791637. | $11.50/EA |
| 18 | TN4039226Replaces Nobles 1211907 | 1 | Pin, Stop, ShortSerial 10000000 to 10791637. | $21.60/EA |
| 19 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4037862Replaces Nobles 1223980 | 1 | Plate Wldt, Head, WeightedSerial 10499417 to 20000000. | $96.80/EA |
| 21 | TN4033193Replaces Nobles 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 22 | TN4029743Replaces Nobles 1219855 | 1 | Hub, Drive, 3lug, Alm-Nyl, 17mm[T2,T300]Serial 10791638 to 20000000. | $126.80/EA |
| 23 | TN4035242Replaces Nobles 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 24 | TN4036259Replaces Nobles 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 25 | TN4037304Replaces Nobles 1013188 | 1 | Clip, Spring, Drive Hub, Release [T3]Serial 10748031 to 20000000. | $7.00/EA |
| 26 | TN4036677Replaces Nobles 1011201 | 1 | Plate, Drive Hub, Release Clip [T3]Serial 10748031 to 20000000. | $21.70/EA |
| 27 | TN4042888Replaces Nobles 01683 | 2 | Washer, Flat, 10, SsSerial 10748031 to 10791637. | $2.60/EA |
| 28 | TN4041589Replaces Nobles 07514 | 2 | Washer, Lock, Int, 10, SsSerial 10748031 to 10791637. | $3.50/EA |
| 29 | TN4041965Replaces Nobles 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial 10748031 to 10791637. | $3.40/EA |
| 30 | TN4022671Replaces Nobles 1210590 | 1 | Plate Wldt, Head, Weighted (Replaced By Kit 9014801)Serial 10000000 to 10499416. | $204.40/EA |
| 31 | TN4022588Replaces Nobles 1210676 | 1 | Hub, Drive, 3 Lug [Machined] (Replaced By Kit 9014623)Serial 10000000 to 10791637. | $240.10/EA |
| 32 | TN4043814Replaces Nobles 140197 | 2 | Screw, Trs, Phl, 10-24 X 0.38, Sems, SsSerial 10791638 to 20000000. | $4.00/EA |
| 33 | TN4037476Replaces Nobles 1221972 | 1 | Plug, Hole, Oval, Head, Hsng, Abs [T300]Serial 10791638 to 20000000. | $58.90/EA |
Nobles Speed Scrub 300 scrub head group, 20 in (50 cm) disk, magnetic hub parts
The parts Nobles numbers on the scrub head group, 20 in (50 cm) disk, magnetic hub drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023231Replaces Nobles 1210703 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mmComplete assembly. Serial 10000000 to 20000000. | $1,584.50/EA |
| – | TN8005967Replaces Nobles 222606 | 1 | Vr, Brush Kit, Motor, Ele [Ip] (4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $188.70/EA |
| – | TN4042671Replaces Nobles 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $20.10/EA |
| 2 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $29.70/EA |
| 3 | TN4037626Replaces Nobles 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (1210703). Serial 10000000 to 20000000. | $4.20/EA |
| 4 | TN4041929Replaces Nobles 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 6 | TN4040581Replaces Nobles 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4040369Replaces Nobles 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingSerial 10000000 to 20000000. | $5.50/EA |
| 8 | TN4038624Replaces Nobles 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 11 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 12 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 13 | TN4041782Replaces Nobles 1208041 | 1 | Housing, Head, 50cmSerial 10000000 to 20000000. | $131.60/EA |
| 14 | TN4038704Replaces Nobles 1055025 | 1 | Bumper, Head, 50cm, W/ Bristle Skirt, ImSerial 10000000 to 20000000. | $147.90/EA |
| 15 | TN4035127Replaces Nobles 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 16 | TN4038920Replaces Nobles 1211242 | 1 | Button, Plunger, PadSerial 10000000 to 20000000. | $11.60/EA |
| 17 | TN4039485Replaces Nobles 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsSerial 10000000 to 20000000. | $11.50/EA |
| 18 | TN4038921Replaces Nobles 1211256 | 1 | Pin, Stop, LongSerial 10000000 to 20000000. | $25.30/EA |
| 19 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4022671Replaces Nobles 1210590 | 1 | Plate Wldt, Head, WeightedSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4033193Replaces Nobles 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 22 | TN4018790Replaces Nobles 1212312 | 1 | Hub, Drive, Magnetic [Machined]Serial 10000000 to 20000000. | $140.69/EA |
| 23 | TN4040922Replaces Nobles 1205043 | 1 | Ring, Hub, MagneticSerial 10000000 to 20000000. | $24.20/EA |
| 24 | TN4035242Replaces Nobles 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 25 | TN4036259Replaces Nobles 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 26 | TN4020510Replaces Nobles 630114 | 3 | Screw, Flt, Phl, M4 X 0.70 X 8, 4.8Serial 10000000 to 20000000. | $3.30/EA |

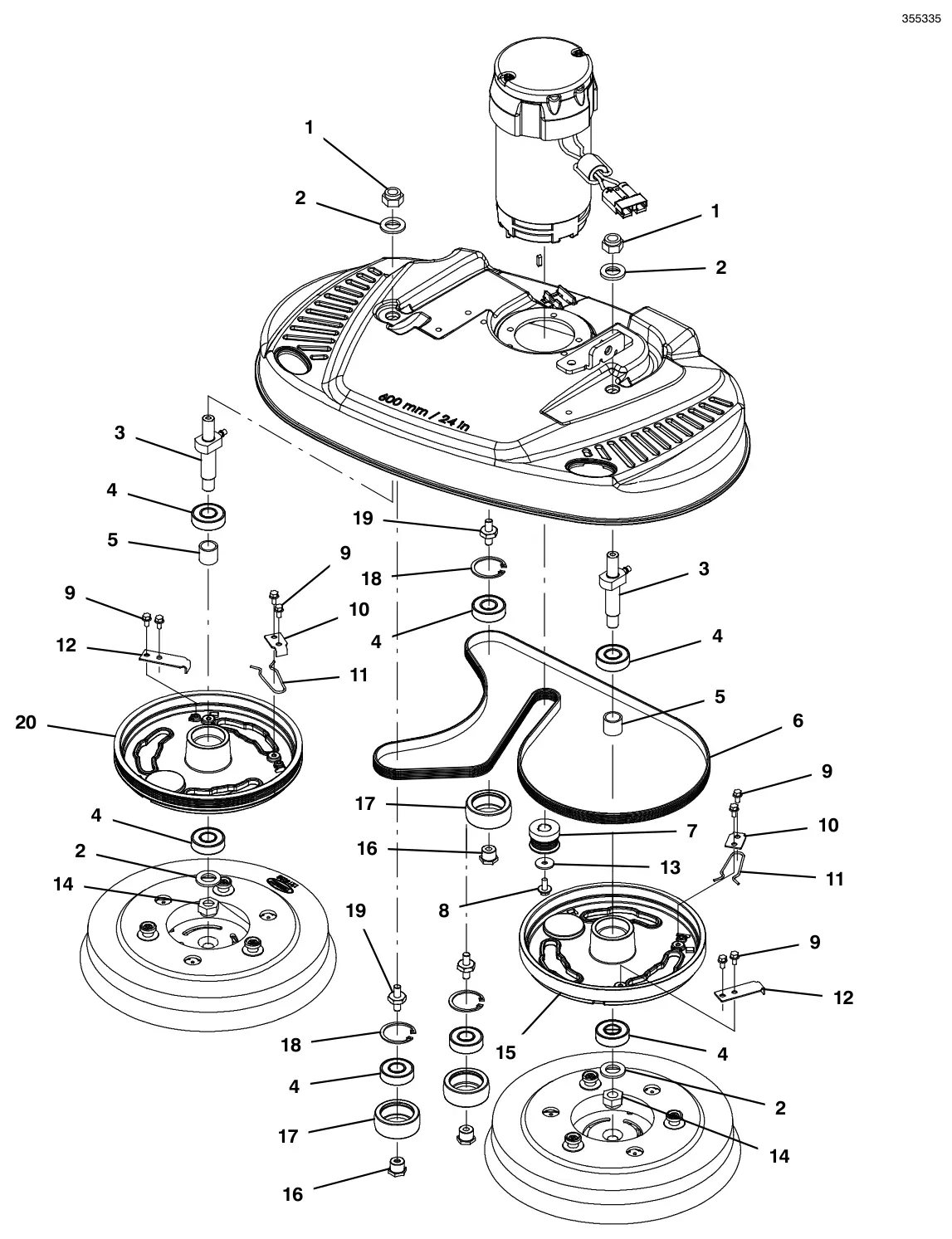

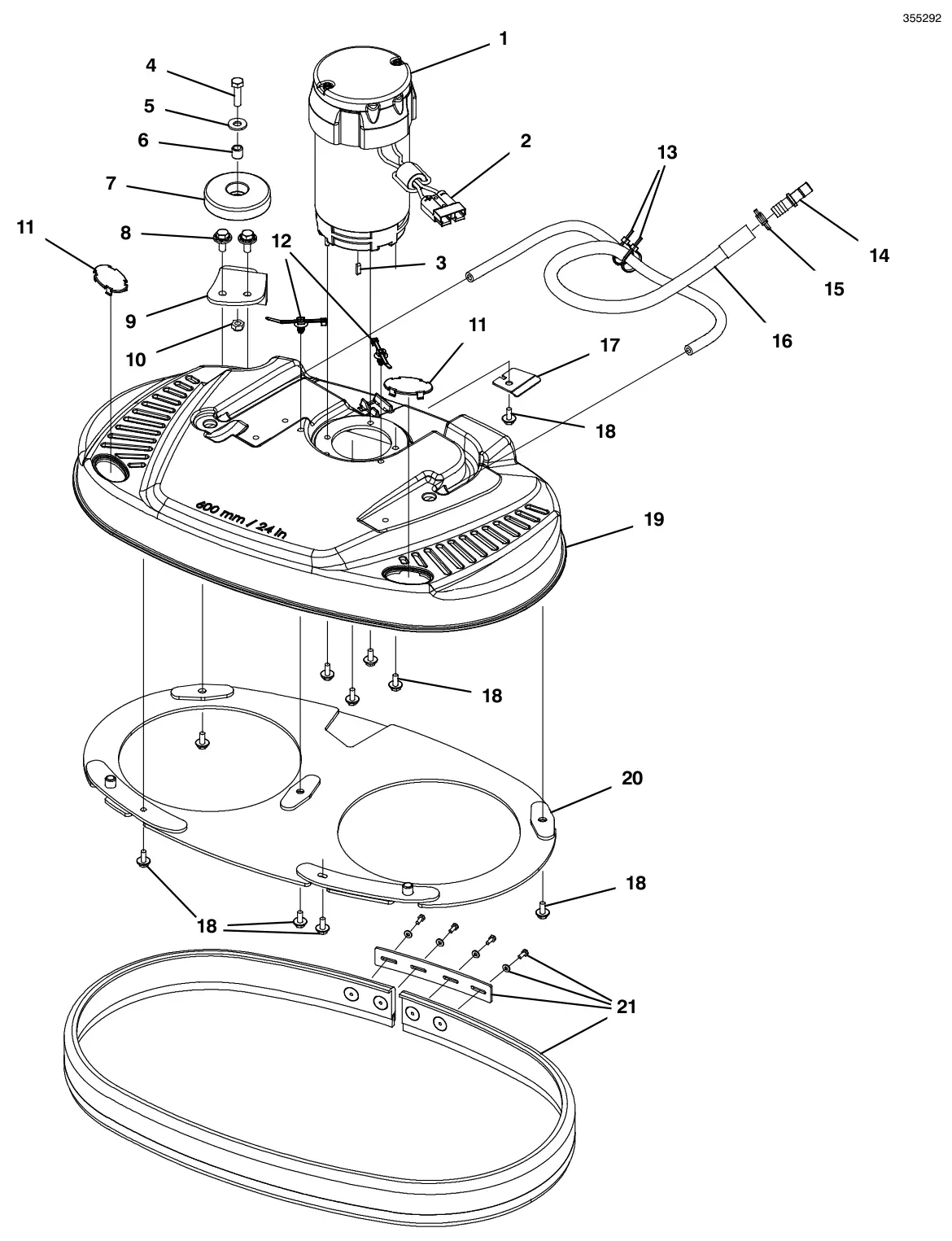

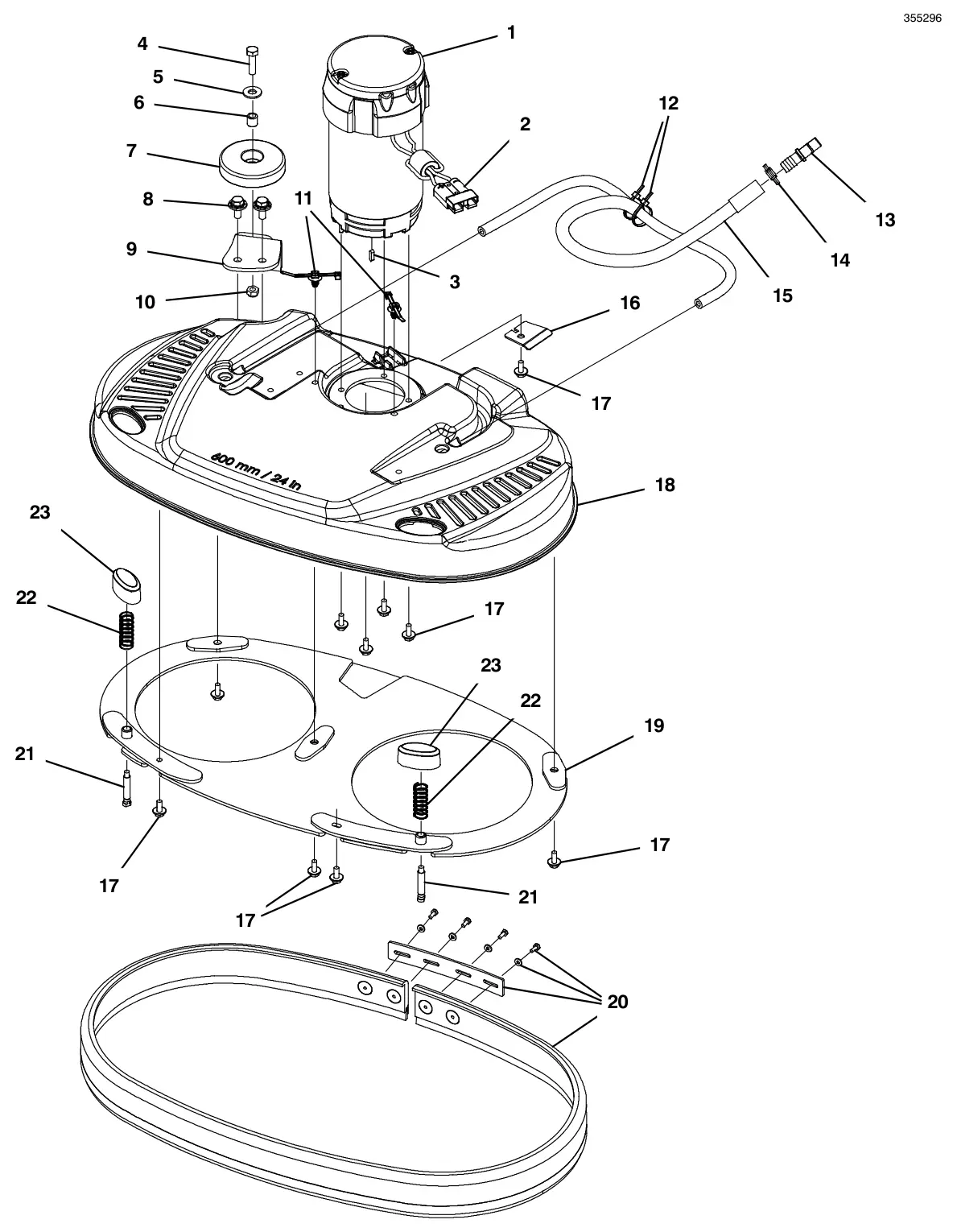

Nobles Speed Scrub 300 scrub head group, 24 in (60 cm) dual disk, 3-lug hub parts
The parts Nobles numbers on the scrub head group, 24 in (60 cm) dual disk, 3-lug hub drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023232Replaces Nobles 1210212 | 1 | Motor, 24vdc, 2000rpm, 7/8hp, UsComplete assembly. Serial 10000000 to 20000000. | $1,259.00/EA |
| – | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (1210212). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (1210212). Serial 10000000 to 20000000. | $29.70/EA |
| 3 | TN4040526Replaces Nobles 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (1210212). Serial 10000000 to 20000000. | $3.90/EA |
| 4 | TN4041944Replaces Nobles 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 5 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 6 | TN4040581Replaces Nobles 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4040369Replaces Nobles 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingSerial 10000000 to 20000000. | $5.50/EA |
| 8 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 9 | TN4039202Replaces Nobles 1211506 | 1 | Bracket, Rlr, Wall, Scb HeadSerial 10000000 to 20000000. | $31.10/EA |
| 10 | TN4041929Replaces Nobles 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 11 | TN4039256Replaces Nobles 1212288 | 2 | Cover, Hole, PlungerSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4038889Replaces Nobles 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 13 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 14 | TN4039487Replaces Nobles 1212807 | 1 | Fitting, Plstc, Str, Qm08/Bm08Serial 10000000 to 20000000. | $14.30/EA |
| 15 | TN4021947Replaces Nobles 607776 | 1 | Clamp, Hose, Wir, .73 - .77, SilverSerial 10000000 to 20000000. | $4.20/EA |
| 16 | TN4040169Replaces Nobles 1216084 | 1 | Manifold, Distribution, Water, 60dd [Vw]Serial 10000000 to 20000000. | $124.40/EA |
| 17 | TN4040524Replaces Nobles 1217752 | 1 | Bracket, Belt GuideSerial 10000000 to 20000000. | $15.00/EA |
| 18 | TN4045268Replaces Nobles 1034731 | 10 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 19 | TN4038908Replaces Nobles 1211027 | 1 | Housing, Head, 60cm [Machined]Serial 10000000 to 20000000. | $610.80/EA |
| 20 | TN4040184Replaces Nobles 1216346 | 1 | Bracket Wldt, Guard, Splash, 60cmSerial 10000000 to 20000000. | $232.10/EA |
| 21 | TN4030967Replaces Nobles 1072656 | 1 | Bumper, Head, 60cm, Bristle SkirtSerial 10000000 to 20000000. | $273.90/EA |

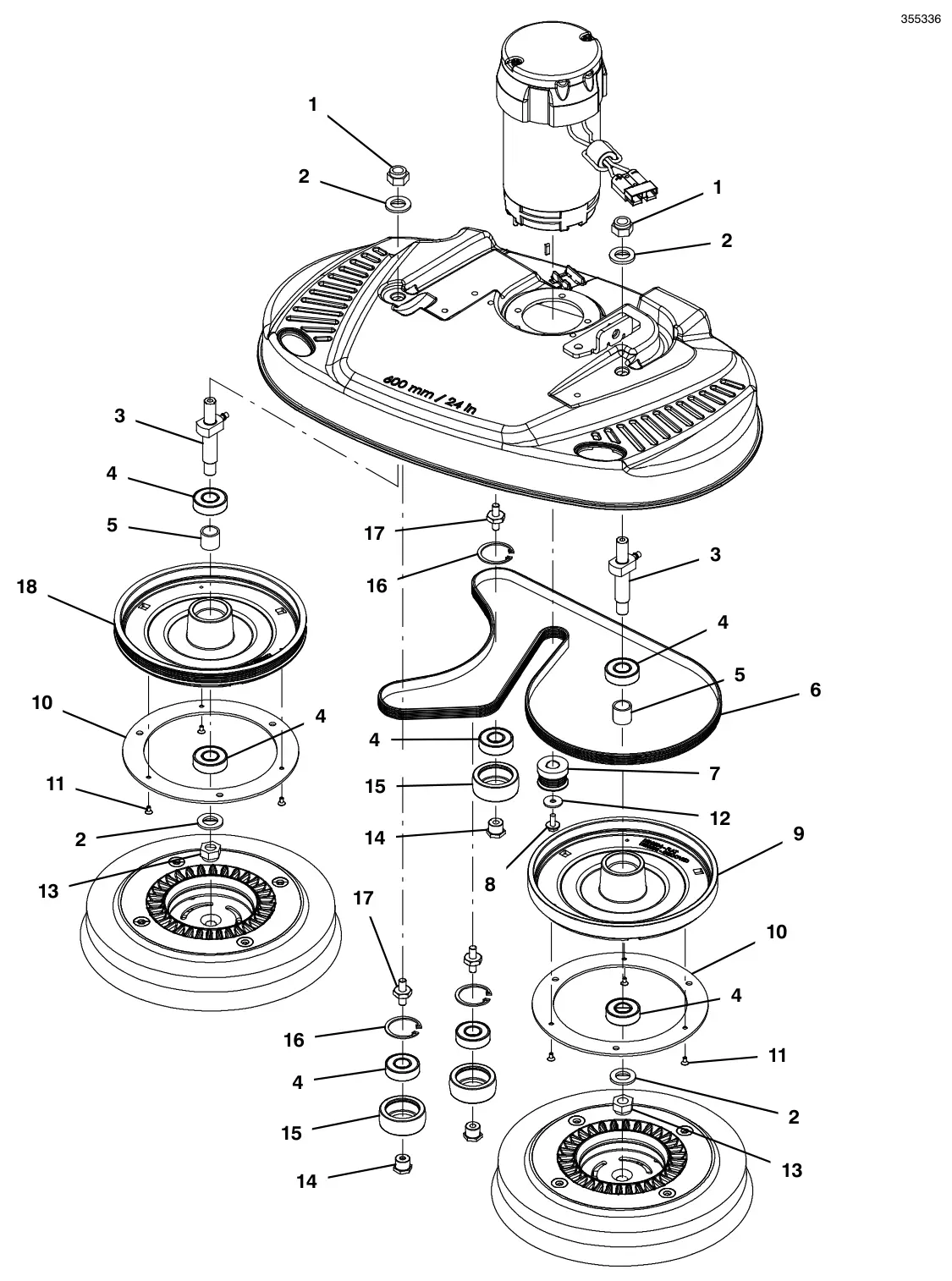

Nobles Speed Scrub 300 scrub head group, 24 in (60 cm) dual disk, 3-lug hub (continued) parts
The parts Nobles numbers on the scrub head group, 24 in (60 cm) dual disk, 3-lug hub drawing, continued from the page before. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016839Replaces Nobles 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlSerial 10000000 to 20000000. | $3.30/EA |
| 2 | TN4033193Replaces Nobles 1022549 | 4 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 3 | TN4039880Replaces Nobles 1214206 | 2 | Shaft Wldt, Mtg, PulleySerial 10000000 to 20000000. | $224.60/EA |
| 4 | TN4038915Replaces Nobles 1211187 | 7 | Bearing, Ball, 0.67b 1.57d 0.47w [6203]Serial 10000000 to 20000000. | $20.90/EA |
| 5 | TN4040542Replaces Nobles 1011041 | 2 | Tube, 0.69id 0.87od 00.8l, Stl, PlSerial 10000000 to 20000000. | $6.60/EA |
| 6 | TN4018508Replaces Nobles 1055305 | 1 | Belt, Drive, 6pj, Ej139 [T3]Serial 10000000 to 20000000. | $55.15/EA |
| 7 | TN4039838Replaces Nobles 1213927 | 1 | Sheave, 06grv, 1.25pd 0.54b, Ss [Keyed]Serial 10000000 to 20000000. | $94.80/EA |
| 8 | TN4045268Replaces Nobles 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4037385Replaces Nobles 223198 | 8 | Screw, Hex, M5 X 0.80 X 10, FmgSerial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4036677Replaces Nobles 1011201 | 2 | Plate, Drive Hub, Release Clip [T3]Serial 10000000 to 20000000. | $21.70/EA |
| 11 | TN4037304Replaces Nobles 1013188 | 2 | Clip, Spring, Drive Hub, Release [T3]Serial 10000000 to 20000000. | $7.00/EA |
| 12 | TN4037548Replaces Nobles 1013592 | 2 | Plate, Drive Hub, Release Stop [T3 Dd]Serial 10000000 to 20000000. | $18.20/EA |
| 13 | TN4042994Replaces Nobles 019680127 | 1 | Washer, Flat, 6.2mm Id X 22.0mm Od X 1.9Serial 10000000 to 20000000. | $4.10/EA |
| 14 | TN4016839Replaces Nobles 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4037114Replaces Nobles 1059205 | 1 | Hub, Drive, 3lug, Alm, 2disk, FltSerial 10000000 to 20000000. | $63.90/EA |
| 16 | TN4040541Replaces Nobles 1011008 | 3 | Spacer, Brg, IdlerSerial 10000000 to 20000000. | $12.10/EA |
| 17 | TN4036725Replaces Nobles 1058514 | 3 | Pulley, Idler, 55d X 21w[60cm Dual Disk]Serial 10000000 to 20000000. | $67.50/EA |
| 18 | TN4037576Replaces Nobles 1013884 | 3 | Ring, Retaining, Int, 40mm, SsSerial 10000000 to 20000000. | $23.40/EA |
| 19 | TN4039208Replaces Nobles 1211624 | 3 | Stud, M8 X 1.25, Dbl End W/Hex, SsSerial 10000000 to 20000000. | $60.00/EA |
| 20 | TN4037115Replaces Nobles 1059206 | 1 | Hub, Drive, 3lug, Alm, 2disk, 6grvSerial 10000000 to 20000000. | $101.00/EA |
Nobles Speed Scrub 300 scrub head group, 24 in (60 cm) dual disk, magnetic hub parts
The parts Nobles numbers on the scrub head group, 24 in (60 cm) dual disk, magnetic hub drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023232Replaces Nobles 1210212 | 1 | Motor, 24vdc, 2000rpm, 7/8hp, UsComplete assembly. Serial 10000000 to 20000000. | $1,259.00/EA |
| – | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (1210212). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (1210212). Serial 10000000 to 20000000. | $29.70/EA |
| 3 | TN4040526Replaces Nobles 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (1210212). Serial 10000000 to 20000000. | $3.90/EA |
| 4 | TN4041944Replaces Nobles 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 5 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 6 | TN4040581Replaces Nobles 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4040369Replaces Nobles 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingSerial 10000000 to 20000000. | $5.50/EA |
| 8 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 9 | TN4039202Replaces Nobles 1211506 | 1 | Bracket, Rlr, Wall, Scb HeadSerial 10000000 to 20000000. | $31.10/EA |
| 10 | TN4041929Replaces Nobles 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 11 | TN4038889Replaces Nobles 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 12 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 13 | TN4039487Replaces Nobles 1212807 | 1 | Fitting, Plstc, Str, Qm08/Bm08Serial 10000000 to 20000000. | $14.30/EA |
| 14 | TN4021947Replaces Nobles 607776 | 1 | Clamp, Hose, Wir, .73 - .77, SilverSerial 10000000 to 20000000. | $4.20/EA |
| 15 | TN4040169Replaces Nobles 1216084 | 1 | Manifold, Distribution, Water, 60dd [Vw]Serial 10000000 to 20000000. | $124.40/EA |
| 16 | TN4040524Replaces Nobles 1217752 | 1 | Bracket, Belt GuideSerial 10000000 to 20000000. | $15.00/EA |
| 17 | TN4045268Replaces Nobles 1034731 | 10 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 18 | TN4038908Replaces Nobles 1211027 | 1 | Housing, Head, 60cm [Machined]Serial 10000000 to 20000000. | $610.80/EA |
| 19 | TN4040184Replaces Nobles 1216346 | 1 | Bracket Wldt, Guard, Splash, 60cmSerial 10000000 to 20000000. | $232.10/EA |
| 20 | TN4030967Replaces Nobles 1072656 | 1 | Bumper, Head, 60cm, Bristle SkirtSerial 10000000 to 20000000. | $273.90/EA |
| 21 | TN4039226Replaces Nobles 1211907 | 2 | Pin, Stop, ShortSerial 10000000 to 20000000. | $21.60/EA |
| 22 | TN4039485Replaces Nobles 1212785 | 2 | Spring, Cmpr, .66od, .05wir, 1.75l, SsSerial 10000000 to 20000000. | $11.50/EA |
| 23 | TN4038920Replaces Nobles 1211242 | 2 | Button, Plunger, PadSerial 10000000 to 20000000. | $11.60/EA |
Nobles Speed Scrub 300 scrub head group, 24 in (60 cm) dual disk, magnetic hub (continued) parts
The parts Nobles numbers on the scrub head group, 24 in (60 cm) dual disk, magnetic hub drawing, continued from the page before. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016839Replaces Nobles 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlSerial 10000000 to 20000000. | $3.30/EA |
| 2 | TN4033193Replaces Nobles 1022549 | 4 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 3 | TN4039880Replaces Nobles 1214206 | 2 | Shaft Wldt, Mtg, PulleySerial 10000000 to 20000000. | $224.60/EA |
| 4 | TN4038915Replaces Nobles 1211187 | 7 | Bearing, Ball, 0.67b 1.57d 0.47w [6203]Serial 10000000 to 20000000. | $20.90/EA |
| 5 | TN4040542Replaces Nobles 1011041 | 2 | Tube, 0.69id 0.87od 00.8l, Stl, PlSerial 10000000 to 20000000. | $6.60/EA |
| 6 | TN4018508Replaces Nobles 1055305 | 1 | Belt, Drive, 6pj, Ej139 [T3]Serial 10000000 to 20000000. | $55.15/EA |
| 7 | TN4039838Replaces Nobles 1213927 | 1 | Sheave, 06grv, 1.25pd 0.54b, Ss [Keyed]Serial 10000000 to 20000000. | $94.80/EA |
| 8 | TN4045268Replaces Nobles 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4038854Replaces Nobles 1210504 | 1 | Hub, Drive, Magnetic, Flat, 60cm DdSerial 10000000 to 20000000. | $133.40/EA |
| 10 | TN4040922Replaces Nobles 1205043 | 2 | Ring, Hub, MagneticSerial 10000000 to 20000000. | $24.20/EA |
| 11 | TN4020510Replaces Nobles 630114 | 6 | Screw, Flt, Phl, M4 X 0.70 X 8, 4.8Serial 10000000 to 20000000. | $3.30/EA |
| 12 | TN4042994Replaces Nobles 019680127 | 1 | Washer, Flat, 6.2mm Id X 22.0mm Od X 1.9Serial 10000000 to 20000000. | $4.10/EA |
| 12 | TN4016839Replaces Nobles 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlSerial 10000000 to 20000000. | $3.30/EA |
| 14 | TN4040541Replaces Nobles 1011008 | 3 | Spacer, Brg, IdlerSerial 10000000 to 20000000. | $12.10/EA |
| 15 | TN4036725Replaces Nobles 1058514 | 3 | Pulley, Idler, 55d X 21w[60cm Dual Disk]Serial 10000000 to 20000000. | $67.50/EA |
| 16 | TN4037576Replaces Nobles 1013884 | 3 | Ring, Retaining, Int, 40mm, SsSerial 10000000 to 20000000. | $23.40/EA |
| 17 | TN4039208Replaces Nobles 1211624 | 3 | Stud, M8 X 1.25, Dbl End W/Hex, SsSerial 10000000 to 20000000. | $60.00/EA |
| 18 | TN4038853Replaces Nobles 1210503 | 1 | Hub, Drive, Magnetic, Grooved, 60cm DdSerial 10000000 to 20000000. | $133.40/EA |

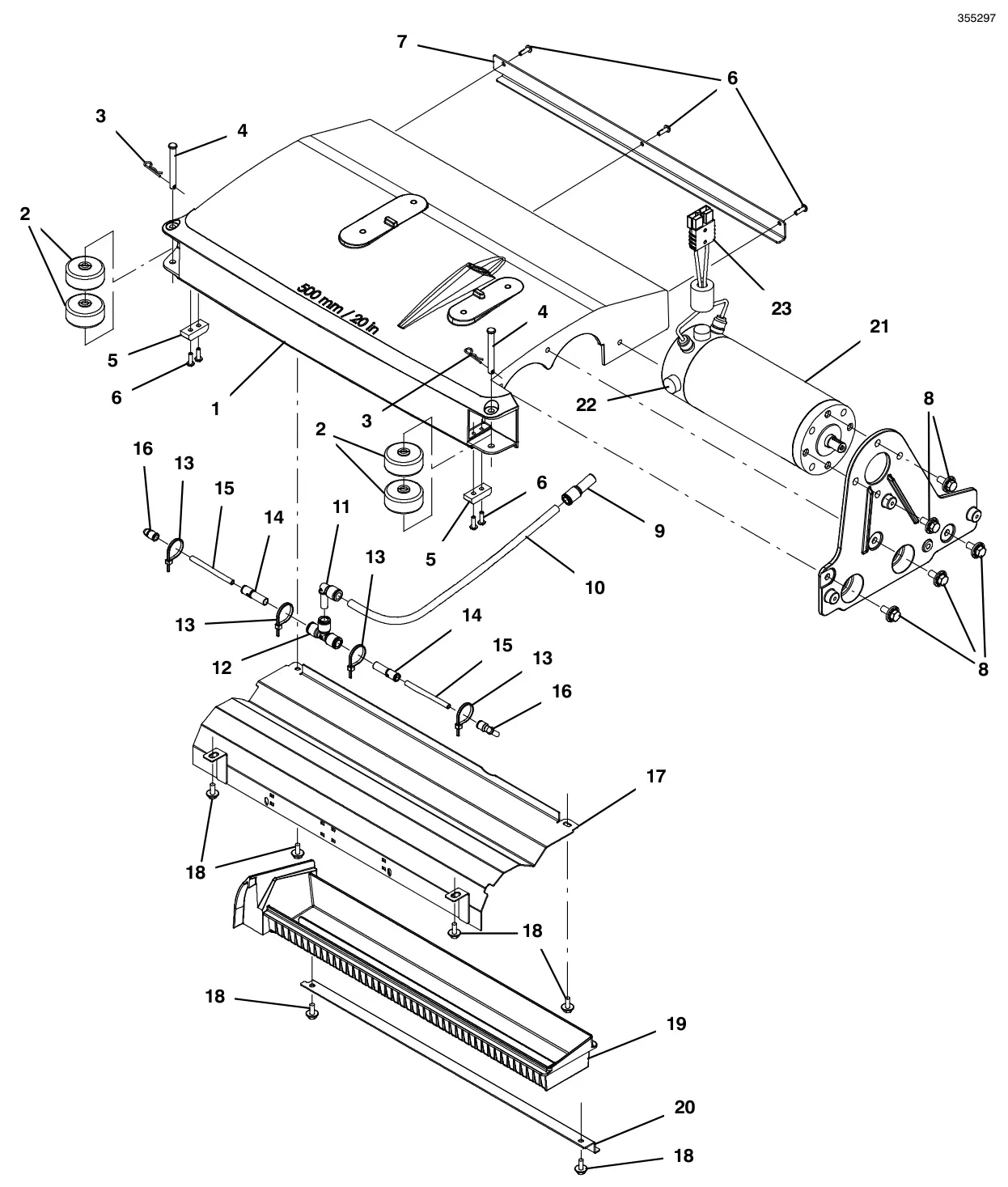

Nobles Speed Scrub 300 scrub head group, 20 in (50 cm) cylindrical parts
The parts Nobles numbers on the scrub head group, 20 in (50 cm) cylindrical drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039255Replaces Nobles 1212265 | 1 | Housing, Brush, Dbl 50cm [Machined]Serial 10000000 to 20000000. | $682.10/EA |
| 2 | TN4020804Replaces Nobles 630477 | 4 | Wheel, Pyu, 02.0d 0.38w, GraySerial 10000000 to 20000000. | $9.50/EA |
| 3 | TN4040200Replaces Nobles 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirSerial 10000000 to 20000000. | $1.50/EA |
| 4 | TN4018939Replaces Nobles 391179 | 2 | Pin, Clevis, 0.37d X 2.62lSerial 10000000 to 20000000. | $4.00/EA |
| 5 | TN4040152Replaces Nobles 1215675 | 2 | Skid, Brush HousingSerial 10000000 to 20000000. | $13.00/EA |
| 6 | TN4041143Replaces Nobles 1205799 | 7 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4039818Replaces Nobles 1213708 | 1 | Bracket, Tray, DebrisSerial 10000000 to 20000000. | $19.90/EA |
| 8 | TN4036259Replaces Nobles 1020341 | 7 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 9 | TN4040124Replaces Nobles 1215218 | 1 | Fitting, Plstc, Str, Qf06/Qm08Serial 10000000 to 20000000. | $12.40/EA |
| 10 | TN4037973Replaces Nobles 1014986 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 02ftSerial 10000000 to 20000000. | $18.70/EA |
| 11 | TN4040123Replaces Nobles 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10000000 to 20000000. | $18.30/EA |
| 12 | TN4039467Replaces Nobles 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10000000 to 20000000. | $19.10/EA |
| 13 | TN4043510Replaces Nobles 130773 | 4 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 14 | TN4039512Replaces Nobles 1212934 | 2 | Fitting, Plstc, Str, Qf04/Qm06Serial 10000000 to 20000000. | $12.30/EA |
| 15 | TN4041512Replaces Nobles 160827 | 1 | Hose, Pvc, Clr, 0.12id 0.25od 010.5lSerial 10000000 to 20000000. | $16.80/EA |
| 16 | TN4039906Replaces Nobles 1214339 | 2 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10000000 to 20000000. | $11.60/EA |
| 17 | TN4036961Replaces Nobles 1219486 | 1 | Panel Wldt, BrushSerial 10000000 to 20000000. | $287.10/EA |
| 18 | TN4045268Replaces Nobles 1034731 | 6 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 19 | TN4039814Replaces Nobles 1213706 | 1 | Tray, Debris, 500mm [Im]Serial 10000000 to 20000000. | $80.80/EA |
| 20 | TN4039816Replaces Nobles 1213707 | 1 | Bracket, Tray, DebrisSerial 10000000 to 20000000. | $36.90/EA |
| 21 | TN4042417Replaces Nobles 1210202 | 1 | Motor, Ele, 24vdc [Vw Cyl]Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4040526Replaces Nobles 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). Serial 10000000 to 20000000. | $3.90/EA |
| 22 | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). Serial 10000000 to 20000000. | $29.70/EA |

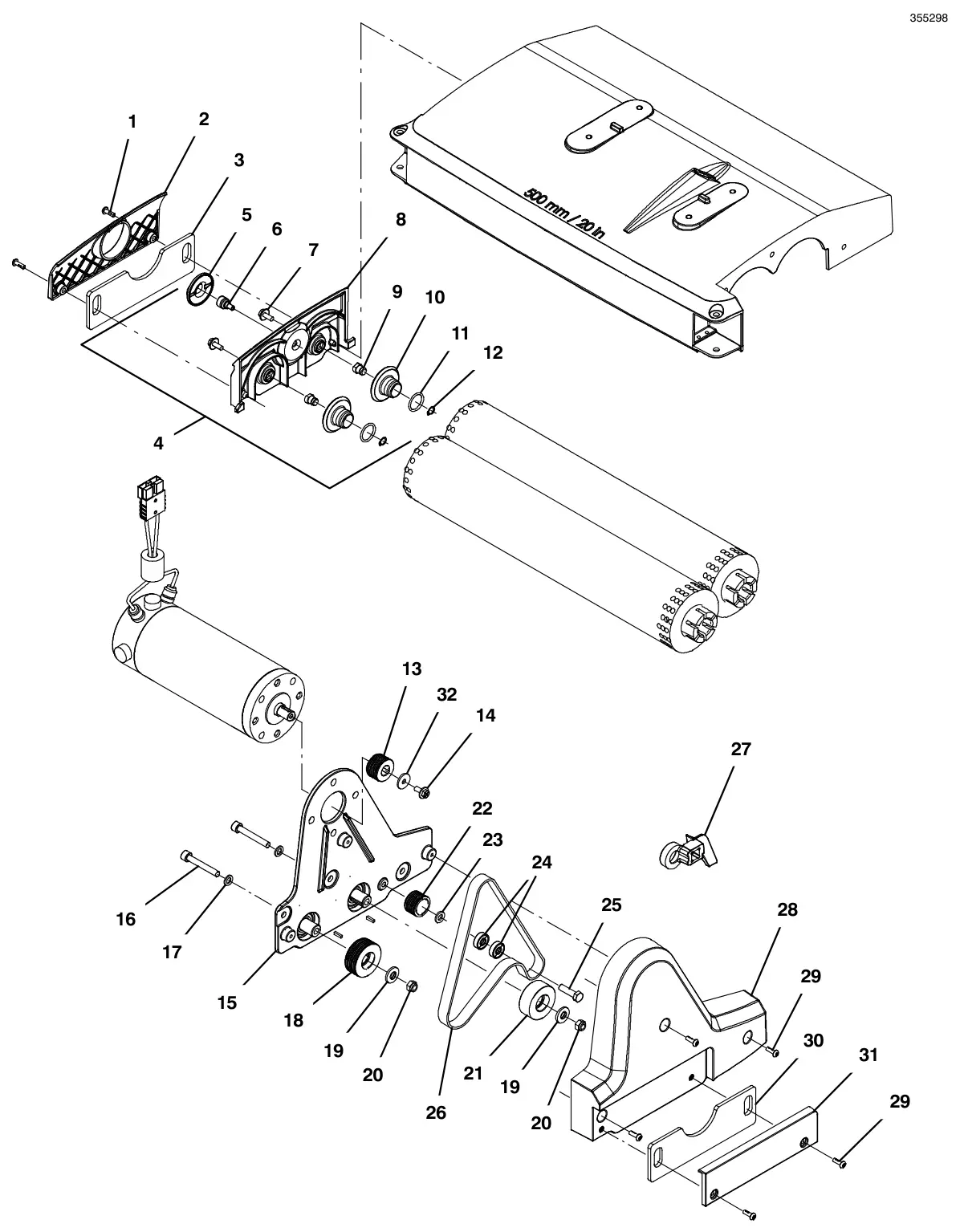

Nobles Speed Scrub 300 scrub head group, 20 in (50 cm) cylindrical (continued) parts
The parts Nobles numbers on the scrub head group, 20 in (50 cm) cylindrical drawing, continued from the page before. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 2 | TN4040399Replaces Nobles 1216689 | 1 | Cover, Skirt, Cyl DoorSerial 10000000 to 20000000. | $16.00/EA |
| 3 | TN4040147Replaces Nobles 1215666 | 1 | Skirt, Side, Cyl, FloatingSerial 10000000 to 20000000. | $21.10/EA |
| 4 | TN4026474Replaces Nobles 9014168 | 1 | Door Assy, BrushComplete assembly. Serial 10000000 to 20000000. | $351.90/EA |
| 5 | TN4040135Replaces Nobles 1215581 | 1 | Cap, ScrewPart of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $2.25/EA |
| 6 | TN4034919Replaces Nobles 1062149 | 1 | Knob, Rnd, 0.58d 0.50l, .25-20x.50l StudPart of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $6.80/EA |
| 7 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $3.30/EA |
| 8 | TN4039253Replaces Nobles 1212250 | 1 | Door, Brush [Machined]Part of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $73.50/EA |
| 9 | TN4031746Replaces Nobles 1030682 | 2 | Shaft, Idler PlugPart of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $21.30/EA |
| 10 | TN4031745Replaces Nobles 1030680 | 2 | Hub, Idler, BrushPart of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $19.60/EA |
| 11 | TN4037211Replaces Nobles 1220596 | 2 | Seal, Org, .139 X .859 Id, 212Part of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $1.40/EA |
| 12 | TN4042881Replaces Nobles 01543 | 2 | Ring, Retaining, Ext, 0.39d, BasicPart of Door Assy, Brush (9014168). Serial 10000000 to 20000000. | $2.50/EA |
| 13 | TN4042411Replaces Nobles 1210116 | 1 | Sheave, Motor, 07grv 1.3pd 0.50b [Pj]Serial 10000000 to 20000000. | $78.23/EA |
| 14 | TN4045268Replaces Nobles 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4026473Replaces Nobles 9014167 | 1 | Brkt Assy, Motor, Sgl Mount (Also includes Hubs,Complete assembly. Serial 10000000 to 20000000. | $889.60/EA |
| 16 | TN4036553Replaces Nobles 1057476 | 2 | Screw, Soc, M8 X 1.25 X 55, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $3.30/EA |
| 17 | TN4036554Replaces Nobles 1057482 | 2 | Washer, Flat, 0.33b 0.57d 0.06, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $1.50/EA |
| 18 | TN4042418Replaces Nobles 1210204 | 1 | Sheave, Drive, Grvd 07grv, 2.0pd 0.67b [Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $112.80/EA |
| 19 | TN4016796Replaces Nobles 41186 | 2 | Washer, Flat, Belleville, .31Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $3.30/EA |
| 21 | TN4042421Replaces Nobles 1210232 | 1 | Sheave, Drive, Smooth 2.0pd 0.67bPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $77.59/EA |
| 22 | TN4038737Replaces Nobles 1210233 | 1 | Sheave, Idler, 07grv 1.2pd 0.87b [Pj]Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $39.66/EA |
| 23 | TN4040174Replaces Nobles 1216289 | 1 | Spacer, Pulley, 2cyl, Pm [Vw]Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $3.25/EA |
| 24 | TN4030642Replaces Nobles 1027651 | 2 | Bearing, Ball, 8mmb X 22mmd X 7mmwPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $4.40/EA |
| 25 | TN4035127Replaces Nobles 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, (9014167). Serial 10000000 to 20000000. | $3.40/EA |
| 26 | TN4026472Replaces Nobles 9014166 | 1 | Kit, Belt, Motor (Includes Installation Tool)Serial 10000000 to 20000000. | $173.70/EA |
| 27 | TN4039539Replaces Nobles 1213132 | 1 | Tool, Installation, BeltSerial 10000000 to 20000000. | $14.50/EA |
| 28 | TN4042357Replaces Nobles 1209594 | 1 | Cover, BeltSerial 10000000 to 20000000. | $46.00/EA |
| 29 | TN4041143Replaces Nobles 1205799 | 5 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 30 | TN4040147Replaces Nobles 1215666 | 1 | Skirt, Side, Cyl, FloatingSerial 10000000 to 20000000. | $21.10/EA |
| 31 | TN4040491Replaces Nobles 1216728 | 1 | Cover, Skirt, Cyl HeadSerial 10000000 to 20000000. | $15.20/EA |
| 32 | TN4042994Replaces Nobles 019680127 | 1 | Washer, Flat, 6.2mm Id X 22.0mm Od X 1.9Serial 10000000 to 20000000. | $4.10/EA |

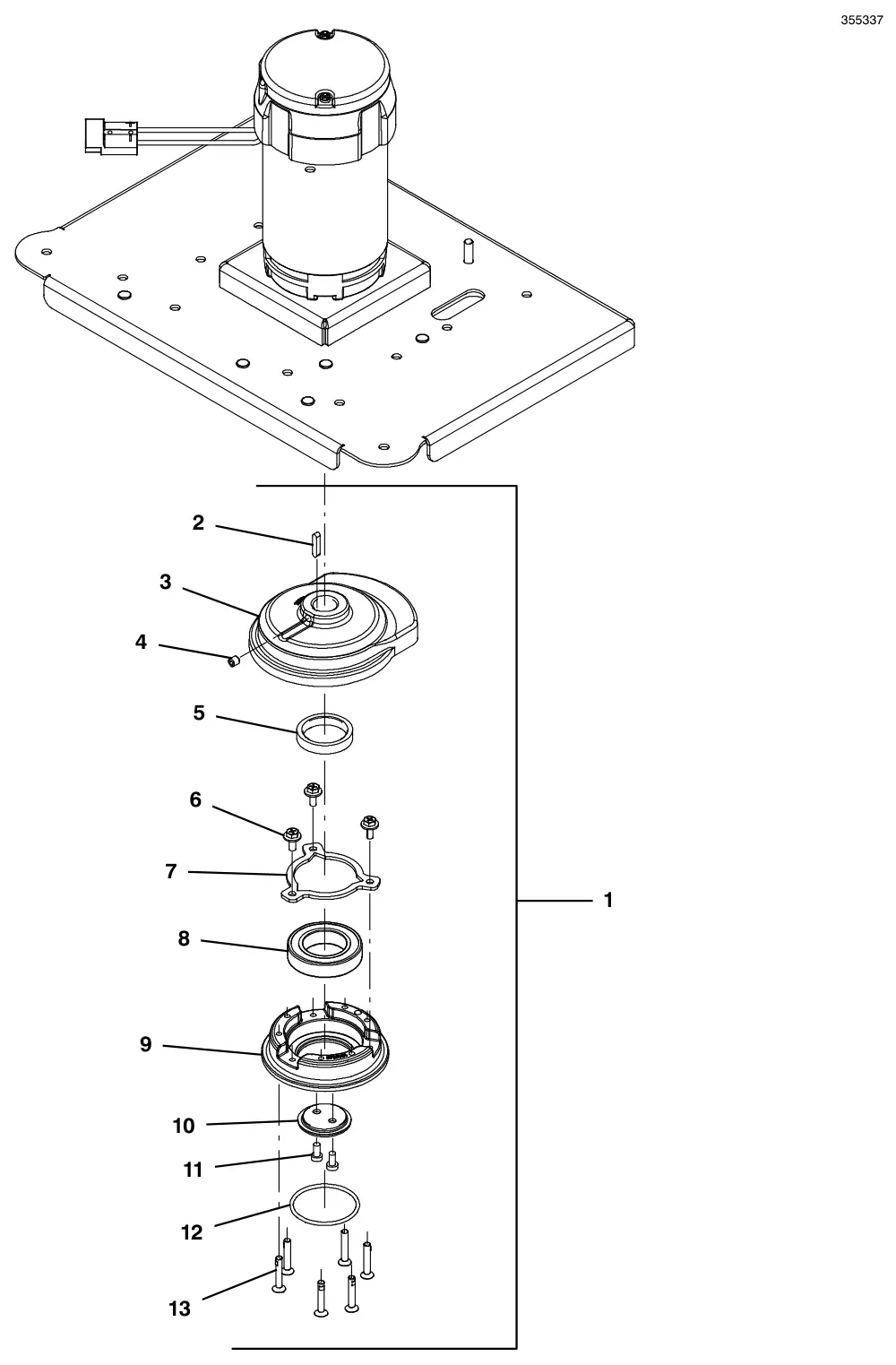

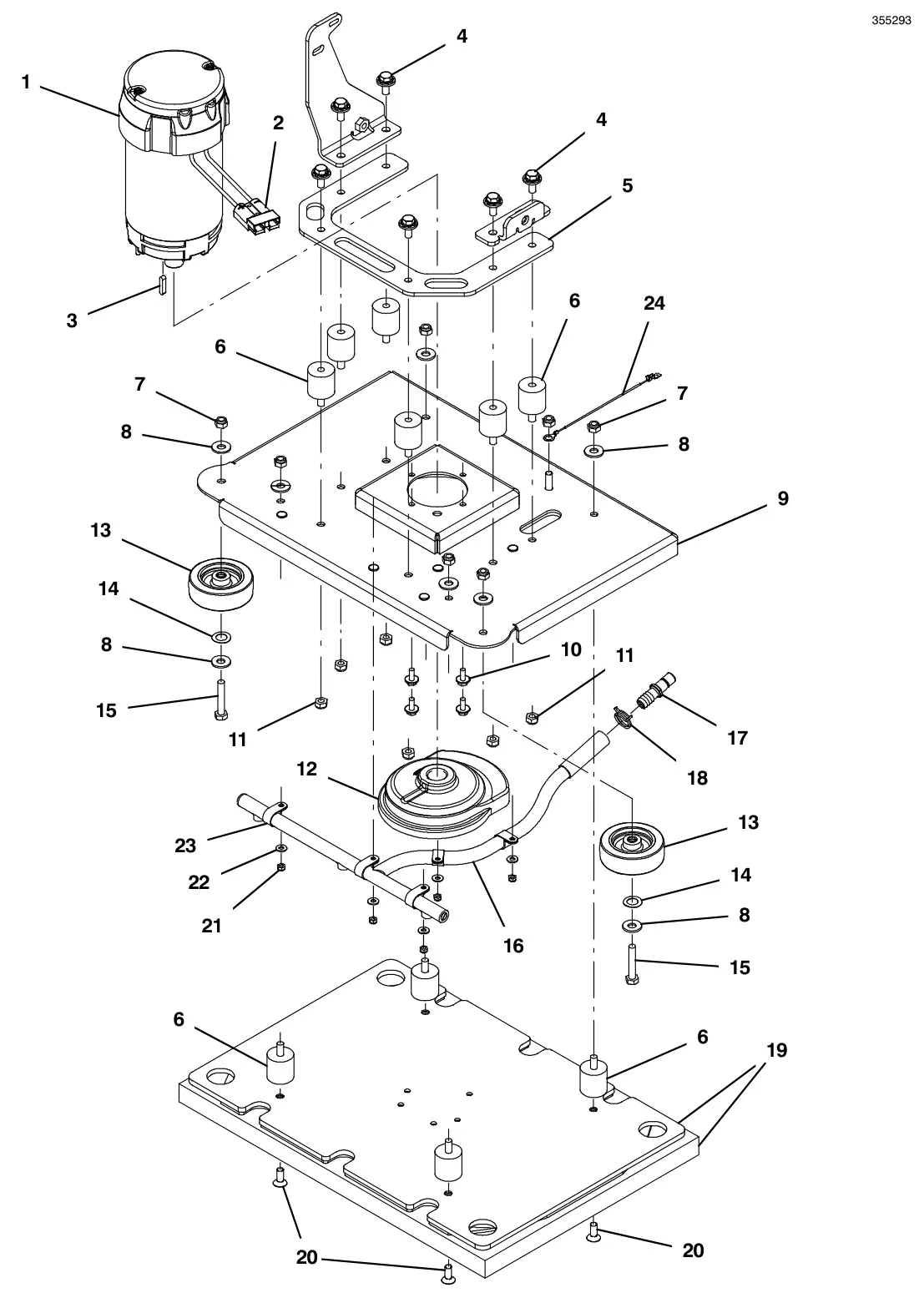

Nobles Speed Scrub 300 scrub head group, 20 in (50 cm) orbital parts
The parts Nobles numbers on the scrub head group, 20 in (50 cm) orbital drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023234Replaces Nobles 1212669 | 1 | Motor, Ele, 24vdc, 2200rpm, .6hp, 22mmComplete assembly. Serial 10000000 to 20000000. | $1,430.40/EA |
| – | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head) (1212669). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4014158Replaces Nobles 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head) (1212669). Serial 10000000 to 20000000. | $29.70/EA |
| 3 | TN4037626Replaces Nobles 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head) (1212669). Serial 10000000 to 20000000. | $4.20/EA |
| 4 | TN4036259Replaces Nobles 1020341 | 6 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 5 | TN4042375Replaces Nobles 1209745 | 1 | Plate, Mtg, Head [50cm Orb]Serial 10000000 to 20000000. | $36.30/EA |
| 6 | TN4039461Replaces Nobles 1212543 | 10 | Isolator, Neoprene, 1.25” X 1.25”, M8Serial 10000000 to 20000000. | $15.10/EA |
| 7 | TN4041929Replaces Nobles 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 8 | TN4042902Replaces Nobles 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 9 | TN4039455Replaces Nobles 1212527 | 1 | Deck Wldt, Scrbr [Volga Wet]Serial 10000000 to 20000000. | $304.10/EA |
| 10 | TN4045268Replaces Nobles 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 11 | TN4041929Replaces Nobles 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 12 | TN4026479Replaces Nobles 9014175 | 1 | Kit, Eccentric Assy, [T300] (See Breakdowns)Serial 10000000 to 20000000. | $1,025.50/EA |
| 13 | TN4037957Replaces Nobles 1014918 | 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, RbrSerial 10000000 to 20000000. | $0.00/EA |
| 14 | TN4042420Replaces Nobles 1210221 | 2 | Washer, Wave, .515b, .875d, .013, SsSerial 10000000 to 20000000. | $2.60/EA |
| 15 | TN4040607Replaces Nobles 222505 | 2 | Screw, Hex, M8 X 1.25 X 45, SsSerial 10000000 to 20000000. | $4.00/EA |
| 16 | TN4039450Replaces Nobles 1212468 | 1 | Manifold, Distribution, Water, Orb [Vw]Serial 10000000 to 20000000. | $125.20/EA |
| 17 | TN4039487Replaces Nobles 1212807 | 1 | Fitting, Plstc, Str, Qm08/Bm08Serial 10000000 to 20000000. | $14.30/EA |
| 18 | TN4021947Replaces Nobles 607776 | 1 | Clamp, Hose, Wir, .73 - .77, SilverSerial 10000000 to 20000000. | $4.20/EA |
| 19 | TN4026482Replaces Nobles 9014189 | 1 | Kit, Afmkt, Pad Driver [T300]Serial 10000000 to 20000000. | $445.60/EA |
| 20 | TN4036888Replaces Nobles 1218926 | 4 | Screw, Flt, Soc, M8 X 1.25 X 14, SsSerial 10000000 to 20000000. | $2.50/EA |
| 21 | TN4041991Replaces Nobles 09739 | 5 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 22 | TN4042888Replaces Nobles 01683 | 5 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 23 | TN4044164Replaces Nobles 140916 | 5 | Clamp, Cable, Nyl, 0.62d, NatSerial 10000000 to 20000000. | $3.40/EA |
| 24 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |

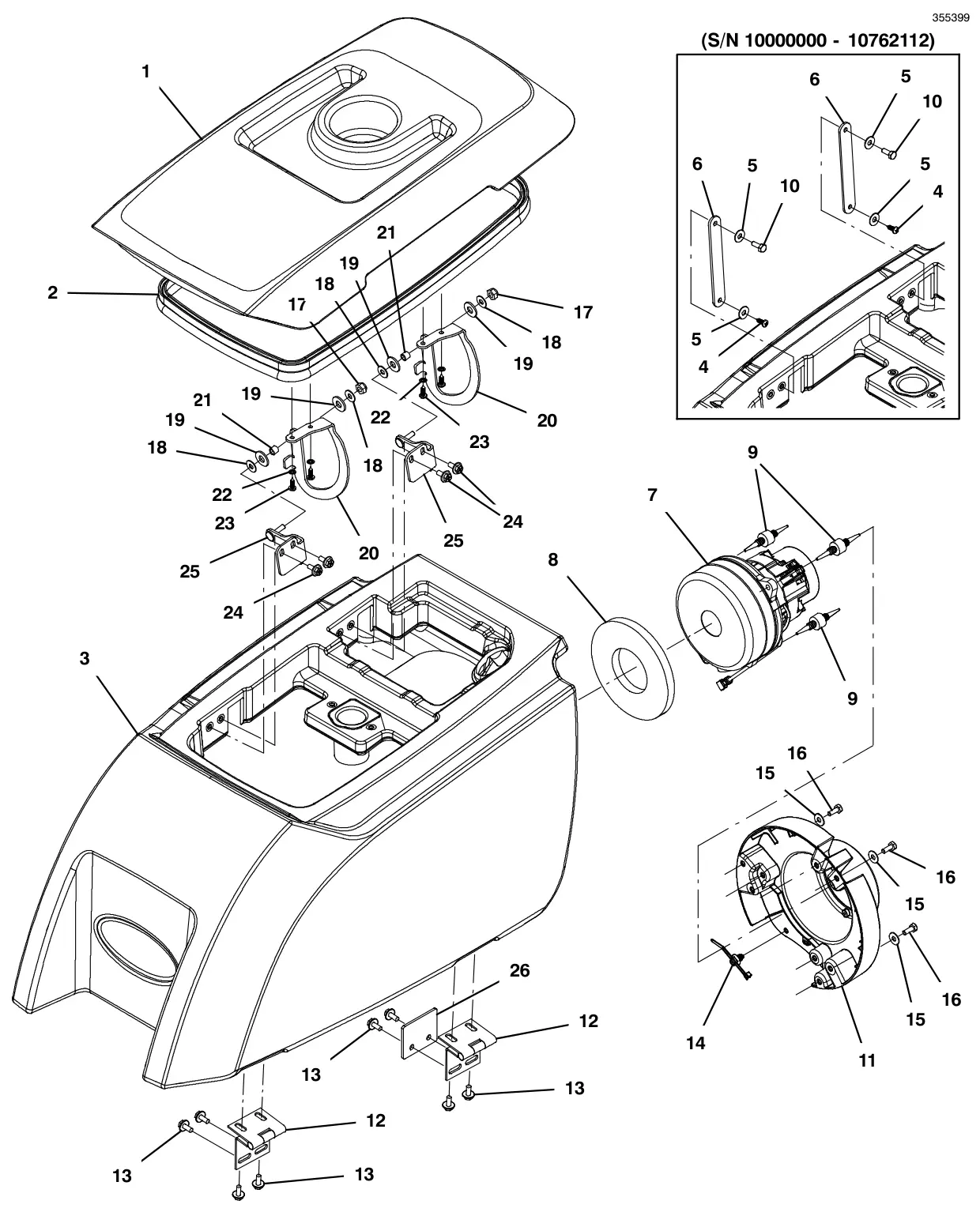

Nobles Speed Scrub 300 recovery tank group, base model parts
The parts Nobles numbers on the recovery tank group, base model drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4022632Replaces Nobles 9014682 | 1 | Kit, Cover, Recvy, Ci [Na]Complete assembly. Serial 10000000 to 20000000. | $273.00/EA |
| 2 | TN4038848Replaces Nobles 1210472 | 1 | Seal, Afmkt, Bulb, 0.50d .13grip, 05ftPart of Kit, Cover, Recvy, Ci [Na] (9014682). Serial 10000000 to 20000000. | $56.90/EA |
| 3 | TN4197567Replaces Nobles 9014152 | 1 | Kit, Tank, Recvy, W/Labels [Ss300]Serial 10000000 to 20000000. | $1,014.55/EA |
| 4 | TN4035537Replaces Nobles 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 10762112. | $2.50/EA |
| 5 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 10762112. | $2.60/EA |
| 6 | TN4039463Replaces Nobles 1212553 | 2 | Strap, Retaining, Cover, 125.0lSerial 10000000 to 10762112. | $3.40/EA |
| 7 | TN4036930Replaces Nobles 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. Serial 10000000 to 20000000. | $388.30/EA |
| – | TN8004151Replaces Nobles 372883 | 1 | Vr, Brush Kit, Motor, Ele (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). Serial 10000000 to 20000000. | $37.30/EA |
| 8 | TN4042297Replaces Nobles 100038 | 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm]Serial 10000000 to 20000000. | $10.00/EA |
| 9 | TN4034906Replaces Nobles 1062016 | 3 | Isolator, Vib, .75dSerial 10000000 to 20000000. | $4.20/EA |
| 10 | TN4043365Replaces Nobles 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 10762112. | $3.40/EA |
| 11 | TN4041450Replaces Nobles 1207368 | 1 | Mount, Vacfan, 5.7/6.6Serial 10000000 to 20000000. | $17.90/EA |
| 12 | TN4042345Replaces Nobles 1209466 | 2 | Hinge, 6mm Pin 2.5 73.5mmw 60.0mml, BentSerial 10000000 to 20000000. | $8.40/EA |
| 13 | TN4045268Replaces Nobles 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 14 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 15 | TN4042901Replaces Nobles 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4043365Replaces Nobles 11329 | 3 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| – | TN4026502Replaces Nobles 9014279 | 1 | Hinge, Kit, Lid, Ci, [T300]Complete assembly. Serial 10762113 to 20000000. | $108.50/EA |
| 17 | TN4041928Replaces Nobles 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $2.50/EA |
| 18 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $2.60/EA |
| 19 | TN4042902Replaces Nobles 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $2.60/EA |
| 20 | TN4036951Replaces Nobles 1219440 | 2 | Hinge, Goose NeckPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $19.60/EA |
| 21 | TN4043810Replaces Nobles 140154 | 2 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $4.10/EA |
| 22 | TN4041589Replaces Nobles 07514 | 4 | Washer, Lock, Int, 10, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $3.50/EA |
| 23 | TN4035537Replaces Nobles 1018155 | 4 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $2.50/EA |
| 24 | TN4045268Replaces Nobles 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $3.30/EA |
| 25 | TN4036957Replaces Nobles 1219473 | 2 | Hinge, Mount, WldtPart of Hinge, Kit, Lid, Ci, [T300] (9014279). Serial 10762113 to 20000000. | $21.10/EA |
| 26 | TN4037209Replaces Nobles 1220553 | 1 | Plate, Hinge, DoublerSerial 10000000 to 20000000. | $11.60/EA |

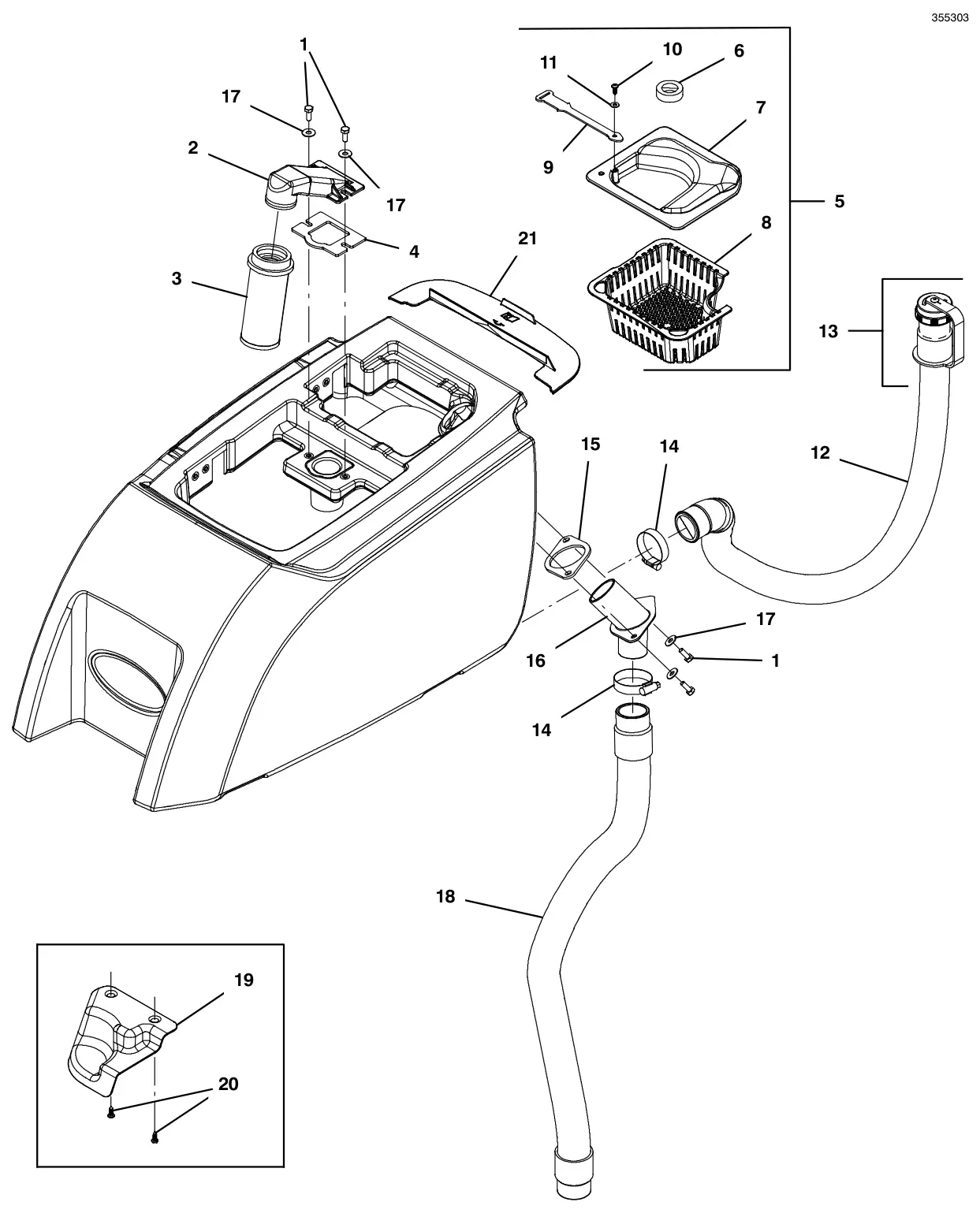

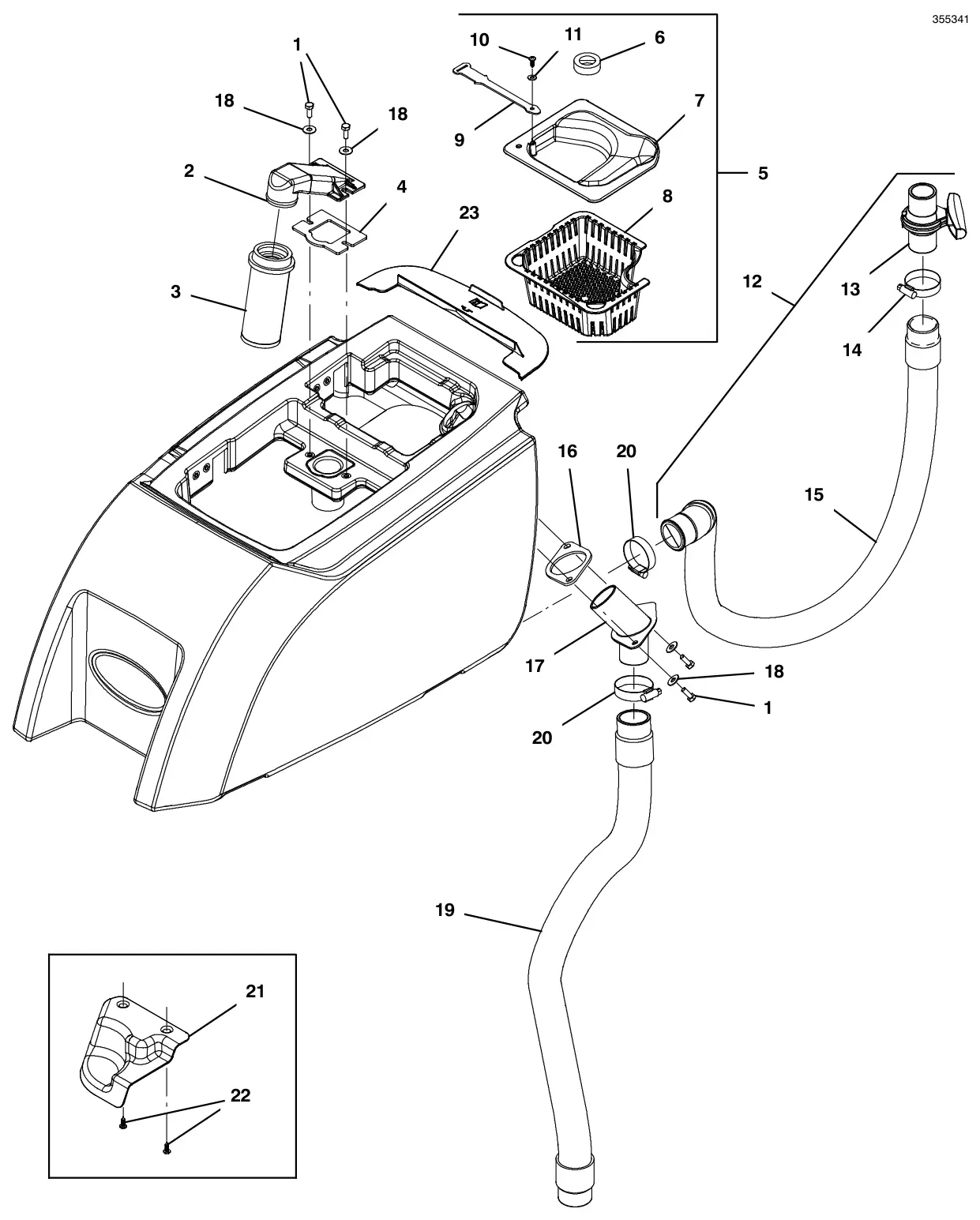

Nobles Speed Scrub 300 recovery tank filter and hose group, screw cap parts
The parts Nobles numbers on the recovery tank filter and hose group, screw cap drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Nobles 11329 | 4 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 2 | TN4036905Replaces Nobles 1011777 | 1 | Mount, Float, MoldSerial 10000000 to 20000000. | $32.00/EA |
| 3 | TN4020485Replaces Nobles 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75dSerial 10000000 to 20000000. | $76.00/EA |
| 4 | TN4037554Replaces Nobles 1013628 | 1 | Gasket, Mtg, Float, .125th, Neo, AdhSerial 10000000 to 20000000. | $4.30/EA |
| 5 | TN4022697Replaces Nobles 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. Serial 10785189 to 20000000. | $60.80/EA |
| 6 | TN4038125Replaces Nobles 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.40/EA |
| 7 | TN4037917Replaces Nobles 1224899 | 1 | Deflector, Tray, DebrisPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $22.70/EA |
| 8 | TN4041448Replaces Nobles 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $33.00/EA |
| 9 | TN4038108Replaces Nobles 1225172 | 1 | Strap, Retaining, Deflector, 150.0LPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $4.30/EA |
| 10 | TN4035537Replaces Nobles 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.50/EA |
| 11 | TN4042888Replaces Nobles 01683 | 1 | Washer, Flat, 10, SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.60/EA |
| 12 | TN4031859Replaces Nobles 1213008 | 1 | Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4036917Replaces Nobles 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray) (1213008). Serial 10000000 to 20000000. | $8.60/EA |
| 12 | TN4039520Replaces Nobles 1213010 | 1 | Hose Assy, Drain, 1.5d 017l 1.5/Cap[Pvc] (Black)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4036892Replaces Nobles 1218955 | 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5d 017l 1.5/Cap[Pvc] (Black) (1213010). Serial 10000000 to 20000000. | $8.60/EA |
| 14 | TN4043377Replaces Nobles 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wSerial 10000000 to 20000000. | $5.30/EA |
| 15 | TN4045602Replaces Nobles 1037106 | 1 | Gasket, Adapter, Hose .13, NeoSerial 10000000 to 20000000. | $3.50/EA |
| 16 | TN4041434Replaces Nobles 1207196 | 1 | Tube, Hose, Adapter, 1.5d [T300]Serial 10000000 to 20000000. | $11.50/EA |
| 17 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 18 | TN4038916Replaces Nobles 1204663 | 1 | Hose Assy, W/2cuff,1.5d 031l 1.5/1.5[Pu]Serial 10000000 to 20000000. | $30.10/EA |
| 18 | TN4038916Replaces Nobles 1211220 | 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc] (Black)Serial 10000000 to 20000000. | $30.10/EA |
| 19 | TN4042419Replaces Nobles 1210214 | 1 | Deflector, Water, Recvy (Replaced By 9014872)Serial 10000000 to 10785188. | $17.80/EA |
| 20 | TN4035537Replaces Nobles 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 10785188. | $2.50/EA |
| 21 | TN4022716Replaces Nobles 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss]Serial 10786729 to 20000000. | $72.80/EA |
Nobles Speed Scrub 300 recovery tank filter and hose group, control valve parts
The parts Nobles numbers on the recovery tank filter and hose group, control valve drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Nobles 11329 | 4 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 2 | TN4036905Replaces Nobles 1011777 | 1 | Mount, Float, MoldSerial 10000000 to 20000000. | $32.00/EA |
| 3 | TN4020485Replaces Nobles 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75dSerial 10000000 to 20000000. | $76.00/EA |
| 4 | TN4037554Replaces Nobles 1013628 | 1 | Gasket, Mtg, Float, .125th, Neo, AdhSerial 10000000 to 20000000. | $4.30/EA |
| 5 | TN4022697Replaces Nobles 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. Serial 10785189 to 20000000. | $60.80/EA |
| 6 | TN4038125Replaces Nobles 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.40/EA |
| 7 | TN4037917Replaces Nobles 1224899 | 1 | Deflector, Tray, DebrisPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $22.70/EA |
| 8 | TN4041448Replaces Nobles 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10000000 to 20000000. | $33.00/EA |
| 9 | TN4038108Replaces Nobles 1225172 | 1 | Strap, Retaining, Deflector, 150.0LPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $4.30/EA |
| 10 | TN4035537Replaces Nobles 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.50/EA |
| 11 | TN4042888Replaces Nobles 01683 | 1 | Washer, Flat, 10, SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). Serial 10785189 to 20000000. | $2.60/EA |
| 12 | TN4026476Replaces Nobles 9014171 | 1 | Hose Assy, With ValveComplete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4020670Replaces Nobles 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/HandlePart of Hose Assy, With Valve (9014171). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4043377Replaces Nobles 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wPart of Hose Assy, With Valve (9014171). Serial 10000000 to 20000000. | $5.30/EA |
| 15 | TN4037503Replaces Nobles 1222591 | 1 | Hose Assy, 45cuff,1.5d 021l 1.5/1.5[Pu]Part of Hose Assy, With Valve (9014171). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4045602Replaces Nobles 1037106 | 1 | Gasket, Adapter, Hose .13, NeoSerial 10000000 to 20000000. | $3.50/EA |
| 17 | TN4041434Replaces Nobles 1207196 | 1 | Tube, Hose, Adapter, 1.5d [T300]Serial 10000000 to 20000000. | $11.50/EA |
| 18 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 19 | TN4038916Replaces Nobles 1204663 | 1 | Hose Assy, W/2cuff,1.5d 031l 1.5/1.5[Pu]Serial 10000000 to 20000000. | $30.10/EA |
| 20 | TN4043377Replaces Nobles 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wSerial 10000000 to 20000000. | $5.30/EA |
| 21 | TN4042419Replaces Nobles 1210214 | 1 | Deflector, Water, RecvySerial 10000000 to 10785188. | $17.80/EA |
| 22 | TN4035537Replaces Nobles 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 10785188. | $2.50/EA |
| 23 | TN4022716Replaces Nobles 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss]Serial 10786729 to 20000000. | $72.80/EA |
Nobles Speed Scrub 300 solution tank group parts
The parts Nobles numbers on the solution tank group drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4197568Replaces Nobles 9014157 | 1 | Kit, Tank, Soltn, [Ss300]Serial 10000000 to 20000000. | $1,248.10/EA |
| 2 | TN4019292Replaces Nobles 391368 | 1 | Cable, Glv .09d 016.5l .38eye /.38eyeSerial 10000000 to 20000000. | $33.50/EA |
| 3 | TN4043810Replaces Nobles 140154 | 2 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlSerial 10000000 to 20000000. | $4.10/EA |
| 4 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4043365Replaces Nobles 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 6 | TN4039891Replaces Nobles 1214264 | 1 | Tray, Accssry, Lh, 16mm ScrewSerial 10000000 to 20000000. | $21.30/EA |
| 7 | TN4043784Replaces Nobles 140053 | 2 | Washer, Flat, 0.28b 0.88d .12, SsSerial 10000000 to 20000000. | $4.80/EA |
| 8 | TN4043365Replaces Nobles 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4039094Replaces Nobles 20778 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 030.0lSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4015366Replaces Nobles 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 20000000. | $5.10/EA |
| 11 | TN4026369Replaces Nobles 9014158 | 1 | Kit, Cvr, Fill, W/ Ech20, Ci [Na/Jp]Serial 10000000 to 20000000. | $178.50/EA |
| 11 | TN4026515Replaces Nobles 9014410 | 1 | Kit, Cvr, Fill, Ci [Na/Jp]Serial 10000000 to 20000000. | $72.30/EA |
| 12 | TN4042866Replaces Nobles 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ftSerial 10000000 to 20000000. | $6.70/EA |
| 13 | TN4035537Replaces Nobles 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 20000000. | $2.50/EA |
| 14 | TN4041589Replaces Nobles 07514 | 2 | Washer, Lock, Int, 10, SsSerial 10000000 to 20000000. | $3.50/EA |
| 15 | TN4020247Replaces Nobles 621443 | 1 | Chain, Ball, 10, 0157mml, SsSerial 10000000 to 20000000. | $4.40/EA |
| 16 | TN4039885Replaces Nobles 1214249 | 1 | Tray, Accssry, Rh, 16mm ScrewSerial 10000000 to 10809548. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4035537Replaces Nobles 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 10809548. | $2.50/EA |
| 18 | TN4025974Replaces Nobles 9013845 | 1 | Clip Kit, Rail, [T300/T300e/Ss300] (Accessory Option)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | TN1214292Nobles 1214292 | 1 | Bracket, Hanger, Rail, Lrg (Accessory Option)Part of Clip Kit, Rail, [T300/T300e/Ss300] (Accessory Option) (9013845). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN1214291Nobles 1214291 | 2 | Bracket, Hanger, Rail, Small (Accessory Option)Part of Clip Kit, Rail, [T300/T300e/Ss300] (Accessory Option) (9013845). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4023520Replaces Nobles 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |
Nobles Speed Scrub 300 frame group, propel model parts
The parts Nobles numbers on the frame group, propel model drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032678Replaces Nobles 1208498 | 1 | Frame Wldt, RearSerial 10000000 to 20000000. | $208.10/EA |
| 2 | TN4036259Replaces Nobles 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 3 | TN4038889Replaces Nobles 1210807 | 5 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 4 | TN4038918Replaces Nobles 1211230 | 1 | Plate Wldt, BrakeSerial 10000000 to 20000000. | $39.00/EA |
| 5 | TN4042399Replaces Nobles 1209983 | 1 | Clamp, Brake, ParkingSerial 10000000 to 20000000. | $77.50/EA |
| 6 | TN4035991Replaces Nobles 12323 | 3 | Screw, Pan, Phl, M4 X 0.70 X 20, SsSerial 10000000 to 20000000. | $3.30/EA |
| 7 | TN4041599Replaces Nobles 07785 | 1 | Nut, Hex, Std, M6 X 1.00, SsSerial 10000000 to 20000000. | $2.50/EA |
| 8 | TN4035459Replaces Nobles 1017416 | 1 | Screw, Weld, M6 X 1.00 X 25, Thru, SsSerial 10000000 to 20000000. | $5.40/EA |
| 9 | TN4040120Replaces Nobles 1215093 | 1 | Spacer, CasterSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4039272Replaces Nobles 1212422 | 1 | Caster, Swivel [Wicke 224051]Serial 10000000 to 20000000. | $75.60/EA |
| 11 | TN4042902Replaces Nobles 01685 | 5 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 12 | TN4041929Replaces Nobles 08713 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 13 | TN4015658Replaces Nobles 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0lSerial 10000000 to 20000000. | $25.90/EA |
| 14 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 15 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 16 | TN4031248Replaces Nobles 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4041944Replaces Nobles 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4036539Replaces Nobles 1211968 | 1 | Frame Wldt, FrontSerial 10000000 to 20000000. | $71.00/EA |
| 19 | TN4041993Replaces Nobles 09741 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, SsSerial 10000000 to 20000000. | $5.80/EA |
| 20 | TN4043786Replaces Nobles 140058 | 2 | Washer, Flat, 0.54b 0.88d .06, Ss [Wand]Serial 10000000 to 20000000. | $4.00/EA |
| 21 | TN4037832Replaces Nobles 1214595 | 2 | Wheel, Scrbr, 8.00d, W/ Taper [Hi Trac]Serial 10000000 to 20000000. | $153.10/EA |
| 22 | TN4042381Replaces Nobles 1209779 | 1 | Transaxle, Ele, 24vdc, 112rpm [Asi]Complete assembly. Serial 10000000 to 20000000. | $1,719.00/EA |
| – | TN4035496Replaces Nobles 1017782 | 1 | Coupling Kit, Transaxle, Replmt [11057]Part of Transaxle, Ele, 24vdc, 112rpm [Asi] (1209779). Serial 10000000 to 20000000. | $34.30/EA |
| 23 | TN4040187Replaces Nobles 1216386 | 1 | Motor, Transaxle, 24vdc, Replmt [Ul, Ce]Serial 10000000 to 20000000. | $653.20/EA |
| 24 | TN4039262Replaces Nobles 1212351 | 1 | Brush Kit, Carbon, Transaxle, Ul (1 Kit = 4 Pcs)Serial 10000000 to 20000000. | $125.90/EA |
| 25 | TN4036547Replaces Nobles 1021167 | 2 | Key, Woodruff, 5mmPart of the assembly above. Serial 10000000 to 20000000. | $3.60/EA |
| 26 | TN4023690Replaces Nobles 612880 | 2 | Joint, Transaxle, ReplmtPart of the assembly above. Serial 10000000 to 20000000. | $10.60/EA |
| 27 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 28 | TN4030690Replaces Nobles 1028292 | 2 | Adapter, Mtg, Axle, Alm [T3]Serial 10000000 to 20000000. | $15.30/EA |
| 29 | TN4038207Replaces Nobles 1223078 | 1 | Bracket Wldt, LatchSerial 10778394 to 20000000. | $77.80/EA |
| 29 | TN4037582Replaces Nobles 1013946 | 1 | Bracket, Locking, Pedal, Foot (Replaced By 1223078)Serial 10000000 to 10778393. | $56.20/EA |
| 30 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 31 | TN4041928Replaces Nobles 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| N/S | TN4023032Replaces Nobles 1073676 | 1 | Harness, Main, Ele [Vw, Base, Propel]Serial 10000000 to 20000000. | $1,083.80/EA |
| N/S | TN4042948Replaces Nobles 1073592 | 1 | Harness, Ele [Vw, Op.Sta, Propel ]Serial 10000000 to 20000000. | $215.40/EA |
Nobles Speed Scrub 300 frame group, push model parts
The parts Nobles numbers on the frame group, push model drawing. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032678Replaces Nobles 1208498 | 1 | Frame Wldt, RearSerial 10000000 to 20000000. | $208.10/EA |
| 2 | TN4036259Replaces Nobles 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 3 | TN4038889Replaces Nobles 1210807 | 5 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 4 | TN4038918Replaces Nobles 1211230 | 1 | Plate Wldt, Brake (Brake Option)Serial 10000000 to 20000000. | $39.00/EA |
| 5 | TN4042399Replaces Nobles 1209983 | 1 | Clamp, Brake, Parking (Brake Option)Serial 10000000 to 20000000. | $77.50/EA |
| 6 | TN4035991Replaces Nobles 12323 | 3 | Screw, Pan, Phl, M4 X 0.70 X 20, Ss (Brake Option)Serial 10000000 to 20000000. | $3.30/EA |
| 7 | TN4041599Replaces Nobles 07785 | 1 | Nut, Hex, Std, M6 X 1.00, Ss (Brake Option)Serial 10000000 to 20000000. | $2.50/EA |
| 8 | TN4035459Replaces Nobles 1017416 | 1 | Screw, Weld, M6 X 1.00 X 25, Thru, Ss (Brake Option)Serial 10000000 to 20000000. | $5.40/EA |
| 9 | TN4040120Replaces Nobles 1215093 | 1 | Spacer, CasterSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4039272Replaces Nobles 1212422 | 1 | Caster, Swivel [Wicke 224051]Serial 10000000 to 20000000. | $75.60/EA |
| 11 | TN4042902Replaces Nobles 01685 | 5 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 12 | TN4041929Replaces Nobles 08713 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 13 | TN4015658Replaces Nobles 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0lSerial 10000000 to 20000000. | $25.90/EA |
| 14 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 15 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 16 | TN4031248Replaces Nobles 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4041944Replaces Nobles 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4036539Replaces Nobles 1211968 | 1 | Frame Wldt, FrontSerial 10000000 to 20000000. | $71.00/EA |
| 19 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4034852Replaces Nobles 1016331 | 2 | Washer, Flat, 0.34b 1.25d .11, SsSerial 10000000 to 20000000. | $5.10/EA |
| 21 | TN4039915Replaces Nobles 1214586 | 2 | Wheel, Scrbr, 8.00d, W/ Brg [Hi Trac]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 23 | TN4030690Replaces Nobles 1028292 | 2 | Adapter, Mtg, Axle, Alm [T3]Serial 10000000 to 20000000. | $15.30/EA |
| 24 | TN4030696Replaces Nobles 1028381 | 2 | Grommet, Axle [Tpu, T3 Push]Serial 10000000 to 20000000. | $8.20/EA |
| 25 | TN4032382Replaces Nobles 1028382 | 1 | Axle, Wheel, Hex, Clr Zn [T3 Push]Serial 10000000 to 20000000. | $42.80/EA |
| 26 | TN4038207Replaces Nobles 1223078 | 1 | Bracket Wldt, LatchSerial 10778394 to 20000000. | $77.80/EA |
| 26 | TN4037582Replaces Nobles 1013946 | 1 | Bracket, Locking, Pedal, Foot (Replaced By 1223078)Serial 10000000 to 10778393. | $56.20/EA |
| 27 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 28 | TN4041928Replaces Nobles 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| N/S | TN4023034Replaces Nobles 1073677 | 1 | Harness, Main, Ele [Vw, Base, Push]Serial 10000000 to 20000000. | $798.70/EA |
| N/S | TN4042960Replaces Nobles 1073593 | 1 | Harness, Ele [Vw, Op.Stat, Push]Serial 10000000 to 20000000. | $44.66/EA |
Nobles Speed Scrub 300 manual down pressure group parts
The parts Nobles numbers on the manual down pressure group drawing. Manual pages 56, list 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Nobles 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 2 | TN4042901Replaces Nobles 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 3 | TN4039827Replaces Nobles 1213745 | 1 | Plate, LinkSerial 10000000 to 20000000. | $11.40/EA |
| 4 | TN4039090Replaces Nobles 20536 | 1 | Washer, Flat, 0.45b 1.19d .06, NylSerial 10000000 to 20000000. | $30.00/EA |
| 5 | TN4040196Replaces Nobles 1216611 | 1 | Spring, Extn, 1.14od, 0.13wir, 6.5l (Disk & Orbital Models)Serial 10000000 to 20000000. | $23.90/EA |
| 5 | TN4040201Replaces Nobles 1216677 | 1 | Spring, Extn, 1.08od, 0.09wir, 6.5l (Cylindrical Model)Serial 10000000 to 20000000. | $17.35/EA |
| 6 | TN4035538Replaces Nobles 1018181 | 1 | Nut, T, M8 X 1.25 X 0.50od X 0.4lSerial 10000000 to 20000000. | $14.40/EA |
| 7 | TN4035844Replaces Nobles 1018756 | 1 | Spring, Cmpr, 0.70od .08wir 00.7l, Pl,MwSerial 10000000 to 20000000. | $6.90/EA |
| 8 | TN4040581Replaces Nobles 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4037581Replaces Nobles 1013936 | 2 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 10 | TN4035240Replaces Nobles 1017156 | 1 | Knob, Ball, M8 Insert, 40mmd, PlstcSerial 10000000 to 20000000. | $24.40/EA |
| 11 | TN4038861Replaces Nobles 1210591 | 1 | Lever Wldt, Down Pressure, MnlSerial 10000000 to 20000000. | $32.60/EA |
| 12 | TN4041928Replaces Nobles 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 13 | TN4038862Replaces Nobles 1210597 | 1 | Bracket Wldt, Down Press, MnlSerial 10000000 to 20000000. | $68.30/EA |
| 14 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4042095Replaces Nobles 1209371 | 1 | Cover, Lever Assy, Down-PressSerial 10000000 to 20000000. | $134.00/EA |
| 16 | TN4042888Replaces Nobles 01683 | 2 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 17 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 18 | TN4023520Replaces Nobles 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |
Nobles Speed Scrub 300 single down pressure group parts
The parts Nobles numbers on the single down pressure group drawing. Manual pages 58, list 59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039903Replaces Nobles 1214330 | 1 | Bracket Wldt, Mtg, CoverSerial 10000000 to 10809548. | $61.00/EA |
| 2 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 10809548. | $3.30/EA |
| 3 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 10809548. | $2.50/EA |
| 4 | TN4042888Replaces Nobles 01683 | 2 | Washer, Flat, 10, SsSerial 10000000 to 10809548. | $2.60/EA |
| 5 | TN4039260Replaces Nobles 1212336 | 1 | Cover, Pulley Assy, Down-PressSerial 10000000 to 10809548. | $25.60/EA |
| 6 | TN4034958Replaces Nobles 12277 | 2 | Screw, Hex, M6 X 1.00 X 20, Nl, SsSerial 10809549 to 20000000. | $3.30/EA |
| 7 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10809549 to 20000000. | $2.60/EA |
| 8 | TN4037885Replaces Nobles 1224289 | 1 | Cover, Tank, Rh, [T300/E/Ss]Serial 10809549 to 20000000. | $63.80/EA |
| 9 | TN4038245Replaces Nobles 1225843 | 2 | Washer, Flat, M6 X 3 X 30, Retain, NylSerial 10809549 to 20000000. | $4.75/EA |
Nobles Speed Scrub 300 solution group, base model parts
The parts Nobles numbers on the solution group, base model drawing. Manual pages 60, list 61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037335Replaces Nobles 1013442 | 1 | Knob, Valve, 0.70d 0.61l, 0.21bSerial 10000000 to 20000000. | $14.50/EA |
| 2 | TN4035235Replaces Nobles 1017091 | 1 | Spring, Cmpr, 0.50od .04wir 00.8lSerial 10000000 to 20000000. | $4.10/EA |
| 3 | TN4042405Replaces Nobles 1210041 | 1 | Bracket Wldt, Mtg, Valve, SoltnSerial 10000000 to 20000000. | $26.40/EA |
| 4 | TN4039193Replaces Nobles 1211423 | 1 | Valve, Water, Solenoid, 24vdc Qf08/Qf08Serial 10000000 to 20000000. | $198.60/EA |
| 5 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 6 | TN4015366Replaces Nobles 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 20000000. | $5.10/EA |
| 7 | TN4039487Replaces Nobles 1212807 | 1 | Fitting, Plstc, Str, Qm08/Bm08Serial 10000000 to 20000000. | $14.30/EA |
| 8 | TN4039486Replaces Nobles 1212806 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qm08Serial 10000000 to 20000000. | $30.00/EA |
| 9 | TN4034290Replaces Nobles 1212987 | 3 | Fitting, Plstc, E90, Qf08/Pm06, SwivelSerial 10000000 to 20000000. | $17.60/EA |
| 10 | TN4039503Replaces Nobles 1212859 | 1 | Fitting, Plstc, Str, Qf08/Qf08Serial 10000000 to 20000000. | $16.60/EA |
| 11 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 12 | TN4039492Replaces Nobles 1212813 | 1 | Fitting, Plstc, Str, Qf08/Pm06Serial 10000000 to 20000000. | $19.40/EA |
| 13 | TN4039203Replaces Nobles 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. Serial 10000000 to 20000000. | $16.90/EA |
| – | TN4036880Replaces Nobles 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $2.70/EA |
| – | TN4036878Replaces Nobles 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4019615Replaces Nobles 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $18.20/EA |
| 14 | TN4039490Replaces Nobles 1212810 | 1 | Fitting, Plstc, Tee, Qm08/Qf08/Qf08Serial 10000000 to 20000000. | $30.00/EA |
Nobles Speed Scrub 300 solution group, base model ec-H2O parts
The parts Nobles numbers on the solution group, base model ec-H2O drawing. Manual pages 62, list 63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018163Replaces Nobles 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns)Complete assembly. Serial 10000000 to 20000000. | $1,339.60/EA |
| 2 | TN4025507Replaces Nobles 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlPart of Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (9011810). Serial 10000000 to 20000000. | $300.60/EA |
| 3 | TN4040123Replaces Nobles 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10000000 to 20000000. | $18.30/EA |
| 4 | TN4026363Replaces Nobles 9014146 | 1 | Hose, Afmkt, Pvc, 0.06id .38od, 05ftSerial 10000000 to 20000000. | $113.90/EA |
| 5 | TN4039906Replaces Nobles 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10000000 to 20000000. | $11.60/EA |
| 6 | TN4026364Replaces Nobles 9014147 | 1 | Hose, Afmkt, Pvc, 0.06id .25od, 05ftSerial 10000000 to 20000000. | $103.40/EA |
| 7 | TN4040501Replaces Nobles 1216973 | 1 | Pump Assy, DispenserSerial 10000000 to 20000000. | $338.70/EA |
| 8 | TN4036818Replaces Nobles 1218192 | 1 | Fitting, Plstc, Str, Qf04/Qf04Serial 10000000 to 20000000. | $4.30/EA |
| 9 | TN4039499Replaces Nobles 1212855 | 2 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06Serial 10000000 to 20000000. | $24.70/EA |
| 10 | TN4039304Replaces Nobles 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 10000000 to 20000000. | $51.70/EA |
| 11 | TN4039919Replaces Nobles 1214972 | 1 | Fitting, Orifice, Str, Bm01/Bm01Serial 10000000 to 20000000. | $6.00/EA |
| 12 | TN4039467Replaces Nobles 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10000000 to 20000000. | $19.10/EA |
| 13 | TN4026365Replaces Nobles 9014148 | 1 | Hose, Afmkt, Nat, 0.25id 0.375od, 06ftSerial 10000000 to 20000000. | $102.00/EA |
| 14 | TN4021946Replaces Nobles 607775 | 1 | Clamp, Hose, Wir, .63 - .66, BlkSerial 10000000 to 20000000. | $4.20/EA |
| 15 | TN4044069Replaces Nobles 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06Serial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4019547Replaces Nobles 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelSerial 10000000 to 20000000. | $3.60/EA |
| 17 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 18 | TN4035537Replaces Nobles 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 20000000. | $2.50/EA |
| 19 | TN4045268Replaces Nobles 1034731 | 5 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 20 | TN4043810Replaces Nobles 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlSerial 10000000 to 20000000. | $4.10/EA |
| 21 | TN4042090Replaces Nobles 1209249 | 1 | Bracket, Mtg, Ec-H20 Module [T300]Serial 10000000 to 20000000. | $70.62/EA |
| 22 | TN4042130Replaces Nobles 1044335 | 1 | Switch, Press, 6psi, Pm02Serial 10000000 to 20000000. | $86.30/EA |
| 23 | TN4044394Replaces Nobles 150307 | 1 | Fitting, Brs, Str, Pf02/Pf02, CplgSerial 10000000 to 20000000. | $4.20/EA |
| 24 | TN4040170Replaces Nobles 1216185 | 1 | Fitting, Plstc, Str, Qm04/Pm02Serial 10000000 to 20000000. | $5.30/EA |
| 25 | TN4040132Replaces Nobles 1215527 | 1 | Valve, Check, 1.0 Psi Qf06/Qf06Serial 10000000 to 20000000. | $44.80/EA |
| 26 | TN4039491Replaces Nobles 1212812 | 1 | Fitting, Plstc, E90, Qf06/Pm06, SwivelSerial 10000000 to 20000000. | $18.00/EA |
| 27 | TN4017376Replaces Nobles 43555 | 1 | Clamp, Hose, Wormdrive, 2.62-3.50dSerial 10000000 to 20000000. | $6.20/EA |
| 28 | TN4029767Replaces Nobles 1210517 | 1 | Pump, Soltn, Ele, 24vdc, 35 PsiSerial 10000000 to 20000000. | $351.68/EA |
| 29 | TN4039491Replaces Nobles 1212812 | 1 | Fitting, Plstc, E90, Qf06/Pm06, SwivelSerial 10000000 to 20000000. | $18.00/EA |
| 30 | TN4037335Replaces Nobles 1013442 | 1 | Knob, Valve, 0.70d 0.61l, 0.21bSerial 10000000 to 20000000. | $14.50/EA |
| 31 | TN4035235Replaces Nobles 1017091 | 1 | Spring, Cmpr, 0.50od .04wir 00.8lSerial 10000000 to 20000000. | $4.10/EA |
| 32 | TN4042405Replaces Nobles 1210041 | 1 | Bracket Wldt, Mtg, Valve, SoltnSerial 10000000 to 20000000. | $26.40/EA |
| 33 | TN4039193Replaces Nobles 1211423 | 1 | Valve, Water, Solenoid, 24vdc Qf08/Qf08Serial 10000000 to 20000000. | $198.60/EA |
| 34 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 35 | TN4015366Replaces Nobles 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 20000000. | $5.10/EA |
| 36 | TN4039487Replaces Nobles 1212807 | 1 | Fitting, Plstc, Str, Qm08/Bm08Serial 10000000 to 20000000. | $14.30/EA |
| 37 | TN4039486Replaces Nobles 1212806 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qm08Serial 10000000 to 20000000. | $30.00/EA |
| 38 | TN4034290Replaces Nobles 1212987 | 3 | Fitting, Plstc, E90, Qf08/Pm06, SwivelSerial 10000000 to 20000000. | $17.60/EA |
| 39 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 40 | TN4040124Replaces Nobles 1215218 | 1 | Fitting, Plstc, Str, Qf06/Qm08Serial 10000000 to 20000000. | $12.40/EA |
| 41 | TN4039506Replaces Nobles 1212875 | 1 | Fitting, Plstc, Tee, Qf06/Qf08/Qf08Serial 10000000 to 20000000. | $26.40/EA |
| 42 | TN4039488Replaces Nobles 1212808 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Pm06Serial 10000000 to 20000000. | $34.80/EA |
| 43 | TN4039203Replaces Nobles 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. Serial 10000000 to 20000000. | $16.90/EA |
| – | TN4036880Replaces Nobles 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $2.70/EA |
| – | TN4036878Replaces Nobles 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4019615Replaces Nobles 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $18.20/EA |
| 44 | TN4039490Replaces Nobles 1212810 | 1 | Fitting, Plstc, Tee, Qm08/Qf08/Qf08Serial 10000000 to 20000000. | $30.00/EA |
| 45 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 46 | TN4016786Replaces Nobles 41140 | 1 | Washer, Lock, Int-Ext, 0.25Serial 10000000 to 20000000. | $3.40/EA |
| 47 | TN4042901Replaces Nobles 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 48 | TN4043365Replaces Nobles 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
Nobles Speed Scrub 300 electrical components group, base model parts
The parts Nobles numbers on the electrical components group, base model drawing. Manual pages 64, list 65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026481Replaces Nobles 9014188 | 1 | Bracket Wldt, Afmkt, Mtg [Circuitbrkrs]Serial 10000000 to 20000000. | $330.57/EA |
| 2 | TN4042042Replaces Nobles 1208816 | 1 | Circuitbreaker, 04.0a, ResetableSerial 10000000 to 20000000. | $8.70/EA |
| 3 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 4 | TN4032601Replaces Nobles 1064191 | 2 | Boot, Circuitbreaker (ec-H2O Option)Serial 10000000 to 20000000. | $12.60/EA |
| 5 | TN4042042Replaces Nobles 1208816 | 2 | Circuitbreaker, 04.0a, Resetable (ec-H2O Option)Serial 10000000 to 20000000. | $8.70/EA |
| 6 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 7 | TN4032589Replaces Nobles 1064189 | 1 | Circuitbreaker, 20.0a, ResetableSerial 10000000 to 20000000. | $5.30/EA |
| 8 | TN4041991Replaces Nobles 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss (ec-H2O Option)Serial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4042888Replaces Nobles 01683 | 1 | Washer, Flat, 10, Ss (ec-H2O Option)Serial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4037225Replaces Nobles 1012216 | 1 | Relay, 24vdc, 070a, Spst No, Plug-In (ec-H2O Option)Serial 10000000 to 20000000. | $17.40/EA |
| 11 | TN4038889Replaces Nobles 1210807 | 4 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 12 | TN4023154Replaces Nobles 383725 | 1 | Circuitbreaker, 30.0a, Resetable (Propel Model)Serial 10000000 to 20000000. | $15.90/EA |
| 13 | TN4044898Replaces Nobles 1074526 | 1 | Circuitbreaker, 37.0aSerial 10000000 to 20000000. | $49.70/EA |
| 14 | TN4016786Replaces Nobles 41140 | 2 | Washer, Lock, Int-Ext, 0.25Serial 10000000 to 20000000. | $3.40/EA |
| 15 | TN4045268Replaces Nobles 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 16 | TN4031246Replaces Nobles 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, SsSerial 10000000 to 20000000. | $3.20/EA |
| 17 | TN4016814Replaces Nobles 41361 | 2 | Nut, Hex, Std, M8 X 1.25, BrsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4042096Replaces Nobles 1209373 | 4 | Washer, Flat, M8.4b X 16d X 1.6, BrsSerial 10000000 to 20000000. | $2.60/EA |
| 19 | TN4017399Replaces Nobles 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10000000 to 20000000. | $2.60/EA |
| 20 | TN4021889Replaces Nobles 607461 | 2 | Screw, Set, M8 X 1.25 X 35, NlSerial 10000000 to 20000000. | $4.00/EA |
| 21 | TN4041084Replaces Nobles 1205345 | 2 | Stand-Off, Wir, M8, Insulator, PanelSerial 10000000 to 20000000. | $13.00/EA |
| 22 | TN4041991Replaces Nobles 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 23 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 24 | TN4032813Replaces Nobles 1066409 | 1 | Relay, 24vdc, 150a, No [Trombetta]Serial 10000000 to 20000000. | $46.60/EA |
| 25 | TN4042017Replaces Nobles 1208619 | 1 | Bracket Wldt, Mtg, EleSerial 10000000 to 20000000. | $87.87/EA |
| 26 | TN4036243Replaces Nobles 1020174 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 03ftSerial 10000000 to 20000000. | $66.70/EA |
| 27 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 28 | TN4034657Replaces Nobles 32984 | 2 | Washer, Lock, Int, 0.31Serial 10000000 to 20000000. | $2.60/EA |
| 29 | TN4022275Replaces Nobles 386868 | 2 | Screw, Hex, M8 X 1.25 X 12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 30 | TN4042408Replaces Nobles 1210078 | 1 | Bracket Wldt, Drive (Propel Model)Serial 10000000 to 10813435. | $32.62/EA |
| 31 | TN4022586Replaces Nobles 9014613 | 1 | Controller Kit, Spd, Ci [T300/E/Ss300] (Propel Model)Serial 10000000 to 20000000. | $620.20/EA |
| 32 | TN4040926Replaces Nobles 04403 | 2 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, Ss (Propel Model)Serial 10000000 to 10813435. | $4.00/EA |
| 33 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss (Propel Model)Serial 10000000 to 10813435. | $3.30/EA |
| 34 | TN4016786Replaces Nobles 41140 | 1 | Washer, Lock, Int-Ext, 0.25 (Propel Model)Serial 10000000 to 10813435. | $3.40/EA |
| 35 | TN4041991Replaces Nobles 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 36 | TN4042888Replaces Nobles 01683 | 2 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 37 | TN4037225Replaces Nobles 1012216 | 2 | Relay, 24vdc, 070a, Spst No, Plug-InSerial 10000000 to 20000000. | $17.40/EA |
| 38 | TN4042023Replaces Nobles 1208628 | 1 | Gasket, Cover, CircuitboardSerial 10000000 to 20000000. | $26.40/EA |
| 39 | TN4045268Replaces Nobles 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10813436 to 20000000. | $3.30/EA |
| 40 | TN4016786Replaces Nobles 41140 | 1 | Washer, Lock, Int-Ext, 0.25Serial 10813436 to 20000000. | $3.40/EA |
| 41 | TN4037852Replaces Nobles 1223824 | 1 | Bracket Wldt, Mtg, Cntrl, [T300/T300e]Serial 10813436 to 20000000. | $60.20/EA |
| 42 | TN4043241Replaces Nobles 02938 | 2 | Washer, Lock, Int, 08, SsSerial 10813436 to 20000000. | $2.60/EA |
| 43 | TN4031246Replaces Nobles 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, SsSerial 10813436 to 20000000. | $3.20/EA |
Nobles Speed Scrub 300 lower console group, on-board charger parts
The parts Nobles numbers on the lower console group, on-board charger drawing. Manual pages 66, list 67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040843Replaces Nobles 9012789 | 1 | Cover, Console, Afmkt, W/ Label [Na]Serial 10000000 to 20000000. | $151.10/EA |
| 2 | TN4036836Replaces Nobles 1011402 | 1 | Switch, KeyComplete assembly. Serial 10000000 to 20000000. | $54.40/EA |
| 3 | TN4129073Replaces Nobles 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). Serial 10000000 to 20000000. | $21.60/EA |
| 4 | TN4042141Replaces Nobles 1044393 | 1 | Switch, Rocker, Spst Mom (ec-H2O Option)Serial 10000000 to 20000000. | $7.70/EA |
| 5 | TN4029938Replaces Nobles 1011735 | 1 | Switch, Safety, Shutoff (Propel Model)Serial 10000000 to 20000000. | $40.50/EA |
| 6 | TN4032366Replaces Nobles 1064038 | 1 | Gauge, Hourmeter, 05-277 Volt, Ac / DcSerial 10000000 to 20000000. | $52.90/EA |
| 7 | TN4041094Replaces Nobles 1205496 | 2 | Hook, CordSerial 10000000 to 20000000. | $2.80/EA |
| 8 | TN4041694Replaces Nobles 1043573 | 2 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10795905 to 20000000. | $2.50/EA |
| 8 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 10795904. | $2.50/EA |
| 9 | TN4022845Replaces Nobles 611311 | 2 | Spring, Cmpr, 0.40od .05wir 00.5l, Pl,MwSerial 10000000 to 20000000. | $3.50/EA |
| 10 | TN4033857Replaces Nobles 1024965 | 2 | Bolt, Shld, 08mmd X 030mm, M06 X 1.0Serial 10000000 to 20000000. | $7.60/EA |
| 11 | TN4043510Replaces Nobles 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 12 | TN4039207Replaces Nobles 1211582 | 1 | Cover, Chrgr [Small Spe]Serial 10000000 to 20000000. | $13.70/EA |
| 13 | TN4041694Replaces Nobles 1043573 | 4 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10795905 to 20000000. | $2.50/EA |
| 13 | TN4041143Replaces Nobles 1205799 | 4 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 10795904. | $2.50/EA |
| 14 | TN4034046Replaces Nobles 1202261 | 1 | Charger, 24vdc 13a 85-265vac [On-Board]Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN4025359Replaces Nobles 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc 13a 85-265vac [On-Board] (1202261). Serial 10000000 to 20000000. | $20.60/EA |
| 16 | TN4034198Replaces Nobles 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us]Serial 10000000 to 20000000. | $49.60/EA |
| 17 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 18 | TN4041694Replaces Nobles 1043573 | 1 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10795905 to 20000000. | $2.50/EA |
| 18 | TN4041143Replaces Nobles 1205799 | 1 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 10795904. | $2.50/EA |
| 19 | TN4035687Replaces Nobles 26395-2 | 1 | Clamp, Cable, Stl, 0.38d X 0.38w, 1holeSerial 10000000 to 20000000. | $4.20/EA |
| 20 | TN4035945Replaces Nobles 1211903 | 1 | Frame, Column, Cntrl [Im]Serial 10795905 to 20000000. | $110.90/EA |
| 20 | TN4018419Replaces Nobles 1216531 | 1 | Frame, Column, Cntrl [Revised Machined]Serial 10000000 to 10795904. | $289.40/EA |
| 21 | TN4030595Replaces Nobles 130161 | 1 | Plug, Hole, Rnd, 0.88d, Blk (Push Model)Serial 10000000 to 20000000. | $4.00/EA |
| 22 | TN4029683Replaces Nobles 582150 | 1 | Plug, Hole, Rt, 1.23 X 1.12, Nyl (Standard Model)Serial 10000000 to 20000000. | $6.00/EA |
Nobles Speed Scrub 300 lower console group, off-board charger parts
The parts Nobles numbers on the lower console group, off-board charger drawing. Manual pages 68, list 69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040843Replaces Nobles 9012789 | 1 | Cover, Console, Afmkt, W/ Label [Na]Serial 10000000 to 20000000. | $151.10/EA |
| 2 | TN4036836Replaces Nobles 1011402 | 1 | Switch, KeyComplete assembly. Serial 10000000 to 20000000. | $54.40/EA |
| 3 | TN4129073Replaces Nobles 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). Serial 10000000 to 20000000. | $21.60/EA |
| 4 | TN4042141Replaces Nobles 1044393 | 1 | Switch, Rocker, Spst Mom (ec-H2O Model)Serial 10000000 to 20000000. | $7.70/EA |
| 5 | TN4029938Replaces Nobles 1011735 | 1 | Switch, Safety, Shutoff (Propel Model)Serial 10000000 to 20000000. | $40.50/EA |
| 6 | TN4032366Replaces Nobles 1064038 | 1 | Gauge, Hourmeter, 05-277 Volt, Ac / DcSerial 10000000 to 20000000. | $52.90/EA |
| 7 | TN4041694Replaces Nobles 1043573 | 2 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10795905 to 20000000. | $2.50/EA |
| 7 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 10795904. | $2.50/EA |
| 8 | TN4042014Replaces Nobles 1208599 | 1 | Bracket Assy, Plug, ChargerSerial 10000000 to 20000000. | $31.00/EA |
| 9 | TN4041015Replaces Nobles 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 to 20000000. | $3.40/EA |
| 10 | TN4025359Replaces Nobles 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Serial 10000000 to 20000000. | $20.60/EA |
| 11 | TN4041015Replaces Nobles 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4041694Replaces Nobles 1043573 | 2 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10000000 to 20000000. | $2.50/EA |
| 13 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 14 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 15 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 16 | TN4035945Replaces Nobles 1211903 | 1 | Frame, Column, Cntrl [Im]Serial 10795905 to 20000000. | $110.90/EA |
| 16 | TN4018419Replaces Nobles 1216531 | 1 | Frame, Column, Cntrl [Revised Machined]Serial 10000000 to 10795904. | $289.40/EA |
| 17 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 18 | TN4039495Replaces Nobles 1212837 | 1 | Charger, 24vdc, 13a 85-265vac [Offboard]Complete assembly. Serial 10000000 to 20000000. | $567.60/EA |
| 19 | TN4025359Replaces Nobles 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 13a 85-265vac [Offboard] (1212837). Serial 10000000 to 20000000. | $20.60/EA |
| 20 | TN4034198Replaces Nobles 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us]Serial 10000000 to 20000000. | $49.60/EA |
| 21 | TN4030595Replaces Nobles 130161 | 1 | Plug, Hole, Rnd, 0.88d, Blk (Push Model)Serial 10000000 to 20000000. | $4.00/EA |
| 22 | TN4029683Replaces Nobles 582150 | 1 | Plug, Hole, Rt, 1.23 X 1.12, Nyl (Standard Model)Serial 10000000 to 20000000. | $6.00/EA |
Nobles Speed Scrub 300 handle group, base propel model parts
The parts Nobles numbers on the handle group, base propel model drawing. Manual pages 70, list 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018194Replaces Nobles 9014131 | 1 | Bezel Kit, Propel, Membrane, Ci [T300e/SComplete assembly. Serial 10000000 to 20000000. | $661.80/EA |
| 2 | TN4018194Replaces Nobles 9014137 | 1 | Screen Kit, Propel, Memb., Ci [T300e/Ss]Serial 10000000 to 20000000. | $661.80/EA |
| 3 | TN4041112Replaces Nobles 1205618 | 1 | Cap, UsbSerial 10000000 to 20000000. | $6.80/EA |
| 4 | TN4030522Replaces Nobles 1071235 | 1 | Cable [Usb, 2m, A-Male To Mini-B- Male]Part of the assembly above. Serial 10000000 to 20000000. | $15.60/EA |
| 5 | TN4041694Replaces Nobles 1043573 | 15 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10000000 to 20000000. | $2.50/EA |
| 6 | TN4041372Replaces Nobles 1206586 | 1 | Dial, Range, SpeedSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4032266Replaces Nobles 1204930 | 1 | Potentiometer [100k, 1 Turn, B5/B7]Serial 10000000 to 20000000. | $80.40/EA |
| 8 | TN4042373Replaces Nobles 1209730 | 1 | Cap, Toggle, DirectionSerial 10000000 to 20000000. | $6.80/EA |
| 9 | TN4042365Replaces Nobles 1209673 | 1 | Switch Assy, Toggle, DirectionSerial 10000000 to 20000000. | $75.10/EA |
| 10 | TN4040841Replaces Nobles 1203787 | 1 | Housing, Handle, Cntrl, TopSerial 10000000 to 20000000. | $87.20/EA |
| 11 | TN4041137Replaces Nobles 1205781 | 1 | Spring, Return, BailSerial 10000000 to 20000000. | $29.40/EA |
| 12 | TN4041074Replaces Nobles 1205143 | 1 | Shaft Assy, Bail, HandleSerial 10000000 to 20000000. | $19.10/EA |
| 13 | TN4037504Replaces Nobles 1222608 | 1 | Housing, Handle, Cntrl, Bottom, SlottedSerial 10000000 to 20000000. | $87.70/EA |
| 14 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 15 | TN4041133Replaces Nobles 1205778 | 1 | Handle, Bail [Machined]Serial 10000000 to 20000000. | $45.60/EA |
| 16 | TN4041408Replaces Nobles 1207004 | 1 | Cover, Handle, CntrlSerial 10000000 to 20000000. | $18.50/EA |
| 17 | TN4041083Replaces Nobles 1205323 | 1 | Switch, 0.1a, Spdt [Micro, Straight]Serial 10000000 to 20000000. | $9.70/EA |
| 18 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 10795904. | $3.50/EA |
| 19 | TN4036250Replaces Nobles 1020280 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftSerial 10000000 to 20000000. | $26.40/EA |
| 20 | TN4040168Replaces Nobles 1215863 | 2 | Screw, Pan, Torx, M8 X 3.5 X 25[Remform]Serial 10795905 to 20000000. | $9.00/EA |
| 21 | TN4043649Replaces Nobles 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsSerial 10795905 to 20000000. | $3.20/EA |
| N/S | TN4030945Replaces Nobles 1072524 | 1 | Harness, Ele [Bail Switch]Serial 10000000 to 20000000. | $9.30/EA |
Nobles Speed Scrub 300 handle group, base push model parts
The parts Nobles numbers on the handle group, base push model drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018196Replaces Nobles 9014130 | 1 | Bezel Kit, Push, Membrane, Ci [T300e/Ss]Complete assembly. Serial 10000000 to 20000000. | $659.40/EA |
| 2 | TN4018196Replaces Nobles 9014136 | 1 | Screen Kit, Push, Memb., Ci [T300e/Ss]Serial 10000000 to 20000000. | $659.40/EA |
| 3 | TN4041112Replaces Nobles 1205618 | 1 | Cap, UsbSerial 10000000 to 20000000. | $6.80/EA |
| 4 | TN4030522Replaces Nobles 1071235 | 1 | Cable [Usb, 2m, A-Male To Mini-B- Male]Part of the assembly above. Serial 10000000 to 20000000. | $15.60/EA |
| 5 | TN4041083Replaces Nobles 1205323 | 1 | Switch, 0.1a, Spdt [Micro, Straight]Serial 10000000 to 20000000. | $9.70/EA |
| 6 | TN4040841Replaces Nobles 1203787 | 1 | Housing, Handle, Cntrl, TopSerial 10000000 to 20000000. | $87.20/EA |
| 7 | TN4041137Replaces Nobles 1205781 | 1 | Spring, Return, BailSerial 10000000 to 20000000. | $29.40/EA |
| 8 | TN4041074Replaces Nobles 1205143 | 1 | Shaft Assy, Bail, HandleSerial 10000000 to 20000000. | $19.10/EA |
| 9 | TN4037504Replaces Nobles 1222608 | 1 | Housing, Handle, Cntrl, Bottom, SlottedSerial 10000000 to 20000000. | $87.70/EA |
| 10 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 11 | TN4041133Replaces Nobles 1205778 | 1 | Handle, Bail [Machined]Serial 10000000 to 20000000. | $45.60/EA |
| 12 | TN4041408Replaces Nobles 1207004 | 1 | Cover, Handle, CntrlSerial 10000000 to 20000000. | $18.50/EA |
| 13 | TN4041694Replaces Nobles 1043573 | 15 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10000000 to 20000000. | $2.50/EA |
| 14 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 10795904. | $3.50/EA |
| 15 | TN4036250Replaces Nobles 1020280 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftSerial 10000000 to 20000000. | $26.40/EA |
| 16 | TN4040168Replaces Nobles 1215863 | 2 | Screw, Pan, Torx, M8 X 3.5 X 25[Remform]Serial 10795905 to 20000000. | $9.00/EA |
| 17 | TN4043649Replaces Nobles 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsSerial 10795905 to 20000000. | $3.20/EA |
| N/S | TN4030945Replaces Nobles 1072524 | 1 | Harness, Ele [Bail Switch]Serial 10000000 to 20000000. | $9.30/EA |
Nobles Speed Scrub 300 shroud group, disk and orbital head parts
The parts Nobles numbers on the shroud group, disk and orbital head drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042404Replaces Nobles 1210029 | 1 | Cover, Head, Disk, Im-Hg [T300]Serial 10000000 to 20000000. | $49.00/EA |
| 2 | TN4042901Replaces Nobles 01684 | 5 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 3 | TN4043365Replaces Nobles 11329 | 5 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 4 | TN4023520Replaces Nobles 80491 | 3 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |
Nobles Speed Scrub 300 shroud group, cylindrical head parts
The parts Nobles numbers on the shroud group, cylindrical head drawing. Manual pages 76, list 77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039802Replaces Nobles 1213570 | 1 | Cover, Head, Cylrcl, Im-Hg [T300]Serial 10000000 to 20000000. | $68.30/EA |
| 2 | TN4042901Replaces Nobles 01684 | 5 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 3 | TN4043365Replaces Nobles 11329 | 5 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 4 | TN4023520Replaces Nobles 80491 | 3 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |
Nobles Speed Scrub 300 scrub head lift group, 17 in (43 cm) disk model parts
The parts Nobles numbers on the scrub head lift group, 17 in (43 cm) disk model drawing. Manual pages 78, list 79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040606Replaces Nobles 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsSerial 10778394 to 20000000. | $4.00/EA |
| 2 | TN4030993Replaces Nobles 1028796 | 2 | Washer, Flat, 0.33b 1.00d .18, Stl, PlSerial 10778394 to 20000000. | $2.50/EA |
| 3 | TN4037586Replaces Nobles 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalSerial 10778394 to 20000000. | $9.80/EA |
| 4 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4039531Replaces Nobles 1213063 | 1 | Bracket, Guide, Head [Vw]Serial 10000000 to 20000000. | $34.00/EA |
| 6 | TN4032463Replaces Nobles 1032420 | 1 | Spring, Extn, 0.85od 0.09wir 02.9lSerial 10000000 to 20000000. | $6.90/EA |
| 7 | TN4020353Replaces Nobles 9014170 | 1 | Kit, Lift, Head[T300/T300e/Ss300]Complete assembly. Serial 10000000 to 20000000. | $261.10/EA |
| 8 | TN4020538Replaces Nobles 630188 | 8 | Bearing, Journal, .50id X .25lPart of Kit, Lift, Head[T300/T300e/Ss300] (9014170). Serial 10000000 to 20000000. | $9.90/EA |
| 9 | TN4036856Replaces Nobles 1218694 | 1 | Pad, Pedal, LiftSerial 10000000 to 20000000. | $4.14/EA |
| 10 | TN4041944Replaces Nobles 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 11 | TN4037581Replaces Nobles 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4040581Replaces Nobles 222460 | 7 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4041929Replaces Nobles 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 14 | TN4018378Replaces Nobles 69915 | 1 | Bolt, Carriage, M8 X 1.25 X 40Serial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4042580Replaces Nobles 200101017 | 1 | Nut, Hex, Jam, M8 X 1.25Serial 10000000 to 20000000. | $3.40/EA |
| 16 | TN4035127Replaces Nobles 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4042902Replaces Nobles 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 18 | TN4037610Replaces Nobles 1014163 | 1 | Screw, Hex, M8 X 1.25 X 60, Fl, SsSerial 10000000 to 20000000. | $4.00/EA |
| 19 | TN4043988Replaces Nobles 140430 | 1 | Spring, Cmpr, 0.70od .10wir 01.7lSerial 10000000 to 20000000. | $9.60/EA |
| 20 | TN4043798Replaces Nobles 140127 | 2 | Washer, Thrust, 0.51b 1.00d 0.12w, BrzSerial 10000000 to 20000000. | $5.20/EA |
| 21 | TN4038830Replaces Nobles 1210258 | 1 | Bracket Wldt, Head Mtg, 43d/50d, ShortSerial 10000000 to 20000000. | $35.80/EA |
| 22 | TN4036504Replaces Nobles 12333 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss, NlSerial 10000000 to 20000000. | $4.00/EA |
| 23 | TN4037864Replaces Nobles 1223982 | 1 | Spacer, Head, 4mm (Push Model)Serial 10802498 to 20000000. | $13.80/EA |
| 24 | TN4037859Replaces Nobles 1223962 | 1 | Bracket Wldt, Mtg, Head, 43d/50d, TallSerial 10802498 to 20000000. | $39.00/EA |
| 25 | TN4040581Replaces Nobles 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10778394 to 20000000. | $3.40/EA |
| 26 | TN4014172Replaces Nobles 49694 | 1 | Screw, Hex, M8 X 1.25 X 50, SsSerial 10000000 to 10778393. | $6.60/EA |
| 27 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 10778393. | $2.60/EA |
| 28 | TN4039856Replaces Nobles 1214039 | 1 | Roller, Lift, HeadSerial 10000000 to 10778393. | $5.50/EA |
| 29 | TN4044727Replaces Nobles 1032791 | 1 | Spacer, Head, 4mm [Ss3] (Push Model)Serial 10000000 to 10802497. | $11.70/EA |
| 30 | TN4037859Replaces Nobles 1210256 | 1 | Bracket Wldt, Mtg, Head, 50d, Tall [Vw]Serial 10000000 to 10802497. | $39.00/EA |
Nobles Speed Scrub 300 scrub head lift group, 20 in (50 cm) disk model parts
The parts Nobles numbers on the scrub head lift group, 20 in (50 cm) disk model drawing. Manual pages 80, list 81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040606Replaces Nobles 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsSerial 10778394 to 20000000. | $4.00/EA |
| 2 | TN4030993Replaces Nobles 1028796 | 2 | Washer, Flat, 0.33b 1.00d .18, Stl, PlSerial 10778394 to 20000000. | $2.50/EA |
| 3 | TN4037586Replaces Nobles 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalSerial 10778394 to 20000000. | $9.80/EA |
| 4 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4039531Replaces Nobles 1213063 | 1 | Bracket, Guide, Head [Vw]Serial 10000000 to 20000000. | $34.00/EA |
| 6 | TN4032463Replaces Nobles 1032420 | 1 | Spring, Extn, 0.85od 0.09wir 02.9lSerial 10000000 to 20000000. | $6.90/EA |
| 7 | TN4020353Replaces Nobles 9014170 | 1 | Kit, Lift, Head[T300/T300e/Ss300]Complete assembly. Serial 10000000 to 20000000. | $261.10/EA |
| 8 | TN4020538Replaces Nobles 630188 | 8 | Bearing, Journal, .50id X .25lPart of Kit, Lift, Head[T300/T300e/Ss300] (9014170). Serial 10000000 to 20000000. | $9.90/EA |
| 9 | TN4036856Replaces Nobles 1218694 | 1 | Pad, Pedal, LiftSerial 10000000 to 20000000. | $4.14/EA |
| 10 | TN4041944Replaces Nobles 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 11 | TN4037581Replaces Nobles 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4040581Replaces Nobles 222460 | 7 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4041929Replaces Nobles 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 14 | TN4018378Replaces Nobles 69915 | 1 | Bolt, Carriage, M8 X 1.25 X 40Serial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4042580Replaces Nobles 200101017 | 1 | Nut, Hex, Jam, M8 X 1.25Serial 10000000 to 20000000. | $3.40/EA |
| 16 | TN4035127Replaces Nobles 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4042902Replaces Nobles 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 18 | TN4037610Replaces Nobles 1014163 | 1 | Screw, Hex, M8 X 1.25 X 60, Fl, SsSerial 10000000 to 20000000. | $4.00/EA |
| 19 | TN4043988Replaces Nobles 140430 | 1 | Spring, Cmpr, 0.70od .10wir 01.7lSerial 10000000 to 20000000. | $9.60/EA |
| 20 | TN4043798Replaces Nobles 140127 | 2 | Washer, Thrust, 0.51b 1.00d 0.12w, BrzSerial 10000000 to 20000000. | $5.20/EA |
| 21 | TN4038830Replaces Nobles 1210258 | 1 | Bracket Wldt, Head Mtg, 43d/50d, ShortSerial 10000000 to 20000000. | $35.80/EA |
| 22 | TN4036504Replaces Nobles 12333 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss, NlSerial 10000000 to 20000000. | $4.00/EA |
| 23 | TN4037864Replaces Nobles 1223982 | 1 | Spacer, Head, 4mm (Push Model)Serial 10499417 to 20000000. | $13.80/EA |
| 24 | TN4037859Replaces Nobles 1223962 | 1 | Bracket Wldt, Mtg, Head, 43d/50d, TallSerial 10499417 to 20000000. | $39.00/EA |
| 25 | TN4040581Replaces Nobles 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10778394 to 20000000. | $3.40/EA |
| 26 | TN4014172Replaces Nobles 49694 | 1 | Screw, Hex, M8 X 1.25 X 50, SsSerial 10000000 to 10778393. | $6.60/EA |
| 27 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 10778393. | $2.60/EA |
| 28 | TN4039856Replaces Nobles 1214039 | 1 | Roller, Lift, HeadSerial 10000000 to 10778393. | $5.50/EA |
| 29 | TN4044727Replaces Nobles 1032791 | 1 | Spacer, Head, 4mm [Ss3] (Push Model)Serial 10000000 to 10499416. | $11.70/EA |
| 30 | TN4037859Replaces Nobles 1210256 | 1 | Bracket Wldt, Mtg, Head, 50d, Tall [Vw]Serial 10000000 to 10499416. | $39.00/EA |
Nobles Speed Scrub 300 scrub head lift group, 24 in (60 cm) dual disk model parts
The parts Nobles numbers on the scrub head lift group, 24 in (60 cm) dual disk model drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040606Replaces Nobles 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsSerial 10778394 to 20000000. | $4.00/EA |
| 2 | TN4030993Replaces Nobles 1028796 | 2 | Washer, Flat, 0.33b 1.00d .18, Stl, PlSerial 10778394 to 20000000. | $2.50/EA |
| 3 | TN4037586Replaces Nobles 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalSerial 10778394 to 20000000. | $9.80/EA |
| 4 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4039531Replaces Nobles 1213063 | 1 | Bracket, Guide, Head [Vw]Serial 10000000 to 20000000. | $34.00/EA |
| 6 | TN4039750Replaces Nobles 1213220 | 1 | Bracket Wldt, Mtg, Head, 60dd, Tall [Vw]Serial 10000000 to 20000000. | $30.03/EA |
| 7 | TN4036259Replaces Nobles 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 8 | TN4020353Replaces Nobles 9014170 | 1 | Kit, Lift, Head[T300/T300e/Ss300]Complete assembly. Serial 10000000 to 20000000. | $261.10/EA |
| 9 | TN4020538Replaces Nobles 630188 | 8 | Bearing, Journal, .50id X .25lPart of Kit, Lift, Head[T300/T300e/Ss300] (9014170). Serial 10000000 to 20000000. | $9.90/EA |
| 10 | TN4036856Replaces Nobles 1218694 | 1 | Pad, Pedal, LiftSerial 10000000 to 20000000. | $4.14/EA |
| 11 | TN4041944Replaces Nobles 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4037581Replaces Nobles 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4040581Replaces Nobles 222460 | 4 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 14 | TN4041929Replaces Nobles 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4018378Replaces Nobles 69915 | 1 | Bolt, Carriage, M8 X 1.25 X 40Serial 10000000 to 20000000. | $3.30/EA |
| 16 | TN4042580Replaces Nobles 200101017 | 1 | Nut, Hex, Jam, M8 X 1.25Serial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4035127Replaces Nobles 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4042902Replaces Nobles 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 19 | TN4039756Replaces Nobles 1213224 | 1 | Bracket Wldt, Mtg, Head, 60dd, Short[Vw]Serial 10000000 to 20000000. | $27.22/EA |
| 20 | TN4044856Replaces Nobles 1074344 | 4 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 21 | TN4040581Replaces Nobles 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10778394 to 20000000. | $3.40/EA |
| 22 | TN4014172Replaces Nobles 49694 | 1 | Screw, Hex, M8 X 1.25 X 50, SsSerial 10000000 to 10778393. | $6.60/EA |
| 23 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 10778393. | $2.60/EA |
| 24 | TN4039856Replaces Nobles 1214039 | 1 | Roller, Lift, HeadSerial 10000000 to 10778393. | $5.50/EA |
Nobles Speed Scrub 300 scrub head lift group, 20 in (50 cm) cylindrical model parts
The parts Nobles numbers on the scrub head lift group, 20 in (50 cm) cylindrical model drawing. Manual pages 84, list 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040606Replaces Nobles 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsSerial 10778394 to 20000000. | $4.00/EA |
| 2 | TN4026720Replaces Nobles 379829 | 1 | Washer, Flat, 0.34b 1.50d .12, Stl, PlSerial 10000000 to 20000000. | $5.80/EA |
| 3 | TN4042409Replaces Nobles 1210103 | 2 | Spring, Cmpr, 1.23od 0.085wir 0.88lSerial 10000000 to 20000000. | $36.97/EA |
| 4 | TN4037586Replaces Nobles 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalSerial 10778394 to 20000000. | $9.80/EA |
| 5 | TN4039133Replaces Nobles 20955 | 2 | Washer, Flat, 1.03b 1.50d .04, Stl, PlSerial 10000000 to 20000000. | $12.52/EA |
| 6 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 7 | TN4039531Replaces Nobles 1213063 | 1 | Bracket, Guide, Head [Vw]Serial 10000000 to 20000000. | $34.00/EA |
| 8 | TN4020353Replaces Nobles 9014170 | 1 | Kit, Lift, Head[T300/T300e/Ss300]Complete assembly. Serial 10000000 to 20000000. | $261.10/EA |
| 9 | TN4020538Replaces Nobles 630188 | 8 | Bearing, Journal, .50id X .25lPart of Kit, Lift, Head[T300/T300e/Ss300] (9014170). Serial 10000000 to 20000000. | $9.90/EA |
| 10 | TN4036856Replaces Nobles 1218694 | 1 | Pad, Pedal, LiftSerial 10000000 to 20000000. | $4.14/EA |
| 11 | TN4041944Replaces Nobles 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4037581Replaces Nobles 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4040581Replaces Nobles 222460 | 4 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 14 | TN4041929Replaces Nobles 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4018378Replaces Nobles 69915 | 1 | Bolt, Carriage, M8 X 1.25 X 40Serial 10000000 to 20000000. | $3.30/EA |
| 16 | TN4042580Replaces Nobles 200101017 | 1 | Nut, Hex, Jam, M8 X 1.25Serial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4035127Replaces Nobles 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4042902Replaces Nobles 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 19 | TN4039758Replaces Nobles 1213226 | 1 | Bracket Wldt, Mtg, Head, 50cyl [Short]Serial 10000000 to 20000000. | $35.65/EA |
| 20 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 21 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 22 | TN4037443Replaces Nobles 1221434 | 1 | Nut, T, M8 X 1.25, Pm Ss [B5/B7, T300]Serial 10000000 to 20000000. | $10.60/EA |
| 23 | TN4041143Replaces Nobles 1205799 | 1 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 24 | TN4040172Replaces Nobles 1216222 | 1 | Bracket Wldt, Mtg, HeadSerial 10000000 to 20000000. | $89.69/EA |
| 25 | TN4042410Replaces Nobles 1210112 | 2 | Washer, Flat, 1.03b 1.50d .03, NylonSerial 10000000 to 20000000. | $1.52/EA |
| 26 | TN4040581Replaces Nobles 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10778394 to 20000000. | $3.40/EA |
| 27 | TN4030993Replaces Nobles 1028796 | 1 | Washer, Flat, 0.33b 1.00d .18, Stl, PlSerial 10778394 to 20000000. | $2.50/EA |
| 28 | TN4014172Replaces Nobles 49694 | 1 | Screw, Hex, M8 X 1.25 X 50, SsSerial 10000000 to 10778393. | $6.60/EA |
| 29 | TN4039856Replaces Nobles 1214039 | 1 | Roller, Lift, HeadSerial 10000000 to 10778393. | $5.50/EA |
Nobles Speed Scrub 300 scrub head lift group, 20 in (50 cm) orbital model parts
The parts Nobles numbers on the scrub head lift group, 20 in (50 cm) orbital model drawing. Manual pages 86, list 87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040606Replaces Nobles 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsSerial 10778394 to 20000000. | $4.00/EA |
| 2 | TN4030993Replaces Nobles 1028796 | 2 | Washer, Flat, 0.33b 1.00d .18, Stl, PlSerial 10778394 to 20000000. | $2.50/EA |
| 3 | TN4037586Replaces Nobles 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalSerial 10778394 to 20000000. | $9.80/EA |
| 4 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4039531Replaces Nobles 1213063 | 1 | Bracket, Guide, Head [Vw]Serial 10000000 to 20000000. | $34.00/EA |
| 6 | TN4032463Replaces Nobles 1032420 | 1 | Spring, Extn, 0.85od 0.09wir 02.9lSerial 10000000 to 20000000. | $6.90/EA |
| 7 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 8 | TN4020353Replaces Nobles 9014170 | 1 | Kit, Lift, Head[T300/T300e/Ss300]Complete assembly. Serial 10000000 to 20000000. | $261.10/EA |
| 9 | TN4020538Replaces Nobles 630188 | 8 | Bearing, Journal, .50id X .25lPart of Kit, Lift, Head[T300/T300e/Ss300] (9014170). Serial 10000000 to 20000000. | $9.90/EA |
| 10 | TN4036856Replaces Nobles 1218694 | 1 | Pad, Pedal, LiftSerial 10000000 to 20000000. | $4.14/EA |
| 11 | TN4041944Replaces Nobles 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 20000000. | $3.40/EA |
| 12 | TN4037581Replaces Nobles 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4040581Replaces Nobles 222460 | 4 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 14 | TN4041929Replaces Nobles 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4018378Replaces Nobles 69915 | 1 | Bolt, Carriage, M8 X 1.25 X 40Serial 10000000 to 20000000. | $3.30/EA |
| 16 | TN4042580Replaces Nobles 200101017 | 1 | Nut, Hex, Jam, M8 X 1.25Serial 10000000 to 20000000. | $3.40/EA |
| 17 | TN4035127Replaces Nobles 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4042902Replaces Nobles 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 19 | TN4039466Replaces Nobles 1212572 | 1 | Bracket Wldt, Mtg, Head, Orb, Short [Vw]Serial 10000000 to 20000000. | $37.10/EA |
| 20 | TN4039754Replaces Nobles 1213223 | 1 | Bracket Wldt, Mtg, Head, Orb, Tall [Vw]Serial 10000000 to 20000000. | $48.70/EA |
| 21 | TN4040581Replaces Nobles 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Serial 10778394 to 20000000. | $3.40/EA |
| 22 | TN4014172Replaces Nobles 49694 | 1 | Screw, Hex, M8 X 1.25 X 50, SsSerial 10000000 to 10778393. | $6.60/EA |
| 23 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 10778393. | $2.60/EA |
| 24 | TN4039856Replaces Nobles 1214039 | 1 | Roller, Lift, HeadSerial 10000000 to 10778393. | $5.50/EA |
Nobles Speed Scrub 300 squeegee group parts
The parts Nobles numbers on the squeegee group drawing. Manual pages 88, list 89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026477Replaces Nobles 9014172 | 1 | Squeegee Kit, Linatex, Am [T300/E/Ss300]Complete assembly. Serial 10000000 to 20000000. | $667.30/EA |
| 1 | TN4040156Replaces Nobles 1215681 | 1 | Frame, Sqge, 50cm, Mach [T300]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4040837Replaces Nobles 1203638 | 1 | Retainer, Sqge [T300]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $79.60/EA |
| 3 | TN4040849Replaces Nobles 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $20.70/EA |
| 3 | TN4040138Replaces Nobles 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Serial 10000000 to 20000000. | $50.62/EA |
| 3 | TN4040139Replaces Nobles 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Serial 10000000 to 20000000. | $11.00/EA |
| 4 | TN4040848Replaces Nobles 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of the assembly above. Serial 10000000 to 20000000. | $23.40/EA |
| 4 | TN4040136Replaces Nobles 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Serial 10000000 to 20000000. | $50.62/EA |
| 4 | TN4040137Replaces Nobles 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Serial 10000000 to 20000000. | $11.00/EA |
| 5 | TN4037087Replaces Nobles 22290 | 2 | Spring, Cmpr, 0.72od .06wir 02.3lPart of the assembly above. Serial 10000000 to 20000000. | $4.10/EA |
| 6 | TN4041945Replaces Nobles 09023 | 2 | Screw, Hex, M8 X 1.25 X 35, Fl, SsPart of the assembly above. Serial 10000000 to 20000000. | $3.30/EA |
| 7 | TN4041600Replaces Nobles 07786 | 4 | Nut, Hex, Std, M8 X 1.25, SsPart of the assembly above. Serial 10000000 to 20000000. | $3.40/EA |
| 8 | TN4039812Replaces Nobles 1213677 | 4 | Knob, Star, 2.00od 4ear M8x1.25 [Yel]Part of the assembly above. Serial 10000000 to 20000000. | $9.90/EA |
| 9 | TN4039479Replaces Nobles 1212755 | 2 | Screw, Btn, Soc, M8x1.25x80, SsPart of the assembly above. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4042359Replaces Nobles 1209631 | 1 | Cover, Trap, Water, SqgePart of the assembly above. Serial 10000000 to 20000000. | $8.20/EA |
| 11 | TN4039475Replaces Nobles 1212683 | 1 | Screw, Captive, M5, Knurled [Snap In]Part of the assembly above. Serial 10000000 to 20000000. | $8.40/EA |
| 12 | TN4038882Replaces Nobles 1210756 | 1 | Gasket, Trap, Water, SqgePart of the assembly above. Serial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4043649Replaces Nobles 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsPart of the assembly above. Serial 10000000 to 20000000. | $3.20/EA |
| 14 | TN4040581Replaces Nobles 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Part of the assembly above. Serial 10000000 to 20000000. | $3.40/EA |
| 15 | TN4040369Replaces Nobles 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of the assembly above. Serial 10000000 to 20000000. | $5.50/EA |
| 16 | TN4020804Replaces Nobles 630477 | 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of the assembly above. Serial 10000000 to 20000000. | $9.50/EA |
| 17 | TN4041878Replaces Nobles 17461 | 2 | Pin, Clevis, 0.37d X 1.75lPart of the assembly above. Serial 10000000 to 20000000. | $4.00/EA |
| 18 | TN4040200Replaces Nobles 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirPart of the assembly above. Serial 10000000 to 20000000. | $1.50/EA |
| 19 | TN4035127Replaces Nobles 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsPart of the assembly above. Serial 10000000 to 20000000. | $3.40/EA |
| 20 | TN4035235Replaces Nobles 1017091 | 2 | Spring, Cmpr, 0.50od .04wir 00.8lPart of the assembly above. Serial 10000000 to 20000000. | $4.10/EA |
| 21 | TN4026508Replaces Nobles 9014303 | 1 | Bracket Kit, Sqge, Wdt [T300/E, Ss300]Serial 10000000 to 20000000. | $184.50/EA |
| 22 | TN4040200Replaces Nobles 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirSerial 10000000 to 20000000. | $1.50/EA |
| 23 | TN4018939Replaces Nobles 391179 | 2 | Pin, Clevis, 0.37d X 2.62lSerial 10000000 to 20000000. | $4.00/EA |
| 24 | TN4039910Replaces Nobles 1214467 | 1 | Sleeve, P/M, 0.41b 0.75d 1.3l [430ss]Serial 10000000 to 20000000. | $7.00/EA |
| 25 | TN4031248Replaces Nobles 33933 | 1 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 26 | TN4026506Replaces Nobles 9014301 | 1 | Bracket Kit, Sqge, Lift [T300/E, Ss300]Serial 10000000 to 20000000. | $183.00/EA |
| 27 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 28 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 29 | TN4041928Replaces Nobles 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 30 | TN4031254Replaces Nobles 33951 | 1 | Screw, Soc, M6 X 1.00 X 20, 12.9Serial 10000000 to 20000000. | $3.40/EA |
| 31 | TN4014599Replaces Nobles 51813 | 1 | Pin, Clevis, 0.37d X 2.12lSerial 10000000 to 20000000. | $4.00/EA |
| 32 | TN4043779Replaces Nobles 140045 | 1 | Washer, Flat, 0.51b 1.25d .06, SsSerial 10000000 to 20000000. | $4.00/EA |
| 33 | TN4041930Replaces Nobles 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 34 | TN4018388Replaces Nobles 69954 | 1 | Washer, Thrust, 0.63b 1.25d 0.13wSerial 10000000 to 20000000. | $6.90/EA |
| 35 | TN4040162Replaces Nobles 1215756 | 1 | Spring, Cmpr, 0.98od .146wir 02.5lSerial 10000000 to 20000000. | $12.40/EA |
| 36 | TN4035570Replaces Nobles 1209782 | 1 | Pin, Guide, SpringSerial 10000000 to 20000000. | $5.80/EA |
| 37 | TN4023520Replaces Nobles 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10000000 to 20000000. | $5.10/EA |
| 38 | TN4040200Replaces Nobles 1216647 | 1 | Pin, Cotter, Hair, 0.38d .054 WirSerial 10000000 to 20000000. | $1.50/EA |
| 39 | TN4039459Replaces Nobles 1212533 | 1 | Cover, Pedal, LiftSerial 10000000 to 20000000. | $11.60/EA |
Nobles Speed Scrub 300 battery cable group parts
The parts Nobles numbers on the battery cable group drawing. Manual pages 90, list 91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044952Replaces Nobles 1074847 | 1 | Cable, Assy [T300e]Serial 10790532 to 20000000. | $101.20/EA |
| – | TN4022654Replaces Nobles 9014781 | 1 | Cable Kit, Battery, Ring, Tray,Ci[T300e]Complete assembly. Serial 10000000 to 20000000. | $348.70/EA |
| 2 | TN4044585Replaces Nobles 1073629 | 1 | Cable, Battery, 4ga [M8 Ring/M8 Ring]Part of Cable Kit, Battery, Ring, Tray,Ci[T300e] (9014781). Serial 10000000 to 10790531. | $117.60/EA |
| 3 | TN4044584Replaces Nobles 1073628 | 1 | Cable, Battery, 4ga [M8 Ring/M8 Ring]Part of Cable Kit, Battery, Ring, Tray,Ci[T300e] (9014781). Serial 10000000 to 10790531. | $119.20/EA |
| 4 | TN4031246Replaces Nobles 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, SsPart of Cable Kit, Battery, Ring, Tray,Ci[T300e] (9014781). Serial 10000000 to 10790531. | $3.20/EA |
| 5 | TN4022837Replaces Nobles 611221 | 2 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10790532 to 20000000. | $4.90/EA |
| 5 | TN4022837Replaces Nobles 611221 | 4 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 10790531. | $4.90/EA |
| 6 | TN1073680Nobles 1073680 | 1 | Cable, 04ga 15.0l Blk [M8 Ring/M8 Ring]Serial 10000000 to 20000000. | $0.00/EA |
Nobles Speed Scrub 300 battery group, 105Ah c20 wet parts
The parts Nobles numbers on the battery group, 105Ah c20 wet drawing. Manual page 92.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029609Replaces Nobles 578426 | 2 | Battery, Wet, 12vdc 0105ah [S8, 27tmx]Serial 10000000 to 20000000. | $374.54/EA |
| 2 | TN4022093Replaces Nobles 87435 | 4 | Nut, Hex, Flexlock, .31-18Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN4013445Replaces Nobles 45962 | 4 | Cap, Battery, White [For 105ah & 130ah]Serial 10000000 to 20000000. | $4.00/EA |
Nobles Speed Scrub 300 battery group, 130Ah c20 wet parts
The parts Nobles numbers on the battery group, 130Ah c20 wet drawing. Manual page 93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043519Replaces Nobles 130869 | 2 | Battery, Wet, 12vdc 0130ah [30xhs-Wnt]Serial 10000000 to 20000000. | $434.80/EA |
| 2 | TN4022093Replaces Nobles 87435 | 4 | Nut, Hex, Flexlock, .31-18Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN4013445Replaces Nobles 45962 | 4 | Cap, Battery, White [For 105ah & 130ah]Serial 10000000 to 20000000. | $4.00/EA |
Nobles Speed Scrub 300 battery group, 155Ah c20 wet parts
The parts Nobles numbers on the battery group, 155Ah c20 wet drawing. Manual page 94.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037986Replaces Nobles 1015046 | 2 | Battery, Wet, 12vdc 0155ahSerial 10000000 to 20000000. | $436.15/EA |
| 2 | TN4022093Replaces Nobles 87435 | 4 | Nut, Hex, Flexlock, .31-18Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN4044457Replaces Nobles 1041030 | 4 | Cap, Battery, Black [For 155ah]Serial 10000000 to 20000000. | $3.20/EA |
Nobles Speed Scrub 300 battery group, 140Ah c20 AGM parts
The parts Nobles numbers on the battery group, 140Ah c20 AGM drawing. Manual page 95.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038188Replaces Nobles 1053408 | 2 | Battery, 12vdc 0140ah [Agm]Complete assembly. Serial 10000000 to 20000000. | $1,007.10/EA |
| 2 | TN4013445Replaces Nobles 45962 | 4 | Cap, Battery, White [For 105ah & 130ah]Part of Battery, 12vdc 0140ah [Agm] (1053408). Serial 10000000 to 20000000. | $4.00/EA |
| 3 | TN4022093Replaces Nobles 87435 | 4 | Nut, Hex, Flexlock, .31-18Serial 10000000 to 20000000. | $3.20/EA |
Nobles Speed Scrub 300 label group parts
The parts Nobles numbers on the label group drawing. Manual pages 96, list 97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040165Replaces Nobles 1215777 | 1 | Label Sheet, OperationalSerial 10000000 to 20000000. | $125.30/EA |
| 2 | TN4040140Replaces Nobles 1215634 | 1 | Label, Opertnl, Solution Knob AdjSerial 10000000 to 20000000. | $8.48/EA |
| 3 | TN4039892Replaces Nobles 1214279 | 1 | Label, Orbital, Size, 50cm (Orbital Head)Serial 10000000 to 20000000. | $18.99/EA |
| 4 | TN4231372Replaces Nobles 1206159 | 1 | Label, Logo, 05.5l [Nobles]Serial 10000000 to 20000000. | $5.65/EA |
| 5 | TN4227508Replaces Nobles 1215264 | 2 | Label, Speed Scrub 300Serial 10000000 to 20000000. | $4.00/EA |
| 6 | TN4040195Replaces Nobles 1216533 | 2 | Label, Logo [Ech2o Nano Nobles] (ec-H2O Model)Serial 10000000 to 20000000. | $42.20/EA |
Nobles Speed Scrub 300 label group (continued) parts
The parts Nobles numbers on the label group drawing, continued from the page before. Manual pages 98, list 99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036828Replaces Nobles 1218392 | 1 | Label, Safety, Magnet, Med (Magnetic Heads)Serial 10000000 to 20000000. | $4.10/EA |
| 2 | TN4040163Replaces Nobles 1215774 | 1 | Label Sheet, Info/Hzrd [Na]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Nobles Speed Scrub 300 electrical harness, main propel parts
Electrical harness, main propel, from the Nobles parts list. Manual page 109.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023032Replaces Nobles 1073676 | 1 | Harness, Main, Ele [Vw, Base, Propel]Complete assembly. | $1,083.80/EA |
| – | TN4040238Replaces Nobles 222290 | 3 | Diode, Ele, PlugPart of Harness, Main, Ele [Vw, Base, Propel] (1073676). | $13.00/EA |
Nobles Speed Scrub 300 electrical harness, main push parts
Electrical harness, main push, from the Nobles parts list. Manual page 113.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023034Replaces Nobles 1073677 | 1 | Harness, Main, Ele [Vw, Base, Push]Complete assembly. | $798.70/EA |
| – | TN4040238Replaces Nobles 222290 | 3 | Diode, Ele, PlugPart of Harness, Main, Ele [Vw, Base, Push] (1073677). | $13.00/EA |
Nobles Speed Scrub 300 electrical harness, options propel parts
Electrical harness, options propel, from the Nobles parts list. Manual page 114.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4042948Replaces Nobles 1073592 | 1 | Harness, Ele [Vw, Op.Sta, Propel ] | $215.40/EA |
Nobles Speed Scrub 300 electrical harness, options push parts
Electrical harness, options push, from the Nobles parts list. Manual page 115.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4042960Replaces Nobles 1073593 | 1 | Harness, Ele [Vw, Op.Stat, Push] | $44.66/EA |
Nobles Speed Scrub 300 electrical harness, bail switch parts
Electrical harness, bail switch, from the Nobles parts list. Manual page 116.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4030945Replaces Nobles 1072524 | 1 | Harness, Ele [Bail Switch] | $9.30/EA |
Nobles Speed Scrub 300 battery lift out box kit parts
The parts Nobles numbers on the battery lift out box kit drawing. Manual pages 118, list 119.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026478Replaces Nobles 9014173 | 1 | Box Kit, Lift, Batt, Am [T300/E/Ss300]Complete assembly. Serial 10000000 to 20000000. | $268.36/EA |
| 1 | TN4041756Replaces Nobles 1207816 | 1 | Box, Battery [Lift-Out]Part of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $149.08/EA |
| 2 | TN4039476Replaces Nobles 1212689 | 2 | Pad, Box, BatteryPart of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $5.35/EA |
| 3 | TN4042031Replaces Nobles 1208697 | 1 | Strap, Pyp, Buckle, FrictionPart of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $33.03/EA |
| 4 | TN4043510Replaces Nobles 130773 | 4 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $3.90/EA |
| 5 | TN4039912Replaces Nobles 1214509 | 1 | Bracket, Deflector, BatteryPart of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $39.49/EA |
| 6 | TN4045268Replaces Nobles 1034731 | 3 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $3.30/EA |
| 7 | TN4044944Replaces Nobles 1074798 | 1 | Cable, Adaptor, Batt [Sb120-Sb50, Red]Part of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $54.92/EA |
| 8 | TN4043365Replaces Nobles 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, SsPart of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4042901Replaces Nobles 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Box Kit, Lift, Batt, Am [T300/E/Ss300] (9014173). Serial 10000000 to 20000000. | $2.60/EA |
Nobles Speed Scrub 300 hydroLink battery watering system kit parts
The parts Nobles numbers on the hydroLink battery watering system kit drawing. Manual pages 120, list 121.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010Replaces Nobles 9010300 | 1 | Battery Fill Kit, 24v, Ci [Hydrolink]Complete assembly. Serial 10000000 to 20000000. | $300.00/EA |
| 1 | TN4036778Replaces Nobles 1058939 | 1 | Pump Kit, Fill, BatteryPart of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $145.10/EA |
| 2 | TN4030313Replaces Nobles 1070394 | 1 | Tube, Water, Battery, 24vdc [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4040858Replaces Nobles 1204142 | 4 | Cap, Fill, Battery [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $42.00/EA |
| 4 | TN4030488Replaces Nobles 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $7.50/EA |
| 5 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $3.90/EA |
Nobles Speed Scrub 300 documentation group parts
Documentation group, from the Nobles parts list. Manual page 122.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4194548Replaces Nobles 9014511 | 1 | Manual, Parts [Speed Scrub 300]Serial 10000000 to 20000000. | $92.76/EA |
| – | TN4194549Replaces Nobles 9014512 | 1 | Manual, Oprtr [Speed Scrub 300, En]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4194810Replaces Nobles 9014513 | 1 | Manual, Oprtr [Speed Scrub 300, Es]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4194811Replaces Nobles 9014514 | 1 | Manual, Oprtr [Speed Scrub 300, Fr]Serial 10000000 to 20000000. | $1.08/EA |
| – | TN4194812Replaces Nobles 9014515 | 1 | Instr, Wall Chart [Speed Scrub 300]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4194813Replaces Nobles 9014516 | 1 | Manual, Service [Speed Scrub 300, En]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Nobles Speed Scrub 300 ec-H2O nanoclean module breakdown parts
The parts Nobles numbers on the ec-H2O nanoclean module breakdown drawing. Manual pages 124, list 125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Nobles 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02]Complete assembly. | $1,339.60/EA |
| – | TN4026248Replaces Nobles 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Part of the assembly above. | $691.04/EA |
| 1 | TN4042043Replaces Nobles 1208823 | 1 | Housing, Module, Upper, Ec-H2o | $17.05/EA |
| 2 | TN4038305Replaces Nobles 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic] | $3.30/EA |
| 3 | TN4042141Replaces Nobles 1044393 | 1 | Switch, Rocker, Spst, Mom | $7.70/EA |
| 4 | TN4034147Replaces Nobles 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, Ss | $0.25/EA |
| 5 | TN4032414Replaces Nobles 1208164 | 1 | Electrode, 5 Plate, High Flow | $588.10/EA |
| 6 | TN4016852Replaces Nobles 41579 | 4 | Washer, Flat, 08, Ss | $2.60/EA |
| 7 | TN4031247Replaces Nobles 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss | $3.40/EA |
| 8 | TN4039304Replaces Nobles 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ft | $51.70/EA |
| 9 | TN4042010Replaces Nobles 1208526 | 1 | Hose, Molded, Bm08/Bm06 | $23.60/EA |
| 10 | TN4040431Replaces Nobles 1049637 | 1 | Label, Direction [Ec-H2o] | $3.23/EA |
| 11 | TN4019547Replaces Nobles 613735 | 1 | Clamp, Hose, Wir, .40 - .42, Yel | $3.60/EA |
| 12 | TN4015366Replaces Nobles 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 13 | TN4044506Replaces Nobles 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o] | $17.60/EA |
| 14 | TN4021577Replaces Nobles 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc]Part of the assembly above. | $1,063.00/EA |
Nobles Speed Scrub 300 orbital head eccentric drive breakdown parts
The parts Nobles numbers on the orbital head eccentric drive breakdown drawing. Manual pages 126, list 127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026479Replaces Nobles 9014175 | 1 | Kit, Eccentric Assy, [T300]Complete assembly. | $1,025.50/EA |
| 2 | TN4037626Replaces Nobles 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | $4.20/EA |
| 3 | Not sold separatelyNobles N/A | 1 | Balance, Eccentric, Step [Machined]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 4 | Not sold separatelyNobles N/A | 1 | Screw, Set, M8 X 1.25 X 8, SSPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 5 | Not sold separatelyNobles N/A | 1 | Spacer, EccentricPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 6 | Not sold separatelyNobles N/A | 3 | Screw, Hex, M6 X 1.00 X 16, SemsPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 7 | Not sold separatelyNobles N/A | 1 | Plate, Retainer, Brg, OuterPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 8 | TN4041379Replaces Nobles 1206608 | 1 | Bearing, Ball, 1.58b 2.68d 0.59w [2seal]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | $54.90/EA |
| 9 | Not sold separatelyNobles N/A | 1 | Housing, Bearing, Outer [Machined]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 10 | Not sold separatelyNobles N/A | 1 | Retainer, Bearing, Inner [Qpq]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 11 | Not sold separatelyNobles N/A | 2 | Screw, Soc, M6 X 1.00 X 12, 8.8, LowPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 12 | TN4041804Replaces Nobles 1208266 | 1 | O-Ring, 57.15 X 3.18, NbrPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | $1.80/EA |
| 13 | TN4039478Replaces Nobles 1212710 | 6 | Screw, Flt, Soc, M6 X 1.00 X 35, 10.9,NlPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). | $1.50/EA |
Nobles Speed Scrub 300 electrical diagram, propel model, page 1 of 3
| What it shows | Electrical diagram, propel model, page 1 of 3, as printed in the manual |
|---|---|
| Manual page | 100 |
Nobles Speed Scrub 300 electrical diagram, propel model, page 2 of 3
| What it shows | Electrical diagram, propel model, page 2 of 3, as printed in the manual |
|---|---|
| Manual page | 101 |
Nobles Speed Scrub 300 electrical diagram, propel model, page 3 of 3
| What it shows | Electrical diagram, propel model, page 3 of 3, as printed in the manual |
|---|---|
| Manual page | 102 |
Nobles Speed Scrub 300 electrical diagram, push model, page 1 of 3
| What it shows | Electrical diagram, push model, page 1 of 3, as printed in the manual |
|---|---|
| Manual page | 103 |
Nobles Speed Scrub 300 electrical diagram, push model, page 2 of 3
| What it shows | Electrical diagram, push model, page 2 of 3, as printed in the manual |
|---|---|
| Manual page | 104 |
Nobles Speed Scrub 300 electrical diagram, push model, page 3 of 3
| What it shows | Electrical diagram, push model, page 3 of 3, as printed in the manual |
|---|---|
| Manual page | 105 |
Nobles Speed Scrub 300 electrical harness, main propel (drawing)
| What it shows | Electrical harness, main propel (drawing), as printed in the manual |
|---|---|
| Manual page | 106 |
Nobles Speed Scrub 300 electrical harness, main propel, extra drawing
| What it shows | Electrical harness, main propel, extra drawing, as printed in the manual |
|---|---|
| Manual page | 107 |
Nobles Speed Scrub 300 electrical harness, main propel, extra drawing
| What it shows | Electrical harness, main propel, extra drawing, as printed in the manual |
|---|---|
| Manual page | 108 |
Nobles Speed Scrub 300 electrical harness, main push (drawing)
| What it shows | Electrical harness, main push (drawing), as printed in the manual |
|---|---|
| Manual page | 110 |
Nobles Speed Scrub 300 electrical harness, main push, extra drawing
| What it shows | Electrical harness, main push, extra drawing, as printed in the manual |
|---|---|
| Manual page | 111 |
Nobles Speed Scrub 300 electrical harness, main push, extra drawing
| What it shows | Electrical harness, main push, extra drawing, as printed in the manual |
|---|---|
| Manual page | 112 |
Nobles Speed Scrub 300 electrical harness, options propel (drawing)
| What it shows | Electrical harness, options propel (drawing), as printed in the manual |
|---|---|
| Manual page | 114 |
Nobles Speed Scrub 300 electrical harness, options push (drawing)
| What it shows | Electrical harness, options push (drawing), as printed in the manual |
|---|---|
| Manual page | 115 |
Nobles Speed Scrub 300 electrical harness, bail switch (drawing)
| What it shows | Electrical harness, bail switch (drawing), as printed in the manual |
|---|---|
| Manual page | 116 |
New to your Nobles Speed Scrub 300? Start here
Set up, run and look after your Speed Scrub 300. Everything here comes from the Nobles operator manual, rewritten in plain steps, with the parts linked to the list above. Where the push and drive models or the scrub heads differ, the step says which.
1Put the squeegee and pad on
- Put your toe under the pedal to lift the squeegee mount. Hang the squeegee on it, tighten the knobs and connect the vacuum hose.
- Step on the scrub head lift pedal to raise the head off the floor.
- Fix the pad to the pad driver with its center lock before you put the driver on.
- 3-lug disk: line the three lugs up with the motor hub slots (look through the scrub head window) and give the driver or brush a quick counterclockwise turn.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 11. SES ref PF-FLDP-MTT4
2Fill the solution tank
- Take the lid off and fill until the level reaches the 3/3 mark on the solution level hose. The fill port has two clips to hold your hose.
- Conventional scrubbing: use water up to 140°F (60°C) and add a cleaning detergent as the bottle says.
- ec-H2O scrubbing: use only cool clean water, under 70°F (21°C), and no detergent. Detergent in the tank causes an ec-H2O fault.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 14. SES ref PF-FLDP-MTT4
3Scrub
- Release the parking brake if you have one and turn the key on. On ec-H2O models the system turns on by itself.
- Step on the lift pedal to lower the scrub head, then lower the squeegee. The vacuum starts when the squeegee is down.
- Pull the start bail. Drive models: push the direction lever forward and set the speed with the dial. Push models: walk the machine forward; the brush helps pull it.
- To stop, let go of the bail and raise the scrub head and squeegee. Overlap each pass by 2 in (5 cm) and keep the machine moving.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), pages 16, 17 and 18. SES ref PF-FLDP-MTT4
4Empty and clean up
- Drive or push to the drain area. Hold the drain hose up, take the cap off (or open the valve) and lower it slowly to drain the recovery tank.
- Take out and clean the float shut-off screen (TN4020485), empty the debris tray if you have one, and rinse the tank.
- Drain the solution tank through the solution hose on the accessory rail, then clip the hose back on. Don't refill from the bucket you drained into.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 20. SES ref PF-FLDP-MTT4
Questions about your Speed Scrub 300? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Nobles Speed Scrub 300 troubleshooting
Problems, likely causes and fixes from the Nobles operator manual's troubleshooting tables.
| Likely cause | Fix | Part |
|---|---|---|
| Machine won't run | ||
| Emergency stop button pushed in | Turn the red button clockwise to reset it, then turn the key again. | |
| Batteries flat or a battery cable loose | Charge the batteries and tighten loose cables. Replace a bad battery. | |
| A circuit breaker tripped | Disconnect the battery cable, let the breaker cool and press its reset button. Key switch breaker: 4 A breaker (TN4042042). | |
| Key switch, start bail switch or control board fault | Call SES service. | |
| Charger won't charge | ||
| Not plugged in, or the charger is bad | Check the plug. Replace a bad on-board charger (TN4034046) or power cord (TN4034198). | |
| Drive model won't move | ||
| Propel breaker tripped or a propel fault | Reset the 30 A propel breaker (TN4023154). If it keeps happening, call SES service. | |
| Brush won't turn | ||
| Brush breaker tripped, worn carbon brushes or a loose belt | Reset the 37 A brush breaker (TN4044898). Worn carbon brushes (TN4042671) or a broken belt (dual disk and cylindrical heads) need service. | |
| Vacuum won't run | ||
| Squeegee raised, or the vacuum breaker tripped | Lower the squeegee to the floor. Reset the 20 A vacuum breaker (TN4032589). | |
| Water left on the floor | ||
| Recovery tank full, too much foam, or the drain hose open | Drain the tank. Tighten the drain hose cap (TN4036917) or close the drain valve. | |
| Worn blades, clogged squeegee or drip trap | Turn or replace the blades (squeegee kit (TN4026477)). Clean the squeegee and the drip trap. | |
| Clogged float screen or a lid that doesn't seal | Clean the float shut-off screen (TN4020485). Check the lid closes fully; replace a bad lid seal (TN4038848). | |
| Little or no solution | ||
| Empty tank, low flow setting or clogged filter | Refill the tank, turn up the flow and clean the solution filter (TN4039203). | |
| Short run time | ||
| Batteries low, worn out or not maintained | Charge the batteries and look after them. Replace batteries at the end of their life. Lower the brush pressure or the dual down pressure lever. | |
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), pages 36 and 37. SES ref PF-NXXL-Q674
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Nobles Speed Scrub 300 maintenance schedule
Nobles' maintenance schedule for the Speed Scrub 300. Before any service, stop on a level surface, turn the machine off and take the key out, as the manual says.
| Task | How often | Part |
|---|---|---|
| Drain and rinse the recovery tank. Clean the float shut-off screen (TN4020485) and empty the debris tray. | After every use | |
| Drain and rinse the solution tank. | After every use | |
| Disk and orbital heads: turn the pad over or replace it when worn. Insta-Click drivers: clean debris from the hub area. | After every use | |
| Wipe the squeegee blades and check them. Turn a worn blade around, or replace it (front blade (TN4040849), rear blade (TN4040848)). | After every use | |
| Check the scrub head skirt and replace it if worn. Cylindrical head: empty and clean the debris trough. | After every use | |
| Wipe the machine down and charge the batteries. | After every use | |
| Check the water level in every battery cell (wet batteries). | Every week | |
| Take the cover off the squeegee drip trap and clean it out. Parts: drip trap cover (TN4042359), drip trap gasket (TN4038882). | Every week | |
| Drain the solution tank, unscrew the solution filter (TN4039203) bowl and clean the filter screen (TN4036878). | Every 50 hours | |
| Cylindrical head: swap the brushes front to rear and clean under the head. | Every 50 hours | |
| Clean the recovery tank lid seal (TN4038848) and replace it if damaged. | Every 50 hours | |
| Battery watering system (option): check the hoses and connections every 100 hours. | Every 100 to 200 hours | |
| Check and clean the batteries, terminals and cables every 200 hours. | Every 100 to 200 hours | |
| These are jobs for trained service people. SES service can do them: call 800-440-6723. | Every 500 to 1250 hours | |
| Orbital head: replace the 4 lower isolators (TN4039461) at 500 hours. | Every 500 to 1250 hours | |
| Vacuum motor carbon brushes at 750 hours. Brush motor carbon brushes (carbon brush kit (TN4042671)) and drive-model propel carbon brushes (propel carbon brush kit (TN4039262)) at 1250 hours. | Every 500 to 1250 hours | |
| Replace the brush belt at 1250 hours (cylindrical belt kit (TN4026472), dual disk belt (TN4018508)). | Every 500 to 1250 hours |
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), pages 24, 25, 26 and 27. SES ref PF-DLIO-QR6Y
Nobles Speed Scrub 300 specifications
From the Nobles operator manual for the Speed Scrub 300.
| Models | Disk 17 in (43 cm) and 20 in (50 cm), push or drive; dual disk 24 in (60 cm); cylindrical 20 in (50 cm); orbital 20 in (50 cm) |
|---|---|
| Solution tank | 11 gal (42 L) |
| Recovery tank | 14 gal (53 L) |
| Squeegee width | 30.4 in (772 mm) |
| Scrubbing speed | 200 ft (61 m) per minute |
| Productivity, 20 in disk drive | 14,943 sq ft (1,388 sq m) per hour, estimated actual |
| Solution flow | Up to 0.5 gal (1.9 L) per minute |
| Brush motor | 24V DC, 1 hp (0.75 kW) |
| Vacuum motor | 24V DC, 0.5 hp (0.37 kW), 34.5 in (876 mm) water lift |
| Batteries | Two 12V: 105, 130 or 155 Ah wet, or 140 Ah sealed AGM (C/20) |
| Charger | On-board or smart off-board, 100-240V AC, 24V DC, 13 A |
| Weight, 20 in disk drive | 240 lb (109 kg); 400 lb (181 kg) with batteries |
| Slopes | Scrubbing up to 9%, transporting up to 21% |
| Operating temperature | 32°F to 110°F (0°C to 43°C) |
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), pages 38 and 39. SES ref PF-NNUN-5WNX
Nobles Speed Scrub 300 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualNobles 9014511 Rev. 04 (07-2016), S/N 10000000-20000000, 127 pages | Speed Scrub 300 | Rev. 04 (07-2016) | 127 pages | Sign in to view or downloadSign in to download |
| Operator manualNobles 9014512 Rev. 00 (03-2015), 43 pages | Speed Scrub 300 | Rev. 00 (03-2015) | 43 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Nobles Speed Scrub 300 parts questions
Can I use detergent with the ec-H2O system on the Speed Scrub 300?
No. Use only cool clean water under 70°F (21°C) for ec-H2O scrubbing. If detergent goes through the system, turn ec-H2O off, drain the tank, refill with cool water and run the system to flush it out.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), pages 14 and 17. SES ref PF-OBRE-LFHP
Why is my Speed Scrub 300 leaving water behind?
Check for a full recovery tank or foam, an open drain hose, worn squeegee blades, or a clogged squeegee, drip trap or float screen. Also make sure the recovery tank lid closes fully and its seal isn't damaged.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 37. SES ref PF-OBRE-LFHP
What does the ec-H2O light mean?
Solid blue is normal. Blinking blue and red means the water conditioning cartridge has expired and needs replacing. Solid or blinking red is a fault: see the service indicator codes.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 17. SES ref PF-OBRE-LFHP
How do I get more scrubbing pressure?
Machines with the option have a dual down pressure lever. Lift it for heavily soiled areas, and release it before you raise the scrub head.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 18. SES ref PF-OBRE-LFHP
How steep a ramp can the Speed Scrub 300 handle?
Nobles rates it for scrubbing on slopes up to 9% and transporting on slopes up to 21%.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), pages 18 and 38. SES ref PF-OBRE-LFHP
What do the circuit breakers protect?
Six resettable breakers: 4 A key switch and control board, 4 A ec-H2O module, 4 A ec-H2O pump, 30 A propel, 37 A brush motor and 20 A vacuum motor. Disconnect the battery, let the breaker cool, then press reset.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 19. SES ref PF-OBRE-LFHP
How often should I clean the solution filter?
Every 50 hours of use. Drain the solution tank first, then turn the filter bowl counterclockwise to take it off and clean the screen.
Source: Nobles Speed Scrub 300 operator manual 9014512 Rev. 00 (03-2015), page 27. SES ref PF-OBRE-LFHP
Notes on this parts list
Places where the Nobles documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Orbital model weight: 255 lb; 216 kg. This page shows no orbital weight in its spec table, because the two printed values disagree (255 lb is about 116 kg).
