Nobles Speed Scrub 500 parts list and diagrams
Find any part on the Nobles Speed Scrub 500 by tapping it on the drawings. Every line from the parts manual is here, with the disk, cylindrical and orbital scrub heads, every squeegee width and the options, crossed to Tennant's current part numbers with our price.
Complete list: every line of the parts list in Nobles Speed Scrub 500 Parts Manual 9015512 Rev. 01 (02-2017), 969 printed part lines, with the parts numbered on its drawings. Checked .
New to your Speed Scrub 500? Start here → Manuals (free sign-in) →
- Solution tank
- 22.5 gal (85 L)
- Recovery tank
- 27 gal (102 L)
- Scrubbing speed
- 220 ft (67 m) per minute

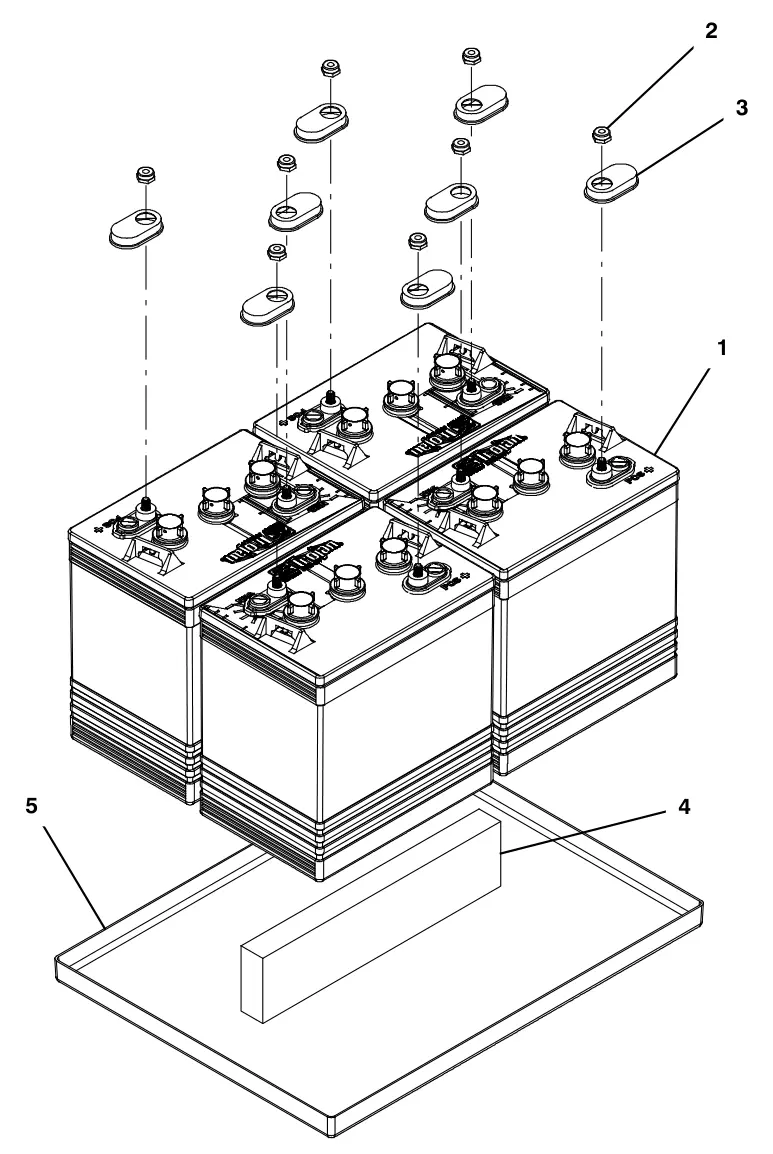

- Batteries
- Four 6V: 225 Ah or 260 Ah wet, or 220 Ah AGM (C/20)
- Weight, 28 in disk
- 330 lb (150 kg); 620 lb (281 kg) with batteries
Maintenance and wear parts for the Speed Scrub 500
Nobles' recommended maintenance items for the Speed Scrub 500. Keep these on the shelf.
Brush Assy, Disk, Scb, 13.0d, Pyp
$231.80/EABrush Assy, Disk, Scb, 13.0d, Nyl
$312.70/EABrush Assy, Disk, Scb, 13.0d, Sab
$363.10/EAPad, Stripping, 13.0d, Brown[1pick=1pad]
$17.70/EAPad, Scb, 13.0d, Blu
$80.60/EAPad, Buff, 13.0d, Red [1pick=1pad]
$14.05/EAPad, Polish, 13.0d, White [1pick=1pad]
$12.15/EAPad, Surf Prep, 13.0d [Mar, 1pick=1pad]
$21.88/EABrush Assy, Disk, Scb, 14.0d, Pyp
$260.00/EABrush Assy, Disk, Scb, 14.0d, Nyl
$311.50/EABrush Assy, Disk, Scb, 14.0d, Sab
$553.10/EAPad, Stripping, 14.0d, Brown[1pick=1pad]
$19.30/EA
Source: Nobles Speed Scrub 500 Parts Manual 9015512 Rev. 01 (02-2017), page 5. SES ref PF-VNH5-RFXK
Your machine
How to tell which you have

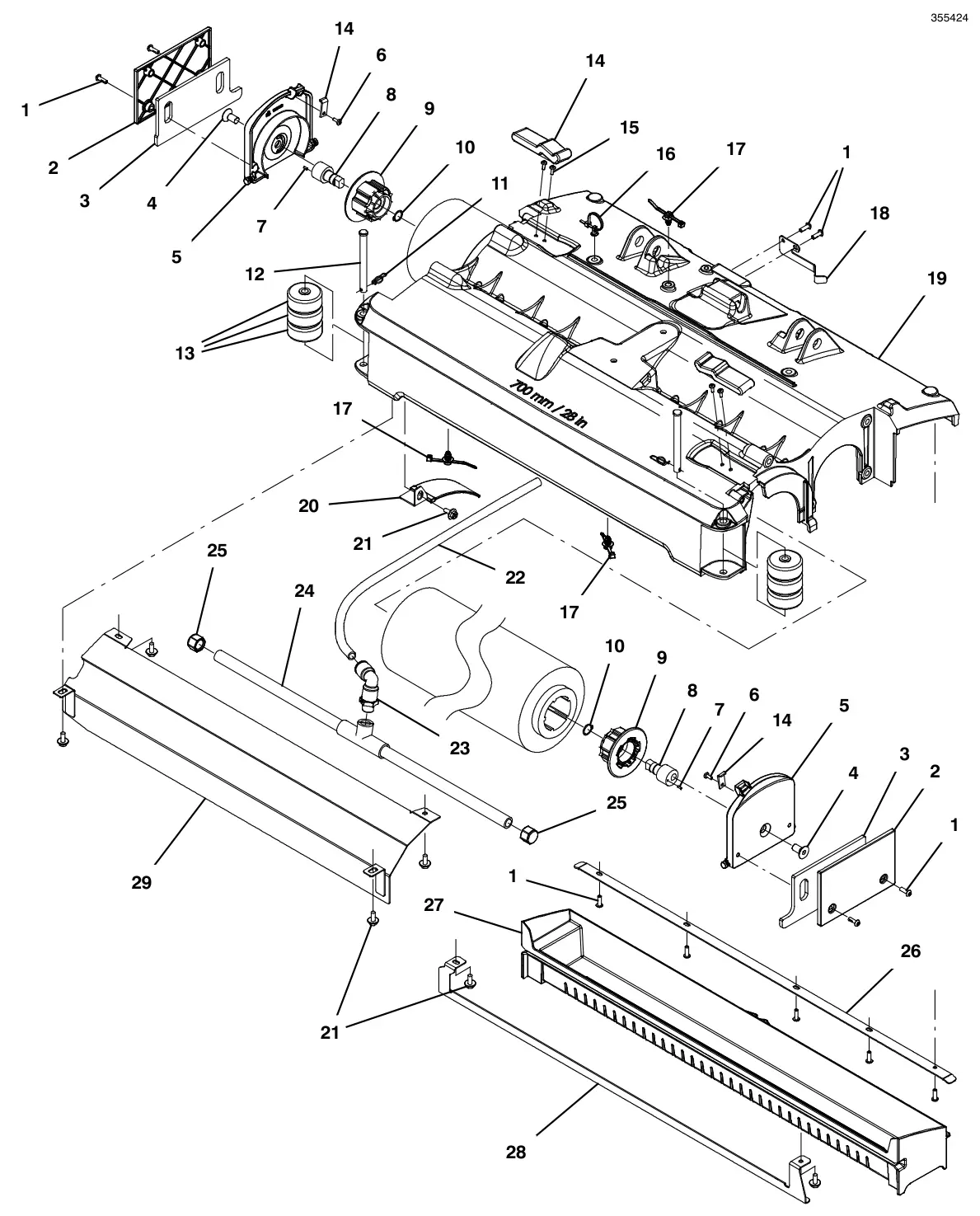

- Scrub head: Nobles's parts manual has separate parts groups for Cylindrical 28 in (700 mm), Disk 26 in (650 mm), Disk 28 in (700 mm), Disk 32 in (800 mm), Orbital 28 in (700 mm) (manual pages 8, 10, 11, 12, 14, 16, 18, 20, 22, 32, 34, 36…). Pick yours to see only its groups; parts every build shares always show.
- Squeegee width: Nobles's parts manual has separate parts groups for 20 in (500 mm), 26 in (650 mm), 28 in (700 mm), 32 in (800 mm) (manual pages 46, 48, 50, 52). Pick yours to see only its groups; parts every build shares always show.
- Battery: Nobles's parts manual has separate parts groups for Wet 225Ah, Wet 260Ah, AGM 220Ah (manual pages 79, 80, 81). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front (Nobles is a Tennant brand). Where Tennant has replaced the number printed in the manual, the line says Replaces Nobles and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Nobles Speed Scrub 500 recommended maintenance items
Nobles' recommended maintenance items: the wear parts and filters to keep on the shelf. Manual page 5.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4037865Replaces Nobles 1223989 | 2 | Brush Assy, Disk, Scb, 13.0d, PypSerial 10000000 to 20000000. | $231.80/EA |
| – | TN4037867Replaces Nobles 1223991 | 2 | Brush Assy, Disk, Scb, 13.0d, NylSerial 10000000 to 20000000. | $312.70/EA |
| – | TN4037866Replaces Nobles 1223990 | 2 | Brush Assy, Disk, Scb, 13.0d, SabSerial 10000000 to 20000000. | $363.10/EA |
| – | TN4018223Replaces Nobles 89046 | 2 | Pad, Stripping, 13.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $17.70/EA |
| – | TN4216983Replaces Nobles 89047 | 2 | Pad, Scb, 13.0d, BluSerial 10000000 to 20000000. | $80.60/EA |
| – | TN4018225Replaces Nobles 89048 | 2 | Pad, Buff, 13.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $14.05/EA |
| – | TN4018226Replaces Nobles 89049 | 2 | Pad, Polish, 13.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $12.15/EA |
| – | TN4040745Replaces Nobles 1051024 | 2 | Pad, Surf Prep, 13.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $21.88/EA |
| – | TN4037173Replaces Nobles 1220218 | 2 | Brush Assy, Disk, Scb, 14.0d, PypSerial 10000000 to 20000000. | $260.00/EA |
| – | TN4037454Replaces Nobles 1221541 | 2 | Brush Assy, Disk, Scb, 14.0d, NylSerial 10000000 to 20000000. | $311.50/EA |
| – | TN4037172Replaces Nobles 1220217 | 2 | Brush Assy, Disk, Scb, 14.0d, SabSerial 10000000 to 20000000. | $553.10/EA |
| – | TN4040260Replaces Nobles 222327 | 2 | Pad, Stripping, 14.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
| – | TN4040259Replaces Nobles 222326 | 2 | Pad, Scb, 14.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
| – | TN4040258Replaces Nobles 222325 | 2 | Pad, Buff, 14.0d, RedSerial 10000000 to 20000000. | $19.30/EA |
| – | TN4040257Replaces Nobles 222324 | 2 | Pad, Polish, 14.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
| – | TN4032338Replaces Nobles 370091 | 2 | Pad, Stripping, 14.0d, Blk [Hi Prod]Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4040746Replaces Nobles 1051026 | 2 | Pad, Surf Prep, 14.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $21.30/EA |
| – | TN4037171Replaces Nobles 1220216 | 2 | Brush Assy, Disk, Scb, 16.0d, PypSerial 10000000 to 20000000. | $298.20/EA |
| – | TN4037170Replaces Nobles 1220215 | 2 | Brush Assy, Disk, Scb, 16.0d, NylSerial 10000000 to 20000000. | $401.30/EA |
| – | TN4037169Replaces Nobles 1220214 | 2 | Brush Assy, Disk, Scb, 16.0d, SabSerial 10000000 to 20000000. | $553.10/EA |
| – | TN4021152Replaces Nobles 63248-1 | 2 | Pad, Stripping, 16.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4021153Replaces Nobles 63248-2 | 2 | Pad, Scb, 16.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4021154Replaces Nobles 63248-3 | 2 | Pad, Buff, 16.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4021155Replaces Nobles 63248-4 | 2 | Pad, Polish, 16.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4032339Replaces Nobles 370092 | 2 | Pad, Stripping, 16.0d, Blk [Hi Prod]Serial 10000000 to 20000000. | $36.20/EA |
| – | TN4040747Replaces Nobles 1051027 | 2 | Pad, Surf Prep, 16.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $24.40/EA |
| – | TN4040245Replaces Nobles 222304 | 2 | Brush, Scb, 28l, 18sr, Pyp, SplSerial 10000000 to 20000000. | $220.00/EA |
| – | TN4040246Replaces Nobles 222305 | 2 | Brush, Scb, 28l, 18sr, Nyl, SplSerial 10000000 to 20000000. | $321.80/EA |
| – | TN4040247Replaces Nobles 222306 | 2 | Brush, Scb, 28l, 18sr, Abr, SplSerial 10000000 to 20000000. | $471.90/EA |
| – | TN4037527Replaces Nobles 1223247 | 1 | Pad, Scb, 28 X 14, Blu [1pick=1pc]Serial 10000000 to 20000000. | $65.50/EA |
| – | TN4036814Replaces Nobles 1218157 | 1 | Pad, Buff, 28 X 14, Red [1pick=1pc]Serial 10000000 to 20000000. | $65.50/EA |
| – | TN4037526Replaces Nobles 1223246 | 1 | Pad, Polish, 28 X 14, White [1pick=1pc]Serial 10000000 to 20000000. | $65.50/EA |
| – | TN4037528Replaces Nobles 1223248 | 1 | Pad, Surf Prep, 28 X 14, Mar [1pick=1pc]Serial 10000000 to 20000000. | $55.02/EA |
| – | TN4037530Replaces Nobles 1223250 | 1 | Pad, Scb, 28 X 14, Green [1pick=1ctn]Serial 10000000 to 20000000. | $465.80/EA |
| – | TN4045167Replaces Nobles 1075563 | 1 | Pad, Stripping, 28 X 14, Blk [1pick=1ctn]Serial 10000000 to 20000000. | $1,043.50/EA |
| – | TN4037468Replaces Nobles 1221839 | 1 | Pad, Backer, 28 X 14Serial 10000000 to 20000000. | $234.50/EA |
| – | TN4040294Replaces Nobles 222403 | 2 | Wheel, 02.0d 0.88w 0.50b (Disk Head)Serial 10000000 to 20000000. | $9.80/EA |
| – | TN4037452Replaces Nobles 1221522 | 1 | Bumper, Head, 65cm, Skirt, Im [T500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4037451Replaces Nobles 1221520 | 1 | Bumper, Head, 70cm, Skirt, Im [T500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4037448Replaces Nobles 1221512 | 1 | Bumper, Head, 80cm, Skirt, Im [T500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4020804Replaces Nobles 630477 | 6 | Wheel, Pyu, 02.0d 0.38w, Gray (Cylindrical Head)Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4032652Replaces Nobles 1023067 | 2 | Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4032140Replaces Nobles 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5] (Disk Head)Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) (1023067). Serial 10000000 to 20000000. | $216.60/EA |
| – | TN4037825Replaces Nobles 1223429 | 2 | Motor, Ele, 24vdc 1500rpm 0.60hp (Cylindrical Head)Complete assembly. Serial 10000000 to 20000000. | $1,051.20/EA |
| – | TN4032140Replaces Nobles 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5] (Cylindrical Head)Part of Motor, Ele, 24vdc 1500rpm 0.60hp (Cylindrical Head) (1223429). Serial 10000000 to 20000000. | $216.60/EA |
| – | TN4036849Replaces Nobles 1218573 | 4 | Skirt, Side, Scrb, Cyl [T500]Serial 10000000 to 20000000. | $26.30/EA |
| – | TN4023976Replaces Nobles 9015765 | 1 | Belt Kit, Motor, Ci (Cylindrical Head)Complete assembly. Serial 10000000 to 20000000. | $95.20/EA |
| – | TN4039539Replaces Nobles 1213132 | 1 | Tool, Installation, Belt (Cylindrical Head)Part of Belt Kit, Motor, Ci (Cylindrical Head) (9015765). Serial 10000000 to 20000000. | $14.50/EA |
| – | TN4036998Replaces Nobles 1219913 | 1 | Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head)Complete assembly. Serial 10000000 to 20000000. | $1,294.80/EA |
| – | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4) (Orbital Head)Part of Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head) (1219913). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4037957Replaces Nobles 1014918 | 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr (Orbital Head)Serial 10000000 to 20000000. | $0.00/EA |
Nobles Speed Scrub 500 recommended maintenance items (continued)
Nobles' recommended maintenance items, continued: the wear parts and filters to keep on the shelf. Manual page 6.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023953Replaces Nobles 9015731 | 1 | Blade Kit, 500mm, Linatex (Standard)Complete assembly. Serial 10000000 to 20000000. | $58.40/EA |
| – | TN4040848Replaces Nobles 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). Serial 10000000 to 20000000. | $23.40/EA |
| – | TN4040849Replaces Nobles 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). Serial 10000000 to 20000000. | $20.70/EA |
| – | TN4023954Replaces Nobles 9015732 | 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $101.25/EA |
| – | TN4040136Replaces Nobles 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| – | TN4040138Replaces Nobles 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| – | TN4023952Replaces Nobles 9015730 | 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $22.00/EA |
| – | TN4040137Replaces Nobles 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |
| – | TN4040139Replaces Nobles 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |
| – | TN4023956Replaces Nobles 9015734 | 1 | Blade Kit, 650mm, Linatex (Standard)Complete assembly. Serial 10000000 to 20000000. | $76.00/EA |
| – | TN4037460Replaces Nobles 1221585 | 1 | Blade, Sqge, Rear, 1166l, Linatex[650mm] (Standard)Part of Blade Kit, 650mm, Linatex (Standard) (9015734). Serial 10000000 to 20000000. | $45.00/EA |
| – | TN4037461Replaces Nobles 1221586 | 1 | Blade, Sqge, Front, 1072l Linatex[650mm] (Standard)Part of Blade Kit, 650mm, Linatex (Standard) (9015734). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023957Replaces Nobles 9015735 | 1 | Blade Kit, 650mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $119.10/EA |
| – | TN4035017Replaces Nobles 1228909 | 1 | Blade, Sqge, Rear, 1136l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). Serial 10000000 to 20000000. | $72.10/EA |
| – | TN4035019Replaces Nobles 1228915 | 1 | Blade, Sqge, Front,1072l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). Serial 10000000 to 20000000. | $47.00/EA |
| – | TN4023955Replaces Nobles 9015733 | 1 | Blade Kit, 650mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $25.00/EA |
| – | TN4035018Replaces Nobles 1228910 | 1 | Blade, Sqge, Rear, 1136l, Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). Serial 10000000 to 20000000. | $13.00/EA |
| – | TN4035020Replaces Nobles 1228919 | 1 | Blade, Sqge, Front, 1072l Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). Serial 10000000 to 20000000. | $12.00/EA |
| – | TN4023959Replaces Nobles 9015737 | 1 | Blade Kit, 700mm, Linatex (Standard)Complete assembly. Serial 10000000 to 20000000. | $86.00/EA |
| – | TN4037458Replaces Nobles 1221572 | 1 | Blade, Sqge, Rear, 1204l, Linatex[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). Serial 10000000 to 20000000. | $50.00/EA |
| – | TN4037459Replaces Nobles 1221573 | 1 | Blade, Sqge, Front, 1148l Linatex[700mm] (Standard)Part of Blade Kit, 700mm, Linatex (Standard) (9015737). Serial 10000000 to 20000000. | $40.50/EA |
| – | TN4023960Replaces Nobles 9015738 | 1 | Blade Kit, 700mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $120.60/EA |
| – | TN4035013Replaces Nobles 1228904 | 1 | Blade, Sqge, Rear, 1204l,Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). Serial 10000000 to 20000000. | $72.90/EA |
| – | TN4035015Replaces Nobles 1228906 | 1 | Blade, Sqge, Front,1148l Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). Serial 10000000 to 20000000. | $47.70/EA |
| – | TN4023958Replaces Nobles 9015736 | 1 | Blade Kit, 700mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $28.90/EA |
| – | TN4035014Replaces Nobles 1228905 | 1 | Blade, Sqge, Rear, 1204l, Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). Serial 10000000 to 20000000. | $16.00/EA |
| – | TN4035016Replaces Nobles 1228907 | 1 | Blade, Sqge, Front, 1148l Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). Serial 10000000 to 20000000. | $12.90/EA |
| – | TN4023962Replaces Nobles 9015740 | 1 | Blade Kit, 800mm, Linatex (Standard)Complete assembly. Serial 10000000 to 20000000. | $106.60/EA |
| – | TN4037251Replaces Nobles 1221115 | 1 | Blade, Sqge, Rear, 1306l, Linatex[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). Serial 10000000 to 20000000. | $64.00/EA |
| – | TN4037253Replaces Nobles 1221116 | 1 | Blade, Sqge, Front, 1256l Linatex[800mm] (Standard)Part of Blade Kit, 800mm, Linatex (Standard) (9015740). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023963Replaces Nobles 9015741 | 1 | Blade Kit, 800mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $122.00/EA |
| – | TN4035252Replaces Nobles 1228920 | 1 | Blade, Sqge, Rear, 1306l,Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). Serial 10000000 to 20000000. | $73.70/EA |
| – | TN4035254Replaces Nobles 1228922 | 1 | Blade, Sqge, Front,1256l Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). Serial 10000000 to 20000000. | $48.30/EA |
| – | TN4023961Replaces Nobles 9015739 | 1 | Blade Kit, 800mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $31.80/EA |
| – | TN4035253Replaces Nobles 1228921 | 1 | Blade, Sqge, Rear, 1306l, Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). Serial 10000000 to 20000000. | $17.00/EA |
| – | TN4035255Replaces Nobles 1228923 | 1 | Blade, Sqge, Front, 1256l Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). Serial 10000000 to 20000000. | $14.80/EA |
Nobles Speed Scrub 500 recommended maintenance items (continued)
Nobles' recommended maintenance items, continued: the wear parts and filters to keep on the shelf. Manual page 7.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4020485Replaces Nobles 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75dSerial 10000000 to 20000000. | $76.00/EA |
| – | TN4023969Replaces Nobles 9015756 | 1 | Seal, Cover, Recvy, Ci [T500]Serial 10000000 to 20000000. | $73.10/EA |
| – | TN121220Replaces Nobles 1224414 | 1 | Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray)Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4038916Replaces Nobles 1211220 | 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc] (Black)Serial 10000000 to 20000000. | $30.10/EA |
| – | TN4032276Replaces Nobles 1228242 | 1 | Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4036917Replaces Nobles 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray) (1228242). Serial 10000000 to 20000000. | $8.60/EA |
| – | TN4031082Replaces Nobles 1228252 | 1 | Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black)Complete assembly. Serial 10000000 to 20000000. | $85.90/EA |
| – | TN4036892Replaces Nobles 1218955 | 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black) (1228252). Serial 10000000 to 20000000. | $8.60/EA |
| – | TN4023971Replaces Nobles 9015758 | 1 | Seal, Tank, Soltn, Ci [T500/T500e]Serial 10000000 to 20000000. | $37.00/EA |
| – | TN4032816Replaces Nobles 1066431 | 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap](Soltn Tank Front)Serial 10000000 to 20000000. | $16.70/EA |
| – | TN4039272Replaces Nobles 1212422 | 2 | Caster, Swivel [Wicke 224051]Serial 10000000 to 20000000. | $75.60/EA |
| – | TN4037832Replaces Nobles 9004909 | 1 | Wheel Kit, Solid, Ci [T5 T5e Ss5]Complete assembly. Serial 10000000 to 20000000. | $153.10/EA |
| – | TN4037832Replaces Nobles 1223583 | 2 | Wheel, Scrbr, 213mm, W/ TaperPart of Wheel Kit, Solid, Ci [T5 T5e Ss5] (9004909). Serial 10000000 to 20000000. | $153.10/EA |
| – | TN4032671Replaces Nobles 1031723 | 1 | Motor, Transaxle, 24vdc, Afmkt [T5]Complete assembly. Serial 10000000 to 20000000. | $749.02/EA |
| – | TN4019997Replaces Nobles 614166 | 1 | Brush Kit, Carbon, Transaxle, Replmt [4]Part of Motor, Transaxle, 24vdc, Afmkt [T5] (1031723). Serial 10000000 to 20000000. | $65.70/EA |
| – | TN4036930Replaces Nobles 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. Serial 10000000 to 20000000. | $388.30/EA |
| – | TN8004151Replaces Nobles 372883 | 1 | Vr, Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). Serial 10000000 to 20000000. | $37.30/EA |
| – | TN4042297Replaces Nobles 100038 | 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm]Serial 10000000 to 20000000. | $10.00/EA |
| – | TN4039203Replaces Nobles 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. Serial 10000000 to 20000000. | $16.90/EA |
| – | TN4036880Replaces Nobles 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $2.70/EA |
| – | TN4036878Replaces Nobles 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4019615Replaces Nobles 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $18.20/EA |

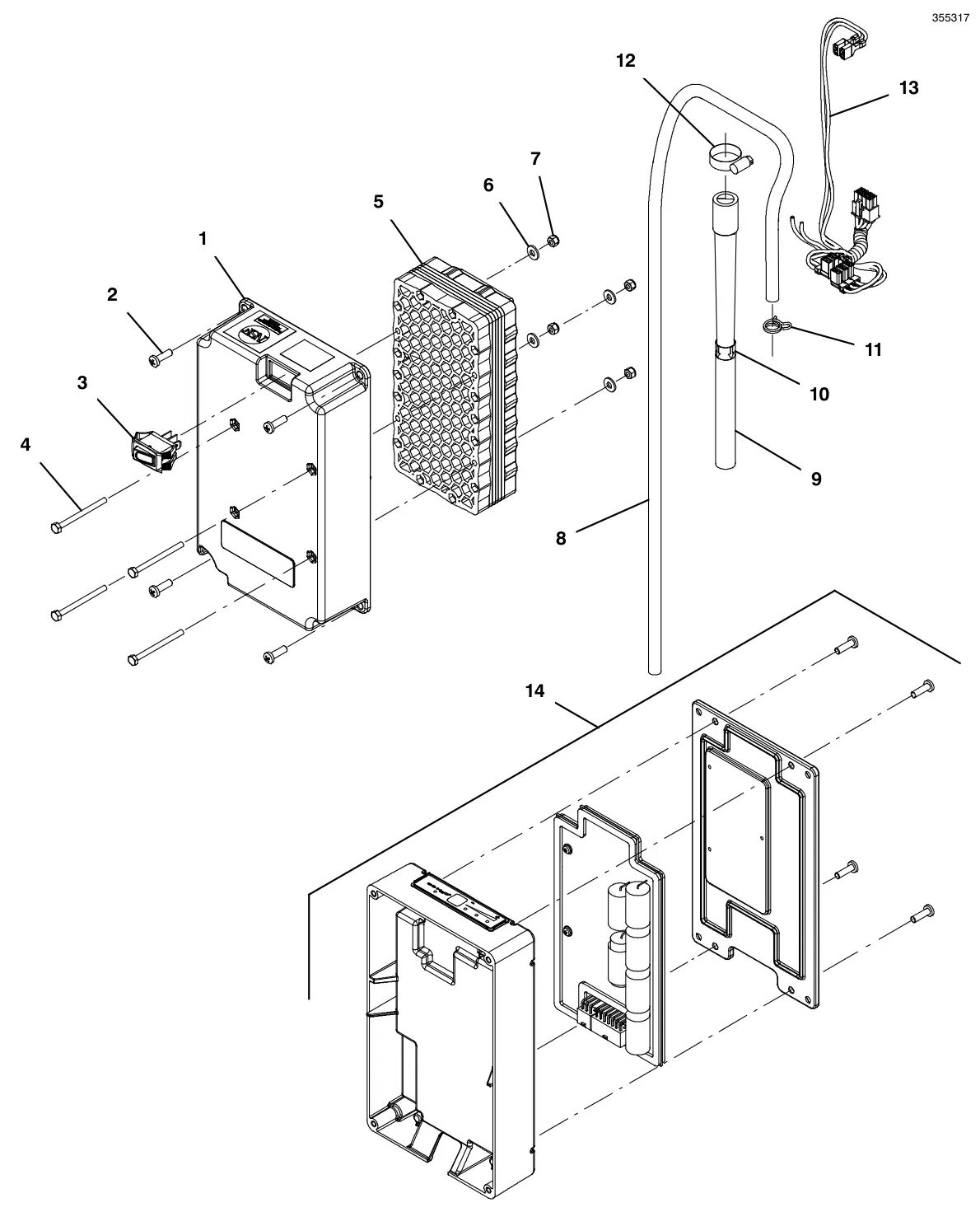

| – | TN4018163Replaces Nobles 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes Cartridge)Complete assembly. Serial 10000000 to 20000000. | $1,339.60/EA |
| – | TN4021577Replaces Nobles 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes Cartridge)Complete assembly. Serial 10000000 to 20000000. | $1,063.00/EA |
| – | TN4025507Replaces Nobles 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlPart of Controller Kit, Replmt [Ec-H2o Nc] (Includes Cartridge) (9014127). Serial 10000000 to 20000000. | $300.60/EA |
| – | TN4031082Replaces Nobles 9015727 | 1 | Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray)Complete assembly. Serial 10000000 to 20000000. | $85.90/EA |
| – | TN4020670Replaces Nobles 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/HandlePart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (9015727). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4034990Replaces Nobles 1228335 | 1 | Hose Assy, W/2cuff,1.5d 022l 2.0/1.5[Pu] (Gray)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (9015727). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4035291Replaces Nobles 1229567 | 1 | Strap, HangerPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (9015727). Serial 10000000 to 20000000. | $5.76/EA |

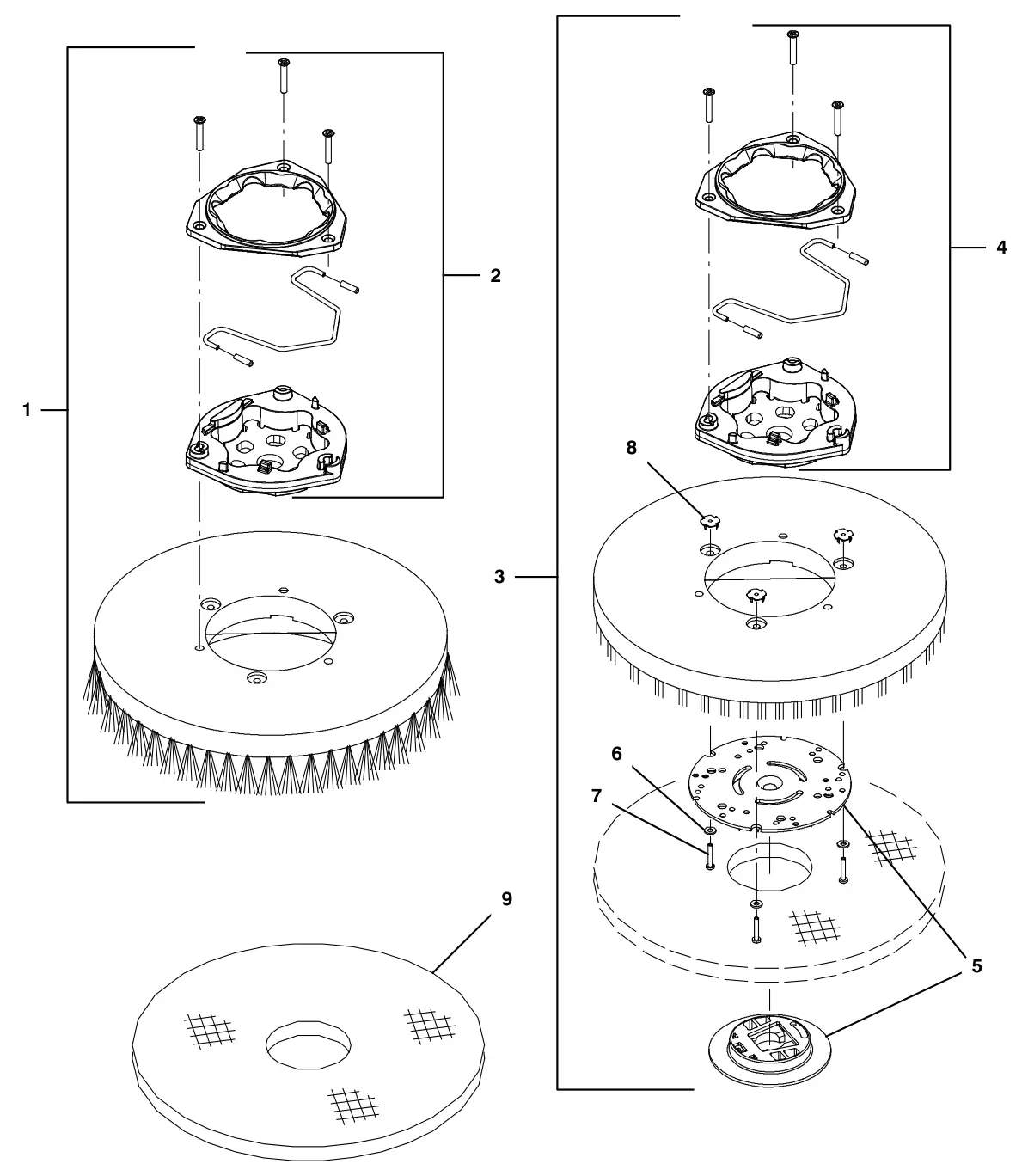

Nobles Speed Scrub 500 replacement brushes and pad driver disk parts
The parts Nobles numbers on the replacement brushes and pad driver disk drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037865Replaces Nobles 1223989 | 2 | Brush Assy, Disk, Scb, 13.0d, PypComplete assembly. Serial 10000000 to 20000000. | $231.80/EA |
| 1 | TN4037867Replaces Nobles 1223991 | 2 | Brush Assy, Disk, Scb, 13.0d, NylComplete assembly. Serial 10000000 to 20000000. | $312.70/EA |
| 1 | TN4037866Replaces Nobles 1223990 | 2 | Brush Assy, Disk, Scb, 13.0d, SabComplete assembly. Serial 10000000 to 20000000. | $363.10/EA |
| 1 | TN4037173Replaces Nobles 1220218 | 2 | Brush Assy, Disk, Scb, 14.0d, PypComplete assembly. Serial 10000000 to 20000000. | $260.00/EA |
| 1 | TN4037454Replaces Nobles 1221541 | 2 | Brush Assy, Disk, Scb, 14.0d, NylComplete assembly. Serial 10000000 to 20000000. | $311.50/EA |
| 1 | TN4037172Replaces Nobles 1220217 | 2 | Brush Assy, Disk, Scb, 14.0d, SabComplete assembly. Serial 10000000 to 20000000. | $553.10/EA |
| 1 | TN4037171Replaces Nobles 1220216 | 2 | Brush Assy, Disk, Scb, 16.0d, PypComplete assembly. Serial 10000000 to 20000000. | $298.20/EA |
| 1 | TN4037170Replaces Nobles 1220215 | 2 | Brush Assy, Disk, Scb, 16.0d, NylComplete assembly. Serial 10000000 to 20000000. | $401.30/EA |
| 1 | TN4037169Replaces Nobles 1220214 | 2 | Brush Assy, Disk, Scb, 16.0d, SabComplete assembly. Serial 10000000 to 20000000. | $553.10/EA |
| 2 | TN4022630Replaces Nobles 9014667 | 1 | Brush Kit, Hub Assy, Drive, Ci [Comm]Part of Brush Assy, Disk, Scb, 16.0d, Sab (1220214). Serial 10000000 to 20000000. | $65.10/EA |
| 3 | TN4037175Replaces Nobles 1220220 | 2 | Driver Assy, Pad, 13.0d, BrushComplete assembly. Serial 10000000 to 20000000. | $351.00/EA |
| 3 | TN4037176Replaces Nobles 1220221 | 2 | Driver Assy, Pad, 14.0d, BrushComplete assembly. Serial 10000000 to 20000000. | $357.30/EA |
| 3 | TN4037177Replaces Nobles 1220222 | 2 | Driver Assy, Pad, 16.0d, BrushComplete assembly. Serial 10000000 to 20000000. | $393.40/EA |
| 4 | TN4022630Replaces Nobles 9014667 | 1 | Brush Kit, Hub Assy, Drive, Ci [Comm]Part of Driver Assy, Pad, 16.0d, Brush (1220222). Serial 10000000 to 20000000. | $65.10/EA |
| 5 | TN4032342Replaces Nobles 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 16.0d, Brush (1220222). Serial 10000000 to 20000000. | $45.50/EA |
| 6 | TN4016852Replaces Nobles 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). Serial 10000000 to 20000000. | $2.60/EA |
| 7 | TN4040926Replaces Nobles 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 16.0d, Brush (1220222). Serial 10000000 to 20000000. | $4.00/EA |
| 8 | TN4043114Replaces Nobles 10908 | 3 | Nut, T, M4 X 0.70Part of Driver Assy, Pad, 16.0d, Brush (1220222). Serial 10000000 to 20000000. | $3.20/EA |
| 9 | TN4018223Replaces Nobles 89046 | 2 | Pad, Stripping, 13.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $17.70/EA |
| 9 | TN4216983Replaces Nobles 89047 | 2 | Pad, Scb, 13.0d, BluSerial 10000000 to 20000000. | $80.60/EA |
| 9 | TN4018225Replaces Nobles 89048 | 2 | Pad, Buff, 13.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $14.05/EA |
| 9 | TN4018226Replaces Nobles 89049 | 2 | Pad, Polish, 13.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $12.15/EA |
| 9 | TN4040745Replaces Nobles 1051024 | 2 | Pad, Surf Prep, 13.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $21.88/EA |
| 9 | TN4040260Replaces Nobles 222327 | 2 | Pad, Stripping, 14.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
| 9 | TN4040259Replaces Nobles 222326 | 2 | Pad, Scb, 14.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
| 9 | TN4040258Replaces Nobles 222325 | 2 | Pad, Buff, 14.0d, RedSerial 10000000 to 20000000. | $19.30/EA |
| 9 | TN4040257Replaces Nobles 222324 | 2 | Pad, Polish, 14.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $19.30/EA |
| 9 | TN4032338Replaces Nobles 370091 | 2 | Pad, Stripping, 14.0d, Blk [Hi Prod]Serial 10000000 to 20000000. | $22.00/EA |
| 9 | TN4040746Replaces Nobles 1051026 | 2 | Pad, Surf Prep, 14.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $21.30/EA |
| 9 | TN4021152Replaces Nobles 63248-1 | 2 | Pad, Stripping, 16.0d, Brown[1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 9 | TN4021153Replaces Nobles 63248-2 | 2 | Pad, Scb, 16.0d, Blu [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 9 | TN4021154Replaces Nobles 63248-3 | 2 | Pad, Buff, 16.0d, Red [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 9 | TN4021155Replaces Nobles 63248-4 | 2 | Pad, Polish, 16.0d, White [1pick=1pad]Serial 10000000 to 20000000. | $22.00/EA |
| 9 | TN4032339Replaces Nobles 370092 | 2 | Pad, Stripping, 16.0d, Blk [Hi Prod]Serial 10000000 to 20000000. | $36.20/EA |
| 9 | TN4040747Replaces Nobles 1051027 | 2 | Pad, Surf Prep, 16.0d [Mar, 1pick=1pad]Serial 10000000 to 20000000. | $24.40/EA |
Nobles Speed Scrub 500 replacement brushes cylindrical parts
The parts Nobles numbers on the replacement brushes cylindrical drawing. Manual page 10.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040245Replaces Nobles 222304 | 2 | Brush, Scb, 28l, 18sr, Pyp, SplSerial 10000000 to 20000000. | $220.00/EA |
| 1 | TN4040246Replaces Nobles 222305 | 2 | Brush, Scb, 28l, 18sr, Nyl, SplSerial 10000000 to 20000000. | $321.80/EA |
| 1 | TN4040247Replaces Nobles 222306 | 2 | Brush, Scb, 28l, 18sr, Abr, SplSerial 10000000 to 20000000. | $471.90/EA |

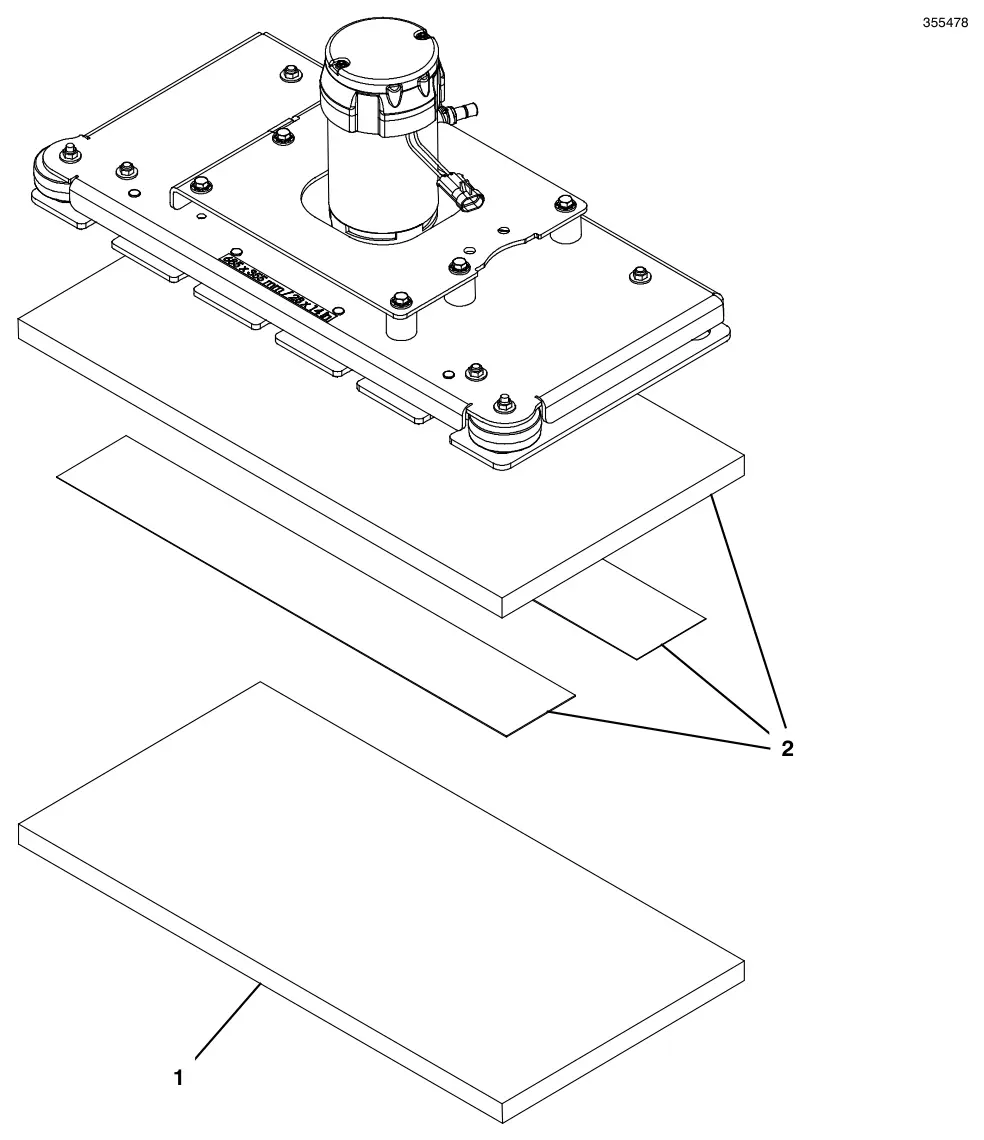

Nobles Speed Scrub 500 replacement pads orbital parts
The parts Nobles numbers on the replacement pads orbital drawing. Manual page 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037527Replaces Nobles 1223247 | 1 | Pad, Scb, 28 X 14, Blu [1pick=1pc]Serial 10000000 to 20000000. | $65.50/EA |
| 1 | TN4036814Replaces Nobles 1218157 | 1 | Pad, Buff, 28 X 14, Red [1pick=1pc]Serial 10000000 to 20000000. | $65.50/EA |
| 1 | TN4037526Replaces Nobles 1223246 | 1 | Pad, Polish, 28 X 14, White [1pick=1pc]Serial 10000000 to 20000000. | $65.50/EA |
| 1 | TN4037528Replaces Nobles 1223248 | 1 | Pad, Surf Prep, 28 X 14, Mar [1pick=1pc]Serial 10000000 to 20000000. | $55.02/EA |
| 1 | TN4037530Replaces Nobles 1223250 | 1 | Pad, Scb, 28 X 14, Green [1pick=1ctn]Serial 10000000 to 20000000. | $465.80/EA |
| 1 | TN4045167Replaces Nobles 1075563 | 1 | Pad, Stripping, 28 x 14, Blk [1pick=1ctn]Serial 10000000 to 20000000. | $1,043.50/EA |
| 2 | TN4037468Replaces Nobles 1221839 | 1 | Pad, Backer, 28 X 14 (Includes Velcro Fasteners)Serial 10000000 to 20000000. | $234.50/EA |
Nobles Speed Scrub 500 scrub head group, disk 26 in (650 mm) parts
The parts Nobles numbers on the scrub head group, disk 26 in (650 mm) drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652Replaces Nobles 1023067 | 2 | Motor, Ele, 24vdc 0220rpm 0.75hp GearComplete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4032140Replaces Nobles 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) (1023067). Serial 10000000 to 20000000. | $216.60/EA |
| 3 | TN4032101Replaces Nobles 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) (1023067). Serial 10000000 to 20000000. | $288.60/EA |
| 4 | TN4033193Replaces Nobles 1022549 | 2 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 5 | TN4034211Replaces Nobles 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 6 | TN4037514Replaces Nobles 1222988 | 2 | Knob, Rnd, 31.0d 27.0l M10, PlstcSerial 10000000 to 20000000. | $16.20/EA |
| 7 | TN4020452Replaces Nobles 626081 | 2 | Spring, Cmpr, 0.48od .04wir 03.5lSerial 10000000 to 20000000. | $5.20/EA |
| 8 | TN4034963Replaces Nobles 1227865 | 4 | Screw, Trs, M6 X 1.0 X 12, Phl, Ss, NlSerial 10000000 to 20000000. | $1.50/EA |
| 9 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4016245Replaces Nobles 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, SsSerial 10000000 to 20000000. | $4.00/EA |
| 11 | TN4034959Replaces Nobles 1227709 | 2 | Bracket, Roller, WallSerial 10000000 to 20000000. | $23.70/EA |
| 12 | TN4040603Replaces Nobles 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4040294Replaces Nobles 222403 | 2 | Wheel, 02.0d 0.88w 0.50bSerial 10000000 to 20000000. | $9.80/EA |
| 14 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4037496Replaces Nobles 1222365 | 1 | Housing, Disc, Dual, 65cm [Machined]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4037452Replaces Nobles 1221522 | 1 | Bumper, Head, 65cm, Skirt, Im [T500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4045268Replaces Nobles 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 18 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 19 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 20 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 21 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 22 | TN4039502Replaces Nobles 1212858 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qf08Serial 10000000 to 20000000. | $13.80/EA |
| 23 | TN4041996Replaces Nobles 09746 | 2 | Screw, Hex, M10 X 1.50 X 90, SsSerial 10000000 to 20000000. | $9.90/EA |
| 24 | TN4042901Replaces Nobles 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 25 | TN4041928Replaces Nobles 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 26 | TN4037626Replaces Nobles 1014328 | 2 | Key, Sq, 05mm X 05mm, 25mmlSerial 10000000 to 20000000. | $4.20/EA |
| 27 | TN4030707Replaces Nobles 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmbSerial 10000000 to 20000000. | $129.00/EA |
| 28 | TN4035242Replaces Nobles 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 29 | TN4034939Replaces Nobles 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 10000000 to 20000000. | $4.00/EA |

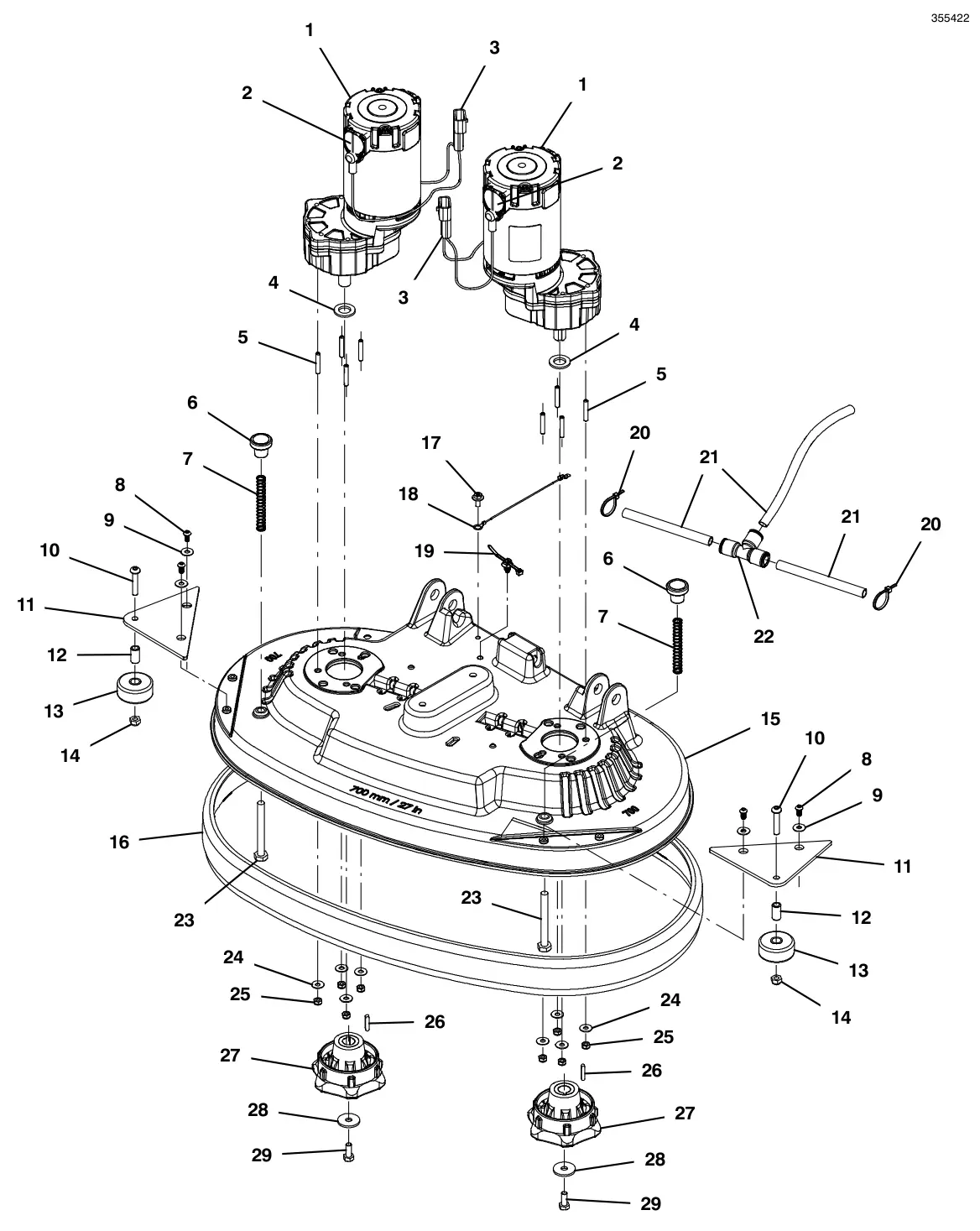

Nobles Speed Scrub 500 scrub head group, disk 28 in (700 mm) parts
The parts Nobles numbers on the scrub head group, disk 28 in (700 mm) drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652Replaces Nobles 1023067 | 2 | Motor, Ele, 24vdc 0220rpm 0.75hp GearComplete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4032140Replaces Nobles 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) (1023067). Serial 10000000 to 20000000. | $216.60/EA |
| 3 | TN4032101Replaces Nobles 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) (1023067). Serial 10000000 to 20000000. | $288.60/EA |
| 4 | TN4033193Replaces Nobles 1022549 | 2 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 5 | TN4034211Replaces Nobles 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 6 | TN4037514Replaces Nobles 1222988 | 2 | Knob, Rnd, 31.0d 27.0l M10, PlstcSerial 10000000 to 20000000. | $16.20/EA |
| 7 | TN4020452Replaces Nobles 626081 | 2 | Spring, Cmpr, 0.48od .04wir 03.5lSerial 10000000 to 20000000. | $5.20/EA |
| 8 | TN4034963Replaces Nobles 1227865 | 4 | Screw, Trs, M6 X 1.0 X 12, Phl, Ss, NlSerial 10000000 to 20000000. | $1.50/EA |
| 9 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4016245Replaces Nobles 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, SsSerial 10000000 to 20000000. | $4.00/EA |
| 11 | TN4034959Replaces Nobles 1227709 | 2 | Bracket, Roller, WallSerial 10000000 to 20000000. | $23.70/EA |
| 12 | TN4040603Replaces Nobles 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4040294Replaces Nobles 222403 | 2 | Wheel, 02.0d 0.88w 0.50bSerial 10000000 to 20000000. | $9.80/EA |
| 14 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4037495Replaces Nobles 1222364 | 1 | Housing, Disc, Dual, 70cm [Machined]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4037451Replaces Nobles 1221520 | 1 | Bumper, Head, 70cm, Skirt, Im [T500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4045268Replaces Nobles 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 18 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 19 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 20 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 21 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 22 | TN4039502Replaces Nobles 1212858 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qf08Serial 10000000 to 20000000. | $13.80/EA |
| 23 | TN4041996Replaces Nobles 09746 | 2 | Screw, Hex, M10 X 1.50 X 90, SsSerial 10000000 to 20000000. | $9.90/EA |
| 24 | TN4042901Replaces Nobles 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 25 | TN4041928Replaces Nobles 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 26 | TN4037626Replaces Nobles 1014328 | 2 | Key, Sq, 05mm X 05mm, 25mmlSerial 10000000 to 20000000. | $4.20/EA |
| 27 | TN4030707Replaces Nobles 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmbSerial 10000000 to 20000000. | $129.00/EA |
| 28 | TN4035242Replaces Nobles 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 29 | TN4034939Replaces Nobles 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 10000000 to 20000000. | $4.00/EA |

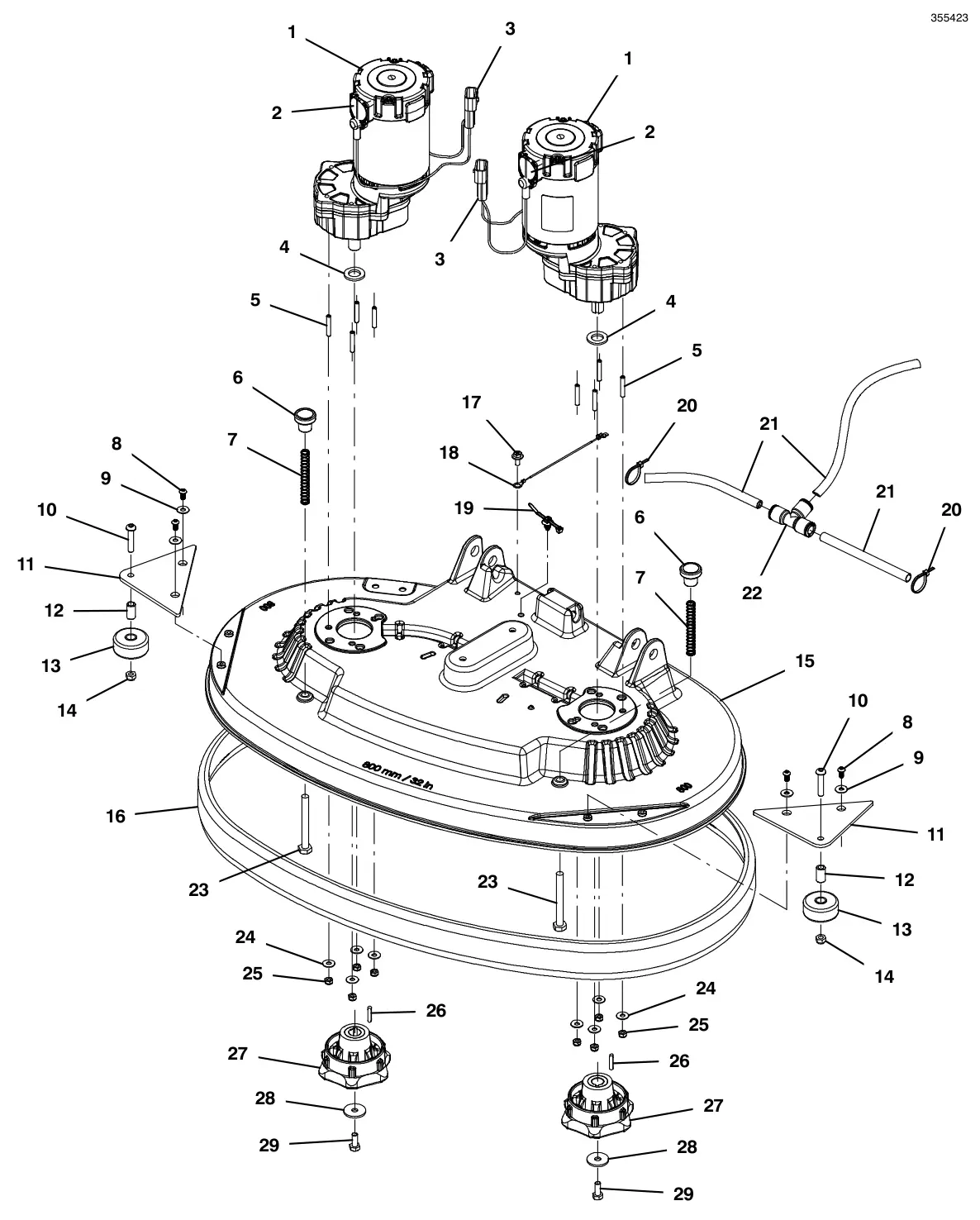

Nobles Speed Scrub 500 scrub head group, disk 32 in (800 mm) parts
The parts Nobles numbers on the scrub head group, disk 32 in (800 mm) drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032652Replaces Nobles 1023067 | 2 | Motor, Ele, 24vdc 0220rpm 0.75hp GearComplete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4032140Replaces Nobles 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) (1023067). Serial 10000000 to 20000000. | $216.60/EA |
| 3 | TN4032101Replaces Nobles 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc 0220rpm 0.75hp Gear (Disk Head) (1023067). Serial 10000000 to 20000000. | $288.60/EA |
| 4 | TN4033193Replaces Nobles 1022549 | 2 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsSerial 10000000 to 20000000. | $8.20/EA |
| 5 | TN4034211Replaces Nobles 1025853 | 8 | Screw, Set, M6 X 1.00 X 35, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 6 | TN4037514Replaces Nobles 1222988 | 2 | Knob, Rnd, 31.0d 27.0l M10, PlstcSerial 10000000 to 20000000. | $16.20/EA |
| 7 | TN4020452Replaces Nobles 626081 | 2 | Spring, Cmpr, 0.48od .04wir 03.5lSerial 10000000 to 20000000. | $5.20/EA |
| 8 | TN4034963Replaces Nobles 1227865 | 4 | Screw, Trs, M6 X 1.0 X 12, Phl, Ss, NlSerial 10000000 to 20000000. | $1.50/EA |
| 9 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4016245Replaces Nobles 397826 | 2 | Screw, Btn, M8 X 1.25 X 40, SsSerial 10000000 to 20000000. | $4.00/EA |
| 11 | TN4034959Replaces Nobles 1227709 | 2 | Bracket, Roller, WallSerial 10000000 to 20000000. | $23.70/EA |
| 12 | TN4040603Replaces Nobles 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Serial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4040294Replaces Nobles 222403 | 2 | Wheel, 02.0d 0.88w 0.50bSerial 10000000 to 20000000. | $9.80/EA |
| 14 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 15 | TN1222293Nobles 1222293 | 1 | Housing, Disc, Dual, 80cm [Machined]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4037448Replaces Nobles 1221512 | 1 | Bumper, Head, 80cm, Skirt, Im [T500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4045268Replaces Nobles 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 18 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 19 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 20 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 21 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 22 | TN4039502Replaces Nobles 1212858 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Qf08Serial 10000000 to 20000000. | $13.80/EA |
| 23 | TN4041996Replaces Nobles 09746 | 2 | Screw, Hex, M10 X 1.50 X 90, SsSerial 10000000 to 20000000. | $9.90/EA |
| 24 | TN4042901Replaces Nobles 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 25 | TN4041928Replaces Nobles 08712 | 8 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 26 | TN4037626Replaces Nobles 1014328 | 2 | Key, Sq, 05mm X 05mm, 25mmlSerial 10000000 to 20000000. | $4.20/EA |
| 27 | TN4030707Replaces Nobles 1071637 | 2 | Hub, Drive, Brush, Disk, 17mmbSerial 10000000 to 20000000. | $129.00/EA |
| 28 | TN4035242Replaces Nobles 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 29 | TN4034939Replaces Nobles 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 10000000 to 20000000. | $4.00/EA |

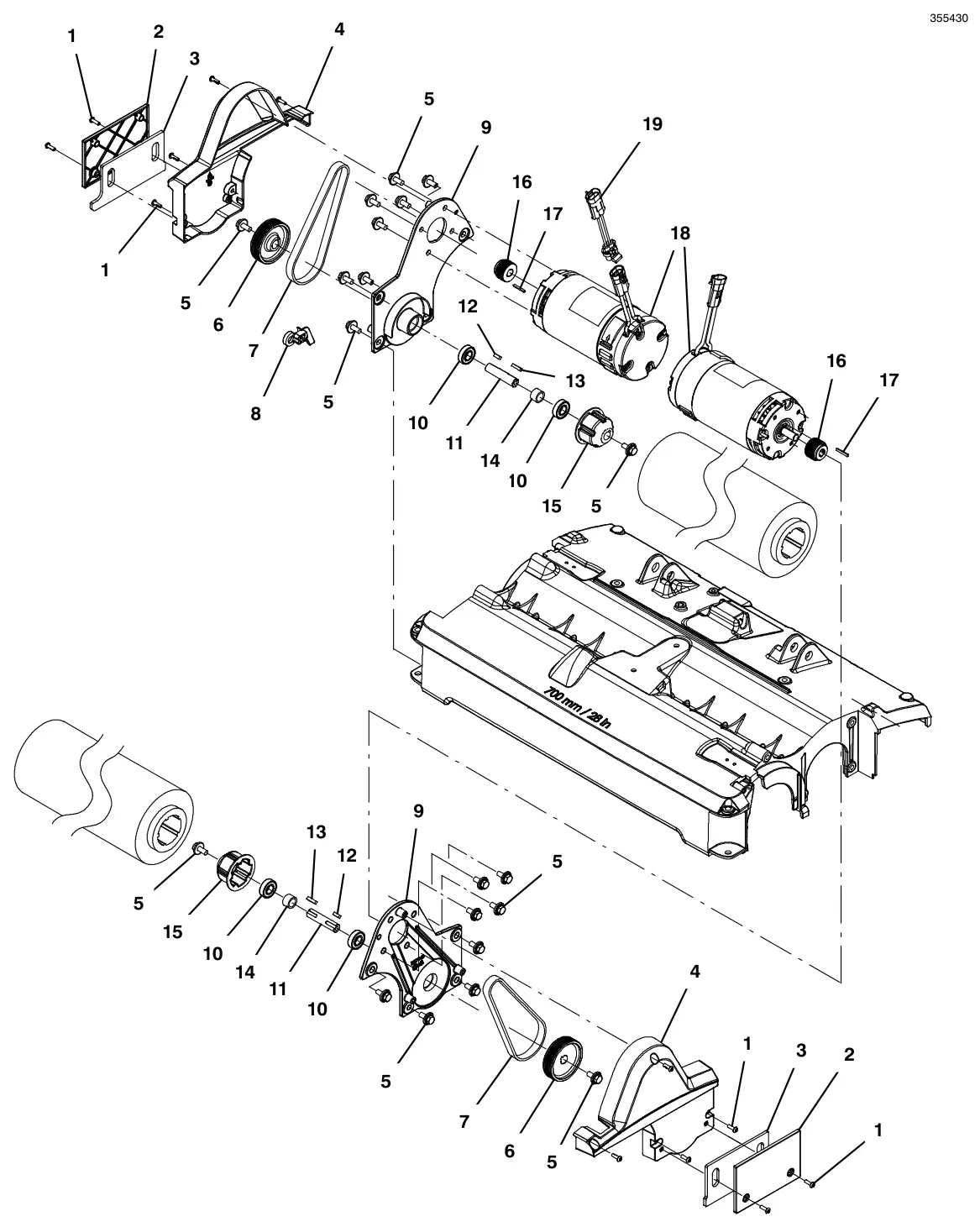

Nobles Speed Scrub 500 scrub head group, cylindrical 28 in (700 mm) parts
The parts Nobles numbers on the scrub head group, cylindrical 28 in (700 mm) drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 2 | TN4040535Replaces Nobles 1218032 | 2 | Cover, Skirt, 2cyl [T500]Serial 10000000 to 20000000. | $10.70/EA |
| 3 | TN4036849Replaces Nobles 1218573 | 2 | Skirt, Side, Scrb, Cyl [T500]Serial 10000000 to 20000000. | $26.30/EA |
| 4 | TN4018896Replaces Nobles 390996 | 2 | Screw, Flt, Soc, M10 X 1.50 X 20,10.9,NlSerial 10000000 to 20000000. | $4.00/EA |
| 5 | TN4036855Replaces Nobles 1218692 | 1 | Door, Brush, 2cyl [Machined, T500]Serial 10000000 to 20000000. | $54.30/EA |
| 6 | TN4014173Replaces Nobles 49697 | 6 | Screw, Pan, Phl, M4 X 0.70 X 10, SsSerial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4039875Replaces Nobles 222184 | 2 | Pin, Roll, .094d X 0.25l, .094/.097Serial 10000000 to 20000000. | $2.50/EA |
| 8 | TN4039865Replaces Nobles 222177 | 2 | Shaft, Plug, IdlerSerial 10000000 to 20000000. | $73.40/EA |
| 9 | TN4036583Replaces Nobles 1057629 | 2 | Plug, Idler, Brush [Sgl Brg]Serial 10000000 to 20000000. | $28.80/EA |
| 10 | TN4042879Replaces Nobles 01516 | 2 | Ring, Retaining, Ext, 0.59d, BasicSerial 10000000 to 20000000. | $2.50/EA |
| 11 | TN4040200Replaces Nobles 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirSerial 10000000 to 20000000. | $1.50/EA |
| 12 | TN4034303Replaces Nobles 49914 | 2 | Pin, Clevis, 0.37d X 4.00lSerial 10000000 to 20000000. | $25.70/EA |
| 13 | TN4020804Replaces Nobles 630477 | 6 | Wheel, Pyu, 02.0d 0.38w, GraySerial 10000000 to 20000000. | $9.50/EA |
| 14 | TN4041442Replaces Nobles 1207285 | 2 | Latch, Draw, Rbr, W/ Keeper, YellowSerial 10000000 to 20000000. | $19.50/EA |
| 15 | TN4014173Replaces Nobles 49697 | 6 | Screw, Pan, Phl, M4 X 0.70 X 10, SsSerial 10000000 to 20000000. | $3.40/EA |
| 16 | TN4037256Replaces Nobles 1221161 | 1 | Tie, Cable, Nyl, Push Mount, 76mm Max DSerial 10000000 to 20000000. | $6.00/EA |
| 17 | TN4038889Replaces Nobles 1210807 | 3 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 18 | TN4036822Replaces Nobles 1218242 | 1 | Bracket, Spring, Tray, Debris [T500]Serial 10000000 to 20000000. | $22.50/EA |
| 19 | TN4040531Replaces Nobles 1217942 | 1 | Housing, Cyl, 70cm [Machined]Serial 10000000 to 20000000. | $806.80/EA |
| 20 | TN4031352Replaces Nobles 1029358 | 1 | Deflector, Water, Cyl HeadSerial 10000000 to 20000000. | $48.30/EA |
| 21 | TN4045268Replaces Nobles 1034731 | 7 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 22 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 23 | TN4034290Replaces Nobles 1212987 | 1 | Fitting, Plstc, E90, Qf08/Pm06, SwivelSerial 10000000 to 20000000. | $17.60/EA |
| 24 | TN4042723Replaces Nobles 1046049 | 1 | Tube Assy, Bar, Spray, 70cm [T5, 5680]Serial 10000000 to 20000000. | $78.70/EA |
| 25 | TN4034190Replaces Nobles 1025580 | 2 | Fitting, Pipe, Cap, P06, NylSerial 10000000 to 20000000. | $8.70/EA |
| 26 | TN4036812Replaces Nobles 1218153 | 1 | Bracket, Tray, Debris [T500]Serial 10000000 to 20000000. | $18.30/EA |
| 27 | TN4036675Replaces Nobles 1218144 | 1 | Tray, Debris, 700mm [Im] [Rhine]Serial 10000000 to 20000000. | $45.90/EA |
| 28 | TN4036851Replaces Nobles 1218577 | 1 | Bracket, Slide, Tray, DebrisSerial 10000000 to 20000000. | $64.90/EA |
| 29 | TN4037000Replaces Nobles 1219969 | 1 | Panel Wldt, Wrap, Brush [T500]Serial 10000000 to 20000000. | $235.30/EA |
Nobles Speed Scrub 500 scrub head group, cylindrical 28 in (700 mm) (continued) parts
The parts Nobles numbers on the scrub head group, cylindrical 28 in (700 mm) drawing, continued from the page before. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041143Replaces Nobles 1205799 | 12 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 2 | TN4040535Replaces Nobles 1218032 | 2 | Cover, Skirt, 2cyl [T500]Serial 10000000 to 20000000. | $10.70/EA |
| 3 | TN4036849Replaces Nobles 1218573 | 2 | Skirt, Side, Scrb, Cyl [T500]Serial 10000000 to 20000000. | $26.30/EA |
| 4 | TN4040534Replaces Nobles 1218012 | 2 | Cover, Belt, 2 Cyl [T500]Serial 10000000 to 20000000. | $50.20/EA |
| 5 | TN4036259Replaces Nobles 1020341 | 20 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 6 | TN4045389Replaces Nobles 1035173 | 2 | Sheave, 06grv, 2.96pd 0.59b, Alm [Pj]Serial 10000000 to 20000000. | $112.10/EA |
| 7 | TN4023976Replaces Nobles 9015765 | 1 | Belt Replacement Kit (Cylindrical)Complete assembly. Serial 10000000 to 20000000. | $95.20/EA |
| 8 | TN4039539Replaces Nobles 1213132 | 1 | Tool, Installation, BeltPart of Belt Kit, Motor, Ci (Cylindrical Head) (9015765). Serial 10000000 to 20000000. | $14.50/EA |
| 9 | TN4040532Replaces Nobles 1217948 | 2 | Bracket, Mount, Motor, Cyl [Machined]Serial 10000000 to 20000000. | $115.20/EA |
| 10 | TN4016813Replaces Nobles 41360 | 4 | Bearing, Ball, 0.59b 1.26d 0.35w[2seal]Serial 10000000 to 20000000. | $19.00/EA |
| 11 | TN4036306Replaces Nobles 1021050 | 2 | Shaft, Drive, 15.0d X 65.5l [T5, 1610]Serial 10000000 to 20000000. | $142.60/EA |
| 12 | TN4042789Replaces Nobles 00961 | 2 | Key, Sq, 0.19 X 0.19, 0.50lSerial 10000000 to 20000000. | $4.20/EA |
| 13 | TN4042777Replaces Nobles 00911 | 2 | Key, Sq, 0.19 X 0.19, 0.75lSerial 10000000 to 20000000. | $3.60/EA |
| 14 | TN4042392Replaces Nobles 1002077 | 2 | Tube, 0.59id 0.81od 00.5lSerial 10000000 to 20000000. | $16.10/EA |
| 15 | TN4026292Replaces Nobles 378805 | 2 | Plug, Drive, Brush, MachSerial 10000000 to 20000000. | $55.50/EA |
| 16 | TN4045045Replaces Nobles 1033528 | 2 | Sheave, 06grv, 1.33pd 0.50b, Alm [Pj]Serial 10000000 to 20000000. | $87.60/EA |
| 17 | TN4042787Replaces Nobles 00954 | 2 | Key, Sq, 0.12 X 0.12, 1.00lSerial 10000000 to 20000000. | $4.20/EA |
| 18 | TN4037825Replaces Nobles 1223429 | 2 | Motor, Ele, 24vdc 1500rpm 0.60hpComplete assembly. Serial 10000000 to 20000000. | $1,051.20/EA |
| – | TN4032140Replaces Nobles 1031775 | 1 | Brush Kit, Carbon, Motor, Replmt [T5]Part of Motor, Ele, 24vdc 1500rpm 0.60hp (Cylindrical Head) (1223429). Serial 10000000 to 20000000. | $216.60/EA |
| 19 | TN4037767Replaces Nobles 1052895 | 1 | Harness, Adapter, Motor [T7/T5]Serial 10000000 to 20000000. | $25.50/EA |

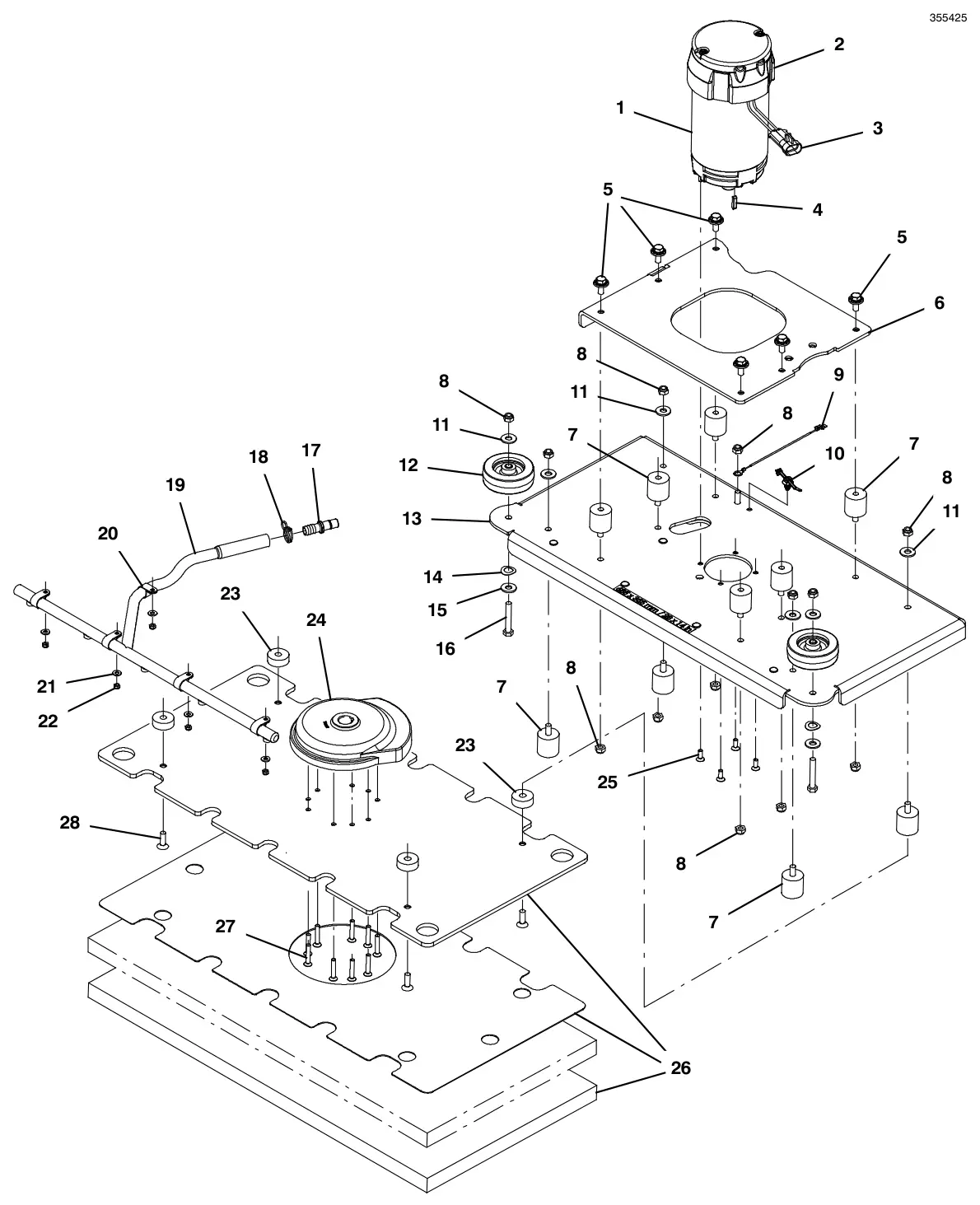

Nobles Speed Scrub 500 scrub head group, orbital 28 in (700 mm) parts
The parts Nobles numbers on the scrub head group, orbital 28 in (700 mm) drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036998Replaces Nobles 1219913 | 1 | Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0aComplete assembly. Serial 10000000 to 20000000. | $1,294.80/EA |
| 2 | TN4037142Replaces Nobles 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head) (1219913). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4032101Replaces Nobles 1031681 | 1 | Harness, Connector, Brush-Motor [T5] UsPart of Motor, Ele, 24vdc, 2200rpm, 0.75hp 28.0a (Orbital Head) (1219913). Serial 10000000 to 20000000. | $288.60/EA |
| 4 | TN4035913Replaces Nobles 1231238 | 1 | Key, Sq, 5mm X 5mm X 22mmSerial 10000000 to 20000000. | $5.10/EA |
| 5 | TN4036259Replaces Nobles 1020341 | 6 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 6 | TN4037223Replaces Nobles 1220910 | 1 | Bracket Wldt, Mtg, HeadSerial 10000000 to 20000000. | $58.03/EA |
| 7 | TN4039461Replaces Nobles 1212543 | 13 | Isolator, Neoprene, 1.25” X 1.25”, M8Serial 10000000 to 20000000. | $15.10/EA |
| 8 | TN4041929Replaces Nobles 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 9 | TN4044856Replaces Nobles 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Serial 10000000 to 20000000. | $6.70/EA |
| 10 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 11 | TN4042902Replaces Nobles 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 12 | TN4037957Replaces Nobles 1014918 | 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, RbrSerial 10000000 to 20000000. | $0.00/EA |
| 13 | TN4037466Replaces Nobles 1221766 | 1 | Housing Wldt, BrushSerial 10000000 to 20000000. | $206.72/EA |
| 14 | TN4042420Replaces Nobles 1210221 | 2 | Washer, Wave, .515b, .875d, .013, SsSerial 10000000 to 20000000. | $2.60/EA |
| 15 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4014172Replaces Nobles 49694 | 2 | Screw, Hex, M8 X 1.25 X 50, SsSerial 10000000 to 20000000. | $6.60/EA |
| 17 | TN4039487Replaces Nobles 1212807 | 1 | Fitting, Plstc, Str, Qm08/Bm08Serial 10000000 to 20000000. | $14.30/EA |
| 18 | TN4021947Replaces Nobles 607776 | 1 | Clamp, Hose, Wir, .73 - .77, SilverSerial 10000000 to 20000000. | $4.20/EA |
| 19 | TN1222903Nobles 1222903 | 1 | Manifold, Bar, Spray [28in]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN4044164Replaces Nobles 140916 | 5 | Clamp, Cable, Nyl, 0.62d, NatSerial 10000000 to 20000000. | $3.40/EA |
| 21 | TN4042888Replaces Nobles 01683 | 4 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 22 | TN4041991Replaces Nobles 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 23 | TN4037469Replaces Nobles 1221850 | 4 | Spacer, HeadSerial 10000000 to 20000000. | $13.70/EA |

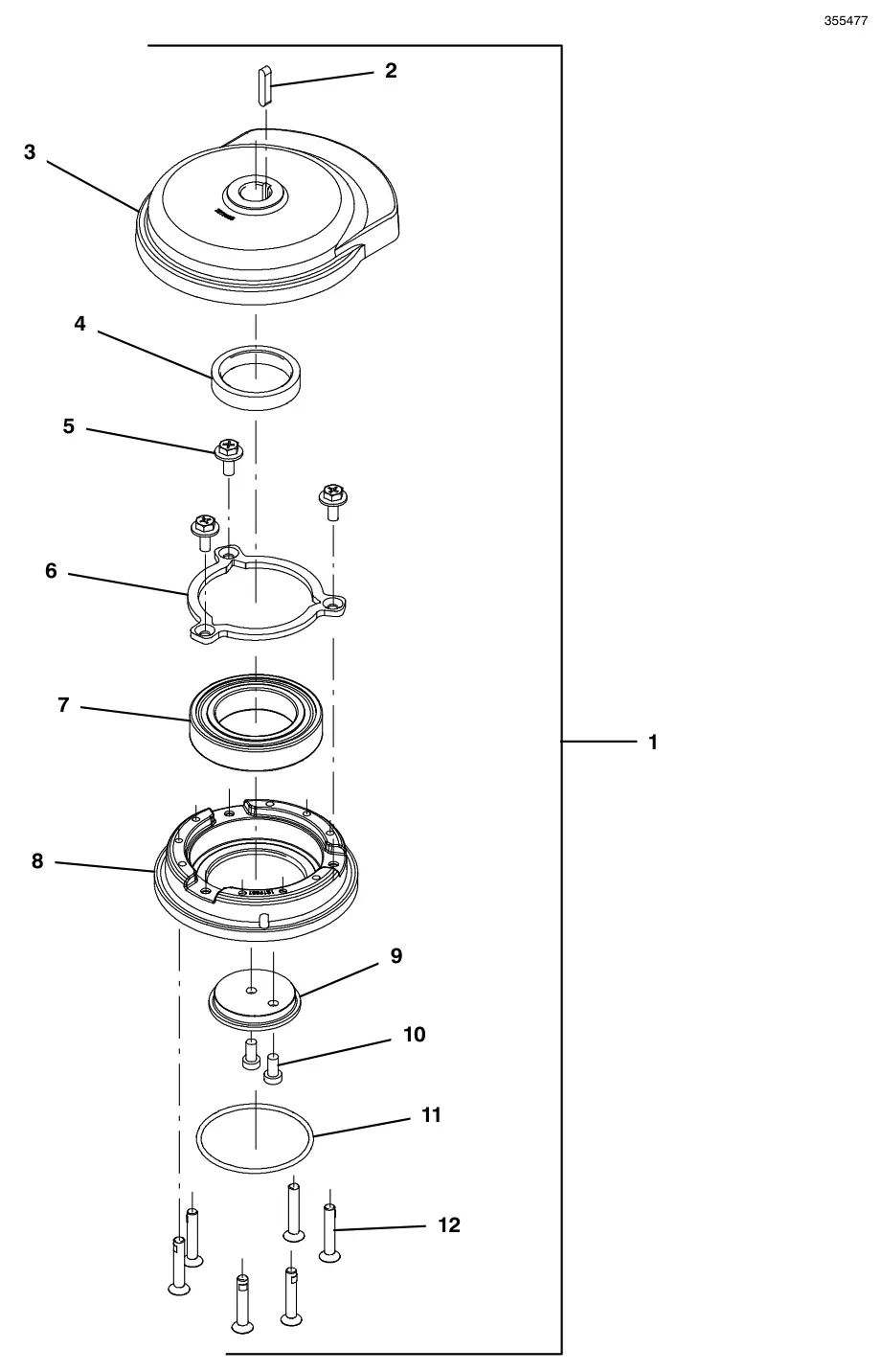

| 24 | TN4023979Replaces Nobles 9015774 | 1 | Eccentric Drive Kit, OrbitalSerial 10000000 to 20000000. | $449.70/EA |
| 25 | TN4041961Replaces Nobles 09163 | 4 | Screw, Flt, Soc, M6 X 1.00 X 16, 18-8,SsSerial 10000000 to 20000000. | $4.00/EA |
| 26 | TN4023350Replaces Nobles 9015416 | 1 | Driver Kit, Pad, Ci [T500]Serial 10000000 to 20000000. | $331.00/EA |
| 27 | TN4039478Replaces Nobles 1212710 | 6 | Screw, Flt, Soc, M6 X 1.00 X 35, 10.9,NlSerial 10000000 to 20000000. | $1.50/EA |
| 28 | TN4012756Replaces Nobles 74077 | 4 | Screw, Flt, Soc, M8 X 1.25 X 25, SsSerial 10000000 to 20000000. | $4.00/EA |

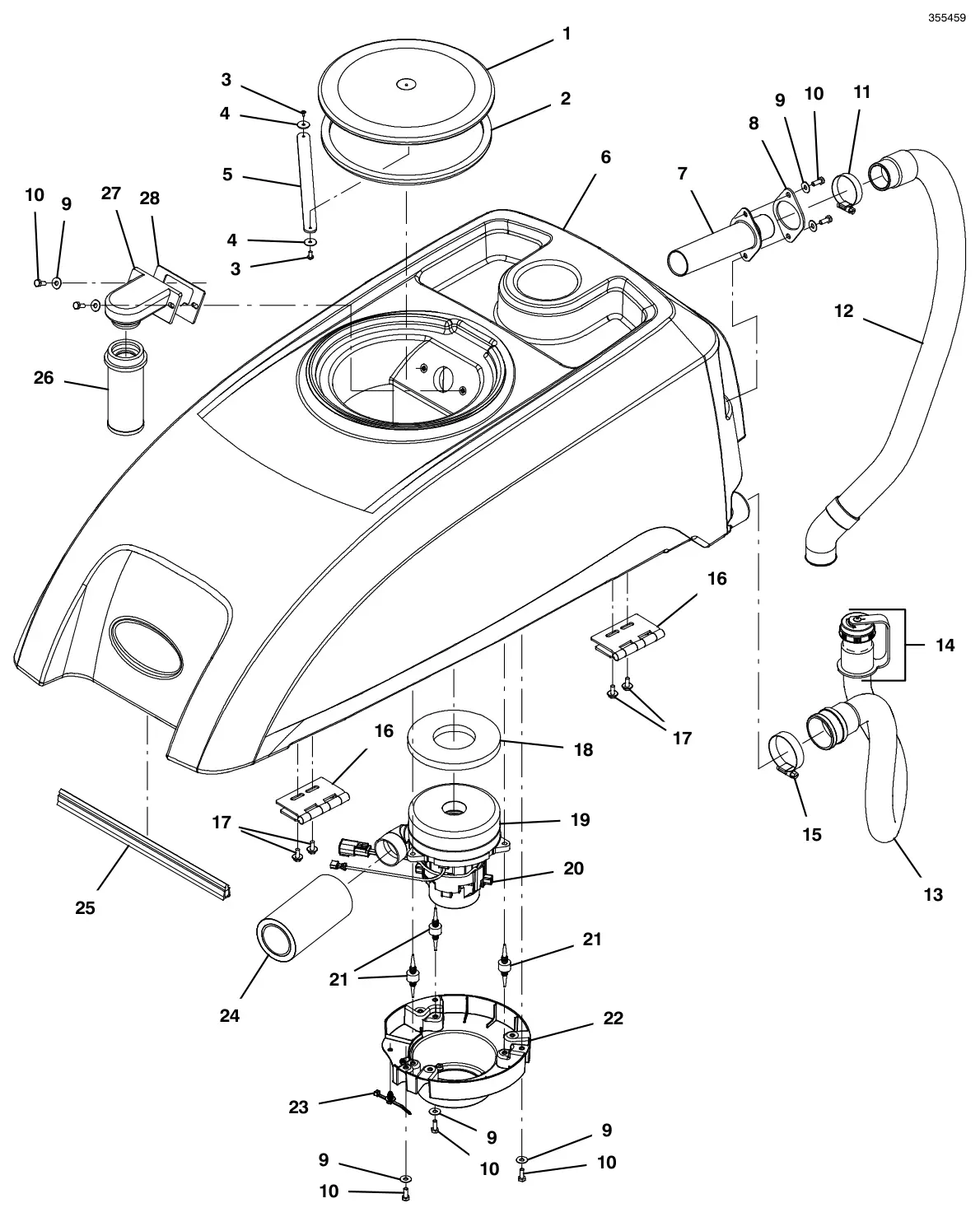

Nobles Speed Scrub 500 recovery tank group parts
The parts Nobles numbers on the recovery tank group drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN9015753Nobles 9015753 | 1 | Kit, Cover, Recvy, Ci [Na,T500e]Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4035522Replaces Nobles 1017959 | 1 | Seal, Bulb, Str, 0.50h .50w 032.0l, AdhPart of Kit, Cover, Recvy, Ci [Na,T500e] (9015753). Serial 10000000 to 20000000. | $12.40/EA |
| 3 | TN4032343Replaces Nobles 3701.6 | 2 | Screw, Pan, Phl, 06-32 X 0.38, Shtmtl,SsSerial 10000000 to 20000000. | $3.40/EA |
| 4 | TN4039982Replaces Nobles 1009168 | 2 | Washer, Flat, 0.17b 0.75d .04, SsSerial 10000000 to 20000000. | $3.40/EA |
| 5 | TN4042322Replaces Nobles 1001005 | 1 | Strap, Retaining, CoverSerial 10000000 to 20000000. | $5.10/EA |
| 6 | TN4195310Replaces Nobles 9015762 | 1 | Kit, Tank, Recvy, Ci [Ss500]Serial 10000000 to 20000000. | $1,322.80/EA |
| 7 | TN4036632Replaces Nobles 1021214 | 1 | Tube, Hose, Adapter, 1.5d [T5]Serial 10000000 to 20000000. | $9.90/EA |
| 8 | TN4033830Replaces Nobles 1024602 | 1 | Gasket, Neo, .13, 1.97id, 2/3.2bc, AdhSerial 10000000 to 20000000. | $3.50/EA |
| 9 | TN4042901Replaces Nobles 01684 | 7 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4043365Replaces Nobles 11329 | 7 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 11 | TN4043377Replaces Nobles 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wSerial 10000000 to 20000000. | $5.30/EA |
| 12 | TN121220Replaces Nobles 1224414 | 1 | Hose Assy, W/2cuff,1.5d 033l 1.5/1.5[Pu] (Gray)Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4038916Replaces Nobles 1211220 | 1 | Hose Assy,W/2cuff,1.5d 022l 1.5/1.5[Pvc] (Black)Serial 10000000 to 20000000. | $30.10/EA |
| 13 | TN4032276Replaces Nobles 1228242 | 1 | Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4036917Replaces Nobles 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5d 024l 2/1.5cap[Pu] (Gray) (1228242). Serial 10000000 to 20000000. | $8.60/EA |
| 13 | TN4031082Replaces Nobles 1228252 | 1 | Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black)Complete assembly. Serial 10000000 to 20000000. | $85.90/EA |
| 14 | TN4036892Replaces Nobles 1218955 | 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5d 014l 2/1.5cap Pvc (Black) (1228252). Serial 10000000 to 20000000. | $8.60/EA |
| 15 | TN4037088Replaces Nobles 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50wSerial 10000000 to 20000000. | $4.20/EA |
| 16 | TN4040520Replaces Nobles 1217669 | 1 | Hinge Assy, 7.0 Pin, 11 Ga, 100l X 105wSerial 10000000 to 20000000. | $15.20/EA |
| 17 | TN4045268Replaces Nobles 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 18 | TN4042297Replaces Nobles 100038 | 1 | Gasket, .50, 02.63id 05.75od, Adh [Epdm]Serial 10000000 to 20000000. | $10.00/EA |
| 19 | TN4036930Replaces Nobles 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. Serial 10000000 to 20000000. | $388.30/EA |
| 20 | TN8004151Replaces Nobles 372883 | 1 | Vr, Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (1219312). Serial 10000000 to 20000000. | $37.30/EA |
| 21 | TN4034906Replaces Nobles 1062016 | 3 | Isolator, Vib, .75dSerial 10000000 to 20000000. | $4.20/EA |
| 22 | TN4041450Replaces Nobles 1207368 | 1 | Mount, Vacfan, 5.7/6.6Serial 10000000 to 20000000. | $17.90/EA |
| 23 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 24 | TN4030068Replaces Nobles 1068577 | 1 | Muffler, Exhaust, Vacfan, 150mml [T2/T3]Serial 10000000 to 20000000. | $29.80/EA |
| 25 | TN4032816Replaces Nobles 1066431 | 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap]Serial 10000000 to 20000000. | $16.70/EA |
| 26 | TN4020485Replaces Nobles 630052 | 1 | Float, Shut-Off, (2)Ball, 1.75dSerial 10000000 to 20000000. | $76.00/EA |
| 27 | TN4020486Replaces Nobles 630053 | 1 | Mount, Cage, Float [20.0 Scrubber]Serial 10000000 to 20000000. | $21.30/EA |
| 28 | TN4020730Replaces Nobles 630255 | 1 | Gasket, Float, MountSerial 10000000 to 20000000. | $5.40/EA |

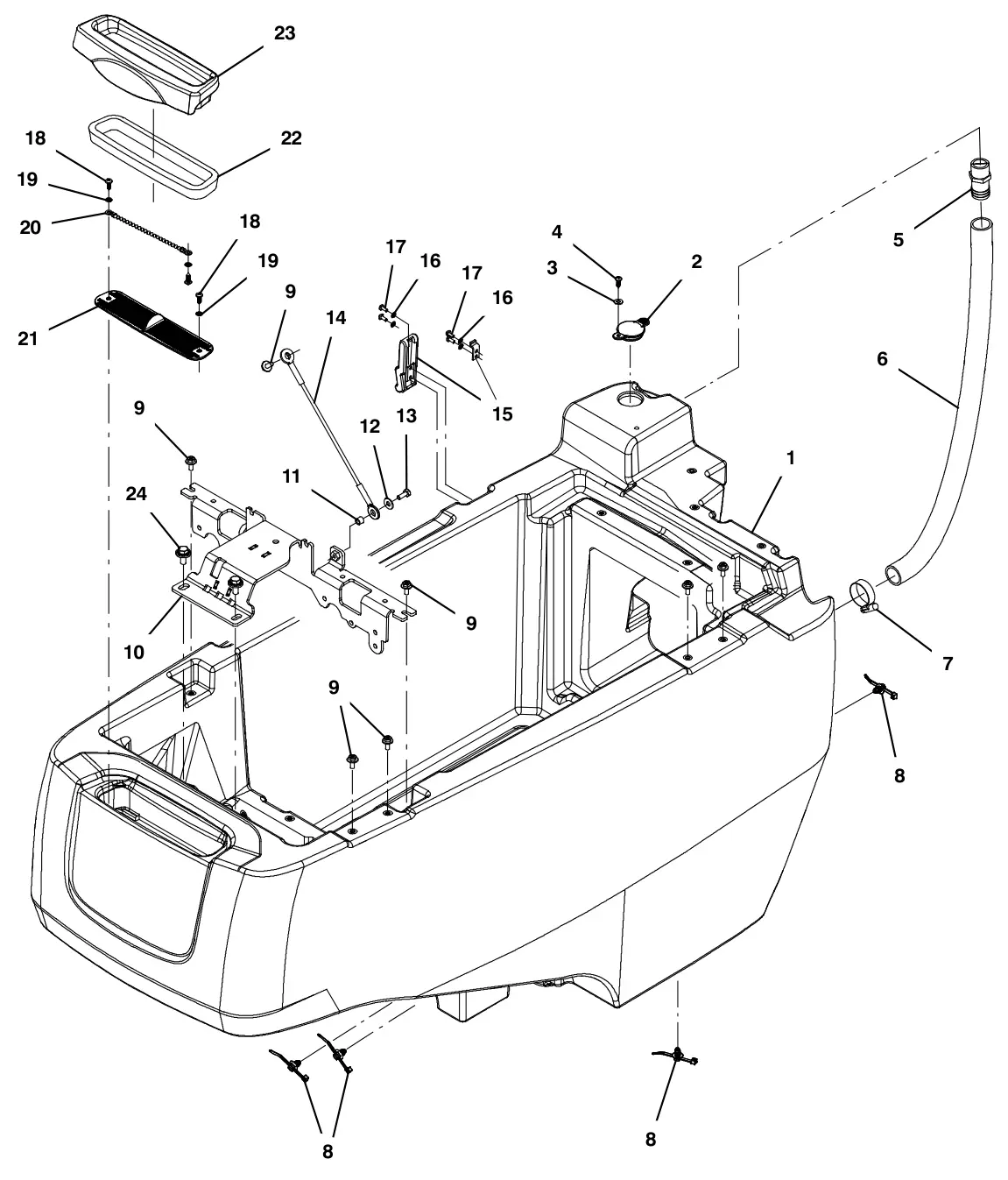

Nobles Speed Scrub 500 solution tank group parts
The parts Nobles numbers on the solution tank group drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4225987Replaces Nobles 1220792 | 1 | Tank, Soltn, Rm-Spg, Trmmd [Ss500, A500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4037289Replaces Nobles 1012965 | 1 | Cap, Port, Soltn FillSerial 10000000 to 20000000. | $4.00/EA |
| 3 | TN4042888Replaces Nobles 01683 | 1 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 4 | TN4035537Replaces Nobles 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 20000000. | $2.50/EA |
| 5 | TN4044464Replaces Nobles 1041082 | 1 | Fitting, Plstc, Str, Bm16/Pm12Serial 10000000 to 20000000. | $4.20/EA |
| 6 | TN4023951Replaces Nobles 9015728 | 1 | Hose Kit, Drain, Soln, Ci [T500/T500e]Serial 10000000 to 20000000. | $46.30/EA |
| 7 | TN4043367Replaces Nobles 11399 | 1 | Clamp, Hose, Wormdrive, 0.81-1.50d, .50wSerial 10000000 to 20000000. | $5.10/EA |
| 8 | TN4038889Replaces Nobles 1210807 | 4 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 9 | TN4045268Replaces Nobles 1034731 | 7 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 10 | TN4037237Replaces Nobles 1221012 | 1 | Bracket Wldt, ActuatorSerial 10000000 to 20000000. | $114.90/EA |
| 11 | TN4043810Replaces Nobles 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlSerial 10000000 to 20000000. | $4.10/EA |
| 12 | TN4042901Replaces Nobles 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 13 | TN4043365Replaces Nobles 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 14 | TN4037467Replaces Nobles 1221803 | 1 | Cable, Glv .13d 10.5l .38eye /.38eyeSerial 10000000 to 20000000. | $16.60/EA |
| 15 | TN4041442Replaces Nobles 1207285 | 1 | Latch, Draw, Rbr, W/ Keeper, YellowSerial 10000000 to 20000000. | $19.50/EA |
| 16 | TN4043241Replaces Nobles 02938 | 4 | Washer, Lock, Int, 08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 17 | TN4014173Replaces Nobles 49697 | 4 | Screw, Pan, Phl, M4 X 0.70 X 10, SsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4035537Replaces Nobles 1018155 | 3 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 20000000. | $2.50/EA |
| 19 | TN4041589Replaces Nobles 07514 | 3 | Washer, Lock, Int, 10, SsSerial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4020247Replaces Nobles 621443 | 1 | Chain, Ball, 10, 0157mml, SsSerial 10000000 to 20000000. | $4.40/EA |
| 21 | TN4036999Replaces Nobles 1219917 | 1 | Screen, Fltr, 2.0 X 8.7Serial 10000000 to 20000000. | $4.40/EA |
| 22 | TN4023971Replaces Nobles 9015758 | 1 | Seal, Tank, Soltn, Ci [T500/T500e]Serial 10000000 to 20000000. | $37.00/EA |
| 23 | TN4040536Replaces Nobles 1218043 | 1 | Cover, Fill, Front [T500]Serial 10000000 to 20000000. | $28.00/EA |
| 23 | TN4023972Replaces Nobles 9015759 | 1 | Kit, Cover, Fill [T500/T500e] (ec-H2O Models)Serial 10000000 to 20000000. | $78.50/EA |
| 24 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |

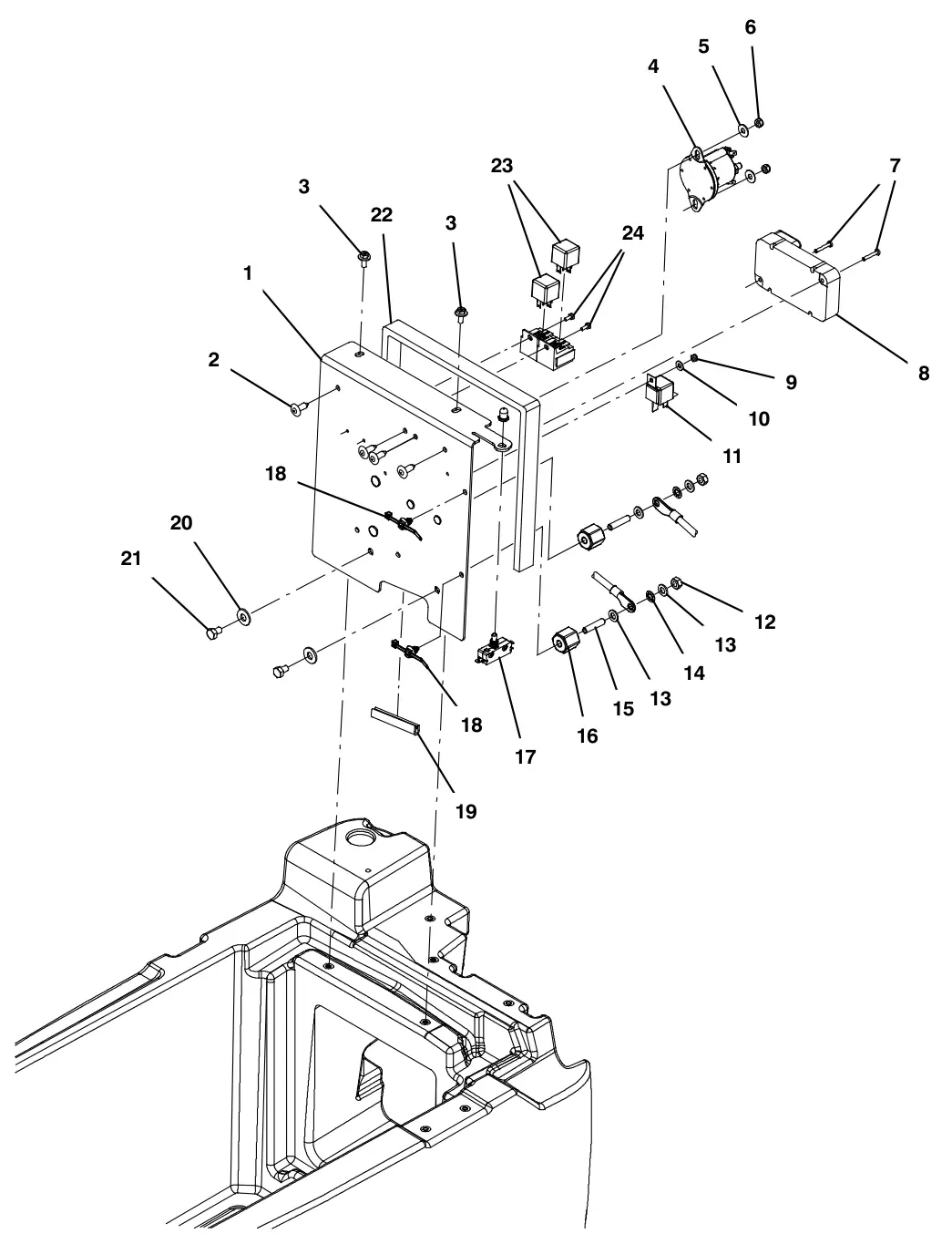

Nobles Speed Scrub 500 standard electrical group parts
The parts Nobles numbers on the standard electrical group drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037868Replaces Nobles 1224001 | 1 | Bracket Wldt, Mtg, Ele [T500e]Serial 10000000 to 20000000. | $93.12/EA |
| 2 | TN4043840Replaces Nobles 140262 | 4 | Clip, Snap-InSerial 10000000 to 20000000. | $4.20/EA |
| 3 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 4 | TN4032813Replaces Nobles 1066409 | 1 | Relay, 24vdc, 150a, No [Trombetta]Serial 10000000 to 20000000. | $46.60/EA |
| 5 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 6 | TN4041928Replaces Nobles 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4044571Replaces Nobles 1073600 | 2 | Screw, Pan, M4 X 0.7 X 25, FmgSerial 10000000 to 20000000. | $1.50/EA |
| 8 | TN4023980Replaces Nobles 9015776 | 1 | Drive Module Kit, CiSerial 10000000 to 20000000. | $397.40/EA |
| 9 | TN4041991Replaces Nobles 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 10 | TN4042888Replaces Nobles 01683 | 1 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 11 | TN4034996Replaces Nobles 1228510 | 1 | Relay, 24vdc, 80a, Spst No, Plug-InSerial 10000000 to 20000000. | $19.90/EA |
| 12 | TN4016814Replaces Nobles 41361 | 1 | Nut, Hex, Std, M8 X 1.25, BrsSerial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4042096Replaces Nobles 1209373 | 2 | Washer, Flat, M8.4b X 16d X 1.6, BrsSerial 10000000 to 20000000. | $2.60/EA |
| 14 | TN4017399Replaces Nobles 43952 | 4 | Washer, Lock, Int, 0.31, SsSerial 10000000 to 20000000. | $2.60/EA |
| 15 | TN4021889Replaces Nobles 607461 | 2 | Screw, Set, M8 X 1.25 X 35, NlSerial 10000000 to 20000000. | $4.00/EA |
| 16 | TN4041084Replaces Nobles 1205345 | 2 | Stand-Off, Wir, M8, Insulator, PanelSerial 10000000 to 20000000. | $13.00/EA |
| 17 | TN4030889Replaces Nobles 1071996 | 1 | Switch, Push, Snap Action, 25aSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4038889Replaces Nobles 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 19 | TN4036243Replaces Nobles 1020174 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 03ftSerial 10000000 to 20000000. | $66.70/EA |
| 20 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 21 | TN4022275Replaces Nobles 386868 | 2 | Screw, Hex, M8 X 1.25 X 12, SsSerial 10000000 to 20000000. | $3.40/EA |
| 22 | TN4036902Replaces Nobles 1219045 | 1 | Gasket, Cover, CircuitboardSerial 10000000 to 20000000. | $52.60/EA |
| 23 | TN4014151Replaces Nobles 49309 | 2 | Relay, 24vdc, 015a, Spdt NoSerial 10000000 to 20000000. | $28.80/EA |
| 24 | TN4041846Replaces Nobles 16944 | 2 | Screw, Hex, M4 X 0.70 X 10, FmgSerial 10000000 to 20000000. | $3.20/EA |

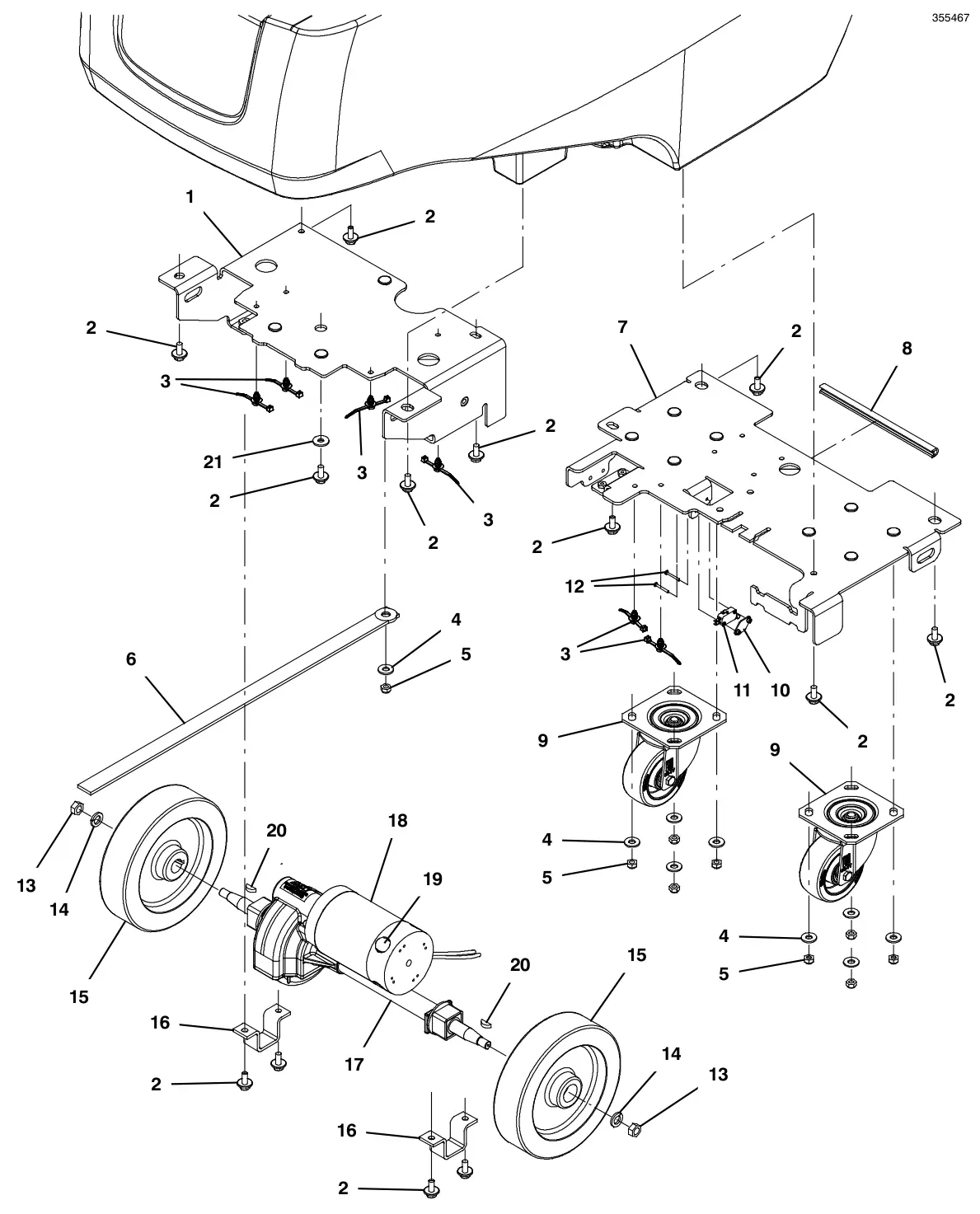

Nobles Speed Scrub 500 frame and drive group parts
The parts Nobles numbers on the frame and drive group drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036915Replaces Nobles 1219118 | 1 | Frame Wldt, Front [T500]Serial 10000000 to 20000000. | $397.60/EA |
| 2 | TN4036259Replaces Nobles 1020341 | 13 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 3 | TN4038889Replaces Nobles 1210807 | 6 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 4 | TN4042902Replaces Nobles 01685 | 9 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4041929Replaces Nobles 08713 | 9 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 6 | TN4015658Replaces Nobles 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0lSerial 10000000 to 20000000. | $25.90/EA |
| 7 | TN4036919Replaces Nobles 1219137 | 1 | Frame Wldt, Rear [T500]Serial 10000000 to 20000000. | $296.20/EA |
| 8 | TN4036241Replaces Nobles 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01ftSerial 10000000 to 20000000. | $44.40/EA |
| 9 | TN4039272Replaces Nobles 1212422 | 2 | Caster, Swivel [Wicke 224051]Serial 10000000 to 20000000. | $75.60/EA |
| 10 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 11 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 12 | TN4031248Replaces Nobles 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 13 | TN4041602Replaces Nobles 07788 | 2 | Nut, Hex, Std, M12 X 1.75, SsSerial 10000000 to 20000000. | $3.40/EA |
| 14 | TN4043649Replaces Nobles 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsSerial 10000000 to 20000000. | $3.20/EA |
| – | TN4037832Replaces Nobles 9004909 | 1 | Wheel Kit, Solid, Ci [T5 T5e Ss5]Complete assembly. Serial 10000000 to 20000000. | $153.10/EA |
| 15 | TN4037832Replaces Nobles 1223583 | 2 | Wheel, Scrbr, 213mm, W/ TaperPart of Wheel Kit, Solid, Ci [T5 T5e Ss5] (9004909). Serial 10000000 to 20000000. | $153.10/EA |
| 16 | TN4025399Replaces Nobles 606001 | 2 | Bracket, Mtg, Transaxle, Pl [1510, T5]Serial 10000000 to 20000000. | $38.30/EA |
| 17 | TN4032671Replaces Nobles 1220970 | 1 | Transaxle, Ele, 24vdc, 107rpm [Asi, 4]Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4023456Replaces Nobles 612874 | 1 | Coupling, Transaxle, ReplmtPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (1220970). Serial 10000000 to 20000000. | $9.90/EA |
| – | TN4023690Replaces Nobles 612880 | 1 | Joint, Transaxle, ReplmtPart of Transaxle, Ele, 24vdc, 107rpm [Asi, 4] (1220970). Serial 10000000 to 20000000. | $10.60/EA |
| 18 | TN4032671Replaces Nobles 1031723 | 1 | Motor, Transaxle, 24vdc, Afmkt [T5]Serial 10000000 to 20000000. | $749.02/EA |
| 19 | TN4019997Replaces Nobles 614166 | 1 | Brush Kit, Carbon, Transaxle, Replmt [4]Serial 10000000 to 20000000. | $65.70/EA |
| 20 | TN4036547Replaces Nobles 1021167 | 2 | Key, Woodruff, 5mmPart of the assembly above. Serial 10000000 to 20000000. | $3.60/EA |
| 21 | TN4016551Replaces Nobles 39890 | 1 | Washer, Flat, M8, FendrSerial 10000000 to 20000000. | $4.10/EA |

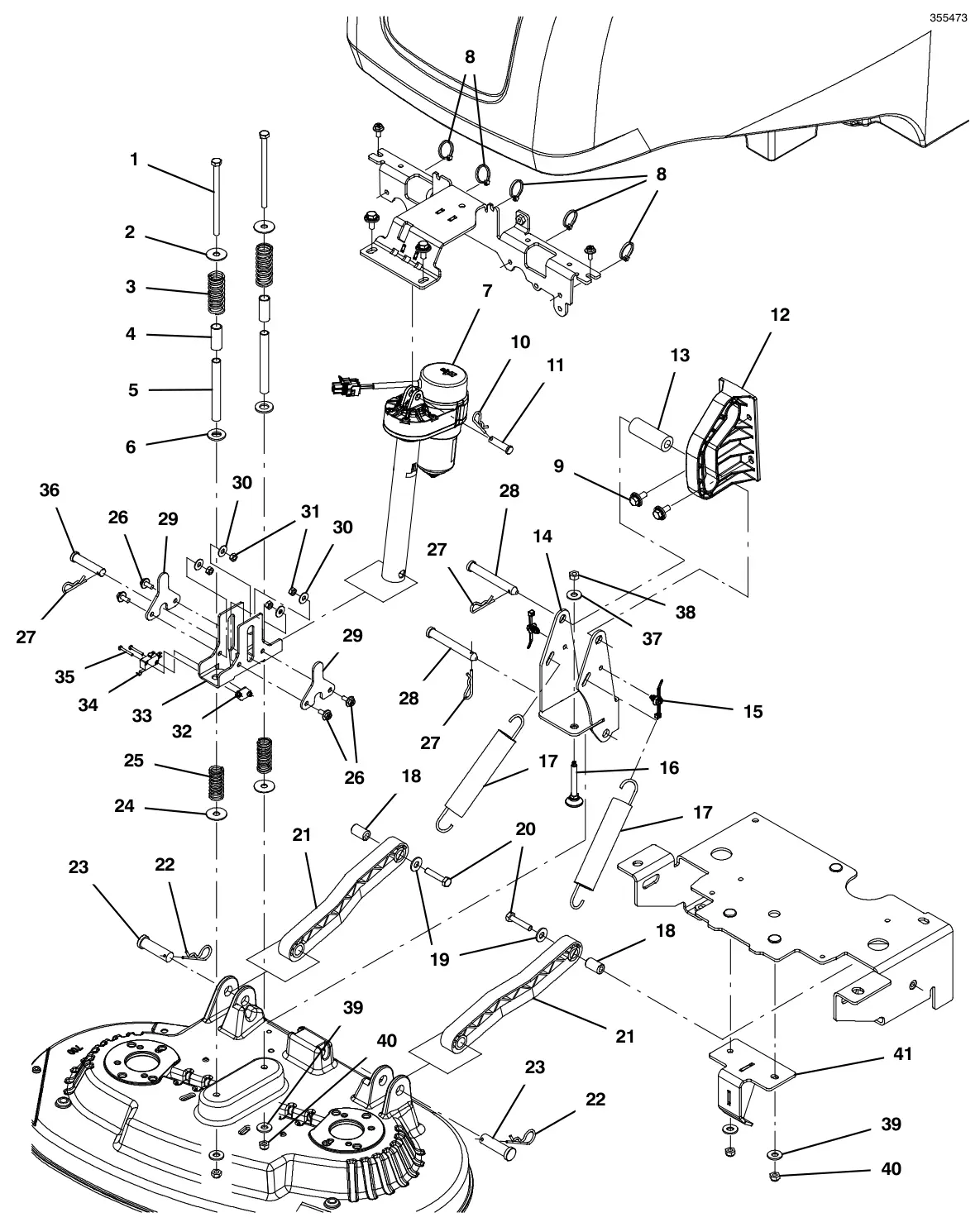

Nobles Speed Scrub 500 head lift group, disk parts
The parts Nobles numbers on the head lift group, disk drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018103Replaces Nobles 387431 | 2 | Screw, Hex, M8 X 1.25 X 130, SsSerial 10000000 to 20000000. | $7.40/EA |
| 2 | TN4034466Replaces Nobles 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, SsSerial 10000000 to 20000000. | $4.00/EA |
| 3 | TN4013421Replaces Nobles 45261 | 2 | Spring, Cmpr, 0.97od .11wir 02.5lSerial 10000000 to 20000000. | $5.20/EA |
| 4 | TN4037889Replaces Nobles 1224334 | 2 | Sleeve, P/M, 0.51b 0.63d 1.5l, PlSerial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4036963Replaces Nobles 1219491 | 2 | Sleeve, 0.40id .50d 4.25l, SsSerial 10000000 to 20000000. | $35.10/EA |
| 6 | TN4034135Replaces Nobles 32486 | 2 | Washer, Flat, 0.53b 1.06d .10, Stl, PlSerial 10000000 to 20000000. | $2.60/EA |
| 7 | TN4037258Replaces Nobles 1221206 | 1 | Actuator, 24vdc, 07.0strk, 0600lbSerial 10000000 to 20000000. | $513.30/EA |
| 8 | TN4014137Replaces Nobles 49263 | 5 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DSerial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 10 | TN4044109Replaces Nobles 140626 | 1 | Pin, Cotter, Hair, 0.25d .125 WirSerial 10000000 to 20000000. | $4.00/EA |
| 11 | TN4036075Replaces Nobles 29558 | 1 | Pin, Clevis, 0.37d X 1.50lSerial 10000000 to 20000000. | $3.90/EA |
| 12 | TN4036997Replaces Nobles 1219912 | 1 | Bracket, Guide, Head[T500]Serial 10000000 to 20000000. | $23.30/EA |
| 13 | TN4037197Replaces Nobles 1220305 | 1 | Tube, Plstc, 0.51id 0.98od 02.8lSerial 10000000 to 20000000. | $6.30/EA |
| 14 | TN4037447Replaces Nobles 1221507 | 1 | Pivot Wldt, Head, Scrub [T500]Serial 10000000 to 20000000. | $85.60/EA |
| 15 | TN4038889Replaces Nobles 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 16 | TN4034951Replaces Nobles 1227530 | 1 | Screw, Leveler, M8x75Serial 10000000 to 20000000. | $32.00/EA |
| 17 | TN4040273Replaces Nobles 222363 | 2 | Spring, Extn, 1.23od 0.15wir 06.5lSerial 10000000 to 20000000. | $13.70/EA |
| 18 | TN4025407Replaces Nobles 606056 | 2 | Tube, 0.32id 0.62od 01.0l, Stl, PlSerial 10000000 to 20000000. | $6.60/EA |
| 19 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 20 | TN4012778Replaces Nobles 74440 | 2 | Screw, Hex, M8 X 1.25 X 40, Nl, SsSerial 10000000 to 20000000. | $4.90/EA |
| 21 | TN4039763Replaces Nobles 222027 | 2 | Arm, Lift, HeadSerial 10000000 to 20000000. | $49.60/EA |
| 22 | TN4043243Replaces Nobles 02942 | 2 | Pin, Hair, Cotter, 0.62d .120 WirSerial 10000000 to 20000000. | $3.40/EA |
| 23 | TN4039905Replaces Nobles 222210 | 2 | Pin, Clevis, 0.62d X 2.12lSerial 10000000 to 20000000. | $6.80/EA |
| 24 | TN4034466Replaces Nobles 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, SsSerial 10000000 to 20000000. | $4.00/EA |
| 25 | TN4021142Replaces Nobles 63185 | 2 | Spring, Cmpr, 0.85od .09wir 02.0lSerial 10000000 to 20000000. | $5.20/EA |
| 26 | TN4045268Replaces Nobles 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 27 | TN4044109Replaces Nobles 140626 | 3 | Pin, Cotter, Hair, 0.25d .125 WirSerial 10000000 to 20000000. | $4.00/EA |
| 28 | TN4028887Replaces Nobles 374225 | 2 | Pin, Clevis, 0.50d X 3.75lSerial 10000000 to 20000000. | $10.10/EA |
| 29 | TN4038236Replaces Nobles 1225719 | 2 | Bracket, Pin HolderSerial 10000000 to 20000000. | $19.10/EA |
| 30 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 31 | TN4041599Replaces Nobles 07785 | 4 | Nut, Hex, Std, M6 X 1.00, SsSerial 10000000 to 20000000. | $2.50/EA |
| 32 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 33 | TN4037881Replaces Nobles 1224191 | 1 | Bracket, Spring, Suspension, HeadSerial 10000000 to 20000000. | $45.90/EA |
| 34 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 35 | TN4031248Replaces Nobles 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 36 | TN4043171Replaces Nobles 11211 | 1 | Pin, Clevis, 0.50d X 2.25lSerial 10000000 to 20000000. | $4.00/EA |
| 37 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 38 | TN4041600Replaces Nobles 07786 | 1 | Nut, Hex, Std, M8 X 1.25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 39 | TN4042902Replaces Nobles 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 40 | TN4041929Replaces Nobles 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 41 | TN4037498Replaces Nobles 1222374 | 1 | Frame Wldt, Hardstop [T500]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |

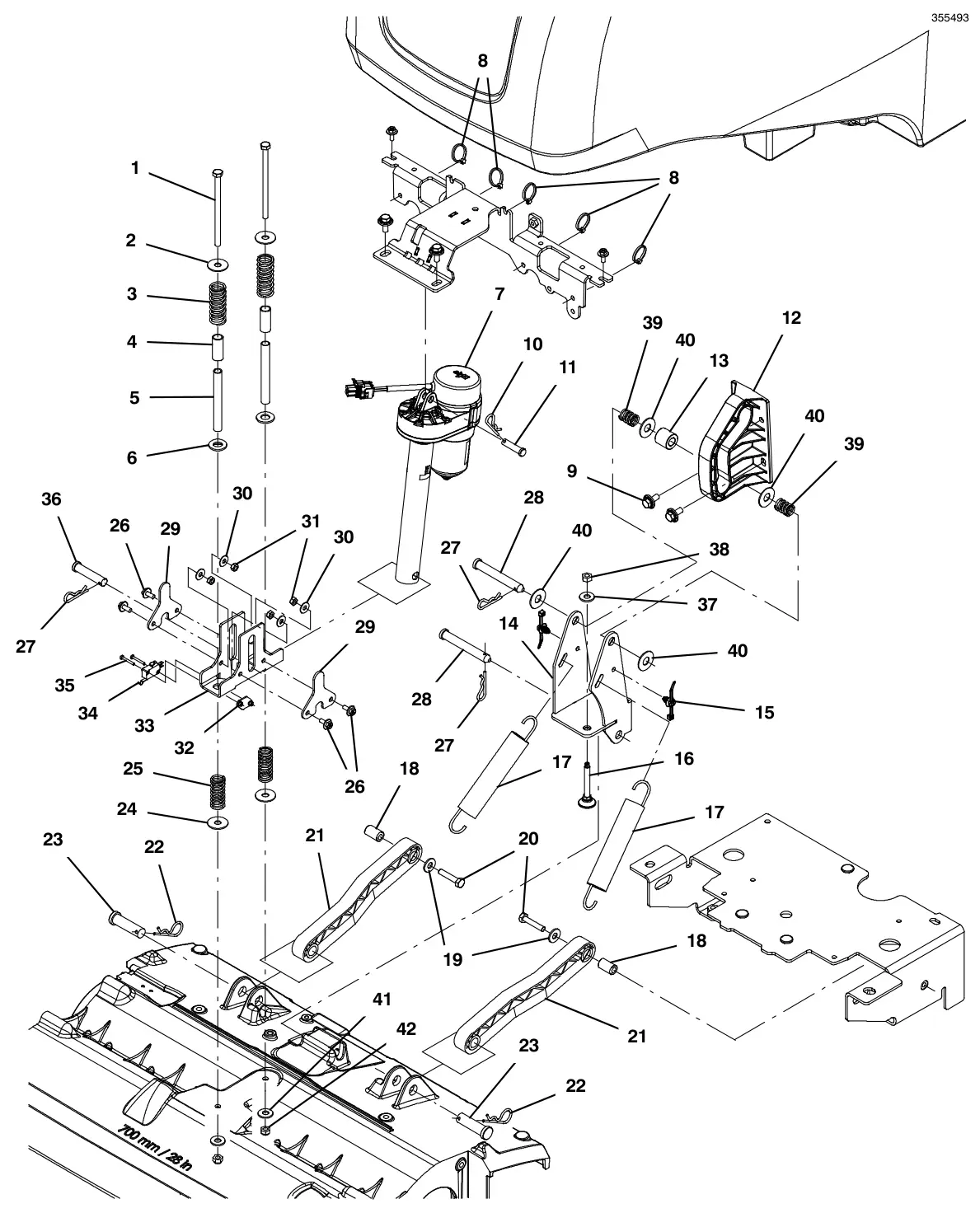

Nobles Speed Scrub 500 head lift group, cylindrical parts
The parts Nobles numbers on the head lift group, cylindrical drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018103Replaces Nobles 387431 | 2 | Screw, Hex, M8 X 1.25 X 130, SsSerial 10000000 to 20000000. | $7.40/EA |
| 2 | TN4034466Replaces Nobles 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, SsSerial 10000000 to 20000000. | $4.00/EA |
| 3 | TN4013421Replaces Nobles 45261 | 2 | Spring, Cmpr, 0.97od .11wir 02.5lSerial 10000000 to 20000000. | $5.20/EA |
| 4 | TN4037889Replaces Nobles 1224334 | 2 | Sleeve, P/M, 0.51b 0.63d 1.5l, PlSerial 10000000 to 20000000. | $2.60/EA |
| 5 | TN4036963Replaces Nobles 1219491 | 2 | Sleeve, 0.40id .50d 4.25l, SsSerial 10000000 to 20000000. | $35.10/EA |
| 6 | TN4034135Replaces Nobles 32486 | 2 | Washer, Flat, 0.53b 1.06d .10, Stl, PlSerial 10000000 to 20000000. | $2.60/EA |
| 7 | TN4037258Replaces Nobles 1221206 | 1 | Actuator, 24vdc, 07.0strk, 0600lbSerial 10000000 to 20000000. | $513.30/EA |
| 8 | TN4014137Replaces Nobles 49263 | 5 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DSerial 10000000 to 20000000. | $3.40/EA |
| 9 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 10 | TN4044109Replaces Nobles 140626 | 1 | Pin, Cotter, Hair, 0.25d .125 WirSerial 10000000 to 20000000. | $4.00/EA |
| 11 | TN4036075Replaces Nobles 29558 | 1 | Pin, Clevis, 0.37d X 1.50lSerial 10000000 to 20000000. | $3.90/EA |
| 12 | TN4036997Replaces Nobles 1219912 | 1 | Bracket, Guide, Head[T500]Serial 10000000 to 20000000. | $23.30/EA |
| 13 | TN4037586Replaces Nobles 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalSerial 10000000 to 20000000. | $9.80/EA |
| 14 | TN4037447Replaces Nobles 1221507 | 1 | Pivot Wldt, Head, Scrub [T500]Serial 10000000 to 20000000. | $85.60/EA |
| 15 | TN4038889Replaces Nobles 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 16 | TN4034951Replaces Nobles 1227530 | 1 | Screw, Leveler, M8x75Serial 10000000 to 20000000. | $32.00/EA |
| 17 | TN4040273Replaces Nobles 222363 | 2 | Spring, Extn, 1.23od 0.15wir 06.5lSerial 10000000 to 20000000. | $13.70/EA |
| 18 | TN4025407Replaces Nobles 606056 | 2 | Tube, 0.32id 0.62od 01.0l, Stl, PlSerial 10000000 to 20000000. | $6.60/EA |
| 19 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 20 | TN4012778Replaces Nobles 74440 | 2 | Screw, Hex, M8 X 1.25 X 40, Nl, SsSerial 10000000 to 20000000. | $4.90/EA |
| 21 | TN4039763Replaces Nobles 222027 | 2 | Arm, Lift, HeadSerial 10000000 to 20000000. | $49.60/EA |
| 22 | TN4043243Replaces Nobles 02942 | 2 | Pin, Hair, Cotter, 0.62d .120 WirSerial 10000000 to 20000000. | $3.40/EA |
| 23 | TN4039905Replaces Nobles 222210 | 2 | Pin, Clevis, 0.62d X 2.12lSerial 10000000 to 20000000. | $6.80/EA |
| 24 | TN4034466Replaces Nobles 32662 | 2 | Washer, Flat, 0.38b 1.22d .06, SsSerial 10000000 to 20000000. | $4.00/EA |
| 25 | TN4021142Replaces Nobles 63185 | 2 | Spring, Cmpr, 0.85od .09wir 02.0lSerial 10000000 to 20000000. | $5.20/EA |
| 26 | TN4045268Replaces Nobles 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 27 | TN4044109Replaces Nobles 140626 | 3 | Pin, Cotter, Hair, 0.25d .125 WirSerial 10000000 to 20000000. | $4.00/EA |
| 28 | TN4028887Replaces Nobles 374225 | 2 | Pin, Clevis, 0.50d X 3.75lSerial 10000000 to 20000000. | $10.10/EA |
| 29 | TN4038236Replaces Nobles 1225719 | 2 | Bracket, Pin HolderSerial 10000000 to 20000000. | $19.10/EA |
| 30 | TN4042901Replaces Nobles 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 31 | TN4041599Replaces Nobles 07785 | 4 | Nut, Hex, Std, M6 X 1.00, SsSerial 10000000 to 20000000. | $2.50/EA |
| 32 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 33 | TN4037881Replaces Nobles 1224191 | 1 | Bracket, Spring, Suspension, HeadSerial 10000000 to 20000000. | $45.90/EA |
| 34 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 35 | TN4031248Replaces Nobles 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 36 | TN4043171Replaces Nobles 11211 | 1 | Pin, Clevis, 0.50d X 2.25lSerial 10000000 to 20000000. | $4.00/EA |
| 37 | TN4042902Replaces Nobles 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 38 | TN4041600Replaces Nobles 07786 | 1 | Nut, Hex, Std, M8 X 1.25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 39 | TN4021969Replaces Nobles 607920 | 2 | Spring, Cmpr, 0.70od .10wir 01.0l, MwSerial 10000000 to 20000000. | $4.10/EA |
| 40 | TN4043779Replaces Nobles 140045 | 4 | Washer, Flat, 0.51b 1.25d .06, SsSerial 10000000 to 20000000. | $4.00/EA |
| 41 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 42 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |

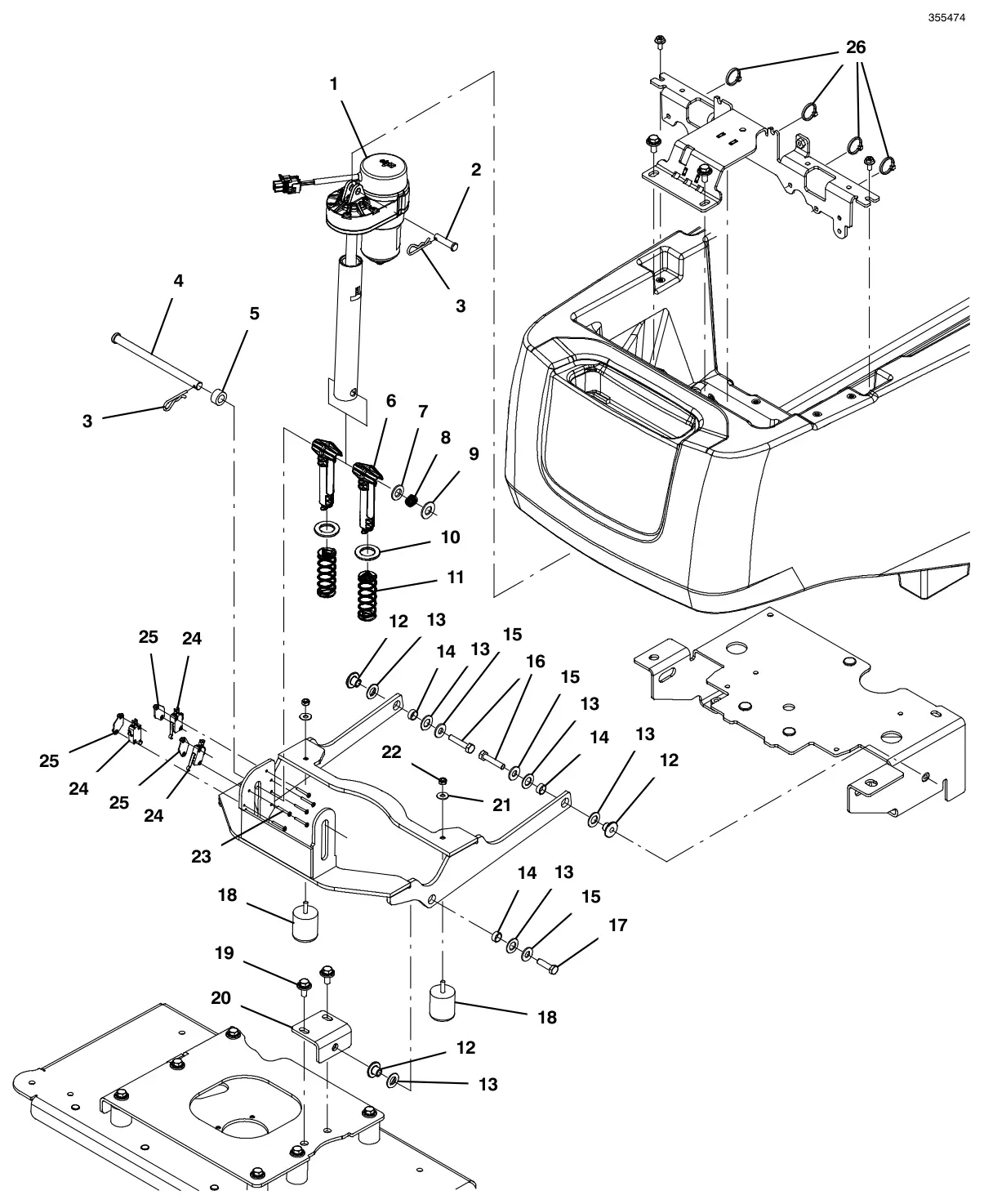

Nobles Speed Scrub 500 head lift group, orbital parts
The parts Nobles numbers on the head lift group, orbital drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037258Replaces Nobles 1221206 | 1 | Actuator, 24vdc, 07.0strk, 0600lbSerial 10000000 to 20000000. | $513.30/EA |
| 2 | TN4036075Replaces Nobles 29558 | 1 | Pin, Clevis, 0.37d X 1.50lSerial 10000000 to 20000000. | $3.90/EA |
| 3 | TN4044109Replaces Nobles 140626 | 1 | Pin, Cotter, Hair, 0.25d .125 WirSerial 10000000 to 20000000. | $4.00/EA |
| 4 | TN4038460Replaces Nobles 1226754 | 1 | Pin, Clevis, .50d X 7.00lSerial 10000000 to 20000000. | $29.30/EA |
| 5 | TN4038461Replaces Nobles 1226759 | 1 | Spacer, .500 Id X .875 OdSerial 10000000 to 20000000. | $12.90/EA |
| 6 | TN4037882Replaces Nobles 1224233 | 2 | Pin, Guide, Spring, HeadSerial 10000000 to 20000000. | $6.10/EA |
| 7 | TN4037581Replaces Nobles 1013936 | 1 | Washer, Flat, 0.51b 0.94d .10, NylSerial 10000000 to 20000000. | $3.40/EA |
| 8 | TN4038445Replaces Nobles 1226640 | 1 | Spring, Wave, .512 Id X .709 Od X .375Serial 10000000 to 20000000. | $19.60/EA |
| 9 | TN4034135Replaces Nobles 32486 | 1 | Washer, Flat, 0.53b 1.06d .10, Stl, PlSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4038269Replaces Nobles 1225960 | 2 | Washer, Thrust, 0.89b 1.50d 0.13w, BnzSerial 10000000 to 20000000. | $3.60/EA |
| 11 | TN4038487Replaces Nobles 1227036 | 2 | Spring, Cmpr, 1.10od .085wir 03.0lSerial 10000000 to 20000000. | $6.80/EA |
| 12 | TN4033989Replaces Nobles 1059990 | 3 | Sleeve, Flng, 0.32b 1.00/0.50d 0.6l, SsSerial 10000000 to 20000000. | $3.60/EA |
| 13 | TN4022362Replaces Nobles 608562 | 6 | Washer, Flat, 0.51b 0.94d .06, NylSerial 10000000 to 20000000. | $3.50/EA |
| 14 | TN4020538Replaces Nobles 630188 | 3 | Bearing, Journal, .50id X .25lSerial 10000000 to 20000000. | $9.90/EA |
| 15 | TN4042902Replaces Nobles 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4012778Replaces Nobles 74440 | 2 | Screw, Hex, M8 X 1.25 X 40, Nl, SsSerial 10000000 to 20000000. | $4.90/EA |
| 17 | TN4035127Replaces Nobles 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4039461Replaces Nobles 1212543 | 2 | Isolator, Neoprene, 1.25” X 1.25”, M8Serial 10000000 to 20000000. | $15.10/EA |
| 19 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 20 | TN4037886Replaces Nobles 1224295 | 1 | Brkt Wldt, LiftSerial 10000000 to 20000000. | $24.53/EA |
| 21 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 22 | TN4041929Replaces Nobles 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 23 | TN4031248Replaces Nobles 33933 | 6 | Screw, Pan, Phl, M3 X 0.50 X 25, SsSerial 10000000 to 20000000. | $3.40/EA |
| 24 | TN4040158Replaces Nobles 1215716 | 3 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 25 | TN4037558Replaces Nobles 1013705 | 3 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 26 | TN4014137Replaces Nobles 49263 | 5 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DSerial 10000000 to 20000000. | $3.40/EA |

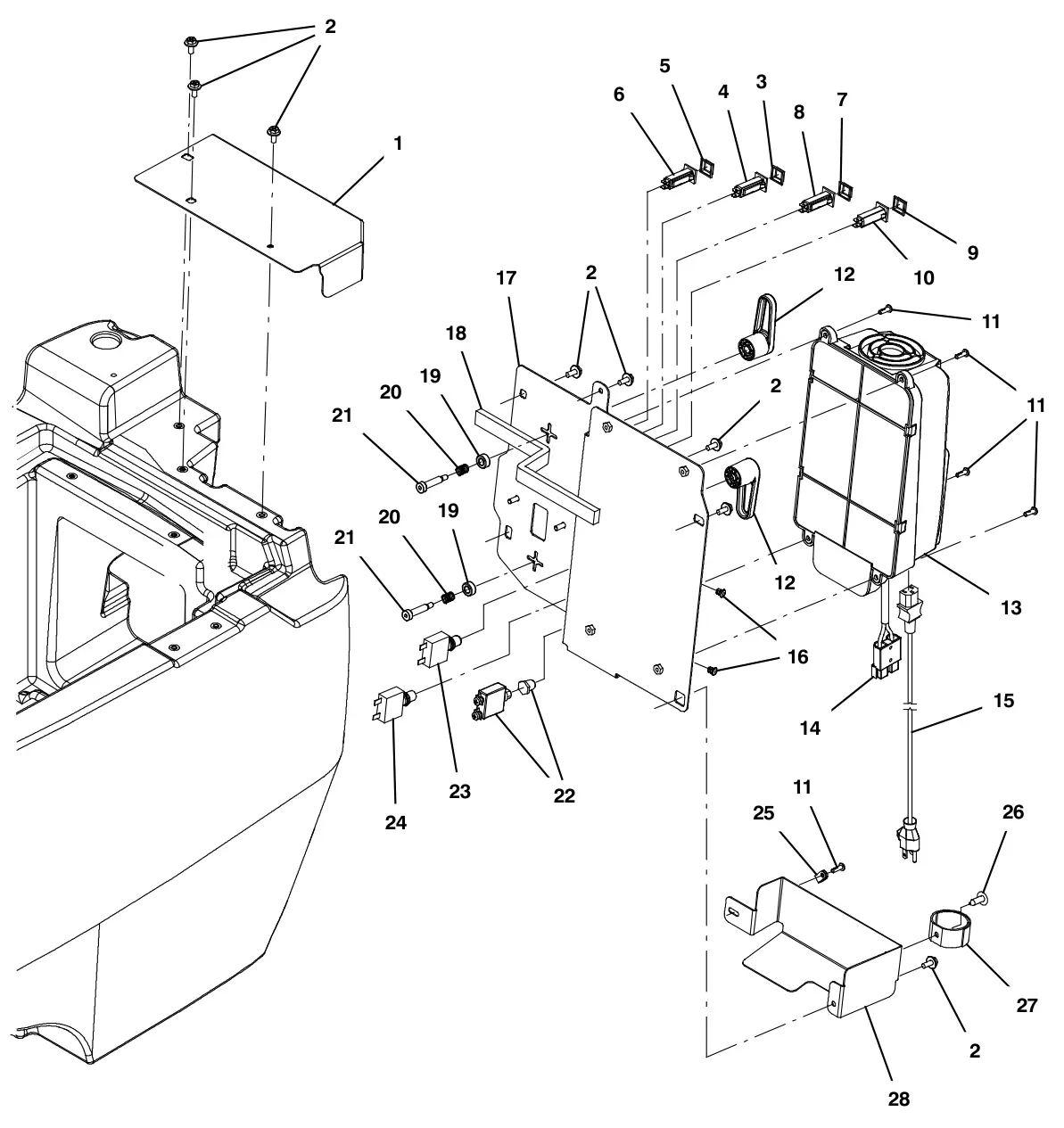

Nobles Speed Scrub 500 lower console group, on-board charger parts
The parts Nobles numbers on the lower console group, on-board charger drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038168Replaces Nobles 1225401 | 1 | Bracket, Cover, ChargerSerial 10000000 to 20000000. | $53.60/EA |
| 2 | TN4045268Replaces Nobles 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 3 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 4 | TN4032587Replaces Nobles 1064187 | 1 | Circuitbreaker, 10.0a, Resetable (ec-H2O / ABW Option)Serial 10000000 to 20000000. | $5.30/EA |
| 5 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 6 | TN4042042Replaces Nobles 1208816 | 1 | Circuitbreaker, 04.0a, Resetable (Key Switch)Serial 10000000 to 20000000. | $8.70/EA |
| 7 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 8 | TN4032587Replaces Nobles 1064187 | 1 | Circuitbreaker, 10.0a, Resetable (Actuator)Serial 10000000 to 20000000. | $5.30/EA |
| 9 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 10 | TN4032589Replaces Nobles 1064189 | 1 | Circuitbreaker, 20.0a, Resetable (Vacuum Fan)Serial 10000000 to 20000000. | $5.30/EA |
| 11 | TN4041143Replaces Nobles 1205799 | 5 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 12 | TN4041094Replaces Nobles 1205496 | 2 | Hook, CordSerial 10000000 to 20000000. | $2.80/EA |
| 13 | TN4031447Replaces Nobles 1220856 | 1 | Charger, 24vdc 25a 115-240vac [On-Board]Complete assembly. Serial 10000000 to 20000000. | $591.10/EA |
| 14 | TN4025359Replaces Nobles 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc 25a 115-240vac [On-Board] (1220856). Serial 10000000 to 20000000. | $20.60/EA |
| 15 | TN4034198Replaces Nobles 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us]Serial 10000000 to 20000000. | $49.60/EA |
| 15 | TN4034246Replaces Nobles 1026330 | 1 | Cord, Power, 1.0mm2 [2.5meter]Serial 10000000 to 20000000. | $31.00/EA |
| 15 | TN4034245Replaces Nobles 1026325 | 1 | Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus]Serial 10000000 to 20000000. | $31.00/EA |
| 15 | TN4039700Replaces Nobles 1048304 | 1 | Cord, Power [4.5meter, India, S.Africa]Serial 10000000 to 20000000. | $39.00/EA |
| 16 | TN4044189Replaces Nobles 1202868 | 2 | Clip, Tie, 0.25d, PlstcSerial 10000000 to 20000000. | $1.52/EA |
| 17 | TN4038097Replaces Nobles 1225019 | 1 | Bracket Wldt, ChargerSerial 10000000 to 20000000. | $101.81/EA |
| 18 | TN4042866Replaces Nobles 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ftSerial 10000000 to 20000000. | $6.70/EA |
| 19 | TN4037931Replaces Nobles 1014668 | 2 | Bushing, Sleeve, 8mmb 12mmd 6mmlSerial 10000000 to 20000000. | $4.20/EA |
| 20 | TN4022845Replaces Nobles 611311 | 2 | Spring, Cmpr, 0.40od .05wir 00.5l, Pl,MwSerial 10000000 to 20000000. | $3.50/EA |
| 21 | TN4033857Replaces Nobles 1024965 | 2 | Bolt, Shld, 08mmd X 030mm, M06 X 1.0Serial 10000000 to 20000000. | $7.60/EA |
| 22 | TN4023158Replaces Nobles 383729 | 1 | Circuitbreaker, 60.0a (I-Drive)Serial 10000000 to 20000000. | $26.80/EA |
| 23 | TN4023153Replaces Nobles 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Left Scrub Motor)Serial 10000000 to 20000000. | $15.40/EA |
| 24 | TN4023153Replaces Nobles 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Right Scrub Motor)Serial 10000000 to 20000000. | $15.40/EA |
| 25 | TN4026308Replaces Nobles 378969 | 1 | Clamp, Cable, Stl, 0.56d X 0.38w, 1holeSerial 10000000 to 20000000. | $5.40/EA |
| 26 | TN4043840Replaces Nobles 140262 | 1 | Clip, Snap-InSerial 10000000 to 20000000. | $4.20/EA |
| 27 | TN4033947Replaces Nobles 1059534 | 1 | Fastener, 09.00l [Hook & Loop]Serial 10000000 to 20000000. | $6.00/EA |
| 28 | TN4037901Replaces Nobles 1224589 | 1 | Bracket, Cover, Charger CablesSerial 10000000 to 20000000. | $56.80/EA |
Nobles Speed Scrub 500 lower console group, off-board charger parts
The parts Nobles numbers on the lower console group, off-board charger drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038168Replaces Nobles 1225401 | 1 | Bracket, Cover, ChargerSerial 10000000 to 20000000. | $53.60/EA |
| 2 | TN4045268Replaces Nobles 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 3 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 4 | TN4032587Replaces Nobles 1064187 | 1 | Circuitbreaker, 10.0a, Resetable (ec-H2O / ABW Option)Serial 10000000 to 20000000. | $5.30/EA |
| 5 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 6 | TN4042042Replaces Nobles 1208816 | 1 | Circuitbreaker, 04.0a, Resetable (Key Switch)Serial 10000000 to 20000000. | $8.70/EA |
| 7 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 8 | TN4032587Replaces Nobles 1064187 | 1 | Circuitbreaker, 10.0a, Resetable (Actuator)Serial 10000000 to 20000000. | $5.30/EA |
| 9 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 10 | TN4032589Replaces Nobles 1064189 | 1 | Circuitbreaker, 20.0a, Resetable (Vacuum Fan)Serial 10000000 to 20000000. | $5.30/EA |
| 11 | TN4016225Replaces Nobles 397780 | 5 | Plug, Hole, Rnd, 0.19h 0.7l, Brb, PlstcSerial 10000000 to 20000000. | $3.20/EA |
| 12 | TN4044189Replaces Nobles 1202868 | 2 | Clip, Tie, 0.25d, PlstcSerial 10000000 to 20000000. | $1.52/EA |
| 13 | TN4038097Replaces Nobles 1225019 | 1 | Bracket Wldt, ChargerSerial 10000000 to 20000000. | $101.81/EA |
| 14 | TN4042866Replaces Nobles 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ftSerial 10000000 to 20000000. | $6.70/EA |
| 15 | TN4037558Replaces Nobles 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlSerial 10000000 to 20000000. | $33.10/EA |
| 16 | TN4040158Replaces Nobles 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Serial 10000000 to 20000000. | $11.60/EA |
| 17 | TN4038104Replaces Nobles 1225158 | 1 | Bracket Assy, Charger PlugSerial 10000000 to 20000000. | $41.60/EA |
| 18 | TN4025359Replaces Nobles 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Serial 10000000 to 20000000. | $20.60/EA |
| 19 | TN4041015Replaces Nobles 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 to 20000000. | $3.40/EA |
| 20 | TN4041928Replaces Nobles 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 21 | TN4041015Replaces Nobles 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 to 20000000. | $3.40/EA |
| 22 | TN4023158Replaces Nobles 383729 | 1 | Circuitbreaker, 60.0a (I-Drive)Serial 10000000 to 20000000. | $26.80/EA |
| 23 | TN4023153Replaces Nobles 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Left Scrub Motor)Serial 10000000 to 20000000. | $15.40/EA |
| 24 | TN4023153Replaces Nobles 383724 | 1 | Circuitbreaker, 25.0a, Resetable (Right Scrub Motor)Serial 10000000 to 20000000. | $15.40/EA |
| 25 | TN4040511Replaces Nobles 1217495 | 1 | Charger, 24vdc, 650w,85-265vac [Off Brd]Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | TN4025359Replaces Nobles 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 650w,85-265vac [Off Brd] (1217495). Serial 10000000 to 20000000. | $20.60/EA |
| 27 | TN4034198Replaces Nobles 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us]Serial 10000000 to 20000000. | $49.60/EA |
| 27 | TN4034246Replaces Nobles 1026330 | 1 | Cord, Power, 1.0mm2 [2.5meter] (China)Serial 10000000 to 20000000. | $31.00/EA |
| 27 | TN4034245Replaces Nobles 1026325 | 1 | Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus]Serial 10000000 to 20000000. | $31.00/EA |
| 27 | TN4039700Replaces Nobles 1048304 | 1 | Cord, Power [4.5meter, India, S.Africa]Serial 10000000 to 20000000. | $39.00/EA |
Nobles Speed Scrub 500 console group parts
The parts Nobles numbers on the console group drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019012Replaces Nobles 9015780 | 1 | Bezel Kit, Membrane [T500e]Complete assembly. Serial 10000000 to 20000000. | $451.77/EA |
| 2 | TN4019012Replaces Nobles 9015781 | 1 | Screen Kit [T500e]Serial 10000000 to 20000000. | $451.77/EA |
| 3 | TN4041112Replaces Nobles 1205618 | 1 | Cap, UsbSerial 10000000 to 20000000. | $6.80/EA |
| 4 | TN4030522Replaces Nobles 1071235 | 1 | Cable [Usb, 2m, A-Male To Mini-B- Male]Part of the assembly above. Serial 10000000 to 20000000. | $15.60/EA |
| 5 | TN4041083Replaces Nobles 1205323 | 1 | Switch, 0.1a, Spdt [Micro, Straight]Serial 10000000 to 20000000. | $9.70/EA |
| 6 | TN4041694Replaces Nobles 1043573 | 15 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Serial 10000000 to 20000000. | $2.50/EA |
| 7 | TN4041372Replaces Nobles 1206586 | 1 | Dial, Range, SpeedSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4032266Replaces Nobles 1204930 | 1 | Potentiometer [100k, 1 Turn, B5/B7]Serial 10000000 to 20000000. | $80.40/EA |
| 9 | TN4042373Replaces Nobles 1209730 | 1 | Cap, Toggle, DirectionSerial 10000000 to 20000000. | $6.80/EA |
| 10 | TN4042365Replaces Nobles 1209673 | 1 | Switch Assy, Toggle, DirectionSerial 10000000 to 20000000. | $75.10/EA |
| 11 | TN4040841Replaces Nobles 1203787 | 2 | Housing, Handle, Cntrl, TopSerial 10000000 to 20000000. | $87.20/EA |
| 12 | TN4040168Replaces Nobles 1215863 | 2 | Screw, Pan, Torx, M8 X 3.5 X 25[Remform]Serial 10000000 to 20000000. | $9.00/EA |
| 13 | TN4043649Replaces Nobles 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsSerial 10000000 to 20000000. | $3.20/EA |
| 14 | TN4041074Replaces Nobles 1205143 | 1 | Shaft Assy, Bail, HandleSerial 10000000 to 20000000. | $19.10/EA |
| 15 | TN4041137Replaces Nobles 1205781 | 1 | Spring, Return, BailSerial 10000000 to 20000000. | $29.40/EA |
| 16 | TN4037504Replaces Nobles 1222608 | 1 | Housing, Handle, Cntrl, Bottom, SlottedSerial 10000000 to 20000000. | $87.70/EA |
| 17 | TN4041133Replaces Nobles 1205778 | 1 | Handle, Bail [Machined]Serial 10000000 to 20000000. | $45.60/EA |
| 18 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 19 | TN4023279Replaces Nobles 9015305 | 1 | Cover Kit, Handle, CntrlSerial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN4036836Replaces Nobles 1011402 | 1 | Switch, KeyComplete assembly. Serial 10000000 to 20000000. | $54.40/EA |
| 21 | TN4129073Replaces Nobles 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). Serial 10000000 to 20000000. | $21.60/EA |
| 22 | TN4029683Replaces Nobles 582150 | 2 | Plug, Hole, Rt, 1.23 X 1.12, NylSerial 10000000 to 20000000. | $6.00/EA |
| 23 | TN4029938Replaces Nobles 1011735 | 1 | Switch, Safety, ShutoffSerial 10000000 to 20000000. | $40.50/EA |
| 24 | TN4032366Replaces Nobles 1064038 | 1 | Gauge, Hourmeter, 05-277 Volt, Ac / DcSerial 10000000 to 20000000. | $52.90/EA |
| 25 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 26 | TN4037517Replaces Nobles 1223019 | 1 | Cover, Console, Lower [T500e]Serial 10000000 to 20000000. | $111.10/EA |
| 27 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 28 | TN4036259Replaces Nobles 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 29 | TN4038436Replaces Nobles 1226368 | 1 | Frame, Console, Short, Simplified [Im]Serial 10000000 to 20000000. | $35.80/EA |
Nobles Speed Scrub 500 squeegee lift group parts
The parts Nobles numbers on the squeegee lift group drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036259Replaces Nobles 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 20000000. | $3.50/EA |
| 2 | TN4037474Replaces Nobles 1221959 | 1 | Bracket, Wldt, Lift, Sqge [T500]Serial 10000000 to 20000000. | $61.50/EA |
| 3 | TN4040200Replaces Nobles 1216647 | 3 | Pin, Cotter, Hair, 0.38d .054 WirSerial 10000000 to 20000000. | $1.50/EA |
| 4 | TN4018939Replaces Nobles 391179 | 1 | Pin, Clevis, 0.37d X 2.62lSerial 10000000 to 20000000. | $4.00/EA |
| 5 | TN4020408Replaces Nobles 1230368 | 1 | Guide, SpringSerial 10000000 to 20000000. | $35.60/EA |
| 6 | TN4038269Replaces Nobles 1225960 | 1 | Washer, Thrust, 0.89b 1.50d 0.13w, BnzSerial 10000000 to 20000000. | $3.60/EA |
| 7 | TN4031851Replaces Nobles 1228773 | 1 | Spring, Cmpr, 1.25od, .625id, 2.0lSerial 10000000 to 20000000. | $28.00/EA |
| 8 | TN4035608Replaces Nobles 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, SsSerial 10000000 to 20000000. | $6.00/EA |
| 9 | TN4043779Replaces Nobles 140045 | 5 | Washer, Flat, 0.51b 1.25d .06, SsSerial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4036955Replaces Nobles 1219466 | 1 | Bracket, Pivot, Sqge [T500]Serial 10000000 to 20000000. | $63.00/EA |
| 11 | TN4037555Replaces Nobles 1013662 | 2 | Bushing, Sleeve, 12mmb 16mmd 7mml,Pm YelSerial 10000000 to 20000000. | $4.20/EA |
| 12 | TN4029373Replaces Nobles 57598 | 2 | Pin, Clevis, 0.37d X 3.25lSerial 10000000 to 20000000. | $9.40/EA |
| 13 | TN4039459Replaces Nobles 1212533 | 1 | Cover, Pedal, LiftSerial 10000000 to 20000000. | $11.60/EA |
| 14 | TN4037205Replaces Nobles 1220505 | 1 | Bracket Wldt, Mtg, Sqge [T500]Serial 10000000 to 20000000. | $87.00/EA |
| 15 | TN4041993Replaces Nobles 09741 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, SsSerial 10000000 to 20000000. | $5.80/EA |
| 16 | TN4043798Replaces Nobles 140127 | 1 | Washer, Thrust, 0.51b 1.00d 0.12w, BrzSerial 10000000 to 20000000. | $5.20/EA |
Nobles Speed Scrub 500 squeegee assembly, 20 in (500 mm) parts
The parts Nobles numbers on the squeegee assembly, 20 in (500 mm) drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026477Replaces Nobles 9014172 | 1 | Squeegee Kit, Linatex, Ci [T300/E/Ss300]Complete assembly. Serial 10000000 to 20000000. | $667.30/EA |
| 1 | TN4040156Replaces Nobles 1215681 | 1 | Frame, Sqge, 50cm, Mach [T300]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4041600Replaces Nobles 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 3 | TN4043649Replaces Nobles 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.20/EA |
| 4 | TN4040581Replaces Nobles 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 5 | TN4040369Replaces Nobles 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $5.50/EA |
| 6 | TN4035127Replaces Nobles 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 7 | TN4039479Replaces Nobles 1212755 | 2 | Screw, Btn, M8 X 1.25 X 80, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4039812Replaces Nobles 1213677 | 4 | Knob, Star, 2.00od 4ear M8x1.25 [Yel]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $9.90/EA |
| 9 | TN4041878Replaces Nobles 17461 | 2 | Pin, Clevis, 0.37d X 1.75lPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4040200Replaces Nobles 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $1.50/EA |
| 11 | TN4035235Replaces Nobles 1017091 | 2 | Spring, Cmpr, 0.50od .04wir 00.8lPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.10/EA |
| 12 | TN4037087Replaces Nobles 22290 | 2 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.10/EA |
| 13 | TN4041946Replaces Nobles 09026 | 2 | Screw, Hex, M8 X 1.25 X 40, SsPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $4.00/EA |
| 14 | TN4020804Replaces Nobles 630477 | 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $9.50/EA |
| 15 | TN4039475Replaces Nobles 1212683 | 1 | Screw, Captive, M5, Knurled [Snap In]Part of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $8.40/EA |
| 16 | TN4042359Replaces Nobles 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $8.20/EA |
| 17 | TN4038882Replaces Nobles 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, Linatex, Ci [T300/E/Ss300] (9014172). Serial 10000000 to 20000000. | $3.40/EA |
| 18 | TN4023953Replaces Nobles 9015731 | 1 | Blade Kit, 500mm, Linatex (Standard)Serial 10000000 to 20000000. | $58.40/EA |
| 19 | TN4040848Replaces Nobles 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Serial 10000000 to 20000000. | $23.40/EA |
| 20 | TN4040849Replaces Nobles 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Serial 10000000 to 20000000. | $20.70/EA |
| 21 | TN4040837Replaces Nobles 1203638 | 1 | Retainer, Sqge [T300]Part of the assembly above. Serial 10000000 to 20000000. | $79.60/EA |
| 18 | TN4023954Replaces Nobles 9015732 | 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $101.25/EA |
| 19 | TN4040136Replaces Nobles 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| 20 | TN4040138Replaces Nobles 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). Serial 10000000 to 20000000. | $50.62/EA |
| 18 | TN4023952Replaces Nobles 9015730 | 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $22.00/EA |
| 19 | TN4040137Replaces Nobles 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |
| 20 | TN4040139Replaces Nobles 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). Serial 10000000 to 20000000. | $11.00/EA |
Nobles Speed Scrub 500 squeegee assembly, 26 in (650 mm) parts
The parts Nobles numbers on the squeegee assembly, 26 in (650 mm) drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021012Replaces Nobles 9015301 | 1 | Squeegee Kit, 650mm, CiComplete assembly. Serial 10000000 to 20000000. | $426.02/EA |
| 1 | TN4034284Replaces Nobles 1221259 | 1 | Frame, Sqge, 65cm, Mach [T500]Part of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $217.40/EA |
| 2 | TN4026847Replaces Nobles 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $4.00/EA |
| 3 | TN4040603Replaces Nobles 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $3.40/EA |
| 4 | TN4039789Replaces Nobles 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $10.80/EA |
| 5 | TN4041600Replaces Nobles 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $3.40/EA |
| 6 | TN4039479Replaces Nobles 1212755 | 4 | Screw, Btn, M8 X 1.25 X 80, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4044825Replaces Nobles 1230581 | 4 | Knob, Star, 2.75d 4ear, M8x1.25 FemPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $33.00/EA |
| 8 | TN4037087Replaces Nobles 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $4.10/EA |
| 9 | TN4034476Replaces Nobles 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4045268Replaces Nobles 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $3.30/EA |
| 11 | TN4037491Replaces Nobles 1222236 | 1 | Bracket Wldt, Caster, Rh Sqge[T500]Part of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $42.60/EA |
| 12 | TN4039297Replaces Nobles 1006343 | 2 | Caster, Swivel, 50mmd, M10 X 30, Clr PlPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $19.80/EA |
| 13 | TN4037477Replaces Nobles 1222001 | 1 | Bracket Wldt, Caster, Lh Sqge [T500]Part of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $42.60/EA |
| 14 | TN4034958Replaces Nobles 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4042901Replaces Nobles 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4043787Replaces Nobles 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $3.90/EA |
| 17 | TN4043810Replaces Nobles 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $4.10/EA |
| 18 | TN4037486Replaces Nobles 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $5.40/EA |
| 19 | TN4042359Replaces Nobles 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $8.20/EA |
| 20 | TN4038882Replaces Nobles 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 650mm, Ci (9015301). Serial 10000000 to 20000000. | $3.40/EA |
| 21 | TN4023956Replaces Nobles 9015734 | 1 | Blade Kit, 650mm, Linatex (Standard)Serial 10000000 to 20000000. | $76.00/EA |
| 22 | TN4037460Replaces Nobles 1221585 | 1 | Blade, Sqge, Rear, 1166l, Linatex[650mm] (Standard)Serial 10000000 to 20000000. | $45.00/EA |
| 23 | TN4037461Replaces Nobles 1221586 | 1 | Blade, Sqge, Front, 1072l Linatex[650mm] (Standard)Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4037438Replaces Nobles 1221260 | 1 | Retainer, Sqge, 65cm [T500]Part of the assembly above. Serial 10000000 to 20000000. | $85.90/EA |
| 25 | TN4035587Replaces Nobles 1230738 | 2 | Bracket, Sqge BumperPart of the assembly above. Serial 10000000 to 20000000. | $10.60/EA |
| 21 | TN4023957Replaces Nobles 9015735 | 1 | Blade Kit, 650mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $119.10/EA |
| 22 | TN4035017Replaces Nobles 1228909 | 1 | Blade, Sqge, Rear, 1136l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). Serial 10000000 to 20000000. | $72.10/EA |
| 23 | TN4035019Replaces Nobles 1228915 | 1 | Blade, Sqge, Front,1072l,Urethane[650mm] (Option)Part of Blade Kit, 650mm, Urethane (Option) (9015735). Serial 10000000 to 20000000. | $47.00/EA |
| 21 | TN4023955Replaces Nobles 9015733 | 1 | Blade Kit, 650mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $25.00/EA |
| 22 | TN4035018Replaces Nobles 1228910 | 1 | Blade, Sqge, Rear, 1136l, Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). Serial 10000000 to 20000000. | $13.00/EA |
| 23 | TN4035020Replaces Nobles 1228919 | 1 | Blade, Sqge, Front, 1072l Gum[650mm] (Option)Part of Blade Kit, 650mm, Gum (Option) (9015733). Serial 10000000 to 20000000. | $12.00/EA |
Nobles Speed Scrub 500 squeegee assembly, 28 in (700 mm) parts
The parts Nobles numbers on the squeegee assembly, 28 in (700 mm) drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021014Replaces Nobles 9015302 | 1 | Squeegee Kit, 700mm, CiComplete assembly. Serial 10000000 to 20000000. | $434.50/EA |
| 1 | TN4033997Replaces Nobles 1220309 | 1 | Frame, Sqge, 70cm, Mach [T500]Part of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $236.90/EA |
| 2 | TN4026847Replaces Nobles 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $4.00/EA |
| 3 | TN4040603Replaces Nobles 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $3.40/EA |
| 4 | TN4039789Replaces Nobles 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $10.80/EA |
| 5 | TN4041600Replaces Nobles 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $3.40/EA |
| 6 | TN4039479Replaces Nobles 1212755 | 4 | Screw, Btn, M8 X 1.25 X 80, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4044825Replaces Nobles 1230581 | 4 | Knob, Star, 2.75d 4ear, M8x1.25 FemPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $33.00/EA |
| 8 | TN4037087Replaces Nobles 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $4.10/EA |
| 9 | TN4034476Replaces Nobles 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4045268Replaces Nobles 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $3.30/EA |
| 11 | TN4037491Replaces Nobles 1222236 | 1 | Bracket Wldt, Caster, Rh Sqge[T500]Part of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $42.60/EA |
| 12 | TN4039297Replaces Nobles 1006343 | 2 | Caster, Swivel, 50mmd, M10 X 30, Clr PlPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $19.80/EA |
| 13 | TN4037477Replaces Nobles 1222001 | 1 | Bracket Wldt, Caster, Lh Sqge [T500]Part of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $42.60/EA |
| 14 | TN4034958Replaces Nobles 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4042901Replaces Nobles 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4043787Replaces Nobles 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $3.90/EA |
| 17 | TN4043810Replaces Nobles 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $4.10/EA |
| 18 | TN4037486Replaces Nobles 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $5.40/EA |
| 19 | TN4042359Replaces Nobles 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $8.20/EA |
| 20 | TN4038882Replaces Nobles 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 700mm, Ci (9015302). Serial 10000000 to 20000000. | $3.40/EA |
| 21 | TN4023959Replaces Nobles 9015737 | 1 | Blade Kit, 700mm, Linatex (Standard)Serial 10000000 to 20000000. | $86.00/EA |
| 22 | TN4037458Replaces Nobles 1221572 | 1 | Blade, Sqge, Rear, 1204l, Linatex[700mm] (Standard)Serial 10000000 to 20000000. | $50.00/EA |
| 23 | TN4037459Replaces Nobles 1221573 | 1 | Blade, Sqge, Front, 1148l Linatex[700mm] (Standard)Serial 10000000 to 20000000. | $40.50/EA |
| 24 | TN4037216Replaces Nobles 1220783 | 1 | Retainer, Sqge, 70cm [T500]Part of the assembly above. Serial 10000000 to 20000000. | $106.70/EA |
| 25 | TN4035587Replaces Nobles 1230738 | 2 | Bracket, Sqge BumperPart of the assembly above. Serial 10000000 to 20000000. | $10.60/EA |
| 21 | TN4023960Replaces Nobles 9015738 | 1 | Blade Kit, 700mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $120.60/EA |
| 22 | TN4035013Replaces Nobles 1228904 | 1 | Blade, Sqge, Rear, 1204l,Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). Serial 10000000 to 20000000. | $72.90/EA |
| 23 | TN4035015Replaces Nobles 1228906 | 1 | Blade, Sqge, Front,1148l Urethane[700mm] (Option)Part of Blade Kit, 700mm, Urethane (Option) (9015738). Serial 10000000 to 20000000. | $47.70/EA |
| 21 | TN4023958Replaces Nobles 9015736 | 1 | Blade Kit, 700mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $28.90/EA |
| 22 | TN4035014Replaces Nobles 1228905 | 1 | Blade, Sqge, Rear, 1204l, Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). Serial 10000000 to 20000000. | $16.00/EA |
| 23 | TN4035016Replaces Nobles 1228907 | 1 | Blade, Sqge, Front, 1148l Gum[700mm] (Option)Part of Blade Kit, 700mm, Gum (Option) (9015736). Serial 10000000 to 20000000. | $12.90/EA |
Nobles Speed Scrub 500 squeegee assembly, 32 in (800 mm) parts
The parts Nobles numbers on the squeegee assembly, 32 in (800 mm) drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021016Replaces Nobles 9015303 | 1 | Squeegee Kit, 800mm, CiComplete assembly. Serial 10000000 to 20000000. | $491.57/EA |
| 1 | TN4034285Replaces Nobles 1219894 | 1 | Frame, Sqge, 80cm, Mach [T500]Part of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $285.40/EA |
| 2 | TN4026847Replaces Nobles 59658 | 2 | Screw, Hex, M8 X 1.25 X 35, Nl, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $4.00/EA |
| 3 | TN4040603Replaces Nobles 222496 | 2 | Sleeve, P/M, 0.32b 0.50d 0.9l [430ss]Part of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $3.40/EA |
| 4 | TN4039789Replaces Nobles 222066 | 2 | Wheel, 03.0d 0.88w 0.50bPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $10.80/EA |
| 5 | TN4041600Replaces Nobles 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $3.40/EA |
| 6 | TN4039479Replaces Nobles 1212755 | 4 | Screw, Btn, M8 X 1.25 X 80, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4044825Replaces Nobles 1230581 | 4 | Knob, Star, 2.75d 4ear, M8x1.25 FemPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $33.00/EA |
| 8 | TN4037087Replaces Nobles 22290 | 4 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $4.10/EA |
| 9 | TN4034476Replaces Nobles 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $4.00/EA |
| 10 | TN4045268Replaces Nobles 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $3.30/EA |
| 11 | TN4037491Replaces Nobles 1222236 | 1 | Bracket Wldt, Caster, Rh Sqge[T500]Part of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $42.60/EA |
| 12 | TN4039297Replaces Nobles 1006343 | 2 | Caster, Swivel, 50mmd, M10 X 30, Clr PlPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $19.80/EA |
| 13 | TN4037477Replaces Nobles 1222001 | 1 | Bracket Wldt, Caster, Lh Sqge [T500]Part of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $42.60/EA |
| 14 | TN4034958Replaces Nobles 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $3.30/EA |
| 15 | TN4042901Replaces Nobles 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $2.60/EA |
| 16 | TN4043787Replaces Nobles 140060 | 1 | Washer, Wave-Spring, .505 .750 .045Part of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $3.90/EA |
| 17 | TN4043810Replaces Nobles 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $4.10/EA |
| 18 | TN4037486Replaces Nobles 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $5.40/EA |
| 19 | TN4042359Replaces Nobles 1209631 | 1 | Cover, Trap, Water, SqgePart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $8.20/EA |
| 20 | TN4038882Replaces Nobles 1210756 | 1 | Gasket, Trap, Water, SqgePart of Squeegee Kit, 800mm, Ci (9015303). Serial 10000000 to 20000000. | $3.40/EA |
| 21 | TN4023962Replaces Nobles 9015740 | 1 | Blade Kit, 800mm, Linatex (Standard)Serial 10000000 to 20000000. | $106.60/EA |
| 22 | TN4037251Replaces Nobles 1221115 | 1 | Blade, Sqge, Rear, 1306l, Linatex[800mm] (Standard)Serial 10000000 to 20000000. | $64.00/EA |
| 23 | TN4037253Replaces Nobles 1221116 | 1 | Blade, Sqge, Front, 1256l Linatex[800mm] (Standard)Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4034285Replaces Nobles 1219894 | 1 | Frame, Sqge, 80cm, Mach [T500]Part of the assembly above. Serial 10000000 to 20000000. | $285.40/EA |
| 25 | TN4035587Replaces Nobles 1230738 | 2 | Bracket, Sqge BumperPart of the assembly above. Serial 10000000 to 20000000. | $10.60/EA |
| 21 | TN4023963Replaces Nobles 9015741 | 1 | Blade Kit, 800mm, Urethane (Option)Complete assembly. Serial 10000000 to 20000000. | $122.00/EA |
| 22 | TN4035252Replaces Nobles 1228920 | 1 | Blade, Sqge, Rear, 1306l,Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). Serial 10000000 to 20000000. | $73.70/EA |
| 23 | TN4035254Replaces Nobles 1228922 | 1 | Blade, Sqge, Front,1256l Urethane[800mm] (Option)Part of Blade Kit, 800mm, Urethane (Option) (9015741). Serial 10000000 to 20000000. | $48.30/EA |
| 21 | TN4023961Replaces Nobles 9015739 | 1 | Blade Kit, 800mm, Gum (Option)Complete assembly. Serial 10000000 to 20000000. | $31.80/EA |
| 22 | TN4035253Replaces Nobles 1228921 | 1 | Blade, Sqge, Rear, 1306l, Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). Serial 10000000 to 20000000. | $17.00/EA |
| 23 | TN4035255Replaces Nobles 1228923 | 1 | Blade, Sqge, Front, 1256l Gum[800mm] (Option)Part of Blade Kit, 800mm, Gum (Option) (9015739). Serial 10000000 to 20000000. | $14.80/EA |
Nobles Speed Scrub 500 standard solution group parts
The parts Nobles numbers on the standard solution group drawing. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039194Replaces Nobles 1211424 | 1 | Valve, Water, Solenoid, 24vdc Qf08/Qf08Serial 10000000 to 20000000. | $195.10/EA |
| 2 | TN4039489Replaces Nobles 1212809 | 4 | Fitting, Plstc, E90, Qf08/Qm08Serial 10000000 to 20000000. | $21.90/EA |
| 3 | TN4041143Replaces Nobles 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 10000000 to 20000000. | $2.50/EA |
| 4 | TN4039503Replaces Nobles 1212859 | 1 | Fitting, Plstc, Str, Qf08/Qf08Serial 10000000 to 20000000. | $16.60/EA |
| 5 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 6 | TN4034952Replaces Nobles 1227552 | 1 | Fitting, Plstc, Str, Qm08/Pm06Serial 10000000 to 20000000. | $6.30/EA |
| 7 | TN4039492Replaces Nobles 1212813 | 1 | Fitting, Plstc, Str, Qf08/Pm06Serial 10000000 to 20000000. | $19.40/EA |
| 8 | TN4039203Replaces Nobles 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. Serial 10000000 to 20000000. | $16.90/EA |
| – | TN4036880Replaces Nobles 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $2.70/EA |
| – | TN4036878Replaces Nobles 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $9.50/EA |
| – | TN4019615Replaces Nobles 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). Serial 10000000 to 20000000. | $18.20/EA |
| 9 | TN4034290Replaces Nobles 1212987 | 1 | Fitting, Plstc, E90, Qf08/Pm06, SwivelSerial 10000000 to 20000000. | $17.60/EA |
| 10 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
Nobles Speed Scrub 500 standard battery cables group parts
The parts Nobles numbers on the standard battery cables group drawing. Manual page 56.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044963Replaces Nobles 1074942 | 1 | Cable, Assy [T500,T500e]Serial 10000000 to 20000000. | $87.10/EA |
| 2 | TN4022837Replaces Nobles 611221 | 8 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 20000000. | $4.90/EA |
| 3 | TN1073680Nobles 1073680 | 3 | Cable, 04ga 15.0l Blk [M8 Ring/M8 Ring]Serial 10000000 to 20000000. | $0.00/EA |
Nobles Speed Scrub 500 label group parts
The parts Nobles numbers on the label group drawing. Manual page 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4224031Replaces Nobles 1224985 | 2 | Label, Speed Scrub 500Serial 10000000 to 20000000. | $6.60/EA |
| 2 | TN4040195Replaces Nobles 1216533 | 2 | Label, Logo [Ech2o Nano Nobles]Serial 10000000 to 20000000. | $42.20/EA |
| 3 | TN4231372Replaces Nobles 1206159 | 1 | Label, Logo, 05.5l [Nobles]Serial 10000000 to 20000000. | $5.65/EA |
| 4 | TN4226003Replaces Nobles 1220962 | 1 | Label Sheet, Info/Hzrd [T500, Na]Serial 10000000 to 20000000. | $98.80/EA |
| 5 | TN4037232Replaces Nobles 1220965 | 1 | Label Sheet, Operational [T500]Serial 10000000 to 20000000. | $227.90/EA |
| 6 | TN4038078Replaces Nobles 1224995 | 1 | Label, Orbital, Size, 70cmSerial 10000000 to 20000000. | $8.90/EA |
Nobles Speed Scrub 500 electrical harness, main parts
Electrical harness, main, from the Nobles parts list. Manual page 67.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4045129Replaces Nobles 1075312 | 1 | Harness, Main, Ele [T500e]Complete assembly. Serial 10000000 to 20000000. | $815.10/EA |
| – | TN4014151Replaces Nobles 49309 | 2 | Relay, 24vdc, 015a, Spdt NoPart of Harness, Main, Ele [T500e] (1075312). Serial 10000000 to 20000000. | $28.80/EA |
Nobles Speed Scrub 500 electrical harness, operator station parts
Electrical harness, operator station, from the Nobles parts list. Manual page 69.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018526Replaces Nobles 1075313 | 1 | Harness, Ele [Op. Station, T500e]Serial 10000000 to 20000000. | $761.84/EA |
Nobles Speed Scrub 500 electrical harness, bail switch parts
Electrical harness, bail switch, from the Nobles parts list. Manual page 70.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4030945Replaces Nobles 1072524 | 1 | Harness, Ele [Bail Switch]Serial 10000000 to 20000000. | $9.30/EA |
Nobles Speed Scrub 500 telemetry battery cables group parts
The parts Nobles numbers on the telemetry battery cables group drawing. Manual page 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030320Replaces Nobles 1070498 | 1 | Cable, 4ga, Blk [6200e, Telemetry]Serial 10000000 to 20000000. | $29.10/EA |
| 2 | TN4022837Replaces Nobles 611221 | 8 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 20000000. | $4.90/EA |
| 3 | TN4044963Replaces Nobles 1074942 | 1 | Cable, Assy [T500,T500e]Serial 10000000 to 20000000. | $87.10/EA |
| 4 | TN1073680Nobles 1073680 | 3 | Cable, 04ga 15.0l Blk [M8 Ring/M8 Ring]Serial 10000000 to 20000000. | $0.00/EA |
Nobles Speed Scrub 500 telemetry electrical group parts
The parts Nobles numbers on the telemetry electrical group drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040508Replaces Nobles 1217304 | 1 | Shunt [Empro, 250amp/50mv, Metric]Serial 10000000 to 20000000. | $114.70/EA |
| 2 | TN4042902Replaces Nobles 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 3 | TN4017399Replaces Nobles 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10000000 to 20000000. | $2.60/EA |
| 4 | TN4041243Replaces Nobles 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 to 20000000. | $3.40/EA |
| 5 | TN4016851Replaces Nobles 41578 | 2 | Washer, Flat, 06, SsSerial 10000000 to 20000000. | $3.30/EA |
| 6 | TN4043241Replaces Nobles 02938 | 2 | Washer, Lock, Int, 08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 7 | TN4019310Replaces Nobles 391403 | 2 | Screw, Pan, Phl, M4 X 0.70 X 8, SsSerial 10000000 to 20000000. | $2.50/EA |
| 8 | TN4038889Replaces Nobles 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 9 | TN4041928Replaces Nobles 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 10 | TN4034133Replaces Nobles 32483 | 4 | Washer, Flat, 0.25, SaeSerial 10000000 to 20000000. | $2.50/EA |
| 11 | TN4019020Replaces Nobles 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa]Serial 10000000 to 20000000. | $1,809.92/EA |
| 12 | TN4038103Replaces Nobles 1225123 | 1 | Bracket Wldt, Control BoxSerial 10000000 to 20000000. | $74.84/EA |
| 13 | TN4045268Replaces Nobles 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 14 | TN4031064Replaces Nobles 315724 | 1 | Antenna, Telem, 18.0 In [Gprs]Serial 10000000 to 20000000. | $54.80/EA |
| 15 | TN4038889Replaces Nobles 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 16 | TN4030121Replaces Nobles 1069580 | 1 | Label, Mach, Telem [Usa, Intl]Serial 10000000 to 20000000. | $4.34/EA |
| 17 | TN4040528Replaces Nobles 1217818 | 1 | Sleeve, Heatshrink, 1.50id, 07.0lSerial 10000000 to 20000000. | $5.00/EA |
Nobles Speed Scrub 500 ec-H2O solution group parts
The parts Nobles numbers on the ec-H2O solution group drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018163Replaces Nobles 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns)Complete assembly. Serial 10000000 to 20000000. | $1,339.60/EA |
| 2 | TN4025507Replaces Nobles 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlPart of Module Kit, Replmt [Ec-H2o, B 02] (Includes Cartridge) (9011810). Serial 10000000 to 20000000. | $300.60/EA |
| 3 | TN4045268Replaces Nobles 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10000000 to 20000000. | $3.30/EA |
| 4 | TN4040123Replaces Nobles 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10000000 to 20000000. | $18.30/EA |
| 5 | TN4026363Replaces Nobles 9014146 | 1 | Hose, Afmkt, Pvc, 0.06id .38od, 05ftSerial 10000000 to 20000000. | $113.90/EA |
| 6 | TN4039906Replaces Nobles 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10000000 to 20000000. | $11.60/EA |
| 7 | TN4026364Replaces Nobles 9014147 | 1 | Hose, Afmkt, Pvc, 0.06id .25od, 05ftSerial 10000000 to 20000000. | $103.40/EA |
| 8 | TN4037471Replaces Nobles 1221926 | 1 | Bracket Wldt, Mtg, Ec-H20 [T500]Serial 10000000 to 20000000. | $40.32/EA |
| 9 | TN4040501Replaces Nobles 1216973 | 1 | Pump Assy, DispenserSerial 10000000 to 20000000. | $338.70/EA |
| 10 | TN4043510Replaces Nobles 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 11 | TN4039467Replaces Nobles 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10000000 to 20000000. | $19.10/EA |
| 12 | TN4026365Replaces Nobles 9014148 | 1 | Hose, Afmkt, Nat, 0.25id 0.375od, 06ftSerial 10000000 to 20000000. | $102.00/EA |
| 13 | TN4039499Replaces Nobles 1212855 | 2 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06Serial 10000000 to 20000000. | $24.70/EA |
| 14 | TN4039500Replaces Nobles 1212856 | 1 | Fitting, Plstc, E90, Qf06/Qf06Serial 10000000 to 20000000. | $18.60/EA |
| 15 | TN4040123Replaces Nobles 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10000000 to 20000000. | $18.30/EA |
| 16 | TN4040170Replaces Nobles 1216185 | 1 | Fitting, Plstc, Str, Qm04/Pm02Serial 10000000 to 20000000. | $5.30/EA |
| 17 | TN4044394Replaces Nobles 150307 | 1 | Fitting, Brs, Cplg, Pf02/Pf02Serial 10000000 to 20000000. | $4.20/EA |
| 18 | TN4042144Replaces Nobles 1044414 | 1 | Switch, Press, 15psi, Pm02Serial 10000000 to 20000000. | $86.30/EA |
| 19 | TN4040132Replaces Nobles 1215527 | 1 | Valve, Check, 1.0 Psi Qf06/Qf06Serial 10000000 to 20000000. | $44.80/EA |
| 20 | TN4039489Replaces Nobles 1212809 | 1 | Fitting, Plstc, E90, Qf08/Qm08Serial 10000000 to 20000000. | $21.90/EA |
| 21 | TN4026362Replaces Nobles 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 10000000 to 20000000. | $104.00/EA |
| 22 | TN4039506Replaces Nobles 1212875 | 1 | Fitting, Plstc, Tee, Qf06/Qf08/Qf08Serial 10000000 to 20000000. | $26.40/EA |
| 23 | TN4037972Replaces Nobles 1014985 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 08ftSerial 10000000 to 20000000. | $62.50/EA |
| 24 | TN4029767Replaces Nobles 1210517 | 1 | Pump, Soltn, Ele, 24vdc, 35 PsiSerial 10000000 to 20000000. | $351.68/EA |
| 25 | TN4017376Replaces Nobles 43555 | 1 | Clamp, Hose, Wormdrive, 2.62-3.50dSerial 10000000 to 20000000. | $6.20/EA |
| 26 | TN4039491Replaces Nobles 1212812 | 2 | Fitting, Plstc, E90, Qf06/Pm06, SwivelSerial 10000000 to 20000000. | $18.00/EA |
| 27 | TN4039506Replaces Nobles 1212875 | 1 | Fitting, Plstc, Tee, Qf06/Qf08/Qf08Serial 10000000 to 20000000. | $26.40/EA |
| 28 | TN4019547Replaces Nobles 613735 | 3 | Clamp, Hose, Wir, .40 - .42, YelSerial 10000000 to 20000000. | $3.60/EA |
| 29 | TN4044069Replaces Nobles 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06Serial 10000000 to 20000000. | $2.60/EA |
| 30 | TN4021946Replaces Nobles 607775 | 1 | Clamp, Hose, Wir, .63 - .66, BlkSerial 10000000 to 20000000. | $4.20/EA |
| 31 | TN4042141Replaces Nobles 1044393 | 1 | Switch, Rocker, Spst, MomSerial 10000000 to 20000000. | $7.70/EA |
| 32 | TN4032587Replaces Nobles 1064187 | 1 | Circuitbreaker, 10.0a, ResetableSerial 10000000 to 20000000. | $5.30/EA |
| 33 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 34 | TN4034996Replaces Nobles 1228510 | 1 | Relay, 24vdc, 80a, Spst No, Plug-InSerial 10000000 to 20000000. | $19.90/EA |
| 35 | TN4042888Replaces Nobles 01683 | 1 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 36 | TN4041991Replaces Nobles 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 37 | TN4039501Replaces Nobles 1212857 | 2 | Fitting, Plstc, Str, Qm06/Bm04Serial 10000000 to 20000000. | $4.10/EA |
Nobles Speed Scrub 500 parking brake group parts
The parts Nobles numbers on the parking brake group drawing. Manual pages 76, list 77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037464Replaces Nobles 1221694 | 1 | Clamp, Brake, Parking [T500]Serial 10000000 to 20000000. | $64.80/EA |
| 2 | TN4041599Replaces Nobles 07785 | 1 | Nut, Hex, Std, M6 X 1.00, SsSerial 10000000 to 20000000. | $2.50/EA |
| 3 | TN4035459Replaces Nobles 1017416 | 1 | Screw, Weld, M6 X 1.00 X 25, Thru, SsSerial 10000000 to 20000000. | $5.40/EA |
| 4 | TN4035991Replaces Nobles 12323 | 4 | Screw, Pan, Phl, M4 X 0.70 X 20, SsSerial 10000000 to 20000000. | $3.30/EA |
| 5 | TN4037465Replaces Nobles 1221695 | 1 | Plate Wldt, Brake [T500]Serial 10000000 to 20000000. | $32.00/EA |
| 6 | TN4041931Replaces Nobles 08716 | 2 | Screw, Hex, M6 X 1.00 X 20, SsSerial 10000000 to 20000000. | $3.20/EA |
| 7 | TN4032591Replaces Nobles 360801 | 2 | Sleeve, 0.32b 0.50d 0.3l, 2cham, SsSerial 10000000 to 20000000. | $4.00/EA |
| 8 | TN4037442Replaces Nobles 1221423 | 1 | Shoe, Brake, ParkingSerial 10000000 to 20000000. | $25.60/EA |
| 9 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 10 | TN4041928Replaces Nobles 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 20000000. | $2.50/EA |
| 11 | TN4013519Replaces Nobles 75575 | 1 | Spring, Extn, 0.50od 0.06wir 02.5lSerial 10000000 to 20000000. | $7.70/EA |
| 12 | TN4038077Replaces Nobles 1224990 | 1 | Label, Opertnl, Parking BrakeSerial 10000000 to 20000000. | $3.75/EA |
Nobles Speed Scrub 500 control valve drain hose parts
The parts Nobles numbers on the control valve drain hose drawing. Manual page 78.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031082Replaces Nobles 9015727 | 1 | Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray)Complete assembly. Serial 10000000 to 20000000. | $85.90/EA |
| 2 | TN4020670Replaces Nobles 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/HandlePart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (9015727). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4034990Replaces Nobles 1228335 | 1 | Hose Assy, W/2cuff,1.5d 022l 2.0/1.5[Pu] (Gray)Part of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (9015727). Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4035291Replaces Nobles 1229567 | 1 | Strap, HangerPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (9015727). Serial 10000000 to 20000000. | $5.76/EA |
| 5 | TN4043377Replaces Nobles 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wPart of Hose Kit, Drain, Pu, W/ Valve, Ci[T500e] (Gray) (9015727). Serial 10000000 to 20000000. | $5.30/EA |
| 6 | TN4037088Replaces Nobles 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50wSerial 10000000 to 20000000. | $4.20/EA |
Nobles Speed Scrub 500 battery group, wet 225Ah parts
The parts Nobles numbers on the battery group, wet 225Ah drawing. Manual page 79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038304Replaces Nobles 10155 | 4 | Battery, Wet, 06vdcComplete assembly. Serial 10000000 to 20000000. | $357.10/EA |
| 2 | TN4022093Replaces Nobles 87435 | 2 | Nut, Hex, Flexlock, .31-18Part of Battery, Wet, 06vdc (10155). Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN4044457Replaces Nobles 1041030 | 8 | Cap, Battery, Black [For 155ah]Serial 10000000 to 20000000. | $3.20/EA |
| 4 | TN4020777Replaces Nobles 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Serial 10000000 to 20000000. | $15.60/EA |
| 5 | TN4037493Replaces Nobles 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick]Serial 10000000 to 20000000. | $46.50/EA |
Nobles Speed Scrub 500 battery group, wet 260Ah parts
The parts Nobles numbers on the battery group, wet 260Ah drawing. Manual page 80.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018860Replaces Nobles 390825 | 4 | Battery, Wet, 06vdc 0244ahComplete assembly. Serial 10000000 to 20000000. | $434.52/EA |
| 2 | TN4022093Replaces Nobles 87435 | 2 | Nut, Hex, Flexlock, .31-18Part of Battery, Wet, 06vdc 0244ah (390825). Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN4044457Replaces Nobles 1041030 | 2 | Cap, Battery, Black [For 155ah]Part of Battery, Wet, 06vdc 0244ah (390825). Serial 10000000 to 20000000. | $3.20/EA |
| 4 | TN4020777Replaces Nobles 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Serial 10000000 to 20000000. | $15.60/EA |
| 5 | TN4037493Replaces Nobles 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick]Serial 10000000 to 20000000. | $46.50/EA |
Nobles Speed Scrub 500 battery group, AGM 220Ah parts
The parts Nobles numbers on the battery group, AGM 220Ah drawing. Manual page 81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4211694Replaces Nobles 1074042 | 4 | Battery, Agm, 06vdc, 220ah (Discover)Complete assembly. Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4022093Replaces Nobles 87435 | 2 | Nut, Hex, Flexlock, .31-18Part of Battery, Agm, 06vdc, 220ah (Discover) (1074042). Serial 10000000 to 20000000. | $3.20/EA |
| 3 | TN4020777Replaces Nobles 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Serial 10000000 to 20000000. | $15.60/EA |
| 4 | TN4037493Replaces Nobles 1222318 | 1 | Tray, Battery, Trimmed [T500, Thick]Serial 10000000 to 20000000. | $46.50/EA |
Nobles Speed Scrub 500 smart-Fill automatic battery watering group parts
The parts Nobles numbers on the smart-Fill automatic battery watering group drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037462Replaces Nobles 1221589 | 1 | Fitting, Plstc, Str, Bm06, Cplg, Fem[Hl]Serial 10000000 to 20000000. | $42.80/EA |
| 2 | TN4039305Replaces Nobles 1006416 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 03ftSerial 10000000 to 20000000. | $18.70/EA |
| 3 | TN4038122Replaces Nobles 1225185 | 1 | Valve, Check, 0002psi Bm04/Bm06Serial 10000000 to 20000000. | $18.80/EA |
| 4 | TN4039304Replaces Nobles 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 10000000 to 20000000. | $51.70/EA |
| 5 | TN4041153Replaces Nobles 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10000000 to 20000000. | $10.60/EA |
| 6 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 20000000. | $3.90/EA |
| 7 | TN4037497Replaces Nobles 1222371 | 1 | Sensor, Flow, Hall Effect, 5-24vdcSerial 10000000 to 20000000. | $24.30/EA |
| 8 | TN4038074Replaces Nobles 1224988 | 1 | Label, Automated Battery WateringSerial 10000000 to 20000000. | $30.10/EA |
| 9 | TN4039274Replaces Nobles 1212430 | 1 | Sensor, Level, Liq, 30watt, SpstSerial 10000000 to 20000000. | $81.30/EA |
| 10 | TN4037903Replaces Nobles 1224600 | 1 | Cap, Snap, 2.17d [Blue]Serial 10000000 to 20000000. | $9.60/EA |
| 11 | TN4036521Replaces Nobles 1217453 | 1 | Tank [2.5 Liter]Serial 10000000 to 20000000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4036521Replaces Nobles 1228813 | 1 | Label, Warning, No DetgtSerial 10000000 to 20000000. | $20.30/EA |
| 13 | TN4039304Replaces Nobles 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 10000000 to 20000000. | $51.70/EA |
| 14 | TN4039491Replaces Nobles 1212812 | 1 | Fitting, Plstc, E90, Qf06/Pm06, SwivelSerial 10000000 to 20000000. | $18.00/EA |
| 15 | TN4037875Replaces Nobles 1224108 | 1 | Hose, Mold, Bm04/Bm06Serial 10000000 to 20000000. | $22.00/EA |
| 16 | TN4035537Replaces Nobles 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 10000000 to 20000000. | $2.50/EA |
| 17 | TN4042888Replaces Nobles 01683 | 2 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 18 | TN4034972Replaces Nobles 1228042 | 1 | Fitting, Plstc, Cap, Bm03 [T500]Serial 10000000 to 20000000. | $2.80/EA |
| 19 | TN4034973Replaces Nobles 1228043 | 1 | Strap, Retaining, Cap [T500]Serial 10000000 to 20000000. | $2.50/EA |
| 20 | TN4037869Replaces Nobles 1224016 | 1 | Hose, Molded, Bm04/Bm06Serial 10000000 to 20000000. | $32.30/EA |
| 21 | TN4037103Replaces Nobles 1220042 | 1 | Pump, Fill, BatterySerial 10000000 to 20000000. | $231.90/EA |
| 22 | TN4037511Replaces Nobles 1222924 | 1 | Filter, In-Line, Bm04/Bm04, 100mic, 2.0lSerial 10000000 to 20000000. | $27.20/EA |
| 23 | TN4038624Replaces Nobles 1016005 | 2 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 24 | TN4042901Replaces Nobles 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 20000000. | $2.60/EA |
| 25 | TN4020331Replaces Nobles 9018008 | 1 | Kit, Module, Abw, Ci (See Breakdowns)Serial 10000000 to 20000000. | $335.60/EA |
| 26 | TN4036241Replaces Nobles 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01ftSerial 10000000 to 20000000. | $44.40/EA |
| 27 | TN4044535Replaces Nobles 150407 | 1 | Fitting, Brs, E90, Pf02/Pm02 [Street]Serial 10000000 to 20000000. | $5.30/EA |
| 28 | TN4044292Replaces Nobles 1040254 | 1 | Fitting, Brs, Str, Bm04/Pf02Serial 10000000 to 20000000. | $20.10/EA |
| 29 | TN4035456Replaces Nobles 1017386 | 1 | Valve, Vent, Air, Float TypeSerial 10000000 to 20000000. | $64.30/EA |
| 30 | TN4038889Replaces Nobles 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Serial 10000000 to 20000000. | $1.90/EA |
| 31 | TN4040858Replaces Nobles 1204142 | 4 | Cap, Fill, Battery [Trojan]Serial 10000000 to 20000000. | $42.00/EA |
| 32 | TN4035289Replaces Nobles 1229544 | 1 | Tube, Water, Battery, 24vdc [Trojan]Serial 10000000 to 20000000. | $176.50/EA |
| 33 | TN4032587Replaces Nobles 1064187 | 1 | Circuitbreaker, 10.0a, ResetableSerial 10000000 to 20000000. | $5.30/EA |
| 34 | TN4032601Replaces Nobles 1064191 | 1 | Boot, CircuitbreakerSerial 10000000 to 20000000. | $12.60/EA |
| 35 | TN4034996Replaces Nobles 1228510 | 1 | Relay, 24vdc, 80a, Spst No, Plug-InSerial 10000000 to 20000000. | $19.90/EA |
| 36 | TN4042888Replaces Nobles 01683 | 1 | Washer, Flat, 10, SsSerial 10000000 to 20000000. | $2.60/EA |
| 37 | TN4041991Replaces Nobles 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 20000000. | $3.30/EA |
| 38 | TN4039501Replaces Nobles 1212857 | 1 | Fitting, Plstc, Str, Qm06/Bm04Serial 10000000 to 20000000. | $4.10/EA |
| 39 | TN4019547Replaces Nobles 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelSerial 10000000 to 20000000. | $3.60/EA |
Nobles Speed Scrub 500 hydroLink manual battery watering kit parts
The parts Nobles numbers on the hydroLink manual battery watering kit drawing. Manual pages 84, list 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010Replaces Nobles 9010300 | 1 | Battery Fill Kit, 24v, Ci [Hydrolink]Complete assembly. Serial 10000000 to 20000000. | $300.00/EA |
| 1 | TN4036778Replaces Nobles 1058939 | 1 | Pump Kit, Fill, BatteryPart of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $145.10/EA |
| 2 | TN4035289Replaces Nobles 1229544 | 1 | Tube, Water, Battery, 24vdc [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $176.50/EA |
| 3 | TN4040858Replaces Nobles 1204142 | 4 | Cap, Fill, Battery [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $42.00/EA |
| 4 | TN4030488Replaces Nobles 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $7.50/EA |
| 5 | TN4043510Replaces Nobles 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Battery Fill Kit, 24v, Ci [Hydrolink] (9010300). Serial 10000000 to 20000000. | $3.90/EA |
Nobles Speed Scrub 500 documentation group parts
Documentation group, from the Nobles parts list. Manual page 86.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4195237Replaces Nobles 9015512 | 1 | Manual, Parts [Speed Scrub 500]Serial 10000000 to 20000000. | $22.68/EA |
| – | TN4195238Replaces Nobles 9015513 | 1 | Manual, Oprtr [Speed Scrub 500, En]Serial 10000000 to 20000000. | $234.24/EA |
| – | TN4195239Replaces Nobles 9015514 | 1 | Manual, Oprtr [Speed Scrub 500, Es]Serial 10000000 to 20000000. | $218.04/EA |
| – | TN4195240Replaces Nobles 9015515 | 1 | Manual, Oprtr [Speed Scrub 500, Fr]Serial 10000000 to 20000000. | $234.24/EA |
| – | TN4195241Replaces Nobles 9015516 | 1 | Instr, Wall Chart [Speed Scrub 500]Serial 10000000 to 20000000. | $8.40/EA |
| – | TN4195242Replaces Nobles 9015517 | 1 | Manual, Service [Speed Scrub 500, En]Serial 10000000 to 20000000. | $92.76/EA |
Nobles Speed Scrub 500 ec-H2O nanoclean module breakdown parts
The parts Nobles numbers on the ec-H2O nanoclean module breakdown drawing. Manual pages 88, list 89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Nobles 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02]Complete assembly. Serial 10000000 to 20000000. | $1,339.60/EA |
| – | TN4026248Replaces Nobles 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Part of the assembly above. Serial 10000000 to 20000000. | $691.04/EA |
| 1 | TN4042043Replaces Nobles 1208823 | 1 | Housing, Module, Upper, Ec-H2oSerial 10000000 to 20000000. | $17.05/EA |
| 2 | TN4038305Replaces Nobles 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Serial 10000000 to 20000000. | $3.30/EA |
| 3 | TN4042141Replaces Nobles 1044393 | 1 | Switch, Rocker, Spst, MomSerial 10000000 to 20000000. | $7.70/EA |
| 4 | TN4034147Replaces Nobles 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsSerial 10000000 to 20000000. | $0.25/EA |
| 5 | TN4032414Replaces Nobles 1208164 | 1 | Electrode, 5 Plate, High FlowSerial 10000000 to 20000000. | $588.10/EA |
| 6 | TN4016852Replaces Nobles 41579 | 4 | Washer, Flat, 08, SsSerial 10000000 to 20000000. | $2.60/EA |
| 7 | TN4031247Replaces Nobles 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsSerial 10000000 to 20000000. | $3.40/EA |
| 8 | TN4039304Replaces Nobles 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftSerial 10000000 to 20000000. | $51.70/EA |
| 9 | TN4042010Replaces Nobles 1208526 | 1 | Hose, Molded, Bm08/Bm06Serial 10000000 to 20000000. | $23.60/EA |
| 10 | TN4040431Replaces Nobles 1049637 | 1 | Label, Direction [Ec-H2o]Serial 10000000 to 20000000. | $3.23/EA |
| 11 | TN4019547Replaces Nobles 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelSerial 10000000 to 20000000. | $3.60/EA |
| 12 | TN4015366Replaces Nobles 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 20000000. | $5.10/EA |
| 13 | TN4044506Replaces Nobles 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Serial 10000000 to 20000000. | $17.60/EA |
| 14 | TN4021577Replaces Nobles 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc]Part of the assembly above. Serial 10000000 to 20000000. | $1,063.00/EA |
Nobles Speed Scrub 500 orbital head eccentric drive breakdown parts
The parts Nobles numbers on the orbital head eccentric drive breakdown drawing. Manual pages 90, list 91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023979Replaces Nobles 9015774 | 1 | Eccentric Drive Kit, OrbitalComplete assembly. Serial 10000000 to 20000000. | $449.70/EA |
| 2 | TN4035913Replaces Nobles 1231238 | 1 | Key, Sq, 5mm X 5mm X 22mmPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | $5.10/EA |
| 3 | Not sold separatelyNobles N/A | 1 | Balance, Eccentric, Step [Machined]Part of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 4 | Not sold separatelyNobles N/A | 1 | Spacer, EccentricPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 5 | Not sold separatelyNobles N/A | 3 | Screw, Hex, M6 X 1.00 X 16, SemsPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 6 | Not sold separatelyNobles N/A | 1 | Plate, Retainer, Brg, OuterPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 7 | TN4037201Replaces Nobles 1220452 | 1 | Bearing, Ball, 2.17b 3.54d .71wPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | $68.48/EA |
| 8 | Not sold separatelyNobles N/A | 1 | Housing, Bearing, Outer [Machined]Part of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 9 | Not sold separatelyNobles N/A | 1 | Retainer, Bearing, Inner [Qpq]Part of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 10 | Not sold separatelyNobles N/A | 2 | Screw, Soc, M6 X 1.00 X 12, 8.8, LowPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | Not sold separately. Nobles prints N/A: not available separately, order the assembly. Order Eccentric Drive Kit, Orbital (TN4023979) |
| 11 | TN4037441Replaces Nobles 1221394 | 1 | Seal, Org, .125 X 02.63idPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | $13.74/EA |
| 12 | TN4039478Replaces Nobles 1212710 | 6 | Screw, Flt, Soc, M6 X 1.00 X 35, 10.9,NlPart of Eccentric Drive Kit, Orbital (9015774). Serial 10000000 to 20000000. | $1.50/EA |
Nobles Speed Scrub 500 automatic battery watering module breakdown parts
The parts Nobles numbers on the automatic battery watering module breakdown drawing. Manual page 92.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4020331Replaces Nobles 9018008 | 1 | Kit, Module, Abw, CiComplete assembly. Serial 10000000 to 20000000. | $335.60/EA |
| 2 | TN4035537Replaces Nobles 1018155 | 4 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Module, Abw, Ci (See Breakdowns) (9018008). Serial 10000000 to 20000000. | $2.50/EA |
| 3 | TN4037518Replaces Nobles 1223055 | 1 | Panel, Mtg, Fill, Auto, BatteryPart of Kit, Module, Abw, Ci (See Breakdowns) (9018008). Serial 10000000 to 20000000. | $15.40/EA |
| 4 | TN4037533Replaces Nobles 1223286 | 2 | Seal, Cover, Board, Battery WateringPart of Kit, Module, Abw, Ci (See Breakdowns) (9018008). Serial 10000000 to 20000000. | $2.83/EA |
| 5 | TN4037228Replaces Nobles 1220931 | 1 | Circuitboard Assy [Abw Module]Part of Kit, Module, Abw, Ci (See Breakdowns) (9018008). Serial 10000000 to 20000000. | $324.40/EA |
| 6 | TN4037532Replaces Nobles 1223261 | 1 | Cover, Circuitboard, Battery WateringPart of Kit, Module, Abw, Ci (See Breakdowns) (9018008). Serial 10000000 to 20000000. | $22.10/EA |
Nobles Speed Scrub 500 electrical diagram, page 1 of 4
| What it shows | Electrical diagram, page 1 of 4, as printed in the manual |
|---|---|
| Manual page | 58 |
Nobles Speed Scrub 500 electrical diagram, page 2 of 4
| What it shows | Electrical diagram, page 2 of 4, as printed in the manual |
|---|---|
| Manual page | 59 |
Nobles Speed Scrub 500 electrical diagram, page 3 of 4
| What it shows | Electrical diagram, page 3 of 4, as printed in the manual |
|---|---|
| Manual page | 60 |
Nobles Speed Scrub 500 electrical diagram, page 4 of 4
| What it shows | Electrical diagram, page 4 of 4, as printed in the manual |
|---|---|
| Manual page | 61 |
Nobles Speed Scrub 500 electrical harness, main (drawing)
| What it shows | Electrical harness, main (drawing), as printed in the manual |
|---|---|
| Manual page | 62 |
Nobles Speed Scrub 500 electrical harness, main, extra drawing
| What it shows | Electrical harness, main, extra drawing, as printed in the manual |
|---|---|
| Manual page | 63 |
Nobles Speed Scrub 500 electrical harness, main, extra drawing
| What it shows | Electrical harness, main, extra drawing, as printed in the manual |
|---|---|
| Manual page | 64 |
Nobles Speed Scrub 500 electrical harness, main, extra drawing
| What it shows | Electrical harness, main, extra drawing, as printed in the manual |
|---|---|
| Manual page | 65 |
Nobles Speed Scrub 500 electrical harness, main, extra drawing
| What it shows | Electrical harness, main, extra drawing, as printed in the manual |
|---|---|
| Manual page | 66 |
Nobles Speed Scrub 500 electrical harness, operator station (drawing)
| What it shows | Electrical harness, operator station (drawing), as printed in the manual |
|---|---|
| Manual page | 68 |
Nobles Speed Scrub 500 electrical harness, bail switch (drawing)
| What it shows | Electrical harness, bail switch (drawing), as printed in the manual |
|---|---|
| Manual page | 70 |
New to your Nobles Speed Scrub 500? Start here
Set up, run and look after your Speed Scrub 500. Everything here comes from the Nobles operator manual, rewritten in plain steps, with the parts linked to the list above. Where the disk, cylindrical and orbital scrub heads differ, the step says which.
1Put the squeegee and pads on
- Step under the pedal to lift the squeegee mount. Hang the squeegee on it, tighten the knobs and connect the vacuum hose.
- Set the casters so there is a 1/16 in (2 mm) gap between caster and floor. That gives the blades the right bend.
- Disk head: raise the head and take the key out. Fix the pad to the pad driver with its center lock, then push the driver or brush up onto the motor hub.
- Replace brushes when they stop cleaning well or the bristles are worn down to the yellow indicator.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 12 and 13. SES ref PF-KVCK-E6HW
2Fill the solution tank
- Fill through the front bucket port or the rear hose port until the level reaches the 3/3 mark on the solution level hose.
- Conventional scrubbing: use water up to 140°F (60°C) and add a cleaning detergent as the bottle says.
- ec-H2O scrubbing: use only cool clean water, under 70°F (21°C), and no detergent. Detergent in the tank causes an ec-H2O fault.
- Put both fill-port covers back on firmly.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), page 15. SES ref PF-KVCK-E6HW
3Scrub
- Before you start, sweep the area, check the pads or brushes and the squeegee blades, and make sure the recovery tank is empty and its screen clean.
- Release the parking brake if you have one and turn the key on. Step on the pedal to lower the squeegee; the vacuum starts by itself.
- Press the 1-STEP button to lower the scrub head, push the direction lever forward and pull the start bail. Set the speed with the dial.
- To stop, let go of the bail, press 1-STEP and lift the squeegee. Overlap each pass by 2 in (5 cm) and keep the machine moving.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 18 and 19. SES ref PF-KVCK-E6HW
4Empty and clean up
- Drive to the drain area. Hold the drain hose up, take the cap off (or open the valve) and lower the hose slowly to drain the recovery tank.
- Take out and clean the float shut-off screen (TN4020485), then rinse the recovery tank with clean water.
- Drain the solution tank through the level hose on the rail and rinse it. Don't fill the solution tank from the bucket you drained into.
- Turn the key off, take it out and charge the batteries.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 20 and 21. SES ref PF-KVCK-E6HW
Questions about your Speed Scrub 500? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Nobles Speed Scrub 500 troubleshooting
Problems, likely causes and fixes from the Nobles operator manual's troubleshooting tables.
| Likely cause | Fix | Part |
|---|---|---|
| Machine won't run | ||
| Emergency shut-off button pushed in | Turn the red button clockwise to reset it, then turn the key again. | |
| Batteries flat or a battery cable loose | Charge the batteries and tighten loose cables. Replace a bad battery. | |
| A circuit breaker tripped | Disconnect the battery cable, let the breaker cool and press its reset button. Key switch breaker: 4 A breaker (TN4042042). | |
| Key switch, start bail switch or control board fault | Call SES service. | |
| Charger won't charge | ||
| Not plugged in, or the cord or charger is bad | Check the plug. Replace a bad power cord (TN4034198) or on-board charger (TN4031447). | |
| Machine won't move | ||
| Propel breaker tripped or a propel fault | Reset the 60 A propel breaker (TN4023158). If it keeps happening, call SES service. | |
| Brush won't turn | ||
| Brush breaker tripped, worn carbon brushes or a loose belt | Reset the 25 A brush breaker (TN4023153). Worn carbon brushes (TN4032140) or a broken belt (TN4023976) (cylindrical head) need service. | |
| Vacuum won't run | ||
| Squeegee raised, or the vacuum breaker tripped | Lower the squeegee to the floor. Reset the 20 A vacuum breaker (TN4032589). | |
| Water left on the floor | ||
| Recovery tank full, too much foam, or the drain hose open | Drain the tank. Tighten the drain hose cap (TN4036917) or close the drain valve. | |
| Worn blades, clogged squeegee or drip trap | Rotate or replace the blades (blade kit (TN4023953 / TN4023956 / TN4023959 / TN4023962)). Clean the squeegee and the drip trap. | |
| Clogged float screen or a lid that doesn't seal | Clean the float shut-off screen (TN4020485). Check the lid closes fully; replace a bad lid seal (TN4023969). | |
| Little or no solution | ||
| Empty tank, low flow setting or clogged filter | Refill the tank, turn up the flow and clean the solution filter (TN4039203). | |
| Short run time | ||
| Batteries low, worn out or not maintained | Charge the batteries and look after them. Replace batteries at the end of their life. Lower the brush pressure. | |
| Orbital head too noisy | ||
| Damaged scrub head isolators | Replace the isolators (TN4039461), or call SES service. | |
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 38 and 39. SES ref PF-N3RQ-35XN
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Nobles Speed Scrub 500 maintenance schedule
Nobles' maintenance schedule for the Speed Scrub 500. Before any service, stop on a level surface, turn the machine off and take the key out, as the manual says.
| Task | How often | Part |
|---|---|---|
| Drain and rinse the recovery tank. Clean the float shut-off screen (TN4020485) and the debris tray. | After every use | |
| Drain and rinse the solution tank. | After every use | |
| Disk and orbital heads: turn the pad over or replace it when worn. Replace brushes worn to the yellow indicator. | After every use | |
| Clean the squeegee and check the blades for wear. Replace worn blades with the squeegee blade kit (TN4023953 / TN4023956 / TN4023959 / TN4023962) for your squeegee width. | After every use | |
| Cylindrical head: empty and clean the debris trough. | After every use | |
| Check the scrub head skirt for damage and wear. | After every use | |
| Charge the batteries if they need it. | After every use | |
| Check the water level in every battery cell (wet batteries). | Every week | |
| Take the cover off the squeegee drip trap and clean it out. Parts: drip trap cover (TN4042359), drip trap gasket (TN4038882). | Every week | |
| Drain the solution tank, unscrew the solution filter (TN4039203) bowl and clean the filter screen (TN4036878). | Every 50 hours | |
| Cylindrical head: swap the brushes front to rear and clean under the head, including the idler plates and drive hubs. | Every 50 hours | |
| Check the recovery tank lid seal (TN4023969) for wear. | Every 50 hours | |
| Battery watering system (option): check the hoses for leaks, damage and loose connections every 100 hours. | Every 100 to 200 hours | |
| Check and clean the batteries, terminals and cables every 200 hours. | Every 100 to 200 hours | |
| These are jobs for trained service people. SES service can do them: call 800-440-6723. | Every 750 to 1250 hours | |
| Vacuum motor carbon brushes at 750 hours. Brush motor carbon brushes (brush motor carbon brush kit (TN4032140)) and propel motor carbon brushes (propel carbon brush kit (TN4019997)) at 1250 hours. | Every 750 to 1250 hours | |
| Cylindrical head: replace the brush belt at 1250 hours (belt kit (TN4023976)). | Every 750 to 1250 hours |
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 24, 25 and 27. SES ref PF-5Q6V-MVPS
Nobles Speed Scrub 500 specifications
From the Nobles operator manual for the Speed Scrub 500.
| Models | Disk 26, 28 and 32 in (650, 700 and 800 mm); cylindrical 28 in (700 mm); orbital 28 in (700 mm) |
|---|---|
| Solution tank | 22.5 gal (85 L) |
| Recovery tank | 27 gal (102 L) |
| Scrubbing speed | 220 ft (67 m) per minute |
| Down pressure, 28 in disk | 70 lb (32 kg) low, 120 lb (54.5 kg) high |
| Productivity, 28 in disk | 22,286 sq ft (2,070 sq m) per hour, estimated actual |
| Solution flow | 0.30, 0.40 or 0.50 gal (1.1, 1.5 or 1.9 L) per minute |
| Brush motors, disk head | Two 24V DC, 0.75 hp (0.55 kW), 29 A, 220 rpm |
| Vacuum motor | 24V DC, 0.46 hp (0.34 kW), 14.3 A, 34 in (864 mm) water lift |
| Batteries | Four 6V: 225 Ah or 260 Ah wet, or 220 Ah AGM (C/20) |
| Charger | On-board 115-240V AC, 24V DC, 25 A; smart off-board 85-265V AC, 24V DC, 25 A |
| Weight, 28 in disk | 330 lb (150 kg); 620 lb (281 kg) with batteries |
| Length × width × height, 28 in disk | 59.1 × 29.5 × 43.3 in (1,501 × 750 × 1,100 mm) |
| Maximum slope | 2% |
| Operating temperature | 36°F to 110°F (2°C to 43°C) |
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 40 and 41. SES ref PF-233R-WXSU
Nobles Speed Scrub 500 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualNobles 9015512 Rev. 01 (02-2017), 93 pages | Speed Scrub 500 | Rev. 01 (02-2017) | 93 pages | Sign in to view or downloadSign in to download |
| Operator manualNobles 9015513 Rev. 00 (01-2017), 44 pages | Speed Scrub 500 | Rev. 00 (01-2017) | 44 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Nobles Speed Scrub 500 parts questions
Can I use detergent with the ec-H2O system on the Speed Scrub 500?
No. Use only cool clean water under 70°F (21°C) for ec-H2O scrubbing. If detergent goes through the system it shows a fault: drain the tank, refill with clear water and run the system until the fault clears.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 15 and 18. SES ref PF-PH3R-2D3P
Why is my Speed Scrub 500 leaving water behind?
Start with the easy causes: a full recovery tank or foam, an open drain hose, worn squeegee blades, or a clogged squeegee, drip trap or float screen. Also check that the recovery tank lid closes fully and its seal isn't damaged.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), page 39. SES ref PF-PH3R-2D3P
How often should I clean the solution filter?
Every 50 hours of use. Drain the solution tank first, then turn the filter bowl counterclockwise to take it off and clean the screen. The filter is under the machine at the rear.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 21 and 27. SES ref PF-PH3R-2D3P
When are the brushes or pads worn out?
Replace brushes when they stop cleaning well or the bristles are worn down to the yellow indicator. Disk and orbital pads can be turned over before you replace them.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 13 and 25. SES ref PF-PH3R-2D3P
What do the circuit breakers on the Speed Scrub 500 protect?
Seven resettable breakers: 4 A key switch, 10 A ec-H2O and battery watering, 10 A head lift, 20 A vacuum, 25 A for each brush motor and 60 A propel. Disconnect the battery, let the breaker cool, then press reset.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), page 20. SES ref PF-PH3R-2D3P
How steep a ramp can the Speed Scrub 500 scrub on?
Nobles rates it for slopes up to 2%. Don't run it where the temperature is above 110°F (43°C) or below 36°F (2°C).
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), pages 19 and 20. SES ref PF-PH3R-2D3P
Which brush or pad should I use?
Soft nylon brushes clean coated floors without removing finish, polypropylene brushes handle light soil on concrete and tile, and super abrasive brushes take on buildup and tire marks. For pads, red is light scrubbing, blue medium to heavy scrubbing, and brown or black is for stripping.
Source: Nobles Speed Scrub 500 operator manual 9015513 Rev. 00 (01-2017), page 12. SES ref PF-PH3R-2D3P
