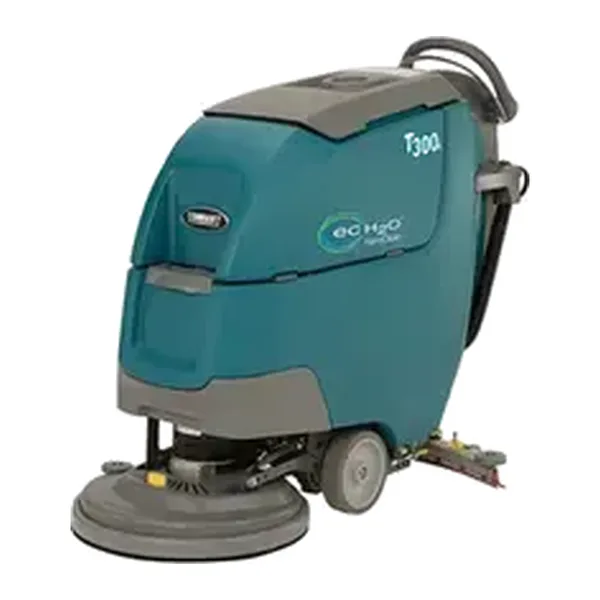

Tennant T300e (S/N 30061275-40000000) parts list and diagrams
Find any part on the Tennant T300e walk-behind scrubber built for China, International and Japan, serial numbers 30061275 to 40000000, in Tennant's own drawings, crossed to Tennant's current numbers with our price. Pick your scrub deck and drive under Your machine to see only the groups that fit it. T300e machines with serial numbers 10000000 to 20000000 have their own page; 30000000 to 30061274 are on the 9014517 page.
Complete list: every line of the parts list in Tennant T300 / T300e Parts Manual 4023727 Rev. 07 (02-2026), China / International / Japan, T300e S/N 30061275-40000000 (T300e groups), 1149 printed part lines, with the parts numbered on its drawings. Checked .
Note: The T300e Traditional model, S/N 30000000-40000000, appears to be a China-market machine and is not covered by the manuals on this page.
New to your T300e (S/N 30061275-40000000)? Start here → T300e with serial number 10000000 to 20000000? Its parts list is on its own page → T300e with serial number 30000000 to 30061274? Its parts list (manual 9014517) is on its own page → Have a T300? Its parts list is on its own page → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Scrub decks
- 17 in (43 cm) disk, 20 in (50 cm) disk, 24 in (60 cm) dual disk, 20 in (50 cm) cylindrical, 20 in (50 cm) orbital
- Solution tank
- 11 gal (42 L)
- Recovery tank
- 14 gal (53 L)
- Squeegee width
- 30.4 in (772 mm)
- Batteries

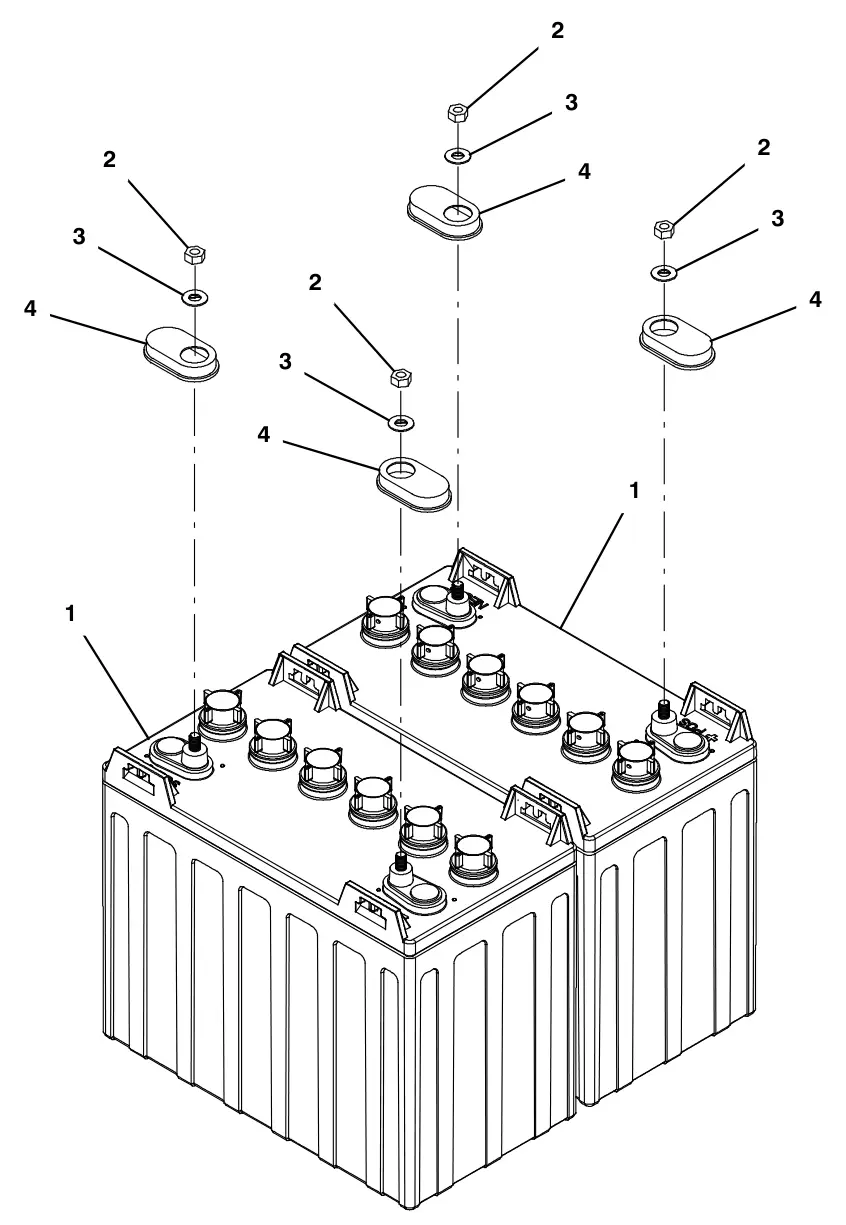

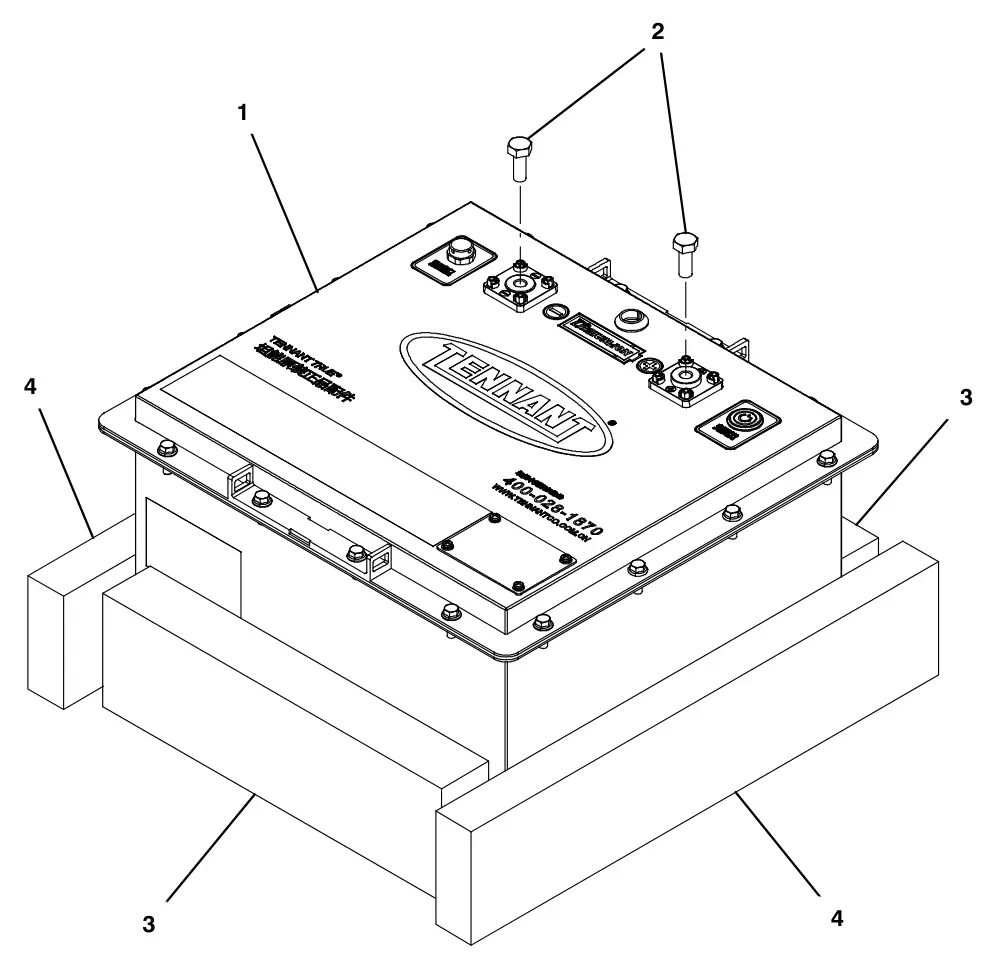

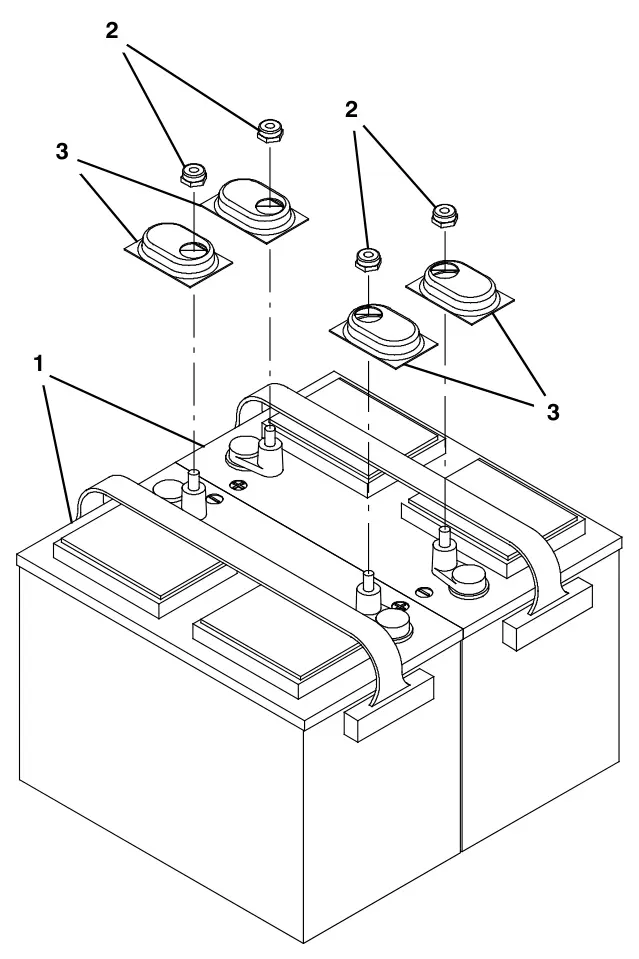

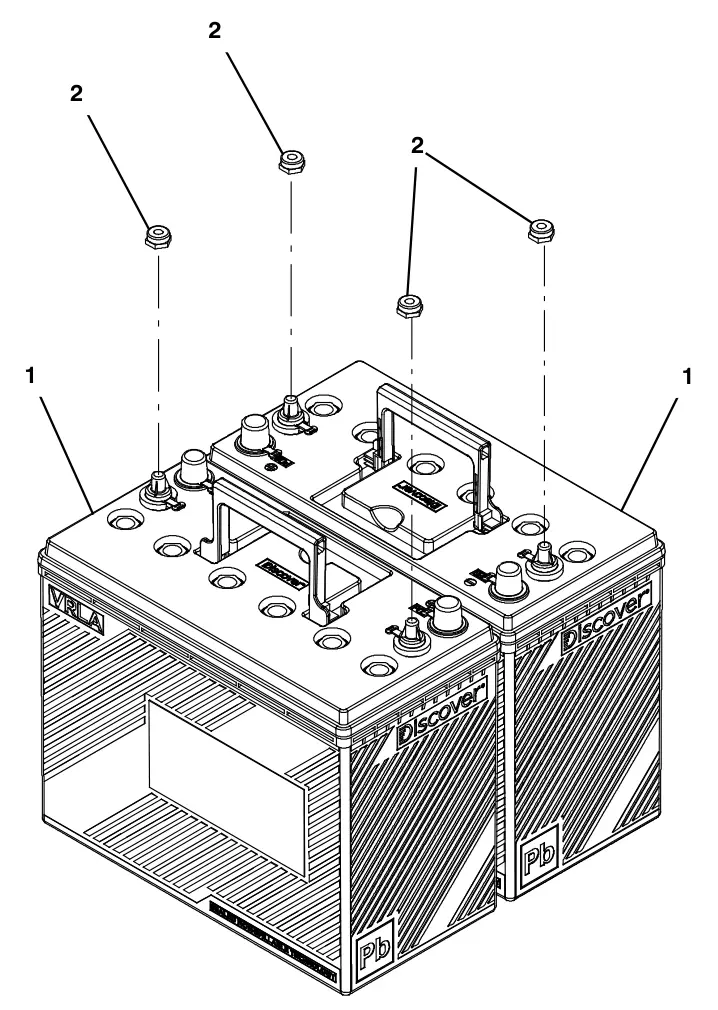

- Two 12 V: 105, 130 or 150 Ah C/20 wet, or 140 Ah C/20 sealed AGM; or one 24 V 90 Ah lithium-ion
Maintenance and wear parts for the T300e (S/N 30061275-40000000)
Tennant's general recommended maintenance items for the T300e. Keep these on the shelf.
Brush Assy, Disk, Scb, 17.0d, Abr (3-Lug)
$416.00/EABrush Assy, Disk, Scb, 17.0d, Nyl (3-Lug)
$304.10/EABrush Assy, Disk, Scb, 17.0d, Pyp (3-Lug)

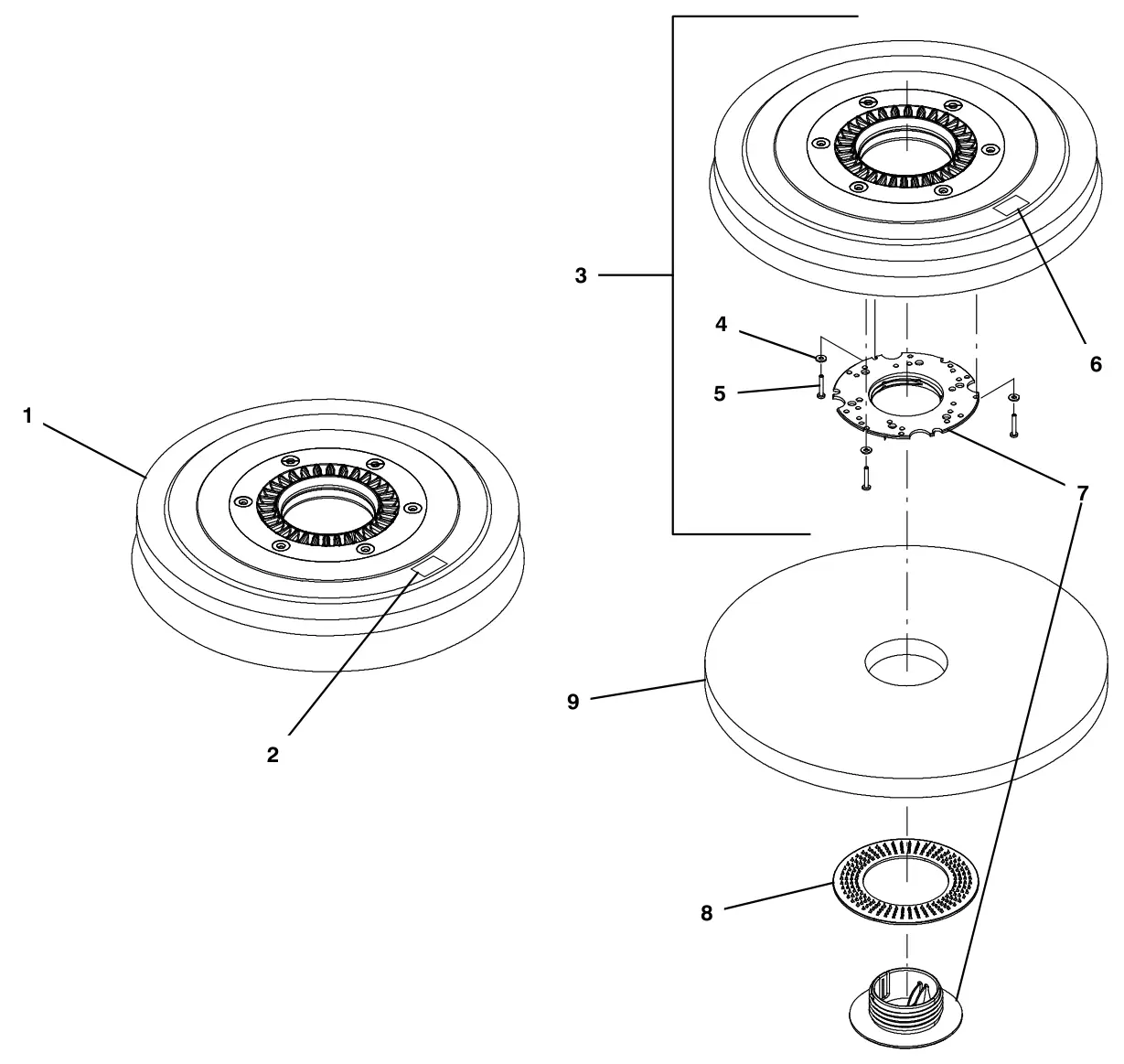

$246.40/EABrush Assy, Disk, Scb, 43cm, Mag, Nyl
$404.20/EABrush Assy, Disk, Scb, 43cm, Mag, Pyp
$332.20/EABrush Assy, Disk, Scb, 43cm, Mag, Ab
$532.40/EAPad, Polish, 17.0d, White [1pick=1ctn]
$62.69/EAPad, Buff, 17.0d, Red [1pick=1ctn]
$111.40/EAPad, Scb, 17.0d, Blu [1pick=1ctn]
$101.80/EAPad, Strip, 17.0d Brown [1pick=1ctn]
$101.80/EAPad, Strip, 17.0d Blk[Hi Prod1pick=1ctn]
$145.20/EAPad, Surf Prep, 17.0d Maroon[1pick=1ctn]
$113.91/EA
Source: Tennant T300 / T300e Parts Manual 4023727 Rev. 07 (02-2026), China / International / Japan, T300e S/N 30061275-40000000 (T300e groups), page 7. SES ref PF-FPXX-EB2Z
Your machine
How to tell which you have

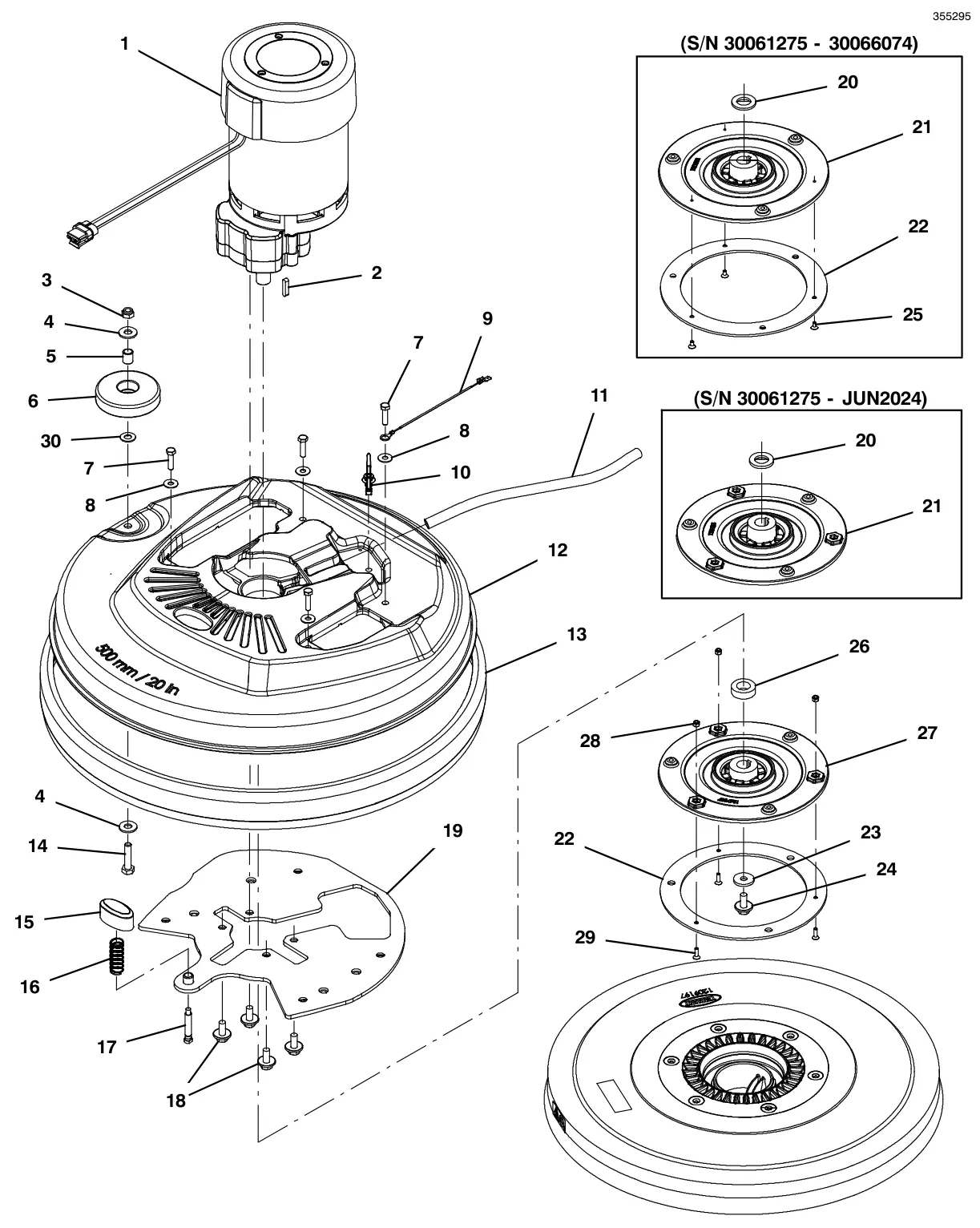

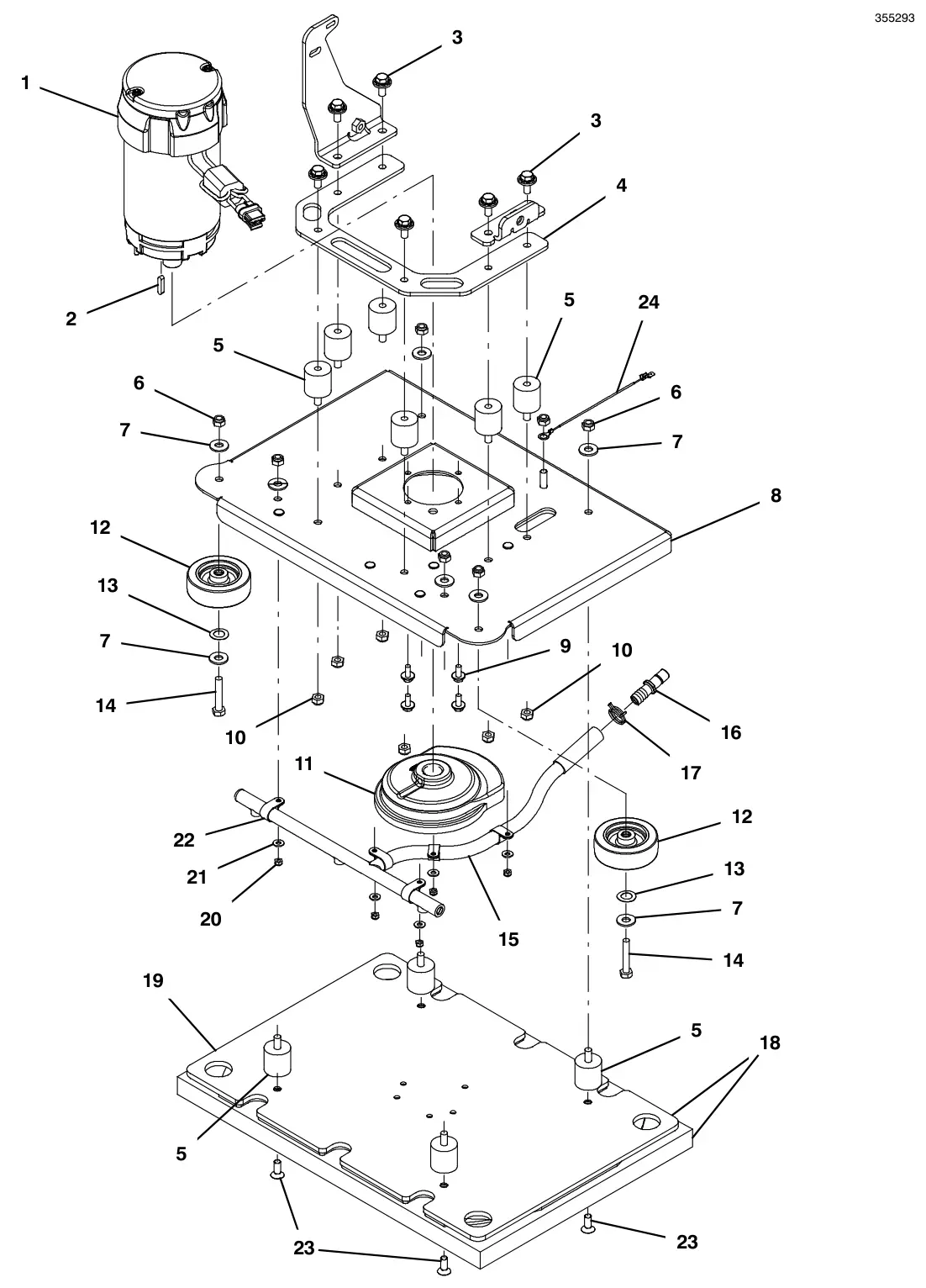

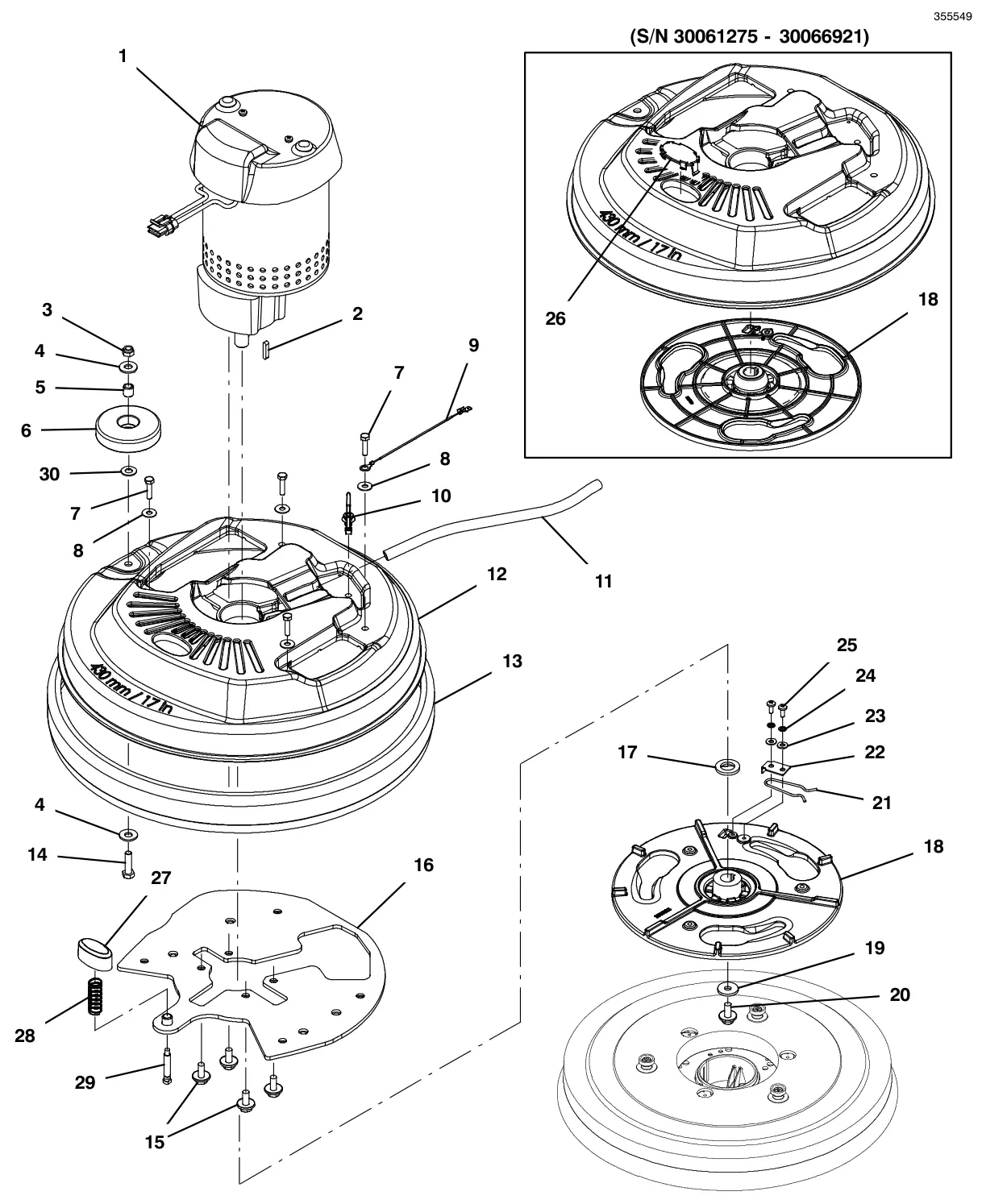

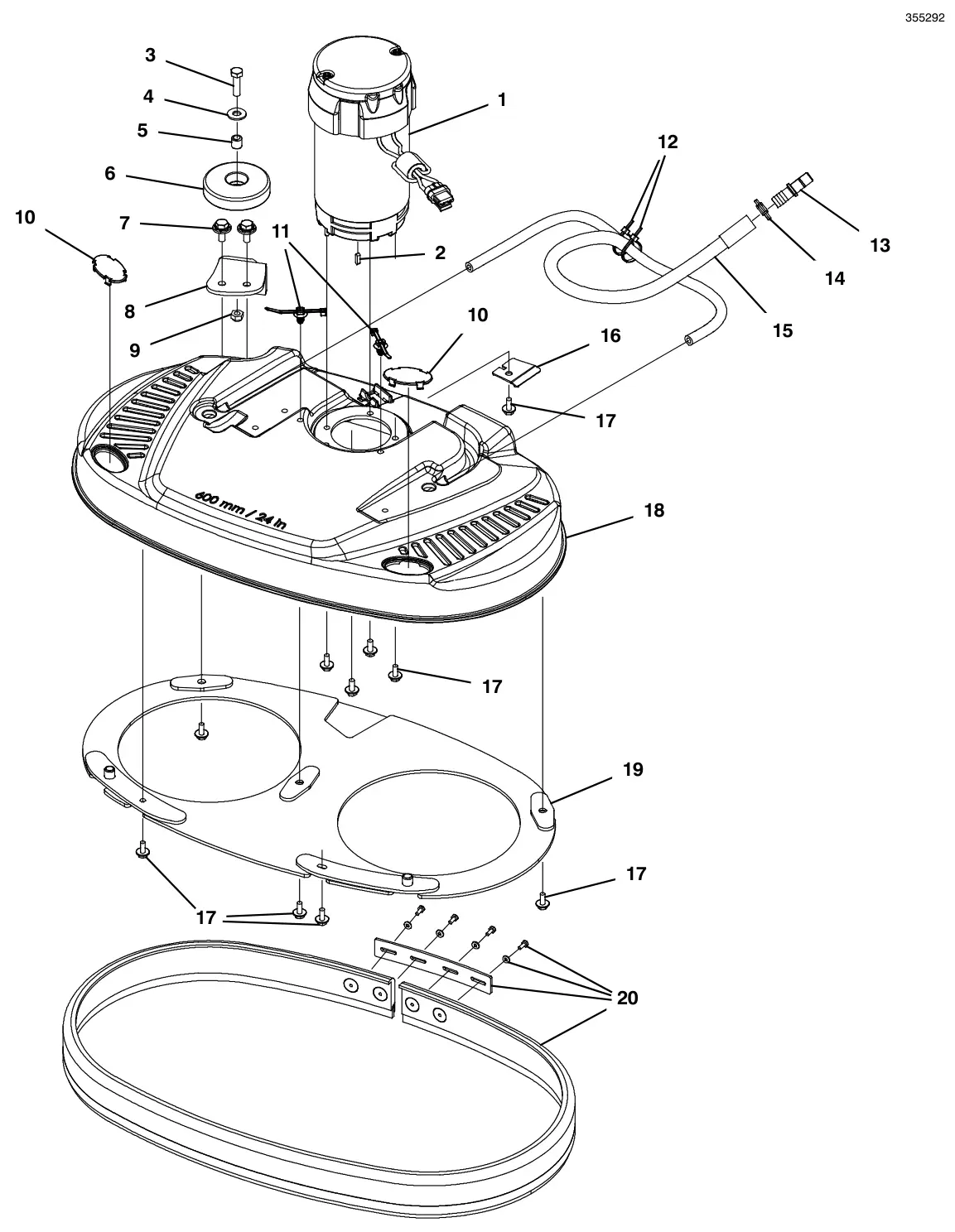

- Scrub deck: the parts manual has separate groups for each scrub head. Pick the one on your machine to see only its groups.
- Drive: propel (drive) and push models have their own frame and handle groups in the parts manual.
- If you are not sure, leave them on Not sure and every line stays on the list.
- Serial number: this page is for T300e machines with serial numbers 30061275 to 40000000 (on the data label). For 10000000 to 20000000, use the T300e parts page; for 30000000 to 30061274, use the T300 / T300e parts page for manual 9014517.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant T300e (S/N 30061275-40000000) General recommended maintenance items
General recommended maintenance items from Tennant's parts list. Manual page 7.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|

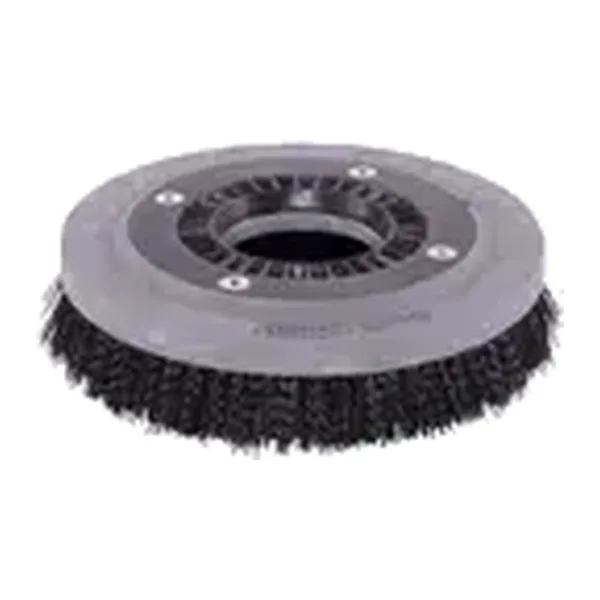

| – | TN4039527Replaces Tennant 1213040 | Qty on machine: 2 | Brush Assy, Disk, Scb, 30cm, Mag, Pyp | $274.50/EA | |

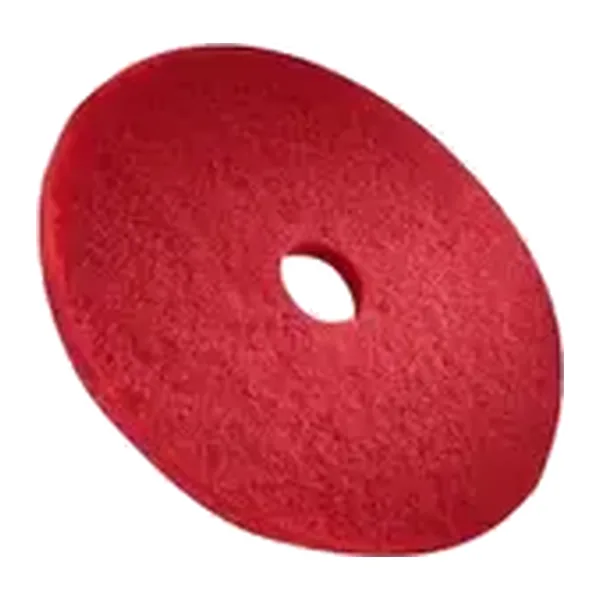

| – | TN4041862Replaces Tennant 1243339 | Qty on machine: 1 | Pad, Buff, 20.0d, Red [1pick=1ctn] | $29.20/EA | |

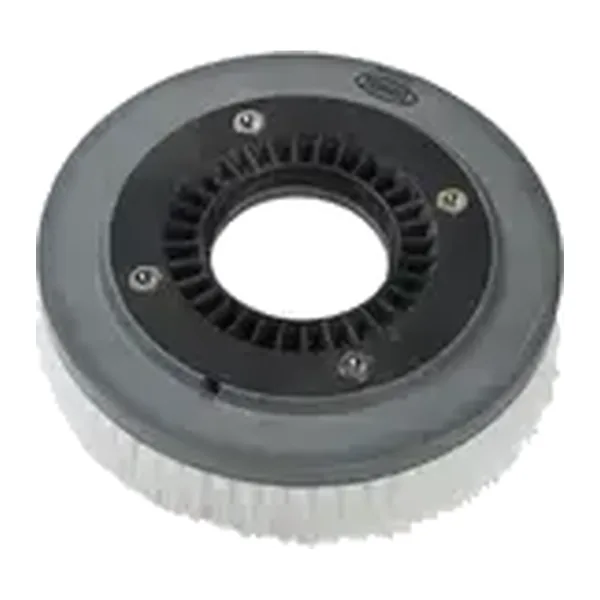

| – | TN4042413Replaces Tennant 1210136 | Qty on machine: 2 | Brush Assy, Disk, Scb, 30cm, Mag, Nyl | $351.20/EA | |

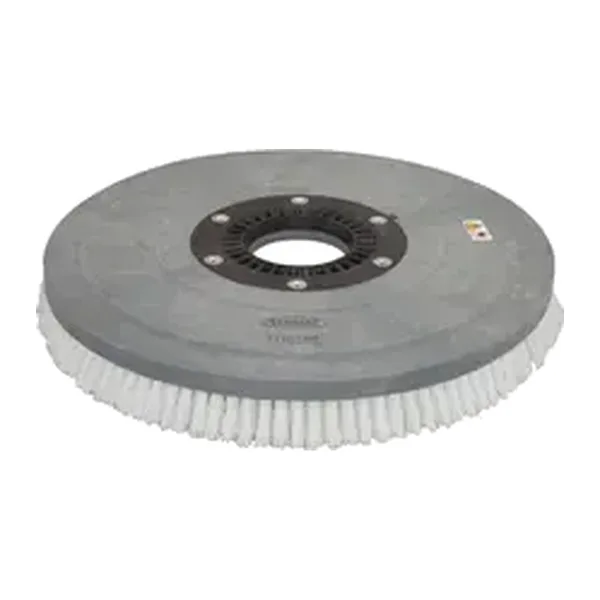

| – | TN4038841Replaces Tennant 1210386 | Qty on machine: 1 | Brush Assy, Disk, Scb, 50cm, Mag, Nyl | $426.30/EA | |

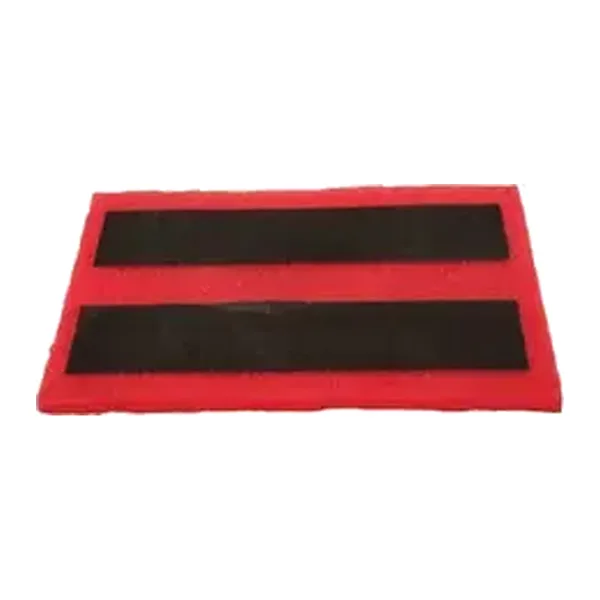

| – | TN4040529Replaces Tennant 1217830 | Qty on machine: 1 | Pad, Backer, 20 X 14 (Orbital Model) | $102.80/EA | |

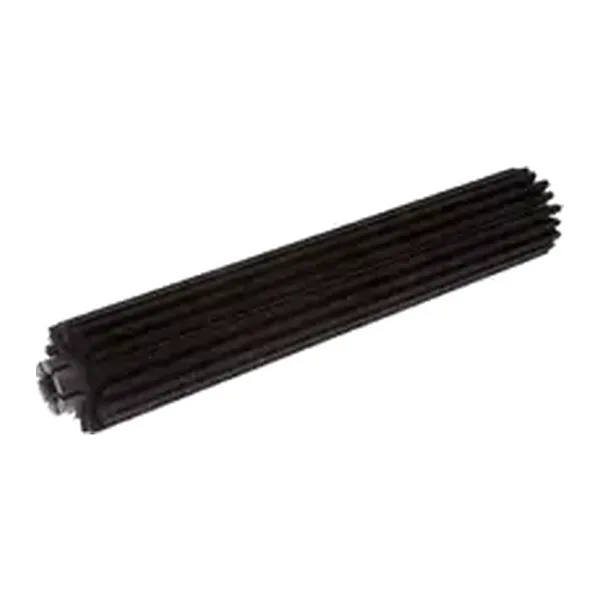

| – | TN4039481Replaces Tennant 1212762 | Qty on machine: 2 | Brush, Scb, 21l, 20sr, Pyp (Cylindrical Model) | $192.00/EA | |

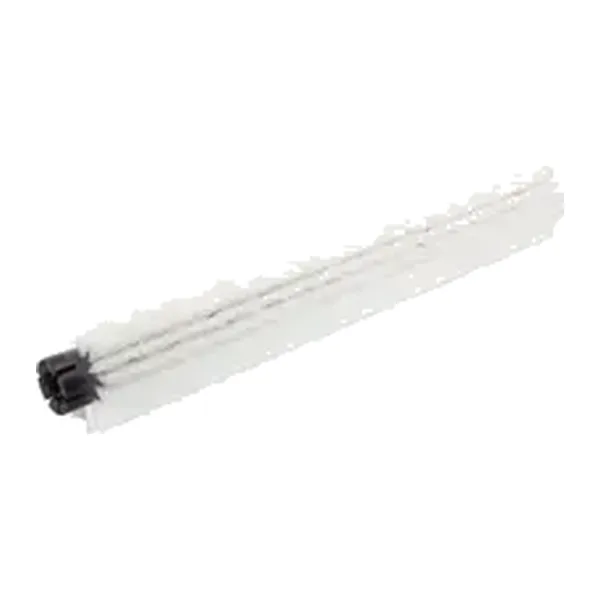

| – | TN4042084Replaces Tennant 1209188 | Qty on machine: 2 | Brush, Scb, 21l, 20sr, Nyl (Cylindrical Model) | $320.20/EA | |

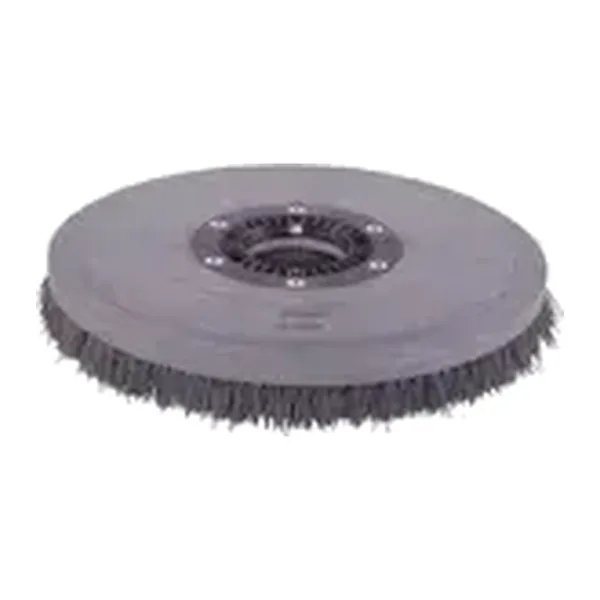

| – | TN4039522Replaces Tennant 1213033 | Qty on machine: 1 | Brush Assy, Disk, Scb, 50cm, Mag, Ab | $690.20/EA | |
| – | TN4034068Replaces Tennant 1243338 | Qty on machine: 1 | Pad, Polish, 20.0d, White [1pick=1ctn] | $134.50/EA | |

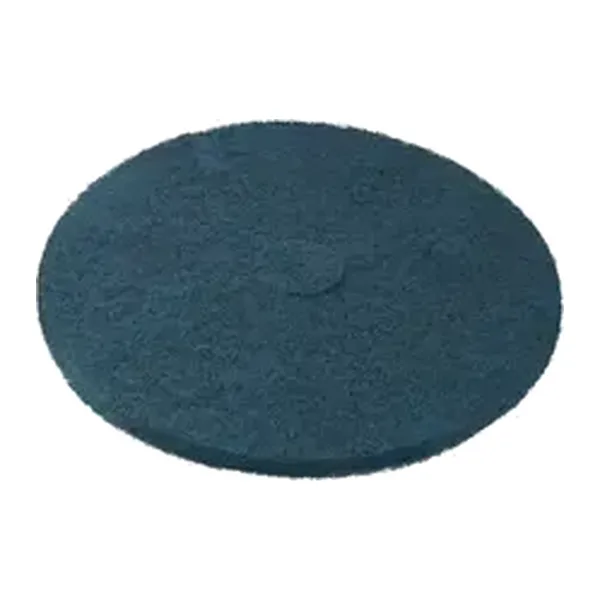

| – | TN4034070Replaces Tennant 1243340 | Qty on machine: 1 | Pad, Scb, 20.0d, Blu [1pick=1ctn] | $134.50/EA | |

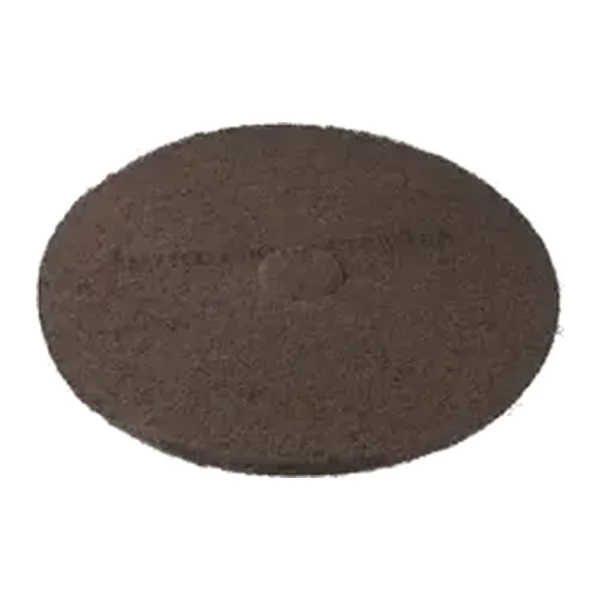

| – | TN4034287Replaces Tennant 1243566 | Qty on machine: 1 | Pad, Stripping 20.0d, Brn [1pick=1ctn] | $134.50/EA | |

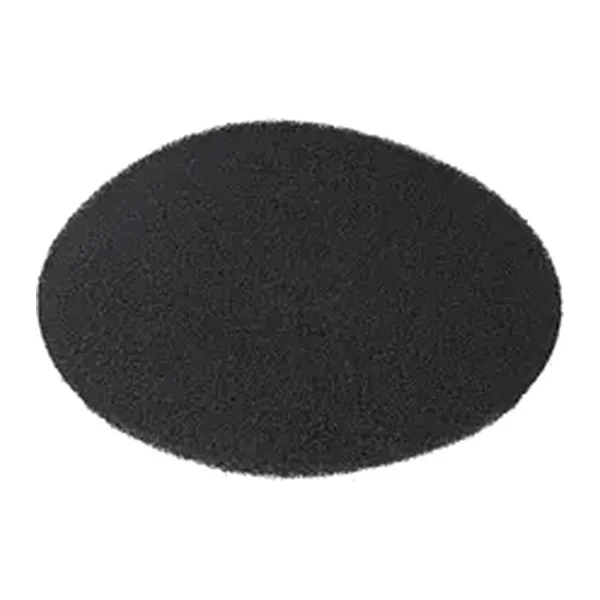

| – | TN4034297Replaces Tennant 1243661 | Qty on machine: 1 | Pad, Strip, 20.0d Blk[Hi Prod1pick=1ctn] | $160.90/EA | |

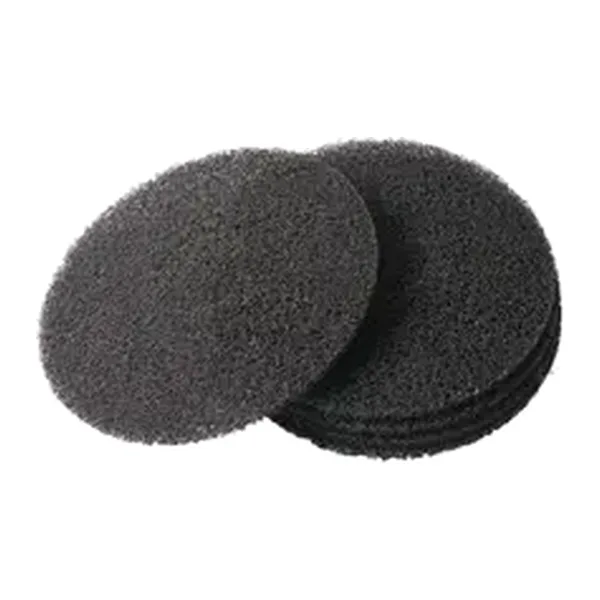

| – | TN4217081Replaces Tennant 1243671 | Qty on machine: 2 | Pad, Strip, 12.0d Blk[Hi Prod1pick=1ctn] | $84.70/EA | |

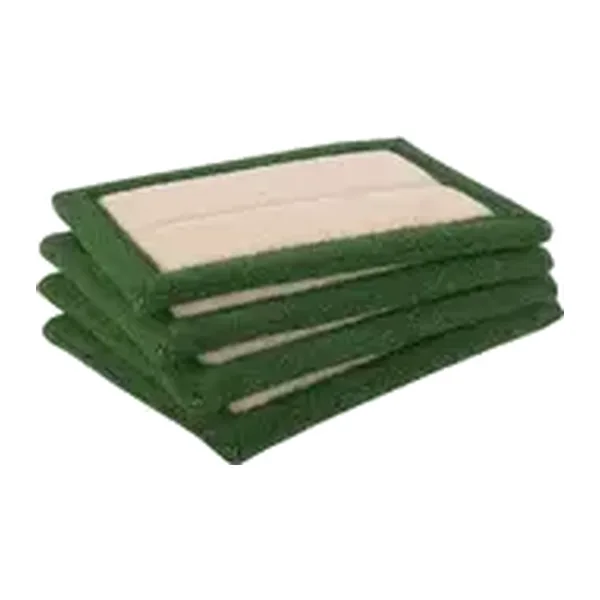

| – | TN4044930Replaces Tennant 1074740 | Qty on machine: 1 | Pad, Scb, 14 X 20, Green [1pick=1ctn] (Orbital Model) | $418.90/EA | |
| – | TN4039521Replaces Tennant 1213032 | Qty on machine: 1 | Brush Assy, Disk, Scb, 50cm, Mag, Pyp | $398.20/EA | |
| – | TN4035183Replaces Tennant 1016765 | Qty on machine: 1 | Brush Assy, Disk, Scb, 17.0d, Pyp (3-Lug) | $246.40/EA | |
| – | TN4035182Replaces Tennant 1016764 | Qty on machine: 1 | Brush Assy, Disk, Scb, 17.0d, Nyl (3-Lug) | $304.10/EA | |
| – | TN4035181Replaces Tennant 1016763 | Qty on machine: 1 | Brush Assy, Disk, Scb, 17.0d, Abr (3-Lug) | $416.00/EA | |
| – | TN4039523Replaces Tennant 1213034 | Qty on machine: 1 | Brush Assy, Disk, Scb, 43cm, Mag, Nyl | $404.20/EA | |
| – | TN4035187Replaces Tennant 1016811 | Qty on machine: 1 | Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug) | $284.80/EA | |
| – | TN4039108Replaces Tennant 1056313 | Qty on machine: 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, Pyp | $210.30/EA | |
| – | TN4034076Replaces Tennant 1243348 | Qty on machine: 1 | Pad, Scb, 17.0d, Blu [1pick=1ctn] | $101.80/EA | |
| – | TN4035186Replaces Tennant 1016810 | Qty on machine: 1 | Brush Assy, Disk, Scb, 20.0d, Nyl (3-Lug) | $333.60/EA | |
| – | TN4039524Replaces Tennant 1213035 | Qty on machine: 1 | Brush Assy, Disk, Scb, 43cm, Mag, Pyp | $332.20/EA | |
| – | TN4216866Replaces Tennant 1243349 | Qty on machine: 1 | Pad, Buff, 17.0d, Red [1pick=1ctn] | $111.40/EA | |
| – | TN4035185Replaces Tennant 1016805 | Qty on machine: 1 | Brush Assy, Disk, Scb, 20.0d, Abr (3-Lug) | $573.80/EA | |
| – | TN4039528Replaces Tennant 1213041 | Qty on machine: 2 | Brush Assy, Disk, Scb, 30cm, Mag, Ab | $435.10/EA | |
| – | TN4039525Replaces Tennant 1213037 | Qty on machine: 1 | Brush Assy, Disk, Scb, 43cm, Mag, Ab | $532.40/EA | |
| – | TN4216867Replaces Tennant 1243350 | Qty on machine: 1 | Pad, Polish, 17.0d, White [1pick=1ctn] | $62.69/EA | |
| – | TN4216985Replaces Tennant 1243664 | Qty on machine: 1 | Pad, Strip, 17.0d Brown [1pick=1ctn] | $101.80/EA | |
| – | TN4034298Replaces Tennant 1243663 | Qty on machine: 1 | Pad, Strip, 17.0d Blk[Hi Prod1pick=1ctn] | $145.20/EA | |
| – | TN4217080Replaces Tennant 1243669 | Qty on machine: 1 | Pad, Surf Prep, 17.0d Maroon[1pick=1ctn] | $113.91/EA | |
| – | TN4034299Replaces Tennant 1243670 | Qty on machine: 1 | Pad, Surf Prep, 20.0d Maroon[1pick=1ctn] | $164.32/EA | |
| – | TN4039107Replaces Tennant 1056306 | Qty on machine: 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, Nyl | $268.40/EA | |
| – | TN4032071Replaces Tennant 1063297 | Qty on machine: 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, Abr | $339.40/EA | |
| – | TN4216864Replaces Tennant 1243345 | Qty on machine: 2 | Pad, Polish, 12.0d, White [1pick=1ctn] | $72.80/EA | |
| – | TN4216865Replaces Tennant 1243346 | Qty on machine: 2 | Pad, Buff, 12.0d, Red [1pick=1ctn] | $72.80/EA | |
| – | TN4034075Replaces Tennant 1243347 | Qty on machine: 2 | Pad, Scb, 12.0d, Blu [1pick=1ctn] | $72.80/EA | |
| – | TN4216984Replaces Tennant 1243662 | Qty on machine: 2 | Pad, Strip, 12.0d Brown [1pick=1ctn] | $72.80/EA | |
| – | TN4216986Replaces Tennant 1243665 | Qty on machine: 2 | Pad, Surf Prep, 12.0d Maroon[1pick=1ctn] | $68.55/EA | |
| – | TN4216868Replaces Tennant 1243351 | Qty on machine: 1 | Pad, Polish, 20 X 14, White [1pick=1ctn] (Orbital Model) | $130.70/EA | |
| – | TN4034077Replaces Tennant 1243352 | Qty on machine: 1 | Pad, Buff, 20 X 14, Red [1pick=1ctn] (Orbital Model) | Call to confirm part: 800-440-6723 | |
| – | TN4216869Replaces Tennant 1243353 | Qty on machine: 1 | Pad, Scb, 20 X 14, Blu [1pick=1ctn] (Orbital Model) | $163.87/EA | |
| – | TN4217082Replaces Tennant 1243672 | Qty on machine: 1 | Pad, Surf Prep, 20x14 Maroon[1pick=1ctn](Orbital Model) | $204.13/EA | |
| – | TN4034969Replaces Tennant 1228000 | Qty on machine: 1 | Pad, Melamine, 14” X 20” [Case Of 5] (Orbital Model) | $322.50/EA |
Tennant T300e (S/N 30061275-40000000) General recommended maintenance items
General recommended maintenance items from Tennant's parts list. Manual page 8.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|

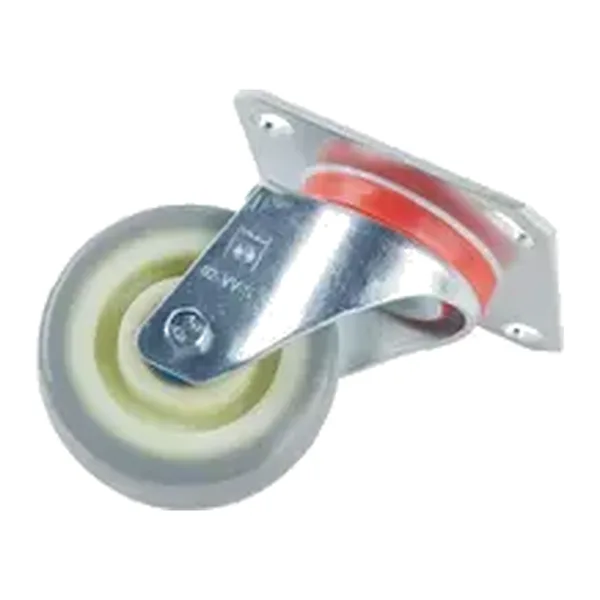

| – | TN4039272Replaces Tennant 1212422 | Qty on machine: 2 | Caster, Swivel [Wicke 224051] | $75.60/EA | ||

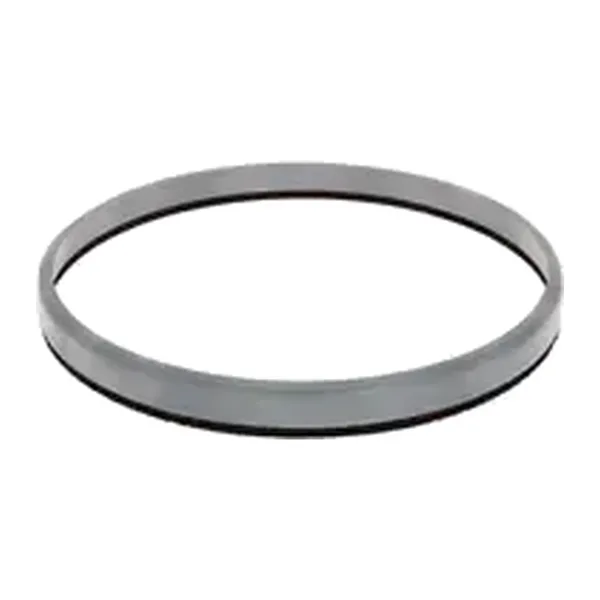

| – | TN4038704Replaces Tennant 1055025 | Qty on machine: 1 | Bumper, Head, 50cm, W/ Bristle Skirt, Im | $147.90/EA | ||

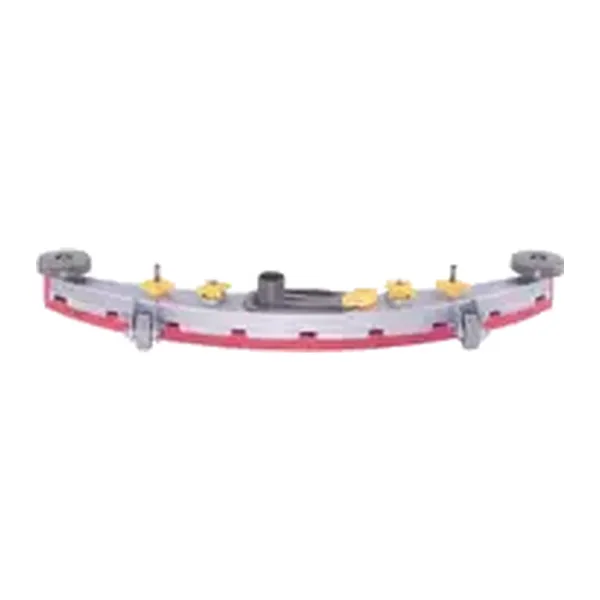

| – | TN4026477Replaces Tennant 9014172 | Qty on machine: 1 | Squeegee Kit, Linatex, Am [T300/E/Ss300]Complete assembly. | $667.30/EA | ||
| – | TN4040369Replaces Tennant 1010560 | Qty on machine: 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $5.50/EA | ||
| – | TN4020804Replaces Tennant 630477 | Qty on machine: 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $9.50/EA | ||

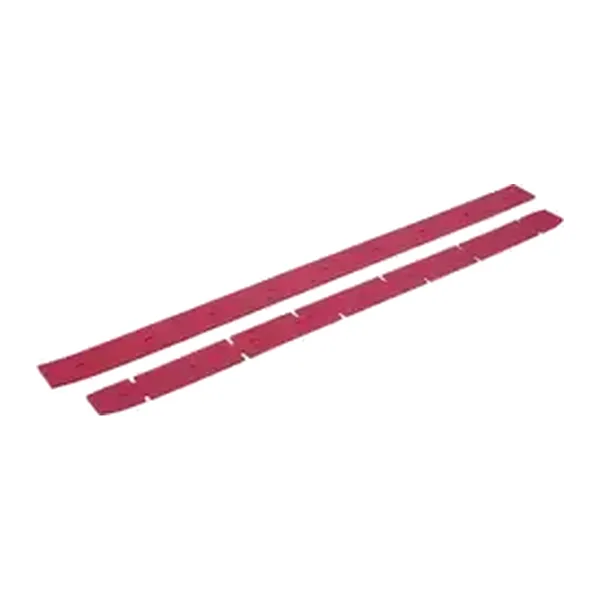

| – | TN4023953Replaces Tennant 9015731 | Qty on machine: 1 | Blade Kit, 500mm, Linatex (Standard)Complete assembly. Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $58.40/EA | ||

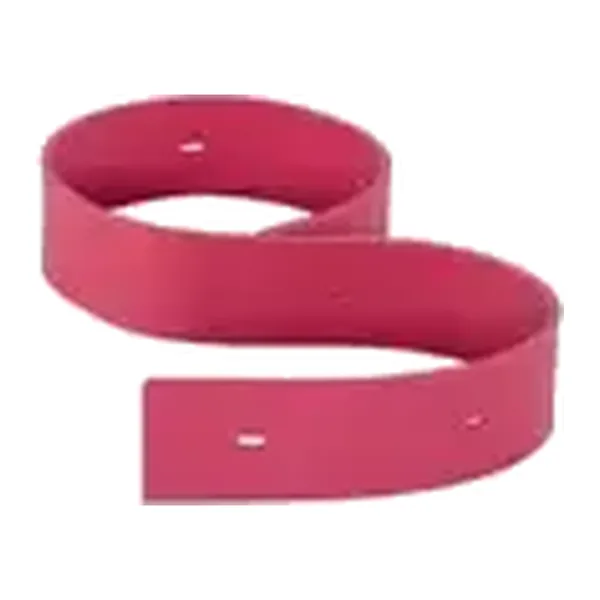

| – | TN4040848Replaces Tennant 1203953 | Qty on machine: 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $23.40/EA | ||

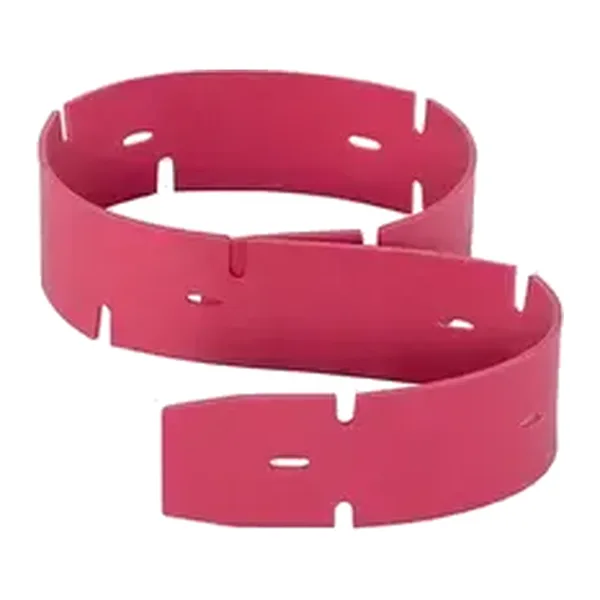

| – | TN4040849Replaces Tennant 1203954 | Qty on machine: 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $20.70/EA | ||

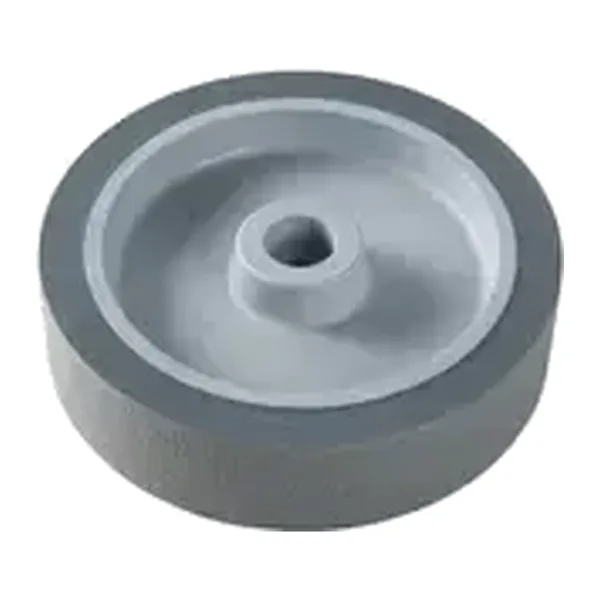

| – | TN4037832Replaces Tennant 1214595 | Qty on machine: 2 | Wheel, Scrbr, 8.00d, W/ Taper [Hi Trac] (Propel Model)Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $153.10/EA | ||

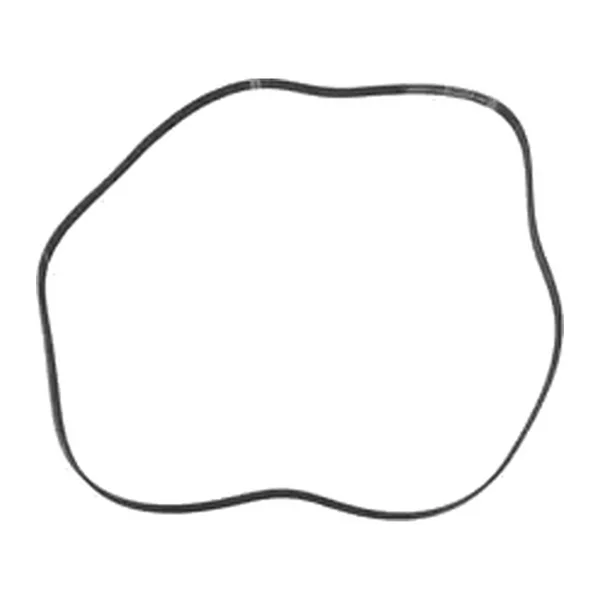

| – | TN4018508Replaces Tennant 1055305 | Qty on machine: 1 | Belt, Drive, 6pj, Ej139 [T3] (60CM Disk Head) | $55.15/EA | ||

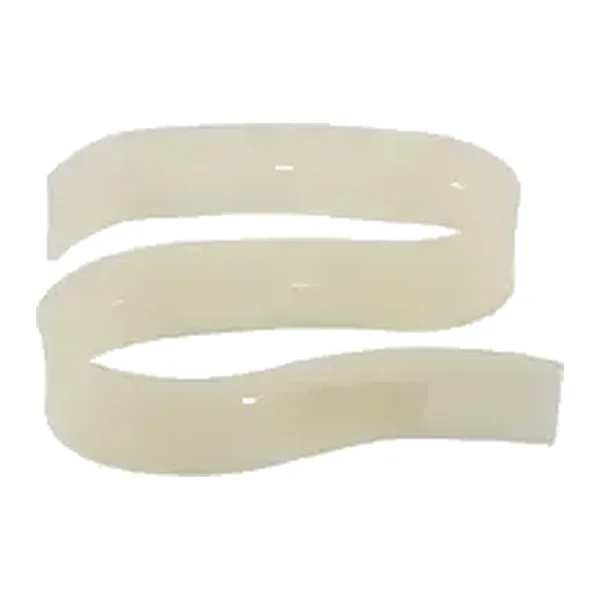

| – | TN4023954Replaces Tennant 9015732 | Qty on machine: 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. | $101.25/EA | ||

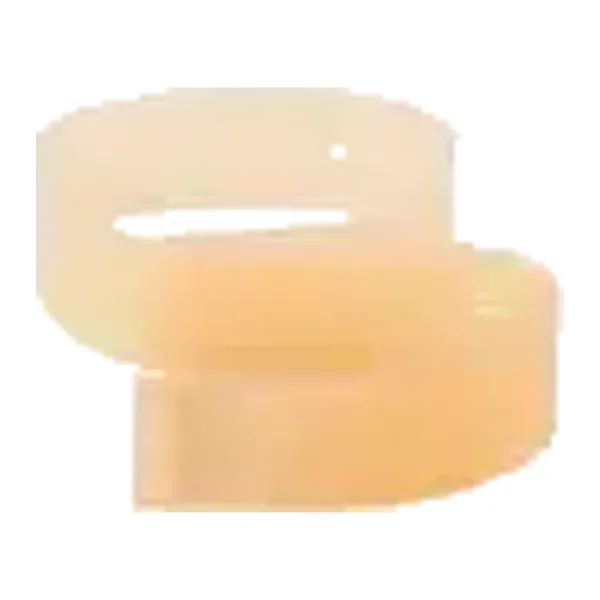

| – | TN4040136Replaces Tennant 1215609 | Qty on machine: 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA | ||

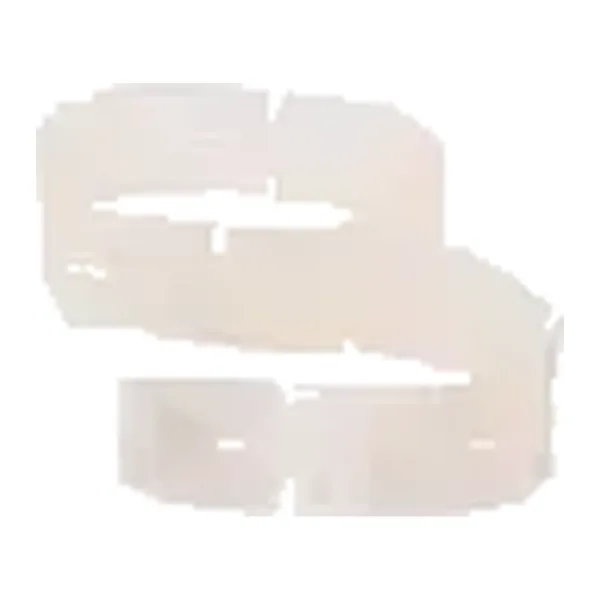

| – | TN4040138Replaces Tennant 1215611 | Qty on machine: 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA | ||

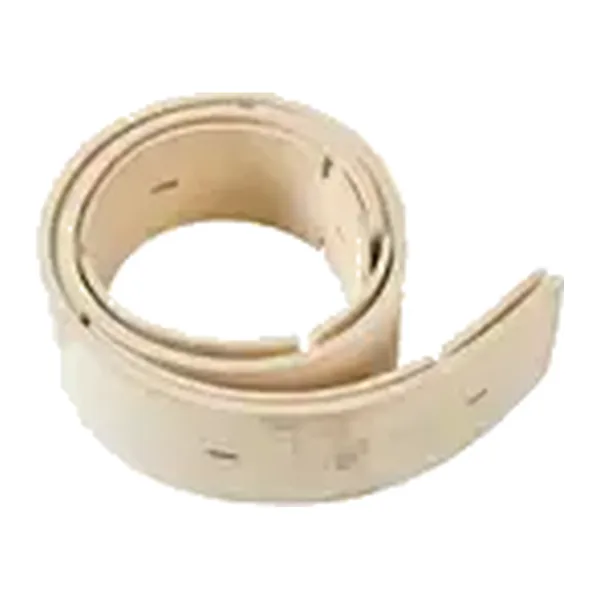

| – | TN4023952Replaces Tennant 9015730 | Qty on machine: 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. | $22.00/EA | ||

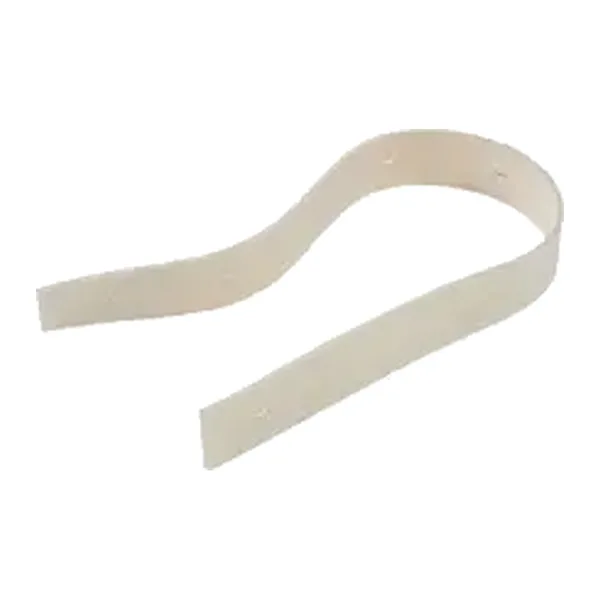

| – | TN4040137Replaces Tennant 1215610 | Qty on machine: 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA | ||

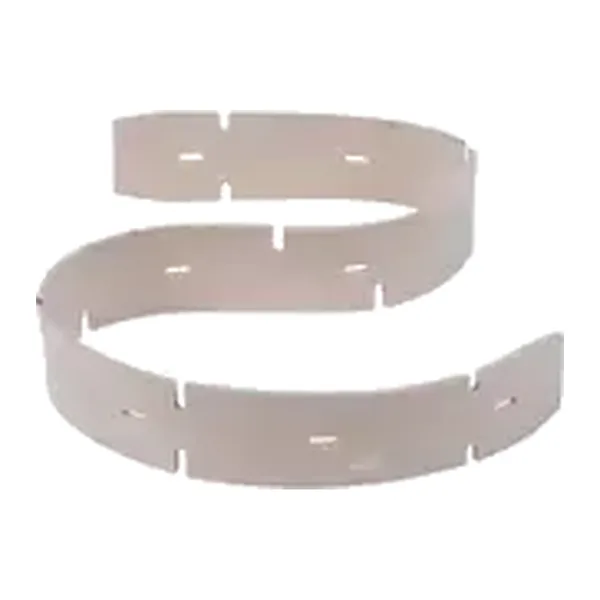

| – | TN4040139Replaces Tennant 1215612 | Qty on machine: 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA | ||

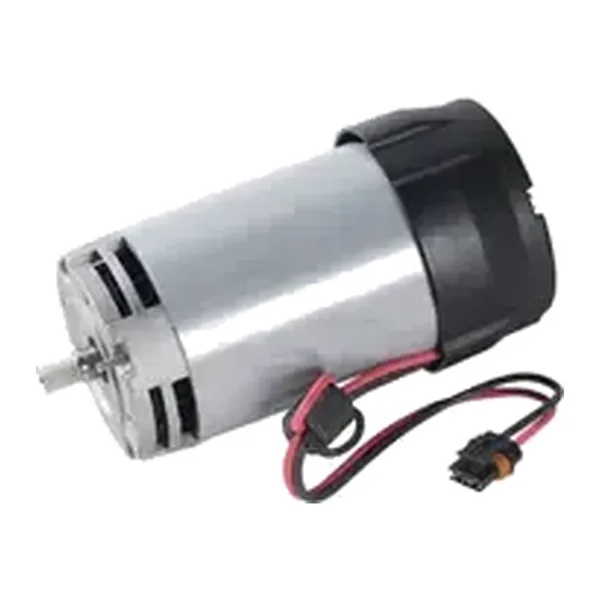

| – | TN4034936Replaces Tennant 1227280 | Qty on machine: 1 | Motor, 24vdc, 2000rpm, 7/8hp (60CM Disk Head)Complete assembly. Serial 30078279 and later. | $989.40/EA | ||
| – | TN4040369Replaces Tennant 1010560 | Qty on machine: 1 | Wheel, Bmpr, 80d X 25w, Non-Marking (Disk Heads) | $5.50/EA | ||
| – | TN4038702Replaces Tennant 1055019 | Qty on machine: 1 | Bumper, Head, 43cm, W/ Bristle Skirt, Im | $94.10/EA | ||
| – | TN4039203Replaces Tennant 1211537 | Qty on machine: 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. | $16.90/EA | ||
| – | TN4036880Replaces Tennant 1218885 | Qty on machine: 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $2.70/EA | ||
| – | TN4036878Replaces Tennant 1218883 | Qty on machine: 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $9.50/EA | ||
| – | TN4019615Replaces Tennant 613991 | Qty on machine: 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $18.20/EA | ||
| – | TN4020804Replaces Tennant 630477 | Qty on machine: 4 | Wheel, Pyu, 02.0d 0.38w, Gray (Cylindrical Head) | $9.50/EA | ||
| – | TN4038485Replaces Tennant 1226976 | Qty on machine: 1 | Motor, Ele, 24vdc 0215rpm 650w, 17mm (43CM Disk Head - T300 Models)Complete assembly. Serial 30071665 and later. | $1,137.50/EA | ||
| – | TN4038485Replaces Tennant 1226976 | Qty on machine: 1 | Motor, Ele, 24vdc 0215rpm 650w, 17mm (50CM Disk Head - T300 Models)Complete assembly. Serial 30071665 and later. | $1,137.50/EA | ||
| – | TN4030967Replaces Tennant 1072656 | Qty on machine: 1 | Bumper, Head, 60cm, Bristle Skirt | $273.90/EA | ||
| – | TN4037957Replaces Tennant 1014918 | Qty on machine: 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, Rbr | Call to confirm part: 800-440-6723 | ||
| – | TN4023251Replaces Tennant 1222495 | Qty on machine: 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198)Complete assembly. Serial 30061275 to 30076603. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30076603, 30071664 to 40000000 and others). Call 800-440-6723 to confirm before ordering. | $1,621.86/EA | ||
| – | TN8005800Replaces Tennant 1227273 | Qty on machine: 1 | Vr, Brush Kit, Motor, Ele (4pc) (43CM & 50CM Disk Head)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Serial 30071665 and later. | $40.20/EA | ||
| – | TN4042671Replaces Tennant 1045790 | Qty on machine: 1 | Brush Kit, Replmt, Carbon 24vdc[1pk=1set] (4Pc) (43CM & 50CM Disk Head)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Serial 30061275 to 30071664. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30071665). Call 800-440-6723 to confirm before ordering. | $20.10/EA | ||
| – | TN4026472Replaces Tennant 9014166 | Qty on machine: 1 | Kit, Belt, Motor (Includes Installation Tool) (Cyld Head)Complete assembly. | $173.70/EA | ||

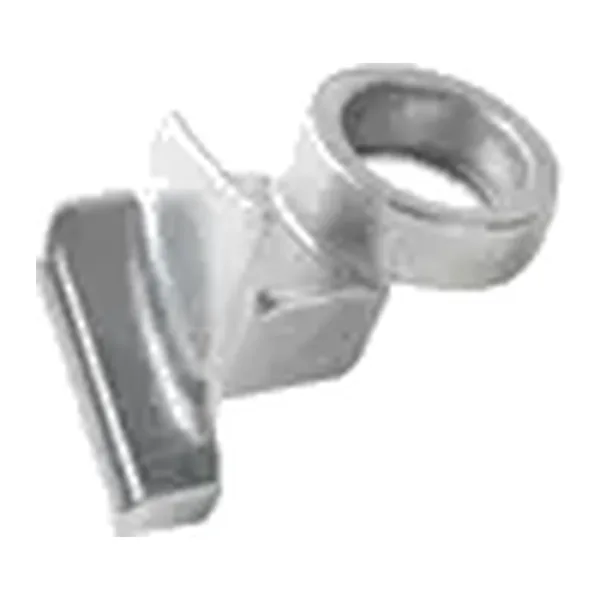

| – | TN4039539Replaces Tennant 1213132 | Qty on machine: 1 | Tool, Installation, Belt (Cylindrical Head)Part of Kit, Belt, Motor (Includes Installation Tool) (Cyld Head) (9014166). | $14.50/EA | ||
| – | TN4040147Replaces Tennant 1215666 | Qty on machine: 2 | Skirt, Side, Cyl, Floating (Cylindrical Head) | $21.10/EA | ||
| – | TN4039915Replaces Tennant 1214586 | Qty on machine: 2 | Wheel, Scrbr, 8.00d, W/ Brg [Hi Trac] (Push Model) | Call to confirm part: 800-440-6723 | ||
| – | TN4023251Replaces Tennant 1228117 | Qty on machine: 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (43CM Disk Head - T300e Models)Complete assembly. Serial 30122075 and later. | $1,621.86/EA | ||
| – | TN4023251Replaces Tennant 1227368 | Qty on machine: 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (43CM & 50CM Disk Head - T300 & T300e Models) (Replaced By Kit 9015159)Complete assembly. Serial 30061275 to 30071664. | Call to confirm part: 800-440-6723 | ||
| – | TN4023251Replaces Tennant 1228117 | Qty on machine: 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Models)Complete assembly. Serial 30071664 and later. | $1,621.86/EA | ||
| – | TN4023232Replaces Tennant 1210212 | Qty on machine: 1 | Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (Replaced By Kit 9015160)Complete assembly. Serial 30061275 to 30078278. | $1,259.00/EA | ||
| – | TN4037142Replaces Tennant 1059370 | Qty on machine: 2 | Brush, Motor, Replmt [Bag Of 4) (60CM Disk Head)Part of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (Replaced By Kit 9015160) (1210212). | Call to confirm part: 800-440-6723 | ||
| – | TN4042417Replaces Tennant 1210202 | Qty on machine: 1 | Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head)Complete assembly. | Call to confirm part: 800-440-6723 | ||
| – | TN4037142Replaces Tennant 1059370 | Qty on machine: 1 | Brush, Motor, Replmt (Bag Of 4) (Cylindrical Head)Part of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). | Call to confirm part: 800-440-6723 | ||
| – | TN4023234Replaces Tennant 1212669 | Qty on machine: 1 | Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head)Complete assembly. | $1,430.40/EA | ||
| – | TN4037142Replaces Tennant 1059370 | Qty on machine: 1 | Brush, Motor, Replmt [Bag Of 4) (Orbital Head)Part of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head) (1212669). | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) General recommended maintenance items
General recommended maintenance items from Tennant's parts list. Manual page 9.
Tennant's online parts catalog lists 4 more parts for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|

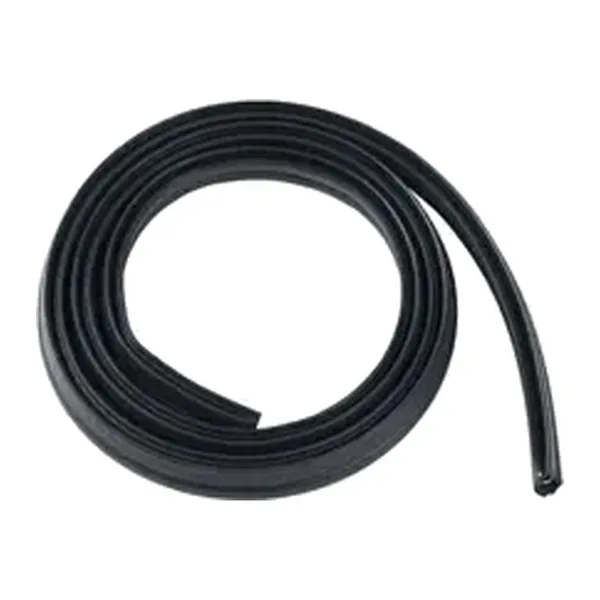

| – | TN4038848Replaces Tennant 1210472 | Qty on machine: 1 | Seal, Afmkt, Bulb, 0.50d .13grip, 05ft (Rec Tank Lid) | $56.90/EA | ||

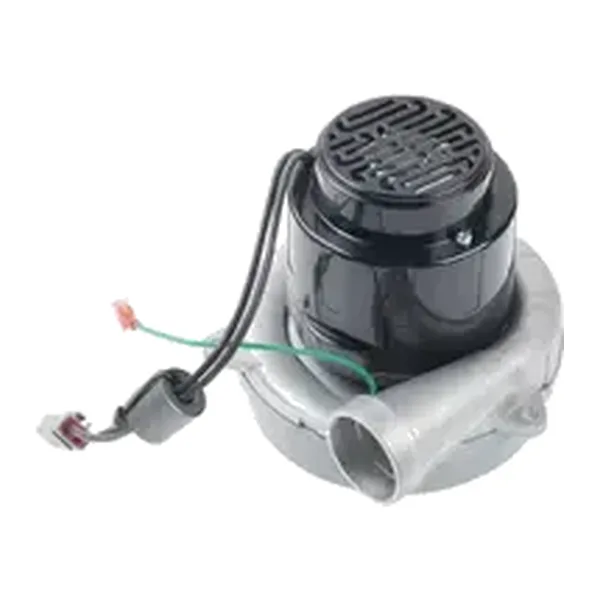

| – | TN4038480Replaces Tennant 1226905 | Qty on machine: 1 | Fan, Vacuum, 6.6d, 024vdc, 2 Stage (T300 Model)Complete assembly. Serial 30071042 and later. | $449.20/EA | ||

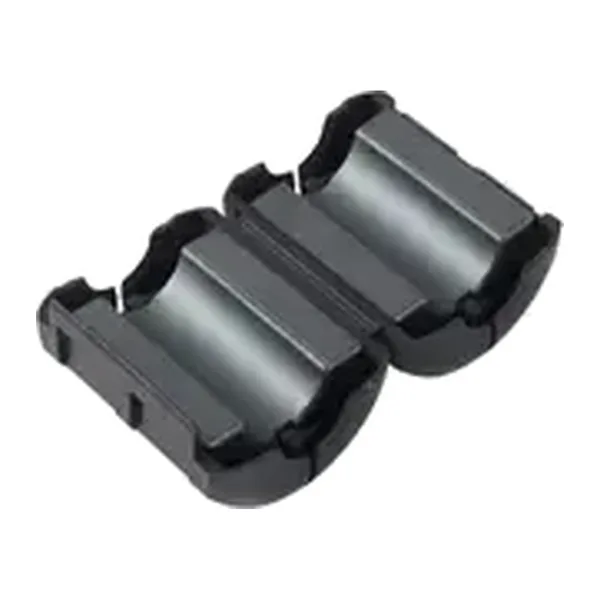

| – | TN4040827Replaces Tennant 1052126 | Qty on machine: 1 | Inductor, 12.7mmid [156 Imp At 25mhz]Part of Fan, Vacuum, 6.6d, 024vdc, 2 Stage (T300 Model) (1226905). Serial 30071042 and later. | $8.70/EA | ||

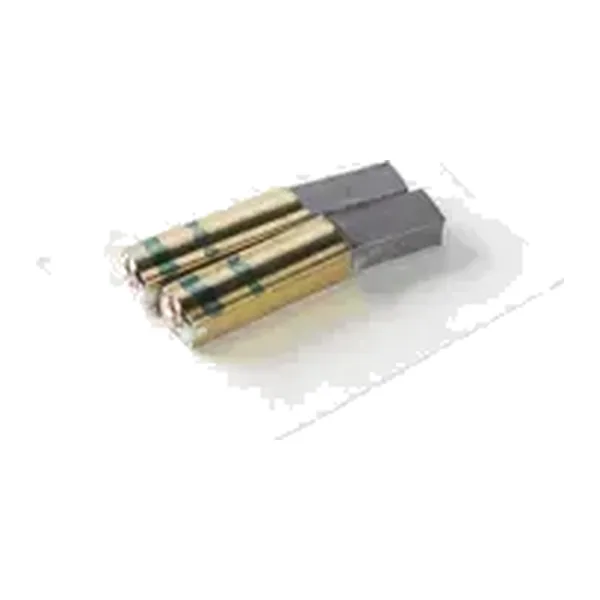

| – | TN8006040Replaces Tennant 1206774 | Qty on machine: 1 | Vr, Brush Kit, Motor, Fan (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 6.6d, 024vdc, 2 Stage (T300 Model) (1226905). | $28.00/EA | ||
| – | TN4038480Replaces Tennant 1202880 | Qty on machine: 1 | Fan, Vacuum, 6.6d, 024vdc, 2 Stage (T300 Model) (Replaced by 1226905)Complete assembly. Serial 30061275 to 30071041. | $449.20/EA | ||
| – | TN8006040Replaces Tennant 1206774 | Qty on machine: 1 | Vr, Brush Kit, Motor, Fan (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 6.6d, 024vdc, 2 Stage (T300 Model) (Replaced by 1226905) (1202880). | $28.00/EA | ||

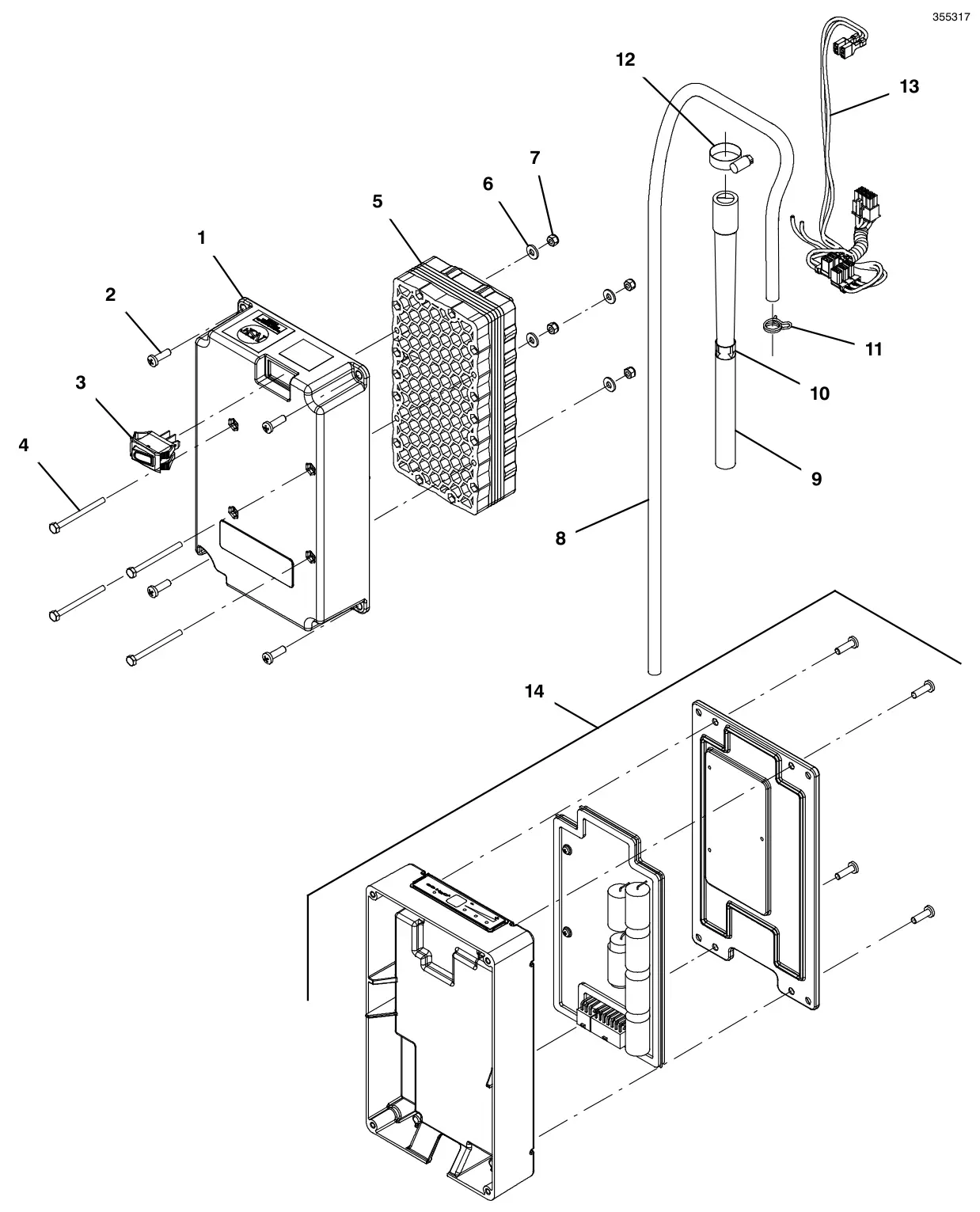

| – | TN4018163Replaces Tennant 9011810 | Qty on machine: 1 | Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553)Complete assembly. Serial 30061275 and later. Tennant prints the serial range as (30061275- MAY2020). | $1,339.60/EA | ||
| – | TN4025507Replaces Tennant 9013646 | Qty on machine: 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlPart of Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553) (9011810). | $300.60/EA | ||
| – | TN4038916Manual prints Tennant 1204663 | Qty on machine: 1 | Hose Assy, W/2cuff,1.5d 031l 1.5/1.5[Pu] (Gray - Option)Number from Tennant's current parts catalog. | $30.10/EA | ||
| – | TN4031484Replaces Tennant 1246719 | Qty on machine: 1 | Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431)Complete assembly. Serial 30104487 and later. Tennant prints the serial range as (30104487- NOV2020). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $60.50/EA | ||
| – | TN4036917Replaces Tennant 1219134 | Qty on machine: 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431) (1246719). | $8.60/EA | ||
| – | TN4031484Replaces Tennant 1246719 | Qty on machine: 1 | Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431)Complete assembly. Tennant prints the serial range as (xxxxxxxx- NOV2020). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $60.50/EA | ||
| – | TN4036917Replaces Tennant 1219134 | Qty on machine: 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431) (1246719). | $8.60/EA | ||
| – | TN4035297Replaces Tennant 1229594 | Qty on machine: 1 | Hose Assy, Drain, 1.5d 017l, [Pvc], [Ch] (Black - Standard - Replaced By Gray Pinch Cuff Screw Cap 1253431)Complete assembly. Serial 30061275 to 30104486. | Call to confirm part: 800-440-6723 | ||
| – | TN4036892Replaces Tennant 1218955 | Qty on machine: 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5d 017l, [Pvc], [Ch] (Black - Standard - Replaced By Gray Pinch Cuff Screw Cap 1253431) (1229594). | $8.60/EA | ||
| – | TN4022697Replaces Tennant 9014872 | Qty on machine: 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. | $60.80/EA | ||
| – | TN4038125Replaces Tennant 1225187 | Qty on machine: 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.40/EA | ||
| – | TN4037917Replaces Tennant 1224899 | Qty on machine: 1 | Deflector, Tray, DebrisPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $22.70/EA | ||
| – | TN4041448Replaces Tennant 1207357 | Qty on machine: 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $33.00/EA | ||
| – | TN4026476Replaces Tennant 9014171 | Qty on machine: 1 | Hose Assy, With Valve (Gray - Japan) (No Longer Avail- able - Replaced By Gray Pinch Cuff Screw Cap 1253431)Complete assembly. Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx). | Call to confirm part: 800-440-6723 | ||

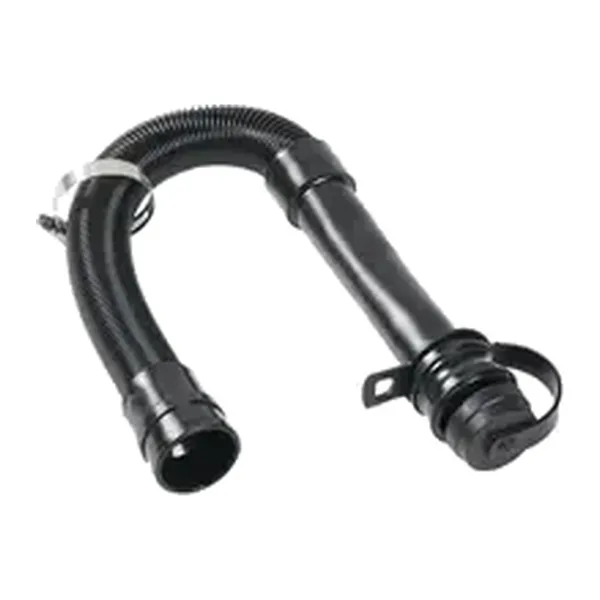

| – | TN4020670Manual prints Tennant 1051986 | Qty on machine: 1 | Valve, Ball, 2way, 1.0id Pvc, W/Handle (No Longer Avail- able - Replaced By Gray Pinch Cuff Screw Cap 1253431)Part of Hose Assy, With Valve (Gray - Japan) (No Longer Avail- able - Replaced By Gray Pinch Cuff Screw Cap 1253431) (9014171). Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx); Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 | ||
| – | TN4037503Replaces Tennant 1222591 | Qty on machine: 1 | Hose Assy, 45cuff,1.5d 021l 1.5/1.5[Pu](Gray) (No Longer Available - Rpld By Gray Pinch Cuff Screw Cap 1253431)Part of Hose Assy, With Valve (Gray - Japan) (No Longer Avail- able - Replaced By Gray Pinch Cuff Screw Cap 1253431) (9014171). Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx). | Call to confirm part: 800-440-6723 | ||
| – | TN4036930Replaces Tennant 1219312 | Qty on machine: 1 | Fan, Vacuum, 5.7d, 024vdc, 2 Stage (T300e Model)Complete assembly. | $388.30/EA | ||
| – | TN8004151Replaces Tennant 372883 | Qty on machine: 1 | Vr, Brush Kit, Motor, Ele (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (T300e Model) (1219312). | $37.30/EA | ||
| – | TN4020485Replaces Tennant 630052 | Qty on machine: 1 | Float Shut-Off (2)Ball 1.75d | $76.00/EA | ||
| – | TN4042866Replaces Tennant 1046428 | Qty on machine: 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft (Front Fill Cover) | $6.70/EA | ||

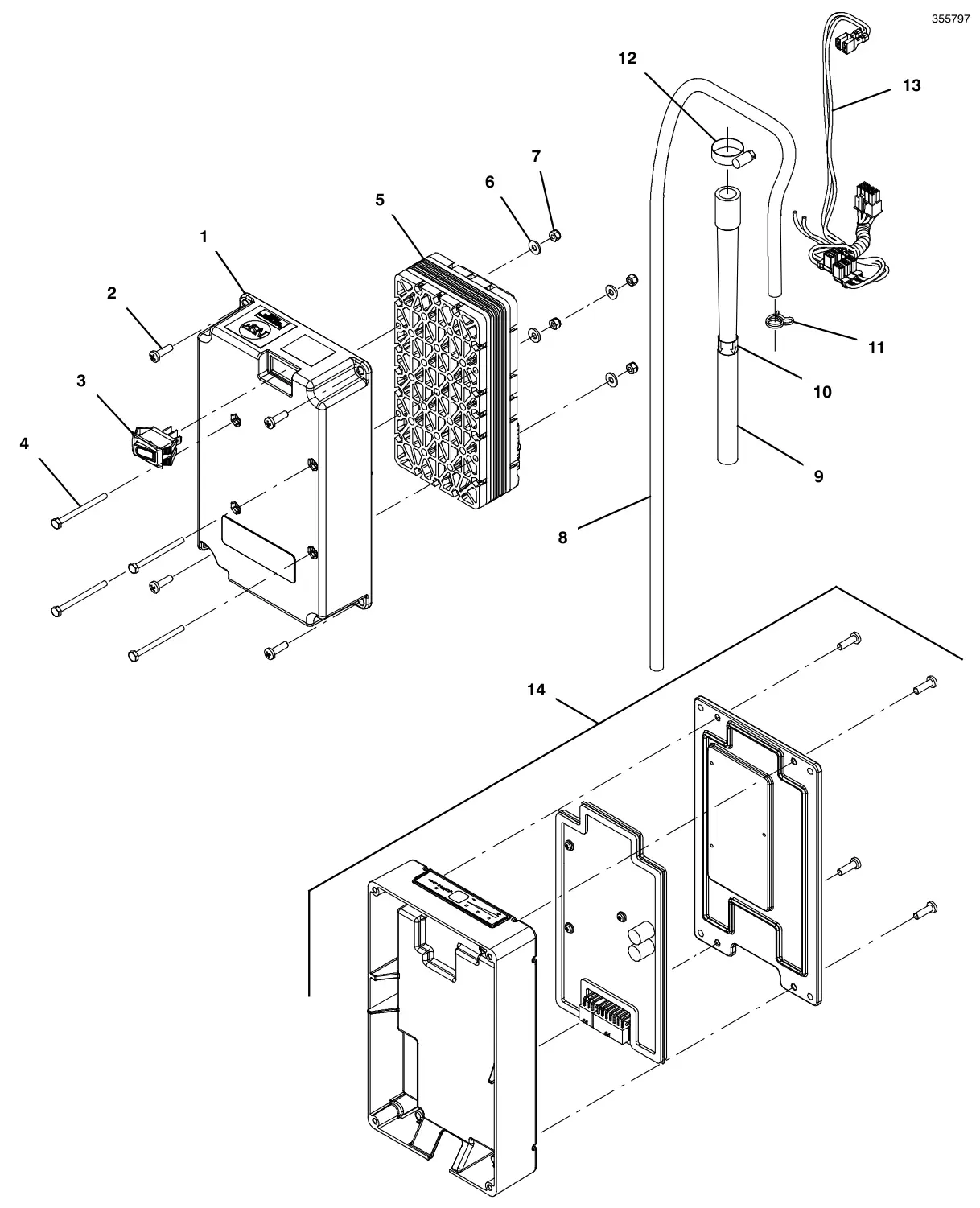

| – | TN4018163Replaces Tennant 9021553 | Qty on machine: 1 | Module Kit, Replmt [Ec-H2o, B 02]Complete assembly. Tennant prints the serial range as (FEB2023- ). | $1,339.60/EA | ||
| – | TN4018163Replaces Tennant 9020643 | Qty on machine: 1 | Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553)Complete assembly. Tennant prints the serial range as (JUN2020- JAN2023). | $1,339.60/EA | ||
| – | TN4031859Replaces Tennant 1253431 | Qty on machine: 1 | Hose Assy, Drain, 1.5id X 19.7l [Pu] (Gray - Option)Complete assembly. Tennant prints the serial range as (DEC2020- ). | Call to confirm part: 800-440-6723 | ||
| – | TN4036917Replaces Tennant 1219134 | Qty on machine: 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5id X 19.7l [Pu] (Gray - Option) (1253431). | $8.60/EA | ||
| – | TN4031859Replaces Tennant 1213008 | Qty on machine: 1 | Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray - Option) (No Longer Available - Replaced By 1253431)Complete assembly. Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx). Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000, 30104487 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723 | ||
| – | TN4036917Replaces Tennant 1219134 | Qty on machine: 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray - Option) (No Longer Available - Replaced By 1253431) (1213008). | $8.60/EA | ||
| – | TN4022716Replaces Tennant 9014905 | Qty on machine: 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss] | $72.80/EA | ||
| – | TN4035593Replaces Tennant 1230810 | Qty on machine: 1 | Brush Kit, Carbon, Transaxle, (Hengye) (For Transaxle 1229667 - Motor Not Available Separately)Serial 30068260 and later. Tennant's online parts catalog gives this part different serial numbers (30068274 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723 | ||
| – | TN4040187Replaces Tennant 1216386 | Qty on machine: 1 | Motor, Transaxle, 24vdc, Replmt [Ul, Ce]Complete assembly. Serial 30061275 to 30068259. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30068273, 30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $653.20/EA | ||
| – | TN4039262Replaces Tennant 1212351 | Qty on machine: 1 | Brush Kit, Carbon, Transaxle, Ul (1 Kit = 4 Pcs)Part of Motor, Transaxle, 24vdc, Replmt [Ul, Ce] (1216386). Serial 30061275 to 30068259. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30068273, 30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $125.90/EA | ||
| – | TN4035298Replaces Tennant 1229595 | Qty on machine: 1 | Hose Assy,W/2cuff,1.5d 022l, [Pvc], [Ch] (Black - Standard) | Call to confirm part: 800-440-6723 |

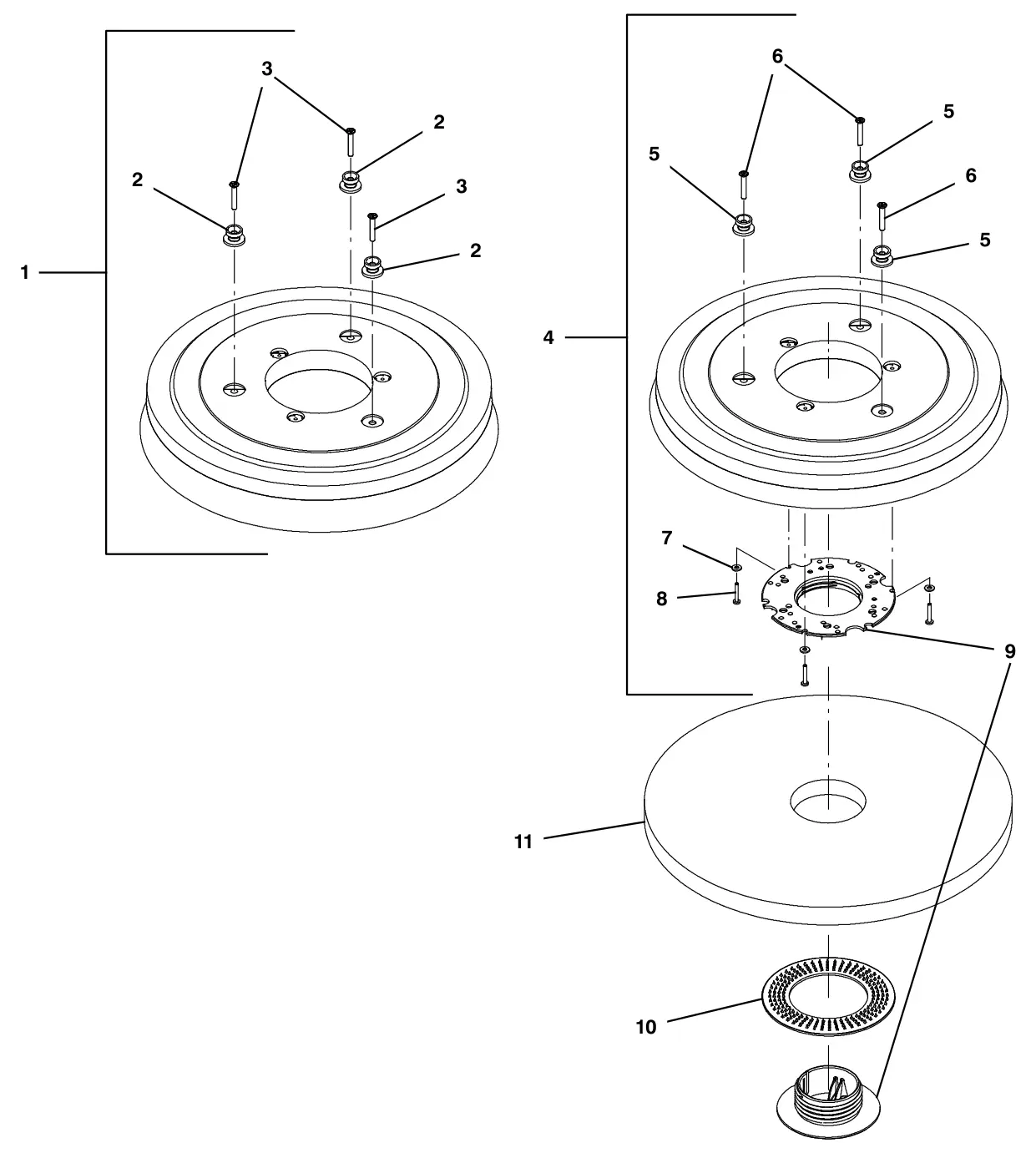

Tennant T300e (S/N 30061275-40000000) Brushes and pad driver group, 43CM disk 3- lug hub parts
The parts Tennant numbers on its brushes and pad driver group, 43cm disk 3- lug hub drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035181Replaces Tennant 1016763 | 1 | Brush Assy, Disk, Scb, 17.0d, AbrComplete assembly. Fits 17 in (43 cm) disk. | $416.00/EA |
| 1 | TN4035182Replaces Tennant 1016764 | 1 | Brush Assy, Disk, Scb, 17.0d, NylComplete assembly. Fits 17 in (43 cm) disk. | $304.10/EA |
| 1 | TN4035183Replaces Tennant 1016765 | 1 | Brush Assy, Disk, Scb, 17.0d, PypComplete assembly. Fits 17 in (43 cm) disk. | $246.40/EA |
| 2 | TN4037291Replaces Tennant 1013018 | 3 | Stud, Drive, Brush PadPart of Brush Assy, Disk, Scb, 17.0d, Pyp (3-Lug) (1016765). Fits 17 in (43 cm) disk. | $16.20/EA |
| 3 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Brush Assy, Disk, Scb, 17.0d, Pyp (3-Lug) (1016765). Fits 17 in (43 cm) disk. | $2.50/EA |
| 4 | TN4039516Replaces Tennant 1212965 | 1 | Driver Assy, Pad, 43cm, Brush, 3 LugComplete assembly. Fits 17 in (43 cm) disk. | $250.30/EA |
| 5 | TN4037291Replaces Tennant 1013018 | 3 | Stud, Drive, Brush PadPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Fits 17 in (43 cm) disk. | $16.20/EA |
| 6 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Fits 17 in (43 cm) disk. | $2.50/EA |
| 7 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Fits 17 in (43 cm) disk. | $2.60/EA |
| 8 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Fits 17 in (43 cm) disk. | $4.00/EA |
| 9 | TN4034145Replaces Tennant 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Fits 17 in (43 cm) disk. | $32.30/EA |
| 10 | TN4034144Replaces Tennant 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverPart of Driver Assy, Pad, 43cm, Brush, 3 Lug (1212965). Fits 17 in (43 cm) disk. | $13.00/EA |
| 11 | TN4216867Replaces Tennant 1243350 | 1 | Pad, Polish, 17.0d, White [1pick=1ctn]Fits 17 in (43 cm) disk. | $62.69/EA |
| 11 | TN4216866Replaces Tennant 1243349 | 1 | Pad, Buff, 17.0d, Red [1pick=1ctn]Fits 17 in (43 cm) disk. | $111.40/EA |
| 11 | TN4034076Replaces Tennant 1243348 | 1 | Pad, Scb, 17.0d, Blu [1pick=1ctn]Fits 17 in (43 cm) disk. | $101.80/EA |
| 11 | TN4216985Replaces Tennant 1243664 | 1 | Pad, Strip, 17.0d Brown [1pick=1ctn]Fits 17 in (43 cm) disk. | $101.80/EA |
| 11 | TN4034298Replaces Tennant 1243663 | 1 | Pad, Strip, 17.0d Blk[Hi Prod1pick=1ctn]Fits 17 in (43 cm) disk. | $145.20/EA |
| 11 | TN4217080Replaces Tennant 1243669 | 1 | Pad, Surf Prep, 17.0d Maroon[1pick=1ctn]Fits 17 in (43 cm) disk. | $113.91/EA |
Tennant T300e (S/N 30061275-40000000) Brushes and pad driver group, 43CM disk magnetic hub parts
The parts Tennant numbers on its brushes and pad driver group, 43cm disk magnetic hub drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039523Replaces Tennant 1213034 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, NylComplete assembly. Fits 17 in (43 cm) disk. | $404.20/EA |
| 1 | TN4039524Replaces Tennant 1213035 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, PypComplete assembly. Fits 17 in (43 cm) disk. | $332.20/EA |
| 1 | TN4039525Replaces Tennant 1213037 | 1 | Brush Assy, Disk, Scb, 43cm, Mag, AbComplete assembly. Fits 17 in (43 cm) disk. | $532.40/EA |
| 2 | TN4036828Replaces Tennant 1218392 | 1 | Label, Safety, Magnet, MedPart of Brush Assy, Disk, Scb, 43cm, Mag, Ab (1213037). Fits 17 in (43 cm) disk. | $4.10/EA |
| 3 | TN4039222Replaces Tennant 1211869 | 1 | Driver Assy, Pad, 43cm, Brush, MagneticComplete assembly. Fits 17 in (43 cm) disk. | $361.50/EA |
| 4 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Fits 17 in (43 cm) disk. | $2.60/EA |
| 5 | TN4039460Replaces Tennant 1212542 | 3 | Screw, Pan, Phl, M4 X 0.70 X 12, Nl, SsPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Fits 17 in (43 cm) disk. | $1.00/EA |
| 6 | TN4036828Replaces Tennant 1218392 | 1 | Label, Safety, Magnet, MedPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Fits 17 in (43 cm) disk. | $4.10/EA |
| 7 | TN4034145Replaces Tennant 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Fits 17 in (43 cm) disk. | $32.30/EA |
| 8 | TN4034144Replaces Tennant 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverPart of Driver Assy, Pad, 43cm, Brush, Magnetic (1211869). Fits 17 in (43 cm) disk. | $13.00/EA |
| 9 | TN4216867Replaces Tennant 1243350 | 1 | Pad, Polish, 17.0d, White [1pick=1ctn]Fits 17 in (43 cm) disk. | $62.69/EA |
| 9 | TN4216866Replaces Tennant 1243349 | 1 | Pad, Buff, 17.0d, Red [1pick=1ctn]Fits 17 in (43 cm) disk. | $111.40/EA |
| 9 | TN4034076Replaces Tennant 1243348 | 1 | Pad, Scb, 17.0d, Blu [1pick=1ctn]Fits 17 in (43 cm) disk. | $101.80/EA |
| 9 | TN4216985Replaces Tennant 1243664 | 1 | Pad, Strip, 17.0d Brown [1pick=1ctn]Fits 17 in (43 cm) disk. | $101.80/EA |
| 9 | TN4034298Replaces Tennant 1243663 | 1 | Pad, Strip, 17.0d Blk[Hi Prod1pick=1ctn]Fits 17 in (43 cm) disk. | $145.20/EA |
| 9 | TN4217080Replaces Tennant 1243669 | 1 | Pad, Surf Prep, 17.0d Maroon[1pick=1ctn]Fits 17 in (43 cm) disk. | $113.91/EA |

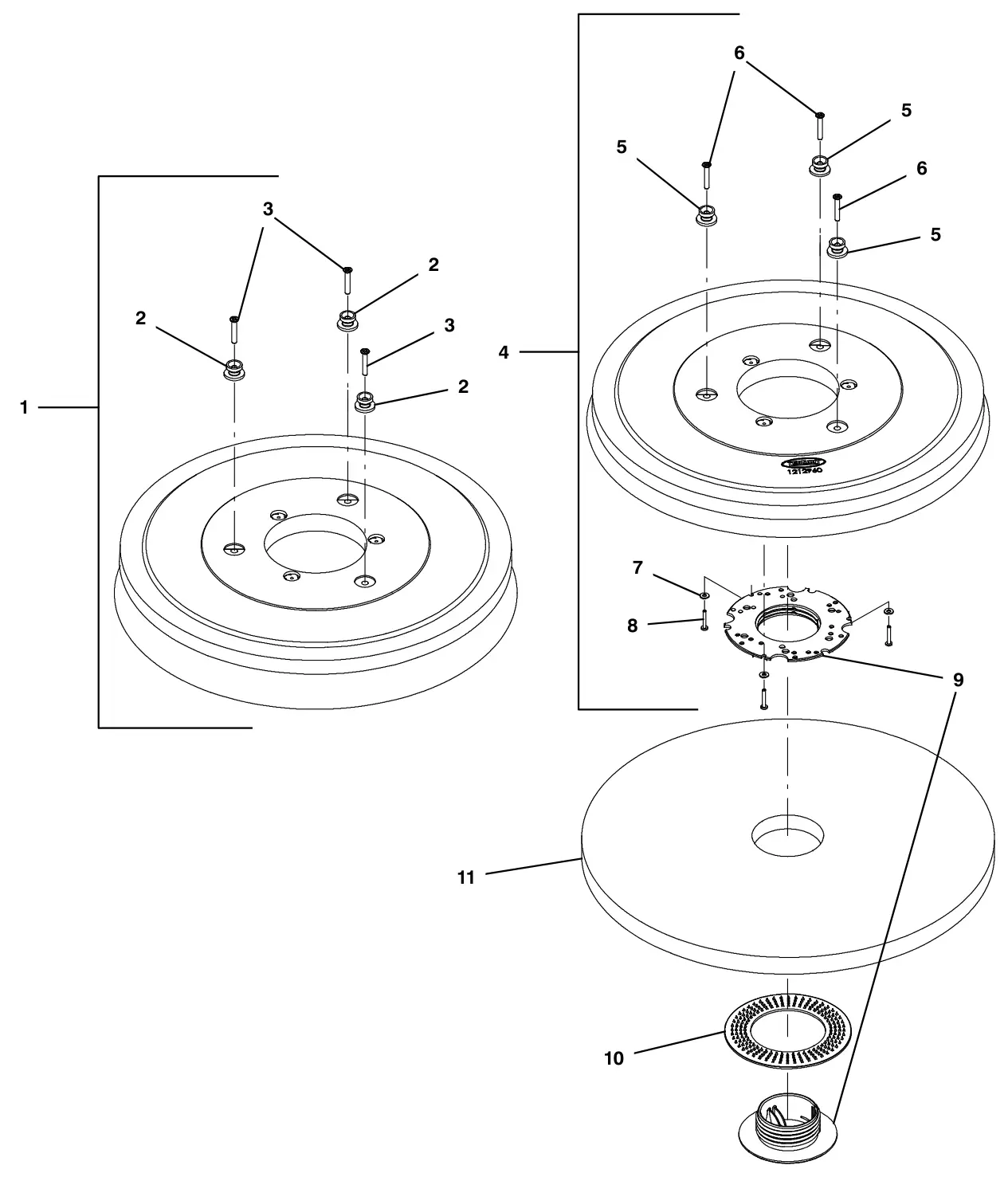

Tennant T300e (S/N 30061275-40000000) Brushes and pad driver group, 50CM disk 3- lug hub parts
The parts Tennant numbers on its brushes and pad driver group, 50cm disk 3- lug hub drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035185Replaces Tennant 1016805 | 1 | Brush Assy, Disk, Scb, 20.0d, AbrComplete assembly. Fits 20 in (50 cm) disk. | $573.80/EA |
| 1 | TN4035186Replaces Tennant 1016810 | 1 | Brush Assy, Disk, Scb, 20.0d, NylComplete assembly. Fits 20 in (50 cm) disk. | $333.60/EA |
| 1 | TN4035187Replaces Tennant 1016811 | 1 | Brush Assy, Disk, Scb, 20.0d, PypComplete assembly. Fits 20 in (50 cm) disk. | $284.80/EA |
| 2 | TN4037291Replaces Tennant 1013018 | 3 | Stud, Drive, Brush PadPart of Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug) (1016811). Fits 20 in (50 cm) disk. | $16.20/EA |
| 3 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Brush Assy, Disk, Scb, 20.0d, Pyp (3-Lug) (1016811). Fits 20 in (50 cm) disk. | $2.50/EA |
| 4 | TN4039514Replaces Tennant 1212960 | 1 | Driver Assy, Pad, 50cm, Brush, 3 LugComplete assembly. Fits 20 in (50 cm) disk. | $295.80/EA |
| 5 | TN4037291Replaces Tennant 1013018 | 3 | Stud, Drive, Brush PadPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Fits 20 in (50 cm) disk. | $16.20/EA |
| 6 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Fits 20 in (50 cm) disk. | $2.50/EA |
| 7 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Fits 20 in (50 cm) disk. | $2.60/EA |
| 8 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Fits 20 in (50 cm) disk. | $4.00/EA |
| 9 | TN4034145Replaces Tennant 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Fits 20 in (50 cm) disk. | $32.30/EA |
| 10 | TN4034144Replaces Tennant 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverPart of Driver Assy, Pad, 50cm, Brush, 3 Lug (1212960). Fits 20 in (50 cm) disk. | $13.00/EA |
| 11 | TN4034068Replaces Tennant 1243338 | 1 | Pad, Polish, 20.0d, White [1pick=1ctn]Fits 20 in (50 cm) disk. | $134.50/EA |
| 11 | TN4041862Replaces Tennant 1243339 | 1 | Pad, Buff, 20.0d, Red [1pick=1ctn]Fits 20 in (50 cm) disk. | $29.20/EA |
| 11 | TN4034070Replaces Tennant 1243340 | 1 | Pad, Scb, 20.0d, Blu [1pick=1ctn]Fits 20 in (50 cm) disk. | $134.50/EA |
| 11 | TN4034287Replaces Tennant 1243566 | 1 | Pad, Stripping 20.0d, Brn [1pick=1ctn]Fits 20 in (50 cm) disk. | $134.50/EA |
| 11 | TN4034297Replaces Tennant 1243661 | 1 | Pad, Strip, 20.0d Blk[Hi Prod1pick=1ctn]Fits 20 in (50 cm) disk. | $160.90/EA |
| 11 | TN4034299Replaces Tennant 1243670 | 1 | Pad, Surf Prep, 20.0d Maroon[1pick=1ctn]Fits 20 in (50 cm) disk. | $164.32/EA |

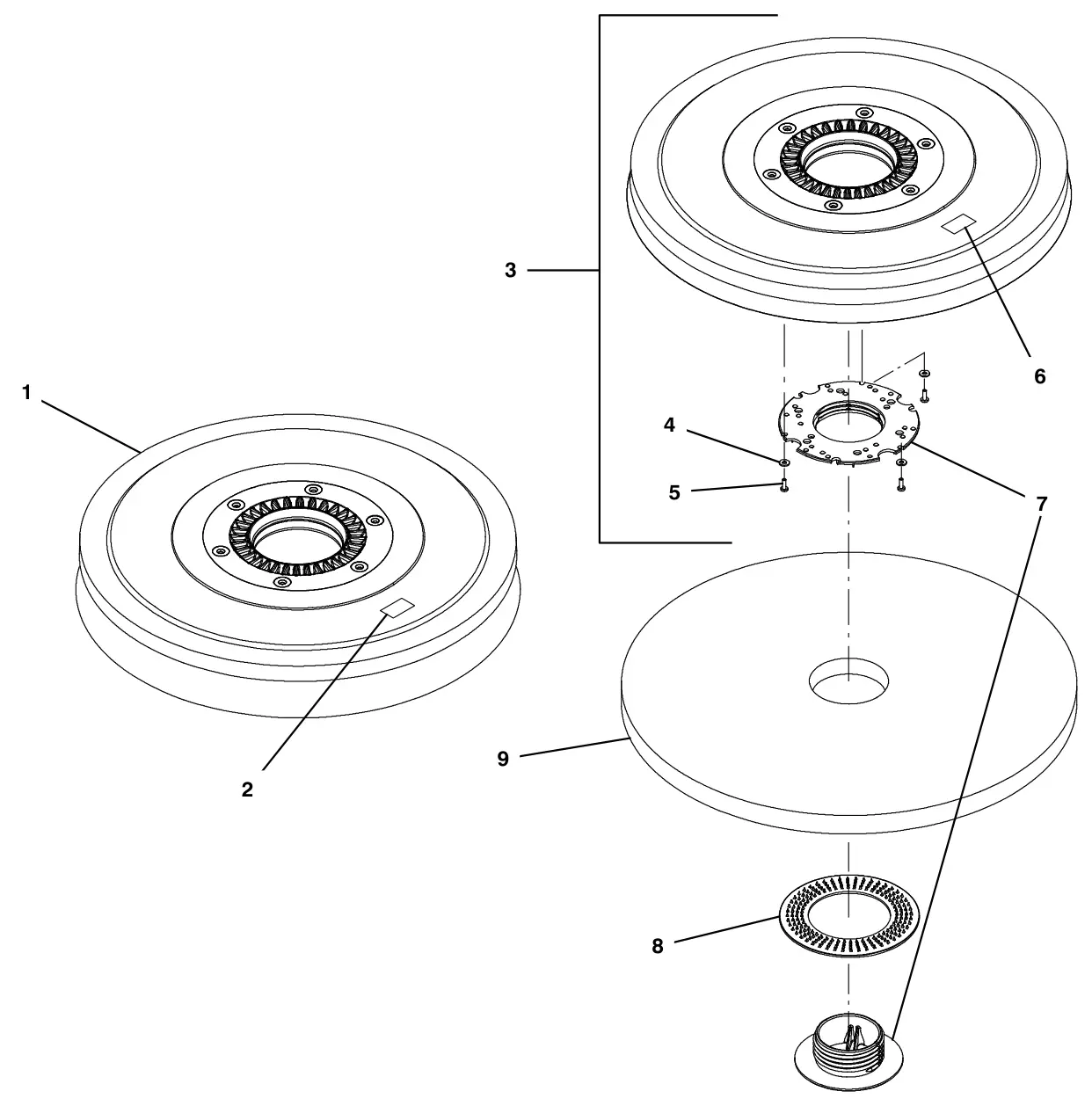

Tennant T300e (S/N 30061275-40000000) Brushes and pad driver group, 50CM disk magnetic hub parts
The parts Tennant numbers on its brushes and pad driver group, 50cm disk magnetic hub drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038841Replaces Tennant 1210386 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, NylComplete assembly. Fits 20 in (50 cm) disk. | $426.30/EA |
| 1 | TN4039521Replaces Tennant 1213032 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, PypComplete assembly. Fits 20 in (50 cm) disk. | $398.20/EA |
| 1 | TN4039522Replaces Tennant 1213033 | 1 | Brush Assy, Disk, Scb, 50cm, Mag, AbComplete assembly. Fits 20 in (50 cm) disk. | $690.20/EA |
| 2 | TN4036828Replaces Tennant 1218392 | 1 | Label, Safety, Magnet, MedPart of Brush Assy, Disk, Scb, 50cm, Mag, Ab (1213033). Fits 20 in (50 cm) disk. | $4.10/EA |
| 3 | TN4042087Replaces Tennant 1209197 | 1 | Driver Assy, Pad, 50cm, Brush, MagneticComplete assembly. Fits 20 in (50 cm) disk. | $387.40/EA |
| 4 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Fits 20 in (50 cm) disk. | $2.60/EA |
| 5 | TN4039460Replaces Tennant 1212542 | 3 | Screw, Pan, Phl, M4 X 0.70 X 12, Nl, SsPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Fits 20 in (50 cm) disk. | $1.00/EA |
| 6 | TN4036828Replaces Tennant 1218392 | 1 | Label, Safety, Magnet, MedPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Fits 20 in (50 cm) disk. | $4.10/EA |
| 7 | TN4034145Replaces Tennant 32506 | 1 | Device, Centering, Rh Pad RetainerPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Fits 20 in (50 cm) disk. | $32.30/EA |
| 8 | TN4034144Replaces Tennant 32505 | 1 | Washer, Flat, 92b 156d 2.6l, Pad DriverPart of Driver Assy, Pad, 50cm, Brush, Magnetic (1209197). Fits 20 in (50 cm) disk. | $13.00/EA |
| 9 | TN4034068Replaces Tennant 1243338 | 1 | Pad, Polish, 20.0d, White [1pick=1ctn]Fits 20 in (50 cm) disk. | $134.50/EA |
| 9 | TN4041862Replaces Tennant 1243339 | 1 | Pad, Buff, 20.0d, Red [1pick=1ctn]Fits 20 in (50 cm) disk. | $29.20/EA |
| 9 | TN4034070Replaces Tennant 1243340 | 1 | Pad, Scb, 20.0d, Blu [1pick=1ctn]Fits 20 in (50 cm) disk. | $134.50/EA |
| 9 | TN4034287Replaces Tennant 1243566 | 1 | Pad, Stripping 20.0d, Brn [1pick=1ctn]Fits 20 in (50 cm) disk. | $134.50/EA |
| 9 | TN4034297Replaces Tennant 1243661 | 1 | Pad, Strip, 20.0d Blk[Hi Prod1pick=1ctn]Fits 20 in (50 cm) disk. | $160.90/EA |
| 9 | TN4034299Replaces Tennant 1243670 | 1 | Pad, Surf Prep, 20.0d Maroon[1pick=1ctn]Fits 20 in (50 cm) disk. | $164.32/EA |

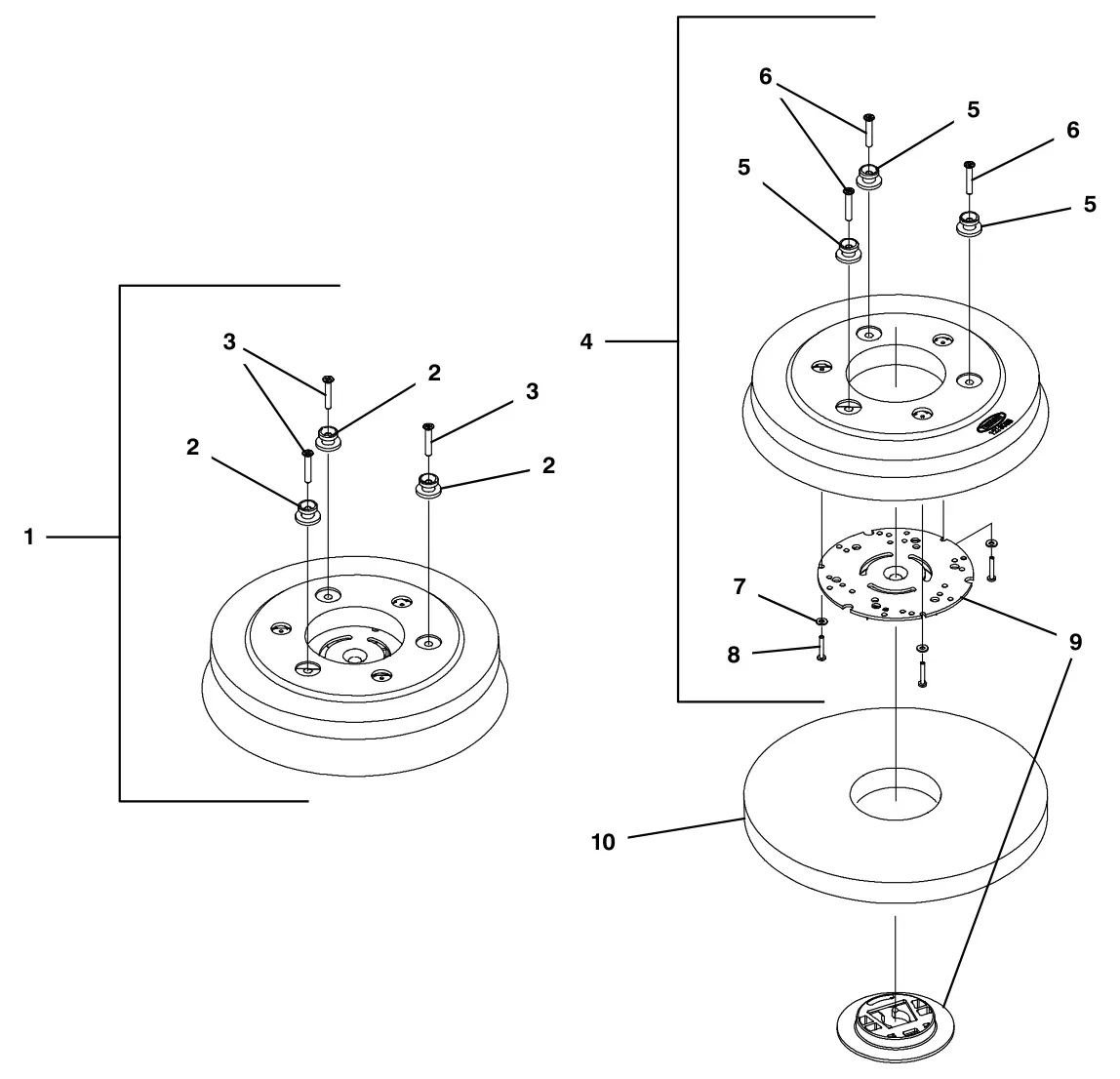

Tennant T300e (S/N 30061275-40000000) Brushes and pad driver group, 60CM dual disk 3- lug hub parts
The parts Tennant numbers on its brushes and pad driver group, 60cm dual disk 3- lug hub drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039107Replaces Tennant 1056306 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, NylComplete assembly. Fits 24 in (60 cm) dual disk. | $268.40/EA |
| 1 | TN4039108Replaces Tennant 1056313 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, PypComplete assembly. Fits 24 in (60 cm) dual disk. | $210.30/EA |
| 1 | TN4032071Replaces Tennant 1063297 | 2 | Brush Assy, Disk, Scb, 12.0d, 3-Lug, AbrComplete assembly. Fits 24 in (60 cm) dual disk. | $339.40/EA |
| 2 | TN4038791Replaces Tennant 1055558 | 3 | Mount, Lug, Pad-Driver [T3]Part of Brush Assy, Disk, Scb, 12.0d, 3-Lug, Abr (1063297). Fits 24 in (60 cm) dual disk. | $10.00/EA |
| 3 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Brush Assy, Disk, Scb, 12.0d, 3-Lug, Abr (1063297). Fits 24 in (60 cm) dual disk. | $2.50/EA |
| 4 | TN4039526Replaces Tennant 1213038 | 2 | Driver Assy, Pad, 30cm, Brush, 3 LugComplete assembly. Fits 24 in (60 cm) dual disk. | $243.20/EA |
| 5 | TN4038791Replaces Tennant 1055558 | 3 | Mount, Lug, Pad-Driver [T3]Part of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Fits 24 in (60 cm) dual disk. | $10.00/EA |
| 6 | TN4036636Replaces Tennant 1021316 | 3 | Screw, Flt, Phl, M6 X 1.00 X 35, SsPart of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Fits 24 in (60 cm) dual disk. | $2.50/EA |
| 7 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Fits 24 in (60 cm) dual disk. | $2.60/EA |
| 8 | TN4040926Replaces Tennant 04403 | 3 | Screw, Pan, Phl, M4 X 0.70 X 25, Nl, SsPart of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Fits 24 in (60 cm) dual disk. | $4.00/EA |
| 9 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 30cm, Brush, 3 Lug (1213038). Fits 24 in (60 cm) dual disk. | $45.50/EA |
| 10 | TN4216864Replaces Tennant 1243345 | 2 | Pad, Polish, 12.0d, White [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 10 | TN4216865Replaces Tennant 1243346 | 2 | Pad, Buff, 12.0d, Red [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 10 | TN4034075Replaces Tennant 1243347 | 2 | Pad, Scb, 12.0d, Blu [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 10 | TN4216984Replaces Tennant 1243662 | 2 | Pad, Strip, 12.0d Brown [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 10 | TN4217081Replaces Tennant 1243671 | 2 | Pad, Strip, 12.0d Blk[Hi Prod1pick=1ctn]Fits 24 in (60 cm) dual disk. | $84.70/EA |
| 10 | TN4216986Replaces Tennant 1243665 | 2 | Pad, Surf Prep, 12.0d Maroon[1pick=1ctn]Fits 24 in (60 cm) dual disk. | $68.55/EA |

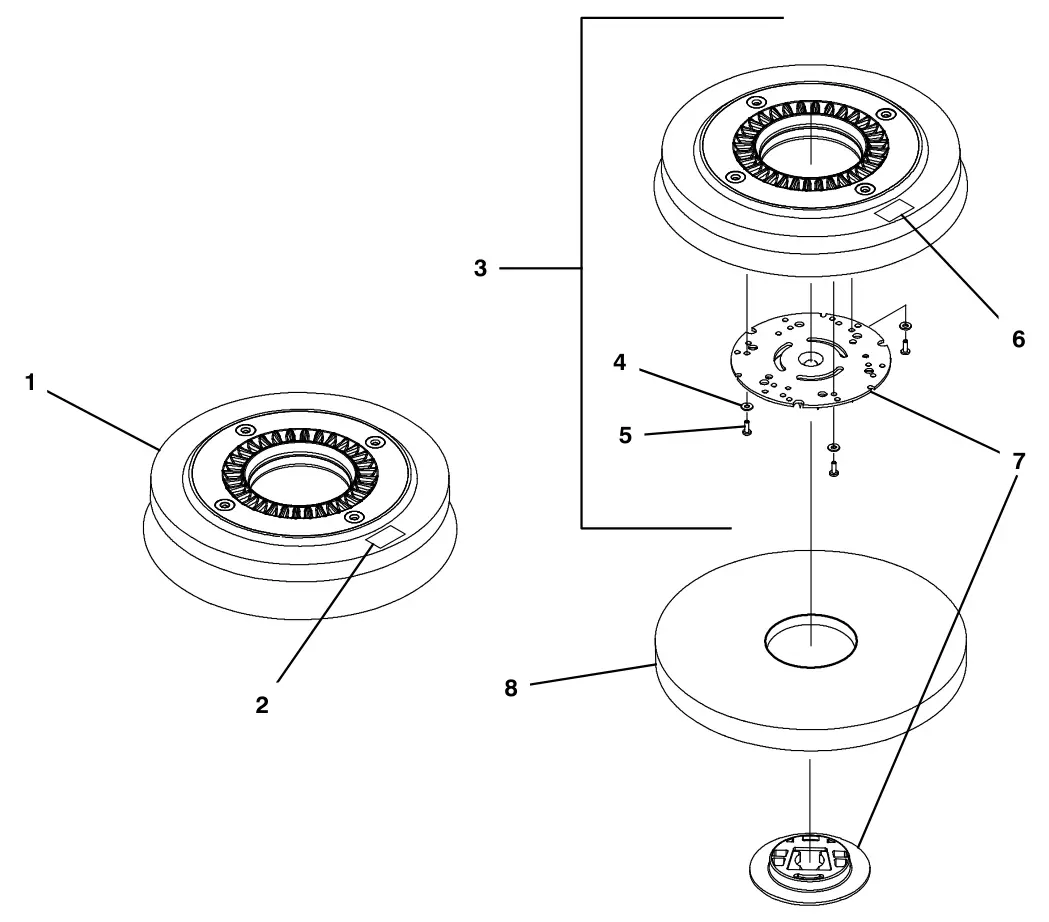

Tennant T300e (S/N 30061275-40000000) Brushes and pad driver group, 60CM dual disk magnetic hub parts
The parts Tennant numbers on its brushes and pad driver group, 60cm dual disk magnetic hub drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042413Replaces Tennant 1210136 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, NylComplete assembly. Fits 24 in (60 cm) dual disk. | $351.20/EA |
| 1 | TN4039527Replaces Tennant 1213040 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, PypComplete assembly. Fits 24 in (60 cm) dual disk. | $274.50/EA |
| 1 | TN4039528Replaces Tennant 1213041 | 2 | Brush Assy, Disk, Scb, 30cm, Mag, AbComplete assembly. Fits 24 in (60 cm) dual disk. | $435.10/EA |
| 2 | TN4036828Replaces Tennant 1218392 | 1 | Label, Safety, Magnet, MedPart of Brush Assy, Disk, Scb, 30cm, Mag, Ab (1213041). Fits 24 in (60 cm) dual disk. | $4.10/EA |
| 3 | TN4042083Replaces Tennant 1209160 | 2 | Driver Assy, Pad, 30cm, [Magnetic]Complete assembly. Fits 24 in (60 cm) dual disk. | $321.40/EA |
| 4 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Fits 24 in (60 cm) dual disk. | $2.60/EA |
| 5 | TN4039460Replaces Tennant 1212542 | 3 | Screw, Pan, Phl, M4 X 0.70 X 12, Nl, SsPart of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Fits 24 in (60 cm) dual disk. | $1.00/EA |
| 6 | TN4036828Replaces Tennant 1218392 | 1 | Label, Safety, Magnet, MedPart of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Fits 24 in (60 cm) dual disk. | $4.10/EA |
| 7 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 30cm, [Magnetic] (1209160). Fits 24 in (60 cm) dual disk. | $45.50/EA |
| 8 | TN4216864Replaces Tennant 1243345 | 2 | Pad, Polish, 12.0d, White [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 8 | TN4216865Replaces Tennant 1243346 | 2 | Pad, Buff, 12.0d, Red [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 8 | TN4034075Replaces Tennant 1243347 | 2 | Pad, Scb, 12.0d, Blu [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 8 | TN4216984Replaces Tennant 1243662 | 2 | Pad, Strip, 12.0d Brown [1pick=1ctn]Fits 24 in (60 cm) dual disk. | $72.80/EA |
| 8 | TN4217081Replaces Tennant 1243671 | 2 | Pad, Strip, 12.0d Blk[Hi Prod1pick=1ctn]Fits 24 in (60 cm) dual disk. | $84.70/EA |
| 8 | TN4216986Replaces Tennant 1243665 | 2 | Pad, Surf Prep, 12.0d Maroon[1pick=1ctn]Fits 24 in (60 cm) dual disk. | $68.55/EA |
Tennant T300e (S/N 30061275-40000000) Brushes group, 50CM cylindrical parts
Brushes group, 50CM cylindrical from Tennant's parts list. Manual page 22.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 1 | TN4039481Replaces Tennant 1212762 | Qty on machine: 2 | Brush, Scb, 21l, 20sr, PypFits 20 in (50 cm) cylindrical. | $192.00/EA | ||
| 1 | TN4042084Replaces Tennant 1209188 | Qty on machine: 2 | Brush, Scb, 21l, 20sr, NylFits 20 in (50 cm) cylindrical. | $320.20/EA |
Tennant T300e (S/N 30061275-40000000) Pad group, 50CM orbital parts
Pad group, 50CM orbital from Tennant's parts list. Manual page 23.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 2 | TN4040529Replaces Tennant 1217830 | Qty on machine: 1 | Pad, Backer, 20 X 14 (Includes Hook & Loop Fastener)Fits 20 in (50 cm) orbital. | $102.80/EA | ||
| 1 | TN4044930Replaces Tennant 1074740 | Qty on machine: 1 | Pad, Scb, 14 X 20, Green [1pick=1ctn]Fits 20 in (50 cm) orbital. | $418.90/EA | ||
| 1 | TN4216868Replaces Tennant 1243351 | Qty on machine: 1 | Pad, Polish, 20 X 14, White [1pick=1ctn]Fits 20 in (50 cm) orbital. | $130.70/EA | ||
| 1 | TN4034077Replaces Tennant 1243352 | Qty on machine: 1 | Pad, Buff, 20 X 14, Red [1pick=1ctn]Fits 20 in (50 cm) orbital. | Call to confirm part: 800-440-6723 | ||
| 1 | TN4216869Replaces Tennant 1243353 | Qty on machine: 1 | Pad, Scb, 20 X 14, Blu [1pick=1ctn]Fits 20 in (50 cm) orbital. | $163.87/EA | ||
| 1 | TN4217082Replaces Tennant 1243672 | Qty on machine: 1 | Pad, Surf Prep, 20x14 Maroon[1pick=1ctn]Fits 20 in (50 cm) orbital. | $204.13/EA | ||
| 1 | TN4034969Replaces Tennant 1228000 | Qty on machine: 1 | Pad, Melamine, 14” X 20” [Case Of 5]Fits 20 in (50 cm) orbital. | $322.50/EA |
Tennant T300e (S/N 30061275-40000000) Scrub head group, 43CM disk, 3- lug hub parts
The parts Tennant numbers on its scrub head group, 43cm disk, 3- lug hub drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038485Replaces Tennant 1226976 | 1 | Motor, Ele, 24vdc 0215rpm 650w, 17mm (T300 Model)Complete assembly. Fits 17 in (43 cm) disk. Serial 30071665 and later. | $1,137.50/EA |
| 1 | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (T300e Model)Complete assembly. Fits 17 in (43 cm) disk. Serial 30122075 and later. | $1,621.86/EA |
| 1 | TN4023251Replaces Tennant 1227368 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (Replaced By Kit 9015159)Complete assembly. Fits 17 in (43 cm) disk. Serial 30071664 and later. | Call to confirm part: 800-440-6723 |
| – | TN8005800Replaces Tennant 1227273 | 1 | Vr, Brush Kit, Motor, Ele (4pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (43CM & 50CM Disk Head - T300 & T300e Models) (Replaced By Kit 9015159) (1227368). Fits 17 in (43 cm) disk. Serial 30071665 and later. | $40.20/EA |
| – | TN4042671Replaces Tennant 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc) (For Sanrong Motor - Frame #56S)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (43CM & 50CM Disk Head - T300 & T300e Models) (Replaced By Kit 9015159) (1227368). Fits 17 in (43 cm) disk. Serial 30071664 and later. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30071665). Call 800-440-6723 to confirm before ordering. | $20.10/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (43CM & 50CM Disk Head - T300 & T300e Models) (Replaced By Kit 9015159) (1227368). Fits 17 in (43 cm) disk. | $4.20/EA |
| 3 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits 17 in (43 cm) disk. | $2.60/EA |
| 5 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 17 in (43 cm) disk. | $3.40/EA |
| 6 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingFits 17 in (43 cm) disk. | $5.50/EA |
| 7 | TN4038624Replaces Tennant 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 8 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsFits 17 in (43 cm) disk. | $2.60/EA |
| 9 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Fits 17 in (43 cm) disk. | $6.70/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Fits 17 in (43 cm) disk. | $1.90/EA |
| 11 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftFits 17 in (43 cm) disk. | $104.00/EA |
| 12 | TN4039259Replaces Tennant 1212324 | 1 | Housing, Head, 43cmFits 17 in (43 cm) disk. | $128.60/EA |
| 13 | TN4038702Replaces Tennant 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, Im (T300 Model)Fits 17 in (43 cm) disk. | $94.10/EA |
| 13 | TN4038702Replaces Tennant 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, Im (T300e Model)Fits 17 in (43 cm) disk. Serial 30061275 and later. Tennant prints the serial range as (30061275- APR2020). | $94.10/EA |
| 14 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Fl, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 15 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 17 in (43 cm) disk. | $3.50/EA |
| 16 | TN4037862Replaces Tennant 1223980 | 1 | Plate Wldt, Head, Weighted (T300 Model)Fits 17 in (43 cm) disk. | $96.80/EA |
| 16 | TN4035314Replaces Tennant 1229792 | 1 | Plate, Wldt, Head, Weighted (T300e Model)Fits 17 in (43 cm) disk. | Call to confirm part: 800-440-6723 |
| 17 | TN4033193Replaces Tennant 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsFits 17 in (43 cm) disk. | $8.20/EA |
| 18 | TN4036503Replaces Tennant 1233282 | 1 | Hub, Drive, 3 Lug [Machined]Fits 17 in (43 cm) disk. Serial 30066922 and later. | Call to confirm part: 800-440-6723 |
| 18 | TN4022588Manual prints Tennant 1219855 | 1 | Hub, Drive, 3lug, Alm-Nyl, 17mm[T2,T300]Fits 17 in (43 cm) disk. Serial 30061275 to 30066921. Number from Tennant's current parts catalog. | $240.10/EA |
| 19 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsFits 17 in (43 cm) disk. | $3.40/EA |
| 20 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 17 in (43 cm) disk. | $3.50/EA |
| 21 | TN4037304Replaces Tennant 1013188 | 1 | Clip, Spring, Drive Hub, Release [T3]Fits 17 in (43 cm) disk. | $7.00/EA |
| 22 | TN4036677Replaces Tennant 1011201 | 1 | Plate, Drive Hub, Release Clip [T3]Fits 17 in (43 cm) disk. | $21.70/EA |
| 23 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsFits 17 in (43 cm) disk. | $2.60/EA |
| 24 | TN4041589Replaces Tennant 07514 | 2 | Washer, Lock, Int, 10, SsFits 17 in (43 cm) disk. | $3.50/EA |
| 25 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsFits 17 in (43 cm) disk. | $3.40/EA |
| 26 | TN4037476Replaces Tennant 1221972 | 1 | Plug, Hole, Oval, Head, Hsng, Abs [T300]Fits 17 in (43 cm) disk. Serial 30061275 to 30066921. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30066921). Call 800-440-6723 to confirm before ordering. | $58.90/EA |
| 27 | TN4038920Replaces Tennant 1211242 | 1 | Button, Plunger, PadFits 17 in (43 cm) disk. Serial 30066922 and later. | $11.60/EA |
| 28 | TN4039485Replaces Tennant 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsFits 17 in (43 cm) disk. Serial 30066922 and later. | $11.50/EA |
| 29 | TN4039226Replaces Tennant 1211907 | 1 | Pin, Stop, ShortFits 17 in (43 cm) disk. Serial 30066922 and later. | $21.60/EA |
| 30 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, SsFits 17 in (43 cm) disk. | $3.20/EA |

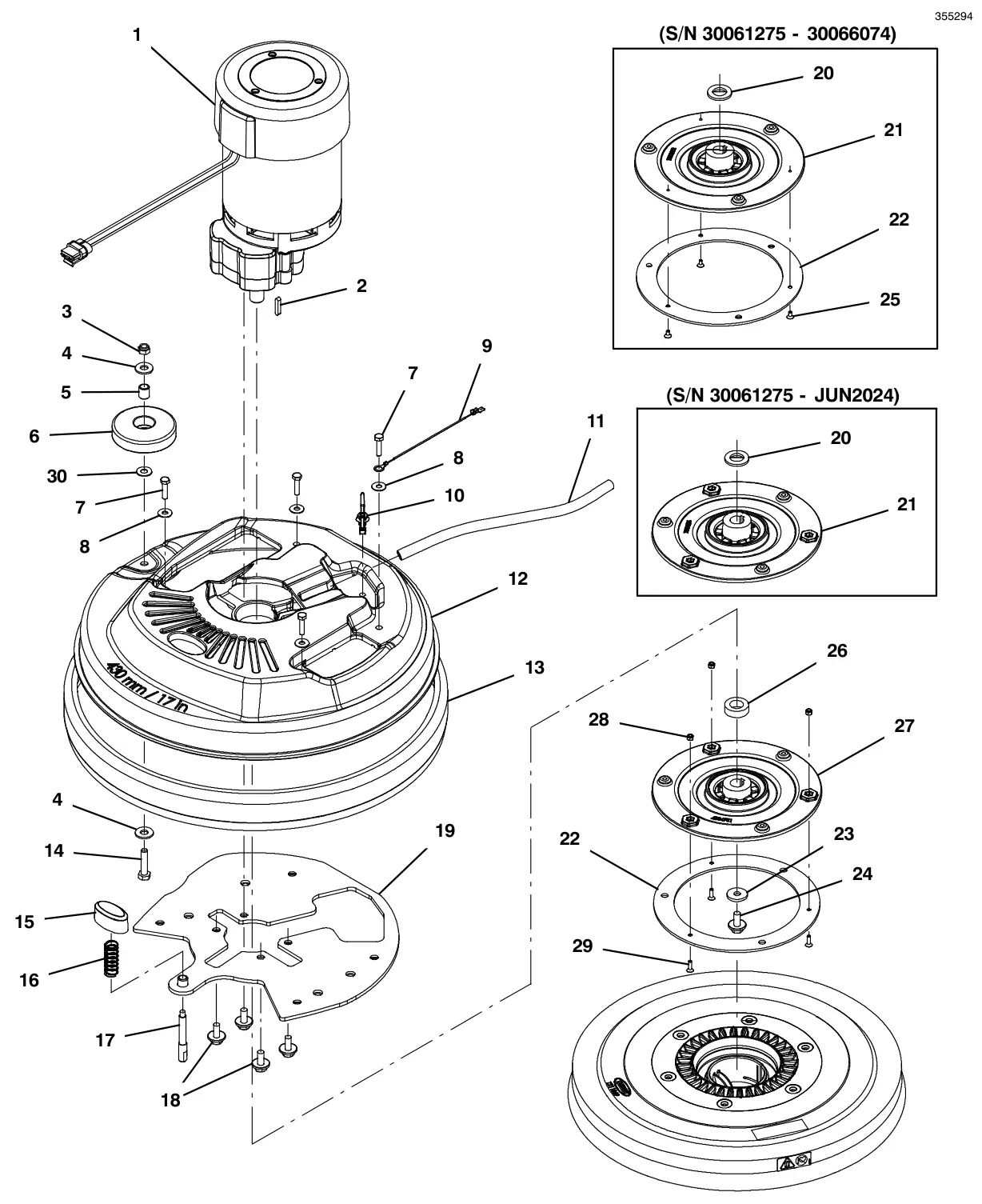

Tennant T300e (S/N 30061275-40000000) Scrub head group, 43CM disk, magnetic hub parts
The parts Tennant numbers on its scrub head group, 43cm disk, magnetic hub drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038485Replaces Tennant 1226976 | 1 | Motor, Ele, 24vdc 0215rpm 650w, 17mm (T300 Model)Complete assembly. Fits 17 in (43 cm) disk. Serial 30071665 and later. | $1,137.50/EA |
| 1 | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (T300e Model)Complete assembly. Fits 17 in (43 cm) disk. Serial 30122075 and later. | $1,621.86/EA |
| 1 | TN4023251Replaces Tennant 1227368 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (Replaced By Kit 9015159)Complete assembly. Fits 17 in (43 cm) disk. Serial 30061275 to 30071664. | Call to confirm part: 800-440-6723 |
| – | TN8005800Replaces Tennant 1227273 | 1 | Vr, Brush Kit, Motor, Ele (4pc)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (43CM & 50CM Disk Head - T300 & T300e Models) (Replaced By Kit 9015159) (1227368). Fits 17 in (43 cm) disk. Serial 30071665 and later. | $40.20/EA |
| – | TN4042671Replaces Tennant 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc) (For Sanrong Motor - Frame #56S)Part of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (43CM & 50CM Disk Head - T300 & T300e Models) (Replaced By Kit 9015159) (1227368). Fits 17 in (43 cm) disk. Serial 30061275 to 30071664. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30071665). Call 800-440-6723 to confirm before ordering. | $20.10/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (43CM & 50CM Disk Head - T300 & T300e Models) (Replaced By Kit 9015159) (1227368). Fits 17 in (43 cm) disk. | $4.20/EA |
| 3 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits 17 in (43 cm) disk. | $2.60/EA |
| 5 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 17 in (43 cm) disk. | $3.40/EA |
| 6 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingFits 17 in (43 cm) disk. | $5.50/EA |
| 7 | TN4038624Replaces Tennant 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 8 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsFits 17 in (43 cm) disk. | $2.60/EA |
| 9 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Fits 17 in (43 cm) disk. | $6.70/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Fits 17 in (43 cm) disk. | $1.90/EA |
| 11 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftFits 17 in (43 cm) disk. | $104.00/EA |
| 12 | TN4039259Replaces Tennant 1212324 | 1 | Housing, Head, 43cmFits 17 in (43 cm) disk. | $128.60/EA |
| 13 | TN4038702Replaces Tennant 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, Im (T300 Model)Fits 17 in (43 cm) disk. | $94.10/EA |
| 13 | TN4038702Replaces Tennant 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, Im (T300e Model)Fits 17 in (43 cm) disk. Serial 30061275 and later. Tennant prints the serial range as (30061275- APR2020). | $94.10/EA |
| 14 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Fl, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 15 | TN4038920Replaces Tennant 1211242 | 1 | Button, Plunger, PadFits 17 in (43 cm) disk. | $11.60/EA |
| 16 | TN4039485Replaces Tennant 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsFits 17 in (43 cm) disk. | $11.50/EA |
| 17 | TN4038921Replaces Tennant 1211256 | 1 | Pin, Stop, LongFits 17 in (43 cm) disk. | $25.30/EA |
| 18 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 17 in (43 cm) disk. | $3.50/EA |
| 19 | TN4037862Replaces Tennant 1223980 | 1 | Plate Wldt, Head, Weighted (T300 Model)Fits 17 in (43 cm) disk. | $96.80/EA |
| 19 | TN4035314Replaces Tennant 1229792 | 1 | Plate, Wldt, Head, Weighted (T300e Model)Fits 17 in (43 cm) disk. | Call to confirm part: 800-440-6723 |
| 20 | TN4033193Replaces Tennant 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsFits 17 in (43 cm) disk. Serial 30061275 and later. Tennant prints the serial range as (30061275- JUN2024). | $8.20/EA |
| 21 | TN4018790Replaces Tennant 1227654 | 1 | Hub, Drive, Magnetic [Machined] (Replaced By 4018790)Fits 17 in (43 cm) disk. Serial 30066075 and later. Tennant prints the serial range as (30066075- JUN2024). | Call to confirm part: 800-440-6723 |
| 21 | TN4018790Replaces Tennant 1212312 | 1 | Hub, Drive, Magnetic [Machined] (Replaced By 4018790)Fits 17 in (43 cm) disk. Serial 30061275 to 30066074. | $140.69/EA |
| 22 | TN4040922Replaces Tennant 1205043 | 1 | Ring, Hub, MagneticFits 17 in (43 cm) disk. | $24.20/EA |
| 23 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsFits 17 in (43 cm) disk. | $3.40/EA |
| 24 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 17 in (43 cm) disk. | $3.50/EA |
| 25 | TN4020510Replaces Tennant 630114 | 3 | Screw, Flt, Phl, M4 X 0.70 X 8, 4.8Fits 17 in (43 cm) disk. Serial 30061275 to 30066074. | $3.30/EA |
| – | TN4018790 | 1 | Kit, Hub, MotorComplete assembly. Fits 17 in (43 cm) disk. Tennant prints the serial range as (JUL2024- ). | $140.69/EA |
| 26 | TN4029937Replaces Tennant 1266671 | 1 | Spacer, Shaft, 17.15b 30.0d 9.53l, SsPart of Kit, Hub, Motor (4018790). Fits 17 in (43 cm) disk. Tennant prints the serial range as (JUL2024- ). | $16.16/EA |
| 27 | TN4029976Replaces Tennant 1267837 | 1 | Hub, Drive, Magnetic [Machined]Part of Kit, Hub, Motor (4018790). Fits 17 in (43 cm) disk. Tennant prints the serial range as (JUL2024- ). | $138.47/EA |
| 28 | TN4031247Replaces Tennant 33932 | 3 | Nut, Hex, Lock, M4 X 0.70, Nl, SsFits 17 in (43 cm) disk. Serial 30066075 and later. | $3.40/EA |
| 29 | TN4034957Replaces Tennant 1227670 | 3 | Screw, Flt, Soc, M4 X 0.70 X 14,18-8, SsFits 17 in (43 cm) disk. Serial 30066075 and later. | $1.00/EA |
| 30 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, SsFits 17 in (43 cm) disk. | $3.20/EA |

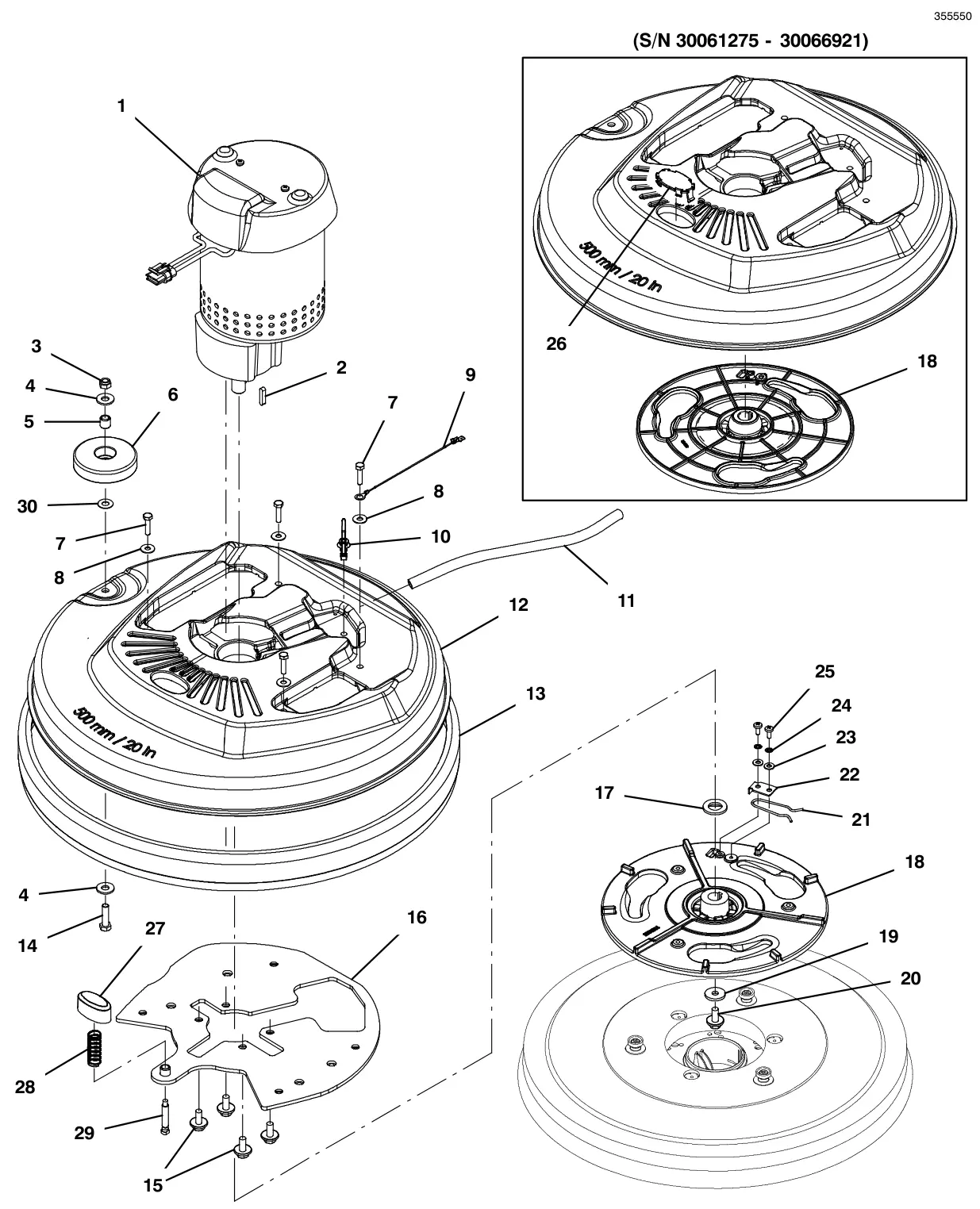

Tennant T300e (S/N 30061275-40000000) Scrub head group, 50CM disk, 3- lug hub parts
The parts Tennant numbers on its scrub head group, 50cm disk, 3- lug hub drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038485Replaces Tennant 1226976 | 1 | Motor, Ele, 24vdc 0215rpm 650w, 17mm (T300 Model)Complete assembly. Fits 20 in (50 cm) disk. Serial 30071665 and later. | $1,137.50/EA |
| 1 | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (T300e Model)Complete assembly. Fits 20 in (50 cm) disk. Serial 30122075 and later. | $1,621.86/EA |
| 1 | TN4023251Replaces Tennant 1227368 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (T300 & T300e Models) (Replaced By Kit 9015159)Complete assembly. Fits 20 in (50 cm) disk. Serial 30061275 to 30071664. | Call to confirm part: 800-440-6723 |
| – | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mmComplete assembly. Fits 20 in (50 cm) disk. Serial 30071665 and later. | $1,621.86/EA |
| 1 | TN4023251Replaces Tennant 1222495 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (T300e Model Only) (Replaced By Kit 9015198)Complete assembly. Fits 20 in (50 cm) disk. Serial 30061275 to 30076603. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30076603, 30071664 to 40000000 and others). Call 800-440-6723 to confirm before ordering. | $1,621.86/EA |
| – | TN8005800Replaces Tennant 1227273 | 1 | Vr, Brush Kit, Motor, Ele (4pc)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Fits 20 in (50 cm) disk. Serial 30071665 and later. | $40.20/EA |
| – | TN4042671Replaces Tennant 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc) (For Sanrong Motor - Frame #56S)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Fits 20 in (50 cm) disk. Serial 30061275 to 30071664. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30071665). Call 800-440-6723 to confirm before ordering. | $20.10/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Fits 20 in (50 cm) disk. | $4.20/EA |
| 3 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits 20 in (50 cm) disk. | $2.60/EA |
| 5 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 20 in (50 cm) disk. | $3.40/EA |
| 6 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingFits 20 in (50 cm) disk. | $5.50/EA |
| 7 | TN4038624Replaces Tennant 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 8 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsFits 20 in (50 cm) disk. | $2.60/EA |
| 9 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Fits 20 in (50 cm) disk. | $6.70/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Fits 20 in (50 cm) disk. | $1.90/EA |
| 11 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftFits 20 in (50 cm) disk. | $104.00/EA |
| 12 | TN4041782Replaces Tennant 1208041 | 1 | Housing, Head, 50cmFits 20 in (50 cm) disk. | $131.60/EA |
| 13 | TN4038704Replaces Tennant 1055025 | 1 | Bumper, Head, 50cm, W/ Bristle Skirt, Im (T300 Model)Fits 20 in (50 cm) disk. | $147.90/EA |
| 13 | TN4038702Replaces Tennant 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, Im (T300e Model)Fits 20 in (50 cm) disk. Serial 30061275 and later. Tennant prints the serial range as (30061275- APR2020). | $94.10/EA |
| 14 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Fl, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 15 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 20 in (50 cm) disk. | $3.50/EA |
| 16 | TN4037862Replaces Tennant 1223980 | 1 | Plate Wldt, Head, Weighted (T300 Model)Fits 20 in (50 cm) disk. | $96.80/EA |
| 16 | TN4035314Replaces Tennant 1229792 | 1 | Plate, Wldt, Head, Weighted (T300e Model)Fits 20 in (50 cm) disk. | Call to confirm part: 800-440-6723 |
| 17 | TN4033193Replaces Tennant 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsFits 20 in (50 cm) disk. | $8.20/EA |
| 18 | TN4036503Replaces Tennant 1233282 | 1 | Hub, Drive, 3 Lug [Machined]Fits 20 in (50 cm) disk. Serial 30066922 and later. | Call to confirm part: 800-440-6723 |
| 18 | TN4022588Manual prints Tennant 1219855 | 1 | Hub, Drive, 3lug, Alm-Nyl, 17mm[T2,T300]Fits 20 in (50 cm) disk. Serial 30061275 to 30066921. Number from Tennant's current parts catalog. | $240.10/EA |
| 19 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsFits 20 in (50 cm) disk. | $3.40/EA |
| 20 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 20 in (50 cm) disk. | $3.50/EA |
| 21 | TN4037304Replaces Tennant 1013188 | 1 | Clip, Spring, Drive Hub, Release [T3]Fits 20 in (50 cm) disk. | $7.00/EA |
| 22 | TN4036677Replaces Tennant 1011201 | 1 | Plate, Drive Hub, Release Clip [T3]Fits 20 in (50 cm) disk. | $21.70/EA |
| 23 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsFits 20 in (50 cm) disk. | $2.60/EA |
| 24 | TN4041589Replaces Tennant 07514 | 2 | Washer, Lock, Int, 10, SsFits 20 in (50 cm) disk. | $3.50/EA |
| 25 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsFits 20 in (50 cm) disk. | $3.40/EA |
| 26 | TN4037476Replaces Tennant 1221972 | 1 | Plug, Hole, Oval, Head, Hsng, Abs [T300]Fits 20 in (50 cm) disk. Serial 30061275 to 30066921. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30066921). Call 800-440-6723 to confirm before ordering. | $58.90/EA |
| 27 | TN4038920Replaces Tennant 1211242 | 1 | Button, Plunger, PadFits 20 in (50 cm) disk. Serial 30066922 and later. | $11.60/EA |
| 28 | TN4039485Replaces Tennant 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsFits 20 in (50 cm) disk. Serial 30066922 and later. | $11.50/EA |
| 29 | TN4039226Replaces Tennant 1211907 | 1 | Pin, Stop, ShortFits 20 in (50 cm) disk. Serial 30066922 and later. | $21.60/EA |
| 30 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, SsFits 20 in (50 cm) disk. | $3.20/EA |
Tennant T300e (S/N 30061275-40000000) Scrub head group, 50CM disk, magnetic hub parts
The parts Tennant numbers on its scrub head group, 50cm disk, magnetic hub drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038485Replaces Tennant 1226976 | 1 | Motor, Ele, 24vdc 0215rpm 650w, 17mm (T300 Model)Complete assembly. Fits 20 in (50 cm) disk. Serial 30071665 and later. | $1,137.50/EA |
| 1 | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (T300e Model)Complete assembly. Fits 20 in (50 cm) disk. Serial 30122075 and later. | $1,621.86/EA |
| 1 | TN4023251Replaces Tennant 1227368 | 1 | Motor, Ele, 24vdc 0200rpm 1.00hp, 17mm (T300 & T300e Models) (Replaced By Kit 9015159)Complete assembly. Fits 20 in (50 cm) disk. Serial 30061275 to 30071664. | Call to confirm part: 800-440-6723 |
| 1 | TN4023251Replaces Tennant 1228117 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mmComplete assembly. Fits 20 in (50 cm) disk. Serial 30071665 and later. | $1,621.86/EA |
| 1 | TN4023251Replaces Tennant 1222495 | 1 | Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (T300e Model Only) (Replaced By Kit 9015198)Complete assembly. Fits 20 in (50 cm) disk. Serial 30061275 to 30076603. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30076603, 30071664 to 40000000 and others). Call 800-440-6723 to confirm before ordering. | $1,621.86/EA |
| – | TN8005800Replaces Tennant 1227273 | 1 | Vr, Brush Kit, Motor, Ele (4pc)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Fits 20 in (50 cm) disk. Serial 30071665 and later. | $40.20/EA |
| – | TN4042671Replaces Tennant 1045790 | 1 | Brush Kit, Replmt,Carbon 24vdc[1pk=1set](4Pc) (For Sanrong Motor - Frame #56S)Part of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Fits 20 in (50 cm) disk. Serial 30061275 to 30071664. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30071664, 30061275 to 30071665). Call 800-440-6723 to confirm before ordering. | $20.10/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc 150rpm 0.68hp, 17mm (50CM Disk Head - T300e Model Only) (Replaced By Kit 9015198) (1222495). Fits 20 in (50 cm) disk. | $4.20/EA |
| 3 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits 20 in (50 cm) disk. | $2.60/EA |
| 5 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 20 in (50 cm) disk. | $3.40/EA |
| 6 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingFits 20 in (50 cm) disk. | $5.50/EA |
| 7 | TN4038624Replaces Tennant 1016005 | 4 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 8 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsFits 20 in (50 cm) disk. | $2.60/EA |
| 9 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Fits 20 in (50 cm) disk. | $6.70/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Fits 20 in (50 cm) disk. | $1.90/EA |
| 11 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftFits 20 in (50 cm) disk. | $104.00/EA |
| 12 | TN4041782Replaces Tennant 1208041 | 1 | Housing, Head, 50cmFits 20 in (50 cm) disk. | $131.60/EA |
| 13 | TN4038704Replaces Tennant 1055025 | 1 | Bumper, Head, 50cm, W/ Bristle Skirt, Im (T300 Model)Fits 20 in (50 cm) disk. | $147.90/EA |
| 13 | TN4038702Replaces Tennant 1055019 | 1 | Bumper, Head, 43cm, W/ Bristle Skirt, Im (T300e Model)Fits 20 in (50 cm) disk. Serial 30061275 and later. Tennant prints the serial range as (30061275- APR2020). | $94.10/EA |
| 14 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Fl, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 15 | TN4038920Replaces Tennant 1211242 | 1 | Button, Plunger, PadFits 20 in (50 cm) disk. | $11.60/EA |
| 16 | TN4039485Replaces Tennant 1212785 | 1 | Spring, Cmpr, .66od, .05wir, 1.75l, SsFits 20 in (50 cm) disk. | $11.50/EA |
| 17 | TN4038921Replaces Tennant 1211256 | 1 | Pin, Stop, LongFits 20 in (50 cm) disk. | $25.30/EA |
| 18 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 20 in (50 cm) disk. | $3.50/EA |
| 19 | TN4037862Replaces Tennant 1223980 | 1 | Plate Wldt, Head, Weighted (T300 Model)Fits 20 in (50 cm) disk. | $96.80/EA |
| 19 | TN4035314Replaces Tennant 1229792 | 1 | Plate, Wldt, Head, Weighted (T300e Model)Fits 20 in (50 cm) disk. | Call to confirm part: 800-440-6723 |
| 20 | TN4033193Replaces Tennant 1022549 | 1 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsFits 20 in (50 cm) disk. Tennant prints the serial range as (JUN2024- ). | $8.20/EA |
| 21 | TN4018790Replaces Tennant 1227654 | 1 | Hub, Drive, Magnetic [Machined] (Replaced By 4018790)Fits 20 in (50 cm) disk. Serial 30066075 and later. Tennant prints the serial range as (30066075- JUN2024). | Call to confirm part: 800-440-6723 |
| 21 | TN4018790Replaces Tennant 1212312 | 1 | Hub, Drive, Magnetic [Machined] (Replaced By 4018790)Fits 20 in (50 cm) disk. Serial 30061275 to 30066074. | $140.69/EA |
| 22 | TN4040922Replaces Tennant 1205043 | 1 | Ring, Hub, MagneticFits 20 in (50 cm) disk. | $24.20/EA |
| 23 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsFits 20 in (50 cm) disk. | $3.40/EA |
| 24 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 20 in (50 cm) disk. | $3.50/EA |
| 25 | TN4020510Replaces Tennant 630114 | 3 | Screw, Flt, Phl, M4 X 0.70 X 8, 4.8Fits 20 in (50 cm) disk. Serial 30061275 to 30066074. | $3.30/EA |
| – | TN4018790 | 1 | Kit, Hub, MotorComplete assembly. Fits 20 in (50 cm) disk. Tennant prints the serial range as (JUL2024- ). | $140.69/EA |
| 26 | TN4029937Replaces Tennant 1266671 | 1 | Spacer, Shaft, 17.15b 30.0d 9.53l, SsPart of Kit, Hub, Motor (4018790). Fits 20 in (50 cm) disk. Tennant prints the serial range as (JUL2024- ). | $16.16/EA |
| 27 | TN4029976Replaces Tennant 1267837 | 1 | Hub, Drive, Magnetic [Machined]Part of Kit, Hub, Motor (4018790). Fits 20 in (50 cm) disk. Tennant prints the serial range as (JUL2024- ). | $138.47/EA |
| 28 | TN4031247Replaces Tennant 33932 | 3 | Nut, Hex, Lock, M4 X 0.70, Nl, SsFits 20 in (50 cm) disk. Serial 30066075 and later. | $3.40/EA |
| 29 | TN4034957Replaces Tennant 1227670 | 3 | Screw, Flt, Soc, M4 X 0.70 X 14,18-8, SsFits 20 in (50 cm) disk. Serial 30066075 and later. | $1.00/EA |
| 30 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, SsFits 20 in (50 cm) disk. | $3.20/EA |

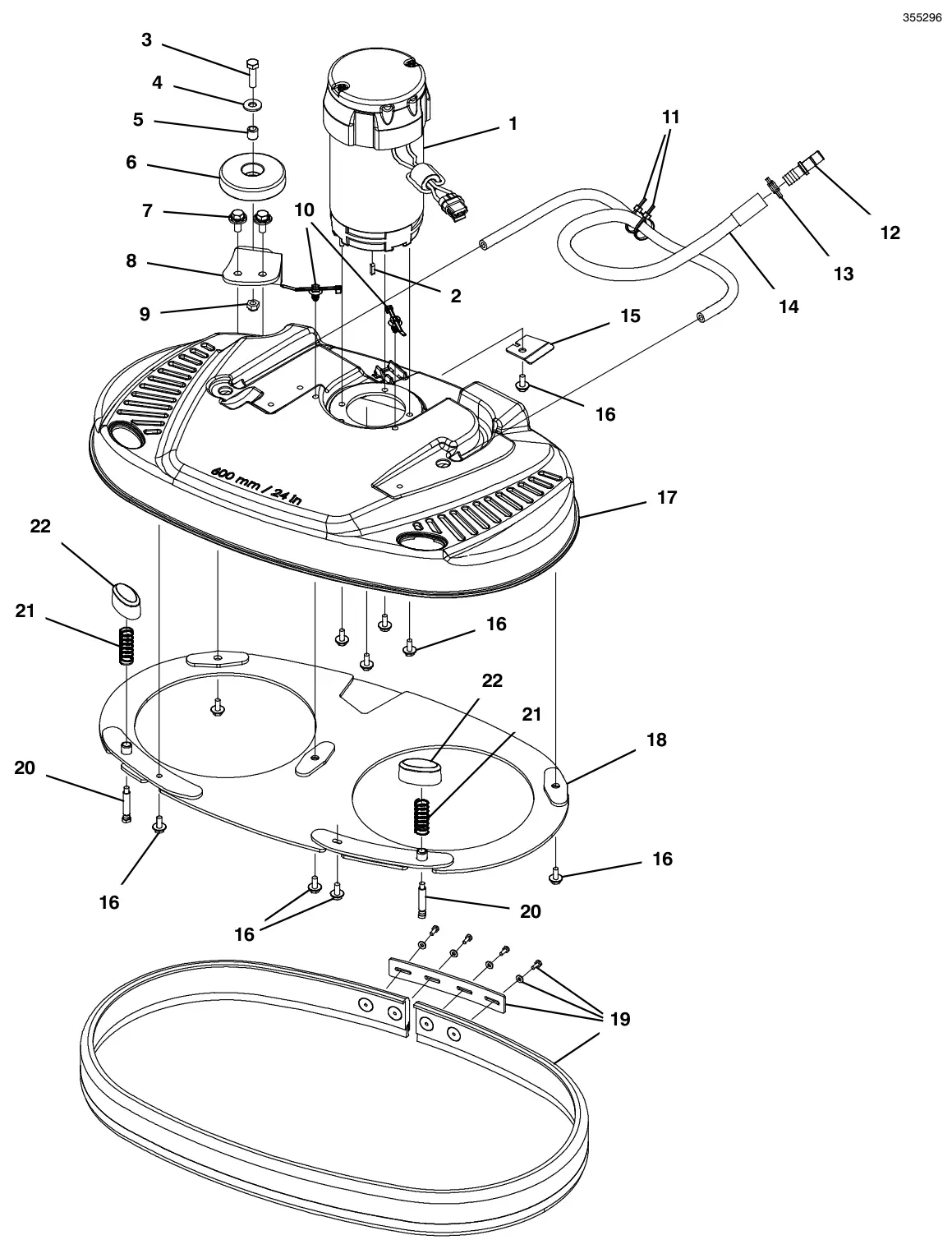

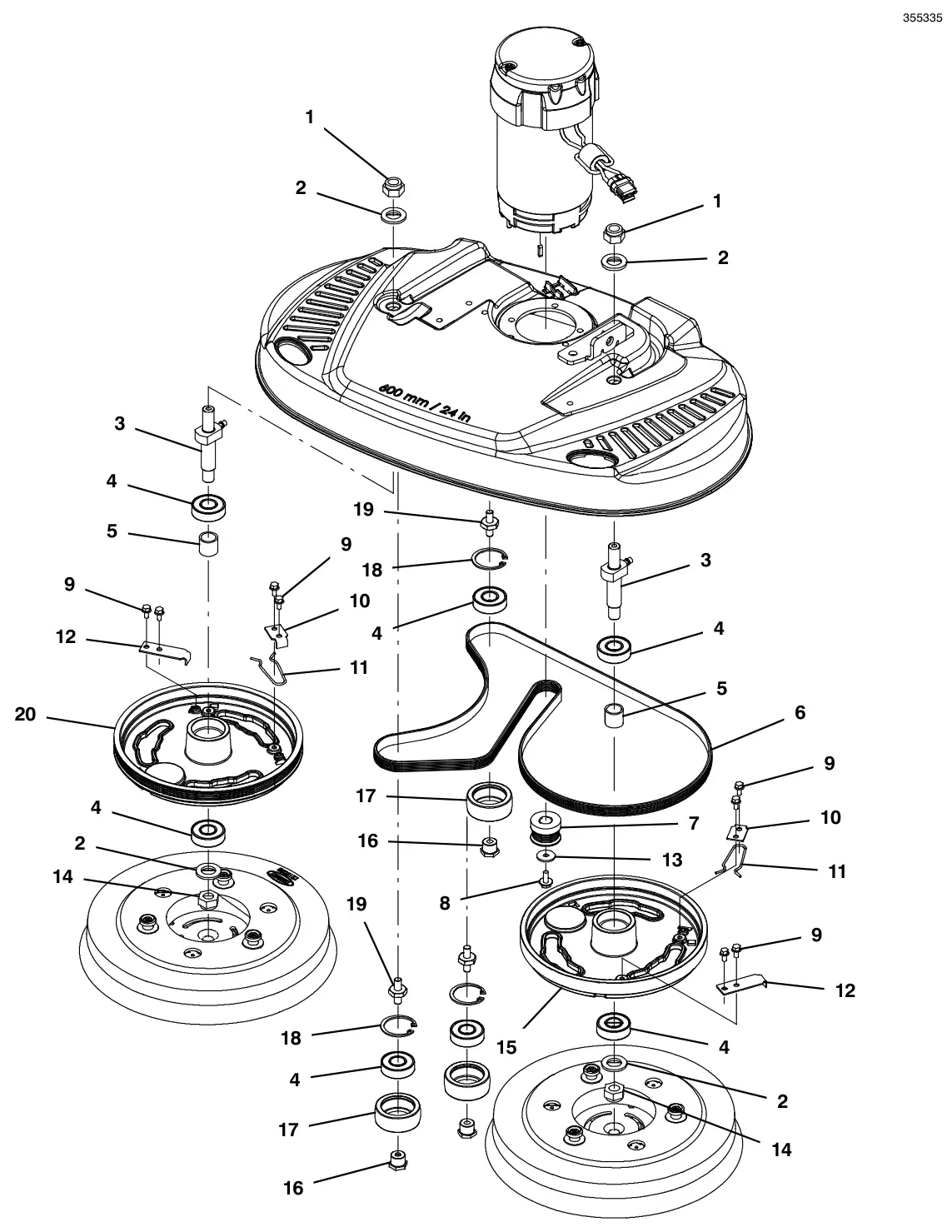

Tennant T300e (S/N 30061275-40000000) Scrub head group, 60CM dual disk, 3- lug hub parts
The parts Tennant numbers on its scrub head group, 60cm dual disk, 3- lug hub drawing. Manual pages 32, list 33.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034936Replaces Tennant 1227280 | 1 | Motor, 24vdc, 2000rpm, 7/8hpComplete assembly. Fits 24 in (60 cm) dual disk. Serial 30078279 and later. | $989.40/EA |
| – | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, 24vdc, 2000rpm, 7/8hp (60CM Disk Head) (1227280). Fits 24 in (60 cm) dual disk. | Call to confirm part: 800-440-6723 |
| 2 | TN4040526Replaces Tennant 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, 24vdc, 2000rpm, 7/8hp (60CM Disk Head) (1227280). Fits 24 in (60 cm) dual disk. | $3.90/EA |
| 1 | TN4023232Replaces Tennant 1210212 | 1 | Motor, 24vdc, 2000rpm, 7/8hp, Us (Replaced By 9015160)Complete assembly. Fits 24 in (60 cm) dual disk. Serial 30061275 to 30078278. | $1,259.00/EA |
| – | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (Replaced By Kit 9015160) (1210212). Fits 24 in (60 cm) dual disk. | Call to confirm part: 800-440-6723 |
| 2 | TN4040526Replaces Tennant 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (Replaced By Kit 9015160) (1210212). Fits 24 in (60 cm) dual disk. | $3.90/EA |
| 3 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, SsFits 24 in (60 cm) dual disk. | $3.40/EA |
| 4 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsFits 24 in (60 cm) dual disk. | $2.60/EA |
| 5 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 24 in (60 cm) dual disk. | $3.40/EA |
| 6 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingFits 24 in (60 cm) dual disk. | $5.50/EA |
| 7 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 24 in (60 cm) dual disk. | $3.50/EA |
| 8 | TN4039202Replaces Tennant 1211506 | 1 | Bracket, Rlr, Wall, Scb HeadFits 24 in (60 cm) dual disk. | $31.10/EA |
| 9 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 24 in (60 cm) dual disk. | $3.30/EA |
| 10 | TN4037476Replaces Tennant 1221972 | 2 | Plug, Hole, Oval, Head, Hsng, Abs [T300]Fits 24 in (60 cm) dual disk. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30066921). Call 800-440-6723 to confirm before ordering. | $58.90/EA |
| 11 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Fits 24 in (60 cm) dual disk. | $1.90/EA |
| 12 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DFits 24 in (60 cm) dual disk. | $3.90/EA |
| 13 | TN4035008Replaces Tennant 1228898 | 1 | Fitting, Plstc, Str, Qm08/Bm08,[Ch]Fits 24 in (60 cm) dual disk. | Call to confirm part: 800-440-6723 |
| 14 | TN4021947Replaces Tennant 607776 | 1 | Clamp, Hose, Wir, .73 - .77, SilverFits 24 in (60 cm) dual disk. | $4.20/EA |
| 15 | TN4040169Replaces Tennant 1216084 | 1 | Manifold, Distribution, Water, 60dd [Vw]Fits 24 in (60 cm) dual disk. | $124.40/EA |
| 16 | TN4040524Replaces Tennant 1217752 | 1 | Bracket, Belt GuideFits 24 in (60 cm) dual disk. | $15.00/EA |
| 17 | TN4045268Replaces Tennant 1034731 | 10 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 24 in (60 cm) dual disk. | $3.30/EA |
| 18 | TN4038908Replaces Tennant 1211027 | 1 | Housing, Head, 60cm [Machined]Fits 24 in (60 cm) dual disk. | $610.80/EA |
| 19 | TN4040184Replaces Tennant 1216346 | 1 | Bracket Wldt, Guard, Splash, 60cmFits 24 in (60 cm) dual disk. | $232.10/EA |
| 20 | TN4028288Replaces Tennant 9011849 | 1 | Bumper, Head, 60cm, Bristle SkirtFits 24 in (60 cm) dual disk. | $291.70/EA |
Tennant T300e (S/N 30061275-40000000) Scrub head group, 60CM dual disk, 3- lug hub - continued parts
The parts Tennant numbers on its scrub head group, 60cm dual disk, 3- lug hub - continued drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016839Replaces Tennant 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlFits 24 in (60 cm) dual disk. | $3.30/EA |
| 2 | TN4033193Replaces Tennant 1022549 | 4 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsFits 24 in (60 cm) dual disk. | $8.20/EA |
| 3 | TN4039880Replaces Tennant 1214206 | 2 | Shaft Wldt, Mtg, PulleyFits 24 in (60 cm) dual disk. | $224.60/EA |
| 4 | TN4038915Replaces Tennant 1211187 | 7 | Bearing, Ball, 0.67b 1.57d 0.47w [6203]Fits 24 in (60 cm) dual disk. | $20.90/EA |
| 5 | TN4040542Replaces Tennant 1011041 | 2 | Tube, 0.69id 0.87od 00.8l, Stl, PlFits 24 in (60 cm) dual disk. | $6.60/EA |
| 6 | TN4018508Replaces Tennant 9022169 | 1 | Belt Kit, Disc Head, 600mm, ReplmtFits 24 in (60 cm) dual disk. | $55.15/EA |
| 7 | TN4039838Replaces Tennant 1213927 | 1 | Sheave, 06grv, 1.25pd 0.54b, Ss [Keyed]Fits 24 in (60 cm) dual disk. | $94.80/EA |
| 8 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 24 in (60 cm) dual disk. | $3.30/EA |
| 9 | TN4037385Replaces Tennant 223198 | 8 | Screw, Hex, M5 X 0.80 X 10, FmgFits 24 in (60 cm) dual disk. | $4.00/EA |
| 10 | TN4036677Replaces Tennant 1011201 | 2 | Plate, Drive Hub, Release Clip [T3]Fits 24 in (60 cm) dual disk. | $21.70/EA |
| 11 | TN4037304Replaces Tennant 1013188 | 2 | Clip, Spring, Drive Hub, Release [T3]Fits 24 in (60 cm) dual disk. | $7.00/EA |
| 12 | TN4037548Replaces Tennant 1013592 | 2 | Plate, Drive Hub, Release Stop [T3 Dd]Fits 24 in (60 cm) dual disk. | $18.20/EA |
| 13 | TN4042994Replaces Tennant 019680127 | 1 | Washer, Flat, 6.2mm Id X 22.0mm Od X 1.9Fits 24 in (60 cm) dual disk. | $4.10/EA |
| 14 | TN4016839Replaces Tennant 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlFits 24 in (60 cm) dual disk. | $3.30/EA |
| 15 | TN4037114Replaces Tennant 1059205 | 1 | Hub, Drive, 3lug, Alm, 2disk, FltFits 24 in (60 cm) dual disk. | $63.90/EA |
| 16 | TN4040541Replaces Tennant 1011008 | 3 | Spacer, Brg, IdlerFits 24 in (60 cm) dual disk. | $12.10/EA |
| 17 | TN4036725Replaces Tennant 1058514 | 3 | Pulley, Idler, 55d X 21w[60cm Dual Disk]Fits 24 in (60 cm) dual disk. | $67.50/EA |
| 18 | TN4037576Replaces Tennant 1013884 | 3 | Ring, Retaining, Int, 40mm, SsFits 24 in (60 cm) dual disk. | $23.40/EA |
| 19 | TN4039208Replaces Tennant 1211624 | 3 | Stud, M8 X 1.25, Dbl End W/Hex, SsFits 24 in (60 cm) dual disk. | $60.00/EA |
| 20 | TN4037115Replaces Tennant 1059206 | 1 | Hub, Drive, 3lug, Alm, 2disk, 6grvFits 24 in (60 cm) dual disk. | $101.00/EA |
Tennant T300e (S/N 30061275-40000000) Scrub head group, 60CM dual disk, magnetic hub parts
The parts Tennant numbers on its scrub head group, 60cm dual disk, magnetic hub drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034936Replaces Tennant 1227280 | 1 | Motor, 24vdc, 2000rpm, 7/8hpComplete assembly. Fits 24 in (60 cm) dual disk. Serial 30078279 and later. | $989.40/EA |
| – | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, 24vdc, 2000rpm, 7/8hp (60CM Disk Head) (1227280). Fits 24 in (60 cm) dual disk. | Call to confirm part: 800-440-6723 |
| 2 | TN4040526Replaces Tennant 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, 24vdc, 2000rpm, 7/8hp (60CM Disk Head) (1227280). Fits 24 in (60 cm) dual disk. | $3.90/EA |
| 1 | TN4023232Replaces Tennant 1210212 | 1 | Motor, 24vdc, 2000rpm, 7/8hp, Us (Replaced By 9015160)Complete assembly. Fits 24 in (60 cm) dual disk. Serial 30061275 to 30078278. | $1,259.00/EA |
| – | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (Replaced By Kit 9015160) (1210212). Fits 24 in (60 cm) dual disk. | Call to confirm part: 800-440-6723 |
| 2 | TN4040526Replaces Tennant 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, 24vdc, 2000rpm, 7/8hp, Us (60CM Disk Head) (Replaced By Kit 9015160) (1210212). Fits 24 in (60 cm) dual disk. | $3.90/EA |
| 3 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, SsFits 24 in (60 cm) dual disk. | $3.40/EA |
| 4 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsFits 24 in (60 cm) dual disk. | $2.60/EA |
| 5 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 24 in (60 cm) dual disk. | $3.40/EA |
| 6 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-MarkingFits 24 in (60 cm) dual disk. | $5.50/EA |
| 7 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 24 in (60 cm) dual disk. | $3.50/EA |
| 8 | TN4039202Replaces Tennant 1211506 | 1 | Bracket, Rlr, Wall, Scb HeadFits 24 in (60 cm) dual disk. | $31.10/EA |
| 9 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 24 in (60 cm) dual disk. | $3.30/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip]Fits 24 in (60 cm) dual disk. | $1.90/EA |
| 11 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DFits 24 in (60 cm) dual disk. | $3.90/EA |
| 12 | TN4035008Replaces Tennant 1228898 | 1 | Fitting, Plstc, Str, Qm08/Bm08,[Ch]Fits 24 in (60 cm) dual disk. | Call to confirm part: 800-440-6723 |
| 13 | TN4021947Replaces Tennant 607776 | 1 | Clamp, Hose, Wir, .73 - .77, SilverFits 24 in (60 cm) dual disk. | $4.20/EA |
| 14 | TN4040169Replaces Tennant 1216084 | 1 | Manifold, Distribution, Water, 60dd [Vw]Fits 24 in (60 cm) dual disk. | $124.40/EA |
| 15 | TN4040524Replaces Tennant 1217752 | 1 | Bracket, Belt GuideFits 24 in (60 cm) dual disk. | $15.00/EA |
| 16 | TN4045268Replaces Tennant 1034731 | 10 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 24 in (60 cm) dual disk. | $3.30/EA |
| 17 | TN4038908Replaces Tennant 1211027 | 1 | Housing, Head, 60cm [Machined]Fits 24 in (60 cm) dual disk. | $610.80/EA |
| 18 | TN4040184Replaces Tennant 1216346 | 1 | Bracket Wldt, Guard, Splash, 60cmFits 24 in (60 cm) dual disk. | $232.10/EA |
| 19 | TN4028288Replaces Tennant 9011849 | 1 | Bumper, Head, 60cm, Bristle SkirtFits 24 in (60 cm) dual disk. | $291.70/EA |
| 20 | TN4039226Replaces Tennant 1211907 | 2 | Pin, Stop, ShortFits 24 in (60 cm) dual disk. | $21.60/EA |
| 21 | TN4039485Replaces Tennant 1212785 | 2 | Spring, Cmpr, .66od, .05wir, 1.75l, SsFits 24 in (60 cm) dual disk. | $11.50/EA |
| 22 | TN4038920Replaces Tennant 1211242 | 2 | Button, Plunger, PadFits 24 in (60 cm) dual disk. | $11.60/EA |
Tennant T300e (S/N 30061275-40000000) Scrub head group, 60CM dual disk, magnetic hub - continued parts
The parts Tennant numbers on its scrub head group, 60cm dual disk, magnetic hub - continued drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016839Replaces Tennant 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlFits 24 in (60 cm) dual disk. | $3.30/EA |
| 2 | TN4033193Replaces Tennant 1022549 | 4 | Spacer, Shaft, 17.15b 30.0d 3.0l, SsFits 24 in (60 cm) dual disk. | $8.20/EA |
| 3 | TN4039880Replaces Tennant 1214206 | 2 | Shaft Wldt, Mtg, PulleyFits 24 in (60 cm) dual disk. | $224.60/EA |
| 4 | TN4038915Replaces Tennant 1211187 | 7 | Bearing, Ball, 0.67b 1.57d 0.47w [6203]Fits 24 in (60 cm) dual disk. | $20.90/EA |
| 5 | TN4040542Replaces Tennant 1011041 | 2 | Tube, 0.69id 0.87od 00.8l, Stl, PlFits 24 in (60 cm) dual disk. | $6.60/EA |
| 6 | TN4018508Replaces Tennant 9022169 | 1 | Belt Kit, Disc Head, 600mm, ReplmtFits 24 in (60 cm) dual disk. | $55.15/EA |
| 7 | TN4039838Replaces Tennant 1213927 | 1 | Sheave, 06grv, 1.25pd 0.54b, Ss [Keyed]Fits 24 in (60 cm) dual disk. | $94.80/EA |
| 8 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 24 in (60 cm) dual disk. | $3.30/EA |
| 9 | TN4038854Replaces Tennant 1210504 | 1 | Hub, Drive, Magnetic, Flat, 60cm DdFits 24 in (60 cm) dual disk. | $133.40/EA |
| 10 | TN4040922Replaces Tennant 1205043 | 2 | Ring, Hub, MagneticFits 24 in (60 cm) dual disk. | $24.20/EA |
| 11 | TN4020510Replaces Tennant 630114 | 6 | Screw, Flt, Phl, M4 X 0.70 X 8, 4.8Fits 24 in (60 cm) dual disk. | $3.30/EA |
| 12 | TN4042994Replaces Tennant 019680127 | 1 | Washer, Flat, 6.2mm Id X 22.0mm Od X 1.9Fits 24 in (60 cm) dual disk. | $4.10/EA |
| 13 | TN4016839Replaces Tennant 41517 | 2 | Nut, Hex, Lock, M14 X 2.00, NlFits 24 in (60 cm) dual disk. | $3.30/EA |
| 14 | TN4040541Replaces Tennant 1011008 | 3 | Spacer, Brg, IdlerFits 24 in (60 cm) dual disk. | $12.10/EA |
| 15 | TN4036725Replaces Tennant 1058514 | 3 | Pulley, Idler, 55d X 21w[60cm Dual Disk]Fits 24 in (60 cm) dual disk. | $67.50/EA |
| 16 | TN4037576Replaces Tennant 1013884 | 3 | Ring, Retaining, Int, 40mm, SsFits 24 in (60 cm) dual disk. | $23.40/EA |
| 17 | TN4039208Replaces Tennant 1211624 | 3 | Stud, M8 X 1.25, Dbl End W/Hex, SsFits 24 in (60 cm) dual disk. | $60.00/EA |
| 18 | TN4038853Replaces Tennant 1210503 | 1 | Hub, Drive, Magnetic, Grooved, 60cm DdFits 24 in (60 cm) dual disk. | $133.40/EA |

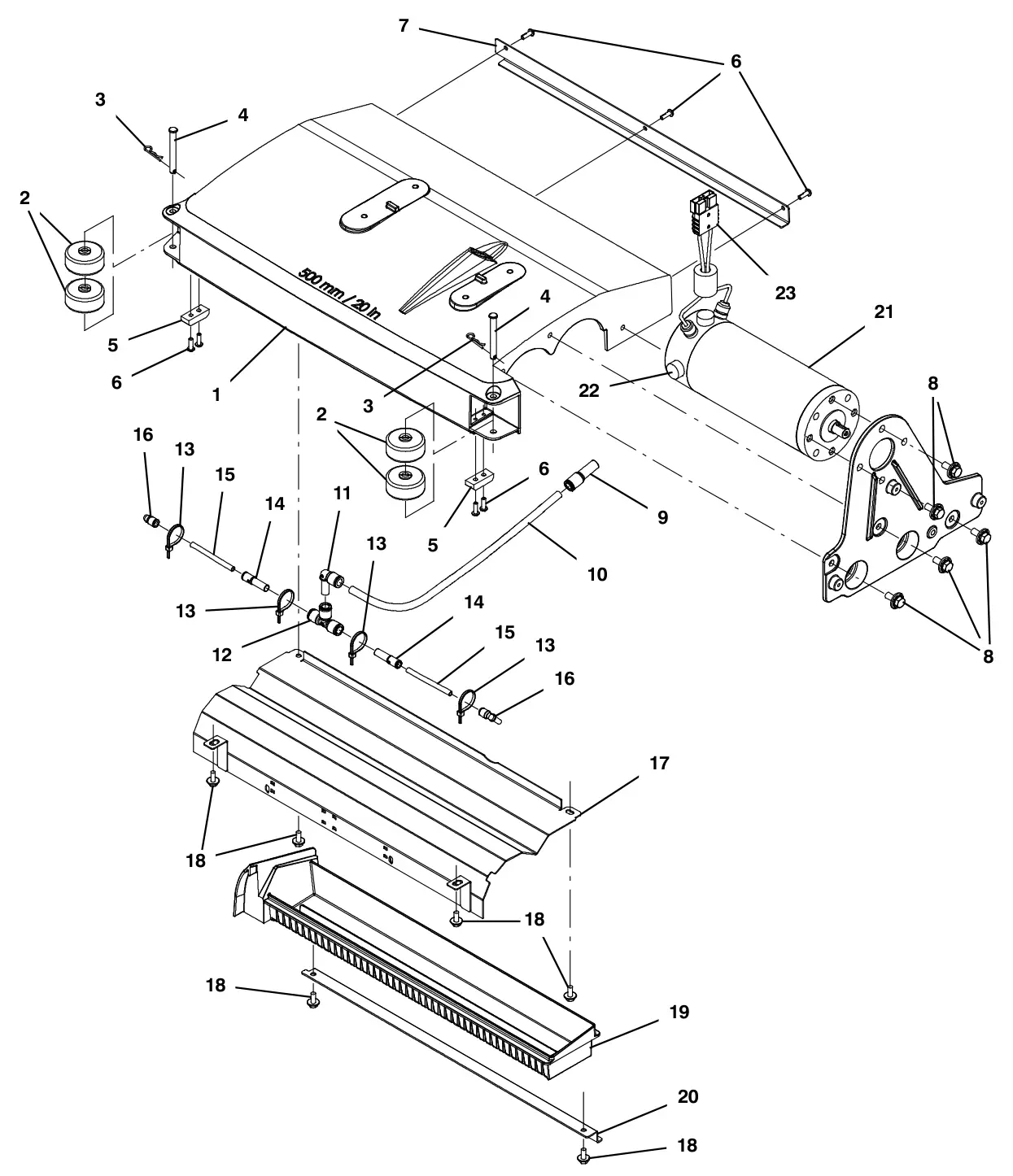

Tennant T300e (S/N 30061275-40000000) Scrub head group, 50CM cylindrical parts
The parts Tennant numbers on its scrub head group, 50cm cylindrical drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039255Replaces Tennant 1212265 | 1 | Housing, Brush, Dbl 50cm [Machined]Fits 20 in (50 cm) cylindrical. | $682.10/EA |
| 2 | TN4020804Replaces Tennant 630477 | 4 | Wheel, Pyu, 02.0d 0.38w, GrayFits 20 in (50 cm) cylindrical. | $9.50/EA |
| 3 | TN4040200Replaces Tennant 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirFits 20 in (50 cm) cylindrical. | $1.50/EA |
| 4 | TN4018939Replaces Tennant 391179 | 2 | Pin, Clevis, 0.37d X 2.62lFits 20 in (50 cm) cylindrical. | $4.00/EA |
| 5 | TN4040152Replaces Tennant 1215675 | 2 | Skid, Brush HousingFits 20 in (50 cm) cylindrical. | $13.00/EA |
| 6 | TN4041143Replaces Tennant 1205799 | 7 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxFits 20 in (50 cm) cylindrical. | $2.50/EA |
| 7 | TN4039818Replaces Tennant 1213708 | 1 | Bracket, Tray, DebrisFits 20 in (50 cm) cylindrical. | $19.90/EA |
| 8 | TN4036259Replaces Tennant 1020341 | 7 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 20 in (50 cm) cylindrical. | $3.50/EA |
| 9 | TN4035270Replaces Tennant 1229147 | 1 | Fitting, Plstc, Str, Qf06/Qm08, [Ch]Fits 20 in (50 cm) cylindrical. | Call to confirm part: 800-440-6723 |
| 10 | TN4037973Replaces Tennant 1014986 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 02ftFits 20 in (50 cm) cylindrical. | $18.70/EA |
| 11 | TN4035269Replaces Tennant 1229146 | 1 | Fitting, Plstc, E90, Qf06/Qm06, [Ch]Fits 20 in (50 cm) cylindrical. | Call to confirm part: 800-440-6723 |
| 12 | TN4035261Replaces Tennant 1229085 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06,[Ch]Fits 20 in (50 cm) cylindrical. | Call to confirm part: 800-440-6723 |
| 13 | TN4043510Replaces Tennant 130773 | 4 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DFits 20 in (50 cm) cylindrical. | $3.90/EA |
| 14 | TN4035267Replaces Tennant 1229144 | 2 | Fitting, Plstc, Str, Qf04/Qm06, [Ch]Fits 20 in (50 cm) cylindrical. | Call to confirm part: 800-440-6723 |
| 15 | TN4041512Replaces Tennant 160827 | 1 | Hose, Pvc, Clr, 0.12id 0.25od 010.5lFits 20 in (50 cm) cylindrical. | $16.80/EA |
| 16 | TN4035268Replaces Tennant 1229145 | 2 | Fitting, Plstc, E90, Qfo4/Qm04, [Ch]Fits 20 in (50 cm) cylindrical. | Call to confirm part: 800-440-6723 |
| 17 | TN4036961Replaces Tennant 1219486 | 1 | Panel Wldt, BrushFits 20 in (50 cm) cylindrical. | $287.10/EA |
| 18 | TN4045268Replaces Tennant 1034731 | 6 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 20 in (50 cm) cylindrical. | $3.30/EA |
| 19 | TN4039814Replaces Tennant 1213706 | 1 | Tray, Debris, 500mm [Im]Fits 20 in (50 cm) cylindrical. | $80.80/EA |
| 20 | TN4039816Replaces Tennant 1213707 | 1 | Bracket, Tray, DebrisFits 20 in (50 cm) cylindrical. | $36.90/EA |
| 21 | TN4042417Replaces Tennant 1210202 | 1 | Motor, Ele, 24vdc [Vw Cyl]Complete assembly. Fits 20 in (50 cm) cylindrical. | Call to confirm part: 800-440-6723 |
| – | TN4040526Replaces Tennant 1217769 | 1 | Key, Sq, 04mm X 04mm, 15mmlPart of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). Fits 20 in (50 cm) cylindrical. | $3.90/EA |
| 22 | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). Fits 20 in (50 cm) cylindrical. | Call to confirm part: 800-440-6723 |
| 23 | TN4014158Replaces Tennant 49548 | 1 | Connector, Anderson, 050a, RedPart of Motor, Ele, 24vdc [Vw Cyl] (Cylindrical Head) (1210202). Fits 20 in (50 cm) cylindrical. | $29.70/EA |

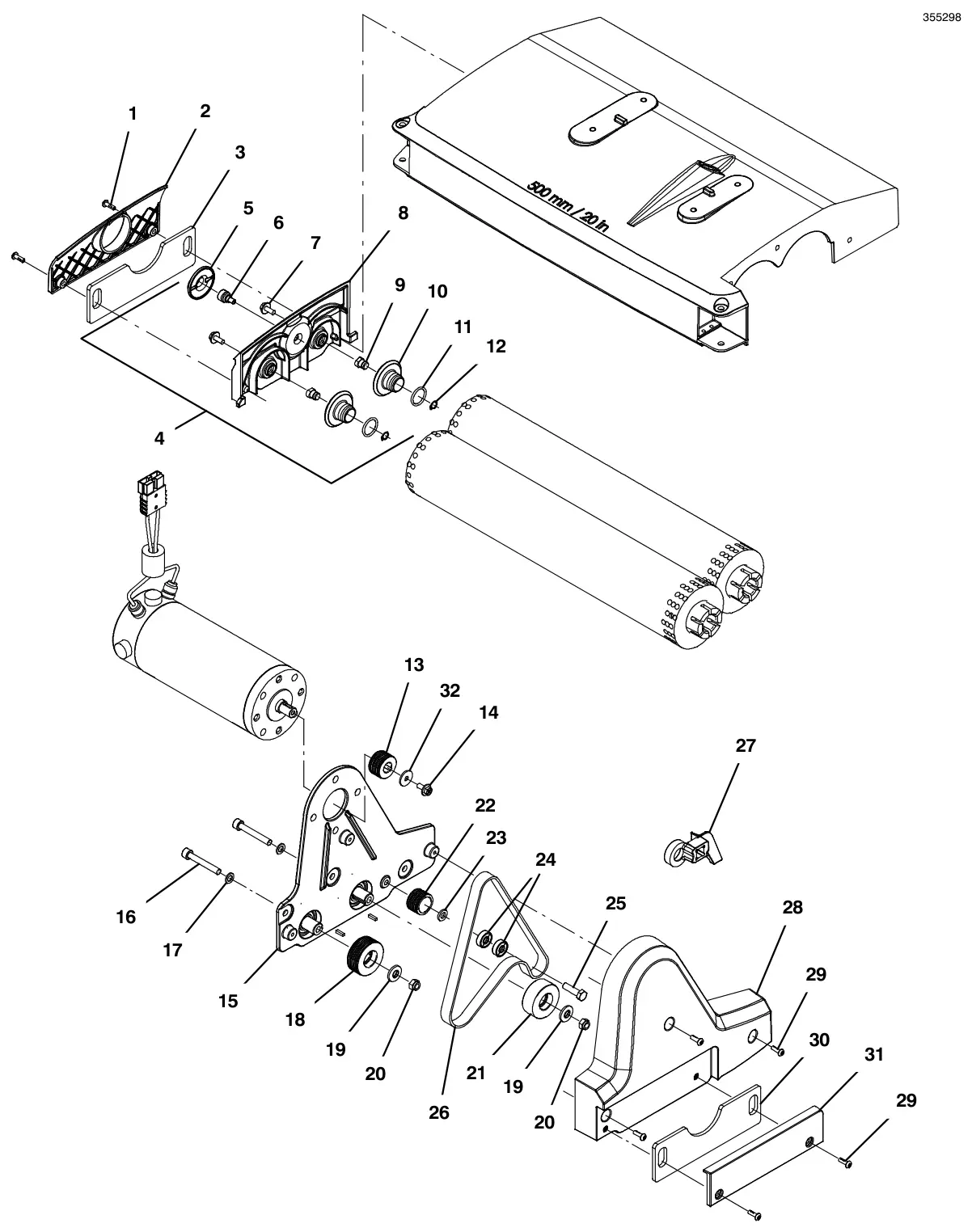

Tennant T300e (S/N 30061275-40000000) Scrub head group, 50CM cylindrical - continued parts
The parts Tennant numbers on its scrub head group, 50cm cylindrical - continued drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxFits 20 in (50 cm) cylindrical. | $2.50/EA |
| 2 | TN4040399Replaces Tennant 1216689 | 1 | Cover, Skirt, Cyl DoorFits 20 in (50 cm) cylindrical. | $16.00/EA |
| 3 | TN4040147Replaces Tennant 1215666 | 1 | Skirt, Side, Cyl, FloatingFits 20 in (50 cm) cylindrical. | $21.10/EA |
| 4 | TN4026474Replaces Tennant 9014168 | 1 | Door Assy, BrushComplete assembly. Fits 20 in (50 cm) cylindrical. | $351.90/EA |
| 5 | TN4040135Replaces Tennant 1215581 | 1 | Cap, ScrewPart of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $2.25/EA |
| 6 | TN4034919Replaces Tennant 1062149 | 1 | Knob, Rnd, 0.58d 0.50l, .25-20x.50l StudPart of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $6.80/EA |
| 7 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $3.30/EA |
| 8 | TN4039253Replaces Tennant 1212250 | 1 | Door, Brush [Machined]Part of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $73.50/EA |
| 9 | TN4031746Replaces Tennant 1030682 | 2 | Shaft, Idler PlugPart of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $21.30/EA |
| 10 | TN4031745Replaces Tennant 1030680 | 2 | Hub, Idler, BrushPart of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $19.60/EA |
| 11 | TN4037211Replaces Tennant 1220596 | 2 | Seal, Org, .139 X .859 Id, 212Part of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $1.40/EA |
| 12 | TN4042881Replaces Tennant 01543 | 2 | Ring, Retaining, Ext, 0.39d, BasicPart of Door Assy, Brush (9014168). Fits 20 in (50 cm) cylindrical. | $2.50/EA |
| 13 | TN4042411Replaces Tennant 1210116 | 1 | Sheave, Motor, 07grv 1.3pd 0.50b [Pj]Fits 20 in (50 cm) cylindrical. | $78.23/EA |
| 14 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 20 in (50 cm) cylindrical. | $3.30/EA |
| 15 | TN4026473Replaces Tennant 9014167 | 1 | Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately)Complete assembly. Fits 20 in (50 cm) cylindrical. | $889.60/EA |
| 16 | TN4036553Replaces Tennant 1057476 | 2 | Screw, Soc, M8 X 1.25 X 55, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $3.30/EA |
| 17 | TN4036554Replaces Tennant 1057482 | 2 | Washer, Flat, 0.33b 0.57d 0.06, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $1.50/EA |
| 18 | TN4042418Replaces Tennant 1210204 | 1 | Sheave, Drive, Grvd 07grv, 2.0pd 0.67b [Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $112.80/EA |
| 19 | TN4016796Replaces Tennant 41186 | 2 | Washer, Flat, Belleville, .31Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $3.50/EA |
| 20 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $3.30/EA |
| 21 | TN4042421Replaces Tennant 1210232 | 1 | Sheave, Drive, Smooth 2.0pd 0.67bPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $77.59/EA |
| 22 | TN4038737Replaces Tennant 1210233 | 1 | Sheave, Idler, 07grv 1.2pd 0.87b [Pj]Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $39.66/EA |
| 23 | TN4040174Replaces Tennant 1216289 | 1 | Spacer, Pulley, 2cyl, Pm [Vw]Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $3.25/EA |
| 24 | TN4030642Replaces Tennant 1027651 | 2 | Bearing, Ball, 8mmb X 22mmd X 7mmwPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $4.40/EA |
| 25 | TN4035127Replaces Tennant 1016399 | 1 | Screw, Hex, M8 X 1.25 X 30, Nl, SsPart of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $3.40/EA |
| – | TN4026472Replaces Tennant 9014166 | 1 | Kit, Belt, Motor (Includes Installation Tool)Complete assembly. Part of Brkt Assy, Motor, Sgl Mount (Also includes Hubs, Bearings and Seals - Not Available Separately) (9014167). Fits 20 in (50 cm) cylindrical. | $173.70/EA |
| 26 | TN4042355Replaces Tennant 1209587 | 1 | Belt, Motor [Vw Single Motor]Part of Kit, Belt, Motor (Includes Installation Tool) (Cyld Head) (9014166). Fits 20 in (50 cm) cylindrical. | $89.30/EA |
| 27 | TN4039539Replaces Tennant 1213132 | 1 | Tool, Installation, BeltPart of Kit, Belt, Motor (Includes Installation Tool) (Cyld Head) (9014166). Fits 20 in (50 cm) cylindrical. | $14.50/EA |
| 28 | TN4042357Replaces Tennant 1209594 | 1 | Cover, BeltFits 20 in (50 cm) cylindrical. | $46.00/EA |
| 29 | TN4041143Replaces Tennant 1205799 | 5 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxFits 20 in (50 cm) cylindrical. | $2.50/EA |
| 30 | TN4040147Replaces Tennant 1215666 | 1 | Skirt, Side, Cyl, FloatingFits 20 in (50 cm) cylindrical. | $21.10/EA |
| 31 | TN4040491Replaces Tennant 1216728 | 1 | Cover, Skirt, Cyl HeadFits 20 in (50 cm) cylindrical. | $15.20/EA |
| 32 | TN4042994Replaces Tennant 019680127 | 1 | Washer, Flat, 6.2mm Id X 22.0mm Od X 1.9Fits 20 in (50 cm) cylindrical. | $4.10/EA |
Tennant T300e (S/N 30061275-40000000) Scrub head group, 50CM orbital parts
The parts Tennant numbers on its scrub head group, 50cm orbital drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038481Replaces Tennant 1226909 | 1 | Motor, Ele, 24vdc, 2200rpm, .6hp, 22mmComplete assembly. Fits 20 in (50 cm) orbital. Tennant prints the serial range as (xxxxxxxx- ). | $1,218.50/EA |
| – | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (1226909). Fits 20 in (50 cm) orbital. | Call to confirm part: 800-440-6723 |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (1226909). Fits 20 in (50 cm) orbital. | $4.20/EA |
| 1 | TN4023234Replaces Tennant 1212669 | 1 | Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Replaced By 9015162)Complete assembly. Fits 20 in (50 cm) orbital. Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx). | $1,430.40/EA |
| – | TN4037142Replaces Tennant 1059370 | 1 | Brush, Motor, Replmt [Bag Of 4)Part of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head) (1212669). Fits 20 in (50 cm) orbital. | Call to confirm part: 800-440-6723 |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor, Ele, 24vdc, 2200rpm, .6hp, 22mm (Orbital Head) (1212669). Fits 20 in (50 cm) orbital. | $4.20/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 6 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits 20 in (50 cm) orbital. | $3.50/EA |
| 4 | TN4042375Replaces Tennant 1209745 | 1 | Plate, Mtg, Head [50cm Orb]Fits 20 in (50 cm) orbital. | $36.30/EA |
| 5 | TN4039461Replaces Tennant 1212543 | 10 | Isolator, Neoprene, 1.25” X 1.25”, M8Fits 20 in (50 cm) orbital. | $15.10/EA |
| 6 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 20 in (50 cm) orbital. | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsFits 20 in (50 cm) orbital. | $2.60/EA |
| 8 | TN4039455Replaces Tennant 1212527 | 1 | Deck Wldt, Scrbr [Volga Wet]Fits 20 in (50 cm) orbital. | $304.10/EA |
| 9 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 20 in (50 cm) orbital. | $3.30/EA |
| 10 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 20 in (50 cm) orbital. | $3.30/EA |
| 11 | TN4026479Replaces Tennant 9014175 | 1 | Kit, Eccentric Assy, [T300] (See Breakdowns)Fits 20 in (50 cm) orbital. | $1,025.50/EA |
| 12 | TN4037957Replaces Tennant 1014918 | 2 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, RbrFits 20 in (50 cm) orbital. | Call to confirm part: 800-440-6723 |
| 13 | TN4042420Replaces Tennant 1210221 | 2 | Washer, Wave, .515b, .875d, .013, SsFits 20 in (50 cm) orbital. | $2.60/EA |
| 14 | TN4040607Replaces Tennant 222505 | 2 | Screw, Hex, M8 X 1.25 X 45, SsFits 20 in (50 cm) orbital. | $4.00/EA |
| 15 | TN4039450Replaces Tennant 1212468 | 1 | Manifold, Distribution, Water, Orb [Vw]Fits 20 in (50 cm) orbital. | $125.20/EA |
| 16 | TN4035008Replaces Tennant 1228898 | 1 | Fitting, Plstc, Str, Qm08/Bm08,[Ch]Fits 20 in (50 cm) orbital. | Call to confirm part: 800-440-6723 |
| 17 | TN4021947Replaces Tennant 607776 | 1 | Clamp, Hose, Wir, .73 - .77, SilverFits 20 in (50 cm) orbital. | $4.20/EA |
| 18 | TN4026482Replaces Tennant 9014189 | 1 | Kit, Afmkt, Pad Driver [T300]Complete assembly. Fits 20 in (50 cm) orbital. | $445.60/EA |
| 19 | TN4039471Replaces Tennant 1212615 | 1 | Face, Pad Driver [Volga Wet]Part of Kit, Afmkt, Pad Driver [T300] (9014189). Fits 20 in (50 cm) orbital. | $106.50/EA |
| 20 | TN4041991Replaces Tennant 09739 | 5 | Nut, Hex, Lock, M5 X 0.80, Nl, SsFits 20 in (50 cm) orbital. | $3.30/EA |
| 21 | TN4042888Replaces Tennant 01683 | 5 | Washer, Flat, 10, SsFits 20 in (50 cm) orbital. | $2.60/EA |
| 22 | TN4044164Replaces Tennant 140916 | 5 | Clamp, Cable, Nyl, 0.62d, NatFits 20 in (50 cm) orbital. | $3.40/EA |
| 23 | TN4036888Replaces Tennant 1218926 | 4 | Screw, Flt, Soc, M8 X 1.25 X 14, SsFits 20 in (50 cm) orbital. | $2.50/EA |
| 24 | TN4044856Replaces Tennant 1074344 | 1 | Harness, Ele [Ring With .250m Tail]Fits 20 in (50 cm) orbital. | $6.70/EA |
Tennant T300e (S/N 30061275-40000000) Recovery tank group (T300E model) parts
The parts Tennant numbers on its recovery tank group (t300e model) drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4022631Replaces Tennant 9014674 | 1 | Kit, Cover, Recvy, Ci [Exp]Complete assembly. | $270.80/EA |
| 2 | TN4038848Replaces Tennant 1210472 | 1 | Seal, Afmkt, Bulb, 0.50d .13grip, 05ftPart of Kit, Cover, Recvy, Ci [Exp] (9014674). | $56.90/EA |
| 3 | TN4023995Replaces Tennant 9015937 | 1 | Tank Kit, Recvy W/Labels, Ci [T300e] | Call to confirm part: 800-440-6723 |
| 4 | TN4035537Replaces Tennant 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,Ss | $2.50/EA |
| 5 | TN4042901Replaces Tennant 01684 | 7 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 6 | TN4039463Replaces Tennant 1212553 | 2 | Strap, Retaining, Cover, 125.0l | $3.40/EA |
| 7 | TN4036930Replaces Tennant 1219312 | 1 | Fan, Vacuum, 5.7d, 024vdc, 2 StageComplete assembly. | $388.30/EA |
| – | TN8004151Replaces Tennant 372883 | 1 | Vr, Brush Kit, Motor, Ele (1 Pkg = 2 Pcs)Part of Fan, Vacuum, 5.7d, 024vdc, 2 Stage (T300e Model) (1219312). | $37.30/EA |
| 8 | TN4035280Replaces Tennant 1229350 | 1 | Gasket .79,02.63id,05.75od,Adh.Epdm | Call to confirm part: 800-440-6723 |
| 9 | TN4034906Replaces Tennant 1062016 | 3 | Isolator, Vib, .75d | $4.20/EA |
| 10 | TN4043365Replaces Tennant 11329 | 5 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 11 | TN4041450Replaces Tennant 1207368 | 1 | Mount, Vacfan, 5.7/6.6 | $17.90/EA |
| 12 | TN4042345Replaces Tennant 1209466 | 2 | Hinge, 6mm Pin 2.5 73.5mmw 60.0mml, Bent | $8.40/EA |
| 13 | TN4045268Replaces Tennant 1034731 | 8 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 14 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 15 | TN4035316Replaces Tennant 1229825 | 1 | Plate, Hinge, Doubler | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Recovery tank filter and hose group, standard screw cap parts
The parts Tennant numbers on its recovery tank filter and hose group, standard screw cap drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Tennant 11329 | 4 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 2 | TN4036905Replaces Tennant 1011777 | 1 | Mount, Float, Mold | $32.00/EA |
| 3 | TN4020485Replaces Tennant 630052 | 1 | Float Shut-Off (2)Ball 1.75d | $76.00/EA |
| 4 | TN4037554Replaces Tennant 1013628 | 1 | Gasket, Mtg, Float, .125th, Neo, Adh | $4.30/EA |
| 5 | TN4022697Replaces Tennant 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. | $60.80/EA |
| 6 | TN4038125Replaces Tennant 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.40/EA |
| 7 | TN4037917Replaces Tennant 1224899 | 1 | Deflector, Tray, DebrisPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $22.70/EA |
| 8 | TN4041448Replaces Tennant 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $33.00/EA |
| 9 | TN4038108Replaces Tennant 1225172 | 1 | Strap, Retaining, Deflector, 150.0lPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $4.30/EA |
| 10 | TN4035537Replaces Tennant 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.50/EA |
| 11 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.60/EA |
| 12 | TN4031484Replaces Tennant 1246719 | 1 | Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431)Complete assembly. Serial 30104487 and later. Tennant prints the serial range as (30104487- NOV2020). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $60.50/EA |
| 13 | TN4036917Replaces Tennant 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431) (1246719). | $8.60/EA |
| 12 | TN4035297Replaces Tennant 1229594 | 1 | Hose Assy, Drain, 1.5d 017l, [Pvc], [Ch] (Black - Standard - Replaced By Gray Pinch Cuff Screw Cap 1253431)Complete assembly. Serial 30061275 to 30104486. | Call to confirm part: 800-440-6723 |
| 13 | TN4036892Replaces Tennant 1218955 | 1 | Cap, Drain Assy [Black]Part of Hose Assy, Drain, 1.5d 017l, [Pvc], [Ch] (Black - Standard - Replaced By Gray Pinch Cuff Screw Cap 1253431) (1229594). | $8.60/EA |
| 12 | TN4031859Replaces Tennant 1213008 | 1 | Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray - Option) (No Longer Available - Replaced By 1253431)Complete assembly. Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx). Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000, 30104487 to 40000000). Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723 |
| – | TN4036917Replaces Tennant 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5d 025l 1.5/Cap [Pu] (Gray - Option) (No Longer Available - Replaced By 1253431) (1213008). | $8.60/EA |
| 14 | TN4043377Replaces Tennant 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 15 | TN4045602Replaces Tennant 1037106 | 1 | Gasket, Adapter, Hose .13, Neo | $3.50/EA |
| 16 | TN4041434Replaces Tennant 1207196 | 1 | Tube, Hose, Adapter, 1.5d [T300] | $11.50/EA |
| 17 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 18 | TN4035298Replaces Tennant 1229595 | 1 | Hose Assy,W/2cuff,1.5d 022l, [Pvc], [Ch] (Black - Standard) | Call to confirm part: 800-440-6723 |
| 18 | TN4038916Manual prints Tennant 1204663 | 1 | Hose Assy, W/2cuff,1.5d 031l 1.5/1.5[Pu] (Gray - Option)Number from Tennant's current parts catalog. | $30.10/EA |
| 19 | TN4022716Replaces Tennant 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss] | $72.80/EA |
Tennant T300e (S/N 30061275-40000000) Recovery tank filter and hose group, pinch cuff screw cap parts
The parts Tennant numbers on its recovery tank filter and hose group, pinch cuff screw cap drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Tennant 11329 | 4 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 2 | TN4036905Replaces Tennant 1011777 | 1 | Mount, Float, Mold | $32.00/EA |
| 3 | TN4020485Replaces Tennant 630052 | 1 | Float Shut-Off (2)Ball 1.75d | $76.00/EA |
| 4 | TN4037554Replaces Tennant 1013628 | 1 | Gasket, Mtg, Float, .125th, Neo, Adh | $4.30/EA |
| 5 | TN4022697Replaces Tennant 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. | $60.80/EA |
| 6 | TN4038125Replaces Tennant 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.40/EA |
| 7 | TN4037917Replaces Tennant 1224899 | 1 | Deflector, Tray, DebrisPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $22.70/EA |
| 8 | TN4041448Replaces Tennant 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $33.00/EA |
| 9 | TN4038108Replaces Tennant 1225172 | 1 | Strap, Retaining, Deflector, 150.0lPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $4.30/EA |
| 10 | TN4035537Replaces Tennant 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.50/EA |
| 11 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.60/EA |
| 12 | TN4031859Replaces Tennant 1253431 | 1 | Hose Assy, Drain, 1.5id X 19.7l [Pu] (Gray - Option)Complete assembly. Tennant prints the serial range as (DEC2020- ). | Call to confirm part: 800-440-6723 |
| 13 | TN4036917Replaces Tennant 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5id X 19.7l [Pu] (Gray - Option) (1253431). | $8.60/EA |
| 12 | TN4031484Replaces Tennant 1246719 | 1 | Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431)Complete assembly. Tennant prints the serial range as (xxxxxxxx- NOV2020). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $60.50/EA |
| 13 | TN4036917Replaces Tennant 1219134 | 1 | Cap, Drain Assy [Gray]Part of Hose Assy, Drain, 1.5id X 21.9l [Pu] (Gray - Option - Replaced By 1253431) (1246719). | $8.60/EA |
| 14 | TN4043377Replaces Tennant 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 15 | TN4045602Replaces Tennant 1037106 | 1 | Gasket, Adapter, Hose .13, Neo | $3.50/EA |
| 16 | TN4041434Replaces Tennant 1207196 | 1 | Tube, Hose, Adapter, 1.5d [T300] | $11.50/EA |
| 17 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 18 | TN4038916Manual prints Tennant 1204663 | 1 | Hose Assy, W/2cuff,1.5d 031l 1.5/1.5[Pu] (Gray - Option)Number from Tennant's current parts catalog. | $30.10/EA |
| 19 | TN4022716Replaces Tennant 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss] | $72.80/EA |
Tennant T300e (S/N 30061275-40000000) Recovery tank filter and hose group, control valve (Japan) parts
The parts Tennant numbers on its recovery tank filter and hose group, control valve (japan) drawing. Manual pages 54, list 55.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Tennant 11329 | 4 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 2 | TN4036905Replaces Tennant 1011777 | 1 | Mount, Float, Mold | $32.00/EA |
| 3 | TN4020485Replaces Tennant 630052 | 1 | Float Shut-Off (2)Ball 1.75d | $76.00/EA |
| 4 | TN4037554Replaces Tennant 1013628 | 1 | Gasket, Mtg, Float, .125th, Neo, Adh | $4.30/EA |
| 5 | TN4022697Replaces Tennant 9014872 | 1 | Kit, Deflector, Tray, Debris, CI, [T300]Complete assembly. | $60.80/EA |
| 6 | TN4038125Replaces Tennant 1225187 | 1 | Seal, Rbr, Clsd, 12.7Th, 24.0Id, 40.0OdPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.40/EA |
| 7 | TN4037917Replaces Tennant 1224899 | 1 | Deflector, Tray, DebrisPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $22.70/EA |
| 8 | TN4041448Replaces Tennant 1207357 | 1 | Tray, Debris, Tank, Recvy [T300]Part of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $33.00/EA |
| 9 | TN4038108Replaces Tennant 1225172 | 1 | Strap, Retaining, Deflector, 150.0lPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $4.30/EA |
| 10 | TN4035537Replaces Tennant 1018155 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.50/EA |
| 11 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsPart of Kit, Deflector, Tray, Debris, CI, [T300] (9014872). | $2.60/EA |
| 12 | TN4026476Replaces Tennant 9014171 | 1 | Hose Assy, With Valve (Gray) (No Longer Available - Replaced by Gray Pinch Cuff Screw Cap 1253431)Complete assembly. Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx). | Call to confirm part: 800-440-6723 |
| 13 | TN4020670Manual prints Tennant 1051986 | 1 | Valve, Ball, 2way, 1.0id Pvc, W/Handle (No Longer Avail- able - Replaced by Gray Pinch Cuff Screw Cap 1253431)Part of Hose Assy, With Valve (Gray - Japan) (No Longer Avail- able - Replaced By Gray Pinch Cuff Screw Cap 1253431) (9014171). Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx); Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 |
| 14 | TN4043377Replaces Tennant 11531 | 1 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56wPart of Hose Assy, With Valve (Gray - Japan) (No Longer Avail- able - Replaced By Gray Pinch Cuff Screw Cap 1253431) (9014171). | $5.30/EA |
| 15 | TN4037503Replaces Tennant 1222591 | 1 | Hose Assy, 45cuff,1.5d 021l 1.5/1.5[Pu](Gray) (No Longer Available - Rpld by Gray Pinch Cuff Screw Cap 1253431)Part of Hose Assy, With Valve (Gray - Japan) (No Longer Avail- able - Replaced By Gray Pinch Cuff Screw Cap 1253431) (9014171). Serial 30061275 and later. Tennant prints the serial range as (30061275- xxxxxxxx). | Call to confirm part: 800-440-6723 |
| 16 | TN4045602Replaces Tennant 1037106 | 1 | Gasket, Adapter, Hose .13, Neo | $3.50/EA |
| 17 | TN4041434Replaces Tennant 1207196 | 1 | Tube, Hose, Adapter, 1.5d [T300] | $11.50/EA |
| 18 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 19 | TN4038916Manual prints Tennant 1204663 | 1 | Hose Assy, W/2cuff,1.5d 031l 1.5/1.5[Pu] (Gray)Number from Tennant's current parts catalog. | $30.10/EA |
| 20 | TN4043377Replaces Tennant 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 21 | TN4022716Replaces Tennant 9014905 | 1 | Cover Kit, Circuitbreaker, Ci[T300/E/Ss] | $72.80/EA |
Tennant T300e (S/N 30061275-40000000) Solution tank group parts
The parts Tennant numbers on its solution tank group drawing. Manual pages 56, list 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026368Replaces Tennant 9014156 | 1 | Kit, Tank, Soltn, Ci [T300] | $1,275.40/EA |
| 1 | TN4023328Manual prints Tennant 9016893 | 1 | Kit, Tank, Soltn,Ci [T300es]Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 |
| 2 | TN4019292Replaces Tennant 391368 | 1 | Cable, Glv .09d 016.5l .38eye /.38eye | $33.50/EA |
| 3 | TN4043810Replaces Tennant 140154 | 2 | Sleeve, P/M, 0.25b 0.38d 0.3l, Pl | $4.10/EA |
| 4 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 5 | TN4043365Replaces Tennant 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 6 | TN4039891Replaces Tennant 1214264 | 1 | Tray, Accssry, Lh, 16mm Screw | $21.30/EA |
| 7 | TN4043784Replaces Tennant 140053 | 2 | Washer, Flat, 0.28b 0.88d .12, Ss | $4.80/EA |
| 8 | TN4043365Replaces Tennant 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 9 | TN4039094Replaces Tennant 20778 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 030.0l | Call to confirm part: 800-440-6723 |
| 10 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wTennant's online parts catalog gives this part different serial numbers (30061275 to 30106902, 30061275 to 40000000, 30106903 to 40000000). Call 800-440-6723 to confirm before ordering. | $5.10/EA |
| 11 | TN4026513Replaces Tennant 9014408 | 1 | Kit, Cvr, Fill, W/ Ech20, Ci [Ce] | $129.50/EA |
| 11 | TN4026514Replaces Tennant 9014409 | 1 | Kit, Cvr, Fill, Ci [Ce] | $128.00/EA |
| 12 | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft | $6.70/EA |
| 13 | TN4035537Replaces Tennant 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,Ss | $2.50/EA |
| 14 | TN4041589Replaces Tennant 07514 | 2 | Washer, Lock, Int, 10, Ss | $3.50/EA |
| 15 | TN4020247Replaces Tennant 621443 | 1 | Chain, Ball, 10, 0157mml, Ss | $4.40/EA |
| 16 | TN4039885Replaces Tennant 1214249 | 1 | Tray, Accssry, Rh, 16mm ScrewSerial 30061275 to 30064643. | Call to confirm part: 800-440-6723 |
| 17 | TN4035537Replaces Tennant 1018155 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsSerial 30061275 to 30064643. | $2.50/EA |
| 18 | TN4025974Manual prints Tennant 9014251 | 1 | Clip Kit, Rail, Di [T300/T300e/Ss300] (Option - No Longer Available)Complete assembly. Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 |
| 19 | TN4039897Manual prints Tennant 1214292 | 1 | Bracket, Hanger, Rail, LrgPart of Clip Kit, Rail, Di [T300/T300e/Ss300] (Option - No Longer Available) (9014251). Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 |
| 20 | TN4039895Manual prints Tennant 1214291 | 2 | Bracket, Hanger, Rail, Small (Option - No Longer Available)Part of Clip Kit, Rail, Di [T300/T300e/Ss300] (Option - No Longer Available) (9014251). Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 |
| 21 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss] | $5.10/EA |
| 22 | TN4035308Replaces Tennant 1229734 | 1 | Seal, Neo, 0.88, 1.00w 3.6l Adh | $2.80/EA |
| 23 | TN4039897Manual prints Tennant 1214292 | 1 | Bracket, Hanger, Rail, Lrg (Option - No Longer Available)Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Frame group, push (T300E model) parts
The parts Tennant numbers on its frame group, push (t300e model) drawing. Manual pages 58, list 59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035317Replaces Tennant 1229826 | 1 | Frame Wldt, RearFits Push model. | Call to confirm part: 800-440-6723 |
| 2 | TN4036259Replaces Tennant 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits Push model. | $3.50/EA |
| 3 | TN4038889Replaces Tennant 1210807 | 5 | Wire, Tie [W/.25” Fir Tree Clip]Fits Push model. | $1.90/EA |
| 4 | TN4035310Replaces Tennant 1229787 | 1 | Spacer,CasterFits Push model. | Call to confirm part: 800-440-6723 |
| 5 | TN4039272Replaces Tennant 1212422 | 1 | Caster, Swivel [Wicke 224051]Fits Push model. | $75.60/EA |
| 6 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flat, 0.38b 0.88d .08, SsFits Push model. | $2.60/EA |
| 7 | TN4041929Replaces Tennant 08713 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits Push model. | $3.30/EA |
| 8 | TN4015658Replaces Tennant 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0lFits Push model. | $25.90/EA |
| 9 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlFits Push model. | $33.10/EA |
| 10 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts]Fits Push model. | $11.60/EA |
| 11 | TN4031248Replaces Tennant 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, SsFits Push model. | $3.40/EA |
| 12 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsFits Push model. | $3.40/EA |
| 13 | TN4035309Replaces Tennant 1229786 | 1 | Frame Wldt, FrontFits Push model. | Call to confirm part: 800-440-6723 |
| 14 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsFits Push model. Serial 30061275 and later. Tennant prints the serial range as (30061275- FEB2022). | $3.50/EA |
| 15 | TN4034852Replaces Tennant 1016331 | 2 | Washer, Flat, 0.34b 1.25d .11, SsFits Push model. Serial 30061275 and later. Tennant prints the serial range as (30061275- FEB2022). | $5.10/EA |
| 16 | TN4039915Replaces Tennant 1214586 | 2 | Wheel, Scrbr, 8.00d, W/ Brg [Hi Trac]Fits Push model. | Call to confirm part: 800-440-6723 |
| 17 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits Push model. | $3.30/EA |
| 18 | TN4030690Replaces Tennant 1028292 | 2 | Adapter, Mtg, Axle, Alm [T3]Fits Push model. | $15.30/EA |
| 19 | TN4030696Replaces Tennant 1028381 | 2 | Grommet, Axle [Tpu, T3 Push]Fits Push model. | $8.20/EA |
| 20 | TN4032382Replaces Tennant 1257946 | 1 | Axle, Wheel, HexFits Push model. Tennant prints the serial range as (MAR2022- ). | $42.80/EA |
| 20 | TN4032382Replaces Tennant 1028382 | 1 | Axle, Wheel, Hex, Clr Zn [T3 Push] (Replaced By 1257946 & Qty 2 of 1025121)Fits Push model. Serial 30061275 and later. Tennant prints the serial range as (30061275- FEB2022). | $42.80/EA |
| 21 | TN4035940Replaces Tennant 1231344 | 1 | Bracket Wldt, LatchFits Push model. | Call to confirm part: 800-440-6723 |
| 22 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsFits Push model. | $2.60/EA |
| 23 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsFits Push model. | $2.50/EA |
| 24 | TN4033875Replaces Tennant 1025121 | 2 | Ring, Retaining, Shaft, Ext, 20mmd, HdFits Push model. Tennant prints the serial range as (MAR2022- ). | $19.30/EA |
Tennant T300e (S/N 30061275-40000000) Actuated down pressure group parts
The parts Tennant numbers on its actuated down pressure group drawing. Manual pages 64, list 65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039893Replaces Tennant 1214283 | 1 | Guide, Cable | $10.10/EA |
| 2 | TN4038624Replaces Tennant 1016005 | 1 | Screw, Hex, M6 X 1.00 X 25, Nl, Fl, Ss | $3.30/EA |
| 3 | TN4039850Replaces Tennant 1213998 | 1 | Bracket Wldt, Mtg, Pulley, Down PressSerial 30061275 to 30064643. | $48.88/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 30061275 to 30064643. | $3.30/EA |
| 5 | TN4040581Replaces Tennant 222460 | 4 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] | $3.40/EA |
| 6 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 7 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 8 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxSerial 30061275 to 30064643. | $2.50/EA |
| 9 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 30061275 to 30064643. | $2.60/EA |
| 10 | TN4039260Replaces Tennant 1212336 | 1 | Cover, Pulley Assy, Down-PressSerial 30061275 to 30064643. | $25.60/EA |
| 11 | TN4032304Replaces Tennant 369781 | 2 | Pulley, Cable, 1.5d Nyl | $5.10/EA |
| 12 | TN4040196Replaces Tennant 1216611 | 1 | Spring, Extn, 1.14od, 0.13wir, 6.5l (Disk & Orbital Models) | $23.90/EA |
| 12 | TN4040201Replaces Tennant 1216677 | 1 | Spring, Extn, 1.08od, 0.09wir, 6.5l (Cylindrical Model) | $17.35/EA |
| 13 | TN4036882Replaces Tennant 1218891 | 1 | Retainer, Strip, Rubber | $1.90/EA |
| 14 | TN4039852Replaces Tennant 1214005 | 1 | Cable, Down Press | $15.20/EA |
| 15 | TN4039846Replaces Tennant 1213986 | 1 | Bracket Wldt, Mtg, Pulley, Down Press | $44.60/EA |
| 16 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 17 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 18 | TN4039842Replaces Tennant 1213982 | 1 | Actuator, 24vdc, 76.2 Strk, 500n | $397.60/EA |
| 19 | TN4017779Replaces Tennant 44906 | 2 | Pin, Cotter, Hair, 0.38d .093 Wir | $4.00/EA |
| 20 | TN4016191Replaces Tennant 397249 | 2 | Pin, Clevis, 0.31d X 1.62l | $3.40/EA |
| 21 | TN4039918Replaces Tennant 1214971 | 1 | Actuator Wldt, Mtg | $99.69/EA |
| 22 | TN4034958Replaces Tennant 12277 | 2 | Screw, Hex, M6 X 1.00 X 20, Nl, SsSerial 30064644 and later. | $3.30/EA |
| 23 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 30064644 and later. | $2.60/EA |
| 24 | TN4037885Replaces Tennant 1224289 | 1 | Cover, Tank, Rh, [T300/E/Ss]Serial 30064644 and later. | $63.80/EA |
| 25 | TN4037899Replaces Tennant 1224560 | 1 | Bracket Wldt, Mtg, Pulley, DnprsSerial 30064644 and later. | $42.82/EA |
Tennant T300e (S/N 30061275-40000000) Manual down pressure group parts
The parts Tennant numbers on its manual down pressure group drawing. Manual pages 66, list 67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043365Replaces Tennant 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 2 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 3 | TN4039827Replaces Tennant 1213745 | 1 | Plate, Link | $11.40/EA |
| 4 | TN4039090Replaces Tennant 20536 | 1 | Washer, Flat, 0.45b 1.19d .06, Nyl | $30.00/EA |
| 5 | TN4040196Replaces Tennant 1216611 | 1 | Spring, Extn, 1.14od, 0.13wir, 6.5l (Disk & Orbital Models) | $23.90/EA |
| 5 | TN4040201Replaces Tennant 1216677 | 1 | Spring, Extn, 1.08od, 0.09wir, 6.5l (Cylindrical Model) | $17.35/EA |
| 6 | TN4035538Replaces Tennant 1018181 | 1 | Nut, T, M8 X 1.25 X 0.50od X 0.4l | $14.40/EA |
| 7 | TN4035844Replaces Tennant 1018756 | 1 | Spring, Cmpr, 0.70od .08wir 00.7l, Pl,Mw | $6.90/EA |
| 8 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] | $3.40/EA |
| 9 | TN4037581Replaces Tennant 1013936 | 2 | Washer, Flat, 0.51b 0.94d .10, Nyl | $3.40/EA |
| 10 | TN4035240Replaces Tennant 1017156 | 1 | Knob, Ball, M8 Insert, 40mmd, Plstc | $24.40/EA |
| 11 | TN4038861Replaces Tennant 1210591 | 1 | Lever Wldt, Down Pressure, Mnl | $32.60/EA |
| 12 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 13 | TN4038862Replaces Tennant 1210597 | 1 | Bracket Wldt, Down Press, Mnl | $68.30/EA |
| 14 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 15 | TN4042095Replaces Tennant 1209371 | 1 | Cover, Lever Assy, Down-Press | $134.00/EA |
| 16 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 17 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 18 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss] | $5.10/EA |
Tennant T300e (S/N 30061275-40000000) Single down pressure group parts
The parts Tennant numbers on its single down pressure group drawing. Manual pages 68, list 69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034958Replaces Tennant 12277 | 2 | Screw, Hex, M6 X 1.00 X 20, Nl, Ss | $3.30/EA |
| 2 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 3 | TN4037885Replaces Tennant 1224289 | 1 | Cover, Tank, Rh, [T300/E/Ss] | $63.80/EA |
| 4 | TN4038245Replaces Tennant 1225843 | 2 | Washer, Flat, M6 X 3 X 30, Retain, Nyl | $4.75/EA |
Tennant T300e (S/N 30061275-40000000) Solution group, standard (T300E model) (S/N 30106903 - ) parts
The parts Tennant numbers on its solution group, standard (t300e model) (s/n 30106903 - ) drawing. Manual pages 70, list 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037335Replaces Tennant 1013442 | 1 | Knob, Valve, 0.70d 0.61l, 0.21b | $14.50/EA |
| 2 | TN4035235Replaces Tennant 1017091 | 1 | Spring, Cmpr, 0.50od .04wir 00.8l | $4.10/EA |
| 3 | TN4035311Replaces Tennant 1229788 | 1 | Bracket Wldt,Mtg,Valve,Soltn | Call to confirm part: 800-440-6723 |
| 4 | TN4039832Replaces Tennant 1213803 | 1 | Valve, Water, Solenoid, 24vdc, Bm10/Bm10Serial 30106903 and later. | $153.70/EA |
| 5 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 6 | TN4015366Replaces Tennant 54333 | 12 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wTennant's online parts catalog gives this part different serial numbers (30061275 to 30106902, 30061275 to 40000000, 30106903 to 40000000). Call 800-440-6723 to confirm before ordering. | $5.10/EA |
| 7 | TN4021151Replaces Tennant 63245-1 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Bm08Serial 30106903 and later. | $6.20/EA |
| 8 | TN4021573Replaces Tennant 9020612 | 1 | Hose, Afmkt, Pvc, 0.50id 0.69od, 5ftSerial 30106903 and later. | Call to confirm part: 800-440-6723 |
| 9 | TN4017647Replaces Tennant 64778 | 2 | Fitting, Plstc, E90, Bm08/Pm06Serial 30106903 and later. | $8.70/EA |
| 10 | TN4035011Replaces Tennant 1228901 | 1 | Fitting, Plstc, Str, Qf08/Qf08,[Ch] | Call to confirm part: 800-440-6723 |
| 11 | TN4017096Replaces Tennant 63987-1 | 1 | Fitting, Plstc, E90, Qf08/Qm08, [Ch]Serial 30106903 and later. | $7.80/EA |
| 12 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06Serial 30106903 and later. | $6.20/EA |
| 13 | TN4039203Replaces Tennant 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. | $16.90/EA |
| – | TN4036880Replaces Tennant 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $2.70/EA |
| – | TN4036878Replaces Tennant 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $9.50/EA |
| – | TN4019615Replaces Tennant 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $18.20/EA |
Tennant T300e (S/N 30061275-40000000) Solution group, standard (T300E model) (S/N 30061275 - 30106903) parts
The parts Tennant numbers on its solution group, standard (t300e model) (s/n 30061275 - 30106903) drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037335Replaces Tennant 1013442 | 1 | Knob, Valve, 0.70d 0.61l, 0.21b | $14.50/EA |
| 2 | TN4035235Replaces Tennant 1017091 | 1 | Spring, Cmpr, 0.50od .04wir 00.8l | $4.10/EA |
| 3 | TN4035311Replaces Tennant 1229788 | 1 | Bracket Wldt,Mtg,Valve,Soltn | Call to confirm part: 800-440-6723 |
| 4 | TN4039193Replaces Tennant 1211423 | 1 | Valve, Water, Solenoid, 24vdc Qf08/Qf08Serial 30061275 to 30106902. | $198.60/EA |
| 5 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, Torx | $2.50/EA |
| 6 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 30061275 to 30106902. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30106902, 30061275 to 40000000, 30106903 to 40000000). Call 800-440-6723 to confirm before ordering. | $5.10/EA |
| 7 | TN4035008Replaces Tennant 1228898 | 1 | Fitting, Plstc, Str, Qm08/Bm08,[Ch]Serial 30061275 to 30106902. | Call to confirm part: 800-440-6723 |
| 8 | TN4035007Replaces Tennant 1228897 | 1 | Fitting, Plstc, Tee, Qf08/Qf08/Q,[Ch]Serial 30061275 to 30106902. | Call to confirm part: 800-440-6723 |
| 9 | TN4035012Replaces Tennant 1228902 | 2 | Fitting, Plstc, E90, Qf08/Pm06, Swivel,[Serial 30061275 to 30106902. | Call to confirm part: 800-440-6723 |
| 10 | TN4035011Replaces Tennant 1228901 | 1 | Fitting, Plstc, Str, Qf08/Qf08,[Ch]Serial 30061275 to 30106902. | Call to confirm part: 800-440-6723 |
| 11 | TN4026362Replaces Tennant 9014145 | 1 | Hose, Afmkt, Pe, .375id .50od, 05ftSerial 30061275 to 30106902. | $104.00/EA |
| 12 | TN4035010Replaces Tennant 1228900 | 1 | Fitting, Plstc, Str, Qf08/Pm06, [Ch]Serial 30061275 to 30106902. | Call to confirm part: 800-440-6723 |
| 13 | TN4039203Replaces Tennant 1211537 | 1 | Filter, In-Line, Pf06/Pf06 080m 2.6l EpdComplete assembly. | $16.90/EA |
| – | TN4036880Replaces Tennant 1218885 | 1 | Gasket [Epdm, F/1211537]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $2.70/EA |
| – | TN4036878Replaces Tennant 1218883 | 1 | Screen, Fltr, 80 Mesh, Ss [W/ Cage]Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $9.50/EA |
| – | TN4019615Replaces Tennant 613991 | 1 | Bowl, Clr, Short, F/1005302Part of Filter, In-Line, Pf06/Pf06 080m 2.6l Epd (1211537). | $18.20/EA |
| 14 | TN4035263Replaces Tennant 1229140 | 1 | Fitting, Plstc, E90, Qf08/Qm08, [Ch]Serial 30061275 to 30106902. | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Electrical components group (T300E model) parts
The parts Tennant numbers on its electrical components group (t300e model) drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016786Replaces Tennant 41140 | 2 | Washer, Lock, Int-Ext, 0.25 | $3.40/EA |
| 2 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 3 | TN4036250Replaces Tennant 1020280 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ft (C410217) | $26.40/EA |
| 4 | TN4034892Replaces Tennant 1061910 | 2 | Nut, Hex, Std, M6 X 1.00, Brs | $1.50/EA |
| 5 | TN4034894Replaces Tennant 1061918 | 4 | Washer, Flat, 0.25b 0.47d .06, Brs | $1.50/EA |
| 6 | TN4041590Replaces Tennant 07515 | 2 | Washer, Lock, Int, 0.25, Ss | $3.50/EA |
| 7 | TN4035296Replaces Tennant 1229593 | 2 | Screw, M6-30 | Call to confirm part: 800-440-6723 |
| 8 | TN4035293Replaces Tennant 1229590 | 2 | Stand-Off, Wir, M6, Insulator, Panel | Call to confirm part: 800-440-6723 |
| 9 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 10 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 11 | TN4037225Replaces Tennant 1012216 | 2 | Relay, 24vdc, 070a, Spst No, Plug-In | $17.40/EA |
| 12 | TN4035592Replaces Tennant 1230798 | 1 | Bracket Wldt, Mtg, Ele | Call to confirm part: 800-440-6723 |
| 12 | TN4035999Replaces Tennant 1232393 | 1 | Bracket Wldt, Mtg, Ele (Bracket Equipped with Anderson Plug Mounting Holes)Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723 |
| 13 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 14 | TN4041994Replaces Tennant 09744 | 2 | Screw, Hex, M6 X 1.00 X 12, Ss | $3.40/EA |
| 15 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 16 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 17 | TN4032813Replaces Tennant 1066409 | 1 | Relay, 24vdc, 150a, No [Trombetta] | $46.60/EA |
| 18 | TN4031246Replaces Tennant 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, Ss (Models With Battery Lift Out Kit Installed) | $3.20/EA |
| 19 | TN4043235Replaces Tennant 02850 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl (Models With Battery Lift Out Kit Installed) | $2.50/EA |
Tennant T300e (S/N 30061275-40000000) Lower console group, off- board charger (T300E model) parts
The parts Tennant numbers on its lower console group, off- board charger (t300e model) drawing. Manual pages 86, list 87.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040843Replaces Tennant 1203802 | 1 | Cover, Column, Cntrl | $151.10/EA |
| 1 | TN4040843Replaces Tennant 9012791 | 1 | Cover, Console, Afmkt, W/ Label [Ce] (Rpld By 1203802) | $151.10/EA |
| 2 | TN4036836Replaces Tennant 1011402 | 1 | Switch, KeyComplete assembly. | $54.40/EA |
| 3 | TN4129073Replaces Tennant 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). | $21.60/EA |
| 4 | TN4042042Replaces Tennant 1208816 | 1 | Circuitbreaker, 04.0a, Resetable | $8.70/EA |
| 5 | TN4032601Replaces Tennant 1064191 | 2 | Boot, Circuitbreaker | $12.60/EA |
| 6 | TN4032366Replaces Tennant 1064038 | 1 | Gauge, Hourmeter, 05-277 Volt, Ac / Dc | $52.90/EA |
| 7 | TN4032589Replaces Tennant 1064189 | 1 | Circuitbreaker, 20.0a, Resetable | $5.30/EA |
| 8 | TN4042014Replaces Tennant 1208599 | 1 | Bracket Assy, Plug, Charger | $31.00/EA |
| 9 | TN4041015Replaces Tennant 06922 | 4 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8 | $3.40/EA |
| 10 | TN4044587Replaces Tennant 1073634 | 1 | Harness, Chrgr, 12ga [M8 Ring/M8 Ring]Complete assembly. | $49.00/EA |
| 11 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Harness, Chrgr, 12ga [M8 Ring/M8 Ring] (1073634). | $20.60/EA |
| 12 | TN4041694Replaces Tennant 1043573 | 4 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap] | $2.50/EA |
| 13 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts] | $11.60/EA |
| 14 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr Pl | $33.10/EA |
| 15 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 16 | TN4035945Replaces Tennant 1231373 | 1 | Frame, Column, Cntrl [Im], T600 | $110.90/EA |
| 17 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 18 | TN4035295Replaces Tennant 1229592 | 1 | Plug, Hole, Circuitbreaker, 4a | Call to confirm part: 800-440-6723 |
| 19 | TN4035294Replaces Tennant 1229591 | 1 | Plug, Hole, Circuitbreaker 37a | Call to confirm part: 800-440-6723 |
| 20 | TN4044898Replaces Tennant 1074526 | 1 | Circuitbreaker, 37.0a | $49.70/EA |
| 21 | TN4039495Replaces Tennant 1212837 | 1 | Charger, 24vdc, 13a 85-265vac [Offboard] (For Wet and AGM Battery Options)Complete assembly. | $567.60/EA |
| 22 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 13a 85-265vac [Offboard] (For Wet and AGM Battery Options) (1212837). | $20.60/EA |
| 21 | TN4031446Replaces Tennant 1249940 | 1 | Charger, 24vdc/15a, 180-264vac[Offboard] (For Wet and AGM Battery Options)Complete assembly. | Call to confirm part: 800-440-6723 |
| 22 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc/15a, 180-264vac[Offboard] (For Wet and AGM Battery Options) (1249940). | $20.60/EA |
| 23 | TN4034022Replaces Tennant 1242314 | 1 | Charger, 24vdc, 085-264vac, Off-brd (For Lithium- Ion Battery Option)Complete assembly. | Call to confirm part: 800-440-6723 |
| 24 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 085-264vac, Off-brd (For Lithium- Ion Battery Option) (1242314). | $20.60/EA |
| 25 | TN4032683Replaces Tennant 1242383 | 1 | Charger, 24vdc, 196-264vac, Off-brd (For Lithium- Ion Battery Option)Complete assembly. | Call to confirm part: 800-440-6723 |
| 26 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, 196-264vac, Off-brd (For Lithium- Ion Battery Option) (1242383). | $20.60/EA |
| 27 | TN4032683Tennant 4032683 | 1 | Charger, 24vdc, Li-Ion, Off-BoardComplete assembly. | Call to confirm part: 800-440-6723 |
| 28 | TN4025359 | 1 | Connector, Anderson, 050a, Red [W/O Con]Part of Charger, 24vdc, Li-Ion, Off-Board (4032683). | $20.60/EA |
| 29 | TN4029997Tennant 4029997 | 1 | Charger, 24vdc/15a, Agm, Off-Board | Call to confirm part: 800-440-6723 |
| 30 | TN4045001Replaces Tennant 1032849 | 1 | Cord, Power, Blk [4.5meter, Ce] | $61.20/EA |
| 30 | TN4035915Replaces Tennant 1019426 | 1 | Cord, Chrgr, Ele, Tj (Japan) | $16.20/EA |
| 30 | TN4034246Replaces Tennant 1026330 | 1 | Cord, Power, 1.0mm2 [2.5meter] (China) | $31.00/EA |
| 30 | TN4034245Replaces Tennant 1026325 | 1 | Cord, Power, 1.0mm2/3 Blk[2.5meter, Aus] | $31.00/EA |
| 30 | TN4039700Replaces Tennant 1048304 | 1 | Cord, Power [4.5meter, India, S.Africa] | $39.00/EA |
Tennant T300e (S/N 30061275-40000000) Console handle group, propel parts
The parts Tennant numbers on its console handle group, propel drawing. Manual pages 92, list 93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040841Replaces Tennant 1203787 | 1 | Housing, Handle, Cntrl, TopFits Propel (drive) model. | $87.20/EA |
| 2 | TN4042365Replaces Tennant 1209673 | 1 | Switch Assy, Toggle, DirectionFits Propel (drive) model. | $75.10/EA |
| 3 | TN4042373Replaces Tennant 1209730 | 1 | Cap, Toggle, DirectionFits Propel (drive) model. | $6.80/EA |
| 4 | TN4041694Replaces Tennant 1043573 | 15 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Fits Propel (drive) model. | $2.50/EA |
| 5 | TN4032266Replaces Tennant 1256757 | 1 | Potentiometer [100k, 1 Turn, Multi-Mach]Fits Propel (drive) model. Serial 30139335 and later. | $80.40/EA |
| 5 | TN4032266Replaces Tennant 1246392 | 1 | Potentiometer [100k, 1 Turn, Multi-Mach] (Replaced By 1256757)Fits Propel (drive) model. Serial 30094944 to 30139334. | $80.40/EA |
| 5 | TN4032266Replaces Tennant 1204930 | 1 | Potentiometer [100k, 1 Turn, B5/B7] (Replaced By 1256757)Fits Propel (drive) model. Serial 30061275 to 30094943. | $80.40/EA |
| 6 | TN4033019Replaces Tennant 1234365 | 1 | Dial, Range, SpeedFits Propel (drive) model. | $8.10/EA |
| 7 | TN4041083Replaces Tennant 1205323 | 1 | Switch, 0.1a, Spdt [Micro, Straight]Fits Propel (drive) model. | $9.70/EA |
| 8 | TN4040168Replaces Tennant 1215863 | 2 | Screw, Pan, Torx, M8 X 3.5 X 25[Remform]Fits Propel (drive) model. | $9.00/EA |
| 9 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsFits Propel (drive) model. | $3.20/EA |
| 10 | TN4185799Replaces Tennant 1063909 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftFits Propel (drive) model. Serial 30108201 and later. | $2.70/EA |
| 11 | TN4041074Replaces Tennant 1205143 | 1 | Shaft Assy, Bail, HandleFits Propel (drive) model. | $19.10/EA |
| 12 | TN4041137Replaces Tennant 1205781 | 1 | Spring, Return, BailFits Propel (drive) model. | $29.40/EA |
| 13 | TN4036250Replaces Tennant 1020280 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftFits Propel (drive) model. | $26.40/EA |
| 14 | TN4037504Replaces Tennant 1222608 | 1 | Housing, Handle, Cntrl, Bottom, SlottedFits Propel (drive) model. | $87.70/EA |
| 15 | TN4041133Replaces Tennant 1205778 | 1 | Handle, Bail [Machined]Fits Propel (drive) model. | $45.60/EA |
| 16 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxFits Propel (drive) model. | $2.50/EA |
| 17 | TN4041408Replaces Tennant 1207004 | 1 | Cover, Handle, CntrlFits Propel (drive) model. | $18.50/EA |
| – | TN4030945Replaces Tennant 1072524 | 1 | Harness, Ele [Bail Switch]Fits Propel (drive) model. | $9.30/EA |
Tennant T300e (S/N 30061275-40000000) Console handle group, push parts
The parts Tennant numbers on its console handle group, push drawing. Manual pages 94, list 95.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040841Replaces Tennant 1203787 | 1 | Housing, Handle, Cntrl, TopFits Push model. | $87.20/EA |
| 2 | TN4041694Replaces Tennant 1043573 | 15 | Screw, #10-14 X 0.675, Spl[Shcs,Selftap]Fits Push model. | $2.50/EA |
| 3 | TN4041083Replaces Tennant 1205323 | 1 | Switch, 0.1a, Spdt [Micro, Straight]Fits Push model. | $9.70/EA |
| 4 | TN4185799Replaces Tennant 1063909 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftFits Push model. Serial 30108201 and later. | $2.70/EA |
| 5 | TN4040168Replaces Tennant 1215863 | 2 | Screw, Pan, Torx, M8 X 3.5 X 25[Remform]Fits Push model. | $9.00/EA |
| 6 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsFits Push model. | $3.20/EA |
| 7 | TN4041074Replaces Tennant 1205143 | 1 | Shaft Assy, Bail, HandleFits Push model. | $19.10/EA |
| 8 | TN4041137Replaces Tennant 1205781 | 1 | Spring, Return, BailFits Push model. | $29.40/EA |
| 9 | TN4036250Replaces Tennant 1020280 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftFits Push model. | $26.40/EA |
| 10 | TN4037504Replaces Tennant 1222608 | 1 | Housing, Handle, Cntrl, Bottom, SlottedFits Push model. | $87.70/EA |
| 11 | TN4041133Replaces Tennant 1205778 | 1 | Handle, Bail [Machined]Fits Push model. | $45.60/EA |
| 12 | TN4041143Replaces Tennant 1205799 | 2 | Screw, Btn, M5 X 0.8 X 16, 8.8, Nl, TorxFits Push model. | $2.50/EA |
| 13 | TN4041408Replaces Tennant 1207004 | 1 | Cover, Handle, CntrlFits Push model. | $18.50/EA |
| – | TN4030945Replaces Tennant 1072524 | 1 | Harness, Ele [Bail Switch]Fits Push model. | $9.30/EA |
Tennant T300e (S/N 30061275-40000000) Console panel, membrane, push, without telemetry (T300E model) parts
The parts Tennant numbers on its console panel, membrane, push, without telemetry (t300e model) drawing. Manual pages 96, list 97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018196Replaces Tennant 9021677 | 1 | Bezel Kit, Push, Mem, Ci[T300e/Es/Ss300] (Kit Includes Circuitboard)Complete assembly. Fits Push model. Serial 30198628 and later. Requires Tennant True service or an authorized Tennant service provider. Tennant's online parts catalog gives this part different serial numbers (30061275 to 30198627, 30198628 to 40000000). Call 800-440-6723 to confirm before ordering. | $659.40/EA |
| 2 | TN4018197Replaces Tennant 9021678 | 1 | Screen Kit, Push, Mem, Ci [T300e/Es/Ss]Complete assembly. Part of Bezel Kit, Push, Mem, Ci[T300e/Es/Ss300] (Kit Includes Circuitboard) (9021677). Fits Push model. Serial 30198628 and later. Before Ordering Screen Kit Confirm Screen Visually Matches Correct Screen Image. | $243.10/EA |
| 3 | TN4041112Replaces Tennant 1205618 | 1 | Cap, UsbPart of Screen Kit, Push, Mem, Ci [T300e/Es/Ss] (9021678). Fits Push model. | $6.80/EA |
| 4 | TN4034345Replaces Tennant 1245824 | 1 | Gasket, ConsolePart of Screen Kit, Push, Mem, Ci [T300e/Es/Ss] (9021678). Fits Push model. Serial 30108201 and later. | $36.60/EA |
| 5 | TN4030522Replaces Tennant 1071235 | 1 | Cable [Usb, 2m, A-Male To Mini-B- Male]Fits Push model. | $15.60/EA |
| 1 | TN9016894Tennant 9016894 | 1 | Bezel Kit, Push, Membrane, Ci [T300es] (Kit Includes Circuitboard) (Replaced By 9021677)Complete assembly. Fits Push model. Serial 30061275 to 30198627. Requires Tennant True service or an authorized Tennant service provider. Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723 |
| 2 | TN4023994Replaces Tennant 9015936 | 1 | Screen Kit, Push, Memb., Ci [T300/E] (Replaced By 9021677)Complete assembly. Part of Bezel Kit, Push, Membrane, Ci [T300es] (Kit Includes Circuitboard) (Replaced By 9021677) (9016894). Fits Push model. Serial 30061275 to 30198627. Before Ordering Screen Kit Confirm Screen Visually Matches Correct Screen Image. Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | Call to confirm part: 800-440-6723 |
| 3 | TN4041112Replaces Tennant 1205618 | 1 | Cap, UsbPart of Screen Kit, Push, Memb., Ci [T300/E] (Replaced By 9021677) (9015936). Fits Push model. | $6.80/EA |
| 4 | TN4034345Replaces Tennant 1245824 | 1 | Gasket, ConsolePart of Screen Kit, Push, Memb., Ci [T300/E] (Replaced By 9021677) (9015936). Fits Push model. Serial 30108201 and later. | $36.60/EA |
| 5 | TN4030522Replaces Tennant 1071235 | 1 | Cable [Usb, 2m, A-Male To Mini-B- Male]Fits Push model. | $15.60/EA |
Tennant T300e (S/N 30061275-40000000) Shroud group, disk and orbital head parts
The parts Tennant numbers on its shroud group, disk and orbital head drawing. Manual pages 110, list 111.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042404Replaces Tennant 1210029 | 1 | Cover, Head, Disk, Im-Hg [T300]Fits 17 in (43 cm) disk or 20 in (50 cm) disk or 24 in (60 cm) dual disk or 20 in (50 cm) orbital. | $49.00/EA |
| 2 | TN4042901Replaces Tennant 01684 | 5 | Washer, Flat, 0.27b 0.69d .05, SsFits 17 in (43 cm) disk or 20 in (50 cm) disk or 24 in (60 cm) dual disk or 20 in (50 cm) orbital. | $2.60/EA |
| 3 | TN4043365Replaces Tennant 11329 | 5 | Screw, Hex, M6 X 1.00 X 16, Nl, SsFits 17 in (43 cm) disk or 20 in (50 cm) disk or 24 in (60 cm) dual disk or 20 in (50 cm) orbital. | $3.40/EA |
| 4 | TN4023520Replaces Tennant 80491 | 3 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Fits 17 in (43 cm) disk or 20 in (50 cm) disk or 24 in (60 cm) dual disk or 20 in (50 cm) orbital. | $5.10/EA |
Tennant T300e (S/N 30061275-40000000) Shroud group, cylindrical head parts
The parts Tennant numbers on its shroud group, cylindrical head drawing. Manual pages 112, list 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039802Replaces Tennant 1213570 | 1 | Cover, Head, Cylrcl, Im-Hg [T300]Fits 20 in (50 cm) cylindrical. | $68.30/EA |
| 2 | TN4042901Replaces Tennant 01684 | 5 | Washer, Flat, 0.27b 0.69d .05, SsFits 20 in (50 cm) cylindrical. | $2.60/EA |
| 3 | TN4043365Replaces Tennant 11329 | 5 | Screw, Hex, M6 X 1.00 X 16, Nl, SsFits 20 in (50 cm) cylindrical. | $3.40/EA |
| 4 | TN4023520Replaces Tennant 80491 | 3 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Fits 20 in (50 cm) cylindrical. | $5.10/EA |
Tennant T300e (S/N 30061275-40000000) Scrub head lift group, 43CM disk model (T300E model) parts
The parts Tennant numbers on its scrub head lift group, 43cm disk model (t300e model) drawing. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4014172Manual prints Tennant 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsFits 17 in (43 cm) disk. Number from Tennant's current parts catalog. | $6.60/EA |
| 2 | TN4030993Replaces Tennant 1028796 | 2 | Washer, Flat, 0.33b 1.00d .18, Stl, PlFits 17 in (43 cm) disk. Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $2.50/EA |
| 3 | TN4039856Manual prints Tennant 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalFits 17 in (43 cm) disk. Number from Tennant's current parts catalog. | $5.50/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 5 | TN4035611Replaces Tennant 1230933 | 1 | Bracket, Guide, Head [Vw]Fits 17 in (43 cm) disk. | Call to confirm part: 800-440-6723 |
| 6 | TN4032463Replaces Tennant 1032420 | 1 | Spring, Extn, 0.85od 0.09wir 02.9lFits 17 in (43 cm) disk. | $6.90/EA |
| 7 | TN4023740Replaces Tennant 9015689 | 1 | Lift Head, Kit, Ci [T300e]Complete assembly. Fits 17 in (43 cm) disk. | Call to confirm part: 800-440-6723 |
| 8 | TN4020538Replaces Tennant 630188 | 8 | Bearing, Journal, .50id X .25lPart of Lift Head, Kit, Ci [T300e] (9015689). Fits 17 in (43 cm) disk. | $9.90/EA |
| 9 | TN4036856Replaces Tennant 1218694 | 1 | Pad, Pedal, LiftFits 17 in (43 cm) disk. | $4.14/EA |
| 10 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 17 in (43 cm) disk. | $3.40/EA |
| 11 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsFits 17 in (43 cm) disk. | $3.40/EA |
| 12 | TN4037581Replaces Tennant 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylFits 17 in (43 cm) disk. | $3.40/EA |
| 13 | TN4040581Replaces Tennant 222460 | 7 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 17 in (43 cm) disk. | $3.40/EA |
| 14 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 17 in (43 cm) disk. | $3.30/EA |
| 15 | TN4033064Replaces Tennant 1235108 | 1 | Bolt, Carriage, M8 X 1.25 X 35, PlFits 17 in (43 cm) disk. Serial 30061275 to 30106902. | $1.80/EA |
| 16 | TN4042580Replaces Tennant 200101017 | 1 | Nut, Hex, Jam, M8 X 1.25Fits 17 in (43 cm) disk. Serial 30061275 to 30106902. | $3.40/EA |
| 17 | TN4035127Replaces Tennant 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsFits 17 in (43 cm) disk. | $3.40/EA |
| 18 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsFits 17 in (43 cm) disk. | $2.60/EA |
| 19 | TN4037610Replaces Tennant 1014163 | 1 | Screw, Hex, M8 X 1.25 X 60, Fl, SsFits 17 in (43 cm) disk. | $4.00/EA |
| 20 | TN4043988Replaces Tennant 140430 | 1 | Spring, Cmpr, 0.70od .10wir 01.7lFits 17 in (43 cm) disk. | $9.60/EA |
| 21 | TN4043798Replaces Tennant 140127 | 2 | Washer, Thrust, 0.51b 1.00d 0.12w, BrzFits 17 in (43 cm) disk. | $5.20/EA |
| 22 | TN4035932Replaces Tennant 1231304 | 1 | Bracket Wldt, Head Mtg, 43d/50d, ShortFits 17 in (43 cm) disk. | Call to confirm part: 800-440-6723 |
| 23 | TN4036504Replaces Tennant 12333 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss, NlFits 17 in (43 cm) disk. | $4.00/EA |
| 24 | TN4035931Replaces Tennant 1231303 | 1 | Spacer, Head, 4mm (Push Model)Fits 17 in (43 cm) disk. | Call to confirm part: 800-440-6723 |
| 25 | TN4035930Replaces Tennant 1231302 | 1 | Bracket Wldt, Mtg, Head, 43d/50d, TallFits 17 in (43 cm) disk. | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Scrub head lift group, 50CM disk model (T300E model) parts
The parts Tennant numbers on its scrub head lift group, 50cm disk model (t300e model) drawing. Manual pages 118, list 119.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4014172Manual prints Tennant 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, SsFits 20 in (50 cm) disk. Number from Tennant's current parts catalog. | $6.60/EA |
| 2 | TN4030993Replaces Tennant 1028796 | 2 | Washer, Flat, 0.33b 1.00d .18, Stl, PlFits 20 in (50 cm) disk. Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $2.50/EA |
| 3 | TN4039856Manual prints Tennant 1014020 | 1 | Roller, 0.99d 0.50b 0.95l, AcetalFits 20 in (50 cm) disk. Number from Tennant's current parts catalog. | $5.50/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 5 | TN4035611Replaces Tennant 1230933 | 1 | Bracket, Guide, Head [Vw]Fits 20 in (50 cm) disk. | Call to confirm part: 800-440-6723 |
| 6 | TN4032463Replaces Tennant 1032420 | 1 | Spring, Extn, 0.85od 0.09wir 02.9lFits 20 in (50 cm) disk. | $6.90/EA |
| 7 | TN4023740Replaces Tennant 9015689 | 1 | Lift Head, Kit, Ci [T300e]Complete assembly. Fits 20 in (50 cm) disk. | Call to confirm part: 800-440-6723 |
| 8 | TN4020538Replaces Tennant 630188 | 8 | Bearing, Journal, .50id X .25lPart of Lift Head, Kit, Ci [T300e] (9015689). Fits 20 in (50 cm) disk. | $9.90/EA |
| 9 | TN4036856Replaces Tennant 1218694 | 1 | Pad, Pedal, LiftFits 20 in (50 cm) disk. | $4.14/EA |
| 10 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 20 in (50 cm) disk. | $3.40/EA |
| 11 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsFits 20 in (50 cm) disk. | $3.40/EA |
| 12 | TN4037581Replaces Tennant 1013936 | 8 | Washer, Flat, 0.51b 0.94d .10, NylFits 20 in (50 cm) disk. | $3.40/EA |
| 13 | TN4040581Replaces Tennant 222460 | 7 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Fits 20 in (50 cm) disk. | $3.40/EA |
| 14 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits 20 in (50 cm) disk. | $3.30/EA |
| 15 | TN4033064Replaces Tennant 1235108 | 1 | Bolt, Carriage, M8 X 1.25 X 35, PlFits 20 in (50 cm) disk. Serial 30061275 to 30106902. | $1.80/EA |
| 16 | TN4042580Replaces Tennant 200101017 | 1 | Nut, Hex, Jam, M8 X 1.25Fits 20 in (50 cm) disk. Serial 30061275 to 30106902. | $3.40/EA |
| 17 | TN4035127Replaces Tennant 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsFits 20 in (50 cm) disk. | $3.40/EA |
| 18 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsFits 20 in (50 cm) disk. | $2.60/EA |
| 19 | TN4037610Replaces Tennant 1014163 | 1 | Screw, Hex, M8 X 1.25 X 60, Fl, SsFits 20 in (50 cm) disk. | $4.00/EA |
| 20 | TN4043988Replaces Tennant 140430 | 1 | Spring, Cmpr, 0.70od .10wir 01.7lFits 20 in (50 cm) disk. | $9.60/EA |
| 21 | TN4043798Replaces Tennant 140127 | 2 | Washer, Thrust, 0.51b 1.00d 0.12w, BrzFits 20 in (50 cm) disk. | $5.20/EA |
| 22 | TN4035932Replaces Tennant 1231304 | 1 | Bracket Wldt, Head Mtg, 43d/50d, ShortFits 20 in (50 cm) disk. | Call to confirm part: 800-440-6723 |
| 23 | TN4036504Replaces Tennant 12333 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss, NlFits 20 in (50 cm) disk. | $4.00/EA |
| 24 | TN4035931Replaces Tennant 1231303 | 1 | Spacer, Head, 4mm (Push Model)Fits 20 in (50 cm) disk. | Call to confirm part: 800-440-6723 |
| 25 | TN4035930Replaces Tennant 1231302 | 1 | Bracket Wldt, Mtg, Head, 43d/50d, TallFits 20 in (50 cm) disk. | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Squeegee assembly, 20 in (500 mm) parts
The parts Tennant numbers on its squeegee assembly, 20 in (500 mm) drawing. Manual pages 128, list 129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026477Replaces Tennant 9014172 | 1 | Squeegee Kit, Linatex, Ci [T300/E/Ss300]Complete assembly. | $667.30/EA |
| 1 | TN4035612Replaces Tennant 1230946 | 1 | Frame, Sqge, 50cm, Mach [T300]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $229.50/EA |
| 2 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $3.40/EA |
| 3 | TN4043649Replaces Tennant 140027 | 4 | Washer, Flat, 0.35b 0.75d .04, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $3.20/EA |
| 4 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $3.40/EA |
| 5 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $5.50/EA |
| 6 | TN4035127Replaces Tennant 1016399 | 2 | Screw, Hex, M8 X 1.25 X 30, Nl, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $3.40/EA |
| 7 | TN4032161Replaces Tennant 1255358 | 2 | Screw, Btn, M8 X 1.25 X 85, SsPart of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $16.90/EA |
| 8 | TN4039812Replaces Tennant 1213677 | 4 | Knob, Star, 2.00od 4ear M8x1.25 [Yel] (T300 Model)Part of Squeegee Kit, Linatex, Am [T300/E/Ss300] (9014172). | $9.90/EA |
| – | TN4040368Replaces Tennant 1010558 | 1 | Knob, Star, 2.00d 4ear 0.7l M8x1.25,Thru (T300e Model)Tennant's online parts catalog lists a quantity of 4. Call 800-440-6723 to confirm before ordering. | $5.30/EA |
| 9 | TN4041878Replaces Tennant 17461 | 2 | Pin, Clevis, 0.37d X 1.75lPart of the assembly above. | $4.00/EA |
| 10 | TN4040200Replaces Tennant 1216647 | 2 | Pin, Cotter, Hair, 0.38d .054 WirPart of the assembly above. | $1.50/EA |
| 11 | TN4035235Replaces Tennant 1017091 | 2 | Spring, Cmpr, 0.50od .04wir 00.8lPart of the assembly above. | $4.10/EA |
| 12 | TN4037087Replaces Tennant 22290 | 2 | Spring, Cmpr, 0.72od .06wir 02.3lPart of the assembly above. | $4.10/EA |
| 13 | TN4041946Replaces Tennant 09026 | 2 | Screw, Hex, M8 X 1.25 X 40, SsPart of the assembly above. | $4.00/EA |
| 14 | TN4020804Replaces Tennant 630477 | 2 | Wheel, Pyu, 02.0d 0.38w, GrayPart of the assembly above. | $9.50/EA |
| 15 | TN4037486Replaces Tennant 1222109 | 1 | Knob, Sqge, 58l, M6 X 1.00, PlstcPart of the assembly above. Serial 30073744 and later. | $5.40/EA |
| 16 | TN4042359Replaces Tennant 1209631 | 1 | Cover, Trap, Water, SqgePart of the assembly above. | $8.20/EA |
| 17 | TN4038882Replaces Tennant 1210756 | 1 | Gasket, Trap, Water, SqgePart of the assembly above. | $3.40/EA |
| 18 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlPart of the assembly above. Serial 30073744 and later. | $4.10/EA |
| 19 | TN4043787Replaces Tennant 140060 | 1 | Washer, .505 X .750 X 0.45 WavePart of the assembly above. Serial 30073744 and later. | $3.90/EA |
| 20 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of the assembly above. Serial 30073744 and later. | $2.60/EA |
| 21 | TN4034958Replaces Tennant 12277 | 1 | Screw, Hex, M6 X 1.00 X 20, Nl, SsPart of the assembly above. Serial 30073744 and later. | $3.30/EA |
| 22 | TN4040837Replaces Tennant 1203638 | 1 | Retainer, Sqge [T300]Part of the assembly above. | $79.60/EA |
| 23 | TN4023953Replaces Tennant 9015731 | 1 | Blade Kit, 500mm, Linatex (Standard)Complete assembly. Part of the assembly above. | $58.40/EA |
| 24 | TN4040848Replaces Tennant 1203953 | 1 | Blade, Sqge, Rear, 836l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $23.40/EA |
| 25 | TN4040849Replaces Tennant 1203954 | 1 | Blade, Sqge, Front, 788l, Linatex[500mm] (Standard)Part of Blade Kit, 500mm, Linatex (Standard) (9015731). | $20.70/EA |
| 23 | TN4023954Replaces Tennant 9015732 | 1 | Blade Kit, 500mm, Urethane (Option)Complete assembly. | $101.25/EA |
| 24 | TN4040136Replaces Tennant 1215609 | 1 | Blade, Sqge, Rear, 836l, Urethane[500mm] (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA |
| 25 | TN4040138Replaces Tennant 1215611 | 1 | Blade, Sqge, Front, 788l, Urethane[500mm (Option)Part of Blade Kit, 500mm, Urethane (Option) (9015732). | $50.62/EA |
| 23 | TN4023952Replaces Tennant 9015730 | 1 | Blade Kit, 500mm, Gum (Option)Complete assembly. | $22.00/EA |
| 24 | TN4040137Replaces Tennant 1215610 | 1 | Blade, Sqge, Rear, 836l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA |
| 25 | TN4040139Replaces Tennant 1215612 | 1 | Blade, Sqge, Front, 788l, Gum[500mm] (Option)Part of Blade Kit, 500mm, Gum (Option) (9015730). | $11.00/EA |
| 26 | TN4039475Replaces Tennant 1212683 | 1 | Screw, Captive, M5, Knurled [Snap In]Serial 30061275 to 30082211. | $8.40/EA |
Tennant T300e (S/N 30061275-40000000) Squeegee lift group parts
The parts Tennant numbers on its squeegee lift group drawing. Manual pages 130, list 131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035570Replaces Tennant 1230485 | 1 | Pin, Guide, Spring [T300] | $5.80/EA |
| 2 | TN4040162Replaces Tennant 1215756 | 1 | Spring, Cmpr, 0.98od .146wir 02.5l | $12.40/EA |
| 3 | TN4018388Replaces Tennant 69954 | 1 | Washer, Thrust, 0.63b 1.25d 0.13w | $6.90/EA |
| 4 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 5 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 6 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 30074958 and later. | $3.90/EA |
| 7 | TN4036525Replaces Tennant 1233709 | 1 | Bracket, Retaining, Wire [T300]Serial 30074958 and later. | $10.70/EA |
| 8 | TN4031248Replaces Tennant 33933 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, Ss | $3.40/EA |
| 9 | TN4014599Replaces Tennant 51813 | 1 | Pin, Clevis, 0.37d X 2.12l | $4.00/EA |
| 10 | TN4040200Replaces Tennant 1216647 | 3 | Pin, Cotter, Hair, 0.38d .054 Wir | $1.50/EA |
| 11 | TN4031254Replaces Tennant 33951 | 1 | Screw, Soc, M6 X 1.00 X 20, 12.9 | $3.40/EA |
| 12 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss] | $5.10/EA |
| 13 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 14 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr Pl | $33.10/EA |
| 15 | TN4029758 | 1 | Switch, Micro, 0.1a, Spdt, Ip67, AuTennant prints the serial range as (JUN2025- ). | $20.20/EA |
| 15 | TN4040158Replaces Tennant 1215716 | 1 | Switch, 0.1a, Spdt[Micro, Gold Contacts] (Replaced By 4185992)Serial 30061275 and later. Tennant prints the serial range as (30061275- MAY2025). | $11.60/EA |
| 16 | TN4026506Replaces Tennant 9014301 | 1 | Bracket Kit, Sqge, Lift [T300/E, Ss300] | $183.00/EA |
| 17 | TN4039910Replaces Tennant 1214467 | 1 | Sleeve, P/M, 0.41b 0.75d 1.3l [430ss] | $7.00/EA |
| 18 | TN4018939Replaces Tennant 391179 | 2 | Pin, Clevis, 0.37d X 2.62l | $4.00/EA |
| 19 | TN4039459Replaces Tennant 1212533 | 1 | Cover, Pedal, Lift | $11.60/EA |
| 20 | TN4023741Replaces Tennant 9015690 | 1 | Bracket Kit, Sqge, Wldt [T300es] (T300e Model) | Call to confirm part: 800-440-6723 |
| 20 | TN4026508Replaces Tennant 9014303 | 1 | Bracket Kit, Sqge, Wdt [T300/E, Ss300] (T300 Model) | $184.50/EA |
Tennant T300e (S/N 30061275-40000000) Battery cable group, wet & Agm (T300E model) parts
The parts Tennant numbers on its battery cable group, wet & agm (t300e model) drawing. Manual pages 132, list 133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035256Replaces Tennant 1228930 | 1 | Cable, Assy [T300e], [Ch] (Standard - Without Battery Lift Out Tray Option) | Call to confirm part: 800-440-6723 |
| – | TN4022654Replaces Tennant 9014781 | 1 | Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit)Complete assembly. | $348.70/EA |
| 2 | TN4044585Replaces Tennant 1073629 | 1 | Cable, Battery, 4ga [M8 Ring/M8 Ring]Part of Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit) (9014781). | $117.60/EA |
| 3 | TN4044584Replaces Tennant 1073628 | 1 | Cable, Battery, 4ga [M8 Ring/M8 Ring]Part of Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit) (9014781). | $119.20/EA |
| 4 | TN4031246Replaces Tennant 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, SsPart of Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit) (9014781). | $3.20/EA |
| 5 | TN4022837Replaces Tennant 611221 | 4 | Boot, Terminal, Battery, 25.4mm, Blk (For Wet and AGM Battery Options) | $4.90/EA |
| 6 | TN4043293Replaces Tennant 130364 | 1 | Cable, 06ga 15.0l Blk .31ring /.38ring (For Wet and AGM Battery Options) | $23.80/EA |
Tennant T300e (S/N 30061275-40000000) Battery cable group, lithium (T300E model) parts
The parts Tennant numbers on its battery cable group, lithium (t300e model) drawing. Manual pages 134, list 135.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035256Replaces Tennant 1228930 | 1 | Cable, Assy [T300e], [Ch] (Standard - Without Battery Lift Out Tray Option) | Call to confirm part: 800-440-6723 |
| – | TN4022654Replaces Tennant 9014781 | 1 | Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit)Complete assembly. | $348.70/EA |
| 2 | TN4044585Replaces Tennant 1073629 | 1 | Cable, Battery, 4ga [M8 Ring/M8 Ring]Part of Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit) (9014781). | $117.60/EA |
| 3 | TN4044584Replaces Tennant 1073628 | 1 | Cable, Battery, 4ga [M8 Ring/M8 Ring]Part of Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit) (9014781). | $119.20/EA |
| 4 | TN4031246Replaces Tennant 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, SsPart of Cable Kit, Battery, Ring, Tray,Ci[T300e] (Option - Required for Battery Lift Out Kit) (9014781). | $3.20/EA |
| 5 | TN4034851Replaces Tennant 1016314 | 2 | Boot, Bulb, .50id 1.00id 2.50l, Red (For Lithium- Ion Battery Option) | $5.40/EA |
Tennant T300e (S/N 30061275-40000000) Label group (T300E model) parts
The parts Tennant numbers on its label group (t300e model) drawing. Manual page 140.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035625Replaces Tennant 1231042 | 1 | Label Sheet, Operational,[Ch] (For Wet and AGM Battery Options) | Call to confirm part: 800-440-6723 |
| 2 | TN4039892Replaces Tennant 1214279 | 1 | Label, Orbital, Size, 50cm (Orbital Head) | $18.99/EA |
| 3 | TN4039536Replaces Tennant 1213114 | 1 | Label, Logo, 05.5l, Blk/Sil [Tennant] | $37.00/EA |
| 4 | TN4040126Replaces Tennant 1215263 | 2 | Label, T300e | $15.00/EA |
| 5 | TN4040140Replaces Tennant 1215634 | 1 | Label, Opertnl, Solution Knob Adj | $8.48/EA |
| 6 | TN4031100Replaces Tennant 1248615 | 1 | Label Sheet, Operational,[Ch] (For Lithium- Ion Battery Option) | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Label group (T300E model) - continued parts
The parts Tennant numbers on its label group (t300e model) - continued drawing. Manual page 141.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036828Replaces Tennant 1218392 | 1 | Label, Safety, Magnet, Med (Magnetic Heads) | $4.10/EA |
| 2 | TN4035624Replaces Tennant 1231041 | 1 | Label Sheet, Info/Hzrd [Ce],[Ch] | Call to confirm part: 800-440-6723 |
| 3 | TN4034031Replaces Tennant 1242514 | 1 | Label, Battery Cable Connection,[Ch] (For Lithium- Ion Battery Option) | Call to confirm part: 800-440-6723 |
| 4 | TN4034032Replaces Tennant 1242515 | 1 | Label, Logo, Lithium-ion (For Lithium- Ion Battery Option) | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Harness group parts
Harness group from Tennant's parts list. Manual page 146.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4030945Replaces Tennant 1072524 | Qty on machine: 1 | Harness, Ele [Bail Switch] | $9.30/EA | |
| – | TN4023035Replaces Tennant 9015157 | Qty on machine: 1 | Harness Kit, Main, Ele [Vw, Prem,Propel] (T300 Model)Complete assembly. Serial 30078278 and later. Tennant prints the serial range as (30078278- MAY2025). | $1,083.80/EA | |
| – | TN4040238Replaces Tennant 222290 | Qty on machine: 4 | Diode, Ele, PlugPart of Harness Kit, Main, Ele [Vw, Prem,Propel] (T300 Model) (9015157). Serial 30078278 and later. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $13.00/EA | |
| – | TN4044437Replaces Tennant 1040868 | Qty on machine: 1 | Capacitor, Plug [.01 Uf, 200v]Part of Harness Kit, Main, Ele [Vw, Prem,Propel] (T300 Model) (9015157). Serial 30078278 and later. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $17.40/EA | |
| – | TN4023035Replaces Tennant 1075323 | Qty on machine: 1 | Harness, Main, Ele [Vw, Premium, Propel] (T300 Model) (Replaced By 9015157)Complete assembly. Serial 30066322 to 30078277. | $1,083.80/EA | |
| – | TN4040238Replaces Tennant 222290 | Qty on machine: 3 | Diode, Ele, PlugPart of Harness, Main, Ele [Vw, Premium, Propel] (T300 Model) (Replaced By 9015157) (1075323). Serial 30066322 to 30078277. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $13.00/EA | |
| – | TN4044437Replaces Tennant 1040868 | Qty on machine: 1 | Capacitor, Plug [.01 Uf, 200v]Part of Harness, Main, Ele [Vw, Premium, Propel] (T300 Model) (Replaced By 9015157) (1075323). Serial 30066322 to 30078277. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $17.40/EA | |
| – | TN4023035Replaces Tennant 1073678 | Qty on machine: 1 | Harness, Main, Ele [Vw, Premium, Propel] (T300 Model) (Replaced By 9015157)Complete assembly. Serial 30061275 to 30066321. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $1,083.80/EA | |
| – | TN4040238Replaces Tennant 222290 | Qty on machine: 3 | Diode, Ele, PlugPart of Harness, Main, Ele [Vw, Premium, Propel] (T300 Model) (Replaced By 9015157) (1073678). Serial 30061275 to 30066321. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $13.00/EA | |
| – | TN4044437Replaces Tennant 1040868 | Qty on machine: 1 | Capacitor, Plug [.01 Uf, 200v]Part of Harness, Main, Ele [Vw, Premium, Propel] (T300 Model) (Replaced By 9015157) (1073678). Serial 30061275 to 30066321. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $17.40/EA | |
| – | TN4023230Replaces Tennant 9015158 | Qty on machine: 1 | Harness Kit, Main, Ele [Vw, Prem, Push] (T300 Model)Complete assembly. Serial 30075985 and later. Tennant prints the serial range as (30075985- MAY2025). | $800.20/EA | |
| – | TN4040238Replaces Tennant 222290 | Qty on machine: 4 | Diode, Ele, PlugPart of Harness Kit, Main, Ele [Vw, Prem, Push] (T300 Model) (9015158). Serial 30075985 and later. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $13.00/EA | |
| – | TN4044437Replaces Tennant 1040868 | Qty on machine: 1 | Capacitor, Plug [.01 Uf, 200v]Part of Harness Kit, Main, Ele [Vw, Prem, Push] (T300 Model) (9015158). Serial 30075985 and later. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $17.40/EA | |
| – | TN4045134Replaces Tennant 1075324 | Qty on machine: 1 | Harness, Main, Ele [Vw, Premium, Push] (T300 Model) (Replaced By 9015158)Complete assembly. Serial 30066322 to 30075984. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $497.43/EA | |
| – | TN4040238Replaces Tennant 222290 | Qty on machine: 3 | Diode, Ele, PlugPart of Harness, Main, Ele [Vw, Premium, Push] (T300 Model) (Replaced By 9015158) (1075324). Serial 30066322 to 30075984. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $13.00/EA | |
| – | TN4044437Replaces Tennant 1040868 | Qty on machine: 1 | Capacitor, Plug [.01 Uf, 200v]Part of Harness, Main, Ele [Vw, Premium, Push] (T300 Model) (Replaced By 9015158) (1075324). Serial 30066322 to 30075984. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $17.40/EA | |
| – | TN4023230Replaces Tennant 1073679 | Qty on machine: 1 | Harness, Main, Ele [Vw, Premium, Push] (T300 Model) (Replaced By 9015158)Complete assembly. Serial 30061275 to 30066321. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $800.20/EA | |
| – | TN4040238Replaces Tennant 222290 | Qty on machine: 3 | Diode, Ele, PlugPart of Harness, Main, Ele [Vw, Premium, Push] (T300 Model) (Replaced By 9015158) (1073679). Serial 30061275 to 30066321. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $13.00/EA | |
| – | TN4044437Replaces Tennant 1040868 | Qty on machine: 1 | Capacitor, Plug [.01 Uf, 200v]Part of Harness, Main, Ele [Vw, Premium, Push] (T300 Model) (Replaced By 9015158) (1073679). Serial 30061275 to 30066321. Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $17.40/EA | |
| – | TN4045144Replaces Tennant 1075411 | Qty on machine: 1 | Harness, Main, Ele [T300, Push, China] (T300e Model)Complete assembly. | Call to confirm part: 800-440-6723 | |
| – | TN4040238Replaces Tennant 222290 | Qty on machine: 3 | Diode, Ele, PlugPart of Harness, Main, Ele [T300, Push, China] (T300e Model) (1075411). Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $13.00/EA | |
| – | TN4044437Replaces Tennant 1040868 | Qty on machine: 1 | Capacitor, Plug [.01 Uf, 200v]Part of Harness, Main, Ele [T300, Push, China] (T300e Model) (1075411). Tennant's online parts catalog gives this part different serial numbers (30061275 to 40000000). Call 800-440-6723 to confirm before ordering. | $17.40/EA | |
| – | TN4029911 | Qty on machine: 1 | Harness Kit, Main, Ele [Vw, Prem,Propel] (T300 Model)Complete assembly. Tennant prints the serial range as (JUN2025- ). | $573.28/EA | |
| – | TN4029912 | Qty on machine: 1 | Harness Kit, Main, Ele [Vw, Prem, Push] (T300 Model)Complete assembly. Tennant prints the serial range as (JUN2025- ). | $422.79/EA | |
| – | TN4042948Replaces Tennant 1076900 | Qty on machine: 1 | Harness, Ele [Op.Sta, Propel] (T300 Model)Tennant prints the serial range as (JAN2024- ). | $215.40/EA | |
| – | TN4042948Replaces Tennant 1073592 | Qty on machine: 1 | Harness, Ele [Vw, Op.Sta, Propel ] (T300 Model) (Replaced By 1076900)Serial 30061275 and later. Tennant prints the serial range as (30061275- DEC2023). | $215.40/EA | |
| – | TN4042960Replaces Tennant 1076904 | Qty on machine: 1 | Harness, Ele [Op.Stat, Push]Tennant prints the serial range as (AUG2023- ). | $44.66/EA | |
| – | TN4042960Replaces Tennant 1073593 | Qty on machine: 1 | Harness, Ele [Vw, Op.Stat, Push] (Replaced By 1076904)Serial 30061275 and later. Tennant prints the serial range as (30061275- JUL2023). | $44.66/EA |
Tennant T300e (S/N 30061275-40000000) Battery group, 105ah C20 wet parts
The parts Tennant numbers on its battery group, 105ah c20 wet drawing. Manual page 147.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029609Replaces Tennant 578426 | 2 | Battery, Wet, 12vdc 0105ah [S8, 27tmx] | $374.54/EA |
| 2 | TN4022093Replaces Tennant 87435 | 4 | Nut, Hex, Flexlock, .31-18 | $3.20/EA |
| 3 | TN4013445Replaces Tennant 45962 | 4 | Cap, Battery, White [For 105ah & 130ah] | $4.00/EA |
Tennant T300e (S/N 30061275-40000000) Battery group, 130ah C20 wet parts
The parts Tennant numbers on its battery group, 130ah c20 wet drawing. Manual page 148.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043519Replaces Tennant 130869 | 2 | Battery, Wet, 12vdc 0130ah [30xhs-Wnt] | $434.80/EA |
| 2 | TN4022093Replaces Tennant 87435 | 4 | Nut, Hex, Flexlock, .31-18 | $3.20/EA |
| 3 | TN4013445Replaces Tennant 45962 | 4 | Cap, Battery, White [For 105ah & 130ah] | $4.00/EA |
Tennant T300e (S/N 30061275-40000000) Battery group, 150ah C20 wet parts
The parts Tennant numbers on its battery group, 150ah c20 wet drawing. Manual page 149.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037986Replaces Tennant 1015046 | 2 | Battery, Wet, 12vdc 0150ah | $436.15/EA |
| 2 | TN4022093Replaces Tennant 87435 | 4 | Nut, Hex, Flexlock, .31-18 | $3.20/EA |
| 3 | TN4044457Replaces Tennant 1041030 | 4 | Cap, Battery, Black [For 155ah] | $3.20/EA |
Tennant T300e (S/N 30061275-40000000) Battery group, 140ah C20 Agm parts
The parts Tennant numbers on its battery group, 140ah c20 agm drawing. Manual page 150.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038188Manual prints Tennant 1268974 | 2 | Battery, 12vdc 0145ah [Agm]Number from Tennant's current parts catalog. | Call to confirm part: 800-440-6723 |
| 2 | TN4013445Replaces Tennant 45962 | 4 | Cap, Battery, White [For 105ah & 130ah] | $4.00/EA |
| 3 | TN4022093Replaces Tennant 87435 | 4 | Nut, Hex, Flexlock, .31-18 | $3.20/EA |
Tennant T300e (S/N 30061275-40000000) Battery group, 150ah wet (china) parts
The parts Tennant numbers on its battery group, 150ah wet (china) drawing. Manual page 151.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031099Replaces Tennant 1248614 | 2 | Battery, Wet, 12vdc 0150ah, CnComplete assembly. | Call to confirm part: 800-440-6723 |
| 2 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Battery, Wet, 12vdc 0150ah, Cn (1248614). | $3.40/EA |
| 3 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsPart of Battery, Wet, 12vdc 0150ah, Cn (1248614). | $3.20/EA |
| 4 | TN4013445Replaces Tennant 45962 | 4 | Cap, Battery, White [For 105ah & 130ah] | $4.00/EA |
Tennant T300e (S/N 30061275-40000000) Battery group, 115ah C5 Agm (china) parts
The parts Tennant numbers on its battery group, 115ah c5 agm (china) drawing. Manual page 152.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029995Tennant 4029995 | 2 | Battery, Agm, 12vdc, 115ah C5, CnComplete assembly. | Call to confirm part: 800-440-6723 |
| 2 | Not sold separatelyTennant N/A | 2 | Nut, Hex, Std, M8 X 1.25, Ss (Not Available Separately)Part of Battery, Agm, 12vdc, 115ah C5, Cn (4029995). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes it |
Tennant T300e (S/N 30061275-40000000) Battery group, 135ah Agm (china) parts
The parts Tennant numbers on its battery group, 135ah agm (china) drawing. Manual page 153.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031474Replaces Tennant 1251238 | 2 | Battery, Agm, 12vdc 0135ah, CnComplete assembly. | $305.96/EA |
| 2 | TN4021590Replaces Tennant 9020683 | 2 | Screw, Hex, M8 X 1.25 X 16Part of Battery, Agm, 12vdc 0135ah, Cn (1251238). | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Battery group, 100ah lithium- ion (china) parts
The parts Tennant numbers on its battery group, 100ah lithium- ion (china) drawing. Manual page 154.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029737Replaces Tennant 1263882 | 1 | Battery, Li-Ion, 24vdc, 100ah, CnComplete assembly. Tennant prints the serial range as (AUG2023- ). | Call to confirm part: 800-440-6723 |
| 2 | TN4021590Replaces Tennant 9020683 | 2 | Screw, Hex, M8 X 1.25 X 16Part of Battery, Li-Ion, 24vdc, 100ah, Cn (1263882). | Call to confirm part: 800-440-6723 |
| 3 | TN4029703Replaces Tennant 1263199 | 2 | Spacer, Battery, Foam, 1.25 X 3.3 X 11Tennant prints the serial range as (AUG2023- ). | Call to confirm part: 800-440-6723 |
| 4 | TN4029702Replaces Tennant 1263198 | 2 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Tennant prints the serial range as (AUG2023- ). | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Battery group, 107ah lithium- ion (china) parts
The parts Tennant numbers on its battery group, 107ah lithium- ion (china) drawing. Manual page 155.
Tennant's online parts catalog lists 1 more part for this group than this printed manual shows. If the part you need isn't here, call 800-440-6723 and we'll confirm it.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034014Replaces Tennant 1242265 | 1 | Battery, Lithium-Ion, 24vdc 0107ah (Replaced By 1263882)Complete assembly. Tennant prints the serial range as (JUL2023- ). | Call to confirm part: 800-440-6723 |
| 2 | TN4021590Replaces Tennant 9020683 | 2 | Screw, Hex, M8 X 1.25 X 16Part of Battery, Lithium-Ion, 24vdc 0107ah (Replaced By 1263882) (1242265). | Call to confirm part: 800-440-6723 |
| 3 | TN4020777Replaces Tennant 630375 | 3 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Tennant prints the serial range as (JUL2023- ). | $15.60/EA |
Tennant T300e (S/N 30061275-40000000) Battery lift out box kit parts
The parts Tennant numbers on its battery lift out box kit drawing. Manual pages 156, list 157.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023992Replaces Tennant 9015934 | 1 | Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required)Complete assembly. | Call to confirm part: 800-440-6723 |
| 1 | TN4035328Replaces Tennant 1229979 | 1 | Box, Battery [Lift-Out], [Ch]Part of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | Call to confirm part: 800-440-6723 |
| 2 | TN4039476Replaces Tennant 1212689 | 2 | Pad, Box, BatteryPart of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $5.35/EA |
| 3 | TN4042031Replaces Tennant 1208697 | 1 | Strap, Pyp, Buckle, FrictionPart of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $33.03/EA |
| 4 | TN4043510Replaces Tennant 130773 | 4 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $3.90/EA |
| 5 | TN4039912Replaces Tennant 1214509 | 1 | Bracket, Deflector, BatteryPart of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $39.49/EA |
| 6 | TN4045268Replaces Tennant 1034731 | 3 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $3.30/EA |
| 7 | TN4044944Replaces Tennant 1074798 | 1 | Cable, Adaptor, Batt [Sb120-Sb50, Red] (Off- Board Charger Models Only)Part of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $54.92/EA |
| 8 | TN4043365Replaces Tennant 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, SsPart of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $3.40/EA |
| 9 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Box Kit, Lift, Batt, Am [T300/Es] (Additional Battery Cable Kit May Also Be Required) (9015934). | $2.60/EA |
Tennant T300e (S/N 30061275-40000000) Manual battery watering system (S/N OCT2022 - ) parts
The parts Tennant numbers on its manual battery watering system (s/n oct2022 - ) drawing. Manual pages 158, list 159.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018207Replaces Tennant 9021730 | 1 | Fill Kit, D, 2 Btry, Mnl, Ci [Trojan]Complete assembly. Tennant prints the serial range as (OCT2022- ) THIS KIT IS INTENDED FOR USE WITH TROJANR LEAD ACID BATTERIES ONLY. | $301.50/EA |
| 1 | TN4033340Replaces Tennant 1236295 | 1 | Pump, Hand, BatteryPart of Fill Kit, D, 2 Btry, Mnl, Ci [Trojan] (9021730). Tennant prints the serial range as (OCT2022- ). | $93.20/EA |
| 2 | TN4032372Replaces Tennant 1257356 | 1 | Manifold Assy, Water, D, 2 Btry [Trojan]Part of Fill Kit, D, 2 Btry, Mnl, Ci [Trojan] (9021730). Tennant prints the serial range as (OCT2022- ). | $207.90/EA |
| 3 | TN4031852Replaces Tennant 1253250 | 1 | Label, Tag, Battery [Bwt Watering]Part of Fill Kit, D, 2 Btry, Mnl, Ci [Trojan] (9021730). Tennant prints the serial range as (OCT2022- ). | Call to confirm part: 800-440-6723 |
| 4 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Fill Kit, D, 2 Btry, Mnl, Ci [Trojan] (9021730). | $3.90/EA |
| 5 | TN4020777Replaces Tennant 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Part of Fill Kit, D, 2 Btry, Mnl, Ci [Trojan] (9021730). | $15.60/EA |
Tennant T300e (S/N 30061275-40000000) Hydrolinkr battery watering system kit (S/N 30061275 - SEP2022) parts
The parts Tennant numbers on its hydrolinkr battery watering system kit (s/n 30061275 - sep2022) drawing. Manual pages 160, list 161.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010Replaces Tennant 9010300 | 1 | Battery Fill Kit, 24v, Ci [Hydrolink] (For Use Only With 155AH Trojan Batteries)Complete assembly. Serial 30061275 and later. Tennant prints the serial range as (30061275- SEP2022). | $300.00/EA |
| 1 | TN4036778Replaces Tennant 1058939 | 1 | Pump Kit, Fill, BatteryPart of Battery Fill Kit, 24v, Ci [Hydrolink] (For Use Only With 155AH Trojan Batteries) (9010300). Serial 30061275 and later. Tennant prints the serial range as (30061275- SEP2022). | $145.10/EA |
| 2 | TN4035289Replaces Tennant 1229544 | 1 | Tube, Water, Battery, 24vdc [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (For Use Only With 155AH Trojan Batteries) (9010300). Serial 30061275 and later. Tennant prints the serial range as (30061275- SEP2022). | $176.50/EA |
| 3 | TN4040858Replaces Tennant 1204142 | 4 | Cap, Fill, Battery [Trojan]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (For Use Only With 155AH Trojan Batteries) (9010300). Serial 30061275 and later. Tennant prints the serial range as (30061275- SEP2022). | $42.00/EA |
| 4 | TN4030488Replaces Tennant 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of Battery Fill Kit, 24v, Ci [Hydrolink] (For Use Only With 155AH Trojan Batteries) (9010300). Serial 30061275 and later. Tennant prints the serial range as (30061275- SEP2022). | $7.50/EA |
| 5 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Battery Fill Kit, 24v, Ci [Hydrolink] (For Use Only With 155AH Trojan Batteries) (9010300). | $3.90/EA |
Tennant T300e (S/N 30061275-40000000) Parking brake group parts
The parts Tennant numbers on its parking brake group drawing. Manual page 162.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038918Replaces Tennant 1211230 | 1 | Plate Wldt, Brake | $39.00/EA |
| 2 | TN4042399Replaces Tennant 1209983 | 1 | Clamp, Brake, Parking | $77.50/EA |
| 3 | TN4035372Replaces Tennant 24265 | 3 | Screw, Pan, Phl, M4 X 0.70 X 16, Ss | $3.00/EA |
| 4 | TN4041599Replaces Tennant 07785 | 1 | Nut, Hex, Std, M6 X 1.00, Ss | $2.50/EA |
| 5 | TN4035459Replaces Tennant 1017416 | 1 | Screw, Weld, M6 X 1.00 X 25, Thru, Ss | $5.40/EA |
Tennant T300e (S/N 30061275-40000000) Documentation group (online only) parts
Documentation group (online only) from Tennant's parts list. Manual page 163.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022550Replaces Tennant 9014518 | Qty on machine: 1 | Manual, Oprtr [T300/T300e, En] | Call to confirm part: 800-440-6723 |
| – | TN4023728Replaces Tennant 9015676 | Qty on machine: 1 | Manual, Oprtr [T300e] (China) | Call to confirm part: 800-440-6723 |
| – | TN4022552Replaces Tennant 9014520 | Qty on machine: 1 | Manual, Oprtr [T300/T300e, Kr] (Korea) | Call to confirm part: 800-440-6723 |
| – | TN4022553Replaces Tennant 9014521 | Qty on machine: 1 | Manual, Oprtr [T300/T300e, Jp] (Japan) | Call to confirm part: 800-440-6723 |
| – | TN4023727Replaces Tennant 9015675 | Qty on machine: 1 | Manual, Parts [T300/T300e] | Call to confirm part: 800-440-6723 |
| – | TN4022554Replaces Tennant 9014522 | Qty on machine: 1 | Instr, Wall Chart [T300/T300e] | Call to confirm part: 800-440-6723 |
| – | TN4026526Replaces Tennant 9014510 | Qty on machine: 1 | Manual, Service [T300/T300e, En] | Call to confirm part: 800-440-6723 |
Tennant T300e (S/N 30061275-40000000) Breakdowns ec- H2O nanoclean module breakdown 9020643, 9021553 parts
The parts Tennant numbers on its breakdowns ec- h2o nanoclean module breakdown 9020643, 9021553 drawing. Manual pages 164, list 165.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9021553 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec- H2O NanoClean Cartridge)Complete assembly. Tennant prints the serial range as (FEB2023- ). | $1,339.60/EA |
| – | TN4018163Replaces Tennant 9020643 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Replcd By 9021553) (Includes ec- H2O NanoClean Cartridge)Complete assembly. Tennant prints the serial range as (JUN2020- JAN2023). | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553) (9020643). | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $0.25/EA |
| 5 | TN4036516Replaces Tennant 1233516 | 1 | Electrode, 5 Plate [De Nora Tech]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Tennant prints the serial range as (MAY2019- ). | $753.50/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Tennant's online parts catalog gives this part different serial numbers (30061275 to 30106902, 30061275 to 40000000, 30106903 to 40000000). Call 800-440-6723 to confirm before ordering. | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.60/EA |
| 14 | TN4018162Replaces Tennant 9021552 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec- H2O NanoClean Cartridge)Part of Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553) (9020643). Tennant prints the serial range as (JUN2020- ). Tennant's online parts catalog doesn't list this part. Call 800-440-6723 to confirm before ordering. | $620.10/EA |
Tennant T300e (S/N 30061275-40000000) Breakdowns ec- H2O nanoclean module breakdown 9011810 parts
The parts Tennant numbers on its breakdowns ec- h2o nanoclean module breakdown 9011810 drawing. Manual pages 166, list 167.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553)Complete assembly. Serial 30061275 and later. Tennant prints the serial range as (30061275- MAY2020). | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553) (9011810). | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $0.25/EA |
| 5 | TN4032414Replaces Tennant 1208164 | 1 | Electrode, 5 Plate, High Flow (Replaced By 1233516)Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 30061275 and later. Tennant prints the serial range as (30061275- APR2019). | $588.10/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Tennant's online parts catalog gives this part different serial numbers (30061275 to 30106902, 30061275 to 40000000, 30106903 to 40000000). Call 800-440-6723 to confirm before ordering. | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). | $17.60/EA |
| 14 | TN4021577Replaces Tennant 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9020642)Part of Module Kit, Replmt [Ec-H2o, B 02] (Replaced By 9021553) (9011810). Serial 30061275 and later. Tennant prints the serial range as (30061275- MAY2020). | $1,063.00/EA |
Tennant T300e (S/N 30061275-40000000) Breakdowns orbital head eccentric drive breakdown parts
The parts Tennant numbers on its breakdowns orbital head eccentric drive breakdown drawing. Manual pages 168, list 169.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026479Replaces Tennant 9014175 | 1 | Kit, Eccentric Assy, [T300]Complete assembly. Fits 20 in (50 cm) orbital. | $1,025.50/EA |
| 2 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | $4.20/EA |
| 3 | Not sold separatelyTennant N/A | 1 | Balance, Eccentric, Step [Machined]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 4 | Not sold separatelyTennant N/A | 1 | Screw, Set, M8 X 1.25 X 8, SSPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 5 | Not sold separatelyTennant N/A | 1 | Spacer, EccentricPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 6 | Not sold separatelyTennant N/A | 3 | Screw, Hex, M6 X 1.00 X 16, SemsPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 7 | Not sold separatelyTennant N/A | 1 | Plate, Retainer, Brg, OuterPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 8 | TN4041379Replaces Tennant 1206608 | 1 | Bearing, Ball, 1.58b 2.68d 0.59w [2seal]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | $54.90/EA |
| 9 | Not sold separatelyTennant N/A | 1 | Housing, Bearing, Outer [Machined]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 10 | Not sold separatelyTennant N/A | 1 | Retainer, Bearing, Inner [Qpq]Part of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 11 | Not sold separatelyTennant N/A | 2 | Screw, Soc, M6 X 1.00 X 12, 8.8, LowPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Kit, Eccentric Assy, [T300] (See Breakdowns) (TN4026479) |
| 12 | TN4041804Replaces Tennant 1208266 | 1 | O-Ring, 57.15 X 3.18, NbrPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | $1.80/EA |
| 13 | TN4039478Replaces Tennant 1212710 | 6 | Screw, Flt, Soc, M6 X 1.00 X 35, 10.9,NlPart of Kit, Eccentric Assy, [T300] (See Breakdowns) (9014175). Fits 20 in (50 cm) orbital. | $1.50/EA |
New to your Tennant T300e (S/N 30061275-40000000)? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your T300e. Everything here comes from Tennant's T300e operator manual for North America, rewritten in plain steps, with the parts linked to the list above. Pick the parts that match your scrub deck.
1Put the batteries and squeegee on
- Stop on a level surface, turn the machine off, take the key out and set the parking brake if your machine has one.
- Lift the recovery tank. With a helper or a hoist, set the two 12 V batteries in as Tennant's figure shows and connect them with the supplied post boots, black (-) cable last, using insulated tools. Lithium-ion batteries are installed and serviced by Tennant only, and must be charged before first use.
- The charger is set for the battery type your machine shipped with. If you fit a different type or capacity, have the charger setting and the battery gauge changed first, or the batteries can be damaged.
- Lift the squeegee mount bracket with your toe under the pedal, hang the squeegee (TN4026477) on it, tighten the knobs and connect the vacuum hose.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 9, 11, 30 and 31. SES ref PF-SHX5-YDKN
2Put the pads or brushes on
- Step on the scrub head lift pedal to raise the scrub head, and fasten the pad to the driver with the centerlock.
- 3-lug disk: look through the scrub head window, set the three lugs of the pad driver (TN4039516 / TN4039514 / TN4039526) or brush (TN4035182 / TN4035186 / TN4039107) into the motor hub slots and give it a quick counterclockwise turn. On the dual disk, turn each one toward the spring clip; the left and right disks lock in opposite directions.
- Insta-Click magnetic disk: lift the pad driver (TN4039222 / TN4042087 / TN4042083) or brush (TN4039523 / TN4038841 / TN4042413) up under the head until it clicks in. The yellow plunger button drops it off again. WARNING: Magnetic Field Hazard. Magnetic pad driver/brush can be harmful to pacemaker wearers or medical implants.
- Orbital: put the backer pad (TN4040529) on first, centered, with its retaining strips facing out, then the work pad (TN4216869).
- Cylindrical: slide out the debris tray, take off the idler plate with the yellow knob, push the brushes (TN4042084) onto the drive hubs, then refit the plate (hooks engaged before you tighten the knob) and the tray.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 11, 12, 13 and 14. SES ref PF-SHX5-YDKN
3Fill the solution tank
- Take the solution tank lid off and fill until the level reaches the 3/3 mark on the drain hose indicator.
- Conventional scrubbing: water no hotter than 140°F (60°C), with a recommended detergent mixed as the container says.
- ec-H2O scrubbing: cool clean water only, under 70°F (21°C), and no detergent. Detergent causes an ec-H2O system fault.
- WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tank(s).
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), page 14. SES ref PF-SHX5-YDKN
4Scrub and stop
- Release the parking brake if your machine has one and turn the key on. On ec-H2O models the system comes on by itself at every key start; press the ec-H2O button to turn it off.
- Step on the pedal to lower the scrub head, then lower the squeegee with its foot pad. The vacuum starts when the squeegee is down.
- Drive models: push the direction lever forward, pull the start bail and set the speed dial. Push models: pull the start bail and walk the machine forward slowly; the turning pad helps it along.
- Overlap each pass by 2 in (5 cm) and keep the machine moving so the floor finish isn't damaged.
- To stop, let go of the bail, raise the scrub head and squeegee, turn the key off and set the parking brake if equipped.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 16, 17 and 18. SES ref PF-SHX5-YDKN
Questions about your T300e (S/N 30061275-40000000)? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant T300e (S/N 30061275-40000000) troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Service indicator blinking | ||
| The machine, charger or ec-H2O system has found a fault | Read the flashing code against the service indicator code tables in the operator manual. | |
| Machine will not run | ||
| Emergency stop button pressed | Turn the button to reset it. | |
| Batteries discharged, a loose battery cable or a bad battery | Recharge the batteries, tighten loose cables and replace a bad battery. | |
| Circuit breaker tripped | Disconnect the battery, let the breaker cool and press its reset button. Call SES service if it won't reset or keeps tripping. | |
| Faulty key switch, start bail switch or control board | Call SES service. | |
| On-board charger will not charge | ||
| Plug not connected, over-discharged batteries, or a charger fault | Check the plug connection. Over-discharged batteries need replacing. For a charger fault, see the service indicator codes. | |
| Machine will not propel (drive models) | ||
| Circuit breaker tripped, a faulty propel motor or wiring, or worn carbon brushes | Reset the breaker. For the motor, call SES service. Part: transaxle carbon brushes (TN4035593). | TN4035593Brush Kit, Carbon, Transaxle, (Hengye) (For Transaxle 1229667 - Motor Not Available Separately)Call to confirm part: 800-440-6723 |
| Brush motor will not run | ||
| Circuit breaker tripped, worn carbon brushes, or a broken or loose belt on dual disk and cylindrical heads | Reset the breaker; otherwise call SES service. Parts: brush motor carbon brushes (TN8005800 / TN4037142), belt (TN4018508 / TN4026472). | |
| Vacuum motor will not run | ||
| Squeegee raised off the floor | Lower the squeegee to the floor. | |
| Circuit breaker tripped, or a faulty vacuum motor or wiring | Reset the breaker; otherwise call SES service. | |
| Poor scrubbing | ||
| Debris caught in the brush or pad, a worn or wrong brush or pad, wrong brush pressure or a low battery | Remove the debris, replace or change the brush or pad, adjust the brush pressure and recharge the batteries. | |
| Trailing water or poor pickup | ||
| Full recovery tank or too much foam, or a loose drain hose cap | Drain the tank and refit the drain hose cap. | |
| Worn squeegee blades, or a clogged drip trap or squeegee | Rotate or replace the squeegee blades (TN4040848), and clean the drip trap and the squeegee. | |
| Vacuum hose loose, clogged or damaged | Reconnect, flush or replace the vacuum hose. | |
| Clogged float shut-off screen, lid not fully closed or a bad lid seal | Clean the screen (TN4020485), check the lid for obstructions and replace the lid seal (TN4038848). | |
| Little or no solution flow | ||
| Empty tank, low flow setting, a clogged solution tank filter or a plugged supply line | Refill the tank, raise the flow rate, clean the filter screen (TN4036878) and flush the supply line. | |
| Short run time | ||
| Low charge, batteries that need maintenance, worn-out batteries, a wrongly set battery gauge or a faulty charger | Charge and service the batteries, and replace worn-out batteries or a faulty charger. Call SES service to set the battery gauge. | |
| Brush pressure set too high | Lower the brush pressure, and lower the dual down pressure lever if your machine has one. | |
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 19, 37 and 38. SES ref PF-KXRV-CZPI
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant T300e (S/N 30061275-40000000) maintenance schedule
Tennant's maintenance schedule for the T300e (S/N 30061275-40000000).
| Task | How often | Part |
|---|---|---|
| Check the pads and flip or replace them; check and clean the brushes. Insta-Click: clear any debris from the hub connection. | After every use | |
| Drain and rinse the recovery tank, and clean the float shut-off screen (TN4020485) and the debris tray (TN4041448). | After every use | |
| Drain and rinse the solution tank. | After every use | |
| Wipe the squeegee blades and check the front blade (TN4040849) and rear blade (TN4040848) for damage and wear; turn a worn blade to a fresh edge. | After every use | |
| Check the scrub head skirt, clean the debris trough on cylindrical models, wipe the machine down with an all-purpose cleaner and a damp cloth, and charge the batteries. | After every use | |
| Wet batteries: check the electrolyte level. It should sit just above the plates before charging; add distilled water if it's low, but don't overfill. Skip this if your machine has the battery watering system. | Weekly | |
| Take the drip trap cover off the squeegee and clean the reservoir. | Weekly | |
| Drain the solution tank, turn the solution tank filter (TN4039203) bowl counterclockwise to take it off (under the machine at the rear) and clean the filter screen (TN4036878). | Every 50 hours | |
| Cylindrical models: rotate the brushes front to rear, replace them when they no longer clean well, and clear the debris from the underside of the scrub head. | Every 50 hours | |
| Check and clean the recovery tank lid seal (TN4038848); replace it if it's damaged. | Every 50 hours | |
| 100 hours: if you have the battery watering system, check its hoses and connections for damage and wear. | Every 100 and 200 hours | |
| 200 hours: check for loose battery connections, and clean the battery tops, terminals and cable clamps with a scrub brush and a strong mix of baking soda and water. Leave the battery caps on. | Every 100 and 200 hours | |
| 500 hours: orbital models, replace the four lower vibration isolators. | Every 500, 750 and 1,250 hours | |
| 750 hours: replace the vacuum motor carbon brushes (vacuum motor brushes (TN8004151)). | Every 500, 750 and 1,250 hours | |
| 1,250 hours: replace the propel motor carbon brushes on drive models (transaxle brushes (TN4035593)), the brush motor carbon brushes (brush motor brushes (TN8005800 / TN4037142)) and, on dual disk and cylindrical heads, the brush belt (TN4018508 / TN4026472). Tennant lists these for trained personnel; SES service can do them: call 800-440-6723. | Every 500, 750 and 1,250 hours | TN4035593Brush Kit, Carbon, Transaxle, (Hengye) (For Transaxle 1229667 - Motor Not Available Separately)Call to confirm part: 800-440-6723 |
| Replace the water conditioning cartridge (TN4025507). Depending on use, one lasts about 12 to 24 months; an uninstalled cartridge keeps for one year from its manufacture date. | ec-H2O models: when the ec-H2O light blinks blue and red | |
| After fitting the new cartridge, write the install date on its label and reset the cartridge timer on the ec-H2O module as the operator manual describes. | ec-H2O models: when the ec-H2O light blinks blue and red |
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 15, 16, 20, 21, 24, 25, 26, 27, 28, 29 and 35. SES ref PF-V3SM-27KS
Tennant T300e (S/N 30061275-40000000) specifications
From Tennant's documents for the T300e (S/N 30061275-40000000).
| Scrub decks | 17 in (43 cm) disk, 20 in (50 cm) disk, 24 in (60 cm) dual disk, 20 in (50 cm) cylindrical, 20 in (50 cm) orbital |
|---|---|
| Scrubbing path | 16.9 in (430 mm), 19.9 in (505 mm), 23.6 in (600 mm), 19.7 in (500 mm) cylindrical and orbital |
| Solution tank | 11 gal (42 L) |
| Recovery tank | 14 gal (53 L) |
| Squeegee width | 30.4 in (772 mm) |
| Batteries | Two 12 V: 105, 130 or 150 Ah C/20 wet, or 140 Ah C/20 sealed AGM; or one 24 V 90 Ah lithium-ion |
| Machine voltage | 24 V DC |
| Brush motor | 24 V DC, 0.68 hp (0.50 kW) |
| Vacuum motor | 24 V DC, 0.5 hp (0.37 kW), water lift 34.5 in (876 mm) |
| Propel motor (drive models) | 24 V DC, 0.23 hp (0.175 kW) |
| Solution flow | Up to 0.5 gpm (1.9 L/min); ec-H2O low 0.12 gpm (0.45 L/min), medium 0.25 gpm (0.94 L/min), high 0.35 gpm (1.3 L/min) |
| Speeds (drive models) | Scrubbing 200 ft (61 m) per minute, transport 240 ft (73 m) per minute, reverse 144 ft (44 m) per minute |
| Weight with batteries | 366 to 415 lb (166 to 188 kg), by model |
| Slope | 9% scrubbing, 21% transporting |
| Battery charger | 100-240 V AC, 50/60 Hz in; 24 V DC, 13 A out (27 A for lithium-ion), on-board or smart off-board |
| Operating temperature | 32°F to 110°F (0°C to 43°C) |
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 39 and 40. SES ref PF-JWER-N4T3
Tennant T300e (S/N 30061275-40000000) manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESParts manualTennant 4023727 Rev. 07 (02-2026), T300 / T300e, China / International / Japan, T300e S/N 30061275-40000000, 169 pages (current) | T300e (S/N 30061275-40000000) | Rev. 07 (02-2026) | 169 pages | Sign in to view or downloadSign in to download |
| PDFby SESOperator manualTennant 9014506 Rev. 04 (02-2024), T300e, North America, 44 pages | T300e (S/N 30061275-40000000) | Rev. 04 (02-2024) | 44 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant T300e (S/N 30061275-40000000) parts questions
How do I change the pad on a Tennant T300e?
Raise the scrub head with the lift pedal and fasten the pad to the driver with the centerlock. A 3-lug driver goes in with its lugs in the hub slots and a quick counterclockwise turn; an Insta-Click magnetic driver just lifts up under the head until it clicks, and the yellow plunger button drops it off again.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 11, 12 and 13. SES ref PF-RQFE-BFE6
How much water does the T300e hold?
The solution tank holds 11 gal (42 L); fill it to the 3/3 mark on the drain hose indicator. The recovery tank holds 14 gal (53 L).
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 14 and 39. SES ref PF-RQFE-BFE6
Can I use detergent with ec-H2O on the T300e?
No. ec-H2O scrubbing uses cool clean water only, under 70°F (21°C), and detergent causes an ec-H2O system fault. If detergent gets into the system, turn ec-H2O off, drain the solution tank, refill with cool water and run ec-H2O to flush it out.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 14 and 16. SES ref PF-RQFE-BFE6
When should I replace the T300e squeegee blades?
Each blade has four wiping edges. When one is worn, turn the blade end for end or top to bottom for a fresh edge, and replace it when all four are worn.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), page 34. SES ref PF-RQFE-BFE6
Why won't the T300e vacuum turn on?
The vacuum motor starts only when the squeegee is lowered to the floor. Lower it with the squeegee foot pad. If it still won't run, check the circuit breaker and the service indicator.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 16 and 37. SES ref PF-RQFE-BFE6
When does the T300e ec-H2O cartridge need replacing?
When the ec-H2O light blinks blue and red. Depending on use, a cartridge lasts about 12 to 24 months; after fitting a new one, reset the cartridge timer on the ec-H2O module.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 15, 16 and 35. SES ref PF-RQFE-BFE6
How do I store a T300e where it can freeze?
Drain both tanks and empty the solution filter, pour 1 gal (4 L) of propylene glycol RV antifreeze into the solution tank and run the solution flow until it shows on the floor. Drain it and flush with clean water before you scrub again.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), page 36. SES ref PF-RQFE-BFE6
What slope can the T300e handle?
Tennant rates it for scrubbing on inclines up to 9% and for transporting on inclines up to 21%. Use a winch to load it on a steeper ramp.
Source: Tennant T300e operator manual 9014506 Rev. 04 (02-2024), pages 4, 36 and 39. SES ref PF-RQFE-BFE6
Does this parts list fit my T300e?
It covers T300e serial numbers 30000000 to 40000000 (built for China, International and Japan), from Tennant parts manual 4023727 Rev. 07. T300e machines with serial numbers 10000000 to 20000000 have their own page. Pick your scrub deck and push or propel model under Your machine; some groups change partway through the serial range and each line shows its range. Call us at 800-440-6723 with your serial number if you are unsure.
Source: Tennant T300 / T300e parts manual 4023727 Rev. 07 (02-2026), page 1. SES ref PF-RQFE-BFE6
Notes on this parts list
Places where Tennant's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
Tennant's online parts catalog also lists 2 parts in groups this printed manual doesn't have: Battery Group, 130AH C20 Wet (China); Battery Group, 150AH C20 Wet (China). If the part you need isn't here, call 800-440-6723 and we'll confirm it.
