Tennant T17 parts list and diagrams
Find any part on the Tennant T17 battery rider scrubber, from the scrub heads and squeegee to the drive, tanks, options and component breakdowns. Every line from Tennant's North America parts manual is here, crossed to current part numbers, with our price.
Complete list: every line of the parts list in Tennant T17 Rider Scrubber (Battery) Parts Manual 9020166 Rev. 15 (11-2024), North America / International, 2460 printed part lines, with the parts numbered on its drawings. Checked .
New to your T17? Start here → Manuals (free sign-in) →
- Cleaning path
- 40 in (1,015 mm); 52 in (1,320 mm) with the scrubbing side brush
- Solution tank
- 75 gal (285 L)
- Recovery tank
- 91.1 gal (346 L)
- Battery
- 36 V, 510, 750 or 930 Ah (6 hr rate)
Maintenance and wear parts for the T17
Tennant's general recommended maintenance items for the T17. Keep these on the shelf.
Service Kit [T17]
$1,001.70/EABlade, Front Squeegee 56.6l (Linard)
$101.10/EABlade, Rear Squeegee 60.6l (Linatex)
$139.80/EABlade, Sqge, Side, Linatex
$82.80/EAFilter, Panl, Dust, 2.0 X 06.1 X 07.6
$48.80/EAHose Assy, Drain, 3.0 Id 35 L
$77.80/EAHose Assy, Rear Squeegee
$73.10/EACaster Assy, Sq, Rear, Afmkt [T17]
$218.20/EASqueegee Kit, Rear_Side, Linatex [T17]
$406.50/EASqueegee Kit, Rear_Side, Urethane [T17]
$985.20/EABlade, Front Squeegee 56.6l (Urethane)
$265.90/EABlade, Rear Squeegee 60.6l (Urethane)
$349.70/EA
Source: Tennant T17 Rider Scrubber (Battery) Parts Manual 9020166 Rev. 15 (11-2024), North America / International, page 5. SES ref PF-ZONK-RNQN
Your machine
How to tell which you have
- Scrub head: Tennant's parts manual has separate parts groups for Cylindrical, Disk (manual pages 40, 42, 44). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant T17 recommended maintenance items
Recommended maintenance items from Tennant's parts list. Manual page 5.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021548Replaces Tennant 9020270 | 1 | Service Kit [T17]Complete assembly. | $1,001.70/EA |
| – | TN4041416Replaces Tennant 1207086 | 1 | Blade, Front Squeegee 56.6l (Linard)Part of Service Kit [T17] (9020270). | $101.10/EA |
| – | TN4041417Replaces Tennant 1207087 | 1 | Blade, Rear Squeegee 60.6l (Linatex)Part of Service Kit [T17] (9020270). | $139.80/EA |
| – | TN4039749Replaces Tennant 1213211 | 2 | Blade, Sqge, Side, LinatexPart of Service Kit [T17] (9020270). | $82.80/EA |
| – | TN4043532Replaces Tennant 1037822 | 1 | Filter, Panl, Dust, 2.0 X 06.1 X 07.6Part of Service Kit [T17] (9020270). | $48.80/EA |
| – | TN4041359Replaces Tennant 1206370 | 1 | Hose Assy, Drain, 3.0 Id 35 LPart of Service Kit [T17] (9020270). | $77.80/EA |
| – | TN4041746Replaces Tennant 1207661 | 1 | Hose Assy, Rear SqueegeePart of Service Kit [T17] (9020270). | $73.10/EA |
| – | TN4021520Replaces Tennant 9020233 | 2 | Caster Assy, Sq, Rear, Afmkt [T17]Part of Service Kit [T17] (9020270). | $218.20/EA |
| – | TN4021549Replaces Tennant 9020271 | 1 | Squeegee Kit, Rear_Side, Linatex [T17]Complete assembly. | $406.50/EA |
| – | TN4041416Replaces Tennant 1207086 | 1 | Blade, Front Squeegee 56.6l (Linard)Part of Squeegee Kit, Rear_Side, Linatex [T17] (9020271). | $101.10/EA |
| – | TN4041417Replaces Tennant 1207087 | 1 | Blade, Rear Squeegee 60.6l (Linatex)Part of Squeegee Kit, Rear_Side, Linatex [T17] (9020271). | $139.80/EA |
| – | TN4039749Replaces Tennant 1213211 | 2 | Blade, Sqge, Side, LinatexPart of Squeegee Kit, Rear_Side, Linatex [T17] (9020271). | $82.80/EA |
| – | TN4021550Replaces Tennant 9020272 | 1 | Squeegee Kit, Rear_Side, Urethane [T17]Complete assembly. | $985.20/EA |
| – | TN4041808Replaces Tennant 1208356 | 1 | Blade, Front Squeegee 56.6l (Urethane)Part of Squeegee Kit, Rear_Side, Urethane [T17] (9020272). | $265.90/EA |
| – | TN4041809Replaces Tennant 1208357 | 1 | Blade, Rear Squeegee 60.6l (Urethane)Part of Squeegee Kit, Rear_Side, Urethane [T17] (9020272). | $349.70/EA |
| – | TN4039772Replaces Tennant 1213266 | 2 | Blade, Sqge, Side, UrePart of Squeegee Kit, Rear_Side, Urethane [T17] (9020272). | $184.80/EA |
| – | TN4032991Replaces Tennant 1067452 | 1 | Bag, Vacuum, Paper [1pick=1pkg(=10pc)] | $20.30/EA |
| – | TN5000195Replaces Tennant 16411 | 1 | Off Whites/G Acrylic12.8oz[Acm101-00171] | $37.80/EA |
| – | TN5000196Replaces Tennant 16412 | 1 | Teal Blue S/G Enamel12.8oz[Icm101-70266] | $41.00/EA |
| – | TN5000171Replaces Tennant 377540 | 1 | Paint, Airdry, Blk, 12oz | $67.20/EA |
| – | TN5000170Replaces Tennant 377538 | 1 | Paint, Airdry, Gray, 12oz [Enamel] | $39.50/EA |
| – | TN5000169Replaces Tennant 377537 | 1 | Iron Gray S/G Enamel12.8oz[Icm101-00517] | $40.60/EA |
| – | TN4029794Replaces Tennant 361144 | 1 | Key, Ignition, Sgl | $14.30/EA |
| – | TN4021522Replaces Tennant 9020237 | 2 | Belt, Kit, Cyl, Afmkt [T17]Complete assembly. | $193.30/EA |
| – | TN4040891Replaces Tennant 1204640 | 1 | Belt, DrivePart of Belt, Kit, Cyl, Afmkt [T17] (9020237). | $26.90/EA |
| – | TN4039498Replaces Tennant 1212849 | 1 | Tool, Installation, BeltPart of Belt, Kit, Cyl, Afmkt [T17] (9020237). | $77.80/EA |

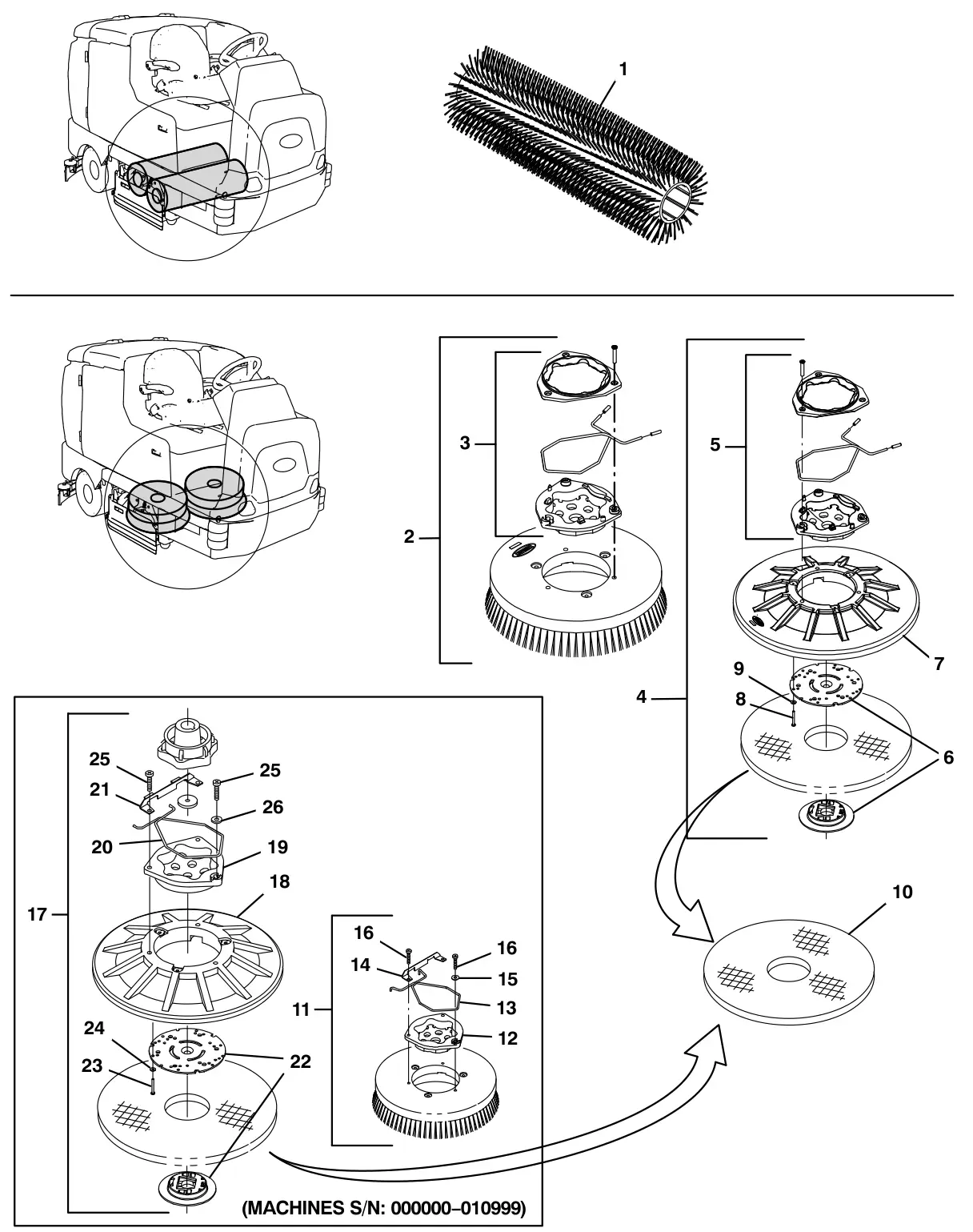

Tennant T17 replacement Brushes, Scrub Head parts
The parts Tennant numbers on its replacement brushes, scrub head drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021391Replaces Tennant 386230 | 2 | Brush, Scrub, 39l, 20sr, Polypropylene, Spiral | $657.80/EA |
| 1 | TN4021395Replaces Tennant 386240 | 2 | Brush, Scrub, 39l, 20sr, Super Abrasive, Spiral | $957.00/EA |
| 1 | TN4021398Replaces Tennant 386250 | 2 | Brush, Scrub, 39l, 20sr, Nylon, Spiral | $836.00/EA |
| 2 | TN4037159Replaces Tennant 1220193 | 2 | Brush Assy, Disk, Scb, 20.0d, NylonComplete assembly. Serial 011000 and later. | $544.20/EA |
| 3 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Brush Assy, Disk, Scb, 20.0d, Nylon (1220193). Serial 011000 and later. | $109.90/EA |
| 2 | TN4037158Replaces Tennant 1220192 | 2 | Brush Assy, Disk, Scb, 20.0d, PolypropyleneComplete assembly. Serial 011000 and later. | $371.90/EA |
| 3 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Brush Assy, Disk, Scb, 20.0d, Polypropylene (1220192). Serial 011000 and later. | $109.90/EA |
| 2 | TN4037160Replaces Tennant 1220194 | 2 | Brush Assy, Disk, Scb, 20.0d, Super AbrasiveComplete assembly. Serial 011000 and later. | $837.50/EA |
| 3 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Brush Assy, Disk, Scb, 20.0d, Super Abrasive (1220194). Serial 011000 and later. | $109.90/EA |
| 4 | TN4037165Replaces Tennant 1220201 | 2 | Driver Assy, Pad, 20.0dComplete assembly. Serial 011000 and later. | $383.60/EA |
| 5 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Driver Assy, Pad, 20.0d (1220201). Serial 011000 and later. | $109.90/EA |
| 6 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 20.0d (1220201). Serial 011000 and later. | $45.50/EA |
| 7 | TN4016273Replaces Tennant 397980 | 1 | Disk, Driver, Pad, W/ Face, 20.0dPart of Driver Assy, Pad, 20.0d (1220201). Serial 011000 and later. | $519.80/EA |
| 8 | TN4041964Replaces Tennant 09198 | 3 | Screw, Pan, Phl, M4 X 0.70 X 35, SsPart of Driver Assy, Pad, 20.0d (1220201). Serial 011000 and later. | $3.20/EA |
| 9 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 20.0d (1220201). Serial 011000 and later. | $2.60/EA |
| 10 | TN4041861Replaces Tennant 17260 | 2 | Pad, Polish, 20.0d, White [1 Pick = 1 Pad] | $29.20/EA |
| 10 | TN4041862Replaces Tennant 17261 | 2 | Pad, Buff, 20.0d, Red [1 Pick = 1 Pad] | $29.20/EA |
| 10 | TN4041863Replaces Tennant 17262 | 2 | Pad, Scrub, 20.0d, Blue [1 Pick = 1 Pad] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4041864Replaces Tennant 17263 | 2 | Pad, Stripping, 20.0d, Brown [1 Pick = 1 Pad] | $29.20/EA |
| 10 | TN4032341Replaces Tennant 370094 | 2 | Pad, Stripping, 20.0D, Black [High Prod}[1 Pick = 1 Pad] | $32.20/EA |
| 10 | TN4040750Replaces Tennant 1051030 | 2 | Pad, Surf Prep, 20.0D Maroon, [1Pick=1Pad] | $33.80/EA |
| 11 | TN4044369Replaces Tennant 14967 | 2 | Brush Assy, Disk, Scrub, 20.0 D, NylonComplete assembly. Serial up to 010999. | $703.50/EA |
| 12 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, BrushPart of Brush Assy, Disk, Scrub, 20.0 D, Nylon (14967). Serial up to 010999. | $114.70/EA |
| 13 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush RetainingPart of Brush Assy, Disk, Scrub, 20.0 D, Nylon (14967). Serial up to 010999. | $20.90/EA |
| 14 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringPart of Brush Assy, Disk, Scrub, 20.0 D, Nylon (14967). Serial up to 010999. | $30.20/EA |
| 15 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flt, .25 SsPart of Brush Assy, Disk, Scrub, 20.0 D, Nylon (14967). Serial up to 010999. | $2.60/EA |
| 16 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M06 X 1.0 X 35, SsPart of Brush Assy, Disk, Scrub, 20.0 D, Nylon (14967). Serial up to 010999. | $3.20/EA |
| 11 | TN4044368Replaces Tennant 14953 | 2 | Brush Assy, Disk, Scrub, 20.0 D, PolypropyleneComplete assembly. Serial up to 010999. | $461.80/EA |
| 12 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, BrushPart of Brush Assy, Disk, Scrub, 20.0 D, Polypropylene (14953). Serial up to 010999. | $114.70/EA |
| 13 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush RetainingPart of Brush Assy, Disk, Scrub, 20.0 D, Polypropylene (14953). Serial up to 010999. | $20.90/EA |
| 14 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringPart of Brush Assy, Disk, Scrub, 20.0 D, Polypropylene (14953). Serial up to 010999. | $30.20/EA |
| 15 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flt, .25 SsPart of Brush Assy, Disk, Scrub, 20.0 D, Polypropylene (14953). Serial up to 010999. | $2.60/EA |
| 16 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M06 X 1.0 X 35, SsPart of Brush Assy, Disk, Scrub, 20.0 D, Polypropylene (14953). Serial up to 010999. | $3.20/EA |
| 11 | TN4026300Replaces Tennant 378951 | 2 | Brush Assy, Disk, Scrub, 20.0 D, Super AbrasiveComplete assembly. Serial up to 010999. | $454.50/EA |
| 12 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, BrushPart of Brush Assy, Disk, Scrub, 20.0 D, Super Abrasive (378951). Serial up to 010999. | $114.70/EA |
| 13 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush RetainingPart of Brush Assy, Disk, Scrub, 20.0 D, Super Abrasive (378951). Serial up to 010999. | $20.90/EA |
| 14 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringPart of Brush Assy, Disk, Scrub, 20.0 D, Super Abrasive (378951). Serial up to 010999. | $30.20/EA |
| 15 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flt, .25 SsPart of Brush Assy, Disk, Scrub, 20.0 D, Super Abrasive (378951). Serial up to 010999. | $2.60/EA |
| 16 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M06 X 1.0 X 35, SsPart of Brush Assy, Disk, Scrub, 20.0 D, Super Abrasive (378951). Serial up to 010999. | $3.20/EA |
| 17 | TN4016259Replaces Tennant 397920 | 2 | Driver Assy, Pad, 20.0DComplete assembly. Serial up to 010999. | $577.90/EA |
| 18 | TN4016273Replaces Tennant 370080 | 1 | Disk, Pad Drive, W/ Face, 20dPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $519.80/EA |
| 19 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, BrushPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $114.70/EA |
| 20 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush RetainingPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $20.90/EA |
| 21 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $30.20/EA |
| 22 | TN4032342Replaces Tennant 370090 | 1 | Device, CenteringPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $45.50/EA |
| 23 | TN4041964Replaces Tennant 09198 | 3 | Screw, Pan, M04 X 0.7 X 35, SsPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $3.20/EA |
| 24 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flt, #08 SsPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $2.60/EA |
| 25 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M06 X 1.0 X 35, SsPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $3.20/EA |
| 26 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flt, .25 SsPart of Driver Assy, Pad, 20.0D (397920). Serial up to 010999. | $2.60/EA |

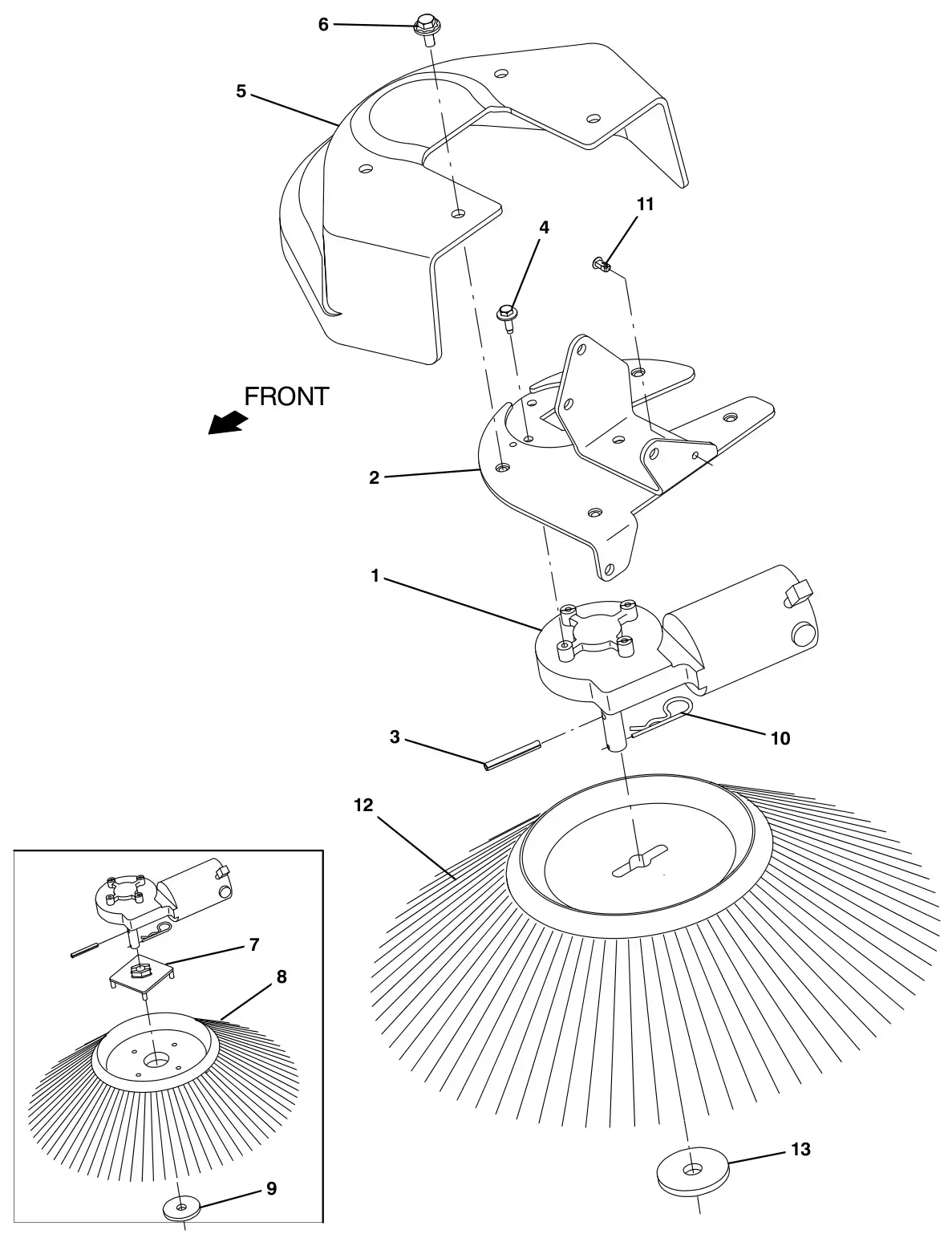

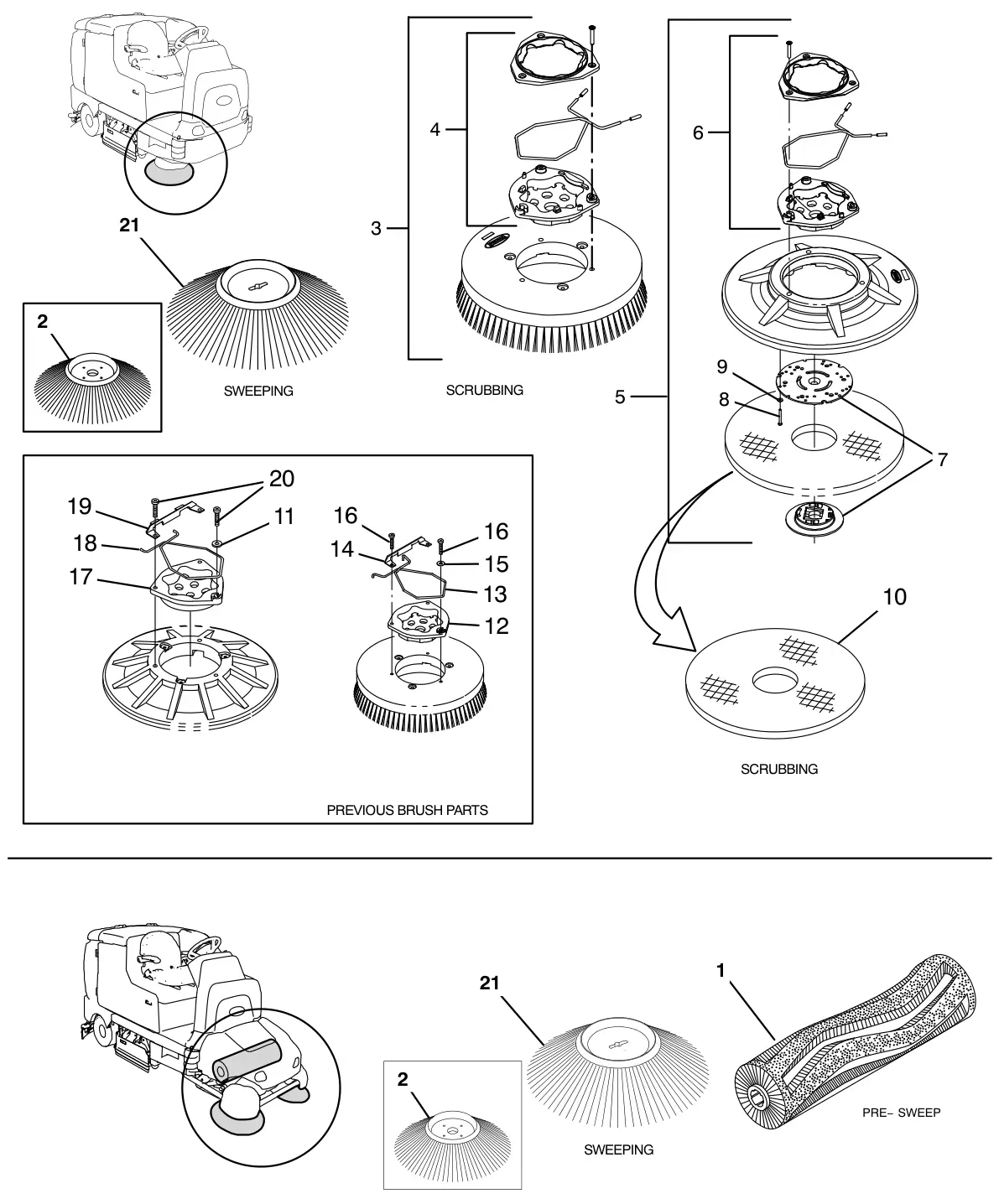

Tennant T17 replacement Brushes, Side Brush and Pre - Sweep parts
The parts Tennant numbers on its replacement brushes, side brush and pre - sweep drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039230Replaces Tennant 1211934 | 1 | Brush, Sweep, 28L, Wedge, Polypropylene, Spiral | $163.20/EA |
| 2 | TN4022088Replaces Tennant 87419 | 2 | Brush, Disk, Sweep, 19.0D, Polypropylene | $155.40/EA |
| 3 | TN4037455Replaces Tennant 1221543 | 1 | Brush Assy, Disk, Scb, 16.0d, Super AbrasiveComplete assembly. | $545.70/EA |
| 4 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 16.0d, Super Abrasive (1221543). | $64.00/EA |
| 3 | TN4037187Replaces Tennant 1220235 | 1 | Brush Assy, Disk, Scb, 16.0d, NylonComplete assembly. | $416.00/EA |
| 4 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 16.0d, Nylon (1220235). | $64.00/EA |
| 3 | TN4037193Replaces Tennant 1220241 | 1 | Brush Assy, Disk, Scb, 16.0d, PolypropyleneComplete assembly. | $255.40/EA |
| 4 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 16.0d, Polypropylene (1220241). | $64.00/EA |
| 3 | TN4037188Replaces Tennant 1220236 | 1 | Brush Assy, Disk, Scb, 16.0d, Heavy Duty PolypropyleneComplete assembly. | $248.00/EA |
| 4 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scb, 16.0d, Heavy Duty Polypropylene (1220236). | $64.00/EA |
| 5 | TN4037195Replaces Tennant 1220244 | 1 | Driver Assy, Pad, 16.0dComplete assembly. | $424.70/EA |
| 6 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Driver Assy, Pad, 16.0d (1220244). | $73.40/EA |
| 7 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 16.0d (1220244). | $45.50/EA |
| 8 | TN4041964Replaces Tennant 09198 | 3 | Screw, Pan, Phl, M4 X 0.70 X 35, SsPart of Driver Assy, Pad, 16.0d (1220244). | $3.20/EA |
| 9 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 16.0d (1220244). | $2.60/EA |
| 10 | TN4021152Replaces Tennant 63248-1 | 1 | Pad, Stripping, 16.0d, Brown [1 Pick = 1 Pad] | $22.00/EA |
| 10 | TN4021153Replaces Tennant 63248-2 | 1 | Pad, Scrub, 16.0d, Blue [1 Pick = 1 Pad] | $22.00/EA |
| 10 | TN4021154Replaces Tennant 63248-3 | 1 | Pad, Buff, 16.0d, Red [1 Pick = 1 Pad] | $22.00/EA |
| 10 | TN4021155Replaces Tennant 63248-4 | 1 | Pad, Polish, 16.0d, White [1 Pick = 1 Pad] | $22.00/EA |
| 10 | TN4032339Replaces Tennant 370092 | 1 | Pad, Stripping, 16.0d, Black [High Prod] [1 Pick = 1 Pad] | $36.20/EA |
| 10 | TN4040747Replaces Tennant 1051027 | 1 | Pad, Surf Prep, 16.0d, Maroon [1pick=1pad] | $24.40/EA |
| 11 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flt, .25 Ss | $2.60/EA |
| 12 | TN4035452Replaces Tennant 1017368 | 1 | Hub, Drive, Brush, Disk, 3 Hole 5.8Bc | $12.30/EA |
| 13 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush Retaining | $20.90/EA |
| 14 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, Spring | $30.20/EA |
| 15 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flt, .25 Ss | $2.60/EA |
| 16 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M06 X 1.0 X 35, Ss | $3.20/EA |
| 17 | TN4041235Replaces Tennant 15539 | 1 | Adaptor, Brush | $114.70/EA |
| 18 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush Retaining | $20.90/EA |
| 19 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, Spring | $30.20/EA |
| 20 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M06 X 1.0 X 35, Ss | $3.20/EA |
| – | TN4037455Replaces Tennant 1042504 | 1 | Brush Assy, Disk, Scrub, 16.0D, Super Abrasive (Replaced by 1221543) | $545.70/EA |
| – | TN4037187Replaces Tennant 1042499 | 1 | Brush Assy, Disk, Scrub, 16.0D, Nylon (Replaced by 1220235) | $416.00/EA |
| – | TN4037193Replaces Tennant 30241 | 1 | Brush Assy, Disk, Scrub, 16.0 D, Polypropylene (Replaced by 1220241) | $255.40/EA |
| – | TN4037188Replaces Tennant 1042500 | 1 | Brush Assy, Disk, Scrub, 16.0D, Heavy Duty Polypropylene (Replaced by 1220236) | $248.00/EA |
| – | TN4037163Replaces Tennant 397916 | 1 | Driver Assy, Pad, 16D (Replaced by 1220199) | $468.70/EA |
| 21 | TN4032279Replaces Tennant 1257198 | 2 | Brush, Disk, Swp, 20.0D, Polypropylene | $142.30/EA |

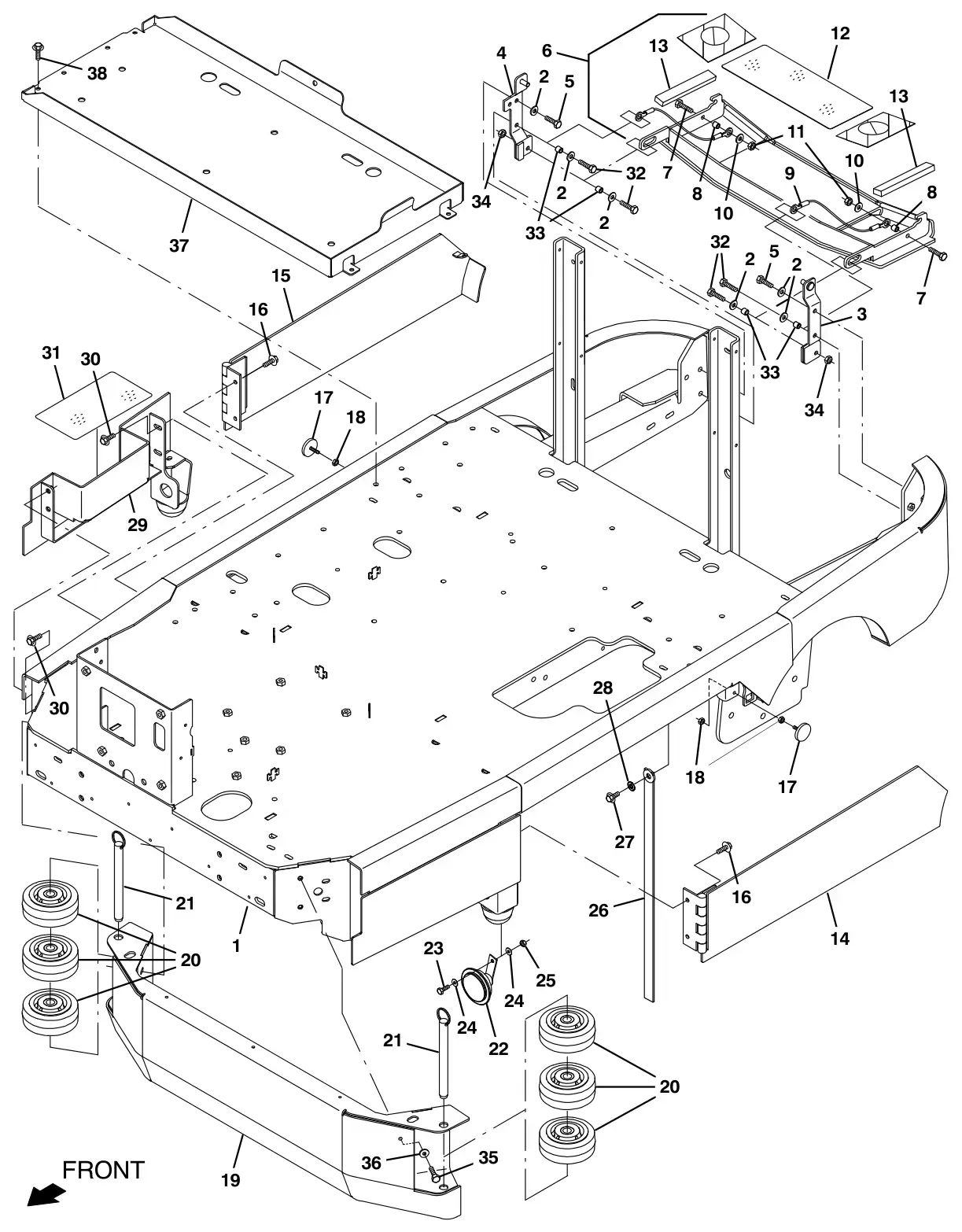

Tennant T17 main Frame Group parts
The parts Tennant numbers on its main frame group drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041075Replaces Tennant 1205154 | 1 | Frame Wldt, Main [T17]Serial up to 010999. | $4,369.56/EA |
| 1 | TN4226029Replaces Tennant 1221285 | 1 | Frame Wldt, Main [T17]Serial 011000 to 012999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4033648Replaces Tennant 1239252 | 1 | Frame Wldt, Main [T17]Serial 013000 and later. | $5,578.23/EA |
| 2 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 3 | TN4041812Replaces Tennant 1208363 | 1 | Bracket Wldt, Lh, Mtg, Door | $41.00/EA |
| 4 | TN4041813Replaces Tennant 1208364 | 1 | Bracket Wldt, Rh, Mtg, Door | $50.80/EA |
| 5 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 6 | TN4021551Replaces Tennant 9020273 | 1 | Bumper Kit, Rear, Afmkt [T17]Complete assembly. | $535.70/EA |
| 7 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M8 X 1.25 X 35, Fl, SsPart of Bumper Kit, Rear, Afmkt [T17] (9020273). | $3.30/EA |
| 8 | TN4040610Replaces Tennant 222516 | 2 | Sleeve, P/m 0.32B 0.50D 0.3L [430Ss]Part of Bumper Kit, Rear, Afmkt [T17] (9020273). | $3.40/EA |
| 9 | TN4022061Replaces Tennant 87172 | 2 | Cable, Glv .13d 010.0l .52eye /.52eyePart of Bumper Kit, Rear, Afmkt [T17] (9020273). | $18.50/EA |
| 10 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsPart of Bumper Kit, Rear, Afmkt [T17] (9020273). | $2.60/EA |
| 11 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Bumper Kit, Rear, Afmkt [T17] (9020273). | $3.30/EA |
| 12 | TN4229586Replaces Tennant 1210711 | 1 | Tread, Non-Skid-Step, 5.5w 13.8lPart of Bumper Kit, Rear, Afmkt [T17] (9020273). | $7.70/EA |
| 13 | TN4229846Replaces Tennant 1212350 | 2 | Bumper, Strip. 1.0Part of Bumper Kit, Rear, Afmkt [T17] (9020273). | $25.20/EA |
| 14 | TN4041157Replaces Tennant 1205863 | 1 | Door Wldt, Brush, Lh | $325.90/EA |
| 15 | TN4041159Replaces Tennant 1205864 | 1 | Door Wldt, Brush, Rh | $325.90/EA |
| 16 | TN4045637Replaces Tennant 1037346 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, Sems | $2.50/EA |
| 17 | TN4044182Replaces Tennant 1202779 | 2 | Magnet, Latch, Brush Door | $20.30/EA |
| 18 | TN4042532Replaces Tennant 19312 | 4 | Nut, Hex, Std, .25-20 | $2.50/EA |
| 19 | TN4041076Replaces Tennant 1205257 | 1 | Channel Wldt, Bumper | $416.30/EA |
| 20 | TN4037787Replaces Tennant 1052962 | 6 | Wheel, 05.0d 2.00w 0.75b, Gray, W/ Bshg | $26.30/EA |
| 21 | TN4041358Replaces Tennant 1206367 | 2 | Pin, Hitch, .750d X 7.00l, Pl | $20.70/EA |
| 22 | TN4036600Replaces Tennant 1057780 | 1 | Horn, 36vdc, 110dba | $68.90/EA |
| 23 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.00 X 20, Ss | $3.20/EA |
| 24 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 25 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 26 | TN4015658Replaces Tennant 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0l | $25.90/EA |
| 27 | TN4011892Replaces Tennant 763045 | 1 | Screw, Hex, M8 X 1.25 X 20, Fmg | $4.90/EA |
| 28 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
| 29 | TN4040923Replaces Tennant 1205048 | 1 | Panel Wldt, Cover, BrushSerial up to 010999. | $199.78/EA |
| 29 | TN4224279Replaces Tennant 1225506 | 1 | Panel Wldt, Cover, BrushSerial 011000 and later. | $164.00/EA |
| 30 | TN4036259Replaces Tennant 1020341 | 5 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 31 | TN4039252Replaces Tennant 1212248 | 1 | Tread, Non-Skid-Step, 3.75W 8.5L, Sba | $3.50/EA |
| 32 | TN4041945Replaces Tennant 09023 | 4 | Screw, Hex, M8 X 1.25 X 35, Fl, Ss | $3.30/EA |
| 33 | TN4040610Replaces Tennant 222516 | 4 | Sleeve, P/m 0.32B 0.50D 0.3L [430Ss] | $3.40/EA |
| 34 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 35 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 36 | TN4035242Replaces Tennant 1017218 | 4 | Washer, flat, 0.32B 1.00D .12, Ss | $3.40/EA |
| 37 | TN4033466Replaces Tennant 1238848 | 1 | Tray Wldt, BatterySerial 013000 and later. | $272.00/EA |
| 38 | TN4045640Replaces Tennant 1037354 | 4 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsSerial 013000 and later. | $2.50/EA |

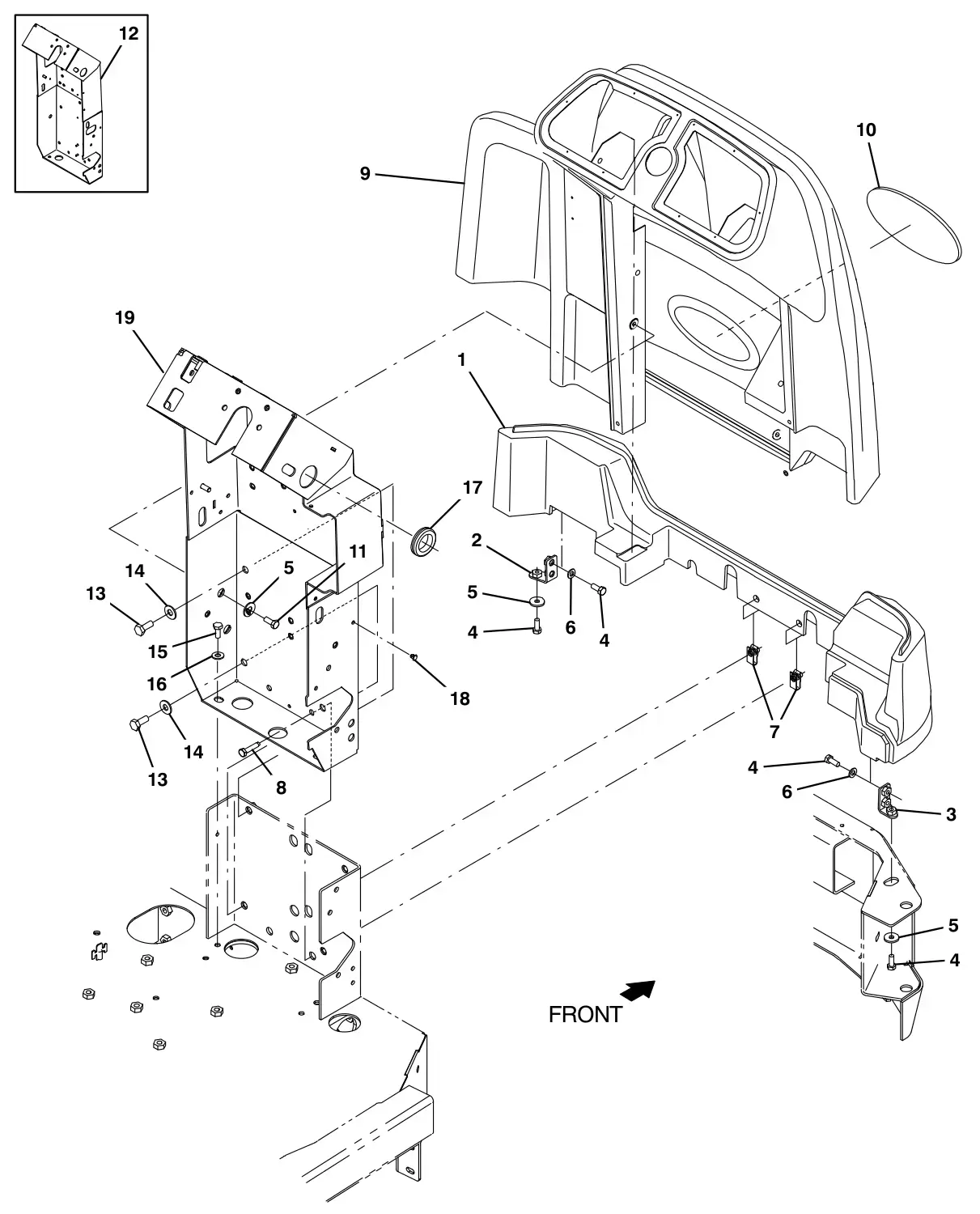

Tennant T17 front Covers Group parts
The parts Tennant numbers on its front covers group drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040898Replaces Tennant 1204732 | 1 | Platform, Oprtr, Front | $282.40/EA |
| 2 | TN4041800Replaces Tennant 1208188 | 1 | Bracket Wldt, Mtg, Platform, Front | $17.60/EA |
| 3 | TN4042089Replaces Tennant 1209246 | 1 | Bracket Wldt, Mtg, Platform, Front, Rh | $16.40/EA |
| 4 | TN4041844Replaces Tennant 16931 | 6 | Screw, Hex, M8 X 1.25 X 20, 8.8 | $2.50/EA |
| 5 | TN4035242Replaces Tennant 1017218 | 6 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 6 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flat, 0.31, Sae | $2.50/EA |
| 7 | TN4041784Replaces Tennant 1208045 | 2 | Nut, U, M8 X 1.25 4-7 Thk | $3.50/EA |
| 8 | TN4045641Replaces Tennant 1037355 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, Sems | $2.50/EA |
| 9 | TN4021508Replaces Tennant 9020216 | 1 | Shroud, Front, Afmkt [T17]Complete assembly. | $580.20/EA |
| 10 | TN4040855Replaces Tennant 1204077 | 1 | Nameplate, Tennant, DomedPart of Shroud, Front, Afmkt [T17] (9020216). | $35.10/EA |
| 11 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 12 | TN4041086Replaces Tennant 1205397 | 1 | Channel Wldt, SteeringSerial up to 010999. | $286.84/EA |
| 13 | TN4019758Replaces Tennant 39283 | 5 | Screw, Hex, M10 X 1.50 X 25, 8.8 | $3.30/EA |
| 14 | TN4034138Replaces Tennant 32492 | 5 | Washer, Flat, 0.38, Std | $2.50/EA |
| 15 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 16 | TN4034134Replaces Tennant 32485 | 2 | Washer, Flat, 0.38, Sae | $2.50/EA |
| 17 | TN4043490Replaces Tennant 04051 | 1 | Grommet, Rbr, 1.31id, F/1.6h, .12 Matl | $4.20/EA |
| 18 | TN4044189Replaces Tennant 1202868 | 6 | Clip, Tie, 0.25d, Plstc | $1.52/EA |
| 19 | TN4036820Replaces Tennant 1218213 | 1 | Channel Wldt, Sppt, SteeringSerial 011000 and later. | $514.49/EA |

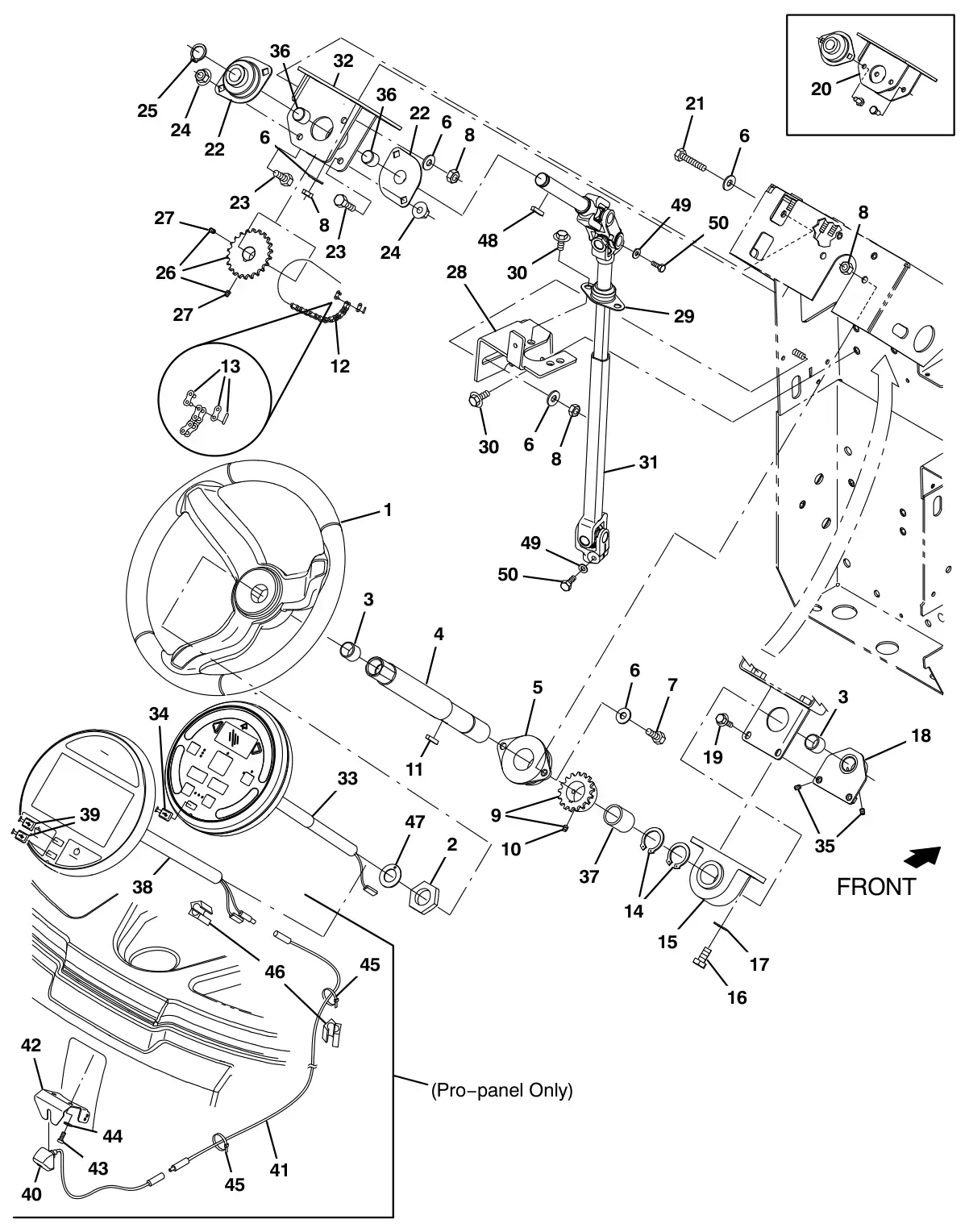

Tennant T17 steering Group parts
The parts Tennant numbers on its steering group drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035223Replaces Tennant 1056412 | 1 | Wheel, Steering, 14.4d | $194.20/EA |
| 2 | TN4036795Replaces Tennant 1059073 | 1 | Nut, Hex, Jam, 1.12-12 | $9.50/EA |
| 3 | TN4036601Replaces Tennant 1057785 | 2 | Bearing, Journal, 0.75b 0.88d 0.75l | $5.50/EA |
| 4 | TN1208612Tennant 1208612 | 1 | Tube, Column, SteeringSerial up to 010999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4037890Replaces Tennant 1224341 | 1 | Tube, Column, SteeringSerial 011000 and later. | $176.60/EA |
| 5 | TN4036368Replaces Tennant 1057043 | 1 | Bearing, Flng, 2hole, 1.25b | $21.70/EA |
| 6 | TN4034137Replaces Tennant 32491 | 8 | Washer, Flat, 0.31, Std | $2.50/EA |
| 7 | TN4041844Replaces Tennant 16931 | 8 | Screw, Hex, M8 X 1.25 X 20, 8.8 | $2.50/EA |
| 8 | TN4041926Replaces Tennant 08709 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl | $2.50/EA |
| – | TN4027855Replaces Tennant 9010942 | 1 | Sprocket Kit, 1.12B, Afmkt [T12]Complete assembly. Serial up to 010999. | $65.80/EA |
| 9 | TN4038391Replaces Tennant 1053825 | 1 | Sprocket, Steering, 1.12BPart of Sprocket Kit, 1.12B, Afmkt [T12] (9010942). Serial up to 010999. | $14.24/EA |
| 10 | TN4041960Replaces Tennant 09162 | 2 | Screw, Set, M6 X 1.00 X 8, NlPart of Sprocket Kit, 1.12B, Afmkt [T12] (9010942). Serial up to 010999. | $4.00/EA |
| – | TN4022901Replaces Tennant 9014999 | 1 | Sprocket Kit, 1.12B, Afmkt [T17/M17]Complete assembly. Serial 011000 and later. | $42.11/EA |
| 9 | TN4224013Replaces Tennant 1224700 | 1 | Sprocket, Steering, 1.12BPart of Sprocket Kit, 1.12B, Afmkt [T17/M17] (9014999). Serial 011000 and later. | $13.64/EA |
| 10 | TN4224023Replaces Tennant 1224893 | 1 | Screw, Set, M8 X 1.25 X 8, LockPart of Sprocket Kit, 1.12B, Afmkt [T17/M17] (9014999). Serial 011000 and later. | $19.50/EA |
| 11 | TN4042778Replaces Tennant 00912 | 1 | Key, Sq, 0.19 X 0.19, 1.00l | $3.60/EA |
| 12 | TN4044493Replaces Tennant 1073181 | 1 | Chain, Rlr, 35 X 41 Pitches | $14.50/EA |
| 13 | TN4044349Replaces Tennant 14799 | 1 | Link, Chain, Rlr, 35 | $4.20/EA |
| 14 | TN4014941Replaces Tennant 70651 | 1 | Ring, Retaining, Ext, 1.12dSerial up to 010999. | $4.00/EA |
| 14 | TN4014941Replaces Tennant 70651 | 2 | Ring, Retaining, Ext, 1.12dSerial 011000 and later. | $4.00/EA |
| 15 | TN4038650Replaces Tennant 1054654 | 1 | Bearing, Pillowblock, 1.12b | $33.80/EA |
| 16 | TN4041286Replaces Tennant 06961 | 2 | Screw, Hex, M10 X 1.5 | $3.40/EA |
| 17 | TN4034134Replaces Tennant 32485 | 2 | Washer, Flat, 0.38, Sae | $2.50/EA |
| 18 | TN4042022Replaces Tennant 1208625 | 1 | Plate Wldt, Brg | $73.50/EA |
| 19 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 20 | TN4036574Replaces Tennant 1057572 | 1 | Plate Wldt, Sppt, Brg (Only used with old Power Steering Motors)Serial up to 014649. | $39.90/EA |
| 21 | TN4040607Replaces Tennant 222505 | 1 | Screw, Hex, M8 X 1.25 X 45, Ss | $4.00/EA |
| 22 | TN4036569Replaces Tennant 1057554 | 2 | Bearing, Flng, 2hole, 0.75b | $37.60/EA |
| 23 | TN4041828Replaces Tennant 16735 | 4 | Screw, Hex, M8 X 1.25 X 16, 8.8 | $3.40/EA |
| 24 | TN4041605Replaces Tennant 07791 | 4 | Nut, Hex, Flng, M8 X 1.25 | $2.50/EA |
| 25 | TN4035690Replaces Tennant 26428 | 1 | Ring, Retaining, Ext, 0.75d, Hd | $3.90/EA |
| – | TN4027856Replaces Tennant 9010943 | 1 | Sprocket Kit, 0.75B, Afmkt [T12]Complete assembly. Serial up to 010999. | $77.00/EA |
| 26 | TN4036383Replaces Tennant 1057171 | 2 | Sprocket, Steering, 0.75BPart of Sprocket Kit, 0.75B, Afmkt [T12] (9010943). Serial up to 010999. | $16.97/EA |
| 27 | TN4041960Replaces Tennant 09162 | 2 | Screw, Set, M6 X 1.00 X 8, NlPart of Sprocket Kit, 0.75B, Afmkt [T12] (9010943). Serial up to 010999. | $4.00/EA |
| – | TN4022900Replaces Tennant 9014998 | 1 | Sprocket Kit, 0.75B, Afmkt [T17/M17]Complete assembly. Serial 011000 and later. | $35.65/EA |
| 26 | TN4224012Replaces Tennant 1224699 | 2 | Sprocket, Steering, 0.75BPart of Sprocket Kit, 0.75B, Afmkt [T17/M17] (9014998). Serial 011000 and later. | $18.50/EA |
| 27 | TN4224023Replaces Tennant 1224893 | 2 | Screw, Set, M6 X 1.00 X 8, NlPart of Sprocket Kit, 0.75B, Afmkt [T17/M17] (9014998). Serial 011000 and later. | $19.50/EA |
| 28 | TN4041079Replaces Tennant 1205296 | 1 | Bracket, BrgSerial up to 010999. | $22.32/EA |
| 28 | TN4224274Replaces Tennant 1225503 | 1 | Bracket, BrgSerial 011000 and later. | $32.42/EA |
| 29 | TN4037347Replaces Tennant 223065 | 1 | Bearing, Flng, 2hole, 0.75b [Nyl] | $6.00/EA |
| 30 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 31 | TN4210261Replaces Tennant 1265160 | 1 | Shaft Assy, Steering | $196.34/EA |
| 32 | TN4214090Replaces Tennant 1256311 | 1 | Bracket Wldt, Mtg, Bearing, SteeringSerial 014650 and later. | $98.40/EA |
| 33 | TN4019015Replaces Tennant 9015635 | 1 | Panel Kit, Pod, Afmkt [Std, T20] | $1,079.69/EA |
| 34 | TN4224044Replaces Tennant 1225119 | 1 | Cap, Usb, UniversalSerial 013000 and later. | $28.60/EA |
| 35 | TN4041960Replaces Tennant 09162 | 2 | Screw, Set, M6 X 1.00 X 8, Nl | $4.00/EA |
| 36 | TN4224470Replaces Tennant 1226141 | 2 | Sleeve, P/M, 0.75B 0.88D 0.6L [841Brz]Serial 011000 and later. | $20.30/EA |
| 37 | TN4223998Replaces Tennant 1224454 | 1 | Sleeve, P/M, 1.13B 1.38D 1.0LSerial 011000 and later. | $5.70/EA |
| 38 | TN4019016Replaces Tennant 9015633 | 1 | Panel Kit, Pod, Afmkt [Pro, M20/M30/T20](Pro-panel Only)Complete assembly. Serial 013000 and later. | $1,974.55/EA |
| 39 | TN4224044Replaces Tennant 1225119 | 2 | Cap, Usb, Universal (Pro-panel Only)Part of Panel Kit, Pod, Afmkt [Pro, M20/M30/T20](Pro-panel Only) (9015633). Serial 013000 and later. | $28.60/EA |
| 40 | TN4036872Replaces Tennant 1218851 | 1 | Camera, Color, Fixed (Pro-panel Only)Serial 013000 and later. | $303.60/EA |
| 41 | TN4036874Replaces Tennant 1218852 | 1 | Cable, Camera, 197.0L [Hvs] (Pro-panel Only)Serial 013000 and later. | $92.40/EA |
| 42 | TN4036900Replaces Tennant 1219037 | 1 | Bracket, Mount, Camera (Pro-panel Only)Serial 013000 and later. | $34.95/EA |
| 43 | TN4029542Replaces Tennant 360973 | 2 | Screw, Pan, Phl, 12-16 X 0.50, F/Plstc (Pro-panel Only)Serial 013000 and later. | $4.00/EA |
| 44 | TN4042244Replaces Tennant 19066 | 2 | Washer, flat, 0.25B 0.56D .05, Pl, 10 (Pro-panel Only)Serial 013000 and later. | $2.50/EA |
| 45 | TN4011908Replaces Tennant 763114 | 6 | Tie, Cable, 11.3L, 2.75D Max (Pro-panel Only)Serial 013000 and later. | $3.30/EA |
| 46 | TN4044271Replaces Tennant 1040049 | 2 | Inductor, 32.0mml [Ferrite 0-300mhz] (Pro-panel Only)Serial 013000 and later. | $6.16/EA |
| 47 | TN4040947Replaces Tennant 04846 | 1 | Washer, Thrust, 0.79b 1.42d 0.06[Garlok] | $10.00/EA |
| 48 | TN4042778Replaces Tennant 00912 | 1 | Key, Sq, 0.19 X 0.19, 1.00lSerial up to 010999. | $3.60/EA |
| 48 | TN4042777Replaces Tennant 00911 | 1 | Key, Sq, 0.19 X 0.19, 0.75lSerial 011000 and later. | $3.60/EA |
| 49 | TN4015595Replaces Tennant 39349 | 2 | Washer, Flat, 0.31, Sae | $2.50/EA |
| 50 | TN4156940Replaces Tennant 39277 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8 | $3.20/EA |

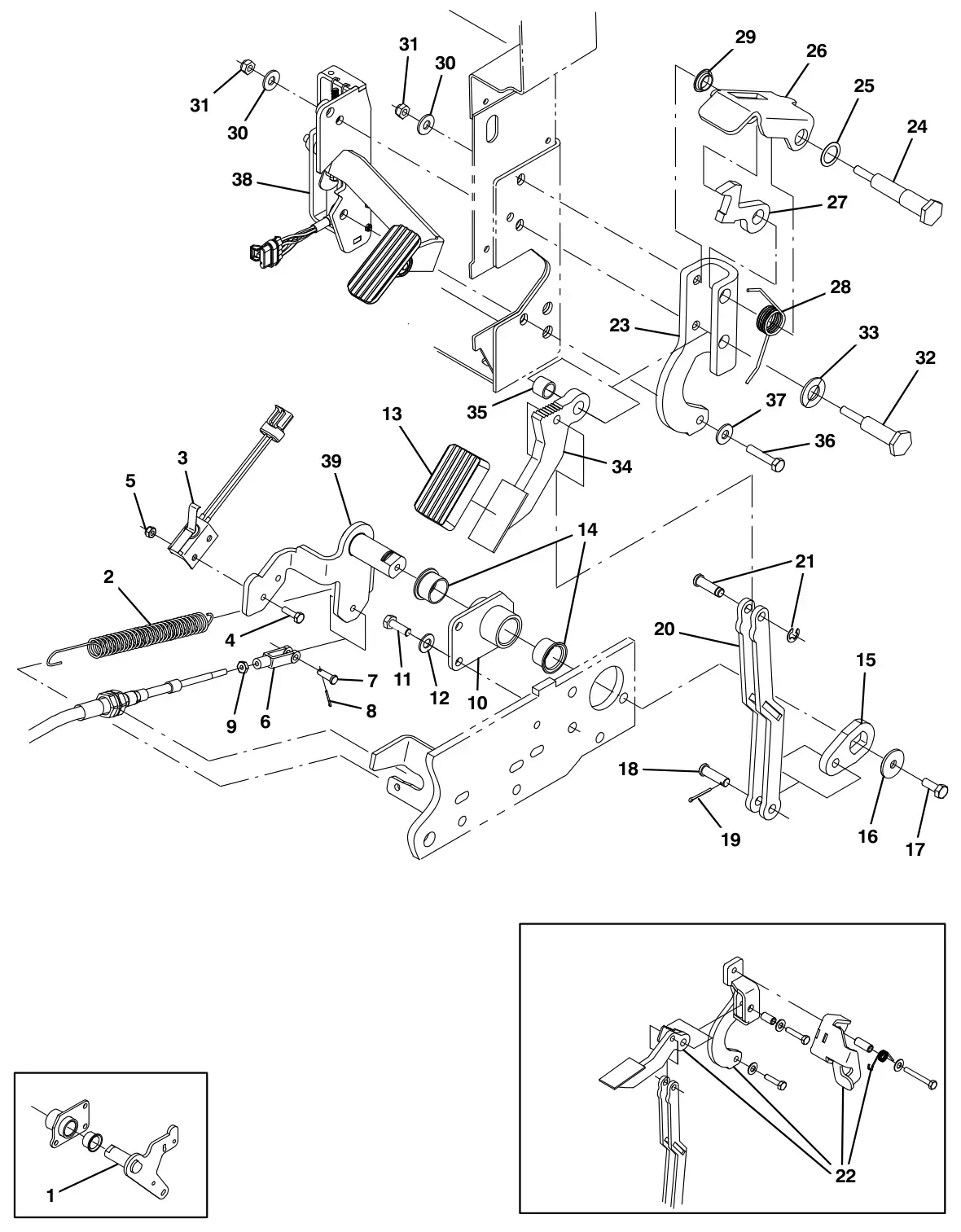

Tennant T17 brake and Directional Pedals Group parts
The parts Tennant numbers on its brake and directional pedals group drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041431Replaces Tennant 1207177 | 1 | Shaft Wldt, Pivot, FrontSerial up to 010999. | $44.44/EA |
| 2 | TN4039788Replaces Tennant 1213461 | 1 | Spring, Tens, .75Od X .08S 7.0L | $28.40/EA |
| 3 | TN4039268Replaces Tennant 1212400 | 1 | Switch, Snap, 15a Nc | $98.20/EA |
| 4 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss | $3.20/EA |
| 5 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 6 | TN4044337Replaces Tennant 14595-1 | 1 | Clevis, Adj, 0.25pin, 0.25-28 Rh, Pl | $9.90/EA |
| 7 | TN4025137Replaces Tennant 605070 | 1 | Pin, Clevis, 0.25d X 0.79l | $4.00/EA |
| 8 | TN4041633Replaces Tennant 08178 | 1 | Pin, Cotter, .062 X 0.75 | $2.50/EA |
| 9 | TN4034503Replaces Tennant 32899 | 1 | Nut, Hex, Jam, .25-28 | $3.40/EA |
| 10 | TN4042060Replaces Tennant 1209015 | 1 | Bracket Wldt, Support, BrakeSerial up to 010999. | $61.81/EA |
| 10 | TN4225340Replaces Tennant 1218580 | 1 | Bracket Wldt, Support, BrakeSerial 011000 and later. | $70.60/EA |
| 11 | TN4041943Replaces Tennant 09010 | 3 | Screw, Hex, M8 X 1.25 X 25, SsSerial up to 010999. | $3.30/EA |
| 11 | TN4041944Replaces Tennant 09011 | 3 | Screw, Hex, M8 X 1.25 X 30, SsSerial 011000 and later. | $3.40/EA |
| 12 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 13 | TN4041742Replaces Tennant 1207654 | 1 | Pad, Pedal, Brake, 2.79l 1.84w .75t | $14.65/EA |
| 14 | TN4029120Replaces Tennant 56166 | 2 | Bushing, Flng, 1.00b 1.13d 0.75l | $25.20/EA |
| 15 | TN4041430Replaces Tennant 1207174 | 1 | Bracket, Brake, FrontSerial up to 010999. | $12.60/EA |
| 15 | TN4036853Replaces Tennant 1218579 | 1 | Bracket, Brake, FrontSerial 011000 and later. | $13.20/EA |
| 16 | TN4034852Replaces Tennant 1016331 | 1 | Washer, Flat, 0.34b 1.25d .11, Ss | $5.10/EA |
| 17 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 18 | TN4013463Replaces Tennant 46657 | 1 | Pin, Clevis, 0.37d X 1.25l | $5.80/EA |
| 19 | TN4041634Replaces Tennant 08179 | 1 | Pin, Cotter, .094 X 1.00 | $2.50/EA |
| 20 | TN4041739Replaces Tennant 1207566 | 1 | Link Wldt, Brake | $46.87/EA |
| 21 | TN4041776Replaces Tennant 1207981 | 1 | Pin, Clevis, Grvd, 0.38d X 1.25l | $9.50/EA |
| 22 | TN4020287Replaces Tennant 9016734 | 1 | Brake Kit, Replmt, Afmkt[T17/M17]Serial up to 011777. | $615.50/EA |
| 23 | TN4033097Replaces Tennant 1236066 | 1 | Bracket, Mtg, Pedal, PaintedSerial 011778 and later. | $65.50/EA |
| 24 | TN4033045Replaces Tennant 1234792 | 1 | Pin, Spindle, SpringSerial 011778 and later. | $92.30/EA |
| 25 | TN4020770Replaces Tennant 630358 | 1 | Washer, Flat, 0.75b 1.00d .03, NylSerial 011778 and later. | $5.30/EA |
| 26 | TN4035607Replaces Tennant 1230885 | 1 | Pedal, WindowSerial 011778 and later. | $44.70/EA |
| 27 | TN4035594Replaces Tennant 1230821 | 1 | Stop, Lock, PedalSerial 011778 and later. | $92.40/EA |
| 28 | TN4033034Replaces Tennant 1234554 | 1 | Spring, Torsion, BrakeSerial 011778 and later. | $5.20/EA |
| 29 | TN4040946Replaces Tennant 04843 | 1 | Bushing, Flng, 0.63b 0.72d 0.25lSerial 011778 and later. | $9.60/EA |
| 30 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 011778 and later. | $2.50/EA |
| 31 | TN4041926Replaces Tennant 08709 | 2 | Nut, Hex, Lock, M8 X 1.25, NlSerial 011778 and later. | $2.50/EA |
| 32 | TN4033044Replaces Tennant 1234789 | 1 | Pin, Mtg, M8 X 1.25 ThrdSerial 011778 and later. | $78.00/EA |
| 33 | TN4041212Replaces Tennant 15331 | 1 | Washer, Flat, 0.62, SaeSerial 011778 and later. | $4.10/EA |
| 34 | TN4035258Replaces Tennant 1229005 | 1 | Plate Wldt, Shaft, PedalSerial 011778 and later. | $41.50/EA |
| 35 | TN4024673Replaces Tennant 830207 | 1 | Sleeve, 0.65b 0.87d 0.6l, PlSerial 011778 and later. | $4.10/EA |
| 36 | TN4041946Replaces Tennant 09026 | 1 | Screw, Hex, M8 X 1.25 X 40, SsSerial 011778 and later. | $4.00/EA |
| 37 | TN4034137Replaces Tennant 32491 | 1 | Washer, Flat, 0.31, StdSerial 011778 and later. | $2.50/EA |
| 38 | TN4042098Replaces Tennant 1209411 | 1 | Pedal Assy, Accelerator, W/O Brake [T17] | $556.30/EA |
| 39 | TN4040510Replaces Tennant 1217475 | 1 | Shaft Wldt, Pivot, Front | $83.60/EA |

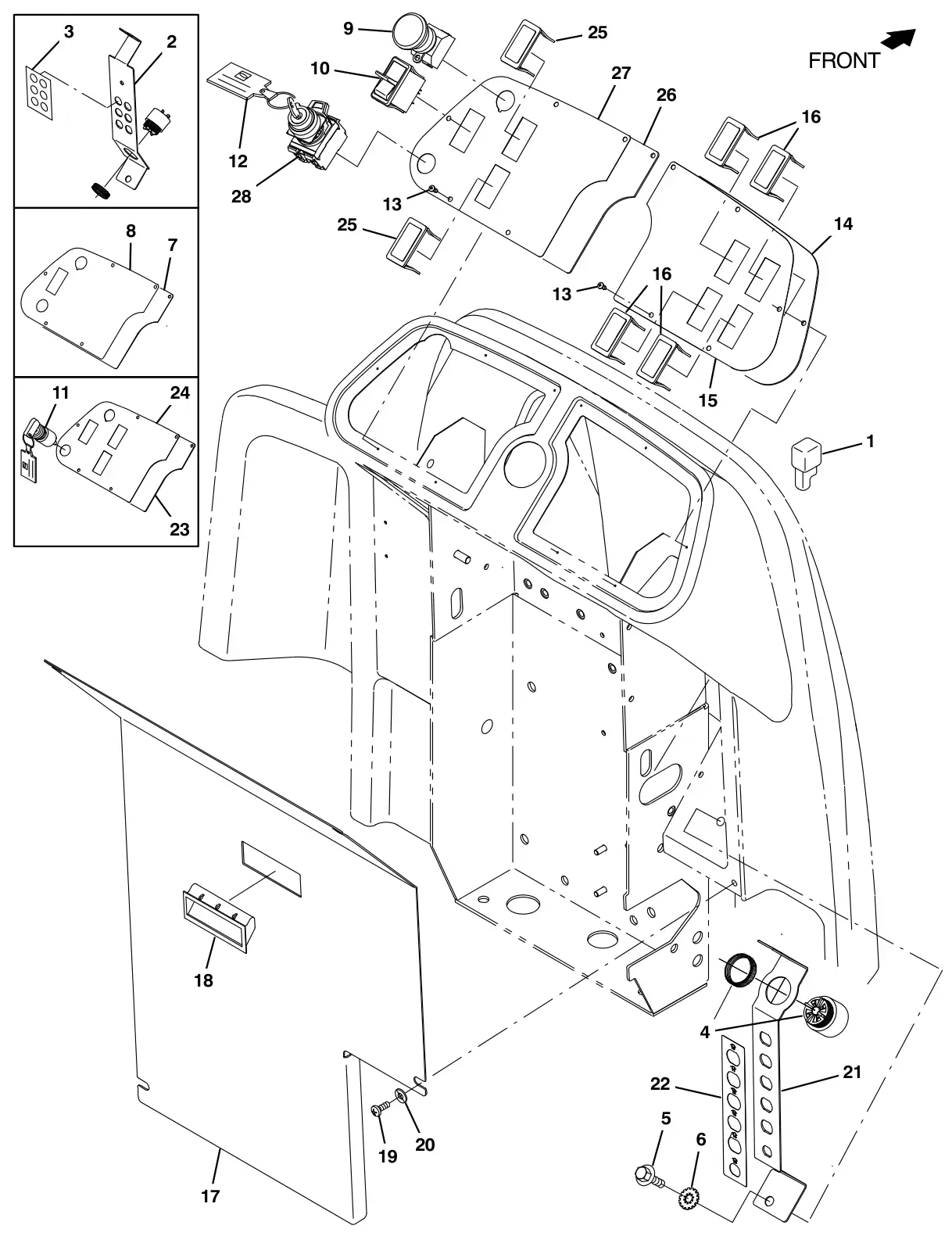

Tennant T17 instrument Panel Group parts
The parts Tennant numbers on its instrument panel group drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040238Replaces Tennant 222290 | 1 | Diode, Ele, Plug | $13.00/EA |
| 2 | TN4041371Replaces Tennant 1206546 | 1 | Bracket, Ele, CbSerial up to 010999. | $23.33/EA |
| 3 | TN4041815Replaces Tennant 1208411 | 1 | Label, Circuit BreakerSerial up to 010999. | $13.23/EA |
| 4 | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 9-48vdc, 95 Db(A) [Ec-H20] | $75.90/EA |
| 5 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 6 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
| 7 | TN4043914Replaces Tennant 1201534 | 1 | Panel, Console, LhSerial up to 012999. | $7.58/EA |
| 8 | TN4040861Replaces Tennant 1204170 | 1 | Label, Opertnl, Console, LhSerial up to 012999. | $19.70/EA |
| 9 | TN4029938Replaces Tennant 1011735 | 1 | Switch, Safety, Shutoff | $40.50/EA |
| 10 | TN4036751Replaces Tennant 1058679 | 1 | Switch, Rocker, Dpdt, On / None / On | $29.40/EA |
| 11 | TN4029584Replaces Tennant 361076 | 1 | Switch, Ignition [Merit Gmbh]Complete assembly. Serial up to 015784. | $85.60/EA |
| – | TN4029794Replaces Tennant 361144 | 1 | Key, Ignition, SglPart of Switch, Ignition [Merit Gmbh] (361076). Serial up to 015784. | $14.30/EA |
| 12 | TN4044966Replaces Tennant 1075003 | 1 | Keychain, Rectangle, Parts & Service | $4.70/EA |
| 13 | TN4044128Replaces Tennant 140825 | 10 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, Blk | $3.30/EA |
| 14 | TN4041798Replaces Tennant 1208185 | 1 | Panel, Console, Rh | $16.00/EA |
| 15 | TN4031807Replaces Tennant 1252251 | 1 | Label, Opertnl, Console, Rh [2-Switch] | $50.00/EA |
| 16 | TN4016538Replaces Tennant 398501 | 4 | Plug, Hole, Rt, Rocker Switch, .87 X 1.7 | $6.80/EA |
| 17 | TN4021512Replaces Tennant 9020225 | 1 | Panel, Access, Na, Afmkt [T17] | $165.64/EA |
| 17 | TN4021514Replaces Tennant 9020227 | 1 | Panel, Access, Tj, Afmkt [T17] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4041799Replaces Tennant 1208187 | 1 | Handle, Panel | $9.55/EA |
| 19 | TN4042643Replaces Tennant 1045525 | 4 | Screw, Pan, Phl, M6 X 1.00 X 12, Blk | $1.50/EA |
| 20 | TN4030108Replaces Tennant 1069322 | 4 | Washer, Flat, 0.25, Sae, Blk | $3.20/EA |
| 21 | TN4228169Replaces Tennant 1217573 | 1 | Bracket, Ele, CircuitbreakerSerial 011000 and later. | $18.99/EA |
| 22 | TN4225352Replaces Tennant 1218920 | 1 | Label, Circuitbreaker, SteeringSerial 011000 and later. | $12.70/EA |
| 23 | TN4033349Replaces Tennant 1236430 | 1 | Panel, Console, LhSerial 013000 to 015784. | $20.30/EA |
| 24 | TN4033634Replaces Tennant 1238870 | 1 | Label, Opertnl, Console, LhSerial 013000 to 015784. | $150.80/EA |
| 25 | TN4016538Replaces Tennant 398501 | 2 | Plug, Hole, Rt, Rocker Switch, .87 X 1.7Serial 013000 and later. | $6.80/EA |
| 26 | TN4029955Replaces Tennant 1266816 | 1 | Panel, Console, LhSerial 015785 and later. | $16.46/EA |
| 27 | TN4029954Replaces Tennant 1266815 | 1 | Label, Opertnl, Console, LhSerial 015785 and later. | $16.16/EA |
| 28 | TN4210743Replaces Tennant 1266666 | 1 | Switch, Key, 2Pos, 8A, 24VdcComplete assembly. Serial 015785 and later. | $64.14/EA |
| – | TN4033720Replaces Tennant 1240918 | 1 | Key, SwitchPart of Switch, Key, 2Pos, 8A, 24Vdc (1266666). Serial 015785 and later. | $27.00/EA |

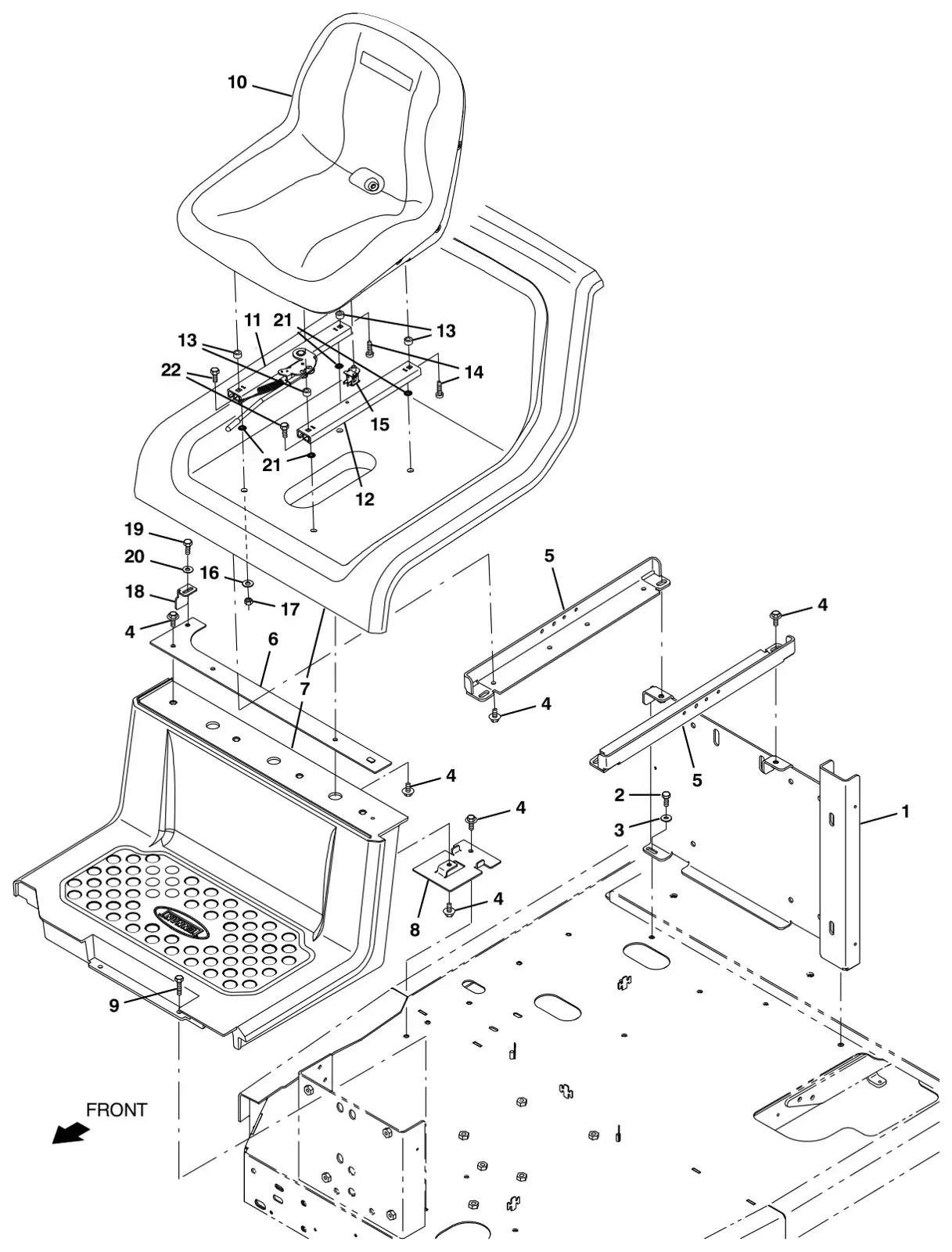

Tennant T17 seat Group parts
The parts Tennant numbers on its seat group drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041767Replaces Tennant 1207922 | 1 | Bracket Wldt, Sppt, Tank | $84.64/EA |
| 2 | TN4037373Replaces Tennant 223163 | 2 | Screw, Hex, M8 X 1.25 X 30, 8.8, Nl | $4.30/EA |
| 3 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 4 | TN4036259Replaces Tennant 1020341 | 11 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 5 | TN4033671Replaces Tennant 1239681 | 2 | Angle, Sppt, Seat | $100.20/EA |
| 6 | TN4041392Replaces Tennant 1206785 | 1 | Plate Wldt, Mtg, Platform | $23.03/EA |
| 7 | TN4039271Replaces Tennant 1212415 | 1 | Platform Set, Oprtr [T17] | $872.70/EA |
| 8 | TN4040925Replaces Tennant 1205073 | 1 | Plate, Mtg | $21.82/EA |
| 9 | TN4045641Replaces Tennant 1037355 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, Sems | $2.50/EA |
| 10 | TN4043938Replaces Tennant 1201894 | 1 | Seat, Std [Milsco] | $216.90/EA |
| 11 | TN4043035Replaces Tennant 1077071 | 1 | Track, Locking, 12.5l, No Stud W/Handle | $52.60/EA |
| 12 | TN4043034Replaces Tennant 1077067 | 1 | Track, N-Lkg, Seat, 12.5l, No Stud | $32.00/EA |
| 13 | TN4040754Replaces Tennant 1051052 | 4 | Spacer, Rnd, .38b .88d .38l | $3.90/EA |
| 14 | TN4014132Replaces Tennant 49177 | 4 | Screw, Pan, Phl, .31-18 X 1.00, G2 | $3.30/EA |
| 15 | TN4040075Replaces Tennant 1048955 | 1 | Switch, Seat, No [Delta 6440-04] | $10.40/EA |
| 16 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 17 | TN4016828Replaces Tennant 41437 | 4 | Nut, Hex, Lock, .31-18, Nl, Ss | $4.00/EA |
| 18 | TN4229498Replaces Tennant 1209194 | 1 | Angle, Latch | $8.30/EA |
| 19 | TN4041270Replaces Tennant 06942 | 1 | Screw, Hex, M6 X 1.00 X 16, 8.8 | $2.50/EA |
| 20 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25, Sae | $2.50/EA |
| 21 | TN4043036Replaces Tennant 1077073 | 4 | Nut, Push, Bolt Retention, Stl,5/16 Thrd | $13.80/EA |
| 22 | TN4028947Replaces Tennant 76955 | 4 | Screw, Hex, .31-18 X 1.00, G5 | $2.50/EA |

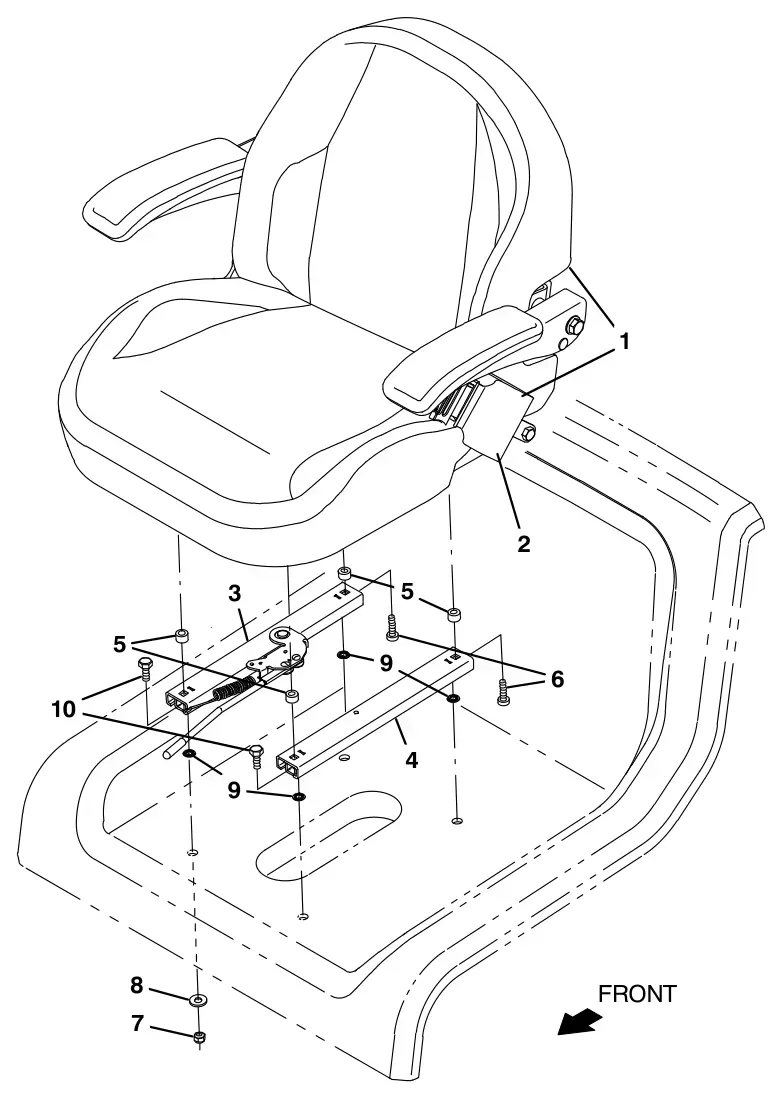

Tennant T17 deluxe Seat Kit parts
The parts Tennant numbers on its deluxe seat kit drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021229Replaces Tennant 9020103 | 1 | Seat Kit, Deluxe, Ci [T17]Complete assembly. | $1,229.50/EA |
| 1 | TN4043898Replaces Tennant 1201428 | 1 | Seat, Dlx, W/ Armrests & SeatbeltPart of Seat Kit, Deluxe, Ci [T17] (9020103). | $587.50/EA |
| 2 | TN4031092Replaces Tennant 1248442 | 1 | Seatbelt, Orange, Retractable, AfmktPart of Seat Kit, Deluxe, Ci [T17] (9020103). | $363.40/EA |
| 3 | TN4043035Replaces Tennant 1077071 | 1 | Track, Locking, 12.5l, No Stud W/HandlePart of Seat Kit, Deluxe, Ci [T17] (9020103). | $52.60/EA |
| 4 | TN4043034Replaces Tennant 1077067 | 1 | Track, N-Lkg, Seat, 12.5l, No StudPart of Seat Kit, Deluxe, Ci [T17] (9020103). | $32.00/EA |
| 5 | TN4040754Replaces Tennant 1051052 | 4 | Spacer, Rnd, .38b .88d .38lPart of Seat Kit, Deluxe, Ci [T17] (9020103). | $3.90/EA |
| 6 | TN4014132Replaces Tennant 49177 | 4 | Screw, Pan, Phl, .31-18X1.00, G2Part of Seat Kit, Deluxe, Ci [T17] (9020103). | $3.30/EA |
| 7 | TN4016828Replaces Tennant 41437 | 4 | Nut, Hex, Lock, .31-18, Nl, SsPart of Seat Kit, Deluxe, Ci [T17] (9020103). | $4.00/EA |
| 8 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Seat Kit, Deluxe, Ci [T17] (9020103). | $2.60/EA |
| 9 | TN4043036Replaces Tennant 1077073 | 4 | Nut, Push, Bolt Retention, Stl,5/16 ThrdPart of Seat Kit, Deluxe, Ci [T17] (9020103). | $13.80/EA |
| 10 | TN4028947Replaces Tennant 76955 | 4 | Screw, Hex, .31-18 X 1.00, G5Part of Seat Kit, Deluxe, Ci [T17] (9020103). | $2.50/EA |

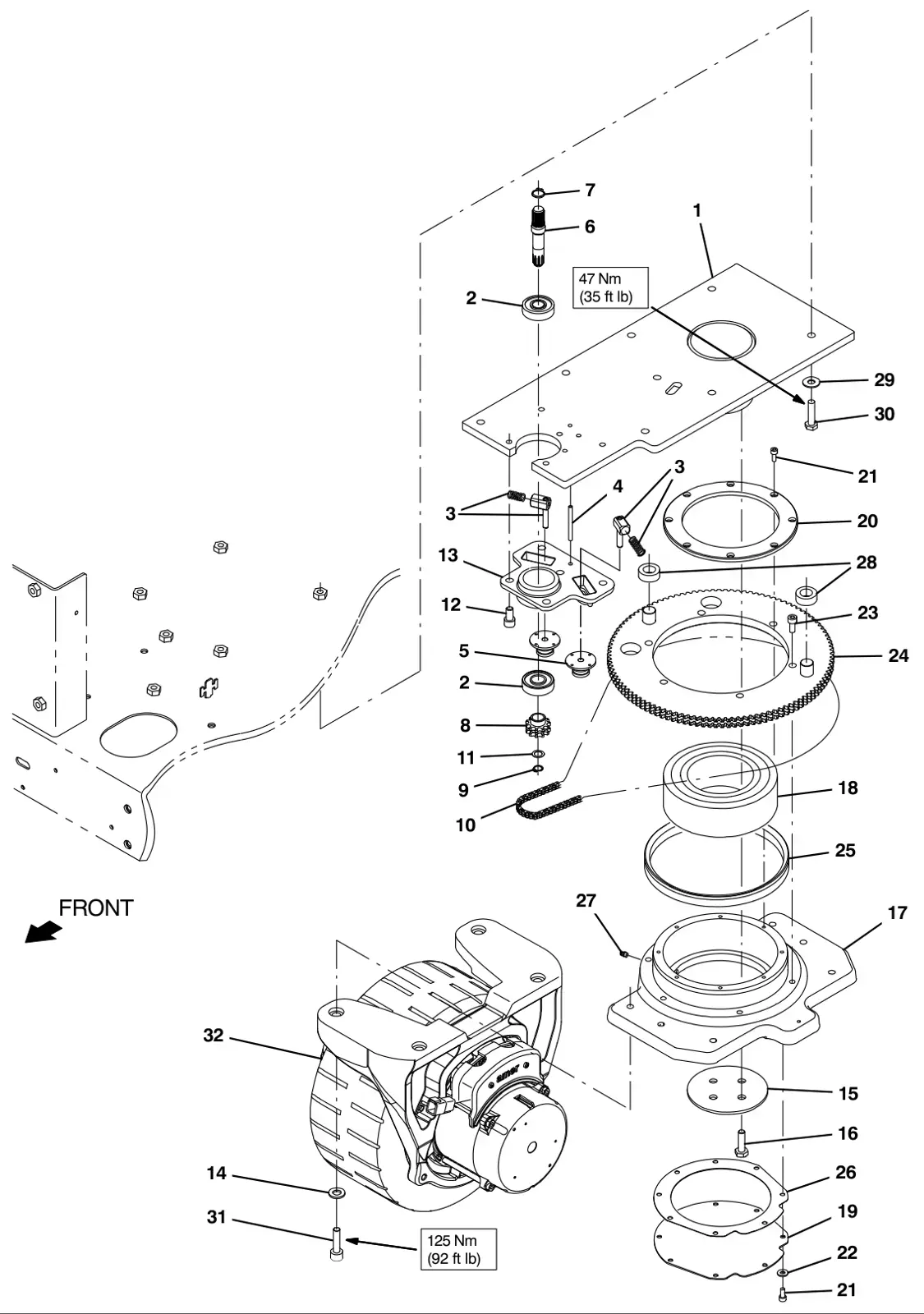

Tennant T17 drive Wheel Group (000000 - 010999) parts
The parts Tennant numbers on its drive wheel group (000000 - 010999) drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4025422Replaces Tennant 9013267 | 1 | Transmission Assy, Str, Afmkt [T17]Complete assembly. Serial up to 010999. | $3,614.10/EA |
| 1 | TN4042066Replaces Tennant 1209073 | 1 | Plate Wldt, Attachment, FramePart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $808.71/EA |
| 2 | TN4042048Replaces Tennant 1208971 | 2 | Bearing, Ball, 0.67b, 1.85d, 0.55wPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $8.00/EA |
| 3 | TN4023702Replaces Tennant 9015632 | 2 | Tensioner Kit, Str Trans, Afmkt [T17/M17]Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $201.40/EA |
| 4 | TN4035684Replaces Tennant 26315 | 4 | Pin, Roll, .250X 1.5L, .250/.256Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $2.40/EA |
| 5 | TN4042049Replaces Tennant 1208974 | 2 | Tensioner, Chain, DblPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $5.10/EA |
| 6 | TN4042053Replaces Tennant 1208986 | 1 | Shaft, Input, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $54.60/EA |
| 7 | TN4042052Replaces Tennant 1208985 | 1 | Ring, Retaining, Ext, 16.2mm Id, HdPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $1.10/EA |
| 8 | TN4042055Replaces Tennant 1208989 | 1 | Sprocket, DblPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $12.10/EA |
| 9 | TN4042051Replaces Tennant 1208983 | 1 | Ring, Retaining, Ext, 11.5mm IdPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $2.10/EA |
| 10 | TN4042054Replaces Tennant 1208987 | 1 | Chain, Double, 3/8 Pitch, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $73.60/EA |
| 11 | TN4042057Replaces Tennant 1208999 | 1 | Washer, Large, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $6.80/EA |
| 12 | TN4042050Replaces Tennant 1208977 | 5 | Screw, Soc, M10 X 1.5 X 20, 12.9Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $1.20/EA |
| 13 | TN4042063Replaces Tennant 1209052 | 1 | Housing, Input [As Machined]Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $10.30/EA |
| 14 | TN4031243Replaces Tennant 33925 | 4 | Washer, Flat, M12Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $3.40/EA |
| 15 | TN4042396Replaces Tennant 1209966 | 1 | Retainer, Shaft, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $10.61/EA |
| 16 | TN4031195Replaces Tennant 368176 | 4 | Screw, Hex, M10 X 1.50 X 35, 10.9Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $4.00/EA |
| 17 | TN4038834Replaces Tennant 1210286 | 1 | Housing, Output, MachinedPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $614.08/EA |
| 18 | TN4042398Replaces Tennant 1209969 | 1 | Bearing, Ball, 3.74b, 6.69d, 2.19wPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $731.54/EA |
| 19 | TN4042397Replaces Tennant 1209968 | 1 | Cover, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $11.72/EA |
| 20 | TN4042395Replaces Tennant 1209965 | 1 | Retainer, Housing, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $47.80/EA |
| 21 | TN4034929Replaces Tennant 1062386 | 16 | Screw, Soc, M6 X 1.00 X 14, NlPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $1.30/EA |
| 22 | TN4034133Replaces Tennant 32483 | 8 | Washer, Flat, 0.25, SaePart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $2.50/EA |
| 23 | TN4016811Replaces Tennant 41358 | 6 | Screw, Soc, M10 X 1.50 X 35, 12.9Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $4.00/EA |
| 24 | TN4042393Replaces Tennant 1209964 | 1 | Sprocket Wldt, Output, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $181.90/EA |
| 25 | TN4042400Replaces Tennant 1209995 | 1 | Seal, Axial, Transmission [199 Vs R]Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $25.35/EA |
| 26 | TN4042391Replaces Tennant 1209960 | 1 | Gasket, Steering, TransmissionPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $15.76/EA |
| 27 | TN4041578Replaces Tennant 07259 | 1 | Fitting, Grease, Str Pm04 .47lPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $3.60/EA |
| 28 | TN4039233Replaces Tennant 1211952 | 2 | Tube, 0.74id 1.24od 0.47l, PyuPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $7.47/EA |
| 29 | TN4034138Replaces Tennant 32492 | 7 | Washer, Flat, 0.38, StdPart of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $2.50/EA |
| 30 | TN4019761Replaces Tennant 39285 | 7 | Screw, Hex, M10 X 1.50 X 40, 8.8Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $3.20/EA |
| 31 | TN4203187Replaces Tennant 16960 | 4 | Screw, Soc, M12 X 1.75 X 40, 12.9Part of Transmission Assy, Str, Afmkt [T17] (9013267). Serial up to 010999. | $6.70/EA |
| 32 | TN4041369Replaces Tennant 1206485 | 1 | Wheel Assy, Drive, Ac, W/O BrakeComplete assembly. Serial up to 010999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021545Replaces Tennant 9020266 | 1 | Tire, Assy, Front, Std, Red [T17]Part of Wheel Assy, Drive, Ac, W/O Brake (1206485). Serial up to 010999. | $3,796.40/EA |
| 32 | TN1208899Tennant 1208899 | 1 | Wheel Assy, Drive, Ac, W/O Brake, White (Optional)Complete assembly. Serial up to 010999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021546Replaces Tennant 9020267 | 1 | Tire Assy, Front, Opt, White [T17] (Optional)Part of Wheel Assy, Drive, Ac, W/O Brake, White (Optional) (1208899). Serial up to 010999. | $4,053.70/EA |

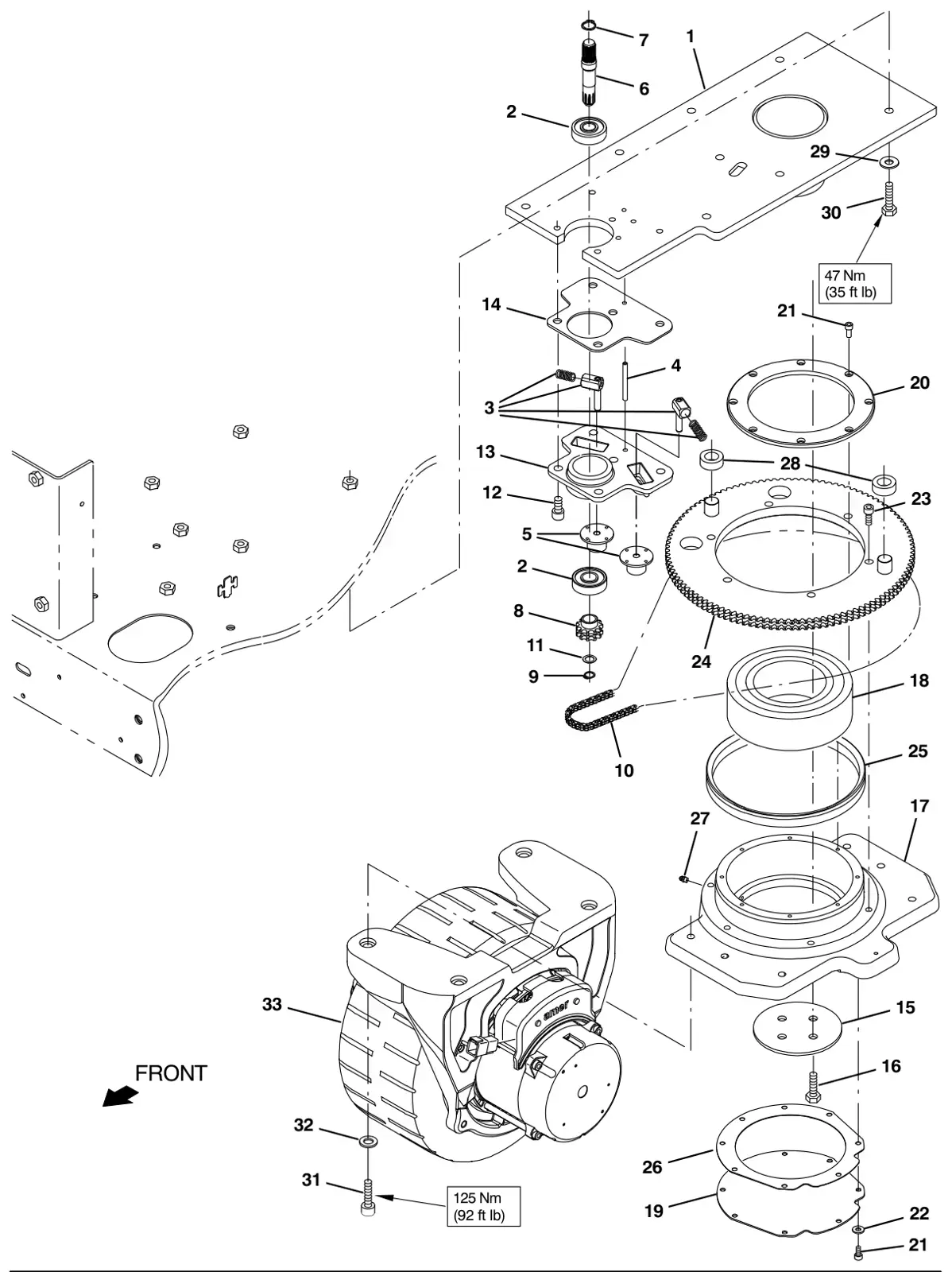

Tennant T17 drive Wheel Group (011000 -) parts
The parts Tennant numbers on its drive wheel group (011000 -) drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022899Replaces Tennant 9014997 | 1 | Transmission Assy, Str, Afmkt [T17/M17]Complete assembly. Serial 011000 and later. | $3,727.20/EA |
| 1 | TN4228155Replaces Tennant 1217322 | 1 | Plate Wldt, Attachment, FramePart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $647.01/EA |
| 2 | TN4042048Replaces Tennant 1208971 | 2 | Bearing, Ball, 0.67b, 1.85d, 0.55wPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $8.00/EA |
| 3 | TN4023702Replaces Tennant 9015632 | 1 | Tensioner Kit, Str Trans, Afmkt [T17/M17]Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $201.40/EA |
| 4 | TN4035684Replaces Tennant 26315 | Pin, Roll, .250d X 1.50l, .250/.256Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $2.40/EA | |
| 5 | TN4042049Replaces Tennant 1208974 | 2 | Tensioner, Chain, DblPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $5.10/EA |
| 6 | TN4042053Replaces Tennant 1208986 | 1 | Shaft, Input, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $54.60/EA |
| 7 | TN4042052Replaces Tennant 1208985 | 1 | Ring, Retaining, Ext, 16.2mm Id, HdPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $1.10/EA |
| 8 | TN4042055Replaces Tennant 1208989 | 1 | Sprocket, DblPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $12.10/EA |
| 9 | TN4042051Replaces Tennant 1208983 | 1 | Ring, Retaining, Ext, 11.5mm IdPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $2.10/EA |
| 10 | TN4042054Replaces Tennant 1208987 | 1 | Chain, Double, 3/8 Pitch, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $73.60/EA |
| 11 | TN4042057Replaces Tennant 1208999 | 1 | Washer, Flat, 0.50b 0.75d .02, StlPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $6.80/EA |
| 12 | TN4042050Replaces Tennant 1208977 | 5 | Screw, Soc, M10 X 1.5 X 20, 12.9Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $1.20/EA |
| 13 | TN4042063Replaces Tennant 1209052 | 1 | Housing, Input [As Machined]Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $10.30/EA |
| 14 | TN4224296Replaces Tennant 1225563 | 1 | Shim, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN4042396Replaces Tennant 1209966 | 1 | Retainer, Shaft, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $10.61/EA |
| 16 | TN4031195Replaces Tennant 368176 | 4 | Screw, Hex, M10 X 1.50 X 35, 10.9Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $4.00/EA |
| 17 | TN4038834Replaces Tennant 1210286 | 1 | Housing, Output, MachinedPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $614.08/EA |
| 18 | TN4042398Replaces Tennant 1209969 | 1 | Bearing, Ball, 3.74b, 6.69d, 2.19wPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $731.54/EA |
| 19 | TN4042397Replaces Tennant 1209968 | 1 | Cover, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $11.72/EA |
| 20 | TN4042395Replaces Tennant 1209965 | 1 | Retainer, Housing, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $47.80/EA |
| 21 | TN4034929Replaces Tennant 1062386 | 16 | Screw, Soc, M6 X 1.00 X 14, NlPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $1.30/EA |
| 22 | TN4034133Replaces Tennant 32483 | 8 | Washer, Flat, 0.25, SaePart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $2.50/EA |
| 23 | TN4016811Replaces Tennant 41358 | 6 | Screw, Soc, M10 X 1.50 X 35, 12.9Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $4.00/EA |
| 24 | TN4042393Replaces Tennant 1209964 | 1 | Sprocket Wldt, Output, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $181.90/EA |
| 25 | TN4042400Replaces Tennant 1209995 | 1 | Seal, Axial, Transmission [199 Vs R]Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $25.35/EA |
| 26 | TN4042391Replaces Tennant 1209960 | 1 | Gasket, Steering, TransmissionPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $15.76/EA |
| 27 | TN4041578Replaces Tennant 07259 | 1 | Fitting, Grease, Str Pm04 .47lPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $3.60/EA |
| 28 | TN4039233Replaces Tennant 1211952 | 2 | Tube, 0.74id 1.24od 0.47l, PyuPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $7.47/EA |
| 29 | TN4034138Replaces Tennant 32492 | 7 | Washer, Flat, 0.38, StdPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $2.50/EA |
| 30 | TN4019761Replaces Tennant 39285 | 7 | Screw, Hex, M10 X 1.50 X 40, 8.8Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $3.20/EA |
| 31 | TN4203187Replaces Tennant 16960 | 4 | Screw, Soc, M12 X 1.75 X 40, 12.9Part of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $6.70/EA |
| 32 | TN4031243Replaces Tennant 33925 | 4 | Washer, Flat, M12, SsPart of Transmission Assy, Str, Afmkt [T17/M17] (9014997). Serial 011000 and later. | $3.40/EA |
| 33 | TN4032202Replaces Tennant 1255929 | 1 | Wheel Assy, Drive, Ac, W/O BrakeComplete assembly. Serial 014726 and later. | $5,129.90/EA |
| – | TN4021545Replaces Tennant 9020266 | 1 | Tire, Assy, Front, Std, Red [T17]Part of Wheel Assy, Drive, Ac, W/O Brake (1255929). Serial 014226 and later. | $3,796.40/EA |
| 33 | TN4032204Replaces Tennant 1255930 | 1 | Wheel Assy, Drive, Ac, W/O Brake, White (Optional)Complete assembly. Serial 014726 and later. | $5,528.10/EA |
| – | TN4021546Replaces Tennant 9020267 | 1 | Tire Assy, Front, Opt, White [T17] (Optional)Part of Wheel Assy, Drive, Ac, W/O Brake, White (Optional) (1255930). Serial 014726 and later. | $4,053.70/EA |
| 33 | TN4034327Replaces Tennant 1244839 | 1 | Wheel Assy, Drive, Ac, W/O BrakeComplete assembly. Serial 011000 to 014725. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021545Replaces Tennant 9020266 | 1 | Tire, Assy, Front, Std, Red [T17]Part of Wheel Assy, Drive, Ac, W/O Brake (1244839). Serial 011000 to 014725. | $3,796.40/EA |
| 33 | TN1244840Tennant 1244840 | 1 | Wheel Assy, Drive, Ac, W/O Brake, White (Optional)Complete assembly. Serial 011000 to 014725. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021546Replaces Tennant 9020267 | 1 | Tire Assy, Front, Opt, White [T17] (Optional)Part of Wheel Assy, Drive, Ac, W/O Brake, White (Optional) (1244840). Serial 011000 to 014725. | $4,053.70/EA |

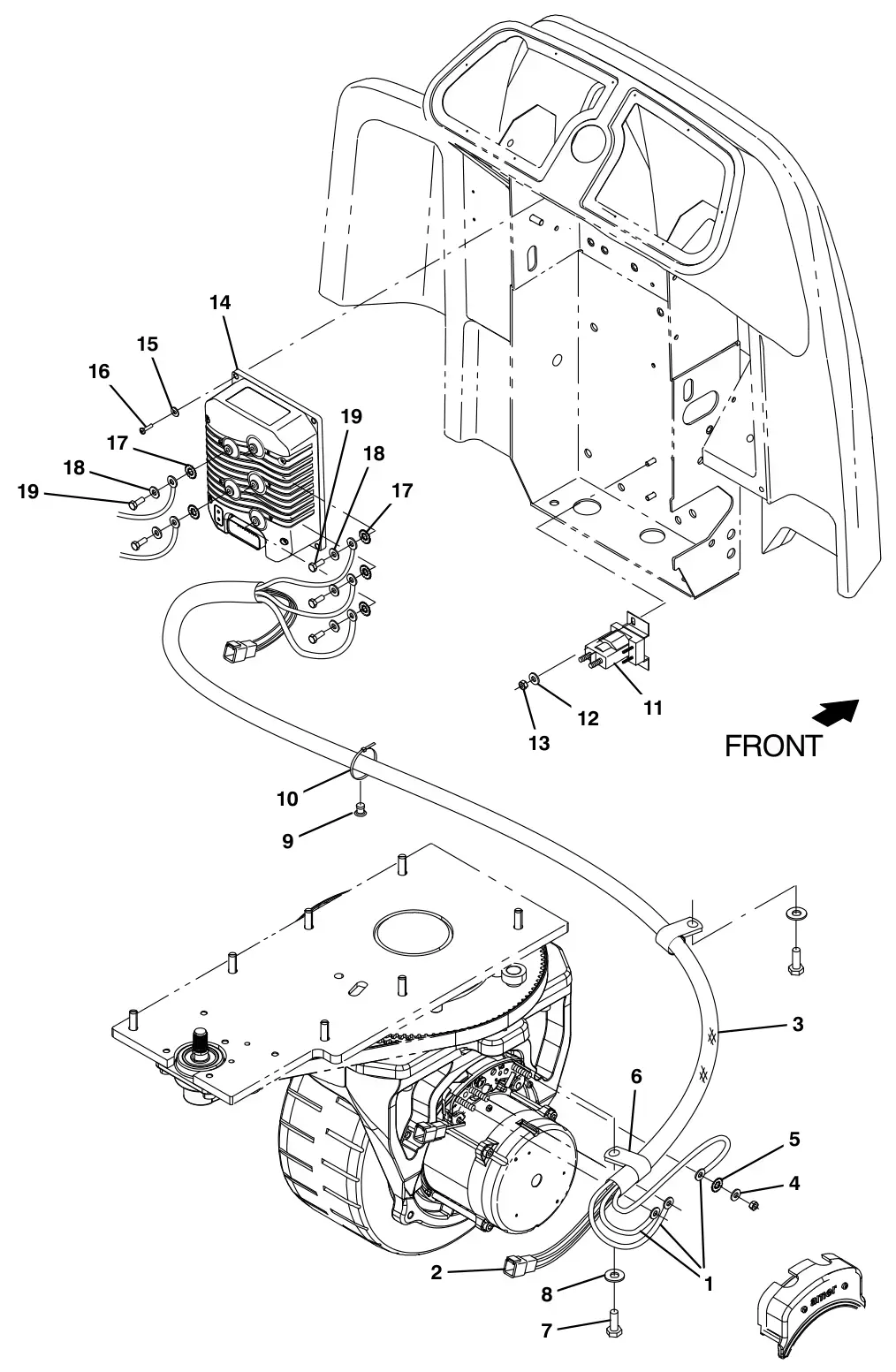

Tennant T17 drive Wheel Electrical Group (000000 - 010999) parts
The parts Tennant numbers on its drive wheel electrical group (000000 - 010999) drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4023270Replaces Tennant 1072951 | 1 | Harness, Cable, Propel Motor [T17] (Replaced by 9015274)Serial up to 010999. | $536.80/EA |
| 2 | TN4023270Replaces Tennant 1072952 | 1 | Harness, Ele, Propel Motor [T17] (Replaced by 9015274)Serial up to 010999. | $536.80/EA |
| 3 | TN4024609Replaces Tennant 82831 | 1 | Sleeve, Nyl, 1.63id 35.0lSerial up to 010999. | $24.80/EA |
| 4 | TN4015595Replaces Tennant 39349 | 3 | Washer, Flat, 0.31, SaeSerial up to 010999. | $2.50/EA |
| 5 | TN4034657Replaces Tennant 32984 | 3 | Washer, Lock, Int, 0.31Serial up to 010999. | $2.60/EA |
| 6 | TN4018310Replaces Tennant 69234 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeSerial up to 010999. | $4.20/EA |
| 7 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.00 X 16, SsSerial up to 010999. | $3.20/EA |
| 8 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial up to 010999. | $2.60/EA |
| 9 | TN4030489Replaces Tennant 1071085 | 1 | Clip, Tie, 0.25d, PlstcSerial up to 010999. | $1.60/EA |
| 10 | TN4011908Replaces Tennant 763114 | 1 | Tie, Cable, 11.3l, 2.75d MaxSerial up to 010999. | $3.30/EA |
| 11 | TN4022251Replaces Tennant 386810 | 2 | Contactor, 36vdc, 100a, Sp, NoSerial up to 010999. | $37.10/EA |
| 12 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flat, 0.25, SaeSerial up to 010999. | $2.50/EA |
| 13 | TN4016812Replaces Tennant 41359 | 2 | Nut, Hex, Std, M6 X 1.00, 8Serial up to 010999. | $3.40/EA |
| 14 | TN4038192Replaces Tennant 1207297 | 1 | Controller, Propel [Ac, 36v, 275a]Serial up to 010999. | $1,472.80/EA |
| 15 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, SsSerial up to 010999. | $2.60/EA |
| 16 | TN4035372Replaces Tennant 24265 | 4 | Screw, Pan, Phl, M4 X 0.70 X 16, SsSerial up to 010999. | $3.00/EA |
| 17 | TN4041590Replaces Tennant 07515 | 5 | Washer, Lock, Int, 0.25, SsSerial up to 010999. | $3.50/EA |
| 18 | TN4034133Replaces Tennant 32483 | 5 | Washer, Flat, 0.25, SaeSerial up to 010999. | $2.50/EA |
| 19 | TN4041270Replaces Tennant 06942 | 5 | Screw, Hex, M6 X 1.00 X 16, 8.8Serial up to 010999. | $2.50/EA |

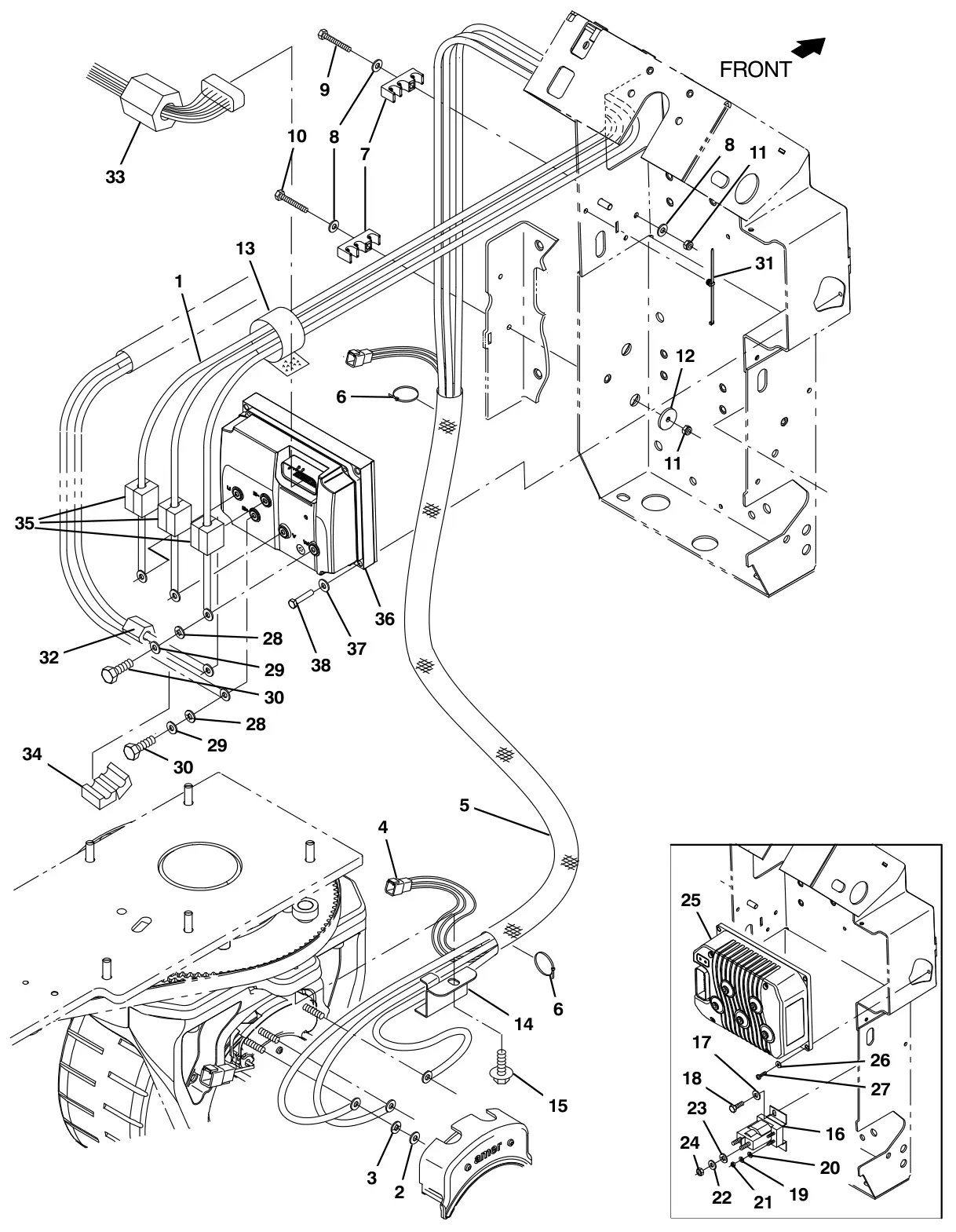

Tennant T17 drive Wheel Electrical Group (011000 -) parts
The parts Tennant numbers on its drive wheel electrical group (011000 -) drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044905Replaces Tennant 1074570 | 1 | Cable Assy, 02ga [T18/T17, Propel]Serial 011000 and later. | $311.70/EA |
| 2 | TN4015595Replaces Tennant 39349 | 3 | Washer, Flat, 0.31, SaeSerial 011000 and later. | $2.50/EA |
| 3 | TN4034657Replaces Tennant 32984 | 3 | Washer, Lock, Int, 0.31Serial 011000 and later. | $2.60/EA |
| 4 | TN4044979Replaces Tennant 1075150 | 1 | Harness, Ele, Propel Motor [M17, T17]Serial 011000 to 015784. | $37.20/EA |
| 4 | TN4210742Replaces Tennant 1266662 | 1 | Harness, Ele, Propel Motor [Inmotion M17/T17]Serial 015785 and later. | $97.57/EA |
| 5 | TN4043603Replaces Tennant 13773 | 1 | Sleeve, Nyl, 1.63id 20.0lSerial 011000 and later. | $13.90/EA |
| 6 | TN4011908Replaces Tennant 763114 | 2 | Tie, Cable, 11.3l, 2.75d MaxSerial 011000 and later. | $3.30/EA |
| 7 | TN4226315Replaces Tennant 1221794 | 4 | Clamp, Sppt, WireSerial 011000 and later. | $2.80/EA |
| 8 | TN4034133Replaces Tennant 32483 | 5 | Washer, Flat, 0.25, SaeSerial 011000 and later. | $2.50/EA |
| 9 | TN4041274Replaces Tennant 06946 | 1 | Screw, Hex, M6 X 1.00 X 35, 8.8Serial 011000 and later. | $3.40/EA |
| 10 | TN4041276Replaces Tennant 06948 | 1 | Screw, Hex, M6 X 1.00 X 45, 8.8Serial 011000 and later. | $4.00/EA |
| 11 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.00, NlSerial 011000 and later. | $2.50/EA |
| 12 | TN4021350Replaces Tennant 386063 | 1 | Washer, Flat, 0.25b 1.12d .12, SsSerial 011000 and later. | $5.80/EA |
| 13 | TN4042099Replaces Tennant 1209444 | 1 | Fastener, 11.00l [Hook & Loop]Serial 011000 and later. | $6.80/EA |
| 14 | TN4040523Replaces Tennant 1217751 | 1 | Clamp, CableSerial 011000 and later. | $15.80/EA |
| 15 | TN4044400Replaces Tennant 1040467 | 1 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsSerial 011000 and later. | $3.30/EA |
| 16 | TN4022251Replaces Tennant 386810 | 1 | Contactor, 36vdc, 100a, Sp, NoSerial 011000 to 015784. | $37.10/EA |
| 17 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flat, 0.25, SaeSerial 011000 to 015784. | $2.50/EA |
| 18 | TN4041270Replaces Tennant 06942 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Serial 011000 to 015784. | $2.50/EA |
| 19 | TN4042539Replaces Tennant 19324 | 2 | Washer, Flat, 10, SaeSerial 011000 to 015784. | $2.50/EA |
| 20 | TN4034653Replaces Tennant 32980 | 2 | Washer, Lock, Int, 10Serial 011000 to 015784. | $2.60/EA |
| 21 | TN4042939Replaces Tennant 01713 | 2 | Nut, Hex, Std, 10-32,Serial 011000 to 015784. | $2.50/EA |
| 22 | TN4015595Replaces Tennant 39349 | 2 | Washer, Flat, 0.31, SaeSerial 011000 to 015784. | $2.50/EA |
| 23 | TN4034657Replaces Tennant 32984 | 2 | Washer, Lock, Int, 0.31Serial 011000 to 015784. | $2.60/EA |
| 24 | TN4039080Replaces Tennant 20170 | 2 | Nut, Hex, Jam, .31-24Serial 011000 to 015784. | $2.50/EA |
| 25 | TN4038192Replaces Tennant 1225442 | 1 | Controller, Propel [Ac, 36v, 275a]Serial 011000 to 015784. | $1,472.80/EA |
| 26 | TN4042243Replaces Tennant 19065 | 4 | Washer, Flat, 0.19b 0.44d .05, Pl, 08Serial 011000 to 015784. | $3.20/EA |
| 27 | TN4041258Replaces Tennant 06927 | 4 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8Serial 011000 to 015784. | $3.30/EA |
| 28 | TN4041590Replaces Tennant 07515 | 5 | Washer, Lock, Int, 0.25, SsSerial 011000 and later. | $3.50/EA |
| 29 | TN4034133Replaces Tennant 32483 | 5 | Washer, Flat, 0.25, SaeSerial 011000 and later. | $2.50/EA |
| 30 | TN4041270Replaces Tennant 06942 | 5 | Screw, Hex, M6 X 1.00 X 16, 8.8Serial 011000 and later. | $2.50/EA |
| 31 | TN4037256Replaces Tennant 1221161 | 1 | Tie, Cable, Nyl, Push Mount, 76mm Max DSerial 011000 and later. | $6.00/EA |
| 32 | TN4044255Replaces Tennant 1039998 | 1 | Inductor, 32.5mml [Ferrite 25-300mhz] (Australia Only)Serial 011000 and later. | $9.19/EA |
| 33 | TN4040824Replaces Tennant 1052123 | 1 | Inductor, 18mmid [225 Imp At 25mhz] (Australia Only)Serial 011000 and later. | $22.51/EA |
| 34 | TN4044255Replaces Tennant 1039998 | 1 | Inductor, 32.5mmid [Ferrite 25-30Mhz] (Europe, Australia, Canada Only)Serial 011000 and later. | $9.19/EA |
| 35 | TN4040827Replaces Tennant 1052126 | 3 | Inductor, 12.7mmid [156 Imp At 25Mhz] (Europe, Australia, Canada Only)Serial 011000 and later. | $8.70/EA |
| 36 | TN4210707Replaces Tennant 1266456 | 1 | Controller, Propel [36V Ac, Inmotion]Serial 015785 and later. | $820.22/EA |
| 37 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaeSerial 015785 and later. | $2.50/EA |
| 38 | TN4041274Replaces Tennant 06946 | 4 | Screw, Hex, M6 X 1.00 X 35, 8.8Serial 015785 and later. | $3.40/EA |

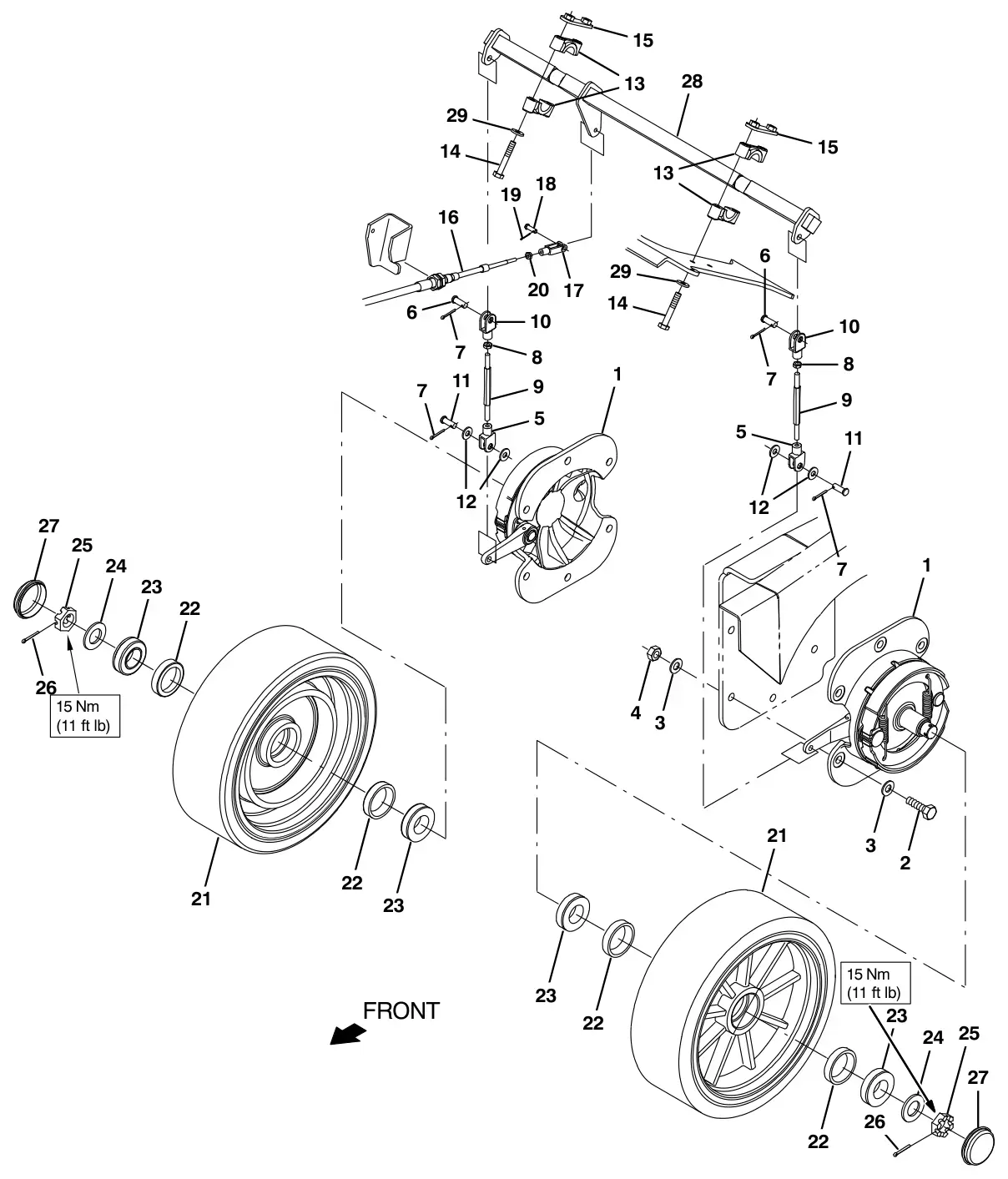

Tennant T17 rear Wheels and Brake Group parts
The parts Tennant numbers on its rear wheels and brake group drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4028659Replaces Tennant 54577 | 2 | Brake Assy, Drum, Mech, 07.9d [6600]Complete assembly. | $611.60/EA |
| – | TN4017920Replaces Tennant 66211 | 1 | Shoe Set, Brake [1pick=1pkg]Part of Brake Assy, Drum, Mech, 07.9d [6600] (54577). | $105.20/EA |
| – | TN8002847Replaces Tennant 66213 | 1 | Brake Kit, RepairPart of Brake Assy, Drum, Mech, 07.9d [6600] (54577). | $121.00/EA |
| – | TN4018543Replaces Tennant 70161 | 1 | ShaftPart of Brake Assy, Drum, Mech, 07.9d [6600] (54577). | $111.30/EA |
| – | TN4018542Replaces Tennant 70158 | 2 | SpringPart of Brake Assy, Drum, Mech, 07.9d [6600] (54577). | $6.00/EA |
| 2 | TN4041294Replaces Tennant 06969 | 12 | Screw, Hex, M12 X 1.75 X 40, 8.8 | $4.00/EA |
| 3 | TN4034135Replaces Tennant 32486 | 24 | Washer Flat,0.50,Sae | $2.60/EA |
| 4 | TN4041927Replaces Tennant 08711 | 12 | Nut, Hex, Lock, M12 X 1.75, Nl | $3.30/EA |
| – | TN4021518Replaces Tennant 9020231 | 2 | Brake Rod Kit, Afmkt [T17]Complete assembly. | $165.70/EA |
| 5 | TN4033540Replaces Tennant 1023677 | 2 | Clevis, Adj, 0.38pin, 0.31-24, Lh, PlPart of Brake Rod Kit, Afmkt [T17] (9020231). | $26.70/EA |
| 6 | TN4028054Replaces Tennant 76653 | 2 | Pin, Clevis, 0.37d X 1.00lPart of Brake Rod Kit, Afmkt [T17] (9020231). | $3.30/EA |
| 7 | TN4041914Replaces Tennant 08182 | 4 | Pin, Cotter, .125 X 1.00Part of Brake Rod Kit, Afmkt [T17] (9020231). | $2.50/EA |
| 8 | TN4039080Replaces Tennant 20170 | 2 | Nut, Hex, Jam, .31-24Part of Brake Rod Kit, Afmkt [T17] (9020231). | $2.50/EA |
| 9 | TN4041777Replaces Tennant 1207984 | 2 | Rod, Hex, Thd .31-24, 2-EndedPart of Brake Rod Kit, Afmkt [T17] (9020231). | $32.60/EA |
| 10 | TN4033539Replaces Tennant 1023676 | 2 | Clevis, Adj, 0.38pin, 0.31-24, PlPart of Brake Rod Kit, Afmkt [T17] (9020231). | $26.70/EA |
| 11 | TN4020732Replaces Tennant 630258 | 2 | Pin, Clevis, 0.38D X 1.00LPart of Brake Rod Kit, Afmkt [T17] (9020231). | $4.00/EA |
| 12 | TN4034137Replaces Tennant 32491 | 4 | Washer, flat, 0.31, StdPart of Brake Rod Kit, Afmkt [T17] (9020231). | $2.50/EA |
| 13 | TN4027058Replaces Tennant 381502 | 4 | Bearing, Split, 1.00b | $7.40/EA |
| 14 | TN4019755Replaces Tennant 39281 | 4 | Screw, Hex, M8 X 1.25 X 90, 8.8 | $4.00/EA |
| 15 | TN4041788Replaces Tennant 1208106 | 2 | Plate Wldt, Bearing Clamp | $15.30/EA |
| 16 | TN4041452Replaces Tennant 1207436 | 1 | Cable, Push / Pull, 052.6L .25-28/.25-28 | $98.50/EA |
| 17 | TN4044337Replaces Tennant 14595-1 | 1 | Clevis, Adj, 0.25pin, 0.25-28 Rh, Pl | $9.90/EA |
| 18 | TN4025137Replaces Tennant 605070 | 1 | Pin, Clevis, 0.25d X 0.79l | $4.00/EA |
| 19 | TN4041633Replaces Tennant 08178 | 1 | Pin, Cotter, .062 X 0.75 | $2.50/EA |
| 20 | TN4034503Replaces Tennant 32899 | 1 | Nut, Hex, Jam, .25-28 | $3.40/EA |
| – | TN4021542Replaces Tennant 9020263 | 2 | Tire Assy, Rear, Std (1) [T17]Complete assembly. | $1,090.80/EA |
| 21 | TN4039239Replaces Tennant 1212112 | 1 | Tire, Solid, 15.0 X 5.0, Poly, StdPart of Tire Assy, Rear, Std (1) [T17] (9020263). | $863.40/EA |
| – | TN4021544Replaces Tennant 9020265 | 1 | Wheel Bearing Kit, Rear, Afmkt [T17]Part of Tire Assy, Rear, Std (1) [T17] (9020263). | $207.10/EA |
| 22 | TN4014546Replaces Tennant 51338 | 2 | Bearing, Cup, 2.56d 0.55wPart of Tire Assy, Rear, Std (1) [T17] (9020263). | $11.70/EA |
| 23 | TN4014547Replaces Tennant 51339 | 2 | Bearing, Cone, 1.38b 0.71wPart of Tire Assy, Rear, Std (1) [T17] (9020263). | $46.30/EA |
| 24 | TN4034510Replaces Tennant 32969 | 1 | Washer, Flat, 1.00, SaePart of Tire Assy, Rear, Std (1) [T17] (9020263). | $4.10/EA |
| 25 | TN4044320Replaces Tennant 14242 | 1 | Nut, Hex, Sltd, 1.00-20Part of Tire Assy, Rear, Std (1) [T17] (9020263). | $11.80/EA |
| 26 | TN4041916Replaces Tennant 08202 | 1 | Pin, Cotter, .125 X 1.75Part of Tire Assy, Rear, Std (1) [T17] (9020263). | $3.40/EA |
| 27 | TN4015370Replaces Tennant 54390 | 1 | Cap, Hub, Dust, 2.57d 0.77lPart of Tire Assy, Rear, Std (1) [T17] (9020263). | $13.50/EA |
| – | TN4021543Replaces Tennant 9020264 | 2 | Tire Assy, Rear, High Traction (1) [T17] (Option)Complete assembly. | $1,594.40/EA |
| 21 | TN4034010Replaces Tennant 1242235 | 1 | Tire, Solid, 15.0 X 5.0 [Hi-Traction]Part of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $763.30/EA |
| – | TN4021544Replaces Tennant 9020265 | 1 | Wheel Bearing Kit, Rear, Afmkt [T17]Part of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $207.10/EA |
| 22 | TN4014546Replaces Tennant 51338 | 2 | Bearing, Cup, 2.56d 0.55wPart of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $11.70/EA |
| 23 | TN4014547Replaces Tennant 51339 | 2 | Bearing, Cone, 1.38b 0.71wPart of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $46.30/EA |
| 24 | TN4034510Replaces Tennant 32969 | 1 | Washer, Flat, 1.00, SaePart of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $4.10/EA |
| 25 | TN4044320Replaces Tennant 14242 | 1 | Nut, Hex, Sltd, 1.00-20Part of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $11.80/EA |
| 26 | TN4041916Replaces Tennant 08202 | 1 | Pin, Cotter, .125 X 1.75Part of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $3.40/EA |
| 27 | TN4015370Replaces Tennant 54390 | 1 | Cap, Hub, Dust, 2.57d 0.77lPart of Tire Assy, Rear, High Traction (1) [T17] (Option) (9020264). | $13.50/EA |
| 28 | TN4041432Replaces Tennant 1207184 | 1 | Shaft Wldt, Brake | $290.17/EA |
| 29 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flat, 0.31, Sae | $2.50/EA |

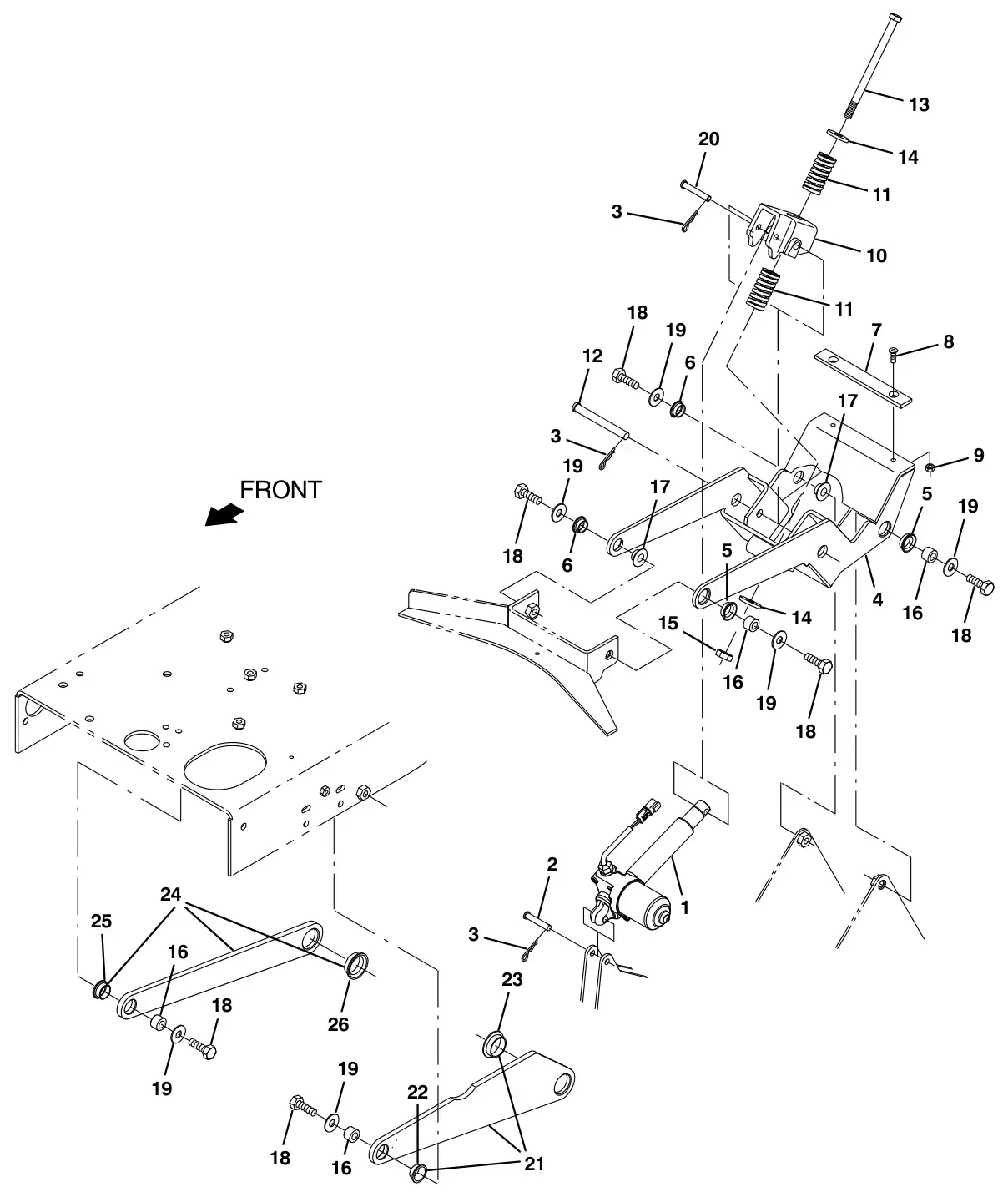

Tennant T17 scrub Head Lift Group parts
The parts Tennant numbers on its scrub head lift group drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041365Replaces Tennant 1206470 | 1 | Actuator, 36vdc, 5.00strk, 1100lb | $475.40/EA |
| 2 | TN4036077Replaces Tennant 29584 | 1 | Pin, Clevis, 0.37d X 2.00l | $3.90/EA |
| 3 | TN4017779Replaces Tennant 44906 | 3 | Pin, Cotter, Hair, 0.38d .093 Wir | $4.00/EA |
| – | TN4021533Replaces Tennant 9020250 | 1 | Link Assy, Lift, Head, Afmkt [T17]Complete assembly. | $341.50/EA |
| 4 | TN4222773Replaces Tennant 1233055 | 1 | Arm Wldt, LiftPart of Link Assy, Lift, Head, Afmkt [T17] (9020250). | $291.60/EA |
| 5 | TN4043535Replaces Tennant 1037827 | 2 | Bushing, Flng, 0.88b 1.0d 0.37lPart of Link Assy, Lift, Head, Afmkt [T17] (9020250). | $5.30/EA |
| 6 | TN4040953Replaces Tennant 04928 | 2 | Bushing, Flng, 0.50b 0.59d 0.38lPart of Link Assy, Lift, Head, Afmkt [T17] (9020250). | $10.50/EA |
| 7 | TN4041072Replaces Tennant 1205133 | 1 | Pad, Stop, RbrPart of Link Assy, Lift, Head, Afmkt [T17] (9020250). | $15.25/EA |
| 8 | TN4041837Replaces Tennant 16879 | 2 | Screw, Flt, Soc, M6 X 1.00 X 20, 10.9Part of Link Assy, Lift, Head, Afmkt [T17] (9020250). | $4.00/EA |
| 9 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Link Assy, Lift, Head, Afmkt [T17] (9020250). | $2.50/EA |
| 10 | TN4042379Replaces Tennant 1209769 | 1 | Bellcrank, Spring, Machined | $147.00/EA |
| 11 | TN4041801Replaces Tennant 1208208 | 2 | Spring, Cmpr, 1.25od Flat Wir 02.5l | $29.40/EA |
| 12 | TN4026850Replaces Tennant 59668 | 1 | Pin, Clevis, 0.50d X 4.50l | $5.10/EA |
| 13 | TN4039472Replaces Tennant 1212623 | 1 | Screw, Hex, M12 X 1.75 X 180, 8.8 | $3.90/EA |
| 14 | TN4031667Replaces Tennant 35843 | 2 | Washer, Flat, 0.53b 1.50d .19, Stl | $4.10/EA |
| 15 | TN4041993Replaces Tennant 09741 | 1 | Nut, Hex, Lock, M12 X 1.75, Nl, Ss | $5.80/EA |
| 16 | TN4038831Replaces Tennant 1210262 | 4 | Sleeve, P/M, 0.50b 0.87d 0.6l [430ss] | $3.90/EA |
| 17 | TN4042414Replaces Tennant 1210177 | 2 | Sleeve, P/M, Flng, 0.50b 1.25/0.75d 0.4l | $4.10/EA |
| 18 | TN4041294Replaces Tennant 06969 | 6 | Screw, Hex, M12 X 1.75 X 40, 8.8 | $4.00/EA |
| 19 | TN4042415Replaces Tennant 1210179 | 6 | Washer, Flat, 0.50b 1.25d 0.8, Stl, Pl | $2.20/EA |
| 20 | TN4040229Replaces Tennant 222260 | 1 | Pin, Clevis, 0.37d X 2.25l | $3.30/EA |
| 21 | TN4021534Replaces Tennant 9020251 | 1 | Plate Assy, Side, Head, Afmkt [T17]Complete assembly. | $121.50/EA |
| 22 | TN4038866Replaces Tennant 1210630 | 1 | Bushing, Flng, 0.88b 1.0d 0.50lPart of Plate Assy, Side, Head, Afmkt [T17] (9020251). | $4.00/EA |
| 23 | TN4038864Replaces Tennant 1210624 | 1 | Bushing, Flng, 1.25b 1.41d 0.50lPart of Plate Assy, Side, Head, Afmkt [T17] (9020251). | $6.20/EA |
| 24 | TN4021536Replaces Tennant 9020253 | 1 | Plate Assy, Side, Head, Afmkt [T17]Complete assembly. | $81.50/EA |
| 25 | TN4038866Replaces Tennant 1210630 | 1 | Bushing, Flng, 0.88b 1.0d 0.50lPart of Plate Assy, Side, Head, Afmkt [T17] (9020253). | $4.00/EA |
| 26 | TN4038864Replaces Tennant 1210624 | 1 | Bushing, Flng, 1.25b 1.41d 0.50lPart of Plate Assy, Side, Head, Afmkt [T17] (9020253). | $6.20/EA |

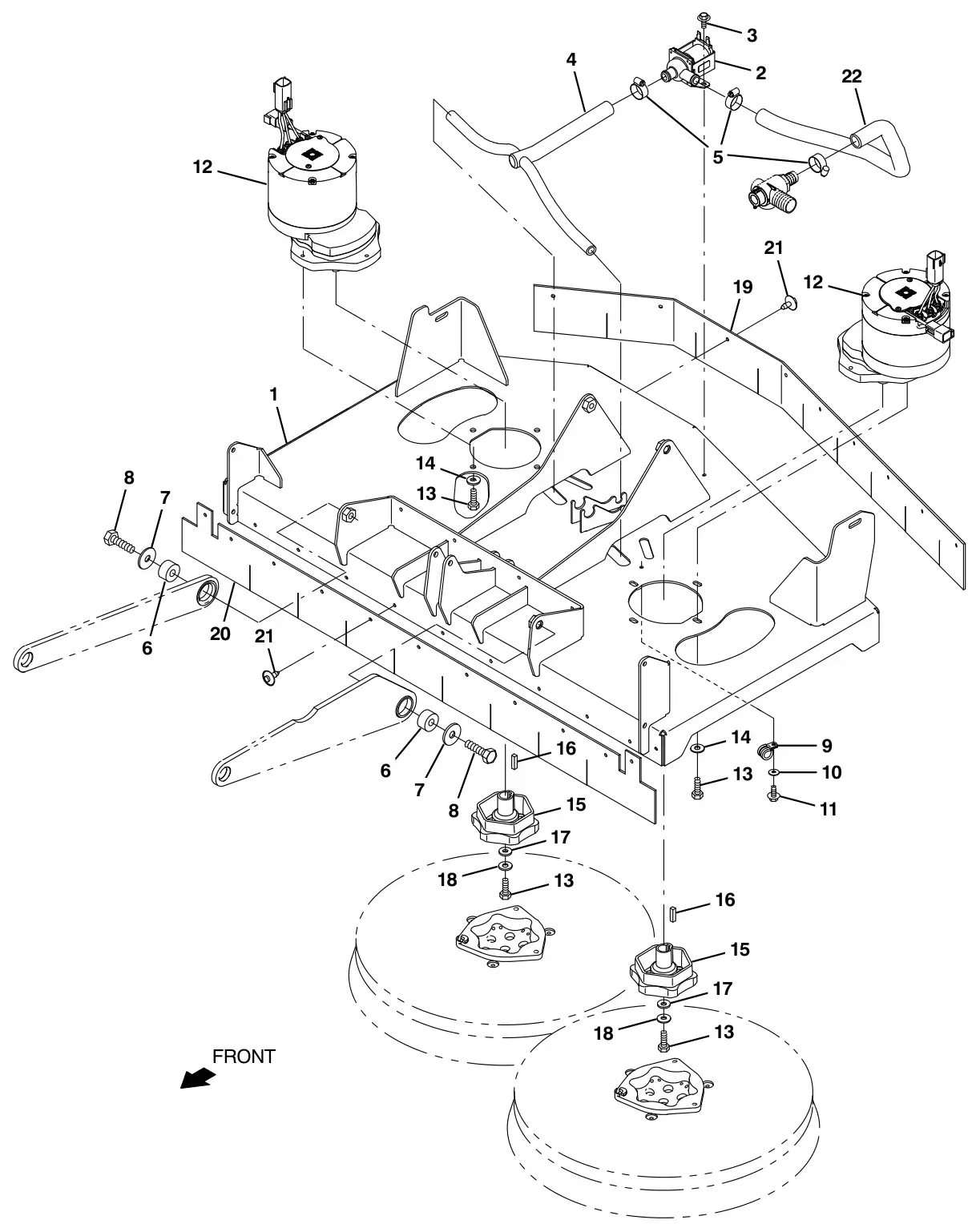

Tennant T17 scrub Head and Drive Motor Group, Disk parts
The parts Tennant numbers on its scrub head and drive motor group, disk drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039747Replaces Tennant 1213200 | 1 | Head Wldt, DiskSerial up to 010999. | $453.60/EA |
| 1 | TN4037502Replaces Tennant 1222545 | 1 | Head Wldt, DiskSerial 011000 and later. | $559.60/EA |
| 2 | TN4024342Replaces Tennant 9016496 | 1 | Valve Kit, Replacement 36V Hi FlowSerial up to 011669. | $111.10/EA |
| 2 | TN4042880Replaces Tennant 1076691 | 1 | Valve, Water, Solenoid-36VSerial 011670 and later. | $144.30/EA |
| 3 | TN4012782Replaces Tennant 74455 | 2 | Screw, Hex, M6 X 1.00 X 12, Fmg | $3.40/EA |
| 4 | TN4041071Replaces Tennant 1205131 | 1 | Manifold, Soltn | $92.40/EA |
| 5 | TN4017089Replaces Tennant 63810 | 3 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 6 | TN4038869Replaces Tennant 1210660 | 2 | Pivot, Lift | $21.80/EA |
| 7 | TN4038870Replaces Tennant 1210667 | 2 | Washer, Flat, 0.5b 1.5d .12, Stl, Pl | $4.10/EA |
| 8 | TN4041294Replaces Tennant 06969 | 2 | Screw, Hex, M12 X 1.75 X 40, 8.8 | $4.00/EA |
| 9 | TN4041588Replaces Tennant 07471 | 2 | Clamp, Cable, Stl, 0.75d X 0.75w, 1hole | $3.60/EA |
| 10 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 11 | TN4039851Replaces Tennant 222158 | 2 | Screw, Hex, M6 X 1.00 X 10, Fmg | $3.40/EA |
| – | TN4021523Replaces Tennant 9020238 | 2 | Motor Assy, Disk, Afmkt [T17]Complete assembly. | $1,862.80/EA |
| 12 | TN4029989Replaces Tennant 1204356 | 1 | Motor, Ele, 36vdc, 350 Rpm 1.5hp GearPart of Motor Assy, Disk, Afmkt [T17] (9020238). | $671.15/EA |
| 13 | TN4041943Replaces Tennant 09010 | 5 | Screw, Hex, M8 X 1.25 X 25, SsPart of Motor Assy, Disk, Afmkt [T17] (9020238). | $3.30/EA |
| 14 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flat, 0.38b 0.88d .08, SsPart of Motor Assy, Disk, Afmkt [T17] (9020238). | $2.60/EA |
| 15 | TN4025667Replaces Tennant 377364 | 1 | Hub, Drive, Brush, Disk, 0.75b [6t]Part of Motor Assy, Disk, Afmkt [T17] (9020238). | $186.50/EA |
| 16 | TN4042785Replaces Tennant 00928 | 1 | Key, Sq, 0.25 X 0.25, 1.00lPart of Motor Assy, Disk, Afmkt [T17] (9020238). | $3.60/EA |
| 17 | TN4016796Replaces Tennant 41186 | 1 | Washer, Flat, Belleville, .31Part of Motor Assy, Disk, Afmkt [T17] (9020238). | $3.50/EA |
| 18 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, SsPart of Motor Assy, Disk, Afmkt [T17] (9020238). | $3.30/EA |
| – | TN4021527Replaces Tennant 9020242 | 1 | Skirt Kit, Disk, Afmkt [T17]Complete assembly. | $89.20/EA |
| 19 | TN4040877Replaces Tennant 1204458 | 1 | Skirt, Rbr, RearPart of Skirt Kit, Disk, Afmkt [T17] (9020242). | $20.80/EA |
| 20 | TN4040878Replaces Tennant 1204460 | 1 | Skirt, Rbr, FrontPart of Skirt Kit, Disk, Afmkt [T17] (9020242). | $29.60/EA |
| 21 | TN4016302Replaces Tennant 72968 | 20 | Rivet, Plstc, .250d X 0.90Part of Skirt Kit, Disk, Afmkt [T17] (9020242). | $3.20/EA |
| 22 | TN4042463Replaces Tennant 1045041 | 1 | Hose, Afmkt, Pvc, Wir, 0.75 Id, 03Ft, Clr | $35.10/EA |
Tennant T17 scrub Head Frame Group, Cylindrical parts
The parts Tennant numbers on its scrub head frame group, cylindrical drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039543Replaces Tennant 1213161 | 1 | Housing Wldt, Scb, Cyl | $413.40/EA |
| 2 | TN4040919Replaces Tennant 1205011 | 1 | Clamp Bracket, Distribution | $42.90/EA |
| 3 | TN4037385Replaces Tennant 223198 | 2 | Screw, Hex, M5 X 0.80 X 10, Fmg | $4.00/EA |
| 4 | TN4040918Replaces Tennant 1205010 | 1 | Manifold, Bar, Spray | $173.10/EA |
| 5 | TN4024342Replaces Tennant 9016496 | 1 | Valve Kit, Replacement 36V Hi FlowSerial up to 011669. | $111.10/EA |
| 5 | TN4042880Replaces Tennant 1076691 | 1 | Valve, Water, Solenoid-36VSerial 011670 and later. | $144.30/EA |
| 6 | TN4012782Replaces Tennant 74455 | 2 | Screw, Hex, M6 X 1.00 X 12, Fmg | $3.40/EA |
| 7 | TN4017089Replaces Tennant 63810 | 3 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 8 | TN4042463Replaces Tennant 1045041 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 03ft, Clr | $35.10/EA |
| 9 | TN4038863Replaces Tennant 1210618 | 2 | Pivot Wldt | $27.00/EA |
| 10 | TN4016789Replaces Tennant 41143 | 2 | Washer, Lock, Int-Ext, 0.50 | $3.10/EA |
| 11 | TN4041296Replaces Tennant 06971 | 2 | Screw, Hex, M12 X 1.75 X 50, 8.8 | $4.00/EA |
| 12 | TN4042415Replaces Tennant 1210179 | 2 | Washer, Flat, 0.50b 1.25d 0.8, Stl, Pl | $2.20/EA |
| 13 | TN4038889Replaces Tennant 1210807 | 3 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| – | TN4021507Replaces Tennant 9020215 | 1 | Tray Kit, Debris, Cyl, Afmkt [T17]Complete assembly. | $535.70/EA |
| 14 | TN4041419Replaces Tennant 1207108 | 1 | Hopper, Debris, TrimmedPart of Tray Kit, Debris, Cyl, Afmkt [T17] (9020215). | $283.90/EA |
| 15 | TN4041422Replaces Tennant 1207126 | 1 | Angle, Stl, Perforated .03Part of Tray Kit, Debris, Cyl, Afmkt [T17] (9020215). | $53.50/EA |
| 16 | TN4041423Replaces Tennant 1207127 | 1 | Lip, Tray, DebrisPart of Tray Kit, Debris, Cyl, Afmkt [T17] (9020215). | $66.60/EA |
| 17 | TN4018300Replaces Tennant 68567 | 7 | Rivet, Blind, .188d X 0.53 X .62d, AlmPart of Tray Kit, Debris, Cyl, Afmkt [T17] (9020215). | $3.20/EA |
| 18 | TN4034948Replaces Tennant 1227455 | 1 | Bracket, Sppt, Debris Tray [T17/M17]Part of Tray Kit, Debris, Cyl, Afmkt [T17] (9020215). | $19.40/EA |
Tennant T17 scrub Head Drive Motors Group, Cylindrical parts
The parts Tennant numbers on its scrub head drive motors group, cylindrical drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021521Replaces Tennant 9020235 | 2 | Panel Assy, Cyl, Afmkt [T17]Complete assembly. | $850.20/EA |
| 1 | TN4040888Replaces Tennant 1204637 | 1 | Plate, Side, WrapPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $145.10/EA |
| 2 | TN4040887Replaces Tennant 1204634 | 1 | Spacer, BrgPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $12.80/EA |
| 3 | TN4013455Replaces Tennant 46390 | 3 | Bearing, Ball, 0.79b 1.85d 0.55wPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $16.00/EA |
| 4 | TN4040893Replaces Tennant 1204643 | 1 | Shaft, Drive, BrushPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $105.50/EA |
| 5 | TN4040905Replaces Tennant 1204881 | 1 | Plug, Drive, BrushPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $63.10/EA |
| 6 | TN4042777Replaces Tennant 00911 | 2 | Key, Sq, 0.19 X 0.19, 0.75lPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.60/EA |
| 7 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.40/EA |
| 8 | TN4016796Replaces Tennant 41186 | 2 | Washer, Flat, Belleville, .31Part of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.50/EA |
| 9 | TN4034939Replaces Tennant 12273 | 2 | Screw, Hex, M8 X 1.25 X 20, Nl, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $4.00/EA |
| 10 | TN4040890Replaces Tennant 1204639 | 1 | Sheave, 09grv, 4.13pd 0.75b [Pj]Part of Panel Assy, Cyl, Afmkt [T17] (9020235). | $49.60/EA |
| 11 | TN4040891Replaces Tennant 1204640 | 1 | Belt Kit, DrivePart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $26.90/EA |
| – | TN4021530Replaces Tennant 9020245 | 1 | Cover Kit, Belt, Cyl, Afmkt [T7] (2 Kits Required)Part of Panel Assy, Cyl, Afmkt [T17] (9020235). | $80.10/EA |
| 12 | TN4040904Replaces Tennant 1204880 | 1 | Gasket, Belt, CoverPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $9.00/EA |
| 13 | TN4040892Replaces Tennant 1204642 | 1 | Cover, BeltPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $14.70/EA |
| 14 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.30/EA |
| – | TN4021525Replaces Tennant 9020240 | 2 | Door Assy, Idler, Cyl, Afmkt [T17] (2 Kits Required)Part of Panel Assy, Cyl, Afmkt [T17] (9020235). | $310.10/EA |
| 15 | TN4040900Replaces Tennant 1204790 | 1 | Plug, Idler, BrushPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $51.90/EA |
| 16 | TN4035690Replaces Tennant 26428 | 1 | Ring, Retaining, Ext, 0.75d, HdPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.90/EA |
| 17 | TN4035877Replaces Tennant 1056838 | 1 | Retainer, Brg, Iron GrayPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $11.60/EA |
| 18 | TN4041990Replaces Tennant 09738 | 4 | Screw, Hex, M5 X 0.80 X 12, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.30/EA |
| 19 | TN4040901Replaces Tennant 1204791 | 1 | Cam, Adj, BrushPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $37.30/EA |
| 20 | TN4041948Replaces Tennant 09028 | 1 | Screw, Hex, M10 X 1.50 X 25, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $4.00/EA |
| 21 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.30/EA |
| 22 | TN4040876Replaces Tennant 1204441 | 1 | Cover, Plug, IdlerPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $76.40/EA |
| 23 | TN4032799Replaces Tennant 1066397 | 1 | LatchPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $17.30/EA |
| 24 | TN4014173Replaces Tennant 49697 | 3 | Screw, Pan, Phl, M4 X 0.70 X 10, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.40/EA |
| 25 | TN4021696Replaces Tennant 386274 | 1 | Hook Wldt, LatchPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $25.30/EA |
| 26 | TN4014211Replaces Tennant 50335 | 2 | Nut, Hex, Std, M5 X 0.80, 8Part of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.30/EA |
| 27 | TN4041942Replaces Tennant 09007 | 5 | Screw, Hex, M6 X 1.00 X 25, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $3.30/EA |
| 28 | TN4042901Replaces Tennant 01684 | 5 | Washer, Flat, 0.27b 0.69d .05, SsPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $2.60/EA |
| 29 | TN4039498Replaces Tennant 1212849 | 1 | Tool, Installation, BeltPart of Panel Assy, Cyl, Afmkt [T17] (9020235). | $77.80/EA |
| – | TN4021524Replaces Tennant 9020239 | 2 | Motor Assy, Cyl, Afmkt [T17]Complete assembly. | $1,606.30/EA |
| 30 | TN4040889Replaces Tennant 1204638 | 1 | Sheave, 09grv, 1.18pd 0.55b [Pj]Part of Motor Assy, Cyl, Afmkt [T17] (9020239). | $52.20/EA |
| 31 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mmlPart of Motor Assy, Cyl, Afmkt [T17] (9020239). | $4.20/EA |
| 32 | TN4037061Replaces Tennant 222818 | 1 | Screw, Set, Soc, 08-32 X 0.25, NlPart of Motor Assy, Cyl, Afmkt [T17] (9020239). | $6.60/EA |
| 33 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsPart of Motor Assy, Cyl, Afmkt [T17] (9020239). | $3.40/EA |
| 34 | TN4016795Replaces Tennant 41185 | 1 | Washer, Flat, Belleville, .25Part of Motor Assy, Cyl, Afmkt [T17] (9020239). | $3.40/EA |
| 35 | TN4041272Replaces Tennant 06944 | 1 | Screw, Hex, M6 X 1.00 X 16Part of Motor Assy, Cyl, Afmkt [T17] (9020239). | $2.50/EA |
| 36 | TN4041245Replaces Tennant 15678 | 4 | Screw, Hex, M6 X 1.00 X 16, SsPart of Motor Assy, Cyl, Afmkt [T17] (9020239). | $3.20/EA |
| 37 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsPart of Motor Assy, Cyl, Afmkt [T17] (9020239). | $2.60/EA |
| 38 | TN4029990Replaces Tennant 1204357 | 1 | Motor, Ele, 36vdc, 1750 Rpm 1.5hpPart of Motor Assy, Cyl, Afmkt [T17] (9020239). | $558.73/EA |
| – | TN4021522Replaces Tennant 9020237 | 2 | Belt, Kit, Cyl, Afmkt [T17]Complete assembly. | $193.30/EA |
| 39 | TN4040891Replaces Tennant 1204640 | 1 | Belt, DrivePart of Belt, Kit, Cyl, Afmkt [T17] (9020237). | $26.90/EA |
| 40 | TN4039498Replaces Tennant 1212849 | 1 | Tool, Installation, BeltPart of Belt, Kit, Cyl, Afmkt [T17] (9020237). | $77.80/EA |
Tennant T17 scrub Head Side Squeegee Group, Right Hand (000000 - 015134) parts
The parts Tennant numbers on its scrub head side squeegee group, right hand (000000 - 015134) drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4025930Replaces Tennant 9013756 | 1 | Squeegee Kit, Side, RhComplete assembly. Serial 010468 to 015134. | $264.32/EA |
| 1 | TN4040498Replaces Tennant 1216949 | 1 | Retainer Assy, Side Sqge, With LatchPart of Squeegee Kit, Side, Rh (9013756). Serial 010468 to 015134. | $71.20/EA |
| 2 | TN4039225Replaces Tennant 1211884 | 1 | Guide, Sqge, SidePart of Squeegee Kit, Side, Rh (9013756). Serial 010468 to 015134. | $11.10/EA |
| 3 | TN4042526Replaces Tennant 1045487 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, BlkPart of Squeegee Kit, Side, Rh (9013756). Serial 010468 to 015134. | $1.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Squeegee Kit, Side, Rh (9013756). Serial 010468 to 015134. | $3.30/EA |
| 5 | TN4040499Replaces Tennant 1216950 | 1 | Holder Wldt, blade, RhPart of Squeegee Kit, Side, Rh (9013756). Serial 010468 to 015134. | $82.00/EA |
| 6 | TN4039749Replaces Tennant 1213211 | 1 | Blade, Sqge, Side, LinatexPart of Squeegee Kit, Side, Rh (9013756). Serial up to 015134. | $82.80/EA |
| 7 | TN4039534Replaces Tennant 1213093 | 1 | Bracket Wldt, Pivot, SqgeSerial up to 015134. | $39.90/EA |
| 8 | TN4014572Replaces Tennant 51538 | 1 | Pin, Clevis, 0.50d X 5.00lSerial up to 015134. | $11.80/EA |
| 9 | TN4041918Replaces Tennant 08236 | 1 | Pin, Cotter, .156 X 1.25Serial up to 015134. | $3.40/EA |
| – | TN4021528Replaces Tennant 9020243 | 1 | Arm Kit, Sqge, Front, Rh, AfmktComplete assembly. Serial up to 015134. | $190.40/EA |
| 10 | TN4039530Replaces Tennant 1213061 | 1 | Arm Wldt, Front, RhPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $60.70/EA |
| 11 | TN4015663Replaces Tennant 71607 | 1 | Bushing, Sleeve, 0.63b 0.72d 0.38lPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $12.50/EA |
| 12 | TN4033219Replaces Tennant 1022846 | 2 | Nut, T, M10 X 1.50 X 15.80od X 13.0lPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $20.00/EA |
| 13 | TN4029965Replaces Tennant 1267143 | 2 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $1.01/EA |
| 14 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $5.80/EA |
| 15 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $3.30/EA |
| 16 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Part of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $3.30/EA |
| 17 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38lPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $10.60/EA |
| 18 | TN4040947Replaces Tennant 04846 | 1 | Washer, Thrust, 0.79b 1.42d 0.06[Garlok]Part of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $10.00/EA |
| 19 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyePart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $24.20/EA |
| 20 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $3.40/EA |
| 21 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $49.60/EA |
| 22 | TN4036962Replaces Tennant 10120 | 1 | Clevis, 0.31d X 0.75lPart of Arm Kit, Sqge, Front, Rh, Afmkt (9020243). Serial up to 015134. | $3.40/EA |
| 23 | TN4021790Replaces Tennant 386391 | 1 | Bracket, Latch, Dbl Scb, Sqge, SideSerial up to 015134. | $9.60/EA |
| 24 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial up to 015134. | $5.10/EA |
| – | TN4021529Replaces Tennant 9020244 | 1 | Arm Kit, Sqge, Rear, Rh, AfmktComplete assembly. Serial up to 015134. | $193.50/EA |
| 25 | TN4039529Replaces Tennant 1213060 | 1 | Arm Wldt, Rear, RhPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $55.70/EA |
| 26 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $12.50/EA |
| 27 | TN4033219Replaces Tennant 1022846 | 2 | Nut, T, M10 X 1.50 X 15.80od X 13.0lPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $20.00/EA |
| 28 | TN4029965Replaces Tennant 1267143 | 5 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $1.01/EA |
| 29 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Part of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $3.30/EA |
| 30 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $5.80/EA |
| 31 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $3.30/EA |
| 32 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyePart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $24.20/EA |
| 33 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $3.40/EA |
| 34 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $49.60/EA |
| 35 | TN4036962Replaces Tennant 10120 | 1 | Clevis, 0.31d X 0.75lPart of Arm Kit, Sqge, Rear, Rh, Afmkt (9020244). Serial up to 015134. | $3.40/EA |
| 36 | TN4032742Replaces Tennant 1065134 | 1 | Latch, Cmpr, Yel GripSerial up to 015134. | $26.80/EA |
| 37 | TN4041828Replaces Tennant 16735 | 2 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial up to 015134. | $3.40/EA |
| 38 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial up to 015134. | $3.30/EA |
| 39 | TN4029965Replaces Tennant 1267143 | 2 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkSerial up to 015134. | $1.01/EA |
| 40 | TN4039772Replaces Tennant 1213266 | 1 | Blade, Sqge, Side, Urethane (Option)Serial up to 015134. | $184.80/EA |
| 40 | TN4039774Replaces Tennant 1213267 | 1 | Blade, Sqge, Side, Rubber (Option)Serial up to 015134. | $30.00/EA |
| 41 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial up to 015134. | $2.60/EA |
| 42 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.00 X 16, SsSerial up to 015134. | $3.20/EA |
| 43 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial up to 015134. | $2.50/EA |
| 44 | TN4039518Replaces Tennant 1213007 | 1 | Arm Wldt, RhSerial up to 015134. | $312.50/EA |
| 45 | TN4038843Replaces Tennant 1210430 | 1 | Retainer Wldt, Side Sqge, With Latch (Repl by 9013756)Serial up to 010467. | $56.60/EA |
| 46 | TN4039762Replaces Tennant 1213229 | 1 | Holder Wldt, Blade, Rh (Repl by 9013756)Serial up to 010467. | $76.30/EA |
| 47 | TN4034053Replaces Tennant 1243007 | 1 | Gasket, Cushion, Side Squeegee DoorSerial up to 015134. | $29.00/EA |
Tennant T17 scrub Head Side Squeegee Group, Right Hand (015135 -) parts
The parts Tennant numbers on its scrub head side squeegee group, right hand (015135 -) drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4025930Replaces Tennant 9013756 | 1 | Squeegee Kit, Side, RhComplete assembly. Serial 015135 and later. | $264.32/EA |
| 1 | TN4040498Replaces Tennant 1216949 | 1 | Retainer Assy, Side Sqge, With LatchPart of Squeegee Kit, Side, Rh (9013756). Serial 015135 and later. | $71.20/EA |
| 2 | TN4039225Replaces Tennant 1211884 | 1 | Guide, Sqge, SidePart of Squeegee Kit, Side, Rh (9013756). Serial 015135 and later. | $11.10/EA |
| 3 | TN4042526Replaces Tennant 1045487 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, BlkPart of Squeegee Kit, Side, Rh (9013756). Serial 015135 and later. | $1.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Squeegee Kit, Side, Rh (9013756). Serial 015135 and later. | $3.30/EA |
| 5 | TN4040499Replaces Tennant 1216950 | 1 | Holder Wldt, Blade, RhPart of Squeegee Kit, Side, Rh (9013756). Serial 015135 and later. | $82.00/EA |
| 6 | TN4039749Replaces Tennant 1213211 | 1 | Blade, Sqge, Side, LinatexPart of Squeegee Kit, Side, Rh (9013756). Serial 015135 and later. | $82.80/EA |
| 7 | TN4032386Replaces Tennant 1258245 | 1 | Bellcrank, Lift, SqgeSerial 015135 and later. | $26.16/EA |
| 8 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeSerial 015135 and later. | $24.20/EA |
| 9 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lSerial 015135 and later. | $49.60/EA |
| 10 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Serial 015135 and later. | $3.30/EA |
| 11 | TN4033219Replaces Tennant 1022846 | 2 | Nut, T, M10 X 1.50 X 15.80od X 13.0lSerial 015135 and later. | $20.00/EA |
| 12 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsSerial 015135 and later. | $5.80/EA |
| 13 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsSerial 015135 and later. | $3.30/EA |
| 14 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsSerial 015135 and later. | $3.40/EA |
| 15 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lSerial 015135 and later. | $12.50/EA |
| 16 | TN4029965Replaces Tennant 1267143 | 8 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkSerial 015135 and later. | $1.01/EA |
| 17 | TN4032397Replaces Tennant 1258619 | 1 | Sleeve, .40b .75d .24lSerial 015135 and later. | $6.36/EA |
| 18 | TN4032386Replaces Tennant 1258245 | 1 | Bellcrank, Lift, SqgeSerial 015135 and later. | $26.16/EA |
| 19 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeSerial 015135 and later. | $24.20/EA |
| 20 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lSerial 015135 and later. | $49.60/EA |
| 21 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Serial 015135 and later. | $3.30/EA |
| 22 | TN4033219Replaces Tennant 1022846 | 2 | Nut, T, M10 X 1.50 X 15.80od X 13.0lSerial 015135 and later. | $20.00/EA |
| 23 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsSerial 015135 and later. | $5.80/EA |
| 24 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsSerial 015135 and later. | $3.30/EA |
| 25 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsSerial 015135 and later. | $3.40/EA |
| 26 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lSerial 015135 and later. | $12.50/EA |
| 27 | TN4034053Replaces Tennant 1243007 | 1 | Gasket, Cushion, Side Squeegee DoorSerial 015135 and later. | $29.00/EA |
| 28 | TN4039534Replaces Tennant 1213093 | 1 | Bracket Wldt, Pivot, SqgeSerial 015135 and later. | $39.90/EA |
| 29 | TN4014572Replaces Tennant 51538 | 1 | Pin, Clevis, 0.50d X 5.00lSerial 015135 and later. | $11.80/EA |
| 30 | TN4041918Replaces Tennant 08236 | 1 | Pin, Cotter, .156 X 1.25Serial 015135 and later. | $3.40/EA |
| 31 | TN4032742Replaces Tennant 1065134 | 1 | Latch, Cmpr, Yel GripSerial 015135 and later. | $26.80/EA |
| 32 | TN4041828Replaces Tennant 16735 | 2 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial 015135 and later. | $3.40/EA |
| 33 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 015135 and later. | $3.30/EA |
| 34 | TN4029965Replaces Tennant 1267143 | 2 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkSerial 015135 and later. | $1.01/EA |
| 35 | TN4021790Replaces Tennant 386391 | 1 | Bracket, Latch, Dbl Scb, Sqge, SideSerial 015135 and later. | $9.60/EA |
| 36 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 015135 and later. | $5.10/EA |
| 37 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 015135 and later. | $2.60/EA |
| 38 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.00 X 16, SsSerial 015135 and later. | $3.20/EA |
| 39 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 015135 and later. | $2.50/EA |
| 40 | TN4039772Replaces Tennant 1213266 | 1 | Blade, Sqge, Side, UreSerial 015135 and later. | $184.80/EA |
| 40 | TN4039774Replaces Tennant 1213267 | 1 | Blade, Sqge, Side, GumSerial 015135 and later. | $30.00/EA |
| 41 | TN4032398Replaces Tennant 1258728 | 1 | Bracket Wldt, RhSerial 015135 and later. | $128.57/EA |
Tennant T17 scrub Head Side Squeegee Group, Left Hand (000000 - 015134) parts
The parts Tennant numbers on its scrub head side squeegee group, left hand (000000 - 015134) drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4025931Replaces Tennant 9013757 | 1 | Squeegee Kit, Side, LhComplete assembly. Serial 010468 to 015134. | $262.80/EA |
| 1 | TN4040498Replaces Tennant 1216949 | 1 | Retainer Assy, Side Sqge, With LatchPart of Squeegee Kit, Side, Lh (9013757). Serial 010468 to 015134. | $71.20/EA |
| 2 | TN4039225Replaces Tennant 1211884 | 1 | Guide, Sqge, SidePart of Squeegee Kit, Side, Lh (9013757). Serial 010468 to 015134. | $11.10/EA |
| 3 | TN4042526Replaces Tennant 1045487 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, BlkPart of Squeegee Kit, Side, Lh (9013757). Serial 010468 to 015134. | $1.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Squeegee Kit, Side, Lh (9013757). Serial 010468 to 015134. | $3.30/EA |
| 5 | TN4040500Replaces Tennant 1216951 | 1 | Holder Wldt, Blade, LhPart of Squeegee Kit, Side, Lh (9013757). Serial 010468 to 015134. | $82.00/EA |
| 6 | TN4039749Replaces Tennant 1213211 | 1 | Blade, Sqge, Side, LinatexPart of Squeegee Kit, Side, Lh (9013757). Serial up to 015134. | $82.80/EA |
| 7 | TN4039534Replaces Tennant 1213093 | 1 | Bracket Wldt, Pivot, SqgeSerial up to 015134. | $39.90/EA |
| 8 | TN4014572Replaces Tennant 51538 | 1 | Pin, Clevis, 0.50d X 5.00lSerial up to 015134. | $11.80/EA |
| 9 | TN4041918Replaces Tennant 08236 | 1 | Pin, Cotter, .156 X 1.25Serial up to 015134. | $3.40/EA |
| – | TN4025208Replaces Tennant 9013046 | 1 | Arm Kit, Sqge, Front, Lh, AfmktComplete assembly. Serial up to 015134. | $498.40/EA |
| 10 | TN4039768Replaces Tennant 1213244 | 2 | Arm Wldt, Front, LhPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $253.00/EA |
| 11 | TN4033219Replaces Tennant 1022846 | 1 | Nut, T, M10 X 1.50 X 15.80od X 13.0lPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $20.00/EA |
| 12 | TN4015663Replaces Tennant 71607 | 1 | Bushing, Sleeve, 0.63b 0.72d 0.38lPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $12.50/EA |
| 13 | TN4029965Replaces Tennant 1267143 | 2 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $1.01/EA |
| 14 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $5.80/EA |
| 15 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $3.30/EA |
| 16 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Part of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $3.30/EA |
| 17 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38lPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $10.60/EA |
| 18 | TN4040947Replaces Tennant 04846 | 1 | Washer, Thrust, 0.79b 1.42d 0.06[Garlok]Part of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $10.00/EA |
| 19 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyePart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $24.20/EA |
| 20 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $3.40/EA |
| 21 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $49.60/EA |
| 22 | TN4036962Replaces Tennant 10120 | 1 | Clevis, 0.31d X 0.75lPart of Arm Kit, Sqge, Front, Lh, Afmkt (9013046). Serial up to 015134. | $3.40/EA |
| 23 | TN4021790Replaces Tennant 386391 | 1 | Bracket, Latch, Dbl Scb, Sqge, SideSerial up to 015134. | $9.60/EA |
| 24 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial up to 015134. | $5.10/EA |
| 25 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial up to 015134. | $2.60/EA |
| 26 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.00 X 16, SsSerial up to 015134. | $3.20/EA |
| 27 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial up to 015134. | $2.50/EA |
| – | TN4025209Replaces Tennant 9013047 | 1 | Arm Kit, Sqge, Rear, Lh, AfmktComplete assembly. Serial up to 015134. | $201.20/EA |
| 28 | TN4039767Replaces Tennant 1213243 | 1 | Arm Wldt, Rear, LhPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $46.90/EA |
| 29 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $12.50/EA |
| 30 | TN4033219Replaces Tennant 1022846 | 2 | Nut, T, M10 X 1.50 X 15.80od X 13.0lPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $20.00/EA |
| 31 | TN4029965Replaces Tennant 1267143 | 5 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $1.01/EA |
| 32 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Part of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $3.30/EA |
| 33 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $5.80/EA |
| 34 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $3.30/EA |
| 35 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyePart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $24.20/EA |
| 36 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $3.40/EA |
| 37 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $49.60/EA |
| 38 | TN4036962Replaces Tennant 10120 | 1 | Clevis, 0.31d X 0.75lPart of Arm Kit, Sqge, Rear, Lh, Afmkt (9013047). Serial up to 015134. | $3.40/EA |
| 39 | TN4032742Replaces Tennant 1065134 | 1 | Latch, Cmpr, Yel GripSerial up to 015134. | $26.80/EA |
| 40 | TN4041828Replaces Tennant 16735 | 2 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial up to 015134. | $3.40/EA |
| 41 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial up to 015134. | $3.30/EA |
| 42 | TN4029965Replaces Tennant 1267143 | 2 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkSerial up to 015134. | $1.01/EA |
| 43 | TN4039772Replaces Tennant 1213266 | 1 | Blade, Sqge, Side, Urethane (Option)Serial up to 015134. | $184.80/EA |
| 43 | TN4039774Replaces Tennant 1213267 | 1 | Blade, Sqge, Side, Rubber (Option)Serial up to 015134. | $30.00/EA |
| 44 | TN4039760Replaces Tennant 1213228 | 1 | Arm Wldt, LhSerial up to 015134. | $312.50/EA |
| 45 | TN4038843Replaces Tennant 1210430 | 1 | Retainer Wldt, Side Sqge, With Latch (Repl by 9013757)Serial up to 010467. | $56.60/EA |
| 46 | TN4039764Replaces Tennant 1213234 | 1 | Holder Wldt, Blade, Lh (Repl by 9013757)Serial up to 010467. | $72.50/EA |
| 47 | TN4034053Replaces Tennant 1243007 | 1 | Gasket, Cushion, Side Squeegee DoorSerial up to 015134. | $29.00/EA |
Tennant T17 scrub Head Side Squeegee Group, Left Hand (015135 -) parts
The parts Tennant numbers on its scrub head side squeegee group, left hand (015135 -) drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4025931Replaces Tennant 9013757 | 1 | Squeegee Kit, Side, LhComplete assembly. Serial 015135 and later. | $262.80/EA |
| 1 | TN4040498Replaces Tennant 1216949 | 1 | Retainer Assy, Side Sqge, With LatchPart of Squeegee Kit, Side, Lh (9013757). Serial 015135 and later. | $71.20/EA |
| 2 | TN4039225Replaces Tennant 1211884 | 1 | Guide, Sqge, SidePart of Squeegee Kit, Side, Lh (9013757). Serial 015135 and later. | $11.10/EA |
| 3 | TN4042526Replaces Tennant 1045487 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, BlkPart of Squeegee Kit, Side, Lh (9013757). Serial 015135 and later. | $1.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Squeegee Kit, Side, Lh (9013757). Serial 015135 and later. | $3.30/EA |
| 5 | TN4040500Replaces Tennant 1216951 | 1 | Holder Wldt, Blade, LhPart of Squeegee Kit, Side, Lh (9013757). Serial 015135 and later. | $82.00/EA |
| 6 | TN4039749Replaces Tennant 1213211 | 1 | Blade, Sqge, Side, LinatexPart of Squeegee Kit, Side, Lh (9013757). Serial 015135 and later. | $82.80/EA |
| 7 | TN4032386Replaces Tennant 1258245 | 1 | Bellcrank, Lift, SqgeSerial 015135 and later. | $26.16/EA |
| 8 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeSerial 015135 and later. | $24.20/EA |
| 9 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lSerial 015135 and later. | $49.60/EA |
| 10 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Serial 015135 and later. | $3.30/EA |
| 11 | TN4033219Replaces Tennant 1022846 | 2 | Nut, T, M10 X 1.50 X 15.80od X 13.0lSerial 015135 and later. | $20.00/EA |
| 12 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsSerial 015135 and later. | $5.80/EA |
| 13 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsSerial 015135 and later. | $3.30/EA |
| 14 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsSerial 015135 and later. | $3.40/EA |
| 15 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lSerial 015135 and later. | $12.50/EA |
| 16 | TN4029965Replaces Tennant 1267143 | 8 | Washer, Thrust, 16Mmb 30Mmd 1.5ThkSerial 015135 and later. | $1.01/EA |
| 17 | TN4032397Replaces Tennant 1258619 | 1 | Sleeve, .40b .75d .24lSerial 015135 and later. | $6.36/EA |
| 18 | TN4032386Replaces Tennant 1258245 | 1 | Bellcrank, Lift, SqgeSerial 015135 and later. | $26.16/EA |
| 19 | TN4021359Replaces Tennant 386088 | 1 | Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeSerial 015135 and later. | $24.20/EA |
| 20 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lSerial 015135 and later. | $49.60/EA |
| 21 | TN4041875Replaces Tennant 17404 | 1 | Pin, Roll, .250d X 0.75l, .250/.256Serial 015135 and later. | $3.30/EA |
| 22 | TN4033219Replaces Tennant 1022846 | 2 | Nut, T, M10 X 1.50 X 15.80od X 13.0lSerial 015135 and later. | $20.00/EA |
| 23 | TN4041974Replaces Tennant 09291 | 2 | Screw, Hex, M10 X 1.50 X 20, SsSerial 015135 and later. | $5.80/EA |
| 24 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsSerial 015135 and later. | $3.30/EA |
| 25 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsSerial 015135 and later. | $3.40/EA |
| 26 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lSerial 015135 and later. | $12.50/EA |
| 27 | TN4034053Replaces Tennant 1243007 | 1 | Gasket, Cushion, Side Squeegee DoorSerial 015135 and later. | $29.00/EA |
| 28 | TN4039534Replaces Tennant 1213093 | 1 | Bracket Wldt, Pivot, SqgeSerial 015135 and later. | $39.90/EA |
| 29 | TN4014572Replaces Tennant 51538 | 1 | Pin, Clevis, 0.50d X 5.00lSerial 015135 and later. | $11.80/EA |
| 30 | TN4041918Replaces Tennant 08236 | 1 | Pin, Cotter, .156 X 1.25Serial 015135 and later. | $3.40/EA |
| 31 | TN4032742Replaces Tennant 1065134 | 1 | Latch, Cmpr, Yel GripSerial 015135 and later. | $26.80/EA |
| 32 | TN4041828Replaces Tennant 16735 | 2 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial 015135 and later. | $3.40/EA |
| 33 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 015135 and later. | $3.30/EA |
| 34 | TN4029965Replaces Tennant 1267143 | 2 | lWasher, Thrust, 16Mmb 30Mmd 1.5ThkSerial 015135 and later. | $1.01/EA |
| 35 | TN4021790Replaces Tennant 386391 | 1 | Bracket, Latch, Dbl Scb, Sqge, SideSerial 015135 and later. | $9.60/EA |
| 36 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 015135 and later. | $5.10/EA |
| 37 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 015135 and later. | $2.60/EA |
| 38 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.00 X 16, SsSerial 015135 and later. | $3.20/EA |
| 39 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 015135 and later. | $2.50/EA |
| 40 | TN4039772Replaces Tennant 1213266 | 1 | Blade, Sqge, Side, UreSerial 015135 and later. | $184.80/EA |
| 40 | TN4039774Replaces Tennant 1213267 | 1 | Blade, Sqge, Side, GumSerial 015135 and later. | $30.00/EA |
| 41 | TN4032392Replaces Tennant 1258400 | 1 | Bracket Wldt, LhSerial 015135 and later. | $128.27/EA |
Tennant T17 solution Tank Group parts
The parts Tennant numbers on its solution tank group drawing. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021503Replaces Tennant 9020210 | 1 | Tank, Soltn, Afmkt [T17] | $1,444.30/EA |
| 2 | TN4021526Replaces Tennant 9020241 | 1 | Cover Assy, Tank, Sol, Afmkt [T17] | $288.46/EA |
| 2 | TN4191263Replaces Tennant 9020284 | 1 | Cover Assy, Tank, Sol, Tj Afmkt [T17] (Japan Only) | $315.22/EA |
| 3 | TN4032816Replaces Tennant 1066431 | 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap] | $16.70/EA |
| 4 | TN4034629Replaces Tennant 1060673 | 1 | Bar, Rnd, Plastic, 0.31D 08.5L | $4.50/EA |
| 5 | TN4021738Replaces Tennant 386324 | 1 | Handle | $89.10/EA |
| 6 | TN4041402Replaces Tennant 1206948 | 1 | Bracket, Pawl, Handle | $3.20/EA |
| 7 | TN4039257Replaces Tennant 1212298 | 1 | Tube Assy, 34.2l | $59.90/EA |
| 8 | TN4035173Replaces Tennant 1062651 | 1 | Sensor, Press, 3 Psi, 8-30vdc | $283.10/EA |
| 9 | TN4025663Replaces Tennant 377349 | 1 | Fitting, Plstc, Pf12/Pf12, Bh | $22.50/EA |
| 10 | TN4040857Replaces Tennant 1204114 | 1 | Bracket, Mtg, Tank, Soltn, RhSerial up to 010999. | $39.90/EA |
| 10 | TN4225238Replaces Tennant 1218383 | 1 | Bracket, Mtg, Tank, Soltn, RhSerial 011000 and later. | $39.29/EA |
| 11 | TN4041177Replaces Tennant 1206060 | 1 | Bracket, Mtg, Tank, Soltn, Front | $15.15/EA |
| 12 | TN4035242Replaces Tennant 1017218 | 14 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 13 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 14 | TN4034939Replaces Tennant 12273 | 6 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 15 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 16 | TN4018894Replaces Tennant 390994 | 1 | Plug, Hole, Soltn Tank, Blk Pyu | $19.00/EA |
| 17 | TN4041437Replaces Tennant 1207229 | 1 | Plate Wldt, Mesh | $41.61/EA |
| 18 | TN4041439Replaces Tennant 1207272 | 1 | Mesh Assy, Cloth [T17] | $44.90/EA |
| 19 | TN4030105Replaces Tennant 1069311 | 4 | Screw, Pan, Phl, M8 X 1.25 X 16, Blk | $3.20/EA |
| 20 | TN4042526Replaces Tennant 1045487 | 5 | Screw, Pan, Phl, M5 X 0.80 X 16, Blk | $1.50/EA |
Tennant T17 solution Supply Group parts
The parts Tennant numbers on its solution supply group drawing. Manual pages 56, list 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041912Replaces Tennant 18595 | 1 | Fitting, Plstc, E90, Bm16/Pm12 | $12.50/EA |
| 2 | TN4039864Replaces Tennant 1214093 | 1 | Hose, Afmkt, Pvc, Wir, 1.00Id, 01Ft, Clr | $41.30/EA |
| 3 | TN4041089Replaces Tennant 1205428 | 1 | Filter, Screen, 080 Mesh, In-LineComplete assembly. | $73.50/EA |
| – | TN8003200Replaces Tennant 9018853 | 1 | Filter Element, Water [M/T17]Part of Filter, Screen, 080 Mesh, In-Line (1205428). | $36.60/EA |
| 4 | TN4039507Replaces Tennant 1212887 | 2 | Fitting, Plstc, E90, Bm16/Pm16 | $18.60/EA |
| 5 | TN4043367Replaces Tennant 11399 | 4 | Clamp, Hose, Wormdrive, 0.81-1.50d, .50w | $5.10/EA |
| 6 | TN4041735Replaces Tennant 1207518 | 1 | Bracket, Mtg, Filter Hsg | $16.77/EA |
| 7 | TN4043377Replaces Tennant 11531 | 2 | Clamp, Hose, Wormdrive, 1.06-2.00d, .56w | $5.30/EA |
| 8 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 9 | TN4041822Replaces Tennant 1208486 | 1 | Manifold, Solution Delivery, Main | $46.90/EA |
| 10 | TN4037256Replaces Tennant 1221161 | 1 | Tie, Cable, Nyl, Push Mount, 76Mm Max D | $6.00/EA |
| 11 | TN4026538Replaces Tennant 79273-2 | 1 | Fitting, Plstc, Str, Bm12/Pm12 | $7.90/EA |
| 12 | TN4020528Replaces Tennant 630146 | 3 | Fitting, Plug, Pm06, Hdpe | $4.00/EA |
Tennant T17 recovery Tank Group parts
The parts Tennant numbers on its recovery tank group drawing. Manual pages 58, list 59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021504Replaces Tennant 9020211 | 1 | Tank, Rec, Afmkt [T17] | $1,230.90/EA |
| 2 | TN4021505Replaces Tennant 9020212 | 1 | Cover Assy, Rec Tank, Afmkt [T17] | $458.30/EA |
| 2 | TN4191265Replaces Tennant 9020286 | 1 | Cover Assy, Rec Tank, Tj Afmkt [T17] (Japan Only) | $464.50/EA |
| 3 | TN4032818Replaces Tennant 1066434 | 1 | Seal, Afmkt, Bulb, Dual, 12Ft [F/.30Gap] | $54.00/EA |
| 4 | TN4041761Replaces Tennant 1207887 | 1 | Screen, Safety, Vac Fan | $11.00/EA |
| 5 | TN4034224Replaces Tennant 1026014 | 1 | Screen, Vacuum | $44.00/EA |
| 6 | TN4027333Replaces Tennant 382320 | 4 | Screw, Pan, Phl, 12-16 X 0.50, F/ Plstc | $2.50/EA |
| 7 | TN4043532Replaces Tennant 1037822 | 1 | Filter, Panl, Dust, 2.0 X 06.1 X 07.6 | $48.80/EA |
| 8 | TN4041183Replaces Tennant 1206119 | 1 | Tray, Debris, Tank | $15.90/EA |
| 9 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 10 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 11 | TN4041404Replaces Tennant 1206961 | 2 | Bracket, Mtg, Cover, Recvy Tank | $16.40/EA |
| 12 | TN4041424Replaces Tennant 1207130 | 2 | Bracket, Retain, Hinge, Cover | $7.60/EA |
| 13 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38B 0.88D .08, Ss | $2.60/EA |
| 14 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, lock, m8 X 1.25, ml, Ss | $3.30/EA |
| 15 | TN4036389Replaces Tennant 1057214 | 1 | Plate, Arm, Prop | $7.80/EA |
| 16 | TN4032509Replaces Tennant 360460 | 1 | Sleeve, P/M, 0.34b 0.63d 0.4l, Ss / Oil | $4.90/EA |
| 17 | TN4038564Replaces Tennant 230735 | 1 | Sleeve, P/M, Flng, 0.33b 0.75/0.50d 0.8l | $4.10/EA |
| 18 | TN4035242Replaces Tennant 1017218 | 19 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 19 | TN4036504Replaces Tennant 12333 | 1 | Screw, Hex, M8 X 1.25 X 25, Ss, Nl | $4.00/EA |
| 20 | TN4026847Replaces Tennant 59658 | 1 | Screw, Hex, M8 X 1.25 X 35, Nl, Ss | $4.00/EA |
| 21 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11 | $78.50/EA |
| 22 | TN4035907Replaces Tennant 1019285 | 1 | Bracket, Protector, Float Switch | $22.50/EA |
| 23 | TN4040924Replaces Tennant 1205049 | 1 | Bracket, Mtg, Tank, Recvy, Lh | $28.99/EA |
| 24 | TN4041141Replaces Tennant 1205797 | 1 | Bracket, Mtg, Tank, Recvy, Rh | $36.46/EA |
| 25 | TN4041435Replaces Tennant 1207209 | 1 | Bracket, Sppt, Hose, Drain | $41.66/EA |
| 26 | TN4034939Replaces Tennant 12273 | 10 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 27 | TN4041944Replaces Tennant 09011 | 4 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 28 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 29 | TN4026720Replaces Tennant 379829 | 1 | Washer, Flat, 0.34b 1.50d .12, Stl, Pl | $5.80/EA |
| 30 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 31 | TN4039535Replaces Tennant 1213110 | 1 | Label, Hole, Cover, Recvy Tank | $31.50/EA |
Tennant T17 tank Drains Group parts
The parts Tennant numbers on its tank drains group drawing. Manual pages 60, list 61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041181Replaces Tennant 1206099 | 1 | Hose Assy, Drain, 3.0 Id 64 LComplete assembly. Serial up to 012999. | $147.10/EA |
| 2 | TN4039904Replaces Tennant 1214337 | 1 | Cuff Assy, Outer, Drain HosePart of Hose Assy, Drain, 3.0 Id 64 L (1206099). Serial up to 012999. | $116.80/EA |
| 1 | TN4033678Replaces Tennant 1239902 | 1 | Hose Assy, Drain, 3.0 Id 65 LComplete assembly. Serial 013000 and later. | $268.80/EA |
| 2 | TN4039904Replaces Tennant 1214337 | 1 | Cuff Assy, Outer, Drain HosePart of Hose Assy, Drain, 3.0 Id 65 L (1239902). Serial 013000 and later. | $116.80/EA |
| 3 | TN4041359Replaces Tennant 1206370 | 1 | Hose Assy, Drain, 3.0 Id 35 LComplete assembly. | $77.80/EA |
| 4 | TN4039904Replaces Tennant 1214337 | 1 | Cuff Assy, Outer, Drain HosePart of Hose Assy, Drain, 3.0 Id 35 L (1206370). | $116.80/EA |
| 5 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 6 | TN4041738Replaces Tennant 1207562 | 1 | Clamp, Cable, Stl, 3.25d X 1.00w, 1hole | $11.80/EA |
| 7 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 8 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 9 | TN4043899Replaces Tennant 1201434 | 2 | Clamp, Hose, Wormdrive, 4.63-5.50, 0.5w | $7.00/EA |
| 10 | TN4042369Replaces Tennant 1209684 | 2 | Bracket, Mtg, Hose | $24.40/EA |
Tennant T17 vacuum Fans and Rear Side Door Group parts
The parts Tennant numbers on its vacuum fans and rear side door group drawing. Manual pages 62, list 63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043422Replaces Tennant 1200149 | 2 | Fan, Vacuum, 6.6d, 036vdc, 1 Stage [Bpt]Complete assembly. | $267.20/EA |
| – | TN8006040Replaces Tennant 1206774 | 1 | Brush Kit, Motor, FanPart of Fan, Vacuum, 6.6d, 036vdc, 1 Stage [Bpt] (1200149). | $28.00/EA |
| 2 | TN4043773Replaces Tennant 1201267 | 2 | Assy, Seal, Mtg, Vacfan | $38.20/EA |
| 3 | TN4014180Replaces Tennant 49891 | 2 | Clamp, Hose, Wormdrive, 5.56-6.50d, .56w | $9.90/EA |
| 4 | TN4041931Replaces Tennant 08716 | 10 | Screw, Hex, M6 X 1.00 X 20, Ss | $3.20/EA |
| 5 | TN4036076Replaces Tennant 29570 | 10 | Washer, Flat, 0.28b 1.00d .06, Stl | $3.00/EA |
| 6 | TN4040845Replaces Tennant 1203848 | 2 | Muffler, Vacfan, 11.0 L | $33.10/EA |
| 7 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 8 | TN4032816Replaces Tennant 1066431 | 1 | Seal, Afmkt, Bulb, Dual, 03ft [F/.30gap] | $16.70/EA |
| 9 | TN4039874Replaces Tennant 1214173 | 2 | Seal, Door, Vac Fan, Rbr | $10.60/EA |
| 10 | TN4039876Replaces Tennant 1214174 | 2 | Retainer, Seal, Door, Vac Fan | $9.80/EA |
| 11 | TN4027333Replaces Tennant 382320 | 8 | Screw, Pan, Phl, 12-16 X 0.50, F/ Plstc | $2.50/EA |
| 12 | TN4021510Replaces Tennant 9020218 | 1 | Cover, Side, Lh, Afmkt [T17]Serial up to 012999. | $500.15/EA |
| 12 | TN4192561Replaces Tennant 9018977 | 1 | Cover, Side, Lh, Afmkt [T/M17]Serial 013000 and later. | $532.83/EA |
| 13 | TN4041145Replaces Tennant 1205801 | 1 | Hinge, Wldt, Lh | $85.60/EA |
| 14 | TN4041146Replaces Tennant 1205811 | 2 | Hinge Wldt, [T12] | $30.30/EA |
| 15 | TN4041243Replaces Tennant 15675 | 11 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 16 | TN4034138Replaces Tennant 32492 | 11 | Washer, Flat, 0.38, Std | $2.50/EA |
| 17 | TN4016548Replaces Tennant 398806 | 1 | Latch | $67.50/EA |
| 18 | TN4042040Replaces Tennant 1208748 | 1 | Plate, Latch [T17] | $3.70/EA |
| 19 | TN4041412Replaces Tennant 1207039 | 2 | Bracket, Bumper | $8.30/EA |
| 20 | TN4039095Replaces Tennant 20802 | 2 | Bumper, Rbr, 1.0d 0.38th .25-20 | $13.50/EA |
| 21 | TN4042532Replaces Tennant 19312 | 4 | Nut, Hex, Std, .25-20 | $2.50/EA |
| 22 | TN4041447Replaces Tennant 1207341 | 1 | Bracket, Latch, Lh Panel [T17] | $16.70/EA |
| 23 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 24 | TN4041264Replaces Tennant 06933 | 1 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8 | $3.40/EA |
| 25 | TN4040827Replaces Tennant 1052126 | 2 | Inductor, 12.7mmid [156 Imp at 25Mhz] (Europe, Australia, Canada Only) | $8.70/EA |
Tennant T17 rear Squeegee Lift Group parts
The parts Tennant numbers on its rear squeegee lift group drawing. Manual pages 64, list 65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041764Replaces Tennant 1207903 | 1 | Bracket Wldt, Sqge Lift, Frame | $159.80/EA |
| 2 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 3 | TN4042002Replaces Tennant 09770 | 4 | Screw, Hex, M10 X 1.50 X 25, Nl, Ss | $6.80/EA |
| 4 | TN4041805Replaces Tennant 1208274 | 1 | Guide, Cable, Sqge Lift | $8.10/EA |
| 5 | TN4019311Replaces Tennant 391434 | 1 | Screw, Hex, M6 X 1.00 X 80, Ss | $5.10/EA |
| 6 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 7 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 8 | TN4041106Replaces Tennant 1205553 | 1 | Lift Wldt, Sqge, Pulley | $77.50/EA |
| 9 | TN4035645Replaces Tennant 25735 | 2 | Bushing, Flng, 0.63b 0.75d 0.38l | $10.60/EA |
| 10 | TN4035784Replaces Tennant 1018276 | 1 | Pin, Clevis, 0.62d X 2.91l | $24.90/EA |
| 11 | TN4041634Replaces Tennant 08179 | 3 | Pin, Cotter, .094 X 1.00 | $2.50/EA |
| 12 | TN4037343Replaces Tennant 223054 | 1 | Drum, Cable, Lift | $13.80/EA |
| 13 | TN4014534Replaces Tennant 51103 | 1 | Pin, Clevis, 0.50d X 2.62l | $8.40/EA |
| 14 | TN4015620Replaces Tennant 71274 | 1 | Pin, Clevis, 0.31d X 2.62l | $3.40/EA |
| 15 | TN4041632Replaces Tennant 08175 | 2 | Pin, Cotter, .125 X 1.25 | $2.50/EA |
| 16 | TN4041751Replaces Tennant 1207739 | 1 | Cable, Ss .12d 22.6l .2clevis / .2clevis | $29.30/EA |
| 17 | TN4025696Replaces Tennant 77488 | 2 | Pin, Clevis, 0.19d X 0.63l | $3.40/EA |
| 18 | TN4041633Replaces Tennant 08178 | 2 | Pin, Cotter, .062 X 0.75 | $2.50/EA |
| 19 | TN4041638Replaces Tennant 1207466 | 1 | Lever Wldt, Sqge Lift, Pulley | $78.20/EA |
| 20 | TN4040946Replaces Tennant 04843 | 2 | Bushing, Flng, 0.63b 0.72d 0.25l | $9.60/EA |
| 21 | TN4041803Replaces Tennant 1208247 | 1 | Bushing,Sleeve,Flng0.40b 0.625d 1.62l,Ss | $15.90/EA |
| 22 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 23 | TN4037922Replaces Tennant 1014563 | 2 | Washer, Flat, 0.40b 1.12d .12, Ss | $5.80/EA |
| 24 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 25 | TN4044333Replaces Tennant 14529 | 1 | Screw, Hex, M10 X 1.50 X 70, Ss | $8.40/EA |
| 26 | TN4041398Replaces Tennant 1206872 | 1 | Actuator, 36v, 2.36in Stroke | $426.60/EA |
| 27 | TN4041878Replaces Tennant 17461 | 2 | Pin, Clevis, 0.37d X 1.75l | $4.00/EA |
| 28 | TN4041753Replaces Tennant 1207757 | 2 | Shield, Bumper, Sqge Cplg | $21.00/EA |
| 29 | TN4040989Replaces Tennant 06415 | 4 | Screw, Flt, Soc, M6 X 1.00 X 25, 10.9 | $3.20/EA |
| 30 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
Tennant T17 rear Squeegee Linkage Group parts
The parts Tennant numbers on its rear squeegee linkage group drawing. Manual pages 66, list 67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041395Replaces Tennant 1206821 | 1 | Coupling Wldt, Sqge, Front | $369.90/EA |
| – | TN4021520Replaces Tennant 9020233 | 2 | Caster, Assy, Sq, Rear, Afmkt [T17]Complete assembly. | $218.20/EA |
| 2 | TN4041795Replaces Tennant 1208155 | 1 | Knob, Adj, CasterPart of Caster Assy, Sq, Rear, Afmkt [T17] (9020233). | $45.60/EA |
| 3 | TN4041586Replaces Tennant 07450 | 1 | Washer, Thrust, 0.66b 1.25d 0.06wPart of Caster Assy, Sq, Rear, Afmkt [T17] (9020233). | $11.00/EA |
| 4 | TN4041794Replaces Tennant 1208153 | 1 | Pivot Wldt, Caster, SqgePart of Caster Assy, Sq, Rear, Afmkt [T17] (9020233). | $66.00/EA |
| 5 | TN4026503Replaces Tennant 9014285 | 1 | Caster Kit, Rear Squeegee, AmPart of Caster Assy, Sq, Rear, Afmkt [T17] (9020233). | $77.10/EA |
| 6 | TN4026533Replaces Tennant 79217 | 1 | Washer, Wavy, 1.20b 1.54d .13Part of Caster Assy, Sq, Rear, Afmkt [T17] (9020233). | $4.10/EA |
| 7 | TN4041796Replaces Tennant 1208156 | 1 | Knob, CasterPart of Caster Assy, Sq, Rear, Afmkt [T17] (9020233). | $42.10/EA |
| 8 | TN4025330Replaces Tennant 77272 | 2 | Washer, Flat, 0.60b 1.31d .10, Ss | $7.50/EA |
| 9 | TN4042879Replaces Tennant 01516 | 2 | Ring, Retaining, Ext, 0.59d, Basic | $2.50/EA |
| 10 | TN4030254Replaces Tennant 363087 | 2 | Bushing, Flng, 0.44b 1.25d 0.25l | $6.00/EA |
| 11 | TN4035960Replaces Tennant 12317 | 2 | Screw, Hex, M10 X 1.50 X 30, Ss | $4.90/EA |
| 12 | TN4022266Replaces Tennant 386847 | 2 | Bolt, Eye, M10 X 1.50 X 064mm, 07.10 Eye | $11.60/EA |
| 13 | TN4042903Replaces Tennant 01686 | 7 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 14 | TN4041930Replaces Tennant 08714 | 5 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 15 | TN4032015Replaces Tennant 1031413 | 2 | Spring, Extn, 1.68od 0.20wir 07.5l | $26.10/EA |
| – | TN4021519Replaces Tennant 9020232 | 4 | Link Kit, Sq, Rear, 1 Link, Afmkt [T17]Complete assembly. | $192.00/EA |
| 16 | TN4042371Replaces Tennant 1209712 | 1 | Rod, Hex, M10, 09.50l, StlPart of Link Kit, Sq, Rear, 1 Link, Afmkt [T17] (9020232). | $32.70/EA |
| 17 | TN4040971Replaces Tennant 05686 | 1 | Rod-End, M10 X 1.5rh Fem M10 X 1.5studPart of Link Kit, Sq, Rear, 1 Link, Afmkt [T17] (9020232). | $48.10/EA |
| 18 | TN4040970Replaces Tennant 05685 | 1 | Rod-End, M10 X 1.5lh Fem M10 X 1.5studPart of Link Kit, Sq, Rear, 1 Link, Afmkt [T17] (9020232). | $52.20/EA |
| 19 | TN4041601Replaces Tennant 07787 | 1 | Nut, Hex, Std, M10 X 1.50, SsPart of Link Kit, Sq, Rear, 1 Link, Afmkt [T17] (9020232). | $4.00/EA |
| 20 | TN4042006Replaces Tennant 09775 | 1 | Nut, Hex, Std, M10-1.5 , SsPart of Link Kit, Sq, Rear, 1 Link, Afmkt [T17] (9020232). | $8.10/EA |
| 21 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, SsPart of Link Kit, Sq, Rear, 1 Link, Afmkt [T17] (9020232). | $3.30/EA |
| 22 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsPart of Link Kit, Sq, Rear, 1 Link, Afmkt [T17] (9020232). | $3.30/EA |
| 23 | TN4041396Replaces Tennant 1206844 | 1 | Coupling Wldt, Sqge, Rear | $131.00/EA |
| 24 | TN4041397Replaces Tennant 1206865 | 1 | Knob, Star, 3.21d 5ear 4.45l M10x1.5 | $99.00/EA |
| 25 | TN4041212Replaces Tennant 15331 | 1 | Washer, Flat, 0.62, Sae | $4.10/EA |
| 26 | TN4042403Replaces Tennant 1210022 | 2 | Washer, 1.02 Od, .62 Id, Urethane | $1.50/EA |
| 27 | TN4038696Replaces Tennant 1054945 | 1 | Knob, Star, 3.21d 5ear M10 | $14.40/EA |
| 28 | TN4041411Replaces Tennant 1207034 | 1 | Pin, Clevis, 0.75d X 2.00l, M10 Hole | $23.40/EA |
| 29 | TN4041918Replaces Tennant 08236 | 1 | Pin, Cotter, .156 X 1.25 | $3.40/EA |
Tennant T17 rear Squeegee Group parts
The parts Tennant numbers on its rear squeegee group drawing. Manual pages 68, list 69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021219Replaces Tennant 9020070 | 1 | Squeegee Kit, Ci [T17]Complete assembly. | $849.51/EA |
| 1 | TN4036982Replaces Tennant 1219748 | 1 | Squeegee Frame AssyPart of Squeegee Kit, Ci [T17] (9020070). Serial 014726 and later. | $599.30/EA |
| 2 | TN4037106Replaces Tennant 1220147 | 2 | Rod, Thrd, 2end, M8x1.25/ M10x1.5-02Part of Squeegee Kit, Ci [T17] (9020070). Serial 014726 and later. | $58.40/EA |
| 3 | TN4037107Replaces Tennant 1220149 | 2 | Nut, T, M10 X 1.50 X 0.62od X 0.5lPart of Squeegee Kit, Ci [T17] (9020070). Serial 014726 and later. | $48.50/EA |
| 4 | TN4039484Replaces Tennant 1212782 | 2 | Spring, Cmpr, 0.98od .14wir 02.00l, SsPart of Squeegee Kit, Ci [T17] (9020070). | $9.70/EA |
| 5 | TN4042024Replaces Tennant 1208629 | 2 | Ring, Mtg, Sqge, .38lPart of Squeegee Kit, Ci [T17] (9020070). | $20.50/EA |
| 6 | TN4038772Replaces Tennant 1055396 | 2 | Pin, 0.63d, 02.0l [W/Cbore, M8 Screw]Part of Squeegee Kit, Ci [T17] (9020070). | $19.10/EA |
| 7 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, SsPart of Squeegee Kit, Ci [T17] (9020070). | $3.40/EA |
| 8 | TN4037644Replaces Tennant 1052532 | 2 | Grip, LockPart of Squeegee Kit, Ci [T17] (9020070). | $14.60/EA |
| 9 | TN4030447Replaces Tennant 363162 | 2 | Wheel, 04.0d 0.89w 0.64bPart of Squeegee Kit, Ci [T17] (9020070). | $35.40/EA |
| 10 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Squeegee Kit, Ci [T17] (9020070). | $3.30/EA |
| 11 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsPart of Squeegee Kit, Ci [T17] (9020070). | $3.30/EA |
| 12 | TN4042078Replaces Tennant 1209122 | 1 | Strap WldtPart of Squeegee Kit, Ci [T17] (9020070). | $50.00/EA |
| 13 | TN4041370Replaces Tennant 1206530 | 2 | Pin, 0.43d 2.75l [303ss]Part of Squeegee Kit, Ci [T17] (9020070). | $20.50/EA |
| 14 | TN4042077Replaces Tennant 1209121 | 1 | Arm WldtPart of Squeegee Kit, Ci [T17] (9020070). | $46.90/EA |
| 15 | TN4042076Replaces Tennant 1209120 | 1 | Bracket WldtPart of Squeegee Kit, Ci [T17] (9020070). | $47.80/EA |
| 16 | TN4014599Replaces Tennant 51813 | 1 | Pin, Clevis, 0.37d X 2.12lPart of Squeegee Kit, Ci [T17] (9020070). | $4.00/EA |
| 17 | TN4042044Replaces Tennant 1208858 | 1 | Cover, HandlePart of Squeegee Kit, Ci [T17] (9020070). | $1.90/EA |
| 18 | TN4041418Replaces Tennant 1207103 | 1 | Clamp Wldt, RearPart of Squeegee Kit, Ci [T17] (9020070). | $58.40/EA |
| 19 | TN4039421Replaces Tennant 21606 | 1 | Bar Wldt, Retainer, Sqge, RearPart of Squeegee Kit, Ci [T17] (9020070). | $51.20/EA |
| 20 | TN4042045Replaces Tennant 1208906 | 1 | Cam, RearPart of Squeegee Kit, Ci [T17] (9020070). | $7.60/EA |
| 21 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flat, 0.38, StdPart of Squeegee Kit, Ci [T17] (9020070). Serial 012500 and later. | $2.50/EA |
| 22 | TN4041741Replaces Tennant 1207608 | 1 | Gasket, Ure, .16, 3.23id 3.63od | $3.50/EA |
| 23 | TN4041746Replaces Tennant 1207661 | 1 | Hose Assy, Rear Squeegee | $73.10/EA |
| 24 | TN4042099Replaces Tennant 1209444 | 1 | Fastener, 11.00l [Hook & Loop] | $6.80/EA |
| 25 | TN4042643Replaces Tennant 1045525 | 1 | Screw, Pan, Phl, M6 X 1.00 X 12, Blk | $1.50/EA |
| 26 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 27 | TN4039796Replaces Tennant 1213539 | 1 | Hose Trap Assy | $62.40/EA |
| 28 | TN4041416Replaces Tennant 1207086 | 1 | Blade, Front Squeegee 56.6l (Linard) | $101.10/EA |
| 28 | TN4041808Replaces Tennant 1208356 | 1 | Blade, Front Squeegee 56.6l (Urethane) | $265.90/EA |
| 28 | TN4041810Replaces Tennant 1208358 | 1 | Blade, Front Squeegee 56.6l (Gum) | $40.00/EA |
| 29 | TN4041417Replaces Tennant 1207087 | 1 | Blade, Rear Squeegee 60.6l (Linatex) | $139.80/EA |
| 29 | TN4041809Replaces Tennant 1208357 | 1 | Blade, Rear Squeegee 60.6l (Urethane) | $349.70/EA |
| 29 | TN4041811Replaces Tennant 1208359 | 1 | Blade, Rear Squeegee 60.6l (Gum) | $45.00/EA |
| 30 | TN4036982Replaces Tennant 1213530 | 1 | Squeegee Frame AssySerial up to 014725. | $599.30/EA |
| 31 | TN4041188Replaces Tennant 1206251 | 2 | Rod, Thrd, 2end, M8x1.25/ M10x1.5-02Serial up to 014725. | $25.40/EA |
| 32 | TN4019285Replaces Tennant 391345 | 2 | Nut, T, M10 X 1.50 X 0.62od X 0.5lSerial up to 014725. | $8.10/EA |
| 33 | TN4042036Replaces Tennant 1208730 | 1 | Cuff, Adapter, 2.75 X 3.00, Pvc | $10.30/EA |
Tennant T17 right Hand Door and Battery Cover Group parts
The parts Tennant numbers on its right hand door and battery cover group drawing. Manual pages 70, list 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021506Replaces Tennant 9020213 | 1 | Cover, Battery, Top, Afmkt [T17]Serial up to 012999. | $986.40/EA |
| 1 | TN4021554Replaces Tennant 9020290 | 1 | Cover Assy, Battery, Tj [T17] (Japan Only)Serial up to 012999. | $702.76/EA |
| 1 | TN4192562Replaces Tennant 9018978 | 1 | Cover, Assy, Battery [T17/M17]Serial 013000 and later. | $1,445.92/EA |
| 2 | TN4191248Replaces Tennant 9020214 | 1 | Cover, Side Rh, Afmkt [T17]Serial up to 012999. | $330.51/EA |
| 2 | TN4021198Replaces Tennant 9018975 | 1 | Cover, Side Rh, Afmkt [T/M17]Serial 013000 and later. | $491.52/EA |
| 3 | TN4016548Replaces Tennant 398806 | 2 | Latch | $67.50/EA |
| 4 | TN4042040Replaces Tennant 1208748 | 1 | Plate, Latch [T17] | $3.70/EA |
| 5 | TN4041266Replaces Tennant 06935 | 2 | Screw, Pan, Phl, M5 X 0.80 X 25, 4.8 | $3.40/EA |
| 6 | TN4042085Replaces Tennant 1209190 | 1 | Plate, Prop Rod, [T17] | $10.60/EA |
| 7 | TN4041245Replaces Tennant 15678 | 3 | Screw, Hex, M6 X 1.00 X 16, Ss | $3.20/EA |
| 8 | TN4034136Replaces Tennant 32490 | 3 | Washer, Flat, 0.25, Std | $2.50/EA |
| 9 | TN4041449Replaces Tennant 1207362 | 1 | Hinge Wldt, Cover, Battery [T17] | $101.20/EA |
| 10 | TN4036259Replaces Tennant 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 11 | TN4041427Replaces Tennant 1207145 | 1 | Rod Wldt, Seat, Battery Cover [T17] | $81.20/EA |
| 12 | TN4041985Replaces Tennant 09570 | 3 | Clamp, Cable, Stl, 0.90d X 0.62w, 1hole | $5.30/EA |
| 13 | TN4041992Replaces Tennant 09740 | 7 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 14 | TN4041425Replaces Tennant 1207131 | 1 | Bracket, Latch [T17] | $14.40/EA |
| 15 | TN4028034Replaces Tennant 76570 | 2 | Screw, Hex, M8 X 1.25 X 30, 8.8 | $3.20/EA |
| 16 | TN4034137Replaces Tennant 32491 | 4 | Washer, Flat, 0.31, Std | $2.50/EA |
| 17 | TN4041926Replaces Tennant 08709 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl | $2.50/EA |
| 18 | TN4032814Replaces Tennant 1066429 | 1 | Seal, Afmkt, Bulb, Dual, 01ft [F/.30gap] | $21.84/EA |
| 19 | TN4041774Replaces Tennant 1207946 | 1 | Hinge Wldt, Rh [T17] | $102.80/EA |
| 20 | TN4014178Replaces Tennant 49826 | 3 | Screw, Hex, M8 X 1.25 X 16, Nl, Ss | $3.40/EA |
| 21 | TN4035242Replaces Tennant 1017218 | 7 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 22 | TN4041146Replaces Tennant 1205811 | 2 | Hinge Wldt, [T12] | $30.30/EA |
| 23 | TN4038902Replaces Tennant 1210971 | 2 | Cord, Battery Cover [T17] | $25.50/EA |
| 24 | TN4019743Replaces Tennant 39239 | 4 | Screw, Pan, Phl, 10-32 X 0.50, G2, Blk | $0.25/EA |
| 25 | TN4043850Replaces Tennant 140324 | 4 | Clamp, Cable, Nyl, 0.31d, Blk | $3.50/EA |
Tennant T17 electrical Box Group parts
The parts Tennant numbers on its electrical box group drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039914Replaces Tennant 1214566 | 1 | Panel Wldt, Enclosure, Electrical | $131.60/EA |
| 2 | TN4039913Replaces Tennant 1214550 | 1 | Cover Wldt, Enclosure, Electrical | $135.44/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 4 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32B 1.00D .12, Ss | $3.40/EA |
| 5 | TN4021515Replaces Tennant 9020228 | 1 | Circuit Board Kit, Scrub, Afmkt [T17]Complete assembly. Serial up to 010999. | $1,331.50/EA |
| 6 | TN4038842Replaces Tennant 1210399 | 4 | Stand-Off, Circuitboard [0.25”]Part of Circuit Board Kit, Scrub, Afmkt [T17] (9020228). Serial up to 010999. | $1.20/EA |
| 5 | TN4022904Replaces Tennant 9015002 | 1 | Circuitboard Kit, Scrub, Afmkt [T17/M17]Complete assembly. Serial 011000 to 013999. | $1,252.20/EA |
| 6 | TN4038842Replaces Tennant 1210399 | 4 | Stand-Off, Circuitboard [0.25”]Part of Circuitboard Kit, Scrub, Afmkt [T17/M17] (9015002). Serial 011000 to 013999. | $1.20/EA |
| 5 | TN4021571Replaces Tennant 9020594 | 1 | Circuitboard Kit, Scrub, Afmkt [T17/M17]Complete assembly. Serial 014000 and later. | $1,187.10/EA |
| 6 | TN4038842Replaces Tennant 1210399 | 4 | Stand-Off, Circuitboard [0.25”]Part of Circuitboard Kit, Scrub, Afmkt [T17/M17] (9020594). Serial 014000 and later. | $1.20/EA |
| 7 | TN4021516Replaces Tennant 9020229 | 1 | Circuit Board Kit, Water, Afmkt [t17]Complete assembly. | $970.90/EA |
| 8 | TN4038842Replaces Tennant 1210399 | 4 | Stand-Off, Circuitboard [0.25”]Part of Circuit Board Kit, Water, Afmkt [t17] (9020229). | $1.20/EA |
| 9 | TN4041257Replaces Tennant 06926 | 4 | Screw, Pan, Phl, M4 X 0.70 X 10, 4.8 | $2.50/EA |
| 10 | TN4044185Replaces Tennant 1202860 | 4 | Washer, Flat, 0.17b 0.31d .03, Nyl | $0.85/EA |
| 11 | TN4042817Replaces Tennant 1046404 | 1 | Molding, Afmkt, Trim, Pvc, .18 .31, 02Ft | $24.04/EA |
| 12 | TN4041816Replaces Tennant 1208412 | 1 | Label, Circuit Breaker | $18.80/EA |
| 13 | TN4032191Replaces Tennant 1255810 | 1 | Circuitbreaker, 60.0a, Short Handle | $49.00/EA |
| 14 | TN4032585Replaces Tennant 1064184 | 3 | Circuitbreaker, 02.5a, Resetable | $13.40/EA |
| 15 | TN4200526Replaces Tennant 06919 | 4 | Screw, Pan, Phl, M3 X 0.50 X 6, 4.8 | $1.10/EA |
| 16 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 17 | TN4227185Replaces Tennant 1213059 | 1 | Plug, Circuit Breaker [Carling, 50/60a] | $11.90/EA |
| 18 | TN4036717Replaces Tennant 1058340 | 3 | Plug, Hole, Rnd, 0.63h 0.1l, Blk | $0.30/EA |
| 19 | TN4031234Replaces Tennant 33807 | 1 | Plug, Hole, Rnd, 0.44H .03 - .12, Blk Nyl | $3.33/EA |
| 20 | TN4044189Replaces Tennant 1202868 | 8 | Clip, Tie, 0.25d, Plstc | $1.52/EA |
| 21 | TN4011908Replaces Tennant 763114 | 6 | Tie, Cable, 11.3l, 2.75d Max | $3.30/EA |
| 22 | TN4034410Replaces Tennant 1060276 | 1 | Inductor, 36.2mml,Rnd [Ferrite 1-300hz] (Australia Only) | $9.19/EA |
| 23 | TN4038847Replaces Tennant 1210467 | 1 | Panel Wldt, Enclosure, ElectricalSerial up to 010341. | $128.37/EA |
| 24 | TN4042062Replaces Tennant 1209041 | 1 | Cover, Enclosure, ElectricalSerial up to 010341. | $65.95/EA |
| 25 | TN4210788Replaces Tennant 1266813 | 1 | Resistor, power, 50W 3.9 OhmSerial 015785 and later. | $38.89/EA |
| 26 | TN4041959Replaces Tennant 09146 | 2 | Screw, Pan, Phl, M3 X 0.50 X 12, 4.8Serial 015785 and later. | $2.50/EA |
| 27 | TN4177672Replaces Tennant 33321 | 4 | Washer, Flat, m2.7B X 6.5D X .5Serial 015785 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | TN4202855Replaces Tennant 140282 | 2 | Nut, Hex, Lock, M3 X 0.50, NlSerial 015785 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | TN4022251Replaces Tennant 386810 | 1 | Contactor, 36Vdc, 100A, Sp, NoSerial 015785 and later. | $37.10/EA |
| 30 | TN4041270Replaces Tennant 06942 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Serial 015785 and later. | $2.50/EA |
| 31 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaeSerial 015785 and later. | $2.50/EA |
| 32 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, NlSerial 015785 and later. | $2.50/EA |
| 33 | TN4015595Replaces Tennant 39349 | 2 | Washer, Flat, 0.31, SaeSerial 015785 and later. | $2.50/EA |
| 34 | TN4034657Replaces Tennant 32984 | 2 | Washer, Lock, Int, 0.31Serial 015785 and later. | $2.60/EA |
| 35 | TN4039080Replaces Tennant 20170 | 2 | Nut, Hex, Jam, .31-24Serial 015785 and later. | $2.50/EA |
| 36 | TN4042539Replaces Tennant 19324 | 2 | Washer, Flat, 10, SaeSerial 015785 and later. | $2.50/EA |
| 37 | TN4034653Replaces Tennant 32980 | 2 | Washer, lock, Int, 10Serial 015785 and later. | $2.60/EA |
| 38 | TN4042939Replaces Tennant 01713 | 2 | Nut, Hex, Std, 10-32,Serial 015785 and later. | $2.50/EA |
Tennant T17 electrical Box Wires Group parts
The parts Tennant numbers on its electrical box wires group drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041985Replaces Tennant 09570 | 1 | Clamp, Cable, Stl, 0.90D X 0.62W, 1 Hole | $5.30/EA |
| 2 | TN4031315Replaces Tennant 1072981 | 1 | Cable, Battery, 1/0ga [M8 Ring/M6 Ring]Complete assembly. | $391.30/EA |
| 3 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350A, GrayPart of Cable, Battery, 1/0ga [M8 Ring/M6 Ring] (1072981). | $165.60/EA |
| 4 | TN4041363Replaces Tennant 1206431 | 1 | Bracket, Mtg, Contactor | $26.66/EA |
| 5 | TN4034133Replaces Tennant 32483 | 13 | Washer, Flat, 0.25, Sae | $2.50/EA |
| 6 | TN4042534Replaces Tennant 19314 | 4 | Screw, Hex, .25-20 X 0.38, G5 | $0.40/EA |
| 7 | TN4013849Replaces Tennant 76062 | 4 | Stand-Off, Wir, 0.25, Insulator, Panel | $9.50/EA |
| 8 | TN4017244Replaces Tennant 41702 | 4 | Rod, Thrd, Full, .25-20 01.5l | $7.50/EA |
| 9 | TN4042532Replaces Tennant 19312 | 10 | Nut, Hex, Std, .25-20 | $2.50/EA |
| 10 | TN4030062Replaces Tennant 1068510 | 1 | Contactor, 36vdc, 200a, Spst | $121.90/EA |
| 11 | TN4041270Replaces Tennant 06942 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8 | $2.50/EA |
| 12 | TN4044187Replaces Tennant 1202864 | 2 | Nut, Hex, Std, M5 X 0.80, Brs | $0.25/EA |
| 13 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
| 14 | TN4034892Replaces Tennant 1061910 | 1 | Nut, Hex, Std, M6 X 1.00, Brs | $1.50/EA |
| 15 | TN4022248Replaces Tennant 386807 | 1 | Fuse, 150a, 0.88 2.4l [Slo-Blo] | $57.10/EA |
| 16 | TN4021650Replaces Tennant 86379 | 1 | Fuse, 100a, 0.88 2.4l, 125volt | $58.00/EA |
| 17 | TN4041590Replaces Tennant 07515 | 6 | Washer, Lock, Int, 0.25, Ss | $3.50/EA |
| 18 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
| 19 | TN4031313Replaces Tennant 1072979 | 1 | Cable, 04ga 6.9l Blk [M6 Ring/M6 Ring] | $16.56/EA |
| 20 | TN4031312Replaces Tennant 1072978 | 1 | Cable, 04ga 9.8l Blu [M5 Ring/M6 Ring] | $19.70/EA |
| 21 | TN4041589Replaces Tennant 07514 | 2 | Washer, Lock, Int, 10, Ss | $3.50/EA |
| 22 | TN4042030Replaces Tennant 1208691 | 1 | Busbar, 200a | $36.50/EA |
| 23 | TN4034894Replaces Tennant 1061918 | 2 | Washer, Flat, 0.25b 0.47d .06, Brs | $1.50/EA |
| 24 | TN4178809Replaces Tennant 1074713 | 1 | Cable Assy, 02ga, Power [T18, 2 Cond.] | $244.82/EA |
| 25 | TN4031245Replaces Tennant 33930 | 2 | Screw, Hex, M6 X 1.00 X 40, Ss | $3.40/EA |
| 26 | TN4014178Replaces Tennant 49826 | 3 | Screw, Hex, M8 X 1.25 X 16, Nl, Ss | $3.40/EA |
Tennant T17 wire Harnesses Group parts
Wire Harnesses Group from Tennant's parts list. Manual page 76.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4022896Replaces Tennant 9014994 | 1 | Harness Kit, Main, Afmkt [T17]Serial up to 010999. | $723.81/EA |
| 2 | TN4045331Replaces Tennant 1076435 | 1 | Harness, Ele, MainSerial 011000 to 013999. | $1,031.80/EA |
| 3 | TN4044909Replaces Tennant 1074604 | 1 | Harness, Ele [Can Adaptor, T17]Serial 011000 and later. | $14.80/EA |
| 4 | TN4231790Replaces Tennant 1076655 | 1 | Harness, Ele, Main [M17/T17]Serial 014000 to 015784. | $1,119.40/EA |
| – | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, plug [0.1 Uf, 200V] (With Scrubbing side brush)Serial 014000 to 015784. | $17.40/EA |
| 5 | TN4044797Replaces Tennant 1074103 | 1 | Harness, Ele, Scrub motors [T17, Ferrite] | $390.60/EA |
| 6 | TN4032088Replaces Tennant 1254497 | 1 | Harness, Ele, Switch, KeySerial 015785 and later. | $82.70/EA |
| 7 | TN4232354Replaces Tennant 1077327 | 1 | Harness, Ele, Main [T17/M17 Hercules]Serial 015785 and later. | $1,169.68/EA |
Tennant T17 label Group parts
Label Group from Tennant's parts list. Manual page 77.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4224255Replaces Tennant 1225465 | 1 | Label Set, Info/Hzrd Vinyl [T17/M17] | $39.17/EA |
| 1 | TN1213434Tennant 1213434 | 1 | Label Set, Info/Hzrd Vinyl TJ [T17] (Japan Only) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4038195Replaces Tennant 1225464 | 1 | Label Kit, Info/Hzrd Pyc [T17/M17] | $136.80/EA |
| 2 | TN1213435Tennant 1213435 | 1 | Label Kit, Info/Hzrd Polycarbonate TJ [T17] (Japan Only) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4035178Replaces Tennant 1062813 | 2 | Label, Logo, 12.3l 4color [Ec-H2o] | $36.60/EA |
| 3 | TN4032752Replaces Tennant 1065343 | 2 | Label, Logo, 05.75l 2color [Es] | $26.97/EA |
Tennant T17 headlight Group (option) parts
The parts Tennant numbers on its headlight group (option) drawing. Manual pages 80, list 81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, Prgrsv | $27.40/EA |
| 2 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, Resetable | $5.30/EA |
| 3 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, Resetable | $13.40/EA |
| 4 | TN4044191Replaces Tennant 1202870 | 1 | Bezel, Headlight, Lh [W/Inserts] | $8.40/EA |
| 5 | TN4044193Replaces Tennant 1202892 | 1 | Bezel, Headlight, Rh [W/Inserts] | $13.60/EA |
| 6 | TN4044128Replaces Tennant 140825 | 6 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, Blk | $3.30/EA |
| 7 | TN4012973Replaces Tennant 9008182 | 2 | Light Assy, Pre-Sweep, Afmkt | $212.60/EA |
| 8 | TN4041014Replaces Tennant 06920 | 6 | Screw, Pan, Phl, M3 X 0.50 X 10, 4.8 | $2.50/EA |
Tennant T17 strobe Light and Backup Alarm Kit (option) parts
The parts Tennant numbers on its strobe light and backup alarm kit (option) drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021233Replaces Tennant 9020109 | 1 | Light Kit, Strobe, Module CI [T17]Complete assembly. | $815.10/EA |
| 1 | TN4045126Replaces Tennant 1075296 | 1 | Light, Flsh, 12Vdc, Amb, RwkPart of Light Kit, Strobe, Module CI [T17] (9020109). | $487.80/EA |
| 2 | TN4033986Replaces Tennant 1059938 | 1 | Base, Module, LightPart of Light Kit, Strobe, Module CI [T17] (9020109). | $19.50/EA |
| 3 | TN4032029Replaces Tennant 1063263 | 1 | Gasket, Base, ModulePart of Light Kit, Strobe, Module CI [T17] (9020109). | $10.70/EA |
| 4 | TN4036752Replaces Tennant 1058694 | 1 | Alarm, Backup, 12-48vdc, AdjPart of Light Kit, Strobe, Module CI [T17] (9020109). | $110.00/EA |
| 5 | TN4014137Replaces Tennant 49263 | 1 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DPart of Light Kit, Strobe, Module CI [T17] (9020109). | $3.40/EA |
| 6 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerPart of Light Kit, Strobe, Module CI [T17] (9020109). | $12.60/EA |
| 7 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25, SaePart of Light Kit, Strobe, Module CI [T17] (9020109). | $2.50/EA |
| 8 | TN4032585Replaces Tennant 1064184 | 2 | Circuitbreaker, 02.5a, ResetablePart of Light Kit, Strobe, Module CI [T17] (9020109). | $13.40/EA |
| 9 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Light Kit, Strobe, Module CI [T17] (9020109). | $2.50/EA |
| 10 | TN4036355Replaces Tennant 1056979 | 1 | Harness, Wire, Alarm / Light [T16]Part of Light Kit, Strobe, Module CI [T17] (9020109). | $49.63/EA |
| 11 | TN4229078Replaces Tennant 48258 | 1 | Sleeve, Vyl, Flex, .23IdPart of Light Kit, Strobe, Module CI [T17] (9020109). | $10.20/EA |
| 12 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, ResetablePart of Light Kit, Strobe, Module CI [T17] (9020109). | $5.30/EA |
| 13 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Light Kit, Strobe, Module CI [T17] (9020109). | $3.50/EA |
| 14 | TN4041264Replaces Tennant 06933 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of Light Kit, Strobe, Module CI [T17] (9020109). | $3.40/EA |
| 15 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Light Kit, Strobe, Module CI [T17] (9020109). | $2.50/EA |
| 16 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Light Kit, Strobe, Module CI [T17] (9020109). | $2.50/EA |
| 17 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, PrgrsvPart of Light Kit, Strobe, Module CI [T17] (9020109). | $27.40/EA |
| 18 | TN4034916Replaces Tennant 1062106 | 1 | Cover, Module, LightPart of Light Kit, Strobe, Module CI [T17] (9020109). | $30.20/EA |
| 19 | TN4037133Replaces Tennant 1059342 | 1 | Light Assy, LedPart of Light Kit, Strobe, Module CI [T17] (9020109). | $296.60/EA |
| 20 | TN4040232Replaces Tennant 222267 | 6 | Screw, Pan, Phl, 06-20 X 0.50, Fmg/AbPart of Light Kit, Strobe, Module CI [T17] (9020109). | $2.50/EA |
| 21 | TN4016544Replaces Tennant 398526 | 1 | Relay, 36Vdc, 005A, Spdt No [Greenwich]Part of Light Kit, Strobe, Module CI [T17] (9020109). | $16.30/EA |
Tennant T17 strobe Light Kit, Overhead Guard (option) parts
The parts Tennant numbers on its strobe light kit, overhead guard (option) drawing. Manual pages 84, list 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021231Replaces Tennant 9020107 | 1 | Light Kit, Strobe, Ohg, Ci [T17]Complete assembly. | $374.50/EA |
| 1 | TN4045126Replaces Tennant 1075296 | 1 | Light, Flsh, 12Vdc, Amb, RwkPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $487.80/EA |
| 2 | TN4041264Replaces Tennant 06933 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $3.40/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $2.50/EA |
| 4 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $2.50/EA |
| 5 | TN4044043Replaces Tennant 1039392 | 1 | Guard, Light, Revl / StrobePart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $76.00/EA |
| 6 | TN4012782Replaces Tennant 74455 | 2 | Screw, Hex, M6 X 1.00 X 12, FmgPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $3.40/EA |
| 7 | TN4034136Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $2.50/EA |
| 8 | TN4032003Replaces Tennant 10632-2 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .12 MatlPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $0.80/EA |
| 9 | TN4030274Replaces Tennant 1069746 | 1 | Harness, Ele, Ohg [T12]Part of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $26.46/EA |
| 10 | TN4043510Replaces Tennant 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $3.90/EA |
| 11 | TN4030489Replaces Tennant 1071085 | 3 | Clip, Tie, 0.25d, PlstcPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $1.60/EA |
| 12 | TN4032585Replaces Tennant 1064184 | 2 | Circuitbreaker, 02.5a, ResetablePart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $13.40/EA |
| 13 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15a, ResetablePart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $5.30/EA |
| 14 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, PrgrsvPart of Light Kit, Strobe, Ohg, Ci [T17] (9020107). | $27.40/EA |
Tennant T17 overhead Guard Group (option) parts
The parts Tennant numbers on its overhead guard group (option) drawing. Manual pages 86, list 87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040915Replaces Tennant 1204974 | 1 | Tube Wldt, Ohg, RhSerial up to 012999. | $1,093.93/EA |
| 1 | TN4033654Replaces Tennant 1239312 | 1 | Tube Wldt, Ohg, RhSerial 013000 and later. | $414.87/EA |
| 2 | TN4040909Replaces Tennant 1204926 | 1 | Tube Wldt, Ohg, LhSerial up to 012999. | $905.26/EA |
| 2 | TN4033653Replaces Tennant 1239309 | 1 | Tube Wldt, Ohg, LhSerial 013000 and later. | $437.31/EA |
| 3 | TN4034939Replaces Tennant 12273 | 10 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 4 | TN4035242Replaces Tennant 1017218 | 8 | Washer, Flat, 0.32B 1.00D .12, Ss | $3.40/EA |
| 5 | TN4041792Replaces Tennant 1208128 | 1 | Tube, Ohg, Middle, Rear | $167.68/EA |
| 6 | TN4014178Replaces Tennant 49826 | 6 | Screw, Hex, M8 X 1.25 X 16, Nl, Ss | $3.40/EA |
| 7 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flat, 0.31, Sae | $2.50/EA |
| 8 | TN4041637Replaces Tennant 1207444 | 1 | Tube Wldt, Front | $304.65/EA |
| 9 | TN4041750Replaces Tennant 1207725 | 1 | Tube Wldt, Guard, Lh, Front | $417.18/EA |
| 10 | TN4043258Replaces Tennant 03192 | 4 | Screw, Hex, M10 X 1.50 X 30, 8.8 | $4.00/EA |
| 11 | TN4042903Replaces Tennant 01686 | 20 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 12 | TN4016826Replaces Tennant 41430 | 10 | Nut, Hex, Lock, M10 X 1.5, Nl | $4.00/EA |
| 13 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 14 | TN4034397Replaces Tennant 1060103 | 4 | Screw, Pan, Phl, 08-16 X 1.13, F/ Plstc | $1.80/EA |
| 15 | TN4040913Replaces Tennant 1204972 | 1 | Guard Wldt, Top, Ohg | $511.30/EA |
| 16 | TN4043259Replaces Tennant 03193 | 6 | Screw, Hex, M10 X1.50 X 90, 8.8 | $6.00/EA |
| 17 | TN4042387Replaces Tennant 1209915 | 1 | Bracket Wldt, Mtg, Ohg | $35.15/EA |
| 18 | TN4042033Replaces Tennant 1208710 | 1 | Cover, Ohg, Trim, Rh | $54.01/EA |
| 19 | TN4042034Replaces Tennant 1208714 | 1 | Cover, Ohg, Trim, Lh | $54.01/EA |
| 20 | TN4197274Replaces Tennant 9013767 | 1 | Kit, Replmt, Cover, Battery, OHGSerial up to 010299. | $871.23/EA |
| 20 | TN4197279Replaces Tennant 9013795 | 1 | Kit, Replmt, Cover, Battery, OHG, JP (Japan)Serial up to 010299. | $702.76/EA |
| 20 | TN4192566Replaces Tennant 9018982 | 1 | Cover, Battery, Ohg [T/M17]Serial 013000 and later. | $627.26/EA |
Tennant T17 power Steering Group (000000 - 010999) (option) parts
The parts Tennant numbers on its power steering group (000000 - 010999) (option) drawing. Manual pages 88, list 89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041791Replaces Tennant 1208122 | 1 | Shaft, Steering, Power, UpperSerial up to 010999. | $164.86/EA |
| 2 | TN4041077Replaces Tennant 1205262 | 1 | Bracket, Mtg, SteeringSerial up to 010999. | $23.70/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial up to 010999. | $3.50/EA |
| 4 | TN4040869Replaces Tennant 1204306 | 1 | Motor Assy, Steering, Power, 12vSerial up to 010999. | $897.76/EA |
| 5 | TN4042361Replaces Tennant 1209652 | 1 | Shaft, Steering, Power, LowerSerial up to 010999. | $75.04/EA |
| 6 | TN4042046Replaces Tennant 1208907 | 1 | Controller, Steering, 36vSerial up to 010999. | $716.10/EA |
| 7 | TN4035372Replaces Tennant 24265 | 3 | Screw, Pan, Phl, M4 X 0.70 X 16, SsSerial up to 010999. | $3.00/EA |
| 8 | TN4042888Replaces Tennant 01683 | 3 | Washer, Flat, 10, SsSerial up to 010999. | $2.60/EA |
| 9 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, ResetableSerial up to 010999. | $5.30/EA |
| 10 | TN4040827Replaces Tennant 1052126 | 1 | Inductor, 12.7Mm [156 Imp At 25Mhz]Serial up to 010999. | $8.70/EA |
Tennant T17 power Steering Group (011000 - 014649) (option) parts
The parts Tennant numbers on its power steering group (011000 - 014649) (option) drawing. Manual pages 90, list 91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034137Replaces Tennant 32491 | 4 | Washer, Flat, 0.31, StdSerial 011000 to 014649. | $2.50/EA |
| 2 | TN4041844Replaces Tennant 16931 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Serial 011000 to 014649. | $2.50/EA |
| 3 | TN4041926Replaces Tennant 08709 | 5 | Nut, Hex, Lock, M8 X 1.25, NlSerial 011000 to 014649. | $2.50/EA |
| 4 | TN4037347Replaces Tennant 223065 | 1 | Bearing, Flng, 2hole, 0.75b [Nyl]Serial 011000 to 014649. | $6.00/EA |
| 5 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flat, 0.31, SaeSerial 011000 to 014649. | $2.50/EA |
| 6 | TN4037910Replaces Tennant 1224777 | 1 | Shaft, Steering, Power, Upper (Only used with old Power Steering Motors)Serial 011000 to 014649. | $327.70/EA |
| 7 | TN4227500Replaces Tennant 1214737 | 1 | Bracket, Brg, Steering (Only used with old Power Steering Motors)Serial 011000 to 014649. | $50.70/EA |
| 8 | TN4036259Replaces Tennant 1020341 | 7 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 011000 to 014649. | $3.50/EA |
| 9 | TN4227498Replaces Tennant 1214622 | 1 | Bracket, Sppt, MotorSerial 011000 to 014649. | $59.09/EA |
| 10 | TN4020965Replaces Tennant 9018436 | 1 | Kit, Field Install, Power SteeringComplete assembly. Serial 011000 to 014649. | $3,633.90/EA |
| 11 | TN4034945Replaces Tennant 12274 | 4 | Screw, Hex, M6 X 1.00 X 20, 8.8, NlPart of Kit, Field Install, Power Steering (9018436). Serial 011000 to 014649. | $4.80/EA |
| 12 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaePart of Kit, Field Install, Power Steering (9018436). Serial 011000 to 014649. | $2.50/EA |
| – | TN4039612Replaces Tennant 1008142 | 1 | Switch, Snap, 25a SpdtPart of Kit, Field Install, Power Steering (9018436). Serial 011000 to 014649. | $35.60/EA |
| 13 | TN4224020Replaces Tennant 1224776 | 1 | Shaft, Steering, Power, LowerSerial 011000 to 014649. | $174.70/EA |
| 14 | TN4020965Replaces Tennant 9018436 | 1 | Kit, Field Install, Power SteeringComplete assembly. Serial 011000 to 014649. | $3,633.90/EA |
| 15 | TN4041258Replaces Tennant 06927 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8Part of Kit, Field Install, Power Steering (9018436). Serial 011000 to 014649. | $3.30/EA |
| – | TN4039612Replaces Tennant 1008142 | 1 | Switch, Snap, 25a SpdtPart of Kit, Field Install, Power Steering (9018436). Serial 011000 to 014649. | $35.60/EA |
Tennant T17 power Steering Group (014650 -) (option) parts
The parts Tennant numbers on its power steering group (014650 -) (option) drawing. Manual pages 92, list 93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018202Replaces Tennant 9021687 | 1 | Kit, Controller, Steer Motor, Ci [M17]Complete assembly. Serial 014650 and later. | $298.05/EA |
| 2 | TN4041258Replaces Tennant 06927 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8Part of Kit, Controller, Steer Motor, Ci [M17] (9021687). Serial 014650 and later. | $3.30/EA |
| – | TN4039612Replaces Tennant 1008142 | 1 | Switch, Snap, 25a SpdtPart of Kit, Controller, Steer Motor, Ci [M17] (9021687). Serial 014650 and later. | $35.60/EA |
| 3 | TN4041926Replaces Tennant 08709 | 5 | Nut, Hex, Lock, M8 X 1.25, NlSerial 014650 and later. | $2.50/EA |
| 4 | TN4037347Replaces Tennant 223065 | 1 | Bearing, Flng, 2hole, 0.75b [Nyl]Serial 014650 and later. | $6.00/EA |
| 5 | TN4015595Replaces Tennant 39349 | 8 | Washer, Flat, 0.31, SaeSerial 014650 and later. | $2.50/EA |
| 6 | TN4210262Replaces Tennant 1265163 | 1 | Shaft, Steering, UpperSerial 014650 and later. | $142.41/EA |
| 7 | TN4215403Replaces Tennant 1249795 | 1 | Bracket, Shaft Bearing, SteeringSerial 014650 and later. | $48.70/EA |
| 8 | TN4036259Replaces Tennant 1020341 | 7 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 014650 and later. | $3.50/EA |
| 9 | TN4227498Replaces Tennant 1214622 | 1 | Bracket, Sppt, MotorSerial 014650 and later. | $59.09/EA |
| 10 | TN4018201Replaces Tennant 9021686 | 1 | Kit, Steering Motor, Ci [M17/T17]Complete assembly. Serial 014650 and later. | $2,535.00/EA |
| 11 | TN4034945Replaces Tennant 12274 | 4 | Screw, Hex, M6 X 1.00 X 20, 8.8, NlPart of Kit, Steering Motor, Ci [M17/T17] (9021686). Serial 014650 and later. | $4.80/EA |
| 12 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaePart of Kit, Steering Motor, Ci [M17/T17] (9021686). Serial 014650 and later. | $2.50/EA |
| – | TN4039612Replaces Tennant 1008142 | 1 | Switch, Snap, 25a SpdtPart of Kit, Steering Motor, Ci [M17/T17] (9021686). Serial 014650 and later. | $35.60/EA |
| 13 | TN4029893Replaces Tennant 1265161 | 1 | Shaft, Steering, LowerSerial 014650 and later. | $163.82/EA |
| 14 | TN4041844Replaces Tennant 16931 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Serial 014650 and later. | $2.50/EA |
| 15 | TN4156940Replaces Tennant 39277 | 4 | Screw, Hex, M8 X 1.25 X 25, 8.8Serial 014650 and later. | $3.20/EA |
Tennant T17 power Steering Wire Harness Group (option) parts
The parts Tennant numbers on its power steering wire harness group (option) drawing. Manual pages 94, list 96.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031329Replaces Tennant 1073062 | 1 | Harness, Ele [Power Steering, T17]Serial up to 010999. | $20.85/EA |
| 2 | TN4034410Replaces Tennant 1060276 | 1 | Inductor, 36.2 Mml, Rnd [Ferrite 1-300Hz] | $9.19/EA |
| 3 | TN4178401Replaces Tennant 1074598 | 1 | Harness, Ele [Steering, M17/T17]Serial 011000 and later. | $90.29/EA |
Tennant T17 transport Group (option) parts
Transport Group (option) from Tennant's parts list. Manual page 97.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4014177Replaces Tennant 49800 | 1 | Latch | $40.40/EA |
| 2 | TN4044424Replaces Tennant 1040800 | 1 | Bracket, Latch, Cover | $31.40/EA |
| 3 | TN4191358Replaces Tennant 1040634 | 1 | Plate, Hook, Latch | $15.00/EA |
| 4 | TN4027333Replaces Tennant 382320 | 2 | Screw, Pan, Phl, 12-16 X 0.50, F/ Plstc | $2.50/EA |
| 5 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 6 | TN4041994Replaces Tennant 09744 | 1 | Screw, Hex, M6 X 1.00 X 12, Ss | $3.40/EA |
| 7 | TN4040232Replaces Tennant 222267 | 2 | Screw, Pan, Phl, 06-20 X 0.50, Fmg/Ab | $2.50/EA |
Tennant T17 scrubbing Side Brush Lift Group (option) parts
The parts Tennant numbers on its scrubbing side brush lift group (option) drawing. Manual pages 98, list 99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4191258Replaces Tennant 9020268 | 1 | Pivot Arm Kit, Act, Sba, Afmkt [T17]Complete assembly. | $346.20/EA |
| 2 | TN4038652Replaces Tennant 1054662 | 2 | Bushing, Flng, 0.50b 0.59d 0.25lPart of Pivot Arm Kit, Act, Sba, Afmkt [T17] (9020268). | $12.10/EA |
| 3 | TN4041386Replaces Tennant 1206723 | 1 | Sleeve, P/M, 0.32b 0.50d 3.03lPart of Pivot Arm Kit, Act, Sba, Afmkt [T17] (9020268). | $21.70/EA |
| 4 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 5 | TN4021718Replaces Tennant 386299 | 1 | Screw, Hex, M8 X 1.25 X 100, Ss | $5.10/EA |
| 6 | TN4043909Replaces Tennant 1201500 | 1 | Actuator, 36vdc, 2.75strk, 450lb | $566.60/EA |
| 7 | TN4031245Replaces Tennant 33930 | 1 | Screw, Hex, M6 X 1.00 X 40, Ss | $3.40/EA |
| 8 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 9 | TN4041385Replaces Tennant 1206722 | 1 | Sleeve, P/M, 0.25b 0.38d 0.8l | $8.30/EA |
| 10 | TN4036077Replaces Tennant 29584 | 1 | Pin, Clevis, 0.37d X 2.00l | $3.90/EA |
| 11 | TN4017779Replaces Tennant 44906 | 1 | Pin, Cotter, Hair, 0.38d .093 Wir | $4.00/EA |
| 12 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 13 | TN4041360Replaces Tennant 1206422 | 1 | Arm, Spring, Tensioner | $44.40/EA |
| 14 | TN4041378Replaces Tennant 1206602 | 1 | Arm Wldt, Spring, Tension | $44.60/EA |
| 15 | TN4038652Replaces Tennant 1054662 | 3 | Bushing, Flng, 0.50b 0.59d 0.25l | $12.10/EA |
| 16 | TN4018420Replaces Tennant 69998 | 2 | Bolt, Eye, M8 X 1.25 X 030mm, 08.00 Eye | $13.10/EA |
| 17 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 18 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 19 | TN4035242Replaces Tennant 1017218 | 3 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 20 | TN4041743Replaces Tennant 1207656 | 3 | Sleeve, P/M, 0.32b 0.50d 0.4l [430ss] | $8.70/EA |
| 21 | TN4026847Replaces Tennant 59658 | 1 | Screw, Hex, M8 X 1.25 X 35, Nl, Ss | $4.00/EA |
| 22 | TN4027877Replaces Tennant 9011054 | 1 | Pivot Arm Kit, Sba, Afmkt [T12]Complete assembly. | $369.40/EA |
| 23 | TN4043747Replaces Tennant 1201101 | 1 | Bushing, Flng, 1.75b 1.94d 1.50lPart of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). | $18.00/EA |
| 24 | TN4028665Replaces Tennant 54618 | 2 | Bushing, Flng, 1.00b 1.13d 1.00lPart of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). | $36.40/EA |
| 25 | TN4019804Replaces Tennant 39308 | 1 | Screw, Soc, M8 X 1.25 X 25, 12.9Part of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). | $3.40/EA |
| 26 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). | $3.30/EA |
| 27 | TN4035608Replaces Tennant 12309 | 1 | Screw, Hex, M12 X 1.75 X 30, Ss | $6.00/EA |
| 28 | TN4043694Replaces Tennant 1200634 | 1 | Washer, Flat, 0.48b 2.50d .12, Ss | $7.70/EA |
| 29 | TN4191254Replaces Tennant 9020248 | 1 | Channel Assy, Lift, Sba, Afmkt [T17]Complete assembly. Serial up to 010999. | $282.00/EA |
| 30 | TN4028665Replaces Tennant 54618 | 2 | Bushing, Flng, 1.00b 1.13d 1.00lPart of Channel Assy, Lift, Sba, Afmkt [T17] (9020248). Serial up to 010999. | $36.40/EA |
| 29 | TN4022898Replaces Tennant 9014996 | 1 | Channel Assy, Lift, Sba, Afmkt [T17]Complete assembly. Serial 011000 and later. | $218.30/EA |
| 30 | TN4028665Replaces Tennant 54618 | 2 | Bushing, Flng, 1.00b 1.13d 1.00lPart of Channel Assy, Lift, Sba, Afmkt [T17] (9014996). Serial 011000 and later. | $36.40/EA |
| 31 | TN4038859Replaces Tennant 1210581 | 1 | Pin, Pivot, Sba | $15.60/EA |
| 32 | TN4021718Replaces Tennant 386299 | 1 | Screw, Hex, M8 X 1.25 X 100, Ss | $5.10/EA |
| 33 | TN4036897Replaces Tennant 1011719 | 4 | Washer, Flat, 0.33b 1.38d .08, Ss | $4.00/EA |
| 34 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 35 | TN4032015Replaces Tennant 1031413 | 1 | Spring, Extn, 1.68od 0.20wir 07.5l | $26.10/EA |
| 36 | TN4021532Replaces Tennant 9020249 | 1 | Link Kit, Upper, Sba, Afmkt [T17]Complete assembly. | $113.10/EA |
| 37 | TN4038652Replaces Tennant 1054662 | 2 | Bushing, Flng, 0.50b 0.59d 0.25lPart of Link Kit, Upper, Sba, Afmkt [T17] (9020249). | $12.10/EA |
| 38 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 39 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 40 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 41 | TN4041743Replaces Tennant 1207656 | 2 | Sleeve, P/M, 0.32b 0.50d 0.4l [430ss] | $8.70/EA |
| 42 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 43 | TN4042367Replaces Tennant 1209678 | 1 | Pin, Pivot, Sba | $17.40/EA |
| 44 | TN4038835Replaces Tennant 1210312 | 1 | Screw, Hex, M8 X 1.25 X 120, Ss | $3.40/EA |
| 45 | TN4027851Replaces Tennant 9010938 | 1 | Spring Assy, Replmt, Afmkt [T12]Complete assembly. | $473.60/EA |
| 46 | TN4011897Replaces Tennant 763064 | 3 | Nut, Hex, Jam, M10 X 1.5, [Din439]Part of Spring Assy, Replmt, Afmkt [T12] (9010938). | $3.40/EA |
| 47 | TN4040971Replaces Tennant 05686 | 2 | Rod-End, M10 X 1.5rh Fem M10 X 1.5studPart of Spring Assy, Replmt, Afmkt [T12] (9010938). | $48.10/EA |
| 48 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsPart of Spring Assy, Replmt, Afmkt [T12] (9010938). | $3.30/EA |
| 49 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Spring Assy, Replmt, Afmkt [T12] (9010938). | $3.30/EA |
Tennant T17 scrubbing Side Brush Motor and Squeegee Group (option) parts
The parts Tennant numbers on its scrubbing side brush motor and squeegee group (option) drawing. Manual pages 100, list 101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041082Replaces Tennant 1205307 | 1 | Bracket Wldt, Deck | $181.80/EA |
| 2 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 3 | TN4023499Replaces Tennant 80409 | 1 | Sleeve, P/M, 0.34b 0.63d 0.6l, Bnz | $5.10/EA |
| 4 | TN4030447Replaces Tennant 363162 | 1 | Wheel, 04.0d 0.89w 0.64b | $35.40/EA |
| 5 | TN4040607Replaces Tennant 222505 | 1 | Screw, Hex, M8 X 1.25 X 45, Ss | $4.00/EA |
| 6 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 7 | TN4030457Replaces Tennant 363301 | 1 | Sleeve, P/M, 0.34b 0.63d 1.2l, Bnz | $9.30/EA |
| 8 | TN4041366Replaces Tennant 1206475 | 1 | Motor, Ele, 36 Vdc, 350 Rpm 1.25 Hp Gear | $1,412.80/EA |
| 9 | TN4026510Replaces Tennant 1207718 | 1 | Plate, Sppt (Replaced by 9014344)Serial up to 010497. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4043365Replaces Tennant 11329 | 4 | Screw, Hex, M6 X 1.00 X 16, Nl, SsSerial up to 010497. | $3.40/EA |
| 11 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial up to 010497. | $2.60/EA |
| 12 | TN4042785Replaces Tennant 00928 | 1 | Key, Sq, 0.25 X 0.25, 1.00l | $3.60/EA |
| 13 | TN4025667Replaces Tennant 377364 | 1 | Hub, Drive, Brush, Disk, 0.75b [6t] | $186.50/EA |
| 14 | TN4034939Replaces Tennant 12273 | 1 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 15 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 16 | TN4016796Replaces Tennant 41186 | 1 | Washer, Flat, Belleville, .31 | $3.50/EA |
| 17 | TN4021509Replaces Tennant 9020217 | 1 | Cover, Motor, Sba, Afmkt[T17] | $285.40/EA |
| 18 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 19 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| – | TN4021531Replaces Tennant 9020247 | 1 | Squeegee Assy, Sba, Afmkt [T17]Complete assembly. | $656.10/EA |
| 20 | TN4041375Replaces Tennant 1206597 | 1 | Bracket Wldt, Sqge, SbaPart of Squeegee Assy, Sba, Afmkt [T17] (9020247). | $97.90/EA |
| 21 | TN4043758Replaces Tennant 1201149 | 1 | Latch, Compression, Sqge, SbaPart of Squeegee Assy, Sba, Afmkt [T17] (9020247). | $123.20/EA |
| 22 | TN4043923Replaces Tennant 1201609 | 1 | Retainer Wldt, Sqge, SbaPart of Squeegee Assy, Sba, Afmkt [T17] (9020247). | $38.90/EA |
| 23 | TN4041374Replaces Tennant 1206592 | 1 | Retainer Wldt, Sqge, SbaPart of Squeegee Assy, Sba, Afmkt [T17] (9020247). | $52.60/EA |
| 24 | TN4041376Replaces Tennant 1206598 | 1 | Spacer, BladePart of Squeegee Assy, Sba, Afmkt [T17] (9020247). | $15.90/EA |
| 25 | TN4041373Replaces Tennant 1206589 | 1 | Blade, Sqge, Sba, LinatexPart of Squeegee Assy, Sba, Afmkt [T17] (9020247). | $78.07/EA |
| 26 | TN4041377Replaces Tennant 1206599 | 1 | Blade, Sqge, Sba, InnerPart of Squeegee Assy, Sba, Afmkt [T17] (9020247). | $68.07/EA |
| 27 | TN4039247Replaces Tennant 1212163 | 1 | Blade, Sqge, Sba, (Urethane) | $150.79/EA |
| 27 | TN4039248Replaces Tennant 1212210 | 1 | Blade, Sqge, Sba, (Gum Rubber) | $63.93/EA |
| 28 | TN4039249Replaces Tennant 1212211 | 1 | Blade, Sqge, Sba, Inner, (Urethane) | $124.84/EA |
| 28 | TN4039250Replaces Tennant 1212212 | 1 | Blade, Sqge, Sba, Inner, (Gum Rubber) | $50.40/EA |
| 29 | TN4035686Replaces Tennant 26395-1 | 1 | Clamp, Cable, Stl, 0.56D X 0.38W, 1 HoleSerial 010498 and later. | $3.40/EA |
| 30 | TN4043382Replaces Tennant 11635 | 4 | Screw, hex, M6 X 1.00 X 12, SsSerial 010498 and later. | $6.60/EA |
| 31 | TN4042901Replaces Tennant 01684 | 3 | Washer, flat, 0.27B 0.69D .05, SsSerial 010498 and later. | $2.60/EA |
Tennant T17 scrubbing Side Brush Mount Group (option) parts
The parts Tennant numbers on its scrubbing side brush mount group (option) drawing. Manual pages 102, list 103.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041080Replaces Tennant 1205299 | 1 | Cover Wldt, SbaSerial up to 010999. | $315.22/EA |
| 1 | TN4037487Replaces Tennant 1222170 | 1 | Cover Wldt, SbaSerial 011000 and later. | $431.28/EA |
| 2 | TN4041393Replaces Tennant 1206805 | 1 | Bracket Wldt, Skid, Anti-RollSerial up to 010999. | $243.41/EA |
| 2 | TN4038190Replaces Tennant 1225419 | 1 | Bracket Wldt, Skid, Anti-RollSerial 011000 and later. | $238.50/EA |
| 3 | TN4041943Replaces Tennant 09010 | 6 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 4 | TN4041944Replaces Tennant 09011 | 3 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 5 | TN4035242Replaces Tennant 1017218 | 12 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 6 | TN4041394Replaces Tennant 1206809 | 1 | Bracket Wldt, Step, Sba | $224.00/EA |
| 7 | TN4041744Replaces Tennant 1207657 | 1 | Tread, Non-Skid-Step, 6.3w 12.8l, Sba | $9.10/EA |
| 8 | TN4041779Replaces Tennant 1208021 | 1 | Door Wldt, Mtg, Sba | $60.70/EA |
| 9 | TN4030447Replaces Tennant 363162 | 1 | Wheel, 04.0d 0.89w 0.64b | $35.40/EA |
| 10 | TN4041759Replaces Tennant 1207866 | 1 | Pin, Clevis, 0.625d X 1.75l | $3.00/EA |
| 11 | TN4028705Replaces Tennant 55094 | 1 | Pin, Cotter, Hair, 0.75d .148 Wir | $2.50/EA |
| 12 | TN4030489Replaces Tennant 1071085 | 6 | Clip, Tie, 0.25d, Plstc | $1.60/EA |
| 13 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
Tennant T17 scrubbing Side Brush Solution Supply Group (option) parts
The parts Tennant numbers on its scrubbing side brush solution supply group (option) drawing. Manual pages 104, list 105.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044578Replaces Tennant 150538 | 1 | Fitting, Plstc, Str, Bm06/Pm06 | $5.30/EA |
| 2 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, Clr | $33.10/EA |
| 3 | TN4030489Replaces Tennant 1071085 | 3 | Clip, Tie, 0.25d, Plstc | $1.60/EA |
| 4 | TN4043510Replaces Tennant 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 5 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31w | $4.20/EA |
| 6 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, Nyl | $7.00/EA |
| 7 | TN4043439Replaces Tennant 1200328 | 1 | Pump, Soltn, Ele, 36vdc, 60psi | $218.80/EA |
| 8 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.62-3.50d | $6.20/EA |
| 9 | TN4041184Replaces Tennant 1206138 | 1 | Bracket, PumpSerial up to 010999. | $39.27/EA |
| 9 | TN4037473Replaces Tennant 1221952 | 1 | Bracket, PumpSerial 011000 and later. | $38.77/EA |
| 10 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 11 | TN4034136Replaces Tennant 32490 | 1 | Washer, Flat, 0.25, Std | $2.50/EA |
| 12 | TN4041819Replaces Tennant 1208433 | 1 | Fitting, Plstc, E90, Bm10/Pm06 | $6.00/EA |
| 13 | TN4037979Replaces Tennant 1015025 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 02ft, Clr | $66.20/EA |
| 14 | TN4017089Replaces Tennant 63810 | 3 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 15 | TN4024342Replaces Tennant 9016496 | 1 | Valve Kit, Replacement 36V Hi FlowSerial up to 011669. | $111.10/EA |
| 15 | TN4045099Replaces Tennant 1075238 | 1 | Valve, Water, Solenoid-36VSerial 011670 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4041820Replaces Tennant 1208434 | 1 | Bracket, Mount, Sba Valve | $34.40/EA |
| 17 | TN4041990Replaces Tennant 09738 | 4 | Screw, Hex, M5 X 0.80 X 12, Ss | $3.30/EA |
| 18 | TN4041603Replaces Tennant 07789 | 4 | Nut, Hex, Flng, M5 X 0.80 | $5.80/EA |
| 19 | TN4041818Replaces Tennant 1208432 | 1 | Manifold, Sba | $68.90/EA |
| 20 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06 | $4.20/EA |
| 21 | TN4037968Replaces Tennant 1014976 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 08ft, Clr | $31.90/EA |
| 22 | TN4026510Replaces Tennant 9014344 | 1 | Hose Kit, Brush, Side [T17]Serial up to 010497. | $36.26/EA |
| 23 | TN4034964Replaces Tennant 1227867 | 1 | Inductor, Ferrite [Split Case, 407@1‘00Hz] | $6.40/EA |
Tennant T17 scrubbing Side Brush Electrical Group (option) parts
The parts Tennant numbers on its scrubbing side brush electrical group (option) drawing. Manual pages 106, list 107.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021517Replaces Tennant 9020230 | 1 | Circuit Board Kit, Sba, Afmkt [T17] | $1,411.10/EA |
| 2 | TN4041257Replaces Tennant 06926 | 2 | Screw, Pan, Phl, M4 X 0.70 X 10, 4.8 | $2.50/EA |
| 3 | TN4044185Replaces Tennant 1202860 | 2 | Washer, Flat, 0.17b 0.31d .03, Nyl | $0.85/EA |
| 4 | TN4038842Replaces Tennant 1210399 | 4 | Stand-Off, Circuitboard [0.25”] | $1.20/EA |
| 5 | TN4011908Replaces Tennant 763114 | 3 | Tie, Cable, 11.3l, 2.75d Max | $3.30/EA |
| 6 | TN4037057Replaces Tennant 222809 | 1 | Tie, Cable, Nyl, 29.8l .30w 9.0 Max D | $4.00/EA |
| 7 | TN4038889Replaces Tennant 1210807 | 7 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 8 | TN4023155Replaces Tennant 383726 | 1 | Circuitbreaker, 35.0a, Resetable | $15.90/EA |
| 9 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, Resetable | $13.40/EA |
| 10 | TN4016250Replaces Tennant 397889 | 1 | Switch, Rocker, Dpst, On / None / On | $43.70/EA |
Tennant T17 scrubbing Side Brush Wire Harness Group (option) parts
The parts Tennant numbers on its scrubbing side brush wire harness group (option) drawing. Manual pages 108, list 109.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031320Replaces Tennant 1072999 | 1 | Harness, Ele [Side Scrub, T17] | $188.93/EA |
Tennant T17 sweeping Side Brush Drive Motor Group, Right Side (option) parts
The parts Tennant numbers on its sweeping side brush drive motor group, right side (option) drawing. Manual pages 110, list 111.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039494Replaces Tennant 1212824 | 1 | Motor, Ele, 36vdc 0.08hp 0068rpm Gear Rh | $715.50/EA |
| 2 | TN4041426Replaces Tennant 1207139 | 1 | Bracket Wldt, Mtg, Motor, Sba | $76.66/EA |
| 3 | TN4043366Replaces Tennant 11398 | 1 | Pin, Roll, .250d X 2.00l, .250/.256 | $3.40/EA |
| 4 | TN4044400Replaces Tennant 1040467 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, Sems | $3.30/EA |
| 5 | TN4041451Replaces Tennant 1207412 | 1 | Cover, Sidebrush, Sweeping | $198.16/EA |
| 6 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 7 | TN4035464Replaces Tennant 1017441 | 1 | Plate, Adapter, Brush | $0.00/EA |
| 8 | TN4022088Replaces Tennant 87419 | 1 | Brush, Disk, Sweep, 19.0D, Polypropylene (Replaced by 1257198) | $155.40/EA |
| 9 | TN4035498Replaces Tennant 1017802 | 1 | Washer, Flat, 0.66b 2.50d .19, Ss | $11.80/EA |
| 10 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair, Cotter, 0.62d .120 Wir | $3.40/EA |
| 11 | TN4030489Replaces Tennant 1071085 | 1 | Clip, Tie, 0.25d, Plstc | $1.60/EA |
| 12 | TN4032279Replaces Tennant 1257198 | 1 | Brush, Disk, Swp, 20.0D, Polypropylene | $142.30/EA |
| 13 | TN4034140Replaces Tennant 32494 | 1 | Washer, Flat, 0.62D, Std | $5.20/EA |
Tennant T17 sweeping Side Brush Lift Group, Right Side (option) parts
The parts Tennant numbers on its sweeping side brush lift group, right side (option) drawing. Manual pages 112, list 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041446Replaces Tennant 1207330 | 1 | Housing Wldt, Sba, RhSerial up to 010999. | $170.19/EA |
| 1 | TN4224084Replaces Tennant 1225432 | 1 | Housing Wldt, Sba, RhSerial 011000 and later. | $210.69/EA |
| 2 | TN4030489Replaces Tennant 1071085 | 3 | Clip, Tie, 0.25d, Plstc | $1.60/EA |
| 3 | TN4032304Replaces Tennant 369781 | 1 | Pulley, Cable, 1.5d Nyl | $5.10/EA |
| 4 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] | $3.40/EA |
| 5 | TN4028652Replaces Tennant 54400 | 1 | Bracket, Angle, Keeper, Cable | $7.80/EA |
| 6 | TN4040920Replaces Tennant 1205013 | 1 | Cable, Ss, .09d 10.35l .38eye/M6-1.0 | $10.20/EA |
| 7 | TN4042902Replaces Tennant 01685 | 10 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 8 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Fl, Ss | $3.30/EA |
| 9 | TN4041929Replaces Tennant 08713 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 10 | TN4043909Replaces Tennant 1201500 | 1 | Actuator, 36vdc, 2.75strk, 450lb | $566.60/EA |
| 11 | TN4029373Replaces Tennant 57598 | 2 | Pin, Clevis, 0.37d X 3.25l | $9.40/EA |
| 12 | TN4017779Replaces Tennant 44906 | 2 | Pin, Cotter, Hair, 0.38d .093 Wir | $4.00/EA |
| 13 | TN4041634Replaces Tennant 08179 | 3 | Pin, Cotter, .094 X 1.00 | $2.50/EA |
| 14 | TN4040908Replaces Tennant 1204919 | 1 | Bracket Wldt, Pivot, SbaSerial up to 010999. | $63.23/EA |
| 14 | TN4224080Replaces Tennant 1225425 | 1 | Bracket Wldt, Pivot, SbaSerial 011000 and later. | $48.76/EA |
| 15 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 16 | TN4040899Replaces Tennant 1204774 | 1 | Cable, Ss, .09d 7.87l .50eye/.50eye | $13.64/EA |
| 17 | TN4040610Replaces Tennant 222516 | 2 | Sleeve, P/M, 0.32b 0.50d 0.3l [430ss] | $3.40/EA |
| 18 | TN4014182Replaces Tennant 49924 | 1 | Pin, Clevis, 0.37d X 6.12l | $11.60/EA |
| 19 | TN4042088Replaces Tennant 1209244 | 1 | Spring, Compr, .98od 2.5l | $183.52/EA |
| 20 | TN4021718Replaces Tennant 386299 | 1 | Screw, Hex, M8 X 1.25 X 100, Ss | $5.10/EA |
| 21 | TN4026720Replaces Tennant 379829 | 1 | Washer, Flat, 0.34b 1.50d .12, Stl, Pl | $5.80/EA |
| 22 | TN4045637Replaces Tennant 1037346 | 3 | Screw, Hex, M8 X 1.25 X 25, 9.8, Sems | $2.50/EA |
| 23 | TN4040921Replaces Tennant 1205016 | 1 | Lever Wldt, Adj, Sba | $39.09/EA |
| 24 | TN4031245Replaces Tennant 33930 | 1 | Screw, Hex, M6 X 1.00 X 40, Ss | $3.40/EA |
| 25 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 26 | TN4042977Replaces Tennant 01847 | 1 | Wheel, 01.6d 0.72w 0.21b | $5.05/EA |
| 27 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 28 | TN4042044Replaces Tennant 1208858 | 1 | Cover, Handle | $1.90/EA |
| 29 | TN4023883Replaces Tennant 81672 | 1 | Spring, Cmpr, 0.37id X Flat Wir, 1.0l | $16.10/EA |
| 30 | TN4014172Replaces Tennant 49694 | 1 | Screw, Hex, M8 X 1.25 X 50, Ss | $6.60/EA |
| 31 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 32 | TN4040874Replaces Tennant 1204396 | 1 | Bracket, Arm, Sba | $22.20/EA |
| 33 | TN4026851Replaces Tennant 59672 | 2 | Pin, Clevis, 0.37d X 4.50l | $4.00/EA |
| 34 | TN4044554Replaces Tennant 15047 | 1 | Spring, Extn, 0.62od 0.08wir 03.0l | $9.40/EA |
| 35 | TN4041599Replaces Tennant 07785 | 2 | Nut, Hex, Std, M6 X 1.00, Ss | $2.50/EA |
Tennant T17 sweeping Side Brush Drive Motor Group, Left Side (option) parts
The parts Tennant numbers on its sweeping side brush drive motor group, left side (option) drawing. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039493Replaces Tennant 1212823 | 1 | Motor, Ele, 36vdc 0.08hp 0068rpm Gear Lh | $699.80/EA |
| 2 | TN4041737Replaces Tennant 1207559 | 1 | Mount Wldt, Motor, Sba | $92.42/EA |
| 3 | TN4043366Replaces Tennant 11398 | 1 | Pin, Roll, .250d X 2.00l, .250/.256 | $3.40/EA |
| 4 | TN4044400Replaces Tennant 1040467 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, Sems | $3.30/EA |
| 5 | TN4041451Replaces Tennant 1207412 | 1 | Cover, Sidebrush, Sweeping | $198.16/EA |
| 6 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 7 | TN4035464Replaces Tennant 1017441 | 1 | Plate, Adapter, Brush | $0.00/EA |
| 8 | TN4022088Replaces Tennant 87419 | 1 | Brush, Disk, Swp, 19.0d, Pyp | $155.40/EA |
| 9 | TN4035498Replaces Tennant 1017802 | 1 | Washer, Flat, 0.66b 2.50d .19, Ss | $11.80/EA |
| 10 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair, Cotter, 0.62d .120 Wir | $3.40/EA |
| 11 | TN4030489Replaces Tennant 1071085 | 1 | Clip, Tie, 0.25d, Plstc | $1.60/EA |
| 12 | TN4032279Replaces Tennant 1257198 | 1 | Brush, Disk, Swp, 20.0D, Polypropylene | $142.30/EA |
| 13 | TN4034140Replaces Tennant 32494 | 1 | Washer, Flat, 0.62D, Std | $5.20/EA |
Tennant T17 sweeping Side Brush Lift Group, Left Side (option) parts
The parts Tennant numbers on its sweeping side brush lift group, left side (option) drawing. Manual pages 116, list 117.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041736Replaces Tennant 1207554 | 1 | Housing Wldt, Sba, LhSerial up to 010999. | $155.74/EA |
| 1 | TN4224078Replaces Tennant 1225423 | 1 | Housing Wldt, Sba, LhSerial 011000 and later. | $196.65/EA |
| 2 | TN4030489Replaces Tennant 1071085 | 3 | Clip, Tie, 0.25d, Plstc | $1.60/EA |
| 3 | TN4032304Replaces Tennant 369781 | 1 | Pulley, Cable, 1.5d Nyl | $5.10/EA |
| 4 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] | $3.40/EA |
| 5 | TN4028652Replaces Tennant 54400 | 1 | Bracket, Angle, Keeper, Cable | $7.80/EA |
| 6 | TN4040920Replaces Tennant 1205013 | 1 | Cable, Ss, .09d 10.35l .38eye/M6-1.0 | $10.20/EA |
| 7 | TN4042902Replaces Tennant 01685 | 10 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 8 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Fl, Ss | $3.30/EA |
| 9 | TN4041929Replaces Tennant 08713 | 5 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 10 | TN4043909Replaces Tennant 1201500 | 1 | Actuator, 36vdc, 2.75strk, 450lb | $566.60/EA |
| 11 | TN4029373Replaces Tennant 57598 | 2 | Pin, Clevis, 0.37d X 3.25l | $9.40/EA |
| 12 | TN4017779Replaces Tennant 44906 | 2 | Pin, Cotter, Hair, 0.38d .093 Wir | $4.00/EA |
| 13 | TN4041634Replaces Tennant 08179 | 3 | Pin, Cotter, .094 X 1.00 | $2.50/EA |
| 14 | TN4040908Replaces Tennant 1204919 | 1 | Bracket Wldt, Pivot, SbaSerial up to 010999. | $63.23/EA |
| 14 | TN4224080Replaces Tennant 1225425 | 1 | Bracket Wldt, Pivot, SbaSerial 011000 and later. | $48.76/EA |
| 15 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 16 | TN4040899Replaces Tennant 1204774 | 1 | Cable, Ss, .09d 7.87l .50eye/.50eye | $13.64/EA |
| 17 | TN4040610Replaces Tennant 222516 | 2 | Sleeve, P/M, 0.32b 0.50d 0.3l [430ss] | $3.40/EA |
| 18 | TN4014182Replaces Tennant 49924 | 1 | Pin, Clevis, 0.37d X 6.12l | $11.60/EA |
| 19 | TN4042088Replaces Tennant 1209244 | 1 | Spring, Compr, .98od 2.5l | $183.52/EA |
| 20 | TN4021718Replaces Tennant 386299 | 1 | Screw, Hex, M8 X 1.25 X 100, Ss | $5.10/EA |
| 21 | TN4026720Replaces Tennant 379829 | 1 | Washer, Flat, 0.34b 1.50d .12, Stl, Pl | $5.80/EA |
| 22 | TN4045637Replaces Tennant 1037346 | 3 | Screw, Hex, M8 X 1.25 X 25, 9.8, Sems | $2.50/EA |
| 23 | TN4040921Replaces Tennant 1205016 | 1 | Lever Wldt, Adj, Sba | $39.09/EA |
| 24 | TN4031245Replaces Tennant 33930 | 1 | Screw, Hex, M6 X 1.00 X 40, Ss | $3.40/EA |
| 25 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 26 | TN4042977Replaces Tennant 01847 | 1 | Wheel, 01.6d 0.72w 0.21b | $5.05/EA |
| 27 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 28 | TN4042044Replaces Tennant 1208858 | 1 | Cover, Handle | $1.90/EA |
| 29 | TN4023883Replaces Tennant 81672 | 1 | Spring, Cmpr, 0.37id X Flat Wir, 1.0l | $16.10/EA |
| 30 | TN4014172Replaces Tennant 49694 | 1 | Screw, Hex, M8 X 1.25 X 50, Ss | $6.60/EA |
| 31 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 32 | TN4040874Replaces Tennant 1204396 | 1 | Bracket, Arm, Sba | $22.20/EA |
| 33 | TN4026851Replaces Tennant 59672 | 2 | Pin, Clevis, 0.37d X 4.50l | $4.00/EA |
| 34 | TN4044554Replaces Tennant 15047 | 1 | Spring, Extn, 0.62od 0.08wir 03.0l | $9.40/EA |
| 35 | TN4041599Replaces Tennant 07785 | 2 | Nut, Hex, Std, M6 X 1.00, Ss | $2.50/EA |
Tennant T17 sweeping Side Brush Electrical Group (option) parts
The parts Tennant numbers on its sweeping side brush electrical group (option) drawing. Manual pages 118, list 119.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021516Replaces Tennant 9020229 | 1 | Circuit Board Kit, H20, Afmkt [T17] | $970.90/EA |
| 2 | TN4041257Replaces Tennant 06926 | 2 | Screw, Pan, Phl, M4 X 0.70 X 10, 4.8 | $2.50/EA |
| 3 | TN4044185Replaces Tennant 1202860 | 2 | Washer, Flat, 0.17b 0.31d .03, Nyl | $0.85/EA |
| 4 | TN4038842Replaces Tennant 1210399 | 4 | Stand-Off, Circuitboard [0.25”] | $1.20/EA |
| 5 | TN4023152Replaces Tennant 383723 | 1 | Circuitbreaker, 20.0a, Resetable | $15.90/EA |
| 6 | TN4016250Replaces Tennant 397889 | 1 | Switch, Rocker, Dpst, On / None / On | $43.70/EA |
Tennant T17 sweeping Side Brush Wire Harness Group (option) parts
The parts Tennant numbers on its sweeping side brush wire harness group (option) drawing. Manual pages 120, list 121.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031316Replaces Tennant 1072992 | 1 | Harness, Ele , [Side Sweep, T17] | $150.29/EA |
Tennant T17 pre - Sweep Hopper Cover Group (option) parts
The parts Tennant numbers on its pre - sweep hopper cover group (option) drawing. Manual pages 122, list 123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042075Replaces Tennant 1209119 | 1 | Bracket Wldt, Corner, Rh | $164.02/EA |
| 2 | TN4041420Replaces Tennant 1207119 | 1 | Bracket, Latch, Rh | $42.12/EA |
| 3 | TN4041258Replaces Tennant 06927 | 4 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8 | $3.30/EA |
| 4 | TN4042243Replaces Tennant 19065 | 8 | Washer, Flat, 0.19b 0.44d .05, Pl, 08 | $3.20/EA |
| 5 | TN4039228Replaces Tennant 1211929 | 2 | Plate Wldt, Nut, M4 | $13.13/EA |
| 6 | TN4042080Replaces Tennant 1209140 | 1 | Bracket Wldt, Corner, Lh | $160.99/EA |
| 7 | TN4041421Replaces Tennant 1207123 | 1 | Bracket, Latch, Lh | $42.12/EA |
| 8 | TN4041258Replaces Tennant 06927 | 4 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8 | $3.30/EA |
| 9 | TN4043235Replaces Tennant 02850 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl | $2.50/EA |
| 10 | TN4028125Replaces Tennant 364614 | 2 | Bumper, Rbr, 1.5d 0.63 0.31h | $7.70/EA |
| 11 | TN4031209Replaces Tennant 33401 | 2 | Screw, Hex, M8 X 1.25 X 50, Fl, Ss | $4.00/EA |
| 12 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 13 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 14 | TN4041605Replaces Tennant 07791 | 2 | Nut, Hex, Flng, M8 X 1.25 | $2.50/EA |
| 15 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 16 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| – | TN4191250Replaces Tennant 9020220 | 1 | Cover, Preswp, Afmkt [T17]Complete assembly. | $1,285.43/EA |
| 17 | TN4228827Replaces Tennant 1207151 | 1 | Cover, Presweep (As Trimmed) [T17]Part of Cover, Preswp, Afmkt [T17] (9020220). | $431.88/EA |
| 18 | TN4028305Replaces Tennant 603268 | 1 | Hinge, .25pin .07 2.5w 16.0l, PlPart of Cover, Preswp, Afmkt [T17] (9020220). | $31.30/EA |
| 19 | TN4044400Replaces Tennant 1040467 | 5 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsPart of Cover, Preswp, Afmkt [T17] (9020220). | $3.30/EA |
| 20 | TN4041413Replaces Tennant 1207041 | 1 | Bracket, Catch, Cover, Saftey RodPart of Cover, Preswp, Afmkt [T17] (9020220). | $17.88/EA |
| 21 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Cover, Preswp, Afmkt [T17] (9020220). | $3.50/EA |
| 22 | TN4036724Replaces Tennant 1058477 | 1 | Gasket, .75, 03.94w 08.58l, Adh[Nitrile]Part of Cover, Preswp, Afmkt [T17] (9020220). | $10.00/EA |
| 23 | TN4186584Replaces Tennant 1058451 | 1 | Plate Wldt, Screen, HpprPart of Cover, Preswp, Afmkt [T17] (9020220). | $35.70/EA |
| 24 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Cover, Preswp, Afmkt [T17] (9020220). | $3.50/EA |
| 25 | TN4036775Replaces Tennant 1058901 | 1 | Gasket, Box, FilterPart of Cover, Preswp, Afmkt [T17] (9020220). | $76.40/EA |
| 26 | TN4014177Replaces Tennant 49800 | 2 | Latch W/ KeeperPart of Cover, Preswp, Afmkt [T17] (9020220). | $40.40/EA |
| 27 | TN4014173Replaces Tennant 49697 | 4 | Screw, Pan, Phl, M4 X 0.70 X 10, SsPart of Cover, Preswp, Afmkt [T17] (9020220). | $3.40/EA |
| 28 | TN4045568Replaces Tennant 1036892 | 4 | Screw, Hex, M6 X 1.00 X 25, 9.8, SemsPart of Cover, Preswp, Afmkt [T17] (9020220). | $2.50/EA |
| 29 | TN4187267Replaces Tennant 1060784 | 2 | Bracket Wldt, Mtg, HeadlightPart of Cover, Preswp, Afmkt [T17] (9020220). | $42.82/EA |
| 30 | TN4012973Replaces Tennant 9008182 | 2 | Light Assy, Pre-Sweep, AfmktPart of Cover, Preswp, Afmkt [T17] (9020220). | $212.60/EA |
| 31 | TN4041014Replaces Tennant 06920 | 6 | Screw, Pan, Phl, M3 X 0.50 X 10, 4.8Part of Cover, Preswp, Afmkt [T17] (9020220). | $2.50/EA |
| 32 | TN4029653Replaces Tennant 579211 | 6 | Nut, Hex, Lock, M3 X 0.50, Nl, SsPart of Cover, Preswp, Afmkt [T17] (9020220). | $3.30/EA |
| 33 | TN4040232Replaces Tennant 222267 | 6 | Screw, Pan, Phl, 06-20 X 0.50, Fmg/AbPart of Cover, Preswp, Afmkt [T17] (9020220). | $2.50/EA |
| 34 | TN4038889Replaces Tennant 1210807 | 3 | Wire, Tie [W/.25” Fir Tree Clip]Part of Cover, Preswp, Afmkt [T17] (9020220). | $1.90/EA |
| 35 | TN4041942Replaces Tennant 09007 | 1 | Screw, Hex, M6 X 1.00 X 25, Ss | $3.30/EA |
| 36 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
| 37 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 38 | TN4041814Replaces Tennant 1208394 | 1 | Rod Wldt, Safety, Hopper Cover | $428.75/EA |
Tennant T17 pre - Sweep Hopper and Vacuum Fan Group (option) parts
The parts Tennant numbers on its pre - sweep hopper and vacuum fan group (option) drawing. Manual pages 124, list 125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4191249Replaces Tennant 9020219 | 1 | Hopper, Preswp, Afmkt [T17]Complete assembly. | $351.00/EA |
| 1 | TN4229010Replaces Tennant 1207550 | 1 | Hopper, Pre-Sweep, Rm-Cptl, TrimmedPart of Hopper, Preswp, Afmkt [T17] (9020219). | $252.60/EA |
| – | TN4191256Replaces Tennant 9020255 | 1 | Skirt Kit, Hopper, Preswp, Afmkt [T17]Part of Hopper, Preswp, Afmkt [T17] (9020219). | $51.59/EA |
| 2 | TN4041102Replaces Tennant 1205547 | 1 | Skirt, Neo, .06, 04.88w 28.26l 05/SlPart of Hopper, Preswp, Afmkt [T17] (9020219). | $21.61/EA |
| 3 | TN4041104Replaces Tennant 1205550 | 1 | Plate, Retainer, SkirtPart of Hopper, Preswp, Afmkt [T17] (9020219). | $24.02/EA |
| 4 | TN4041942Replaces Tennant 09007 | 5 | Screw, Hex, M6 X 1.00 X 25, SsPart of Hopper, Preswp, Afmkt [T17] (9020219). | $3.30/EA |
| 5 | TN4042901Replaces Tennant 01684 | 10 | Washer, Flat, 0.27b 0.69d .05, SsPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.60/EA |
| 6 | TN4041928Replaces Tennant 08712 | 5 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.50/EA |
| 7 | TN4041113Replaces Tennant 1205619 | 2 | Angle, Mtg, HopperPart of Hopper, Preswp, Afmkt [T17] (9020219). | $6.06/EA |
| 8 | TN4045640Replaces Tennant 1037354 | 4 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.50/EA |
| 9 | TN4034137Replaces Tennant 32491 | 4 | Washer, Flat, 0.31, StdPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.50/EA |
| 10 | TN4041926Replaces Tennant 08709 | 4 | Nut, Hex, Lock, M8 X 1.25, NlPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.50/EA |
| 11 | TN4033567Replaces Tennant 1023920 | 2 | Handle, DoorPart of Hopper, Preswp, Afmkt [T17] (9020219). | $19.10/EA |
| 12 | TN4041266Replaces Tennant 06935 | 4 | Screw, Pan, Phl, M5 X 0.80 X 25, 4.8Part of Hopper, Preswp, Afmkt [T17] (9020219). | $3.40/EA |
| 13 | TN4016794Replaces Tennant 41178 | 4 | Washer, Flat, 0.25, FendrPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.50/EA |
| 14 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.50/EA |
| 15 | TN4035039Replaces Tennant 23446 | 1 | Clip, Grip, Finger, 0.31-0.75d, Nk PlPart of Hopper, Preswp, Afmkt [T17] (9020219). | $4.70/EA |
| 16 | TN4041258Replaces Tennant 06927 | 1 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8Part of Hopper, Preswp, Afmkt [T17] (9020219). | $3.30/EA |
| 17 | TN4043235Replaces Tennant 02850 | 1 | Nut, Hex, Lock, M4 X 0.70, NlPart of Hopper, Preswp, Afmkt [T17] (9020219). | $2.50/EA |
| 18 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flat, 0.16b 0.38d .05, Pl, 06Part of Hopper, Preswp, Afmkt [T17] (9020219). | $3.40/EA |
| – | TN4191257Replaces Tennant 9020256 | 1 | Vac Fan Kit, W/Seal [T17]Complete assembly. | $394.30/EA |
| 19 | TN4043422Replaces Tennant 1200149 | 1 | Fan, Vacuum, 6.6d, 036vdc, 1 Stage [Bpt]Part of Vac Fan Kit, W/Seal [T17] (9020256). | $267.20/EA |
| – | TN8006040Replaces Tennant 1206774 | 1 | Brush Kit, Motor, FanPart of Vac Fan Kit, W/Seal [T17] (9020256). | $28.00/EA |
| 20 | TN4043116Replaces Tennant 10912 | 1 | Seal, Rbr, Clsd, 0.375, 5.0d 2.5hPart of Vac Fan Kit, W/Seal [T17] (9020256). | $6.70/EA |
| 21 | TN4019311Replaces Tennant 391434 | 3 | Screw, Hex, M6 X 1.00 X 80, SsPart of Vac Fan Kit, W/Seal [T17] (9020256). | $5.10/EA |
| 22 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, SsPart of Vac Fan Kit, W/Seal [T17] (9020256). | $2.60/EA |
| 23 | TN4023898Replaces Tennant 81719 | 3 | Tube, 0.38id 0.50od 02.2l, Stl, PlPart of Vac Fan Kit, W/Seal [T17] (9020256). | $11.92/EA |
| 24 | TN4040911Replaces Tennant 1204954 | 1 | Filterbox Wldt, Presweep | $276.80/EA |
| 25 | TN4036753Replaces Tennant 1058695 | 1 | Gasket, .75, 03.94w 04.92l, Adh[Nitrile] | $4.30/EA |
| 26 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 27 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 28 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 29 | TN4032991Replaces Tennant 1067452 | 1 | Bag, Vacuum, Paper [1pick=1pkg(=10pc)] | $20.30/EA |
| 30 | TN4041948Replaces Tennant 09028 | 4 | Screw, Hex, M10 X 1.50 X 25, Ss | $4.00/EA |
| 31 | TN4042903Replaces Tennant 01686 | 8 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 32 | TN4041111Replaces Tennant 1205593 | 2 | Bracket Wldt, Mount | $55.35/EA |
| 33 | TN4041104Replaces Tennant 1205550 | 1 | Plate, Retainer, Skirt | $24.02/EA |
| 34 | TN4041438Replaces Tennant 1207269 | 1 | Skirt, Neo, .19, 03.62w 28.12l 05/Sl | $33.53/EA |
| 35 | TN4041639Replaces Tennant 1207484 | 1 | Skirt, Neo, .06, 03.62w 28.12l 05/Sl | $17.27/EA |
| 36 | TN4041942Replaces Tennant 09007 | 5 | Screw, Hex, M6 X 1.00 X 25, Ss | $3.30/EA |
| 37 | TN4042901Replaces Tennant 01684 | 5 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 38 | TN4041928Replaces Tennant 08712 | 5 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 39 | TN4041087Replaces Tennant 1205402 | 1 | Frame Wldt, Brush, Pre-Sweep | $726.29/EA |
| 40 | TN4035960Replaces Tennant 12317 | 4 | Screw, Hex, M10 X 1.50 X 30, Ss | $4.90/EA |
Tennant T17 pre - Sweep Brush Drive Group (option) parts
The parts Tennant numbers on its pre - sweep brush drive group (option) drawing. Manual pages 126, list 127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041109Replaces Tennant 1205565 | 1 | Arm Wldt, Brush | $416.32/EA |
| 2 | TN4027058Replaces Tennant 381502 | 6 | Bearing, Split, 1.00b | $7.40/EA |
| 3 | TN4027324Replaces Tennant 382224 | 3 | Plate, Sppt | $14.80/EA |
| 4 | TN4042001Replaces Tennant 09767 | 6 | Screw, Hex, M8 X 1.25 X 70, Ss | $6.70/EA |
| 5 | TN4034137Replaces Tennant 32491 | 12 | Washer, Flat, 0.31, Std | $2.50/EA |
| 6 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 7 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 8 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M8 X 1.25 X 35, Fl, Ss | $3.30/EA |
| 9 | TN4039190Replaces Tennant 1211399 | 1 | Shaft, Drive, Pre-Sweep, Lrg Brg | $192.00/EA |
| 10 | TN4036022Replaces Tennant 28010 | 2 | Bearing, Ball, 0.62b 1.38d 0.43w | $14.70/EA |
| 11 | TN4038710Replaces Tennant 1055051 | 1 | Spacer, Brg | $6.70/EA |
| 12 | TN4042879Replaces Tennant 01516 | 1 | Ring, Retaining, Ext, 0.59d, Basic | $2.50/EA |
| 13 | TN4041906Replaces Tennant 18136 | 1 | Ring, Retaining, Ext, 0.62d, Basic | $2.50/EA |
| 14 | TN4032075Replaces Tennant 1063363 | 1 | Housing Wldt, Brg, Pre-Sweep | $87.60/EA |
| 15 | TN4042876Replaces Tennant 01513 | 1 | Ring, Retaining, Int, | $3.30/EA |
| 16 | TN4041942Replaces Tennant 09007 | 2 | Screw, Hex, M6 X 1.00 X 25, Ss | $3.30/EA |
| 17 | TN4043365Replaces Tennant 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 18 | TN4016224Replaces Tennant 397779 | 1 | Washer, Flat, 0.28b 1.00d .06, Stl, Blk | $3.20/EA |
| 19 | TN4016795Replaces Tennant 41185 | 1 | Washer, Flat, Belleville, .25 | $3.40/EA |
| 20 | TN4042777Replaces Tennant 00911 | 2 | Key, Sq, 0.19 X 0.19, 0.75l | $3.60/EA |
| 21 | TN4038469Replaces Tennant 12269 | 1 | Plug, Drive, Brush, Nyl | $19.70/EA |
| 22 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 23 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 24 | TN4016796Replaces Tennant 41186 | 1 | Washer, Flat, Belleville, .31 | $3.50/EA |
| 25 | TN4038639Replaces Tennant 1054591 | 1 | Sheave, 07grv, 03.3pd 0.63b [Pj] | $122.20/EA |
| 26 | TN4029988Replaces Tennant 1053342 | 1 | Motor, Ele, 36vdc 1750rpm 1.00hp 22.0a | $296.03/EA |
| 27 | TN4042901Replaces Tennant 01684 | 6 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 28 | TN4041931Replaces Tennant 08716 | 4 | Screw, Hex, M6 X 1.00 X 20, Ss | $3.20/EA |
| 29 | TN4038637Replaces Tennant 1054581 | 1 | Sheave, 07grv, 1.22pd 0.55b [Pj] | $30.70/EA |
| 30 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25mml | $4.20/EA |
| 31 | TN4037061Replaces Tennant 222818 | 2 | Screw, Set, Soc, 08-32 X 0.25, Nl | $6.60/EA |
| 32 | TN4021537Replaces Tennant 9020257 | 1 | Belt Kit, Preswp, Afmkt [T17] | $103.10/EA |
| 33 | TN4186953Replaces Tennant 1059308 | 1 | Cover, Belt, Pre-Sweep | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | TN4029864Replaces Tennant 361339 | 2 | Screw, Hex, M6 X 1.00 X 16, Fmg | $4.00/EA |
| 35 | TN4042385Replaces Tennant 1209802 | 1 | Bracket Wldt, Adj, Actuator | $35.65/EA |
| 36 | TN4045640Replaces Tennant 1037354 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8, Sems | $2.50/EA |
| 37 | TN4042041Replaces Tennant 1208772 | 1 | Actuator, 36vdc, 2.08strk, 500lbs | $264.48/EA |
| 38 | TN4040008Replaces Tennant 1009356 | 1 | Pin, Clevis, 10mmd X 040mml | $7.60/EA |
| 39 | TN4040229Replaces Tennant 222260 | 1 | Pin, Clevis, 0.37d X 2.25l | $3.30/EA |
| 40 | TN4041628Replaces Tennant 08170 | 2 | Pin, Cotter, .062 X 0.50 | $2.60/EA |
| 41 | TN4041733Replaces Tennant 1207488 | 1 | Skirt, Rbr, .12, 09.11w 16.61l, 05/Hole | $35.70/EA |
| 42 | TN4041731Replaces Tennant 1207486 | 1 | Plate, Retainer, Skirt, Rh, Curved | $33.63/EA |
| 43 | TN4041732Replaces Tennant 1207487 | 1 | Plate, Retainer, Skirt, Rh, Straight | $32.42/EA |
| 44 | TN4045568Replaces Tennant 1036892 | 4 | Screw, Hex, M6 X 1.00 X 25, 9.8, Sems | $2.50/EA |
| 45 | TN4039230Replaces Tennant 1211934 | 1 | Brush, Swp, 28l, Wedge, Pyp, Spiral | $163.20/EA |
| 46 | TN4040827Replaces Tennant 1052126 | 1 | Inductor, 12.7Mm [156 Imp At 25Mhz] | $8.70/EA |
Tennant T17 pre - Sweep Brush Idler Group (option) parts
The parts Tennant numbers on its pre - sweep brush idler group (option) drawing. Manual pages 128, list 129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4013983Replaces Tennant 48749 | 1 | Bearing Assy, W/ShaftComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4041233Replaces Tennant 15522 | 1 | Shaft, Idler, Brush, MainPart of Bearing Assy, W/Shaft (48749). | $132.10/EA |
| 2 | TN4042879Replaces Tennant 01516 | 2 | Ring, Retaining, Ext, 0.59d, BasicPart of Bearing Assy, W/Shaft (48749). | $2.50/EA |
| 3 | TN4016813Replaces Tennant 41360 | 2 | Bearing, Ball, 0.59b 1.26d 0.35w[2seal]Part of Bearing Assy, W/Shaft (48749). | $19.00/EA |
| 4 | TN4016815Replaces Tennant 41362 | 1 | Housing, Flng, BrgPart of Bearing Assy, W/Shaft (48749). | $17.50/EA |
| 5 | TN4022034Replaces Tennant 86773 | 1 | Ring, Retaining, Ext, 0.59d, BasicPart of Bearing Assy, W/Shaft (48749). | $4.00/EA |
| 6 | TN4034091Replaces Tennant 32408 | 2 | Plate, Hold-Down | $8.70/EA |
| 7 | TN4034477Replaces Tennant 32720 | 1 | Shield, Plug, Drive | $130.00/EA |
| 8 | TN4168567Replaces Tennant 392215 | 2 | Spacer, Arm, Brush | $12.20/EA |
| 9 | TN4188683Replaces Tennant 1056189 | 1 | Arm, Brush, Pre-Sweep, Idler, Lh | $24.61/EA |
| 10 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
| 11 | TN4043365Replaces Tennant 11329 | 1 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 12 | TN4016795Replaces Tennant 41185 | 1 | Washer, Flat, Belleville, .25 | $3.40/EA |
| 13 | TN4016224Replaces Tennant 397779 | 1 | Washer, Flat, 0.28b 1.00d .06, Stl, Blk | $3.20/EA |
| 14 | TN4042777Replaces Tennant 00911 | 1 | Key, Sq, 0.19 X 0.19, 0.75l | $3.60/EA |
| 15 | TN4038469Replaces Tennant 12269 | 1 | Plug, Drive, Brush, Nyl | $19.70/EA |
| 16 | TN4044425Replaces Tennant 1040803 | 2 | Screw, Hex, M6 X 1.00 X 30mm, Ss | $1.50/EA |
| 17 | TN4024240Replaces Tennant 81884 | 1 | Plate, Arm, Adj | $13.50/EA |
| 18 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 19 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 20 | TN4038697Replaces Tennant 1054948 | 1 | Knob Assy, Star, 3.21d 5ear M8 | $13.00/EA |
| 21 | TN4041733Replaces Tennant 1207488 | 1 | Skirt, Rbr, .12, 09.11w 16.61l, 05/Hole | $35.70/EA |
| 22 | TN4041730Replaces Tennant 1207485 | 1 | Plate, Retainer, Skirt, Lh | $38.99/EA |
| 23 | TN4040590Replaces Tennant 222470 | 3 | Knob, Star, 1.50d 0.88l 3ear M8x1.25 Fem | $7.90/EA |
Tennant T17 pre - Sweep Side Brush Group (option) parts
The parts Tennant numbers on its pre - sweep side brush group (option) drawing. Manual pages 130, list 131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041091Replaces Tennant 1205449 | 1 | Tube Wldt, Arm, Brush, Side | $523.20/EA |
| 2 | TN4041414Replaces Tennant 1207045 | 1 | Bracket Wldt, Brush, Adj, Lh | $42.50/EA |
| 3 | TN4041415Replaces Tennant 1207047 | 1 | Bracket Wldt, Brush, Adj, Rh | $40.40/EA |
| 4 | TN4034572Replaces Tennant 1060394 | 2 | Screw, Hex, M8 X 1.25 X 80, Fl, Ss | $2.50/EA |
| 5 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 6 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 7 | TN4028125Replaces Tennant 364614 | 2 | Bumper, Rbr, 1.5d 0.63 0.31h | $7.70/EA |
| 8 | TN4040590Replaces Tennant 222470 | 2 | Knob, Star, 1.50d 0.88l 3ear M8x1.25 Fem | $7.90/EA |
| 9 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 10 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 11 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 12 | TN4038388Replaces Tennant 1053815 | 2 | Bushing, Flex, Ure | $15.30/EA |
| 13 | TN4034407Replaces Tennant 1060210 | 2 | Housing Wldt, Pivot | $96.00/EA |
| 14 | TN4035960Replaces Tennant 12317 | 4 | Screw, Hex, M10 X 1.50 X 30, Ss | $4.90/EA |
| 15 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 16 | TN4039493Replaces Tennant 1212823 | 1 | Motor, Ele, 36vdc 0.08hp 0068rpm Gear Lh | $699.80/EA |
| 17 | TN4043366Replaces Tennant 11398 | 2 | Pin, Roll, .250d X 2.00l, .250/.256 | $3.40/EA |
| 18 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 19 | TN4043365Replaces Tennant 11329 | 8 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 20 | TN4039494Replaces Tennant 1212824 | 1 | Motor, Ele, 36vdc 0.08hp 0068rpm Gear Rh | $715.50/EA |
| 21 | TN4039221Replaces Tennant 1211837 | 2 | Marker, Corner | $72.60/EA |
| 22 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair, Cotter, 0.62d .120 Wir | $3.40/EA |
| 23 | TN4191251Replaces Tennant 9020221 | 2 | Cover, Motor, Preswp, Afmkt [T17] | $266.00/EA |
| 24 | TN4036259Replaces Tennant 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 25 | TN4035464Replaces Tennant 1017441 | 2 | Plate, Adapter, Brush | $0.00/EA |
| 26 | TN4022088Replaces Tennant 87419 | 2 | Brush, Disk, Swp, 19.0d, Pyp | $155.40/EA |
| 27 | TN4035498Replaces Tennant 1017802 | 2 | Washer, Flat, 0.66b 2.50d .19, Ss | $11.80/EA |
| 28 | TN4227463Replaces Tennant 1213802 | 2 | Inductor, Ferrite [spit Case, 220@100Hz] | $11.80/EA |
| 29 | TN4032279Replaces Tennant 1257198 | 2 | Brush, Disk, Swp, 20.0D, Polypropylene | $142.30/EA |
| 30 | TN4034140Replaces Tennant 32494 | 2 | Washer, Flat, 0.62D, Std | $5.20/EA |
Tennant T17 pre - Sweep Electrical Group (option) parts
The parts Tennant numbers on its pre - sweep electrical group (option) drawing. Manual pages 132, list 133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038889Replaces Tennant 1210807 | 6 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 2 | TN4021516Replaces Tennant 9020229 | 1 | Circuit Board Kit, H2o, Afmkt [T17] | $970.90/EA |
| 3 | TN4038842Replaces Tennant 1210399 | 4 | Stand-Off, Circuitboard [0.25”] | $1.20/EA |
| 4 | TN4041257Replaces Tennant 06926 | 2 | Screw, Pan, Phl, M4 X 0.70 X 10, 4.8 | $2.50/EA |
| 5 | TN4044185Replaces Tennant 1202860 | 2 | Washer, Flat, 0.17b 0.31d .03, Nyl | $0.85/EA |
| 6 | TN4038900Replaces Tennant 1210969 | 1 | Circuitbreaker, 50.0a, Resetable | $57.61/EA |
| 7 | TN4200526Replaces Tennant 06919 | 2 | Screw, Pan, Phl, M3 X 0.50 X 6, 4.8 | $1.10/EA |
| 8 | TN4032585Replaces Tennant 1064184 | 2 | Circuitbreaker, 02.5a, Resetable | $13.40/EA |
| 9 | TN4041802Replaces Tennant 1208217 | 1 | Label, Opertnl, Console, Rh, W/Pre-Sweep | $27.17/EA |
| 10 | TN4041441Replaces Tennant 1207284 | 1 | Switch, Rocker [Mom,Off,Mom, Dual Led] | $65.00/EA |
| 11 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, Resetable | $5.30/EA |
| 12 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, Prgrsv | $27.40/EA |
Tennant T17 pre - Sweep Wire Harnesses Group (option) parts
The parts Tennant numbers on its pre - sweep wire harnesses group (option) drawing. Manual pages 134, list 136.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031327Replaces Tennant 1073054 | 1 | Harness, Ele [Presweep, Head, T17] | $131.27/EA |
| 2 | TN4031325Replaces Tennant 1073042 | 1 | Harness, Ele [Presweep, Base, T17] | $223.01/EA |
Tennant T17 auto Fill Group (option) parts
The parts Tennant numbers on its auto fill group (option) drawing. Manual pages 138, list 139.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016821Replaces Tennant 41410 | 1 | Valve, Water, Solenoid, 36vdc Pf08/Pf08 | $542.10/EA |
| 2 | TN4225711Replaces Tennant 1220430 | 1 | Bracket, Mtg, Ftg, Auto FillSerial 011000 and later. | $23.10/EA |
| 3 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 4 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 5 | TN4043367Replaces Tennant 11399 | 8 | Clamp, Hose, Wormdrive, 0.81-1.50d, .50w | $5.10/EA |
| 6 | TN4026578Replaces Tennant 79497 | 1 | Fitting, Plstc, Tee, Pf08/Pf08/Pf08 | $10.30/EA |
| 7 | TN4021149Replaces Tennant 63244-2 | 1 | Fitting, Plstc, E90, Bm12/Pm08 | $6.90/EA |
| 8 | TN4028472Replaces Tennant 365096 | 1 | Fitting, Plstc, Tee, Bm16/Pf12/Bm16, Br | $9.90/EA |
| 9 | TN4041912Replaces Tennant 18595 | 2 | Fitting, Plstc, E90, Bm16/Pm12Serial 013000 and later. | $12.50/EA |
| 10 | TN4035365Replaces Tennant 24105 | 1 | Fitting, Brs, Qdc, Bm12/Qf08 | $101.81/EA |
| 11 | TN4041783Replaces Tennant 1208043 | 1 | Bracket, Mtg, Fitting, Qdc | $6.57/EA |
| 12 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 13 | TN4043365Replaces Tennant 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 14 | TN4042460Replaces Tennant 1045034 | 2 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, Clr | $65.50/EA |
| 15 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 16 | TN4029238Replaces Tennant 375321 | 1 | Fitting, Brs, Str, Pm08/Garden Hose | $10.40/EA |
| 17 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, Rbr | $3.50/EA |
| 18 | TN4030863Replaces Tennant 33295 | 1 | Fitting, Brs, Qdc, Pf08 | $9.60/EA |
| 19 | TN4038955Replaces Tennant 1005218 | 1 | Fitting, Plstc, Str, Pm08/Pm12, NylSerial 011000 and later. | $5.30/EA |
| 20 | TN4036555Replaces Tennant 10575 | 1 | Fitting, Plstc, E45, Pf12/Pf12Serial 011000 and later. | $21.70/EA |
| 21 | TN4029317Replaces Tennant 57379 | 1 | Fitting, Plstc, Str, Bm16/Pm12Serial 011000 and later. | $9.90/EA |
| 22 | TN4039866Replaces Tennant 1214095 | 3 | Hose, Afmkt, Pvc, Wir,1.00 Id, 03ft, Clr | $66.60/EA |
| 23 | TN4041879Replaces Tennant 17521 | 1 | Fitting, Pipe, Plug, Pm08, Sq Head | $4.20/EA |
| 24 | TN4021662Replaces Tennant 86508 | 1 | Fitting, Plstc, Str, Pm08/Pm08 | $6.90/EA |
| 25 | TN4041755Replaces Tennant 1207777 | 1 | Bracket, Mtg, Ftg, Auto FillSerial up to 010999. | $44.64/EA |
| 26 | TN4021662Replaces Tennant 86508 | 3 | Fitting, Plstc, Str, Pm08/Pm08Serial up to 010999. | $6.90/EA |
| 27 | TN4038891Replaces Tennant 1210841 | 1 | Fitting, Plstc, E90, Bm16/Pf8Serial up to 010999. | $12.63/EA |
| 28 | TN4018368Replaces Tennant 69784 | 1 | Fitting, Plstc, Str, Pm12/Pm12 CloseSerial up to 010999. | $5.30/EA |
Tennant T17 ES Auto Fill Group (option) parts
The parts Tennant numbers on its es auto fill group (option) drawing. Manual pages 140, list 141.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016821Replaces Tennant 41410 | 1 | Valve, Water, Solenoid, 36vdc Pf08/Pf08 | $542.10/EA |
| 2 | TN4225711Replaces Tennant 1220430 | 1 | Bracket, Mtg, Ftg, Auto FillSerial 011000 and later. | $23.10/EA |
| 3 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 4 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 5 | TN4043367Replaces Tennant 11399 | 8 | Clamp, Hose, Wormdrive, 0.81-1.50d, .50w | $5.10/EA |
| 6 | TN4026578Replaces Tennant 79497 | 1 | Fitting, Plstc, Tee, Pf08/Pf08/Pf08 | $10.30/EA |
| 7 | TN4021149Replaces Tennant 63244-2 | 1 | Fitting, Plstc, E90, Bm12/Pm08 | $6.90/EA |
| 8 | TN4028472Replaces Tennant 365096 | 1 | Fitting, Plstc, Tee, Bm16/Pf12/Bm16, Br | $9.90/EA |
| 9 | TN4041912Replaces Tennant 18595 | 2 | Fitting, Plstc, E90, Bm16/Pm12Serial 011000 and later. | $12.50/EA |
| 10 | TN4035365Replaces Tennant 24105 | 1 | Fitting, Brs, Qdc, Bm12/Qf08 | $101.81/EA |
| 11 | TN4041783Replaces Tennant 1208043 | 1 | Bracket, Mtg, Fitting, Qdc | $6.57/EA |
| 12 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 13 | TN4043365Replaces Tennant 11329 | 2 | Screw, Hex, M6 X 1.00 X 16, Nl, Ss | $3.40/EA |
| 14 | TN4042460Replaces Tennant 1045034 | 2 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, Clr | $65.50/EA |
| 15 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 16 | TN4029238Replaces Tennant 375321 | 1 | Fitting, Brs, Str, Pm08/Garden Hose | $10.40/EA |
| 17 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, Rbr | $3.50/EA |
| 18 | TN4030863Replaces Tennant 33295 | 1 | Fitting, Brs, Qdc, Pf08 | $9.60/EA |
| 19 | TN4038955Replaces Tennant 1005218 | 1 | Fitting, Plstc, Str, Pm08/Pm12, NylSerial 011000 and later. | $5.30/EA |
| 20 | TN4036555Replaces Tennant 10575 | 1 | Fitting, Plstc, E45, Pf12/Pf12Serial 011000 and later. | $21.70/EA |
| 21 | TN4029317Replaces Tennant 57379 | 1 | Fitting, Plstc, Str, Bm16/Pm12Serial 011000 and later. | $9.90/EA |
| 22 | TN4039866Replaces Tennant 1214095 | 3 | Hose, Afmkt, Pvc, Wir,1.00 Id, 03ft, Clr | $66.60/EA |
| 23 | TN4021662Replaces Tennant 86508 | 2 | Fitting, Plstc, Str, Pm08/Pm08 | $6.90/EA |
| 24 | TN4044360Replaces Tennant 14877 | 1 | Fitting, Plstc, E90, Bm12/Pm12 | $6.20/EA |
| 25 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08, Nyl | $6.20/EA |
| 26 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11 | $78.50/EA |
| 27 | TN4035907Replaces Tennant 1019285 | 1 | Bracket, Protector, Float Switch | $22.50/EA |
| 28 | TN4042038Replaces Tennant 1208733 | 1 | Filter, Soltn, 080mesh, Pm12 3.2s 17.5l | $189.20/EA |
| 29 | TN4041755Replaces Tennant 1207777 | 1 | Bracket, Mtg, Ftg, Auto FillSerial up to 010999. | $44.64/EA |
| 30 | TN4021662Replaces Tennant 86508 | 1 | Fitting, Plstc, Str, Pm08/Pm08Serial up to 010999. | $6.90/EA |
| 31 | TN4018368Replaces Tennant 69784 | 1 | Fitting, Plstc, Str, Pm12/Pm12 CloseSerial up to 010999. | $5.30/EA |
| 32 | TN4038891Replaces Tennant 1210841 | 1 | Fitting, Plstc, E90, Bm16/Pf8Serial up to 010999. | $12.63/EA |
Tennant T17 ES Pump Group (option) parts
The parts Tennant numbers on its es pump group (option) drawing. Manual pages 142, list 143.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036689Replaces Tennant 1057978 | 1 | Pump, Soltn, 36vdc, Impeller | $608.60/EA |
| 2 | TN4041745Replaces Tennant 1207659 | 1 | Bracket Weldmt, Mtg, Pump | $18.79/EA |
| 3 | TN4035367Replaces Tennant 24196 | 4 | Screw, Pan, Phl, M5 X 0.80 X 20, Ss | $3.20/EA |
| 4 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, Ss | $2.60/EA |
| 5 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 6 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 7 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 8 | TN4016343Replaces Tennant 73468 | 2 | Fitting, Plstc, E90, Bm10/Pm12 | $7.90/EA |
| 9 | TN4015677Replaces Tennant 71628 | 1 | Fitting, Plstc, Str, Bm10/Pm12 [Nylon] | $6.00/EA |
| 10 | TN4026509Replaces Tennant 9014338 | 1 | Valve Kit, Check, Es [T17]Complete assembly. | $247.71/EA |
| 11 | TN8003653Replaces Tennant 78840 | 1 | Valve, Check, Pump, WaterPart of Valve Kit, Check, Es [T17] (9014338). | $165.50/EA |
| 12 | TN8002662Replaces Tennant 73342 | 1 | Gasket, .25 1.88d 1.0id [Poron]Part of Valve Kit, Check, Es [T17] (9014338). | $3.65/EA |
| 13 | TN8003654Replaces Tennant 78841 | 1 | Flapper, Valve, Pump, WaterPart of Valve Kit, Check, Es [T17] (9014338). | $109.82/EA |
| 14 | TN4228137Replaces Tennant 1217187 | 1 | Flap, Resistor, Check ValvePart of Valve Kit, Check, Es [T17] (9014338). | $7.30/EA |
| 15 | TN4037981Replaces Tennant 1015032 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, Clr | $80.40/EA |
| 16 | TN4015366Replaces Tennant 54333 | 4 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 17 | TN4022231Replaces Tennant 386652 | 1 | Strainer, Soltn, 20mesh, Cyl, 3.5d 09.5l | $101.80/EA |
| 18 | TN4040959Replaces Tennant 05134 | 1 | Fitting, Plstc, Str, Pf12/Pf12 | $3.70/EA |
| 19 | TN4044360Replaces Tennant 14877 | 2 | Fitting, Plstc, E90, Bm12/Pm12 | $6.20/EA |
| 20 | TN4039303Replaces Tennant 1006410 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 03ft, Clr | $14.75/EA |
| 21 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 22 | TN4034897Replaces Tennant 1061954 | 1 | Bracket, Strainer, Pump, Es | $14.44/EA |
| 23 | TN4041942Replaces Tennant 09007 | 1 | Screw, Hex, M6 X 1.00 X 25, Ss | $3.30/EA |
| 24 | TN4027617Replaces Tennant 76426 | 1 | Washer, Sealing, 0.28b 0.75d Ss, Neo | $3.50/EA |
| 25 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 26 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11 | $78.50/EA |
| 27 | TN4035907Replaces Tennant 1019285 | 1 | Bracket, Protector, Float Switch | $22.50/EA |
| 28 | TN4025663Replaces Tennant 377349 | 1 | Fitting, Plstc, Pf12/Pf12, Bh | $22.50/EA |
Tennant T17 ES / Severe Environment / Detergent Metering Group (option) parts
The parts Tennant numbers on its es / severe environment / detergent metering group (option) drawing. Manual pages 144, list 145.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021538Replaces Tennant 9020258 | 1 | Tank Kit, Detergent, Afmkt [T17] | $564.39/EA |
| 1 | TN4191266Replaces Tennant 9020288 | 1 | Tank Kit, Detergent, Tj Afmkt [T17] (Japan Only) | $699.83/EA |
| 2 | TN4042037Replaces Tennant 1208732 | 1 | Plate, Mtg, Tank, Detergent | $4.04/EA |
| 3 | TN4041752Replaces Tennant 1207750 | 1 | Bracket, Mtg, Tank, Detergent | $6.67/EA |
| 4 | TN4034939Replaces Tennant 12273 | 3 | Screw, Hex, M8 X 1.25 X 20, Nl, Ss | $4.00/EA |
| 5 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, Ss | $3.40/EA |
| 6 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 7 | TN4036929Replaces Tennant 1011885 | 1 | Cap, Tank | $69.10/EA |
| 8 | TN4227438Replaces Tennant 1213317 | 1 | Bracket Wldt, PumpSerial up to 010999. | $56.06/EA |
| 8 | TN4224245Replaces Tennant 1225439 | 1 | Bracket Wldt, PumpSerial 011000 and later. | $61.50/EA |
| 9 | TN4021774Replaces Tennant 386364 | 1 | Pump, Detgt, 36vdc (See Breakdowns) | $789.60/EA |
| 10 | TN4035372Replaces Tennant 24265 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, Ss | $3.00/EA |
| 11 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 12 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss | $3.40/EA |
| 13 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial up to 010999. | $3.30/EA |
| 14 | TN4034136Replaces Tennant 32490 | 4 | Washer, Flat, 0.25, StdSerial up to 010999. | $2.50/EA |
| 15 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial up to 010999. | $3.30/EA |
| 16 | TN4037970Replaces Tennant 1014981 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 20ft, Clr | $60.00/EA |
| 17 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, Nyl | $7.00/EA |
| 18 | TN4039131Replaces Tennant 20951 | 1 | Fitting, Plstc, E90, Bm06/Bm06 | $4.20/EA |
| 19 | TN4039117Replaces Tennant 20944 | 1 | Grommet, Pye, 0.37id, F/1.5h, .13 Matl | $27.50/EA |
| 20 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06 | $4.20/EA |
| 21 | TN4039132Replaces Tennant 20952 | 1 | Screen, Pump | $13.70/EA |
| 22 | TN4038889Replaces Tennant 1210807 | 2 | Wire, Tie [W/.25” Fir Tree Clip] | $1.90/EA |
| 23 | TN4030489Replaces Tennant 1071085 | 4 | Clip, Tie, 0.25d, Plstc | $1.60/EA |
| 24 | TN4043510Replaces Tennant 130773 | 6 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 25 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31w | $4.20/EA |
| 26 | TN4041441Replaces Tennant 1207284 | 1 | Switch, Rocker [Mom,Off,Mom, Dual Led] (Only on Severe Environment Group) | $65.00/EA |
| 27 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 011000 and later. | $3.40/EA |
| 28 | TN4034136Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdSerial 011000 and later. | $2.50/EA |
Tennant T17 ec-H2O Solution Pump Group (option) parts
The parts Tennant numbers on its ec-h2o solution pump group (option) drawing. Manual pages 146, list 147.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039277Replaces Tennant 1212443 | 1 | Bracket Wldt, Mgt [T17 Ec-H2o] | $107.87/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 3 | TN4021539Replaces Tennant 9020260 | 1 | Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) | $2,060.30/EA |
| 4 | TN4044400Replaces Tennant 1040467 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, Sems | $3.30/EA |
| 5 | TN4029298Replaces Tennant 57248 | 2 | Fitting, Plstc, E90, Bm06/Pm04, Nyl | $7.00/EA |
| 6 | TN4037122Replaces Tennant 1059231 | 1 | Fitting, Stl, Pm04/Pm02/Pm04/Pm02, Spcl | $46.30/EA |
| 7 | TN4044388Replaces Tennant 150208 | 1 | Fitting, Brs, Str, Pm02, Plug [Skhd] | $4.20/EA |
| 8 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, Ss | $3.30/EA |
| 9 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 10 | TN4038746Replaces Tennant 1055254 | 1 | Switch, Press, 25 Psi, Pm02 | $74.20/EA |
| 11 | TN4017396Replaces Tennant 43844 | 15 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31w | $4.20/EA |
| 12 | TN4037967Replaces Tennant 1014974 | 2 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, Clr | $22.40/EA |
| 13 | TN4040844Replaces Tennant 1203814 | 1 | Fitting, Plstc, Str, Bm06, Cplg, Male | $5.30/EA |
| 14 | TN4040836Replaces Tennant 1203454 | 1 | Fitting, Plstc, Str, Bm06, Cplg, Fem | $21.70/EA |
| 15 | TN4038299Replaces Tennant 1015455 | 1 | Valve, Check, 0005psi Bm06/Bm06 | $93.60/EA |
| 16 | TN4040852Replaces Tennant 1203996 | 1 | Fitting, Plstc, Str, Bm05, Cplg, Fem | $15.10/EA |
| 17 | TN4040854Replaces Tennant 1204024 | 1 | Fitting, Plstc, E90, Bm04 Cplg Male | $8.50/EA |
| 18 | TN4040871Replaces Tennant 1204338 | 1 | Fitting, Plstc, Str, Bm04, Cplg, Male | $4.20/EA |
| 19 | TN4199328Replaces Tennant 1011522 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 03Ft | $14.14/EA |
| 20 | TN4032999Replaces Tennant 1067526 | 1 | Fastener, 8.0l [Hook And Loop] | $7.10/EA |
| 21 | TN4041965Replaces Tennant 09200 | 1 | Screw, Pan, Phl, M5 X 0.80 X 12, Ss | $3.40/EA |
| 22 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, Ss | $2.60/EA |
| 23 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 24 | TN4041184Replaces Tennant 1206138 | 1 | Bracket, PumpSerial up to 010999. | $39.27/EA |
| 24 | TN4037473Replaces Tennant 1221952 | 1 | Bracket, PumpSerial 011000 and later. | $38.77/EA |
| 25 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 26 | TN4034136Replaces Tennant 32490 | 1 | Washer, Flat, 0.25, Std | $2.50/EA |
| 27 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, , 0.25-0.62D, .31W | $6.20/EA |
| 28 | TN4043439Replaces Tennant 1200328 | 1 | Pump, Soltn, Ele, 36vdc, 60psi | $218.80/EA |
| 29 | TN4038993Replaces Tennant 1005630 | 2 | Fitting, Plstc, E90, Bm06/Pm06, Nyl | $7.00/EA |
| 30 | TN4032585Replaces Tennant 1064184 | 2 | Circuitbreaker, 02.5a, Resetable | $13.40/EA |
| 31 | TN4044578Replaces Tennant 150538 | 1 | Fitting, Plstc, Str, Bm06/Pm06 | $5.30/EA |
| 32 | TN4037968Replaces Tennant 1014976 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 08ft, Clr | $31.90/EA |
| 33 | TN4037962Replaces Tennant 1014949 | 1 | Hose, Afmkt, Pvc, Brd, 0.25id, 08ft, Clr | $25.30/EA |
| 34 | TN4044069Replaces Tennant 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06 | $2.60/EA |
| 35 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v] | $17.40/EA |
| 36 | TN4035142Replaces Tennant 1062403 | 1 | Fitting, Brs, Snubber, Pm02/Pf02 | $37.10/EA |
| 37 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04 | $10.60/EA |
| 38 | TN4036842Replaces Tennant 1011409 | 2 | Hose, Afmkt, Pvc, Brd, 0.25id, 01ft | $46.06/EA |
| 39 | TN4035120Replaces Tennant 1016354 | 2 | Clamp, Cable, Ss, 0.50d X 0.50w [Insul] | $4.10/EA |
Tennant T17 ec-H2O solution Supply Group, Side Brush (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, side brush (option) drawing. Manual pages 148, list 149.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030938Replaces Tennant 1028581 | 1 | Valve, Water, Solenoid, 36vdc 6.0mm Pf04 | $470.60/EA |
| 2 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, Ss | $3.30/EA |
| 3 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 4 | TN4040561Replaces Tennant 1011170 | 1 | Fitting, Plstc, E90, Bm04/Pm04, Nyl | $5.30/EA |
| 5 | TN4017396Replaces Tennant 43844 | 17 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31w | $4.20/EA |
| 6 | TN4037962Replaces Tennant 1014949 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 08Ft | $25.30/EA |
| 7 | TN4043455Replaces Tennant 1200467 | 1 | Fitting, Plstc, Rst | $11.62/EA |
| 8 | TN4040871Replaces Tennant 1204338 | 2 | Fitting, Plstc, Str, Bm04, Cplg, Male | $4.20/EA |
| 9 | TN4040836Replaces Tennant 1203454 | 1 | Fitting, Plstc, Str, Bm06, Cplg, Fem | $21.70/EA |
| 10 | TN4041193Replaces Tennant 1206303 | 1 | Fitting, Plstc, Pf04/Pf04/Pf04 | $59.70/EA |
| 11 | TN4040810Replaces Tennant 1052010 | 1 | Fitting, Plstc, Str, Pm04/Pm04 | $3.60/EA |
| 12 | TN4040561Replaces Tennant 1011170 | 1 | Fitting, Plstc, E90, Bm04/Pm04, Nyl | $5.30/EA |
| 13 | TN4036842Replaces Tennant 1011409 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 01Ft | $46.06/EA |
| 14 | TN4043900Replaces Tennant 1201441 | 1 | Fitting, Plstc, Rst, Main Head | $8.08/EA |
| 15 | TN4038929Replaces Tennant 1002898 | 1 | Fitting, Plstc, Str, Bm04, Cplg,Fem[Tco] | $58.00/EA |
| 16 | TN4040852Replaces Tennant 1203996 | 1 | Fitting, Plstc, Str, Bm05, Cplg, Fem | $15.10/EA |
| 17 | TN4038930Replaces Tennant 1002899 | 1 | Fitting, Plstc, Str, Pm04, Cplg,Mal[Tco] | $31.30/EA |
| 18 | TN4038993Replaces Tennant 1005630 | 2 | Fitting, Plstc, E90, Bm06/Pm06, Nyl | $7.00/EA |
| 19 | TN4044069Replaces Tennant 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06 | $2.60/EA |
| 20 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, Clr | $33.10/EA |
| 21 | TN4022062Replaces Tennant 87173 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm06 | $6.67/EA |
| 22 | TN4199316Replaces Tennant 1011411 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 03Ft | $33.84/EA |
Tennant T17 ec-H2O Wire Harness Group (option) parts
ec-H2O Wire Harness Group (option) from Tennant's parts list. Manual page 150.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030126Replaces Tennant 1069671 | 1 | Harness, Ele [Ec-H20, T12] | $60.70/EA |
Tennant T17 spray Nozzle Group (option) parts
The parts Tennant numbers on its spray nozzle group (option) drawing. Manual pages 152, list 153.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038428Replaces Tennant 1054178 | 1 | Pump, Soltn, Ele, 36vdc, 45psiSerial up to 012999. | $518.00/EA |
| 2 | TN4036357Replaces Tennant 1056982 | 1 | Diode, Ele, Plug | $15.40/EA |
| 3 | TN4041754Replaces Tennant 1207774 | 1 | Bracket Wldt, Pump, Spray HoseSerial up to 012999. | $22.20/EA |
| 4 | TN4035956Replaces Tennant 12316 | 4 | Screw, Hex, M5 X 0.80 X 25, Ss | $3.40/EA |
| 5 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, Ss | $2.60/EA |
| 6 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial up to 012999. | $3.30/EA |
| 7 | TN4045637Replaces Tennant 1037346 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, Sems | $2.50/EA |
| 8 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, Resetable | $5.30/EA |
| 9 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt, On / None / On | $45.20/EA |
| 10 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 11 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, Clr | $75.50/EA |
| 12 | TN4015366Replaces Tennant 54333 | 7 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 13 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. D | $3.90/EA |
| 14 | TN4017096Replaces Tennant 63987-1 | 1 | Fitting, Plstc, E90, Bm08/Bm08 | $7.80/EA |
| 15 | TN4041367Replaces Tennant 1206482 | 1 | Plate Wldt, Mtg, Hose-Reel [T17] | $99.80/EA |
| 16 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 17 | TN4041364Replaces Tennant 1206456 | 1 | Reel Assy, Hose, Large | $685.10/EA |
| 18 | TN4040847Replaces Tennant 1203947 | 1 | Washer, Retainer, Spring | $6.70/EA |
| 19 | TN4043893Replaces Tennant 1201393 | 1 | Pawl, Ratchet | $11.90/EA |
| 20 | TN4041926Replaces Tennant 08709 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl | $2.50/EA |
| 21 | TN4035833Replaces Tennant 1056719 | 1 | Bolt, Shld, .41d X 0.35, M8 X 1.25 | $12.90/EA |
| 22 | TN4043896Replaces Tennant 1201423 | 1 | Spring, Torsion, Hose Reel | $21.60/EA |
| 23 | TN4035386Replaces Tennant 24584 | 1 | Fitting, Brs, E90, Pf06/Pm06, Spcl | $6.90/EA |
| 24 | TN4034398Replaces Tennant 1060128 | 1 | Fitting, Brs, E90, Bm06/Pm06, Short | $8.70/EA |
| 25 | TN4031218Replaces Tennant 33584 | 1 | Clamp, Cable, Stl, 0.63d X 0.50w, 1hole | $4.20/EA |
| 26 | TN4041271Replaces Tennant 06943 | 1 | Screw, Hex, M6 X 1.00 X 20, 8.8 | $2.50/EA |
| 27 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
| 28 | TN4036609Replaces Tennant 1057816 | 1 | Bushing, Sleeve, 1.00b 1.13d 1.750l, Fgl | $10.30/EA |
| 29 | TN4036608Replaces Tennant 1057814 | 1 | Washer, Thrust, Plstc 1.02b 1.38d | $1.50/EA |
| 30 | TN4034453Replaces Tennant 32598 | 1 | Washer, Flat, 1.02b 1.75d .12, Stl | $4.10/EA |
| 31 | TN4041941Replaces Tennant 09005 | 1 | Ring, Retaining, Ext, 1.00d, Basic | $2.50/EA |
| 32 | TN4032867Replaces Tennant 1066919 | 1 | Washer, Thrust, 50.0b 110.0d 0.79w | $6.10/EA |
| 33 | TN4043446Replaces Tennant 1200394 | 1 | Fitting, Swivel, Str, Pf06/Pm06, Brs | $28.60/EA |
| 34 | TN4013489Replaces Tennant 47388 | 1 | Fitting, Brs, E90, Em08/Pm06 | $12.60/EA |
| 35 | TN4021535Replaces Tennant 9020252 | 1 | Hose Kit, Spray, Afmkt [T17] | $116.60/EA |
| 36 | TN4034577Replaces Tennant 1060428 | 1 | Fitting, Stl, Str, Bm06/Pm06, Swivel | $12.10/EA |
| 37 | TN4030660Replaces Tennant 1027976 | 1 | Fitting, Brs, Str, Pf06/Pm12 | $11.80/EA |
| 38 | TN4028980Replaces Tennant 769785 | 1 | Nozzle, Spray, Gun | $90.00/EA |
| 39 | TN4034044Replaces Tennant 1242823 | 1 | Pump, Soltn, Ele, 36vdc, 45psiSerial 013000 and later. | $299.97/EA |
| 40 | TN4034320Replaces Tennant 1244427 | 1 | Bracket Wldt, PumpSerial 013000 and later. | $35.25/EA |
Tennant T17 vacuum Wand Kit (option) parts
The parts Tennant numbers on its vacuum wand kit (option) drawing. Manual pages 154, list 155.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021224Replaces Tennant 9020080 | 1 | Vac Wand Kit, Ci [T17]Complete assembly. | $808.90/EA |
| 1 | TN4041765Replaces Tennant 1207911 | 1 | Tray, Vac WandPart of Vac Wand Kit, Ci [T17] (9020080). | $314.80/EA |
| 2 | TN4038912Replaces Tennant 1211150 | 4 | Knob, Star,Part of Vac Wand Kit, Ci [T17] (9020080). | $6.16/EA |
| 3 | TN4016224Replaces Tennant 397779 | 4 | Washer, Flat, 0.28b 1.00d .06, Stl, BlkPart of Vac Wand Kit, Ci [T17] (9020080). | $3.20/EA |
| 4 | TN4034578Replaces Tennant 1060440 | 1 | Squeegee, HandPart of Vac Wand Kit, Ci [T17] (9020080). | $20.60/EA |
| 5 | TN4034631Replaces Tennant 1060691 | 1 | Plug, Adapter, PortPart of Vac Wand Kit, Ci [T17] (9020080). | $6.80/EA |
| 6 | TN4034743Replaces Tennant 1061356 | 1 | Retainer, Blade, Sqge, 14.2l (1 set = 2 blades)Part of Vac Wand Kit, Ci [T17] (9020080). | $33.10/EA |
| 7 | TN4034752Replaces Tennant 1061570 | 2 | Bearing, Ball, 0.24b 0.51d 0.20w [2seal]Part of Vac Wand Kit, Ci [T17] (9020080). | $31.60/EA |
| 8 | TN4034753Replaces Tennant 1061571 | 2 | Pin, Axle, BrgPart of Vac Wand Kit, Ci [T17] (9020080). | $4.00/EA |
| 9 | TN4033206Replaces Tennant 1022671 | 2 | Housing, Sqge, Holder, Wheel, F/609648Part of Vac Wand Kit, Ci [T17] (9020080). | $5.40/EA |
| 10 | TN4012933Replaces Tennant 9008155 | 1 | Handle Kit, Wand, AfmktPart of Vac Wand Kit, Ci [T17] (9020080). | $176.40/EA |
| 11 | TN4035174Replaces Tennant 1062659 | 1 | Label, Opertnl, Vacuum Wand HandlePart of Vac Wand Kit, Ci [T17] (9020080). | $16.80/EA |
| 12 | TN4034633Replaces Tennant 1060708 | 1 | Adapter, Swivel, 1.75, AbsPart of Vac Wand Kit, Ci [T17] (9020080). | $17.60/EA |
| 13 | TN4034635Replaces Tennant 1060718 | 1 | Nut, Compression, 2.25-12, AbsPart of Vac Wand Kit, Ci [T17] (9020080). | $3.00/EA |
| 14 | TN4034637Replaces Tennant 1060720 | 1 | Ring, CompressionPart of Vac Wand Kit, Ci [T17] (9020080). | $10.10/EA |
| 15 | TN4043695Replaces Tennant 1200642 | 1 | Hose Assy, Sqge, W/2cuffPart of Vac Wand Kit, Ci [T17] (9020080). | $135.30/EA |
| 16 | TN4037622Replaces Tennant 1014295 | 2 | Clip, Grip, Hose, 0.75-1.12, Stl, Blk, VylPart of Vac Wand Kit, Ci [T17] (9020080). | $12.40/EA |
| 17 | TN4041734Replaces Tennant 1207517 | 1 | Cuff, Adapter, 1.75 X 2.50, PvcPart of Vac Wand Kit, Ci [T17] (9020080). | $10.70/EA |
| 18 | TN4039793Replaces Tennant 1213513 | 6 | Rivet, Blind, .156D X 1.07 X .31D, AlmPart of Vac Wand Kit, Ci [T17] (9020080). | $1.10/EA |
| 19 | TN4039829Replaces Tennant 1213799 | 1 | Mess Assy, ClothPart of Vac Wand Kit, Ci [T17] (9020080). | $143.60/EA |
Tennant T17 squeegee Guard Group (option) parts
The parts Tennant numbers on its squeegee guard group (option) drawing. Manual pages 156, list 157.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041775Replaces Tennant 1207961 | 1 | Bracket, Bumper, Lh, Squeegee [T17] | $127.30/EA |
| 2 | TN4041763Replaces Tennant 1207902 | 1 | Bracket, Bumper, Rh, Squeegee [T17] | $145.10/EA |
| 3 | TN4041789Replaces Tennant 1208109 | 1 | Tube, Guard | $577.10/EA |
| 4 | TN4033860Replaces Tennant 1024977 | 2 | Bumper, Ure, 1.50d 1.25l | $35.00/EA |
| 5 | TN4031918Replaces Tennant 369359 | 1 | Pin, Hitch, .375d X 3.12l, Pl | $7.50/EA |
| 6 | TN4029376Replaces Tennant 57702 | 1 | Cable, Glv .06d 012.0l .26eye /.26eye | $9.50/EA |
| 7 | TN4041785Replaces Tennant 1208053 | 2 | Plate, Doubler | $13.90/EA |
| 8 | TN4018404Replaces Tennant 69972 | 4 | Screw, Hex, M12 X 1.75 X 40, 10.9 | $4.00/EA |
| 9 | TN4043779Replaces Tennant 140045 | 4 | Washer, Flat, 0.51b 1.25d .06, Ss | $4.00/EA |
| 10 | TN4041290Replaces Tennant 06965 | 2 | Screw, Hex, M10 X 1.50 X 80, 8.8 | $6.80/EA |
| 11 | TN4039391Replaces Tennant 21196 | 2 | Screw, Hex, .38-16 X 0.88, G5 | $2.50/EA |
| 12 | TN4034138Replaces Tennant 32492 | 6 | Washer, Flat, 0.38, Std | $2.50/EA |
| 13 | TN4016826Replaces Tennant 41430 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl | $4.00/EA |
| 14 | TN4041271Replaces Tennant 06943 | 1 | Screw, Hex, M6 X 1.00 X 20, 8.8 | $2.50/EA |
| 15 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25, Sae | $2.50/EA |
| 16 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
Tennant T17 positive Drain Group (option) parts
The parts Tennant numbers on its positive drain group (option) drawing. Manual pages 158, list 159.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4183825Replaces Tennant 322427 | 1 | CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17]Complete assembly. | $1,087.70/EA |
| 1 | TN4039546Replaces Tennant 1213186 | 1 | Valve, Ball, Drain, 2.00id, RhPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $531.70/EA |
| 2 | TN4039236Replaces Tennant 1212006 | 1 | Bracket, Mtg, Valve, DrainPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $20.15/EA |
| 3 | TN4039537Replaces Tennant 1213118 | 1 | Support, Valve, DrainPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $99.10/EA |
| 4 | TN4039545Replaces Tennant 1213182 | 2 | Clamp, Valve, U-BoltPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $21.80/EA |
| 5 | TN4039235Replaces Tennant 1211963 | 1 | Cuff, Hose, 5.0 / 2.0 IdPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $204.60/EA |
| 6 | TN4037088Replaces Tennant 22297 | 1 | Clamp, Hose, Wormdrive, 1.56-2.50d, .50wPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $4.20/EA |
| 7 | TN4043899Replaces Tennant 1201434 | 1 | Clamp, Hose, Wormdrive, 4.63-5.50, 0.5wPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $7.00/EA |
| 8 | TN4039786Replaces Tennant 1213392 | 1 | Fitting, Coupler, Hose, Shank, FemPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $50.60/EA |
| 9 | TN4039748Replaces Tennant 1213206 | 1 | Hose Assy, W/1 Cuff, 2.0 Id 120.0 LPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $197.20/EA |
| 10 | TN4039899Replaces Tennant 1214326 | 1 | Rework, Dust Cap, Valve, DrainPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $64.30/EA |
| 11 | TN4036504Replaces Tennant 12333 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, NlPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $4.00/EA |
| 12 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $2.60/EA |
| 13 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $3.30/EA |
| 14 | TN4039264Replaces Tennant 1212366 | 1 | Handle, ValvePart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $11.30/EA |
| 15 | TN4039783Replaces Tennant 1213362 | 1 | Grip, Handle, ValvePart of CS, Hose Kit, Extn, Drn, Tnk, Rcv [T17] (322427). | $27.20/EA |
| 16 | TN4044789Replaces Tennant 1074075 | 1 | Plug, Hole, Rnd, 0.25H, 1.00D 0.6L, Nyl | $1.20/EA |
Tennant T17 telemetry Group (option) parts
The parts Tennant numbers on its telemetry group (option) drawing. Manual pages 160, list 161.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031062Replaces Tennant 1069467 | 1 | Controlbox Assy, Telem [Int]Serial up to 014259. | $989.40/EA |
| 1 | TN4031062Replaces Tennant 1247507 | 1 | Controlbox Assy, Telem [Usa, 4g]Serial 014260 and later. | $989.40/EA |
| 1 | TN1070541Tennant 1070541 | 1 | Controlbox Assy, Telem [Canada]Serial up to 014259. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4031063Replaces Tennant 1247508 | 1 | Controlbox Assy, Telem [3g, Intl.]Serial 014260 and later. | $1,107.77/EA |
| 2 | TN4041748Replaces Tennant 1207701 | 1 | Bracket Wldt, Mtg, Telem | $32.12/EA |
| 3 | TN4041969Replaces Tennant 09244 | 4 | Screw, Hex, M5 X 0.80 X 16, 8.8 | $2.50/EA |
| 4 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, 0.25b 0.56d .05, Pl, 10 | $2.50/EA |
| 5 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl | $2.50/EA |
| 6 | TN4034133Replaces Tennant 32483 | 4 | Washer, flat, 0.25, Sae | $2.50/EA |
| 7 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 8 | TN4217657Replaces Tennant 1070324 | 1 | Antenna, Telem, 110 In [Gprs]Serial up to 010999. | $81.51/EA |
| 9 | TN4030314Replaces Tennant 1070402 | 1 | Angle, Mtg, Antenna, TelemSerial up to 010999. | $18.69/EA |
| 10 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62d, NatSerial up to 010999. | $3.40/EA |
| 11 | TN4044400Replaces Tennant 1040467 | 2 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsSerial up to 010999. | $3.30/EA |
| 12 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial up to 010999. | $2.50/EA |
| 13 | TN4030121Replaces Tennant 1069580 | 1 | Label, Opertnl, Telem [Fcc/Ic] | $4.34/EA |
| 14 | TN4030336Replaces Tennant 1070757 | 1 | Shunt, 050mv 400a | $79.29/EA |
| 15 | TN4041258Replaces Tennant 06927 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8 | $3.30/EA |
| 16 | TN4041589Replaces Tennant 07514 | 2 | Washer, Lock, Int, 10, Ss | $3.50/EA |
| 17 | TN4022837Replaces Tennant 611221 | 2 | Boot, Terminal, Battery, 25.4mm, BlkSerial up to 014259. | $4.90/EA |
| 18 | TN4031328Replaces Tennant 1073059 | 1 | Harness, Ele [Telemetry, T17]Complete assembly. | $108.47/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Fuse, 002a, 250vdc, CartridgePart of Harness, Ele [Telemetry, T17] (1073059). | $5.20/EA |
| 19 | TN4031331Replaces Tennant 1073077 | 1 | Cable, Battery, 1/0ga [Telem, T17]Serial up to 010999. | $282.40/EA |
| 19 | TN4178403Replaces Tennant 1074600 | 1 | Cable, Battery, 2/0ga [M17, Telem]Serial 011000 and later. | $341.48/EA |
| 20 | TN4031332Replaces Tennant 1073078 | 1 | Cable, 1/0ga 48.2l Blk[M9 Ring/.25 Ring]Serial up to 010999. | $111.30/EA |
| 20 | TN4178404Replaces Tennant 1074601 | 1 | Cable, 2/0ga 61.0Ll Blk[M6 Ring/M9 Ring]Serial 011000 and later. | $140.19/EA |
| 21 | TN4217709Replaces Tennant 1248350 | 2 | Antenna, Telem [4g, 180”]Serial 014260 and later. | $50.89/EA |
| 22 | TN4168046Replaces Tennant 39358 | 2 | Washer, Lock, Int, 0.44 | $1.82/EA |
| 23 | TN4038889Replaces Tennant 1210807 | 5 | Wire, Tie [W/.25” Fir Tree Clip]Serial 011000 and later. | $1.90/EA |
| 24 | TN4031245Replaces Tennant 33930 | 2 | Screw, Hex, M6 X 1.00 X 40, Ss | $3.40/EA |
| 25 | TN4041985Replaces Tennant 09570 | 3 | Clamp, Cable, Stl, 0.90d X 0.62w, 1hole | $5.30/EA |
| 26 | TN4041992Replaces Tennant 09740 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 27 | TN4035369Replaces Tennant 24199 | 2 | Screw, Hex, M5 X 0.80 X 16, SsSerial up to 010999. | $3.00/EA |
| 28 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, SsSerial up to 010999. | $2.60/EA |
| 29 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlSerial up to 010999. | $2.50/EA |
| 30 | TN1070658Tennant 1070658 | 1 | Antenna, Telem, 187 In [Gprs]Serial 011000 to 014259. | $41.10/EA |
Tennant T17 battery Slide Out Group (option) parts
The parts Tennant numbers on its battery slide out group (option) drawing. Manual pages 162, list 163.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041766Replaces Tennant 1207912 | 1 | Tray Wldt, Ro Battery, [T17]Serial up to 010999. | $545.40/EA |
| 1 | TN4224088Replaces Tennant 1225437 | 1 | Tray Wldt, Ro Battery, [T17]Serial 011000 to 012999. | $580.55/EA |
| 1 | TN4033927Replaces Tennant 1241249 | 1 | Tray Wldt, R/O, BatterySerial 013000 and later. | $785.00/EA |
| 2 | TN4042011Replaces Tennant 1208527 | 3 | Plate, Plstc, Bat Rollout | $170.27/EA |
| 3 | TN4026590Replaces Tennant 79506 | 9 | Screw, Flt, Soc, M8 X 1.25 X 30, Ss | $4.00/EA |
| 4 | TN4042902Replaces Tennant 01685 | 9 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 5 | TN4041929Replaces Tennant 08713 | 9 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 6 | TN4031927Replaces Tennant 369415 | 6 | Bearing, Needle, 0.25b 0.88d 0.50w | $40.10/EA |
| 7 | TN4026774Replaces Tennant 58979 | 3 | Screw, Hex, M6 X 1.00 X 55, Fl, Ss | $4.00/EA |
| 8 | TN4041928Replaces Tennant 08712 | 3 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 9 | TN4042901Replaces Tennant 01684 | 6 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 10 | TN4042094Replaces Tennant 1209368 | 1 | Plate, Guide, Battery Rollout [T17] | $315.62/EA |
| 11 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flat, 0.31, Sae | $2.50/EA |
| 12 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss (Large Battery) | $3.30/EA |
| 13 | TN4045640Replaces Tennant 1037354 | 6 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsSerial up to 010999. | $2.50/EA |
| 13 | TN4045641Replaces Tennant 1037355 | 6 | Screw, Hex, M8 X 1.25 X 35, 9.8, SemsSerial 011000 and later. | $2.50/EA |
| 14 | TN4038871Replaces Tennant 1210673 | 1 | Switch, Limit, N.C. [Cpi, Spst, 280 Mp] | $107.50/EA |
| 15 | TN4041957Replaces Tennant 09120 | 2 | Screw, Flt, Soc, M5 X 0.80 X 16, 10.9 | $4.80/EA |
| 16 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl | $2.50/EA |
| 17 | TN4042029Replaces Tennant 1208673 | 1 | Plate, Door, Battery Rollout [T17]Serial up to 012999. | $42.82/EA |
| 17 | TN4033928Replaces Tennant 1241253 | 1 | Plate, Door, Battery Rollout [T17/M17]Serial 013000 and later. | $69.36/EA |
| 18 | TN4045641Replaces Tennant 1037355 | 6 | Screw, Hex, M8 X 1.25 X 35, 9.8, Sems (Small Battery) | $2.50/EA |
Tennant T17 battery and Charger Group, 510AH / 625AH (option) parts
The parts Tennant numbers on its battery and charger group, 510ah / 625ah (option) drawing. Manual pages 164, list 165.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029769Replaces Tennant 1264829 | 1 | Battery, Wet, 36Vdc, 510AhComplete assembly. | $10,608.76/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36Vdc, 510Ah (1264829). | $165.60/EA |
| 1 | TN4031086Replaces Tennant 1248312 | 1 | Battery, Wet, 36Vdc, 625Ah (China Only)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36Vdc, 625Ah (China Only) (1248312). | $165.60/EA |
| 3 | TN4029771Replaces Tennant 1264831 | 1 | Battery, Wet, 36vdc, 510ah [W/Watering]Complete assembly. | $9,972.00/EA |
| 4 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36vdc, 510ah [W/Watering] (1264831). | $165.60/EA |
| 5 | TN4227431Replaces Tennant 1213281 | 1 | Kit, Hose, Watering, Battery, 20ft | $548.40/EA |
| 6 | TN4188914Replaces Tennant 316766 | 1 | Watering Kit, Battery | $995.80/EA |
| 7 | TN4045640Replaces Tennant 1037354 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8 Sems | $2.50/EA |
| 8 | TN4041769Replaces Tennant 1207934 | 1 | Charger, 36vdc/80a, 200-240vac 3phComplete assembly. | $6,099.24/EA |
| 9 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/80a, 200-240vac 3ph (1207934). | $165.60/EA |
| 10 | TN4041768Replaces Tennant 1207933 | 1 | Charger, 36vdc/80a, 200-240vac 1phComplete assembly. | $5,235.12/EA |
| 11 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/80a, 200-240vac 1ph (1207933). | $165.60/EA |
| 12 | TN4034976Replaces Tennant 1228060 | 1 | Charger, 36Vdc/a60A, 600Vac, 3PhComplete assembly. | $8,735.74/EA |
| 13 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36Vdc/a60A, 600Vac, 3Ph (1228060). | $165.60/EA |
| 14 | TN4041403Replaces Tennant 1206951 | 1 | Bracket, Front, Battery | $42.50/EA |
Tennant T17 battery and Charger Group, 750AH / 775AH (option) parts
The parts Tennant numbers on its battery and charger group, 750ah / 775ah (option) drawing. Manual pages 166, list 167.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029770Replaces Tennant 1264830 | 1 | Battery, Wet, 36Vdc, 750AhComplete assembly. | $10,904.20/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36Vdc, 750Ah (1264830). | $165.60/EA |
| 1 | TN4031087Replaces Tennant 1248313 | 1 | Battery, Wet, 36Vdc, 755Ah (China Only)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36Vdc, 755Ah (China Only) (1248313). | $165.60/EA |
| 3 | TN4029871Replaces Tennant 1264832 | 1 | Battery, Wet, 36vdc, 750ah [W/Watering]Complete assembly. | $13,545.72/EA |
| 4 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36vdc, 750ah [W/Watering] (1264832). | $165.60/EA |
| 5 | TN4227431Replaces Tennant 1213281 | 1 | Kit, Hose, Watering, Battery, 20ft | $548.40/EA |
| 6 | TN4188914Replaces Tennant 316766 | 1 | Watering Kit, Battery | $995.80/EA |
| 7 | TN4045640Replaces Tennant 1037354 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8 Sems | $2.50/EA |
| 8 | TN4039246Replaces Tennant 1212158 | 1 | Charger, 36vdc/100a, 200-240vac 3phComplete assembly. | $6,134.52/EA |
| 9 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/100a, 200-240vac 3ph (1212158). | $165.60/EA |
| 8 | TN4041771Replaces Tennant 1207936 | 1 | Charger, 36vdc/120a, 480vac 3phComplete assembly. | $6,697.56/EA |
| 9 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/120a, 480vac 3ph (1207936). | $165.60/EA |
| 8 | TN4041770Replaces Tennant 1207935 | 1 | Charger, 36vdc/120a, 380-415vac 3ph (International Only)Complete assembly. | $6,584.68/EA |
| 9 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/120a, 380-415vac 3ph (International Only) (1207935). | $165.60/EA |
| 10 | TN4021579Replaces Tennant 9020652 | 1 | Charger Kit, 36vdc/80a, 200-240vac 1ph (International Only)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger Kit, 36vdc/80a, 200-240vac 1ph (International Only) (9020652). | $165.60/EA |
| 12 | TN4034976Replaces Tennant 1228060 | 1 | Charger, 36Vdc/a60A, 600Vac, 3PhComplete assembly. | $8,735.74/EA |
| 13 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36Vdc/a60A, 600Vac, 3Ph (1228060). | $165.60/EA |
| 14 | TN4041403Replaces Tennant 1206951 | 1 | Bracket, Front, Battery | $42.50/EA |
Tennant T17 battery and Charger Group, 930AH (option) parts
The parts Tennant numbers on its battery and charger group, 930ah (option) drawing. Manual pages 168, list 169.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038836Replaces Tennant 1210313 | 1 | Battery, Wet, 36Vdc, 930AhComplete assembly. | $16,735.32/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36Vdc, 930Ah (1210313). | $165.60/EA |
| 3 | TN4038838Replaces Tennant 1210316 | 1 | Battery, Wet, 36vdc, 930ah [W/Watering]Complete assembly. | $18,289.08/EA |
| 4 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36vdc, 930ah [W/Watering] (1210316). | $165.60/EA |
| 5 | TN4227431Replaces Tennant 1213281 | 1 | Kit, Hose, Watering, Battery, 20ft | $548.40/EA |
| 6 | TN4188914Replaces Tennant 316766 | 1 | Watering Kit, Battery | $995.80/EA |
| 7 | TN4045640Replaces Tennant 1037354 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8 Sems | $2.50/EA |
| 8 | TN4039246Replaces Tennant 1212158 | 1 | Charger, 36vdc/100a, 200-240vac 3phComplete assembly. | $6,134.52/EA |
| 9 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/100a, 200-240vac 3ph (1212158). | $165.60/EA |
| 8 | TN4041771Replaces Tennant 1207936 | 1 | Charger, 36vdc/120a, 480vac 3phComplete assembly. | $6,697.56/EA |
| 9 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/120a, 480vac 3ph (1207936). | $165.60/EA |
| 8 | TN4041770Replaces Tennant 1207935 | 1 | Charger, 36vdc/120a, 380-415vac 3ph (International Only)Complete assembly. | $6,584.68/EA |
| 9 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36vdc/120a, 380-415vac 3ph (International Only) (1207935). | $165.60/EA |
| 10 | TN4021579Replaces Tennant 9020652 | 1 | Charger Kit, 36vdc/80a, 200-240vac 1ph (International Only)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger Kit, 36vdc/80a, 200-240vac 1ph (International Only) (9020652). | $165.60/EA |
| 12 | TN4034976Replaces Tennant 1228060 | 1 | Charger, 36Vdc/a60A, 600Vac, 3PhComplete assembly. | $8,735.74/EA |
| 13 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36Vdc/a60A, 600Vac, 3Ph (1228060). | $165.60/EA |
| 14 | TN4041403Replaces Tennant 1206951 | 1 | Bracket, Front, Battery | $42.50/EA |
Tennant T17 battery and Charger Group, 930AH, Opportunity Charging (option) parts
The parts Tennant numbers on its battery and charger group, 930ah, opportunity charging (option) drawing. Manual pages 170, list 171.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038213Replaces Tennant 1225538 | 1 | Battery, Wet, 36Vdc, 930Ah [Spw/Wi-Iq]Complete assembly. | $18,025.32/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Battery, Wet, 36Vdc, 930Ah [Spw/Wi-Iq] (1225538). | $165.60/EA |
| 3 | TN4227431Replaces Tennant 1213281 | 1 | Kit, Hose, Watering, Battery, 20ft | $548.40/EA |
| 4 | TN4188914Replaces Tennant 316766 | 1 | Watering Kit, Battery | $995.80/EA |
| 5 | TN4045640Replaces Tennant 1037354 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8 Sems | $2.50/EA |
| 6 | TN4225392Replaces Tennant 1219396 | 1 | Charger, 36 Vdc/240A, 480Vac [Opportunity]Complete assembly. | $10,306.92/EA |
| 7 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36 Vdc/240A, 480Vac [Opportunity] (1219396). | $165.60/EA |
| 6 | TN4038211Replaces Tennant 1225535 | 1 | Charger, 36 Vdc 195A 400Vac [Opportunity] - (China Only)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, GrayPart of Charger, 36 Vdc 195A 400Vac [Opportunity] - (China Only) (1225535). | $165.60/EA |
| 8 | TN4041403Replaces Tennant 1206951 | 1 | Bracket, Front, Battery | $42.50/EA |
Tennant T17 ramp Climb Counter Weight Group (option) parts
The parts Tennant numbers on its ramp climb counter weight group (option) drawing. Manual pages 172, list 173.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4227458Replaces Tennant 1213680 | 1 | Weight, Counter, Casting, 250Lb, Painted | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4227154Replaces Tennant 1212747 | 1 | Channel Wldt, Bumper, Ballast | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4041843Replaces Tennant 16930 | 4 | Screw, Hex, M10 X 1.50 X 50, 8.8 | $3.20/EA |
| 4 | TN4034138Replaces Tennant 32492 | 4 | Washer, Flat, 0.38, Std | $2.50/EA |
| 5 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 6 | TN4037787Replaces Tennant 1052962 | 6 | Wheel, 05.0d 2.00w 0.75b, Gray, W/ Bshg | $26.30/EA |
| 7 | TN4041358Replaces Tennant 1206367 | 2 | Pin, Hitch, .750d X 7.00l, Pl | $20.70/EA |
| 8 | TN4035242Replaces Tennant 1017218 | 4 | Washer, flat, 0.32B 1.00D .12, Ss | $3.40/EA |
Tennant T17 fuel Cell Group (013000 -) (option) parts
The parts Tennant numbers on its fuel cell group (013000 -) (option) drawing. Manual pages 174, list 175.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033684Replaces Tennant 1240010 | 2 | Bracket, Cell, FuelSerial 013000 and later. | $73.93/EA |
| 2 | TN4045640Replaces Tennant 1037354 | 4 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsSerial 013000 and later. | $2.50/EA |
| 3 | TN4033636Replaces Tennant 1238895 | 1 | Bracket, Controller [Pendant]Serial 013000 and later. | $42.12/EA |
| 4 | TN4027333Replaces Tennant 382320 | 2 | Screw, Pan, Phl, 12-16 X 0.50, F/ PlstcSerial 013000 and later. | $2.50/EA |
| 5 | TN4030108Replaces Tennant 1069322 | 2 | Washer, Flat, 0.25, Sae, BlkSerial 013000 and later. | $3.20/EA |
| 6 | TN4221367Replaces Tennant 1238731 | 1 | Bracket Wldt, Sppt, SeatSerial 013000 and later. | $369.36/EA |
| 7 | TN4045637Replaces Tennant 1037346 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsSerial 013000 and later. | $2.50/EA |
| 8 | TN4218219Replaces Tennant 1238878 | 1 | Door, FrameSerial 013000 and later. | $414.81/EA |
| 9 | TN4192309Replaces Tennant 9018849 | 1 | Cover, Side, Lh, Fuel Cell, Afmkt [T/M17]Serial 013000 and later. | $830.83/EA |
| 10 | TN4034939Replaces Tennant 12273 | 4 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 013000 and later. | $4.00/EA |
| 11 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsSerial 013000 and later. | $3.40/EA |
| 12 | TN4192308Replaces Tennant 9018848 | 1 | Cover, Side, Rh, Fuel Cell,Afmkt [T/M17]Serial 013000 and later. | $880.32/EA |
| 13 | TN4014178Replaces Tennant 49826 | 3 | Screw, Hex, M8 X 1.25 X 16, Nl, SsSerial 013000 and later. | $3.40/EA |
| 14 | TN4036927Replaces Tennant 1011882 | 1 | Seal, Bulb, Str, Snap-In, Epdm, BulkSerial 013000 and later. | $3.90/EA |
| 15 | TN4033404Replaces Tennant 1238175 | 1 | Panel, Louvered, RhSerial 013000 and later. | $105.85/EA |
| 16 | TN4029542Replaces Tennant 360973 | 6 | Screw, Pan, Phl, 12-16 X 0.50, F/ PlstcSerial 013000 and later. | $4.00/EA |
| 17 | TN4016548Replaces Tennant 398806 | 1 | LatchSerial 013000 and later. | $67.50/EA |
| 18 | TN4041265Replaces Tennant 06934 | 1 | Screw, Pan, Phl, M5 X 0.80 X 20, 4.8Serial 013000 and later. | $3.40/EA |
| 19 | TN4192564Replaces Tennant 9018980 | 1 | Cover, Battery, Fuel Cell, Afmkt [T/M17]Serial 013000 and later. | $1,490.96/EA |
| 19 | TN4192567Replaces Tennant 9018983 | 1 | Cover, Battery, Fuel Cell, Ohg [T/M17]Serial 013000 and later. | $1,490.96/EA |
| 20 | TN4033456Replaces Tennant 1238671 | 1 | Bracket Wldt, Mtg, OhgSerial 013000 and later. | $43.43/EA |
Tennant T17 pressure Washer Wand and Cover Group (013000 -) (option) parts
The parts Tennant numbers on its pressure washer wand and cover group (013000 -) (option) drawing. Manual pages 176, list 177.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021196Replaces Tennant 9018850 | 1 | Brkt Kit, Press Wash, Afmkt [T/M17]Serial 013000 and later. | $552.18/EA |
| 2 | TN4035634Replaces Tennant 12312 | 4 | Screw, Hex, M5 X 0.80 X 12, 8.8Serial 013000 and later. | $4.00/EA |
| 3 | TN4016224Replaces Tennant 397779 | 1 | Washer, Flat, 0.28b 1.00d .06, Stl, BlkSerial 013000 and later. | $3.20/EA |
| 4 | TN4039851Replaces Tennant 222158 | 1 | Screw, Hex, M6 X 1.00 X 10, FmgSerial 013000 and later. | $3.40/EA |
| 5 | TN4016786Replaces Tennant 41140 | 1 | Washer, Lock, Int-Ext, 0.25Serial 013000 and later. | $3.40/EA |
| 6 | TN1239531Tennant 1239531 | 1 | Seal, Rbr, Clsd, 0.63, 0.63, 3.0lSerial 013000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4192563Replaces Tennant 9018979 | 1 | Cover, Battery, Pw, Dv, Na [T/M17]Serial 013000 and later. | $803.18/EA |
| 7 | TN4192565Replaces Tennant 9018981 | 1 | Cover, Battery, Pw, Dv, Ohg [T/M17]Serial 013000 and later. | $693.66/EA |
| 8 | TN4016548Replaces Tennant 398806 | 1 | LatchSerial 013000 and later. | $67.50/EA |
| 9 | TN4042040Replaces Tennant 1208748 | 1 | Plate, Latch [T17]Serial 013000 and later. | $3.70/EA |
| 10 | TN4041266Replaces Tennant 06935 | 1 | Screw, Pan, Phl, M5 X 0.80 X 25, 4.8Serial 013000 and later. | $3.40/EA |
| 11 | TN4038233Replaces Tennant 1225700 | 1 | Hinge Wldt, Cover, BatterySerial 013000 and later. | $246.54/EA |
| 12 | TN4036259Replaces Tennant 1020341 | 12 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 013000 and later. | $3.50/EA |
| 13 | TN4034347Replaces Tennant 1245866 | 2 | Gasspring, 90lb, 3.15strkSerial 013000 and later. | $48.90/EA |
| 14 | TN4033993Replaces Tennant 1241509 | 4 | Stud, Ball, 10mm Ball, M8x1.25Serial 013000 and later. | $4.20/EA |
| 15 | TN4034137Replaces Tennant 32491 | 4 | Washer, Flat, 0.31, StdSerial 013000 and later. | $2.50/EA |
| 16 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 013000 and later. | $3.30/EA |
| 17 | TN4038234Replaces Tennant 1225704 | 1 | Plate, Mtg, CoverSerial 013000 and later. | $24.07/EA |
| 18 | TN4041424Replaces Tennant 1207130 | 2 | Bracket, Retain, Hinge, CoverSerial 013000 and later. | $7.60/EA |
| 19 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 013000 and later. | $3.30/EA |
| 20 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 013000 and later. | $2.60/EA |
| 21 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 013000 and later. | $3.30/EA |
| 22 | TN4044400Replaces Tennant 1040467 | 3 | Screw, hex, M6 X 1.00 X20, 9.8, SemsSerial 013000 and later. | $3.30/EA |
| 23 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01 FtSerial 013000 and later. | $44.40/EA |
| 24 | TN4021195Replaces Tennant 9018847 | 1 | Cover Kit, Press Wash, Afmkt [T/M17]Serial 013000 and later. | $699.47/EA |
| 25 | TN4029438Replaces Tennant 57772 | 4 | Plug, Hole, Rt, 1.45 X 0.83, Blk NylSerial 013000 and later. | $8.85/EA |
| – | TN4021192Replaces Tennant 9018841 | 1 | Plug Kit, Press Wash, Pump, Afmkt[T/M17]Complete assembly. Serial 013000 and later. | $83.33/EA |
| 26 | TN4034291Replaces Tennant 1243644 | 1 | Strap, PlugPart of Plug Kit, Press Wash, Pump, Afmkt[T/M17] (9018841). Serial 013000 and later. | $4.24/EA |
| 27 | TN4216893Replaces Tennant 1243645 | 1 | Plug, OilPart of Plug Kit, Press Wash, Pump, Afmkt[T/M17] (9018841). Serial 013000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | TN4041258Replaces Tennant 06927 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, 4.8Serial 013000 and later. | $3.30/EA |
| 29 | TN4035039Replaces Tennant 23446 | 2 | Clip, Grip, Finger, 0.31-0.75d, Nk PlSerial 013000 and later. | $4.70/EA |
| 30 | TN4043235Replaces Tennant 02850 | 2 | Nut, Hex, Lock, M4 X 0.70, NlSerial 013000 and later. | $2.50/EA |
| 31 | TN4016852Replaces Tennant 41579 | 2 | Washer, Flat, 08, SsSerial 013000 and later. | $2.60/EA |
| 32 | TN4034322Replaces Tennant 1244570 | 1 | Latch, DrawSerial 013000 and later. | $26.63/EA |
| 33 | TN4041969Replaces Tennant 09244 | 3 | Screw, Hex, M5 X 0.80 X 16, 8.8Serial 013000 and later. | $2.50/EA |
| 34 | TN4034329Replaces Tennant 1244906 | 1 | Keeper, Latch, DrawSerial 013000 and later. | $3.60/EA |
| – | TN4021193Replaces Tennant 9018842 | 1 | Wand Kit, Press Wash, Afmkt [T/M17]Complete assembly. Serial 013000 and later. | $324.60/EA |
| 35 | TN4043990Replaces Tennant 1039042 | 1 | Handle, Gun, TriggerPart of Wand Kit, Press Wash, Afmkt [T/M17] (9018842). Serial 013000 and later. | $124.30/EA |
| 36 | TN4043991Replaces Tennant 1039044 | 1 | Wand, Str, Ss, 28lPart of Wand Kit, Press Wash, Afmkt [T/M17] (9018842). Serial 013000 and later. | $80.80/EA |
| 37 | TN4033448Replaces Tennant 1238513 | 1 | Nozzle, Press WasherPart of Wand Kit, Press Wash, Afmkt [T/M17] (9018842). Serial 013000 and later. | $44.70/EA |
| 38 | TN4044669Replaces Tennant 1042191 | 1 | Fitting, Ss, Qdc, MalPart of Wand Kit, Press Wash, Afmkt [T/M17] (9018842). Serial 013000 and later. | $51.20/EA |
| 39 | TN4042150Replaces Tennant 1044428 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Part of Wand Kit, Press Wash, Afmkt [T/M17] (9018842). Serial 013000 and later. | $7.00/EA |
| – | TN4021194Replaces Tennant 9018844 | 1 | Hose Kit, Press Wash, Afmkt [T/M17]Complete assembly. Serial 013000 and later. | $314.66/EA |
| 40 | TN4043994Replaces Tennant 1039056 | 1 | Hose, Rbr, 25ftPart of Hose Kit, Press Wash, Afmkt [T/M17] (9018844). Serial 013000 and later. | $124.40/EA |
| 41 | TN4044659Replaces Tennant 1042051 | 2 | Fitting, Ss, Qdc, FemPart of Hose Kit, Press Wash, Afmkt [T/M17] (9018844). Serial 013000 and later. | $156.60/EA |
| 42 | TN4032407Replaces Tennant 1259146 | 2 | Fitting, Swivel, Str, Pf06/Pm04, StlPart of Hose Kit, Press Wash, Afmkt [T/M17] (9018844). Serial 013000 and later. | $8.90/EA |
| 43 | TN4039385Replaces Tennant 21168 | 1 | Plug, Hole, Rnd, 0.25h 0.8l, Brb, NylSerial 013000 and later. | $3.20/EA |
Tennant T17 pressure Washer Solution Supply Group (013000 -) (option) parts
The parts Tennant numbers on its pressure washer solution supply group (013000 -) (option) drawing. Manual pages 178, list 179.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013000 and later. | $8.70/EA |
| 2 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 013000 and later. | $70.70/EA |
| 3 | TN4015366Replaces Tennant 54333 | 6 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013000 and later. | $5.10/EA |
| 4 | TN4031467Replaces Tennant 1250867 | 1 | Pump, Soltn, Ele, 36vdc, 45psiSerial 013000 and later. | $428.00/EA |
| 5 | TN4034320Replaces Tennant 1244427 | 1 | Plate Wldt, PumpSerial 013000 and later. | $35.25/EA |
| 6 | TN4045637Replaces Tennant 1037346 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsSerial 013000 and later. | $2.50/EA |
| 7 | TN4017096Replaces Tennant 63987-1 | 1 | Fitting, Plstc, E90, Bm08/Bm08Serial 013000 and later. | $7.80/EA |
| 8 | TN4035956Replaces Tennant 12316 | 4 | Screw, Hex, M5 X 0.80 X 25, SsSerial 013000 and later. | $3.40/EA |
| 9 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, SsSerial 013000 and later. | $2.60/EA |
| 10 | TN4038889Replaces Tennant 1210807 | 4 | Wire, Tie [W/.25” Fir Tree Clip]Serial 013000 and later. | $1.90/EA |
| 11 | TN4040278Replaces Tennant 222375 | 1 | Fitting, Plstc, Str, Bm06/Bm08Serial 013000 and later. | $4.20/EA |
| 12 | TN4037968Replaces Tennant 1014976 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 12ft, ClrSerial 013000 and later. | $31.90/EA |
| 13 | TN4017396Replaces Tennant 43844 | 13 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 013000 and later. | $4.20/EA |
| 14 | TN4033696Replaces Tennant 1240293 | 2 | Tube, Water, Pressure WasherSerial 013000 and later. | $88.68/EA |
| 15 | TN4022325Replaces Tennant 87677 | 1 | Sleeve, Nyl, 1.22id 20.0lSerial 013000 and later. | $7.30/EA |
| 16 | TN4037968Replaces Tennant 1014976 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 08ft, ClrSerial 013000 and later. | $31.90/EA |
| 17 | TN4044539Replaces Tennant 150412 | 1 | Fitting, Plstc, E90, Bm06/Pm06Serial 013000 and later. | $7.90/EA |
| 18 | TN4035386Replaces Tennant 24584 | 2 | Fitting, Brs, E90, Pf06/Pm06, SpclSerial 013000 and later. | $6.90/EA |
| 19 | TN4034002Replaces Tennant 1242000 | 1 | Valve, Pop-Off, 3500 PsiSerial 013000 and later. | $40.99/EA |
| 20 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 013000 and later. | $6.80/EA |
| 21 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrSerial 013000 and later. | $31.50/EA |
| 22 | TN4034059Replaces Tennant 1243167 | 1 | Fitting, Plstc, Str, Bm06/Bm10Serial 013000 and later. | $18.00/EA |
| 23 | TN4037967Replaces Tennant 1014974 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrSerial 013000 and later. | $22.40/EA |
| 24 | TN4022062Replaces Tennant 87173 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm06Serial 013000 and later. | $6.67/EA |
| 25 | TN4034398Replaces Tennant 1060128 | 1 | Fitting, Brs, E90, Bm06/Pmo6, ShortSerial 013000 and later. | $8.70/EA |
| 26 | TN4034059Replaces Tennant 1243167 | 1 | Fitting, Brs, Str, Bm06/Pf08Serial 013000 and later. | $18.00/EA |
| 27 | TN4026509Replaces Tennant 9014338 | 1 | Valve Kit, Check, Es [T17]Complete assembly. Serial 013000 and later. | $247.71/EA |
| 28 | TN8003653Replaces Tennant 78840 | 1 | Valve, Check, Pump, WaterPart of Valve Kit, Check, Es [T17] (9014338). Serial 013000 and later. | $165.50/EA |
| 29 | TN8002662Replaces Tennant 73342 | 1 | Gasket, .25 1.88d 1.0id [Poron]Part of Valve Kit, Check, Es [T17] (9014338). Serial 013000 and later. | $3.65/EA |
| 30 | TN8003654Replaces Tennant 78841 | 1 | Flapper, Valve, Pump, WaterPart of Valve Kit, Check, Es [T17] (9014338). Serial 013000 and later. | $109.82/EA |
| 31 | TN4228137Replaces Tennant 1217187 | 1 | Flap, Restrictor, Check ValvePart of Valve Kit, Check, Es [T17] (9014338). Serial 013000 and later. | $7.30/EA |
| 32 | TN4041590Replaces Tennant 07515 | 4 | Washer, Lock, Int, 0.25, SsSerial 013000 and later. | $3.50/EA |
| 33 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaeSerial 013000 and later. | $2.50/EA |
Tennant T17 pressure Washer Motor and Pump Group (013000 -) (option) parts
The parts Tennant numbers on its pressure washer motor and pump group (013000 -) (option) drawing. Manual pages 180, list 181.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033341Replaces Tennant 1236318 | 1 | Pump, Pressure WasherSerial 013000 and later. | $937.40/EA |
| 2 | TN4041828Replaces Tennant 16735 | 4 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial 013000 and later. | $3.40/EA |
| 3 | TN4034137Replaces Tennant 32491 | 8 | Washer, Flat, 0.31, StdSerial 013000 and later. | $2.50/EA |
| 4 | TN4039393Replaces Tennant 21198 | 4 | Screw, Hex, .38-16 X 1.25, G5Serial 013000 and later. | $3.30/EA |
| 5 | TN4033646Replaces Tennant 1239141 | 1 | Motor, Ele, 24-72vdc 3400rpm 6.71hpSerial 013000 and later. | $1,732.50/EA |
| 6 | TN4042778Replaces Tennant 00912 | 1 | Key, Sq, 0.19 X 0.19, 1.00lSerial 013000 and later. | $3.60/EA |
| 7 | TN4040827Replaces Tennant 1052126 | 2 | Inductor, 12.7mmid [156 Imp At 25mhz]Serial 013000 and later. | $8.70/EA |
| 8 | TN4033996Replaces Tennant 1241608 | 1 | Block, Cooling, Press WashSerial 013000 and later. | $380.27/EA |
| 9 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 013000 and later. | $3.50/EA |
| 10 | TN4033458Replaces Tennant 1238746 | 1 | Controller, Propel [36vdc,200a, I-Drive]Serial 013000 and later. | $497.61/EA |
| 11 | TN4041267Replaces Tennant 06938 | 2 | Screw, Pan, Phl, M5 X 0.80 X 40, 4.8Serial 013000 and later. | $1.82/EA |
| 12 | TN4033723Replaces Tennant 1241005 | 1 | Cover Assy, I-DriveSerial 013000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4033670Replaces Tennant 1239673 | 1 | Cover, Wash, Press [I-Drive]Serial 013000 and later. | $43.43/EA |
| 14 | TN4041270Replaces Tennant 06942 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Serial 013000 and later. | $2.50/EA |
| 15 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flat, 0.25, SaeSerial 013000 and later. | $2.50/EA |
| 16 | TN4044578Replaces Tennant 150538 | 1 | Fitting, Plstc, Str, Bm06/Pm06Serial 013000 and later. | $5.30/EA |
| 17 | TN4017396Replaces Tennant 43844 | 10 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 013000 and later. | $4.20/EA |
| 18 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 0.38Id, 01ft, ClrSerial 013000 and later. | $18.70/EA |
| 19 | TN4034398Replaces Tennant 1060128 | 1 | Fitting, Brs, E90, Bm06/Pmo6, ShortSerial 013000 and later. | $8.70/EA |
| 20 | TN4035386Replaces Tennant 24584 | 2 | Fitting, Brs, E90, Pf06/Pm06, SpclSerial 013000 and later. | $6.90/EA |
| 21 | TN4013482Replaces Tennant 47167 | 1 | Fitting, Brs, Str, Pf06/Pm08Serial 013000 and later. | $4.95/EA |
| 22 | TN4223626Replaces Tennant 1224331 | 1 | Fitting, Brs, Str, Pm06/Pm06Serial 013000 and later. | $22.10/EA |
| 23 | TN4033641Replaces Tennant 1239018 | 1 | Valve, Needle, [M17/T17]Serial 013000 and later. | $99.80/EA |
| 24 | TN4042150Replaces Tennant 1044428 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Serial 013000 and later. | $7.00/EA |
| 25 | TN4044669Replaces Tennant 1042191 | 1 | Fitting, Ss, Qdc, MalSerial 013000 and later. | $51.20/EA |
| 26 | TN4031067Replaces Tennant 1247646 | 1 | Bracket Wldt, Sppt, MotorSerial 013000 and later. | $106.93/EA |
| 27 | TN4041948Replaces Tennant 09028 | 3 | Screw, Hex, M10 X 1.50 X 25, SsSerial 013000 and later. | $4.00/EA |
| 28 | TN4032324Replaces Tennant 36996 | 3 | Washer, Flat, 0.41B 1.50D .19, Stl, PlSerial 013000 and later. | $4.10/EA |
Tennant T17 pressure Washer Electrical Group (013000 -) (option) parts
Pressure Washer Electrical Group (013000 -) (option) from Tennant's parts list. Manual page 182.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt, On / None / OnSerial 013000 and later. | $45.20/EA |
| 2 | TN4036357Replaces Tennant 1056982 | 1 | Diode, Ele, PlugSerial 013000 and later. | $15.40/EA |
| 3 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, ResetableSerial 013000 and later. | $5.30/EA |
| 4 | TN4045332Replaces Tennant 1076436 | 1 | Cable Assy, 04ga, Fuse [Press Wash, M17]Complete assembly. Serial 013000 and later. | $196.65/EA |
| – | TN4217771Replaces Tennant 1248572 | 1 | Fuse, 100A, 58VdcPart of Cable Assy, 04ga, Fuse [Press Wash, M17] (1076436). Serial 011000 and later. | $16.90/EA |
Tennant T17 pressure Washer Electrical Wire Harness Group (013000 -) (option) parts
Pressure Washer Electrical Wire Harness Group (013000 -) (option) from Tennant's parts list. Manual page 183.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045335Replaces Tennant 1076449 | 1 | Harness, Ele [Pressure Washer, M17/T17]Serial 013000 and later. | $117.20/EA |
| 2 | TN4022325Replaces Tennant 87677 | 1 | Sleeve, Nyl, 1.22id 20.0lSerial 013000 and later. | $7.30/EA |
Tennant T17 dry Vacuum Wand Group (014000 -) (option) parts
The parts Tennant numbers on its dry vacuum wand group (014000 -) (option) drawing. Manual pages 184, list 185.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4191539Replaces Tennant 9020698 | 1 | Wand Assy Kit, Vacuum, hoseComplete assembly. Serial 014000 and later. | $764.60/EA |
| 1 | TN4225361Replaces Tennant 1219065 | 1 | Hose, Vacuum, 3.00id X 132l, 2 CuffPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $369.90/EA |
| – | TN4215600Replaces Tennant 1250357 | 1 | Wand Assy, Vacuum DryPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $533.38/EA |
| 2 | TN4217091Replaces Tennant 1243787 | 1 | Tube, 3.0d, 2.9b, 56.3lPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $386.22/EA |
| 3 | TN4217086Replaces Tennant 1243710 | 1 | Handle, Wand, Dry Vac, RhPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $60.70/EA |
| 4 | TN4217087Replaces Tennant 1243711 | 1 | Handle, Wand, Dry Vac, LhPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $29.09/EA |
| 5 | TN4217125Replaces Tennant 1244571 | 2 | Nozzle, Wand, InletPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $26.87/EA |
| 6 | TN4217664Replaces Tennant 1247624 | 8 | Seal, Epdm, .38, .50w 2.65l, AdhPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $29.90/EA |
| 7 | TN4217700Replaces Tennant 1248099 | 1 | Pad, RestPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $58.98/EA |
| 8 | TN4217536Replaces Tennant 1247164 | 11 | Screw, Hex, M5 X 0.80 X 16, Nl, SsPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $19.90/EA |
| 9 | TN4217537Replaces Tennant 1247165 | 3 | Screw, Hex, M5 X 0.80 X 30, Nl, SsPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $20.91/EA |
| 10 | TN4041970Replaces Tennant 09252 | 1 | Screw, Hex, M5 X 0.80 X 20, 8.8Part of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $3.40/EA |
| 11 | TN4042888Replaces Tennant 01683 | 16 | Washer, Flat, 10, SsPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $2.60/EA |
| 12 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Wand Assy Kit, Vacuum, hose (9020698). Serial 014000 and later. | $3.30/EA |
| 13 | TN4224056Replaces Tennant 1225192 | 1 | Cover, Inlet, Wand, Vac (M17,Trimmed)Serial 014000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4224298Replaces Tennant 1225566 | 1 | Cover, Inlet, Wand, Vac [M17,Trimmed]Serial 014000 and later. | $191.19/EA |
| 15 | TN4226366Replaces Tennant 1222526 | 1 | Tube Wldt, Wand, VacuumSerial 014000 and later. | $176.45/EA |
| 16 | TN4224259Replaces Tennant 1225479 | 1 | Gasket, HoseSerial 014000 and later. | $12.52/EA |
| 17 | TN4045568Replaces Tennant 1036892 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8, SemsSerial 014000 and later. | $2.50/EA |
| 18 | TN4224506Replaces Tennant 1226647 | 2 | Bracket, Mtg, Latch, KeeperSerial 014000 and later. | $13.64/EA |
| 19 | TN4041967Replaces Tennant 09206 | 4 | Screw, Hex, M4 X 0.70 X 12, 8.8Serial 014000 and later. | $3.30/EA |
| 20 | TN4043235Replaces Tennant 02850 | 4 | Nut, Hex, Lock, M4 X 0.70, NlSerial 014000 and later. | $2.50/EA |
| 21 | TN4224718Replaces Tennant 1227707 | 1 | Bracket Wldt, Sppt, Wand, VacuumSerial 014000 and later. | $109.59/EA |
| 22 | TN4217090Replaces Tennant 1243783 | 1 | Bracket, Sppt, Wand, VacSerial 014000 and later. | $42.22/EA |
| 23 | TN4042817Replaces Tennant 1046404 | 1 | Molding, Afmkt, Trim, Pvc, .18 .31, 02ftSerial 014000 and later. | $24.04/EA |
| 24 | TN4034958Replaces Tennant 12277 | 2 | Screw, Hex, M6 X 1.00 X 20, Nl, SsSerial 014000 and later. | $3.30/EA |
| 25 | TN4021350Replaces Tennant 386063 | 2 | Washer, Flat, 0.25b 1.12d .12, SsSerial 014000 and later. | $5.80/EA |
| 26 | TN4045640Replaces Tennant 1037354 | 3 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsSerial 014000 and later. | $2.50/EA |
| 27 | TN4224972Replaces Tennant 1228978 | 1 | Plate Wldt, MtgSerial 014000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | TN4224995Replaces Tennant 1229338 | 1 | Bracket Wldt, AdjmtSerial 014000 and later. | $68.48/EA |
| 29 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 014000 and later. | $3.50/EA |
Tennant T17 dry Vacuum Rear Cover and Hinge Group (014000 -) (option) parts
The parts Tennant numbers on its dry vacuum rear cover and hinge group (014000 -) (option) drawing. Manual pages 186, list 187.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4221303Replaces Tennant 1238324 | 1 | Cover, Battery, Trimmed [Washer/Vac]Serial 014000 and later. | $536.21/EA |
| 2 | TN4038233Replaces Tennant 1225700 | 1 | Hinge Wldt, Cover, BatterySerial 014000 and later. | $246.54/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 12 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 014000 and later. | $3.50/EA |
| 4 | TN4033993Replaces Tennant 1241509 | 1 | Stud, Ball, 10mm Ball, M8x1.25Serial 014000 and later. | $4.20/EA |
| 5 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 014000 and later. | $2.50/EA |
| 6 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 014000 and later. | $3.30/EA |
| 7 | TN4041427Replaces Tennant 1207145 | 1 | Rod Wldt, Seat, Battery Cover [T17]Serial 014000 and later. | $81.20/EA |
| 8 | TN4038234Replaces Tennant 1225704 | 1 | Plate, Mtg, CoverSerial 014000 and later. | $24.07/EA |
| 9 | TN4044400Replaces Tennant 1040467 | 3 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsSerial 014000 and later. | $3.30/EA |
Tennant T17 dry Vacuum Fan and Housing Group (014000 -) (option) parts
The parts Tennant numbers on its dry vacuum fan and housing group (014000 -) (option) drawing. Manual pages 188, list 189.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4226363Replaces Tennant 1222504 | 1 | Box, Wand, Vac (Trimmed)Serial 014000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4217312Replaces Tennant 1244957 | 1 | Plate, SpringSerial 014000 and later. | $97.06/EA |
| 3 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M6 X 1.00 X 20, SsSerial 014000 and later. | $3.20/EA |
| 4 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 014000 and later. | $2.60/EA |
| 5 | TN4026185Replaces Tennant 78785 | 2 | Washer, Flat, 0.25b 0.88d .06, NeoSerial 014000 and later. | $3.40/EA |
| 6 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 014000 and later. | $2.50/EA |
| 7 | TN4034939Replaces Tennant 12273 | 6 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 014000 and later. | $4.00/EA |
| 8 | TN4035242Replaces Tennant 1017218 | 9 | Washer, Flat, 0.32b 1.00d .12, SsSerial 014000 and later. | $3.40/EA |
| 9 | TN4223592Replaces Tennant 1224229 | 1 | Bracket Wldt, FanSerial 014000 and later. | $171.70/EA |
| 10 | TN4014178Replaces Tennant 49826 | 3 | Screw, Hex, M8 X 1.25 X 16, Nl, SsSerial 014000 and later. | $3.40/EA |
| 11 | TN4036826Replaces Tennant 1218331 | 1 | Fan, Vacuum, 5.7d, 036vdc, 1 StageSerial 014000 and later. | $1,375.40/EA |
| 12 | TN4041271Replaces Tennant 06943 | 3 | Screw, Hex, M6 X 1.00 X 20, 8.8Serial 014000 and later. | $2.50/EA |
| 13 | TN4034133Replaces Tennant 32483 | 3 | Washer, Flat, 0.25, SaeSerial 014000 and later. | $2.50/EA |
| 14 | TN4224263Replaces Tennant 1225482 | 1 | Gasket, .50, 3.94id 5.08od, Adh [Poron]Serial 014000 and later. | $32.62/EA |
| 15 | TN4015369Replaces Tennant 54345 | 1 | Grommet, Rbr, 1.62id, F/1.9h, .13 MatlSerial 014000 and later. | $1.40/EA |
| 16 | TN4228417Replaces Tennant 1218173 | 1 | Muffler, Vacfan, 2.50 Id X 25.0 OalSerial 014000 and later. | $201.50/EA |
| 17 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.62-3.50dSerial 014000 and later. | $6.20/EA |
| 18 | TN4012782Replaces Tennant 74455 | 1 | Screw, Hex, M6 X 1.00 X 12, FmgSerial 014000 and later. | $3.40/EA |
| 19 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 014000 and later. | $1.90/EA |
| 20 | TN4028714Replaces Tennant 55248 | 2 | Mount, Cable TieSerial 014000 and later. | $3.70/EA |
| 21 | TN4217352Replaces Tennant 1245600 | 1 | Bracket, MirrorSerial 014000 and later. | $101.30/EA |
| 22 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 014000 and later. | $3.50/EA |
| 23 | TN4029542Replaces Tennant 360973 | 1 | Screw, Pan, Phl, 12-16 X 0.50, F/ PlstcSerial 014000 and later. | $4.00/EA |
| 24 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsSerial 014000 and later. | $2.60/EA |
| 25 | TN4040671Replaces Tennant 1050295 | 1 | Mirror, Convex, 5.00 D, RndSerial 014000 and later. | $27.80/EA |
| 26 | TN7005276Replaces Tennant 1245646 | 1 | Label, Instructional, Dry VacSerial 014000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T17 dry Vacuum Debris Tray and Filter Group (014000 -) (option) parts
The parts Tennant numbers on its dry vacuum debris tray and filter group (014000 -) (option) drawing. Manual pages 190, list 191.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4226362Replaces Tennant 1222501 | 1 | Tray Wldt, Wand, DebrisSerial 014000 and later. | $274.52/EA |
| 2 | TN4225360Replaces Tennant 1219060 | 1 | Gasket, Inlet, Vac WandSerial 014000 and later. | $14.95/EA |
| 3 | TN4033567Replaces Tennant 1023920 | 1 | Handle, DoorSerial 014000 and later. | $19.10/EA |
| 4 | TN4041266Replaces Tennant 06935 | 2 | Screw, Pan, Phl, M5 X 0.80 X 25, 4.8Serial 014000 and later. | $3.40/EA |
| 5 | TN4041273Replaces Tennant 06945 | 2 | Screw, Hex, M6 X 1.00 X 30, 8.8Serial 014000 and later. | $3.30/EA |
| 6 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 014000 and later. | $3.30/EA |
| 7 | TN4217315Replaces Tennant 1244985 | 2 | Plate, ContactSerial 014000 and later. | $31.82/EA |
| 8 | TN4014177Replaces Tennant 49800 | 4 | LatchSerial 014000 and later. | $40.40/EA |
| 9 | TN4041967Replaces Tennant 09206 | 8 | Screw, Hex, M4 X 0.70 X 12, 8.8Serial 014000 and later. | $3.30/EA |
| 10 | TN4042243Replaces Tennant 19065 | 8 | Washer, Flat, 0.19b 0.44d .05, Pl, 08Serial 014000 and later. | $3.20/EA |
| 11 | TN4043235Replaces Tennant 02850 | 8 | Nut, Hex, Lock, M4 X 0.70, NlSerial 014000 and later. | $2.50/EA |
| 12 | TN4038178Replaces Tennant 1225417 | 2 | Brkt, Mtg, LatchSerial 014000 and later. | $16.06/EA |
| 13 | TN4038152Replaces Tennant 1225312 | 2 | Plate, Mtg, LatchSerial 014000 and later. | $4.95/EA |
| 14 | TN4014178Replaces Tennant 49826 | 10 | Screw, Hex, M8 X 1.25 X 16, Nl, SsSerial 014000 and later. | $3.40/EA |
| 15 | TN4042902Replaces Tennant 01685 | 12 | Washer, Flat, 0.38b 0.88d .08, SsSerial 014000 and later. | $2.60/EA |
| 16 | TN4038158Replaces Tennant 1225331 | 1 | Plate, Mtg, SwitchSerial 014000 and later. | $7.98/EA |
| 17 | TN4014131Replaces Tennant 49162 | 2 | Screw, Pan, Phl, 08-16 X 0.50, F/ PlstcSerial 014000 and later. | $4.00/EA |
| 18 | TN4016250Replaces Tennant 397889 | 1 | Switch, Rocker, Dpst, On / None / OnSerial 014000 and later. | $43.70/EA |
| 19 | TN4038120Replaces Tennant 1225182 | 2 | Hinge Wldt, CoverSerial 014000 and later. | $9.49/EA |
| 20 | TN4040702Replaces Tennant 1050554 | 2 | Hinge, Leaf [T7, 5680/5700]Serial 014000 and later. | $25.30/EA |
| 21 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 014000 and later. | $3.50/EA |
| 22 | TN4040584Replaces Tennant 222463 | 2 | Screw, Flt, Soc, M8 X 1.25 X 20, Al, BlkSerial 014000 and later. | $3.30/EA |
| 23 | TN4038164Replaces Tennant 1225397 | 1 | Angle, RtngSerial 014000 and later. | $77.47/EA |
| 24 | TN4038174Replaces Tennant 1225415 | 1 | Guard, FanSerial 014000 and later. | $11.31/EA |
| 25 | TN4014131Replaces Tennant 49162 | 2 | Screw, Pan, Phl, 08-16 X 0.50, F/ PlstcSerial 014000 and later. | $4.00/EA |
| 26 | TN4224263Replaces Tennant 1225482 | 1 | Gasket, .50, 3.94id 5.08od, Adh [Poron]Serial 014000 and later. | $32.62/EA |
| 27 | TN4037905Replaces Tennant 1224634 | 1 | Bracket Wldt, HingeSerial 014000 and later. | $97.67/EA |
| 28 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, SsSerial 014000 and later. | $3.40/EA |
| 29 | TN4040610Replaces Tennant 222516 | 1 | Sleeve, P/M, 0.32b 0.50d 0.3l [430ss]Serial 014000 and later. | $3.40/EA |
| 30 | TN4041929Replaces Tennant 08713 | 1 | Nut, hex, lock, m8 X 1.25, nl, SsSerial 014000 and later. | $3.30/EA |
| 31 | TN4038176Replaces Tennant 1225416 | 1 | Brkt, LanyardSerial 014000 and later. | $13.23/EA |
| 32 | TN4223578Replaces Tennant 1224140 | 1 | Filter, Wand, VacSerial 014000 and later. | $253.01/EA |
| 33 | TN4224041Replaces Tennant 1225078 | 1 | Cover, Wand, Vac (Trimmed)Serial 014000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | TN4224506Replaces Tennant 1226647 | 2 | Bracket, Mtg, Latch, KeeperSerial 014000 and later. | $13.64/EA |
| 35 | TN4030107Replaces Tennant 1069315 | 2 | Screw, Pan, Phl, M4 X 0.70 X 10, BlkSerial 014000 and later. | $1.52/EA |
Tennant T17 dry Vacuum Nozzle Holder Group (014000 -) (option) parts
The parts Tennant numbers on its dry vacuum nozzle holder group (014000 -) (option) drawing. Manual pages 192, list 193.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4217859Replaces Tennant 1249034 | 1 | Bracket Wldt, NozzleSerial 014000 and later. | $204.53/EA |
| 2 | TN4038871Replaces Tennant 1210673 | 1 | Switch, Limit, N.C. [Cpi, Spst, 280 Mp]Serial 014000 and later. | $107.50/EA |
| 3 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsSerial 014000 and later. | $3.20/EA |
| 4 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 014000 and later. | $2.60/EA |
| 5 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, M5 X 0.80 X 16, 8.8Serial 014000 and later. | $2.50/EA |
| 6 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 014000 and later. | $3.50/EA |
| 7 | TN4217843Replaces Tennant 1249017 | 1 | Bracket Wldt, RollerSerial 014000 and later. | $297.85/EA |
| 8 | TN4034939Replaces Tennant 12273 | 3 | Screw, Hex, M8 X 1.25 X 20, Nl, SsSerial 014000 and later. | $4.00/EA |
| 9 | TN4035242Replaces Tennant 1017218 | 10 | Washer, Flat, 0.32b 1.00d .12, SsSerial 014000 and later. | $3.40/EA |
| 10 | TN4041944Replaces Tennant 09011 | 9 | Screw, Hex, M8 X 1.25 X 30, SsSerial 014000 and later. | $3.40/EA |
| 11 | TN4038889Replaces Tennant 1210807 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Serial 014000 and later. | $1.90/EA |
| 12 | TN4226028Replaces Tennant 1221283 | 1 | Pin, .75d X 5.88lSerial 014000 and later. | $27.10/EA |
| 13 | TN4014130Replaces Tennant 49145 | 1 | Washer, Flat, 0.76b 1.50d .06, SsSerial 014000 and later. | $5.20/EA |
| 14 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair, Cotter, 0.62d .120 WirSerial 014000 and later. | $3.40/EA |
| 15 | TN4035025Replaces Tennant 23146 | 1 | Pin, Roll, .187d X 1.62l, .187/.192Serial 014000 and later. | $2.50/EA |
| 16 | TN4037787Replaces Tennant 1052962 | 2 | Wheel, 05.0d 2.00w 0.75b, Gray, W/ BshgSerial 014000 and later. | $26.30/EA |
| 17 | TN4217863Replaces Tennant 1249038 | 1 | Bracket Wldt, Step, SbaSerial 014000 and later. | $399.15/EA |
| 18 | TN4039252Replaces Tennant 1212248 | 2 | Tread, Non-Skid-Step, 3.75w 8.5l, SbaSerial 014000 and later. | $3.50/EA |
| 19 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, SsSerial 014000 and later. | $3.30/EA |
| 20 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 014000 and later. | $2.60/EA |
| 21 | TN4038190Replaces Tennant 1225419 | 1 | Bracket Wldt, Skid, Anti-RollSerial 014000 and later. | $238.50/EA |
| 22 | TN4037487Replaces Tennant 1222170 | 1 | Cover Wldt, SbaSerial 014000 and later. | $431.28/EA |
| 23 | TN4215370Replaces Tennant 1249205 | 1 | Plate Wldt, CoverSerial 014000 and later. | $66.36/EA |
Tennant T17 dry Vacuum Wire Harness Group (014000 -) (option) parts
The parts Tennant numbers on its dry vacuum wire harness group (014000 -) (option) drawing. Manual pages 194, list 195.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4231755Replaces Tennant 1076532 | 1 | Harness, Ele [Dry Vac, M17/T17]Serial 014000 and later. | $339.97/EA |
| 2 | TN4231940Replaces Tennant 1076746 | 1 | Harness, Ele, Fuse [Dry Vac, M17/T17]Serial 014000 and later. | $71.31/EA |
Tennant T17 battery Quick Disconnect Group (013000 -) (option) parts
The parts Tennant numbers on its battery quick disconnect group (013000 -) (option) drawing. Manual pages 196, list 197.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021189Replaces Tennant 9018832 | 1 | Parts Kit, Battery Qdc, CI [T17/M17]Complete assembly. Serial 013000 and later. | $213.70/EA |
| 1 | TN4033394Replaces Tennant 1238009 | 1 | Bracket, Mtg, Battery, DisconnectPart of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $167.40/EA |
| 2 | TN4033395Replaces Tennant 1238011 | 1 | Bracket, Mtg, Base, Battery, DisconnectPart of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $41.10/EA |
| 3 | TN4031245Replaces Tennant 33930 | 2 | Screw, Hex, M6 X 1.00 X 40, SsPart of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $3.40/EA |
| 4 | TN4034136Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdPart of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $2.50/EA |
| 5 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M6 X 1.00Part of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $3.20/EA |
| 6 | TN4041276Replaces Tennant 06948 | 2 | Screw, Hex, M6 X 1.00 X 45, 8.8Part of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $4.00/EA |
| 7 | TN4033430Replaces Tennant 1238390 | 1 | Plate, Mtg, Battery, DisconnectPart of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $9.60/EA |
| 8 | TN4041985Replaces Tennant 09570 | 1 | Clamp, Cable, Stl, 0.90D X 0.62W, 1 HolePart of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $5.30/EA |
| 9 | TN4014178Replaces Tennant 49826 | 3 | Screw, Hex, M8 X 1.25 X 16, Nl, SsPart of Parts Kit, Battery Qdc, CI [T17/M17] (9018832). Serial 013000 and later. | $3.40/EA |
Tennant T17 fire Extinguisher Kit (option) parts
Fire Extinguisher Kit (option) from Tennant's parts list. Manual page 198.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021235Replaces Tennant 9020139 | 1 | Parts Kit, Extinguisher, Fire, CiComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4035427Replaces Tennant 25312 | 1 | Extinguisher, Fire, 2.5 Lb DryPart of Parts Kit, Extinguisher, Fire, Ci (9020139). | $206.60/EA |
| 2 | TN4041778Replaces Tennant 1207986 | 1 | Bracket, Fire ExtinguisherPart of Parts Kit, Extinguisher, Fire, Ci (9020139). | $21.70/EA |
| 3 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, SsPart of Parts Kit, Extinguisher, Fire, Ci (9020139). | $3.30/EA |
| 4 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaePart of Parts Kit, Extinguisher, Fire, Ci (9020139). | $2.50/EA |
| 5 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Parts Kit, Extinguisher, Fire, Ci (9020139). | $3.30/EA |
| 6 | TN4043641Replaces Tennant 140011 | 2 | Washer, Flat, 0.21b 0.45d .03, SsPart of Parts Kit, Extinguisher, Fire, Ci (9020139). | $3.20/EA |
| 7 | TN4029542Replaces Tennant 360973 | 2 | Screw, Pan, Phl, 12-16 X 0.50, F/ PlstcPart of Parts Kit, Extinguisher, Fire, Ci (9020139). | $4.00/EA |
Tennant T17 extended Operation Station Group (013000 -) (option) parts
Extended Operation Station Group (013000 -) (option) from Tennant's parts list. Manual page 199.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4217434Replaces Tennant 1246365 | 1 | Platform Set, Oprtr [T17/M17 Trim]Serial 013000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4033658Replaces Tennant 1239383 | 1 | Plate Wldt, Mtg, PlatformSerial 013000 and later. | $54.04/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 9 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 013000 and later. | $3.50/EA |
| 4 | TN4040925Replaces Tennant 1205073 | 1 | Plate, MtgSerial 013000 and later. | $21.82/EA |
| 5 | TN4045641Replaces Tennant 1037355 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, SemsSerial 013000 and later. | $2.50/EA |
| 6 | TN4033663Replaces Tennant 1239393 | 1 | Bracket, LatchSerial 013000 and later. | $25.05/EA |
| 7 | TN4033659Replaces Tennant 1239385 | 2 | Angle, Sppt, SeatSerial 013000 and later. | $79.89/EA |
Tennant T17 spotlight Kit, Blue (option) parts
The parts Tennant numbers on its spotlight kit, blue (option) drawing. Manual pages 200, list 201.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022021Replaces Tennant 9021203 | 1 | Spotlight Kit, Blue, Ci [M17/T17]Complete assembly. | $953.04/EA |
| 1 | TN4033715Replaces Tennant 1240687 | 2 | Light, Spot, Blue, LedPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $562.40/EA |
| 2 | TN4016789Replaces Tennant 41143 | 2 | Washer, Lock, Int-Ext, 0.50Part of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $3.10/EA |
| 3 | TN4032109Replaces Tennant 1254712 | 1 | Harness, Blu SpotlightPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $95.55/EA |
| 4 | TN4042916Replaces Tennant 1076808 | 1 | Brkt, Blu SpotlightPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $56.60/EA |
| 5 | TN4032093Replaces Tennant 1031665 | 3 | Screw, Pan, M8 X 1.25, BlkPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $3.40/EA |
| 6 | TN4016551Replaces Tennant 39890 | 3 | Washer, Flat, M8, FendrPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $4.10/EA |
| 7 | TN4041929Replaces Tennant 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $3.30/EA |
| 8 | TN4032370Replaces Tennant 1257237 | 1 | Harness, Blu Spotlight, Rr, CiPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $95.55/EA |
| – | TN4038626Replaces Tennant 1016029 | 1 | Fuse, Blade, 005A 32vdc [Atof]Part of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $3.40/EA |
| 9 | TN4042918Replaces Tennant 1076810 | 1 | Brkt, Blu Spotlight, Rr, Cover MtgPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $65.25/EA |
| 10 | TN4032029Replaces Tennant 1063263 | 1 | Gasket, Base, ModulePart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $10.70/EA |
| 11 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $3.50/EA |
| 12 | TN4032269Replaces Tennant 1256917 | 1 | Harness, Blu Spotlight, Rr Fi & Ci (Machine W/Strobe Light Option Only)Part of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $85.80/EA |
| – | TN4038626Replaces Tennant 1016029 | 1 | Fuse, Blade, 005A 32vdc [Atof] (Machine W/Strobe Light Option Only)Part of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $3.40/EA |
| 13 | TN4211832Replaces Tennant 1262447 | 1 | Brkt, Blu Spotlight, Rr, Cover Mtg (Machine W/Strobe Light Option Only)Part of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $40.70/EA |
| 14 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, ResetablePart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $13.40/EA |
| 15 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $12.60/EA |
| 16 | TN4011908Replaces Tennant 763114 | 10 | Tie, Cable, 11.3l, 2.75d MaxPart of Spotlight Kit, Blue, Ci [M17/T17] (9021203). | $3.30/EA |
Tennant T17 documentation Group (Online Only) (option) parts
Documentation Group (Online Only) (option) from Tennant's parts list. Manual page 202.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021237Replaces Tennant 9020160 | 1 | Manual, Oprtr [T17 Ele, En, Na] | $241.80/EA |
| – | TN4191020Replaces Tennant 9020161 | 1 | Manual, Oprtr [T17 Ele, Es, Na] | $241.80/EA |
| – | TN4191021Replaces Tennant 9020162 | 1 | Manual, Oprtr [T17 Ele, Fr, Na] | $241.80/EA |
| – | TN4191022Replaces Tennant 9020163 | 1 | Manual, Oprtr [T17 Ele, Ptb] | $241.80/EA |
| – | TN4021238Replaces Tennant 9020164 | 1 | Manual, Oprtr [T17 Ele, Jp] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021239Replaces Tennant 9020165 | 1 | Manual, Oprtr [T17 Ele, Cn] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4021240Replaces Tennant 9020166 | 1 | Manual, Parts [T17 Ele, En, Na/Int] | $157.80/EA |
| – | TN4021241Replaces Tennant 9020167 | 1 | Manual, Service Info [T17 Ele, En] | $319.37/EA |
| – | TN9020146Tennant 9020146 | 1 | Dvd, Operator [T17] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4191270Replaces Tennant 9020305 | 1 | Instr, Use&Care, Wallchart [T17] | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T17 ec - H2O Module Assembly Breakdown, 9020260 (component breakdown) parts
The parts Tennant numbers on its ec - h2o module assembly breakdown, 9020260 (component breakdown) drawing. Manual pages 204, list 205.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021539Replaces Tennant 9020260 | 1 | Ec-H2o Module Kit, Afmkt [T17]Complete assembly. | $2,060.30/EA |
| 1 | TN4021540Replaces Tennant 9020261 | 1 | Circuit Board Kit, Ec-H2o, Afmkt [T17]Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $553.28/EA |
| 2 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $2.50/EA |
| 3 | TN4032414Replaces Tennant 1259255 | 1 | Electrode, 5 Plate [De Nora]Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). Serial 012205 and later. | $588.10/EA |
| 4 | TN4030271Replaces Tennant 1069708 | 1 | Harness, Ele, Ech2o [T12 Module]Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $42.93/EA |
| 5 | TN4034288Replaces Tennant 1243570 | 1 | Hose, Molded, Bm08/Bm05Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). Serial 012205 and later. | $55.95/EA |
| 6 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 01Ft, ClrPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $18.70/EA |
| 7 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $5.10/EA |
| 8 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $3.23/EA |
| 9 | TN4040777Replaces Tennant 1051519 | 1 | Housing, Upper, Module, High FlowPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $12.60/EA |
| 10 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $0.25/EA |
| 11 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $2.60/EA |
| 12 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $3.40/EA |
| 13 | TN4042720Replaces Tennant 1046041 | 1 | Label, Module [Nsf, Ec-H2o]Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $14.44/EA |
| 14 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $7.70/EA |
| 15 | TN4040034Replaces Tennant 1048741 | 1 | Bracket, Valve, LargePart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $12.83/EA |
| 16 | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $753.50/EA |
| 17 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $3.90/EA |
| 18 | TN4038789Replaces Tennant 1055552 | 1 | Fitting, Brs, Str, Bm06/Pm02Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $3.60/EA |
| 19 | TN4040769Replaces Tennant 1051268 | 1 | Fitting, Plstc, E90, Bm05/Pm02, NylPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $4.20/EA |
| 20 | TN4017396Replaces Tennant 43844 | 3 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $4.20/EA |
| 21 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 01Ft, ClrPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $18.70/EA |
| 22 | TN4030078Replaces Tennant 1068763 | 1 | Label, Date Code [Ec-H2o]Part of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $10.60/EA |
| 24 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Ec-H20 Module Kit, Afmkt [T17] (See Breakdowns) (9020260). | $5.10/EA |
| 25 | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High FlowSerial up to 012204. | $753.50/EA |
| 26 | TN4014907Replaces Tennant 9006268 | 1 | Hose, Pvc, Brd, 0.38id, 01Ft, ClrSerial up to 012204. | $59.39/EA |
Tennant T17 accelerator and Brake Pedal Assembly Breakdown, 1209411 (component breakdown) parts
Accelerator and Brake Pedal Assembly Breakdown, 1209411 (component breakdown) from Tennant's parts list. Manual page 206.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4042098Replaces Tennant 1209411 | 1 | Pedal Assy, Accelerator, W/O BrakeComplete assembly. | $556.30/EA |
| 1 | TN8005873Replaces Tennant 1058687 | 1 | Sensor, Position [Hall]Part of Pedal Assy, Accelerator, W/O Brake [T17] (1209411). | $346.40/EA |
| 2 | TN8005368Replaces Tennant 1071311 | 1 | Pedal, Foot, W/ TreadPart of Pedal Assy, Accelerator, W/O Brake [T17] (1209411). | $7.88/EA |
| 3 | TN8005767Replaces Tennant 1061049 | 2 | Spring, Extn, 0.35od 0.05wir 02.8lPart of Pedal Assy, Accelerator, W/O Brake [T17] (1209411). | $10.30/EA |
Tennant T17 metering Solution Pump Breakdown, 386364 (component breakdown) parts
Metering Solution Pump Breakdown, 386364 (component breakdown) from Tennant's parts list. Manual page 207.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021774Replaces Tennant 386364 | 1 | Pump, Metering SolutionComplete assembly. | $789.60/EA |
| 1 | TN8002729Replaces Tennant 63923 | 1 | Connector Kit, TubingPart of Pump, Detgt, 36vdc (See Breakdowns) (386364). | $91.36/EA |
| 2 | TN8005913Replaces Tennant 21659 | 1 | Valve Kit, PumpPart of Pump, Detgt, 36vdc (See Breakdowns) (386364). | $118.80/EA |
| 3 | TN8005915Replaces Tennant 21661 | 1 | Replacement Kit, BellowsPart of Pump, Detgt, 36vdc (See Breakdowns) (386364). | $224.26/EA |
| 4 | TN8006136Replaces Tennant 02430 | 1 | Crank Replacement KitPart of Pump, Detgt, 36vdc (See Breakdowns) (386364). | $112.01/EA |
Tennant T17 power steering wire harness group, drawing 2
| What it shows | Power Steering Wire Harness Group, drawing 2, as printed in the manual |
|---|---|
| Manual page | 95 |
Tennant T17 pre - sweep wire harnesses group, drawing 2
| What it shows | Pre - Sweep Wire Harnesses Group, drawing 2, as printed in the manual |
|---|---|
| Manual page | 135 |
New to your Tennant T17? Start here
Set up, run and look after your T17. Everything here comes from Tennant's T17 operator manual for North America, rewritten in plain steps, with the parts linked to the list above.
1Check it before every shift
- Look under the machine for fluid leaks and check the lights, horn, brakes, parking brake and steering.
- Check the main brushes for wear and pull off any wire, string or twine. With cylindrical brushes, make sure the debris tray is empty and clean.
- Check the side and rear squeegees and both tank cover seals for wear or damage.
- Make sure the vacuum fan inlet filter (TN4043532) is clean and the tires are not damaged.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 19. SES ref PF-7J34-3OFE
2Fill the solution tank
- Park on level ground, turn the machine off, set the parking brake and take the key out.
- Conventional scrubbing: fill partway with water no hotter than 140°F (60°C), add the recommended detergent, then fill to about 1 in (25 mm) below the opening.
- ec-H2O scrubbing: use clean cool water only, under 70°F (21°C), with no detergent, to about 1 in (25 mm) below the opening.
- Close the solution tank cover.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 21. SES ref PF-7J34-3OFE
3Start it
- Adjust the seat and fasten the seat belt, if your machine has one.
- Turn the key switch on and turn on the lights if equipped.
- Pick a direction with the directional switch and press the propel pedal. The machine only moves with you in the seat.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 20. SES ref PF-7J34-3OFE
4Empty the recovery tank
- Do it every day, or when the recovery-tank-full code shows on the display.
- Park near a floor drain, lower the rear bumper door, turn the machine off, set the parking brake and take the key out.
- Unhook the drain hose, point it at the drain and twist the nozzle open.
- Lift the cover, flush the tank with clean water and rinse the sensor (TN4021025) near the top of the tank.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 28. SES ref PF-7J34-3OFE
Questions about your T17? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant T17 troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Machine will not run | ||
| Emergency stop button pressed | Turn the button clockwise to reset it. | |
| Battery low or a cable loose | Charge the battery and tighten loose cables. | |
| Water left behind | ||
| Worn squeegee blades | Rotate or replace the squeegee blades (TN4041417). | |
| Squeegee out of adjustment or clogged | Adjust or clean the squeegee assembly. | |
| Vacuum hose loose, clogged or damaged | Secure, flush or replace the vacuum hose. | |
| Vacuum fan inlet filter dirty | Clean the inlet filter (TN4043532). | |
| Vacuum fan will not turn on | ||
| Recovery tank full, or foam filling the tank | Drain the recovery tank. Use less detergent, change it or add a defoamer. | |
| Little or no solution to the floor | ||
| Solution tank empty or flow turned off | Fill the tank and turn the solution flow on. | |
| Supply lines plugged or solenoid stuck | Flush the supply lines; clean or replace the solenoid. | |
| Poor scrubbing | ||
| Debris on the brushes, or worn brushes or pads | Remove the debris or replace the brushes (TN4037158) or pads. | |
| Too much or uneven brush pressure | Reduce the brush pressure or level the scrub head. | |
| Broken drive belts on the cylindrical head | Replace the belts (TN4040891). | |
| Short run time | ||
| Battery not fully charged or needs maintenance | Charge until the charger turns off on its own, and service the batteries. | |
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), pages 44 and 45. SES ref PF-SPDA-DK3Q
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant T17 maintenance schedule
Tennant's maintenance schedule for the T17.
| Task | How often | Part |
|---|---|---|
| Check the side and rear squeegees for damage, wear and deflection. | Every day | |
| Check the main brushes for damage, wear and debris. | Every day | |
| Clean the recovery tank and its top sensor; check both tank cover seals. | Every day | |
| Clean the vacuum fan inlet filter (TN4043532), the screen (TN4034224) and the debris tray (TN4041183). | Every day | |
| Cylindrical brushes: clean the debris tray under the scrub head. | Every day | |
| Check the electrolyte level in the battery cells and top up with distilled water (trained staff). | Every week | |
| Check the side and rear squeegee leveling. | Every 50 hours | |
| Cylindrical brushes: rotate the main brushes from front to rear. | Every 50 hours | |
| Disk brushes: check the scrub head skirts for damage and wear. | Every 50 hours | |
| Check the brake adjustment, and check and clean the battery terminals and cables. | Every 200 hours | |
| Check the cylindrical brush drive belts (TN4040891) for damage and wear. | Every 200 hours | |
| Lubricate the drive wheel pivot (Lubriplate EMB grease) and the steering and steering gear chains (SAE 90 gear lubricant). | Every 200 hours | |
| Check the vacuum fan motor brushes (trained staff). | Every 500 hours | |
| Check the tires for damage and wear. | Every 500 hours |
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), pages 47 and 48. SES ref PF-C567-HJJI
Tennant T17 specifications
From Tennant's documents for the T17.
| Cleaning path | 40 in (1,015 mm); 52 in (1,320 mm) with the scrubbing side brush |
|---|---|
| Main brushes | Disk: 20 in (510 mm). Cylindrical: 9 in (230 mm) diameter, 40 in (1,015 mm) long |
| Solution tank | 75 gal (285 L) |
| Recovery tank | 91.1 gal (346 L) |
| Battery | 36 V, 510, 750 or 930 Ah (6 hr rate) |
| Travel speed | 5.5 mph (9 km/h) forward, 4 mph (6.5 km/h) while scrubbing, 3 mph (5 km/h) reverse |
| Length | 87.9 in (2,230 mm); 113 in (2,870 mm) with Pre-Sweep |
| Width with squeegee | 49 in (1,245 mm) |
| Height | 58.25 in (1,480 mm); 82.5 in (2,096 mm) with overhead guard |
| Weight | 1,925 lb (875 kg) empty; 3,365 lb (1,525 kg) with the standard 510 Ah battery |
| Aisle turnaround | 93.25 in (2,370 mm) |
| Steepest ramp while scrubbing | 8.7%; 10.5% with the optional ramp kit |
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), pages 89 and 90. SES ref PF-2QHU-CKV6
Tennant T17 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9020166 Rev. 15 (11-2024), North America / International, 208 pages | T17 | Rev. 15 (11-2024) | 208 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 9020160 Rev. 05 (7-2016), North America / International, 98 pages | T17 | Rev. 05 (7-2016) | 98 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant T17 parts questions
What water do I put in a T17 for ec-H2O scrubbing?
Clean cool water only, under 70°F (21°C), with no detergent, to about 1 in (25 mm) below the opening. Detergent in the tank can make the ec-H2O system fail.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 21. SES ref PF-X7CZ-TN42
How hot can the water be for conventional scrubbing?
No hotter than 140°F (60°C). Fill partway, add the recommended detergent, then fill to about 1 in (25 mm) below the opening.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 21. SES ref PF-X7CZ-TN42
How often do I empty the T17 recovery tank?
Every day, or sooner when the recovery-tank-full code shows on the display. Flush it with clean water and rinse the sensor near the top.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 28. SES ref PF-X7CZ-TN42
How big are the T17 tanks?
The solution tank holds 75 gal (285 L) and the recovery tank 91.1 gal (346 L).
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 89. SES ref PF-X7CZ-TN42
Why won't the T17 run at all?
Check the emergency stop button first: turn it clockwise to reset it. A low battery or a loose battery cable also stops the machine.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 44. SES ref PF-X7CZ-TN42
How often do I check the T17 battery water?
Every week. Trained staff should check the electrolyte level and top up with distilled water.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 47. SES ref PF-X7CZ-TN42
When are the vacuum fan motor brushes checked?
Every 500 hours, by trained staff.
Source: Tennant T17 operator manual 9020160 Rev. 05 (7-2016), page 48. SES ref PF-X7CZ-TN42
