Tennant T7 parts list and diagrams
Find any part on the Tennant T7 rider scrubber by its area in Tennant's drawings. Every line of the North America parts manual for serial numbers 10000000 to 20000000 is here, crossed to Tennant's current numbers with our price. Disk and cylindrical scrub heads, batteries and kits each have their own section.
Complete list: every line of the parts list in Tennant T7 Rider-Scrubber Parts Manual 9013606 Rev. 23 (07-2025), North America / International / Japan, S/N 10000000-20000000, 1728 printed part lines, with the parts numbered on its drawings. Checked .
New to your T7? Start here → Manuals (free sign-in) →
- Scrubbing path
- 26 or 32 in (650 or 800 mm) disk; 28 or 32 in (700 or 800 mm) cylindrical

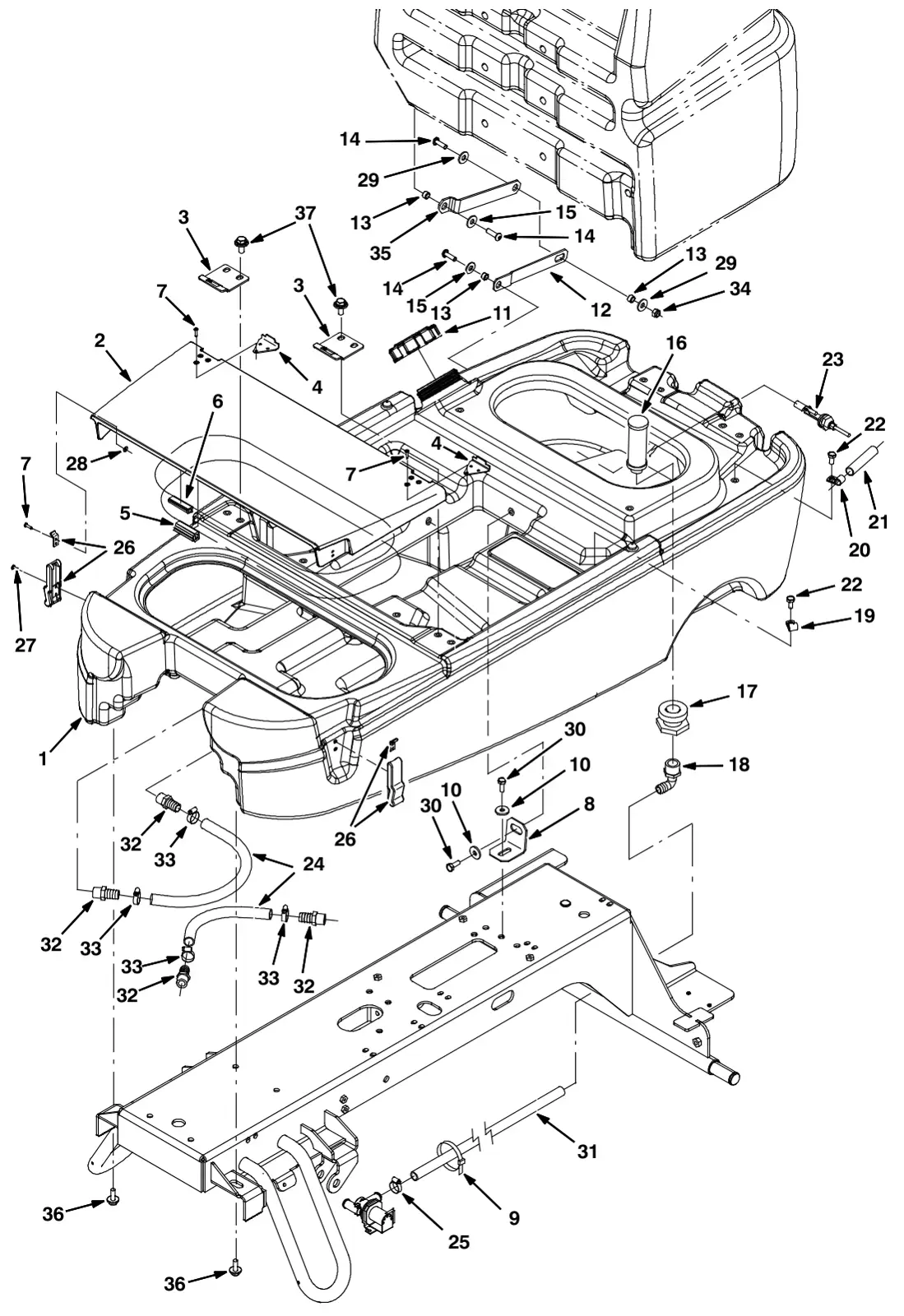

- Solution tank
- 29 gal (110 L)
- Recovery tank
- 29 gal (110 L)
- Travel speed
- 4 mph (6.4 km/h) maximum

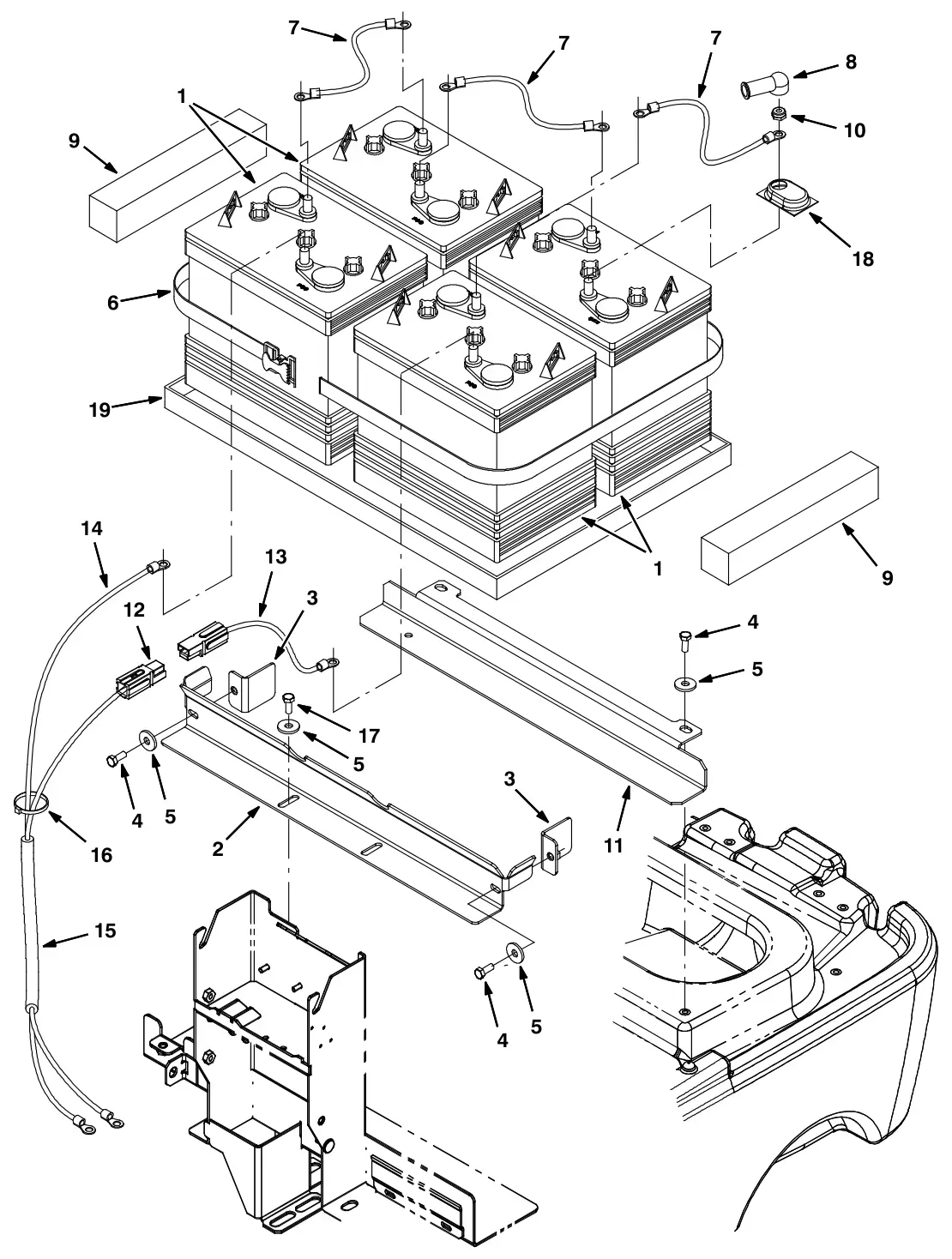

- Batteries
- Four 6V: 235 Ah or 335 Ah lead acid, or 180 Ah or 220 Ah gel
Maintenance and wear parts for the T7
Tennant's general recommended maintenance items for the T7. Keep these on the shelf.

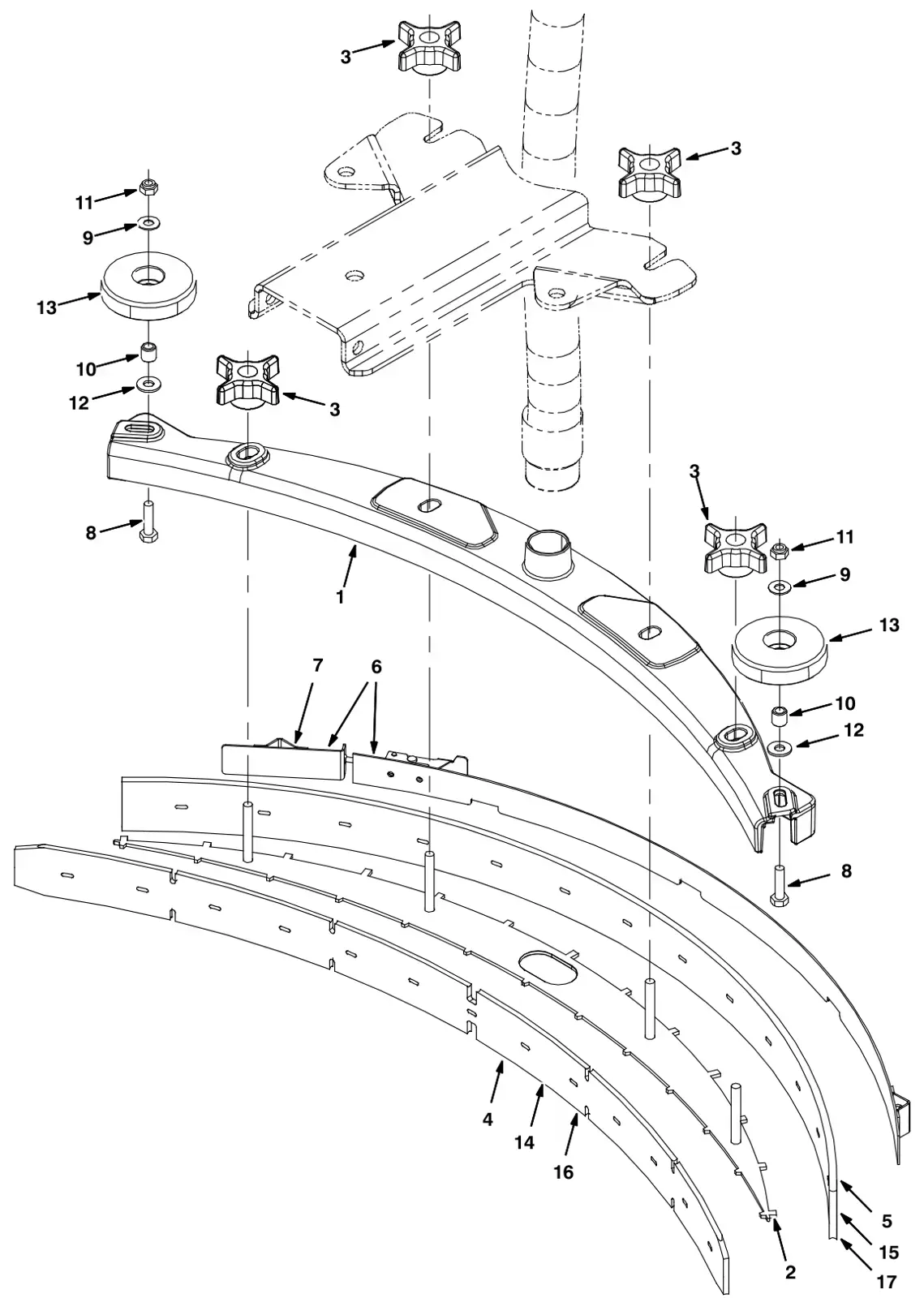

Blade, Sqge, Rear, 37.50l Linatex[700mm]
$36.00/EABlade, Sqge, Rear, 44.00l Linatex[800mm]
$37.00/EASqueegee Kit, 700mm, Ure
$166.35/EABlade, Sqge, Front, 35.00l Ure [700mm]
$43.20/EABlade, Sqge, Rear, 37.50l Pyu [700mm]
$57.60/EASqueegee Kit, 700mm, Gum
$75.25/EABlade, Sqge, Front, 35.00l [Linx, 700mm]
$27.00/EABlade, Sqge, Rear, 37.50l Gum [700mm]
$15.00/EASqueegee Kit, 800mm, Ure
$163.60/EABlade, Sqge, Front, 41.50l Ure [800mm]
$44.80/EABlade, Sqge, Rear, 44.0l Pyu [800mm]
$59.20/EASqueegee Kit, 800mm, Gum
$78.60/EA
Source: Tennant T7 Rider-Scrubber Parts Manual 9013606 Rev. 23 (07-2025), North America / International / Japan, S/N 10000000-20000000, page 3. SES ref PF-7XRH-SMDR
Your machine
How to tell which you have
- Scrub head: Tennant's parts manual has separate parts groups for Cylindrical 28 in (700 mm), Cylindrical 32 in (800 mm), Disk 26 in (650 mm), Disk 32 in (800 mm) (manual pages 6, 12, 14, 16, 18, 40, 42, 44, 46, 48, 50, 52…). Pick yours to see only its groups; parts every build shares always show.
- Squeegee width: Tennant's parts manual has separate parts groups for 26 in (650 mm), 32 in (800 mm) (manual pages 80, 82). Pick yours to see only its groups; parts every build shares always show.
- Battery: Tennant's parts manual has separate parts groups for 235Ah, 180Ah, maintenance free, 220Ah, maintenance free, 360Ah (manual pages 72, 74, 135, 136, 137). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant T7 general recommended maintenance T7, Ssr parts
General recommended maintenance T7, Ssr from Tennant's parts list. Manual page 3.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018884Replaces Tennant 390942 | 1 | Blade, Sqge, Rear, 37.50l Linatex[700mm] | $36.00/EA |
| – | TN4018876Replaces Tennant 390922 | 1 | Blade, Sqge, Rear, 44.00l Linatex[800mm] | $37.00/EA |
| – | TN4019303Replaces Tennant 391384 | 1 | Squeegee Kit, 700mm, UreComplete assembly. | $166.35/EA |
| – | TN4019296Replaces Tennant 391377 | 1 | Blade, Sqge, Front, 35.00l Ure [700mm]Part of Squeegee Kit, 700mm, Ure (391384). | $43.20/EA |
| – | TN4019297Replaces Tennant 391378 | 1 | Blade, Sqge, Rear, 37.50l Pyu [700mm]Part of Squeegee Kit, 700mm, Ure (391384). | $57.60/EA |
| – | TN4019305Replaces Tennant 391386 | 1 | Squeegee Kit, 700mm, GumComplete assembly. | $75.25/EA |
| – | TN4018885Replaces Tennant 390943 | 1 | Blade, Sqge, Front, 35.00l [Linx, 700mm]Part of Squeegee Kit, 700mm, Gum (391386). | $27.00/EA |
| – | TN4018882Replaces Tennant 390936 | 1 | Blade, Sqge, Rear, 37.50l Gum [700mm]Part of Squeegee Kit, 700mm, Gum (391386). | $15.00/EA |
| – | TN4019302Replaces Tennant 391383 | 1 | Squeegee Kit, 800mm, UreComplete assembly. | $163.60/EA |
| – | TN4019298Replaces Tennant 391379 | 1 | Blade, Sqge, Front, 41.50l Ure [800mm]Part of Squeegee Kit, 800mm, Ure (391383). | $44.80/EA |
| – | TN4019299Replaces Tennant 391380 | 1 | Blade, Sqge, Rear, 44.0l Pyu [800mm]Part of Squeegee Kit, 800mm, Ure (391383). | $59.20/EA |
| – | TN4019304Replaces Tennant 391385 | 1 | Squeegee Kit, 800mm, GumComplete assembly. | $78.60/EA |
| – | TN4018877Replaces Tennant 390923 | 1 | Blade, Sqge, Front, 41.50l [Linx, 800mm]Part of Squeegee Kit, 800mm, Gum (391385). | $28.00/EA |
| – | TN4018881Replaces Tennant 390934 | 1 | Blade, Sqge, Rear, 44.00l Gum [800mm]Part of Squeegee Kit, 800mm, Gum (391385). | $15.00/EA |
| – | TN4022045Replaces Tennant 86859 | 2 | Squeegee Assy, Side [Linatex] (Disk Head - Standard) | $64.64/EA |
| – | TN4036762Replaces Tennant 1058731 | 2 | Squeegee Assy, Side, Disc, Ure (Disk Head - Optional) | $83.83/EA |
| – | TN4036760Replaces Tennant 1058729 | 2 | Squeegee Assy, Side, Disc, Gum (Disk Head - Optional) | $51.50/EA |
| – | TN4019280Replaces Tennant 391334 | 2 | Squeegee Assy, Side [Linatex] (Cyld Head - Standard) | $62.40/EA |
| – | TN4036759Replaces Tennant 1058728 | 2 | Squeegee Assy, Cylrcl, Ure [T7/Ssr] (Cyld Head - Optional) | $89.30/EA |
| – | TN4186790Replaces Tennant 1058715 | 2 | Squeegee Assy, Cylrcl, Gum [T7/Ssr] (Cyld Head - Optional) | $53.10/EA |
| – | TN4044538Replaces Tennant 1073476 | 2 | Caster, Swivel, 50mmd, M10 X 30, Clr Pl | $23.10/EA |
| – | TN4037542Replaces Tennant 1013531 | 1 | Skirt, Spray, 650mm | $18.80/EA |
| – | TN4036832Replaces Tennant 1011376 | 1 | Skirt, Spray, 800mm | $21.40/EA |
| – | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bmpr, 80d X 25w, Non-Marking | $5.50/EA |
| – | TN4037551Replaces Tennant 1013611 | 1 | Seal, Cover, Recvy | $18.60/EA |
| – | TN4036277Replaces Tennant 1020719 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $91.40/EA |
| – | TN4036278Replaces Tennant 1020727 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $71.00/EA |
| – | TN4036254Replaces Tennant 1020301 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $116.00/EA |
| – | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.50id X 057.1l, 2cuff,Blk | $44.80/EA |
| – | TN4043531Replaces Tennant 1037821 | 1 | Filter, Panl, Dust, 2.3 X 04.5 X 06.4 | $20.40/EA |
| – | TN4035125Replaces Tennant 1016392 | 1 | Gasket, Fltr, Tank | $10.00/EA |

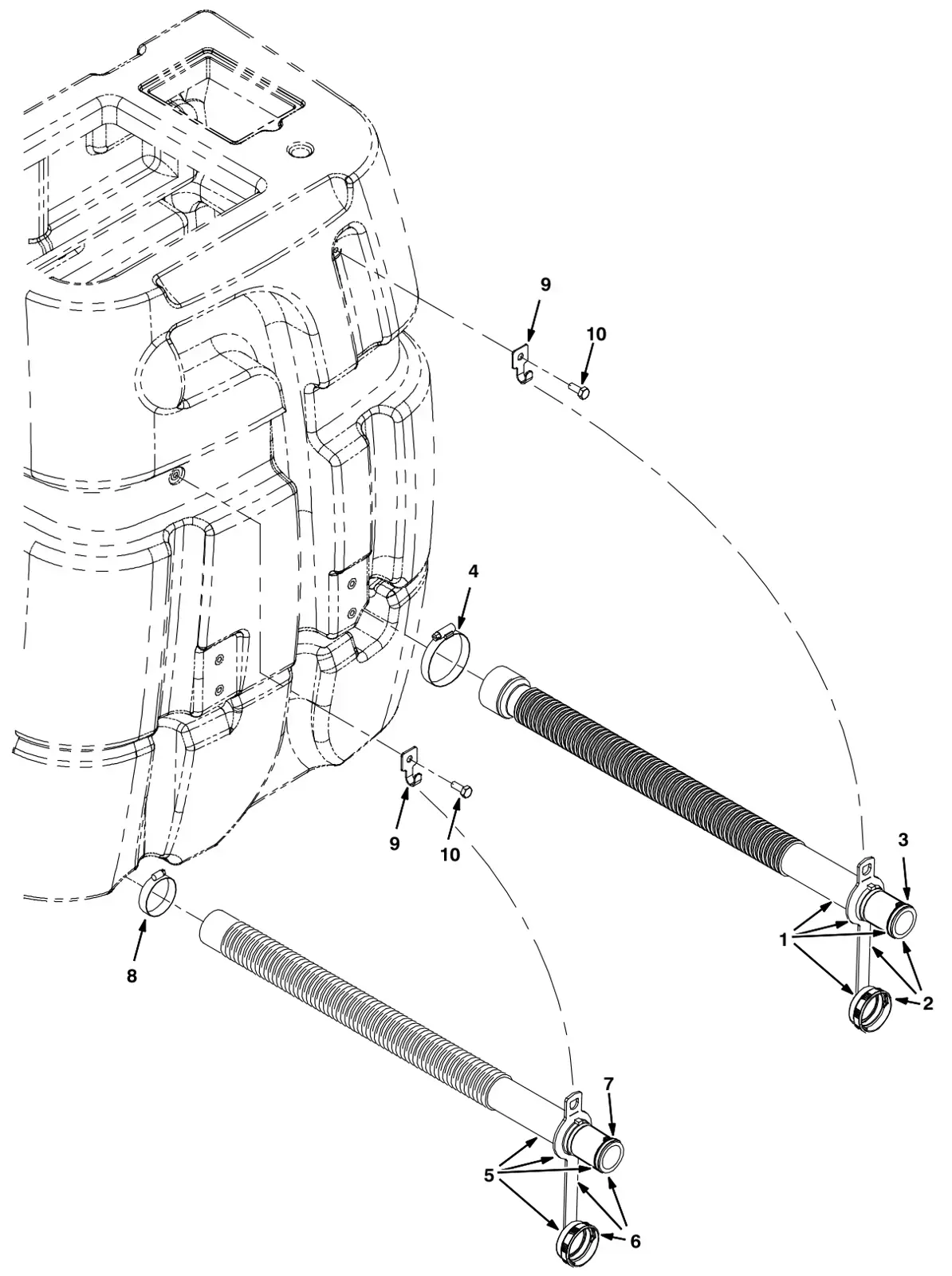

| – | TN4037618Replaces Tennant 1014274 | 1 | Hose Assy, Drain, 1.50id X 27.8l, Blk (Recovery Tank)Complete assembly. | $97.60/EA |
| – | TN4039939Replaces Tennant 1008639 | 1 | Cap, Drain AssemblyPart of Hose Assy, Drain, 1.50id X 27.8l, Blk (Recovery Tank) (1014274). | $20.20/EA |
| – | TN4039938Replaces Tennant 1008637 | 1 | O Ring, 1.48” Id, 1.76” OdPart of the assembly above. | $12.10/EA |
| – | TN4037617Replaces Tennant 1014268 | 1 | Hose Assy, Drain, 1.50id X 27.0l, Blk (Solution Tank)Complete assembly. | $82.10/EA |
| – | TN4039939Replaces Tennant 1008639 | 5 | Cap, Drain AssemblyPart of Hose Assy, Drain, 1.50id X 27.0l, Blk (Solution Tank) (1014268). | $20.20/EA |
| – | TN4039938Replaces Tennant 1008637 | 1 | O Ring, 1.48” Id, 1.76” OdPart of the assembly above. | $12.10/EA |
| – | TN4025731Replaces Tennant 377500 | 2 | Belt, Synchronous, 05mm 500l[05p,Plychn]Serial 10000000 to 10346424. | $88.90/EA |
| – | TN4045455Replaces Tennant 1035888 | 2 | Belt, Drive, 6grv, 508 L X 14 W, [6pj]Serial 10346425 and later. | $35.20/EA |
| – | TN4014066Replaces Tennant 9004968 | 1 | Switch Kit, Key, [T7/Ssr/R14/Strv Rdr]Complete assembly. Serial 10000000 to 10403818. | $79.70/EA |
| – | TN4029794Replaces Tennant 361144 | 1 | Key, IgnitionPart of Switch Kit, Key, [T7/Ssr/R14/Strv Rdr] (9004968). Serial 10000000 to 10403818. | $14.30/EA |
| – | TN4036836Replaces Tennant 1011402 | 1 | Switch, KeyComplete assembly. Serial 10403819 and later. | $54.40/EA |
| – | TN4129073Replaces Tennant 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). Serial 10403819 and later. | $21.60/EA |

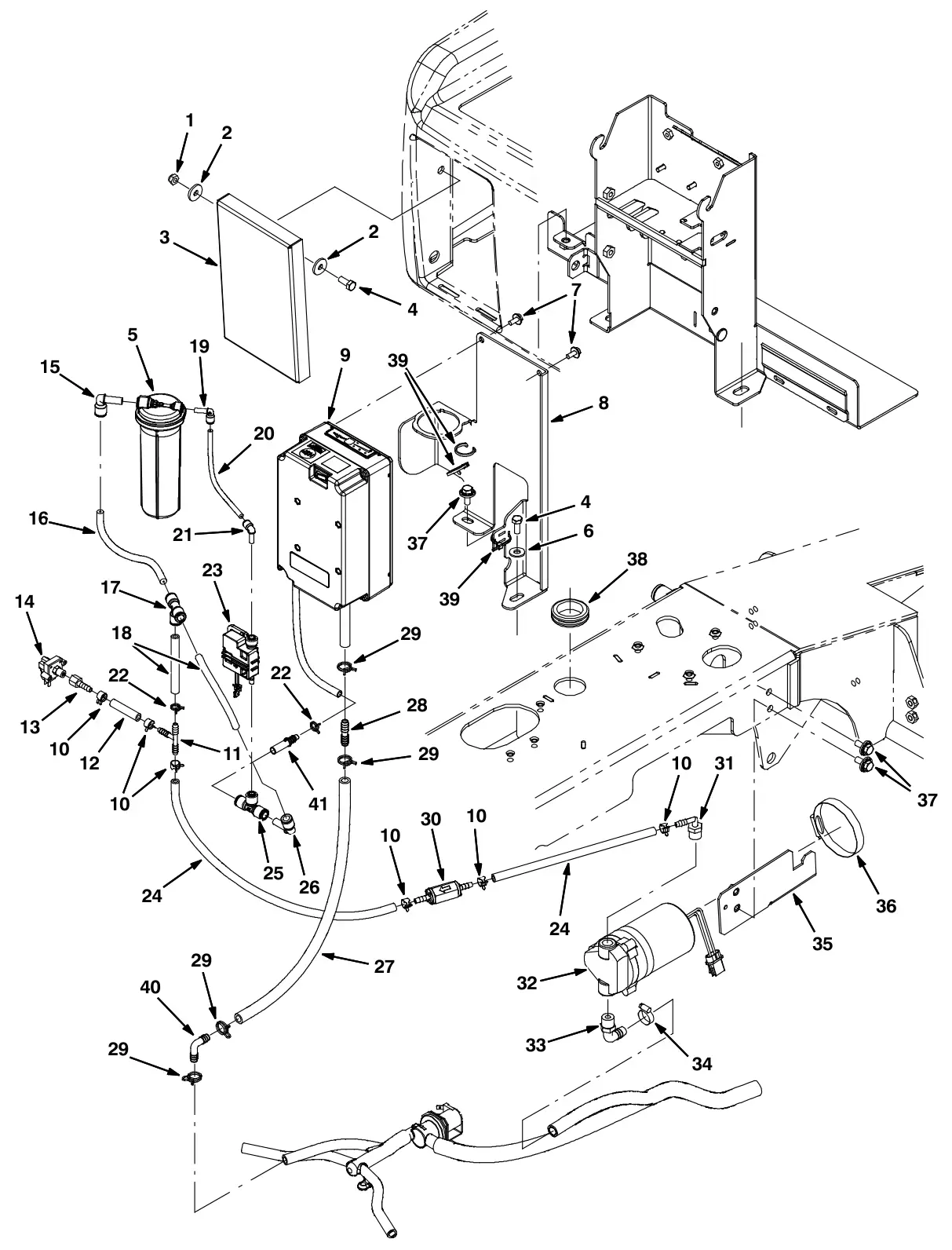

Tennant T7 general recommended maintenance T7, Ssr parts
General recommended maintenance T7, Ssr from Tennant's parts list. Manual page 4.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

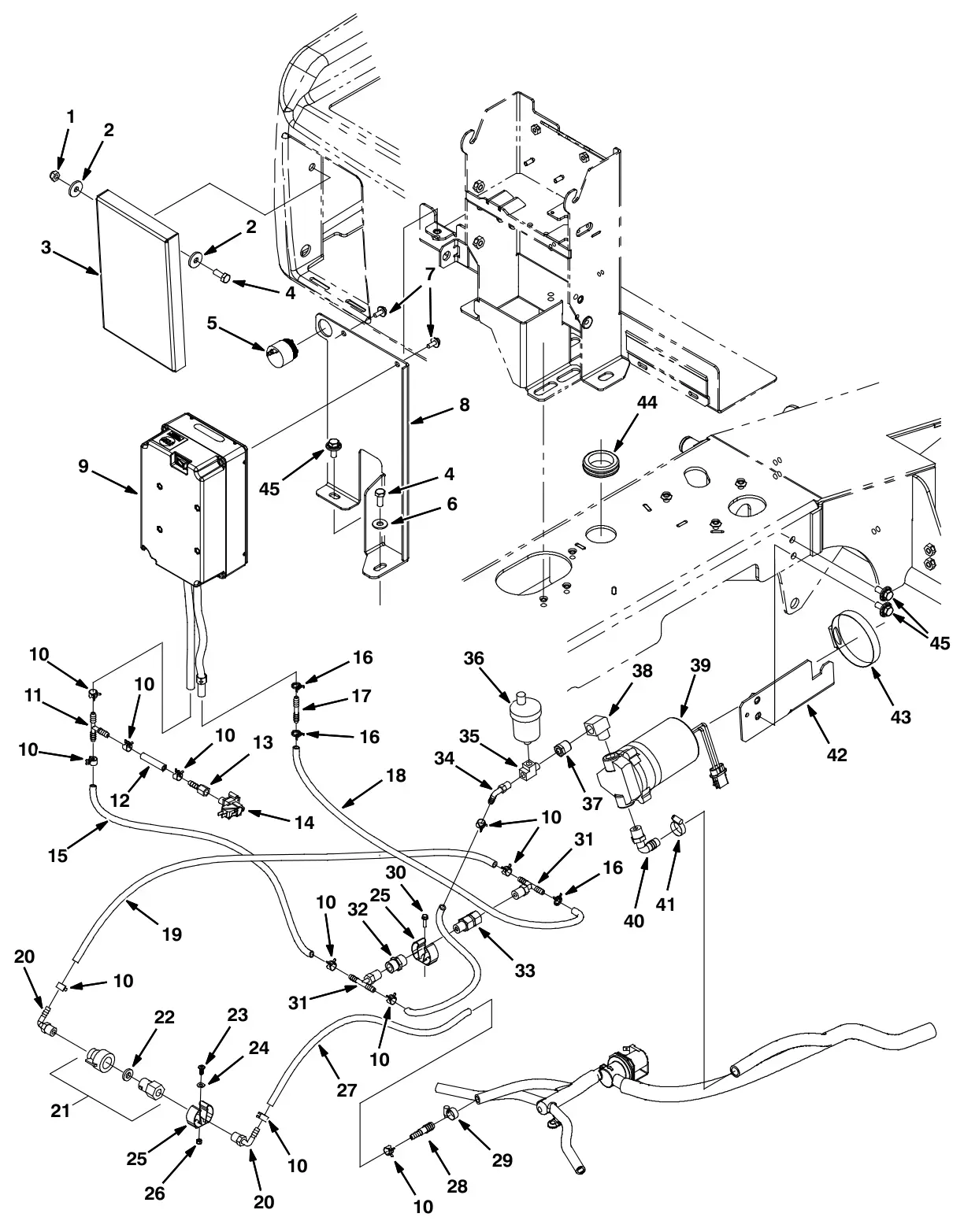

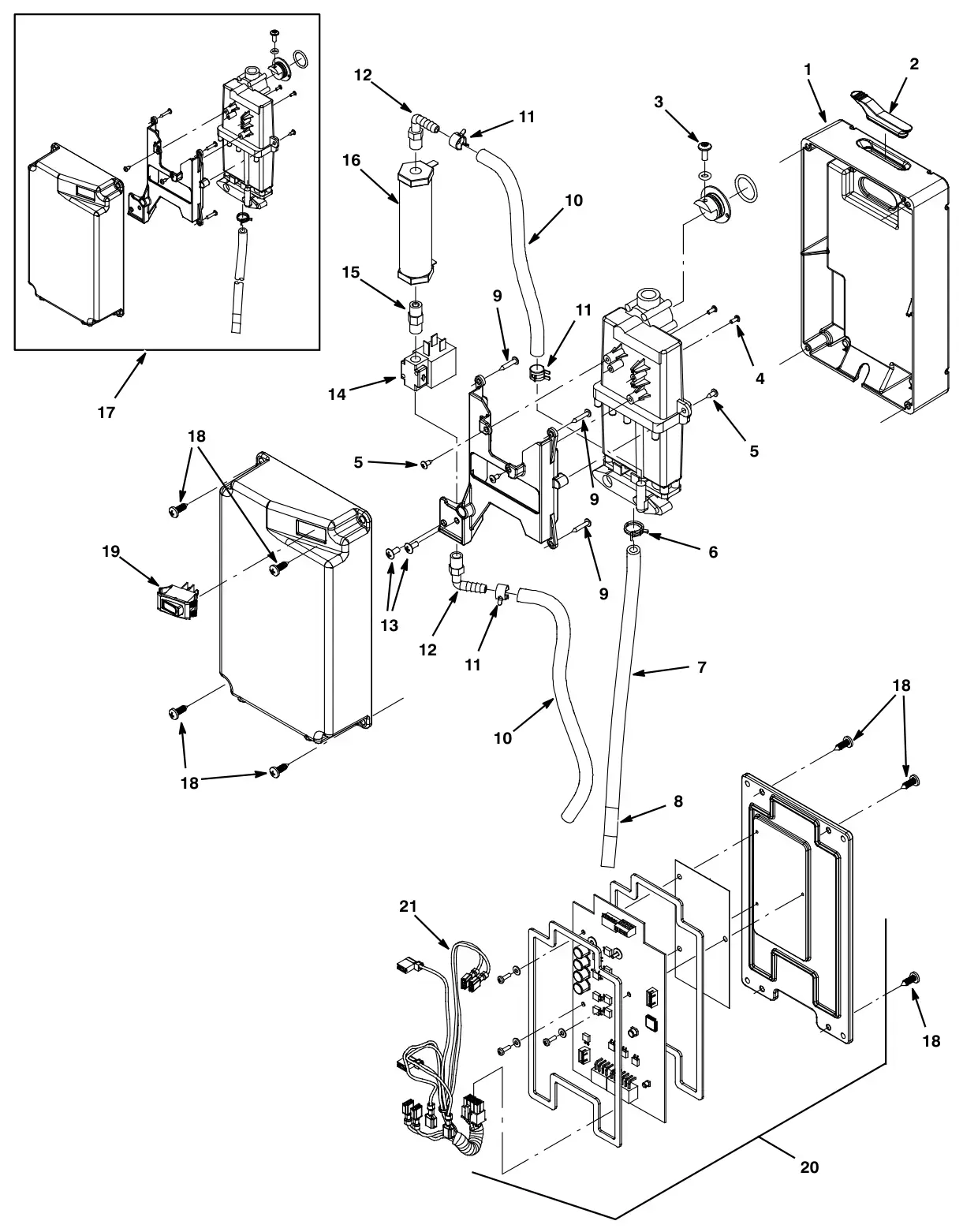

| – | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o] (Replaced By 9007970)Complete assembly. Serial 10419534 to 10449321. | $778.37/EA |
| – | TN9006324Tennant 9006324 | 1 | Ec-H2o Kit, Module B, PlumbingPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $5.10/EA |
| – | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $162.50/EA |
| – | TN4036516Replaces Tennant 1038159 | 1 | Electrode, Cylindrical (Replaced By 1062006)Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $753.50/EA |
| – | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $7.70/EA |
| – | TN4021577Replaces Tennant 9006159 | 1 | Controller Kit, Replmt [Ec-H2o] (Replaced By 9007969)Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $1,063.00/EA |
| – | TN4042142Replaces Tennant 1044399 | 1 | Harness, Main, Controller [Ec-H2o, P3]Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $30.20/EA |

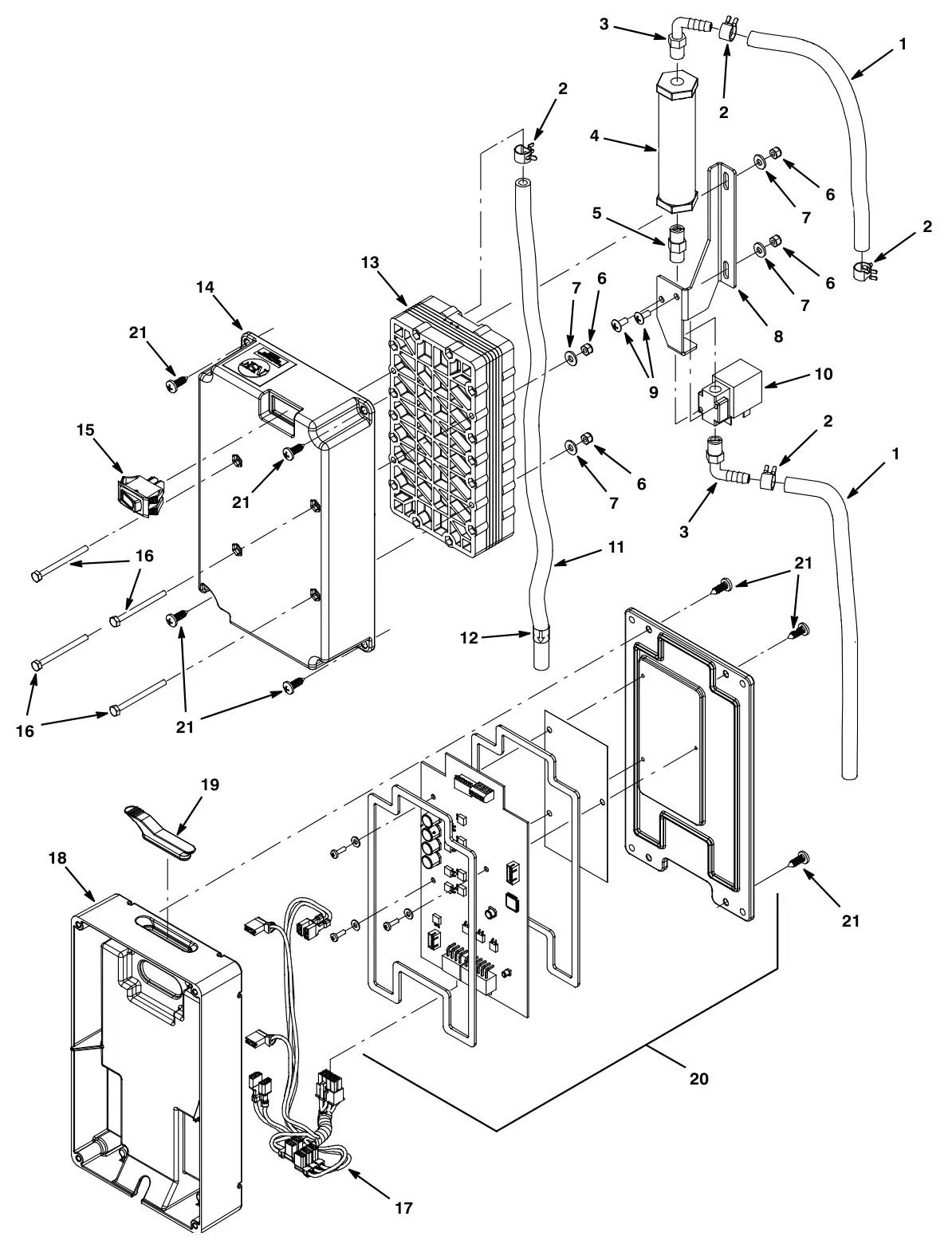

| – | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. Serial 10449322 to 10740597. | $778.37/EA |
| – | TN9006324Tennant 9006324 | 1 | Ec-H2o Kit, Module B, PlumbingComplete assembly. Part of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10449322 to 10740597. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $753.50/EA |
| – | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $162.50/EA |
| – | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High Flow (Replaced By 1233516)Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $753.50/EA |
| – | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $7.70/EA |
| – | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10449322 to 10740597. | $5.10/EA |
| – | TN4021577Replaces Tennant 9007969 | 1 | Controller Kit, Replmt [Ec-H2o] (Replaced By 9020642)Part of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10449322 to 10740597. | $1,063.00/EA |
| – | TN4031726Replaces Tennant 1030592 | 1 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 03ft | $66.60/EA |
| – | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 9-48vdc, 95 Db(A) [Ec-H20]Serial 10449322 to 10740597. | $75.90/EA |
| – | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlSerial 10740598 and later. | $300.60/EA |
| – | TN4018163Replaces Tennant 9021553 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge)Complete assembly. Tennant prints the serial range as (OCT2022- ). | $1,339.60/EA |
| – | TN4018163Replaces Tennant 9020643 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553)Complete assembly. Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2022). | $1,339.60/EA |
| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553)Complete assembly. Serial 10740598 to 10998255. | $1,339.60/EA |
| – | TN4036516Replaces Tennant 1233516 | 1 | Electrode, 5 Plate [De Nora Tech]Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9011810). Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2022). | $753.50/EA |
| – | TN4032414Replaces Tennant 1208164 | 1 | Electrode, 5 Plate, High Flow (Replaced By 1233516)Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9011810). Serial 10740598 to 10998255. | $588.10/EA |
| – | TN4021577Replaces Tennant 9020642 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec-H2O NanoClean Cartridge)Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9011810). Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2022). | $1,063.00/EA |
| – | TN4021577Replaces Tennant 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9020642)Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9011810). Serial 10740598 to 10998255. | $1,063.00/EA |
| – | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, DispenserSerial 10740598 and later. | $338.70/EA |
| – | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa]Serial 10740598 and later. | $1,809.92/EA |
| – | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Intl]Serial 10740598 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |

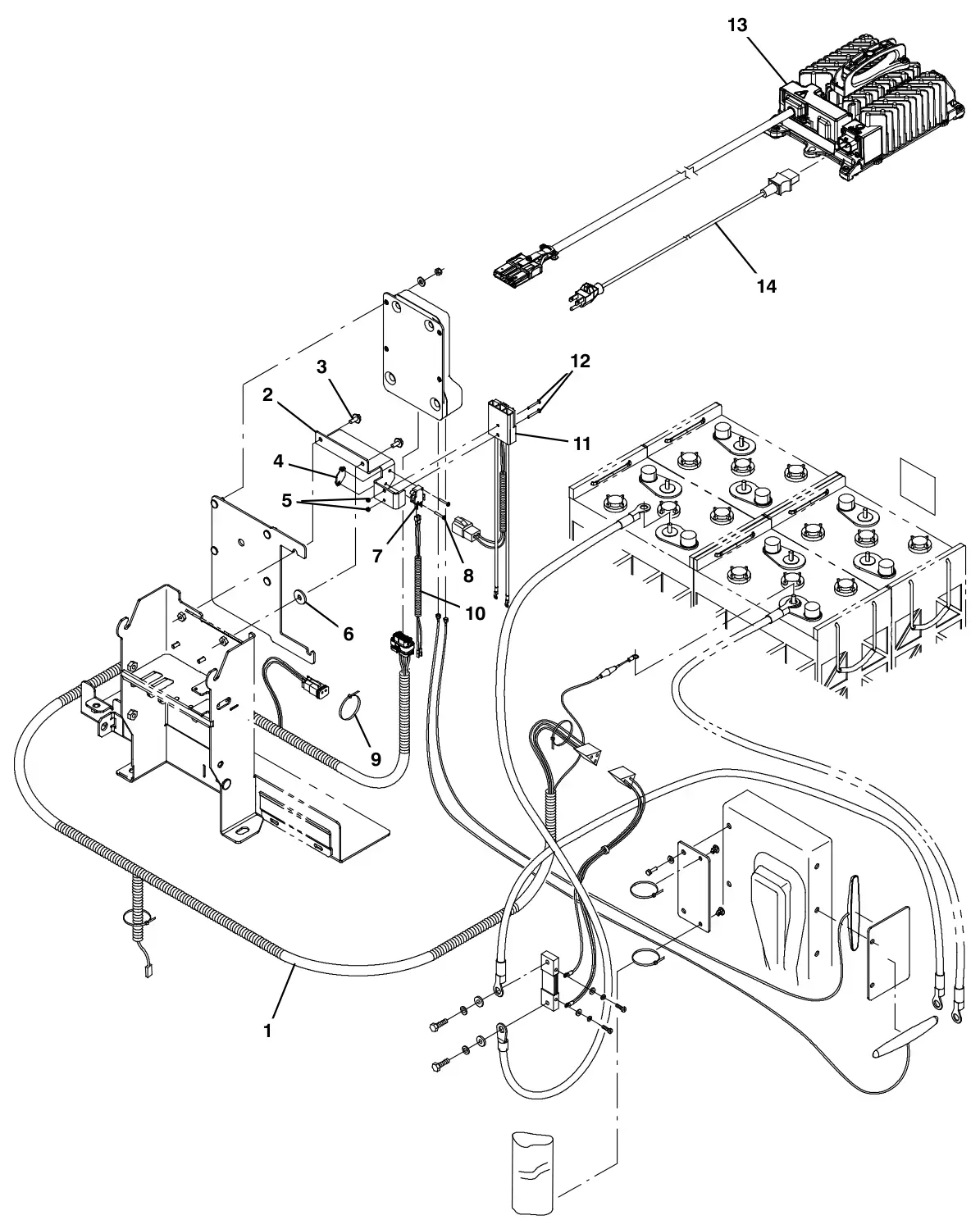

| – | TN4031064Replaces Tennant 1247522 | 2 | Antenna, Telem [4g, 72”] | $54.80/EA |
| – | TN4031064Replaces Tennant 1070659 | 1 | Antenna, Telem, 70 In [Gprs] (Replaced By 1247522) | $54.80/EA |

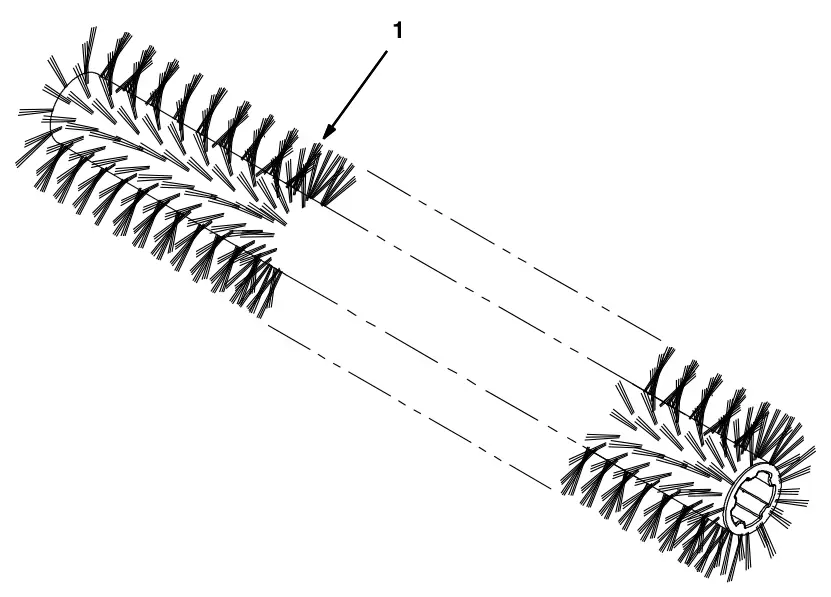

Tennant T7 brushes, replacement, cylindrical parts
The parts Tennant numbers on its brushes, replacement, cylindrical drawing. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040246Replaces Tennant 222305 | 2 | Brush, Scb, 28l, 18sr, Nyl, Spl | $321.80/EA |
| 1 | TN4040247Replaces Tennant 222306 | 2 | Brush, Scb, 28l, 18sr, Abr, Spl | $471.90/EA |
| 1 | TN4040245Replaces Tennant 222304 | 2 | Brush, Scb, 28l, 18sr, Pyp, Spl | $220.00/EA |
| 1 | TN4028633Replaces Tennant 374041 | 2 | Brush, Scb, 28l, 18sr, Hd Pyp, Spl | $215.70/EA |
| 1 | TN4040249Replaces Tennant 222308 | 2 | Brush, Scb, 32l, 18sr, Nyl, Spl | $360.00/EA |
| 1 | TN4040250Replaces Tennant 222309 | 2 | Brush, Scb, 32l, 18sr, Abr, Spl | $533.90/EA |
| 1 | TN4040248Replaces Tennant 222307 | 2 | Brush, Scb, 32l, 18sr, Pyp, Spl [Grout] | $248.00/EA |
| 1 | TN4028635Replaces Tennant 374042 | 2 | Brush, Scb, 32l, 18sr, Hd Pyp, Spl | $245.10/EA |

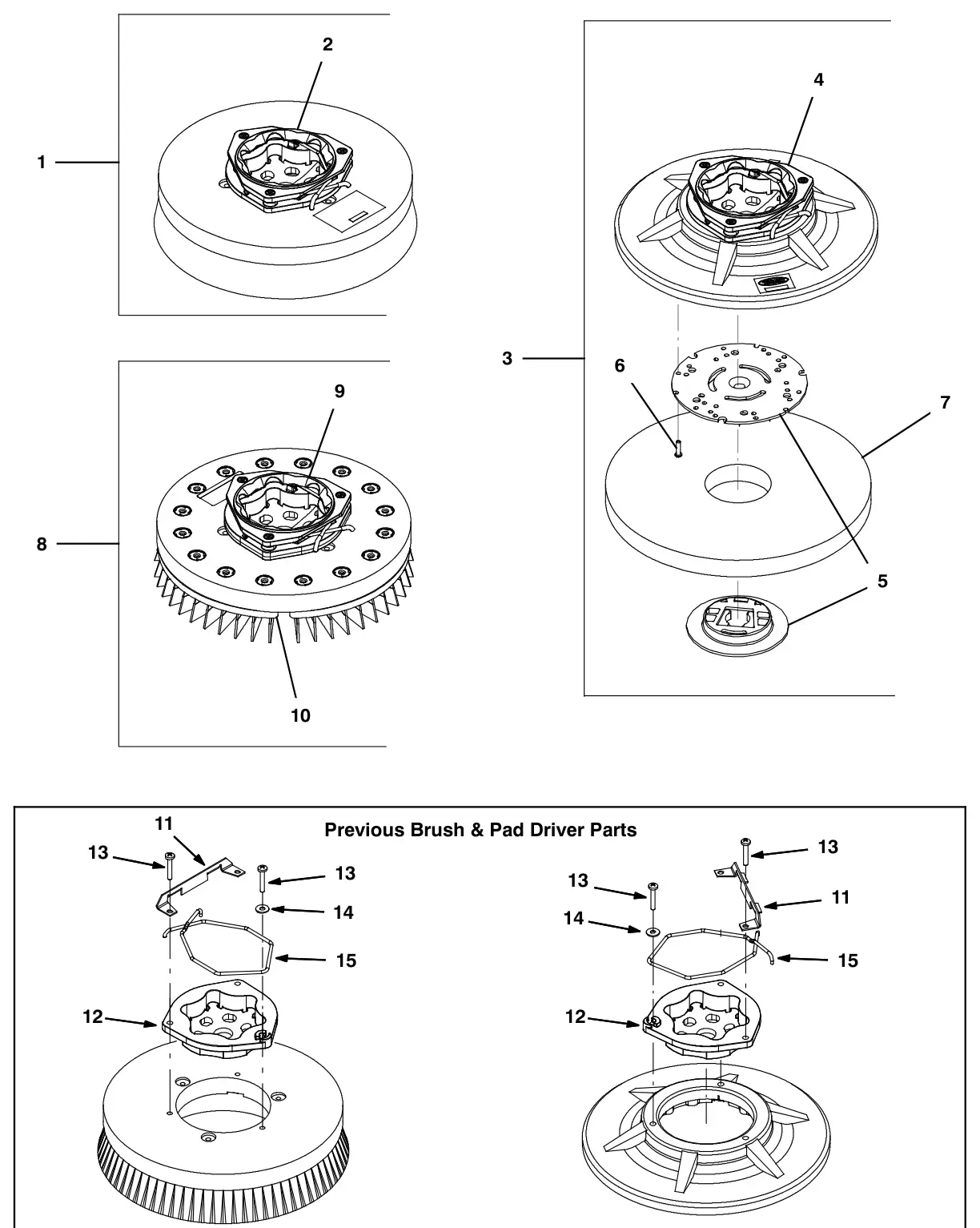

Tennant T7 replacement brushes and pad drivers, 26 in (650 mm) parts
The parts Tennant numbers on its replacement brushes and pad drivers, 26 in (650 mm) drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037181Replaces Tennant 1220226 | 2 | Brush Assy, Disk, Scb, 13.0d, NylComplete assembly. | $212.50/EA |
| 2 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Brush Assy, Disk, Scb, 13.0d, Nyl (1220226). | $73.40/EA |
| 1 | TN4037178Replaces Tennant 1220223 | 2 | Brush Assy, Disk, Scb, 13.0d, PypComplete assembly. | $174.20/EA |
| 2 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Brush Assy, Disk, Scb, 13.0d, Pyp (1220223). | $73.40/EA |
| 1 | TN4037183Replaces Tennant 1220228 | 2 | Brush Assy, Disk, Scb, 13.0d, SabComplete assembly. | $481.00/EA |
| 2 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Brush Assy, Disk, Scb, 13.0d, Sab (1220228). | $73.40/EA |
| 3 | TN4037194Replaces Tennant 1220243 | 2 | Driver Assy, Pad, 13.0dComplete assembly. | $367.90/EA |
| 4 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Driver Assy, Pad, 13.0d (1220243). | $73.40/EA |
| 5 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 13.0d (1220243). | $45.50/EA |
| 6 | TN4029531Replaces Tennant 360943 | 3 | Screw, Pan, Phl, 10-14 X 0.75, F/ PlstcPart of Driver Assy, Pad, 13.0d (1220243). | $2.50/EA |
| 7 | TN4216882Replaces Tennant 1243567 | 2 | Pad, Stripper, 13.0d, Brn [1pick=1ctn] | $80.10/EA |
| 7 | TN4216983Replaces Tennant 1243655 | 2 | Pad, Scb, 13.0d Blu [1pick=1ctn] | $80.60/EA |
| 7 | TN4034071Replaces Tennant 1243341 | 2 | Pad, Buff, 13.0d, Red [1pick=1ctn] | $80.10/EA |
| 7 | TN4034072Replaces Tennant 1243342 | 2 | Pad, Polish, 13.0d, White [1pick=1ctn] | $80.10/EA |
| 7 | TN4216987Replaces Tennant 1243666 | 2 | Pad, Surf Prep, 13.0d Maroon[1pick=1ctn] | $94.50/EA |
| 7 | TN4216842Replaces Tennant 1243042 | 2 | Pad, Polish, 13.0d, Yel [1pick=1pad] | $37.60/EA |
| 8 | TN4208051Replaces Tennant 1272026 | 2 | Disk, Polish, 13.0d,1000grit[Diamabrush] (NA Only Option)Complete assembly. | $1,136.25/EA |
| 9 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Disk, Polish, 13.0d,1000grit[Diamabrush] (NA Only Option) (1272026). | $73.40/EA |
| 10 | TN4208360Replaces Tennant 1272996 | 1 | Retainer, Blade, 12.0Part of Disk, Polish, 13.0d,1000grit[Diamabrush] (NA Only Option) (1272026). | $25.65/EA |
| 8 | TN4206946Replaces Tennant 1273963 | 2 | Disk, Polish, 13.0d,2000grit[Diamabrush] (NA Only Option)Complete assembly. | $1,159.48/EA |
| 9 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Disk, Polish, 13.0d,2000grit[Diamabrush] (NA Only Option) (1273963). | $73.40/EA |
| 10 | TN4208360Replaces Tennant 1272996 | 1 | Retainer, Blade, 12.0Part of Disk, Polish, 13.0d,2000grit[Diamabrush] (NA Only Option) (1273963). | $25.65/EA |
| 11 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, Spring | $30.20/EA |
| 12 | TN4035452Replaces Tennant 1017368 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bc | $12.30/EA |
| 13 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M6 X 1.0 X 35, Ss | $3.20/EA |
| 14 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 15 | TN4035520Replaces Tennant 1017957 | 1 | Spring, Retaining, Brush | $24.00/EA |
| – | TN4037181Replaces Tennant 1018377 | 2 | Brush Assy, Disk, Scb, 13.0 D, Soft Nylon (Replaced By 1220226) | $212.50/EA |
| – | TN4037178Replaces Tennant 1014346 | 2 | Brush Assy, Disk, Scb, 13.0d, Pyp (Replaced By 1220223) | $174.20/EA |
| – | TN4037183Replaces Tennant 1018457 | 2 | Brush Assy, Disk, Scb, 13.0 D, Super Abrasive (Replaced By 1220228) | $481.00/EA |
| – | TN4037194Replaces Tennant 379013 | 2 | Driver Assy, Pad, 13.0d (Replaced By 1220243) | $367.90/EA |

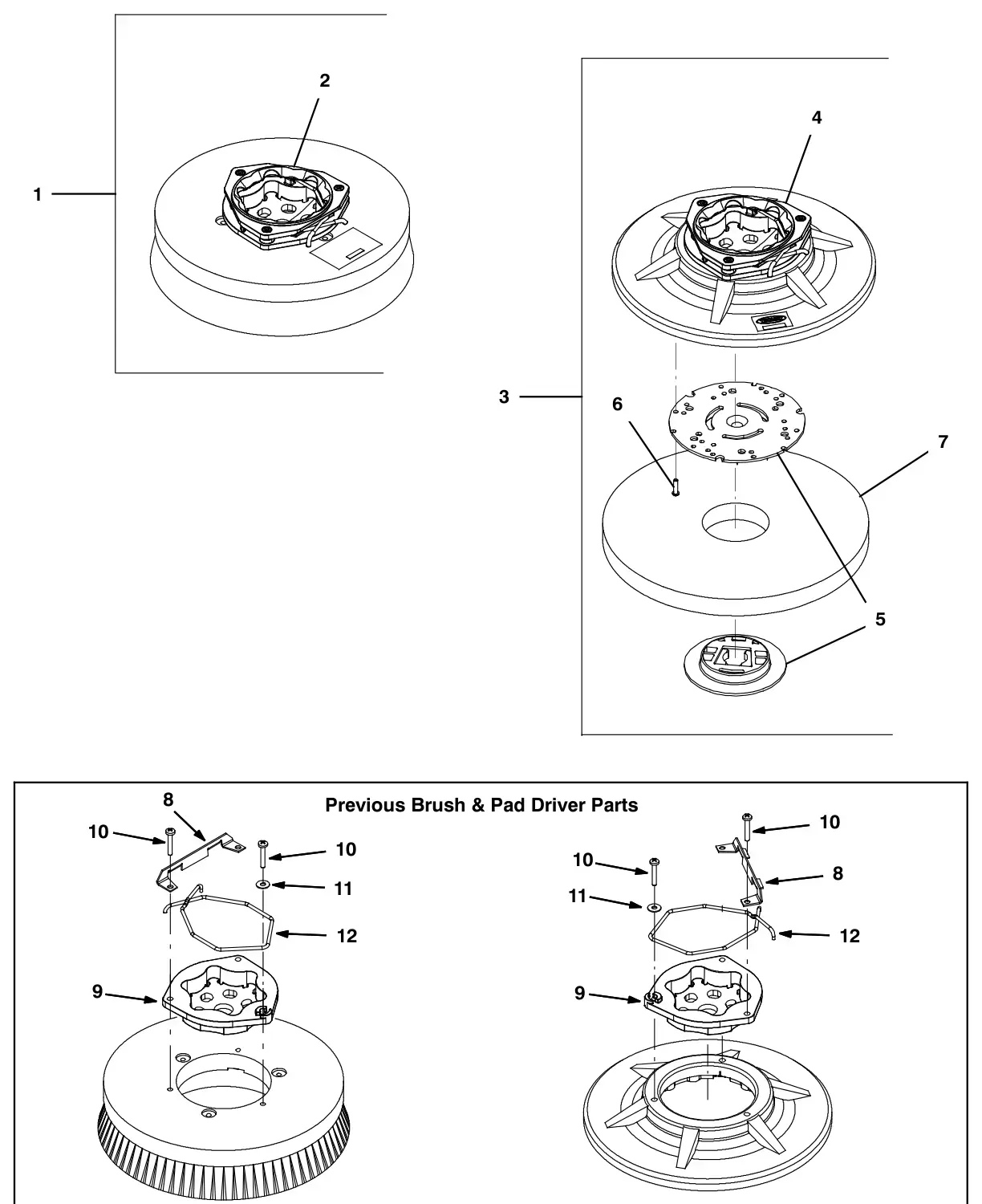

Tennant T7 replacement brushes and pad drivers, 32 in (800 mm) parts
The parts Tennant numbers on its replacement brushes and pad drivers, 32 in (800 mm) drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037180Replaces Tennant 1220225 | 2 | Brush Assy, Disk, Scb, 16.0d, NylComplete assembly. | $323.20/EA |
| 2 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Brush Assy, Disk, Scb, 16.0d, Nyl (1220225). | $73.40/EA |
| 1 | TN4037179Replaces Tennant 1220224 | 2 | Brush Assy, Disk, Scb, 16.0d, PypComplete assembly. | $214.10/EA |
| 2 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Brush Assy, Disk, Scb, 16.0d, Pyp (1220224). | $73.40/EA |
| 1 | TN4037182Replaces Tennant 1220227 | 2 | Brush Assy, Disk, Scb, 16.0d, SabComplete assembly. | $491.30/EA |
| 2 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Brush Assy, Disk, Scb, 16.0d, Sab (1220227). | $73.40/EA |
| 3 | TN4037195Replaces Tennant 1220244 | 2 | Driver Assy, Pad, 16.0dComplete assembly. | $424.70/EA |
| 4 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe]Part of Driver Assy, Pad, 16.0d (1220244). | $73.40/EA |
| 5 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 16.0d (1220244). | $45.50/EA |
| 6 | TN4029531Replaces Tennant 360943 | 3 | Screw, Pan, Phl, 10-14 X 0.75, F/ PlstcPart of Driver Assy, Pad, 16.0d (1220244). | $2.50/EA |
| 7 | TN4034295Replaces Tennant 1243659 | 2 | Pad, Strip, 16.0d Blk[Hi Prod1pick=1ctn] | $176.30/EA |
| 7 | TN4217085Replaces Tennant 1243685 | 2 | Pad, Stripping, 16.0d, Brn [1pick=1ctn] | $101.80/EA |
| 7 | TN4216870Replaces Tennant 1243354 | 2 | Pad, Scb, 16.0d, Blu [1pick=1ctn] | $101.80/EA |
| 7 | TN4034078Replaces Tennant 1243355 | 2 | Pad, Buff, 16.0d, Red [1pick=1ctn] | $122.70/EA |
| 7 | TN4216989Replaces Tennant 1243668 | 2 | Pad, Surf Prep, 16.0d Maroon[1pick=1ctn] | $123.30/EA |
| 7 | TN4034079Replaces Tennant 1243356 | 2 | Pad, Polish, 16.0d, White [1pick=1ctn] | $101.80/EA |
| 7 | TN4216844Replaces Tennant 1243044 | 2 | Pad, Polish, 16.0d, Yel [1pick=1pad] | $169.00/EA |
| 8 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, Spring | $30.20/EA |
| 9 | TN4035452Replaces Tennant 1017368 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bc | $12.30/EA |
| 10 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, M6 X 1.0 X 35, Ss | $3.20/EA |
| 11 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 12 | TN4035520Replaces Tennant 1017957 | 1 | Spring, Retaining, Brush | $24.00/EA |
| – | TN4037180Replaces Tennant 1016634 | 2 | Brush Assy, Disk, Scb, 16.0 D, Soft Nylon (Replaced By 1220225) | $323.20/EA |
| – | TN4037179Replaces Tennant 1016633 | 2 | Brush Assy, Disk, Scb, 16.0 D, Polypropylene (Replaced By 1220224) | $214.10/EA |
| – | TN4037182Replaces Tennant 1018455 | 2 | Brush Assy, Disk, Scb, 16.0 D, Super Abrasive (Replaced By 1220227) | $491.30/EA |
| – | TN4037195Replaces Tennant 379016 | 2 | Driver Assy, Pad, 16.0d (Replaced By 1220244) | $424.70/EA |

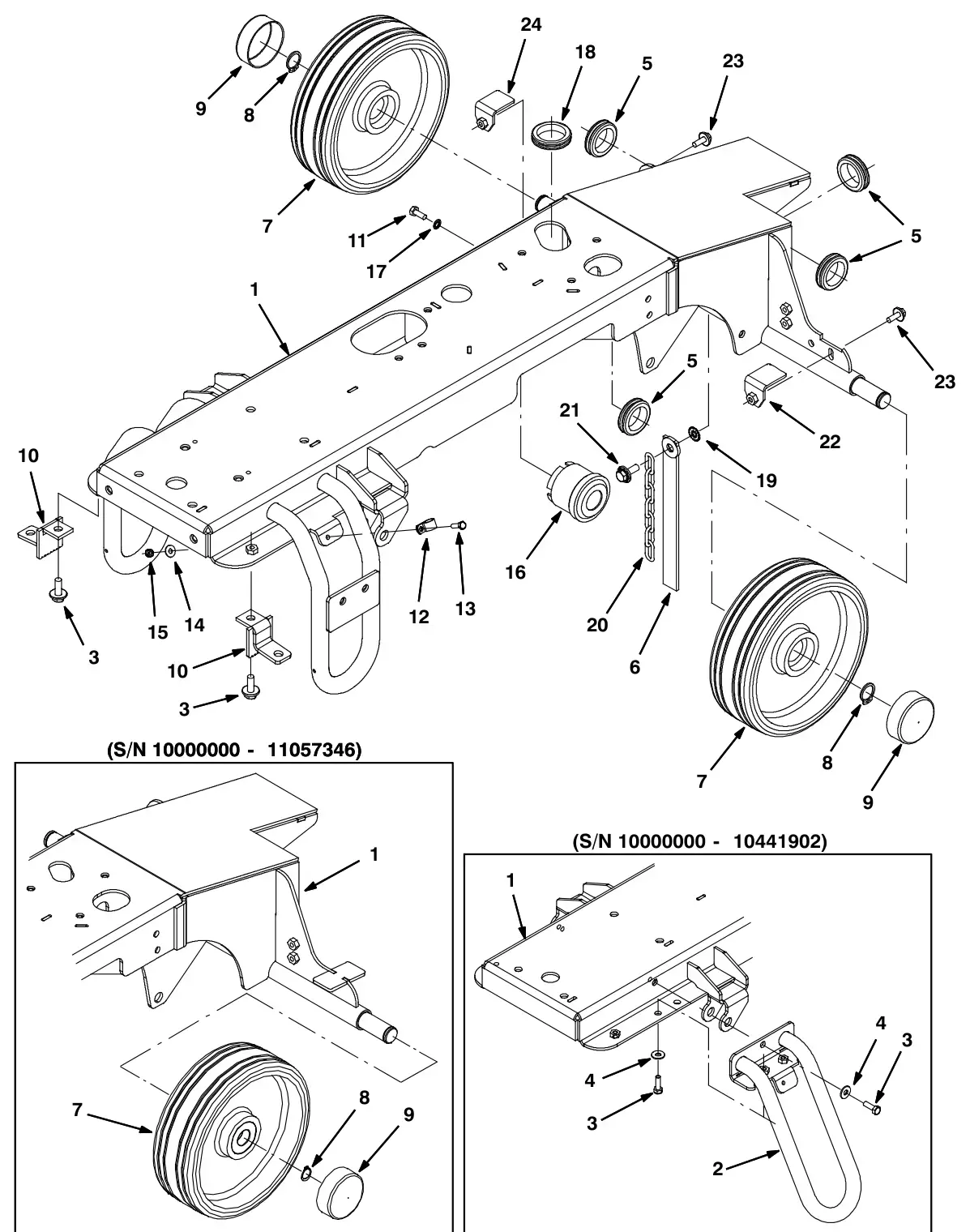

Tennant T7 main frame group, disk scrub head parts
The parts Tennant numbers on its main frame group, disk scrub head drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4212989Replaces Tennant 1259538 | 1 | Frame Wldt, Main, DiskSerial 11057347 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4212989Replaces Tennant 1054028 | 1 | Frame Wldt, Main, Disk [T7] (Replaced By 1259538 and Qty 2 of 1257594)Serial 10000000 to 11057346. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4212989Replaces Tennant 1010160 | 1 | Frame Wldt [T7] (Replaced By 1259538 and Qty 2 of 1257594 & 1072628, Qty 1 of 1075258 & 1075252)Serial 10000000 to 10441902. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4212989Replaces Tennant 1010556 | 2 | Stabilizer Wldt (Replaced By 1054028)Serial 10000000 to 10441902. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 10441903 and later. | $2.50/EA |
| 3 | TN4041943Replaces Tennant 09010 | 9 | Screw, Hex, M8 X 1.25 X 25, SsSerial 10000000 to 10441902. | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 SsSerial 10441903 and later. | $2.60/EA |
| 4 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flat, 0.31 SsSerial 10000000 to 10441902. | $2.60/EA |
| 6 | TN4037625Replaces Tennant 1014318 | 1 | Strap, Static | $98.80/EA |
| 7 | TN4043676Replaces Tennant 1038560 | 2 | Tire Assy, Solid, 250mmx80mm, 25mm Id | $0.00/EA |
| 8 | TN4032376Replaces Tennant 1257594 | 2 | Ring, Retaining, Shaft, Ext, 25mmd, HdSerial 11057347 and later. | $0.70/EA |
| 8 | TN4041941Replaces Tennant 09005 | 2 | Ring, Retaining, Ext, 1.00D, Basic (For Use With Frames 1010160 & 1054028)Serial 10000000 to 11057346. | $2.50/EA |
| 9 | TN4035212Replaces Tennant 1016957 | 2 | Cap, Vyl, 70mm Id X 25mm L | $7.50/EA |
| 10 | TN4035487Replaces Tennant 1017688 | 2 | Bracket Wldt, Stand, Jack | $50.70/EA |
| 11 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.00 X 16, Ss | $3.20/EA |
| 12 | TN4043845Replaces Tennant 140300 | 1 | Clamp, Cable, Stl, 0.50d [Insulated]Serial 10518139 and later. | $4.20/EA |
| 13 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.0 X 20, Ss | $3.20/EA |
| 14 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 15 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 16 | TN4035813Replaces Tennant 1018505 | 1 | Horn, 12-48vdc | $147.00/EA |
| 17 | TN4041590Replaces Tennant 07515 | 1 | Washer, Lock, Int, 0.25, Ss | $3.50/EA |
| 18 | TN4230556Replaces Tennant 1202181 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .19 Matl | $4.04/EA |
| 19 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
| 20 | TN4017375Replaces Tennant 43500 | 1 | Chain, Coil, Str, #2/0, 09.0l 07 Link | $8.30/EA |
| 21 | TN4031197Replaces Tennant 1072816 | 1 | Screw, Hex, M8 X 1.25 X 30, Ss, Sems | $2.50/EA |
| 22 | TN4045111Replaces Tennant 1075258 | 1 | Bracket, Mount, Tank [Disk]Serial 11057347 and later. | $70.55/EA |
| 23 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, SemsSerial 11057347 and later. | $2.50/EA |
| 24 | TN4045109Replaces Tennant 1075252 | 1 | Tank, Mount, BracketSerial 11057347 and later. | $160.99/EA |

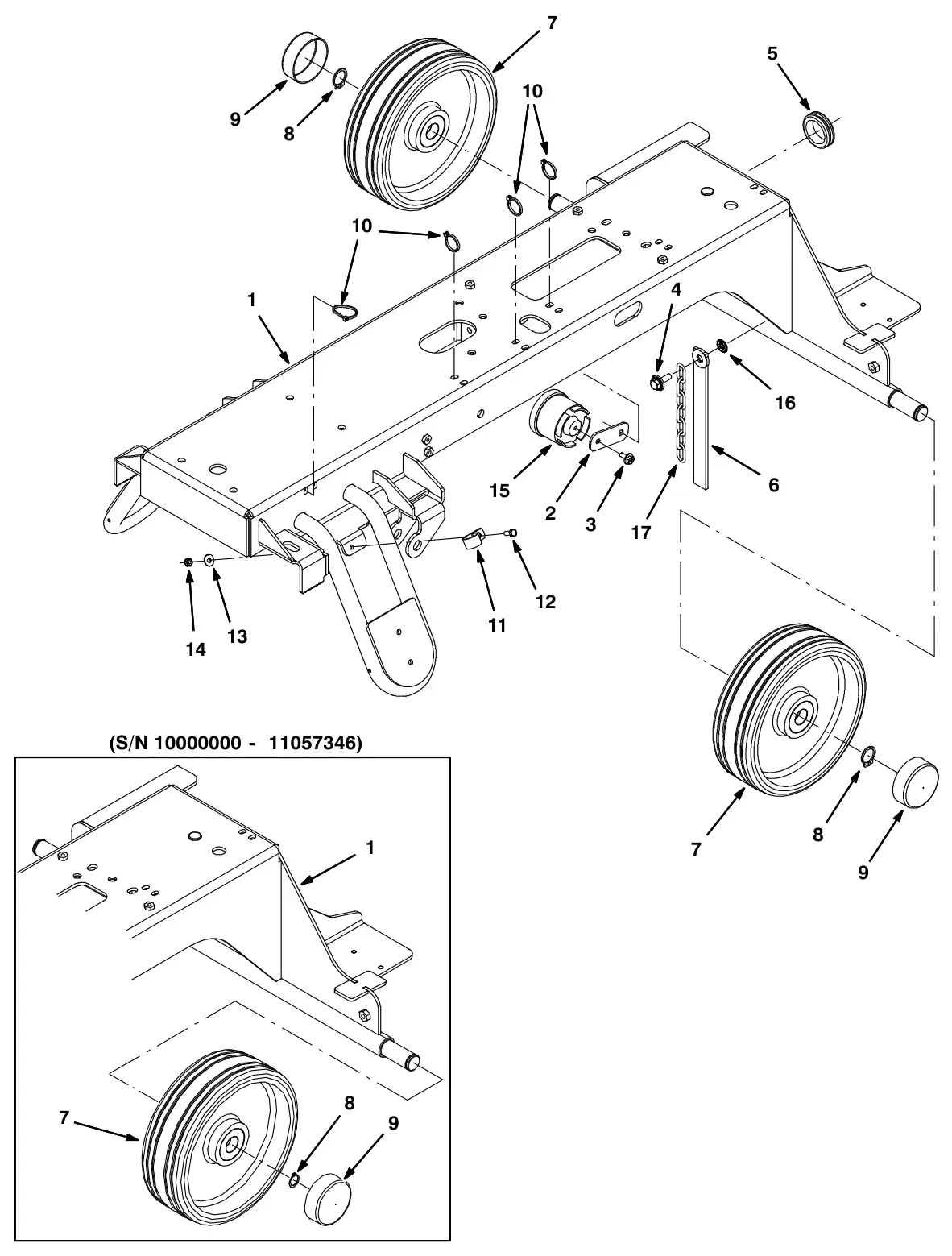

Tennant T7 main frame group, cylindrical scrub head, 28 in (700 mm) (S/N 10448499 and later) parts
The parts Tennant numbers on its main frame group, cylindrical scrub head, 28 in (700 mm) (s/n 10448499 and later) drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043045Replaces Tennant 1077218 | 1 | Frame Wldt, Main, Cyl, 70/80cm [T7, R14]Serial 11057347 and later. | $1,760.43/EA |
| 1 | TN4043045Replaces Tennant 1056133 | 1 | Frame Wldt, Main, 80cm [R14, T7 Cyl] (Replaced By 1077218 and Qty 2 of 1257594)Serial 10000000 to 11057346. | $1,760.43/EA |
| 1 | TN4043045Replaces Tennant 1054035 | 1 | Frame Wldt, Main [R14, T7 Cyl] (Replaced By 1077218 and Qty 2 of 1257594)Serial 10448499 to 10907664. | $1,760.43/EA |
| 2 | TN4033909Replaces Tennant 1025354 | 1 | Plate, Mtg, Horn | $8.38/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10448499 to 10907664. | $3.30/EA |
| 4 | TN4031197Replaces Tennant 1072816 | 1 | Screw, Hex, M8 X 1.25 X 30, Ss, SemsSerial 10448499 to 10907664. | $2.50/EA |
| 6 | TN4037625Replaces Tennant 1014318 | 1 | Strap, Static, 10.3l [Afmkt, 71579] | $98.80/EA |
| 7 | TN4043676Replaces Tennant 1038560 | 2 | Tire Assy, Solid, 250mmx80mm, 25mm Id | $0.00/EA |
| 8 | TN4032376Replaces Tennant 1257594 | 2 | Ring, Retaining, Shaft, Ext, 25mmd, HdSerial 11057347 and later. | $0.70/EA |
| 8 | TN4041941Replaces Tennant 09005 | 2 | Ring, Retaining, Ext, 1.00D, Basic (For Use With Frame’s 1054035 & 1056133)Serial 10000000 to 11057346. | $2.50/EA |
| 9 | TN4035212Replaces Tennant 1016957 | 2 | Cap, Vyl, 70mm Id X 25mm L | $7.50/EA |
| 10 | TN4014137Replaces Tennant 49263 | 4 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 11 | TN4043845Replaces Tennant 140300 | 1 | Clamp, Cable, Stl, 0.50d [Insulated]Serial 10518139 and later. | $4.20/EA |
| 12 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.0 X 20, Ss | $3.20/EA |
| 13 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 14 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 15 | TN4035813Replaces Tennant 1018505 | 1 | Horn, 12-48vdc | $147.00/EA |
| 16 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
| 17 | TN4017375Replaces Tennant 43500 | 1 | Chain, Coil, Str, #2/0, 09.0l 07 Link | $8.30/EA |

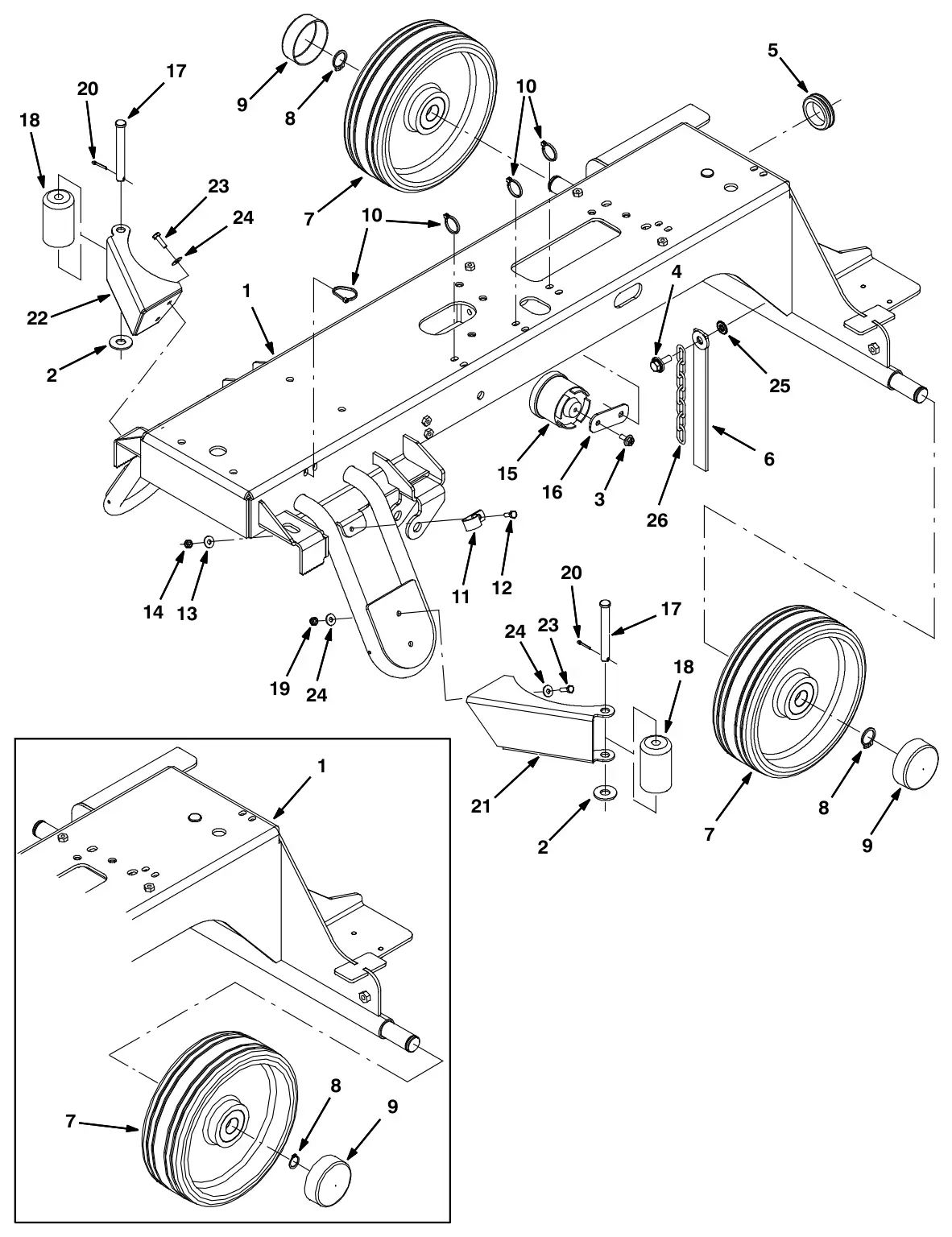

Tennant T7 main frame group, cylindrical scrub head, 32 in (800 mm) (S/N 10448499 and later) parts
The parts Tennant numbers on its main frame group, cylindrical scrub head, 32 in (800 mm) (s/n 10448499 and later) drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043045Replaces Tennant 1077218 | 1 | Frame Wldt, Main, Cyl, 70/80cm [T7, R14]Serial 11057347 and later. | $1,760.43/EA |
| 1 | TN4043045Replaces Tennant 1056133 | 1 | Frame Wldt, Main, 80cm [R14, T7 Cyl] (Replaced By 1077218 and Qty 2 of 1257594)Serial 10000000 to 11057346. | $1,760.43/EA |
| 2 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flat, 0.56b 1.38d .11, Ss | $4.10/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10448499 and later. | $3.30/EA |
| 4 | TN4031197Replaces Tennant 1072816 | 1 | Screw, Hex, M8 X 1.25 X 30, Ss, SemsSerial 10448499 and later. | $2.50/EA |
| 6 | TN4037625Replaces Tennant 1014318 | 1 | Strap, Static, 10.3l [Afmkt, 71579] | $98.80/EA |
| 7 | TN4043676Replaces Tennant 1038560 | 2 | Tire Assy, Solid, 250mmx80mm, 25mm Id | $0.00/EA |
| 8 | TN4032376Replaces Tennant 1257594 | 2 | Ring, Retaining, Shaft, Ext, 25mmd, HdSerial 11057347 and later. | $0.70/EA |
| 8 | TN4041941Replaces Tennant 09005 | 2 | Ring, Retaining, Ext, 1.00D, Basic (For Use With Frame 1056133)Serial 10000000 to 11057346. | $2.50/EA |
| 9 | TN4035212Replaces Tennant 1016957 | 2 | Cap, Vyl, 70mm Id X 25mm L | $7.50/EA |
| 10 | TN4014137Replaces Tennant 49263 | 4 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 11 | TN4043845Replaces Tennant 140300 | 1 | Clamp, Cable, Stl, 0.50d [Insulated]Serial 10518139 and later. | $4.20/EA |
| 12 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.0 X 20, Ss | $3.20/EA |
| 13 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 14 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 15 | TN4035813Replaces Tennant 1018505 | 1 | Horn, 12-48vdc | $147.00/EA |
| 16 | TN4033909Replaces Tennant 1025354 | 1 | Plate, Mtg, Horn | $8.38/EA |
| 17 | TN4014567Replaces Tennant 51528 | 2 | Pin, Clevis, 0.50d X 4.00l | $13.10/EA |
| 18 | TN4039867Replaces Tennant 222178 | 2 | Roller, Pyu, 1.88d 0.53b 3.05l (800cyl. Scrubhead) | $15.20/EA |
| 19 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Ss, Nl | $2.50/EA |
| 20 | TN4041921Replaces Tennant 08346 | 2 | Pin, Cotter, .125 X 0.75 | $2.50/EA |
| 21 | TN4045034Replaces Tennant 1033355 | 1 | Bracket, Guard, Lh (800cyl. Scrubhead) | $116.80/EA |
| 22 | TN4045010Replaces Tennant 1032971 | 1 | Bracket, Guard, Rh (800cyl. Scrubhead) | $116.80/EA |
| 23 | TN4041931Replaces Tennant 08716 | 4 | Screw, Hex, M6 X 1.0 X 20, Ss | $3.20/EA |
| 24 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.25, Ss | $2.60/EA |
| 25 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
| 26 | TN4017375Replaces Tennant 43500 | 1 | Chain, Coil, Str, #2/0, 09.0l 07 Link | $8.30/EA |

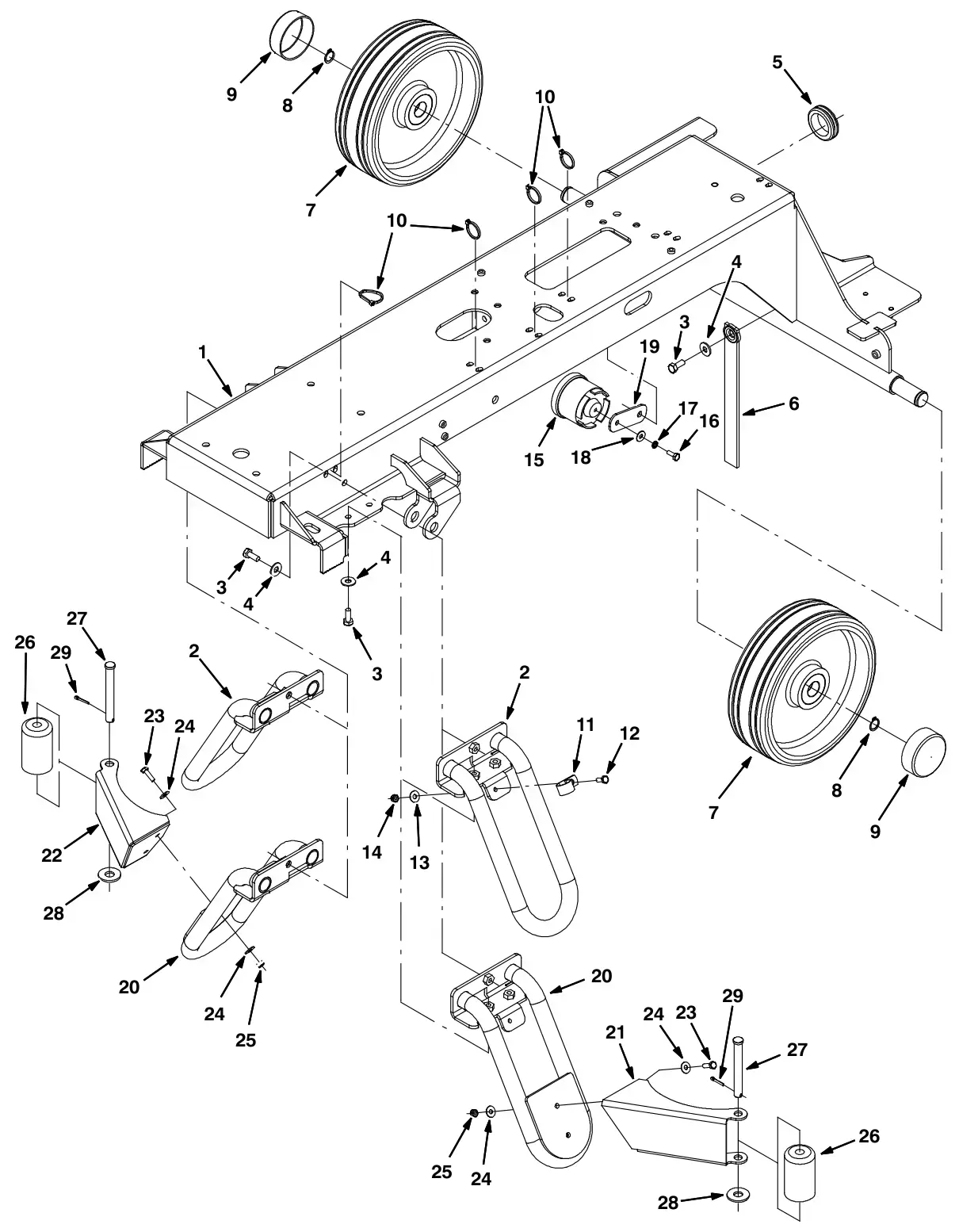

Tennant T7 main frame group, cylindrical scrub head (S/N 10000000-10448498) parts
The parts Tennant numbers on its main frame group, cylindrical scrub head (s/n 10000000-10448498) drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043045Replaces Tennant 1023551 | 1 | Frame, Wldt (Replaced By 1056133 for 700 mm & 800 mm)Serial 10000000 to 10448498. | $1,760.43/EA |
| 2 | TN4043045Replaces Tennant 1025473 | 2 | Stabilizer Wldt (700cyl. Scrubhead) (Replaced By 1054035)Serial 10000000 to 10448498. | $1,760.43/EA |
| 3 | TN4041992Replaces Tennant 09740 | 7 | Screw, Hex, M8 X 1.25 X 20, SsSerial 10000000 to 10448498. | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flat, 0.31 SsSerial 10000000 to 10448498. | $2.60/EA |
| 6 | TN4015658Replaces Tennant 71579 | 1 | Strap, Static, .19 1.1w 25.0l W/ Grommet | $25.90/EA |
| 7 | TN4043676Replaces Tennant 1038560 | 2 | Tire Assy, Solid, 250mmx80mm, 25mm Id | $0.00/EA |
| 8 | TN4041941Replaces Tennant 09005 | 2 | Ring, Retaining, Ext, 1.00D, Basic | $2.50/EA |
| 9 | TN4035212Replaces Tennant 1016957 | 2 | Cap, Vyl, 70mm Id X 25mm L | $7.50/EA |
| 10 | TN4014137Replaces Tennant 49263 | 4 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 12 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.0 X 20, Ss | $3.20/EA |
| 13 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 14 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 15 | TN4035813Replaces Tennant 1018505 | 1 | Horn, 12-48vdc | $147.00/EA |
| 16 | TN4041245Replaces Tennant 15678 | 1 | Screw, Hex, M6 X 1.0 X 16, Ss | $3.20/EA |
| 17 | TN4041590Replaces Tennant 07515 | 1 | Washer, Lock, Int, .25, Ss | $3.50/EA |
| 18 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 19 | TN4033909Replaces Tennant 1025354 | 1 | Plate, Mtg, Horn | $8.38/EA |
| 20 | TN4043045Replaces Tennant 1032947 | 2 | Stabilizer Wldt, W/ Rlr (800cyl. Scrubhead) (Replaced By 1056133)Serial 10000000 to 10448498. | $1,760.43/EA |
| 21 | TN4045034Replaces Tennant 1033355 | 1 | Bracket, Guard, Lh (800cyl. Scrubhead) | $116.80/EA |
| 22 | TN4045010Replaces Tennant 1032971 | 1 | Bracket, Guard, Rh (800cyl. Scrubhead) | $116.80/EA |
| 23 | TN4041931Replaces Tennant 08716 | 4 | Screw, Hex, M6 X 1.0 X 20, Ss (800cyl. Scrubhead) | $3.20/EA |
| 24 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.25, Ss (800cyl. Scrubhead) | $2.60/EA |
| 25 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Ss, Nl (800cyl. Scrubhead) | $2.50/EA |
| 26 | TN4039867Replaces Tennant 222178 | 2 | Roller, Pyu, 1.88d 0.53b 3.05l (800cyl. Scrubhead) | $15.20/EA |
| 27 | TN4014567Replaces Tennant 51528 | 2 | Pin, Clevis, 0.50d X 4.00l (800cyl. Scrubhead) | $13.10/EA |
| 28 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flat, 0.56b 1.38d .11, Ss (800cyl. Scrubhead) | $4.10/EA |
| 29 | TN4041921Replaces Tennant 08346 | 2 | Pin, Cotter, .125 X 0.75 (800cyl. Scrubhead) | $2.50/EA |

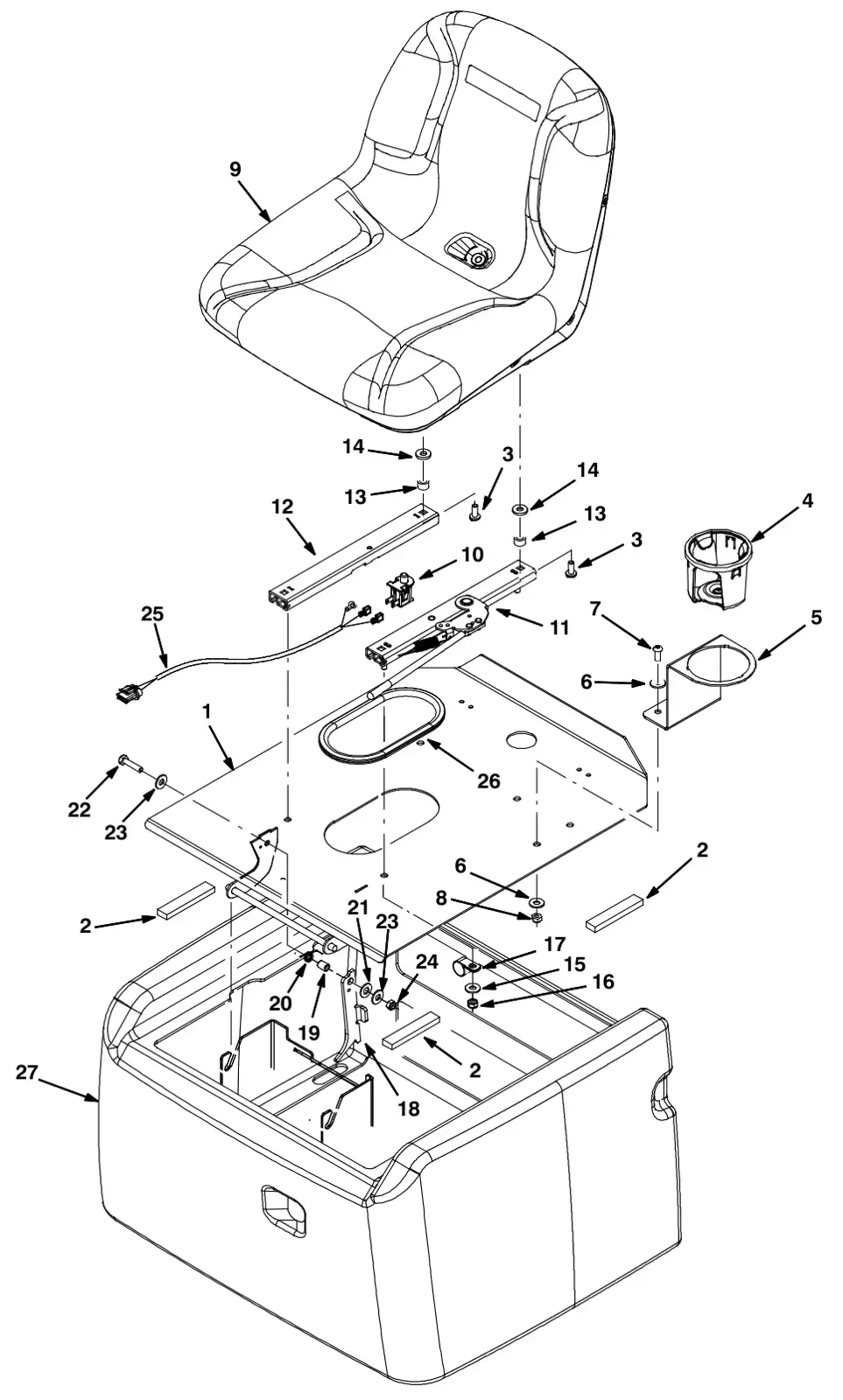

Tennant T7 seat group (S/N 10961659 and later) parts
The parts Tennant numbers on its seat group (s/n 10961659 and later) drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038293Replaces Tennant 1015406 | 1 | Plate, Seat, W/ Label | $298.20/EA |
| 1 | TN4045508Replaces Tennant 1036299 | 1 | Plate, Seat, Afmkt, Tj (Japan) | $232.60/EA |
| 2 | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ftSerial 10950688 and later. | $6.70/EA |
| 2 | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft (ec-H2O Model) | $6.70/EA |
| 3 | TN4028949Replaces Tennant 76956 | 4 | Screw, Hex, .31-18 X 1.25, G5 | $2.50/EA |
| – | TN4043591Replaces Tennant 1038062 | 1 | Holder Kit, Cup, Assy [T7]Complete assembly. | $74.50/EA |
| 4 | TN4034212Replaces Tennant 1025867 | 1 | Holder, Cup, Blk [T7]Part of Holder Kit, Cup, Assy [T7] (1038062). | $10.70/EA |
| 5 | TN4043595Replaces Tennant 1038081 | 1 | Holder, Cup, Brkt, Blk, [T7]Part of Holder Kit, Cup, Assy [T7] (1038062). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4035130Replaces Tennant 1016435 | 4 | Washer, Flat, 0.52b 0.75d .06, Stl, BlkPart of Holder Kit, Cup, Assy [T7] (1038062). | $3.40/EA |
| 7 | TN4019813Replaces Tennant 393135 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkPart of Holder Kit, Cup, Assy [T7] (1038062). | $3.30/EA |
| 8 | TN4041926Replaces Tennant 08709 | 2 | Nut, Hex, Lock, M8 X 1.25, NlPart of Holder Kit, Cup, Assy [T7] (1038062). | $2.50/EA |
| 9 | TN4014100Replaces Tennant 9005082 | 1 | Seat Kit, Std, Replmt (Kit Includes Screw and Spacer) | $263.50/EA |
| 10 | TN4040075Replaces Tennant 1048955 | 1 | Switch, Seat, No [Delta 6440-04] | $10.40/EA |
| 11 | TN4043035Replaces Tennant 1077071 | 1 | Track, Locking, 12.5l, No Stud W/HandleSerial 10970073 and later. | $52.60/EA |
| 11 | TN4043035Replaces Tennant 1017054 | 1 | Rail, Adj, Slide, Seat, 11.5l, W/ Latch (Replaced By 1077071)Serial 10000000 to 10970072. | $52.60/EA |
| 12 | TN4043034Replaces Tennant 1077067 | 1 | Track, N-Lkg, Seat, 12.5l, No StudSerial 10970073 and later. | $32.00/EA |
| 12 | TN1077076Replaces Tennant 1017053 | 1 | Rail, Adj, Slide, Seat, 11.5l (Replaced By 1077067)Serial 10000000 to 10970072. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4040754Replaces Tennant 1051052 | 4 | Spacer, Rnd, .38b .88d .38l | $3.90/EA |
| 14 | TN4018313Replaces Tennant 69461 | 4 | Washer, Flat, 0.38b 0.88d .12, Stl, Pl | $2.50/EA |
| 15 | TN4034137Replaces Tennant 32491 | 4 | Washer, Flat, 0.31 Std | $2.50/EA |
| 16 | TN4042967Replaces Tennant 01760 | 4 | Nut, Hex, Lock, .31-18, Nl, Thin | $3.40/EA |
| 17 | TN4013452Replaces Tennant 46236 | 1 | Clamp, Cable, Stl, 0.25D X 0.56W, 1H | $3.60/EA |
| 18 | TN4038623Replaces Tennant 1016000 | 1 | Plate, Stop, Seat | $44.50/EA |
| 19 | TN4035489Replaces Tennant 1017699 | 1 | Sleeve, P/M, 0.437d 0.318b 0.57l 430ss | $6.20/EA |
| 20 | TN4043126Replaces Tennant 10928 | 1 | Spring, Tors, 0.49id .05wir 05.0coil | $8.50/EA |
| 21 | TN4035536Replaces Tennant 1018151 | 1 | Washer, Flat, 0.44b 0.88d .06, Nyl | $3.40/EA |
| 22 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Ss, Fl | $3.30/EA |
| 23 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 24 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 25 | TN4019335Replaces Tennant 391951 | 1 | Harness, Seat, [ T7/Ssr ] | $42.50/EA |
| 26 | TN4036242Replaces Tennant 1020170 | 1 | Molding, Afmkt, Trim, Pvc, .08- .11, 2ft | $57.90/EA |
| 27 | TN4020987Replaces Tennant 9018603 | 1 | Cover, Box, Battery, Tl, AfmktSerial 10961659 and later. | $273.90/EA |

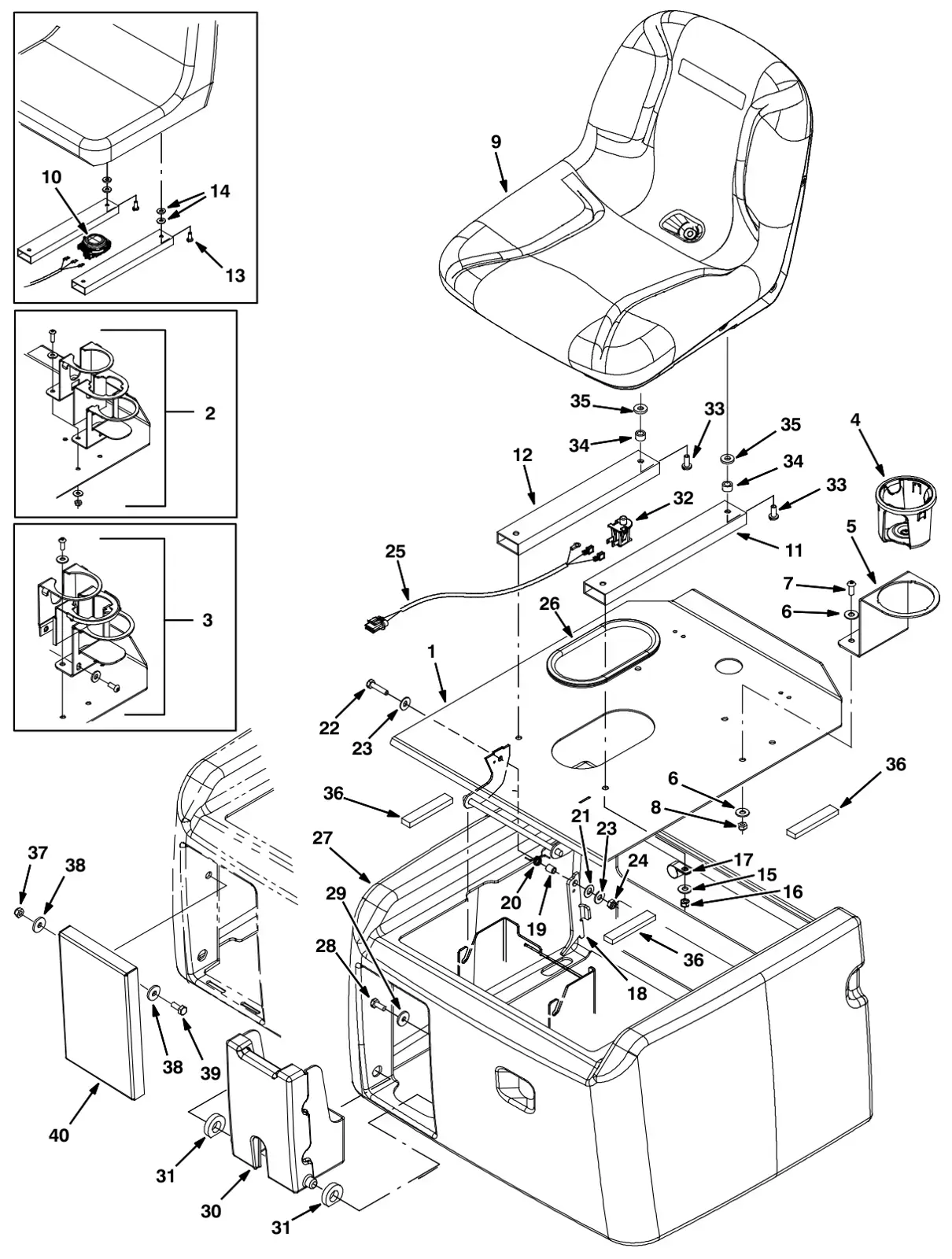

Tennant T7 seat group (S/N 10000000-10961658) parts
The parts Tennant numbers on its seat group (s/n 10000000-10961658) drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038293Replaces Tennant 1015406 | 1 | Plate, Seat, W/ Label | $298.20/EA |
| 1 | TN4045508Replaces Tennant 1036299 | 1 | Plate, Seat, Afmkt, Tj (Japan) | $232.60/EA |
| – | TN4043591Replaces Tennant 1038062 | 1 | Holder Kit, Cup, Assy [T7]Complete assembly. Serial 10382116 and later. | $74.50/EA |
| 4 | TN4034212Replaces Tennant 1025867 | 1 | Holder, Cup, Blk [T7]Part of Holder Kit, Cup, Assy [T7] (1038062). Serial 10382116 and later. | $10.70/EA |
| 5 | TN4043595Replaces Tennant 1038081 | 1 | Holder, Cup, Brkt, Blk, [T7]Part of Holder Kit, Cup, Assy [T7] (1038062). Serial 10382116 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4035130Replaces Tennant 1016435 | 4 | Washer, Flat, 0.52b 0.75d .06, Stl, BlkPart of Holder Kit, Cup, Assy [T7] (1038062). | $3.40/EA |
| 7 | TN4019813Replaces Tennant 393135 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkPart of Holder Kit, Cup, Assy [T7] (1038062). | $3.30/EA |
| 8 | TN4041926Replaces Tennant 08709 | 2 | Nut, Hex, Lock, M8 X 1.25, NlPart of Holder Kit, Cup, Assy [T7] (1038062). | $2.50/EA |
| 9 | TN4014100Replaces Tennant 9005082 | 1 | Seat Kit, Std, ReplmtSerial 10000000 to 10400496. | $263.50/EA |
| 9 | TN4014100Replaces Tennant 1048932 | 1 | Seat, Std [Michigan, Model V-2505] (Replaced By 9005082)Serial 10400497 to 10611439. | $263.50/EA |
| 9 | TN4014100Replaces Tennant 9005082 | 1 | Seat Kit, Std, Replmt (Kit Includes Screw and Spacer)Serial 10611440 and later. | $263.50/EA |
| 10 | TN4037351Replaces Tennant 223078 | 1 | Switch, Seat, NoSerial 10000000 to 10400496. | $23.90/EA |
| 11 | TN4043035Replaces Tennant 1017054 | 1 | Rail, Adj, Slide, Seat, 11.5l, W/ Latch | $52.60/EA |
| 12 | TN1077076Replaces Tennant 1017053 | 1 | Rail, Adj, Slide, Seat, 11.5l | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4035431Replaces Tennant 25537 | 4 | Screw, Pan, Phl, .31-18 X 0.75, G2Serial 10000000 to 10400496. | $3.90/EA |
| 14 | TN4018313Replaces Tennant 69461 | 8 | Washer, Flat, 0.38b 0.88d .12, Stl, PlSerial 10000000 to 10400496. | $2.50/EA |
| 15 | TN4034137Replaces Tennant 32491 | 4 | Washer, Flat, 0.31 Std | $2.50/EA |
| 16 | TN4042967Replaces Tennant 01760 | 4 | Nut, Hex, Lock, .31-18, Nl, Thin | $3.40/EA |
| 17 | TN4013452Replaces Tennant 46236 | 1 | Clamp, Cable, Stl, 0.25D X 0.56W, 1H | $3.60/EA |
| 18 | TN4038623Replaces Tennant 1016000 | 1 | Plate, Stop, Seat | $44.50/EA |
| 19 | TN4035489Replaces Tennant 1017699 | 1 | Sleeve, P/M, 0.437d 0.318b 0.57l 430ss | $6.20/EA |
| 20 | TN4043126Replaces Tennant 10928 | 1 | Spring, Tors, 0.49id .05wir 05.0coil | $8.50/EA |
| 21 | TN4035536Replaces Tennant 1018151 | 1 | Washer, Flat, 0.44b 0.88d .06, Nyl | $3.40/EA |
| 22 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Ss, Fl | $3.30/EA |
| 23 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 24 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 25 | TN4037428Replaces Tennant 223330 | 1 | Harness, Switch, SeatSerial 10000000 to 10236151. | $46.20/EA |
| 25 | TN4019335Replaces Tennant 391951 | 1 | Harness, Seat, [ T7/Ssr ]Serial 10236152 and later. | $42.50/EA |
| 26 | TN4036242Replaces Tennant 1020170 | 1 | Molding, Afmkt, Trim, Pvc, .08- .11, 2ft | $57.90/EA |
| 27 | TN4045088Replaces Tennant 1033968 | 1 | Cover, Box, Battery, Afmkt, Teal[T7]Serial 10000000 to 10961658. | $653.00/EA |
| 27 | TN4045190Replaces Tennant 1033972 | 1 | Cover, Box, Battery, Afmkt, Hg[Aramark]Serial 10000000 to 10961658. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss (Fast Model) | $3.30/EA |
| 29 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.321b 1.00d .12, Ss (Fast Model) | $3.40/EA |
Tennant T7 seat group - continued (S/N 10000000-10961658) parts
Seat group - continued (S/N 10000000-10961658) from Tennant's parts list. Manual page 24.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 30 | TN4045372Replaces Tennant 1035037 | 1 | Box, Holder, Ci [T7 Fast] (Teal) (Fast Model) | $189.10/EA |
| 30 | TN4033600Replaces Tennant 1024324 | 1 | Box, Holder, Trimmed [Fast] (Gray) (Fast Model)No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | TN4035139Replaces Tennant 1016553 | 2 | Seal, Rbr (Fast Model) | $4.40/EA |
| 32 | TN4040075Replaces Tennant 1048955 | 1 | Switch, Seat, No [Delta 6440-04]Serial 10400497 and later. | $10.40/EA |
| 33 | TN4014132Replaces Tennant 49177 | 4 | Screw, Pan, Phl, .31-18 X 1.00, G2Serial 10400497 to 10611439. | $3.30/EA |
| 33 | TN4028949Replaces Tennant 76956 | 4 | Screw, Hex, .31-18 X 1.25, G5Serial 10611440 and later. | $2.50/EA |
| 34 | TN4040754Replaces Tennant 1051052 | 4 | Spacer, Rnd, .38b .88d .38l | $3.90/EA |
| 35 | TN4018313Replaces Tennant 69461 | 4 | Washer, Flat, 0.38b 0.88d .12, Stl, Pl | $2.50/EA |
| 36 | TN4042866Replaces Tennant 1046428 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 02ft (ec-H2O Model) | $6.70/EA |
| 37 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss (Standard & ec-H2O Models) | $3.30/EA |
| 38 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, Ss (Standard & ec-H2O Models) | $3.40/EA |
| 39 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss (Standard & ec-H2O Models) | $3.30/EA |
| 40 | TN4040759Replaces Tennant 1051138 | 1 | Bracket, Cover, Fast Open [T7 Ec-H2o] (Standard & ec-H2O Models) | $35.70/EA |

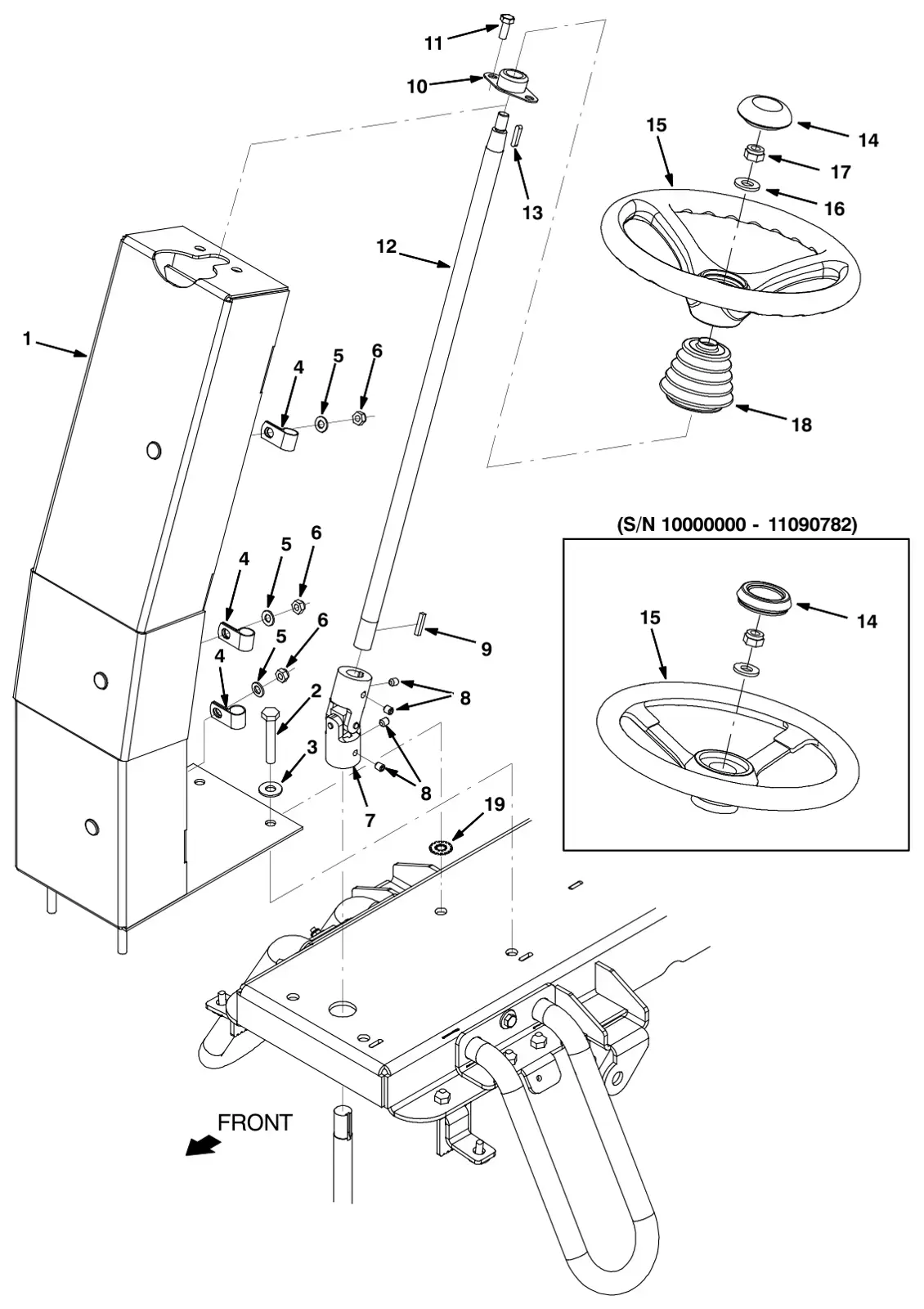

Tennant T7 steering group parts
The parts Tennant numbers on its steering group drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031198Replaces Tennant 1072829 | 1 | Support Wldt, Steering | $371.30/EA |
| 2 | TN4040928Replaces Tennant 04417 | 4 | Screw, Hex, M10 X 1.5 X 60, Ss | $6.80/EA |
| 3 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 4 | TN4018310Replaces Tennant 69234 | 3 | Clamp, Cable, Stl, 1.00d X 0.62w, 1h | $4.20/EA |
| 5 | TN4015595Replaces Tennant 39349 | 3 | Washer, Flat, 0.31 Sae | $2.50/EA |
| 6 | TN4041926Replaces Tennant 08709 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl | $2.50/EA |
| 7 | TN4044298Replaces Tennant 1040295 | 1 | Joint, U, 0.75id | $114.20/EA |
| 8 | TN4013468Replaces Tennant 46820 | 4 | Screw, Set, .31-18 X 0.38, Nl | $4.00/EA |
| 9 | TN4042778Replaces Tennant 00912 | 1 | Key, Sq, 0.19 X 0.19, 1.00l | $3.60/EA |
| 10 | TN4037347Replaces Tennant 223065 | 1 | Bearing, Flng, 2-Hole, 0.75b [Nyl] | $6.00/EA |
| 11 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 12 | TN4037301Replaces Tennant 1013164 | 1 | Shaft, Steering, Wheel | $253.20/EA |
| 13 | TN4037626Replaces Tennant 1014328 | 1 | Key, Sq, 05mm X 05mm, 25l | $4.20/EA |
| 14 | TN4036204Replaces Tennant 1019706 | 1 | Cap, Steering WheelSerial 10000000 to 11090782. | $12.10/EA |
| 15 | TN4036964Replaces Tennant 1012002 | 1 | Wheel, Steering, 300mm (Replaced By 9022928)Serial 10000000 to 11090782. | $139.20/EA |
| – | TN4018791Replaces Tennant 9022928 | 1 | Steering Wheel Kit, ReplmntComplete assembly. Serial 11090783 and later. | $201.29/EA |
| 14 | TN4029992Replaces Tennant 1268482 | 1 | Cap, Wheel, SteeringPart of Steering Wheel Kit, Replmnt (9022928). Serial 11090783 and later. | $3.03/EA |
| 15 | TN4029991Replaces Tennant 1268481 | 1 | Wheel, Steering, 320mmPart of Steering Wheel Kit, Replmnt (9022928). Serial 11090783 and later. | $95.85/EA |
| 16 | TN4017101Replaces Tennant 64154 | 1 | Washer, Flat, 0.53b 1.12d .11, Stl, Pl | $5.20/EA |
| 17 | TN4041927Replaces Tennant 08711 | 1 | Nut, Hex, Lock, M12 X 1.75,Nl | $3.30/EA |
| 18 | TN4037245Replaces Tennant 1012437 | 1 | Bellows, Shaft, Steering | $9.50/EA |
| 19 | TN4016788Replaces Tennant 41142 | 1 | Washer, Lock, Int-ext, 0.38 | $3.40/EA |

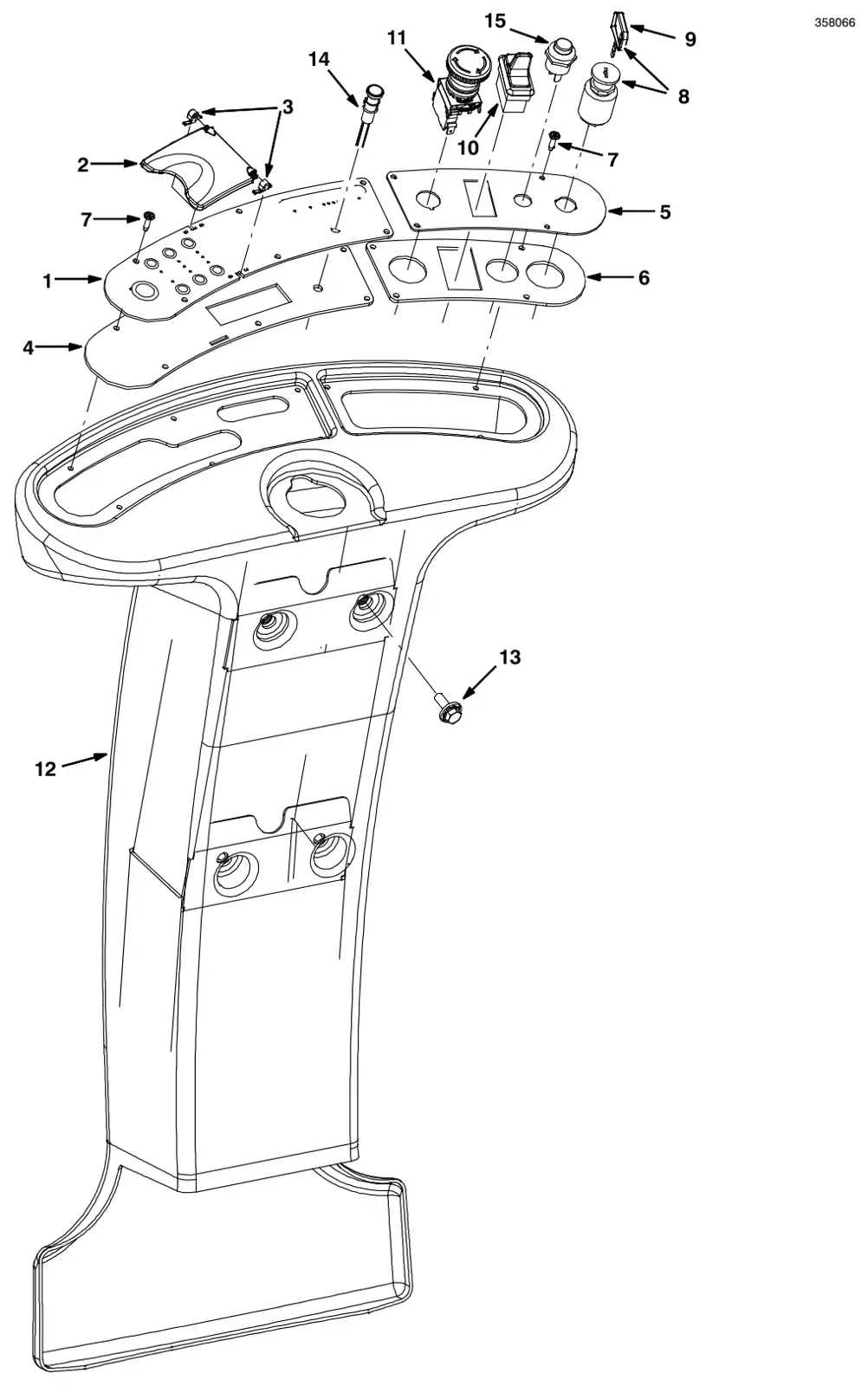

Tennant T7 instrument panel group parts
The parts Tennant numbers on its instrument panel group drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045337Replaces Tennant 1076470 | 1 | Panel, Instmt, Lh, Afmkt [T7] | $215.80/EA |
| 1 | TN4045338Replaces Tennant 1076471 | 1 | Panel, Instmt, Lh, Afmkt [Ec-h2oT7] | $253.10/EA |
| 2 | TN4037221Replaces Tennant 1012197 | 1 | Cover, Panl, Instmt | $4.50/EA |
| 3 | TN4036948Replaces Tennant 1011952 | 2 | Block, Pivot, Cover | $3.40/EA |
| 4 | TN4037662Replaces Tennant 1052607 | 1 | Gasket, Panl, Instmt, Lh, .13, Foam, Adh | $4.30/EA |
| 5 | TN4042810Replaces Tennant 1046313 | 1 | Panel, Instmt, RhSerial 10403819 and later. | $47.80/EA |
| 5 | TN4014066Replaces Tennant 9004968 | 1 | Switch Kit, Key, [T7/Ssr/R14/Strv Rdr]Serial 10000000 to 10403818. | $79.70/EA |
| 6 | TN4037597Replaces Tennant 1014080 | 1 | Gasket, Panl, Instmt, Rh | $5.40/EA |
| 7 | TN4016303Replaces Tennant 72969 | 10 | Rivet, Plstc, .181d X 0.720 | $4.00/EA |
| 8 | TN4036836Replaces Tennant 1011402 | 1 | Switch, KeyComplete assembly. Serial 10403819 and later. | $54.40/EA |
| 9 | TN4129073Replaces Tennant 1017696 | 1 | Key Set, Replmt [F/ Keyswitch 1011402]Part of Switch, Key (1011402). Serial 10403819 and later. | $21.60/EA |
| 8 | TN4014066Replaces Tennant 9004968 | 1 | Switch Kit, Key, [T7/Ssr/R14/Strv Rdr]Complete assembly. Serial 10000000 to 10403818. | $79.70/EA |
| 9 | TN4029794Replaces Tennant 361144 | 1 | Key, IgnitionPart of Switch Kit, Key, [T7/Ssr/R14/Strv Rdr] (9004968). Serial 10000000 to 10403818. | $14.30/EA |
| 10 | TN4030893Replaces Tennant 1072040 | 1 | Switch, Rocker, Spst, Paddle | $33.70/EA |
| 11 | TN4029938Replaces Tennant 1266688 | 1 | Switch, Safety, Shutoff | $40.50/EA |
| 12 | TN4038296Replaces Tennant 1015415 | 1 | Column, Steering, W/Label [T7] (Teal) | $459.30/EA |
| 12 | TN1023928Tennant 1023928 | 1 | Column, Steering, W/ Label [T7] Rm-Nlg (Gray) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4045513Replaces Tennant 1036372 | 1 | Column, Steering, Afmkt, Tj (Japan) | $432.79/EA |
| 12 | TN4014829Replaces Tennant 9006188 | 1 | Column, Steering, Teal [T7 Ec-H2o] | $245.13/EA |
| 12 | TN4202391Replaces Tennant 9006189 | 1 | Column, Steering, Gray [T7 Ec-H2o] | $245.13/EA |
| 13 | TN4030961Replaces Tennant 1072628 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss, Sems | $2.50/EA |
| 14 | TN4044628Replaces Tennant 1041822 | 1 | Light, Led, .312d, 2 Volt [Tri-Color] (ec-H2O Model) | $104.60/EA |
| 15 | TN4037949Replaces Tennant 1014832 | 1 | Switch, Horn | $35.60/EA |

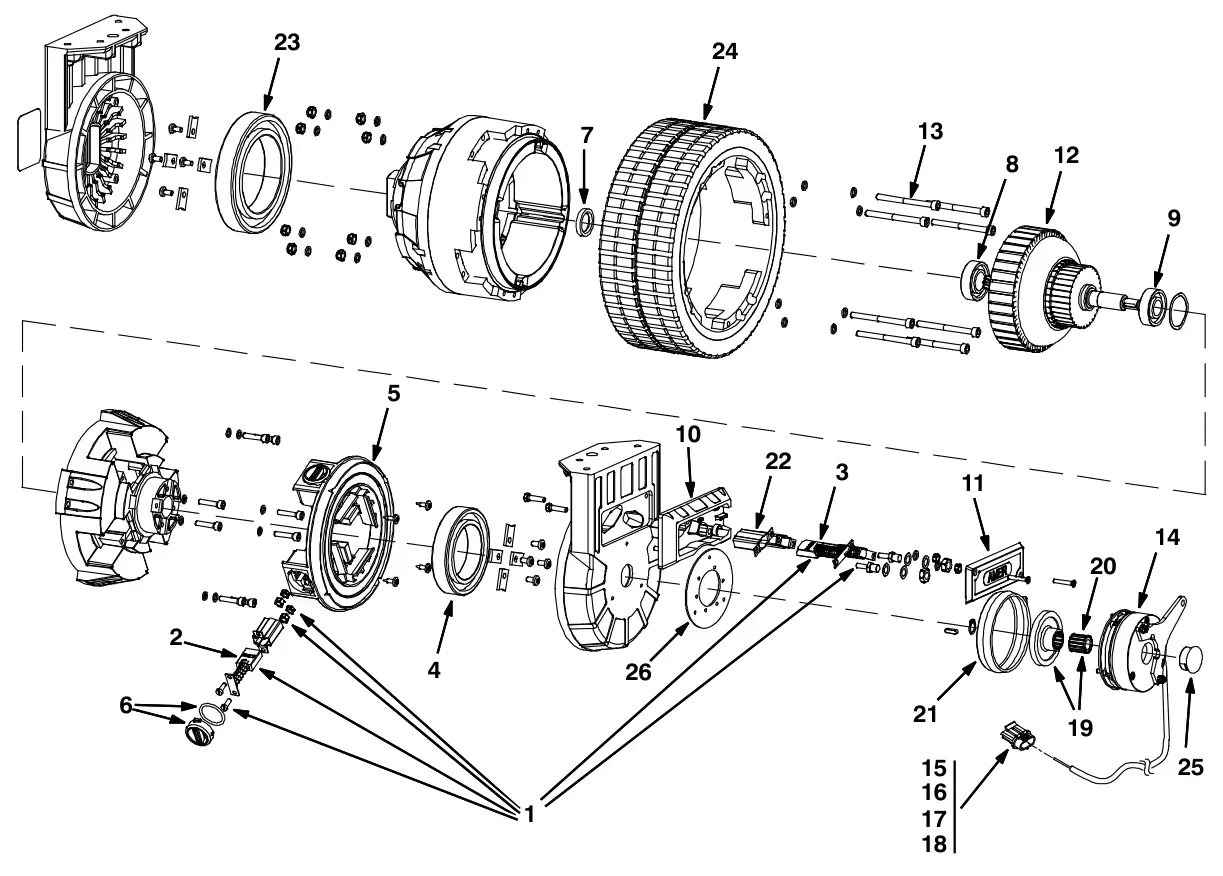

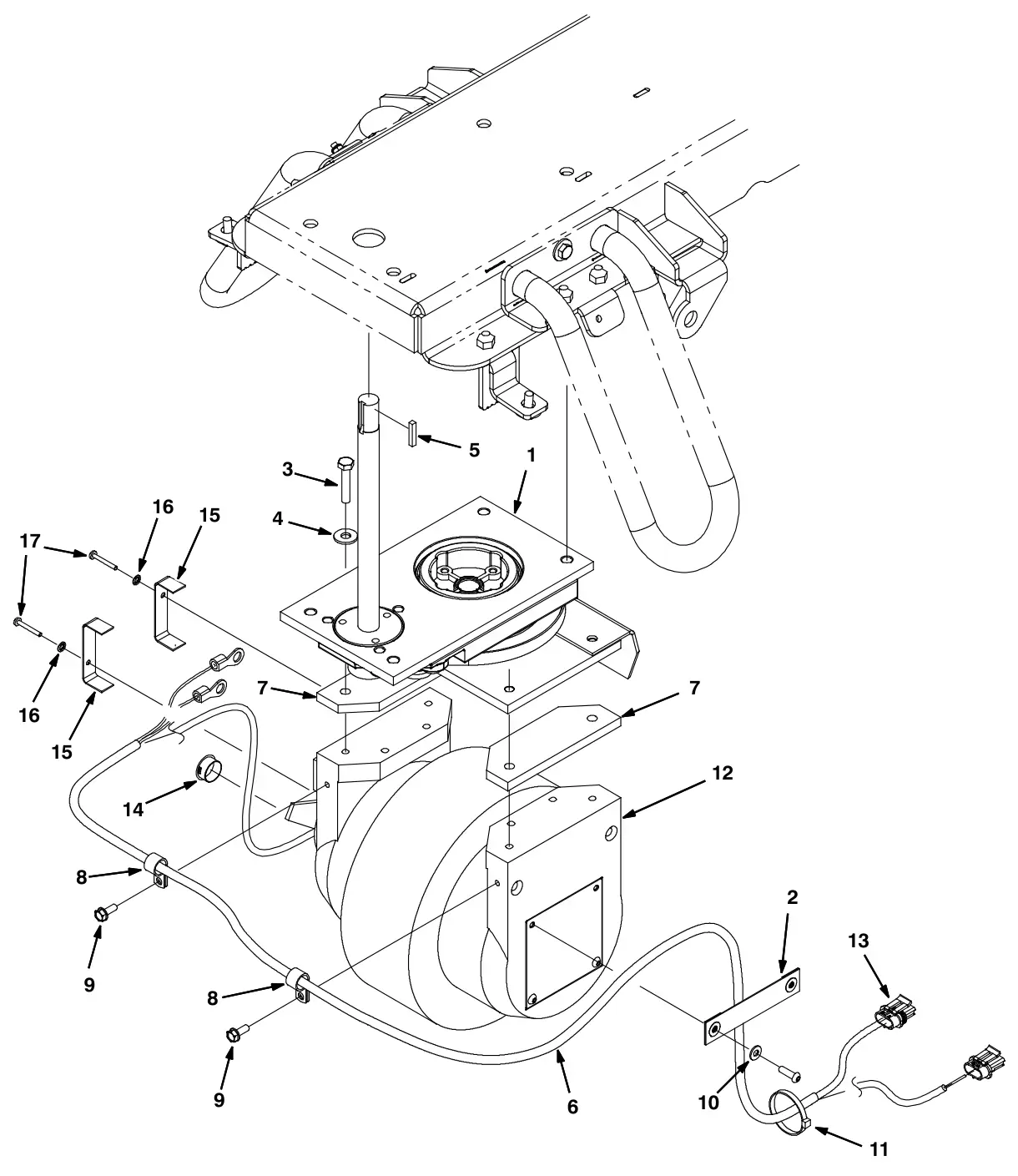

Tennant T7 front drive wheel group (S/N 10518139 and later) parts
The parts Tennant numbers on its front drive wheel group (s/n 10518139 and later) drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

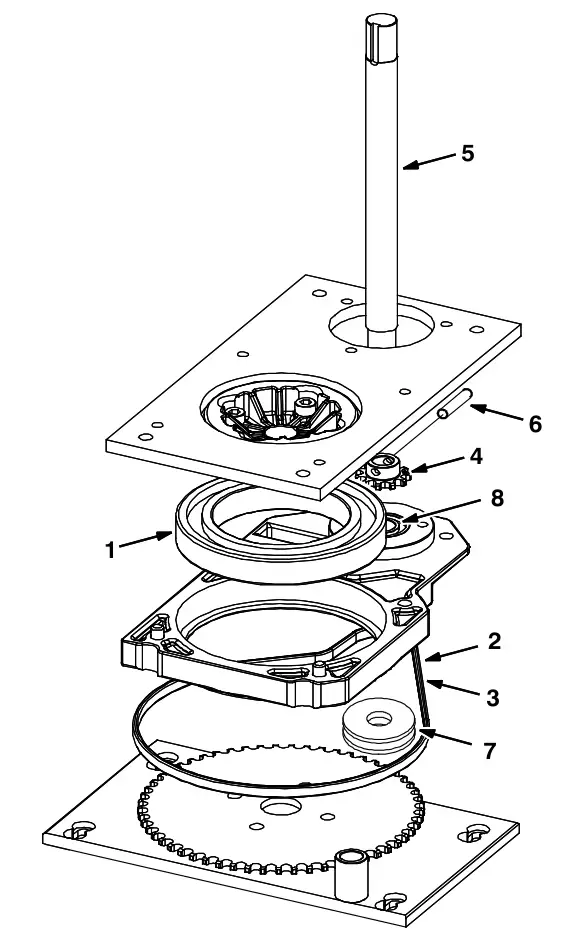

| 1 | TN4036208Replaces Tennant 1019724 | 1 | Steer-Control Assy, Wheel Drive (See Breakdown) | $1,274.10/EA |
| 2 | TN4035889Replaces Tennant 1019224 | 1 | Strap, Nyl | $20.40/EA |
| 3 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss (Disk Brush) | $3.30/EA |
| 3 | TN4041946Replaces Tennant 09026 | 4 | Screw, Hex, M8 X 1.25 X 40, Ss (Cylindrical Brush) | $4.00/EA |
| 4 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 5 | TN4042778Replaces Tennant 00912 | 1 | Key, Sq, 0.19 X 0.19, 1.00l | $3.60/EA |
| 6 | TN4032785Replaces Tennant 1065808 | 1 | Harness, Motor, Brake [T7/Ssr]Serial 10518139 and later. | $70.80/EA |
| 7 | TN4031012Replaces Tennant 1028873 | 2 | Plate, Spacer, Drive (Cylindrical Brush) | $37.20/EA |
| 8 | TN4043845Replaces Tennant 140300 | 2 | Clamp, Cable, Stl, 0.50d [Insulated]Serial 10518139 and later. | $4.20/EA |
| 9 | TN4029864Replaces Tennant 361339 | 2 | Screw, Hex, M6 X 1.0 X 16, Fmg | $4.00/EA |
| 10 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, #10 | $2.50/EA |
| 11 | TN4043510Replaces Tennant 130773 | 4 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10518139 and later. | $3.90/EA |
| 12 | TN4010373Replaces Tennant 9008999 | 1 | Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown)Complete assembly. Serial 10518139 and later. | $4,702.30/EA |
| 13 | TN4043067Replaces Tennant 1047186 | 1 | Connector, Fem, 3 Recept [Mp630]Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $16.70/EA |
| 14 | TN4030595Replaces Tennant 130161 | 1 | Plug, Hole, Rnd, 0.88d, BlkSerial 10518139 and later. | $4.00/EA |
| 15 | TN4032731Replaces Tennant 1064972 | 2 | Bracket, CordSerial 10518139 and later. | $13.50/EA |
| 16 | TN4043241Replaces Tennant 02938 | 2 | Washer, Lock, Int, 08, Ss | $2.60/EA |
| 17 | TN4031246Replaces Tennant 33931 | 2 | Screw, Pan, Phl, M4 X 0.70 X 30, SsSerial 10518139 and later. | $3.20/EA |

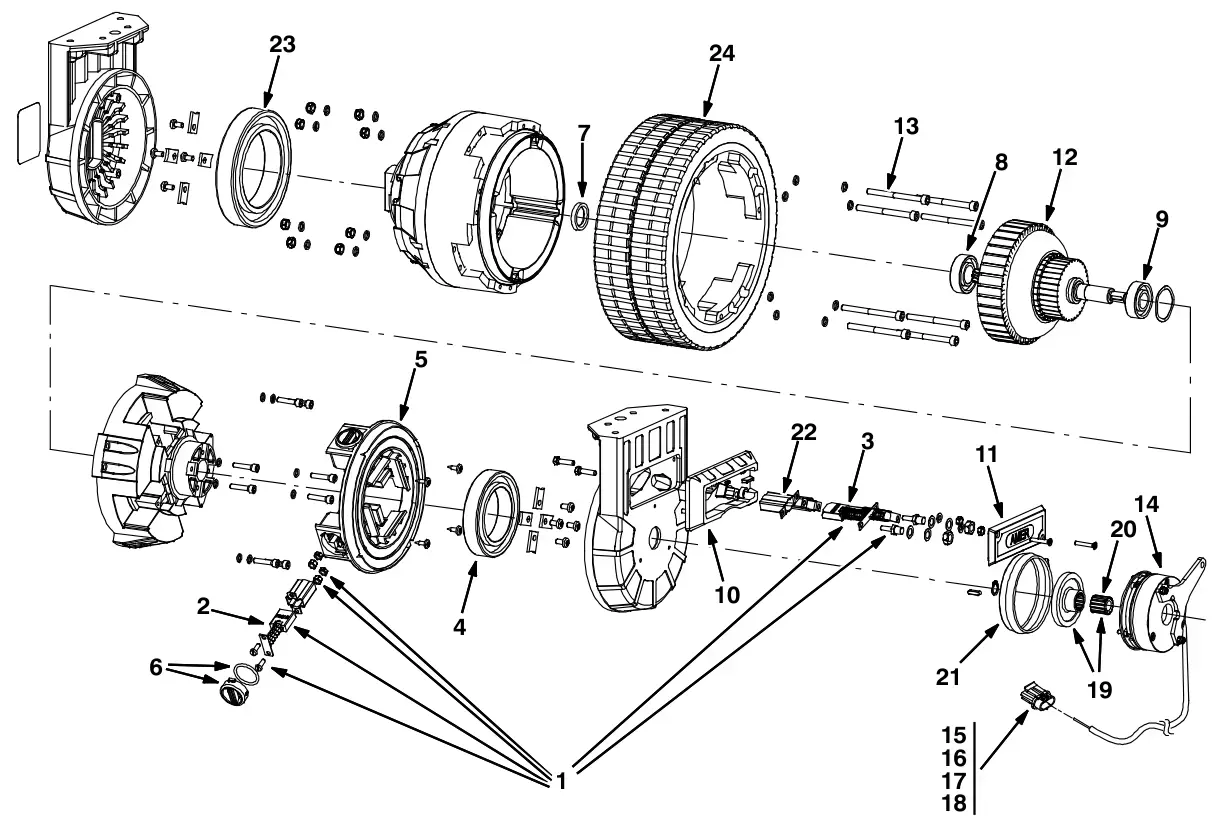

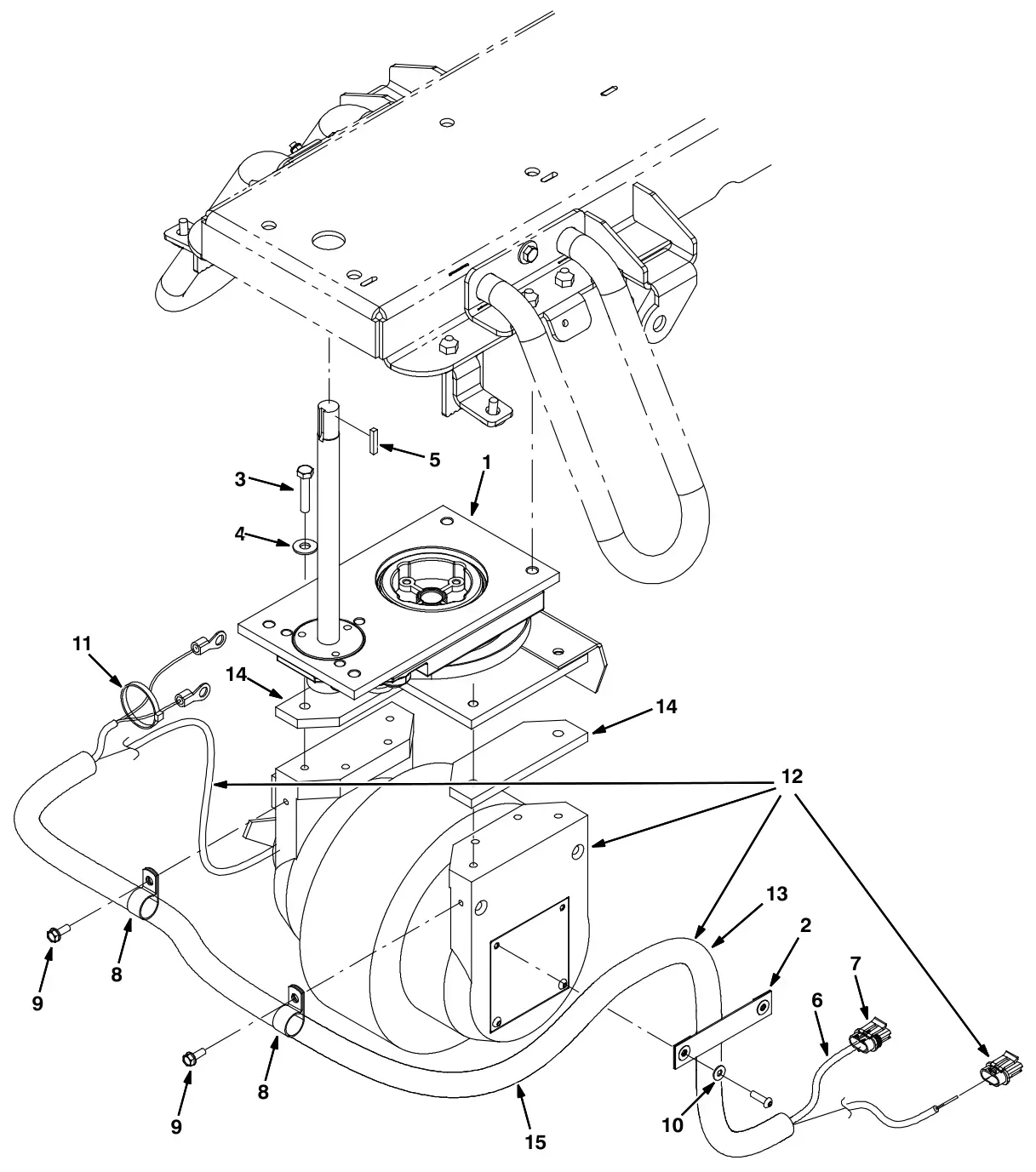

Tennant T7 front drive wheel group (S/N 10000000-10518138) parts
The parts Tennant numbers on its front drive wheel group (s/n 10000000-10518138) drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036208Replaces Tennant 1019724 | 1 | Steer-Control Assy, Wheel Drive (See Breakdown) | $1,274.10/EA |
| 2 | TN4035889Replaces Tennant 1019224 | 1 | Strap, Nyl | $20.40/EA |
| 3 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, Ss (Disk Brush) | $3.30/EA |
| 3 | TN4041946Replaces Tennant 09026 | 4 | Screw, Hex, M8 X 1.25 X 40, Ss (Cylindrical Brush) | $4.00/EA |
| 4 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 5 | TN4042778Replaces Tennant 00912 | 1 | Key, Sq, 0.19 X 0.19, 1.00l | $3.60/EA |
| 6 | TN4013062Replaces Tennant 391914 | 1 | Harness, Motor, #10-2, 48.0 L, [T7] (Replaced By 9008400)Complete assembly. Serial 10000000 to 10518138. | $173.70/EA |
| 7 | TN4043067Replaces Tennant 1047186 | 1 | Connector, Fem, 3 Recept [Mp630]Part of Harness, Motor, #10-2, 48.0 L, [T7] (Replaced By 9008400) (391914). | $16.70/EA |
| 9 | TN4029864Replaces Tennant 361339 | 2 | Screw, Hex, M6 X 1.0 X 16, Fmg | $4.00/EA |
| 10 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, #10 | $2.50/EA |
| 11 | TN4014137Replaces Tennant 49263 | 4 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DSerial 10000000 to 10518138. | $3.40/EA |
| 12 | TN4010374Replaces Tennant 9001642 | 1 | Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness)Complete assembly. Serial 10000000 to 10518138. | $4,783.70/EA |
| 13 | TN4013062Replaces Tennant 9008400 | 1 | Brake, Jumper Kit [T7]Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $173.70/EA |
| 14 | TN4031012Replaces Tennant 1028873 | 2 | Plate, Spacer, Drive (Cylindrical Brush) | $37.20/EA |
| 15 | TN4038377Replaces Tennant 1015761 | 1 | Sleeve, Afmkt, Nyl, #13, 3ftSerial 10000000 to 10518138. | $40.40/EA |

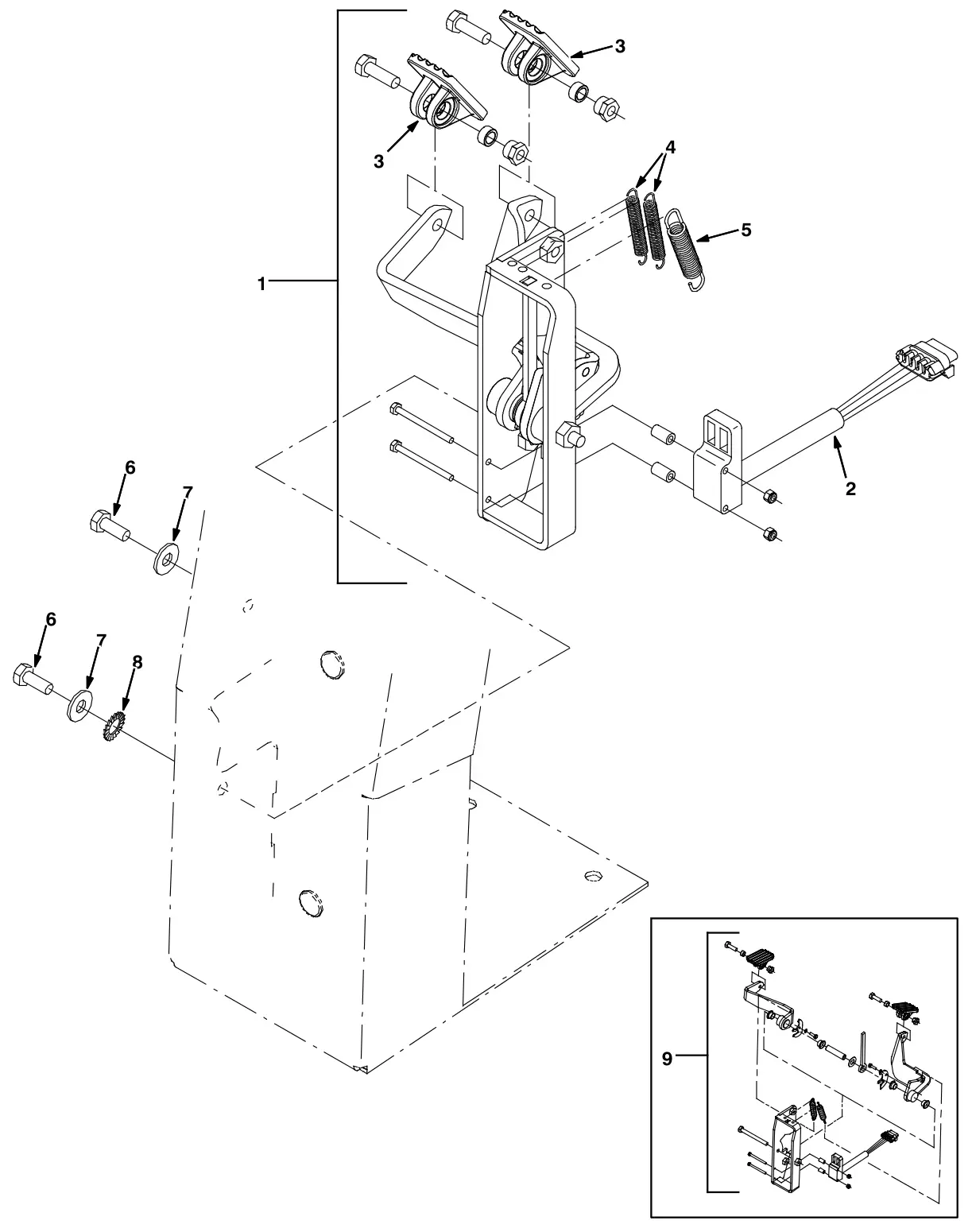

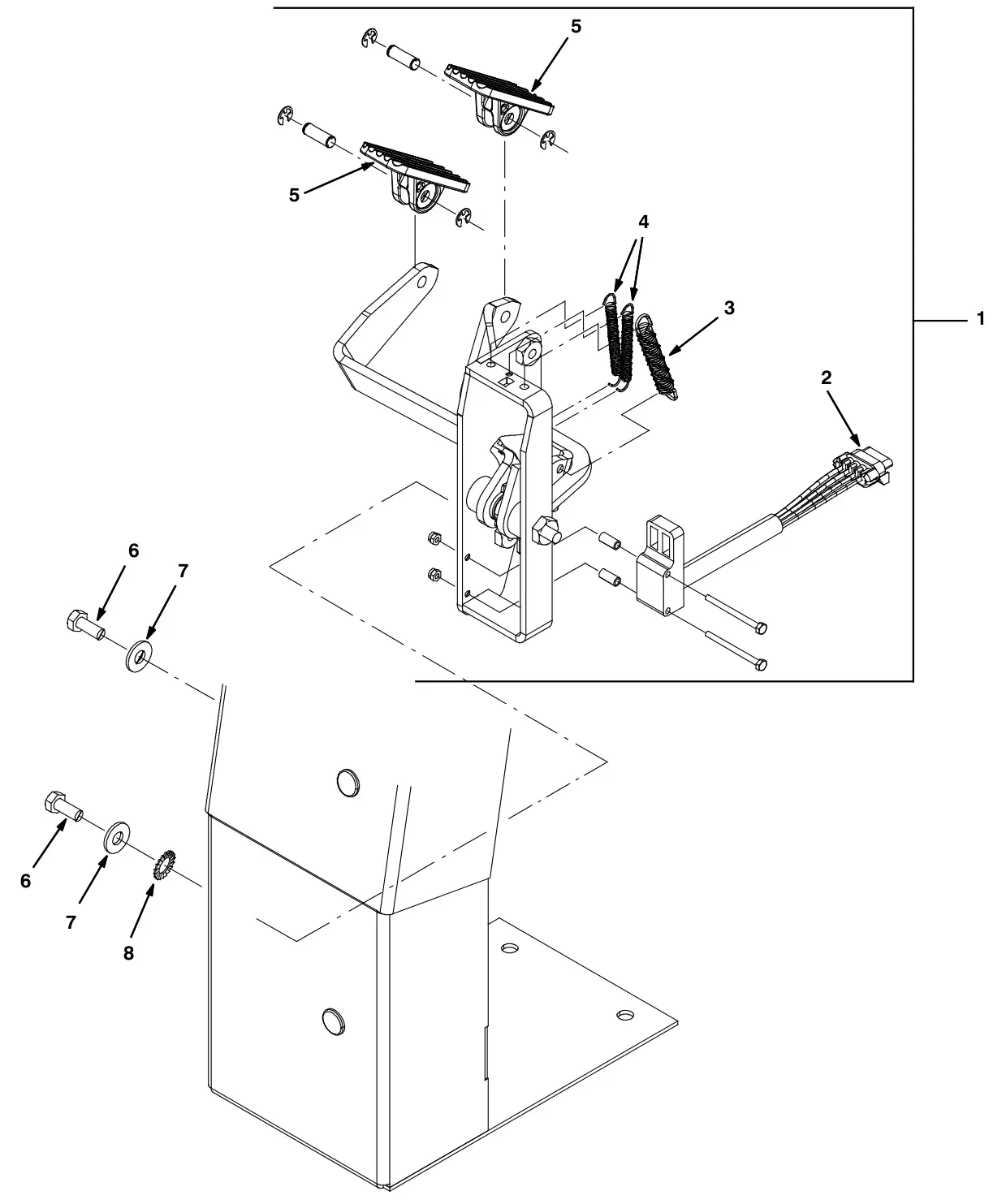

Tennant T7 brake pedal and accelerator pedal group (S/N 10644406 and later) parts
The parts Tennant numbers on its brake pedal and accelerator pedal group (s/n 10644406 and later) drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030944Replaces Tennant 1072477 | 1 | Pedal Assy, Accelerator, BrakeComplete assembly. Serial 10644406 and later. | $534.90/EA |
| 2 | TN8005873Replaces Tennant 1058687 | 1 | Vr, Sensor, Position [Hall]Part of Pedal Assy, Accelerator, Brake (1072477). | $346.40/EA |
| 3 | TN4032122Replaces Tennant 1031716 | 1 | Spring, Extn, 0.50od 0.07wir 03.0lPart of Pedal Assy, Accelerator, Brake (1072477). | $29.60/EA |
| 4 | TN8005767Replaces Tennant 1061049 | 2 | Vr, Spring, Extn, 0.35od 0.05wir 02.8lPart of Pedal Assy, Accelerator, Brake (1072477). | $10.30/EA |
| 5 | TN8005441Replaces Tennant 1072478 | 2 | Vr, Pedal, Foot, W/ TreadPart of Pedal Assy, Accelerator, Brake (1072477). Serial 10644406 and later. | $10.20/EA |
| 6 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 8 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |

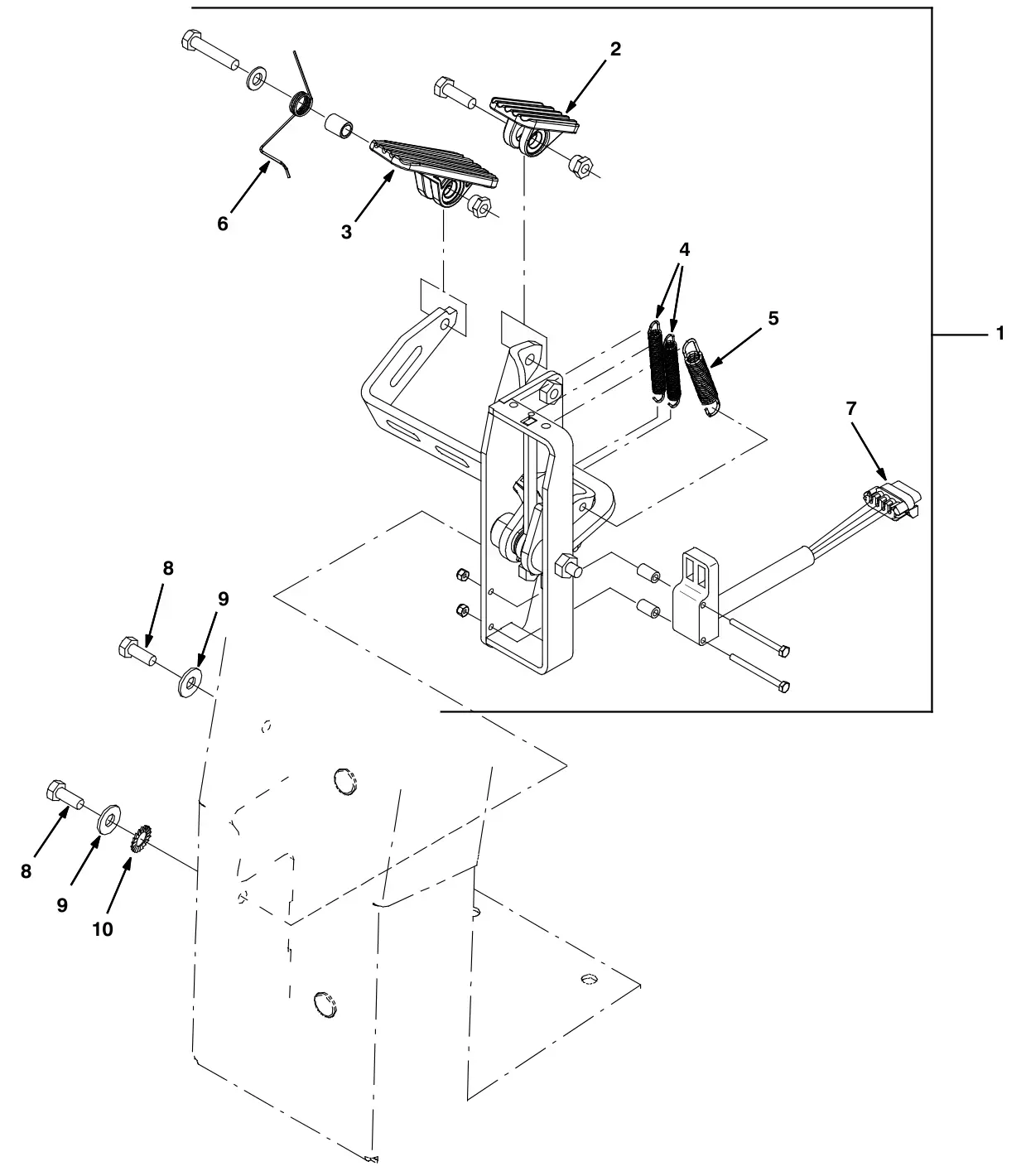

Tennant T7 brake pedal and accelerator pedal group (S/N 10508137-10644405) parts
The parts Tennant numbers on its brake pedal and accelerator pedal group (s/n 10508137-10644405) drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030944Replaces Tennant 1051837 | 1 | Pedal Assy, Accelerator, Brake (Replaced By 1072477 Pedal Assy Kit)Complete assembly. Serial 10508137 to 10644405. | $534.90/EA |
| 2 | TN4030944Replaces Tennant 1014548 | 1 | Vr, Pedal, Brake, W/ Tread (Replaced By 1072477 Pedal Assy Kit)Part of Pedal Assy, Accelerator, Brake (Replaced By 1072477 Pedal Assy Kit) (1051837). Serial 10508137 to 10644405. | $534.90/EA |
| 3 | TN4030944Replaces Tennant 1051836 | 1 | Vr, Pedal, Propel, W/ Tread (Replaced By 1072477 Pedal Assy Kit)Part of Pedal Assy, Accelerator, Brake (Replaced By 1072477 Pedal Assy Kit) (1051837). Serial 10508137 to 10644405. | $534.90/EA |
| 4 | TN8005767Replaces Tennant 1061049 | 2 | Vr, Spring, Extn, 0.35od 0.05wir 02.8lPart of Pedal Assy, Accelerator, Brake (Replaced By 1072477 Pedal Assy Kit) (1051837). Serial 10508137 to 10644405. | $10.30/EA |
| 5 | TN4032122Replaces Tennant 1031716 | 1 | Spring, Extn, 0.50od 0.07wir 03.0lPart of Pedal Assy, Accelerator, Brake (Replaced By 1072477 Pedal Assy Kit) (1051837). Serial 10508137 to 10644405. | $29.60/EA |
| 6 | TN8005628Replaces Tennant 1064665 | 1 | Vr, Spring, Tors, 0.55id .05wir 04.0coilPart of Pedal Assy, Accelerator, Brake (Replaced By 1072477 Pedal Assy Kit) (1051837). Serial 10508137 to 10644405. | $6.36/EA |
| 7 | TN8005873Replaces Tennant 1058687 | 1 | Vr, Sensor, Position [Hall]Part of Pedal Assy, Accelerator, Brake (Replaced By 1072477 Pedal Assy Kit) (1051837). Serial 10508137 to 10644405. | $346.40/EA |
| 8 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 9 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 10 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
Tennant T7 brake pedal and accelerator pedal group (S/N 10000000-10508136) parts
The parts Tennant numbers on its brake pedal and accelerator pedal group (s/n 10000000-10508136) drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1037142Tennant 1037142 | 1 | Pedal Assy, Accelerator, Brake [T7, Ssr]Complete assembly. Serial 10327782 to 10508136. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8005873Replaces Tennant 1011562 | 1 | Sensor, Position [Hall]Part of Pedal Assy, Accelerator, Brake [T7, Ssr] (1037142). Serial 10327782 to 10508136. | $346.40/EA |
| 3 | TN4030944Replaces Tennant 1014548 | 2 | Pedal, Rest, FootPart of Pedal Assy, Accelerator, Brake [T7, Ssr] (1037142). Serial 10327782 to 10508136. | $534.90/EA |
| 4 | TN8006238Replaces Tennant 1037141 | 1 | Spring Kit, Ext. 1pc = 2 SpringsPart of Pedal Assy, Accelerator, Brake [T7, Ssr] (1037142). Serial 10327782 to 10508136. | $37.90/EA |
| 5 | TN4032122Replaces Tennant 1031716 | 1 | Spring, Extn, 0.50od 0.07wir 03.0lPart of Pedal Assy, Accelerator, Brake [T7, Ssr] (1037142). | $29.60/EA |
| 6 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 8 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
| 9 | TN1037142Tennant 1037142 | 1 | Pedal Assy, Accelerator, Brake [T7, Ssr]Serial 10000000 to 10327781. | Call to confirm part: 800-440-6723Call 800-440-6723 |

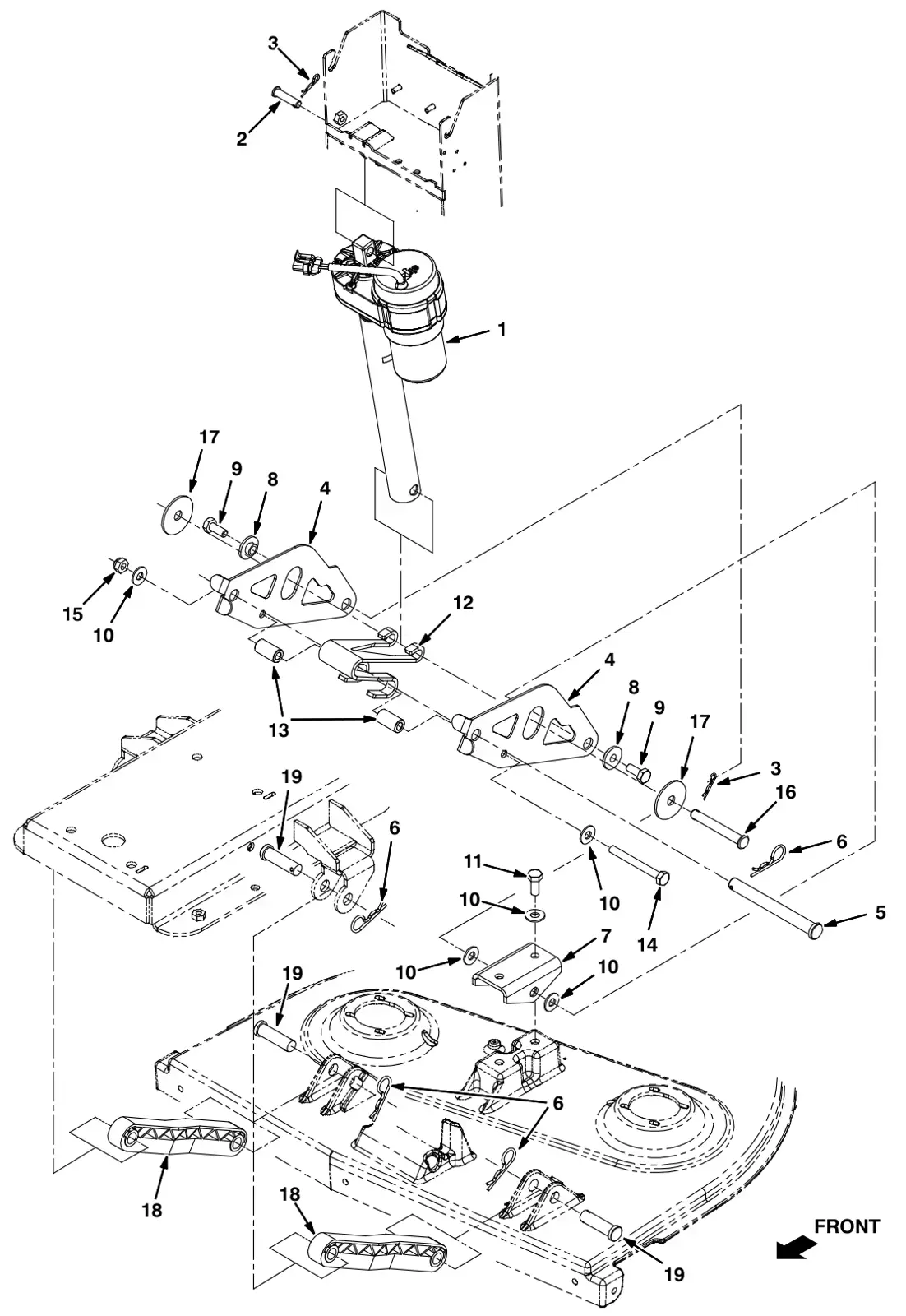

Tennant T7 disk scrub head lift group parts
The parts Tennant numbers on its disk scrub head lift group drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035821Replaces Tennant 1056622 | 1 | Actuator, 24vdc, 04.5strk, 0600lb | $386.60/EA |
| 2 | TN4040008Replaces Tennant 1009356 | 1 | Pin, Clevis , 10mm X 40l | $7.60/EA |
| 3 | TN4022048Replaces Tennant 86866 | 2 | Pin, Hair Cotter, 0.38 D .072 Wir | $2.50/EA |
| 4 | TN4037311Replaces Tennant 1013278 | 2 | Plate, Arm, Cntr, Lift, Scb Head | $108.70/EA |
| 5 | TN4040352Replaces Tennant 1010401 | 1 | Pin, Clevis, 16d X 150l | $29.10/EA |
| 6 | TN4043243Replaces Tennant 02942 | 5 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 7 | TN4037595Replaces Tennant 1014076 | 1 | Bracket, Lift | $64.10/EA |
| 8 | TN4030254Replaces Tennant 363087 | 2 | Bushing, Flng, 0.44b 1.25d 0.25l | $6.00/EA |
| 9 | TN4042002Replaces Tennant 09770 | 2 | Screw, Hex, M10 X 1.5 X 25, Ss, Nl | $6.80/EA |
| 10 | TN4042903Replaces Tennant 01686 | 6 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 11 | TN4041948Replaces Tennant 09028 | 2 | Screw, Hex, M10 X 1.5 X 25, Ss | $4.00/EA |
| 12 | TN4038295Replaces Tennant 1015413 | 1 | Spring, Lift, Head, Scb | $118.80/EA |
| 13 | TN4037312Replaces Tennant 1013281 | 2 | Sleeve, P/M, 18.5d 10.5b 34l 430 Ss | $7.90/EA |
| 14 | TN4041996Replaces Tennant 09746 | 1 | Screw, Hex, M10 X 1.5 X 90, Ss | $9.90/EA |
| 15 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 16 | TN4037325Replaces Tennant 1013356 | 1 | Pin, Clevis, 12mm D X 90mm L | $11.90/EA |
| 17 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, Pl | $3.50/EA |
| 18 | TN4039763Replaces Tennant 222027 | 2 | Arm, Lift, Head | $49.60/EA |
| 19 | TN4039905Replaces Tennant 222210 | 4 | Pin, Clevis, 0.62 D X 2.12l | $6.80/EA |

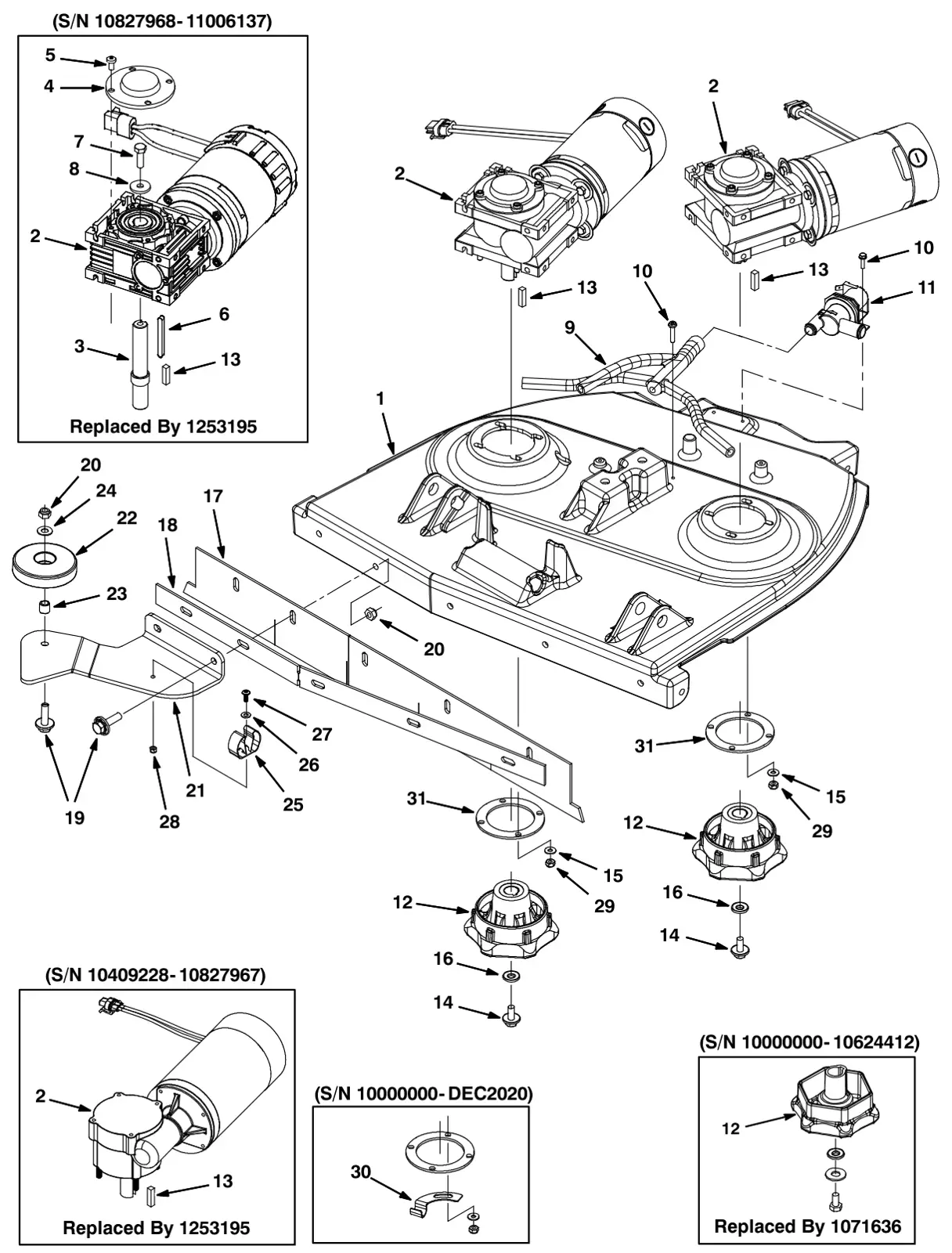

Tennant T7 disk scrub head drive motor group, 26 in (650 mm) parts
The parts Tennant numbers on its disk scrub head drive motor group, 26 in (650 mm) drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037545Replaces Tennant 1013560 | 1 | Head, Scb, 650mm | $1,578.20/EA |
| 2 | TN4031848Replaces Tennant 1253195 | 2 | Motor, Ele, 24vdc 0285rpmSerial 11006138 and later. | $474.70/EA |
| 2 | TN4031848Replaces Tennant 1210864 | 2 | Motor, Ele, 24vdc 0260rpm (Replaced By 1253195)Complete assembly. Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8004146Replaces Tennant 372878 | 1 | Brush Kit, Motor, ElePart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $192.90/EA |
| – | TN8004147Replaces Tennant 372879 | 1 | Hook, SafetyPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $6.10/EA |
| – | TN8004148Replaces Tennant 372880 | 1 | Cover, Brush, Ele MotorPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $10.20/EA |
| 3 | TN4039240Replaces Tennant 1212130 | 1 | Shaft, Drive, BrushPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4039242Replaces Tennant 1212132 | 1 | Cap, MotorPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4027711Replaces Tennant 363503 | 4 | Screw, Pan, Phl, M6 X 1.00 X 12, SsPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $4.00/EA |
| 6 | TN4039241Replaces Tennant 1212131 | 1 | Key, Sq, 06mm X 06mm, 60mmlPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, SsPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $3.30/EA |
| 8 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $3.40/EA |
| 2 | TN4031848Replaces Tennant 1048884 | 2 | Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195)Complete assembly. Serial 10409228 to 10827967. | $474.70/EA |
| – | TN8005951Replaces Tennant 1048888 | 1 | Vr, Brush Kit, Motor, 1048884Part of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1048884). Serial 10409228 to 10827967. | $79.90/EA |
| 2 | TN4031848Replaces Tennant 1000083 | 2 | Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195)Complete assembly. Serial 10000000 to 10409227. | $474.70/EA |
| – | TN8004146Replaces Tennant 372878 | 1 | Brush Kit, Motor, ElePart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $192.90/EA |
| – | TN8004147Replaces Tennant 372879 | 1 | Hook, SafetyPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $6.10/EA |
| – | TN8004148Replaces Tennant 372880 | 1 | Cover, Brush, Ele MotorPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $10.20/EA |
| 3 | TN4039953Replaces Tennant 1008758 | 2 | Shaft, Drive, BrushPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $131.10/EA |
| 4 | TN4035475Replaces Tennant 1017553 | 2 | Cap, MotorPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $28.89/EA |
| 5 | TN4027711Replaces Tennant 363503 | 4 | Screw, Pan, Phl, M6 X 1.00 X 12, SsPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $4.00/EA |
| 6 | TN4037624Replaces Tennant 1014303 | 2 | Key, Sq, 06mm X 06mm, 60mm LPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $7.90/EA |
| 9 | TN4037613Replaces Tennant 1014228 | 1 | Manifold, Soltn, 650mm | $121.00/EA |
| 10 | TN4035137Replaces Tennant 1016520 | 3 | Screw, Hex, M4 X 0.7 16 Fmg, Ss | $3.40/EA |
| 11 | TN4039920Replaces Tennant 1214973 | 1 | Valve, Water, Solenoid, 24vdc, Bm10/Bm10 | $107.90/EA |
| 12 | TN4032388Replaces Tennant 377367 | 2 | Hub, Drive, Brush, Disk, 0.75b 6t (Replaced By 1071636)Serial 10000000 to 10624412. | $59.60/EA |
| 12 | TN4032388Replaces Tennant 1071636 | 2 | Hub, Drive, Brush, Disk, 0.75b [6t]Serial 10624413 and later. | $59.60/EA |
| 13 | TN4042785Replaces Tennant 00928 | 2 | Key, Sq, 0.25 X 0.25, 1.00l | $3.60/EA |
| 14 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 15 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss (ec-H2O Model) | $2.60/EA |
| 16 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 17 | TN4037542Replaces Tennant 1013531 | 1 | Skirt, Spray, 650mm | $18.80/EA |
| 18 | TN4037543Replaces Tennant 1013532 | 1 | Retainer, Skirt, 650mm | $27.00/EA |
| 19 | TN4031197Replaces Tennant 1072816 | 6 | Screw, Hex, M8 X 1.25 X 30, Ss, Sems | $2.50/EA |
| 20 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 21 | TN4041025Replaces Tennant 1052198 | 1 | Bracket, Wheel, Guiide 650mm | $50.20/EA |
| 22 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bumper, 80d X 25w, Non-Marking | $5.50/EA |
| 23 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/, 0.49D 0.318B 0.50L 430Ss | $3.40/EA |
| 24 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 25 | TN4037622Replaces Tennant 1014295 | 1 | Clip, Grip, Hose, 0.75-1.12, Stl,Blk Vyl (ec-H2O Model) | $12.40/EA |
| 26 | TN4043641Replaces Tennant 140011 | 1 | Washer, Flat, 0.21b 0.45d .03, Ss (ec-H2O Model) | $3.20/EA |
| 27 | TN4026079Replaces Tennant 607006 | 1 | Screw, Trs, M4 X 0.70 X 12, Phl, Pl (ec-H2O Model) | $4.00/EA |
| 28 | TN4031247Replaces Tennant 33932 | 1 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss (ec-H2O Model) | $3.40/EA |
| 29 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 31 | TN4037569Replaces Tennant 1013821 | 2 | Plate, Sppt | $13.50/EA |

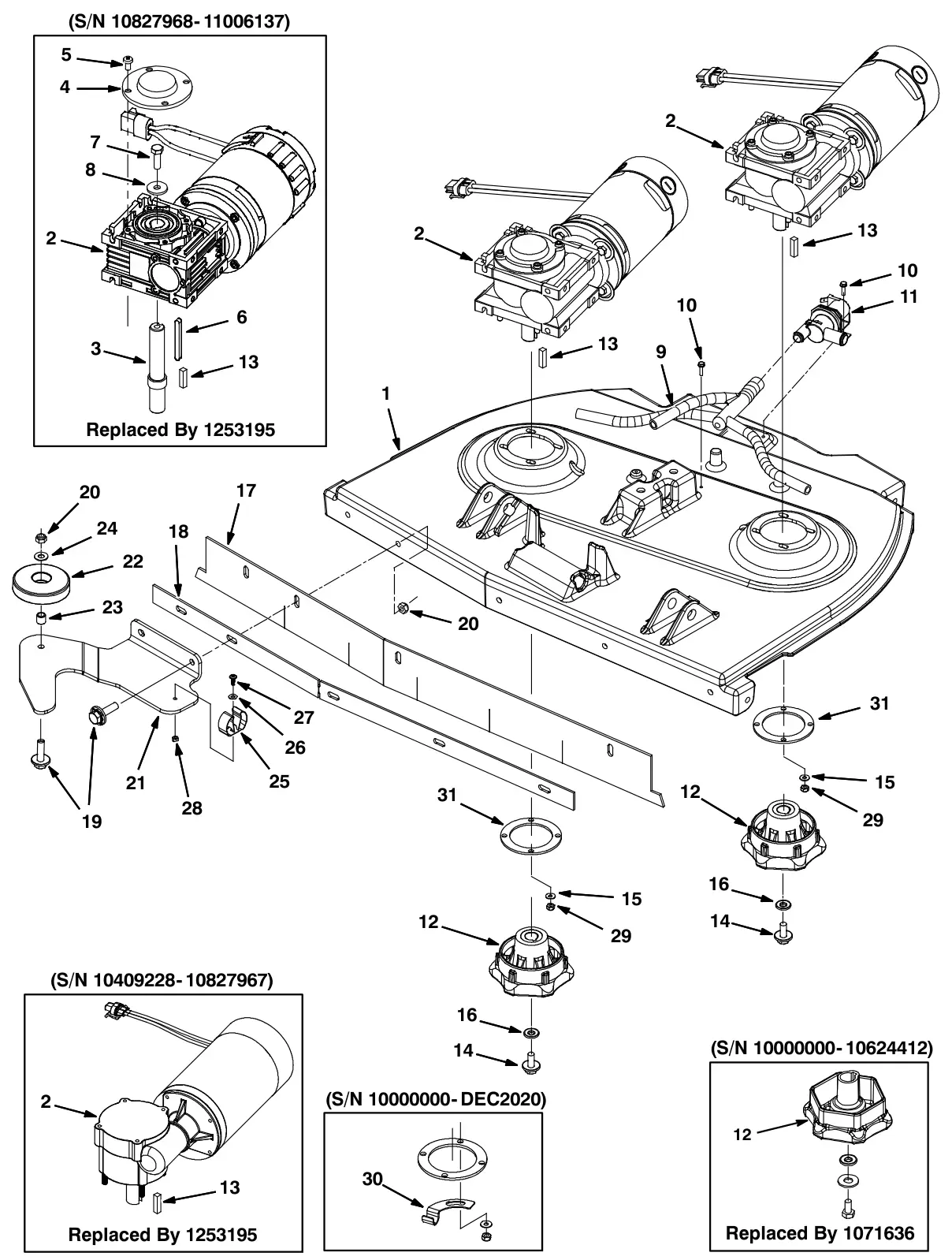

Tennant T7 disk scrub head drive motor group, 32 in (800 mm) parts
The parts Tennant numbers on its disk scrub head drive motor group, 32 in (800 mm) drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037267Replaces Tennant 1012630 | 1 | Head, Scb, 800mm | $1,862.80/EA |
| 2 | TN4031848Replaces Tennant 1253195 | 2 | Motor, Ele, 24vdc 0285rpmSerial 11006138 and later. | $474.70/EA |
| 2 | TN4031848Replaces Tennant 1210864 | 2 | Motor, Ele, 24vdc 0260rpm (Replaced By 1253195)Complete assembly. Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8004146Replaces Tennant 372878 | 1 | Brush Kit, Motor, ElePart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $192.90/EA |
| – | TN8004147Replaces Tennant 372879 | 1 | Hook, SafetyPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $6.10/EA |
| – | TN8004148Replaces Tennant 372880 | 1 | Cover, Brush, Ele MotorPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $10.20/EA |
| 3 | TN4039240Replaces Tennant 1212130 | 1 | Shaft, Drive, BrushPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4039242Replaces Tennant 1212132 | 1 | Cap, MotorPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4027711Replaces Tennant 363503 | 4 | Screw, Pan, Phl, M6 X 1.00 X 12, SsPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $4.00/EA |
| 6 | TN4039241Replaces Tennant 1212131 | 1 | Key, Sq, 06mm X 06mm, 60mmlPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, SsPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $3.30/EA |
| 8 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsPart of Motor, Ele, 24vdc 0260rpm (Replaced By 1253195) (1210864). Serial 10827968 to 11006137. | $3.40/EA |
| 2 | TN4031848Replaces Tennant 1048884 | 2 | Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195)Complete assembly. Serial 10409228 to 10827967. | $474.70/EA |
| – | TN8005951Replaces Tennant 1048888 | 1 | Vr, Brush Kit, Motor, 1048884Part of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1048884). Serial 10409228 to 10827967. | $79.90/EA |
| 2 | TN4031848Replaces Tennant 1000083 | 2 | Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195)Complete assembly. Serial 10000000 to 10409227. | $474.70/EA |
| – | TN8004146Replaces Tennant 372878 | 1 | Brush Kit, Motor, ElePart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $192.90/EA |
| – | TN8004147Replaces Tennant 372879 | 1 | Hook, SafetyPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $6.10/EA |
| – | TN8004148Replaces Tennant 372880 | 1 | Cover, Brush, Ele MotorPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $10.20/EA |
| 3 | TN4039953Replaces Tennant 1008758 | 2 | Shaft, Drive, BrushPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $131.10/EA |
| 4 | TN4035475Replaces Tennant 1017553 | 2 | Cap, MotorPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $28.89/EA |
| 5 | TN4027711Replaces Tennant 363503 | 4 | Screw, Pan, Phl, M6 X 1.00 X 12, SsPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $4.00/EA |
| 6 | TN4037624Replaces Tennant 1014303 | 2 | Key, Sq, 06mm X 06mm, 60mm LPart of Motor, Ele, 24 Vdc 0285rpm (Replaced By 1253195) (1000083). Serial 10000000 to 10409227. | $7.90/EA |
| 9 | TN4037942Replaces Tennant 1014776 | 1 | Manifold, Soltn, 800mm | $108.90/EA |
| 10 | TN4035137Replaces Tennant 1016520 | 3 | Screw, Hex, M4 X 0.7 16 Fmg, Ss | $3.40/EA |
| 11 | TN4039920Replaces Tennant 1214973 | 1 | Valve, Water, Solenoid, 24vdc, Bm10/Bm10 | $107.90/EA |
| 12 | TN4032388Replaces Tennant 377367 | 2 | Hub, Drive, Brush, Disk, 0.75b 6t (Replaced By 1071636)Serial 10000000 to 10624412. | $59.60/EA |
| 12 | TN4032388Replaces Tennant 1071636 | 2 | Hub, Drive, Brush, Disk, 0.75b [6t]Serial 10624413 and later. | $59.60/EA |
| 13 | TN4042785Replaces Tennant 00928 | 2 | Key, Sq, 0.25 X 0.25, 1.00l | $3.60/EA |
| 14 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 15 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss (ec-H2O Model) | $2.60/EA |
| 16 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 17 | TN4036832Replaces Tennant 1011376 | 1 | Skirt, Spray, 800mm | $21.40/EA |
| 18 | TN4037238Replaces Tennant 1012359 | 1 | Retainer, Skirt, 800mm | $20.10/EA |
| 19 | TN4031197Replaces Tennant 1072816 | 6 | Screw, Hex, M8 X 1.25 X 30, Ss, Sems | $2.50/EA |
| 20 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 21 | TN4041052Replaces Tennant 1052393 | 1 | Bracket, Wheel, Guide | $54.40/EA |
| 22 | TN4040369Replaces Tennant 1010560 | 1 | Wheel, Bumper, 80d X 25w, Non-Marking | $5.50/EA |
| 23 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/, 0.49D 0.318B 0.50L 430Ss | $3.40/EA |
| 24 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 25 | TN4037622Replaces Tennant 1014295 | 1 | Clip, Grip, Hose, 0.75-1.12, Stl,Blk Vyl (ec-H2O Model) | $12.40/EA |
| 26 | TN4043641Replaces Tennant 140011 | 1 | Washer, Flat, 0.21b 0.45d .03, Ss (ec-H2O Model) | $3.20/EA |
| 27 | TN4026079Replaces Tennant 607006 | 1 | Screw, Trs, M4 X 0.70 X 12, Phl, Pl (ec-H2O Model) | $4.00/EA |
| 28 | TN4031247Replaces Tennant 33932 | 1 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss (ec-H2O Model) | $3.40/EA |
| 29 | TN4041928Replaces Tennant 08712 | 8 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 31 | TN4037569Replaces Tennant 1013821 | 2 | Plate, Sppt | $13.50/EA |

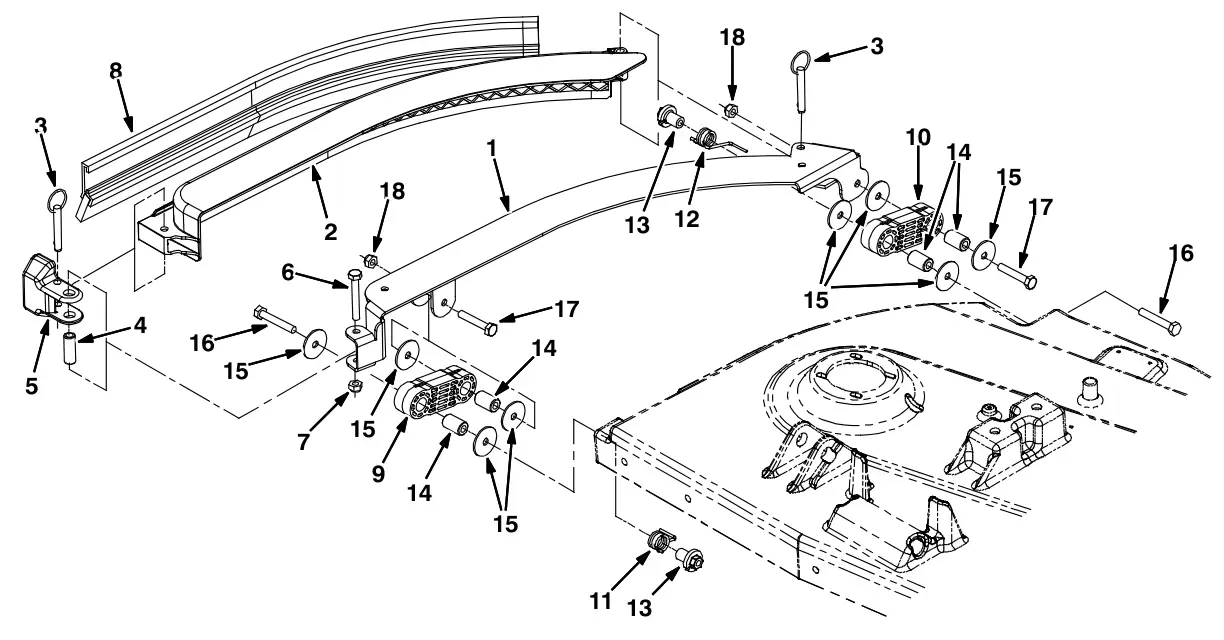

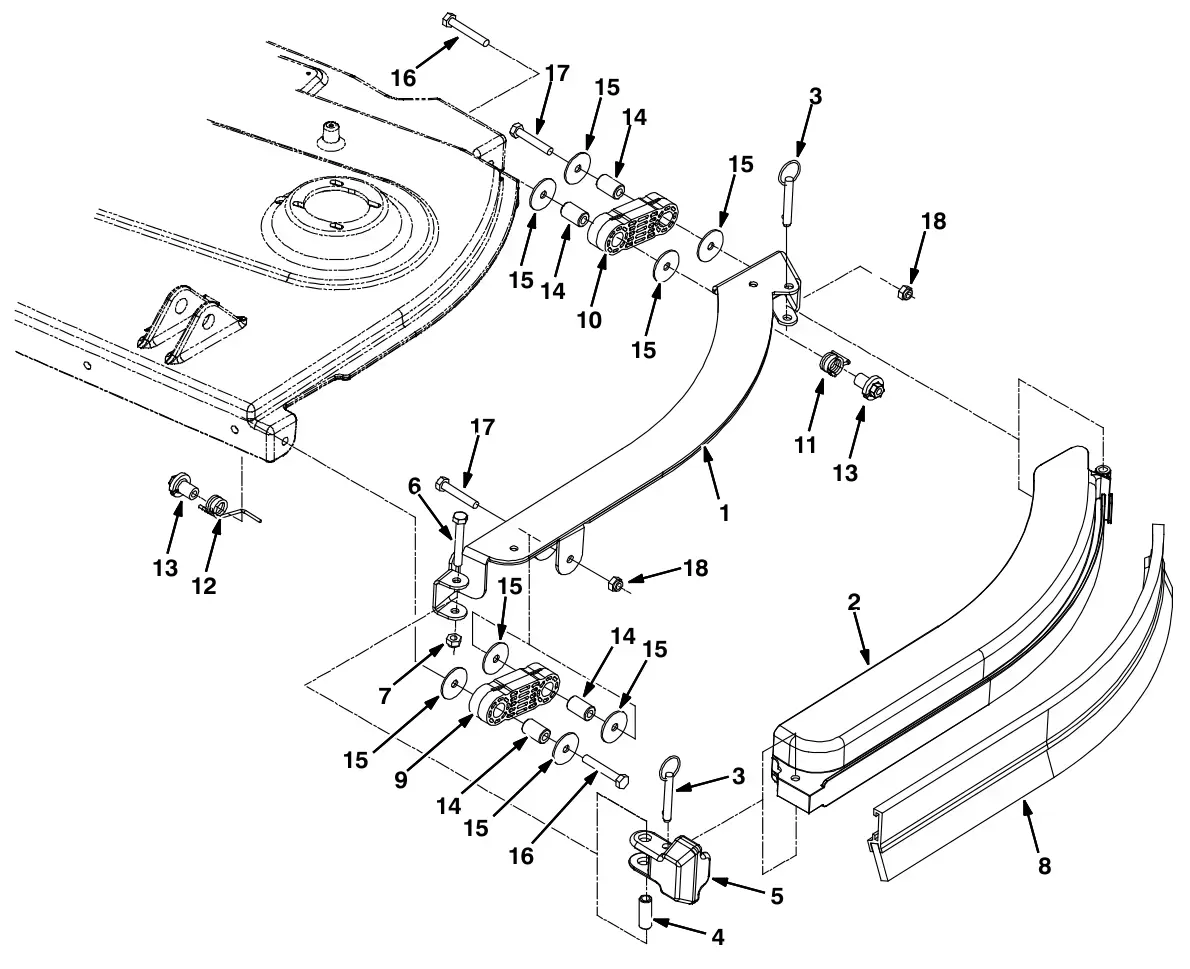

Tennant T7 disk scrub head side squeegee group, right parts
The parts Tennant numbers on its disk scrub head side squeegee group, right drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035515Replaces Tennant 1017910 | 1 | Support Wldt, Sqge, Rh | $110.70/EA |
| 2 | TN4035503Replaces Tennant 1017832 | 1 | Retainer, Sqge, Rh | $68.20/EA |
| 3 | TN4038622Replaces Tennant 1015989 | 2 | Pin, Hitch, .312d X 1.62l | $8.20/EA |
| 4 | TN4035470Replaces Tennant 1017495 | 1 | Sleeve, P/M, 0.496d 0.318b 1.375 Ss | $6.20/EA |
| 5 | TN4044823Replaces Tennant 1074201 | 1 | Block, Guard, Yellow | $10.90/EA |
| 6 | TN4040606Replaces Tennant 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, Ss | $4.00/EA |
| 7 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 8 | TN4022045Replaces Tennant 86859 | 1 | Squeegee Assy, Side [Linatex] (Standard) | $64.64/EA |
| 8 | TN4036762Replaces Tennant 1058731 | 1 | Squeegee Assy, Side, Disc, Ure (Optional) | $83.83/EA |
| 8 | TN4036760Replaces Tennant 1058729 | 1 | Squeegee Assy, Side, Disc, Gum (Optional) | $51.50/EA |
| 9 | TN4040391Replaces Tennant 1010876 | 1 | Link, Sqge | $9.60/EA |
| 10 | TN4035497Replaces Tennant 1017785 | 1 | Link, Sqge | $9.60/EA |
| 11 | TN4036829Replaces Tennant 1011344 | 1 | Spring, Tors | $6.90/EA |
| 12 | TN4036825Replaces Tennant 1011334 | 1 | Spring, Tors | $6.90/EA |
| 13 | TN4036823Replaces Tennant 1011317 | 2 | Retainer, Spring | $24.90/EA |
| 14 | TN4036895Replaces Tennant 1011717 | 4 | Sleeve, P/M, 0.625d 0.318b 1.00 L 430ss | $5.00/EA |
| 15 | TN4036897Replaces Tennant 1011719 | 8 | Washer, Flat, 0.33b 1.38d .075, Ss | $4.00/EA |
| 16 | TN4014172Replaces Tennant 49694 | 2 | Screw, Hex, M8 X 1.25 X 50, Ss | $6.60/EA |
| 17 | TN4040607Replaces Tennant 222505 | 2 | Screw, Hex, M8 X 1.25 X 45, Ss | $4.00/EA |
| 18 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
Tennant T7 disk scrub head side squeegee group, left parts
The parts Tennant numbers on its disk scrub head side squeegee group, left drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035474Replaces Tennant 1017534 | 1 | Support Wldt, Sqge, Lh | $110.70/EA |
| 2 | TN4035483Replaces Tennant 1017653 | 1 | Retainer, Sqge, Lh | $61.30/EA |
| 3 | TN4038622Replaces Tennant 1015989 | 2 | Pin, Hitch, .312d X 1.62l | $8.20/EA |
| 4 | TN4035470Replaces Tennant 1017495 | 1 | Sleeve, P/M, 0.496d 0.318b 1.375 Ss | $6.20/EA |
| 5 | TN4044823Replaces Tennant 1074201 | 1 | Block, Guard, Yellow | $10.90/EA |
| 6 | TN4040606Replaces Tennant 222504 | 1 | Screw, Hex, M8 X 1.25 X 55, Ss | $4.00/EA |
| 7 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 8 | TN4022045Replaces Tennant 86859 | 1 | Squeegee Assy, Side [Linatex] (Standard) | $64.64/EA |
| 8 | TN4036762Replaces Tennant 1058731 | 1 | Squeegee Assy, Side, Disc, Ure (Optional) | $83.83/EA |
| 8 | TN4036760Replaces Tennant 1058729 | 1 | Squeegee Assy, Side, Disc, Gum (Optional) | $51.50/EA |
| 9 | TN4040391Replaces Tennant 1010876 | 1 | Link, Sqge | $9.60/EA |
| 10 | TN4035497Replaces Tennant 1017785 | 1 | Link, Sqge | $9.60/EA |
| 11 | TN4036829Replaces Tennant 1011344 | 1 | Spring, Tors | $6.90/EA |
| 12 | TN4036825Replaces Tennant 1011334 | 1 | Spring, Tors | $6.90/EA |
| 13 | TN4036823Replaces Tennant 1011317 | 2 | Retainer, Spring | $24.90/EA |
| 14 | TN4036895Replaces Tennant 1011717 | 4 | Sleeve, P/M, 0.625d 0.318b 1.00 L 430ss | $5.00/EA |
| 15 | TN4036897Replaces Tennant 1011719 | 8 | Washer, Flat, 0.33b 1.38d .075, Ss | $4.00/EA |
| 16 | TN4014172Replaces Tennant 49694 | 2 | Screw, Hex, M8 X 1.25 X 50, Ss | $6.60/EA |
| 17 | TN4040607Replaces Tennant 222505 | 2 | Screw, Hex, M8 X 1.25 X 45, Ss | $4.00/EA |
| 18 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
Tennant T7 cylindrical scrub head lift group parts
The parts Tennant numbers on its cylindrical scrub head lift group drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035821Replaces Tennant 1056622 | 1 | Actuator, 24vdc, 04.5strk, 0600lb | $386.60/EA |
| 2 | TN4040008Replaces Tennant 1009356 | 1 | Pin, Clevis , 10mm X 40l | $7.60/EA |
| 3 | TN4022048Replaces Tennant 86866 | 1 | Pin, Hair Cotter, 0.38 D .072 Wir | $2.50/EA |
| 4 | TN4037311Replaces Tennant 1013278 | 2 | Plate, Arm, Cntr, Lift, Scb Head | $108.70/EA |
| 5 | TN4040352Replaces Tennant 1010401 | 1 | Pin, Clevis, 16d X 150l | $29.10/EA |
| 6 | TN4043243Replaces Tennant 02942 | 4 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 7 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62 D X 2.12l | $6.80/EA |
| 8 | TN4039763Replaces Tennant 222027 | 2 | Arm, Lift, Head | $49.60/EA |
| 9 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 10 | TN4038295Replaces Tennant 1015413 | 1 | Spring, Lift, Head, Scb | $118.80/EA |
| 11 | TN4037312Replaces Tennant 1013281 | 2 | Sleeve, P/M, 18.5d 10.5b 34l 430 Ss | $7.90/EA |
| 12 | TN4041996Replaces Tennant 09746 | 1 | Screw, Hex, M10 X 1.5 X 90, Ss | $9.90/EA |
| 13 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 14 | TN4037325Replaces Tennant 1013356 | 1 | Pin, Clevis, 12mm D X 90mm L | $11.90/EA |
| 15 | TN4029163Replaces Tennant 57048 | 2 | Washer, Flat, 0.53b 2.13d .11, Stl, Pl | $3.50/EA |
Tennant T7 cylindrical scrub head group, 28 in (700 mm) parts
The parts Tennant numbers on its cylindrical scrub head group, 28 in (700 mm) drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031036Replaces Tennant 1029131 | 1 | Housing, Machining, Head, 70 Cm Cyl | $390.84/EA |
| 2 | TN4032016Replaces Tennant 1031416 | 2 | Mount, Link, Mach | $96.90/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 12 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 5 | TN4031366Replaces Tennant 1029531 | 1 | Channel, Lift | $76.00/EA |
| 6 | TN4030254Replaces Tennant 363087 | 2 | Bushing, Flng, 0.44b 1.25d 0.25l | $6.00/EA |
| 7 | TN4031368Replaces Tennant 1029538 | 1 | Bracket, Lift, Upper | $61.50/EA |
| 8 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 9 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 10 | TN4029625Replaces Tennant 578717 | 1 | Screw, Hex, M8 X 1.25 X 50, Ss, Fl | $5.80/EA |
| 11 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 12 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 13 | TN4031044Replaces Tennant 1029215 | 1 | Tube Assy, Bar, Spray [70cm] | $91.80/EA |
| 14 | TN4034190Replaces Tennant 1025580 | 2 | Fitting, Pipe, Cap, P06, Nyl | $8.70/EA |
| 15 | TN4031218Replaces Tennant 33584 | 2 | Clamp, Cable, Stl, 0.63d X 0.50w, 1h | $4.20/EA |
| 16 | TN4043365Replaces Tennant 11329 | 4 | Screw, Hex, M6 X 1.0 X 16, Ss, Nl | $3.40/EA |
| 17 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.25, Ss | $2.60/EA |
| 18 | TN4016829Replaces Tennant 41440 | 1 | Fitting, Plstc, Str, Bm10/Pm08 | $6.20/EA |
| 19 | TN4014478Replaces Tennant 9005805 | 1 | Hopper, Debris, 70cm, Black, Afmkt | $495.80/EA |
| 20 | TN4031348Replaces Tennant 1029274 | 1 | Skirt, Tray, Debris [70cm] | $31.50/EA |
| 21 | TN4031347Replaces Tennant 1029272 | 1 | Bracket, Lip, Debris, 70cm | $92.00/EA |
| 22 | TN4041599Replaces Tennant 07785 | 4 | Nut, Hex, Std, M6 X 1.00, A2, Ss | $2.50/EA |
| 23 | TN4031786Replaces Tennant 1031132 | 1 | Hose, Molded | $87.60/EA |
| 24 | TN4031780Replaces Tennant 1031037 | 1 | Bracket, Mtg, Valve | $20.60/EA |
| 25 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.8 X 12, Ss | $3.30/EA |
| 26 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 27 | TN4039920Replaces Tennant 1214973 | 1 | Valve, Water, Solenoid, 24vdc, Bm10/Bm10 | $107.90/EA |
| 28 | TN4015366Replaces Tennant 54333 | 3 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 29 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62d X 2.12l | $6.80/EA |
| 30 | TN4043243Replaces Tennant 02942 | 2 | Pin, Cotter, Hair, 0.62d .120 Wir | $3.40/EA |
| 31 | TN4041948Replaces Tennant 09028 | 2 | Screw, Hex, M10 X 1.5 X 25, Ss | $4.00/EA |
Tennant T7 cylindrical scrub head group, 32 in (800 mm) parts
The parts Tennant numbers on its cylindrical scrub head group, 32 in (800 mm) drawing. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031412Replaces Tennant 1030273 | 1 | 80cm Scrubhead, Machining, T7/Cyl | $777.70/EA |
| 2 | TN4032016Replaces Tennant 1031416 | 2 | Mount, Link, Mach | $96.90/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 12 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 5 | TN4031366Replaces Tennant 1029531 | 1 | Channel, Lift | $76.00/EA |
| 6 | TN4030254Replaces Tennant 363087 | 2 | Bushing, Flng, 0.44b 1.25d 0.25l | $6.00/EA |
| 7 | TN4031368Replaces Tennant 1029538 | 1 | Bracket, Lift, Upper | $61.50/EA |
| 8 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 9 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 10 | TN4029625Replaces Tennant 578717 | 1 | Screw, Hex, M8 X 1.25 X 50, Ss, Fl | $5.80/EA |
| 11 | TN4043649Replaces Tennant 140027 | 1 | Washer, Flat, 0.35b 0.75d .04, Ss | $3.20/EA |
| 12 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 13 | TN4031779Replaces Tennant 1031029 | 1 | Tube Assy, Bar, Spray [80cm] | $95.68/EA |
| 14 | TN4034190Replaces Tennant 1025580 | 2 | Fitting, Pipe, Cap, P06, Nyl | $8.70/EA |
| 15 | TN4031218Replaces Tennant 33584 | 2 | Clamp, Cable, Stl, 0.63d X 0.50w, 1h | $4.20/EA |
| 16 | TN4043365Replaces Tennant 11329 | 5 | Screw, Hex, M6 X 1.0 X 16, Ss, Nl | $3.40/EA |
| 17 | TN4042901Replaces Tennant 01684 | 10 | Washer, Flat, 0.25, Ss | $2.60/EA |
| 18 | TN4016829Replaces Tennant 41440 | 1 | Fitting, Plstc, Str, Bm10/Pm08 | $6.20/EA |
| 19 | TN4014480Replaces Tennant 9005806 | 1 | Hopper, Debris, 80cm, Black, Afmkt | $410.10/EA |
| 20 | TN4033891Replaces Tennant 1025273 | 1 | Skirt, Tray, Debris [80cm] | $33.00/EA |
| 21 | TN4033881Replaces Tennant 1025150 | 1 | Lip, Tray, Debris, Scb Head, 80cm | $90.90/EA |
| 22 | TN4041599Replaces Tennant 07785 | 5 | Nut, Hex, Std, M6 X 1.00, A2, Ss | $2.50/EA |
| 23 | TN4031786Replaces Tennant 1031132 | 1 | Hose, Molded | $87.60/EA |
| 24 | TN4031780Replaces Tennant 1031037 | 1 | Bracket, Mtg, Valve | $20.60/EA |
| 25 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.8 X 12, Ss | $3.30/EA |
| 26 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 27 | TN4039920Replaces Tennant 1214973 | 1 | Valve, Water, Solenoid, 24vdc, Bm10/Bm10 | $107.90/EA |
| 28 | TN4015366Replaces Tennant 54333 | 3 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 29 | TN4039905Replaces Tennant 222210 | 2 | Pin, Clevis, 0.62d X 2.12l | $6.80/EA |
| 30 | TN4043243Replaces Tennant 02942 | 2 | Pin, Cotter, Hair, 0.62d .120 Wir | $3.40/EA |
| 31 | TN4041948Replaces Tennant 09028 | 2 | Screw, Hex, M10 X 1.5 X 25, Ss | $4.00/EA |
Tennant T7 cylindrical scrub head drive group, right side parts
The parts Tennant numbers on its cylindrical scrub head drive group, right side drawing. Manual pages 56, list 57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044671Replaces Tennant 1042228 | 1 | Motor, Ele, 24vdc 1500rpm 0.75hp 23.0aComplete assembly. Serial 10415584 and later. | $1,017.40/EA |
| – | TN4040440Replaces Tennant 1049739 | 1 | Brush Kit, Carbon, Motor, Replmt [4pcs]Part of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (1042228). Serial 10415584 and later. | $108.70/EA |
| 2 | TN4042787Replaces Tennant 00954 | 1 | Key, Sq, 0.12 X 0.12, 1.00lPart of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (1042228). | $4.20/EA |
| 1 | TN4187820Replaces Tennant 1050372 | 1 | Motor Kit, Cylrcl, Replmt, F/604980 [T7]Complete assembly. Serial 10000000 to 10415583. | $500.58/EA |
| 2 | TN4042787Replaces Tennant 00954 | 1 | Key, Sq, 0.12 X 0.12, 1.00lPart of Motor Kit, Cylrcl, Replmt, F/604980 [T7] (1050372). | $4.20/EA |
| 3 | TN4040487Replaces Tennant 1050099 | 1 | Harness, Adapter, Motor [T7]Serial 10415584 and later. | $19.80/EA |
| 4 | TN4045285Replaces Tennant 1034845 | 1 | Strip, Pye, Hi-dns, 0.25 01.75w 05.6l | $44.40/EA |
| 5 | TN4022386Replaces Tennant 608964 | 2 | Boot, 90deg .27id 0.64id 1.79l, BlkSerial 10000000 to 10415583. | $25.80/EA |
| 6 | TN4192530Replaces Tennant 1032496 | 1 | Harness, Adapter, Motor, CylrclSerial 10000000 to 10415583. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4017399Replaces Tennant 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10000000 to 10415583. | $2.60/EA |
| 8 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsSerial 10000000 to 10415583. | $3.20/EA |
| 9 | TN4042140Replaces Tennant 1044386 | 1 | Bracket, Mtg, Motor | $46.20/EA |
| 10 | TN4036259Replaces Tennant 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 11 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31, Ss | $2.60/EA |
| 12 | TN4033863Replaces Tennant 1025026 | 1 | Screw, Hex, M8 X 1.25 X 180, Ss | $9.75/EA |
| 13 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 14 | TN4029625Replaces Tennant 578717 | 1 | Screw, Hex, M8 X 1.25 X 50, Ss | $5.80/EA |
| 15 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 16 | TN4045045Replaces Tennant 1033528 | 1 | Sheave, 06grv, 1.33pd 0.50b, Alm [Pj]Serial 10346425 and later. | $87.60/EA |
| 17 | TN4037061Replaces Tennant 222818 | 2 | Screw, Set, #08-32 X 0.25, Nl | $6.60/EA |
| 18 | TN4045455Replaces Tennant 1035888 | 1 | Belt, Drive, 6grv, 508 L X 14 W, [6pj]Serial 10346425 and later. | $35.20/EA |
| 19 | TN4036304Replaces Tennant 1021036 | 1 | Bracket, Motor [Machined] | $231.60/EA |
| 20 | TN4016813Replaces Tennant 41360 | 2 | Bearing, Ball, 0.59b 1.26d 0.35w[2seal] | $19.00/EA |
| 21 | TN4042392Replaces Tennant 1002077 | 1 | Tube, 0.81d 0.59b 00.5l | $16.10/EA |
| 22 | TN4036306Replaces Tennant 1021050 | 1 | Shaft, Drive | $142.60/EA |
| 23 | TN4026292Replaces Tennant 378805 | 1 | Plug, Drive, Brush, Mach | $55.50/EA |
| 24 | TN4042777Replaces Tennant 00911 | 1 | Key, Sq, 0.19 X 0.19, 0.75l | $3.60/EA |
| 25 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, M8 X 1.25 X 20, Ss 18-8 | $4.00/EA |
| 26 | TN4045389Replaces Tennant 1035173 | 1 | Sheave, 06grv, 2.96pd 0.59b, Alm [Pj]Serial 10346425 and later. | $112.10/EA |
| 27 | TN4042789Replaces Tennant 00961 | 1 | Key, Sq, 0.19 X 0.19, 0.50l | $4.20/EA |
| 28 | TN4032931Replaces Tennant 1022401 | 1 | Gasket, Cover, Belt | $11.00/EA |
| 29 | TN4033215Replaces Tennant 1022807 | 1 | Cover, Belt | $76.80/EA |
| – | TN4036627Replaces Tennant 1057922 | 1 | Door Assy, Cyl Head [7100]Complete assembly. | $138.20/EA |
| 30 | TN4018896Replaces Tennant 390996 | 1 | Screw, Flt, M10 X 1.5 X 20, 10.9, NlPart of Door Assy, Cyl Head [7100] (1057922). | $4.00/EA |
| 31 | TN4042114Replaces Tennant 1044145 | 1 | Door, BrushPart of Door Assy, Cyl Head [7100] (1057922). | $55.20/EA |
| – | TN4037036Replaces Tennant 222752 | 1 | Plug Assy, Idler, BrushPart of Door Assy, Cyl Head [7100] (1057922). | $107.70/EA |
| 32 | TN4039875Replaces Tennant 222184 | 1 | Pin, Roll, .094 D X 0.25l, .094/.097Part of the assembly above. | $2.50/EA |
| 33 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Idler PlugPart of the assembly above. | $73.40/EA |
| 34 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg]Part of the assembly above. | $28.80/EA |
| 35 | TN4042879Replaces Tennant 01516 | 1 | Ring, Retaining, Ext, 0.59d, BasicPart of the assembly above. | $2.50/EA |
| 36 | TN4031352Replaces Tennant 1029358 | 2 | Deflector, Water, Cyl Head | $48.30/EA |
| 37 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 38 | TN4044272Replaces Tennant 1024636 | 1 | Sprocket, 48t, 5pSerial 10000000 to 10346424. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 39 | TN4029226Replaces Tennant 375195 | 1 | Sprocket, Timing, 22tooth, 0.50b, [Gt/2]Serial 10000000 to 10346424. | $68.20/EA |
| 40 | TN4025731Replaces Tennant 377500 | 1 | Belt, Synchronous, 05mm 500l[05p,Plychn]Serial 10000000 to 10346424. | $88.90/EA |
Tennant T7 cylindrical scrub head drive group, left side parts
The parts Tennant numbers on its cylindrical scrub head drive group, left side drawing. Manual pages 58, list 59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044671Replaces Tennant 1042228 | 1 | Motor, Ele, 24vdc 1500rpm 0.75hp 23.0aComplete assembly. Serial 10415584 and later. | $1,017.40/EA |
| – | TN4040440Replaces Tennant 1049739 | 1 | Brush Kit, Carbon, Motor, Replmt [4pcs]Part of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (1042228). Serial 10415584 and later. | $108.70/EA |
| 2 | TN4042787Replaces Tennant 00954 | 1 | Key, Sq, 0.12 X 0.12, 1.00lPart of Motor, Ele, 24vdc 1500rpm 0.75hp 23.0a (1042228). | $4.20/EA |
| 1 | TN4187820Replaces Tennant 1050372 | 1 | Motor Kit, Cylrcl, Replmt, F/604980 [T7]Complete assembly. Serial 10000000 to 10415583. | $500.58/EA |
| 2 | TN4042787Replaces Tennant 00954 | 1 | Key, Sq, 0.12 X 0.12, 1.00lPart of Motor Kit, Cylrcl, Replmt, F/604980 [T7] (1050372). | $4.20/EA |
| 3 | TN4037766Replaces Tennant 1052892 | 1 | Harness, Adapter, Motor [T7]Serial 10415584 and later. | $15.30/EA |
| 4 | TN4042140Replaces Tennant 1044386 | 1 | Bracket, Mtg, Motor | $46.20/EA |
| 5 | TN4022386Replaces Tennant 608964 | 1 | Boot, 90deg .27id 0.64id 1.79l, BlkSerial 10000000 to 10415583. | $25.80/EA |
| 6 | TN608963Tennant 608963 | 1 | Boot, 90deg .27id 0.64id 1.79l, RedSerial 10000000 to 10415583. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsSerial 10000000 to 10415583. | $3.20/EA |
| 8 | TN4017399Replaces Tennant 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10000000 to 10415583. | $2.60/EA |
| 9 | TN4192530Replaces Tennant 1032496 | 1 | Harness, Adapter, Motor, CylrclSerial 10000000 to 10415583. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4036259Replaces Tennant 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 11 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31, Ss | $2.60/EA |
| 12 | TN4033863Replaces Tennant 1025026 | 1 | Screw, Hex, M8 X 1.25 X 180, Ss | $9.75/EA |
| 13 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 14 | TN4029625Replaces Tennant 578717 | 1 | Screw, Hex, M8 X 1.25 X 50, Ss | $5.80/EA |
| 15 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 16 | TN4045045Replaces Tennant 1033528 | 1 | Sheave, 06grv, 1.33pd 0.50b, Alm [Pj]Serial 10346425 and later. | $87.60/EA |
| 17 | TN4037061Replaces Tennant 222818 | 2 | Screw, Set, #08-32 X 0.25, Nl | $6.60/EA |
| 18 | TN4045455Replaces Tennant 1035888 | 1 | Belt, Drive, 6grv, 508 L X 14 W, [6pj]Serial 10346425 and later. | $35.20/EA |
| 19 | TN4036304Replaces Tennant 1021036 | 1 | Bracket, Motor [Machined] | $231.60/EA |
| 20 | TN4016813Replaces Tennant 41360 | 2 | Bearing, Ball, 0.59b 1.26d 0.35w[2seal] | $19.00/EA |
| 21 | TN4042392Replaces Tennant 1002077 | 1 | Tube, 0.81d 0.59b 00.5l | $16.10/EA |
| 22 | TN4036306Replaces Tennant 1021050 | 1 | Shaft, Drive | $142.60/EA |
| 23 | TN4026292Replaces Tennant 378805 | 1 | Plug, Drive, Brush, Mach | $55.50/EA |
| 24 | TN4042777Replaces Tennant 00911 | 1 | Key, Sq, 0.19 X 0.19, 0.75l | $3.60/EA |
| 25 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, M8 X 1.25 X 20, Ss 18-8 | $4.00/EA |
| 26 | TN4045389Replaces Tennant 1035173 | 1 | Sheave, 06grv, 2.96pd 0.59b, Alm [Pj]Serial 10346425 and later. | $112.10/EA |
| 27 | TN4042789Replaces Tennant 00961 | 1 | Key, Sq, 0.19 X 0.19, 0.50l | $4.20/EA |
| 28 | TN4032931Replaces Tennant 1022401 | 1 | Gasket, Cover, Belt | $11.00/EA |
| 29 | TN4033215Replaces Tennant 1022807 | 1 | Cover, Belt | $76.80/EA |
| – | TN4036627Replaces Tennant 1057922 | 1 | Door Assy, Cyl Head [7100]Complete assembly. | $138.20/EA |
| 30 | TN4018896Replaces Tennant 390996 | 1 | Screw, Flt, M10 X 1.5 X 20, 10.9, Nl | $4.00/EA |
| 31 | TN4042114Replaces Tennant 1044145 | 1 | Door, Brush | $55.20/EA |
| – | TN4037036Replaces Tennant 222752 | 1 | Plug Assy, Idler, BrushPart of the assembly above. | $107.70/EA |
| 32 | TN4039875Replaces Tennant 222184 | 1 | Pin, Roll, .094 D X 0.25l, .094/.097 | $2.50/EA |
| 33 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Idler Plug | $73.40/EA |
| 34 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg] | $28.80/EA |
| 35 | TN4042879Replaces Tennant 01516 | 1 | Ring, Retaining, Ext, 0.59d, Basic | $2.50/EA |
| 36 | TN4045285Replaces Tennant 1034845 | 1 | Strip, Pye, Hi-dns, 0.25 01.75w 05.6l | $44.40/EA |
| 37 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Sems, Ss | $3.30/EA |
| 38 | TN4044272Replaces Tennant 1024636 | 1 | Sprocket, 48t, 5pSerial 10000000 to 10346424. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 39 | TN4029226Replaces Tennant 375195 | 1 | Sprocket, Timing, 22tooth, 0.50b, [Gt/2]Serial 10000000 to 10346424. | $68.20/EA |
| 40 | TN4025731Replaces Tennant 377500 | 1 | Belt, Synchronous, 05mm 500l[05p,Plychn]Serial 10000000 to 10346424. | $88.90/EA |
Tennant T7 cylindrical scrub head squeegee group parts
The parts Tennant numbers on its cylindrical scrub head squeegee group drawing. Manual pages 60, list 61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019278Replaces Tennant 391328 | 1 | Frame Wldt, Sqge, Side, Lh | $282.40/EA |
| 2 | TN4019280Replaces Tennant 391334 | 2 | Squeegee Assy, Side [Linatex] (Standard) | $62.40/EA |
| 2 | TN4036759Replaces Tennant 1058728 | 2 | Squeegee Assy, Cylrcl, Ure [T7/Ssr] (Optional) | $89.30/EA |
| 2 | TN4186790Replaces Tennant 1058715 | 2 | Squeegee Assy, Cylrcl, Gum [T7/Ssr] (Optional) | $53.10/EA |
| 3 | TN4022032Replaces Tennant 86759 | 2 | Retainer, Sqge | $11.30/EA |
| 4 | TN4018317Replaces Tennant 69582 | 2 | Pin, Clevis, 0.31d X 1.00l | $3.40/EA |
| 5 | TN4017779Replaces Tennant 44906 | 2 | Pin, Cotter, Hair, 0.69d .092 Wir | $4.00/EA |
| 6 | TN4044824Replaces Tennant 1074203 | 2 | Guide, Sqge, Side, Yellow | $17.57/EA |
| 7 | TN4031355Replaces Tennant 1029380 | 1 | Angle Wldt, Stop, Lh | $78.80/EA |
| 8 | TN4031354Replaces Tennant 1029368 | 1 | Angle Wldt, Stop, Rh | $77.00/EA |
| 9 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 10 | TN4017779Replaces Tennant 44906 | 2 | Pin, Cotter, Hair, 0.69d .092 Wir | $4.00/EA |
| 11 | TN4031417Replaces Tennant 1030365 | 1 | Arm, Mtg, Link, Lh Sqge, Cylrcl Head | $108.40/EA |
| 12 | TN4018317Replaces Tennant 69582 | 2 | Pin, Clevis, 0.31d X 1.00l | $3.40/EA |
| 13 | TN4044554Replaces Tennant 15047 | 2 | Spring, Extn, 0.62od X 0.08wir, 3.0l | $9.40/EA |
| 14 | TN4018581Replaces Tennant 39019 | 2 | Pin, Clevis, 0.37d X 0.75l | $7.60/EA |
| 15 | TN4035447Replaces Tennant 25709 | 2 | Bellcrank, Lift, Sqge | $56.10/EA |
| 16 | TN4026752Replaces Tennant 380587 | 2 | Screw, Flt, M10 X 1.5 X 20, Ss, 18-8 | $5.80/EA |
| 17 | TN4017115Replaces Tennant 64425 | 4 | Washer, Thrust, 0.61b 1.25d .06, Fgl | $5.40/EA |
| 18 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38l | $12.50/EA |
| 19 | TN4019285Replaces Tennant 391345 | 2 | Nut, T, M10 X 1.50 X 0.62od X 0.5l | $8.10/EA |
| 20 | TN4019286Replaces Tennant 391346 | 2 | Nut, T, M8 X 1.25 X 0.50od X 0.5l | $7.50/EA |
| 21 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, M8 X 1.25 X 20, Ss 18-8 | $4.00/EA |
| 22 | TN4022046Replaces Tennant 86860 | 4 | Bearing, Thrust, 0.50b 0.87d 0.06w | $10.00/EA |
| 23 | TN4017102Replaces Tennant 64173 | 2 | Bushing, Sleeve, 0.50b 0.59d 0.38l, Stl | $7.00/EA |
| 24 | TN4013423Replaces Tennant 45280 | 2 | Screw, Hex, .50-13 X 5.50, G5 | $7.60/EA |
| 25 | TN4031243Replaces Tennant 33925 | 6 | Washer, Flat, M12, Ss | $3.40/EA |
| 26 | TN4031783Replaces Tennant 1031077 | 2 | Bushing, Sleeve, 0.51b 0.75d 0.16l | $8.70/EA |
| 27 | TN4043240Replaces Tennant 02931 | 2 | Nut, Hex, Lock, .50-13, Nl, Ss | $7.50/EA |
| 28 | TN4019277Replaces Tennant 391327 | 1 | Frame Wldt, Sqge, Side, Rh | $282.40/EA |
| 29 | TN4031391Replaces Tennant 1030026 | 1 | Arm, Mtg, Link, Rh Sqge, Cylrcl Head | $103.70/EA |
Tennant T7 recovery tank group parts
The parts Tennant numbers on its recovery tank group drawing. Manual pages 62, list 63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035530Replaces Tennant 1018032 | 1 | Tank, Recvy, W/Label [T7] (Teal) | $1,467.60/EA |
| 1 | TN4033568Replaces Tennant 1023942 | 1 | Tank, Recvy, W/ Label [T7] Rm-Nlg (Gray) | $517.38/EA |
| 1 | TN4035531Replaces Tennant 1018034 | 1 | Tank, Recvy. W/Label [T7 FaST] (Teal) | $1,445.92/EA |
| 1 | TN4196211Replaces Tennant 1023944 | 1 | Tank, Recvy, Rm-Cphg, W/ Label [T7 Fast] (Gray) | $1,333.60/EA |
| 1 | TN4014827Replaces Tennant 9006186 | 1 | Tank, Recvy, Afmkt, Teal[T7 Ec-H2o] | $738.61/EA |
| 1 | TN4202390Replaces Tennant 9006187 | 1 | Tank, Recvy, Afmkt, Gray [T7 Ec-H2o] | $791.54/EA |
| 2 | TN4045191Replaces Tennant 1033973 | 1 | Cover, Tank, Recvy, Afmkt, Hg [T7] | $607.60/EA |
| 3 | TN4040702Replaces Tennant 222529 | 2 | Hinge, Leaf | $25.30/EA |
| 4 | TN4040584Replaces Tennant 222463 | 2 | Screw, Flt, M8 X 1.25 X 20, Blk | $3.30/EA |
| 5 | TN4036968Replaces Tennant 1012055 | 2 | Hinge Wldt, Cover | $44.30/EA |
| 6 | TN4041992Replaces Tennant 09740 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 7 | TN4035242Replaces Tennant 1017218 | 8 | Washer, Flat, 0.321b 1.00d .12, Ss | $3.40/EA |
| 8 | TN4035800Replaces Tennant 1018304 | 2 | Hinge, 10mm Pin, Crs, Blk [T7]Serial 10346364 and later. | $39.70/EA |
| 9 | TN4019813Replaces Tennant 393135 | 4 | Screw, Btn, M8 X 1.25 X 20, BlkSerial 10346364 and later. | $3.30/EA |
| 10 | TN4035130Replaces Tennant 1016435 | 4 | Washer, Flat, 0.52b 0.75d .06, Stl, Blk | $3.40/EA |
| 11 | TN1016430Tennant 1016430 | 4 | Screw, Btn, M8 X 1.25 X 25,10.9, BlkSerial 10000000 to 10346363. | $2.20/EA |
| 12 | TN4024607Replaces Tennant 82829 | 2 | Clamp, Cable, Stl, 0.63d X 0.75w, 1hole | $2.60/EA |
| 13 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 14 | TN4035195Replaces Tennant 1016855 | 1 | Plate Wldt, Seal, Tank | $207.70/EA |
| 15 | TN4036254Replaces Tennant 1020301 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $116.00/EA |
| 16 | TN4035197Replaces Tennant 1016871 | 2 | Spacer, Seal, Tank | $14.50/EA |
| 17 | TN4016192Replaces Tennant 397255 | 2 | Spring, Cmpr, 0.85od .08wir 2.0l | $5.20/EA |
| 18 | TN4025358Replaces Tennant 605385 | 4 | Washer, Flat, 0.69b 1.50d .05, Ss | $6.70/EA |
| 19 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.321b 1.00d .12, Ss | $3.40/EA |
| 20 | TN4025329Replaces Tennant 77270 | 2 | Screw, Hex, M8 X 1.25 X 60, Ss | $6.60/EA |
| 21 | TN4035490Replaces Tennant 1017705 | 1 | Pad, Rbr | $14.75/EA |
| 22 | TN1011752Tennant 1011752 | 1 | Hinge Wldt, TankSerial 10000000 to 10346363. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN1011753Tennant 1011753 | 1 | Hinge Wldt, TankSerial 10000000 to 10346363. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4035485Replaces Tennant 1017670 | 1 | Angle, Sppt, Tank | $44.44/EA |
| 25 | TN4035478Replaces Tennant 1017607 | 1 | Bracket Wldt, Tank, Sppt | $79.89/EA |
| 26 | TN4043531Replaces Tennant 1037821 | 1 | Filter, Panl, Dust, 2.3 X 4.5 X 6.4 | $20.40/EA |
| 27 | TN4035125Replaces Tennant 1016392 | 1 | Gasket, Fltr, Tank | $10.00/EA |
| 28 | TN4037587Replaces Tennant 1014026 | 1 | Hose, Vacuum, 1.50id X 057.1l, 2cuff,Blk | $44.80/EA |
| 29 | TN4042386Replaces Tennant 1001992 | 2 | Clip, Hose, Gripper, 1.75id, Blk Ny | $6.20/EA |
| 30 | TN4026079Replaces Tennant 607006 | 4 | Screw, Trs, M4 X 0.70 X 12, Phl, Pl | $4.00/EA |
| 31 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liquid, 14vdc 01a .62-11 | $78.50/EA |
| 32 | TN4037596Replaces Tennant 1014079 | 1 | Clip, Grip, Hose, 1.50id, Dbl, Blk Pyp | $4.20/EA |
| 33 | TN4036259Replaces Tennant 1020341 | 8 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 34 | TN1017590Tennant 1017590 | 2 | Plate, HingeSerial 10000000 to 10346363. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | TN1011536Tennant 1011536 | 2 | Hinge, TankSerial 10000000 to 10346363. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T7 vacuum fan group parts
The parts Tennant numbers on its vacuum fan group drawing. Manual pages 64, list 65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032145Replaces Tennant 1255137 | 1 | Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown)Serial 11037132 and later. | $212.90/EA |
| 1 | TN4032145Replaces Tennant 1039763 | 1 | Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137)Serial 10000000 to 11037131. | $212.90/EA |
| 1 | TN4032253Replaces Tennant 1256475 | 1 | Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown)Serial 11037132 and later. | $239.10/EA |
| 1 | TN4032253Replaces Tennant 1021064 | 1 | Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475)Serial 10000000 to 11037131. | $239.10/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, M5 X 16, F/ Plstc | $3.30/EA |
| 3 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, #10 | $2.50/EA |
| 4 | TN4040552Replaces Tennant 1011127 | 1 | Plate, Mtg, Fan | $113.20/EA |
| 5 | TN4037551Replaces Tennant 1013611 | 1 | Seal, Cover, Recvy | $18.60/EA |
| 6 | TN4037954Replaces Tennant 1014858 | 1 | Gasket, Adapter | $4.30/EA |
| 7 | TN4037935Replaces Tennant 1014711 | 1 | Adaptor, Hose | $10.50/EA |
| 8 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 9 | TN4042901Replaces Tennant 01684 | 9 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 10 | TN4041604Replaces Tennant 07790 | 9 | Nut, Hex, Flng, M6 X 1.00 | $3.20/EA |
| 11 | TN4040553Replaces Tennant 1011140 | 1 | Seal, Fan | $10.40/EA |
| 12 | TN4040548Replaces Tennant 1011103 | 1 | Bracket Wldt, Mtg, Fan | $117.70/EA |
| 13 | TN4040545Replaces Tennant 1011093 | 3 | Isolator, Vib, .75d, M6 Stud Both Ends | $13.10/EA |
| – | TN4016714Replaces Tennant 9003365 | 1 | Insulation Kit, Acstc, VacfanComplete assembly. | $66.90/EA |
| 14 | TN4030931Replaces Tennant 1028514 | 1 | Insulation, Acstc, VacfanPart of Insulation Kit, Acstc, Vacfan (9003365). | $6.70/EA |
| 15 | TN4030932Replaces Tennant 1028515 | 1 | Insulation, Acstc, Hsng, VacfanPart of Insulation Kit, Acstc, Vacfan (9003365). | $26.00/EA |
| 16 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 17 | TN4016793Replaces Tennant 41169 | 1 | Nut, Hex, Lock, .25-20, Nl, SsSerial 10261379 to 10764500. | $4.00/EA |
| 18 | TN4040555Replaces Tennant 1011159 | 1 | Hose, Vacuum, 1.5d X 8.3l, Clr, Blk Wire | $14.10/EA |
| 19 | TN4026556Replaces Tennant 79381 | 2 | Clamp, Hose, Wormdrive, 1.25-2.00d, .50w | $6.20/EA |
| 20 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.375d 0.250b 0.16l 430ssSerial 10000000 to 10261378. | $5.10/EA |
| 21 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.0 X 20, SsSerial 10000000 to 10261378. | $3.20/EA |
| 22 | TN1015803Tennant 1015803 | 1 | Bracket, Mtg, StopSerial 10000000 to 10261378. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN1015808Tennant 1015808 | 1 | Plate, Mtg, TankSerial 10000000 to 10261378. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.25, SsSerial 10000000 to 10261378. | $2.60/EA |
| 25 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Ss, NlSerial 10000000 to 10261378. | $2.50/EA |
| 26 | TN4034244Replaces Tennant 1026322 | 1 | Bracket, Mtg, StopSerial 10261379 and later. | $66.00/EA |
| 27 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10261379 and later. | $3.30/EA |
| 28 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.25, SsSerial 10261379 and later. | $2.60/EA |
| 29 | TN4023520Replaces Tennant 80491 | 1 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 10261379 and later. | $5.10/EA |
| 30 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Ss, NlSerial 10261379 and later. | $2.50/EA |
| 31 | TN4034241Replaces Tennant 1026270 | 1 | Bracket, Arm, PropSerial 10261379 and later. | $39.20/EA |
| 32 | TN4030603Replaces Tennant 1026986 | 1 | Screw, Trs, .25-20 X 3.00, Phl, SsSerial 10261379 to 10764500. | $2.50/EA |
| 33 | TN4029617Replaces Tennant 578579 | 1 | Spacer, 0.25b 0.88d 0.50lSerial 10261379 and later. | $3.40/EA |
| 34 | TN4043810Replaces Tennant 140154 | 1 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlSerial 10261379 and later. | $4.10/EA |
| 35 | TN4043784Replaces Tennant 140053 | 1 | Washer, Flat, 0.28b 0.88d .12, SsSerial 10261379 and later. | $4.80/EA |
| 36 | TN4041274Replaces Tennant 06946 | 1 | Screw, Hex, M6 X 1.00 X 35, 8.8Serial 10764501 and later. | $3.40/EA |
Tennant T7 solution tank group, disk scrub head parts
The parts Tennant numbers on its solution tank group, disk scrub head drawing. Manual pages 66, list 67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038292Replaces Tennant 1015405 | 1 | Tank, Soltn, W/ Label [T7] | $1,796.40/EA |
| 1 | TN4045514Replaces Tennant 1036374 | 1 | Tank, Soltn, Disk, Hg, Afmkt, Tj (Japan) | $1,573.48/EA |
| 2 | TN4037250Replaces Tennant 1012505 | 1 | Cover, Tank, Soltn [T7] | $128.60/EA |
| 3 | TN4036256Replaces Tennant 1020317 | 2 | Catch, Cover [T7] | $22.40/EA |
| 4 | TN4036253Replaces Tennant 1020292 | 2 | Plate, Cover, Tab [T7] | $32.30/EA |
| 5 | TN4036278Replaces Tennant 1020727 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $71.00/EA |
| 6 | TN4036277Replaces Tennant 1020719 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $91.40/EA |
| 7 | TN4032825Replaces Tennant 1021677 | 10 | Rivet, Blind, .156DX0.55X.38D, Ss | $2.50/EA |
| 8 | TN4037594Replaces Tennant 1014072 | 3 | Bracket, Mtg, Tank | $20.91/EA |
| 9 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 10 | TN4035242Replaces Tennant 1017218 | 6 | Washer, Flat, 0.321b 1.00d .12, Ss | $3.40/EA |
| 11 | TN4036929Replaces Tennant 1011885 | 1 | Cap, Tank | $69.10/EA |
| 12 | TN4036920Replaces Tennant 1011852 | 1 | Arm, Tank, Retaining | $17.88/EA |
| 13 | TN4040610Replaces Tennant 222516 | 5 | Sleeve, P/M, 0.496d 0.318b 0.31l 430ss | $3.40/EA |
| 14 | TN4037712Replaces Tennant 223470 | 3 | Screw, Btn, M8 X 1.25 X 25, Ss | $4.00/EA |
| 15 | TN4035130Replaces Tennant 1016435 | 2 | Washer, Flat, 0.52b 0.75d .06, Stl, Blk | $3.40/EA |
| 16 | TN4016546Replaces Tennant 398770 | 1 | Strainer, Soltn, 80mesh Cyl 1.3d 3.5l | $49.40/EA |
| 17 | TN4025663Replaces Tennant 377349 | 1 | Fitting, Plstc, Pf12/Pf12, Bh | $22.50/EA |
| 18 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12 | $7.90/EA |
| 19 | TN4024607Replaces Tennant 82829 | 2 | Clamp, Cable, Stl, 0.63d X 0.75w, 1hole | $2.60/EA |
| 20 | TN4017933Replaces Tennant 67767 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1h | $4.20/EA |
| 21 | TN1019879Tennant 1019879 | 1 | Conduit, Nylon, .50d 3.0l | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 23 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liquid, 14vdc 01a .62-11 | $78.50/EA |
| 24 | TN4037948Replaces Tennant 1014825 | 1 | Hose, Mold | $96.30/EA |
| 25 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 26 | TN4014177Replaces Tennant 49800 | 2 | Latch, Draw, Soft, Rbr W/ Keeper | $40.40/EA |
| 27 | TN4026079Replaces Tennant 607006 | 4 | Screw, Trs, M4 X 0.70 X 12, Phl, Pl | $4.00/EA |
| 28 | TN4045399Replaces Tennant 1035394 | 4 | Washer, Flat, 0.17b 0.38d .04, Ss | $2.50/EA |
| 29 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 30 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 31 | TN4036922Replaces Tennant 1011853 | 1 | Arm, Tank, Retaining | $18.79/EA |
| 32 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, Sems | $2.50/EA |
| 33 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 34 | TN4018310Replaces Tennant 69234 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1hole | $4.20/EA |
Tennant T7 solution tank group, cylindrical scrub head parts
The parts Tennant numbers on its solution tank group, cylindrical scrub head drawing. Manual pages 68, list 69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045222Replaces Tennant 1034271 | 1 | Tank, Soltn, W/ Label [T7] | $1,028.38/EA |
| 1 | TN4190671Replaces Tennant 1036378 | 1 | Tank, Soltn, Cylrcl, Hg, Afmkt, Tj (Japan) | $2,050.20/EA |
| 2 | TN4037250Replaces Tennant 1012505 | 1 | Cover, Tank, Soltn [T7] | $128.60/EA |
| 3 | TN4036256Replaces Tennant 1020317 | 2 | Catch, Cover [T7] | $22.40/EA |
| 4 | TN4036253Replaces Tennant 1020292 | 2 | Plate, Cover, Tab [T7] | $32.30/EA |
| 5 | TN4036278Replaces Tennant 1020727 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $71.00/EA |
| 6 | TN4036277Replaces Tennant 1020719 | 1 | Seal, Afmkt, Bulb, Clsd Cell, Adh, 8ft | $91.40/EA |
| 7 | TN4032825Replaces Tennant 1021677 | 10 | Rivet, Blind, .156DX0.55X.38D, Ss | $2.50/EA |
| 8 | TN4037594Replaces Tennant 1014072 | 1 | Bracket, Mtg, Tank | $20.91/EA |
| 9 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0L, .14W, 3.0 Max. D | $3.90/EA |
| 10 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.321b 1.00d .12, Ss | $3.40/EA |
| 11 | TN4036929Replaces Tennant 1011885 | 1 | Cap, Tank | $69.10/EA |
| 12 | TN4036920Replaces Tennant 1011852 | 1 | Arm, Tank, Retaining | $17.88/EA |
| 13 | TN4040610Replaces Tennant 222516 | 5 | Sleeve, P/M, 0.496d 0.318b 0.31l 430ss | $3.40/EA |
| 14 | TN4037712Replaces Tennant 223470 | 3 | Screw, Btn, M8 X 1.25 X 25, Ss | $4.00/EA |
| 15 | TN4035130Replaces Tennant 1016435 | 2 | Washer, Flat, 0.52b 0.75d .06, Stl, Blk | $3.40/EA |
| 16 | TN4016546Replaces Tennant 398770 | 1 | Strainer, Soltn, 80mesh Cyl 1.3d 3.5l | $49.40/EA |
| 17 | TN4025663Replaces Tennant 377349 | 1 | Fitting, Plstc, Pf12/Pf12, Bh | $22.50/EA |
| 18 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12 | $7.90/EA |
| 19 | TN4024607Replaces Tennant 82829 | 2 | Clamp, Cable, Stl, 0.63d X 0.75w, 1hole | $2.60/EA |
| 20 | TN4017933Replaces Tennant 67767 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1h | $4.20/EA |
| 21 | TN1019879Tennant 1019879 | 1 | Conduit, Nylon, .50d 3.0l | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 23 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liquid, 14vdc 01a .62-11 | $78.50/EA |
| 24 | TN4045397Replaces Tennant 1035355 | 2 | Hose, Afmkt, Pvc, Clr, 0.62Id, 02Ft | $36.50/EA |
| 25 | TN4017089Replaces Tennant 63810 | 1 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 26 | TN4014177Replaces Tennant 49800 | 2 | Latch, Draw, Soft, Rbr W/ Keeper | $40.40/EA |
| 27 | TN4026079Replaces Tennant 607006 | 4 | Screw, Trs, M4 X 0.70 X 12, Phl, Pl | $4.00/EA |
| 28 | TN4045399Replaces Tennant 1035394 | 4 | Washer, Flat, 0.17b 0.38d .04, Ss | $2.50/EA |
| 29 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 30 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 31 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, Clr | $31.50/EA |
| 32 | TN4016829Replaces Tennant 41440 | 4 | Fitting, Plstc, Str, Bm10/Pm08 | $6.20/EA |
| 33 | TN4015366Replaces Tennant 54333 | 4 | Clamp, Hose, Wormdrive, 0.31-0.88D, .31W | $5.10/EA |
| 34 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 35 | TN4036922Replaces Tennant 1011853 | 1 | Arm, Tank, Retaining | $18.79/EA |
| 36 | TN4030961Replaces Tennant 1072628 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss, Sems | $2.50/EA |
| 37 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
Tennant T7 tanks drain group parts
The parts Tennant numbers on its tanks drain group drawing. Manual pages 70, list 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037618Replaces Tennant 1014274 | 1 | Hose Assy, Drain, 27.8l (Recovery Tank)Complete assembly. | $97.60/EA |
| 2 | TN4039939Replaces Tennant 1008639 | 1 | Cap, Drain AssemblyPart of Hose Assy, Drain, 1.50id X 27.8l, Blk (Recovery Tank) (1014274). | $20.20/EA |
| 3 | TN4039938Replaces Tennant 1008637 | 1 | O Ring, 1.48” Id, 1.76” OdPart of the assembly above. | $12.10/EA |
| 4 | TN4044328Replaces Tennant 14432 | 1 | Clamp, Hose, Wormdrive, 1.81-2.75d, .56w | $5.30/EA |
| 5 | TN4037617Replaces Tennant 1014268 | 1 | Hose Assy, Drain, 27.0l (Solution Tank)Complete assembly. | $82.10/EA |
| 6 | TN4039939Replaces Tennant 1008639 | 1 | Cap, Drain AssemblyPart of Hose Assy, Drain, 1.50id X 27.0l, Blk (Solution Tank) (1014268). | $20.20/EA |
| 7 | TN4039938Replaces Tennant 1008637 | 1 | O Ring, 1.48” Id, 1.76” OdPart of the assembly above. | $12.10/EA |
| 8 | TN4026556Replaces Tennant 79381 | 1 | Clamp, Hose, Wormdrive, 1.25-2.00d, .50w | $6.20/EA |
| 9 | TN4037049Replaces Tennant 222793 | 2 | Clip, Hanger, Hose, .38d Hole, Ss | $7.00/EA |
| 10 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
Tennant T7 battery group, 235Ah (S/N 10523206 and later) parts
The parts Tennant numbers on its battery group, 235ah (s/n 10523206 and later) drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040235Replaces Tennant 222280 | 4 | Battery, 06vdc, 235ah, Wet | $314.77/EA |
| 2 | TN4044711Replaces Tennant 1042532 | 1 | Bracket, Battery [T7, 220ah Agm]Serial 10523206 and later. | $48.30/EA |
| 3 | TN4033883Replaces Tennant 1025155 | 1 | Tray, Battery, 605x370x25 | $115.50/EA |
| 4 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 5 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.321b 1.00d .12, Ss | $3.40/EA |
| 6 | TN4037006Replaces Tennant 222682 | 1 | Strap | $33.50/EA |
| 7 | TN4037634Replaces Tennant 223356 | 3 | Wire, 04ga 12.0l Blk .34ring /.34ring | $28.90/EA |
| 8 | TN4022837Replaces Tennant 611221 | 8 | Boot, Terminal, Battery, 25.4Mm, Blk | $4.90/EA |
| 9 | TN4020777Replaces Tennant 630375 | 2 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Serial 10523206 and later. | $15.60/EA |
| 10 | TN4022093Replaces Tennant 87435 | 8 | Nut, Hex, Flexlock, .31-18 | $3.20/EA |
| 11 | TN4040382Replaces Tennant 1010771 | 1 | Angle, Sppt, Battery | $61.60/EA |
| 12 | TN4016253Replaces Tennant 397907 | 1 | Wire Assy, Cable, 4ga, Red | $64.00/EA |
| 13 | TN4016254Replaces Tennant 397908 | 1 | Wire Assy, Cable, 4ga, RedComplete assembly. | $56.60/EA |
| – | TN4036267Replaces Tennant 1020446 | 1 | Connector, Anderson, 1321 SeriesPart of Wire Assy, Cable, 4ga, Red (397908). | $18.80/EA |
| – | TN4036268Replaces Tennant 1020447 | 1 | Terminal, Contact, Anderson, 1319g4, 4gaPart of Wire Assy, Cable, 4ga, Red (397908). | $12.50/EA |
| 14 | TN4037638Replaces Tennant 223364 | 1 | Wire, 04ga 16.0l Blk .34ring /.34ring | $35.80/EA |
| 15 | TN4036238Replaces Tennant 1020105 | 1 | Sleeve, Afmkt, Nyl, #13, 1ft | $27.50/EA |
| 16 | TN4014137Replaces Tennant 49263 | 3 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 17 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 18 | TN4044457Replaces Tennant 1041030 | 8 | Cap, Battery | $3.20/EA |
Tennant T7 battery group, 235Ah (S/N 10000000-10523205) parts
The parts Tennant numbers on its battery group, 235ah (s/n 10000000-10523205) drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040235Replaces Tennant 222280 | 4 | Battery, 06vdc, 235ah, Wet | $314.77/EA |
| 2 | TN4044711Replaces Tennant 1015039 | 1 | Bracket, Battery (Replaced by 1042532)Serial 10000000 to 10523205. | $48.30/EA |
| 3 | TN4044711Replaces Tennant 1017062 | 2 | Angle, Spacer, Battery (Replaced by 1042532)Serial 10000000 to 10523205. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsSerial 10000000 to 10523205. | $3.30/EA |
| 5 | TN4035242Replaces Tennant 1017218 | 6 | Washer, Flat, 0.321b 1.00d .12, SsSerial 10000000 to 10523205. | $3.40/EA |
| 6 | TN4037006Replaces Tennant 222682 | 1 | Strap | $33.50/EA |
| 7 | TN4037634Replaces Tennant 223356 | 3 | Wire, 04ga 12.0l Blk .34ring /.34ring | $28.90/EA |
| 8 | TN4022837Replaces Tennant 611221 | 8 | Boot, Terminal, Battery, 25.4Mm, Blk | $4.90/EA |
| 9 | TN4020912Replaces Tennant 83415 | 2 | Spacer, Battery, 2 X 2 X 11, FoamSerial 10000000 to 10523205. | $9.50/EA |
| 10 | TN4022093Replaces Tennant 87435 | 8 | Nut, Hex, Flexlock, .31-18 | $3.20/EA |
| 11 | TN4040382Replaces Tennant 1010771 | 1 | Angle, Sppt, Battery | $61.60/EA |
| 12 | TN4016253Replaces Tennant 397907 | 1 | Wire Assy, Cable, 4ga, Red | $64.00/EA |
| 13 | TN4016254Replaces Tennant 397908 | 1 | Wire Assy, Cable, 4ga, RedComplete assembly. | $56.60/EA |
| – | TN4036267Replaces Tennant 1020446 | 1 | Connector, Anderson, 1321 SeriesPart of Wire Assy, Cable, 4ga, Red (397908). | $18.80/EA |
| – | TN4036268Replaces Tennant 1020447 | 1 | Terminal, Contact, Anderson, 1319g4, 4gaPart of Wire Assy, Cable, 4ga, Red (397908). | $12.50/EA |
| 14 | TN4037638Replaces Tennant 223364 | 1 | Wire, 04ga 16.0l Blk .34ring /.34ring | $35.80/EA |
| 15 | TN4036238Replaces Tennant 1020105 | 1 | Sleeve, Afmkt, Nyl, #13, 1ft | $27.50/EA |
| 16 | TN4014137Replaces Tennant 49263 | 3 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max D | $3.40/EA |
| 17 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 18 | TN4044457Replaces Tennant 1041030 | 8 | Cap, Battery | $3.20/EA |
| 19 | TN4033883Replaces Tennant 1025155 | 1 | Tray, Battery, 605x370x25 | $115.50/EA |
Tennant T7 rear squeegee lift group, disk scrub head parts
The parts Tennant numbers on its rear squeegee lift group, disk scrub head drawing. Manual pages 76, list 77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4027814Replaces Tennant 1009268 | 1 | Actuator, 12vdc, 40mm Strk [750n] (Replaced by Kit 9010845 - Includes Actuator & Housing)Serial 10000000 to 10627040. | $483.30/EA |
| 1 | TN4027814Replaces Tennant 9010845 | 1 | Actuator Kit, Replmt [T7/Ssr]Complete assembly. Serial 10627041 and later. | $483.30/EA |
| 2 | TN4016164Replaces Tennant 1012607 | 1 | Housing, Spring, Sqge Actuator (Replaced By 1031028)Serial 10000000 to 10280388. | $58.80/EA |
| 2 | TN4031778Replaces Tennant 1031028 | 1 | Housing, Sqge, Spring, ActuatorPart of the assembly above. Serial 10280389 and later. | $5.30/EA |
| 3 | TN4022048Replaces Tennant 86866 | 2 | Pin, Hair Cotter, 0.38 D .072 Wir | $2.50/EA |
| 4 | TN4017048Replaces Tennant 94877 | 1 | Pin, Clevis, 10d X 50l | $6.00/EA |
| 5 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 6 | TN4040008Replaces Tennant 1009356 | 1 | Pin, Clevis , 10mm X 40l | $7.60/EA |
| 7 | TN4035161Replaces Tennant 1016639 | 2 | Spring, Extn, 0.75od X 0.11wir, 4.5l | $12.10/EA |
| 8 | TN96184Tennant 96184 | 1 | Pin, Clevis, 12d X 100l, Pl | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4022048Replaces Tennant 86866 | 1 | Pin, Cotter, Hair, 0.38d .072 Wir | $2.50/EA |
| 10 | TN4032013Replaces Tennant 1031379 | 1 | Arm Wldt, Sqge, Rear | $272.40/EA |
| 11 | TN4037540Replaces Tennant 1013515 | 2 | Bushing, Flex, Ure | $17.20/EA |
| 12 | TN4040352Replaces Tennant 1010401 | 1 | Pin, Clevis, 16d X 150l | $29.10/EA |
| 13 | TN4043243Replaces Tennant 02942 | 1 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 14 | TN4044538Replaces Tennant 1073476 | 2 | Caster, Swivel, 50mmd, M10 X 30, Clr Pl | $23.10/EA |
| 15 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flat, 0.56b 1.38d .11, Ss | $4.10/EA |
| 16 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
| 17 | TN4041601Replaces Tennant 07787 | 2 | Nut, Hex, Std, M10 X 1.5, Ss | $4.00/EA |
| 18 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, Ss | $4.00/EA |
| 19 | TN4035840Replaces Tennant 1018725 | 1 | Channel, Arm, Lower Sqge | $165.70/EA |
| 20 | TN4039830Replaces Tennant 12138 | 1 | Screw, Hex, M12 X 1.75 X 120, 8.8 | $7.60/EA |
| 21 | TN4041993Replaces Tennant 09741 | 1 | Nut, Hex, Lock, M12 X 1.75, Nl, Ss | $5.80/EA |
| 22 | TN4036244Replaces Tennant 1020182 | 1 | Spring, Cmpr, 20mm D X 44mm L | $49.00/EA |
| 23 | TN4040928Replaces Tennant 04417 | 1 | Screw, Hex, M10 X 1.5 X 60, Ss | $6.80/EA |
| 24 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00 .08, Ss | $3.30/EA |
Tennant T7 rear squeegee lift group, cylindrical scrub head parts
The parts Tennant numbers on its rear squeegee lift group, cylindrical scrub head drawing. Manual pages 78, list 79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031023Replaces Tennant 1028997 | 1 | Support, Frame, Sqge | $45.60/EA |
| 2 | TN4031024Replaces Tennant 1028998 | 1 | Support, Frame, Sqge | $43.83/EA |
| 3 | TN4041974Replaces Tennant 09291 | 6 | Screw, Hex, M10 X 1.5 X 20, Ss | $5.80/EA |
| 4 | TN4042903Replaces Tennant 01686 | 7 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 5 | TN4031031Replaces Tennant 1029072 | 1 | Bracket Wldt, Actuator | $56.10/EA |
| 6 | TN4022048Replaces Tennant 86866 | 1 | Pin, Cotter, Hair, 0.38d .072 Wir | $2.50/EA |
| 7 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 8 | TN4027814Replaces Tennant 1009268 | 1 | Actuator, 12vdc, 40mm Strk [750n] (Replaced by Kit 9010845 - Includes Actuator & Housing)Serial 10000000 to 10627040. | $483.30/EA |
| 8 | TN4027814Replaces Tennant 9010845 | 1 | Actuator Kit, Replmt [T7/Ssr]Complete assembly. Serial 10627041 and later. | $483.30/EA |
| 9 | TN4031778Replaces Tennant 1031028 | 1 | Housing, Sqge, Spring, ActuatorPart of Actuator Kit, Replmt [T7/Ssr] (9010845). | $5.30/EA |
| 10 | TN4032471Replaces Tennant 1032539 | 1 | Arm, Spring, Mtg | $30.03/EA |
| 11 | TN4035161Replaces Tennant 1016639 | 2 | Spring, Extn, 0.75od 0.11wir 04.5l | $12.10/EA |
| 12 | TN4035809Replaces Tennant 1018483 | 1 | Pin, Clevis, 12mmd X 100mml | $8.40/EA |
| 13 | TN4041914Replaces Tennant 08182 | 1 | Pin, Cotter, .125 X 1.00 | $2.50/EA |
| 14 | TN4032467Replaces Tennant 1032452 | 1 | Arm Wldt, Sqge, Rear, Cylrcl | $217.40/EA |
| 15 | TN4037540Replaces Tennant 1013515 | 2 | Bushing, Flex, Ure | $17.20/EA |
| 16 | TN4044538Replaces Tennant 1073476 | 2 | Caster, Swivel, 50mmd, M10 X 30, Clr Pl | $23.10/EA |
| 17 | TN4041601Replaces Tennant 07787 | 2 | Nut, Hex, Std, M10 X 1.50, Ss | $4.00/EA |
| 18 | TN4035840Replaces Tennant 1018725 | 1 | Channel, Arm, Lower Sqge | $165.70/EA |
| 19 | TN4039830Replaces Tennant 12138 | 1 | Screw, Hex, M12 X 1.75 X 120, 8.8 | $7.60/EA |
| 20 | TN4041993Replaces Tennant 09741 | 1 | Nut, Hex, Lock, M12 X 1.75, Nl, Ss | $5.80/EA |
| 21 | TN4036244Replaces Tennant 1020182 | 1 | Spring, Cmpr, 0.70od, 01.7l | $49.00/EA |
| 22 | TN4040928Replaces Tennant 04417 | 1 | Screw, Hex, M10 X 1.5 X 60, Ss | $6.80/EA |
| 23 | TN4040352Replaces Tennant 1010401 | 1 | Pin, Clevis, 16mmd X 150mml | $29.10/EA |
| 24 | TN4043243Replaces Tennant 02942 | 1 | Pin, Cotter, Hair, 0.62d .120 Wir | $3.40/EA |
| 25 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flat, 0.56b 1.38d .11, Ss | $4.10/EA |
| 26 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 27 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, Ss | $4.00/EA |
| 28 | TN4017048Replaces Tennant 94877 | 1 | Pin, Clevis, 10mmd X 050mml | $6.00/EA |
| 29 | TN4032483Replaces Tennant 1032733 | 1 | Pin, Clevis, 10mmd X 070mml, Pl | $29.80/EA |
| 30 | TN4032482Replaces Tennant 1032732 | 1 | Pin, Clevis, 12mmd X 070mml, Pl | $30.30/EA |
| 31 | TN4017232Replaces Tennant 41619 | 1 | Washer, Flat, 0.56b 1.38d .11, Ss | $4.10/EA |
| 32 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 33 | TN4041914Replaces Tennant 08182 | 2 | Pin, Cotter, .125 X 1.00 | $2.50/EA |
| 34 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
Tennant T7 rear squeegee group, 26 in (650 mm) parts
The parts Tennant numbers on its rear squeegee group, 26 in (650 mm) drawing. Manual pages 80, list 81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019002Replaces Tennant 9000139 | 1 | Squeegee Assy Kit, 650mm, Ci [T7/Ssr]Complete assembly. | $1,019.80/EA |
| 1 | TN4042347Replaces Tennant 1001468 | 1 | Frame, Sqge, 700mmPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $500.70/EA |
| 2 | TN4037286Replaces Tennant 1012934 | 1 | Plate Wldt, Sqge, Retainer, 700mmPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $152.40/EA |
| 3 | TN4044825Replaces Tennant 1074204 | 4 | Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,YPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $33.00/EA |
| 4 | TN4018885Replaces Tennant 390943 | 1 | Blade, Sqge, Front, 35.00l [Linx, 700mm]Part of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $27.00/EA |
| 5 | TN4018884Replaces Tennant 390942 | 1 | Blade, Sqge, Rear, 37.50l Linatex[700mm]Part of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $36.00/EA |
| 6 | TN4034346Replaces Tennant 1245861 | 1 | Strap Assy, Squge, 700mm [T7/T7amr], YlPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $79.70/EA |
| 7 | TN4037269Replaces Tennant 1012643 | 1 | Strap Wldt, Sqge, Wedge, Ss [T3]Part of the assembly above. | $27.20/EA |
| 8 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $3.40/EA |
| 9 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $3.20/EA |
| 10 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ssPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $3.40/EA |
| 11 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $3.30/EA |
| 12 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $2.60/EA |
| 13 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Assy Kit, 650mm, Ci [T7/Ssr] (9000139). | $5.50/EA |
| – | TN4019303Replaces Tennant 391384 | 1 | Squeegee Kit, 700mm, UreComplete assembly. | $166.35/EA |
| 14 | TN4019296Replaces Tennant 391377 | 1 | Blade, Sqge, Front, 35.00l Ure [700mm]Part of Squeegee Kit, 700mm, Ure (391384). | $43.20/EA |
| 15 | TN4019297Replaces Tennant 391378 | 1 | Blade, Sqge, Rear, 37.50l Pyu [700mm]Part of Squeegee Kit, 700mm, Ure (391384). | $57.60/EA |
| – | TN4019305Replaces Tennant 391386 | 1 | Squeegee Kit, 700mm, GumComplete assembly. | $75.25/EA |
| 16 | TN4018885Replaces Tennant 390943 | 1 | Blade, Sqge, Front, 35.00l [Linx, 700mm]Part of Squeegee Kit, 700mm, Gum (391386). | $27.00/EA |
| 17 | TN4018882Replaces Tennant 390936 | 1 | Blade, Sqge, Rear, 37.50l Gum [700mm]Part of Squeegee Kit, 700mm, Gum (391386). | $15.00/EA |
Tennant T7 rear squeegee group, 32 in (800 mm) parts
The parts Tennant numbers on its rear squeegee group, 32 in (800 mm) drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019007Replaces Tennant 9000145 | 1 | Squeegee Assy Kit, 800mm, Ci [T7/Ssr]Complete assembly. | $1,176.30/EA |
| 1 | TN4037288Replaces Tennant 1012964 | 1 | Frame, Sqge, 800mmPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $584.50/EA |
| 2 | TN4037330Replaces Tennant 1013395 | 1 | Plate Wldt, Sqge, Retainer, 800mmPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $159.40/EA |
| 3 | TN4044825Replaces Tennant 1074204 | 4 | Knob,Star,2.75d 4ear 1.1l M8x1.25,Thru,YPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $33.00/EA |
| 4 | TN4018877Replaces Tennant 390923 | 1 | Blade, Sqge, Front, 41.50l [Linx, 800mm]Part of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $28.00/EA |
| 5 | TN4018876Replaces Tennant 390922 | 1 | Blade, Sqge, Rear, 44.00l Linatex[800mm]Part of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $37.00/EA |
| 6 | TN4045019Replaces Tennant 1033102 | 1 | Strap Assy, Sqge, 800mmPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $179.10/EA |
| 7 | TN4037269Replaces Tennant 1012643 | 1 | Strap Wldt, Sqge, Wedge, Ss [T3]Part of the assembly above. | $27.20/EA |
| 8 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $3.40/EA |
| 9 | TN4043649Replaces Tennant 140027 | 2 | Washer, Flat, 0.35b 0.75d .04, SsPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $3.20/EA |
| 10 | TN4040581Replaces Tennant 222460 | 2 | Sleeve, P/M, 0.496d 0.318b 0.50l 430ssPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $3.40/EA |
| 11 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $3.30/EA |
| 12 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $2.60/EA |
| 13 | TN4040369Replaces Tennant 1010560 | 2 | Wheel, Bmpr, 80d X 25w, Non-MarkingPart of Squeegee Assy Kit, 800mm, Ci [T7/Ssr] (9000145). | $5.50/EA |
| – | TN4019302Replaces Tennant 391383 | 1 | Squeegee Kit, 800mm, UreComplete assembly. | $163.60/EA |
| 14 | TN4019298Replaces Tennant 391379 | 1 | Blade, Sqge, Front, 41.50l Ure [800mm]Part of Squeegee Kit, 800mm, Ure (391383). | $44.80/EA |
| 15 | TN4019299Replaces Tennant 391380 | 1 | Blade, Sqge, Rear, 44.0l Pyu [800mm]Part of Squeegee Kit, 800mm, Ure (391383). | $59.20/EA |
| – | TN4019304Replaces Tennant 391385 | 1 | Squeegee Kit, 800mm, GumComplete assembly. | $78.60/EA |
| 16 | TN4018877Replaces Tennant 390923 | 1 | Blade, Sqge, Front, 41.50l [Linx, 800mm]Part of Squeegee Kit, 800mm, Gum (391385). | $28.00/EA |
| 17 | TN4018881Replaces Tennant 390934 | 1 | Blade, Sqge, Rear, 44.00l Gum [800mm]Part of Squeegee Kit, 800mm, Gum (391385). | $15.00/EA |
Tennant T7 circuit board group parts
The parts Tennant numbers on its circuit board group drawing. Manual pages 84, list 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025019Replaces Tennant 9012711 | 1 | Controller Kit, Replmt, Ci [T7 Disk]Complete assembly. | $1,552.70/EA |
| 2 | TN4041015Replaces Tennant 06922 | 4 | Screw, Pan, M3 X 0.5 X 20, 4.8Part of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $3.40/EA |
| 3 | TN4035888Replaces Tennant 1019218 | 3 | Washer, Flat, 0.14b 0.31d, NylPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $3.20/EA |
| 4 | TN4029653Replaces Tennant 579211 | 3 | Nut, Hex, Lock, M3 X .5, SsPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $3.30/EA |
| 5 | TN4035191Replaces Tennant 1016825 | 2 | Support, CircuitboardPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $5.60/EA |
| 6 | TN4032343Replaces Tennant 3701.6 | 2 | Screw, Pan, #06-32 X 0.38, Phl Ss ShtmtlPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $3.40/EA |
| 7 | TN4041599Replaces Tennant 07785 | 4 | Nut, Hex, Std, M6 X 1.0, A2, SsPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $2.50/EA |
| 8 | TN4036570Replaces Tennant 1057560 | 6 | Washer, Flat, M6.4b, X 16d X 1 SsPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $2.60/EA |
| 9 | TN4034655Replaces Tennant 32982 | 2 | Washer, Lock, Int, 0.25Part of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $2.60/EA |
| 10 | TN4028714Replaces Tennant 55248 | 1 | Mount, Cable TiePart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $3.70/EA |
| 11 | TN4035491Replaces Tennant 1017754 | 1 | Panel, Wldt, CntrlPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $170.19/EA |
| 12 | TN4036251Replaces Tennant 1020284 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 03ft (C410217)Part of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $25.00/EA |
| 13 | TN4035190Replaces Tennant 1016816 | 1 | Pad, Thermal, Heat SinkPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $21.61/EA |
| 14 | TN8005508Replaces Tennant 1030692 | 1 | Vr, Fuse, 15a, ReplmtPart of Controller Kit, Replmt, Ci [T7 Disk] (9012711). | $3.50/EA |
| 1 | TN4025020Replaces Tennant 9012712 | 1 | Controller Kit, Replmt, Ci [T7 Cyl]Complete assembly. | $1,674.50/EA |
| 2 | TN4041015Replaces Tennant 06922 | 4 | Screw, Pan, M3 X 0.5 X 20, 4.8Part of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $3.40/EA |
| 3 | TN4035888Replaces Tennant 1019218 | 3 | Washer, Flat, 0.14b 0.31d, NylPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $3.20/EA |
| 4 | TN4029653Replaces Tennant 579211 | 3 | Nut, Hex, Lock, M3 X .5, SsPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $3.30/EA |
| 5 | TN4035191Replaces Tennant 1016825 | 2 | Support, CircuitboardPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $5.60/EA |
| 6 | TN4032343Replaces Tennant 3701.6 | 2 | Screw, Pan, #06-32 X 0.38, Phl Ss ShtmtlPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $3.40/EA |
| 7 | TN4041599Replaces Tennant 07785 | 4 | Nut, Hex, Std, M6 X 1.0, A2, SsPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $2.50/EA |
| 8 | TN4036570Replaces Tennant 1057560 | 6 | Washer, Flat, M6.4b, X 16d X 1 SsPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $2.60/EA |
| 9 | TN4034655Replaces Tennant 32982 | 2 | Washer, Lock, Int, 0.25Part of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $2.60/EA |
| 10 | TN4028714Replaces Tennant 55248 | 1 | Mount, Cable TiePart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $3.70/EA |
| 11 | TN4035491Replaces Tennant 1017754 | 1 | Panel, Wldt, CntrlPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $170.19/EA |
| 12 | TN4036251Replaces Tennant 1020284 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 03ft (C410217)Part of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $25.00/EA |
| 13 | TN4035190Replaces Tennant 1016816 | 1 | Pad, Thermal, Heat SinkPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $21.61/EA |
| 14 | TN8005508Replaces Tennant 1030692 | 1 | Vr, Fuse, 15a, ReplmtPart of Controller Kit, Replmt, Ci [T7 Cyl] (9012712). | $3.50/EA |
| 15 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 16 | TN4027617Replaces Tennant 76426 | 6 | Washer, Sealing, 0.28b 0.75d Ss/Neo | $3.50/EA |
| 17 | TN4045512Replaces Tennant 1036368 | 1 | Cover, Panl, Ele, Afmkt, Na, Ce, Tj | $249.70/EA |
| 18 | TN4035369Replaces Tennant 24199 | 6 | Screw, Hex, M5 X 0.8 X 16, Ss | $3.00/EA |
| 19 | TN4035196Replaces Tennant 1016865 | 1 | Cable, Ribbon | $165.60/EA |
| 20 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
| 21 | TN4035884Replaces Tennant 1019083 | 1 | Seal, Cut | $31.60/EA |
| 22 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
Tennant T7 electrical group parts
The parts Tennant numbers on its electrical group drawing. Manual pages 86, list 87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035202Replaces Tennant 1062850 | 1 | Support Wldt, Actuator (For Disk Scrub Head) (Note: For machines built before S/N 10490105 also order Grommet P/N 10632- 13) | $564.00/EA |
| 1 | TN4032805Replaces Tennant 1021531 | 1 | Support Wldt, Actuator (For Cylindrical Scrub Head) | $738.61/EA |
| 2 | TN4015369Replaces Tennant 54345 | 1 | Grommet, Rbr, 1.62id, F/1.9h, .13 MatlSerial 10000000 to 10490104. | $1.40/EA |
| 3 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M8 X 1.25 X 35, Ss, Fl | $3.30/EA |
| 4 | TN4041600Replaces Tennant 07786 | 1 | Nut, Hex, Std, M8 X 1.25, Ss | $3.40/EA |
| 5 | TN4041992Replaces Tennant 09740 | 5 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 6 | TN4035242Replaces Tennant 1017218 | 5 | Washer, Flat, 0.321b 1.00d .12, Ss | $3.40/EA |
| 7 | TN4043204Replaces Tennant 02424 | 1 | Relay, 24vdc, 100a, Sp N/O [White] | $94.40/EA |
| 8 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 9 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.0, Ss, Nl | $2.50/EA |
| 10 | TN4041589Replaces Tennant 07514 | 2 | Washer, Lock, Int, #10, Ss | $3.50/EA |
| 11 | TN4042907Replaces Tennant 01689 | 2 | Nut, Hex, Std, #10-32, Ss | $2.50/EA |
| 12 | TN4039080Replaces Tennant 20170 | 2 | Nut, Hex, Jam, .31-24 | $2.50/EA |
| 13 | TN4034657Replaces Tennant 32984 | 2 | Washer, Lock, Int, .31 | $2.60/EA |
| 14 | TN4015595Replaces Tennant 39349 | 3 | Washer, Flat, 0.31 Sae | $2.50/EA |
| 15 | TN4034136Replaces Tennant 32490 | 5 | Washer, Flat, 0.25 Std | $2.50/EA |
| 16 | TN4021650Replaces Tennant 86379 | 1 | Fuse, .88 X 3.2l 100a 125vac | $58.00/EA |
| 17 | TN4035814Replaces Tennant 1018546 | 1 | Bracket, Stand-Off (For Disk Scrub Head) | $27.50/EA |
| 18 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 19 | TN4013849Replaces Tennant 76062 | 2 | Insulator, Panel & Switchboard | $9.50/EA |
| 20 | TN4026682Replaces Tennant 58670 | 2 | Screw, Hex, .25-20 X 0.50, Nl | $2.50/EA |
| 21 | TN4034655Replaces Tennant 32982 | 4 | Washer, Lock, Int, 0.25 | $2.60/EA |
| 22 | TN4035500Replaces Tennant 1017807 | 2 | Rod, Thrd, Full, .25-20 01.0l | $3.50/EA |
| 23 | TN4034153Replaces Tennant 32520 | 2 | Nut, Hex, Jam, .25-20 | $2.50/EA |
| 24 | TN4023149Replaces Tennant 383720 | 1 | Circuitbreaker, 5.0a | $15.90/EA |
| 25 | TN4023151Replaces Tennant 383722 | 1 | Circuitbreaker, 15.0a | $15.90/EA |
| 26 | TN4025707Replaces Tennant 377433 | 1 | Gauge, Hourmeter, 12-60vdc, Analog [10k] | $77.80/EA |
| 27 | TN4037007Replaces Tennant 222683 | 1 | Gasket, Hourmeter | $4.30/EA |
| 28 | TN4041959Replaces Tennant 09146 | 2 | Screw, Pan, M3 X 0.5 X 12, 4.8 | $2.50/EA |
| 29 | TN4015826Replaces Tennant 39658 | 2 | Washer, Lock, Int, #04 | $3.50/EA |
| 30 | TN4042963Replaces Tennant 01754 | 2 | Nut, Hex, Std, M3 X 0.5, 8 | $2.50/EA |
| 31 | TN4019330Replaces Tennant 391915 | 1 | Harness, Chrgr [T7] (Off-Board Charger Model w/out Telemetry) | $90.10/EA |
| 32 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08- .11, 1ft | $44.40/EA |
| 33 | TN4035406Replaces Tennant 25005 | 2 | Screw, Pan, #06-32 X 1.00, 1 | $2.40/EA |
| 34 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flat, #06 (Off-Board Charger Model w/out Telemetry) | $3.40/EA |
| 35 | TN4013574Replaces Tennant 75939 | 2 | Nut, Hex, Lock, #06-32, Nl (Off-Board Charger Model w/out Telemetry) | $3.40/EA |
| 36 | TN4027406Replaces Tennant 600437 | 1 | Switch, Snap Actn, 250vac 16a (Off-Board Charger Model w/out Telemetry) | $21.40/EA |
| 37 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, M3 X 0.5 X 20, 4.8 | $3.40/EA |
| 38 | TN4015826Replaces Tennant 39658 | 2 | Washer, Lock, Int, #04 (Off-Board Charger Model w/out Telemetry) | $3.50/EA |
| 39 | TN4042963Replaces Tennant 01754 | 2 | Nut, Hex, Std, M3 X 0.5, 8 (Off-Board Charger Model w/out Telemetry) | $2.50/EA |
| 40 | TN4018310Replaces Tennant 69234 | 1 | Clamp, Cable, Stl, 1.00d X 0.62w, 1h | $4.20/EA |
| 41 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 42 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 43 | TN4019331Replaces Tennant 391916 | 1 | Harness, Power, [T7] | $90.10/EA |
| 44 | TN4040238Replaces Tennant 222290 | 2 | Diode, Ele, Plug | $13.00/EA |
| 45 | TN4027459Replaces Tennant 601359 | 1 | Plate, Backing, Switch (Off-Board Charger Model w/out Telemetry) | $13.50/EA |
| 46 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31 | $3.50/EA |
Tennant T7 wire harnesses group, main (S/N 10961681 and later) parts
The parts Tennant numbers on its wire harnesses group, main (s/n 10961681 and later) drawing. Manual pages 99, list 100.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042856Replaces Tennant 1076635 | 1 | Harness, Main [T7]Complete assembly. Serial 10961681 and later. | $552.60/EA |
| 2 | TN4043069Replaces Tennant 1047189 | 1 | Connector, Mal, 3 Cav [Mp630]Part of Harness, Main [T7] (1076635). | $15.90/EA |
| 3 | TN4042854Replaces Tennant 1076631 | 1 | Harness, Ele, ConnectorPart of Harness, Main [T7] (1076635). Serial 10961681 and later. | $64.90/EA |
| 4 | TN4019685Replaces Tennant 1051629 | 1 | Connector, Fem, 4 Cav [Molex]Part of Harness, Main [T7] (1076635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4042853Replaces Tennant 1076630 | 1 | Harness, Ele [Vac Fan Euro Conn. Repl.]Part of Harness, Main [T7] (1076635). Serial 10961681 and later. | $124.70/EA |
Tennant T7 wire harnesses group, main (S/N 10426043-10961680) parts
The parts Tennant numbers on its wire harnesses group, main (s/n 10426043-10961680) drawing. Manual pages 102, list 103.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019685Replaces Tennant 1052906 | 1 | Harness, Main [T7] (Replaced by 9001454)Complete assembly. Serial 10426043 to 10961680. | $972.20/EA |
| 2 | TN4043069Replaces Tennant 1047189 | 1 | Connector, Mal, 3 Cav [Mp630]Part of Harness, Main [T7] (Replaced by 9001454) (1052906). | $15.90/EA |
| 3 | TN4037571Replaces Tennant 1013835 | 2 | Connector Body, Fem, 2 Recept.[Molex]Part of Harness, Main [T7] (Replaced by 9001454) (1052906). Serial 10426043 to 10961680. | $18.00/EA |
| 4 | TN4019685Replaces Tennant 1051629 | 1 | Connector, Fem, 4 Cav [Molex]Part of Harness, Main [T7] (Replaced by 9001454) (1052906). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T7 wire harnesses group, main (S/N 10236152-10426042) parts
The parts Tennant numbers on its wire harnesses group, main (s/n 10236152-10426042) drawing. Manual pages 105, list 106.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN391991Tennant 391991 | 1 | Harness, Main, Disk / Cylrcl [T7] (Replaced by 9001454)Complete assembly. Serial 10236152 to 10426042. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4043069Replaces Tennant 1047189 | 1 | Connector, Mal, 3 Cav [Mp630]Part of Harness, Main, Disk / Cylrcl [T7] (Replaced by 9001454) (391991). | $15.90/EA |
| 3 | TN4037571Replaces Tennant 1013835 | 2 | Connector Body, Fem, 2 Recept.[Molex]Part of Harness, Main, Disk / Cylrcl [T7] (Replaced by 9001454) (391991). | $18.00/EA |
| 4 | TN4019685Replaces Tennant 1051629 | 1 | Connector, Fem, 4 Cav [Molex]Part of Harness, Main, Disk / Cylrcl [T7] (Replaced by 9001454) (391991). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T7 wire harnesses group, main (S/N 10000000-10236151) parts
The parts Tennant numbers on its wire harnesses group, main (s/n 10000000-10236151) drawing. Manual pages 108, list 109.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN391991Replaces Tennant 391950 | 1 | Harness, Main, [ T7/SSR ] (Replaced by 9001454)Serial 10000000 to 10236151. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T7 wire harnesses group, tank parts
Wire harnesses group, tank from Tennant's parts list. Manual page 110.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019329Replaces Tennant 391913 | 1 | Harness, Tank, [T7] | $164.00/EA |
Tennant T7 wire harnesses group, ec-H2O NanoClean (S/N 10740598 and later) parts
The parts Tennant numbers on its wire harnesses group, ec-h2o nanoclean (s/n 10740598 and later) drawing. Manual pages 111, list 112.
Wiring drawing: the manufacturer prints no item numbers on it.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044869Replaces Tennant 1074374 | 1 | Harness Assy, Wire [T7 Ec-H2o G2]Serial 10740598 and later. | $101.00/EA |
| 2 | TN4043084Replaces Tennant 1047470 | 1 | Fuse, Blade, 010a, 32vdc, Red | $2.50/EA |
| 3 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v] | $17.40/EA |
Tennant T7 wire harnesses group, ec-H2O (S/N 10419534-10740597) parts
The parts Tennant numbers on its wire harnesses group, ec-h2o (s/n 10419534-10740597) drawing. Manual page 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040680Replaces Tennant 1050394 | 1 | Harness Assy, Wire [T7 Ec-H2o]Serial 10419534 to 10740597. | $68.48/EA |
| 2 | TN4043084Replaces Tennant 1047470 | 1 | Fuse, Blade, 010a, 32vdc, Red | $2.50/EA |
| 3 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v] | $17.40/EA |
Tennant T7 wire harnesses group, Iris telemetry parts
The parts Tennant numbers on its wire harnesses group, iris telemetry drawing. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4178367Replaces Tennant 1074466 | 1 | Harness, Ele, Telem [T7]Complete assembly. Serial 10740598 and later. | $112.10/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Vr, Fuse, 002a, 250vdc, CartridgePart of Harness, Ele, Telem [T7] (1074466). Serial 10740598 and later. | $5.20/EA |
Tennant T7 cable assembly, Iris telemetry parts
Cable assembly, Iris telemetry from Tennant's parts list. Manual page 116.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045156Replaces Tennant 1075477 | 1 | Cable, Assy, Telem [T7, Sbs-brn]Serial 10842681 and later. | $126.80/EA |
Tennant T7 cable assembly, extension, Iris telemetry parts
Cable assembly, extension, Iris telemetry from Tennant's parts list. Manual page 117.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4179520Replaces Tennant 1075494 | 1 | Cable, Assy, Extension [T7, Faston]Serial 10842681 and later. | $21.60/EA |
Tennant T7 wire harnesses group, ec-H2O NanoClean main control board parts
Wire harnesses group, ec-H2O NanoClean main control board from Tennant's parts list. Manual page 118.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Serial 10740598 and later. | $17.60/EA |
Tennant T7 wire harnesses group, ec-H2O main control board (S/N 10419534-10740597) parts
Wire harnesses group, ec-H2O main control board (S/N 10419534-10740597) from Tennant's parts list. Manual page 119.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040417Replaces Tennant 1049489 | 1 | Harness, Main,Controlboard[Ec-H2o 5cell]Serial 10419534 to 10740597. | $28.50/EA |
Tennant T7 label group parts
The parts Tennant numbers on its label group drawing. Manual page 120.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038004Replaces Tennant 1015167 | 1 | Label Set, Info/Hzrd | $47.70/EA |
| 1 | TN4035886Replaces Tennant 1019186 | 1 | Label Set, Info/Hzrd, Tj [T7] (Japan) | $117.77/EA |
| 2 | TN4039120Replaces Tennant 1056322 | 2 | Label, Model, Side, White [T7] | $11.10/EA |
| 3 | Not sold separatelyTennant N/A | 1 | Label [Nfsi Certification] | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes itCall 800-440-6723 |
| 4 | TN4039651Replaces Tennant 1047746 | 1 | Label, Logo, 06.9l, White, [Tennant] | $11.10/EA |
| 5 | TN4034273Replaces Tennant 1026686 | 1 | Label, Battery, Diagram [T7 / R14] | $26.70/EA |
| 6 | TN4039652Replaces Tennant 1047747 | 1 | Label, Logo, 06.9l, White, Hg, [Tennant] | $58.00/EA |
| 7 | TN4040192Replaces Tennant 1216520 | 2 | Label, Logo [Ech2o Nano]Serial 10740598 and later. | $32.70/EA |
| 7 | TN4035178Replaces Tennant 1062813 | 2 | Label, Logo, 12.3l 4color [Ec-H2o]Serial 10449322 to 10740597. | $36.60/EA |
| 7 | TN4035179Replaces Tennant 1062814 | 2 | Label, Logo, 06.1l White / Tl [Fast] | $15.55/EA |
| 8 | TN4040474Replaces Tennant 1050003 | 1 | Label [User, Attention, Ec-H2o] | $4.34/EA |
| 8 | TN4019319Replaces Tennant 391451 | 1 | Label [Attention Fast Users, 5400s] | $15.90/EA |
| 9 | TN4030093Replaces Tennant 1068925 | 1 | Label, Do Not Add Detgt[Ec-H20] | $9.00/EA |
| 10 | TN4031716Replaces Tennant 1030507 | 3 | Label, Warning, 2x2 [No Step] (Disk Model) | $5.40/EA |
| 10 | TN4031716Replaces Tennant 1030507 | 1 | Label, Warning, 2x2 [No Step] (Cylindrical Model) | $5.40/EA |
Tennant T7 ec-H2O NanoClean group, disc scrub head (S/N 10740598 and later) parts
The parts Tennant numbers on its ec-h2o nanoclean group, disc scrub head (s/n 10740598 and later) drawing. Manual pages 122, list 123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 2 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 3 | TN4040759Replaces Tennant 1051138 | 1 | Bracket, Cover, Fast Opng [T7 Ec-H2o] | $35.70/EA |
| 4 | TN4041992Replaces Tennant 09740 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 5 | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlSerial 10740598 and later. | $300.60/EA |
| 6 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 7 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 8 | TN4040171Replaces Tennant 1216192 | 1 | Bracket, Module, Ec-H20 [T7]Serial 10740598 and later. | $56.20/EA |
| 9 | TN4018163Replaces Tennant 9021553 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns)Tennant prints the serial range as (OCT2022- ). | $1,339.60/EA |
| 9 | TN4018163Replaces Tennant 9020643 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (Replaced By 9021553)Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2023). | $1,339.60/EA |
| 9 | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (Replaced By 9021553)Serial 10740598 to 10998255. | $1,339.60/EA |
| 10 | TN4024452Replaces Tennant 603654 | 6 | Clamp, Hose, Ear, .44d [Ctb]Serial 10740598 and later. | $4.20/EA |
| 11 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04 | $10.60/EA |
| 12 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 13 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02 | $5.30/EA |
| 14 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 20psi, Pm02 | $92.80/EA |
| 15 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10740598 and later. | $18.30/EA |
| 16 | TN4026363Replaces Tennant 9014146 | 1 | Hose, Afmkt, Pvc, 0.06id .38od, 05ftSerial 10740598 and later. | $113.90/EA |
| 17 | TN4039467Replaces Tennant 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10740598 and later. | $19.10/EA |
| 18 | TN4037974Replaces Tennant 1014987 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 01ftSerial 10740598 and later. | $18.00/EA |
| 19 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10740598 and later. | $11.60/EA |
| 20 | TN4026364Replaces Tennant 9014147 | 1 | Hose, Afmkt, Pvc, 0.06id .25od, 05ftSerial 10740598 and later. | $103.40/EA |
| 21 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10740598 and later. | $11.60/EA |
| 22 | TN4019547Replaces Tennant 613735 | 2 | Clamp, Hose, Wir, .40 - .42, Yel | $3.60/EA |
| 23 | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, DispenserSerial 10740598 and later. | $338.70/EA |
| 24 | TN4026485Replaces Tennant 9014210 | 1 | Hose, Afmkt, Pvc, Brd .25id .44od, 05ftSerial 10740598 and later. | $57.80/EA |
| 25 | TN4039499Replaces Tennant 1212855 | 1 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06Serial 10740598 and later. | $24.70/EA |
| 26 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10740598 and later. | $18.30/EA |
| 27 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10740598 and later. | $33.10/EA |
| 28 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06Serial 10740598 and later. | $4.20/EA |
| 29 | TN4021946Replaces Tennant 607775 | 4 | Clamp, Hose, Wir, .63 - .66, BlkSerial 10740598 and later. | $4.20/EA |
| 30 | TN4040497Replaces Tennant 1216879 | 1 | Valve, Check, 0005psi Bm04/Bm04Serial 10740598 and later. | $34.10/EA |
| 31 | TN4044543Replaces Tennant 150417 | 1 | Fitting, Plstc, E90, Bm04/Pm06Complete assembly. Serial 10740598 and later. | $7.00/EA |
| 32 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiComplete assembly. | $434.80/EA |
| – | TN4013798Replaces Tennant 9004759 | 1 | Pump Kit, Head, Soltn [Ec-H2o]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $164.32/EA |
| – | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $7.90/EA |
| – | TN4026210Replaces Tennant 78951 | 1 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $0.55/EA |
| – | TN4043117Replaces Tennant 10917 | 1 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]37Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $3.60/EA |
| – | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $4.20/EA |
| 33 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 34 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 35 | TN4037930Replaces Tennant 1014617 | 1 | Bracket, Pump, Soltn | $38.60/EA |
| 36 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50w | $6.20/EA |
| 37 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 39 | TN4043510Replaces Tennant 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10740598 and later. | $3.90/EA |
| 40 | TN4039131Replaces Tennant 20951 | 1 | Fitting, Plstc, E90, Bm06/Bm06 | $4.20/EA |
| 41 | TN4039501Replaces Tennant 1212857 | 1 | Fitting, Plstc, Str, Qm06/Bm04 | $4.10/EA |
Tennant T7 ec-H2O group, disc scrub head (S/N 10419534-10740597) parts
The parts Tennant numbers on its ec-h2o group, disc scrub head (s/n 10419534-10740597) drawing. Manual pages 124, list 125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 2 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 3 | TN4040759Replaces Tennant 1051138 | 1 | Bracket, Cover, Fast Opng [T7 Ec-H2o] | $35.70/EA |
| 4 | TN4041992Replaces Tennant 09740 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 5 | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 9-48vdc, 95 Db(A) [Ec-H20]Serial 10449322 to 10740597. | $75.90/EA |
| 6 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 7 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 8 | TN1050052Tennant 1050052 | 1 | Bracket, Module, Ec-H2o [T7]Serial 10449322 to 10740597. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10449322 to 10740597. | $778.37/EA |
| 9 | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10419534 to 10449321. | $778.37/EA |
| 10 | TN4024452Replaces Tennant 603654 | 11 | Clamp, Hose, Ear, .44d [Ctb] | $4.20/EA |
| 11 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04 | $10.60/EA |
| 12 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 13 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02 | $5.30/EA |
| 14 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 20psi, Pm02 | $92.80/EA |
| 15 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 16 | TN4019547Replaces Tennant 613735 | 3 | Clamp, Hose, Wir, .40 - .42, Yel | $3.60/EA |
| 17 | TN4037705Replaces Tennant 1052705 | 1 | Fitting, Plstc, Str, Bm04/Bm04 | $3.70/EA |
| 18 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ft | $51.70/EA |
| 19 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 20 | TN4040561Replaces Tennant 1011170 | 2 | Fitting, Plstc, E90, Bm04/Pm04, NylComplete assembly. | $5.30/EA |
| 21 | TN4041715Replaces Tennant 1043866 | 1 | Fitting Assy, Qdc, Pf04Complete assembly. | $36.80/EA |
| 22 | TN4043107Replaces Tennant 1047655 | 1 | Washer, Flat, 0.40b 0.75d .12 [Viton]Part of Fitting Assy, Qdc, Pf04 (1043866). | $6.46/EA |
| 23 | TN4026079Replaces Tennant 607006 | 1 | Screw, Trs, M4 X 0.70 X 12, Phl, Pl | $4.00/EA |
| 24 | TN4043641Replaces Tennant 140011 | 1 | Washer, Flat, 0.21b 0.45d .03, Ss | $3.20/EA |
| 25 | TN4037622Replaces Tennant 1014295 | 2 | Clip, Grip, Hose, 0.75-1.12, Stl,Blk Vyl | $12.40/EA |
| 26 | TN4031247Replaces Tennant 33932 | 1 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss | $3.40/EA |
| 27 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 28 | TN4044069Replaces Tennant 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06 | $2.60/EA |
| 29 | TN4017396Replaces Tennant 43844 | 1 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31w | $4.20/EA |
| 30 | TN4035137Replaces Tennant 1016520 | 1 | Screw, Hex, M4 X 0.70 X 16, Fmg, Ss | $3.40/EA |
| 31 | TN4021856Replaces Tennant 607306 | 2 | Fitting, Plstc, Tee, Bm04/Bm04/Pm04, Br | $7.90/EA |
| 32 | TN4044392Replaces Tennant 150302 | 1 | Fitting, Brs, Str, Pf04/Pf04 | $5.30/EA |
| 33 | TN4042178Replaces Tennant 1044790 | 1 | Valve, Check, 0025psi Pm04/Pf04 | $245.10/EA |
| 34 | TN4045657Replaces Tennant 1037595 | 1 | Fitting, Plstc, E90, Bm04/Pm02, Nyl | $4.20/EA |
| 35 | TN4035689Replaces Tennant 26426 | 1 | Fitting, Brs, Tee, Pf02/Pf02/Pm02, Run | $6.90/EA |
| 36 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float TypeSerial 10449322 to 10740597. | $64.30/EA |
| 37 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06 | $8.70/EA |
| 38 | TN4035386Replaces Tennant 24584 | 1 | Fitting, Brs, E90, Pf06/Pm06, SpclComplete assembly. | $6.90/EA |
| 39 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiComplete assembly. | $434.80/EA |
| – | TN4013798Replaces Tennant 9004759 | 1 | Pump Kit, Head, Soltn [Ec-H2o]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $164.32/EA |
| – | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $7.90/EA |
| – | TN4026210Replaces Tennant 78951 | 1 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $0.55/EA |
| – | TN4043117Replaces Tennant 10917 | 1 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $3.60/EA |
| – | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $4.20/EA |
| 40 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 41 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 42 | TN4037930Replaces Tennant 1014617 | 1 | Bracket, Pump, Soltn | $38.60/EA |
| 43 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50w | $6.20/EA |
| 45 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
Tennant T7 ec-H2O NanoClean group, cylindrical scrub head (S/N 10740598 and later) parts
The parts Tennant numbers on its ec-h2o nanoclean group, cylindrical scrub head (s/n 10740598 and later) drawing. Manual pages 126, list 127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 2 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 3 | TN4040759Replaces Tennant 1051138 | 1 | Bracket, Cover, Fast Opng [T7 Ec-H2o] | $35.70/EA |
| 4 | TN4041992Replaces Tennant 09740 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 5 | TN4025507Replaces Tennant 9013646 | 1 | Cartridge, Ec-H2o Nanoclean Wcm, 270mlSerial 10740598 and later. | $300.60/EA |
| 6 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 7 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 8 | TN4040171Replaces Tennant 1216192 | 1 | Bracket, Module, Ec-H20 [T7]Serial 10740598 and later. | $56.20/EA |
| 9 | TN4018163Replaces Tennant 9021553 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns)Tennant prints the serial range as (OCT2022- ). | $1,339.60/EA |
| 9 | TN4018163Replaces Tennant 9020643 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (Replaced By 9021553)Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2023). | $1,339.60/EA |
| 9 | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (See Breakdowns) (Replaced By 9021553)Serial 10740598 to 10998255. | $1,339.60/EA |
| 10 | TN4024452Replaces Tennant 603654 | 5 | Clamp, Hose, Ear, .44d [Ctb]Serial 10740598 and later. | $4.20/EA |
| 11 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04 | $10.60/EA |
| 12 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 13 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02 | $5.30/EA |
| 14 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 20psi, Pm02 | $92.80/EA |
| 15 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10740598 and later. | $18.30/EA |
| 16 | TN4026363Replaces Tennant 9014146 | 1 | Hose, Afmkt, Pvc, 0.06id .38od, 05ftSerial 10740598 and later. | $113.90/EA |
| 17 | TN4039467Replaces Tennant 1212573 | 1 | Fitting, Plstc, Tee, Qf06/Qf06/Qf06Serial 10740598 and later. | $19.10/EA |
| 18 | TN4037974Replaces Tennant 1014987 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 01ftSerial 10740598 and later. | $18.00/EA |
| 19 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10740598 and later. | $11.60/EA |
| 20 | TN4026364Replaces Tennant 9014147 | 1 | Hose, Afmkt, Pvc, 0.06id .25od, 05ftSerial 10740598 and later. | $103.40/EA |
| 21 | TN4039906Replaces Tennant 1214339 | 1 | Fitting, Plstc, E90, Qfo4/Qm04Serial 10740598 and later. | $11.60/EA |
| 22 | TN4019547Replaces Tennant 613735 | 2 | Clamp, Hose, Wir, .40 - .42, Yel | $3.60/EA |
| 23 | TN4040501Replaces Tennant 1216973 | 1 | Pump Assy, DispenserSerial 10740598 and later. | $338.70/EA |
| 24 | TN4026485Replaces Tennant 9014210 | 1 | Hose , Afmkt, Pvc, Brd .25id .44od, 05ftSerial 10740598 and later. | $57.80/EA |
| 25 | TN4039499Replaces Tennant 1212855 | 1 | Fitting, Plstc, Tee, Qf04/Qf06/Qf06Serial 10740598 and later. | $24.70/EA |
| 26 | TN4040123Replaces Tennant 1215186 | 1 | Fitting, Plstc, E90, Qf06/Qm06Serial 10740598 and later. | $18.30/EA |
| 27 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10740598 and later. | $33.10/EA |
| 28 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06Serial 10740598 and later. | $4.20/EA |
| 29 | TN4021946Replaces Tennant 607775 | 4 | Clamp, Hose, Wir, .63 - .66, BlkSerial 10740598 and later. | $4.20/EA |
| 30 | TN4015366Replaces Tennant 54333 | 6 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 31 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, Clr | $31.50/EA |
| 32 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, Br | $5.30/EA |
| 33 | TN1031304Tennant 1031304 | 1 | Hose, Pump (376716) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 35 | TN1031738Tennant 1031738 | 1 | Hose, Pvc, Brd, 0.62id 0.88od [C460117] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50wComplete assembly. | $6.20/EA |
| 37 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiComplete assembly. | $434.80/EA |
| – | TN4013798Replaces Tennant 9004759 | 1 | Pump Kit, Head, Soltn [Ec-H2o]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $164.32/EA |
| – | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $7.90/EA |
| – | TN4026210Replaces Tennant 78951 | 1 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $0.55/EA |
| – | TN4043117Replaces Tennant 10917 | 1 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $3.60/EA |
| – | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $4.20/EA |
| 38 | TN4031032Replaces Tennant 1029095 | 1 | Bracket, Pump, Soltn | $36.66/EA |
| 39 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
| 40 | TN4040497Replaces Tennant 1216879 | 1 | Valve, Check, 0005psi Bm04/Bm04Serial 10740598 and later. | $34.10/EA |
| 41 | TN4044543Replaces Tennant 150417 | 1 | Fitting, Plstc, E90, Bm04/Pm06Serial 10740598 and later. | $7.00/EA |
| 43 | TN4043510Replaces Tennant 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10740598 and later. | $3.90/EA |
| 44 | TN4039131Replaces Tennant 20951 | 1 | Fitting, Plstc, E90, Bm06/Bm06Serial 10740598 and later. | $4.20/EA |
| 45 | TN4039501Replaces Tennant 1212857 | 1 | Fitting, Plstc, Str, Qm06/Bm04 | $4.10/EA |
Tennant T7 ec-H2O group, cylindrical scrub head (S/N 10419534-10740597) parts
The parts Tennant numbers on its ec-h2o group, cylindrical scrub head (s/n 10419534-10740597) drawing. Manual pages 128, list 129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 2 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 3 | TN4040759Replaces Tennant 1051138 | 1 | Bracket, Cover, Fast Opng [T7 Ec-H2o] | $35.70/EA |
| 4 | TN4041992Replaces Tennant 09740 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 5 | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 9-48vdc, 95 Db(A) [Ec-H20]Serial 10449322 to 10740597. | $75.90/EA |
| 6 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 7 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, Sems | $3.30/EA |
| 8 | TN1050052Tennant 1050052 | 1 | Bracket, Module, Ec-H2o [T7]Serial 10449322 to 10740597. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10449322 to 10740597. | $778.37/EA |
| 9 | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o] (See Breakdown)Serial 10419534 to 10449321. | $778.37/EA |
| 10 | TN4024452Replaces Tennant 603654 | 11 | Clamp, Hose, Ear, .44d [Ctb] | $4.20/EA |
| 11 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04 | $10.60/EA |
| 12 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 13 | TN4044566Replaces Tennant 150520 | 1 | Fitting, Brs, Str, Bm04/Pf02 | $5.30/EA |
| 14 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 20psi, Pm02 | $92.80/EA |
| 15 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 16 | TN4021856Replaces Tennant 607306 | 2 | Fitting, Plstc, Tee, Bm04/Bm04/Pm04, Br | $7.90/EA |
| 17 | TN4044392Replaces Tennant 150302 | 1 | Fitting, Brs, Str, Pf04/Pf04 | $5.30/EA |
| 18 | TN4037622Replaces Tennant 1014295 | 1 | Clip, Grip, Hose, 0.75-1.12, Stl,Blk Vyl | $12.40/EA |
| 19 | TN4026079Replaces Tennant 607006 | 1 | Screw, Trs, M4 X 0.70 X 12, Phl, Pl | $4.00/EA |
| 20 | TN4031247Replaces Tennant 33932 | 1 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss | $3.40/EA |
| 21 | TN4042178Replaces Tennant 1044790 | 1 | Valve, Check, 0025psi Pm04/Pf04Serial 10449322 to 10740597. | $245.10/EA |
| 22 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, Yel | $3.60/EA |
| 23 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 24 | TN4014520Replaces Tennant 50901 | 2 | Fitting, Plstc, Str, Bm04/Pm04Complete assembly. | $3.60/EA |
| 25 | TN4041715Replaces Tennant 1043866 | 1 | Fitting Assy, Qdc, Pf04Complete assembly. | $36.80/EA |
| 26 | TN4043107Replaces Tennant 1047655 | 1 | Washer, Flat, 0.40b 0.75d .12 [Viton]Part of Fitting Assy, Qdc, Pf04 (1043866). | $6.46/EA |
| 27 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 28 | TN4044069Replaces Tennant 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06 | $2.60/EA |
| 29 | TN4017396Replaces Tennant 43844 | 1 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31w | $4.20/EA |
| 30 | TN4015366Replaces Tennant 54333 | 6 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31w | $5.10/EA |
| 31 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, Clr | $31.50/EA |
| 32 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, Br | $5.30/EA |
| 33 | TN1031304Tennant 1031304 | 1 | Hose, Pump (376716) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 35 | TN1031738Tennant 1031738 | 1 | Hose, Pvc, Brd, 0.62id 0.88od [C460117] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50wComplete assembly. | $6.20/EA |
| 37 | TN4044695Replaces Tennant 1042495 | 1 | Pump, Soltn, Ele, 24vdc, 35psiComplete assembly. | $434.80/EA |
| – | TN4013798Replaces Tennant 9004759 | 1 | Pump Kit, Head, Soltn [Ec-H2o]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $164.32/EA |
| – | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $7.90/EA |
| – | TN4026210Replaces Tennant 78951 | 1 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $0.55/EA |
| – | TN4043117Replaces Tennant 10917 | 1 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $3.60/EA |
| – | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Soltn, Ele, 24vdc, 35psi (1042495). | $4.20/EA |
| 38 | TN4031032Replaces Tennant 1029095 | 1 | Bracket, Pump, Soltn | $36.66/EA |
| 39 | TN4029355Replaces Tennant 575523000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 043.5l,Clr | $10.50/EA |
| 40 | TN4035386Replaces Tennant 24584 | 1 | Fitting, Brs, E90, Pf06/Pm06, Spcl | $6.90/EA |
| 41 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06 | $8.70/EA |
| 42 | TN4035689Replaces Tennant 26426 | 1 | Fitting, Brs, Tee, Pf02/Pf02/Pm02, Run | $6.90/EA |
| 43 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float TypeSerial 10449322 to 10740597. | $64.30/EA |
| 44 | TN4045657Replaces Tennant 1037595 | 1 | Fitting, Plstc, E90, Bm04/Pm02, Nyl | $4.20/EA |
| 46 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | $3.50/EA |
Tennant T7 iris telemetry group parts
The parts Tennant numbers on its iris telemetry group drawing. Manual pages 130, list 131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4228081Replaces Tennant 1216714 | 1 | Bracket Wldt, ModuleSerial 10740598 and later. | $59.89/EA |
| – | TN4187455Replaces Tennant 9021969 | 1 | Telemetry Kit, 3g-4g, Na [B5, B7, T7]Complete assembly. Serial 10740598 and later. | $1,668.00/EA |
| 2 | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa] (USA Only - Upgrade from 3G to 4G Order Kit 9021969)Part of Telemetry Kit, 3g-4g, Na [B5, B7, T7] (9021969). Serial 10740598 and later. | $1,809.92/EA |
| 2 | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Intl]Serial 10740598 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4031064Replaces Tennant 1247522 | 2 | Antenna, Telem [4g, 72”]Part of the assembly above. Serial 10978464 and later. | $54.80/EA |
| 3 | TN4031064Replaces Tennant 1070659 | 1 | Antenna, Telem, 70 In [Gprs] (Replaced By 1247522) (USA Only - Upgrade from 3G to 4G Order Kit 9021969)Serial 10740598 to 10978463. | $54.80/EA |
| 4 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaeSerial 10740598 and later. | $2.50/EA |
| 5 | TN4227941Replaces Tennant 1216382 | 1 | Bar, Mtg, Antenna, TelemSerial 10740598 and later. | $30.81/EA |
| 6 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.00, NlSerial 10740598 and later. | $2.50/EA |
| 7 | TN4043510Replaces Tennant 130773 | 15 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10740598 and later. | $3.90/EA |
| 8 | TN4227885Replaces Tennant 1215943 | 1 | Bracket, ShuntSerial 10740598 and later. | $15.25/EA |
| 9 | TN4040508Replaces Tennant 1217304 | 1 | Shunt [Empro, 250amp/50mv, Metric]Serial 10740598 and later. | $114.70/EA |
| 10 | TN4019310Replaces Tennant 391403 | 2 | Screw, Pan, Phl, M4 X 0.70 X 8, SsSerial 10740598 and later. | $2.50/EA |
| 11 | TN4043241Replaces Tennant 02938 | 2 | Washer, Lock, Int, 08, SsSerial 10740598 and later. | $2.60/EA |
| 12 | TN4016851Replaces Tennant 41578 | 2 | Washer, Flat, 06, SsSerial 10740598 and later. | $3.30/EA |
| 13 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10740598 and later. | $3.40/EA |
| 14 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10740598 and later. | $2.60/EA |
| 15 | TN4017399Replaces Tennant 43952 | 2 | Washer, Lock, Int, 0.31, SsSerial 10740598 and later. | $2.60/EA |
| 16 | TN4044189Replaces Tennant 1202868 | 2 | Clip, Tie, 0.25D, PlstcSerial 10740598 and later. | $1.52/EA |
| 17 | TN4178367Replaces Tennant 1074466 | 1 | Harness, Ele, [Telem, T7]Complete assembly. Serial 10740598 and later. | $112.10/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Fuse, 002a, 250vdc, CartridgePart of Harness, Ele, Telem [T7] (1074466). Serial 10740598 and later. | $5.20/EA |
| 18 | TN4178370Replaces Tennant 1074488 | 1 | Cable, 04ga, 36.0l, Blk .31ring/.31ringSerial 10740598 and later. | $36.30/EA |
| 19 | TN4178371Replaces Tennant 1074489 | 1 | Cable, 04ga, 40.0l, Blk .25ring/.31ringSerial 10740598 and later. | $39.30/EA |
| 20 | TN4044907Replaces Tennant 1074595 | 1 | Harness, Ele [Telem, Shunt]Serial 10740598 and later. | $13.70/EA |
| 21 | TN4040528Replaces Tennant 1217818 | 1 | Heatshrink [1.5” Dia., 7.0” Sections]Serial 10740598 and later. | $5.00/EA |
Tennant T7 kit, Iris telemetry battery manager parts
The parts Tennant numbers on its kit, iris telemetry battery manager drawing. Manual pages 132, list 133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023292Replaces Tennant 9015309 | 1 | Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models)Complete assembly. Serial 10740598 and later. | $804.10/EA |
| 1 | TN4178367Replaces Tennant 1074466 | 1 | Harness, Ele, [Telem, T7]Part of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10740598 and later. | $112.10/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Fuse, 002a, 250vdc, CartridgePart of the assembly above. Serial 10740598 and later. | $5.20/EA |
| 2 | TN4225034Replaces Tennant 1230028 | 1 | Bracket, Switch, Charger [T7]Part of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $34.36/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsPart of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $3.30/EA |
| 4 | TN4037558Replaces Tennant 1013705 | 1 | Plate, Thread, Switch, M3 Nut, 96hr PlPart of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $33.10/EA |
| 5 | TN4029653Replaces Tennant 579211 | 2 | Nut, Hex, Lock, M3 X 0.50, Nl, SsPart of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $3.30/EA |
| 6 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsPart of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $3.40/EA |
| 7 | TN4022803Replaces Tennant 611005 | 1 | Switch, Rlr, 16a, MicroPart of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $14.80/EA |
| 8 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Part of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $3.40/EA |
| 9 | TN4043510Replaces Tennant 130773 | 5 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $3.90/EA |
| 10 | TN4179520Replaces Tennant 1075494 | 1 | Cable, Assy, Extension [T7, Faston]Part of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $21.60/EA |
| 11 | TN4045156Replaces Tennant 1075477 | 1 | Cable, Assy, Telem [T7, Sbs-Brn]Part of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $126.80/EA |
| 12 | TN4041016Replaces Tennant 06923 | 2 | Screw, Pan, Phl, M3 X 0.50 X 25, 4.8Part of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $3.30/EA |
| 13 | TN4035553Replaces Tennant 1230312 | 1 | Charger, 24vdc, 650w,100-240vac[Off Brd] (Models With Iris Battery Manager Functionality Only)Part of Harness Kit, Amii, Ci [T7] (Kit Needed to Add Iris Battery Manager Functionality to Telemetry Models) (9015309). Serial 10842681 and later. | $1,264.00/EA |
| 14 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 10ft [Sjt] (Not Included In Kit - Use Cord From Current Off- Board Charger)Serial 10842681 and later. | $15.10/EA |
Tennant T7 flashing light kit parts
The parts Tennant numbers on its flashing light kit drawing. Manual page 134.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019196Replaces Tennant 9000581 | 1 | Light Kit, Flsh, Ci [T7/Ssr]Complete assembly. | $1,059.60/EA |
| 1 | TN4037923Replaces Tennant 1014564 | 1 | Lamp, Strobe, 12-80Vdc, 4WattPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $288.50/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, M5 X 0.8 X 20, SsPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $3.20/EA |
| 3 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, #10 SsPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $2.60/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.8, Nl, SsPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $3.30/EA |
| 5 | TN4034721Replaces Tennant 1014527 | 1 | Bracket Wldt, Light, FlshPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $56.10/EA |
| 6 | TN4020223Replaces Tennant 61913 | 4 | Nut, Isolator, .25-20 Wall Thk .031- .187Part of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $4.80/EA |
| 7 | TN4042931Replaces Tennant 01699 | 4 | Screw, Hex, .25-20 X 1.25, SsPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $3.00/EA |
| 8 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.25 SsPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $2.60/EA |
| 9 | TN4041590Replaces Tennant 07515 | 4 | Washer, Lock, Int, .25, SsPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $3.50/EA |
| 10 | TN4043347Replaces Tennant 130717 | 1 | Switch, Rocker, 250vac 15a Spst On/OffPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $12.20/EA |
| 11 | TN4030573Replaces Tennant 130040 | 1 | Tie, Cable, Nyl, 06.0L .12WPart of Light Kit, Flsh, Ci [T7/Ssr] (9000581). | $3.30/EA |
Tennant T7 battery group, 180Ah, maintenance free parts
The parts Tennant numbers on its battery group, 180ah, maintenance free drawing. Manual page 135.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018825Replaces Tennant 390764 | 4 | Battery, 06vdc 0180ah, Maint Free | $628.62/EA |
| 2 | TN4043826Replaces Tennant 140221 | 8 | Screw, Hex, .31-18 X 1.25, Ss | $4.00/EA |
| 3 | TN4044079Replaces Tennant 140506 | 8 | Nut, Hex, Std, .31-18, Ss | $3.40/EA |
Tennant T7 battery group, 220Ah, maintenance free parts
The parts Tennant numbers on its battery group, 220ah, maintenance free drawing. Manual page 136.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4211694Replaces Tennant 1262245 | 4 | Battery, Agm, 06vdc 0210ah | $320.58/EA |
| 1 | TN4211694Replaces Tennant 1074042 | 4 | Battery, Agm, 06vdc, 220ah (Discover) (Replaced By 1262245) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4044711Replaces Tennant 1042532 | 1 | Bracket, Battery [T7, 220ah Agm] | $48.30/EA |
Tennant T7 battery group, 360Ah parts
Battery group, 360Ah from Tennant's parts list. Manual page 137.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030324Replaces Tennant 1070587 | 4 | Battery, Wet, 06vdc, 0360ah, W/ Carton | $613.02/EA |
Tennant T7 battery charger kit, on-board (S/N 10847945 and later) parts
The parts Tennant numbers on its battery charger kit, on-board (s/n 10847945 and later) drawing. Manual pages 138, list 139.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4020024Replaces Tennant 9001994 | 1 | Charger Kit, Ci [On-Board, T7]Complete assembly. | $1,919.60/EA |
| 1 | TN4031449Replaces Tennant 1250064 | 1 | Charger, 24vdc 25a 115vac (T7)Part of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10847945 and later. | $700.80/EA |
| – | TN4228731Replaces Tennant 1206662 | 1 | Fuse, 015a, 250vac [Baf-15]Part of the assembly above. | $23.60/EA |
| 2 | TN4035922Replaces Tennant 1231256 | 2 | Bracket, Chrgr, On-Board [T7]Part of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10847945 and later. | $50.80/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsPart of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10847945 and later. | $3.30/EA |
| 4 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlPart of Charger Kit, Ci [On-Board, T7] (9001994). | $2.50/EA |
| 5 | TN4038724Replaces Tennant 230920.BK | 2 | Hook, Cord, Blk [Boss]Part of Charger Kit, Ci [On-Board, T7] (9001994). | $24.40/EA |
| 6 | TN4041264Replaces Tennant 06933 | 4 | Screw, Pan, M5 X 0.80 X 16, 4.8Part of Charger Kit, Ci [On-Board, T7] (9001994). | $3.40/EA |
| 7 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, #10Part of Charger Kit, Ci [On-Board, T7] (9001994). | $2.50/EA |
| 9 | TN4041961Replaces Tennant 09163 | 2 | Screw, Flt, Soc, M6 X 1.00 X 16, 18-8,SsPart of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10847945 and later. | $4.00/EA |
| 10 | TN4036250Replaces Tennant 1020280 | 1 | Seal, Afmkt, Rbr, Clsd, Adh, 01ftPart of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10847945 and later. | $26.40/EA |
| 11 | TN4030573Replaces Tennant 130040 | 5 | Tie, Cable, Nyl, 06.0l .12wPart of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10847945 and later. | $3.30/EA |
Tennant T7 battery charger kit, on-board (S/N 10740598-10847944) parts
The parts Tennant numbers on its battery charger kit, on-board (s/n 10740598-10847944) drawing. Manual pages 140, list 141.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4020024Replaces Tennant 9001994 | 1 | Charger Kit, Ci [On-Board, T7]Complete assembly. | $1,919.60/EA |
| 1 | TN4024025Replaces Tennant 1031491 | 1 | Charger, 24vdc 25a 115vac [Wet/Gel] (Replaced by 9016185)Part of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10000000 to 10847944. | $1,274.80/EA |
| – | TN4228731Replaces Tennant 1206662 | 1 | Fuse, 015a, 250vac [Baf-15]Part of the assembly above. | $23.60/EA |
| 2 | TN4024002Replaces Tennant 1031180 | 2 | Bracket, Chrgr (Replaced by 9015973)Part of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10000000 to 10847944. | $71.20/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsPart of Charger Kit, Ci [On-Board, T7] (9001994). Serial 10000000 to 10847944. | $3.30/EA |
| 4 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlPart of Charger Kit, Ci [On-Board, T7] (9001994). | $2.50/EA |
| 5 | TN4038724Replaces Tennant 230920.BK | 2 | Hook, Cord, Blk [Boss]Part of Charger Kit, Ci [On-Board, T7] (9001994). | $24.40/EA |
| 6 | TN4041264Replaces Tennant 06933 | 4 | Screw, Pan, M5 X 0.80 X 16, 4.8Part of Charger Kit, Ci [On-Board, T7] (9001994). | $3.40/EA |
| 7 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, #10Part of Charger Kit, Ci [On-Board, T7] (9001994). | $2.50/EA |
Tennant T7 battery charger kit, on-board (S/N 10000000-10740597) parts
The parts Tennant numbers on its battery charger kit, on-board (s/n 10000000-10740597) drawing. Manual pages 142, list 143.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4020024Replaces Tennant 9001994 | 1 | Charger Kit, Ci [On-Board, T7]Complete assembly. | $1,919.60/EA |
| 1 | TN4024025Replaces Tennant 1031491 | 1 | Charger, 24vdc 25a 115vac [Wet/Gel]Part of Charger Kit, Ci [On-Board, T7] (9001994). | $1,274.80/EA |
| 2 | TN4024002Replaces Tennant 1031180 | 2 | Bracket, ChrgrPart of Charger Kit, Ci [On-Board, T7] (9001994). | $71.20/EA |
| 3 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsPart of Charger Kit, Ci [On-Board, T7] (9001994). | $3.30/EA |
| 4 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlPart of Charger Kit, Ci [On-Board, T7] (9001994). | $2.50/EA |
| 5 | TN4038724Replaces Tennant 230920.BK | 2 | Hook, Cord, Blk [Boss]Part of Charger Kit, Ci [On-Board, T7] (9001994). | $24.40/EA |
| 6 | TN4041264Replaces Tennant 06933 | 4 | Screw, Pan, M5 X 0.80 X 16, 4.8Part of Charger Kit, Ci [On-Board, T7] (9001994). | $3.40/EA |
| 7 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, #10Part of Charger Kit, Ci [On-Board, T7] (9001994). | $2.50/EA |
Tennant T7 battery chargers group, off-board parts
The parts Tennant numbers on its battery chargers group, off-board drawing. Manual pages 144, list 145.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4010439Replaces Tennant 130871 | 1 | Charger 24vdc 25amp 120ac/60hz (Replaced By 9009486) | $929.10/EA |
| 1 | TN4010439Replaces Tennant 604282 | 1 | Charger 24Vdc/30Amp/World (Japan) (Replaced By 9009486) | $929.10/EA |
| 1 | TN4030658Replaces Tennant 1027951 | 1 | Charger Kit, 24vdc 020a 120vac [Gel/Agm] (Japan) | $1,193.92/EA |
| 1 | TN4030659Replaces Tennant 1027952 | 1 | Charger Kit, 24vdc 020a 240vac [Gel/Agm] (Japan) | $1,447.84/EA |
| 2 | TN4031341Replaces Tennant 1029256 | 1 | Charger, 24vdc, 19a Var Vac 1ph 50/60hzComplete assembly. | $1,044.80/EA |
| 3 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 50a,Red W/O ContactPart of Charger, 24vdc, 19a Var Vac 1ph 50/60hz (1029256). | $20.60/EA |
| 4 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 010ft [Sjt]Part of Charger, 24vdc, 19a Var Vac 1ph 50/60hz (1029256). | $15.10/EA |
| 2 | TN4010422Replaces Tennant 9009310 | 1 | Charger Kit, 24vdc, 19a Var50/60hz [Kor] (Korea)Complete assembly. | $560.62/EA |
| 3 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 50a,Red W/O ContactPart of Charger Kit, 24vdc, 19a Var50/60hz [Kor] (Korea) (9009310). | $20.60/EA |
| 4 | TN4030327Replaces Tennant 1070626 | 1 | Cord, Power, 2.5m L, 7mm Dia, Blk[Korea]Part of Charger Kit, 24vdc, 19a Var50/60hz [Kor] (Korea) (9009310). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4010439Replaces Tennant 9009486 | 1 | Charger Kit, 24vdc 025a, Ci[W/ Ac Cord]Complete assembly. | $929.10/EA |
| 6 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 50a,Red W/O ContactPart of Charger Kit, 24vdc 025a, Ci[W/ Ac Cord] (9009486). | $20.60/EA |
| 7 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 010ft [Sjt]Part of Charger Kit, 24vdc 025a, Ci[W/ Ac Cord] (9009486). | $15.10/EA |
| 5 | TN4196429Replaces Tennant 9012519 | 1 | Charger Kit, 24vdc 025a, Ci [Discvr] (For Discover Batteries)Complete assembly. | $752.50/EA |
| 6 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 50a,Red W/O ContactPart of Charger Kit, 24vdc 025a, Ci [Discvr] (For Discover Batteries) (9012519). | $20.60/EA |
| 7 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 010ft [Sjt]Part of Charger Kit, 24vdc 025a, Ci [Discvr] (For Discover Batteries) (9012519). | $15.10/EA |
| 8 | TN4035553Replaces Tennant 1230312 | 1 | Charger, 24vdc, 650w,100-240vac[Off Brd] (Models With Iris Battery Manager Functionality Only) | $1,264.00/EA |
| 9 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 010ft [Sjt] (Not Included With Charger) | $15.10/EA |
| 10 | TN4033000Replaces Tennant 1067630 | 1 | Charger, 24vdc, 19a Var Vac 50/60hz (Japan - PSE Approved)Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4025359Replaces Tennant 605387 | 1 | Connector, Anderson, 50a,Red W/O ContactPart of Charger, 24vdc, 19a Var Vac 50/60hz (Japan - PSE Approved) (1067630). | $20.60/EA |
Tennant T7 manual battery watering system (S/N 11021176 and later) parts
The parts Tennant numbers on its manual battery watering system (s/n 11021176 and later) drawing. Manual pages 146, list 147.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010Replaces Tennant 9021123 | 1 | Fill Kit, Battery, Manual, Ci [Trojan]Complete assembly. Serial 11021176 and later. THIS KIT IS INTENDED FOR USE WITH TROJANR LEAD ACID BATTERIES ONLY. | $300.00/EA |
| 1 | TN4033340Replaces Tennant 1236295 | 1 | Pump, Hand, BatteryPart of Fill Kit, Battery, Manual, Ci [Trojan] (9021123). Serial 11021176 and later. | $93.20/EA |
| 2 | TN4189222Replaces Tennant 9018988 | 1 | Distribution Kit, Water, BatteryPart of Fill Kit, Battery, Manual, Ci [Trojan] (9021123). Serial 11021176 and later. | $283.90/EA |
| 3 | TN4031852Replaces Tennant 1253250 | 1 | Label, Tag, Battery [Bwt Watering]Part of Fill Kit, Battery, Manual, Ci [Trojan] (9021123). Serial 11021176 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Fill Kit, Battery, Manual, Ci [Trojan] (9021123). | $3.90/EA |
Tennant T7 hydroLINK battery watering system kit (S/N 10000000-11021175) parts
The parts Tennant numbers on its hydrolink battery watering system kit (s/n 10000000-11021175) drawing. Manual page 148.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022010Replaces Tennant 9010300 | 1 | Pump Kit, Fill, Battery,24vdc,Ci[Trojan]Complete assembly. Serial 10000000 to 11021175. | $300.00/EA |
| 1 | TN4036778Replaces Tennant 1058939 | 1 | Pump Kit, Fill, BatteryPart of Pump Kit, Fill, Battery,24vdc,Ci[Trojan] (9010300). Serial 10000000 to 11021175. | $145.10/EA |
| 2 | TN4035289Replaces Tennant 1229544 | 1 | Tube, Water, Battery, 24vdc [Trojan]Part of Pump Kit, Fill, Battery,24vdc,Ci[Trojan] (9010300). Serial 10000000 to 11021175. | $176.50/EA |
| 3 | TN4040858Replaces Tennant 1204142 | 4 | Cap, Fill, Battery [Trojan]Part of Pump Kit, Fill, Battery,24vdc,Ci[Trojan] (9010300). Serial 10000000 to 11021175. | $42.00/EA |
| 4 | TN4030488Replaces Tennant 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of Pump Kit, Fill, Battery,24vdc,Ci[Trojan] (9010300). Serial 10000000 to 11021175. | $7.50/EA |
| 5 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Pump Kit, Fill, Battery,24vdc,Ci[Trojan] (9010300). | $3.90/EA |
Tennant T7 basket kit parts
Basket kit from Tennant's parts list. Manual page 149.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019232Replaces Tennant 9001004 | 1 | Basket Kit, Ci | $579.70/EA |
Tennant T7 seatbelt kit parts
The parts Tennant numbers on its seatbelt kit drawing. Manual page 150.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021020Replaces Tennant 9018668 | 1 | Seatbelt Kit, Ci [T7/Ssr/R14/Striverider]Complete assembly. | $157.80/EA |
| 1 | TN4036448Replaces Tennant 30533 | 1 | Seatbelt, 60.0l, OrangePart of Seatbelt Kit, Ci [T7/Ssr/R14/Striverider] (9018668). | $141.00/EA |
| 2 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsPart of Seatbelt Kit, Ci [T7/Ssr/R14/Striverider] (9018668). | $3.30/EA |
| 3 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Seatbelt Kit, Ci [T7/Ssr/R14/Striverider] (9018668). | $3.40/EA |
Tennant T7 documentation group (online only) parts
The parts Tennant numbers on its documentation group (online only) drawing. Manual page 151.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030810Replaces Tennant 331040 | 1 | Manual, Oprtr [T7, Na] | $246.40/EA |
| 1 | TN4030813Replaces Tennant 331044 | 1 | Manual, Oprtr [T7, Jp] (Japan) | $241.80/EA |
| 1 | TN4030811Replaces Tennant 331042 | 1 | Manual, Oprtr, [T7 Ele Es Na] | $241.80/EA |
| 1 | TN4030812Replaces Tennant 331043 | 1 | Manual, Oprtr, [T7 Ele Fr Na] | $1.09/EA |
| 2 | TN4025498Replaces Tennant 9013606 | 1 | Manual, Parts [T7, Na] (NA & Japan) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4030814Replaces Tennant 331045 | 1 | Manual, Service, [T7 Ele Na] | $133.00/EA |
| 4 | TN1059848Tennant 1059848 | 1 | Media, Dvd, Training, Inter, Eng [T7] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN1059850Tennant 1059850 | 1 | Media, Dvd, Training, Inter, Spn [T7] | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T7 ec-H2O NanoClean module breakdown, 9020643, 9021553 (S/N 10998256 and later) parts
The parts Tennant numbers on its ec-h2o nanoclean module breakdown, 9020643, 9021553 (s/n 10998256 and later) drawing. Manual pages 154, list 155.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9021553 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge)Complete assembly. Tennant prints the serial range as (OCT2022- ). | $1,339.60/EA |
| – | TN4018163Replaces Tennant 9020643 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553)Complete assembly. Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2022). | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9020643). Serial 10740598 and later. | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $0.25/EA |
| 5 | TN4036516Replaces Tennant 1233516 | 1 | Electrode, 5 Plate [De Nora Tech]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2022). | $753.50/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $17.60/EA |
| 14 | TN4021577Replaces Tennant 9020642 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec-H2O NanoClean Cartridge)Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9020643). Serial 10998256 and later. Tennant prints the serial range as (10998256- SEP2022). | $1,063.00/EA |
Tennant T7 ec-H2O NanoClean module breakdown, 9011810 (S/N 10740598-10998255) parts
The parts Tennant numbers on its ec-h2o nanoclean module breakdown, 9011810 (s/n 10740598-10998255) drawing. Manual pages 156, list 157.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018163Replaces Tennant 9011810 | 1 | Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9020643)Complete assembly. Serial 10740598 to 10998255. | $1,339.60/EA |
| – | TN4026248Replaces Tennant 9014126 | 1 | Ec-H2o Nc Kit [Module B, Plumbing]Complete assembly. Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9011810). Serial 10740598 and later. | $691.04/EA |
| 1 | TN4042043Replaces Tennant 1208823 | 1 | Housing, Module, Upper, Ec-H2oPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $17.05/EA |
| 2 | TN4038305Replaces Tennant 1015506 | 4 | Screw, Pan, Phl, M5 X 16, Tcut [Plastic]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.30/EA |
| 3 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $7.70/EA |
| 4 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $0.25/EA |
| 5 | TN4032414Replaces Tennant 1208164 | 1 | Electrode, 5 Plate, High Flow (Replaced By 1233516)Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 to 10998255. | $588.10/EA |
| 6 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $2.60/EA |
| 7 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.40/EA |
| 8 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $51.70/EA |
| 9 | TN4042010Replaces Tennant 1208526 | 1 | Hose, Molded, Bm08/Bm06Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $23.60/EA |
| 10 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.23/EA |
| 11 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $3.60/EA |
| 12 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $5.10/EA |
| 13 | TN4044506Replaces Tennant 1073286 | 1 | Harness, Ele, Module B2 [Ec-H2o]Part of Ec-H2o Nc Kit [Module B, Plumbing] (9014126). Serial 10740598 and later. | $17.60/EA |
| 14 | TN4021577Replaces Tennant 9014127 | 1 | Controller Kit, Replmt [Ec-H2o Nc] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9020642)Part of Module Kit, Replmt [Ec-H2o, B 02] (Includes ec-H2O NanoClean Cartridge) (Replaced By 9021553) (9011810). Serial 10740598 to 10998255. | $1,063.00/EA |
Tennant T7 ec-H2O module assembly breakdown, 9007970 (S/N 10449322-10740597) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9007970 (s/n 10449322-10740597) drawing. Manual pages 158, list 159.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012505Replaces Tennant 9007970 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. Tennant marks this line with serial key ¢, which this page does not print. | $778.37/EA |
| – | TN9006324Tennant 9006324 | 1 | Ec-H2o Kit, Module B, PlumbingComplete assembly. Part of Module Kit, Replmt [Ec-H2o] (9007970). Serial 10449322 to 10740597. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrPart of Ec-H2o Kit, Module B, Plumbing (9006324). | $27.80/EA |
| 2 | TN4024452Replaces Tennant 603654 | 4 | Clamp, Hose, Ear, .44d [Ctb]Part of Ec-H2o Kit, Module B, Plumbing (9006324). | $4.20/EA |
| 3 | TN4045657Replaces Tennant 1037595 | 2 | Fitting, Plstc, E90, Bm04/Pm02, NylPart of Ec-H2o Kit, Module B, Plumbing (9006324). | $4.20/EA |
| 4 | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Ec-H2o Kit, Module B, Plumbing (9006324). | $753.50/EA |
| 5 | TN4042458Replaces Tennant 1045030 | 1 | Fitting, Brs, Str, Pm02/Pm02Part of Ec-H2o Kit, Module B, Plumbing (9006324). | $15.15/EA |
| 6 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $3.40/EA |
| 7 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $2.60/EA |
| 8 | TN4039728Replaces Tennant 1048490 | 1 | Bracket, ValvePart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $15.05/EA |
| 9 | TN4044122Replaces Tennant 140801 | 2 | Screw, Trs, Phl, 08-32 X 0.38, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). | $3.40/EA |
| 10 | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Ec-H2o Kit, Module B, Plumbing (9006324). | $162.50/EA |
| 11 | TN4015328Replaces Tennant 9006574 | 1 | Hose, Pvc, Brd, 0.25id 0.45od, 65l, ClrPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $97.97/EA |
| 12 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ec-H2o Kit, Module B, Plumbing (9006324). | $3.23/EA |
| 13 | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High FlowPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $753.50/EA |
| 14 | TN4040777Replaces Tennant 1051519 | 1 | Housing, Upper, Module, High FlowPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $12.60/EA |
| 15 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ec-H2o Kit, Module B, Plumbing (9006324). | $7.70/EA |
| 16 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $0.25/EA |
| 17 | TN4040417Replaces Tennant 1049489 | 1 | Harness, Main,Controlboard[Ec-H2o 5cell]Part of Ec-H2o Kit, Module B, Plumbing (9006324). Serial 10449322 to 10740597. | $28.50/EA |
| 18 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [Ec-H2o] (9007970). | $10.60/EA |
| 19 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (9007970). | $5.10/EA |
| 20 | TN4021577Replaces Tennant 9007969 | 1 | Controller Kit, Replmt [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (9007970). | $1,063.00/EA |
| 21 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [Ec-H2o] (9007970). | $2.50/EA |
Tennant T7 ec-H2O module assembly breakdown, 9006161 (S/N 10419534-10449321) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9006161 (s/n 10419534-10449321) drawing. Manual pages 160, list 161.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012505Replaces Tennant 9006161 | 1 | Module Kit, Replmt [Ec-H2o] (Replaced by 9007970)Complete assembly. Serial 10419534 to 10449321. | $778.37/EA |
| 1 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $10.60/EA |
| 2 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $5.10/EA |
| 3 | TN4022392Replaces Tennant 609062 | 1 | Screw, Trs, M5 X 0.80 X 12, Phl, SsPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $3.20/EA |
| 4 | TN4029639Replaces Tennant 578860 | 2 | Screw, Pan, Phl, 04-40 X 0.31, PlPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4032343Replaces Tennant 3701.6 | 4 | Screw, Pan, Phl, 06-32 X 0.38, Shtmtl,SsPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $3.40/EA |
| 6 | TN4019547Replaces Tennant 613735 | 1 | Clamp, Hose, Wir, .40 - .42, YelPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $3.60/EA |
| 7 | TN4013781Replaces Tennant 9004606 | 1 | Hose, Pvc, Clr, 0.25id 0.38od 064.0lPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $3.23/EA |
| 9 | TN4044129Replaces Tennant 140826 | 4 | Screw, Pan, Phl, 06-20 X 0.75, Fmg/Ab,SsPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $3.40/EA |
| 10 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Pvc, Brd, 0.25id 0.44od 157.2l,ClrPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $27.80/EA |
| 11 | TN4024452Replaces Tennant 603654 | 3 | Clamp, Hose, Ear, .44d [Ctb]Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $4.20/EA |
| 12 | TN4045657Replaces Tennant 1037595 | 2 | Fitting, Plstc, E90, Bm04/Pm02, NylPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $4.20/EA |
| 13 | TN4044122Replaces Tennant 140801 | 2 | Screw, Trs, Phl, 08-32 X 0.38, SsPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $3.40/EA |
| 14 | TN4037306Replaces Tennant 1013236 | 1 | Valve, Shutoff, Ele, 24vdcPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $162.50/EA |
| 15 | TN4042458Replaces Tennant 1045030 | 1 | Fitting, Brs, Str, Pm02/Pm02Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $15.15/EA |
| 16 | TN4036516Replaces Tennant 1038159 | 1 | Electrode, CylindricalPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $753.50/EA |
| 17 | TN9006324Tennant 9006324 | 1 | Ec-H2o Kit, Module B, PlumbingPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $2.50/EA |
| 19 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $7.70/EA |
| 20 | TN4021577Replaces Tennant 9006159 | 1 | Controller Kit, Replmt [Ec-H2o]Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). | $1,063.00/EA |
| 21 | TN4042142Replaces Tennant 1044399 | 1 | Harness, Main, Controller [Ec-H2o, P3]Part of Module Kit, Replmt [Ec-H2o] (Replaced By 9007970) (9006161). Serial 10419534 to 10449321. | $30.20/EA |
Tennant T7 vacuum fan motor breakdown, 1039763, 1255137 parts
The parts Tennant numbers on its vacuum fan motor breakdown, 1039763, 1255137 drawing. Manual pages 162, list 163.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032145Replaces Tennant 1255137 | 1 | Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp]Complete assembly. Serial 11037132 and later. | $212.90/EA |
| – | TN4032145Replaces Tennant 1039763 | 1 | Fan, Vacuum, 5.7D, 024Vdc, 3 Stage [Bpp] (Replaced By 1255137)Complete assembly. Serial 10000000 to 11037131. | $212.90/EA |
| 1 | TN8002698Replaces Tennant 398511 | 1 | HousingPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $21.60/EA |
| 2 | TN8002699Replaces Tennant 398512 | 1 | FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $5.30/EA |
| 3 | TN8004151Replaces Tennant 372883 | 1 | Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $37.30/EA |
| 4 | TN398514Tennant 398514 | 1 | BracketPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8006099Replaces Tennant 01856 | 1 | Spring, Brg, Motor, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $2.35/EA |
| 6 | TN8045855Replaces Tennant 372885 | 1 | CommutatorPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $201.39/EA |
| 7 | TN8006097Replaces Tennant 01837 | 2 | Bearing, Motor, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $33.84/EA |
| 8 | TN8045856Replaces Tennant 372886 | 1 | WasherPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $8.89/EA |
| 9 | TN8052057Replaces Tennant 398516 | 1 | SpacerPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $8.59/EA |
| 10 | TN8006131Replaces Tennant 01971 | 1 | Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $6.57/EA |
| 11 | TN8045857Replaces Tennant 372888 | 1 | Impeller, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $19.39/EA |
| 12 | TN8003343Replaces Tennant 60387 | 1 | FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $21.11/EA |
| 13 | TN8052058Replaces Tennant 398517 | 2 | SpacerPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $7.98/EA |
| 14 | TN8006063Replaces Tennant 18628 | 1 | Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $13.70/EA |
| 15 | TN8003317Replaces Tennant 61297 | 1 | Housing, Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $23.53/EA |
| 16 | TN8004153Replaces Tennant 372889 | 1 | Impeller, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $19.29/EA |
| 17 | TN8004154Replaces Tennant 372890 | 1 | Shell, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $14.55/EA |
| 18 | TN8003675Replaces Tennant 37929 | 1 | Nut, Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $4.24/EA |
| 19 | TN8004152Replaces Tennant 372887 | 1 | Bracket, End, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $63.13/EA |
| 20 | TN8045854Replaces Tennant 372884 | 1 | ArmaturePart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $273.00/EA |
| 21 | TN8003671Replaces Tennant 378983 | 1 | WasherPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $4.14/EA |
| – | TN4037412Replaces Tennant 223264 | 1 | Seal, Rbr, Clsd, 0.25th, 5.8d 03.3hPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $6.70/EA |
| – | TN4043124Replaces Tennant 10925 | 1 | Connector, Fem, 2cav [Mp630 Sealed]Part of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $10.50/EA |
| – | TN4035380Replaces Tennant 24537 | 2 | Terminal, Fem, 10/12ga [Mp630 P2s]Part of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (See Breakdown) (Replaced By 1255137) (1039763). | $3.20/EA |
Tennant T7 vacuum fan motor breakdown, 1021064, 1256475 parts
The parts Tennant numbers on its vacuum fan motor breakdown, 1021064, 1256475 drawing. Manual pages 164, list 165.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032253Replaces Tennant 1256475 | 1 | Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia Model)Complete assembly. Serial 11037132 and later. | $239.10/EA |
| – | TN4032253Replaces Tennant 1021064 | 1 | Fan, Vacuum, 5.7, 3s 24v Bpt (Australia Model) (Replaced By 1256475)Complete assembly. Serial 10000000 to 11037131. | $239.10/EA |
| 1 | TN8002698Replaces Tennant 398511 | 1 | HousingPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $21.60/EA |
| 2 | TN8002699Replaces Tennant 398512 | 1 | FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $5.30/EA |
| 3 | TN8004151Replaces Tennant 372883 | 1 | Brush Kit, Motor, ElePart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $37.30/EA |
| 4 | TN398514Tennant 398514 | 1 | BracketPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8006099Replaces Tennant 01856 | 1 | Spring, Brg, Motor, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $2.35/EA |
| 6 | TN8045855Replaces Tennant 372885 | 1 | CommutatorPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $201.39/EA |
| 7 | TN8006097Replaces Tennant 01837 | 2 | Bearing, Motor, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $33.84/EA |
| 8 | TN8045856Replaces Tennant 372886 | 1 | WasherPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $8.89/EA |
| 9 | TN8052057Replaces Tennant 398516 | 1 | SpacerPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $8.59/EA |
| 10 | TN8006131Replaces Tennant 01971 | 1 | Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $6.57/EA |
| 11 | TN8045857Replaces Tennant 372888 | 1 | Impeller, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $19.39/EA |
| 12 | TN8003343Replaces Tennant 60387 | 1 | FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $21.11/EA |
| 13 | TN8052058Replaces Tennant 398517 | 2 | SpacerPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $7.98/EA |
| 14 | TN8006063Replaces Tennant 18628 | 1 | Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $13.70/EA |
| 15 | TN8003317Replaces Tennant 61297 | 1 | Housing, Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $23.53/EA |
| 16 | TN8004153Replaces Tennant 372889 | 1 | Impeller, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $19.29/EA |
| 17 | TN8004154Replaces Tennant 372890 | 1 | Shell, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $14.55/EA |
| 18 | TN8003675Replaces Tennant 37929 | 1 | Nut, Impeller, VacfanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $4.24/EA |
| 19 | TN8004152Replaces Tennant 372887 | 1 | Bracket, End, FanPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $63.13/EA |
| 20 | TN8045854Replaces Tennant 372884 | 1 | ArmaturePart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $273.00/EA |
| 21 | TN8003671Replaces Tennant 378983 | 1 | WasherPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $4.14/EA |
| – | TN4037412Replaces Tennant 223264 | 1 | Seal, Rbr, Clsd, 0.25th, 5.8d 03.3hPart of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $6.70/EA |
| – | TN4043124Replaces Tennant 10925 | 1 | Connector, Fem, 2cav [Mp630 Sealed]Part of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $10.50/EA |
| – | TN4035380Replaces Tennant 24537 | 2 | Terminal, Fem, 10/12ga [Mp630 P2s]Part of Fan, Vacuum, 5.7d, 024vdc, 3 Stage [Bpp] (Australia) (See Breakdown) (Replaced By 1256475) (1021064). | $3.20/EA |
Tennant T7 front wheel gearbox breakdown, 9008999 (S/N 10518139 and later) parts
The parts Tennant numbers on its front wheel gearbox breakdown, 9008999 (s/n 10518139 and later) drawing. Manual pages 166, list 167.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010373Replaces Tennant 9008999 | 1 | Gearbox Kit, Wheel, 250mm, W/ ConnectorComplete assembly. Serial 10518139 and later. | $4,702.30/EA |
| 1 | TN8002922Replaces Tennant 391261 | 1 | Brush Kit, Motor [Amer, 1pick=1bag] (1 Kit = 6 Brushes)Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $545.40/EA |
| 2 | TN8005453Replaces Tennant 1029225 | 1 | Brush Kit, Carbon (1 Kit = 4 Brushes)Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $338.40/EA |
| 2 | TN8005452Replaces Tennant 1029224 | 4 | Brush, Carbon (1 Brush)Part of the assembly above. | $88.20/EA |
| 3 | TN8005454Replaces Tennant 1029226 | 1 | Brush Kit, Carbon, Curve (1 Kit = 2 Brushes)Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $126.80/EA |
| 3 | TN4016536Replaces Tennant 398492 | 2 | Brush, Motor, Ele [Amer] Curve (1 Brush)Part of the assembly above. | $58.40/EA |
| 4 | TN8005496Replaces Tennant 1029227 | 1 | Bearing, Ball, Brush SidePart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $112.10/EA |
| 5 | TN8005497Replaces Tennant 1029228 | 1 | Ring, BrushholderPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $1,101.30/EA |
| 6 | TN8002923Replaces Tennant 391262 | 4 | Brush Kit, Cover [Amer]Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8002924Replaces Tennant 391263 | 1 | Seal, Ring [Amer]Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $62.40/EA |
| 8 | TN8002925Replaces Tennant 391264 | 1 | Bearing, Gearbox Side [Amer]Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $82.10/EA |
| 9 | TN8002926Replaces Tennant 391265 | 1 | Bearing, Motor Side [Amer]Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $72.20/EA |
| 10 | TN8002948Replaces Tennant 391467 | 1 | Box, Ele, ConnectionPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $128.20/EA |
| 11 | TN8002949Replaces Tennant 391468 | 11 | Cover, Ele, ConnectionPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $22.00/EA |
| 12 | TN8004136Replaces Tennant 372867 | 1 | ArmaturePart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $1,018.50/EA |
| 13 | TN8005439Replaces Tennant 1029218 | 8 | Screw, Mount, WheelPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $7.50/EA |
| 14 | TN4010357Replaces Tennant 9008896 | 1 | Brake Kit, W/ConnectorPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). Serial 10518139 and later. | $1,157.40/EA |
| 15 | TN4026208Replaces Tennant 78950 | 2 | Connector, Fem, 02cav, Mp280 SealedPart of the assembly above. | $7.90/EA |
| 16 | TN4026214Replaces Tennant 78952 | 2 | Lock, Secondary, 2cav, Mp280 SealedPart of the assembly above. | $4.20/EA |
| 17 | TN4035665Replaces Tennant 25837 | 2 | Terminal, Fem, Mp280, Sealed, 22-20gaPart of the assembly above. | $3.40/EA |
| 18 | TN4035661Replaces Tennant 25830 | 2 | Seal, Wire, 14ga [Wp / Mp280 Sealed]Part of the assembly above. | $3.70/EA |
| 19 | TN8004139Replaces Tennant 372870 | 1 | Vr, Disc, Brake (Set Includes Spline)Part of the assembly above. | $228.60/EA |
| 20 | TN8004139Replaces Tennant 372871 | 1 | Adapter, Brake, Spl (NLA - Replaced By Set 372870)Part of the assembly above. | $228.60/EA |
| 21 | TN8004141Replaces Tennant 372872 | 1 | Sleeve, RbrPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $67.30/EA |
| 22 | TN8004145Replaces Tennant 372877 | 1 | Guide, Brushholder, Slip Ring [AmerPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $15.90/EA |
| 23 | TN8004142Replaces Tennant 372874 | 1 | Bearing, SteeringPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $302.00/EA |
| 24 | TN8002920Replaces Tennant 391259 | 1 | Tire, Solid, 250mm X 90mm RedPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $758.50/EA |
| 25 | TN4030595Replaces Tennant 130161 | 1 | Plug, Hole, Rnd, 0.88d, BlkPart of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). Serial 10518139 and later. | $4.00/EA |
| 26 | TN8004106Replaces Tennant 9010971 | 1 | Vr, Flange, Brake, T7Part of Gearbox Kit, Wheel, 250mm, W/ Connector (Note: Does NOT Include Motor Brake Harness) (See Breakdown) (9008999). | $37.30/EA |
Tennant T7 front wheel gearbox breakdown, 9001642, 9009000 (S/N 00000000-10518138) parts
The parts Tennant numbers on its front wheel gearbox breakdown, 9001642, 9009000 (s/n 00000000-10518138) drawing. Manual pages 168, list 169.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010374Replaces Tennant 9001642 | 1 | Gearbox Kit, Wheel, 250mm, W/ Connector (Replaced By 9009000)Complete assembly. Serial up to 10518138. | $4,783.70/EA |
| 1 | TN8002922Replaces Tennant 391261 | 1 | Brush Kit, Motor [Amer, 1pick=1bag] (1 Kit = 6 Brushes)Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $545.40/EA |
| 2 | TN8005453Replaces Tennant 1029225 | 1 | Brush Kit, Carbon (1 Kit = 4 Brushes)Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $338.40/EA |
| 2 | TN8005452Replaces Tennant 1029224 | 4 | Brush, Carbon (1 Brush)Part of the assembly above. | $88.20/EA |
| 3 | TN8005454Replaces Tennant 1029226 | 1 | Brush Kit, Carbon, Curve (1 Kit = 2 Brushes)Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $126.80/EA |
| 3 | TN4016536Replaces Tennant 398492 | 2 | Brush, Motor, Ele [Amer] Curve (1 Brush)Part of the assembly above. | $58.40/EA |
| 4 | TN8005496Replaces Tennant 1029227 | 1 | Bearing, Ball, Brush SidePart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $112.10/EA |
| 5 | TN8005497Replaces Tennant 1029228 | 1 | Ring, BrushholderPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $1,101.30/EA |
| 6 | TN8002923Replaces Tennant 391262 | 4 | Brush Kit, Cover [Amer]Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8002924Replaces Tennant 391263 | 1 | Seal, Ring [Amer]Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $62.40/EA |
| 8 | TN8002925Replaces Tennant 391264 | 1 | Bearing, Gearbox Side [Amer]Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $82.10/EA |
| 9 | TN8002926Replaces Tennant 391265 | 1 | Bearing, Motor Side [Amer]Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $72.20/EA |
| 10 | TN8002948Replaces Tennant 391467 | 1 | Box, Ele, ConnectionPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $128.20/EA |
| 11 | TN8002949Replaces Tennant 391468 | 11 | Cover, Ele, ConnectionPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $22.00/EA |
| 12 | TN8004136Replaces Tennant 372867 | 1 | ArmaturePart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $1,018.50/EA |
| 13 | TN8005439Replaces Tennant 1029218 | 8 | Screw, Mount, WheelPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $7.50/EA |
| 14 | TN4010358Replaces Tennant 9001644 | 1 | Brake Kit, Gearbox, W/ Connector (Replaced By 9008897)Part of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). Serial up to 10518138. | $1,258.70/EA |
| 15 | TN4026208Replaces Tennant 78950 | 2 | Connector, Fem, 02cav, Mp280 SealedPart of the assembly above. | $7.90/EA |
| 16 | TN4026214Replaces Tennant 78952 | 2 | Lock, Secondary, 2cav, Mp280 SealedPart of the assembly above. | $4.20/EA |
| 17 | TN4035665Replaces Tennant 25837 | 2 | Terminal, Fem, Mp280, Sealed, 22-20gaPart of the assembly above. | $3.40/EA |
| 18 | TN4035661Replaces Tennant 25830 | 2 | Seal, Wire, 14ga [Wp / Mp280 Sealed]Part of the assembly above. | $3.70/EA |
| 19 | TN8004139Replaces Tennant 372870 | 1 | Vr, Disc, Brake (Set Includes Spline)Part of the assembly above. | $228.60/EA |
| 20 | TN8004139Replaces Tennant 372871 | 1 | Adapter, Brake, Spl (NLA - Replaced By Set 372870)Part of the assembly above. | $228.60/EA |
| 21 | TN8004141Replaces Tennant 372872 | 1 | Sleeve, RbrPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $67.30/EA |
| 22 | TN8004145Replaces Tennant 372877 | 1 | Guide, Brushholder, Slip Ring [AmerPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $15.90/EA |
| 23 | TN8004142Replaces Tennant 372874 | 1 | Bearing, SteeringPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $302.00/EA |
| 24 | TN8002920Replaces Tennant 391259 | 1 | Tire, Solid, 250mm X 90mm RedPart of Gearbox Kit, Wheel, 250Mm W/Connector (See Breakdown) (Replaced By 9009000 - Includes Motor Brake Harness) (9001642). | $758.50/EA |
| 24 | TN8002920Replaces Tennant 391463 | 1 | Tire, Solid, 250mm X 90mm Gray, Pyu (NLA - Replaced By 391259) | $758.50/EA |
Tennant T7 steering control breakdown, 1019724 parts
The parts Tennant numbers on its steering control breakdown, 1019724 drawing. Manual page 170.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4036208Replaces Tennant 1019724 | 1 | Steer-Control Assy, Wheel DriveComplete assembly. | $1,274.10/EA |
| 1 | TN8004142Replaces Tennant 372874 | 1 | Bearing, SteeringPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $302.00/EA |
| 2 | TN8004143Replaces Tennant 372875 | 1 | Chain, SteeringPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $126.70/EA |
| 3 | TN8004144Replaces Tennant 372876 | 1 | Link, MasterPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $17.00/EA |
| 4 | TN8004149Replaces Tennant 372881 | 1 | SprocketPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $52.20/EA |
| 5 | TN8005498Replaces Tennant 1029229 | 1 | Shaft, SteeringPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $346.70/EA |
| 6 | TN8006104Replaces Tennant 1038313 | 1 | Pin, Roll, 06Mm X 28MmLPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $3.50/EA |
| 7 | TN8004109Replaces Tennant 9011051 | 1 | Vr, Pulley, TensPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $16.60/EA |
| 8 | TN8001824Replaces Tennant 9008719 | 2 | Vr, Bearing [6003 2rs]Part of Steer-Control Assy, Wheel Drive (See Breakdown) (1019724). | $9.40/EA |
New to your Tennant T7? Start here
Set up, run and look after your T7. Everything here comes from Tennant's T7 operator manual, rewritten in plain steps, with the parts linked to the list above. Pick the parts that match your scrub head size.
1Put the squeegee on
- Stop on a level surface, turn the key off and take it out.
- Place the rear squeegee under the squeegee mount bracket and fasten it with the two knobs.
- Connect the vacuum hose to the squeegee and loop it through the hose clip.
- Blade deflection is set at the factory. Adjust it only as the manual's rear squeegee section describes.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), page 8. SES ref PF-QRCR-VFPP
2Fill the solution tank
- Open the fill port at the rear of the machine.
- Conventional scrubbing: partly fill with water no hotter than 140°F (60°C), add detergent as the bottle says, then top up to just below the fill port.
- ec-H2O scrubbing: cool clean water only, below 70°F (21°C), and no detergent.
- Use a clean bucket, never the one you drain with, and never put flammable materials in the tanks.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), page 9. SES ref PF-QRCR-VFPP
3Scrub and stop
- Turn the key on and pick your scrub settings.
- Press the One Step Scrub button, set the direction switch and press the propel pedal to start scrubbing.
- Release the pedal to stop. The parking brake sets on its own. Use the brake pedal to stop faster or on a slope, and don't scrub on slopes over 7%.
- Press One Step Scrub again to turn the scrubbing functions off.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), pages 12 and 13. SES ref PF-QRCR-VFPP
4Drain and clean the tanks
- Drive to a drain, turn the key off, tilt the seat forward and latch it.
- Lower the recovery drain hose, take the plug out and drain the tank. Flush it and rinse the float sensor (TN4021025), then put the drain hose cap (TN4039939) back.
- Take out and clean the vacuum fan filter (TN4043531). Let it dry before you put it back.
- Drain the solution tank, rinse its float sensor and the screen filter on the bottom of the tank.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), pages 20 and 21. SES ref PF-QRCR-VFPP
Questions about your T7? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant T7 troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Water left behind | ||
| Vacuum fan off or a dirty vacuum fan filter | Turn the vacuum fan on. Clean the vacuum fan filter (TN4043531). | |
| Worn or misadjusted squeegee blades, or debris on the squeegee | Clear the debris, adjust the squeegee, and rotate or replace the rear blades (TN4018884 / TN4018876) and front blades (TN4018885 / TN4018877). | |
| Worn fan cover seals or a recovery cover not fully closed | Replace the fan seal (TN4040553) or cover seal (TN4037551), and check the cover for anything in the way. | |
| Vacuum fan won't turn on | ||
| Recovery tank full or foaming, or the tank sensor dirty or stuck | Drain the recovery tank and use less detergent. Clean or replace the recovery tank sensor (TN4021025). | |
| Little or no solution | ||
| Empty tank, solution flow off, or a clogged tank filter | Fill the tank and turn the flow on. Drain the tank, then take out and clean the solution tank filter. | |
| Poor scrubbing | ||
| Worn brush, debris on the brushes or too little brush pressure | Clear the debris, raise the brush pressure and replace a worn brush (TN4037181 / TN4037180). | |
| Broken or loose brush drive belt on cylindrical models | Replace or tighten the drive belt (TN4045455). SES service can do it. | |
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), page 23. SES ref PF-VWID-IA4E
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant T7 maintenance schedule
Tennant's maintenance schedule for the T7.
| Task | How often | Part |
|---|---|---|
| Check the side and rear squeegees for wear, deflection and leveling. Replace worn rear blades (TN4018884 / TN4018876), front blades (TN4018885 / TN4018877) or side squeegees (TN4022045 / TN4019280). | Daily | |
| Check the brushes or pads for damage, wear and debris. Replace a worn disk brush (TN4037181 / TN4037180). | Daily | |
| Clean the recovery tank, its screen filter and the float sensor (TN4021025). | Daily | |
| Clean the vacuum fan filter (TN4043531) and, on cylindrical models, the debris tray. | Daily | |
| Check the electrolyte level in lead-acid batteries and top up with distilled water. Tennant lists this for trained personnel. | Weekly | |
| Check the disk scrub head floor skirt (TN4037542 / TN4036832) for damage and wear. | Every 50 hours | |
| Check the cylindrical brush taper and rotate the brushes front to rear. | Every 50 hours | |
| Have the vacuum fan seal (TN4040553) and the tank cover seal (TN4037551) checked for wear. | Every 100 hours | |
| Have the cylindrical brush drive belt (TN4045455) tension checked. | Every 100 hours | |
| 200 hours: have the battery terminals and cables checked and cleaned. | Every 200 and 500 hours | |
| 500 hours, then every 100 hours: have the motor carbon brushes (TN4040440) and the tires checked. SES service can do it: call 800-440-6723. | Every 200 and 500 hours |
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), pages 20, 21 and 26. SES ref PF-B7JA-PRHF
Tennant T7 specifications
From Tennant's documents for the T7.
| Scrubbing path | 26 or 32 in (650 or 800 mm) disk; 28 or 32 in (700 or 800 mm) cylindrical |
|---|---|
| Solution tank | 29 gal (110 L) |
| Recovery tank | 29 gal (110 L) |
| Travel speed | 4 mph (6.4 km/h) maximum |
| Slope when scrubbing | 7% maximum |
| Batteries | Four 6V: 235 Ah or 335 Ah lead acid, or 180 Ah or 220 Ah gel |
| Motors | 24V DC: disk brush 0.6 hp (0.45 kW), cylindrical brush 0.75 hp (0.50 kW), vacuum 0.6 hp (0.45 kW), propel 1.1 hp (0.85 kW) |
| Weight with standard batteries | 850 to 918 lb (386 to 416 kg), by scrub head |
| Length | 60 in (1,520 mm) |
| Sound level | 69 dB(A) disk, 75 dB(A) cylindrical |
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), pages 47 and 48. SES ref PF-CRT6-NUT2
Tennant T7 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9013606 Rev. 23 (07-2025), North America / International / Japan, S/N 10000000-20000000, 171 pages | T7 | Rev. 23 (07-2025) | 171 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 331040 Rev. 11 (02-2024), North America / International, 51 pages | T7 | Rev. 11 (02-2024) | 51 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant T7 parts questions
Why is my Tennant T7 leaving water behind?
Check that the vacuum fan is on, clean the vacuum fan filter and clear debris from the squeegee. Then adjust the squeegee and rotate or replace worn blades.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), page 23. SES ref PF-52C5-EO63
Why won't the T7 vacuum fan turn on?
The recovery tank may be full or full of foam, or its sensor may be dirty. Drain the tank, use less detergent and clean the recovery tank sensor.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), page 23. SES ref PF-52C5-EO63
How often should I clean the T7 vacuum fan filter?
Every day. Take it out when you drain the tanks, clean it with a damp cloth or a low-pressure hose, and let it dry before you put it back.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), pages 21 and 26. SES ref PF-52C5-EO63
Can I use detergent with ec-H2O on the T7?
No. ec-H2O scrubbing uses cool clean water only. Detergent can make the ec-H2O system fail. Drain, rinse and refill with clean water before you switch back to ec-H2O.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), pages 9 and 12. SES ref PF-52C5-EO63
What slope can a T7 scrub on?
Up to 7% while scrubbing. Go slowly on slopes and slippery floors and use the brake pedal when you need to stop faster.
Source: Tennant T7 operator manual 331040 Rev. 11 (02-2024), pages 13 and 47. SES ref PF-52C5-EO63
Does this parts list fit my T7?
It covers the North America, International and Japan T7, serial numbers 10000000 to 20000000. Many lines change partway through that range; each line shows its serial range. Call us with your serial number if you are unsure.
Source: Tennant T7 parts manual 9013606 Rev. 23 (07-2025), page 1. SES ref PF-52C5-EO63
