Tennant T12 parts list and diagrams
Find any part on the Tennant T12 and T12XP battery rider scrubber, serial numbers 10000000 to 19999999, by its area in Tennant's drawings. Every line of the parts manual is here, disk and cylindrical scrub heads and every option, crossed to Tennant's current numbers with our price.
Complete list: every line of the parts list in Tennant T12 Rider Scrubber (Battery) Parts Manual 9009916 Rev. 16 (3-2025), North America / International, S/N 10000000-19999999, 1311 printed part lines, with the parts numbered on its drawings. Checked .
New to your T12? Start here → Manuals (free sign-in) →
- Scrubbing path
- 32 in (810 mm); 41 in (1,040 mm) with the side brush
- Solution tank
- 35 gal (132 L)
- Recovery tank
- 44 gal (166 L)
- Travel speed
- 5 mph (8 km/h) forward, 3.8 mph (6.1 km/h) scrubbing, 2.5 mph (4 km/h) reverse
- Batteries
- 36 V: six 6 V lead-acid, 240 or 360 Ah, or lithium-ion packs
Maintenance and wear parts for the T12
Tennant's general recommended maintenance items for the T12. Keep these on the shelf.
Blade, Sqge, Side, 22.50l, Linatex
$54.90/EABlade, Sqge, Side, 22.50l, Ure
$90.00/EABlade, Sqge, Side, 22.50l, Gum
$25.00/EABlade, Sqge, Front, 42.59l [Linard]
$41.00/EABlade, Sqge, Rear, 44.96l Linatex
$60.00/EABlade, Sqge, Front, 42.59l [Gum]
$20.00/EABlade, Sqge, Front, 42.59l [Urethane]
$70.09/EABlade, Sqge, Rear, 44.96l Gum
$25.00/EABlade, Sqge, Rear, 44.96l Urethane
$120.00/EAWheel, 04.0d 2.56w 0.41b
$26.60/EAWheel, 04.0d 0.89w 0.64b
$35.40/EACaster Assy, Swivel
$126.80/EA
Source: Tennant T12 Rider Scrubber (Battery) Parts Manual 9009916 Rev. 16 (3-2025), North America / International, S/N 10000000-19999999, page 5. SES ref PF-VLUK-K5KW
Your machine
How to tell which you have
- Scrub head: Tennant's parts manual has separate parts groups for Cylindrical, Disk (manual pages 30, 32, 34). Pick yours to see only its groups; parts every build shares always show.
- Battery: Tennant's parts manual has separate parts groups for 240Ah, 36V 360Ah (option), 36V 350Ah (option), Lithium-Ion, 36V, 2 Battery Kit (option) (manual pages 54, 100, 102, 104, 106, 112). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant T12 recommended maintenance items
Recommended maintenance items from Tennant's parts list. Manual page 5.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4043450Replaces Tennant 1200430 | 2 | Blade, Sqge, Side, 22.50l, LinatexSerial 10000000 to 19999999. | $54.90/EA |
| – | TN4043966Replaces Tennant 1202159 | 2 | Blade, Sqge, Side, 22.50l, UreSerial 10000000 to 19999999. | $90.00/EA |
| – | TN4043967Replaces Tennant 1202160 | 2 | Blade, Sqge, Side, 22.50l, GumSerial 10000000 to 19999999. | $25.00/EA |
| – | TN4043444Replaces Tennant 1200383 | 1 | Blade, Sqge, Front, 42.59l [Linard]Serial 10000000 to 19999999. | $41.00/EA |
| – | TN4043445Replaces Tennant 1200384 | 1 | Blade, Sqge, Rear, 44.96l LinatexSerial 10000000 to 19999999. | $60.00/EA |
| – | TN4043933Replaces Tennant 1201825 | 1 | Blade, Sqge, Front, 42.59l [Gum]Serial 10000000 to 19999999. | $20.00/EA |
| – | TN4043931Replaces Tennant 1201823 | 1 | Blade, Sqge, Front, 42.59l [Urethane]Serial 10000000 to 19999999. | $70.09/EA |
| – | TN4043934Replaces Tennant 1201826 | 1 | Blade, Sqge, Rear, 44.96l GumSerial 10000000 to 19999999. | $25.00/EA |
| – | TN4043932Replaces Tennant 1201824 | 1 | Blade, Sqge, Rear, 44.96l UrethaneSerial 10000000 to 19999999. | $120.00/EA |
| – | TN4038425Replaces Tennant 1054100 | 2 | Wheel, 04.0d 2.56w 0.41bSerial 10000000 to 19999999. | $26.60/EA |
| – | TN4030447Replaces Tennant 363162 | 2 | Wheel, 04.0d 0.89w 0.64bSerial 10000000 to 19999999. | $35.40/EA |
| – | TN4041152Replaces Tennant 1205850 | 2 | Caster Assy, SwivelSerial 10000000 to 19999999. | $126.80/EA |
| – | TN4040235Replaces Tennant 222280 | 6 | Battery, Wet, 06vdc 0240ahSerial 10000000 to 19999999. | $314.77/EA |
| – | TN4030324Replaces Tennant 1070587 | 6 | Battery, Wet, 06vdc 0360ahSerial 10000000 to 19999999. | $613.02/EA |
| – | TN4027848Replaces Tennant 9010935 | 1 | Tool, Belt, Cyl Head, Afmkt [T12] (Cylindrical Scrub Head)Complete assembly. Serial 10000000 to 19999999. | $269.90/EA |
| – | TN4043440Replaces Tennant 1200334 | 2 | Belt, Drive, 7 GrvPart of Tool, Belt, Cyl Head, Afmkt [T12] (Cylindrical Scrub Head) (9010935). Serial 10000000 to 19999999. | $41.80/EA |
| – | TN4040839Replaces Tennant 1203758 | 1 | Tool, Installation, BeltPart of Tool, Belt, Cyl Head, Afmkt [T12] (Cylindrical Scrub Head) (9010935). Serial 10000000 to 19999999. | $130.30/EA |
| – | TN4043739Replaces Tennant 1201053 | 1 | Skirt, Rbr, Front, Disc (Disc Scrub Head)Serial 10000000 to 19999999. | $19.70/EA |
| – | TN4043762Replaces Tennant 1201185 | 1 | Strip, Skirt, Rear, Disc (Disc Scrub Head)Serial 10000000 to 19999999. | $7.90/EA |
| – | TN4029794Replaces Tennant 361144 | 1 | Key, Ignition, SglSerial 10000000 to 19999999. | $14.30/EA |
| – | TN5000195Replaces Tennant 16411 | 1 | Off Whites/G Acrylic12.8oz[Acm101-00171]Serial 10000000 to 19999999. | $37.80/EA |
| – | TN5000196Replaces Tennant 16412 | 1 | Teal Blue S/G Enamel12.8oz[Icm101-70266]Serial 10000000 to 19999999. | $41.00/EA |
| – | TN5000171Replaces Tennant 377540 | 1 | Paint, Airdry, Blk, 12ozSerial 10000000 to 19999999. | $67.20/EA |
| – | TN5000170Replaces Tennant 377538 | 1 | Paint, Airdry, Gray, 12oz [Enamel]Serial 10000000 to 19999999. | $39.50/EA |
| – | TN5000169Replaces Tennant 377537 | 1 | Iron Gray S/G Enamel12.8oz[Icm101-00517]Serial 10000000 to 19999999. | $40.60/EA |

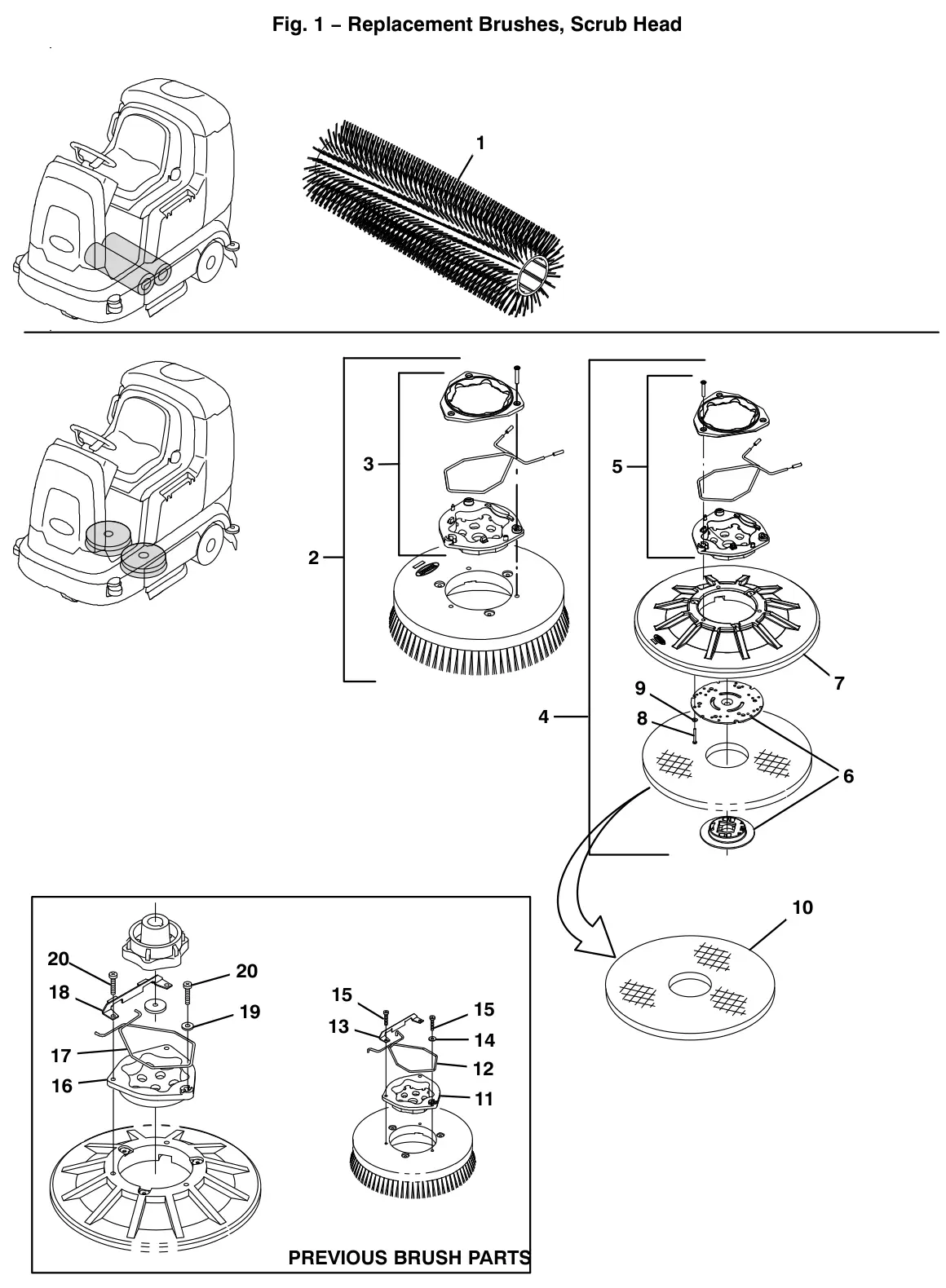

Tennant T12 replacement Brushes, Scrub Head parts
The parts Tennant numbers on its replacement brushes, scrub head drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043918Replaces Tennant 1201572 | 2 | Brush, Scb, 31l, 18sr, Polypropylene, SpiralSerial 10000000 to 19999999. | $253.90/EA |
| 1 | TN4043940Replaces Tennant 1201926 | 2 | Brush, Scb, 31l, 18sr, Heavy Duty Polypropylene, SpiralSerial 10000000 to 19999999. | $253.90/EA |
| 1 | TN4043941Replaces Tennant 1201927 | 2 | Brush, Scb, 31l, 18sr, Polyester, SpiralSerial 10000000 to 19999999. | $348.20/EA |
| 1 | TN4043942Replaces Tennant 1201928 | 2 | Brush, Scb, 31l, 18sr, Super Abrasive, SpiralSerial 10000000 to 19999999. | $481.00/EA |
| 2 | TN4037187Replaces Tennant 1220235 | 2 | Brush Assy, Disk, Scrub, 16.0D, NylonComplete assembly. Serial 10000000 to 19999999. | $416.00/EA |
| 3 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scrub, 16.0D, Nylon (1220235). Serial 10000000 to 19999999. | $64.00/EA |
| 2 | TN4037193Replaces Tennant 1220241 | 2 | Brush Assy, Disk, Scrub, 16.0D, PolypropyleneComplete assembly. Serial 10000000 to 19999999. | $255.40/EA |
| 3 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scrub, 16.0D, Polypropylene (1220241). Serial 10000000 to 19999999. | $64.00/EA |
| 2 | TN4037455Replaces Tennant 1221543 | 2 | Brush Assy, Disk, Scrub, 16.0D, Super AbrasiveComplete assembly. Serial 10000000 to 19999999. | $545.70/EA |
| 3 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scrub, 16.0D, Super Abrasive (1221543). Serial 10000000 to 19999999. | $64.00/EA |
| 2 | TN4037188Replaces Tennant 1220236 | 2 | Brush Assy, Disk, Scrub, 16.0D, Heavy Duty PolypropyleneComplete assembly. Serial 10000000 to 19999999. | $248.00/EA |
| 3 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Part of Brush Assy, Disk, Scrub, 16.0D, Heavy Duty Polypropylene (1220236). Serial 10000000 to 19999999. | $64.00/EA |
| 4 | TN4037195Replaces Tennant 1220244 | 2 | Driver Assy, Pad, 16.0DComplete assembly. Serial 10000000 to 19999999. | $424.70/EA |
| 5 | TN4022629Replaces Tennant 9014666 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Part of Driver Assy, Pad, 16.0D (1220244). Serial 10000000 to 19999999. | $109.90/EA |
| 6 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Ti [Gf Pp]Part of Driver Assy, Pad, 16.0D (1220244). Serial 10000000 to 19999999. | $45.50/EA |
| 7 | TN4016271Replaces Tennant 397976 | 1 | Disk, Driver, Pad, W/Face, 16.0DPart of Driver Assy, Pad, 16.0D (1220244). Serial 10000000 to 19999999. | $221.80/EA |
| 8 | TN4041964Replaces Tennant 09198 | 3 | Screw, Pan, Phl, M4 X 0.70 X 35, SsPart of Driver Assy, Pad, 16.0D (1220244). Serial 10000000 to 19999999. | $3.20/EA |
| 9 | TN4016852Replaces Tennant 41579 | 3 | Washer, Flat, 08, SsPart of Driver Assy, Pad, 16.0D (1220244). Serial 10000000 to 19999999. | $2.60/EA |
| 10 | TN4021152Replaces Tennant 63248-1 | 2 | Pad, Stripping, 16.0d, Brown[1pick=1pad]Serial 10000000 to 19999999. | $22.00/EA |
| 10 | TN4021153Replaces Tennant 63248-2 | 2 | Pad, Scrubbing, 16.0d, Blu [1pick=1pad]Serial 10000000 to 19999999. | $22.00/EA |
| 10 | TN4021154Replaces Tennant 63248-3 | 2 | Pad, Buff, 16.0d, Red [1pick=1pad]Serial 10000000 to 19999999. | $22.00/EA |
| 10 | TN4021155Replaces Tennant 63248-4 | 2 | Pad, Polish, 16.0d, White [1pick=1pad]Serial 10000000 to 19999999. | $22.00/EA |
| 10 | TN4032339Replaces Tennant 370092 | 2 | Pad, Stripping, 16.0d[Hi Prod, Black, 1pick=1padSerial 10000000 to 19999999. | $36.20/EA |
| 10 | TN4040747Replaces Tennant 1051027 | 2 | Pad, Surf Prep, 16.0d [Maroon, 1pick=1pad]Serial 10000000 to 19999999. | $24.40/EA |
| 11 | TN4035452Replaces Tennant 1017368 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bcSerial 10000000 to 19999999. Previous Brush Parts. | $12.30/EA |
| 12 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush RetainingSerial 10000000 to 19999999. Previous Brush Parts. | $20.90/EA |
| 13 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringSerial 10000000 to 19999999. Previous Brush Parts. | $30.20/EA |
| 14 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. Previous Brush Parts. | $2.60/EA |
| 15 | TN4034480Replaces Tennant 32746 | 2 | Screw, Pan, Phl, M6 X 1.00 X 35, SsSerial 10000000 to 19999999. Previous Brush Parts. | $3.20/EA |
| 16 | TN4041235Replaces Tennant 15539 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bc[6t]Serial 10000000 to 19999999. Previous Brush Parts. | $114.70/EA |
| 17 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush RetainingSerial 10000000 to 19999999. Previous Brush Parts. | $20.90/EA |
| 18 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringSerial 10000000 to 19999999. Previous Brush Parts. | $30.20/EA |
| 19 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. Previous Brush Parts. | $2.60/EA |
| 20 | TN4034480Replaces Tennant 32746 | 1 | Screw, Pan, Phl, M6 X 1.00 X 35, SsSerial 10000000 to 19999999. Previous Brush Parts. | $3.20/EA |
| – | TN4037193Replaces Tennant 30241 | 2 | Brush Assy, Disk, Scb, 16.0d, Polypropylene (Replaced by 1220241)Serial 10000000 to 19999999. Previous Brush Parts. | $255.40/EA |
| – | TN4037188Replaces Tennant 1042500 | 2 | Brush Assy, Disk, Scb, 16.0d, Polypropylene Stiff (Replaced by 1220236)Serial 10000000 to 19999999. Previous Brush Parts. | $248.00/EA |
| – | TN4037187Replaces Tennant 1042499 | 2 | Brush Assy, Disk, Scb, 16.0d, Nylon (Replaced by 1220235)Serial 10000000 to 19999999. Previous Brush Parts. | $416.00/EA |
| – | TN4037455Replaces Tennant 1042504 | 2 | Brush Assy, Disk, Scb, 16.0d, Super Abrasive (Replaced by 1221543)Serial 10000000 to 19999999. Previous Brush Parts. | $545.70/EA |
| – | TN4037163Replaces Tennant 397916 | 2 | Driver Assy, Pad, 16. (Replaced by 1220244)Serial 10000000 to 19999999. Previous Brush Parts. | $468.70/EA |

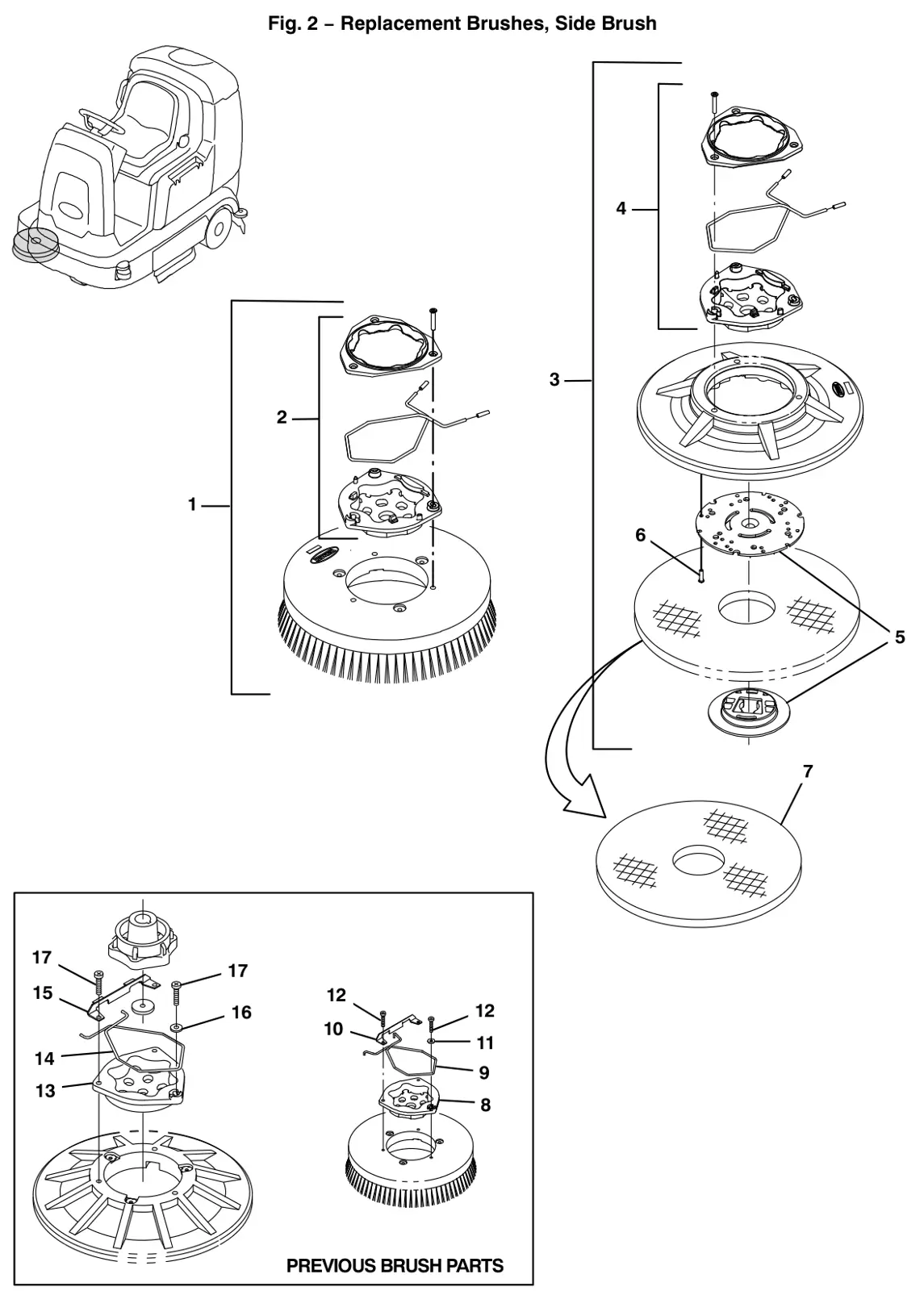

Tennant T12 replacement Brushes, Side Brush parts
The parts Tennant numbers on its replacement brushes, side brush drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037184Replaces Tennant 1220230 | 2 | Brush Assy, disk, Scb, 13.0D, NylonComplete assembly. Serial 10000000 to 19999999. | $333.60/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, CIPart of Brush Assy, disk, Scb, 13.0D, Nylon (1220230). Serial 10000000 to 19999999. | $64.00/EA |
| 1 | TN4037185Replaces Tennant 1220231 | 2 | Brush Assy, disk, Scb, 13.0D, Polypropylene StiffComplete assembly. Serial 10000000 to 19999999. | $298.20/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, CIPart of Brush Assy, disk, Scb, 13.0D, Polypropylene Stiff (1220231). Serial 10000000 to 19999999. | $64.00/EA |
| 1 | TN4037186Replaces Tennant 1220232 | 2 | Brush Assy, disk, Scb, 13.0d, Super AbrasiveComplete assembly. Serial 10000000 to 19999999. | $497.10/EA |
| 2 | TN4022626Replaces Tennant 9014662 | 1 | Brush Kit, Hub Assy, Drive, CIPart of Brush Assy, disk, Scb, 13.0d, Super Abrasive (1220232). Serial 10000000 to 19999999. | $64.00/EA |
| 3 | TN4037194Replaces Tennant 1220243 | 1 | Driver Assy, Pad, 13.0DComplete assembly. Serial 10000000 to 19999999. | $367.90/EA |
| 4 | TN4022627Replaces Tennant 9014664 | 1 | Brush Kit, Hub Assy, Drive, CIPart of Driver Assy, Pad, 13.0D (1220243). Serial 10000000 to 19999999. | $73.40/EA |
| 5 | TN4032342Replaces Tennant 370095 | 1 | Device, Centering, Clip On, Tl [Gf Pp]Part of Driver Assy, Pad, 13.0D (1220243). Serial 10000000 to 19999999. | $45.50/EA |
| 6 | TN4029531Replaces Tennant 360943 | 3 | Screw, Pan, Phl, 10-14 X 0.75, F/PlstcPart of Driver Assy, Pad, 13.0D (1220243). Serial 10000000 to 19999999. | $2.50/EA |
| 7 | TN4018223Replaces Tennant 89046 | 2 | Pad, Stripping, 13.0d, Brown[1pick=1pad]Serial 10000000 to 19999999. | $17.70/EA |
| 7 | TN4216983Replaces Tennant 89047 | 2 | Pad, Scrubbing, 13.0d, BlueSerial 10000000 to 19999999. | $80.60/EA |
| 7 | TN4018225Replaces Tennant 89048 | 2 | Pad, Buff, 13.0d, Red [1pick=1pad]Serial 10000000 to 19999999. | $14.05/EA |
| 7 | TN4018226Replaces Tennant 89049 | 2 | Pad, Polish, 13.0d, White [1pick=1pad]Serial 10000000 to 19999999. | $12.15/EA |
| 7 | TN4040745Replaces Tennant 1051024 | 2 | Pad, Surf Prep, 13.0d [Mar, 1pick=1pad]Serial 10000000 to 19999999. | $21.88/EA |
| 8 | TN4035452Replaces Tennant 1017368 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bcSerial 10000000 to 19999999. | $12.30/EA |
| 9 | TN4044356Replaces Tennant 14838 | 1 | Spring, Wir, 0.16d, Brush RetainingSerial 10000000 to 19999999. | $20.90/EA |
| 10 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringSerial 10000000 to 19999999. | $30.20/EA |
| 11 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 12 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, Phl, M6 X 1.00 X 35, SsSerial 10000000 to 19999999. | $3.20/EA |
| 13 | TN4035452Replaces Tennant 1017368 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bcSerial 10000000 to 19999999. | $12.30/EA |
| 14 | TN4035520Replaces Tennant 1017957 | 1 | Spring, Retaining, BrushSerial 10000000 to 19999999. | $24.00/EA |
| 15 | TN4035374Replaces Tennant 24299 | 1 | Bracket, Retainer, SpringSerial 10000000 to 19999999. | $30.20/EA |
| 16 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 17 | TN4034480Replaces Tennant 32746 | 3 | Screw, Pan, Phl, M6 X 1.00 X 35, SsSerial 10000000 to 19999999. | $3.20/EA |
| – | TN4037184Replaces Tennant 1042492 | 1 | Brush Assy, Disk, Scb, 13.0d, Nylon (Scrubbing) (Replaced by 1220230)Serial 10000000 to 19999999. | $333.60/EA |
| – | TN4037185Replaces Tennant 1042494 | 1 | Brush Assy, Disk, Scb, 13.0d, Polypropylene Stiff (Scrubbing) (Replaced by 1220231)Serial 10000000 to 19999999. | $298.20/EA |
| – | TN4037186Replaces Tennant 1042496 | 1 | Brush Assy, Disk, Scb, 13.0d, Super Abrasive (Scrubbing) (Replaced by 1220232)Serial 10000000 to 19999999. | $497.10/EA |
| – | TN4037194Replaces Tennant 379013 | 2 | Driver Assy, Pad, 13.0d (Replaced by 1220243)Serial 10000000 to 19999999. | $367.90/EA |

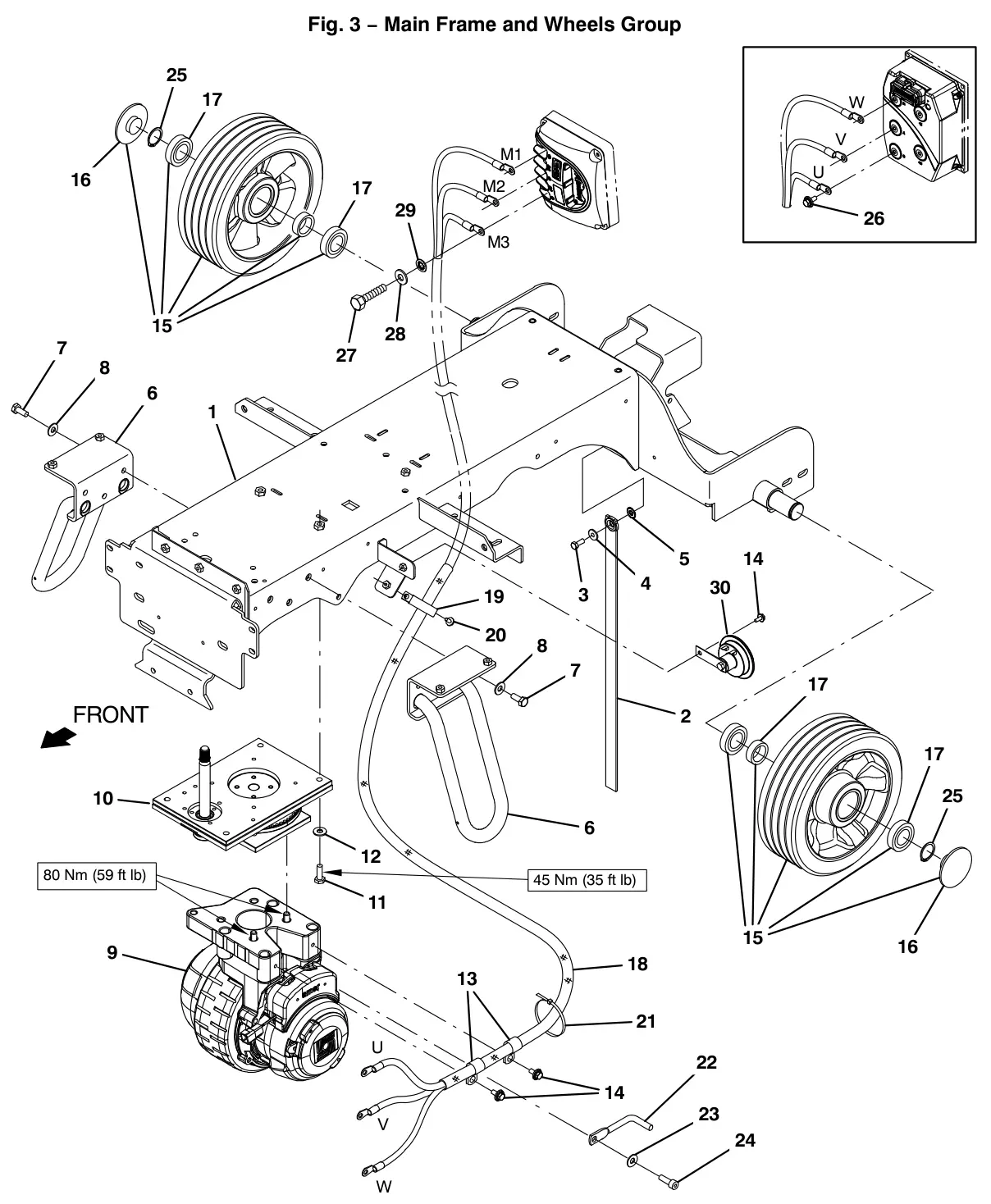

Tennant T12 main Frame and Wheels Group parts
The parts Tennant numbers on its main frame and wheels group drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043420Replaces Tennant 1200025 | 1 | Frame Wldt [T12]Serial 10000000 to 19999999. | $969.31/EA |
| 2 | TN4015658Replaces Tennant 71579 | 1 | Strap, Static, W/Grommet, .19 1.1w 25.0lSerial 10000000 to 19999999. | $25.90/EA |
| 3 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 19999999. | $3.40/EA |
| 4 | TN4016787Replaces Tennant 41141 | 1 | Washer, Lock, Int-Ext, 0.31Serial 10000000 to 19999999. | $3.50/EA |
| 5 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 6 | TN4043436Replaces Tennant 1200298 | 2 | Stabilizer Wldt [Cassoday]Serial 10000000 to 19999999. | $92.62/EA |
| 7 | TN4035960Replaces Tennant 12317 | 6 | Screw, Hex, M10 X 1.50 X 30, SsSerial 10000000 to 19999999. | $4.90/EA |
| 8 | TN4042903Replaces Tennant 01686 | 6 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |

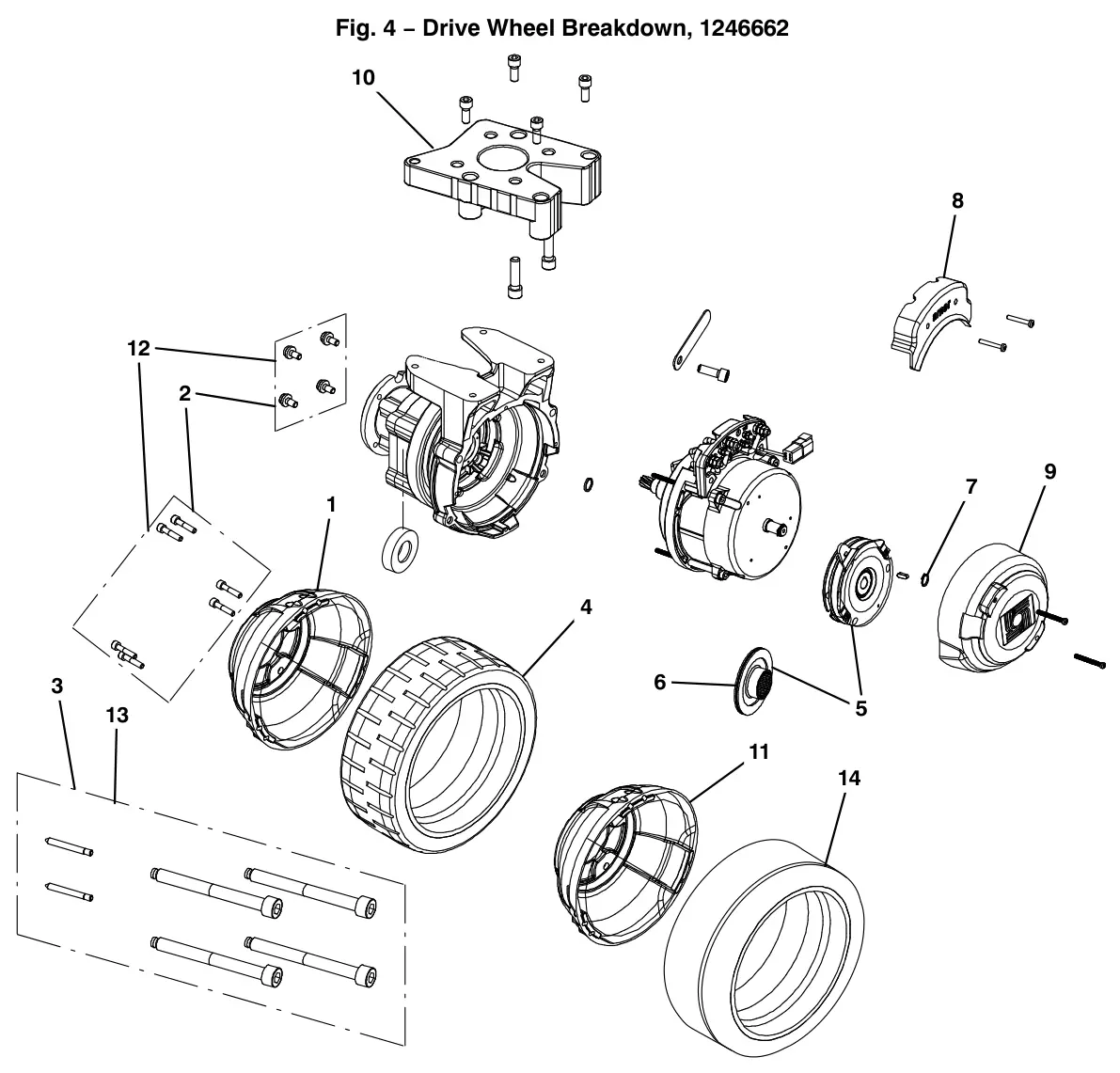

| 9 | TN4032211Replaces Tennant 1200150 | 1 | Wheel, Drive, Ac (Replaced by 1255933)Serial 10000000 to 10956761. | $2,446.30/EA |
| 9 | TN4032211Replaces Tennant 1246662 | 1 | Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933)Serial 10956762 to 11025471. | $2,446.30/EA |
| 9 | TN4032211Replaces Tennant 1255933 | 1 | Wheel, Drive, Ac (See Breakdown)Serial 11025472 to 19999999. | $2,446.30/EA |
| 10 | TN4032249Replaces Tennant 1200203 | 1 | Steer-Control Assy, Wheel Drive (See Breakdown) (Replaced by 1256309)Serial 10000000 to 11017501. | $700.90/EA |
| 10 | TN4032249Replaces Tennant 1256309 | 1 | Steer-Control Assy, Wheel Drive (See Breakdown)Serial 11017502 to 19999999. | $700.90/EA |
| 11 | TN4041948Replaces Tennant 09028 | 4 | Screw, Hex, M10 X 1.50 X 25, SsSerial 10000000 to 19999999. | $4.00/EA |
| 12 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |
| 13 | TN4018310Replaces Tennant 69234 | 2 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeSerial 10000000 to 10863997. | $4.20/EA |
| 13 | TN4029699Replaces Tennant 58366 | 2 | Clamp, Cable, Stl, 1.25d X 1.00w, 1holeSerial 10863998 to 19999999. | $5.10/EA |
| 14 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 15 | TN4034622Replaces Tennant 1060626 | 2 | Tire Assy, Solid, 300mm X 100mm, UreComplete assembly. Serial 10000000 to 19999999. | $438.70/EA |
| 16 | TN8004298Replaces Tennant 9011872 | 1 | Cap, Hub, Wheel [For 1060626]Part of Tire Assy, Solid, 300mm X 100mm, Ure (1060626). Serial 10000000 to 19999999. | $9.70/EA |
| 17 | TN4035399Replaces Tennant 24899 | 2 | Bearing, Ball 1.48B 2.38B 0.67WPart of Tire Assy, Solid, 300mm X 100mm, Ure (1060626). Serial 10000000 to 19999999. | $37.70/EA |
| 18 | TN4033490Replaces Tennant 31646 | 1 | Sleeve, Nyl, 1.63ID 25.0lSerial 10000000 to 19999999. | $23.80/EA |
| 19 | TN4041985Replaces Tennant 09570 | 1 | Clamp, Cable, Stl, 0.9x1.8x0.62w, 1holeSerial 10000000 to 19999999. | $5.30/EA |
| 20 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 to 19999999. | $3.30/EA |
| 21 | TN4043510Replaces Tennant 130773 | 3 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 19999999. | $3.90/EA |
| 22 | TN4041429Replaces Tennant 1207171 | 1 | Rod, SpptSerial 10000000 to 19999999. | $9.90/EA |
| 23 | TN4031242Replaces Tennant 33924 | 1 | Washer, Flat, M10, SsSerial 10000000 to 19999999. | $2.60/EA |
| 24 | TN4016811Replaces Tennant 41358 | 1 | Screw, Soc, M10X1.50X35, 12.9Serial 10000000 to 19999999. | $4.00/EA |
| 25 | TN4036791Replaces Tennant 1059019 | 2 | Ring, Retaining, Ext, 1.375odSerial 10000000 to 19999999. | $1.50/EA |
| 26 | TN4045268Replaces Tennant 1034731 | 3 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 to 10863997. | $3.30/EA |
| 27 | TN4022075Replaces Tennant 87308 | 3 | Screw, Hex, M6 X 1.00 x 12, 8.8Serial 10863998 to 19999999. | $2.50/EA |
| 28 | TN4034133Replaces Tennant 32483 | 3 | Washer, Flat, 0.25, SaeSerial 10863998 to 19999999. | $2.50/EA |
| 29 | TN4034655Replaces Tennant 32982 | 3 | Washer, Lock, Int, 0.25Serial 10863998 to 19999999. | $2.60/EA |
| 30 | TN4036600Replaces Tennant 1057780 | 1 | Horn, 36vdc, 110dbaSerial 10000000 to 19999999. | $68.90/EA |

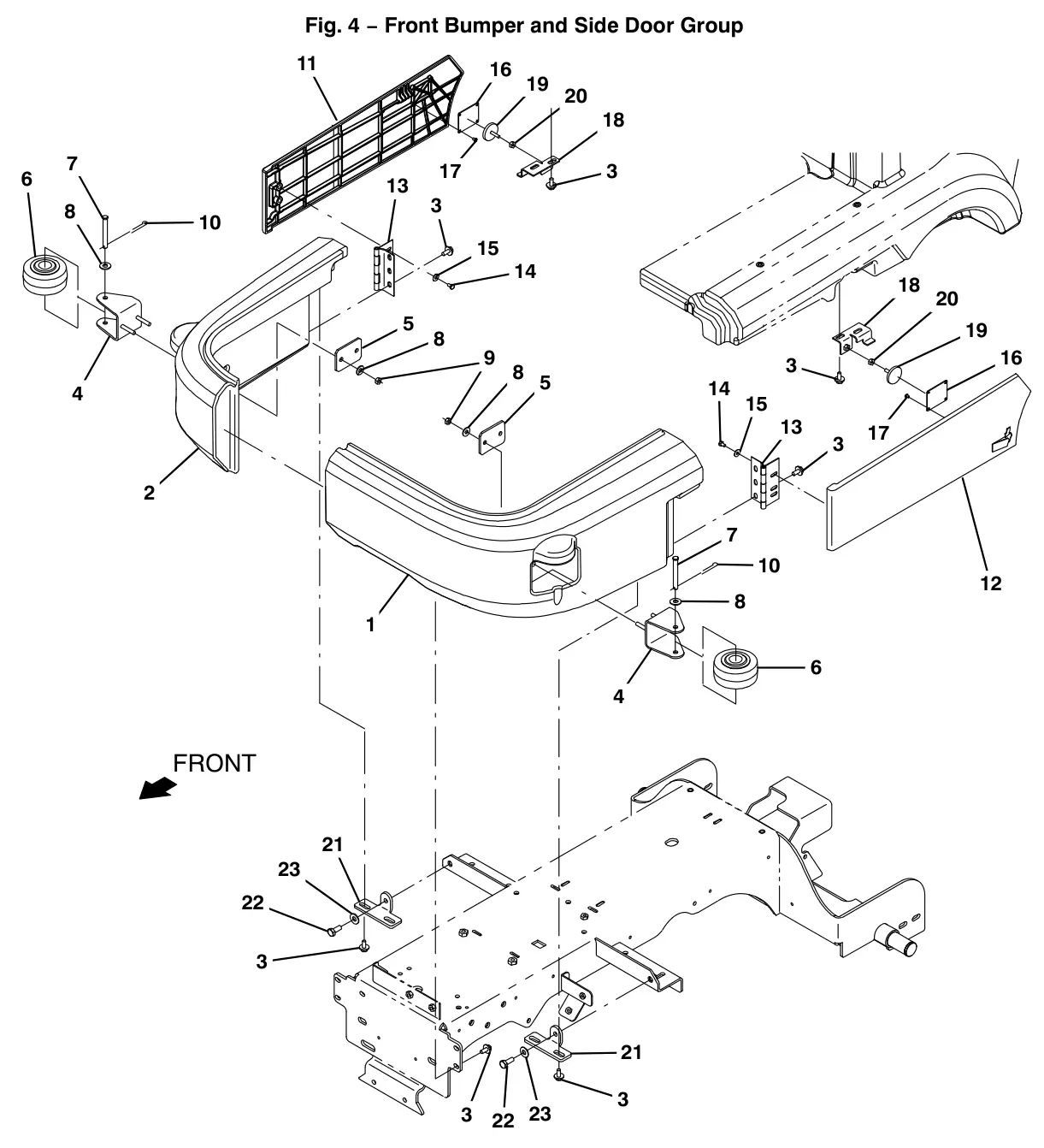

Tennant T12 front Bumper and Side Door Group parts
The parts Tennant numbers on its front bumper and side door group drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4027837Replaces Tennant 9010924 | 1 | Bumper, Lh, Afmkt [T12]Serial 10000000 to 19999999. | $243.30/EA |
| 2 | TN4027838Replaces Tennant 9010925 | 1 | Bumper, Rh, Afmkt [T12]Serial 10000000 to 19999999. | $207.70/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 15 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 4 | TN4043719Replaces Tennant 1200869 | 2 | Channel Wldt, RlrSerial 10000000 to 19999999. | $36.90/EA |
| 5 | TN4043720Replaces Tennant 1200870 | 2 | Plate, Backing, RollerSerial 10000000 to 19999999. | $4.70/EA |
| 6 | TN4038425Replaces Tennant 1054100 | 2 | Wheel, 04.0d 2.56w 0.41bSerial 10000000 to 19999999. | $26.60/EA |
| 7 | TN4029373Replaces Tennant 57598 | 2 | Pin, Clevis, 0.37d X 3.25lSerial 10000000 to 19999999. | $9.40/EA |
| 8 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 9 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 10 | TN4017779Replaces Tennant 44906 | 2 | Pin, Cotter, Hair, 0.38d .093 WirSerial 10000000 to 19999999. | $4.00/EA |
| 11 | TN4043983Replaces Tennant 1202289 | 1 | Panel, Door, RhSerial 10000000 to 19999999. | $49.60/EA |
| 12 | TN4044171Replaces Tennant 1202392 | 1 | Panel, Door, LhSerial 10000000 to 19999999. | $49.60/EA |
| 13 | TN4044169Replaces Tennant 1202349 | 2 | Hinge, Brush Door, BentSerial 10000000 to 19999999. | $19.20/EA |
| 14 | TN4041269Replaces Tennant 06941 | 4 | Screw, Hex, M6 X 1.00 X 10, 8.8Serial 10000000 to 19999999. | $2.50/EA |
| 15 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 16 | TN4044196Replaces Tennant 1202941 | 2 | Plate, LatchSerial 10000000 to 19999999. | $6.70/EA |
| 17 | TN4044200Replaces Tennant 1203025 | 8 | Screw, Pan, Phl, 08-16 X 0.25, F/PlstcSerial 10000000 to 19999999. | $1.50/EA |
| 18 | TN4043732Replaces Tennant 1200984 | 2 | Bracket Wldt, Latch, LhSerial 10000000 to 19999999. | $16.40/EA |
| 19 | TN4044182Replaces Tennant 1202779 | 2 | Magnet, Latch, Brush DoorSerial 10000000 to 19999999. | $20.30/EA |
| 20 | TN4034153Replaces Tennant 32520 | 2 | Nut, Hex, Jam, .25-20Serial 10000000 to 19999999. | $2.50/EA |
| 21 | TN4043453Replaces Tennant 1200460 | 2 | Bracket, Bumper, RightSerial 10000000 to 19999999. | $8.80/EA |
| 22 | TN4041948Replaces Tennant 09028 | 2 | Screw, Hex, M10 X 1.50 X 25, SsSerial 10000000 to 19999999. | $4.00/EA |
| 23 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |

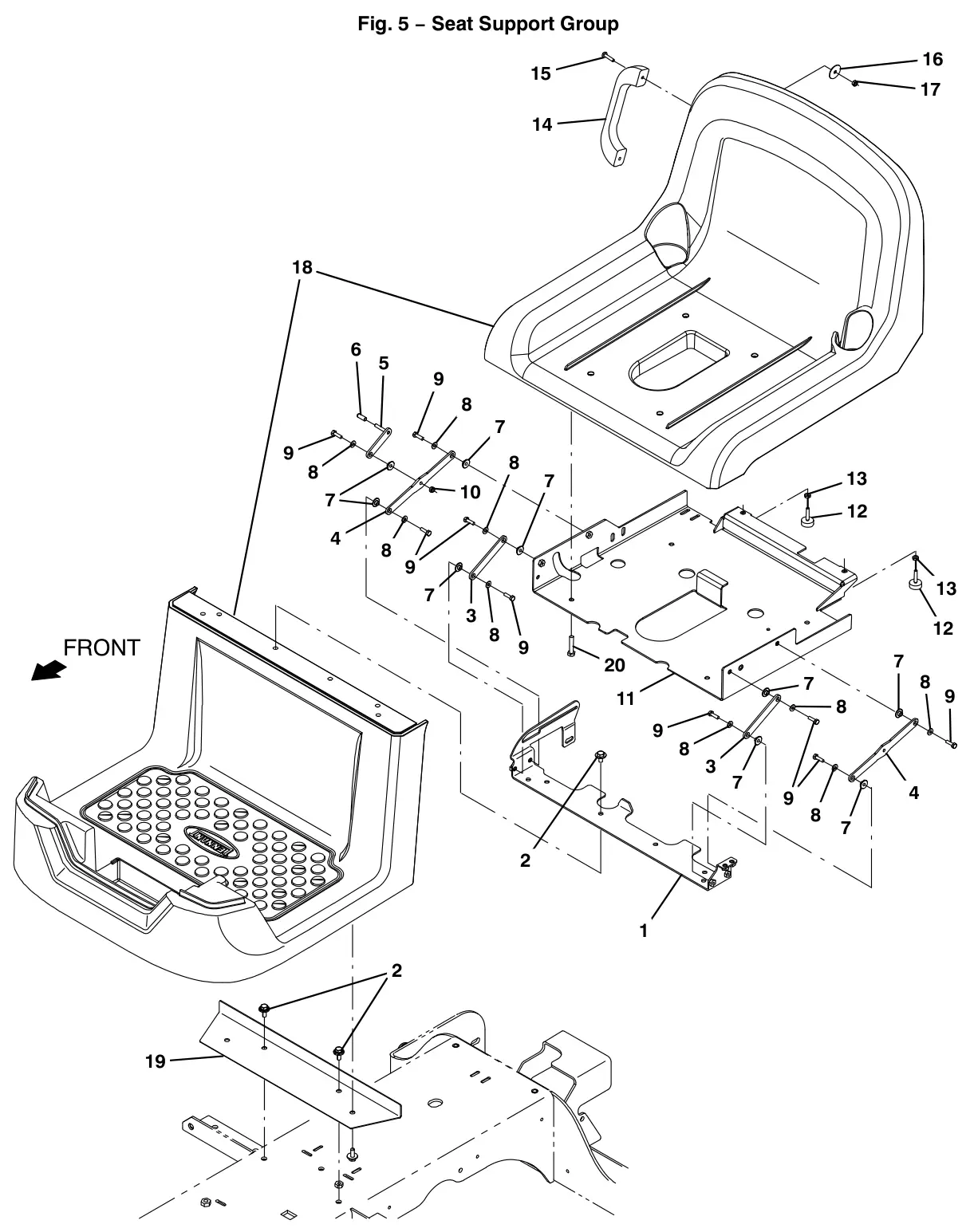

Tennant T12 seat Support Group parts
The parts Tennant numbers on its seat support group drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4027879Replaces Tennant 9011057 | 1 | Plate Wldt, Mtg, W/Label, Aftmkt, NaSerial 10000000 to 19999999. | $194.70/EA |
| 1 | TN4027880Replaces Tennant 9011058 | 1 | Plate Wldt, Mtg, W/Label, Aftmkt, JPSerial 10000000 to 19999999. | $350.77/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 10 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 3 | TN4043712Replaces Tennant 1200827 | 2 | Link, Oprtr StationSerial 10000000 to 19999999. | $7.60/EA |
| 4 | TN4043713Replaces Tennant 1200828 | 2 | Link, Oprtr StationSerial 10000000 to 19999999. | $8.20/EA |
| 5 | TN4043748Replaces Tennant 1201103 | 1 | Link Wldt, Oprtr StationSerial 10000000 to 19999999. | $21.30/EA |
| 6 | TN4044197Replaces Tennant 1202957 | 1 | Grip, Handle, .25d .90l YelSerial 10000000 to 19999999. | $1.50/EA |
| 7 | TN4043965Replaces Tennant 1202156 | 9 | Sleeve, FlangeSerial 10000000 to 19999999. | $1.40/EA |
| 8 | TN4042244Replaces Tennant 19066 | 10 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Serial 10000000 to 19999999. | $2.50/EA |
| 9 | TN4041931Replaces Tennant 08716 | 9 | Screw, Hex, M6 X 1.00 X 20, SsSerial 10000000 to 19999999. | $3.20/EA |
| 10 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M6 X 1.00, NlSerial 10000000 to 19999999. | $2.50/EA |
| 11 | TN4043425Replaces Tennant 1200210 | 1 | Channel Wldt, SeatSerial 10000000 to 19999999. | $74.34/EA |
| 12 | TN4039095Replaces Tennant 20802 | 2 | Bumper, Rbr, 1.0d 0.38th .25-20Serial 10000000 to 19999999. | $13.50/EA |
| 13 | TN4034153Replaces Tennant 32520 | 2 | Nut, Hex, Jam, .25-20Serial 10000000 to 19999999. | $2.50/EA |
| 14 | TN4027092Replaces Tennant 381962 | 1 | Handle, ContainerSerial 10000000 to 19999999. | $11.30/EA |
| 15 | TN4027387Replaces Tennant 382726 | 2 | Screw, Pan, Phl, M6 X 1.00 X 25, 4.8Serial 10000000 to 19999999. | $0.65/EA |
| 16 | TN4016794Replaces Tennant 41178 | 2 | Washer, Flat, 0.25, FendrSerial 10000000 to 19999999. | $2.50/EA |
| 17 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 19999999. | $2.50/EA |
| 18 | TN4010536Replaces Tennant 9009632 | 1 | Part Kit, Station, Oprtn, Plstc [2Pc=1Kit]Serial 10000000 to 19999999. | $571.65/EA |
| 19 | TN4043693Replaces Tennant 1200612 | 1 | Angle, SupportSerial 10000000 to 19999999. | $11.72/EA |
| 20 | TN4041946Replaces Tennant 09026 | 4 | Screw, Hex, M8 X 1.25 X 40, SsSerial 10000000 to 19999999. | $4.00/EA |

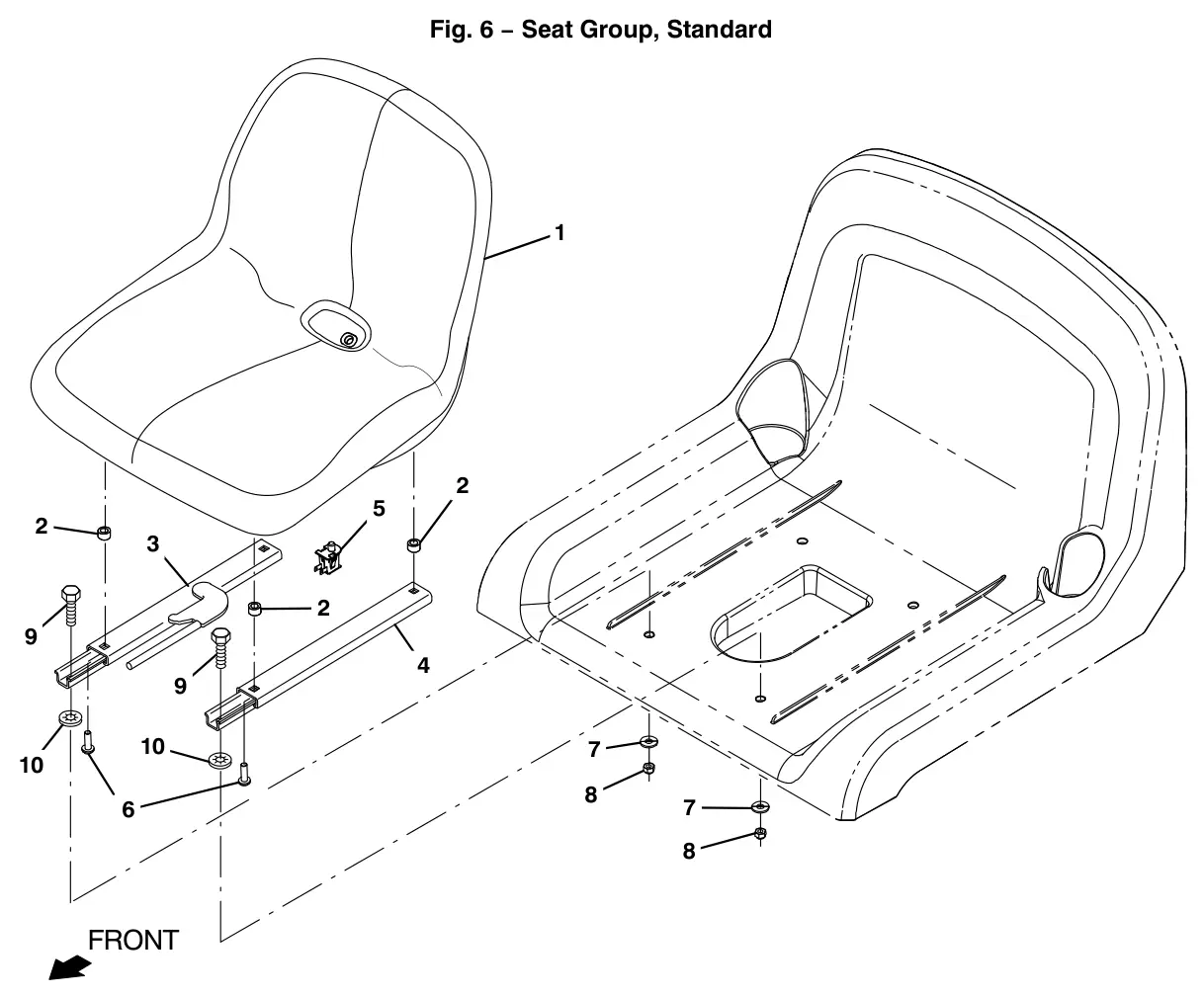

Tennant T12 seat Group, Standard parts
The parts Tennant numbers on its seat group, standard drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043938Replaces Tennant 1201894 | 1 | Seat, Std [Milsco]Serial 10000000 to 19999999. | $216.90/EA |
| 2 | TN4040754Replaces Tennant 1051052 | 4 | Spacer, Rnd, .38b .88d .38lSerial 10000000 to 19999999. | $3.90/EA |
| 3 | TN4043035Replaces Tennant 1077071 | 1 | Track, Locking, 12.5L, No Stud W/HandleSerial 10000000 to 19999999. | $52.60/EA |
| 4 | TN4043034Replaces Tennant 1077067 | 1 | Track, N-Lkg, Seat, 12.5L, No StudSerial 10000000 to 19999999. | $32.00/EA |
| 5 | TN4040075Replaces Tennant 1048955 | 1 | Switch, Seat, No [Delta 6440-04]Serial 10000000 to 19999999. | $10.40/EA |
| 6 | TN4045373Replaces Tennant 1035038 | 4 | Screw, Hex, .31-18 X 1.38, Ss, NlSerial 10000000 to 19999999. | $4.00/EA |
| 7 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 8 | TN4016828Replaces Tennant 41437 | 4 | Nut, Hex, Lock, .31-18, Nl, SsSerial 10000000 to 19999999. | $4.00/EA |
| 9 | TN4028947Replaces Tennant 76955 | 4 | Track, N-Lkg, Seat, 12.5L, No StudSerial 10000000 to 19999999. | $2.50/EA |
| 10 | TN4043036Replaces Tennant 1077073 | 4 | Nut, Push, Bolt Retension, Stl, 5/16 ThrdSerial 10000000 to 19999999. | $13.80/EA |

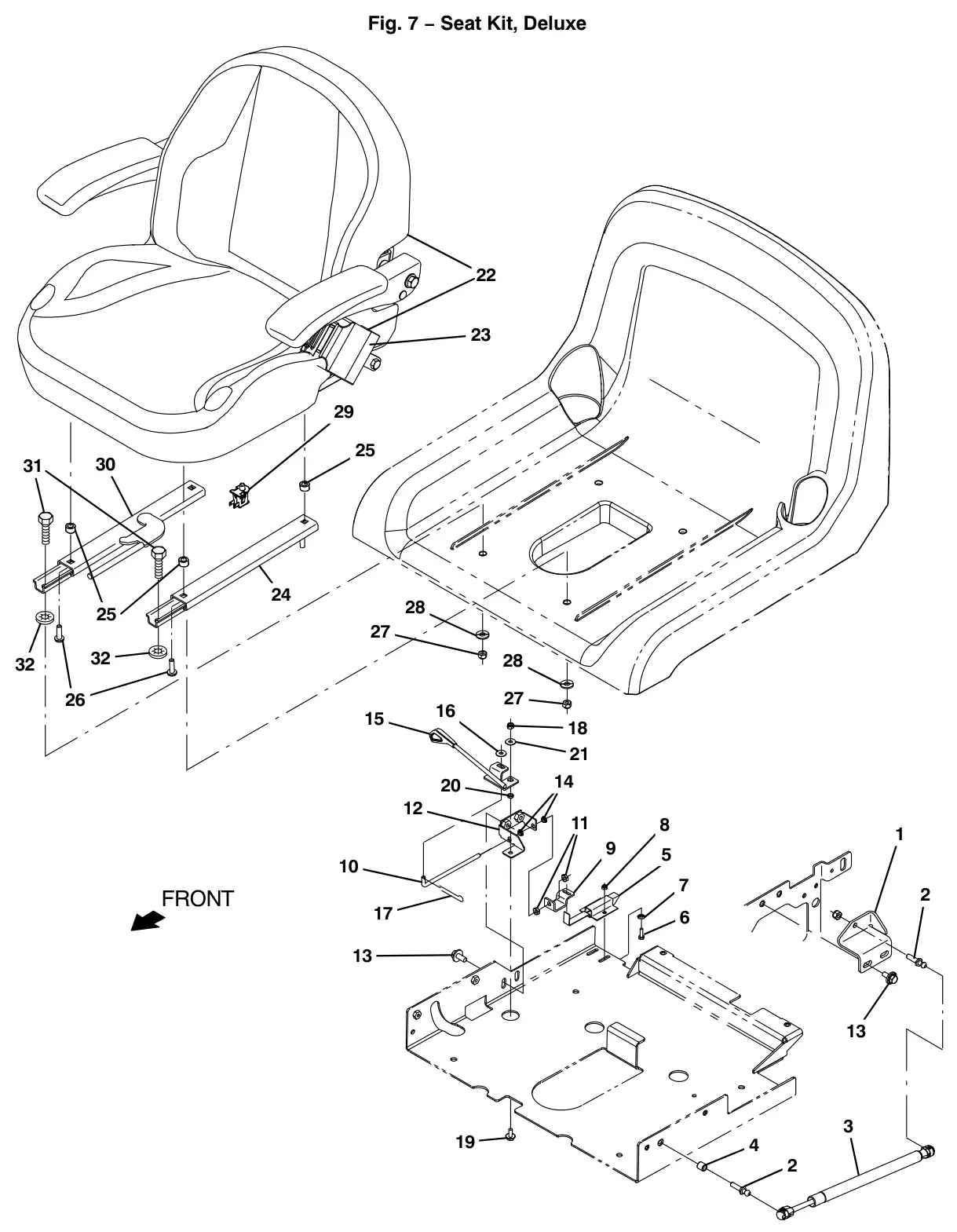

Tennant T12 seat Kit, Deluxe parts
The parts Tennant numbers on its seat kit, deluxe drawing. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010751Replaces Tennant 9009836 | 1 | Seat Kit, Deluxe, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $1,924.20/EA |
| 1 | TN4044183Replaces Tennant 1202800 | 1 | Bracket, Mtg, Ball StudPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $16.97/EA |
| 2 | TN4037285Replaces Tennant 1012878 | 2 | Stud, Ball, .39d .31-18Part of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $11.80/EA |
| 3 | TN4032452Replaces Tennant 1260773 | 1 | Gas spring, 30lb, 8.0strkPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $80.40/EA |
| 4 | TN4040581Replaces Tennant 222460 | 1 | Sleeve, P/M, 0.32b 0.50d 0.5l [430ss]Part of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.40/EA |
| 5 | TN4034205Replaces Tennant 1025736 | 1 | LatchPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $17.00/EA |
| 6 | TN4035369Replaces Tennant 24199 | 2 | Screw, Hex, M5 X 0.80 X 16, SsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.00/EA |
| 7 | TN4043641Replaces Tennant 140011 | 2 | Washer, Flat, 0.21b 0.45d .03, SsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.20/EA |
| 8 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.30/EA |
| 9 | TN4043734Replaces Tennant 1200999 | 1 | Angle, LatchPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $18.35/EA |
| 10 | TN4040850Replaces Tennant 1203958 | 1 | Handle, LatchPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $39.56/EA |
| 11 | TN4034153Replaces Tennant 32520 | 2 | Nut, Hex, Jam, .25-20Part of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $2.50/EA |
| 12 | TN4040846Replaces Tennant 1203946 | 1 | Bracket Wldt, LatchPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $30.95/EA |
| 13 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.50/EA |
| 14 | TN4023534Replaces Tennant 80921 | 2 | Bushing, Snap-In, 0.25b 0.31d 0.08th NylPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $6.00/EA |
| 15 | TN4041078Replaces Tennant 1205295 | 1 | Handle Assy, Latch, SeatPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $107.37/EA |
| 16 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $2.60/EA |
| 17 | TN4041620Replaces Tennant 08085 | 1 | Pin, Cotter, Hair, 0.31d .058 WirPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $2.50/EA |
| 18 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $2.50/EA |
| 19 | TN4045268Replaces Tennant 1034731 | 1 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.30/EA |
| 20 | TN4041131Replaces Tennant 1205764 | 1 | Sleeve, P/M, 0.25b 0.38d 0.1l [430ss]Part of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $11.40/EA |
| 21 | TN4036076Replaces Tennant 29570 | 1 | Washer, Flat, 0.28b 1.00d .06, StlPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.00/EA |
| 22 | TN4043898Replaces Tennant 1201428 | 1 | Seat, Dlx, W/ Armrests & SeatbeltPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $587.50/EA |
| 23 | TN4031092Replaces Tennant 1248442 | 1 | Seatbelt, Orange, Retractable, AfmktPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $363.40/EA |
| 24 | TN4043034Replaces Tennant 1077067 | 1 | Track, N-Lkg, Seat, 12.5L, No StudPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $32.00/EA |
| 25 | TN4040754Replaces Tennant 1051052 | 4 | Spacer, Rnd, .38b .88d .38lPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $3.90/EA |
| 26 | TN4045373Replaces Tennant 1035038 | 4 | Screw, Hex, .31-18 X 1.38, Ss, NlPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $4.00/EA |
| 27 | TN4016828Replaces Tennant 41437 | 4 | Nut, Hex, Lock, .31-18, Nl, SsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $4.00/EA |
| 28 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $2.60/EA |
| 29 | TN4040075Replaces Tennant 1048955 | 4 | Switch, Seat, No [Delta 6440-04]Part of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $10.40/EA |
| 30 | TN4043035Replaces Tennant 1077071 | 1 | Track, Locking, 12.5L, No Stud W/HandlePart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $52.60/EA |
| 31 | TN4028947Replaces Tennant 76955 | 4 | Screw, Hex, .31-18 X 1.00, G5Part of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $2.50/EA |
| 32 | TN4043036Replaces Tennant 1077073 | 4 | Nut, Push, Bolt Retension, Stl, 5/16 ThrdPart of Seat Kit, Deluxe, Ci [T12] (9009836). Serial 10000000 to 19999999. | $13.80/EA |

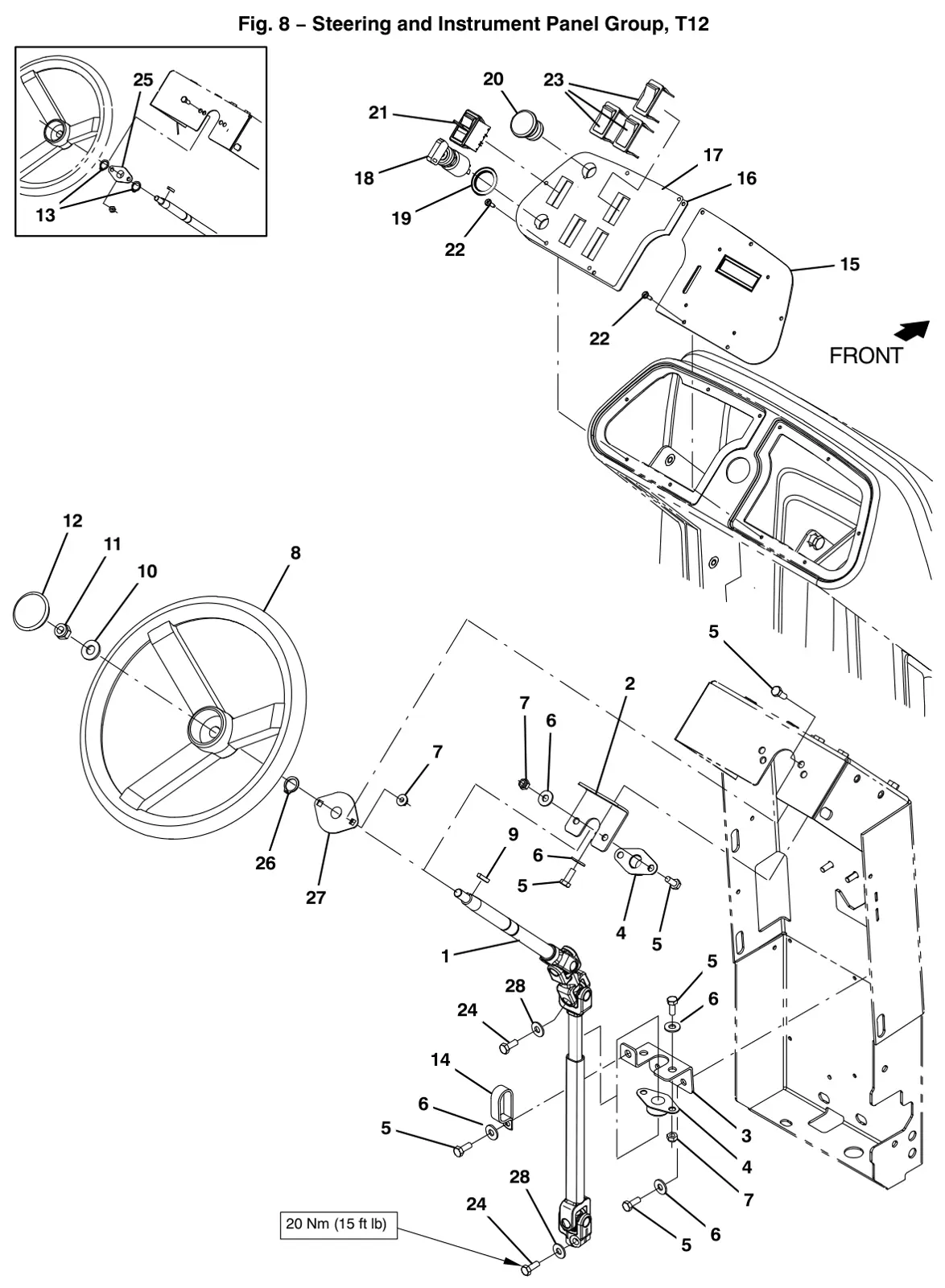

Tennant T12 steering and Instrument Panel Group, T12 parts
The parts Tennant numbers on its steering and instrument panel group, t12 drawing. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029891Replaces Tennant 1265158 | 1 | Shaft Assy, SteeringSerial 10000000 to 19999999. | $223.31/EA |
| 2 | TN4043771Replaces Tennant 1201253 | 1 | Bracket, Mtg, BrgSerial 10000000 to 19999999. | $8.18/EA |
| 3 | TN4041129Replaces Tennant 1205753 | 1 | Bracket Wldt, Sppt, BrgSerial 10000000 to 19999999. | $30.83/EA |
| 4 | TN4037347Replaces Tennant 223065 | 2 | Bearing, Flng, 2hole, 0.75b [Nyl]Serial 10000000 to 19999999. | $6.00/EA |
| 5 | TN4041844Replaces Tennant 16931 | 5 | Screw, Hex, M8 X 1.25 X 20, 8.8Serial 10000000 to 19999999. | $2.50/EA |
| 6 | TN4034137Replaces Tennant 32491 | 7 | Washer, Flat, 0.31, StdSerial 10000000 to 19999999. | $2.50/EA |
| 7 | TN4041926Replaces Tennant 08709 | 6 | Nut, Hex, Lock, M8 X 1.25, NlSerial 10000000 to 19999999. | $2.50/EA |
| 8 | TN4045520Replaces Tennant 1036490 | 1 | Wheel, Steering, 14.0d, Taper BoreSerial 10000000 to 19999999. | $153.10/EA |
| 9 | TN4042778Replaces Tennant 00912 | 1 | Key, Sq, 0.19 X 0.19, 1.00lSerial 10000000 to 19999999. | $3.60/EA |
| 10 | TN4041927Replaces Tennant 08711 | 1 | Nut, Hex, Lock, M12 X 1.75, NlSerial 10000000 to 19999999. | $3.30/EA |
| 11 | TN4034139Replaces Tennant 32493 | 1 | Washer, Flat, 0.50, StdSerial 10000000 to 19999999. | $3.50/EA |
| 12 | TN4043972Replaces Tennant 1038966 | 1 | Cap, Wheel, SteeringSerial 10000000 to 19999999. | $4.00/EA |
| 13 | TN4035690Replaces Tennant 26428 | 2 | Ring, Retaining, Ext, 0.75d, HdSerial 10000000 to 10638330. | $3.90/EA |
| 14 | TN4041985Replaces Tennant 09570 | 1 | Clamp, Cable, Stl, 0.9x1.8x0.62w, 1holeSerial 10000000 to 19999999. | $5.30/EA |
| 15 | TN4025425Replaces Tennant 9013277 | 1 | Panel kit, Cntrl, Replmt [T12]Serial 10000000 to 19999999. | $1,215.60/EA |
| 16 | TN4043761Replaces Tennant 1201180 | 1 | Panel, Console, LhSerial 10000000 to 10962735. | $11.11/EA |
| 16 | TN4033632Replaces Tennant 1238865 | 1 | Panel, Console, LhSerial 10962736 to 19999999. | $38.47/EA |
| 17 | TN4040863Replaces Tennant 1204177 | 1 | Label, Opertnl, Console, LhSerial 10000000 to 10962735. | $21.50/EA |
| 17 | TN4033635Replaces Tennant 1238872 | 1 | Label, Opertnl, Console, LhSerial 10962736 to 19999999. | $19.70/EA |
| 18 | TN4029584Replaces Tennant 361076 | 1 | Switch, Ignition [Merit Gmbh]Complete assembly. Serial 10000000 to 19999999. | $85.60/EA |
| – | TN4029794Replaces Tennant 361144 | 1 | Key, ignition, SglPart of Switch, Ignition [Merit Gmbh] (361076). Serial 10000000 to 19999999. | $14.30/EA |
| 19 | TN4024287Replaces Tennant 82226 | 1 | Washer, Flat, 0.91b 1.38d .06, Stl, PlSerial 10000000 to 19999999. | $4.10/EA |
| 20 | TN4029938Replaces Tennant 1011735 | 1 | Switch, Safety, ShutoffSerial 10000000 to 19999999. | $40.50/EA |
| 21 | TN4036751Replaces Tennant 1058679 | 1 | Switch, Rocker, Dpdt, On / None / OnSerial 10000000 to 19999999. | $29.40/EA |
| 22 | TN4044128Replaces Tennant 140825 | 10 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, BlkSerial 10000000 to 19999999. | $3.30/EA |
| 23 | TN4016538Replaces Tennant 398501 | 3 | Plug, Hole, Rt, Rocker Switch, .87 X 1.7Serial 10000000 to 19999999. | $6.80/EA |
| 24 | TN4156940Replaces Tennant 39277 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Serial 10000000 to 19999999. | $3.20/EA |
| 25 | TN4037347Replaces Tennant 223065 | 1 | Bearing, Flng, 2hole, 0.75b [Nyl]Serial 10000000 to 10638330. | $6.00/EA |
| 26 | TN4035690Replaces Tennant 26428 | 1 | Ring, Retaining, Ext, 0.75D, HdSerial 10638331 to 19999999. | $3.90/EA |
| 27 | TN4036569Replaces Tennant 1057554 | 1 | Bearing, Flng, 2hole, 0.75bSerial 10638331 to 19999999. | $37.60/EA |
| 28 | TN4015595Replaces Tennant 39349 | 2 | Washer, flat, 0.31, SaeSerial 10000000 to 19999999. | $2.50/EA |

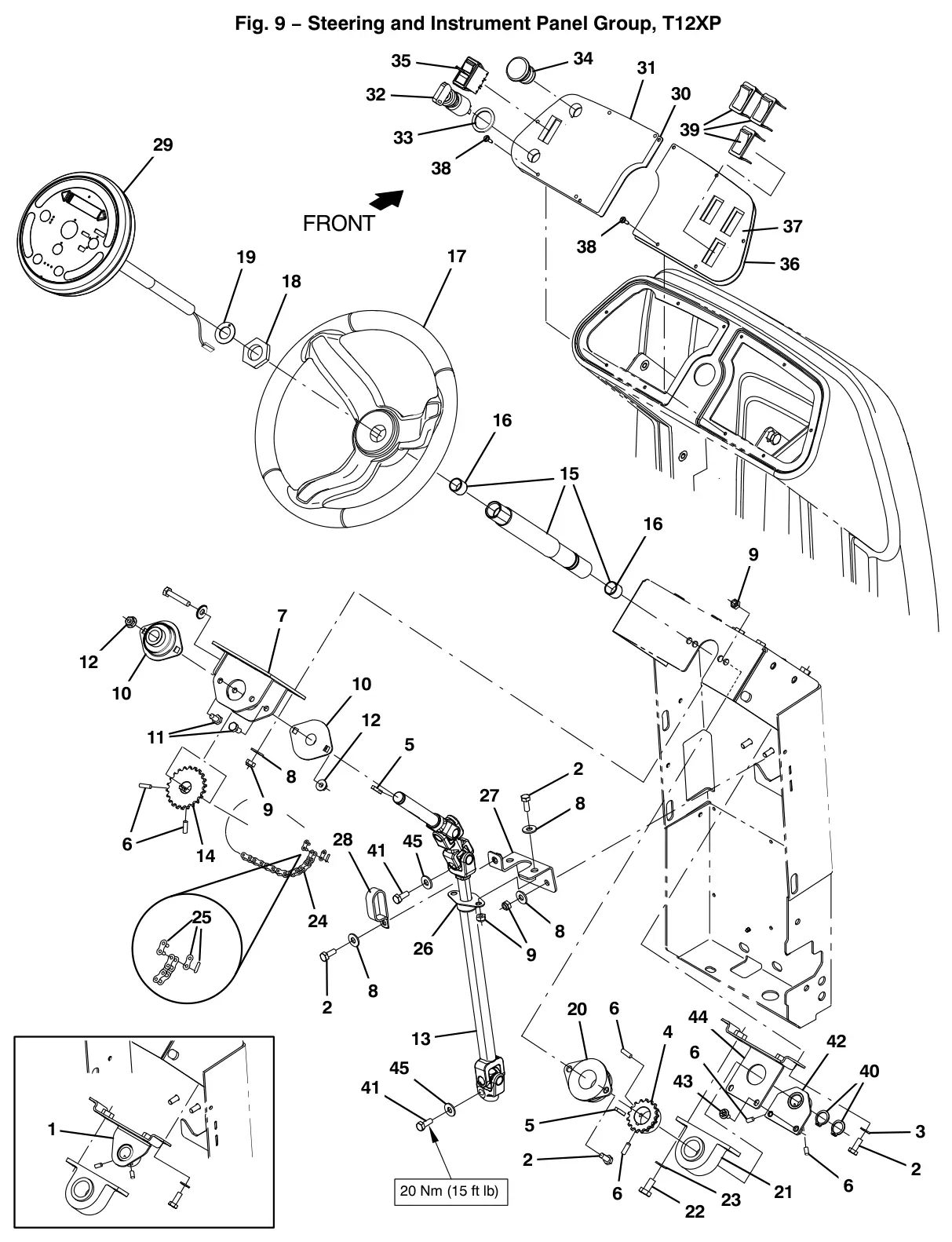

Tennant T12 steering and Instrument Panel Group, T12XP parts
The parts Tennant numbers on its steering and instrument panel group, t12xp drawing. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042019Replaces Tennant 1200263 | 1 | Bracket Wldt, BrgSerial 10000000 to 10713299. | $36.26/EA |
| 2 | TN4041844Replaces Tennant 16931 | 7 | Screw, Hex, M8 X 1.25 X 20, 8.8Serial 10000000 to 19999999. | $2.50/EA |
| 3 | TN4171131Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdSerial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4027855Replaces Tennant 9010942 | 1 | Sprocket Kit, 1.12b, Afmkt [T12]Serial 10000000 to 19999999. | $65.80/EA |
| 5 | TN4042778Replaces Tennant 00912 | 2 | Key, Sq, 0.19 X 0.19, 1.00lSerial 10000000 to 19999999. | $3.60/EA |
| 6 | TN4041960Replaces Tennant 09162 | 6 | Screw, Set, M6 X 1.00 X 8, NlSerial 10000000 to 19999999. | $4.00/EA |
| 7 | TN4036574Replaces Tennant 1057572 | 1 | Plate Wldt, Sppt, BrgSerial 10000000 to 19999999. | $39.90/EA |
| 8 | TN4034137Replaces Tennant 32491 | 9 | Washer, Flat, 0.31, StdSerial 10000000 to 19999999. | $2.50/EA |
| 9 | TN4041926Replaces Tennant 08709 | 10 | Nut, Hex, Lock, M8 X 1.25, NlSerial 10000000 to 19999999. | $2.50/EA |
| 10 | TN4036569Replaces Tennant 1057554 | 2 | Bearing, Flng, 2hole, 0.75bSerial 10000000 to 19999999. | $37.60/EA |
| 11 | TN4041828Replaces Tennant 16735 | 4 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial 10000000 to 19999999. | $3.40/EA |
| 12 | TN4041605Replaces Tennant 07791 | 4 | Nut, Hex, Flng, M8 X 1.25Serial 10000000 to 19999999. | $2.50/EA |
| 13 | TN4029892Replaces Tennant 1265159 | 1 | Shaft Assy, SteeringSerial 10000000 to 19999999. | $224.93/EA |
| 14 | TN4027856Replaces Tennant 9010943 | 1 | Sprocket Kit, 0.75b, Afmkt [T12]Serial 10000000 to 19999999. | $77.00/EA |
| 15 | TN4039878Replaces Tennant 1214182 | 1 | Tube Assy, Column, SteeringComplete assembly. Serial 10713300 to 19999999. | $304.11/EA |
| 16 | TN4036601Replaces Tennant 1057785 | 2 | Bearing, Journal, 0.75b 0.88d 0.75lPart of Tube Assy, Column, Steering (1214182). Serial 10000000 to 19999999. | $5.50/EA |
| 17 | TN4035223Replaces Tennant 1056412 | 1 | Wheel, Steering, 14.4dSerial 10000000 to 19999999. | $194.20/EA |
| 18 | TN4036795Replaces Tennant 1059073 | 1 | Nut, Hex, Jam, 1.12-12Serial 10000000 to 19999999. | $9.50/EA |
| 19 | TN4040947Replaces Tennant 04846 | 1 | Washer, Thrust, 0.79b 1.42d 0.06[Garlok]Serial 10000000 to 19999999. | $10.00/EA |
| 20 | TN4036368Replaces Tennant 1057043 | 1 | Bearing, Flng, 2hole, 1.25bSerial 10000000 to 19999999. | $21.70/EA |
| 21 | TN4038650Replaces Tennant 1054654 | 1 | Bearing, Pillowblock, 1.12bSerial 10000000 to 19999999. | $33.80/EA |
| 22 | TN4041286Replaces Tennant 06961 | 2 | Screw, Hex, M10 X 1.5Serial 10000000 to 19999999. | $3.40/EA |
| 23 | TN4034134Replaces Tennant 32485 | 2 | Washer, Flat, 0.38, SaeSerial 10000000 to 19999999. | $2.50/EA |
| 24 | TN4038411Replaces Tennant 1053977 | 1 | Chain, Rlr, 35 X 35 PitchesSerial 10000000 to 19999999. | $7.40/EA |
| 25 | TN4044349Replaces Tennant 14799 | 1 | Link, Chain, Rlr, 35Serial 10000000 to 19999999. | $4.20/EA |
| 26 | TN4037347Replaces Tennant 223065 | 1 | Bearing, Flng, 2hole, 0.75b [Nyl]Serial 10000000 to 19999999. | $6.00/EA |
| 27 | TN4041129Replaces Tennant 1205753 | 1 | Bracket Wldt, Sppt, BrgSerial 10000000 to 19999999. | $30.83/EA |
| 28 | TN4041985Replaces Tennant 09570 | 1 | Clamp, Cable, Stl, 0.9x1.8x0.62w, 1holeSerial 10000000 to 19999999. | $5.30/EA |
| 29 | TN4025232Replaces Tennant 9013157 | 1 | Panel Assy, Steering Poc, Ci [T12]Serial 10000000 to 10713299. | $761.37/EA |
| 29 | TN4027847Replaces Tennant 9010934 | 1 | Panel, Pod, W/Instr Afmkt [T12]Serial 10713300 to 19999999. | $941.10/EA |
| 30 | TN4043914Replaces Tennant 1201534 | 1 | Panel, Console, LhSerial 10000000 to 10962735. | $7.58/EA |
| 30 | TN4033631Replaces Tennant 1238864 | 1 | Panel, Console, LhSerial 10962736 to 19999999. | $31.71/EA |
| 31 | TN4040861Replaces Tennant 1204170 | 1 | Label, Opertnl, Console, LhSerial 10000000 to 10962735. | $19.70/EA |
| 31 | TN4033633Replaces Tennant 1238867 | 1 | Label, Opertnl, Console, LhSerial 10962736 to 19999999. | $93.22/EA |
| 32 | TN4029584Replaces Tennant 361076 | 1 | Switch, Ignition [Merit Gmbh]Complete assembly. Serial 10000000 to 19999999. | $85.60/EA |
| – | TN4029794Replaces Tennant 361144 | 1 | Key, ignition, SglPart of Switch, Ignition [Merit Gmbh] (361076). Serial 10000000 to 19999999. | $14.30/EA |
| 33 | TN4024287Replaces Tennant 82226 | 1 | Washer, Flat, 0.91b 1.38d .06, Stl, PlSerial 10000000 to 19999999. | $4.10/EA |
| 34 | TN4029938Replaces Tennant 1011735 | 1 | Switch, Safety, ShutoffSerial 10000000 to 19999999. | $40.50/EA |
| 35 | TN4036751Replaces Tennant 1058679 | 1 | Switch, Rocker, Dpdt, On / None / OnSerial 10000000 to 19999999. | $29.40/EA |
| 36 | TN4043915Replaces Tennant 1201535 | 1 | Panel, Console, RhSerial 10000000 to 19999999. | $7.58/EA |
| 37 | TN4040862Replaces Tennant 1204176 | 1 | Label, Opertnl, Console, RhSerial 10000000 to 19999999. | $19.70/EA |
| 38 | TN4044128Replaces Tennant 140825 | 10 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, BlkSerial 10000000 to 19999999. | $3.30/EA |
| 39 | TN4016538Replaces Tennant 398501 | 3 | Plug, Hole, Rt, Rocker Switch, .87 X 1.7Serial 10000000 to 19999999. | $6.80/EA |
| 40 | TN4014941Replaces Tennant 70651 | 2 | Ring, Retaining, Ext, 1.12dSerial 10000000 to 19999999. | $4.00/EA |
| 41 | TN4156940Replaces Tennant 39277 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Serial 10000000 to 19999999. | $3.20/EA |
| 42 | TN4042022Replaces Tennant 1208625 | 1 | Plate Wldt, BrgSerial 10713300 to 19999999. | $73.50/EA |
| 43 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Sems, SsSerial 10713300 to 19999999. | $3.30/EA |
| 44 | TN4042019Replaces Tennant 1208622 | 1 | Bracket Wldt, BrgSerial 10713300 to 19999999. | $36.26/EA |
| 45 | TN4015595Replaces Tennant 39349 | 2 | Washer, flat, 0.31, SaeSerial 10000000 to 19999999. | $2.50/EA |

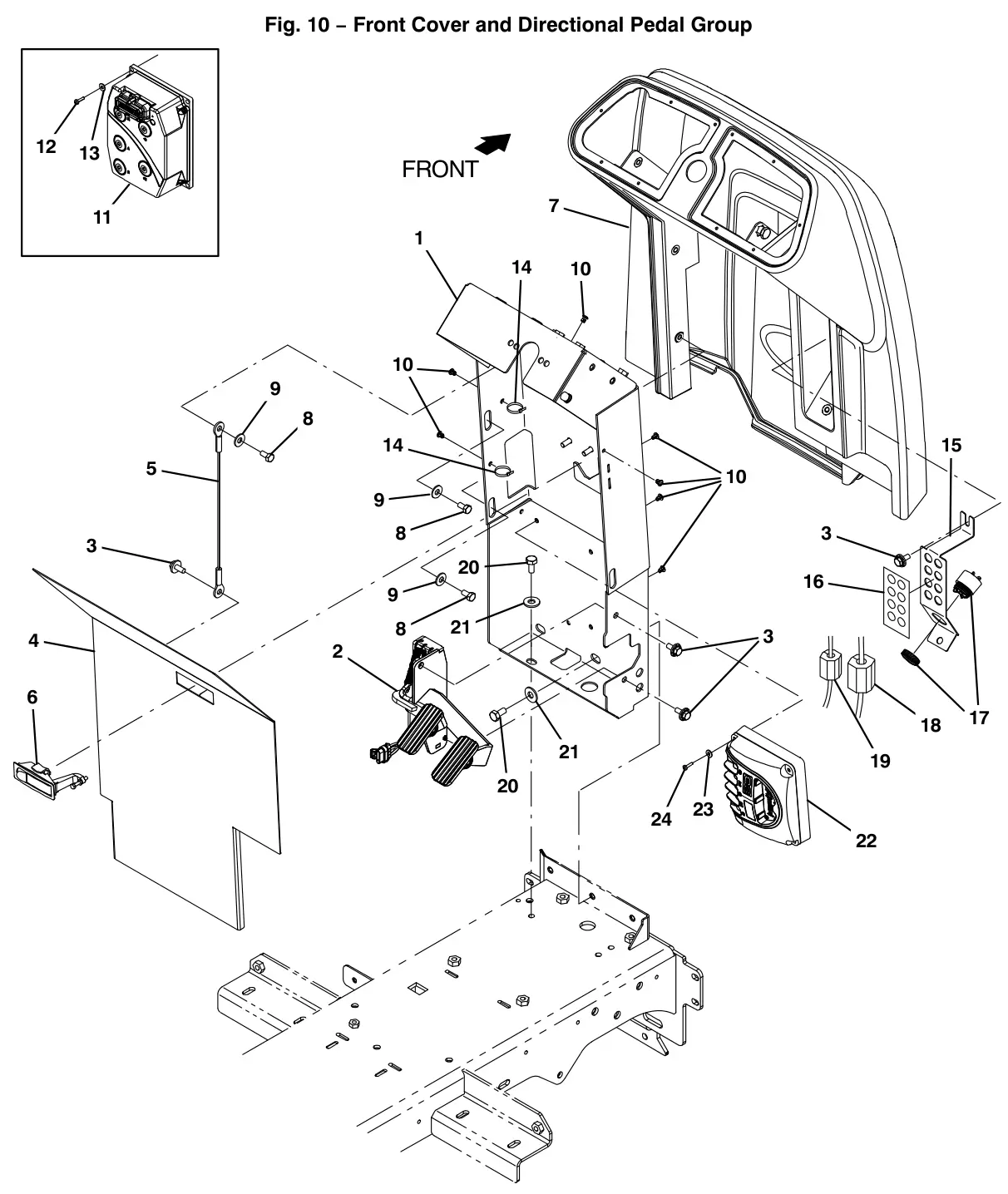

Tennant T12 front Cover and Directional Pedal Group parts
The parts Tennant numbers on its front cover and directional pedal group drawing. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043421Replaces Tennant 1200146 | 1 | Channel Wldt, Steering, PntdSerial 10000000 to 10863997. | $130.29/EA |
| 1 | TN4036847Replaces Tennant 1218569 | 1 | Channel Wldt, Steering, PntdSerial 10863998 to 19999999. | $223.21/EA |
| 2 | TN4043432Replaces Tennant 1200253 | 1 | Pedal Assy, Accelerator, Brake (See Breakdowns)Serial 10000000 to 19999999. | $434.90/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 5 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 4 | TN4027843Replaces Tennant 9010930 | 1 | Panel, Access, Front, Afmkt [T12]Serial 10000000 to 19999999. | $192.00/EA |
| 4 | TN4200337Replaces Tennant 9011168 | 1 | Panel, Access, Front, Afmkt [Jp]Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4042551Replaces Tennant 19676 | 1 | Cable, Glv .09d 013.0l .38eye /.38eyeSerial 10000000 to 19999999. | $12.60/EA |
| 6 | TN4016548Replaces Tennant 398806 | 1 | LatchSerial 10000000 to 19999999. | $67.50/EA |
| 7 | TN4027841Replaces Tennant 9010928 | 1 | Shroud, Front, Afmkt [T12]Serial 10000000 to 19999999. | $364.20/EA |
| 8 | TN4041243Replaces Tennant 15675 | 5 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 to 19999999. | $3.40/EA |
| 9 | TN4034137Replaces Tennant 32491 | 5 | Washer, Flat, 0.31, StdSerial 10000000 to 19999999. | $2.50/EA |
| 10 | TN4044189Replaces Tennant 1202868 | 7 | Clip, Tie, 0.25d, PlstcSerial 10000000 to 19999999. | $1.52/EA |
| 11 | TN4043985Replaces Tennant 1202308 | 1 | Controller, 36vdc, 200a [Ac Propel]Serial 10000000 to 10863997. | $2,344.20/EA |
| 12 | TN4035372Replaces Tennant 24265 | 4 | Screw, Pan, Phl, M4 X 0.70 X 16, SsSerial 10000000 to 10863997. | $3.00/EA |
| 13 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, SsSerial 10000000 to 10863997. | $2.60/EA |
| 14 | TN4043510Replaces Tennant 130773 | 7 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 19999999. | $3.90/EA |
| 15 | TN4043765Replaces Tennant 1201212 | 1 | Bracket, Ele, Cb [T12]Serial 10000000 to 19999999. | $12.83/EA |
| 16 | TN4043935Replaces Tennant 1201864 | 1 | Label, CircuitbreakerSerial 10000000 to 19999999. | $7.58/EA |
| 17 | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 9-48vdc, 95 Db(A) [Ec-H20]Serial 10000000 to 19999999. | $75.90/EA |
| 18 | TN4040823Replaces Tennant 1052120 | 1 | Inductor, 25Mmid [218 Imp At 25Mhz] (Australia Only)Serial 10000000 to 19999999. | $30.10/EA |
| 19 | TN4040824Replaces Tennant 1052123 | 1 | Inductor, 18Mmid [156 Imp At 25Mhz] (Australia Only)Serial 10000000 to 19999999. | $22.51/EA |
| 20 | TN4019758Replaces Tennant 39283 | 4 | Screw, Hex, M10x 1.50 x 25, 8.8Serial 10000000 to 19999999. | $3.30/EA |
| 21 | TN4034138Replaces Tennant 32492 | 4 | Washer, Flat, 0.38, StdSerial 10000000 to 19999999. | $2.50/EA |
| 22 | TN4040537Replaces Tennant 1218104 | 1 | Controller, Drive [T12]Serial 10863998 to 19999999. | $1,083.80/EA |
| 23 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, 0.25B 0.56D, .05, Pl, 10Serial 10863998 to 19999999. | $2.50/EA |
| 24 | TN4041268Replaces Tennant 06939 | 4 | Screw, Pan, Phl, M5X0.80 X 45, 4.8Serial 10863998 to 19999999. | $3.40/EA |

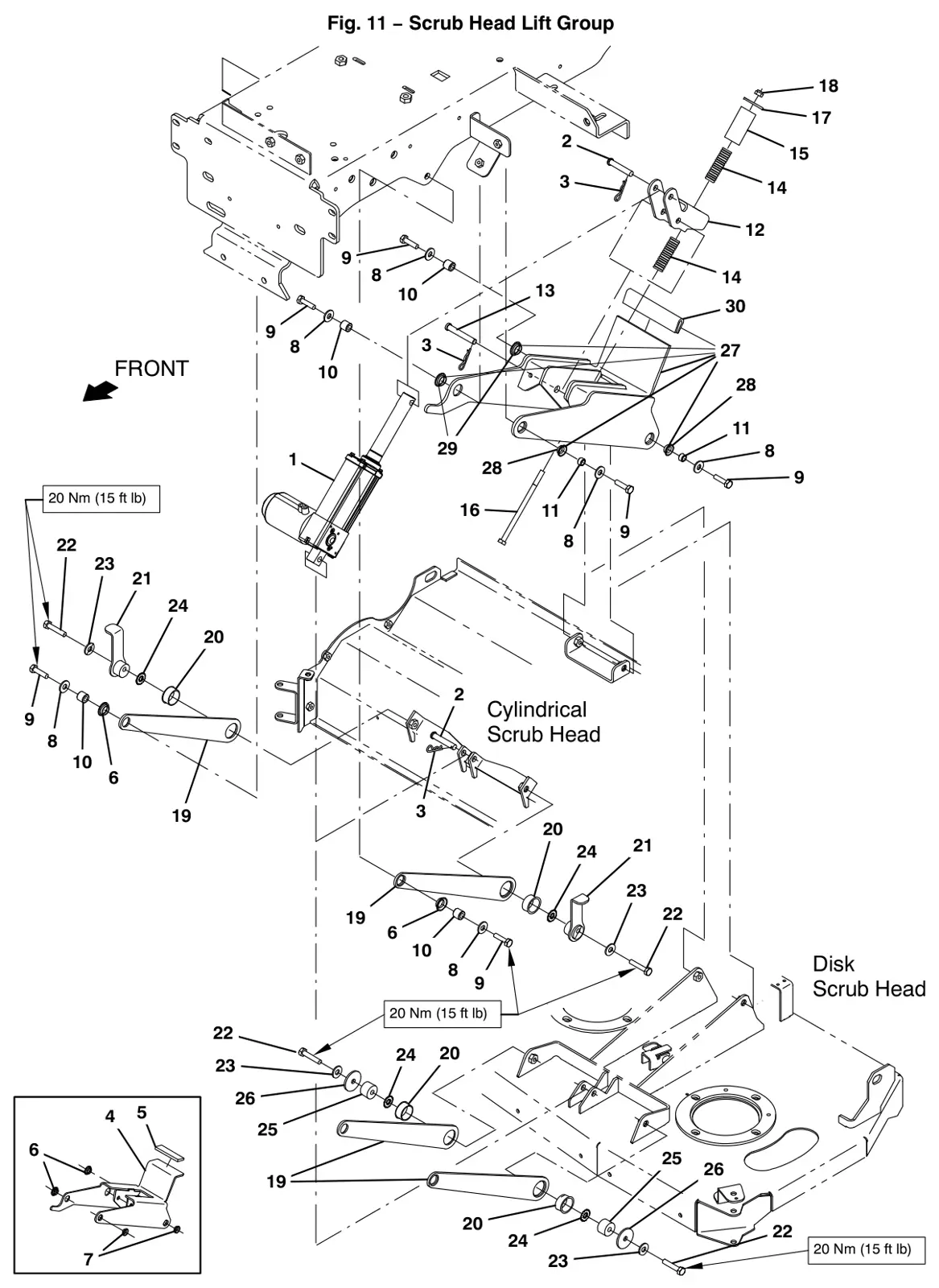

Tennant T12 scrub Head Lift Group parts
The parts Tennant numbers on its scrub head lift group drawing. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043709Replaces Tennant 1200774 | 1 | Actuator, 36vdc, 3.9strk, 450lbSerial 10000000 to 19999999. | $477.00/EA |
| 2 | TN4036077Replaces Tennant 29584 | 2 | Pin, Clevis, 0.37d X 2.00lSerial 10000000 to 19999999. | $3.90/EA |
| 3 | TN4017779Replaces Tennant 44906 | 3 | Pin, Cotter, Hair, 0.38d .093 WirSerial 10000000 to 19999999. | $4.00/EA |
| 4 | TN4025502Replaces Tennant 1200735 | 1 | Arm Wldt, Pivot (Replced by 9013613)Serial 10000000 to 10728113. | $413.40/EA |
| 5 | TN4025502Replaces Tennant 1200440 | 1 | Pad, Stop, Rbr (Replced by 9013613)Serial 10000000 to 10728113. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4040946Replaces Tennant 04843 | 4 | Bushing, Flng, 0.63b 0.72d 0.25lSerial 10000000 to 10728113. | $9.60/EA |
| 7 | TN4038652Replaces Tennant 1054662 | 2 | Bushing, Flng, 0.50b 0.59d 0.25lSerial 10000000 to 10728113. | $12.10/EA |
| 8 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 9 | TN4041944Replaces Tennant 09011 | 6 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 19999999. | $3.40/EA |
| 10 | TN4023499Replaces Tennant 80409 | 4 | Sleeve, P/M, 0.34b 0.63d 0.6l, BnzSerial 10000000 to 19999999. | $5.10/EA |
| 11 | TN4040610Replaces Tennant 222516 | 2 | Sleeve, P/M, 0.32b 0.50d 0.3l [430ss]Serial 10000000 to 19999999. | $3.40/EA |
| 12 | TN4043708Replaces Tennant 1200764 | 1 | Bracket, Pivot, SpringSerial 10000000 to 19999999. | $19.50/EA |
| 13 | TN4028486Replaces Tennant 365180 | 1 | Pin, Clevis, 0.38d X 2.50lSerial 10000000 to 19999999. | $6.00/EA |
| 14 | TN4044210Replaces Tennant 1203336 | 2 | Spring, Cmpr, .73od 2.5lSerial 10000000 to 19999999. | $5.20/EA |
| 15 | TN4040864Replaces Tennant 1204185 | 1 | Tube, BumperSerial 10000000 to 19999999. | $21.70/EA |
| 16 | TN4043945Replaces Tennant 1201996 | 1 | Screw, Hex, M8 X 1.25 X 140, SsSerial 10000000 to 19999999. | $5.10/EA |
| 17 | TN4026720Replaces Tennant 379829 | 1 | Washer, Flat, 0.34b 1.50d .12, Stl, PlSerial 10000000 to 19999999. | $5.80/EA |
| 18 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 19 | TN4043737Replaces Tennant 1201033 | 2 | Link, Head ScbSerial 10000000 to 19999999. | $31.00/EA |
| 20 | TN4028819Replaces Tennant 367313 | 2 | Bushing, Flng, 1.00b 1.13d 0.50lSerial 10000000 to 19999999. | $15.30/EA |
| 21 | TN4043743Replaces Tennant 1201080 | 2 | Pivot WldtSerial 10000000 to 19999999. | $65.70/EA |
| 22 | TN4041946Replaces Tennant 09026 | 2 | Screw, Hex, M8 X 1.25 X 40, SsSerial 10000000 to 19999999. | $4.00/EA |
| 23 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 24 | TN4016787Replaces Tennant 41141 | 2 | Washer, Lock, Int-Ext, 0.31Serial 10000000 to 19999999. | $3.50/EA |
| 25 | TN4043888Replaces Tennant 1201354 | 2 | Pivot, LiftSerial 10000000 to 19999999. | $13.30/EA |
| 26 | TN4026720Replaces Tennant 379829 | 2 | Washer, Flat, 0.34b 1.50d .12, Stl, PlSerial 10000000 to 19999999. | $5.80/EA |
| 27 | TN4025502Replaces Tennant 9013613 | 1 | Arm Kit, Lift, Scb [T12]Complete assembly. Serial 10728114 to 19999999. | $413.40/EA |
| 28 | TN4038652Replaces Tennant 1054662 | 2 | Bushing, Flng, 0.50B 0.59D 0.25LPart of Arm Kit, Lift, Scb [T12] (9013613). Serial 10728114 to 19999999. | $12.10/EA |
| 29 | TN4040946Replaces Tennant 04843 | 2 | Bushing, Flng, 0.63B 0.72D 0.25LPart of Arm Kit, Lift, Scb [T12] (9013613). Serial 10728114 to 19999999. | $9.60/EA |
| 30 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim , Pvc, .08 .11, 01FtPart of Arm Kit, Lift, Scb [T12] (9013613). Serial 10728114 to 19999999. | $44.40/EA |

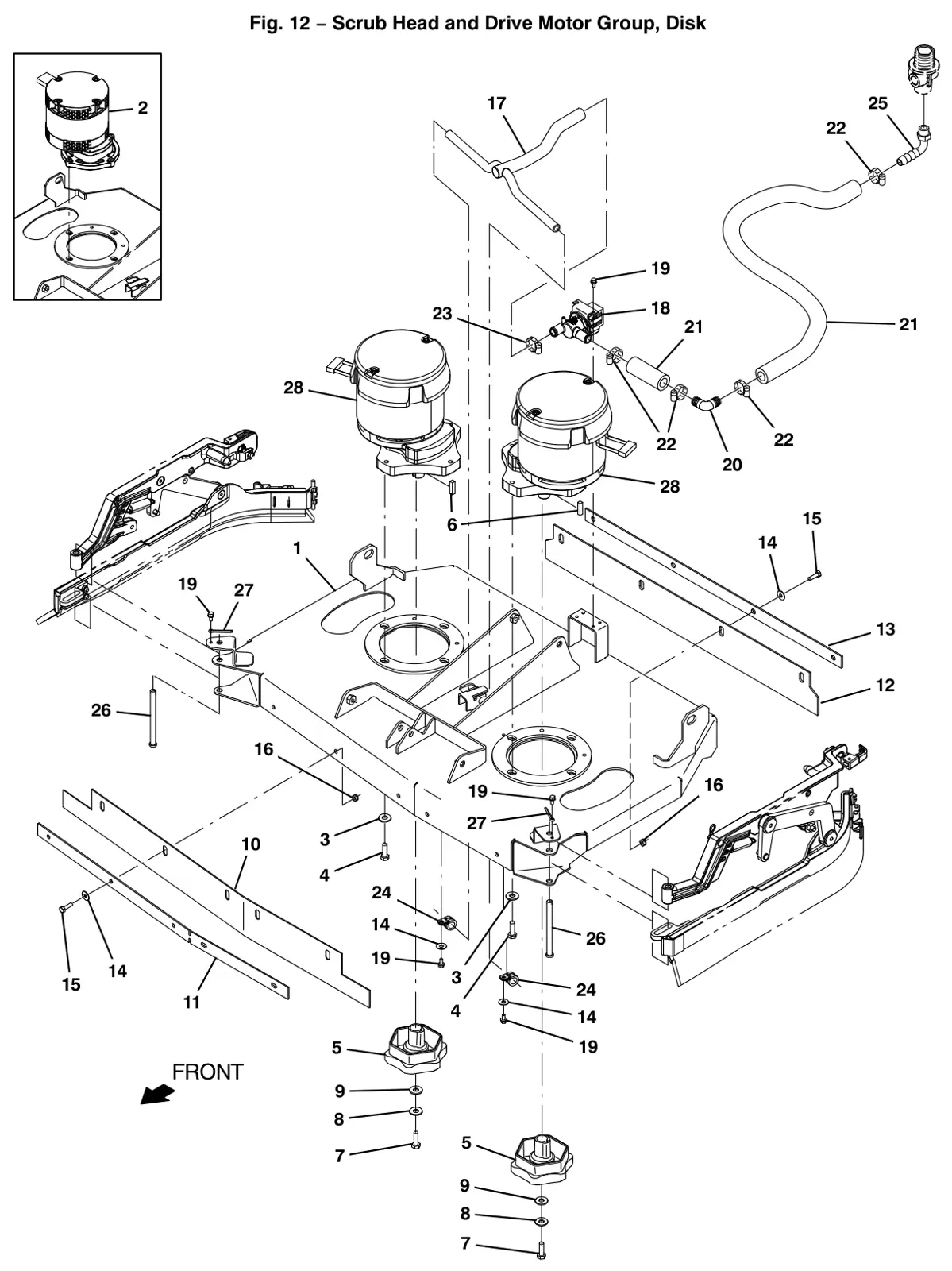

Tennant T12 scrub Head and Drive Motor Group, Disk parts
The parts Tennant numbers on its scrub head and drive motor group, disk drawing. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032403Replaces Tennant 1258968 | 1 | Head Wldt, Scrbr, DiscSerial 10000000 to 19999999. | $560.40/EA |
| 2 | TN4043424Replaces Tennant 1200168 | 2 | Motor, Ele, 36vdc 0315rpmComplete assembly. Serial 10000000 to 11056554. | $1,023.90/EA |
| – | TN8001832Replaces Tennant 9009577 | 2 | Brush Kit, MotorPart of Motor, Ele, 36vdc 0315rpm (1200168). Serial 10000000 to 11056554. | $26.60/EA |
| 3 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 4 | TN4041944Replaces Tennant 09011 | 8 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 19999999. | $3.40/EA |
| 5 | TN4025667Replaces Tennant 377364 | 2 | Hub, Drive, Brush, Disk, 0.75b [6t]Serial 10000000 to 19999999. | $186.50/EA |
| 6 | TN4042785Replaces Tennant 00928 | 2 | Key, Sq, 0.25 X 0.25, 1.00lSerial 10000000 to 19999999. | $3.60/EA |
| 7 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 10000000 to 19999999. | $3.30/EA |
| 8 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 9 | TN4016796Replaces Tennant 41186 | 2 | Washer, Flat, Belleville, .31Serial 10000000 to 19999999. | $3.50/EA |
| 10 | TN4043739Replaces Tennant 1201053 | 1 | Skirt, Rbr, Front, DiscSerial 10000000 to 19999999. | $19.70/EA |
| 11 | TN4043763Replaces Tennant 1201190 | 1 | Strip, Retainer, FrontSerial 10000000 to 19999999. | $9.50/EA |
| 12 | TN4043751Replaces Tennant 1201127 | 1 | Skirt, Rbr, Rear, DiscSerial 10000000 to 19999999. | $16.70/EA |
| 13 | TN4043762Replaces Tennant 1201185 | 1 | Strip, Skirt, Rear, DiscSerial 10000000 to 19999999. | $7.90/EA |
| 14 | TN4042901Replaces Tennant 01684 | 11 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 15 | TN4041942Replaces Tennant 09007 | 9 | Screw, Hex, M6 X 1.00 X 25, SsSerial 10000000 to 19999999. | $3.30/EA |
| 16 | TN4041925Replaces Tennant 08708 | 9 | Nut, Hex, Lock, M6 X 1.00, NlSerial 10000000 to 19999999. | $2.50/EA |
| 17 | TN4043766Replaces Tennant 1201215 | 1 | Tube, Distribution, DiscSerial 10000000 to 19999999. | $59.50/EA |
| 18 | TN4045101Replaces Tennant 1075240 | 1 | Valve, Water, Solenoid, 36vdc Bm12/Bm12Serial 10000000 to 19999999. | $96.10/EA |
| 19 | TN4037385Replaces Tennant 223198 | 6 | Screw, Hex, M5 X 0.80 X 10, FmgSerial 10000000 to 19999999. | $4.00/EA |
| 20 | TN4019291Replaces Tennant 391365 | 1 | Fitting, Plstc, E90, Bm10/Bm10Serial 10000000 to 19999999. | $4.20/EA |
| 21 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrSerial 10000000 to 19999999. | $31.50/EA |
| 22 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 10000000 to 19999999. | $6.80/EA |
| 23 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 19999999. | $5.10/EA |
| 24 | TN4035120Replaces Tennant 1016354 | 2 | Clamp, Cable, Ss, 0.50d X 0.50w [Insul]Serial 10000000 to 19999999. | $4.10/EA |
| 25 | TN4020775Replaces Tennant 630371 | 1 | Fitting, Plstc, E90, Bm10/Pm08Serial 10000000 to 19999999. | $8.70/EA |
| 26 | TN4041169Replaces Tennant 1205975 | 2 | Pin, Clevis, 0.37d X 5.00lSerial 10000000 to 19999999. | $13.80/EA |
| 27 | TN4041918Replaces Tennant 08236 | 2 | Pin, Cotter, .156 X 1.25Serial 10000000 to 19999999. | $3.40/EA |
| 28 | TN4038180Replaces Tennant 1053341 | 2 | Motor, Ele, 36vdc 0360rpm 1.00hp GearComplete assembly. | $1,188.00/EA |
| – | TN8005758Replaces Tennant 1066573 | 1 | Brush Kit, MotorPart of Motor, Ele, 36vdc 0360rpm 1.00hp Gear (1053341). | $116.80/EA |
| – | TN8003649Replaces Tennant 9013931 | 1 | Bearing, Motor, ElePart of Motor, Ele, 36vdc 0360rpm 1.00hp Gear (1053341). | $16.97/EA |
| – | TN8047661Replaces Tennant 9013933 | 1 | Bearing, Motor, ElePart of Motor, Ele, 36vdc 0360rpm 1.00hp Gear (1053341). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | TN4032650Replaces Tennant 1261035 | 1 | Motor, Ele, 36Vdc, 0365Rpm | $560.95/EA |

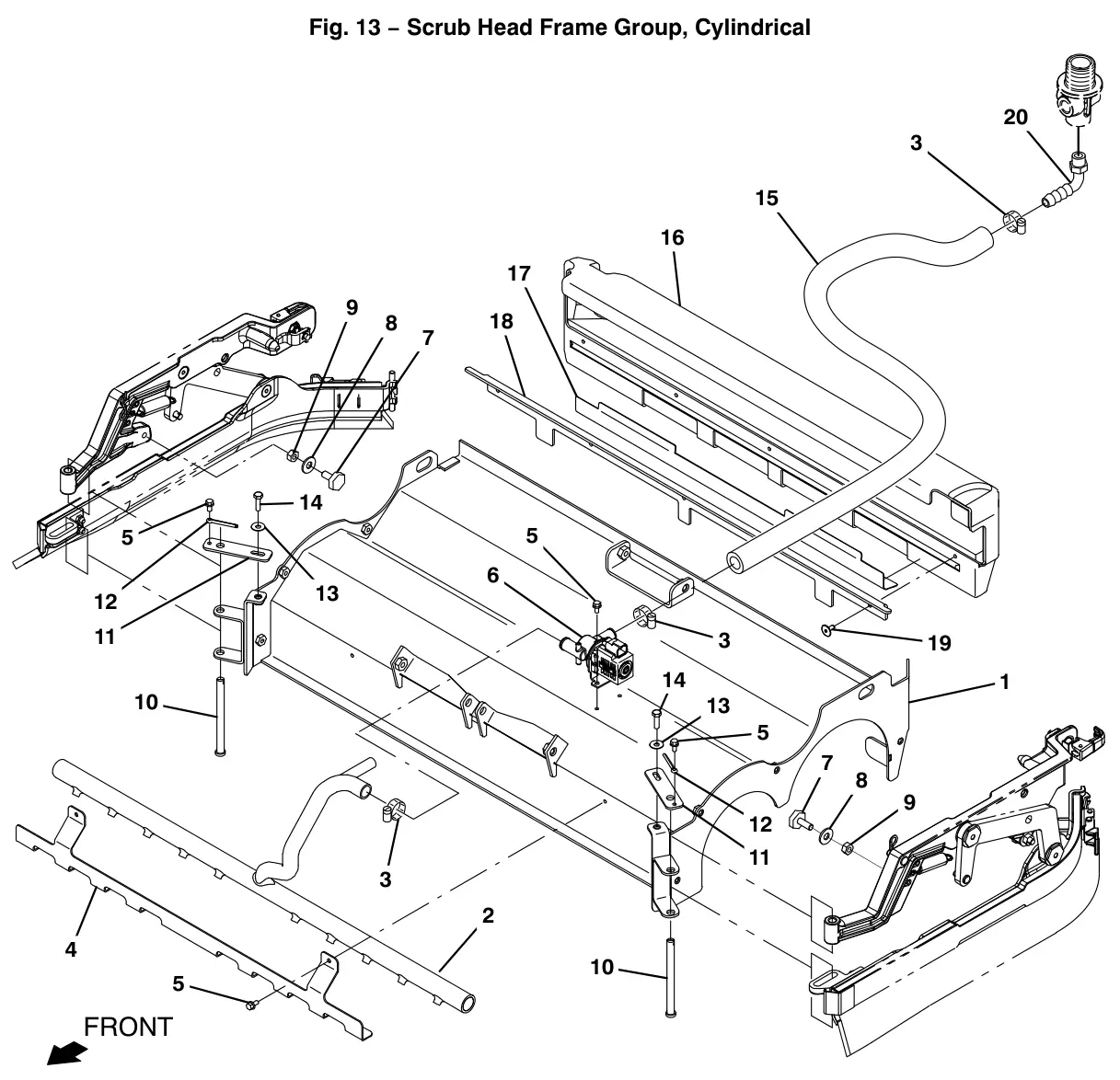

Tennant T12 scrub Head Frame Group, Cylindrical parts
The parts Tennant numbers on its scrub head frame group, cylindrical drawing. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043435Replaces Tennant 1200292 | 1 | Head Wldt, Scb, CylSerial 10000000 to 19999999. | $454.50/EA |
| 2 | TN4043419Replaces Tennant 1200012 | 1 | Tube, Distribution, T12Serial 10000000 to 19999999. | $104.90/EA |
| 3 | TN4017089Replaces Tennant 63810 | 3 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 10000000 to 19999999. | $6.80/EA |
| 4 | TN4043902Replaces Tennant 1201447 | 1 | Bracket, Scrbr, WatertubeSerial 10000000 to 19999999. | $16.90/EA |
| 5 | TN4037385Replaces Tennant 223198 | 6 | Screw, Hex, M5 X 0.80 X 10, FmgSerial 10000000 to 19999999. | $4.00/EA |
| 6 | TN4045101Replaces Tennant 1075240 | 1 | Valve, Water, Solenoid, 36vdc Bm12/Bm12Serial 10000000 to 19999999. | $96.10/EA |
| 7 | TN4040870Replaces Tennant 1204335 | 2 | Bumper, Rbr, 1.0 HexSerial 10000000 to 19999999. | $3.70/EA |
| 8 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 9 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1Serial 10000000 to 19999999. | $3.40/EA |
| 10 | TN4041169Replaces Tennant 1205975 | 2 | Pin, Clevis, 0.37d X 5.00lSerial 10000000 to 19999999. | $13.80/EA |
| 11 | TN4043984Replaces Tennant 1202301 | 2 | Bracket, Retainer, PinSerial 10000000 to 19999999. | $5.60/EA |
| 12 | TN4041918Replaces Tennant 08236 | 2 | Pin, Cotter, .156 X 1.25Serial 10000000 to 19999999. | $3.40/EA |
| 13 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 14 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M6 X 1.00 X 20, SsSerial 10000000 to 19999999. | $3.20/EA |
| 15 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrSerial 10000000 to 19999999. | $31.50/EA |
| 16 | TN4027840Replaces Tennant 9010927 | 1 | Debris Tray, Cyl, Afmkt [T12]Complete assembly. Serial 10000000 to 19999999. | $350.80/EA |
| 17 | TN4043919Replaces Tennant 1201574 | 1 | Angle, Stl, Perforated .03 1.4 1.4 22lPart of Debris Tray, Cyl, Afmkt [T12] (9010927). Serial 10000000 to 19999999. | $31.90/EA |
| 18 | TN4043750Replaces Tennant 1201126 | 1 | Lip, Tray, DebrisPart of Debris Tray, Cyl, Afmkt [T12] (9010927). Serial 10000000 to 19999999. | $45.90/EA |
| 19 | TN4034174Replaces Tennant 32548 | 5 | Rivet, Blind, .188d X 0.45 X .62d, AlmPart of Debris Tray, Cyl, Afmkt [T12] (9010927). Serial 10000000 to 19999999. | $4.00/EA |
| 20 | TN4020775Replaces Tennant 630371 | 1 | Fitting, Plstc, E90, Bm10/Pm08Serial 10000000 to 19999999. | $8.70/EA |

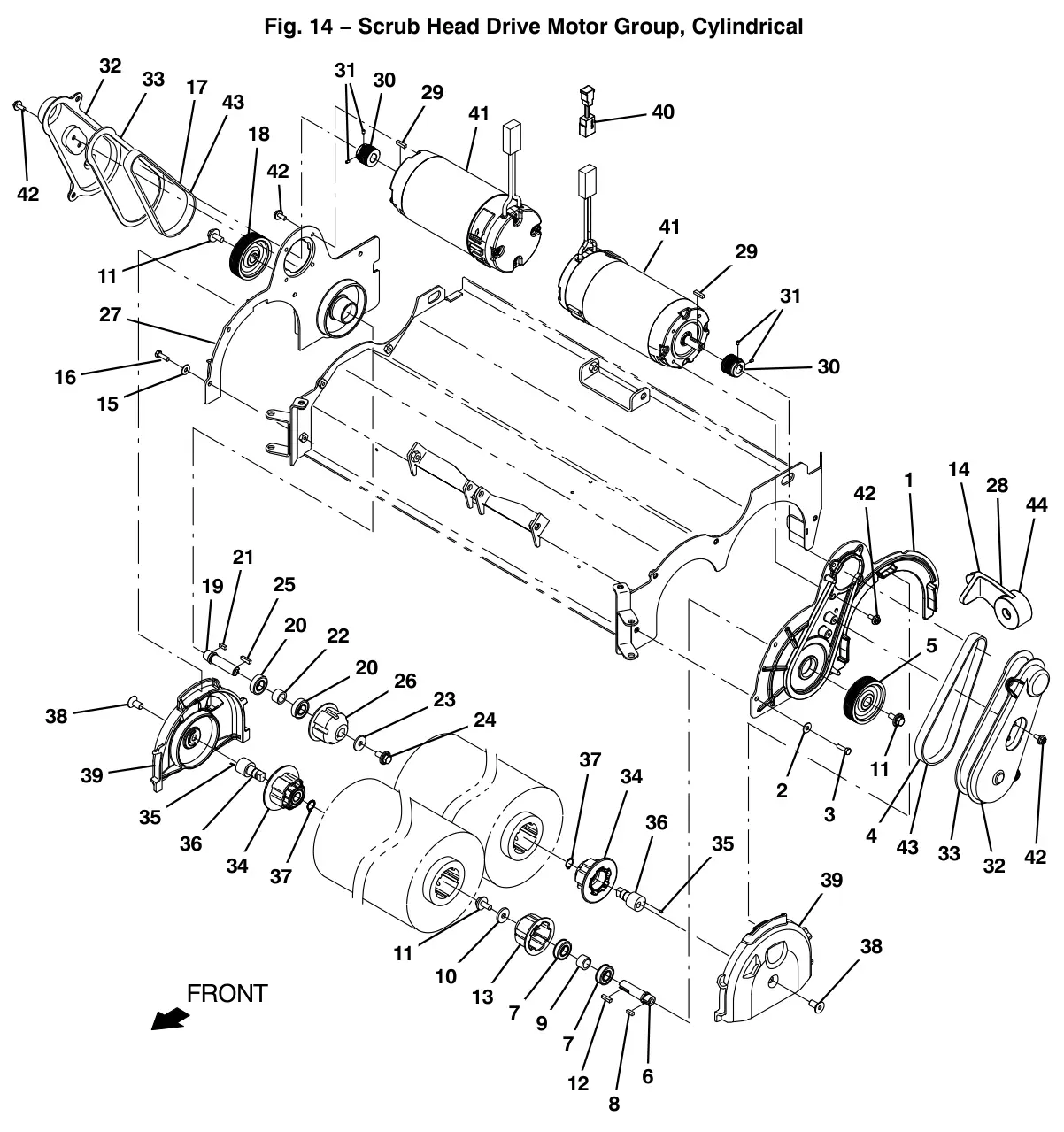

Tennant T12 scrub Head Drive Motor Group, Cylindrical parts
The parts Tennant numbers on its scrub head drive motor group, cylindrical drawing. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4027852Replaces Tennant 9010939 | 1 | Side Panel Assy, Cyl, Lh, Afmkt [T12]Complete assembly. Serial 10000000 to 19999999. | $574.60/EA |
| 1 | TN4043724Replaces Tennant 1200900 | 1 | Plate, Side, Scrubhead, LhPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $62.10/EA |
| 2 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $2.60/EA |
| 3 | TN4041931Replaces Tennant 08716 | 4 | Screw, Hex, M6 X 1.00 X 20, SsPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $3.20/EA |
| 4 | TN4043440Replaces Tennant 1200334 | 1 | Belt, DrivePart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $41.80/EA |
| 5 | TN4043427Replaces Tennant 1200215 | 1 | Sheave, 07grv, 2.96pd 0.63b [Pj]Part of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $40.50/EA |
| 6 | TN4043433Replaces Tennant 1200281 | 1 | Shaft, DrivePart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $92.30/EA |
| 7 | TN4016813Replaces Tennant 41360 | 2 | Bearing, Ball, 0.59b 1.26d 0.35w[2seal]Part of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $19.00/EA |
| 8 | TN4042789Replaces Tennant 00961 | 1 | Key, Sq, 0.19 X 0.19, 0.50lPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $4.20/EA |
| 9 | TN4042392Replaces Tennant 1002077 | 1 | Tube, 0.59id 0.81od 00.5lPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $16.10/EA |
| 10 | TN4016796Replaces Tennant 41186 | 1 | Washer, Flat, Belleville, .31Part of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $3.50/EA |
| 11 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $3.50/EA |
| 12 | TN4042777Replaces Tennant 00911 | 1 | Key, Sq, 0.19 X 0.19, 0.75lPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $3.60/EA |
| 13 | TN4026292Replaces Tennant 378805 | 1 | Plug, Drive, Brush, MachPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $55.50/EA |
| 14 | TN4040839Replaces Tennant 1203758 | 1 | Tool, Installation, BeltPart of Side Panel Assy, Cyl, Lh, Afmkt [T12] (9010939). Serial 10000000 to 19999999. | $130.30/EA |
| – | TN4027853Replaces Tennant 9010940 | 1 | Side Panel Assy, Cyl, Rh, Afmkt [T12]Complete assembly. | $570.10/EA |
| 15 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, SsPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $2.60/EA |
| 16 | TN4041931Replaces Tennant 08716 | 4 | Screw, Hex, M6 X 1.00 X 20, SsPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $3.20/EA |
| 17 | TN4043440Replaces Tennant 1200334 | 1 | Belt, DrivePart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $41.80/EA |
| 18 | TN4043427Replaces Tennant 1200215 | 1 | Sheave, 07grv, 2.96pd 0.63b [Pj]Part of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $40.50/EA |
| 19 | TN4043433Replaces Tennant 1200281 | 1 | Shaft, DrivePart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $92.30/EA |
| 20 | TN4016813Replaces Tennant 41360 | 2 | Bearing, Ball, 0.59b 1.26d 0.35w[2seal]Part of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $19.00/EA |
| 21 | TN4042789Replaces Tennant 00961 | 1 | Key, Sq, 0.19 X 0.19, 0.50lPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $4.20/EA |
| 22 | TN4042392Replaces Tennant 1002077 | 1 | Tube, 0.59id 0.81od 00.5lPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $16.10/EA |
| 23 | TN4016796Replaces Tennant 41186 | 1 | Washer, Flat, Belleville, .31Part of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $3.50/EA |
| 24 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $3.50/EA |
| 25 | TN4042777Replaces Tennant 00911 | 1 | Key, Sq, 0.19 X 0.19, 0.75lPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $3.60/EA |
| 26 | TN4026292Replaces Tennant 378805 | 1 | Plug, Drive, Brush, MachPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $55.50/EA |
| 27 | TN4043722Replaces Tennant 1200898 | 1 | Plate, Side, Scrubhead, RhPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $59.10/EA |
| 28 | TN4040839Replaces Tennant 1203758 | 1 | Tool, Installation, BeltPart of Side Panel Assy, Cyl, Rh, Afmkt [T12] (9010940). Serial 10000000 to 19999999. | $130.30/EA |
| 29 | TN4037626Replaces Tennant 1014328 | 2 | Key, Sq, 05mm X 05mm, 25mmlSerial 10000000 to 19999999. | $4.20/EA |
| 30 | TN4033096Replaces Tennant 1236053 | 2 | Sheave, 07Grv, 1.22Pd 0.55B [Pj]Serial 10000000 to 19999999. | $47.40/EA |
| 31 | TN4037061Replaces Tennant 222818 | 4 | Screw, Set, Soc, 08-32 X 0.25, NlSerial 10000000 to 19999999. | $6.60/EA |
| 32 | TN4043434Replaces Tennant 1200283 | 2 | Cover, BeltSerial 10000000 to 19999999. | $17.80/EA |
| 33 | TN4043884Replaces Tennant 1201341 | 1 | Gasket, Cover, BeltSerial 10000000 to 19999999. | $4.30/EA |
| – | TN4037036Replaces Tennant 222752 | 2 | Plug Assy, Idler, BrushComplete assembly. Serial 10000000 to 19999999. | $107.70/EA |
| 34 | TN4036583Replaces Tennant 1057629 | 1 | Plug, Idler, Brush [Sgl Brg]Part of Plug Assy, Idler, Brush (222752). Serial 10000000 to 19999999. | $28.80/EA |
| 35 | TN4039875Replaces Tennant 222184 | 1 | Pin, Roll, .094d X 0.25l, .094/.097Part of Plug Assy, Idler, Brush (222752). Serial 10000000 to 19999999. | $2.50/EA |
| 36 | TN4039865Replaces Tennant 222177 | 1 | Shaft, Plug, IdlerPart of Plug Assy, Idler, Brush (222752). Serial 10000000 to 19999999. | $73.40/EA |
| 37 | TN4042879Replaces Tennant 01516 | 1 | Ring, Retaining, Ext, 0.59d, BasicPart of Plug Assy, Idler, Brush (222752). Serial 10000000 to 19999999. | $2.50/EA |
| 38 | TN4018896Replaces Tennant 390996 | 2 | Screw, Flt, Soc, M10 X 1.50 X 20,10.9,NlSerial 10000000 to 19999999. | $4.00/EA |
| 39 | TN4043437Replaces Tennant 1200309 | 2 | Door, BrushSerial 10000000 to 19999999. | $40.40/EA |
| 40 | TN4037111Replaces Tennant 1059170 | 1 | Harness, Wire, Adapter [Deutsch, Dtp]Serial 10000000 to 19999999. | $29.60/EA |
| 41 | TN4029988Replaces Tennant 1053342 | 2 | Motor, Ele, 36vdc 1750rpm 1.00hp 22.0a (See Breakdown)Serial 10000000 to 19999999. | $296.03/EA |
| 42 | TN4045268Replaces Tennant 1034731 | 12 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 to 19999999. | $3.30/EA |
| – | TN4027848Replaces Tennant 9010935 | 1 | Belt, Cyl Head, W/Too;l, AfmktComplete assembly. Serial 10000000 to 19999999. | $269.90/EA |
| 43 | TN4043440Replaces Tennant 1200334 | 2 | Belt, DrivePart of Tool, Belt, Cyl Head, Afmkt [T12] (Cylindrical Scrub Head) (9010935). Serial 10000000 to 19999999. | $41.80/EA |
| 44 | TN4040839Replaces Tennant 1203758 | 1 | Tool, Installation, BeltPart of Tool, Belt, Cyl Head, Afmkt [T12] (Cylindrical Scrub Head) (9010935). Serial 10000000 to 19999999. | $130.30/EA |

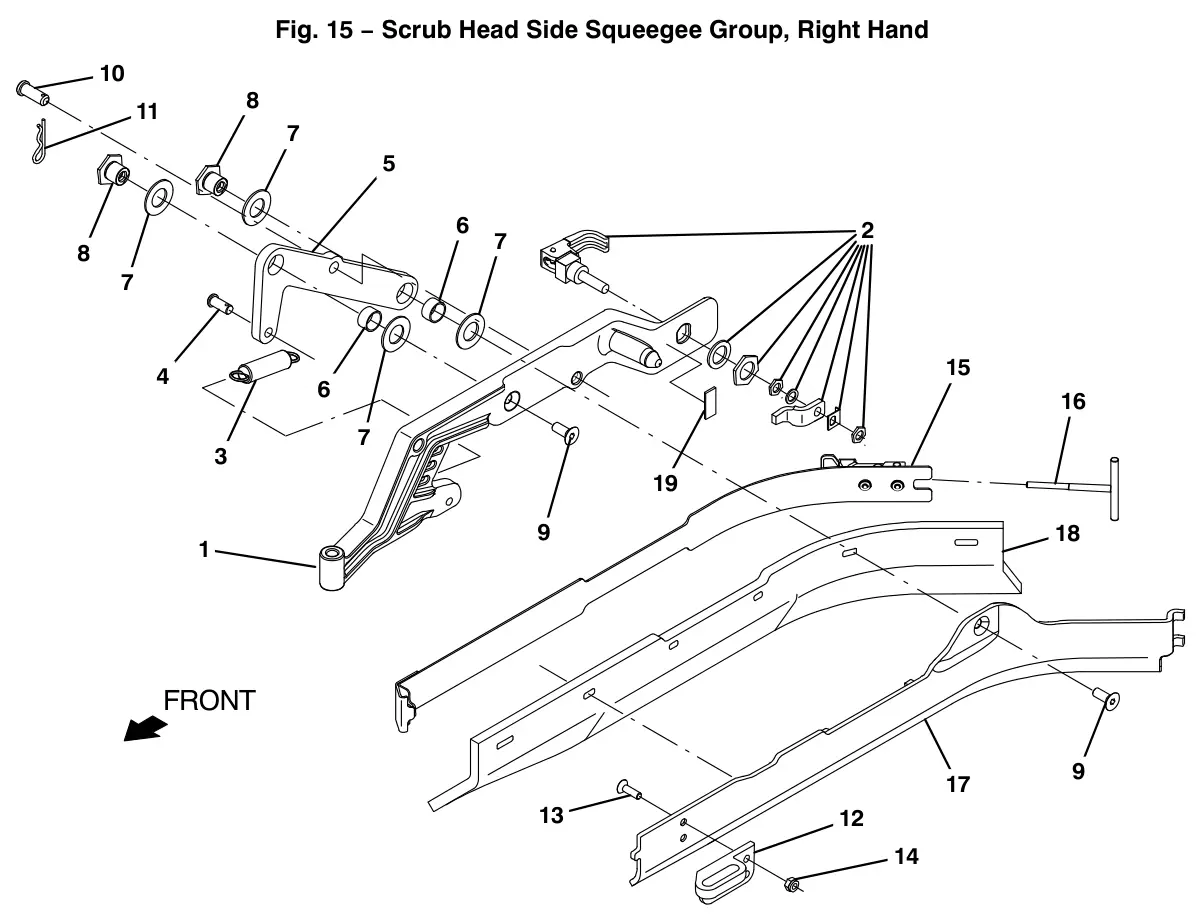

Tennant T12 scrub Head Side Squeegee Group, Right Hand parts
The parts Tennant numbers on its scrub head side squeegee group, right hand drawing. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043969Replaces Tennant 1202243 | 1 | Door, Casting, Squeegee, RhSerial 10000000 to 19999999. | $48.70/EA |
| 2 | TN4032742Replaces Tennant 1065134 | 1 | Latch, Cmpr, Yel GripSerial 10000000 to 19999999. | $26.80/EA |
| 3 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lSerial 10000000 to 19999999. | $49.60/EA |
| 4 | TN4013467Replaces Tennant 46800 | 1 | Pin, Clevis, 0.31D X 0.75LSerial 10000000 to 19999999. | $3.40/EA |
| 5 | TN4043961Replaces Tennant 1202100 | 1 | Bellcrank, Lift, Sqge [T12]Serial 10000000 to 19999999. | $54.40/EA |
| 6 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lSerial 10000000 to 19999999. | $12.50/EA |
| 7 | TN4017115Replaces Tennant 64425 | 4 | Washer, Thrust, 0.61b 1.25d .06, FglSerial 10000000 to 19999999. | $5.40/EA |
| 8 | TN4043668Replaces Tennant 1200525 | 2 | Nut, T, M8 X 1.25Serial 10000000 to 19999999. | $13.70/EA |
| 9 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, Soc, M8 X 1.25 X 20, 18-8,SsSerial 10000000 to 19999999. | $4.00/EA |
| 10 | TN4041956Replaces Tennant 09088 | 1 | Pin, Clevis, 0.37d X 1.00lSerial 10000000 to 19999999. | $3.40/EA |
| 11 | TN4017779Replaces Tennant 44906 | 1 | Pin, Cotter, Hair, 0.38d .093 WirSerial 10000000 to 19999999. | $4.00/EA |
| 12 | TN4034301Replaces Tennant 1243722 | 1 | Block, Sqge, Guide, RhSerial 10000000 to 19999999. | $49.60/EA |
| 13 | TN4052301Replaces Tennant 1016421 | 2 | Screw, Flt, M6 X 1.0 X 20, SsSerial 10000000 to 19999999. | $3.30/EA |
| 14 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, NlSerial 10000000 to 19999999. | $2.50/EA |
| 15 | TN4043904Replaces Tennant 1201453 | 1 | Strap Wldt, SqgeSerial 10000000 to 19999999. | $75.10/EA |
| 16 | TN4038471Replaces Tennant 1054312 | 1 | Hook Wldt, LatchSerial 10000000 to 19999999. | $30.70/EA |
| 17 | TN4043430Replaces Tennant 1200221 | 1 | Frame, Sqge, Side, RhSerial 10000000 to 19999999. | $64.10/EA |
| 18 | TN4043450Replaces Tennant 1200430 | 1 | Blade, Sqge, Side, 22.50l, Linatex (Standard)Serial 10000000 to 19999999. | $54.90/EA |
| 18 | TN4043966Replaces Tennant 1202159 | 1 | Blade, Sqge, Side, 22.50l, Urethane (Option)Serial 10000000 to 19999999. | $90.00/EA |
| 18 | TN4043967Replaces Tennant 1202160 | 1 | Blade, Sqge, Side, 22.50l, Gum (Option)Serial 10000000 to 19999999. | $25.00/EA |
| 19 | TN4034053Replaces Tennant 1243007 | 1 | Gasket, Cushion, Side Squeegee DoorSerial 10000000 to 19999999. | $29.00/EA |

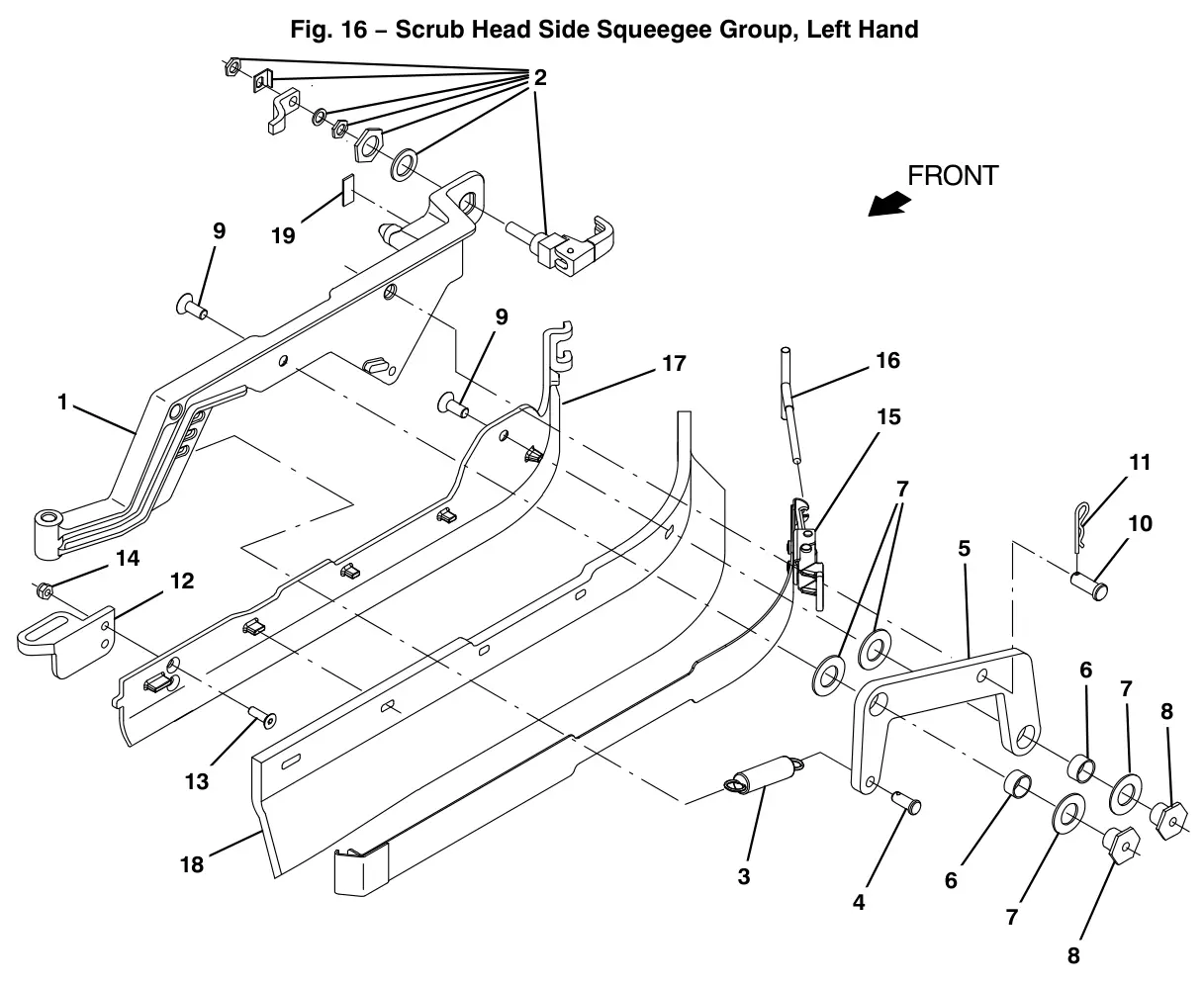

Tennant T12 scrub Head Side Squeegee Group, Left Hand parts
The parts Tennant numbers on its scrub head side squeegee group, left hand drawing. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043968Replaces Tennant 1202221 | 1 | Door, Casting, Squeegee, LhSerial 10000000 to 19999999. | $64.50/EA |
| 2 | TN4032742Replaces Tennant 1065134 | 1 | Latch, Cmpr, Yel GripSerial 10000000 to 19999999. | $26.80/EA |
| 3 | TN4027698Replaces Tennant 363469 | 1 | Spring, Extn, 0.75od 0.10wir 03.0lSerial 10000000 to 19999999. | $49.60/EA |
| 4 | TN4013467Replaces Tennant 46800 | 1 | Pin, Clevis, 0.31D X 0.75LSerial 10000000 to 19999999. | $3.40/EA |
| 5 | TN4043426Replaces Tennant 1200213 | 1 | Bellcrank, Lift, Sqge [T12]Serial 10000000 to 19999999. | $55.00/EA |
| 6 | TN4015663Replaces Tennant 71607 | 2 | Bushing, Sleeve, 0.63b 0.72d 0.38lSerial 10000000 to 19999999. | $12.50/EA |
| 7 | TN4017115Replaces Tennant 64425 | 4 | Washer, Thrust, 0.61b 1.25d .06, FglSerial 10000000 to 19999999. | $5.40/EA |
| 8 | TN4043668Replaces Tennant 1200525 | 2 | Nut, T, M8 X 1.25Serial 10000000 to 19999999. | $13.70/EA |
| 9 | TN4026535Replaces Tennant 79246 | 2 | Screw, Flt, Soc, M8 X 1.25 X 20, 18-8,SsSerial 10000000 to 19999999. | $4.00/EA |
| 10 | TN4041956Replaces Tennant 09088 | 1 | Pin, Clevis, 0.37d X 1.00lSerial 10000000 to 19999999. | $3.40/EA |
| 11 | TN4017779Replaces Tennant 44906 | 1 | Pin, Cotter, Hair, 0.38d .093 WirSerial 10000000 to 19999999. | $4.00/EA |
| 12 | TN4034300Replaces Tennant 1243718 | 1 | Block, Guide, SqgeSerial 10000000 to 19999999. | $50.10/EA |
| 13 | TN4052301Replaces Tennant 1016421 | 2 | Screw, Flt, M6 X 1.0 X 20, SsSerial 10000000 to 19999999. | $3.30/EA |
| 14 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, NlSerial 10000000 to 19999999. | $2.50/EA |
| 15 | TN4043904Replaces Tennant 1201453 | 1 | Strap Wldt, SqgeSerial 10000000 to 19999999. | $75.10/EA |
| 16 | TN4038471Replaces Tennant 1054312 | 1 | Hook Wldt, LatchSerial 10000000 to 19999999. | $30.70/EA |
| 17 | TN4043418Replaces Tennant 1200011 | 1 | Frame, Sqge, Side, LhSerial 10000000 to 19999999. | $64.10/EA |
| 18 | TN4043450Replaces Tennant 1200430 | 1 | Blade, Sqge, Side, 22.50l, Linatex (Standard)Serial 10000000 to 19999999. | $54.90/EA |
| 18 | TN4043966Replaces Tennant 1202159 | 1 | Blade, Sqge, Side, 22.50l, Urethane (Option)Serial 10000000 to 19999999. | $90.00/EA |
| 18 | TN4043967Replaces Tennant 1202160 | 1 | Blade, Sqge, Side, 22.50l, Gum (Option)Serial 10000000 to 19999999. | $25.00/EA |
| 19 | TN4034053Replaces Tennant 1243007 | 1 | Gasket, Cushion, Side Squeegee DoorSerial 10000000 to 19999999. | $29.00/EA |

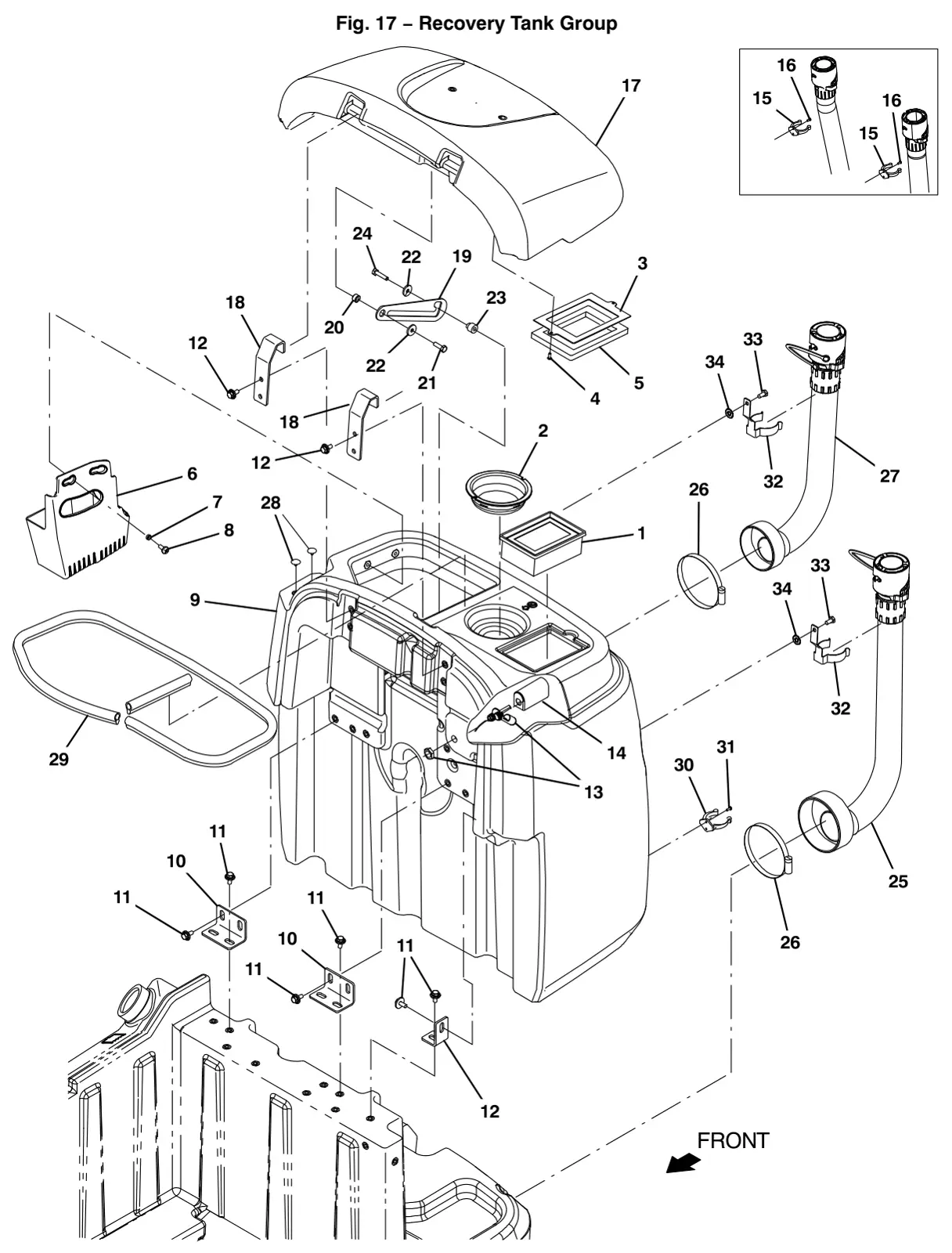

Tennant T12 recovery Tank Group parts
The parts Tennant numbers on its recovery tank group drawing. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043531Replaces Tennant 1037821 | 1 | Filter, Panl, Dust, 2.3 X 04.5 X 06.4Serial 10000000 to 19999999. | $20.40/EA |
| 2 | TN4034224Replaces Tennant 1026014 | 1 | Screen, VacuumSerial 10000000 to 19999999. | $44.00/EA |
| 3 | TN4043759Replaces Tennant 1201157 | 1 | Plate, Mtg, GasketSerial 10000000 to 19999999. | $15.60/EA |
| 4 | TN4044128Replaces Tennant 140825 | 2 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, BlkSerial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4035125Replaces Tennant 1016392 | 1 | Gasket, Ure, .50, 03.74w 05.31l, AdhSerial 10000000 to 19999999. | $10.00/EA |
| 6 | TN4043883Replaces Tennant 1201340 | 1 | Tray, DebrisSerial 10000000 to 19999999. | $20.10/EA |
| 7 | TN4032837Replaces Tennant 1066720 | 2 | Sleeve, P/M, 0.32b 0.44d 0.2l [430ss]Serial 10000000 to 19999999. | $2.60/EA |
| 8 | TN4041989Replaces Tennant 09737 | 2 | Screw, Pan, Phl, M8 X 1.25 X 20, 4.8Serial 10000000 to 19999999. | $3.40/EA |
| 9 | TN4027833Replaces Tennant 9010920 | 1 | Recovery Tank, Afmkt [T12]Serial 10000000 to 19999999. | $882.10/EA |
| 9 | TN4200339Replaces Tennant 9011173 | 1 | Recovery Tank, Afmkt, Jp [T12]Serial 10000000 to 19999999. | $1,336.74/EA |
| 10 | TN4043452Replaces Tennant 1200458 | 3 | Bracket, Mtg, TankSerial 10000000 to 19999999. | $6.06/EA |
| 11 | TN4036259Replaces Tennant 1020341 | 18 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 12 | TN4038674Replaces Tennant 1054823 | 1 | Angle, Mtg, TankSerial 10000000 to 19999999. | $13.00/EA |
| 13 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11Serial 10000000 to 19999999. | $78.50/EA |
| 14 | TN4035907Replaces Tennant 1019285 | 1 | Bracket, Protector, Float SwitchSerial 10000000 to 19999999. | $22.50/EA |
| 15 | TN4043705Replaces Tennant 1200746 | 2 | Clip, Hose, Plstc 1.88-2.12Serial 10000000 to 10872535. | $9.00/EA |
| 16 | TN4014173Replaces Tennant 49697 | 4 | Screw, Pan, Phl, M4 X 0.70 X 10, SsSerial 10000000 to 10872535. | $3.40/EA |
| 17 | TN4027834Replaces Tennant 9010921 | 1 | Cover, Recovery Tank, Afmkt [T12]Serial 10000000 to 19999999. | $261.38/EA |
| 18 | TN4043667Replaces Tennant 1200519 | 2 | Bracket, Mtg, CoverSerial 10000000 to 19999999. | $10.90/EA |
| 19 | TN4036389Replaces Tennant 1057214 | 1 | Plate, Arm, PropSerial 10000000 to 19999999. | $7.80/EA |
| 20 | TN4032509Replaces Tennant 360460 | 1 | Sleeve, P/M, 0.34b 0.63d 0.4l, Ss / OilSerial 10000000 to 19999999. | $4.90/EA |
| 21 | TN4036504Replaces Tennant 12333 | 1 | Screw, Hex, M8 X 1.25 X 25, Ss, NlSerial 10000000 to 19999999. | $4.00/EA |
| 22 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 19999999. | $3.40/EA |
| 23 | TN4038564Replaces Tennant 230735 | 1 | Sleeve, P/M, Flng, 0.33b 0.75/0.50d 0.8lSerial 10000000 to 19999999. | $4.10/EA |
| 24 | TN4026847Replaces Tennant 59658 | 1 | Screw, Hex, M8 X 1.25 X 35, Nl, SsSerial 10000000 to 19999999. | $4.00/EA |
| 25 | TN4026166Replaces Tennant 9013951 | 1 | Hose Kit, Mtg, Brkt T12 (819.0) (Solution Tank)Serial 10000000 to 10872535. | $198.80/EA |
| 25 | TN4040185Replaces Tennant 1216347 | 1 | Hose Assy, Drain. 2.0ID x 32.2L, Blk (Solution Tank)Serial 10872536 to 19999999. | $146.20/EA |
| 26 | TN4043899Replaces Tennant 1201434 | 2 | Clamp, Hose, Wormdrive, 4.63-5.50, 0.5wSerial 10000000 to 19999999. | $7.00/EA |
| 27 | TN4026164Replaces Tennant 9013950 | 1 | Hose kit, Mtg, Brk, T12 (665.5) (Recovery Tank)Serial 10000000 to 10872535. | $189.60/EA |
| 27 | TN4040186Replaces Tennant 1216370 | 1 | Hose Assy, Drain, 2.0Id X 26.2L, Blk (Recovery Tank)Serial 10872536 to 19999999. | $145.20/EA |
| 28 | TN4032789Replaces Tennant 1066063 | 4 | Plug, Hole, Rnd, 0.25H 0.43L, Brb, NylSerial 10000000 to 19999999. | $1.50/EA |
| 29 | TN4032817Replaces Tennant 1066433 | 1 | Seal, Afmkt, Bulb, Dual, 08ft [F/.30gap]Serial 10000000 to 19999999. | $93.20/EA |
| 30 | TN4043705Replaces Tennant 1200746 | 1 | Clip, Hose, Plstc 1.88-2.12Serial 10000000 to 19999999. | $9.00/EA |
| 31 | TN4014173Replaces Tennant 49697 | 2 | Screw, Pan, Phl, M4 X 0.70 X 10, SsSerial 10000000 to 19999999. | $3.40/EA |
| 32 | TN4039824Replaces Tennant 1213730 | 2 | Bracket, Mtg, HoseSerial 10872536 to 19999999. | $32.60/EA |
| 33 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10872536 to 19999999. | $3.40/EA |
| 34 | TN4016787Replaces Tennant 41141 | 2 | Washer, Lock, Int-Ext, 0.31Serial 10872536 to 19999999. | $3.50/EA |

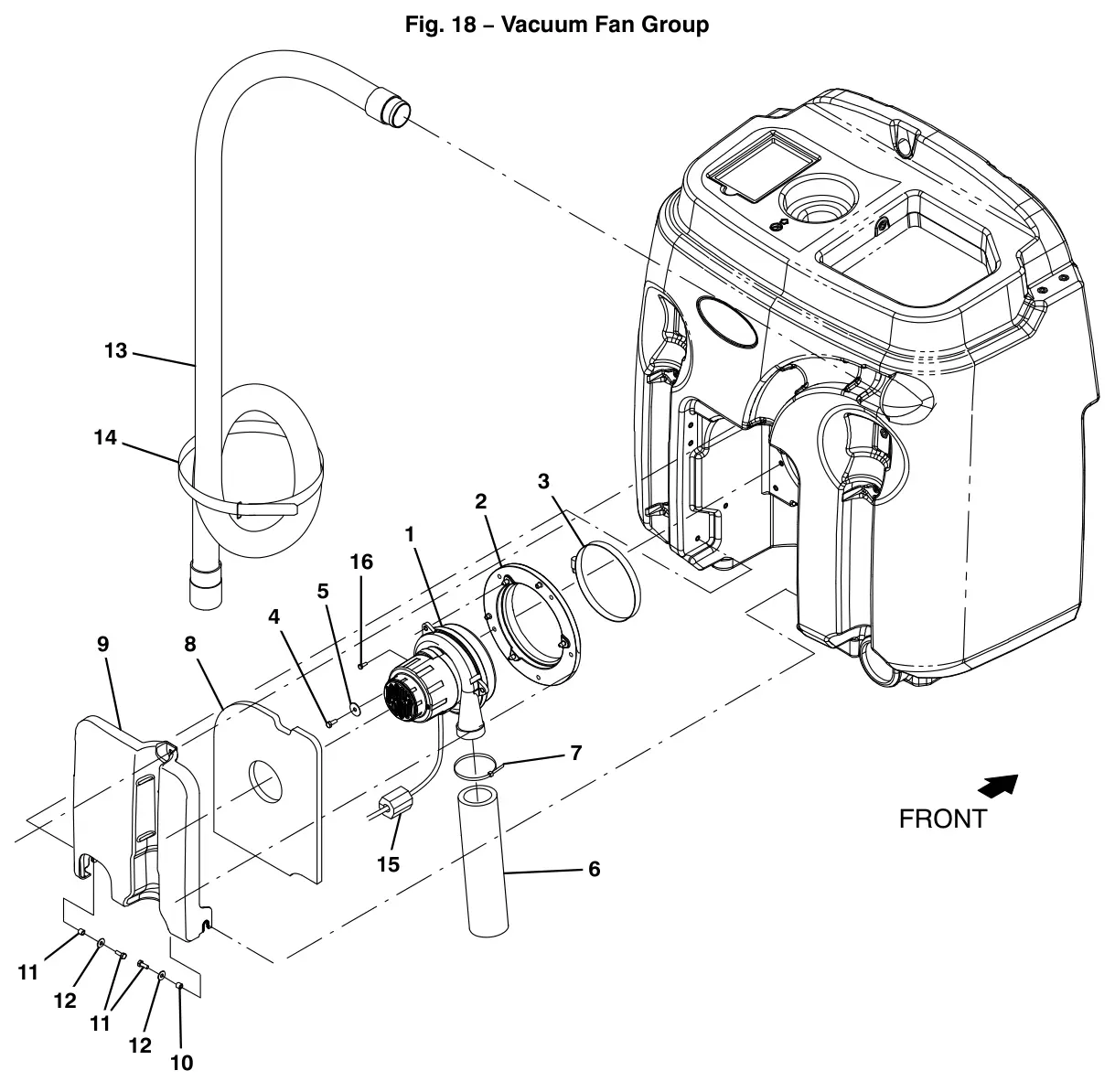

Tennant T12 vacuum Fan Group parts
The parts Tennant numbers on its vacuum fan group drawing. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043422Replaces Tennant 1200149 | 1 | Fan, Vac, 6.6 Dia, AmetekComplete assembly. Serial 10000000 to 19999999. | $267.20/EA |
| – | TN8006040Replaces Tennant 1206774 | 1 | Brush Kit, Motor, FanPart of Fan, Vac, 6.6 Dia, Ametek (1200149). Serial 10000000 to 19999999. | $28.00/EA |
| 2 | TN4043773Replaces Tennant 1201267 | 1 | Assy, Seal, Mtg, VacfanSerial 10000000 to 19999999. | $38.20/EA |
| 3 | TN4014180Replaces Tennant 49891 | 1 | Clamp, Hose, Wormdrive, 5.56-6.50d, .56wSerial 10000000 to 19999999. | $9.90/EA |
| 4 | TN4041931Replaces Tennant 08716 | 5 | Screw, Hex, M6 X 1.00 X 20, SsSerial 10000000 to 19999999. | $3.20/EA |
| 5 | TN4036076Replaces Tennant 29570 | 5 | Washer, Flat, 0.28b 1.00d .06, StlSerial 10000000 to 19999999. | $3.00/EA |
| 6 | TN4040845Replaces Tennant 1203848 | 1 | Muffler, Vacfan, 11.0 LSerial 10000000 to 19999999. | $33.10/EA |
| 7 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 19999999. | $3.90/EA |
| 8 | TN4043441Replaces Tennant 1200369 | 1 | Insulation, Acstc, 0.5, 10.4 X 13.0 C-0Serial 10000000 to 19999999. | $19.20/EA |
| 9 | TN4043696Replaces Tennant 1200649 | 1 | Cover, Fan, VacuumSerial 10000000 to 19999999. | $30.00/EA |
| 10 | TN4043810Replaces Tennant 140154 | 2 | Sleeve, P/M, 0.25b 0.38d 0.3l, PlSerial 10000000 to 19999999. | $4.10/EA |
| 11 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M6 X 1.00 X 16, SsSerial 10000000 to 19999999. | $3.20/EA |
| 12 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 13 | TN4043936Replaces Tennant 1201875 | 1 | Hose, Vacuum, 1.75id X 68.6l, 2 CuffSerial 10000000 to 19999999. | $64.00/EA |
| 14 | TN4033318Replaces Tennant 1067964 | 1 | Fastener, 25.0 [Hook & Loop]Serial 10000000 to 19999999. | $8.40/EA |
| 15 | TN4040827Replaces Tennant 1052126 | 1 | Inductor, 12.7Mmid [156 Imp At 25Mz] (Australia Only)Serial 10000000 to 19999999. | $8.70/EA |
| 16 | TN4041846Replaces Tennant 16944 | 1 | Screw, hex, m4 X 0.70 X 10, FmgSerial 10000000 to 19999999. | $3.20/EA |

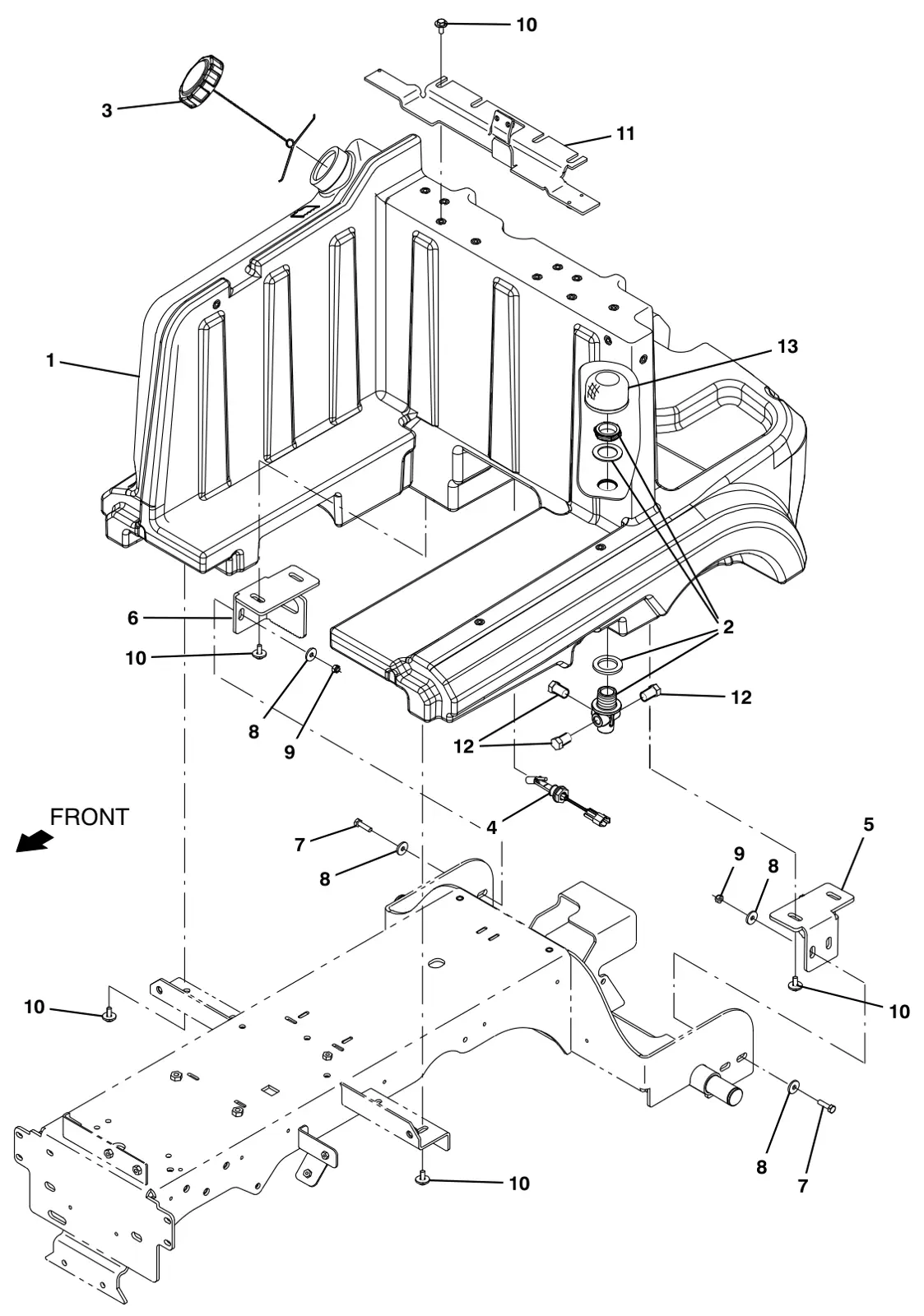

Tennant T12 solution Tank Group parts
The parts Tennant numbers on its solution tank group drawing. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4027832Replaces Tennant 9010919 | 1 | Solution Tank, Afmkt [T12]Serial 10000000 to 19999999. | $1,000.20/EA |
| 2 | TN4037129Replaces Tennant 1059317 | 1 | Fitting Assy, Soltn, BhSerial 10000000 to 19999999. | $32.20/EA |
| 3 | TN4036929Replaces Tennant 1011885 | 1 | Cap, TankSerial 10000000 to 19999999. | $69.10/EA |
| 4 | TN4043921Replaces Tennant 1201588 | 1 | Sensor, Level, Liq, 30watt, SpstSerial 10000000 to 19999999. | $46.00/EA |
| 5 | TN4043741Replaces Tennant 1201077 | 1 | Bracket, Sppt, Tank, LhSerial 10000000 to 19999999. | $22.83/EA |
| 6 | TN4043742Replaces Tennant 1201079 | 1 | Bracket, Sppt, Tank, RhSerial 10000000 to 19999999. | $23.03/EA |
| 7 | TN4035960Replaces Tennant 12317 | 4 | Screw, Hex, M10 X 1.50 X 30, SsSerial 10000000 to 19999999. | $4.90/EA |
| 8 | TN4042903Replaces Tennant 01686 | 8 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |
| 9 | TN4041930Replaces Tennant 08714 | 4 | Nut, Hex, Lock, M10 X 1.5, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 10 | TN4036259Replaces Tennant 1020341 | 12 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 11 | TN4041123Replaces Tennant 1205727 | 1 | Bracket Wldt, Sppt, SeatSerial 10000000 to 19999999. | $30.50/EA |
| 12 | TN4020528Replaces Tennant 630146 | 3 | Fitting, Plug, Pm06, NylSerial 10000000 to 19999999. | $4.00/EA |
| 13 | TN4030627Replaces Tennant 1027290 | 1 | Filter, Soltn, 020Mesh, Pm12 3.1D 02.6LSerial 10000000 to 19999999. | $20.30/EA |
Tennant T12 rear Squeegee Lift Group parts
The parts Tennant numbers on its rear squeegee lift group drawing. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038388Replaces Tennant 1053815 | 2 | Bushing, Flex, UreSerial 10000000 to 19999999. | $15.30/EA |
| 2 | TN4038395Replaces Tennant 1053870 | 1 | Arm, Lift, SqgeSerial 10000000 to 19999999. | $88.50/EA |
| 3 | TN4038387Replaces Tennant 1053814 | 1 | Clamp, Pivot, LinkSerial 10000000 to 19999999. | $12.40/EA |
| 4 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M8 X 1.25 X 25, SsSerial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 19999999. | $3.40/EA |
| 6 | TN4041929Replaces Tennant 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 7 | TN4043906Replaces Tennant 1201489 | 1 | Actuator, 36vdc, 02.0strk, 0180lbSerial 10000000 to 19999999. | $269.80/EA |
| 8 | TN4017048Replaces Tennant 94877 | 1 | Pin, Clevis, 10mmd XSerial 10000000 to 19999999. | $6.00/EA |
| 9 | TN4017779Replaces Tennant 44906 | 4 | Pin, Cotter, Hair, 0.38d .093 WirSerial 10000000 to 19999999. | $4.00/EA |
| 10 | TN4033987Replaces Tennant 1059969 | 2 | Washer, Thrust, 1.81b 2.93d .06w, PlstcSerial 10000000 to 19999999. | $3.50/EA |
| 11 | TN4037128Replaces Tennant 1059316 | 1 | Link, Tensioner, SpringSerial 10000000 to 19999999. | $27.50/EA |
| 12 | TN4043890Replaces Tennant 1201370 | 1 | Spring, Extn, 1.26od 0.162wir 03.3lSerial 10000000 to 19999999. | $17.60/EA |
| 13 | TN4033943Replaces Tennant 1059498 | 1 | Pin, Clevis, 0.50d X 2.25lSerial 10000000 to 19999999. | $8.20/EA |
| 14 | TN4034139Replaces Tennant 32493 | 1 | Washer, Flat, 0.50, StdSerial 10000000 to 19999999. | $3.50/EA |
| 15 | TN4037131Replaces Tennant 1059338 | 2 | Pin, Clevis, 0.37d X 5.25lSerial 10000000 to 19999999. | $4.00/EA |
| 16 | TN4042903Replaces Tennant 01686 | 5 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |
| 17 | TN4035536Replaces Tennant 1018151 | 2 | Washer, Flat, 0.44b 0.88d .06, NylSerial 10000000 to 19999999. | $3.40/EA |
| 18 | TN4040912Replaces Tennant 1204957 | 1 | Coupling, SqgeSerial 10000000 to 19999999. | $53.80/EA |
| 19 | TN4038652Replaces Tennant 1054662 | 2 | Bushing, Flng, 0.50b 0.59d 0.25lSerial 10000000 to 19999999. | $12.10/EA |
| 20 | TN4033989Replaces Tennant 1059990 | 2 | Sleeve, Flng, 0.32b 1.00/0.50d 0.6l, SsSerial 10000000 to 19999999. | $3.60/EA |
| 21 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 19999999. | $3.40/EA |
| 22 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 23 | TN4027850Replaces Tennant 9010937 | 1 | Turnbuckle Replmt, Afmkt [T12]Serial 10000000 to 19999999. | $222.50/EA |
| 24 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |
| 25 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 26 | TN4041152Replaces Tennant 1205850 | 2 | Caster Assy, SwivelSerial 10000000 to 19999999. | $126.80/EA |
| 27 | TN4038786Replaces Tennant 1055516 | 2 | Knob Assy, Star, 3.21d 5ear M12Serial 10000000 to 19999999. | $13.00/EA |
| 28 | TN4029610Replaces Tennant 578430 | 2 | Washer, Flat, 0.50d, Pl [Spring-Disc]Serial 10000000 to 19999999. | $5.20/EA |
Tennant T12 rear Squeegee Kit parts
The parts Tennant numbers on its rear squeegee kit drawing. Manual pages 48, list 49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010734Replaces Tennant 9009817 | 1 | Squeegee Kit, Rear, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $683.06/EA |
| 1 | TN4043429Replaces Tennant 1200219 | 1 | Frame, Sqge, OuterPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $138.20/EA |
| 2 | TN4043428Replaces Tennant 1200218 | 1 | Frame, Sqge, InnerPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $111.90/EA |
| 3 | TN4043454Replaces Tennant 1200466 | 1 | Clamp Wldt, Retainer, SqgePart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $44.50/EA |
| 4 | TN4030447Replaces Tennant 363162 | 2 | Wheel, 04.0d 0.89w 0.64bPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $35.40/EA |
| 5 | TN4030457Replaces Tennant 363301 | 2 | Sleeve, P/M, 0.34b 0.63d 1.2l, BnzPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $9.30/EA |
| 6 | TN4014172Replaces Tennant 49694 | 2 | Screw, Hex, M8 X 1.25 X 50, SsPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $6.60/EA |
| 7 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $3.30/EA |
| 8 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $3.40/EA |
| 9 | TN4037644Replaces Tennant 1052532 | 2 | Grip, LockPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $14.60/EA |
| 10 | TN4038772Replaces Tennant 1055396 | 2 | Pin, 0.63d, 02.0l [W/Cbore, M8 Screw]Part of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $19.10/EA |
| 11 | TN4041600Replaces Tennant 07786 | 2 | Nut, Hex, Std, M8 X 1Part of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $3.40/EA |
| 12 | TN4036408Replaces Tennant 1057407 | 2 | Rod, Thrd, 2end, M8x1.25/ M10x1.5 04.7lPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $15.60/EA |
| 13 | TN4038784Replaces Tennant 1055506 | 2 | Ring, Mtg, Sqge, .38lPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $24.50/EA |
| 14 | TN4032719Replaces Tennant 1064770 | 2 | Spring, Cmpr, 0.98od .13wir 01.3l, SsPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $6.50/EA |
| 15 | TN4019285Replaces Tennant 391345 | 2 | Nut, T, M10 X 1.50 X 0.62od X 0.5lPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $8.10/EA |
| 16 | TN4043444Replaces Tennant 1200383 | 1 | Blade, Sqge, Front, 42.59l [Linard]Part of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $41.00/EA |
| 17 | TN4043445Replaces Tennant 1200384 | 1 | Blade, Sqge, Rear, 44.96l LinatexPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $60.00/EA |
| 18 | TN4038471Replaces Tennant 1054312 | Hook Wldt, LatchPart of Squeegee Kit, Rear, Ci [T12] (9009817). Serial 10000000 to 19999999. | $30.70/EA | |
| 19 | TN4043933Replaces Tennant 1201825 | 1 | Blade, Sqge, Front, 42.59L [Gum] (Option)Serial 10000000 to 19999999. | $20.00/EA |
| 19 | TN4043931Replaces Tennant 1201823 | 1 | Blade, Sqge, Front, 42.59l [Urethane] (Option)Serial 10000000 to 19999999. | $70.09/EA |
| 19 | TN4039251Replaces Tennant 1212213 | 1 | Blade, Sqge, Front, Tile, Tile, 42.59L [Linard} (Option)Serial 10000000 to 19999999. | $101.00/EA |
| 20 | TN4043934Replaces Tennant 1201826 | 1 | Blade, Sqge, Rear, 44.96l Gum (Option)Serial 10000000 to 19999999. | $25.00/EA |
| 20 | TN4043932Replaces Tennant 1201824 | 1 | Blade, Sqge, Rear, 44.96l Urethane (Option)Serial 10000000 to 19999999. | $120.00/EA |
Tennant T12 electrical Circuit Board Group parts
The parts Tennant numbers on its electrical circuit board group drawing. Manual pages 50, list 51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043726Replaces Tennant 1200918 | 1 | Plate Wldt, Mtg, Electronic ComponentSerial 10000000 to 19999999. | $76.26/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 5 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 3 | TN4044189Replaces Tennant 1202868 | 7 | Clip, Tie, 0.25d, PlstcSerial 10000000 to 19999999. | $1.52/EA |
| 4 | TN4043510Replaces Tennant 130773 | 7 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 19999999. | $3.90/EA |
| 5 | TN4040838Replaces Tennant 1203717 | 1 | Bracket, StiffenerSerial 10000000 to 19999999. | $9.49/EA |
| 6 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 to 19999999. | $3.30/EA |
| 7 | TN4027844Replaces Tennant 9010931 | 1 | Circuit Board Kit, Scrub, Afmkt [T12]Serial 10000000 to 19999999. | $861.80/EA |
| 8 | TN4027845Replaces Tennant 9010932 | 1 | Circuit board Kit, H20_Sba, Afmkt [T12]Serial 10000000 to 19999999. | $737.20/EA |
| 9 | TN4035191Replaces Tennant 1016825 | 4 | Support, CircuitboardSerial 10000000 to 19999999. | $5.60/EA |
| 10 | TN4044190Replaces Tennant 1202869 | 4 | Support, Circuitboard [0.5”]Serial 10000000 to 19999999. | $1.82/EA |
| 12 | TN4044186Replaces Tennant 1202862 | 2 | Washer, Flat, .21b .39d .04, BrsSerial 10000000 to 19999999. | $1.21/EA |
| 13 | TN4041589Replaces Tennant 07514 | 1 | Washer, Lock, Int, 10, SsSerial 10000000 to 19999999. | $3.50/EA |
| 14 | TN4044187Replaces Tennant 1202864 | 1 | Nut, Hex, Std, M5 X 0.80, BrsSerial 10000000 to 19999999. | $0.25/EA |
| 15 | TN4034894Replaces Tennant 1061918 | 2 | Washer, Flat, 0.25b 0.47d .06, BrsSerial 10000000 to 19999999. | $1.50/EA |
| 16 | TN4041590Replaces Tennant 07515 | 1 | Washer, Lock, Int, 0.25, SsSerial 10000000 to 19999999. | $3.50/EA |
| 17 | TN4034892Replaces Tennant 1061910 | 1 | Nut, Hex, Std, M6 X 1.00, BrsSerial 10000000 to 19999999. | $1.50/EA |
| 18 | TN4043711Replaces Tennant 1200792 | 1 | Cover, Box, CircuitboardSerial 10000000 to 19999999. | $38.10/EA |
| 19 | TN4043764Replaces Tennant 1201210 | 1 | Gasket, Cover, CircuitboardSerial 10000000 to 19999999. | $15.10/EA |
| 20 | TN4041265Replaces Tennant 06934 | 6 | Screw, Pan, Phl, M5 X 0.80 X 20, 4.8Serial 10000000 to 19999999. | $3.40/EA |
| 21 | TN4043641Replaces Tennant 140011 | 6 | Washer, Flat, 0.21b 0.45d .03, SsSerial 10000000 to 19999999. | $3.20/EA |
| 22 | TN4027835Replaces Tennant 9010922 | 1 | Side Cover, Std, Afmkt [T12]Serial 10000000 to 19999999. | $150.70/EA |
| 23 | TN4043735Replaces Tennant 1201024 | 1 | Bracket, Mtg, PanelSerial 10000000 to 19999999. | $13.50/EA |
| 24 | TN4040238Replaces Tennant 222290 | 3 | Diode, Ele, PlugSerial 10000000 to 19999999. | $13.00/EA |
| 25 | TN4041260Replaces Tennant 06929 | 2 | Screw, Pan, Phl, M4 X 0.70 X 25, 4.8Serial 10000000 to 19999999. | $2.50/EA |
| 26 | TN4044185Replaces Tennant 1202860 | 3 | Washer, Flat, 0.17b 0.31d .03, NylSerial 10000000 to 19999999. | $0.85/EA |
| 27 | TN4035369Replaces Tennant 24199 | 1 | Screw, Hex, M5 X 0.80 X 16, SsSerial 10000000 to 19999999. | $3.00/EA |
| 28 | TN4016786Replaces Tennant 41140 | 1 | Washer, Lock, Int-Ext, 0.25Serial 10000000 to 19999999. | $3.40/EA |
| 29 | TN4035372Replaces Tennant 24265 | 1 | Screw, Pan, Phl, M4 X 0.70 X 16, SsSerial 10000000 to 19999999. | $3.00/EA |
Tennant T12 electrical Contactor and Wires Group parts
The parts Tennant numbers on its electrical contactor and wires group drawing. Manual pages 52, list 53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034358Replaces Tennant 1246191 | 1 | Plate, ElectricalSerial 10000000 to 19999999. | $78.68/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 3 | TN4043725Replaces Tennant 1200913 | 1 | Label, CircuitbreakerSerial 10000000 to 19999999. | $11.11/EA |
| 4 | TN4013849Replaces Tennant 76062 | 3 | Stand-Off, Wir, 0.25, Insulator, PanelSerial 10000000 to 19999999. | $9.50/EA |
| 5 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 6 | TN4026682Replaces Tennant 58670 | 3 | Screw, Hex, .25-20 X 0.50, NlSerial 10000000 to 19999999. | $2.50/EA |
| 7 | TN4017244Replaces Tennant 41702 | 3 | Rod, Thrd, Full, .25-20 01.5lSerial 10000000 to 19999999. | $7.50/EA |
| 8 | TN4171131Replaces Tennant 32490 | 6 | Washer, Flat, 0.25, StdSerial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4034655Replaces Tennant 32982 | 7 | Washer, Lock, Int, 0.25Serial 10000000 to 19999999. | $2.60/EA |
| 10 | TN4042909Replaces Tennant 01690 | 8 | Nut, Hex, Std, .25-20Serial 10000000 to 19999999. | $2.93/EA |
| 11 | TN4016195Replaces Tennant 397609 | 1 | Contactor, 36vdc, NoSerial 10000000 to 19999999. | $172.20/EA |
| 12 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, SsSerial 10000000 to 19999999. | $3.30/EA |
| 13 | TN4043641Replaces Tennant 140011 | 4 | Washer, Flat, 0.21b 0.45d .03, SsSerial 10000000 to 19999999. | $3.20/EA |
| 14 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 15 | TN4022077Replaces Tennant 87318 | 1 | Fuse, 080a, 0.88 2.4l, 125volt,Slow-BlowSerial 10000000 to 19999999. | $63.10/EA |
| 16 | TN4034851Replaces Tennant 1016314 | 4 | Boot, 90deg .50id 1.00id 2.50l, RedSerial 10000000 to 19999999. | $5.40/EA |
| 17 | TN4030282Replaces Tennant 1069894 | 1 | Cable, 06ga 5.5l Brown .25ring /.312ringSerial 10000000 to 19999999. | $16.77/EA |
| 18 | TN4030283Replaces Tennant 1069897 | 1 | Cable, Battery, 4ga, .25ring / .312ringSerial 10000000 to 19999999. | $54.40/EA |
| 19 | TN4031251Replaces Tennant 33944 | 2 | Screw, Pan, Phl, M6 X 1.00 X 35, 4.8Serial 10000000 to 19999999. | $3.40/EA |
| 20 | TN4032585Replaces Tennant 1064184 | 5 | Circuitbreaker, 02.5a, ResetableSerial 10000000 to 19999999. | $13.40/EA |
| 21 | TN4023153Replaces Tennant 383724 | 1 | Circuitbreaker, 25.0a, ResetableSerial 10000000 to 19999999. | $15.40/EA |
| 22 | TN4041388Replaces Tennant 1206757 | 1 | Circuitbreaker, 60.0a, resetableSerial 10000000 to 19999999. | $112.80/EA |
| 23 | TN4027406Replaces Tennant 600437 | 1 | Switch, Snap, 15a, RlrSerial 10000000 to 19999999. | $21.40/EA |
| 24 | TN4027459Replaces Tennant 601359 | 1 | Plate, Backing, SwitchSerial 10000000 to 19999999. | $13.50/EA |
| 25 | TN4041015Replaces Tennant 06922 | 2 | Screw, Pan, Phl, M3 X 0.50 X 20, 4.8Serial 10000000 to 19999999. | $3.40/EA |
| 26 | TN4042963Replaces Tennant 01754 | 2 | Nut, Hex, Std, M3 X 0Serial 10000000 to 19999999. | $2.50/EA |
| 27 | TN4037110Replaces Tennant 1059169 | 1 | Cable Assy, 10ga .25ring /.31ring, 050aSerial 10000000 to 19999999. | $38.30/EA |
| 28 | TN4035406Replaces Tennant 25005 | 2 | Screw, Pan, Phl, 06-32 X 1.00, G1Serial 10000000 to 19999999. | $2.40/EA |
| 29 | TN4013574Replaces Tennant 75939 | 2 | Nut, Hex, Lock, #06-32, NlSerial 10000000 to 19999999. | $3.40/EA |
| 30 | TN4045268Replaces Tennant 1034731 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 to 10863997. | $3.30/EA |
| 31 | TN4041274Replaces Tennant 06946 | 2 | Screw, Hex, M6 X 1.00 X 35, 8.8Serial 10863998 to 19999999. | $3.40/EA |
| 32 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flat, 0.25, SaeSerial 10863998 to 19999999. | $2.50/EA |
| 33 | TN4041385Replaces Tennant 1206722 | 2 | Sleeve, P/M, 0.25B 0.38D 0.8LSerial 10863998 to 19999999. | $8.30/EA |
Tennant T12 battery Group, 240Ah parts
The parts Tennant numbers on its battery group, 240ah drawing. Manual pages 54, list 55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040235Replaces Tennant 222280 | 6 | Battery, Wet, 06vdc 0240ahSerial 10000000 to 19999999. | $314.77/EA |
| 2 | TN4044457Replaces Tennant 1041030 | 12 | Cap, BatterySerial 10000000 to 19999999. | $3.20/EA |
| 3 | TN4020912Replaces Tennant 83415 | 4 | Spacer, Battery, Foam, 2.00 X 2.0 X 11.0Serial 10000000 to 19999999. | $9.50/EA |
| 4 | TN4037436Replaces Tennant 223355 | 4 | Cable, 04ga 08.0l Blk .34ring /.34ringSerial 10000000 to 19999999. | $26.20/EA |
| 5 | TN4037634Replaces Tennant 223356 | 1 | Cable, 04ga 12.0l Blk .34ring /.34ringSerial 10000000 to 19999999. | $28.90/EA |
| 6 | TN4022093Replaces Tennant 87435 | 12 | Nut, Hex, Flexlock, .31-18Serial 10000000 to 19999999. | $3.20/EA |
| 7 | TN4034851Replaces Tennant 1016314 | 1 | Boot, 90deg .50id 1.00id 2.50l, RedSerial 10000000 to 19999999. | $5.40/EA |
| 8 | TN4022837Replaces Tennant 611221 | 11 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 19999999. | $4.90/EA |
| 9 | TN4043876Replaces Tennant 1201303 | 1 | Tray Wldt, BatterySerial 10000000 to 19999999. | $144.98/EA |
| 10 | TN4039302Replaces Tennant 1006401 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 03ft, ClrSerial 10000000 to 19999999. | $32.10/EA |
| 11 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 19999999. | $5.10/EA |
| 12 | TN4037636Replaces Tennant 223361 | 1 | Cable Assy, 04ga .34ring /.34ring, 175aComplete assembly. Serial 10000000 to 19999999. | $147.40/EA |
| 13 | TN4038095Replaces Tennant 22892 | 1 | Connector, Anderson, 175a, GrayPart of Cable Assy, 04ga .34ring /.34ring, 175a (223361). Serial 10000000 to 19999999. | $93.70/EA |
| 14 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 19999999. | $3.90/EA |
Tennant T12 wire Harnesses Group parts
Wire Harnesses Group from Tennant's parts list. Manual page 56.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030111Replaces Tennant 1069346 | 1 | Harness, Main, Ele [T12]Serial 10000000 to 10863997. | $656.30/EA |
| 2 | TN4044940Replaces Tennant 1074780 | 1 | Harness, Main, Ele [T12]Serial 10863998 to 19999999. | $928.30/EA |
| 3 | TN4030273Replaces Tennant 1069745 | 1 | Harness. Ele, Seat [T12]Serial 10000000 to 19999999. | $16.40/EA |
| 4 | TN4030272Replaces Tennant 1069730 | 1 | Harness, Wire, Propel Motor [T12]Serial 10000000 to 19999999. | $63.10/EA |
| 5 | TN4030383Replaces Tennant 1070956 | 1 | Harness, Cable, Propel Motor [T12]Serial 10000000 to 10863997. | $71.10/EA |
| 6 | TN4044941Replaces Tennant 1074787 | 1 | Harness, Cable, Propel Motor [T12]Serial 10863998 to 11083475. | $135.80/EA |
| 6 | TN4043044Replaces Tennant 1077190 | 1 | Harness, Cable, Propel Motor [Cw]Serial 11083476 to 19999999. | $328.90/EA |
| 7 | TN4030281Replaces Tennant 1069891 | 1 | Cable Assy, power [T12]Serial 10000000 to 10863997. | $81.10/EA |
| 8 | TN4044942Replaces Tennant 1074788 | 1 | Cable Assy, power [T12]Serial 10863998 to 19999999. | $165.70/EA |
Tennant T12 labels Group parts
Labels Group from Tennant's parts list. Manual page 57.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041126Replaces Tennant 1205741 | 1 | Label Set, Info/Hzrd [T12]Serial 10000000 to 19999999. | $42.90/EA |
| 1 | TN4041128Replaces Tennant 1205743 | 1 | Label Set, Info/Hzrd, Tj [T12] (Japan Only)Serial 10000000 to 19999999. | $119.28/EA |
| 2 | TN4041122Replaces Tennant 1205724 | 1 | Label, Hzrd, Flammable Matl, NaSerial 10000000 to 19999999. | $11.55/EA |
| 2 | TN4032967Replaces Tennant 1067120 | 1 | Label, Hzrd, Flammable Matl, Tj (Japan Only)Serial 10000000 to 19999999. | $43.53/EA |
| 3 | TN4040855Replaces Tennant 1204077 | 1 | Nameplate, Tennant, Domed 7.0inSerial 10000000 to 19999999. | $35.10/EA |
| 4 | TN4041088Replaces Tennant 1205426 | 2 | Label, Logo [T12]Serial 10000000 to 19999999. | $15.80/EA |
| 4 | TN4041090Replaces Tennant 1205432 | 2 | Label, Logo [T12XP]Serial 10000000 to 19999999. | $10.10/EA |
| 5 | TN4035178Replaces Tennant 1062813 | 2 | Label, Logo, 12.3l 4color [Ec-H2o]Serial 10000000 to 19999999. | $36.60/EA |
| 6 | TN4035794Replaces Tennant 1056578 | 2 | Label, Logo, 05.8L Shite / Tl [Tennant]Serial 10000000 to 19999999. | $7.40/EA |
Tennant T12 headlight Group (option) parts
The parts Tennant numbers on its headlight group (option) drawing. Manual pages 60, list 61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044191Replaces Tennant 1202870 | 1 | Bezel, Headlight, Lh [W/Inserts]Serial 10000000 to 19999999. | $8.40/EA |
| 2 | TN4044193Replaces Tennant 1202892 | 1 | Bezel, Headlight, Rh [W/Inserts]Serial 10000000 to 19999999. | $13.60/EA |
| 3 | TN4012973Replaces Tennant 9008182 | 2 | Light Assy, Pre-Sweep, AfmktSerial 10000000 to 19999999. | $212.60/EA |
| 4 | TN4041014Replaces Tennant 06920 | 6 | Screw, Pan, Phl, M3 X 0.50 X 10, 4.8Serial 10000000 to 19999999. | $2.50/EA |
| 5 | TN4044128Replaces Tennant 140825 | 6 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, BlkSerial 10000000 to 19999999. | $3.30/EA |
| 6 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, ResetableSerial 10000000 to 19999999. | $13.40/EA |
| 7 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, ResetableSerial 10000000 to 19999999. | $5.30/EA |
| 8 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, PrgrsvSerial 10000000 to 19999999. | $27.40/EA |
Tennant T12 strobe Light and Backup Alarm Kit (option) parts
The parts Tennant numbers on its strobe light and backup alarm kit (option) drawing. Manual pages 62, list 63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4027280Replaces Tennant 9010353 | 1 | Light kit, Strobe, Module, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $1,098.30/EA |
| 1 | TN4045126Replaces Tennant 1075296 | 1 | Light, Flsh, 12Vdc, Amb, RwkPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $487.80/EA |
| 2 | TN4033986Replaces Tennant 1059938 | 1 | Base, Module, LightPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $19.50/EA |
| 3 | TN4032029Replaces Tennant 1063263 | 1 | Gasket, Base, ModulePart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $10.70/EA |
| 4 | TN4036752Replaces Tennant 1058694 | 1 | Alarm, Backup, 12-48vdc, AdjPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $110.00/EA |
| 5 | TN4014137Replaces Tennant 49263 | 1 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $3.40/EA |
| 6 | TN4016544Replaces Tennant 398526 | 1 | Relay, 36Vdc, 005A, Spdt No [Greenwich]Part of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $16.30/EA |
| 7 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25, SaePart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $2.50/EA |
| 8 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, ResetablePart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $13.40/EA |
| 9 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $2.50/EA |
| 10 | TN4036355Replaces Tennant 1056979 | 1 | Harness, Wire, Alarm / Light [T16]Part of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $49.63/EA |
| 11 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, ResetablePart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $13.40/EA |
| 12 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, ResetablePart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $5.30/EA |
| 13 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $3.50/EA |
| 14 | TN4041264Replaces Tennant 06933 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $3.40/EA |
| 15 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $2.50/EA |
| 16 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $2.50/EA |
| 17 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, PrgrsvPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $27.40/EA |
| 18 | TN4034916Replaces Tennant 1062106 | 1 | Cover, Module, LightPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $30.20/EA |
| 19 | TN4037133Replaces Tennant 1059342 | 1 | Light Assy, LedPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $296.60/EA |
| 20 | TN4044128Replaces Tennant 140825 | 6 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, BlkPart of Light kit, Strobe, Module, Ci [T12] (9010353). Serial 10000000 to 19999999. | $3.30/EA |
Tennant T12 strobe Light Kit, Overhead Guard (option) parts
The parts Tennant numbers on its strobe light kit, overhead guard (option) drawing. Manual pages 64, list 65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4027108Replaces Tennant 9010351 | 1 | Light Kit, Warning, Ohg, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $300.45/EA |
| 1 | TN4045126Replaces Tennant 1075296 | 1 | Light, Flsh, 12Vdc, Amb, RwkPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $487.80/EA |
| 2 | TN4041264Replaces Tennant 06933 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $3.40/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $2.50/EA |
| 4 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $2.50/EA |
| 5 | TN4044043Replaces Tennant 1039392 | 1 | Guard, Light, Revl / StrobePart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $76.00/EA |
| 6 | TN4012782Replaces Tennant 74455 | 2 | Screw, Hex, M6 X 1.00 X 12, FmgPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $3.40/EA |
| 7 | TN4171131Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4032003Replaces Tennant 10632-2 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .12 MatlPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $0.80/EA |
| 9 | TN4030274Replaces Tennant 1069746 | 1 | Harness, Ele, Ohg [T12]Part of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $26.46/EA |
| 10 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $3.90/EA |
| 11 | TN4044189Replaces Tennant 1202868 | 2 | Clip, Tie, 0.25d, PlstcPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $1.52/EA |
| 12 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, ResetablePart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $13.40/EA |
| 13 | TN4032588Replaces Tennant 1064188 | 1 | Circuitbreaker, 15.0a, ResetablePart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $5.30/EA |
| 14 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, PrgrsvPart of Light Kit, Warning, Ohg, Ci [T12] (9010351). Serial 10000000 to 19999999. | $27.40/EA |
Tennant T12 spotlight Kit, Blue (option) parts
The parts Tennant numbers on its spotlight kit, blue (option) drawing. Manual pages 66, list 67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021959Replaces Tennant 9020972 | 1 | Spotlight Kit, Blue, Ci [T12/T16]Complete assembly. Serial 10000000 to 19999999. | $1,000.70/EA |
| 1 | TN4033715Replaces Tennant 1240687 | 2 | Light, Spot, Blue, LedPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $562.40/EA |
| 2 | TN4016789Replaces Tennant 41143 | 2 | Washer, Lock, Int-Ext, 0.50Part of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $3.10/EA |
| 3 | TN4032109Replaces Tennant 1254712 | 1 | Harness, Blu Spotlight, FrontPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $95.55/EA |
| 4 | TN4042916Replaces Tennant 1076808 | 1 | Brkt, Blu Spotlight, Fr, Cover MtgPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $56.60/EA |
| 5 | TN4032093Replaces Tennant 1031665 | 3 | Screw, Pan, M8 X 1.25 X 25, BlkPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $3.40/EA |
| 6 | TN4016551Replaces Tennant 39890 | 3 | Washer, Flat, M8, FendrPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $4.10/EA |
| 7 | TN4041929Replaces Tennant 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $3.30/EA |
| 8 | TN4032370Replaces Tennant 1257237 | 1 | Harness, Blu Spotlight, RearPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $95.55/EA |
| – | TN4038626Replaces Tennant 1016029 | 1 | Fuse, Blade, 005a, 32vdc [Atof]Part of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $3.40/EA |
| 9 | TN4043040Replaces Tennant 1077103 | 1 | Brkt, Blu Spotlight, Rr, Cover MtgPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $38.64/EA |
| 10 | TN4032029Replaces Tennant 1063263 | 1 | Gasket, Base, ModulePart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $10.70/EA |
| 11 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $3.50/EA |
| 12 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, ResetablePart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $13.40/EA |
| 13 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $12.60/EA |
| 14 | TN4032269Replaces Tennant 1256917 | 1 | Harness, Blu Spotlight, RearPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $85.80/EA |
| – | TN4038626Replaces Tennant 1016029 | 1 | Fuse, Blade, 005a, 32vdc [Atof]Part of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $3.40/EA |
| 15 | TN4042918Replaces Tennant 1076810 | 1 | Brkt, Blu Spotlight, Rr, Cover MtgPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $65.25/EA |
| 16 | TN4011908Replaces Tennant 763114 | 10 | Tie, Cable, 11.43l, 2.75d MaxPart of Spotlight Kit, Blue, Ci [T12/T16] (9020972). Serial 10000000 to 19999999. | $3.30/EA |
Tennant T12 squeegee Guard Group (option) parts
The parts Tennant numbers on its squeegee guard group (option) drawing. Manual pages 68, list 69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043907Replaces Tennant 1201496 | 1 | Channel Wldt, Bumper, RhSerial 10000000 to 19999999. | $52.12/EA |
| 2 | TN4043912Replaces Tennant 1201503 | 1 | Channel Wldt, Bumper, LhSerial 10000000 to 19999999. | $63.63/EA |
| 3 | TN4035960Replaces Tennant 12317 | 10 | Screw, Hex, M10 X 1.50 X 30, SsSerial 10000000 to 19999999. | $4.90/EA |
| 4 | TN4042903Replaces Tennant 01686 | 18 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4041930Replaces Tennant 08714 | 8 | Nut, Hex, Lock, M10 X 1.5, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 6 | TN4033860Replaces Tennant 1024977 | 2 | Bumper, Ure, 1.50d 1.25lSerial 10000000 to 19999999. | $35.00/EA |
| 7 | TN4034138Replaces Tennant 32492 | 4 | Washer, Flat, 0.38, StdSerial 10000000 to 19999999. | $2.50/EA |
| 8 | TN4018309Replaces Tennant 69225 | 2 | Screw, Hex, .38-16 X 1.00, SsSerial 10000000 to 19999999. | $3.40/EA |
| 9 | TN4043908Replaces Tennant 1201499 | 1 | Bracket, Support, Tank, RhSerial 10000000 to 19999999. | $31.04/EA |
| 10 | TN4043913Replaces Tennant 1201504 | 1 | Bracket, Support, Tank, LhSerial 10000000 to 19999999. | $30.11/EA |
| 11 | TN4043980Replaces Tennant 1202246 | 1 | Support Wldt, Guard, RhSerial 10000000 to 19999999. | $49.18/EA |
| 12 | TN4043981Replaces Tennant 1202247 | 1 | Support Wldt, Guard, LhSerial 10000000 to 19999999. | $60.70/EA |
| 13 | TN4041948Replaces Tennant 09028 | 6 | Screw, Hex, M10 X 1.50 X 25, SsSerial 10000000 to 19999999. | $4.00/EA |
| 14 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 15 | TN4040903Replaces Tennant 1204847 | 1 | Tube, Guard, PntdSerial 10000000 to 19999999. | $200.74/EA |
| 16 | TN4041290Replaces Tennant 06965 | 2 | Screw, Hex, M10 X 1.50 X 80, 8.8Serial 10000000 to 19999999. | $6.80/EA |
| 17 | TN4031918Replaces Tennant 369359 | 1 | Pin, Hitch, .375d X 3.12l, PlSerial 10000000 to 19999999. | $7.50/EA |
| 18 | TN4042551Replaces Tennant 19676 | 1 | Cable, Glv .09d 013.0l .38eye /.38eyeSerial 10000000 to 19999999. | $12.60/EA |
| 19 | TN4041970Replaces Tennant 09252 | 1 | Screw, Hex, M5 X 0.80 X 20, 8.8Serial 10000000 to 19999999. | $3.40/EA |
| 20 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 10000000 to 19999999. | $2.60/EA |
| 21 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
Tennant T12 heavy Duty Bumper Kit (option) parts
The parts Tennant numbers on its heavy duty bumper kit (option) drawing. Manual pages 70, list 71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010766Replaces Tennant 9009857 | 1 | Bumper Kit, Front, Hd, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $1,014.55/EA |
| 1 | TN4043903Replaces Tennant 1201452 | 1 | Tube Wldt, BmprPart of Bumper Kit, Front, Hd, Ci [T12] (9009857). Serial 10000000 to 19999999. | $737.20/EA |
| 2 | TN4035608Replaces Tennant 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, SsPart of Bumper Kit, Front, Hd, Ci [T12] (9009857). Serial 10000000 to 19999999. | $6.00/EA |
| 3 | TN4045230Replaces Tennant 140045 | 2 | Washer, Flat, 0.51b 1.25d .06, SsPart of Bumper Kit, Front, Hd, Ci [T12] (9009857). Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4043740Replaces Tennant 1201061 | 1 | Bracket Wldt, BumperPart of Bumper Kit, Front, Hd, Ci [T12] (9009857). Serial 10000000 to 19999999. | $35.70/EA |
| 5 | TN4041944Replaces Tennant 09011 | 4 | Screw, Hex, M8 X 1.25 X 30, SsPart of Bumper Kit, Front, Hd, Ci [T12] (9009857). Serial 10000000 to 19999999. | $3.40/EA |
| 6 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.38b 0.88d .08, SsPart of Bumper Kit, Front, Hd, Ci [T12] (9009857). Serial 10000000 to 19999999. | $2.60/EA |
| 7 | TN4040351Replaces Tennant 1010399 | 2 | Plug, Hole, Rnd, 1.25h .18, Blk StlPart of Bumper Kit, Front, Hd, Ci [T12] (9009857). Serial 10000000 to 19999999. | $2.30/EA |
Tennant T12 overhead Guard Kit (option) parts
The parts Tennant numbers on its overhead guard kit (option) drawing. Manual pages 72, list 73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4045693Replaces Tennant 9009848 | 1 | Ohg Kit W/O Bumper, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $1,773.60/EA |
| 1 | TN4043917Replaces Tennant 1201550 | 1 | Tube Wldt, Guard, RhPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $329.06/EA |
| 2 | TN4043889Replaces Tennant 1201357 | 1 | Tube Wldt, Guard, LhPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $344.71/EA |
| 3 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $3.50/EA |
| 4 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M8 X 1.25 X 35, Fl, SsPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4013475Replaces Tennant 46983 | 2 | Washer, Flat, 0.39b 1.38d .19, Stl, PlPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $4.00/EA |
| 6 | TN4043770Replaces Tennant 1201247 | 1 | Guard Wldt, Top, OhgPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $324.21/EA |
| 7 | TN4043258Replaces Tennant 03192 | 4 | Screw, Hex, M10 X 1.50 X 30, 8.8Part of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $4.00/EA |
| 8 | TN4034138Replaces Tennant 32492 | 8 | Washer, Flat, 0.38, StdPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $2.50/EA |
| 9 | TN4016826Replaces Tennant 41430 | 4 | Nut, Hex, Lock, M10 X 1.5, NlPart of Ohg Kit W/O Bumper, Ci [T12] (9009848). Serial 10000000 to 19999999. | $4.00/EA |
Tennant T12 ec-H20 Solution Pump Group (option) parts
The parts Tennant numbers on its ec-h20 solution pump group (option) drawing. Manual pages 74, list 75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031047Replaces Tennant 1247316 | 1 | Bracket, Soltn [Ec-H2o]Serial 10000000 to 19999999. | $127.50/EA |
| 2 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 3 | TN4027846Replaces Tennant 9010933 | 1 | Ech20 Module, Afmkt [T12] (See Breakdowns)Serial 10000000 to 19999999. | $2,273.10/EA |
| 4 | TN4045268Replaces Tennant 1034731 | 4 | Screw, Hex, M6 X 1.00 X 16, Ss, SemsSerial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4037122Replaces Tennant 1059231 | 1 | Fitting, Stl, Pm04/Pm02/Pm04/Pm02, SpclSerial 10000000 to 19999999. | $46.30/EA |
| 6 | TN4044388Replaces Tennant 150208 | 1 | Fitting, Brs, Str, Pm02, Plug [Skhd]Serial 10000000 to 19999999. | $4.20/EA |
| 7 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, SsSerial 10000000 to 19999999. | $3.30/EA |
| 8 | TN4043641Replaces Tennant 140011 | 2 | Washer, Flat, 0.21b 0.45d .03, SsSerial 10000000 to 19999999. | $3.20/EA |
| 9 | TN4042145Replaces Tennant 1044415 | 1 | Switch, Press, 20psi, Pm02Serial 10000000 to 19999999. | $92.80/EA |
| 10 | TN4037705Replaces Tennant 1052705 | 2 | Fitting, Plstc, Str, Bm04/Bm04Serial 10000000 to 19999999. | $3.70/EA |
| 11 | TN4017396Replaces Tennant 43844 | 14 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10000000 to 19999999. | $4.20/EA |
| 12 | TN4040844Replaces Tennant 1203814 | 1 | Fitting, Plstc, Str, Bm06, Cplg, MaleSerial 10000000 to 19999999. | $5.30/EA |
| 13 | TN4040836Replaces Tennant 1203454 | 1 | Fitting, Plstc, Str, Bm06, Cplg, FemSerial 10000000 to 19999999. | $21.70/EA |
| 14 | TN4038299Replaces Tennant 1015455 | 1 | Valve, Check, 0005psi Bm06/Bm06Serial 10000000 to 19999999. | $93.60/EA |
| 15 | TN4040852Replaces Tennant 1203996 | 1 | Fitting, Plstc, Str, Bm05, Cplg, FemSerial 10000000 to 19999999. | $15.10/EA |
| 16 | TN4040854Replaces Tennant 1204024 | 1 | Fitting, Plstc, E90, Bm04 Cplg MaleSerial 10000000 to 19999999. | $8.50/EA |
| 17 | TN4040871Replaces Tennant 1204338 | 1 | Fitting, Plstc, Str, Bm04, Cplg, MaleSerial 10000000 to 19999999. | $4.20/EA |
| 18 | TN4041391Replaces Tennant 1206779 | 2 | Hose, Afmkt, Pvc, Brd, 0.25Id, 08FtSerial 10000000 to 19999999. | $57.40/EA |
| 19 | TN4033947Replaces Tennant 1059534 | 1 | Fastener, 09.00l [Hook & Loop]Serial 10000000 to 19999999. | $6.00/EA |
| 20 | TN4043877Replaces Tennant 1201310 | 1 | Bracket, Pump, SoltnSerial 10000000 to 19999999. | $16.90/EA |
| 21 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 22 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.62-3.50dSerial 10000000 to 19999999. | $6.20/EA |
| 23 | TN4043439Replaces Tennant 1200328 | 1 | Pump, Soltn, Ele, 36vdc, 60psiSerial 10000000 to 19999999. | $218.80/EA |
| 24 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, NylSerial 10000000 to 19999999. | $7.00/EA |
| 25 | TN4044578Replaces Tennant 150538 | 1 | Fitting, Plstc, Str, Bm06/Pm06Serial 10000000 to 19999999. | $5.30/EA |
| 26 | TN4043891Replaces Tennant 1201379 | 1 | Filter, Soltn, 080 Mesh, Pm12 3.2d 6.0lSerial 10000000 to 19999999. | $52.10/EA |
| 27 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, NylSerial 10000000 to 19999999. | $7.00/EA |
| 28 | TN4029298Replaces Tennant 57248 | 2 | Fitting, Plstc, E90, Bm06/Pm04, NylSerial 10000000 to 19999999. | $7.00/EA |
| 29 | TN4037966Replaces Tennant 1014971 | 2 | Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrSerial 10000000 to 19999999. | $18.70/EA |
| 30 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10000000 to 19999999. | $33.10/EA |
| 31 | TN4037967Replaces Tennant 1014974 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrSerial 10000000 to 19999999. | $22.40/EA |
| 32 | TN4041390Replaces Tennant 1206778 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 03FtSerial 10000000 to 19999999. | $53.83/EA |
| 33 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 10000000 to 19999999. | $10.60/EA |
| 34 | TN4035120Replaces Tennant 1016354 | 2 | Clamp, Cable, Ss, 0.50D X 0.50W [Insul]Serial 10000000 to 19999999. | $4.10/EA |
| 35 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27B 0.69D .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 36 | TN4037385Replaces Tennant 223198 | 2 | Screw, Hex, M5 X 0.80 X 10, FmgSerial 10000000 to 19999999. | $4.00/EA |
| 37 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200V]Serial 10000000 to 19999999. | $17.40/EA |
| 38 | TN4028261Replaces Tennant 9011663 | 1 | Silicone Cap, Afmkt [ec-H2O]Serial 10000000 to 19999999. | $61.00/EA |
| 39 | TN4031439Replaces Tennant 1249803 | 1 | Ferrite Clam On Id=0.52Serial 10000000 to 19999999. | $32.22/EA |
Tennant T12 ec-H20 Solution Supply Group, Side Brush (option) parts
The parts Tennant numbers on its ec-h20 solution supply group, side brush (option) drawing. Manual pages 76, list 77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030938Replaces Tennant 1028581 | 1 | Valve, Water, Solenoid, 36vdc 6.0mm Pf04Serial 10000000 to 19999999. | $470.60/EA |
| 2 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, SsSerial 10000000 to 19999999. | $3.30/EA |
| 3 | TN4043641Replaces Tennant 140011 | 2 | Washer, Flat, 0.21b 0.45d .03, SsSerial 10000000 to 19999999. | $3.20/EA |
| 4 | TN4040561Replaces Tennant 1011170 | 2 | Fitting, Plstc, E90, Bm04/Pm04, NylSerial 10000000 to 19999999. | $5.30/EA |
| 5 | TN4017396Replaces Tennant 43844 | 9 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10000000 to 19999999. | $4.20/EA |
| 6 | TN4043455Replaces Tennant 1200467 | 1 | Fitting, Plstc, RstSerial 10000000 to 19999999. | $11.62/EA |
| 7 | TN4043733Replaces Tennant 1200998 | 1 | Fitting, Plstc, Pf04/Pf04/Pf04Serial 10000000 to 19999999. | $18.48/EA |
| 8 | TN4040810Replaces Tennant 1052010 | 1 | Fitting, Plstc, Str, Pm04/Pm04Serial 10000000 to 19999999. | $3.60/EA |
| 9 | TN4043900Replaces Tennant 1201441 | 1 | Fitting, Plstc, Rst, Main HeadSerial 10000000 to 19999999. | $8.08/EA |
| 10 | TN4040871Replaces Tennant 1204338 | 1 | Fitting, Plstc, Str, Bm04, Cplg, MaleSerial 10000000 to 19999999. | $4.20/EA |
| 11 | TN4038929Replaces Tennant 1002898 | 1 | Fitting, Plstc, Str, Bm04, Cplg,Fem[Tco]Serial 10000000 to 19999999. | $58.00/EA |
| 12 | TN4044069Replaces Tennant 1039557 | 1 | Fitting, Plstc, Str, Bm04/Bm06Serial 10000000 to 19999999. | $2.60/EA |
| 13 | TN4037962Replaces Tennant 1014949 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 08FtSerial 10000000 to 19999999. | $25.30/EA |
| 14 | TN4041389Replaces Tennant 1206776 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 01FtSerial 10000000 to 19999999. | $46.26/EA |
| 15 | TN4041391Replaces Tennant 1206779 | 1 | Hose, Afmkt, Pvc, Brd, 0.25Id, 08FtSerial 10000000 to 19999999. | $57.40/EA |
| 16 | TN4038930Replaces Tennant 1002899 | 1 | Fitting, Plstc, Str, Pm04, Cplg,Mal[Tco]Serial 10000000 to 19999999. | $31.30/EA |
| 17 | TN4040852Replaces Tennant 1203996 | 1 | Fitting, Plstc, Str, Bm05, Cplg, FemSerial 10000000 to 19999999. | $15.10/EA |
| 18 | TN4037705Replaces Tennant 1052705 | 1 | Fitting, Plstc, Str, Bm04/Bm04Serial 10000000 to 19999999. | $3.70/EA |
Tennant T12 ec-H20 Wire Harness Group (option) parts
The parts Tennant numbers on its ec-h20 wire harness group (option) drawing. Manual pages 78, list 79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030126Replaces Tennant 1069671 | 1 | Harness, Ele [Ec-H20, T12]Serial 10000000 to 19999999. | $60.70/EA |
Tennant T12 side Brush Motor and Squeegee Group (option) parts
The parts Tennant numbers on its side brush motor and squeegee group (option) drawing. Manual pages 80, list 81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034337Replaces Tennant 1245125 | 1 | Motor, Ele, 36vdc 0320rpm 0.63hp GearComplete assembly. Serial 10000000 to 19999999. | $859.40/EA |
| – | TN8005795Replaces Tennant 1242618 | 1 | Brush, Motor, [1PC=1Kit]Part of Motor, Ele, 36vdc 0320rpm 0.63hp Gear (1245125). Serial 10000000 to 19999999. | $76.30/EA |
| 2 | TN4040835Replaces Tennant 1203439 | 1 | Plate, SpptSerial 10000000 to 19999999. | $17.50/EA |
| 3 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 19999999. | $2.50/EA |
| 4 | TN4025667Replaces Tennant 377364 | 1 | Hub, Drive, Brush, Disk, 0.75b [6t]Serial 10000000 to 19999999. | $186.50/EA |
| 5 | TN4042785Replaces Tennant 00928 | 1 | Key, Sq, 0.25 X 0.25, 1.00lSerial 10000000 to 19999999. | $3.60/EA |
| 6 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 19999999. | $3.40/EA |
| 7 | TN4016796Replaces Tennant 41186 | 1 | Washer, Flat, Belleville, .31Serial 10000000 to 19999999. | $3.50/EA |
| 8 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, SsSerial 10000000 to 19999999. | $3.30/EA |
| 9 | TN4043449Replaces Tennant 1200417 | 1 | Plate Wldt, Deck, SbaSerial 10000000 to 19999999. | $150.60/EA |
| 10 | TN4037957Replaces Tennant 1014918 | 1 | Wheel, 03.0d 0.88w 0.31b, W/ Bshg, RbrSerial 10000000 to 19999999. | $0.00/EA |
| 11 | TN4040607Replaces Tennant 222505 | 1 | Screw, Hex, M8 X 1.25 X 45, SsSerial 10000000 to 19999999. | $4.00/EA |
| 12 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 13 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 14 | TN4027842Replaces Tennant 9010929 | 1 | Cover, Motor, Sba, Afmkt [T12]Serial 10000000 to 19999999. | $219.00/EA |
| 15 | TN4041243Replaces Tennant 15675 | 1 | Screw, Hex, M8 X 1.25 X 16, SsSerial 10000000 to 19999999. | $3.40/EA |
| 16 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 17 | TN4043880Replaces Tennant 1201327 | 1 | Squeegee Wldt, Holder, SbaSerial 10000000 to 19999999. | $77.10/EA |
| 18 | TN4023499Replaces Tennant 80409 | 1 | Sleeve, P/M, 0.34b 0.63d 0.6l, BnzSerial 10000000 to 19999999. | $5.10/EA |
| 19 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 19999999. | $3.40/EA |
| 20 | TN4043758Replaces Tennant 1201149 | 1 | Latch, Compression, Sqge, SbaSerial 10000000 to 19999999. | $123.20/EA |
| 21 | TN4043923Replaces Tennant 1201609 | 1 | Retainer Wldt, Sqge, SbaSerial 10000000 to 19999999. | $38.90/EA |
| 22 | TN4043924Replaces Tennant 1201610 | 1 | Retainer Wldt, Sqge, Sba, With LatchSerial 10000000 to 19999999. | $43.60/EA |
| 23 | TN4043887Replaces Tennant 1201345 | 1 | Blade, Sqge, Sba, LinatexSerial 10000000 to 19999999. | $50.00/EA |
| 23 | TN4040883Replaces Tennant 1204541 | 1 | Blade, Sqge, Sba, Urethane (Option)Serial 10000000 to 19999999. | $153.80/EA |
| 23 | TN4040885Replaces Tennant 1204543 | 1 | Blade, Sqge, Sba, Gum (Option)Serial 10000000 to 19999999. | $25.00/EA |
| 24 | TN4043886Replaces Tennant 1201344 | 1 | Spacer, BladeSerial 10000000 to 19999999. | $9.90/EA |
| 25 | TN4043885Replaces Tennant 1201343 | 1 | Blade, Sqge, Sba, Inner, LinardSerial 10000000 to 19999999. | $45.00/EA |
| 25 | TN4040882Replaces Tennant 1204540 | 1 | Blade, Sqge, Sba, Inner, Urethane (Option)Serial 10000000 to 19999999. | $72.00/EA |
| 25 | TN4040884Replaces Tennant 1204542 | 1 | Blade, Sqge, Sba, Inner, Gum (Option)Serial 10000000 to 19999999. | $18.00/EA |
Tennant T12 side Brush Pivot Group (option) parts
The parts Tennant numbers on its side brush pivot group (option) drawing. Manual pages 82, list 83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043729Replaces Tennant 1200939 | 1 | Link, UpperSerial 10000000 to 19999999. | $23.30/EA |
| 2 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsSerial 10000000 to 19999999. | $3.40/EA |
| 3 | TN4040610Replaces Tennant 222516 | 2 | Sleeve, P/M, 0.32b 0.50d 0.3l [430ss]Serial 10000000 to 19999999. | $3.40/EA |
| 4 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 6 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 7 | TN4038652Replaces Tennant 1054662 | 2 | Bushing, Flng, 0.50b 0.59d 0.25lSerial 10000000 to 19999999. | $12.10/EA |
| 8 | TN4027878Replaces Tennant 9011055 | 1 | Lift channel Kit, Sba, Afmkt [T12]Complete assembly. Serial 10000000 to 19999999. | $242.30/EA |
| 9 | TN4028665Replaces Tennant 54618 | 2 | Bushing, Flng, 1.00b 1.13d 1.00lPart of Lift channel Kit, Sba, Afmkt [T12] (9011055). Serial 10000000 to 19999999. | $36.40/EA |
| 10 | TN4043755Replaces Tennant 1201137 | 1 | Pin, Pivot, SbaSerial 10000000 to 19999999. | $39.50/EA |
| 11 | TN4043920Replaces Tennant 1201575 | 1 | Pin, Pivot, SbaSerial 10000000 to 19999999. | $33.60/EA |
| 12 | TN4041946Replaces Tennant 09026 | 2 | Screw, Hex, M8 X 1.25 X 40, SsSerial 10000000 to 19999999. | $4.00/EA |
| 13 | TN4027877Replaces Tennant 9011054 | 1 | Pivot Arm Kit, Sba, Afmkt [T12]Complete assembly. Serial 10000000 to 19999999. | $369.40/EA |
| 14 | TN4028665Replaces Tennant 54618 | 2 | Bushing, Flng, 1.00b 1.13d 1.00lPart of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). Serial 10000000 to 19999999. | $36.40/EA |
| 15 | TN4043747Replaces Tennant 1201101 | 1 | Bushing, Flng, 1.75b 1.94d 1.50lPart of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). Serial 10000000 to 19999999. | $18.00/EA |
| 16 | TN4019804Replaces Tennant 39308 | 1 | Screw, Soc, M8 X 1.25 X 25, 12.9Part of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). Serial 10000000 to 19999999. | $3.40/EA |
| 17 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsPart of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). Serial 10000000 to 19999999. | $2.60/EA |
| 18 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Pivot Arm Kit, Sba, Afmkt [T12] (9011054). Serial 10000000 to 19999999. | $3.30/EA |
| 19 | TN4027851Replaces Tennant 9010938 | 1 | Spring Assy, Replmt, Afmkt [T12]Complete assembly. Serial 10000000 to 19999999. | $473.60/EA |
| 20 | TN4040971Replaces Tennant 05686 | 2 | Rod-End, M10 X 1.5rh Fem M10 X 1.5studPart of Spring Assy, Replmt, Afmkt [T12] (9010938). Serial 10000000 to 19999999. | $48.10/EA |
| 21 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsPart of Spring Assy, Replmt, Afmkt [T12] (9010938). Serial 10000000 to 19999999. | $3.30/EA |
| 22 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Spring Assy, Replmt, Afmkt [T12] (9010938). Serial 10000000 to 19999999. | $3.30/EA |
| 23 | TN4011897Replaces Tennant 763064 | 2 | Nut, Hex, Jam, M10 X 1.5, [Din439]Part of Spring Assy, Replmt, Afmkt [T12] (9010938). Serial 10000000 to 19999999. | $3.40/EA |
| 24 | TN4027854Replaces Tennant 9010941 | 1 | Actuator Kit, Sba, Afmkt [T12]Complete assembly. Serial 10000000 to 19999999. | $613.60/EA |
| 25 | TN4021642Replaces Tennant 86240 | 1 | Pin, Clevis, 0.38d X 1.13lPart of Actuator Kit, Sba, Afmkt [T12] (9010941). Serial 10000000 to 19999999. | $4.00/EA |
| 26 | TN4036077Replaces Tennant 29584 | 1 | Pin, Clevis, 0.37d X 2.00lPart of Actuator Kit, Sba, Afmkt [T12] (9010941). Serial 10000000 to 19999999. | $3.90/EA |
| 27 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsPart of Actuator Kit, Sba, Afmkt [T12] (9010941). Serial 10000000 to 19999999. | $3.30/EA |
| 28 | TN4017779Replaces Tennant 44906 | 2 | Pin, Cotter, Hair, 0.38d .093 WirPart of Actuator Kit, Sba, Afmkt [T12] (9010941). Serial 10000000 to 19999999. | $4.00/EA |
| 29 | TN4043744Replaces Tennant 1201094 | 1 | Arm Assy, Lift, ActuatorSerial 10000000 to 19999999. | $75.20/EA |
| 30 | TN4044181Replaces Tennant 1202694 | 1 | Sleeve, 0.334b 0.494d 4.00l Stl PlSerial 10000000 to 19999999. | $10.50/EA |
| 31 | TN4039849Replaces Tennant 49883 | 1 | Screw, Hex, M8 X 1.25 X 120, 8.8, FlSerial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | TN4043848Replaces Tennant 140314 | 1 | Clamp, Cable, Stl, 0.75D X 0.75W, 1HoleSerial 10000000 to 19999999. | $3.70/EA |
| 33 | TN4038652Replaces Tennant 1054662 | 2 | Bushing, Flng, 0.50b 0.59d 0.25lSerial 10000000 to 19999999. | $12.10/EA |
| 34 | TN4043694Replaces Tennant 1200634 | 1 | Washer, Flat, 0.48b 2.50d .12, SsSerial 10000000 to 19999999. | $7.70/EA |
| 35 | TN4035608Replaces Tennant 12309 | 1 | Screw, Hex, M12 X 1.75 X 30, SsSerial 10000000 to 19999999. | $6.00/EA |
Tennant T12 side Brush Bumper and Mount Group (option) parts
The parts Tennant numbers on its side brush bumper and mount group (option) drawing. Manual pages 84, list 85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043442Replaces Tennant 1200370 | 1 | Bracket Wldt, Mount, SbaSerial 10000000 to 19999999. | $204.53/EA |
| 2 | TN4044194Replaces Tennant 1202914 | 1 | Bracket Wldt, Skid, Anti-RollSerial 10000000 to 19999999. | $38.48/EA |
| 3 | TN4035960Replaces Tennant 12317 | 1 | Screw, Hex, M10 X 1.50 X 30, SsSerial 10000000 to 19999999. | $4.90/EA |
| 4 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4044175Replaces Tennant 1202521 | 1 | Bracket, Sppt, DoorSerial 10000000 to 19999999. | $19.09/EA |
| 6 | TN4036259Replaces Tennant 1020341 | 3 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 7 | TN4027839Replaces Tennant 9010926 | 1 | Bumper, Sba, Afmkt [T12]Serial 10000000 to 19999999. | $191.50/EA |
| 8 | TN4041948Replaces Tennant 09028 | 2 | Screw, Hex, M10 X 1.50 X 25, SsSerial 10000000 to 19999999. | $4.00/EA |
| 9 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, 0.44b 1.00d .08, SsSerial 10000000 to 19999999. | $3.30/EA |
| 10 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M8 X 1.25 X 25, SsSerial 10000000 to 19999999. | $3.30/EA |
| 11 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 19999999. | $2.60/EA |
| 12 | TN4035608Replaces Tennant 12309 | 1 | Screw, Hex, M12 X 1.75 X 30, SsSerial 10000000 to 19999999. | $6.00/EA |
| 13 | TN4045230Replaces Tennant 140045 | 1 | Washer, Flat, 0.51b 1.25d .06, SsSerial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T12 side Brush Solution Supply Group (option) parts
The parts Tennant numbers on its side brush solution supply group (option) drawing. Manual pages 86, list 87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043700Replaces Tennant 1200713 | 1 | Pump, Soltn, 36vdcSerial 10000000 to 19999999. | $253.70/EA |
| 2 | TN4043878Replaces Tennant 1201313 | 1 | Bracket, PumpSerial 10000000 to 19999999. | $14.24/EA |
| 3 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.62-3.50dSerial 10000000 to 19999999. | $6.20/EA |
| 4 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 19999999. | $3.50/EA |
| 5 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, NylSerial 10000000 to 19999999. | $7.00/EA |
| 6 | TN4037577Replaces Tennant 1013900 | 1 | Fitting, Plstc, Str, Bm10/Pm06, NylSerial 10000000 to 19999999. | $5.30/EA |
| 7 | TN4019291Replaces Tennant 391365 | 1 | Fitting, Plstc, E90, Bm10/Bm10Serial 10000000 to 19999999. | $4.20/EA |
| 8 | TN4038673Replaces Tennant 1054795 | 1 | Valve, Water, Solenoid, 36vdc Bm12/Bm12Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, SsSerial 10000000 to 19999999. | $3.30/EA |
| 10 | TN4041603Replaces Tennant 07789 | 2 | Nut, Hex, Flng, M5 X 0.80Serial 10000000 to 19999999. | $5.80/EA |
| 11 | TN4015366Replaces Tennant 54333 | 5 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 10000000 to 19999999. | $5.10/EA |
| 12 | TN4037982Replaces Tennant 1015033 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 01ft, ClrSerial 10000000 to 19999999. | $60.00/EA |
| 13 | TN4043882Replaces Tennant 1201336 | 1 | Manifold, Soltn, SbaSerial 10000000 to 19999999. | $35.57/EA |
| 14 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06Serial 10000000 to 19999999. | $4.20/EA |
| 15 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 10000000 to 19999999. | $4.20/EA |
| 16 | TN4039301Replaces Tennant 1006400 | 2 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 10000000 to 19999999. | $33.10/EA |
| 17 | TN4040834Replaces Tennant 1203438 | 1 | Fitting, Plstc, Str, Bm06, Mplg, MaleSerial 10000000 to 19999999. | $24.50/EA |
| 18 | TN4040836Replaces Tennant 1203454 | 1 | Fitting, Plstc, Str, Bm06, Cplg, FemSerial 10000000 to 19999999. | $21.70/EA |
| 19 | TN4030489Replaces Tennant 1071085 | 2 | Clip, Tie, 0.25d, PlstcSerial 10000000 to 19999999. | $1.60/EA |
| 20 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 19999999. | $3.90/EA |
| 21 | TN4038993Replaces Tennant 1005630 | 1 | Fitting, Plstc, E90, Bm06/Pm06, NylSerial 10000000 to 19999999. | $7.00/EA |
| 22 | TN4037968Replaces Tennant 1014976 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 08ft, ClrSerial 10000000 to 19999999. | $31.90/EA |
Tennant T12 side Brush Electrical Group (option) parts
The parts Tennant numbers on its side brush electrical group (option) drawing. Manual pages 88, list 89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016250Replaces Tennant 397889 | 1 | Switch, Rocker, Dpst, On / None / OnSerial 10000000 to 19999999. | $43.70/EA |
| 2 | TN4032585Replaces Tennant 1064184 | 1 | Circuitbreaker, 02.5a, ResetableSerial 10000000 to 19999999. | $13.40/EA |
| 3 | TN4032589Replaces Tennant 1064189 | 1 | Circuitbreaker, 20.0a, ResetableSerial 10000000 to 19999999. | $5.30/EA |
| 4 | TN4027845Replaces Tennant 9010932 | 1 | Circuit Board Kit, H2o_Sba, Afmkt [T12]Serial 10000000 to 19999999. | $737.20/EA |
| 6 | TN4035191Replaces Tennant 1016825 | 4 | Support, CircuitboardSerial 10000000 to 19999999. | $5.60/EA |
| 7 | TN4035372Replaces Tennant 24265 | 1 | Screw, Pan, Phl, M4 X 0.70 X 16, SsSerial 10000000 to 19999999. | $3.00/EA |
| 8 | TN70246Tennant 70246 | 1 | Washer, Flat, 0.19b 0.38d .03, NylSerial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4034652Replaces Tennant 32978 | 1 | Washer, Lock, Int, 08Serial 10000000 to 19999999. | $2.60/EA |
| 10 | TN4040420Replaces Tennant 1049573 | 1 | Nut, Hex, Jam, M4 X 0.70, SsSerial 10000000 to 19999999. | $1.52/EA |
| 11 | TN4041994Replaces Tennant 09744 | 3 | Screw, Hex, M6 X 1.00 X 12, SsSerial 10000000 to 19999999. | $3.40/EA |
| 12 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 19999999. | $2.60/EA |
| 13 | TN4043760Replaces Tennant 1201164 | 1 | Bracket, Circuit Board, SbaSerial 10000000 to 19999999. | $11.11/EA |
Tennant T12 side Brush Wire Harness Group (option) parts
The parts Tennant numbers on its side brush wire harness group (option) drawing. Manual pages 90, list 91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030125Replaces Tennant 1069639 | 1 | Harness, Side Brush, Ele [T12]Serial 10000000 to 19999999. | $100.20/EA |
| 2 | TN4042872Replaces Tennant 1076673 | 1 | Harness, Ele [Gnd., T12]Serial 10000000 to 19999999. | $40.91/EA |
Tennant T12 spray Hose Kit (option) parts
The parts Tennant numbers on its spray hose kit (option) drawing. Manual pages 92, list 93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010761Replaces Tennant 9009852 | 1 | Spray Hose Kit, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $2,880.20/EA |
| 1 | TN4038428Replaces Tennant 1054178 | 1 | Pump, Soltn, Ele, 36vdc, 45psiPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $518.00/EA |
| 2 | TN4036357Replaces Tennant 1056982 | 1 | Diode, Ele, PlugPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $15.40/EA |
| 3 | TN4043879Replaces Tennant 1201314 | 1 | Bracket, Pump, SprayPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $28.06/EA |
| 4 | TN4041942Replaces Tennant 09007 | 4 | Screw, Hex, M6 X 1.00 X 25, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $3.30/EA |
| 5 | TN4042901Replaces Tennant 01684 | 12 | Washer, Flat, 0.27b 0.69d .05, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $2.60/EA |
| 6 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $2.50/EA |
| 7 | TN4036259Replaces Tennant 1020341 | 1 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $3.50/EA |
| 8 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50Id, 08Ft., ClrPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $70.70/EA |
| 9 | TN4015366Replaces Tennant 54333 | 5 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $5.10/EA |
| 10 | TN4044188Replaces Tennant 1202867 | 1 | Cover, Access, Vacfan, TrimmedPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $74.30/EA |
| 11 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt, On / None / OnPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $45.20/EA |
| 12 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $8.70/EA |
| 13 | TN4043431Replaces Tennant 1200239 | 1 | Plate Wldt, Mtg, Hose-Reel [Cassoday]Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $72.90/EA |
| 14 | TN4043438Replaces Tennant 1200313 | 1 | Reel Assy, Hose, SmallPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $597.90/EA |
| 15 | TN4040847Replaces Tennant 1203947 | 1 | Washer, Retainer, SpringPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $6.70/EA |
| 16 | TN4043893Replaces Tennant 1201393 | 1 | Pawl, RatchetPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $11.90/EA |
| 17 | TN4041926Replaces Tennant 08709 | 1 | Nut, Hex, Lock, M8 X 1.25, NlPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $2.50/EA |
| 18 | TN4035833Replaces Tennant 1056719 | 1 | Bolt, Shld, .41d X 0.35, M8 X 1.25Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $12.90/EA |
| 19 | TN4043896Replaces Tennant 1201423 | 1 | Spring, Torsion, Hose ReelPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $21.60/EA |
| 20 | TN4035386Replaces Tennant 24584 | 1 | Fitting, Brs, E90, Pf06/Pm06, SpclPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $6.90/EA |
| 21 | TN4034398Replaces Tennant 1060128 | 1 | Fitting, Brs, E90, Bm06/Pm06, ShortPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $8.70/EA |
| 22 | TN4031218Replaces Tennant 33584 | 1 | Clamp, Cable, Stl, 0.63d X 0.50w, 1holePart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $4.20/EA |
| 23 | TN4041271Replaces Tennant 06943 | 1 | Screw, Hex, M6 X 1.00 X 20, 8.8Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $2.50/EA |
| 24 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M6 X 1.00, NlPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $2.50/EA |
| 25 | TN4036609Replaces Tennant 1057816 | 1 | Bushing, Sleeve, 1.00b 1.13d 1.750l, FglPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $10.30/EA |
| 26 | TN4036608Replaces Tennant 1057814 | 1 | Washer, Thrust, Plstc 1.02b 1.38dPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $1.50/EA |
| 27 | TN4034453Replaces Tennant 32598 | 1 | Washer, Flat, 1.02b 1.75d .12, StlPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $4.10/EA |
| 28 | TN4041941Replaces Tennant 09005 | 1 | Ring, Retaining, Ext, 1.00d, BasicPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $2.50/EA |
| 29 | TN4032867Replaces Tennant 1066919 | 1 | Washer, Thrust, 50.0b 110.0d 0.79wPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $6.10/EA |
| 30 | TN4043446Replaces Tennant 1200394 | 1 | Fitting, Swivel, Str, Pm06/Pm06, BrsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $28.60/EA |
| 31 | TN4013489Replaces Tennant 47388 | 1 | Fitting, Brs, E90, Em08/Pm06Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $12.60/EA |
| 32 | TN4027849Replaces Tennant 9010936 | 1 | Hose, Spray, Afmkt [T12]Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $59.20/EA |
| 33 | TN4043697Replaces Tennant 1200665 | 1 | Guide, Hose, Hdpe [Cassoday]Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $13.45/EA |
| 34 | TN4035991Replaces Tennant 12323 | 4 | Screw, Pan, Phl, M4 X 0.70 X 20, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $3.30/EA |
| 35 | TN4042888Replaces Tennant 01683 | 8 | Washer, Flat, 10, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $2.60/EA |
| 36 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $3.40/EA |
| 37 | TN4034577Replaces Tennant 1060428 | 1 | Fitting, Stl, Str, Bm06/Pm06, SwivelPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $12.10/EA |
| 38 | TN4030660Replaces Tennant 1027976 | 1 | Fitting, Brs, Str, Pf06/Pm12Part of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $11.80/EA |
| 39 | TN4028980Replaces Tennant 769785 | 1 | Nozzle, Spray, GunPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $90.00/EA |
| 40 | TN4043745Replaces Tennant 1201096 | 1 | Hook, Nozzle, HdpePart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $15.30/EA |
| 41 | TN4041994Replaces Tennant 09744 | 6 | Screw, Hex, M6 X 1.00 X 12, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $3.40/EA |
| 42 | TN4043702Replaces Tennant 1200732 | 1 | Plate, Mtg, Hose ReelPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $6.16/EA |
| 43 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M6 X 1.00 X 20, SsPart of Spray Hose Kit, Ci [T12] (9009852). Serial 10000000 to 19999999. | $3.20/EA |
Tennant T12 vacuum Wand Kit (option) parts
The parts Tennant numbers on its vacuum wand kit (option) drawing. Manual pages 94, list 95.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4027283Replaces Tennant 9010356 | 1 | Wand Kit, Wet, Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $749.80/EA |
| 1 | TN4034615Replaces Tennant 1060536 | 1 | Cuff, Adapter, 1.75 X 2.00, PvcPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $8.60/EA |
| 2 | TN4034578Replaces Tennant 1060440 | 1 | Squeegee, HandPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $20.60/EA |
| 3 | TN4034631Replaces Tennant 1060691 | 1 | Plug, Adapter, PortPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $6.80/EA |
| 4 | TN4034743Replaces Tennant 1061356 | 1 | Retainer, Blade, Sqge, 14.2l (Set of 2)Part of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $33.10/EA |
| 5 | TN4034752Replaces Tennant 1061570 | 2 | Bearing, Ball, 0.24b 0.51d 0.20w [2seal]Part of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $31.60/EA |
| 6 | TN4034753Replaces Tennant 1061571 | 2 | Pin, Axle, BrgPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $4.00/EA |
| 7 | TN4033206Replaces Tennant 1022671 | 2 | Housing, Sqge, Holder, Wheel, F/609648Part of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $5.40/EA |
| 8 | TN4012933Replaces Tennant 9008155 | 1 | Handle Kit, Wand, AfmktPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $176.40/EA |
| 9 | TN4035174Replaces Tennant 1062659 | 1 | Label, Opertnl, Vacuum Wand HandlePart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $16.80/EA |
| 10 | TN4034633Replaces Tennant 1060708 | 1 | Adapter, Swivel, 1.75, AbsPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $17.60/EA |
| 11 | TN4034635Replaces Tennant 1060718 | 1 | Nut, Compression, 2.25-12, AbsPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $3.00/EA |
| 12 | TN4034637Replaces Tennant 1060720 | 1 | Ring, CompressionPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $10.10/EA |
| 13 | TN4043695Replaces Tennant 1200642 | 1 | Hose Assy, Sqge, W/2cuff [Cassoday]Part of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $135.30/EA |
| 14 | TN4011920Replaces Tennant 763149 | 2 | Screw, Pan, 06-X 0.38, F/ PlstcPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $1.50/EA |
| 15 | TN4034876Replaces Tennant 1061811 | 1 | Strap, Retainer, HandlePart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $29.30/EA |
| 16 | TN4032985Replaces Tennant 1067350 | 2 | Rivet, Blind, .188d X 0.53 X .62d, AlmPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $1.10/EA |
| 17 | TN4021644Replaces Tennant 86308 | 2 | Washer, Flat, .19b .50d .06, Alm, BlindPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $2.50/EA |
| 18 | TN4034877Replaces Tennant 1061812 | 1 | Catch, Snap, Push, MalPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $2.80/EA |
| 19 | TN4042855Replaces Tennant 01335 | 1 | Rivet, Blind, .125d X 0.44 X .25d, AlmPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $3.40/EA |
| 20 | TN4043238Replaces Tennant 02892 | 1 | Washer, Flat, 0.12b 0.38d .03, PlPart of Wand Kit, Wet, Ci [T12] (9010356). Serial 10000000 to 19999999. | $2.50/EA |
Tennant T12 telemetry Group (S/N 10000000-10967790) (option) parts
The parts Tennant numbers on its telemetry group (s/n 10000000-10967790) (option) drawing. Manual pages 96, list 97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031062Replaces Tennant 1069467 | 1 | Controlbox Assy, Telem [Usa, 3G]Serial 10000000 to 10967790. | $989.40/EA |
| 1 | TN1070541Tennant 1070541 | 1 | Controlbox Assy, Telem [3G, Intl]Serial 10000000 to 10967790. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4035369Replaces Tennant 24199 | 4 | Screw, Hex, M5 X 0.80 X 16, SsSerial 10000000 to 10967790. | $3.00/EA |
| 3 | TN4042888Replaces Tennant 01683 | 12 | Washer, Flat, 10, SsSerial 10000000 to 10967790. | $2.60/EA |
| 4 | TN4041004Replaces Tennant 06549 | 6 | Nut, Hex, Lock, M5 X 0.80, NlSerial 10000000 to 10967790. | $2.50/EA |
| 5 | TN4030314Replaces Tennant 1070402 | 1 | Angle, Mtg, Antenna, TelemSerial 10000000 to 10967790. | $18.69/EA |
| 6 | TN4031064Replaces Tennant 1070659 | 1 | Antenna, Telem, 70 In [Gprs]Serial 10000000 to 10967790. | $54.80/EA |
| 7 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62d, NatSerial 10000000 to 10967790. | $3.40/EA |
| 8 | TN4035369Replaces Tennant 24199 | 2 | Screw, Hex, M5 X 0.80 X 16, SsSerial 10000000 to 10967790. | $3.00/EA |
| 9 | TN4036259Replaces Tennant 1020341 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsSerial 10000000 to 10967790. | $3.50/EA |
| 10 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10000000 to 10967790. | $2.60/EA |
| 11 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10000000 to 10967790. | $3.30/EA |
| 12 | TN4030312Replaces Tennant 1070384 | 1 | Shunt, 050mv 250aSerial 10000000 to 10967790. | $97.06/EA |
| 13 | TN4035991Replaces Tennant 12323 | 2 | Screw, Pan, Phl, M4 X 0.70 X 20, SsSerial 10000000 to 10967790. | $3.30/EA |
| 14 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flat, 0.16b 0.38d .05, Pl, 06Serial 10000000 to 10967790. | $3.40/EA |
| 15 | TN4030121Replaces Tennant 1069580 | 1 | Label, Opertnl, Telem [Fcc/Ic]Serial 10000000 to 10967790. | $4.34/EA |
| 16 | TN4230880Replaces Tennant 1203695 | 1 | Bracket Wldt, Mtg, BoxSerial 10000000 to 10967790. | $20.50/EA |
| 17 | TN4018310Replaces Tennant 69234 | 2 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeSerial 10000000 to 10967790. | $4.20/EA |
| 18 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10000000 to 10967790. | $2.60/EA |
| 19 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10000000 to 10967790. | $2.50/EA |
| 20 | TN4030389Replaces Tennant 1070978 | 1 | Cable Assy, 4ga [T12-Telemetry]Serial 10000000 to 10967790. | $77.77/EA |
| 21 | TN4030320Replaces Tennant 1070498 | 1 | Cable, 4ga, Blk [6200e, Telemetry]Serial 10000000 to 10967790. | $29.10/EA |
| 22 | TN4022837Replaces Tennant 611221 | 2 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 10967790. | $4.90/EA |
| 23 | TN4184697Replaces Tennant 1070042 | 1 | Harness, Ele, [Telemetry T12]Complete assembly. Serial 10000000 to 10967790. | $105.77/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Fuse. 002A. 250Vdc, CartridgePart of Harness, Ele, [Telemetry T12] (1070042). Serial 10000000 to 10967790. | $5.20/EA |
Tennant T12 telemetry Group (S/N 10967791-19999999) (option) parts
The parts Tennant numbers on its telemetry group (s/n 10967791-19999999) (option) drawing. Manual pages 98, list 99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[USA]Serial 10967791 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[INTL]Serial 10967791 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4035369Replaces Tennant 24199 | 8 | Screw, Hex, M5 X 0.80 X 16, SsSerial 10967791 to 19999999. | $3.00/EA |
| 3 | TN4042888Replaces Tennant 01683 | 16 | Washer, Flat, 10, SsSerial 10967791 to 19999999. | $2.60/EA |
| 4 | TN4041004Replaces Tennant 06549 | 8 | Nut, Hex, Lock, M5 X 0.80, NlSerial 10967791 to 19999999. | $2.50/EA |
| 5 | TN4030314Replaces Tennant 1070402 | 2 | Angle, Mtg, Antenna, TelemSerial 10967791 to 19999999. | $18.69/EA |
| 6 | TN4031064Replaces Tennant 1247522 | 2 | Antenna, Telem [4G, 72”]Serial 10967791 to 19999999. | $54.80/EA |
| 7 | TN4044164Replaces Tennant 140916 | 4 | Clamp, Cable, Nyl, 0.62d, NatSerial 10967791 to 19999999. | $3.40/EA |
| 8 | TN4184697Replaces Tennant 1070042 | 1 | Harness, Ele, [Telemetry T12]Complete assembly. Serial 10967791 to 19999999. | $105.77/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Fuse. 002A. 250Vdc, CartridgePart of Harness, Ele, [Telemetry T12] (1070042). Serial 10967791 to 19999999. | $5.20/EA |
| 9 | TN4041275Replaces Tennant 06947 | 4 | Screw, Hex, M6 X 1.00 X 40, 8.8Serial 10967791 to 19999999. | $3.40/EA |
| 10 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 10967791 to 19999999. | $2.60/EA |
| 11 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 10967791 to 19999999. | $3.30/EA |
| 12 | TN4030312Replaces Tennant 1070384 | 1 | Shunt, 050mv 250aSerial 10967791 to 19999999. | $97.06/EA |
| 13 | TN4035991Replaces Tennant 12323 | 2 | Screw, Pan, Phl, M4 X 0.70 X 20, SsSerial 10967791 to 19999999. | $3.30/EA |
| 14 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flat, 0.16b 0.38d .05, Pl, 06Serial 10967791 to 19999999. | $3.40/EA |
| 15 | TN4030121Replaces Tennant 1069580 | 1 | Label, Opertnl, Telem [Fcc/Ic]Serial 10967791 to 19999999. | $4.34/EA |
| 16 | TN4230880Replaces Tennant 1203695 | 1 | Bracket Wldt, Mtg, BoxSerial 10967791 to 19999999. | $20.50/EA |
| 17 | TN4018310Replaces Tennant 69234 | 2 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeSerial 10967791 to 19999999. | $4.20/EA |
| 18 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsSerial 10967791 to 19999999. | $2.60/EA |
| 19 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 10967791 to 19999999. | $2.50/EA |
| 20 | TN4231796Replaces Tennant 1076675 | 1 | Cable Assy, 4ga [T12-Litelem]Serial 10967791 to 19999999. | $127.98/EA |
| 21 | TN4030311Replaces Tennant 1070358 | 1 | Cable, 2ga, Blk, Telem [T16]Serial 10967791 to 19999999. | $14.34/EA |
Tennant T12 battery Group, 36V 360Ah (option) parts
The parts Tennant numbers on its battery group, 36v 360ah (option) drawing. Manual pages 100, list 101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030324Replaces Tennant 1070587 | 6 | Battery, Wet, 06Vdc 0360Ah, W/CartonSerial 10000000 to 19999999. | $613.02/EA |
| 2 | TN4037634Replaces Tennant 223356 | 4 | Cable, 04ga 12.0l Blk .34ring /.34ringSerial 10000000 to 19999999. | $28.90/EA |
| 3 | TN4037638Replaces Tennant 223364 | 1 | Cable, 04ga 18.0l Blk .34ring /.34ringSerial 10000000 to 19999999. | $35.80/EA |
| 4 | TN4044457Replaces Tennant 1041030 | 12 | Cap, BatterySerial 10000000 to 19999999. | $3.20/EA |
| 5 | TN4018304Replaces Tennant 68872 | 10 | Boot, Terminal, Battery, 02-01Ga, BlkSerial 10000000 to 19999999. | $6.60/EA |
| 6 | TN4018305Replaces Tennant 68873 | 1 | Boot, Terminal, Battery, 02-01Ga, RedSerial 10000000 to 19999999. | $6.70/EA |
| 7 | TN4037636Replaces Tennant 223361 | 1 | Cable Assy, 04ga .34ring /.34ring, 175aComplete assembly. Serial 10000000 to 19999999. | $147.40/EA |
| 8 | TN4038095Replaces Tennant 22892 | 1 | Connector, Anderson, 175a, GrayPart of Cable Assy, 04ga .34ring /.34ring, 175a (223361). Serial 10000000 to 19999999. | $93.70/EA |
| 9 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DSerial 10000000 to 19999999. | $3.90/EA |
| 10 | TN4022093Replaces Tennant 87435 | 12 | Nut, Hex, Flexlock, .31-18Serial 10000000 to 19999999. | $3.20/EA |
Tennant T12 battery Group, 36V 350Ah (option) parts
The parts Tennant numbers on its battery group, 36v 350ah (option) drawing. Manual pages 102, list 103.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032684Replaces Tennant 1262287 | 6 | Battery, Agm, 06vdc 350AhSerial 10000000 to 19999999. | $513.26/EA |
| 2 | TN4020777Replaces Tennant 630375 | 1 | Spacer, Battery, Foam, 1.25 X 3.3 X 13.7Serial 10000000 to 19999999. | $15.60/EA |
| 3 | TN4037436Replaces Tennant 223355 | 4 | Cable, 04ga 08.0l Blk .34ring /.34ringSerial 10000000 to 19999999. | $26.20/EA |
| 4 | TN4037638Replaces Tennant 223364 | 1 | Cable, 04ga 18.0l Blk .34ring /.34ringSerial 10000000 to 19999999. | $35.80/EA |
| 5 | TN4034851Replaces Tennant 1016314 | 1 | Boot, Bulb, .50id 1.00id 2.50l, RedSerial 10000000 to 19999999. | $5.40/EA |
| 6 | TN4022837Replaces Tennant 611221 | 11 | Boot, Terminal, Battery, 25.4mm, BlkSerial 10000000 to 19999999. | $4.90/EA |
Tennant T12 battery Group, Lithium-Ion, 36V, 2 Battery Kit (option) parts
The parts Tennant numbers on its battery group, lithium-ion, 36v, 2 battery kit (option) drawing. Manual pages 104, list 105.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4186540Replaces Tennant 9023244 | 1 | Con Kit, Lion, 36V, 2Bat, Afmkt, NAComplete assembly. Serial 10000000 to 19999999. | $8,553.96/EA |
| 1 | TN4016390Replaces Tennant 9052013 | 2 | Battery, Replmt, LiIon, 36v, 80 AhPart of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $3,522.64/EA |
| 2 | TN4232186Replaces Tennant 1077084 | 1 | Cable Assy, 8 Pos, Male To Male, 19.7lPart of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $52.00/EA |
| 3 | TN4210958Replaces Tennant 1266966 | 2 | Resistor, Ele, Plug [120, 1/2w, 5%]Part of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $100.19/EA |
| 4 | TN4232185Replaces Tennant 1077083 | 1 | Cable, 04ga 18.0l Red .41ring /.41ringPart of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $27.97/EA |
| 5 | TN4037638Replaces Tennant 223364 | 1 | Cable, 04ga 18.0l Blk .34ring /.34ringPart of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $35.80/EA |
| 6 | TN4207658Replaces Tennant 1271149 | 1 | Cable Assy, 04ga .50ring /.50ring, 175aPart of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $158.37/EA |
| 7 | TN4018304Replaces Tennant 68872 | 2 | Boot, Terminal, Battery, 0201ga, BlkPart of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $6.60/EA |
| 8 | TN4018305Replaces Tennant 68873 | 2 | Boot, Terminal, Battery, 0201ga, RedPart of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $6.70/EA |
| 9 | TN4207999Replaces Tennant 1271753 | 7 | Weight, Counter, 25.0lb, 1.5 X 11 X 6Part of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $193.52/EA |
| 10 | TN4034602Replaces Tennant 1247131 | 2 | Spacer, Battery, Foam, 2.25 X 4.8 X 10.5Part of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $13.43/EA |
| 11 | TN4020912Replaces Tennant 83415 | 2 | Spacer, Battery, Foam, 2.00 X 2.0 X 11.0Part of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $9.50/EA |
| 12 | TN4040592Replaces Tennant 222473 | 2 | Spacer, Battery, Foam, 0.75 X 3.0 X 21.0Part of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $6.60/EA |
| 13 | TN4208044Replaces Tennant 1271984 | 2 | Label, Hzrd, Battery [T12]Part of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $21.61/EA |
| 14 | TN4186745Replaces Tennant 9023334 | 2 | Charger Kit,LiIon,36vdc,1200w [Offb]Part of Con Kit, Lion, 36V, 2Bat, Afmkt, NA (9023244). Serial 10000000 to 19999999. | $860.32/EA |
| 15 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Serial 10000000 to 19999999. | $24.00/EA |
Tennant T12 battery Expansion Kit, Lithium-Ion, 36V (option) parts
The parts Tennant numbers on its battery expansion kit, lithium-ion, 36v (option) drawing. Manual pages 106, list 107.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4186542Replaces Tennant 9023246 | 1 | Bat Expansion Kit, Lion, 36v, Na [T12]Complete assembly. Serial 10000000 to 19999999. | $3,527.40/EA |
| 1 | TN4016390Replaces Tennant 9052013 | 1 | Battery, Replmt, Li-Ion, 36v, 80 AhPart of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $3,522.64/EA |
| 2 | TN4018304Replaces Tennant 68872 | 1 | Boot, Terminal, Battery, 02-01ga, BlkPart of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $6.60/EA |
| 3 | TN4232185Replaces Tennant 1077083 | 1 | Cable, 04ga 18.0l Red .41ring /.41ringPart of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $27.97/EA |
| 4 | TN4037638Replaces Tennant 223364 | 1 | Cable, 04ga 18.0l Blk .34ring /.34ringPart of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $35.80/EA |
| 5 | TN4232186Replaces Tennant 1077084 | 1 | Cable Assy, 8 Pos, Male To Male, 19.7lPart of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $52.00/EA |
| 6 | TN4018305Replaces Tennant 68873 | 1 | Boot, Terminal, Battery, 02-01ga, RedPart of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $6.70/EA |
| 7 | TN4034602Replaces Tennant 1247131 | 1 | Spacer, Battery, Foam, 2.25 X 4.8 X 10.5Part of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $13.43/EA |
| 8 | TN4031835Replaces Tennant 1252818 | 3 | Spacer, Battery, Foam, 3.25 X 7.5 X 7Part of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $58.08/EA |
| 9 | TN4020912Replaces Tennant 83415 | 3 | Spacer, Battery, Foam, 2.00 X 2.0 X 11.0Part of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $9.50/EA |
| 10 | TN4034040Replaces Tennant 1242643 | 2 | Spacer, Battery, Foam, 0.75 X 3.0 X 12.5Part of Bat Expansion Kit, Lion, 36v, Na [T12] (9023246). Serial 10000000 to 19999999. | $13.13/EA |
Tennant T12 battery Charger Group (option) parts
Battery Charger Group (option) from Tennant's parts list. Manual page 108.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019240Replaces Tennant 9001055 | 1 | Charger Kit, 36vdc 021a, 1ph,Domestic,CiComplete assembly. Serial 10000000 to 19999999. | $848.80/EA |
| 2 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 10ft [Sjt]Part of Charger Kit, 36vdc 021a, 1ph,Domestic,Ci (9001055). Serial 10000000 to 19999999. | $15.10/EA |
| 3 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger Kit, 36vdc 021a, 1ph,Domestic,Ci (9001055). Serial 10000000 to 19999999. | $24.00/EA |
Tennant T12 battery Charger Group (option) parts
Battery Charger Group (option) from Tennant's parts list. Manual page 109.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4189104Replaces Tennant 9020990 | 1 | Charger Kit, Re-ProgComplete assembly. Serial 10000000 to 19999999. | $1,018.90/EA |
| 2 | TN4038028Replaces Tennant 223679 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger Kit, Re-Prog (9020990). Serial 10000000 to 19999999. | $117.70/EA |
| 3 | TN4035234Replaces Tennant 1017079 | 1 | Cord, Extn, 16ga /3, 10ft [Sjt]Part of Charger Kit, Re-Prog (9020990). Serial 10000000 to 19999999. | $15.10/EA |
| 4 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Grayt [2cont]Part of Charger Kit, Re-Prog (9020990). Serial 10000000 to 19999999. | $24.00/EA |
Tennant T12 battery Charger Group, International Only (option) parts
Battery Charger Group, International Only (option) from Tennant's parts list. Manual page 110.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019245Replaces Tennant 9001062 | 1 | Charger Kit, 36vdc 021a, 1ph, CiComplete assembly. Serial 10000000 to 19999999. | $768.10/EA |
| 2 | TN4035915Replaces Tennant 1019426 | 1 | Cord, Chrgr, Ele, [Japanese]Part of Charger Kit, 36vdc 021a, 1ph, Ci (9001062). Serial 10000000 to 19999999. | $16.20/EA |
| 3 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger Kit, 36vdc 021a, 1ph, Ci (9001062). Serial 10000000 to 19999999. | $24.00/EA |
| 1 | TN4019239Replaces Tennant 9001054 | 1 | Charger Kit, 36Vdc 21A 85-265Vac, 1Ph 45/65HzComplete assembly. Serial 10000000 to 19999999. | $789.60/EA |
| 2 | TN4035901Replaces Tennant 1019242 | 1 | Cord, Chrgr, Ele {European]Part of Charger Kit, 36Vdc 21A 85-265Vac, 1Ph 45/65Hz (9001054). Serial 10000000 to 19999999. | $14.75/EA |
| 3 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger Kit, 36Vdc 21A 85-265Vac, 1Ph 45/65Hz (9001054). Serial 10000000 to 19999999. | $24.00/EA |
Tennant T12 battery Charger Group (option) parts
Battery Charger Group (option) from Tennant's parts list. Manual page 111.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042878Replaces Tennant 1076685 | 1 | Charger, 36Vdc 030A Wet Sb050G 230VacComplete assembly. Serial 10000000 to 19999999. | $671.80/EA |
| 2 | TN4041707Replaces Tennant 1043746 | 1 | Cable, Charger Eu Bc5 & 7Part of Charger, 36Vdc 030A Wet Sb050G 230Vac (1076685). Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4044609Replaces Tennant 1041716 | 1 | Cable, Charger Uk, Bc5 & 7 (UK Only)Part of Charger, 36Vdc 030A Wet Sb050G 230Vac (1076685). Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T12 battery Chargers Group, Lithium-Ion (option) parts
The parts Tennant numbers on its battery chargers group, lithium-ion (option) drawing. Manual pages 112, list 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034047Replaces Tennant 1242861 | 1 | Charger, 36vdc 1200w 100-240vac[Off Brd]Complete assembly. Serial 10967791 to 19999999. | $1,780.90/EA |
| 2 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger, 36vdc 1200w 100-240vac[Off Brd] (1242861). Serial 10967791 to 19999999. | $24.00/EA |
| 3 | TN4034048Replaces Tennant 1242864 | 1 | Charger, 36vdc 900w 100-240vac [Off Brd]Complete assembly. Serial 10967791 to 19999999. | $739.03/EA |
| 4 | TN4030594Replaces Tennant 130155 | 1 | Connector, Battery, 6ga 50a, Gray[2cont]Part of Charger, 36vdc 900w 100-240vac [Off Brd] (1242864). Serial 10967791 to 19999999. | $24.00/EA |
| 5 | TN4034198Replaces Tennant 1025642 | 1 | Cord, Power, 16/3, 15ft Blk [Us]Serial 10967791 to 19999999. | $49.60/EA |
Tennant T12 on-Board Charger Kit (option) parts
The parts Tennant numbers on its on-board charger kit (option) drawing. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010774Replaces Tennant 9009866 | 1 | Charger Kit, On-Board, Us Ci [T12]Complete assembly. Serial 10000000 to 19999999. | $1,787.80/EA |
| 1 | TN4018638Replaces Tennant 9022393 | 1 | Charger, Kit, Programmable [T12/T16]Part of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $569.40/EA |
| – | TN8005508Replaces Tennant 1030692 | 1 | Fuse, 15a, Replmt (If equipped with replaceable fuse)Part of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 10983212. | $3.50/EA |
| 2 | TN4044757Replaces Tennant 1073882 | 1 | Cord, Power, 14/3, 15A, 15ft Blk [Us]Part of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $54.90/EA |
| 3 | TN4043641Replaces Tennant 140011 | 3 | Washer, Flat, 0.21b 0.45d .03, SsPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $3.20/EA |
| 4 | TN4041264Replaces Tennant 06933 | 3 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $3.40/EA |
| 5 | TN4043910Replaces Tennant 1201501 | 1 | Cover, Access, Chrgr, TrimmedPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4036242Replaces Tennant 1020170 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 02ftPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $57.90/EA |
| 7 | TN4023495Replaces Tennant 80395 | 2 | Sleeve, P/M, 0.32b 0.50d 0.7l [430ss]Part of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $5.10/EA |
| 8 | TN4027995Replaces Tennant 373117 | 2 | Washer, Flat, 0.38b 2.25d .07, Stl, PntPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $11.00/EA |
| 9 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $3.40/EA |
| 10 | TN4011909Replaces Tennant 763115 | 1 | Tie, Cable, 6.0l, 1.25d MaxPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $2.30/EA |
| 11 | TN4044189Replaces Tennant 1202868 | 1 | Clip, Tie, 0.25d, PlstcPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $1.52/EA |
| 12 | TN4030322Replaces Tennant 1070508 | 1 | Cable Assy, 6ga [6100e-Telemetry]Part of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $42.10/EA |
| 13 | TN4041407Replaces Tennant 1206036 | 1 | Duct, Outlet, HeatPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $8.95/EA |
| 14 | TN4041176Replaces Tennant 1206052 | 1 | Plate, Mtg, Heat DuctPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $5.35/EA |
| 15 | TN4041990Replaces Tennant 09738 | 4 | Screw, Hex, M5 X 0.80 X 12, SsPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $3.30/EA |
| 16 | TN4043641Replaces Tennant 140011 | 4 | Washer, Flat, 0.21b 0.45d .03, SsPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $3.20/EA |
| 17 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $3.30/EA |
| 18 | TN4041179Replaces Tennant 1206096 | 1 | Seal, Foam, 0.50 0.75w 8.0l, Pvc, AdhPart of Charger Kit, On-Board, Us Ci [T12] (9009866). Serial 10000000 to 19999999. | $3.00/EA |
Tennant T12 on-Board Charger Group, International (option) parts
The parts Tennant numbers on its on-board charger group, international (option) drawing. Manual pages 116, list 117.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018638Replaces Tennant 9022393 | 1 | Charger, Kit, Programmable [T12/T16]Complete assembly. Serial 10000000 to 19999999. | $569.40/EA |
| – | TN8005508Replaces Tennant 1030692 | 1 | Fuse, 15a, Replmt (If equipped with replaceable fuse)Part of Charger, Kit, Programmable [T12/T16] (9022393). Serial 10000000 to 10983212. | $3.50/EA |
| 2 | TN4035901Replaces Tennant 1019242 | 1 | Cord, Chrgr, Ele [European]Serial 10000000 to 19999999. | $14.75/EA |
| 2 | TN4034245Replaces Tennant 1026325 | 1 | Cord, Power, 1.0mm2/3 Blk[2.5Meter, Australia]Serial 10000000 to 19999999. | $31.00/EA |
| 3 | TN4043641Replaces Tennant 140011 | 3 | Washer, Flat, 0.21b 0.45d .03, SsSerial 10000000 to 19999999. | $3.20/EA |
| 4 | TN4041179Replaces Tennant 1206096 | 1 | Seal, Foam, 0.50 0.75w 8.0l, Pvc, AdhSerial 10000000 to 19999999. | $3.00/EA |
| 5 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 6 | TN4036242Replaces Tennant 1020170 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 02ftSerial 10000000 to 19999999. | $57.90/EA |
| 7 | TN4023495Replaces Tennant 80395 | 2 | Sleeve, P/M, 0.32b 0.50d 0.7l [430ss]Serial 10000000 to 19999999. | $5.10/EA |
| 8 | TN4027995Replaces Tennant 373117 | 2 | Washer, Flat, 0.38b 2.25d .07, Stl, PntSerial 10000000 to 19999999. | $11.00/EA |
| 9 | TN4041944Replaces Tennant 09011 | 2 | Screw, Hex, M8 X 1.25 X 30, SsSerial 10000000 to 19999999. | $3.40/EA |
| 10 | TN4011909Replaces Tennant 763115 | 1 | Tie, Cable, 6.0l, 1.25d MaxSerial 10000000 to 19999999. | $2.30/EA |
| 11 | TN4044189Replaces Tennant 1202868 | 1 | Clip, Tie, 0.25d, PlstcSerial 10000000 to 19999999. | $1.52/EA |
| 12 | TN4030322Replaces Tennant 1070508 | 1 | Cable Assy, 6ga [6100e-Telemetry]Serial 10000000 to 19999999. | $42.10/EA |
| 13 | TN4041407Replaces Tennant 1206036 | 1 | Duct, Outlet, HeatSerial 10000000 to 19999999. | $8.95/EA |
| 14 | TN4041176Replaces Tennant 1206052 | 1 | Plate, Mtg, Heat DuctSerial 10000000 to 19999999. | $5.35/EA |
| 15 | TN4041990Replaces Tennant 09738 | 4 | Screw, Hex, M5 X 0.80 X 12, SsSerial 10000000 to 19999999. | $3.30/EA |
| 16 | TN4043641Replaces Tennant 140011 | 4 | Washer, Flat, 0.21b 0.45d .03, SsSerial 10000000 to 19999999. | $3.20/EA |
| 17 | TN4041264Replaces Tennant 06933 | 3 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Serial 10000000 to 19999999. | $3.40/EA |
Tennant T12 flow-Rite Battery Water Manifold Kit (option) parts
Flow-Rite Battery Water Manifold Kit (option) from Tennant's parts list. Manual page 118.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN7006819Replaces Tennant 9009870 | 1 | Manifold Kit, Sys, Water, Battery, Di (Replaced by 9045074)Complete assembly. Serial 10000000 to 19999999. | $1,457.10/EA |
| 1 | TN4034639Replaces Tennant 1060756 | 1 | Manifold, Sys, Water, BatteryPart of Manifold Kit, Sys, Water, Battery, Di (Replaced by 9045074) (9009870). Serial 10000000 to 19999999. | $560.70/EA |
| 2 | TN4034895Replaces Tennant 1061926 | 1 | Valve, Reg, WaterPart of Manifold Kit, Sys, Water, Battery, Di (Replaced by 9045074) (9009870). Serial 10000000 to 19999999. | $447.50/EA |
Tennant T12 hydrolink Battery Watering System Kit (option) parts
Hydrolink Battery Watering System Kit (option) from Tennant's parts list. Manual page 119.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036778Replaces Tennant 1058939 | 1 | Pump Kit, Fill, BatteryPart of the assembly above. Serial 10000000 to 19999999. | $145.10/EA |
| 2 | TN4043946Replaces Tennant 1201997 | 1 | Tube, Water, Battery, 36vdc [Trojan]Part of the assembly above. Serial 10000000 to 19999999. | $139.10/EA |
| 3 | TN4040858Replaces Tennant 1204142 | 6 | Cap, Fill, Battery [Trojan]Part of the assembly above. Serial 10000000 to 19999999. | $42.00/EA |
| 4 | TN4030488Replaces Tennant 1071084 | 1 | Label, Tag, Battery [Hydrolink Watering]Part of the assembly above. Serial 10000000 to 19999999. | $7.50/EA |
| 5 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of the assembly above. Serial 10000000 to 19999999. | $3.90/EA |
Tennant T12 manual Battery Watering System Kit (option) parts
Manual Battery Watering System Kit (option) from Tennant's parts list. Manual page 120.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033340Replaces Tennant 1236295 | 1 | Pump, Hand, BatteryPart of the assembly above. Serial 10000000 to 19999999. | $93.20/EA |
| 2 | TN4031076Replaces Tennant 1248178 | 1 | Distribution Assy, Water, BatteryPart of the assembly above. Serial 10000000 to 19999999. | $294.70/EA |
| 3 | TN4031852Replaces Tennant 1253250 | 1 | Label, Tag, Battery [Bwt Watering]Part of the assembly above. Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4043510Replaces Tennant 130773 | 2 | Tie, Cable, nyl, 11.0L, .14W, 3.0Max. DPart of the assembly above. Serial 10000000 to 19999999. | $3.90/EA |
Tennant T12 transport Group (option) parts
Transport Group (option) from Tennant's parts list. Manual page 121.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044214Replaces Tennant 140932 | 1 | Latch, Draw, Rbr, W/ Keeper, Fr/49800Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4041117Replaces Tennant 1205666 | 1 | Bracket, Catch, LatchSerial 10000000 to 19999999. | $6.77/EA |
| 3 | TN4029542Replaces Tennant 360973 | 2 | Screw, Pan, 12-16 X 0.50, F/ PlstcSerial 10000000 to 19999999. | $4.00/EA |
| 4 | TN4044128Replaces Tennant 140825 | 2 | Screw, Pan, Phl, 06 X 0.50, Fmg/Ab, BlkSerial 10000000 to 19999999. | $3.30/EA |
Tennant T12 fire Extinguisher Group (option) parts
Fire Extinguisher Group (option) from Tennant's parts list. Manual page 122.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035427Replaces Tennant 25312 | 1 | Extinguisher, Fire, 2.5 Lb DrySerial 10000000 to 19999999. | $206.60/EA |
| 2 | TN4041161Replaces Tennant 1205877 | 1 | Bracket, Mtg, ExtinguisherSerial 10000000 to 19999999. | $142.80/EA |
| 3 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, SsSerial 10000000 to 19999999. | $3.30/EA |
| 4 | TN4043641Replaces Tennant 140011 | 4 | Washer, Flat, 0.21b 0.45d .03, SsSerial 10000000 to 19999999. | $3.20/EA |
| 5 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 10000000 to 19999999. | $3.30/EA |
| 6 | TN4041167Replaces Tennant 1205889 | 1 | Plate Wldt, Mtg, ExtinguisherSerial 10000000 to 19999999. | $12.83/EA |
| 7 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M6 X 1.00 X 20, SsSerial 10000000 to 19999999. | $3.20/EA |
Tennant T12 documentation Group (Available Online Only) (option) parts
Documentation Group (Available Online Only) (option) from Tennant's parts list. Manual page 123.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010809Replaces Tennant 9009910 | 1 | Manual, Oprtr [T12 Ele, En, Na]Serial 10000000 to 19999999. | $86.78/EA |
| – | TN4010810Replaces Tennant 9009911 | 1 | Manual, Oprtr [T12 Ele, Es, Na]Serial 10000000 to 19999999. | $93.68/EA |
| – | TN4010811Replaces Tennant 9009912 | 1 | Manual, Oprtr [T12 Ele, Fr, Na]Serial 10000000 to 19999999. | $93.68/EA |
| – | TN4199782Replaces Tennant 9009913 | 1 | Manual, Oprtr [T12 Ele, Ptb]Serial 10000000 to 19999999. | $2.54/EA |
| – | TN4010812Replaces Tennant 9009914 | 1 | Manual, Oprtr [T12 Ele, Jp]Serial 10000000 to 19999999. | $2.54/EA |
| – | TN4010813Replaces Tennant 9009915 | 1 | Manual, Oprtr [T12 Ele, Cn]Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4010814Replaces Tennant 9009916 | 1 | Manual, Parts [T12 Ele, En, Na/Int] (S/N 1000000-1999999)Serial 10000000 to 19999999. | $157.80/EA |
| – | TN4025025Replaces Tennant 9012729 | 1 | Manual, Parts [T12 Ele, EN] (S/N 3000000-3999999)Serial 30000000 to 39999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4010815Replaces Tennant 9009917 | 1 | Manual, Service Info [T12 Ele, En]Serial 10000000 to 19999999. | $319.37/EA |
| – | TN4010795Replaces Tennant 9009890 | 1 | Dvd, Operator [T12]Serial 10000000 to 19999999. | $62.64/EA |
| – | TN4028200Replaces Tennant 9011140 | 1 | Instr, Use&Care, Wallchart [T12]Serial 10000000 to 19999999. | $4.56/EA |
Tennant T12 ec-H2O Module Assembly Breakdown, 9010933 (component breakdown) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9010933 (component breakdown) drawing. Manual pages 126, list 127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4027846Replaces Tennant 9010933 | 1 | Ec-H2o Module Kit, Afmkt [T12]Complete assembly. Serial 10000000 to 19999999. | $2,273.10/EA |
| 1 | TN4021541Replaces Tennant 9020262 | 1 | Circuit Board Kit, Ec-H2o, Afmkt [T12]Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $584.49/EA |
| 2 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $2.50/EA |
| 3 | TN4036516Replaces Tennant 1233516 | 1 | Electrode, 5 Plate, [De Nora Tech]Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10994329 to 19999999. | $753.50/EA |
| 4 | TN4030271Replaces Tennant 1069708 | 1 | Harness, Ele, Ech2o [T12 Module]Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $42.93/EA |
| 5 | TN4034288Replaces Tennant 1243570 | 1 | Hose , Molded, Bm08/Bm05Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10994329 to 19999999. | $55.95/EA |
| 6 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 01Ft, ClrPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $18.70/EA |
| 7 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $5.10/EA |
| 8 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $3.23/EA |
| 9 | TN4040777Replaces Tennant 1051519 | 1 | Housing, Upper, Module, High FlowPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $12.60/EA |
| 10 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $0.25/EA |
| 11 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $2.60/EA |
| 12 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $3.40/EA |
| 13 | TN4042720Replaces Tennant 1046041 | 1 | Label, Module [Nsf, Ec-H2o]Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $14.44/EA |
| 14 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $7.70/EA |
| 15 | TN4040034Replaces Tennant 1048741 | 1 | Bracket, Valve, LargePart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $12.83/EA |
| 16 | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $753.50/EA |
| 17 | TN4043510Replaces Tennant 130773 | 1 | Tie, Cable, Nyl, 11.0l, .14w, 3.0 Max. DPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $3.90/EA |
| 18 | TN4038789Replaces Tennant 1055552 | 1 | Fitting, Brs, Str, Bm06/Pm02Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $3.60/EA |
| 19 | TN4040769Replaces Tennant 1051268 | 1 | Fitting, Plstc, E90, Bm05/Pm02, NylPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $4.20/EA |
| 20 | TN4017396Replaces Tennant 43844 | 3 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $4.20/EA |
| 21 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 01Ft, ClrPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $18.70/EA |
| 22 | TN4030078Replaces Tennant 1068763 | 1 | Label, Date Code [Ec-H2o]Part of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $10.60/EA |
| 24 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Ech20 Module, Afmkt [T12] (See Breakdowns) (9010933). Serial 10000000 to 19999999. | $5.10/EA |
| 25 | TN4020962Replaces Tennant 9018397 | 1 | Electrode Kit, 5 Plate, Hi Flow, ReplmtSerial 10000000 to 10994328. | $587.38/EA |
| 26 | TN4014907Replaces Tennant 9006268 | 1 | Hose, Pvc, Brd, 0.38id, 01Ft, ClrSerial 10000000 to 10994328. | $59.39/EA |
Tennant T12 steering Control Breakdown, 1200203 (component breakdown) parts
Steering Control Breakdown, 1200203 (component breakdown) from Tennant's parts list. Manual page 128.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032249Replaces Tennant 1200203 | 1 | Steer-Control Assy, Wheel DriveComplete assembly. Serial 10000000 to 11017501. | $700.90/EA |
| 1 | TN8004108Replaces Tennant 9011049 | 1 | Chain, Steering W/LinkPart of Steer-Control Assy, Wheel Drive (See Breakdown) (Replaced by 1256309) (1200203). Serial 10000000 to 11017501. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8004109Replaces Tennant 9011051 | 1 | Pulley, TensionPart of Steer-Control Assy, Wheel Drive (See Breakdown) (Replaced by 1256309) (1200203). Serial 10000000 to 11017501. | $16.60/EA |
| 3 | TN8004142Replaces Tennant 372874 | 1 | Bearing, SteeringPart of Steer-Control Assy, Wheel Drive (See Breakdown) (Replaced by 1256309) (1200203). Serial 10000000 to 11017501. | $302.00/EA |
| 4 | TN8001824Replaces Tennant 9008719 | 2 | Bearing [6003 2RS]Part of Steer-Control Assy, Wheel Drive (See Breakdown) (Replaced by 1256309) (1200203). Serial 10000000 to 11017501. | $9.40/EA |
Tennant T12 steering Control Breakdown, 1256309 (component breakdown) parts
Steering Control Breakdown, 1256309 (component breakdown) from Tennant's parts list. Manual page 129.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032249Replaces Tennant 1256309 | 1 | Steer-Control Assy, Wheel DriveComplete assembly. Serial 11017502 to 19999999. | $700.90/EA |
| 1 | TN8004108Replaces Tennant 9011049 | 1 | Chain, Steering W/LinkPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1256309). Serial 11017502 to 19999999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8004109Replaces Tennant 9011051 | 1 | Pulley, TensionPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1256309). Serial 11017502 to 19999999. | $16.60/EA |
| 3 | TN8004142Replaces Tennant 372874 | 1 | Bearing, SteeringPart of Steer-Control Assy, Wheel Drive (See Breakdown) (1256309). Serial 11017502 to 19999999. | $302.00/EA |
| 4 | TN8001824Replaces Tennant 9008719 | 2 | Bearing [6003 2RS]Part of Steer-Control Assy, Wheel Drive (See Breakdown) (1256309). Serial 11017502 to 19999999. | $9.40/EA |
Tennant T12 drive Wheel Breakdown, 1246662 (component breakdown) parts
The parts Tennant numbers on its drive wheel breakdown, 1246662 (component breakdown) drawing. Manual pages 130, list 131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032211Replaces Tennant 1246662 | 1 | Wheel, Drive, AcComplete assembly. Serial 10956762 to 11025471. | $2,446.30/EA |
| – | TN4021592Replaces Tennant 9020686 | 1 | Wheel And Hub Kit, Red [T12]Part of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $1,663.50/EA |
| 1 | TN8003229Replaces Tennant 9020657 | 1 | Hub, AlmPart of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $124.50/EA |
| 2 | TN8003230Replaces Tennant 9020658 | 1 | Screw KitPart of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $114.50/EA |
| 3 | TN8002158Replaces Tennant 9008544 | 1 | Tire Kit, PullerPart of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $363.30/EA |
| 4 | TN8004107Replaces Tennant 9011048 | 1 | Wheel, Pyu [250X90 Red]Part of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $1,013.30/EA |
| 5 | TN4021594Replaces Tennant 9020688 | 1 | Brake Kit, Complt [T12/T16]Part of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $724.70/EA |
| 6 | TN4021595Replaces Tennant 9020689 | 1 | Brake Kit, Rotor [T12/T16]Part of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $225.50/EA |
| 7 | TN8002163Replaces Tennant 9008556 | 1 | Ring, Retaining F/1055257Part of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $7.00/EA |
| 8 | TN8002161Replaces Tennant 9008550 | 1 | Cover, Box, ConnectorPart of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $22.20/EA |
| 9 | TN8003648Replaces Tennant 9013901 | 1 | Cover, Motor, DrivePart of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $17.10/EA |
| 10 | TN8002162Replaces Tennant 9008552 | 1 | Spacer, AlmPart of Wheel, Drive, Ac (See Breakdown) (Replaced by 1255933) (1246662). Serial 10956762 to 11025471. | $70.40/EA |
| – | TN4021591Replaces Tennant 9020685 | 1 | Wheel And Hub Kit, Blue [T12]Complete assembly. Serial 10956762 to 11025471. | $1,786.99/EA |
| 11 | TN8003229Replaces Tennant 9020657 | 1 | Hub, AlmPart of Wheel And Hub Kit, Blue [T12] (9020685). Serial 10956762 to 11025471. | $124.50/EA |
| 12 | TN8003230Replaces Tennant 9020658 | 1 | Screw KitPart of Wheel And Hub Kit, Blue [T12] (9020685). Serial 10956762 to 11025471. | $114.50/EA |
| 13 | TN8002158Replaces Tennant 9008544 | 1 | Tire Kit, PullerPart of Wheel And Hub Kit, Blue [T12] (9020685). Serial 10956762 to 11025471. | $363.30/EA |
| 14 | TN8004107Replaces Tennant 9011048 | 1 | Wheel, Pyu [250X90 Red]Part of Wheel And Hub Kit, Blue [T12] (9020685). Serial 10956762 to 11025471. | $1,013.30/EA |
Tennant T12 drive Wheel Breakdown, 1255933 (component breakdown) parts
The parts Tennant numbers on its drive wheel breakdown, 1255933 (component breakdown) drawing. Manual pages 132, list 133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4032211Replaces Tennant 1255933 | 1 | Wheel, Drive, AcComplete assembly. Serial 11025472 to 19999999. | $2,446.30/EA |
| – | TN4021592Replaces Tennant 9020686 | 1 | Wheel And Hub Kit, Red [T12]Part of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $1,663.50/EA |
| 1 | TN8003229Replaces Tennant 9020657 | 1 | Hub, AlmPart of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $124.50/EA |
| 2 | TN8003230Replaces Tennant 9020658 | 1 | Screw KitPart of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $114.50/EA |
| 3 | TN8002158Replaces Tennant 9008544 | 1 | Tire Kit, PullerPart of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $363.30/EA |
| 4 | TN8004107Replaces Tennant 9011048 | 1 | Wheel, Pyu [250X90 Red]Part of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $1,013.30/EA |
| 5 | TN4021594Replaces Tennant 9020688 | 1 | Brake Kit, Complt [T12/T16]Part of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $724.70/EA |
| 6 | TN4021595Replaces Tennant 9020689 | 1 | Brake Kit, Rotor [T12/T16]Part of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $225.50/EA |
| 7 | TN8002163Replaces Tennant 9008556 | 1 | Ring, Retaining F/1055257Part of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $7.00/EA |
| 8 | TN8002161Replaces Tennant 9008550 | 1 | Cover, Box, ConnectorPart of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $22.20/EA |
| 9 | TN8003648Replaces Tennant 9013901 | 1 | Cover, Motor, DrivePart of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $17.10/EA |
| 10 | TN8002162Replaces Tennant 9008552 | 1 | Spacer, AlmPart of Wheel, Drive, Ac (See Breakdown) (1255933). Serial 11025472 to 19999999. | $70.40/EA |
| – | TN4021591Replaces Tennant 9020685 | 1 | Wheel And Hub Kit, Blue [T12]Complete assembly. Serial 11025472 to 19999999. | $1,786.99/EA |
| 11 | TN8003229Replaces Tennant 9020657 | 1 | Hub, AlmPart of Wheel And Hub Kit, Blue [T12] (9020685). Serial 11025472 to 19999999. | $124.50/EA |
| 12 | TN8003230Replaces Tennant 9020658 | 1 | Screw KitPart of Wheel And Hub Kit, Blue [T12] (9020685). Serial 11025472 to 19999999. | $114.50/EA |
| 13 | TN8002158Replaces Tennant 9008544 | 1 | Tire Kit, PullerPart of Wheel And Hub Kit, Blue [T12] (9020685). Serial 11025472 to 19999999. | $363.30/EA |
| 14 | TN8004107Replaces Tennant 9011048 | 1 | Wheel, Pyu [250X90 Red]Part of Wheel And Hub Kit, Blue [T12] (9020685). Serial 11025472 to 19999999. | $1,013.30/EA |
Tennant T12 electric Motor Breakdown, 1053342 (component breakdown) parts
Electric Motor Breakdown, 1053342 (component breakdown) from Tennant's parts list. Manual page 134.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4029988Replaces Tennant 1053342 | 1 | Motor, ele, 36Vdc 1750rpm 1.00hp 22.0aComplete assembly. Serial 10000000 to 19999999. | $296.03/EA |
| 1 | TN8003649Replaces Tennant 9013931 | 2 | Bearing, Motor, ElePart of Motor, Ele, 36vdc 1750rpm 1.00hp 22.0a (See Breakdown) (1053342). Serial 10000000 to 19999999. | $16.97/EA |
| 2 | TN8047662Replaces Tennant 9013934 | 2 | Bearing, Motor, ElePart of Motor, Ele, 36vdc 1750rpm 1.00hp 22.0a (See Breakdown) (1053342). Serial 10000000 to 19999999. | $39.29/EA |
| 3 | TN8004300Replaces Tennant 9011916 | 1 | Brush Kit, MotorPart of Motor, Ele, 36vdc 1750rpm 1.00hp 22.0a (See Breakdown) (1053342). Serial 10000000 to 19999999. | $110.90/EA |
Tennant T12 accelerator and Brake Pedal Assembly Breakdown, 1200253 (component breakdown) parts
Accelerator and Brake Pedal Assembly Breakdown, 1200253 (component breakdown) from Tennant's parts list. Manual page 135.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4043432Replaces Tennant 1200253 | 1 | Pedal Assy, Accelerator, BrakeComplete assembly. Serial 10000000 to 19999999. | $434.90/EA |
| 1 | TN8005873Replaces Tennant 1058687 | 1 | Sensor, Position [Hall]Part of Pedal Assy, Accelerator, Brake (See Breakdowns) (1200253). Serial 10000000 to 19999999. | $346.40/EA |
| 2 | TN4030944Replaces Tennant 1014548 | 1 | Pedal, Brake, W/ TreadPart of Pedal Assy, Accelerator, Brake (See Breakdowns) (1200253). Serial 10000000 to 19999999. | $534.90/EA |
| 3 | TN4030944Replaces Tennant 1051836 | 1 | Pedal, Propel, W/ TreadPart of Pedal Assy, Accelerator, Brake (See Breakdowns) (1200253). Serial 10000000 to 19999999. | $534.90/EA |
| 4 | TN8005767Replaces Tennant 1061049 | 2 | Spring, Extn, 0.35od 0.05wir 02.8lPart of Pedal Assy, Accelerator, Brake (See Breakdowns) (1200253). Serial 10000000 to 19999999. | $10.30/EA |
| 5 | TN4032122Replaces Tennant 1031716 | 1 | Spring, Extn, 0.50od 0.07wir 03.0lPart of Pedal Assy, Accelerator, Brake (See Breakdowns) (1200253). Serial 10000000 to 19999999. | $29.60/EA |
| 6 | TN8005628Replaces Tennant 1064665 | 1 | Spring, Tors, 0.55id .05wir 04.0coilPart of Pedal Assy, Accelerator, Brake (See Breakdowns) (1200253). Serial 10000000 to 19999999. | $6.36/EA |
New to your Tennant T12? Start here
Set up, run and look after your T12 or T12XP. Everything here comes from Tennant's T12 operator manual, rewritten in plain steps, with the parts linked to the list above. Pick the parts that match your disk or cylindrical scrub head.
1Fill the solution tank
- Stop on a level surface, turn the machine off and take the key out.
- Conventional scrubbing: partly fill with water no hotter than 140°F (60°C), add a recommended detergent, then keep filling to about 2 in (50 mm) below the cap.
- ec-H2O scrubbing (option): cool clean water only, below 70°F (21°C), and no detergent. Detergent can cause an ec-H2O system failure.
- Never put flammable materials in the tanks. Put the cap back on when you are done.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 24 and 25. SES ref PF-GYWR-ZEQL
2Scrub and stop
- Sit in the seat, fasten the seat belt if fitted, and turn the key past On and let it go.
- Press the 1-STEP button. Set the brush pressure and solution flow to the lowest setting that cleans.
- Set the directional switch and press the propel pedal. The machine only moves with the operator in the seat.
- To stop scrubbing, press 1-STEP while still moving so the squeegee picks up the last water, then release the pedal and brake.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 24, 27 and 29. SES ref PF-GYWR-ZEQL
3Drain and clean the tanks
- Drive to a floor drain, turn the machine off and take the key out.
- Unhook the recovery drain hose, point it at the drain and twist the nozzle open. Flush the tank and rinse the tank sensor (TN4021025).
- Clean the vacuum fan inlet filter (TN4043531) and let it dry, rinse the vacuum screen (TN4034224) and the debris tray (TN4043883). Cylindrical heads: empty the debris trough (TN4027840).
- Drain and flush the solution tank the same way. If it clogs, clean the solution tank filter (TN4030627). Don't use steam on the tanks.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 30, 31, 32 and 33. SES ref PF-GYWR-ZEQL
4Change disk brushes or pads
- Raise the scrub head, turn the machine off and take the key out.
- Open the main brush door and the side squeegee door, turn the brush until the spring handles show, squeeze them and let the brush (TN4037193) or pad driver (TN4037195) drop.
- To change a pad, take the center disk off the driver, flip or replace the pad, center it and refit the disk.
- Push the brush or driver under the head and lift it onto the hub until it locks. Replace brushes and pads in pairs.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 65 and 66. SES ref PF-GYWR-ZEQL
Questions about your T12? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant T12 troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Machine will not run | ||
| Emergency stop button pressed, discharged batteries or a loose battery cable | Turn the button clockwise to reset it, charge the batteries and tighten loose cables. | |
| Water left behind | ||
| Worn or misadjusted squeegee blades, or debris on the squeegee | Clear the debris, adjust the squeegee, and rotate or replace the rear blades (TN4043445) and front blades (TN4043444). | |
| Dirty vacuum fan inlet filter, or a loose, clogged or damaged vacuum hose | Clean the inlet filter (TN4043531), then secure, flush or replace the hose. | |
| Torn recovery tank seals or a cover not fully closed | Replace the seals (TN4032817) and check the cover for anything in the way. | |
| Vacuum fan won't turn on | ||
| Recovery tank full or full of foam | Drain the tank. Use less detergent or a defoamer. | |
| Little or no solution | ||
| Empty tank, flow turned off, or a clogged solution tank filter | Fill the tank, turn the flow on and clean the solution tank filter (TN4030627). | |
| Poor scrubbing | ||
| Debris on the brushes, worn brushes or pads, or too much brush pressure | Clear the debris, lower the pressure and replace worn brushes (TN4037193) or pads. | |
| Full debris trough or broken drive belts on the cylindrical head | Empty the debris trough (TN4027840) and replace the belts (TN4043440). SES service can do it. | |
| Short run time | ||
| Batteries not fully charged or in need of maintenance | Charge until the charger shuts off on its own, and service the batteries. | |
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 40 and 41. SES ref PF-7IWS-76NX
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant T12 maintenance schedule
Tennant's maintenance schedule for the T12.
| Task | How often | Part |
|---|---|---|
| Check the side and rear squeegees for damage and wear. Rotate the blades to a fresh edge, and replace worn rear blades (TN4043445), front blades (TN4043444) or side blades (TN4043450). | Daily | |
| Check the main brushes for damage, wear and debris. Replace a worn disk brush (TN4037193) or cylindrical brush (TN4043918). | Daily | |
| Clean the recovery tank and check the cover seal (TN4032817). | Daily | |
| Clean the vacuum fan inlet filter (TN4043531) and, on cylindrical heads, the debris trough (TN4027840). | Daily | |
| Check the electrolyte level in lead-acid batteries (TN4040235) and top up with distilled water. Tennant lists this for trained personnel. | Weekly | |
| Lubricate the rear squeegee caster pivot points and check squeegee deflection and leveling. | Every 50 hours | |
| Cylindrical heads: rotate the brushes front to rear. | Every 50 hours | |
| Disk heads: check the scrub head skirts (TN4043739 / TN4043751) for damage and wear. | Every 50 hours | |
| 100 hours: check the battery watering system hoses and connections (option). | Every 100 and 200 hours | |
| 200 hours: check and clean the battery terminals and cables, check the cylindrical brush drive belts (TN4043440), and lubricate and check the steering gear chain (and the T12XP steering chain). | Every 100 and 200 hours | |
| 500 hours: check the tires and the vacuum fan motor carbon brushes (TN8006040). | Every 500 and 1,000 hours | |
| 1,000 hours, then every 100 hours: check the main and side brush motor carbon brushes. SES service can do it: call 800-440-6723. | Every 500 and 1,000 hours |
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 42, 43, 44, 64, 69 and 77. SES ref PF-EK4N-HHK3
Tennant T12 specifications
From Tennant's documents for the T12.
| Scrubbing path | 32 in (810 mm); 41 in (1,040 mm) with the side brush |
|---|---|
| Solution tank | 35 gal (132 L) |
| Recovery tank | 44 gal (166 L) |
| Brushes | Two 16 in (405 mm) disk, or two 7 in (180 mm) cylindrical, 30.7 in (780 mm) long |
| Travel speed | 5 mph (8 km/h) forward, 3.8 mph (6.1 km/h) scrubbing, 2.5 mph (4 km/h) reverse |
| Slope | 7% scrubbing, 14% transporting (GVWR) |
| Batteries | 36 V: six 6 V lead-acid, 240 or 360 Ah, or lithium-ion packs |
| Motors | 36 V DC: scrub brush 1.0 hp (0.75 kW), vacuum fan 0.8 hp (0.6 kW), propel 1.2 hp (0.9 kW) |
| Weight | 1,030 lb (468 kg) empty; 1,460 lb (664 kg) with standard 240 Ah lead-acid batteries |
| Length | 67.25 in (1,710 mm) |
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 89 and 90. SES ref PF-BMP3-L2ET
Tennant T12 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9009916 Rev. 16 (3-2025), North America / International, S/N 10000000-19999999, 136 pages | T12 | Rev. 16 (3-2025) | 136 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 9009910 Rev. 11 (12-2024), North America / International, 94 pages | T12 | Rev. 11 (12-2024) | 94 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant T12 parts questions
Why is my Tennant T12 leaving water behind?
Check the squeegee blades for wear and debris, then the vacuum fan inlet filter, the vacuum hose and the recovery tank seals. Rotate or replace worn blades and adjust the squeegee.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), page 40. SES ref PF-V5S2-G32V
Why won't the T12 vacuum fan turn on?
The recovery tank is probably full or full of foam. Drain it, use less detergent or a defoamer, and clean the tank sensor.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 30 and 40. SES ref PF-V5S2-G32V
Can I use detergent with ec-H2O on the T12?
No. ec-H2O scrubbing uses cool clean water only, below 70°F (21°C). Detergent can cause an ec-H2O system failure, so drain, rinse and refill with clear water before you switch.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 24 and 27. SES ref PF-V5S2-G32V
How often should I rotate the T12 cylindrical brushes?
Every 50 hours, front to rear, and end for end if you like. Replace them in pairs, and keep the left and right idler plates on their own sides.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 43 and 67. SES ref PF-V5S2-G32V
What is the right squeegee blade deflection on the T12?
About 0.50 in (12 mm) for smooth floors and 0.62 in (15 mm) for rough floors. Level the squeegee first, then set deflection with the adjustment knobs.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 72 and 73. SES ref PF-V5S2-G32V
What slope can a T12 scrub on?
Up to 7% while scrubbing and 14% while transporting at full weight. Go slowly on slopes and scrub uphill rather than down.
Source: Tennant T12 operator manual 9009910 Rev. 11 (12-2024), pages 23 and 90. SES ref PF-V5S2-G32V
Does this parts list fit my T12?
It covers the T12 and T12XP battery rider scrubber in parts manual 9009916 Rev. 16, serial numbers 10000000 to 19999999, North America and International. Each line shows its serial range. Call us with your serial number if you are unsure.
Source: Tennant T12 parts manual 9009916 Rev. 16 (3-2025), page 1. SES ref PF-V5S2-G32V
