Tennant M20 standard parts, SN 008000 and later: 2022 manual (rev. 08)

Standard parts parts from Tennant's North American M20 parts manuals for SN 008000 and later (9016001 rev. 08 (gas/LPG) + 9016051 rev. 08 (diesel)), gas, LPG and diesel. Use Your machine to pick your serial number, edition or another area.‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‌‍‌⁠‌‍⁠‍‌⁠‌⁠‌⁠‌‍‌‌‍‍‌‌

Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.

Find your parts list →

1,539 lines from 9016001 rev. 08 (gas/LPG) + 9016051 rev. 08 (diesel). Checked against the manuals line by line on October 12, 2026.

Tennant M20 integrated sweeper-scrubber. Shop M20 machines

Machine: M20 rider sweeper-scrubber
Cleaning path: 40 in (56 in with side brush)
Solution / recovery: 56 / 73 gal
Hopper: 3.9 ft³, 390 lb
Power: Gasoline, LPG or diesel
Main brushes: 2 × 40 in cylindrical

Your machine‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‍‍‍‌‌‍‌⁠‌‌‌‍⁠‌⁠‍⁠‌‌‌‍⁠‌‌‌

You’re viewing the 2022 manual (Rev 08, Jul 2022). The current manual is Rev 12 (Oct 2025). Enter your serial number or use the dropdown for your exact machine.

Machine serial number

Serial rangeParts list editionArea of the machinePower

Where to find the serial number and power type

The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.

How to read this list

Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

M20 recommended maintenance parts

Recommended maintenanceSN 008000 and later, 2022 manualFits: GasolineLPG‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‍‌‌⁠‌⁠‍⁠‌‍‌⁠⁠‌‍‌‍‌‍⁠⁠‍‌‍‌‌⁠‌

Tennant M20 recommended maintenance parts parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN82681	1	Bracket Wldt, Lpg MountOld # 82681 · no current Tennant number on file	Call for price
2	Old # 63810	4	Latch Assy, Lpg Tank Mtg, W/NutOld # 63810Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
3	Old # 51839	2	Nut Adjustable, Lpg Tank MtgOld # 51839Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
4	TN4014137	3	Tie, CableOld # 49263	$3.40/EA
5	TN82556	1	Bracket, VaporizerFits SN up to 001039 · Old # 82556 · no current Tennant number on file	Call for price
6	TN8004486	1	Vaporizer, LPGOld # 54930 · replaced by 8004486 (Tennant parts catalog)	Call for price
	TN4016168	1	Maint Kit, Gas, 800hr[M20/T20]Old # 9002555	$438.80/EA
	TN4033485	1	Strainer, Hyd, 25 Gpm 100 MeshOld # 31613	$110.60/EA
	TN4035422	1	Cap, Breather, Hyd, 2.4 DsOld # 25122	$149.20/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN8005188	1	Filter, Fuel [Gm 1.6l/3.0l]Old # 372440	$64.20/EA
	TN4012018	1	Maint Kit, 800hr [M20/T20/M30 Lpg 2010]Old # 9007381	$401.20/EA
	TN4033485	1	Strainer, Hyd, 025gpm 100mesh 03psiOld # 31613	$110.60/EA
	TN4035422	1	Cap, Breather, Hyd, 2.4 DsOld # 25122	$149.20/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN8002010	1	Filter Kit, Fuelock, LpgOld # 9007380	$25.60/EA
	TN8002631	1	Element, Fltr, Oil, Spin - On (Mits)Old # 393982	$30.00/EA
	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290	$20.30/EA
	TN8003282	1	Key, Ignition [Set Of 2]Old # 87866	$27.00/EA
	TN4037557	1	Battery, Wet, 12vdc 0475ccaOld # 10137	$218.28/EA
	TN4039111	2	Wheel, 3.0d 1.38w 0.50bOld # 20833	$80.80/EA
	TN4045064	1	Belt, Ribbed, 38.5lOld # 1033644	$73.00/EA
	TN4033626	2	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
	TN4035908	2	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
	TN4035508	1	Blade, Sqge, Front [Linard]Old # 1017868	$90.00/EA
	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
	TN4031774	2	Blade, Sqge, 37.08l LinatexOld # 1031011	$93.40/EA
	TN4030648	1	Blade, Sqge, Front, 49.59l PyuOld # 1027719	$274.30/EA
	TN4032198	1	Blade, Sqge, Rear, 53.78L PyuOld # 1031945	$305.50/EA
	TN4032169	2	Blade, Sqge, .38 3.55w 038.3l, UreOld # 1031823	$183.50/EA
	TN8003678	4	Plug, SparkOld # 9014160	$5.00/EA
	TN4036799	1	Blade, Sqge, Side Brush, UrethaneOld # 1059091	$91.61/EA
	TN4036800	1	Blade, Sqge, Side Brush, UrethaneOld # 1059092	$55.85/EA
	TN4043022	1	Blade, Sqge, Side Brush, LinatexOld # 1046980	$59.89/EA
	TN4043073	1	Blade, Sqge, Side Brush, LinatexOld # 1047238	$31.51/EA
	Old # 16411	1	Paint, Airdry, Off - White, 12ozOld # 16411Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	Old # 16412	1	Paint, Airdry, Teal, 12oz, SolidOld # 16412Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN5000171	1	Paint, Airdry, Blk, 12ozOld # 377540	$67.20/EA
	TN5000170	1	Paint, Airdry, Gray, 12oz [Enamel]Old # 377538	$39.50/EA
	Old # 377537	1	Paint, Airdry, Iron Gray,12oz[Pwdr Coat]Old # 377537Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN8005843	1	Oil, Hyd [El, Iso 100, 01gal]Old # 1057710	$58.70/EA
	TN8005844	1	Oil, Hyd [El, Iso 100, 05gal]Old # 1057711	$251.30/EA
	TN8004994	1	Oil, Hyd [El, Iso 68, 01gal]Old # 1069019	$48.70/EA
	TN8004995	1	Oil, Hyd [El, Iso 68, 05gal]Old # 1069020	$227.00/EA
	TN8005841	1	Oil, Hyd [El, Iso 32, 01gal]Old # 1057707	$58.70/EA
	TN8005842	1	Oil, Hyd [El, Iso 32, 05gal]Old # 1057708	$248.90/EA

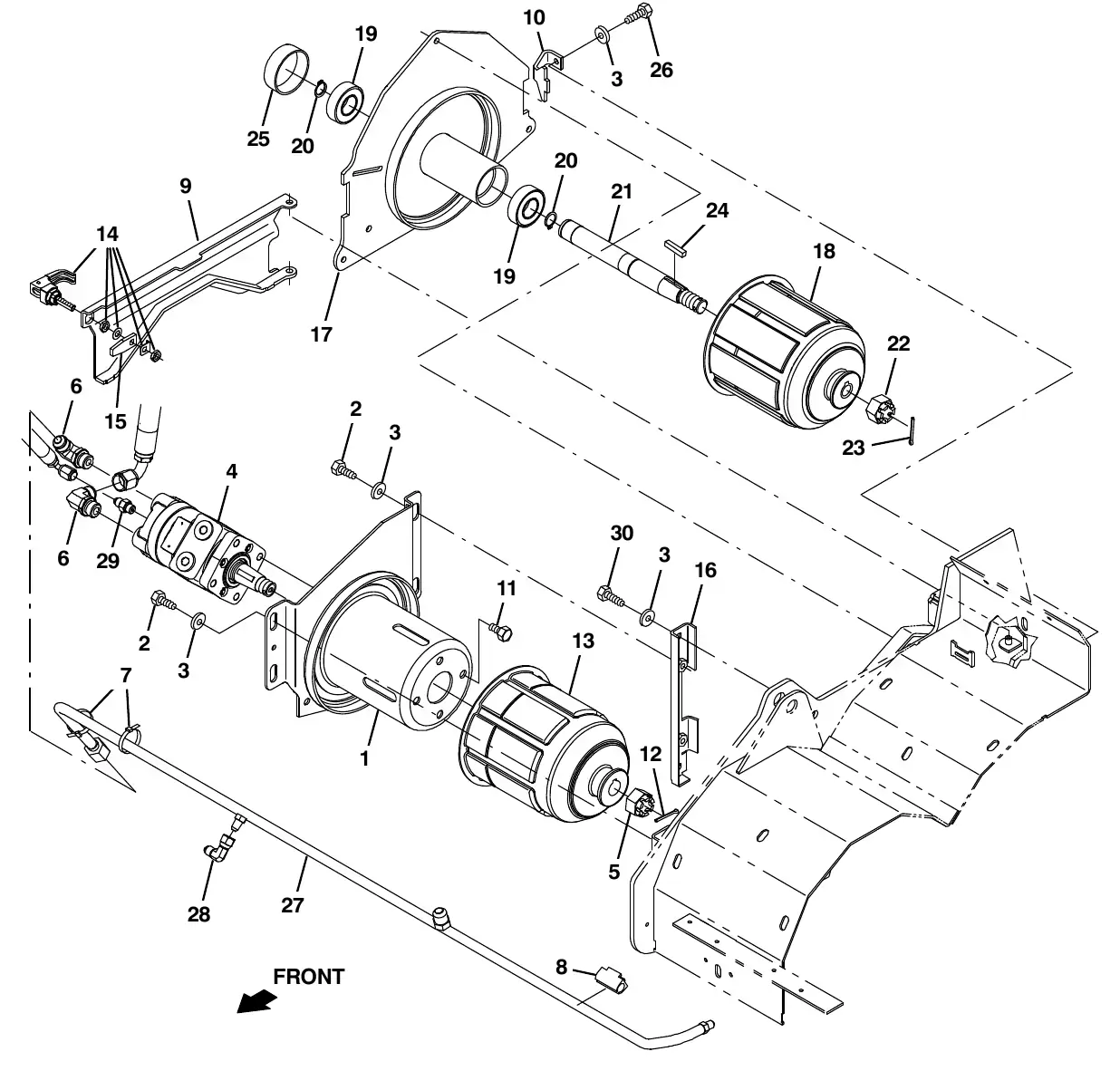

M20 brushes, replacement, scrub head

Standard partsSN 008000 and later, 2022 manual‌‌⁠‍⁠‌‌‍‍‍⁠‌‌⁠‍‍‌⁠‌‍‌⁠‌⁠‌‌‍‌⁠‍‌⁠‌‌‍‌‍‍

Tennant M20 brushes, replacement, scrub head parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (4)
1	TN4034238	2	Brush, Sweep / Scb, 40L, Polypropylene, SpiralOld # 1026223	$616.50/EA
1	TN4031519	2	Brush, Sweep / Scb, 40L, 24Sr, Super Abrasive, SpiralOld # 1252156 · Replaces 1026222 (2016 list (rev. 01))	$979.10/EA
1	TN4030645	2	Brush, Sweep / Scb, 40L, Polyester, SpiralOld # 1027697	$682.90/EA
1	TN4031767	2	Brush, Sweep / Scb, 40L, Heavy Duty Polypropylene, SpiralOld # 1030969	$657.80/EA
Item 2: choose your version (2)
2	TN4044403	1	Brush, Sweep / Scb, 40L, Window, Polypropylene, SpiralOld # 1040524	$572.20/EA
2	TN4033963	1	Brush, Sweep / Scb, 40L, Window, Super Abrasive, SpiralOld # 1059640	$868.60/EA

M20 brushes, replacement, side brush

Standard partsSN 008000 and later, 2022 manual‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‍⁠‌‍‍‌‌‍‌⁠‍‌‌⁠⁠‌⁠‌⁠‍⁠⁠‍‌⁠‍‍

Tennant M20 brushes, replacement, side brush parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4037187	1	Brush Assy, Disk, Scb, 16.0d, NylonOld # 1220235	$416.00/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
1	TN4037188	1	Brush Assy, Disk, Scb, 16.0d, Heavy Duty PolypropyleneOld # 1220236	$248.00/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
1	TN4037455	1	Brush Assy, Disk, Scb, 16.0d, Super AbrasiveOld # 1221543	$545.70/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
3	TN4037153	1	Brush Assy, Disk, Swp, 24.0d, PolypropyleneOld # 1220185	$318.80/EA
4	TN4022629	1	Brush Kit, Hub Assy, Drive, Ci [Uhmw]Old # 9014666	$109.90/EA

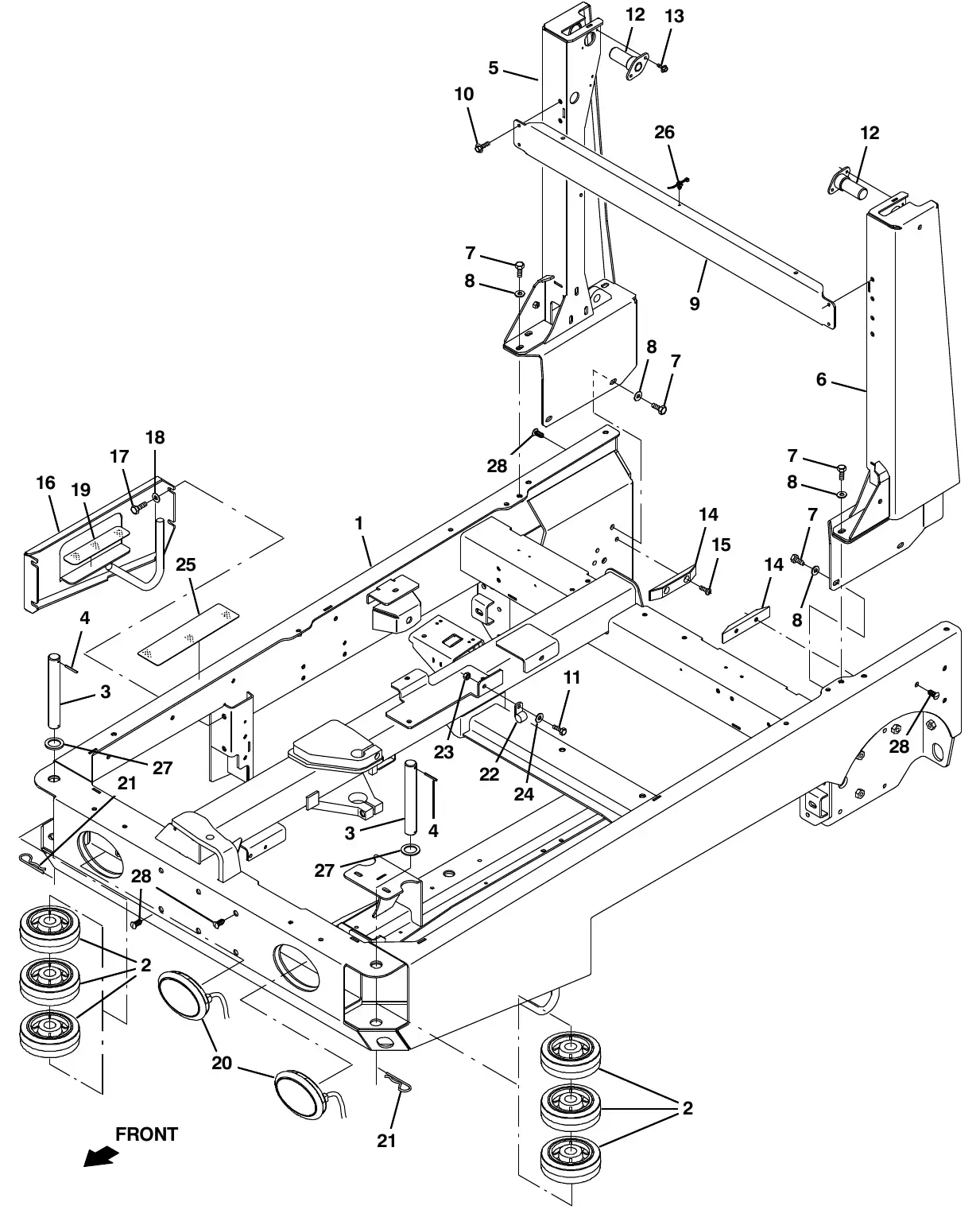

M20 main frame group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 main frame group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4016146	1	Frame Wldt, Main, Replmt [M20 & T20]Old # 9002401	$5,863.15/EA
2	TN4034399	6	Wheel, 06.0D 2.00W 1.19B, Gray RbrOld # 1060130	$21.60/EA
3	TN4038392	2	Pin, 30mmd X 215mmlOld # 1053838	$74.40/EA
4	TN4035025	2	Pin, Roll, .187d X 1.62l, .187/.192Old # 23146	$2.50/EA
5	TN4205148	1	Tower, Wldt, Lift, Rh, Replmt [M20]Old # 9002400	$576.96/EA
6	TN4205147	1	Tower, Wldt, Lift, Lh, Replmt [M20]Old # 9002399	$579.94/EA
7	TN4019758	10	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
8	TN4034138	10	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
9	TN4197845	1	Channel, Upper, Tower, LiftOld # 1017791	$101.20/EA
10	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
11	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
12	TN4035903	2	Pin Wldt, Pivot, HpprOld # 1019251	$53.70/EA
13	TN4012782	4	Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455	$3.40/EA
14	TN4036638	2	Block, Guide, HpprOld # 1021327	$21.34/EA
15	TN4029274	4	Screw, Pan, M8 X 1.25 X 25, SsOld # 367771	$3.30/EA
16	TN4030654	1	Panel Wldt, FillerOld # 1027916	$172.20/EA
17	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
18	TN4042903	4	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
19	TN4030470	1	Tread, Non - Skid, 01.9w 08.0lOld # 363458	$6.10/EA
20	TN4045141	2	Headlight, 12Vdc, Oval, LedOld # 1075367	$281.90/EA
21	TN4031623	2	Pin, Cotter, Hair, 1.00d .178 WirOld # 34411	$4.00/EA
22	TN4015029	1	Clamp, Cable, Stl, 1.50d X 1.00w, 1holeOld # 53466	$4.20/EA
23	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
24	TN4034137	1	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
25	TN4026685	1	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
26	TN4038889	1	Wire, Tie [W/.25” Fir Tree Clip]Old # 1210807	$1.90/EA
27	TN4035148	2	Washer, Flat, 1.26B 1.88D .13, Stl, PlOld # 1062566	$2.60/EA
28	TN4038798	12	Plug, Hole, Rnd, 0.38h .4 - .7, Blk NylOld # 1055605	$1.20/EA

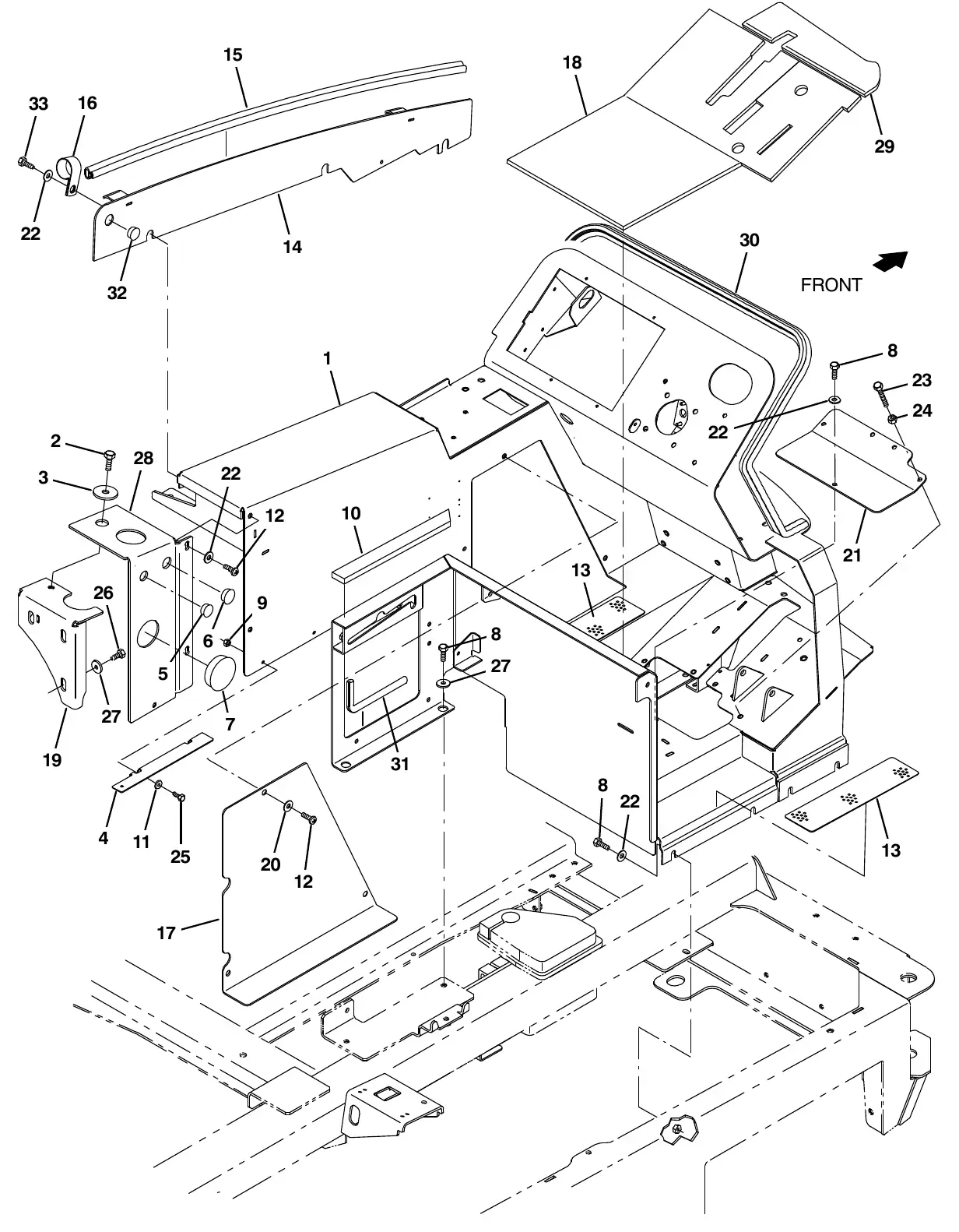

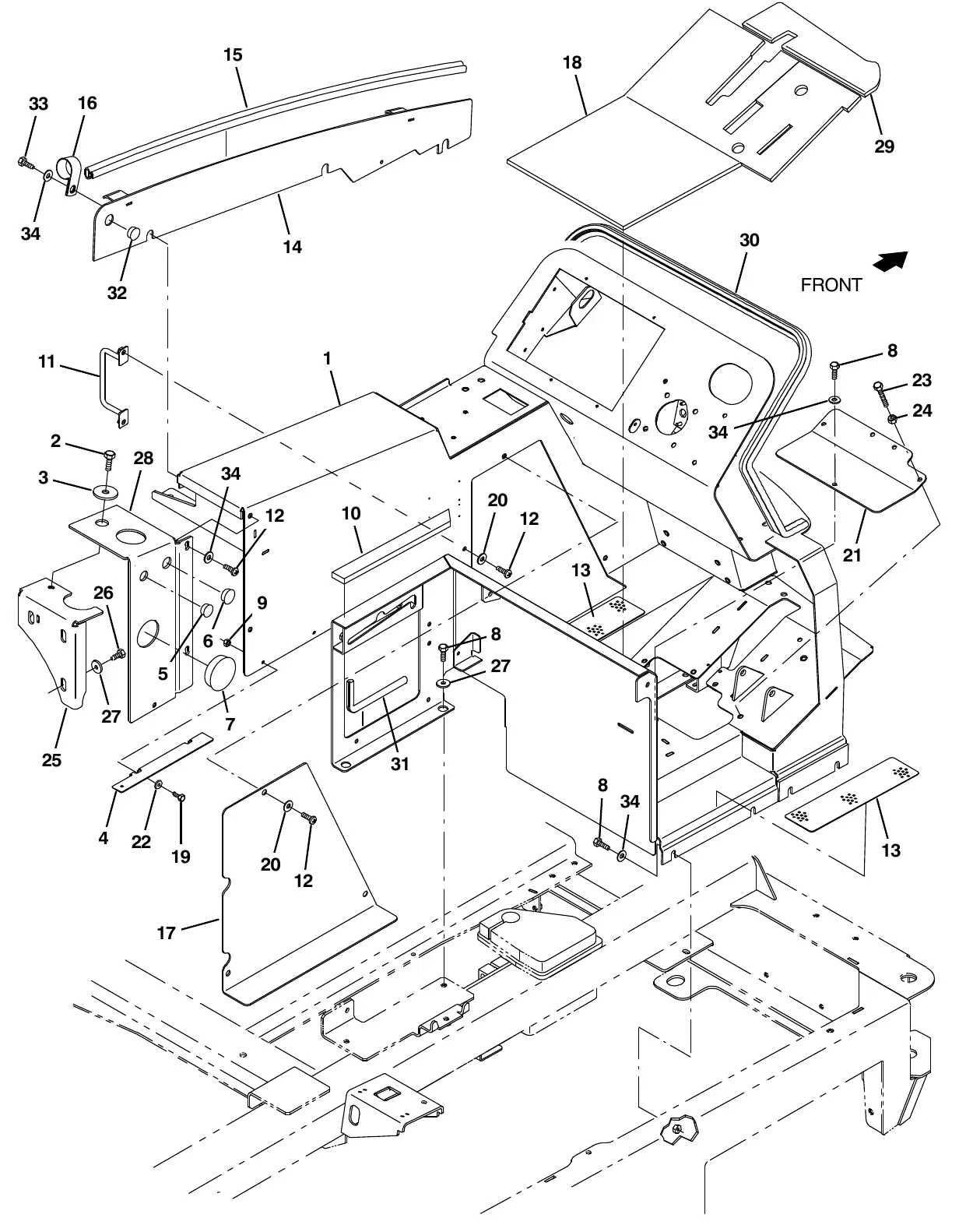

M20 operator station group

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 operator station group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (12)
1	TN4193454	1	Panel Wldt, Gas, ReplmtOld # 9016324 · Replaces 9002409 (2016 list (rev. 01))	$2,145.24/EA
1	TN9016320	1	Panel Wldt, Gas, Replmt [W/Fast]Old # 9016320 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaces 9002380 (2016 list (rev. 01))	Call for price
1	TN4193452	1	Panel Wldt, Gas, W/ Es, ReplmtOld # 9016321 · Replaces 9002381 (2016 list (rev. 01))	$2,113.93/EA
1	TN4193456	1	Panel Wldt, Gas, Replmt, TJ (Japan only)Old # 9016326 · Replaces 9003422 (2016 list (rev. 01))	$2,129.48/EA
1	TN9016329	1	Panel Wldt, Gas, Replmt, TJ [W/Fast] (Japan only)Old # 9016329 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaces 9003425 (2016 list (rev. 01))	Call for price
1	TN4193459	1	Panel Wldt, Gas, Replmt, TJ, W/Es (Japan only)Old # 9016332 · Replaces 9003428 (2016 list (rev. 01))	$2,129.48/EA
1	TN4024322	1	Panel Wldt, LPG, ReplmtOld # 9016335 · Replaces 9003431 (2016 list (rev. 01))	$2,113.93/EA
1	TN9016336	1	Panel Wldt, LPG, Replmt [W/Fast]Old # 9016336 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaces 9003432 (2016 list (rev. 01))	Call for price
1	TN4193462	1	Panel Wldt, LPG, Replmt, W/EsOld # 9016337 · Replaces 9003433 (2016 list (rev. 01))	$2,113.93/EA
1	TN4193457	1	Panel Wldt, LPG, Replmt, TJ (Japan only)Old # 9016327 · Replaces 9003423 (2016 list (rev. 01))	$2,129.48/EA
1	TN9016330	1	Panel Wldt, LPG, Replmt, TJ [W/Fast] (Japan only)Old # 9016330 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaces 9003426 (2016 list (rev. 01))	Call for price
1	TN4193460	1	Panel Wldt, LPG, Replmt, TJ, W/Es (Japan only)Old # 9016333 · Replaces 9003429 (2016 list (rev. 01))	$2,129.48/EA
2	TN4019758	1	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
3	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
4	TN4190204	2	Bracket, Mtg, InsulationOld # 1047169	$12.93/EA
5	TN4024314	1	Plug, Hole, Rnd, 0.88h .03 - .12, Blk NylOld # 82727	$3.40/EA
6	TN4042871	1	Plug, Hole, Rnd, 1.00h .03 - .12, Blk NylOld # 01493	$2.50/EA
7	TN4031389	1	Plug, Hole, Rnd, 2.50h .03 - .25, Blk NylOld # 1030017	$10.60/EA
8	TN4041844	12	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
9	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
10	Old # 1047295	1	Seal, Foam, 0.50Old # 1047295Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
11	TN4030705	1	Bracket Wldt, Mtg, HoseOld # 1071616	$26.97/EA
12	TN4032093	6	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
13	TN4026685	4	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
14	TN4193255	1	Panel Wldt, Adj [2007]Old # 1035832	$73.63/EA
15	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
16	TN4015029	5	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
17	TN4032850	1	Panel, Access, DoorOld # 1021834	$48.40/EA
18	TN4030622	1	Mat, FloorOld # 1027218	$116.30/EA
19	TN4041270	2	Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942	$2.50/EA
20	TN4015595	5	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4195877	1	Panel, Access, FloorOld # 1022699	$24.15/EA
22	TN4034136	2	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
23	TN4027729	1	Screw, Hex, M8 X 1.25 X 60, 8.8, FlOld # 363976	$3.40/EA
24	TN4019808	1	Nut, Hex, Std, M8 X 1.25Old # 39311	$2.50/EA
25	TN4190656	1	Bracket Wldt, Mtg, TankOld # 1035997	$61.32/EA
26	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4035242	5	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
28	TN4192844	1	Bracket, MtgOld # 1033975	$68.18/EA
29	TN4030625	1	Mat, FloorOld # 1027267	$27.40/EA
30	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593 · Replaces 1020904 (2016 list (rev. 01))	$83.40/EA
31	TN4036241	1	Molding, Afmkt, Trim, Pvc, .08 .11, 1ftOld # 1020168	$44.40/EA
32	TN4023358	1	Plug, Hole, Rnd, 0.81h, BlkOld # 80288	$1.40/EA
33	TN4156940	6	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
34	TN4034137	17	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

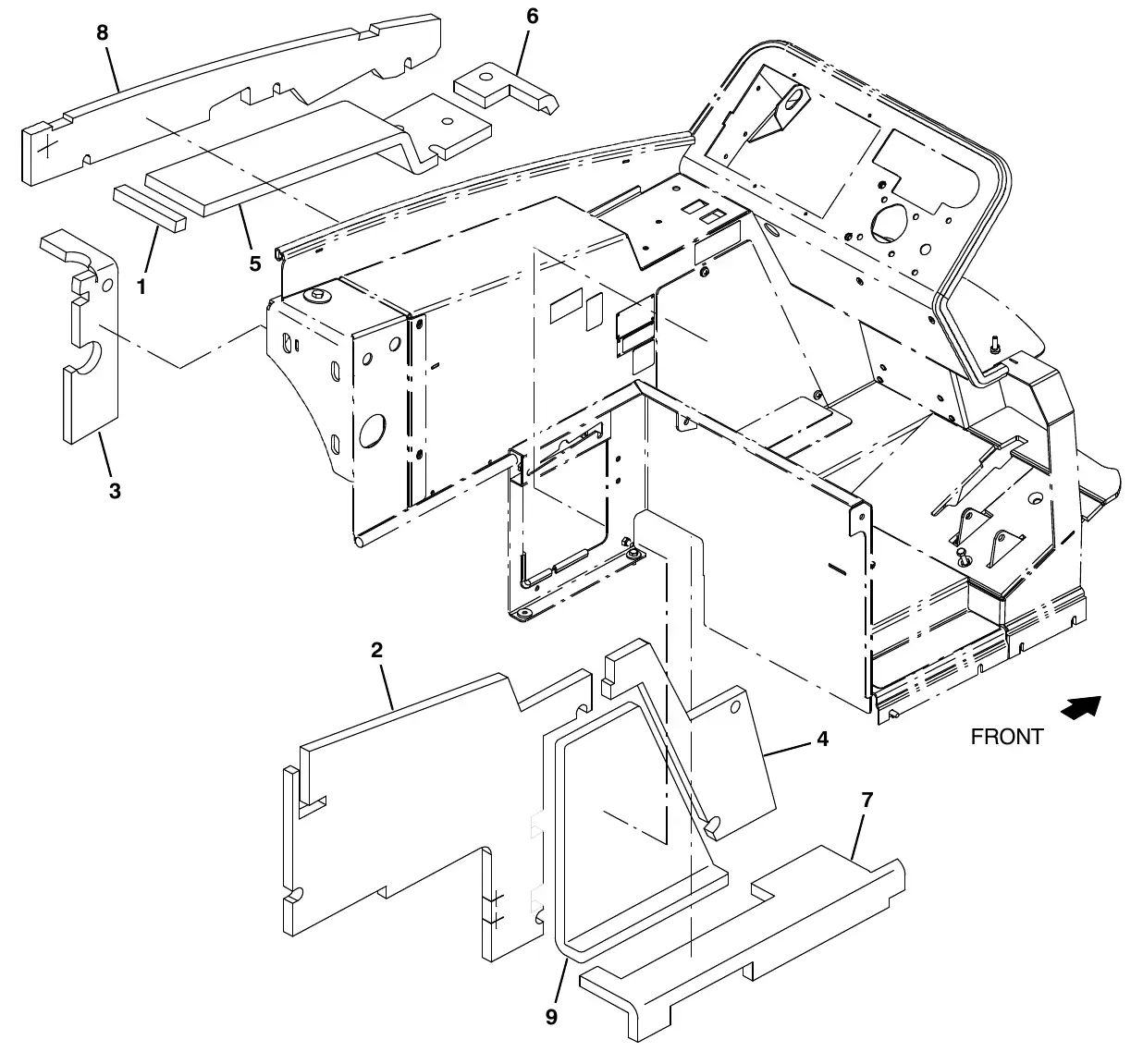

M20 operator station insulation group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 operator station insulation group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4045278	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034769	$3.60/EA
2	TN4045274	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034765	$149.40/EA
3	TN4044434	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1040841	$31.90/EA
4	TN4033266	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023464	$62.10/EA
5	TN4045273	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034764	$39.60/EA
6	TN4045275	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034766	$9.20/EA
7	TN4045277	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034768	$46.10/EA
8	TN4045279	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034770	$115.50/EA
9	TN4033283	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023569	$59.70/EA

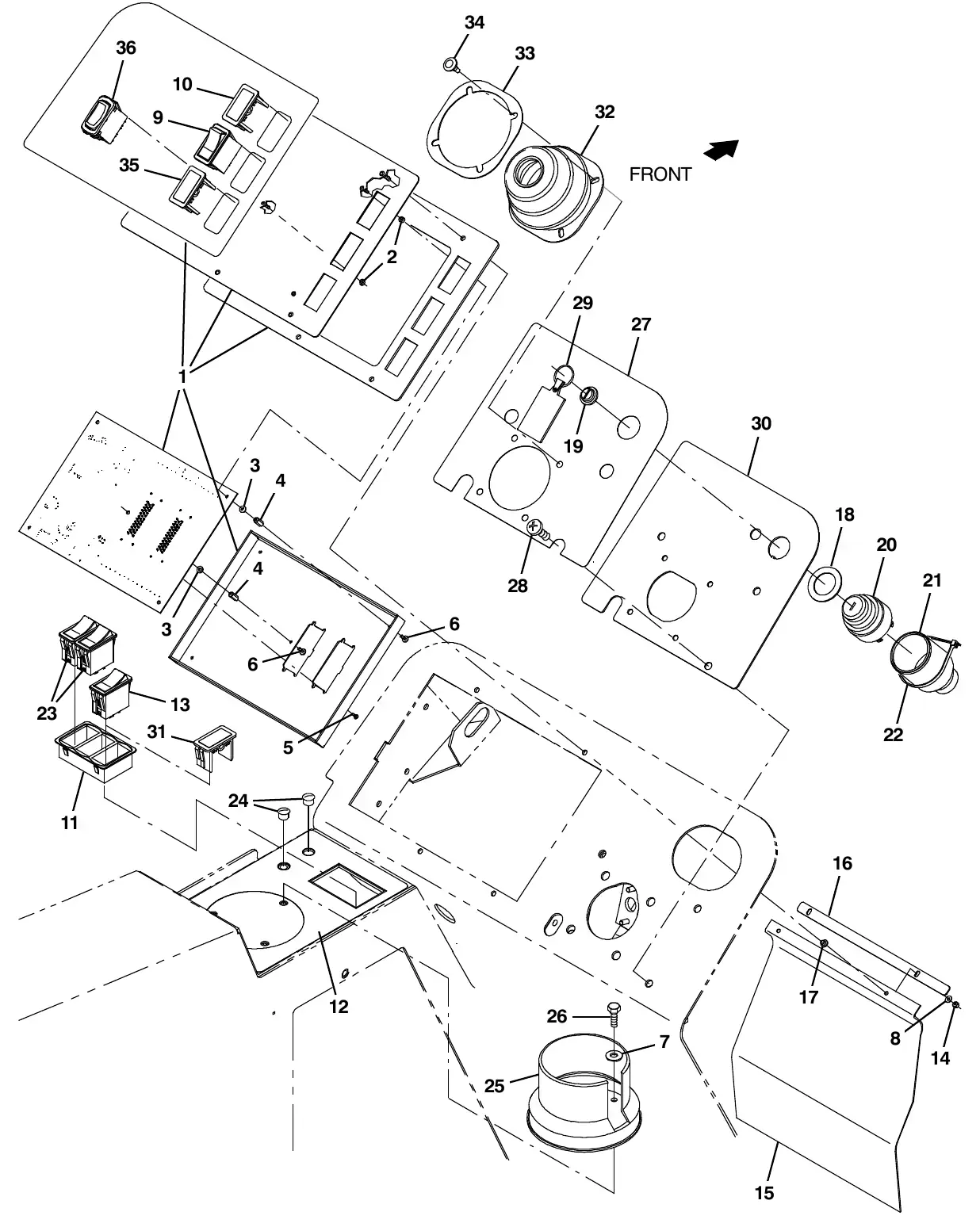

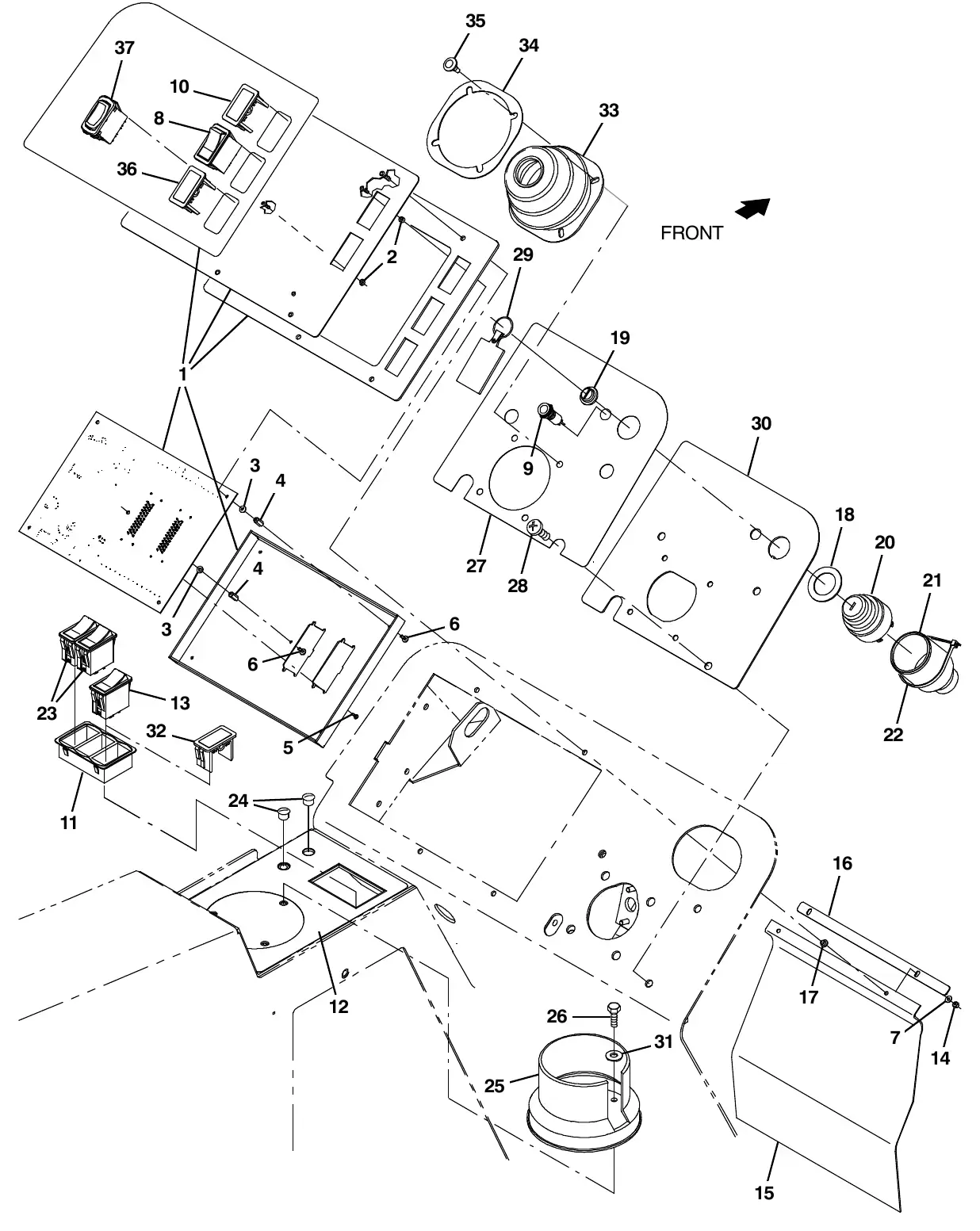

M20 instrument panel group

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 instrument panel group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4037853	1	Panel Assy, Instmt, W/ Label, AfmktOld # 1223896 · Replaces 1222812 (2016 list (rev. 01))	$1,172.60/EA
2	TN4198475	5	Spacer, Rnd, .125l, AlmOld # 1006808	Call for price
3	TN4198594	5	Washer, Flat, 0.15b 0.31d .05, NylOld # 1008663	Call for price
4	TN4195865	5	StandOff, Hex, M3 X M14, AlmOld # 1022472	Call for price
5	TN4198561	5	Screw, Pan, #0424 X 0.50l, Hi - LowOld # 1008240	Call for price
6	TN4195912	8	Screw, Pan, M3 X 6, [Seelscrew]Old # 1022905	Call for price
7	TN4034136	3	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
8	TN4042243	4	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
9	TN4019347	1	Switch, Rocker, Dpdt, On / Off / OnOld # 392171	$25.90/EA
10	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Old # 398501	$6.80/EA
11	TN4031384	1	Bezel, Switch [3 Gang]Old # 1029951	$21.90/EA
12	TN4037854	1	Label, Switch, Rocker [Drago]Old # 1223906	$35.20/EA
13	TN4037904	1	Switch, Rocker, Mom, Led (Dry Dust Control Only)Old # 1224603	$65.90/EA
14	TN4041852	4	Nut, Hex, Lock, #0832, NlOld # 16968	$1.50/EA
15	TN4030979	1	Flap, BatteryOld # 1028769	$9.80/EA
16	TN4194573	1	Bar, Flat, Ss 0.06, 00.50 X 10.00l, 2slOld # 1028772	$3.85/EA
17	TN4031353	4	Washer, Shld, Nyl [832]Old # 1029362	$0.15/EA
18	TN4012418	1	Washer, Flat, 1.15b 1.75d .08, StlOld # 73736	$3.50/EA
19	TN4027368	1	Boot, .63id .29l .90wOld # 382516	$10.20/EA
20	TN4022110	1	Switch, Ignition [Ku]Old # 87536 · Replaces 1028790 (2016 list (rev. 01))	$109.50/EA
	TN8003282	1	Key, Ignition [Set of 2]Old # 87866	$27.00/EA
21	TN4023075	1	Boot, Switch, IgnitionOld # 383165	$5.10/EA
22	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
23	TN4016541	2	Switch, Rocker, Dpdt, Mom / Off / MomOld # 398508	$27.40/EA
24	TN4029160	2	Plug, Hole, Rnd, 0.50h .03- .12, Blk NylOld # 56992	$3.40/EA
25	TN4037805	1	Cup Holder, RwkOld # 223599	$56.40/EA
26	TN4041271	3	Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943	$2.50/EA
27	TN4223545	1	Label, Instrument Panel, Rh, [Drago]Old # 1223903	$40.30/EA
28	TN4032093	4	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
29	TN4044966	1	Keychain, Rectangle, Parts & ServiceOld # 1075003	$4.70/EA
30	TN4223544	1	Plate, Instrument, Rh [Drago]Old # 1223897	$11.11/EA
31	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7 (Wet Dust Control Only)Fits SN 010900 and later · Old # 398501	$6.80/EA
32	TN4014919	1	Boot, Bellows, 3.1l 4.4w 2.8h 1hole, NeoOld # 70622	$50.40/EA
33	TN4014930	1	Retainer, Boot, Steering ColumnOld # 70623	$10.20/EA
34	TN4016304	4	Rivet, Plstc, .250d X 0.90Old # 72970	$3.20/EA
35	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Fits SN 014001 and later · Old # 398501	$6.80/EA
36	TN4032200	1	Switch, Rocker [Mom,Off,Mom, Dual Led] (Detergent Metering Option Only)Fits SN 014001 and later · Old # 1255914	$78.81/EA

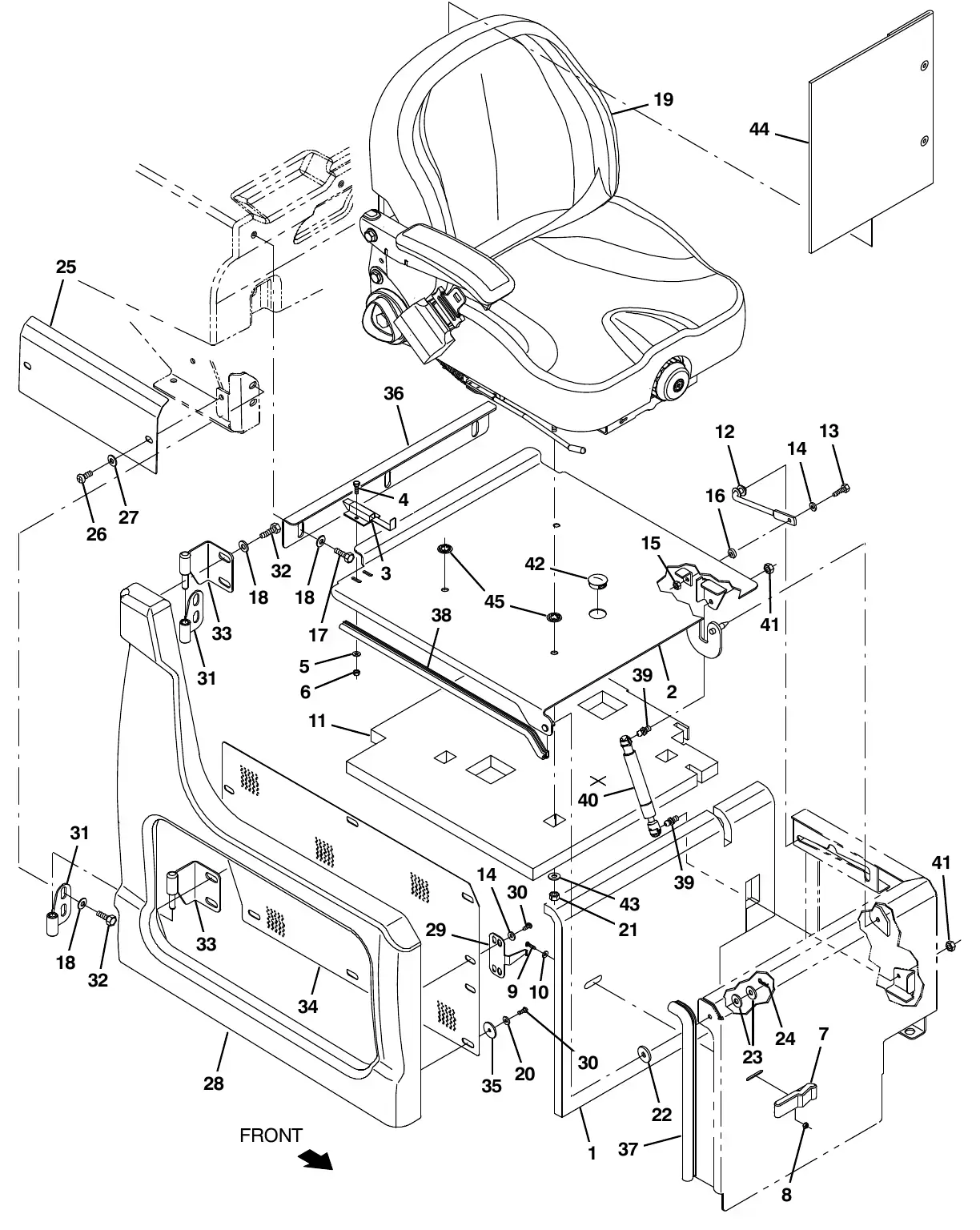

M20 seat group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 seat group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4045276	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034767	$83.30/EA
2	TN4195199	1	Plate Wldt, SeatOld # 1019228	$218.26/EA
3	TN4034205	1	LatchOld # 1025736	$17.00/EA
4	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
5	TN4042244	2	Washer, Flat, #10Old # 19066	$2.50/EA
6	TN4041004	2	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
7	TN4014177	1	LatchOld # 49800	$40.40/EA
8	TN4043235	4	Nut, Hex, Lock, M4 X 0.7, NlOld # 02850	$2.50/EA
9	TN4041260	4	Screw, Pan, M4 X 0.7 X 25, 4.8Old # 06929	$2.50/EA
10	TN4042243	2	Washer, Flat, #08Old # 19065	$3.20/EA
11	TN4033275	1	Insulation, Flame - Retardant, 1.0Old # 1023499	$80.10/EA
12	TN4037355	1	Arm Wldt, Safety, Sppt, Seat, .38d 06.5dOld # 223080	$54.00/EA
13	TN4041271	1	Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943	$2.50/EA
14	TN4034133	9	Washer, Flat, 0.25 SaeOld # 32483	$2.50/EA
15	TN4041925	1	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
16	TN4039442	1	Spacer, Plstc, NyOld # 21851	$3.20/EA
17	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
18	TN4035242	11	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
19	TN4192066	1	Seat, Deluxe, Replmt [M20/T20/M30] (See Breakdowns)Old # 9018721 · Replaces 1072456 (2016 list (rev. 01))	$1,220.30/EA
20	TN4042244	6	Washer, Flat,.25b 0.56d .05, Pl, 10Old # 19066	$2.50/EA
21	TN4034656	4	Nut, Hex, Lock, .31 - 18, NlOld # 32983	$2.50/EA
22	TN4028157	1	Washer, Flat, 0.41b 1.25d .12, PyeOld # 364749	$6.57/EA
23	TN4034138	2	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
24	TN4041620	1	Pin, Cotter, Hair, 0.31d .058 WirOld # 08085	$2.50/EA
25	TN4032874	1	Cover, LowerOld # 1022005	$21.70/EA
26	TN4032093	2	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
27	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
28	TN4035845	1	Shroud, SeatOld # 1018776	$418.20/EA
29	TN4034516	1	Bracket, Latch, Shrd, SeatOld # 1026825	$17.50/EA
30	TN4041965	8	Screw, Pan, M5 X 0.8 X 12, SsOld # 09200	$3.40/EA
31	TN4033611	2	Hinge Wldt, Shrd, RhOld # 1024464	$43.40/EA
32	TN4041844	8	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
33	TN4033607	2	Hinge Wldt, Shrd, RhOld # 1024425	$68.90/EA
34	TN4034218	1	Grill, SideOld # 1025916	$114.20/EA
35	TN4016794	6	Washer, Flat, 0.25 FendrOld # 41178	$2.50/EA
36	TN4195388	1	Bracket, Seat, AdjOld # 1020487	$35.91/EA
37	TN4031725	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588	$46.50/EA
38	TN4031792	1	Seal, Afmkt, Bulb, 90, 0.50d, 02ftOld # 1031206	$33.70/EA
39	TN4029776	2	Stud, Ball, .39d .31 - 16, GasspringOld # 58494	$8.40/EA
40	TN4032401	1	Gasspring, 135lb, 03.15strkOld # 1258921 · Replaces 368391 (2016 list (rev. 01))	$62.60/EA
41	TN4042967	2	Nut, Hex, Lock, .31 - 18, Nl, ThinOld # 01760	$3.40/EA
42	TN4028623	1	Plug, Hole, Rnd, 1.25H .03 - .12, Blk NylOld # 76888	$3.40/EA
43	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
44	TN4018295	1	Pouch (OPTION)Old # 68275	$34.86/EA
45	TN4043036	4	Nut, Push, Bolt Retention, Stl,5/16 ThrdOld # 1077073	$13.80/EA

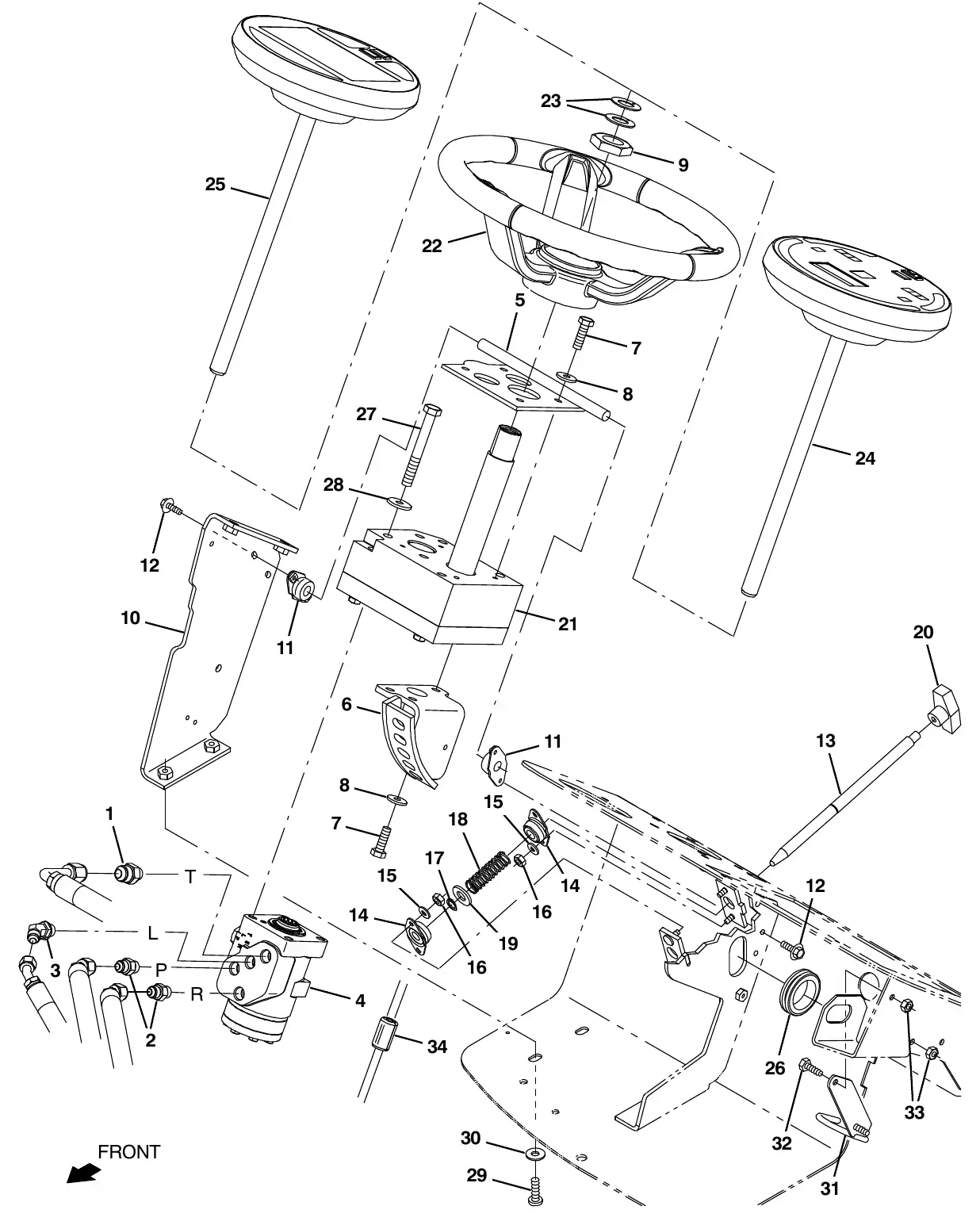

M20 steering group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 steering group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4029151	1	Fitting, Hyd, Str, Jm08/Om06Old # 56835	$10.50/EA
2	TN4029145	2	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
3	TN4013877	1	Fitting, Hyd, E45, Jm06/Om06Old # 47522	$21.70/EA
4	TN4033593	1	Steer - Control, Hyd05, 06.1 2030 (See Breakdowns)Old # 1024260	$816.30/EA
5	TN4226796	1	Plate, Wldt, Mtg, HousingOld # 1223514	$59.09/EA
6	TN4222412	1	Bracket Wldt, Steering, TiltOld # 1232054 · Replaces 1224723 (2016 list (rev. 01))	$62.00/EA
7	TN4041844	7	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
8	TN4034136	7	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
9	TN4036795	1	Nut, Hex, Jam, 1.12 - 12Old # 1059073	$9.50/EA
10	TN4226795	1	Bracket Wldt, Steering, Tilt, RhOld # 1223511	$41.92/EA
11	TN4014957	2	Bearing, Flng, 2hole, 0.50bOld # 70709	$7.40/EA
12	TN4045568	4	Screw, Hex, M6 X 1.00 X 25, 9.8, SemsOld # 1036892	$2.50/EA
13	TN4226790	1	Pin, Locking, Steering, TiltOld # 1223504	$51.73/EA
14	TN4013879	2	Bearing, Flng, 2hole, 0.50b [Nyl]Old # 47585	$5.96/EA
15	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
16	TN4041925	4	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
17	TN4014958	1	Ring, Retaining, Ext, 0.50d, HdOld # 70717	$0.40/EA
18	TN4037087	1	Spring, Cmpr, 0.72od .06wir 02.3lOld # 22290	$4.10/EA
19	TN4034135	1	Washer, Flat, 0.53b 1.06d .10, Stl, PlOld # 32486	$2.60/EA
20	TN4040933	1	Knob, Tee, 0.38 - 16, 2.5 X 1.0 1.1l,PlstcOld # 04706	$11.80/EA
21	TN4023706	1	Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns)Old # 9015636	$931.80/EA
22	TN4035223	1	Wheel, Steering, 14.4dOld # 1056412	$194.20/EA
23	TN4040947	2	Washer, Thrust, 0.79b 1.42d 0.06[Garlok]Old # 04846	$10.00/EA
24	TN4023704	1	Panel Kit, Pod, Afmkt [Std, M20/M30]Old # 9015634	$1,198.60/EA
25	TN4023703	1	Panel Kit, Pod, Afmkt [Pro, M20/M30/T20] (Pro - Panel Only)Old # 9015633 · Not in the 2025 list (rev. 12)	$2,226.60/EA
26	TN4031957	1	Grommet, Rbr, 1.50id, F/1.8h, .19 MatlOld # 10632-13	$6.00/EA
27	TN4041290	4	Screw, Hex, M10 X 1.50 X 80, 8.8Old # 06965	$6.80/EA
28	TN4043561	4	Washer, Flat, 0.40b 1.12d .12, Stl, PlOld # 13248	$3.00/EA
29	TN4032093	6	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
30	TN4034137	6	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
31	TN4035560	1	Bracket Wldt, HoseFits SN 010230 and later · Old # 1230341	$31.92/EA
32	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsFits SN 010230 and later · Old # 08716	$3.20/EA
33	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlFits SN 010230 and later · Old # 08708	$2.50/EA
34	TN4227463	1	Inductor, Ferrite [Spit Case, 220@100hz]Fits SN 014001 and later · Old # 1213802	$11.80/EA

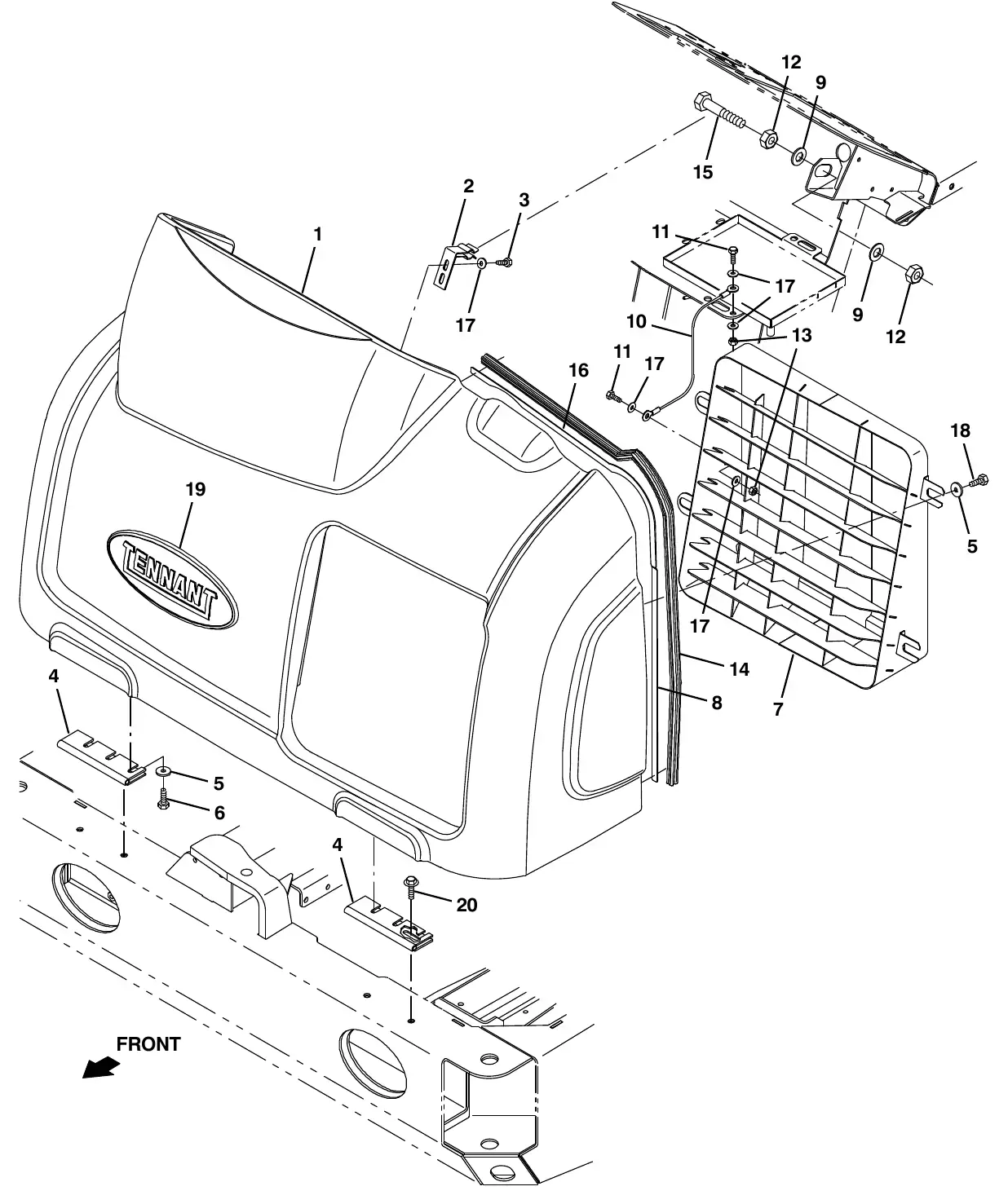

M20 front cover group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 front cover group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032893	1	Shroud, Front, TrimmedOld # 1022069	$932.80/EA
2	TN4039966	1	Bracket Wldt, LatchOld # 1008916 · Replaced by 1266312 in the 2025 list (rev. 12)	$38.80/EA
3	TN4041270	2	Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942	$2.50/EA
4	TN4015921	2	Hinge, .38pin .11 3.5w 06.0l 6/0.38slOld # 71941	$48.10/EA
5	TN4035242	10	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 · Replaces 32491 (2016 list (rev. 01))	$3.40/EA
6	TN4041844	6	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
7	TN4045378	1	Grill Wldt, FrontOld # 1035068	$748.00/EA
8	TN4043571	1	Strip Mtg, SealOld # 1037971	$3.50/EA
9	TN4041212	2	Washer, Flat, 0.62 SaeOld # 15331	$4.10/EA
10	TN4019292	1	Cable, Glv .09d 016.5l .38eye /.38eyeOld # 391368	$33.50/EA
11	TN4041271	2	Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 · Replaces 1040467 (2016 list (rev. 01))	$2.50/EA
12	TN4041596	2	Nut, Hex, Std, M16 X 2.0Old # 07782	$3.40/EA
13	TN4041925	2	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
14	TN4040452	1	Seal, Sponge, 0.88 1.00W 43.0LOld # 1049919	$14.65/EA
15	TN4041570	1	Screw, Hex, M16 X 2.0 X 90, 8.8Old # 06988	$8.20/EA
16	TN4043570	1	Strip Mtg, SealOld # 1037970	$4.30/EA
17	TN4034136	6	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
18	TN4041828	4	Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735	$3.40/EA
19	TN4039887	1	Nameplate, Tennant, Domed, 10 InchOld # 1214251	$84.70/EA
20	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA

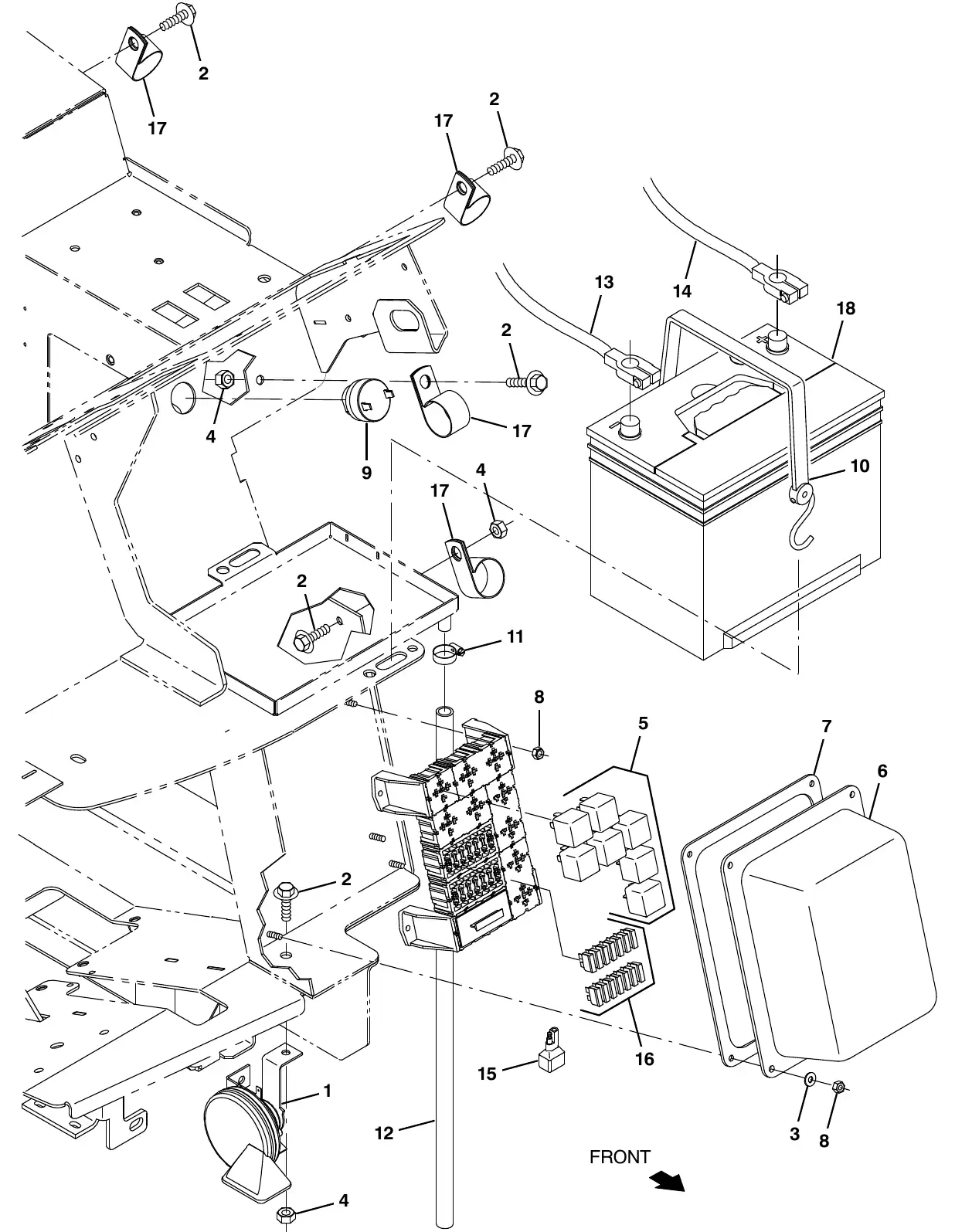

M20 battery and electrical group

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 battery and electrical group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032292	1	Horn, 12vdc, Dba [Wolo]Old # 369704	$42.00/EA
2	TN4045637	5	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
3	TN4042244	4	Washer, Flat, #10Old # 19066	$2.50/EA
4	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
5	TN4029449	7	Relay, 12vdc, 40a, Spdt N/OOld # 57804	$16.30/EA
6	TN4033595	1	Cover, Fuse, BlockOld # 1024274	$112.70/EA
7	TN4034267	1	Gasket, Cover, Fuse BlockOld # 1026576	$11.90/EA
8	TN4041004	8	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
9	TN4036635	1	Alarm, Warning [Sonalert, St628]Old # 1021290	$55.10/EA
10	TN4031223	1	Strap, Rbr, Tie - Down, 2/Hooks 19.0lOld # 33671	$13.10/EA
11	TN4015366	1	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
12	TN4039094	1	Hose, Pvc, Clr, 0.50id 0.69od 30.00lOld # 20778	Call for price
13	TN4030568	1	Cable, Battery, 2ga, 62l, BlkOld # 1071481	$80.80/EA
14	TN4030569	1	Cable, Battery, 2ga, 60l, RedOld # 1071482	$78.90/EA
15	TN4040238	1	Diode, Ele, PlugOld # 222290	$13.00/EA
16	TN4011598	14	Fuse, 015aOld # 762514	$4.00/EA
17	TN4015029	4	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
18	TN4037557	1	Battery, 12vdc, 0475cca, Ah, WetOld # 10137	$218.28/EA

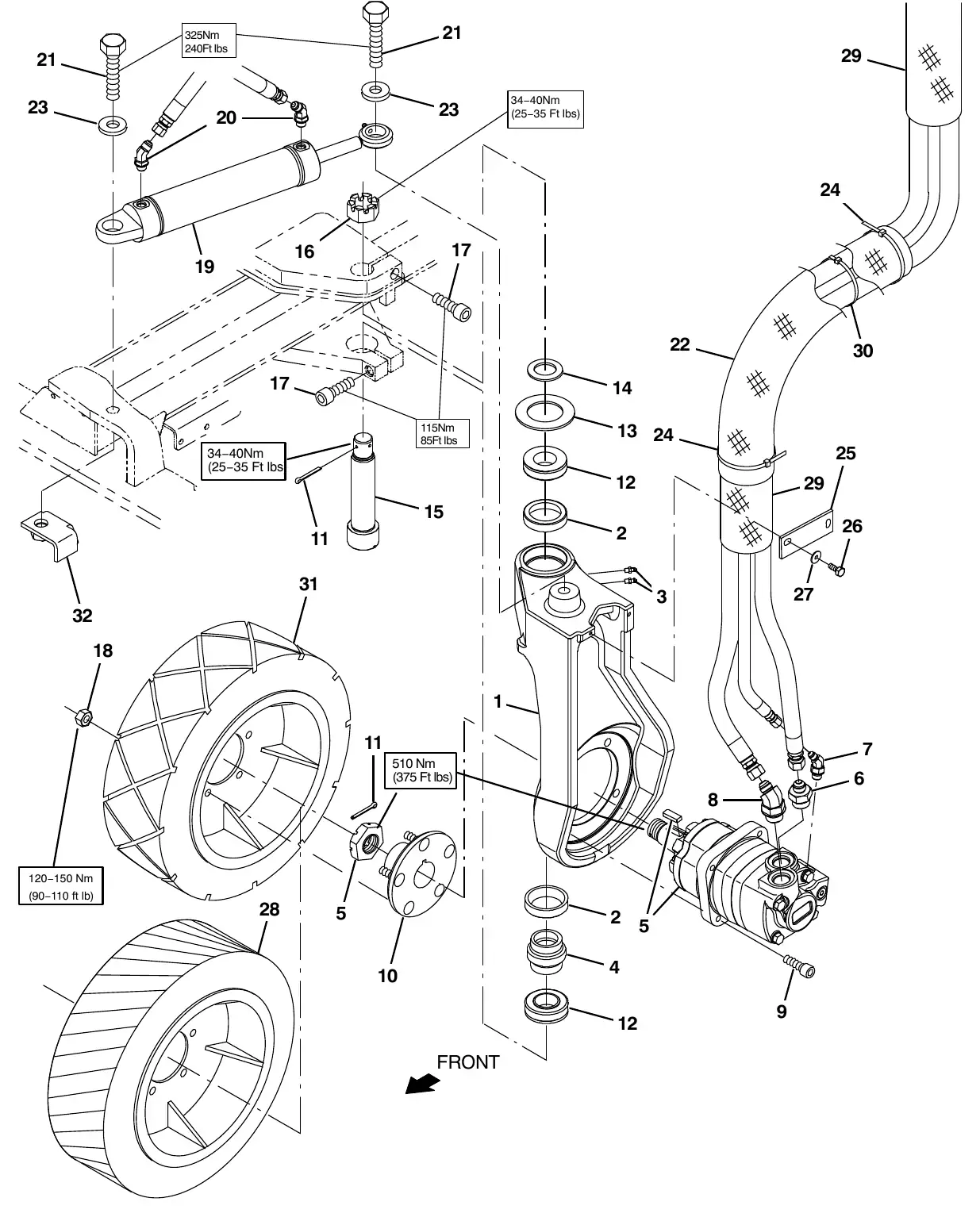

M20 wheel group, front drive

Standard partsSN 008000 and later, 2022 manual

Tennant M20 wheel group, front drive parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4182964	1	Housing, Sppt, Front WheelOld # 1071061	Call for price
2	TN4014546	2	Bearing, Cup, 2.56d 0.55wOld # 51338	$11.70/EA
3	TN4013913	2	Fitting, Grease, Str Pm04 .63lOld # 47801	$6.00/EA
4	TN4028913	1	Seal, Drive, Rear, Grease CavOld # 374560	$28.60/EA
5	TN4026352	1	Motor, Hyd, Gear, Int 19.0 Bi - Dir 3000 (See Breakdowns)Old # 379609	Call for price
Item 6: choose your version (2)
6	TN4017334	1	Fitting, Hyd, Str, Jm10/Om12Fits SN 008000–012314 · Old # 42223	$12.60/EA
6	TN4017336	1	Fitting, Hyd, Str, Jm08/Om12Fits SN 012315 and later · Old # 42227	$15.50/EA
7	TN4019818	1	Fitting, Hyd, E45, Jm04/Om06Old # 393215	$43.70/EA
Item 8: choose your version (2)
8	TN4033591	1	Fitting, Hyd, E45, Jm10/Om12Fits SN 008000–012314 · Old # 1024249	$42.90/EA
8	TN4032402	1	Fitting, Hyd, E45, Jm08/Om12Fits SN 012315 and later · Old # 1258930	$31.30/EA
9	TN4042547	4	Screw, Soc, .50 - 13 X 1.50, AlOld # 19583	$5.80/EA
10	TN4015068	1	Hub Assy, Wheel, 5 Bolt 4.50bc Taper BOld # 54087	$202.20/EA
	TN4033528	5	Stud, Wheel, .50 - 20 X 1.50l, 0.370thOld # 32126	$4.20/EA
11	TN4041635	2	Pin, Cotter, .125 X 2.00Old # 08180	$2.50/EA
12	TN4014547	2	Bearing, Cone, 1.38b 0.71wOld # 51339	$46.30/EA
13	TN4028915	1	Washer, Flat, 2.16b 3.50d .16, FeltOld # 374563	$4.00/EA
14	TN4015062	1	Washer, Flat, 1.39b 2.12d .13, StlOld # 54051	$3.50/EA
15	TN4016329	1	Bolt, Shld, 1.37d X 5.13l,1.1 - 18 DrilledOld # 73281	$106.20/EA
16	TN4015063	1	Nut, Hex, Sltd, 1.12 - 18Old # 54052	$23.30/EA
17	TN4016287	2	Screw, Soc, M16 X 2.0 X 50, 12.9Old # 72926	$6.70/EA
18	TN4035377	5	Nut, Wheel, .50 - 20 X 60 AngleOld # 24339	$3.00/EA
19	TN4045221	1	Cylinder, Hyd, 2.0b,15.2l,09.00strk,3000Old # 1034270	$463.00/EA
20	TN4013877	2	Fitting, Hyd, E45, Jm06/Om06Old # 47522	$21.70/EA
21	TN4025656	1	Screw, Hex, .75 - 10 X 3.25, G5Old # 77345	$9.50/EA
22	TN4024610	1	Sleeve, Nyl, 2.38id 25.0lOld # 82832	$20.70/EA
23	TN4044540	2	Washer, Flat, .781b 1.63od .16, Stl, BlkOld # 1073487	$2.60/EA
24	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
25	TN4037146	1	Bar, Flat, Stl 0.19, 01.50 X 04.1lOld # 1052521	$5.30/EA
26	TN4041844	2	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
27	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
28	TN4034901	1	Tire, Drive, Scrbr, Pu, Grey, 18.0X6.0 (Optional Polyurethane)Old # 1061973	$1,442.80/EA
29	TN4029311	2	Sleeve, Nyl, #37 05.0lOld # 57315	$7.80/EA
30	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
31	TN4037134	1	Tire, Drive, Scrbr, Non - Skid, 18.0X6.0Old # 1059343	$1,386.50/EA
32	TN4034614	1	Bracket, Mtg, SpptOld # 1060521	$21.70/EA

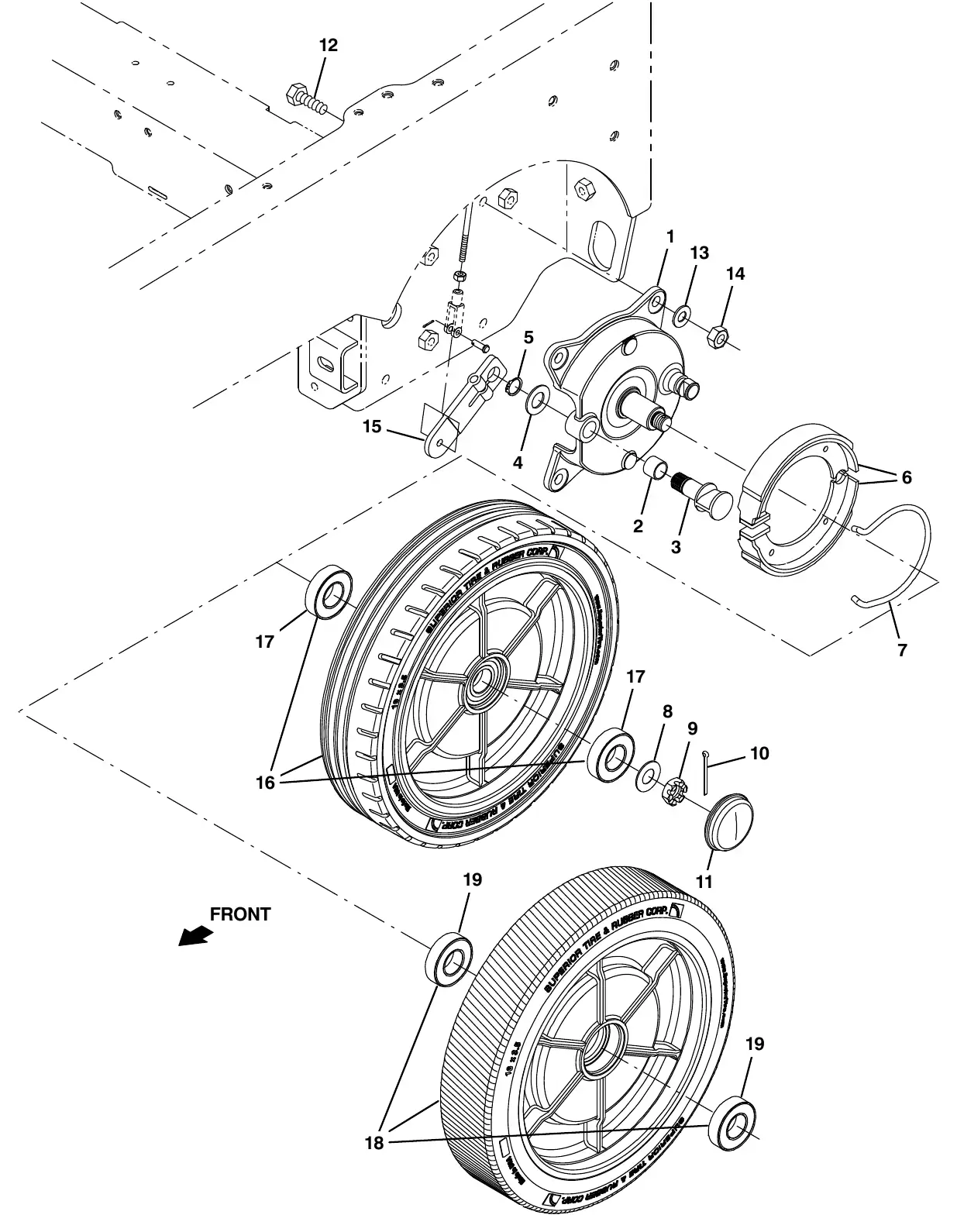

M20 wheel group, rear

Standard partsSN 008000 and later, 2022 manual

Tennant M20 wheel group, rear parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
	TN4031682	2	Brake Assy, Drum, Mech, 07.0d 1.2wOld # 360023	$537.20/EA
1	TN8005524	1	Plate, Backing, BrakeOld # 360270	$283.10/EA
2	TN4031992	1	Bushing, Sleeve, 0.78b 0.86d 0.93l, BnzOld # 360271	$21.40/EA
3	TN8005525	1	Cam, Plt, Brake [Nickel]Old # 360272	$80.00/EA
4	TN4031993	1	Washer, Flat, M21.0b X 37d X 3Old # 360273	$5.30/EA
5	TN4031994	1	Retainer, Ring, BrakeOld # 360274	$3.50/EA
6	TN4031995	2	Shoe, Brake, 180 X 30mmOld # 360275	$84.00/EA
7	TN4031996	1	Spring, Wir, 0.25d, Return, BrakeOld # 360276	$22.30/EA
8	TN4014130	2	Washer, Flat, 0.76b 1.50d .06, SsOld # 49145	$5.20/EA
9	TN4021672	2	Nut, Hex, Sltd, .75 - 16Old # 86659	$8.20/EA
10	TN4041629	2	Pin, Cotter, .156 X 2.00Old # 08171	$3.40/EA
11	TN4015370	2	Cap, Hub, Dust 2.57d 0.77lOld # 54390	$13.50/EA
12	TN4041294	8	Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969	$4.00/EA
13	TN4034135	8	Washer, Flat, 0.50 SaeOld # 32486	$2.60/EA
14	TN4041927	8	Nut, Hex, Lock, M12 X 1.75,NlOld # 08711	$3.30/EA
15	TN4032592	2	Arm, Lever, Brake, 4.1 [Knott]Old # 360802	$82.50/EA
16	TN4045305	2	Tire Assy, Idler, 16.0 X 3.5, RubberOld # 1076240 · Replaces 1059671 (2016 list (rev. 01))	$358.40/EA
17	TN4031697	2	Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074	$20.20/EA
18	TN4042875	2	Tire, Idle, 16 X 3.5, Pu, Siped Tread(Optional Polyurethane)Old # 1076680 · Replaces 1061974 (2016 list (rev. 01))	$571.90/EA
19	TN4031697	2	Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074	$20.20/EA

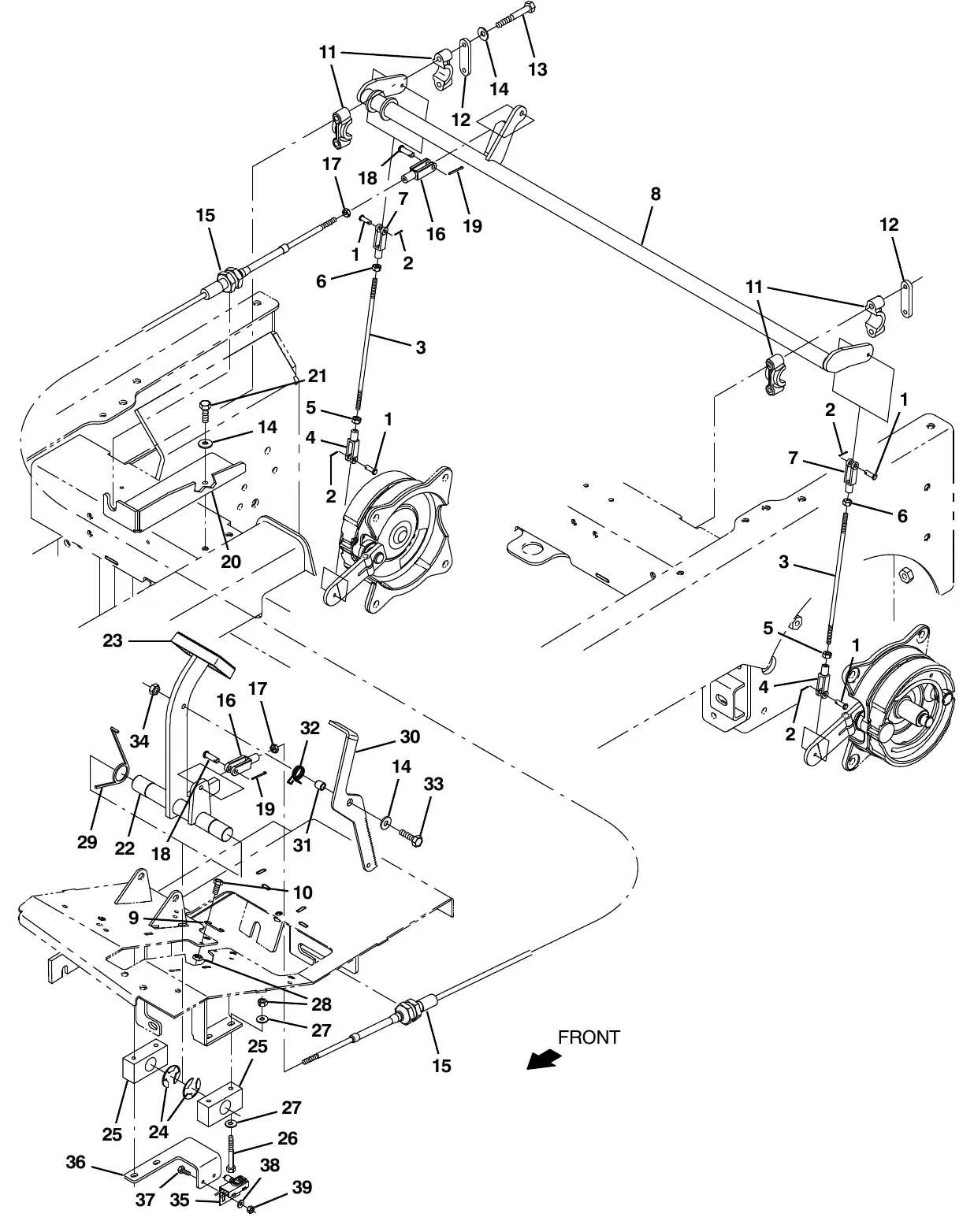

M20 brake pedal linkage group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 brake pedal linkage group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4044344	4	Pin, Clevis, 0.25d X 0.75lOld # 14605	$3.40/EA
2	TN4041628	4	Pin, Cotter, .062 X 0.50Old # 08170	$2.60/EA
3	TN4027767	2	RodOld # 364347	$33.10/EA
4	TN4044337	2	Clevis, Adj, 0.25 Pin, 0.25 - 28 Rh, PlOld # 14595-1	$9.90/EA
5	TN4028195	2	Nut, Hex, Std, .25 - 28, LhOld # 364948	$4.00/EA
6	TN4042941	2	Nut, Hex, Std, .25 - 28Old # 01714	$2.50/EA
7	TN4028178	2	Clevis, Adj, 0.25pin, 0.25 - 28left PlOld # 364864	$15.30/EA
8	TN4032890	1	Shaft Wldt, BrakeOld # 1022031	$119.58/EA
9	TN4015629	1	Spring, Wir, 0.08d, Brake, ParkingOld # 71367	$6.80/EA
10	TN4041270	2	Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942	$2.50/EA
11	TN4027058	4	Bearing, Split, 1.00bOld # 381502	$7.40/EA
12	TN4027324	2	Plate, SpptOld # 382224	$14.80/EA
13	TN4019754	4	Screw, Hex, M8 X 1.25 X 70, 8.8Old # 39279	$4.00/EA
14	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
15	TN4033919	1	Cable, Push / Pull, 063.0l 4.0, .31 - 24Old # 1025495	$306.60/EA
16	TN4029693	2	Clevis, Adj, 0.31pin, 0.31 - 24Old # 58311	$45.70/EA
17	TN4039080	2	Nut, Hex, Jam, .31 - 24Old # 20170	$2.50/EA
18	TN4018317	2	Pin, Clevis, 0.31d X 1.00lOld # 69582	$3.40/EA
19	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
20	TN4195882	1	Bracket, Mtg, CableOld # 1022736	$27.47/EA
21	TN4041844	2	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
22	TN4195848	1	Shaft Wldt, Pedal, BrakeOld # 1022243	$82.40/EA
23	TN4014535	1	Pad, Pedal, Brake, 3.96l 2.36w 0.75Old # 51109	$30.10/EA
24	TN4035052	2	Ring, Retaining, Ext, 0.98d, [E - Ring]Old # 23788	$2.40/EA
25	TN4022031	2	Bearing, Pillowblock, 1.02b [Solid Pye]Old # 86751	$40.50/EA
26	TN4041003	4	Screw, Hex, M6 X 1.0 X 60, 8.8Old # 06548	$3.43/EA
27	TN4034136	8	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
28	TN4041925	6	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
29	TN4028660	2	Spring, Tors, 1.13id .12wir 02.3coil RhOld # 54607	$17.10/EA
30	TN4033918	1	Pedal, Brake, LockOld # 1025487	$62.70/EA
31	TN4013461	1	Bushing, Sleeve, 0.37b 0.50d 0.50l, OibOld # 46563	$4.20/EA
32	TN4026776	1	Spring, Tors, 0.75id .06wir 02.8coilOld # 59009	$5.20/EA
33	TN4041280	1	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
34	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
35	TN4027224	1	Switch, Snap, 15a Nc, RlrOld # 59962	$124.90/EA
36	TN4034981	1	Bracket, Mtg, SwitchOld # 1228195	$16.30/EA
37	TN4035369	2	Screw, Hex, M5 X 0.80 X 16, SsOld # 24199	$3.00/EA
38	TN4042888	2	Washer, Flat, 10, SsOld # 01683	$2.60/EA
39	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA

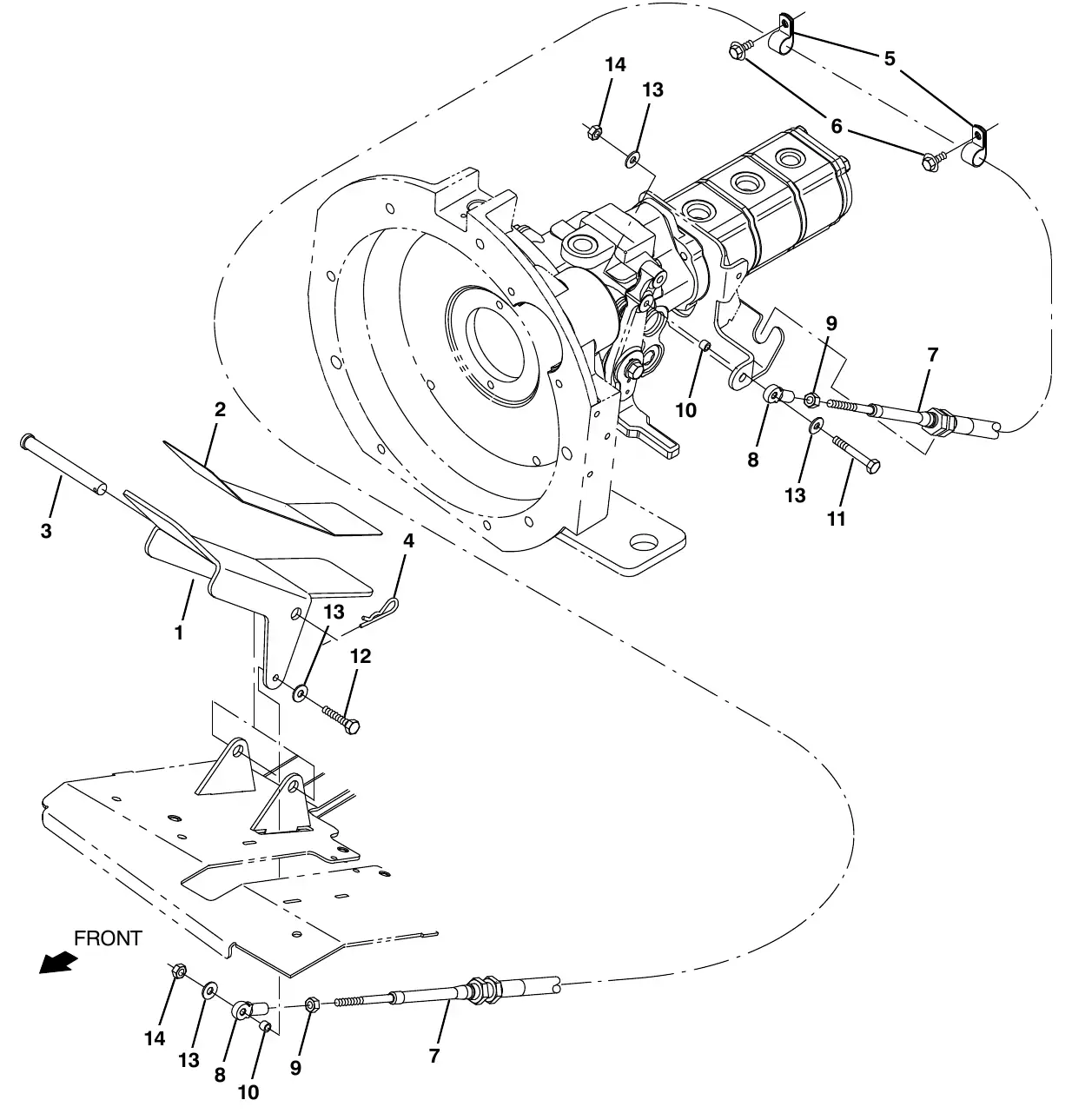

M20 directional pedal group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 directional pedal group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4193625	1	Pedal, PropelOld # 1025140	$45.75/EA
2	TN4026685	1	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
3	TN4026850	1	Pin, Clevis, 0.50 D X 4.50lOld # 59668	$5.10/EA
4	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
5	TN4017933	2	Clamp, Cable, Stl, 0.69d X 0.62w, 1hOld # 67767	$4.20/EA
6	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
7	TN4032922	1	Cable, Push / Pull, 098.0l .25 - 28/.25 - 28Old # 1022345 · Replaced by 1035482 in the 2025 list (rev. 12)	$293.20/EA
8	TN4018302	2	Rod - End, .25 - 28rh Fem 0.25b [Teflon]Old # 68866	$44.50/EA
9	TN4042941	2	Nut, Hex, Std, .25 - 28Old # 01714	$2.50/EA
10	TN4017735	2	Tube, 00.38d 00.26b 00.3l Stl PltOld # 65441	$19.20/EA
11	TN4231432	1	Screw, Hex, .25 - 20 X 2.25, SsOld # 41399	$4.00/EA
12	TN4017319	1	Screw, Hex, .25 - 20 X 1.75, SsOld # 42180	$3.40/EA
13	TN4034136	4	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
14	TN4016793	2	Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169	$4.00/EA

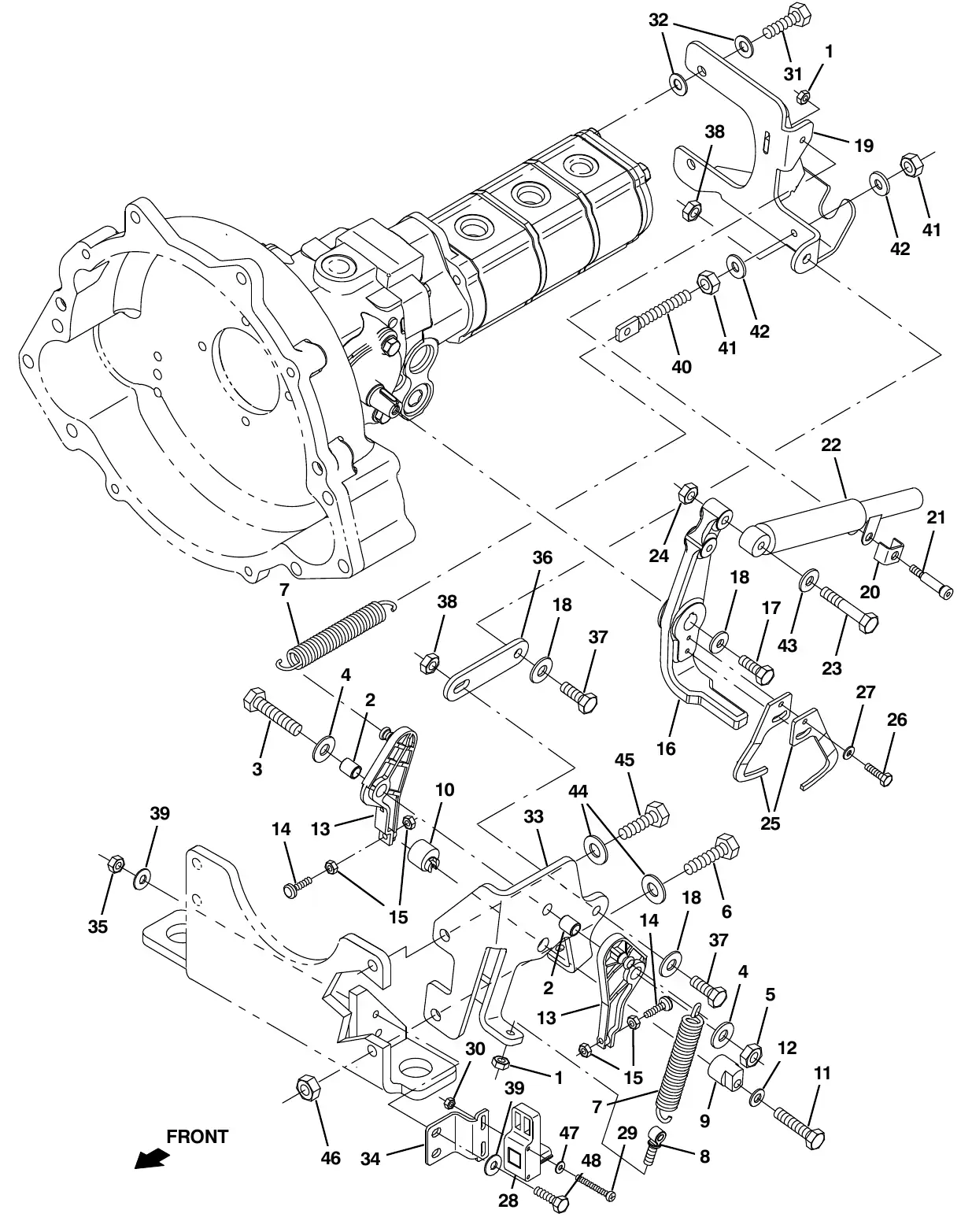

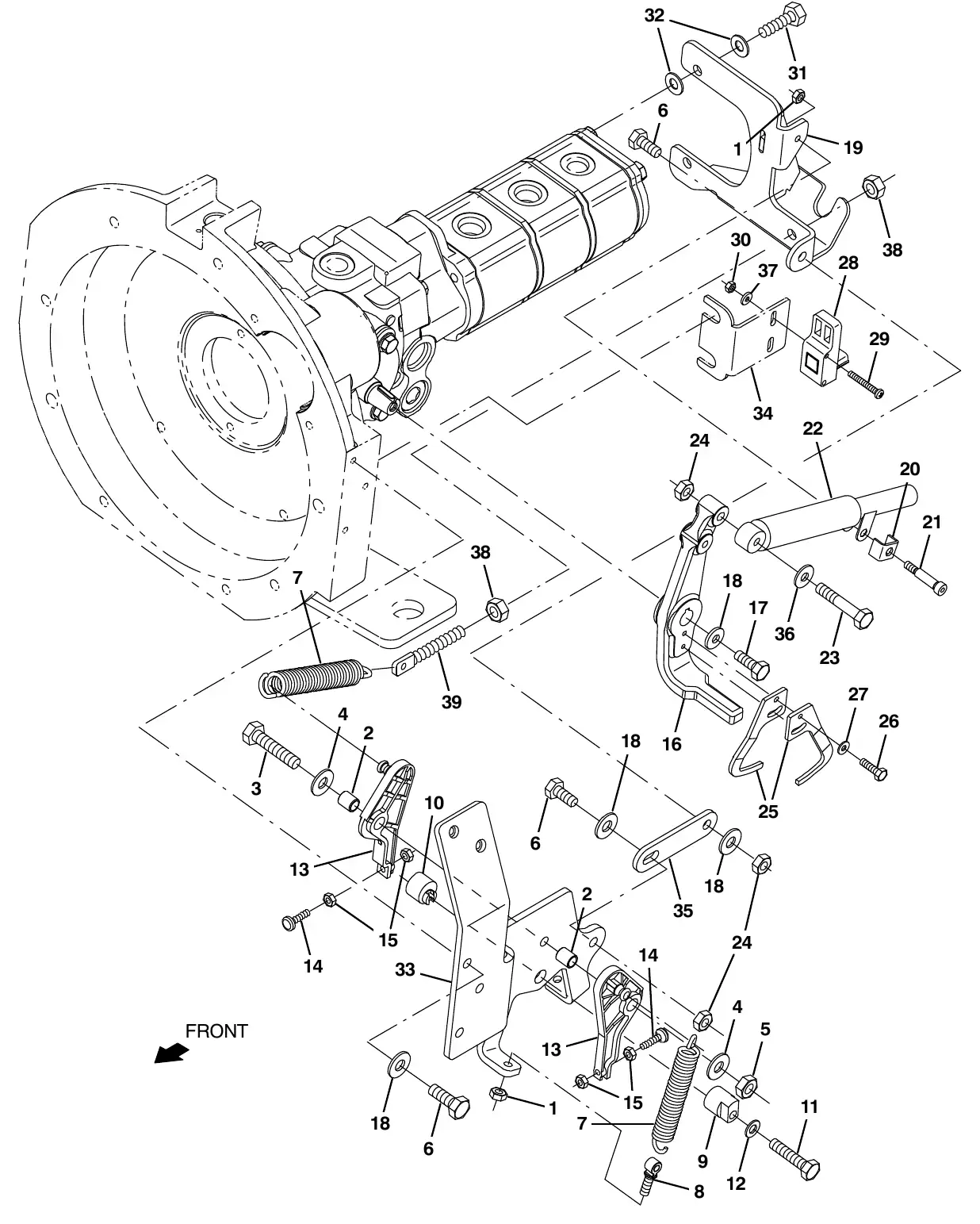

M20 hydraulic pump linkage group

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 hydraulic pump linkage group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4013573	2	Nut, Hex, Lock, .25 - 20, NlOld # 75934	$2.50/EA
2	TN4021145	2	Tube, 00.50d 00.38b 00.6l StlOld # 63234	$6.60/EA
3	TN4200713	1	Screw, Hex, .38 - 16 X 2.25, G5Old # 27991	$3.23/EA
4	TN4034138	2	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
5	TN4028758	1	Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643	$2.50/EA
6	TN4156940	5	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
7	TN4043395	2	Spring, Extn, 0.75od X 0.12wir, 4.3lOld # 11842	$12.20/EA
8	TN4013918	1	Bolt, Eye, .25 - 20 X 1.40 X .25 EyeOld # 48079	$6.00/EA
9	TN4015051	1	Cam, Centering, PintleOld # 53947	$74.84/EA
10	TN4028669	1	Cam, Centering, PintleOld # 54655	$72.52/EA
11	TN4012778	1	Screw, Hex, M8 X 1.25 X 40, Ss, NlOld # 74440	$4.90/EA
12	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
13	TN4015053	2	Arm, Cntrl, Pintle, CenteringOld # 53953	$26.60/EA
14	TN4015362	2	Bumper, Rbr, 0.5d 0.16t M5 X 08Old # 54205	$18.50/EA
15	TN4014211	4	Nut, Hex, Std, M5 X 0.8, 8Old # 50335	$3.30/EA
16	TN4030623	1	Arm, PintleOld # 1027233	$101.71/EA
17	TN4021295	1	Screw, Hex, .31 - 24 X 0.75, NlOld # 83879	$2.90/EA
18	TN4016796	6	Washer, Belleville, .31Old # 41186	$3.50/EA
19	TN4194159	1	Bracket Wldt, Propel, PintleOld # 1027313	$48.78/EA
20	TN4021318	1	Bracket, Retainer, SafetyOld # 84170	$11.60/EA
21	TN4041517	1	Bolt, Shld, .31d X 1.00, .25 - 20Old # 16213	$6.80/EA
22	TN4016337	1	Shock Absorber, 2.3 StrkOld # 73411	$115.00/EA
23	TN4019753	1	Screw, Hex, M8 X 1.25 X 50, 8.8Old # 39278	$4.00/EA
24	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
25	TN4033213	2	Arm [Positioning]Old # 1022787	$15.80/EA
26	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
27	TN4042888	2	Washer, Flat, #10 SsOld # 01683	$2.60/EA
28	TN4033212	1	Sensor, Spd / Dir, 6 - 30vdcOld # 1022779	$285.30/EA
29	TN4041964	2	Screw, Pan, M4 X 0.7 X 35, SsOld # 09198	$3.20/EA
30	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
31	TN4013460	2	Screw, Hex, .38 - 16 X 1.25, NlOld # 46559	$4.00/EA
32	TN4034134	4	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
33	TN4030339	1	Bracket, Propel, G/Lpg [Mit 2013]Old # 1070798	$27.17/EA
34	TN4182555	1	Angle, MtgOld # 1070819	$5.35/EA
35	TN4192517	1	Strap, SpptOld # 1032399	$11.82/EA
36	TN4034136	1	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
37	TN4042243	2	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
38	TN4041600	2	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
39	TN4021359	1	Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA

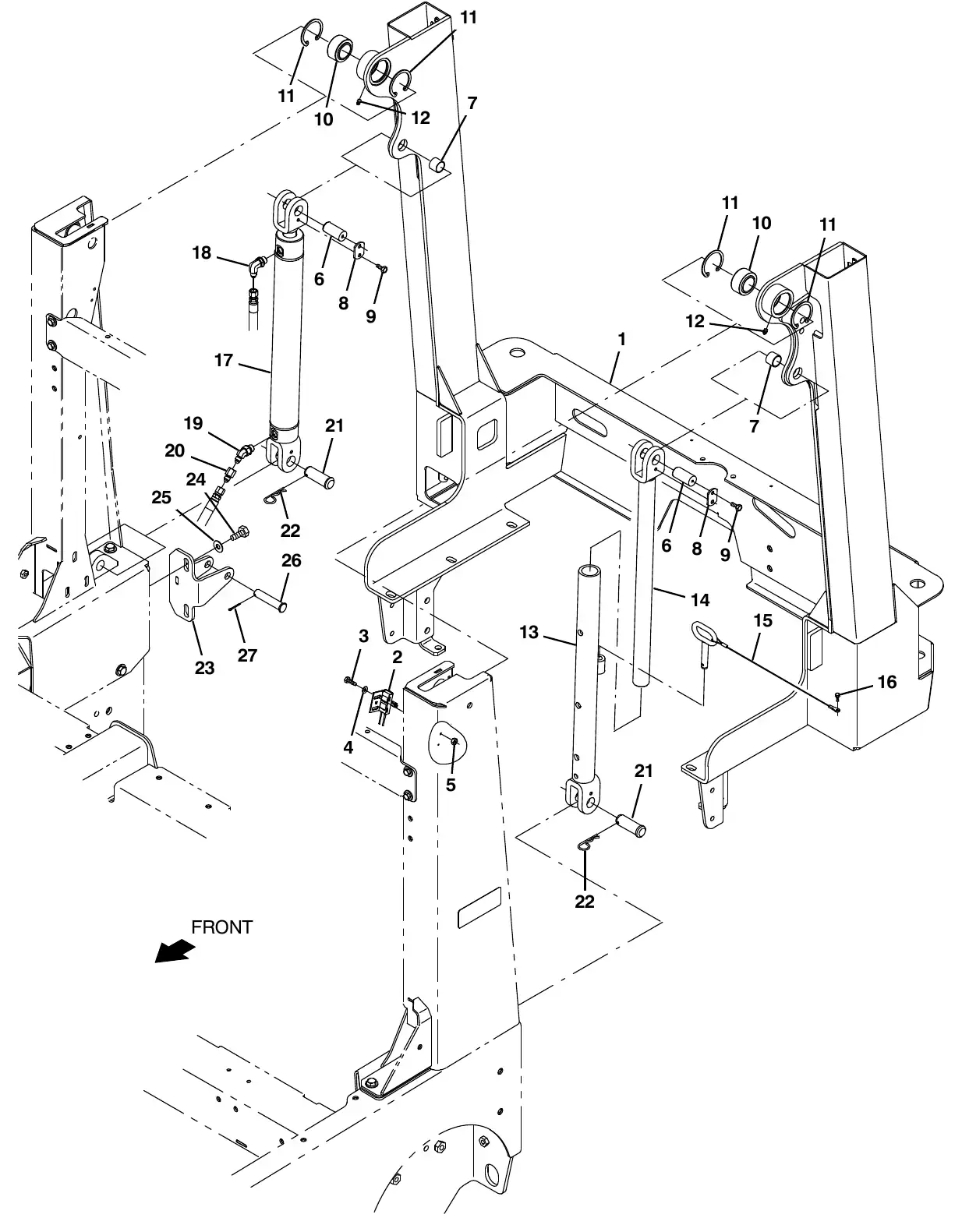

M20 hopper lift arms group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hopper lift arms group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4030288	1	Frame Wldt, Lift, HpprOld # 1069933	$1,780.90/EA
2	TN4035032	1	Switch, Snap, 15a No, RlrOld # 23211	$136.10/EA
3	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
4	TN4042244	2	Washer, Flat, #10Old # 19066	$2.50/EA
5	TN4041603	2	Nut, Hex, Flng, M5 X 0.8Old # 07789	$5.80/EA
6	TN4035738	2	Pin, 0.87d 01.8l, 1/M6 X 1.0, 1cham,StlOld # 1018226	$20.00/EA
7	TN4028122	2	Bushing, Sleeve, 0.88b 1.00d 0.75l, BnzOld # 364587	$12.10/EA
8	TN4016283	2	Plate, Pin, Clevis, UpperOld # 72897	$16.40/EA
9	TN4044400	4	Screw, Hex, M6 X 1.0 X 20, 9.8, SemsOld # 1040467	$3.30/EA
10	TN4017311	2	Bearing, Self Align, 1.25b 2.00dOld # 42120-1	$52.20/EA
11	TN4026820	4	Ring, Retaining, Int, 2.00dOld # 59542	$4.00/EA
12	TN4041578	2	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
13	TN4035768	1	Tube Wldt, Arm, SafetyOld # 1018260	$295.90/EA
14	TN4035769	1	Rod Wldt, Arm, SafetyOld # 1018262	$251.20/EA
15	TN4035780	1	Pin, Arm, SafetyOld # 1018266	$40.10/EA
16	TN4041846	1	Screw, Hex, M4 X 0.7 X 10, FmgOld # 16944	$3.20/EA
17	TN4031370	1	Cylinder, Hyd, 2.0B 24.1L 15.00Strk 3000Old # 1029646	$560.00/EA
18	TN4013891	1	Fitting, Hyd, E90, Jm04/Om06Old # 47638	$18.30/EA
19	TN4019818	1	Fitting, Hyd, E45, Jm04/Om06Old # 393215	$43.70/EA
20	TN4034217	1	Fitting, Hyd, Rst, Jf04/Jm04, .028Old # 1025904	$55.20/EA
21	TN4035739	2	Pin, Clevis, 0.88d X 2.25lOld # 1018227	$29.90/EA
22	TN4043243	2	Pin, Cotter, Hair, 0.62d .120 WirOld # 02942	$3.40/EA
23	TN4035783	1	Plate Wldt, Arm, StopOld # 1018275	$39.20/EA
24	TN4041948	2	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
25	TN4042903	2	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
26	TN4035784	1	Pin, Clevis, 0.62d X 2.91lOld # 1018276	$24.90/EA
27	TN4041634	1	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA

M20 hopper and debris screen group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hopper and debris screen group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4035789	1	Hopper, Debris, Rm - Hg, TrimmedOld # 1018300	$716.90/EA
2	TN4035781	2	Bar, Mtg, HpprOld # 1018272	$28.50/EA
3	TN4011890	6	Washer, Flat, Belleville, M10Old # 763042	$3.40/EA
4	TN4041930	6	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
5	TN4035762	1	Hose Assy, W/1cuff, 1.0d 09l 1.0/Old # 1018239	$57.80/EA
6	TN4041943	1	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
7	TN4042127	1	Spring, Flat, Retainer, Angled ScreenOld # 1044323	$44.80/EA
8	TN4035242	3	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
9	TN4040233	2	Washer, Flat, 0.38b 1.25d .12, NeoOld # 222268	$4.00/EA
10	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
11	TN4044019	1	Screen Wldt, HpprOld # 1039163	$242.00/EA
12	TN4044026	1	Angle, RetainerOld # 1039215	$11.10/EA

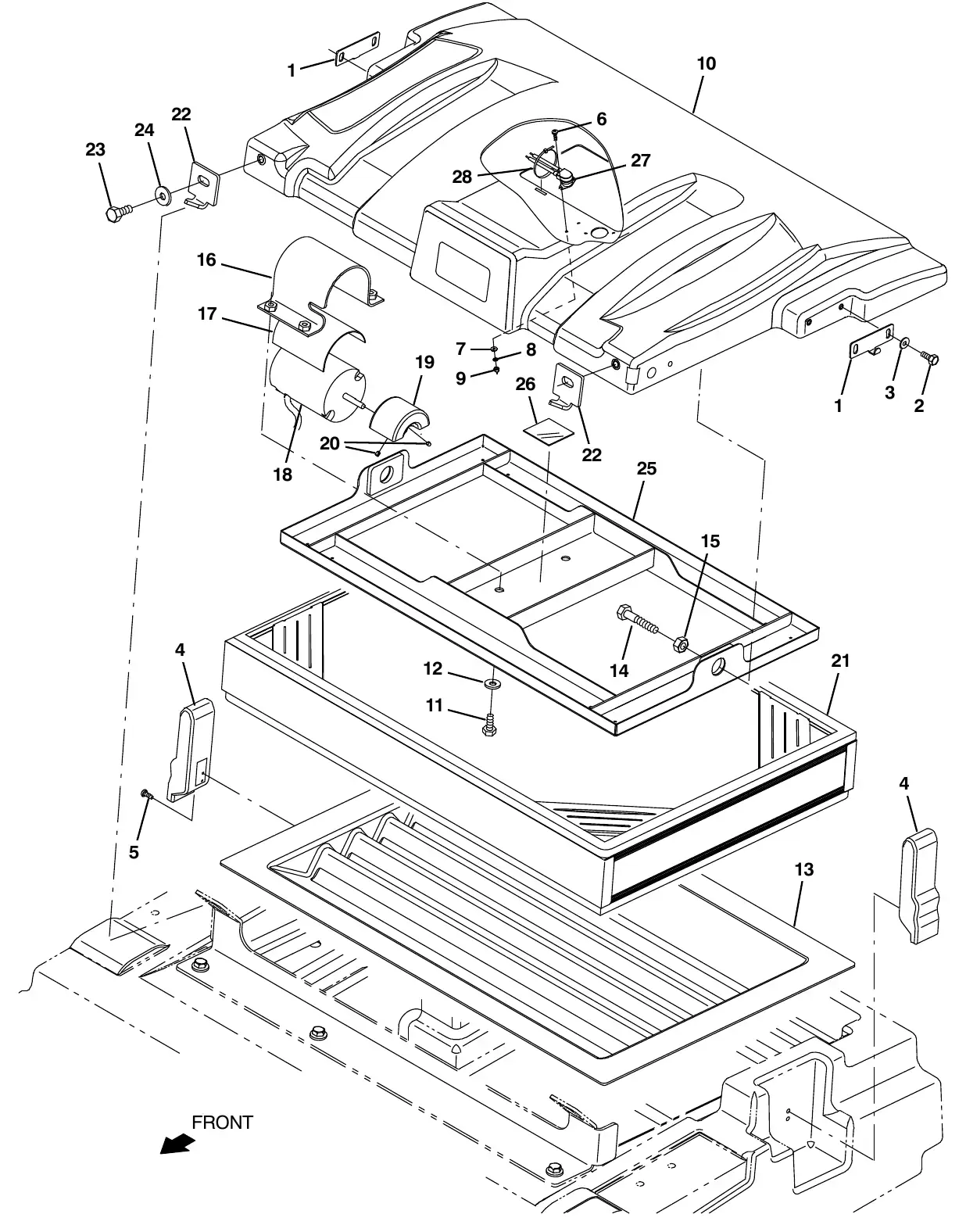

M20 hopper cover and dust filter group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hopper cover and dust filter group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4044648	2	Bracket, Cover, HpprOld # 1041984	$15.60/EA
2	TN4041245	4	Screw, Hex, M6 X 1.0 X 16, SsOld # 15678	$3.20/EA
3	TN4042901	4	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
4	TN4037480	2	Latch, YellowOld # 1222019 · Replaces 360824 (2016 list (rev. 01))	$40.40/EA
5	TN4041965	4	Screw, Pan, M5 X 0.8 X 12, SsOld # 09200	$3.40/EA
6	TN4041015	2	Screw, Pan, M3 X 0.5 X 20, 4.8Old # 06922	$3.40/EA
7	TN4042242	2	Washer, Flat, #06Old # 19064	$3.40/EA
8	TN4034651	2	Washer, Lock, Int, #06Old # 32975	$2.60/EA
9	TN4042963	2	Nut, Hex, Std, M3 X 0.5, 8Old # 01754	$2.50/EA
10	TN4044454	1	Cover, HpprOld # 1041006	$384.00/EA
11	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
12	TN4042902	4	Washer, Flat, 0.38b 0.88d .08, SsOld # 01685	$2.60/EA
13	TN4043553	1	Tray, Perma - FilterOld # 1037947	$127.10/EA
14	TN4041288	2	Screw, Hex, M10 X 1.50 X 60, 8.8Old # 06963	$4.00/EA
15	TN4019809	2	Nut, Hex, Std, M10 X 1.50Old # 39312	$3.40/EA
16	TN4045661	1	Strap, Mtg, Motor, .124.00WOld # 1037671	$43.90/EA
17	TN4028761	1	Strip, Rbr, 0.06 04.00w 05.0l Neo/60Old # 36658	$6.50/EA
18	TN4033948	1	Motor, Ele 12Vdc, ShakrOld # 1059542	$294.50/EA
19	TN4038145	1	Weight, EccentricOld # 1053320	$28.50/EA
20	TN4039093	2	Screw, Set, #10 - 24 X 0.25, NlOld # 20634	$3.40/EA
21	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
22	TN4035545	2	Bar, Mtg, Hppr CoverOld # 1018207	$14.80/EA
23	TN4041974	2	Screw, Hex, M10 X 1.5 X 20, SsOld # 09291	$5.80/EA
24	TN4037922	2	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
25	TN4045625	1	Shaker WldtOld # 1037235	$230.80/EA
26	Old # 36661	1	Strip, Rbr, 0.06 01.00W 04.0LOld # 36661Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
27	TN4039106	1	Switch, Temp, Sealed, NcOld # 1056298	$217.60/EA
28	TN4011910	1	Tie, Cable, Nyl, 15.3L . W 4.5 Max DOld # 763116	$3.40/EA

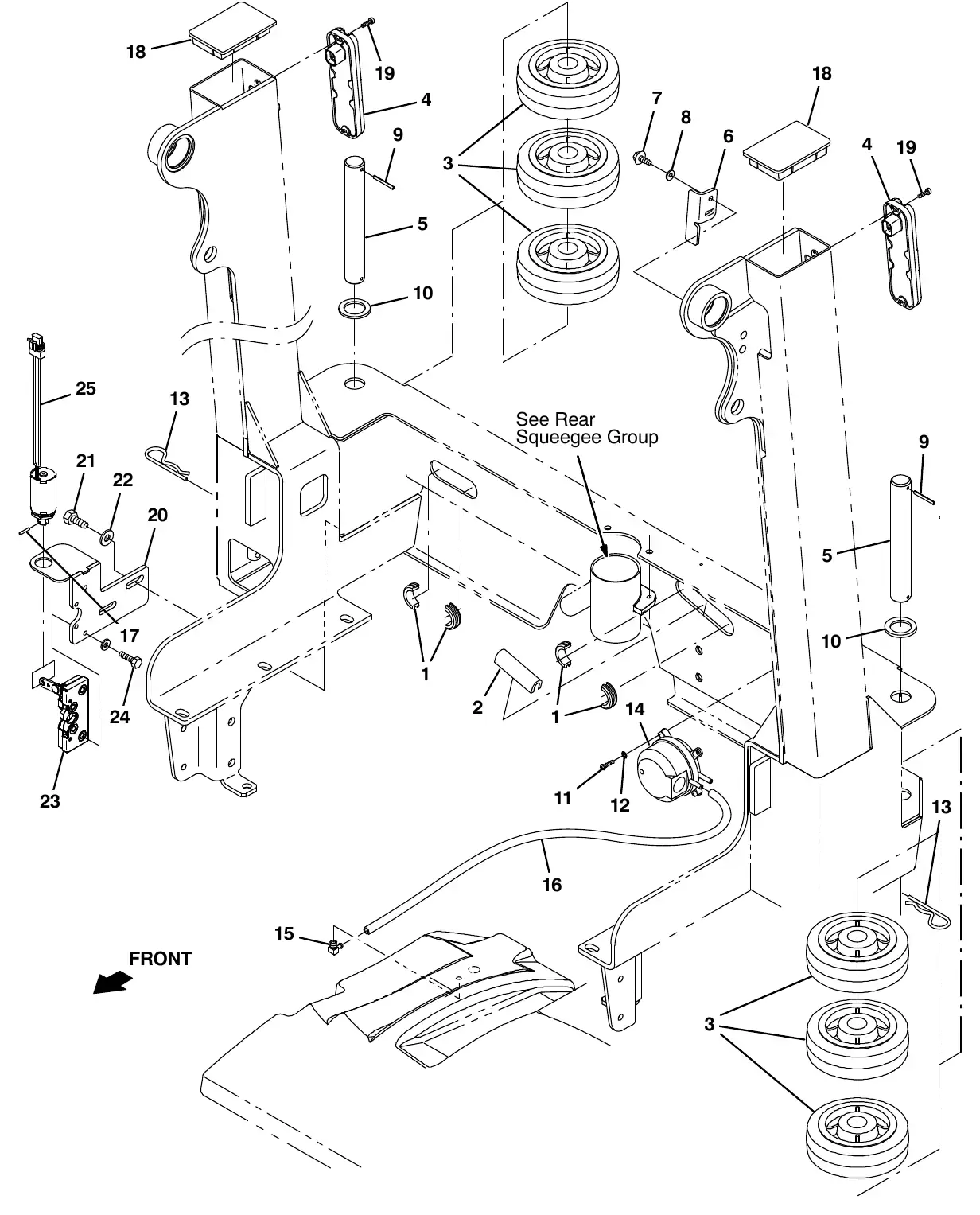

M20 hopper bumper group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hopper bumper group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031957	2	Grommet, Rbr, 1.50id, F/1.8h, .19 MatlOld # 10632-13	$6.00/EA
2	TN50646	1	Molding, Trim, Pvc,.18 - .31 07.5lOld # 50646 · no current Tennant number on file	Call for price
3	TN4034399	6	Wheel, 06.0d 2.00w 1.19b, Gray RbrOld # 1060130 · Replaces 1021047 (2016 list (rev. 01))	$21.60/EA
4	TN4035546	2	Light, Tail, 12vdcOld # 1018208	$131.70/EA
5	TN4038392	2	Pin, 30mmd X 215mmlOld # 1053838	$74.40/EA
6	TN4035763	1	Bracket, Mtg, SwitchOld # 1018240	$16.65/EA
7	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
8	TN4034133	2	Washer, Flat, 0.25 SaeOld # 32483	$2.50/EA
9	TN4035025	2	Pin, Roll, .187d X 1.62l, .187/.192Old # 23146	$2.50/EA
10	TN4035148	2	Washer, Flat, 1.26B 1.88D .13, Stl, PlOld # 1062566	$2.60/EA
11	TN4035991	2	Screw, Pan, M4 X 0.7 X 20, SsOld # 12323	$3.30/EA
12	TN4043241	2	Washer, Lock, Int, #08, SsOld # 02938	$2.60/EA
13	TN4031623	2	Pin, Cotter, Hair, 1.00d .178 WirOld # 34411	$4.00/EA
14	TN4037765	1	Switch, Press, Adj [4 - 16 In Wtr]Old # 1052885	$72.10/EA
15	TN4033731	1	Fitting, Brs, E90, Pm02/Bm03Old # 32183	$9.90/EA
16	TN4032044	1	Hose, Afmkt, Vacuum, 0.16id, 03ftOld # 1031575	$16.60/EA
17	TN4042585	1	Pin, Roll, .125 D X 0.75l, .125/.129Old # 20021	$2.50/EA
18	TN4035787	2	Cap, Arm, LiftOld # 1018293	$15.60/EA
19	TN4041259	4	Screw, Pan, M4 X 0.7 X 20, 4.8Old # 06928	$2.50/EA
20	TN4035785	1	Plate Wldt, Mtg, SolenoidOld # 1018280	$47.60/EA
21	TN4035608	2	Screw, Hex, M12 X 1.75 X 30, SsOld # 12309	$6.00/EA
22	TN4034135	2	Washer, Flat, 0.50, SaeOld # 32486	$2.60/EA
23	TN4039424	1	LatchOld # 21623	$49.60/EA
24	TN4041272	4	Screw, Hex, M6 X 1.0 X 25, 8.8Old # 06944	$2.50/EA
25	TN4035782	1	Solenoid, Pull, 12vdc, DamperOld # 1018274	$167.10/EA

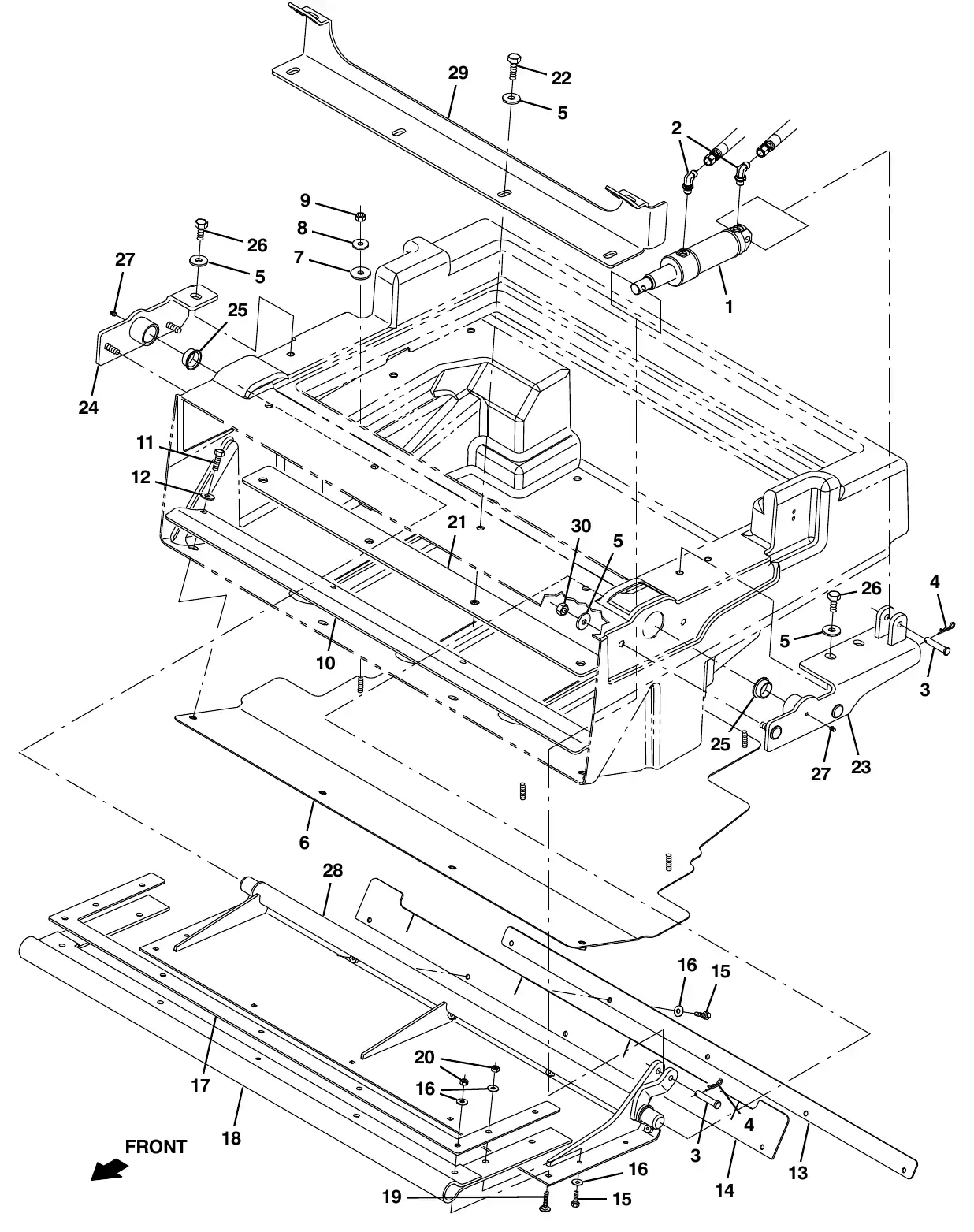

M20 hopper door group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hopper door group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4043598	1	Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Old # 1038115	$223.30/EA
2	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4041878	2	Pin, Clevis, 0.37d X 1.75lOld # 17461	$4.00/EA
4	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
5	TN4037922	11	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
6	TN4035761	1	Plate, Bottom, HpprOld # 1018237	$220.70/EA
7	TN4040233	2	Washer, Flat, 0.38b 1.25d .12, NeoOld # 222268	$4.00/EA
8	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
9	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
10	TN4035760	1	Bracket, Lip, HpprOld # 1018236	$66.00/EA
11	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
12	TN4042902	4	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
13	TN4044017	1	Strap, Door, DumpOld # 1039155	$21.80/EA
14	TN4035765	1	Seal, Door, DumpOld # 1018245	$37.10/EA
15	TN4041931	9	Screw, Hex, M6 X 1.0 X 20, SsOld # 08716	$3.20/EA
16	TN4042901	14	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
17	TN4044016	1	Plate, Retainer, Door, DumpOld # 1039149	$61.40/EA
18	TN4044018	1	Seal, Door, DumpOld # 1039157	$132.90/EA
19	TN4026709	5	Bolt, Carriage, M06 X 1.0 X 30Old # 379791	$4.00/EA
20	TN4041928	9	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
21	TN4035767	1	Bracket, CoverOld # 1018253	$44.50/EA
22	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
23	TN4043611	1	Bracket Wldt, Pivot, Hppr Door, LhOld # 1038123	$90.80/EA
24	TN4043613	1	Bracket Wldt, Pivot, Hppr, RhOld # 1038134	$70.20/EA
25	TN4028819	2	Bushing, Flng, 1.00b 1.13d 0.50lOld # 367313	$15.30/EA
26	TN4041974	3	Screw, Hex, M10 X 1.5 X 20, SsOld # 09291	$5.80/EA
27	TN4041578	2	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
28	TN4044009	1	Door Wldt, HpprOld # 1039124	$358.40/EA
29	TN4042449	1	Bracket, Cover, HopperOld # 1044993	$60.20/EA
30	TN4041930	4	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA

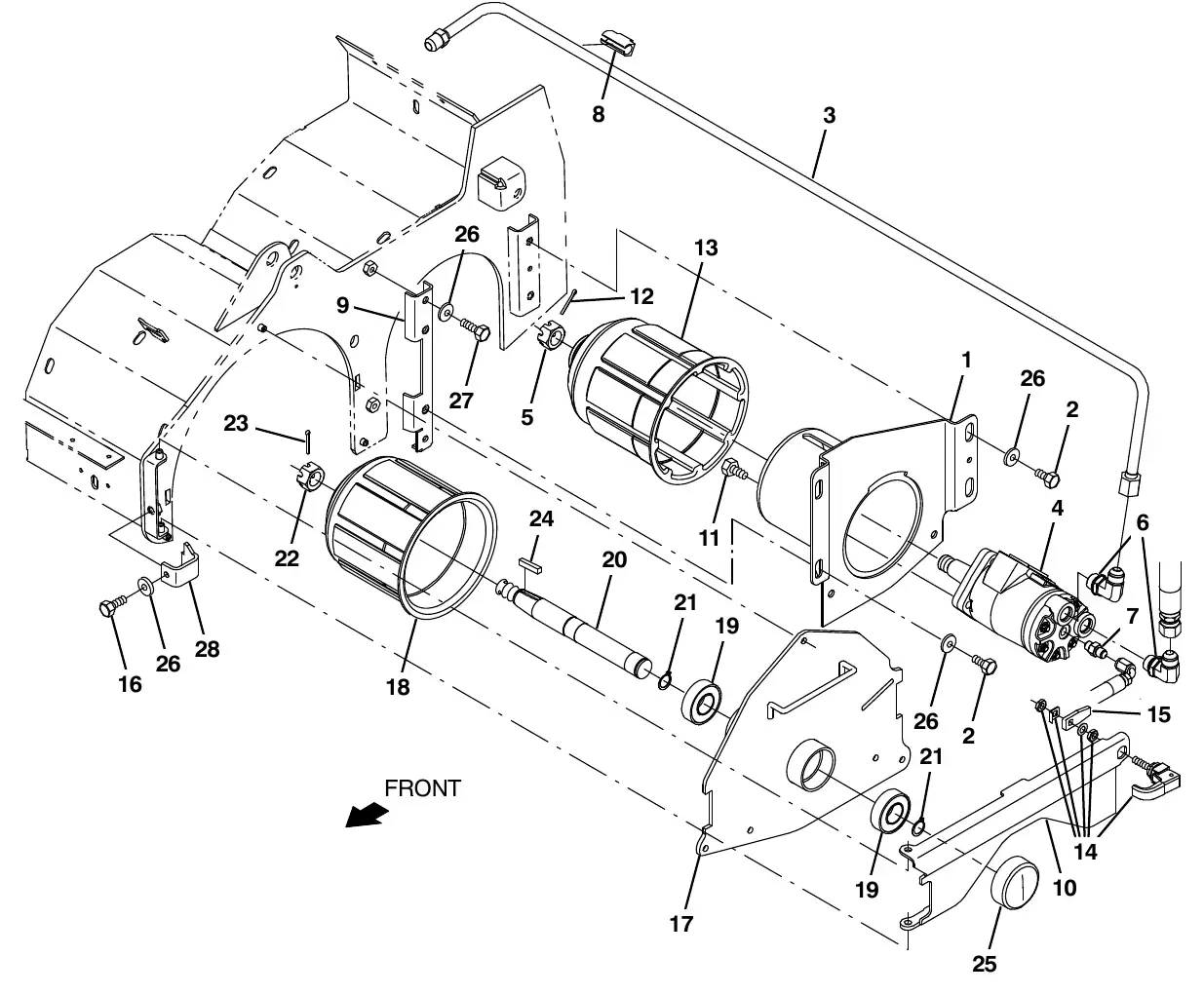

M20 cylindrical scrub brush drive group, left side

Standard partsSN 008000 and later, 2022 manual

Tennant M20 cylindrical scrub brush drive group, left side parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4036300	1	Housing Wldt, Brush, DriveOld # 1021019	$190.40/EA
2	TN4041243	4	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
3	TN4033536	1	Tube, Hyd, 08 Jf08/Jm08Old # 1023617	$72.10/EA
4	TN4030082	1	Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500Old # 1068811	$594.80/EA
5	TN4015800	1	Nut, Hex, Sltd, .75 - 18Old # 39527	$8.00/EA
6	TN4017776	2	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
7	TN4028729	1	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
8	TN4034229	1	Clamp, Hyd, 0.50dOld # 1026080	$8.70/EA
9	TN4038636	1	Bracket, SpptOld # 1054575	$39.20/EA
10	TN4031386	1	Door Wldt, BrushOld # 1029964	$74.90/EA
11	TN4042969	4	Screw, Hex, .38 - 16 X 0.75, NlOld # 01762	$3.20/EA
12	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
13	TN4036586	1	Plug Wldt, Drive, Brush, SweepOld # 1057643	$152.90/EA
14	TN4032742	1	Latch, Cmpr, Yel GripOld # 1065134	$26.80/EA
15	TN4034247	1	Pawl, StrOld # 1026352	$6.00/EA
16	TN4041992	1	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
	TN4025173	2	Idler Door Kit, Replmt [M20/T20/M30/T12]Old # 9012832	$507.00/EA
17	TN4038684	1	Door Wldt, Brush, IdlerOld # 1054857	$205.40/EA
18	TN4035446	1	Plug Wldt, Drive, BrushOld # 25686	$179.60/EA
19	TN4043586	2	Bearing, Ball, 0.98b 2.05d 0.59wOld # 13534	$17.50/EA
20	TN4029109	1	Shaft, Brush, IdlerOld # 56078	$279.20/EA
21	TN4041941	2	Ring, Retaining, Ext, 1.00d, BasicOld # 09005	$2.50/EA
22	TN4035288	1	Nut, Hex, Sltd, M20 X 2.5, 8Old # 12295	$9.50/EA
23	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
24	TN4042784	1	Key, Sq, 0.25 X 0.25, 1.25lOld # 00927	$3.60/EA
25	TN4044946	1	Cap, Vinyl, 57mmid X 23mmlOld # 1074807	$3.70/EA
26	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
27	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
28	TN4038661	1	Bracket, Retainer, LhOld # 1054682	$18.60/EA

M20 cylindrical scrub brush drive group, right side

Standard partsSN 008000 and later, 2022 manual

Tennant M20 cylindrical scrub brush drive group, right side parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4036300	1	Housing Wldt, Brush, DriveOld # 1021019	$190.40/EA
2	TN4041243	4	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
3	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
4	TN4030082	1	Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500Old # 1068811	$594.80/EA
5	TN4015800	1	Nut, Hex, Sltd, .75 - 16Old # 39527	$8.00/EA
6	TN4017776	2	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
7	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
8	TN4034229	1	Clamp, Hyd, 0.50dOld # 1026080	$8.70/EA
9	TN4031386	1	Door Wldt, BrushOld # 1029964	$74.90/EA
10	TN4038642	1	Bracket, Retainer, RhOld # 1054610	$18.60/EA
11	TN4042969	4	Screw, Hex, .38 - 16 X 0.75, NlOld # 01762	$3.20/EA
12	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
13	TN4036586	1	Plug Wldt, Drive, Brush, SweepOld # 1057643	$152.90/EA
14	TN4032742	1	Latch, Cmpr, Yel GripOld # 1065134	$26.80/EA
15	TN4034247	1	Pawl, StrOld # 1026352	$6.00/EA
16	TN4038636	1	Bracket, SpptOld # 1054575	$39.20/EA
	TN4025173	2	Idler Door Kit, Replmt [M20/T20/M30/T12]Old # 9012832	$507.00/EA
17	TN4038684	1	Door Wldt, Brush, IdlerOld # 1054857	$205.40/EA
18	TN4035446	1	Plug Wldt, Drive, BrushOld # 25686	$179.60/EA
19	TN4043586	2	Bearing, Ball, 0.98b 2.05d 0.59wOld # 13534	$17.50/EA
20	TN4041941	2	Ring, Retaining, Ext, 1.00d, BasicOld # 09005	$2.50/EA
21	TN4029109	1	Shaft, Brush, IdlerOld # 56078	$279.20/EA
22	TN4035288	1	Nut, Hex, Sltd, M20 X 2.5, 8Old # 12295	$9.50/EA
23	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
24	TN4042784	1	Key, Sq, 0.25 X 0.25, 1.25lOld # 00927	$3.60/EA
25	TN4044946	1	Cap, Vinyl, 57mmid X 23mmlOld # 1074807	$3.70/EA
26	TN4041992	1	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4038716	1	Tube, Hyd, Brush Return, W/ Cd [M20/T20]Old # 1055139	$158.30/EA
28	TN4019344	1	Fitting, Hyd, E90, Jf04/Jm04Old # 39210	$8.70/EA
29	TN4028729	1	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
30	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA

M20 cylindrical scrub brush head lift group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 cylindrical scrub brush head lift group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031765	1	Bracket, Mtg, Scb Head, RhOld # 1030910	$36.50/EA
2	TN4031766	1	Bracket, Mtg, Scb Head, LhOld # 1030911	$26.60/EA
3	TN4041948	4	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
4	TN4034134	4	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
5	TN4041929	10	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
6	TN4017929	2	Rod - End, .50 - 20rh Fem 0.50bOld # 67555	$70.00/EA
7	TN4037934	2	Rod, Thrd, 2 End, .50 - 20 04.9l, Rh / LhOld # 1014705	$54.00/EA
8	TN4013991	2	Nut, Hex, Jam, .50 - 20Old # 48985	$3.40/EA
9	TN4015630	2	Nut, Hex, Jam, .50 - 20, LhOld # 71369	$4.00/EA
10	TN4027312	2	Rod - End, .50 - 20lh Fem 0.50 - 20studOld # 382099	$53.10/EA
11	TN4014600	2	Nut, Hex, Lock, .50 - 20, Nl, ThinOld # 51824	$3.30/EA
12	TN4036233	1	Tube Wldt, TorqueOld # 1020003	$219.70/EA
13	TN4017310	4	Bearing, Self Align, 0.75b 1.25dOld # 42120	$35.40/EA
14	TN4041578	4	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
15	TN4041294	2	Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969	$4.00/EA
16	TN4017232	2	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
17	TN4041993	2	Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741	$5.80/EA
18	TN4040938	2	Pin, Clevis, 0.75d X 2.00lOld # 04733-12	$7.60/EA
19	TN4041918	2	Pin, Cotter, .156 X 1.25Old # 08236	$3.40/EA
20	TN4037385	2	Screw, Hex, M5 X 0.8 X 10, FmgOld # 223198	$4.00/EA
21	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
22	TN4025261	2	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
23	TN4041878	2	Pin, Clevis, 0.37d X 1.75lOld # 17461	$4.00/EA
24	TN4022048	2	Pin, Cotter, Hair, 0.38d .072 WirOld # 86866	$2.50/EA
25	TN4044719	1	Spring, Extn, 2.00od 0.25wir 07.5lOld # 1042686	$23.40/EA
26	TN4030652	1	Bracket, Mtg, SpringOld # 1027810	$19.80/EA
27	TN4011904	1	Screw, Hex, M8 X 1.25 X 60, FlOld # 763090	Call for price
28	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
29	TN4035885	1	Bracket, Mtg, Lift, Scb HeadOld # 1019146	$31.00/EA
30	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
31	TN4016292	2	Screw, Hex, .50 - 13 X 1.50, 5Old # 39811	$4.00/EA
32	TN4028759	2	Nut, Hex, Lock, .50 - 13, Nl, ThinOld # 36644	$3.40/EA
33	TN4033870	3	Sleeve, P/M, 0.47b 0.75d 0.5l [430ss]Old # 1025100	$4.20/EA
34	TN4041051	1	Bracket Wldt, Brush Wrap, LhOld # 1052342	$443.90/EA
Item 35: choose your version (2)
35	TN4030120	1	Plate Wldt, Wrap, BrushFits SN 008000–014000 · Old # 1069562	$303.10/EA
35	TN4232148	1	Plate Wldt, Wrap, BrushFits SN 014001 and later · Old # 1077002	$306.50/EA
36	TN4040825	1	Bracket Wldt, Brush Wrap Mtg, RhOld # 1052124	$470.60/EA
37	TN4037712	10	Screw, Btn, M8 X 1.25 X 25, SsOld # 223470	$4.00/EA
38	TN4034137	20	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

M20 cylindrical brush head skirt group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 cylindrical brush head skirt group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032901	2	Skirt, Neo, .12, 05.39w 14.01l, 02 SlOld # 1022165	$57.10/EA
2	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
3	TN4034232	1	Skirt, Neo, .06, 26.99w 40.55l, 36 HoleOld # 1026108	$126.60/EA
4	TN4032923	1	Skirt, Neo, .06, 07.63w 51.52l, 11 HoleFits SN 008000–014000 · Old # 1022363	$50.20/EA
5	TN4032872	2	Retainer, SkirtOld # 1022003	$10.20/EA
6	TN4029864	7	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
7	TN4042901	6	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
8	TN4036282	1	Strip, Flap, RecirculationOld # 1020828	$29.10/EA
9	TN4041608	6	Screw, Hex, M6 X 1.0 X 35, SsOld # 07805	$3.30/EA
10	TN4041928	6	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
11	TN4044044	1	Bracket, Mtg, SkirtOld # 1039396	$102.90/EA
12	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
13	TN4042902	22	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
14	TN4032906	1	Bracket Wldt, Flap, RecirculationOld # 1022179	$204.40/EA
15	TN4041943	13	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
16	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
17	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
18	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
19	TN4036282	1	Strip, Flap, RecirculationOld # 1020828	$29.10/EA
20	TN4030999	1	Strap, Static, AfmktOld # 1028852	Call for price
21	TN4016787	7	Washer, Lock, IntExt, 0.31Old # 41141	$3.50/EA
22	TN4044265	1	Plate, Skirt, FrontOld # 1040018	$56.20/EA
23	TN4031209	1	Screw, Hex, M8 X 1.25 X 50, Ss, FlOld # 33401	$4.00/EA
24	TN4041929	1	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
25	TN4032872	2	Retainer, SkirtFits SN 008000–014000 · Old # 1022003	$10.20/EA
26	TN4029864	6	Screw, Hex, M6 X 1.0 X 16, FmgFits SN 008000–014000 · Old # 361339	$4.00/EA
27	TN4042901	6	Washer, Flat, 0.25, SsFits SN 008000–014000 · Old # 01684	$2.60/EA

M20 squeegee lift group, rear

Standard partsSN 008000 and later, 2022 manual

Tennant M20 squeegee lift group, rear parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4034223	4	Link Assy, Rod - End, M12Old # 1026007	$131.30/EA
2	TN4017232	8	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
3	TN4041993	9	Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741	$5.80/EA
4	TN4013466	2	Spring, Extn, 0.88od X 0.14wir, 9.0lOld # 46785-1	$49.00/EA
5	TN4022266	2	Bolt, Eye, M10 X 1.50 X 064mm, 07.10 EyeOld # 386847	$11.60/EA
6	TN4042903	2	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
7	TN4041930	2	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
8	TN4032925	1	Angle, RhOld # 1022372	$22.80/EA
9	TN4032936	1	Angle, LhOld # 1022442	$20.50/EA
10	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
11	TN4042902	15	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
12	TN4041929	9	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
13	TN4015603	2	Spring, Flt, 0.08th, 4.50w X 07.0lOld # 71204	$28.80/EA
14	TN4033833	4	Block, CenteringOld # 1024648	$21.20/EA
15	TN4029273	4	Screw, Pan, M6 X 1.0 X 16, SsOld # 367770	$2.50/EA
16	TN4041928	4	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
17	TN4033831	4	Spacer, Pad, RbrOld # 1024641	$3.90/EA
18	TN4033838	2	Retainer, SpringOld # 1024703	$10.40/EA
19	TN4041945	4	Screw, Hex, M8 X 1.25 X 35, Ss, FlOld # 09023	$3.30/EA
20	TN4016797	4	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
21	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
22	TN4034203	1	Bellcrank, Lift, SqgeOld # 1025680	$116.80/EA
23	TN4028819	2	Bushing, Flng, 1.00b 1.13d 0.50lOld # 367313	$15.30/EA
24	TN4036077	2	Pin, Clevis, 0.37d X 2.00lOld # 29584	$3.90/EA
25	TN4035045	1	Ring, Retaining, Ext, 0.38d, [Selflock]Old # 23524-1	$2.40/EA
26	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
27	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
28	TN4041282	1	Screw, Hex, M8 X 1.25 X 60, 8.8Old # 06957	$3.40/EA
29	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
30	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
31	TN4033552	1	Chain, Str, 4/0, 08 LinkOld # 1023779	$5.50/EA
32	TN4032821	1	Plate Wldt, Lift, SqgeOld # 1021609	$180.10/EA

M20 squeegee group, rear

Standard partsSN 008000 and later, 2022 manual

Tennant M20 squeegee group, rear parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4017376	1	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
	TN4013708	1	Squeegee Kit, Rear, Replmt [M20/T20]Old # 9004493	$1,254.10/EA
2	TN4033218	1	Squeegee Wldt, RearOld # 1022831	$631.30/EA
3	TN4033239	1	Clamp Wldt, FrontOld # 1023239	$102.00/EA
4	TN4043266	4	Strip, Non - Slip, 0.50w 06.0lOld # 03495	$3.40/EA
5	TN4039420	4	Pin, Grvd, 0.43d 01.8l [303ss]Old # 21603	$16.60/EA
6	TN4035383	4	Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555	$2.40/EA
7	TN4021717	1	Pin Wldt, FrontOld # 386298	$40.30/EA
8	TN4037481	1	Cam, Front, YellowOld # 1222020	$13.70/EA
9	TN4030695	1	Clamp Wldt, RearOld # 1028374	$121.90/EA
10	TN4039421	1	Bar Wldt, Retainer, Sqge, RearOld # 21606	$51.20/EA
11	TN4042045	1	Cam, Rear, YellowOld # 1208906	$7.60/EA
12	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
13	TN4021691	2	Bumper, SqgeOld # 386264	$25.40/EA
14	TN4030447	2	Wheel, 4.0d 0.89w 0.64bOld # 363162	$35.40/EA
15	TN4030457	2	Sleeve, P/M, 0.34b 0.63d 1.2l, BnzOld # 363301	$9.30/EA
16	TN4023495	2	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
17	TN4027793	2	Screw, Hex, M8 X 1.25 X 110, SsOld # 364441	$4.90/EA
18	TN4042902	8	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
19	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
20	TN4036824	2	Knob, Star, 2.75d 4ear, M8x1.25 FemOld # 1218322	$18.00/EA
21	TN4040927	2	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
22	TN4018105	2	Ring, Mtg, Sqge, .50lOld # 387433	$20.90/EA
23	TN4018131	2	Spring, Cmpr, 0.9od .042wir 02.0lOld # 387500	$3.50/EA
24	TN4038447	2	Stud, M8 X 1.25, 2.75l M8 X 1.25, SsOld # 1226700	$6.40/EA
Item 25: choose your version (2)
25	TN4032803	1	Hose, Vacuum, 3.00id X 019.0l, 1cuffFits SN 008000–010516 · Old # 1021511	$69.00/EACall for availability
25	TN4033033	1	Hose, Vacuum, 3.00id X 019.0l, 1cuffFits SN 010517 and later · Old # 1234534	$59.40/EA
Item 26: choose your version (2)
26	TN4035508	1	Blade, Sqge, Front, 49.58l [Linard]Old # 1017868	$90.00/EA
26	TN4030648	1	Blade, Sqge, Front, 49.58l Ure (Option)Old # 1027719	$274.30/EA
Item 27: choose your version (2)
27	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
27	TN4032198	1	Blade, Sqge, Rear, 53.78l Ure (Option)Old # 1031945	$305.50/EA
28	TN4045499	1	Tube, VacuumOld # 1036240	$32.10/EA
29	TN4045637	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
30	TN4032050	1	Hose Assy, SqgeOld # 1031610	$217.50/EA
31	TN4032859	1	Gasket, 3.23id 3.63od .16th, UreOld # 1021920	$4.30/EA

M20 squeegee linkage group, rear

Standard partsSN 008000 and later, 2022 manual

Tennant M20 squeegee linkage group, rear parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4042902	8	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
2	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
3	TN4023499	2	Sleeve, P/M, 0.34b 0.63d 0.6l, BnzOld # 80409	$5.10/EA
4	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
5	TN4040607	2	Screw, Hex, M8 X 1.25 X 45, SsOld # 222505	$4.00/EA
6	TN4033268	1	Bracket Wldt, Mtg, SqgeOld # 1023476	$253.70/EA
7	TN4017703	1	Spring, Dsl, 1.00od 0.50id 1.7lOld # 65180	$25.80/EA
8	TN4034194	1	Bolt, Carriage, M10 X 1.5 X 70Old # 1025601	$3.40/EA
9	TN4041930	1	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
10	TN4045201	1	Crossmember Wldt [M20]Old # 1034149	$422.40/EA
	TN4020926	2	Caster Assy, F/ Sqge, Replmt[M20/T20]Old # 9017944	$432.80/EA
11	TN4036644	1	Bracket Wldt, Mtg, CasterOld # 1021404	$36.87/EA
12	TN4026503	1	Caster Kit, Rear Squeegee, AmOld # 9014285	$77.10/EA
13	TN4033916	1	Caster, PivotOld # 1025460	$106.20/EA
14	TN4023753	2	Bushing, Flng, 0.32b 0.50d 0.24l, BnzOld # 80950	$6.00/EA
15	TN4041578	1	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
16	TN4031208	1	Ring, Retaining, Ext, 0.62d, HdOld # 33373	$3.40/EA
17	TN4017061	1	Washer, Flat, 0.69b 1.19d .06, Stl, PlOld # 63468	$4.10/EA
18	TN4017115	1	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
19	TN4041585	2	Bushing, Sleeve, 0.62b 0.72d 0.50l, FglOld # 07449	$9.60/EA
20	TN4035383	2	Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555	$2.40/EA
21	TN4037922	1	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
22	TN4019755	2	Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281	$4.00/EA
23	TN4037485	2	Knob Assy, Star, 1.12d 3ear M10, YellowOld # 1222043	$36.00/EA
24	TN4032802	2	Pin, 0.63d 01.8l, 1/M10h, 2chamOld # 1021497	$13.00/EA
25	TN4045431	2	Stop, RotationOld # 1035727	$4.00/EA
26	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA

M20 squeegee group, right side

Standard partsSN 008000 and later, 2022 manual

Tennant M20 squeegee group, right side parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031037	1	Frame Wldt, Sqge, RhOld # 1029132	$159.70/EA
2	TN4031035	1	Retainer, Sqge, Side, RhOld # 1029128	$48.80/EA
3	TN4037479	1	Latch, Door, YellowOld # 1222018	$18.30/EA
4	TN4014173	2	Screw, Pan, M4 X 0.7 X 10, SsOld # 49697	$3.40/EA
5	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
Item 6: choose your version (2)
6	TN4031774	1	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
6	TN4032169	1	Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823	$183.50/EA
7	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
8	TN4017115	2	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
9	TN4033219	2	Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846	$20.00/EA
10	TN4041954	2	Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081	$5.80/EA
11	TN4033625	1	Bracket, Mtg, Skirt, Brush DoorOld # 1024584	$65.20/EA
12	TN4033834	1	Bracket, Mtg, Skirt, DoorOld # 1024651	$69.30/EA
13	TN4033626	1	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
14	TN4035908	1	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
15	TN4033882	1	Bracket, Mtg, Skirt, Door, BrushOld # 1025151	$53.20/EA
16	TN4040584	6	Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463	$3.30/EA
17	TN4019813	4	Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135	$3.30/EA
18	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
19	TN4041605	2	Nut, Hex, Flng, M8 X 1.25Old # 07791	$2.50/EA

M20 squeegee lift group, right side

Standard partsSN 008000 and later, 2022 manual

Tennant M20 squeegee lift group, right side parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
2	TN4025260	1	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4030954	1	Fitting, Hyd, Rst, SpclOld # 1028635	$77.30/EA
4	TN4033217	1	Bracket, Mtg, CylOld # 1022825	$24.30/EA
5	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsOld # 08716	$3.20/EA
6	TN4042902	3	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
7	TN4044039	1	Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348	$11.80/EA
8	TN4036275	2	Arm, Sqge, Side, RhOld # 1020548	$62.70/EA
9	TN4041878	1	Pin, Clevis, 0.37D X 1.75LOld # 17461	$4.00/EA
10	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
11	TN4022528	2	Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816	$5.20/EA
12	TN4021359	2	Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA
13	TN4041600	4	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
14	TN4033244	1	Arm Wldt, Sqge, Lift, RhOld # 1023306	Call for price
15	TN4015663	3	Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607	$12.50/EA
16	TN4023925	1	Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784	$25.30/EA
17	TN4032591	3	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
18	TN4019804	1	Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308	$3.40/EA
19	TN4016830	1	Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445	$5.10/EA
20	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
22	TN4017115	5	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
23	TN4016797	3	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
24	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
25	TN4035869	1	Door Wldt, Brush, RhOld # 1019031	$356.60/EA
26	TN4041948	3	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
27	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
28	TN4037483	1	Latch, Hook, YellowOld # 1222036 · Replaces 1222038 (2016 list (rev. 01))	$35.00/EA
29	TN4041942	2	Screw, Hex, M6 X 1.0 X 25, SsOld # 09007	$3.30/EA
30	TN4016795	5	Washer, Flat, Belleville, .25Old # 41185	$3.40/EA
31	TN4026728	1	Screw, Hex, M12 X 1.75 X 55, SsOld # 379870	$7.60/EA
32	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
33	TN4017232	1	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
34	TN4033623	1	Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576	$76.50/EA

M20 squeegee group, left side

Standard partsSN 008000 and later, 2022 manual

Tennant M20 squeegee group, left side parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031019	1	Frame Wldt, Sqge, LhOld # 1028972	$181.40/EA
2	TN4031021	1	Retainer, Sqge, Side, LhOld # 1028979	$48.80/EA
3	TN4037479	1	Latch, Door, YellowOld # 1222018	$18.30/EA
4	TN4014173	2	Screw, Pan, M4 X 0.7 X 10, SsOld # 49697	$3.40/EA
5	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
Item 6: choose your version (2)
6	TN4031774	1	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
6	TN4032169	1	Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823	$183.50/EA
7	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
8	TN4017115	2	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
9	TN4033219	2	Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846	$20.00/EA
10	TN4041954	2	Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081	$5.80/EA
11	TN4033625	1	Bracket, Mtg, Skirt, Brush DoorOld # 1024584	$65.20/EA
12	TN4033834	1	Bracket, Mtg, Skirt, DoorOld # 1024651	$69.30/EA
13	TN4033626	1	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
14	TN4035908	1	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
15	TN4033882	1	Bracket, Mtg, Skirt, Door, BrushOld # 1025151	$53.20/EA
16	TN4040584	6	Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463	$3.30/EA
17	TN4019813	4	Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135	$3.30/EA
18	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
19	TN4041605	2	Nut, Hex, Flng, M8 X 1.25Old # 07791	$2.50/EA

M20 squeegee lift group, left side

Standard partsSN 008000 and later, 2022 manual

Tennant M20 squeegee lift group, left side parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
2	TN4025260	1	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4030954	1	Fitting, Hyd, Rst, SpclOld # 1028635	$77.30/EA
4	TN4033217	1	Bracket, Mtg, CylOld # 1022825	$24.30/EA
5	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsOld # 08716	$3.20/EA
6	TN4042902	3	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
7	TN4044039	1	Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348	$11.80/EA
8	TN4033227	1	Arm Wldt, Lift, Sqge, LhOld # 1022978	$68.40/EA
9	TN4041878	1	Pin, Clevis, 0.37D X 1.75LOld # 17461	$4.00/EA
10	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
11	TN4017115	5	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
12	TN4016797	3	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
13	TN4022528	2	Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816	$5.20/EA
14	TN4021359	2	Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA
15	TN4041600	4	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
16	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
17	TN4033245	2	Arm, Sqge, Side, LhOld # 1023307	$62.70/EA
18	TN4015663	3	Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607	$12.50/EA
19	TN4023925	1	Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784	$25.30/EA
20	TN4032591	3	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
21	TN4019804	1	Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308	$3.40/EA
22	TN4016830	1	Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445	$5.10/EA
23	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
24	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
25	TN4041948	3	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
26	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
27	TN4033246	1	Door Wldt, Brush, LhOld # 1023314	$356.30/EA
28	TN4037484	1	Latch, Hook, YellowOld # 1222038 · Replaces 1222036 (2016 list (rev. 01))	$35.60/EA
29	TN4041942	2	Screw, Hex, M6 X 1.0 X 25, SsOld # 09007	$3.30/EA
30	TN4016795	5	Washer, Flat, Belleville, .25Old # 41185	$3.40/EA
31	TN4026728	1	Screw, Hex, M12 X 1.75 X 55, SsOld # 379870	$7.60/EA
32	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
33	TN4017232	1	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
34	TN4033623	1	Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576	$76.50/EA

M20 solution tank group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 solution tank group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4030635	1	Tank, Soltn, W/ Label [M20]Old # 1027381	$1,196.60/EA
2	TN4018894	1	Plug, Hole, Soltn Tank, Blk PyuOld # 390994	$19.00/EA
3	TN4195360	2	Angle, Sppt, Tank, RearOld # 1020209	$14.45/EA
4	TN4041992	12	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
5	TN4035242	12	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
6	TN4044300	1	Bracket Wldt, Tank, Soltn, RhOld # 1040306	$56.66/EA
7	TN4033628	1	Bracket, Tank, Soltn, LhOld # 1024591	Call for price
8	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
9	TN4015595	4	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
10	TN4196365	2	Bracket, Soltn, Tank, CntrOld # 1024389	$28.79/EA
11	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
	TN4016484	1	Cover Kit, Soltn Tank, Rh [M20 & T20]Old # 9003069	$419.40/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
12	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
13	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
14	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
15	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
16	TN4031145	1	LatchOld # 367949	$35.40/EA
17	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
18	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
19	TN4032903	1	Cover, Tank, Soltn, Rh, TrimmedOld # 1022176	$230.40/EA
20	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
21	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
22	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4205387	1	Cover Kit, Tank, Soltn, Rh, Replmt, Ce (Japan and Europe Only)Old # 9003071	$414.81/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
12	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
13	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
14	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
15	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
16	TN4031145	1	LatchOld # 367949	$35.40/EA
17	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
18	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
19	TN1031233	1	Cover, Tank, Soltn, Rh, Trimmed, Ce (Japan and Europe Only)Old # 1031233 · current Tennant number (Tennant parts catalog)	Call for price
20	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
21	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
22	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4016483	1	Cover Kit, Tank, Soltn, Lh, ReplmtOld # 9003068	$416.30/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
23	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
24	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
25	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
26	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
27	TN4031145	1	LatchOld # 367949	$35.40/EA
28	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
29	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
30	TN4032907	1	Cover, Tank, Soltn, Lh, TrimmedOld # 1022182	$334.10/EA
31	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
32	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
33	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4205386	1	Cover Kit, Tank, Soltn, Lh, Replmt, Ce (Japan and Europe Only)Old # 9003070	$270.40/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
23	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
24	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
25	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
26	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
27	TN4031145	1	LatchOld # 367949	$35.40/EA
28	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
29	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
30	TN1031235	1	Cover, Tank, Soltn, Lh, Trimmed, Ce (Japan and Europe Only)Old # 1031235 · current Tennant number (Tennant parts catalog)	Call for price
31	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
32	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
33	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
34	TN4025663	1	Fitting, Plstc, Pf12/Pf12, BhOld # 377349	$22.50/EA
35	TN4018369	1	Fitting, Plstc, E90, Pf12/Pm12Old # 69785	$11.80/EA
36	TN4021025	1	Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685	$78.50/EA
37	TN4035236	2	Plate, Label, Soltn Tank (ec - H20 only)Old # 1017101	$11.60/EA
38	TN4029542	4	Screw, Pan, 12 - 16 X 0.50, F/ Plstc (ec - H20 Only)Old # 360973	$4.00/EA
Item 39: choose your version (2)
39	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lFits SN 008000–014000 · Old # 1027290	$20.30/EA
39	TN4036552	1	Filter, Soltn, 080Mesh, Pm12 3.2D 08.0LFits SN 014001 and later · Old # 1057465	$106.70/EA

M20 solution tank drain group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 solution tank drain group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4017007	1	Tube Kit, Tank, Soltn, ReplmtOld # 9003793	$82.40/EA
2	TN4035042	1	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
3	TN4044649	1	Mount Wldt, Valve, Pinch, RhOld # 1042003	$57.10/EA
4	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
5	TN4040610	1	Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516	$3.40/EA
6	TN4034137	5	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
7	TN4041929	3	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
8	TN4033829	1	Bushing, Eccentric, AdjOld # 1024599	$46.80/EA
9	TN4034227	1	Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051	$2.60/EA
10	TN4012759	1	Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090	$12.10/EA
11	TN4026590	1	Screw, Flt, M8 X 1.25 X 30, SsOld # 79506	$4.00/EA
12	TN4030970	1	Washer, Thrust, 0.34b 1.50d .06Old # 1028701	$37.40/EA
13	TN4041242	1	Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648	$16.20/EA
14	TN4030958	1	Roller, BrgOld # 1028691	$16.90/EA
15	TN4030957	1	Tube, 0.50d 0.32b 00.4l, SsOld # 1028690	$9.40/EA
16	TN4035242	1	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4033619	1	Arm, PinchOld # 1024535	$52.30/EA
18	TN4041280	2	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
19	TN4023495	1	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
20	TN4028034	1	Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570	$3.20/EA
21	TN4016796	1	Washer, Flat, Belleville, .31Old # 41186	$3.50/EA
22	TN4034278	1	Handle, Valve, Pinch, RhOld # 1026727	$33.50/EA
23	TN4033276	1	Grip, HandleOld # 1023502	$4.10/EA
24	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
25	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
26	TN4032899	1	Plug, Hose, PyuOld # 1022137	$22.40/EA
27	TN4033917	1	Bracket, Retaining, HoseOld # 1025480	$16.40/EA
28	TN4041243	1	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
29	TN4044645	2	Tube, 2.90id 3.00od 02.4l, SsOld # 1041953	$43.70/EA
30	TN4017376	2	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
31	TN4033620	1	Strap, Retaining, HoseOld # 1024558	$21.00/EA
32	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
33	TN4035914	1	Hose, Drain, 3.00id X 48.0lOld # 1019424	$128.00/EA
34	TN4042902	2	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA

M20 solution control group (008000 - 014000)

Standard partsSN 008000 and later, 2022 manual

Tennant M20 solution control group (008000 - 014000) parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4042882	1	Valve Assy, Water, Solenoid, 12vdcFits SN 008000–014000 · Old # 1076692 · Replaces 1067700 (2016 list (rev. 01))	$142.90/EA
2	TN4027714	1	Fitting, Plstc, Str, Bm10/Bm12Fits SN 008000–014000 · Old # 363543	$4.50/EA
3	TN4045588	1	Manifold, Bar, Spray, 37.5inchFits SN 008000–014000 · Old # 1036997	$130.40/EA
4	TN4026538	1	Fitting, Plstc, Str, Bm12/Pm12Fits SN 008000–014000 · Old # 79273-2	$7.90/EA
5	TN4043995	1	Fitting, Plstc, Cap, Pf12 HexFits SN 008000–014000 · Old # 1039064	$4.20/EA
6	TN4028471	1	Fitting, Plstc, Str, Bm10/Pm12Fits SN 008000–014000 · Old # 365095	$4.20/EA
7	TN4028483	1	Fitting, Plstc, Str, Bm10/Bm10Fits SN 008000–014000 · Old # 365164	$4.20/EA
8	TN4037982	1	Hose, Afmkt, Pvc, Brd, 0.62id, 01ft, ClrFits SN 008000–014000 · Old # 1015033	$60.00/EA
9	TN4017089	2	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810	$6.80/EA
10	TN4014222	6	Clamp, Cable, Ss, 1.12d X 0.38w, 1hFits SN 008000–014000 · Old # 50544	$8.40/EA
11	TN4041965	4	Screw, Pan, M5 X 0.8 X 12, SsFits SN 008000–014000 · Old # 09200	$3.40/EA
12	TN4041991	6	Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN 008000–014000 · Old # 09739	$3.30/EA
13	TN4017089	8	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810	$6.80/EA
14	TN4037981	1	Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 008000–014000 · Old # 1015032	$80.40/EA
15	TN4042901	2	Washer, Flat, 0.25, SsFits SN 008000–014000 · Old # 01684	$2.60/EA
16	TN4041928	2	Nut, Hex, Lock, M6 X 1.0, Ss, NlFits SN 008000–014000 · Old # 08712	$2.50/EA
17	TN4041931	2	Screw, Hex, M6 X 1.0 X 20, SsFits SN 008000–014000 · Old # 08716	$3.20/EA
18	TN4045142	1	Harness, Ele, Adaptor [2f, Dt To Faston]Fits SN 008000–010490 · Old # 1075394	$11.80/EA
19	TN4042888	4	Washer, Flat, 10, SsFits SN 008000–014000 · Old # 01683	$2.60/EA
20	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsFits SN 008000–014000 · Old # 24196	$3.20/EA

M20 solution control group (014001 - )

Standard partsSN 008000 and later, 2022 manual

Tennant M20 solution control group (014001 - ) parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031487	1	Valve, Check, 1.0psi, Bm08/Bm08Fits SN 014001 and later · Old # 1251530	$39.20/EA
2	TN4036844	1	Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 014001 and later · Old # 1011412	$70.70/EA
3	TN4015366	10	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333	$5.10/EA
4	TN4021151	1	Fitting, Plstc, Tee, Bm08/Bm08/Bm08Fits SN 014001 and later · Old # 63245-1	$6.20/EA
5	TN4040279	1	Fitting, Plstc, E90, Bm06/Bm08Fits SN 014001 and later · Old # 222376	$3.20/EA
6	TN4037966	1	Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrFits SN 014001 and later · Old # 1014971	$18.70/EA
7	TN4017396	1	Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 014001 and later · Old # 43844	$4.20/EA
8	TN4213653	1	Valve, Vent, Bm06/Bm06Fits SN 014001 and later · Old # 1253873	$42.70/EA
9	TN4026539	1	Fitting, Plstc, Str, Bm08/Pm08Fits SN 014001 and later · Old # 79273-4	$6.20/EA
10	TN4042942	1	Spray Manifold Assy [M20/T20]Fits SN 014001 and later · Old # 1076854	$104.50/EA
11	TN4024607	4	Clamp, Cable, Stl, 0.63d X 0.75w, 1holeFits SN 014001 and later · Old # 82829	$2.60/EA
12	TN4041931	4	Screw, Hex, M6 X 1.00 X 20, SsFits SN 014001 and later · Old # 08716	$3.20/EA
13	TN4041925	4	Nut, Hex, Lock, M6 X 1.00, NlFits SN 014001 and later · Old # 08708	$2.50/EA
14	TN4042901	8	Washer, Flat, 0.27b 0.69d .05, SsFits SN 014001 and later · Old # 01684	$2.60/EA
15	TN4021350	4	Washer, Flat, 0.25b 1.12d .12, SsFits SN 014001 and later · Old # 386063	$5.80/EA
16	TN4037981	1	Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 014001 and later · Old # 1015032	$80.40/EA
17	TN4028471	1	Fitting, Plstc, Str, Bm10/Pm12Fits SN 014001 and later · Old # 365095	$4.20/EA
18	TN4031503	1	Fitting, Plstc, E90, Bm10/Pf08Fits SN 014001 and later · Old # 1251921	$16.50/EA
19	TN4031872	1	Pump, Soltn, Ele, 12v, 3.6 GpmFits SN 014001 and later · Old # 1253561	$340.10/EA
20	TN4035811	1	Fitting, Plstc, E90, Bm08/Pf08s, SwivelFits SN 014001 and later · Old # 1018499	$4.20/EA
21	TN4034971	4	Screw, Hex, M5 X 0.80 X 30, SsFits SN 014001 and later · Old # 1228033	$1.20/EA

M20 recovery tank group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 recovery tank group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4036646	1	Tank, Recvy, TrimmedOld # 1021419	$1,407.00/EA
2	TN4033606	1	Plate, Tank, BottomOld # 1024403	$32.30/EA
3	TN4041992	17	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
4	TN4035242	15	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
5	TN4036258	1	Bracket, Sppt, Tank, LhOld # 1020335	$45.85/EA
6	TN4195376	1	Bracket, Sppt, Tank, RhOld # 1020331	$48.78/EA
7	TN4043997	2	Bracket, Sppt, Cover, Tank, RecvyOld # 1039072	$37.30/EA
8	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
9	TN4036308	1	Plate, Sppt, TankOld # 1021090	$25.50/EA
10	TN4032902	1	Cover, Tank, Recvy, TrimmedOld # 1022167	$632.00/EA
11	TN4032855	1	Gasket, Cover, Recvy TankOld # 1021879	$115.60/EA
12	TN4041928	2	Nut, Hex, Lock, M6 X 1.00, Ss, NlOld # 08712	$2.50/EA
13	TN4027617	2	Washer, Sealing, 0.28b 0.75d Ss, NeoOld # 76426	$3.50/EA
14	TN4034197	1	Plate, Mtg, Prop RodOld # 1025620	$19.50/EA
15	TN4034195	1	Bracket, Mtg, Prop RodOld # 1025619	$18.60/EA
16	TN4042955	4	Screw, Hex, .25 - 14 X 0.75, Fmg/Ab, SsOld # 1046798	$2.50/EA
17	TN4028662	1	Arm Wldt, Safety, Sppt, Seat, .38d 10.1lOld # 54615	$63.50/EA
18	TN4041931	1	Screw, Hex, M6 X 1.0 X 20, SsOld # 08716	$3.20/EA
19	TN4042901	1	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
20	TN4041928	1	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
21	TN4037482	1	Screen, Vacuum, YellowOld # 1222035	$21.60/EA
22	TN4035378	1	Cap Assy, Tank, DrainOld # 24358	$40.40/EA
23	TN4032112	1	Gasket, 4.05id 5.29od .19 [Buna]Old # 1031699	$9.00/EA
24	Old # 86636	1	Cover, TankOld # 86636Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
25	TN4021025	1	Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685	$78.50/EA
26	TN4043993	2	Bracket, Mtg, Cover, Recvy TankOld # 1039049	$15.60/EA
27	TN4041828	6	Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735	$3.40/EA
28	TN4034137	6	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
29	TN4190934	1	Bracket, Sppt, Tank, RhOld # 1038941	$26.60/EA
30	TN4190932	1	Bracket, Sppt, Tank, LhOld # 1038927	$26.60/EA
31	TN4043530	1	Bracket, Protector, Float SwitchOld # 1037816	$43.60/EA
32	TN4041942	2	Screw, Hex, M6 X 1.00 X 25, SsOld # 09007	$3.30/EA
33	TN4038068	1	Cable, Camera, 236.2l [Hvs] (PRO PANEL ONLY)Old # 1224979	$97.07/EA
34	TN4038379	1	Bracket, Mtg, Camera [M20/M30] (PRO PANEL ONLY)Old # 1225989	$68.22/EA
35	TN4036872	1	Camera, Color, Fixed (PRO PANEL ONLY)Old # 1218851	$303.60/EA
36	TN4027333	2	Screw, Pan, Phl, 12 - 16 X 0.50, F/ Plstc (PRO PANEL ONLY)Old # 382320	$2.50/EA
37	TN4030489	1	Clip, Tie, 0.25d, Plstc (PRO PANEL ONLY)Old # 1071085	$1.60/EA
38	TN4011908	1	Tie, Cable, 11.3l, 2.75d Max (PRO PANEL ONLY)Old # 763114	$3.30/EA

M20 recovery tank drain group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 recovery tank drain group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4017008	1	Tube Kit, Tank, Recvy, ReplmtOld # 9003794	$82.40/EA
2	TN4035042	1	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
3	TN4044651	1	Mount Wldt, Valve, Pinch, LhOld # 1042010	$83.10/EA
4	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
5	TN4040610	1	Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516	$3.40/EA
6	TN4034137	5	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
7	TN4041929	3	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
8	TN4033829	1	Bushing, Eccentric, AdjOld # 1024599	$46.80/EA
9	TN4034227	1	Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051	$2.60/EA
10	TN4012759	1	Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090	$12.10/EA
11	TN4026590	1	Screw, Flt, M8 X 1.25 X 30, SsOld # 79506	$4.00/EA
12	TN4030970	1	Washer, Thrust, 0.34b 1.50d .06Old # 1028701	$37.40/EA
13	TN4041242	1	Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648	$16.20/EA
14	TN4030958	1	Roller, BrgOld # 1028691	$16.90/EA
15	TN4030957	1	Tube, 0.50d 0.32b 00.4l, SsOld # 1028690	$9.40/EA
16	TN4035242	1	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4033619	1	Arm, PinchOld # 1024535	$52.30/EA
18	TN4041280	2	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
19	TN4023495	1	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
20	TN4028034	1	Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570	$3.20/EA
21	TN4016796	1	Washer, Flat, Belleville, .31Old # 41186	$3.50/EA
22	TN4030609	1	Handle, Valve, Pinch, LhOld # 1027039	$35.70/EA
23	TN4033276	1	Grip, HandleOld # 1023502	$4.10/EA
24	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
25	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
26	TN4032899	2	Plug, Hose, PyuOld # 1022137	$22.40/EA
27	TN4033917	1	Bracket, Retaining, HoseOld # 1025480	$16.40/EA
28	TN4041243	1	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
29	TN4044645	1	Tube, 2.90id 3.00od 02.4l, SsOld # 1041953	$43.70/EA
30	TN4017376	2	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
31	TN4033620	1	Strap, Retaining, HoseOld # 1024558	$21.00/EA
32	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
33	TN4035914	1	Hose, Drain, 3.00id X 48.0lOld # 1019424	$128.00/EA
34	TN4042902	2	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
35	TN4031802	1	Tube, Acrylic, Hose, PinchOld # 1031309	$37.20/EA
	TN4016700	1	Plug Kit, Drain, Recvy, Ci [M20 & T20]Old # 9003313	$616.10/EA
36	TN4032924	1	Plug, Drain, Expandable, 4.75 - 6.00Old # 1022370	$93.60/EA
37	TN4030692	1	Tube Wldt, Plug, DrainOld # 1028328	$153.20/EA
38	TN4030679	1	Pin, Lift, DrainOld # 1028173	$35.90/EA
39	TN4031301	1	Tube Assy, Plug, DrainOld # 1072885	$113.30/EA
40	TN4030933	1	Washer, Flat, .78b 1.75d .18, SsOld # 1028522	$7.70/EA
41	TN4030684	1	Handle Wldt, DrainOld # 1028211	$62.00/EA
42	TN4026774	1	Screw, Hex, M6 X 1.0 X 55, SsOld # 58979	$4.00/EA
43	TN4041928	1	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
44	TN4032591	2	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
45	TN4045374	1	Seal, Shaft, Drain PlugOld # 1035044	$2.80/EA
46	TN4044228	1	Seal, Plug, Drain, NitrileOld # 1039652	$19.20/EA

M20 vacuum fan group, scrubbing

Standard partsSN 008000 and later, 2022 manual

Tennant M20 vacuum fan group, scrubbing parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
	TN4193415	1	Fan Kit, Scb, Replmt [M20/T20/M30]Old # 9016241	$1,594.40/EA
1	TN4030069	1	Plate Wldt, Mtg, FanOld # 1068611	$197.90/EA
2	TN4034909	1	Impeller, 11.81d X 0.500bOld # 1062033	$473.30/EA
3	TN4015364	3	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274	$14.70/EA
	TN4024031	1	Motor Kit, Replmt [M20/T20/M30]Old # 9016242	$794.80/EA
4	TN4045187	1	Motor, Hyd, Gear, Ext 0.17 Lh 3000Old # 1076027 · Replaces 1071253 (2016 list (rev. 01))	$748.20/EA
5	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
6	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
7	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
8	TN4042902	4	Washer, Flat, 0.38b 0.88d .08, SsOld # 01685	$2.60/EA
9	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
10	TN4011921	1	Fitting, Hyd, Tee, Jf08/Jm08/Jm08, BrOld # 76315	$15.10/EA
11	TN4013874	1	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
12	TN4025261	1	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
13	TN4029146	1	Fitting, Hyd, Str, Jm08/Om10Old # 56692	$10.60/EA
14	TN4184443	3	Angle, Sppt, FanOld # 1068644	$11.30/EA
15	TN4156940	3	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
16	TN4035242	6	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
18	TN4036801	1	Housing, Fan, Radial Discharge, Sq InletOld # 1059100	$19.40/EA
19	TN4032056	1	Seal, Afmkt, Bulb, Str, .75d F/07ga 08ftOld # 1031617	$102.70/EA
20	TN4041944	2	Screw, Hex, M8 X 1.25 X 30, SsOld # 09011	$3.40/EA
21	TN4041945	1	Screw, Hex, M8 X 1.25 X 35, Fl, SsOld # 09023	$3.30/EA
22	TN4042902	3	Washer, Flat, 0.38b 0.88d .08, SsOld # 01685	$2.60/EA
23	TN4018541	1	Clamp, Cable, Ss, 2.50d X 1.00w, 1holeOld # 70157	$14.80/EA
24	TN4033549	1	Plate Wldt, Hose, VacuumOld # 1023754	$76.30/EA
25	TN4034634	1	Gasket, 2.00, 07.87w 10.24l, AdhOld # 1060716	$11.90/EA
26	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA

M20 vacuum fan group, sweeping

Standard partsSN 008000 and later, 2022 manual

Tennant M20 vacuum fan group, sweeping parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4016432	1	Housing Assy, Vacfan, SwprOld # 9002683	$381.00/EA
2	TN4027226	1	Seal, Ure, 0.38 0.75w 13.2l AdhOld # 59967	Call for price
3	TN4038019	1	Seal, Afmkt, Ure, Adh, 0.38, 0.75w 03ftOld # 1015221	$26.90/EA
4	TN4035737	1	Fan Wldt, Vac, InletOld # 1018216	$68.18/EA
5	TN4031280	4	Screw, Hex, .25 - 20 X 0.75, NlOld # 34323	$11.60/EA
6	TN4016794	4	Washer, Flat, 0.25 FenderOld # 41178	$2.50/EA
7	TN4012781	1	Impeller, 9.00d X 1.40w X 0.376bOld # 74454	$134.10/EA
8	TN4033118	1	Nut, Hex, Lock, .31 - 24, Nl, ThinOld # 31241	$3.40/EA
9	TN4034134	1	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
10	TN4026845	3	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 59649	$15.50/EA
11	TN4181494	1	Bar, Isolator, Vacfan [M20]Old # 1074010	$25.05/EA
12	TN4019761	3	Screw, Hex, M10 X 1.5 X 40, 8.8Old # 39285	$3.20/EA
13	TN4016826	3	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
14	TN4015365	1	Bracket, Mtg, MotorOld # 54275A	$43.80/EA
15	TN4015364	4	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274	$14.70/EA
16	TN4037922	10	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
17	TN4015802	4	Screw, Flt, Soc, .25 - 20 X 1.00, AlOld # 39534	$3.20/EA
18	TN4034654	4	Nut, Hex, Lock, .25 - 20, NlOld # 32981	$2.50/EA
19	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
20	TN4017332	1	Fitting, Hyd, Tee, Jf06/Jm06/Jm06, RunOld # 42215	$34.90/EA
21	TN4030523	1	Motor, Hyd, Gear, Ext 0.17 Lh 3000Old # 1071240	$1,451.00/EA
22	TN4025261	1	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
23	TN4034206	1	Muffler, Vacfan, 4.0idOld # 1025756	$70.70/EA
24	TN4035042	3	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
25	TN4034209	1	Tube, Transition, CastingOld # 1025841	$33.70/EA
26	TN4035735	1	Gasket, Hppr, TransitionOld # 1018209	$10.00/EA
27	TN4045637	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
28	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
29	TN4035766	1	Hose, Flex, Vacuum, 3.5d 32.0lOld # 1018252	$93.60/EA
30	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
31	TN4028758	4	Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643	$2.50/EA

M20 hydraulic hose group, steering and propel

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 hydraulic hose group, steering and propel parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4225025	1	Hose, Hyd, Tc08, Jfoee90/Jf08str, 96Old # 1229745	$110.50/EA
2	TN4224463	1	Hose, Hyd, Tc06, Jf06e45/Jf06str, 110.0Old # 1226062	$97.70/EA
3	TN4038431	2	Hose, Hyd, Tc06, Jf06e45/Jf06str, 45.0Old # 1226063	$66.90/EA
Item 4: choose your version (2)
4	TN4043678	1	Hose, Hyd, Spcl, Jf10str/Jf10str, 56.5Fits SN 008000–012314 · Old # 1038569	$91.80/EA
4	TN4216323	1	Hose, Hyd, Mold, Jf08str/Jf08str, 066.5Fits SN 012315 and later · Old # 1253469 · Replaced by 1262760 in the 2025 list (rev. 12) · Replaces 54017 (2016 list (rev. 01))	Call for price
Item 5: choose your version (2)
5	TN4033273	1	Hose, Hyd, Spcl, Jf10e90/Jf10str, 63.0Fits SN 008000–012314 · Old # 1023488	$135.50/EA
5	TN4216321	1	Hose, Hyd, Mold, Jf08str/Jf08str, 078.4Fits SN 012315 and later · Old # 1253468 · Replaced by 1262759 in the 2025 list (rev. 12)	Call for price
6	TN4031422	1	Hose, Hyd,Med04, Jf04str/Jf04str, 066.0Old # 1030404	$67.20/EA

M20 hydraulic hose group, pump and vacuum fans

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 hydraulic hose group, pump and vacuum fans parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4015715	2	Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Old # 71741	$79.20/EA
2	TN4015813	1	Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Old # 396255	$41.60/EA
3	TN4041531	2	Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Old # 16431	$28.90/EA
4	TN4033532	1	Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Old # 1023607	$52.12/EA
5	TN4031283	1	Hose, Hyd, Suc20, Jf20e90/Jf20str, 032.0Old # 34351 · Replaces 1023611 (2016 list (rev. 01))	$170.10/EA
6	TN4191362	1	Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Old # 1040655	$54.22/EA
7	TN4190722	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Old # 1036945	$35.20/EA
8	TN4015655	1	Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Old # 71556	$32.20/EA
9	TN4030676	1	Hose, Hyd, Med12, Jf12str/Jf12str, 066.0Old # 1028145	$85.20/EA
10	TN4040692	1	Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Old # 1050436	$257.10/EA
11	TN4034271	1	Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Old # 1026645	$63.00/EA
12	TN4033531	1	Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Old # 1023606	$53.50/EA

M20 hydraulic hose group, brush and hopper

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hydraulic hose group, brush and hopper parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4045578	1	Hose, Hyd, Tc06, Jf06str/Jf06str, 054.0Old # 1036939	$56.40/EA
2	TN4044412	2	Hose, Hyd, Tc04, Jf04str/Jf04str, 096.0Old # 1040628	$73.90/EA
3	TN4018068	1	Hose, Hyd, Tc04, Jf04e90/Jf04str, 020.0Old # 387281	$41.60/EA
4	TN4041067	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 138.0Old # 1042775	$87.00/EA
5	TN4041068	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 132.0Old # 1042776	$85.20/EA
6	TN4033841	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 48.0Old # 1024764	$69.90/EA
7	TN4033551	1	Hose, Hyd, Tc 06, Jf06str /Jf06e45, 56.0Old # 1023769	$49.30/EA
8	TN4029663	1	Hose, Hyd, Med04, Jf04e90/Jf04str, 016.0Old # 57946	$50.00/EA
9	TN4033923	1	Hose, Hyd, Tc08, Jf08e90/Jf08str, 13.0Old # 1025544	$52.70/EA
10	TN4027080	1	Hose, Hyd, Tc08, Jf08e90/Jf08str, 018.0Old # 381857	$39.30/EA
11	TN4220361	1	Sleeve, Nyl, 1.22id, 95.0lOld # 1235405	$16.10/EA

M20 hydraulic hose group, squeegee lift

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hydraulic hose group, squeegee lift parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033836	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 124.0Old # 1024688	$93.60/EA
2	TN4034183	1	Hose, Hyd, Spcl, Jf04str/Jf06str, 128.0Old # 1025551	$96.30/EA
3	TN4031748	2	Hose, Hyd,Tc 04, Jf04str /Jf04e45 , 35.0Old # 1030709	$58.10/EA
4	TN4042664	2	Hose, Hyd, Tco4, Jf04Str/Qm06, 028.0Old # 1045759 · Replaced by 1263336 in the 2025 list (rev. 12)	Call for price
5	TN1037053	2	Hose, Hyd, Tc04, Jf04e45/Qm06, 026.0Old # 1037053 · current Tennant number (Tennant parts catalog) · Replaced by 1263337 in the 2025 list (rev. 12)	Call for price
6	TN4220361	1	Sleeve, Nyl, 1.22id, 95.0lOld # 1235405	$16.10/EA

M20 hydraulic pumps group

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 hydraulic pumps group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033592	1	Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns)Old # 1024251	$1,813.50/EA
2	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
3	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869 · Replaced by 42226 in the 2025 list (rev. 12)	$7.00/EA
Item 4: choose your version (2)
4	TN4015013	2	Fitting, Hyd, E90, Jm10/Om12Fits SN 008000–012314 · Old # 53076	$37.60/EA
4	TN4013892	2	Fitting, Hyd, E90, Jm08/Om12Fits SN 012315 and later · Old # 47655	$29.30/EA
5	TN4019758	2	Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283	$3.30/EA
6	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
7	TN4011841	1	Pump Kit, Mtg, Aux, Ci [M20 & T20]Old # 9007142	$1,593.60/EA
8	TN4017696	1	Seal, Org, .069 X 3.06idOld # 65145-1	$4.50/EA
9	TN4013874	2	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
10	TN4017934	1	Fitting, Hyd, Str, Jm20/Om16Old # 67811	$33.30/EA
11	TN4013873	1	Fitting, Hyd, E90, Jm06/Om08Old # 47512	$22.50/EA
12	TN4015060	1	Fitting, Hyd, E45, Jf10/Jm10Fits SN 008000–012314 · Old # 54017	$48.90/EA

M20 hydraulic cooler and tubes group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hydraulic cooler and tubes group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4030996	1	Tube, Hyd, SqgeOld # 1028822	$103.70/EA
2	TN4013458	1	Fitting, Hyd, E90, Jm12/Om12Old # 46481	$18.60/EA
3	TN4020261	1	Fitting, Hyd, E90, Jm12/Om12, LOld # 62471	$47.40/EA
4	TN4016764	2	Clamp, Cable, Stl, 0.44d X 0.62w, 1hOld # 40678	$3.60/EA
5	TN4012782	1	Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455	$3.40/EA
6	TN4030997	2	Tube, Hyd, Rear Sqge [M20]Old # 1028823	$33.64/EA
7	TN4031672	2	Nut, Ftg, Hyd, 0.56 - 18Old # 35904	$3.23/EA
8	TN4014193	2	Fitting, Hyd, Cap, Jf04Old # 50161	$2.40/EA
9	TN4016826	2	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
10	TN4156940	2	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
11	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
12	TN4015029	1	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
13	TN4027429	1	Fitting, Hyd, Cap, Jf08Old # 60090	$7.70/EA
14	TN4030995	1	Tube, Hyd, SqgeOld # 1028821	$101.50/EA
15	TN4013899	1	Fitting, Hyd, Str, Jf06/Jm04Old # 47752	$9.80/EA
16	TN4030506	1	Tube, Hyd, Main Return [G/Lp Mit2013]Old # 1071173	$122.10/EA
17	TN4041885	1	Fitting, Hyd, E90, Jf08/Jm08Old # 17980	$11.80/EA

M20 hydraulic reservoir group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hydraulic reservoir group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4016144	1	Reservoir, Hyd, 10.0Gal, ReplmtOld # 9002398	$1,216.40/EA
2	TN8002771	1	Gauge, Sensing, LevelOld # 65215	$121.60/EA
3	TN4035786	1	Cap, Breather, Hyd, W ChainOld # 1018289 · Replaces 25122 (2016 list (rev. 01))	$114.70/EA
4	TN4029145	2	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
5	TN4013459	3	Fitting, Hyd, Plug, Om06Old # 46482	$4.20/EA
6	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
7	TN4044301	2	Pad, Tank, Hyd [W/Psa]Old # 1040318	$2.83/EA
8	TN4045640	2	Screw, Hex, M8 X 1.25 X 30, 9.8, SemsOld # 1037354	$2.50/EA
9	TN4045352	1	Insulation, Thermal, Hydraulic BlanketOld # 1034878	$145.60/EA
10	TN4033281	1	Fitting, Hyd, E45, Jm12/Om16Old # 1023545	$49.70/EA
11	TN4033485	1	Strainer, Hyd, 25gpm 100mesh PsiOld # 31613	$110.60/EA
12	TN4015701	1	Fitting, Hyd, E45, Jm20/Om20Old # 71726	$121.80/EA
13	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
14	TN4028724	1	Fitting, Hyd, E90, Jm04/Pm02Old # 55455	$8.50/EA
15	TN4029789	1	Send - Unit, Water, Temp, 04npt 113oh/195dOld # 58592	$27.20/EA
16	TN4016577	1	Fitting, Hyd, Plug, Om10Old # 40362	$4.20/EA
17	TN4033877	1	Indicator, Press, 60psiOld # 1025132	$73.50/EA

M20 hydraulic valve group

Standard partsSN 008000 and later, 2022 manual

Tennant M20 hydraulic valve group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031317	1	Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns)Old # 1072995	$3,016.30/EA
2	TN4191208	1	Bracket, Mtg, Valve [Combined]Old # 1039789	$21.61/EA
3	TN4191305	1	Bracket, Mtg, Valve, LowerOld # 1040117	$13.64/EA
4	TN4015807	2	Fitting, Hyd, E90, Om04/Qm04Old # 395974	$36.40/EA
5	TN4031235	1	Fitting, Hyd, Plug, Om04Old # 33812	$3.50/EA
6	TN4041992	8	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
7	TN4035242	8	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
8	TN4018308	2	Fitting, Hyd, E90, Jm08/Om08, LongOld # 69173	$58.60/EA
9	TN4191392	1	Fitting, Hyd, Str, Jm10/Om10, LongOld # 1040876	$14.90/EA
10	TN4014183	1	Fitting, Hyd, Tee, Jm08/Jm08/Om08, BrOld # 49933	$33.10/EA
11	TN4029148	1	Fitting, Hyd, E90, Jm06/Om06Old # 56820	$14.00/EA
12	TN4015703	1	Fitting, Hyd, E90, Jm06/Om06, LongOld # 71727	$32.20/EA
13	TN4015806	1	Fitting, Hyd, Str, Om04/Qm04Old # 395973 · Replaces 69173 (2016 list (rev. 01))	$26.30/EA
14	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
15	TN4017335	1	Fitting, Hyd, E45, Jm08/Om08Old # 42226	$11.80/EA
16	TN4013459	1	Fitting, Hyd, Plug, Om06Old # 46482	$4.20/EA
17	TN4028729	4	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
18	TN4026830	1	Fitting, Hyd, Str, Jm06/Om06, LongOld # 59577	$9.90/EA
19	TN4042137	1	Valve, Relief, 0600PsiOld # 1044367	$82.20/EA
20	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
21	TN4200590	1	Fitting, Hyd, E45, Jf08/Jm08Old # 07797	$11.40/EA

M20 electrical wire harness group, main (008000- 014000)

Standard partsSN 008000 and later, 2022 manual

Tennant M20 electrical wire harness group, main (008000- 014000) exploded view (page 2) — Electrical Wire Harness Group, Main (008000- 014000), SN 008000 and later, 2022 manual. Manual pages 150, 151, 152, 153, 154. SES ref PF-ULVR-DWTB‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‌⁠‍‍⁠⁠‌‌‍‌⁠‌‍⁠‌‌‍‌⁠‍⁠‍⁠⁠⁠⁠‌‌

Tennant M20 electrical wire harness group, main (008000- 014000) parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4044970	1	Harness, Main [M30/M20]Fits SN 008000–014000 · Old # 1075079	$1,569.40/EA

M20 ElectricalWireHarnessGroup,Main(014001- )

Standard partsSN 008000 and later, 2022 manual

Tennant M20 electricalwireharnessgroup,main(014001- ) exploded view (page 2) — ElectricalWireHarnessGroup,Main(014001- ), SN 008000 and later, 2022 manual. Manual pages 156, 157, 158, 159, 160, 161. SES ref PF-QRVH-LQCL‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‌‍‍‌‌‍⁠‌‍‌‌⁠⁠⁠‌⁠‍⁠‌‌⁠‌‍⁠‌‌‍‍‍

Tennant M20 ElectricalWireHarnessGroup,Main(014001- ) parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4042974	1	Harness, Main [M30/M20]Fits SN 014001 and later · Old # 1076973 · Replaced by 1076951 in the 2025 list (rev. 12)	$1,337.40/EA
2	TN4040238	2	Diode, Ele, PlugFits SN 014001 and later · Old # 222290	$13.00/EA

M20 electrical wire harness group, headlight

Standard partsSN 008000 and later, 2022 manual‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‌‌‌⁠⁠‍‍‌‍‌‍‍‌⁠⁠‌⁠⁠‍‍⁠‌‌‍⁠‍⁠⁠

Tennant M20 electrical wire harness group, headlight parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033578	1	Harness, Headlight [M20 And T20]Old # 1024141	$28.50/EA

M20 electrical wire harness group, hopper

Standard partsSN 008000 and later, 2022 manual‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‌‍‌⁠‌‌⁠‌‍‌‍‌⁠⁠⁠‌⁠‌‌⁠‍⁠‌⁠⁠‍⁠‍‌⁠

Tennant M20 electrical wire harness group, hopper parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4179279	1	Harness, Hppr, Ele [M20/M30]Old # 1075080	$151.90/EA

M20 electrical wire harness group, hopper cover

Standard partsSN 008000 and later, 2022 manual‌‌⁠‍⁠‌‌‍‍‍⁠‌‌⁠‍⁠‍‍⁠‍‌‌‍‌‍‌⁠‍‍‍‍‍⁠‍⁠‌⁠‍‍

Tennant M20 electrical wire harness group, hopper cover parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032608	1	Harness, Hppr, Cover [M20]Old # 1064370	$47.60/EA

M20 electrical wire harness group, seat switch

Standard partsSN 008000 and later, 2022 manual‌‌⁠‍⁠‌‌‍‍‍⁠‌‌⁠‌⁠‍‍⁠⁠‌‍‌‍‌‌‌⁠‌⁠⁠‌‍‍⁠⁠⁠⁠⁠⁠

Tennant M20 electrical wire harness group, seat switch parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4179302	1	Harness, Ele [Ce, Seat]Old # 1075141	$35.90/EA

M20 LabelGroup

Standard partsSN 008000 and later, 2022 manualFits: GasolineLPG

Tennant M20 LabelGroup parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4025324	1	Label Set, Info/Hzrd, Swpr / ScrbrOld # 77221	$28.90/EA
2	TN4035239	1	Label Set, Hi TempOld # 1017141	$30.80/EA
3	TN4032752	3	Label, Logo, 05.75L 2Color [ES]Old # 1065343	$26.97/EA
4	TN4032751	3	Label, Logo, 07.95L 2Color [FaST]Old # 1065342	$11.11/EA
5	TN4040474	2	Label [User, Attention, ecH2O]Old # 1050003	$4.34/EA
6	TN4031775	1	Label Set, Brush Indicator & RemovalOld # 1031017	$30.10/EA
7	TN4032466	1	Label Set, Info/Hzrd, Swpr / Scrbr, Tj (Japan Only)Old # 1032450	$162.79/EA
8	TN4036266	1	Label, Caution [Apply Parking Brake]Old # 1020434	$39.40/EA
9	TN4033871	1	Label, Caution [Apply Parking Brake] (Japan Only)Old # 1025101	Call for price
10	TN4032629	2	Label, Model, 2Color [M20]Old # 1064662	$21.30/EA
11	TN4035178	1	Label, Logo, 12.3L 4Color [ecH2O]Old # 1062813	$36.60/EA
12	TN4032615	1	Label, Logo, 16.9L 4Color [ecH2O]Old # 1064440	$27.20/EA

M20 recommended maintenance parts

Recommended maintenanceSN 008000 and later, 2022 manualFits: Diesel‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‍‍‍⁠⁠‌‍‌‌⁠‍⁠‍‌‌‍‌⁠‍⁠‍‍‍‌‌‌‌‍

Tennant M20 recommended maintenance parts parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN82681	1	Bracket Wldt, Lpg MountOld # 82681 · no current Tennant number on file	Call for price
2	Old # 63810	4	Latch Assy, Lpg Tank Mtg, W/NutOld # 63810Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
3	Old # 51839	2	Nut Adjustable, Lpg Tank MtgOld # 51839Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
4	TN4014137	3	Tie, CableOld # 49263	$3.40/EA
5	TN82556	1	Bracket, VaporizerFits SN up to 001039 · Old # 82556 · no current Tennant number on file	Call for price
6	TN8004486	1	Vaporizer, LPGOld # 54930 · replaced by 8004486 (Tennant parts catalog)	Call for price
	TN4014789	1	Maint Kit, 400hr, Dsl [M20/T20]Old # 9006060	$306.60/EA
	TN8005623	1	Element, Fltr, Air [Dn]Old # 369746	$34.60/EA
	TN8002633	1	Element, Fltr, Oil, Spin - On [Ku]Old # 39703-2	$15.60/EA
	TN8005805	1	Element, Fltr, Fuel [Dn]Old # 1017126	$21.90/EA
	TN4033485	1	Strainer, Hyd, 25 Gpm 100 MeshOld # 31613	$110.60/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN4019823	1	Belt, V, 42.0L [Hc41]Old # 393244	$15.00/EA
	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290	$20.30/EA
	TN8003282	1	Key, Ignition [Set Of 2]Old # 87866	$27.00/EA
	TN4037623	1	Battery, Wet, 12vdc 0600ccaOld # 10143	$274.80/EA
	TN4039111	2	Wheel, 3.0d 1.38w 0.50bOld # 20833	$80.80/EA
	TN4033626	2	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
	TN4035908	2	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
	TN4035508	1	Blade, Sqge, Front, 49.58l [Linard]Old # 1017868	$90.00/EA
	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
	TN4031774	2	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
	TN4030648	1	Blade, Sqge, Front, 49.58l UreOld # 1027719	$274.30/EA
	TN4032198	1	Blade, Sqge, Rear, 53.78l UreOld # 1031945	$305.50/EA
	TN4032169	2	Blade, Sqge, .38 3.55w 038.3l, UreOld # 1031823	$183.50/EA
	TN4036799	1	Blade, Sqge, Side Brush, UrethaneOld # 1059091	$91.61/EA
	TN4036800	1	Blade, Sqge, Side Brush, UrethaneOld # 1059092	$55.85/EA
	TN4043022	1	Blade, Sqge, Side Brush, LinatexOld # 1046980	$59.89/EA
	TN4043073	1	Blade, Sqge, Side Brush, LinatexOld # 1047238	$31.51/EA
	Old # 16411	1	Paint, Airdry, Off - White, 12ozOld # 16411Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	Old # 16412	1	Paint, Airdry, Teal, 12oz, SolidOld # 16412Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN5000171	1	Paint, Airdry, Blk, 12ozOld # 377540	$67.20/EA
	TN5000170	1	Paint, Airdry, Gray, 12oz [Enamel]Old # 377538	$39.50/EA
	Old # 377537	1	Paint, Airdry, Iron Gray,12oz[Pwdr Coat]Old # 377537Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN8005843	1	Oil, Hyd [El, Iso 100, 01gal]Old # 1057710	$58.70/EA
	TN8005844	1	Oil, Hyd [El, Iso 100, 05gal]Old # 1057711	$251.30/EA
	TN8004994	1	Oil, Hyd [El, Iso 68, 01gal]Old # 1069019	$48.70/EA
	TN8004995	1	Oil, Hyd [El, Iso 68, 05gal]Old # 1069020	$227.00/EA
	TN8005841	1	Oil, Hyd [El, Iso 32, 01gal]Old # 1057707	$58.70/EA
	TN8005842	1	Oil, Hyd [El, Iso 32, 05gal]Old # 1057708	$248.90/EA

M20 operator station group

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 operator station group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (6)
1	TN4193455	1	Panel Wldt, Dsl, ReplmtOld # 9016325	$2,145.24/EA
1	TN9016322	1	Panel Wldt, Dsl, Replmt [W/Fast]Old # 9016322 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193453	1	Panel Wldt, Dsl, W/ Es, ReplmtOld # 9016323	$2,145.24/EA
1	TN4193458	1	Panel Wldt, Dsl, Replmt, TJ (Japan only)Old # 9016328	$2,129.48/EA
1	TN9016331	1	Panel Wldt, Dsl, Replmt, TJ [W/Fast] (Japan only)Old # 9016331 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193461	1	Panel Wldt, Dsl, Replmt, TJ, W/Es (Japan only)Old # 9016334	$2,129.48/EA
2	TN4019758	1	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
3	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
4	TN4190204	2	Bracket, Mtg, InsulationOld # 1047169	$12.93/EA
5	TN4024314	1	Plug, Hole, Rnd, 0.88h .03 - .12, Blk NylOld # 82727	$3.40/EA
6	TN4042871	1	Plug, Hole, Rnd, 1.00h .03 - .12, Blk NylOld # 01493	$2.50/EA
7	TN4031389	1	Plug, Hole, Rnd, 2.50h .03 - .25, Blk NylOld # 1030017	$10.60/EA
8	TN4041844	12	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
9	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
10	Old # 1047295	1	Seal, Foam, 0.50Old # 1047295Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
11	TN4034136	2	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
12	TN4032093	4	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
13	TN4026685	4	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
14	TN4033911	1	Panel Wldt, AdjOld # 1025435	$91.00/EA
15	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
16	TN4015029	5	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
17	TN4032850	1	Panel, Access, DoorOld # 1021834	$48.40/EA
18	TN4030622	1	Mat, FloorOld # 1027218	$116.30/EA
19	TN4190656	1	Bracket Wldt, Mtg, TankOld # 1035997	$61.32/EA
20	TN4015595	3	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4195877	1	Panel, Access, FloorOld # 1022699	$24.15/EA
22	TN4034137	17	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
23	TN4027729	1	Screw, Hex, M8 X 1.25 X 60, 8.8, FlOld # 363976	$3.40/EA
24	TN4019808	1	Nut, Hex, Std, M8 X 1.25Old # 39311	$2.50/EA
25	TN4041270	2	Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942	$2.50/EA
26	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4035242	5	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
28	TN4192844	1	Bracket, MtgOld # 1033975	$68.18/EA
29	TN4030625	1	Mat, FloorOld # 1027267	$27.40/EA
30	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
31	TN4036241	1	Molding, Afmkt, Trim, Pvc, .08 .11, 1ftOld # 1020168	$44.40/EA
32	TN4023358	1	Plug, Hole, Rnd, 0.81h, BlkOld # 80288	$1.40/EA
33	TN4156940	6	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA

M20 instrument panel group

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 instrument panel group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4037853	1	Panel Assy, Instmt, W/ Label, AfmktOld # 1223896 · Replaced by 1263875 in the 2025 list (rev. 11)	$1,172.60/EA
2	TN4198475	5	Spacer, Rnd, .125l, AlmOld # 1006808	Call for price
3	TN4198594	5	Washer, Flat, 0.15b 0.31d .05, NylOld # 1008663	Call for price
4	TN4195865	5	StandOff, Hex, M3 X M14, AlmOld # 1022472	Call for price
5	TN4198561	5	Screw, Pan, #0424 X 0.50l, Hi - LowOld # 1008240	Call for price
6	TN4195912	8	Screw, Pan, M3 X 6, [Seelscrew]Old # 1022905	Call for price
7	TN4042243	4	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
8	TN4019347	1	Switch, Rocker, Dpdt, On / Off / OnOld # 392171	$25.90/EA
9	TN4224042	1	Light, Indicator, GlowplugOld # 1225091	$83.83/EA
10	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Old # 398501	$6.80/EA
11	TN4031384	1	Bezel, Switch [3 Gang]Old # 1029951	$21.90/EA
12	TN4037854	1	Label, Switch, Rocker [Drago]Old # 1223906	$35.20/EA
13	TN4037904	1	Switch, Rocker, Mom, Led (Dry Dust Control Only)Old # 1224603	$65.90/EA
14	TN4041852	4	Nut, Hex, Lock, #0832, NlOld # 16968	$1.50/EA
15	TN4030979	1	Flap, BatteryOld # 1028769	$9.80/EA
16	TN4194573	1	Bar, Flat, Ss 0.06, 00.50 X 10.00l, 2slOld # 1028772	$3.85/EA
17	TN4031353	4	Washer, Shld, Nyl [832]Old # 1029362	$0.15/EA
18	TN4012418	1	Washer, Flat, 1.15b 1.75d .08, StlOld # 73736	$3.50/EA
19	TN4027368	1	Boot, .63id .29l .90wOld # 382516	$10.20/EA
20	TN4022110	1	Switch, Ignition [Ku]Old # 87536	$109.50/EA
	TN8003282	1	Key, Ignition [Set Of 2]Old # 87866	$27.00/EA
21	TN4023075	1	Boot, Switch, IgnitionOld # 383165	$5.10/EA
22	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
23	TN4016541	2	Switch, Rocker, Dpdt, Mom / Off / MomOld # 398508	$27.40/EA
24	TN4029160	2	Plug, Hole, Rnd, 0.50h .03- .12, Blk NylOld # 56992	$3.40/EA
25	TN4037805	1	Cup Holder, RwkOld # 223599	$56.40/EA
26	TN4041271	3	Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943	$2.50/EA
27	TN4218634	1	Label, Instrument Panel, Rh, Dsl [Drago]Old # 1239555	$61.91/EA
28	TN4032093	4	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
29	TN4044966	1	Keychain, Rectangle, Parts & ServiceOld # 1075003	$4.70/EA
30	TN4223544	1	Plate, Instrument, Rh [Drago]Old # 1223897	$11.11/EA
31	TN4034136	3	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
32	TN4016538	2	Plug, Hole, Rt, Rocker Switch, .87 X 1.7 (Wet Dust Control Only)Fits SN 010900 and later · Old # 398501	$6.80/EA
33	TN4014919	1	Boot, Bellows, 3.1l 4.4w 2.8h 1hole, NeoOld # 70622	$50.40/EA
34	TN4014930	1	Retainer, Boot, Steering ColumnOld # 70623	$10.20/EA
35	TN4016304	4	Rivet, Plstc, .250d X 0.90Old # 72970	$3.20/EA
36	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Fits SN 014001 and later · Old # 398501	$6.80/EA
37	TN4032200	1	Switch, Rocker [Mom,Off,Mom, Dual Led] (Detergent Metering Option Only)Fits SN 014001 and later · Old # 1255914	$78.81/EA

M20 battery and electrical group

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 battery and electrical group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032292	1	Horn, 12vdc, Dba [Wolo]Old # 369704	$42.00/EA
2	TN4045637	5	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
3	TN4042244	4	Washer, Flat, #10Old # 19066	$2.50/EA
4	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
5	TN4029449	7	Relay, 12vdc, 40a, Spdt N/OOld # 57804	$16.30/EA
6	TN4033595	1	Cover, Fuse, BlockOld # 1024274	$112.70/EA
7	TN4034267	1	Gasket, Cover, Fuse BlockOld # 1026576	$11.90/EA
8	TN4041004	8	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
9	TN4036635	1	Alarm, Warning [Sonalert, St628]Old # 1021290	$55.10/EA
10	TN4031223	1	Strap, Rbr, Tie - Down, 2/Hooks 19.0lOld # 33671	$13.10/EA
11	TN4015366	1	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
12	TN4039094	1	Hose, Pvc, Clr, 0.50id 0.69od 30.00lOld # 20778	Call for price
13	TN4027918	1	Cable, Battery, 02ga 60.0l Blk .41ringOld # 60295	$69.30/EA
14	TN4018303	1	Cable, Battery, 02ga 48.0l Red .41ringOld # 68869	$69.30/EA
15	TN4040238	1	Diode, Ele, PlugOld # 222290	$13.00/EA
16	TN4011598	14	Fuse, 015aOld # 762514	$4.00/EA
17	TN4015029	4	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
18	TN4037623	1	Battery, Wet, 12Vdc 0600CcaOld # 10143	$274.80/EA

M20 hydraulic pump linkage group

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 hydraulic pump linkage group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4016793	2	Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169	$4.00/EA
2	TN4021145	2	Tube, 00.50d 00.38b 00.6l StlOld # 63234	$6.60/EA
3	TN4017355	1	Screw, Hex, .38 - 16 X 2.00, SsOld # 42467	$1.05/EA
4	TN4034138	2	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
5	TN4028758	1	Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643	$2.50/EA
6	TN4019759	1	Screw, Hex, M10 X 1.50 X 35, 8.8Old # 39284	$4.00/EA
7	TN4043395	2	Spring, Extn, 0.75od X 0.12wir, 4.3lOld # 11842	$12.20/EA
8	TN4013918	1	Bolt, Eye, .25 - 20 X 1.40 X .25 EyeOld # 48079	$6.00/EA
9	TN4015051	1	Cam, Centering, PintleOld # 53947	$74.84/EA
10	TN4028669	1	Cam, Centering, PintleOld # 54655	$72.52/EA
11	TN4012778	1	Screw, Hex, M8 X 1.25 X 40, Ss, NlOld # 74440	$4.90/EA
12	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
13	TN4015053	2	Arm, Cntrl, Pintle, CenteringOld # 53953	$26.60/EA
14	TN4015362	2	Bumper, Rbr, 0.5d 0.16t M5 X 08Old # 54205	$18.50/EA
15	TN4014211	4	Nut, Hex, Std, M5 X 0.8, 8Old # 50335	$3.30/EA
16	TN4030623	1	Arm, PintleOld # 1027233	$101.71/EA
17	TN4021295	1	Screw, Hex, .31 - 24 X 0.75, NlOld # 83879	$2.90/EA
18	TN4016796	3	Washer, Belleville, .31Old # 41186	$3.50/EA
19	TN4194159	1	Bracket Wldt, Propel, PintleOld # 1027313	$48.78/EA
20	TN4021318	1	Bracket, Retainer, SafetyOld # 84170	$11.60/EA
21	TN4041517	1	Bolt, Shld, .31d X 1.00, .25 - 20Old # 16213	$6.80/EA
22	TN4016337	1	Shock Absorber, 2.3 StrkOld # 73411	$115.00/EA
23	TN4019753	1	Screw, Hex, M8 X 1.25 X 50, 8.8Old # 39278	$4.00/EA
24	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
25	TN4033213	2	Arm [Positioning]Old # 1022787	$15.80/EA
26	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
27	TN4042888	2	Washer, Flat, #10 SsOld # 01683	$2.60/EA
28	TN4033212	1	Sensor, Spd / Dir, 6 - 30vdcOld # 1022779	$285.30/EA
29	TN4041964	2	Screw, Pan, M4 X 0.7 X 35, SsOld # 09198	$3.20/EA
30	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
31	TN4039393	2	Screw, Hex, .38 - 16 X 1.25, G5Old # 21198	$3.30/EA
32	TN4034134	4	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
33	TN4194319	1	Bracket, Propel, DslOld # 1027692	$43.83/EA
34	TN4194321	1	Bracket, Mtg, SensorOld # 1027742	$12.12/EA
35	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
36	TN4192517	1	Strap, SpptOld # 1032399	$11.82/EA
37	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
38	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
39	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
40	TN4021359	1	Bolt, Eye, M8X1.25, 2.75LOld # 386088	$24.20/EA
41	TN4041600	2	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
42	TN4034137	2	Washer, Flat, 0.31 StdOld # 32491	$2.50/EA
43	TN4034136	1	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
44	TN4016797	2	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
45	TN4043258	1	Screw, Hex, M10 X 1.50 X 30, 8.8Old # 03192	$4.00/EA
46	TN4016826	1	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
47	TN4042243	2	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
48	TN4041272	2	Screw, Hex, M6 X 1.00 X 25, 8.8Old # 06944	$2.50/EA

M20 hydraulic hose group, steering and propel

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 hydraulic hose group, steering and propel parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4225025	1	Hose, Hyd, Tc08, Jfoee90/Jf08str, 96Old # 1229745	$110.50/EA
2	TN4224463	1	Hose, Hyd, Tc06, Jf06e45/Jf06str, 110.0Old # 1226062	$97.70/EA
3	TN4038431	2	Hose, Hyd, Tc06, Jf06e45/Jf06str, 45.0Old # 1226063	$66.90/EA
4	TN4043678	1	Hose, Hyd, Spcl, Jf10str/Jf10str, 56.5Old # 1038569	$91.80/EA
5	TN4033273	1	Hose, Hyd, Spcl, Jf10e90/Jf10str, 63.0Old # 1023488	$135.50/EA
6	TN4031422	1	Hose, Hyd,Med04, Jf04str/Jf04str, 066.0Old # 1030404	$67.20/EA

M20 hydraulic hose group, pump and vacuum fans

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 hydraulic hose group, pump and vacuum fans parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4015715	2	Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Old # 71741	$79.20/EA
2	TN4015813	1	Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Old # 396255	$41.60/EA
3	TN4041531	1	Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Old # 16431	$28.90/EA
4	TN4033532	1	Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Old # 1023607	$52.12/EA
5	TN4031283	1	Hose, Hyd, Suc20, Jf20e90/Jf20str, 032.0Old # 34351	$170.10/EA
6	TN4191362	1	Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Old # 1040655	$54.22/EA
7	TN4190722	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Old # 1036945	$35.20/EA
8	TN4015655	1	Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Old # 71556	$32.20/EA
9	TN4188134	1	Hose, Hyd, Med12, Jf12str/Jf12str, 060.0Old # 1052834	$92.82/EA
10	TN4040692	1	Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Old # 1050436	$257.10/EA
11	TN4034271	1	Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Old # 1026645	$63.00/EA
12	TN4033531	1	Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Old # 1023606	$53.50/EA

M20 hydraulic pumps group

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 hydraulic pumps group parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033592	1	Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns)Old # 1024251	$1,813.50/EA
2	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
3	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869 · Replaced by 42226 in the 2025 list (rev. 11)	$7.00/EA
4	TN4015013	2	Fitting, Hyd, E90, Jm10/Om12Old # 53076	$37.60/EA
5	TN4019758	2	Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283	$3.30/EA
6	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
7	TN4011841	1	Pump Kit, Mtg, Aux, Ci [M20 & T20]Old # 9007142	$1,593.60/EA
8	TN4017696	1	Seal, Org, .069 X 3.06idOld # 65145-1	$4.50/EA
9	TN4013874	2	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
10	TN4017934	1	Fitting, Hyd, Str, Jm20/Om16Old # 67811	$33.30/EA
11	TN4013873	1	Fitting, Hyd, E90, Jm06/Om08Old # 47512	$22.50/EA
12	TN4015060	1	Fitting, Hyd, E45, Jf10/Jm10Old # 54017	$48.90/EA

M20 LabelGroup

Standard partsSN 008000 and later, 2022 manualFits: Diesel

Tennant M20 LabelGroup parts, SN 008000 and later, 2022 manual
Item	Part number	Qty	Description and notes	Price
1	TN4025324	1	Label Set, Info/Hzrd, Swpr / ScrbrOld # 77221	$28.90/EA
2	TN4035239	1	Label Set, Hi TempOld # 1017141	$30.80/EA
3	TN4032752	3	Label, Logo, 05.75L 2Color [ES]Old # 1065343	$26.97/EA
4	TN4032751	3	Label, Logo, 07.95L 2Color [FaST]Old # 1065342	$11.11/EA
5	TN4040474	2	Label [User, Attention, ecH2O]Old # 1050003	$4.34/EA
6	TN4031775	1	Label Set, Brush Indicator & RemovalOld # 1031017	$30.10/EA
7	TN4032466	1	Label Set, Info/Hzrd, Swpr / Scrbr, Tj (Japan Only)Old # 1032450	$162.79/EA
8	TN4032629	2	Label, Model, 2Color [M20]Old # 1064662	$21.30/EA
9	TN4035178	1	Label, Logo, 12.3L 4Color [ecH2O]Old # 1062813	$36.60/EA
10	TN4032615	1	Label, Logo, 16.9L 4Color [ecH2O]Old # 1064440	$27.20/EA

M20 common parts and consumables

Brushes, squeegee blades, filters, belts, skirts and other parts from Tennant's M20 common parts and consumables sheet (rev 9/2023), which covers all M20 power types; lines marked Gasoline, LPG or Diesel fit only that engine.‌‌⁠‍⁠‌‌‍‍‍⁠‌‌⁠‍‍⁠‍‌‍‌‍⁠‌‍‌‍‌‍‍⁠‌‍⁠‍‍‍‍

Tennant Common Parts & Consumables sheet (rev 9/2023)SN 008000 and later

Tennant M20 common parts and consumables parts, SN 008000 and later
Part number	Description and notes	Price
TN4030645	performance, designed and Polyester Cylindrical BrushOld # 1027697Confirm fit before ordering: Tennant's current description differs	$682.90/EA
TN4034238	engineered specifically to fit CYLINDRICAL Polypropylene Cylindrical Brush 40” (1020 mm) /Old # 1026223Confirm fit before ordering: Tennant's current description differs	$616.50/EA
TN4031767	Heavy Duty Polypropylene Cylindrical Brush 2 x 40” (1020 mm) brushesOld # 1030969Confirm fit before ordering: Tennant's current description differs	$657.80/EA
TN4034237	Super Abrasive Cylindrical BrushOld # 1026222Confirm fit before ordering: Tennant's current description differs	$872.90/EA
TN4037187	Nylon Disk Scrub BrushOld # 1220235	$416.00/EA
TN4037188	Heavy Duty Polypropylene Disk Scrub Brush 1 x 16” (406 mm) brushOld # 1220236	$248.00/EA
TN4037455	Super Abrasive Disk Scrub BrushOld # 1221543	$545.70/EA
TN4037153	Polypropylene Disk Sweep Brush 1 x 24” (610 mm) brushOld # 1220185	$318.80/EA
TN4035508	Linard® Front SqueegeeOld # 1017868	$90.00/EA
TN4030648	Urethane Front SqueegeeOld # 1027719Confirm fit before ordering: Tennant's current description differs	$274.30/EA
TN4031803	• Less rework and low labor costs. Linatex® Rear SqueegeeOld # 1031331Confirm fit before ordering: Tennant's current description differs	$120.00/EA
TN4032198	Urethane Rear SqueegeeOld # 1031945Confirm fit before ordering: Tennant's current description differs	$305.50/EA
TN4021294	applications. Linatex® Rear Squeegee End GasketOld # 83874Confirm fit before ordering: Tennant's current description differs	$13.00/EA
TN4031774	• Premium Linatex® and Linatex® Left and Right Side SqueegeeOld # 1031011Confirm fit before ordering: Tennant's current description differs	$93.40/EA
TN4032169	Linard® rubber exhibits Urethane Left and Right Side SqueegeeOld # 1031823Confirm fit before ordering: Tennant's current description differs	$183.50/EA
TN4033862	outstanding strength and Linatex® Side Brush SqueegeeOld # 1025005	$72.00/EA
TN4030647	Urethane Side Brush SqueegeeOld # 1027716Confirm fit before ordering: Tennant's current description differs	$169.30/EA
TN4032809	Hydraulic Oil FilterOld # 1021579Confirm fit before ordering: Tennant's current description differs	$128.30/EA
TN4030627	20 Mesh Solution FilterOld # 1027290	$20.30/EA
TN4039697	Dust Panel Filter – SyntheticOld # 1048295AMConfirm fit before ordering: Tennant's current description differs	$329.30/EA
TN8005623	Air Filter Element – GM Gas / LP, Mitsubishi Gas / LP, DieselDieselGasolineLPGOld # 369746	$34.60/EA
TN8004565	Spin-On Oil Filter – GM Gas / LPGasolineLPGOld # 371972	$32.00/EA
TN8002631	Spin-On Oil Filter – Mitsubishi Gas / LPGasolineLPGOld # 393982	$30.00/EA
TN8002633	Spin-On Oil Filter – DieselDieselOld # 39703-2	$15.60/EA
TN8005188	Fuel Filter – GM Gas, Mitsubishi GasGasolineOld # 372440	$64.20/EA
TN8005332	Fuel Filter – GM LPLPGOld # 372615	$88.40/EA
TN8002010	Fuel Filter – Mitsubishi LPLPGOld # 9007380Confirm fit before ordering: Tennant's current description differs	$25.60/EA
TN8005805	Fuel Filter – DieselDieselOld # 1017126	$21.90/EA
TN4039111	Squeegee WheelOld # 20833	$80.80/EA
TN8003282	Ignition Key (set of 2)Old # 87866	$27.00/EA
TN4037557	12V, 475CCA Wet BatteryOld # 10137	$218.28/EA
TN8005314	Spark Plug – GM Gas / LPGasolineLPGOld # 372575Confirm fit before ordering: Tennant's current description differs	$13.30/EA
TN8004084	Spark Plug – Mitsubishi Gas / LPGasolineLPGOld # 9010622	$9.40/EA
TN8005311	39” Alternator Belt – GMOld # 372571	$156.70/EA
TN4030504	39” Alternator Belt – MitsubishiOld # 1071145	$53.20/EA
TN4019823	42” Alternator Belt – Diesel (for machine serial number above 002593)DieselOld # 393244Confirm fit before ordering: Tennant's current description differs	$15.00/EA
TN4033626	Side Door Inner SkirtOld # 1024586Confirm fit before ordering: Tennant's current description differs	$33.60/EA
TN4035908	Side Door Outer SkirtOld # 1019295	$67.60/EA
TN4036240	Front Tabbed SkirtOld # 1020166	$70.20/EA
TN4032877	Rear SkirtOld # 1022009	$34.70/EA
TN4032876	Rear Recirculation FlapOld # 1022007Confirm fit before ordering: Tennant's current description differs	$49.10/EA
TN4037134	18.0 X 6.0 Solid Hi Traction Tire AssemblyOld # 1059343	$1,386.50/EA

Notes on this parts list‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‍‍‌‍‍⁠‌‍‌‌‌‍‌‌‌‌‍‌⁠‌⁠‍⁠⁠‌⁠⁠‌

This is Tennant's 2022 manual (rev. 08). The current manual is Tennant's October 2025 edition: open the current manual.
Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.

M20 recommended maintenance parts

M20 brushes, replacement, scrub head

M20 brushes, replacement, side brush

M20 main frame group

M20 operator station group

M20 operator station insulation group

M20 instrument panel group

M20 seat group

M20 steering group

M20 front cover group

M20 battery and electrical group

M20 wheel group, front drive

M20 wheel group, rear

M20 brake pedal linkage group

M20 directional pedal group

M20 hydraulic pump linkage group

M20 hopper lift arms group

M20 hopper and debris screen group

M20 hopper cover and dust filter group

M20 hopper bumper group

M20 hopper door group

M20 cylindrical scrub brush drive group, left side

M20 cylindrical scrub brush drive group, right side

M20 cylindrical scrub brush head lift group

M20 cylindrical brush head skirt group

M20 squeegee lift group, rear

M20 squeegee group, rear

M20 squeegee linkage group, rear

M20 squeegee group, right side

M20 squeegee lift group, right side

M20 squeegee group, left side

M20 squeegee lift group, left side

M20 solution tank group

M20 solution tank drain group

M20 solution control group (008000 - 014000)

M20 solution control group (014001 - )

M20 recovery tank group

M20 recovery tank drain group

M20 vacuum fan group, scrubbing

M20 vacuum fan group, sweeping

M20 hydraulic hose group, steering and propel

M20 hydraulic hose group, pump and vacuum fans

M20 hydraulic hose group, brush and hopper

M20 hydraulic hose group, squeegee lift

M20 hydraulic pumps group

M20 hydraulic cooler and tubes group

M20 hydraulic reservoir group

M20 hydraulic valve group

M20 electrical wire harness group, main (008000- 014000)

M20 ElectricalWireHarnessGroup,Main(014001- )

M20 electrical wire harness group, headlight

M20 electrical wire harness group, hopper

M20 electrical wire harness group, hopper cover

M20 electrical wire harness group, seat switch

M20 LabelGroup

M20 recommended maintenance parts

M20 operator station group

M20 instrument panel group

M20 battery and electrical group

M20 hydraulic pump linkage group

M20 hydraulic hose group, steering and propel

M20 hydraulic hose group, pump and vacuum fans

M20 hydraulic pumps group

M20 LabelGroup

M20 common parts and consumables

Notes on this parts list‌‌​⁠‍⁠‌‌‍‍​‍​⁠‌​​‌​​‍‍‌‍‍​⁠​​​​‌​‍‌​‌‌‍‌‌‌‌‍‌⁠‌⁠‍⁠⁠‌​⁠⁠​​​‌​

Notes on this parts list‌‌⁠‍⁠‌‌‍‍‍⁠‌‌‍‍‌‍‍⁠‌‍‌‌‌‍‌‌‌‌‍‌⁠‌⁠‍⁠⁠‌⁠⁠‌
