Tennant M20 options and breakdowns, SN 000000–007999

Options and breakdowns parts from Tennant's North American M20 parts manuals for SN 000000–007999 (331381 rev. 19 (gas/LPG) + 331411 rev. 19 (diesel)), gas, LPG and diesel. Use Your machine to pick your serial number, edition or another area.‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‌‍‌⁠‌‌‍⁠‌‌‍‍‌‌‌‌‍⁠‍

Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.

Find your parts list →

1,111 lines from 331381 rev. 19 (gas/LPG) + 331411 rev. 19 (diesel). Checked against the manuals line by line on October 12, 2026.

Tennant M20 integrated sweeper-scrubber. Shop M20 machines

Machine: M20 rider sweeper-scrubber
Cleaning path: 40 in (56 in with side brush)
Solution / recovery: 56 / 73 gal
Hopper: 3.9 ft³, 390 lb
Power: Gasoline, LPG or diesel
Main brushes: 2 × 40 in cylindrical

Your machine‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‍‍‌‌‍‌‌⁠‌⁠‌‍⁠‌‌‌‌⁠‍‌‍‍⁠‍

You’re viewing the manual for SN 000000–007999 (Rev 19, May 2016), Tennant’s latest for these machines. Enter your serial number or use the dropdown for your exact machine.

Machine serial number

Serial rangeArea of the machinePower

Where to find the serial number and power type

The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.

How to read this list

Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

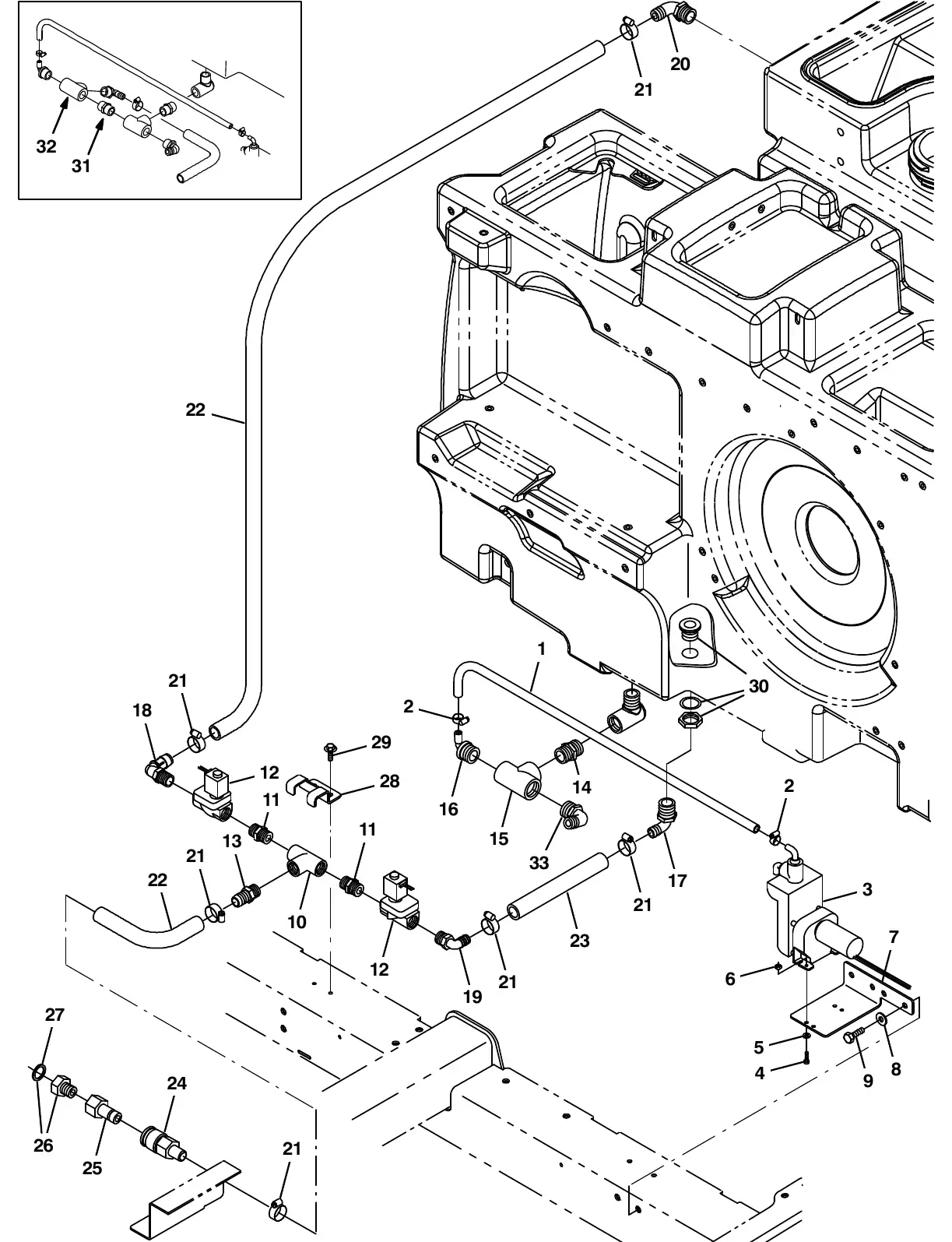

M20 ES pump group

OptionsSN 000000–007999

Tennant M20 ES pump group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4016800	1	Hose, Pvc, Clr, 0.38id 0.56od 48.00lOld # 41295	Call for price
2	TN4017396	2	Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844	$4.20/EA
3	TN4016324	1	Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns)Old # 73260	$792.20/EA
4	TN4035372	2	Screw, Pan, M4 X 0.7 X 16, SsOld # 24265	$3.00/EA
5	TN4042888	2	Washer, Flat, #10, SsOld # 01683	$2.60/EA
6	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
7	TN4195605	1	Bracket, Mtg, ValveOld # 1021325	$20.50/EA
8	TN4042902	2	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
9	TN4041992	2	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
10	TN4026578	1	Fitting, Plstc, Tee, Pf08/Pf08/Pf08Old # 79497	$10.30/EA
11	TN4021662	2	Fitting, Plstc, Str, Pm08/Pm08Old # 86508	$6.90/EA
12	TN4016339	2	Valve, Water, Solenoid, 12vdc 0.08pfOld # 73433	$535.70/EA
13	TN4026135	1	Fitting, Plstc, Str, Bm12/Pm08, NylOld # 78398	$6.20/EA
14	TN4035382	1	Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544	$6.20/EA
15	TN4017317	1	Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A	$17.60/EA
16	TN4026576	1	Fitting, Plstc, E90, Bm06/Pm12, NylOld # 79484	$7.80/EA
17	TN4016343	1	Fitting, Plstc, E90, Bm10/Pm12Old # 73468	$7.90/EA
18	TN4021149	1	Fitting, Plstc, E90, Bm12/Pm08Old # 63244-2	$6.90/EA
19	TN4020775	1	Fitting, Plstc, E90, Bm10/Pm08Old # 630371	$8.70/EA
20	TN4044360	1	Fitting, Plstc, E90, Bm12/Pm12Old # 14877	$6.20/EA
21	TN4017089	6	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
22	TN4037985	1	Hose, Afmkt, Pvc, Brd 0.75id 08ftOld # 1015045	$83.30/EA
23	TN4032310	1	Hose, Pvc, Brd, 0.62id 0.88od 09.00lOld # 369811	$12.83/EA
24	TN4035365	1	Fitting, Brs, Qdc, Bm12/Qf08Old # 24105	$101.81/EA
25	TN4030863	1	Fitting, Brs, Qdc, Pf08 [Parker Bh3f]Old # 33295	$9.60/EA
26	TN4029239	1	Fitting Kit, Hose, GardenOld # 375322	$19.09/EA
27	TN4042839	1	Washer, Flat, 0.66b 1.00d .12, RbrOld # 01316	$3.50/EA
28	TN4197702	1	Bracket, Mtg, ValveOld # 1016837	$13.03/EA
29	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
30	TN4025663	1	Fitting, Plstc, Pf12/Pf12, BhOld # 377349	$22.50/EA
31	TN4035382	1	Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544	$6.20/EA
32	TN4017317	1	Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A	$17.60/EA
Item 33: choose your version (2)
33	TN4044360	1	Fitting, Plstc, E90, Bm12/Pm12Fits SN up to 007259 · Old # 14877	$6.20/EA
33	TN4016343	1	Fitting, Plstc, E90, Bm10/Pm12Fits SN 007260 and later · Old # 73468	$7.90/EA

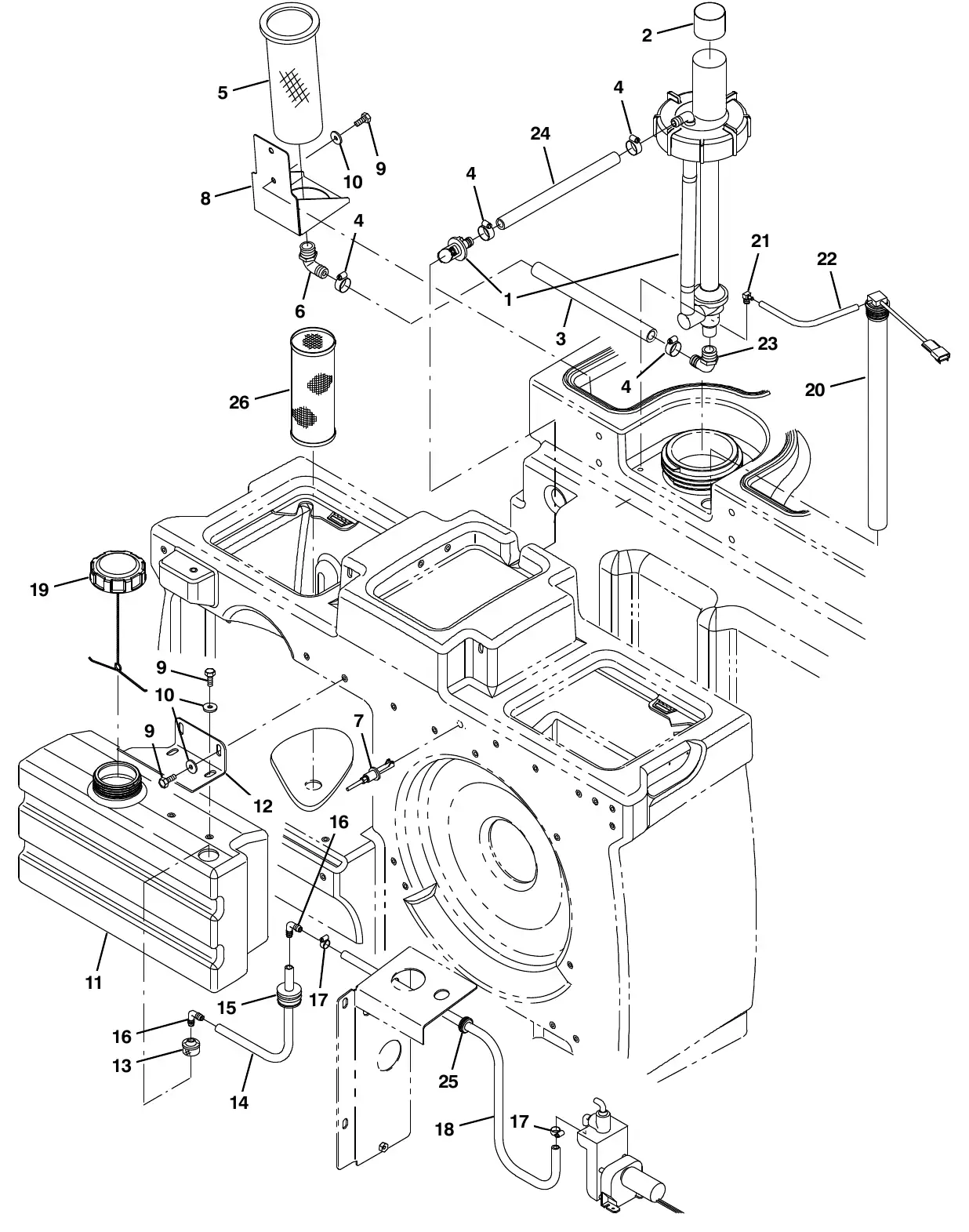

M20 ES tanks group

OptionsSN 000000–007999

Tennant M20 ES tanks group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4036630	1	Pump Assy, Column, Es (See Breakdowns)Old # 1021210	$1,762.90/EA
2	TN4030959	1	Sleeve, Rbr, 3.50b 3.58d 1.8lOld # 1028697	$11.01/EA
3	TN4037988	1	Hose, Afmkt, Pvc, Brd 0.75id 01ftOld # 1015048	$14.65/EA
4	TN4017089	4	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
5	TN4022231	1	Strainer, Soltn, 20 Mesh, Cyl 3.5d 9.5lOld # 386652	$101.80/EA
6	TN4035381	1	Fitting, Plstc, E90, Bm12/Pf12Old # 24543	$8.40/EA
7	TN4021025	1	Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685	$78.50/EA
8	TN4195222	1	Bracket, Mtg, StrainerOld # 1019636	$53.53/EA
9	TN4041992	6	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
10	TN4035242	6	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
11	TN4032910	1	Tank, Detgt, TrimmedOld # 1022229	$341.48/EA
12	TN4193627	1	Bracket, Mtg, Detgt And Spray WandOld # 1025159	$19.70/EA
13	TN4039132	1	Screen, PumpOld # 20952	$13.70/EA
14	TN4037967	1	Hose, Afmkt, Pvc, Brd 0.38id 02ftOld # 1014974	$22.40/EA
15	TN4039117	1	Grommet, Pye, 0.37id, F/1.5h, .13 MatlOld # 20944	$27.50/EA
16	TN4039131	2	Fitting, Plstc, E90, Bm06/Bm06Old # 20951	$4.20/EA
17	TN4017396	2	Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844	$4.20/EA
18	TN4016800	1	Hose, Pvc, Clr, 0.38id 0.56od 48.00lOld # 41295	Call for price
19	TN4036929	1	Cap, TankOld # 1011885	$69.10/EA
20	TN1072877	1	Switch Assy, Press, 3.0, 17.5l TubeOld # 1072877 · current Tennant number (Tennant parts catalog)	Call for price
21	TN4033731	1	Fitting, Brs, E90, Pm02/Bm03Old # 32183	$9.90/EA
22	TN4032040	1	Hose, Afmkt, Vacuum, 0.16id, 01ftOld # 1031572	$12.50/EA
23	TN4044360	1	Fitting, Plstc, E90, Bm12/Pm12Old # 14877	$6.20/EA
24	TN4037982	1	Hose, Afmkt, Pvc, Brd 0.62Id, 01Ft, ClrOld # 1015033	$60.00/EA
25	TN4032003	1	Grommet, Rbr, 0.62id, F/0.9h, .12 MatlOld # 10632-2	$0.80/EA
26	TN4043976	1	Filter, Soltn, 020mesh, Pm12 3.2d 08.0lOld # 1039019	$51.50/EA

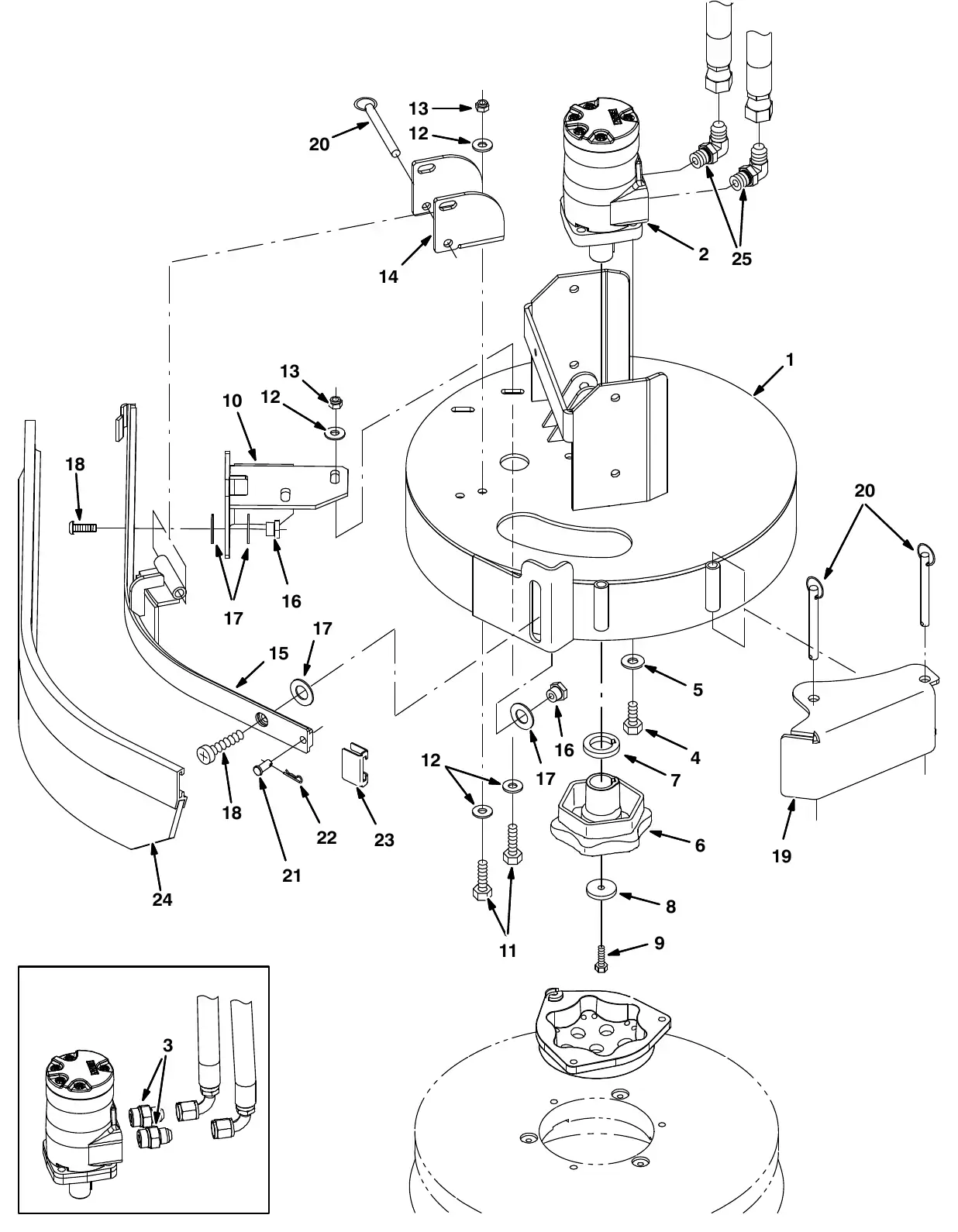

M20 side brush motor group (000000 - 003076)

OptionsSN 000000–007999

Tennant M20 side brush motor group (000000 - 003076) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4032844	1	Bracket Wldt, Mtg, Side BrushFits SN up to 003076 · Old # 1021794	$497.50/EA
2	TN4010444	1	Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500 (See Breakdowns)Fits SN up to 003076 · Old # 1029379 · replaced by 4010444 (Tennant parts catalog)	Call for price
3	TN4029146	2	Fitting, Hyd, Str, Jm08/Om10Fits SN up to 001337 · Old # 56692	$10.60/EA
4	TN4042969	4	Screw, Hex, .38 - 16 X 0.75, NlFits SN up to 003076 · Old # 01762	$3.20/EA
5	TN4034138	4	Washer, Flat, 0.38 StdFits SN up to 003076 · Old # 32492	$2.50/EA
6	TN4041657	1	Hub, Drive, Brush, Disk, 1.00b [6t]Fits SN up to 003076 · Old # 1042968	$121.80/EA
7	TN4035434	1	Spacer, Hub, KeyedFits SN up to 003076 · Old # 25611	$23.50/EA
8	TN4042424	1	SpacerFits SN up to 003076 · Old # 19191	$9.00/EA
9	TN4035411	1	Screw, Hex, .25 - 20 X 1.00, 5Fits SN up to 003076 · Old # 25046	$3.20/EA
10	TN4032898	1	Bracket, Mtg, SqgeFits SN up to 003076 · Old # 1022135	$39.02/EA
11	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsFits SN up to 003076 · Old # 09010	$3.30/EA
12	TN4042902	8	Washer, Flat, 0.31, SsFits SN up to 003076 · Old # 01685	$2.60/EA
13	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 003076 · Old # 08713	$3.30/EA
14	TN4032908	1	Bar, RetainerFits SN up to 003076 · Old # 1022188	$21.90/EA
15	TN4032897	1	Frame Wldt, Sqge, Side BrushFits SN up to 003076 · Old # 1022111	$170.20/EA
16	TN4032918	2	Nut, T, M8 X 1.25 X 14.5od X 9.5lFits SN up to 003076 · Old # 1022302	$25.10/EA
17	TN4017115	4	Washer, Thrust, 0.61b 1.25d .06, FglFits SN up to 003076 · Old # 64425	$5.40/EA
18	TN4037712	2	Screw, Btn, M8 X 1.25 X 25, SsFits SN up to 003076 · Old # 223470	$4.00/EA
19	TN4032914	1	Bumper Wldt, Brush, SideFits SN up to 003076 · Old # 1022260	$72.00/EA
20	TN4031918	3	Pin, Hitch, .375d X 3.12l, PlFits SN up to 003076 · Old # 369359	$7.50/EA
21	TN4013467	1	Pin, Clevis, 0.31d X 0.75lFits SN up to 003076 · Old # 46800	$3.40/EA
22	TN4041634	1	Pin, Cotter, .094 X 1.00Fits SN up to 003076 · Old # 08179	$2.50/EA
23	TN4022032	1	Retainer, SqgeFits SN up to 003076 · Old # 86759	$11.30/EA
Item 24: choose your version (2)
24	TN4033862	1	Squeegee Assy, Sba, LinatexFits SN up to 003076 · Old # 1025005	$72.00/EA
24	TN4030647	1	Squeegee Assy, Sba, UreFits SN up to 003076 · Old # 1027716	$169.30/EA
25	TN4029149	1	Fitting, Hyd, E90, Jm08/Om10Fits SN 001338–003076 · Old # 56821	$36.80/EA

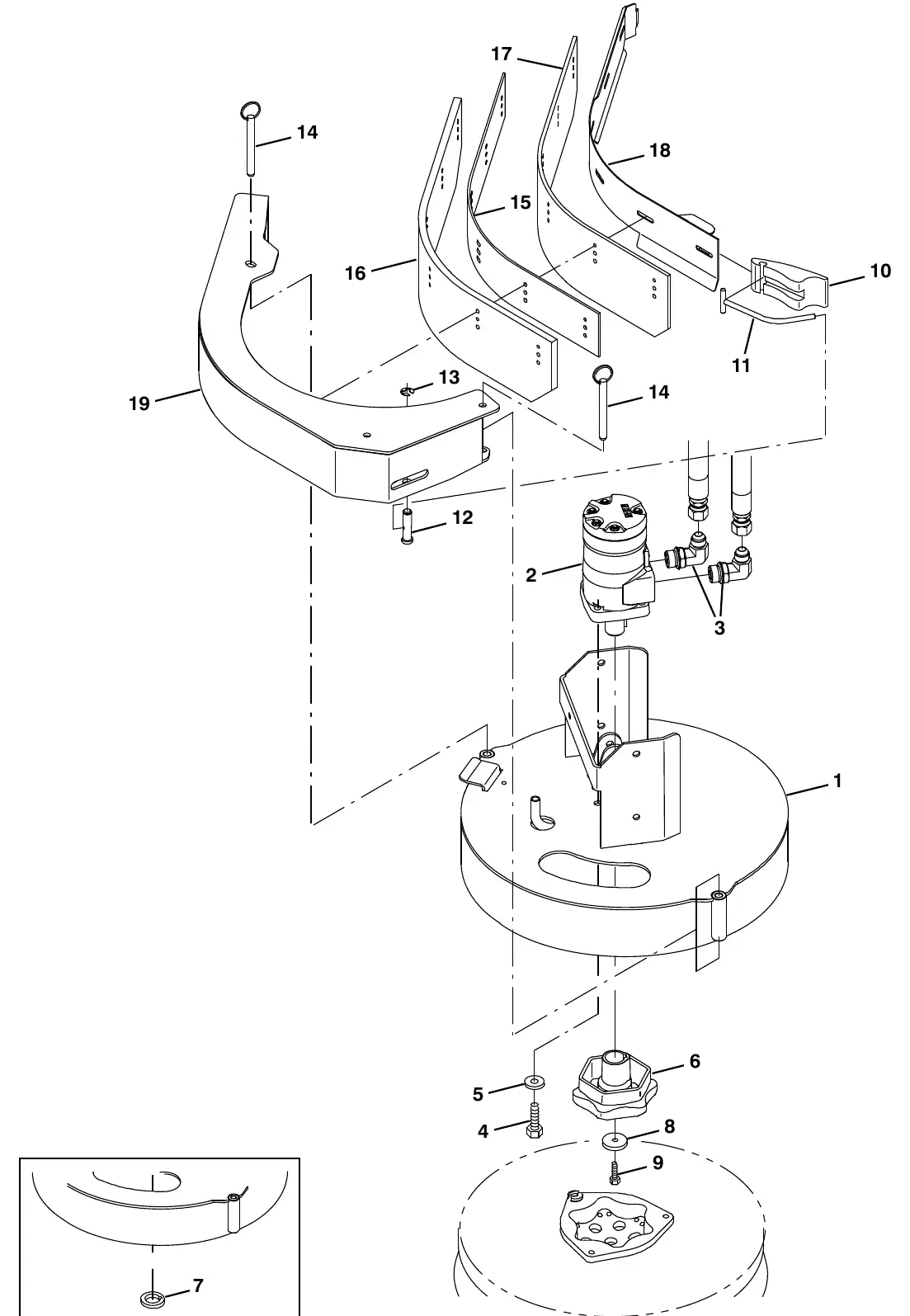

M20 side brush motor group (003077 - )

OptionsSN 000000–007999

Tennant M20 side brush motor group (003077 - ) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4043026	1	Bracket Wldt, Mtg, Side Brush FixedFits SN 003077 and later · Old # 1047002	$473.90/EA
Item 2: choose your version (2)
2	TN4010444	1	Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500 (See Breakdowns)Fits SN 003077–004189 · Old # 1029379 · replaced by 4010444 (Tennant parts catalog)	Call for price
2	TN4030083	1	Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500Fits SN 004190 and later · Old # 1068812	$616.10/EA
	TN8005882	1	Seal Kit, Motor [Cl]Fits SN 004190 and later · Old # 22615	$112.10/EA
3	TN4029149	2	Fitting, Hyd, E90, Jm08/Om10Fits SN 003077 and later · Old # 56821	$36.80/EA
4	TN4042969	4	Screw, Hex, .38 - 16 X 0.75, NlFits SN 003077 and later · Old # 01762	$3.20/EA
5	TN4034138	4	Washer, Flat, 0.38 StdFits SN 003077 and later · Old # 32492	$2.50/EA
6	TN4041657	1	Hub, Drive, Brush, Disk, 1.00b [6t]Fits SN 003077 and later · Old # 1042968	$121.80/EA
7	TN4035434	1	Spacer, Hub, KeyedFits SN 003077–004189 · Old # 25611	$23.50/EA
8	TN4042424	1	SpacerFits SN 003077 and later · Old # 19191	$9.00/EA
9	TN4035411	1	Screw, Hex, .25 - 20 X 1.00, 5Fits SN 003077 and later · Old # 25046	$3.20/EA
10	TN4039418	1	Cam, FrontFits SN 003077 and later · Old # 21601	Call for price
11	TN4021717	1	Pin Wldt, FrontFits SN 003077 and later · Old # 386298	$40.30/EA
12	TN4039420	1	Pin, Grvd, 0.43d 01.8l [303ss]Fits SN 003077 and later · Old # 21603	$16.60/EA
13	TN4035383	1	Ring, Retaining, Ext, 0.38d, [E - Ring]Fits SN 003077 and later · Old # 24555	$2.40/EA
14	TN4031918	2	Pin, Hitch, .375d X 3.12l, PlFits SN 003077 and later · Old # 369359	$7.50/EA
15	TN4043024	1	Spacer, Sqge, Side Brush, RbrFits SN 003077 and later · Old # 1046995	$20.00/EA
Item 16: choose your version (2)
16	TN4043022	1	Blade, Sqge, Side Brush, LinatexFits SN 003077 and later · Old # 1046980	$59.89/EA
16	TN4036799	1	Blade, Sqge, Side Brush, UrethaneFits SN 003077 and later · Old # 1059091	$91.61/EA
Item 17: choose your version (2)
17	TN4043073	1	Blade, Sqge, Side Brush, LinatexFits SN 003077 and later · Old # 1047238	$31.51/EA
17	TN4036800	1	Blade, Sqge, Side Brush, UrethaneFits SN 003077 and later · Old # 1059092	$55.85/EA
18	TN4043029	1	Plate Wldt, Retainer, SqgeFits SN 003077 and later · Old # 1047060	$107.80/EA
19	TN4043021	1	Bumper Wldt, Brush, SideFits SN 003077 and later · Old # 1046976	$184.00/EA

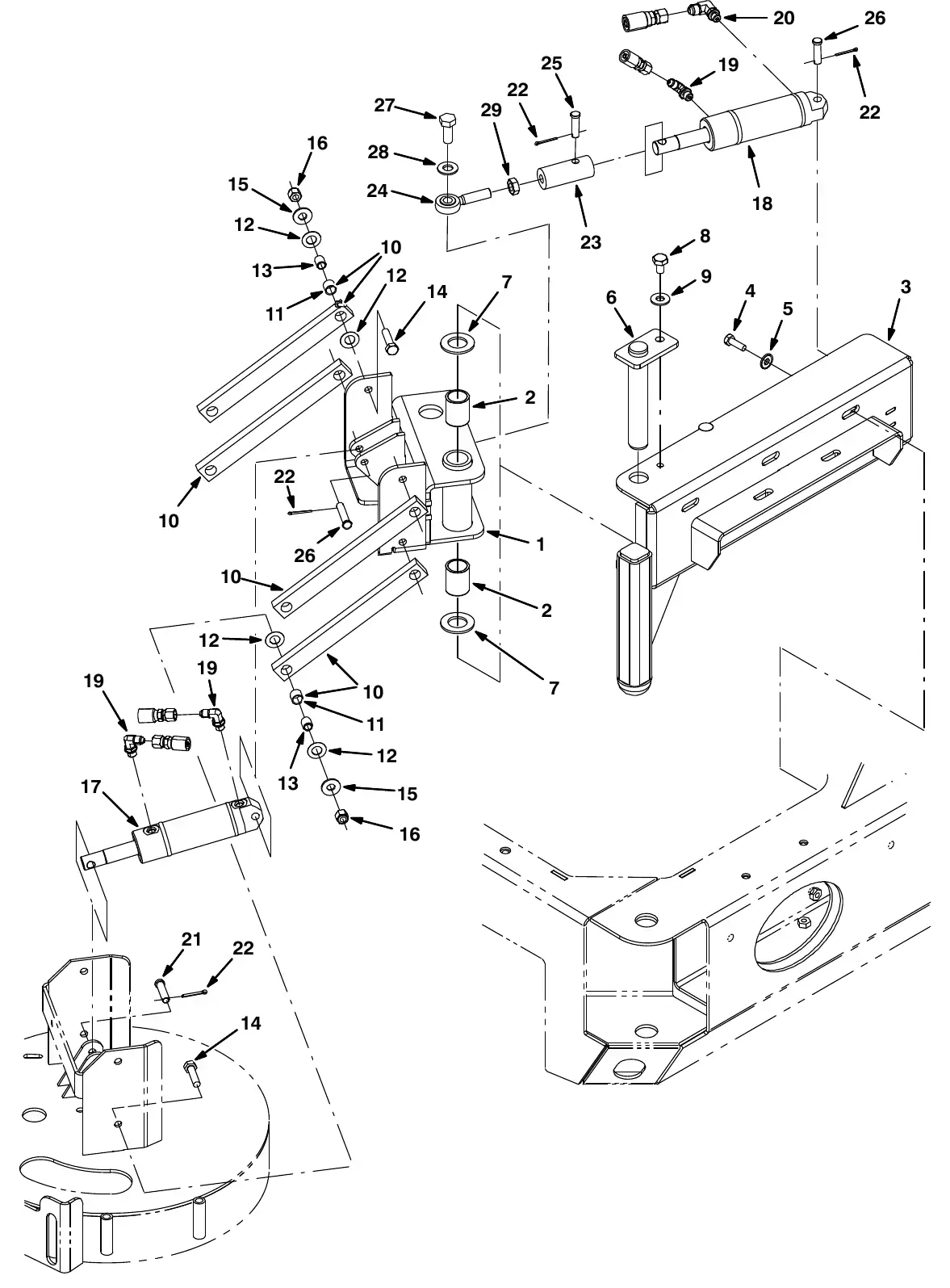

M20 side brush lift group

OptionsSN 000000–007999

Tennant M20 side brush lift group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4036647	1	Pivot Wldt, Brush, SideOld # 1021439	$330.60/EA
2	TN4015898	2	Bushing, Sleeve, 1.00b 1.13d 1.50l, FglOld # 71868	$13.70/EA
3	TN4032801	1	Channel Wldt, PivotOld # 1021473	$329.10/EA
4	TN4041943	5	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
5	TN4016796	5	Washer, Flat, Belleville, .31Old # 41186	$3.50/EA
6	TN4032822	1	Pin WldtOld # 1021617	$42.00/EA
7	TN4015900	2	Washer, Thrust, 1.00b 1.75d 0.13w, FbrOld # 71869	$27.10/EA
8	TN4041828	1	Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735	$3.40/EA
9	TN4034137	1	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
10	TN4021139	4	Arm, LinkOld # 63175-1	$62.20/EA
11	TN4021144	2	Bushing, Sleeve, 0.50b 0.59d 0.50l, BnzOld # 63233	$8.40/EA
12	TN4026841	16	Bearing, Thrust, 0.53b 1.00d 0.03wOld # 59633	$6.30/EA
13	TN4030655	8	Sleeve, P/M, 0.37b 0.50d 0.6l [430ss]Old # 1027926	$4.20/EA
14	TN4031575	8	Screw, Hex, .38 - 16 X 1.50, SsOld # 36845	$4.00/EA
15	TN4042902	8	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
16	TN4026793	8	Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156	$4.00/EA
17	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
18	TN4043598	1	Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Old # 1038115	$223.30/EA
19	TN4025260	3	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
20	TN4025261	1	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
21	TN4036075	1	Pin, Clevis, 0.37d X 1.50lOld # 29558	$3.90/EA
22	TN4041634	4	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
23	TN4032808	1	Adapter, Rod - End, Side BrushOld # 1021564	$56.00/EA
24	TN4015904	1	Rod - End, .50 - 20rh Mal 0.50bOld # 71874	$42.70/EA
25	TN4036074	1	Pin, Clevis, 0.37d X 1.31lOld # 29557	$3.20/EA
26	TN4041878	2	Pin, Clevis, 0.37d X 1.75lOld # 17461	$4.00/EA
27	TN4016809	1	Screw, Hex, M12 X 1.75 X 30, 8.8Old # 41346	$4.00/EA
28	TN4034135	1	Washer, Flat, 0.50 SaeOld # 32486	$2.60/EA
29	TN4013991	1	Nut, Hex, Jam, .50 - 20Old # 48985	$3.40/EA

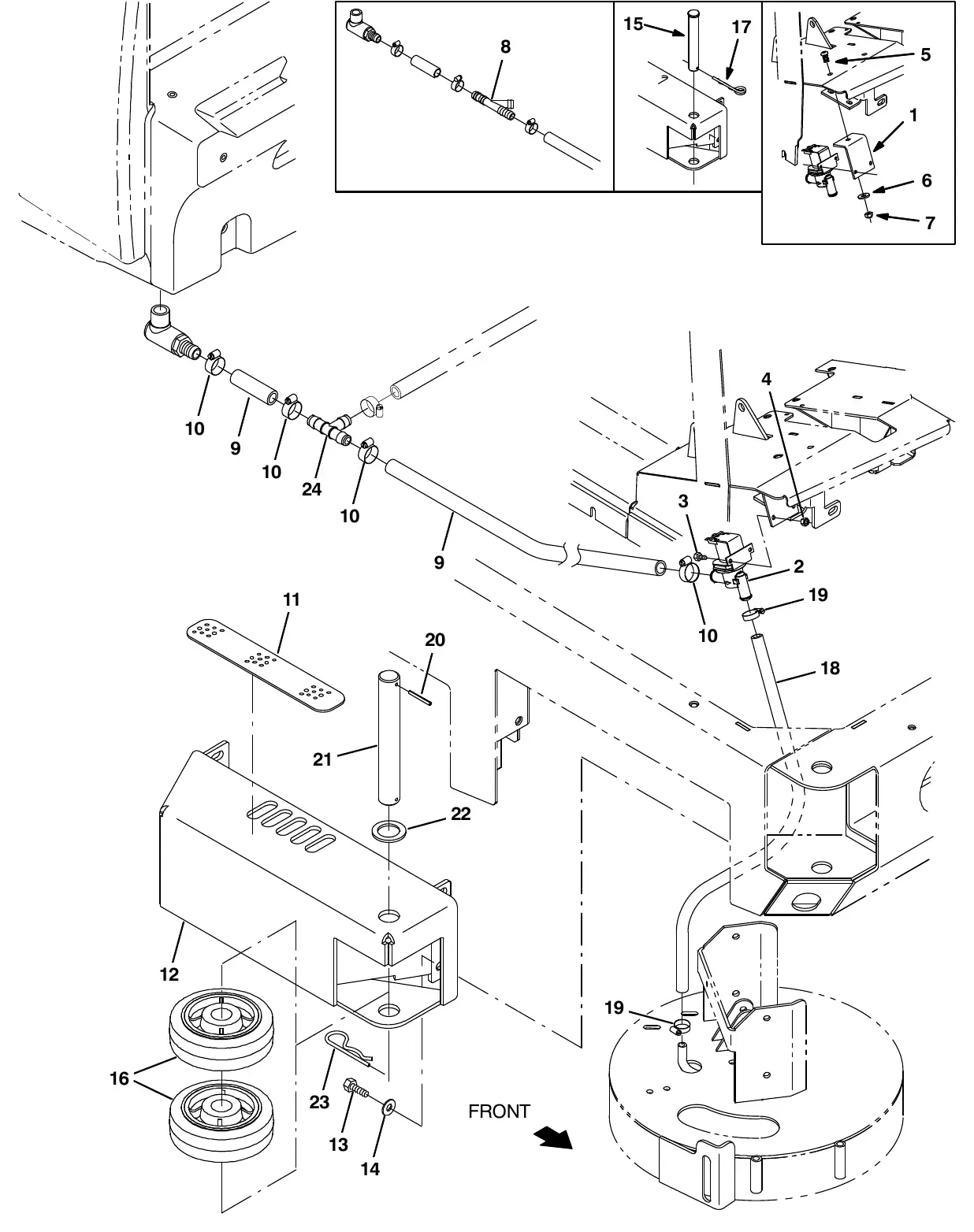

M20 side brush solution control group

OptionsSN 000000–007999

Tennant M20 side brush solution control group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4044431	1	Angle, Mtg, ValveFits SN up to 002241 · Old # 1040834	$23.33/EA
2	TN4032896	1	Valve Assy, Water, Solenoid, 12vdcOld # 1022106	Call for price
3	TN4041990	2	Screw, Hex, M5 X 0.8 X 12, SsOld # 09738	$3.30/EA
4	TN4041991	2	Nut, Hex, Lock, M5 X 0.8, Nl, SsOld # 09739	$3.30/EA
5	TN4041866	1	Screw, Btn, M8 X 1.25 X 16, SsFits SN up to 002241 · Old # 17284	$6.60/EA
6	TN4034137	1	Washer, Flat, 0.31, StdFits SN up to 002241 · Old # 32491	$2.50/EA
7	TN4041929	1	Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 002241 · Old # 08713	$3.30/EA
8	TN4019824	1	Fitting, Plstc, Tee, Bm12/Bm12/Bm12Fits SN up to 007259 · Old # 393255	$29.40/EA
Item 9: choose your version (2)
9	TN4037985	1	Hose, Afmkt, Pvc, Brd 0.75id 08ftFits SN up to 007259 · Old # 1015045	$83.30/EA
9	TN4037981	1	Hose, Afmkt, Pvc, Brd 0.62id 08ftFits SN 007260 and later · Old # 1015032	$80.40/EA
10	TN4017089	4	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
11	TN4024613	1	Tread, Non - Skid, 02.2w 11.5lOld # 82839	$6.10/EA
12	TN4032919	1	Guard Wldt, Brush, SideOld # 1022318	$562.80/EA
13	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
14	TN4042903	4	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
15	TN4015303	1	Pin Kit, Wheel, Ci [M20/T20/M30]Fits SN up to 003062 · Old # 9006334	$34.00/EA
16	TN4034399	2	Wheel, 06.0D 2.00W 1.19B, Gray RbrOld # 1060130	$21.60/EA
17	TN4010707	1	Pin, Cotter, Hair, DblFits SN up to 003062 · Old # 761490	$13.80/EA
18	TN50178	1	Hose, Pvc, Clr, 0.50id 0.69od 26.00lOld # 50178 · current Tennant number (Tennant parts catalog)	Call for price
19	TN4015366	2	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
20	TN4035025	1	Pin, Roll, .187d X 1.62l, .187/.192Fits SN 003063 and later · Old # 23146	$2.50/EA
21	TN4038392	1	Pin, 30mmd X 215mmlFits SN 003063 and later · Old # 1053838	$74.40/EA
22	TN4013894	1	Washer, Flat, 1.26b 1.88d .13, StlFits SN 003063 and later · Old # 47719	$4.10/EA
23	TN4031623	1	Pin, Cotter, Hair, 1.00d .178 WirFits SN 003063 and later · Old # 34411	$4.00/EA
24	TN4034918	1	Fitting, Plstc, Tee, Bm10/Bm10/Bm10, NylFits SN 007260 and later · Old # 1062116	$6.20/EA

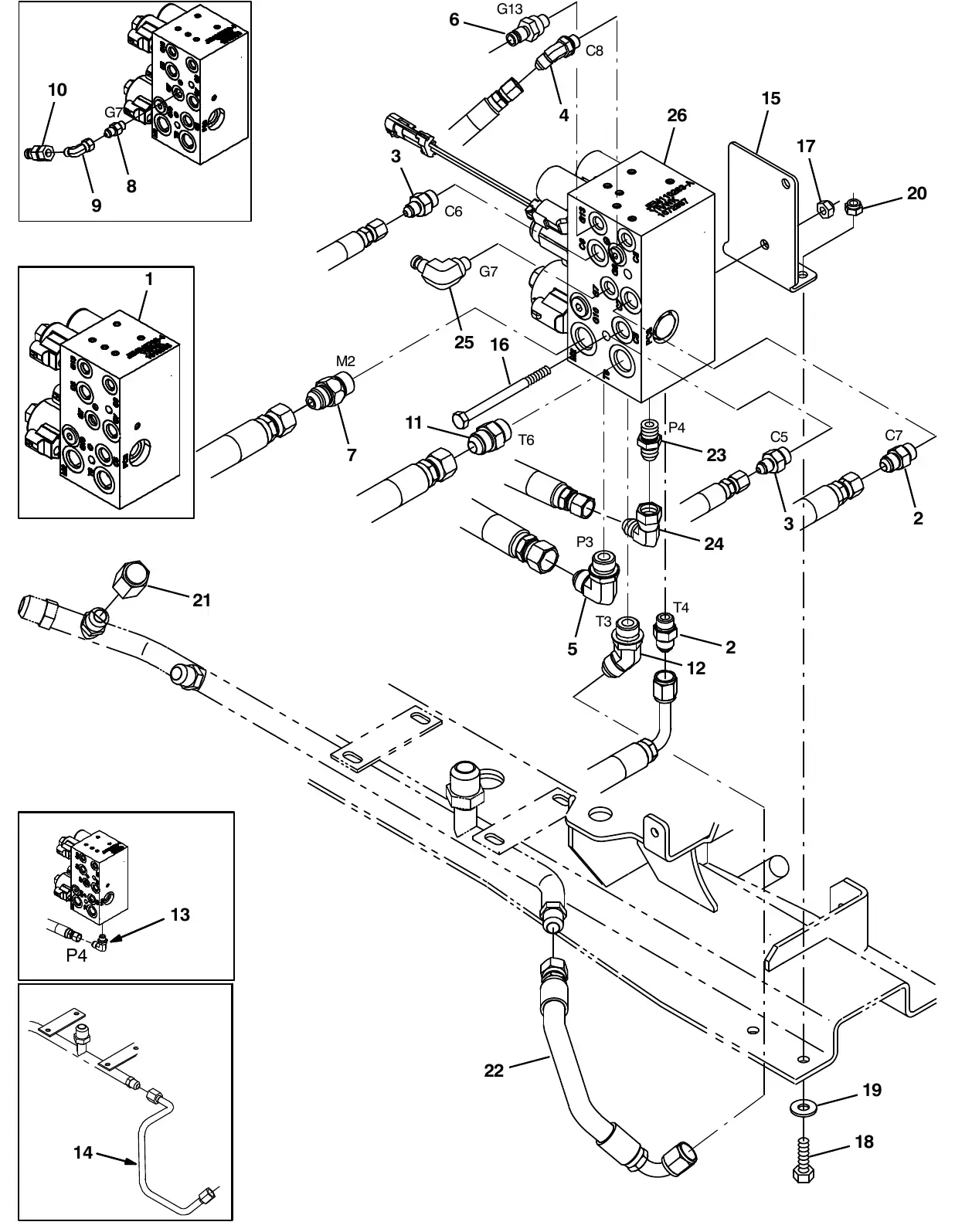

M20 side brush hydraulic valve group

OptionsSN 000000–007999

Tennant M20 side brush hydraulic valve group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (2)

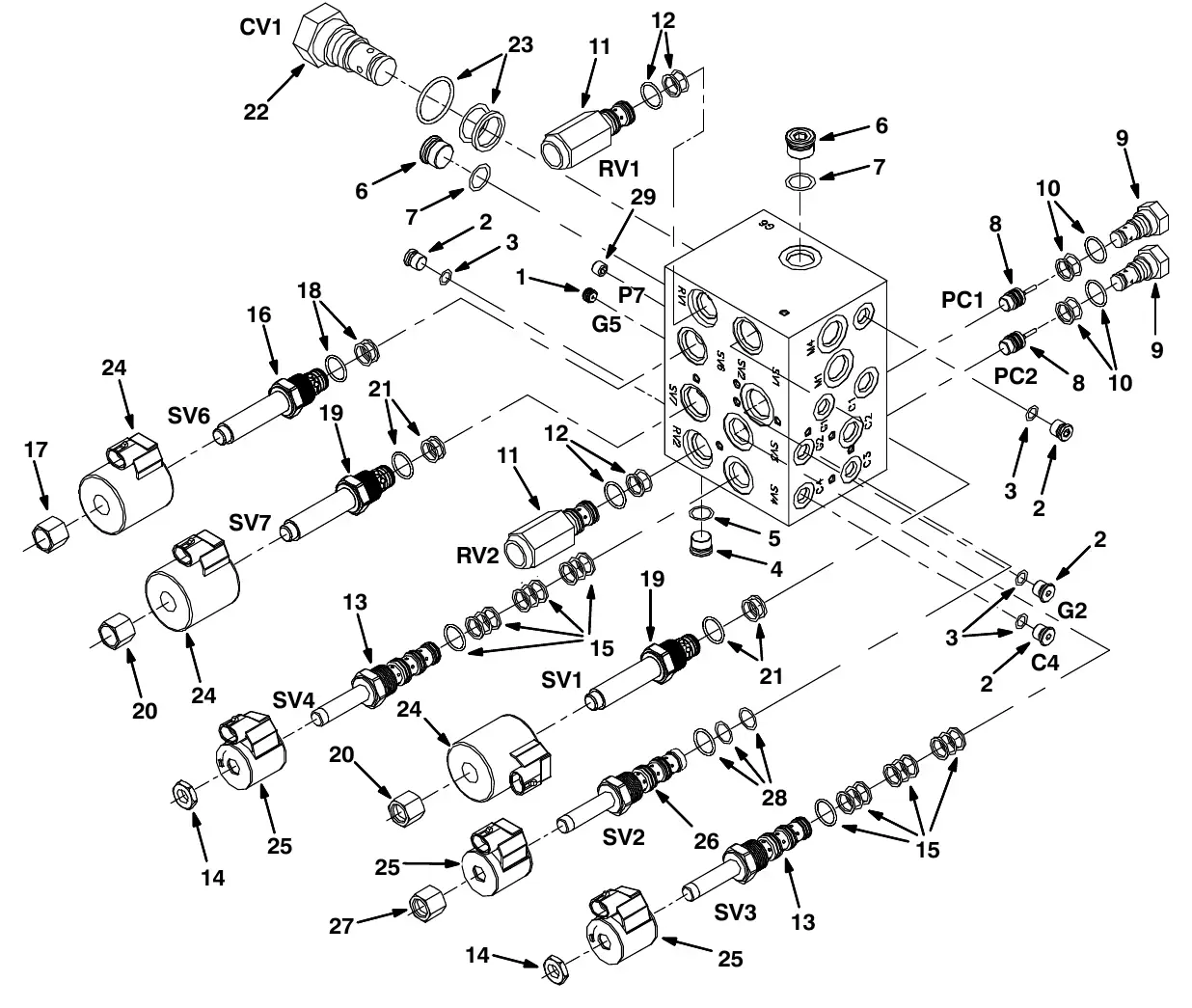

1	TN4045666	1	Valve, Cntrl, Hyd [M20 And T20] (See Breakdowns)Fits SN up to 002015 · Old # 1018938 · replaced by 4045666 (Tennant parts catalog)	Call for price
1	TN4045666	1	Valve, Hyd, Solenoid 12vdc 3000psi (See Breakdowns)Fits SN 002016–006286 · Old # 1037805	Call for price
2	TN4029145	2	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
3	TN4028732	2	Fitting, Hyd, Str, Jm04/Om06Old # 55685	$7.90/EA
4	TN4031286	1	Fitting, Hyd, E45, Jm04/Om04Old # 34359	$11.80/EA
5	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
6	TN4015806	1	Fitting, Hyd, Str, Om04/Qm04Old # 395973	$26.30/EA
7	TN4034233	1	Valve, Hyd, Check, Jm08/Om08 5000psiOld # 1026119	$41.50/EA
8	TN4028729	1	Fitting, Hyd, Str, Jm04/Om04Fits SN up to 002951 · Old # 55586	$6.20/EA
9	TN4019344	1	Fitting, Hyd, E90, Jf04/Jm04Fits SN up to 002951 · Old # 39210	$8.70/EA
10	TN4015822	1	Fitting, Hyd, Str, Jf04/Qm04Fits SN up to 002951 · Old # 396476	$19.90/EA
11	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
12	TN4017335	1	Fitting, Hyd, E45, Jm08/Om08Old # 42226	$11.80/EA
13	TN4029148	1	Fitting, Hyd, E90, Jm06/Om06Fits SN up to 002015 · Old # 56820	$14.00/EA
14	TN4033910	1	Tube, Hyd, 08 Jf08/Jf08Fits SN up to 001357 · Old # 1025405	$35.41/EA
15	TN4042495	1	Bracket, Valve, Sba [M20 And T20]Old # 1045272	$14.45/EA
16	TN4027793	2	Screw, Hex, M8 X 1.25 X 110, SsOld # 364441	$4.90/EA
17	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
18	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
19	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
20	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
21	TN4027429	1	Fitting, Hyd, Cap, Jf08Old # 60090	$7.70/EA
22	TN4045589	1	Hose, Hyd, Tc08, Jf08str/Jf08e90, 012.0Fits SN 001358 and later · Old # 1037011	$39.49/EA
23	TN4029145	1	Fitting, Hyd, Str, Jm06/Om06Fits SN 002016 and later · Old # 56690	$9.60/EA
24	TN4013494	1	Fitting, Hyd, E90, Jf06/Jm06Fits SN 002016 and later · Old # 47504	$14.90/EA
25	TN4015807	1	Fitting, Hyd, E90, Om04/Qm04Fits SN 002952 and later · Old # 395974	$36.40/EA
26	TN4031319	1	Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns)Fits SN 006287 and later · Old # 1072997	$1,504.00/EA

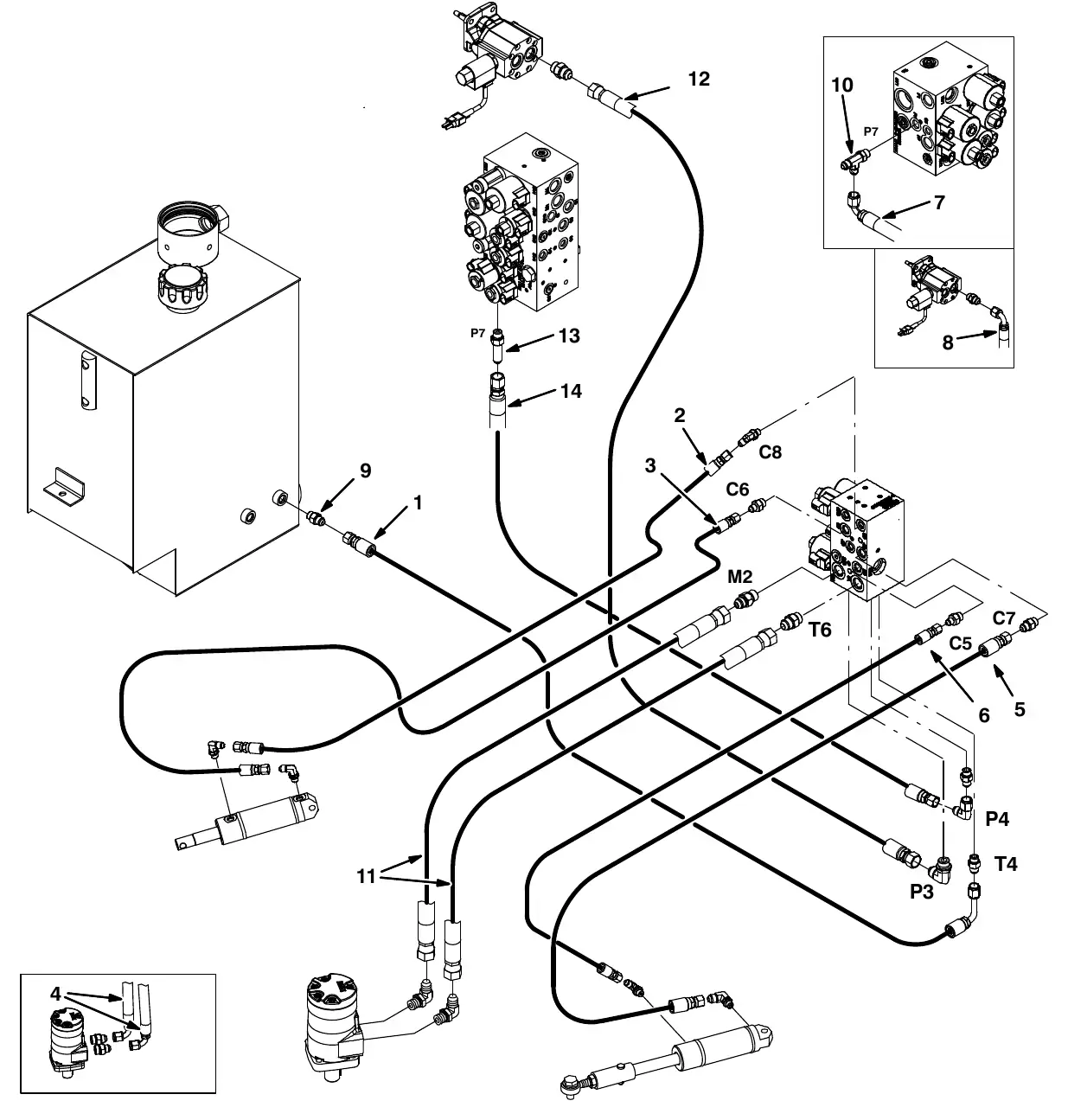

M20 side brush hydraulic hose group

OptionsSN 000000–007999

Tennant M20 side brush hydraulic hose group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4029569	1	Hose, Hyd, Med06, Jf06e90l/Jf06str,038.0Old # 361047	$42.00/EA
2	TN4033270	1	Hose, Hyd, Tc06, Jf06str/Jf06str, 033.0Old # 1023485	$41.92/EA
3	TN4034220	1	Hose, Hyd, Tc04, Jf04str /Jf04str, 39.0Old # 1025990	$51.70/EA
4	TN4033271	2	Hose, Hyd, Tc08, Jf08e90/Jf08str, 034.0Fits SN up to 001337 · Old # 1023486	$49.63/EA
5	TN4034221	1	Hose, Hyd, Tc06, Jf06str /Jf06str, 23.0Old # 1025991	$32.90/EA
6	TN4034222	1	Hose, Hyd, Tc04, Jf04str /Jf04str, 20.0Old # 1025992	$30.60/EA
7	TN4033912	1	Hose, Hyd, Tc06, Jf06str /Jf06e90, 74.0Fits SN up to 002699 · Old # 1025445	$80.80/EA
8	TN4028453	1	Hose, Hyd, Tc08, Jf08e90/Jf08str, 056.0Fits SN up to 001337 · Old # 365004	$99.69/EA
9	TN4029145	1	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
10	TN4011922	1	Fitting, Hyd, Tee, Jm06/Jm06/Om06, RunFits SN up to 002699 · Old # 76316	$38.40/EA
11	TN4045583	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 034.0Fits SN 001338 and later · Old # 1036965	$50.50/EA
Item 12: choose your version (2)
12	TN4045579	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 056.0Fits SN 001338–005999 · Old # 1036944	Call for price
12	TN4045580	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 084.0Fits SN 006000 and later · Old # 1036946	$54.54/EA
13	TN4026830	1	Fitting, Hyd, Str, Jm06/Om06, LongFits SN 002700 and later · Old # 59577	$9.90/EA
Item 14: choose your version (2)
14	TN4025641	1	Hose, Hyd, Tc06, Jf06Str/Jf06Str, 062.0Fits SN 002700–005999 · Old # 377236	$63.02/EA
14	TN4044481	1	Hose, Hyd, Tc06, Jf06str/Jf06str, 086.0Fits SN 006000 and later · Old # 1041389	$48.50/EA

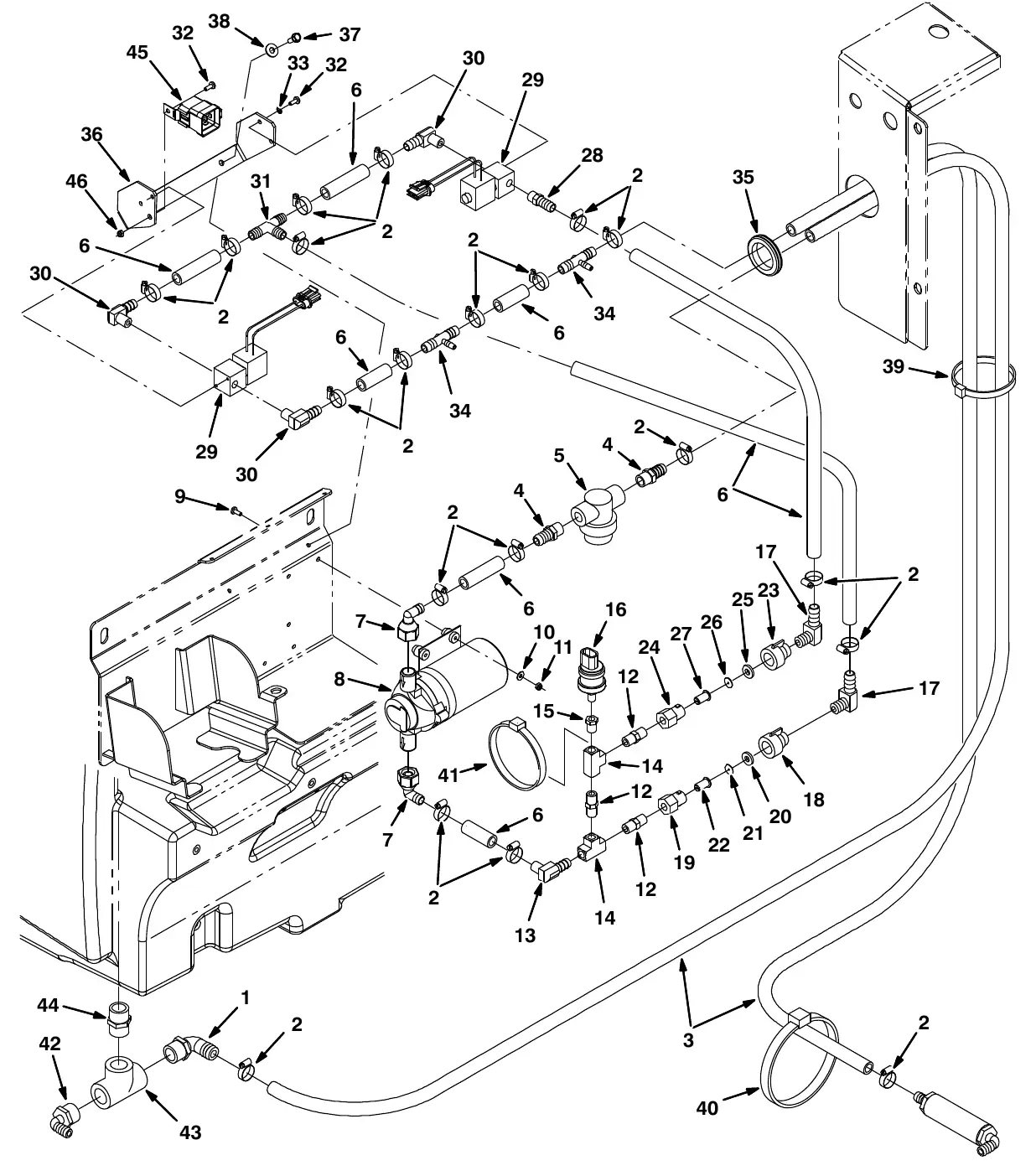

M20 FaST solution pump group (000000 - 002532)

OptionsSN 000000–007999

Tennant M20 FaST solution pump group (000000 - 002532) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4038988	1	Fitting, Plstc, E90, Bm08/Pm12, NylFits SN up to 002532 · Old # 1005552	$7.90/EA
2	TN4015366	1	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN up to 002532 · Old # 54333	$5.10/EA
3	TN4036844	1	Hose, Afmkt, Pvc, Brd 0.50id 08ftFits SN up to 002532 · Old # 1011412	$70.70/EA
4	TN4017637	2	Fitting, Plstc, Str, Bm08/Pm06Fits SN up to 002532 · Old # 64743	$6.20/EA
5	TN4038961	1	Filter, In - Line, Pf06/Pf06, 80 MeshFits SN up to 002532 · Old # 1005302	$21.10/EA
6	TN4039302	1	Hose, Afmkt, Pvc, Brd 0.50id 03ftFits SN up to 002532 · Old # 1006401	$32.10/EA
7	TN4035811	2	Fitting, Plstc, E90, Bm08/Pf08s, SwivelFits SN up to 002532 · Old # 1018499	$4.20/EA
8	TN4031763	1	Pump, Soltn, Ele, 12vdc [W/O Chk Valve]Fits SN up to 002532 · Old # 1030878	$645.90/EA
9	TN4041856	4	Screw, Pan, M5 X 0.8 X 40, SsFits SN up to 002532 · Old # 17185	$4.00/EA
10	TN4042888	4	Washer, Flat, #10, SsFits SN up to 002532 · Old # 01683	$2.60/EA
11	TN4041991	4	Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN up to 002532 · Old # 09739	$3.30/EA
12	TN4016530	3	Fitting, Brs, Str, Pm04/Pm04Fits SN up to 002532 · Old # 398468	$3.60/EA
13	TN4040389	1	Fitting, Brs, E90, Bm08/Pm04Fits SN up to 002532 · Old # 1010836	$14.40/EA
14	TN4016533	2	Fitting, Brs, Tee, Pf04/Pf04/Pf04Fits SN up to 002532 · Old # 398474	$6.90/EA
15	TN4044383	1	Fitting, Brs, Str, Pf02/Pm04Fits SN up to 002532 · Old # 150100	$4.10/EA
16	TN4030939	1	Switch, Press, 10psi, SpstFits SN up to 002532 · Old # 1028582	$125.40/EA
17	TN4040389	2	Fitting, Brs, E90, Bm08/Pm04Fits SN up to 002532 · Old # 1010836	$14.40/EA
	TN1030864	1	Fitting Assy, Orifice, 0.070b, Pf04/Pf04Fits SN up to 002532 · Old # 1030864 · current Tennant number (Tennant parts catalog)	$56.00/EA
18	TN4038980	1	Fitting, Plstc, Cap, Spray, Pf04Fits SN up to 002532 · Old # 1005506	$25.15/EA
19	TN4038981	1	Fitting, Plstc, Body, Spray, Pf04Fits SN up to 002532 · Old # 1005507	$12.83/EA
20	TN4038982	1	Washer, Flat, 0.34b 0.75d .12 [Viton]Fits SN up to 002532 · Old # 1005508	$13.00/EA
21	TN4035860	1	Plate, Orifice, 0.070idFits SN up to 002532 · Old # 1018883	$16.26/EA
22	TN8005899	1	Filter, Screen, 50 Mesh .59d .8l SsFits SN up to 002532 · Old # 1006447	$13.00/EA
	TN4031757	1	Fitting Assy, Orifice, 0.093b, Pf04/Pf04Fits SN up to 002532 · Old # 1030863	$60.70/EA
23	TN4038980	1	Fitting, Plstc, Cap, Spray, Pf04Fits SN up to 002532 · Old # 1005506	$25.15/EA
24	TN4038981	1	Fitting, Plstc, Body, Spray, Pf04Fits SN up to 002532 · Old # 1005507	$12.83/EA
25	TN4038982	1	Washer, Flat, 0.34b 0.75d .12 [Viton]Fits SN up to 002532 · Old # 1005508	$13.00/EA
26	TN4035861	1	Plate, Orifice, 0.093idFits SN up to 002532 · Old # 1018884	$10.30/EA
27	TN8005899	1	Filter, Screen, 50 Mesh .59d .8l SsFits SN up to 002532 · Old # 1006447	$13.00/EA
28	TN4011407	1	Fitting, Brs, Str, Bm08/Pm04Fits SN up to 002532 · Old # 762249	$4.20/EA
29	TN4035534	2	Valve, Water, 12vdc, 6.0mm, 04pfFits SN up to 002532 · Old # 1018098	$329.20/EA
30	TN4040389	3	Fitting, Brs, E90, Bm08/Pm04Fits SN up to 002532 · Old # 1010836	$14.40/EA
31	TN4021151	1	Fitting, Plstc, Tee, Bm08/Bm08/Bm08Fits SN up to 002532 · Old # 63245-1	$6.20/EA
32	TN4041965	5	Screw, Pan, M5 X 0.8 X 12, SsFits SN up to 002532 · Old # 09200	$3.40/EA
33	TN4041589	4	Washer, Lock, Int, #10, SsFits SN up to 002532 · Old # 07514	$3.50/EA
34	TN4040376	2	Fitting, Plstc, Tee, Bm04/Bm08/Bm08, BrFits SN up to 002532 · Old # 1010684	$1.60/EA
35	TN4032002	1	Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN up to 002532 · Old # 10632-19	$1.50/EA
36	TN1026074	1	Plate, Hsng [FaST]Fits SN up to 002532 · Old # 1026074 · current Tennant number (Tennant parts catalog)	$24.80/EA
37	TN4029864	4	Screw, Hex, M6 X 1.0 X 16, FmgFits SN up to 002532 · Old # 361339	$4.00/EA
38	TN4034136	4	Washer, Flat, 0.25 StdFits SN up to 002532 · Old # 32490	$2.50/EA
39	TN4014138	1	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN up to 002532 · Old # 49266	$2.50/EA
40	TN4011910	1	Tie, Cable, Nyl, 15.3l . W 4.5 Max DFits SN up to 002532 · Old # 763116	$3.40/EA
41	TN4011908	1	Tie, Cable, 11.3l, 2.75d MaxFits SN up to 002532 · Old # 763114	$3.30/EA
42	TN4044360	1	Fitting, Plstc, E90, Bm12/Pm12Fits SN up to 002532 · Old # 14877	$6.20/EA
43	TN4017317	1	Fitting, Plstc, Tee, Pf12/Pf12/Pf12Fits SN up to 002532 · Old # 42133A	$17.60/EA
44	TN4035382	1	Fitting, Plstc, Str, Pm12/Pm12 1.60lFits SN up to 002532 · Old # 24544	$6.20/EA
45	TN4029123	1	Relay, 12vdc, 40a, Spdt N/OFits SN up to 002532 · Old # 56186	$11.30/EA
46	TN4041991	1	Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN up to 002532 · Old # 09739	$3.30/EA

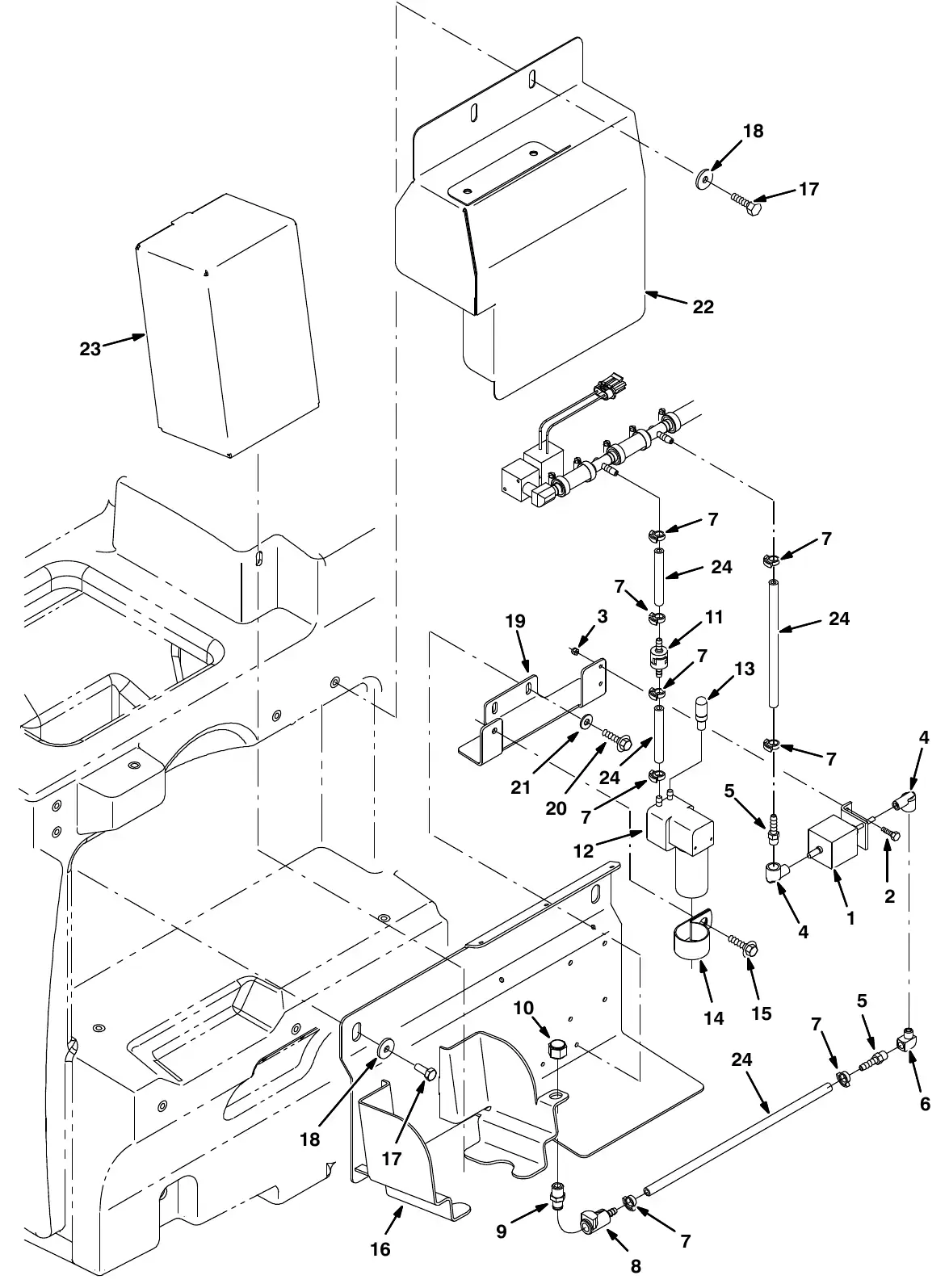

M20 FaST air pump and detergent group (000000 - 002532)

OptionsSN 000000–007999

Tennant M20 FaST air pump and detergent group (000000 - 002532) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4035533	1	Pump, Detgt, 12vdcFits SN up to 002532 · Old # 1018097	$1,347.24/EA
2	TN4041967	2	Screw, Hex, M4 X 0.7 X 12, 8.8Fits SN up to 002532 · Old # 09206	$3.30/EA
3	TN4043235	2	Nut, Hex, Lock, M4 X 0.7, NlFits SN up to 002532 · Old # 02850	$2.50/EA
4	TN4037598	2	Fitting, Brs, E90, Cf03/Pf02Fits SN up to 002532 · Old # 1014082	$13.03/EA
5	TN4044572	2	Fitting, Brs, Str, Bm04/Pm02Fits SN up to 002532 · Old # 150525	$4.20/EA
6	TN4043406	1	Fitting, Pipe, E90, Pf02/Pm02Fits SN up to 002532 · Old # 11984	$6.20/EA
7	TN4037926	8	Clamp, Hose, Plstc .351 - .394 IdFits SN up to 002532 · Old # 1014575	$3.23/EA
8	TN4038929	1	Fitting, Plstc, Str, Bm04, Cplg, FemFits SN up to 002532 · Old # 1002898	$58.00/EA
9	TN4038930	1	Fitting, Plstc, Str, Pm04, Cplg, MalFits SN up to 002532 · Old # 1002899	$31.30/EA
10	TN4038978	1	Fitting, Plstc, Pipe, Cap, Pf04Fits SN up to 002532 · Old # 1005435	$4.20/EA
11	TN4037578	1	Valve, Check, 0002psi Bm04/Bm04Fits SN up to 002532 · Old # 1013902	$84.00/EA
12	TN4035847	1	Pump, Air, Ele, 12vdcFits SN up to 002532 · Old # 1018780	$968.89/EA
13	TN4038960	1	Filter Assy, Air, Mold, UreFits SN up to 002532 · Old # 1005255	$28.10/EA
14	TN4015029	1	Clamp, Cable, Stl, 1.50d X 1.00w, 1hFits SN up to 002532 · Old # 53466	$4.20/EA
15	TN4013943	1	Screw, Hex, M8 X 1.25 X 25, FmgFits SN up to 002532 · Old # 76099	$4.00/EA
16	TN4034228	1	Bracket Wldt, Mtg [FaST]Fits SN up to 002532 · Old # 1026067	$154.13/EA
17	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsFits SN up to 002532 · Old # 09740	$3.30/EA
18	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 002532 · Old # 1017218	$3.40/EA
19	TN4194604	1	Bracket, Mtg [FaST]Fits SN up to 002532 · Old # 1029118	Call for price
20	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgFits SN up to 002532 · Old # 361339	$4.00/EA
21	TN4034136	2	Washer, Flat, 0.25 StdFits SN up to 002532 · Old # 32490	$2.50/EA
22	TN4192669	1	Cover Wldt [FaST]Fits SN up to 002532 · Old # 1033297	$81.51/EA
23	TN4035218	1	Detergent Pkg, 2 Liter, Sgl [665]Fits SN up to 002532 · Old # 1017022	Call for price
24	TN4039304	1	Hose, Afmkt, Pvc, Clr 0.25id 03ftFits SN up to 002532 · Old # 1006415	$51.70/EA

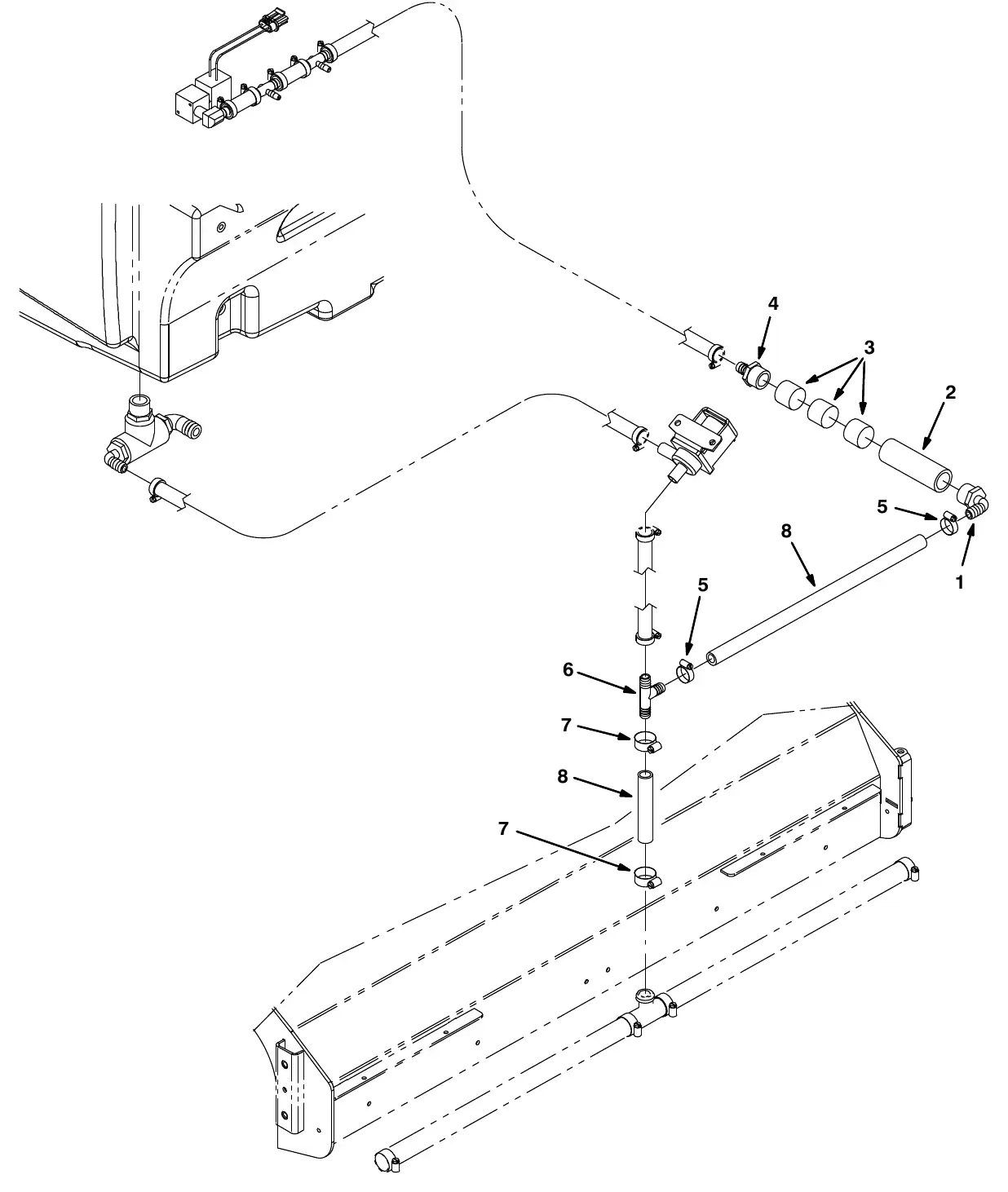

M20 FaST foam filter group (000000 - 002532)

OptionsSN 000000–007999

Tennant M20 FaST foam filter group (000000 - 002532) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4038988	1	Fitting, Plstc, E90, Bm08/Pm12, NylFits SN up to 002532 · Old # 1005552	$7.90/EA
2	TN4038947	1	Tube, Pvc, Clr, 4.0l [Shc80]Fits SN up to 002532 · Old # 1005086	$46.00/EA
3	TN4038926	3	Filter, Foam, Rbr, 1.20d, 1.0lFits SN up to 002532 · Old # 1002789	$3.40/EA
4	TN4026537	1	Fitting, Plstc, Str, Bm08/Pm12Fits SN up to 002532 · Old # 79273-1	$8.70/EA
5	TN4015366	2	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN up to 002532 · Old # 54333	$5.10/EA
6	TN4021001	1	Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrFits SN up to 002532 · Old # 385644	$9.90/EA
7	TN4017089	2	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN up to 002532 · Old # 63810	$6.80/EA
8	TN4036862	1	Hose, Afmkt, Pvc, Brd 0.50id 02ftFits SN up to 002532 · Old # 1011521	$21.00/EA

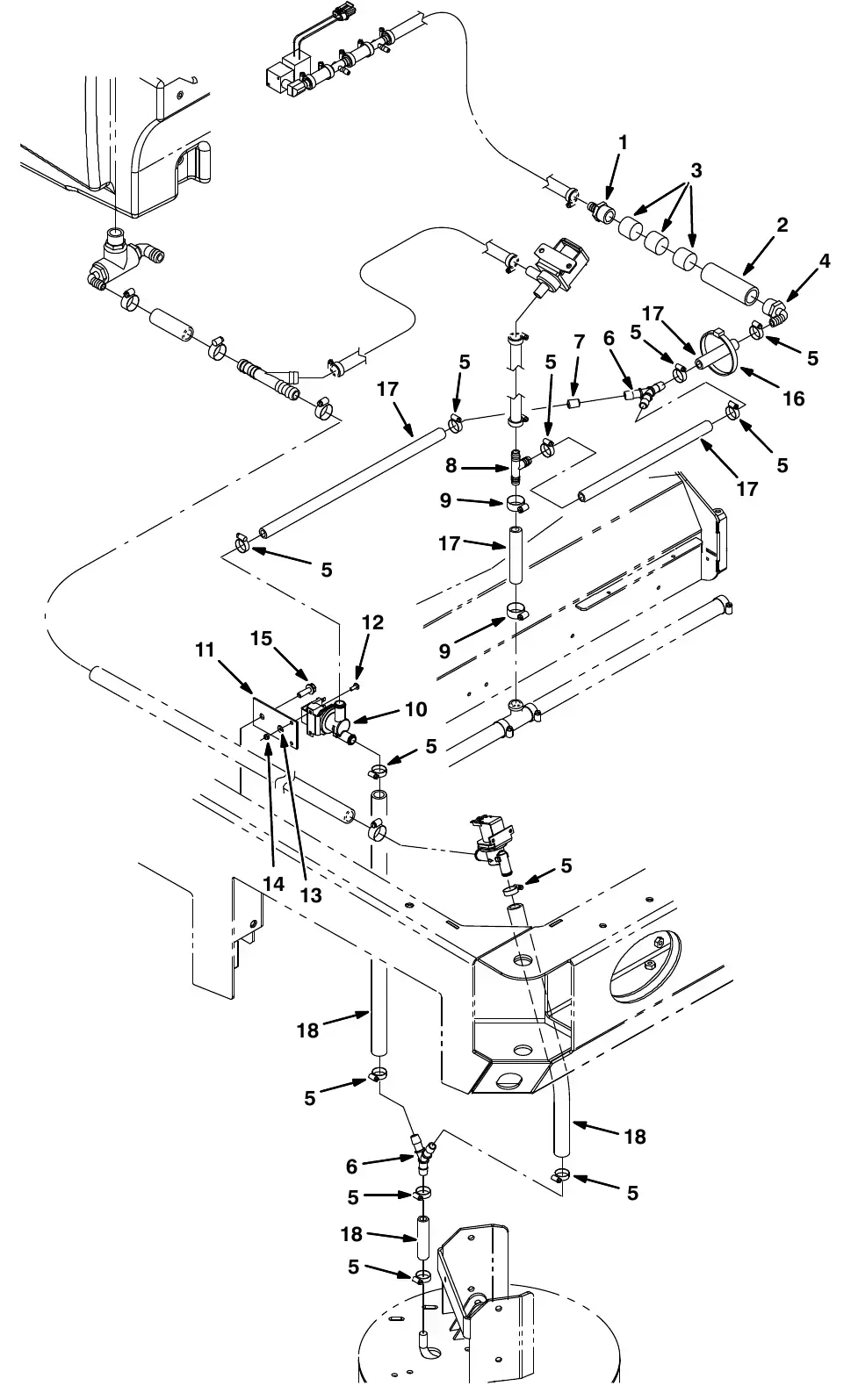

M20 FaST foam filter group, side brush (000000 - 002532)

OptionsSN 000000–007999

Tennant M20 FaST foam filter group, side brush (000000 - 002532) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4026537	1	Fitting, Plstc, Str, Bm08/Pm12Fits SN up to 002532 · Old # 79273-1	$8.70/EA
2	TN4038947	1	Tube, Pvc, Clr, 4.0l [Shc80]Fits SN up to 002532 · Old # 1005086	$46.00/EA
3	TN4038926	3	Filter, Foam, Rbr, 1.20d, 1.0lFits SN up to 002532 · Old # 1002789	$3.40/EA
4	TN4038988	1	Fitting, Plstc, E90, Bm08/Pm12, NylFits SN up to 002532 · Old # 1005552	$7.90/EA
5	TN4015366	10	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN up to 002532 · Old # 54333	$5.10/EA
6	TN4040375	2	Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylFits SN up to 002532 · Old # 1010668	$11.00/EA
7	TN4035803	1	Fitting, Plstc, Rst, .50od /.13idFits SN up to 002532 · Old # 1018333	$46.26/EA
8	TN4021001	1	Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrFits SN up to 002532 · Old # 385644	$9.90/EA
9	TN4017089	2	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN up to 002532 · Old # 63810	$6.80/EA
10	TN4043533	1	Valve, Solenoid, 12vdc, Water FlowFits SN up to 002532 · Old # 1037825	Call for price
11	TN4031717	11	Plate, Mtg, ValveFits SN up to 002532 · Old # 1030511	$4.75/EA
12	TN4041965	2	Screw, Pan, M5 X 0.8 X 12, SsFits SN up to 002532 · Old # 09200	$3.40/EA
13	TN4042888	2	Washer, Flat, #10, SsFits SN up to 002532 · Old # 01683	$2.60/EA
14	TN4041991	2	Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN up to 002532 · Old # 09739	$3.30/EA
15	TN4013943	1	Screw, Hex, M8 X 1.25 X 25, FmgFits SN up to 002532 · Old # 76099	$4.00/EA
16	TN4011910	1	Tie, Cable, Nyl, 15.3l . W 4.5 Max DFits SN up to 002532 · Old # 763116	$3.40/EA
17	TN4036844	1	Hose, Afmkt, Pvc, Brd 0.50id 08ftFits SN up to 002532 · Old # 1011412	$70.70/EA
18	TN4037991	1	Hose, Afmkt, Pvc, Clr 0.50id 08ftFits SN up to 002532 · Old # 1015067	$50.20/EA

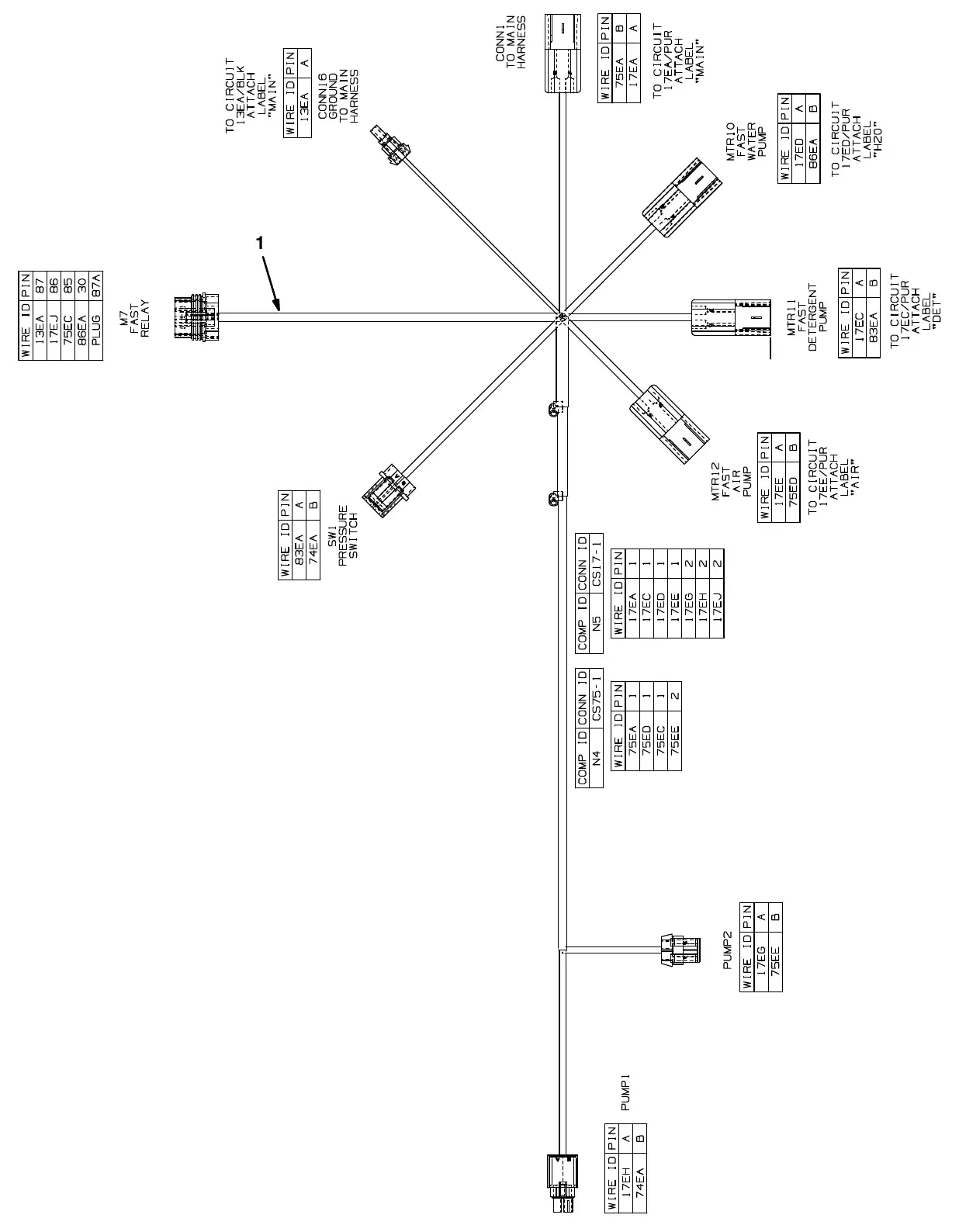

M20 FaST wire harness group (000000 - 002532)

OptionsSN 000000–007999

Tennant M20 FaST wire harness group (000000 - 002532) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN1019646	1	Harness [FaST, M20 And T20]Fits SN up to 002532 · Old # 1019646 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price

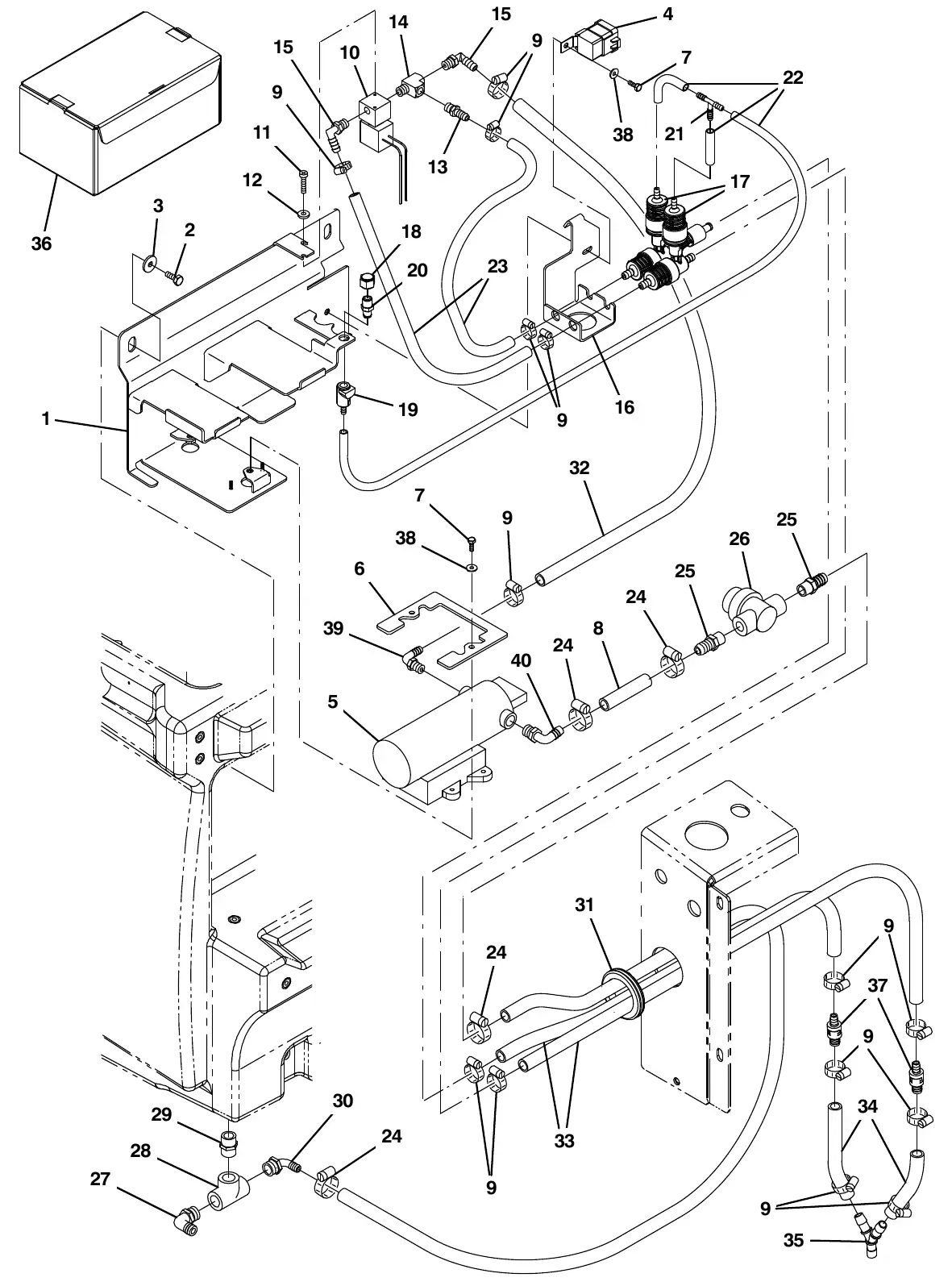

M20 FaST pumps and detergent group (002533 - )

OptionsSN 000000–007999

Tennant M20 FaST pumps and detergent group (002533 - ) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4189669	1	Bracket Wldt, Mtg [FaST Gen 2+]Fits SN 002533 and later · Old # 1044342	$167.05/EA
2	TN4041992	2	Screw, Hex, M8 X 1.25 X 20, SsFits SN 002533 and later · Old # 09740	$3.30/EA
3	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsFits SN 002533 and later · Old # 1017218	$3.40/EA
4	TN4029123	1	Relay, 12vdc, 040a, Spdt NoFits SN 002533 and later · Old # 56186	$11.30/EA
5	TN4045556	1	Pump, Soltn, 13.7vdc, 65psi [FaST Ii+]Fits SN 002533 and later · Old # 1036801	$593.80/EA
6	TN4191121	1	Bracket, Retainer, PumpFits SN 002533 and later · Old # 1039357	$9.15/EA
7	TN4041245	3	Screw, Hex, M6 X 1.00 X 16, SsFits SN 002533 and later · Old # 15678	$3.20/EA
8	TN4036839	1	Hose, Afmkt, Pvc, Brd, 0.50Id, 01Ft, ClrFits SN 002533 and later · Old # 1011403	$19.40/EA
9	TN4017396	14	Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 002533 and later · Old # 43844	$4.20/EA
10	TN4035534	1	Valve, Water, Solenoid, 12vdc 6.0mm Pf04Fits SN 002533 and later · Old # 1018098	$329.20/EA
11	TN4041965	2	Screw, Pan, Phl, M5 X 0.80 X 12, SsFits SN 002533 and later · Old # 09200	$3.40/EA
12	TN4042888	2	Washer, Flat, 10, SsFits SN 002533 and later · Old # 01683	$2.60/EA
13	TN4041118	1	Fitting, Plstc, Str, Bm06/Pm04Fits SN 002533 and later · Old # 150540	$4.20/EA
14	TN4041151	1	Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunFits SN 002533 and later · Old # 150709	$14.40/EA
15	TN4029298	2	Fitting, Plstc, E90, Bm06/Pm04, NylFits SN 002533 and later · Old # 57248	$7.00/EA
16	TN4189680	1	Bracket, Mtg [FaST Gen 2+]Fits SN 002533 and later · Old # 1044343	$23.03/EA
17	TN4010349	2	FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns)Fits SN 002533 and later · Old # 9008868	Call for price
18	TN4038978	1	Fitting, Plstc, Pipe, Cap, Pf04Fits SN 002533 and later · Old # 1005435	$4.20/EA
19	TN4038929	1	Fitting, Plstc, Str, Bm04, Cplg, FemFits SN 002533 and later · Old # 1002898	$58.00/EA
20	TN4038930	2	Fitting, Plstc, Str, Pm04, Cplg, MalFits SN 002533 and later · Old # 1002899	$31.30/EA
21	TN4041153	1	Fitting, Plstc, Tee, Bm04/Bm04/Bm04Fits SN 002533 and later · Old # 150713	$10.60/EA
22	TN4037973	1	Hose, Afmkt, Pvc, Clr, 0.25id, 02ftFits SN 002533 and later · Old # 1014986	$18.70/EA
23	TN4039305	1	Hose, Afmkt, Pvc, Clr, 0.38id, 03ftFits SN 002533 and later · Old # 1006416	$18.70/EA
24	TN4015366	8	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 002533 and later · Old # 54333	$5.10/EA
25	TN4044578	2	Fitting, Plstc, Str, Bm06/Pm06Fits SN 002533 and later · Old # 150538	$5.30/EA
26	TN4038961	1	Filter, In - Line, Pf06/Pf06 080mesh 02.6lFits SN 002533 and later · Old # 1005302	$21.10/EA
Item 27: choose your version (2)
27	TN4044360	1	Fitting, Plstc, E90, Bm12/Pm12Fits SN 002533–007259 · Old # 14877	$6.20/EA
27	TN4016343	1	Fitting, Plstc, E90, Bm10/Pm12Fits SN 007260 and later · Old # 73468	$7.90/EA
28	TN4017317	1	Fitting, Plstc, Tee, Pf12/Pf12/Pf12Fits SN 002533 and later · Old # 42133A	$17.60/EA
29	TN4035382	1	Fitting, Plstc, Str, Pm12/Pm12 1.60lFits SN 002533 and later · Old # 24544	$6.20/EA
30	TN4038988	1	Fitting, Plstc, E90, Bm08/Pm12, NylFits SN 002533 and later · Old # 1005552	$7.90/EA
31	TN4032002	1	Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN 002533 and later · Old # 10632-19	$1.50/EA
32	TN4039301	1	Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrFits SN 002533 and later · Old # 1006400	$33.10/EA
33	TN4033588	1	Hose, Afmkt, Pvc, Wir, 0.50id, 03ft, ClrFits SN 002533 and later · Old # 1024237	$27.20/EA
34	TN4037960	1	Hose, Afmkt, Pvc, Clr, 0.38id, 01ftFits SN 002533 and later · Old # 1014929	$21.00/EA
35	TN4040375	1	Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylFits SN 002533 and later · Old # 1010668	$11.00/EA
36	TN4035218	1	Detergent, Pkg, 2 Liter, Sgl [665]Fits SN 002533 and later · Old # 1017022	Call for price
37	TN4045437	2	Valve, Check, 0005psi Bm06/Bm08Fits SN 002533 and later · Old # 1035794	$35.90/EA
38	TN4042901	3	Washer, Flat, 0.27B 0.69D .05, SsFits SN 002533 and later · Old # 01684	$2.60/EA
39	TN4040112	1	Fitting, Nyl, Qdc, E90, Bm08/ Qm10Fits SN 002533 and later · Old # 1049254	$11.80/EA
40	TN4040113	1	Fitting, NylY, Qdc, E90, Bm06/ Qm10Fits SN 002533 and later · Old # 1049259	$10.60/EA

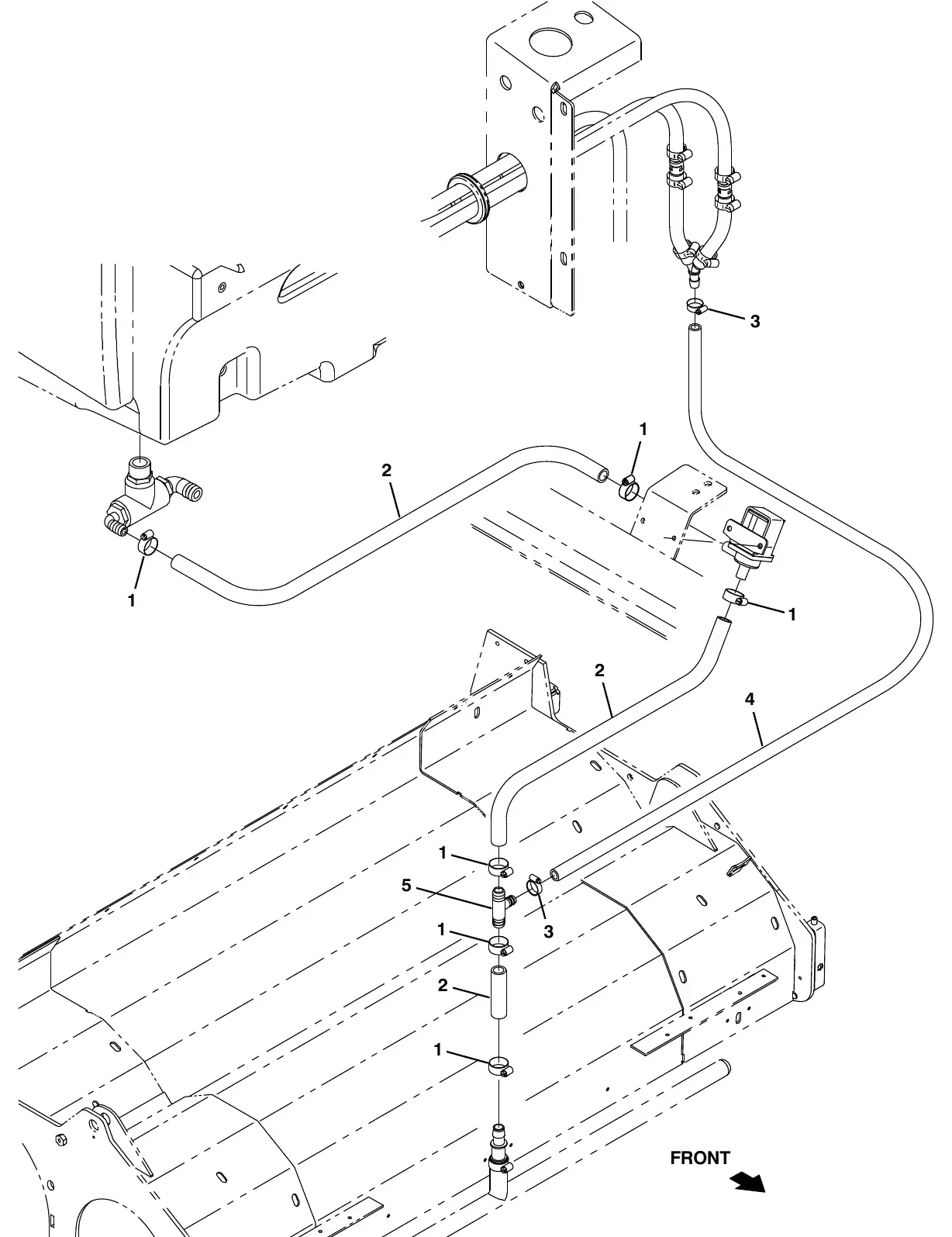

M20 FaST solution supply group (002533 - )

OptionsSN 000000–007999

Tennant M20 FaST solution supply group (002533 - ) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4017089	6	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 002533 and later · Old # 63810	$6.80/EA
Item 2: choose your version (2)
2	TN4037985	1	Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrFits SN 002533–007259 · Old # 1015045	$83.30/EA
2	TN4037981	1	Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 007260 and later · Old # 1015032	$80.40/EA
3	TN4015366	2	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 002533 and later · Old # 54333	$5.10/EA
4	TN4036844	1	Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 002533 and later · Old # 1011412	$70.70/EA
Item 5: choose your version (2)
5	TN4021001	1	Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrFits SN 002533–007259 · Old # 385644	$9.90/EA
5	TN4038303	1	Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrFits SN 007260 and later · Old # 1015486	$5.30/EA

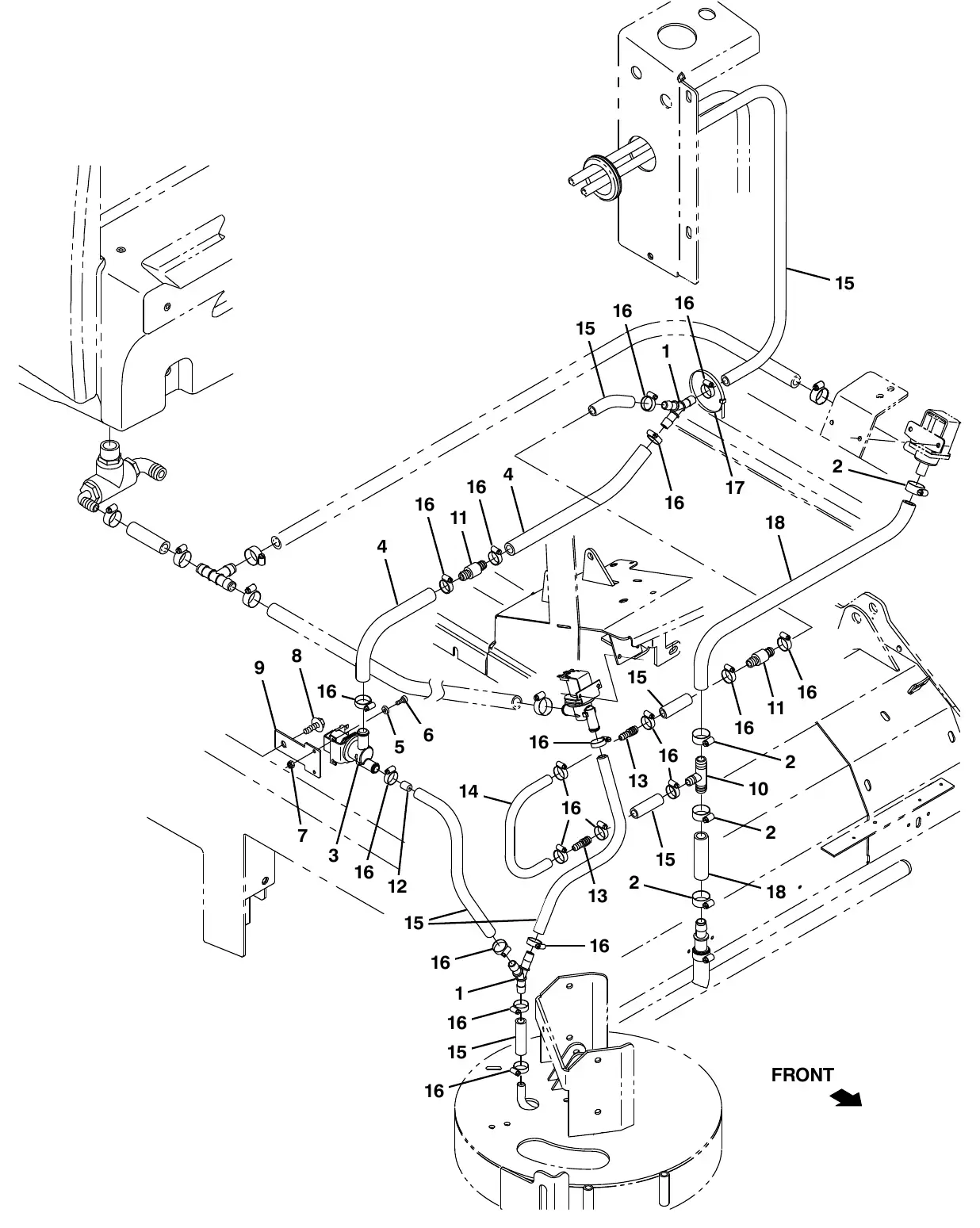

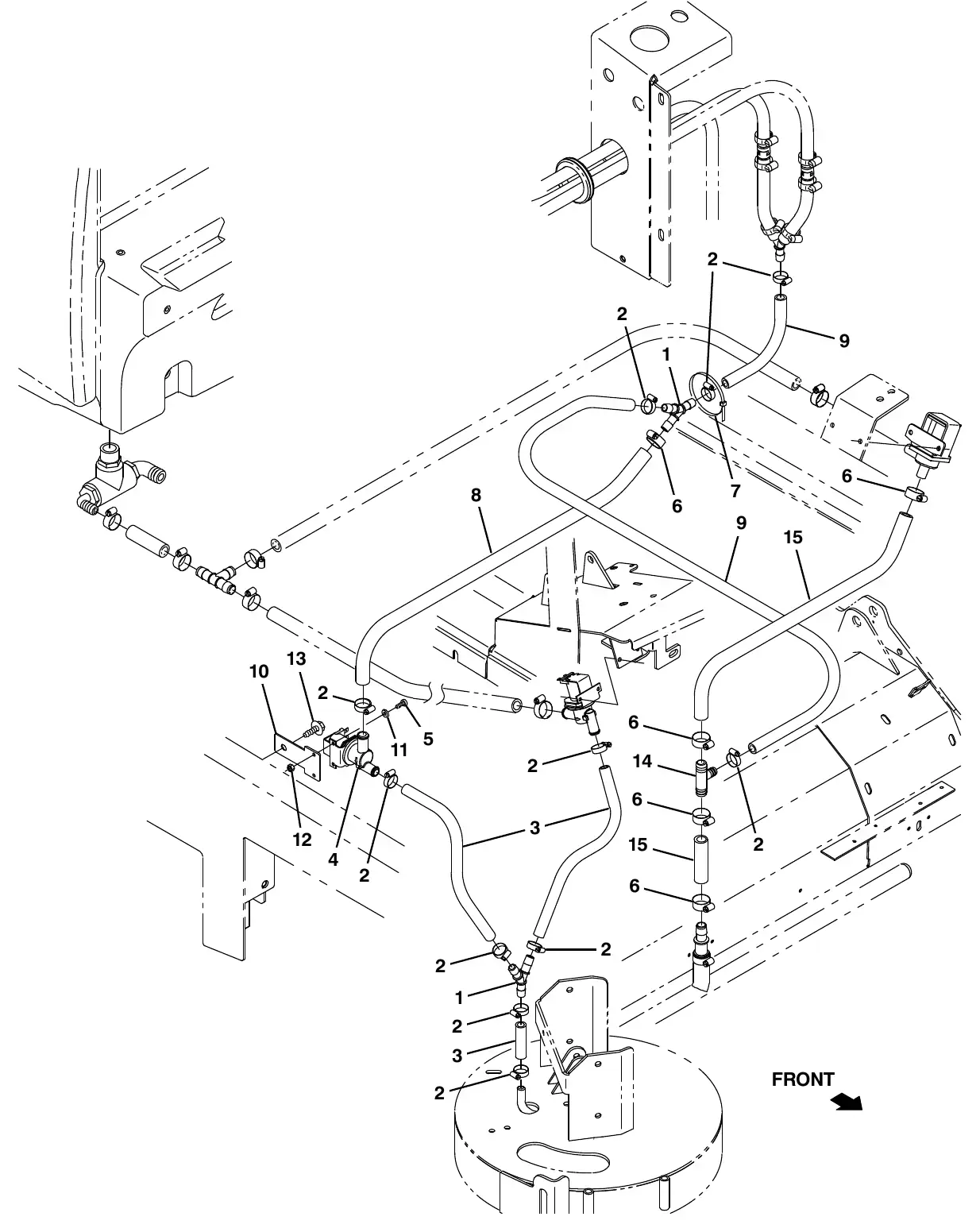

M20 FaST solution supply group with side brush (002533 - )

OptionsSN 000000–007999

Tennant M20 FaST solution supply group with side brush (002533 - ) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4040375	2	Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylFits SN 002533 and later · Old # 1010668	$11.00/EA
2	TN4015366	11	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 002533 and later · Old # 54333	$5.10/EA
3	TN4037991	1	Hose, Afmkt, Pvc, Clr, 0.50id, 08ftFits SN 002533 and later · Old # 1015067	$50.20/EA
4	TN4043533	1	Valve, Solenoid, 12vdc, Water FlowFits SN 002533 and later · Old # 1037825	Call for price
5	TN4041965	2	Screw, Pan, Phl, M5 X 0.80 X 12, SsFits SN 002533 and later · Old # 09200	$3.40/EA
6	TN4017089	5	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 002533 and later · Old # 63810	$6.80/EA
7	TN4011910	1	Tie, Cable, Nyl, 15.3l . W 4.5 Max DFits SN 002533 and later · Old # 763116	$3.40/EA
8	TN4033443	1	Hose, Heater, E90, 0.62id, 24.0 4.0Fits SN 002533 and later · Old # 31543	$37.40/EA
9	TN4036844	1	Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 002533 and later · Old # 1011412	$70.70/EA
10	TN4031717	1	Plate, Mtg, ValveFits SN 002533 and later · Old # 1030511	$4.75/EA
11	TN4042888	2	Washer, Flat, 10, SsFits SN 002533 and later · Old # 01683	$2.60/EA
12	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsFits SN 002533 and later · Old # 09739	$3.30/EA
13	TN4013943	1	Screw, Hex, M8 X 1.25 X 25, FmgFits SN 002533 and later · Old # 76099	$4.00/EA
Item 14: choose your version (2)
14	TN4021001	1	Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrFits SN 002533–007259 · Old # 385644	$9.90/EA
14	TN4038303	1	Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrFits SN 007260 and later · Old # 1015486	$5.30/EA
Item 15: choose your version (2)
15	TN4039302	1	Hose, Afmkt, Pvc, Brd, 0.50id, 03ft, ClrFits SN 002533–007259 · Old # 1006401	$32.10/EA
15	TN4037980	1	Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrFits SN 007260 and later · Old # 1015026	$31.50/EA

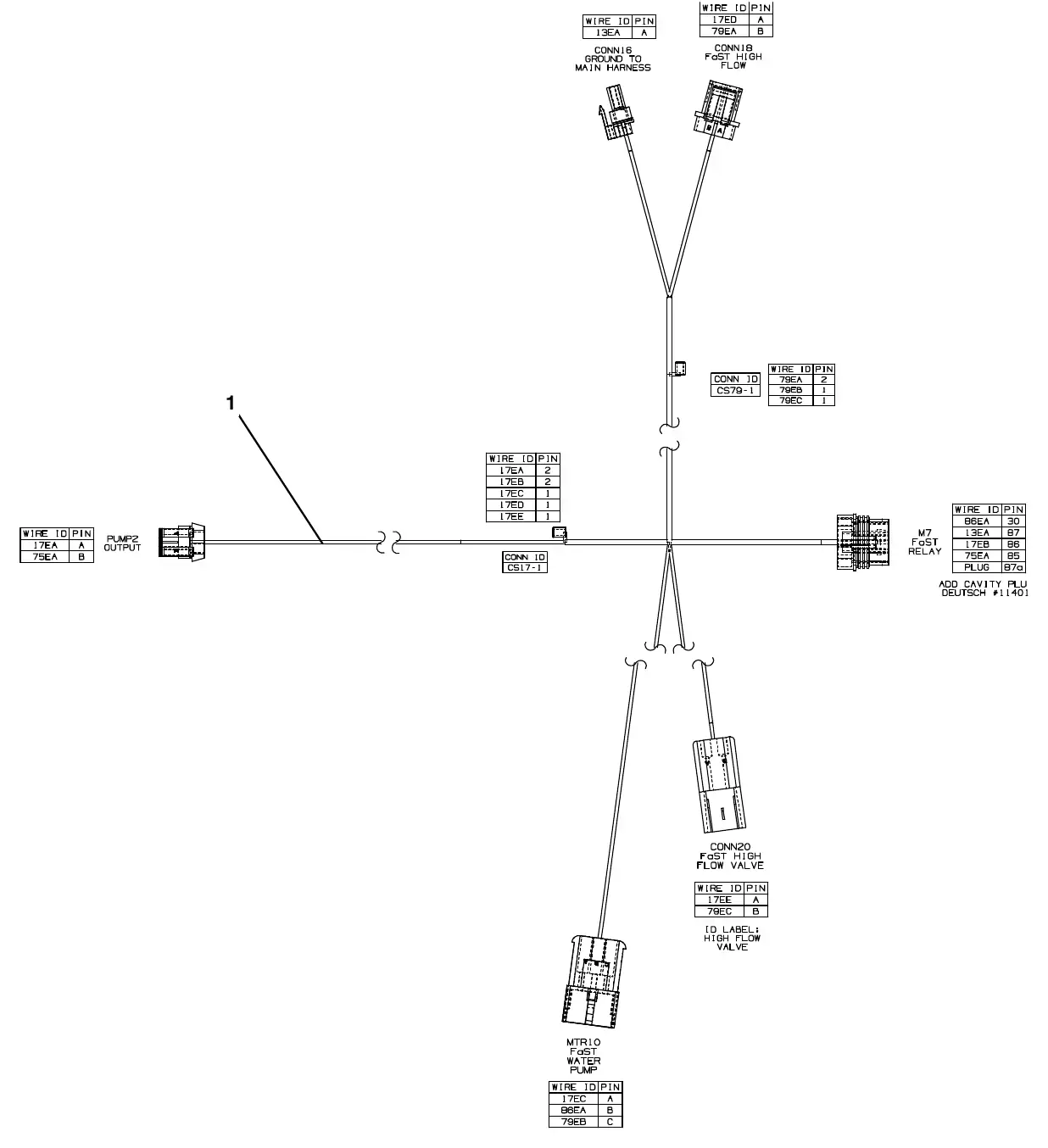

M20 FaST wire harness group (002533 - )

OptionsSN 000000–007999

Tennant M20 FaST wire harness group (002533 - ) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN1037809	1	Harness, Wire [FaST Gen 2]Fits SN 002533 and later · Old # 1037809 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price

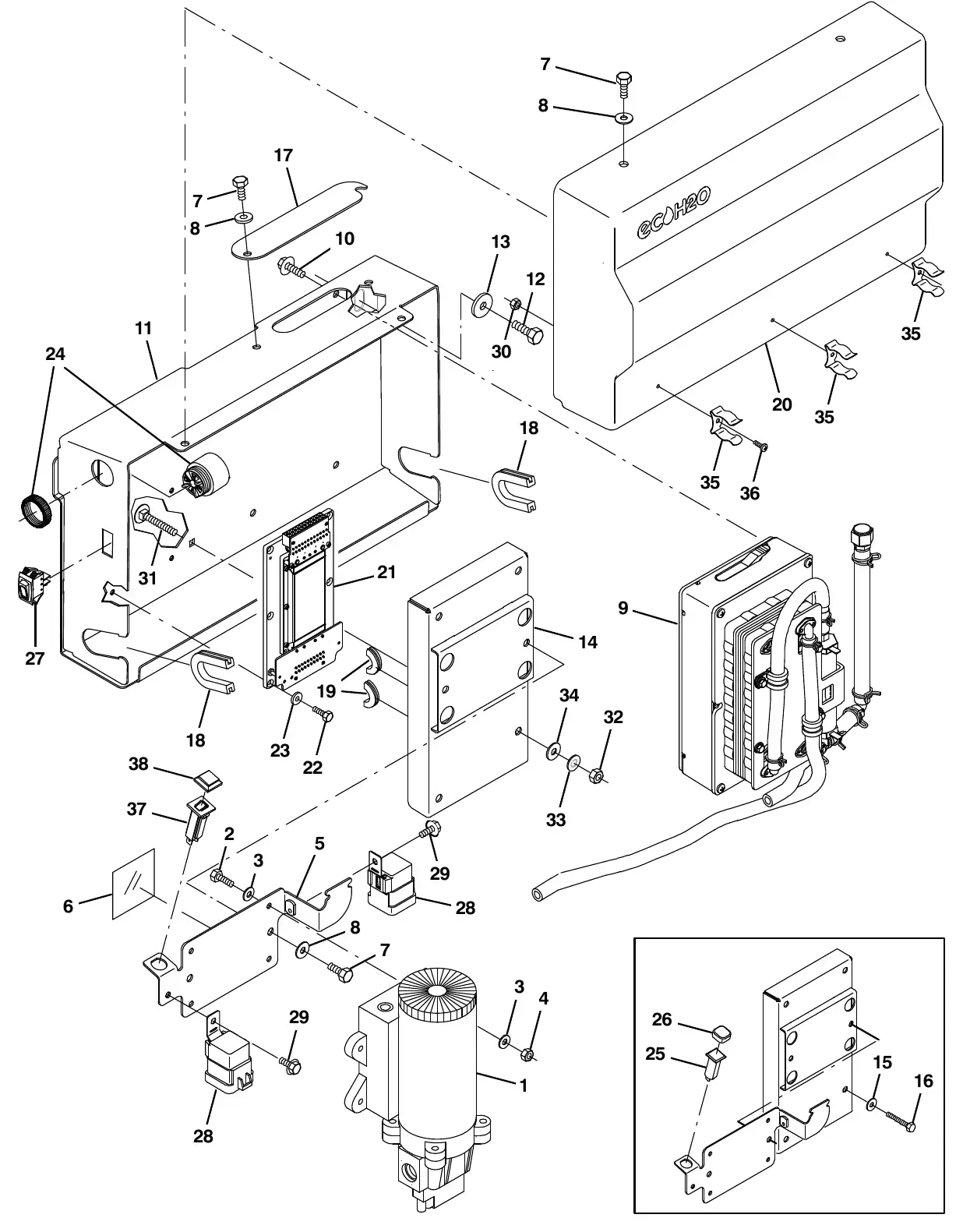

M20 ec - H20 solution pump group

OptionsSN 000000–007999

Tennant M20 ec - H20 solution pump group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4034620	1	Pump, Soltn, Ele, 13.7vdc,12/28psiOld # 1060624	$621.40/EA
2	TN4041970	4	Screw, Hex, M5 X 0.80 X 20, 8.8Old # 09252	$3.40/EA
3	TN4042244	8	Washer, Flat, 10Old # 19066	$2.50/EA
4	TN4041004	4	Nut, Hex, Lock, M5 X 0.80, NlOld # 06549	$2.50/EA
5	TN4187222	1	Plate, Mtg, PumpOld # 1060273	$31.31/EA
6	TN4187047	1	Strip, Rbr, 0.06 03.54w 03.5l [Neo/60]Old # 1059677	$2.83/EA
7	TN4041994	6	Screw, Hex, M6 X 1.00 X 12, SsOld # 09744	$3.40/EA
8	TN4042901	6	Washer, Flat, 0.27b 0.69d .05, SsOld # 01684	$2.60/EA

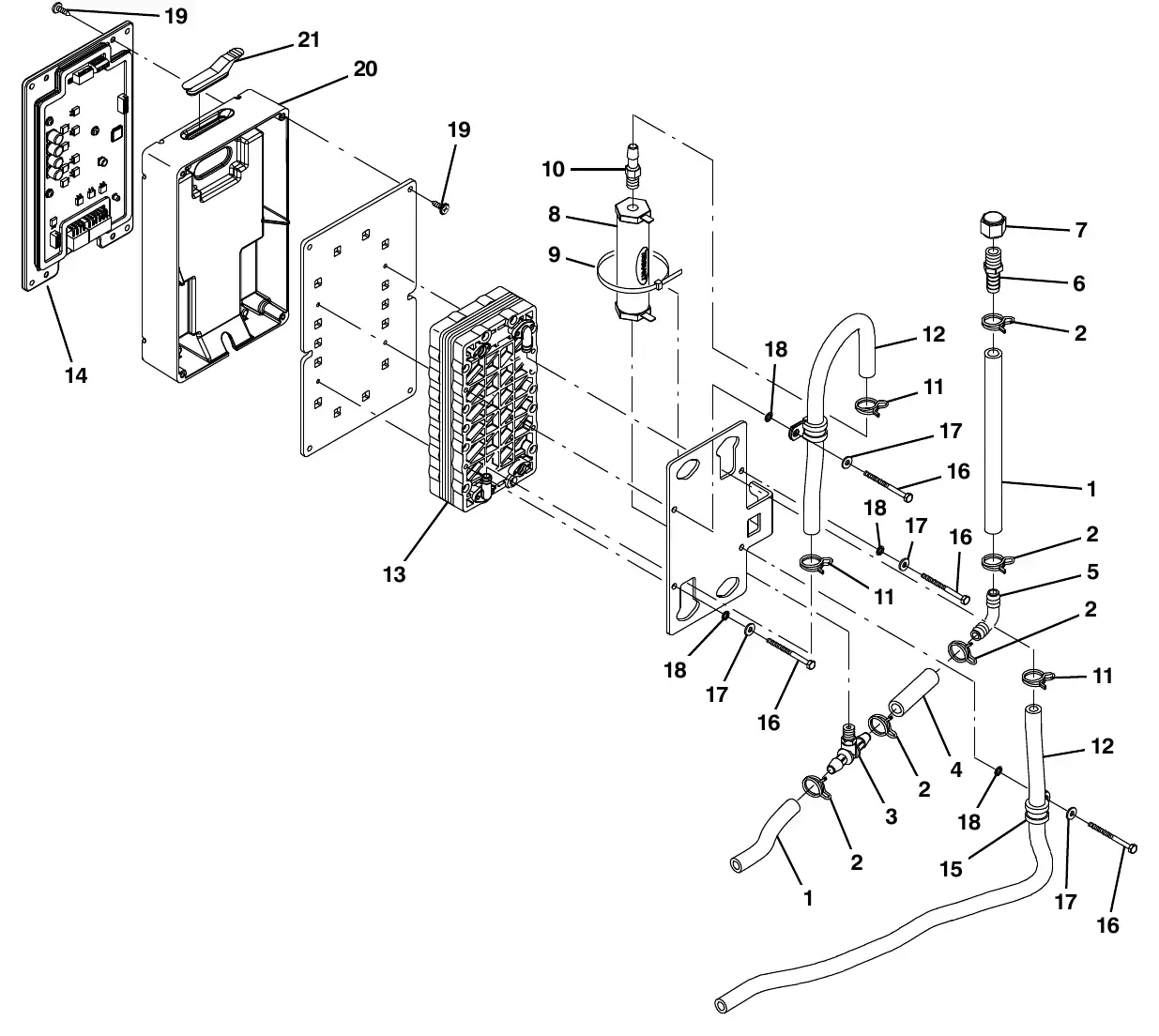

9	TN4012473	1	Module Kit, Replmt [Ec - H20] (See Breakdowns)Old # 9007882	$1,782.70/EA
10	TN4044400	4	Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467	$3.30/EA
11	TN4187224	1	Plate Wldt, MtgOld # 1060292	$165.64/EA
12	TN4041992	2	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
13	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
14	TN4187215	1	Cover Wldt, Power SupplyOld # 1060185	$68.18/EA
15	TN4042901	4	Washer, Flat, 0.27b 0.69d .05, SsOld # 01684	$2.60/EA
16	TN4041608	4	Screw, Hex, M6 X 1.00 X 35, SsOld # 07805	$3.30/EA
17	TN4187223	1	Plate, InspectionOld # 1060291	$5.96/EA
18	TN4036241	1	Molding, Afmkt, Trim, Pvc, .08 .11, 01FtOld # 1020168	$44.40/EA
19	TN4032006	1	Grommet, Rbr, 0.62id, F/0.9h, .06 MatlOld # 10632-4	$2.50/EA
20	TN4034636	1	Cover, TrimmedOld # 1060719	$164.73/EA
21	TN4036779	1	Converter, Ele, 12 - 36 VdcOld # 1058963	Call for price
22	TN4041967	4	Screw, Hex, M4 X 0.70 X 12, 8.8Old # 09206	$3.30/EA
23	TN4042243	4	Washer, Flat, 08Old # 19065	$3.20/EA
24	TN4037707	1	Alarm, 9 - 48vdc, 95 Db(A) [Ec - H20]Old # 1052726	$75.90/EA
25	TN1053078	1	Circuitbreaker, 2.0a, ResetableFits SN up to 003658 · Old # 1053078 · current Tennant number (Tennant parts catalog)	Call for price
26	TN4042734	1	Boot, CircuitbreakerFits SN up to 003658 · Old # 1046173	Call for price
27	TN4042141	1	Switch, Rocker, Spst, MomOld # 1044393	$7.70/EA
28	TN4029123	2	Relay, 12vdc, 040a, Spdt NoOld # 56186	$11.30/EA
29	TN4037385	2	Screw, Hex, M5 X 0.80 X 10, FmgOld # 223198	$4.00/EA
30	TN4031247	3	Nut, Hex, Lock, M4 X 0.70, Nl, SsOld # 33932	$3.40/EA
31	TN4185338	4	Bolt, Carriage, M06 X 1.00 X 40, 4.6Old # 1062804	$1.52/EA
32	TN4016812	4	Nut, Hex, Std, M6 X 1.00, 8Old # 41359	$3.40/EA
33	TN4034655	4	Washer, Lock, Int, 0.25Old # 32982	$2.60/EA
34	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
35	TN4031029	3	Clip, Grip, Finger, 0.88 - 1.25dOld # 1029057	$5.15/EA
36	TN4035991	3	Screw, Pan, Phl, M4 X 0.70 X 20, SsOld # 12323	$3.30/EA
37	TN4032584	1	Circuitbreaker, 02.0a, ResetableFits SN 003659 and later · Old # 1064183	$13.40/EA
38	TN4032601	1	Boot, CircuitbreakerFits SN 003659 and later · Old # 1064191	$12.60/EA

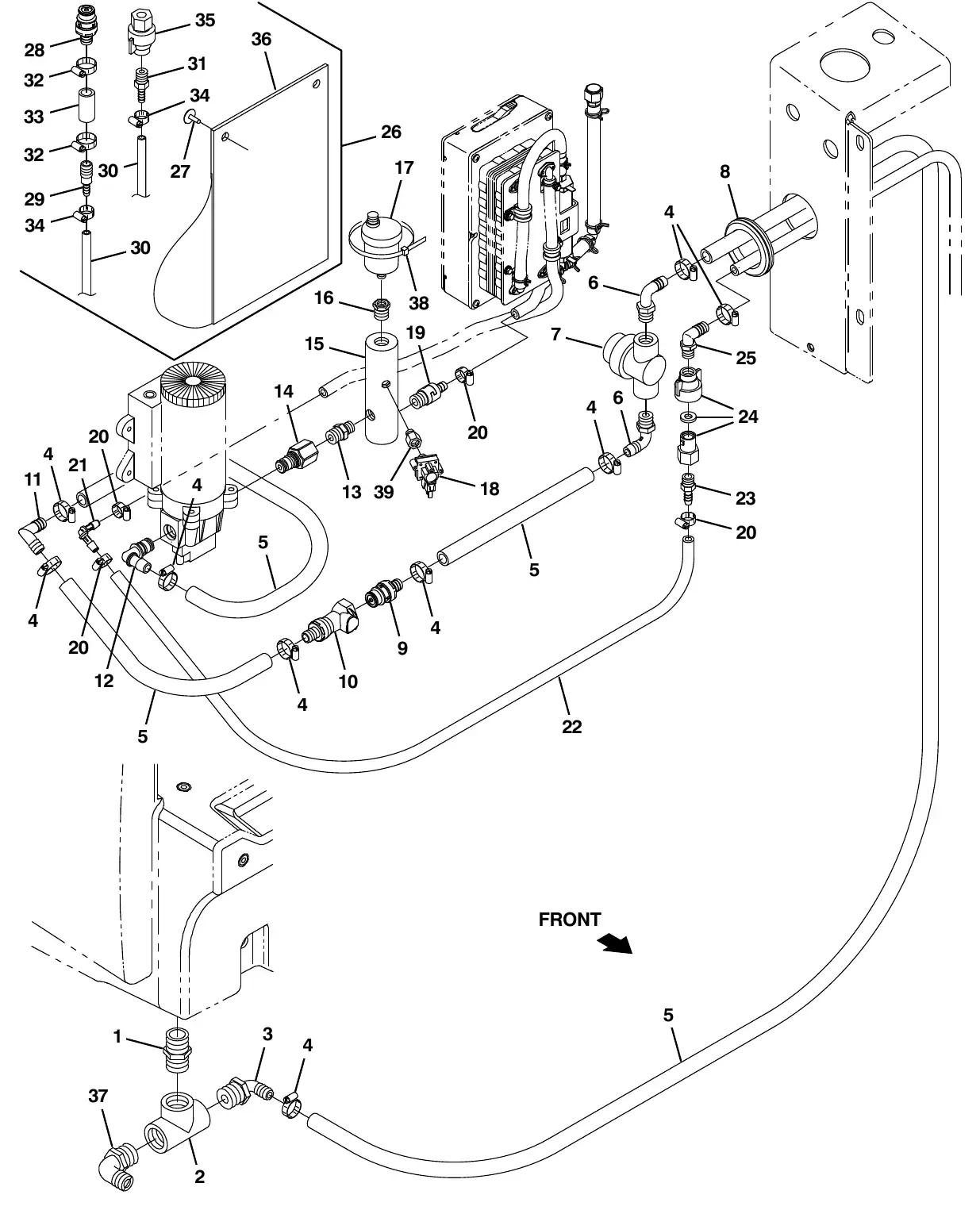

M20 ec - H20 solution pump supply group

OptionsSN 000000–007999

Tennant M20 ec - H20 solution pump supply group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4035382	1	Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544	$6.20/EA
2	TN4017317	1	Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A	$17.60/EA
3	TN4038988	1	Fitting, Plstc, E90, Bm08/Pm12, NylOld # 1005552	$7.90/EA
4	TN4015366	9	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
5	TN4036916	1	Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrOld # 1011837	$75.50/EA
6	TN4017647	2	Fitting, Plstc, E90, Bm08/Pm06Old # 64778	$8.70/EA
7	TN4038961	1	Filter, In - Line, Pf06/Pf06 080mesh 02.6lOld # 1005302	$21.10/EA
8	TN4032002	3	Grommet, Rbr, 2.13id, F/2.5h, .12 MatlOld # 10632-19	$1.50/EA
9	TN4035458	1	Insert, Cplg, Qm, Bm08Old # 1017415	$34.70/EA
10	TN4035457	1	Housing, Cplg, Qf / Pm08Old # 1017413	$37.90/EA
11	TN4017096	1	Fitting, Plstc, E90, Bm08/Bm08Old # 63987-1	$7.80/EA
12	TN4040112	1	Fitting, Nyl, Qdc, E90, Bm08/ Qm10Old # 1049254	$11.80/EA
13	TN4037143	1	Fitting, Plstc, Str, Pf06/Qm10, PvcOld # 1059372	$13.00/EA
14	TN4038956	1	Fitting, Plstc, Str, Pm04/Pm06, NylOld # 1005219	$4.20/EA
15	TN4034619	1	Manifold, WaterOld # 1060596	$44.30/EA
16	TN4035395	1	Fitting, Brs, Str, Pf02/Pm06Old # 24698	$8.70/EA
17	TN4035456	1	Valve, Vent, Air, Float TypeOld # 1017386	$64.30/EA
18	TN4036776	1	Switch, Press, 50 Psi, Pm02Old # 1058935	$115.30/EA
19	TN4034632	1	Valve, Check, 0005psi Pm04/Bm06Old # 1060693	$55.50/EA
20	TN4017396	4	Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844	$4.20/EA
21	TN4187030	1	Fitting, Plstc, E90, Bm05/Bm05, NylOld # 1059391	$4.40/EA
22	TN4041050	2	Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrOld # 1052336	$48.50/EA
23	TN4040814	1	Fitting, Plstc, Str, Bm05/Pm04Old # 1052017	$2.60/EA
24	TN4030539	1	Fitting Assy, Qdc, Pf04Old # 1071280	$8.70/EA
25	TN4017747	1	Fitting, Plstc, E90, Bm08/Pm04Old # 65581	$2.55/EA
26	TN4197576	1	ec - H2O Kit, Flush, Replmt[M20, M30&T20]Old # 9014281	$99.60/EA
27	TN4016302	2	Rivet, Plstc, .250d X 0.90Old # 72968	$3.20/EA
28	TN4035458	1	Insert, Cplg, Qm, Bm08Old # 1017415	$34.70/EA
29	TN4020535	1	Fitting, Plstc, Str, Bm04/Bm08Old # 630164	$7.90/EA
30	TN4039304	2	Hose, Afmkt, Pvc, Clr, 0.25id, 03ftOld # 1006415	$51.70/EA
31	TN4014520	1	Fitting, Plstc, Str, Bm04/Pm04Old # 50901	$3.60/EA
32	TN4015366	2	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
33	TN4036839	1	Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrOld # 1011403	$19.40/EA
34	TN4017396	2	Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844	$4.20/EA
35	TN4030539	1	Fitting Assy, Qdc, Pf04Old # 1071280	$8.70/EA
36	TN4013988	1	PouchOld # 48790	$32.02/EA
Item 37: choose your version (2)
37	TN4044360	1	Fitting, Plstc, E90, Bm12/Pm12Fits SN up to 007259 · Old # 14877	$6.20/EA
37	TN4016343	1	Fitting, Plstc, E90, Bm10/Pm12Fits SN 007260 and later · Old # 73468	$7.90/EA
38	TN4014138	1	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
39	TN4035142	1	Fitting, Brs, Snubber, Pm02/Pf02Old # 1062403	$37.10/EA

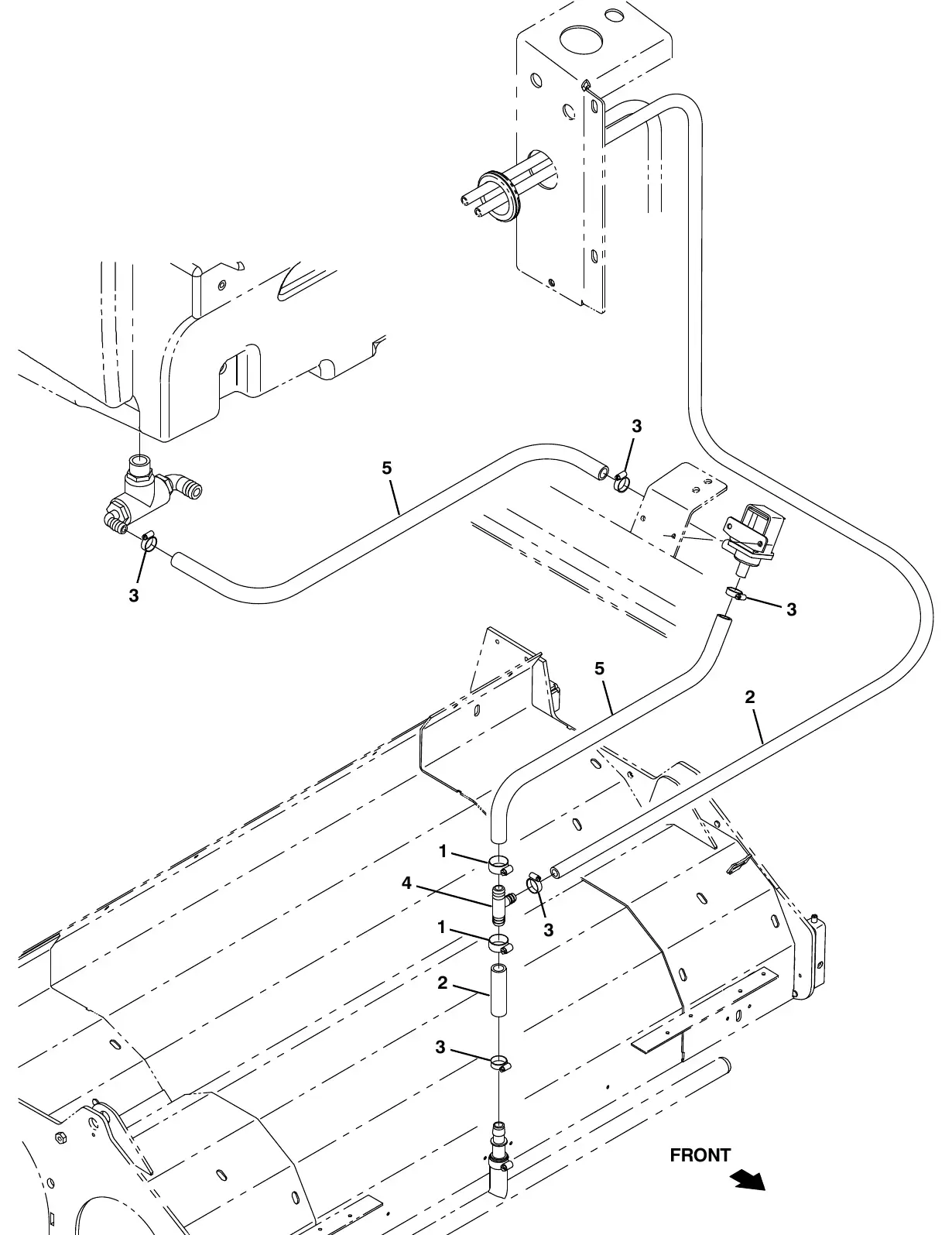

M20 ec - H20 solution supply group

OptionsSN 000000–007999

Tennant M20 ec - H20 solution supply group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4017089	2	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
2	TN4036916	1	Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrOld # 1011837	$75.50/EA
3	TN4015366	5	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
Item 4: choose your version (2)
4	TN4021001	1	Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrFits SN up to 007259 · Old # 385644	$9.90/EA
4	TN4038303	1	Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrFits SN 007260 and later · Old # 1015486	$5.30/EA
Item 5: choose your version (2)
5	TN4037985	1	Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrFits SN up to 007259 · Old # 1015045	$83.30/EA
5	TN4037981	1	Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 007260 and later · Old # 1015032	$80.40/EA

M20 ec - H20 solution supply group with side brush

OptionsSN 000000–007999

Tennant M20 ec - H20 solution supply group with side brush parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4040375	1	Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylOld # 1010668	$11.00/EA
2	TN4017089	4	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
3	TN4043533	1	Valve Assy, Water, Solenoid, 12vdcOld # 1037825	Call for price
4	TN4033443	1	Hose, Heater, E90, 0.62id, 24.0 4.0Old # 31543	$37.40/EA
5	TN4042888	2	Washer, Flat, 10, SsOld # 01683	$2.60/EA
6	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196	$3.20/EA
7	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
8	TN4013943	1	Screw, Hex, M8 X 1.25 X 25, FmgOld # 76099	$4.00/EA
9	TN4031717	1	Plate, Mtg, ValveOld # 1030511	$4.75/EA
Item 10: choose your version (2)
10	TN4021001	1	Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrFits SN up to 007259 · Old # 385644	$9.90/EA
10	TN4038303	1	Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrFits SN 007260 and later · Old # 1015486	$5.30/EA
11	TN4040370	2	Valve, Check, 2gpm .5psi Bm08/Bm08Old # 1010614	$55.50/EA
12	TN4034713	1	Plug, RestrictorOld # 1061045	$22.30/EA
13	TN4040278	2	Fitting, Plstc, Str, Bm06/Bm08Old # 222375	$4.20/EA
14	TN4037967	1	Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrOld # 1014974	$22.40/EA
15	TN4036844	1	Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrOld # 1011412	$70.70/EA
16	TN4015366	18	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
17	TN4011910	1	Tie, Cable, Nyl, 15.3l . W 4.5 Max DOld # 763116	$3.40/EA
18	TN4037980	1	Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrOld # 1015026	$31.50/EA

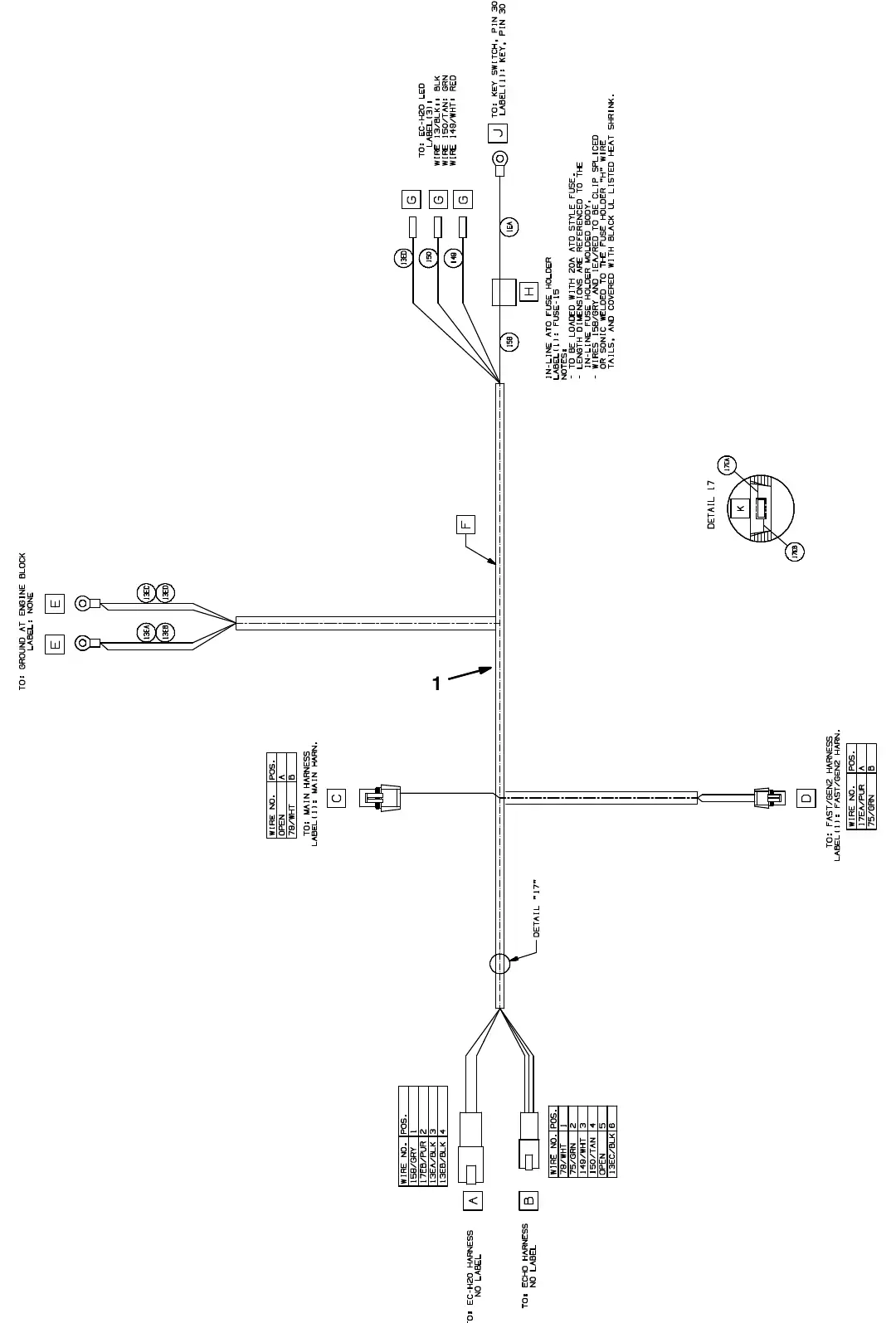

M20 ec - H20 wire harnesses group

OptionsSN 000000–007999

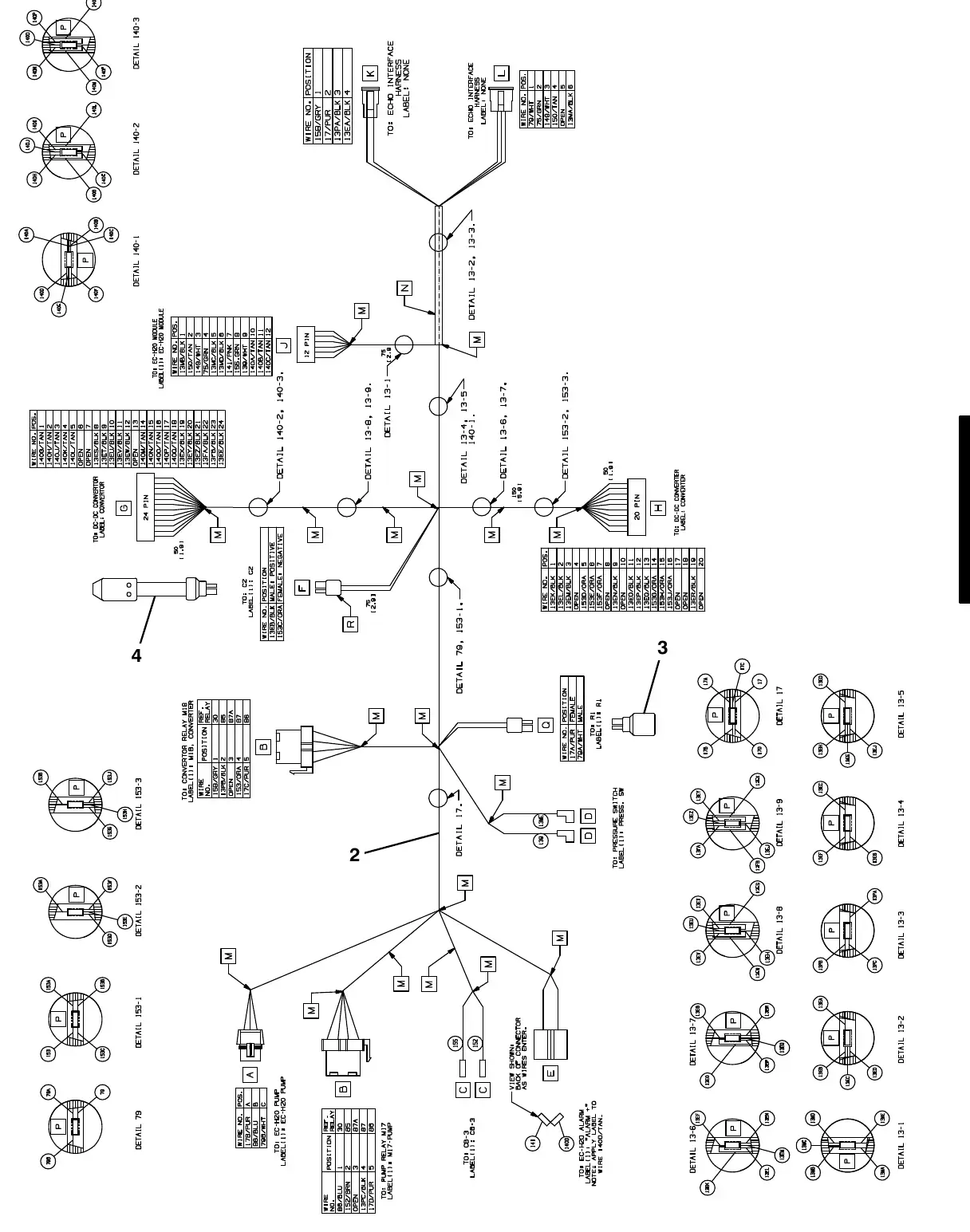

Tennant M20 ec - h20 wire harnesses group exploded view (page 2) — ec - H20 Wire Harnesses Group, SN 000000–007999. Manual pages 292, 293. SES ref PF-QLPM-GHED‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‌⁠‌‍‍‌‌‍‌‍‌‌‍⁠‌‌‍‌⁠‌‍‍‌‍⁠⁠⁠

Tennant M20 ec - H20 wire harnesses group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4030887	1	Harness, Wire [Ec - H2o, Mako, 2.0l & Dsl]Old # 1071947	$69.20/EA
2	TN4034646	1	Harness, Wire [Ec - H2o]Old # 1060871	$240.18/EA
3	TN4034647	1	Resistor, Ele, Plug [430 , 2w]Old # 1060880	$9.49/EA
4	TN4034648	1	Capacitor, Plug [4700uf, 25v]Old # 1060881	$15.35/EA

M20 backup alarm kit

OptionsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‌‌‍‌‌⁠‌‍‌‌‍‍‌⁠⁠⁠⁠‍⁠‌‍‌‌‌⁠

Tennant M20 backup alarm kit parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019666	1	Alarm Kit, Backup, Ci [M20 And T20]Old # 9001321	$349.80/EA
1	TN4011838	1	Alarm Assy, Backup, 12/48VdcOld # 9007131	$162.50/EA
2	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196	$3.20/EA
3	TN4042244	2	Washer, Flat, 10Old # 19066	$2.50/EA
4	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
5	TN4035919	1	Bracket, Sppt, Strobe LightOld # 1019445	$55.20/EA
6	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
7	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
8	TN4036226	1	Harness, Warning / Backup [M20 & T20]Old # 1019971	$27.50/EA

M20 light kit, flashing

OptionsSN 000000–007999

Tennant M20 light kit, flashing parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019669	1	Light Kit, Flsh, Ci [M20 And T20]Old # 9001327	$444.00/EA
1	TN1017248	1	Lamp, Flasher, Amb [12 - 48 Vdc]Old # 1017248 · current Tennant number (Tennant parts catalog)	Call for price
	TN8002935	1	Lens, Lamp, Amb, Strobe/FlasherOld # 9000879	$34.24/EA
	TN8002933	1	Lamp, Bulb, FlshOld # 9000846	$19.10/EA
	TN4000111	1	Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800	$47.37/EA
	TN4000109	1	Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798	$34.61/EA
	TN4028718	2	Terminal, Bullet, Mal, .157d, 12gaOld # 55272	$3.40/EA
2	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196	$3.20/EA
3	TN4042244	2	Washer, Flat, 10Old # 19066	$2.50/EA
4	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
5	TN4035919	1	Bracket, Sppt, Strobe LightOld # 1019445	$55.20/EA
6	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
7	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
8	TN4036226	1	Harness, Warning / Backup [M20 & T20]Old # 1019971	$27.50/EA
9	TN4013452	2	Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleOld # 46236	$3.60/EA

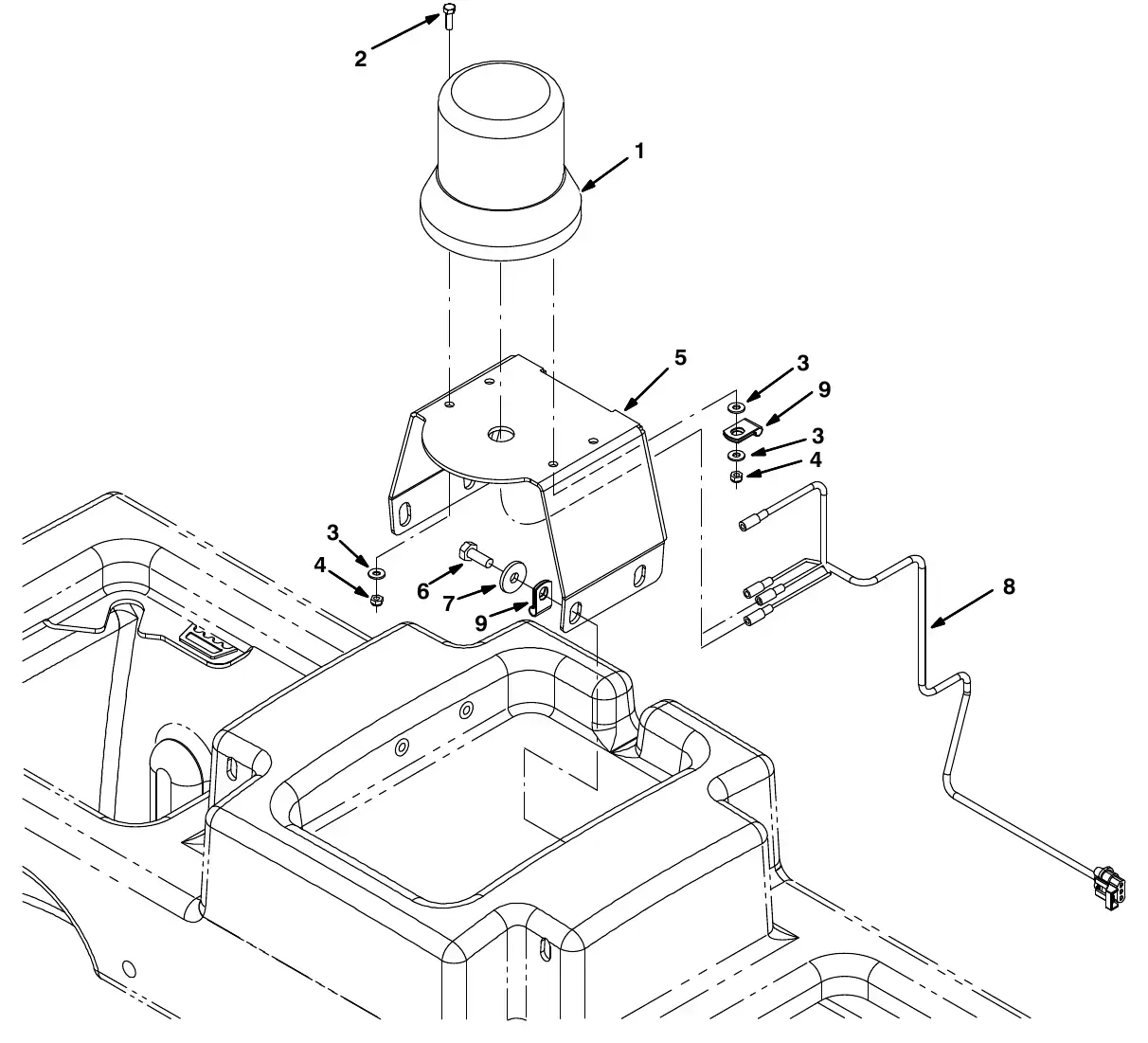

M20 light kit, strobe

OptionsSN 000000–007999

Tennant M20 light kit, strobe parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019671	1	Light Kit, Strobe, Ci [M20 And T20]Old # 9001331	$767.90/EA
1	TN4035245	1	Lamp Strobe, Amb [12 - 48 Vdc]Old # 1017250	Call for price
	TN8002935	1	Lens, Lamp, Amb, Strobe/FlasherOld # 9000879	$34.24/EA
	TN8002932	1	Lamp, Bulb, StrobeOld # 9000845	$44.30/EA
	TN4000111	1	Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800	$47.37/EA
	TN4000109	1	Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798	$34.61/EA
	TN4028718	2	Terminal, Bullet, Mal, .157d, 12gaOld # 55272	$3.40/EA
2	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196	$3.20/EA
3	TN4042244	2	Washer, Flat, 10Old # 19066	$2.50/EA
4	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
5	TN4035919	1	Bracket, Sppt, Strobel LightOld # 1019445	$55.20/EA
6	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
7	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
8	TN4036226	1	Harness, Warning / Backup [M20 & T20]Old # 1019971	$27.50/EA
9	TN4013452	2	Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleOld # 46236	$3.60/EA

M20 light kit, flashing overhead guard

OptionsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍⁠‍‍‌‍‌‍‌⁠‌⁠‍⁠‍‍‍‍⁠‌⁠‌‌‍

Tennant M20 light kit, flashing overhead guard parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019724	1	Light Kit, Flsh, W/Ohg, Ci[M20 And T20]Old # 9001718	$372.90/EA
1	TN1017248	1	Lamp, Flasher, Amb [12 - 48 Vdc]Old # 1017248 · current Tennant number (Tennant parts catalog)	Call for price
	TN8002935	1	Lens, Lamp, Amb, Strobe/FlasherOld # 9000879	$34.24/EA
	TN8002933	1	Lamp, Bulb, FlshOld # 9000846	$19.10/EA
	TN4000111	1	Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800	$47.37/EA
	TN4000109	1	Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798	$34.61/EA
	TN4028718	2	Terminal, Bullet, Mal, .157d, 12gaOld # 55272	$3.40/EA
2	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196	$3.20/EA
3	TN4042244	2	Washer, Flat, 10Old # 19066	$2.50/EA
4	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
5	TN4036203	1	Harness, Warning / Ohg [M20]Old # 1019647	$23.56/EA
6	TN4032000	4	Grommet, Rbr, 0.50id, F/0.8h, .12 MatlOld # 10632-17	$3.20/EA
7	TN4011909	4	Tie, Cable, 6.0l, 1.25d MaxOld # 763115	$2.30/EA
8	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA

M20 light kit, strobe overhead guard

OptionsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‍⁠‍‌‍‌⁠‌‍⁠‍⁠‍‍⁠‌‍‌‍‌⁠‍‌‍‌‌

Tennant M20 light kit, strobe overhead guard parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019723	1	Light Kit, Strobe, W/Ohg, Ci [M20 And T20]Old # 9001717	$164.46/EA
1	TN4035245	1	Lamp Strobe, Amb [12 - 48 Vdc]Old # 1017250	Call for price
	TN8002935	1	Lens, Lamp, Amb, Strobe/FlasherOld # 9000879	$34.24/EA
	TN8002932	1	Lamp, Bulb, StrobeOld # 9000845	$44.30/EA
	TN4000111	1	Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800	$47.37/EA
	TN4000109	1	Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798	$34.61/EA
	TN4028718	2	Terminal, Bullet, Mal, .157d, 12gaOld # 55272	$3.40/EA
2	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196	$3.20/EA
3	TN4042244	2	Washer, Flat, 10Old # 19066	$2.50/EA
4	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
5	TN4036203	1	Harness, Warning / Ohg [M20]Old # 1019647	$23.56/EA
6	TN4032000	4	Grommet, Rbr, 0.50id, F/0.8h, .12 MatlOld # 10632-17	$3.20/EA
7	TN4011909	4	Tie, Cable, 6.0l, 1.25d MaxOld # 763115	$2.30/EA
8	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA

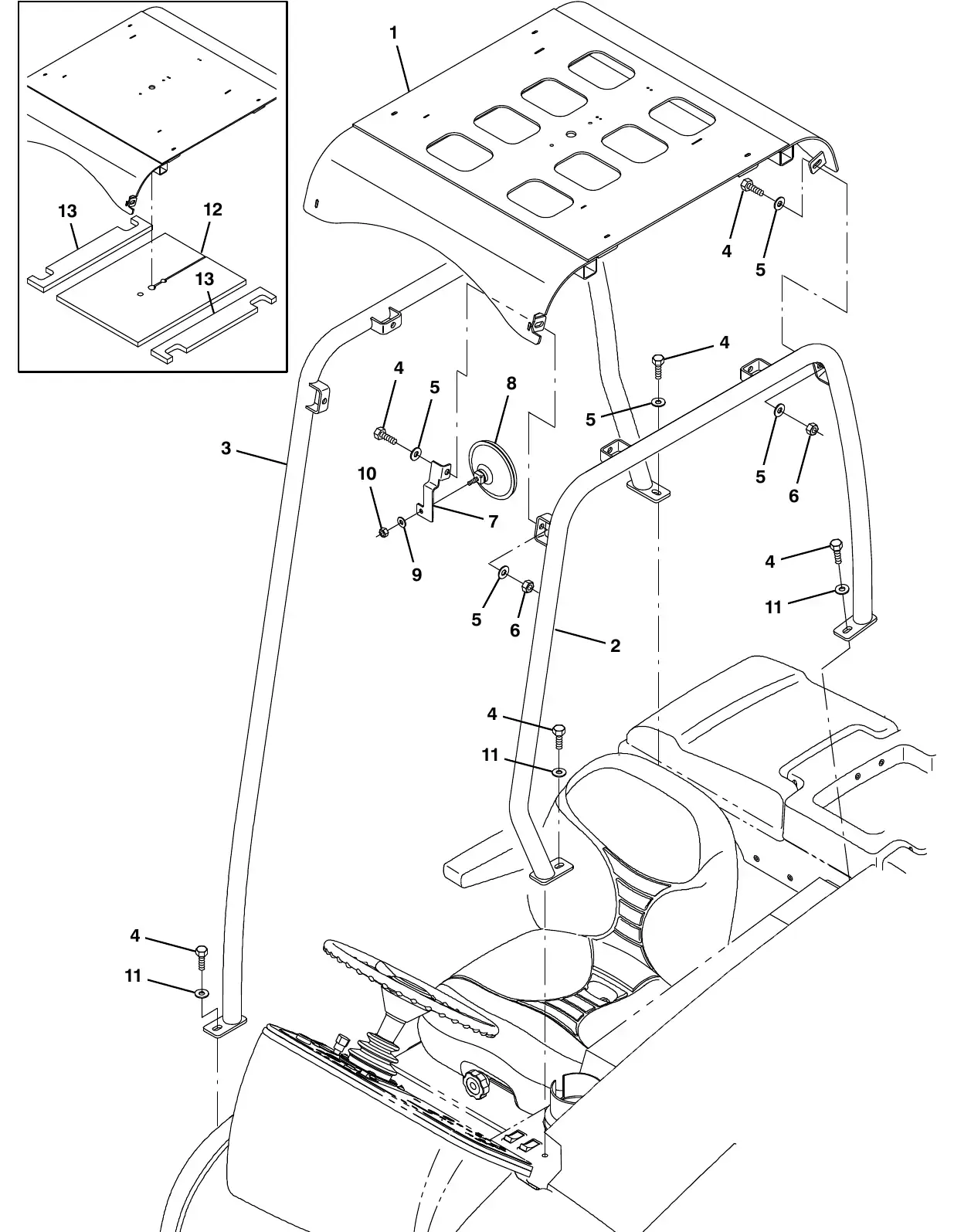

M20 overhead guard kit

OptionsSN 000000–007999

Tennant M20 overhead guard kit parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019662	1	Ohg Kit, Ci [M20 And T20]Old # 9001314	$3,559.40/EA
1	TN4032916	1	Guard Wldt, Top, OhgOld # 1022276	$480.30/EA
2	TN4030100	1	Tube Wldt, Leg, Ohg, Lh, PntdOld # 1069241	$299.68/EA
3	TN4030101	1	Tube Wldt, Leg, Ohg, Rh, PntdOld # 1069253	$451.40/EA
4	TN4043258	12	Screw, Hex, M10 X 1.5 X 30, 8.8Old # 03192	$4.00/EA
5	TN4034138	17	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
6	TN4016826	8	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
7	TN4033561	1	Bracket, Mtg, Mirror, RearviewOld # 1023879	$16.40/EA
8	TN4040671	1	Mirror, Convex, 0.50DOld # 1050295	$27.80/EA
9	TN4034137	1	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
10	TN4042533	1	Nut, Hex, Std, .31 - 18Old # 19313	$2.50/EA
11	TN4037922	3	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
12	TN4192585	1	InsulationFits SN up to 006913 · Old # 1032830	$45.33/EA
13	TN4192586	2	InsulationFits SN up to 006913 · Old # 1032831	$15.75/EA

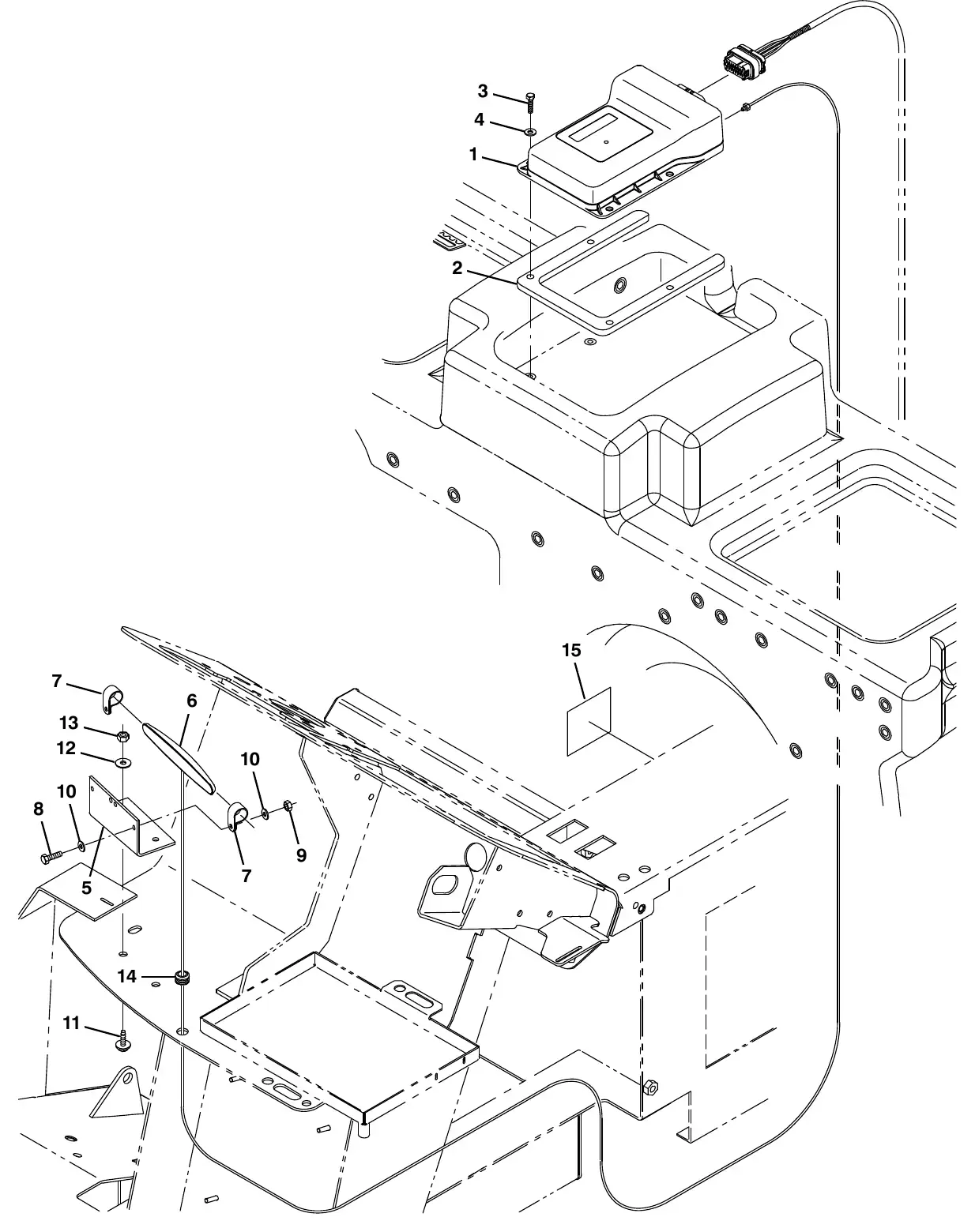

M20 telemetry group

OptionsSN 000000–007999

Tennant M20 telemetry group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (2)
1	TN4011098	1	Control Box Assy Kit, Replmt, Telem [USA]Old # 9010085	$1,623.00/EA
1	TN4011099	1	Control Box Assy Kit, Replmt, Telem [CAN]Old # 9010086	Call for price
2	TN4030486	1	Bracket, Spacer, ControlboxOld # 1071062	$14.44/EA
3	TN4041970	4	Screw,Hex, M5 X 0.80 X 29, 8.8Old # 09252	$3.40/EA
4	TN4042888	4	Washer, Flat, 10, SsOld # 01683	$2.60/EA
5	TN4030314	1	Angle, mtg, Antenna, TelemOld # 1070402	$18.69/EA
6	TN4030328	1	Antenna, Telem, 70 In [Gprs]Old # 1070659	$60.90/EA
7	TN4044164	2	Clamp, Cable, Nyl, 0.62D, NatOld # 140916	$3.40/EA
8	TN4035369	2	Screw, Hex, M5 X 0.80 X 16, SsOld # 24199	$3.00/EA
9	TN4041004	2	Nut, Hex, Lock, M5 X 0.80, NlOld # 06549	$2.50/EA
10	TN4042888	4	Washer, Flat, 10, SsOld # 01683	$2.60/EA
11	TN4044400	2	Screw, hex, H6 X 1.00 X 20, 9.8, SemsOld # 1040467	$3.30/EA
12	TN4042901	2	Washer, Flat, 0.27B 0.69D .05, SsOld # 01684	$2.60/EA
13	TN4041928	2	Nut, hex, Lock, M6 X 1.00, Nl, SsOld # 08712	$2.50/EA
14	TN4031956	1	Grommet, Rbr, 0.38id, F/0.5H, .12 MatlOld # 10632-12	$3.30/EA
15	TN4030121	1	Label, Opertnl, Telem [Fcc/Ic]Old # 1069580	$4.34/EA

M20 electrical wire harness group, Gasoline/LPG engine adapter harness with telemetry

OptionsSN 000000–007999Fits: GasolineLPG‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‌‍⁠‍⁠‌‍‌⁠‌⁠‌⁠⁠⁠⁠‍⁠‌‌⁠‌⁠‌‌‌‍

Tennant M20 electrical wire harness group, Gasoline/LPG engine adapter harness with telemetry parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4030708	1	Harness, Wire, Gas/Lpg [Telemetry]Fits SN 002000 and later · Old # 1071641	$125.34/EA

M20 vacuum wand kit (000000 - 002406)

OptionsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‌‌‍‌⁠‍‍‌‍‌‍‌‌‌‍‍‌‌‌⁠⁠‍⁠‍‌‌⁠‌‌‍‌

Tennant M20 vacuum wand kit (000000 - 002406) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019673	1	Wand Kit, Vacuum, Ci [M20]Fits SN up to 002406 · Old # 9001334	$1,037.30/EA
1	TN4018319	1	Hose Assy, W/2cuff, 1.5d 84l [Vacwand]Fits SN up to 002406 · Old # 69657	$303.60/EA
2	TN4017060	1	Nozzle, Wand, Plstc, 14.0lgFits SN up to 002406 · Old # 63451	Call for price
3	TN4017055	1	Shoe, Plstc, Sqge, 14.0Fits SN up to 002406 · Old # 63430	Call for price
4	TN4017057	1	Tube, Wand, Vacuum, Metal [1pick=1box]Fits SN up to 002406 · Old # 63448	Call for price
5	TN4191979	1	Bracket, Mtg, Vacuum WandFits SN up to 002406 · Old # 1030549	$23.53/EA
6	TN4193863	1	Plate, Mtg, Vacuum WandFits SN up to 002406 · Old # 1026146	$57.77/EA
7	TN4016197	4	Nut, Isolator, .38 - 16 Wall Th .015 - .437Fits SN up to 002406 · Old # 397648	$5.76/EA
8	TN4039393	4	Screw, Hex, .38 - 16 X 1.25, 5Fits SN up to 002406 · Old # 21198	$3.30/EA
9	TN4034138	4	Washer, Flat, 0.38 StdFits SN up to 002406 · Old # 32492	$2.50/EA
10	TN4031158	3	Strap, Pyp, 0.07 1.0w 18.5l, W/ BuckleFits SN up to 002406 · Old # 367974	$21.00/EA
11	TN4017922	6	Clip, Grip, Finger, 1.00 - 1.88d White,VylFits SN up to 002406 · Old # 67004	$26.10/EA
12	TN4029085	6	Screw, Hex, M5 X 0.8 X 16, FmgFits SN up to 002406 · Old # 55845	$4.00/EA
13	TN4018360	1	PlungerFits SN up to 002406 · Old # 69659	$20.65/EA

M20 vacuum wand kit (002407 - )

OptionsSN 000000–007999

Tennant M20 vacuum wand kit (002407 - ) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019673	1	Wand Kit, Vacuum, Ci [M20]Fits SN 002407 and later · Old # 9001334	$1,037.30/EA
1	TN4017746	1	Bag, PowerFits SN 002407 and later · Old # 65580	$159.30/EA
2	TN4016302	4	Rivet, Plstc, .250d X 0.90Fits SN 002407 and later · Old # 72968	$3.20/EA
3	TN4017057	1	Tube, Wand, Vacuum, MetalFits SN 002407 and later · Old # 63448	Call for price
4	TN4018319	1	Hose Assy, W/2cuff, 1.5d 084l [Vacwand]Fits SN 002407 and later · Old # 69657	$303.60/EA
5	TN4018360	1	PlungerFits SN 002407 and later · Old # 69659	$20.65/EA
6	TN4029085	2	Screw, Hex, M5 X 0.80 X 16, FmgFits SN 002407 and later · Old # 55845	$4.00/EA
7	TN4017055	1	Shoe, Plstc, Sqge, 14.0Fits SN 002407 and later · Old # 63430	Call for price
8	TN4017060	1	Nozzle, Wand, Plstc, 14.0lFits SN 002407 and later · Old # 63451	Call for price
9	TN4017922	2	Clip, Grip, Finger, 1.00 - 1.88d White,VylFits SN 002407 and later · Old # 67004	$26.10/EA
10	TN4042242	6	Washer, Flat, 06Fits SN 002407 and later · Old # 19064	$3.40/EA

M20 spray nozzle kit

OptionsSN 000000–007999

Tennant M20 spray nozzle kit parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019660	1	Nozzle Kit, Spray, CiOld # 9001310	$758.04/EA
1	TN4034280	1	Pump, Diaphragm (See Breakdowns)Old # 1026743	$370.80/EA
2	TN4030606	1	Plate, Mtg, PumpOld # 1027007	$9.60/EA
3	TN4041268	4	Screw, Pan, M5 X 0.80 X 45, 4.8Old # 06939	$3.40/EA
4	TN4042244	4	Washer, Flat, #10Old # 19066	$2.50/EA
5	TN4041004	2	Nut, Hex, Lock, M5 X 0.80, NlOld # 06549	$2.50/EA
6	TN4037985	1	Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrOld # 1015045	$83.30/EA
7	TN4017089	4	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
8	TN4035902	1	Hose, Water, CoilOld # 1019250	$192.50/EA
9	TN4028980	1	Nozzle, Spray, GunOld # 769785	$90.00/EA
10	TN4030660	1	Fitting, Brs, Str, Pf06/Pm12Old # 1027976	$11.80/EA
11	TN4030624	1	Bracket, Mtg, Spray HandleOld # 1027237	$15.30/EA
12	TN4038303	1	Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrFits SN 007260 and later · Old # 1015486	$5.30/EA
13	TN4035811	1	Fitting, Plstc, E90, Bm08/Pf08s, SwivelOld # 1018499	$4.20/EA
14	TN4016537	1	Switch, Rocker, Dpdt On/None/OnOld # 398500	$45.20/EA
15	TN4031379	1	Bracket, Mtg, Spray Wand [FaST, Conv]Old # 1029790	$26.25/EA
16	TN4041992	2	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
17	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
18	TN4030661	1	Fitting, Brs, Str, Pf06/Pf06 BhOld # 1027978	$23.25/EA
19	TN4017647	1	Fitting, Plstc, E90, Bm08/Pm06Old # 64778	$8.70/EA
20	TN4031028	1	Wand, Clean - OutOld # 1029055	$176.10/EA
21	TN4031029	2	Clip, Grip, Finger, .875 - 1.25Old # 1029057	$5.15/EA
22	TN4039088	2	Screw, Hex, #10 - 16 X 0.62, Fmg [Ab]Old # 20394	$3.30/EA
23	TN4042888	4	Washer, Flat, #10, SsOld # 01683	$2.60/EA
24	TN4029238	1	Fitting, Brs, Str, Pm08/Garden HoseOld # 375321	$10.40/EA
25	TN4042839	1	Washer, Flat, 0.66b 1.00d .12, RbrOld # 01316	$3.50/EA
26	Old # 1029153	1	Nipple, HoseOld # 1029153Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
27	TN4031039	1	Coupling, Nozzle, SprayOld # 1029155	$15.40/EA
28	TN4031040	1	NozzleOld # 1029156	$69.50/EA
29	TN4031357	1	Valve, ShutoffOld # 1029399	$41.60/EA
30	TN4195644	1	Harness, Spray, NozzleOld # 1021881	$83.10/EA
31	TN4029123	1	Relay, 12vdc, 40a, Spdt N/OOld # 56186	$11.30/EA
32	TN4035810	1	Fitting, Plstc, Str, Bm08/Pf08s, SwivelOld # 1018495	$5.30/EA
33	TN4015366	2	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
34	TN4021001	1	Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrFits SN up to 007259 · Old # 385644	$9.90/EA

M20 transport kit

OptionsSN 000000–007999

Tennant M20 transport kit parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4022696	1	Transport Kit, Ci [M20/M30}Fits SN 002473 and later · Old # 9014867	$219.60/EA
1	TN4044424	2	Bracket, Latch, CoverFits SN 002473 and later · Old # 1040800	$31.40/EA
2	TN4036273	2	Bracket, Retaining, HoseOld # 1020526	$57.10/EA
3	TN4191358	2	Plate, Hook, LatchFits SN 002473 and later · Old # 1040634	$15.00/EA
4	TN4041994	6	Screw, Hex, M6 X 1.00 X 12, SsFits SN 002473 and later · Old # 09744	$3.40/EA
5	TN4042901	6	Washer, Flat, 0.27b 0.69d .05, SsFits SN 002473 and later · Old # 01684	$2.60/EA
6	TN4032766	2	LatchOld # 360824	$55.80/EA
7	TN4041965	4	Screw, Pan, Phl, M5 X 0.80 X 12, SsOld # 09200	$3.40/EA
8	TN4041991	4	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
9	TN4019813	2	Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135	$3.30/EA
10	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
11	TN4041928	4	Nut, Hex, Lock, M6 X 1.00, Nl, SsFits SN up to 002472 · Old # 08712	$2.50/EA
12	TN4044424	2	Bracket, Latch, CoverFits SN up to 002472 · Old # 1032869 · replaced by 4044424 (Tennant parts catalog)	Call for price
13	TN4045004	2	Plate, Hook, Latch, [M20]Fits SN up to 002472 · Old # 1032896	$17.50/EA
14	TN4041994	4	Screw, Hex, M6 X 1.0 X 12, SsFits SN up to 002472 · Old # 09744	$3.40/EA
15	TN4042901	4	Washer, Flat, 0.25, SsFits SN up to 002472 · Old # 01684	$2.60/EA

M20 squeegee guard kit

OptionsSN 000000–007999

Tennant M20 squeegee guard kit parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019675	1	Guard Kit, Sqge, Ci [M20]Old # 9001338	$687.93/EA
1	TN4030640	2	Bracket Wldt, Guard, SqgeOld # 1027560	$92.00/EA
2	TN4019759	4	Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284	$4.00/EA
3	TN4034138	14	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
4	TN4033860	2	Bumper, Ure, 1.50d 1.25lOld # 1024977	$35.00/EA
5	TN4039391	2	Screw, Hex, .38 - 16 X 0.88, 5Old # 21196	$2.50/EA
6	TN4038473	1	Guard Wldt, Pntd [M20/T20]Old # 1056195 · replaced by 4038473 (Tennant supersession list)	Call for price
7	TN4041290	2	Screw, Hex, M10 X 1.5 X 80, 8.8Old # 06965	$6.80/EA
8	TN4016826	2	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
9	TN4031918	1	Pin, Hitch, .375d X 3.12l, PlOld # 369359	$7.50/EA
10	TN4029376	1	Cable, Glv .06d 012.0l .26eye /.26eyeOld # 57702	$9.50/EA
11	TN4041990	1	Screw, Hex, M5 X 0.8 X 12, SsOld # 09738	$3.30/EA
12	TN4042888	1	Washer, Flat, #10, SsOld # 01683	$2.60/EA
13	TN4042522	2	Guard Wldt, Sqge [M20/T20/M30]Old # 1045444	$171.70/EA
14	TN4041287	4	Screw, Hex, M10 X 1.5 X 45, 8.8Old # 06962	$4.00/EA
15	TN4194632	2	Plate, MtgFits SN up to 004292 · Old # 1029543	Call for price
16	TN1039069	2	Guard Wldt, SqgeFits SN up to 002435 · Old # 1025663 · replaced by 1039069 (Tennant parts catalog)	Call for price
17	TN4042522	1	Guard Wldt, Sqge [M20/T20 Lh, M30 Rh]Old # 1040863 · replaced by 4042522 (Tennant parts catalog)	Call for price
18	TN4042522	1	Guard Wldt, Sqge [M20/T20 Rh, M30 Lh]Old # 1040871 · replaced by 4042522 (Tennant parts catalog)	Call for price

M20 engine radiator screen kit (003039 - 005999)

OptionsSN 000000–007999Fits: GasolineLPG

Tennant M20 engine radiator screen kit (003039 - 005999) parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN9010988	1	Rad Screen Kit, Replmt [M/T20,M30 G/Lp]Fits SN 003039–005999 · Old # 9010988 · current Tennant number (Tennant parts catalog)	Call for price
1	TN1071041	1	Bracket Wldt, Radiator, Fan, Gas/LpgFits SN 003039–005999 · Old # 1071041 · current Tennant number (Tennant parts catalog)	Call for price
2	TN1071033	1	Frame Wldt, Screen, RadFits SN 003039–005999 · Old # 1071033 · current Tennant number (Tennant parts catalog)	Call for price
3	TN1071047	1	Plate, Cover, ScreenFits SN 003039–005999 · Old # 1071047 · current Tennant number (Tennant parts catalog)	Call for price
4	TN4038497	1	Shroud, FanFits SN 003039–005999 · Old # 1054428	$126.20/EA
5	TN4032038	1	Fan, Cooling, 14.1d, 6 Blade, 0.5b TaperFits SN 003039–005999 · Old # 1031566	$174.80/EA
6	TN4180322	1	Sheave, Mach [Gm1.6l 2615rpm Fan]Fits SN 003039–005999 · Old # 1072505	Call for price
7	TN1051534	1	Concept, LatchFits SN 003039–005999 · Old # 1051534 · current Tennant number (Tennant parts catalog)	Call for price
8	TN4186796	1	Bracket, Shrd, Fan, Upper, Sppt, Gas/LpgFits SN 003039–005999 · Old # 1058777	$36.56/EA
9	TN4036767	1	Bracket, Shrd, Fan, Lower, Gas/LpgFits SN 003039–005999 · Old # 1058753	$10.20/EA
10	TN4185825	1	Bracket, Shrd, Radiator, Gas/Lpg, CeFits SN 003039–005999 · Old # 1064443	$29.80/EA
11	TN4036249	2	Screw, Hex, M4 X 0.70 X 10, SsFits SN 003039–005999 · Old # 1020234	$3.30/EA
12	TN4043235	2	Nut, Hex, Lock, M4 X 0.70, NlFits SN 003039–005999 · Old # 02850	$2.50/EA
13	TN4029376	1	Cable, Glv .06d 012.0l .26eye /.26eyeFits SN 003039–005999 · Old # 57702	$9.50/EA
14	TN4029864	2	Screw, Hex, M6 X 1.00 X 16, FmgFits SN 003039–005999 · Old # 361339	$4.00/EA
15	TN4034133	6	Washer, Flat, 0.25, SaeFits SN 003039–005999 · Old # 32483	$2.50/EA
16	TN4045568	4	Screw, Hex, M6 X 1.00 X 25, 9.8, SemsFits SN 003039–005999 · Old # 1036892	$2.50/EA
17	TN4041925	4	Nut, Hex, Lock, M6 X 1.00, NlFits SN 003039–005999 · Old # 08708	$2.50/EA
18	TN4045637	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsFits SN 003039–005999 · Old # 1037346	$2.50/EA
19	TN4034137	2	Washer, Flat, 0.31, StdFits SN 003039–005999 · Old # 32491	$2.50/EA
20	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlFits SN 003039–005999 · Old # 08709	$2.50/EA
21	TN4045640	3	Screw, Hex, M8 X 1.25 X 30, 9.8, SemsFits SN 003039–005999 · Old # 1037354	$2.50/EA
22	TN4045641	1	Screw, Hex, M8 X 1.25 X 35, 9.8, SemsFits SN 003039–005999 · Old # 1037355	$2.50/EA
23	TN4038766	2	Bearing, Ball, 20mm B 42mm D 12mm WFits SN 003039–005999 · Old # 1055377	$12.60/EA
24	TN4039684	1	Seal, Afmkt, Bulb, Str, 0.58d 08ftFits SN 003039–005999 · Old # 1048166	$53.10/EA

M20 fire extinguisher kit

OptionsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍⁠⁠‌⁠⁠‌‍‌‌⁠⁠‌‌‍‍⁠‌‍⁠‍‌‍‌‍‍‌

Tennant M20 fire extinguisher kit parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4019664	1	Extinguisher Kit, Fire, Ci [M20 And T20]Old # 9001316	$218.90/EA
1	TN4035427	1	Extinguisher, Fire, 2.5 Lb DryOld # 25312	$206.60/EA
2	TN4027333	2	Screw, Pan, #12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA

M20 documentation group

OptionsSN 000000–007999Fits: GasolineLPG‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‍⁠‍⁠‌⁠‍‌‍‌⁠‍‌⁠⁠⁠‌‌‌⁠‍‍‍⁠‌‍⁠

Tennant M20 documentation group parts, SN 000000–007999
Part number	Qty	Description and notes	Price
TN4030822	1	Manual, Oprtr [M20 Gas/Lpg En]Old # 331380	$94.66/EA
TN4032476	1	Instr, Maint, Wall Chart [M20]Old # 1032578	$40.12/EA
TN4030824	1	Manual, Oprtr [M20 Gas/Lpg, Es, Na]Old # 331382	$93.68/EA
TN4030825	1	Manual, Oprtr [M20 Gas/Lpg, Fr, Na]Old # 331383	$92.76/EA
TN4030823	1	Manual, Parts [M20 Gas/Lpg En]Old # 331381	$157.80/EA
TN4030827	1	Manual, Service [M20 En]Old # 331385	$319.37/EA
TN1027759	1	Video, Oprtr, Dvd [W/Checklist M20]Old # 1027759 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
TN8045852	1	Manual, Service, Eng[Gm1.6l Em Cert]Fits SN up to 001999 · Old # 372863	$319.37/EA
TN8045672	1	Manual, Service, Eng [Gm1.6l]Fits SN up to 001999 · Old # 371790	$319.37/EA
TN9003926	1	Manual, Eng, Cd - Rom [Tier Ii,Gm1.6l]Fits SN 002000 and later · Old # 9003926 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
TN9006257	1	Media, Cd - Rom, Training [ec - H2O Tennant]Old # 9006257 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
TN4199969	1	Manual, Service, Cd - Rom [Mit2.0l]Fits SN 006000 and later · Old # 9010635	Call for price

M20 extended scrub pump breakdown, 1021210

BreakdownsSN 000000–007999

Tennant M20 extended scrub pump breakdown, 1021210 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4036630	1	Pump Assy, Column, EsOld # 1021210	$1,762.90/EA
1	TN8002651	1	Motor, Ele, 12vdc, Pump, WaterOld # 9002708	$856.93/EA
	TN8003651	1	Kit, Brush, Motor, EleOld # 78829	$307.90/EA
2	TN4035378	1	Cap Assy, Tank, DrainOld # 24358	$40.40/EA
3	TN4032112	1	Gasket, 4.05id 5.29od .19 [Buna]Old # 1031699	$9.00/EA
4	TN8050826	1	Tube, Vinyl, Pump, WaterOld # 78833	$66.86/EA
5	TN4026135	1	Fitting, Plstc, Str, Bm12/Pm08, NylOld # 78398	$6.20/EA
6	TN8003656	1	Housing Kit, Pump, WaterOld # 78843	$262.10/EA
7	TN8003652	1	Column, Pump, WaterOld # 78836	$118.57/EA
8	TN8002652	1	Shaft, Pump, WaterOld # 9002709	$257.35/EA
9	TN8050828	1	Fitting, E, GrOld # 78838	$36.66/EA
10	TN8050829	1	Fitting, Plstc, E90, Pf Bm [Es Pump]Old # 78839	$16.87/EA
11	TN8003655	1	Kit, Valve, Check, Pump, WaterOld # 78842	$205.38/EA
12	TN8003653	1	Valve, Check, Pump, WaterOld # 78840	$165.50/EA
13	TN8002662	1	Gasket, .25 1.88d 1.0id [Poron]Old # 73342	$3.65/EA
14	TN8003654	1	Flapper, Valve, Pump, WaterOld # 78841	$109.82/EA
15	TN8050825	1	Washer, RbrOld # 78830	$20.71/EA
16	TN8049214	1	Insert, Cap, Mount, Es PumpOld # 22790	$82.42/EA
17	TN8005801	1	Sleeve, Pump, WaterOld # 23285	$59.69/EA

M20 hydraulic motor breakdown, 379609

BreakdownsSN 000000–007999

Tennant M20 hydraulic motor breakdown, 379609 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4026352	1	Motor, Hyd, Gear, [Int], 19.0 X 3000Old # 379609	Call for price
1	TN8002102	1	Shaft, Motor, HydOld # 74165	$850.20/EA
2	TN8002103	1	Housing, Brg, Motor, HydOld # 74166	$269.47/EA
3	TN8002104	1	Retainer, Motor, HydOld # 74167	$390.90/EA
4	TN8002105	8	Screw, Cap, Motor, HydOld # 74168	$5.90/EA
5	TN8003621	1	Drive, Motor, HydOld # 37616	$111.00/EA
6	TN8003630	1	Geroler, Motor, HydOld # 37756	$592.06/EA
7	TN8002092	1	Plate, Valve, Motor, HydOld # 74122	$349.36/EA
8	TN4014991	1	Valve, Motor, HydOld # 52405	$69.89/EA
9	TN8002093	1	Valve, Motor, HydOld # 74123	$272.20/EA
10	TN8005491	2	Spring, Motor, HydOld # 34178	$4.30/EA
11	TN8002895	1	Ring, Motor, HydOld # 38968	$23.53/EA
12	TN8002094	3	Bolt, Motor, HydOld # 74125	$14.95/EA
13	TN8003887	1	Bolt, Motor, HydOld # 38255	$16.87/EA
14	TN8045139	1	Housing, ValveOld # 373297	Call for price
15	TN4028397	1	PlugOld # 373298	$43.53/EA
16	TN8045128	2	Plug, Pump, Hyd, GearOld # 373260	$24.00/EA
17	TN8045140	1	PlugOld # 373299	Call for price
18	TN4028396	2	SpringOld # 373291	$4.70/EA
19	TN8045105	1	Piston, Pump, Hyd, GearOld # 373217	$25.49/EA
20	TN8004223	2	Poppet, Pump, Hyd, GearOld # 373226	$7.90/EA
21	TN8004227	2	Sleeve, Dashpo, Pump, Hyd, GearOld # 373236	Call for price
22	TN8002165	1	Nut, Motor, HydOld # 45622	$64.70/EA
23	TN8002166	1	Key, Motor, HydOld # 45623	$17.60/EA
24	TN8003766	1	Kit, Seal, Motor, HydOld # 79828	$140.00/EA
25	TN8005457	1	Kit, Seal, Motor, HydOld # 33580	$59.50/EA
26	TN4026637	1	Instr, Repair, Motor, Hyd, GearOld # 79729	$4.00/EA

M20 hydraulic pump breakdown, 1024251

BreakdownsSN 000000–007999

Tennant M20 hydraulic pump breakdown, 1024251 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4033592	1	Pump, Hyd, Piston, Var, 1.24 4000, CwOld # 1024251	$1,813.50/EA
1	TN373681	1	Shaft, PumpOld # 373681 · current Tennant number (Tennant parts catalog)	Call for price
2	TN8045195	1	Cover, EndOld # 373427	$1,326.78/EA
3	TN8004244	1	HousingOld # 373389	$824.67/EA
4	TN8006141	1	Pump Kit, Hyd, Rotating [Cessna]Old # 02706	$576.71/EA
5	TN8045211	1	Plate, CamOld # 373493	Call for price
6	TN8002864	1	Washer, Flat, Pump, HydOld # 70096	$7.88/EA
7	TN8051813	1	Ring, Retaining, Pump, HydOld # 55926	$5.30/EA
8	TN8045197	2	Ring, RetainingOld # 373434	$3.33/EA
9	TN8002118	1	Bearing, Thrust, Pump, HydOld # 74225	$12.30/EA
10	TN8002119	2	Race, Brg, Pump, HydOld # 74226	$6.97/EA
11	TN8045151	1	Insert, Plt, Cam, Pump, HydOld # 373327	$42.63/EA
12	TN8045179	6	Washer, Pump, Hyd [En]Old # 373391	$3.33/EA
13	TN8045161	6	Screw, CapOld # 373346	$4.44/EA
14	TN8004260	1	Valve, Relief, 4000 PsiOld # 373494	$486.30/EA
15	TN8004354	1	Valve, Relief, 3000 PsiOld # 373678	$144.74/EA
16	TN8004232	2	Bearing, Cone, Pump, HydOld # 373317	$42.32/EA
17	TN8004245	1	Plate, CoverOld # 373393	$1,844.56/EA
18	TN8004246	1	Plate, CoverOld # 373394	$353.90/EA
19	TN8002865	2	Pin, Dowel, Pump, HydOld # 70100	$4.04/EA
20	TN8045162	2	Screw, CapOld # 373347	$4.85/EA
21	TN8045163	2	Screw, CapOld # 373348	Call for price
22	TN8002126	1	Key, Shaft, Pump, HydOld # 74237	$3.23/EA
23	TN373679	1	Coupler, PumpOld # 373679 · current Tennant number (Tennant parts catalog)	Call for price
24	TN373680	1	Ring, LockOld # 373680 · current Tennant number (Tennant parts catalog)	Call for price
25	TN8004247	2	Bearing, CupOld # 373395	$28.18/EA
26	TN8002108	1	Plate, Valve, Pump, HydOld # 74180	$215.43/EA
27	TN8006154	1	Fitting, Hyd, Plug, Om08Old # 13907	$7.60/EA
28	TN8004250	1	Actuator, Valve, By - Pass [En]Old # 373413	$170.19/EA
29	TN8004248	1	Seal Kit, Pump, HydOld # 373398	$236.10/EA
30	TN8004249	1	Shim KitOld # 373402	$479.45/EA
31	TN8004255	1	Instr, Repair, PumpOld # 373429	$1.72/EA

M20 hydraulic motor breakdown, 71729

BreakdownsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‍⁠‍‌‌‍‌⁠‍‌‌⁠⁠‌⁠‌‍‌‌‌‍‍‌⁠‌⁠⁠‍‌

Tennant M20 hydraulic motor breakdown, 71729 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4015708	1	Motor, Hyd Gear In 4.5 B 1500Old # 71729	Call for price
1	TN8004514	4	ScrewOld # 37555	$4.40/EA
2	TN8005776	1	Flange MountingOld # 31354	$105.75/EA
3	TN8006045	1	Race ThrustOld # 16695	$43.50/EA
4	TN8002167	1	Thrust BearingOld # 45628	$15.60/EA
5	TN8005777	1	Shaft, OutputOld # 31375	$304.08/EA
6	Old # 74100	1	HousinglOld # 74100Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
7	TN8005778	1	DriveOld # 31379	$52.12/EA
8	TN8002085	1	Spacer PlateOld # 74094	$52.62/EA
9	TN8047405	1	Gerotor SetOld # 31383	$273.71/EA
10	TN8051369	1	End CapOld # 74095	$101.10/EA
11	TN8051596	5	Cap ScrewOld # 65241	$3.74/EA
12	TN4012760	1	Plug #4Old # 74098	$5.00/EA
13	TN4012761	2	Plug #10Old # 74099	$4.05/EA
14	TN4042771	1	Key - Wdruff 0.25 1.00Old # 00500-15	$4.60/EA
15	TN4015800	1	Nut - Hxslot .75 - 16 PltdOld # 39527	$8.00/EA
16	TN8002969	1	Seal Replmt KitOld # 61490	$114.70/EA
17	TN8002133	1	Instr. Repair Info, MotorOld # 74250	$4.12/EA

M20 hydraulic motor breakdown, 1029379

BreakdownsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‌‍⁠‌‍‌‍‌‌⁠⁠‍‌⁠‍‍⁠⁠‌‌‍⁠‌‍‍‍‌

Tennant M20 hydraulic motor breakdown, 1029379 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4010444	1	Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500Old # 1029379 · replaced by 4010444 (Tennant parts catalog)	Call for price
1	TN8004514	4	Screw, Motor, Hyd [En]Old # 37555	$4.40/EA
2	TN8005776	1	Flange, Motor, Hyd [En]Old # 31354	$105.75/EA
3	TN8006045	1	Ace, Thrust, Motor, Hyd [En]Old # 16695	$43.50/EA
4	TN8002167	1	Bearing, ThrustOld # 45628	$15.60/EA
5	TN8005827	1	Shaft, Output, Motor, Hyd [En]Old # 28854	$176.45/EA
6	TN8002086	1	Housing, Motor, Hyd [En]Old # 74100	$153.62/EA
7	TN8048818	1	Drive [Cl]Old # 21955	Call for price
8	TN8002085	1	Plate, Spacer, Motor, Hyd [En]Old # 74094	$52.62/EA
9	TN8048819	1	Gerotor Set [Cl]Old # 21956	$283.61/EA
10	TN8051591	1	End Cap, Motor, Hyd [En]Old # 65230	Call for price
11	TN8048820	5	Cap Screw ClOld # 21958	$3.74/EA
12	TN4042771	1	Key, Woodruff, 0.25 1.00 [Asa#0808]Old # 00500-15	$4.60/EA
13	TN8002969	1	Seal Kit, Motor [Cl]Old # 61490	$114.70/EA
14	TN8002133	1	Instr, Motor, Hyd, Repair [En]Old # 74250	$4.12/EA

M20 hydraulic motor breakdown, 53485

BreakdownsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‌‍‍‍⁠⁠‌‍‌‌‍‌‌‍‍‍⁠⁠⁠‍‍⁠‍‌‌‍‌‌‍‍

Tennant M20 hydraulic motor breakdown, 53485 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4015031	1	Motor, Hyd, Gear, Ext 0.19 Rh 3000Old # 53485	Call for price
	TN8002123	1	Kit, Seal, Motor, Hyd, Gear[Barns]Old # 74233	$106.39/EA
1	TN4042800	1	Key, Sq, 0.12 X 0.12, 0.75lOld # 00966	$1.45/EA
2	TN8002440	1	Valve, Hyd Cartridge 10no/ - 0Old # 54095	$407.70/EA
3	TN8003752	1	Valve Stem, N.O.Valve, HydOld # 59378	$286.50/EA
4	TN8002295	1	Kit, Seal, Valve, Hyd [Cec]Old # 48813	$173.57/EA
5	TN8005505	1	Solenoid, 12v, Valve, Hyd [Cec]Old # 35493	$129.70/EA
6	TN4006499	1	Instr, Seal Kit, MotorOld # IB3614	Call for price

M20 hydraulic valve breakdown, 1018936

BreakdownsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‌⁠‍‍‍‍‍‌‍‌‌‍‌‍⁠‌‍‍⁠‌‍⁠‌‍‍‍‍‌

Tennant M20 hydraulic valve breakdown, 1018936 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4035865	1	Valve, Cntrl, Hyd [M20]Old # 1018936	$707.61/EA
1	TN8004340	2	Valve, CheckOld # 373656	$52.60/EA
2	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
3	TN8004341	1	Stem, Valve, Hyd, 4w2pOld # 373657	$185.50/EA
4	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
5	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
6	TN8004288	1	Valve, Cntrl, SolenoidOld # 373637	$311.30/EA
7	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
8	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
9	TN8004342	2	Spool, Pilot, HydOld # 373658	$44.30/EA
10	TN8004291	3	Solenoid, #8, 12vdcOld # 373640	$73.70/EA
11	TN8004290	1	Spacer, Coil, #8Old # 373639	$8.50/EA
12	TN4012760	3	Fitting, Hyd, Plug, Om04Old # 74098	$5.00/EA
13	TN4029251	1	Seal, Org, .072 X 00.35id #04Old # 77003	$4.40/EA
14	TN8004284	1	Plug, Orifice, Valve, Hyd, .040Old # 373633	$12.95/EA
15	TN8004343	1	Valve, Hyd, ReliefOld # 373659	$92.31/EA
16	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
17	TN8045249	1	Plug, Orifice, Valve, Hyd, .030Old # 373660	$12.52/EA
18	TN8006153	1	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
19	TN4029252	1	Seal, Org, .078 X 00.47id #06Old # 77005	$4.40/EA

M20 hydraulic valve breakdown, 1018938

BreakdownsSN 000000–007999

Tennant M20 hydraulic valve breakdown, 1018938 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4045666	1	Valve, Cntrl, Hyd [M20 And T20] (Replaced by 1037805)Old # 1018938 · replaced by 4045666 (Tennant parts catalog)	Call for price
1	TN8004284	1	Plug, Orifice, Valve, Hyd, .040Old # 373633	$12.95/EA
2	TN8006153	1	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
3	TN4029252	1	Seal, Org, .078 X 00.47id #06Old # 77005	$4.40/EA
4	TN8004340	1	Valve, CheckOld # 373656	$52.60/EA
5	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
6	TN8004344	1	Valve, ReliefOld # 373661	$125.50/EA
7	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
8	TN8004345	1	Stem, Valve, HydOld # 373662	$147.30/EA
9	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
10	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
11	TN8004341	1	Stem, Valve, Hyd, 4w2pOld # 373657	$185.50/EA
12	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
13	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
14	TN8004291	3	Solenoid, #8, 12vdcOld # 373640	$73.70/EA
15	TN8004342	1	Spool, Pilot, HydOld # 373658	$44.30/EA
16	TN8004293	1	Solenoid, #10, 12vdcOld # 373642	$88.20/EA
17	TN8004346	1	Valve, Stem, NoOld # 373663	$213.30/EA
18	TN8045252	1	Nut, SolenoidOld # 373670	$6.80/EA
19	TN8004296	1	Seal Kit, CartridgeOld # 373646	$25.60/EA
20	TN8004347	1	Cartridge, Psi Cntrl, Valve, HydOld # 373664	$452.70/EA
21	TN8045253	1	Nut, SolenoidOld # 373673	$6.20/EA
22	TN8004353	1	Seal Kit, CartridgeOld # 373672	$18.80/EA

M20 hydraulic valve breakdown, 1037805

BreakdownsSN 000000–007999

Tennant M20 hydraulic valve breakdown, 1037805 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4045666	1	Valve, Cntrl, Hyd, Solenoid, 03/16gpmOld # 1037805	Call for price
1	TN8004284	1	Plug, Orifice, Valve, Hyd, .040Old # 373633	$12.95/EA
2	TN8006153	1	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
3	TN4029252	1	Seal, Org, .078 X 00.47id 06Old # 77005	$4.40/EA
4	TN8004340	1	Valve, CheckOld # 373656	$52.60/EA
5	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
6	TN8004344	1	Valve, ReliefOld # 373661	$125.50/EA
7	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
8	TN8004345	1	Stem, Valve, HydOld # 373662	$147.30/EA
9	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
10	TN8004329	1	Nut, Coil, Nyl PatchOld # 373648	$4.20/EA
11	TN8004341	1	Stem, Valve, Hyd [4w2p]Old # 373657	$185.50/EA
12	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
13	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
14	TN8004291	3	Solenoid, #8, 12vdcOld # 373640	$73.70/EA
15	TN8004342	1	Spool, Pilot, HydOld # 373658	$44.30/EA
16	TN8004293	1	Solenoid, #10, 12vdcOld # 373642	$88.20/EA
17	TN8004346	1	Valve, Stem, NoOld # 373663	$213.30/EA
18	TN8004296	1	Seal Kit, CartridgeOld # 373646	$25.60/EA
19	TN8045252	1	Nut, SolenoidOld # 373670	$6.80/EA
20	TN8004347	1	Cartridge, Psi Cntrl, Valve, HydOld # 373664	$452.70/EA
21	TN8004353	1	Seal Kit, CartridgeOld # 373672	$18.80/EA
22	TN8045253	1	Nut, SolenoidOld # 373673	$6.20/EA
23	TN8004355	1	Valve, ReliefOld # 373683	$153.10/EA
24	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA

M20 hydraulic valve breakdown, 1072997

BreakdownsSN 000000–007999

Tennant M20 hydraulic valve breakdown, 1072997 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4031319	1	Valve, Cntrl, Hyd, Solenoid, 03/16gpmOld # 1072997	$1,504.00/EA
1	TN8004284	1	Plug, Orifice, Valve, Hyd, .040Old # 373633	$12.95/EA
2	TN8006153	1	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
3	TN4029252	1	Seal, Org, .078 X 00.47id 06Old # 77005	$4.40/EA
4	TN8004340	1	Valve, CheckOld # 373656	$52.60/EA
5	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
6	TN8004344	1	Valve, ReliefOld # 373661	$125.50/EA
7	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
8	TN8004345	1	Stem, Valve, HydOld # 373662	$147.30/EA
9	TN8004329	1	Nut, Coil, Nyl PatchOld # 373648	$4.20/EA
10	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
11	TN8004341	1	Stem, Valve, Hyd [4w2p]Old # 373657	$185.50/EA
12	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
13	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
14	TN8004291	3	Solenoid, #8, 12vdcOld # 373640	$73.70/EA
15	TN8004342	1	Spool, Pilot, HydOld # 373658	$44.30/EA
16	TN8004293	1	Solenoid, #10, 12vdcOld # 373642	$88.20/EA
17	TN8004346	1	Valve, Stem, NoOld # 373663	$213.30/EA
18	TN8045252	1	Nut, SolenoidOld # 373670	$6.80/EA
19	TN8004296	1	Seal Kit, CartridgeOld # 373646	$25.60/EA
20	TN8004187	1	Valve Assy [Proportional]Old # 9011347	$351.30/EA
21	TN8004184	1	Seal Kit, Valve [Ehpr98]Old # 9011343	$26.70/EA
22	TN8004185	2	Screw, Mtg [Ehpr98]Old # 9011345	$3.10/EA
23	TN8004186	1	Harness, Jumper [Deutsch To Mpack]Old # 9011346	$35.00/EA
24	TN8006153	1	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
25	TN4029252	1	Seal, Org, .078 X 00.47id 06Old # 77005	$4.40/EA
26	TN8004355	1	Valve, ReliefOld # 373683	$153.10/EA
27	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA

M20 hydraulic valve breakdown, 1020394

BreakdownsSN 000000–007999

Tennant M20 hydraulic valve breakdown, 1020394 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4031318	1	Valve, Cntrl, HydOld # 1020394 · replaced by 4031318 (Tennant parts catalog)	Call for price
1	TN8004348	1	Plug, Orifice, Valve, Hyd, .046Old # 373665	$12.52/EA
2	TN4012760	4	Fitting, Hyd, Plug, Om04Old # 74098	$5.00/EA
3	TN4029251	1	Seal, Org, .072 X 00.35id #04Old # 77003	$4.40/EA
4	TN8006153	1	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
5	TN4029252	1	Seal, Org, .078 X 00.47id #06Old # 77005	$4.40/EA
6	TN8006154	2	Fitting, Hyd, Plug, Om08Old # 13907	$7.60/EA
7	TN4029253	2	Seal, Org, .087 X 00.64id #08Old # 77006	$6.00/EA
8	TN8004342	2	Spool, Pilot, HydOld # 373658	$44.30/EA
9	TN8004282	2	Valve, CheckOld # 373631	$59.10/EA
10	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
11	TN8004349	2	Valve, ReliefOld # 373666	$133.50/EA
12	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
13	TN8004341	2	Stem, Valve, Hyd, 4w2pOld # 373657	$185.50/EA
14	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
15	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
16	TN8004350	1	Stem, Valve, HydOld # 373667	$144.10/EA
17	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
18	TN8004296	1	Seal Kit, CartridgeOld # 373646	$25.60/EA
19	TN8004346	2	Valve, Stem, NoOld # 373663	$213.30/EA
20	TN8045252	1	Nut, SolenoidOld # 373670	$6.80/EA
21	TN8004296	1	Seal Kit, CartridgeOld # 373646	$25.60/EA
22	TN8004351	1	Valve, CheckOld # 373668	$118.80/EA
23	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
24	TN8004293	3	Solenoid, #10, 12vdcOld # 373642	$88.20/EA
25	TN8004291	3	Solenoid, #8, 12vdcOld # 373640	$73.70/EA
26	TN8004347	1	Cartridge, Psi Cntrl, Valve, HydOld # 373664	$452.70/EA
27	TN8045253	1	Nut, SolenoidOld # 373673	$6.20/EA
28	TN8004353	1	Seal Kit, CartridgeOld # 373672	$18.80/EA
29	TN8045250	1	Plug, Orifice, Valve, Hyd, .063Old # 373669	$11.82/EA

M20 hydraulic valve breakdown, 1038566

BreakdownsSN 000000–007999

Tennant M20 hydraulic valve breakdown, 1038566 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN1038566	1	Valve, Hyd, Solenoid, 12vdcOld # 1038566 · current Tennant number (Tennant parts catalog)	Call for price
1	TN8004348	1	Plug, Orifice, Valve, Hyd, .046Old # 373665	$12.52/EA
2	TN8004284	1	Plug, Orifice, Valve, Hyd, .040Old # 373633	$12.95/EA
3	TN8004363	1	Plug Orifice, Valve, Hyd, .140Old # 9004475 · replaced by 8004363 (Tennant parts catalog)	Call for price
4	TN8045249	1	Plug, Orifice, Valve, Hyd, .030Old # 373660	$12.52/EA
5	TN4012760	9	Fitting, Hyd, Plug, Om04Old # 74098	$5.00/EA
6	TN4029251	1	Seal, Org, .072 X 00.35id #04Old # 77003	$4.40/EA
7	TN8006153	2	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
8	TN4029252	1	Seal, Org, .078 X 00.47id #06Old # 77005	$4.40/EA
9	TN8004340	5	Valve, CheckOld # 373656	$52.60/EA
10	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
11	TN4171592	1	Spool, Pilot, Dual, HydOld # 373688	Call for price
12	TN8004346	2	Valve, Stem, NoOld # 373663	$213.30/EA
13	TN8045252	1	Nut, SolenoidOld # 373670	$6.80/EA
14	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
15	TN8004350	1	Stem, Valve, HydOld # 373667	$144.10/EA
16	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
17	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
18	TN8004347	1	Cartridge, Psi Cntrl, Valve, HydOld # 373664	$452.70/EA
19	TN8045253	1	Nut, SolenoidOld # 373673	$6.20/EA
20	TN8004353	1	Seal Kit, CartridgeOld # 373672	$18.80/EA
21	TN8004341	3	Stem, Valve, Hyd [4w2p]Old # 373657	$185.50/EA
22	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
23	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
24	TN8004288	1	Valve, Cntrl, SolenoidOld # 373637	$311.30/EA
25	TN8004356	2	Nut, Coil, Nyl PatchOld # 373684	$3.80/EA
26	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
27	TN8004349	2	Valve, ReliefOld # 373666	$133.50/EA
28	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
29	TN8004291	6	Solenoid, #8, 12vdcOld # 373640	$73.70/EA
30	TN8004293	3	Solenoid, #10, 12vdcOld # 373642	$88.20/EA
31	TN8004290	1	Spacer, Coil, #8Old # 373639	$8.50/EA
32	TN8004351	1	Valve, CheckOld # 373668	$118.80/EA
33	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
34	TN8004342	3	Spool, Pilot, HydOld # 373658	$44.30/EA

M20 hydraulic valve breakdown, 1072995

BreakdownsSN 000000–007999

Tennant M20 hydraulic valve breakdown, 1072995 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4031317	1	Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpmOld # 1072995	$3,016.30/EA
1	TN8004348	1	Plug, Orifice, Valve, Hyd, .046Old # 373665	$12.52/EA
2	TN8004284	1	Plug, Orifice, Valve, Hyd, .040Old # 373633	$12.95/EA
3	TN8004363	1	Plug Orifice, Valve, Hyd, .140Old # 9004475 · replaced by 8004363 (Tennant parts catalog)	Call for price
4	TN8045249	1	Plug, Orifice, Valve, Hyd, .030Old # 373660	$12.52/EA
5	TN4012760	9	Fitting, Hyd, Plug, Om04Old # 74098	$5.00/EA
6	TN4029251	1	Seal, Org, .072 X 00.35id #04Old # 77003	$4.40/EA
7	TN8006153	2	Fitting, Plug, Org, #6, Valve [Cec]Old # 13904	$7.60/EA
8	TN4029252	1	Seal, Org, .078 X 00.47id #06Old # 77005	$4.40/EA
9	TN8004340	5	Valve, CheckOld # 373656	$52.60/EA
10	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
11	TN4171592	1	Spool, Pilot, Dual, HydOld # 373688	Call for price
12	TN8004346	2	Valve, Stem, NoOld # 373663	$213.30/EA
13	TN8045252	1	Nut, SolenoidOld # 373670	$6.80/EA
14	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
15	TN8004350	1	Stem, Valve, HydOld # 373667	$144.10/EA
16	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
17	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
18	TN8004187	1	Valve Assy [Proportional]Old # 9011347	$351.30/EA
19	TN8004184	1	Seal Kit, Valve [Ehpr98]Old # 9011343	$26.70/EA
20	TN8004185	2	Screw, Mtg [Ehpr98]Old # 9011345	$3.10/EA
21	TN8004186	1	Harness, Jumper [Deutsch To Mpack]Old # 9011346	$35.00/EA
22	TN8004341	3	Stem, Valve, Hyd [4w2p]Old # 373657	$185.50/EA
23	TN8004329	1	Nut, Coil, F/#8Old # 373648	$4.20/EA
24	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
25	TN8004288	1	Valve, Cntrl, SolenoidOld # 373637	$311.30/EA
26	TN8004356	2	Nut, Coil, Nyl PatchOld # 373684	$3.80/EA
27	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
28	TN8004349	2	Valve, ReliefOld # 373666	$133.50/EA
29	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
30	TN8004291	5	Solenoid, #8, 12vdcOld # 373640	$73.70/EA
31	TN8004293	3	Solenoid, #10, 12vdcOld # 373642	$88.20/EA
32	TN8004290	1	Spacer, Coil, #8Old # 373639	$8.50/EA
33	TN8004351	1	Valve, CheckOld # 373668	$118.80/EA
34	TN8004352	1	Seal Kit, CartridgeOld # 373671	$46.60/EA
35	TN8004342	3	Spool, Pilot, HydOld # 373658	$44.30/EA

M20 hydraulic steering valve breakdown, 1024260

BreakdownsSN 000000–007999

Tennant M20 hydraulic steering valve breakdown, 1024260 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4033593	1	Steer - Control, Hyd05, 06.1 2030Old # 1024260	$816.30/EA
1	TN8051403	7	Screw, Valve, SteeringOld # 74183	Call for price
2	TN8051405	1	Cap, End, Valve, SteeringOld # 74185	Call for price
3	TN8002112	1	Spacer, Valve, SteeringOld # 74193	$17.78/EA
4	TN8002117	1	Plate, Wear, Steering ValveOld # 74222	Call for price
5	TN8002122	1	Pin, Valve, SteeringOld # 74232	Call for price
6	TN8005935	1	Bearing Kit [Cl]Old # 21935	$39.98/EA
7	TN8048811	1	Plug Assy [Cl]Old # 21933	$42.32/EA
8	TN8048812	1	Valve Assy, Relief [Cl]Old # 21934	$236.04/EA
9	TN8002129	1	Ring, Retainer, Steering ValveOld # 74243	$5.96/EA
10	TN8002114	1	Spring Kit, Scu [Cl]Old # 74196	$45.35/EA
11	TN8002130	1	Seal Kit, Steering [Cl]Old # 74244	$62.30/EA
12	TN8002131	1	Instr, Valve, Steering, RepairOld # 74245	Call for price

M20 metering solution pump breakdown, 73260

BreakdownsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠⁠‌‌⁠‍‌‌‍‌‍‌‌‍‍⁠‌‌‍‌‍‍‍⁠⁠‌‌

Tennant M20 metering solution pump breakdown, 73260 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4016324	1	Pump, Detgt, 14vdc, 150ml/Min 20psiOld # 73260	$792.20/EA
1	TN8002729	1	Tubing Connctr.Kit, Gorman PmpOld # 63923	$91.36/EA
2	TN8005913	1	Valve Kit, Poppet, Gorman RuppOld # 21659	$118.80/EA
3	TN8005912	1	Kit, Bellows, Pump, DetgtOld # 21657	$249.77/EA
4	TN8003657	1	Motor, Ele, Gear, 14vdc, Pump, DetgtOld # 78875	$540.96/EA
5	TN8006136	1	Crank Kit, Pump, F/79323, ReplmtOld # 02430	$112.01/EA

M20 water pump breakdown, 1026743

BreakdownsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‌‍⁠⁠‍‌‍‌‌‍‍‌⁠‌⁠‌‍⁠⁠‌⁠‌⁠⁠

Tennant M20 water pump breakdown, 1026743 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4034280	1	Pump, DiaphragmOld # 1026743	$370.80/EA
1	TN8005597	1	Complete Pump Kit, Pump, Repair,Old # 1031802	$251.40/EA
2	TN8005598	1	Hsg & Switch Kit, Pump, Repair,Old # 1031803	$121.04/EA
3	TN8005592	1	Switch Kit, Pump, Repair,Old # 1031796	$83.12/EA
4	TN8005593	1	Chech Valve Kit, Pump, Repair,Old # 1031797	$36.60/EA
5	TN8005594	1	Upper Hsg Kit, Pump, Repair,Old # 1031798	$23.63/EA
6	TN8005595	1	Bypass Valve Kit, Pump, Repair,Old # 1031799	$85.45/EA
7	TN8005596	1	Diaphragm Kit, Pump, Repair,Old # 1031800	$59.59/EA
8	TN8047054	1	Motor Kit, Pump, Repair,Old # 1031801	$167.21/EA
9	TN4026208	1	Connector, Fem, 02cav, Mp280 SealedOld # 78950	$7.90/EA
10	TN4026214	1	Lock, Secondary, 2cav, Mp280 SealedOld # 78952	$4.20/EA
	TN4026210	2	Terminal, Fem, Mp280, Sealed, 18 - 16gaOld # 78951	$0.55/EA
	TN4043117	2	Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Old # 10917	$3.60/EA

M20 ec - H20 module assembly breakdown, 9007882

BreakdownsSN 000000–007999

Tennant M20 ec - H20 module assembly breakdown, 9007882 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4012473	1	Module Kit, Replmt [Ec - H20]Old # 9007882	$1,782.70/EA
1	TN4037967	2	Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrOld # 1014974	$22.40/EA
2	TN4021946	5	Clamp, Hose, Wir, .63 - .66, BlkOld # 607775	$4.20/EA
3	TN4034613	1	Fitting, Plstc, Tee, Bm06/Pm02/Bm06Old # 1060517	$6.20/EA
4	TN4037966	1	Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrOld # 1014971	$18.70/EA
5	TN4039131	1	Fitting, Plstc, E90, Bm06/Bm06Old # 20951	$4.20/EA
6	TN4041118	1	Fitting, Plstc, Str, Bm06/Pm04Old # 150540	$4.20/EA
7	TN4038978	1	Fitting, Plstc, Pipe, Cap, Pf04Old # 1005435	$4.20/EA
8	TN1038159	1	Electrode, CylindricalOld # 1038159 · current Tennant number (Tennant parts catalog)	Call for price
9	TN4013410	1	Tie, Cable, Nyl, 14.5l .30w 4.0 Max DOld # 44961	$3.40/EA
10	TN4187263	1	Fitting, Plstc, Str, Pm02/Bm05Old # 1060695	$4.20/EA
11	TN4038223	3	Clamp, Hose, Wir, .52 - .56, YelOld # 1053464	$2.73/EA
12	TN4041050	1	Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrOld # 1052336	$48.50/EA
13	TN4036585	1	Electrode, 5 Plate, High FlowOld # 1057637	Call for price
14	TN4012474	1	Controller Kit, Replmt [Ec - H20]Old # 9007883	$544.60/EA
15	TN4035120	2	Clamp, Cable, Ss, 0.50d X 0.50w [Insul]Old # 1016354	$4.10/EA
16	TN4034147	4	Screw, Hex, M4 X 0.70 X 50, SsOld # 32509	$0.25/EA
17	TN4016852	4	Washer, Flat, 08, SsOld # 41579	$2.60/EA
18	TN4043241	4	Washer, Lock, Int, 08, SsOld # 02938	$2.60/EA
19	TN4035537	8	Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsOld # 1018155	$2.50/EA
20	TN4045590	1	Housing, BottomOld # 1037032	$10.60/EA
21	TN4038670	1	Grommet, BlindOld # 1054776	$5.10/EA

M20 seat breakdown, 1072456

BreakdownsSN 000000–007999

Tennant M20 seat breakdown, 1072456 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4030942	1	SeatOld # 1072456	$1,143.80/EA
1	TN8003570	1	Track Assy, SlideOld # 9012585	$187.20/EA
2	TN8003571	1	Bellows, SeatOld # 9012587	$49.09/EA
3	TN8003572	1	Knobs, Adjmt, WeightOld # 9012589	$30.10/EA
4	TN8003573	1	SeatbeltOld # 9012590	$213.20/EA
5	TN8003574	1	Switch, SeatOld # 9012591	$25.90/EA
6	TN8003575	1	ArmrestOld # 9012592	$121.91/EA
7	TN8003576	1	Pad, ArmrestOld # 9012593	$60.60/EA
8	TN8003577	1	Cover, CushionOld # 9012594	$147.20/EA
9	TN8003578	1	Cover, BackrestOld # 9012595	$164.20/EA

M20 FaST injector assembly breakdown, 9008868

BreakdownsSN 000000–007999‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‌‍⁠‍‍⁠⁠‌‍‌‌‍⁠‌⁠‌‌‍⁠‌⁠‌‍‌‌⁠‍‌‌

Tennant M20 FaST injector assembly breakdown, 9008868 parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
	TN4010349	1	FaST Kit, Injector [M20/T20/m30 FaST III}Old # 9008868	Call for price
1	TN9008757	1	FaST Kit, Ci [inj Rebld, M30/M20 III]Old # 9008757 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
2	TN9008848	1	FaST Kit, Seal, injector, Ci [FaST III]Old # 9008848 · current Tennant number (Tennant parts catalog)	$4.10/EA
3	TN4016470	1	FaST Kit, Ci, Injector Filters[FaST Ii+]Old # 9003009	$71.60/EA
4	TN1059878	1	Plate Assy, Orifice, 0.0105Id, GreenOld # 1059878 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	$22.80/EA
5	TN1042710	1	Plug, Orifice, 0.060, Ss [FaST Ii+]Old # 1042710 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	$18.30/EA
6	TN1059234	1	Insert, :Lrg [Venturi, FaST III]Old # 1059234 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	$11.80/EA
7	TN1030444	1	Valve, Check, 0002psi [FaST Ii+]Old # 1030444 · no current Tennant number on file	Call for price
8	TN1030441	1	Valve, Check, 0005psi [FaST Ii+]Old # 1030441 · no current Tennant number on file	Call for price

M20 telemetry wire harness group

OptionsSN 000000–007999Fits: Diesel

Tennant M20 telemetry wire harness group parts, SN 000000–007999
Item	Part number	Qty	Description and notes	Price
1	TN4030280	1	Harness, Wire, Dsl [M20/T20, Telemetry]Old # 1069876	$133.72/EA

M20 documentation group

OptionsSN 000000–007999Fits: Diesel‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠⁠‌⁠⁠‌⁠‌‍‌‍‍‌⁠⁠‌‌‍‌‍‌‌‍⁠⁠⁠‌

Tennant M20 documentation group parts, SN 000000–007999
Part number	Qty	Description and notes	Price
TN4030828	1	Manual, Oprtr [M20 Dsl En]Old # 331410	$94.90/EA
TN4032476	1	Instr, Maint, Wall Chart [M20]Old # 1032578	$40.12/EA
TN4030829	1	Manual, Parts [M20 Dsl En/Jp]Old # 331411	$156.11/EA
TN4030830	1	Manual, Oprtr [M20 Dsl Es]Old # 331412	$95.63/EA
TN4030831	1	Manual, Oprtr [M20 Dsl Fr]Old # 331413	$95.63/EA
TN4030827	1	Manual, Service [M20 En]Old # 331385	$319.37/EA
TN1027759	1	Video, Oprtr, Dvd [W/Checklist M20]Old # 1027759 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
TN8003218	1	Manual, Eng [Kubo, V1505e]Old # 84660	$211.37/EA
TN9006257	1	Media, Cd - Rom, Training [ec - H2O Tennant]Old # 9006257 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price

Notes on this parts list‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‍‌‍‍⁠‌‍‌‌‍‍‍‍⁠‌‍⁠‌⁠⁠‍‍‍⁠‍‌‌

Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.

M20 ES pump group

M20 ES tanks group

M20 side brush motor group (000000 - 003076)

M20 side brush motor group (003077 - )

M20 side brush lift group

M20 side brush solution control group

M20 side brush hydraulic valve group

M20 side brush hydraulic hose group

M20 FaST solution pump group (000000 - 002532)

M20 FaST air pump and detergent group (000000 - 002532)

M20 FaST foam filter group (000000 - 002532)

M20 FaST foam filter group, side brush (000000 - 002532)

M20 FaST wire harness group (000000 - 002532)

M20 FaST pumps and detergent group (002533 - )

M20 FaST solution supply group (002533 - )

M20 FaST solution supply group with side brush (002533 - )

M20 FaST wire harness group (002533 - )

M20 ec - H20 solution pump group

M20 ec - H20 solution pump supply group

M20 ec - H20 solution supply group

M20 ec - H20 solution supply group with side brush

M20 ec - H20 wire harnesses group

M20 backup alarm kit

M20 light kit, flashing

M20 light kit, strobe

M20 light kit, flashing overhead guard

M20 light kit, strobe overhead guard

M20 overhead guard kit

M20 telemetry group

M20 electrical wire harness group, Gasoline/LPG engine adapter harness with telemetry

M20 vacuum wand kit (000000 - 002406)

M20 vacuum wand kit (002407 - )

M20 spray nozzle kit

M20 transport kit

M20 squeegee guard kit

M20 engine radiator screen kit (003039 - 005999)

M20 fire extinguisher kit

M20 documentation group

M20 extended scrub pump breakdown, 1021210

M20 hydraulic motor breakdown, 379609

M20 hydraulic pump breakdown, 1024251

M20 hydraulic motor breakdown, 71729

M20 hydraulic motor breakdown, 1029379

M20 hydraulic motor breakdown, 53485

M20 hydraulic valve breakdown, 1018936

M20 hydraulic valve breakdown, 1018938

M20 hydraulic valve breakdown, 1037805

M20 hydraulic valve breakdown, 1072997

M20 hydraulic valve breakdown, 1020394

M20 hydraulic valve breakdown, 1038566

M20 hydraulic valve breakdown, 1072995

M20 hydraulic steering valve breakdown, 1024260

M20 metering solution pump breakdown, 73260

M20 water pump breakdown, 1026743

M20 ec - H20 module assembly breakdown, 9007882

M20 seat breakdown, 1072456

M20 FaST injector assembly breakdown, 9008868

M20 telemetry wire harness group

M20 documentation group

Notes on this parts list‌‌​⁠⁠‍⁠‍⁠⁠‌‌​‌‌​‍⁠​⁠‍‍‌‍‍​⁠​​​​‌​‍‌​‌‍‍‍‍⁠‌​‍​​⁠‌​⁠⁠‍‍‍⁠‍​‌‌

Notes on this parts list‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‌‍⁠⁠‍‍‌‍‍⁠‌‍‌‌‍‍‍‍⁠‌‍⁠‌⁠⁠‍‍‍⁠‍‌‌
