Tennant M20 engine, options and breakdowns, SN 008000 and later: 2016 manual (rev. 01)
Engine, options and breakdowns parts from Tennant's North American M20 parts manuals for SN 008000 and later (9016001 rev. 01 (gas/LPG, 2016)), gas/LPG. Use Your machine to pick your serial number, edition or another area.
Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.
Find your parts list →1,486 lines from 9016001 rev. 01 (gas/LPG, 2016). Checked against the manuals line by line on .
- Machine
- M20 rider sweeper-scrubber
- Cleaning path
- 40 in (56 in with side brush)
- Solution / recovery
- 56 / 73 gal
- Hopper
- 3.9 ft³, 390 lb
- Power
- Gasoline, LPG or diesel
- Main brushes
- 2 × 40 in cylindrical
Your machine
You’re viewing the 2016 manual (Rev 01, Dec 2016; gas/LPG only). The current manual is Rev 12 (Oct 2025). Enter your serial number or use the dropdown for your exact machine.
Where to find the serial number and power type
- The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
- Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
- Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.
How to read this list
Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

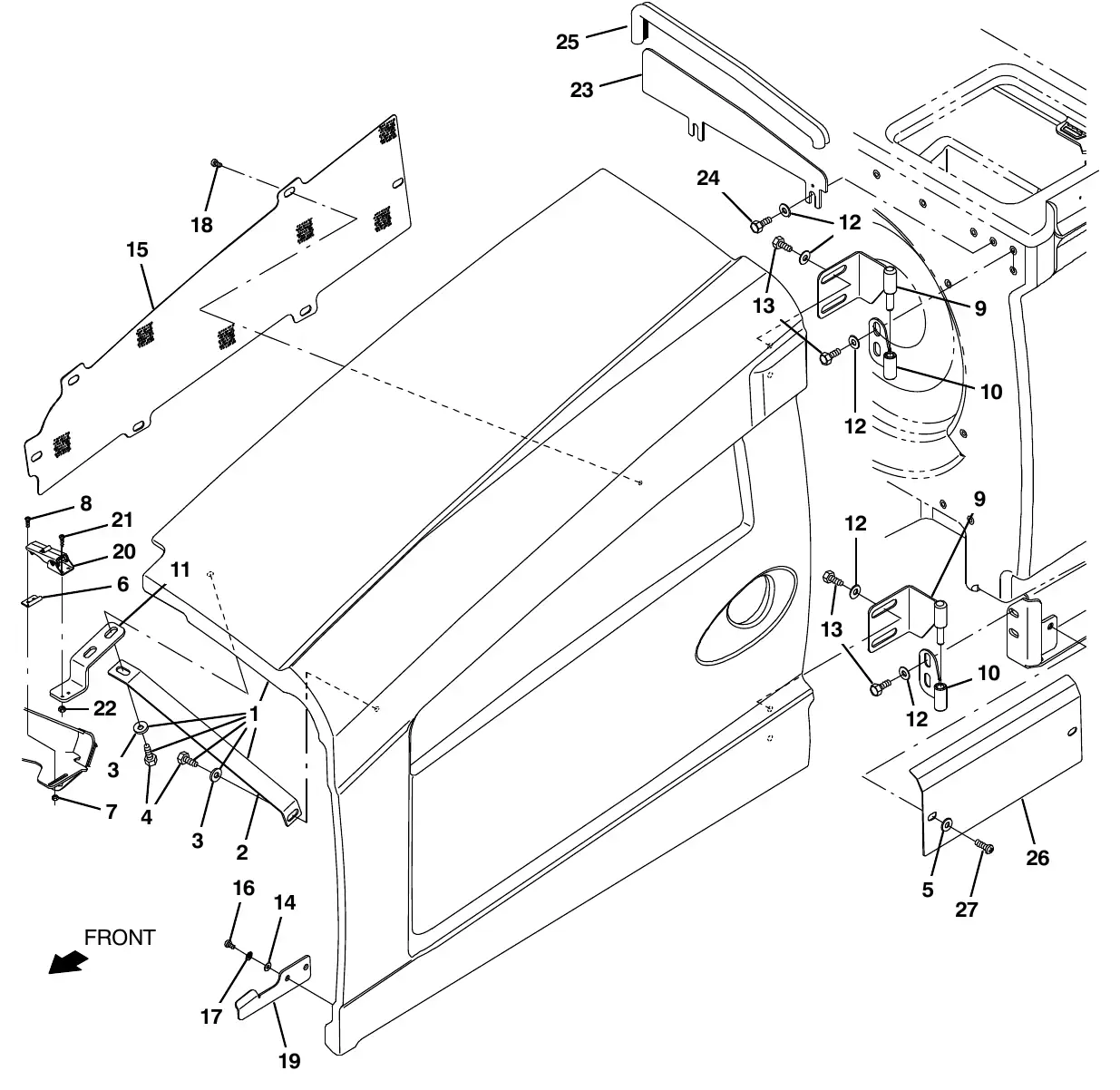

M20 Engine Cover Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030566 | 1 | Shroud Assy, EngOld # 1071439 | $434.10/EA |
| 2 | TN4194117 | 1 | Angle, Brace, ShrdOld # 1026628 | $14.75/EA |
| 3 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 4 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 5 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 6 | TN4024119 | 1 | Bracket, Latch, Keeper [Southco]Old # 384419 | $4.50/EA |
| 7 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 8 | TN4035372 | 2 | Screw, Pan, M4 X 0.7 X 16, SsOld # 24265 | $3.00/EA |
| 9 | TN4033616 | 2 | Hinge Wldt, Shrd, LhOld # 1024500 | $68.90/EA |
| 10 | TN4033887 | 2 | Hinge Wldt, Shrd, LhOld # 1025196 | $42.60/EA |
| 11 | TN4036245 | 1 | Bracket, Latch, CoverOld # 1020186 | $13.50/EA |
| 12 | TN4035242 | 11 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 13 | TN4041844 | 7 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 14 | TN4016785 | 2 | Washer, Lock, Int - Ext, 10Old # 41139 | $3.50/EA |
| 15 | TN4034277 | 1 | Grill, EngOld # 1026726 | $72.20/EA |
| 16 | TN4041965 | 2 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 17 | TN4042244 | 2 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 18 | TN4040232 | 6 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267 | $2.50/EA |
| 19 | TN4030910 | 1 | Bracket, Guide, ShrdOld # 1028412 | $19.50/EA |
| 20 | TN4037479 | 1 | Latch, Door, YellowOld # 1222018 | $18.30/EA |
| 21 | TN4041258 | 2 | Screw, Pan, M4 X 0.7 X 16, 4.8Old # 06927 | $3.30/EA |
| 22 | TN4043235 | 2 | Nut, Hex, Lock, M4 X 0.7, NlOld # 02850 | $2.50/EA |
| 23 | TN4193841 | 1 | Plate, Seal, SoundOld # 1025806 | $15.80/EA |
| 24 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4031725 | 2 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588 | $46.50/EA |
| 26 | TN4032874 | 1 | Cover, LowerOld # 1022005 | $21.70/EA |
| 27 | TN4032093 | 2 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |

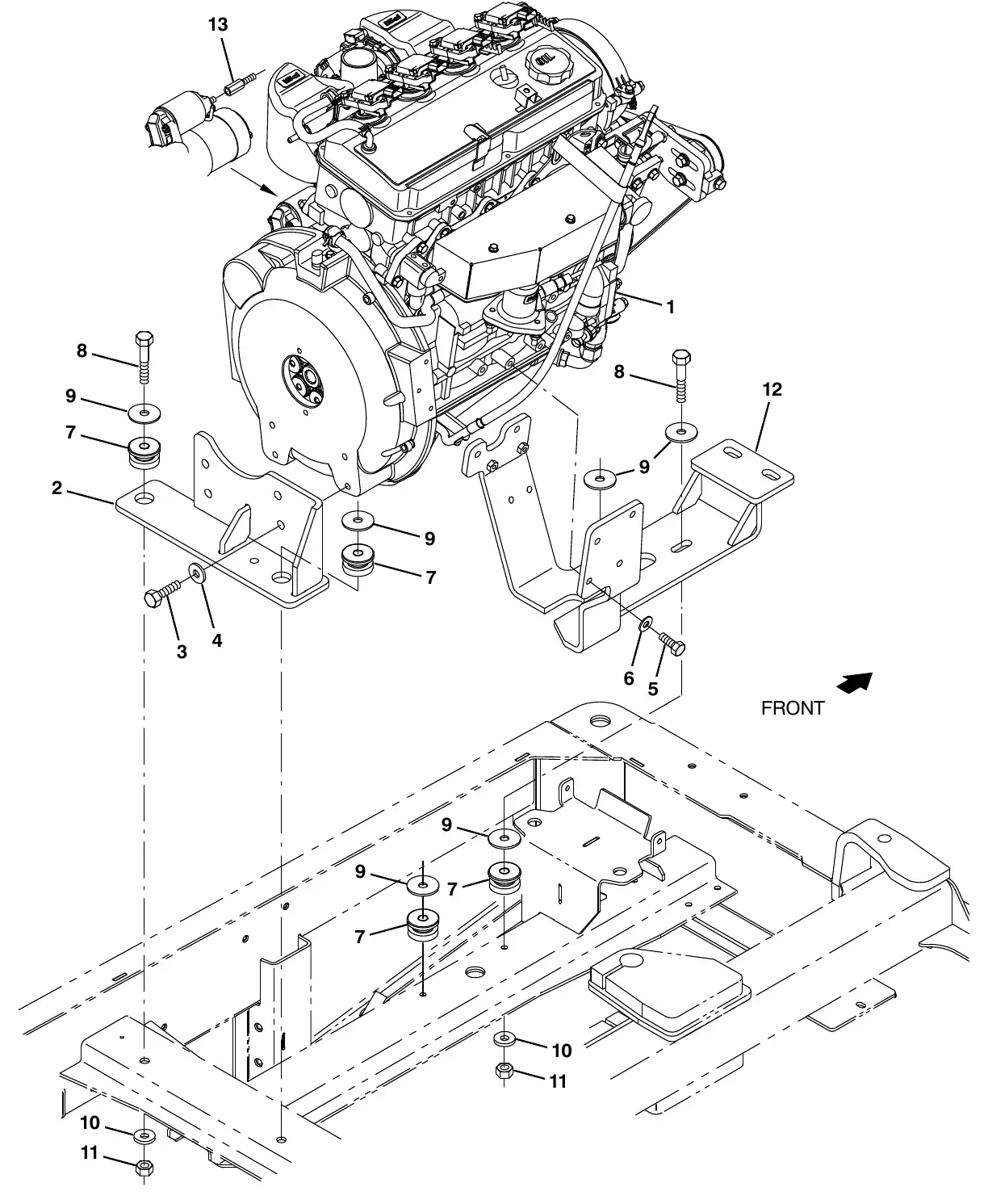

M20 Mitsubishi Engine and Mount Group, Gas
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003679 | 1 | Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Old # 9014202 | $8,912.00/EA |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Old # 393982 | $30.00/EA | |
| 2 | TN4030335 | 1 | Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Old # 1070756 | $68.38/EA |
| 3 | TN4016809 | 4 | Screw, Hex, M12 X 1.75 X 30, 8.8Old # 41346 | $4.00/EA |
| 4 | TN4034135 | 4 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 5 | TN4041580 | 6 | Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 | $2.40/EA |
| 6 | TN4034138 | 6 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 7 | TN4014538 | 4 | Isolator, Vib, .50dOld # 51176 | $37.60/EA |
| 8 | TN4041297 | 4 | Screw, Hex, M12 X 1.75 X 60, 8.8Old # 06972 | $4.00/EA |
| 9 | TN4040927 | 4 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 10 | TN4034139 | 3 | Washer, Flat, 0.50 StdOld # 32493 | $3.50/EA |
| 11 | TN4041927 | 3 | Nut, Hex, Lock, M12 X 1.75,NlOld # 08711 | $3.30/EA |
| 12 | TN4030332 | 1 | Bracket Wldt, Mtg, Engine [Mit 2013]Old # 1070751 | $192.32/EA |
| 13 | TN4180344 | 1 | Stand - Off, Hex, M8 X M8, MetalOld # 1072669 | $38.57/EA |

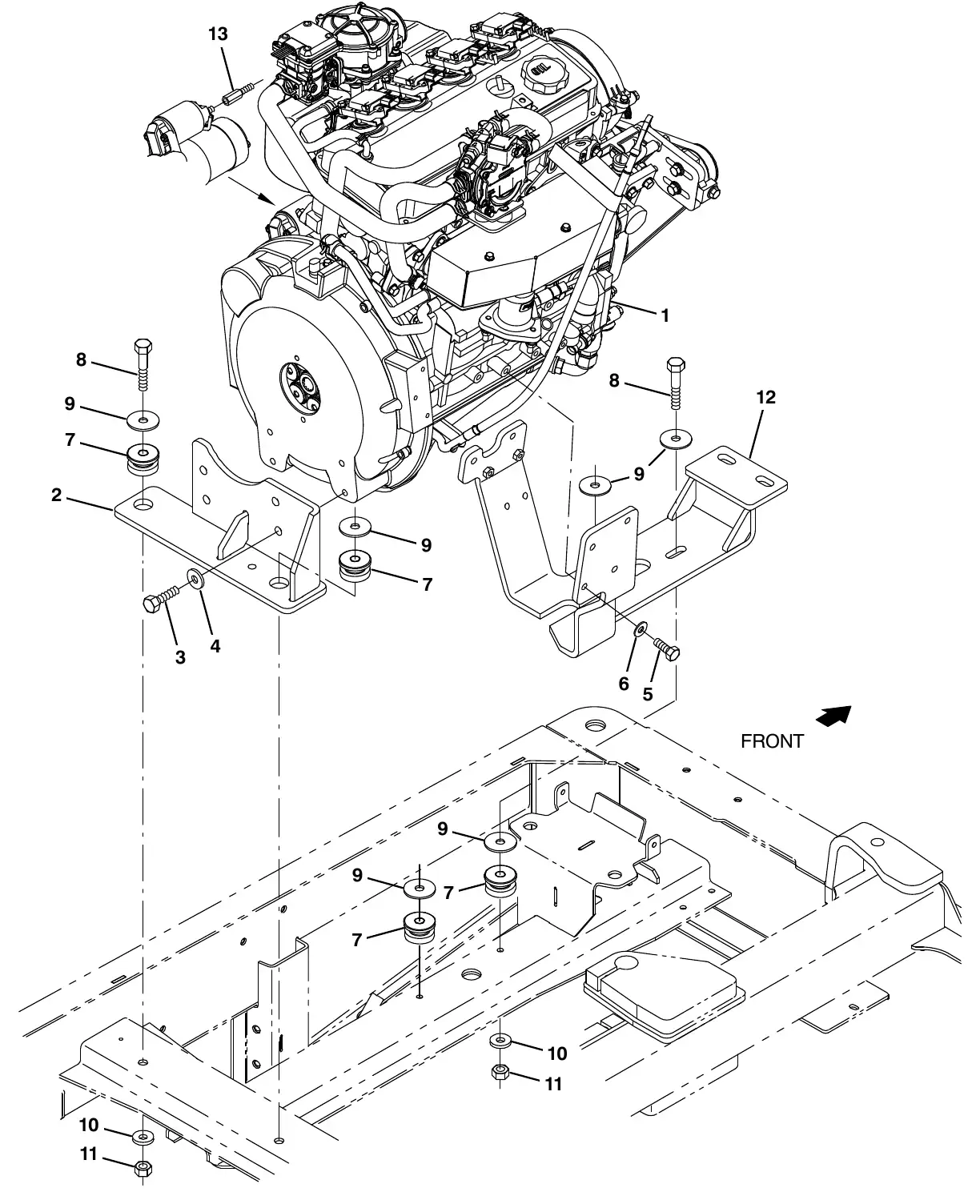

M20 Mitsubishi Engine and Mount Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003679 | 1 | Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Old # 9014202 | $8,912.00/EA |
| TN8002631 | 1 | Element, Fltr, Oil, SpinOn (Mits)Old # 393982 | $30.00/EA | |
| 2 | TN4030335 | 1 | Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Old # 1070756 | $68.38/EA |
| 3 | TN4016809 | 4 | Screw, Hex, M12 X 1.75 X 30, 8.8Old # 41346 | $4.00/EA |
| 4 | TN4034135 | 4 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 5 | TN4041580 | 6 | Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 | $2.40/EA |
| 6 | TN4034138 | 6 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 7 | TN4014538 | 4 | Isolator, Vib, .50dOld # 51176 | $37.60/EA |
| 8 | TN4041297 | 4 | Screw, Hex, M12 X 1.75 X 60, 8.8Old # 06972 | $4.00/EA |
| 9 | TN4040927 | 4 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 10 | TN4034139 | 3 | Washer, Flat, 0.50 StdOld # 32493 | $3.50/EA |
| 11 | TN4041927 | 3 | Nut, Hex, Lock, M12 X 1.75,NlOld # 08711 | $3.30/EA |
| 12 | TN4030332 | 1 | Bracket Wldt, Mtg, Engine [Mit 2013]Old # 1070751 | $192.32/EA |
| 13 | TN4180344 | 1 | StandOff, Hex, M8 X M8, MetalOld # 1072669 | $38.57/EA |

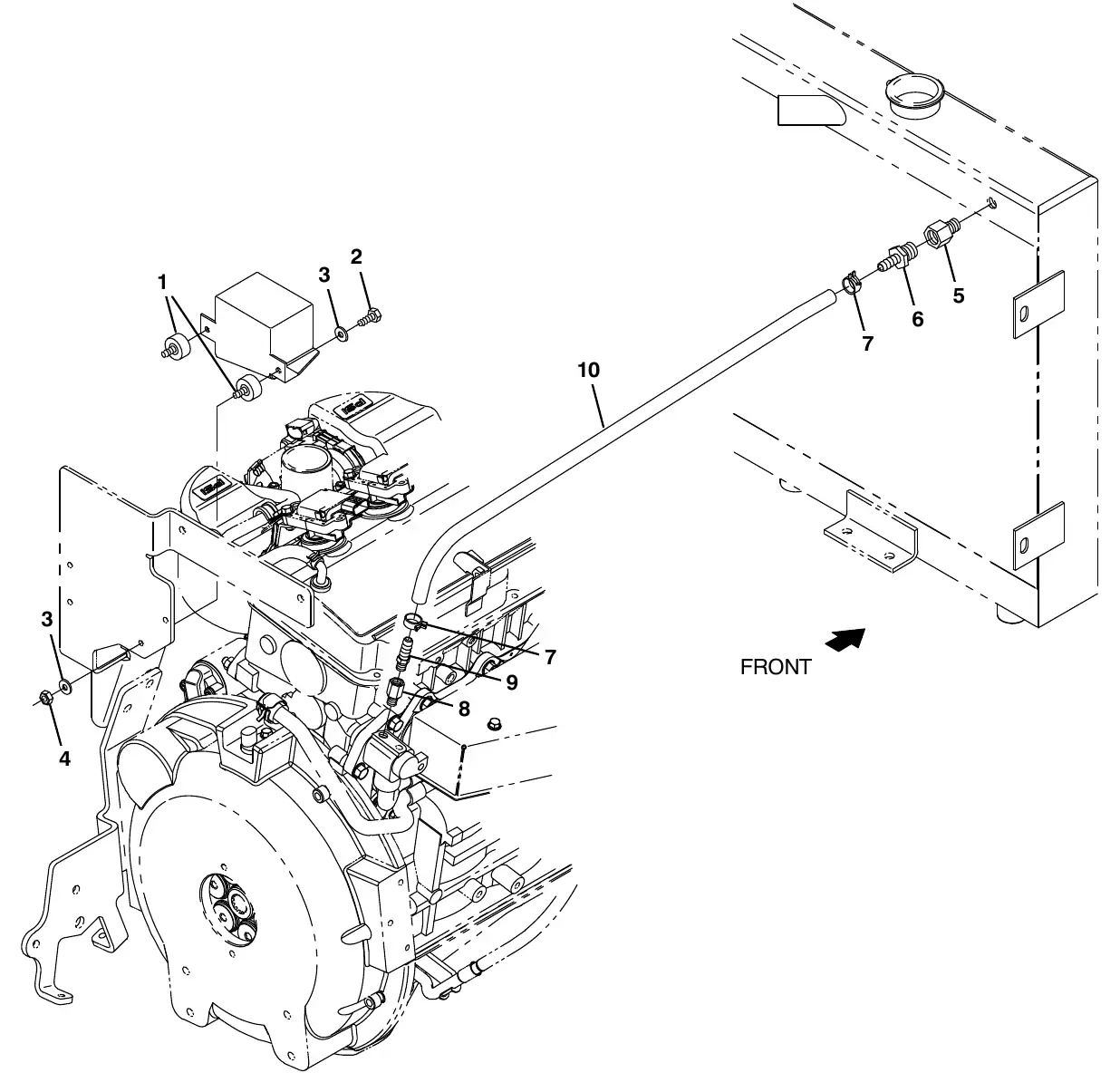

M20 Mitsubishi Engine EFI Group, Gasoline
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005190 | 2 | Isolator, Box, RelayOld # 372470 | $25.70/EA |
| 2 | TN4042535 | 2 | Screw, Hex, .25 - 20 X 0.50, G5Old # 19315 | $2.50/EA |
| 3 | TN4034136 | 4 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 4 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Old # 19312 | $2.50/EA |
| 5 | TN4030567 | 1 | Fitting, Brs, Str, Pf06/Pm04Old # 1071440 | $66.00/EA |
| 6 | TN4175233 | 1 | Fitting, Brs, Str, Bm06/Pm06Old # 36159 | $4.60/EA |
| 7 | TN4030949 | 2 | Clamp, Hose, Spring Stl, 0.58d X 0.31wOld # 1072559 | $3.20/EA |
| 8 | TN4030700 | 1 | Fitting, Brs, Str, Pf02/Pm02 [Bspt]Old # 1071502 | $39.76/EA |
| 9 | TN4038789 | 1 | Fitting, Brs, Str, Bm06/Pm02Old # 1055552 | $3.60/EA |
| 10 | TN4030929 | 1 | Hose, Afmkt, Rbr, Heater, 0.38id, 03ftOld # 1072408 | $68.40/EA |

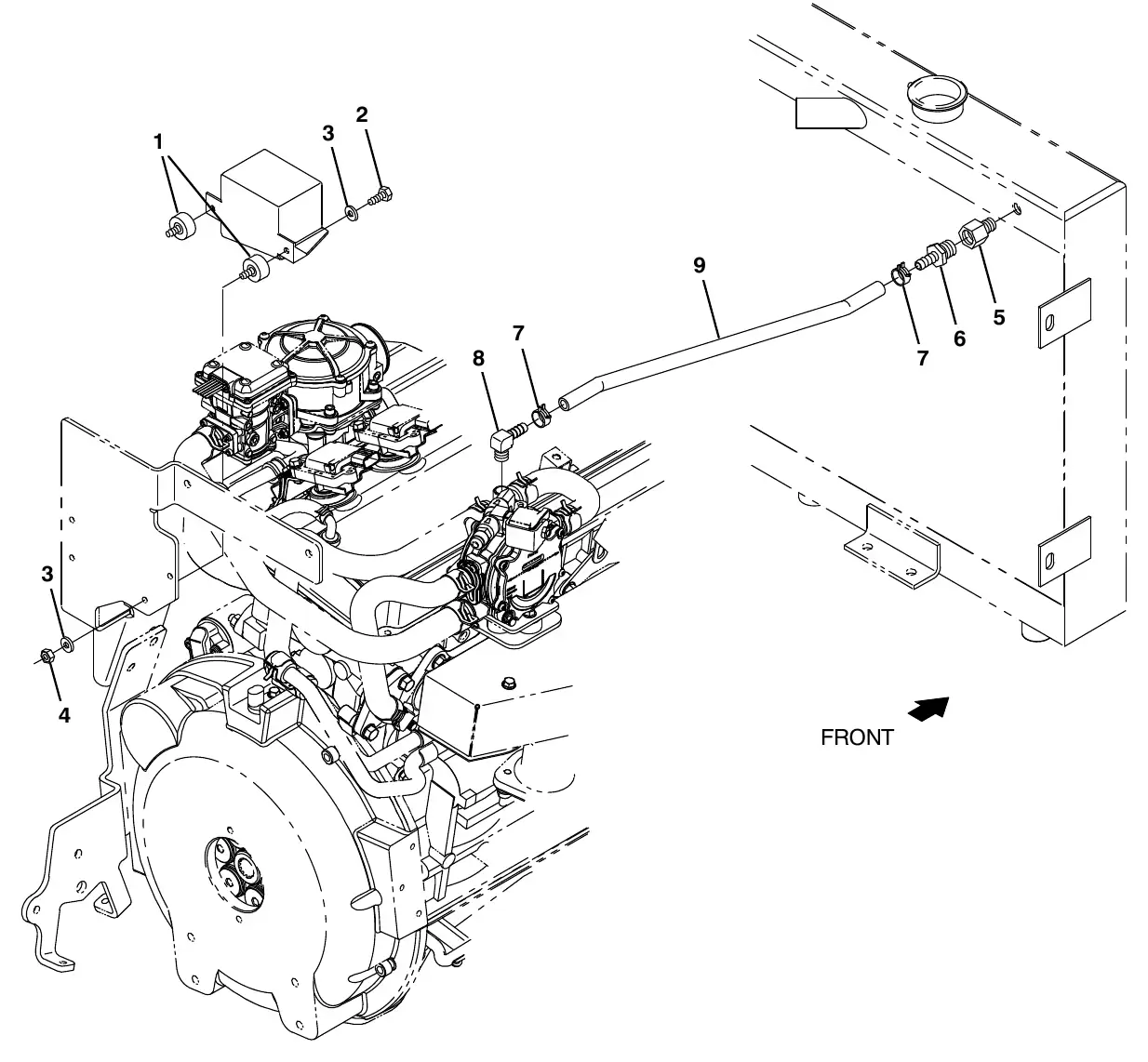

M20 Mitsubishi Engine EFI Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005190 | 2 | Isolator, Box, RelayOld # 372470 | $25.70/EA |
| 2 | TN4042535 | 2 | Screw, Hex, .25 - 20 X 0.50, G5Old # 19315 | $2.50/EA |
| 3 | TN4034136 | 4 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 4 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Old # 19312 | $2.50/EA |
| 5 | TN4030567 | 1 | Fitting, Brs, Str, Pf06/Pm04Old # 1071440 | $66.00/EA |
| 6 | TN4175233 | 1 | Fitting, Brs, Str, Bm06/Pm06Old # 36159 | $4.60/EA |
| 7 | TN4030949 | 2 | Clamp, Hose, Spring Stl, 0.58d X 0.31wOld # 1072559 | $3.20/EA |
| 8 | TN4197481 | 1 | Fitting, Brs, E90, Bm06/Pm04Old # 1015815 | $8.50/EA |
| 9 | TN4030929 | 1 | Hose, Afmkt, Rbr, Heater, 0.38id, 03ftOld # 1072408 | $68.40/EA |

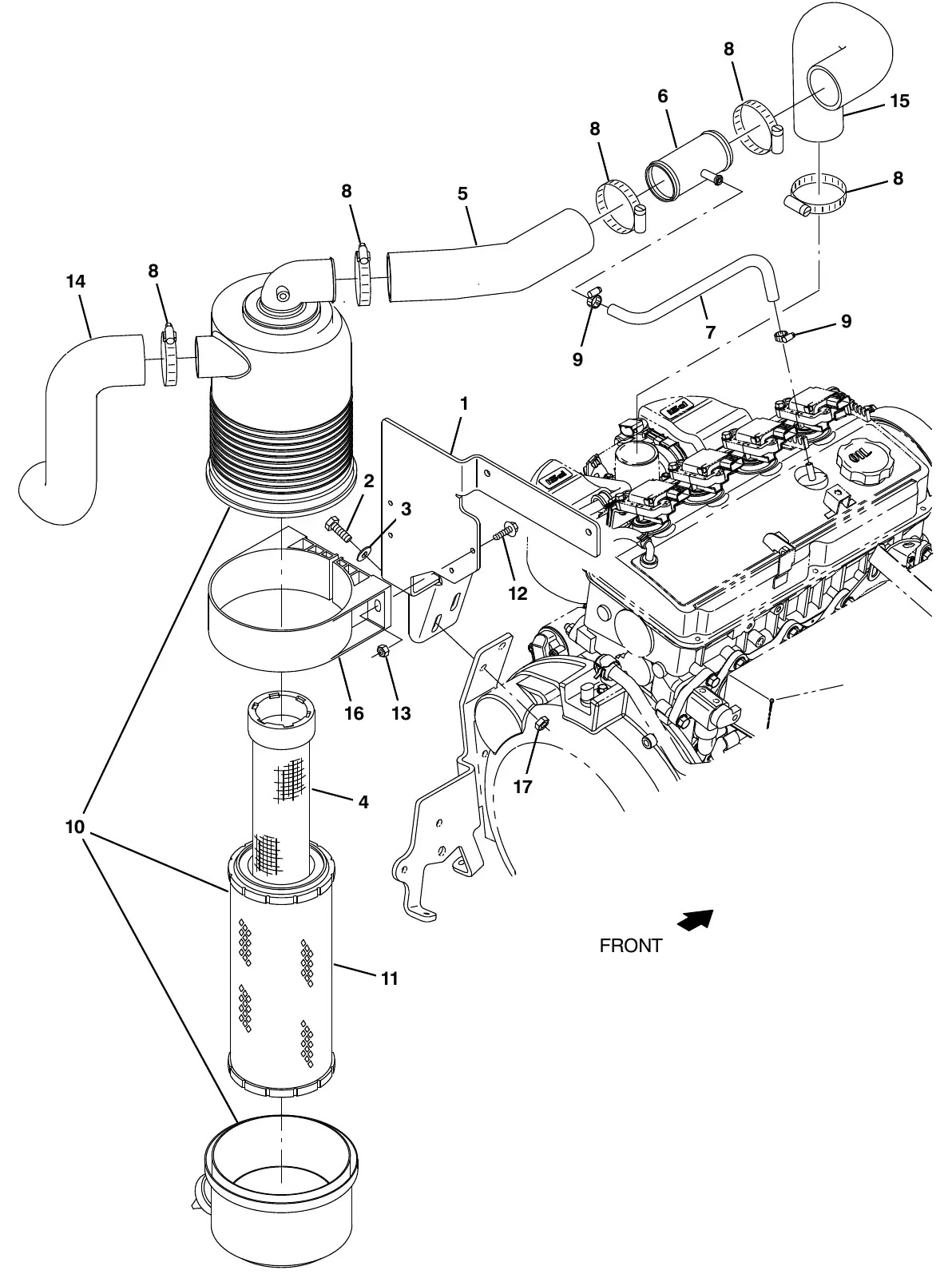

M20 Mitsubishi Engine Air Cleaner Group, Gasoline
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182557 | 1 | Bracket, Mtg, Fltr, Air [Mit 2013]Old # 1070822 | $47.43/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Old # 398279 | $52.20/EA |
| 5 | TN4182540 | 1 | Hose, Intake, Mold [Epdm Mit 2013]Old # 1070788 | $45.22/EA |
| 6 | TN4182561 | 1 | Tube Wldt, Tee [Mit 2013]Old # 1070833 | $95.68/EA |
| 7 | TN4027047 | 1 | Hose, Drain,Overflow,Radiator[1pick=1ft]Old # 381391 | Call for price |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wOld # 14432 | $5.30/EA |
| 9 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirOld # 369745 | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Old # 369746 | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 14 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Old # 1020949 | $59.99/EA |
| 15 | TN4182993 | 1 | Hose, Intake, Mold, Gas [Epdm Mit 2013]Old # 1071404 | $53.83/EA |
| 16 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirOld # 369747 | $32.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |

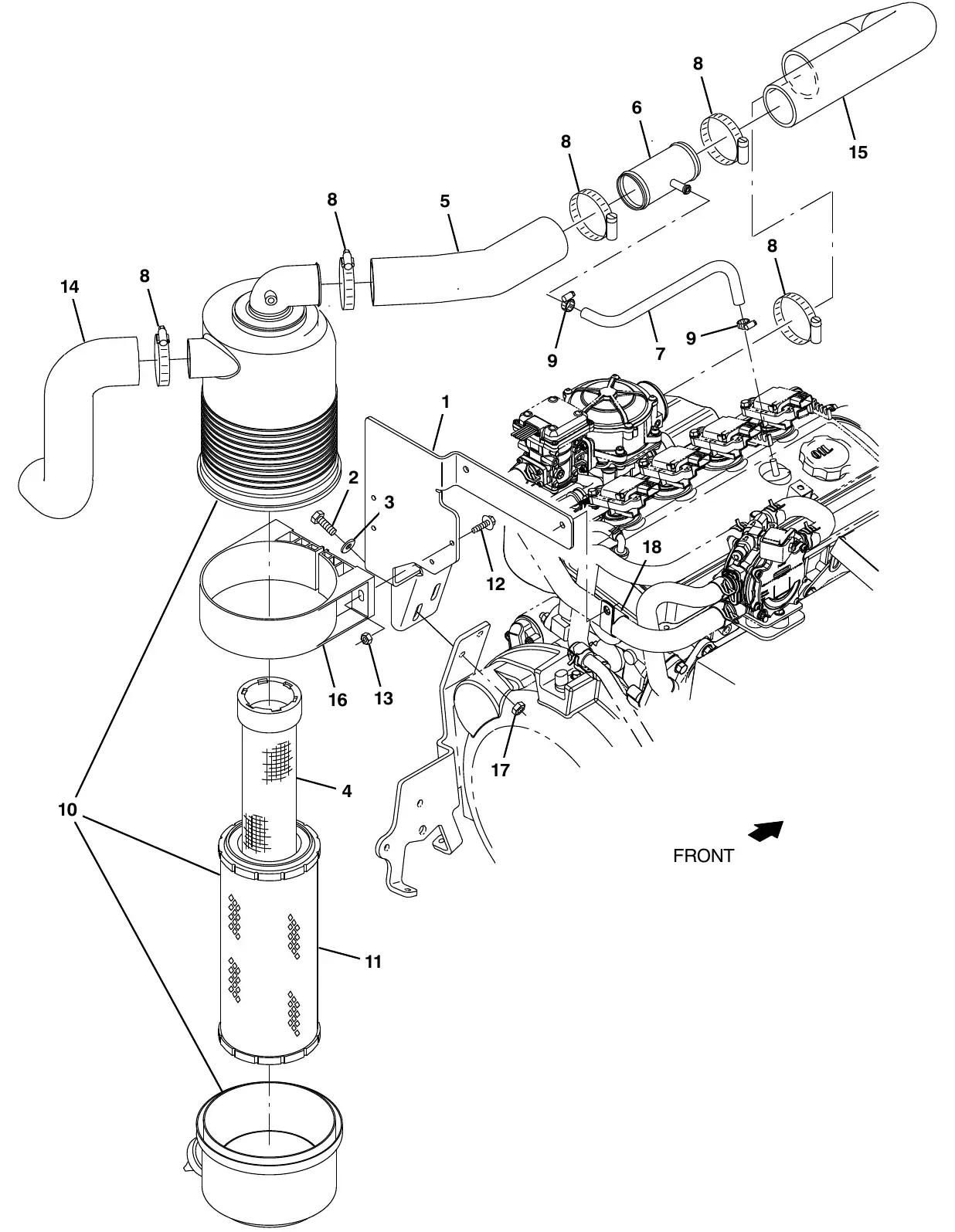

M20 Mitsubishi Engine Air Cleaner Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182557 | 1 | Bracket, Mtg, Fltr, Air [Mit 2013]Old # 1070822 | $47.43/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Old # 398279 | $52.20/EA |
| 5 | TN4182540 | 1 | Hose, Intake, Mold [Epdm Mit 2013]Old # 1070788 | $45.22/EA |
| 6 | TN4182561 | 1 | Tube Wldt, Tee [Mit 2013]Old # 1070833 | $95.68/EA |
| 7 | TN4027047 | 1 | Hose, Drain,Overflow,Radiator[1pick=1ft]Old # 381391 | Call for price |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wOld # 14432 | $5.30/EA |
| 9 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirOld # 369745 | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Old # 369746 | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 14 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Old # 1020949 | $59.99/EA |
| 15 | TN4182539 | 1 | Hose, Intake, Mold, Lpg [Epdm Mit2013]Old # 1070787 | $37.80/EA |
| 16 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirOld # 369747 | $32.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 18 | TN4018310 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeOld # 69234 | $4.20/EA |

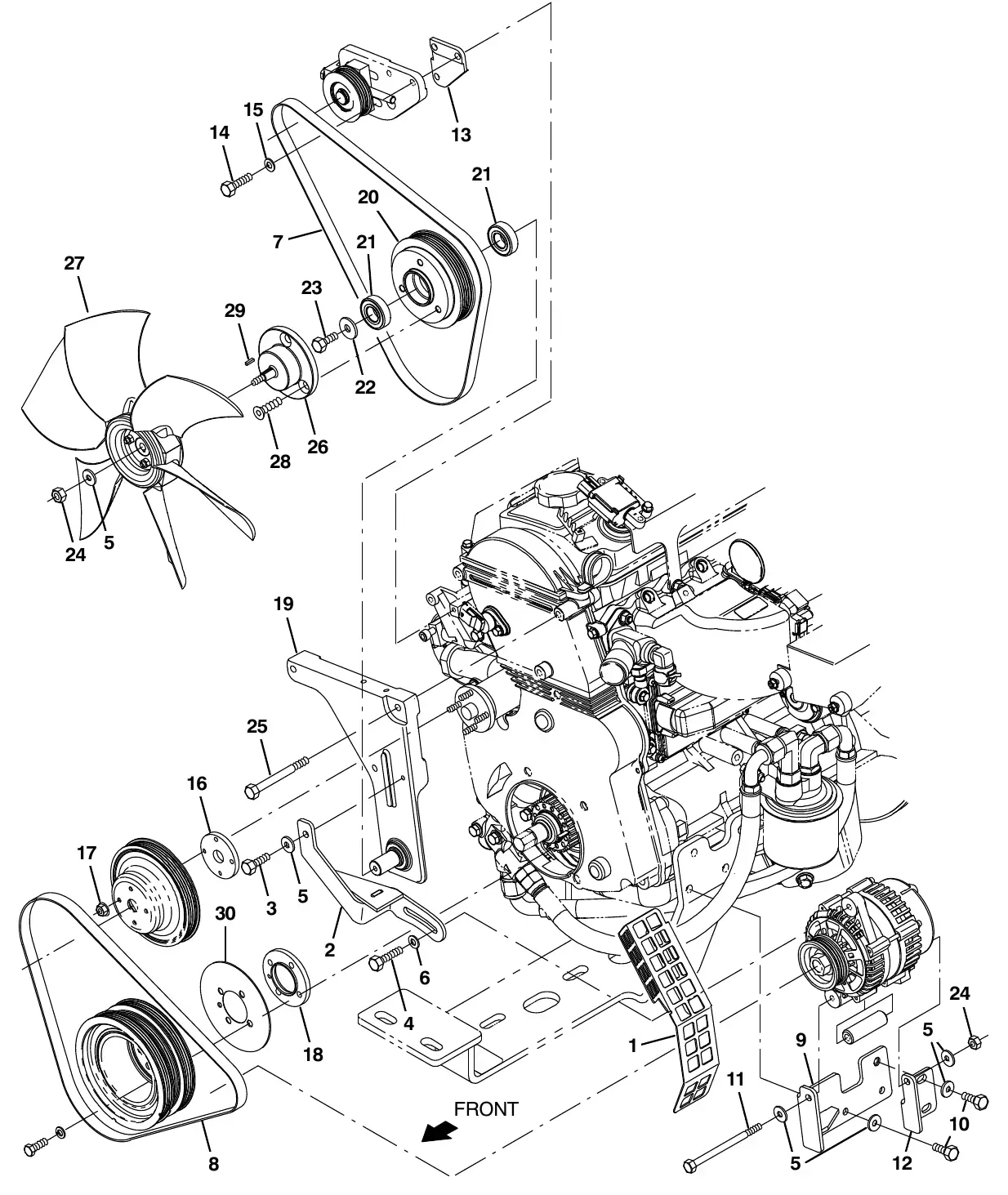

M20 Mitsubishi Engine Alternator and Fan Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030726 | 1 | Guard, Fan, SideOld # 1071727 | $21.60/EA |
| 2 | TN4182800 | 1 | Arm Wldt, Alternator [Mit 2013]Old # 1070890 | $28.68/EA |
| 3 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 4 | TN4043498 | 1 | Screw, Hex, M8 X 1.25 X 40, 8.8, FlOld # 04375 | $4.00/EA |
| 5 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 6 | TN4016796 | 1 | Washer, Flat, Belleville, .31Old # 41186 | $3.50/EA |
| 7 | TN4030503 | 1 | Belt, Ribbed, Fan, 42.13lOld # 1071144 | $52.40/EA |
| 8 | TN4030504 | 1 | Belt, Ribbed, Alternator, 41.5lOld # 1071145 | $53.20/EA |
| 9 | TN4182536 | 1 | Bracket Wldt, Alternator [Mit13]Old # 1070764 | $29.60/EA |
| 10 | TN4156940 | 3 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 11 | TN4014179 | 1 | Screw, Hex, M8 X 1.25 X 120, 8.8, FlOld # 49883 | $6.70/EA |
| 12 | TN4182314 | 1 | Bracket, Mtg, Alternator [Mit 2013]Old # 1070619 | $5.20/EA |
| 13 | TN4030493 | 1 | Block, SpacerOld # 1071107 | $41.60/EA |
| 14 | TN4028034 | 2 | Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 | $3.20/EA |
| 15 | TN4015595 | 2 | Washer, Flat, 0.31, SaeOld # 39349 | $2.50/EA |
| 16 | TN4030494 | 1 | Spacer, Pump, WaterOld # 1071108 | $34.00/EA |
| 17 | TN4041604 | 4 | Nut, Hex, Flng, M6 X 1.00Old # 07790 | $3.20/EA |
| 18 | TN4030495 | 1 | Spacer, CrankfshaftOld # 1071110 | $90.10/EA |
| 19 | TN4044544 | 1 | Plate Wldt, Shaft, Fan [Shaft Extended]Old # 1073529 | Call for price |
| 20 | TN4030316 | 1 | Sheave, Mach [Mit 2615rpm Fan]Old # 1070426 | Call for price |
| 21 | TN4038766 | 2 | Bearing, Ball, 20mm B 42mm D 12mm WOld # 1055377 | $12.60/EA |
| 22 | TN4035242 | 1 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 23 | TN4041828 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735 | $3.40/EA |
| 24 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 25 | TN4019755 | 3 | Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281 | $4.00/EA |
| 26 | TN4030317 | 1 | Spacer, Fan, Taper [Mit 2013]Old # 1070431 | $107.60/EA |
| 27 | TN4032038 | 1 | Fan, Cooling, 14.1d, 6 Blade, 0.5b TaperOld # 1031566 | $174.80/EA |
| 28 | TN4013994 | 3 | Screw, Flt, Soc, .38 - 16 X 1.00, AlOld # 48998 · Replaced by 1074849 in the 2022 list (rev. 08) | $5.10/EA |
| 29 | TN4042788 | 1 | Key, Sq, 0.12 X 0.12, 0.50lOld # 00960 | $3.60/EA |
| 30 | TN4180279 | 1 | Plate, Shield, DustOld # 1072421 | $16.20/EA |

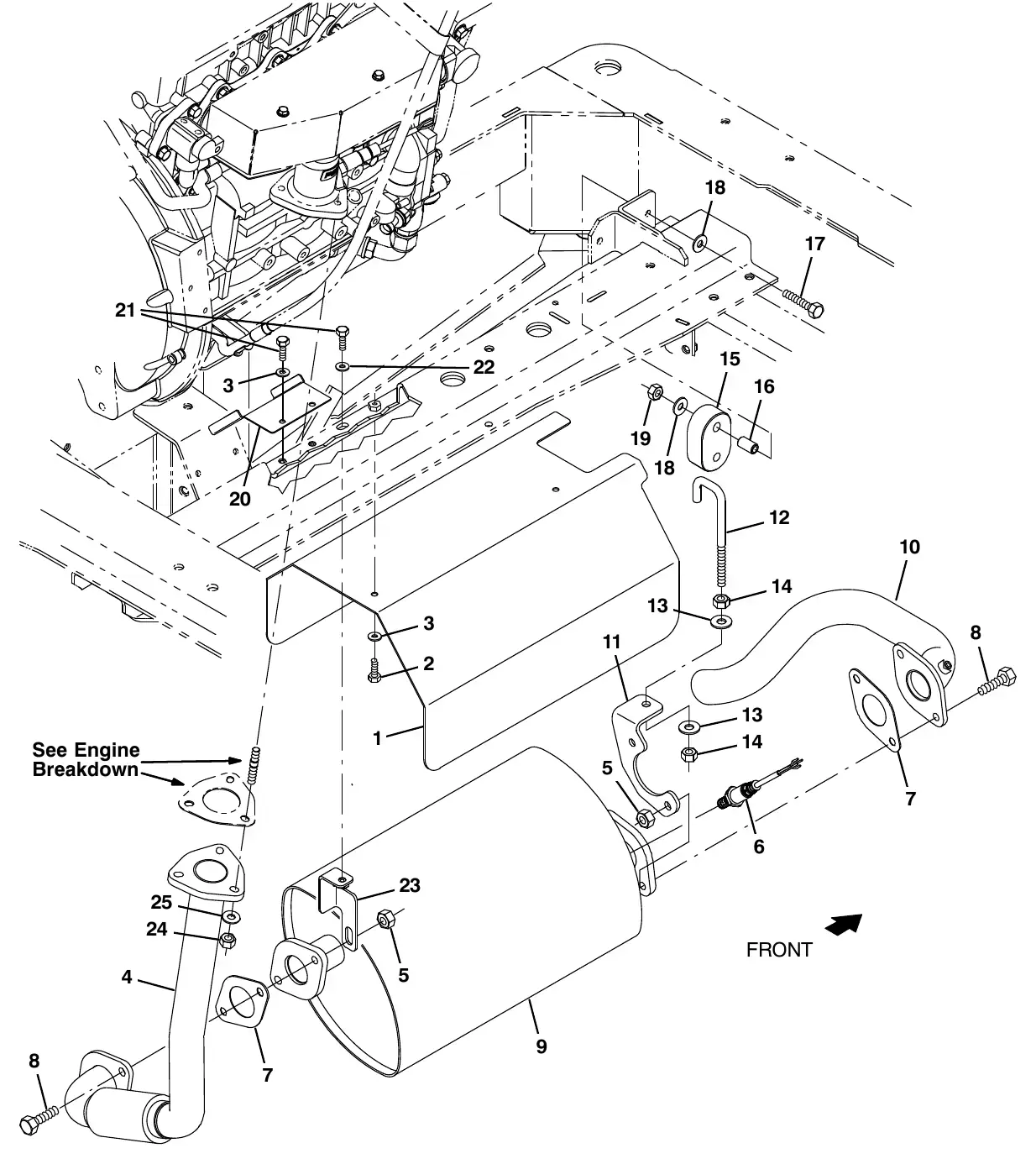

M20 Mitsubishi Engine Muffler Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031022 | 1 | Channel, Shield, Muffler [M20/T20 2007]Old # 1028994 | $123.70/EA |
| 2 | TN4041931 | 2 | Screw, Hex, M6 X 1.0 X 20, SsOld # 08716 | $3.20/EA |
| 3 | TN4034133 | 4 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 4 | TN4025234 | 1 | Pipe Kit, Exhaust, Replmt [Mako Mitsu]Old # 9013159 | $415.30/EA |
| 5 | TN4041626 | 4 | Nut, Hex, M10 X 1.50 [Stover]Old # 08166 | $2.50/EA |
| 6 | TN8005433 | 1 | Sensor, Oxygen, TailpipeOld # 1028558 | $277.60/EA |
| 7 | TN4036679 | 2 | Gasket, Exhaust, 2hole, 3.4bcOld # 1011216 | $8.10/EA |
| 8 | TN4019759 | 4 | Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 | $4.00/EA |
| 9 | TN8005369 | 1 | Muffler, Catalytic [Mit 2.0l 2013]Old # 1071376 | $1,859.30/EA |
| 10 | TN4030978 | 1 | Tube, Exhaust, Flng, 1.5d [M20/T20 2007]Old # 1028753 | $210.10/EA |
| 11 | TN4031015 | 1 | Bracket, Mtg, Muffler [M20/T20 2007]Old # 1028929 | $25.50/EA |
| 12 | TN4037297 | 1 | Rod, Hanger, IsolatorOld # 1013117 | $57.90/EA |
| 13 | TN4034138 | 2 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 14 | TN4035408 | 2 | Nut, Hex, Std, .38 - 16Old # 25014 | $2.40/EA |
| 15 | TN4037292 | 1 | Isolator, RbrOld # 1013031 | $18.30/EA |
| 16 | TN4040603 | 1 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Old # 222496 | $3.40/EA |
| 17 | TN4040607 | 1 | Screw, Hex, M8 X 1.25 X 45, SsOld # 222505 | $4.00/EA |
| 18 | TN4042902 | 2 | Washer, Flat, 0.38b 0.88d .08, SsOld # 01685 | $2.60/EA |
| 19 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 20 | TN4182994 | 1 | Shield, Tray, Drip [Mit 2013]Old # 1071418 | $12.60/EA |
| 21 | TN4041271 | 3 | Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 | $2.50/EA |
| 22 | TN4034136 | 1 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 23 | TN4030497 | 1 | Bracket, MufflerOld # 1071113 | $15.60/EA |
| 24 | TN4041625 | 3 | Nut, Hex, Stover, M8Old # 08165 | $3.40/EA |
| 25 | TN4015595 | 3 | Washer, Flat, 0.31, SaeOld # 39349 | $2.50/EA |

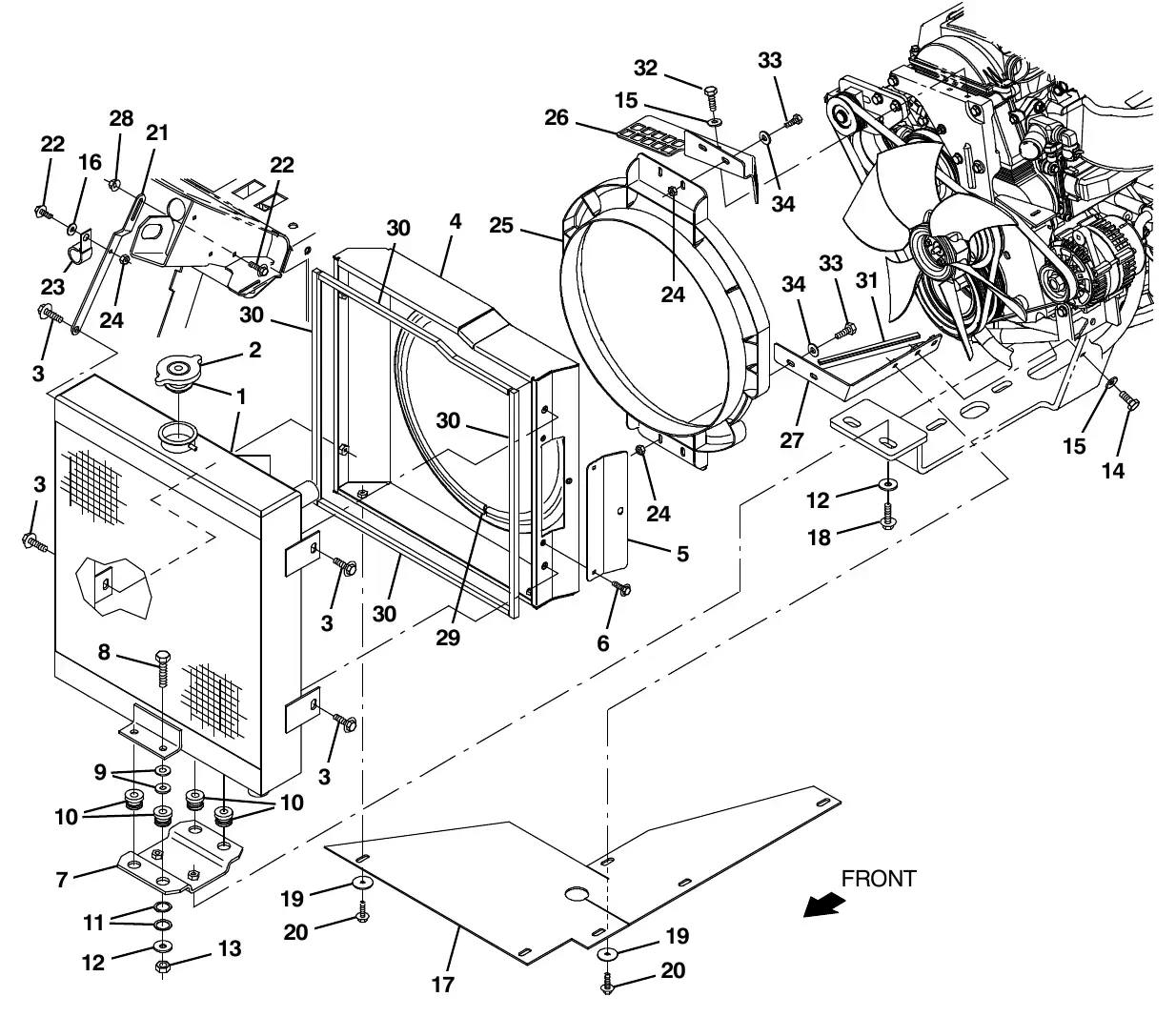

M20 Mitsubishi Engine Radiator and Mount Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042691 | 1 | Radiator, W/ Hyd Cooler [Side X Side]Old # 1045940 · Replaced by 1249770 in the 2022 list (rev. 08) | Call for price |
| 2 | TN4042665 | 1 | Cap, Radiator, 14Psi [Stant]Old # 1045764 | $10.90/EACall for availability |
| 3 | TN4045637 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4011220 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [M20/M30/T20]Old # 9010096 | $102.00/EA |
| 4 | TN4011221 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [TJ] (Japan Only)Old # 9010097 | $271.39/EA |
| 5 | TN4030382 | 1 | Plate, Door, CleanOut [Mit2013]Old # 1070955 | $6.40/EA |
| 6 | TN4045568 | 3 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 7 | TN4190181 | 1 | Bracket, Mtg, RadiatorOld # 1046962 | $26.70/EA |
| 8 | TN4041287 | 4 | Screw, Hex, M10 X 1.50 X 45, 8.8Old # 06962 | $4.00/EA |
| 9 | TN4034138 | 8 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 10 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274 | $14.70/EA |
| 11 | TN4042008 | 8 | Washer, Flat, 0.81b 1.06d .06, StlOld # 09832 | $3.30/EA |
| 12 | TN4037922 | 4 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
| 13 | TN4016826 | 4 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 14 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 15 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 16 | TN4034136 | 2 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 17 | TN4030761 | 1 | Skirt, Eng Fan, Gas / LpOld # 1071785 | $73.00/EA |
| 18 | TN4045641 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, SemsOld # 1037355 | $2.50/EA |
| 19 | TN4016794 | 7 | Washer, Flat, 0.25, FendrOld # 41178 | $2.50/EA |
| 20 | TN4045568 | 7 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 21 | TN4036225 | 1 | Bracket, Mtg, RadiatorOld # 1019968 | $18.60/EA |
| 22 | TN4044400 | 2 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 23 | TN4036443 | 1 | Clip, Keeper, OpenOld # 30407 | $1.70/EA |
| 24 | TN4041925 | 5 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 25 | TN4038497 | 1 | Shroud, FanOld # 1054428 | $126.20/EA |
| 26 | TN4030318 | 1 | Bracket, Shrd, Fan, Upper, Sppt, G/LpgOld # 1070434 | Call for price |
| 27 | TN4030343 | 1 | Bracket, Shrd, Fan, Lower, Sppt, G/LpgOld # 1070860 | $24.40/EA |
| 28 | TN4041604 | 1 | Nut, Hex, Flng, M6 X 1.00Old # 07790 | $3.20/EA |
| 29 | TN4039684 | 1 | Seal, Afmkt, Bulb, Str, 0.58d 08ftOld # 1048166 | $53.10/EA |
| 30 | TN4038013 | 4 | Seal, Afmkt, Ure, Adh, 0.38, 0.38w 02ftOld # 1015205 | $6.30/EA |
| 31 | TN4029367 | 1 | Molding, Trim, Pvc, .08- .11 06.8lOld # 57569 | Call for price |
| 32 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 33 | TN4041271 | 4 | Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 | $2.50/EA |
| 34 | TN4034133 | 4 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |

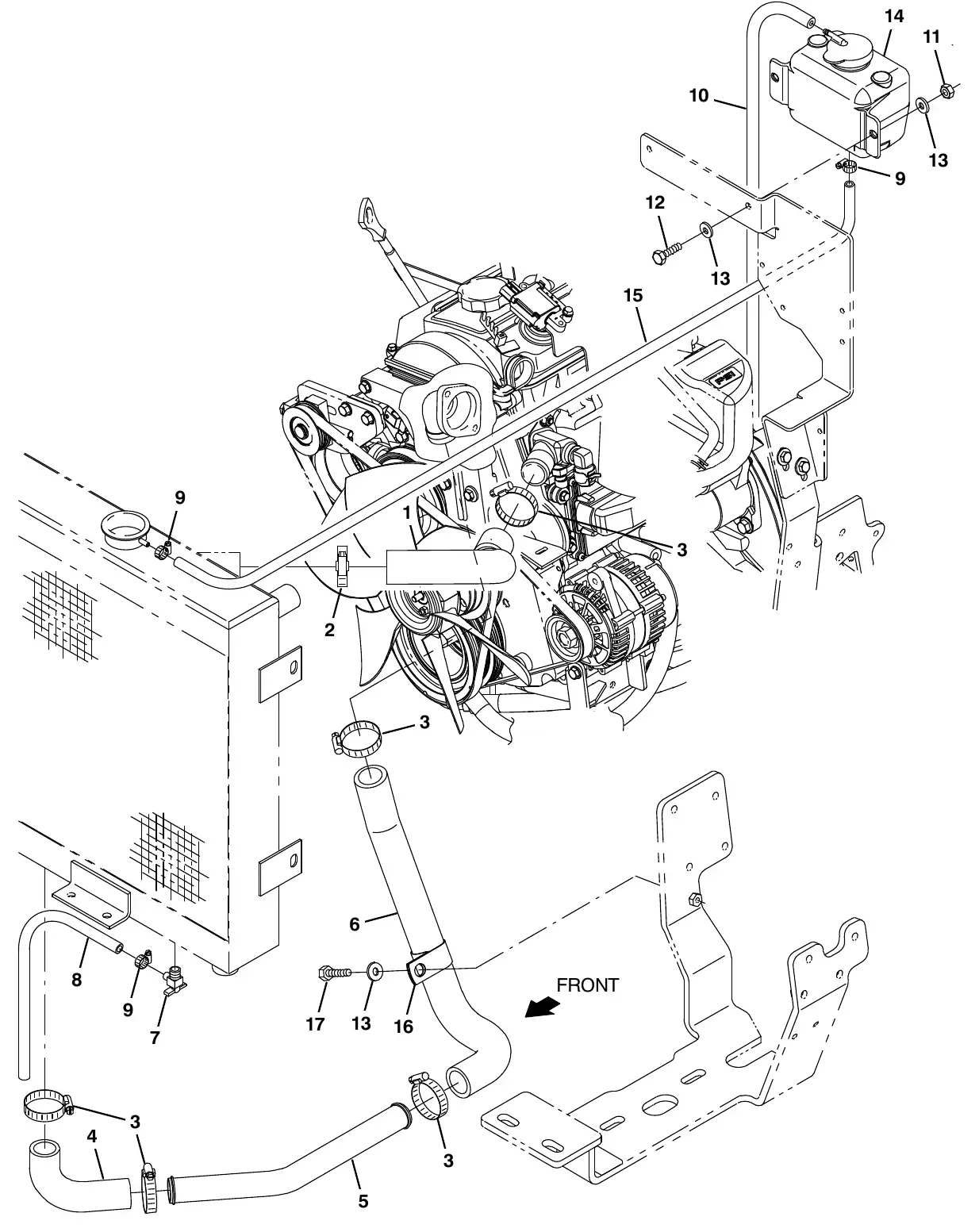

M20 Mitsubishi Engine Radiator Hose Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030330 | 1 | Hose, Coolant, Upper, Mold [Mit 2013]Old # 1070732 | $13.00/EA |
| 2 | TN4037088 | 1 | Clamp, Hose, Wormdrive, 1.56 - 2.50d, .50wOld # 22297 | $4.20/EA |
| 3 | TN4026556 | 5 | Clamp, Hose, Wormdrive, 1.25 - 2.00d, .50wOld # 79381 | $6.20/EA |
| 4 | TN4039550 | 1 | Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Old # 1007482 | $20.40/EA |
| 5 | TN4030491 | 1 | Tube, Coolant, 1.3d, Lower [Mit 2013]Old # 1071099 | $11.90/EA |
| 6 | TN4027830 | 1 | Hose Kit, Coolant, Replmt [Mitsubishi}Old # 9010904 | $41.60/EA |
| 7 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptOld # 51305 | $15.10/EA |
| 8 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 022.0lOld # 73471 | $7.60/EA |
| 9 | TN4017396 | 3 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 10 | TN4022521 | 1 | Hose, Fuel, 0.18id, 29.0lOld # 87738 | $19.40/EA |
| 11 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 12 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 13 | TN4034137 | 5 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 14 | TN4038493 | 1 | Tank, Coolant, 03.6w 04.1hi 05.5l,1literOld # 1054382 | $119.90/EA |
| 15 | TN4037950 | 1 | Hose, Afmkt, Coolant Recvy, 05ftOld # 1014843 | $63.10/EA |
| 16 | TN4015029 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1holeOld # 53466 | $4.20/EA |
| 17 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |

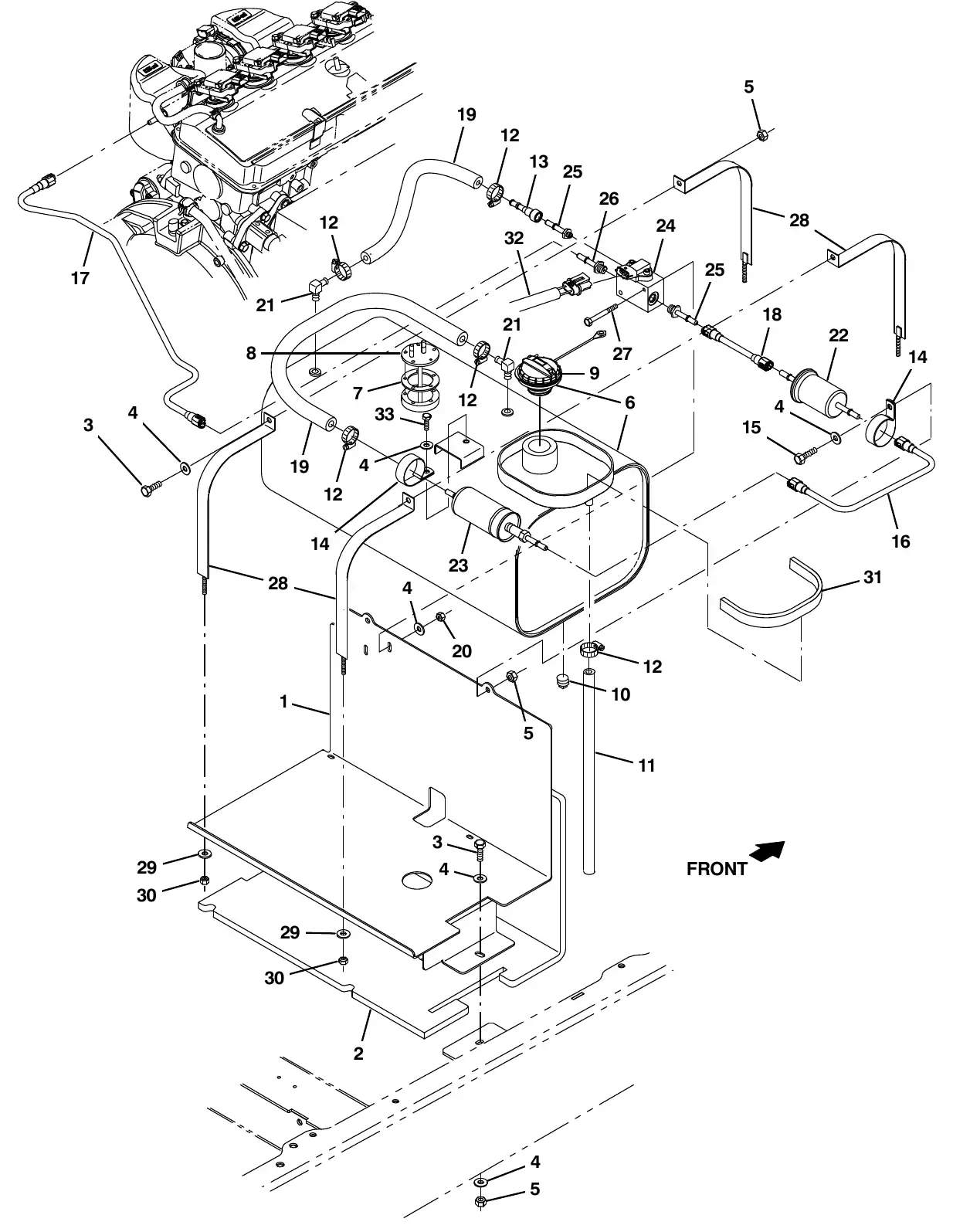

M20 Engine Fuel Tank Group, Gasoline
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194105 | 1 | Tray Wldt, FuelOld # 1026550 | $171.70/EA |
| 2 | TN4194130 | 1 | Insulation, Flame - Retardant, 0.5Old # 1026759 | $80.60/EA |
| 3 | TN4156940 | 4 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 4 | TN4034137 | 8 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 5 | TN4041926 | 5 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 6 | TN4203095 | 1 | Tank, Fuel, 11.2gal, Gas, Replmt [2007]Old # 9003610 | $805.70/EA |
| 7 | TN8006208 | 1 | Gasket, Sender, FuelOld # 1033897 | $9.20/EA |
| 8 | TN8006221 | 1 | Send - Unit, Fuel [2007]Old # 1033901 | $122.70/EA |
| 9 | TN8006207 | 1 | Cap, Fuel, TankOld # 1032812 | $36.90/EA |
| 10 | TN4013933 | 1 | Fitting, Pipe, Plug, Pm02, Sq HeadOld # 48126 | $2.93/EA |
| 11 | TN4033269 | 1 | Hose, Fuel, 0.50id, 21.0lOld # 1023482 | $10.10/EA |
| 12 | TN4015366 | 5 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 13 | TN4037296 | 2 | Connector, Fuel, QfOld # 1013086 | $16.90/EA |
| 14 | TN4036932 | 2 | Clamp, Cable, Stl, 2.00d X 0.75w, 1holeOld # 1011895 | $5.05/EA |
| 15 | TN4041281 | 2 | Screw, Hex, M8 X 1.25 X 45, 8.8Old # 06956 | $4.00/EA |
| 16 | TN4045263 | 1 | Fuelline, .31d Str/Str,Plstc[M20/T20 07]Old # 1034676 | $52.10/EA |
| 17 | TN4030561 | 1 | Fuelline, .31d Str/Str, Plstc [Mit 2013]Old # 1071388 | $56.80/EA |
| 18 | TN4037227 | 1 | Fuelline, .31d Str/Str, PlstcOld # 1012248 | $80.80/EA |
| 19 | TN4045069 | 2 | Hose, Fuel, 0.31id [Evap Emission 07]Old # 1033746 | $13.00/EA |
| 20 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 21 | TN4019173 | 2 | Fitting, Brs, E90, Em05/Pm04Old # 9000355 | $6.30/EA |
| 22 | TN8005188 | 1 | Filter, Fuel [Gm 1.6l/3.0l]Old # 372440 | $64.20/EA |
| 23 | TN8002487 | 1 | Pump, FuelOld # 9006592 | $1,016.40/EA |
| 24 | TN8005437 | 1 | Manifold, Gas, Relief, ValveOld # 1028924 | $1,128.00/EA |
| 25 | TN8047407 | 2 | Fitting, Fuel, Str, 0.56 - 18 [07 Eng]Old # 1029293 | $148.20/EA |
| 26 | TN8005499 | 1 | Fitting, Fuel, Str, 0.38 - 24 [07 Eng]Old # 1029295 | $140.10/EA |
| 27 | TN4041277 | 2 | Screw, Hex, M6 X 1.0 X 50, 8.8Old # 06949 | $3.30/EA |
| 28 | TN4193651 | 4 | Strap, Tank, GasOld # 1025229 | $18.10/EA |
| 29 | TN4034133 | 4 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 30 | TN4034654 | 4 | Nut, Hex, Lock, .25 - 20, NlOld # 32981 | $2.50/EA |
| 31 | TN4218342 | 1 | Molding, Trim, Pvc, .08 - .11 13.2lOld # 62595-15 | Call for price |
| 32 | TN8044978 | 1 | Harness, Manifold, GasOld # 385009 | $257.35/EA |
| 33 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |

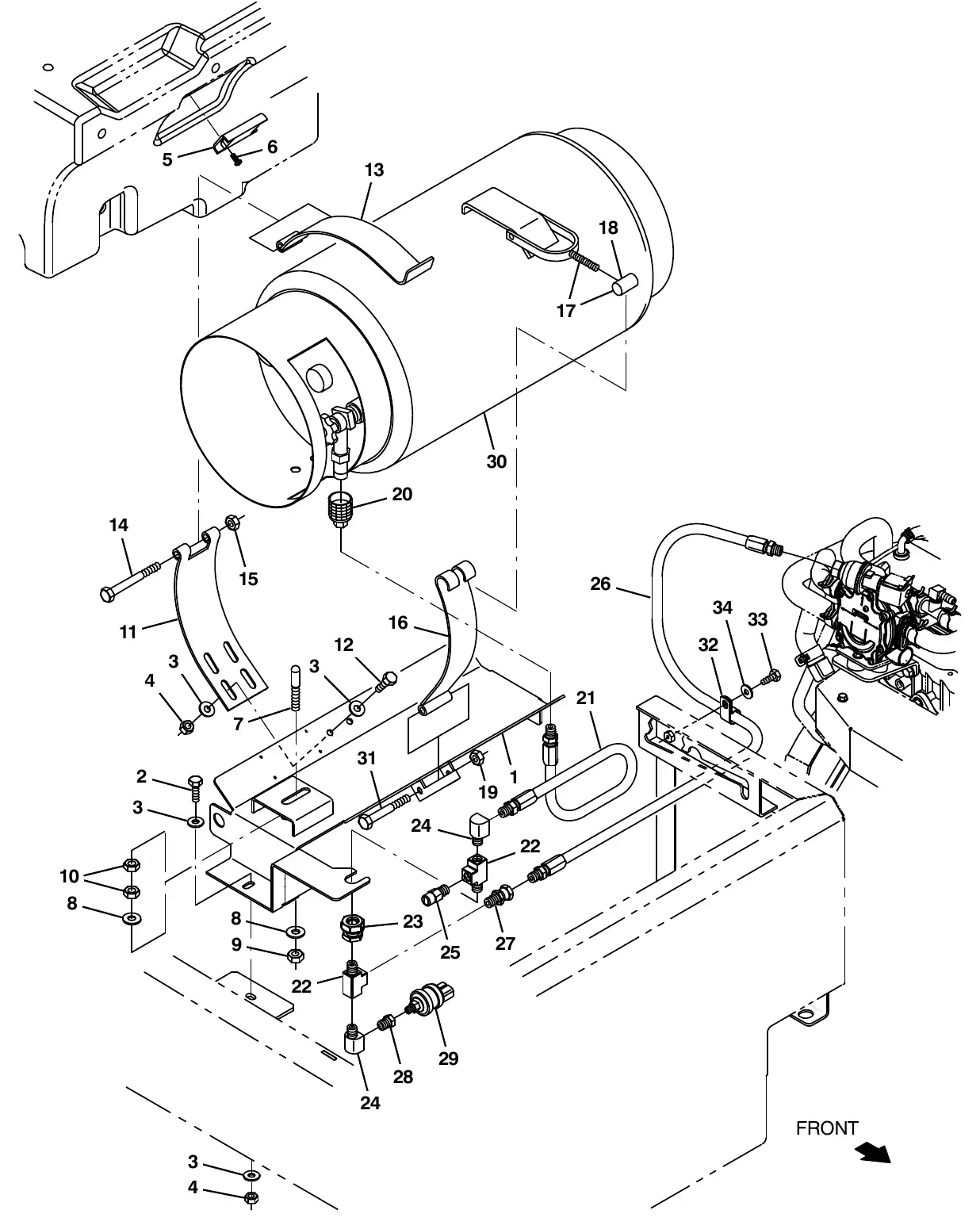

M20 Engine Fuel Tank Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035518 | 1 | Tray Wldt, LpgOld # 1017947 | $120.90/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 8 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 4 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 5 | TN4017052 | 1 | Magnet, Drive BrushOld # 63378 | $21.10/EA |
| 6 | TN4041965 | 2 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 7 | TN4033855 | 1 | Pin, Locating, LpgOld # 1024934 | $13.43/EA |
| 8 | TN4034138 | 2 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 9 | TN4016826 | 1 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 10 | TN4034476 | 2 | Nut, Hex, Jam, M10 X 1.5, SsOld # 32716 | $4.00/EA |
| 11 | TN4029786 | 1 | Strap, Mtg, Tank, LpgOld # 58589 | $113.90/EA |
| 12 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 13 | TN4029300 | 1 | Strap, Mtg, Tank, Lpg, HingeOld # 57297 | $114.90/EA |
| 14 | TN4031662 | 1 | Screw, Hex, .38 - 16 X 3.75, 5Old # 35710 | $1.10/EA |
| 15 | TN4026793 | 1 | Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156 | $4.00/EA |
| 16 | TN4029787 | 1 | Strap, Mtg, Tank, LpgOld # 58590 | $88.70/EA |
| 17 | TN4015025 | 1 | Latch Assy, Mtg, Tank, Lpg, W/NutOld # 53400-1 | $56.90/EA |
| 18 | TN4015026 | 1 | Nut, Adj, Mtg, Tank, LpgOld # 53400-4 | $13.30/EA |
| 19 | TN4028758 | 1 | Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643 | $2.50/EA |
| 20 | TN4035691 | 1 | Fitting, Brs, Qdc, Pf04, Lpg FemOld # 26496 | $86.90/EA |
| 21 | TN4037354 | 1 | Hose, Lpg, Med05, Pm04str/Sm04str, 14.0lOld # 22308-6 | $46.90/EA |
| 22 | TN4041151 | 2 | Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunOld # 150709 | $14.40/EA |
| 23 | TN4026127 | 1 | Fitting, Brs, Str, Pf04/Pf04, BhOld # 78122 | $30.50/EA |
| 24 | TN4035699 | 2 | Fitting, Brs, E90, Pf04/Pm04Old # 27048 | $5.30/EA |
| 25 | TN4035364 | 1 | Valve, Lpg, Press Relief [Rego]Old # 24047 | $133.70/EA |
| 26 | TN4042556 | 1 | Hose, Lpg, Med05, Pm04str/Sm04str, 55.0lOld # 19760 | $82.40/EA |
| 28 | TN4041876 | 1 | Fitting, Hyd, Str, Pf02/Pm04Old # 17414 | $7.90/EA |
| 27 | TN4232409 | 1 | Fitting, Pipe, Str, Pm04/Sf04Old # 11442-23 | $6.70/EA |
| 29 | TN4035027 | 1 | Switch, Press, 12vdc 08a Spst Nc 0070psiOld # 23156 | $112.50/EA |
| 30 | TN4035401 | 1 | Tank, Lpg, 33lb, W/ Gauge [Empty, Liq]Old # 24928-1 | $816.50/EA |
| 31 | TN4031659 | 1 | Screw, Hex, .38 - 16 X 3.00, 5Old # 35707 | $1.15/EA |
| 32 | TN4017933 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1holeOld # 67767 | $4.20/EA |
| 33 | TN4041270 | 1 | Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942 | $2.50/EA |
| 34 | TN4034133 | 1 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
M20 Electrical Wire Harness Group, Gasoline/LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtOld # 57804 | $16.30/EA |
| 2 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtOld # 57804 | $16.30/EA |
| TN8005428 | 1 | Harness, Wire, Eng, Lpg [Mit, 2.Ol]Old # 1071654 | $1,268.00/EA | |
| 1 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtOld # 394916 | $15.40/EA |
| 1 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtOld # 394916 | $15.40/EA |
| TN8005427 | 1 | Harness, Wire, Eng, Gas [Mit, 2.0l]Old # 1071653 | $1,434.90/EA | |
| 3 | TN8004955 | 3 | Fuse, 20 Amp, [Min - 20]Old # 372237 | $5.20/EA |
| 4 | TN8004953 | 1 | Fuse, 5 Amp, [Min - 5]Old # 372235 | $5.50/EA |
| 5 | TN8044970 | 1 | Fuse, 10 AmpOld # 384999 | $1.75/EA |
| 3 | TN8004955 | 3 | Fuse, 20 Amp, [Min - 20]Old # 372237 | $5.20/EA |
| 4 | TN8004953 | 1 | Fuse, 5 Amp, [Min - 5]Old # 372235 | $5.50/EA |
| 5 | TN8044970 | 1 | Fuse, 10 AmpOld # 384999 | $1.75/EA |

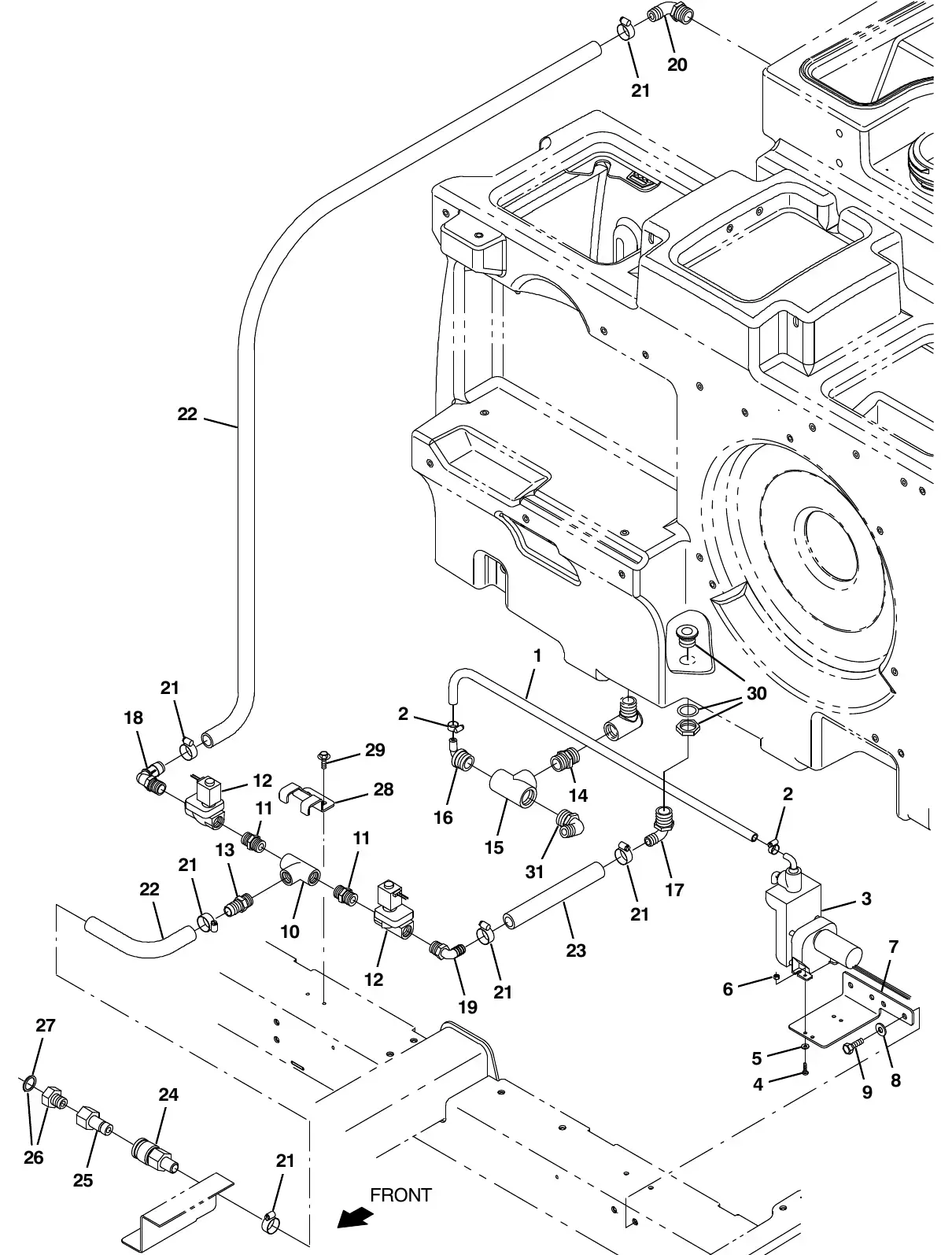

M20 ES Pump Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016800 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 48.00lOld # 41295 | Call for price |
| 2 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 3 | TN4016324 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns)Old # 73260 | $792.20/EA |
| 4 | TN4035372 | 2 | Screw, Pan, M4 X 0.7 X 16, SsOld # 24265 | $3.00/EA |
| 5 | TN4042888 | 2 | Washer, Flat, #10, SsOld # 01683 | $2.60/EA |
| 6 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 7 | TN4195605 | 1 | Bracket, Mtg, ValveOld # 1021325 | $20.50/EA |
| 8 | TN4042902 | 2 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 9 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 10 | TN4026578 | 1 | Fitting, Plstc, Tee, Pf08/Pf08/Pf08Old # 79497 | $10.30/EA |
| 11 | TN4021662 | 2 | Fitting, Plstc, Str, Pm08/Pm08Old # 86508 | $6.90/EA |
| 12 | TN4016339 | 2 | Valve, Water, Solenoid, 12vdc 0.08pfOld # 73433 | $535.70/EA |
| 13 | TN4026135 | 1 | Fitting, Plstc, Str, Bm12/Pm08, NylOld # 78398 | $6.20/EA |
| 14 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544 | $6.20/EA |
| 15 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A | $17.60/EA |
| 16 | TN4026576 | 1 | Fitting, Plstc, E90, Bm06/Pm12, NylOld # 79484 | $7.80/EA |
| 17 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Old # 73468 | $7.90/EA |
| 18 | TN4021149 | 1 | Fitting, Plstc, E90, Bm12/Pm08Old # 63244-2 | $6.90/EA |
| 19 | TN4020775 | 1 | Fitting, Plstc, E90, Bm10/Pm08Old # 630371 | $8.70/EA |
| 20 | TN4044360 | 1 | Fitting, Plstc, E90, Bm12/Pm12Old # 14877 | $6.20/EA |
| 21 | TN4017089 | 6 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 22 | TN4037985 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 08ftOld # 1015045 | $83.30/EA |
| 23 | TN4032310 | 1 | Hose, Pvc, Brd, 0.62id 0.88od 09.00lOld # 369811 | $12.83/EA |
| 24 | TN4035365 | 1 | Fitting, Brs, Qdc, Bm12/Qf08Old # 24105 | $101.81/EA |
| 25 | TN4030863 | 1 | Fitting, Brs, Qdc, Pf08 [Parker Bh3f]Old # 33295 | $9.60/EA |
| 26 | TN4029239 | 1 | Fitting Kit, Hose, GardenOld # 375322 | $19.09/EA |
| 27 | TN4042839 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrOld # 01316 | $3.50/EA |
| 28 | TN4197702 | 1 | Bracket, Mtg, ValveOld # 1016837 | $13.03/EA |
| 29 | TN4029864 | 2 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 30 | TN4025663 | 1 | Fitting, Plstc, Pf12/Pf12, BhOld # 377349 | $22.50/EA |
| 31 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Old # 73468 | $7.90/EA |

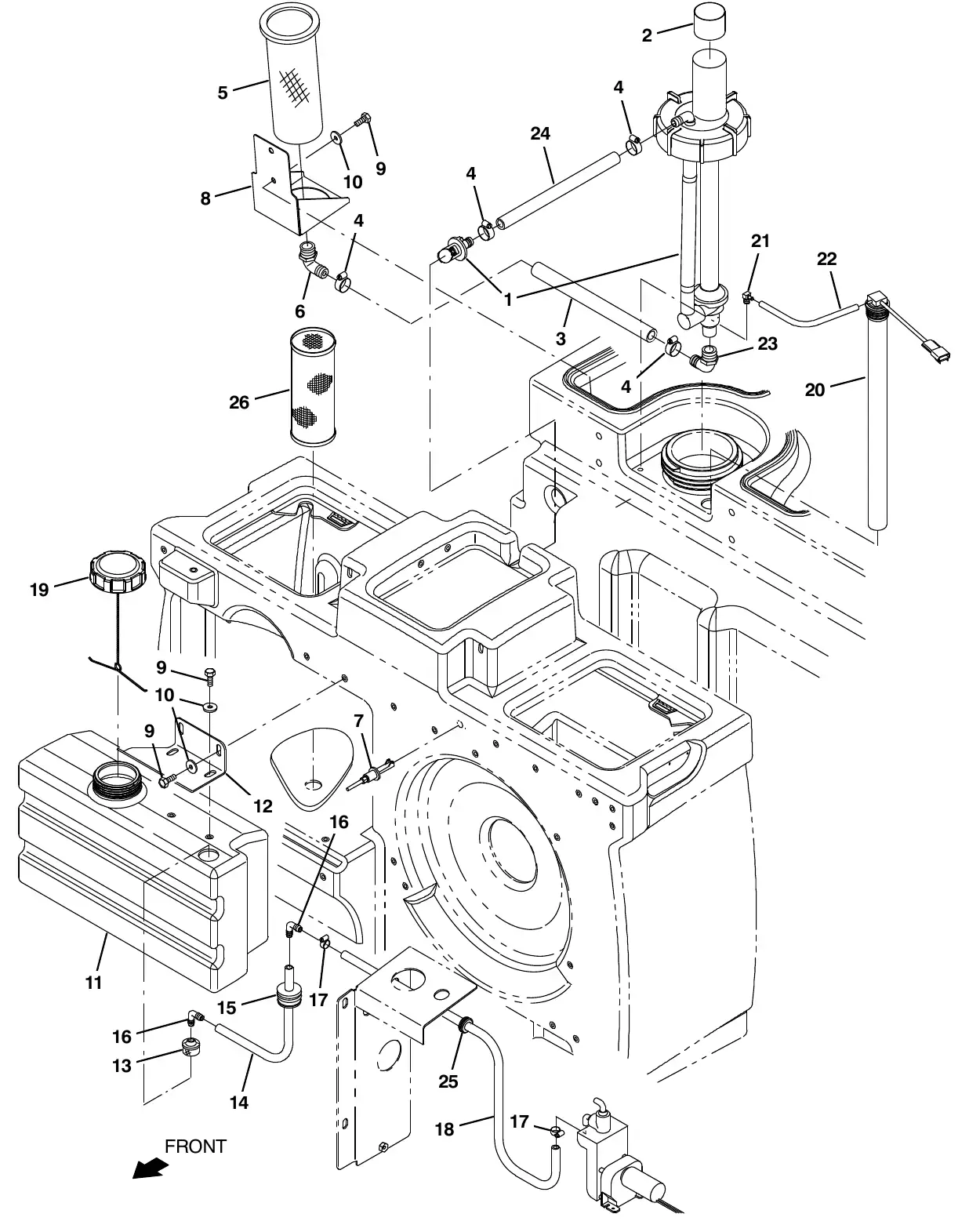

M20 ES Tanks Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

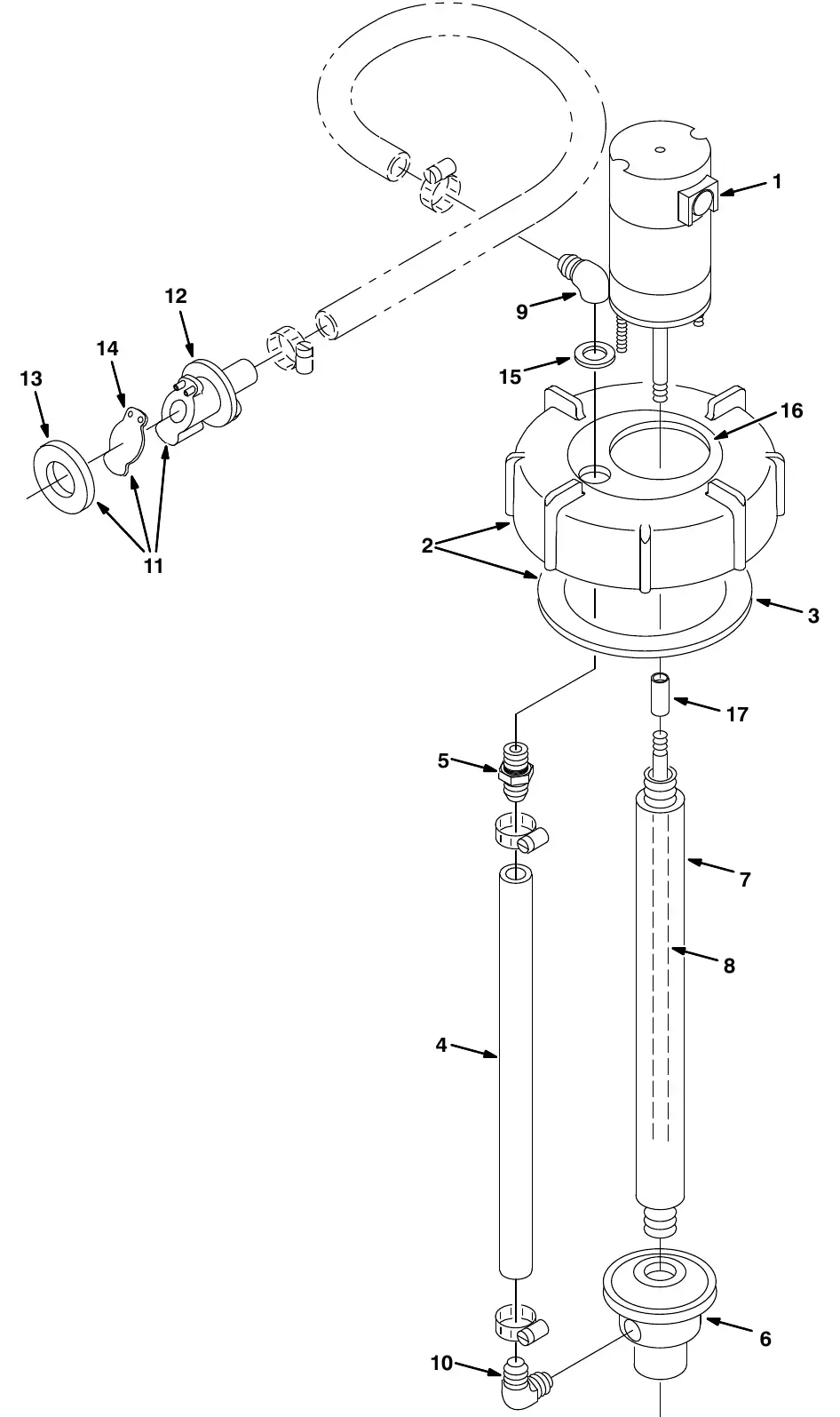

| 1 | TN4036630 | 1 | Pump Assy, Column, Es (See Breakdowns)Old # 1021210 | $1,762.90/EA |
| 2 | TN4030959 | 1 | Sleeve, Rbr, 3.50b 3.58d 1.8lOld # 1028697 | $11.01/EA |
| 3 | TN4037988 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 01ftOld # 1015048 | $14.65/EA |
| 4 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 5 | TN4022231 | 1 | Strainer, Soltn, 20 Mesh, Cyl 3.5d 9.5lOld # 386652 | $101.80/EA |
| 6 | TN4035381 | 1 | Fitting, Plstc, E90, Bm12/Pf12Old # 24543 | $8.40/EA |
| 7 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685 | $78.50/EA |
| 8 | TN4195222 | 1 | Bracket, Mtg, StrainerOld # 1019636 | $53.53/EA |
| 9 | TN4041992 | 6 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 10 | TN4035242 | 6 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 11 | TN4032910 | 1 | Tank, Detgt, TrimmedOld # 1022229 | $341.48/EA |
| 12 | TN4193627 | 1 | Bracket, Mtg, Detgt And Spray WandOld # 1025159 | $19.70/EA |
| 13 | TN4039132 | 1 | Screen, PumpOld # 20952 | $13.70/EA |
| 14 | TN4037967 | 1 | Hose, Afmkt, Pvc, Brd 0.38id 02ftOld # 1014974 | $22.40/EA |
| 15 | TN4039117 | 1 | Grommet, Pye, 0.37id, F/1.5h, .13 MatlOld # 20944 | $27.50/EA |
| 16 | TN4039131 | 2 | Fitting, Plstc, E90, Bm06/Bm06Old # 20951 | $4.20/EA |
| 17 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 18 | TN4016800 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 48.00lOld # 41295 | Call for price |
| 19 | TN4036929 | 1 | Cap, TankOld # 1011885 | $69.10/EA |
| 20 | TN1072877 | 1 | Switch Assy, Press, 3.0, 17.5l TubeOld # 1072877 · current Tennant number (Tennant parts catalog) | Call for price |
| 21 | TN4033731 | 1 | Fitting, Brs, E90, Pm02/Bm03Old # 32183 | $9.90/EA |
| 22 | TN4032040 | 1 | Hose, Afmkt, Vacuum, 0.16id, 01ftOld # 1031572 | $12.50/EA |
| 23 | TN4044360 | 1 | Fitting, Plstc, E90, Bm12/Pm12Old # 14877 | $6.20/EA |
| 24 | TN4037982 | 1 | Hose, Afmkt, Pvc, Brd 0.62Id, 01Ft, ClrOld # 1015033 | $60.00/EA |
| 25 | TN4032003 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .12 MatlOld # 10632-2 | $0.80/EA |
| 26 | TN4043976 | 1 | Filter, Soltn, 020mesh, Pm12 3.2d 08.0lOld # 1039019 | $51.50/EA |

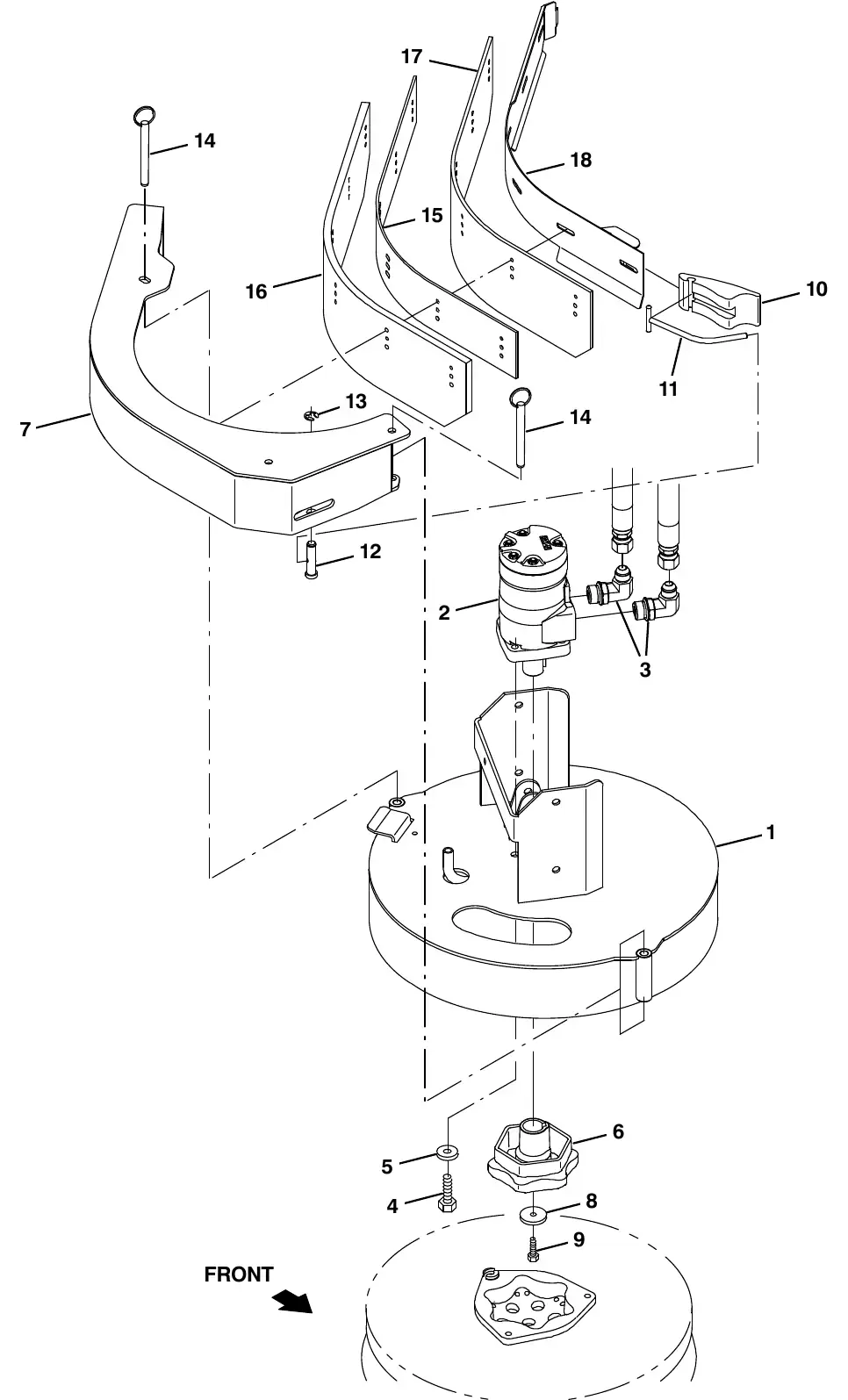

M20 Side Brush Motor Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043026 | 1 | Bracket Wldt, Mtg, Side Brush FixedOld # 1047002 | $473.90/EA |

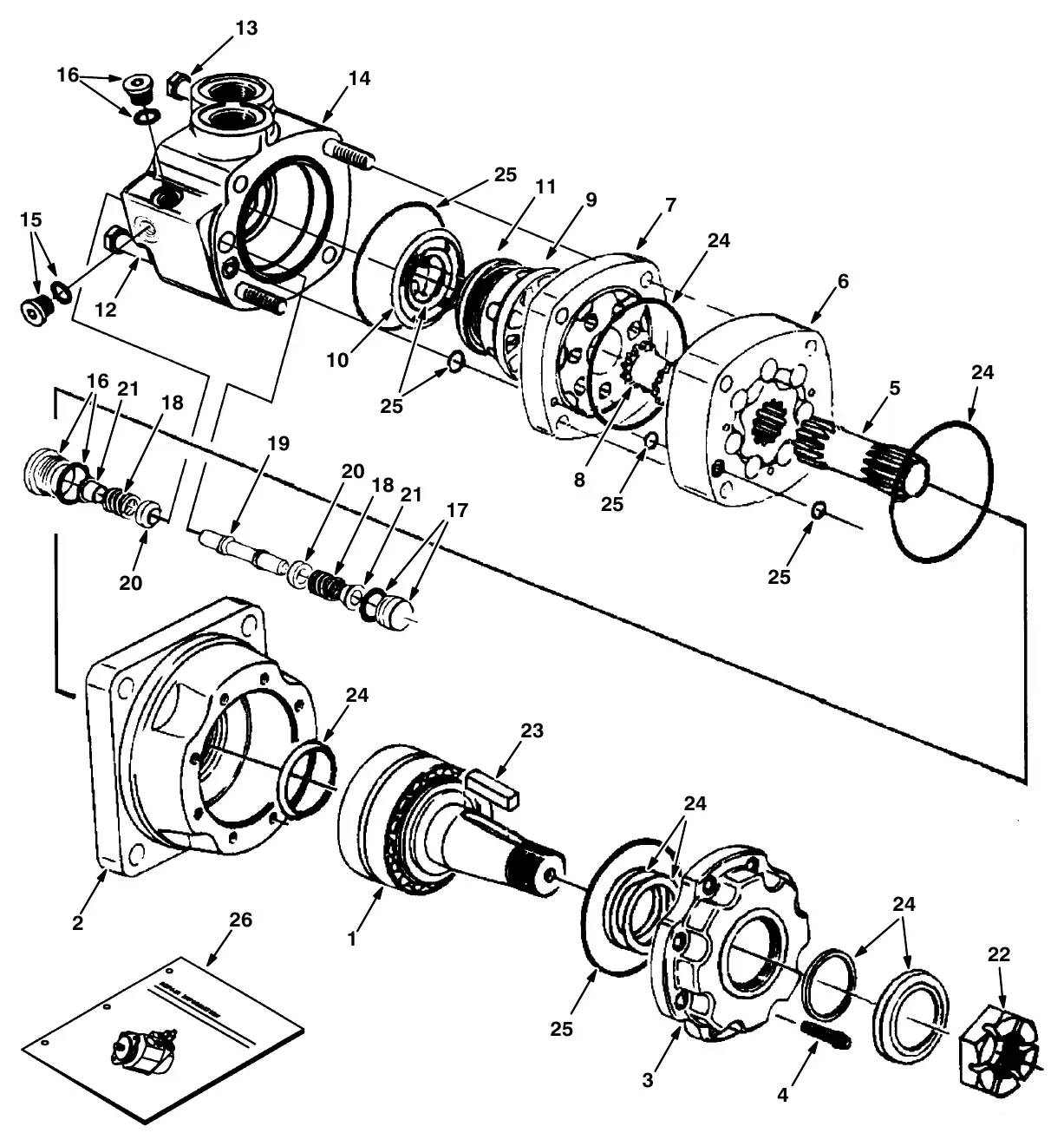

| 2 | TN4030083 | 1 | Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500Old # 1068812 | $616.10/EA |
| TN8005882 | 1 | Seal Kit, Motor [Cl]Old # 22615 | $112.10/EA | |
| 3 | TN4029149 | 2 | Fitting, Hyd, E90, Jm08/Om10Old # 56821 | $36.80/EA |
| 4 | TN4042969 | 4 | Screw, Hex, .38 - 16 X 0.75, NlOld # 01762 | $3.20/EA |
| 5 | TN4034138 | 4 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 6 | TN4041657 | 1 | Hub, Drive, Brush, Disk, 1.00b [6t]Old # 1042968 | $121.80/EA |
| 7 | TN4043021 | 1 | Bumper Wldt, Brush, SideOld # 1046976 | $184.00/EA |
| 8 | TN4042424 | 1 | SpacerOld # 19191 | $9.00/EA |
| 9 | TN4035411 | 1 | Screw, Hex, .25 - 20 X 1.00, 5Old # 25046 | $3.20/EA |
| 10 | TN4037481 | 1 | Cam, Front, YelOld # 1222020 | $13.70/EA |
| 11 | TN4021717 | 1 | Pin Wldt, FrontOld # 386298 | $40.30/EA |
| 12 | TN4039420 | 1 | Pin, Grvd, 0.43d 01.8l [303ss]Old # 21603 | $16.60/EA |
| 13 | TN4035383 | 1 | Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555 | $2.40/EA |
| 14 | TN4031918 | 2 | Pin, Hitch, .375d X 3.12l, PlOld # 369359 | $7.50/EA |
| 15 | TN4043024 | 1 | Spacer, Sqge, Side Brush, RbrOld # 1046995 | $20.00/EA |
| Item 16: choose your version (2) | ||||
| 16 | TN4043022 | 1 | Blade, Sqge, Side Brush, LinatexOld # 1046980 | $59.89/EA |
| 16 | TN4036799 | 1 | Blade, Sqge, Side Brush, UrethaneOld # 1059091 | $91.61/EA |
| Item 17: choose your version (2) | ||||
| 17 | TN4043073 | 1 | Blade, Sqge, Side Brush, LinatexOld # 1047238 | $31.51/EA |
| 17 | TN4036800 | 1 | Blade, Sqge, Side Brush, UrethaneOld # 1059092 | $55.85/EA |
| 18 | TN4043029 | 1 | Plate Wldt, Retainer, SqgeOld # 1047060 | $107.80/EA |

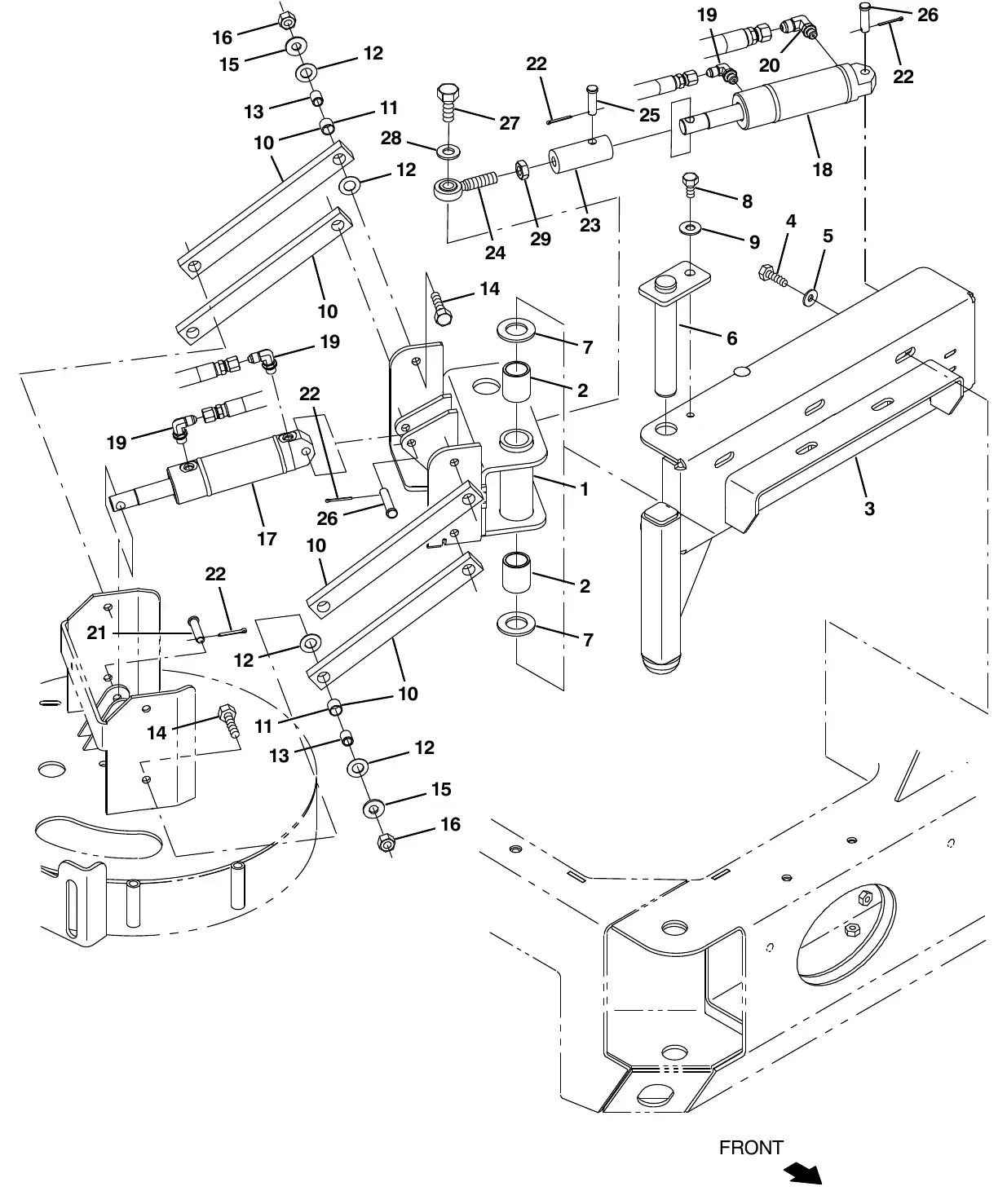

M20 Side Brush Lift Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036647 | 1 | Pivot Wldt, Brush, SideOld # 1021439 | $330.60/EA |
| 2 | TN4015898 | 2 | Bushing, Sleeve, 1.00b 1.13d 1.50l, FglOld # 71868 | $13.70/EA |
| 3 | TN4032801 | 1 | Channel Wldt, PivotOld # 1021473 | $329.10/EA |
| 4 | TN4041943 | 5 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 5 | TN4016796 | 5 | Washer, Flat, Belleville, .31Old # 41186 | $3.50/EA |
| 6 | TN4032822 | 1 | Pin WldtOld # 1021617 | $42.00/EA |
| 7 | TN4015900 | 2 | Washer, Thrust, 1.00b 1.75d 0.13w, FbrOld # 71869 | $27.10/EA |
| 8 | TN4041828 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735 | $3.40/EA |
| 9 | TN4034137 | 1 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 10 | TN4021139 | 4 | Arm, LinkOld # 63175-1 | $62.20/EA |
| 11 | TN4021144 | 2 | Bushing, Sleeve, 0.50b 0.59d 0.50l, BnzOld # 63233 | $8.40/EA |
| 12 | TN4026841 | 16 | Bearing, Thrust, 0.53b 1.00d 0.03wOld # 59633 | $6.30/EA |
| 13 | TN4030655 | 8 | Sleeve, P/M, 0.37b 0.50d 0.6l [430ss]Old # 1027926 | $4.20/EA |
| 14 | TN4031575 | 8 | Screw, Hex, .38 - 16 X 1.50, SsOld # 36845 | $4.00/EA |
| 15 | TN4042902 | 8 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 16 | TN4026793 | 8 | Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156 | $4.00/EA |
| 17 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 18 | TN4043598 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Old # 1038115 | $223.30/EA |
| 19 | TN4025260 | 3 | Fitting, Hyd, E90, Jm04/Om04Old # 77097 | $14.70/EA |
| 20 | TN4025261 | 1 | Fitting, Hyd, E90, Jm06/Om04Old # 77098 | $15.50/EA |
| 21 | TN4036075 | 1 | Pin, Clevis, 0.37d X 1.50lOld # 29558 | $3.90/EA |
| 22 | TN4041634 | 4 | Pin, Cotter, .094 X 1.00Old # 08179 | $2.50/EA |
| 23 | TN4032808 | 1 | Adapter, Rod - End, Side BrushOld # 1021564 | $56.00/EA |
| 24 | TN4015904 | 1 | Rod - End, .50 - 20rh Mal 0.50bOld # 71874 | $42.70/EA |
| 25 | TN4036074 | 1 | Pin, Clevis, 0.37d X 1.31lOld # 29557 | $3.20/EA |
| 26 | TN4041878 | 2 | Pin, Clevis, 0.37d X 1.75lOld # 17461 | $4.00/EA |
| 27 | TN4016809 | 1 | Screw, Hex, M12 X 1.75 X 30, 8.8Old # 41346 | $4.00/EA |
| 28 | TN4034135 | 1 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 29 | TN4013991 | 1 | Nut, Hex, Jam, .50 - 20Old # 48985 | $3.40/EA |

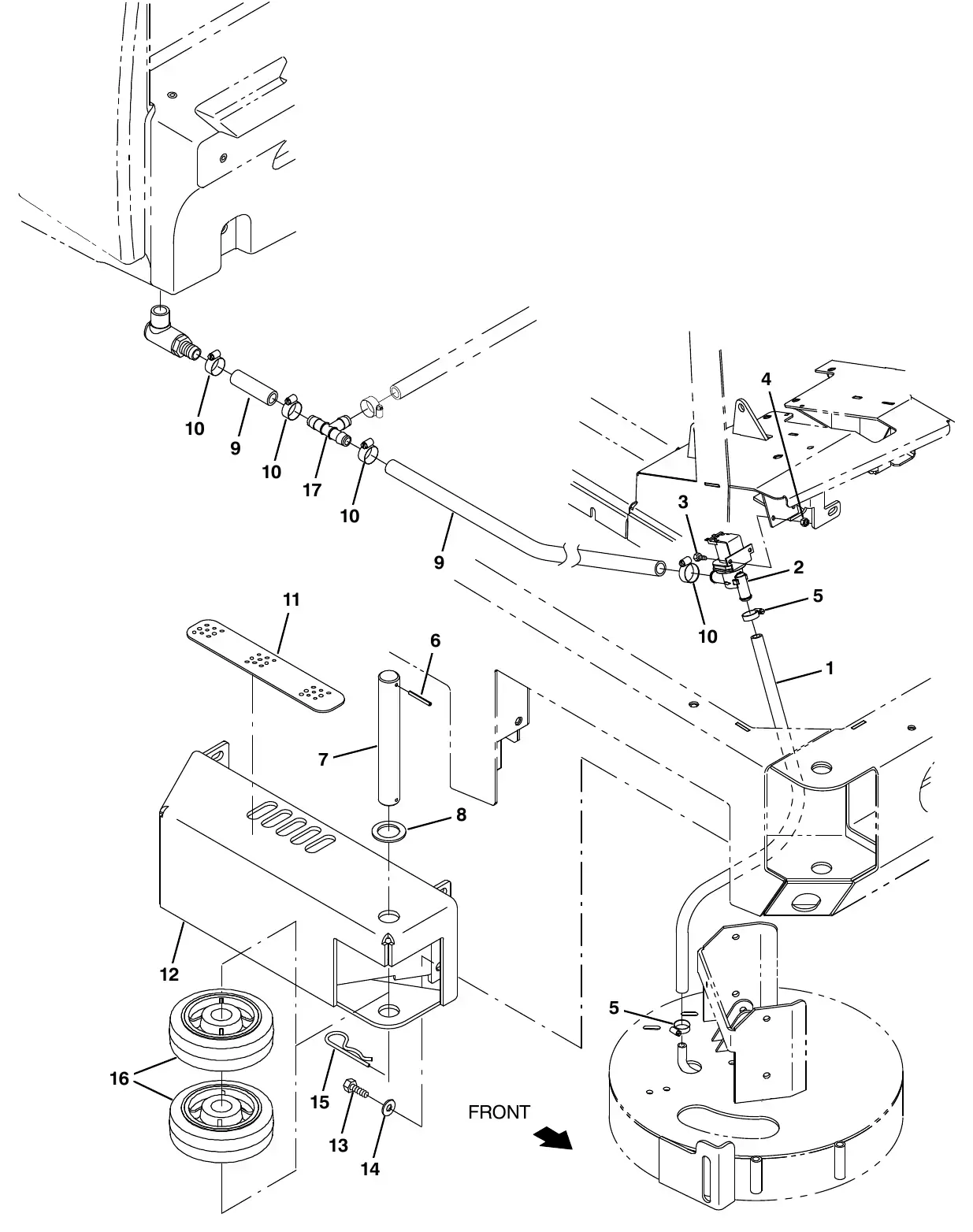

M20 Side Brush Solution Control Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN50178 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 26.00lOld # 50178 · current Tennant number (Tennant parts catalog) | Call for price |
| 2 | TN4032896 | 1 | Valve Assy, Water, Solenoid, 12vdcOld # 1022106 · Replaced by 9016494 in the 2022 list (rev. 08) | Call for price |
| 3 | TN4041990 | 2 | Screw, Hex, M5 X 0.8 X 12, SsOld # 09738 | $3.30/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.8, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 6 | TN4035025 | 1 | Pin, Roll, .187d X 1.62l, .187/.192Old # 23146 · Not in the 2022 list (rev. 08) | $2.50/EA |
| 7 | TN4038392 | 1 | Pin, 30mmd X 215mmlOld # 1053838 · Not in the 2022 list (rev. 08) | $74.40/EA |
| 8 | TN4013894 | 1 | Washer, Flat, 1.26b 1.88d .13, StlOld # 47719 · Not in the 2022 list (rev. 08) | $4.10/EA |
| 9 | TN4037981 | 1 | Hose, Afmkt, Pvc, Brd 0.62id 08ftOld # 1015032 | $80.40/EA |
| 10 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 11 | TN4024613 | 1 | Tread, Non - Skid, 02.2w 11.5lOld # 82839 · Not in the 2022 list (rev. 08) | $6.10/EA |
| 12 | TN4032919 | 1 | Guard Wldt, Brush, SideOld # 1022318 · Not in the 2022 list (rev. 08) | $562.80/EA |
| 13 | TN4035960 | 4 | Screw, Hex, M10 X 1.5 X 30, SsOld # 12317 · Not in the 2022 list (rev. 08) | $4.90/EA |
| 14 | TN4042903 | 4 | Washer, Flat, 0.44b 1.00d .08, SsOld # 01686 · Not in the 2022 list (rev. 08) | $3.30/EA |
| 15 | TN4031623 | 1 | Pin, Cotter, Hair, 1.00d .178 WirOld # 34411 · Not in the 2022 list (rev. 08) | $4.00/EA |
| 16 | TN4034399 | 2 | Wheel, 06.0D 2.00W 1.19B, Gray RbrOld # 1060130 · Not in the 2022 list (rev. 08) | $21.60/EA |
| 17 | TN4034918 | 1 | Fitting, Plstc, Tee, Bm10/Bm10/Bm10, NylOld # 1062116 | $6.20/EA |

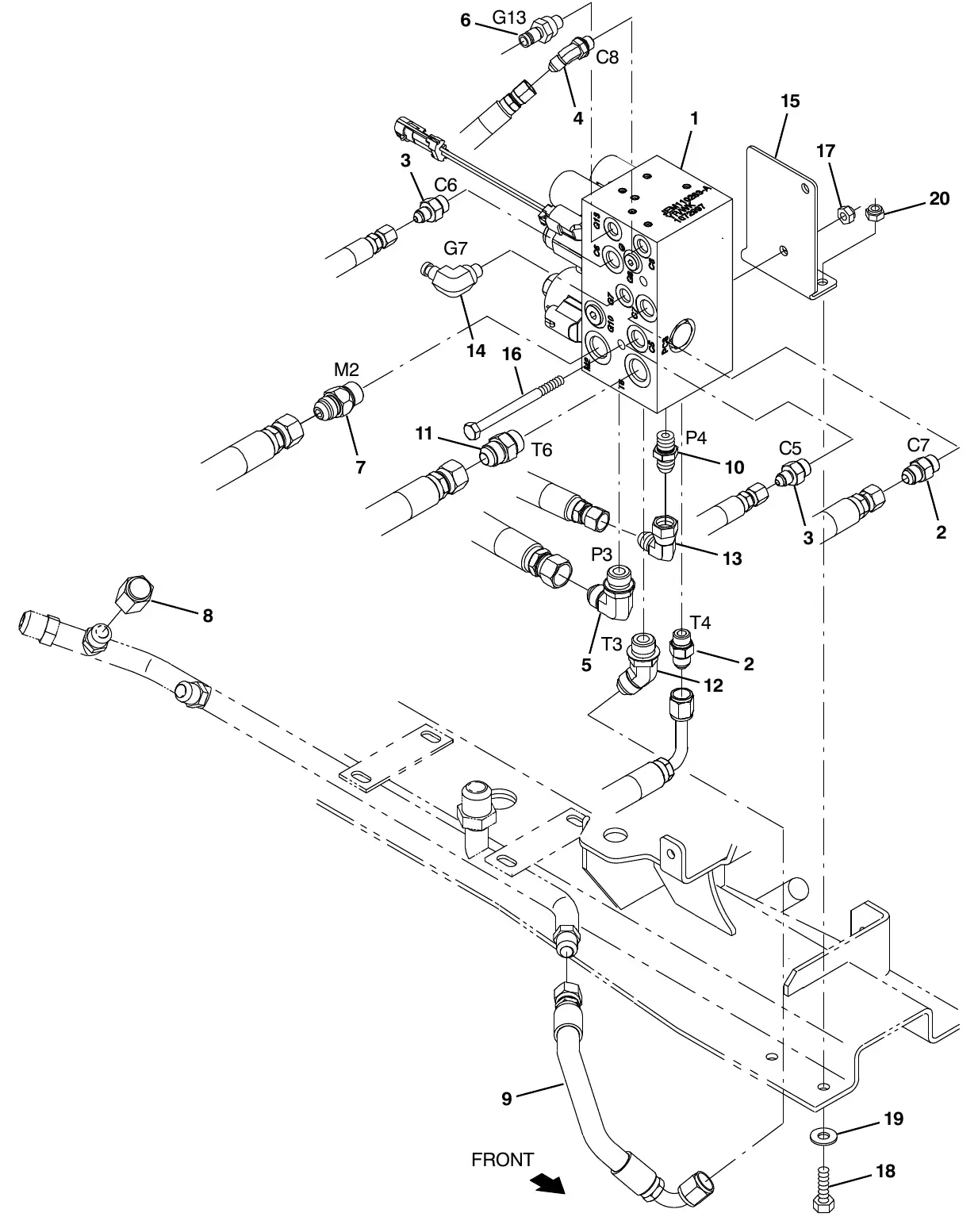

M20 Side Brush Hydraulic Valve Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031319 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns)Old # 1072997 | $1,504.00/EA |
| 2 | TN4029145 | 2 | Fitting, Hyd, Str, Jm06/Om06Old # 56690 | $9.60/EA |
| 3 | TN4028732 | 2 | Fitting, Hyd, Str, Jm04/Om06Old # 55685 | $7.90/EA |
| 4 | TN4031286 | 1 | Fitting, Hyd, E45, Jm04/Om04Old # 34359 | $11.80/EA |
| 5 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Old # 44868 | $10.30/EA |
| 6 | TN4015806 | 1 | Fitting, Hyd, Str, Om04/Qm04Old # 395973 | $26.30/EA |
| 7 | TN4034233 | 1 | Valve, Hyd, Check, Jm08/Om08 5000psiOld # 1026119 | $41.50/EA |
| 8 | TN4027429 | 1 | Fitting, Hyd, Cap, Jf08Old # 60090 | $7.70/EA |
| 9 | TN4045589 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 012.0Old # 1037011 | $39.49/EA |
| 10 | TN4029145 | 1 | Fitting, Hyd, Str, Jm06/Om06Old # 56690 · Not in the 2022 list (rev. 08) | $9.60/EA |
| 11 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Old # 44869 | $7.00/EA |
| 12 | TN4017335 | 1 | Fitting, Hyd, E45, Jm08/Om08Old # 42226 | $11.80/EA |
| 13 | TN4013494 | 1 | Fitting, Hyd, E90, Jf06/Jm06Old # 47504 · Replaced by 71727 in the 2022 list (rev. 08) | $14.90/EA |
| 14 | TN4015807 | 1 | Fitting, Hyd, E90, Om04/Qm04Old # 395974 | $36.40/EA |
| 15 | TN4042495 | 1 | Bracket, Valve, Sba [M20 And T20]Old # 1045272 | $14.45/EA |
| 16 | TN4027793 | 2 | Screw, Hex, M8 X 1.25 X 110, SsOld # 364441 | $4.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 18 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 19 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 20 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |

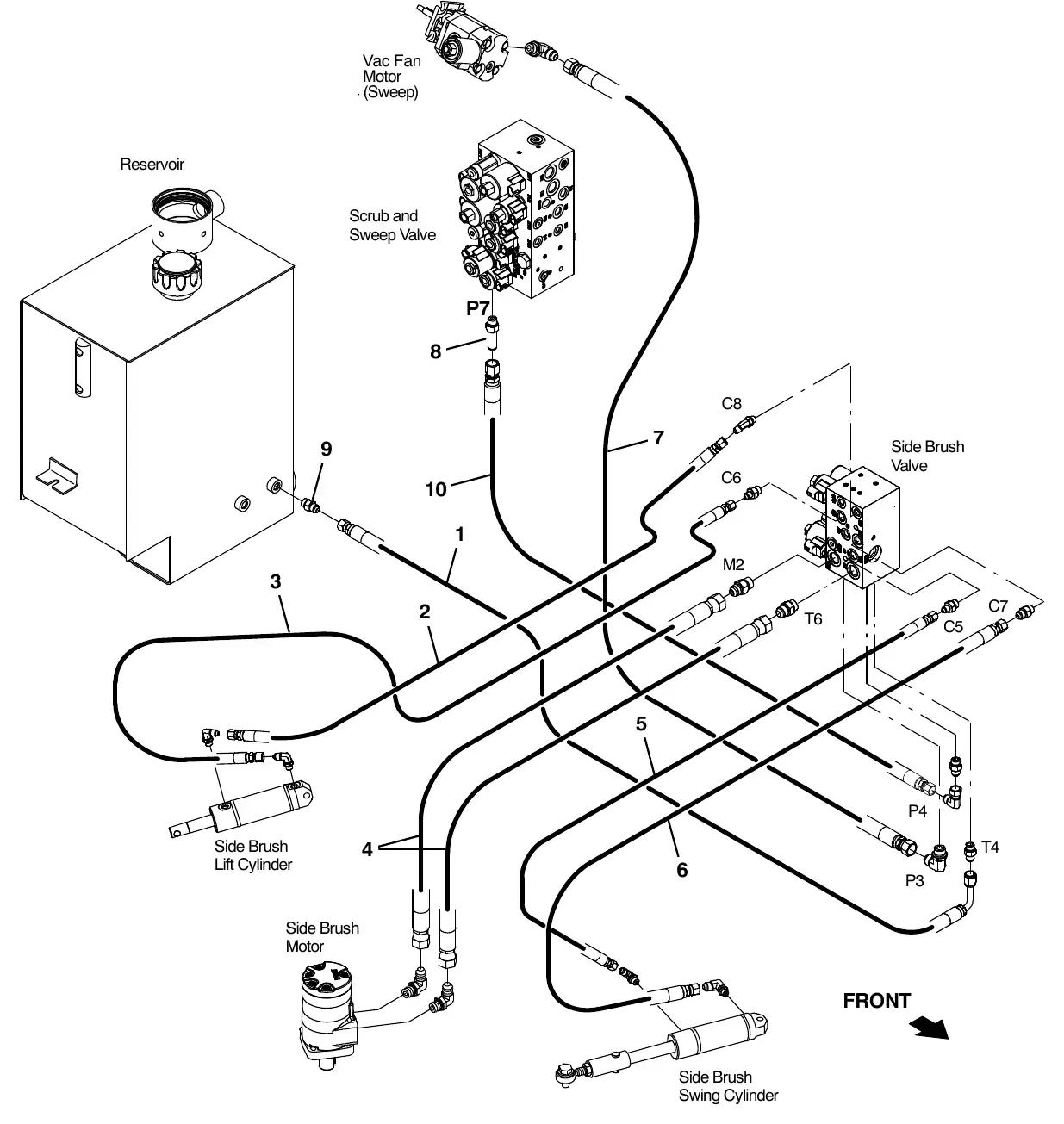

M20 Side Brush Hydraulic Hose Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029569 | 1 | Hose, Hyd, Med06, Jf06e90l/Jf06str,038.0Old # 361047 | $42.00/EA |
| 2 | TN4033270 | 1 | Hose, Hyd, Tc06, Jf06str/Jf06str, 033.0Old # 1023485 | $41.92/EA |
| 3 | TN4034220 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04str, 39.0Old # 1025990 | $51.70/EA |
| 4 | TN4045583 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 034.0Old # 1036965 | $50.50/EA |
| 5 | TN4034221 | 1 | Hose, Hyd, Tc06, Jf06str /Jf06str, 23.0Old # 1025991 | $32.90/EA |
| 6 | TN4034222 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04str, 20.0Old # 1025992 | $30.60/EA |
| 7 | TN4045580 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 084.0Old # 1036946 | $54.54/EA |
| 8 | TN4026830 | 1 | Fitting, Hyd, Str, Jm06/Om06, LongOld # 59577 | $9.90/EA |
| 9 | TN4029145 | 1 | Fitting, Hyd, Str, Jm06/Om06Old # 56690 | $9.60/EA |
| 10 | TN4044481 | 1 | Hose, Hyd, Tc06, Jf06str/Jf06str, 086.0Old # 1041389 | $48.50/EA |

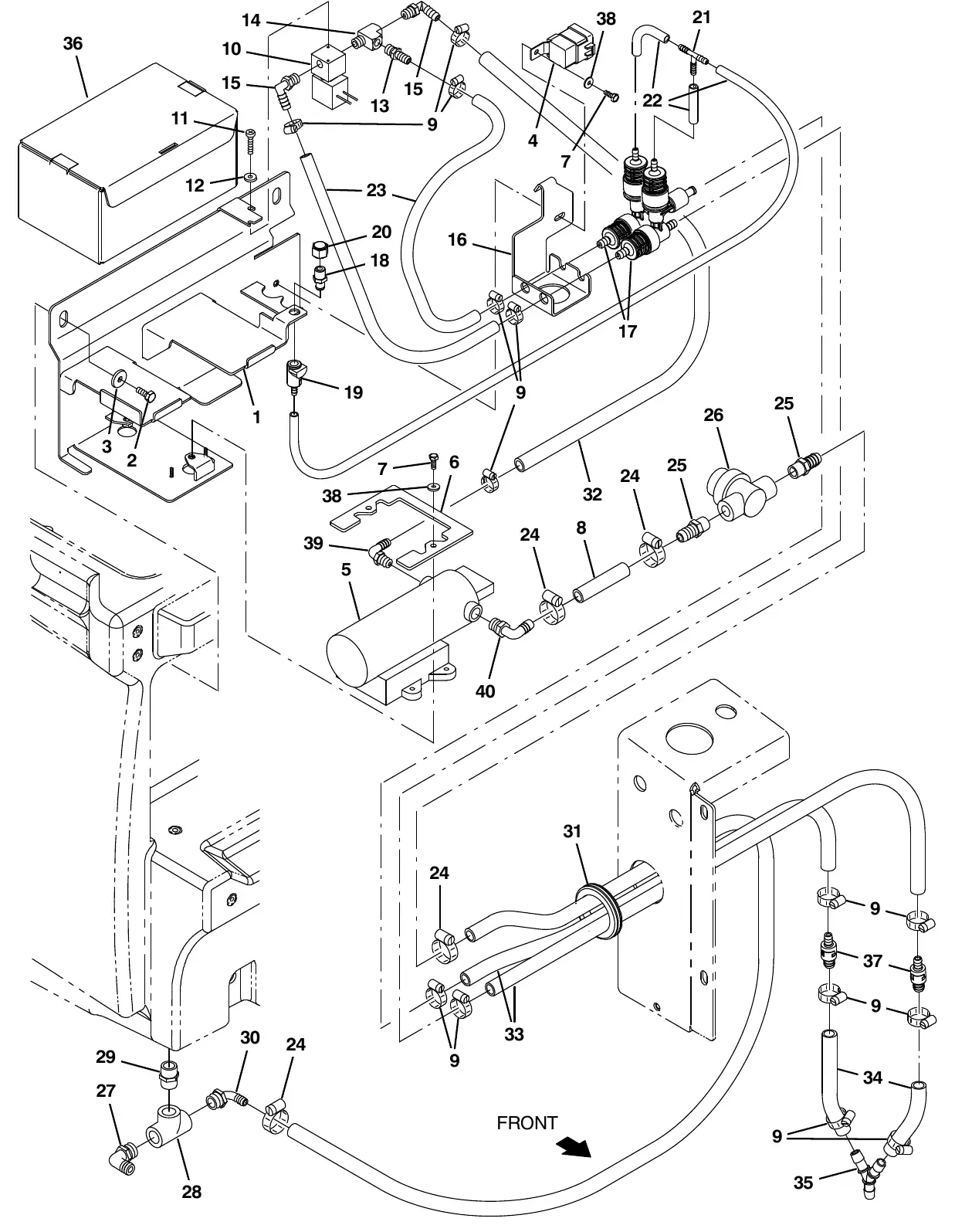

M20 FaST Pumps and Detergent Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Old # 1044342Tennant 4189669 | 1 | Bracket Wldt, Mtg [FaST Gen 2+]Old # 1044342 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 2 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 3 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 4 | TN4029123 | 1 | Relay, 12vdc, 040a, Spdt NoOld # 56186 | $11.30/EA |
| 5 | Old # 1036801Tennant 4045556 | 1 | Pump, Soltn, 13.7vdc, 65psi [FaST Ii+]Old # 1036801 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 6 | TN4191121 | 1 | Bracket, Retainer, PumpOld # 1039357 | $9.15/EA |
| 7 | TN4041245 | 3 | Screw, Hex, M6 X 1.00 X 16, SsOld # 15678 | $3.20/EA |
| 8 | TN4036839 | 1 | Hose, Afmkt, Pvc, Brd, 0.50Id, 01Ft, ClrOld # 1011403 | $19.40/EA |
| 9 | TN4017396 | 14 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 10 | TN4035534 | 1 | Valve, Water, Solenoid, 12vdc 6.0mm Pf04Old # 1018098 | $329.20/EA |
| 11 | TN4041965 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsOld # 09200 | $3.40/EA |
| 12 | TN4042888 | 2 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 13 | TN4041118 | 1 | Fitting, Plstc, Str, Bm06/Pm04Old # 150540 | $4.20/EA |
| 14 | TN4041151 | 1 | Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunOld # 150709 | $14.40/EA |
| 15 | TN4029298 | 2 | Fitting, Plstc, E90, Bm06/Pm04, NylOld # 57248 | $7.00/EA |
| 16 | Old # 1044343Tennant 4189680 | 1 | Bracket, Mtg [FaST Gen 2+]Old # 1044343 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 17 | Old # 9008868Tennant 4010349 | 2 | FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns)Old # 9008868 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 18 | TN4038978 | 1 | Fitting, Plstc, Pipe, Cap, Pf04Old # 1005435 | $4.20/EA |
| 19 | TN4038929 | 1 | Fitting, Plstc, Str, Bm04, Cplg, FemOld # 1002898 | $58.00/EA |
| 20 | TN4038930 | 2 | Fitting, Plstc, Str, Pm04, Cplg, MalOld # 1002899 | $31.30/EA |
| 21 | TN4041153 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Old # 150713 | $10.60/EA |
| 22 | TN4037973 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 02ftOld # 1014986 | $18.70/EA |
| 23 | TN4039305 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 03ftOld # 1006416 | $18.70/EA |
| 24 | TN4015366 | 8 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 25 | TN4044578 | 2 | Fitting, Plstc, Str, Bm06/Pm06Old # 150538 | $5.30/EA |
| 26 | TN4038961 | 1 | Filter, In - Line, Pf06/Pf06 080mesh 02.6lOld # 1005302 | $21.10/EA |
| 27 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Old # 73468 | $7.90/EA |
| 28 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A | $17.60/EA |
| 29 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544 | $6.20/EA |
| 30 | TN4038988 | 1 | Fitting, Plstc, E90, Bm08/Pm12, NylOld # 1005552 | $7.90/EA |
| 31 | TN4032002 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlOld # 10632-19 | $1.50/EA |
| 32 | TN4039301 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrOld # 1006400 | $33.10/EA |
| 33 | TN4033588 | 1 | Hose, Afmkt, Pvc, Wir, 0.50id, 03ft, ClrOld # 1024237 | $27.20/EA |
| 34 | TN4037960 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 01ftOld # 1014929 | $21.00/EA |
| 35 | TN4040375 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylOld # 1010668 | $11.00/EA |
| 36 | TN4035218 | 1 | Detergent, Pkg, 2 Liter, Sgl [665]Old # 1017022 | Call for price |
| 37 | TN4045437 | 2 | Valve, Check, 0005psi Bm06/Bm08Old # 1035794 | $35.90/EA |
| 38 | TN4042901 | 3 | Washer, Flat, 0.27B 0.69D .05, SsOld # 01684 | $2.60/EA |
| 39 | TN4040112 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10Old # 1049254 | $11.80/EA |
| 40 | TN4040113 | 1 | Fitting, NylY, Qdc, E90, Bm06/ Qm10Old # 1049259 | $10.60/EA |

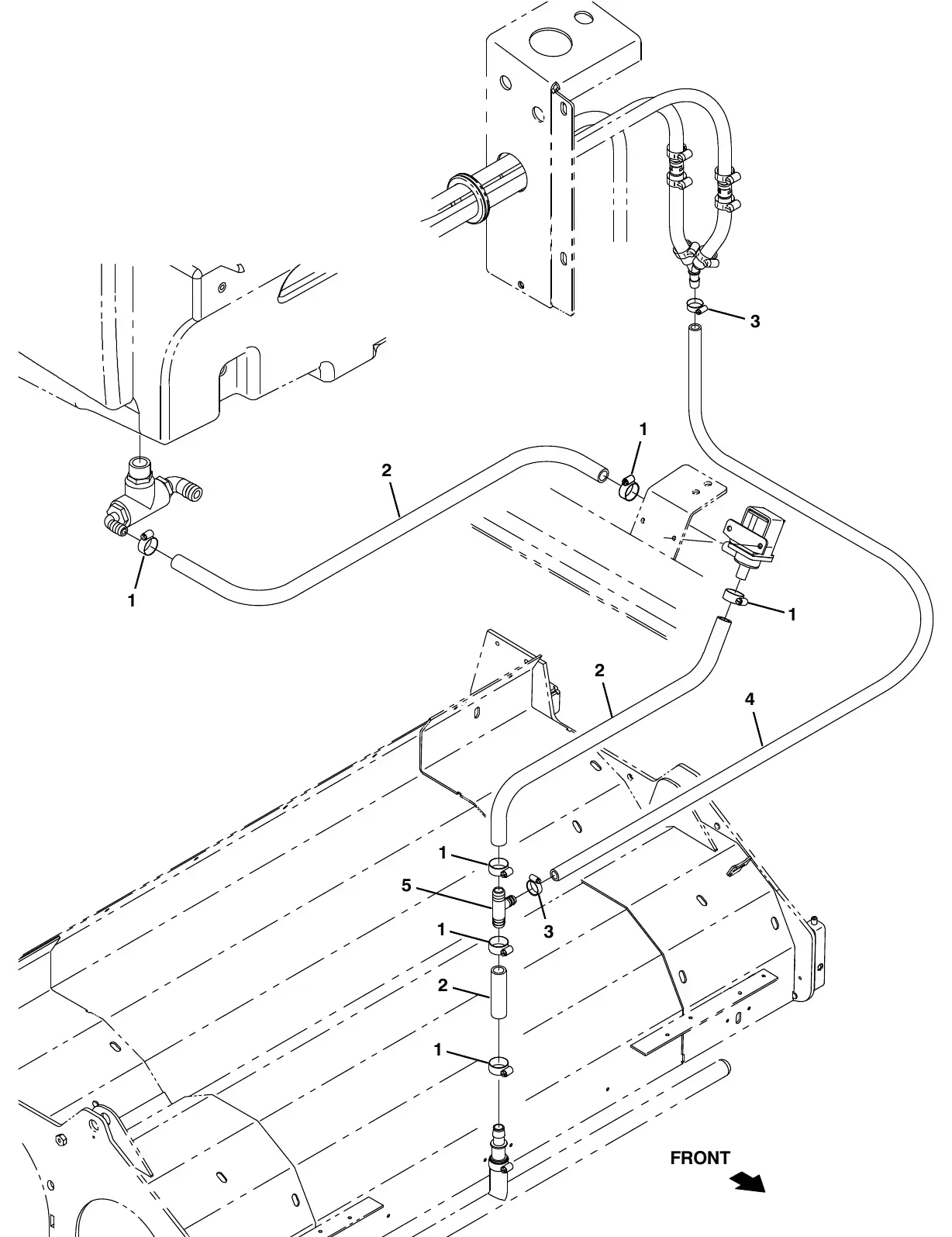

M20 FaST Solution Supply Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089 | 6 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 2 | TN4037981 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrOld # 1015032 | $80.40/EA |
| 3 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 4 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrOld # 1011412 | $70.70/EA |
| 5 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |

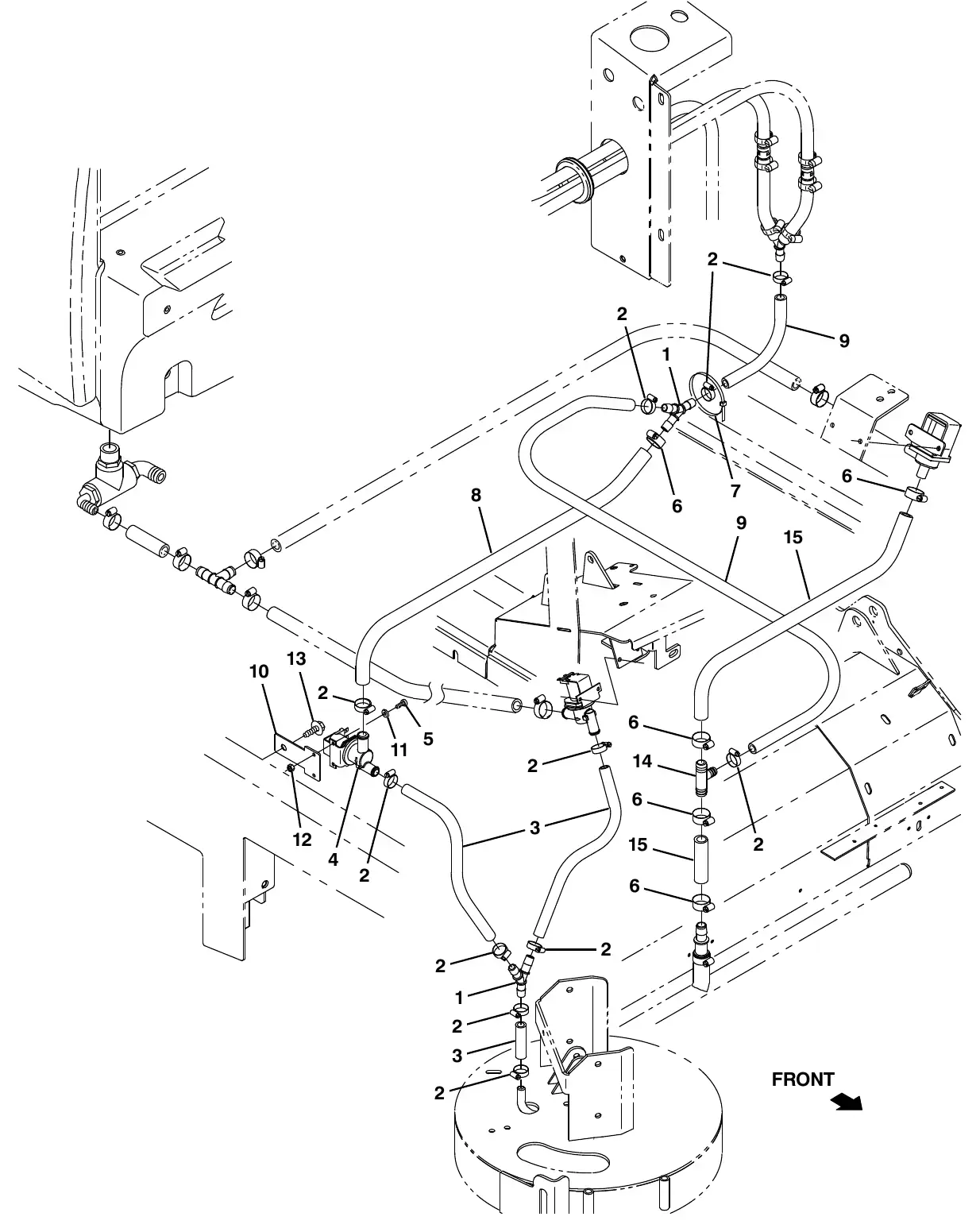

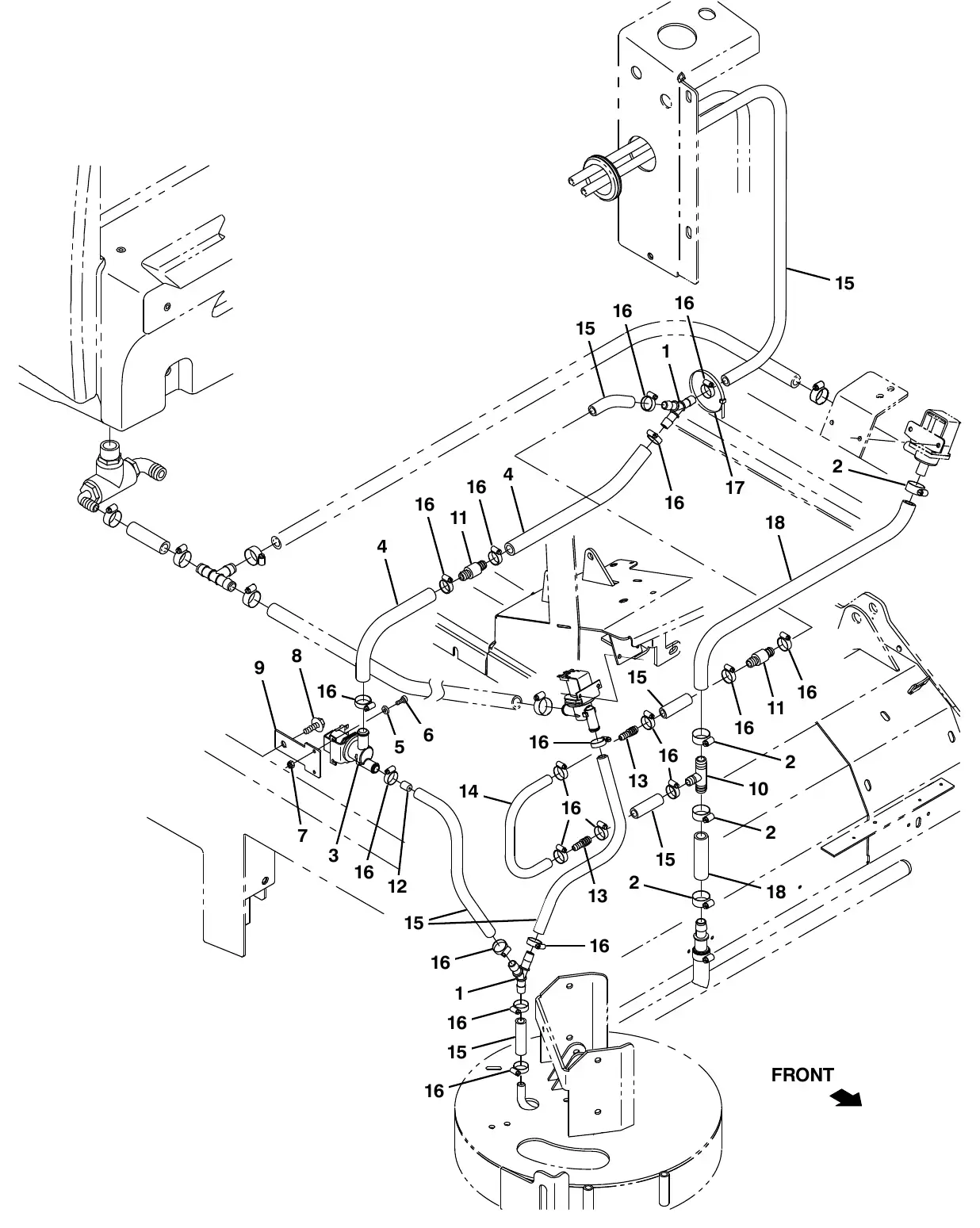

M20 FaST Solution Supply Group with Side Brush
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375 | 2 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylOld # 1010668 | $11.00/EA |
| 2 | TN4015366 | 11 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 3 | TN4037991 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 08ftOld # 1015067 | $50.20/EA |
| 4 | TN4043533 | 1 | Valve, Solenoid, 12vdc, Water FlowOld # 1037825 | Call for price |
| 5 | TN4041965 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsOld # 09200 | $3.40/EA |
| 6 | TN4017089 | 5 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 7 | TN4011910 | 1 | Tie, Cable, Nyl, 15.3l . W 4.5 Max DOld # 763116 | $3.40/EA |
| 8 | TN4033443 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0Old # 31543 | $37.40/EA |
| 9 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrOld # 1011412 | $70.70/EA |
| 10 | TN4031717 | 1 | Plate, Mtg, ValveOld # 1030511 | $4.75/EA |
| 11 | TN4042888 | 2 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 12 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 13 | TN4013943 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgOld # 76099 | $4.00/EA |
| 14 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |
| 15 | TN4037980 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrOld # 1015026 | $31.50/EA |

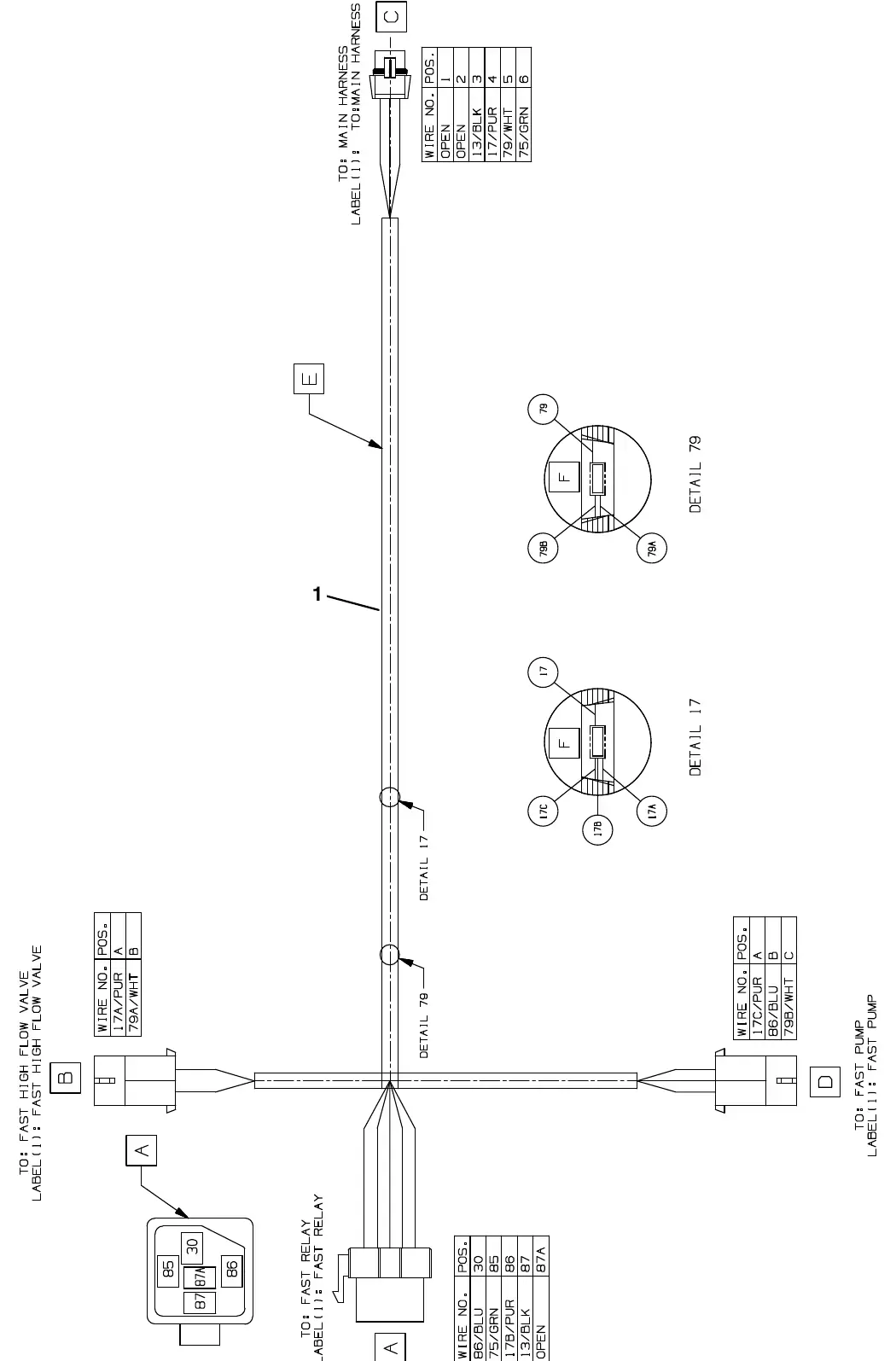

M20 FaST Wire Harness Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Old # 1075138 | 1 | Harness, Wire [FaST Gen 2, M20/T20]Old # 1075138 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |

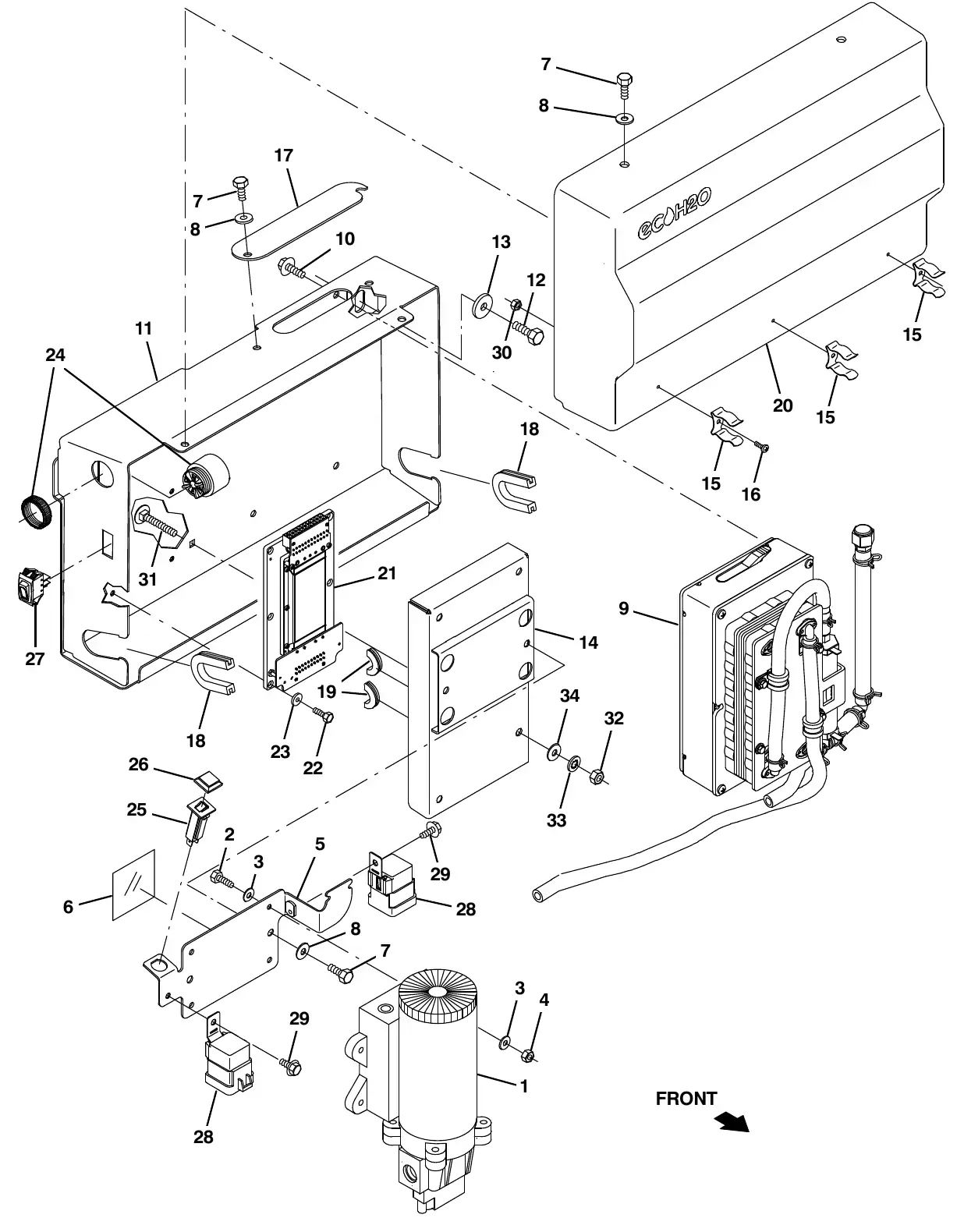

M20 ec - H20 Solution Pump Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034620 | 1 | Pump, Soltn, Ele, 13.7vdc,12/28psiOld # 1060624 | $621.40/EA |
| 2 | TN4041970 | 4 | Screw, Hex, M5 X 0.80 X 20, 8.8Old # 09252 | $3.40/EA |
| 3 | TN4042244 | 8 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041004 | 4 | Nut, Hex, Lock, M5 X 0.80, NlOld # 06549 | $2.50/EA |
| 5 | TN4187222 | 1 | Plate, Mtg, PumpOld # 1060273 | $31.31/EA |
| 6 | TN4187047 | 1 | Strip, Rbr, 0.06 03.54w 03.5l [Neo/60]Old # 1059677 | $2.83/EA |
| 7 | TN4041994 | 6 | Screw, Hex, M6 X 1.00 X 12, SsOld # 09744 | $3.40/EA |
| 8 | TN4042901 | 6 | Washer, Flat, 0.27b 0.69d .05, SsOld # 01684 | $2.60/EA |

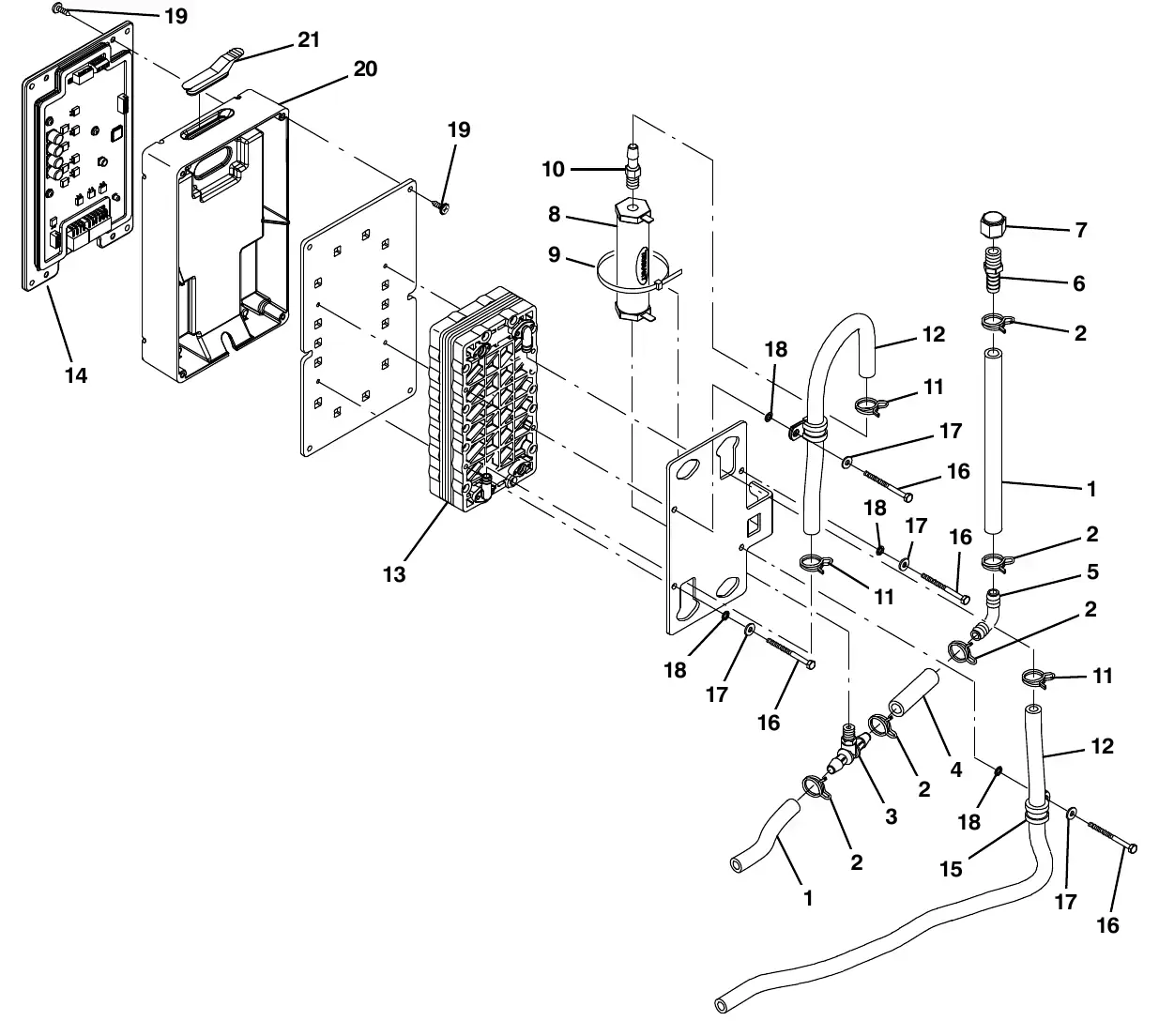

| 9 | TN4012473 | 1 | Module Kit, Replmt [Ec - H20] (See Breakdowns)Old # 9007882 | $1,782.70/EA |
| 10 | TN4044400 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 11 | TN4187224 | 1 | Plate Wldt, MtgOld # 1060292 | $165.64/EA |
| 12 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 13 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 14 | TN4187215 | 1 | Cover Wldt, Power SupplyOld # 1060185 | $68.18/EA |
| 15 | TN4031029 | 3 | Clip, Grip, Finger, 0.88 - 1.25dOld # 1029057 | $5.15/EA |
| 16 | TN4035991 | 3 | Screw, Pan, Phl, M4 X 0.70 X 20, SsOld # 12323 | $3.30/EA |
| 17 | TN4187223 | 1 | Plate, InspectionOld # 1060291 | $5.96/EA |
| 18 | TN4036241 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01FtOld # 1020168 | $44.40/EA |
| 19 | TN4032006 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .06 MatlOld # 10632-4 | $2.50/EA |
| 20 | TN4034636 | 1 | Cover, TrimmedOld # 1060719 | $164.73/EA |
| 21 | TN4036779 | 1 | Converter, Ele, 12 - 36 VdcOld # 1058963 · Replaced by 1247720 in the 2022 list (rev. 08) | Call for price |
| 22 | TN4041967 | 4 | Screw, Hex, M4 X 0.70 X 12, 8.8Old # 09206 | $3.30/EA |
| 23 | TN4042243 | 4 | Washer, Flat, 08Old # 19065 | $3.20/EA |
| 24 | TN4037707 | 1 | Alarm, 9 - 48vdc, 95 Db(A) [Ec - H20]Old # 1052726 | $75.90/EA |
| 25 | TN4032584 | 1 | Circuitbreaker, 02.0a, ResetableOld # 1064183 | $13.40/EA |
| 26 | TN4032601 | 1 | Boot, CircuitbreakerOld # 1064191 | $12.60/EA |
| 27 | TN4042141 | 1 | Switch, Rocker, Spst, MomOld # 1044393 | $7.70/EA |
| 28 | TN4029123 | 2 | Relay, 12vdc, 040a, Spdt NoOld # 56186 | $11.30/EA |
| 29 | TN4037385 | 2 | Screw, Hex, M5 X 0.80 X 10, FmgOld # 223198 | $4.00/EA |
| 30 | TN4031247 | 3 | Nut, Hex, Lock, M4 X 0.70, Nl, SsOld # 33932 | $3.40/EA |
| 31 | TN4185338 | 4 | Bolt, Carriage, M06 X 1.00 X 40, 4.6Old # 1062804 | $1.52/EA |
| 32 | TN4016812 | 4 | Nut, Hex, Std, M6 X 1.00, 8Old # 41359 | $3.40/EA |
| 33 | TN4034655 | 4 | Washer, Lock, Int, 0.25Old # 32982 | $2.60/EA |
| 34 | TN4034133 | 4 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |

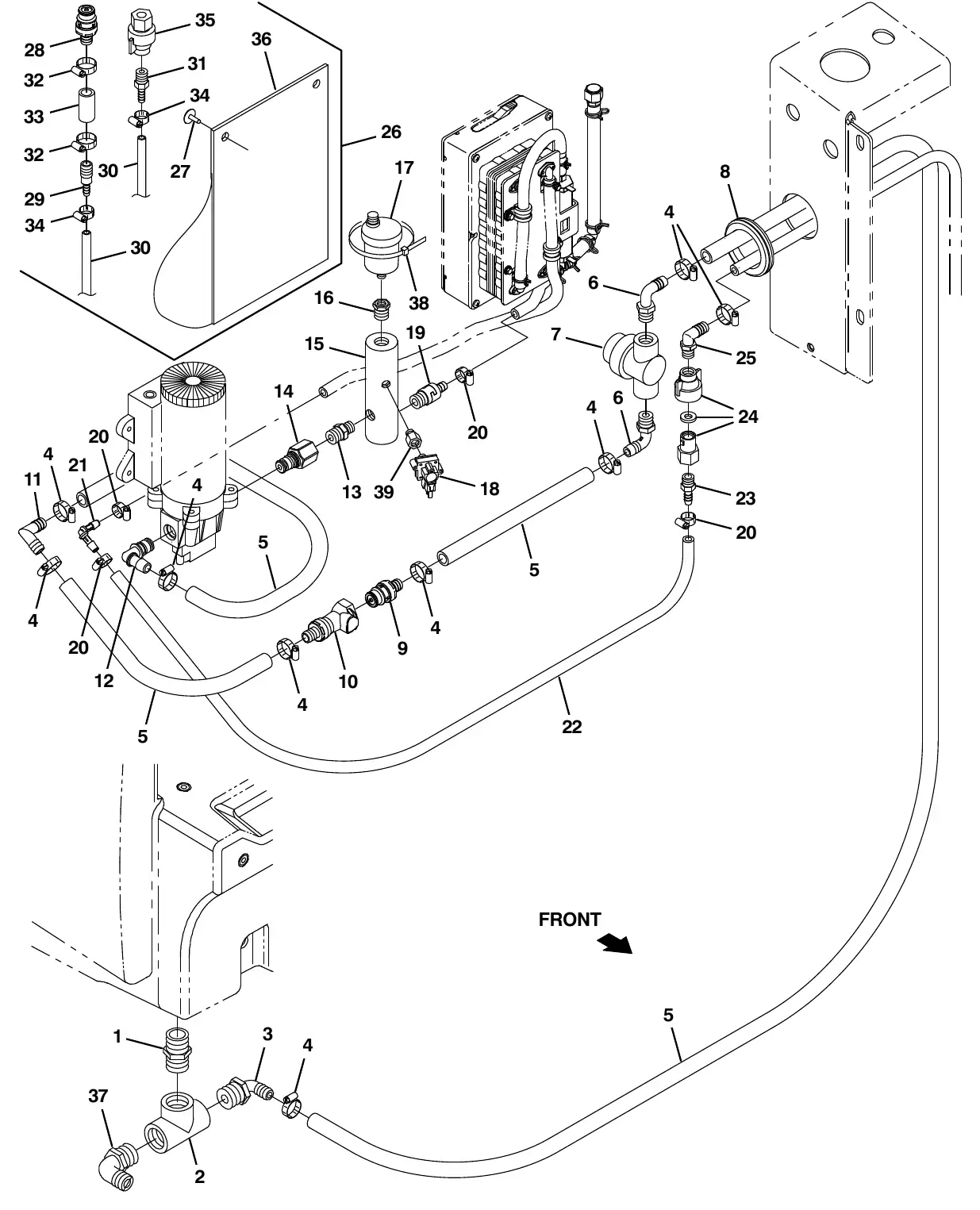

M20 ec - H20 Solution Pump Supply Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544 | $6.20/EA |
| 2 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A | $17.60/EA |
| 3 | TN4038988 | 1 | Fitting, Plstc, E90, Bm08/Pm12, NylOld # 1005552 | $7.90/EA |
| 4 | TN4015366 | 9 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 5 | TN4036916 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrOld # 1011837 | $75.50/EA |
| 6 | TN4017647 | 2 | Fitting, Plstc, E90, Bm08/Pm06Old # 64778 | $8.70/EA |
| 7 | TN4038961 | 1 | Filter, In - Line, Pf06/Pf06 080mesh 02.6lOld # 1005302 | $21.10/EA |
| 8 | TN4032002 | 3 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlOld # 10632-19 | $1.50/EA |
| 9 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08Old # 1017415 | $34.70/EA |
| 10 | TN4035457 | 1 | Housing, Cplg, Qf / Pm08Old # 1017413 | $37.90/EA |
| 11 | TN4017096 | 1 | Fitting, Plstc, E90, Bm08/Bm08Old # 63987-1 | $7.80/EA |
| 12 | TN4040112 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10Old # 1049254 | $11.80/EA |
| 13 | TN4037143 | 1 | Fitting, Plstc, Str, Pf06/Qm10, PvcOld # 1059372 | $13.00/EA |
| 14 | TN4038956 | 1 | Fitting, Plstc, Str, Pm04/Pm06, NylOld # 1005219 | $4.20/EA |
| 15 | TN4034619 | 1 | Manifold, WaterOld # 1060596 | $44.30/EA |
| 16 | TN4035395 | 1 | Fitting, Brs, Str, Pf02/Pm06Old # 24698 | $8.70/EA |
| 17 | TN4035456 | 1 | Valve, Vent, Air, Float TypeOld # 1017386 | $64.30/EA |
| 18 | TN4036776 | 1 | Switch, Press, 50 Psi, Pm02Old # 1058935 | $115.30/EA |
| 19 | TN4034632 | 1 | Valve, Check, 0005psi Pm04/Bm06Old # 1060693 | $55.50/EA |
| 20 | TN4017396 | 4 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 21 | TN4187030 | 1 | Fitting, Plstc, E90, Bm05/Bm05, NylOld # 1059391 | $4.40/EA |
| 22 | TN4041050 | 2 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrOld # 1052336 | $48.50/EA |
| 23 | TN4040814 | 1 | Fitting, Plstc, Str, Bm05/Pm04Old # 1052017 | $2.60/EA |
| 24 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Old # 1071280 | $8.70/EA |
| 25 | TN4017747 | 1 | Fitting, Plstc, E90, Bm08/Pm04Old # 65581 | $2.55/EA |
| 26 | TN4197576 | 1 | ec - H2O Kit, Flush, Replmt[M20, M30&T20]Old # 9014281 | $99.60/EA |
| 27 | TN4016302 | 2 | Rivet, Plstc, .250d X 0.90Old # 72968 | $3.20/EA |
| 28 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08Old # 1017415 | $34.70/EA |
| 29 | TN4020535 | 1 | Fitting, Plstc, Str, Bm04/Bm08Old # 630164 | $7.90/EA |
| 30 | TN4039304 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftOld # 1006415 | $51.70/EA |
| 31 | TN4014520 | 1 | Fitting, Plstc, Str, Bm04/Pm04Old # 50901 | $3.60/EA |
| 32 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 33 | TN4036839 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrOld # 1011403 | $19.40/EA |
| 34 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 35 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Old # 1071280 | $8.70/EA |
| 36 | TN4013988 | 1 | PouchOld # 48790 | $32.02/EA |
| 37 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Old # 73468 | $7.90/EA |
| 38 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 39 | TN4035142 | 1 | Fitting, Brs, Snubber, Pm02/Pf02Old # 1062403 | $37.10/EA |
M20 ec - H20 Solution Supply Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089 | 2 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 2 | TN4036916 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrOld # 1011837 | $75.50/EA |
| 3 | TN4015366 | 5 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 4 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |
| 5 | TN4037981 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrOld # 1015032 | $80.40/EA |
M20 ec - H20 Solution Supply Group with Side Brush
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylOld # 1010668 | $11.00/EA |
| 2 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 3 | TN4043533 | 1 | Valve Assy, Water, Solenoid, 12vdcOld # 1037825 · Replaced by 9021167 in the 2022 list (rev. 08) | Call for price |
| 4 | TN4033443 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0Old # 31543 | $37.40/EA |
| 5 | TN4042888 | 2 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 6 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 7 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 8 | TN4013943 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgOld # 76099 | $4.00/EA |
| 9 | TN4031717 | 1 | Plate, Mtg, ValveOld # 1030511 | $4.75/EA |
| 10 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |
| 11 | TN4040370 | 2 | Valve, Check, 2gpm .5psi Bm08/Bm08Old # 1010614 | $55.50/EA |
| 12 | TN4034713 | 1 | Plug, RestrictorOld # 1061045 | $22.30/EA |
| 13 | TN4040278 | 2 | Fitting, Plstc, Str, Bm06/Bm08Old # 222375 | $4.20/EA |
| 14 | TN4037967 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrOld # 1014974 | $22.40/EA |
| 15 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrOld # 1011412 | $70.70/EA |
| 16 | TN4015366 | 18 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 17 | TN4011910 | 1 | Tie, Cable, Nyl, 15.3l . W 4.5 Max DOld # 763116 | $3.40/EA |
| 18 | TN4037980 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrOld # 1015026 | $31.50/EA |
M20 ec - H20 Wire Harnesses Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044977 | 1 | Harness, Ele [Ech2o, Interface]Old # 1075140 | $89.60/EA |
| 2 | TN4034646 | 1 | Harness, Wire [Ec - H2o]Old # 1060871 | $240.18/EA |
| 3 | TN4034647 | 1 | Resistor, Ele, Plug [430 , 2w]Old # 1060880 | $9.49/EA |
| 4 | TN4034648 | 1 | Capacitor, Plug [4700uf, 25v]Old # 1060881 | $15.35/EA |
M20 Backup Alarm Kit
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 7 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| TN4019666 | 1 | Alarm Kit, Backup, Ci [M20 And T20]Old # 9001321 | $349.80/EA | |
| 1 | TN4011838 | 1 | Alarm Assy, Backup, 12/48VdcOld # 9007131 | $162.50/EA |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 8 | TN4036226 | 1 | Harness, Warning / Backup [M20 & T20]Old # 1019971 | $27.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 6 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 5 | TN4035919 | 1 | Bracket, Sppt, Strobe LightOld # 1019445 | $55.20/EA |
M20 Light Kit, Flashing
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019669 | 1 | Light Kit, Flsh, Ci [M20 And T20]Old # 9001327 | $444.00/EA | |
| 1 | TN1017248 | 1 | Lamp, Flasher, Amb [12 - 48 Vdc]Old # 1017248 · current Tennant number (Tennant parts catalog) · Replaced by 1254294 in the 2022 list (rev. 08) | Call for price |
| TN8002935 | 1 | Lens, Lamp, Amb, Strobe/FlasherOld # 9000879 · Not in the 2022 list (rev. 08) | $34.24/EA | |
| TN8002933 | 1 | Lamp, Bulb, FlshOld # 9000846 · Not in the 2022 list (rev. 08) | $19.10/EA | |
| TN4000111 | 1 | Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800 · Not in the 2022 list (rev. 08) | $47.37/EA | |
| TN4000109 | 1 | Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798 · Not in the 2022 list (rev. 08) | $34.61/EA | |
| TN4028718 | 2 | Terminal, Bullet, Mal, .157d, 12gaOld # 55272 · Not in the 2022 list (rev. 08) | $3.40/EA | |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4035919 | 1 | Bracket, Sppt, Strobe LightOld # 1019445 | $55.20/EA |
| 6 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 7 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 8 | TN4036226 | 1 | Harness, Warning / Backup [M20 & T20]Old # 1019971 | $27.50/EA |
| 9 | TN4013452 | 2 | Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleOld # 46236 | $3.60/EA |
M20 Light Kit, Strobe
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019671 | 1 | Light Kit, Strobe, Ci [M20 And T20]Old # 9001331 | $767.90/EA | |
| 1 | TN4035245 | 1 | Lamp Strobe, Amb [12 - 48 Vdc]Old # 1017250 · Replaced by 1254294 in the 2022 list (rev. 08) | Call for price |
| TN8002935 | 1 | Lens, Lamp, Amb, Strobe/FlasherOld # 9000879 · Not in the 2022 list (rev. 08) | $34.24/EA | |
| TN8002932 | 1 | Lamp, Bulb, StrobeOld # 9000845 · Not in the 2022 list (rev. 08) | $44.30/EA | |
| TN4000111 | 1 | Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800 · Not in the 2022 list (rev. 08) | $47.37/EA | |
| TN4000109 | 1 | Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798 · Not in the 2022 list (rev. 08) | $34.61/EA | |
| TN4028718 | 2 | Terminal, Bullet, Mal, .157d, 12gaOld # 55272 · Not in the 2022 list (rev. 08) | $3.40/EA | |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4035919 | 1 | Bracket, Sppt, Strobel LightOld # 1019445 | $55.20/EA |
| 6 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 7 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 8 | TN4036226 | 1 | Harness, Warning / Backup [M20 & T20]Old # 1019971 | $27.50/EA |
| 9 | TN4013452 | 2 | Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleOld # 46236 | $3.60/EA |
M20 Light Kit, Flashing Overhead Guard
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| TN8002933 | 1 | Lamp, Bulb, FlshOld # 9000846 · Not in the 2022 list (rev. 08) | $19.10/EA | |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| TN4019724 | 1 | Light Kit, Flsh, W/Ohg, Ci[M20 And T20]Old # 9001718 | $372.90/EA | |
| 1 | TN1017248 | 1 | Lamp, Flasher, Amb [12 - 48 Vdc]Old # 1017248 · current Tennant number (Tennant parts catalog) · Replaced by 1254294 in the 2022 list (rev. 08) | Call for price |
| TN8002935 | 1 | Lens, Lamp, Amb, Strobe/FlasherOld # 9000879 · Not in the 2022 list (rev. 08) | $34.24/EA | |
| TN4000111 | 1 | Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800 · Not in the 2022 list (rev. 08) | $47.37/EA | |
| TN4000109 | 1 | Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798 · Not in the 2022 list (rev. 08) | $34.61/EA | |
| TN4028718 | 2 | Terminal, Bullet, Mal, .157d, 12gaOld # 55272 · Not in the 2022 list (rev. 08) | $3.40/EA | |
| 5 | TN4036203 | 1 | Harness, Warning / Ohg [M20]Old # 1019647 | $23.56/EA |
| 6 | TN4032000 | 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlOld # 10632-17 | $3.20/EA |
| 7 | TN4011909 | 4 | Tie, Cable, 6.0l, 1.25d MaxOld # 763115 | $2.30/EA |
| 8 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
M20 Light Kit, Strobe Overhead Guard
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| TN8002932 | 1 | Lamp, Bulb, StrobeOld # 9000845 · Not in the 2022 list (rev. 08) | $44.30/EA | |
| TN4019723 | 1 | Light Kit, Strobe, W/Ohg, Ci [M20 And T20]Old # 9001717 | $164.46/EA | |
| 1 | TN4035245 | 1 | Lamp Strobe, Amb [12 - 48 Vdc]Old # 1017250 · Replaced by 1254294 in the 2022 list (rev. 08) | Call for price |
| TN8002935 | 1 | Lens, Lamp, Amb, Strobe/FlasherOld # 9000879 · Not in the 2022 list (rev. 08) | $34.24/EA | |
| TN4000111 | 1 | Lens, Blue, Option, F/ Strobe / Flsh LightOld # 1027800 · Not in the 2022 list (rev. 08) | $47.37/EA | |
| TN4000109 | 1 | Lens, Red, Option, F/ Strobe / Flsh LightOld # 1027798 · Not in the 2022 list (rev. 08) | $34.61/EA | |
| TN4028718 | 2 | Terminal, Bullet, Mal, .157d, 12gaOld # 55272 · Not in the 2022 list (rev. 08) | $3.40/EA | |
| 5 | TN4036203 | 1 | Harness, Warning / Ohg [M20]Old # 1019647 | $23.56/EA |
| 6 | TN4032000 | 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlOld # 10632-17 | $3.20/EA |
| 7 | TN4011909 | 4 | Tie, Cable, 6.0l, 1.25d MaxOld # 763115 | $2.30/EA |
| 8 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
M20 Overhead Guard Kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019662 | 1 | Ohg Kit, Ci [M20 And T20]Old # 9001314 | $3,559.40/EA | |
| 1 | TN4032916 | 1 | Guard Wldt, Top, OhgOld # 1022276 | $480.30/EA |
| 2 | TN4030100 | 1 | Tube Wldt, Leg, Ohg, Lh, PntdOld # 1069241 | $299.68/EA |
| 3 | TN4030101 | 1 | Tube Wldt, Leg, Ohg, Rh, PntdOld # 1069253 | $451.40/EA |
| 4 | TN4043258 | 12 | Screw, Hex, M10 X 1.5 X 30, 8.8Old # 03192 | $4.00/EA |
| 5 | TN4034138 | 17 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 6 | TN4016826 | 8 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 7 | TN4033561 | 1 | Bracket, Mtg, Mirror, RearviewOld # 1023879 | $16.40/EA |
| 8 | TN4040671 | 1 | Mirror, Convex, 0.50DOld # 1050295 | $27.80/EA |
| 9 | TN4034137 | 1 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 10 | TN4042533 | 1 | Nut, Hex, Std, .31 - 18Old # 19313 | $2.50/EA |
| 11 | TN4037922 | 3 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
M20 Telemetry Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN4011098 | 1 | Control Box Assy Kit, Replmt, Telem [USA]Old # 9010085 | $1,623.00/EA |
| 1 | TN4011099 | 1 | Control Box Assy Kit, Replmt, Telem [CAN]Old # 9010086 | Call for price |
| 2 | TN4030486 | 1 | Bracket, Spacer, ControlboxOld # 1071062 | $14.44/EA |
| 3 | TN4041970 | 4 | Screw,Hex, M5 X 0.80 X 29, 8.8Old # 09252 | $3.40/EA |
| 4 | TN4042888 | 4 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 5 | TN4030314 | 1 | Angle, mtg, Antenna, TelemOld # 1070402 | $18.69/EA |
| 6 | TN4030328 | 1 | Antenna, Telem, 70 In [Gprs]Old # 1070659 | $60.90/EA |
| 7 | TN4044164 | 2 | Clamp, Cable, Nyl, 0.62D, NatOld # 140916 | $3.40/EA |
| 8 | TN4035369 | 2 | Screw, Hex, M5 X 0.80 X 16, SsOld # 24199 · Replaced by 09244 in the 2022 list (rev. 08) | $3.00/EA |
| 9 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlOld # 06549 | $2.50/EA |
| 10 | TN4042888 | 4 | Washer, Flat, 10, SsOld # 01683 · Replaced by 19066 in the 2022 list (rev. 08) | $2.60/EA |
| 11 | TN4044400 | 2 | Screw, hex, H6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 12 | TN4042901 | 2 | Washer, Flat, 0.27B 0.69D .05, SsOld # 01684 · Replaced by 55248 in the 2022 list (rev. 08) | $2.60/EA |
| 13 | TN4041928 | 2 | Nut, hex, Lock, M6 X 1.00, Nl, SsOld # 08712 · Replaced by 07790 in the 2022 list (rev. 08) | $2.50/EA |
| 14 | TN4031956 | 1 | Grommet, Rbr, 0.38id, F/0.5H, .12 MatlOld # 10632-12 | $3.30/EA |
| 15 | TN4030121 | 1 | Label, Opertnl, Telem [Fcc/Ic]Old # 1069580 | $4.34/EA |
| 16 | TN4044978 | 1 | Harness, Ele [Telem]Old # 1075143 | $97.55/EA |
M20 Vacuum Wand Kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019673 | 1 | Wand Kit, Vacuum, Ci [M20]Old # 9001334 | $1,037.30/EA | |
| 1 | TN4017746 | 1 | Bag, PowerOld # 65580 | $159.30/EA |
| 2 | TN4016302 | 4 | Rivet, Plstc, .250d X 0.90Old # 72968 | $3.20/EA |
| 3 | TN4017057 | 1 | Tube, Wand, Vacuum, MetalOld # 63448 · Replaced by 190722 in the 2022 list (rev. 08) | Call for price |
| 4 | TN4018319 | 1 | Hose Assy, W/2cuff, 1.5d 084l [Vacwand]Old # 69657 · Replaced by 86767 in the 2022 list (rev. 08) | $303.60/EA |
| 5 | TN4018360 | 1 | PlungerOld # 69659 · Replaced by 1029396 in the 2022 list (rev. 08) | $20.65/EA |
| 6 | TN4029085 | 2 | Screw, Hex, M5 X 0.80 X 16, FmgOld # 55845 | $4.00/EA |
| 7 | TN4017055 | 1 | Shoe, Plstc, Sqge, 14.0Old # 63430 · Replaced by 13840 in the 2022 list (rev. 08) | Call for price |
| 8 | TN4017060 | 1 | Nozzle, Wand, Plstc, 14.0lOld # 63451 · Replaced by 79381 in the 2022 list (rev. 08) | Call for price |
| 9 | TN4017922 | 2 | Clip, Grip, Finger, 1.00 - 1.88d White,VylOld # 67004 | $26.10/EA |
| 10 | TN4042242 | 6 | Washer, Flat, 06Old # 19064 | $3.40/EA |
M20 Spray Nozzle Kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019660 | 1 | Nozzle Kit, Spray, CiOld # 9001310 | $758.04/EA | |
| 1 | TN4034280 | 1 | Pump, Diaphragm (See Breakdowns)Old # 1026743 | $370.80/EA |
| 2 | TN4030606 | 1 | Plate, Mtg, PumpOld # 1027007 | $9.60/EA |
| 3 | TN4041268 | 4 | Screw, Pan, M5 X 0.80 X 45, 4.8Old # 06939 | $3.40/EA |
| 4 | TN4042244 | 4 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 5 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlOld # 06549 | $2.50/EA |
| 6 | TN4037985 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrOld # 1015045 | $83.30/EA |
| 7 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 8 | TN4035902 | 1 | Hose, Water, CoilOld # 1019250 | $192.50/EA |
| 9 | TN4028980 | 1 | Nozzle, Spray, GunOld # 769785 | $90.00/EA |
| 10 | TN4030660 | 1 | Fitting, Brs, Str, Pf06/Pm12Old # 1027976 | $11.80/EA |
| 11 | TN4030624 | 1 | Bracket, Mtg, Spray HandleOld # 1027237 | $15.30/EA |
| 12 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |
| 13 | TN4035811 | 1 | Fitting, Plstc, E90, Bm08/Pf08s, SwivelOld # 1018499 | $4.20/EA |
| 14 | TN4016537 | 1 | Switch, Rocker, Dpdt On/None/OnOld # 398500 | $45.20/EA |
| 15 | Old # 1029790Tennant 4031379 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Old # 1029790 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 16 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 17 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 18 | TN4030661 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhOld # 1027978 | $23.25/EA |
| 19 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Old # 64778 | $8.70/EA |
| 20 | TN4031028 | 1 | Wand, Clean - OutOld # 1029055 | $176.10/EA |
| 21 | TN4031029 | 2 | Clip, Grip, Finger, .875 - 1.25Old # 1029057 | $5.15/EA |
| 22 | TN4039088 | 2 | Screw, Hex, #10 - 16 X 0.62, Fmg [Ab]Old # 20394 | $3.30/EA |
| 23 | TN4042888 | 4 | Washer, Flat, #10, SsOld # 01683 | $2.60/EA |
| 24 | TN4029238 | 1 | Fitting, Brs, Str, Pm08/Garden HoseOld # 375321 | $10.40/EA |
| 25 | TN4042839 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrOld # 01316 | $3.50/EA |
| 26 | Old # 1029153 | 1 | Nipple, HoseOld # 1029153Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 27 | TN4031039 | 1 | Coupling, Nozzle, SprayOld # 1029155 | $15.40/EA |
| 28 | TN4031040 | 1 | NozzleOld # 1029156 | $69.50/EA |
| 29 | TN4031357 | 1 | Valve, ShutoffOld # 1029399 | $41.60/EA |
| 30 | TN4195644 | 1 | Harness, Spray, NozzleOld # 1021881 | $83.10/EA |
| 31 | TN4029123 | 1 | Relay, 12vdc, 40a, Spdt N/OOld # 56186 | $11.30/EA |
| 32 | TN4035810 | 1 | Fitting, Plstc, Str, Bm08/Pf08s, SwivelOld # 1018495 | $5.30/EA |
| 33 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
M20 Transport Kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4022696 | 1 | Transport Kit, Ci [M20/M30}Old # 9014867 | $219.60/EA | |
| 1 | TN4044424 | 2 | Bracket, Latch, CoverOld # 1040800 | $31.40/EA |
| 2 | TN4036273 | 2 | Bracket, Retaining, HoseOld # 1020526 | $57.10/EA |
| 3 | TN4191358 | 2 | Plate, Hook, LatchOld # 1040634 | $15.00/EA |
| 4 | TN4041994 | 6 | Screw, Hex, M6 X 1.00 X 12, SsOld # 09744 | $3.40/EA |
| 5 | TN4042901 | 6 | Washer, Flat, 0.27b 0.69d .05, SsOld # 01684 | $2.60/EA |
| 6 | TN4037480 | 2 | Latch, YellowOld # 1222019 | $40.40/EA |
| 7 | TN4041965 | 4 | Screw, Pan, Phl, M5 X 0.80 X 12, SsOld # 09200 | $3.40/EA |
| 8 | TN4041991 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 9 | TN4019813 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135 | $3.30/EA |
| 10 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
M20 Squeegee Guard Kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019675 | 1 | Guard Kit, Sqge, Ci [M20]Old # 9001338 | $687.93/EA | |
| 1 | TN4030640 | 2 | Bracket Wldt, Guard, SqgeOld # 1027560 | $92.00/EA |
| 2 | TN4019759 | 4 | Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 | $4.00/EA |
| 3 | TN4034138 | 14 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 4 | TN4033860 | 2 | Bumper, Ure, 1.50d 1.25lOld # 1024977 | $35.00/EA |
| 5 | TN4039391 | 2 | Screw, Hex, .38 - 16 X 0.88, 5Old # 21196 | $2.50/EA |
| 6 | TN4038473 | 1 | Guard Wldt, Pntd [M20/T20]Old # 1056195 · replaced by 4038473 (Tennant supersession list) · Replaced by 1054338 in the 2022 list (rev. 08) | Call for price |
| 7 | TN4041290 | 2 | Screw, Hex, M10 X 1.5 X 80, 8.8Old # 06965 | $6.80/EA |
| 8 | TN4016826 | 2 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 9 | TN4031918 | 1 | Pin, Hitch, .375d X 3.12l, PlOld # 369359 | $7.50/EA |
| 10 | TN4029376 | 1 | Cable, Glv .06d 012.0l .26eye /.26eyeOld # 57702 | $9.50/EA |
| 11 | TN4041990 | 1 | Screw, Hex, M5 X 0.8 X 12, SsOld # 09738 | $3.30/EA |
| 12 | TN4042888 | 1 | Washer, Flat, #10, SsOld # 01683 | $2.60/EA |
| 13 | TN4042522 | 2 | Guard Wldt, Sqge [M20/T20/M30]Old # 1045444 | $171.70/EA |
| 14 | TN4041287 | 4 | Screw, Hex, M10 X 1.5 X 45, 8.8Old # 06962 | $4.00/EA |
M20 Pressure Washer Mount Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043994 | 1 | Hose, Rbr, 25ftOld # 1039056 | $124.40/EA |
| 2 | TN4044659 | 2 | Fitting, Ss, Qdc, FemOld # 1042051 | $156.60/EA |
| 3 | TN4041066 | 2 | Fitting, Brs, Str, Pf06/Pm04Old # 1042772 · Replaced by 1259146 in the 2022 list (rev. 08) | $7.00/EA |
| 4 | TN4043990 | 1 | Handle, Gun, TriggerOld # 1039042 | $124.30/EA |
| 5 | TN4043991 | 1 | Wand, Str, Ss, 28lOld # 1039044 | $80.80/EA |
| 6 | TN4042150 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Old # 1044428 | $7.00/EA |
| 7 | TN4044669 | 1 | Fitting, Ss, Qdc, MalOld # 1042191 | $51.20/EA |
| 8 | TN4044642 | 1 | Nozzle, Spray [Pressure Washer]Old # 1041935 | $56.90/EA |
| 9 | TN4017922 | 3 | Clip, Grip, Finger, 1.00 - 1.88d White,VylOld # 67004 | $26.10/EA |
| 10 | TN4039088 | 3 | Screw, Hex, 10 - 16 X 0.62, Fmg/Ab, PlOld # 20394 | $3.30/EA |
| 11 | TN4042888 | 12 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 12 | TN4029123 | 1 | Relay, 12vdc, 040a, Spdt NoOld # 56186 | $11.30/EA |
| 13 | TN4044442 | 1 | Switch, Rocker, PrgrsvOld # 1040899 | $138.30/EA |
| 14 | TN4178877 | 1 | Harness, Ele [Press. Wash]Old # 1074983 | $111.70/EA |
| 15 | TN4014138 | 5 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 16 | TN4017746 | 1 | Bag, PowerOld # 65580 | $159.30/EA |
| 17 | TN4016302 | 2 | Rivet, Plstc, .250D X 0.90Old # 72968 | $3.20/EA |
M20 Pressure Washer Solution Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038244 | 1 | Pump, Hyd, Press WasherOld # 1225829 | $2,428.30/EA |
| 2 | TN4043992 | 1 | Valve, NeedleOld # 1039046 | $168.90/EA |
| 3 | TN4017089 | 10 | Clamp, Hose, Wormdrive, 0.561.06d, .56wOld # 63810 | $6.80/EA |
| 4 | TN4025657 | 1 | Fitting, Brs, Str, Bm12/Pm12Old # 377334 | $9.80/EA |
| 5 | TN4043978 | 1 | Filter, Y, InLine, .75Old # 1039037 | $108.10/EA |
| 6 | TN4042460 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, ClrOld # 1045034 | $65.50/EA |
| 7 | TN4044478 | 1 | Fitting, Brs, E90, Bm12/Pm12Old # 1041351 | $19.70/EA |
| 8 | TN4025663 | 1 | Fitting, Plstc, Pf12/Pf12, BhOld # 377349 | $22.50/EA |
| 9 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .6211Old # 385685 | $78.50/EA |
| 10 | TN4030627 | 1 | Filter, Soltn, 020mesh, Pm12 3.1d 02.6lOld # 1027290 | $20.30/EA |
| 11 | TN4041645 | 3 | Fitting, Brs, Str, Bm12/Pm08Old # 1042859 | $9.90/EA |
| 12 | TN4191727 | 1 | Fitting, Brs, E90, Pf08/Pm06Old # 1042579 | $15.10/EA |
| 13 | TN4042150 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Old # 1044428 | $7.00/EA |
| 14 | TN4032002 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlOld # 10632-19 | $1.50/EA |
| 15 | TN4034280 | 1 | Pump, DiaphragmOld # 1026743 | $370.80/EA |
| 16 | TN4030606 | 1 | Plate, Mtg, PumpOld # 1027007 | $9.60/EA |
| 17 | TN4041268 | 4 | Screw, Pan, Phl, M5 X 0.80 X 45, 4.8Old # 06939 | $3.40/EA |
| 18 | TN4042244 | 4 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Old # 19066 | $2.50/EA |
| 19 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlOld # 06549 | $2.50/EA |
| 20 | TN4035386 | 3 | Fitting, Brs, E90, Pf06/Pm06, SpclOld # 24584 | $6.90/EA |
| 21 | TN7007024 | 1 | Bracket, Mtg, Pump, Hp, ReplmtOld # 9016315 | Call for price |
| 22 | TN4041243 | 1 | Screw, Hex, M8 X 1.25 X 16, SsOld # 15675 | $3.40/EA |
| 23 | TN4034137 | 1 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 24 | TN4044659 | 2 | Fitting, Ss, Qdc, FemOld # 1042051 · Replaced by 1042191 in the 2022 list (rev. 08) | $156.60/EA |
| 25 | TN4223620 | 1 | Valve, Drain, Pm12, Qtr TurnOld # 1224328 | $40.24/EA |
| 26 | TN4223623 | 1 | Fitting, Tee, Pf12/Pf12/Pf12, BrsOld # 1224329 | $68.54/EA |
| 27 | TN4223625 | 2 | Fitting, E90, Pf08/ Pf08, BrsOld # 1224330 · Replaced by 1231375 in the 2022 list (rev. 08) | Call for price |
| 28 | TN4034859 | 1 | Valve, Hyd, Press WasherOld # 1227137 | $35.70/EA |
| 29 | TN4223626 | 1 | Fitting, Brs, Str, Pm06/ Pm06Old # 1224331 | $22.10/EA |
| 30 | TN4224054 | 1 | Bracket Wldt, MtgOld # 1225174 | $74.43/EA |
| 31 | TN16391 | 3 | Channel, .18, 2.5w 1.3 01.0l, 1/0.5hOld # 16391 · current Tennant number (Tennant parts catalog) · Replaced by 16931 in the 2022 list (rev. 08) | Call for price |
| 32 | TN4035242 | 3 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 33 | TN4224047 | 1 | Plate, Mtg, Light, Hp Spray (Flashing or Strobe Light Option Only)Old # 1225146 | $12.35/EA |
| 34 | TN16391 | 2 | Channel, .18, 2.5w 1.3 01.0l, 1/0.5h (Flashing or Strobe Light Option Only)Old # 16391 · current Tennant number (Tennant parts catalog) · Replaced by 16931 in the 2022 list (rev. 08) | Call for price |
| 35 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss (Flashing or Strobe Light Option Only)Old # 1017218 | $3.40/EA |
M20 Pressure Washer Hydraulic Hoses Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043680 | 1 | Valve, Hyd, Press WasherOld # 1038571 | $242.50/EA |
| 2 | TN4224046 | 1 | Bracket, Valve, MtgOld # 1225144 | $45.71/EA |
| 3 | TN4041277 | 2 | Screw, Hex, M6 X 1.00 X 50, 8.8Old # 06949 | $3.30/EA |
| 4 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsOld # 08712 | $2.50/EA |
| 5 | TN4034136 | 2 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 6 | TN4016768 | 2 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, RunOld # 40755 | $20.10/EA |
| 7 | TN4224365 | 2 | Hose, Hyd, Tc08, Jfoee90/Jf08str, 72Old # 1226044 | $98.70/EA |
| 8 | TN4031958 | 2 | Grommet, Rbr, 1.00id, F/1.4h, .12 MatlOld # 10632-14 | $4.90/EA |
| 9 | TN4045583 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 034.0Old # 1036965 | $50.50/EA |
| 10 | TN4031528 | 1 | Hose, Hyd, Med04, Jf04e90/Jf04str, 072.0Old # 34379 | $61.20/EA |
| 11 | TN4017336 | 2 | Fitting, Hyd, Str, Jm08/Om12Old # 42227 | $15.50/EA |
| 12 | TN4028732 | 1 | Fitting, Hyd, Str, Jm04/Om06Old # 55685 | $7.90/EA |
| 13 | TN4013891 | 1 | Fitting, Hyd, E90, Jm04/Om06Old # 47638 | $18.30/EA |
| 14 | TN4190729 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 052.0Old # 1037072 | $54.15/EA |
| 15 | TN4045571 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 039.0Old # 1036902 | $51.10/EA |
| 16 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 17 | TN4200590 | 1 | Fitting, Hyd, E45, Jf08/Jm08Old # 07797 | $11.40/EA |
| 18 | TN4223616 | 1 | Sleeve, Nyl, 0.69id 20.0l [Asb11]Old # 1224326 | $5.30/EA |
| 19 | TN4223618 | 2 | Sleeve, Nyl, 1.06id 22.0l [Asb15]Old # 1224327 | $9.00/EA |
| 20 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
M20 Fire Extinguisher Kit
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN4027333 | 2 | Screw, Pan, #12 - 16 X 0.50, F/ PlstcOld # 382320 | $2.50/EA |
| TN4019664 | 1 | Extinguisher Kit, Fire, Ci [M20/T20/M30]Old # 9001316 | $218.90/EA | |
| 1 | TN4035427 | 1 | Extinguisher, Fire, 2.5 Lb DryOld # 25312 | $206.60/EA |
M20 Documentation Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4024004 | 1 | Manual, Oprtr [M20 Gas/Lpg En]Old # 9016000 | $93.68/EA | |
| TN4032476 | 1 | Instr, Maint, Wall Chart [M20]Old # 1032578 | $40.12/EA | |
| TN4195701 | 1 | Manual, Oprtr [M20 Gas/Lpg, Es, Na]Old # 9016002 | $93.68/EA | |
| TN4195702 | 1 | Manual, Oprtr [M20 Gas/Lpg, Fr, Na]Old # 9016003 | $93.68/EA | |
| TN4024005 | 1 | Manual, Parts [M20 Gas/Lpg En]Old # 9016001 | $157.92/EA | |
| TN4024008 | 1 | Manual, Service, [M20/M30 G/D, Sn 8000 - ]Old # 9016006 | $321.18/EA | |
| TN9006257 | 1 | Media, Cd - Rom, Training [ec - H2O Tennant]Old # 9006257 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price | |
| TN4199969 | 1 | Manual, Service, Cd - Rom [Mit2.0l]Old # 9010635 | Call for price | |
| TN9016288 | 1 | Video, Oprtr, Dvd [M20/M30 En Es Fr]Old # 9016288 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Not in the 2022 list (rev. 08) | Call for price |
M20 Extended Scrub Pump Breakdown, 1021210
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4036630 | 1 | Pump Assy, Column, EsOld # 1021210 | $1,762.90/EA | |
| 1 | TN8002651 | 1 | Motor, Ele, 12vdc, Pump, WaterOld # 9002708 | $856.93/EA |
| TN8003651 | 1 | Kit, Brush, Motor, EleOld # 78829 | $307.90/EA | |
| 2 | TN4035378 | 1 | Cap Assy, Tank, DrainOld # 24358 | $40.40/EA |
| 3 | TN4032112 | 1 | Gasket, 4.05id 5.29od .19 [Buna]Old # 1031699 | $9.00/EA |
| 4 | TN8050826 | 1 | Tube, Vinyl, Pump, WaterOld # 78833 | $66.86/EA |
| 5 | TN4026135 | 1 | Fitting, Plstc, Str, Bm12/Pm08, NylOld # 78398 | $6.20/EA |
| 6 | TN8003656 | 1 | Housing Kit, Pump, WaterOld # 78843 | $262.10/EA |
| 7 | TN8003652 | 1 | Column, Pump, WaterOld # 78836 | $118.57/EA |
| 8 | TN8002652 | 1 | Shaft, Pump, WaterOld # 9002709 | $257.35/EA |
| 9 | TN8050828 | 1 | Fitting, E, GrOld # 78838 | $36.66/EA |
| 10 | TN8050829 | 1 | Fitting, Plstc, E90, Pf Bm [Es Pump]Old # 78839 | $16.87/EA |
| 11 | TN8003655 | 1 | Kit, Valve, Check, Pump, WaterOld # 78842 | $205.38/EA |
| 12 | TN8003653 | 1 | Valve, Check, Pump, WaterOld # 78840 | $165.50/EA |
| 13 | TN8002662 | 1 | Gasket, .25 1.88d 1.0id [Poron]Old # 73342 | $3.65/EA |
| 14 | TN8003654 | 1 | Flapper, Valve, Pump, WaterOld # 78841 | $109.82/EA |
| 15 | TN8050825 | 1 | Washer, RbrOld # 78830 | $20.71/EA |
| 16 | TN8049214 | 1 | Insert, Cap, Mount, Es PumpOld # 22790 | $82.42/EA |
| 17 | TN8005801 | 1 | Sleeve, Pump, WaterOld # 23285 | $59.69/EA |
M20 Hydraulic Motor Breakdown, 379609
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4026352 | 1 | Motor, Hyd, Gear, [Int], 19.0 X 3000Old # 379609 | Call for price | |
| 1 | TN8002102 | 1 | Shaft, Motor, HydOld # 74165 | $850.20/EA |
| 2 | TN8002103 | 1 | Housing, Brg, Motor, HydOld # 74166 | $269.47/EA |
| 3 | TN8002104 | 1 | Retainer, Motor, HydOld # 74167 | $390.90/EA |
| 4 | TN8002105 | 8 | Screw, Cap, Motor, HydOld # 74168 | $5.90/EA |
| 5 | TN8003621 | 1 | Drive, Motor, HydOld # 37616 | $111.00/EA |
| 6 | TN8003630 | 1 | Geroler, Motor, HydOld # 37756 | $592.06/EA |
| 7 | TN8002092 | 1 | Plate, Valve, Motor, HydOld # 74122 | $349.36/EA |
| 8 | TN4014991 | 1 | Valve, Motor, HydOld # 52405 | $69.89/EA |
| 9 | TN8002093 | 1 | Valve, Motor, HydOld # 74123 | $272.20/EA |
| 10 | TN8005491 | 2 | Spring, Motor, HydOld # 34178 | $4.30/EA |
| 11 | TN8002895 | 1 | Ring, Motor, HydOld # 38968 | $23.53/EA |
| 12 | TN8002094 | 3 | Bolt, Motor, HydOld # 74125 | $14.95/EA |
| 13 | TN8003887 | 1 | Bolt, Motor, HydOld # 38255 | $16.87/EA |
| 14 | TN8045139 | 1 | Housing, ValveOld # 373297 | Call for price |
| 15 | TN4028397 | 1 | PlugOld # 373298 | $43.53/EA |
| 16 | TN8045128 | 2 | Plug, Pump, Hyd, GearOld # 373260 | $24.00/EA |
| 17 | TN8045140 | 1 | PlugOld # 373299 | Call for price |
| 18 | TN4028396 | 2 | SpringOld # 373291 | $4.70/EA |
| 19 | TN8045105 | 1 | Piston, Pump, Hyd, GearOld # 373217 | $25.49/EA |
| 20 | TN8004223 | 2 | Poppet, Pump, Hyd, GearOld # 373226 | $7.90/EA |
| 21 | TN8004227 | 2 | Sleeve, Dashpo, Pump, Hyd, GearOld # 373236 | Call for price |
| 22 | TN8002165 | 1 | Nut, Motor, HydOld # 45622 | $64.70/EA |
| 23 | TN8002166 | 1 | Key, Motor, HydOld # 45623 | $17.60/EA |
| 24 | TN8003766 | 1 | Kit, Seal, Motor, HydOld # 79828 | $140.00/EA |
| 25 | TN8005457 | 1 | Kit, Seal, Motor, HydOld # 33580 | $59.50/EA |
| 26 | TN4026637 | 1 | Instr, Repair, Motor, Hyd, GearOld # 79729 | $4.00/EA |
M20 Hydraulic Pump Breakdown, 1024251
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4033592 | 1 | Pump, Hyd, Piston, Var, 1.24 4000, CwOld # 1024251 | $1,813.50/EA | |
| 1 | TN373681 | 1 | Shaft, PumpOld # 373681 · current Tennant number (Tennant parts catalog) | Call for price |
| 2 | TN8045195 | 1 | Cover, EndOld # 373427 | $1,326.78/EA |
| 3 | TN8004244 | 1 | HousingOld # 373389 | $824.67/EA |
| 4 | TN8006141 | 1 | Pump Kit, Hyd, Rotating [Cessna]Old # 02706 | $576.71/EA |
| 5 | TN8045211 | 1 | Plate, CamOld # 373493 | Call for price |
| 6 | TN8002864 | 1 | Washer, Flat, Pump, HydOld # 70096 | $7.88/EA |
| 7 | TN8051813 | 1 | Ring, Retaining, Pump, HydOld # 55926 | $5.30/EA |
| 8 | TN8045197 | 2 | Ring, RetainingOld # 373434 | $3.33/EA |
| 9 | TN8002118 | 1 | Bearing, Thrust, Pump, HydOld # 74225 | $12.30/EA |
| 10 | TN8002119 | 2 | Race, Brg, Pump, HydOld # 74226 | $6.97/EA |
| 11 | TN8045151 | 1 | Insert, Plt, Cam, Pump, HydOld # 373327 | $42.63/EA |
| 12 | TN8045179 | 6 | Washer, Pump, Hyd [En]Old # 373391 | $3.33/EA |
| 13 | TN8045161 | 6 | Screw, CapOld # 373346 | $4.44/EA |
| 14 | TN8004260 | 1 | Valve, Relief, 4000 PsiOld # 373494 | $486.30/EA |
| 15 | TN8004354 | 1 | Valve, Relief, 3000 PsiOld # 373678 | $144.74/EA |
| 16 | TN8004232 | 2 | Bearing, Cone, Pump, HydOld # 373317 | $42.32/EA |
| 17 | TN8004245 | 1 | Plate, CoverOld # 373393 | $1,844.56/EA |
| 18 | TN8004246 | 1 | Plate, CoverOld # 373394 | $353.90/EA |
| 19 | TN8002865 | 2 | Pin, Dowel, Pump, HydOld # 70100 | $4.04/EA |
| 20 | TN8045162 | 2 | Screw, CapOld # 373347 | $4.85/EA |
| 21 | TN8045163 | 2 | Screw, CapOld # 373348 | Call for price |
| 22 | TN8002126 | 1 | Key, Shaft, Pump, HydOld # 74237 | $3.23/EA |
| 23 | TN373679 | 1 | Coupler, PumpOld # 373679 · current Tennant number (Tennant parts catalog) | Call for price |
| 24 | TN373680 | 1 | Ring, LockOld # 373680 · current Tennant number (Tennant parts catalog) | Call for price |
| 25 | TN8004247 | 2 | Bearing, CupOld # 373395 | $28.18/EA |
| 26 | TN8002108 | 1 | Plate, Valve, Pump, HydOld # 74180 | $215.43/EA |
| 27 | TN8006154 | 1 | Fitting, Hyd, Plug, Om08Old # 13907 | $7.60/EA |
| 28 | TN8004250 | 1 | Actuator, Valve, By - Pass [En]Old # 373413 | $170.19/EA |
| 29 | TN8004248 | 1 | Seal Kit, Pump, HydOld # 373398 | $236.10/EA |
| 30 | TN8004249 | 1 | Shim KitOld # 373402 | $479.45/EA |
| 31 | TN8004255 | 1 | Instr, Repair, PumpOld # 373429 | $1.72/EA |
M20 Hydraulic Motor Breakdown, 71729
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 15 | TN4015800 | 1 | Nut - Hxslot .75 - 16 PltdOld # 39527 | $8.00/EA |
| 12 | TN4012760 | 1 | Plug #4Old # 74098 | $5.00/EA |
| 16 | TN8002969 | 1 | Seal Replmt KitOld # 61490 | $114.70/EA |
| TN4015708 | 1 | Motor, Hyd Gear In 4.5 B 1500Old # 71729 | Call for price | |
| 1 | TN8004514 | 4 | ScrewOld # 37555 | $4.40/EA |
| 2 | TN8005776 | 1 | Flange MountingOld # 31354 | $105.75/EA |
| 3 | TN8006045 | 1 | Race ThrustOld # 16695 | $43.50/EA |
| 4 | TN8002167 | 1 | Thrust BearingOld # 45628 | $15.60/EA |
| 5 | TN8005777 | 1 | Shaft, OutputOld # 31375 | $304.08/EA |
| 6 | Old # 74100 | 1 | HousinglOld # 74100Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 7 | TN8005778 | 1 | DriveOld # 31379 | $52.12/EA |
| 8 | TN8002085 | 1 | Spacer PlateOld # 74094 | $52.62/EA |
| 9 | TN8047405 | 1 | Gerotor SetOld # 31383 | $273.71/EA |
| 10 | TN8051369 | 1 | End CapOld # 74095 | $101.10/EA |
| 11 | TN8051596 | 5 | Cap ScrewOld # 65241 | $3.74/EA |
| 13 | TN4012761 | 2 | Plug #10Old # 74099 | $4.05/EA |
| 14 | TN4042771 | 1 | Key - Wdruff 0.25 1.00Old # 00500-15 | $4.60/EA |
| 17 | TN8002133 | 1 | Instr. Repair Info, MotorOld # 74250 | $4.12/EA |
M20 Hydraulic Motor Breakdown, 1029379
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4010444 | 1 | Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500Old # 1029379 · replaced by 4010444 (Tennant parts catalog) | Call for price | |
| 13 | TN8002969 | 1 | Seal Kit, Motor [Cl]Old # 61490 | $114.70/EA |
| 1 | TN8004514 | 4 | Screw, Motor, Hyd [En]Old # 37555 | $4.40/EA |
| 2 | TN8005776 | 1 | Flange, Motor, Hyd [En]Old # 31354 | $105.75/EA |
| 3 | TN8006045 | 1 | Ace, Thrust, Motor, Hyd [En]Old # 16695 | $43.50/EA |
| 4 | TN8002167 | 1 | Bearing, ThrustOld # 45628 | $15.60/EA |
| 5 | TN8005827 | 1 | Shaft, Output, Motor, Hyd [En]Old # 28854 | $176.45/EA |
| 6 | TN8002086 | 1 | Housing, Motor, Hyd [En]Old # 74100 | $153.62/EA |
| 7 | TN8048818 | 1 | Drive [Cl]Old # 21955 | Call for price |
| 8 | TN8002085 | 1 | Plate, Spacer, Motor, Hyd [En]Old # 74094 | $52.62/EA |
| 9 | TN8048819 | 1 | Gerotor Set [Cl]Old # 21956 | $283.61/EA |
| 10 | TN8051591 | 1 | End Cap, Motor, Hyd [En]Old # 65230 | Call for price |
| 11 | TN8048820 | 5 | Cap Screw ClOld # 21958 | $3.74/EA |
| 12 | TN4042771 | 1 | Key, Woodruff, 0.25 1.00 [Asa#0808]Old # 00500-15 | $4.60/EA |
| 14 | TN8002133 | 1 | Instr, Motor, Hyd, Repair [En]Old # 74250 | $4.12/EA |
M20 Hydraulic Valve Breakdown, 1072997
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4031319 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpmOld # 1072997 | $1,504.00/EA | |
| 1 | TN8004284 | 1 | Plug, Orifice, Valve, Hyd, .040Old # 373633 | $12.95/EA |
| 2 | TN8006153 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Old # 13904 | $7.60/EA |
| 3 | TN4029252 | 1 | Seal, Org, .078 X 00.47id 06Old # 77005 | $4.40/EA |
| 4 | TN8004340 | 1 | Valve, CheckOld # 373656 | $52.60/EA |
| 5 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 6 | TN8004344 | 1 | Valve, ReliefOld # 373661 | $125.50/EA |
| 7 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 8 | TN8004345 | 1 | Stem, Valve, HydOld # 373662 | $147.30/EA |
| 9 | TN8004329 | 1 | Nut, Coil, Nyl PatchOld # 373648 | $4.20/EA |
| 10 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 11 | TN8004341 | 1 | Stem, Valve, Hyd [4w2p]Old # 373657 | $185.50/EA |
| 12 | TN8004329 | 1 | Nut, Coil, F/#8Old # 373648 | $4.20/EA |
| 13 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 14 | TN8004291 | 3 | Solenoid, #8, 12vdcOld # 373640 | $73.70/EA |
| 15 | TN8004342 | 1 | Spool, Pilot, HydOld # 373658 | $44.30/EA |
| 16 | TN8004293 | 1 | Solenoid, #10, 12vdcOld # 373642 | $88.20/EA |
| 17 | TN8004346 | 1 | Valve, Stem, NoOld # 373663 | $213.30/EA |
| 18 | TN8045252 | 1 | Nut, SolenoidOld # 373670 | $6.80/EA |
| 19 | TN8004296 | 1 | Seal Kit, CartridgeOld # 373646 | $25.60/EA |
| 20 | TN8004187 | 1 | Valve Assy [Proportional]Old # 9011347 | $351.30/EA |
| 21 | TN8004184 | 1 | Seal Kit, Valve [Ehpr98]Old # 9011343 | $26.70/EA |
| 22 | TN8004185 | 2 | Screw, Mtg [Ehpr98]Old # 9011345 | $3.10/EA |
| 23 | TN8004186 | 1 | Harness, Jumper [Deutsch To Mpack]Old # 9011346 | $35.00/EA |
| 24 | TN8006153 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Old # 13904 | $7.60/EA |
| 25 | TN4029252 | 1 | Seal, Org, .078 X 00.47id 06Old # 77005 | $4.40/EA |
| 26 | TN8004355 | 1 | Valve, ReliefOld # 373683 | $153.10/EA |
| 27 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
M20 Hydraulic Valve Breakdown, 1072995
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4031317 | 1 | Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpmOld # 1072995 | $3,016.30/EA | |
| 1 | TN8004348 | 1 | Plug, Orifice, Valve, Hyd, .046Old # 373665 | $12.52/EA |
| 2 | TN8004284 | 1 | Plug, Orifice, Valve, Hyd, .040Old # 373633 | $12.95/EA |
| 3 | TN8004363 | 1 | Plug Orifice, Valve, Hyd, .140Old # 9004475 · replaced by 8004363 (Tennant parts catalog) | Call for price |
| 4 | TN8045249 | 1 | Plug, Orifice, Valve, Hyd, .030Old # 373660 | $12.52/EA |
| 5 | TN4012760 | 9 | Fitting, Hyd, Plug, Om04Old # 74098 | $5.00/EA |
| 6 | TN4029251 | 1 | Seal, Org, .072 X 00.35id #04Old # 77003 | $4.40/EA |
| 7 | TN8006153 | 2 | Fitting, Plug, Org, #6, Valve [Cec]Old # 13904 | $7.60/EA |
| 8 | TN4029252 | 1 | Seal, Org, .078 X 00.47id #06Old # 77005 | $4.40/EA |
| 9 | TN8004340 | 5 | Valve, CheckOld # 373656 | $52.60/EA |
| 10 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 11 | TN4171592 | 1 | Spool, Pilot, Dual, HydOld # 373688 | Call for price |
| 12 | TN8004346 | 2 | Valve, Stem, NoOld # 373663 | $213.30/EA |
| 13 | TN8045252 | 1 | Nut, SolenoidOld # 373670 | $6.80/EA |
| 14 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 15 | TN8004350 | 1 | Stem, Valve, HydOld # 373667 | $144.10/EA |
| 16 | TN8004329 | 1 | Nut, Coil, F/#8Old # 373648 | $4.20/EA |
| 17 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 18 | TN8004187 | 1 | Valve Assy [Proportional]Old # 9011347 | $351.30/EA |
| 19 | TN8004184 | 1 | Seal Kit, Valve [Ehpr98]Old # 9011343 | $26.70/EA |
| 20 | TN8004185 | 2 | Screw, Mtg [Ehpr98]Old # 9011345 | $3.10/EA |
| 21 | TN8004186 | 1 | Harness, Jumper [Deutsch To Mpack]Old # 9011346 | $35.00/EA |
| 22 | TN8004341 | 3 | Stem, Valve, Hyd [4w2p]Old # 373657 | $185.50/EA |
| 23 | TN8004329 | 1 | Nut, Coil, F/#8Old # 373648 | $4.20/EA |
| 24 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 25 | TN8004288 | 1 | Valve, Cntrl, SolenoidOld # 373637 | $311.30/EA |
| 26 | TN8004356 | 2 | Nut, Coil, Nyl PatchOld # 373684 | $3.80/EA |
| 27 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 28 | TN8004349 | 2 | Valve, ReliefOld # 373666 | $133.50/EA |
| 29 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 30 | TN8004291 | 5 | Solenoid, #8, 12vdcOld # 373640 | $73.70/EA |
| 31 | TN8004293 | 3 | Solenoid, #10, 12vdcOld # 373642 | $88.20/EA |
| 32 | TN8004290 | 1 | Spacer, Coil, #8Old # 373639 | $8.50/EA |
| 33 | TN8004351 | 1 | Valve, CheckOld # 373668 | $118.80/EA |
| 34 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 35 | TN8004342 | 3 | Spool, Pilot, HydOld # 373658 | $44.30/EA |
M20 Hydraulic Steering Valve Breakdown, 1024260
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4033593 | 1 | Steer - Control, Hyd05, 06.1 2030Old # 1024260 | $816.30/EA | |
| 1 | TN8051403 | 7 | Screw, Valve, SteeringOld # 74183 | Call for price |
| 2 | TN8051405 | 1 | Cap, End, Valve, SteeringOld # 74185 | Call for price |
| 3 | TN8002112 | 1 | Spacer, Valve, SteeringOld # 74193 | $17.78/EA |
| 4 | TN8002117 | 1 | Plate, Wear, Steering ValveOld # 74222 | Call for price |
| 5 | TN8002122 | 1 | Pin, Valve, SteeringOld # 74232 | Call for price |
| 6 | TN8005935 | 1 | Bearing Kit [Cl]Old # 21935 | $39.98/EA |
| 7 | TN8048811 | 1 | Plug Assy [Cl]Old # 21933 | $42.32/EA |
| 8 | TN8048812 | 1 | Valve Assy, Relief [Cl]Old # 21934 | $236.04/EA |
| 9 | TN8002129 | 1 | Ring, Retainer, Steering ValveOld # 74243 | $5.96/EA |
| 10 | TN8002114 | 1 | Spring Kit, Scu [Cl]Old # 74196 | $45.35/EA |
| 11 | TN8002130 | 1 | Seal Kit, Steering [Cl]Old # 74244 | $62.30/EA |
| 12 | TN8002131 | 1 | Instr, Valve, Steering, RepairOld # 74245 | Call for price |
M20 Metering Solution Pump Breakdown, 73260
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4016324 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psiOld # 73260 | $792.20/EA | |
| 1 | TN8002729 | 1 | Tubing Connctr.Kit, Gorman PmpOld # 63923 | $91.36/EA |
| 2 | TN8005913 | 1 | Valve Kit, Poppet, Gorman RuppOld # 21659 | $118.80/EA |
| 3 | TN8005912 | 1 | Kit, Bellows, Pump, DetgtOld # 21657 | $249.77/EA |
| 4 | TN8003657 | 1 | Motor, Ele, Gear, 14vdc, Pump, DetgtOld # 78875 | $540.96/EA |
| 5 | TN8006136 | 1 | Crank Kit, Pump, F/79323, ReplmtOld # 02430 | $112.01/EA |
M20 Water Pump Breakdown, 1026743
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4034280 | 1 | Pump, DiaphragmOld # 1026743 | $370.80/EA | |
| 9 | TN4026208 | 1 | Connector, Fem, 02cav, Mp280 SealedOld # 78950 | $7.90/EA |
| 10 | TN4026214 | 1 | Lock, Secondary, 2cav, Mp280 SealedOld # 78952 | $4.20/EA |
| 1 | TN8005597 | 1 | Complete Pump Kit, Pump, Repair,Old # 1031802 | $251.40/EA |
| 2 | TN8005598 | 1 | Hsg & Switch Kit, Pump, Repair,Old # 1031803 | $121.04/EA |
| 3 | TN8005592 | 1 | Switch Kit, Pump, Repair,Old # 1031796 | $83.12/EA |
| 4 | TN8005593 | 1 | Chech Valve Kit, Pump, Repair,Old # 1031797 | $36.60/EA |
| 5 | TN8005594 | 1 | Upper Hsg Kit, Pump, Repair,Old # 1031798 | $23.63/EA |
| 6 | TN8005595 | 1 | Bypass Valve Kit, Pump, Repair,Old # 1031799 | $85.45/EA |
| 7 | TN8005596 | 1 | Diaphragm Kit, Pump, Repair,Old # 1031800 | $59.59/EA |
| 8 | TN8047054 | 1 | Motor Kit, Pump, Repair,Old # 1031801 | $167.21/EA |
| TN4026210 | 2 | Terminal, Fem, Mp280, Sealed, 18 - 16gaOld # 78951 | $0.55/EA | |
| TN4043117 | 2 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Old # 10917 | $3.60/EA |
M20 ec - H20 Module Assembly Breakdown, 9007882
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4012473 | 1 | Module Kit, Replmt [Ec - H20]Old # 9007882 | $1,782.70/EA | |
| 1 | TN4037967 | 2 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrOld # 1014974 | $22.40/EA |
| 2 | TN4021946 | 5 | Clamp, Hose, Wir, .63 - .66, BlkOld # 607775 · Replaced by 54333 in the 2022 list (rev. 08) | $4.20/EA |
| 3 | TN4034613 | 1 | Fitting, Plstc, Tee, Bm06/Pm02/Bm06Old # 1060517 | $6.20/EA |
| 4 | TN4037966 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrOld # 1014971 | $18.70/EA |
| 5 | TN4039131 | 1 | Fitting, Plstc, E90, Bm06/Bm06Old # 20951 | $4.20/EA |
| 6 | TN4041118 | 1 | Fitting, Plstc, Str, Bm06/Pm04Old # 150540 | $4.20/EA |
| 7 | TN4038978 | 1 | Fitting, Plstc, Pipe, Cap, Pf04Old # 1005435 | $4.20/EA |
| 8 | TN1038159 | 1 | Electrode, CylindricalOld # 1038159 · current Tennant number (Tennant parts catalog) · Replaced by 1062006 in the 2022 list (rev. 08) | Call for price |
| 9 | TN4013410 | 1 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DOld # 44961 | $3.40/EA |
| 10 | TN4187263 | 1 | Fitting, Plstc, Str, Pm02/Bm05Old # 1060695 | $4.20/EA |
| 11 | TN4038223 | 3 | Clamp, Hose, Wir, .52 - .56, YelOld # 1053464 · Replaced by 43844 in the 2022 list (rev. 08) | $2.73/EA |
| 12 | TN4041050 | 1 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrOld # 1052336 | $48.50/EA |
| 13 | TN4036585 | 1 | Electrode, 5 Plate, High FlowOld # 1057637 · Replaced by 1233516 in the 2022 list (rev. 08) | Call for price |
| 14 | TN4012474 | 1 | Controller Kit, Replmt [Ec - H20]Old # 9007883 | $544.60/EA |
| 15 | TN4035120 | 2 | Clamp, Cable, Ss, 0.50d X 0.50w [Insul]Old # 1016354 | $4.10/EA |
| 16 | TN4034147 | 4 | Screw, Hex, M4 X 0.70 X 50, SsOld # 32509 | $0.25/EA |
| 17 | TN4016852 | 4 | Washer, Flat, 08, SsOld # 41579 | $2.60/EA |
| 18 | TN4043241 | 4 | Washer, Lock, Int, 08, SsOld # 02938 | $2.60/EA |
| 19 | TN4035537 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsOld # 1018155 | $2.50/EA |
| 20 | TN4045590 | 1 | Housing, BottomOld # 1037032 | $10.60/EA |
| 21 | TN4038670 | 1 | Grommet, BlindOld # 1054776 | $5.10/EA |
M20 Seat Breakdown, 1072456
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4030942 | 1 | SeatOld # 1072456 | $1,143.80/EA | |
| 1 | TN8003570 | 1 | Track Assy, SlideOld # 9012585 | $187.20/EA |
| 2 | TN8003571 | 1 | Bellows, SeatOld # 9012587 | $49.09/EA |
| 3 | TN8003572 | 1 | Knobs, Adjmt, WeightOld # 9012589 | $30.10/EA |
| 4 | TN8003573 | 1 | SeatbeltOld # 9012590 | $213.20/EA |
| 5 | TN8003574 | 1 | Switch, SeatOld # 9012591 | $25.90/EA |
| 6 | TN8003575 | 1 | ArmrestOld # 9012592 | $121.91/EA |
| 7 | TN8003576 | 1 | Pad, ArmrestOld # 9012593 | $60.60/EA |
| 8 | TN8003577 | 1 | Cover, CushionOld # 9012594 | $147.20/EA |
| 9 | TN8003578 | 1 | Cover, BackrestOld # 9012595 | $164.20/EA |
M20 Steering Gearbox Breakdown, 9015636
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4023706 | 1 | Gearbox Kit, Steering, Afmkt[M20/30/T20]Old # 9015636 | $931.80/EA | |
| 1 | TN4223567 | 1 | Housing, Gear, TopOld # 1224091 | $108.37/EA |
| 2 | TN4223568 | 1 | Housing, Gear, BottomOld # 1224092 | $215.43/EA |
| 3 | TN4226508 | 2 | Gear, SteeringOld # 1222953 | $25.76/EA |
| 4 | TN4223569 | 1 | Shaft, Gear, OrbitalOld # 1224093 | $209.07/EA |
| 5 | TN4223570 | 1 | Shaft. SterringOld # 1224094 | $157.76/EA |
| 6 | TN4027202 | 4 | Ring, Retaining, Ext, 1.25dOld # 59861 | $3.40/EA |
| 7 | TN4038864 | 4 | Bushing, Flng, 1.25b 1.41d 0.50lOld # 1210624 | $6.20/EA |
| 8 | TN4011883 | 4 | Washer, Thrust, 1.26b 1.97d 0.13, BnzOld # 763024 | $7.50/EA |
| 9 | TN4016807 | 4 | Screw, Hex, M8 X 1.25 X 40, 8.8Old # 41342 | $3.40/EA |
| 10 | TN4015595 | 4 | Washer, Flat, 0.31, SaeOld # 39349 | $2.50/EA |
| 11 | TN4042789 | 2 | Key, Sq, 0.19 X 0.19, 0.50lOld # 00961 | $4.20/EA |
| 12 | TN4020610 | 2 | Pin, Dowel, 0.2502d X 1.00lOld # 83043 | $2.42/EA |
| 13 | TN4036601 | 2 | Bearing, Journal, 0.75b 0.88d 0.75lOld # 1057785 | $5.50/EA |
M20 FaST Injector Assembly Breakdown, 9008868
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Old # 9008868Tennant 4010349 | 1 | FaST Kit, Injector [M20/T20/m30 FaST III}Old # 9008868 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 | |
| 1 | Old # 9008757 | 1 | FaST Kit, Ci [inj Rebld, M30/M20 III]Old # 9008757 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 2 | Old # 9008848 | 1 | FaST Kit, Seal, injector, Ci [FaST III]Old # 9008848 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 3 | Old # 9003009Tennant 4016470 | 1 | FaST Kit, Ci, Injector Filters[FaST Ii+]Old # 9003009 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 4 | TN1059878 | 1 | Plate Assy, Orifice, 0.0105Id, GreenOld # 1059878 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | $22.80/EA |
| 5 | Old # 1042710 | 1 | Plug, Orifice, 0.060, Ss [FaST Ii+]Old # 1042710 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 6 | Old # 1059234 | 1 | Insert, :Lrg [Venturi, FaST III]Old # 1059234 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 7 | Old # 1030444 | 1 | Valve, Check, 0002psi [FaST Ii+]Old # 1030444 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
| 8 | Old # 1030441 | 1 | Valve, Check, 0005psi [FaST Ii+]Old # 1030441 | No longer available: Tennant has discontinued FaST. Call to confirm part: 800-440-6723 |
M20 Water Pump Motor Breakdown, 1225829
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4038244 | 1 | Pump, Hyd, Press WasherOld # 1225829 | $2,428.30/EA | |
| 1 | TN9004290 | 1 | Valve KitOld # 9004290 · current Tennant number (Tennant parts catalog) | $115.00/EA |
| 2 | TN9004291 | 1 | Piston KitOld # 9004291 · current Tennant number (Tennant parts catalog) | $444.80/EA |
| Item 3: choose your version (2) | ||||
| 3 | TN9004288 | 1 | Seal Kit [Buna]Old # 9004288 · current Tennant number (Tennant parts catalog) | Call for price |
| 3 | TN9004272 | 1 | Seal Kit [Vitron]Old # 9004272 · current Tennant number (Tennant parts catalog) | $601.00/EA |
| 4 | TN9004289 | 1 | Seal Kit, OilOld # 9004289 · current Tennant number (Tennant parts catalog) | Call for price |
| 5 | TN9004292 | 1 | Ring Kit, SpptOld # 9004292 · current Tennant number (Tennant parts catalog) | Call for price |
| 6 | TN4034859 | 1 | Valve, Hyd, Press WasherOld # 1227137 | $35.70/EA |
M20 Cylinder Block Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003898 | 1 | Block Assy, CylinderOld # 9010419 | $5,928.20/EA |
| 2 | TN8003899 | 2 | Plug, TaperOld # 9010420 | $3.23/EA |
| 3 | TN8003900 | 1 | Plug, TaperOld # 9010421 | $3.23/EA |
| 4 | TN8003901 | 1 | PlugOld # 9010422 | $2.83/EA |
| 5 | TN8003902 | 1 | Plug, TaperOld # 9010423 | $5.45/EA |
| 6 | TN8003903 | 7 | Cap, SealOld # 9010424 | $2.60/EA |
| 7 | TN8003904 | 2 | Cap, SealOld # 9010425 | $4.10/EA |
| 8 | TN8003905 | 2 | Pin, DowelOld # 9010426 | $2.30/EA |
| 9 | TN8003906 | 2 | Bushing, KnockOld # 9010427 | $2.83/EA |
| 10 | TN8003907 | 2 | Bolt, Cap, BearingOld # 9010428 | $3.43/EA |
| 11 | TN8003908 | 7 | Bolt, Cap, BearingOld # 9010429 | $4.44/EA |
| 12 | TN8003909 | 1 | Bolt, Cap, BearingOld # 9010430 | $4.85/EA |
| 13 | TN8003910 | 2 | BushingOld # 9010431 | $2.40/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN8003911 | 1 | Bearing, Std, BalancerOld # 9010432 | $64.44/EA |
| 14 | TN8003912 | 1 | Bearing, Oversize [1.0]Old # 9010433 | $66.16/EA |
| Item 15: choose your version (2) | ||||
| 15 | TN8003913 | 1 | Bearing, Std, BalancerOld # 9010434 | $93.43/EA |
| 15 | TN8003914 | 1 | Bearing, Oversize [1.0]Old # 9010435 | $93.43/EA |
| 16 | TN8003915 | 2 | Bushing, KnockOld # 9010436 | $3.50/EA |
| Item 17: choose your version (2) | ||||
| 17 | TN8003932 | 1 | Bearing, Shaft, Std, BalancerOld # 9010458 | $66.16/EA |
| 17 | TN8003933 | 1 | Bearing, Shaft, Balancer [ Ovrsz]Old # 9010459 | $69.89/EA |
| 18 | TN8003916 | 1 | Dipstick Assy, GuageOld # 9010439 | $46.90/EA |
| 19 | TN8003917 | 1 | Dipstick, Guage, GuideOld # 9010440 | $41.24/EA |
| 20 | TN9010437 | 1 | Dipstick, Rod, GuageOld # 9010437 · no current Tennant number on file · Replaced by 9015866 in the 2022 list (rev. 08) | Call for price |
| 21 | TN8048109 | 1 | O - RingOld # 9010438 | $2.20/EA |
| 22 | TN8003918 | 1 | Bolt, FlangeOld # 9010441 | $1.50/EA |
| 23 | TN8048110 | 1 | O - RingOld # 9010442 | $2.80/EA |
| 24 | TN8003919 | 5 | Bolt, FlangeOld # 9010444 | $1.25/EA |
| 25 | TN8003920 | 1 | Seal, Case, Oil, RearOld # 9010445 | $31.10/EA |
| 26 | TN8003921 | 1 | Seal, OilOld # 9010446 | $21.60/EA |
| Item 27: choose your version (5) | ||||
| 27 | TN8003922 | 4 | Bearing, Cshft [Green Std 1,2,4,5]Old # 9010447 | $9.80/EA |
| 27 | TN8003923 | 4 | Bearing, Cshft [Yellow Std 1,2,4,5]Old # 9010448 | $9.80/EA |
| 27 | TN8003924 | 4 | Bearing, Cshft[No Color Std 1,2,4,5]Old # 9010449 | Call for price |
| 27 | TN8003925 | 4 | Bearing, Cshft [ Lan Std 1,2,4,5]Old # 9010450 | $9.80/EA |
| 27 | TN8003926 | 4 | Bearing, Cshft [ Red Std 1,2,4,5]Old # 9010451 | $9.80/EA |
| Item 28: choose your version (5) | ||||
| 28 | TN4027498 | 1 | Bearing, Cshft [ Green Std 3]Old # 9010452 | Call for price |
| 28 | TN8003927 | 1 | Bearing, Cshft [ Yellow Std 3]Old # 9010453 | $8.99/EA |
| 28 | TN8003928 | 1 | Bearing, Cshft [ No Color Std 3]Old # 9010454 | $9.80/EA |
| 28 | TN8003929 | 1 | Bearing, Cshft [ Lan Std 3]Old # 9010455 | $9.80/EA |
| 28 | TN8003930 | 1 | Bearing, Cshft [ Black Std 3]Old # 9010456 | $14.30/EA |
| 29 | TN8003931 | 1 | Bearing, Thrust, CshftOld # 9010457 | $9.39/EA |
| 30 | TN8048111 | 1 | Drain, Water, JointOld # 9010443 | $16.97/EA |
M20 Rocker Cover Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8003935 | 1 | Valve, Gasket, PcvOld # 9010461 | $4.20/EA |
| 5 | TN8003937 | 1 | Cap, Oil, FillerOld # 9010464 | $9.70/EA |
| 3 | TN8003936 | 6 | Bolt, Rocker, CoverOld # 9010462 | $2.20/EA |
| 6 | TN8003938 | 1 | Gasket, Cover, RockerOld # 9010465 | $27.70/EA |
| 1 | TN8003934 | 1 | Valve, PcvOld # 9010460 | $15.90/EA |
| 4 | TN9010463 | 1 | Gasket, Oil, Filler, CapOld # 9010463 · no current Tennant number on file · Not in the 2022 list (rev. 08) | Call for price |
| 7 | TN8003939 | 1 | Cover Assy, RockerOld # 9010466 | $178.30/EA |
M20 Cylinder Head Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 11 | TN8003948 | 1 | O - RingOld # 9010482 | $6.60/EA |
| 7 | TN8003943 | 1 | Seal, Cam Shaft, FrontOld # 9010471 | $12.20/EA |
| 13 | TN8003949 | 1 | GasketOld # 9010483 | $5.50/EA |
| 2 | TN8003944 | 2 | StudOld # 9010473 | $3.90/EA |
| 4 | TN8003942 | 3 | StudOld # 9010470 | $2.50/EA |
| 8 | TN8003918 | 2 | Bolt, FlangeOld # 9010441 | $1.50/EA |
| 10 | TN8003947 | 2 | ScrewOld # 9010481 | $1.50/EA |
| 12 | TN8003950 | 10 | Cylinder Assy, Head, BoltOld # 9010484 | $7.50/EA |
| 14 | TN8003951 | 1 | CoverOld # 9010485 | $6.30/EA |
| 6 | TN8003940 | 1 | Gasket, Cylinder, HeadOld # 9010468 | $51.30/EA |
| 1 | TN4026470 | 1 | Head Kit, Cyl [Mitsubishi 2015 12mm]Old # 9014162 | $6,997.80/EA |
| 3 | TN8003941 | 2 | Seal, CapOld # 9010469 | $2.80/EA |
| 5 | TN8003910 | 2 | BushingOld # 9010431 | $2.40/EA |
| 9 | TN8003946 | 1 | Thurst, CaseOld # 9010480 | $13.20/EA |
M20 Front Cover and Oil Pan Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003952 | 1 | Pan, OilOld # 9010487 | $119.50/EA |
| 2 | TN8003953 | 1 | Gasket, Plug, Drain, OilOld # 9010488 | $1.90/EA |
| 3 | TN8003954 | 1 | Plug, Oil, DrainOld # 9010489 | $5.30/EA |
| 4 | TN8003955 | 17 | Bolt, FlangeOld # 9010490 | $1.31/EA |
| 5 | TN8003956 | 2 | Bolt, FlangeOld # 9010491 | $1.40/EA |
| 6 | TN8003957 | 2 | Washer, BoltOld # 9010492 | $2.12/EA |
| 7 | TN8003958 | 1 | Screen, OilOld # 9010493 | $41.92/EA |
| 8 | TN8003959 | 1 | Nut, StrainerOld # 9010494 | $1.31/EA |
| 9 | TN8003960 | 1 | Washer, StrainerOld # 9010495 | $1.21/EA |
| 10 | TN8003961 | 1 | Gasket, ScreenOld # 9010496 | $2.80/EA |
| 11 | TN8003962 | 8 | Bolt, FlangeOld # 9010497 | $1.50/EA |
| 12 | TN8003963 | 1 | Cover Assy, Front, Upper [T - Belt]Old # 9010498 | $14.40/EA |
| 13 | TN8003964 | 1 | Bracket Assy, Coil, IgnitionOld # 9010502 | $53.30/EA |
| 14 | TN8048102 | 1 | Hose, Drain, Oil [Mit 20/24m]Old # 9010311 | $68.70/EA |
| 15 | TN8003870 | 1 | Plug, Flare, 37deg [Mit]Old # 9010312 | $12.20/EA |
| 16 | TN8048103 | 1 | Fitting, 37deg [Mit]Old # 9010313 | $20.20/EA |
| 17 | TN8003965 | 3 | Bolt, FlangeOld # 9010503 | $3.50/EA |
| 18 | TN8003966 | 1 | Bolt, FlangeOld # 9010504 | $3.40/EA |
| 19 | TN8003967 | 1 | Bolt, FlangeOld # 9010505 | $2.40/EA |
| 20 | TN8003968 | 2 | BoltOld # 9010506 | $1.80/EA |
| 21 | TN8003969 | 2 | BoltOld # 9010507 | $1.50/EA |
| 22 | TN8003970 | 1 | Cover, Lower, Front [T - Belt]Old # 9010508 | $72.10/EA |
| 23 | TN8003971 | 1 | Cover, Rear [T - Belt]Old # 9010511 | $15.00/EA |
| 24 | TN8048112 | 1 | Plug, RubberOld # 9010512 | $2.60/EA |
M20 Camshaft and Valve Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004012 | 1 | Camshaft AssyOld # 9010530 | $549.95/EA |
| 2 | TN8004017 | 1 | Pin, DowelOld # 9010535 | $2.30/EA |
| 3 | TN8004014 | 4 | Shaft, Spring, RockerOld # 9010532 | $4.40/EA |
| 4 | TN8004015 | 4 | Arm Assy, Rocker [B]Old # 9010533 | $31.11/EA |
| 5 | TN8004016 | 4 | Arm Assy, Rocker [A]Old # 9010534 | $37.21/EA |
| 6 | TN8004013 | 1 | Shaft, Arm , RockerOld # 9010531 | $43.43/EA |
| 7 | TN8004018 | 16 | Adjuster Assy, LashOld # 9010536 | $29.50/EA |
| 8 | TN8004019 | 32 | Valve, Spring, LockOld # 9010537 | $1.52/EA |
| 9 | TN8004020 | 16 | Valve, Spring, RetainerOld # 9010538 | $5.15/EA |
| 10 | TN8004021 | 16 | Valve, SpringOld # 9010539 | $7.58/EA |
| 11 | TN8004022 | 16 | Valve, Seal, StemOld # 9010540 | $5.90/EA |
| 12 | TN8003828 | 1 | Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 | $7.00/EA |
| 13 | TN8004023 | 16 | Valve, Spring, SeatOld # 9010541 | $1.50/EA |
| 14 | TN8004024 | 8 | Valve, InletOld # 9010542 | $20.40/EA |
| 15 | TN8004025 | 8 | Valve, ExhaustOld # 9010543 | $18.80/EA |
| 16 | TN8004026 | 1 | Shaft, Arm, RockerOld # 9010544 | $43.43/EA |
| 17 | TN8004027 | 13 | Bolt, FlangeOld # 9010545 | $1.80/EA |
| 18 | TN8004028 | 13 | Shaft, Cap, RockerOld # 9010546 | $2.30/EA |
| 19 | TN8004029 | 4 | Arm Assy, Rocker [C]Old # 9010547 | $41.65/EA |
| 20 | TN8004030 | 1 | Bracket, Pulley, TensionerOld # 9010548 | $183.10/EA |
| 21 | TN8004031 | 1 | Bolt, WasherOld # 9010549 | $2.30/EA |
| 22 | TN8004032 | 1 | Bolt, WasherOld # 9010550 | $3.10/EA |
| 23 | TN8004033 | 1 | WasherOld # 9010551 | $10.00/EA |
| 24 | TN8004034 | 1 | Pulley, IdlerOld # 9010552 | $54.20/EA |
| 25 | TN8003829 | 1 | Bolt, M8 - 1.25 X 55 Fi Hd [Mit]Old # 9010254 | $3.33/EA |
| 26 | TN8004035 | 1 | Bolt, SealOld # 9010554 | $3.50/EA |
| 27 | TN8004036 | 1 | Bolt, WasherOld # 9010555 | $3.80/EA |
| 28 | TN8004037 | 1 | Pulley, TensionerOld # 9010556 | $48.00/EA |
| 29 | TN8004038 | 1 | Bolt, WasherOld # 9010557 | $3.90/EA |
| 30 | TN8004032 | 1 | Bolt, WasherOld # 9010550 | $3.10/EA |
| 31 | TN8004039 | 1 | Belt, TimingOld # 9010559 | $165.80/EA |
| 32 | TN8004040 | 1 | Sprocket, CamshaftOld # 9010560 | $31.90/EA |
| 33 | TN8004041 | 1 | Bolt, FlangeOld # 9010561 | $2.83/EA |
| 34 | TN8004042 | 1 | Sprocket Assy, CshftOld # 9010562 | $25.90/EA |
| 35 | TN8048116 | 1 | Pin, SpringOld # 9010563 | $8.30/EA |
| 36 | TN8004043 | 1 | TensionerOld # 9010564 | $201.60/EA |
| 37 | TN8004044 | 2 | Bolt, FlangeOld # 9010565 | $2.60/EA |
| 38 | TN8003956 | 2 | Bolt, FlangeOld # 9010491 | $1.40/EA |
| 39 | TN8004045 | 1 | Bracket, Indicator, TimingOld # 9010567 | $4.14/EA |
| 40 | TN8004046 | 1 | Sprocket, Pump, OilOld # 9010568 | $15.70/EA |
| 41 | TN8004047 | 1 | NutOld # 9010569 | $2.65/EA |
| 42 | TN8003825 | 1 | Cover, Timing, Gear [Mit 2.0/2.4l]Old # 9010250 | $349.80/EA |
| 43 | TN8003826 | 2 | Bolt, M8 - 1.25 X 65 Hxhd [Mit]Old # 9010251 | $1.80/EA |
| 44 | TN8003827 | 3 | Washer, Lock, M8 [Mit]Old # 9010252 | $1.10/EA |
M20 Piston and Crankshaft Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003972 | 1 | Crankshaft AssyOld # 9010513 | $996.06/EA |
| 2 | TN8048113 | 1 | KeyOld # 9010514 | $4.20/EA |
| 3 | TN8048114 | 1 | Washer, SpecialOld # 9010515 | $6.80/EA |
| 4 | TN8003973 | 1 | Pulley Assy, Damper, TorsionalOld # 9010516 | $171.80/EA |
| 5 | TN8003974 | 4 | Bolt, WasherOld # 9010517 | $2.20/EA |
| 6 | TN8048115 | 1 | Bolt, Sprocket, CshftOld # 9010518 | $11.20/EA |
| 7 | TN8003975 | 1 | Pin, DowelOld # 9010519 | $4.85/EA |
| 8 | TN8003976 | 4 | Rod Assy, ConnectingOld # 9010520 | $185.94/EA |
| 9 | TN8004003 | 8 | NutOld # 9010521 | $3.03/EA |
| Item 10: choose your version (3) | ||||
| 10 | TN8004004 | 4 | Bearing, Rod, Connect [Yellow Std]Old # 9010522 | $8.89/EA |
| 10 | TN8004005 | 4 | Bearing, Rod, Connect [No Color Std]Old # 9010523 | $9.49/EA |
| 10 | TN8004006 | 4 | Bearing, Rod, Connect [ Lan Std]Old # 9010524 | $9.49/EA |
| 11 | TN8004007 | 8 | Bolt, ConnectingOld # 9010525 | $22.83/EA |
| Item 12: choose your version (3) | ||||
| 12 | TN8004008 | 4 | Piston, Pin [Std A]Old # 9010526 | $63.43/EA |
| 12 | TN8004009 | 4 | Piston, Pin [Std B]Old # 9010527 | $63.43/EA |
| 12 | TN8004010 | 4 | Piston, Pin [Std C]Old # 9010528 | $63.43/EA |
| 13 | TN8004011 | 1 | Piston Set, RingOld # 9010529 | $109.58/EA |
M20 Balancer Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 6 | TN8004052 | 1 | Belt, TimingOld # 9010575 | $30.70/EA |
| 2 | TN8004049 | 1 | Tensioner, Timing, BeltOld # 9010571 | $33.80/EA |
| 1 | TN8004048 | 1 | Bolt, Belt, Balancer, TrainOld # 9010570 | $3.50/EA |
| 3 | TN8004050 | 1 | Flange, Sprocket, CshftOld # 9010572 | $4.34/EA |
| 4 | TN8004070 | 1 | Bolt, FlangeOld # 9010600 | $2.90/EA |
| 5 | TN8004051 | 1 | Washer, Belt, Balancer, TrainOld # 9010574 | $3.30/EA |
| 7 | TN8004053 | 1 | Sprocket, Shaft, BalancerOld # 9010576 | $10.30/EA |
| 8 | TN8004054 | 1 | Spacer, Belt, Balancer, TrainOld # 9010577 | $11.50/EA |
| 9 | TN8004055 | 1 | Shaft, Right, BalancerOld # 9010578 | $136.45/EA |
| 10 | TN8004056 | 1 | Shaft, Left, BalancerOld # 9010579 | $115.65/EA |
| 11 | TN8004057 | 1 | Sprocket, CshftOld # 9010580 | $27.55/EA |
M20 Oil Pump and Pressure Switch Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 20 | TN8003832 | 1 | Sender, Oil, Press [Mit] (3 Prong)Old # 9010259 | $295.90/EA |
| 4 | TN8004061 | 1 | Seal, OilOld # 9010586 | $16.90/EA |
| 3 | TN8004060 | 1 | Seal, OilOld # 9010585 | $13.90/EA |
| 10 | TN8004071 | 1 | Seal, OilOld # 9010601 | $13.20/EA |
| 14 | TN8048117 | 1 | Plug, CapOld # 9010596 | $7.40/EA |
| 15 | TN8048118 | 1 | O - RingOld # 9010597 | $3.60/EA |
| 1 | TN8004058 | 1 | Pump, OilOld # 9010582 | $316.00/EA |
| 11 | TN8004065 | 1 | Gasket, Case, FrontOld # 9010593 | $9.90/EA |
| 2 | TN9010592 | 1 | Pump, Gear, Drive, OilOld # 9010592 · current Tennant number (Tennant parts catalog) | $399.00/EA |
| 5 | TN8004062 | 1 | Plug, TapperOld # 9010587 | $5.50/EA |
| 6 | TN8003905 | 2 | Pin, DowelOld # 9010426 | $2.30/EA |
| 7 | TN8004063 | 1 | ScrewOld # 9010589 | $41.92/EA |
| 8 | TN8004064 | 4 | Bolt, FlangeOld # 9010590 | $1.82/EA |
| 9 | TN9010591 | 1 | Pump, Gear, OilOld # 9010591 · current Tennant number (Tennant parts catalog) | Call for price |
| 12 | TN8004066 | 3 | Bolt, WasherOld # 9010594 | $2.90/EA |
| 13 | TN8004067 | 1 | Bolt, WasherOld # 9010595 | $2.90/EA |
| 16 | TN8004068 | 1 | Bolt, FlangeOld # 9010598 | $2.90/EA |
| 17 | TN8004069 | 1 | Bolt, FlangeOld # 9010599 | $2.73/EA |
| 18 | TN8004070 | 1 | Bolt, FlangeOld # 9010600 | $2.90/EA |
| 19 | TN8004059 | 1 | Bolt, FlangeOld # 9010583 | $3.50/EA |
M20 Water Pump Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004072 | 1 | Pump, WaterOld # 9010602 | $226.70/EA |
| 2 | TN8004073 | 1 | Gasket, Pump, WaterOld # 9010603 | $8.20/EA |
| 4 | TN8003965 | 1 | Bolt, FlangeOld # 9010503 | $3.50/EA |
| 5 | TN8004075 | 2 | Bolt, FlangeOld # 9010606 | $1.50/EA |
| 6 | TN8004076 | 1 | Bolt, FlangeOld # 9010607 | $1.50/EA |
| 7 | TN8004077 | 1 | Pulley, Pump, WaterOld # 9010612 | $31.20/EA |
| 8 | TN8048120 | 4 | Nut, FlangeOld # 9010609 | $2.60/EA |
| 9 | TN8048121 | 4 | Washer, SpringOld # 9010610 | $1.50/EA |
| 3 | TN8004074 | 1 | Bolt, FlangeOld # 9010604 | $2.60/EA |
M20 Intake Manifold Gasket Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003895 | 1 | Fitting, 1/8 Mpt X 3/8 Hb [Mit]Old # 9010382 | $10.95/EA |
| 2 | TN8003851 | 17” | Loom, Convoluted, Split 5/8 [Mit]Old # 9010281 | $28.73/EA |
| 3 | TN8044972 | 20” | Hose, Fuel, .38d, Rbr[16”L]Old # 385001 | $16.00/EA |
| 4 | TN8048107 | 1 | Elbow, 1/8m X 1/8f, 90 [Mit]Old # 9010383 | $13.40/EA |
| 5 | TN8048058 | 2 | Clamp, 3/8id [Mit Olive Green]Old # 9010282 | $4.15/EA |
| 6 | TN8048104 | 1 | Plug, 1/8 Npt, Brs, Skt Hd [Mit]Old # 9010283 · replaced by 8048104 (Tennant parts catalog) | Call for price |
| 7 | TN8048059 | 4 | Plug, Injector [Mit]Old # 9010284 | $3.10/EA |
| 8 | TN8003852 | 1 | Manifold, Intake [Mit 20/24m Tilt]Old # 9010285 | $950.90/EA |
| 9 | TN8003853 | 2 | Nut, M8 - 1.25 [Mit]Old # 9010286 | $3.50/EA |
| 10 | TN8044984 | 7 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 11 | TN8003854 | 2 | Stud, M8 - 1.25 X 50 Full Thrd [Mit]Old # 9010287 | $6.70/EA |
| 12 | TN8003855 | 2 | Stud, M8 - 1.25 X 35 [Mit Double End]Old # 9010288 | $4.20/EA |
| 13 | TN8003896 | 4 | Stud, M8 - 1.25 X 30 [Mit Double End]Old # 9010384 | $5.90/EA |
| 14 | TN8004078 | 1 | Gasket, Manifold, IntakeOld # 9010613 | $19.90/EA |
| 15 | TN8004075 | 2 | Bolt, FlangeOld # 9010606 | $1.50/EA |
| 16 | TN8004079 | 1 | Bolt, Manifold, InletOld # 9010615 | $1.50/EA |
| 17 | TN8004080 | 1 | Hanger, EngineOld # 9010617 | $4.30/EA |
| 18 | TN8004081 | 1 | Hanger, EngineOld # 9010618 | $13.30/EA |
M20 Exhaust Manifold Gasket Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003859 | 1 | Gasket, Manifold, Exh [Mit]Old # 9010296 | $58.20/EA |
| 2 | TN8003860 | 7 | Stud, M8 - 1.25 X 40 [Mit]Old # 9010297 | $4.90/EA |
| 8 | TN8003835 | 5 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 10 | TN8004082 | 1 | Gasket, Manifold, ExhaustOld # 9010619 | $22.80/EA |
| 3 | TN8004596 | 3 | Stud, Manifold, Intake, M8 X 28Old # 372020 | $29.60/EA |
| 5 | TN8003862 | 1 | Shield, Heat, Lower [Mit 20/24m]Old # 9010302 | $89.20/EA |
| 4 | TN8003861 | 1 | Manifold, Exhaust [Mit 2.0/2.4l]Old # 9010298 | $548.40/EA |
| 6 | TN8003863 | 1 | Shield, Heat, Upper [Mit 20/24m]Old # 9010303 | $137.20/EA |
| 7 | TN8044984 | 10 | Nut, Flng, M8Old # 385015 · Replaced by 9015915 in the 2022 list (rev. 08) | $6.70/EA |
| 9 | TN8003814 | 2 | Nut, M10 - 1.25 Flg [Mit]Old # 9010239 · Replaced by 9015916 in the 2022 list (rev. 08) | $1.50/EA |
M20 Fan Tensioner and Pump Mount Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 4 | TN8003799 | 1 | Pulley, Tensioner, Assy[Mit2.0/2.4l]Old # 9010224 | $346.10/EA |
| 2 | TN8003797 | 1 | Plate, Tensioner, Adj [Mit 2.0/2.4l]Old # 9010222 | $122.00/EA |
| 6 | TN8003801 | 2 | Bolt, 3/8 - 16 X 1 1/4 Hxhd [Mit]Old # 9010226 | $2.20/EA |
| 7 | TN8045487 | 2 | Washer, Lock, 0.38Old # 371509 | $2.60/EA |
| 9 | TN8003803 | 1 | Bolt, 3/8 - 16 X 4.5 [Mit]Old # 9010228 | $8.50/EA |
| 10 | TN8003804 | 4 | Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 | $3.50/EA |
| 1 | TN8045530 | 1 | Ring, RetainingOld # 371562 | $38.80/EA |
| 3 | TN8003798 | 1 | Bar, Tensioner, Mtg [Mit 2.0/2.4l]Old # 9010223 | $29.30/EA |
| 5 | TN8003800 | 1 | Bracket, Tensioner, [Mit 2.0/2.4l]Old # 9010225 | $105.30/EA |
| 8 | TN8003802 | 3 | Washer, Flat 3/8, SaeOld # 9010227 | $1.50/EA |
| 11 | TN8003805 | 2 | Bolt, M8 - 1.25 X 20 Fl Hd [Mit]Old # 9010230 | $3.30/EA |
| 12 | TN8003806 | 1 | Bolt, M8 - 1.25 X 25 Soc Hd [Mit]Old # 9010231 | $8.20/EA |
| 13 | TN8004085 | 1 | Bracket, Pump, MtgOld # 9010623 | $59.39/EA |
| 14 | TN8004086 | 1 | Bolt, WasherOld # 9010624 | $2.83/EA |
| 15 | TN8004087 | 2 | Bolt, WasherOld # 9010625 | $3.54/EA |
M20 Flywheel Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 3 | TN8003809 | 1 | Coupling, Flywheel [Mit20/24m]Old # 9010234 | $1,151.80/EA |
| 1 | TN8003807 | 6 | Bolt, M8 - 1.25 X 15, Hx Hd [Mit]Old # 9010232 | $2.60/EA |
| 4 | TN8003810 | 3 | Pin, Flywheel [Mit 20/20m]Old # 9010235 | $4.10/EA |
| 5 | TN8003811 | 7 | Bolt, Flywheel [Mit 20/24m]Old # 9010236 | $5.20/EA |
| 2 | TN8003808 | 1 | Flywheel, Flatface [Mit 20/24m]Old # 9010233 | $421.50/EA |
| 6 | TN8003876 | 2 | Bolt, M12 - 1.75 X 25, Hex Hd [Mit]Old # 9010359 | $3.43/EA |
| 7 | TN8003812 | 1 | Cover, Dust [Mit 2.0l]Old # 9010237 | $73.93/EA |
| 8 | TN8003813 | 1 | Housing, Flywheel [Mit 2.0l]Old # 9010238 | $629.53/EA |
| 9 | TN8003877 | 2 | Washer, Lock, M12 [Mit]Old # 9010360 | $8.18/EA |
| 10 | TN8003814 | 1 | Nut, M10 - 1.25 Flg [Mit]Old # 9010239 | $1.50/EA |
| 11 | TN8003815 | 2 | Bolt, M6 - 1.0 X 20 Fl Hd [Mit]Old # 9010240 | $3.60/EA |
| 12 | TN8003816 | 4 | Bolt, M10 - 1.25 X 30 Soc Hd [Mit]Old # 9010241 | $7.40/EA |
| 13 | TN8003817 | 2 | Bolt, M10 - 1.25 X 45 Soc Hd [Mit]Old # 9010242 | $8.38/EA |
M20 Ignition Coil and Spark Plug Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 5 | TN8003678 | 4 | Plug, Spark [Mitsubishi 2015 12mm]Old # 9014160 | $5.00/EA |
| 2 | TN8003819 | 4 | Coil, Ignition [Mit 2.0/2.4l]Old # 9010244 | $221.10/EA |
| 6 | TN8003945 | 4 | Seal, OilOld # 9010479 | $6.60/EA |
| 1 | TN8003818 | 1 | Bracket, Coil [Mit 2.0/2.4l]Old # 9010243 | $69.60/EA |
| 3 | TN8044984 | 2 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 4 | TN8003815 | 4 | Bolt, M6 - 1.0 X 20 Fl Hd [Mit]Old # 9010240 | $3.60/EA |
M20 Starter / Alternator Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8003821 | 1 | Starter, Motor [Mit 2.0/2.4l]Old # 9010246 | $808.70/EA |
| 3 | TN8003796 | 1 | Alternator, 7si [Mit Df Sur - Belt]Old # 9010217 | $786.90/EA |
| 1 | TN8003820 | 2 | Bolt, M10 - 1.50 X 30 [Mit]Old # 9010245 | $5.20/EA |
| 4 | TN8048052 | 1 | Spacer, Alternator [Mit 2.0/2.4l]Old # 9010219 | $12.40/EA |
M20 Remote Oil Filter Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 7 | TN8003892 | 1 | Hose, 90xstr,Flter, Oil, Remote[Mit]Old # 9010376 | $240.10/EA |
| 8 | TN8003892 | 1 | Hose, 90xstr,Flter, Oil, Remote[Mit]Old # 9010376 | $240.10/EA |
| 1 | TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Old # 393982 | $30.00/EA |
| 9 | TN8004090 | 1 | ElbowOld # 9010628 | $49.40/EA |
| 18 | TN8004090 | 1 | ElbowOld # 9010628 | $49.40/EA |
| 10 | TN8048122 | 1 | ElbowOld # 9010629 | $99.80/EA |
| 3 | TN8048105 | 1 | Fitting, Str, 10 - 10 Orb, 37fi [Mit]Old # 9010371 | $12.40/EA |
| 4 | TN8003890 | 1 | Plug, 3/8npt X 5/16, Brs [Mit]Old # 9010372 | $14.40/EA |
| 13 | TN8003828 | 1 | Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 | $7.00/EA |
| 15 | TN8003804 | 3 | Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 | $3.50/EA |
| 16 | TN8003894 | 1 | Washer, Lock, M8 [Mit]Old # 9010380 | $1.20/EA |
| 11 | TN8003893 | 1 | Gasket, Oil, Adapter [Mit 2.0/2.4]Old # 9010377 | $29.80/EA |
| 2 | TN8005673 | 1 | Mount, Fltr, RemoteOld # 371503 | $221.60/EA |
| 5 | TN8048106 | 1 | Adapter, Filter, Oil, Remote [Mit]Old # 9010373 | $100.00/EA |
| 6 | TN8003891 | 1 | Bracket, Filter, Oil, Remote [Mit]Old # 9010374 | $24.40/EA |
| 12 | TN8044984 | 3 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 14 | TN8004091 | 2 | WasherOld # 9010630 | $1.21/EA |
| 17 | TN8004092 | 2 | BoltOld # 9010631 | $5.35/EA |
M20 Coolant Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 9 | TN8003858 | 2 | Cap, Rubber, 5/8id [Mit 2.0/2.4l]Old # 9010295 | $7.70/EA |
| 10 | TN4027831 | 1 | Thermostat Kit, Coolant, Replmt [Mitsub]Old # 9010905 | $35.10/EA |
| 13 | TN8003599 | 2 | Seal, Tube, Water [Mit 2.0l]Old # 9013530 | $27.70/EA |
| 1 | TN8003856 | 1 | O - Ring [Mit 208 Buna - N]Old # 9010289 | $2.80/EA |
| 12 | TN8004105 | 1 | Tube, Pump, WaterOld # 9010910 | $14.90/EA |
| 5 | TN8003170 | 2 | Clamp, Hose, Spring, 0.62dOld # 384979 | $4.10/EA |
| 6 | TN8004093 | 1 | Gasket, OutletOld # 9010632 | $38.40/EA |
| 2 | TN8048100 | 1 | Housing, T - Stat, 2 Holes [Mit]Old # 9010290 | $153.60/EA |
| 11 | TN8003795 | 1 | Housing, ThermostatOld # 9010215 | $94.30/EA |
| 3 | TN8003857 | 1 | Tube, Water, Line [Mit]Old # 9010291 | $87.60/EA |
| 4 | TN8044980 | 1 | Fitting, E90Old # 385011 | $24.70/EA |
| 7 | TN8048101 | 1 | Outlet, Water, W/Plug [Mit 2.0/2.4l]Old # 9010294 | $48.60/EA |
| 8 | TN8044984 | 2 | Nut, Flng, M8Old # 385015 | $6.70/EA |
M20 DSR Coolant Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8003856 | 1 | O - Ring [Mit 208 Buna - N]Old # 9010289 | $2.80/EA |
| 3 | TN8003865 | 1 | Tube, Cooling, Line [Mit]Old # 9010306 | $103.30/EA |
| 1 | TN8003864 | 1 | Bolt, M8 - 1.25 X 12 [Mit]Old # 9010305 | $6.10/EA |
| 4 | TN8003866 | 1 | Gasket, Water Supply [Mit 2.0/2.4l]Old # 9010307 | $32.00/EA |
| 5 | TN8003867 | 1 | Fitting, 1/2 Mpt X 5/8bh 90deg [Mit]Old # 9010308 | $40.80/EA |
| 6 | TN8003868 | 1 | Plate, Water, Outlet [Mit Bypass]Old # 9010309 | $61.30/EA |
| 7 | TN8003869 | 2 | Bolt, M8 - 1.25 X 25 Flg Hd [Mit]Old # 9010310 | $2.40/EA |
M20 Electrical Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003830 | 1 | Washer, Star, M10 [Mit]Old # 9010255 | $1.50/EA |
| 2 | TN8003831 | 2 | Bolt, M6 - 1.0 X 12 Fl Hd Pl [Mit]Old # 9010256 | $1.31/EA |
| 3 | TN8005197 | 1 | Sensor, Spd, Timing Wheel [3.0l]Old # 372492 | $412.60/EA |
| 4 | TN8001829 | 2 | IsolatorOld # 9008805 | $11.80/EA |
| 5 | TN8005433 | 1 | Sensor, Oxygen, TailpipeOld # 1028558 | $277.60/EA |
| 6 | TN8048054 | 2 | Clamp, 1/4 Hole [Mit #20]Old # 9010257 | $28.89/EA |
| Item 7: choose your version (2) | ||||
| 7 | TN8005370 | 1 | Module, Ecu, Gas [Mit 2.0l 2013]Old # 1071397 | $1,347.10/EA |
| 7 | TN8005426 | 1 | Module, Ecu, Lpg [Mit 2.0l 2013]Old # 1071398 | $1,360.50/EA |
| 8 | TN8005198 | 1 | Sensor [Tmap]Old # 372493 | $206.90/EA |
| 9 | TN8004155 | 1 | Sensor, Temp, CoolantOld # 372891 | $126.90/EA |
| 10 | TN8048055 | 1 | Clamp, 0.75d [Mit]Old # 9010258 | $21.92/EA |
| 11 | TN8003824 | 4 | Bolt, M6 - 1.0 X 30 Fl Hd [Mit]Old # 9010249 | $7.27/EA |
| 12 | TN8003833 | 1 | Sensor, Camshaft [Mit]Old # 9010260 | $426.00/EA |
| 13 | TN8003834 | 1 | Cam, Sensor, Wheel [Mit 2.0/2.4l]Old # 9010261 | $123.40/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN8005427 | 1 | Harness, Wire, Eng, Gas [Mit, 2.0l]Old # 1071653 | $1,434.90/EA |
| 14 | TN8005428 | 1 | Harness, Wire, Eng, Lpg [Mit, 2.Ol]Old # 1071654 | $1,268.00/EA |
| 15 | TN8003835 | 3 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 16 | TN8003836 | 3 | Bolt, M6 - 1.0 X 16 Fl Hd [Mit]Old # 9010263 | $2.73/EA |
| 17 | TN8003837 | 4 | Nut, M6 - 1.0 Flange [Mit]Old # 9010264 | $2.60/EA |
| 18 | TN8003878 | 1 | Stud, M10 - 1.25 X 50, Full Thrd [Mit]Old # 9010366 | $5.60/EA |
| 19 | TN8003889 | 1 | Nut, M10 - 1.25, Hx Flg [Mit]Old # 9010367 | $1.90/EA |
| 20 | TN8003822 | 1 | Plate, Mtg, Ecu [Mit 2.0/2.4l]Old # 9010247 | $37.67/EA |
| 21 | TN8003823 | 3 | Bolt, M10 - 1.25 X 20 Hxhd [Mit]Old # 9010248 | $3.43/EA |
M20 Fuel Rail Group, Gasoline Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003865 | 1 | Tube, Cooling, Line [Mit]Old # 9010306 · Replaced by 9015878 in the 2022 list (rev. 08) | $103.30/EA |
| 2 | TN8003873 | 2 | Bolt, M8 - 1.25 X 16, Soc Hd [Mit]Old # 9010327 | $2.42/EA |
M20 Throttle Body Group, Gasoline Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003838 | 1 | Actuator [Mit , Bosch]Old # 9010266 | $714.50/EA |
| 2 | TN8003839 | 1 | Gasket, Throttle [Mit 40mm]Old # 9010268 | $3.60/EA |
| 3 | TN8003874 | 4 | Washer, 1/4 Flat [Mit]Old # 9010330 | $1.30/EA |
| 4 | TN8003875 | 4 | Bolt, M6 - 1.0 X 45, Skt Hd [Mit]Old # 9010331 | $3.10/EA |
M20 Throttle Body Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003838 | 1 | Actuator [Mit , Bosch]Old # 9010266 | $714.50/EA |
| 2 | TN8006239 | 1 | Seal, Org, Lpg, MixerOld # 1037311 | $13.10/EA |
| 5 | TN8003839 | 1 | Gasket, Throttle [Mit 40mm]Old # 9010268 | $3.60/EA |
| 3 | TN8002571 | 1 | AdapterOld # 9006619 | $80.90/EA |
| 4 | TN8048056 | 1 | Spacer, Ring, Throttle [Mit 40mm]Old # 9010267 | $8.10/EA |
| 6 | TN8003840 | 4 | Bolt, M6 - 1.0 X 25 Soc Hd [Mit]Old # 9010269 | $1.90/EA |
| 7 | TN8003841 | 4 | Washer, Lock, M6 [Mit]Old # 9010270 | $1.20/EA |
| 8 | TN8003842 | 4 | Bolt, M6 - 1.0 X 85 Soc Hd [Mit]Old # 9010271 | $3.20/EA |
M20 Vaporizer Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8001829 | 3 | IsolatorOld # 9008805 | $11.80/EA |
| 17 | TN8002010 | 1 | Filter Kit, Fuelock, LpgOld # 9007380 | $25.60/EA |
| 13 | TN8003835 | 3 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 5 | TN8003843 | 2 | Fitting, 1/2 X 5/8 Hose,Plastic[Mit]Old # 9010273 | $14.40/EA |
| 15 | TN8003837 | 1 | Nut, M6 - 1.0 Flange [Mit]Old # 9010264 | $2.60/EA |
| 7 | TN8002154 | 1 | RegulatorOld # 9008193 | $475.20/EA |
| 10 | TN8003847 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010277 | $22.00/EA |
| 16 | TN4015547 | 1 | Lock - Off, 12v, Lpg [Mit]Old # 9006620 | $374.70/EA |
| 3 | TN8003170 | 6 | Clamp, Hose, Spring, 0.62dOld # 384979 | $4.10/EA |
| 11 | TN8003848 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010278 | $15.90/EA |
| 12 | TN8003849 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010279 | $11.50/EA |
| 18 | TN8003872 | 1 | Fitting, 1/4mpt X 1/4mpt, 90deg[Mit]Old # 9010317 | $24.30/EA |
| 14 | TN8003850 | 2 | Bolt, M8 - 1.25 X 16 Fl Hd [Mit]Old # 9010280 | $3.50/EA |
| 9 | TN8003846 | 1 | Hose, Fuel, Molded [Mit 20/24m]Old # 9010276 | $29.60/EA |
| 1 | TN8048057 | 1 | Hose Assy, Upper, Tap [Mit]Old # 9010272 | $152.20/EA |
| 4 | TN8001828 | 1 | Plate, Mtg [Epr]Old # 9008804 | $71.50/EA |
| 6 | TN8003844 | 2 | Clamp, Tension [Mit #29]Old # 9010274 | $6.10/EA |
| TN8004088 | 1 | Repair Kit, VaporizerOld # 9010626 | $275.10/EA | |
| 8 | TN8003845 | 1 | Bracket, Vaporizer [Mit 20/24m Tilt]Old # 9010275 | $60.60/EA |
M20 Electronic Pressure Regulator (EPR) Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 6 | TN8002012 | 4 | Stud, M05 - 0.8Old # 9007424 | $12.90/EA |
| 7 | TN8002011 | 4 | Nut, Flng, M05 - 0.8Old # 9007423 | $2.60/EA |
| 2 | TN8001830 | 1 | Regulator, Press, Electronic [Epr]Old # 9008806 | $1,412.00/EA |
| TN8004095 | 1 | Repair Kit, MixerOld # 9010634 | $155.10/EA | |
| 5 | TN8048471 | 4 | Screw, Soc, M4 X 0.70 X 16Old # 9008808 | $5.20/EA |
| 3 | TN8048470 | 1 | Fitting, Barb, 3/4” [Epr]Old # 9008807 | $12.40/EA |
| 1 | TN8048104 | 2 | Plug, 1/8npt, Brs [Mit]Old # 9010314 | $37.20/EA |
| 4 | TN8002570 | 1 | Mixer , LpgOld # 9006618 | $479.40/EA |
Notes on this parts list
- This is Tennant's 2016 manual (rev. 01). The current manual is Tennant's October 2025 edition: open the current manual.
- Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
- Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
- Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
- Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.
