Tennant M20 options and breakdowns, SN 008000 and later
Options and breakdowns parts from Tennant's North American M20 parts manuals for SN 008000 and later (9016001 rev. 12 (gas/LPG) + 9016051 rev. 11 (diesel)), gas, LPG and diesel. Use Your machine to pick your serial number, edition or another area.
Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.
Find your parts list →1,263 lines from 9016001 rev. 12 (gas/LPG) + 9016051 rev. 11 (diesel). Checked against the manuals line by line on .
- Machine
- M20 rider sweeper-scrubber
- Cleaning path
- 40 in (56 in with side brush)
- Solution / recovery
- 56 / 73 gal
- Hopper
- 3.9 ft³, 390 lb
- Power
- Gasoline, LPG or diesel
- Main brushes
- 2 × 40 in cylindrical
Your machine
You’re viewing the current manual (Rev 12, Oct 2025; diesel: Rev 11). Enter your serial number or use the dropdown for your exact machine.
Where to find the serial number and power type
- The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
- Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
- Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.
How to read this list
Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

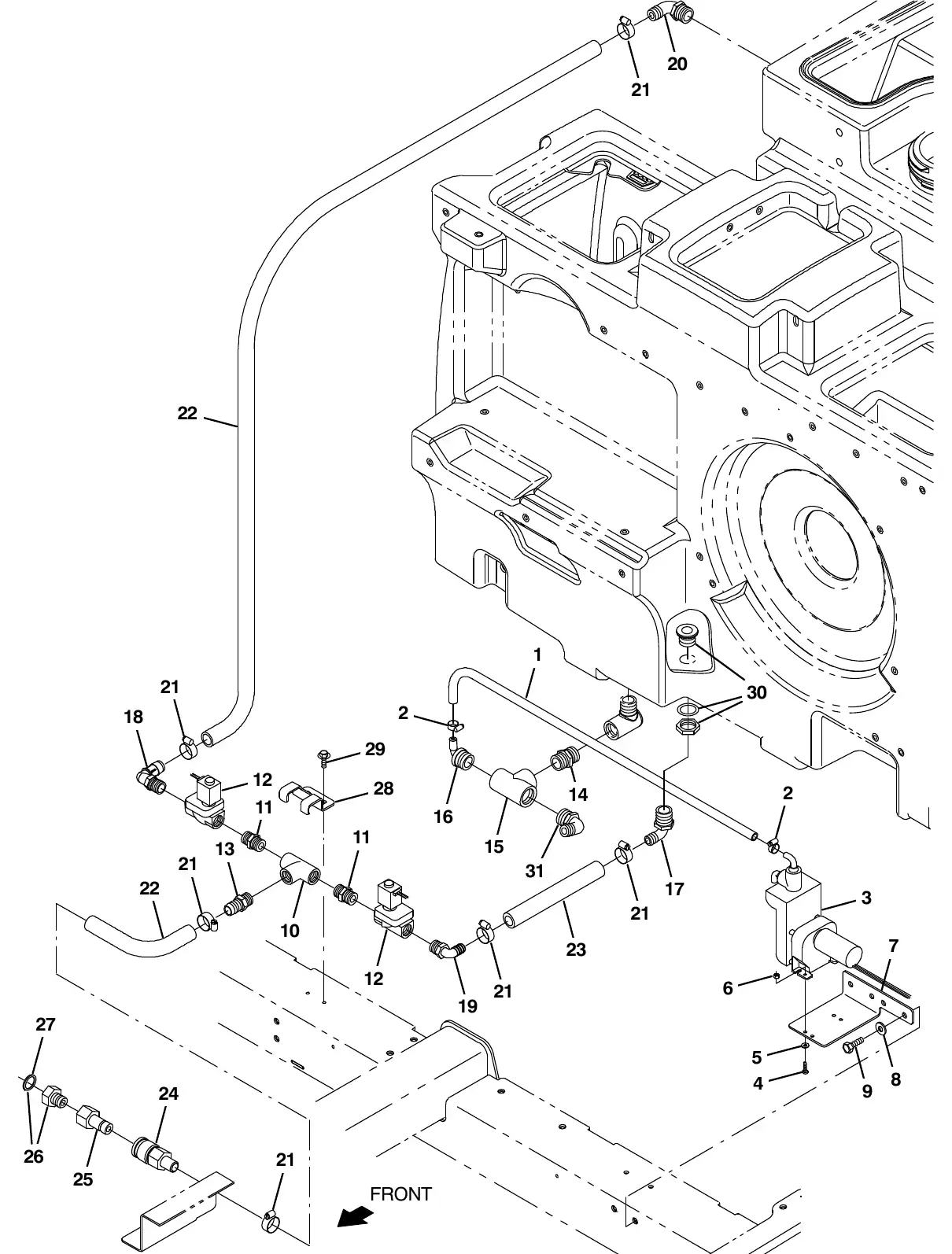

M20 ES pump group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016800 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 48.00lOld # 41295 | Call for price |
| 2 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 3 | TN4016324 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns)Old # 73260 | $792.20/EA |
| 4 | TN4035372 | 2 | Screw, Pan, M4 X 0.7 X 16, SsOld # 24265 | $3.00/EA |
| 5 | TN4042888 | 2 | Washer, Flat, #10, SsOld # 01683 | $2.60/EA |
| 6 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 7 | TN4195605 | 1 | Bracket, Mtg, ValveOld # 1021325 | $20.50/EA |
| 8 | TN4042902 | 2 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 9 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 10 | TN4026578 | 1 | Fitting, Plstc, Tee, Pf08/Pf08/Pf08Old # 79497 | $10.30/EA |
| 11 | TN4021662 | 2 | Fitting, Plstc, Str, Pm08/Pm08Old # 86508 | $6.90/EA |
| 12 | TN4016339 | 2 | Valve, Water, Solenoid, 12vdc 0.08pfOld # 73433 | $535.70/EA |
| 13 | TN4026135 | 1 | Fitting, Plstc, Str, Bm12/Pm08, NylOld # 78398 | $6.20/EA |
| 14 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544 | $6.20/EA |
| 15 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A | $17.60/EA |
| 16 | TN4026576 | 1 | Fitting, Plstc, E90, Bm06/Pm12, NylOld # 79484 | $7.80/EA |
| 17 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Old # 73468 | $7.90/EA |
| 18 | TN4021149 | 1 | Fitting, Plstc, E90, Bm12/Pm08Old # 63244-2 | $6.90/EA |
| 19 | TN4020775 | 1 | Fitting, Plstc, E90, Bm10/Pm08Old # 630371 | $8.70/EA |
| 20 | TN4044360 | 1 | Fitting, Plstc, E90, Bm12/Pm12Old # 14877 | $6.20/EA |
| 21 | TN4017089 | 6 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 22 | TN4037985 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 08ftOld # 1015045 | $83.30/EA |
| 23 | TN4032310 | 1 | Hose, Pvc, Brd, 0.62id 0.88od 09.00lOld # 369811 | $12.83/EA |
| 24 | TN4035365 | 1 | Fitting, Brs, Qdc, Bm12/Qf08Old # 24105 | $101.81/EA |
| 25 | TN4030863 | 1 | Fitting, Brs, Qdc, Pf08 [Parker Bh3f]Old # 33295 | $9.60/EA |
| 26 | TN4029239 | 1 | Fitting Kit, Hose, GardenOld # 375322 | $19.09/EA |
| 27 | TN4042839 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrOld # 01316 | $3.50/EA |
| 28 | TN4197702 | 1 | Bracket, Mtg, ValveOld # 1016837 | $13.03/EA |
| 29 | TN4029864 | 2 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 30 | TN4025663 | 1 | Fitting, Plstc, Pf12/Pf12, BhOld # 377349 | $22.50/EA |
| 31 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Old # 73468 | $7.90/EA |

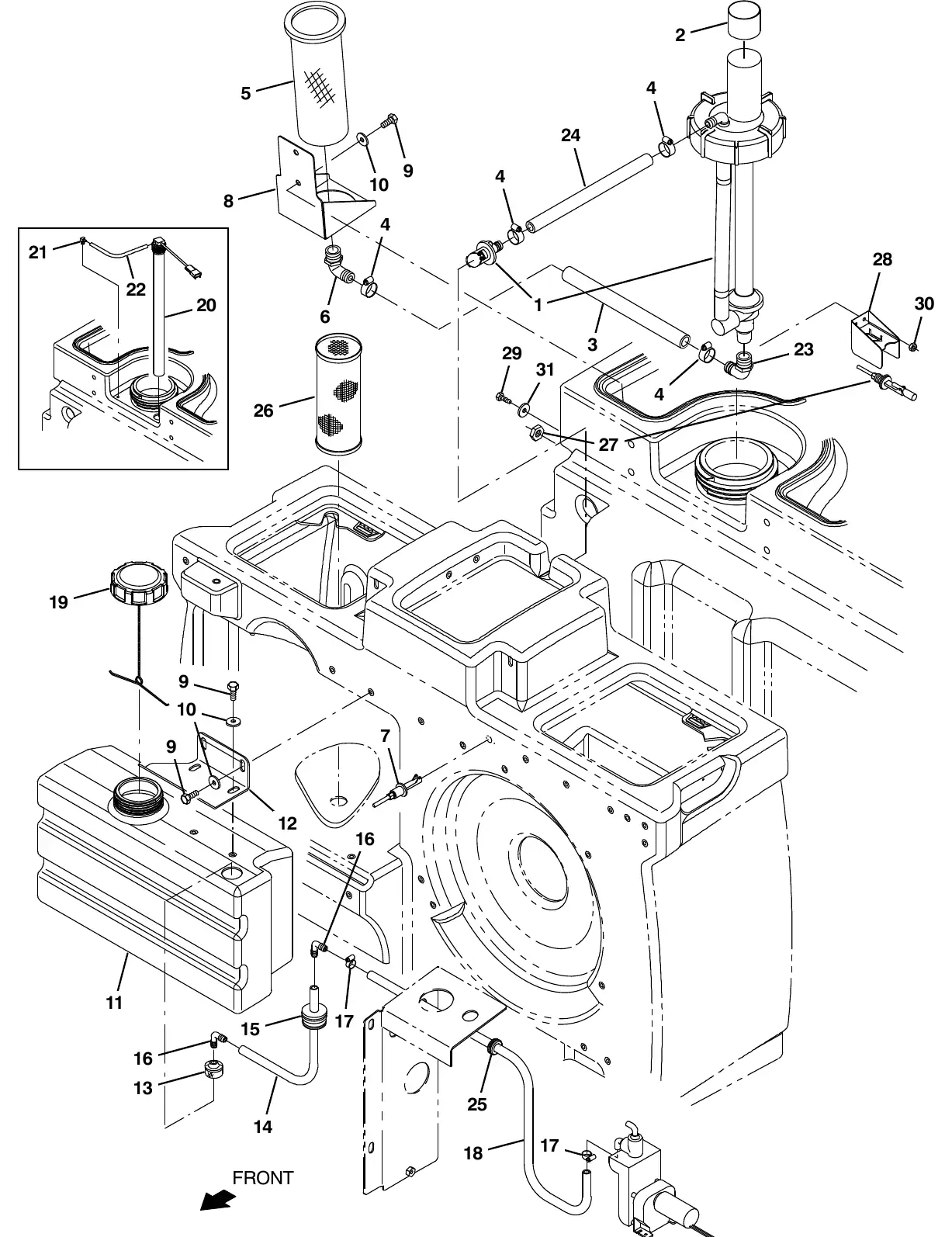

M20 ES tanks group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

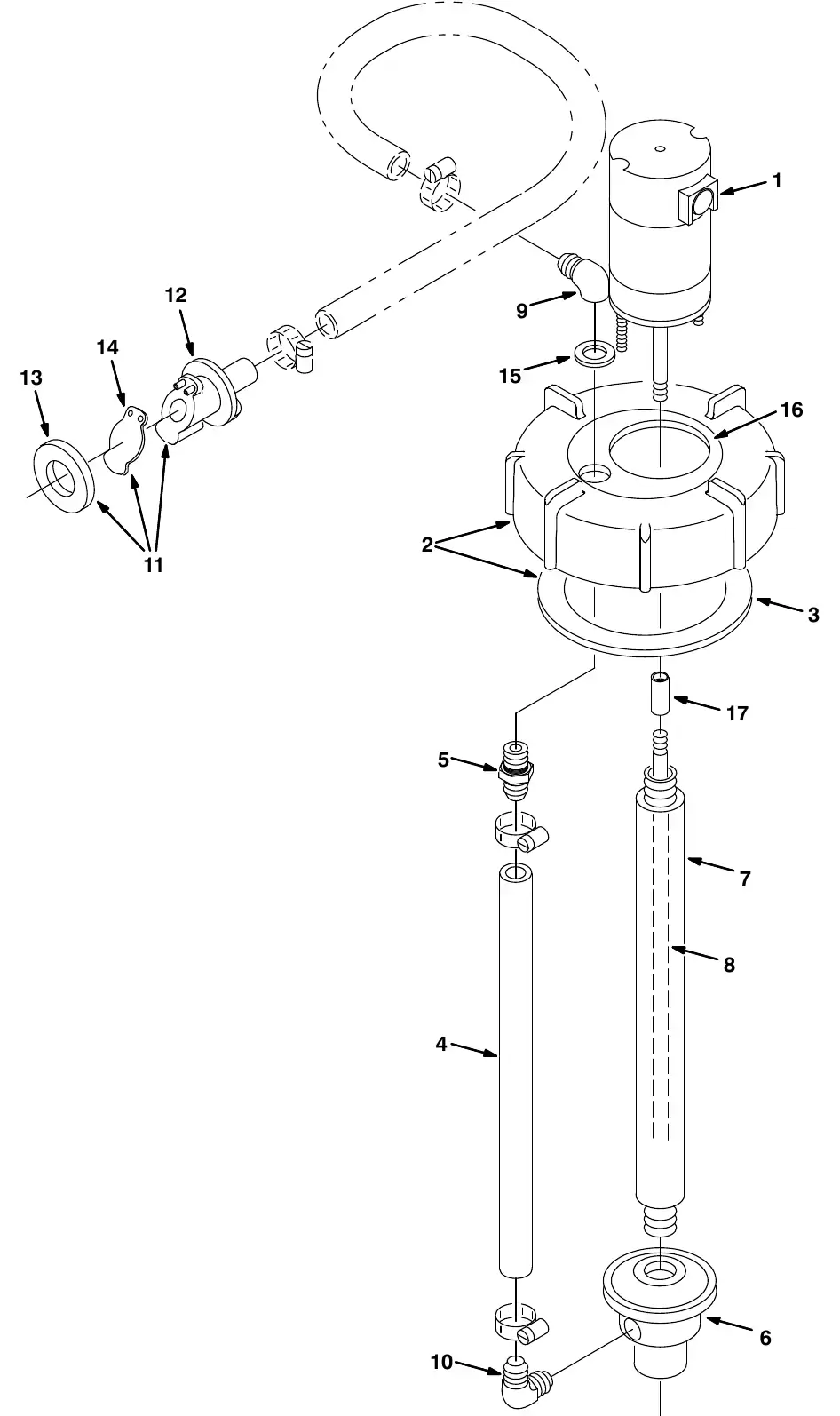

| 1 | TN4036630 | 1 | Pump Assy, Column, Es (See Breakdowns)Old # 1021210 | $1,762.90/EA |
| 2 | TN4030959 | 1 | Sleeve, Rbr, 3.50b 3.58d 1.8lOld # 1028697 | $11.01/EA |
| 3 | TN4037988 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 01ftOld # 1015048 | $14.65/EA |
| 4 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 5 | TN4022231 | 1 | Strainer, Soltn, 20 Mesh, Cyl 3.5d 9.5lOld # 386652 | $101.80/EA |
| 6 | TN4035381 | 1 | Fitting, Plstc, E90, Bm12/Pf12Old # 24543 | $8.40/EA |
| 7 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685 | $78.50/EA |
| 8 | TN4195222 | 1 | Bracket, Mtg, StrainerOld # 1019636 | $53.53/EA |
| 9 | TN4041992 | 6 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 10 | TN4035242 | 6 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 11 | TN4032910 | 1 | Tank, Detgt, TrimmedOld # 1022229 | $341.48/EA |
| 12 | TN4193627 | 1 | Bracket, Mtg, Detgt And Spray WandOld # 1025159 | $19.70/EA |
| 13 | TN4039132 | 1 | Screen, PumpOld # 20952 | $13.70/EA |
| 14 | TN4037967 | 1 | Hose, Afmkt, Pvc, Brd 0.38id 02ftOld # 1014974 | $22.40/EA |
| 15 | TN4039117 | 1 | Grommet, Pye, 0.37id, F/1.5h, .13 MatlOld # 20944 | $27.50/EA |
| 16 | TN4039131 | 2 | Fitting, Plstc, E90, Bm06/Bm06Old # 20951 | $4.20/EA |
| 17 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 18 | TN4016800 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 48.00lOld # 41295 | Call for price |
| 19 | TN4036929 | 1 | Cap, TankOld # 1011885 | $69.10/EA |
| 20 | TN1072877 | 1 | Switch Assy, Press, 3.0, 17.5l TubeFits SN 008000–012038 · Old # 1072877 · current Tennant number (Tennant parts catalog) | Call for price |
| 21 | TN4033731 | 1 | Fitting, Brs, E90, Pm02/Bm03Fits SN 008000–012038 · Old # 32183 | $9.90/EA |
| 22 | TN4032040 | 1 | Hose, Afmkt, Vacuum, 0.16id, 01ftFits SN 008000–012038 · Old # 1031572 | $12.50/EA |
| 23 | TN4044360 | 1 | Fitting, Plstc, E90, Bm12/Pm12Old # 14877 | $6.20/EA |
| 24 | TN4037982 | 1 | Hose, Afmkt, Pvc, Brd 0.62Id, 01Ft, ClrOld # 1015033 | $60.00/EA |
| 25 | TN4032003 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .12 MatlOld # 10632-2 | $0.80/EA |
| 26 | TN4043976 | 1 | Filter, Soltn, 020mesh, Pm12 3.2d 08.0lOld # 1039019 | $51.50/EA |
| 27 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .62 - 11Fits SN 012039 and later · Old # 385685 | $78.50/EA |
| 28 | TN4043530 | 1 | Bracket, Protector, Float SwitchFits SN 012039 and later · Old # 1037816 | $43.60/EA |
| 29 | TN4041942 | 2 | Screw, Hex, M6 X 1.00 X 25, SsFits SN 012039 and later · Old # 09007 | $3.30/EA |
| 30 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsFits SN 012039 and later · Old # 08712 | $2.50/EA |
| 31 | TN4027617 | 2 | Washer, Sealing, 0.28b 0.75d Ss, NeoFits SN 012039 and later · Old # 76426 | $3.50/EA |

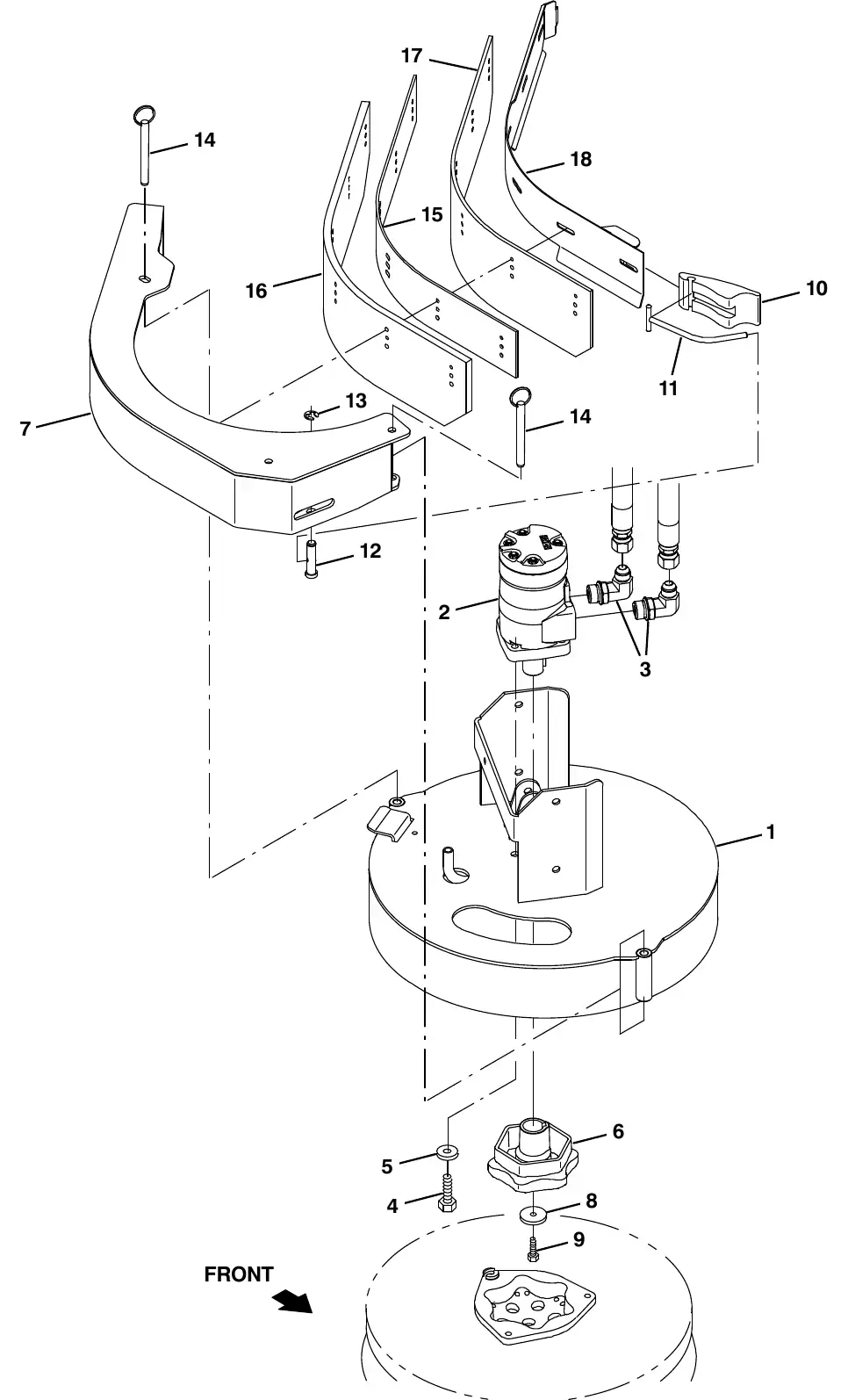

M20 side brush motor group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043026 | 1 | Bracket Wldt, Mtg, Side Brush FixedOld # 1047002 | $473.90/EA |
| 2 | TN4030083 | 1 | Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500Old # 1068812 | $616.10/EA |
| TN8005882 | 1 | Seal Kit, Motor [Cl]Old # 22615 | $112.10/EA | |
| 3 | TN4029149 | 2 | Fitting, Hyd, E90, Jm08/Om10Old # 56821 | $36.80/EA |
| 4 | TN4042969 | 4 | Screw, Hex, .38 - 16 X 0.75, NlOld # 01762 | $3.20/EA |
| 5 | TN4034138 | 4 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 6 | TN4041657 | 1 | Hub, Drive, Brush, Disk, 1.00b [6t]Old # 1042968 | $121.80/EA |
| 7 | TN4043021 | 1 | Bumper Wldt, Brush, SideOld # 1046976 | $184.00/EA |
| 8 | TN4042424 | 1 | SpacerOld # 19191 | $9.00/EA |
| 9 | TN4035411 | 1 | Screw, Hex, .25 - 20 X 1.00, 5Old # 25046 | $3.20/EA |
| 10 | TN4037481 | 1 | Cam, Front, YelOld # 1222020 | $13.70/EA |
| 11 | TN4021717 | 1 | Pin Wldt, FrontOld # 386298 | $40.30/EA |
| 12 | TN4039420 | 1 | Pin, Grvd, 0.43d 01.8l [303ss]Old # 21603 | $16.60/EA |
| 13 | TN4035383 | 1 | Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555 | $2.40/EA |
| 14 | TN4031918 | 2 | Pin, Hitch, .375d X 3.12l, PlOld # 369359 | $7.50/EA |
| 15 | TN4043024 | 1 | Spacer, Sqge, Side BrushOld # 1046995 | $20.00/EA |
| Item 16: choose your version (2) | ||||
| 16 | TN4043022 | 1 | Blade, Sqge, Side Brush, LinatexOld # 1046980 | $59.89/EA |
| 16 | TN4036799 | 1 | Blade, Sqge, Side Brush, UrethaneOld # 1059091 | $91.61/EA |
| Item 17: choose your version (2) | ||||
| 17 | TN4043073 | 1 | Blade, Sqge, Side Brush, LinatexOld # 1047238 | $31.51/EA |
| 17 | TN4036800 | 1 | Blade, Sqge, Side Brush, UrethaneOld # 1059092 | $55.85/EA |
| 18 | TN4043029 | 1 | Plate Wldt, Retainer, SqgeOld # 1047060 | $107.80/EA |

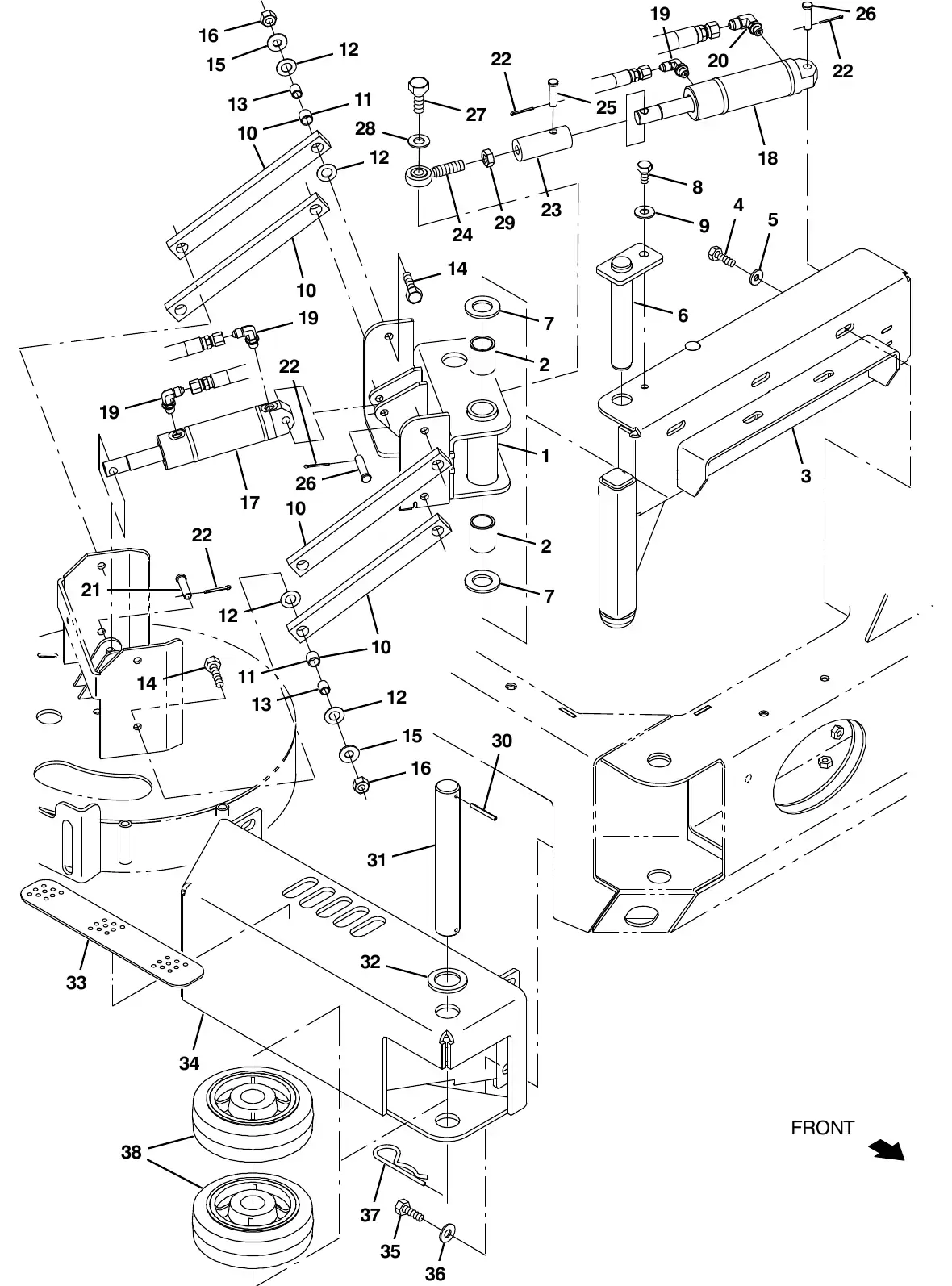

M20 side brush lift group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036647 | 1 | Pivot Wldt, Brush, SideOld # 1021439 | $330.60/EA |
| 2 | TN4015898 | 2 | Bushing, Sleeve, 1.00b 1.13d 1.50l, FglOld # 71868 | $13.70/EA |
| 3 | TN4032801 | 1 | Channel Wldt, PivotOld # 1021473 | $329.10/EA |
| 4 | TN4041943 | 5 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 5 | TN4016796 | 5 | Washer, Flat, Belleville, .31Old # 41186 | $3.50/EA |
| 6 | TN4032822 | 1 | Pin WldtOld # 1021617 | $42.00/EA |
| 7 | TN4015900 | 2 | Washer, Thrust, 1.00b 1.75d 0.13w, FbrOld # 71869 | $27.10/EA |
| 8 | TN4041828 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735 | $3.40/EA |
| 9 | TN4034137 | 1 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 10 | TN4021139 | 4 | Arm, LinkOld # 63175-1 | $62.20/EA |
| 11 | TN4021144 | 2 | Bushing, Sleeve, 0.50b 0.59d 0.50l, BnzOld # 63233 | $8.40/EA |
| 12 | TN4026841 | 16 | Bearing, Thrust, 0.53b 1.00d 0.03wOld # 59633 | $6.30/EA |
| 13 | TN4030655 | 8 | Sleeve, P/M, 0.37b 0.50d 0.6l [430ss]Old # 1027926 | $4.20/EA |
| 14 | TN4031575 | 8 | Screw, Hex, .38 - 16 X 1.50, SsOld # 36845 | $4.00/EA |
| 15 | TN4042902 | 8 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 16 | TN4026793 | 8 | Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156 | $4.00/EA |
| 17 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 18 | TN4043598 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Old # 1038115 | $223.30/EA |
| 19 | TN4025260 | 3 | Fitting, Hyd, E90, Jm04/Om04Old # 77097 | $14.70/EA |
| 20 | TN4025261 | 1 | Fitting, Hyd, E90, Jm06/Om04Old # 77098 | $15.50/EA |
| 21 | TN4036075 | 1 | Pin, Clevis, 0.37d X 1.50lOld # 29558 | $3.90/EA |
| 22 | TN4041634 | 4 | Pin, Cotter, .094 X 1.00Old # 08179 | $2.50/EA |
| 23 | TN4032808 | 1 | Adapter, Rod - End, Side BrushOld # 1021564 | $56.00/EA |
| 24 | TN4015904 | 1 | Rod - End, .50 - 20rh Mal 0.50bOld # 71874 | $42.70/EA |
| 25 | TN4036074 | 1 | Pin, Clevis, 0.37d X 1.31lOld # 29557 | $3.20/EA |
| 26 | TN4041878 | 2 | Pin, Clevis, 0.37d X 1.75lOld # 17461 | $4.00/EA |
| 27 | TN4016809 | 1 | Screw, Hex, M12 X 1.75 X 30, 8.8Old # 41346 | $4.00/EA |
| 28 | TN4034135 | 1 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 29 | TN4013991 | 1 | Nut, Hex, Jam, .50 - 20Old # 48985 | $3.40/EA |
| 30 | TN4035025 | 1 | Pin, Roll, .187d X 1.62l, .187/.192Old # 23146 | $2.50/EA |
| 31 | TN4038392 | 1 | Pin, 30mmd X 215mmlOld # 1053838 | $74.40/EA |
| 32 | TN4013894 | 1 | Washer, Flat, 1.26b 1.88d .13, StlOld # 47719 | $4.10/EA |
| 33 | TN4024613 | 1 | Tread, Non - Skid, 02.2w 11.5lOld # 82839 | $6.10/EA |
| 34 | TN4032919 | 1 | Guard Wldt, Brush, SideOld # 1022318 | $562.80/EA |
| 35 | TN4035960 | 4 | Screw, Hex, M10 X 1.5 X 30, SsOld # 12317 | $4.90/EA |
| 36 | TN4042903 | 4 | Washer, Flat, 0.44b 1.00d .08, SsOld # 01686 | $3.30/EA |
| 37 | TN4031623 | 1 | Pin, Cotter, Hair, 1.00d .178 WirOld # 34411 | $4.00/EA |
| 38 | TN4034399 | 2 | Wheel, 06.0D 2.00W 1.19B, Gray RbrOld # 1060130 | $21.60/EA |

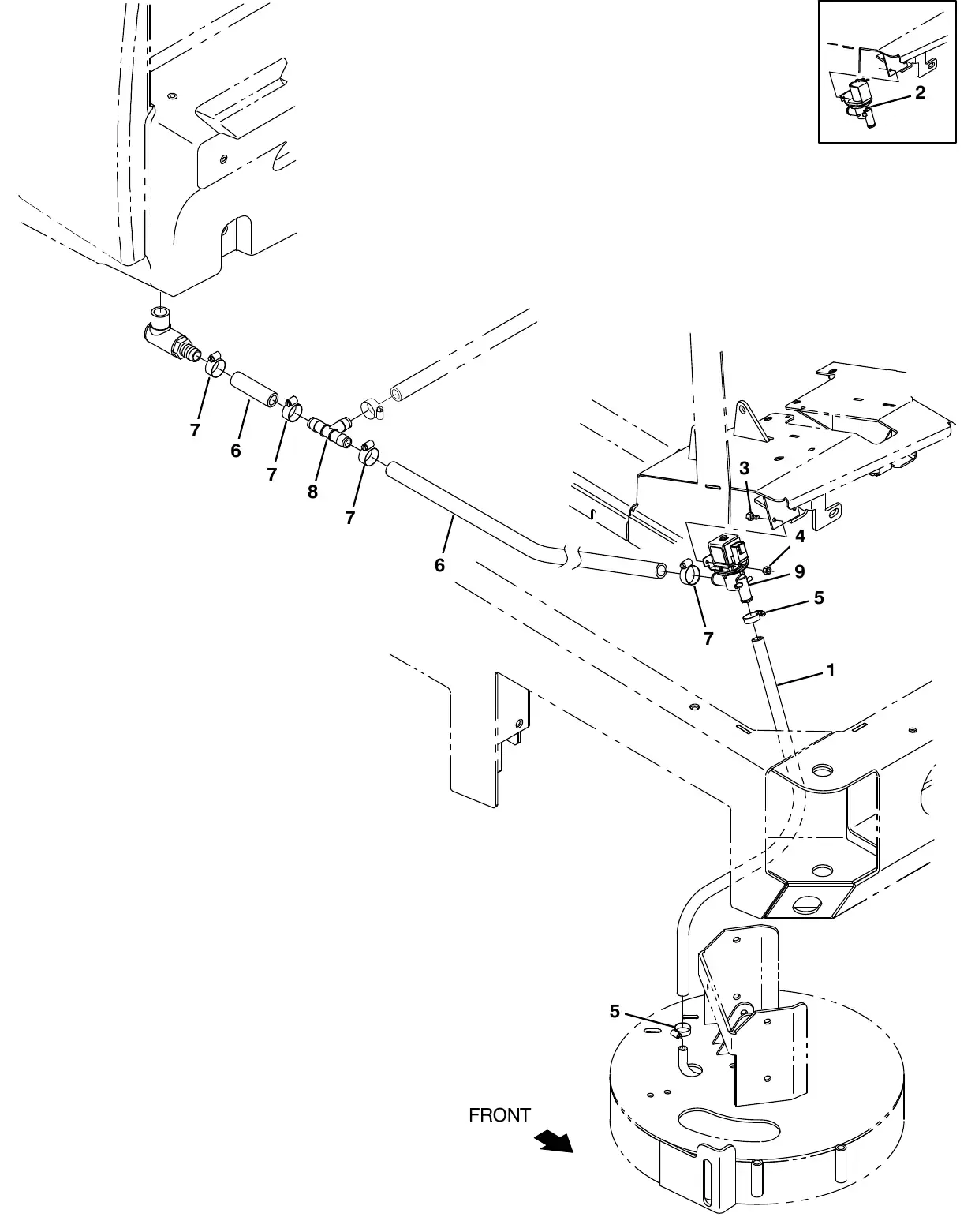

M20 side brush solution control group (S/N 008000 - 014000)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN50178 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 26.00lFits SN 008000–014000 · Old # 50178 · current Tennant number (Tennant parts catalog) | Call for price |
| 2 | TN4024340 | 1 | Valve Kit, Replacement 12v St FlowFits SN 008000–010490 · Old # 9016494 | $90.00/EA |
| 3 | TN4041990 | 2 | Screw, Hex, M5 X 0.8 X 12, SsFits SN 008000–014000 · Old # 09738 | $3.30/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN 008000–014000 · Old # 09739 | $3.30/EA |
| 5 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–014000 · Old # 54333 | $5.10/EA |
| 6 | TN4037981 | 1 | Hose, Afmkt, Pvc, Brd 0.62id 08ftFits SN 008000–014000 · Old # 1015032 | $80.40/EA |
| 7 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810 | $6.80/EA |
| 8 | TN4034918 | 1 | Fitting, Plstc, Tee, Bm10/Bm10/Bm10, NylFits SN 008000–014000 · Old # 1062116 | $6.20/EA |
| 9 | TN4045102 | 1 | Valve Assy, Water, Solenoid, 12vdcFits SN 010491–014000 · Old # 1075241 | $88.70/EA |

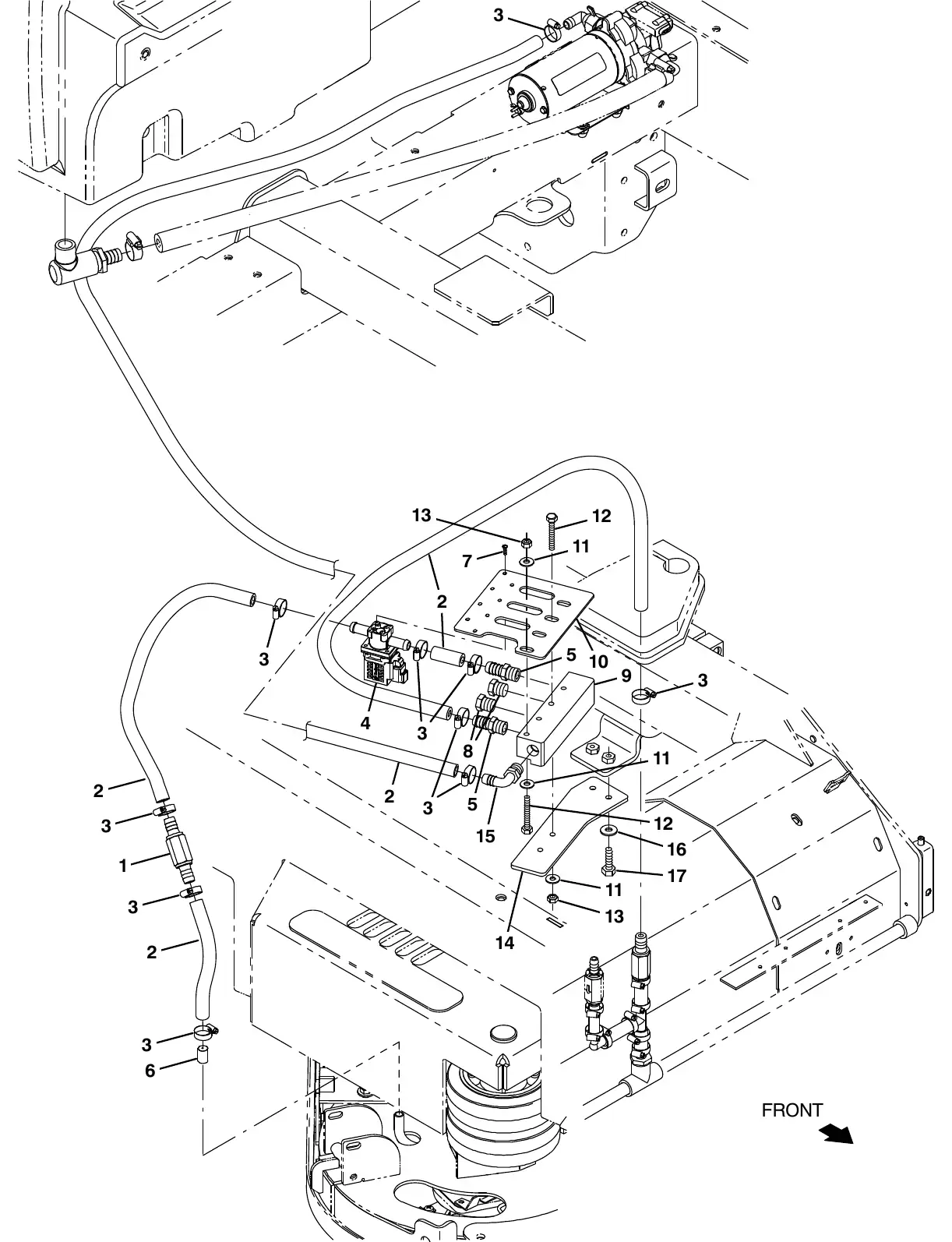

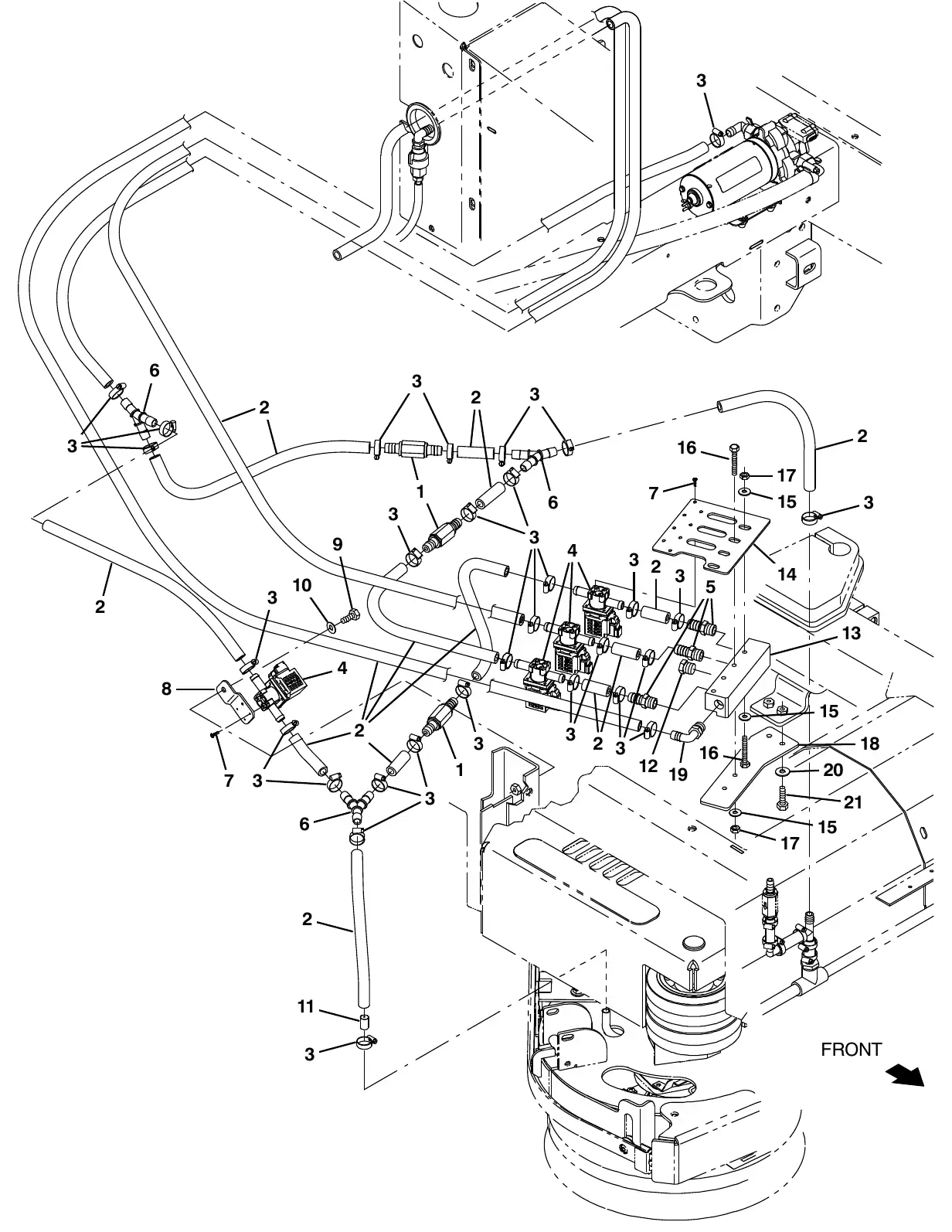

M20 side brush solution control group (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031487 | 1 | Valve, Check, 1.0psi, Bm08/Bm08Fits SN 014001 and later · Old # 1251530 | $39.20/EA |
| 2 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 014001 and later · Old # 1011412 | $70.70/EA |
| 3 | TN4015366 | 6 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 4 | TN4042944 | 1 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Fits SN 014001 and later · Old # 1076870 | $122.10/EA |
| 5 | TN4017637 | 2 | Fitting, Plstc, Str, Bm08/Pm06Fits SN 014001 and later · Old # 64743 | $6.20/EA |
| 6 | TN4032259 | 1 | Fitting, Plastic, Rst, 3.00mmFits SN 014001 and later · Old # 1256639 | $29.60/EA |
| 7 | TN4032374 | 2 | Screw, Pan, Torx, 06 - 19 X 0.38, F/ PlstcFits SN 014001 and later · Old # 1257563 | $13.74/EA |
| 8 | TN4020528 | 2 | Fitting, Plug, Pm06, HdpeFits SN 014001 and later · Old # 630146 | $4.00/EA |
| 9 | TN4032111 | 1 | Manifold, SolnFits SN 014001 and later · Old # 1254833 | $121.00/EA |
| 10 | TN4032116 | 1 | Plate, Manifold, MtgFits SN 014001 and later · Old # 1254856 | $25.55/EA |
| 11 | TN4034136 | 1 | Washer, Flat, 0.25, StdFits SN 014001 and later · Old # 32490 | $2.50/EA |
| 12 | TN4032379 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlFits SN 014001 and later · Old # 1257800 | $14.14/EA |
| 13 | TN4041928 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsFits SN 014001 and later · Old # 08712 | $2.50/EA |
| 14 | TN4043042 | 1 | Bracket, Manifold, StratusFits SN 014001 and later · Old # 1077124 | $10.20/EA |
| 15 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 014001 and later · Old # 64778 | $8.70/EA |
| 16 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 014001 and later · Old # 32491 | $2.50/EA |
| 17 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 014001 and later · Old # 39277 | $3.20/EA |

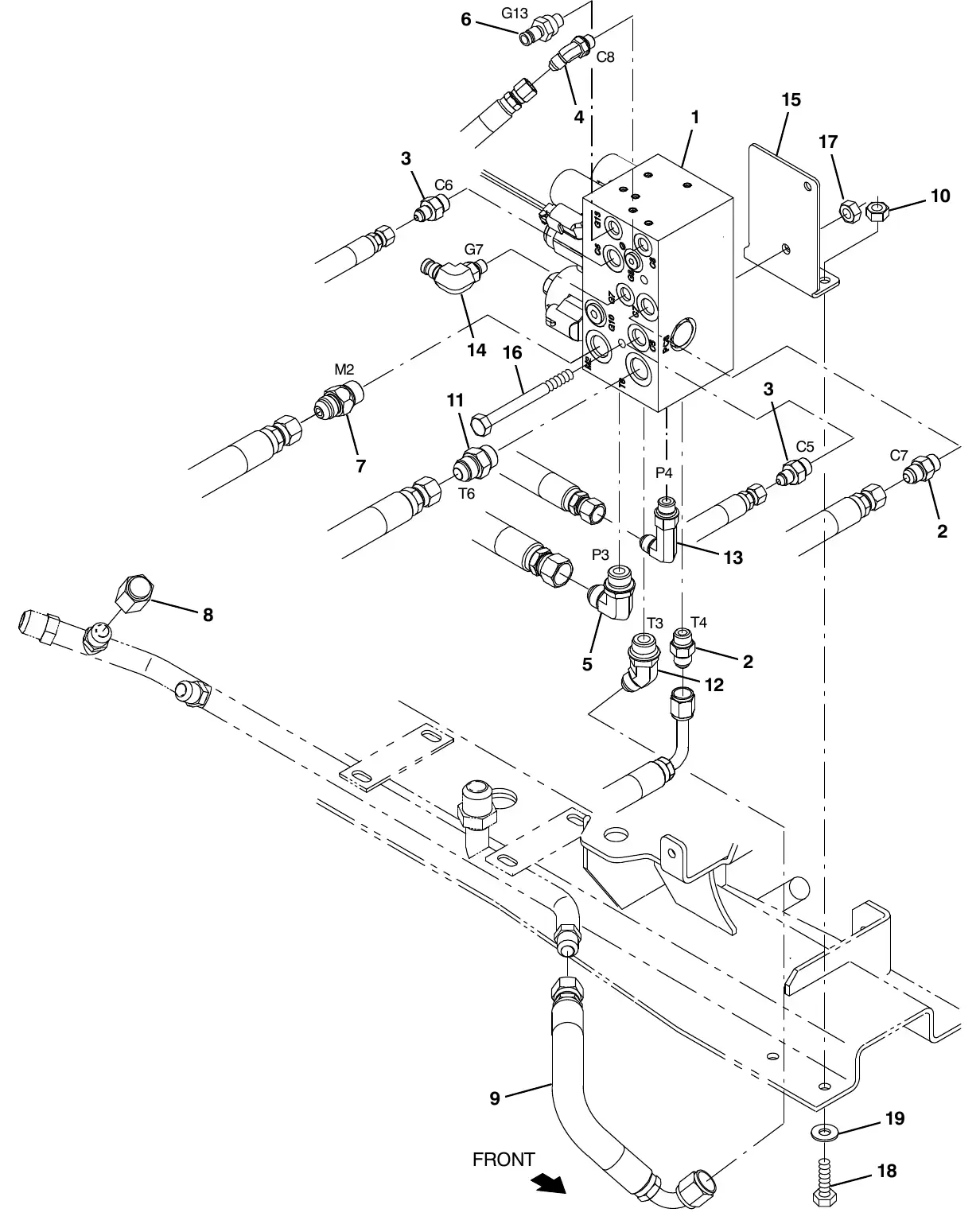

M20 side brush hydraulic valve group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

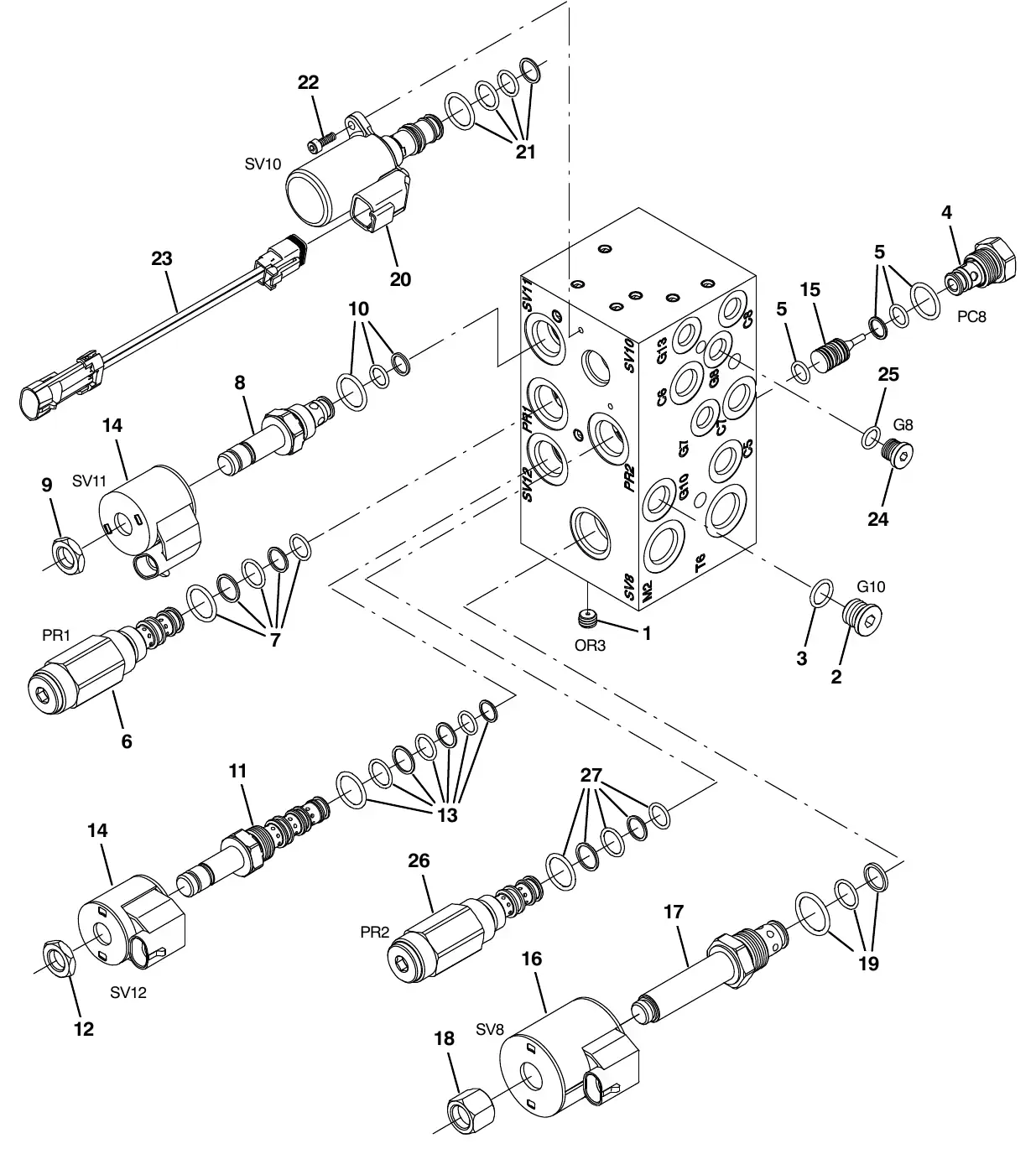

| 1 | TN4031319 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns)Old # 1072997 | $1,504.00/EA |
| 2 | TN4029145 | 2 | Fitting, Hyd, Str, Jm06/Om06Old # 56690 | $9.60/EA |
| 3 | TN4028732 | 2 | Fitting, Hyd, Str, Jm04/Om06Old # 55685 | $7.90/EA |
| 4 | TN4031286 | 1 | Fitting, Hyd, E45, Jm04/Om04Old # 34359 | $11.80/EA |
| 5 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Old # 44868 | $10.30/EA |
| 6 | TN4015806 | 1 | Fitting, Hyd, Str, Om04/Qm04Old # 395973 | $26.30/EA |
| 7 | TN4034233 | 1 | Valve, Hyd, Check, Jm08/Om08 5000psiOld # 1026119 | $41.50/EA |
| 8 | TN4027429 | 1 | Fitting, Hyd, Cap, Jf08Old # 60090 | $7.70/EA |
| 9 | TN4045589 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 012.0Old # 1037011 | $39.49/EA |
| 10 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 11 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Old # 44869 | $7.00/EA |
| 12 | TN4017335 | 1 | Fitting, Hyd, E45, Jm08/Om08Old # 42226 | $11.80/EA |
| 13 | TN4015703 | 1 | Fitting, Hyd, E90, Jf06/Jm06, LongOld # 71727 | $32.20/EA |
| 14 | TN4015807 | 1 | Fitting, Hyd, E90, Om04/Qm04Old # 395974 | $36.40/EA |
| 15 | TN4042495 | 1 | Bracket, Valve, Sba [M20 And T20]Old # 1045272 | $14.45/EA |
| 16 | TN4027793 | 2 | Screw, Hex, M8 X 1.25 X 110, SsOld # 364441 | $4.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 18 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 19 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |

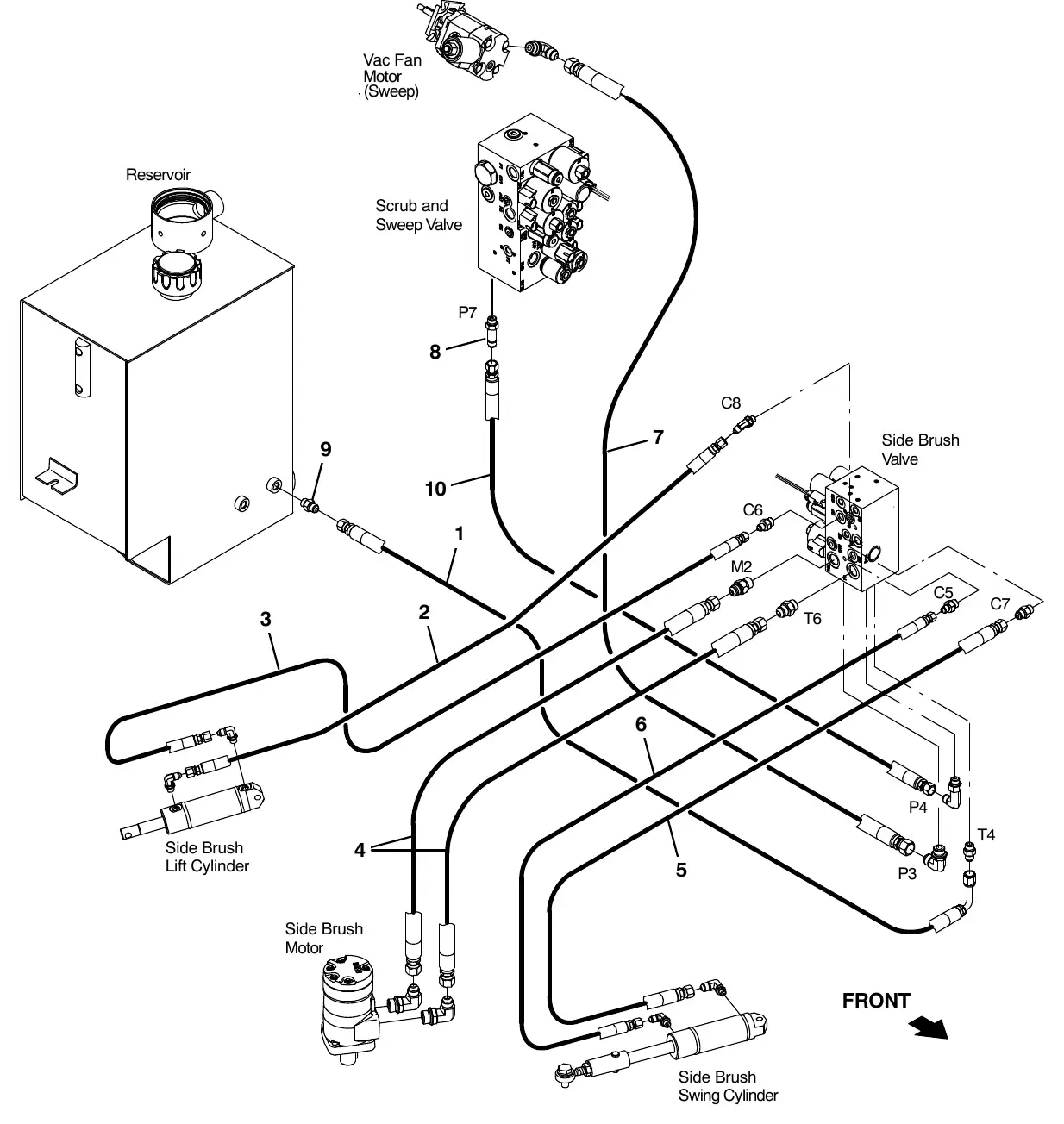

M20 side brush hydraulic hose group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029569 | 1 | Hose, Hyd, Med06, Jf06e90l/Jf06str,038.0Old # 361047 | $42.00/EA |
| 2 | TN4033270 | 1 | Hose, Hyd, Tc06, Jf04str/Jf04str, 033.0Old # 1023485 | $41.92/EA |
| 3 | TN4034220 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04str, 39.0Old # 1025990 | $51.70/EA |
| 4 | TN4045583 | 2 | Hose, Hyd, Tc08, Jf08str/Jf08str, 034.0Old # 1036965 | $50.50/EA |
| 5 | TN4034221 | 1 | Hose, Hyd, Tc06, Jf06str /Jf06str, 23.0Old # 1025991 | $32.90/EA |
| 6 | TN4034222 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04str, 20.0Old # 1025992 | $30.60/EA |
| 7 | TN4045580 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 084.0Old # 1036946 | $54.54/EA |
| 8 | TN4026830 | 1 | Fitting, Hyd, Str, Jm06/Om06, LongOld # 59577 | $9.90/EA |
| 9 | TN4029145 | 1 | Fitting, Hyd, Str, Jm06/Om06Old # 56690 | $9.60/EA |
| 10 | TN4044481 | 1 | Hose, Hyd, Tc06, Jf06str/Jf06str, 086.0Old # 1041389 | $48.50/EA |

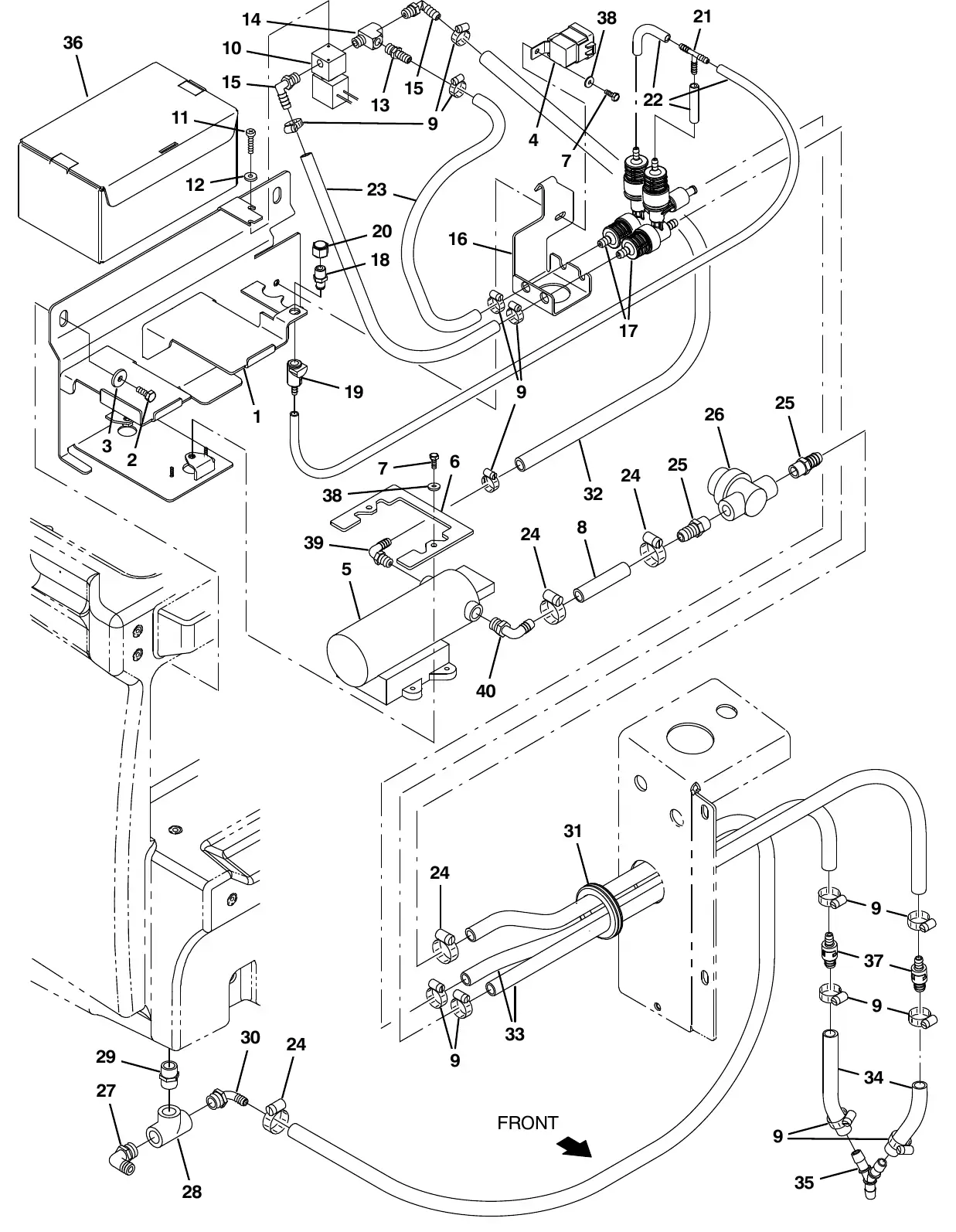

M20 FaST pumps and detergent group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4189669 | 1 | Bracket Wldt, Mtg [FaST Gen 2+]Old # 1044342 | $167.05/EA |
| 2 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 3 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 4 | TN4029123 | 1 | Relay, 12vdc, 040a, Spdt NoOld # 56186 | $11.30/EA |
| 5 | TN4045556 | 1 | Pump, Soltn, 13.7vdc, 65psi [FaST Ii+]Old # 1036801 | $593.80/EA |
| 6 | TN4191121 | 1 | Bracket, Retainer, PumpOld # 1039357 | $9.15/EA |
| 7 | TN4041245 | 3 | Screw, Hex, M6 X 1.00 X 16, SsOld # 15678 | $3.20/EA |
| 8 | TN4036839 | 1 | Hose, Afmkt, Pvc, Brd, 0.50Id, 01Ft, ClrOld # 1011403 | $19.40/EA |
| 9 | TN4017396 | 14 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 10 | TN4035534 | 1 | Valve, Water, Solenoid, 12vdc 6.0mm Pf04Old # 1018098 | $329.20/EA |
| 11 | TN4041965 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsOld # 09200 | $3.40/EA |
| 12 | TN4042888 | 2 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 13 | TN4041118 | 1 | Fitting, Plstc, Str, Bm06/Pm04Old # 150540 | $4.20/EA |
| 14 | TN4041151 | 1 | Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunOld # 150709 | $14.40/EA |
| 15 | TN4029298 | 2 | Fitting, Plstc, E90, Bm06/Pm04, NylOld # 57248 | $7.00/EA |
| 16 | TN4189680 | 1 | Bracket, Mtg [FaST Gen 2+]Old # 1044343 | $23.03/EA |
| 17 | TN4010349 | 2 | FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns)Old # 9008868 | Call for price |
| 18 | TN4038978 | 1 | Fitting, Plstc, Pipe, Cap, Pf04Old # 1005435 | $4.20/EA |
| 19 | TN4038929 | 1 | Fitting, Plstc, Str, Bm04, Cplg, FemOld # 1002898 | $58.00/EA |
| 20 | TN4038930 | 2 | Fitting, Plstc, Str, Pm04, Cplg, MalOld # 1002899 | $31.30/EA |
| 21 | TN4041153 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Old # 150713 | $10.60/EA |
| 22 | TN4037973 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 02ftOld # 1014986 | $18.70/EA |
| 23 | TN4039305 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 03ftOld # 1006416 | $18.70/EA |
| 24 | TN4015366 | 8 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 25 | TN4044578 | 2 | Fitting, Plstc, Str, Bm06/Pm06Old # 150538 | $5.30/EA |
| 26 | TN4038961 | 1 | Filter, In - Line, Pf06/Pf06 080mesh 02.6lOld # 1005302 | $21.10/EA |
| 27 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Old # 73468 | $7.90/EA |
| 28 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Old # 42133A | $17.60/EA |
| 29 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lOld # 24544 | $6.20/EA |
| 30 | TN4038988 | 1 | Fitting, Plstc, E90, Bm08/Pm12, NylOld # 1005552 | $7.90/EA |
| 31 | TN4032002 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlOld # 10632-19 | $1.50/EA |
| 32 | TN4039301 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrOld # 1006400 | $33.10/EA |
| 33 | TN4033588 | 1 | Hose, Afmkt, Pvc, Wir, 0.50id, 03ft, ClrOld # 1024237 | $27.20/EA |
| 34 | TN4037960 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 01ftOld # 1014929 | $21.00/EA |
| 35 | TN4040375 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylOld # 1010668 | $11.00/EA |
| 36 | TN4035218 | 1 | Detergent, Pkg, 2 Liter, Sgl [665]Old # 1017022 | Call for price |
| 37 | TN4045437 | 2 | Valve, Check, 0005psi Bm06/Bm08Old # 1035794 | $35.90/EA |
| 38 | TN4042901 | 3 | Washer, Flat, 0.27B 0.69D .05, SsOld # 01684 | $2.60/EA |
| 39 | TN4040112 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10Old # 1049254 | $11.80/EA |
| 40 | TN4040113 | 1 | Fitting, NylY, Qdc, E90, Bm06/ Qm10Old # 1049259 | $10.60/EA |

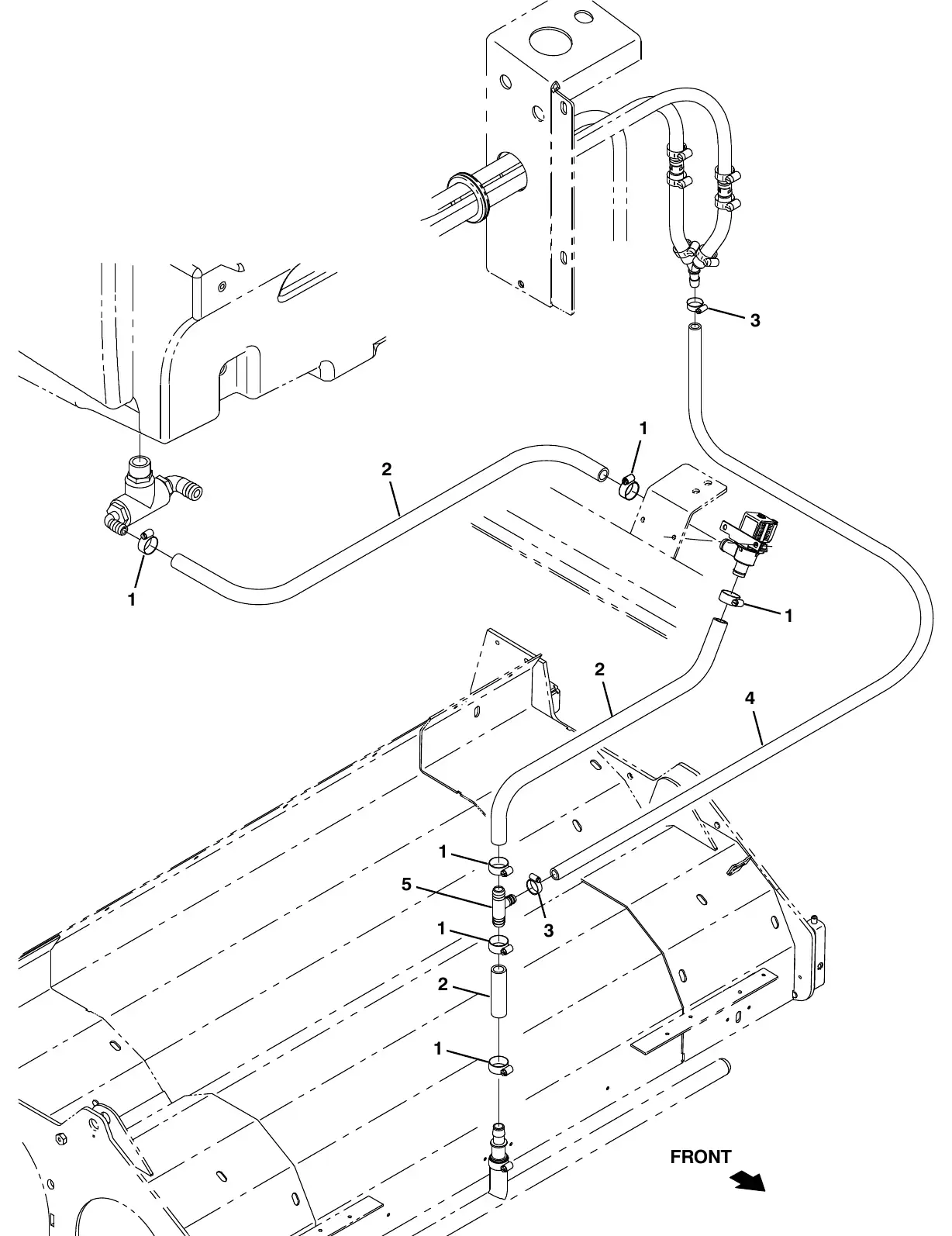

M20 FaST solution supply group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089 | 6 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 2 | TN4037981 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrOld # 1015032 | $80.40/EA |
| 3 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 4 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrOld # 1011412 | $70.70/EA |
| 5 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |

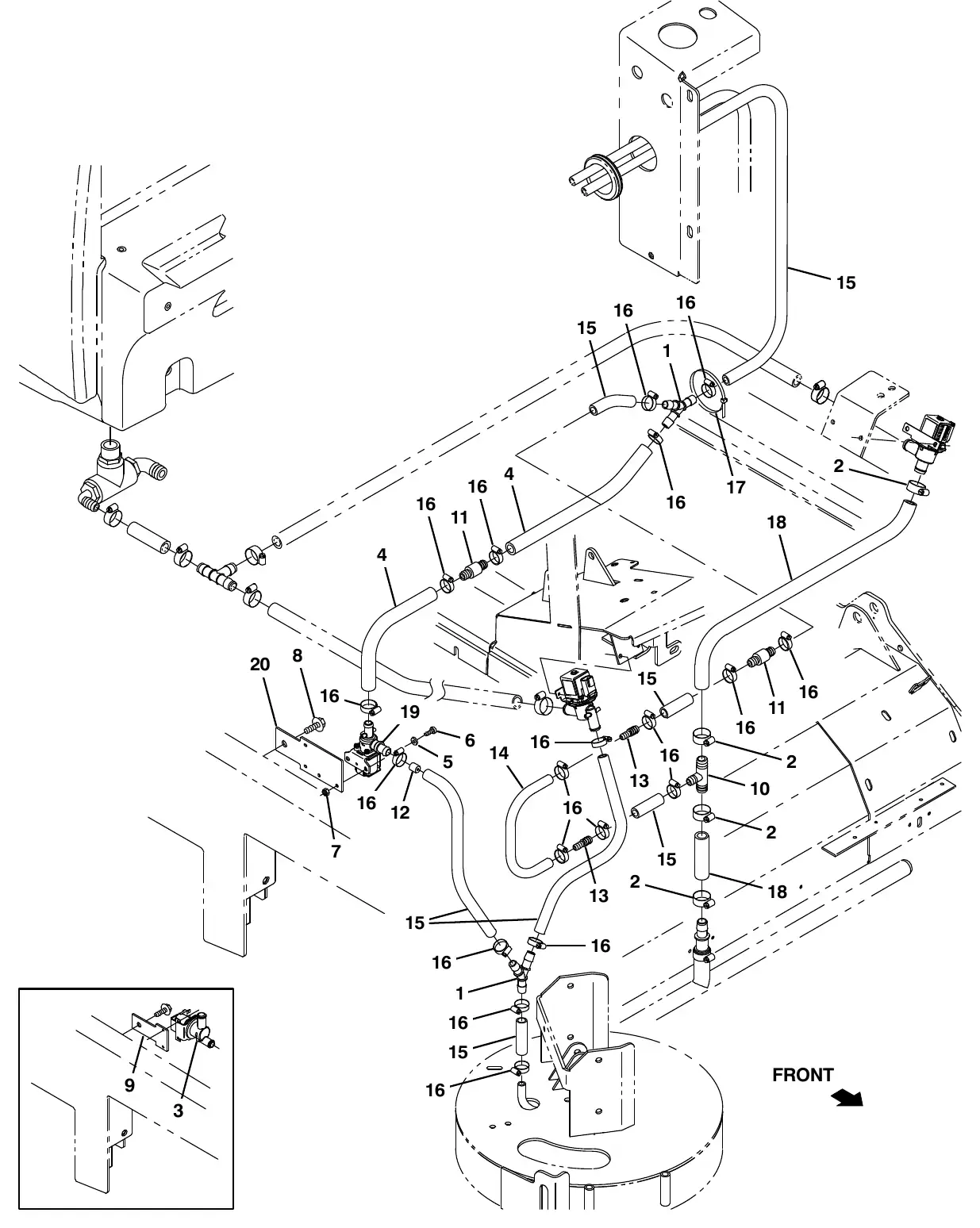

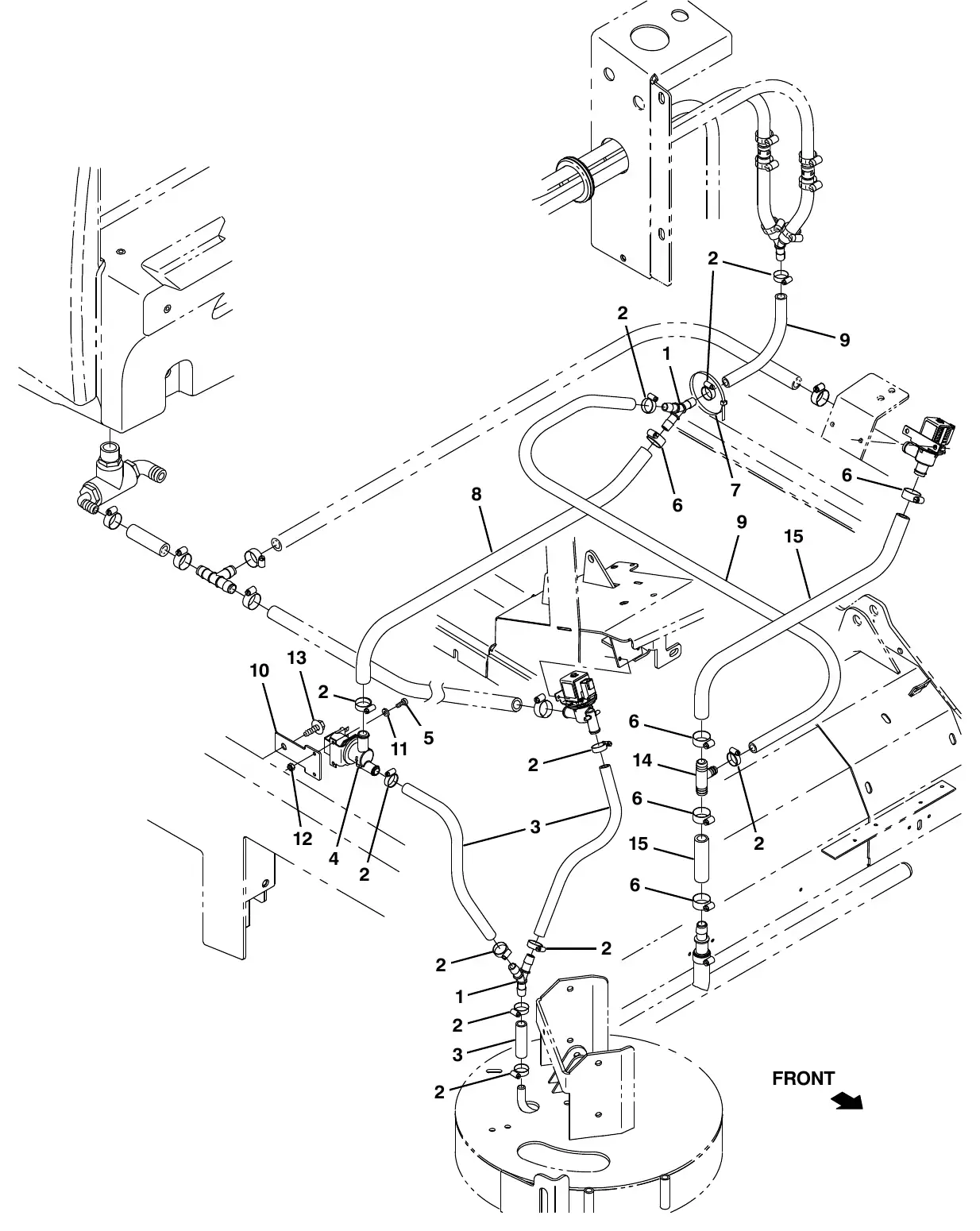

M20 FaST solution supply group with side brush
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375 | 2 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylOld # 1010668 | $11.00/EA |
| 2 | TN4015366 | 11 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 3 | TN4037991 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 08ftOld # 1015067 | $50.20/EA |
| 4 | TN4043533 | 1 | Valve, Solenoid, 12vdc, Water FlowOld # 1037825 | Call for price |
| 5 | TN4041965 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsOld # 09200 | $3.40/EA |
| 6 | TN4017089 | 5 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 7 | TN4011910 | 1 | Tie, Cable, Nyl, 15.3l . W 4.5 Max DOld # 763116 | $3.40/EA |
| 8 | TN4033443 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0Old # 31543 | $37.40/EA |
| 9 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrOld # 1011412 | $70.70/EA |
| 10 | TN4031717 | 1 | Plate, Mtg, ValveOld # 1030511 | $4.75/EA |
| 11 | TN4042888 | 2 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 12 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 13 | TN4013943 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgOld # 76099 | $4.00/EA |
| 14 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |
| 15 | TN4037980 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrOld # 1015026 | $31.50/EA |

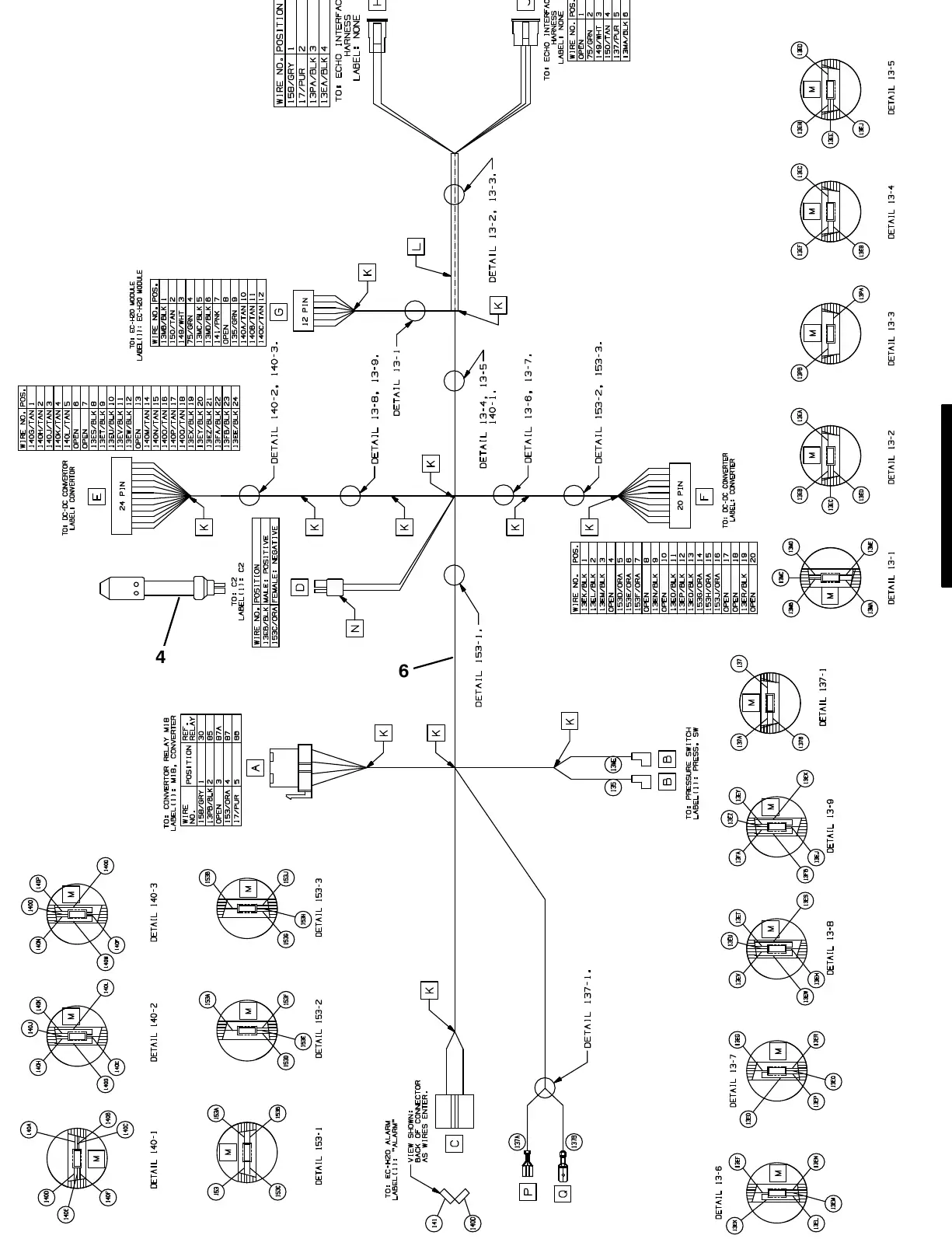

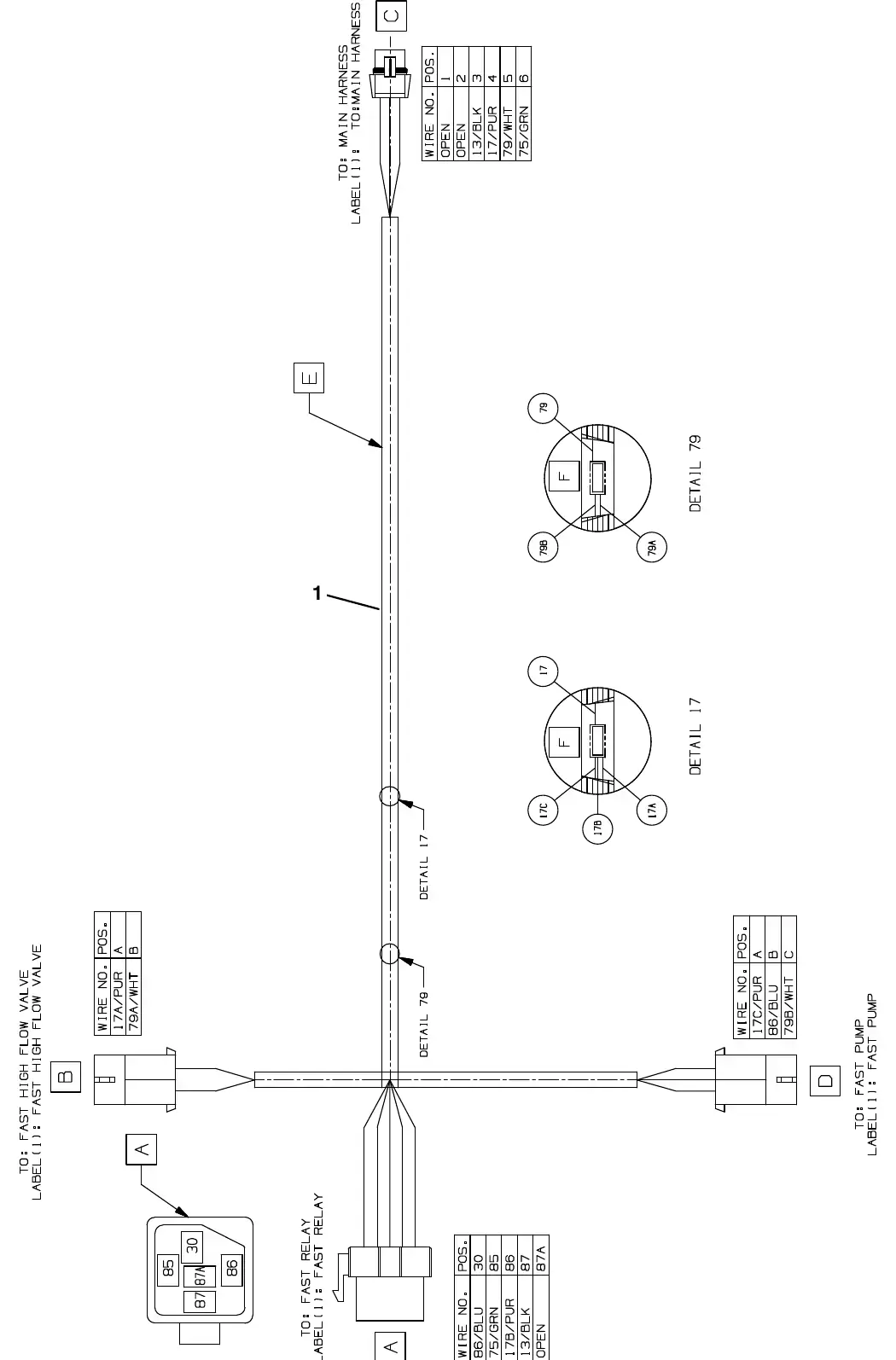

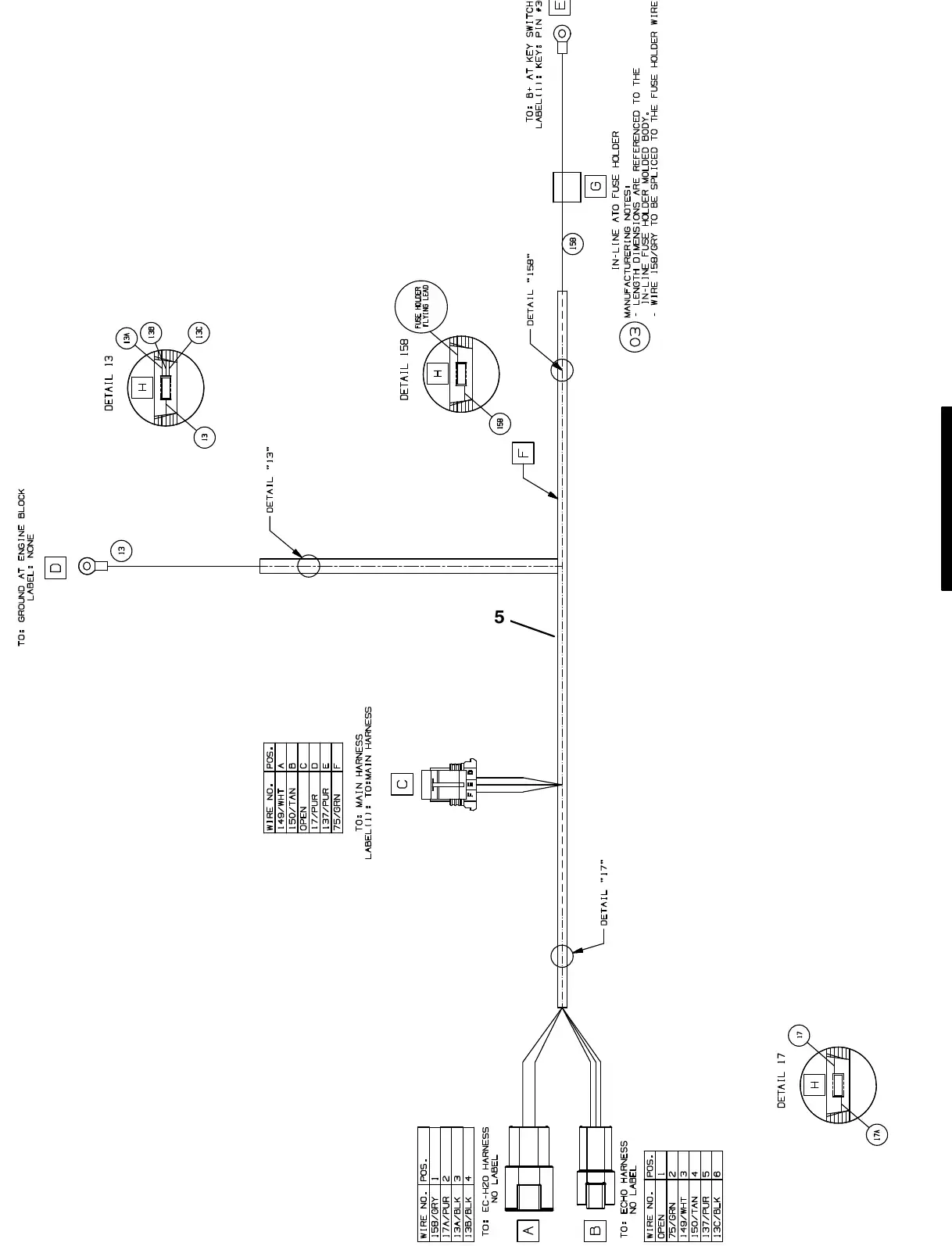

M20 FaST wire harness group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1075138 | 1 | Harness, Wire [FaST Gen 2, M20/T20]Old # 1075138 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |

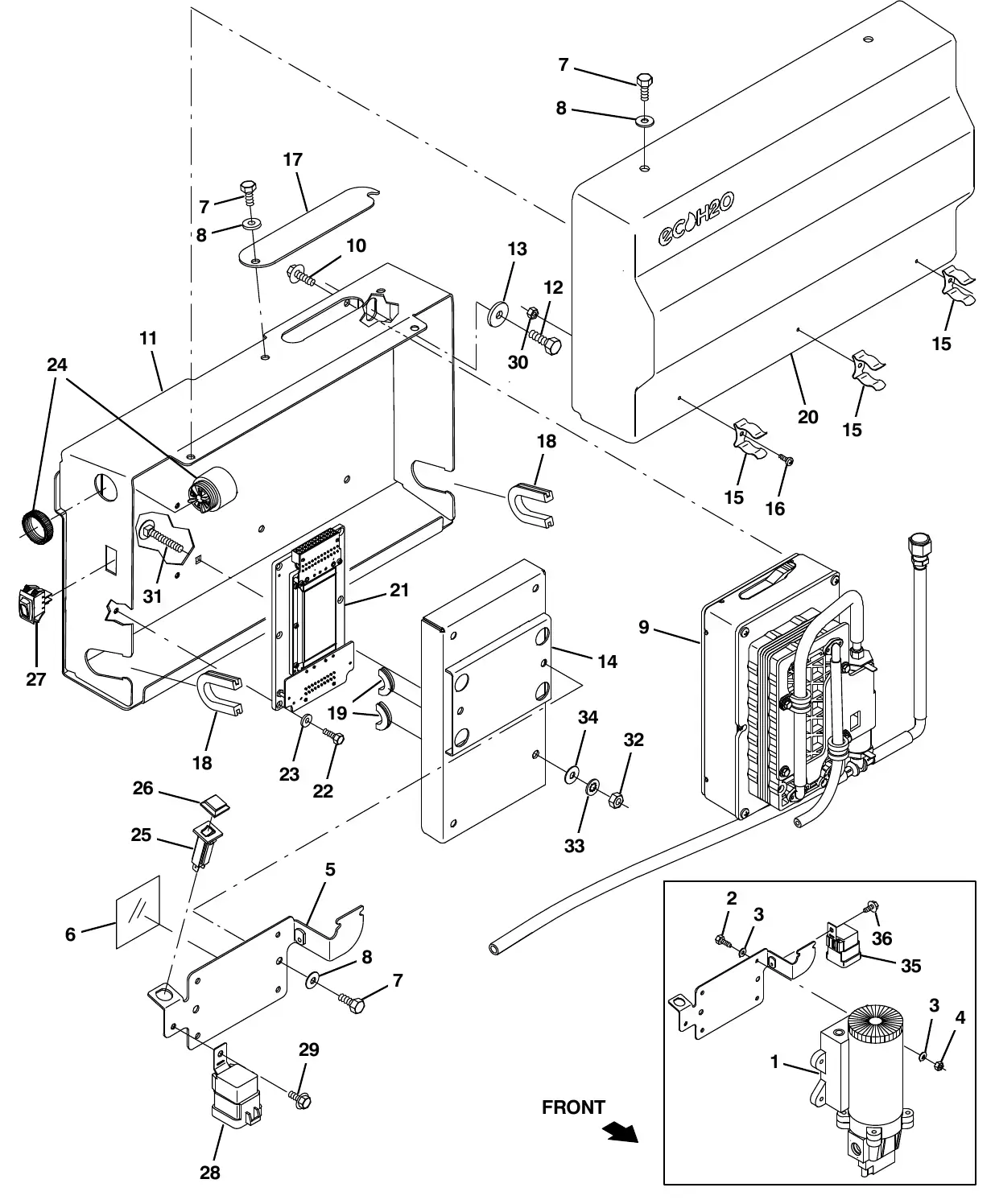

M20 ec - H20 solution pump group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034620 | 1 | Pump, Soltn, Ele, 13.7vdc,12/28psiFits SN 008000–014000 · Old # 1060624 | $621.40/EA |
| 2 | TN4041970 | 4 | Screw, Hex, M5 X 0.80 X 20, 8.8Fits SN 008000–014000 · Old # 09252 | $3.40/EA |
| 3 | TN4042244 | 8 | Washer, Flat, 10Fits SN 008000–014000 · Old # 19066 | $2.50/EA |
| 4 | TN4041004 | 4 | Nut, Hex, Lock, M5 X 0.80, NlFits SN 008000–014000 · Old # 06549 | $2.50/EA |
| 5 | TN4187222 | 1 | Plate, Mtg, PumpOld # 1060273 | $31.31/EA |
| 6 | TN4187047 | 1 | Strip, Rbr, 0.06 03.54w 03.5l [Neo/60]Old # 1059677 | $2.83/EA |
| 7 | TN4041994 | 6 | Screw, Hex, M6 X 1.00 X 12, SsOld # 09744 | $3.40/EA |
| 8 | TN4042901 | 6 | Washer, Flat, 0.27b 0.69d .05, SsOld # 01684 | $2.60/EA |

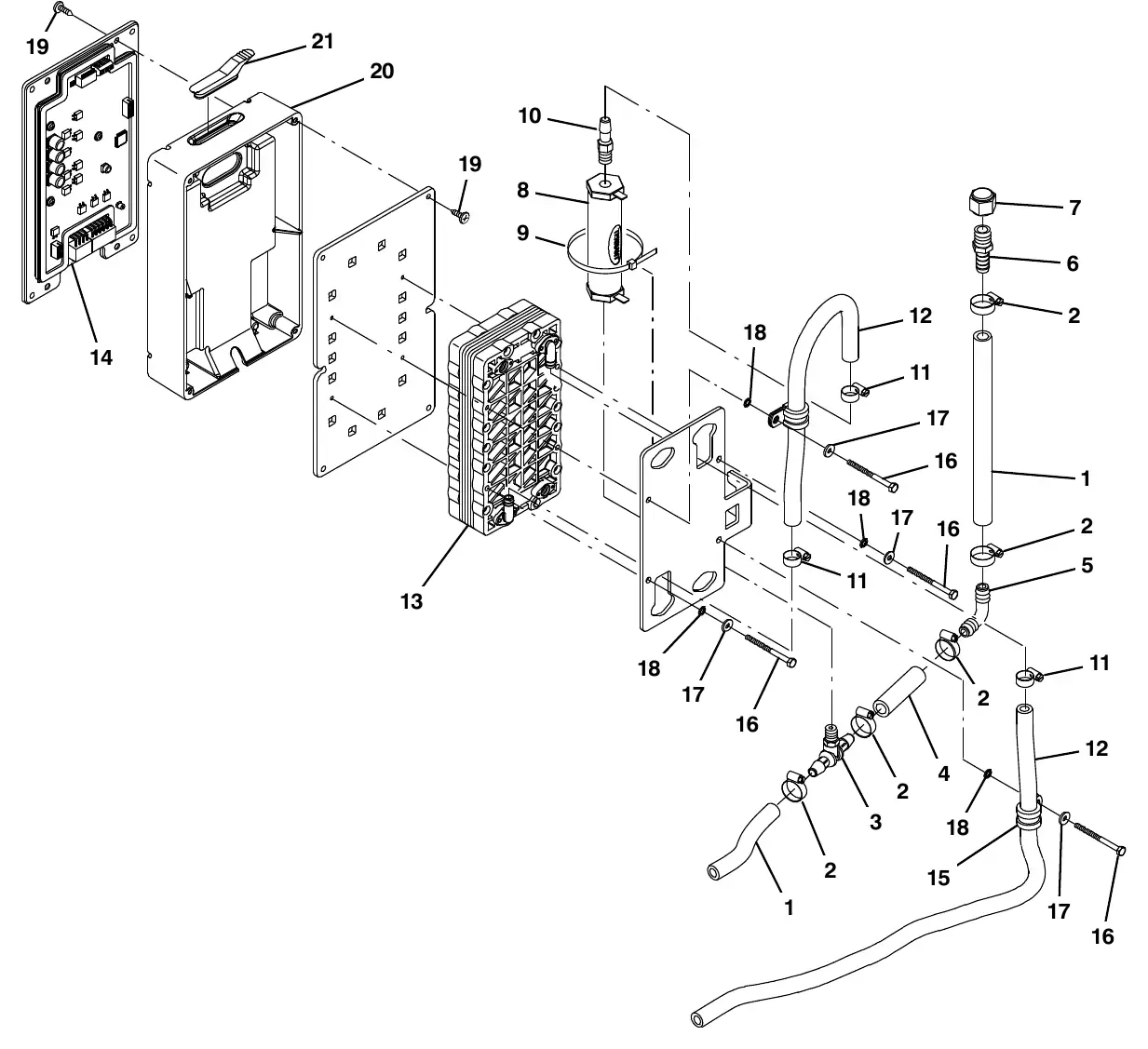

| 9 | TN4012473 | 1 | Module Kit, Replmt [Ec - H20] (See Breakdowns)Old # 9007882 | $1,782.70/EA |
| 10 | TN4044400 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 11 | TN4187224 | 1 | Plate Wldt, MtgOld # 1060292 | $165.64/EA |
| 12 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 13 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 14 | TN4187215 | 1 | Cover Wldt, Power SupplyOld # 1060185 | $68.18/EA |
| 15 | TN4031029 | 3 | Clip, Grip, Finger, 0.88 - 1.25dOld # 1029057 | $5.15/EA |
| 16 | TN4035991 | 3 | Screw, Pan, Phl, M4 X 0.70 X 20, SsOld # 12323 | $3.30/EA |
| 17 | TN4187223 | 1 | Plate, InspectionOld # 1060291 | $5.96/EA |
| 18 | TN4036241 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01FtOld # 1020168 | $44.40/EA |
| 19 | TN4032006 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .06 MatlOld # 10632-4 | $2.50/EA |
| 20 | TN4034636 | 1 | Cover, TrimmedOld # 1060719 | $164.73/EA |
| 21 | TN4031068 | 1 | Circuitboard Assy [Dc To Dc Conv.]Old # 1247720 | $712.80/EA |
| 22 | TN4041967 | 4 | Screw, Hex, M4 X 0.70 X 12, 8.8Old # 09206 | $3.30/EA |
| 23 | TN4042243 | 4 | Washer, Flat, 08Old # 19065 | $3.20/EA |
| 24 | TN4037707 | 1 | Alarm, 9 - 48vdc, 95 Db(A) [Ec - H20]Old # 1052726 | $75.90/EA |
| 25 | TN4032584 | 1 | Circuitbreaker, 02.0a, ResetableOld # 1064183 | $13.40/EA |
| 26 | TN4032601 | 1 | Boot, CircuitbreakerOld # 1064191 | $12.60/EA |
| 27 | TN4042141 | 1 | Switch, Rocker, Spst, MomOld # 1044393 | $7.70/EA |
| 28 | TN4029123 | 1 | Relay, 12vdc, 040a, Spdt NoOld # 56186 | $11.30/EA |
| 29 | TN4037385 | 1 | Screw, Hex, M5 X 0.80 X 10, FmgOld # 223198 | $4.00/EA |
| 30 | TN4031247 | 3 | Nut, Hex, Lock, M4 X 0.70, Nl, SsOld # 33932 | $3.40/EA |
| 31 | TN4185338 | 4 | Bolt, Carriage, M06 X 1.00 X 40, 4.6Old # 1062804 | $1.52/EA |
| 32 | TN4016812 | 4 | Nut, Hex, Std, M6 X 1.00, 8Old # 41359 | $3.40/EA |
| 33 | TN4034655 | 4 | Washer, Lock, Int, 0.25Old # 32982 | $2.60/EA |
| 34 | TN4034133 | 4 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 35 | TN4029123 | 1 | Relay, 12vdc, 040a, Spdt NoFits SN 008000–014000 · Old # 56186 | $11.30/EA |
| 36 | TN4037385 | 1 | Screw, Hex, M5 X 0.80 X 10, FmgFits SN 008000–014000 · Old # 223198 | $4.00/EA |

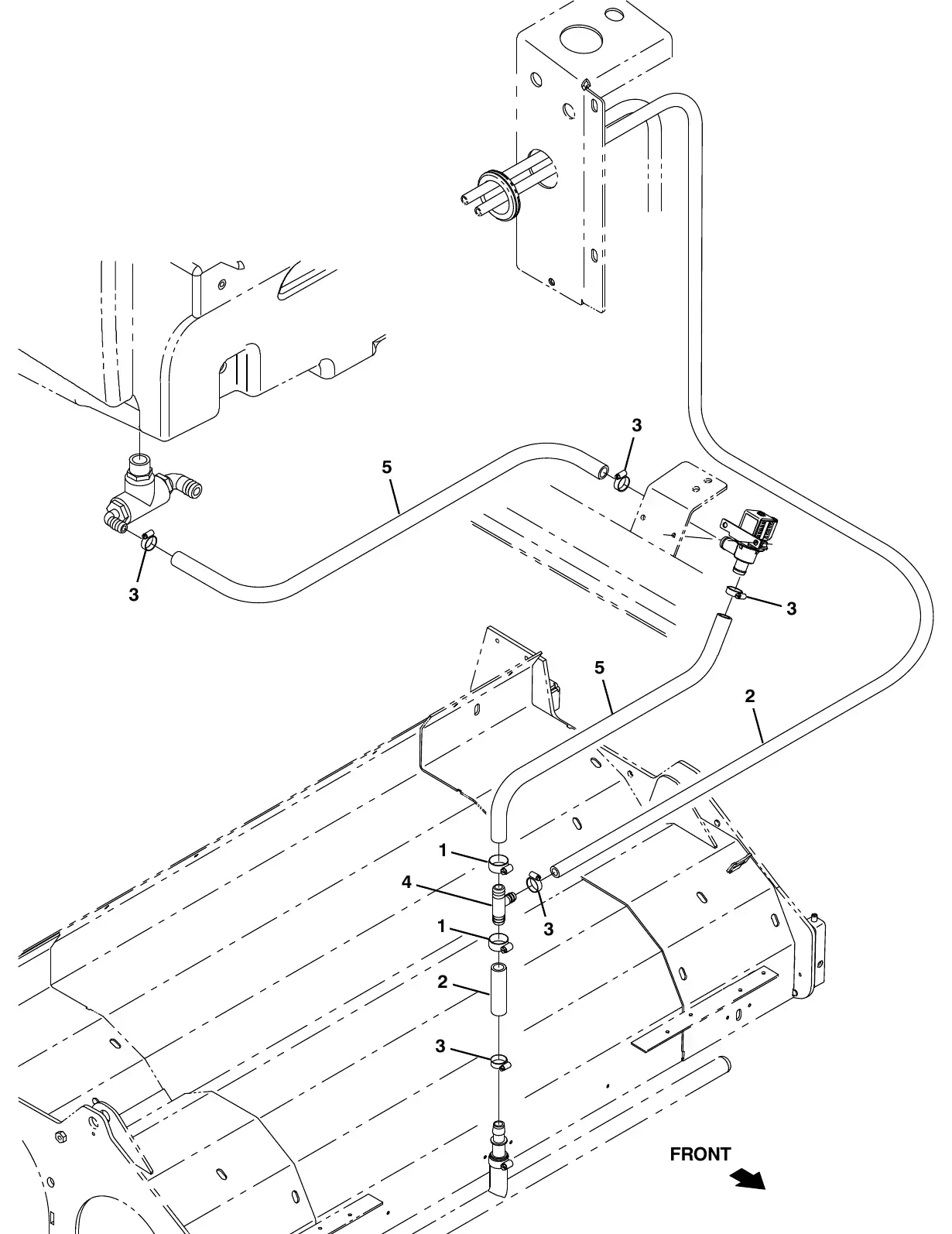

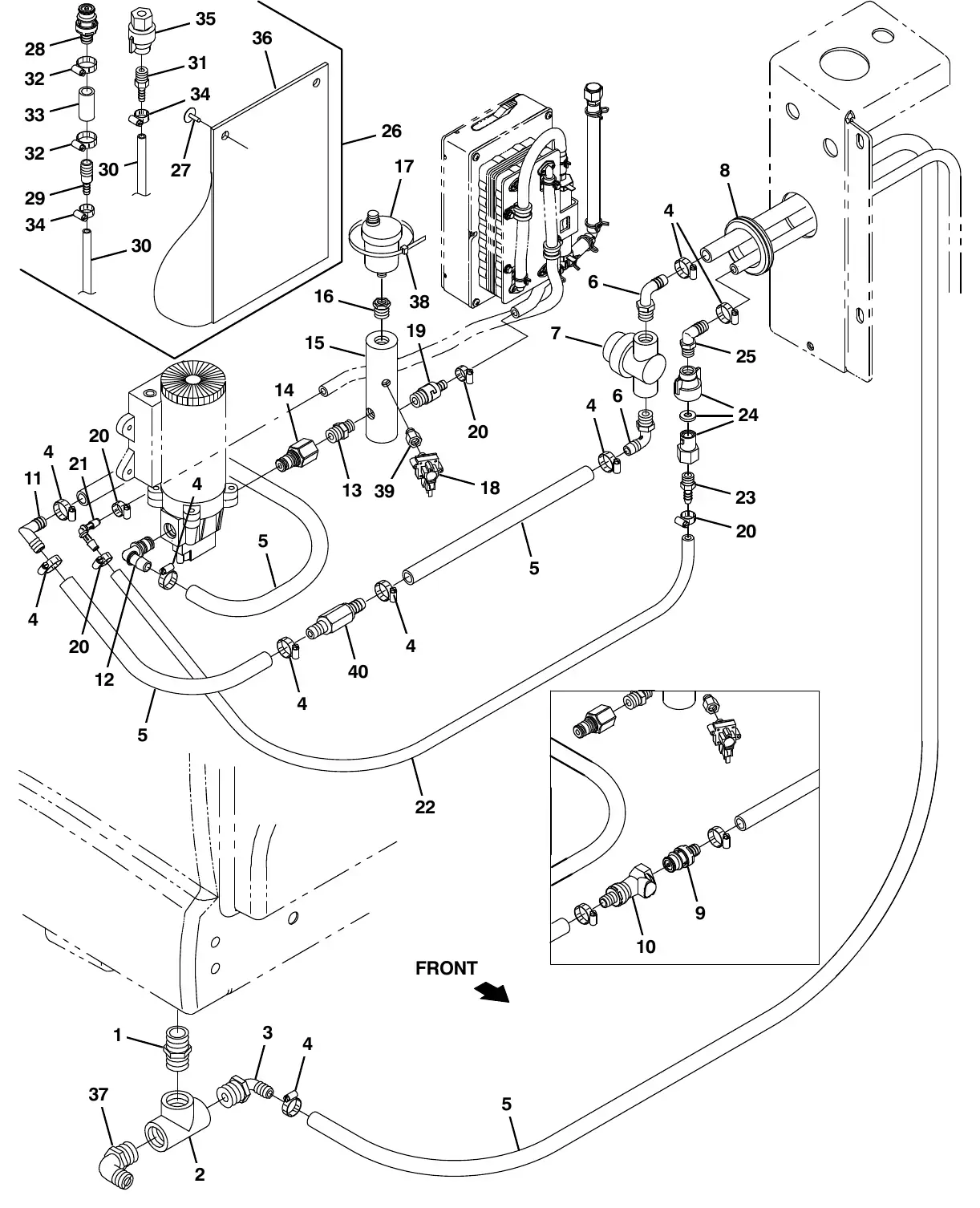

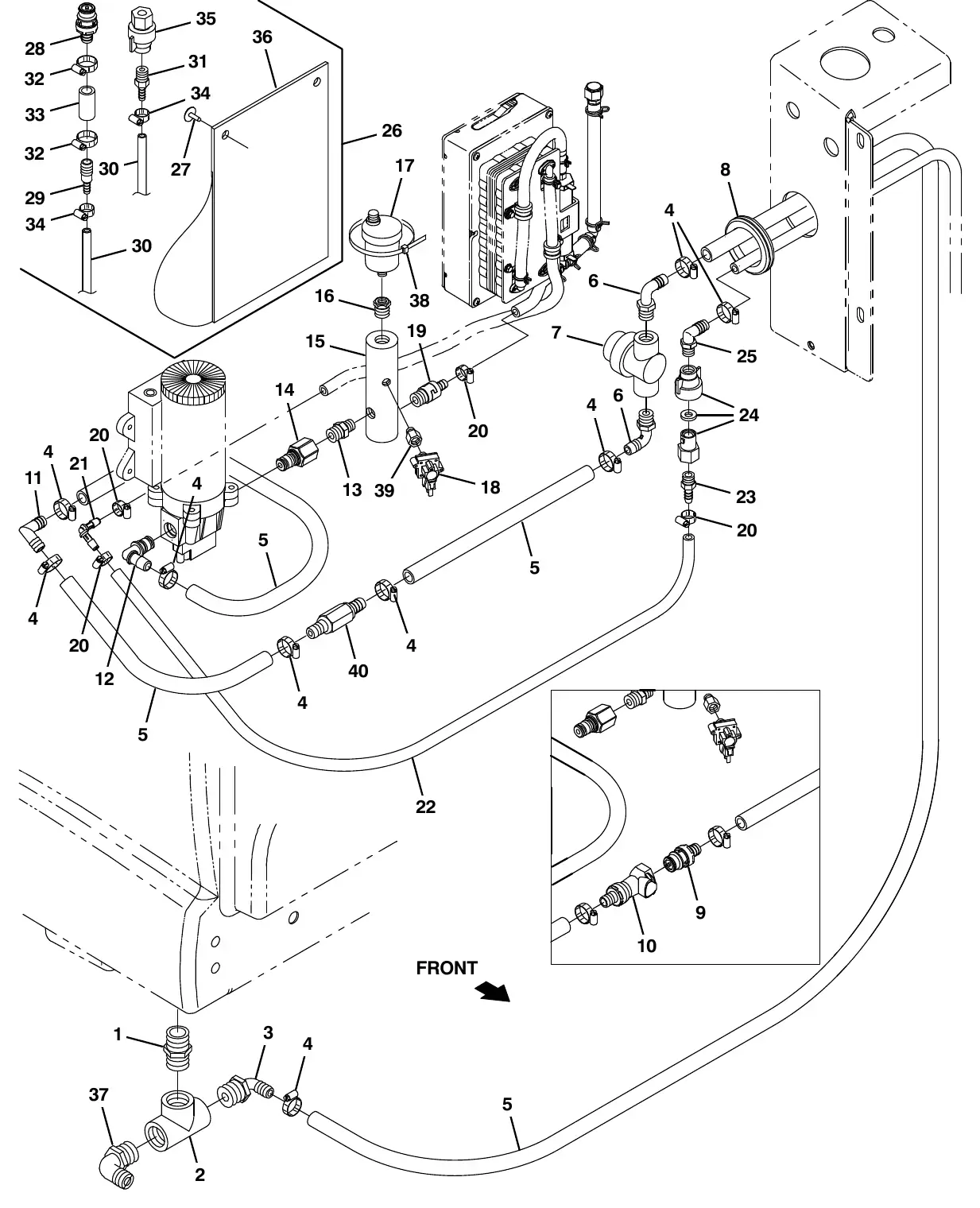

M20 ec - H20 solution pump supply group (S/N 008000 - 014000)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lFits SN 008000–014000 · Old # 24544 | $6.20/EA |
| 2 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Fits SN 008000–014000 · Old # 42133A | $17.60/EA |
| 3 | TN4038988 | 1 | Fitting, Plstc, E90, Bm08/Pm12, NylFits SN 008000–014000 · Old # 1005552 | $7.90/EA |
| 4 | TN4015366 | 9 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–014000 · Old # 54333 | $5.10/EA |
| 5 | TN4036916 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrFits SN 008000–014000 · Old # 1011837 | $75.50/EA |
| 6 | TN4017647 | 2 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 008000–014000 · Old # 64778 | $8.70/EA |
| 7 | TN4038961 | 1 | Filter, In - Line, Pf06/Pf06 080mesh 02.6lFits SN 008000–014000 · Old # 1005302 | $21.10/EA |
| 8 | TN4032002 | 3 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN 008000–014000 · Old # 10632-19 | $1.50/EA |
| 9 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08 (Repl by 1531530)Fits SN 008000–014000 · Old # 1017415 | $34.70/EA |
| 10 | TN4035457 | 1 | Housing, Cplg, Qf / Pm08 (Repl by 1531530)Fits SN 008000–014000 · Old # 1017413 | $37.90/EA |
| 11 | TN4017096 | 1 | Fitting, Plstc, E90, Bm08/Bm08Fits SN 008000–014000 · Old # 63987-1 | $7.80/EA |
| 12 | TN4040112 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10Fits SN 008000–014000 · Old # 1049254 | $11.80/EA |
| 13 | TN4038956 | 1 | Fitting, Plstc, Str, Pm04/Pm06, NylFits SN 008000–014000 · Old # 1005219 | $4.20/EA |
| 14 | TN4037143 | 1 | Fitting, Plstc, Str, Pf06/Qm10, PvcFits SN 008000–014000 · Old # 1059372 | $13.00/EA |
| 15 | TN4034619 | 1 | Manifold, WaterFits SN 008000–014000 · Old # 1060596 | $44.30/EA |
| 16 | TN4035395 | 1 | Fitting, Brs, Str, Pf02/Pm06Fits SN 008000–014000 · Old # 24698 | $8.70/EA |
| 17 | TN4035456 | 1 | Valve, Vent, Air, Float TypeFits SN 008000–014000 · Old # 1017386 | $64.30/EA |
| 18 | TN4036776 | 1 | Switch, Press, 50 Psi, Pm02Fits SN 008000–014000 · Old # 1058935 | $115.30/EA |
| 19 | TN4034632 | 1 | Valve, Check, 0005psi Pm04/Bm06Fits SN 008000–014000 · Old # 1060693 | $55.50/EA |
| 20 | TN4017396 | 4 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 008000–014000 · Old # 43844 | $4.20/EA |
| 21 | TN4187030 | 1 | Fitting, Plstc, E90, Bm05/Bm05, NylFits SN 008000–014000 · Old # 1059391 | $4.40/EA |
| 22 | TN4041050 | 2 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrFits SN 008000–014000 · Old # 1052336 | $48.50/EA |
| 23 | TN4040814 | 1 | Fitting, Plstc, Str, Bm05/Pm04Fits SN 008000–014000 · Old # 1052017 | $2.60/EA |
| 24 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 008000–014000 · Old # 1071280 | $8.70/EA |
| 25 | TN4017747 | 1 | Fitting, Plstc, E90, Bm08/Pm04Fits SN 008000–014000 · Old # 65581 | $2.55/EA |
| 26 | TN4197576 | 1 | ec - H2O Kit, Flush, Replmt[M20, M30&T20]Fits SN 008000–014000 · Old # 9014281 | $99.60/EA |
| 27 | TN4016302 | 2 | Rivet, Plstc, .250d X 0.90Fits SN 008000–014000 · Old # 72968 | $3.20/EA |
| 28 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08Fits SN 008000–014000 · Old # 1017415 | $34.70/EA |
| 29 | TN4020535 | 1 | Fitting, Plstc, Str, Bm04/Bm08Fits SN 008000–014000 · Old # 630164 | $7.90/EA |
| 30 | TN4039304 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftFits SN 008000–014000 · Old # 1006415 | $51.70/EA |
| 31 | TN4014520 | 1 | Fitting, Plstc, Str, Bm04/Pm04Fits SN 008000–014000 · Old # 50901 | $3.60/EA |
| 32 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–014000 · Old # 54333 | $5.10/EA |
| 33 | TN4036839 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrFits SN 008000–014000 · Old # 1011403 | $19.40/EA |
| 34 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 008000–014000 · Old # 43844 | $4.20/EA |
| 35 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 008000–014000 · Old # 1071280 | $8.70/EA |
| 36 | TN4013988 | 1 | PouchFits SN 008000–014000 · Old # 48790 | $32.02/EA |
| 37 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Fits SN 008000–014000 · Old # 73468 | $7.90/EA |
| 38 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN 008000–014000 · Old # 49266 | $2.50/EA |
| 39 | TN4035142 | 1 | Fitting, Brs, Snubber, Pm02/Pf02Fits SN 008000–014000 · Old # 1062403 | $37.10/EA |
| 40 | TN4031487 | 1 | Valve, Check, 1.0psi, Bm08/Bm08Fits SN 008000–014000 · Old # 1251530 | $39.20/EA |

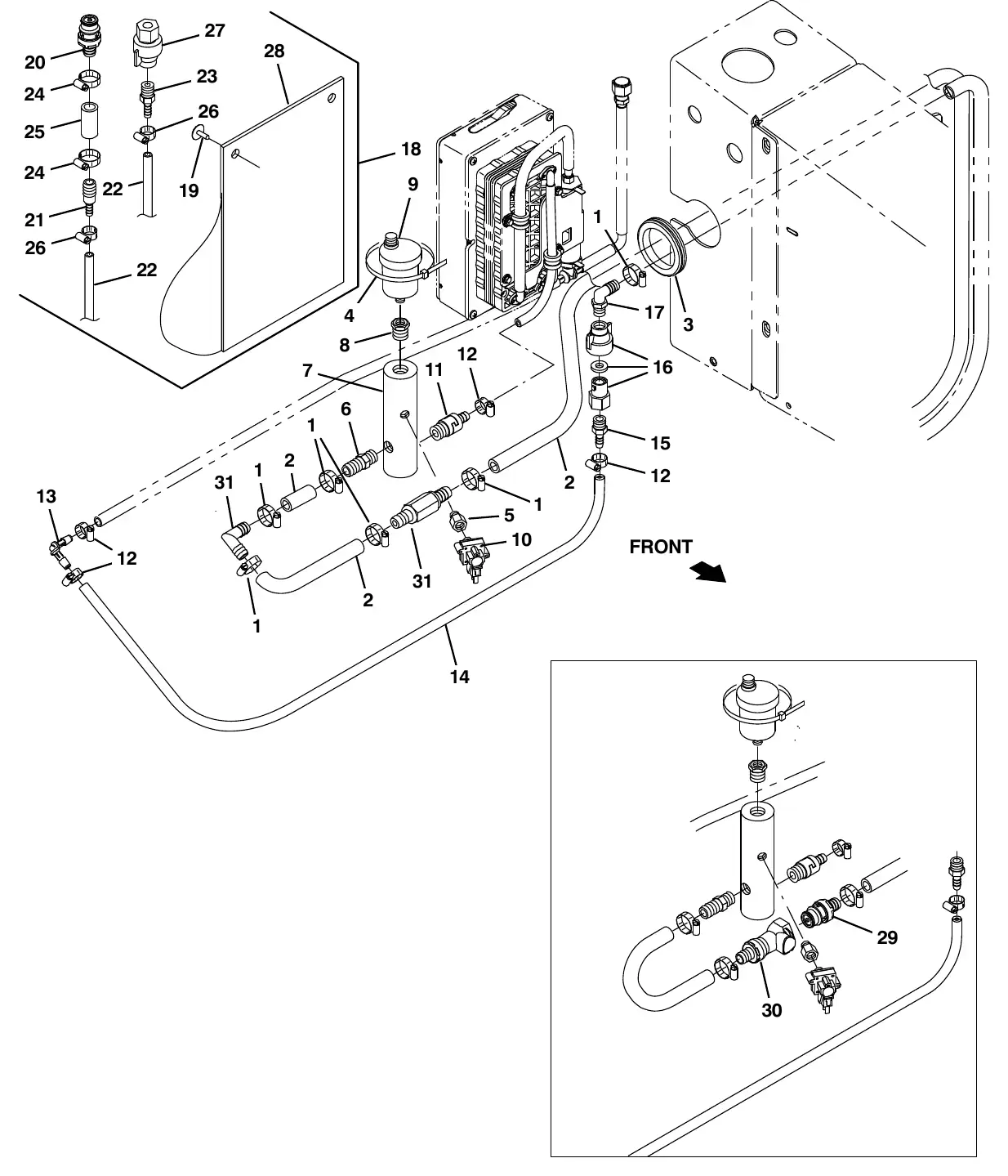

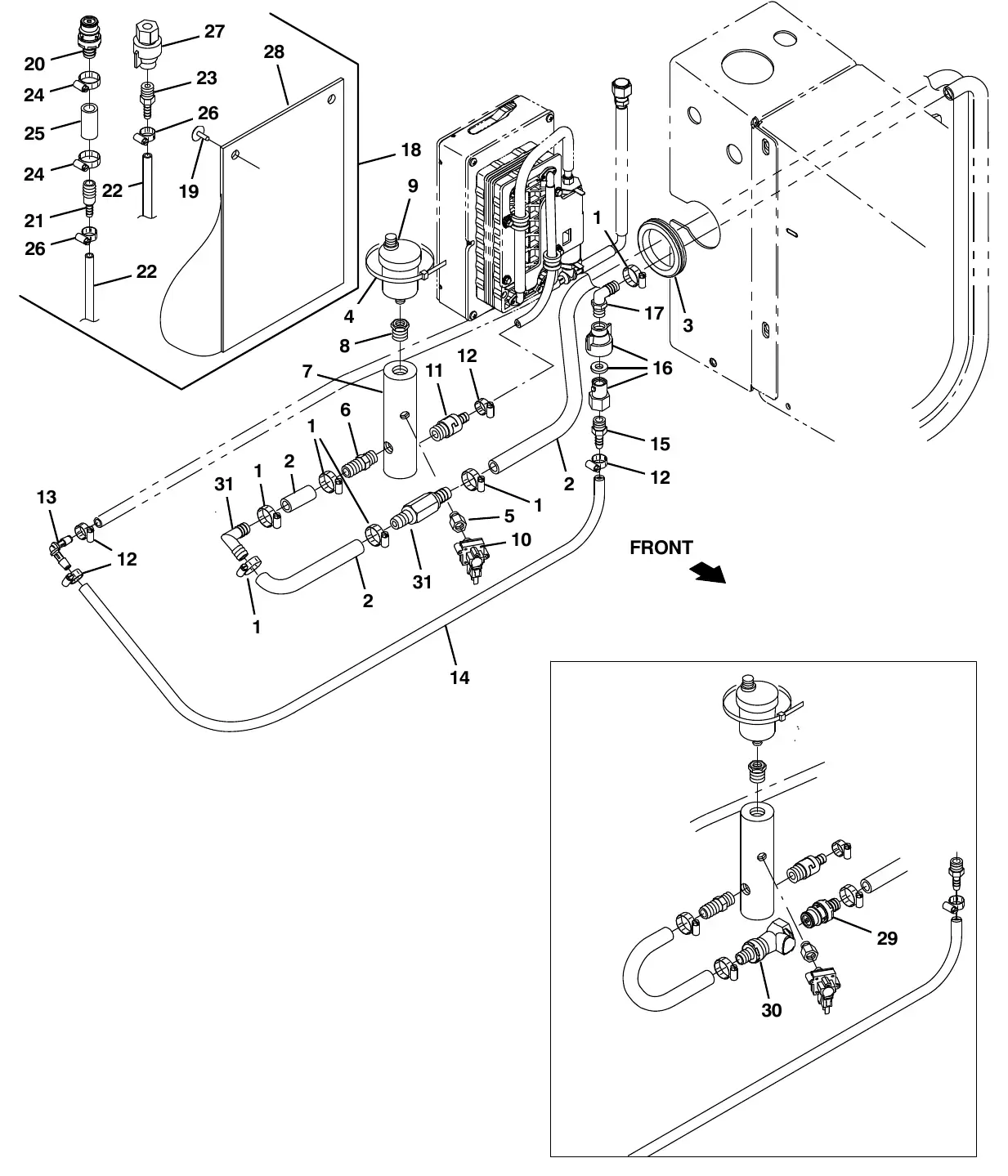

M20 ec - H20 solution pump supply group (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4015366 | 4 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 2 | TN4036916 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrFits SN 014001 and later · Old # 1011837 | $75.50/EA |
| 3 | TN4032002 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN 014001 and later · Old # 10632-19 | $1.50/EA |
| 4 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN 014001 and later · Old # 49266 | $2.50/EA |
| 5 | TN4035142 | 1 | Fitting, Brs, Snubber, Pm02/Pf02Fits SN 014001 and later · Old # 1062403 | $37.10/EA |
| 6 | TN4013959 | 1 | Fitting, Plstc, Str, Bm08/Pm04Fits SN 014001 and later · Old # 48610 | $1.35/EA |
| 7 | TN4034619 | 1 | Manifold, WaterFits SN 014001 and later · Old # 1060596 | $44.30/EA |
| 8 | TN4035395 | 1 | Fitting, Brs, Str, Pf02/Pm06Fits SN 014001 and later · Old # 24698 | $8.70/EA |
| 9 | TN4035456 | 1 | Valve, Vent, Air, Float TypeFits SN 014001 and later · Old # 1017386 | $64.30/EA |
| 10 | TN4036776 | 1 | Switch, Press, 50 Psi, Pm02Fits SN 014001 and later · Old # 1058935 | $115.30/EA |
| 11 | TN4034632 | 1 | Valve, Check, 0005psi Pm04/Bm06Fits SN 014001 and later · Old # 1060693 | $55.50/EA |
| 12 | TN4017396 | 4 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 014001 and later · Old # 43844 | $4.20/EA |
| 13 | TN4187030 | 1 | Fitting, Plstc, E90, Bm05/Bm05, NylFits SN 014001 and later · Old # 1059391 | $4.40/EA |
| 14 | TN4041050 | 1 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrFits SN 014001 and later · Old # 1052336 | $48.50/EA |
| 15 | TN4040814 | 1 | Fitting, Plstc, Str, Bm05/Pm04Fits SN 014001 and later · Old # 1052017 | $2.60/EA |
| 16 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 014001 and later · Old # 1071280 | $8.70/EA |
| 17 | TN4017747 | 1 | Fitting, Plstc, E90, Bm08/Pm04Fits SN 014001 and later · Old # 65581 | $2.55/EA |
| 18 | TN4197576 | 1 | ec - H2O Kit, Flush, Replmt[M20, M30&T20]Fits SN 014001 and later · Old # 9014281 | $99.60/EA |
| 19 | TN4016302 | 2 | Rivet, Plstc, .250d X 0.90Fits SN 014001 and later · Old # 72968 | $3.20/EA |
| 20 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08Fits SN 014001 and later · Old # 1017415 | $34.70/EA |
| 21 | TN4020535 | 1 | Fitting, Plstc, Str, Bm04/Bm08Fits SN 014001 and later · Old # 630164 | $7.90/EA |
| 22 | TN4039304 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftFits SN 014001 and later · Old # 1006415 | $51.70/EA |
| 23 | TN4014520 | 1 | Fitting, Plstc, Str, Bm04/Pm04Fits SN 014001 and later · Old # 50901 | $3.60/EA |
| 24 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 25 | TN4036839 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrFits SN 014001 and later · Old # 1011403 | $19.40/EA |
| 26 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 014001 and later · Old # 43844 | $4.20/EA |
| 27 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 014001 and later · Old # 1071280 | $8.70/EA |
| 28 | TN4013988 | 1 | PouchFits SN 014001 and later · Old # 48790 | $32.02/EA |
| 29 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08 (Repl by 1531530)Fits SN 014001–016999 · Old # 1017415 | $34.70/EA |
| 30 | TN4035457 | 1 | Housing, Cplg, Qf / Pm08 (Repl by 1531530)Fits SN 014001–016999 · Old # 1017413 | $37.90/EA |
| 31 | TN4031487 | 1 | Valve, Check, 1.0psi, Bm08/Bm08Fits SN 014001 and later · Old # 1251530 | $39.20/EA |
M20 ec - H20 solution supply group (S/N 008000 - 014000)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089 | 2 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810 | $6.80/EA |
| 2 | TN4036916 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrFits SN 008000–014000 · Old # 1011837 | $75.50/EA |
| 3 | TN4015366 | 5 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–014000 · Old # 54333 | $5.10/EA |
| 4 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrFits SN 008000–014000 · Old # 1015486 | $5.30/EA |
| 5 | TN4037981 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 008000–014000 · Old # 1015032 | $80.40/EA |

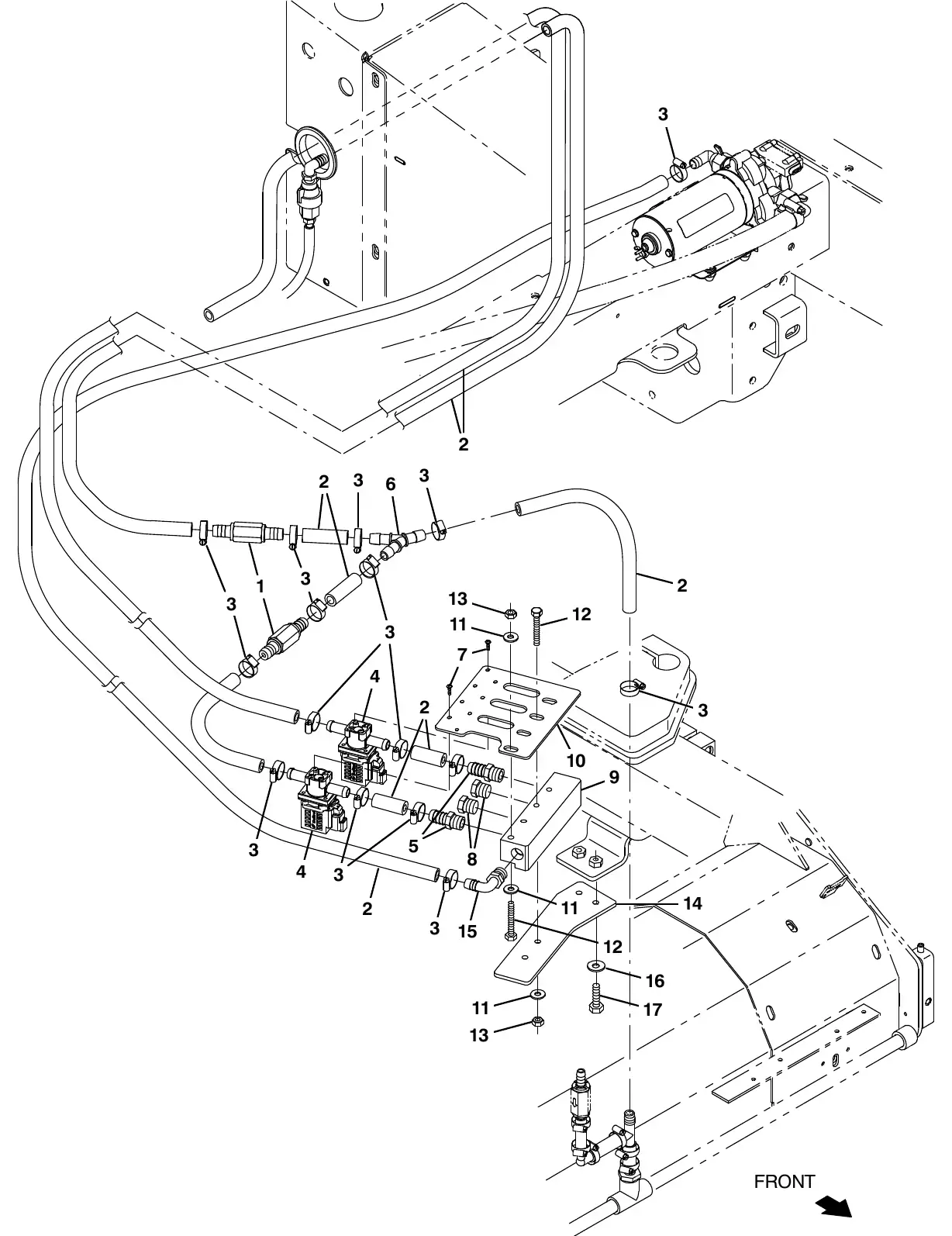

M20 ec - H20 solution supply group (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031487 | 2 | Valve, Check, 1.0psi, Bm08/Bm08Fits SN 014001 and later · Old # 1251530 | $39.20/EA |
| 2 | TN4036844 | 2 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 014001 and later · Old # 1011412 | $70.70/EA |
| 3 | TN4015366 | 6 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 4 | TN4042944 | 2 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Fits SN 014001 and later · Old # 1076870 | $122.10/EA |
| 5 | TN4017637 | 2 | Fitting, Plstc, Str, Bm08/Pm06Fits SN 014001 and later · Old # 64743 | $6.20/EA |
| 6 | TN4040375 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylFits SN 014001 and later · Old # 1010668 | $11.00/EA |
| 7 | TN4032374 | 4 | Screw, Pan, Torx, 06 - 19 X 0.38, F/ PlstcFits SN 014001 and later · Old # 1257563 | $13.74/EA |
| 8 | TN4020528 | 2 | Fitting, Plug, Pm06, HdpeFits SN 014001 and later · Old # 630146 | $4.00/EA |
| 9 | TN4032111 | 1 | Manifold, SolnFits SN 014001 and later · Old # 1254833 | $121.00/EA |
| 10 | TN4032116 | 1 | Plate, Manifold, MtgFits SN 014001 and later · Old # 1254856 | $25.55/EA |
| 11 | TN4034136 | 1 | Washer, Flat, 0.25, StdFits SN 014001 and later · Old # 32490 | $2.50/EA |
| 12 | TN4032379 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlFits SN 014001 and later · Old # 1257800 | $14.14/EA |
| 13 | TN4041928 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsFits SN 014001 and later · Old # 08712 | $2.50/EA |
| 14 | TN4043042 | 1 | Bracket, Manifold, StratusFits SN 014001 and later · Old # 1077124 | $10.20/EA |
| 15 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 014001 and later · Old # 64778 | $8.70/EA |
| 16 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 014001 and later · Old # 32491 | $2.50/EA |
| 17 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 014001 and later · Old # 39277 | $3.20/EA |
M20 ec - H20 solution supply group with side brush (S/N 008000 - 014000)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylFits SN 008000–014000 · Old # 1010668 | $11.00/EA |
| 2 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810 | $6.80/EA |
| 3 | TN4189257 | 1 | Valve Kit, Water, ReplmtFits SN 008000–012081 · Old # 9021167 | $50.00/EA |
| 4 | TN4033443 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0Fits SN 008000–014000 · Old # 31543 | $37.40/EA |
| 5 | TN4042888 | 2 | Washer, Flat, 10, SsFits SN 008000–014000 · Old # 01683 | $2.60/EA |
| 6 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsFits SN 008000–014000 · Old # 24196 | $3.20/EA |
| 7 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsFits SN 008000–014000 · Old # 09739 | $3.30/EA |
| 8 | TN4013943 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgFits SN 008000–014000 · Old # 76099 | $4.00/EA |
| 9 | TN4031717 | 1 | Plate, Mtg, ValveFits SN 008000–012081 · Old # 1030511 | $4.75/EA |
| 10 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrFits SN 008000–014000 · Old # 1015486 | $5.30/EA |
| 11 | TN4040370 | 2 | Valve, Check, 2gpm .5psi Bm08/Bm08Fits SN 008000–014000 · Old # 1010614 | $55.50/EA |
| 12 | TN4034713 | 1 | Plug, RestrictorFits SN 008000–014000 · Old # 1061045 | $22.30/EA |
| 13 | TN4040278 | 2 | Fitting, Plstc, Str, Bm06/Bm08Fits SN 008000–014000 · Old # 222375 | $4.20/EA |
| 14 | TN4037967 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrFits SN 008000–014000 · Old # 1014974 | $22.40/EA |
| 15 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 008000–014000 · Old # 1011412 | $70.70/EA |
| 16 | TN4015366 | 18 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–014000 · Old # 54333 | $5.10/EA |
| 17 | TN4011910 | 1 | Tie, Cable, Nyl, 15.3l . W 4.5 Max DFits SN 008000–014000 · Old # 763116 | $3.40/EA |
| 18 | TN4037980 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrFits SN 008000–014000 · Old # 1015026 | $31.50/EA |
| 19 | TN4042930 | 1 | Valve Assy, Water, Solenoid, 12vdcFits SN 012082–014000 · Old # 1076824 | $132.30/EA |
| 20 | TN4042912 | 1 | Plate, Mtg, ValveFits SN 012082–014000 · Old # 1076793 | $30.81/EA |
M20 ec - H20 solution supply group with side brush (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031487 | 2 | Valve, Check, 1.0psi, Bm08/Bm08Fits SN 014001 and later · Old # 1251530 | $39.20/EA |
| 2 | TN4036914 | 2 | Hose, Afmkt, Pvc, Brd, 0.50id, 20ft, ClrFits SN 014001 and later · Old # 1011835 | $109.50/EA |
| 3 | TN4015366 | 28 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 4 | TN4042944 | 4 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Fits SN 014001 and later · Old # 1076870 | $122.10/EA |
| 5 | TN4017637 | 3 | Fitting, Plstc, Str, Bm08/Pm06Fits SN 014001 and later · Old # 64743 | $6.20/EA |
| 6 | TN4040375 | 3 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylFits SN 014001 and later · Old # 1010668 | $11.00/EA |
| 7 | TN4032374 | 8 | Screw, Pan, Torx, 06 - 19 X 0.38, F/ PlstcFits SN 014001 and later · Old # 1257563 | $13.74/EA |
| 8 | TN4032241 | 1 | Bracket, Solenoid, Ech2oFits SN 014001 and later · Old # 1256174 | $9.49/EA |
| 9 | TN4041992 | 1 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 014001 and later · Old # 09740 | $3.30/EA |
| 10 | TN4042902 | 1 | Washer, Flat, 0.38b 0.88d .08, SsFits SN 014001 and later · Old # 01685 | $2.60/EA |
| 11 | TN4032259 | 1 | Fitting, Plastic, Rst, 3.00mmFits SN 014001 and later · Old # 1256639 | $29.60/EA |
| 12 | TN4020528 | 1 | Fitting, Plug, Pm06, HdpeFits SN 014001 and later · Old # 630146 | $4.00/EA |
| 13 | TN4032111 | 1 | Manifold, SolnFits SN 014001 and later · Old # 1254833 | $121.00/EA |
| 14 | TN4032116 | 1 | Plate, Manifold, MtgFits SN 014001 and later · Old # 1254856 | $25.55/EA |
| 15 | TN4034136 | 6 | Washer, Flat, 0.25, StdFits SN 014001 and later · Old # 32490 | $2.50/EA |
| 16 | TN4032379 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlFits SN 014001 and later · Old # 1257800 | $14.14/EA |
| 17 | TN4041928 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsFits SN 014001 and later · Old # 08712 | $2.50/EA |
| 18 | TN4043042 | 1 | Bracket, Manifold, StratusFits SN 014001 and later · Old # 1077124 | $10.20/EA |
| 19 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 014001 and later · Old # 64778 | $8.70/EA |
| 20 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 014001 and later · Old # 32491 | $2.50/EA |
| 21 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 014001 and later · Old # 39277 | $3.20/EA |

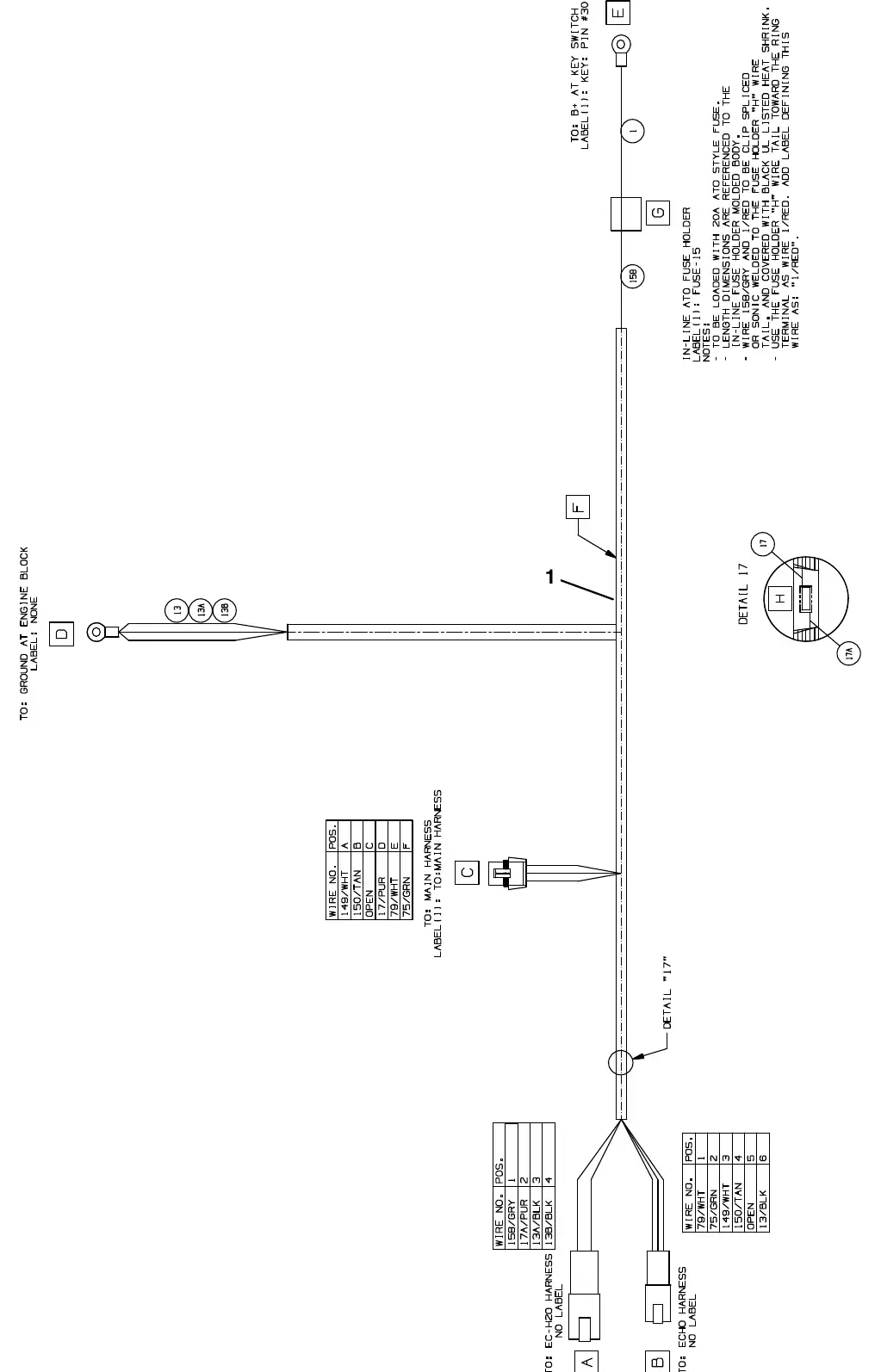

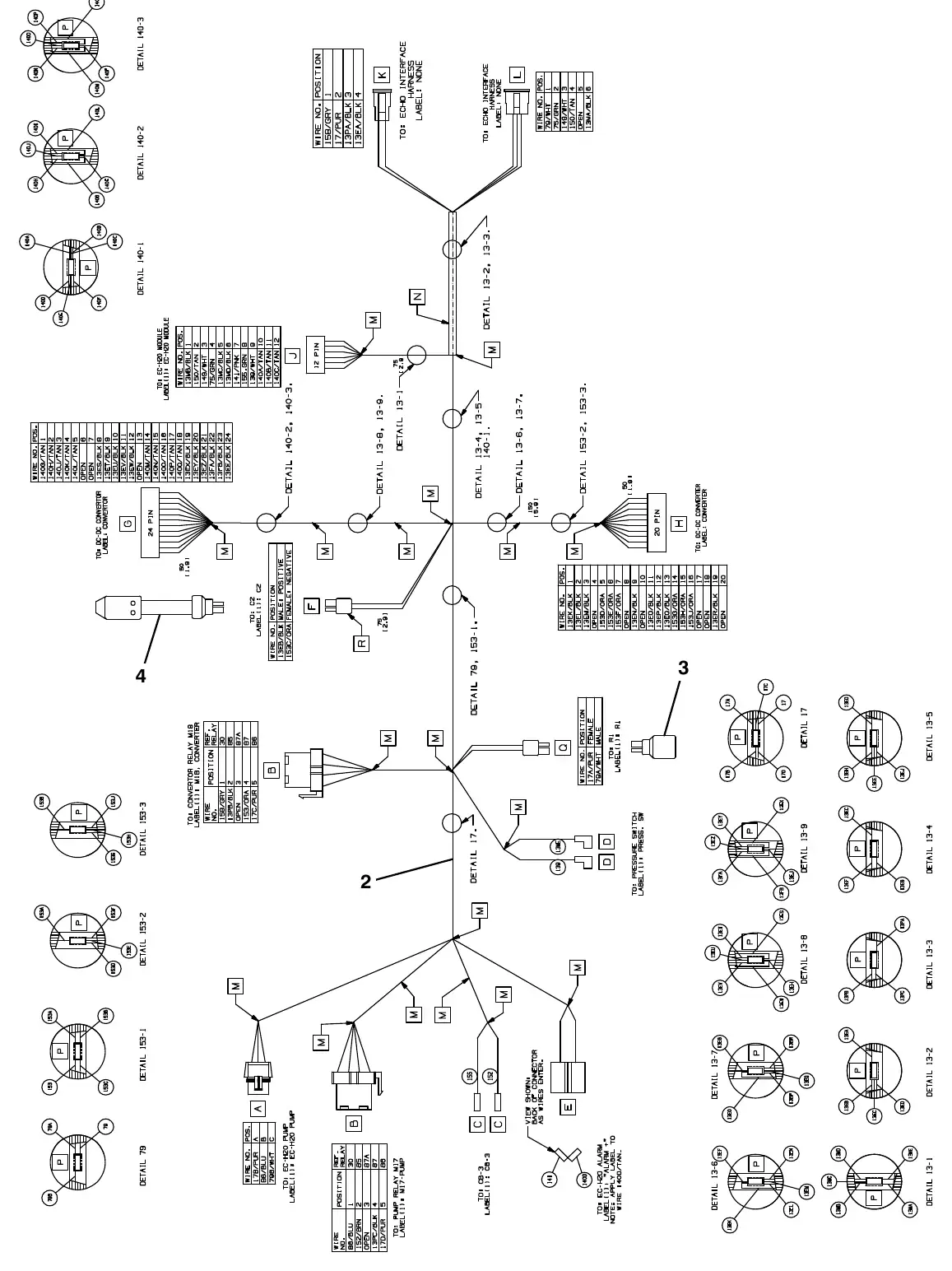

M20 ec - H20 wire harnesses group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044977 | 1 | Harness, Ele [Ech2o, Interface]Fits SN 008000–014000 · Old # 1075140 | $89.60/EA |
| 2 | TN4034646 | 1 | Harness, Wire [Ec - H2o]Fits SN 008000–014000 · Old # 1060871 | $240.18/EA |
| 3 | TN4034647 | 1 | Resistor, Ele, Plug [430 , 2w]Fits SN 008000–014000 · Old # 1060880 | $9.49/EA |
| 4 | TN4034648 | 1 | Capacitor, Plug [4700uf, 25v]Old # 1060881 | $15.35/EA |
| 5 | TN4042979 | 1 | Harness, Ele [Ech2o, Interface]Fits SN 014001 and later · Old # 1076976 | $83.95/EA |
| 6 | TN4042972 | 1 | Harness, Wire [Ec - H2o]Fits SN 014001 and later · Old # 1076937 | $166.72/EA |
M20 backup alarm kit
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019666 | 1 | Alarm Kit, Backup, Ci [M20 And T20]Old # 9001321 | $349.80/EA | |
| 1 | TN4011838 | 1 | Alarm Assy, Backup, 12/48VdcOld # 9007131 | $162.50/EA |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4035919 | 1 | Bracket, Sppt, Strobe LightOld # 1019445 | $55.20/EA |
| 6 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 7 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 8 | TN4036226 | 1 | Harness, Warning / Backup [M20 & T20]Old # 1019971 | $27.50/EA |
M20 light kit, flashing
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019669 | 1 | Light Kit, Flsh, Ci [M20 And T20]Old # 9001327 | $444.00/EA | |
| 1 | TN4032682 | 1 | Light, Flashing, Amb, LedOld # 1262183 · Replaces 1254294 (2022 list (rev. 08)) | Call for price |
| TN4023554 | 2 | Terminal, Bullet, Mal, .156d, 22 - 18gaOld # 383820 | $2.50/EA | |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4035919 | 1 | Bracket, Sppt, Strobe LightOld # 1019445 | $55.20/EA |
| 6 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 7 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 8 | TN4036226 | 1 | Harness, Warning / Backup [M20 & T20]Old # 1019971 | $27.50/EA |
| 9 | TN4013452 | 2 | Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleOld # 46236 | $3.60/EA |
M20 light kit, strobe
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019671 | 1 | Light Kit, Strobe, Ci [M20 And T20]Old # 9001331 | $767.90/EA | |
| 1 | TN4032682 | 1 | Light, Flashing, Amb, LedOld # 1262183 · Replaces 1254294 (2022 list (rev. 08)) | Call for price |
| TN4023554 | 2 | Terminal, Bullet, Mal, .156d, 22 - 18gaOld # 383820 | $2.50/EA | |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4035919 | 1 | Bracket, Sppt, Strobel LightOld # 1019445 | $55.20/EA |
| 6 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 7 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 8 | TN4036226 | 1 | Harness, Warning / Backup [M20 & T20]Old # 1019971 | $27.50/EA |
| 9 | TN4013452 | 2 | Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleOld # 46236 | $3.60/EA |
M20 light kit, flashing overhead guard
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019724 | 1 | Light Kit, Flsh, W/Ohg, Ci[M20 And T20]Old # 9001718 | $372.90/EA | |
| 1 | TN4032682 | 1 | Light, Flashing, Amb, LedOld # 1262183 · Replaces 1254294 (2022 list (rev. 08)) | Call for price |
| TN4023554 | 2 | Terminal, Bullet, Mal, .156d, 22 - 18gaOld # 383820 | $2.50/EA | |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4036203 | 1 | Harness, Warning / Ohg [M20]Old # 1019647 | $23.56/EA |
| 6 | TN4032000 | 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlOld # 10632-17 | $3.20/EA |
| 7 | TN4011909 | 4 | Tie, Cable, 6.0l, 1.25d MaxOld # 763115 | $2.30/EA |
| 8 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
M20 light kit, strobe overhead guard
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019723 | 1 | Light Kit, Strobe, W/Ohg, Ci [M20 And T20]Old # 9001717 | $164.46/EA | |
| 1 | TN4032682 | 1 | Light, Flashing, Amb, LedOld # 1262183 · Replaces 1254294 (2022 list (rev. 08)) | Call for price |
| TN4023554 | 2 | Terminal, Bullet, Mal, .156d, 22 - 18gaOld # 383820 | $2.50/EA | |
| 2 | TN4035367 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 3 | TN4042244 | 2 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 4 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 5 | TN4036203 | 1 | Harness, Warning / Ohg [M20]Old # 1019647 | $23.56/EA |
| 6 | TN4032000 | 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlOld # 10632-17 | $3.20/EA |
| 7 | TN4011909 | 4 | Tie, Cable, 6.0l, 1.25d MaxOld # 763115 | $2.30/EA |
| 8 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |

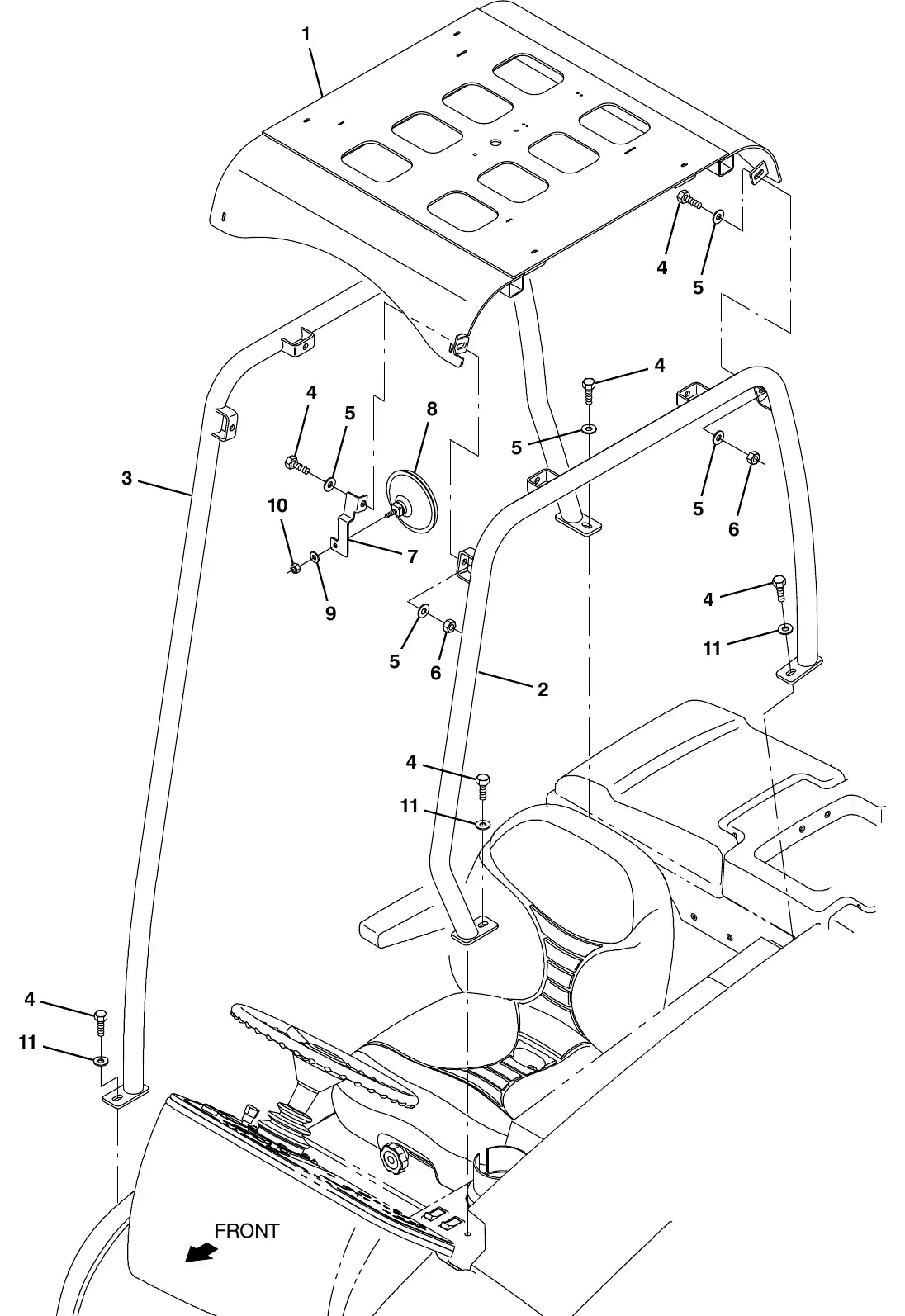

M20 overhead guard kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019662 | 1 | Ohg Kit, Ci [M20 And T20]Old # 9001314 | $3,559.40/EA | |
| 1 | TN4032916 | 1 | Guard Wldt, Top, OhgOld # 1022276 | $480.30/EA |
| 2 | TN4030100 | 1 | Tube Wldt, Leg, Ohg, Lh, PntdOld # 1069241 | $299.68/EA |
| 3 | TN4030101 | 1 | Tube Wldt, Leg, Ohg, Rh, PntdOld # 1069253 | $451.40/EA |
| 4 | TN4043258 | 12 | Screw, Hex, M10 X 1.5 X 30, 8.8Old # 03192 | $4.00/EA |
| 5 | TN4034138 | 17 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 6 | TN4016826 | 8 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 7 | TN4033561 | 1 | Bracket, Mtg, Mirror, RearviewOld # 1023879 | $16.40/EA |
| 8 | TN4040671 | 1 | Mirror, Convex, 0.50DOld # 1050295 | $27.80/EA |
| 9 | TN4034137 | 1 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 10 | TN4042533 | 1 | Nut, Hex, Std, .31 - 18Old # 19313 | $2.50/EA |
| 11 | TN4037922 | 3 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |

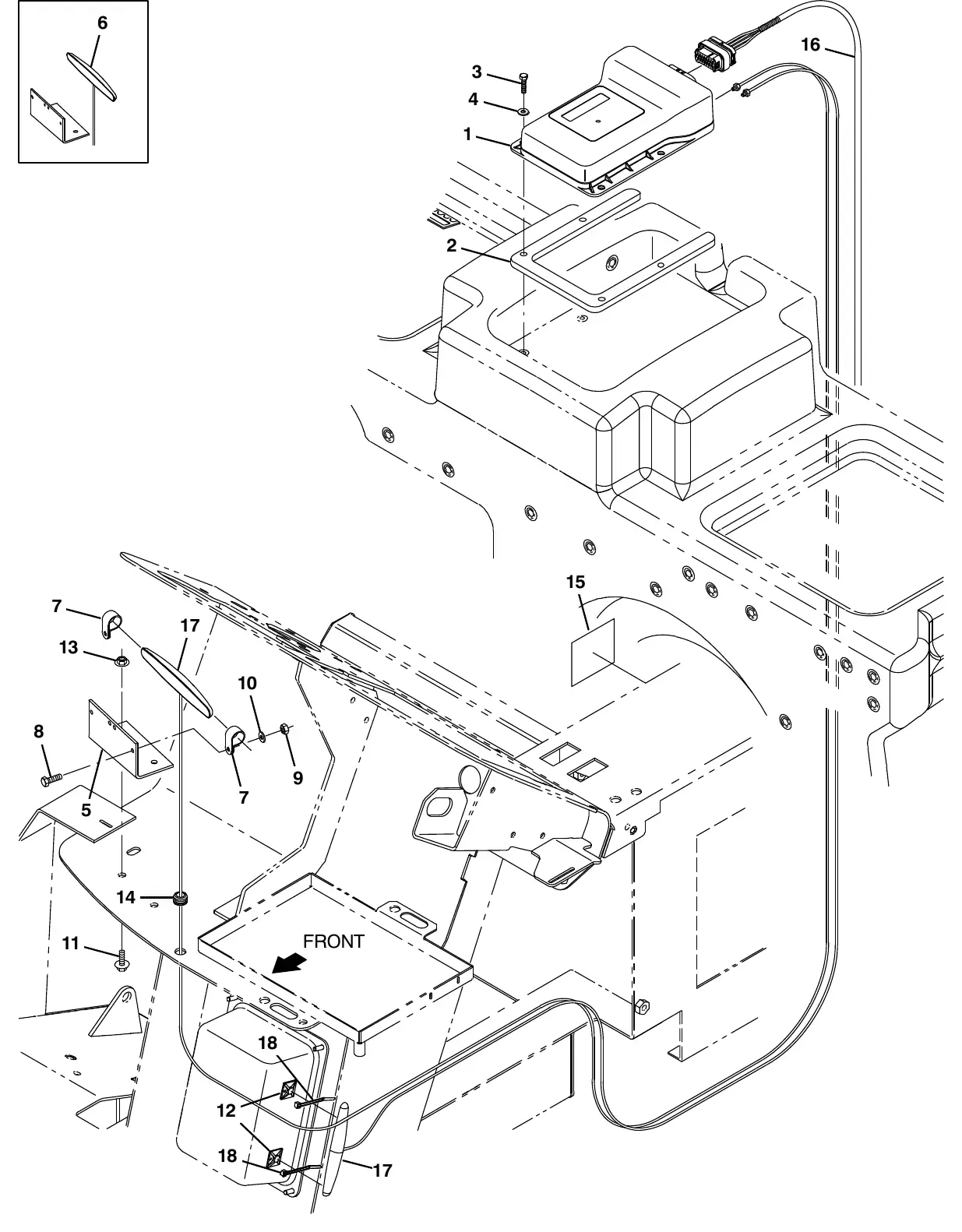

M20 telemetry group (S/N 008000 - 016088)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN4011098 | 1 | Control Box Assy Kit, Replmt, Telem [USA] (Repl by 9023153 Std or 9023152 Pro)Fits SN 008000–016088 · Old # 9010085 | $1,623.00/EA |
| 1 | TN4011099 | 1 | Control Box Assy Kit, Replmt, Telem [INTL] (Repl by 9023153 Std or 9023152 Pro)Fits SN 008000–016088 · Old # 9010086 | Call for price |
| 2 | TN4030486 | 1 | Bracket, Spacer, ControlboxFits SN 008000–016088 · Old # 1071062 | $14.44/EA |
| 3 | TN4041970 | 4 | Screw,Hex, M5 X 0.80 X 29, 8.8Fits SN 008000–016088 · Old # 09252 | $3.40/EA |
| 4 | TN4042888 | 4 | Washer, Flat, 10, SsFits SN 008000–016088 · Old # 01683 | $2.60/EA |
| 5 | TN4030314 | 1 | Angle, mtg, Antenna, TelemFits SN 008000–016088 · Old # 1070402 | $18.69/EA |
| 6 | TN4030328 | 1 | Antenna, Telem, 70 In [Gprs]Fits SN 008000–011777 · Old # 1070659 | $60.90/EA |
| 7 | TN4044164 | 2 | Clamp, Cable, Nyl, 0.62D, NatFits SN 008000–016088 · Old # 140916 | $3.40/EA |
| 8 | TN4041969 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Fits SN 008000–016088 · Old # 09244 | $2.50/EA |
| 9 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlFits SN 008000–016088 · Old # 06549 | $2.50/EA |
| 10 | TN4042244 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 008000–016088 · Old # 19066 | $2.50/EA |
| 11 | TN4044400 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsFits SN 008000–016088 · Old # 1040467 | $3.30/EA |
| 12 | TN4028714 | 2 | Mount, Cable TieFits SN 011778–016088 · Old # 55248 | $3.70/EA |
| 13 | TN4041604 | 2 | Nut, Hex, Flng, M6 X 1.00Fits SN 008000–016088 · Old # 07790 | $3.20/EA |
| 14 | TN4031956 | 1 | Grommet, Rbr, 0.38id, F/0.5H, .12 MatlFits SN 008000–016088 · Old # 10632-12 | $3.30/EA |
| 15 | TN4030121 | 1 | Label, Opertnl, Telem [Fcc/Ic]Fits SN 008000–016088 · Old # 1069580 | $4.34/EA |
| 16 | TN4044978 | 1 | Harness, Ele [Telem]Fits SN 008000–016088 · Old # 1075143 | $97.55/EA |
| 17 | TN4217709 | 2 | Antenna, Telem [4g, 180”]Fits SN 011778–016088 · Old # 1248350 | $50.89/EA |
| 18 | TN4011908 | 2 | Tie, Cable, 11.3l, 2.75d MaxFits SN 011778–016088 · Old # 763114 | $3.30/EA |

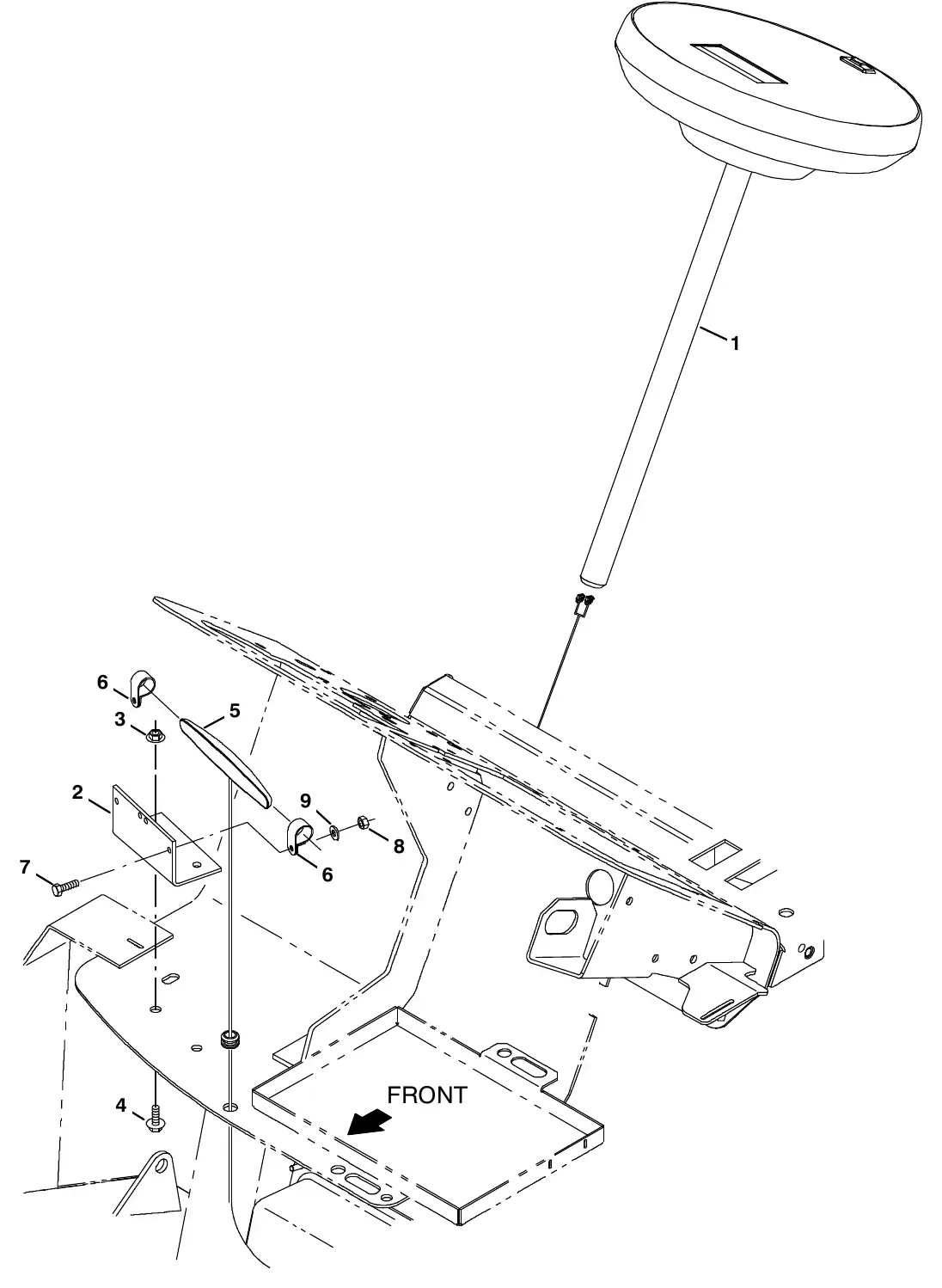

M20 telemetry panel kit, std (S/N 016089 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018562 | 1 | Panel Kit, POD Teleml, CI [M20/M30, STD]Fits SN 016089 and later · Old # 9022293 | Call for price |
| 2 | TN4030314 | 1 | Angle, Mtg, Antenna, TelemFits SN 016089 and later · Old # 1070402 | $18.69/EA |
| 3 | TN4041604 | 2 | Nut, Hex, Flng, M6 X 1.00Fits SN 016089 and later · Old # 07790 | $3.20/EA |
| 4 | TN4044400 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsFits SN 016089 and later · Old # 1040467 | $3.30/EA |
| 5 | TN4031066 | 1 | Antenna, Telem [4G, 36”]Fits SN 016089 and later · Old # 1247569 | Call for price |
| 6 | TN4044164 | 2 | Clamp, Cable, Nyl, 0.62D, NatFits SN 016089 and later · Old # 140916 | $3.40/EA |
| 7 | TN4041969 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Fits SN 016089 and later · Old # 09244 | $2.50/EA |
| 8 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlFits SN 016089 and later · Old # 06549 | $2.50/EA |
| 9 | TN4042244 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 016089 and later · Old # 19066 | $2.50/EA |
| 10 | TN4032434 | 1 | Label, Mach, Telem [BG95/BG96]Fits SN 016089 and later · Old # 1259755 | Call for price |

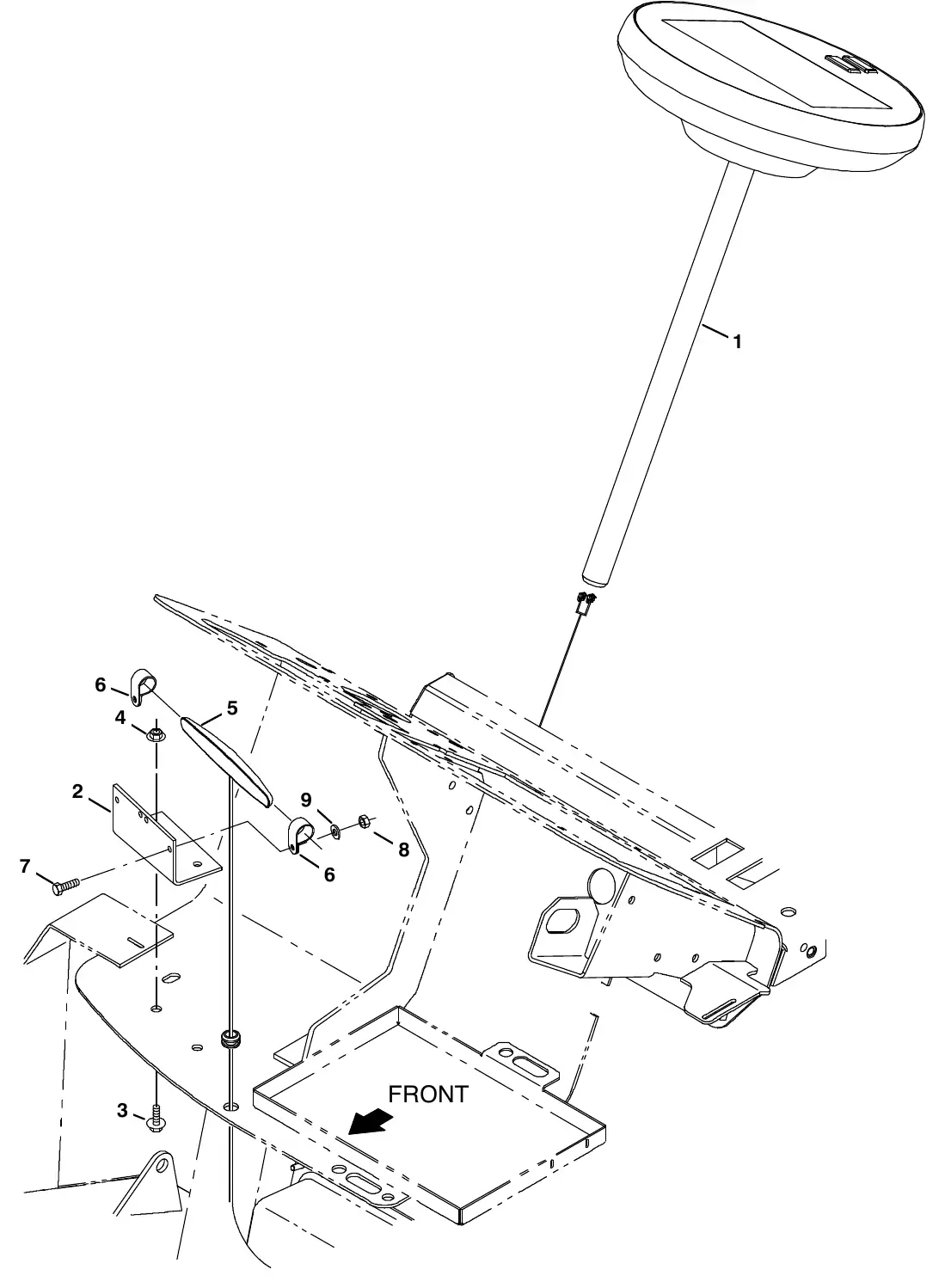

M20 telemetry panel kit, Pro - panel (S/N 016089 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018561 | 1 | Panel Kit, POD Telem, CI [T/M20/M30, PRO]Fits SN 016089 and later · Old # 9022292 | Call for price |
| 2 | TN4030314 | 1 | Angle, Mtg, Antenna, TelemFits SN 016089 and later · Old # 1070402 | $18.69/EA |
| 3 | TN4044400 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsFits SN 016089 and later · Old # 1040467 | $3.30/EA |
| 4 | TN4041604 | 2 | Nut, Hex, Flng, M6 X 1.00Fits SN 016089 and later · Old # 07790 | $3.20/EA |
| 5 | TN4031066 | 1 | Antenna, Telem [4G, 36]Fits SN 016089 and later · Old # 1247569 | Call for price |
| 6 | TN4044164 | 2 | Clamp, Cable, Nyl, 0.62D, NatFits SN 016089 and later · Old # 140916 | $3.40/EA |
| 7 | TN4041969 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Fits SN 016089 and later · Old # 09244 | $2.50/EA |
| 8 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80 X 16, 8.8Fits SN 016089 and later · Old # 06549 | $2.50/EA |
| 9 | TN4042244 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 016089 and later · Old # 19066 | $2.50/EA |
| 10 | TN4032434 | 1 | Label, Mach, Telem [BG95/BG96]Fits SN 016089 and later · Old # 1259755 | Call for price |

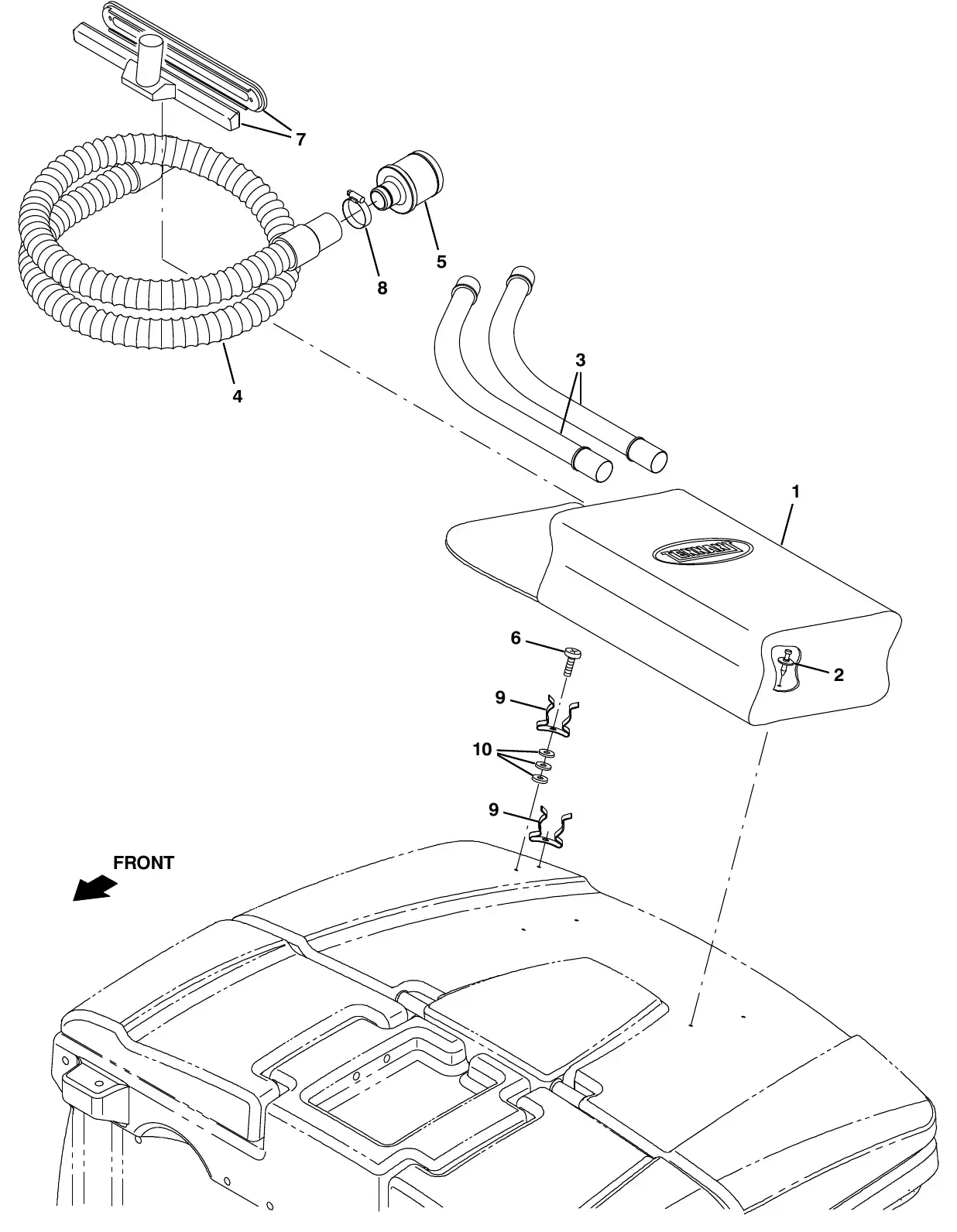

M20 vacuum wand kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019673 | 1 | Wand Kit, Vacuum, Ci [M20]Old # 9001334 | $1,037.30/EA | |
| 1 | TN4017746 | 1 | Bag, PowerOld # 65580 | $159.30/EA |
| 2 | TN4016302 | 4 | Rivet, Plstc, .250d X 0.90Old # 72968 | $3.20/EA |
| 3 | TN4042249 | 1 | Wand, Chm, Dbl Bend [1 Pk= 1 Box Of 2pc]Old # 190722 | $174.70/EA |
| 4 | TN4022033 | 1 | Hose Assy, W/2cuff, 1.5d 090l 1.5/1.5Old # 86767 | $78.40/EA |
| 5 | TN4031356 | 1 | Fitting, Alm, Str, Bm24/Bm48Old # 1029396 | $164.30/EA |
| 6 | TN4029085 | 2 | Screw, Hex, M5 X 0.80 X 16, FmgOld # 55845 | $4.00/EA |
| 7 | TN4043605 | 1 | Nozzle Assy, Tool, Wand, 14.0 InchOld # 13840 | $145.30/EA |
| 8 | TN4026556 | 1 | Clamp, Hose, Wormdrive, 1.25 - 2.00d, .50wOld # 79381 | $6.20/EA |
| 9 | TN4017922 | 2 | Clip, Grip, Finger, 1.00 - 1.88d White,VylOld # 67004 | $26.10/EA |
| 10 | TN4042242 | 6 | Washer, Flat, 06Old # 19064 | $3.40/EA |

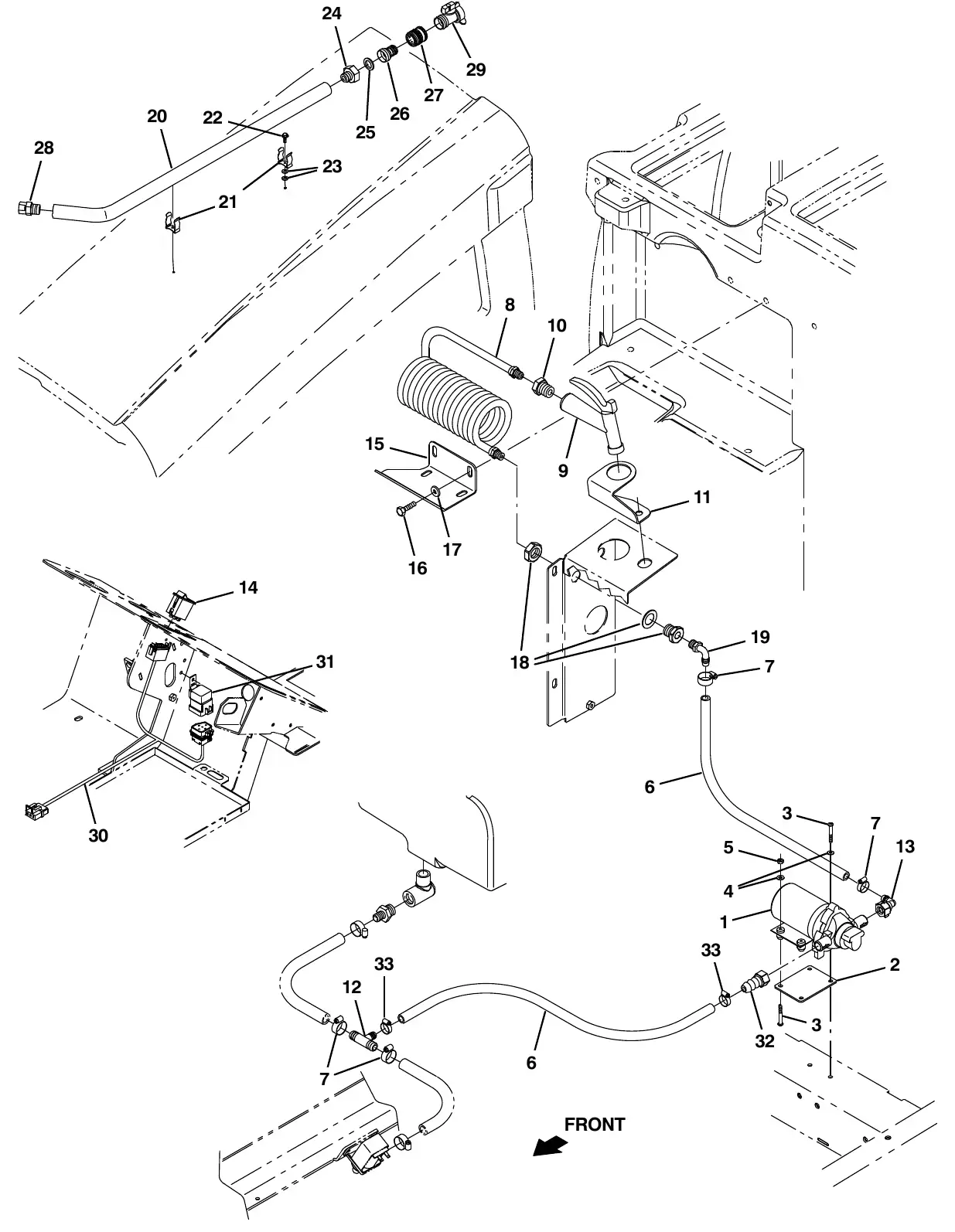

M20 spray nozzle kit (S/N 008000 - 014000)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019660 | 1 | Nozzle Kit, Spray, CiFits SN 008000–014000 · Old # 9001310 | $758.04/EA | |
| 1 | TN4034280 | 1 | Pump, Diaphragm (See Breakdowns)Fits SN 008000–014000 · Old # 1026743 | $370.80/EA |
| 2 | TN4030606 | 1 | Plate, Mtg, PumpFits SN 008000–014000 · Old # 1027007 | $9.60/EA |
| 3 | TN4041268 | 4 | Screw, Pan, M5 X 0.80 X 45, 4.8Fits SN 008000–014000 · Old # 06939 | $3.40/EA |
| 4 | TN4042244 | 4 | Washer, Flat, #10Fits SN 008000–014000 · Old # 19066 | $2.50/EA |
| 5 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlFits SN 008000–014000 · Old # 06549 | $2.50/EA |
| 6 | TN4037985 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrFits SN 008000–014000 · Old # 1015045 | $83.30/EA |
| 7 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810 | $6.80/EA |
| 8 | TN4035902 | 1 | Hose, Water, CoilFits SN 008000–014000 · Old # 1019250 | $192.50/EA |
| 9 | TN4028980 | 1 | Nozzle, Spray, GunFits SN 008000–014000 · Old # 769785 | $90.00/EA |
| 10 | TN4030660 | 1 | Fitting, Brs, Str, Pf06/Pm12Fits SN 008000–014000 · Old # 1027976 | $11.80/EA |
| 11 | TN4030624 | 1 | Bracket, Mtg, Spray HandleFits SN 008000–014000 · Old # 1027237 | $15.30/EA |
| 12 | TN4038303 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrOld # 1015486 | $5.30/EA |
| 13 | TN4035811 | 1 | Fitting, Plstc, E90, Bm08/Pf08s, SwivelFits SN 008000–014000 · Old # 1018499 | $4.20/EA |
| 14 | TN4016537 | 1 | Switch, Rocker, Dpdt On/None/OnFits SN 008000–014000 · Old # 398500 | $45.20/EA |
| 15 | TN4031379 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Fits SN 008000–014000 · Old # 1029790 | $26.25/EA |
| 16 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 008000–014000 · Old # 09740 | $3.30/EA |
| 17 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 008000–014000 · Old # 1017218 | $3.40/EA |
| 18 | TN4030661 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhFits SN 008000–014000 · Old # 1027978 | $23.25/EA |
| 19 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 008000–014000 · Old # 64778 | $8.70/EA |
| 20 | TN4031028 | 1 | Wand, Clean - OutFits SN 008000–014000 · Old # 1029055 | $176.10/EA |
| 21 | TN4031029 | 2 | Clip, Grip, Finger, .875 - 1.25Fits SN 008000–014000 · Old # 1029057 | $5.15/EA |
| 22 | TN4039088 | 2 | Screw, Hex, #10 - 16 X 0.62, Fmg [Ab]Fits SN 008000–014000 · Old # 20394 | $3.30/EA |
| 23 | TN4042888 | 4 | Washer, Flat, #10, SsFits SN 008000–014000 · Old # 01683 | $2.60/EA |
| 24 | TN4029238 | 1 | Fitting, Brs, Str, Pm08/Garden HoseFits SN 008000–014000 · Old # 375321 | $10.40/EA |
| 25 | TN4042839 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrFits SN 008000–014000 · Old # 01316 | $3.50/EA |
| 26 | Old # 1029153 | 1 | Nipple, HoseFits SN 008000–014000 · Old # 1029153Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 27 | TN4031039 | 1 | Coupling, Nozzle, SprayFits SN 008000–014000 · Old # 1029155 | $15.40/EA |
| 28 | TN4031040 | 1 | NozzleFits SN 008000–014000 · Old # 1029156 | $69.50/EA |
| 29 | TN4031357 | 1 | Valve, ShutoffFits SN 008000–014000 · Old # 1029399 | $41.60/EA |
| 30 | TN4195644 | 1 | Harness, Spray, NozzleFits SN 008000–014000 · Old # 1021881 | $83.10/EA |
| 31 | TN4029123 | 1 | Relay, 12vdc, 40a, Spdt N/OFits SN 008000–014000 · Old # 56186 | $11.30/EA |
| 32 | TN4035810 | 1 | Fitting, Plstc, Str, Bm08/Pf08s, SwivelFits SN 008000–014000 · Old # 1018495 | $5.30/EA |
| 33 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–014000 · Old # 54333 | $5.10/EA |

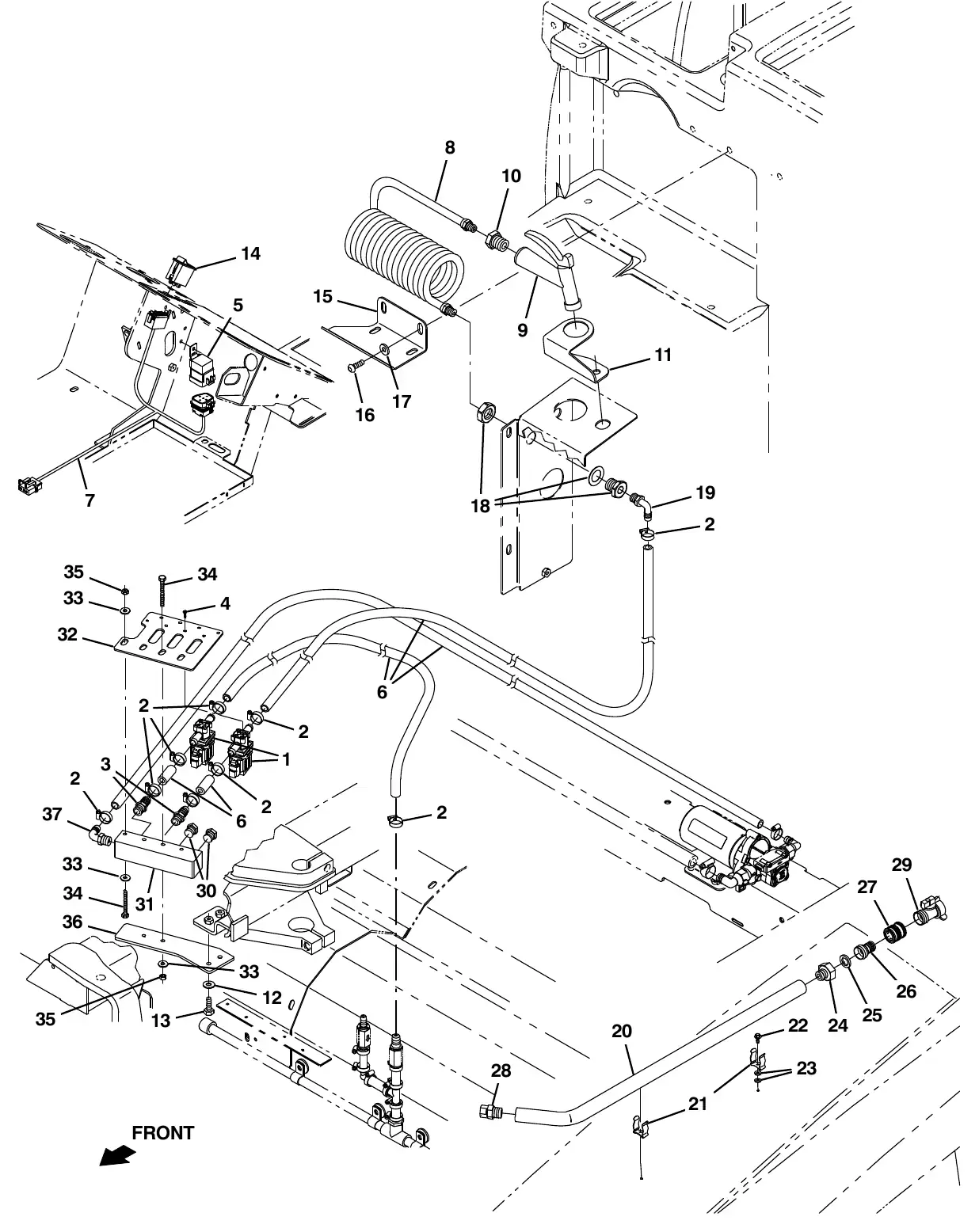

M20 spray nozzle group (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042944 | 1 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Fits SN 014001 and later · Old # 1076870 | $122.10/EA |
| 2 | TN4015366 | 8 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 3 | TN4017637 | 2 | Fitting, Plstc, Str, Bm08/Pm06Fits SN 014001 and later · Old # 64743 | $6.20/EA |
| 4 | TN4032374 | 4 | Screw, Pan, Torx, 06 - 19 X 0.38, F/ PlstcFits SN 014001 and later · Old # 1257563 | $13.74/EA |
| 5 | TN4029123 | 1 | Relay, 12vdc, 40a, Spdt N/OFits SN 014001 and later · Old # 56186 | $11.30/EA |
| 6 | TN4036844 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 014001 and later · Old # 1011412 | $70.70/EA |
| 7 | TN4042976 | 1 | Harness, Spray, NozzleFits SN 014001 and later · Old # 1076974 | $59.01/EA |
| 8 | TN4035902 | 1 | Hose, Water, CoilFits SN 014001 and later · Old # 1019250 | $192.50/EA |
| 9 | TN4028980 | 1 | Nozzle, Spray, GunFits SN 014001 and later · Old # 769785 | $90.00/EA |
| 10 | TN4030660 | 1 | Fitting, Brs, Str, Pf06/Pm12Fits SN 014001 and later · Old # 1027976 | $11.80/EA |
| 11 | TN4030624 | 1 | Bracket, Mtg, Spray HandleFits SN 014001 and later · Old # 1027237 | $15.30/EA |
| 12 | TN4042902 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits SN 014001 and later · Old # 01685 | $2.60/EA |
| 13 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 014001 and later · Old # 09010 | $3.30/EA |
| 14 | TN4016537 | 1 | Switch, Rocker, Dpdt On/None/OnFits SN 014001 and later · Old # 398500 | $45.20/EA |
| 15 | TN4031379 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Fits SN 014001 and later · Old # 1029790 | $26.25/EA |
| 16 | TN4019813 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkFits SN 014001 and later · Old # 393135 | $3.30/EA |
| 17 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 014001 and later · Old # 32491 | $2.50/EA |
| 18 | TN4030661 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhFits SN 014001 and later · Old # 1027978 | $23.25/EA |
| 19 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 014001 and later · Old # 64778 | $8.70/EA |
| 20 | TN4031028 | 1 | Wand, Clean - OutFits SN 014001 and later · Old # 1029055 | $176.10/EA |
| 21 | TN4031029 | 2 | Clip, Grip, Finger, .875 - 1.25Fits SN 014001 and later · Old # 1029057 | $5.15/EA |
| 22 | TN4039088 | 2 | Screw, Hex, #10 - 16 X 0.62, Fmg [Ab]Fits SN 014001 and later · Old # 20394 | $3.30/EA |
| 23 | TN4042888 | 4 | Washer, Flat, #10, SsFits SN 014001 and later · Old # 01683 | $2.60/EA |
| 24 | TN4029238 | 1 | Fitting, Brs, Str, Pm08/Garden HoseFits SN 014001 and later · Old # 375321 | $10.40/EA |
| 25 | TN4042839 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrFits SN 014001 and later · Old # 01316 | $3.50/EA |
| 26 | Old # 1029153 | 1 | Nipple, HoseFits SN 014001 and later · Old # 1029153Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 27 | TN4031039 | 1 | Coupling, Nozzle, SprayFits SN 014001 and later · Old # 1029155 | $15.40/EA |
| 28 | TN4031040 | 1 | NozzleFits SN 014001 and later · Old # 1029156 | $69.50/EA |
| 29 | TN4031357 | 1 | Valve, ShutoffFits SN 014001 and later · Old # 1029399 | $41.60/EA |
| 30 | TN4020528 | 2 | Fitting, Plug, Pm06, HdpeFits SN 014001 and later · Old # 630146 | $4.00/EA |
| 31 | TN4032111 | 1 | Manifold, SolnFits SN 014001 and later · Old # 1254833 | $121.00/EA |
| 32 | TN4032116 | 1 | Plate, Manifold, MtgFits SN 014001 and later · Old # 1254856 | $25.55/EA |
| 33 | TN4034136 | 6 | Washer, Flat, 0.25, StdFits SN 014001 and later · Old # 32490 | $2.50/EA |
| 34 | TN4032379 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlFits SN 014001 and later · Old # 1257800 | $14.14/EA |
| 35 | TN4041928 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsFits SN 014001 and later · Old # 08712 | $2.50/EA |
| 36 | TN4043042 | 1 | Bracket, Manifold, StratusFits SN 014001 and later · Old # 1077124 | $10.20/EA |
| 37 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 014001 and later · Old # 64778 | $8.70/EA |
M20 transport kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4022696 | 1 | Transport Kit, Ci [M20/M30}Old # 9014867 | $219.60/EA | |
| 1 | TN4044424 | 2 | Bracket, Latch, CoverOld # 1040800 | $31.40/EA |
| 2 | TN4036273 | 2 | Bracket, Retaining, HoseOld # 1020526 | $57.10/EA |
| 3 | TN4191358 | 2 | Plate, Hook, LatchOld # 1040634 | $15.00/EA |
| 4 | TN4041994 | 6 | Screw, Hex, M6 X 1.00 X 12, SsOld # 09744 | $3.40/EA |
| 5 | TN4042901 | 6 | Washer, Flat, 0.27b 0.69d .05, SsOld # 01684 | $2.60/EA |
| 6 | TN4037480 | 2 | Latch, YellowOld # 1222019 | $40.40/EA |
| 7 | TN4041965 | 4 | Screw, Pan, Phl, M5 X 0.80 X 12, SsOld # 09200 | $3.40/EA |
| 8 | TN4041991 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 9 | TN4019813 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135 | $3.30/EA |
| 10 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
M20 squeegee guard kit
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019675 | 1 | Guard Kit, Sqge, Ci [M20]Old # 9001338 | $687.93/EA | |
| 1 | TN4030640 | 2 | Bracket Wldt, Guard, SqgeOld # 1027560 | $92.00/EA |
| 2 | TN4019759 | 4 | Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 | $4.00/EA |
| 3 | TN4034138 | 14 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 4 | TN4033860 | 2 | Bumper, Ure, 1.50d 1.25lOld # 1024977 | $35.00/EA |
| 5 | TN4039391 | 2 | Screw, Hex, .38 - 16 X 0.88, 5Old # 21196 | $2.50/EA |
| 6 | TN4038473 | 1 | Guard Wldt, SqgeOld # 1054338 | $278.85/EA |
| 7 | TN4041290 | 2 | Screw, Hex, M10 X 1.5 X 80, 8.8Old # 06965 | $6.80/EA |
| 8 | TN4016826 | 2 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 9 | TN4031918 | 1 | Pin, Hitch, .375d X 3.12l, PlOld # 369359 | $7.50/EA |
| 10 | TN4029376 | 1 | Cable, Glv .06d 012.0l .26eye /.26eyeOld # 57702 | $9.50/EA |
| 11 | TN4041990 | 1 | Screw, Hex, M5 X 0.8 X 12, SsOld # 09738 | $3.30/EA |
| 12 | TN4042888 | 1 | Washer, Flat, #10, SsOld # 01683 | $2.60/EA |
| 13 | TN4042522 | 2 | Guard Wldt, Sqge [M20/T20/M30]Old # 1045444 | $171.70/EA |
| 14 | TN4041287 | 4 | Screw, Hex, M10 X 1.5 X 45, 8.8Old # 06962 | $4.00/EA |
M20 pressure washer mount group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043994 | 1 | Hose, Rbr, 25ftOld # 1039056 | $124.40/EA |
| 2 | TN4044659 | 2 | Fitting, Ss, Qdc, FemOld # 1042051 | $156.60/EA |
| 3 | TN4032407 | 2 | Fitting, Swivel, Str, Pf06/Pm04, StlOld # 1259146 | $8.90/EA |
| 4 | TN4043990 | 1 | Handle, Gun, TriggerOld # 1039042 | $124.30/EA |
| 5 | TN4043991 | 1 | Wand, Str, Ss, 28lOld # 1039044 | $80.80/EA |
| 6 | TN4042150 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Old # 1044428 | $7.00/EA |
| 7 | TN4044669 | 1 | Fitting, Ss, Qdc, MalOld # 1042191 | $51.20/EA |
| 8 | TN4044642 | 1 | Nozzle, Spray [Pressure Washer]Old # 1041935 | $56.90/EA |
| 9 | TN4017922 | 3 | Clip, Grip, Finger, 1.00 - 1.88d White,VylOld # 67004 | $26.10/EA |
| 10 | TN4039088 | 3 | Screw, Hex, 10 - 16 X 0.62, Fmg/Ab, PlOld # 20394 | $3.30/EA |
| 11 | TN4042888 | 6 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 12 | TN4029123 | 1 | Relay, 12vdc, 040a, Spdt NoOld # 56186 | $11.30/EA |
| 13 | TN4044442 | 1 | Switch, Rocker, PrgrsvOld # 1040899 | $138.30/EA |
| 14 | TN4178877 | 1 | Harness, Ele [Press. Wash]Fits SN 008000–014000 · Old # 1074983 | $111.70/EA |
| 15 | TN4014138 | 5 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 16 | TN4017746 | 1 | Bag, PowerOld # 65580 | $159.30/EA |
| 17 | TN4016302 | 2 | Rivet, Plstc, .250D X 0.90Old # 72968 | $3.20/EA |
| 18 | TN4042978 | 1 | Harness, Ele [Press. Wash]Fits SN 014001 and later · Old # 1076975 | $213.72/EA |
| 19 | TN4040238 | 1 | Diode, Ele, PlugFits SN 014001 and later · Old # 222290 | $13.00/EA |
M20 pressure washer solution group (S/N 008000 - 014000)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038244 | 1 | Pump, Hyd, Press WasherFits SN 008000–014000 · Old # 1225829 | $2,428.30/EA |
| 2 | TN4043992 | 1 | Valve, NeedleFits SN 008000–014000 · Old # 1039046 | $168.90/EA |
| 3 | TN4017089 | 10 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810 | $6.80/EA |
| 4 | TN4025657 | 4 | Fitting, Brs, Str, Bm12/Pm12Fits SN 008000–014000 · Old # 377334 | $9.80/EA |
| 5 | TN4043978 | 1 | Filter, Y, In - Line, .75Fits SN 008000–014000 · Old # 1039037 | $108.10/EA |
| 6 | TN4042460 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, ClrFits SN 008000–014000 · Old # 1045034 | $65.50/EA |
| 7 | TN4044478 | 1 | Fitting, Brs, E90, Bm12/Pm12Fits SN 008000–014000 · Old # 1041351 | $19.70/EA |
| 8 | TN4025663 | 1 | Fitting, Plstc, Pf12/Pf12, BhFits SN 008000–014000 · Old # 377349 | $22.50/EA |
| 9 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .62 - 11Fits SN 008000–014000 · Old # 385685 | $78.50/EA |
| 10 | TN4030627 | 1 | Filter, Soltn, 020mesh, Pm12 3.1d 02.6lFits SN 008000–014000 · Old # 1027290 | $20.30/EA |
| 11 | TN4041645 | 2 | Fitting, Brs, Str, Bm12/Pm08Fits SN 008000–014000 · Old # 1042859 | $9.90/EA |
| 12 | TN4191727 | 1 | Fitting, Brs, E90, Pf08/Pm06Fits SN 008000–014000 · Old # 1042579 | $15.10/EA |
| 13 | TN4042150 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Fits SN 008000–014000 · Old # 1044428 | $7.00/EA |
| 14 | TN4032002 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN 008000–014000 · Old # 10632-19 | $1.50/EA |
| 15 | TN4034280 | 1 | Pump, DiaphragmFits SN 008000–014000 · Old # 1026743 | $370.80/EA |
| 16 | TN4030606 | 1 | Plate, Mtg, PumpFits SN 008000–014000 · Old # 1027007 | $9.60/EA |
| 17 | TN4041268 | 4 | Screw, Pan, Phl, M5 X 0.80 X 45, 4.8Fits SN 008000–014000 · Old # 06939 | $3.40/EA |
| 18 | TN4042244 | 4 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 008000–014000 · Old # 19066 | $2.50/EA |
| 19 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlFits SN 008000–014000 · Old # 06549 | $2.50/EA |
| 20 | TN4035386 | 2 | Fitting, Brs, E90, Pf06/Pm06, SpclFits SN 008000–014000 · Old # 24584 | $6.90/EA |
| 21 | TN7007024 | 1 | Bracket, Mtg, Pump, Hp, ReplmtFits SN 008000–014000 · Old # 9016315 | Call for price |
| 22 | TN4041243 | 1 | Screw, Hex, M8 X 1.25 X 16, SsFits SN 008000–014000 · Old # 15675 | $3.40/EA |
| 23 | TN4034137 | 1 | Washer, Flat, 0.31, StdFits SN 008000–014000 · Old # 32491 | $2.50/EA |
| 24 | TN4044669 | 1 | Fitting, Ss, Qdc, MalFits SN 008000–014000 · Old # 1042191 | $51.20/EA |
| 25 | TN4223620 | 1 | Valve, Drain, Pm12, Qtr TurnFits SN 008000–014000 · Old # 1224328 | $40.24/EA |
| 26 | TN4223623 | 1 | Fitting, Tee, Pf12/Pf12/Pf12, BrsFits SN 008000–014000 · Old # 1224329 | $68.54/EA |
| 27 | TN4222135 | 2 | Fitting, Plstc, E90, Bm12/Pf08Fits SN 008000–014000 · Old # 1231375 | $2.50/EA |
| 28 | TN4034859 | 1 | Valve, Hyd, Press WasherFits SN 008000–014000 · Old # 1227137 | $35.70/EA |
| 29 | TN4223626 | 1 | Fitting, Brs, Str, Pm06/ Pm06Fits SN 008000–014000 · Old # 1224331 | $22.10/EA |
| 30 | TN4224054 | 1 | Bracket Wldt, MtgFits SN 008000–014000 · Old # 1225174 | $74.43/EA |
| 31 | TN4041844 | 3 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–014000 · Old # 16931 | $2.50/EA |
| 32 | TN4035242 | 3 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 008000–014000 · Old # 1017218 | $3.40/EA |
| 33 | TN4224047 | 1 | Plate, Mtg, Light, Hp Spray (Flashing or Strobe Light Option Only)Fits SN 008000–014000 · Old # 1225146 | $12.35/EA |
| 34 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8 (Flashing or Strobe Light Option Only)Fits SN 008000–014000 · Old # 16931 | $2.50/EA |
| 35 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss (Flashing or Strobe Light Option Only)Fits SN 008000–014000 · Old # 1017218 | $3.40/EA |
M20 pressure washer solution group (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038244 | 1 | Pump, Hyd, Press WasherFits SN 014001 and later · Old # 1225829 | $2,428.30/EA |
| 2 | TN4043992 | 1 | Valve, NeedleFits SN 014001 and later · Old # 1039046 | $168.90/EA |
| 3 | TN4017089 | 2 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 014001 and later · Old # 63810 | $6.80/EA |
| 4 | TN4026537 | 2 | Fitting, Plstc, Str, Bm08/Pm12Fits SN 014001 and later · Old # 79273-1 | $8.70/EA |
| 5 | TN4044669 | 1 | Fitting, Ss, Qdc, MalFits SN 014001 and later · Old # 1042191 | $51.20/EA |
| 6 | TN4042460 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, ClrFits SN 014001 and later · Old # 1045034 | $65.50/EA |
| 7 | TN4223623 | 1 | Fitting, Tee, Pf12/Pf12/Pf12, BrsFits SN 014001 and later · Old # 1224329 | $68.54/EA |
| 8 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .62 - 11Fits SN 014001 and later · Old # 385685 | $78.50/EA |
| 9 | TN4223620 | 1 | Valve, Drain, Pm12, Qtr TurnFits SN 014001 and later · Old # 1224328 | $40.24/EA |
| 10 | TN4041645 | 1 | Fitting, Brs, Str, Bm12/Pm08Fits SN 014001 and later · Old # 1042859 | $9.90/EA |
| 11 | TN4191727 | 1 | Fitting, Brs, E90, Pf08/Pm06Fits SN 014001 and later · Old # 1042579 | $15.10/EA |
| 12 | TN4042150 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Fits SN 014001 and later · Old # 1044428 | $7.00/EA |
| 13 | TN4032002 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN 014001 and later · Old # 10632-19 | $1.50/EA |
| 14 | TN4034859 | 1 | Valve, Hyd, Press WasherFits SN 014001 and later · Old # 1227137 | $35.70/EA |
| 15 | TN4035386 | 2 | Fitting, Brs, E90, Pf06/Pm06, SpclFits SN 014001 and later · Old # 24584 | $6.90/EA |
| 16 | TN7007024 | 1 | Bracket, Mtg, Pump, Hp, ReplmtFits SN 014001 and later · Old # 9016315 | Call for price |
| 17 | TN4041243 | 1 | Screw, Hex, M8 X 1.25 X 16, SsFits SN 014001 and later · Old # 15675 | $3.40/EA |
| 18 | TN4034137 | 1 | Washer, Flat, 0.31, StdFits SN 014001 and later · Old # 32491 | $2.50/EA |
| 19 | TN4026539 | 1 | Fitting, Plstc, Str, Bm08/Pm08Fits SN 014001 and later · Old # 79273-4 | $6.20/EA |
| 20 | TN4223626 | 1 | Fitting, Brs, Str, Pm06/ Pm06Fits SN 014001 and later · Old # 1224331 | $22.10/EA |
| 21 | TN4224054 | 1 | Bracket Wldt, MtgFits SN 014001 and later · Old # 1225174 | $74.43/EA |
| 22 | TN4041844 | 3 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 014001 and later · Old # 16931 | $2.50/EA |
| 23 | TN4035242 | 3 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 014001 and later · Old # 1017218 | $3.40/EA |
| 24 | TN4224047 | 1 | Plate, Mtg, Light, Hp Spray (Flashing or Strobe Light Option Only)Fits SN 014001 and later · Old # 1225146 | $12.35/EA |
| 25 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8 (Flashing or Strobe Light Option Only)Fits SN 014001 and later · Old # 16931 | $2.50/EA |
| 26 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss (Flashing or Strobe Light Option Only)Fits SN 014001 and later · Old # 1017218 | $3.40/EA |
| 27 | TN4036914 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 20.0ft, ClrFits SN 014001 and later · Old # 1011835 | $109.50/EA |
| 28 | TN4015366 | 12 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 29 | TN4042944 | 2 | Valve, Water, Solenoid [12vdc, Bm08/Bm08]Fits SN 014001 and later · Old # 1076870 | $122.10/EA |
| 30 | TN4017637 | 2 | Fitting, Plstc, Str, Bm08/Pm06Fits SN 014001 and later · Old # 64743 | $6.20/EA |
| 31 | TN4032374 | 4 | Screw, Pan, Torx, 06 - 19 X 0.38, F/ PlstcFits SN 014001 and later · Old # 1257563 | $13.74/EA |
| 32 | TN4020528 | 2 | Fitting, Plug, Pm06, HdpeFits SN 014001 and later · Old # 630146 | $4.00/EA |
| 33 | TN4032111 | 1 | Manifold, SolnFits SN 014001 and later · Old # 1254833 | $121.00/EA |
| 34 | TN4032116 | 1 | Plate, Manifold, MtgFits SN 014001 and later · Old # 1254856 | $25.55/EA |
| 35 | TN4034136 | 6 | Washer, Flat, 0.25, StdFits SN 014001 and later · Old # 32490 | $2.50/EA |
| 36 | TN4032379 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlFits SN 014001 and later · Old # 1257800 | $14.14/EA |
| 37 | TN4041928 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsFits SN 014001 and later · Old # 08712 | $2.50/EA |
| 38 | TN4043042 | 1 | Bracket, Manifold, StratusFits SN 014001 and later · Old # 1077124 | $10.20/EA |
| 39 | TN4017647 | 1 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 014001 and later · Old # 64778 | $8.70/EA |
| 40 | TN4042902 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits SN 014001 and later · Old # 01685 | $2.60/EA |
| 41 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 014001 and later · Old # 09010 | $3.30/EA |
M20 pressure washer hydraulic hoses group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043680 | 1 | Valve, Hyd, Press WasherOld # 1038571 | $242.50/EA |
| 2 | TN4224046 | 1 | Bracket, Valve, MtgOld # 1225144 | $45.71/EA |
| 3 | TN4041277 | 2 | Screw, Hex, M6 X 1.00 X 50, 8.8Old # 06949 | $3.30/EA |
| 4 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsOld # 08712 | $2.50/EA |
| 5 | TN4034136 | 2 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 6 | TN4016768 | 2 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, RunOld # 40755 | $20.10/EA |
| 7 | TN4224365 | 2 | Hose, Hyd, Tc08, Jfoee90/Jf08str, 72Old # 1226044 | $98.70/EA |
| 8 | TN4031958 | 2 | Grommet, Rbr, 1.00id, F/1.4h, .12 MatlOld # 10632-14 | $4.90/EA |
| 9 | TN4045583 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 034.0Old # 1036965 | $50.50/EA |
| 10 | TN4031528 | 1 | Hose, Hyd, Med04, Jf04e90/Jf04str, 072.0Old # 34379 | $61.20/EA |
| 11 | TN4017336 | 2 | Fitting, Hyd, Str, Jm08/Om12Old # 42227 | $15.50/EA |
| 12 | TN4028732 | 1 | Fitting, Hyd, Str, Jm04/Om06Old # 55685 | $7.90/EA |
| 13 | TN4013891 | 1 | Fitting, Hyd, E90, Jm04/Om06Old # 47638 | $18.30/EA |
| 14 | TN4190729 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 052.0Old # 1037072 | $54.15/EA |
| 15 | TN4045571 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 039.0Old # 1036902 | $51.10/EA |
| 16 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 17 | TN4200590 | 1 | Fitting, Hyd, E45, Jf08/Jm08Old # 07797 | $11.40/EA |
| 18 | TN4223616 | 1 | Sleeve, Nyl, 0.69id 20.0l [Asb11]Old # 1224326 | $5.30/EA |
| 19 | TN4223618 | 2 | Sleeve, Nyl, 1.06id 22.0l [Asb15]Old # 1224327 | $9.00/EA |
| 20 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
M20 wet dust control hopper cover group (S/N 010900 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045323 | 1 | Panel, Filler, Filter [M20/30 Wet Sweep]Fits SN 010900 and later · Old # 1076414 | $246.40/EA |
| 2 | TN4044454 | 1 | Cover, HpprFits SN 010900 and later · Old # 1041006 | $384.00/EA |
| 3 | TN4035545 | 2 | Bar, Mtg, Hppr CoverFits SN 010900 and later · Old # 1018207 | $14.80/EA |
| 4 | TN4041974 | 2 | Screw, Hex, M10 X 1.5 X 20, SsFits SN 010900 and later · Old # 09291 | $5.80/EA |
| 5 | TN4037922 | 2 | Washer, Flat, 0.40b 1.12d .12, SsFits SN 010900 and later · Old # 1014563 | $5.80/EA |
| 6 | TN4037480 | 2 | Latch, YellowFits SN 010900 and later · Old # 1222019 | $40.40/EA |
| 7 | TN4044648 | 2 | Bracket, Cover, HpprFits SN 010900 and later · Old # 1041984 | $15.60/EA |
| 8 | TN4041245 | 4 | Screw, Hex, M6 X 1.0 X 16, SsFits SN 010900 and later · Old # 15678 | $3.20/EA |
| 9 | TN4042901 | 4 | Washer, Flat, 0.25, SsFits SN 010900 and later · Old # 01684 | $2.60/EA |
| 10 | TN4197239 | 4 | Seal, Afmkt, Ure, Adh, 0.50, 0.75w 03ftFits SN 010900 and later · Old # 1015239 | $36.60/EA |
| 11 | TN4041965 | 4 | Screw, Pan, M5 X 0.8 X 12, SsFits SN 010900 and later · Old # 09200 | $3.40/EA |
| 12 | TN1015241 | 4 | Seal, Afmkt, Ure, Adh, 0.50, 0.75w 02ftFits SN 010900 and later · Old # 1015241 · current Tennant number (Tennant parts catalog) | $0.00/EACall for availability |
M20 fire extinguisher kit
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4019664 | 1 | Extinguisher Kit, Fire, Ci [M20/T20/M30]Old # 9001316 | $218.90/EA | |
| 1 | TN4035427 | 1 | Extinguisher, Fire, 2.5 Lb DryOld # 25312 | $206.60/EA |
| 2 | TN4027333 | 2 | Screw, Pan, #12 - 16 X 0.50, F/ PlstcOld # 382320 | $2.50/EA |
M20 frame tie down and tow group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4231806 | 1 | Guard Wldt, Sqge, Tie - Down, Side, RhOld # 1076696 | $207.60/EA |
| 2 | TN4231808 | 1 | Guard Wldt, Sqge, Tie - Down, Side, LhOld # 1076698 | $207.60/EA |
| 3 | TN4231939 | 1 | Tow Wldt, Bumper, FrontOld # 1076740 | $143.93/EA |
| 4 | TN4042889 | 1 | Anchor [Shackle], .50 BoltOld # 1076741 | $25.30/EA |
| 5 | TN4041293 | 4 | Screw, Hex, M12 X 1.75 X 35, 8.8Old # 06968 | $3.20/EA |
| 6 | TN4034135 | 4 | Washer, Flat, 0.53b 1.06d .10, Stl, PlOld # 32486 | $2.60/EA |
| 7 | TN4031489 | 1 | Label, Hook, WinchOld # 1251735 | Call for price |
| 8 | TN4231809 | 1 | Plate, Shim, Guard, Sqge, Tie - DownOld # 1076699 | $45.40/EA |
| 9 | TN4025658 | 6 | Screw, Hex, M10 X 1.50 X 35, SsOld # 77347 | $4.00/EA |
| 10 | TN4034138 | 6 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
M20 rear squeegee guard group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030640 | 2 | Bracket Wldt, Guard, SqgeOld # 1027560 | $92.00/EA |
| 2 | TN4019759 | 4 | Screw, Hex, M10 X 1.50 X 35, 8.8Old # 39284 | $4.00/EA |
| 3 | TN4034138 | 12 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 4 | TN4033860 | 2 | Bumper, Ure, 1.50d 1.25lOld # 1024977 | $35.00/EA |
| 5 | TN4039391 | 2 | Screw, Hex, .38 - 16 X 0.88, G5Old # 21196 | $2.50/EA |
| 6 | TN4038473 | 1 | Guard Wldt, SqgeOld # 1054338 | $278.85/EA |
| 7 | TN4041290 | 2 | Screw, Hex, M10 X 1.50 X 80, 8.8Old # 06965 | $6.80/EA |
| 8 | TN4016826 | 2 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 9 | TN4031918 | 1 | Pin, Hitch, .375d X 3.12l, PlOld # 369359 | $7.50/EA |
| 10 | TN4029376 | 1 | Cable, Glv .06d 012.0l .26eye /.26eyeOld # 57702 | $9.50/EA |
| 11 | TN4029085 | 1 | Screw, Hex, M5 X 0.80 X 16, FmgOld # 55845 | $4.00/EA |
| 12 | TN4042888 | 1 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
M20 front cover latch group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026848 | 1 | LatchOld # 59661 | $65.80/EA |
| 2 | TN4231810 | 1 | Bracket, Mtg, LatchOld # 1076703 | $67.27/EA |
| 3 | TN4231811 | 1 | Lever, LatchOld # 1076704 | $43.58/EA |
| 4 | TN4039882 | 1 | Grip, HandleOld # 222190 | $5.10/EA |
| 5 | TN4023520 | 2 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Old # 80491 | $5.10/EA |
| 6 | TN4035411 | 3 | Screw, Hex, .25 - 20 X 1.00, G5Old # 25046 | $3.20/EA |
| 7 | TN4034502 | 1 | Screw, Hex, .50 - 13 X 3.50, G5Old # 32895 | $5.10/EA |
| 8 | TN4040927 | 2 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 9 | TN4034157 | 2 | Nut, Hex, Jam, .50 - 13Old # 32523 | $3.30/EA |
| 10 | TN4041271 | 2 | Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 | $2.50/EA |
| 11 | TN4034136 | 8 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 12 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 13 | TN4041270 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942 | $2.50/EA |
M20 detergent metering group (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036552 | 1 | Filter, Soltn, 080mesh, Pm12 3.2d 08.0lFits SN 014001 and later · Old # 1057465 | $106.70/EA |
| 2 | TN4028471 | 1 | Fitting, Plstc, Str, Bm10/Pm12Fits SN 014001 and later · Old # 365095 | $4.20/EA |
| 3 | TN4018369 | 1 | Fitting, Plstc, E90, Pf12/Pm12Fits SN 014001 and later · Old # 69785 | $11.80/EA |
| 4 | TN4032910 | 1 | Tank, Detgt, TrimmedFits SN 014001 and later · Old # 1022229 | $341.48/EA |
| 5 | TN4036929 | 1 | Cap, TankFits SN 014001 and later · Old # 1011885 | $69.10/EA |
| 6 | TN4193627 | 6 | Bracket, Mtg, Detgt And Spray WandFits SN 014001 and later · Old # 1025159 | $19.70/EA |
| 7 | TN4041992 | 6 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 014001 and later · Old # 09740 | $3.30/EA |
| 8 | TN4035242 | 1 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 014001 and later · Old # 1017218 | $3.40/EA |
| 9 | TN4039132 | 1 | Screen, PumpFits SN 014001 and later · Old # 20952 | $13.70/EA |
| 10 | TN4039131 | 2 | Fitting, Plstc, E90, Bm06/Bm06Fits SN 014001 and later · Old # 20951 | $4.20/EA |
| 11 | TN4037961 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 08ftFits SN 014001 and later · Old # 1014930 | $18.40/EA |
| 12 | TN4039117 | 1 | Grommet, Pye, 0.37id, F/1.5h, .13 MatlFits SN 014001 and later · Old # 20944 | $27.50/EA |
| 13 | TN4017396 | 1 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 014001 and later · Old # 43844 | $4.20/EA |
| 14 | TN4032003 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .12 MatlFits SN 014001 and later · Old # 10632-2 | $0.80/EA |
| 15 | TN4016324 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psiFits SN 014001 and later · Old # 73260 | $792.20/EA |
| 16 | TN4195605 | 1 | Bracket, Mtg, ValveFits SN 014001 and later · Old # 1021325 | $20.50/EA |
| 17 | TN4035372 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, SsFits SN 014001 and later · Old # 24265 | $3.00/EA |
| 18 | TN4042888 | 2 | Washer, Flat, 10, SsFits SN 014001 and later · Old # 01683 | $2.60/EA |
| 19 | TN4026576 | 1 | Fitting, Plstc, E90, Bm06/Pm12, NylFits SN 014001 and later · Old # 79484 | $7.80/EA |
| 20 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Fits SN 014001 and later · Old # 42133A | $17.60/EA |
| 21 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lFits SN 014001 and later · Old # 24544 | $6.20/EA |
| 22 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsFits SN 014001 and later · Old # 33932 | $3.40/EA |
M20 spotlight kit, blue
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4022024 | 1 | Spotlight Kit, Blue, Ci [T20/M20]Old # 9021235 · Have SES install this kit | $868.40/EA | |
| 1 | TN4033715 | 2 | Light, Spot, Blue, LedOld # 1240687 | $562.40/EA |
| 2 | TN4016789 | 2 | Washer, Lock, Int - Ext, 0.50Old # 41143 | $3.10/EA |
| 3 | TN4042916 | 1 | Brkt, Blu Spotlight, Fr, Cover MtgOld # 1076808 | $56.60/EA |
| 4 | TN4032093 | 3 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 5 | TN4016551 | 3 | Washer, Flat, M8, FendrOld # 39890 | $4.10/EA |
| 6 | TN4041929 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 7 | TN4042910 | 1 | Brkt, Blu Spotlight, Rr, Frame MtgOld # 1076789 | $22.32/EA |
| 8 | TN4035367 | 4 | Screw, Pan, Phl, M5 X 0.80 X 20, SsOld # 24196 | $3.20/EA |
| 9 | TN4042244 | 4 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Old # 19066 | $2.50/EA |
| 10 | TN4041991 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739 | $3.30/EA |
| 11 | TN4035919 | 1 | Bracket, Sppt, Revl LightOld # 1019445 | $55.20/EA |
| 12 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 13 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 14 | TN4042993 | 1 | Harness, Blu Spotlight [T20/M20/M30]Old # 1076999 | $147.76/EA |
| TN4038626 | 1 | Fuse, Blade, 005a, 32vdc [Atof]Old # 1016029 | $3.40/EA | |
| 15 | TN4038889 | 3 | Wire, Tie [W/.25” Fir Tree Clip]Old # 1210807 | $1.90/EA |
| 16 | TN4011908 | 10 | Tie, Cable, 11.3l, 2.75d MaxOld # 763114 | $3.30/EA |
M20 documentation group (online only)
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4024004 | 1 | Manual, Oprtr [M20 G, En, Na Sn 8000 - ]Old # 9016000 | $93.68/EA | |
| TN4032476 | 1 | Instr, Maint, Wall Chart [M20]Old # 1032578 | $40.12/EA | |
| TN4195701 | 1 | Manual, Oprtr [M20 G, Es, Na Sn 8000 - ]Old # 9016002 | $93.68/EA | |
| TN4195702 | 1 | Manual, Oprtr [M20 G, Fr, Na, Sn 8000 - ]Old # 9016003 | $93.68/EA | |
| TN4024006 | 1 | Manual, Oprtr [M20 G/Lpg, Jp, Sn 8000 - ]Old # 9016004 | Call for price | |
| TN4024007 | 1 | Manual, Oprtr [M20 G/Lpg, Cn, Sn 8000 - ]Old # 9016005 | Call for price | |
| TN4024005 | 1 | Manual, Parts [M20 Gas/Lp, Na Sn 8000 - ]Old # 9016001 | $157.92/EA | |
| TN9016283 | 1 | Manual, Oprtr [M20 G/Lp, Ptb, Sn 8000 - ]Old # 9016283 · current Tennant number (Tennant parts catalog) | Call for price | |
| TN4024008 | 1 | Manual, Service, [M20/M30 G/D, Sn 8000 - ]Old # 9016006 | $321.18/EA | |
| TN9006257 | 1 | Media, Cd - Rom, Training [ec - H2O Tennant]Old # 9006257 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price | |
| TN4199969 | 1 | Manual, Service, Cd - Rom [Mit2.0l]Old # 9010635 | Call for price |
M20 extended scrub pump breakdown, 1021210
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4036630 | 1 | Pump Assy, Column, EsOld # 1021210 | $1,762.90/EA | |
| 1 | TN8002651 | 1 | Motor, Ele, 12vdc, Pump, WaterOld # 9002708 | $856.93/EA |
| TN8003651 | 1 | Kit, Brush, Motor, EleOld # 78829 | $307.90/EA | |
| 2 | TN4035378 | 1 | Cap Assy, Tank, DrainOld # 24358 | $40.40/EA |
| 3 | TN4032112 | 1 | Gasket, 4.05id 5.29od .19 [Buna]Old # 1031699 | $9.00/EA |
| 4 | TN8050826 | 1 | Tube, Vinyl, Pump, WaterOld # 78833 | $66.86/EA |
| 5 | TN4026135 | 1 | Fitting, Plstc, Str, Bm12/Pm08, NylOld # 78398 | $6.20/EA |
| 6 | TN8003656 | 1 | Housing Kit, Pump, WaterOld # 78843 | $262.10/EA |
| 7 | TN8003652 | 1 | Column, Pump, WaterOld # 78836 | $118.57/EA |
| 8 | TN8002652 | 1 | Shaft, Pump, WaterOld # 9002709 | $257.35/EA |
| 9 | TN8050828 | 1 | Fitting, E, GrOld # 78838 | $36.66/EA |
| 10 | TN8050829 | 1 | Fitting, Plstc, E90, Pf Bm [Es Pump]Old # 78839 | $16.87/EA |
| 11 | TN8003655 | 1 | Kit, Valve, Check, Pump, WaterOld # 78842 | $205.38/EA |
| 12 | TN8003653 | 1 | Valve, Check, Pump, WaterOld # 78840 | $165.50/EA |
| 13 | TN8002662 | 1 | Gasket, .25 1.88d 1.0id [Poron]Old # 73342 | $3.65/EA |
| 14 | TN8003654 | 1 | Flapper, Valve, Pump, WaterOld # 78841 | $109.82/EA |
| 15 | TN8050825 | 1 | Washer, RbrOld # 78830 | $20.71/EA |
| 16 | TN8049214 | 1 | Insert, Cap, Mount, Es PumpOld # 22790 | $82.42/EA |
| 17 | TN8005801 | 1 | Sleeve, Pump, WaterOld # 23285 | $59.69/EA |
M20 hydraulic motor breakdown, 379609
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4026352 | 1 | Motor, Hyd, Gear, [Int], 19.0 X 3000Old # 379609 | Call for price | |
| 1 | TN8002102 | 1 | Shaft, Motor, HydOld # 74165 | $850.20/EA |
| 2 | TN8002103 | 1 | Housing, Brg, Motor, HydOld # 74166 | $269.47/EA |
| 3 | TN8002104 | 1 | Retainer, Motor, HydOld # 74167 | $390.90/EA |
| 4 | TN8002105 | 8 | Screw, Cap, Motor, HydOld # 74168 | $5.90/EA |
| 5 | TN8003621 | 1 | Drive, Motor, HydOld # 37616 | $111.00/EA |
| 6 | TN8003630 | 1 | Geroler, Motor, HydOld # 37756 | $592.06/EA |
| 7 | TN8002092 | 1 | Plate, Valve, Motor, HydOld # 74122 | $349.36/EA |
| 8 | TN4014991 | 1 | Valve, Motor, HydOld # 52405 | $69.89/EA |
| 9 | TN8002093 | 1 | Valve, Motor, HydOld # 74123 | $272.20/EA |
| 10 | TN8005491 | 2 | Spring, Motor, HydOld # 34178 | $4.30/EA |
| 11 | TN8002895 | 1 | Ring, Motor, HydOld # 38968 | $23.53/EA |
| 12 | TN8002094 | 3 | Bolt, Motor, HydOld # 74125 | $14.95/EA |
| 13 | TN8003887 | 1 | Bolt, Motor, HydOld # 38255 | $16.87/EA |
| 14 | TN8045139 | 1 | Housing, ValveOld # 373297 | Call for price |
| 15 | TN4028397 | 1 | PlugOld # 373298 | $43.53/EA |
| 16 | TN8045128 | 2 | Plug, Pump, Hyd, GearOld # 373260 | $24.00/EA |
| 17 | TN8045140 | 1 | PlugOld # 373299 | Call for price |
| 18 | TN4028396 | 2 | SpringOld # 373291 | $4.70/EA |
| 19 | TN8045105 | 1 | Piston, Pump, Hyd, GearOld # 373217 | $25.49/EA |
| 20 | TN8004223 | 2 | Poppet, Pump, Hyd, GearOld # 373226 | $7.90/EA |
| 21 | TN8004227 | 2 | Sleeve, Dashpo, Pump, Hyd, GearOld # 373236 | Call for price |
| 22 | TN8002165 | 1 | Nut, Motor, HydOld # 45622 | $64.70/EA |
| 23 | TN8002166 | 1 | Key, Motor, HydOld # 45623 | $17.60/EA |
| 24 | TN8003766 | 1 | Seal Kit, Shaft [Cl]Old # 79828 | $140.00/EA |
| 25 | TN8005457 | 1 | Seal Kit, Rear [Cl]Old # 33580 | $59.50/EA |
| 26 | TN4026637 | 1 | Instr, Repair, Motor, Hyd, GearOld # 79729 | $4.00/EA |
M20 hydraulic pump breakdown, 1024251
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4033592 | 1 | Pump, Hyd, Piston, Var, 1.24 4000, CwOld # 1024251 | $1,813.50/EA | |
| 1 | TN373681 | 1 | Shaft, PumpOld # 373681 · current Tennant number (Tennant parts catalog) | Call for price |
| 2 | TN8045195 | 1 | Cover, EndOld # 373427 | $1,326.78/EA |
| 3 | TN8004244 | 1 | HousingOld # 373389 | $824.67/EA |
| 4 | TN8006141 | 1 | Pump Kit, Hyd, Rotating [Cessna]Old # 02706 | $576.71/EA |
| 5 | TN8045211 | 1 | Plate, CamOld # 373493 | Call for price |
| 6 | TN8002864 | 1 | Washer, Flat, Pump, HydOld # 70096 | $7.88/EA |
| 7 | TN8051813 | 1 | Ring, Retaining, Pump, HydOld # 55926 | $5.30/EA |
| 8 | TN8045197 | 2 | Ring, RetainingOld # 373434 | $3.33/EA |
| 9 | TN8002118 | 1 | Bearing, Thrust, Pump, HydOld # 74225 | $12.30/EA |
| 10 | TN8002119 | 2 | Race, Brg, Pump, HydOld # 74226 | $6.97/EA |
| 11 | TN8045151 | 1 | Insert, Plt, Cam, Pump, HydOld # 373327 | $42.63/EA |
| 12 | TN8045179 | 6 | Washer, Pump, Hyd [En]Old # 373391 | $3.33/EA |
| 13 | TN8045161 | 6 | Screw, CapOld # 373346 | $4.44/EA |
| 14 | TN8004260 | 1 | Valve, Relief, 4000 PsiOld # 373494 | $486.30/EA |
| 15 | TN8004354 | 1 | Valve, Relief, 3000 PsiOld # 373678 | $144.74/EA |
| 16 | TN8004232 | 2 | Bearing, Cone, Pump, HydOld # 373317 | $42.32/EA |
| 17 | TN8004245 | 1 | Plate, CoverOld # 373393 | $1,844.56/EA |
| 18 | TN8004246 | 1 | Plate, CoverOld # 373394 | $353.90/EA |
| 19 | TN8002865 | 2 | Pin, Dowel, Pump, HydOld # 70100 | $4.04/EA |
| 20 | TN8045162 | 2 | Screw, CapOld # 373347 | $4.85/EA |
| 21 | TN8045163 | 2 | Screw, CapOld # 373348 | Call for price |
| 22 | TN8002126 | 1 | Key, Shaft, Pump, HydOld # 74237 | $3.23/EA |
| 23 | TN373679 | 1 | Coupler, PumpOld # 373679 · current Tennant number (Tennant parts catalog) | Call for price |
| 24 | TN373680 | 1 | Ring, LockOld # 373680 · current Tennant number (Tennant parts catalog) | Call for price |
| 25 | TN8004247 | 2 | Bearing, CupOld # 373395 | $28.18/EA |
| 26 | TN8002108 | 1 | Plate, Valve, Pump, HydOld # 74180 | $215.43/EA |
| 27 | TN8006154 | 1 | Fitting, Hyd, Plug, Om08Old # 13907 | $7.60/EA |
| 28 | TN8004250 | 1 | Actuator, Valve, By - Pass [En]Old # 373413 | $170.19/EA |
| 29 | TN8004248 | 1 | Seal Kit, Pump, HydOld # 373398 | $236.10/EA |
| 30 | TN8004249 | 1 | Shim KitOld # 373402 | $479.45/EA |
| 31 | TN8004255 | 1 | Instr, Repair, PumpOld # 373429 | $1.72/EA |
M20 hydraulic motor breakdown, 71729
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4015708 | 1 | Motor, Hyd Gear In 4.5 B 1500Old # 71729 | Call for price | |
| 1 | TN8004514 | 4 | ScrewOld # 37555 | $4.40/EA |
| 2 | TN8005776 | 1 | Flange MountingOld # 31354 | $105.75/EA |
| 3 | TN8006045 | 1 | Race ThrustOld # 16695 | $43.50/EA |
| 4 | TN8002167 | 1 | Thrust BearingOld # 45628 | $15.60/EA |
| 5 | TN8005777 | 1 | Shaft, OutputOld # 31375 | $304.08/EA |
| 6 | Old # 74100 | 1 | HousinglOld # 74100Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 7 | TN8005778 | 1 | DriveOld # 31379 | $52.12/EA |
| 8 | TN8002085 | 1 | Spacer PlateOld # 74094 | $52.62/EA |
| 9 | TN8047405 | 1 | Gerotor SetOld # 31383 | $273.71/EA |
| 10 | TN8051369 | 1 | End CapOld # 74095 | $101.10/EA |
| 11 | TN8051596 | 5 | Cap ScrewOld # 65241 | $3.74/EA |
| 12 | TN4012760 | 1 | Plug #4Old # 74098 | $5.00/EA |
| 13 | TN4012761 | 2 | Plug #10Old # 74099 | $4.05/EA |
| 14 | TN4042771 | 1 | Key - Wdruff 0.25 1.00Old # 00500-15 | $4.60/EA |
| 15 | TN4015800 | 1 | Nut - Hxslot .75 - 16 PltdOld # 39527 | $8.00/EA |
| 16 | TN8002969 | 1 | Seal Replmt KitOld # 61490 | $114.70/EA |
| 17 | TN8002133 | 1 | Instr. Repair Info, MotorOld # 74250 | $4.12/EA |
M20 hydraulic motor breakdown, 1029379
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4010444 | 1 | Motor, Hyd, Gear, Int 08.9 Bi - Dir 2500Old # 1029379 · replaced by 4010444 (Tennant parts catalog) | Call for price | |
| 1 | TN8004514 | 4 | Screw, Motor, Hyd [En]Old # 37555 | $4.40/EA |
| 2 | TN8005776 | 1 | Flange, Motor, Hyd [En]Old # 31354 | $105.75/EA |
| 3 | TN8006045 | 1 | Ace, Thrust, Motor, Hyd [En]Old # 16695 | $43.50/EA |
| 4 | TN8002167 | 1 | Bearing, ThrustOld # 45628 | $15.60/EA |
| 5 | TN8005827 | 1 | Shaft, Output, Motor, Hyd [En]Old # 28854 | $176.45/EA |
| 6 | TN8002086 | 1 | Housing, Motor, Hyd [En]Old # 74100 | $153.62/EA |
| 7 | TN8048818 | 1 | Drive [Cl]Old # 21955 | Call for price |
| 8 | TN8002085 | 1 | Plate, Spacer, Motor, Hyd [En]Old # 74094 | $52.62/EA |
| 9 | TN8048819 | 1 | Gerotor Set [Cl]Old # 21956 | $283.61/EA |
| 10 | TN8051591 | 1 | End Cap, Motor, Hyd [En]Old # 65230 | Call for price |
| 11 | TN8048820 | 5 | Cap Screw ClOld # 21958 | $3.74/EA |
| 12 | TN4042771 | 1 | Key, Woodruff, 0.25 1.00 [Asa#0808]Old # 00500-15 | $4.60/EA |
| 13 | TN8002969 | 1 | Seal Kit, Motor [Cl]Old # 61490 | $114.70/EA |
| 14 | TN8002133 | 1 | Instr, Motor, Hyd, Repair [En]Old # 74250 | $4.12/EA |
M20 hydraulic valve breakdown, 1072997
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4031319 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpmOld # 1072997 | $1,504.00/EA | |
| 1 | TN8004284 | 1 | Plug, Orifice, Valve, Hyd, .040Old # 373633 | $12.95/EA |
| 2 | TN8006153 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Old # 13904 | $7.60/EA |
| 3 | TN4029252 | 1 | Seal, Org, .078 X 00.47id 06Old # 77005 | $4.40/EA |
| 4 | TN8004340 | 1 | Valve, CheckOld # 373656 | $52.60/EA |
| 5 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 6 | TN8004344 | 1 | Valve, ReliefOld # 373661 | $125.50/EA |
| 7 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 8 | TN8004345 | 1 | Stem, Valve, HydOld # 373662 | $147.30/EA |
| 9 | TN8004329 | 1 | Nut, Coil, Nyl PatchOld # 373648 | $4.20/EA |
| 10 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 11 | TN8004341 | 1 | Stem, Valve, Hyd [4w2p]Old # 373657 | $185.50/EA |
| 12 | TN8004329 | 1 | Nut, Coil, F/#8Old # 373648 | $4.20/EA |
| 13 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 14 | TN8004291 | 3 | Solenoid, #8, 12vdcOld # 373640 | $73.70/EA |
| 15 | TN8004342 | 1 | Spool, Pilot, HydOld # 373658 | $44.30/EA |
| 16 | TN8004293 | 1 | Solenoid, #10, 12vdcOld # 373642 | $88.20/EA |
| 17 | TN8004346 | 1 | Valve, Stem, NoOld # 373663 | $213.30/EA |
| 18 | TN8045252 | 1 | Nut, SolenoidOld # 373670 | $6.80/EA |
| 19 | TN8004296 | 1 | Seal Kit, CartridgeOld # 373646 | $25.60/EA |
| 20 | TN8004187 | 1 | Valve Assy [Proportional]Old # 9011347 | $351.30/EA |
| 21 | TN8004184 | 1 | Seal Kit, Valve [Ehpr98]Old # 9011343 | $26.70/EA |
| 22 | TN8004185 | 2 | Screw, Mtg [Ehpr98]Old # 9011345 | $3.10/EA |
| 23 | TN8004186 | 1 | Harness, Jumper [Deutsch To Mpack]Old # 9011346 | $35.00/EA |
| 24 | TN8006153 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Old # 13904 | $7.60/EA |
| 25 | TN4029252 | 1 | Seal, Org, .078 X 00.47id 06Old # 77005 | $4.40/EA |
| 26 | TN8004355 | 1 | Valve, ReliefOld # 373683 | $153.10/EA |
| 27 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
M20 hydraulic valve breakdown, 1072995
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4031317 | 1 | Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpmOld # 1072995 | $3,016.30/EA | |
| 1 | TN8004348 | 1 | Plug, Orifice, Valve, Hyd, .046Old # 373665 | $12.52/EA |
| 2 | TN8004284 | 1 | Plug, Orifice, Valve, Hyd, .040Old # 373633 | $12.95/EA |
| 3 | TN8004363 | 1 | Plug Orifice, Valve, Hyd, .140Old # 9004475 · replaced by 8004363 (Tennant parts catalog) | Call for price |
| 4 | TN8045249 | 1 | Plug, Orifice, Valve, Hyd, .030Old # 373660 | $12.52/EA |
| 5 | TN4012760 | 9 | Fitting, Hyd, Plug, Om04Old # 74098 | $5.00/EA |
| 6 | TN4029251 | 1 | Seal, Org, .072 X 00.35id #04Old # 77003 | $4.40/EA |
| 7 | TN8006153 | 2 | Fitting, Plug, Org, #6, Valve [Cec]Old # 13904 | $7.60/EA |
| 8 | TN4029252 | 1 | Seal, Org, .078 X 00.47id #06Old # 77005 | $4.40/EA |
| 9 | TN8004340 | 5 | Valve, CheckOld # 373656 | $52.60/EA |
| 10 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 11 | TN4171592 | 1 | Spool, Pilot, Dual, HydOld # 373688 | Call for price |
| 12 | TN8004346 | 2 | Valve, Stem, NoOld # 373663 | $213.30/EA |
| 13 | TN8045252 | 1 | Nut, SolenoidOld # 373670 | $6.80/EA |
| 14 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 15 | TN8004350 | 1 | Stem, Valve, HydOld # 373667 | $144.10/EA |
| 16 | TN8004329 | 1 | Nut, Coil, F/#8Old # 373648 | $4.20/EA |
| 17 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 18 | TN8004187 | 1 | Valve Assy [Proportional]Old # 9011347 | $351.30/EA |
| 19 | TN8004184 | 1 | Seal Kit, Valve [Ehpr98]Old # 9011343 | $26.70/EA |
| 20 | TN8004185 | 2 | Screw, Mtg [Ehpr98]Old # 9011345 | $3.10/EA |
| 21 | TN8004186 | 1 | Harness, Jumper [Deutsch To Mpack]Old # 9011346 | $35.00/EA |
| 22 | TN8004341 | 3 | Stem, Valve, Hyd [4w2p]Old # 373657 | $185.50/EA |
| 23 | TN8004329 | 1 | Nut, Coil, F/#8Old # 373648 | $4.20/EA |
| 24 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 25 | TN8004288 | 1 | Valve, Cntrl, SolenoidOld # 373637 | $311.30/EA |
| 26 | TN8004356 | 2 | Nut, Coil, Nyl PatchOld # 373684 | $3.80/EA |
| 27 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 28 | TN8004349 | 2 | Valve, ReliefOld # 373666 | $133.50/EA |
| 29 | TN8004297 | 1 | Seal Kit, CartridgeOld # 373647 | $22.60/EA |
| 30 | TN8004291 | 5 | Solenoid, #8, 12vdcOld # 373640 | $73.70/EA |
| 31 | TN8004293 | 3 | Solenoid, #10, 12vdcOld # 373642 | $88.20/EA |
| 32 | TN8004290 | 1 | Spacer, Coil, #8Old # 373639 | $8.50/EA |
| 33 | TN8004351 | 1 | Valve, CheckOld # 373668 | $118.80/EA |
| 34 | TN8004352 | 1 | Seal Kit, CartridgeOld # 373671 | $46.60/EA |
| 35 | TN8004342 | 3 | Spool, Pilot, HydOld # 373658 | $44.30/EA |
M20 hydraulic steering valve breakdown, 1024260
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4033593 | 1 | Steer - Control, Hyd05, 06.1 2030Old # 1024260 | $816.30/EA | |
| 1 | TN8051403 | 7 | Screw, Valve, SteeringOld # 74183 | Call for price |
| 2 | TN8051405 | 1 | Cap, End, Valve, SteeringOld # 74185 | Call for price |
| 3 | TN8002112 | 1 | Spacer, Valve, SteeringOld # 74193 | $17.78/EA |
| 4 | TN8002117 | 1 | Plate, Wear, Steering ValveOld # 74222 | Call for price |
| 5 | TN8002122 | 1 | Pin, Valve, SteeringOld # 74232 | Call for price |
| 6 | TN8005935 | 1 | Bearing Kit [Cl]Old # 21935 | $39.98/EA |
| 7 | TN8048811 | 1 | Plug Assy [Cl]Old # 21933 | $42.32/EA |
| 8 | TN8048812 | 1 | Valve Assy, Relief [Cl]Old # 21934 | $236.04/EA |
| 9 | TN8002129 | 1 | Ring, Retainer, Steering ValveOld # 74243 | $5.96/EA |
| 10 | TN8002114 | 1 | Spring Kit, Scu [Cl]Old # 74196 | $45.35/EA |
| 11 | TN8002130 | 1 | Seal Kit, Steering [Cl]Old # 74244 | $62.30/EA |
| 12 | TN8002131 | 1 | Instr, Valve, Steering, RepairOld # 74245 | Call for price |
M20 metering solution pump breakdown, 73260
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4016324 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psiOld # 73260 | $792.20/EA | |
| 1 | TN8002729 | 1 | Tubing Connctr.Kit, Gorman PmpOld # 63923 | $91.36/EA |
| 2 | TN8005913 | 1 | Valve Kit, Poppet, Gorman RuppOld # 21659 | $118.80/EA |
| 3 | TN8005912 | 1 | Kit, Bellows, Pump, DetgtOld # 21657 | $249.77/EA |
| 4 | TN8003657 | 1 | Motor, Ele, Gear, 14vdc, Pump, DetgtOld # 78875 | $540.96/EA |
| 5 | TN8006136 | 1 | Crank Kit, Pump, F/79323, ReplmtOld # 02430 | $112.01/EA |
M20 water pump breakdown, 1026743
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4034280 | 1 | Pump, DiaphragmOld # 1026743 | $370.80/EA | |
| 1 | TN8005597 | 1 | Complete Pump Kit, Pump, Repair,Old # 1031802 | $251.40/EA |
| 2 | TN8005598 | 1 | Hsg & Switch Kit, Pump, Repair,Old # 1031803 | $121.04/EA |
| 3 | TN8005592 | 1 | Switch Kit, Pump, Repair,Old # 1031796 | $83.12/EA |
| 4 | TN8005593 | 1 | Chech Valve Kit, Pump, Repair,Old # 1031797 | $36.60/EA |
| 5 | TN8005594 | 1 | Upper Hsg Kit, Pump, Repair,Old # 1031798 | $23.63/EA |
| 6 | TN8005595 | 1 | Bypass Valve Kit, Pump, Repair,Old # 1031799 | $85.45/EA |
| 7 | TN8005596 | 1 | Diaphragm Kit, Pump, Repair,Old # 1031800 | $59.59/EA |
| 8 | TN8047054 | 1 | Motor Kit, Pump, Repair,Old # 1031801 | $167.21/EA |
| 9 | TN4026208 | 1 | Connector, Fem, 02cav, Mp280 SealedOld # 78950 | $7.90/EA |
| 10 | TN4026214 | 1 | Lock, Secondary, 2cav, Mp280 SealedOld # 78952 | $4.20/EA |
| TN4026210 | 2 | Terminal, Fem, Mp280, Sealed, 18 - 16gaOld # 78951 | $0.55/EA | |
| TN4043117 | 2 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Old # 10917 | $3.60/EA |
M20 ec - H20 module assembly breakdown, 9007882
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4012473 | 1 | Module Kit, Replmt [Ec - H20]Old # 9007882 | $1,782.70/EA | |
| 1 | TN4037967 | 2 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrOld # 1014974 | $22.40/EA |
| 2 | TN4015366 | 5 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 3 | TN4034613 | 1 | Fitting, Plstc, Tee, Bm06/Pm02/Bm06Old # 1060517 | $6.20/EA |
| 4 | TN4037966 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrOld # 1014971 | $18.70/EA |
| 5 | TN4039131 | 1 | Fitting, Plstc, E90, Bm06/Bm06Old # 20951 | $4.20/EA |
| 6 | TN4041118 | 1 | Fitting, Plstc, Str, Bm06/Pm04Old # 150540 | $4.20/EA |
| 7 | TN4038978 | 1 | Fitting, Plstc, Pipe, Cap, Pf04Old # 1005435 | $4.20/EA |
| 8 | TN4034905 | 1 | Electrode, CylindricalOld # 1062006 | $43.40/EA |
| 9 | TN4013410 | 1 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DOld # 44961 | $3.40/EA |
| 10 | TN4187263 | 1 | Fitting, Plstc, Str, Pm02/Bm05Old # 1060695 | $4.20/EA |
| 11 | TN4017396 | 3 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 12 | TN4041050 | 1 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrOld # 1052336 | $48.50/EA |
| 13 | TN4036516 | 1 | Electrode, 5 Plate [De Nora Tech]Old # 1233516 | $753.50/EA |
| 14 | TN4012474 | 1 | Controller Kit, Replmt [Ec - H20]Old # 9007883 | $544.60/EA |
| 15 | TN4035120 | 2 | Clamp, Cable, Ss, 0.50d X 0.50w [Insul]Old # 1016354 | $4.10/EA |
| 16 | TN4034147 | 4 | Screw, Hex, M4 X 0.70 X 50, SsOld # 32509 | $0.25/EA |
| 17 | TN4016852 | 4 | Washer, Flat, 08, SsOld # 41579 | $2.60/EA |
| 18 | TN4043241 | 4 | Washer, Lock, Int, 08, SsOld # 02938 | $2.60/EA |
| 19 | TN4035537 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsOld # 1018155 | $2.50/EA |
| 20 | TN4045590 | 1 | Housing, BottomOld # 1037032 | $10.60/EA |
| 21 | TN4038670 | 1 | Grommet, BlindOld # 1054776 | $5.10/EA |
M20 seat breakdown, 9018721
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4192066 | 1 | Seat, Deluxe, Replmt [M20/T20/M30]Old # 9018721 | $1,220.30/EA | |
| 1 | TN8003570 | 1 | Track Assy, SlideOld # 9012585 | $187.20/EA |
| 2 | TN8003571 | 1 | Bellows, SeatOld # 9012587 | $49.09/EA |
| 3 | TN8003572 | 1 | Knobs, Adjmt, WeightOld # 9012589 | $30.10/EA |
| 4 | TN4021172 | 1 | Seatbelt, Retract, Orange, ReplmtOld # 9018734 | $353.90/EA |
| 5 | TN8003574 | 1 | Switch, SeatOld # 9012591 | $25.90/EA |
| 6 | TN8003575 | 1 | ArmrestOld # 9012592 | $121.91/EA |
| 7 | TN8003576 | 1 | Pad, ArmrestOld # 9012593 | $60.60/EA |
| 8 | TN8003577 | 1 | Cover, CushionOld # 9012594 | $147.20/EA |
| 9 | TN8003578 | 1 | Cover, BackrestOld # 9012595 | $164.20/EA |
M20 steering gearbox breakdown, 9015636
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4023706 | 1 | Gearbox Kit, Steering, Afmkt[M20/30/T20]Old # 9015636 | $931.80/EA | |
| 1 | TN4223567 | 1 | Housing, Gear, TopOld # 1224091 | $108.37/EA |
| 2 | TN4223568 | 1 | Housing, Gear, BottomOld # 1224092 | $215.43/EA |
| 3 | TN4226508 | 2 | Gear, SteeringOld # 1222953 | $25.76/EA |
| 4 | TN4223569 | 1 | Shaft, Gear, OrbitalOld # 1224093 | $209.07/EA |
| 5 | TN4223570 | 1 | Shaft. SterringOld # 1224094 | $157.76/EA |
| 6 | TN4027202 | 4 | Ring, Retaining, Ext, 1.25dOld # 59861 | $3.40/EA |
| 7 | TN4038864 | 4 | Bushing, Flng, 1.25b 1.41d 0.50lOld # 1210624 | $6.20/EA |
| 8 | TN4011883 | 4 | Washer, Thrust, 1.26b 1.97d 0.13, BnzOld # 763024 | $7.50/EA |
| 9 | TN4016807 | 4 | Screw, Hex, M8 X 1.25 X 40, 8.8Old # 41342 | $3.40/EA |
| 10 | TN4015595 | 4 | Washer, Flat, 0.31, SaeOld # 39349 | $2.50/EA |
| 11 | TN4042789 | 2 | Key, Sq, 0.19 X 0.19, 0.50lOld # 00961 | $4.20/EA |
| 12 | TN4020610 | 2 | Pin, Dowel, 0.2502d X 1.00lOld # 83043 | $2.42/EA |
| 13 | TN4036601 | 2 | Bearing, Journal, 0.75b 0.88d 0.75lOld # 1057785 | $5.50/EA |
M20 FaST injector assembly breakdown, 9008868
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4010349 | 1 | FaST Kit, Injector [M20/T20/m30 FaST III}Old # 9008868 | Call for price | |
| 1 | TN9008757 | 1 | FaST Kit, Ci [inj Rebld, M30/M20 III]Old # 9008757 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 2 | TN9008848 | 1 | FaST Kit, Seal, injector, Ci [FaST III]Old # 9008848 · current Tennant number (Tennant parts catalog) | $4.10/EA |
| 3 | TN4016470 | 1 | FaST Kit, Ci, Injector Filters[FaST Ii+]Old # 9003009 | $71.60/EA |
| 4 | TN1059878 | 1 | Plate Assy, Orifice, 0.0105Id, GreenOld # 1059878 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | $22.80/EA |
| 5 | TN1042710 | 1 | Plug, Orifice, 0.060, Ss [FaST Ii+]Old # 1042710 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | $18.30/EA |
| 6 | TN1059234 | 1 | Insert, :Lrg [Venturi, FaST III]Old # 1059234 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | $11.80/EA |
| 7 | TN1030444 | 1 | Valve, Check, 0002psi [FaST Ii+]Old # 1030444 · no current Tennant number on file | Call for price |
| 8 | TN1030441 | 1 | Valve, Check, 0005psi [FaST Ii+]Old # 1030441 · no current Tennant number on file | Call for price |
M20 water pump motor breakdown, 1225829
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4038244 | 1 | Pump, Hyd, Press WasherOld # 1225829 | $2,428.30/EA | |
| 1 | TN9004290 | 1 | Valve KitOld # 9004290 · current Tennant number (Tennant parts catalog) | $115.00/EA |
| 2 | TN9004291 | 1 | Piston KitOld # 9004291 · current Tennant number (Tennant parts catalog) | $444.80/EA |
| Item 3: choose your version (2) | ||||
| 3 | TN9004288 | 1 | Seal Kit [Buna]Old # 9004288 · current Tennant number (Tennant parts catalog) | Call for price |
| 3 | TN9004272 | 1 | Seal Kit [Vitron]Old # 9004272 · current Tennant number (Tennant parts catalog) | $601.00/EA |
| 4 | TN9004289 | 1 | Seal Kit, OilOld # 9004289 · current Tennant number (Tennant parts catalog) | Call for price |
| 5 | TN9004292 | 1 | Ring Kit, SpptOld # 9004292 · current Tennant number (Tennant parts catalog) | Call for price |
| 6 | TN4034859 | 1 | Valve, Hyd, Press WasherOld # 1227137 | $35.70/EA |
M20 ec - H20 solution pump supply group (S/N 008000 - 014000)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035382 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lFits SN 008000–013000 · Old # 24544 | $6.20/EA |
| 2 | TN4017317 | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Fits SN 008000–013000 · Old # 42133A | $17.60/EA |
| 3 | TN4038988 | 1 | Fitting, Plstc, E90, Bm08/Pm12, NylFits SN 008000–013000 · Old # 1005552 | $7.90/EA |
| 4 | TN4015366 | 9 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–013000 · Old # 54333 | $5.10/EA |
| 5 | TN4036916 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrFits SN 008000–013000 · Old # 1011837 | $75.50/EA |
| 6 | TN4017647 | 2 | Fitting, Plstc, E90, Bm08/Pm06Fits SN 008000–013000 · Old # 64778 | $8.70/EA |
| 7 | TN4038961 | 1 | Filter, In - Line, Pf06/Pf06 080mesh 02.6lFits SN 008000–013000 · Old # 1005302 | $21.10/EA |
| 8 | TN4032002 | 3 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN 008000–013000 · Old # 10632-19 | $1.50/EA |
| 9 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08 (Repl by 1531530)Fits SN 008000–013000 · Old # 1017415 | $34.70/EA |
| 10 | TN4035457 | 1 | Housing, Cplg, Qf / Pm08 (Repl by 1531530)Fits SN 008000–013000 · Old # 1017413 | $37.90/EA |
| 11 | TN4017096 | 1 | Fitting, Plstc, E90, Bm08/Bm08Fits SN 008000–013000 · Old # 63987-1 | $7.80/EA |
| 12 | TN4040112 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10Fits SN 008000–013000 · Old # 1049254 | $11.80/EA |
| 13 | TN4038956 | 1 | Fitting, Plstc, Str, Pm04/Pm06, NylFits SN 008000–013000 · Old # 1005219 | $4.20/EA |
| 14 | TN4037143 | 1 | Fitting, Plstc, Str, Pf06/Qm10, PvcFits SN 008000–013000 · Old # 1059372 | $13.00/EA |
| 15 | TN4034619 | 1 | Manifold, WaterFits SN 008000–013000 · Old # 1060596 | $44.30/EA |
| 16 | TN4035395 | 1 | Fitting, Brs, Str, Pf02/Pm06Fits SN 008000–013000 · Old # 24698 | $8.70/EA |
| 17 | TN4035456 | 1 | Valve, Vent, Air, Float TypeFits SN 008000–013000 · Old # 1017386 | $64.30/EA |
| 18 | TN4036776 | 1 | Switch, Press, 50 Psi, Pm02Fits SN 008000–013000 · Old # 1058935 | $115.30/EA |
| 19 | TN4034632 | 1 | Valve, Check, 0005psi Pm04/Bm06Fits SN 008000–013000 · Old # 1060693 | $55.50/EA |
| 20 | TN4017396 | 4 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 008000–013000 · Old # 43844 | $4.20/EA |
| 21 | TN4187030 | 1 | Fitting, Plstc, E90, Bm05/Bm05, NylFits SN 008000–013000 · Old # 1059391 | $4.40/EA |
| 22 | TN4041050 | 2 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrFits SN 008000–013000 · Old # 1052336 | $48.50/EA |
| 23 | TN4040814 | 1 | Fitting, Plstc, Str, Bm05/Pm04Fits SN 008000–013000 · Old # 1052017 | $2.60/EA |
| 24 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 008000–013000 · Old # 1071280 | $8.70/EA |
| 25 | TN4017747 | 1 | Fitting, Plstc, E90, Bm08/Pm04Fits SN 008000–013000 · Old # 65581 | $2.55/EA |
| 26 | TN4197576 | 1 | ec - H2O Kit, Flush, Replmt[M20, M30&T20]Fits SN 008000–013000 · Old # 9014281 | $99.60/EA |
| 27 | TN4016302 | 2 | Rivet, Plstc, .250d X 0.90Fits SN 008000–013000 · Old # 72968 | $3.20/EA |
| 28 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08Fits SN 008000–013000 · Old # 1017415 | $34.70/EA |
| 29 | TN4020535 | 1 | Fitting, Plstc, Str, Bm04/Bm08Fits SN 008000–013000 · Old # 630164 | $7.90/EA |
| 30 | TN4039304 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftFits SN 008000–013000 · Old # 1006415 | $51.70/EA |
| 31 | TN4014520 | 1 | Fitting, Plstc, Str, Bm04/Pm04Fits SN 008000–013000 · Old # 50901 | $3.60/EA |
| 32 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–013000 · Old # 54333 | $5.10/EA |
| 33 | TN4036839 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrFits SN 008000–013000 · Old # 1011403 | $19.40/EA |
| 34 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 008000–013000 · Old # 43844 | $4.20/EA |
| 35 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 008000–013000 · Old # 1071280 | $8.70/EA |
| 36 | TN4013988 | 1 | PouchFits SN 008000–013000 · Old # 48790 | $32.02/EA |
| 37 | TN4016343 | 1 | Fitting, Plstc, E90, Bm10/Pm12Fits SN 008000–013000 · Old # 73468 | $7.90/EA |
| 38 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN 008000–013000 · Old # 49266 | $2.50/EA |
| 39 | TN4035142 | 1 | Fitting, Brs, Snubber, Pm02/Pf02Fits SN 008000–013000 · Old # 1062403 | $37.10/EA |
| 40 | TN4031487 | 1 | Valve, Check, 1.0psi, Bm08/Bm08Fits SN 008000–013000 · Old # 1251530 | $39.20/EA |
M20 ec - H20 solution pump supply group (S/N 014001 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 2 | TN4036916 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrFits SN 014001 and later · Old # 1011837 | $75.50/EA |
| 3 | TN4032002 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlFits SN 014001 and later · Old # 10632-19 | $1.50/EA |
| 4 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN 014001 and later · Old # 49266 | $2.50/EA |
| 5 | TN4035142 | 1 | Fitting, Brs, Snubber, Pm02/Pf02Fits SN 014001 and later · Old # 1062403 | $37.10/EA |
| 6 | TN4013959 | 1 | Fitting, Plstc, Str, Bm08/Pm04Fits SN 014001 and later · Old # 48610 | $1.35/EA |
| 7 | TN4034619 | 1 | Manifold, WaterFits SN 014001 and later · Old # 1060596 | $44.30/EA |
| 8 | TN4035395 | 1 | Fitting, Brs, Str, Pf02/Pm06Fits SN 014001 and later · Old # 24698 | $8.70/EA |
| 9 | TN4035456 | 1 | Valve, Vent, Air, Float TypeFits SN 014001 and later · Old # 1017386 | $64.30/EA |
| 10 | TN4036776 | 1 | Switch, Press, 50 Psi, Pm02Fits SN 014001 and later · Old # 1058935 | $115.30/EA |
| 11 | TN4034632 | 1 | Valve, Check, 0005psi Pm04/Bm06Fits SN 014001 and later · Old # 1060693 | $55.50/EA |
| 12 | TN4017396 | 4 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 014001 and later · Old # 43844 | $4.20/EA |
| 13 | TN4187030 | 1 | Fitting, Plstc, E90, Bm05/Bm05, NylFits SN 014001 and later · Old # 1059391 | $4.40/EA |
| 14 | TN4041050 | 1 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrFits SN 014001 and later · Old # 1052336 | $48.50/EA |
| 15 | TN4040814 | 1 | Fitting, Plstc, Str, Bm05/Pm04Fits SN 014001 and later · Old # 1052017 | $2.60/EA |
| 16 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 014001 and later · Old # 1071280 | $8.70/EA |
| 17 | TN4017747 | 1 | Fitting, Plstc, E90, Bm08/Pm04Fits SN 014001 and later · Old # 65581 | $2.55/EA |
| 18 | TN4197576 | 1 | ec - H2O Kit, Flush, Replmt[M20, M30&T20]Fits SN 014001 and later · Old # 9014281 | $99.60/EA |
| 19 | TN4016302 | 2 | Rivet, Plstc, .250d X 0.90Fits SN 014001 and later · Old # 72968 | $3.20/EA |
| 20 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08Fits SN 014001 and later · Old # 1017415 | $34.70/EA |
| 21 | TN4020535 | 1 | Fitting, Plstc, Str, Bm04/Bm08Fits SN 014001 and later · Old # 630164 | $7.90/EA |
| 22 | TN4039304 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftFits SN 014001 and later · Old # 1006415 | $51.70/EA |
| 23 | TN4014520 | 1 | Fitting, Plstc, Str, Bm04/Pm04Fits SN 014001 and later · Old # 50901 | $3.60/EA |
| 24 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333 | $5.10/EA |
| 25 | TN4036839 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrFits SN 014001 and later · Old # 1011403 | $19.40/EA |
| 26 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 014001 and later · Old # 43844 | $4.20/EA |
| 27 | TN4030539 | 1 | Fitting Assy, Qdc, Pf04Fits SN 014001 and later · Old # 1071280 | $8.70/EA |
| 28 | TN4013988 | 1 | PouchFits SN 014001 and later · Old # 48790 | $32.02/EA |
| 29 | TN4035458 | 1 | Insert, Cplg, Qm, Bm08 (Repl by 1531530)Fits SN 014001–016999 · Old # 1017415 | $34.70/EA |
| 30 | TN4035457 | 1 | Housing, Cplg, Qf / Pm08 (Repl by 1531530)Fits SN 014001–016999 · Old # 1017413 | $37.90/EA |
| 31 | TN4031487 | 1 | Valve, Check, 1.0psi, Bm08/Bm08Fits SN 014001 and later · Old # 1251530 | $39.20/EA |
M20 telemetry group (S/N 008000 - 017145)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN4011098 | 1 | Control Box Assy Kit, Replmt, Telem [USA] (Repl by 9023153 Std or 9023152 Pro)Fits SN 008000–016088 · Old # 9010085 | $1,623.00/EA |
| 1 | TN4011099 | 1 | Control Box Assy Kit, Replmt, Telem [INTL] (Repl by 9023153 Std or 9023152 Pro)Fits SN 008000–016088 · Old # 9010086 | Call for price |
| 2 | TN4030486 | 1 | Bracket, Spacer, ControlboxFits SN 008000–016088 · Old # 1071062 | $14.44/EA |
| 3 | TN4041970 | 4 | Screw,Hex, M5 X 0.80 X 29, 8.8Fits SN 008000–016088 · Old # 09252 | $3.40/EA |
| 4 | TN4042888 | 4 | Washer, Flat, 10, SsFits SN 008000–016088 · Old # 01683 | $2.60/EA |
| 5 | TN4030314 | 1 | Angle, mtg, Antenna, TelemFits SN 008000–016088 · Old # 1070402 | $18.69/EA |
| 6 | TN4030328 | 1 | Antenna, Telem, 70 In [Gprs]Fits SN 008000–011777 · Old # 1070659 | $60.90/EA |
| 7 | TN4044164 | 2 | Clamp, Cable, Nyl, 0.62D, NatFits SN 008000–016088 · Old # 140916 | $3.40/EA |
| 8 | TN4041969 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Fits SN 008000–016088 · Old # 09244 | $2.50/EA |
| 9 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlFits SN 008000–016088 · Old # 06549 | $2.50/EA |
| 10 | TN4042244 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 008000–016088 · Old # 19066 | $2.50/EA |
| 11 | TN4044400 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsFits SN 008000–016088 · Old # 1040467 | $3.30/EA |
| 12 | TN4028714 | 2 | Mount, Cable TieFits SN 011778–016088 · Old # 55248 | $3.70/EA |
| 13 | TN4041604 | 2 | Nut, Hex, Flng, M6 X 1.00Fits SN 008000–016088 · Old # 07790 | $3.20/EA |
| 14 | TN4031956 | 1 | Grommet, Rbr, 0.38id, F/0.5H, .12 MatlFits SN 008000–016088 · Old # 10632-12 | $3.30/EA |
| 15 | TN4030121 | 1 | Label, Opertnl, Telem [Fcc/Ic]Fits SN 008000–016088 · Old # 1069580 | $4.34/EA |
| 16 | TN4044978 | 1 | Harness, Ele [Telem]Fits SN 008000–016088 · Old # 1075143 | $97.55/EA |
| 17 | TN4217709 | 2 | Antenna, Telem [4g, 180”]Fits SN 011778–016088 · Old # 1248350 | $50.89/EA |
| 18 | TN4011908 | 2 | Tie, Cable, 11.3l, 2.75d MaxFits SN 011778–016088 · Old # 763114 | $3.30/EA |
M20 telemetry panel kit, std (S/N 017146 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018562 | 1 | Panel Kit, POD Teleml, CI [M20/M30, STD]Fits SN 016089 and later · Old # 9022293 | Call for price |
| 2 | TN4030314 | 1 | Angle, Mtg, Antenna, TelemFits SN 016089 and later · Old # 1070402 | $18.69/EA |
| 3 | TN4041604 | 2 | Nut, Hex, Flng, M6 X 1.00Fits SN 016089 and later · Old # 07790 | $3.20/EA |
| 4 | TN4044400 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsFits SN 016089 and later · Old # 1040467 | $3.30/EA |
| 5 | TN4031066 | 1 | Antenna, Telem [4G, 36”]Fits SN 016089 and later · Old # 1247569 | Call for price |
| 6 | TN4044164 | 2 | Clamp, Cable, Nyl, 0.62D, NatFits SN 016089 and later · Old # 140916 | $3.40/EA |
| 7 | TN4041969 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Fits SN 016089 and later · Old # 09244 | $2.50/EA |
| 8 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlFits SN 016089 and later · Old # 06549 | $2.50/EA |
| 9 | TN4042244 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 016089 and later · Old # 19066 | $2.50/EA |
| 10 | TN4032434 | 1 | Label, Mach, Telem [BG95/BG96]Fits SN 016089 and later · Old # 1259755 | Call for price |
M20 telemetry panel kit, Pro - panel (S/N 017146 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018561 | 1 | Panel Kit, POD Telem, CI [T/M20/M30, PRO]Fits SN 016089 and later · Old # 9022292 | Call for price |
| 2 | TN4030314 | 1 | Angle, Mtg, Antenna, TelemFits SN 016089 and later · Old # 1070402 | $18.69/EA |
| 3 | TN4044400 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsFits SN 016089 and later · Old # 1040467 | $3.30/EA |
| 4 | TN4041604 | 2 | Nut, Hex, Flng, M6 X 1.00Fits SN 016089 and later · Old # 07790 | $3.20/EA |
| 5 | TN4031066 | 1 | Antenna, Telem [4G, 36]Fits SN 016089 and later · Old # 1247569 | Call for price |
| 6 | TN4044164 | 2 | Clamp, Cable, Nyl, 0.62D, NatFits SN 016089 and later · Old # 140916 | $3.40/EA |
| 7 | TN4041969 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Fits SN 016089 and later · Old # 09244 | $2.50/EA |
| 8 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80 X 16, 8.8Fits SN 016089 and later · Old # 06549 | $2.50/EA |
| 9 | TN4042244 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 016089 and later · Old # 19066 | $2.50/EA |
| 10 | TN4032434 | 1 | Label, Mach, Telem [BG95/BG96]Fits SN 016089 and later · Old # 1259755 | Call for price |
M20 pressure washer hydraulic hoses group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043680 | 1 | Valve, Hyd, Press WasherOld # 1038571 | $242.50/EA |
| 2 | TN4224046 | 1 | Bracket, Valve, MtgOld # 1225144 | $45.71/EA |
| 3 | TN4041277 | 2 | Screw, Hex, M6 X 1.00 X 50, 8.8Old # 06949 | $3.30/EA |
| 4 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsOld # 08712 | $2.50/EA |
| 5 | TN4034136 | 2 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 6 | TN4016768 | 2 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, RunOld # 40755 | $20.10/EA |
| 7 | TN4224365 | 2 | Hose, Hyd, Tc08, Jfoee90/Jf08str, 72Old # 1226044 | $98.70/EA |
| 8 | TN4031958 | 2 | Grommet, Rbr, 1.00id, F/1.4h, .12 MatlOld # 10632-14 | $4.90/EA |
| 9 | TN4045583 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 034.0Old # 1036965 | $50.50/EA |
| 10 | TN4031528 | 1 | Hose, Hyd, Med04, Jf04e90/Jf04str, 072.0Old # 34379 | $61.20/EA |
| 11 | TN4017336 | 2 | Fitting, Hyd, Str, Jm08/Om12Old # 42227 | $15.50/EA |
| 12 | TN4028732 | 1 | Fitting, Hyd, Str, Jm04/Om06Old # 55685 | $7.90/EA |
| 13 | TN4013891 | 1 | Fitting, Hyd, E90, Jm04/Om06Old # 47638 | $18.30/EA |
| 14 | TN4190729 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 052.0Old # 1037072 | $54.15/EA |
| 15 | TN4045571 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 039.0Old # 1036902 | $51.10/EA |
| 16 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 17 | TN4200590 | 3 | Fitting, Hyd, E45, Jf08/Jm08Old # 07797 | $11.40/EA |
| 18 | TN4223616 | 1 | Sleeve, Nyl, 0.69id 20.0l [Asb11]Old # 1224326 | $5.30/EA |
| 19 | TN4223618 | 2 | Sleeve, Nyl, 1.06id 22.0l [Asb15]Old # 1224327 | $9.00/EA |
| 20 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
M20 documentation group (online only)
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4024009 | 1 | Manual, Oprtr, [M20 Dsl, En Na Sn 8000 - ]Old # 9016050 | $93.68/EA | |
| TN4032476 | 1 | Instr, Maint, Wall Chart [M20]Old # 1032578 | $40.12/EA | |
| TN4195737 | 1 | Manual, Oprtr, [M20 Dsl, Es Na Sn 8000 - ]Old # 9016052 | $93.68/EA | |
| TN4195738 | 1 | Manual, Oprtr, [M20 Dsl, Fr Na Sn 8000 - ]Old # 9016053 | $93.68/EA | |
| TN4024010 | 1 | Manual, Parts, [M20 Dsl, En Na Sn 8000 - ]Old # 9016051 | $157.92/EA | |
| TN4024011 | 1 | Manual, Oprtr, [M20 Dsl, Jp, Sn 8000 - ]Old # 9016054 | Call for price | |
| TN9016284 | 1 | Manual, Oprtr, [M20 Dsl, Ptb, Sn 8000 - ]Old # 9016284 · current Tennant number (Tennant parts catalog) | Call for price | |
| TN4024008 | 1 | Manual, Service, [M20/M30 G/D, Sn 8000 - ]Old # 9016006 | $321.18/EA | |
| TN8003218 | 1 | Vr, Manual, Engine [Kubota, V1505e]Old # 84660 | $211.37/EA | |
| TN9006257 | 1 | Media, Cd - Rom, Training [Ec - H2o Tennant]Old # 9006257 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
M20 steering gearbox breakdown, 9015636
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4023706 | 1 | Gearbox Kit, Steering, Afmkt[M20/30/T20]Old # 9015636 | $931.80/EA | |
| 1 | TN4223567 | 1 | Housing, Gear, TopOld # 1224091 | $108.37/EA |
| 2 | TN4223568 | 1 | Housing, Gear, BottomOld # 1224092 | $215.43/EA |
| 3 | TN4226508 | 2 | Gear, SteeringOld # 1222953 | $25.76/EA |
| 4 | TN4223569 | 1 | Shaft, Gear, OrbitalOld # 1224093 | $209.07/EA |
| 5 | TN4223570 | 1 | Shaft. SterringOld # 1224094 | $157.76/EA |
| 6 | Old # 59681 | 4 | Ring, Retaining, Ext, 1.25dOld # 59681Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 7 | TN4038864 | 4 | Bushing, Flng, 1.25b 1.41d 0.50lOld # 1210624 | $6.20/EA |
| 8 | TN4011883 | 4 | Washer, Thrust, 1.26b 1.97d 0.13, BnzOld # 763024 | $7.50/EA |
| 9 | TN4016807 | 4 | Screw, Hex, M8 X 1.25 X 40, 8.8Old # 41342 | $3.40/EA |
| 10 | TN4015595 | 4 | Washer, Flat, 0.31, SaeOld # 39349 | $2.50/EA |
| 11 | TN4042789 | 2 | Key, Sq, 0.19 X 0.19, 0.50lOld # 00961 | $4.20/EA |
| 12 | TN4020610 | 2 | Pin, Dowel, 0.2502d X 1.00lOld # 83043 | $2.42/EA |
| 13 | TN4036601 | 2 | Bearing, Journal, 0.75b 0.88d 0.75lOld # 1057785 | $5.50/EA |
Notes on this parts list
- Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
- Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
- Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
- Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.
