Tennant M20 standard parts, SN 000000–007999
Standard parts parts from Tennant's North American M20 parts manuals for SN 000000–007999 (331381 rev. 19 (gas/LPG) + 331411 rev. 19 (diesel)), gas, LPG and diesel. Use Your machine to pick your serial number, edition or another area.
Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.
Find your parts list →2,106 lines from 331381 rev. 19 (gas/LPG) + 331411 rev. 19 (diesel). Checked against the manuals line by line on .
- Machine
- M20 rider sweeper-scrubber
- Cleaning path
- 40 in (56 in with side brush)
- Solution / recovery
- 56 / 73 gal
- Hopper
- 3.9 ft³, 390 lb
- Power
- Gasoline, LPG or diesel
- Main brushes
- 2 × 40 in cylindrical
Your machine
You’re viewing the manual for SN 000000–007999 (Rev 19, May 2016), Tennant’s latest for these machines. Enter your serial number or use the dropdown for your exact machine.
Where to find the serial number and power type
- The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
- Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
- Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.
How to read this list
Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.
M20 recommended maintenance parts
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN82681 | 1 | Bracket Wldt, Lpg MountOld # 82681 · no current Tennant number on file | Call for price |
| 2 | Old # 63810 | 4 | Latch Assy, Lpg Tank Mtg, W/NutOld # 63810Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 3 | Old # 51839 | 2 | Nut Adjustable, Lpg Tank MtgOld # 51839Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 4 | TN4014137 | 3 | Tie, CableOld # 49263 | $3.40/EA |
| 5 | TN82556 | 1 | Bracket, VaporizerFits SN up to 001039 · Old # 82556 · no current Tennant number on file | Call for price |
| 6 | TN8004486 | 1 | Vaporizer, LPGOld # 54930 · replaced by 8004486 (Tennant parts catalog) | Call for price |
| TN4016166 | 1 | Maint Kit, Gas, 400hr[M20/T20]Fits SN up to 005999 · Old # 9002553 | $125.90/EA | |
| TN8005314 | 4 | Sparkplug [Gm ]Fits SN up to 005999 · Old # 372575 | $13.30/EA | |
| TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN up to 005999 · Old # 369746 | $34.60/EA | |
| TN8005188 | 1 | Filter, Fuel [Gm 1.6l/3.0l]Fits SN up to 005999 · Old # 372440 | $64.20/EA | |
| TN4016167 | 1 | Maint Kit, Lpg, 400hr[M20/T20]Fits SN up to 003122 · Old # 9002554 | $107.50/EA | |
| TN8005314 | 4 | Sparkplug [Gm ]Fits SN up to 003122 · Old # 372575 | $13.30/EA | |
| TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN up to 003122 · Old # 369746 | $34.60/EA | |
| TN8005332 | 1 | Filter Kit, Fuelock, LpgFits SN up to 003122 · Old # 372615 | $88.40/EA | |
| TN4200895 | 1 | Maint Kit, 400hr [M20/T20/M30 Lpg 2010]Fits SN 003123–005999 · Old # 9007382 | $101.70/EA | |
| TN8005314 | 4 | Sparkplug [Gm, 1pick=1plug]Fits SN 003123–005999 · Old # 372575 | $13.30/EA | |
| TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN 003123–005999 · Old # 369746 | $34.60/EA | |
| TN8002010 | 1 | Filter Kit, Fuelock, LpgFits SN 003123–005999 · Old # 9007380 | $25.60/EA | |
| TN4016168 | 1 | Maint Kit, Gas, 800hr[M20/T20]Old # 9002555 | $438.80/EA | |
| TN4033485 | 1 | Strainer, Hyd, 25 Gpm 100 MeshOld # 31613 | $110.60/EA | |
| TN4035422 | 1 | Cap, Breather, Hyd, 2.4 DsOld # 25122 | $149.20/EA | |
| TN4032809 | 1 | Filter Assy, Hyd, 10micOld # 1021579 | $128.30/EA | |
| TN8005188 | 1 | Filter, Fuel [Gm 1.6l/3.0l]Old # 372440 | $64.20/EA | |
| TN4016179 | 1 | Maint Kit, Lpg, 800hr[M20/T20]Fits SN up to 003122 · Old # 9002613 | $425.40/EA | |
| TN4033485 | 1 | Strainer, Hyd, 25 Gpm 100 MeshFits SN up to 003122 · Old # 31613 | $110.60/EA | |
| TN4035422 | 1 | Cap, Breather, Hyd, 2.4 DsFits SN up to 003122 · Old # 25122 | $149.20/EA | |
| TN4032809 | 1 | Filter Assy, Hyd, 10micFits SN up to 003122 · Old # 1021579 | $128.30/EA | |
| TN8005332 | 1 | Filter Kit, Fuelock, LpgFits SN up to 003122 · Old # 372615 | $88.40/EA | |
| TN4012018 | 1 | Maint Kit, 800hr [M20/T20/M30 Lpg 2010]Fits SN 003123 and later · Old # 9007381 | $401.20/EA | |
| TN4033485 | 1 | Strainer, Hyd, 025gpm 100mesh 03psiFits SN 003123 and later · Old # 31613 | $110.60/EA | |
| TN4035422 | 1 | Cap, Breather, Hyd, 2.4 DsFits SN 003123 and later · Old # 25122 | $149.20/EA | |
| TN4032809 | 1 | Filter Assy, Hyd, 10micFits SN 003123 and later · Old # 1021579 | $128.30/EA | |
| TN8002010 | 1 | Filter Kit, Fuelock, LpgFits SN 003123 and later · Old # 9007380 | $25.60/EA | |
| TN8004565 | 1 | Element, Fltr, Oil, Eng, Spin - On (GM)Fits SN up to 005999 · Old # 371972 | $32.00/EA | |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Fits SN 006000 and later · Old # 393982 | $30.00/EA | |
| TN4039697 | 1 | Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM | $329.30/EA | |
| TN4030627 | 1 | Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290 | $20.30/EA | |
| TN8003282 | 1 | Key, Ignition [Set Of 2]Old # 87866 | $27.00/EA | |
| TN4037557 | 1 | Battery, Wet, 12vdc 0475ccaOld # 10137 | $218.28/EA | |
| TN4039111 | 2 | Wheel, 3.0d 1.38w 0.50bOld # 20833 | $80.80/EA | |
| TN4045064 | 1 | Belt, Ribbed, 38.5lOld # 1033644 | $73.00/EA | |
| TN4033626 | 2 | Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586 | $33.60/EA | |
| TN4035908 | 2 | Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295 | $67.60/EA | |
| TN4036240 | 1 | Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166 | $70.20/EA | |
| TN4032877 | 1 | Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009 | $34.70/EA | |
| TN4032876 | 1 | Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007 | $49.10/EA | |
| TN4035508 | 1 | Blade, Sqge, Front [Linard]Old # 1017868 | $90.00/EA | |
| TN4031803 | 1 | Blade, Sqge, Rear, LinatexOld # 1031331 | $120.00/EA | |
| TN4021294 | 2 | Gasket, SqgeOld # 83874 | $13.00/EA | |
| TN4031774 | 2 | Blade, Sqge, 37.08l LinatexOld # 1031011 | $93.40/EA | |
| TN4030648 | 1 | Blade, Sqge, Front, 49.59l PyuOld # 1027719 | $274.30/EA | |
| TN4032198 | 1 | Blade, Sqge, Rear, 53.78L PyuOld # 1031945 | $305.50/EA | |
| TN4032169 | 2 | Blade, Sqge, .38 3.55w 038.3l, UreOld # 1031823 | $183.50/EA | |
| TN8004084 | 4 | Plug, SparkFits SN 006000–007114 · Old # 9010622 | $9.40/EA | |
| TN8003678 | 4 | Plug, SparkFits SN 007115 and later · Old # 9014160 | $5.00/EA | |
| TN4030647 | 1 | Squeegee Assy, Sba, UreFits SN up to 003076 · Old # 1027716 | $169.30/EA | |
| TN4036799 | 1 | Blade, Sqge, Side Brush, UrethaneFits SN 003077 and later · Old # 1059091 | $91.61/EA | |
| TN4036800 | 1 | Blade, Sqge, Side Brush, UrethaneFits SN 003077 and later · Old # 1059092 | $55.85/EA | |
| TN4033862 | 1 | Squeegee Assy, Sba, LinatexFits SN up to 003076 · Old # 1025005 | $72.00/EA | |
| TN4043022 | 1 | Blade, Sqge, Side Brush, LinatexFits SN 003077 and later · Old # 1046980 | $59.89/EA | |
| TN4043073 | 1 | Blade, Sqge, Side Brush, LinatexFits SN 003077 and later · Old # 1047238 | $31.51/EA | |
| TN84597 | 1 | Tire Assy, Solid, 18.0x6.0 4.5bc/5boltOld # 84597 · current Tennant number (Tennant parts catalog) | Call for price | |
| Old # 16411 | 1 | Paint, Airdry, Off - White, 12ozOld # 16411Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering | |
| Old # 16412 | 1 | Paint, Airdry, Teal, 12oz, SolidOld # 16412Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering | |
| TN5000171 | 1 | Paint, Airdry, Blk, 12ozOld # 377540 | $67.20/EA | |
| TN5000170 | 1 | Paint, Airdry, Gray, 12oz [Enamel]Old # 377538 | $39.50/EA | |
| Old # 377537 | 1 | Paint, Airdry, Iron Gray,12oz[Pwdr Coat]Old # 377537Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering | |
| TN8005843 | 1 | Oil, Hyd [El, Iso 100, 01gal]Old # 1057710 | $58.70/EA | |
| TN8005844 | 1 | Oil, Hyd [El, Iso 100, 05gal]Old # 1057711 | $251.30/EA | |
| TN8004994 | 1 | Oil, Hyd [El, Iso 68, 01gal]Old # 1069019 | $48.70/EA | |
| TN8004995 | 1 | Oil, Hyd [El, Iso 68, 05gal]Old # 1069020 | $227.00/EA | |
| TN8005841 | 1 | Oil, Hyd [El, Iso 32, 01gal]Old # 1057707 | $58.70/EA | |
| TN8005842 | 1 | Oil, Hyd [El, Iso 32, 05gal]Old # 1057708 | $248.90/EA |
M20 brushes, replacement, scrub head
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (4) | ||||
| 1 | TN4034238 | 2 | Brush, Sweep / Scb, 40L, PolypropyleneOld # 1026223 | $616.50/EA |
| 1 | TN4034237 | 2 | Brush, Sweep / Scb, 40L, Super AbrasiveOld # 1026222 | $872.90/EA |
| 1 | TN4030645 | 2 | Brush, Sweep / Scb, 40L, PolyesterOld # 1027697 | $682.90/EA |
| 1 | TN4031767 | 2 | Brush, Sweep / Scb, 40L, Heavy Duty PolypropyleneOld # 1030969 | $657.80/EA |
| Item 2: choose your version (2) | ||||
| 2 | TN4044403 | 1 | Brush, Sweep / Scb, 40L, Wndw, PolypropyleneOld # 1040524 | $572.20/EA |
| 2 | TN4033963 | 1 | Brush, Sweep / Scb, 40L, Wndw, Super AbrasiveOld # 1059640 | $868.60/EA |

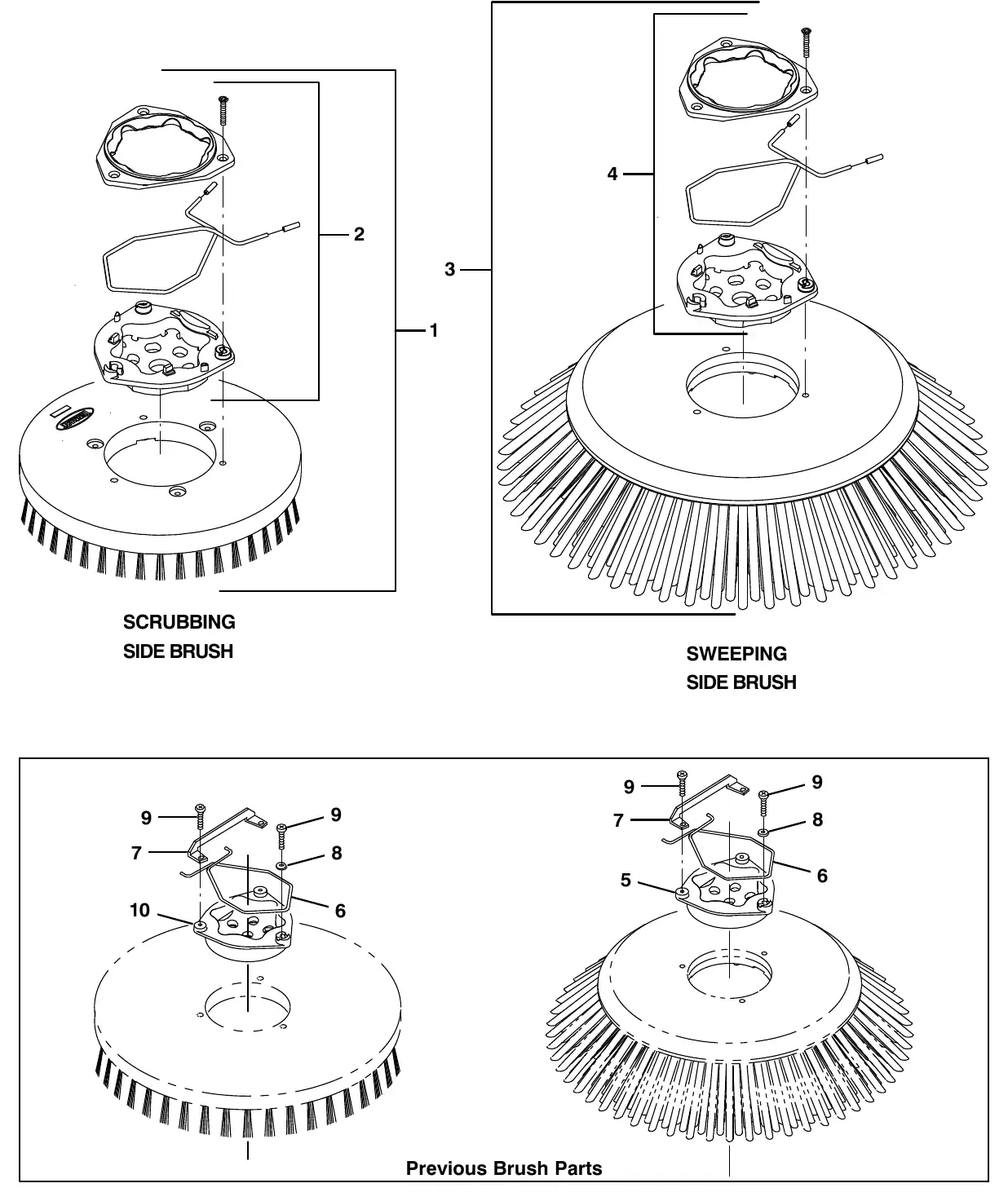

M20 brushes, replacement, side brush
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037187 | 1 | Brush Assy, Disk, Scb, 16.0d, NylonOld # 1220235 | $416.00/EA |
| 2 | TN4022626 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662 | $64.00/EA |
| 1 | TN4037188 | 1 | Brush Assy, Disk, Scb, 16.0d, Heavy Duty PolypropyleneOld # 1220236 | $248.00/EA |
| 2 | TN4022626 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662 | $64.00/EA |
| 1 | TN4037455 | 1 | Brush Assy, Disk, Scb, 16.0d, Super AbrasiveOld # 1221543 | $545.70/EA |
| 2 | TN4022626 | 1 | Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662 | $64.00/EA |
| 3 | TN4037153 | 1 | Brush Assy, Disk, Swp, 24.0d, PolypropyleneOld # 1220185 | $318.80/EA |
| 4 | TN4022629 | 1 | Brush Kit, Hub Assy, Drive, Ci [Uhmw]Old # 9014666 | $109.90/EA |
| 5 | TN4035452 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bcOld # 1017368 · Previous Brush Parts | $12.30/EA |
| 6 | TN4044356 | 1 | Spring, Wir, 0.16d, Brush RetainingOld # 14838 · Previous Brush Parts | $20.90/EA |
| 7 | TN4035374 | 1 | Bracket, Retainer, SpringOld # 24299 · Previous Brush Parts | $30.20/EA |
| 8 | TN4042901 | 1 | Washer, Flat, 0.27b 0.69d .05, SsOld # 01684 · Previous Brush Parts | $2.60/EA |
| 9 | TN4034480 | 3 | Screw, Pan, Phl, M6 X 1.00 X 35, SsOld # 32746 · Previous Brush Parts | $3.20/EA |
| 10 | TN4041235 | 1 | Hub, Drive, Brush, Disk, 3hole 5.8bc[6t]Old # 15539 · Previous Brush Parts | $114.70/EA |
| TN4044700 | 1 | Brush Assy, Disk, Scrub, 16.0 D, Heavy Duty Polypropylene (Replaced by 1220236)Old # 1042500 · Previous Brush Parts | Call for price | |
| TN4044701 | 1 | Brush Assy, Disk, Scrub, 16.0 D, Super Abrasive (Replaced by 1221543)Old # 1042504 · Previous Brush Parts | Call for price | |
| TN4044699 | 1 | Brush Assy, Disk, Scrub, 16.0D, Nylon (Replaced by 1220235)Old # 1042499 · Previous Brush Parts | Call for price | |
| TN4030644 | 1 | Brush Assy, Disk, Sweep, 24.oD, Polypropylene (Replaced by 1220185)Old # 1027688 · Previous Brush Parts | Call for price |

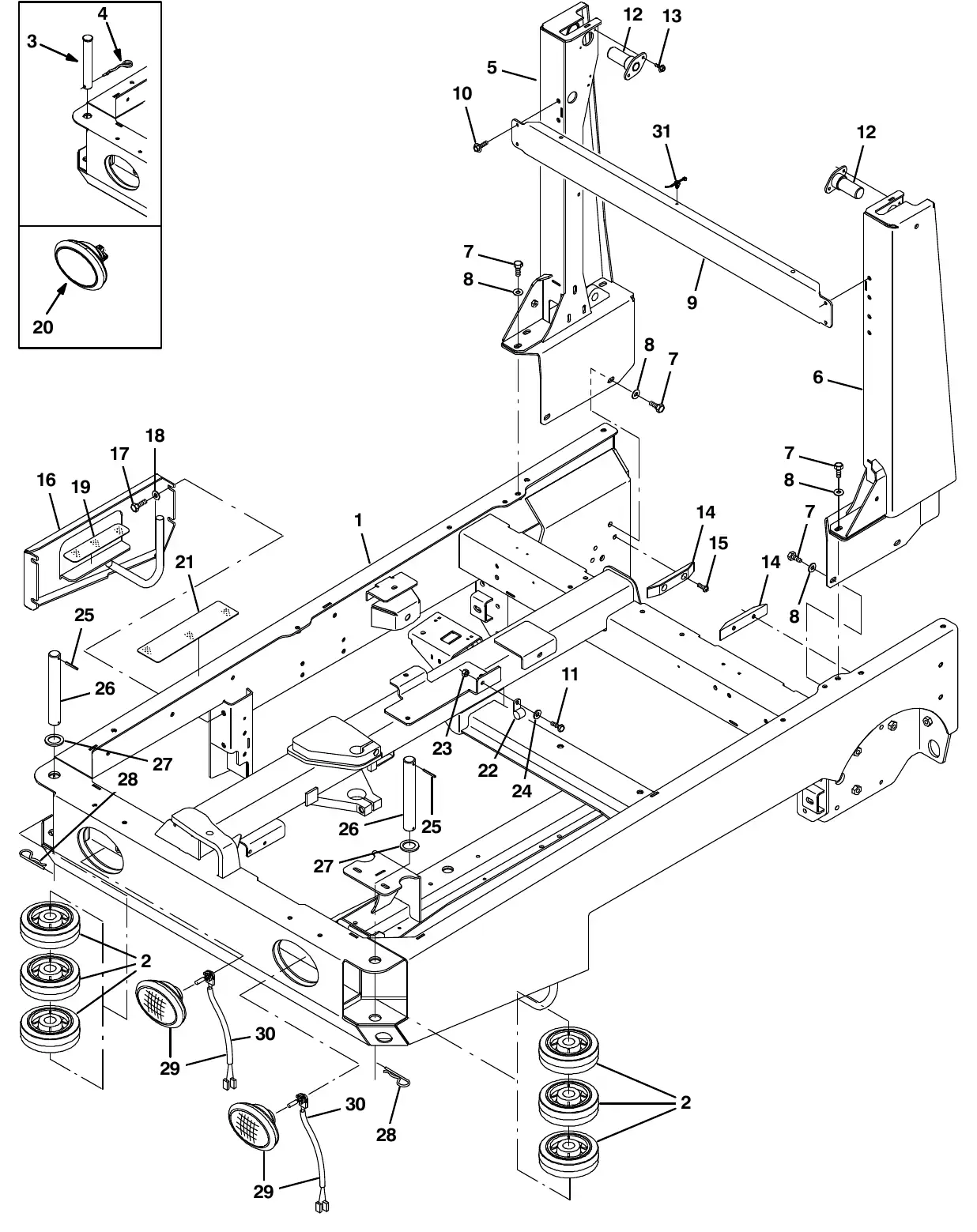

M20 main frame group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016146 | 1 | Frame Wldt, Main, Replmt [m20 & T20]Old # 9002401 | $5,863.15/EA |
| 2 | TN4034399 | 6 | Wheel, 06.0D 2.00W 1.19B, Gray RbrOld # 1060130 | $21.60/EA |
| 3 | TN4015303 | 2 | Pin Kit, Wheel, Ci [M20/T20/M30]Fits SN up to 003062 · Old # 9006334 | $34.00/EA |
| 4 | TN4010707 | 2 | Pin, Cotter, Hair, DblFits SN up to 003062 · Old # 761490 | $13.80/EA |
| 5 | TN4205148 | 1 | Tower, Wldt, Lift, Rh, Replmt [M20]Old # 9002400 | $576.96/EA |
| 6 | TN4205147 | 1 | Tower, Wldt, Lift, Lh, Replmt [M20]Old # 9002399 | $579.94/EA |
| 7 | TN4019758 | 10 | Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283 | $3.30/EA |
| 8 | TN4034138 | 10 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 9 | TN4197845 | 1 | Channel, Upper, Tower, LiftOld # 1017791 | $101.20/EA |
| 10 | TN4045637 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 11 | TN4156940 | 1 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 001338 and later · Old # 39277 | $3.20/EA |
| 12 | TN4035903 | 2 | Pin Wldt, Pivot, HpprOld # 1019251 | $53.70/EA |
| 13 | TN4012782 | 4 | Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455 | $3.40/EA |
| 14 | TN4036638 | 2 | Block, Guide, HpprOld # 1021327 | $21.34/EA |
| 15 | TN4029274 | 4 | Screw, Pan, M8 X 1.25 X 25, SsOld # 367771 | $3.30/EA |
| 16 | TN4030654 | 1 | Panel Wldt, FillerOld # 1027916 | $172.20/EA |
| 17 | TN4035960 | 4 | Screw, Hex, M10 X 1.5 X 30, SsOld # 12317 | $4.90/EA |
| 18 | TN4042903 | 4 | Washer, Flat, 0.44b 1.00d .08, SsOld # 01686 | $3.30/EA |
| 19 | TN4030470 | 1 | Tread, Non - Skid, 01.9w 08.0lOld # 363458 | $6.10/EA |
| 20 | TN4035900 | 2 | Headlight, 12vdc, 27watt, 2.1a, Oval (Rpl by 1060942)Fits SN up to 003382 · Old # 1019225 | Call for price |
| TN8005599 | 1 | Lamp, 12vdc [Speaker]Fits SN up to 003382 · Old # 1031826 | Call for price | |
| TN8005600 | 1 | Receptacle, Lamp [Speaker]Fits SN up to 003382 · Old # 1031827 | $8.80/EA | |
| 21 | TN4026685 | 1 | Tread, Non - Skid, 03.0w 11.6lOld # 58819 | $7.70/EA |
| 22 | TN4015029 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1holeFits SN 001338 and later · Old # 53466 | $4.20/EA |
| 23 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 001338 and later · Old # 08709 | $2.50/EA |
| 24 | TN4034137 | 1 | Washer, Flat, 0.31, StdFits SN 001338 and later · Old # 32491 | $2.50/EA |
| 25 | TN4035025 | 2 | Pin, Roll, .187d X 1.62l, .187/.192Fits SN 003063 and later · Old # 23146 | $2.50/EA |
| 26 | TN4038392 | 2 | Pin, 30mmd X 215mmlFits SN 003063 and later · Old # 1053838 | $74.40/EA |
| 27 | TN4035148 | 2 | Washer, Flat, 1.26B 1.88D .13, Stl, PlFits SN 003063 and later · Old # 1062566 | $2.60/EA |
| 28 | TN4031623 | 2 | Pin, Cotter, Hair, 1.00d .178 WirFits SN 003063 and later · Old # 34411 | $4.00/EA |
| 29 | TN4034704 | 2 | Headlight, 12Vdc, Oval, HalogenFits SN 003383 and later · Old # 1060942 | $0.00/EACall for availability |
| 30 | TN8002013 | 1 | Lamp, Halogen [Speaker]Fits SN 003383 and later · Old # 9007513 | $28.10/EA |
| 31 | TN4038889 | 1 | Wire, Tie [W/.25” Fir Tree Clip]Old # 1210807 | $1.90/EA |

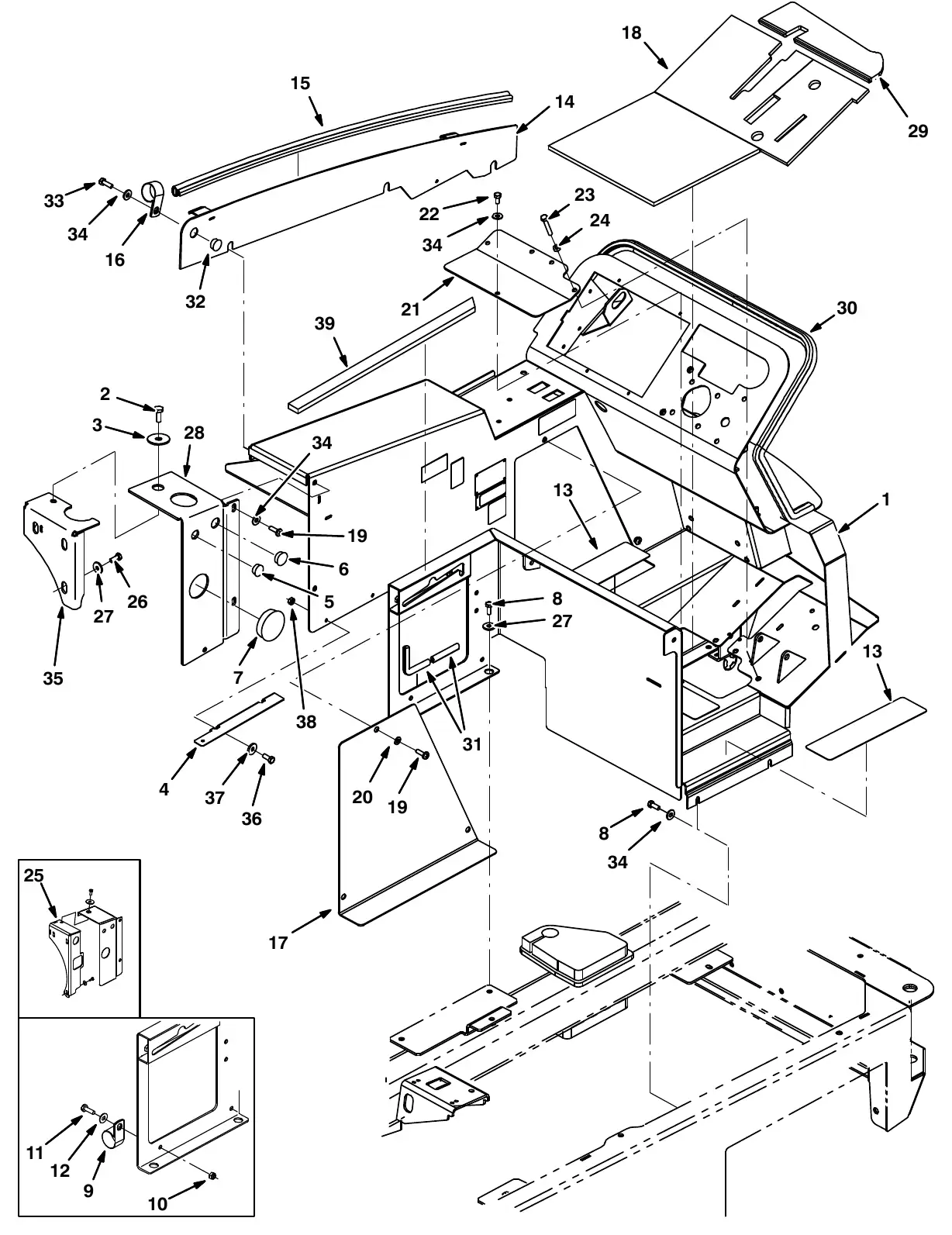

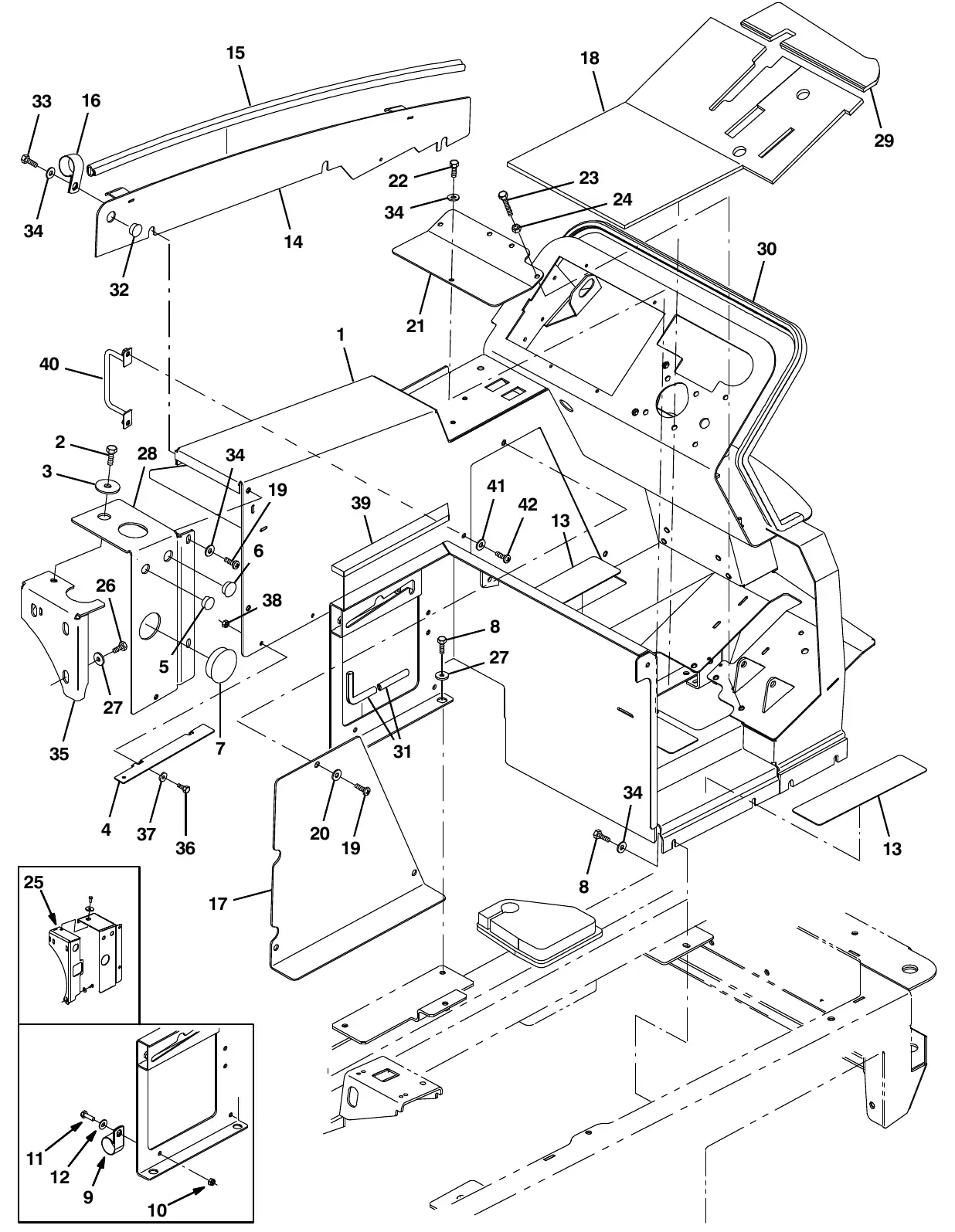

M20 operator station group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (12) | ||||
| 1 | TN4205149 | 1 | Panel Wldt, Gas, ReplmtOld # 9002409 | $1,369.56/EA |
| 1 | TN9002380 | 1 | Panel Wldt, Gas, Replmt [W/Fast]Old # 9002380 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 1 | TN4205137 | 1 | Panel Wldt, Gas, W/ Es, ReplmtOld # 9002381 | $1,396.12/EA |
| 1 | TN4203060 | 1 | Panel Wldt, Gas, Replmt, TJ (Japan only)Old # 9003422 | $1,378.95/EA |
| 1 | TN9003425 | 1 | Panel Wldt, Gas, Replmt, TJ [W/Fast] (Japan only)Old # 9003425 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 1 | TN4016726 | 1 | Panel Wldt, Gas, Replmt, TJ, W/Es (Japan only)Old # 9003428 | $1,414.61/EA |
| 1 | TN4203065 | 1 | Panel Wldt, LPG, ReplmtOld # 9003431 | $1,378.95/EA |
| 1 | TN9003432 | 1 | Panel Wldt, LPG, Replmt [W/Fast]Old # 9003432 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 1 | TN4203066 | 1 | Panel Wldt, LPG, Replmt, W/EsOld # 9003433 | $1,414.61/EA |
| 1 | TN4203061 | 1 | Panel Wldt, LPG, Replmt, TJ (Japan only)Old # 9003423 | $1,377.24/EA |
| 1 | TN9003426 | 1 | Panel Wldt, LPG, Replmt, TJ [W/Fast] (Japan only)Old # 9003426 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 1 | TN4203063 | 1 | Panel Wldt, LPG, Replmt, TJ, W/Es (Japan only)Old # 9003429 | $1,414.61/EA |
| 2 | TN4019758 | 1 | Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283 | $3.30/EA |
| 3 | TN4040927 | 1 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 4 | TN4190204 | 2 | Bracket, Mtg, InsulationOld # 1047169 | $12.93/EA |
| 5 | TN4024314 | 1 | Plug, Hole, Rnd, 0.88h .03 - .12, Blk NylOld # 82727 | $3.40/EA |
| 6 | TN4042871 | 1 | Plug, Hole, Rnd, 1.00h .03 - .12, Blk NylOld # 01493 | $2.50/EA |
| 7 | TN4031389 | 1 | Plug, Hole, Rnd, 2.50h .03 - .25, Blk NylOld # 1030017 | $10.60/EA |
| 8 | TN4041844 | 8 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 9 | TN4018541 | 1 | Clamp, Cable, Ss, 2.50d X 1.00w, 1hFits SN up to 001337 · Old # 70157 | $14.80/EA |
| 10 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 001337 · Old # 08709 | $2.50/EA |
| 11 | TN4156940 | 7 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 001337 · Old # 39277 | $3.20/EA |
| 12 | TN4034137 | 18 | Washer, Flat, 0.31, StdFits SN up to 001337 · Old # 32491 | $2.50/EA |
| 13 | TN4026685 | 4 | Tread, Non - Skid, 03.0w 11.6lOld # 58819 | $7.70/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN4033911 | 1 | Panel Wldt, AdjFits SN up to 001999 · Old # 1025435 | $91.00/EA |
| 14 | TN4193255 | 1 | Panel Wldt, Adj [2007]Fits SN 002000 and later · Old # 1035832 | $73.63/EA |
| 15 | TN4031727 | 1 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593 | $83.40/EA |
| 16 | TN4015029 | 5 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466 | $4.20/EA |
| 17 | TN4032850 | 1 | Panel, Access, DoorOld # 1021834 | $48.40/EA |
| 18 | TN4030622 | 1 | Mat, FloorOld # 1027218 | $116.30/EA |
| 19 | TN4032093 | 4 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 20 | TN4015595 | 3 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 21 | TN4195877 | 1 | Panel, Access, FloorOld # 1022699 | $24.15/EA |
| 22 | TN4041844 | 4 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 23 | TN4027729 | 1 | Screw, Hex, M8 X 1.25 X 60, 8.8, FlOld # 363976 | $3.40/EA |
| 24 | TN4019808 | 1 | Nut, Hex, Std, M8 X 1.25Old # 39311 | $2.50/EA |
| 25 | TN4195391 | 1 | Bracket Wldt, Mtg, TankFits SN up to 002412 · Old # 1020540 | $83.80/EA |
| 26 | TN4041992 | 3 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 27 | TN4035242 | 5 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 28 | TN4192844 | 1 | Bracket, MtgOld # 1033975 | $68.18/EA |
| 29 | TN4030625 | 1 | Mat, FloorOld # 1027267 | $27.40/EA |
| 30 | TN1020904 | 1 | Seal, Panl, InstmtOld # 1020904 · current Tennant number (Tennant parts catalog) | Call for price |
| 31 | TN4036241 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 1ftOld # 1020168 | $44.40/EA |
| 32 | TN4023358 | 1 | Plug, Hole, Rnd, 0.81h, BlkFits SN 002000 and later · Old # 80288 | $1.40/EA |
| 33 | TN4156940 | 6 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 34 | TN4034137 | 17 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 35 | TN4190656 | 1 | Bracket Wldt, Mtg, TankFits SN 002413 and later · Old # 1035997 | $61.32/EA |
| 36 | TN4041270 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942 | $2.50/EA |
| 37 | TN4034136 | 2 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 38 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 39 | Old # 1047295 | 1 | Seal, Foam, 0.50Old # 1047295Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 40 | TN4030705 | 1 | Bracket Wldt, Mtg, HoseFits SN 006000 and later · Old # 1071616 | $26.97/EA |
| 41 | TN4032093 | 2 | Screw, Pan, M8 X 1.25 X 25, BlkFits SN 006000 and later · Old # 1031665 | $3.40/EA |
| 42 | TN4015595 | 2 | Washer, Flat, 0.31 SaeFits SN 006000 and later · Old # 39349 | $2.50/EA |

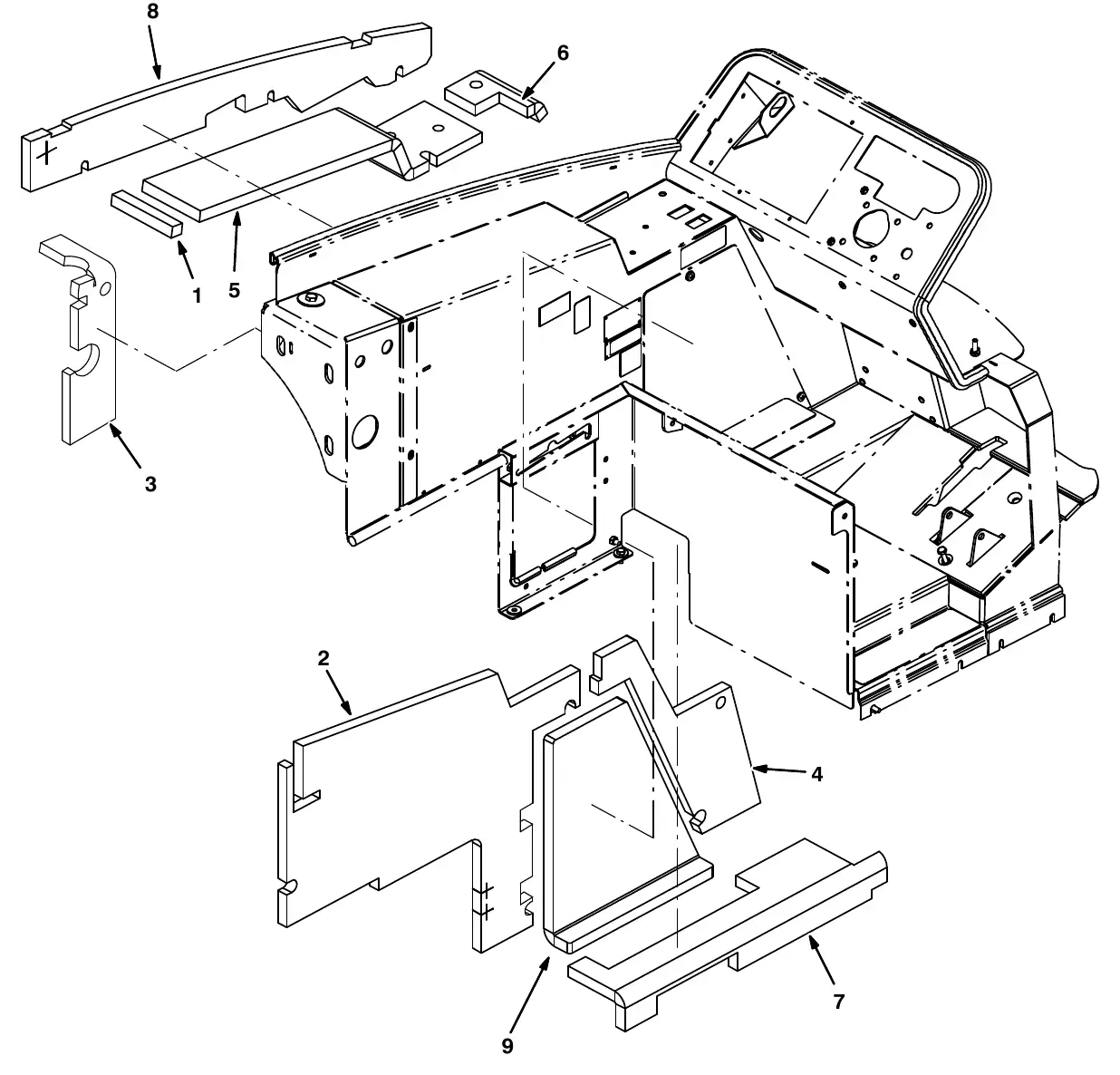

M20 operator station insulation group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045278 | 1 | Insulation, Flame - retardant, 0.75 - 0.88Old # 1034769 | $3.60/EA |
| 2 | TN4045274 | 1 | Insulation, Flame - retardant, 0.75 - 0.88Old # 1034765 | $149.40/EA |
| 3 | TN4044434 | 1 | Insulation, Flame - Retardant, 0.75 - 0.88Old # 1040841 | $31.90/EA |
| 4 | TN4033266 | 1 | Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023464 | $62.10/EA |
| 5 | TN4045273 | 1 | Insulation, Flame - retardant, 0.75 - 0.88Old # 1034764 | $39.60/EA |
| 6 | TN4045275 | 1 | Insulation, Flame - retardant, 0.75 - 0.88Old # 1034766 | $9.20/EA |
| 7 | TN4045277 | 1 | Insulation, Flame - retardant, 0.75 - 0.88Old # 1034768 | $46.10/EA |
| 8 | TN4045279 | 1 | Insulation, Flame - retardant, 0.75 - 0.88Old # 1034770 | $115.50/EA |
| 9 | TN4033283 | 1 | Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023569 | $59.70/EA |

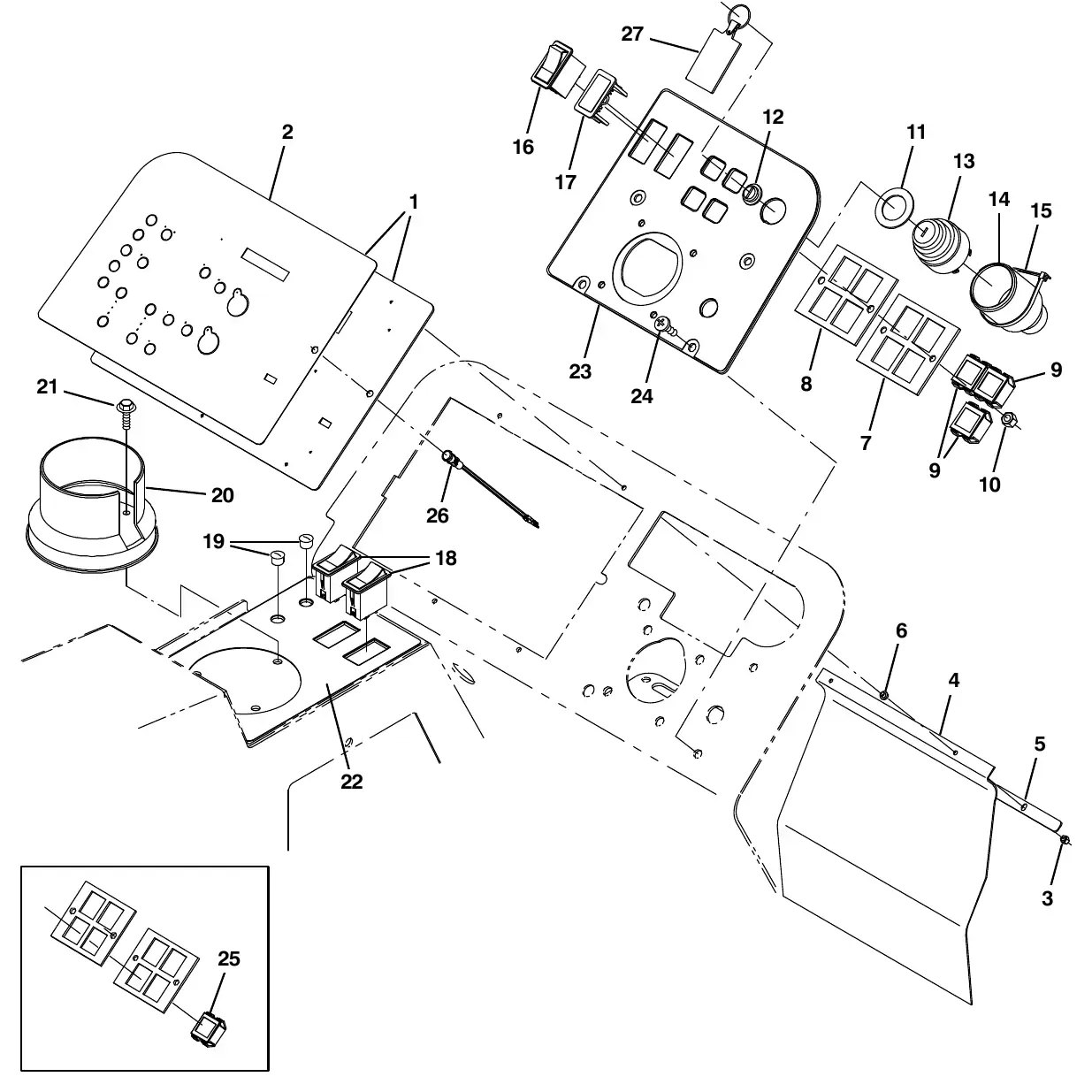

M20 instrument panel group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016731 | 1 | Panel Kit, Instmt, Repair [M20/M30]Old # 9003453 | $2,221.10/EA |
| 2 | TN4016152 | 1 | Label Kit, Panel, Replmt [M20]Old # 9002435 | $755.80/EA |
| 1 | TN4012482 | 1 | Panel, Kit, Instmt, Replmt [M20/M30 ec - H20 only]Old # 9007912 | $2,395.40/EA |
| 2 | TN4012483 | 1 | Label Kit, Panel, Replmt [M20/M30 ec - H20 only]Old # 9007913 | $467.50/EA |
| 3 | TN4041852 | 4 | Nut, Hex, Lock, #08 - 32, NlOld # 16968 | $1.50/EA |
| 4 | TN4030979 | 1 | Flap, BatteryOld # 1028769 | $9.80/EA |
| 5 | TN4194573 | 1 | Bar, Flat, Ss, .06 X .50 X 10.0l 2/.19slOld # 1028772 | $3.85/EA |
| 6 | TN4031353 | 4 | Washer, Shld, Nyl [8 - 32]Old # 1029362 | $0.15/EA |
| 7 | TN4175109 | 1 | Plate, Mtg, LightOld # 361071 | $11.11/EA |
| 8 | TN4029581 | 1 | Seal, Rbr, Clsd, 0.13, Instmt PanlOld # 361073 | $3.54/EA |
| 9 | TN4029583 | 3 | Light, Panl, 14vdc, , 1.1 X 1.0Old # 361075 | $22.50/EA |
| 10 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712 | $2.50/EA |
| 11 | TN4012418 | 1 | Washer, Flat, 1.15b 1.75d .08, StlOld # 73736 | $3.50/EA |
| 12 | TN4027368 | 1 | Boot, .63id .29l .90wOld # 382516 | $10.20/EA |
| 13 | TN4022110 | 1 | Switch, Ignition [Ku]Old # 87536 | $109.50/EA |
| TN8003282 | 1 | Key, Ignition [Set Of 2]Old # 87866 | $27.00/EA | |
| 14 | TN4023075 | 1 | Boot, Switch, IgnitionOld # 383165 | $5.10/EA |
| 15 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 16 | TN4019347 | 1 | Switch, Rocker, Dpdt On/Off/OnOld # 392171 | $25.90/EA |
| 17 | TN4016538 | 1 | Plug, Hole, Rt, Rocker Switch, .87 X 1.7Old # 398501 | $6.80/EA |
| 18 | TN4016541 | 2 | Switch, Rocker, Dpdt Mom/Off/MomOld # 398508 | $27.40/EA |
| 19 | TN4029160 | 1 | Plug, Hole, Rnd, 0.50h .03 - .12, Blk NylOld # 56992 | $3.40/EA |
| 20 | TN4037805 | 1 | Cup Holder, RwkOld # 223599 | $56.40/EA |
| 21 | TN4045568 | 3 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 22 | TN4033597 | 1 | Label, Switch, Rocker [M20/M30]Old # 1024287 | $34.69/EA |
| Item 23: choose your version (3) | ||||
| 23 | TN4203803 | 1 | Panel, Instmt, Rh, Gas, ReplmtOld # 9004880 | $143.82/EA |
| 23 | TN4205142 | 1 | Panel, Instmt, Rh, Lpg, ReplmtOld # 9002391 | $253.30/EA |
| 23 | TN4205143 | 1 | Panel, Instmt, Rh, Lpg, Replmt, Ce (Japan and CE Only)Old # 9002392 | $167.11/EA |
| 24 | TN4032093 | 4 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 25 | TN4029583 | 1 | Light, Panl, 14vdc, , 1.1 X 1.0Fits SN up to 002886 · Old # 361075 | $22.50/EA |
| 26 | TN4044628 | 1 | Light, Led, .312D, 2 Volt [Tri - Color] (ec - H20 only)Old # 1041822 | $104.60/EA |
| 27 | TN4044966 | 1 | Keychain, Rectangle, Parts & ServiceOld # 1075003 | $4.70/EA |
M20 seat group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045276 | 1 | Insulation, Flame - retardant, 0.75 - 0.88Old # 1034767 | $83.30/EA |
| 2 | TN4195199 | 1 | Plate Wldt, SeatOld # 1019228 | $218.26/EA |
| 3 | TN4034205 | 1 | LatchOld # 1025736 | $17.00/EA |
| 4 | TN4041970 | 2 | Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252 | $3.40/EA |
| 5 | TN4042244 | 2 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 6 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.8, NlOld # 06549 | $2.50/EA |
| 7 | TN4014177 | 1 | LatchOld # 49800 | $40.40/EA |
| 8 | TN4043235 | 4 | Nut, Hex, Lock, M4 X 0.7, NlOld # 02850 | $2.50/EA |
| 9 | TN4041260 | 4 | Screw, Pan, M4 X 0.7 X 25, 4.8Old # 06929 | $2.50/EA |
| 10 | TN4042243 | 2 | Washer, Flat, #08Old # 19065 | $3.20/EA |
| 11 | TN4033275 | 1 | Insulation, Flame - Retardant, 1.0Old # 1023499 | $80.10/EA |
| 12 | TN4037355 | 1 | Arm Wldt, Safety, Sppt, Seat, .38d 06.5dOld # 223080 | $54.00/EA |
| 13 | TN4041271 | 1 | Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943 | $2.50/EA |
| 14 | TN4034133 | 9 | Washer, Flat, 0.25 SaeOld # 32483 | $2.50/EA |
| 15 | TN4041925 | 1 | Nut, Hex, Lock, M6 X 1.0, NlOld # 08708 | $2.50/EA |
| 16 | TN4039442 | 1 | Spacer, Plstc, NyOld # 21851 | $3.20/EA |
| 17 | TN4041992 | 3 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 18 | TN4035242 | 11 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 19 | TN4032895 | 1 | Seat, Suspension, W/1 Arm And BeltFits SN up to 006519 · Old # 1022105 | $1,391.50/EA |
| TN8005759 | 1 | Seatbelt, Retractable [Deluxe Seat]Fits SN up to 006519 · Old # 1066893 | $214.90/EA | |
| TN4040075 | 1 | Switch, Seat, No [Delta 6440 - 04]Fits SN up to 006519 · Old # 1048955 | $10.40/EA | |
| 20 | TN8005483 | 1 | Armrest, RhFits SN up to 006519 · Old # 1072815 | $175.30/EA |
| 21 | TN4034656 | 4 | Nut, Hex, Lock, .31 - 18, NlOld # 32983 | $2.50/EA |
| 22 | TN4028157 | 1 | Washer, Flat, 0.41b 1.25d .12, PyeOld # 364749 | $6.57/EA |
| 23 | TN4034138 | 2 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 24 | TN4041620 | 1 | Pin, Cotter, Hair, 0.31d .058 WirOld # 08085 | $2.50/EA |
| 25 | TN4032874 | 1 | Cover, LowerOld # 1022005 | $21.70/EA |
| 26 | TN4032093 | 2 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 27 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 28 | TN4035845 | 1 | Shroud, SeatOld # 1018776 | $418.20/EA |
| 29 | TN4034516 | 1 | Bracket, Latch, Shrd, SeatOld # 1026825 | $17.50/EA |
| 30 | TN4041965 | 8 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 31 | TN4033611 | 2 | Hinge Wldt, Shrd, RhOld # 1024464 | $43.40/EA |
| 32 | TN4041844 | 8 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 33 | TN4033607 | 2 | Hinge Wldt, Shrd, RhOld # 1024425 | $68.90/EA |
| 34 | TN4034218 | 1 | Grill, SideOld # 1025916 | $114.20/EA |
| 35 | TN4016794 | 6 | Washer, Flat, 0.25 FendrOld # 41178 | $2.50/EA |
| 36 | TN4195388 | 1 | Bracket, Seat, AdjOld # 1020487 | $35.91/EA |
| 37 | TN4031725 | 1 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588 | $46.50/EA |
| 38 | TN4031792 | 1 | Seal, Afmkt, Bulb, 90, 0.50d, 02ftOld # 1031206 | $33.70/EA |
| 39 | TN4029776 | 2 | Stud, Ball, .39d .31 - 16, GasspringFits SN 001299 and later · Old # 58494 | $8.40/EA |
| 40 | TN4031564 | 1 | Gasspring, 180lb, 03.0strkFits SN 001299 and later · Old # 368391 | Call for price |
| 41 | TN4042967 | 2 | Nut, Hex, Lock, .31 - 18, Nl, ThinFits SN 001299 and later · Old # 01760 | $3.40/EA |
| 42 | TN4028623 | 1 | Plug, Hole, Rnd, 1.25H .03 - .12, Blk NylFits SN 002886 and later · Old # 76888 | $3.40/EA |
| 43 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 44 | TN4042244 | 6 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Old # 19066 | $2.50/EA |
| 45 | TN4030942 | 1 | Seat (See Breakdowns)Fits SN 006520 and later · Old # 1072456 | $1,143.80/EA |

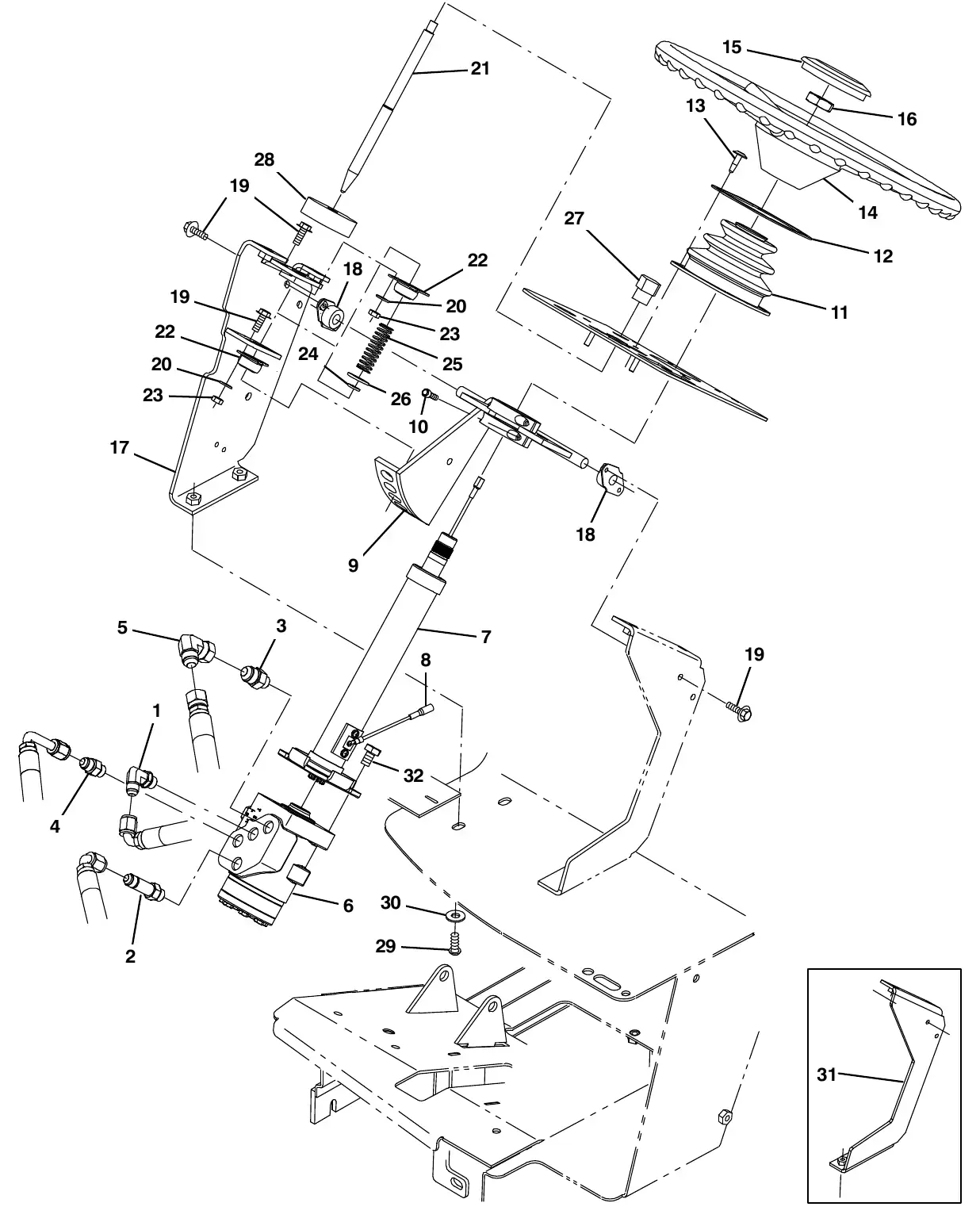

M20 steering group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029148 | 1 | Fitting, Hyd, E90, Jm06/Om06Old # 56820 | $14.00/EA |
| 2 | TN4026830 | 1 | Fitting, Hyd, Str, Jm06/Om06, LOld # 59577 | $9.90/EA |
| 3 | TN4029151 | 1 | Fitting, Hyd, Str, Jm08/Om06Old # 56835 | $10.50/EA |
| 4 | TN4029145 | 1 | Fitting, Hyd, Str, Jm06/Om06Old # 56690 | $9.60/EA |
| 5 | TN4041885 | 1 | Fitting, Hyd, E90, Jf08/Jm08Old # 17980 | $11.80/EA |
| 6 | TN4033593 | 1 | Steer - Control, Hyd#05, 06.1 2030 (See Breakdowns)Old # 1024260 | $816.30/EA |
| 7 | TN4036634 | 1 | Column, Steering, 09.9L 0.86D 36ToothOld # 1021265 | $315.60/EA |
| 8 | TN8002883 | 4 | Contact Kit, W/ Brush [En]Old # 388153 | $93.10/EA |
| 9 | TN4016310 | 1 | Bracket Wldt, Steering, TiltOld # 73027 | $112.31/EA |
| 10 | TN01681 | 4 | Screw, Soc, .25 - 20 X 0.75, AlOld # 01681 · current Tennant number (Tennant parts catalog) | Call for price |
| 11 | TN4014919 | 1 | Boot, Bellows, 3.1l 4.4w 2.8h 1hole, NeoOld # 70622 | $50.40/EA |
| 12 | TN4014930 | 1 | Retainer, Boot, Steering ColumnOld # 70623 | $10.20/EA |
| 13 | TN4016304 | 4 | Rivet, Plstc, .250d X 0.898Old # 72970 | $3.20/EA |
| 14 | TN4036781 | 1 | Wheel, Steering, 14.3d 0.81b 36toothOld # 1058996 | $270.50/EA |
| 15 | TN4033613 | 1 | Button, Cntrl, HornOld # 1024478 | $39.00/EA |
| 16 | TN4029122 | 1 | Nut, Hex, Jam, M20 X 1.5Old # 56185 | $6.00/EA |
| 17 | TN4193534 | 1 | Bracket Wldt, Tilt, RhOld # 1024695 | $59.49/EA |
| 18 | TN4014957 | 2 | Bearing, Flng, 2 - Hole, 0.50bOld # 70709 | $7.40/EA |
| 19 | TN4044400 | 8 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 20 | TN4034133 | 4 | Washer, Flat, 0.25 SaeOld # 32483 | $2.50/EA |
| 21 | TN4196205 | 1 | Pin, Locking, Steering, TiltOld # 1023926 | $31.71/EA |
| 22 | TN4013879 | 2 | Bearing, Flng, 2hole, 0.50b [Nyl]Old # 47585 | $5.96/EA |
| 23 | TN4041925 | 4 | Nut, Hex, Lock, M6 X 1.0, NlOld # 08708 | $2.50/EA |
| 24 | TN4014958 | 1 | Ring, Retaining, Ext, 0.50d, HdOld # 70717 | $0.40/EA |
| 25 | TN4037087 | 1 | Spring, Cmpr, 18.8d, 1.6w, 57.1lOld # 22290 | $4.10/EA |
| 26 | TN4034135 | 1 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 27 | TN4040933 | 1 | Knob, Tee, 2.5x1.0 1.1l 0.38 - 16 PlstcOld # 04706 | $11.80/EA |
| 28 | TN4013575 | 1 | Insulation, Acstc, Rnd, 0.8, 02.5d 0.5hOld # 75968 | $2.73/EA |
| 29 | TN4032093 | 2 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 30 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 31 | TN4196346 | 1 | Bracket, Tilt, LhFits SN up to 001052 · Old # 1024157 | Call for price |
| 32 | TN4041285 | 4 | Screw, Hex, M10 X 1.5 X 16, 8.8Old # 06960 | $3.23/EA |

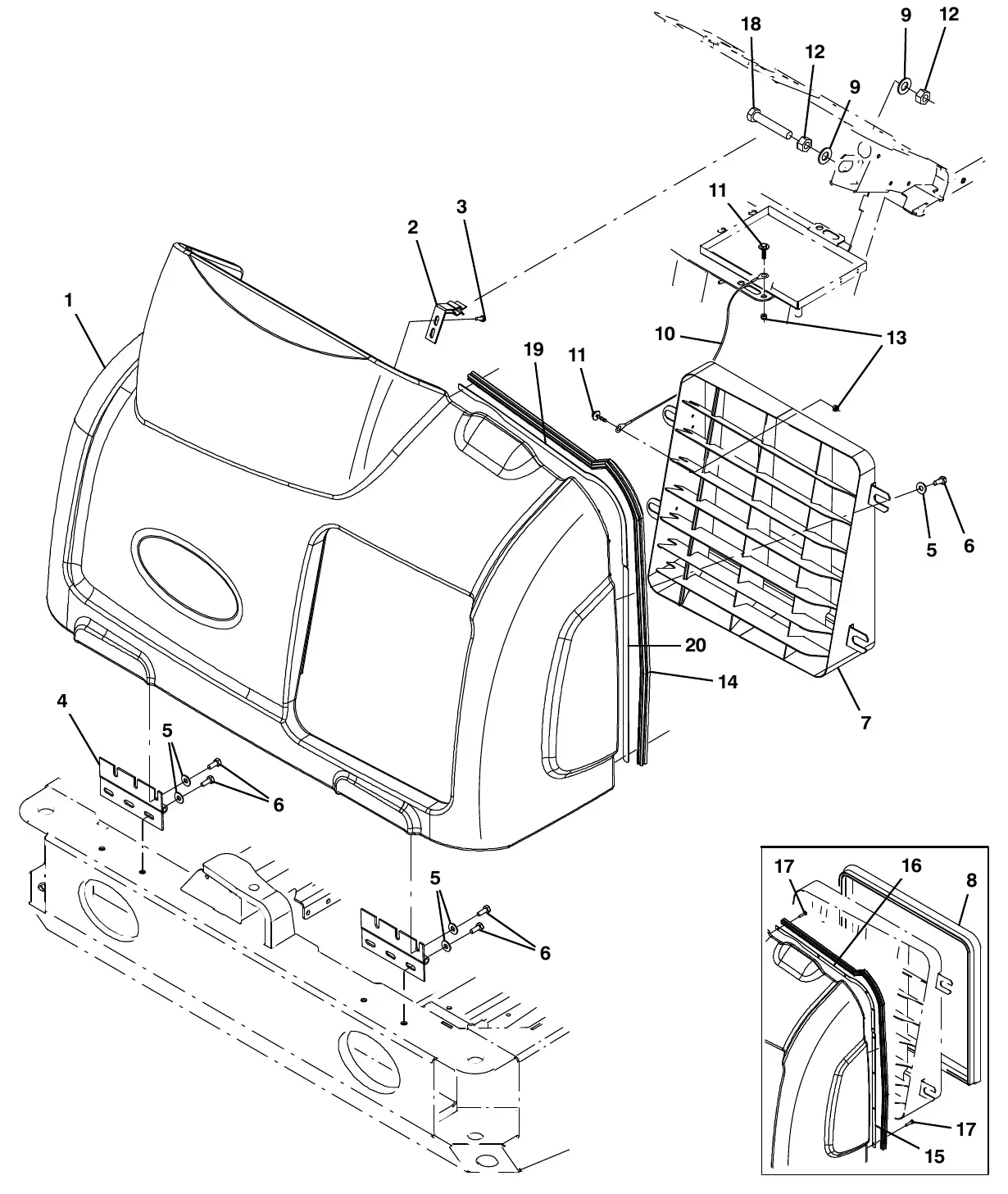

M20 front cover group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032893 | 1 | Shroud, Front, TrimmedOld # 1022069 | $932.80/EA |
| 2 | TN4039966 | 1 | Bracket Wldt, LatchOld # 1008916 | $38.80/EA |
| 3 | TN4041270 | 2 | Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942 | $2.50/EA |
| 4 | TN4015921 | 2 | Hinge, .38pin .11 3.5w 06.0l 6/0.38slOld # 71941 | $48.10/EA |
| 5 | TN4034137 | 14 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 6 | TN4041844 | 14 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 7 | TN4045378 | 1 | Grill Wldt, FrontOld # 1035068 | $748.00/EA |
| 8 | TN4032036 | 1 | Seal, Afmkt, Bulb, Str, 1.0d F/11ga 08ftFits SN up to 001277 · Old # 1031557 | $159.70/EA |
| 9 | TN4041212 | 2 | Washer, Flat, 0.62 SaeOld # 15331 | $4.10/EA |
| 10 | TN4019292 | 1 | Cable, Glv .09d 016.5l .38eye /.38eyeOld # 391368 | $33.50/EA |
| 11 | TN4044400 | 2 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 12 | TN4041596 | 2 | Nut, Hex, Std, M16 X 2.0Old # 07782 | $3.40/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.0, NlOld # 08708 | $2.50/EA |
| 14 | TN4040452 | 1 | Seal, Sponge, 0.88 1.00W 43.0LOld # 1049919 | $14.65/EA |
| 15 | TN4031371 | 1 | Plate, Mtg, SealFits SN up to 002064 · Old # 1029652 | $25.20/EA |
| 16 | TN4194633 | 1 | Plate, Mtg, SealFits SN up to 002064 · Old # 1029545 | $33.94/EA |
| 17 | TN4039088 | 10 | Screw, Hex, #10 - 16 X 0.62, Fmg, [Ab]Fits SN up to 002064 · Old # 20394 | $3.30/EA |
| 18 | TN4041570 | 1 | Screw, Hex, M16 X 2.0 X 90, 8.8Old # 06988 | $8.20/EA |
| 19 | TN4043570 | 1 | Strip Mtg, SealFits SN 002065 and later · Old # 1037970 | $4.30/EA |
| 20 | TN4043571 | 1 | Strip Mtg, SealFits SN 002065 and later · Old # 1037971 | $3.50/EA |

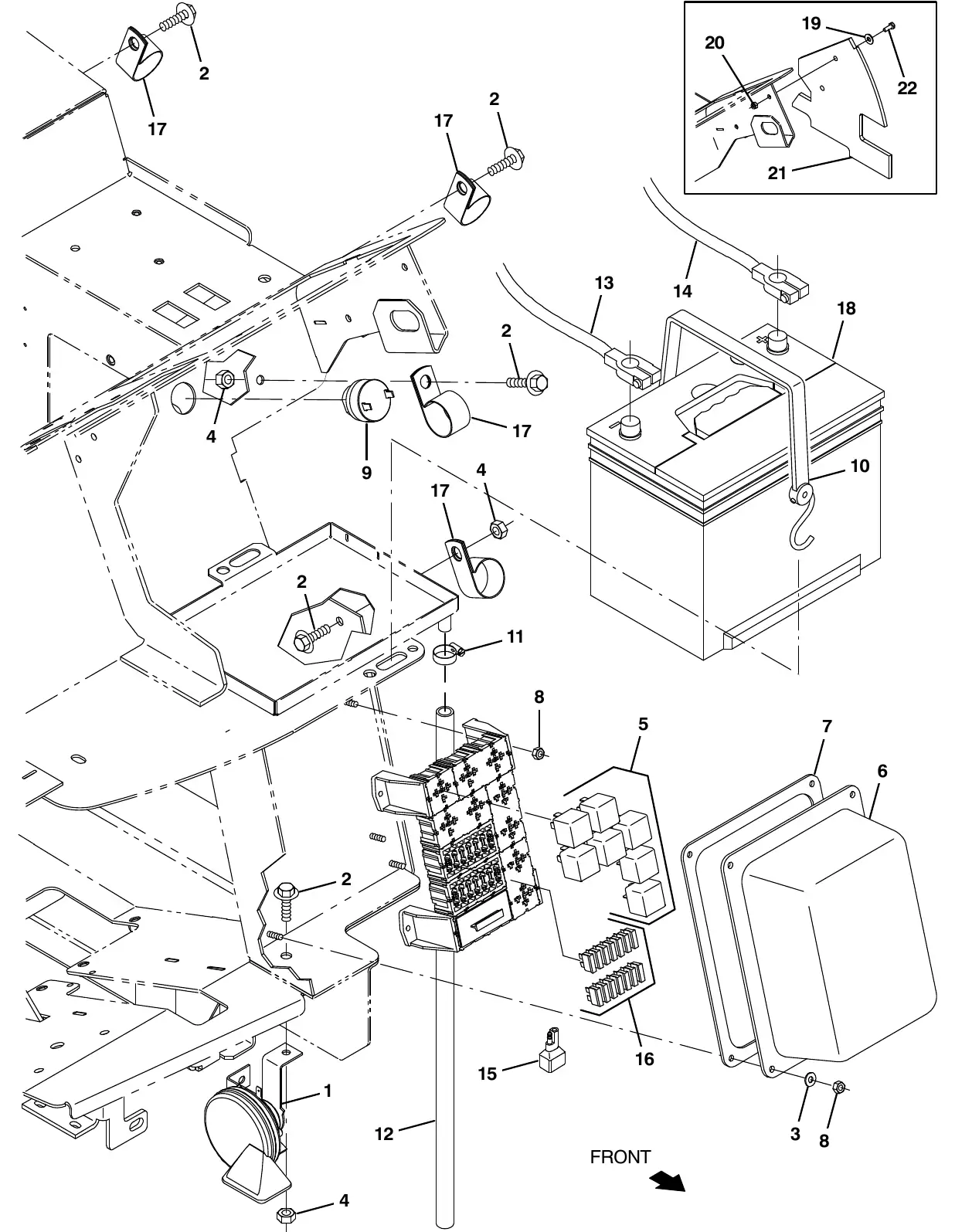

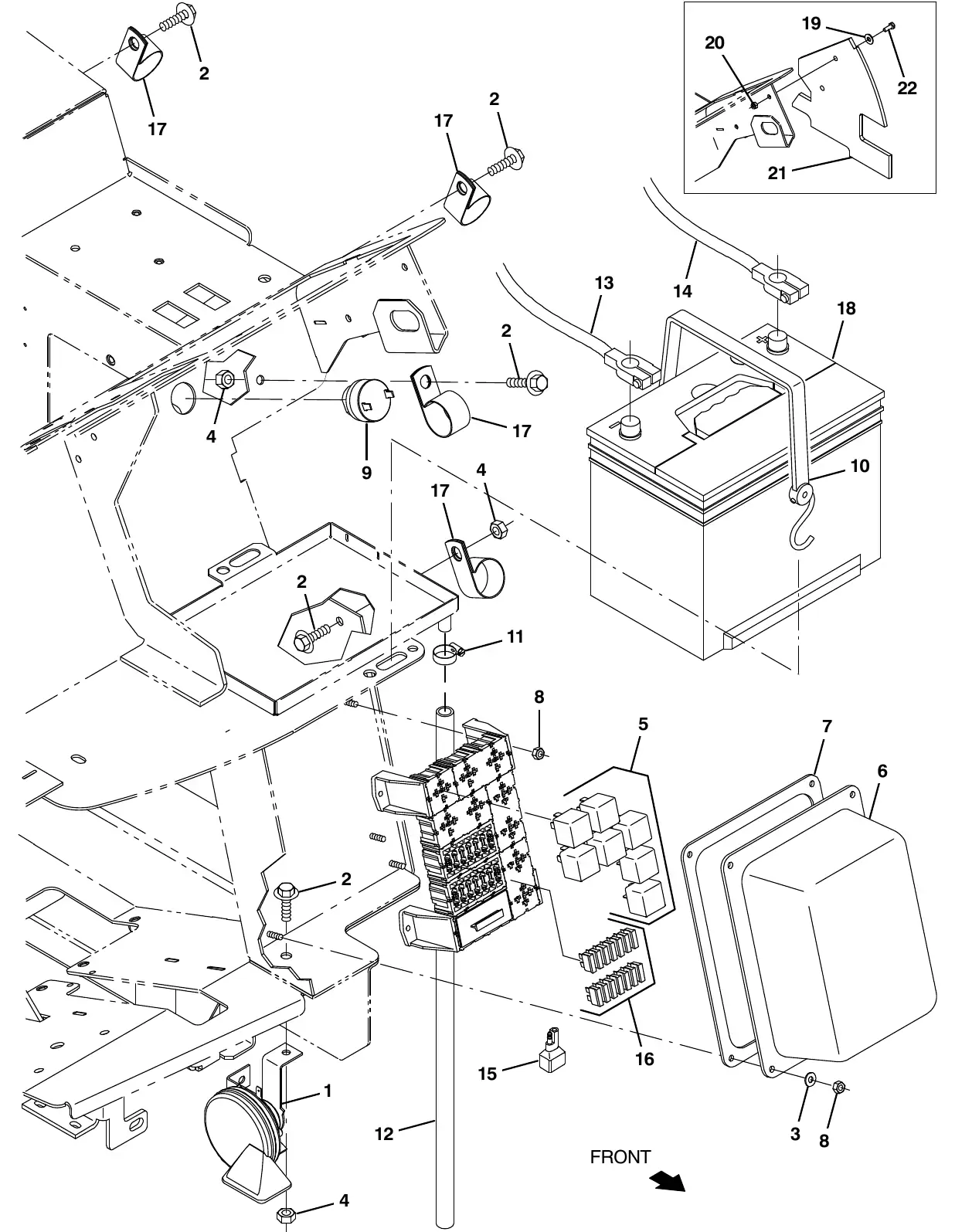

M20 battery and electrical group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032292 | 1 | Horn, 12vdc, Dba [Wolo]Old # 369704 | $42.00/EA |
| 2 | TN4045637 | 5 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 3 | TN4042244 | 4 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 4 | TN4041926 | 3 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 5 | TN4029449 | 7 | Relay, 12vdc, 40a, Spdt N/OOld # 57804 | $16.30/EA |
| 6 | TN4033595 | 1 | Cover, Fuse, BlockOld # 1024274 | $112.70/EA |
| 7 | TN4034267 | 1 | Gasket, Cover, Fuse BlockOld # 1026576 | $11.90/EA |
| 8 | TN4041004 | 8 | Nut, Hex, Lock, M5 X 0.8, NlOld # 06549 | $2.50/EA |
| 9 | TN4036635 | 1 | Alarm, Warning [Sonalert, St628]Old # 1021290 | $55.10/EA |
| 10 | TN4031223 | 1 | Strap, Rbr, Tie - Down, 2/Hooks 19.0lOld # 33671 | $13.10/EA |
| 11 | TN4015366 | 1 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 12 | TN4039094 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 30.00lOld # 20778 | Call for price |
| Item 13: choose your version (2) | ||||
| 13 | TN4027918 | 1 | Cable, Battery, 02ga 60.0l Blk .41ringFits SN up to 005999 · Old # 60295 | $69.30/EA |
| 13 | TN4030568 | 1 | Cable, Battery, 2ga, 62l, BlkFits SN 006000 and later · Old # 1071481 | $80.80/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN4018303 | 1 | Cable, Battery, 02ga 48.0l Red .41ringFits SN up to 005999 · Old # 68869 | $69.30/EA |
| 14 | TN4030569 | 1 | Cable, Battery, 2ga, 60l, RedFits SN 006000 and later · Old # 1071482 | $78.90/EA |
| 15 | TN4040238 | 1 | Diode, Ele, PlugOld # 222290 | $13.00/EA |
| 16 | TN4011598 | 14 | Fuse, 015aOld # 762514 | $4.00/EA |
| 17 | TN4015029 | 4 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466 | $4.20/EA |
| 18 | TN4037557 | 1 | Battery, 12vdc, 0475cca, Ah, WetOld # 10137 | $218.28/EA |
| 19 | TN4034136 | 2 | Washer, Flat, 0.25 StdFits SN up to 001278 · Old # 32490 | $2.50/EA |
| 20 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 001278 · Old # 08708 | $2.50/EA |
| 21 | TN4194149 | 1 | Seal, Radiator, UpperFits SN up to 001278 · Old # 1027228 | $23.94/EA |
| 22 | TN4041270 | 2 | Screw, Hex, M6 X 1.0 X 16, 8.8Fits SN up to 001278 · Old # 06942 | $2.50/EA |

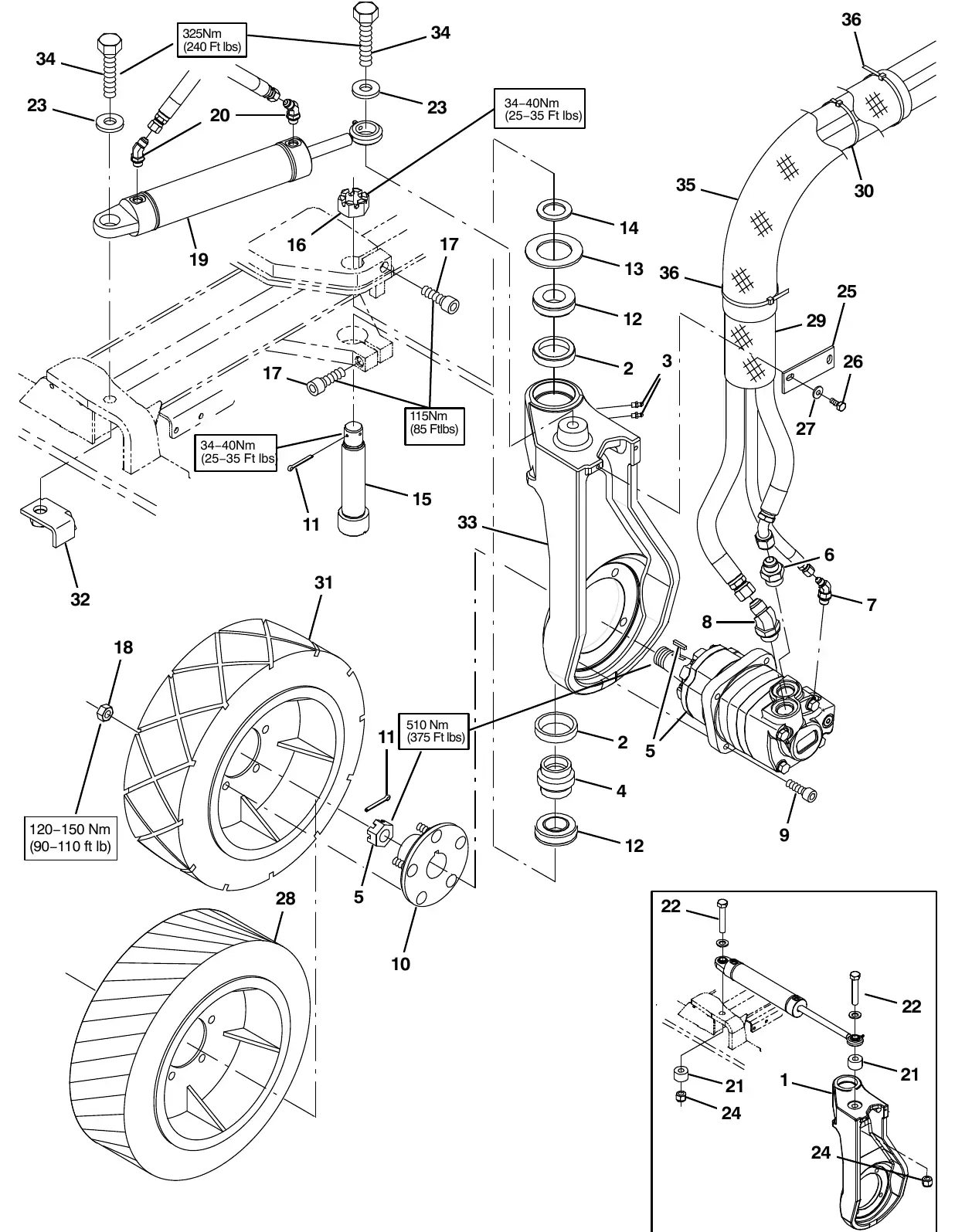

M20 wheel group, front drive
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4013010 | 1 | Housing Kit, Drive, Front, ReplmtFits SN up to 003675 · Old # 9008248 | $1,226.30/EA |
| 2 | TN4014546 | 2 | Bearing, Cup, 2.56d 0.55wOld # 51338 | $11.70/EA |
| 3 | TN4013913 | 2 | Fitting, Grease, Str Pm04 .63lOld # 47801 | $6.00/EA |
| 4 | TN4028913 | 1 | Seal, Drive, Rear, Grease CavOld # 374560 | $28.60/EA |
| 5 | TN4026352 | 1 | Motor, Hyd, Gear, Int 19.0 Bi - Dir 3000 (See Breakdowns)Old # 379609 | Call for price |
| 6 | TN4017334 | 1 | Fitting, Hyd, Str, Jm10/Om12Old # 42223 | $12.60/EA |
| 7 | TN4019818 | 1 | Fitting, Hyd, E45, Jm04/Om06Old # 393215 | $43.70/EA |
| 8 | TN4033591 | 1 | Fitting, Hyd, E45, Jm10/Om12Old # 1024249 | $42.90/EA |
| 9 | TN4042547 | 4 | Screw, Soc, .50 - 13 X 1.50, AlOld # 19583 | $5.80/EA |
| 10 | TN4015068 | 1 | Hub Assy, Wheel, 5 Bolt 4.50bc Taper BOld # 54087 | $202.20/EA |
| TN4033528 | 5 | Stud, Wheel, .50 - 20 X 1.50l, 0.370thOld # 32126 | $4.20/EA | |
| 11 | TN4041635 | 2 | Pin, Cotter, .125 X 2.00Old # 08180 | $2.50/EA |
| 12 | TN4014547 | 2 | Bearing, Cone, 1.38b 0.71wOld # 51339 | $46.30/EA |
| 13 | TN4028915 | 1 | Washer, Flat, 2.16b 3.50d .16, FeltOld # 374563 | $4.00/EA |
| 14 | TN4015062 | 1 | Washer, Flat, 1.39b 2.12d .13, StlOld # 54051 | $3.50/EA |
| 15 | TN4016329 | 1 | Bolt, Shld, 1.37d X 5.13l,1.1 - 18 DrilledOld # 73281 | $106.20/EA |
| 16 | TN4015063 | 1 | Nut, Hex, Sltd, 1.12 - 18Old # 54052 | $23.30/EA |
| 17 | TN4016287 | 2 | Screw, Soc, M16 X 2.0 X 50, 12.9Old # 72926 | $6.70/EA |
| 18 | TN4035377 | 5 | Nut, Wheel, .50 - 20 X 60 AngleOld # 24339 | $3.00/EA |
| Item 19: choose your version (2) | ||||
| 19 | TN4035514 | 1 | Cylinder, Hyd, 2.0b,15.2l,09.00strk,3000Fits SN up to 006885 · Old # 1017903 | Call for price |
| 19 | TN4045221 | 1 | Cylinder, Hyd, 2.0b,15.2l,09.00strk,3000Fits SN 006886 and later · Old # 1034270 | $463.00/EA |
| 20 | TN4013877 | 2 | Fitting, Hyd, E45, Jm06/Om06Old # 47522 | $21.70/EA |
| 21 | TN4015622 | 2 | Tube, Rnd, 1.75d 0.77b 01.1l, Stl, PntdFits SN up to 003675 · Old # 71340 | $25.10/EA |
| 22 | TN4015623 | 2 | Screw, Hex, .75 - 10 X 4.00, 5Fits SN up to 003675 · Old # 71341 | $11.90/EA |
| Item 23: choose your version (2) | ||||
| 23 | TN4015596 | 2 | Washer, Flat, 0.75 SaeFits SN up to 006885 · Old # 39350 | $4.10/EA |
| 23 | TN4044540 | 2 | Washer, Flat, .781b 1.63od .16, Stl, BlkFits SN 006886 and later · Old # 1073487 | $2.60/EA |
| 24 | TN4034660 | 2 | Nut, Hex, Lock, .75 - 10, NlFits SN up to 003675 · Old # 32987 | $4.00/EA |
| 25 | TN4026686 | 1 | Bar, Flat, Stl 0.19, 01.50 X 04.1lOld # 58842 | $30.80/EA |
| 26 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 27 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 28 | TN4034901 | 1 | Tire, Drive, Scrbr, Pu, Grey, 18.0X6.0 (Optional Polyurethane)Old # 1061973 | $1,442.80/EA |
| 29 | TN4029311 | 2 | Sleeve, Nyl, #37 05.0lOld # 57315 | $7.80/EA |
| 30 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 31 | TN4037134 | 1 | Tire, Drive, Scrbr, Non - Skid, 18.0X6.0Old # 1059343 | $1,386.50/EA |
| 32 | TN4034614 | 1 | Bracket, Mtg, SpptFits SN 003676 and later · Old # 1060521 | $21.70/EA |
| 33 | TN4182964 | 1 | Housing, Sppt, Front WheelFits SN 003676 and later · Old # 1071061 | Call for price |
| 34 | TN4025656 | 1 | Screw, Hex, .75 - 10 X 3.25, G5Fits SN 003676 and later · Old # 77345 | $9.50/EA |
| 35 | TN4024610 | 1 | Sleeve, Nyl, 2.38id 25.0lFits SN 006000 and later · Old # 82832 | $20.70/EA |
| 36 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN 006000 and later · Old # 49266 | $2.50/EA |

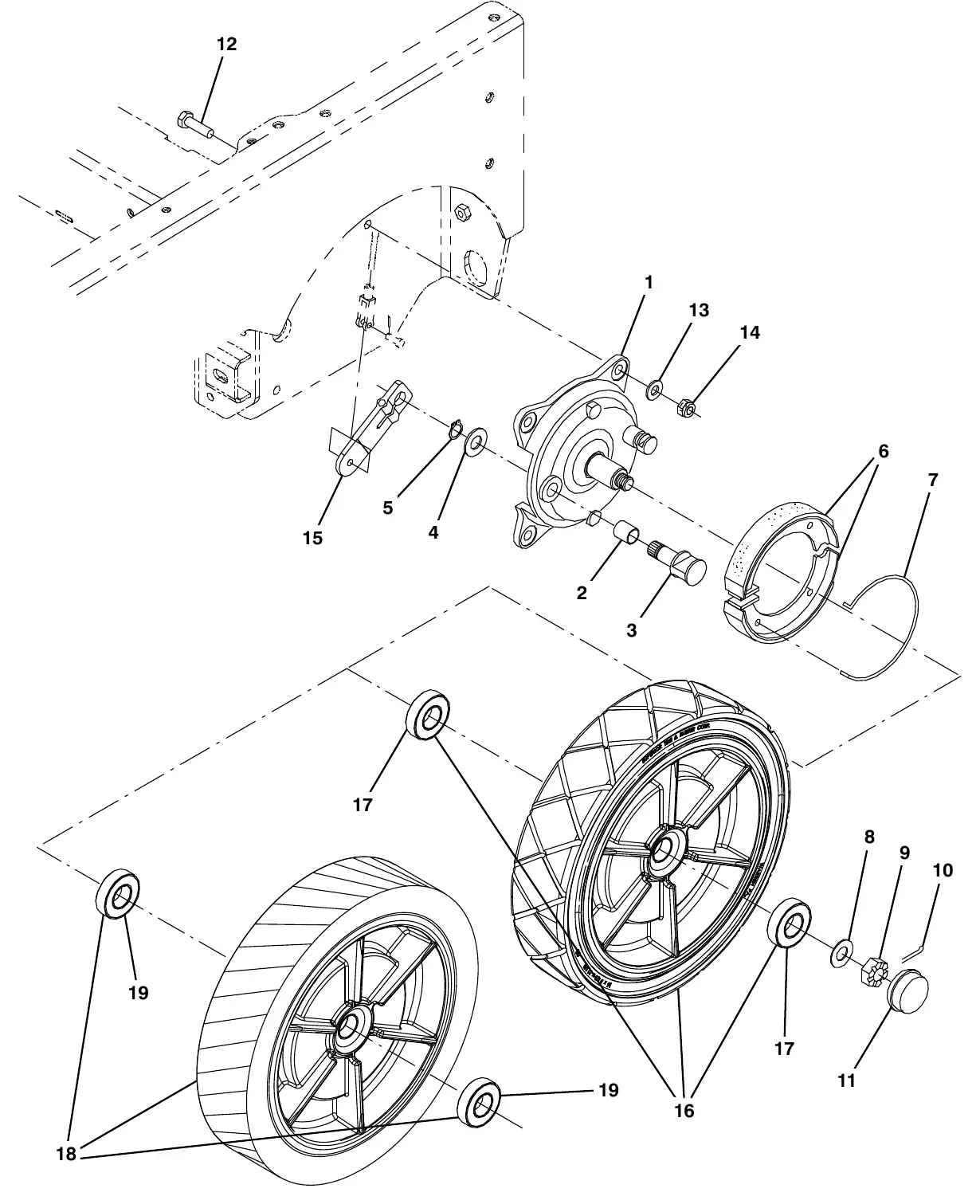

M20 wheel group, rear
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4031682 | 2 | Brake Assy, Drum, Mech, 07.0d 1.2wOld # 360023 | $537.20/EA | |
| 1 | TN8005524 | 1 | Plate, Backing, BrakeOld # 360270 | $283.10/EA |
| 2 | TN4031992 | 1 | Bushing, Sleeve, 0.78b 0.86d 0.93l, BnzOld # 360271 | $21.40/EA |
| 3 | TN8005525 | 1 | Cam, Plt, Brake [Nickel]Old # 360272 | $80.00/EA |
| 4 | TN4031993 | 1 | Washer, Flat, M21.0b X 37d X 3Old # 360273 | $5.30/EA |
| 5 | TN4031994 | 1 | Retainer, Ring, BrakeOld # 360274 | $3.50/EA |
| 6 | TN4031995 | 2 | Shoe, Brake, 180 X 30mmOld # 360275 | $84.00/EA |
| 7 | TN4031996 | 1 | Spring, Wir, 0.25d, Return, BrakeOld # 360276 | $22.30/EA |
| 8 | TN4014130 | 2 | Washer, Flat, 0.76b 1.50d .06, SsOld # 49145 | $5.20/EA |
| 9 | TN4021672 | 2 | Nut, Hex, Sltd, .75 - 16Old # 86659 | $8.20/EA |
| 10 | TN4041629 | 2 | Pin, Cotter, .156 X 2.00Old # 08171 | $3.40/EA |
| 11 | TN4015370 | 2 | Cap, Hub, Dust 2.57d 0.77lOld # 54390 | $13.50/EA |
| 12 | TN4041294 | 8 | Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969 | $4.00/EA |
| 13 | TN4034135 | 8 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 14 | TN4041927 | 8 | Nut, Hex, Lock, M12 X 1.75,NlOld # 08711 | $3.30/EA |
| 15 | TN4032592 | 2 | Arm, Lever, Brake, 4.1 [Knott]Old # 360802 | $82.50/EA |
| 16 | TN4033969 | 2 | Tire, Idler, Scrbr, Blk, 16.0X3.5Old # 1059671 | Call for price |
| 17 | TN4031697 | 2 | Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074 | $20.20/EA |
| 16 | TN4037138 | 2 | Tire, Idler, Scrbr, Non - Skid, 16.0x3.5 (Optional)Old # 1059347 | Call for price |
| 17 | TN4031697 | 2 | Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074 | $20.20/EA |
| 18 | TN4034902 | 2 | Tire, Idler, Scrbr, Pu, Grey, 16.0X3.5 (Optional Polyurethane)Old # 1061974 | Call for price |
| 19 | TN4031697 | 2 | Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074 | $20.20/EA |

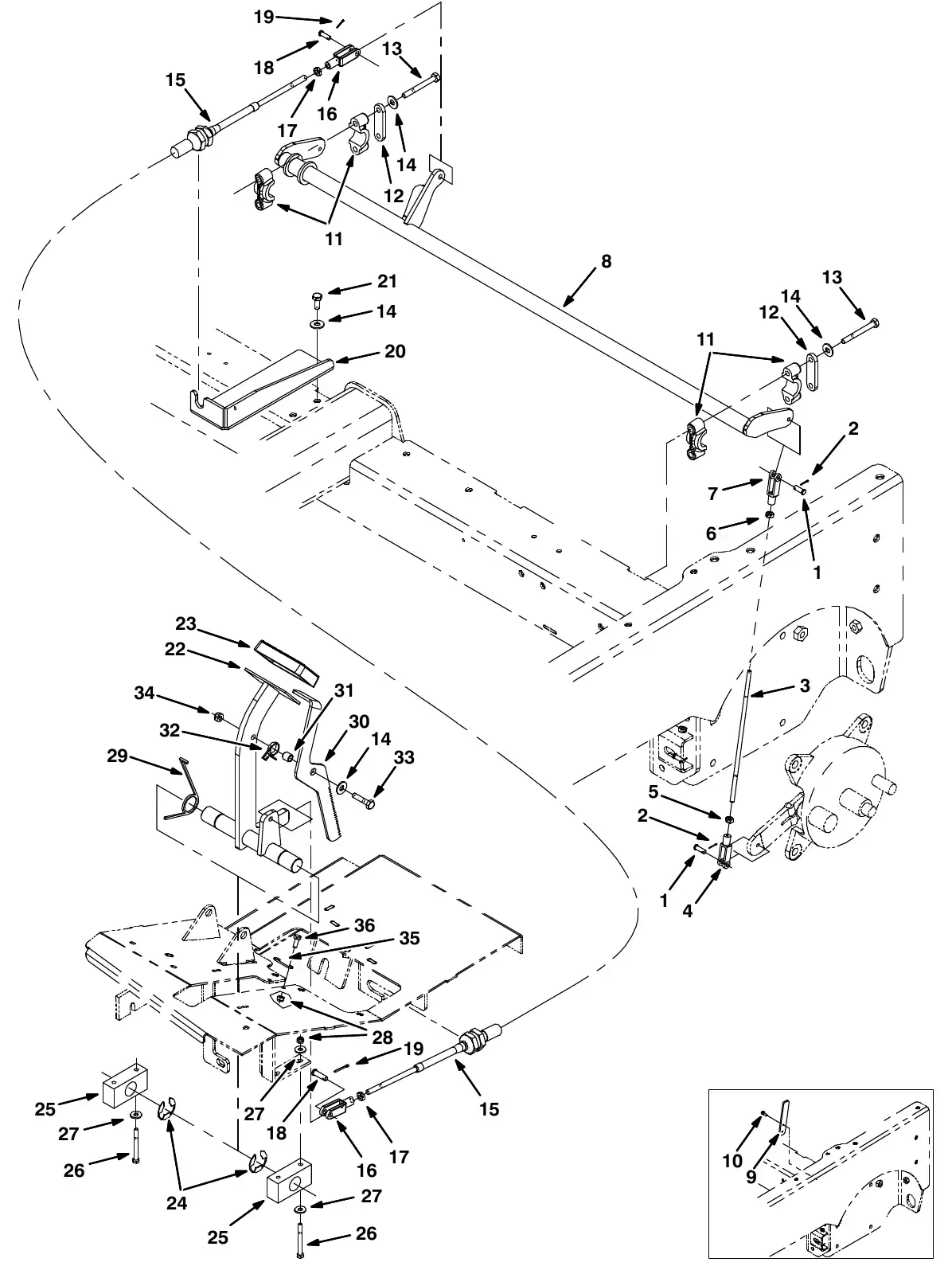

M20 brake pedal linkage group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044344 | 4 | Pin, Clevis, 0.25d X 0.75lOld # 14605 | $3.40/EA |
| 2 | TN4041628 | 4 | Pin, Cotter, .062 X 0.50Old # 08170 | $2.60/EA |
| 3 | TN4027767 | 2 | RodOld # 364347 | $33.10/EA |
| 4 | TN4044337 | 2 | Clevis, Adj, 0.25 Pin, 0.25 - 28 Rh, PlOld # 14595-1 | $9.90/EA |
| 5 | TN4028195 | 2 | Nut, Hex, Std, .25 - 28, LhOld # 364948 | $4.00/EA |
| 6 | TN4042941 | 2 | Nut, Hex, Std, .25 - 28Old # 01714 | $2.50/EA |
| 7 | TN4028178 | 2 | Clevis, Adj, 0.25pin, 0.25 - 28left PlOld # 364864 | $15.30/EA |
| 8 | TN4032890 | 1 | Shaft Wldt, BrakeOld # 1022031 | $119.58/EA |
| 9 | TN4193848 | 2 | Plate, Stop, BrakeFits SN up to 007328 · Old # 1026025 | $5.96/EA |
| 10 | TN4029864 | 4 | Screw, Hex, M6 X 1.0 X 16, FmgFits SN up to 007328 · Old # 361339 | $4.00/EA |
| 11 | TN4027058 | 4 | Bearing, Split, 1.00bOld # 381502 | $7.40/EA |
| 12 | TN4027324 | 2 | Plate, SpptOld # 382224 | $14.80/EA |
| 13 | TN4019754 | 4 | Screw, Hex, M8 X 1.25 X 70, 8.8Old # 39279 | $4.00/EA |
| 14 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 15 | TN4033919 | 1 | Cable, Push / Pull, 063.0l 4.0, .31 - 24Old # 1025495 | $306.60/EA |
| 16 | TN4029693 | 2 | Clevis, Adj, 0.31pin, 0.31 - 24Old # 58311 | $45.70/EA |
| 17 | TN4039080 | 2 | Nut, Hex, Jam, .31 - 24Old # 20170 | $2.50/EA |
| 18 | TN4018317 | 2 | Pin, Clevis, 0.31d X 1.00lOld # 69582 | $3.40/EA |
| 19 | TN4041634 | 2 | Pin, Cotter, .094 X 1.00Old # 08179 | $2.50/EA |
| 20 | TN4195882 | 1 | Bracket, Mtg, CableOld # 1022736 | $27.47/EA |
| 21 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 22 | TN4195848 | 1 | Shaft Wldt, Pedal, BrakeOld # 1022243 | $82.40/EA |
| 23 | TN4014535 | 1 | Pad, Pedal, Brake, 3.96l 2.36w 0.75Old # 51109 | $30.10/EA |
| 24 | TN4035052 | 2 | Ring, Retaining, Ext, 0.98d, [E - Ring]Old # 23788 | $2.40/EA |
| 25 | TN4022031 | 2 | Bearing, Pillowblock, 1.02b [Solid Pye]Old # 86751 | $40.50/EA |
| 26 | TN4041003 | 4 | Screw, Hex, M6 X 1.0 X 60, 8.8Old # 06548 | $3.43/EA |
| 27 | TN4034136 | 8 | Washer, Flat, 0.25 StdOld # 32490 | $2.50/EA |
| 28 | TN4041925 | 6 | Nut, Hex, Lock, M6 X 1.0, NlOld # 08708 | $2.50/EA |
| 29 | TN4028660 | 2 | Spring, Tors, 1.13id .12wir 02.3coil RhOld # 54607 | $17.10/EA |
| 30 | TN4033918 | 1 | Pedal, Brake, LockOld # 1025487 | $62.70/EA |
| 31 | TN4013461 | 1 | Bushing, Sleeve, 0.37b 0.50d 0.50l, OibOld # 46563 | $4.20/EA |
| 32 | TN4026776 | 1 | Spring, Tors, 0.75id .06wir 02.8coilOld # 59009 | $5.20/EA |
| 33 | TN4041280 | 1 | Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955 | $3.40/EA |
| 34 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 35 | TN4015629 | 1 | Spring, Wir, 0.08d, Brake, ParkingOld # 71367 | $6.80/EA |
| 36 | TN4041270 | 2 | Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942 | $2.50/EA |

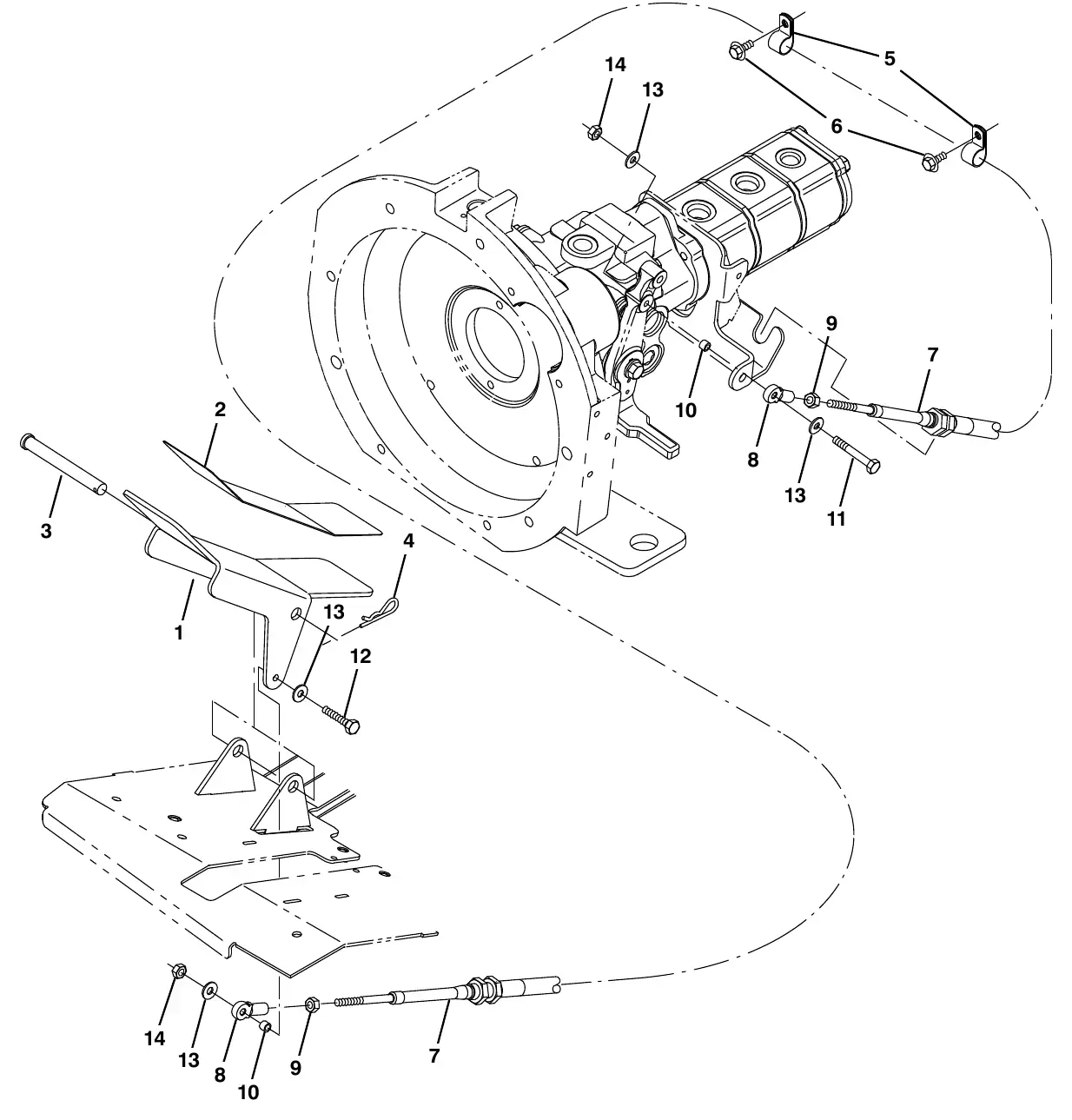

M20 directional pedal group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4193625 | 1 | Pedal, PropelOld # 1025140 | $45.75/EA |
| 2 | TN4026685 | 1 | Tread, Non - Skid, 03.0w 11.6lOld # 58819 | $7.70/EA |
| 3 | TN4026850 | 1 | Pin, Clevis, 0.50 D X 4.50lOld # 59668 | $5.10/EA |
| 4 | TN4041914 | 1 | Pin, Cotter, .125 X 1.00Old # 08182 | $2.50/EA |
| 5 | TN4017933 | 2 | Clamp, Cable, Stl, 0.69d X 0.62w, 1hOld # 67767 | $4.20/EA |
| 6 | TN4029864 | 2 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 7 | TN4032922 | 1 | Cable, Push / Pull, 098.0l .25 - 28/.25 - 28Old # 1022345 | $293.20/EA |
| 8 | TN4018302 | 2 | Rod - End, .25 - 28rh Fem 0.25b [Teflon]Old # 68866 | $44.50/EA |
| 9 | TN4042941 | 2 | Nut, Hex, Std, .25 - 28Old # 01714 | $2.50/EA |
| 10 | TN4017735 | 2 | Tube, 00.38d 00.26b 00.3l Stl PltOld # 65441 | $19.20/EA |
| 11 | TN4231432 | 1 | Screw, Hex, .25 - 20 X 2.25, SsOld # 41399 | $4.00/EA |
| 12 | TN4017319 | 1 | Screw, Hex, .25 - 20 X 1.75, SsOld # 42180 | $3.40/EA |
| 13 | TN4034136 | 4 | Washer, Flat, 0.25 StdOld # 32490 | $2.50/EA |
| 14 | TN4016793 | 2 | Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169 | $4.00/EA |

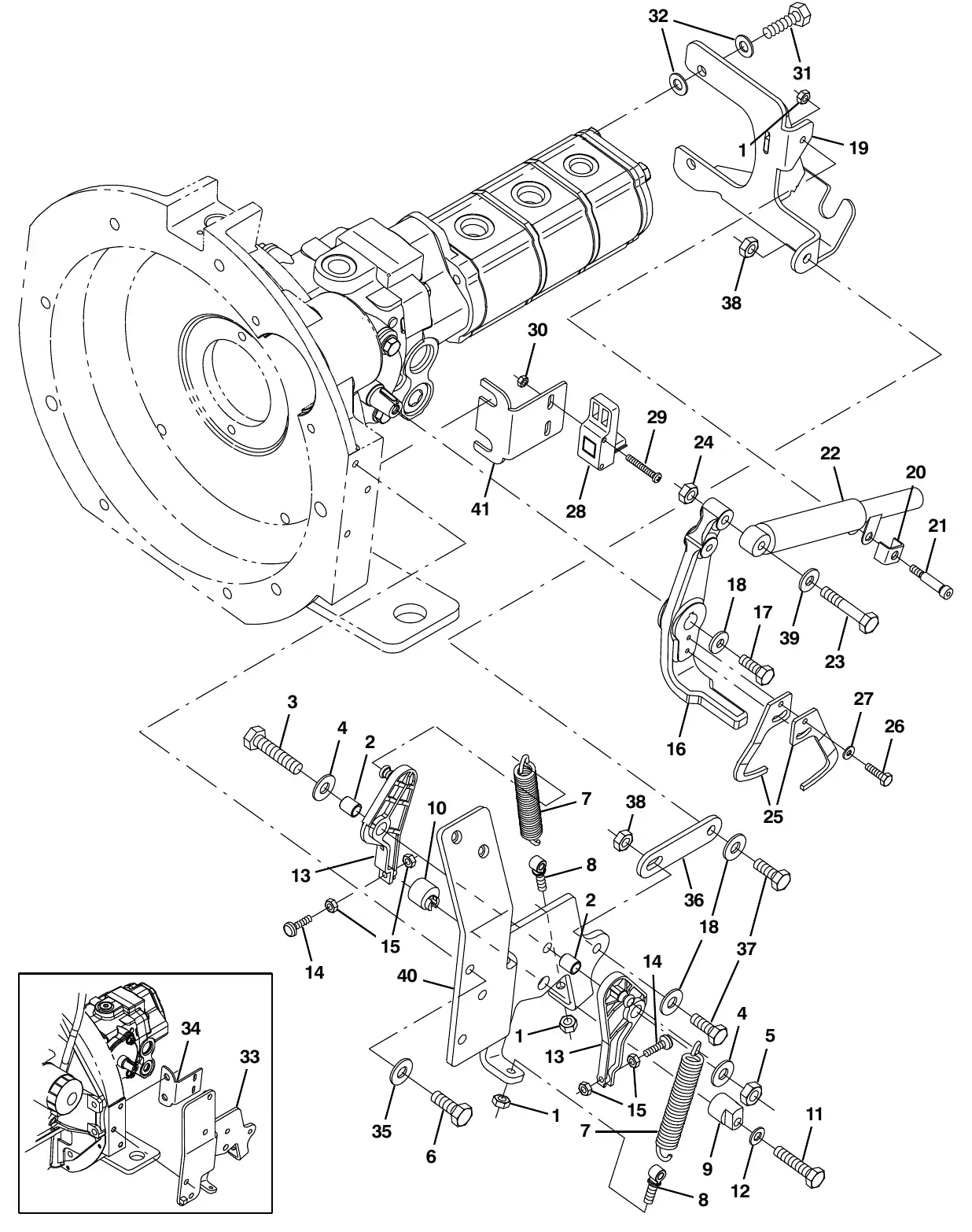

M20 hydraulic pump linkage group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016793 | 3 | Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169 | $4.00/EA |
| 2 | TN4021145 | 2 | Tube, 00.50d 00.38b 00.6l StlOld # 63234 | $6.60/EA |
| 3 | TN4017355 | 1 | Screw, Hex, .38 - 16 X 2.00, SsOld # 42467 | $1.05/EA |
| 4 | TN4034138 | 2 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 5 | TN4028758 | 1 | Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643 | $2.50/EA |
| 6 | TN4039392 | 2 | Screw, Hex, .38 - 16 X 1.00, 5Old # 21197 | $3.30/EA |
| 7 | TN4043395 | 2 | Spring, Extn, 0.75od X 0.12wir, 4.3lOld # 11842 | $12.20/EA |
| 8 | TN4013918 | 1 | Bolt, Eye, .25 - 20 X 1.40 X .25 EyeOld # 48079 | $6.00/EA |
| 9 | TN4015051 | 1 | Cam, Centering, PintleOld # 53947 | $74.84/EA |
| 10 | TN4028669 | 1 | Cam, Centering, PintleOld # 54655 | $72.52/EA |
| 11 | TN4012778 | 1 | Screw, Hex, M8 X 1.25 X 40, Ss, NlOld # 74440 | $4.90/EA |
| 12 | TN4015595 | 1 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 13 | TN4015053 | 2 | Arm, Cntrl, Pintle, CenteringOld # 53953 | $26.60/EA |
| 14 | TN4015362 | 2 | Bumper, Rbr, 0.5d 0.16t M5 X 08Old # 54205 | $18.50/EA |
| 15 | TN4014211 | 4 | Nut, Hex, Std, M5 X 0.8, 8Old # 50335 | $3.30/EA |
| 16 | TN4030623 | 1 | Arm, PintleOld # 1027233 | $101.71/EA |
| 17 | TN4021295 | 1 | Screw, Hex, .31 - 24 X 0.75, NlOld # 83879 | $2.90/EA |
| 18 | TN4016796 | 3 | Washer, Belleville, .31Old # 41186 | $3.50/EA |
| 19 | TN4194159 | 1 | Bracket Wldt, Propel, PintleOld # 1027313 | $48.78/EA |
| 20 | TN4021318 | 1 | Bracket, Retainer, SafetyOld # 84170 | $11.60/EA |
| 21 | TN4041517 | 1 | Bolt, Shld, .31d X 1.00, .25 - 20Old # 16213 | $6.80/EA |
| 22 | TN4016337 | 1 | Shock Absorber, 2.3 StrkOld # 73411 | $115.00/EA |
| 23 | TN4019753 | 1 | Screw, Hex, M8 X 1.25 X 50, 8.8Old # 39278 | $4.00/EA |
| 24 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 25 | TN4033213 | 2 | Arm [Positioning]Old # 1022787 | $15.80/EA |
| 26 | TN4041970 | 2 | Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252 | $3.40/EA |
| 27 | TN4042888 | 2 | Washer, Flat, #10 SsOld # 01683 | $2.60/EA |
| 28 | TN4033212 | 1 | Sensor, Spd / Dir, 6 - 30vdcOld # 1022779 | $285.30/EA |
| 29 | TN4041964 | 2 | Screw, Pan, M4 X 0.7 X 35, SsOld # 09198 | $3.20/EA |
| 30 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 31 | TN4013460 | 2 | Screw, Hex, .38 - 16 X 1.25, NlOld # 46559 | $4.00/EA |
| 32 | TN4034134 | 4 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 33 | TN4195666 | 1 | Bracket, Propel, Gas/LpgFits SN up to 005999 · Old # 1022140 | $32.42/EA |
| 34 | TN4195891 | 1 | Bracket, Mtg, CylFits SN up to 005999 · Old # 1022798 | $10.20/EA |
| 35 | TN4016797 | 2 | Washer, Flat, Belleville, .38Old # 41187 | $4.10/EA |
| 36 | TN4192517 | 1 | Strap, SpptOld # 1032399 | $11.82/EA |
| 37 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 38 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 39 | TN4034136 | 1 | Washer, Flat, 0.25 StdOld # 32490 | $2.50/EA |
| 40 | TN4030339 | 1 | Bracket, Propel, G/Lpg [Mit 2013]Fits SN 006000 and later · Old # 1070798 | $27.17/EA |
| 41 | TN4182555 | 1 | Angle, MtgFits SN 006000 and later · Old # 1070819 | $5.35/EA |

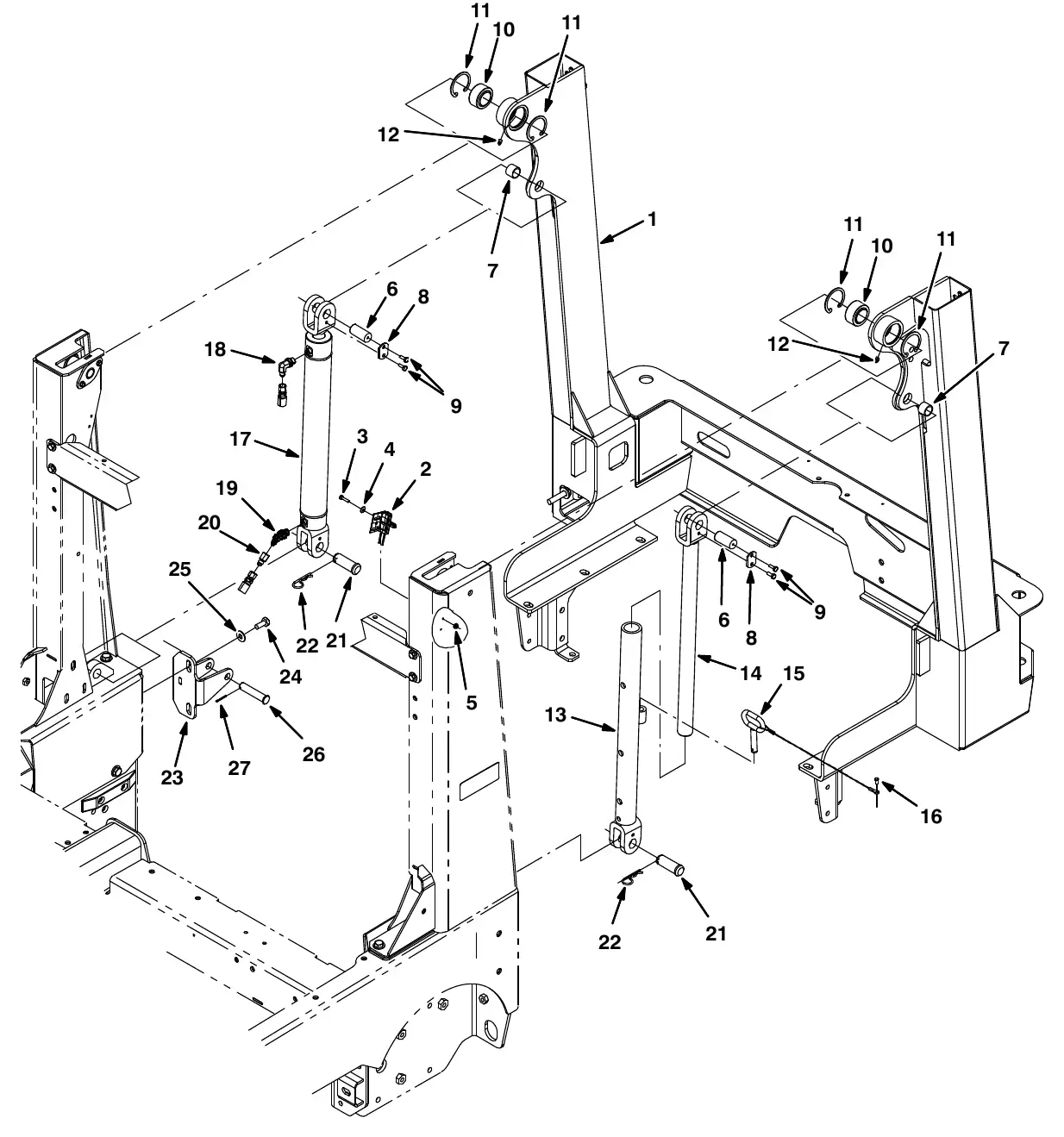

M20 hopper lift arms group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN4030288 | 1 | Frame Wldt, Lift, HpprFits SN up to 004292 · Old # 1018241 · replaced by 4030288 (Tennant parts catalog) | Call for price |
| 1 | TN4030288 | 1 | Frame Wldt, Lift, HpprFits SN 004293 and later · Old # 1069933 | $1,780.90/EA |
| 2 | TN4035032 | 1 | Switch, Snap, 15a No, RlrOld # 23211 | $136.10/EA |
| 3 | TN4041970 | 2 | Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252 | $3.40/EA |
| 4 | TN4042244 | 2 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 5 | TN4041603 | 2 | Nut, Hex, Flng, M5 X 0.8Old # 07789 | $5.80/EA |
| 6 | TN4035738 | 2 | Pin, 0.87d 01.8l, 1/M6 X 1.0, 1cham,StlOld # 1018226 | $20.00/EA |
| 7 | TN4028122 | 2 | Bushing, Sleeve, 0.88b 1.00d 0.75l, BnzOld # 364587 | $12.10/EA |
| 8 | TN4016283 | 2 | Plate, Pin, Clevis, UpperOld # 72897 | $16.40/EA |
| 9 | TN4044400 | 4 | Screw, Hex, M6 X 1.0 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 10 | TN4017311 | 2 | Bearing, Self Align, 1.25b 2.00dOld # 42120-1 | $52.20/EA |
| 11 | TN4026820 | 4 | Ring, Retaining, Int, 2.00dOld # 59542 | $4.00/EA |
| 12 | TN4041578 | 2 | Fitting, Grease, Str Pm04 .47lOld # 07259 | $3.60/EA |
| 13 | TN4035768 | 1 | Tube Wldt, Arm, SafetyOld # 1018260 | $295.90/EA |
| 14 | TN4035769 | 1 | Rod Wldt, Arm, SafetyOld # 1018262 | $251.20/EA |
| 15 | TN4035780 | 1 | Pin, Arm, SafetyOld # 1018266 | $40.10/EA |
| 16 | TN4041846 | 1 | Screw, Hex, M4 X 0.7 X 10, FmgOld # 16944 | $3.20/EA |
| 17 | TN4031370 | 1 | Cylinder, Hyd, 2.0B 24.1L 15.00Strk 3000Old # 1029646 | $560.00/EA |
| 18 | TN4013891 | 1 | Fitting, Hyd, E90, Jm04/Om06Old # 47638 | $18.30/EA |
| 19 | TN4019818 | 1 | Fitting, Hyd, E45, Jm04/Om06Old # 393215 | $43.70/EA |
| 20 | TN4034217 | 1 | Fitting, Hyd, Rst, Jf04/Jm04, .028Old # 1025904 | $55.20/EA |
| 21 | TN4035739 | 2 | Pin, Clevis, 0.88d X 2.25lOld # 1018227 | $29.90/EA |
| 22 | TN4043243 | 2 | Pin, Cotter, Hair, 0.62d .120 WirOld # 02942 | $3.40/EA |
| 23 | TN4035783 | 1 | Plate Wldt, Arm, StopOld # 1018275 | $39.20/EA |
| 24 | TN4041948 | 2 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 25 | TN4042903 | 2 | Washer, Flat, 0.44b 1.00d .08, SsOld # 01686 | $3.30/EA |
| 26 | TN4035784 | 1 | Pin, Clevis, 0.62d X 2.91lOld # 1018276 | $24.90/EA |
| 27 | TN4041634 | 1 | Pin, Cotter, .094 X 1.00Old # 08179 | $2.50/EA |

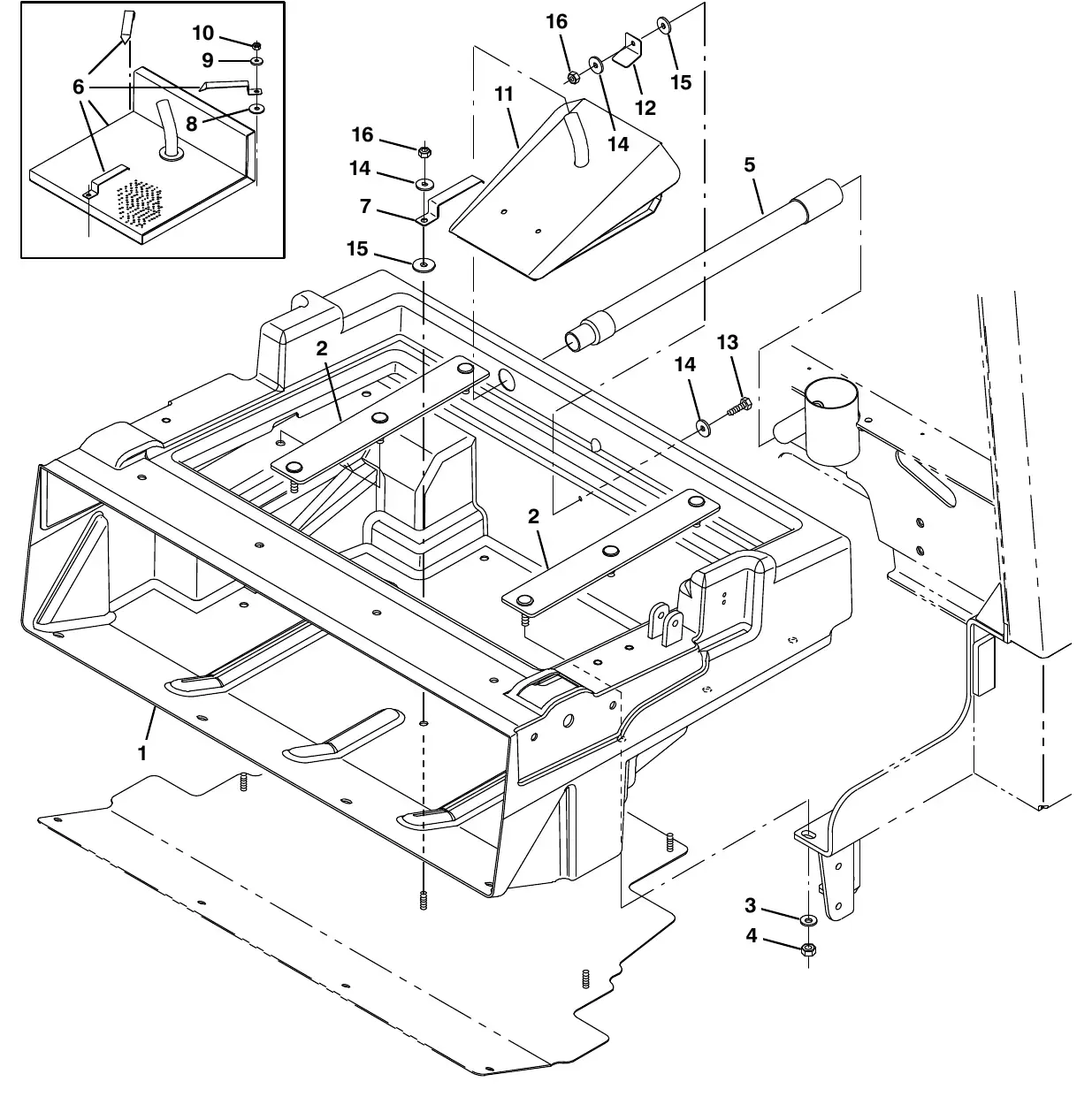

M20 hopper and debris screen group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035789 | 1 | Hopper, Debris, Rm - Hg, TrimmedOld # 1018300 | $716.90/EA |
| 2 | TN4035781 | 2 | Bar, Mtg, HpprOld # 1018272 | $28.50/EA |
| 3 | TN4011890 | 6 | Washer, Flat, Belleville, M10Old # 763042 | $3.40/EA |
| 4 | TN4041930 | 6 | Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714 | $3.30/EA |
| 5 | TN4035762 | 1 | Hose Assy, W/1cuff, 1.0d 09l 1.0/Old # 1018239 | $57.80/EA |
| 6 | TN4017005 | 1 | Screen Kit, Hppr, Replmt [M20]Fits SN up to 002280 · Old # 9003774 | $260.50/EA |
| 7 | TN4042127 | 1 | Spring, Flat, Retainer, Angled ScreenFits SN 002281 and later · Old # 1044323 | $44.80/EA |
| 8 | TN4040233 | 3 | Washer, Flat, 0.38b 1.25d .12, NeoFits SN up to 002280 · Old # 222268 | $4.00/EA |
| 9 | TN4035242 | 3 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 002280 · Old # 1017218 | $3.40/EA |
| 10 | TN4041929 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 002280 · Old # 08713 | $3.30/EA |
| 11 | TN4044019 | 1 | Screen Wldt, HpprFits SN 002281 and later · Old # 1039163 | $242.00/EA |
| 12 | TN4044026 | 1 | Angle, RetainerFits SN 002281 and later · Old # 1039215 | $11.10/EA |
| 13 | TN4041943 | 1 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 002281 and later · Old # 09010 | $3.30/EA |
| 14 | TN4035242 | 3 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 002281 and later · Old # 1017218 | $3.40/EA |
| 15 | TN4040233 | 2 | Washer, Flat, 0.38b 1.25d .12, NeoFits SN 002281 and later · Old # 222268 | $4.00/EA |
| 16 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 002281 and later · Old # 08713 | $3.30/EA |

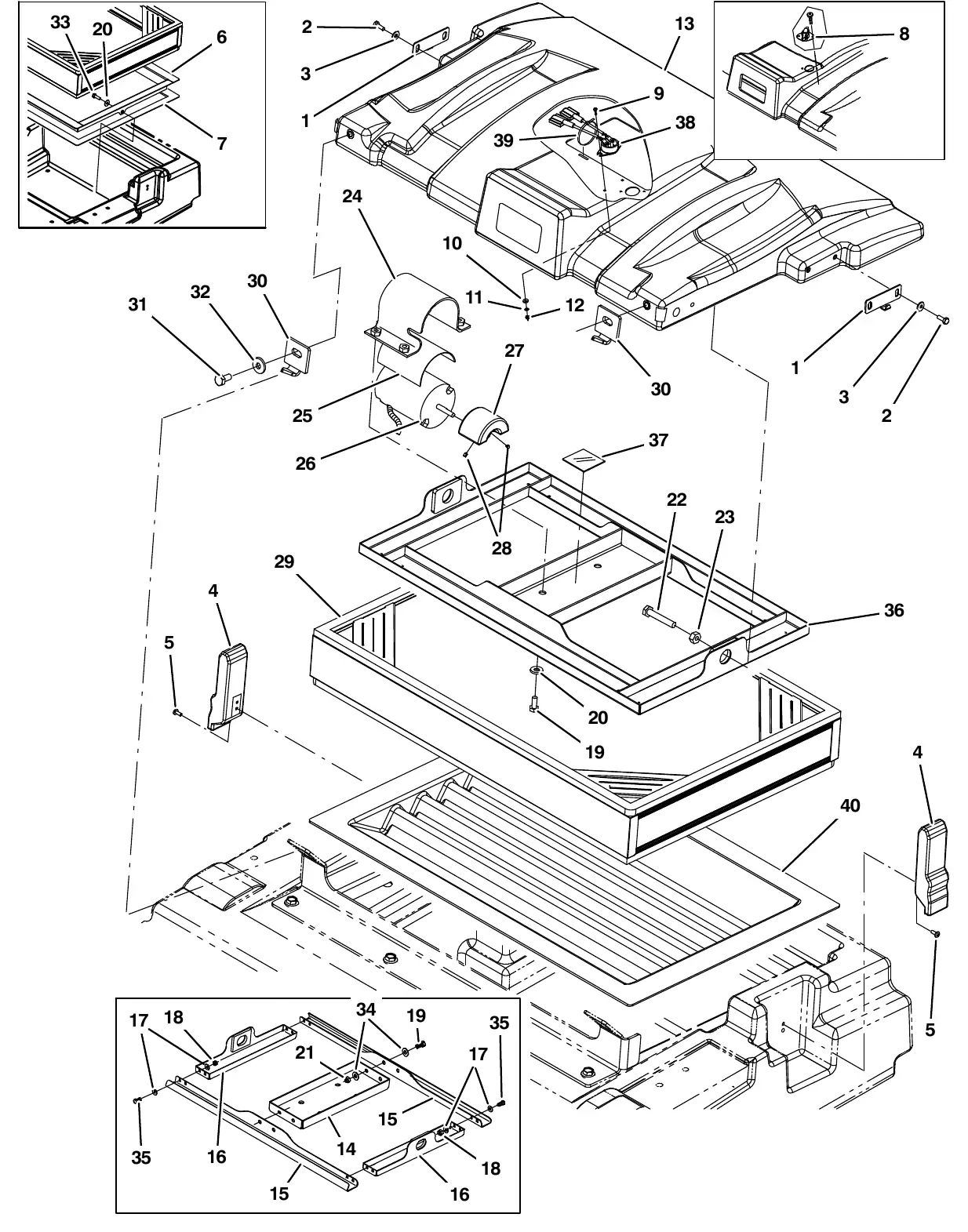

M20 hopper cover and dust filter group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044648 | 2 | Bracket, Cover, HpprOld # 1041984 | $15.60/EA |
| 2 | TN4041245 | 4 | Screw, Hex, M6 X 1.0 X 16, SsOld # 15678 | $3.20/EA |
| 3 | TN4042901 | 4 | Washer, Flat, 0.25, SsOld # 01684 | $2.60/EA |
| 4 | TN4032766 | 2 | LatchOld # 360824 | $55.80/EA |
| 5 | TN4041965 | 4 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 6 | TN4045060 | 1 | Tray Wldt, Perma - filter (Replaced By none)Fits SN up to 002048 · Old # 1033591 | $157.30/EA |
| 7 | TN4038018 | 1 | Seal, Afmkt, Ure, Adh, 0.38, 0.75w 08ft (Replaced By none)Fits SN up to 002048 · Old # 1015220 | $26.90/EA |
| 8 | TN4016728 | 1 | Sensor Kit, Repair [Thermo - Sentry, M20]Fits SN up to 002040 · Old # 9003444 | $70.30/EA |
| 9 | TN4041015 | 2 | Screw, Pan, M3 X 0.5 X 20, 4.8Old # 06922 | $3.40/EA |
| 10 | TN4042242 | 2 | Washer, Flat, #06Old # 19064 | $3.40/EA |
| 11 | TN4034651 | 2 | Washer, Lock, Int, #06Old # 32975 | $2.60/EA |
| 12 | TN4042963 | 2 | Nut, Hex, Std, M3 X 0.5, 8Old # 01754 | $2.50/EA |
| 13 | TN4044454 | 1 | Cover, HpprOld # 1041006 | $384.00/EA |
| 14 | TN1018203 | 1 | Plate, ShakrFits SN up to 001356 · Old # 1018203 · current Tennant number (Tennant parts catalog) | Call for price |
| 15 | TN4029533 | 2 | Plate, Shakr, BarFits SN up to 001356 · Old # 360952 | $29.80/EA |
| 16 | TN1017944 | 2 | Plate Wldt, Shakr, SideFits SN up to 001356 · Old # 1017944 · current Tennant number (Tennant parts catalog) | Call for price |
| 17 | TN4034133 | 16 | Washer, Flat, 0.25 SaeFits SN up to 001356 · Old # 32483 | $2.50/EA |
| 18 | TN4041928 | 8 | Nut, Hex, Lock, M6 X 1.0, Ss, NlFits SN up to 001356 · Old # 08712 | $2.50/EA |
| 19 | TN4041992 | 8 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 20 | TN4042902 | 6 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 21 | TN4041929 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| Item 22: choose your version (2) | ||||
| 22 | TN4041282 | 2 | Screw, Hex, M8 X 1.25 X 60, 8.8Fits SN up to 002040 · Old # 06957 | $3.40/EA |
| 22 | TN4041288 | 2 | Screw, Hex, M10 X 1.50 X 60, 8.8Fits SN 002041 and later · Old # 06963 | $4.00/EA |
| Item 23: choose your version (2) | ||||
| 23 | TN4019808 | 2 | Nut, Hex, Std, M8 X 1.25Fits SN up to 002040 · Old # 39311 | $2.50/EA |
| 23 | TN4019809 | 2 | Nut, Hex, Std, M10 X 1.50Fits SN 002041 and later · Old # 39312 | $3.40/EA |
| 24 | TN4045661 | 1 | Strap, Mtg, Motor, .124.00WOld # 1037671 | $43.90/EA |
| 25 | TN4028761 | 1 | Strip, Rbr, 0.06 04.00w 05.0l Neo/60Old # 36658 | $6.50/EA |
| Item 26: choose your version (2) | ||||
| 26 | TN1041920 | 1 | Motor, Ele [12vdc, Shaker]Fits SN up to 003408 · Old # 1041920 · current Tennant number (Tennant parts catalog) | Call for price |
| 26 | TN4033948 | 1 | Motor, Ele 12Vdc, ShakrFits SN 003409 and later · Old # 1059542 | $294.50/EA |
| Item 27: choose your version (2) | ||||
| 27 | TN4040108 | 1 | Weight, EccentricFits SN up to 003408 · Old # 1049242 | $56.60/EA |
| 27 | TN4038145 | 1 | Weight, EccentricFits SN 003409 and later · Old # 1053320 | $28.50/EA |
| 28 | TN4039093 | 2 | Screw, Set, #10 - 24 X 0.25, NlOld # 20634 | $3.40/EA |
| 29 | TN4039697 | 1 | Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM | $329.30/EA |
| 30 | TN4035545 | 2 | Bar, Mtg, Hppr CoverOld # 1018207 | $14.80/EA |
| 31 | TN4041974 | 2 | Screw, Hex, M10 X 1.5 X 20, SsOld # 09291 | $5.80/EA |
| 32 | TN4037922 | 2 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
| 33 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 34 | TN4042902 | 8 | Washer, Flat, 0.31, SsFits SN up to 001356 · Old # 01685 | $2.60/EA |
| 35 | TN4041245 | 8 | Screw, Hex, M6 X 1.0 X 16, SsFits SN up to 001356 · Old # 15678 | $3.20/EA |
| 36 | TN4045625 | 1 | Shaker WldtFits SN 001357 and later · Old # 1037235 | $230.80/EA |
| 37 | Old # 36661 | 1 | Strip, Rbr, 0.06 01.00W 04.0LFits SN 001357 and later · Old # 36661Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| Item 38: choose your version (2) | ||||
| 38 | TN4045538 | 1 | Switch, Temp [160F]Fits SN 002041–003478 · Old # 1036611 | $66.70/EACall for availability |
| 38 | TN4039106 | 1 | Switch, Temp, Sealed, NcFits SN 003479 and later · Old # 1056298 | $217.60/EA |
| 39 | TN4011910 | 1 | Tie, Cable, Nyl, 15.3L . W 4.5 Max DFits SN 002041 and later · Old # 763116 | $3.40/EA |
| 40 | TN4043553 | 1 | Tray, Perma - FilterFits SN 002140 and later · Old # 1037947 | $127.10/EA |

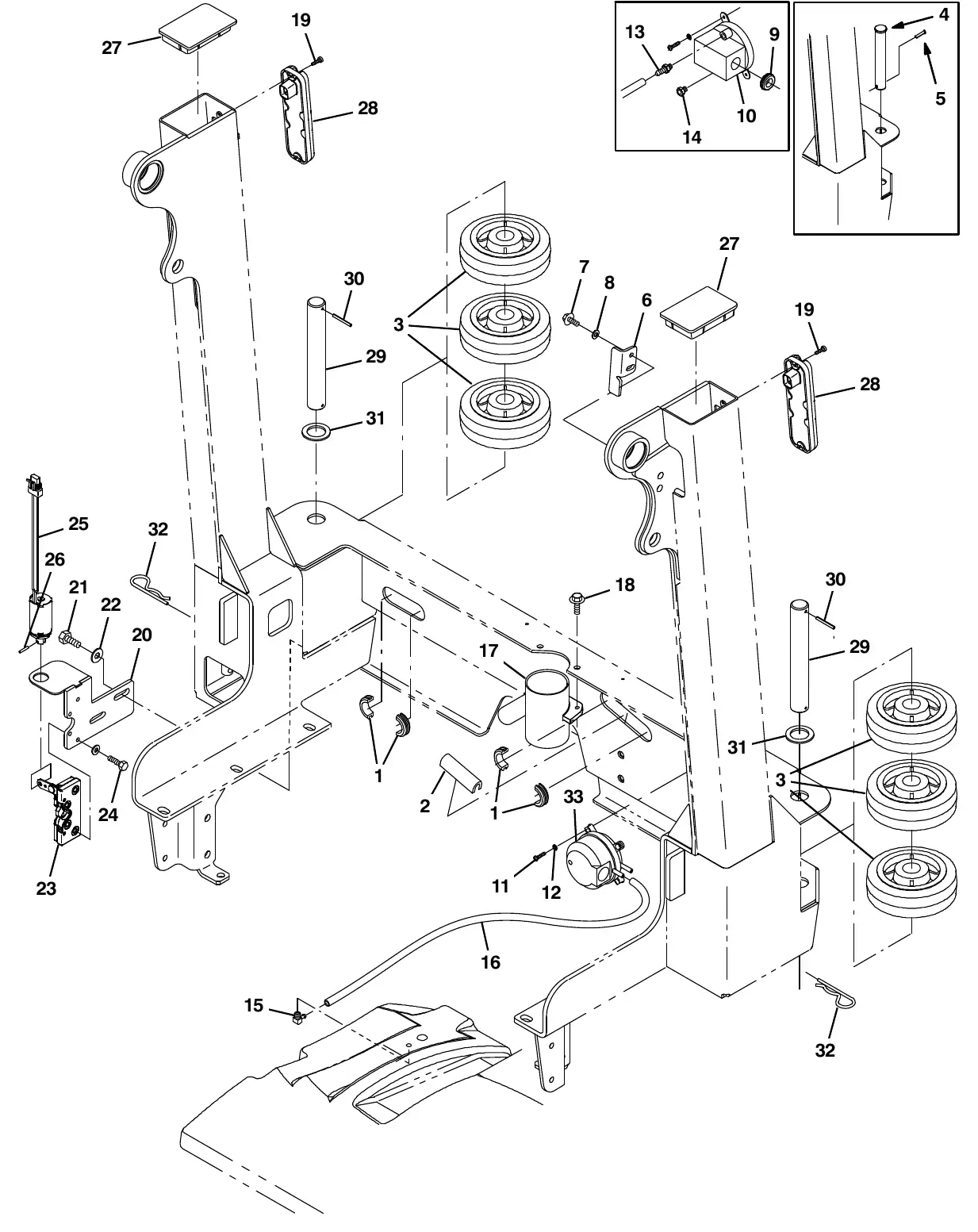

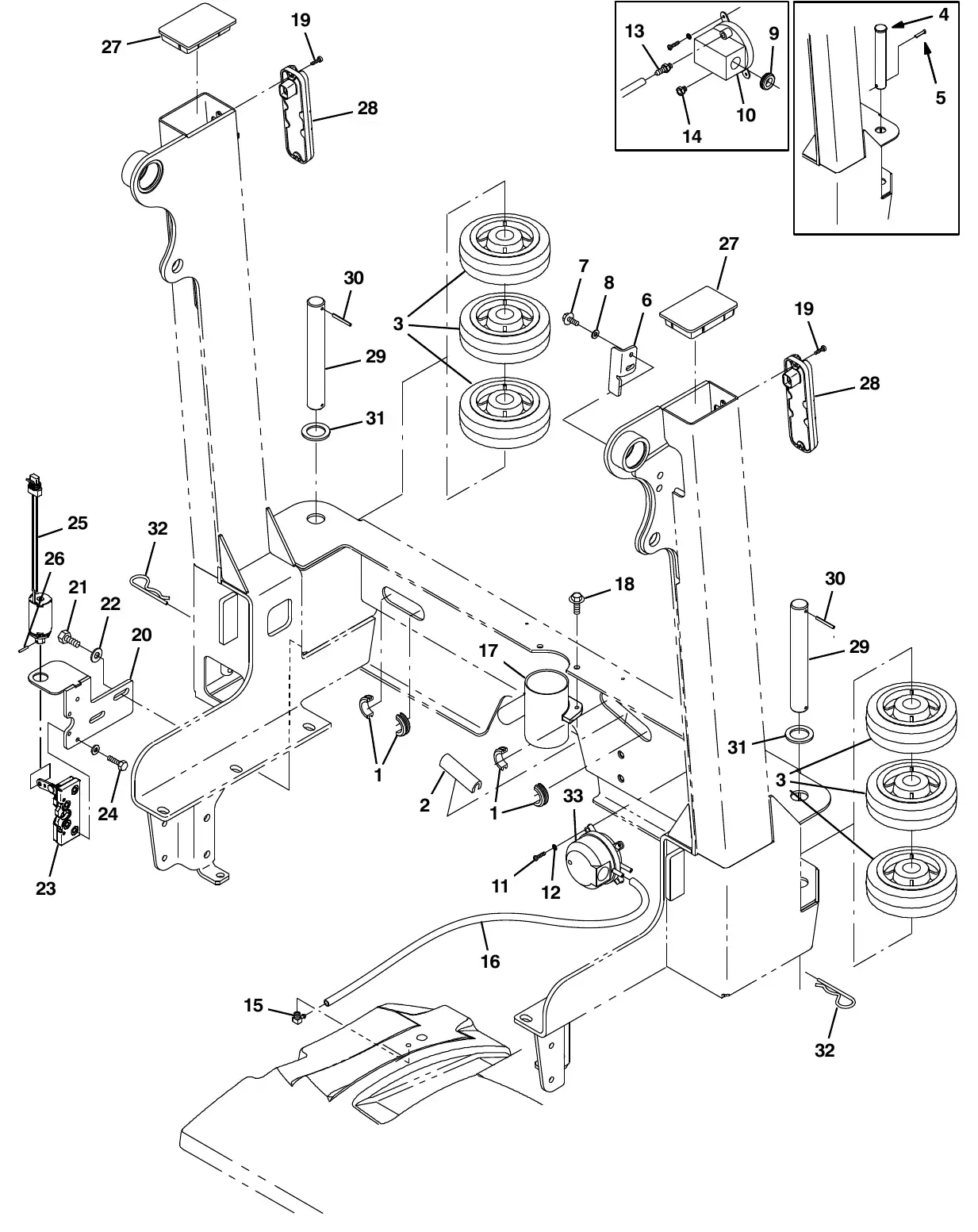

M20 hopper bumper group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN4031954 | 2 | Grommet, Rbr, 1.06id, F/1.4h, .19 MatlFits SN up to 007328 · Old # 10632-1 | $4.90/EA |
| 1 | TN4031957 | 2 | Grommet, Rbr, 1.50id, F/1.8h, .19 MatlFits SN 007328 and later · Old # 10632-13 | $6.00/EA |
| 2 | TN50646 | 1 | Molding, Trim, Pvc,.18 - .31 07.5lOld # 50646 · no current Tennant number on file | Call for price |
| 3 | TN4036305 | 6 | Wheel, 06.0d 2.00w 1.19b, Gray RbrOld # 1021047 | Call for price |
| 4 | TN4015303 | 2 | Pin Kit, Wheel, Ci [M20/T20/M30]Fits SN up to 003062 · Old # 9006334 | $34.00/EA |
| 5 | TN4041629 | 2 | Pin, Cotter, .156 X 2.00Fits SN up to 003062 · Old # 08171 | $3.40/EA |
| 6 | TN4035763 | 1 | Bracket, Mtg, SwitchOld # 1018240 | $16.65/EA |
| 7 | TN4029864 | 2 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 8 | TN4034133 | 2 | Washer, Flat, 0.25 SaeOld # 32483 | $2.50/EA |
| 9 | TN4032006 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .06 MatlFits SN up to 003259 · Old # 10632-4 | $2.50/EA |
| 10 | TN4016553 | 1 | Switch, Press, Spdt 0008psiFits SN up to 003259 · Old # 39924 | Call for price |
| 11 | TN4035991 | 2 | Screw, Pan, M4 X 0.7 X 20, SsOld # 12323 | $3.30/EA |
| 12 | TN4043241 | 2 | Washer, Lock, Int, #08, SsOld # 02938 | $2.60/EA |
| 13 | TN4016762 | 1 | Fitting, Brs, Str, Bm03/Pm02Fits SN up to 003259 · Old # 40607 | $4.20/EA |
| 14 | TN4024317 | 1 | Fitting, Brs, Breather [02mp]Fits SN up to 003259 · Old # 82739 | $10.50/EA |
| 15 | TN4033731 | 1 | Fitting, Brs, E90, Pm02/Bm03Old # 32183 | $9.90/EA |
| 16 | TN4032044 | 1 | Hose, Afmkt, Vacuum, 0.16id, 03ftOld # 1031575 | $16.60/EA |
| 17 | TN4045499 | 1 | Tube, VacuumOld # 1036240 | $32.10/EA |
| 18 | TN4045637 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 19 | TN4041259 | 4 | Screw, Pan, M4 X 0.7 X 20, 4.8Old # 06928 | $2.50/EA |
| 20 | TN4035785 | 1 | Plate Wldt, Mtg, SolenoidOld # 1018280 | $47.60/EA |
| Item 21: choose your version (2) | ||||
| 21 | TN4041948 | 2 | Screw, Hex, M10 X 1.5 X 25, SsFits SN up to 007328 · Old # 09028 | $4.00/EA |
| 21 | TN4035608 | 2 | Screw, Hex, M12 X 1.75 X 30, SsFits SN 007328 and later · Old # 12309 | $6.00/EA |
| Item 22: choose your version (2) | ||||
| 22 | TN4034138 | 2 | Washer, Flat, 0.38 StdFits SN up to 007328 · Old # 32492 | $2.50/EA |
| 22 | TN4034135 | 2 | Washer, Flat, 0.50, SaeFits SN 007328 and later · Old # 32486 | $2.60/EA |
| 23 | TN4039424 | 1 | LatchOld # 21623 | $49.60/EA |
| 24 | TN4041272 | 4 | Screw, Hex, M6 X 1.0 X 25, 8.8Old # 06944 | $2.50/EA |
| 25 | TN4035782 | 1 | Solenoid, Pull, 12vdc, DamperOld # 1018274 | $167.10/EA |
| 26 | TN4042585 | 1 | Pin, Roll, .125 D X 0.75l, .125/.129Old # 20021 | $2.50/EA |
| 27 | TN4035787 | 2 | Cap, Arm, LiftOld # 1018293 | $15.60/EA |
| 28 | TN4035546 | 2 | Light, Tail, 12vdcOld # 1018208 | $131.70/EA |
| 29 | TN4038392 | 2 | Pin, 30mmd X 215mmlFits SN 003063 and later · Old # 1053838 | $74.40/EA |
| 30 | TN4035025 | 2 | Pin, Roll, .187d X 1.62l, .187/.192Fits SN 003063 and later · Old # 23146 | $2.50/EA |
| 31 | TN4035148 | 2 | Washer, Flat, 1.26B 1.88D .13, Stl, PlFits SN 003063 and later · Old # 1062566 | $2.60/EA |
| 32 | TN4031623 | 2 | Pin, Cotter, Hair, 1.00d .178 WirFits SN 003063 and later · Old # 34411 | $4.00/EA |
| 33 | TN4037765 | 1 | Switch, Press, Adj [4 - 16 In Wtr]Fits SN 003260 and later · Old # 1052885 | $72.10/EA |
M20 hopper door group (000000 - 003061)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043598 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Fits SN up to 003061 · Old # 1038115 | $223.30/EA |
| 2 | TN4025260 | 2 | Fitting, Hyd, E90, Jm04/Om04Fits SN up to 003061 · Old # 77097 | $14.70/EA |
| 3 | TN4041878 | 2 | Pin, Clevis, 0.37d X 1.75lFits SN up to 003061 · Old # 17461 | $4.00/EA |
| 4 | TN4041634 | 2 | Pin, Cotter, .094 X 1.00Fits SN up to 003061 · Old # 08179 | $2.50/EA |
| 5 | TN4037922 | 4 | Washer, Flat, 0.40b 1.12d .12, SsFits SN up to 003061 · Old # 1014563 | $5.80/EA |
| 6 | TN4035761 | 1 | Plate, Bottom, HpprFits SN up to 003061 · Old # 1018237 | $220.70/EA |
| 7 | TN4040233 | 2 | Washer, Flat, 0.38b 1.25d .12, NeoFits SN up to 003061 · Old # 222268 | $4.00/EA |
| 8 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 003061 · Old # 1017218 | $3.40/EA |
| 9 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 003061 · Old # 08713 | $3.30/EA |
| 10 | TN4035760 | 1 | Bracket, Lip, HpprFits SN up to 003061 · Old # 1018236 | $66.00/EA |
| 11 | TN4041943 | 4 | Screw, Hex, M8 X 1.25 X 25, SsFits SN up to 003061 · Old # 09010 | $3.30/EA |
| 12 | TN4042902 | 4 | Washer, Flat, 0.31, SsFits SN up to 003061 · Old # 01685 | $2.60/EA |
| 13 | TN4035764 | 1 | Strap, Door, DumpFits SN up to 003061 · Old # 1018244 | $33.10/EA |
| 14 | TN4035765 | 1 | Seal, Door, DumpFits SN up to 003061 · Old # 1018245 | $37.10/EA |
| 15 | TN4041931 | 9 | Screw, Hex, M6 X 1.0 X 20, SsFits SN up to 003061 · Old # 08716 | $3.20/EA |
| 16 | TN4042901 | 19 | Washer, Flat, 0.25, SsFits SN up to 003061 · Old # 01684 | $2.60/EA |
| 17 | TN4035541 | 1 | Plate, Retainer, Door, DumpFits SN up to 003061 · Old # 1018196 | $45.30/EA |
| 18 | TN4035542 | 1 | Seal, Door, DumpFits SN up to 003061 · Old # 1018197 | $76.80/EA |
| 19 | TN4026709 | 6 | Bolt, Carriage, M06 X 1.0 X 30Fits SN up to 003061 · Old # 379791 | $4.00/EA |
| 20 | TN4041928 | 10 | Nut, Hex, Lock, M6 X 1.0, Ss, NlFits SN up to 003061 · Old # 08712 | $2.50/EA |
| 21 | TN4035540 | 2 | Strap, Door, Dump, SideFits SN up to 003061 · Old # 1018194 | $10.20/EA |
| 22 | TN4035543 | 2 | Seal, Door, Dump, SideFits SN up to 003061 · Old # 1018199 | $5.60/EA |
| 23 | TN4035736 | 1 | Bracket Wldt, Pivot, Hppr Door, LhFits SN up to 003061 · Old # 1018210 | Call for price |
| 24 | TN4035544 | 1 | Bracket, Pivot, Hppr Door, RhFits SN up to 003061 · Old # 1018202 | $25.50/EA |
| 25 | TN4035539 | 2 | Bushing, Pivot, DoorFits SN up to 003061 · Old # 1018193 | $38.10/EA |
| 26 | TN4015805 | 4 | Screw, Flt, M10 X 1.5 X 30, Ss 18 - 8Fits SN up to 003061 · Old # 395825 | $4.00/EA |
| 27 | TN4041611 | 2 | Screw, Flt, M8 X 1.25 X 25, 10.9Fits SN up to 003061 · Old # 07810 | $4.80/EA |
| 28 | TN4035131 | 1 | Door Wldt, HpprFits SN up to 003061 · Old # 1016463 | $528.40/EA |
| 29 | TN4017109 | 2 | Bushing, Sleeve, 0.75b 0.88d 0.75l, TefFits SN up to 003061 · Old # 64379 | Call for price |
| 30 | TN4041578 | 2 | Fitting, Grease, Str Pm04 .47lFits SN up to 003061 · Old # 07259 | $3.60/EA |
| 31 | TN4042449 | 1 | Bracket, Cover, HopperFits SN up to 003061 · Old # 1044993 | $60.20/EA |
| 32 | TN4035767 | 1 | Bracket, CoverFits SN up to 003061 · Old # 1018253 | $44.50/EA |
| 33 | TN4035960 | 4 | Screw, Hex, M10 X 1.5 X 30, SsFits SN up to 003061 · Old # 12317 | $4.90/EA |
| 34 | TN4041974 | 3 | Screw, Hex, M10 X 1.5 X 20, SsFits SN up to 003061 · Old # 09291 | $5.80/EA |
| 35 | TN4037922 | 3 | Washer, Flat, 0.40b 1.12d .12, SsFits SN up to 003061 · Old # 1014563 | $5.80/EA |
M20 hopper door group (003062 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043598 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Fits SN 003062 and later · Old # 1038115 | $223.30/EA |
| 2 | TN4025260 | 2 | Fitting, Hyd, E90, Jm04/Om04Fits SN 003062 and later · Old # 77097 | $14.70/EA |
| 3 | TN4041878 | 2 | Pin, Clevis, 0.37d X 1.75lFits SN 003062 and later · Old # 17461 | $4.00/EA |
| 4 | TN4041634 | 2 | Pin, Cotter, .094 X 1.00Fits SN 003062 and later · Old # 08179 | $2.50/EA |
| 5 | TN4037922 | 11 | Washer, Flat, 0.40b 1.12d .12, SsFits SN 003062 and later · Old # 1014563 | $5.80/EA |
| 6 | TN4035761 | 1 | Plate, Bottom, HpprFits SN 003062 and later · Old # 1018237 | $220.70/EA |
| 7 | TN4040233 | 2 | Washer, Flat, 0.38b 1.25d .12, NeoFits SN 003062 and later · Old # 222268 | $4.00/EA |
| 8 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 003062 and later · Old # 1017218 | $3.40/EA |
| 9 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 003062 and later · Old # 08713 | $3.30/EA |
| 10 | TN4035760 | 1 | Bracket, Lip, HpprFits SN 003062 and later · Old # 1018236 | $66.00/EA |
| 11 | TN4041943 | 4 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 003062 and later · Old # 09010 | $3.30/EA |
| 12 | TN4042902 | 4 | Washer, Flat, 0.31, SsFits SN 003062 and later · Old # 01685 | $2.60/EA |
| 13 | TN4044017 | 1 | Strap, Door, DumpFits SN 003062 and later · Old # 1039155 | $21.80/EA |
| 14 | TN4035765 | 1 | Seal, Door, DumpFits SN 003062 and later · Old # 1018245 | $37.10/EA |
| 15 | TN4041931 | 9 | Screw, Hex, M6 X 1.0 X 20, SsFits SN 003062 and later · Old # 08716 | $3.20/EA |
| 16 | TN4042901 | 14 | Washer, Flat, 0.25, SsFits SN 003062 and later · Old # 01684 | $2.60/EA |
| 17 | TN4044016 | 1 | Plate, Retainer, Door, DumpFits SN 003062 and later · Old # 1039149 | $61.40/EA |
| 18 | TN4044018 | 1 | Seal, Door, DumpFits SN 003062 and later · Old # 1039157 | $132.90/EA |
| 19 | TN4026709 | 5 | Bolt, Carriage, M06 X 1.0 X 30Fits SN 003062 and later · Old # 379791 | $4.00/EA |
| 20 | TN4041928 | 9 | Nut, Hex, Lock, M6 X 1.0, Ss, NlFits SN 003062 and later · Old # 08712 | $2.50/EA |
| 21 | TN4035767 | 1 | Bracket, CoverFits SN 003062 and later · Old # 1018253 | $44.50/EA |
| 22 | TN4035960 | 4 | Screw, Hex, M10 X 1.5 X 30, SsFits SN 003062 and later · Old # 12317 | $4.90/EA |
| 23 | TN4043611 | 1 | Bracket Wldt, Pivot, Hppr Door, LhFits SN 003062 and later · Old # 1038123 | $90.80/EA |
| 24 | TN4043613 | 1 | Bracket Wldt, Pivot, Hppr, RhFits SN 003062 and later · Old # 1038134 | $70.20/EA |
| 25 | TN4028819 | 2 | Bushing, Flng, 1.00b 1.13d 0.50lFits SN 003062 and later · Old # 367313 | $15.30/EA |
| 26 | TN4041974 | 3 | Screw, Hex, M10 X 1.5 X 20, SsFits SN 003062 and later · Old # 09291 | $5.80/EA |
| 27 | TN4041578 | 2 | Fitting, Grease, Str Pm04 .47lFits SN 003062 and later · Old # 07259 | $3.60/EA |
| 28 | TN4044009 | 1 | Door Wldt, HpprFits SN 003062 and later · Old # 1039124 | $358.40/EA |
| 29 | TN4042449 | 1 | Bracket, Cover, HopperFits SN 003062 and later · Old # 1044993 | $60.20/EA |
| 30 | TN4041930 | 4 | Nut, Hex, Lock, M10 X 1.5, Nl, SsFits SN 003062 and later · Old # 08714 | $3.30/EA |
M20 cylindrical scrub brush drive group, left side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036300 | 1 | Housing Wldt, Brush, DriveOld # 1021019 | $190.40/EA |
| 2 | TN4041243 | 4 | Screw, Hex, M8 X 1.25 X 16, SsOld # 15675 | $3.40/EA |
| 3 | TN4033536 | 1 | Tube, Hyd, 08 Jf08/Jm08Old # 1023617 | $72.10/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4015708 | 1 | Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500 (See Breakdowns)Fits SN up to 004190 · Old # 71729 | Call for price |
| 4 | TN4030082 | 1 | Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500Fits SN 004191 and later · Old # 1068811 | $594.80/EA |
| 5 | TN4015800 | 1 | Nut, Hex, Sltd, .75 - 18Old # 39527 | $8.00/EA |
| 6 | TN4017776 | 2 | Fitting, Hyd, E90, Jm08/Om08Old # 44868 | $10.30/EA |
| 7 | TN4028729 | 1 | Fitting, Hyd, Str, Jm04/Om04Old # 55586 | $6.20/EA |
| 8 | TN4034229 | 1 | Clamp, Hyd, 0.50dOld # 1026080 | $8.70/EA |
| 9 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 004185 · Old # 08713 | $3.30/EA |
| 10 | TN4031386 | 1 | Door Wldt, BrushOld # 1029964 | $74.90/EA |
| 11 | TN4042969 | 4 | Screw, Hex, .38 - 16 X 0.75, NlOld # 01762 | $3.20/EA |
| 12 | TN4041632 | 1 | Pin, Cotter, .125 X 1.25Old # 08175 | $2.50/EA |
| Item 13: choose your version (2) | ||||
| 13 | TN4022124 | 1 | Plug Wldt, Drive, Brush, SweepFits SN up to 004190 · Old # 87631 | $242.60/EA |
| 13 | TN4036586 | 1 | Plug Wldt, Drive, Brush, SweepFits SN 004191 and later · Old # 1057643 | $152.90/EA |
| 14 | TN4017894 | 1 | LatchOld # 65695 | $32.90/EA |
| 15 | TN4034247 | 1 | Pawl, StrOld # 1026352 | $6.00/EA |
| 16 | TN4014914 | 1 | Screw, Hex, M8 X 1.25 X 130, 8.8Fits SN up to 004185 · Old # 70563 | $3.40/EA |
| TN4015320 | 1 | Idler Assy, Brush, Replmt [M20/T20, M30]Fits SN up to 004185 · Old # 9006398 | $867.10/EA | |
| 17 | TN4035446 | 1 | Plug Wldt, Drive, BrushFits SN up to 004185 · Old # 25686 | $179.60/EA |
| 18 | TN4042784 | 1 | Key, Sq, 0.25 X 0.25, 1.25lFits SN up to 004185 · Old # 00927 | $3.60/EA |
| 19 | TN4043631 | 1 | Door Wldt, Brush, IdlerFits SN up to 004185 · Old # 1038258 | $249.70/EA |
| 20 | TN4043586 | 2 | Bearing, Ball, 0.98b 2.05d 0.59wFits SN up to 004185 · Old # 13534 | $17.50/EA |
| 21 | TN4029109 | 1 | Shaft, Brush, IdlerFits SN up to 004185 · Old # 56078 | $279.20/EA |
| 22 | TN4041941 | 2 | Ring, Retaining, Ext, 1.00d, BasicFits SN up to 004185 · Old # 09005 | $2.50/EA |
| 23 | TN4035288 | 1 | Nut, Hex, Sltd, M20 X 2.5, 8Fits SN up to 004185 · Old # 12295 | $9.50/EA |
| 24 | TN4041632 | 1 | Pin, Cotter, .125 X 1.25Fits SN up to 004185 · Old # 08175 | $2.50/EA |
| 25 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN up to 002167 · Old # 09739 | $3.30/EA |
| 26 | TN4041856 | 2 | Screw, Pan, M5 X 0.8 X 40, SsFits SN up to 002167 · Old # 17185 | $4.00/EA |
| 27 | TN4032484 | 1 | Plate, HandleFits SN up to 002167 · Old # 1032743 | Call for price |
| 28 | TN4040603 | 2 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN up to 002167 · Old # 222496 | $3.40/EA |
| 29 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 30 | TN4038684 | 1 | Door Wldt, Brush, IdlerFits SN 004186 and later · Old # 1054857 | $205.40/EA |
| 31 | TN4038636 | 1 | Bracket, SpptFits SN 004186 and later · Old # 1054575 | $39.20/EA |
| 32 | TN4038661 | 1 | Bracket, Retainer, LhFits SN 004186 and later · Old # 1054682 | $18.60/EA |
| 33 | TN4035446 | 1 | Plug Wldt, Drive, BrushFits SN 004186 and later · Old # 25686 | $179.60/EA |
| 34 | TN4043586 | 2 | Bearing, Ball, 0.98b 2.05d 0.59wFits SN 004186 and later · Old # 13534 | $17.50/EA |
| 35 | TN4029109 | 1 | Shaft, Brush, IdlerFits SN 004186 and later · Old # 56078 | $279.20/EA |
| 36 | TN4041941 | 2 | Ring, Retaining, Ext, 1.00d, BasicFits SN 004186 and later · Old # 09005 | $2.50/EA |
| 37 | TN4035288 | 1 | Nut, Hex, Sltd, M20 X 2.5, 8Fits SN 004186 and later · Old # 12295 | $9.50/EA |
| 38 | TN4041632 | 1 | Pin, Cotter, .125 X 1.25Fits SN 004186 and later · Old # 08175 | $2.50/EA |
| 39 | TN4042784 | 1 | Key, Sq, 0.25 X 0.25, 1.25lFits SN 004186 and later · Old # 00927 | $3.60/EA |
| 40 | TN4041992 | 1 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 004186 and later · Old # 09740 | $3.30/EA |
| 41 | TN4034137 | 3 | Washer, Flat, 0.31, StdFits SN 004186 and later · Old # 32491 | $2.50/EA |
| 42 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 004186 and later · Old # 09010 | $3.30/EA |
| 43 | TN4044946 | 1 | Cap, Vinyl, 57mmid X 23mmlFits SN 004186 and later · Old # 1074807 | $3.70/EA |
M20 cylindrical scrub brush drive group, right side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036300 | 1 | Housing Wldt, Brush, DriveOld # 1021019 | $190.40/EA |
| 2 | TN4041243 | 4 | Screw, Hex, M8 X 1.25 X 16, SsOld # 15675 | $3.40/EA |
| 3 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4015708 | 1 | Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500 (See Breakdowns)Fits SN up to 004190 · Old # 71729 | Call for price |
| 4 | TN4030082 | 1 | Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500Fits SN 004191 and later · Old # 1068811 | $594.80/EA |
| 5 | TN4015800 | 1 | Nut, Hex, Sltd, .75 - 16Old # 39527 | $8.00/EA |
| 6 | TN4017776 | 2 | Fitting, Hyd, E90, Jm08/Om08Old # 44868 | $10.30/EA |
| 7 | TN4015312 | 1 | Tube Kit, Hyd, Case Drain [M20/T20]Fits SN up to 003056 · Old # 9006386 | $109.30/EA |
| 8 | TN4034229 | 1 | Clamp, Hyd, 0.50dOld # 1026080 | $8.70/EA |
| 9 | TN4031386 | 1 | Door Wldt, BrushOld # 1029964 | $74.90/EA |
| 10 | TN4041856 | 2 | Screw, Pan, M5 X 0.8 X 40, SsFits SN up to 002167 · Old # 17185 | $4.00/EA |
| 11 | TN4042969 | 4 | Screw, Hex, .38 - 16 X 0.75, NlOld # 01762 | $3.20/EA |
| 12 | TN4041632 | 1 | Pin, Cotter, .125 X 1.25Old # 08175 | $2.50/EA |
| Item 13: choose your version (2) | ||||
| 13 | TN4022124 | 1 | Plug Wldt, Drive, Brush, SweepFits SN up to 004190 · Old # 87631 | $242.60/EA |
| 13 | TN4036586 | 1 | Plug Wldt, Drive, Brush, SweepFits SN 004191 and later · Old # 1057643 | $152.90/EA |
| 14 | TN4017894 | 1 | LatchOld # 65695 | $32.90/EA |
| 15 | TN4034247 | 1 | Pawl, StrOld # 1026352 | $6.00/EA |
| 16 | TN4014914 | 1 | Screw, Hex, M8 X 1.25 X 130, 8.8Fits SN up to 004185 · Old # 70563 | $3.40/EA |
| 17 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 004185 · Old # 08713 | $3.30/EA |
| TN4015320 | 1 | Idler Assy, Brush, Replmt [M20/T20, M30]Fits SN up to 004185 · Old # 9006398 | $867.10/EA | |
| 18 | TN4035446 | 1 | Plug Wldt, Drive, BrushFits SN up to 004185 · Old # 25686 | $179.60/EA |
| 19 | TN4043631 | 1 | Door Wldt, Brush, IdlerFits SN up to 004185 · Old # 1038258 | $249.70/EA |
| 20 | TN4043586 | 2 | Bearing, Ball, 0.98b 2.05d 0.59wFits SN up to 004185 · Old # 13534 | $17.50/EA |
| 21 | TN4041941 | 2 | Ring, Retaining, Ext, 1.00d, BasicFits SN up to 004185 · Old # 09005 | $2.50/EA |
| 22 | TN4029109 | 1 | Shaft, Brush, IdlerFits SN up to 004185 · Old # 56078 | $279.20/EA |
| 23 | TN4035288 | 1 | Nut, Hex, Sltd, M20 X 2.5, 8Fits SN up to 004185 · Old # 12295 | $9.50/EA |
| 24 | TN4041632 | 1 | Pin, Cotter, .125 X 1.25Fits SN up to 004185 · Old # 08175 | $2.50/EA |
| 25 | TN4042784 | 1 | Key, Sq, 0.25 X 0.25, 1.25lFits SN up to 004185 · Old # 00927 | $3.60/EA |
| 26 | TN4032484 | 1 | Plate, HandleFits SN up to 002167 · Old # 1032743 | Call for price |
| 27 | TN4040603 | 2 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN up to 002167 · Old # 222496 | $3.40/EA |
| 28 | TN4041991 | 2 | Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN up to 002167 · Old # 09739 | $3.30/EA |
| 29 | TN4038716 | 1 | Tube, Hyd, Brush Return, W/ Cd [M20/T20]Old # 1055139 | $158.30/EA |
| 30 | TN4019344 | 1 | Fitting, Hyd, E90, Jf04/Jm04Old # 39210 | $8.70/EA |
| 31 | TN4028729 | 1 | Fitting, Hyd, Str, Jm04/Om04Old # 55586 | $6.20/EA |
| 32 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 33 | TN4038684 | 1 | Door Wldt, Brush, IdlerFits SN 004186 and later · Old # 1054857 | $205.40/EA |
| 34 | TN4038636 | 1 | Bracket, SpptFits SN 004186 and later · Old # 1054575 | $39.20/EA |
| 35 | TN4038642 | 1 | Bracket, Retainer, RhFits SN 004186 and later · Old # 1054610 | $18.60/EA |
| 36 | TN4035446 | 1 | Plug Wldt, Drive, BrushFits SN 004186 and later · Old # 25686 | $179.60/EA |
| 37 | TN4043586 | 2 | Bearing, Ball, 0.98b 2.05d 0.59wFits SN 004186 and later · Old # 13534 | $17.50/EA |
| 38 | TN4041941 | 2 | Ring, Retaining, Ext, 1.00d, BasicFits SN 004186 and later · Old # 09005 | $2.50/EA |
| 39 | TN4029109 | 1 | Shaft, Brush, IdlerFits SN 004186 and later · Old # 56078 | $279.20/EA |
| 40 | TN4035288 | 1 | Nut, Hex, Sltd, M20 X 2.5, 8Fits SN 004186 and later · Old # 12295 | $9.50/EA |
| 41 | TN4041632 | 1 | Pin, Cotter, .125 X 1.25Fits SN 004186 and later · Old # 08175 | $2.50/EA |
| 42 | TN4042784 | 1 | Key, Sq, 0.25 X 0.25, 1.25lFits SN 004186 and later · Old # 00927 | $3.60/EA |
| 43 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 004186 and later · Old # 09010 | $3.30/EA |
| 44 | TN4041992 | 1 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 004186 and later · Old # 09740 | $3.30/EA |
| 45 | TN4034137 | 3 | Washer, Flat, 0.31, StdFits SN 004186 and later · Old # 32491 | $2.50/EA |
| 46 | TN4044946 | 1 | Cap, Vinyl, 57mmid X 23mmlFits SN 004186 and later · Old # 1074807 | $3.70/EA |
M20 cylindrical scrub brush head lift group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031765 | 1 | Bracket, Mtg, Scb Head, RhOld # 1030910 | $36.50/EA |
| 2 | TN4031766 | 1 | Bracket, Mtg, Scb Head, LhOld # 1030911 | $26.60/EA |
| 3 | TN4041948 | 4 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 4 | TN4034134 | 4 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 5 | TN1020002 | 1 | Housing Wldt, Swp, ScbFits SN up to 004185 · Old # 1020002 · no current Tennant number on file | Call for price |
| 6 | TN4017929 | 2 | Rod - End, .50 - 20rh Fem 0.50bOld # 67555 | $70.00/EA |
| 7 | TN4037934 | 2 | Rod, Thrd, 2 End, .50 - 20 04.9l, Rh / LhOld # 1014705 | $54.00/EA |
| 8 | TN4013991 | 2 | Nut, Hex, Jam, .50 - 20Old # 48985 | $3.40/EA |
| 9 | TN4015630 | 2 | Nut, Hex, Jam, .50 - 20, LhOld # 71369 | $4.00/EA |
| 10 | TN4027312 | 2 | Rod - End, .50 - 20lh Fem 0.50 - 20studOld # 382099 | $53.10/EA |
| 11 | TN4014600 | 2 | Nut, Hex, Lock, .50 - 20, Nl, ThinOld # 51824 | $3.30/EA |
| 12 | TN4036233 | 1 | Tube Wldt, TorqueOld # 1020003 | $219.70/EA |
| 13 | TN4017310 | 4 | Bearing, Self Align, 0.75b 1.25dOld # 42120 | $35.40/EA |
| 14 | TN4041578 | 4 | Fitting, Grease, Str Pm04 .47lOld # 07259 | $3.60/EA |
| 15 | TN4041294 | 2 | Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969 | $4.00/EA |
| 16 | TN4017232 | 2 | Washer, Flat, 0.56b 1.38d .11, SsOld # 41619 | $4.10/EA |
| 17 | TN4041993 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741 | $5.80/EA |
| 18 | TN4040938 | 2 | Pin, Clevis, 0.75d X 2.00lOld # 04733-12 | $7.60/EA |
| 19 | TN4041918 | 2 | Pin, Cotter, .156 X 1.25Old # 08236 | $3.40/EA |
| 20 | TN4037385 | 2 | Screw, Hex, M5 X 0.8 X 10, FmgOld # 223198 | $4.00/EA |
| 21 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 22 | TN4025261 | 2 | Fitting, Hyd, E90, Jm06/Om04Old # 77098 | $15.50/EA |
| 23 | TN4041878 | 2 | Pin, Clevis, 0.37d X 1.75lOld # 17461 | $4.00/EA |
| 24 | TN4022048 | 2 | Pin, Cotter, Hair, 0.38d .072 WirOld # 86866 | $2.50/EA |
| 25 | TN4044719 | 1 | Spring, Extn, 2.00od 0.25wir 07.5lOld # 1042686 | $23.40/EA |
| 26 | TN4030652 | 1 | Bracket, Mtg, SpringOld # 1027810 | $19.80/EA |
| 27 | TN4011904 | 1 | Screw, Hex, M8 X 1.25 X 60, FlOld # 763090 | Call for price |
| 28 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 29 | TN4035885 | 1 | Bracket, Mtg, Lift, Scb HeadOld # 1019146 | $31.00/EA |
| 30 | TN4041992 | 3 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 31 | TN4016292 | 2 | Screw, Hex, .50 - 13 X 1.50, 5Old # 39811 | $4.00/EA |
| 32 | TN4028759 | 2 | Nut, Hex, Lock, .50 - 13, Nl, ThinOld # 36644 | $3.40/EA |
| 33 | TN4033870 | 3 | Sleeve, P/M, 0.47b 0.75d 0.5l [430ss]Old # 1025100 | $4.20/EA |
| 34 | TN4041051 | 1 | Bracket Wldt, Brush Wrap, LhFits SN 004186 and later · Old # 1052342 | $443.90/EA |
| 35 | TN4030120 | 1 | Plate Wldt, Wrap, BrushFits SN 004186 and later · Old # 1069562 | $303.10/EA |
| 36 | TN4040825 | 1 | Bracket Wldt, Brush Wrap Mtg, RhFits SN 004186 and later · Old # 1052124 | $470.60/EA |
| 37 | TN4041992 | 10 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 004186–007371 · Old # 09740 | $3.30/EA |
| 38 | TN4034137 | 20 | Washer, Flat, 0.31, StdFits SN 004186 and later · Old # 32491 | $2.50/EA |
| 39 | TN4041929 | 10 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 004186 and later · Old # 08713 | $3.30/EA |
| 40 | TN4037712 | 10 | Screw, Btn, M8 X 1.25 X 25, SsFits SN 007372 and later · Old # 223470 | $4.00/EA |
M20 cylindrical brush head skirt group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036248 | 1 | Plate, Skirt, FrontFits SN up to 002275 · Old # 1020208 | $46.20/EA |
| 2 | TN4036240 | 1 | Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166 | $70.20/EA |
| 3 | TN4036247 | 1 | Retainer, Skirt, FrontFits SN up to 002275 · Old # 1020207 | $39.70/EA |
| 4 | TN4032923 | 1 | Skirt, Neo, .06, 07.63w 51.52l, 11 HoleOld # 1022363 | $50.20/EA |
| 5 | TN4032872 | 4 | Retainer, SkirtOld # 1022003 | $10.20/EA |
| 6 | TN4029864 | 13 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 7 | TN4042901 | 12 | Washer, Flat, 0.25, SsOld # 01684 | $2.60/EA |
| 8 | TN4033621 | 1 | Bracket, Mtg, SkirtFits SN up to 002275 · Old # 1024570 | $26.60/EA |
| 9 | TN4036239 | 1 | Bracket, Mtg, SkirtFits SN up to 002275 · Old # 1020163 | $30.20/EA |
| 10 | TN4013943 | 4 | Screw, Hex, M8 X 1.25 X 25, FmgFits SN up to 002275 · Old # 76099 | $4.00/EA |
| 11 | TN4044044 | 1 | Bracket, Mtg, SkirtFits SN 002276 and later · Old # 1039396 | $102.90/EA |
| 12 | TN4041992 | 4 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 13 | TN4042902 | 22 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 14 | TN4032906 | 1 | Bracket Wldt, Flap, RecirculationOld # 1022179 | $204.40/EA |
| 15 | TN4041943 | 13 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 16 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 17 | TN4032876 | 1 | Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007 | $49.10/EA |
| 18 | TN4032877 | 1 | Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009 | $34.70/EA |
| 19 | TN4036282 | 1 | Strip, Flap, RecirculationOld # 1020828 | $29.10/EA |
| 20 | TN4030999 | 1 | Strap, Static, AfmktOld # 1028852 | Call for price |
| 21 | TN4016787 | 7 | Washer, Lock, Int - Ext, 0.31Old # 41141 | $3.50/EA |
| 22 | TN4044265 | 1 | Plate, Skirt, FrontFits SN 002276 and later · Old # 1040018 | $56.20/EA |
| 23 | TN4031209 | 1 | Screw, Hex, M8 X 1.25 X 50, Ss, FlOld # 33401 | $4.00/EA |
| 24 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 25 | TN4032901 | 2 | Skirt, Neo, .12, 05.39w 14.01l, 02 SlOld # 1022165 | $57.10/EA |
| 26 | TN4034232 | 1 | Skirt, Neo, .06, 26.99w 40.55l, 36 HoleOld # 1026108 | $126.60/EA |
| 27 | TN4036282 | 1 | Strip, Flap, RecirculationOld # 1020828 | $29.10/EA |
| 28 | TN4041608 | 6 | Screw, Hex, M6 X 1.0 X 35, SsOld # 07805 | $3.30/EA |
| 29 | TN4041928 | 6 | Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712 | $2.50/EA |
| 30 | TN1022359 | 2 | Plate, Mtg, Skirt, Scb Head (Replaced by None)Fits SN up to 001284 · Old # 1022359 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
M20 squeegee lift group, rear
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034223 | 4 | Link Assy, Rod - End, M12Old # 1026007 | $131.30/EA |
| 2 | TN4017232 | 8 | Washer, Flat, 0.56b 1.38d .11, SsOld # 41619 | $4.10/EA |
| 3 | TN4041993 | 8 | Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741 | $5.80/EA |
| 4 | TN4013466 | 2 | Spring, Extn, 0.88od X 0.14wir, 9.0lOld # 46785-1 | $49.00/EA |
| 5 | TN4022266 | 2 | Bolt, Eye, M10 X 1.50 X 064mm, 07.10 EyeOld # 386847 | $11.60/EA |
| 6 | TN4042903 | 2 | Washer, Flat, 0.44b 1.00d .08, SsOld # 01686 | $3.30/EA |
| 7 | TN4041930 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714 | $3.30/EA |
| 8 | TN4032925 | 1 | Angle, RhOld # 1022372 | $22.80/EA |
| 9 | TN4032936 | 1 | Angle, LhOld # 1022442 | $20.50/EA |
| 10 | TN4041943 | 4 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 11 | TN4042902 | 15 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 12 | TN4041929 | 9 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 13 | TN4015603 | 2 | Spring, Flt, 0.08th, 4.50w X 07.0lOld # 71204 | $28.80/EA |
| 14 | TN4033833 | 4 | Block, CenteringOld # 1024648 | $21.20/EA |
| 15 | TN4029273 | 4 | Screw, Pan, M6 X 1.0 X 16, SsOld # 367770 | $2.50/EA |
| 16 | TN4041928 | 4 | Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712 | $2.50/EA |
| 17 | TN4033831 | 4 | Spacer, Pad, RbrOld # 1024641 | $3.90/EA |
| 18 | TN4033838 | 2 | Retainer, SpringOld # 1024703 | $10.40/EA |
| 19 | TN4041945 | 4 | Screw, Hex, M8 X 1.25 X 35, Ss, FlOld # 09023 | $3.30/EA |
| 20 | TN4016797 | 4 | Washer, Flat, Belleville, .38Old # 41187 | $4.10/EA |
| 21 | TN4035960 | 4 | Screw, Hex, M10 X 1.5 X 30, SsOld # 12317 | $4.90/EA |
| 22 | TN4034203 | 1 | Bellcrank, Lift, SqgeOld # 1025680 | $116.80/EA |
| 23 | TN4028819 | 2 | Bushing, Flng, 1.00b 1.13d 0.50lOld # 367313 | $15.30/EA |
| 24 | TN4036077 | 2 | Pin, Clevis, 0.37d X 2.00lOld # 29584 | $3.90/EA |
| 25 | TN4035045 | 1 | Ring, Retaining, Ext, 0.38d, [Selflock]Old # 23524-1 | $2.40/EA |
| 26 | TN4041634 | 2 | Pin, Cotter, .094 X 1.00Old # 08179 | $2.50/EA |
| 27 | TN4040927 | 1 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 28 | TN4041993 | 1 | Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741 | $5.80/EA |
| 29 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 30 | TN4025260 | 2 | Fitting, Hyd, E90, Jm04/Om04Old # 77097 | $14.70/EA |
| 31 | TN4033552 | 1 | Chain, Str, 4/0, 08 LinkOld # 1023779 | $5.50/EA |
| 32 | TN4032821 | 1 | Plate Wldt, Lift, SqgeOld # 1021609 | $180.10/EA |
| 33 | TN4041282 | 1 | Screw, Hex, M8 X 1.25 X 60, 8.8Fits SN 002102 and later · Old # 06957 | $3.40/EA |
M20 squeegee group, rear
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017376 | 1 | Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555 | $6.20/EA |
| TN4013708 | 1 | Squeegee Kit, Rear, Replmt [M20/T20]Old # 9004493 | $1,254.10/EA | |
| 2 | TN4033218 | 1 | Squeegee Wldt, RearOld # 1022831 | $631.30/EA |
| 3 | TN4033239 | 1 | Clamp Wldt, FrontOld # 1023239 | $102.00/EA |
| 4 | TN4043266 | 4 | Strip, Non - Slip, 0.50w 06.0lOld # 03495 | $3.40/EA |
| 5 | TN4039420 | 4 | Pin, Grvd, 0.43d 01.8l [303ss]Old # 21603 | $16.60/EA |
| 6 | TN4035383 | 4 | Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555 | $2.40/EA |
| 7 | TN4021717 | 1 | Pin Wldt, FrontOld # 386298 | $40.30/EA |
| 8 | TN4039418 | 1 | CamOld # 21601 | Call for price |
| 9 | TN4030695 | 1 | Clamp Wldt, RearOld # 1028374 | $121.90/EA |
| 10 | TN4039421 | 1 | Bar Wldt, Retainer, Sqge, RearOld # 21606 | $51.20/EA |
| 11 | TN4039419 | 1 | Cam, RearOld # 21602 | $0.00/EACall for availability |
| 12 | TN4021294 | 2 | Gasket, SqgeOld # 83874 | $13.00/EA |
| 13 | TN4021691 | 2 | Bumper, SqgeOld # 386264 | $25.40/EA |
| 14 | TN4030447 | 2 | Wheel, 4.0d 0.89w 0.64bOld # 363162 | $35.40/EA |
| 15 | TN4030457 | 2 | Sleeve, P/M, 0.34b 0.63d 1.2l, BnzOld # 363301 | $9.30/EA |
| 16 | TN4023495 | 2 | Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395 | $5.10/EA |
| 17 | TN4027793 | 2 | Screw, Hex, M8 X 1.25 X 110, SsOld # 364441 | $4.90/EA |
| 18 | TN4042902 | 10 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 19 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 20 | TN4036388 | 2 | Knob, Star, 2.80d 4ear 1.1l .31 - 18 PypOld # 370100 · replaced by 4036388 (Tennant parts catalog) | Call for price |
| 21 | TN4040927 | 2 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 22 | TN4018105 | 2 | Ring, Mtg, Sqge, .50lOld # 387433 | $20.90/EA |
| 23 | TN4018131 | 2 | Spring, Cmpr, 0.9od .042wir 02.0lOld # 387500 | $3.50/EA |
| 24 | TN4018055 | 2 | Stud, .31 - 18 2.75l M8 X 1.25, SsOld # 387237 | $19.30/EA |
| 25 | TN4032803 | 1 | Hose, Vacuum, 19.0lOld # 1021511 | $69.00/EACall for availability |
| Item 26: choose your version (2) | ||||
| 26 | TN4035508 | 1 | Blade, Sqge, Front, 49.58l [Linard]Old # 1017868 | $90.00/EA |
| 26 | TN4030648 | 1 | Blade, Sqge, Front, 49.58l Ure (Option)Old # 1027719 | $274.30/EA |
| Item 27: choose your version (2) | ||||
| 27 | TN4031803 | 1 | Blade, Sqge, Rear, LinatexOld # 1031331 | $120.00/EA |
| 27 | TN4032198 | 1 | Blade, Sqge, Rear, 53.78l Ure (Option)Old # 1031945 | $305.50/EA |
M20 squeegee linkage group, rear
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042902 | 6 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 2 | TN4041929 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 3 | TN4023499 | 2 | Sleeve, P/M, 0.34b 0.63d 0.6l, BnzOld # 80409 | $5.10/EA |
| 4 | TN4035645 | 2 | Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735 | $10.60/EA |
| 5 | TN4040607 | 2 | Screw, Hex, M8 X 1.25 X 45, SsOld # 222505 | $4.00/EA |
| 6 | TN4033268 | 1 | Bracket Wldt, Mtg, SqgeOld # 1023476 | $253.70/EA |
| 7 | TN4017703 | 1 | Spring, Dsl, 1.00od 0.50id 1.7lOld # 65180 | $25.80/EA |
| 8 | TN4034194 | 1 | Bolt, Carriage, M10 X 1.5 X 70Old # 1025601 | $3.40/EA |
| 9 | TN4016746 | 1 | Pin Wldt, Lift (Replaced by 9003478)Fits SN up to 002101 · Old # 1034147 · replaced by 4016746 (Tennant parts catalog) | Call for price |
| 10 | TN4040607 | 2 | Screw, Hex, M8 X 1.25 X 45, SsFits SN up to 002101 · Old # 222505 | $4.00/EA |
| 11 | TN4036644 | 2 | Bracket Wldt, Mtg, CasterOld # 1021404 | $36.87/EA |
| 12 | TN4039111 | 2 | Wheel, 3.0d 1.38w 0.50bOld # 20833 | $80.80/EA |
| 13 | TN4024265 | 2 | Screw, Hex, .50 - 13 X 3.00, Ss18 - 8Old # 81952 | $5.10/EA |
| 14 | TN4043240 | 2 | Nut, Hex, Lock, .50 - 13, Nl, SsOld # 02931 | $7.50/EA |
| 15 | TN4041578 | 2 | Fitting, Grease, Str Pm04 .47lOld # 07259 | $3.60/EA |
| 16 | TN4031208 | 2 | Ring, Retaining, Ext, 0.62d, HdOld # 33373 | $3.40/EA |
| 17 | TN4017061 | 2 | Washer, Flat, 0.69b 1.19d .06, Stl, PlOld # 63468 | $4.10/EA |
| 18 | TN4017115 | 2 | Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425 | $5.40/EA |
| 19 | TN4041585 | 4 | Bushing, Sleeve, 0.62b 0.72d 0.50l, FglOld # 07449 | $9.60/EA |
| 20 | TN4033916 | 2 | Caster, PivotOld # 1025460 | $106.20/EA |
| 21 | TN4023753 | 4 | Bushing, Flng, 0.32b 0.50d 0.24l, BnzOld # 80950 | $6.00/EA |
| 22 | TN4019755 | 2 | Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281 | $4.00/EA |
| 23 | TN4032807 | 2 | Knob Assy, Star, 1.12d 3ear M10Old # 1021546 | $38.80/EA |
| 24 | TN4032802 | 2 | Pin, 0.63d 01.8l, 1/M10h, 2chamOld # 1021497 | $13.00/EA |
| 25 | TN1022545 | 2 | Spring, KeeperFits SN up to 002049 · Old # 1022545 · current Tennant number (Tennant parts catalog) | Call for price |
| 26 | TN4034134 | 2 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 27 | TN4035383 | 2 | Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555 | $2.40/EA |
| 28 | TN4037922 | 1 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
| 29 | TN4041930 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714 | $3.30/EA |
| 30 | TN4045201 | 1 | Crossmember Wldt [M20]Old # 1034149 | $422.40/EA |
| 31 | TN4045431 | 2 | Stop, RotationFits SN 002050 and later · Old # 1035727 | $4.00/EA |
| 32 | TN4042902 | 4 | Washer, Flat, 0.31, SsFits SN up to 002101 · Old # 01685 | $2.60/EA |
| 33 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 002101 · Old # 08713 | $3.30/EA |
M20 squeegee group, right side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031037 | 1 | Frame Wldt, Sqge, RhOld # 1029132 | $159.70/EA |
| 2 | TN4031035 | 1 | Retainer, Sqge, Side, RhOld # 1029128 | $48.80/EA |
| 3 | TN4024118 | 1 | Latch, Door [Southco 91 - 562 - 07]Old # 384418 | $25.30/EA |
| 4 | TN4014173 | 2 | Screw, Pan, M4 X 0.7 X 10, SsOld # 49697 | $3.40/EA |
| 5 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| Item 6: choose your version (2) | ||||
| 6 | TN4031774 | 1 | Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011 | $93.40/EA |
| 6 | TN4032169 | 1 | Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823 | $183.50/EA |
| 7 | TN4035645 | 2 | Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735 | $10.60/EA |
| 8 | TN4017115 | 2 | Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425 | $5.40/EA |
| 9 | TN4033219 | 2 | Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846 | $20.00/EA |
| 10 | TN4041954 | 2 | Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081 | $5.80/EA |
| 11 | TN4033625 | 1 | Bracket, Mtg, Skirt, Brush DoorOld # 1024584 | $65.20/EA |
| 12 | TN4033834 | 1 | Bracket, Mtg, Skirt, DoorOld # 1024651 | $69.30/EA |
| 13 | TN4033626 | 1 | Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586 | $33.60/EA |
| 14 | TN4035908 | 1 | Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295 | $67.60/EA |
| 15 | TN4033882 | 1 | Bracket, Mtg, Skirt, Door, BrushOld # 1025151 | $53.20/EA |
| 16 | TN4040584 | 6 | Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463 | $3.30/EA |
| 17 | TN4019813 | 4 | Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135 | $3.30/EA |
| 18 | TN4041929 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 19 | TN4041605 | 2 | Nut, Hex, Flng, M8 X 1.25Old # 07791 | $2.50/EA |
M20 squeegee lift group, right side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 2 | TN4025260 | 1 | Fitting, Hyd, E90, Jm04/Om04Old # 77097 | $14.70/EA |
| 3 | TN4030954 | 1 | Fitting, Hyd, Rst, SpclOld # 1028635 | $77.30/EA |
| 4 | TN4033217 | 1 | Bracket, Mtg, CylOld # 1022825 | $24.30/EA |
| 5 | TN4041931 | 1 | Screw, Hex, M6 X 1.00 X 20, SsOld # 08716 | $3.20/EA |
| 6 | TN4042902 | 3 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 7 | TN4044039 | 1 | Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348 | $11.80/EA |
| 8 | TN4036275 | 2 | Arm, Sqge, Side, RhOld # 1020548 | $62.70/EA |
| 9 | TN4041878 | 1 | Pin, Clevis, 0.37D X 1.75LOld # 17461 | $4.00/EA |
| 10 | TN4041914 | 1 | Pin, Cotter, .125 X 1.00Old # 08182 | $2.50/EA |
| 11 | TN4022528 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816 | $5.20/EA |
| 12 | TN4021359 | 2 | Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088 | $24.20/EA |
| 13 | TN4041600 | 4 | Nut, Hex, Std, M8 X 1.25, SsOld # 07786 | $3.40/EA |
| 14 | TN4033244 | 1 | Arm Wldt, Sqge, Lift, RhOld # 1023306 | Call for price |
| 15 | TN4015663 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607 | $12.50/EA |
| 16 | TN4023925 | 1 | Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784 | $25.30/EA |
| 17 | TN4032591 | 3 | Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801 | $4.00/EA |
| 18 | TN4019804 | 1 | Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308 | $3.40/EA |
| 19 | TN4016830 | 1 | Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445 | $5.10/EA |
| 20 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 21 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 22 | TN4017115 | 5 | Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425 | $5.40/EA |
| 23 | TN4016797 | 3 | Washer, Flat, Belleville, .38Old # 41187 | $4.10/EA |
| 24 | TN4041992 | 5 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4035869 | 1 | Door Wldt, Brush, RhOld # 1019031 | $356.60/EA |
| 26 | TN4041948 | 3 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 27 | TN4030456 | 1 | Washer, Flat, Belleville, .50Old # 36328 | $4.10/EA |
| 28 | TN4026796 | 1 | Latch, HookOld # 59194 | $82.60/EA |
| 29 | TN4041942 | 2 | Screw, Hex, M6 X 1.0 X 25, SsOld # 09007 | $3.30/EA |
| 30 | TN4016795 | 5 | Washer, Flat, Belleville, .25Old # 41185 | $3.40/EA |
| 31 | TN4026728 | 1 | Screw, Hex, M12 X 1.75 X 55, SsOld # 379870 | $7.60/EA |
| 32 | TN4041602 | 1 | Nut, Hex, Std, M12 X 1.75, SsOld # 07788 | $3.40/EA |
| 33 | TN4017232 | 1 | Washer, Flat, 0.56b 1.38d .11, SsOld # 41619 | $4.10/EA |
| 34 | TN4033623 | 1 | Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576 | $76.50/EA |
M20 squeegee group, left side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031019 | 1 | Frame Wldt, Sqge, LhOld # 1028972 | $181.40/EA |
| 2 | TN4031021 | 1 | Retainer, Sqge, Side, LhOld # 1028979 | $48.80/EA |
| 3 | TN4024118 | 1 | Latch, Door [Southco 9156207]Old # 384418 | $25.30/EA |
| 4 | TN4014173 | 2 | Screw, Pan, M4 X 0.7 X 10, SsOld # 49697 | $3.40/EA |
| 5 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| Item 6: choose your version (2) | ||||
| 6 | TN4031774 | 1 | Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011 | $93.40/EA |
| 6 | TN4032169 | 1 | Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823 | $183.50/EA |
| 7 | TN4035645 | 2 | Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735 | $10.60/EA |
| 8 | TN4017115 | 2 | Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425 | $5.40/EA |
| 9 | TN4033219 | 2 | Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846 | $20.00/EA |
| 10 | TN4041954 | 2 | Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081 | $5.80/EA |
| 11 | TN4033625 | 1 | Bracket, Mtg, Skirt, Brush DoorOld # 1024584 | $65.20/EA |
| 12 | TN4033834 | 1 | Bracket, Mtg, Skirt, DoorOld # 1024651 | $69.30/EA |
| 13 | TN4033626 | 1 | Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586 | $33.60/EA |
| 14 | TN4035908 | 1 | Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295 | $67.60/EA |
| 15 | TN4033882 | 1 | Bracket, Mtg, Skirt, Door, BrushOld # 1025151 | $53.20/EA |
| 16 | TN4040584 | 6 | Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463 | $3.30/EA |
| 17 | TN4019813 | 4 | Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135 | $3.30/EA |
| 18 | TN4041929 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 19 | TN4041605 | 2 | Nut, Hex, Flng, M8 X 1.25Old # 07791 | $2.50/EA |
M20 squeegee lift group, left side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 2 | TN4025260 | 1 | Fitting, Hyd, E90, Jm04/Om04Old # 77097 | $14.70/EA |
| 3 | TN4030954 | 1 | Fitting, Hyd, Rst, SpclOld # 1028635 | $77.30/EA |
| 4 | TN4033217 | 1 | Bracket, Mtg, CylOld # 1022825 | $24.30/EA |
| 5 | TN4041931 | 1 | Screw, Hex, M6 X 1.00 X 20, SsOld # 08716 | $3.20/EA |
| 6 | TN4042902 | 3 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 7 | TN4044039 | 1 | Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348 | $11.80/EA |
| 8 | TN4033227 | 1 | Arm Wldt, Lift, Sqge, LhOld # 1022978 | $68.40/EA |
| 9 | TN4041878 | 1 | Pin, Clevis, 0.37D X 1.75LOld # 17461 | $4.00/EA |
| 10 | TN4041914 | 1 | Pin, Cotter, .125 X 1.00Old # 08182 | $2.50/EA |
| 11 | TN4017115 | 5 | Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425 | $5.40/EA |
| 12 | TN4016797 | 3 | Washer, Flat, Belleville, .38Old # 41187 | $4.10/EA |
| 13 | TN4022528 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816 | $5.20/EA |
| 14 | TN4021359 | 2 | Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088 | $24.20/EA |
| 15 | TN4041600 | 4 | Nut, Hex, Std, M8 X 1.25, SsOld # 07786 | $3.40/EA |
| 16 | TN4041992 | 5 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 17 | TN4033245 | 2 | Arm, Sqge, Side, LhOld # 1023307 | $62.70/EA |
| 18 | TN4015663 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607 | $12.50/EA |
| 19 | TN4023925 | 1 | Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784 | $25.30/EA |
| 20 | TN4032591 | 3 | Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801 | $4.00/EA |
| 21 | TN4019804 | 1 | Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308 | $3.40/EA |
| 22 | TN4016830 | 1 | Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445 | $5.10/EA |
| 23 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 24 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 25 | TN4041948 | 3 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 26 | TN4030456 | 1 | Washer, Flat, Belleville, .50Old # 36328 | $4.10/EA |
| 27 | TN4033246 | 1 | Door Wldt, Brush, LhOld # 1023314 | $356.30/EA |
| 28 | TN4026797 | 1 | Latch, HookOld # 59195 | $82.60/EA |
| 29 | TN4041942 | 2 | Screw, Hex, M6 X 1.0 X 25, SsOld # 09007 | $3.30/EA |
| 30 | TN4016795 | 5 | Washer, Flat, Belleville, .25Old # 41185 | $3.40/EA |
| 31 | TN4026728 | 1 | Screw, Hex, M12 X 1.75 X 55, SsOld # 379870 | $7.60/EA |
| 32 | TN4041602 | 1 | Nut, Hex, Std, M12 X 1.75, SsOld # 07788 | $3.40/EA |
| 33 | TN4017232 | 1 | Washer, Flat, 0.56b 1.38d .11, SsOld # 41619 | $4.10/EA |
| 34 | TN4033623 | 1 | Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576 | $76.50/EA |
M20 solution tank group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN4030635 | 1 | Tank, Soltn, W/ Label [M20]Fits SN 002413 and later · Old # 1027381 | $1,196.60/EA |
| 1 | TN4203465 | 1 | Tank Kit, Soltn, W/ Bracket, ReplmtFits SN up to 002412 · Old # 9004117 | $1,078.28/EA |
| 2 | TN4018894 | 1 | Plug, Hole, Soltn Tank, Blk PyuOld # 390994 | $19.00/EA |
| 3 | TN4195360 | 2 | Angle, Sppt, Tank, RearOld # 1020209 | $14.45/EA |
| 4 | TN4041992 | 12 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 5 | TN4035242 | 12 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 6 | TN4044300 | 1 | Bracket Wldt, Tank, Soltn, RhOld # 1040306 | $56.66/EA |
| 7 | TN4033628 | 1 | Bracket, Tank, Soltn, LhOld # 1024591 | Call for price |
| 8 | TN4041943 | 4 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 9 | TN4015595 | 4 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 10 | TN4196365 | 2 | Bracket, Soltn, Tank, CntrOld # 1024389 | $28.79/EA |
| 11 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| TN4016484 | 1 | Cover Kit, Soltn Tank, Rh [M20 & T20]Old # 9003069 | $419.40/EA | |
| TN4014110 | 1 | Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165 | $120.00/EA | |
| 12 | TN4044235 | 1 | Plate, Mtg, LatchFits SN 002426 and later · Old # 1039757 | $13.50/EA |
| 13 | TN4027333 | 4 | Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320 | $2.50/EA |
| 14 | TN4039724 | 1 | Catch, Latch, Tank CoverFits SN 002798 and later · Old # 1048474 | $10.20/EA |
| 15 | TN4040232 | 2 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbFits SN 002798 and later · Old # 222267 | $2.50/EA |
| 16 | TN4031145 | 1 | LatchFits SN 002798 and later · Old # 367949 | $35.40/EA |
| 17 | TN4039732 | 1 | Bracket, Mtg, Latch, Tank CoverFits SN 002798 and later · Old # 1048512 | $18.60/EA |
| 18 | TN4041936 | 2 | Rivet, Blind, .125d X 0.54 X .25d, AlmFits SN 002798 and later · Old # 08875 | $3.40/EA |
| 19 | TN4032903 | 1 | Cover, Tank, Soltn, Rh, TrimmedOld # 1022176 | $230.40/EA |
| 20 | TN4043062 | 1 | Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098 | $6.70/EA |
| 21 | TN4043688 | 1 | Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805 | $10.40/EA |
| TN4205387 | 1 | Cover Kit, Tank, Soltn, Rh, Replmt, Ce (Japan and CE Only)Old # 9003071 | $414.81/EA | |
| TN4014110 | 1 | Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165 | $120.00/EA | |
| 12 | TN4044235 | 1 | Plate, Mtg, LatchFits SN 002426 and later · Old # 1039757 | $13.50/EA |
| 13 | TN4027333 | 4 | Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320 | $2.50/EA |
| 14 | TN4039724 | 1 | Catch, Latch, Tank CoverFits SN 002798 and later · Old # 1048474 | $10.20/EA |
| 15 | TN4040232 | 2 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbFits SN 002798 and later · Old # 222267 | $2.50/EA |
| 16 | TN4031145 | 1 | LatchFits SN 002798 and later · Old # 367949 | $35.40/EA |
| 17 | TN4039732 | 1 | Bracket, Mtg, Latch, Tank CoverFits SN 002798 and later · Old # 1048512 | $18.60/EA |
| 18 | TN4041936 | 2 | Rivet, Blind, .125d X 0.54 X .25d, AlmFits SN 002798 and later · Old # 08875 | $3.40/EA |
| 19 | TN1031233 | 1 | Cover, Tank, Soltn, Rh, Trimmed, Ce (Japan and CE Only)Old # 1031233 · current Tennant number (Tennant parts catalog) | Call for price |
| 20 | TN4043062 | 1 | Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098 | $6.70/EA |
| 21 | TN4043688 | 1 | Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805 | $10.40/EA |
| TN4016483 | 1 | Cover Kit, Tank, Soltn, Lh, ReplmtOld # 9003068 | $416.30/EA | |
| TN4014110 | 1 | Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165 | $120.00/EA | |
| 22 | TN4044235 | 1 | Plate, Mtg, LatchFits SN 002426 and later · Old # 1039757 | $13.50/EA |
| 23 | TN4027333 | 4 | Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320 | $2.50/EA |
| 24 | TN4039724 | 1 | Catch, Latch, Tank CoverFits SN 002798 and later · Old # 1048474 | $10.20/EA |
| 25 | TN4040232 | 2 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbFits SN 002798 and later · Old # 222267 | $2.50/EA |
| 26 | TN4031145 | 1 | LatchFits SN 002798 and later · Old # 367949 | $35.40/EA |
| 27 | TN4039732 | 1 | Bracket, Mtg, Latch, Tank CoverFits SN 002798 and later · Old # 1048512 | $18.60/EA |
| 28 | TN4041936 | 2 | Rivet, Blind, .125d X 0.54 X .25d, AlmFits SN 002798 and later · Old # 08875 | $3.40/EA |
| 29 | TN4032907 | 1 | Cover, Tank, Soltn, Lh, TrimmedOld # 1022182 | $334.10/EA |
| 30 | TN4043062 | 1 | Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098 | $6.70/EA |
| 31 | TN4043688 | 1 | Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805 | $10.40/EA |
| TN4205386 | 1 | Cover Kit, Tank, Soltn, Lh, Replmt, Ce (Japan and CE Only)Old # 9003070 | $270.40/EA | |
| TN4014110 | 1 | Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165 | $120.00/EA | |
| 22 | TN4044235 | 1 | Plate, Mtg, LatchFits SN 002426 and later · Old # 1039757 | $13.50/EA |
| 23 | TN4027333 | 4 | Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320 | $2.50/EA |
| 24 | TN4039724 | 1 | Catch, Latch, Tank CoverFits SN 002798 and later · Old # 1048474 | $10.20/EA |
| 25 | TN4040232 | 2 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbFits SN 002798 and later · Old # 222267 | $2.50/EA |
| 26 | TN4031145 | 1 | LatchFits SN 002798 and later · Old # 367949 | $35.40/EA |
| 27 | TN4039732 | 1 | Bracket, Mtg, Latch, Tank CoverFits SN 002798 and later · Old # 1048512 | $18.60/EA |
| 28 | TN4041936 | 2 | Rivet, Blind, .125d X 0.54 X .25d, AlmFits SN 002798 and later · Old # 08875 | $3.40/EA |
| 29 | TN1031235 | 1 | Cover, Tank, Soltn, Lh, Trimmed, Ce (Japan and CE Only)Old # 1031235 · current Tennant number (Tennant parts catalog) | Call for price |
| 30 | TN4043062 | 1 | Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098 | $6.70/EA |
| 31 | TN4043688 | 1 | Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805 | $10.40/EA |
| 32 | TN4030627 | 1 | Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290 | $20.30/EA |
| 33 | TN4025663 | 1 | Fitting, Plstc, Pf12/Pf12, BhOld # 377349 | $22.50/EA |
| 34 | TN4018369 | 1 | Fitting, Plstc, E90, Pf12/Pm12Old # 69785 | $11.80/EA |
| 35 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685 | $78.50/EA |
| 36 | TN4036265 | 2 | Bracket, Latch, CoverFits SN up to 002425 · Old # 1020428 | $113.60/EA |
| 37 | TN4041994 | 4 | Screw, Hex, M6 X 1.00 X 12, SsFits SN up to 002425 · Old # 09744 | $3.40/EA |
| 38 | TN4042901 | 4 | Washer, Flat, 0.27b 0.69d .05, SsFits SN up to 002425 · Old # 01684 | $2.60/EA |
| 39 | TN4031730 | 2 | Latch, CoverFits SN 002426–002797 · Old # 1030617 | $23.30/EA |
| 40 | TN4031378 | 2 | Bracket, Keeper, LatchFits SN 002426–002797 · Old # 1029748 | $12.60/EA |
| 41 | TN4027333 | 4 | Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcFits SN 002426–002797 · Old # 382320 | $2.50/EA |
| 42 | TN4035236 | 2 | Plate, Label, Soltn Tank (ec - H20 only)Old # 1017101 | $11.60/EA |
| 43 | TN4029542 | 4 | Screw, Pan, 12 - 16 X 0.50, F/ Plstc (ec - H20 only)Old # 360973 | $4.00/EA |
M20 solution tank drain group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017007 | 1 | Tube Kit, Tank, Soltn, ReplmtOld # 9003793 | $82.40/EA |
| 2 | TN4035042 | 1 | Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498 | $6.20/EA |
| 3 | TN4044649 | 1 | Mount Wldt, Valve, Pinch, RhOld # 1042003 | $57.10/EA |
| 4 | TN4156940 | 1 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 5 | TN4040610 | 1 | Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516 | $3.40/EA |
| 6 | TN4034137 | 5 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 7 | TN4041929 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 8 | TN4033829 | 1 | Bushing, Eccentric, AdjOld # 1024599 | $46.80/EA |
| 9 | TN4034227 | 1 | Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051 | $2.60/EA |
| 10 | TN4012759 | 1 | Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090 | $12.10/EA |
| 11 | TN4026590 | 1 | Screw, Flt, M8 X 1.25 X 30, SsOld # 79506 | $4.00/EA |
| 12 | TN4030970 | 1 | Washer, Thrust, 0.34b 1.50d .06Old # 1028701 | $37.40/EA |
| 13 | TN4041242 | 1 | Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648 | $16.20/EA |
| 14 | TN4030958 | 1 | Roller, BrgOld # 1028691 | $16.90/EA |
| 15 | TN4030957 | 1 | Tube, 0.50d 0.32b 00.4l, SsOld # 1028690 | $9.40/EA |
| 16 | TN4035242 | 1 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 17 | TN4033619 | 1 | Arm, PinchOld # 1024535 | $52.30/EA |
| 18 | TN4041280 | 2 | Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955 | $3.40/EA |
| 19 | TN4023495 | 1 | Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395 | $5.10/EA |
| 20 | TN4028034 | 1 | Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 | $3.20/EA |
| 21 | TN4016796 | 1 | Washer, Flat, Belleville, .31Old # 41186 | $3.50/EA |
| 22 | TN4034278 | 1 | Handle, Valve, Pinch, RhOld # 1026727 | $33.50/EA |
| 23 | TN4033276 | 1 | Grip, HandleOld # 1023502 | $4.10/EA |
| 24 | TN4041992 | 5 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 26 | TN4032899 | 1 | Plug, Hose, PyuOld # 1022137 | $22.40/EA |
| 27 | TN4033917 | 1 | Bracket, Retaining, HoseOld # 1025480 | $16.40/EA |
| 28 | TN4041243 | 1 | Screw, Hex, M8 X 1.25 X 16, SsOld # 15675 | $3.40/EA |
| 29 | TN4044645 | 2 | Tube, 2.90id 3.00od 02.4l, SsOld # 1041953 | $43.70/EA |
| 30 | TN4017376 | 2 | Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555 | $6.20/EA |
| 31 | TN4033620 | 1 | Strap, Retaining, HoseOld # 1024558 | $21.00/EA |
| 32 | TN4015595 | 1 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 33 | TN4035914 | 1 | Hose, Drain, 3.00id X 48.0lOld # 1019424 | $128.00/EA |
| 34 | TN4042902 | 2 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
M20 solution control group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033009 | 1 | Valve Assy, Water, Solenoid , 12vdcOld # 1067700 | Call for price |
| 2 | TN4041931 | 2 | Screw, Hex, M6 X 1.0 X 20, SsFits SN up to 002241 · Old # 08716 | $3.20/EA |
| 3 | TN4042901 | 2 | Washer, Flat, 0.25, SsFits SN up to 002241 · Old # 01684 | $2.60/EA |
| 4 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.0, Ss, NlFits SN up to 002241 · Old # 08712 | $2.50/EA |
| 5 | TN4194339 | 1 | Bracket, Mtg, ValveFits SN up to 002241 · Old # 1028074 | $13.50/EA |
| Item 6: choose your version (2) | ||||
| 6 | TN4026538 | 1 | Fitting, Plstc, Str, Bm12/Pm12Fits SN up to 007259 · Old # 79273-2 | $7.90/EA |
| 6 | TN4028471 | 1 | Fitting, Plstc, Str, Bm10/Pm12Fits SN 007260 and later · Old # 365095 | $4.20/EA |
| 7 | Old # 1029185 | 2 | Tube, Distribution, WaterFits SN up to 002143 · Old # 1029185Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 8 | TN4016804 | 1 | Fitting, Plstc, Tee, Bm12/Bm12/Bm12Fits SN up to 002143 · Old # 41315 | $7.00/EA |
| 9 | TN4041879 | 2 | Fitting, Pipe, Plug, Pm08, Sq HeadFits SN up to 002143 · Old # 17521 | $4.20/EA |
| 10 | TN4014222 | 6 | Clamp, Cable, Ss, 1.12d X 0.38w, 1hOld # 50544 | $8.40/EA |
| 11 | TN4041965 | 6 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 12 | TN4041991 | 6 | Nut, Hex, Lock, M5 X 0.8, Nl, SsOld # 09739 | $3.30/EA |
| 13 | TN4017089 | 8 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN4037985 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 08ftFits SN up to 007259 · Old # 1015045 | $83.30/EA |
| 14 | TN4037981 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 007260 and later · Old # 1015032 | $80.40/EA |
| 15 | TN4042901 | 2 | Washer, Flat, 0.25, SsOld # 01684 | $2.60/EA |
| 16 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712 | $2.50/EA |
| 17 | TN4041931 | 2 | Screw, Hex, M6 X 1.0 X 20, SsOld # 08716 | $3.20/EA |
| Item 18: choose your version (2) | ||||
| 18 | TN4043594 | 1 | Fitting, Plstc, Str, Bm12/Bm12Fits SN 002144–007259 · Old # 1038074 | $4.20/EA |
| 18 | TN4027714 | 1 | Fitting, Plstc, Str, Bm10/Bm12Fits SN 007260 and later · Old # 363543 | $4.50/EA |
| 19 | TN4045588 | 1 | Manifold, Bar, Spray, 37.5inchFits SN 002144 and later · Old # 1036997 | $130.40/EA |
| 20 | TN4026538 | 1 | Fitting, Plstc, Str, Bm12/Pm12Fits SN 002144 and later · Old # 79273-2 | $7.90/EA |
| 21 | TN4043995 | 1 | Fitting, Plstc, Cap, Pf12 HexFits SN 002144 and later · Old # 1039064 | $4.20/EA |
| 22 | TN4028483 | 1 | Fitting, Plstc, Str, Bm10/Bm10Fits SN 007260 and later · Old # 365164 | $4.20/EA |
| 23 | TN4037982 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 01ft, ClrFits SN 007260 and later · Old # 1015033 | $60.00/EA |
| 24 | TN4017089 | 2 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 007260 and later · Old # 63810 | $6.80/EA |
M20 recovery tank group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036646 | 1 | Tank, Recvy, TrimmedOld # 1021419 | $1,407.00/EA |
| 2 | TN4033606 | 1 | Plate, Tank, BottomOld # 1024403 | $32.30/EA |
| 3 | TN4041992 | 17 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 4 | TN4035242 | 15 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 5 | TN4036258 | 1 | Bracket, Sppt, Tank, LhOld # 1020335 | $45.85/EA |
| 6 | TN4195376 | 1 | Bracket, Sppt, Tank, RhOld # 1020331 | $48.78/EA |
| 7 | TN4027333 | 2 | Screw, Pan, #12 - 16 X 0.50, F/ PlstcOld # 382320 | $2.50/EA |
| 8 | TN4045637 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 9 | TN4036308 | 1 | Plate, Sppt, TankOld # 1021090 | $25.50/EA |
| 10 | TN4032902 | 1 | Cover, Tank, Recvy, TrimmedOld # 1022167 | $632.00/EA |
| 11 | TN4032855 | 1 | Gasket, Cover, Recvy TankOld # 1021879 | $115.60/EA |
| 12 | TN4032050 | 1 | Hose Assy, SqgeOld # 1031610 | $217.50/EA |
| 13 | TN4032859 | 1 | Gasket, 3.23id 3.63od .16th, UreOld # 1021920 | $4.30/EA |
| 14 | TN4034197 | 1 | Plate, Mtg, Prop RodOld # 1025620 | $19.50/EA |
| 15 | TN4034195 | 1 | Bracket, Mtg, Prop RodOld # 1025619 | $18.60/EA |
| 16 | TN4042955 | 4 | Screw, Hex, .25 - 14 X 0.75, Fmg/Ab, SsOld # 1046798 | $2.50/EA |
| 17 | TN4028662 | 1 | Arm Wldt, Safety, Sppt, Seat, .38d 10.1lOld # 54615 | $63.50/EA |
| 18 | TN4041931 | 1 | Screw, Hex, M6 X 1.0 X 20, SsOld # 08716 | $3.20/EA |
| 19 | TN4042901 | 1 | Washer, Flat, 0.25, SsOld # 01684 | $2.60/EA |
| 20 | TN4041928 | 1 | Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712 | $2.50/EA |
| 21 | TN4034224 | 1 | Screen, VacuumOld # 1026014 | $44.00/EA |
| 22 | TN4035378 | 1 | Cap Assy, Tank, DrainOld # 24358 | $40.40/EA |
| 23 | TN4032112 | 1 | Gasket, 4.05id 5.29od .19 [Buna]Old # 1031699 | $9.00/EA |
| 24 | Old # 86636 | 1 | Cover, TankOld # 86636Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 25 | TN4021025 | 1 | Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685 | $78.50/EA |
| 26 | TN4016730 | 1 | Cover Kit, Switch, Float, RepairFits SN up to 002024 · Old # 9003449 | $114.00/EA |
| TN4016700 | 1 | Plug Kit, Drain, Recvy, Ci [M20 & T20]Old # 9003313 | $616.10/EA | |
| 27 | TN4032924 | 1 | Plug, Drain, Expandable, 4.75 - 6.00Old # 1022370 | $93.60/EA |
| 28 | TN4030692 | 1 | Tube Wldt, Plug, DrainOld # 1028328 | $153.20/EA |
| 29 | TN4030679 | 1 | Pin, Lift, DrainOld # 1028173 | $35.90/EA |
| 30 | TN4031301 | 1 | Tube Assy, Plug, DrainOld # 1072885 | $113.30/EA |
| 31 | TN4030933 | 1 | Washer, Flat, .78b 1.75d .18, SsOld # 1028522 | $7.70/EA |
| 32 | TN4030684 | 1 | Handle Wldt, DrainOld # 1028211 | $62.00/EA |
| 33 | TN4026774 | 1 | Screw, Hex, M6 X 1.0 X 55, SsOld # 58979 | $4.00/EA |
| 34 | TN4041928 | 1 | Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712 | $2.50/EA |
| 35 | TN4032591 | 2 | Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801 | $4.00/EA |
| 36 | TN4045374 | 1 | Seal, Shaft, Drain PlugOld # 1035044 | $2.80/EA |
| 37 | TN4044228 | 1 | Seal, Plug, Drain, NitrileOld # 1039652 | $19.20/EA |
| 38 | TN4017030 | 2 | Hinge Kit, Cover, Tank, Recvy, ReplmtFits SN up to 002418 · Old # 9003893 | $51.60/EA |
| 39 | TN4034137 | 6 | Washer, Flat, 0.31, StdFits SN 002419 and later · Old # 32491 | $2.50/EA |
| 40 | TN4190934 | 1 | Bracket, Sppt, Tank, RhOld # 1038941 | $26.60/EA |
| 41 | TN4190932 | 1 | Bracket, Sppt, Tank, LhOld # 1038927 | $26.60/EA |
| 42 | TN4043530 | 1 | Bracket, Protector, Float SwitchFits SN 002025 and later · Old # 1037816 | $43.60/EA |
| 43 | TN4041942 | 2 | Screw, Hex, M6 X 1.00 X 25, SsFits SN 002025 and later · Old # 09007 | $3.30/EA |
| 44 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.00, Ss, NlFits SN 002025 and later · Old # 08712 | $2.50/EA |
| 45 | TN4027617 | 2 | Washer, Sealing, 0.28b 0.75d Ss, NeoFits SN 002025 and later · Old # 76426 | $3.50/EA |
| 46 | TN4043997 | 2 | Bracket, Sppt, Cover, Tank, RecvyFits SN 002419 and later · Old # 1039072 | $37.30/EA |
| 47 | TN4043993 | 2 | Bracket, Mtg, Cover, Recvy TankFits SN 002419 and later · Old # 1039049 | $15.60/EA |
| 48 | TN4041828 | 6 | Screw, Hex, M8 X 1.25 X 16, 8.8Fits SN 002419 and later · Old # 16735 | $3.40/EA |
M20 recovery tank drain group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017008 | 1 | Tube Kit, Tank, Recvy, ReplmtOld # 9003794 | $82.40/EA |
| 2 | TN4035042 | 1 | Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498 | $6.20/EA |
| 3 | TN4044651 | 1 | Mount Wldt, Valve, Pinch, LhOld # 1042010 | $83.10/EA |
| 4 | TN4156940 | 1 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 5 | TN4040610 | 1 | Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516 | $3.40/EA |
| 6 | TN4034137 | 5 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 7 | TN4041929 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 8 | TN4033829 | 1 | Bushing, Eccentric, AdjOld # 1024599 | $46.80/EA |
| 9 | TN4034227 | 1 | Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051 | $2.60/EA |
| 10 | TN4012759 | 1 | Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090 | $12.10/EA |
| 11 | TN4026590 | 1 | Screw, Flt, M8 X 1.25 X 30, SsOld # 79506 | $4.00/EA |
| 12 | TN4030970 | 1 | Washer, Thrust, 0.34b 1.50d .06Old # 1028701 | $37.40/EA |
| 13 | TN4041242 | 1 | Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648 | $16.20/EA |
| 14 | TN4030958 | 1 | Roller, BrgOld # 1028691 | $16.90/EA |
| 15 | TN4030957 | 1 | Tube, 0.50d 0.32b 00.4l, SsOld # 1028690 | $9.40/EA |
| 16 | TN4035242 | 1 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 17 | TN4033619 | 1 | Arm, PinchOld # 1024535 | $52.30/EA |
| 18 | TN4041280 | 2 | Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955 | $3.40/EA |
| 19 | TN4023495 | 1 | Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395 | $5.10/EA |
| 20 | TN4028034 | 1 | Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 | $3.20/EA |
| 21 | TN4016796 | 1 | Washer, Flat, Belleville, .31Old # 41186 | $3.50/EA |
| 22 | TN4030609 | 1 | Handle, Valve, Pinch, LhOld # 1027039 | $35.70/EA |
| 23 | TN4033276 | 1 | Grip, HandleOld # 1023502 | $4.10/EA |
| 24 | TN4041992 | 5 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 26 | TN4032899 | 2 | Plug, Hose, PyuOld # 1022137 | $22.40/EA |
| 27 | TN4033917 | 1 | Bracket, Retaining, HoseOld # 1025480 | $16.40/EA |
| 28 | TN4041243 | 1 | Screw, Hex, M8 X 1.25 X 16, SsOld # 15675 | $3.40/EA |
| 29 | TN4044645 | 1 | Tube, 2.90id 3.00od 02.4l, SsOld # 1041953 | $43.70/EA |
| 30 | TN4017376 | 2 | Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555 | $6.20/EA |
| 31 | TN4033620 | 1 | Strap, Retaining, HoseOld # 1024558 | $21.00/EA |
| 32 | TN4015595 | 1 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 33 | TN4035914 | 1 | Hose, Drain, 3.00id X 48.0lOld # 1019424 | $128.00/EA |
| 34 | TN4042902 | 2 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 35 | TN4031802 | 1 | Tube, Acrylic, Hose, PinchOld # 1031309 | $37.20/EA |
M20 vacuum fan group, scrubbing (000000 - 006877)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4016733 | 1 | Fan Kit, Scrub, Replmt [M20/T20]Fits SN up to 006877 · Old # 9003455 | $1,750.60/EA | |
| 1 | TN4016433 | 1 | Housing Assy, Vacfan, ScrbrFits SN up to 006877 · Old # 9002684 | $495.90/EA |
| 2 | TN4034215 | 1 | Insulation, Flame - Retardant, 0.50Fits SN up to 006877 · Old # 1025888 | $27.20/EA |
| 3 | TN4034214 | 1 | Insulation, Flame - Retardant, 0.75 - 0.88Fits SN up to 006877 · Old # 1025887 | $28.90/EA |
| 4 | TN4034213 | 1 | Insulation, Flame - Retardant, 0.75 - 0.88Fits SN up to 006877 · Old # 1025872 | $79.30/EA |
| 5 | TN4043463 | 1 | Impeller, 9.5d, 18 BlFits SN up to 006877 · Old # 03922 | $329.80/EA |
| 6 | TN4029292 | 1 | Housing Wldt, Vacfan, Front [528]Fits SN up to 006877 · Old # 57189 | $649.80/EA |
| 7 | TN4013511 | 3 | Shim, Washer, 0.88d 0.51b .020Fits SN up to 006877 · Old # 75456-3 | $6.00/EA |
| 8 | TN4013512 | 3 | Shim, Washer, 0.88d 0.51b .060Fits SN up to 006877 · Old # 75456-4 | $8.10/EA |
| 9 | TN4015365 | 1 | Bracket, Mtg, MotorFits SN up to 006877 · Old # 54275A | $43.80/EA |
| 10 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN up to 006877 · Old # 54274 | $14.70/EA |
| 11 | TN4016739 | 1 | Motor Kit, Replmt [M20&T20]Fits SN up to 006877 · Old # 9003461 | $658.80/EA |
| TN4042787 | 1 | Key, Sq, 0.12 X 0.12, 1.00l (Included With Motor)Fits SN up to 006877 · Old # 00954 | $4.20/EA | |
| TN8002123 | 1 | Kit, Seal, Motor, Hyd, Gear[Barns]Fits SN up to 006877 · Old # 74233 | $106.39/EA | |
| 12 | TN4016783 | 1 | Nut, Low Crown, .50 - 20Fits SN up to 006877 · Old # 41130 | $6.00/EA |
| 13 | TN4028682 | 4 | Screw, Flt, .38 - 16 X 1.50, AlFits SN up to 006877 · Old # 54861 | $0.55/EA |
| 14 | TN4037922 | 4 | Washer, Flat, 0.40b 1.12d .12, SsFits SN up to 006877 · Old # 1014563 | $5.80/EA |
| 15 | TN4028758 | 4 | Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN up to 006877 · Old # 36643 | $2.50/EA |
| 16 | TN4015802 | 4 | Screw, Flt, .25 - 20 X 1.00, AlFits SN up to 006877 · Old # 39534 | $3.20/EA |
| 17 | TN4034654 | 4 | Nut, Hex, Lock, .25 - 20, NlFits SN up to 006877 · Old # 32981 | $2.50/EA |
| 18 | TN4014183 | 1 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, BrFits SN up to 006877 · Old # 49933 | $33.10/EA |
| 19 | TN4017335 | 1 | Fitting, Hyd, E45, Jm08/Om08Fits SN up to 006877 · Old # 42226 | $11.80/EA |
| 20 | TN4019746 | 1 | Fitting, Hyd, E45, Jm06/Om04Fits SN up to 006877 · Old # 392609 | $32.21/EA |
| 21 | TN4036257 | 1 | Angle, Sppt, FanFits SN up to 006877 · Old # 1020320 | $11.90/EA |
| 22 | TN4033853 | 2 | Bracket, Mtg, FanFits SN up to 006877 · Old # 1024891 | $12.40/EA |
| 23 | TN4041844 | 6 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN up to 006877 · Old # 16931 | $2.50/EA |
| 24 | TN4016796 | 6 | Washer, Flat, Belleville, .31Fits SN up to 006877 · Old # 41186 | $3.50/EA |
| 25 | TN4041992 | 7 | Screw, Hex, M8 X 1.25 X 20, SsFits SN up to 006877 · Old # 09740 | $3.30/EA |
| 26 | TN4032927 | 1 | Hose, Flex, 4.00d, 24.0lFits SN up to 006877 · Old # 1022377 | $90.90/EA |
| 27 | TN4037922 | 3 | Washer, Flat, 0.40b 1.12d .12, SsFits SN up to 006877 · Old # 1014563 | $5.80/EA |
| 28 | TN4026555 | 1 | Clamp, Hose, Wormdrive, 3.75 - 4.62d, .62wFits SN up to 006877 · Old # 79380 | $10.50/EA |
| 29 | TN4033549 | 1 | Plate Wldt, Hose, VacuumFits SN up to 006877 · Old # 1023754 | $76.30/EA |
| 30 | TN4033849 | 1 | Gasket, Plt, Hose, VacuumFits SN up to 006877 · Old # 1024853 | $5.40/EA |
| 31 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 006877 · Old # 1017218 | $3.40/EA |
| 32 | TN4035042 | 1 | Clamp, Hose, Wormdrive, 3.56 - 4.50D, .50WFits SN up to 006877 · Old # 23498 | $6.20/EA |
M20 vacuum fan group, scrubbing (006878 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030069 | 1 | Plate Wldt, Mtg, FanFits SN 006878 and later · Old # 1068611 | $197.90/EA |
| 2 | TN4034909 | 1 | Impeller, 11.81d X 0.500bFits SN 006878 and later · Old # 1062033 | $473.30/EA |
| 3 | TN4015364 | 3 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN 006878 and later · Old # 54274 | $14.70/EA |
| 4 | TN4030528 | 1 | Motor, Hyd, Gear, Ext 0.17 Lh 3000Fits SN 006878 and later · Old # 1071253 | Call for price |
| 5 | TN4041602 | 1 | Nut, Hex, Std, M12 X 1.75, SsFits SN 006878 and later · Old # 07788 | $3.40/EA |
| 6 | TN4041943 | 4 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 006878 and later · Old # 09010 | $3.30/EA |
| 7 | TN4042902 | 7 | Washer, Flat, 0.38b 0.88d .08, SsFits SN 006878 and later · Old # 01685 | $2.60/EA |
| 8 | TN4041929 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 006878 and later · Old # 08713 | $3.30/EA |
| 9 | TN4011921 | 1 | Fitting, Hyd, Tee, Jf08/Jm08/Jm08, BrFits SN 006878 and later · Old # 76315 | $15.10/EA |
| 10 | TN4013874 | 1 | Fitting, Hyd, E45, Jm08/Om10Fits SN 006878 and later · Old # 47513 | $34.20/EA |
| 11 | TN4025261 | 1 | Fitting, Hyd, E90, Jm06/Om04Fits SN 006878 and later · Old # 77098 | $15.50/EA |
| 12 | TN4029146 | 1 | Fitting, Hyd, Str, Jm08/Om10Fits SN 006878 and later · Old # 56692 | $10.60/EA |
| 13 | TN4184443 | 3 | Angle, Sppt, FanFits SN 006878 and later · Old # 1068644 | $11.30/EA |
| 14 | TN4018541 | 1 | Clamp, Cable, Ss, 2.50d X 1.00w, 1holeFits SN 006878 and later · Old # 70157 | $14.80/EA |
| 15 | TN4156940 | 3 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 006878 and later · Old # 39277 | $3.20/EA |
| 16 | TN4035242 | 10 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 006878 and later · Old # 1017218 | $3.40/EA |
| 17 | TN4041992 | 7 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 006878 and later · Old # 09740 | $3.30/EA |
| 18 | TN4036801 | 1 | Housing, Fan, Radial Discharge, Sq InletFits SN 006878 and later · Old # 1059100 | $19.40/EA |
| 19 | TN4030456 | 1 | Washer, Flat, Belleville, .50Fits SN 006878 and later · Old # 36328 | $4.10/EA |
| 20 | TN4033549 | 1 | Plate Wldt, Hose, VacuumFits SN 006878 and later · Old # 1023754 | $76.30/EA |
| 21 | TN4034634 | 1 | Gasket, 2.00, 07.87w 10.24l, AdhFits SN 006878 and later · Old # 1060716 | $11.90/EA |
| 22 | TN4041944 | 2 | Screw, Hex, M8 X 1.25 X 30, SsFits SN 006878 and later · Old # 09011 | $3.40/EA |
| 23 | TN4041945 | 1 | Screw, Hex, M8 X 1.25 X 35, Fl, SsFits SN 006878 and later · Old # 09023 | $3.30/EA |
| 24 | TN4184442 | 1 | Gasket, Foam, .50, 14.76id 16.54od, AdhFits SN 006878 and later · Old # 1068613 | $11.80/EACall for availability |
M20 vacuum fan group, sweeping
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016432 | 1 | Housing Assy, Vacfan, SwprOld # 9002683 | $381.00/EA |
| 2 | TN4027226 | 1 | Seal, Ure, 0.38 0.75w 13.2l AdhOld # 59967 | Call for price |
| 3 | TN4038019 | 1 | Seal, Ure, 0.38 0.75w 33.0l AdhOld # 59735 · replaced by 4038019 (Tennant parts catalog) | Call for price |
| 4 | TN4035737 | 1 | Fan Wldt, Vac, InletOld # 1018216 | $68.18/EA |
| 5 | TN4031280 | 4 | Screw, Hex, .25 - 20 X 0.75, NlOld # 34323 | $11.60/EA |
| 6 | TN4016794 | 4 | Washer, Flat, 0.25 FenderOld # 41178 | $2.50/EA |
| 7 | TN4012781 | 1 | Impeller, 9.00d X 1.40w X 0.376bOld # 74454 | $134.10/EA |
| 8 | TN4033118 | 1 | Nut, Hex, Lock, .31 - 24, Nl, ThinOld # 31241 | $3.40/EA |
| 9 | TN4034134 | 1 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 10 | TN4026845 | 3 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 59649 | $15.50/EA |
| Item 11: choose your version (2) | ||||
| 11 | TN4192981 | 1 | Bar, Isolator, Vacfan [M20 2007]Fits SN up to 006877 · Old # 1034388 | $18.08/EA |
| 11 | TN4181494 | 1 | Bar, Isolator, Vacfan [M20]Fits SN 006878 and later · Old # 1074010 | $25.05/EA |
| 12 | TN4019761 | 3 | Screw, Hex, M10 X 1.5 X 40, 8.8Old # 39285 | $3.20/EA |
| 13 | TN4016826 | 3 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 14 | TN4015365 | 1 | Bracket, Mtg, MotorOld # 54275A | $43.80/EA |
| 15 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274 | $14.70/EA |
| 16 | TN4015031 | 1 | Motor, Hyd, Gear, [Ex] .194 R 3000 (See Breakdowns)Fits SN up to 006877 · Old # 53485 | Call for price |
| 17 | TN4015802 | 4 | Screw, Flt, Soc, .25 - 20 X 1.00, AlOld # 39534 | $3.20/EA |
| 18 | TN4034654 | 4 | Nut, Hex, Lock, .25 - 20, NlOld # 32981 | $2.50/EA |
| 19 | TN4014524 | 1 | Fitting, Hyd, Str, Jm06/Om04Fits SN up to 006877 · Old # 50960 | $7.00/EA |
| 20 | TN4017332 | 1 | Fitting, Hyd, Tee, Jf06/Jm06/Jm06, RunOld # 42215 | $34.90/EA |
| 21 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Fits SN up to 001337 · Old # 44868 | $10.30/EA |
| 22 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Fits SN up to 001337 · Old # 44869 | $7.00/EA |
| 23 | TN4034206 | 1 | Muffler, Vacfan, 4.0idOld # 1025756 | $70.70/EA |
| 24 | TN4035042 | 3 | Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498 | $6.20/EA |
| 25 | TN4034209 | 1 | Tube, Transition, CastingOld # 1025841 | $33.70/EA |
| 26 | TN4035735 | 1 | Gasket, Hppr, TransitionOld # 1018209 | $10.00/EA |
| 27 | TN4045637 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 28 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Old # 44869 | $7.00/EA |
| 29 | TN4035766 | 1 | Hose, Flex, Vacuum, 3.5d 32.0lOld # 1018252 | $93.60/EA |
| 30 | TN4034133 | 4 | Washer, Flat, 0.25, SaeFits SN 006878 and later · Old # 32483 | $2.50/EA |
| 31 | TN4028758 | 4 | Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643 | $2.50/EA |
| 32 | TN4037922 | 10 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
| 33 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Fits SN 001338 and later · Old # 44868 | $10.30/EA |
| 34 | TN4030523 | 1 | Motor, Hyd, Gear, Ext 0.17 Lh 3000Fits SN 006878 and later · Old # 1071240 | $1,451.00/EA |
| 35 | TN4025261 | 1 | Fitting, Hyd, E90, Jm06/Om04Fits SN 006878 and later · Old # 77098 | $15.50/EA |
M20 hydraulic hose group, steering and propel
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033534 | 1 | Hose, Hyd, Tc08, Jf08e45/Jf08str, 96.0Old # 1023609 | $102.90/EA |
| 2 | TN4033533 | 1 | Hose, Hyd, Tc06, Jf06e90/Jf06str, 104.0Old # 1023608 | $93.60/EA |
| 3 | TN4015811 | 2 | Hose, Hyd, Tc06, Jf06e90/Jf06str, 040.0Old # 396221 | $55.30/EA |
| 4 | TN4044015 | 1 | Hose Kit, Hyd, Propel, Ci [M20/T20]Fits SN up to 002183 · Old # 1039148 | $108.10/EA |
| 5 | TN4033273 | 1 | Hose, Hyd, Spcl, Jf10e90/Jf10str, 63.0Old # 1023488 | $135.50/EA |
| 6 | TN4031422 | 1 | Hose, Hyd,Med04, Jf04str/Jf04str, 066.0Old # 1030404 | $67.20/EA |
| 7 | TN4043678 | 1 | Hose, Hyd, Spcl, Jf10str/Jf10str, 56.5Fits SN 002184 and later · Old # 1038569 | $91.80/EA |
| 8 | TN4015060 | 1 | Fitting, Hyd, E45, Jf10/Jm10Fits SN 002184 and later · Old # 54017 | $48.90/EA |
M20 hydraulic hose group, pump and vacuum fans (000000 - 006877)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4015715 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Fits SN up to 006877 · Old # 71741 | $79.20/EA |
| 2 | TN4029567 | 1 | Hose, Hyd, Med06, Jf06str/Jf06str, 018.0Fits SN up to 006877 · Old # 361044 | $23.94/EA |
| 3 | TN4027082 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 024.0Fits SN up to 001337 · Old # 381862 | $29.09/EA |
| 4 | TN4015813 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Fits SN up to 006877 · Old # 396255 | $41.60/EA |
| 5 | TN4034271 | 1 | Hose, Hyd, Tc08, Jf08e45/Jf08str, 26.0Fits SN up to 003297 · Old # 1026645 | $63.00/EA |
| 6 | TN4041531 | 1 | Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Fits SN up to 006877 · Old # 16431 | $28.90/EA |
| 7 | TN4033532 | 1 | Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Fits SN up to 006877 · Old # 1023607 | $52.12/EA |
| 8 | TN4033535 | 1 | Hose, Hyd, Suc20, Jf20str /Jf20e90, 29.0Fits SN up to 006877 · Old # 1023611 | $204.63/EA |
| 9 | TN396266 | 1 | Hose, Hyd, Med08, Jf08e90/Jf08str, 031.0Fits SN up to 001337 · Old # 396266 · current Tennant number (Tennant parts catalog) | Call for price |
| 10 | TN4015710 | 1 | Hose, Hyd, Med06, Jf06e90/Jf06str, 042.0Fits SN up to 002699 · Old # 71735 | $54.40/EA |
| Item 11: choose your version (2) | ||||
| 11 | TN4033924 | 1 | Hose, Hyd, Med10, Jf10str/Jf10str, 41.0Fits SN up to 002699 · Old # 1025547 | $53.60/EA |
| 11 | TN4191362 | 1 | Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Fits SN 002700–006877 · Old # 1040655 | $54.22/EA |
| 12 | TN4015819 | 1 | Hose, Hyd, Tc12, Jf12e90/Jf12str, 044.0Fits SN up to 003038 · Old # 396438 | $95.34/EA |
| 13 | TN4033272 | 1 | Hose, Hyd, Med12, Jf12e90/Jf12str, 50.0Fits SN up to 003038 · Old # 1023487 | $147.40/EA |
| 14 | TN4033531 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 21.0Fits SN up to 003297 · Old # 1023606 | $53.50/EA |
| Item 15: choose your version (3) | ||||
| 15 | TN4027081 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 024.0Fits SN 001338–002699 · Old # 381858 | $38.28/EA |
| 15 | TN4191311 | 1 | Hose, Hyd, Tc08, Jf08E90/Jf08Str, 029.0Fits SN 002700–005999 · Old # 1040216 | $57.80/EA |
| 15 | TN4015715 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Fits SN 006000–006877 · Old # 71741 | $79.20/EA |
| 16 | TN4190722 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Fits SN 001338–006877 · Old # 1036945 | $35.20/EA |
| 17 | TN4015655 | 1 | Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Fits SN 002700–006877 · Old # 71556 | $32.20/EA |
| Item 18: choose your version (2) | ||||
| 18 | TN4040693 | 1 | Hose, Hyd, Med12, Jf12str/Jf12str, 052.0Fits SN 003039–005999 · Old # 1050437 | $79.15/EA |
| 18 | TN4030676 | 1 | Hose, Hyd, Med12, Jf12str/Jf12str, 066.0Fits SN 006000–006877 · Old # 1028145 | $85.20/EA |
| 19 | TN4040692 | 1 | Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Fits SN 003039–006877 · Old # 1050436 | $257.10/EA |
| 20 | TN4034271 | 1 | Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Fits SN 003298–006877 · Old # 1026645 | $63.00/EA |
| 21 | TN4033531 | 1 | Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Fits SN 003298–006877 · Old # 1023606 | $53.50/EA |
M20 hydraulic hose group, pump and vacuum fans (006878 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4015715 | 2 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Fits SN 006878 and later · Old # 71741 | $79.20/EA |
| 2 | TN4015813 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Fits SN 006878 and later · Old # 396255 | $41.60/EA |
| 3 | TN4041531 | 2 | Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Fits SN 006878 and later · Old # 16431 | $28.90/EA |
| 4 | TN4033532 | 1 | Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Fits SN 006878 and later · Old # 1023607 | $52.12/EA |
| 5 | TN4033535 | 1 | Hose, Hyd, Suc20, Jf20str /Jf20e90, 29.0Fits SN 006878 and later · Old # 1023611 | $204.63/EA |
| 6 | TN4191362 | 1 | Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Fits SN 006878 and later · Old # 1040655 | $54.22/EA |
| 7 | TN4190722 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Fits SN 006878 and later · Old # 1036945 | $35.20/EA |
| 8 | TN4015655 | 1 | Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Fits SN 006878 and later · Old # 71556 | $32.20/EA |
| 9 | TN4030676 | 1 | Hose, Hyd, Med12, Jf12str/Jf12str, 066.0Fits SN 006878 and later · Old # 1028145 | $85.20/EA |
| 10 | TN4040692 | 1 | Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Fits SN 006878 and later · Old # 1050436 | $257.10/EA |
| 11 | TN4034271 | 1 | Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Fits SN 006878 and later · Old # 1026645 | $63.00/EA |
| 12 | TN4033531 | 1 | Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Fits SN 006878 and later · Old # 1023606 | $53.50/EA |
M20 hydraulic hose group, brush and hopper
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030631 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04e90, 88.0Fits SN up to 002699 · Old # 1027320 | $56.66/EA |
| 2 | TN4030632 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04e90, 70.0Fits SN up to 002699 · Old # 1027321 | $51.71/EA |
| 3 | TN4033925 | 1 | Hose, Hyd, Tc06, Jf06str /Jf06e45, 54.0Fits SN up to 001337 · Old # 1025548 | $47.50/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4034279 | 1 | Hose, Hyd, Spcl, Jf04str/Jf04str, 115.0Fits SN up to 002699 · Old # 1026733 | $90.90/EA |
| 4 | TN4041067 | 1 | Hose, Hyd, Spcl, Jf04str/Jf04str, 133.0Fits SN 002700 and later · Old # 1042775 | $87.00/EA |
| Item 5: choose your version (2) | ||||
| 5 | TN4033836 | 1 | Hose, Hyd, Spcl, Jf04str/Jf04str, 121.0Fits SN up to 002699 · Old # 1024688 | $93.60/EA |
| 5 | TN4041068 | 1 | Hose, Hyd, Spcl, Jf04str/Jf04str, 127.0Fits SN 002700 and later · Old # 1042776 | $85.20/EA |
| 6 | TN4033841 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 48.0Old # 1024764 | $69.90/EA |
| 7 | TN4033551 | 1 | Hose, Hyd, Tc 06, Jf06str /Jf06e45, 56.0Old # 1023769 | $49.30/EA |
| 8 | TN4029663 | 1 | Hose, Hyd, Med04, Jf04e90/Jf04str, 016.0Old # 57946 | $50.00/EA |
| 9 | TN4033923 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 13.0Old # 1025544 | $52.70/EA |
| 10 | TN4014591 | 1 | Hose, Hyd, Med08, Jf08str/Jf08str, 022.0Fits SN up to 005999 · Old # 51754 | $51.70/EA |
| 11 | TN4045578 | 1 | Hose, Hyd, Tc06, Jf06str/Jf06str, 054.0Fits SN 001338 and later · Old # 1036939 | $56.40/EA |
| 12 | TN4044412 | 2 | Hose, Hyd, Tc04, Jf04str/Jf04str, 096.0Fits SN 002700 and later · Old # 1040628 | $73.90/EA |
| 13 | TN4018068 | 1 | Hose, Hyd, Tc04, Jf04e90/Jf04str, 020.0Fits SN 003057 and later · Old # 387281 | $41.60/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN4028450 | 1 | Hose, Hyd, Med08, Jf08e45/Jf08str, 029.0Fits SN 006000–006697 · Old # 364978 | $83.20/EA |
| 14 | TN4044482 | 1 | Hose, Hyd, Tc08, Jf08e45/Jf08str, 018.0Fits SN 006698 and later · Old # 1041391 | $57.80/EA |
M20 hydraulic hose group, squeegee lift
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033836 | 1 | Hose, Hyd, Spcl, Jf04str/Jf04str, 121.0Old # 1024688 | $93.60/EA |
| 2 | TN4034183 | 1 | Hose, Hyd, Spcl, Jf04str/Jf06str, 125.0Old # 1025551 | $96.30/EA |
| 3 | TN4031748 | 2 | Hose, Hyd,Tc 04, Jf04str /Jf04e45 , 35.0Old # 1030709 | $58.10/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4042664 | 2 | Hose, Hyd, Tc04, Jf04e45/Qm06, 028.0Fits SN up to 002555 · Old # 1037042 · replaced by 4042664 (Tennant parts catalog) | Call for price |
| 4 | TN4042664 | 2 | Hose, Hyd, Tco4, Jf04Str/Qm06, 028.0Fits SN 002556 and later · Old # 1045759 | Call for price |
| 5 | TN1037053 | 2 | Hose, Hyd, Tc04, Jf04e45/Qm06, 026.0Old # 1037053 · current Tennant number (Tennant parts catalog) | Call for price |
M20 hydraulic pumps group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033592 | 1 | Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns)Old # 1024251 | $1,813.50/EA |
| 2 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Old # 44868 | $10.30/EA |
| 3 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Old # 44869 | $7.00/EA |
| 4 | TN4015013 | 2 | Fitting, Hyd, E90, Jm10/Om12Old # 53076 | $37.60/EA |
| 5 | TN4039393 | 2 | Screw, Hex, .38 - 16 X 1.25, 5Old # 21198 | $3.30/EA |
| 6 | TN4034134 | 2 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 7 | TN4011841 | 1 | Pump Kit, Mtg, Aux, Ci [M20 & T20]Old # 9007142 | $1,593.60/EA |
| 8 | TN4017696 | 1 | Seal, Org, .069 X 3.06idOld # 65145-1 | $4.50/EA |
| 9 | TN4013874 | 2 | Fitting, Hyd, E45, Jm08/Om10Old # 47513 | $34.20/EA |
| 10 | TN4017934 | 1 | Fitting, Hyd, Str, Jm20/Om16Old # 67811 | $33.30/EA |
| 11 | TN4013873 | 1 | Fitting, Hyd, E90, Jm06/Om08Old # 47512 | $22.50/EA |
M20 hydraulic cooler and tubes group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043588 | 1 | Cooler, Hyd, 25gpm 325btu Of12 13x12x2Fits SN up to 003038 · Old # 13698 | Call for price |
| 2 | TN4013458 | 1 | Fitting, Hyd, E90, Jm12/Om12Old # 46481 | $18.60/EA |
| 3 | TN4020261 | 1 | Fitting, Hyd, E90, Jm12/Om12, LOld # 62471 | $47.40/EA |
| 4 | TN4193902 | 1 | Bracket Wldt, Cooler, Hyd FluidFits SN up to 003038 · Old # 1026319 | $157.76/EA |
| 5 | TN4044301 | 4 | Pad, Tank, Hyd [W/Psa]Fits SN up to 003038 · Old # 1040318 | $2.83/EA |
| 6 | TN1026647 | 1 | Angle, Mtg, Stl, .12 1.6 1.6 02.2lFits SN up to 007328 · Old # 1026647 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 7 | TN4019758 | 1 | Screw, Hex, M10 X 1.5 X 25, 8.8Fits SN up to 007328 · Old # 39283 | $3.30/EA |
| 8 | TN4034138 | 1 | Washer, Flat, 0.38 StdFits SN up to 007328 · Old # 32492 | $2.50/EA |
| 9 | TN4016826 | 1 | Nut, Hex, Lock, M10 X 1.5, NlFits SN up to 007328 · Old # 41430 | $4.00/EA |
| 10 | TN4014594 | 1 | Bumper, Rbr, 0.6d 0.34t .3d TipFits SN up to 003038 · Old # 51787 | $3.70/EA |
| 11 | TN4045582 | 1 | Tube, Hyd, Main ReturnFits SN up to 005999 · Old # 1036959 | $87.89/EA |
| 12 | TN4015029 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466 | $4.20/EA |
| 13 | TN4027429 | 1 | Fitting, Hyd, Cap, Jf08Old # 60090 | $7.70/EA |
| 14 | TN4030995 | 1 | Tube, Hyd, SqgeOld # 1028821 | $101.50/EA |
| 15 | TN4030996 | 1 | Tube, Hyd, SqgeOld # 1028822 | $103.70/EA |
| 16 | TN4016764 | 2 | Clamp, Cable, Stl, 0.44d X 0.62w, 1hOld # 40678 | $3.60/EA |
| 17 | TN4012782 | 1 | Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455 | $3.40/EA |
| 18 | TN4030997 | 2 | Tube, Hyd, Rear Sqge [M20]Old # 1028823 | $33.64/EA |
| 19 | TN4031672 | 2 | Nut, Ftg, Hyd, 0.56 - 18Old # 35904 | $3.23/EA |
| 20 | TN4014193 | 2 | Fitting, Hyd, Cap, Jf04Old # 50161 | $2.40/EA |
| 21 | TN4156940 | 8 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 003038 · Old # 39277 | $3.20/EA |
| 22 | TN4034137 | 8 | Washer, Flat, 0.31, StdFits SN up to 003038 · Old # 32491 | $2.50/EA |
| 23 | TN4041605 | 8 | Nut, Hex, Flng, M8 X 1.25Fits SN up to 003038 · Old # 07791 | $2.50/EA |
| 24 | TN4016826 | 2 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 25 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 26 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 27 | TN4013899 | 1 | Fitting, Hyd, Str, Jf06/Jm04Old # 47752 | $9.80/EA |
| 28 | TN4030506 | 1 | Tube, Hyd, Main Return [G/Lp Mit2013]Fits SN 006000 and later · Old # 1071173 | $122.10/EA |
| 29 | TN4041885 | 1 | Fitting, Hyd, E90, Jf08/Jm08Fits SN 006000 and later · Old # 17980 | $11.80/EA |
M20 hydraulic reservoir group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016144 | 1 | Reservoir, Hyd, 10.0Gal, ReplmtOld # 9002398 | $1,216.40/EA |
| 2 | TN8002771 | 1 | Gauge, Sensing, LevelOld # 65215 | $121.60/EA |
| 3 | TN4035422 | 1 | Cap, Breather, Hyd, 2.4 DsOld # 25122 | $149.20/EA |
| 4 | TN4029145 | 2 | Fitting, Hyd, Str, Jm06/Om06Old # 56690 | $9.60/EA |
| 5 | TN4013459 | 3 | Fitting, Hyd, Plug, Om06Old # 46482 | $4.20/EA |
| 6 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Old # 44869 | $7.00/EA |
| 7 | TN4044301 | 2 | Pad, Tank, Hyd [W/Psa]Old # 1040318 | $2.83/EA |
| 8 | TN4045640 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsOld # 1037354 | $2.50/EA |
| 9 | TN4045352 | 1 | Insulation, Thermal, Hydraulic BlanketOld # 1034878 | $145.60/EA |
| 10 | TN4033281 | 1 | Fitting, Hyd, E45, Jm12/Om16Old # 1023545 | $49.70/EA |
| 11 | TN4033485 | 1 | Strainer, Hyd, 25gpm 100mesh PsiOld # 31613 | $110.60/EA |
| 12 | TN4015701 | 1 | Fitting, Hyd, E45, Jm20/Om20Old # 71726 | $121.80/EA |
| 13 | TN4032809 | 1 | Filter Assy, Hyd, 10micOld # 1021579 | $128.30/EA |
| 14 | TN4028724 | 1 | Fitting, Hyd, E90, Jm04/Pm02Old # 55455 | $8.50/EA |
| 15 | TN4029789 | 1 | Send - Unit, Water, Temp, 04npt 113oh/195dOld # 58592 | $27.20/EA |
| 16 | TN4016577 | 1 | Fitting, Hyd, Plug, Om10Old # 40362 | $4.20/EA |
| 17 | TN4033877 | 1 | Indicator, Press, 60psiOld # 1025132 | $73.50/EA |
M20 hydraulic valves group (000000 - 002699)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035865 | 1 | Valve, Cntrl, Hyd [M20] (See Breakdowns)Fits SN up to 002699 · Old # 1018936 | $707.61/EA |
| 2 | TN4014179 | 2 | Screw, Hex, M8 X 1.25 X 120, 8.8, FlFits SN up to 002699 · Old # 49883 | $6.70/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN up to 002699 · Old # 32491 | $2.50/EA |
| 4 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 002699 · Old # 08709 | $2.50/EA |
| 5 | TN4025260 | 2 | Fitting, Hyd, E90, Jm04/Om04Fits SN up to 002699 · Old # 77097 | $14.70/EA |
| 6 | TN4028729 | 2 | Fitting, Hyd, Str, Jm04/Om04Fits SN up to 002699 · Old # 55586 | $6.20/EA |
| 7 | TN4025260 | 2 | Fitting, Hyd, E90, Jm04/Om04Fits SN up to 002699 · Old # 77097 | $14.70/EA |
| 8 | TN4019344 | 1 | Fitting, Hyd, E90, Jf04/Jm04Fits SN up to 002699 · Old # 39210 | $8.70/EA |
| 9 | TN4013877 | 2 | Fitting, Hyd, E45, Jm06/Om06Fits SN up to 002699 · Old # 47522 | $21.70/EA |
| 10 | TN4195397 | 1 | Bracket, Mtg, Valve, Hyd, SwpFits SN up to 002699 · Old # 1020708 | $8.08/EA |
| 11 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsFits SN up to 002699 · Old # 09740 | $3.30/EA |
| 12 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 002699 · Old # 1017218 | $3.40/EA |
| 13 | TN4032939 | 1 | Tube, Hyd, SwpFits SN up to 002699 · Old # 1022482 | $31.82/EA |
| 14 | TN4033189 | 1 | Tube, Hyd, SwpFits SN up to 002699 · Old # 1022484 | $24.45/EA |
| 15 | TN4031318 | 1 | Valve, Cntrl, Hyd (See Breakdowns)Fits SN up to 002699 · Old # 1020394 · replaced by 4031318 (Tennant parts catalog) | Call for price |
| 16 | TN4041992 | 6 | Screw, Hex, M8 X 1.25 X 20, SsFits SN up to 002699 · Old # 09740 | $3.30/EA |
| 17 | TN4035242 | 6 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 002699 · Old # 1017218 | $3.40/EA |
| 18 | TN4032871 | 1 | Bracket, Mtg, Valve, Hyd, ScbFits SN up to 002699 · Old # 1021991 | $18.08/EA |
| 19 | TN4019344 | 1 | Fitting, Hyd, E90, Jf04/Jm04Fits SN up to 001271 · Old # 39210 | $8.70/EA |
| 20 | TN4015806 | 1 | Fitting, Hyd, Str, Om04/Qm04Fits SN up to 002699 · Old # 395973 | $26.30/EA |
| 21 | TN4015807 | 1 | Fitting, Hyd, E90, Om04/Qm04Fits SN up to 002699 · Old # 395974 | $36.40/EA |
| 22 | TN4015822 | 1 | Fitting, Hyd, Str, Jf04/Qm04Fits SN up to 001271 · Old # 396476 | $19.90/EA |
| 23 | TN4017335 | 1 | Fitting, Hyd, E45, Jm08/Om08Fits SN up to 002699 · Old # 42226 | $11.80/EA |
| 24 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Fits SN up to 002699 · Old # 44868 | $10.30/EA |
| 25 | TN4028729 | 1 | Fitting, Hyd, Str, Jm04/Om04Fits SN up to 001271 · Old # 55586 | $6.20/EA |
| 26 | TN4029148 | 2 | Fitting, Hyd, E90, Jm06/Om06Fits SN up to 002699 · Old # 56820 | $14.00/EA |
| 27 | TN4013457 | 1 | Fitting, Hyd, Str, Jm10/Om10Fits SN up to 002699 · Old # 46480 | $7.80/EA |
| 28 | TN4014183 | 1 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, BrFits SN up to 002699 · Old # 49933 | $33.10/EA |
| 29 | TN4018308 | 1 | Fitting, Hyd, E90, Jm08/Om08, LFits SN up to 002699 · Old # 69173 | $58.60/EA |
| 30 | TN4011922 | 1 | Fitting, Hyd, Tee, Jm06/Jm06/Om06, RunFits SN up to 002699 · Old # 76316 | $38.40/EA |
| 31 | TN4015806 | 1 | Fitting, Hyd, Str, Om04/Qm04Fits SN 001272–026999 · Old # 395973 | $26.30/EA |
| 32 | TN4029148 | 1 | Fitting, Hyd, E90, Jm06/Om06Fits SN up to 001337 · Old # 56820 | $14.00/EA |
| 33 | TN4015703 | 1 | Fitting, Hyd, E90, Jm06/Om06, LFits SN 001338–026999 · Old # 71727 | $32.20/EA |
M20 hydraulic valve group (002700 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1038566 | 1 | Valve, Hyd, Solenoid, 12vdc (See Breakdowns)Fits SN 002700–006286 · Old # 1038566 · current Tennant number (Tennant parts catalog) | Call for price |
| 2 | TN4191208 | 1 | Bracket, Mtg, Valve [Combined]Fits SN 002700 and later · Old # 1039789 | $21.61/EA |
| 3 | TN4191305 | 1 | Bracket, Mtg, Valve, LowerFits SN 002700 and later · Old # 1040117 | $13.64/EA |
| 4 | TN4015807 | 3 | Fitting, Hyd, E90, Om04/Qm04Fits SN 002700 and later · Old # 395974 | $36.40/EA |
| 5 | TN4031235 | 1 | Fitting, Hyd, Plug, Om04Fits SN 002700 and later · Old # 33812 | $3.50/EA |
| 6 | TN4041992 | 8 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 002700 and later · Old # 09740 | $3.30/EA |
| 7 | TN4035242 | 8 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 002700 and later · Old # 1017218 | $3.40/EA |
| 8 | TN4018308 | 1 | Fitting, Hyd, E90, Jm08/Om08, LongFits SN 002700 and later · Old # 69173 | $58.60/EA |
| 9 | TN4191392 | 1 | Fitting, Hyd, Str, Jm10/Om10, LongFits SN 002700 and later · Old # 1040876 | $14.90/EA |
| 10 | TN4014183 | 1 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, BrFits SN 002700 and later · Old # 49933 | $33.10/EA |
| 11 | TN4029148 | 1 | Fitting, Hyd, E90, Jm06/Om06Fits SN 002700 and later · Old # 56820 | $14.00/EA |
| 12 | TN4015703 | 1 | Fitting, Hyd, E90, Jm06/Om06, LongFits SN 002700 and later · Old # 71727 | $32.20/EA |
| 13 | TN4018308 | 1 | Fitting, Hyd, E90, Jm08/Om08, LongFits SN 002700 and later · Old # 69173 | $58.60/EA |
| 14 | TN4025260 | 2 | Fitting, Hyd, E90, Jm04/Om04Fits SN 002700 and later · Old # 77097 | $14.70/EA |
| 15 | TN4017335 | 1 | Fitting, Hyd, E45, Jm08/Om08Fits SN 002700 and later · Old # 42226 | $11.80/EA |
| 16 | TN4013459 | 1 | Fitting, Hyd, Plug, Om06Fits SN 002700 and later · Old # 46482 | $4.20/EA |
| 17 | TN4028729 | 4 | Fitting, Hyd, Str, Jm04/Om04Fits SN 002700 and later · Old # 55586 | $6.20/EA |
| 18 | TN4026830 | 1 | Fitting, Hyd, Str, Jm06/Om06, LongFits SN 002700 and later · Old # 59577 | $9.90/EA |
| 19 | TN4042137 | 1 | Valve, Relief, 0600PsiFits SN 002700 and later · Old # 1044367 | $82.20/EA |
| 20 | TN8004297 | 1 | Seal Kit, CartridgeFits SN 002700 and later · Old # 373647 | $22.60/EA |
| 21 | TN4200590 | 1 | Fitting, Hyd, E45, Jf08/Jm08Fits SN 006000 and later · Old # 07797 | $11.40/EA |
| 22 | TN4031317 | 1 | Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns)Fits SN 006287 and later · Old # 1072995 | $3,016.30/EA |
M20 electrical wire harness group, main
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1018549 | 1 | Harness, Main [M20]Fits SN up to 002273 · Old # 1018549 · current Tennant number (Tennant parts catalog) | Call for price |
| 2 | TN4030703 | 1 | Harness, Main [M20]Fits SN 002274 and later · Old # 1071603 | $1,588.90/EA |
M20 electrical wire harness group, headlight
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033578 | 1 | Harness, Headlight [M20 And T20]Old # 1024141 | $28.50/EA |
M20 electrical wire harness group, hopper
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1019630 | 1 | Harness, Hppr [M20]Fits SN up to 002273 · Old # 1019630 · current Tennant number (Tennant parts catalog) | $140.70/EA |
| 2 | TN4045062 | 1 | Harness, Hppr [M20/M30]Fits SN 002274–003478 · Old # 1033624 | $180.10/EA |
| 3 | TN4032609 | 1 | Harness, Hppr [M20/M30]Fits SN 003479 and later · Old # 1064371 | $248.20/EA |
| 4 | TN4029123 | 1 | Relay, 12vdc, 040a, Spdt NoFits SN 003479 and later · Old # 56186 | $11.30/EA |
M20 electrical wire harness group, hopper cover
Tap a number to see that part.
M20 label group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025324 | 1 | Label Set, Info/Hzrd, Swpr / ScrbrOld # 77221 | $28.90/EA |
| 2 | TN4035239 | 1 | Label Set, Hi TempOld # 1017141 | $30.80/EA |
| 3 | TN4032752 | 3 | Label, Logo, 05.75L 2Color [ES]Old # 1065343 | $26.97/EA |
| 4 | TN4032751 | 3 | Label, Logo, 07.95L 2Color [FaST]Old # 1065342 | $11.11/EA |
| 5 | TN4040474 | 2 | Label [User, Attention, ec - H2O]Old # 1050003 | $4.34/EA |
| 6 | TN4031775 | 1 | Label Set, Brush Indicator & RemovalOld # 1031017 | $30.10/EA |
| 7 | TN4032466 | 1 | Label Set, Info/Hzrd, Swpr / Scrbr, Tj (Japan Only)Old # 1032450 | $162.79/EA |
| 8 | TN4036266 | 1 | Label, Caution [Apply Parking Brake]Old # 1020434 | $39.40/EA |
| 9 | TN4033871 | 1 | Label, Caution [Apply Parking Brake] (Japan Only)Old # 1025101 | Call for price |
| 10 | TN4032629 | 2 | Label, Model, 2Color [M20]Old # 1064662 | $21.30/EA |
| 11 | TN4035178 | 1 | Label, Logo, 12.3L 4Color [ec - H2O]Old # 1062813 | $36.60/EA |
| 12 | TN4032615 | 1 | Label, Logo, 16.9L 4Color [ec - H2O]Old # 1064440 | $27.20/EA |
M20 recommended maintenance parts
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN82681 | 1 | Bracket Wldt, Lpg MountOld # 82681 · no current Tennant number on file | Call for price |
| 2 | Old # 63810 | 4 | Latch Assy, Lpg Tank Mtg, W/NutOld # 63810Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 3 | Old # 51839 | 2 | Nut Adjustable, Lpg Tank MtgOld # 51839Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 4 | TN4014137 | 3 | Tie, CableOld # 49263 | $3.40/EA |
| 5 | TN82556 | 1 | Bracket, VaporizerFits SN up to 001039 · Old # 82556 · no current Tennant number on file | Call for price |
| 6 | TN8004486 | 1 | Vaporizer, LPGOld # 54930 · replaced by 8004486 (Tennant parts catalog) | Call for price |
| TN4016487 | 1 | Maint Kit, 400hr, Dsl [M20/T20]Fits SN up to 002593 · Old # 9003130 | $266.94/EA | |
| TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN up to 002593 · Old # 369746 | $34.60/EA | |
| TN8002633 | 1 | Element, Fltr, Oil, Spin - On [Ku]Fits SN up to 002593 · Old # 39703-2 | $15.60/EA | |
| TN8005805 | 1 | Element, Fltr, Fuel [Dn]Fits SN up to 002593 · Old # 1017126 | $21.90/EA | |
| TN4033565 | 1 | Belt, V, 37.5l [3v]Fits SN up to 002593 · Old # 1023911 | $16.00/EA | |
| TN4033485 | 1 | Strainer, Hyd, 25 Gpm 100 MeshFits SN up to 002593 · Old # 31613 | $110.60/EA | |
| TN4032809 | 1 | Filter Assy, Hyd, 10micFits SN up to 002593 · Old # 1021579 | $128.30/EA | |
| TN4014789 | 1 | Maint Kit, 400hr, Dsl [M20/T20]Fits SN 002594 and later · Old # 9006060 | $306.60/EA | |
| TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN 002594 and later · Old # 369746 | $34.60/EA | |
| TN8002633 | 1 | Element, Fltr, Oil, Spin - On [Ku]Fits SN 002594 and later · Old # 39703-2 | $15.60/EA | |
| TN8005805 | 1 | Element, Fltr, Fuel [Dn]Fits SN 002594 and later · Old # 1017126 | $21.90/EA | |
| TN4033485 | 1 | Strainer, Hyd, 25 Gpm 100 MeshFits SN 002594 and later · Old # 31613 | $110.60/EA | |
| TN4032809 | 1 | Filter Assy, Hyd, 10micFits SN 002594 and later · Old # 1021579 | $128.30/EA | |
| TN4019823 | 1 | Belt, V, 42.0L [Hc41]Fits SN 002594 and later · Old # 393244 | $15.00/EA | |
| TN4039697 | 1 | Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM | $329.30/EA | |
| TN4030627 | 1 | Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290 | $20.30/EA | |
| TN8003282 | 1 | Key, Ignition [Set Of 2]Old # 87866 | $27.00/EA | |
| TN4037623 | 1 | Battery, Wet, 12vdc 0600ccaOld # 10143 | $274.80/EA | |
| TN4039111 | 2 | Wheel, 3.0d 1.38w 0.50bOld # 20833 | $80.80/EA | |
| TN4033626 | 2 | Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586 | $33.60/EA | |
| TN4035908 | 2 | Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295 | $67.60/EA | |
| TN4036240 | 1 | Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166 | $70.20/EA | |
| TN4032877 | 1 | Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009 | $34.70/EA | |
| TN4032876 | 1 | Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007 | $49.10/EA | |
| TN4035508 | 1 | Blade, Sqge, Front, 49.58l [Linard]Old # 1017868 | $90.00/EA | |
| TN4031803 | 1 | Blade, Sqge, Rear, LinatexOld # 1031331 | $120.00/EA | |
| TN4021294 | 2 | Gasket, SqgeOld # 83874 | $13.00/EA | |
| TN4031774 | 2 | Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011 | $93.40/EA | |
| TN4030648 | 1 | Blade, Sqge, Front, 49.58l UreOld # 1027719 | $274.30/EA | |
| TN4032198 | 1 | Blade, Sqge, Rear, 53.78l UreOld # 1031945 | $305.50/EA | |
| TN4032169 | 2 | Blade, Sqge, .38 3.55w 038.3l, UreOld # 1031823 | $183.50/EA | |
| TN4030647 | 1 | Squeegee Assy, Sba, UreFits SN up to 003076 · Old # 1027716 | $169.30/EA | |
| TN4036799 | 1 | Blade, Sqge, Side Brush, UrethaneFits SN 003077 and later · Old # 1059091 | $91.61/EA | |
| TN4036800 | 1 | Blade, Sqge, Side Brush, UrethaneFits SN 003077 and later · Old # 1059092 | $55.85/EA | |
| TN4033862 | 1 | Squeegee Assy, Sba, LinatexFits SN up to 003076 · Old # 1025005 | $72.00/EA | |
| TN4043022 | 1 | Blade, Sqge, Side Brush, LinatexFits SN 003077 and later · Old # 1046980 | $59.89/EA | |
| TN4043073 | 1 | Blade, Sqge, Side Brush, LinatexFits SN 003077 and later · Old # 1047238 | $31.51/EA | |
| TN84597 | 1 | Tire Assy, Solid, 18.0x6.0 4.5bc/5boltOld # 84597 · current Tennant number (Tennant parts catalog) | Call for price | |
| Old # 16411 | 1 | Paint, Airdry, Off - White, 12ozOld # 16411Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering | |
| Old # 16412 | 1 | Paint, Airdry, Teal, 12oz, SolidOld # 16412Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering | |
| TN5000171 | 1 | Paint, Airdry, Blk, 12ozOld # 377540 | $67.20/EA | |
| TN5000170 | 1 | Paint, Airdry, Gray, 12oz [Enamel]Old # 377538 | $39.50/EA | |
| Old # 377537 | 1 | Paint, Airdry, Iron Gray,12oz[Pwdr Coat]Old # 377537Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering | |
| TN8005843 | 1 | Oil, Hyd [El, Iso 100, 01gal]Old # 1057710 | $58.70/EA | |
| TN8005844 | 1 | Oil, Hyd [El, Iso 100, 05gal]Old # 1057711 | $251.30/EA | |
| TN8004994 | 1 | Oil, Hyd [El, Iso 68, 01gal]Old # 1069019 | $48.70/EA | |
| TN8004995 | 1 | Oil, Hyd [El, Iso 68, 05gal]Old # 1069020 | $227.00/EA | |
| TN8005841 | 1 | Oil, Hyd [El, Iso 32, 01gal]Old # 1057707 | $58.70/EA | |
| TN8005842 | 1 | Oil, Hyd [El, Iso 32, 05gal]Old # 1057708 | $248.90/EA |
M20 operator station group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (6) | ||||
| 1 | TN4205150 | 1 | Panel Wldt, Dsl, ReplmtOld # 9002410 | $1,372.69/EA |
| 1 | TN9002382 | 1 | Panel Wldt, Dsl, Replmt [W/Fast]Old # 9002382 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 1 | TN4205138 | 1 | Panel Wldt, Dsl, W/ Es, ReplmtOld # 9002383 | $1,398.95/EA |
| 1 | TN4203062 | 1 | Panel Wldt, Dsl, Replmt, TJ (Japan only)Old # 9003424 | $1,382.08/EA |
| 1 | TN9003427 | 1 | Panel Wldt, Dsl, Replmt, TJ [W/Fast] (Japan only)Old # 9003427 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 1 | TN4203064 | 1 | Panel Wldt, Dsl, Replmt, TJ, W/Es (Japan only)Old # 9003430 | $1,414.61/EA |
| 2 | TN4019758 | 1 | Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283 | $3.30/EA |
| 3 | TN4040927 | 1 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 4 | TN4190204 | 2 | Bracket, Mtg, InsulationOld # 1047169 | $12.93/EA |
| 5 | TN4024314 | 1 | Plug, Hole, Rnd, 0.88h .03 - .12, Blk NylOld # 82727 | $3.40/EA |
| 6 | TN4042871 | 1 | Plug, Hole, Rnd, 1.00h .03 - .12, Blk NylOld # 01493 | $2.50/EA |
| 7 | TN4031389 | 1 | Plug, Hole, Rnd, 2.50h .03 - .25, Blk NylOld # 1030017 | $10.60/EA |
| 8 | TN4041844 | 8 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 9 | TN4018541 | 1 | Clamp, Cable, Ss, 2.50d X 1.00w, 1hFits SN up to 001337 · Old # 70157 | $14.80/EA |
| 10 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 001337 · Old # 08709 | $2.50/EA |
| 11 | TN4156940 | 7 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 001337 · Old # 39277 | $3.20/EA |
| 12 | TN4034137 | 18 | Washer, Flat, 0.31, StdFits SN up to 001337 · Old # 32491 | $2.50/EA |
| 13 | TN4026685 | 4 | Tread, Non - Skid, 03.0w 11.6lOld # 58819 | $7.70/EA |
| 14 | TN4033911 | 1 | Panel Wldt, AdjOld # 1025435 | $91.00/EA |
| 15 | TN4031727 | 1 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593 | $83.40/EA |
| 16 | TN4015029 | 5 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466 | $4.20/EA |
| 17 | TN4032850 | 1 | Panel, Access, DoorOld # 1021834 | $48.40/EA |
| 18 | TN4030622 | 1 | Mat, FloorOld # 1027218 | $116.30/EA |
| 19 | TN4032093 | 4 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 20 | TN4015595 | 3 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 21 | TN4195877 | 1 | Panel, Access, FloorOld # 1022699 | $24.15/EA |
| 22 | TN4041844 | 4 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 23 | TN4027729 | 1 | Screw, Hex, M8 X 1.25 X 60, 8.8, FlOld # 363976 | $3.40/EA |
| 24 | TN4019808 | 1 | Nut, Hex, Std, M8 X 1.25Old # 39311 | $2.50/EA |
| 25 | TN4195391 | 1 | Bracket Wldt, Mtg, TankFits SN up to 002412 · Old # 1020540 | $83.80/EA |
| 26 | TN4041992 | 3 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 27 | TN4035242 | 5 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 28 | TN4192844 | 1 | Bracket, MtgOld # 1033975 | $68.18/EA |
| 29 | TN4030625 | 1 | Mat, FloorOld # 1027267 | $27.40/EA |
| 30 | TN1020904 | 1 | Seal, Panl, InstmtOld # 1020904 · current Tennant number (Tennant parts catalog) | Call for price |
| 31 | TN4036241 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 1ftOld # 1020168 | $44.40/EA |
| 32 | TN4023358 | 1 | Plug, Hole, Rnd, 0.81h, BlkFits SN 002000 and later · Old # 80288 | $1.40/EA |
| 33 | TN4156940 | 6 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 34 | TN4034137 | 17 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 35 | TN4190656 | 1 | Bracket Wldt, Mtg, TankFits SN 002413 and later · Old # 1035997 | $61.32/EA |
| 36 | TN4041270 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942 | $2.50/EA |
| 37 | TN4034136 | 2 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 38 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 39 | Old # 1047295 | 1 | Seal, Foam, 0.50Old # 1047295Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
M20 instrument panel group, diesel
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016731 | 1 | Panel Kit, Instmt, Repair [M20/M30]Old # 9003453 | $2,221.10/EA |
| 2 | TN4016152 | 1 | Label Kit, Panel, Replmt [M20]Old # 9002435 | $755.80/EA |
| 1 | TN4012482 | 1 | Panel, Kit, Instmt, Replmt [M20/M30 ec - H20 only]Old # 9007912 | $2,395.40/EA |
| 2 | TN4012483 | 1 | Label Kit, Panel, Replmt [M20/M30 ec - H20 only]Old # 9007913 | $467.50/EA |
| 3 | TN4041852 | 4 | Nut, Hex, Lock, #08 - 32, NlOld # 16968 | $1.50/EA |
| 4 | TN4030979 | 1 | Flap, BatteryOld # 1028769 | $9.80/EA |
| 5 | TN4194573 | 1 | Bar, Flat, Ss, .06 X .50 X 10.0l 2/.19slOld # 1028772 | $3.85/EA |
| 6 | TN4031353 | 4 | Washer, Shld, Nyl [8 - 32]Old # 1029362 | $0.15/EA |
| 7 | TN4175109 | 1 | Plate, Mtg, LightOld # 361071 | $11.11/EA |
| 8 | TN4029581 | 1 | Seal, Rbr, Clsd, 0.13, Instmt PanlOld # 361073 | $3.54/EA |
| 9 | TN4029583 | 3 | Light, Panl, 14vdc, , 1.1 X 1.0Old # 361075 | $22.50/EA |
| 10 | TN4041928 | 2 | Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712 | $2.50/EA |
| 11 | TN4012418 | 1 | Washer, Flat, 1.15b 1.75d .08, StlOld # 73736 | $3.50/EA |
| 12 | TN4027368 | 1 | Boot, .63id .29l .90wOld # 382516 | $10.20/EA |
| 13 | TN4022110 | 1 | Switch, Ignition [Ku]Old # 87536 | $109.50/EA |
| TN8003282 | 1 | Key, Ignition [Set Of 2]Old # 87866 | $27.00/EA | |
| 14 | TN4023075 | 1 | Boot, Switch, IgnitionOld # 383165 | $5.10/EA |
| 15 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 16 | TN4019347 | 1 | Switch, Rocker, Dpdt On/Off/OnOld # 392171 | $25.90/EA |
| 17 | TN4016538 | 1 | Plug, Hole, Rt, Rocker Switch, .87 X 1.7Old # 398501 | $6.80/EA |
| 18 | TN4016541 | 2 | Switch, Rocker, Dpdt Mom/Off/MomOld # 398508 | $27.40/EA |
| 19 | TN4029160 | 1 | Plug, Hole, Rnd, 0.50h .03 - .12, Blk NylOld # 56992 | $3.40/EA |
| 20 | TN4037805 | 1 | Cup Holder, RwkOld # 223599 | $56.40/EA |
| 21 | TN4045568 | 3 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 22 | TN4033597 | 1 | Label, Switch, Rocker [M20/M30]Old # 1024287 | $34.69/EA |
| 23 | TN4013826 | 1 | Panel, Instmt, Rh, Dsl, ReplmtOld # 9004881 | $150.69/EA |
| 24 | TN4032093 | 4 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 25 | TN4029583 | 1 | Light, Panl, 14vdc, , 1.1 X 1.0Fits SN up to 002886 · Old # 361075 | $22.50/EA |
| 26 | TN4044628 | 1 | Light, Led, .312D, 2 Volt [Tri - Color] (ec - H20 only)Old # 1041822 | $104.60/EA |
| 27 | TN4044966 | 1 | Keychain, Rectangle, Parts & ServiceOld # 1075003 | $4.70/EA |
M20 battery and electrical group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032292 | 1 | Horn, 12vdc, Dba [Wolo]Old # 369704 | $42.00/EA |
| 2 | TN4045637 | 5 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 3 | TN4042244 | 4 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 4 | TN4041926 | 3 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 5 | TN4029449 | 7 | Relay, 12vdc, 40a, Spdt N/OOld # 57804 | $16.30/EA |
| 6 | TN4033595 | 1 | Cover, Fuse, BlockOld # 1024274 | $112.70/EA |
| 7 | TN4034267 | 1 | Gasket, Cover, Fuse BlockOld # 1026576 | $11.90/EA |
| 8 | TN4041004 | 8 | Nut, Hex, Lock, M5 X 0.8, NlOld # 06549 | $2.50/EA |
| 9 | TN4036635 | 1 | Alarm, Warning [Sonalert, St628]Old # 1021290 | $55.10/EA |
| 10 | TN4031223 | 1 | Strap, Rbr, Tie - Down, 2/Hooks 19.0lOld # 33671 | $13.10/EA |
| 11 | TN4015366 | 1 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 12 | TN4039094 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 30.00lOld # 20778 | Call for price |
| 13 | TN4027918 | 1 | Cable, Battery, 02ga 60.0l Blk .41ringOld # 60295 | $69.30/EA |
| 14 | TN4018303 | 1 | Cable, Battery, 02ga 48.0l Red .41ringOld # 68869 | $69.30/EA |
| 15 | TN4040238 | 1 | Diode, Ele, PlugOld # 222290 | $13.00/EA |
| 16 | TN4011598 | 14 | Fuse, 015aOld # 762514 | $4.00/EA |
| 17 | TN4015029 | 4 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466 | $4.20/EA |
| 18 | TN4037623 | 1 | Battery, Wet, 12Vdc 0600CcaOld # 10143 | $274.80/EA |
| 19 | TN4034136 | 2 | Washer, Flat, 0.25 StdFits SN up to 001278 · Old # 32490 | $2.50/EA |
| 20 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 001278 · Old # 08708 | $2.50/EA |
| 21 | TN4194149 | 1 | Seal, Radiator, UpperFits SN up to 001278 · Old # 1027228 | $23.94/EA |
| 22 | TN4041270 | 2 | Screw, Hex, M6 X 1.0 X 16, 8.8Fits SN up to 001278 · Old # 06942 | $2.50/EA |
M20 brake pedal linkage group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044344 | 4 | Pin, Clevis, 0.25d X 0.75lOld # 14605 | $3.40/EA |
| 2 | TN4041628 | 4 | Pin, Cotter, .062 X 0.50Old # 08170 | $2.60/EA |
| 3 | TN4027767 | 2 | RodOld # 364347 | $33.10/EA |
| 4 | TN4044337 | 2 | Clevis, Adj, 0.25 Pin, 0.25 - 28 Rh, PlOld # 14595-1 | $9.90/EA |
| 5 | TN4028195 | 2 | Nut, Hex, Std, .25 - 28, LhOld # 364948 | $4.00/EA |
| 6 | TN4042941 | 2 | Nut, Hex, Std, .25 - 28Old # 01714 | $2.50/EA |
| 7 | TN4028178 | 2 | Clevis, Adj, 0.25pin, 0.25 - 28left PlOld # 364864 | $15.30/EA |
| 8 | TN4032890 | 1 | Shaft Wldt, BrakeOld # 1022031 | $119.58/EA |
| 9 | TN4193848 | 2 | Plate, Stop, BrakeOld # 1026025 | $5.96/EA |
| 10 | TN4029864 | 4 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 11 | TN4027058 | 4 | Bearing, Split, 1.00bOld # 381502 | $7.40/EA |
| 12 | TN4027324 | 2 | Plate, SpptOld # 382224 | $14.80/EA |
| 13 | TN4019754 | 4 | Screw, Hex, M8 X 1.25 X 70, 8.8Old # 39279 | $4.00/EA |
| 14 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 15 | TN4033919 | 1 | Cable, Push / Pull, 063.0l 4.0, .31 - 24Old # 1025495 | $306.60/EA |
| 16 | TN4029693 | 2 | Clevis, Adj, 0.31pin, 0.31 - 24Old # 58311 | $45.70/EA |
| 17 | TN4039080 | 2 | Nut, Hex, Jam, .31 - 24Old # 20170 | $2.50/EA |
| 18 | TN4018317 | 2 | Pin, Clevis, 0.31d X 1.00lOld # 69582 | $3.40/EA |
| 19 | TN4041634 | 2 | Pin, Cotter, .094 X 1.00Old # 08179 | $2.50/EA |
| 20 | TN4195882 | 1 | Bracket, Mtg, CableOld # 1022736 | $27.47/EA |
| 21 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 22 | TN4195848 | 1 | Shaft Wldt, Pedal, BrakeOld # 1022243 | $82.40/EA |
| 23 | TN4014535 | 1 | Pad, Pedal, Brake, 3.96l 2.36w 0.75Old # 51109 | $30.10/EA |
| 24 | TN4035052 | 2 | Ring, Retaining, Ext, 0.98d, [E - Ring]Old # 23788 | $2.40/EA |
| 25 | TN4022031 | 2 | Bearing, Pillowblock, 1.02b [Solid Pye]Old # 86751 | $40.50/EA |
| 26 | TN4041003 | 4 | Screw, Hex, M6 X 1.0 X 60, 8.8Old # 06548 | $3.43/EA |
| 27 | TN4034136 | 8 | Washer, Flat, 0.25 StdOld # 32490 | $2.50/EA |
| 28 | TN4041925 | 6 | Nut, Hex, Lock, M6 X 1.0, NlOld # 08708 | $2.50/EA |
| 29 | TN4028660 | 2 | Spring, Tors, 1.13id .12wir 02.3coil RhOld # 54607 | $17.10/EA |
| 30 | TN4033918 | 1 | Pedal, Brake, LockOld # 1025487 | $62.70/EA |
| 31 | TN4013461 | 1 | Bushing, Sleeve, 0.37b 0.50d 0.50l, OibOld # 46563 | $4.20/EA |
| 32 | TN4026776 | 1 | Spring, Tors, 0.75id .06wir 02.8coilOld # 59009 | $5.20/EA |
| 33 | TN4041280 | 1 | Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955 | $3.40/EA |
| 34 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 35 | TN4015629 | 1 | Spring, Wir, 0.08d, Brake, ParkingOld # 71367 | $6.80/EA |
| 36 | TN4041270 | 2 | Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942 | $2.50/EA |
M20 directional pedal and linkage group, diesel
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4193625 | 1 | Pedal, PropelOld # 1025140 | $45.75/EA |
| 2 | TN4026685 | 1 | Tread, Non - Skid, 03.0w 11.6lOld # 58819 | $7.70/EA |
| 3 | TN4026850 | 1 | Pin, Clevis, 0.50 D X 4.50lOld # 59668 | $5.10/EA |
| 4 | TN4041914 | 1 | Pin, Cotter, .125 X 1.00Old # 08182 | $2.50/EA |
| 5 | TN4017933 | 2 | Clamp, Cable, Stl, 0.69d X 0.62w, 1hOld # 67767 | $4.20/EA |
| 6 | TN4029864 | 2 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 7 | TN4032922 | 1 | Cable, Push / Pull, 098.0l .25 - 28/.25 - 28Old # 1022345 | $293.20/EA |
| 8 | TN4018302 | 2 | Rod - End, .25 - 28rh Fem 0.25b [Teflon]Old # 68866 | $44.50/EA |
| 9 | TN4042941 | 2 | Nut, Hex, Std, .25 - 28Old # 01714 | $2.50/EA |
| 10 | TN4017735 | 2 | Tube, 00.38d 00.26b 00.3l Stl PltOld # 65441 | $19.20/EA |
| 11 | TN4231432 | 1 | Screw, Hex, .25 - 20 X 2.25, SsOld # 41399 | $4.00/EA |
| 12 | TN4017319 | 1 | Screw, Hex, .25 - 20 X 1.75, SsOld # 42180 | $3.40/EA |
| 13 | TN4034136 | 5 | Washer, Flat, 0.25 StdOld # 32490 | $2.50/EA |
| 14 | TN4016793 | 4 | Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169 | $4.00/EA |
| 15 | TN4021145 | 2 | Tube, 00.50d 00.38b 00.6l StlOld # 63234 | $6.60/EA |
| 16 | TN4017355 | 1 | Screw, Hex, .38 - 16 X 2.00, SsOld # 42467 | $1.05/EA |
| 17 | TN4034138 | 2 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 18 | TN4028758 | 1 | Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643 | $2.50/EA |
| 19 | TN4039392 | 2 | Screw, Hex, .38 - 16 X 1.00, 5Old # 21197 | $3.30/EA |
| 20 | TN4043395 | 2 | Spring, Extn, 0.75od X 0.12wir, 4.3lOld # 11842 | $12.20/EA |
| 21 | TN4013918 | 1 | Bolt, Eye, .25 - 20 X 1.40 X .25 EyeOld # 48079 | $6.00/EA |
| 22 | TN4015051 | 1 | Cam, Centering, PintleOld # 53947 | $74.84/EA |
| 23 | TN4028669 | 1 | Cam, Centering, PintleOld # 54655 | $72.52/EA |
| 24 | TN4012778 | 1 | Screw, Hex, M8 X 1.25 X 40, Ss, NlOld # 74440 | $4.90/EA |
| 25 | TN4015595 | 1 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 26 | TN4015053 | 2 | Arm, Cntrl, Pintle, CenteringOld # 53953 | $26.60/EA |
| 27 | TN4015362 | 2 | Bumper, Rbr, 0.5d 0.16t M5 X 08Old # 54205 | $18.50/EA |
| 28 | TN4014211 | 4 | Nut, Hex, Std, M5 X 0.8, 8Old # 50335 | $3.30/EA |
| 29 | TN4030623 | 1 | Arm, PintleOld # 1027233 | $101.71/EA |
| 30 | TN4021295 | 1 | Screw, Hex, .31 - 24 X 0.75, NlOld # 83879 | $2.90/EA |
| 31 | TN4016796 | 3 | Washer, Belleville, .31Old # 41186 | $3.50/EA |
| 32 | TN4194159 | 1 | Bracket Wldt, Propel, PintleOld # 1027313 | $48.78/EA |
| 33 | TN4021318 | 1 | Bracket, Retainer, SafetyOld # 84170 | $11.60/EA |
| 34 | TN4041517 | 1 | Bolt, Shld, .31d X 1.00, .25 - 20Old # 16213 | $6.80/EA |
| 35 | TN4016337 | 1 | Shock Absorber, 2.3 StrkOld # 73411 | $115.00/EA |
| 36 | TN4019753 | 1 | Screw, Hex, M8 X 1.25 X 50, 8.8Old # 39278 | $4.00/EA |
| 37 | TN4034137 | 2 | Washer, Flat, 0.31 StdOld # 32491 | $2.50/EA |
| 38 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 39 | TN4033213 | 2 | Arm [Positioning]Old # 1022787 | $15.80/EA |
| 40 | TN4041970 | 2 | Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252 | $3.40/EA |
| 41 | TN4042888 | 2 | Washer, Flat, #10 SsOld # 01683 | $2.60/EA |
| 42 | TN4033212 | 1 | Sensor, Spd / Dir, 6 - 30vdcOld # 1022779 | $285.30/EA |
| 43 | TN4041964 | 2 | Screw, Pan, M4 X 0.7 X 35, SsOld # 09198 | $3.20/EA |
| 44 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 45 | TN4039393 | 2 | Screw, Hex, .38 - 16 X 1.25, G5Old # 21198 | $3.30/EA |
| 46 | TN4034134 | 4 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 47 | TN4194319 | 1 | Bracket, Propel, DslOld # 1027692 | $43.83/EA |
| 48 | TN4194321 | 1 | Bracket, Mtg, SensorOld # 1027742 | $12.12/EA |
| 49 | TN4034133 | 2 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 50 | TN4192517 | 1 | Strap, SpptOld # 1032399 | $11.82/EA |
| 51 | TN4041943 | 2 | Screw, Hex, M8 X 1.25 X 25, SsOld # 09010 | $3.30/EA |
| 52 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 53 | TN4021359 | 1 | Bolt, Eye, M8X1.25, 2.75LOld # 386088 | $24.20/EA |
| 54 | TN4041600 | 2 | Nut, Hex, Std, M8 X 1.25, SsOld # 07786 | $3.40/EA |
M20 hopper bumper group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN4031954 | 2 | Grommet, Rbr, 1.06id, F/1.4h, .19 MatlOld # 10632-1 | $4.90/EA |
| 1 | TN4031957 | 2 | Grommet, Rbr, 1.50id, F/1.8h, .19 MatlOld # 10632-13 | $6.00/EA |
| 2 | TN50646 | 1 | Molding, Trim, Pvc,.18 - .31 07.5lOld # 50646 · no current Tennant number on file | Call for price |
| 3 | TN4036305 | 6 | Wheel, 06.0d 2.00w 1.19b, Gray RbrOld # 1021047 | Call for price |
| 4 | TN4015303 | 2 | Pin Kit, Wheel, Ci [M20/T20/M30]Fits SN up to 003062 · Old # 9006334 | $34.00/EA |
| 5 | TN4041629 | 2 | Pin, Cotter, .156 X 2.00Fits SN up to 003062 · Old # 08171 | $3.40/EA |
| 6 | TN4035763 | 1 | Bracket, Mtg, SwitchOld # 1018240 | $16.65/EA |
| 7 | TN4029864 | 2 | Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339 | $4.00/EA |
| 8 | TN4034133 | 2 | Washer, Flat, 0.25 SaeOld # 32483 | $2.50/EA |
| 9 | TN4032006 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .06 MatlFits SN up to 003259 · Old # 10632-4 | $2.50/EA |
| 10 | TN4016553 | 1 | Switch, Press, Spdt 0008psiFits SN up to 003259 · Old # 39924 | Call for price |
| 11 | TN4035991 | 2 | Screw, Pan, M4 X 0.7 X 20, SsOld # 12323 | $3.30/EA |
| 12 | TN4043241 | 2 | Washer, Lock, Int, #08, SsOld # 02938 | $2.60/EA |
| 13 | TN4016762 | 1 | Fitting, Brs, Str, Bm03/Pm02Fits SN up to 003259 · Old # 40607 | $4.20/EA |
| 14 | TN4024317 | 1 | Fitting, Brs, Breather [02mp]Fits SN up to 003259 · Old # 82739 | $10.50/EA |
| 15 | TN4033731 | 1 | Fitting, Brs, E90, Pm02/Bm03Old # 32183 | $9.90/EA |
| 16 | TN4032044 | 1 | Hose, Afmkt, Vacuum, 0.16id, 03ftOld # 1031575 | $16.60/EA |
| 17 | TN4045499 | 1 | Tube, VacuumOld # 1036240 | $32.10/EA |
| 18 | TN4045637 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 19 | TN4041259 | 4 | Screw, Pan, M4 X 0.7 X 20, 4.8Old # 06928 | $2.50/EA |
| 20 | TN4035785 | 1 | Plate Wldt, Mtg, SolenoidOld # 1018280 | $47.60/EA |
| Item 21: choose your version (2) | ||||
| 21 | TN4041948 | 2 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 21 | TN4035608 | 2 | Screw, Hex, M12 X 1.75 X 30, SsOld # 12309 | $6.00/EA |
| Item 22: choose your version (2) | ||||
| 22 | TN4034138 | 2 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 22 | TN4034135 | 2 | Washer, Flat, 0.50, SaeOld # 32486 | $2.60/EA |
| 23 | TN4039424 | 1 | LatchOld # 21623 | $49.60/EA |
| 24 | TN4041272 | 4 | Screw, Hex, M6 X 1.0 X 25, 8.8Old # 06944 | $2.50/EA |
| 25 | TN4035782 | 1 | Solenoid, Pull, 12vdc, DamperOld # 1018274 | $167.10/EA |
| 26 | TN4042585 | 1 | Pin, Roll, .125 D X 0.75l, .125/.129Old # 20021 | $2.50/EA |
| 27 | TN4035787 | 2 | Cap, Arm, LiftOld # 1018293 | $15.60/EA |
| 28 | TN4035546 | 2 | Light, Tail, 12vdcOld # 1018208 | $131.70/EA |
| 29 | TN4038392 | 2 | Pin, 30mmd X 215mmlFits SN 003063 and later · Old # 1053838 | $74.40/EA |
| 30 | TN4035025 | 2 | Pin, Roll, .187d X 1.62l, .187/.192Fits SN 003063 and later · Old # 23146 | $2.50/EA |
| 31 | TN4035148 | 2 | Washer, Flat, 1.26B 1.88D .13, Stl, PlFits SN 003063 and later · Old # 1062566 | $2.60/EA |
| 32 | TN4031623 | 2 | Pin, Cotter, Hair, 1.00d .178 WirFits SN 003063 and later · Old # 34411 | $4.00/EA |
| 33 | TN4037765 | 1 | Switch, Press, Adj [4 - 16 In Wtr]Fits SN 003260 and later · Old # 1052885 | $72.10/EA |
M20 cylindrical brush head lift group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031765 | 1 | Bracket, Mtg, Scb Head, RhOld # 1030910 | $36.50/EA |
| 2 | TN4031766 | 1 | Bracket, Mtg, Scb Head, LhOld # 1030911 | $26.60/EA |
| 3 | TN4041948 | 4 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 4 | TN4034134 | 4 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 5 | TN1020002 | 1 | Housing Wldt, Swp, ScbFits SN up to 004185 · Old # 1020002 · no current Tennant number on file | Call for price |
| 6 | TN4017929 | 2 | Rod - End, .50 - 20rh Fem 0.50bOld # 67555 | $70.00/EA |
| 7 | TN4037934 | 2 | Rod, Thrd, 2 End, .50 - 20 04.9l, Rh / LhOld # 1014705 | $54.00/EA |
| 8 | TN4013991 | 2 | Nut, Hex, Jam, .50 - 20Old # 48985 | $3.40/EA |
| 9 | TN4015630 | 2 | Nut, Hex, Jam, .50 - 20, LhOld # 71369 | $4.00/EA |
| 10 | TN4027312 | 2 | Rod - End, .50 - 20lh Fem 0.50 - 20studOld # 382099 | $53.10/EA |
| 11 | TN4014600 | 2 | Nut, Hex, Lock, .50 - 20, Nl, ThinOld # 51824 | $3.30/EA |
| 12 | TN4036233 | 1 | Tube Wldt, TorqueOld # 1020003 | $219.70/EA |
| 13 | TN4017310 | 4 | Bearing, Self Align, 0.75b 1.25dOld # 42120 | $35.40/EA |
| 14 | TN4041578 | 4 | Fitting, Grease, Str Pm04 .47lOld # 07259 | $3.60/EA |
| 15 | TN4041294 | 2 | Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969 | $4.00/EA |
| 16 | TN4017232 | 2 | Washer, Flat, 0.56b 1.38d .11, SsOld # 41619 | $4.10/EA |
| 17 | TN4041993 | 2 | Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741 | $5.80/EA |
| 18 | TN4040938 | 2 | Pin, Clevis, 0.75d X 2.00lOld # 04733-12 | $7.60/EA |
| 19 | TN4041918 | 2 | Pin, Cotter, .156 X 1.25Old # 08236 | $3.40/EA |
| 20 | TN4037385 | 2 | Screw, Hex, M5 X 0.8 X 10, FmgOld # 223198 | $4.00/EA |
| 21 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 22 | TN4025261 | 2 | Fitting, Hyd, E90, Jm06/Om04Old # 77098 | $15.50/EA |
| 23 | TN4041878 | 2 | Pin, Clevis, 0.37d X 1.75lOld # 17461 | $4.00/EA |
| 24 | TN4022048 | 2 | Pin, Cotter, Hair, 0.38d .072 WirOld # 86866 | $2.50/EA |
| 25 | TN4044719 | 1 | Spring, Extn, 2.00od 0.25wir 07.5lOld # 1042686 | $23.40/EA |
| 26 | TN4030652 | 1 | Bracket, Mtg, SpringOld # 1027810 | $19.80/EA |
| 27 | TN4011904 | 1 | Screw, Hex, M8 X 1.25 X 60, FlOld # 763090 | Call for price |
| 28 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 29 | TN4035885 | 1 | Bracket, Mtg, Lift, Scb HeadOld # 1019146 | $31.00/EA |
| 30 | TN4041992 | 3 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 31 | TN4016292 | 2 | Screw, Hex, .50 - 13 X 1.50, 5Old # 39811 | $4.00/EA |
| 32 | TN4028759 | 2 | Nut, Hex, Lock, .50 - 13, Nl, ThinOld # 36644 | $3.40/EA |
| 33 | TN4033870 | 3 | Sleeve, P/M, 0.47b 0.75d 0.5l [430ss]Old # 1025100 | $4.20/EA |
| 34 | TN4041051 | 1 | Bracket Wldt, Brush Wrap, LhFits SN 004186 and later · Old # 1052342 | $443.90/EA |
| 35 | TN4030120 | 1 | Plate Wldt, Wrap, BrushFits SN 004186 and later · Old # 1069562 | $303.10/EA |
| 36 | TN4040825 | 1 | Bracket Wldt, Brush Wrap Mtg, RhFits SN 004186 and later · Old # 1052124 | $470.60/EA |
| 37 | TN4041992 | 10 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 004186–00731 · Old # 09740 | $3.30/EA |
| 38 | TN4034137 | 20 | Washer, Flat, 0.31, StdFits SN 004186 and later · Old # 32491 | $2.50/EA |
| 39 | TN4041929 | 10 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 004186 and later · Old # 08713 | $3.30/EA |
| 40 | TN4037712 | 10 | Screw, Btn, M8 X 1.25 X 25, SsFits SN 007372 and later · Old # 223470 | $4.00/EA |
M20 squeegee lift group, right side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 2 | TN4025260 | 1 | Fitting, Hyd, E90, Jm04/Om04Old # 77097 | $14.70/EA |
| 3 | TN4030954 | 1 | Fitting, Hyd, Rst, SpclOld # 1028635 | $77.30/EA |
| 4 | TN4033217 | 1 | Bracket, Mtg, CylOld # 1022825 | $24.30/EA |
| 5 | TN4041931 | 1 | Screw, Hex, M6 X 1.00 X 20, SsOld # 08716 | $3.20/EA |
| 6 | TN4042902 | 3 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 7 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 8 | TN4036275 | 2 | Arm, Sqge, Side, RhOld # 1020548 | $62.70/EA |
| 9 | TN4041878 | 1 | Pin, Clevis, 0.37D X 1.75LOld # 17461 | $4.00/EA |
| 10 | TN4041914 | 1 | Pin, Cotter, .125 X 1.00Old # 08182 | $2.50/EA |
| 11 | TN4022528 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816 | $5.20/EA |
| 12 | TN4021359 | 2 | Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088 | $24.20/EA |
| 13 | TN4041600 | 4 | Nut, Hex, Std, M8 X 1.25, SsOld # 07786 | $3.40/EA |
| 14 | TN4033244 | 1 | Arm Wldt, Sqge, Lift, RhOld # 1023306 | Call for price |
| 15 | TN4015663 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607 | $12.50/EA |
| 16 | TN4023925 | 1 | Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784 | $25.30/EA |
| 17 | TN4032591 | 3 | Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801 | $4.00/EA |
| 18 | TN4019804 | 1 | Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308 | $3.40/EA |
| 19 | TN4016830 | 1 | Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445 | $5.10/EA |
| 20 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 21 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 22 | TN4017115 | 5 | Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425 | $5.40/EA |
| 23 | TN4016797 | 3 | Washer, Flat, Belleville, .38Old # 41187 | $4.10/EA |
| 24 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4035869 | 1 | Door Wldt, Brush, RhOld # 1019031 | $356.60/EA |
| 26 | TN4041948 | 3 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 27 | TN4041992 | 3 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 28 | TN4026796 | 1 | Latch, HookOld # 59194 | $82.60/EA |
| 29 | TN4041942 | 2 | Screw, Hex, M6 X 1.0 X 25, SsOld # 09007 | $3.30/EA |
| 30 | TN4016795 | 5 | Washer, Flat, Belleville, .25Old # 41185 | $3.40/EA |
| 31 | TN4026728 | 1 | Screw, Hex, M12 X 1.75 X 55, SsOld # 379870 | $7.60/EA |
| 32 | TN4041602 | 1 | Nut, Hex, Std, M12 X 1.75, SsOld # 07788 | $3.40/EA |
| 33 | TN4017232 | 1 | Washer, Flat, 0.56b 1.38d .11, SsOld # 41619 | $4.10/EA |
| 34 | TN4033623 | 1 | Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576 | $76.50/EA |
| 35 | TN4030456 | 1 | Washer, Flat, Belleville, .50Old # 36328 | $4.10/EA |
| 36 | TN4044039 | 1 | Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348 | $11.80/EA |
M20 squeegee lift group, left side
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043614 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137 | $388.60/EA |
| 2 | TN4025260 | 1 | Fitting, Hyd, E90, Jm04/Om04Old # 77097 | $14.70/EA |
| 3 | TN4030954 | 1 | Fitting, Hyd, Rst, SpclOld # 1028635 | $77.30/EA |
| 4 | TN4033217 | 1 | Bracket, Mtg, CylOld # 1022825 | $24.30/EA |
| 5 | TN4041931 | 1 | Screw, Hex, M6 X 1.00 X 20, SsOld # 08716 | $3.20/EA |
| 6 | TN4042902 | 3 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 7 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 8 | TN4033227 | 1 | Arm Wldt, Lift, Sqge, LhOld # 1022978 | $68.40/EA |
| 9 | TN4041878 | 1 | Pin, Clevis, 0.37D X 1.75LOld # 17461 | $4.00/EA |
| 10 | TN4041914 | 1 | Pin, Cotter, .125 X 1.00Old # 08182 | $2.50/EA |
| 11 | TN4017115 | 5 | Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425 | $5.40/EA |
| 12 | TN4016797 | 3 | Washer, Flat, Belleville, .38Old # 41187 | $4.10/EA |
| 13 | TN4022528 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816 | $5.20/EA |
| 14 | TN4021359 | 2 | Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088 | $24.20/EA |
| 15 | TN4041600 | 4 | Nut, Hex, Std, M8 X 1.25, SsOld # 07786 | $3.40/EA |
| 16 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 17 | TN4033245 | 2 | Arm, Sqge, Side, LhOld # 1023307 | $62.70/EA |
| 18 | TN4015663 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607 | $12.50/EA |
| 19 | TN4023925 | 1 | Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784 | $25.30/EA |
| 20 | TN4032591 | 3 | Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801 | $4.00/EA |
| 21 | TN4019804 | 1 | Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308 | $3.40/EA |
| 22 | TN4016830 | 1 | Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445 | $5.10/EA |
| 23 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 24 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 25 | TN4041948 | 3 | Screw, Hex, M10 X 1.5 X 25, SsOld # 09028 | $4.00/EA |
| 26 | TN4041992 | 6 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 27 | TN4033246 | 1 | Door Wldt, Brush, LhOld # 1023314 | $356.30/EA |
| 28 | TN4026797 | 1 | Latch, HookOld # 59195 | $82.60/EA |
| 29 | TN4041942 | 2 | Screw, Hex, M6 X 1.0 X 25, SsOld # 09007 | $3.30/EA |
| 30 | TN4016795 | 5 | Washer, Flat, Belleville, .25Old # 41185 | $3.40/EA |
| 31 | TN4026728 | 1 | Screw, Hex, M12 X 1.75 X 55, SsOld # 379870 | $7.60/EA |
| 32 | TN4041602 | 1 | Nut, Hex, Std, M12 X 1.75, SsOld # 07788 | $3.40/EA |
| 33 | TN4017232 | 1 | Washer, Flat, 0.56b 1.38d .11, SsOld # 41619 | $4.10/EA |
| 34 | TN4033623 | 1 | Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576 | $76.50/EA |
| 35 | TN4030456 | 1 | Washer, Flat, Belleville, .50Old # 36328 | $4.10/EA |
| 36 | TN4044039 | 1 | Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348 | $11.80/EA |
M20 vacuum fan group, scrubbing (000000 - 006877)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4016733 | 1 | Fan Kit, Scrub, Replmt [M20/T20]Fits SN up to 006877 · Old # 9003455 | $1,750.60/EA | |
| 1 | TN4016433 | 1 | Housing Assy, Vacfan, ScrbrFits SN up to 006877 · Old # 9002684 | $495.90/EA |
| 2 | TN4034215 | 1 | Insulation, Flame - Retardant, 0.50Fits SN up to 006877 · Old # 1025888 | $27.20/EA |
| 3 | TN4034214 | 1 | Insulation, Flame - Retardant, 0.75 - 0.88Fits SN up to 006877 · Old # 1025887 | $28.90/EA |
| 4 | TN4034213 | 1 | Insulation, Flame - Retardant, 0.75 - 0.88Fits SN up to 006877 · Old # 1025872 | $79.30/EA |
| 5 | TN1041815 | 1 | Impeller, 9.5” Dia, 18 Blade (Machined)Fits SN up to 006877 · Old # 1041815 · no current Tennant number on file | Call for price |
| 6 | TN4029292 | 1 | Housing Wldt, Vacfan, Front [528]Fits SN up to 006877 · Old # 57189 | $649.80/EA |
| 7 | TN4013511 | 3 | Shim, Washer, 0.88d 0.51b .020Fits SN up to 006877 · Old # 75456-3 | $6.00/EA |
| 8 | TN4013512 | 3 | Shim, Washer, 0.88d 0.51b .060Fits SN up to 006877 · Old # 75456-4 | $8.10/EA |
| 9 | TN4015365 | 1 | Bracket, Mtg, MotorFits SN up to 006877 · Old # 54275A | $43.80/EA |
| 10 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN up to 006877 · Old # 54274 | $14.70/EA |
| 11 | TN4016739 | 1 | Motor Kit, Replmt [M20&T20]Fits SN up to 006877 · Old # 9003461 | $658.80/EA |
| TN4042787 | 1 | Key, Sq, 0.12 X 0.12, 1.00l (Included With Motor)Fits SN up to 006877 · Old # 00954 | $4.20/EA | |
| TN8002123 | 1 | Kit, Seal, Motor, Hyd, Gear[Barns]Fits SN up to 006877 · Old # 74233 | $106.39/EA | |
| 12 | TN4016783 | 1 | Nut, Low Crown, .50 - 20Fits SN up to 006877 · Old # 41130 | $6.00/EA |
| 13 | TN4028682 | 4 | Screw, Flt, .38 - 16 X 1.50, AlFits SN up to 006877 · Old # 54861 | $0.55/EA |
| 14 | TN4037922 | 4 | Washer, Flat, 0.40b 1.12d .12, SsFits SN up to 006877 · Old # 1014563 | $5.80/EA |
| 15 | TN4028758 | 4 | Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN up to 006877 · Old # 36643 | $2.50/EA |
| 16 | TN4015802 | 4 | Screw, Flt, .25 - 20 X 1.00, AlFits SN up to 006877 · Old # 39534 | $3.20/EA |
| 17 | TN4034654 | 4 | Nut, Hex, Lock, .25 - 20, NlFits SN up to 006877 · Old # 32981 | $2.50/EA |
| 18 | TN4014183 | 1 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, BrFits SN up to 006877 · Old # 49933 | $33.10/EA |
| 19 | TN4017335 | 1 | Fitting, Hyd, E45, Jm08/Om08Fits SN up to 006877 · Old # 42226 | $11.80/EA |
| 20 | TN4019746 | 1 | Fitting, Hyd, E45, Jm06/Om04Fits SN up to 006877 · Old # 392609 | $32.21/EA |
| 21 | TN4036257 | 1 | Angle, Sppt, FanFits SN up to 006877 · Old # 1020320 | $11.90/EA |
| 22 | TN4033853 | 2 | Bracket, Mtg, FanFits SN up to 006877 · Old # 1024891 | $12.40/EA |
| 23 | TN4041844 | 6 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN up to 006877 · Old # 16931 | $2.50/EA |
| 24 | TN4016796 | 6 | Washer, Flat, Belleville, .31Fits SN up to 006877 · Old # 41186 | $3.50/EA |
| 25 | TN4041992 | 7 | Screw, Hex, M8 X 1.25 X 20, SsFits SN up to 006877 · Old # 09740 | $3.30/EA |
| 26 | TN4032927 | 1 | Hose, Air - Intk, Flex 4.00id 24.0lFits SN up to 006877 · Old # 1022377 | $90.90/EA |
| 27 | TN4037922 | 3 | Washer, Flat, 0.40b 1.12d .12, SsFits SN up to 006877 · Old # 1014563 | $5.80/EA |
| 28 | TN4026555 | 1 | Clamp, Hose, Wormdrive, 3.75 - 4.62d, .62wFits SN up to 006877 · Old # 79380 | $10.50/EA |
| 29 | TN4033549 | 1 | Plate Wldt, Hose, VacuumFits SN up to 006877 · Old # 1023754 | $76.30/EA |
| 30 | TN4033849 | 1 | Gasket, Plt, Hose, VacuumFits SN up to 006877 · Old # 1024853 | $5.40/EA |
| 31 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 006877 · Old # 1017218 | $3.40/EA |
| 32 | TN4035042 | 1 | Clamp, Hose, Wormdrive, 3.56 - 4.50D, .50WFits SN up to 006877 · Old # 23498 | $6.20/EA |
M20 vacuum fan group, sweeping
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016432 | 1 | Housing Assy, Vacfan, SwprOld # 9002683 | $381.00/EA |
| 2 | TN4027226 | 1 | Seal, Ure, 0.38 0.75w 13.2l AdhOld # 59967 | Call for price |
| 3 | TN4038019 | 1 | Seal, Ure, 0.38 0.75w 33.0l AdhOld # 59735 · replaced by 4038019 (Tennant parts catalog) | Call for price |
| 4 | TN4035737 | 1 | Fan Wldt, Vac, InletOld # 1018216 | $68.18/EA |
| 5 | TN4031280 | 4 | Screw, Hex, .25 - 20 X 0.75, NlOld # 34323 | $11.60/EA |
| 6 | TN4016794 | 4 | Washer, Flat, 0.25 FenderOld # 41178 | $2.50/EA |
| 7 | TN4012781 | 1 | Impeller, 9.00d X 1.40w X 0.376bOld # 74454 | $134.10/EA |
| 8 | TN4033118 | 1 | Nut, Hex, Lock, .31 - 24, Nl, ThinOld # 31241 | $3.40/EA |
| 9 | TN4034134 | 1 | Washer, Flat, 0.38 SaeOld # 32485 | $2.50/EA |
| 10 | TN4026845 | 3 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 59649 | $15.50/EA |
| Item 11: choose your version (2) | ||||
| 11 | TN4192981 | 1 | Bar, Isolator, Vacfan [M20 2007]Fits SN up to 006877 · Old # 1034388 | $18.08/EA |
| 11 | TN4181494 | 1 | Bar, Isolator, Vacfan [M20]Fits SN 006878 and later · Old # 1074010 | $25.05/EA |
| 12 | TN4019761 | 3 | Screw, Hex, M10 X 1.5 X 40, 8.8Old # 39285 | $3.20/EA |
| 13 | TN4016826 | 3 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 14 | TN4015365 | 1 | Bracket, Mtg, MotorOld # 54275A | $43.80/EA |
| 15 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274 | $14.70/EA |
| 16 | TN4015031 | 1 | Motor, Hyd, Gear, [Ex] .194 R 3000 (See Breakdowns)Fits SN up to 006877 · Old # 53485 | Call for price |
| 17 | TN4015802 | 4 | Screw, Flt, Soc, .25 - 20 X 1.00, AlOld # 39534 | $3.20/EA |
| 18 | TN4034654 | 4 | Nut, Hex, Lock, .25 - 20, NlOld # 32981 | $2.50/EA |
| 19 | TN4014524 | 1 | Fitting, Hyd, Str, Jm06/Om04Fits SN up to 006877 · Old # 50960 | $7.00/EA |
| 20 | TN4017332 | 1 | Fitting, Hyd, Tee, Jf06/Jm06/Jm06, RunOld # 42215 | $34.90/EA |
| 21 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Fits SN up to 001337 · Old # 44868 | $10.30/EA |
| 22 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Fits SN up to 001337 · Old # 44869 | $7.00/EA |
| 23 | TN4034206 | 1 | Muffler, Vacfan, 4.0idOld # 1025756 | $70.70/EA |
| 24 | TN4035042 | 3 | Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498 | $6.20/EA |
| 25 | TN4034209 | 1 | Tube, Transition, CastingOld # 1025841 | $33.70/EA |
| 26 | TN4035735 | 1 | Gasket, Hppr, TransitionOld # 1018209 | $10.00/EA |
| 27 | TN4045637 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 28 | TN4017777 | 1 | Fitting, Hyd, Str, Jm08/Om08Old # 44869 | $7.00/EA |
| 29 | TN4035766 | 1 | Hose, Flex, Vacuum, 3.5d 32.0lOld # 1018252 | $93.60/EA |
| 30 | TN4034133 | 4 | Washer, Flat, 0.25, SaeFits SN 006878 and later · Old # 32483 | $2.50/EA |
| 31 | TN4028758 | 4 | Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643 | $2.50/EA |
| 32 | TN4037922 | 10 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
| 33 | TN4017776 | 1 | Fitting, Hyd, E90, Jm08/Om08Old # 44868 | $10.30/EA |
| 34 | TN4030523 | 1 | Motor, Hyd, Gear, Ext 0.17 Lh 3000Fits SN 006878 and later · Old # 1071240 | $1,451.00/EA |
| 35 | TN4025261 | 1 | Fitting, Hyd, E90, Jm06/Om04Fits SN 006878 and later · Old # 77098 | $15.50/EA |
M20 hydraulic hose group, pump and vacuum fans (000000 - 006877)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4015715 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Fits SN up to 006877 · Old # 71741 | $79.20/EA |
| 2 | TN4029567 | 1 | Hose, Hyd, Med06, Jf06str/Jf06str, 018.0Fits SN up to 006877 · Old # 361044 | $23.94/EA |
| 3 | TN4027082 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 024.0Fits SN up to 001337 · Old # 381862 | $29.09/EA |
| 4 | TN4015813 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Fits SN up to 006877 · Old # 396255 | $41.60/EA |
| 5 | TN4034271 | 1 | Hose, Hyd, Tc08, Jf08e45/Jf08str, 26.0Fits SN up to 003297 · Old # 1026645 | $63.00/EA |
| 6 | TN4041531 | 1 | Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Fits SN up to 006877 · Old # 16431 | $28.90/EA |
| 7 | TN4033532 | 1 | Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Fits SN up to 006877 · Old # 1023607 | $52.12/EA |
| 8 | TN1036710 | 1 | Hose, Hyd, Suc20, Jf20str /Jf20e90, 30.0Fits SN up to 006877 · Old # 1036710 · current Tennant number (Tennant parts catalog) | $143.30/EA |
| 9 | TN396266 | 1 | Hose, Hyd, Med08, Jf08e90/Jf08str, 031.0Fits SN up to 001337 · Old # 396266 · current Tennant number (Tennant parts catalog) | Call for price |
| 10 | TN4015710 | 1 | Hose, Hyd, Med06, Jf06e90/Jf06str, 042.0Fits SN up to 002699 · Old # 71735 | $54.40/EA |
| Item 11: choose your version (2) | ||||
| 11 | TN4033924 | 1 | Hose, Hyd, Med10, Jf10str/Jf10str, 41.0Fits SN up to 002699 · Old # 1025547 | $53.60/EA |
| 11 | TN4191362 | 1 | Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Fits SN 002700–006877 · Old # 1040655 | $54.22/EA |
| 12 | TN4015819 | 1 | Hose, Hyd, Tc12, Jf12e90/Jf12str, 044.0Fits SN up to 003038 · Old # 396438 | $95.34/EA |
| 13 | TN4030676 | 1 | Hose, Hyd,Med12, Jf12str/Jf12str , 66.0Fits SN up to 003038 · Old # 1028145 | $85.20/EA |
| 14 | TN4033531 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 21.0Fits SN up to 003297 · Old # 1023606 | $53.50/EA |
| Item 15: choose your version (2) | ||||
| 15 | TN4027081 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 024.0Fits SN 001338–002699 · Old # 381858 | $38.28/EA |
| 15 | TN4191311 | 1 | Hose, Hyd, Tc08, Jf08E90/Jf08Str, 029.0Fits SN 002700–006877 · Old # 1040216 | $57.80/EA |
| 16 | TN4190722 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Fits SN 001338–006877 · Old # 1036945 | $35.20/EA |
| 17 | TN4015655 | 1 | Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Fits SN 002700–006877 · Old # 71556 | $32.20/EA |
| 18 | TN4188134 | 1 | Hose, Hyd, Med12, Jf12str/Jf12str, 060.0Fits SN 003039–006877 · Old # 1052834 | $92.82/EA |
| 19 | TN4040692 | 1 | Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Fits SN 003039–006877 · Old # 1050436 | $257.10/EA |
| 20 | TN4034271 | 1 | Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Fits SN 003298–006877 · Old # 1026645 | $63.00/EA |
| 21 | TN4033531 | 1 | Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Fits SN 003298–006877 · Old # 1023606 | $53.50/EA |
M20 hydraulic hose group, pump and vacuum fans (006878 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4015715 | 2 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Fits SN 006878 and later · Old # 71741 | $79.20/EA |
| 2 | TN4015813 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Fits SN 006878 and later · Old # 396255 | $41.60/EA |
| 3 | TN4041531 | 1 | Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Fits SN 006878 and later · Old # 16431 | $28.90/EA |
| 4 | TN4033532 | 1 | Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Fits SN 006878 and later · Old # 1023607 | $52.12/EA |
| 5 | TN1036710 | 1 | Hose, Hyd, Suc20, Jf20str /Jf20e90, 30.0Fits SN 006878 and later · Old # 1036710 · current Tennant number (Tennant parts catalog) | $143.30/EA |
| 6 | TN4191362 | 1 | Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Fits SN 006878 and later · Old # 1040655 | $54.22/EA |
| 7 | TN4190722 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Fits SN 006878 and later · Old # 1036945 | $35.20/EA |
| 8 | TN4015655 | 1 | Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Fits SN 006878 and later · Old # 71556 | $32.20/EA |
| 9 | TN4188134 | 1 | Hose, Hyd, Med12, Jf12str/Jf12str, 060.0Fits SN 006878 and later · Old # 1052834 | $92.82/EA |
| 10 | TN4040692 | 1 | Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Fits SN 006878 and later · Old # 1050436 | $257.10/EA |
| 11 | TN4034271 | 1 | Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Fits SN 006878 and later · Old # 1026645 | $63.00/EA |
| 12 | TN4033531 | 1 | Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Fits SN 006878 and later · Old # 1023606 | $53.50/EA |
M20 hydraulic cooler and tubes group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043588 | 1 | Cooler, Hyd, 25gpm 325btu Of12 13x12x2Fits SN up to 003038 · Old # 13698 | Call for price |
| 2 | TN4013458 | 1 | Fitting, Hyd, E90, Jm12/Om12Old # 46481 | $18.60/EA |
| 3 | TN4020261 | 1 | Fitting, Hyd, E90, Jm12/Om12, LOld # 62471 | $47.40/EA |
| 4 | TN4193902 | 1 | Bracket Wldt, Cooler, Hyd FluidFits SN up to 003038 · Old # 1026319 | $157.76/EA |
| 5 | TN4044301 | 4 | Pad, Tank, Hyd [W/Psa]Fits SN up to 003038 · Old # 1040318 | $2.83/EA |
| 6 | TN1026647 | 1 | Angle, Mtg, Stl, .12 1.6 1.6 02.2lOld # 1026647 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 7 | TN4019758 | 1 | Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283 | $3.30/EA |
| 8 | TN4034138 | 1 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 9 | TN4016826 | 1 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 10 | TN4014594 | 1 | Bumper, Rbr, 0.6d 0.34t .3d TipFits SN up to 003038 · Old # 51787 | $3.70/EA |
| 11 | TN4045582 | 1 | Tube, Hyd, Main ReturnFits SN up to 005999 · Old # 1036959 | $87.89/EA |
| 12 | TN4015029 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466 | $4.20/EA |
| 13 | TN4027429 | 1 | Fitting, Hyd, Cap, Jf08Old # 60090 | $7.70/EA |
| 14 | TN4030995 | 1 | Tube, Hyd, SqgeOld # 1028821 | $101.50/EA |
| 15 | TN4030996 | 1 | Tube, Hyd, SqgeOld # 1028822 | $103.70/EA |
| 16 | TN4016764 | 2 | Clamp, Cable, Stl, 0.44d X 0.62w, 1hOld # 40678 | $3.60/EA |
| 17 | TN4012782 | 1 | Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455 | $3.40/EA |
| 18 | TN4030997 | 2 | Tube, Hyd, Rear Sqge [M20]Old # 1028823 | $33.64/EA |
| 19 | TN4031672 | 2 | Nut, Ftg, Hyd, 0.56 - 18Old # 35904 | $3.23/EA |
| 20 | TN4014193 | 2 | Fitting, Hyd, Cap, Jf04Old # 50161 | $2.40/EA |
| 21 | TN4156940 | 8 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 003038 · Old # 39277 | $3.20/EA |
| 22 | TN4034137 | 8 | Washer, Flat, 0.31, StdFits SN up to 003038 · Old # 32491 | $2.50/EA |
| 23 | TN4041605 | 8 | Nut, Hex, Flng, M8 X 1.25Fits SN up to 003038 · Old # 07791 | $2.50/EA |
| 24 | TN4016826 | 2 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 25 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 26 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 27 | TN4013899 | 1 | Fitting, Hyd, Str, Jf06/Jm04Old # 47752 | $9.80/EA |
| 28 | TN4030506 | 1 | Tube, Hyd, Main Return [G/Lp Mit2013]Fits SN 006000 and later · Old # 1071173 | $122.10/EA |
| 29 | TN4041885 | 1 | Fitting, Hyd, E90, Jf08/Jm08Fits SN 006000 and later · Old # 17980 | $11.80/EA |
M20 label group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025324 | 1 | Label Set, Info/Hzrd, Swpr / ScrbrOld # 77221 | $28.90/EA |
| 2 | TN4035239 | 1 | Label Set, Hi TempOld # 1017141 | $30.80/EA |
| 3 | TN4032752 | 3 | Label, Logo, 05.75L 2Color [ES]Old # 1065343 | $26.97/EA |
| 4 | TN4032751 | 3 | Label, Logo, 07.95L 2Color [FaST]Old # 1065342 | $11.11/EA |
| 5 | TN4040474 | 2 | Label [User, Attention, ec - H2O]Old # 1050003 | $4.34/EA |
| 6 | TN4031775 | 1 | Label Set, Brush Indicator & RemovalOld # 1031017 | $30.10/EA |
| 7 | TN4032466 | 1 | Label Set, Info/Hzrd, Swpr / Scrbr, Tj (Japan Only)Old # 1032450 | $162.79/EA |
| 8 | TN4032629 | 2 | Label, Model, 2Color [M20]Old # 1064662 | $21.30/EA |
| 9 | TN4035178 | 1 | Label, Logo, 12.3L 4Color [ec - H2O]Old # 1062813 | $36.60/EA |
| 10 | TN4032615 | 1 | Label, Logo, 16.9L 4Color [ec - H2O]Old # 1064440 | $27.20/EA |
M20 common parts and consumables
Brushes, squeegee blades, filters, belts, skirts and other parts from Tennant's M20 common parts and consumables sheet (rev 9/2023), which covers all M20 power types; lines marked Gasoline, LPG or Diesel fit only that engine.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN4030645 | performance, designed and Polyester Cylindrical BrushOld # 1027697Confirm fit before ordering: Tennant's current description differs | $682.90/EA | ||
| TN4034238 | engineered specifically to fit CYLINDRICAL Polypropylene Cylindrical Brush 40” (1020 mm) /Old # 1026223Confirm fit before ordering: Tennant's current description differs | $616.50/EA | ||
| TN4031767 | Heavy Duty Polypropylene Cylindrical Brush 2 x 40” (1020 mm) brushesOld # 1030969Confirm fit before ordering: Tennant's current description differs | $657.80/EA | ||
| TN4034237 | Super Abrasive Cylindrical BrushOld # 1026222Confirm fit before ordering: Tennant's current description differs | $872.90/EA | ||
| TN4037187 | Nylon Disk Scrub BrushOld # 1220235 | $416.00/EA | ||
| TN4037188 | Heavy Duty Polypropylene Disk Scrub Brush 1 x 16” (406 mm) brushOld # 1220236 | $248.00/EA | ||
| TN4037455 | Super Abrasive Disk Scrub BrushOld # 1221543 | $545.70/EA | ||
| TN4037153 | Polypropylene Disk Sweep Brush 1 x 24” (610 mm) brushOld # 1220185 | $318.80/EA | ||
| TN4035508 | Linard® Front SqueegeeOld # 1017868 | $90.00/EA | ||
| TN4030648 | Urethane Front SqueegeeOld # 1027719Confirm fit before ordering: Tennant's current description differs | $274.30/EA | ||
| TN4031803 | • Less rework and low labor costs. Linatex® Rear SqueegeeOld # 1031331Confirm fit before ordering: Tennant's current description differs | $120.00/EA | ||
| TN4032198 | Urethane Rear SqueegeeOld # 1031945Confirm fit before ordering: Tennant's current description differs | $305.50/EA | ||
| TN4021294 | applications. Linatex® Rear Squeegee End GasketOld # 83874Confirm fit before ordering: Tennant's current description differs | $13.00/EA | ||
| TN4031774 | • Premium Linatex® and Linatex® Left and Right Side SqueegeeOld # 1031011Confirm fit before ordering: Tennant's current description differs | $93.40/EA | ||
| TN4032169 | Linard® rubber exhibits Urethane Left and Right Side SqueegeeOld # 1031823Confirm fit before ordering: Tennant's current description differs | $183.50/EA | ||
| TN4033862 | outstanding strength and Linatex® Side Brush SqueegeeOld # 1025005 | $72.00/EA | ||
| TN4030647 | Urethane Side Brush SqueegeeOld # 1027716Confirm fit before ordering: Tennant's current description differs | $169.30/EA | ||
| TN4032809 | Hydraulic Oil FilterOld # 1021579Confirm fit before ordering: Tennant's current description differs | $128.30/EA | ||
| TN4030627 | 20 Mesh Solution FilterOld # 1027290 | $20.30/EA | ||
| TN4039697 | Dust Panel Filter – SyntheticOld # 1048295AMConfirm fit before ordering: Tennant's current description differs | $329.30/EA | ||
| TN8005623 | Air Filter Element – GM Gas / LP, Mitsubishi Gas / LP, DieselDieselGasolineLPGOld # 369746 | $34.60/EA | ||
| TN8004565 | Spin-On Oil Filter – GM Gas / LPGasolineLPGOld # 371972 | $32.00/EA | ||
| TN8002631 | Spin-On Oil Filter – Mitsubishi Gas / LPGasolineLPGOld # 393982 | $30.00/EA | ||
| TN8002633 | Spin-On Oil Filter – DieselDieselOld # 39703-2 | $15.60/EA | ||
| TN8005188 | Fuel Filter – GM Gas, Mitsubishi GasGasolineOld # 372440 | $64.20/EA | ||
| TN8005332 | Fuel Filter – GM LPLPGOld # 372615 | $88.40/EA | ||
| TN8002010 | Fuel Filter – Mitsubishi LPLPGOld # 9007380Confirm fit before ordering: Tennant's current description differs | $25.60/EA | ||
| TN8005805 | Fuel Filter – DieselDieselOld # 1017126 | $21.90/EA | ||
| TN4039111 | Squeegee WheelOld # 20833 | $80.80/EA | ||
| TN8003282 | Ignition Key (set of 2)Old # 87866 | $27.00/EA | ||
| TN4037557 | 12V, 475CCA Wet BatteryOld # 10137 | $218.28/EA | ||
| TN8005314 | Spark Plug – GM Gas / LPGasolineLPGOld # 372575Confirm fit before ordering: Tennant's current description differs | $13.30/EA | ||
| TN8004084 | Spark Plug – Mitsubishi Gas / LPGasolineLPGOld # 9010622 | $9.40/EA | ||
| TN8005311 | 39” Alternator Belt – GMOld # 372571 | $156.70/EA | ||
| TN4030504 | 39” Alternator Belt – MitsubishiOld # 1071145 | $53.20/EA | ||
| TN4019823 | 42” Alternator Belt – Diesel (for machine serial number above 002593)DieselOld # 393244Confirm fit before ordering: Tennant's current description differs | $15.00/EA | ||
| TN4033626 | Side Door Inner SkirtOld # 1024586Confirm fit before ordering: Tennant's current description differs | $33.60/EA | ||
| TN4035908 | Side Door Outer SkirtOld # 1019295 | $67.60/EA | ||
| TN4036240 | Front Tabbed SkirtOld # 1020166 | $70.20/EA | ||
| TN4032877 | Rear SkirtOld # 1022009 | $34.70/EA | ||
| TN4032876 | Rear Recirculation FlapOld # 1022007Confirm fit before ordering: Tennant's current description differs | $49.10/EA | ||
| TN4037134 | 18.0 X 6.0 Solid Hi Traction Tire AssemblyOld # 1059343 | $1,386.50/EA |
Notes on this parts list
- Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
- Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
- Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
- Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.
