Tennant M20 standard parts, SN 008000 and later: 2016 manual (rev. 01)

Standard parts parts from Tennant's North American M20 parts manuals for SN 008000 and later (9016001 rev. 01 (gas/LPG, 2016)), gas/LPG. Use Your machine to pick your serial number, edition or another area.‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‌‍‌‍‍⁠‍‍‌⁠‍‍⁠‍⁠⁠‌‍‌‌‌⁠

Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.

Find your parts list →

1,256 lines from 9016001 rev. 01 (gas/LPG, 2016). Checked against the manuals line by line on October 12, 2026.

Tennant M20 integrated sweeper-scrubber. Shop M20 machines

Machine: M20 rider sweeper-scrubber
Cleaning path: 40 in (56 in with side brush)
Solution / recovery: 56 / 73 gal
Hopper: 3.9 ft³, 390 lb
Power: Gasoline, LPG or diesel
Main brushes: 2 × 40 in cylindrical

Your machine‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‍‍‍‌‌‍‌‍‌‍‌‌‍⁠‌⁠⁠‌‌‍

You’re viewing the 2016 manual (Rev 01, Dec 2016; gas/LPG only). The current manual is Rev 12 (Oct 2025). Enter your serial number or use the dropdown for your exact machine.

Machine serial number

Serial rangeParts list editionArea of the machinePower

Where to find the serial number and power type

The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.

How to read this list

Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

M20 recommended maintenance parts

Recommended maintenanceSN 008000 and later, 2016 manualFits: GasolineLPG‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌⁠⁠‌‌‍‍‌‍‌‍⁠‍‍‍‍⁠‍‌⁠⁠⁠⁠⁠‍‌⁠‍

Tennant M20 recommended maintenance parts parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN82681	1	Bracket Wldt, Lpg MountOld # 82681 · no current Tennant number on file	Call for price
2	Old # 63810	4	Latch Assy, Lpg Tank Mtg, W/NutOld # 63810Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
3	Old # 51839	2	Nut Adjustable, Lpg Tank MtgOld # 51839Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
4	TN4014137	3	Tie, CableOld # 49263	$3.40/EA
5	TN82556	1	Bracket, VaporizerFits SN up to 001039 · Old # 82556 · no current Tennant number on file	Call for price
6	TN8004486	1	Vaporizer, LPGOld # 54930 · replaced by 8004486 (Tennant parts catalog)	Call for price
	TN4016168	1	Maint Kit, Gas, 800hr[M20/T20]Old # 9002555	$438.80/EA
	TN4033485	1	Strainer, Hyd, 25 Gpm 100 MeshOld # 31613	$110.60/EA
	TN4035422	1	Cap, Breather, Hyd, 2.4 DsOld # 25122	$149.20/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN8005188	1	Filter, Fuel [Gm 1.6l/3.0l]Old # 372440	$64.20/EA
	TN4012018	1	Maint Kit, 800hr [M20/T20/M30 Lpg 2010]Old # 9007381	$401.20/EA
	TN4033485	1	Strainer, Hyd, 025gpm 100mesh 03psiOld # 31613	$110.60/EA
	TN4035422	1	Cap, Breather, Hyd, 2.4 DsOld # 25122	$149.20/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN8002010	1	Filter Kit, Fuelock, LpgOld # 9007380	$25.60/EA
	TN8002631	1	Element, Fltr, Oil, Spin - On (Mits)Old # 393982	$30.00/EA
	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290	$20.30/EA
	TN8003282	1	Key, Ignition [Set Of 2]Old # 87866	$27.00/EA
	TN4037557	1	Battery, Wet, 12vdc 0475ccaOld # 10137	$218.28/EA
	TN4039111	2	Wheel, 3.0d 1.38w 0.50bOld # 20833	$80.80/EA
	TN4045064	1	Belt, Ribbed, 38.5lOld # 1033644	$73.00/EA
	TN4033626	2	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
	TN4035908	2	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
	TN4035508	1	Blade, Sqge, Front [Linard]Old # 1017868	$90.00/EA
	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
	TN4031774	2	Blade, Sqge, 37.08l LinatexOld # 1031011	$93.40/EA
	TN4030648	1	Blade, Sqge, Front, 49.59l PyuOld # 1027719	$274.30/EA
	TN4032198	1	Blade, Sqge, Rear, 53.78L PyuOld # 1031945	$305.50/EA
	TN4032169	2	Blade, Sqge, .38 3.55w 038.3l, UreOld # 1031823	$183.50/EA
	TN8003678	4	Plug, SparkOld # 9014160	$5.00/EA
	TN4036799	1	Blade, Sqge, Side Brush, UrethaneOld # 1059091	$91.61/EA
	TN4036800	1	Blade, Sqge, Side Brush, UrethaneOld # 1059092	$55.85/EA
	TN4043022	1	Blade, Sqge, Side Brush, LinatexOld # 1046980	$59.89/EA
	TN4043073	1	Blade, Sqge, Side Brush, LinatexOld # 1047238	$31.51/EA
	Old # 16411	1	Paint, Airdry, Off - White, 12ozOld # 16411Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	Old # 16412	1	Paint, Airdry, Teal, 12oz, SolidOld # 16412Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN5000171	1	Paint, Airdry, Blk, 12ozOld # 377540	$67.20/EA
	TN5000170	1	Paint, Airdry, Gray, 12oz [Enamel]Old # 377538	$39.50/EA
	Old # 377537	1	Paint, Airdry, Iron Gray,12oz[Pwdr Coat]Old # 377537Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN8005843	1	Oil, Hyd [El, Iso 100, 01gal]Old # 1057710	$58.70/EA
	TN8005844	1	Oil, Hyd [El, Iso 100, 05gal]Old # 1057711	$251.30/EA
	TN8004994	1	Oil, Hyd [El, Iso 68, 01gal]Old # 1069019	$48.70/EA
	TN8004995	1	Oil, Hyd [El, Iso 68, 05gal]Old # 1069020	$227.00/EA
	TN8005841	1	Oil, Hyd [El, Iso 32, 01gal]Old # 1057707	$58.70/EA
	TN8005842	1	Oil, Hyd [El, Iso 32, 05gal]Old # 1057708	$248.90/EA

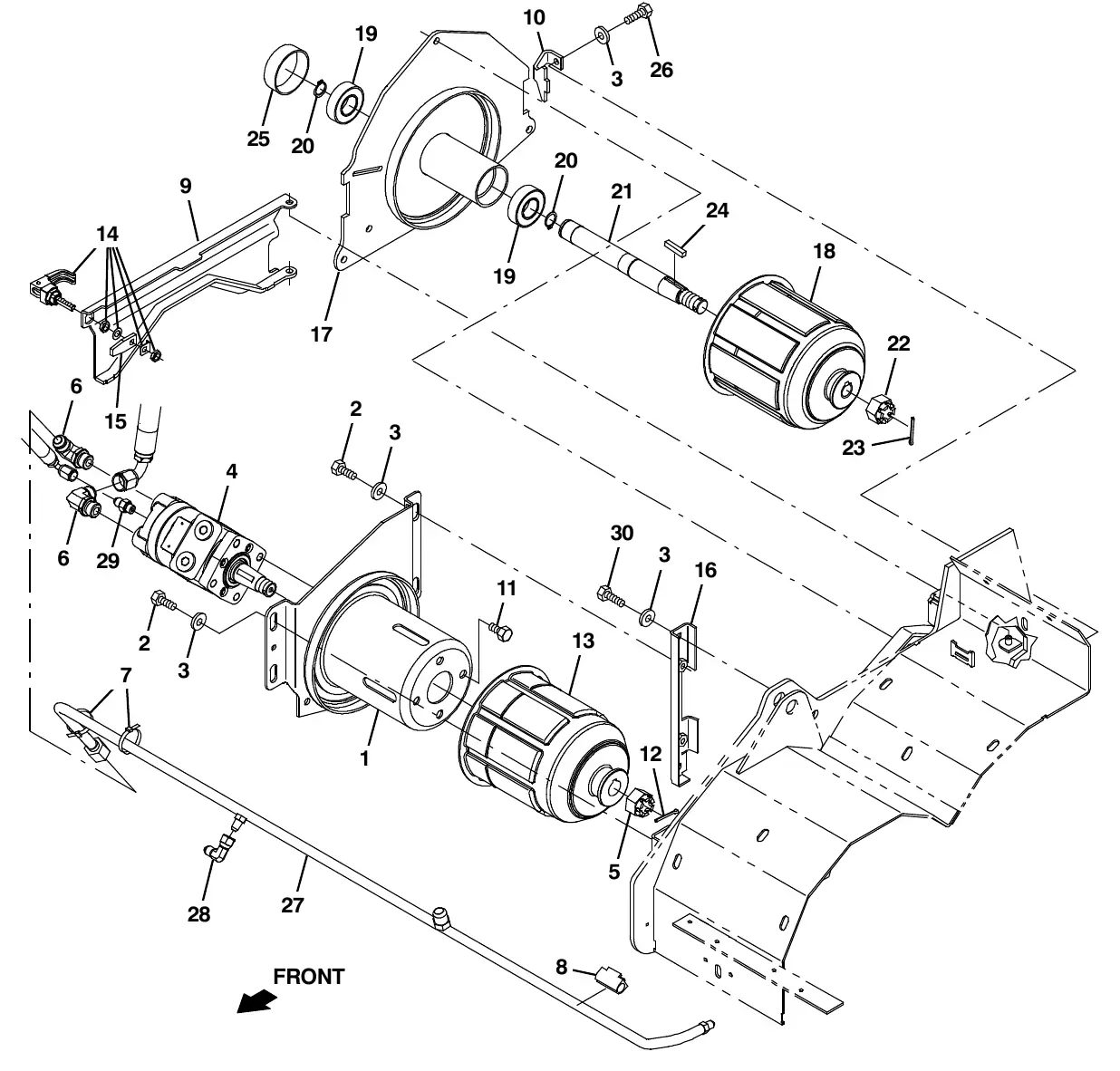

M20 brushes, replacement, scrub head

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‍‍⁠‍‍‌‍‌‍⁠‌‍⁠‌⁠⁠‌⁠⁠‌‌‌‍‌‍‌‍‍‍

Tennant M20 brushes, replacement, scrub head parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (4)
1	TN4034238	2	Brush, Sweep / Scb, 40L, PolypropyleneOld # 1026223	$616.50/EA
1	TN4034237	2	Brush, Sweep / Scb, 40L, Super AbrasiveOld # 1026222 · Replaced by 1252156 in the 2022 list (rev. 08)	$872.90/EA
1	TN4030645	2	Brush, Sweep / Scb, 40L, PolyesterOld # 1027697	$682.90/EA
1	TN4031767	2	Brush, Sweep / Scb, 40L, Heavy Duty PolypropyleneOld # 1030969	$657.80/EA
Item 2: choose your version (2)
2	TN4044403	1	Brush, Sweep / Scb, 40L, Wndw, PolypropyleneOld # 1040524	$572.20/EA
2	TN4033963	1	Brush, Sweep / Scb, 40L, Wndw, Super AbrasiveOld # 1059640	$868.60/EA

M20 brushes, replacement, side brush

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌⁠‌⁠‌‌‍‌‍‌⁠⁠‍‍⁠‌⁠‍‍⁠‌‍‍⁠‍‍‌‍‌

Tennant M20 brushes, replacement, side brush parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4037187	1	Brush Assy, Disk, Scb, 16.0d, NylonOld # 1220235	$416.00/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
1	TN4037188	1	Brush Assy, Disk, Scb, 16.0d, Heavy Duty PolypropyleneOld # 1220236	$248.00/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
1	TN4037455	1	Brush Assy, Disk, Scb, 16.0d, Super AbrasiveOld # 1221543	$545.70/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
3	TN4037153	1	Brush Assy, Disk, Swp, 24.0d, PolypropyleneOld # 1220185	$318.80/EA
4	TN4022629	1	Brush Kit, Hub Assy, Drive, Ci [Uhmw]Old # 9014666	$109.90/EA

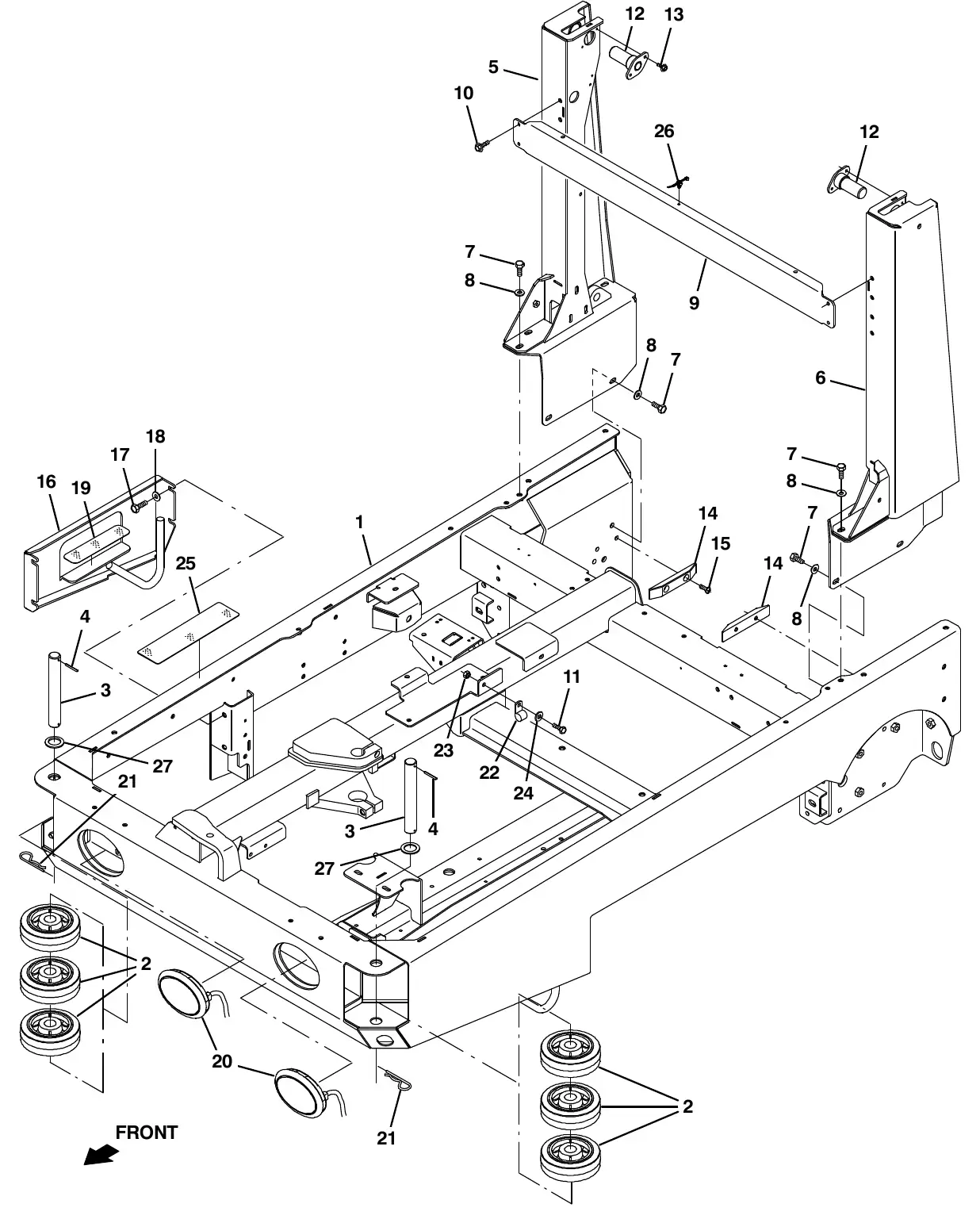

M20 main frame group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 main frame group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4016146	1	Frame Wldt, Main, Replmt [M20 & T20]Old # 9002401	$5,863.15/EA
2	TN4034399	6	Wheel, 06.0D 2.00W 1.19B, Gray RbrOld # 1060130	$21.60/EA
3	TN4038392	2	Pin, 30mmd X 215mmlOld # 1053838	$74.40/EA
4	TN4035025	2	Pin, Roll, .187d X 1.62l, .187/.192Old # 23146	$2.50/EA
5	TN4205148	1	Tower, Wldt, Lift, Rh, Replmt [M20]Old # 9002400	$576.96/EA
6	TN4205147	1	Tower, Wldt, Lift, Lh, Replmt [M20]Old # 9002399	$579.94/EA
7	TN4019758	10	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
8	TN4034138	10	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
9	TN4197845	1	Channel, Upper, Tower, LiftOld # 1017791	$101.20/EA
10	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
11	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
12	TN4035903	2	Pin Wldt, Pivot, HpprOld # 1019251	$53.70/EA
13	TN4012782	4	Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455	$3.40/EA
14	TN4036638	2	Block, Guide, HpprOld # 1021327	$21.34/EA
15	TN4029274	4	Screw, Pan, M8 X 1.25 X 25, SsOld # 367771	$3.30/EA
16	TN4030654	1	Panel Wldt, FillerOld # 1027916	$172.20/EA
17	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
18	TN4042903	4	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
19	TN4030470	1	Tread, Non - Skid, 01.9w 08.0lOld # 363458	$6.10/EA
20	TN4045141	2	Headlight, 12Vdc, Oval, LedOld # 1075367	$281.90/EA
21	TN4031623	2	Pin, Cotter, Hair, 1.00d .178 WirOld # 34411	$4.00/EA
22	TN4015029	1	Clamp, Cable, Stl, 1.50d X 1.00w, 1holeOld # 53466	$4.20/EA
23	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
24	TN4034137	1	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
25	TN4026685	1	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
26	TN4038889	1	Wire, Tie [W/.25” Fir Tree Clip]Old # 1210807	$1.90/EA
27	TN4035148	2	Washer, Flat, 1.26B 1.88D .13, Stl, PlOld # 1062566	$2.60/EA

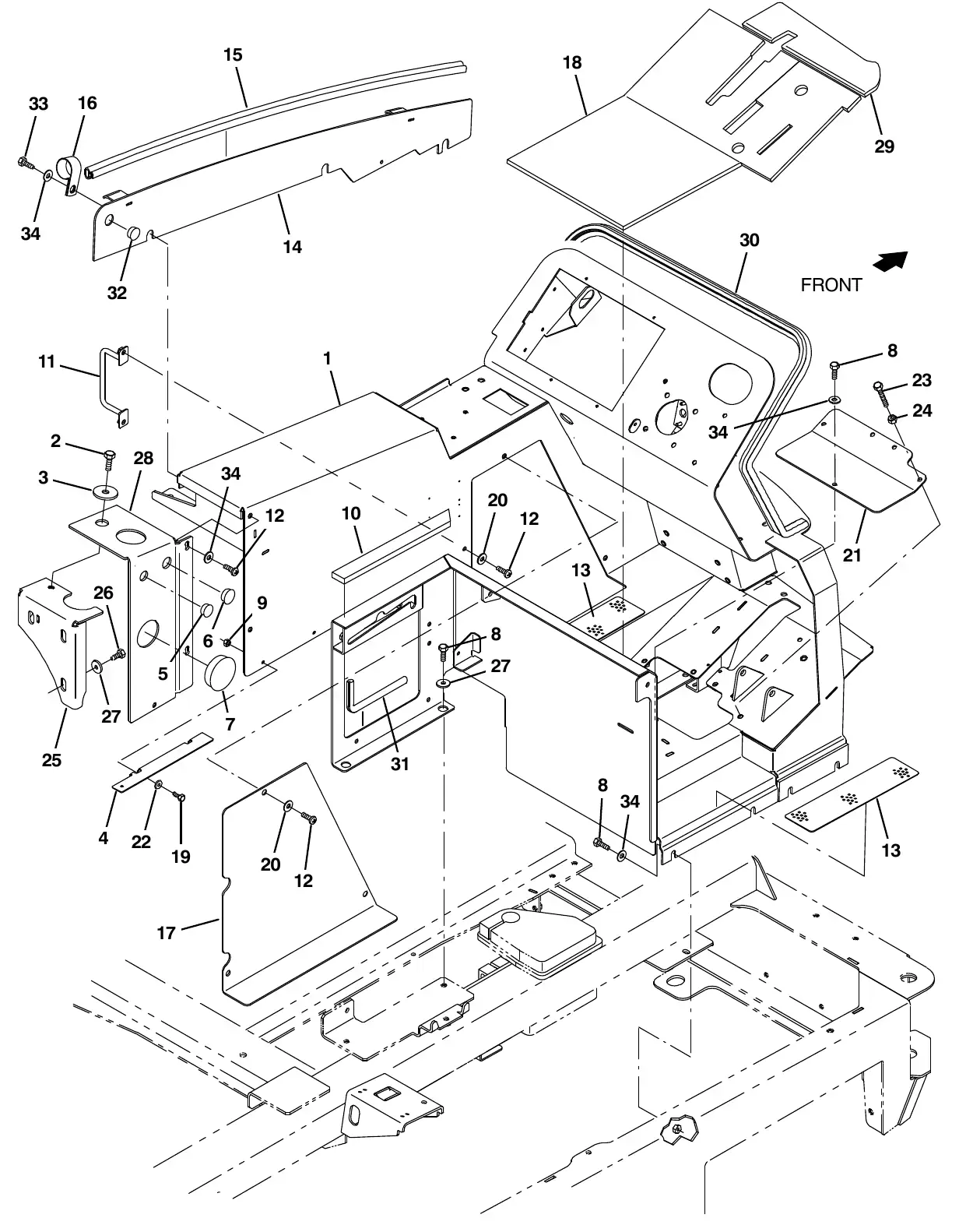

M20 operator station group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 operator station group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (12)
1	TN4205149	1	Panel Wldt, Gas, ReplmtOld # 9002409 · Replaced by 9016324 in the 2022 list (rev. 08)	$1,369.56/EA
1	TN9002380	1	Panel Wldt, Gas, Replmt [W/Fast]Old # 9002380 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaced by 9016320 in the 2022 list (rev. 08)	Call for price
1	TN4205137	1	Panel Wldt, Gas, W/ Es, ReplmtOld # 9002381 · Replaced by 9016321 in the 2022 list (rev. 08)	$1,396.12/EA
1	TN4203060	1	Panel Wldt, Gas, Replmt, TJ (Japan only)Old # 9003422 · Replaced by 9016326 in the 2022 list (rev. 08)	$1,378.95/EA
1	TN9003425	1	Panel Wldt, Gas, Replmt, TJ [W/Fast] (Japan only)Old # 9003425 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaced by 9016329 in the 2022 list (rev. 08)	Call for price
1	TN4016726	1	Panel Wldt, Gas, Replmt, TJ, W/Es (Japan only)Old # 9003428 · Replaced by 9016332 in the 2022 list (rev. 08)	$1,414.61/EA
1	TN4203065	1	Panel Wldt, LPG, ReplmtOld # 9003431 · Replaced by 9016335 in the 2022 list (rev. 08)	$1,378.95/EA
1	TN9003432	1	Panel Wldt, LPG, Replmt [W/Fast]Old # 9003432 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaced by 9016336 in the 2022 list (rev. 08)	Call for price
1	TN4203066	1	Panel Wldt, LPG, Replmt, W/EsOld # 9003433 · Replaced by 9016337 in the 2022 list (rev. 08)	$1,414.61/EA
1	TN4203061	1	Panel Wldt, LPG, Replmt, TJ (Japan only)Old # 9003423 · Replaced by 9016327 in the 2022 list (rev. 08)	$1,377.24/EA
1	TN9003426	1	Panel Wldt, LPG, Replmt, TJ [W/Fast] (Japan only)Old # 9003426 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 · Replaced by 9016330 in the 2022 list (rev. 08)	Call for price
1	TN4203063	1	Panel Wldt, LPG, Replmt, TJ, W/Es (Japan only)Old # 9003429 · Replaced by 9016333 in the 2022 list (rev. 08)	$1,414.61/EA
2	TN4019758	1	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
3	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
4	TN4190204	2	Bracket, Mtg, InsulationOld # 1047169	$12.93/EA
5	TN4024314	1	Plug, Hole, Rnd, 0.88h .03 - .12, Blk NylOld # 82727	$3.40/EA
6	TN4042871	1	Plug, Hole, Rnd, 1.00h .03 - .12, Blk NylOld # 01493	$2.50/EA
7	TN4031389	1	Plug, Hole, Rnd, 2.50h .03 - .25, Blk NylOld # 1030017	$10.60/EA
8	TN4041844	12	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
9	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
10	Old # 1047295	1	Seal, Foam, 0.50Old # 1047295Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
11	TN4030705	1	Bracket Wldt, Mtg, HoseOld # 1071616	$26.97/EA
12	TN4032093	6	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
13	TN4026685	4	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
14	TN4193255	1	Panel Wldt, Adj [2007]Old # 1035832	$73.63/EA
15	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
16	TN4015029	5	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
17	TN4032850	1	Panel, Access, DoorOld # 1021834	$48.40/EA
18	TN4030622	1	Mat, FloorOld # 1027218	$116.30/EA
19	TN4041270	2	Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942	$2.50/EA
20	TN4015595	5	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4195877	1	Panel, Access, FloorOld # 1022699	$24.15/EA
22	TN4034136	2	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
23	TN4027729	1	Screw, Hex, M8 X 1.25 X 60, 8.8, FlOld # 363976	$3.40/EA
24	TN4019808	1	Nut, Hex, Std, M8 X 1.25Old # 39311	$2.50/EA
25	TN4190656	1	Bracket Wldt, Mtg, TankOld # 1035997	$61.32/EA
26	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4035242	5	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
28	TN4192844	1	Bracket, MtgOld # 1033975	$68.18/EA
29	TN4030625	1	Mat, FloorOld # 1027267	$27.40/EA
30	TN1020904	1	Seal, Panl, InstmtOld # 1020904 · current Tennant number (Tennant parts catalog) · Replaced by 1030593 in the 2022 list (rev. 08)	Call for price
31	TN4036241	1	Molding, Afmkt, Trim, Pvc, .08 .11, 1ftOld # 1020168	$44.40/EA
32	TN4023358	1	Plug, Hole, Rnd, 0.81h, BlkOld # 80288	$1.40/EA
33	TN4156940	6	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
34	TN4034137	17	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

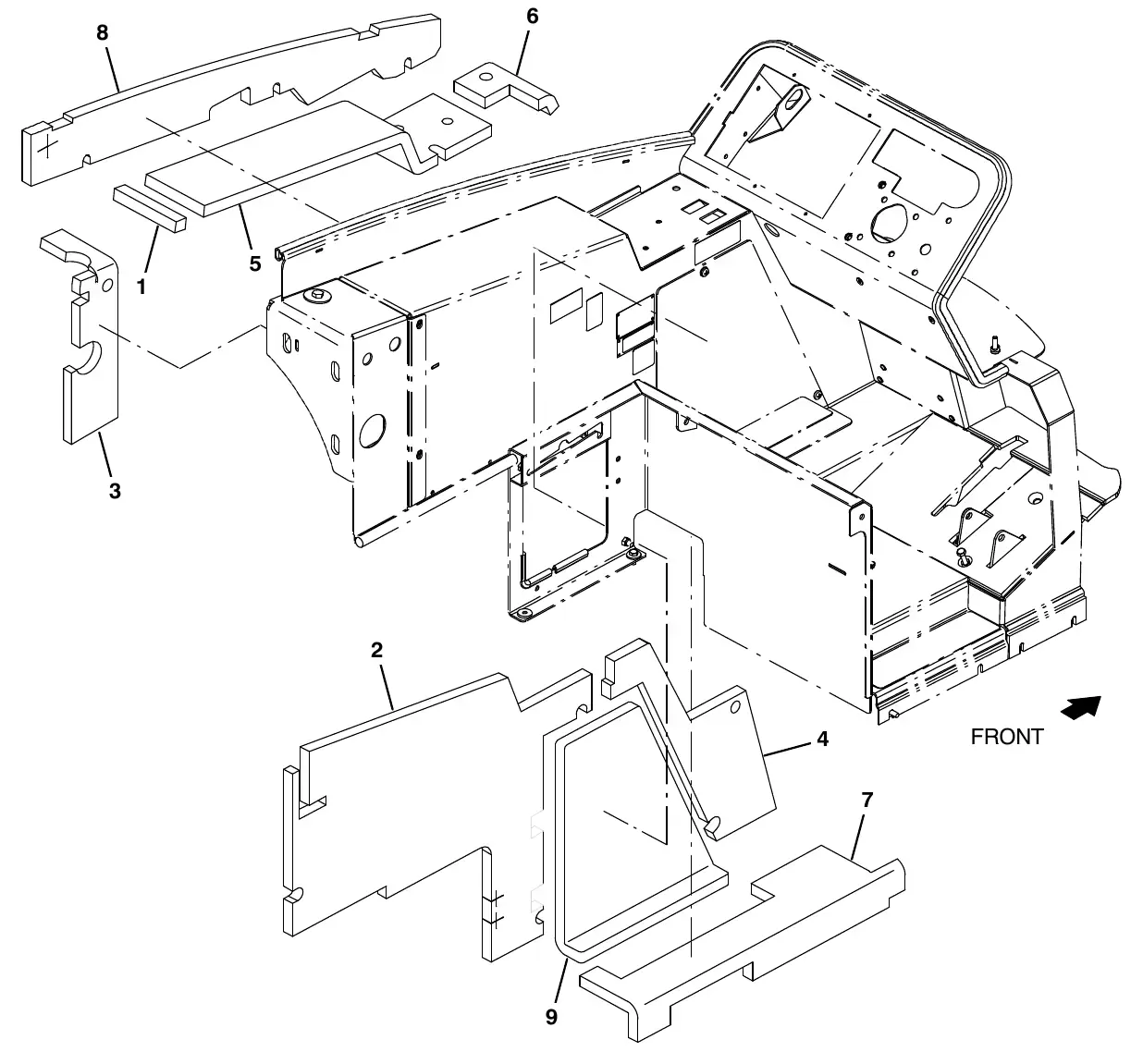

M20 operator station insulation group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 operator station insulation group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4045278	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034769	$3.60/EA
2	TN4045274	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034765	$149.40/EA
3	TN4044434	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1040841	$31.90/EA
4	TN4033266	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023464	$62.10/EA
5	TN4045273	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034764	$39.60/EA
6	TN4045275	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034766	$9.20/EA
7	TN4045277	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034768	$46.10/EA
8	TN4045279	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034770	$115.50/EA
9	TN4033283	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023569	$59.70/EA

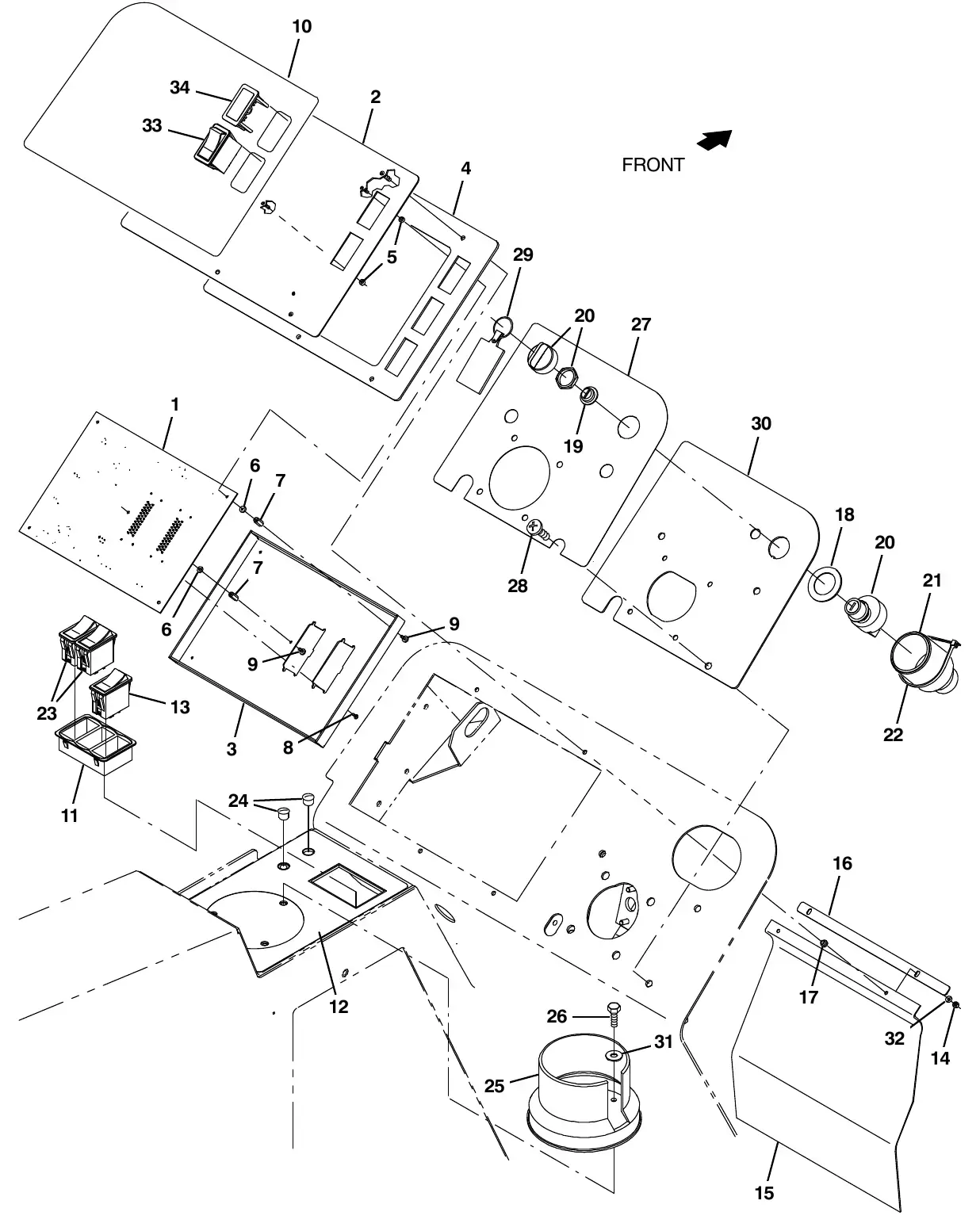

M20 instrument panel group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 instrument panel group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4037507	1	Circuitboard Assy [Drago, W/Telem]Old # 1222812 · Replaced by 1223896 in the 2022 list (rev. 08)	Call for price
2	TN4224068	1	Plate Assy[Backer Drago]Old # 1225340 · Not in the 2022 list (rev. 08)	Call for price
3	TN4223541	1	Cover, Panl, Instrument [Drago]Old # 1223893 · Not in the 2022 list (rev. 08)	Call for price
4	TN4223542	1	Gasket, Panl, InstmtOld # 1223894 · Not in the 2022 list (rev. 08)	Call for price
5	TN4198475	5	Spacer, Rnd, .125l, AlmOld # 1006808	Call for price
6	TN4198594	5	Washer, Flat, 0.15b 0.31d .05, NylOld # 1008663	Call for price
7	TN4195865	5	Stand - Off, Hex, M3 X M14, AlmOld # 1022472	Call for price
8	TN4198561	5	Screw, Pan, #04 - 24 X 0.50l, Hi - LowOld # 1008240	Call for price
9	TN4195912	8	Screw, Pan, M3 X 6, [Seelscrew]Old # 1022905	Call for price
10	TN4223546	1	Label, Instrument Panel, Lh [Drago]Old # 1223904 · Not in the 2022 list (rev. 08)	Call for price
11	TN4031384	1	Bezel, Switch [3 Gang]Old # 1029951	$21.90/EA
12	TN4037854	1	Label, Switch, Rocker [Drago]Old # 1223906	$35.20/EA
13	TN4037904	1	Switch, Rocker, Mom, LedOld # 1224603	$65.90/EA
14	TN4041852	4	Nut, Hex, Lock, #08 - 32, NlOld # 16968	$1.50/EA
15	TN4030979	1	Flap, BatteryOld # 1028769	$9.80/EA
16	TN4194573	1	Bar, Flat, Ss 0.06, 00.50 X 10.00l, 2slOld # 1028772	$3.85/EA
17	TN4031353	4	Washer, Shld, Nyl [8 - 32]Old # 1029362	$0.15/EA
18	TN4012418	1	Washer, Flat, 1.15b 1.75d .08, StlOld # 73736	$3.50/EA
19	TN4027368	1	Boot, .63id .29l .90wOld # 382516	$10.20/EA
20	TN4030991	1	Switch, Key, 4 Position [Honeywell]Old # 1028790 · Replaced by 87536 in the 2022 list (rev. 08)	$72.80/EA
	TN8002267	1	Key, Ignition [Replmt W/O Dust Boot]Old # 9004545 · Not in the 2022 list (rev. 08)	$8.10/EA
21	TN4023075	1	Boot, Switch, IgnitionOld # 383165	$5.10/EA
22	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
23	TN4016541	2	Switch, Rocker, Dpdt, Mom / Off / MomOld # 398508	$27.40/EA
24	TN4029160	2	Plug, Hole, Rnd, 0.50h .03 - .12, Blk NylOld # 56992	$3.40/EA
25	TN4037805	1	Cup Holder, RwkOld # 223599	$56.40/EA
26	TN4041271	3	Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943	$2.50/EA
27	TN4223545	1	Label, Instrument Panel, Rh, [Drago]Old # 1223903	$40.30/EA
28	TN4032093	4	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
29	TN4044966	1	Keychain, Rectangle, Parts & ServiceOld # 1075003	$4.70/EA
30	TN4223544	1	Plate, Instrument, Rh [Drago]Old # 1223897	$11.11/EA
31	TN4034136	3	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
32	TN4042243	4	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
33	TN4019347	1	Switch, Rocker, Dpdt, On / Off / OnOld # 392171	$25.90/EA
34	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Old # 398501	$6.80/EA

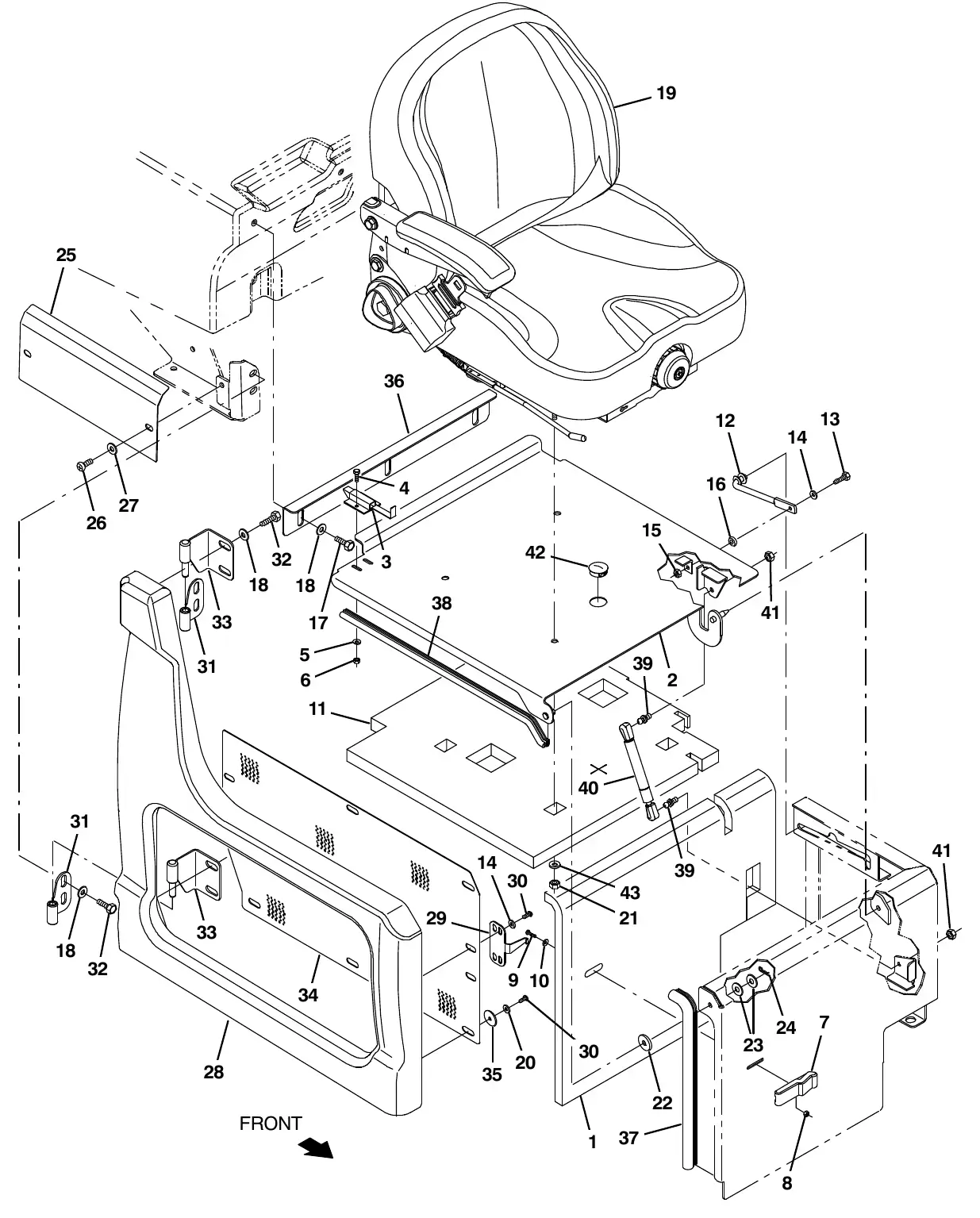

M20 seat group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 seat group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4045276	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034767	$83.30/EA
2	TN4195199	1	Plate Wldt, SeatOld # 1019228	$218.26/EA
3	TN4034205	1	LatchOld # 1025736	$17.00/EA
4	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
5	TN4042244	2	Washer, Flat, #10Old # 19066	$2.50/EA
6	TN4041004	2	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
7	TN4014177	1	LatchOld # 49800	$40.40/EA
8	TN4043235	4	Nut, Hex, Lock, M4 X 0.7, NlOld # 02850	$2.50/EA
9	TN4041260	4	Screw, Pan, M4 X 0.7 X 25, 4.8Old # 06929	$2.50/EA
10	TN4042243	2	Washer, Flat, #08Old # 19065	$3.20/EA
11	TN4033275	1	Insulation, Flame - Retardant, 1.0Old # 1023499	$80.10/EA
12	TN4037355	1	Arm Wldt, Safety, Sppt, Seat, .38d 06.5dOld # 223080	$54.00/EA
13	TN4041271	1	Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943	$2.50/EA
14	TN4034133	9	Washer, Flat, 0.25 SaeOld # 32483	$2.50/EA
15	TN4041925	1	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
16	TN4039442	1	Spacer, Plstc, NyOld # 21851	$3.20/EA
17	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
18	TN4035242	11	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
19	TN4030942	1	Seat (See Breakdowns)Old # 1072456 · Replaced by 9018721 in the 2022 list (rev. 08)	$1,143.80/EA
20	TN4042244	6	Washer, Flat, 0.25b 0.56d .05, Pl, 10Old # 19066	$2.50/EA
21	TN4034656	4	Nut, Hex, Lock, .31 - 18, NlOld # 32983	$2.50/EA
22	TN4028157	1	Washer, Flat, 0.41b 1.25d .12, PyeOld # 364749	$6.57/EA
23	TN4034138	2	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
24	TN4041620	1	Pin, Cotter, Hair, 0.31d .058 WirOld # 08085	$2.50/EA
25	TN4032874	1	Cover, LowerOld # 1022005	$21.70/EA
26	TN4032093	2	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
27	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
28	TN4035845	1	Shroud, SeatOld # 1018776	$418.20/EA
29	TN4034516	1	Bracket, Latch, Shrd, SeatOld # 1026825	$17.50/EA
30	TN4041965	8	Screw, Pan, M5 X 0.8 X 12, SsOld # 09200	$3.40/EA
31	TN4033611	2	Hinge Wldt, Shrd, RhOld # 1024464	$43.40/EA
32	TN4041844	8	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
33	TN4033607	2	Hinge Wldt, Shrd, RhOld # 1024425	$68.90/EA
34	TN4034218	1	Grill, SideOld # 1025916	$114.20/EA
35	TN4016794	6	Washer, Flat, 0.25 FendrOld # 41178	$2.50/EA
36	TN4195388	1	Bracket, Seat, AdjOld # 1020487	$35.91/EA
37	TN4031725	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588	$46.50/EA
38	TN4031792	1	Seal, Afmkt, Bulb, 90, 0.50d, 02ftOld # 1031206	$33.70/EA
39	TN4029776	2	Stud, Ball, .39d .31 - 16, GasspringOld # 58494	$8.40/EA
40	TN4031564	1	Gasspring, 180lb, 03.0strkOld # 368391 · Replaced by 1258921 in the 2022 list (rev. 08)	Call for price
41	TN4042967	2	Nut, Hex, Lock, .31 - 18, Nl, ThinOld # 01760	$3.40/EA
42	TN4028623	1	Plug, Hole, Rnd, 1.25H .03 - .12, Blk NylOld # 76888	$3.40/EA
43	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

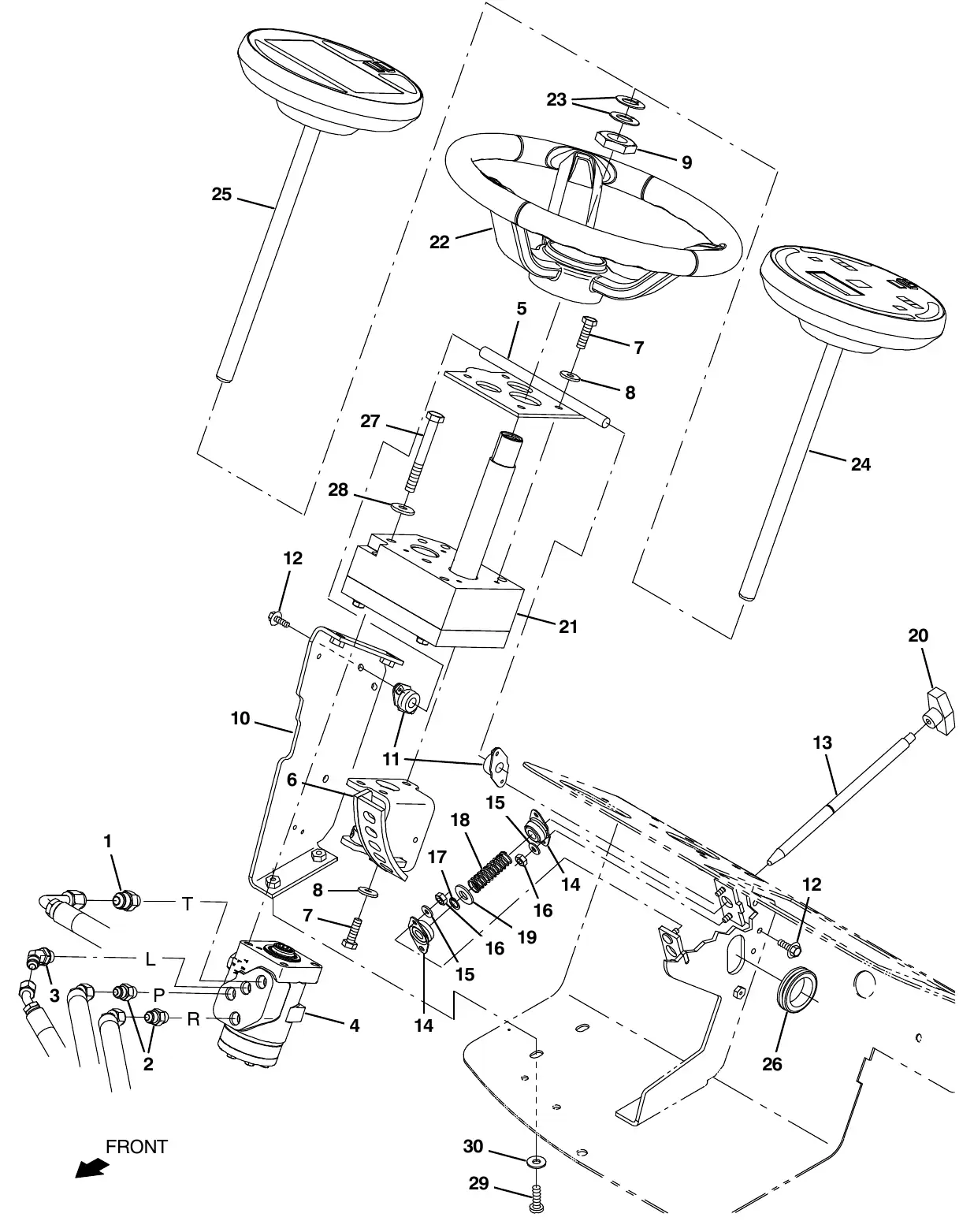

M20 steering group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 steering group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4029151	1	Fitting, Hyd, Str, Jm08/Om06Old # 56835	$10.50/EA
2	TN4029145	2	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
3	TN4013877	1	Fitting, Hyd, E45, Jm06/Om06Old # 47522	$21.70/EA
4	TN4033593	1	Steer - Control, Hyd05, 06.1 2030 (See Breakdowns)Old # 1024260	$816.30/EA
5	TN4226796	1	Plate, Wldt, Mtg, HousingOld # 1223514	$59.09/EA
6	TN1224723	1	Bracket Wldt, Steering, TiltOld # 1224723 · no current Tennant number on file · Replaced by 1232054 in the 2022 list (rev. 08)	Call for price
7	TN4041844	7	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
8	TN4034136	7	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
9	TN4036795	1	Nut, Hex, Jam, 1.12 - 12Old # 1059073	$9.50/EA
10	TN4226795	1	Bracket Wldt, Steering, Tilt, RhOld # 1223511	$41.92/EA
11	TN4014957	2	Bearing, Flng, 2hole, 0.50bOld # 70709	$7.40/EA
12	TN4045568	4	Screw, Hex, M6 X 1.00 X 25, 9.8, SemsOld # 1036892	$2.50/EA
13	TN4226790	1	Pin, Locking, Steering, TiltOld # 1223504	$51.73/EA
14	TN4013879	2	Bearing, Flng, 2hole, 0.50b [Nyl]Old # 47585	$5.96/EA
15	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
16	TN4041925	4	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
17	TN4014958	1	Ring, Retaining, Ext, 0.50d, HdOld # 70717	$0.40/EA
18	TN4037087	1	Spring, Cmpr, 0.72od .06wir 02.3lOld # 22290	$4.10/EA
19	TN4034135	1	Washer, Flat, 0.53b 1.06d .10, Stl, PlOld # 32486	$2.60/EA
20	TN4040933	1	Knob, Tee, 0.38 - 16, 2.5 X 1.0 1.1l,PlstcOld # 04706	$11.80/EA
21	TN4023706	1	Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns)Old # 9015636	$931.80/EA
22	TN4035223	1	Wheel, Steering, 14.4dOld # 1056412	$194.20/EA
23	TN4040947	2	Washer, Thrust, 0.79b 1.42d 0.06[Garlok]Old # 04846	$10.00/EA
24	TN4023704	1	Panel Kit, Pod, Afmkt [Std, M20/M30]Old # 9015634	$1,198.60/EA
25	TN4023703	1	Panel Kit, Pod, Afmkt [Pro, M20/M30/T20] (Pro - Panel Only)Old # 9015633	$2,226.60/EA
26	TN4031957	1	Grommet, Rbr, 1.50id, F/1.8h, .19 MatlOld # 10632-13	$6.00/EA
27	TN4041290	4	Screw, Hex, M10 X 1.50 X 80, 8.8Old # 06965	$6.80/EA
28	TN4043561	4	Washer, Flat, 0.40b 1.12d .12, Stl, PlOld # 13248	$3.00/EA
29	TN4032093	6	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
30	TN4034137	6	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

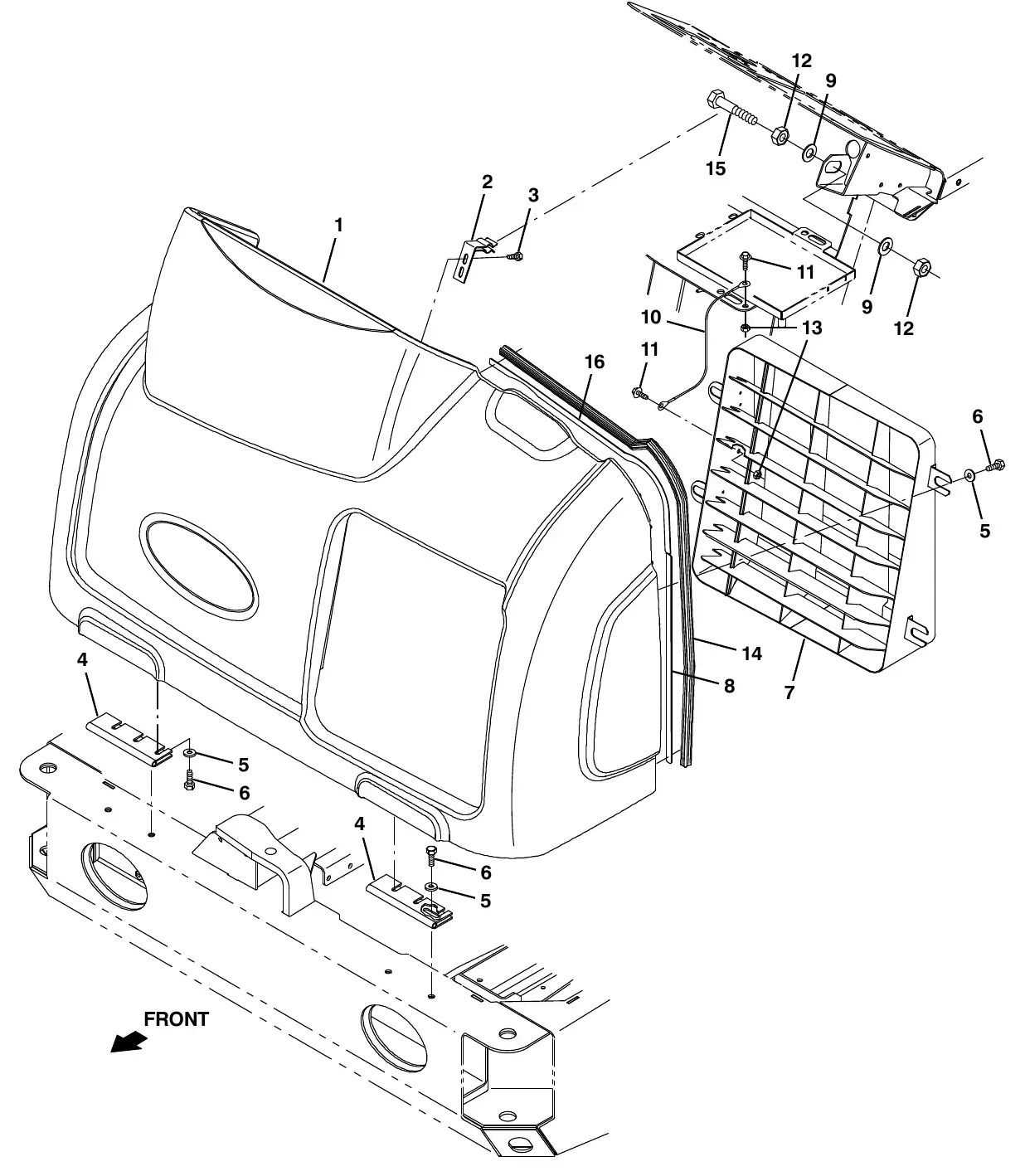

M20 front cover group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 front cover group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032893	1	Shroud, Front, TrimmedOld # 1022069	$932.80/EA
2	TN4039966	1	Bracket Wldt, LatchOld # 1008916	$38.80/EA
3	TN4041270	2	Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942	$2.50/EA
4	TN4015921	2	Hinge, .38pin .11 3.5w 06.0l 6/0.38slOld # 71941	$48.10/EA
5	TN4034137	14	Washer, Flat, 0.31, StdOld # 32491 · Replaced by 1017218 in the 2022 list (rev. 08)	$2.50/EA
6	TN4041844	14	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
7	TN4045378	1	Grill Wldt, FrontOld # 1035068	$748.00/EA
8	TN4043571	1	Strip Mtg, SealOld # 1037971	$3.50/EA
9	TN4041212	2	Washer, Flat, 0.62 SaeOld # 15331	$4.10/EA
10	TN4019292	1	Cable, Glv .09d 016.5l .38eye /.38eyeOld # 391368	$33.50/EA
11	TN4044400	2	Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 · Replaced by 06943 in the 2022 list (rev. 08)	$3.30/EA
12	TN4041596	2	Nut, Hex, Std, M16 X 2.0Old # 07782	$3.40/EA
13	TN4041925	2	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
14	TN4040452	1	Seal, Sponge, 0.88 1.00W 43.0LOld # 1049919	$14.65/EA
15	TN4041570	1	Screw, Hex, M16 X 2.0 X 90, 8.8Old # 06988	$8.20/EA
16	TN4043570	1	Strip Mtg, SealOld # 1037970	$4.30/EA

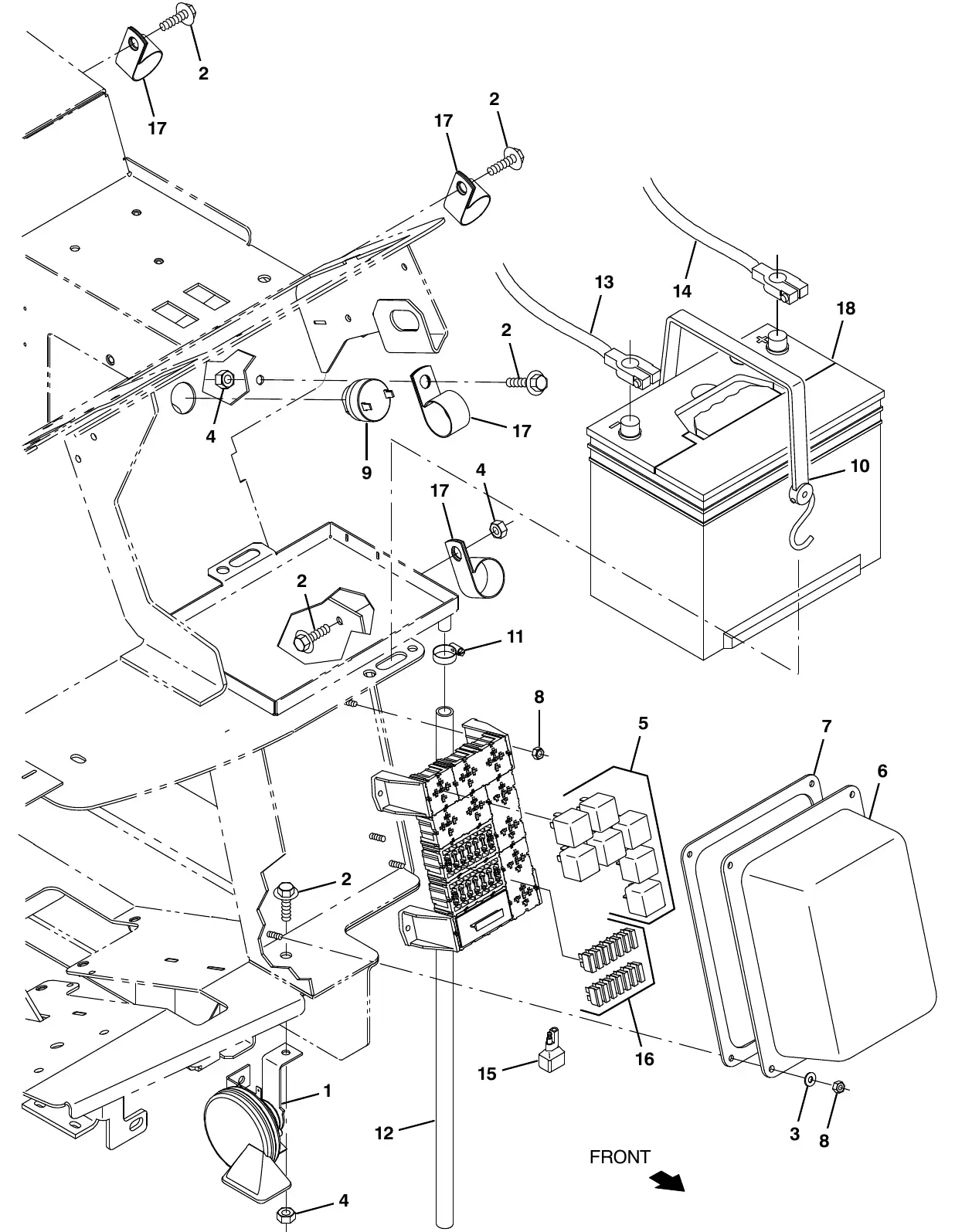

M20 battery and electrical group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 battery and electrical group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032292	1	Horn, 12vdc, Dba [Wolo]Old # 369704	$42.00/EA
2	TN4045637	5	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
3	TN4042244	4	Washer, Flat, #10Old # 19066	$2.50/EA
4	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
5	TN4029449	7	Relay, 12vdc, 40a, Spdt N/OOld # 57804	$16.30/EA
6	TN4033595	1	Cover, Fuse, BlockOld # 1024274	$112.70/EA
7	TN4034267	1	Gasket, Cover, Fuse BlockOld # 1026576	$11.90/EA
8	TN4041004	8	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
9	TN4036635	1	Alarm, Warning [Sonalert, St628]Old # 1021290	$55.10/EA
10	TN4031223	1	Strap, Rbr, Tie - Down, 2/Hooks 19.0lOld # 33671	$13.10/EA
11	TN4015366	1	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
12	TN4039094	1	Hose, Pvc, Clr, 0.50id 0.69od 30.00lOld # 20778	Call for price
13	TN4030568	1	Cable, Battery, 2ga, 62l, BlkOld # 1071481	$80.80/EA
14	TN4030569	1	Cable, Battery, 2ga, 60l, RedOld # 1071482	$78.90/EA
15	TN4040238	1	Diode, Ele, PlugOld # 222290	$13.00/EA
16	TN4011598	14	Fuse, 015aOld # 762514	$4.00/EA
17	TN4015029	4	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
18	TN4037557	1	Battery, 12vdc, 0475cca, Ah, WetOld # 10137	$218.28/EA

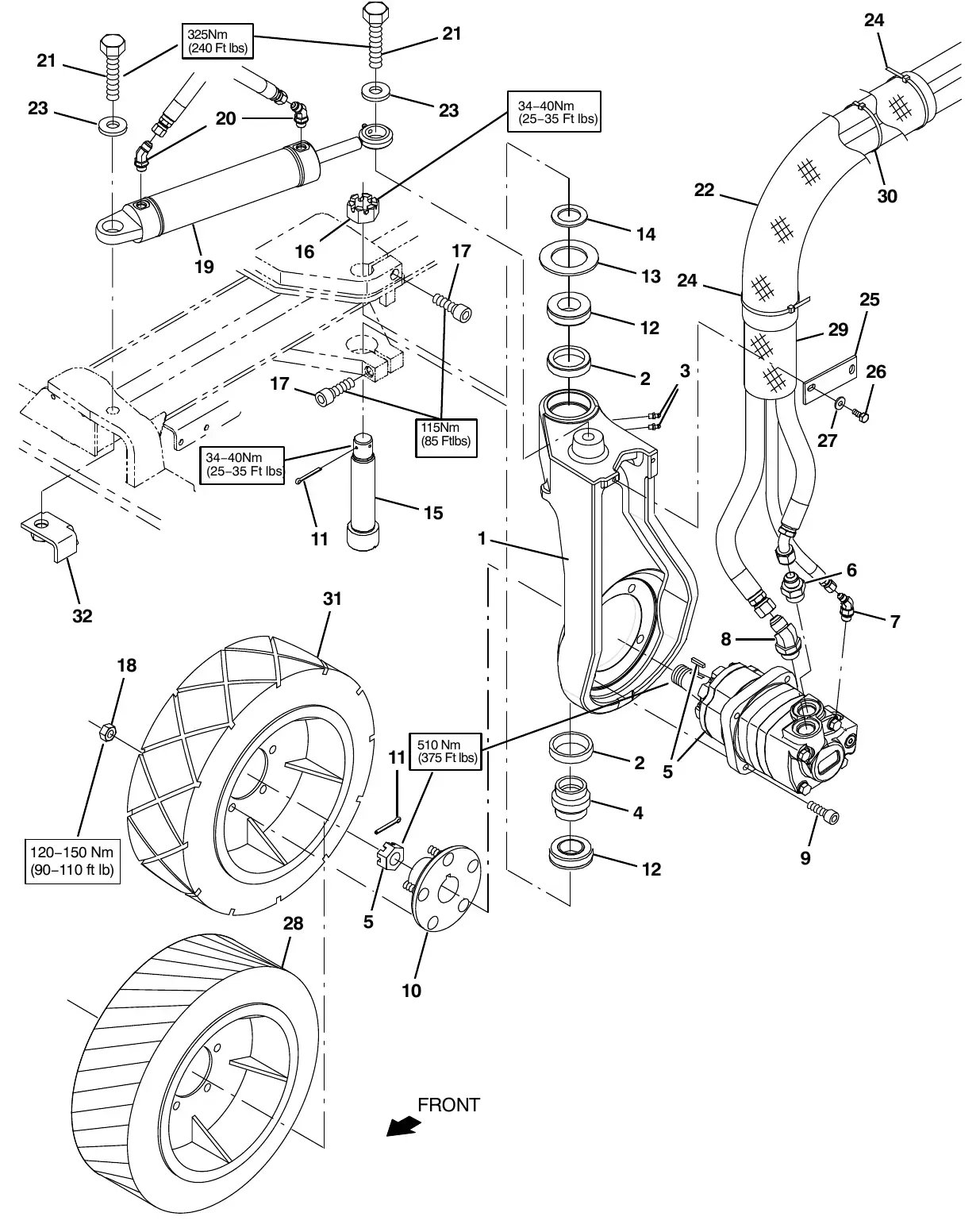

M20 wheel group, front drive

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 wheel group, front drive parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4182964	1	Housing, Sppt, Front WheelOld # 1071061	Call for price
2	TN4014546	2	Bearing, Cup, 2.56d 0.55wOld # 51338	$11.70/EA
3	TN4013913	2	Fitting, Grease, Str Pm04 .63lOld # 47801	$6.00/EA
4	TN4028913	1	Seal, Drive, Rear, Grease CavOld # 374560	$28.60/EA
5	TN4026352	1	Motor, Hyd, Gear, Int 19.0 Bi - Dir 3000 (See Breakdowns)Old # 379609	Call for price
6	TN4017334	1	Fitting, Hyd, Str, Jm10/Om12Old # 42223	$12.60/EA
7	TN4019818	1	Fitting, Hyd, E45, Jm04/Om06Old # 393215	$43.70/EA
8	TN4033591	1	Fitting, Hyd, E45, Jm10/Om12Old # 1024249	$42.90/EA
9	TN4042547	4	Screw, Soc, .50 - 13 X 1.50, AlOld # 19583	$5.80/EA
10	TN4015068	1	Hub Assy, Wheel, 5 Bolt 4.50bc Taper BOld # 54087	$202.20/EA
	TN4033528	5	Stud, Wheel, .50 - 20 X 1.50l, 0.370thOld # 32126	$4.20/EA
11	TN4041635	2	Pin, Cotter, .125 X 2.00Old # 08180	$2.50/EA
12	TN4014547	2	Bearing, Cone, 1.38b 0.71wOld # 51339	$46.30/EA
13	TN4028915	1	Washer, Flat, 2.16b 3.50d .16, FeltOld # 374563	$4.00/EA
14	TN4015062	1	Washer, Flat, 1.39b 2.12d .13, StlOld # 54051	$3.50/EA
15	TN4016329	1	Bolt, Shld, 1.37d X 5.13l,1.1 - 18 DrilledOld # 73281	$106.20/EA
16	TN4015063	1	Nut, Hex, Sltd, 1.12 - 18Old # 54052	$23.30/EA
17	TN4016287	2	Screw, Soc, M16 X 2.0 X 50, 12.9Old # 72926	$6.70/EA
18	TN4035377	5	Nut, Wheel, .50 - 20 X 60 AngleOld # 24339	$3.00/EA
19	TN4045221	1	Cylinder, Hyd, 2.0b,15.2l,09.00strk,3000Old # 1034270	$463.00/EA
20	TN4013877	2	Fitting, Hyd, E45, Jm06/Om06Old # 47522	$21.70/EA
21	TN4025656	1	Screw, Hex, .75 - 10 X 3.25, G5Old # 77345	$9.50/EA
22	TN4024610	1	Sleeve, Nyl, 2.38id 25.0lOld # 82832	$20.70/EA
23	TN4044540	2	Washer, Flat, .781b 1.63od .16, Stl, BlkOld # 1073487	$2.60/EA
24	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
25	TN4037146	1	Bar, Flat, Stl 0.19, 01.50 X 04.1lOld # 1052521	$5.30/EA
26	TN4041844	2	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
27	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
28	TN4034901	1	Tire, Drive, Scrbr, Pu, Grey, 18.0X6.0 (Optional Polyurethane)Old # 1061973	$1,442.80/EA
29	TN4029311	1	Sleeve, Nyl, #37 05.0lOld # 57315	$7.80/EA
30	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
31	TN4037134	1	Tire, Drive, Scrbr, Non - Skid, 18.0X6.0Old # 1059343	$1,386.50/EA
32	TN4034614	1	Bracket, Mtg, SpptOld # 1060521	$21.70/EA

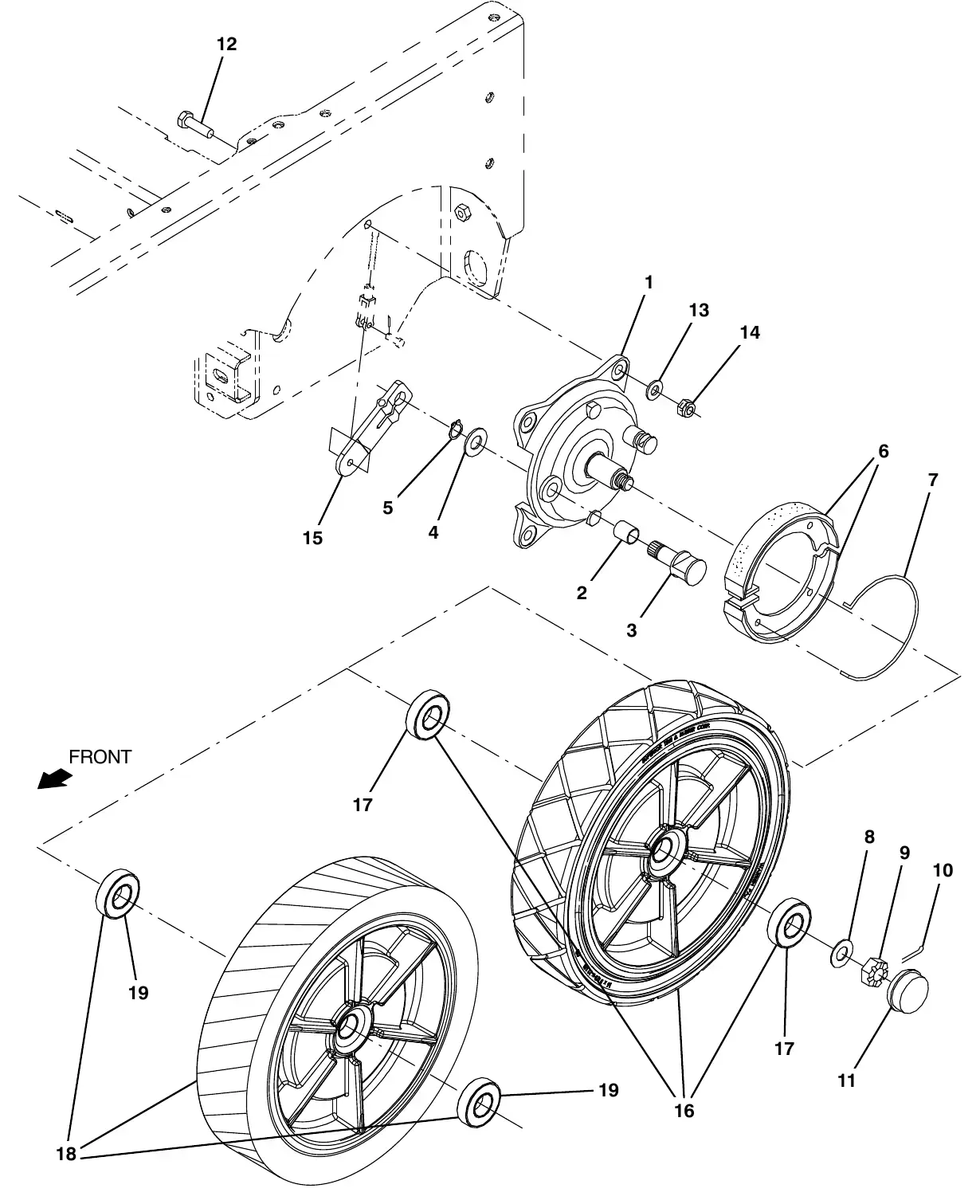

M20 wheel group, rear

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 wheel group, rear parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
	TN4031682	2	Brake Assy, Drum, Mech, 07.0d 1.2wOld # 360023	$537.20/EA
1	TN8005524	1	Plate, Backing, BrakeOld # 360270	$283.10/EA
2	TN4031992	1	Bushing, Sleeve, 0.78b 0.86d 0.93l, BnzOld # 360271	$21.40/EA
3	TN8005525	1	Cam, Plt, Brake [Nickel]Old # 360272	$80.00/EA
4	TN4031993	1	Washer, Flat, M21.0b X 37d X 3Old # 360273	$5.30/EA
5	TN4031994	1	Retainer, Ring, BrakeOld # 360274	$3.50/EA
6	TN4031995	2	Shoe, Brake, 180 X 30mmOld # 360275	$84.00/EA
7	TN4031996	1	Spring, Wir, 0.25d, Return, BrakeOld # 360276	$22.30/EA
8	TN4014130	2	Washer, Flat, 0.76b 1.50d .06, SsOld # 49145	$5.20/EA
9	TN4021672	2	Nut, Hex, Sltd, .75 - 16Old # 86659	$8.20/EA
10	TN4041629	2	Pin, Cotter, .156 X 2.00Old # 08171	$3.40/EA
11	TN4015370	2	Cap, Hub, Dust 2.57d 0.77lOld # 54390	$13.50/EA
12	TN4041294	8	Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969	$4.00/EA
13	TN4034135	8	Washer, Flat, 0.50 SaeOld # 32486	$2.60/EA
14	TN4041927	8	Nut, Hex, Lock, M12 X 1.75,NlOld # 08711	$3.30/EA
15	TN4032592	2	Arm, Lever, Brake, 4.1 [Knott]Old # 360802	$82.50/EA
16	TN4033969	2	Tire, Idler, Scrbr, Blk, 16.0X3.5Old # 1059671 · Replaced by 1076240 in the 2022 list (rev. 08)	Call for price
17	TN4031697	2	Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074	$20.20/EA
16	TN4037138	2	Tire, Idler, Scrbr, Non - Skid, 16.0x3.5 (Optional)Old # 1059347 · Not in the 2022 list (rev. 08)	Call for price
17	TN4031697	2	Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074	$20.20/EA
18	TN4034902	2	Tire, Idler, Scrbr, Pu, Grey, 16.0X3.5 (Optional Polyurethane)Old # 1061974 · Replaced by 1076680 in the 2022 list (rev. 08)	Call for price
19	TN4031697	2	Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074 · Not in the 2022 list (rev. 08)	$20.20/EA

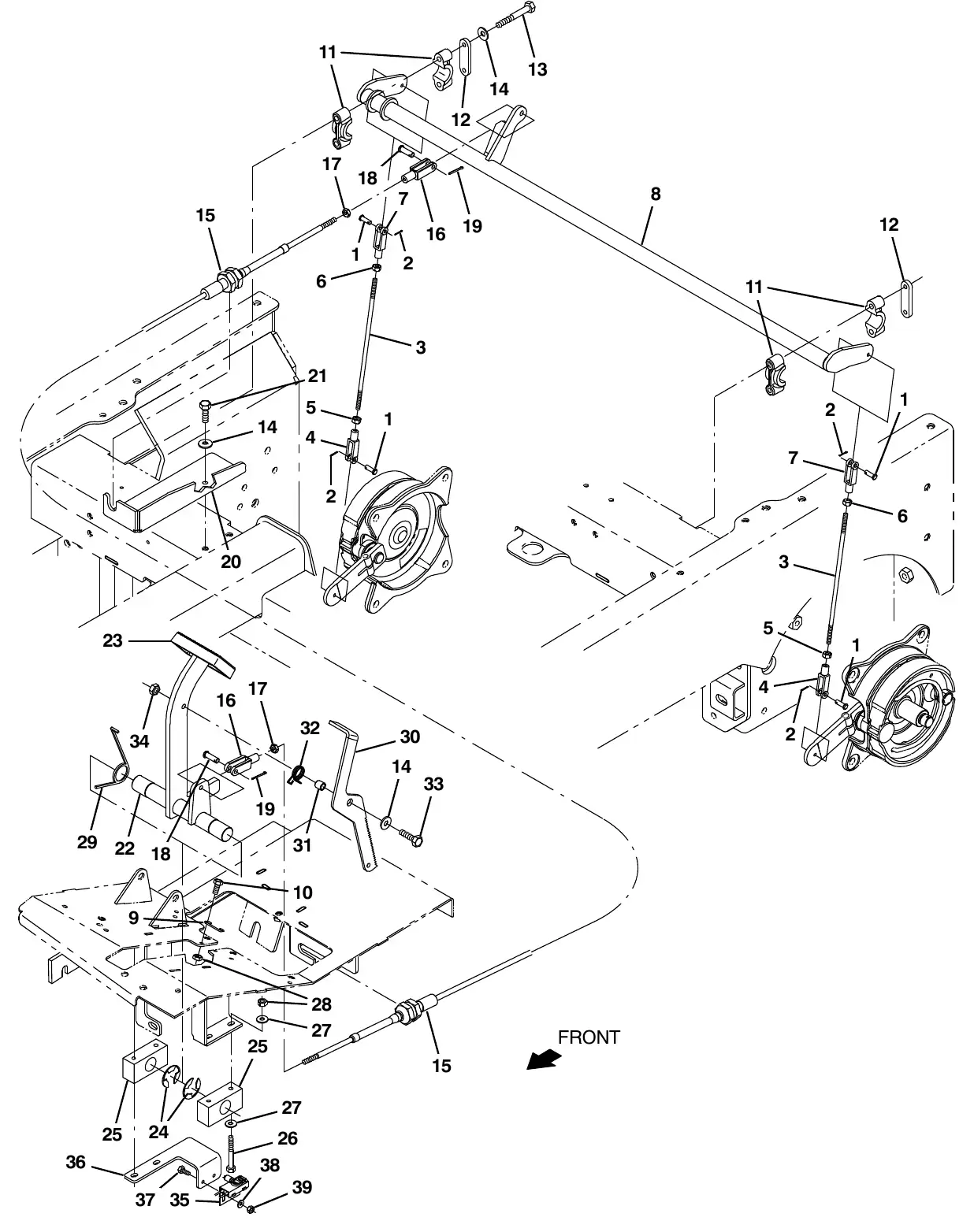

M20 brake pedal linkage group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 brake pedal linkage group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4044344	4	Pin, Clevis, 0.25d X 0.75lOld # 14605	$3.40/EA
2	TN4041628	4	Pin, Cotter, .062 X 0.50Old # 08170	$2.60/EA
3	TN4027767	2	RodOld # 364347	$33.10/EA
4	TN4044337	2	Clevis, Adj, 0.25 Pin, 0.25 - 28 Rh, PlOld # 14595-1	$9.90/EA
5	TN4028195	2	Nut, Hex, Std, .25 - 28, LhOld # 364948	$4.00/EA
6	TN4042941	2	Nut, Hex, Std, .25 - 28Old # 01714	$2.50/EA
7	TN4028178	2	Clevis, Adj, 0.25pin, 0.25 - 28left PlOld # 364864	$15.30/EA
8	TN4032890	1	Shaft Wldt, BrakeOld # 1022031	$119.58/EA
9	TN4015629	1	Spring, Wir, 0.08d, Brake, ParkingOld # 71367	$6.80/EA
10	TN4041270	2	Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942	$2.50/EA
11	TN4027058	4	Bearing, Split, 1.00bOld # 381502	$7.40/EA
12	TN4027324	2	Plate, SpptOld # 382224	$14.80/EA
13	TN4019754	4	Screw, Hex, M8 X 1.25 X 70, 8.8Old # 39279	$4.00/EA
14	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
15	TN4033919	1	Cable, Push / Pull, 063.0l 4.0, .31 - 24Old # 1025495	$306.60/EA
16	TN4029693	2	Clevis, Adj, 0.31pin, 0.31 - 24Old # 58311	$45.70/EA
17	TN4039080	2	Nut, Hex, Jam, .31 - 24Old # 20170	$2.50/EA
18	TN4018317	2	Pin, Clevis, 0.31d X 1.00lOld # 69582	$3.40/EA
19	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
20	TN4195882	1	Bracket, Mtg, CableOld # 1022736	$27.47/EA
21	TN4041844	2	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
22	TN4195848	1	Shaft Wldt, Pedal, BrakeOld # 1022243	$82.40/EA
23	TN4014535	1	Pad, Pedal, Brake, 3.96l 2.36w 0.75Old # 51109	$30.10/EA
24	TN4035052	2	Ring, Retaining, Ext, 0.98d, [E - Ring]Old # 23788	$2.40/EA
25	TN4022031	2	Bearing, Pillowblock, 1.02b [Solid Pye]Old # 86751	$40.50/EA
26	TN4041003	4	Screw, Hex, M6 X 1.0 X 60, 8.8Old # 06548	$3.43/EA
27	TN4034136	8	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
28	TN4041925	6	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
29	TN4028660	2	Spring, Tors, 1.13id .12wir 02.3coil RhOld # 54607	$17.10/EA
30	TN4033918	1	Pedal, Brake, LockOld # 1025487	$62.70/EA
31	TN4013461	1	Bushing, Sleeve, 0.37b 0.50d 0.50l, OibOld # 46563	$4.20/EA
32	TN4026776	1	Spring, Tors, 0.75id .06wir 02.8coilOld # 59009	$5.20/EA
33	TN4041280	1	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
34	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
35	TN4027224	1	Switch, Snap, 15a Nc, RlrOld # 59962	$124.90/EA
36	TN4034981	1	Bracket, Mtg, SwitchOld # 1228195	$16.30/EA
37	TN4035369	2	Screw, Hex, M5 X 0.80 X 16, SsOld # 24199	$3.00/EA
38	TN4042888	2	Washer, Flat, 10, SsOld # 01683	$2.60/EA
39	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA

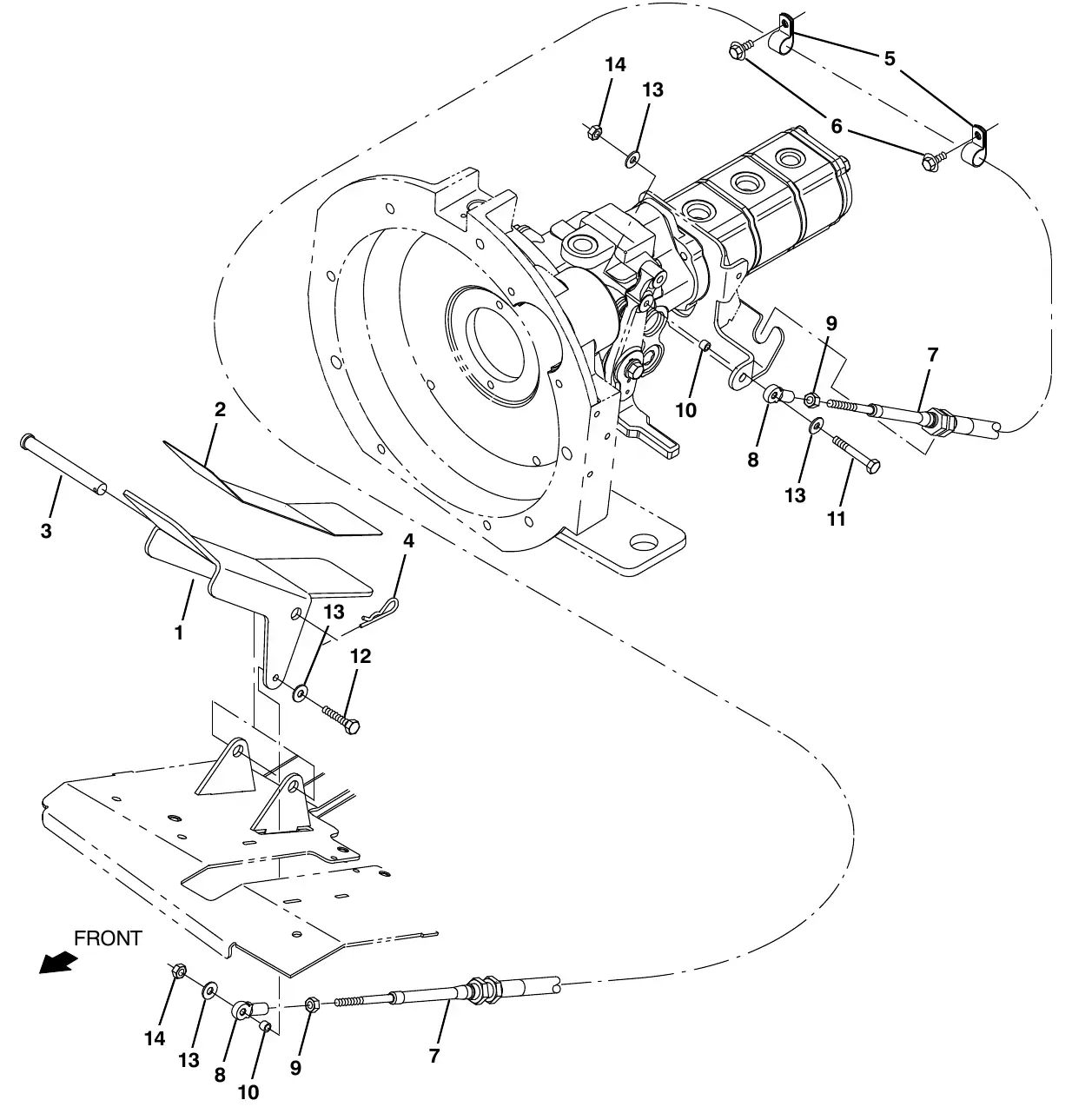

M20 directional pedal group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 directional pedal group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4193625	1	Pedal, PropelOld # 1025140	$45.75/EA
2	TN4026685	1	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
3	TN4026850	1	Pin, Clevis, 0.50 D X 4.50lOld # 59668	$5.10/EA
4	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
5	TN4017933	2	Clamp, Cable, Stl, 0.69d X 0.62w, 1hOld # 67767	$4.20/EA
6	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
7	TN4032922	1	Cable, Push / Pull, 098.0l .25 - 28/.25 - 28Old # 1022345	$293.20/EA
8	TN4018302	2	Rod - End, .25 - 28rh Fem 0.25b [Teflon]Old # 68866	$44.50/EA
9	TN4042941	2	Nut, Hex, Std, .25 - 28Old # 01714	$2.50/EA
10	TN4017735	2	Tube, 00.38d 00.26b 00.3l Stl PltOld # 65441	$19.20/EA
11	TN4231432	1	Screw, Hex, .25 - 20 X 2.25, SsOld # 41399	$4.00/EA
12	TN4017319	1	Screw, Hex, .25 - 20 X 1.75, SsOld # 42180	$3.40/EA
13	TN4034136	4	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
14	TN4016793	2	Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169	$4.00/EA

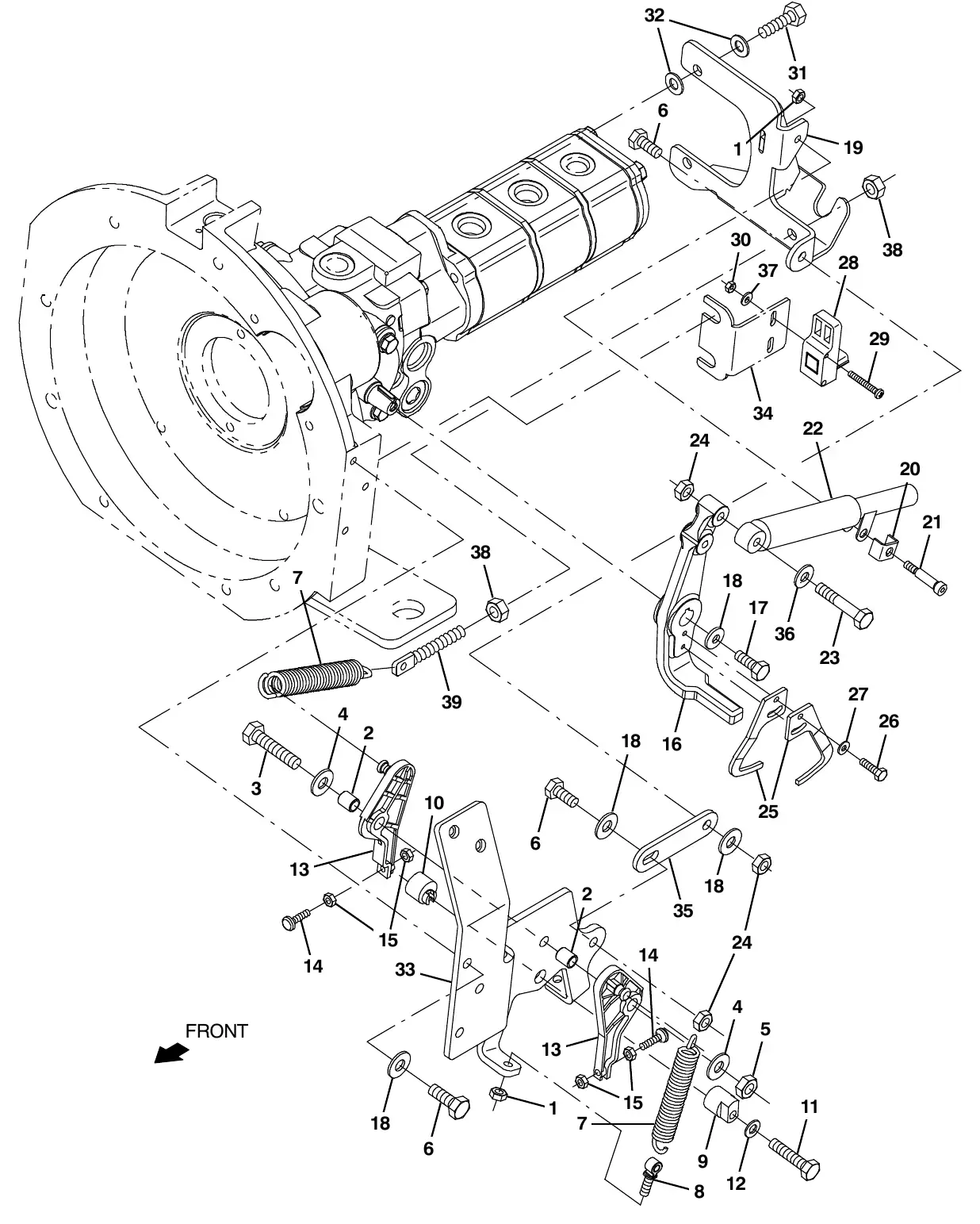

M20 hydraulic pump linkage group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic pump linkage group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4013573	2	Nut, Hex, Lock, .2520, NlOld # 75934	$2.50/EA
2	TN4021145	2	Tube, 00.50d 00.38b 00.6l StlOld # 63234	$6.60/EA
3	TN4200713	1	Screw, Hex, .3816 X 2.25, G5Old # 27991	$3.23/EA
4	TN4034138	2	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
5	TN4028758	1	Nut, Hex, Lock, .3816, Nl, ThinOld # 36643	$2.50/EA
6	TN4156940	5	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
7	TN4043395	2	Spring, Extn, 0.75od X 0.12wir, 4.3lOld # 11842	$12.20/EA
8	TN4013918	1	Bolt, Eye, .2520 X 1.40 X .25 EyeOld # 48079	$6.00/EA
9	TN4015051	1	Cam, Centering, PintleOld # 53947	$74.84/EA
10	TN4028669	1	Cam, Centering, PintleOld # 54655	$72.52/EA
11	TN4012778	1	Screw, Hex, M8 X 1.25 X 40, Ss, NlOld # 74440	$4.90/EA
12	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
13	TN4015053	2	Arm, Cntrl, Pintle, CenteringOld # 53953	$26.60/EA
14	TN4015362	2	Bumper, Rbr, 0.5d 0.16t M5 X 08Old # 54205	$18.50/EA
15	TN4014211	4	Nut, Hex, Std, M5 X 0.8, 8Old # 50335	$3.30/EA
16	TN4030623	1	Arm, PintleOld # 1027233	$101.71/EA
17	TN4021295	1	Screw, Hex, .3124 X 0.75, NlOld # 83879	$2.90/EA
18	TN4016796	6	Washer, Belleville, .31Old # 41186	$3.50/EA
19	TN4194159	1	Bracket Wldt, Propel, PintleOld # 1027313	$48.78/EA
20	TN4021318	1	Bracket, Retainer, SafetyOld # 84170	$11.60/EA
21	TN4041517	1	Bolt, Shld, .31d X 1.00, .2520Old # 16213	$6.80/EA
22	TN4016337	1	Shock Absorber, 2.3 StrkOld # 73411	$115.00/EA
23	TN4019753	1	Screw, Hex, M8 X 1.25 X 50, 8.8Old # 39278	$4.00/EA
24	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
25	TN4033213	2	Arm [Positioning]Old # 1022787	$15.80/EA
26	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
27	TN4042888	2	Washer, Flat, #10 SsOld # 01683	$2.60/EA
28	TN4033212	1	Sensor, Spd / Dir, 630vdcOld # 1022779	$285.30/EA
29	TN4041964	2	Screw, Pan, M4 X 0.7 X 35, SsOld # 09198	$3.20/EA
30	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
31	TN4013460	2	Screw, Hex, .3816 X 1.25, NlOld # 46559	$4.00/EA
32	TN4034134	4	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
33	TN4030339	1	Bracket, Propel, G/Lpg [Mit 2013]Old # 1070798	$27.17/EA
34	TN4182555	1	Angle, MtgOld # 1070819	$5.35/EA
35	TN4192517	1	Strap, SpptOld # 1032399	$11.82/EA
36	TN4034136	1	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
37	TN4042243	2	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
38	TN4041600	2	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
39	TN4021359	1	Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA

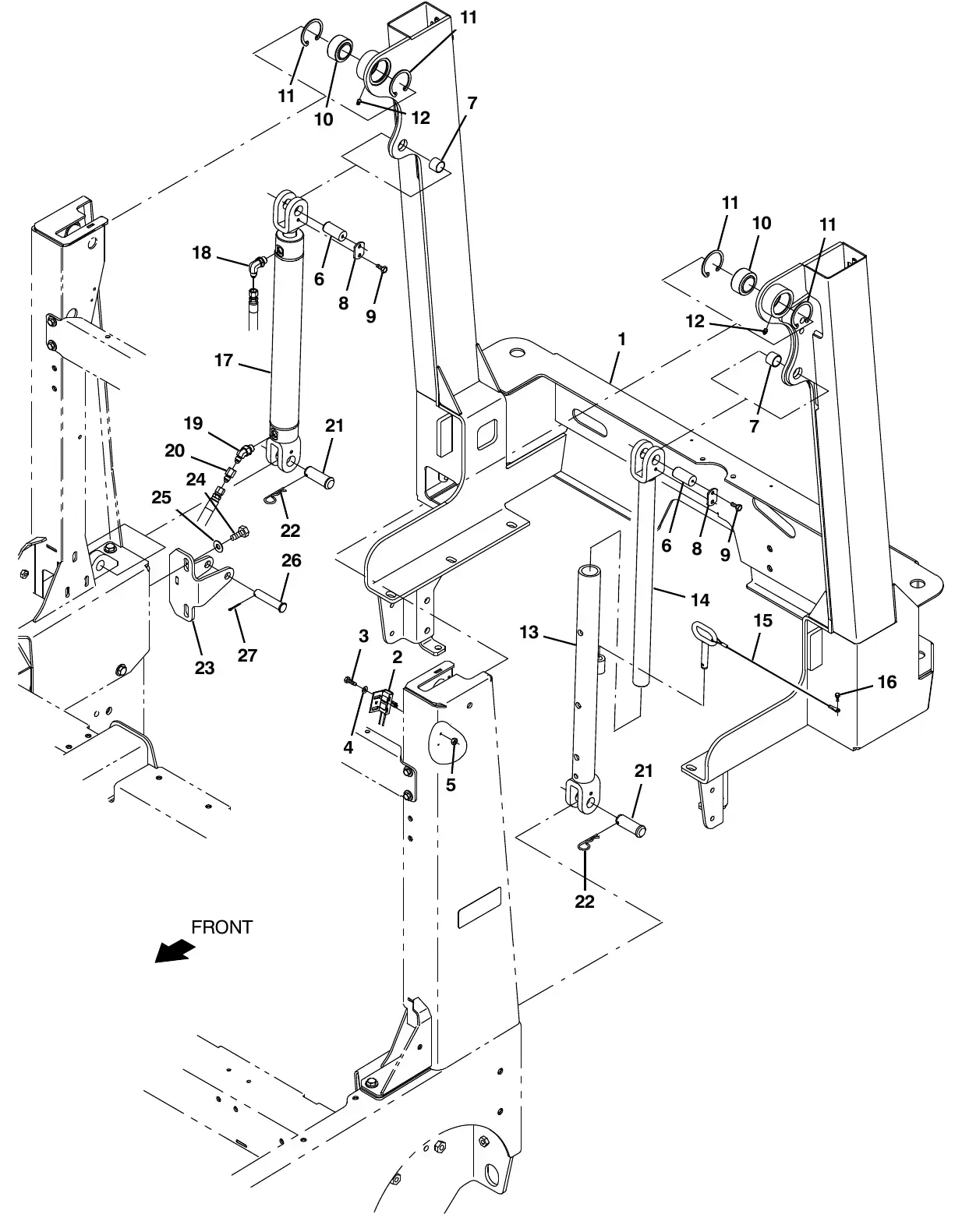

M20 hopper lift arms group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hopper lift arms group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4030288	1	Frame Wldt, Lift, HpprOld # 1069933	$1,780.90/EA
2	TN4035032	1	Switch, Snap, 15a No, RlrOld # 23211	$136.10/EA
3	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
4	TN4042244	2	Washer, Flat, #10Old # 19066	$2.50/EA
5	TN4041603	2	Nut, Hex, Flng, M5 X 0.8Old # 07789	$5.80/EA
6	TN4035738	2	Pin, 0.87d 01.8l, 1/M6 X 1.0, 1cham,StlOld # 1018226	$20.00/EA
7	TN4028122	2	Bushing, Sleeve, 0.88b 1.00d 0.75l, BnzOld # 364587	$12.10/EA
8	TN4016283	2	Plate, Pin, Clevis, UpperOld # 72897	$16.40/EA
9	TN4044400	4	Screw, Hex, M6 X 1.0 X 20, 9.8, SemsOld # 1040467	$3.30/EA
10	TN4017311	2	Bearing, Self Align, 1.25b 2.00dOld # 42120-1	$52.20/EA
11	TN4026820	4	Ring, Retaining, Int, 2.00dOld # 59542	$4.00/EA
12	TN4041578	2	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
13	TN4035768	1	Tube Wldt, Arm, SafetyOld # 1018260	$295.90/EA
14	TN4035769	1	Rod Wldt, Arm, SafetyOld # 1018262	$251.20/EA
15	TN4035780	1	Pin, Arm, SafetyOld # 1018266	$40.10/EA
16	TN4041846	1	Screw, Hex, M4 X 0.7 X 10, FmgOld # 16944	$3.20/EA
17	TN4031370	1	Cylinder, Hyd, 2.0B 24.1L 15.00Strk 3000Old # 1029646	$560.00/EA
18	TN4013891	1	Fitting, Hyd, E90, Jm04/Om06Old # 47638	$18.30/EA
19	TN4019818	1	Fitting, Hyd, E45, Jm04/Om06Old # 393215	$43.70/EA
20	TN4034217	1	Fitting, Hyd, Rst, Jf04/Jm04, .028Old # 1025904	$55.20/EA
21	TN4035739	2	Pin, Clevis, 0.88d X 2.25lOld # 1018227	$29.90/EA
22	TN4043243	2	Pin, Cotter, Hair, 0.62d .120 WirOld # 02942	$3.40/EA
23	TN4035783	1	Plate Wldt, Arm, StopOld # 1018275	$39.20/EA
24	TN4041948	2	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
25	TN4042903	2	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
26	TN4035784	1	Pin, Clevis, 0.62d X 2.91lOld # 1018276	$24.90/EA
27	TN4041634	1	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA

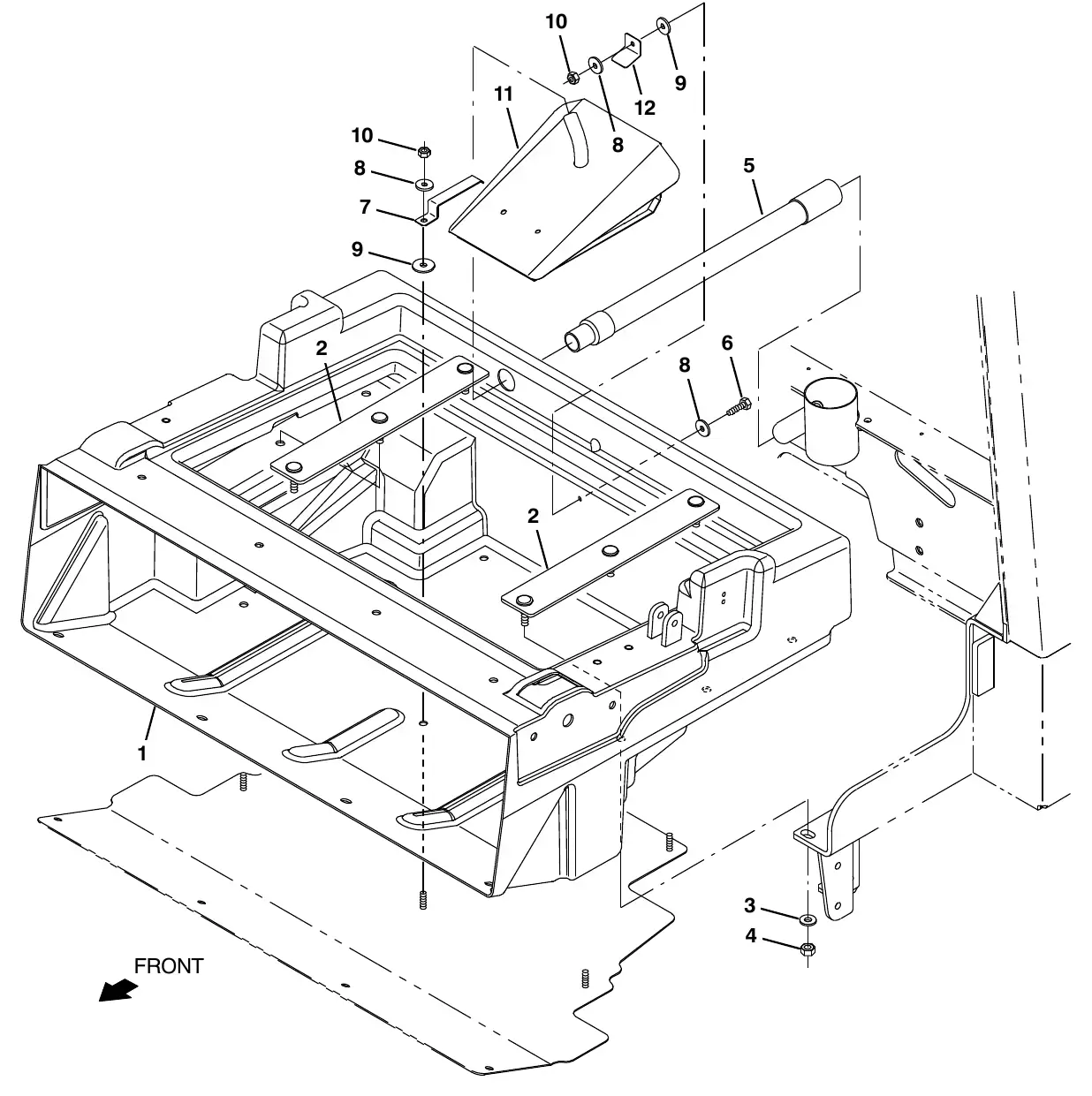

M20 hopper and debris screen group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hopper and debris screen group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4035789	1	Hopper, Debris, Rm - Hg, TrimmedOld # 1018300	$716.90/EA
2	TN4035781	2	Bar, Mtg, HpprOld # 1018272	$28.50/EA
3	TN4011890	6	Washer, Flat, Belleville, M10Old # 763042	$3.40/EA
4	TN4041930	6	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
5	TN4035762	1	Hose Assy, W/1cuff, 1.0d 09l 1.0/Old # 1018239	$57.80/EA
6	TN4041943	1	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
7	TN4042127	1	Spring, Flat, Retainer, Angled ScreenOld # 1044323	$44.80/EA
8	TN4035242	3	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
9	TN4040233	2	Washer, Flat, 0.38b 1.25d .12, NeoOld # 222268	$4.00/EA
10	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
11	TN4044019	1	Screen Wldt, HpprOld # 1039163	$242.00/EA
12	TN4044026	1	Angle, RetainerOld # 1039215	$11.10/EA

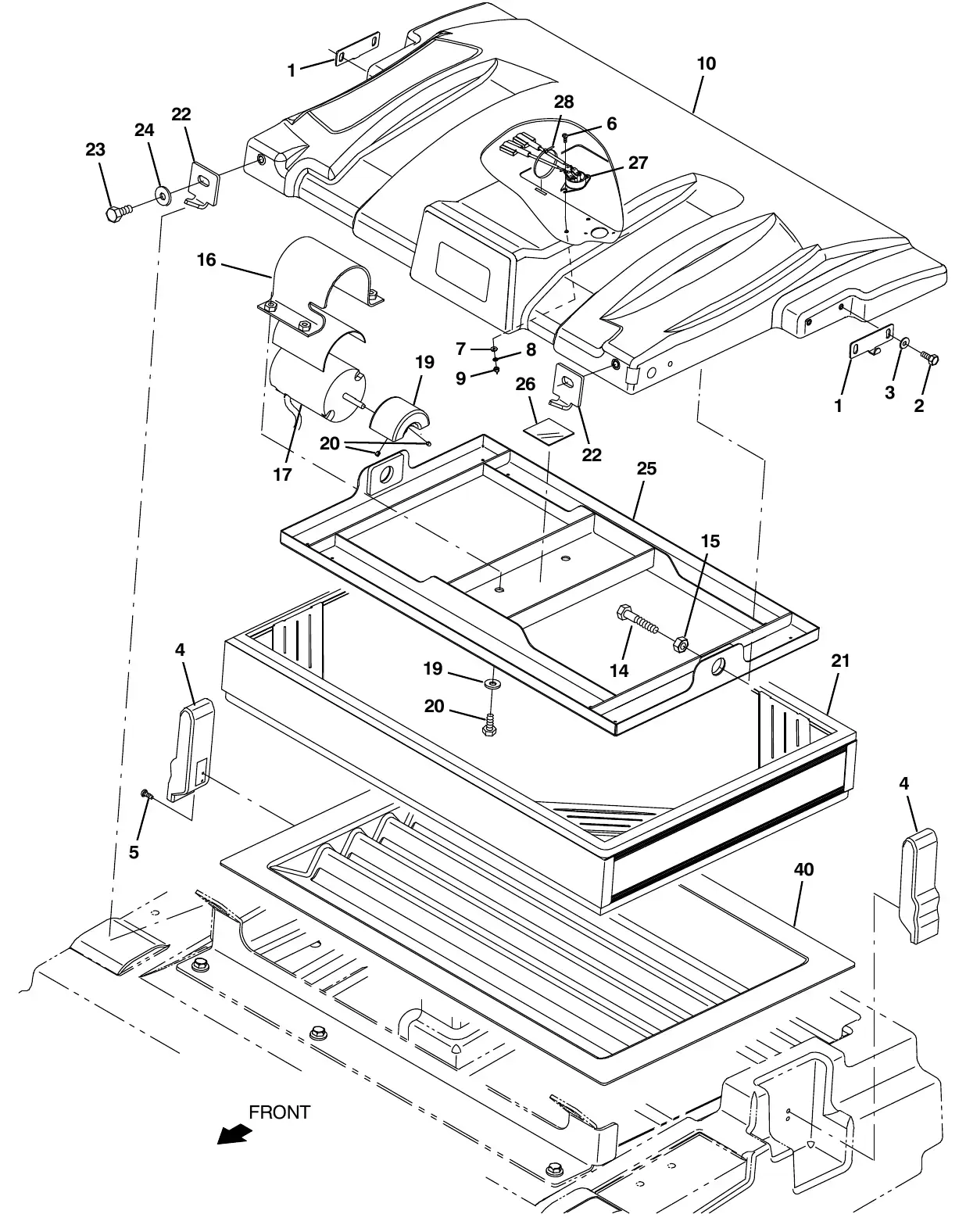

M20 hopper cover and dust filter group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hopper cover and dust filter group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4044648	2	Bracket, Cover, HpprOld # 1041984	$15.60/EA
2	TN4041245	4	Screw, Hex, M6 X 1.0 X 16, SsOld # 15678	$3.20/EA
3	TN4042901	4	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
4	TN4032766	2	LatchOld # 360824 · Replaced by 1222019 in the 2022 list (rev. 08)	$55.80/EA
5	TN4041965	4	Screw, Pan, M5 X 0.8 X 12, SsOld # 09200	$3.40/EA
6	TN4041015	2	Screw, Pan, M3 X 0.5 X 20, 4.8Old # 06922	$3.40/EA
7	TN4042242	2	Washer, Flat, #06Old # 19064	$3.40/EA
8	TN4034651	2	Washer, Lock, Int, #06Old # 32975	$2.60/EA
9	TN4042963	2	Nut, Hex, Std, M3 X 0.5, 8Old # 01754	$2.50/EA
10	TN4044454	1	Cover, HpprOld # 1041006	$384.00/EA
11	TN4041992	8	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
12	TN4042902	6	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
13	TN4043553	1	Tray, Perma - FilterOld # 1037947	$127.10/EA
14	TN4041288	2	Screw, Hex, M10 X 1.50 X 60, 8.8Old # 06963	$4.00/EA
15	TN4019809	2	Nut, Hex, Std, M10 X 1.50Old # 39312	$3.40/EA
16	TN4045661	1	Strap, Mtg, Motor, .124.00WOld # 1037671	$43.90/EA
17	TN4028761	1	Strip, Rbr, 0.06 04.00w 05.0l Neo/60Old # 36658	$6.50/EA
18	TN4033948	1	Motor, Ele 12Vdc, ShakrOld # 1059542	$294.50/EA
19	TN4038145	1	Weight, EccentricOld # 1053320	$28.50/EA
20	TN4039093	2	Screw, Set, #10 - 24 X 0.25, NlOld # 20634	$3.40/EA
21	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
22	TN4035545	2	Bar, Mtg, Hppr CoverOld # 1018207	$14.80/EA
23	TN4041974	2	Screw, Hex, M10 X 1.5 X 20, SsOld # 09291	$5.80/EA
24	TN4037922	2	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
25	TN4045625	1	Shaker WldtOld # 1037235	$230.80/EA
26	Old # 36661	1	Strip, Rbr, 0.06 01.00W 04.0LOld # 36661Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
27	TN4039106	1	Switch, Temp, Sealed, NcOld # 1056298	$217.60/EA
28	TN4011910	1	Tie, Cable, Nyl, 15.3L . W 4.5 Max DOld # 763116	$3.40/EA

M20 hopper bumper group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hopper bumper group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031957	2	Grommet, Rbr, 1.50id, F/1.8h, .19 MatlOld # 10632-13	$6.00/EA
2	TN50646	1	Molding, Trim, Pvc,.18 - .31 07.5lOld # 50646 · no current Tennant number on file	Call for price
3	TN4036305	6	Wheel, 06.0d 2.00w 1.19b, Gray RbrOld # 1021047 · Replaced by 1060130 in the 2022 list (rev. 08)	Call for price
4	TN4035546	2	Light, Tail, 12vdcOld # 1018208	$131.70/EA
5	TN4038392	2	Pin, 30mmd X 215mmlOld # 1053838	$74.40/EA
6	TN4035763	1	Bracket, Mtg, SwitchOld # 1018240	$16.65/EA
7	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
8	TN4034133	2	Washer, Flat, 0.25 SaeOld # 32483	$2.50/EA
9	TN4035025	2	Pin, Roll, .187d X 1.62l, .187/.192Old # 23146	$2.50/EA
10	TN4035148	2	Washer, Flat, 1.26B 1.88D .13, Stl, PlOld # 1062566	$2.60/EA
11	TN4035991	2	Screw, Pan, M4 X 0.7 X 20, SsOld # 12323	$3.30/EA
12	TN4043241	2	Washer, Lock, Int, #08, SsOld # 02938	$2.60/EA
13	TN4031623	2	Pin, Cotter, Hair, 1.00d .178 WirOld # 34411	$4.00/EA
14	TN4037765	1	Switch, Press, Adj [4 - 16 In Wtr]Old # 1052885	$72.10/EA
15	TN4033731	1	Fitting, Brs, E90, Pm02/Bm03Old # 32183	$9.90/EA
16	TN4032044	1	Hose, Afmkt, Vacuum, 0.16id, 03ftOld # 1031575	$16.60/EA
17	TN4045499	1	Tube, VacuumOld # 1036240 · Not in the 2022 list (rev. 08)	$32.10/EA
18	TN4045637	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 · Not in the 2022 list (rev. 08)	$2.50/EA
19	TN4041259	4	Screw, Pan, M4 X 0.7 X 20, 4.8Old # 06928	$2.50/EA
20	TN4035785	1	Plate Wldt, Mtg, SolenoidOld # 1018280	$47.60/EA
21	TN4035608	2	Screw, Hex, M12 X 1.75 X 30, SsOld # 12309	$6.00/EA
22	TN4034135	2	Washer, Flat, 0.50, SaeOld # 32486	$2.60/EA
23	TN4039424	1	LatchOld # 21623	$49.60/EA
24	TN4041272	4	Screw, Hex, M6 X 1.0 X 25, 8.8Old # 06944	$2.50/EA
25	TN4035782	1	Solenoid, Pull, 12vdc, DamperOld # 1018274	$167.10/EA
26	TN4042585	1	Pin, Roll, .125 D X 0.75l, .125/.129Old # 20021	$2.50/EA
27	TN4035787	2	Cap, Arm, LiftOld # 1018293	$15.60/EA

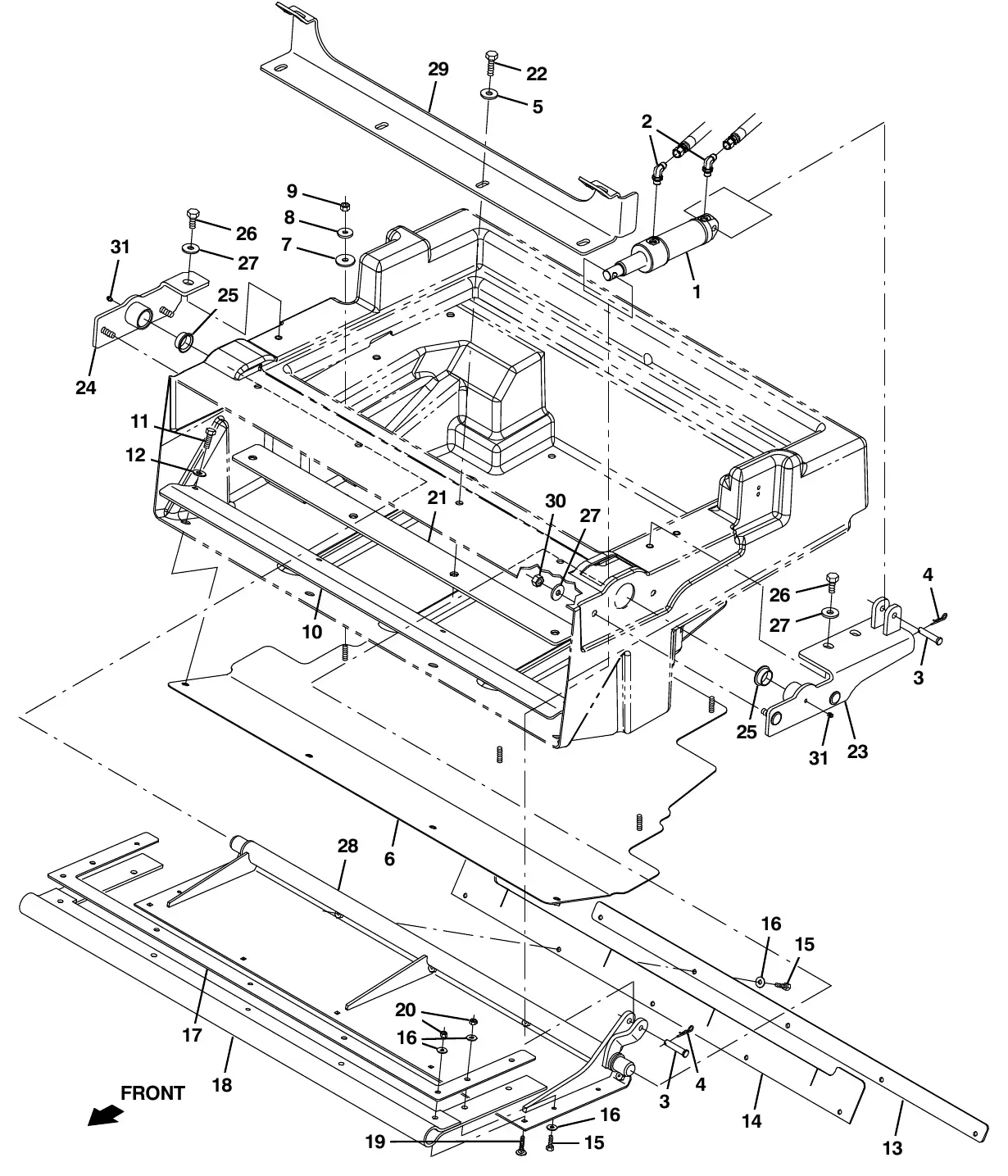

M20 hopper door group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hopper door group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4043598	1	Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Old # 1038115	$223.30/EA
2	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4041878	2	Pin, Clevis, 0.37d X 1.75lOld # 17461	$4.00/EA
4	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
5	TN4037922	11	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
6	TN4035761	1	Plate, Bottom, HpprOld # 1018237	$220.70/EA
7	TN4040233	2	Washer, Flat, 0.38b 1.25d .12, NeoOld # 222268	$4.00/EA
8	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
9	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
10	TN4035760	1	Bracket, Lip, HpprOld # 1018236	$66.00/EA
11	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
12	TN4042902	4	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
13	TN4044017	1	Strap, Door, DumpOld # 1039155	$21.80/EA
14	TN4035765	1	Seal, Door, DumpOld # 1018245	$37.10/EA
15	TN4041931	9	Screw, Hex, M6 X 1.0 X 20, SsOld # 08716	$3.20/EA
16	TN4042901	14	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
17	TN4044016	1	Plate, Retainer, Door, DumpOld # 1039149	$61.40/EA
18	TN4044018	1	Seal, Door, DumpOld # 1039157	$132.90/EA
19	TN4026709	5	Bolt, Carriage, M06 X 1.0 X 30Old # 379791	$4.00/EA
20	TN4041928	9	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
21	TN4035767	1	Bracket, CoverOld # 1018253	$44.50/EA
22	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
23	TN4043611	1	Bracket Wldt, Pivot, Hppr Door, LhOld # 1038123	$90.80/EA
24	TN4043613	1	Bracket Wldt, Pivot, Hppr, RhOld # 1038134	$70.20/EA
25	TN4028819	2	Bushing, Flng, 1.00b 1.13d 0.50lOld # 367313	$15.30/EA
26	TN4041974	3	Screw, Hex, M10 X 1.5 X 20, SsOld # 09291	$5.80/EA
27	TN4041578	2	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
28	TN4044009	1	Door Wldt, HpprOld # 1039124	$358.40/EA
29	TN4042449	1	Bracket, Cover, HopperOld # 1044993	$60.20/EA
30	TN4041930	4	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA

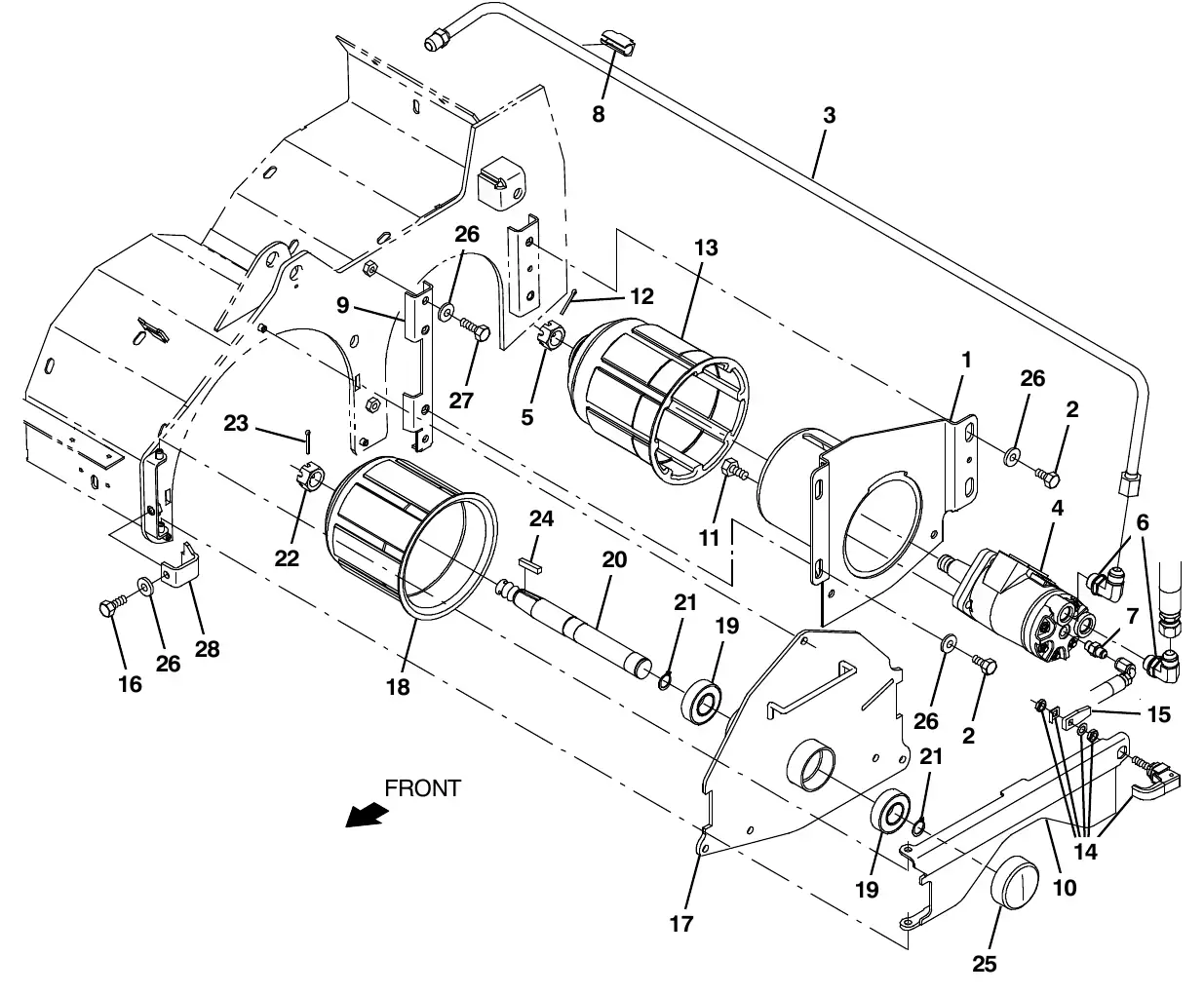

M20 cylindrical scrub brush drive group, left side

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 cylindrical scrub brush drive group, left side parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4036300	1	Housing Wldt, Brush, DriveOld # 1021019	$190.40/EA
2	TN4041243	4	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
3	TN4033536	1	Tube, Hyd, 08 Jf08/Jm08Old # 1023617	$72.10/EA
4	TN4030082	1	Motor, Hyd, Gear, Int 04.5 BiDir 1500Old # 1068811	$594.80/EA
5	TN4015800	1	Nut, Hex, Sltd, .7518Old # 39527	$8.00/EA
6	TN4017776	2	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
7	TN4028729	1	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
8	TN4034229	1	Clamp, Hyd, 0.50dOld # 1026080	$8.70/EA
9	TN4038636	1	Bracket, SpptOld # 1054575	$39.20/EA
10	TN4031386	1	Door Wldt, BrushOld # 1029964	$74.90/EA
11	TN4042969	4	Screw, Hex, .3816 X 0.75, NlOld # 01762	$3.20/EA
12	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
13	TN4036586	1	Plug Wldt, Drive, Brush, SweepOld # 1057643	$152.90/EA
14	TN4032742	1	Latch, Cmpr, Yel GripOld # 1065134	$26.80/EA
15	TN4034247	1	Pawl, StrOld # 1026352	$6.00/EA
16	TN4041992	1	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
	TN4025173	2	Idler Door Kit, Replmt [M20/T20/M30/T12]Old # 9012832	$507.00/EA
17	TN4038684	1	Door Wldt, Brush, IdlerOld # 1054857	$205.40/EA
18	TN4035446	1	Plug Wldt, Drive, BrushOld # 25686	$179.60/EA
19	TN4043586	2	Bearing, Ball, 0.98b 2.05d 0.59wOld # 13534	$17.50/EA
20	TN4029109	1	Shaft, Brush, IdlerOld # 56078	$279.20/EA
21	TN4041941	2	Ring, Retaining, Ext, 1.00d, BasicOld # 09005	$2.50/EA
22	TN4035288	1	Nut, Hex, Sltd, M20 X 2.5, 8Old # 12295	$9.50/EA
23	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
24	TN4042784	1	Key, Sq, 0.25 X 0.25, 1.25lOld # 00927	$3.60/EA
25	TN4044946	1	Cap, Vinyl, 57mmid X 23mmlOld # 1074807	$3.70/EA
26	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
27	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
28	TN4038661	1	Bracket, Retainer, LhOld # 1054682	$18.60/EA

M20 cylindrical scrub brush drive group, right side

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 cylindrical scrub brush drive group, right side parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4036300	1	Housing Wldt, Brush, DriveOld # 1021019	$190.40/EA
2	TN4041243	4	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
3	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
4	TN4030082	1	Motor, Hyd, Gear, Int 04.5 BiDir 1500Old # 1068811	$594.80/EA
5	TN4015800	1	Nut, Hex, Sltd, .7516Old # 39527	$8.00/EA
6	TN4017776	2	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
7	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
8	TN4034229	1	Clamp, Hyd, 0.50dOld # 1026080	$8.70/EA
9	TN4031386	1	Door Wldt, BrushOld # 1029964	$74.90/EA
10	TN4038642	1	Bracket, Retainer, RhOld # 1054610	$18.60/EA
11	TN4042969	4	Screw, Hex, .3816 X 0.75, NlOld # 01762	$3.20/EA
12	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
13	TN4036586	1	Plug Wldt, Drive, Brush, SweepOld # 1057643	$152.90/EA
14	TN4032742	1	Latch, Cmpr, Yel GripOld # 1065134	$26.80/EA
15	TN4034247	1	Pawl, StrOld # 1026352	$6.00/EA
16	TN4038636	1	Bracket, SpptOld # 1054575	$39.20/EA
	TN4025173	2	Idler Door Kit, Replmt [M20/T20/M30/T12]Old # 9012832	$507.00/EA
17	TN4038684	1	Door Wldt, Brush, IdlerOld # 1054857	$205.40/EA
18	TN4035446	1	Plug Wldt, Drive, BrushOld # 25686	$179.60/EA
19	TN4043586	2	Bearing, Ball, 0.98b 2.05d 0.59wOld # 13534	$17.50/EA
20	TN4041941	2	Ring, Retaining, Ext, 1.00d, BasicOld # 09005	$2.50/EA
21	TN4029109	1	Shaft, Brush, IdlerOld # 56078	$279.20/EA
22	TN4035288	1	Nut, Hex, Sltd, M20 X 2.5, 8Old # 12295	$9.50/EA
23	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
24	TN4042784	1	Key, Sq, 0.25 X 0.25, 1.25lOld # 00927	$3.60/EA
25	TN4044946	1	Cap, Vinyl, 57mmid X 23mmlOld # 1074807	$3.70/EA
26	TN4041992	1	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4038716	1	Tube, Hyd, Brush Return, W/ Cd [M20/T20]Old # 1055139	$158.30/EA
28	TN4019344	1	Fitting, Hyd, E90, Jf04/Jm04Old # 39210	$8.70/EA
29	TN4028729	1	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
30	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA

M20 cylindrical scrub brush head lift group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 cylindrical scrub brush head lift group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031765	1	Bracket, Mtg, Scb Head, RhOld # 1030910	$36.50/EA
2	TN4031766	1	Bracket, Mtg, Scb Head, LhOld # 1030911	$26.60/EA
3	TN4041948	4	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
4	TN4034134	4	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
5	TN4041929	10	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
6	TN4017929	2	Rod - End, .50 - 20rh Fem 0.50bOld # 67555	$70.00/EA
7	TN4037934	2	Rod, Thrd, 2 End, .50 - 20 04.9l, Rh / LhOld # 1014705	$54.00/EA
8	TN4013991	2	Nut, Hex, Jam, .50 - 20Old # 48985	$3.40/EA
9	TN4015630	2	Nut, Hex, Jam, .50 - 20, LhOld # 71369	$4.00/EA
10	TN4027312	2	Rod - End, .50 - 20lh Fem 0.50 - 20studOld # 382099	$53.10/EA
11	TN4014600	2	Nut, Hex, Lock, .50 - 20, Nl, ThinOld # 51824	$3.30/EA
12	TN4036233	1	Tube Wldt, TorqueOld # 1020003	$219.70/EA
13	TN4017310	4	Bearing, Self Align, 0.75b 1.25dOld # 42120	$35.40/EA
14	TN4041578	4	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
15	TN4041294	2	Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969	$4.00/EA
16	TN4017232	2	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
17	TN4041993	2	Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741	$5.80/EA
18	TN4040938	2	Pin, Clevis, 0.75d X 2.00lOld # 04733-12	$7.60/EA
19	TN4041918	2	Pin, Cotter, .156 X 1.25Old # 08236	$3.40/EA
20	TN4037385	2	Screw, Hex, M5 X 0.8 X 10, FmgOld # 223198	$4.00/EA
21	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
22	TN4025261	2	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
23	TN4041878	2	Pin, Clevis, 0.37d X 1.75lOld # 17461	$4.00/EA
24	TN4022048	2	Pin, Cotter, Hair, 0.38d .072 WirOld # 86866	$2.50/EA
25	TN4044719	1	Spring, Extn, 2.00od 0.25wir 07.5lOld # 1042686	$23.40/EA
26	TN4030652	1	Bracket, Mtg, SpringOld # 1027810	$19.80/EA
27	TN4011904	1	Screw, Hex, M8 X 1.25 X 60, FlOld # 763090	Call for price
28	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
29	TN4035885	1	Bracket, Mtg, Lift, Scb HeadOld # 1019146	$31.00/EA
30	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
31	TN4016292	2	Screw, Hex, .50 - 13 X 1.50, 5Old # 39811	$4.00/EA
32	TN4028759	2	Nut, Hex, Lock, .50 - 13, Nl, ThinOld # 36644	$3.40/EA
33	TN4033870	3	Sleeve, P/M, 0.47b 0.75d 0.5l [430ss]Old # 1025100	$4.20/EA
34	TN4041051	1	Bracket Wldt, Brush Wrap, LhOld # 1052342	$443.90/EA
35	TN4030120	1	Plate Wldt, Wrap, BrushOld # 1069562	$303.10/EA
36	TN4040825	1	Bracket Wldt, Brush Wrap Mtg, RhOld # 1052124	$470.60/EA
37	TN4037712	10	Screw, Btn, M8 X 1.25 X 25, SsOld # 223470	$4.00/EA
38	TN4034137	20	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

M20 cylindrical brush head skirt group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 cylindrical brush head skirt group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032901	2	Skirt, Neo, .12, 05.39w 14.01l, 02 SlOld # 1022165	$57.10/EA
2	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
3	TN4034232	1	Skirt, Neo, .06, 26.99w 40.55l, 36 HoleOld # 1026108	$126.60/EA
4	TN4032923	1	Skirt, Neo, .06, 07.63w 51.52l, 11 HoleOld # 1022363	$50.20/EA
5	TN4032872	4	Retainer, SkirtOld # 1022003	$10.20/EA
6	TN4029864	13	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
7	TN4042901	12	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
8	TN4036282	1	Strip, Flap, RecirculationOld # 1020828	$29.10/EA
9	TN4041608	6	Screw, Hex, M6 X 1.0 X 35, SsOld # 07805	$3.30/EA
10	TN4041928	6	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
11	TN4044044	1	Bracket, Mtg, SkirtOld # 1039396	$102.90/EA
12	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
13	TN4042902	22	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
14	TN4032906	1	Bracket Wldt, Flap, RecirculationOld # 1022179	$204.40/EA
15	TN4041943	13	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
16	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
17	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
18	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
19	TN4036282	1	Strip, Flap, RecirculationOld # 1020828	$29.10/EA
20	TN4030999	1	Strap, Static, AfmktOld # 1028852	Call for price
21	TN4016787	7	Washer, Lock, Int - Ext, 0.31Old # 41141	$3.50/EA
22	TN4044265	1	Plate, Skirt, FrontOld # 1040018	$56.20/EA
23	TN4031209	1	Screw, Hex, M8 X 1.25 X 50, Ss, FlOld # 33401	$4.00/EA
24	TN4041929	1	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA

M20 squeegee lift group, rear

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 squeegee lift group, rear parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4034223	4	Link Assy, Rod - End, M12Old # 1026007	$131.30/EA
2	TN4017232	8	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
3	TN4041993	8	Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741	$5.80/EA
4	TN4013466	2	Spring, Extn, 0.88od X 0.14wir, 9.0lOld # 46785-1	$49.00/EA
5	TN4022266	2	Bolt, Eye, M10 X 1.50 X 064mm, 07.10 EyeOld # 386847	$11.60/EA
6	TN4042903	2	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
7	TN4041930	2	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
8	TN4032925	1	Angle, RhOld # 1022372	$22.80/EA
9	TN4032936	1	Angle, LhOld # 1022442	$20.50/EA
10	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
11	TN4042902	15	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
12	TN4041929	9	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
13	TN4015603	2	Spring, Flt, 0.08th, 4.50w X 07.0lOld # 71204	$28.80/EA
14	TN4033833	4	Block, CenteringOld # 1024648	$21.20/EA
15	TN4029273	4	Screw, Pan, M6 X 1.0 X 16, SsOld # 367770	$2.50/EA
16	TN4041928	4	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
17	TN4033831	4	Spacer, Pad, RbrOld # 1024641	$3.90/EA
18	TN4033838	2	Retainer, SpringOld # 1024703	$10.40/EA
19	TN4041945	4	Screw, Hex, M8 X 1.25 X 35, Ss, FlOld # 09023	$3.30/EA
20	TN4016797	4	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
21	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
22	TN4034203	1	Bellcrank, Lift, SqgeOld # 1025680	$116.80/EA
23	TN4028819	2	Bushing, Flng, 1.00b 1.13d 0.50lOld # 367313	$15.30/EA
24	TN4036077	2	Pin, Clevis, 0.37d X 2.00lOld # 29584	$3.90/EA
25	TN4035045	1	Ring, Retaining, Ext, 0.38d, [Selflock]Old # 23524-1	$2.40/EA
26	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
27	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
28	TN4041993	1	Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741 · Not in the 2022 list (rev. 08)	$5.80/EA
29	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
30	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
31	TN4033552	1	Chain, Str, 4/0, 08 LinkOld # 1023779	$5.50/EA
32	TN4032821	1	Plate Wldt, Lift, SqgeOld # 1021609	$180.10/EA
33	TN4041282	1	Screw, Hex, M8 X 1.25 X 60, 8.8Old # 06957	$3.40/EA

M20 squeegee group, rear

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 squeegee group, rear parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4017376	1	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
	TN4013708	1	Squeegee Kit, Rear, Replmt [M20/T20]Old # 9004493	$1,254.10/EA
2	TN4033218	1	Squeegee Wldt, RearOld # 1022831	$631.30/EA
3	TN4033239	1	Clamp Wldt, FrontOld # 1023239	$102.00/EA
4	TN4043266	4	Strip, Non - Slip, 0.50w 06.0lOld # 03495	$3.40/EA
5	TN4039420	4	Pin, Grvd, 0.43d 01.8l [303ss]Old # 21603	$16.60/EA
6	TN4035383	4	Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555	$2.40/EA
7	TN4021717	1	Pin Wldt, FrontOld # 386298	$40.30/EA
8	TN4037481	1	Cam, Front, YellowOld # 1222020	$13.70/EA
9	TN4030695	1	Clamp Wldt, RearOld # 1028374	$121.90/EA
10	TN4039421	1	Bar Wldt, Retainer, Sqge, RearOld # 21606	$51.20/EA
11	TN4042045	1	Cam, RearOld # 1208906	$7.60/EA
12	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
13	TN4021691	2	Bumper, SqgeOld # 386264	$25.40/EA
14	TN4030447	2	Wheel, 4.0d 0.89w 0.64bOld # 363162	$35.40/EA
15	TN4030457	2	Sleeve, P/M, 0.34b 0.63d 1.2l, BnzOld # 363301	$9.30/EA
16	TN4023495	2	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
17	TN4027793	2	Screw, Hex, M8 X 1.25 X 110, SsOld # 364441	$4.90/EA
18	TN4042902	10	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
19	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
20	TN4036824	2	Knob, Star, 2.75d 4ear, M8x1.25 FemOld # 1218322	$18.00/EA
21	TN4040927	2	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
22	TN4018105	2	Ring, Mtg, Sqge, .50lOld # 387433	$20.90/EA
23	TN4018131	2	Spring, Cmpr, 0.9od .042wir 02.0lOld # 387500	$3.50/EA
24	TN4038447	2	Stud, M8 X 1.25, 2.75l M8 X 1.25, SsOld # 1226700	$6.40/EA
25	TN4032803	1	Hose, Vacuum, 19.0lOld # 1021511	$69.00/EACall for availability
Item 26: choose your version (2)
26	TN4035508	1	Blade, Sqge, Front, 49.58l [Linard]Old # 1017868	$90.00/EA
26	TN4030648	1	Blade, Sqge, Front, 49.58l Ure (Option)Old # 1027719	$274.30/EA
Item 27: choose your version (2)
27	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
27	TN4032198	1	Blade, Sqge, Rear, 53.78l Ure (Option)Old # 1031945	$305.50/EA

M20 squeegee linkage group, rear

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 squeegee linkage group, rear parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4042902	6	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
2	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
3	TN4023499	2	Sleeve, P/M, 0.34b 0.63d 0.6l, BnzOld # 80409	$5.10/EA
4	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
5	TN4040607	2	Screw, Hex, M8 X 1.25 X 45, SsOld # 222505	$4.00/EA
6	TN4033268	1	Bracket Wldt, Mtg, SqgeOld # 1023476	$253.70/EA
7	TN4017703	1	Spring, Dsl, 1.00od 0.50id 1.7lOld # 65180	$25.80/EA
8	TN4034194	1	Bolt, Carriage, M10 X 1.5 X 70Old # 1025601	$3.40/EA
9	TN4041930	1	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
10	TN4045201	1	Crossmember Wldt [M20]Old # 1034149	$422.40/EA
11	TN4036644	2	Bracket Wldt, Mtg, CasterOld # 1021404	$36.87/EA
12	TN4026503	2	Caster Kit, Rear Squeegee, AmOld # 9014285	$77.10/EA
13	TN4035383	2	Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555	$2.40/EA
14	TN4037922	1	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
15	TN4041578	2	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
16	TN4031208	2	Ring, Retaining, Ext, 0.62d, HdOld # 33373	$3.40/EA
17	TN4017061	2	Washer, Flat, 0.69b 1.19d .06, Stl, PlOld # 63468	$4.10/EA
18	TN4017115	2	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
19	TN4041585	4	Bushing, Sleeve, 0.62b 0.72d 0.50l, FglOld # 07449	$9.60/EA
20	TN4033916	2	Caster, PivotOld # 1025460	$106.20/EA
21	TN4023753	4	Bushing, Flng, 0.32b 0.50d 0.24l, BnzOld # 80950	$6.00/EA
22	TN4019755	2	Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281	$4.00/EA
23	TN4037485	2	Knob Assy, Star, 1.12d 3ear M10, YellowOld # 1222043	$36.00/EA
24	TN4032802	2	Pin, 0.63d 01.8l, 1/M10h, 2chamOld # 1021497	$13.00/EA
25	TN4045431	2	Stop, RotationOld # 1035727	$4.00/EA
26	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA

M20 squeegee group, right side

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 squeegee group, right side parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031037	1	Frame Wldt, Sqge, RhOld # 1029132	$159.70/EA
2	TN4031035	1	Retainer, Sqge, Side, RhOld # 1029128	$48.80/EA
3	TN4037479	1	Latch, Door, YellowOld # 1222018	$18.30/EA
4	TN4014173	2	Screw, Pan, M4 X 0.7 X 10, SsOld # 49697	$3.40/EA
5	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
Item 6: choose your version (2)
6	TN4031774	1	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
6	TN4032169	1	Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823	$183.50/EA
7	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
8	TN4017115	2	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
9	TN4033219	2	Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846	$20.00/EA
10	TN4041954	2	Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081	$5.80/EA
11	TN4033625	1	Bracket, Mtg, Skirt, Brush DoorOld # 1024584	$65.20/EA
12	TN4033834	1	Bracket, Mtg, Skirt, DoorOld # 1024651	$69.30/EA
13	TN4033626	1	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
14	TN4035908	1	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
15	TN4033882	1	Bracket, Mtg, Skirt, Door, BrushOld # 1025151	$53.20/EA
16	TN4040584	6	Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463	$3.30/EA
17	TN4019813	4	Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135	$3.30/EA
18	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
19	TN4041605	2	Nut, Hex, Flng, M8 X 1.25Old # 07791	$2.50/EA

M20 squeegee lift group, right side

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 squeegee lift group, right side parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
2	TN4025260	1	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4030954	1	Fitting, Hyd, Rst, SpclOld # 1028635	$77.30/EA
4	TN4033217	1	Bracket, Mtg, CylOld # 1022825	$24.30/EA
5	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsOld # 08716	$3.20/EA
6	TN4042902	3	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
7	TN4044039	1	Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348	$11.80/EA
8	TN4036275	2	Arm, Sqge, Side, RhOld # 1020548	$62.70/EA
9	TN4041878	1	Pin, Clevis, 0.37D X 1.75LOld # 17461	$4.00/EA
10	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
11	TN4022528	2	Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816	$5.20/EA
12	TN4021359	2	Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA
13	TN4041600	4	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
14	TN4033244	1	Arm Wldt, Sqge, Lift, RhOld # 1023306	Call for price
15	TN4015663	3	Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607	$12.50/EA
16	TN4023925	1	Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784	$25.30/EA
17	TN4032591	3	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
18	TN4019804	1	Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308	$3.40/EA
19	TN4016830	1	Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445	$5.10/EA
20	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
22	TN4017115	5	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
23	TN4016797	3	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
24	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
25	TN4035869	1	Door Wldt, Brush, RhOld # 1019031	$356.60/EA
26	TN4041948	3	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
27	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
28	TN4037484	1	Latch, Hook, Rh, YellowOld # 1222038 · Replaced by 1222036 in the 2022 list (rev. 08)	$35.60/EA
29	TN4041942	2	Screw, Hex, M6 X 1.0 X 25, SsOld # 09007	$3.30/EA
30	TN4016795	5	Washer, Flat, Belleville, .25Old # 41185	$3.40/EA
31	TN4026728	1	Screw, Hex, M12 X 1.75 X 55, SsOld # 379870	$7.60/EA
32	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
33	TN4017232	1	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
34	TN4033623	1	Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576	$76.50/EA

M20 squeegee group, left side

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 squeegee group, left side parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031019	1	Frame Wldt, Sqge, LhOld # 1028972	$181.40/EA
2	TN4031021	1	Retainer, Sqge, Side, LhOld # 1028979	$48.80/EA
3	TN4037479	1	Latch, Door, YellowOld # 1222018	$18.30/EA
4	TN4014173	2	Screw, Pan, M4 X 0.7 X 10, SsOld # 49697	$3.40/EA
5	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
Item 6: choose your version (2)
6	TN4031774	1	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
6	TN4032169	1	Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823	$183.50/EA
7	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
8	TN4017115	2	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
9	TN4033219	2	Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846	$20.00/EA
10	TN4041954	2	Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081	$5.80/EA
11	TN4033625	1	Bracket, Mtg, Skirt, Brush DoorOld # 1024584	$65.20/EA
12	TN4033834	1	Bracket, Mtg, Skirt, DoorOld # 1024651	$69.30/EA
13	TN4033626	1	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
14	TN4035908	1	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
15	TN4033882	1	Bracket, Mtg, Skirt, Door, BrushOld # 1025151	$53.20/EA
16	TN4040584	6	Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463	$3.30/EA
17	TN4019813	4	Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135	$3.30/EA
18	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
19	TN4041605	2	Nut, Hex, Flng, M8 X 1.25Old # 07791	$2.50/EA

M20 squeegee lift group, left side

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 squeegee lift group, left side parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
2	TN4025260	1	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4030954	1	Fitting, Hyd, Rst, SpclOld # 1028635	$77.30/EA
4	TN4033217	1	Bracket, Mtg, CylOld # 1022825	$24.30/EA
5	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsOld # 08716	$3.20/EA
6	TN4042902	3	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
7	TN4044039	1	Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348	$11.80/EA
8	TN4033227	1	Arm Wldt, Lift, Sqge, LhOld # 1022978	$68.40/EA
9	TN4041878	1	Pin, Clevis, 0.37D X 1.75LOld # 17461	$4.00/EA
10	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
11	TN4017115	5	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
12	TN4016797	3	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
13	TN4022528	2	Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816	$5.20/EA
14	TN4021359	2	Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA
15	TN4041600	4	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
16	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
17	TN4033245	2	Arm, Sqge, Side, LhOld # 1023307	$62.70/EA
18	TN4015663	3	Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607	$12.50/EA
19	TN4023925	1	Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784	$25.30/EA
20	TN4032591	3	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
21	TN4019804	1	Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308	$3.40/EA
22	TN4016830	1	Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445	$5.10/EA
23	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
24	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
25	TN4041948	3	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
26	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
27	TN4033246	1	Door Wldt, Brush, LhOld # 1023314	$356.30/EA
28	TN4037483	1	Latch, Hook, Lh, YellowOld # 1222036 · Replaced by 1222038 in the 2022 list (rev. 08)	$35.00/EA
29	TN4041942	2	Screw, Hex, M6 X 1.0 X 25, SsOld # 09007	$3.30/EA
30	TN4016795	5	Washer, Flat, Belleville, .25Old # 41185	$3.40/EA
31	TN4026728	1	Screw, Hex, M12 X 1.75 X 55, SsOld # 379870	$7.60/EA
32	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
33	TN4017232	1	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
34	TN4033623	1	Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576	$76.50/EA

M20 solution tank group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 solution tank group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4030635	1	Tank, Soltn, W/ Label [M20]Old # 1027381	$1,196.60/EA
2	TN4018894	1	Plug, Hole, Soltn Tank, Blk PyuOld # 390994	$19.00/EA
3	TN4195360	2	Angle, Sppt, Tank, RearOld # 1020209	$14.45/EA
4	TN4041992	12	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
5	TN4035242	12	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
6	TN4044300	1	Bracket Wldt, Tank, Soltn, RhOld # 1040306	$56.66/EA
7	TN4033628	1	Bracket, Tank, Soltn, LhOld # 1024591	Call for price
8	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
9	TN4015595	4	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
10	TN4196365	2	Bracket, Soltn, Tank, CntrOld # 1024389	$28.79/EA
11	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
	TN4016484	1	Cover Kit, Soltn Tank, Rh [M20 & T20]Old # 9003069	$419.40/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
12	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
13	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
14	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
15	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
16	TN4031145	1	LatchOld # 367949	$35.40/EA
17	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
18	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
19	TN4032903	1	Cover, Tank, Soltn, Rh, TrimmedOld # 1022176	$230.40/EA
20	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
21	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
22	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4205387	1	Cover Kit, Tank, Soltn, Rh, Replmt, Ce (Japan and CE Only)Old # 9003071	$414.81/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
12	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
13	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
14	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
15	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
16	TN4031145	1	LatchOld # 367949	$35.40/EA
17	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
18	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
19	TN1031233	1	Cover, Tank, Soltn, Rh, Trimmed, Ce (Japan and CE Only)Old # 1031233 · current Tennant number (Tennant parts catalog)	Call for price
20	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
21	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
22	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4016483	1	Cover Kit, Tank, Soltn, Lh, ReplmtOld # 9003068	$416.30/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
23	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
24	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
25	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
26	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
27	TN4031145	1	LatchOld # 367949	$35.40/EA
28	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
29	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
30	TN4032907	1	Cover, Tank, Soltn, Lh, TrimmedOld # 1022182	$334.10/EA
31	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
32	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
33	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4205386	1	Cover Kit, Tank, Soltn, Lh, Replmt, Ce (Japan and CE Only)Old # 9003070	$270.40/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
23	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
24	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
25	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
26	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
27	TN4031145	1	LatchOld # 367949	$35.40/EA
28	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
29	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
30	TN1031235	1	Cover, Tank, Soltn, Lh, Trimmed, Ce (Japan and CE Only)Old # 1031235 · current Tennant number (Tennant parts catalog)	Call for price
31	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
32	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
33	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
34	TN4025663	1	Fitting, Plstc, Pf12/Pf12, BhOld # 377349	$22.50/EA
35	TN4018369	1	Fitting, Plstc, E90, Pf12/Pm12Old # 69785	$11.80/EA
36	TN4021025	1	Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685	$78.50/EA
37	TN4035236	2	Plate, Label, Soltn Tank (ec - H20 only)Old # 1017101	$11.60/EA
38	TN4029542	4	Screw, Pan, 12 - 16 X 0.50, F/ Plstc (ec - H20 only)Old # 360973	$4.00/EA
39	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290	$20.30/EA

M20 solution tank drain group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 solution tank drain group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4017007	1	Tube Kit, Tank, Soltn, ReplmtOld # 9003793	$82.40/EA
2	TN4035042	1	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
3	TN4044649	1	Mount Wldt, Valve, Pinch, RhOld # 1042003	$57.10/EA
4	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
5	TN4040610	1	Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516	$3.40/EA
6	TN4034137	5	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
7	TN4041929	3	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
8	TN4033829	1	Bushing, Eccentric, AdjOld # 1024599	$46.80/EA
9	TN4034227	1	Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051	$2.60/EA
10	TN4012759	1	Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090	$12.10/EA
11	TN4026590	1	Screw, Flt, M8 X 1.25 X 30, SsOld # 79506	$4.00/EA
12	TN4030970	1	Washer, Thrust, 0.34b 1.50d .06Old # 1028701	$37.40/EA
13	TN4041242	1	Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648	$16.20/EA
14	TN4030958	1	Roller, BrgOld # 1028691	$16.90/EA
15	TN4030957	1	Tube, 0.50d 0.32b 00.4l, SsOld # 1028690	$9.40/EA
16	TN4035242	1	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4033619	1	Arm, PinchOld # 1024535	$52.30/EA
18	TN4041280	2	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
19	TN4023495	1	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
20	TN4028034	1	Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570	$3.20/EA
21	TN4016796	1	Washer, Flat, Belleville, .31Old # 41186	$3.50/EA
22	TN4034278	1	Handle, Valve, Pinch, RhOld # 1026727	$33.50/EA
23	TN4033276	1	Grip, HandleOld # 1023502	$4.10/EA
24	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
25	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
26	TN4032899	1	Plug, Hose, PyuOld # 1022137	$22.40/EA
27	TN4033917	1	Bracket, Retaining, HoseOld # 1025480	$16.40/EA
28	TN4041243	1	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
29	TN4044645	2	Tube, 2.90id 3.00od 02.4l, SsOld # 1041953	$43.70/EA
30	TN4017376	2	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
31	TN4033620	1	Strap, Retaining, HoseOld # 1024558	$21.00/EA
32	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
33	TN4035914	1	Hose, Drain, 3.00id X 48.0lOld # 1019424	$128.00/EA
34	TN4042902	2	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA

M20 solution control group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 solution control group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033009	1	Valve Assy, Water, Solenoid , 12vdcOld # 1067700 · Replaced by 1076692 in the 2022 list (rev. 08)	Call for price
2	TN4027714	1	Fitting, Plstc, Str, Bm10/Bm12Old # 363543	$4.50/EA
3	TN4045588	1	Manifold, Bar, Spray, 37.5inchOld # 1036997	$130.40/EA
4	TN4026538	1	Fitting, Plstc, Str, Bm12/Pm12Old # 79273-2	$7.90/EA
5	TN4043995	1	Fitting, Plstc, Cap, Pf12 HexOld # 1039064	$4.20/EA
6	TN4028471	1	Fitting, Plstc, Str, Bm10/Pm12Old # 365095	$4.20/EA
7	TN4028483	1	Fitting, Plstc, Str, Bm10/Bm10Old # 365164	$4.20/EA
8	TN4037982	1	Hose, Afmkt, Pvc, Brd, 0.62id, 01ft, ClrOld # 1015033	$60.00/EA
9	TN4017089	2	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
10	TN4014222	6	Clamp, Cable, Ss, 1.12d X 0.38w, 1hOld # 50544	$8.40/EA
11	TN4041965	6	Screw, Pan, M5 X 0.8 X 12, SsOld # 09200	$3.40/EA
12	TN4041991	6	Nut, Hex, Lock, M5 X 0.8, Nl, SsOld # 09739	$3.30/EA
13	TN4017089	8	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810	$6.80/EA
14	TN4037981	1	Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrOld # 1015032	$80.40/EA
15	TN4042901	2	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
16	TN4041928	2	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
17	TN4041931	2	Screw, Hex, M6 X 1.0 X 20, SsOld # 08716	$3.20/EA

M20 recovery tank group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 recovery tank group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4036646	1	Tank, Recvy, TrimmedOld # 1021419	$1,407.00/EA
2	TN4033606	1	Plate, Tank, BottomOld # 1024403	$32.30/EA
3	TN4041992	17	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
4	TN4035242	15	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
5	TN4036258	1	Bracket, Sppt, Tank, LhOld # 1020335	$45.85/EA
6	TN4195376	1	Bracket, Sppt, Tank, RhOld # 1020331	$48.78/EA
7	TN4027333	2	Screw, Pan, #12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
8	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
9	TN4036308	1	Plate, Sppt, TankOld # 1021090	$25.50/EA
10	TN4032902	1	Cover, Tank, Recvy, TrimmedOld # 1022167	$632.00/EA
11	TN4032855	1	Gasket, Cover, Recvy TankOld # 1021879	$115.60/EA
12	TN4032050	1	Hose Assy, SqgeOld # 1031610 · Not in the 2022 list (rev. 08)	$217.50/EA
13	TN4032859	1	Gasket, 3.23id 3.63od .16th, UreOld # 1021920 · Not in the 2022 list (rev. 08)	$4.30/EA
14	TN4034197	1	Plate, Mtg, Prop RodOld # 1025620	$19.50/EA
15	TN4034195	1	Bracket, Mtg, Prop RodOld # 1025619	$18.60/EA
16	TN4042955	4	Screw, Hex, .25 - 14 X 0.75, Fmg/Ab, SsOld # 1046798	$2.50/EA
17	TN4028662	1	Arm Wldt, Safety, Sppt, Seat, .38d 10.1lOld # 54615	$63.50/EA
18	TN4041931	1	Screw, Hex, M6 X 1.0 X 20, SsOld # 08716	$3.20/EA
19	TN4042901	1	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
20	TN4041928	1	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
21	TN4037482	1	Screen, Vacuum, YellowOld # 1222035	$21.60/EA
22	TN4035378	1	Cap Assy, Tank, DrainOld # 24358	$40.40/EA
23	TN4032112	1	Gasket, 4.05id 5.29od .19 [Buna]Old # 1031699	$9.00/EA
24	Old # 86636	1	Cover, TankOld # 86636Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
25	TN4021025	1	Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685	$78.50/EA
26	TN4043993	2	Bracket, Mtg, Cover, Recvy TankOld # 1039049	$15.60/EA
27	TN4041828	6	Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735	$3.40/EA
28	TN4034137	6	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
29	TN4190934	1	Bracket, Sppt, Tank, RhOld # 1038941	$26.60/EA
30	TN4190932	1	Bracket, Sppt, Tank, LhOld # 1038927	$26.60/EA
31	TN4043530	1	Bracket, Protector, Float SwitchOld # 1037816	$43.60/EA
32	TN4041942	2	Screw, Hex, M6 X 1.00 X 25, SsOld # 09007	$3.30/EA
33	TN4041928	2	Nut, Hex, Lock, M6 X 1.00, Ss, NlOld # 08712	$2.50/EA
34	TN4027617	2	Washer, Sealing, 0.28b 0.75d Ss, NeoOld # 76426	$3.50/EA
35	TN4043997	2	Bracket, Sppt, Cover, Tank, RecvyOld # 1039072	$37.30/EA
36	TN4038379	1	Bracket, Mtg, Camera [M20/M30] (PRO PANEL ONLY)Old # 1225989	$68.22/EA
37	TN4036872	1	Camera, Color, Fixed (PRO PANEL ONLY)Old # 1218851	$303.60/EA
38	TN4027333	2	Screw, Pan, Phl, 12 - 16 X 0.50, F/ Plstc (PRO PANEL ONLY)Old # 382320 · Not in the 2022 list (rev. 08)	$2.50/EA
39	TN4030489	1	Clip, Tie, 0.25d, Plstc (PRO PANEL ONLY)Old # 1071085	$1.60/EA
40	TN4011908	1	Tie, Cable, 11.3l, 2.75d Max (PRO PANEL ONLY)Old # 763114	$3.30/EA

M20 recovery tank drain group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 recovery tank drain group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4017008	1	Tube Kit, Tank, Recvy, ReplmtOld # 9003794	$82.40/EA
2	TN4035042	1	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
3	TN4044651	1	Mount Wldt, Valve, Pinch, LhOld # 1042010	$83.10/EA
4	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
5	TN4040610	1	Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516	$3.40/EA
6	TN4034137	5	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
7	TN4041929	3	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
8	TN4033829	1	Bushing, Eccentric, AdjOld # 1024599	$46.80/EA
9	TN4034227	1	Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051	$2.60/EA
10	TN4012759	1	Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090	$12.10/EA
11	TN4026590	1	Screw, Flt, M8 X 1.25 X 30, SsOld # 79506	$4.00/EA
12	TN4030970	1	Washer, Thrust, 0.34b 1.50d .06Old # 1028701	$37.40/EA
13	TN4041242	1	Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648	$16.20/EA
14	TN4030958	1	Roller, BrgOld # 1028691	$16.90/EA
15	TN4030957	1	Tube, 0.50d 0.32b 00.4l, SsOld # 1028690	$9.40/EA
16	TN4035242	1	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4033619	1	Arm, PinchOld # 1024535	$52.30/EA
18	TN4041280	2	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
19	TN4023495	1	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
20	TN4028034	1	Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570	$3.20/EA
21	TN4016796	1	Washer, Flat, Belleville, .31Old # 41186	$3.50/EA
22	TN4030609	1	Handle, Valve, Pinch, LhOld # 1027039	$35.70/EA
23	TN4033276	1	Grip, HandleOld # 1023502	$4.10/EA
24	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
25	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
26	TN4032899	2	Plug, Hose, PyuOld # 1022137	$22.40/EA
27	TN4033917	1	Bracket, Retaining, HoseOld # 1025480	$16.40/EA
28	TN4041243	1	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
29	TN4044645	1	Tube, 2.90id 3.00od 02.4l, SsOld # 1041953	$43.70/EA
30	TN4017376	2	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
31	TN4033620	1	Strap, Retaining, HoseOld # 1024558	$21.00/EA
32	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
33	TN4035914	1	Hose, Drain, 3.00id X 48.0lOld # 1019424	$128.00/EA
34	TN4042902	2	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
35	TN4031802	1	Tube, Acrylic, Hose, PinchOld # 1031309	$37.20/EA
	TN4016700	1	Plug Kit, Drain, Recvy, Ci [M20 & T20]Old # 9003313	$616.10/EA
36	TN4032924	1	Plug, Drain, Expandable, 4.75 - 6.00Old # 1022370	$93.60/EA
37	TN4030692	1	Tube Wldt, Plug, DrainOld # 1028328	$153.20/EA
38	TN4030679	1	Pin, Lift, DrainOld # 1028173	$35.90/EA
39	TN4031301	1	Tube Assy, Plug, DrainOld # 1072885	$113.30/EA
40	TN4030933	1	Washer, Flat, .78b 1.75d .18, SsOld # 1028522	$7.70/EA
41	TN4030684	1	Handle Wldt, DrainOld # 1028211	$62.00/EA
42	TN4026774	1	Screw, Hex, M6 X 1.0 X 55, SsOld # 58979	$4.00/EA
43	TN4041928	1	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
44	TN4032591	2	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
45	TN4045374	1	Seal, Shaft, Drain PlugOld # 1035044	$2.80/EA
46	TN4044228	1	Seal, Plug, Drain, NitrileOld # 1039652	$19.20/EA

M20 vacuum fan group, scrubbing

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 vacuum fan group, scrubbing parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4030069	1	Plate Wldt, Mtg, FanOld # 1068611	$197.90/EA
2	TN4034909	1	Impeller, 11.81d X 0.500bOld # 1062033	$473.30/EA
3	TN4015364	3	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274	$14.70/EA
4	TN4030528	1	Motor, Hyd, Gear, Ext 0.17 Lh 3000Old # 1071253 · Replaced by 1076027 in the 2022 list (rev. 08)	Call for price
5	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
6	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
7	TN4042902	7	Washer, Flat, 0.38b 0.88d .08, SsOld # 01685	$2.60/EA
8	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
9	TN4011921	1	Fitting, Hyd, Tee, Jf08/Jm08/Jm08, BrOld # 76315	$15.10/EA
10	TN4013874	1	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
11	TN4025261	1	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
12	TN4029146	1	Fitting, Hyd, Str, Jm08/Om10Old # 56692	$10.60/EA
13	TN4184443	3	Angle, Sppt, FanOld # 1068644	$11.30/EA
14	TN4018541	1	Clamp, Cable, Ss, 2.50d X 1.00w, 1holeOld # 70157	$14.80/EA
15	TN4156940	3	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
16	TN4035242	10	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4041992	7	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
18	TN4036801	1	Housing, Fan, Radial Discharge, Sq InletOld # 1059100	$19.40/EA
19	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
20	TN4033549	1	Plate Wldt, Hose, VacuumOld # 1023754	$76.30/EA
21	TN4034634	1	Gasket, 2.00, 07.87w 10.24l, AdhOld # 1060716	$11.90/EA
22	TN4041944	2	Screw, Hex, M8 X 1.25 X 30, SsOld # 09011	$3.40/EA
23	TN4041945	1	Screw, Hex, M8 X 1.25 X 35, Fl, SsOld # 09023	$3.30/EA
24	TN4032056	1	Seal, Afmkt, Bulb, Str, .75d F/07ga 08ftOld # 1031617	$102.70/EA

M20 vacuum fan group, sweeping

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 vacuum fan group, sweeping parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4016432	1	Housing Assy, Vacfan, SwprOld # 9002683	$381.00/EA
2	TN4027226	1	Seal, Ure, 0.38 0.75w 13.2l AdhOld # 59967	Call for price
3	TN4038019	1	Seal, Afmkt, Ure, Adh, 0.38, 0.75w 03ftOld # 1015221	$26.90/EA
4	TN4035737	1	Fan Wldt, Vac, InletOld # 1018216	$68.18/EA
5	TN4031280	4	Screw, Hex, .2520 X 0.75, NlOld # 34323	$11.60/EA
6	TN4016794	4	Washer, Flat, 0.25 FenderOld # 41178	$2.50/EA
7	TN4012781	1	Impeller, 9.00d X 1.40w X 0.376bOld # 74454	$134.10/EA
8	TN4033118	1	Nut, Hex, Lock, .3124, Nl, ThinOld # 31241	$3.40/EA
9	TN4034134	1	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
10	TN4026845	3	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 59649	$15.50/EA
11	TN4181494	1	Bar, Isolator, Vacfan [M20]Old # 1074010	$25.05/EA
12	TN4019761	3	Screw, Hex, M10 X 1.5 X 40, 8.8Old # 39285	$3.20/EA
13	TN4016826	3	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
14	TN4015365	1	Bracket, Mtg, MotorOld # 54275A	$43.80/EA
15	TN4015364	4	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274	$14.70/EA
16	TN4037922	10	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
17	TN4015802	4	Screw, Flt, Soc, .2520 X 1.00, AlOld # 39534	$3.20/EA
18	TN4034654	4	Nut, Hex, Lock, .2520, NlOld # 32981	$2.50/EA
19	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
20	TN4017332	1	Fitting, Hyd, Tee, Jf06/Jm06/Jm06, RunOld # 42215	$34.90/EA
21	TN4030523	1	Motor, Hyd, Gear, Ext 0.17 Lh 3000Old # 1071240	$1,451.00/EA
22	TN4025261	1	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
23	TN4034206	1	Muffler, Vacfan, 4.0idOld # 1025756	$70.70/EA
24	TN4035042	3	Clamp, Hose, Wormdrive, 3.564.50d, .50wOld # 23498	$6.20/EA
25	TN4034209	1	Tube, Transition, CastingOld # 1025841	$33.70/EA
26	TN4035735	1	Gasket, Hppr, TransitionOld # 1018209	$10.00/EA
27	TN4045637	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
28	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
29	TN4035766	1	Hose, Flex, Vacuum, 3.5d 32.0lOld # 1018252	$93.60/EA
30	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
31	TN4028758	4	Nut, Hex, Lock, .3816, Nl, ThinOld # 36643	$2.50/EA

M20 hydraulic hose group, steering and propel

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic hose group, steering and propel parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4225025	1	Hose, Hyd, Tc08, Jfoee90/Jf08str, 96Old # 1229745	$110.50/EA
2	TN4224463	1	Hose, Hyd, Tc06, Jf06e45/Jf06str, 110.0Old # 1226062	$97.70/EA
3	TN4038431	2	Hose, Hyd, Tc06, Jf06e45/Jf06str, 44.0Old # 1226063	$66.90/EA
4	TN4015060	1	Fitting, Hyd, E45, Jf10/Jm10Old # 54017 · Replaced by 1253469 in the 2022 list (rev. 08)	$48.90/EA
5	TN4033273	1	Hose, Hyd, Spcl, Jf10e90/Jf10str, 63.0Old # 1023488	$135.50/EA
6	TN4031422	1	Hose, Hyd,Med04, Jf04str/Jf04str, 066.0Old # 1030404	$67.20/EA
7	TN4043678	1	Hose, Hyd, Spcl, Jf10str/Jf10str, 56.5Old # 1038569	$91.80/EA

M20 hydraulic hose group, pump and vacuum fans

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic hose group, pump and vacuum fans parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4015715	2	Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Old # 71741	$79.20/EA
2	TN4015813	1	Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Old # 396255	$41.60/EA
3	TN4041531	2	Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Old # 16431	$28.90/EA
4	TN4033532	1	Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Old # 1023607	$52.12/EA
5	TN4033535	1	Hose, Hyd, Suc20, Jf20str /Jf20e90, 29.0Old # 1023611 · Replaced by 34351 in the 2022 list (rev. 08)	$204.63/EA
6	TN4191362	1	Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Old # 1040655	$54.22/EA
7	TN4190722	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Old # 1036945	$35.20/EA
8	TN4015655	1	Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Old # 71556	$32.20/EA
9	TN4030676	1	Hose, Hyd, Med12, Jf12str/Jf12str, 066.0Old # 1028145	$85.20/EA
10	TN4040692	1	Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Old # 1050436	$257.10/EA
11	TN4034271	1	Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Old # 1026645	$63.00/EA
12	TN4033531	1	Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Old # 1023606	$53.50/EA

M20 hydraulic hose group, brush and hopper

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic hose group, brush and hopper parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4045578	1	Hose, Hyd, Tc06, Jf06str/Jf06str, 054.0Old # 1036939	$56.40/EA
2	TN4044412	2	Hose, Hyd, Tc04, Jf04str/Jf04str, 096.0Old # 1040628	$73.90/EA
3	TN4018068	1	Hose, Hyd, Tc04, Jf04e90/Jf04str, 020.0Old # 387281	$41.60/EA
4	TN4041067	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 133.0Old # 1042775	$87.00/EA
5	TN4041068	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 127.0Old # 1042776	$85.20/EA
6	TN4033841	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 48.0Old # 1024764	$69.90/EA
7	TN4033551	1	Hose, Hyd, Tc 06, Jf06str /Jf06e45, 56.0Old # 1023769	$49.30/EA
8	TN4029663	1	Hose, Hyd, Med04, Jf04e90/Jf04str, 016.0Old # 57946	$50.00/EA
9	TN4033923	1	Hose, Hyd, Tc08, Jf08e90/Jf08str, 13.0Old # 1025544	$52.70/EA
10	TN4027080	1	Hose, Hyd, Tc08, Jf08e90/Jf08str, 018.0Old # 381857	$39.30/EA

M20 hydraulic hose group, squeegee lift

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic hose group, squeegee lift parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033836	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 121.0Old # 1024688	$93.60/EA
2	TN4034183	1	Hose, Hyd, Spcl, Jf04str/Jf06str, 125.0Old # 1025551	$96.30/EA
3	TN4031748	2	Hose, Hyd,Tc 04, Jf04str /Jf04e45 , 35.0Old # 1030709	$58.10/EA
4	TN4042664	2	Hose, Hyd, Tco4, Jf04Str/Qm06, 028.0Old # 1045759	Call for price
5	TN1037053	2	Hose, Hyd, Tc04, Jf04e45/Qm06, 026.0Old # 1037053 · current Tennant number (Tennant parts catalog)	Call for price

M20 hydraulic pumps group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic pumps group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033592	1	Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns)Old # 1024251	$1,813.50/EA
2	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
3	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
4	TN4015013	2	Fitting, Hyd, E90, Jm10/Om12Old # 53076	$37.60/EA
5	TN4019758	2	Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283	$3.30/EA
6	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
7	TN4011841	1	Pump Kit, Mtg, Aux, Ci [M20 & T20]Old # 9007142	$1,593.60/EA
8	TN4017696	1	Seal, Org, .069 X 3.06idOld # 65145-1	$4.50/EA
9	TN4013874	2	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
10	TN4017934	1	Fitting, Hyd, Str, Jm20/Om16Old # 67811	$33.30/EA
11	TN4013873	1	Fitting, Hyd, E90, Jm06/Om08Old # 47512	$22.50/EA

M20 hydraulic cooler and tubes group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic cooler and tubes group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4030996	1	Tube, Hyd, SqgeOld # 1028822	$103.70/EA
2	TN4013458	1	Fitting, Hyd, E90, Jm12/Om12Old # 46481	$18.60/EA
3	TN4020261	1	Fitting, Hyd, E90, Jm12/Om12, LOld # 62471	$47.40/EA
4	TN4016764	2	Clamp, Cable, Stl, 0.44d X 0.62w, 1hOld # 40678	$3.60/EA
5	TN4012782	1	Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455	$3.40/EA
6	TN4030997	2	Tube, Hyd, Rear Sqge [M20]Old # 1028823	$33.64/EA
7	TN4031672	2	Nut, Ftg, Hyd, 0.56 - 18Old # 35904	$3.23/EA
8	TN4014193	2	Fitting, Hyd, Cap, Jf04Old # 50161	$2.40/EA
9	TN4016826	2	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
10	TN4156940	2	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
11	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
12	TN4015029	1	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
13	TN4027429	1	Fitting, Hyd, Cap, Jf08Old # 60090	$7.70/EA
14	TN4030995	1	Tube, Hyd, SqgeOld # 1028821	$101.50/EA
15	TN4013899	1	Fitting, Hyd, Str, Jf06/Jm04Old # 47752	$9.80/EA
16	TN4030506	1	Tube, Hyd, Main Return [G/Lp Mit2013]Old # 1071173	$122.10/EA
17	TN4041885	1	Fitting, Hyd, E90, Jf08/Jm08Old # 17980	$11.80/EA

M20 hydraulic reservoir group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic reservoir group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4016144	1	Reservoir, Hyd, 10.0Gal, ReplmtOld # 9002398	$1,216.40/EA
2	TN8002771	1	Gauge, Sensing, LevelOld # 65215	$121.60/EA
3	TN4035422	1	Cap, Breather, Hyd, 2.4 DsOld # 25122 · Replaced by 1018289 in the 2022 list (rev. 08)	$149.20/EA
4	TN4029145	2	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
5	TN4013459	3	Fitting, Hyd, Plug, Om06Old # 46482	$4.20/EA
6	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
7	TN4044301	2	Pad, Tank, Hyd [W/Psa]Old # 1040318	$2.83/EA
8	TN4045640	2	Screw, Hex, M8 X 1.25 X 30, 9.8, SemsOld # 1037354	$2.50/EA
9	TN4045352	1	Insulation, Thermal, Hydraulic BlanketOld # 1034878	$145.60/EA
10	TN4033281	1	Fitting, Hyd, E45, Jm12/Om16Old # 1023545	$49.70/EA
11	TN4033485	1	Strainer, Hyd, 25gpm 100mesh PsiOld # 31613	$110.60/EA
12	TN4015701	1	Fitting, Hyd, E45, Jm20/Om20Old # 71726	$121.80/EA
13	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
14	TN4028724	1	Fitting, Hyd, E90, Jm04/Pm02Old # 55455	$8.50/EA
15	TN4029789	1	Send - Unit, Water, Temp, 04npt 113oh/195dOld # 58592	$27.20/EA
16	TN4016577	1	Fitting, Hyd, Plug, Om10Old # 40362	$4.20/EA
17	TN4033877	1	Indicator, Press, 60psiOld # 1025132	$73.50/EA

M20 hydraulic valve group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 hydraulic valve group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4031317	1	Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns)Old # 1072995	$3,016.30/EA
2	TN4191208	1	Bracket, Mtg, Valve [Combined]Old # 1039789	$21.61/EA
3	TN4191305	1	Bracket, Mtg, Valve, LowerOld # 1040117	$13.64/EA
4	TN4015807	3	Fitting, Hyd, E90, Om04/Qm04Old # 395974	$36.40/EA
5	TN4031235	1	Fitting, Hyd, Plug, Om04Old # 33812	$3.50/EA
6	TN4041992	8	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
7	TN4035242	8	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
8	TN4018308	1	Fitting, Hyd, E90, Jm08/Om08, LongOld # 69173	$58.60/EA
9	TN4191392	1	Fitting, Hyd, Str, Jm10/Om10, LongOld # 1040876	$14.90/EA
10	TN4014183	1	Fitting, Hyd, Tee, Jm08/Jm08/Om08, BrOld # 49933	$33.10/EA
11	TN4029148	1	Fitting, Hyd, E90, Jm06/Om06Old # 56820	$14.00/EA
12	TN4015703	1	Fitting, Hyd, E90, Jm06/Om06, LongOld # 71727	$32.20/EA
13	TN4018308	1	Fitting, Hyd, E90, Jm08/Om08, LongOld # 69173 · Replaced by 395973 in the 2022 list (rev. 08)	$58.60/EA
14	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
15	TN4017335	1	Fitting, Hyd, E45, Jm08/Om08Old # 42226	$11.80/EA
16	TN4013459	1	Fitting, Hyd, Plug, Om06Old # 46482	$4.20/EA
17	TN4028729	4	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
18	TN4026830	1	Fitting, Hyd, Str, Jm06/Om06, LongOld # 59577	$9.90/EA
19	TN4042137	1	Valve, Relief, 0600PsiOld # 1044367	$82.20/EA
20	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
21	TN4200590	1	Fitting, Hyd, E45, Jf08/Jm08Old # 07797	$11.40/EA

M20 electrical wire harness group, main

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 electrical wire harness group, main exploded view (page 2) — Electrical Wire Harness Group, Main, SN 008000 and later, 2016 manual. Manual pages 140, 141, 142, 143, 144. SES ref PF-HDOT-HDC5‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‌‍‍‍‍‌‌‍‌⁠‌⁠‌‍‌‌⁠⁠⁠‌‍⁠‍‌⁠‍‌

Tennant M20 electrical wire harness group, main parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4044970	1	Harness, Main [M30/M20]Old # 1075079	$1,569.40/EA

M20 electrical wire harness group, headlight

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‌⁠‍‍‍⁠⁠⁠‌‍‌⁠⁠‌‍⁠‍‌‌⁠‌⁠‍⁠‌‍⁠⁠‌‍

Tennant M20 electrical wire harness group, headlight parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4033578	1	Harness, Headlight [M20 And T20]Old # 1024141	$28.50/EA

M20 electrical wire harness group, hopper

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‍‍⁠‌‌‌‍‌⁠‌‌‌‌‌⁠‌‍⁠⁠⁠‌‍⁠⁠

Tennant M20 electrical wire harness group, hopper parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4179279	1	Harness, Hppr, Ele [M20/M30]Old # 1075080	$151.90/EA

M20 electrical wire harness group, hopper cover

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‌‍⁠‍‌⁠‌‍‌⁠‍‌⁠‌⁠⁠‌‌‌‌⁠‍‌⁠‍‍

Tennant M20 electrical wire harness group, hopper cover parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4032608	1	Harness, Hppr, Cover [M20]Old # 1064370	$47.60/EA

M20 label group

Standard partsSN 008000 and later, 2016 manualFits: GasolineLPG

Tennant M20 label group parts, SN 008000 and later, 2016 manual
Item	Part number	Qty	Description and notes	Price
1	TN4025324	1	Label Set, Info/Hzrd, Swpr / ScrbrOld # 77221	$28.90/EA
2	TN4035239	1	Label Set, Hi TempOld # 1017141	$30.80/EA
3	TN4032752	3	Label, Logo, 05.75L 2Color [ES]Old # 1065343	$26.97/EA
4	TN4032751	3	Label, Logo, 07.95L 2Color [FaST]Old # 1065342	$11.11/EA
5	TN4040474	2	Label [User, Attention, ec - H2O]Old # 1050003	$4.34/EA
6	TN4031775	1	Label Set, Brush Indicator & RemovalOld # 1031017	$30.10/EA
7	TN4032466	1	Label Set, Info/Hzrd, Swpr / Scrbr, Tj (Japan Only)Old # 1032450	$162.79/EA
8	TN4036266	1	Label, Caution [Apply Parking Brake]Old # 1020434	$39.40/EA
9	TN4033871	1	Label, Caution [Apply Parking Brake] (Japan Only)Old # 1025101	Call for price
10	TN4032629	2	Label, Model, 2Color [M20]Old # 1064662	$21.30/EA
11	TN4035178	1	Label, Logo, 12.3L 4Color [ec - H2O]Old # 1062813	$36.60/EA
12	TN4032615	1	Label, Logo, 16.9L 4Color [ec - H2O]Old # 1064440	$27.20/EA

Notes on this parts list‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‍‍‌‍‍⁠‌‍‌‍⁠‌⁠‍‍‍⁠‍‍‌‍‍‌‍‌⁠‌‍‌

This is Tennant's 2016 manual (rev. 01). The current manual is Tennant's October 2025 edition: open the current manual.
Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.

M20 recommended maintenance parts

M20 brushes, replacement, scrub head

M20 brushes, replacement, side brush

M20 main frame group

M20 operator station group

M20 operator station insulation group

M20 instrument panel group

M20 seat group

M20 steering group

M20 front cover group

M20 battery and electrical group

M20 wheel group, front drive

M20 wheel group, rear

M20 brake pedal linkage group

M20 directional pedal group

M20 hydraulic pump linkage group

M20 hopper lift arms group

M20 hopper and debris screen group

M20 hopper cover and dust filter group

M20 hopper bumper group

M20 hopper door group

M20 cylindrical scrub brush drive group, left side

M20 cylindrical scrub brush drive group, right side

M20 cylindrical scrub brush head lift group

M20 cylindrical brush head skirt group

M20 squeegee lift group, rear

M20 squeegee group, rear

M20 squeegee linkage group, rear

M20 squeegee group, right side

M20 squeegee lift group, right side

M20 squeegee group, left side

M20 squeegee lift group, left side

M20 solution tank group

M20 solution tank drain group

M20 solution control group

M20 recovery tank group

M20 recovery tank drain group

M20 vacuum fan group, scrubbing

M20 vacuum fan group, sweeping

M20 hydraulic hose group, steering and propel

M20 hydraulic hose group, pump and vacuum fans

M20 hydraulic hose group, brush and hopper

M20 hydraulic hose group, squeegee lift

M20 hydraulic pumps group

M20 hydraulic cooler and tubes group

M20 hydraulic reservoir group

M20 hydraulic valve group

M20 electrical wire harness group, main

M20 electrical wire harness group, headlight

M20 electrical wire harness group, hopper

M20 electrical wire harness group, hopper cover

M20 label group

Notes on this parts list‌‌​⁠⁠​⁠​‌⁠⁠‍‍​⁠​‍⁠‌​‍‍‌‍‍​⁠​​​​‌​‍‌​​‍⁠‌⁠‍​‍‍⁠‍‍‌‍‍‌‍‌⁠​​‌‍‌

Notes on this parts list‌‌⁠⁠⁠‌⁠⁠‍‍⁠‍⁠‌‍‍‌‍‍⁠‌‍‌‍⁠‌⁠‍‍‍⁠‍‍‌‍‍‌‍‌⁠‌‍‌
