Tennant M20 parts, manuals and troubleshooting

Q: How do I know which M20 parts list to use?

Serial 000000-007999: manuals 331381 (gas/LPG) and 331411 (diesel); 008000 and later: 9016001 (gas/LPG) and 9016051 (diesel). Pick the power type on the parts page.

Q: Why are the Tennant part numbers different from my manual?

Tennant renumbered parts. Old 1026223 (polypropylene main brush) is now 4034238, sold as TN4034238.

Q: What main brushes fit the Tennant M20?

Two 40 in cylindrical brushes: polypropylene (old 1026223), polyester (old 1027697), heavy-duty polypropylene (old 1030969), super abrasive (old 1026222).

Q: What squeegee blades fit the Tennant M20?

Rear Linatex old 1031331 or urethane 1031945; side Linatex 1031011 or urethane 1031823; front Linard 1017868 or urethane 1027719.

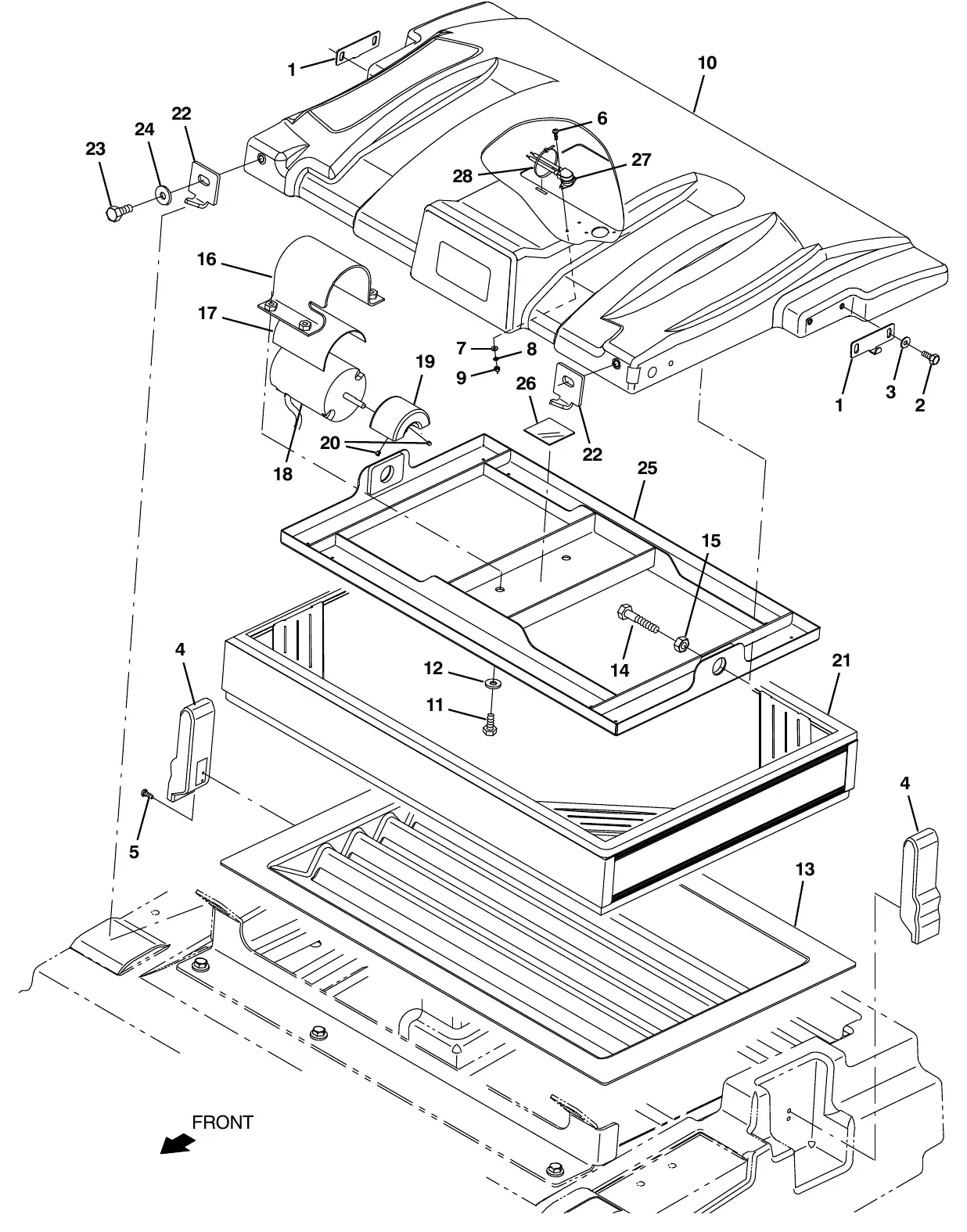

Q: What hopper dust filter does the M20 use?

Synthetic dust panel filter, old 1048295AM; check every 20 hours.

Q: Why is my M20 leaving water on the floor?

Vacuum fan off, worn or misadjusted squeegee blades, clogged or disconnected vacuum hose, dirty vacuum screen, or recovery tank cover not sealing.

Q: What engine does the Tennant M20 gas/LPG have?

Mitsubishi 2.0 L from SN 006000; GM engines before that.

Q: What do Tennant M20 fault codes mean?

SN 008000+: hex codes, e.g. 0x07A3 shaker/dust filter clogged, 0x07A0 hydraulic filter clogged, 0x0791 recovery tank full. Early machines: F1-F11, e.g. F1 hopper up, F7 recovery tank full.

Q: How do I run the self test on an early M20?

Hold 4/5 + Side Brush, key to RUN until CONFIG MODE, 2/3 to SELF TEST, 0/1 to run; open/shorted outputs listed by pin.

Q: How do I order a Tennant M20 part from Southeastern Equipment?

Order online or call 800-440-6723; SKUs are Tennant's current number with a TN prefix.

The current Tennant M20 parts manual for North American machines from SN 008000: gas, LPG and diesel standard parts with clickable diagrams, plus troubleshooting, fault codes, maintenance, kits and specs. Enter your serial number under Your machine for your exact machine.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.

Find your parts list → New to your M20? Start here →

1,660 lines from 9016001 rev. 12 (gas/LPG) + 9016051 rev. 11 (diesel). Checked against the manuals line by line on October 12, 2026.

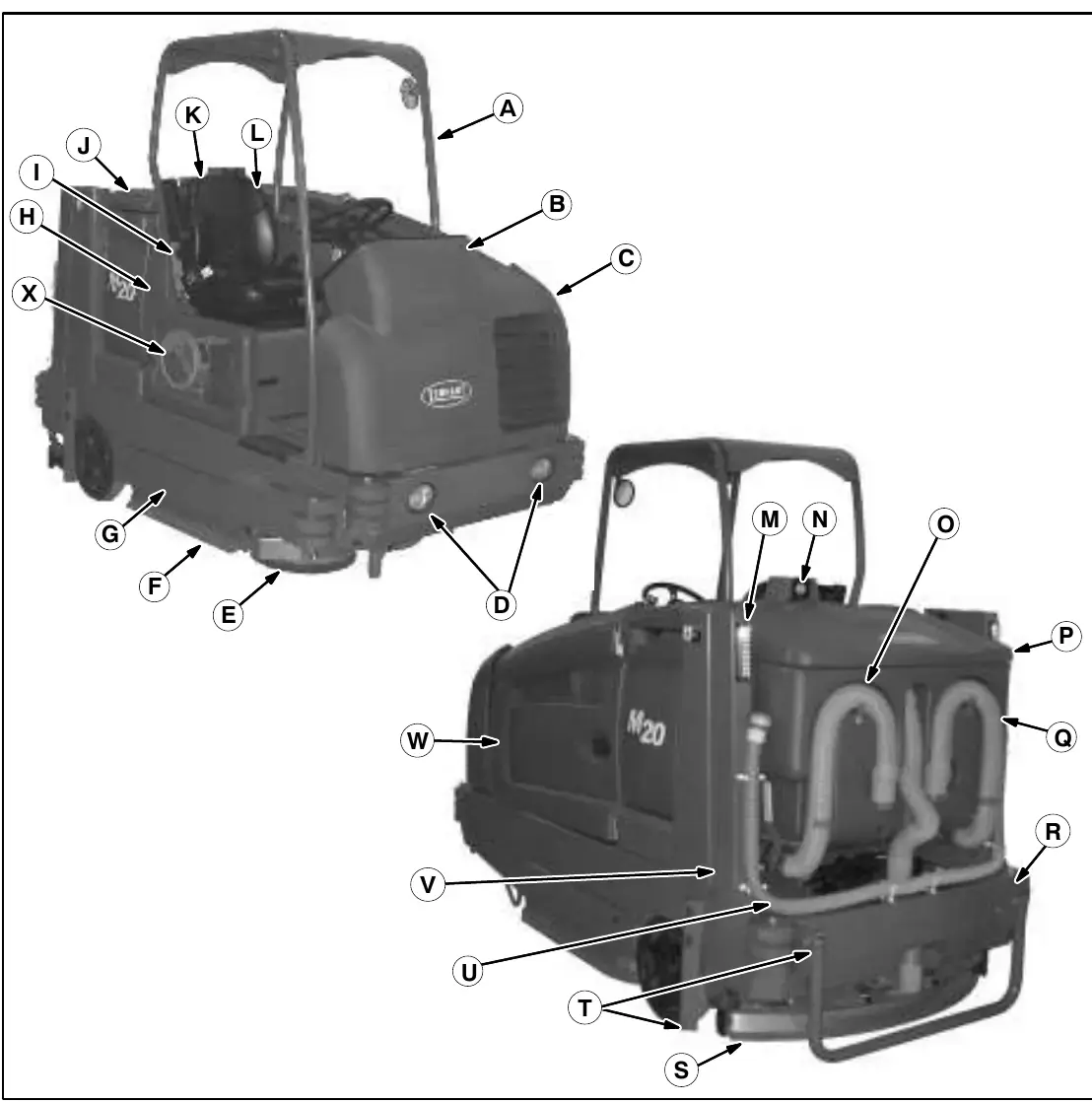

Tennant M20 integrated sweeper-scrubber. Shop M20 machines

Machine: M20 rider sweeper-scrubber
Cleaning path: 40 in (56 in with side brush)
Solution / recovery: 56 / 73 gal
Hopper: 3.9 ft³, 390 lb
Power: Gasoline, LPG or diesel
Main brushes: 2 × 40 in cylindrical

Your machine‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍‍‍‌‌‍‌‍‍⁠‍⁠‍‌‌‌⁠‌‍⁠⁠⁠⁠

You’re viewing the current manual (Rev 12, Oct 2025; diesel: Rev 11). Enter your serial number or use the dropdown for your exact machine.

Machine serial number

Serial rangeParts list editionArea of the machinePower

Where to find the serial number and power type

The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.

M20 wear parts most owners reorder

Brushes, blades and filters from Tennant's M20 common-parts list and maintenance schedule.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‌‌‍‌‍⁠⁠‍‌⁠‍‍‍⁠‍‍‍‌‌‍

Main brush, polypropylene (2 required)
p/n: TN4034238
Old # 1026223
$616.50/EA
Main brush, polyester (2 required)
p/n: TN4030645
Old # 1027697
$682.90/EA
Rear squeegee blade, Linatex
p/n: TN4031803
Old # 1031331
$120.00/EA
Side squeegee blade, Linatex
p/n: TN4031774
Old # 1031011
$93.40/EA
Hopper dust panel filter
p/n: TN4039697
Old # 1048295AM
$329.30/EA
Solution filter, 20 mesh
p/n: TN4030627
Old # 1027290
$20.30/EA
Hydraulic oil filter
p/n: TN4032809
Old # 1021579
$128.30/EA
Spark plug, Mitsubishi
p/n: TN8004084
Old # 9010622
$9.40/EA

How to read this list

Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

M20 recommended maintenance parts

Recommended maintenanceSN 008000 and laterFits: GasolineLPG‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‍‌‌‍‌⁠‍‍‍‍‍‍‍‌‌⁠‌‌⁠⁠⁠‌‌‌‍

Tennant M20 recommended maintenance parts parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN82681	1	Bracket Wldt, Lpg MountOld # 82681 · no current Tennant number on file	Call for price
2	Old # 63810	4	Latch Assy, Lpg Tank Mtg, W/NutOld # 63810Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
3	Old # 51839	2	Nut Adjustable, Lpg Tank MtgOld # 51839Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
4	TN4014137	3	Tie, CableOld # 49263	$3.40/EA
5	TN82556	1	Bracket, VaporizerFits SN up to 001039 · Old # 82556 · no current Tennant number on file	Call for price
6	TN8004486	1	Vaporizer, LPGOld # 54930 · replaced by 8004486 (Tennant parts catalog)	Call for price
	TN4016168	1	Maint Kit, Gas, 800hr[M20/T20]Old # 9002555	$438.80/EA
	TN4033485	1	Strainer, Hyd, 25 Gpm 100 MeshOld # 31613	$110.60/EA
	TN4035422	1	Cap, Breather, Hyd, 2.4 DsOld # 25122	$149.20/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN8005188	1	Filter, Fuel [Gm 1.6l/3.0l]Fits SN 008000–015000 · Old # 372440	$64.20/EA
	Old # 1268530	1	Filter, Fuel, Assy, KubotaFits SN 015001 and later · Old # 1268530Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN8003678	4	Plug, Spark [Mitsubishi 2015 12mm]Fits SN 008000–015000 · Old # 9014160	$5.00/EA
	TN8046573	4	Spark PlugFits SN 015001 and later · Old # 9023109	Call for price
	TN4012018	1	Maint Kit, 800hr [M20/T20/M30 Lpg 2010]Old # 9007381	$401.20/EA
	TN4033485	1	Strainer, Hyd, 025gpm 100mesh 03psiOld # 31613	$110.60/EA
	TN4035422	1	Cap, Breather, Hyd, 2.4 DsOld # 25122	$149.20/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN8002010	1	Filter Kit, Fuelock, LpgFits SN 008000–015000 · Old # 9007380	$25.60/EA
	TN8046576	1	Valve, Lock - off, Kubota, LpgFits SN 015001 and later · Old # 9023112	Call for price
	TN8002631	1	Element, Fltr, Oil, Spin - On (Mits)Fits SN 008000–015000 · Old # 393982	$30.00/EA
	Old # 9005007	1	Filter, Oil, Lpg, KubotaFits SN 015001 and later · Old # 9005007Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290	$20.30/EA
	TN8003282	1	Key, Ignition [Set Of 2]Old # 87866	$27.00/EA
	TN4037557	1	Battery, Wet, 12vdc 0475ccaOld # 10137	$218.28/EA
	TN4039111	2	Wheel, 3.0d 1.38w 0.50bOld # 20833	$80.80/EA
	TN4045064	1	Belt, Ribbed, 38.5lOld # 1033644	$73.00/EA
	TN4033626	2	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
	TN4035908	2	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
	TN4035508	1	Blade, Sqge, Front [Linard]Old # 1017868	$90.00/EA
	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
	TN4031774	2	Blade, Sqge, 37.08l LinatexOld # 1031011	$93.40/EA
	TN4030648	1	Blade, Sqge, Front, 49.59l PyuOld # 1027719	$274.30/EA
	TN4032198	1	Blade, Sqge, Rear, 53.78L PyuOld # 1031945	$305.50/EA
	TN4032169	2	Blade, Sqge, .38 3.55w 038.3l, UreOld # 1031823	$183.50/EA
	TN8003678	4	Plug, SparkFits SN 008000–015000 · Old # 9014160	$5.00/EA
	TN4036799	1	Blade, Sqge, Side Brush, UrethaneOld # 1059091	$91.61/EA
	TN4036800	1	Blade, Sqge, Side Brush, UrethaneOld # 1059092	$55.85/EA
	TN4043022	1	Blade, Sqge, Side Brush, LinatexOld # 1046980	$59.89/EA
	TN4043073	1	Blade, Sqge, Side Brush, LinatexOld # 1047238	$31.51/EA
	Old # 16411	1	Paint, Airdry, Off - White, 12ozOld # 16411Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	Old # 16412	1	Paint, Airdry, Teal, 12oz, SolidOld # 16412Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN5000171	1	Paint, Airdry, Blk, 12ozOld # 377540	$67.20/EA
	TN5000170	1	Paint, Airdry, Gray, 12oz [Enamel]Old # 377538	$39.50/EA
	Old # 377537	1	Paint, Airdry, Iron Gray,12oz[Pwdr Coat]Old # 377537Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN8005843	1	Oil, Hyd [El, Iso 100, 01gal]Old # 1057710	$58.70/EA
	TN8005844	1	Oil, Hyd [El, Iso 100, 05gal]Old # 1057711	$251.30/EA
	TN8004994	1	Oil, Hyd [El, Iso 68, 01gal]Old # 1069019	$48.70/EA
	TN8004995	1	Oil, Hyd [El, Iso 68, 05gal]Old # 1069020	$227.00/EA
	TN8005841	1	Oil, Hyd [El, Iso 32, 01gal]Old # 1057707	$58.70/EA
	TN8005842	1	Oil, Hyd [El, Iso 32, 05gal]Old # 1057708	$248.90/EA

M20 brushes, replacement, scrub head

Standard partsSN 008000 and later‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌⁠‌‍‍‌‌‍‌⁠‍⁠‌‍‌⁠‍‌‌‍⁠‌‍‌‌‌⁠⁠

Tennant M20 brushes, replacement, scrub head parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (4)
1	TN4034238	2	Brush, Sweep / Scb, 40L, Polypropylene, SpiralOld # 1026223	$616.50/EA
1	TN4031519	2	Brush, Sweep / Scb, 40L, 24Sr, Super Abrasive, SpiralOld # 1252156	$979.10/EA
1	TN4030645	2	Brush, Sweep / Scb, 40L, Polyester, SpiralOld # 1027697	$682.90/EA
1	TN4031767	2	Brush, Sweep / Scb, 40L, Heavy Duty Polypropylene, SpiralOld # 1030969	$657.80/EA
Item 2: choose your version (2)
2	TN4044403	2	Brush, Sweep / Scb, 40L, Window, Polypropylene, SpiralOld # 1040524	$572.20/EA
2	TN4033963	2	Brush, Sweep / Scb, 40L, Window, Super Abrasive, SpiralOld # 1059640	$868.60/EA

M20 brushes, replacement, side brush

Standard partsSN 008000 and later‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍‌‍⁠‌‍‌⁠⁠‌‌‍‍‍‍‍‌‌‍‌‍⁠‌‌

Tennant M20 brushes, replacement, side brush parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4037187	1	Brush Assy, Disk, Scb, 16.0d, NylonOld # 1220235	$416.00/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
1	TN4037188	1	Brush Assy, Disk, Scb, 16.0d, Heavy Duty PolypropyleneOld # 1220236	$248.00/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
1	TN4037455	1	Brush Assy, Disk, Scb, 16.0d, Super AbrasiveOld # 1221543	$545.70/EA
2	TN4022626	1	Brush Kit, Hub Assy, Drive, Ci [Hdpe In]Old # 9014662	$64.00/EA
3	TN4037153	1	Brush Assy, Disk, Swp, 24.0d, PolypropyleneOld # 1220185	$318.80/EA
4	TN4022629	1	Brush Kit, Hub Assy, Drive, Ci [Uhmw]Old # 9014666	$109.90/EA

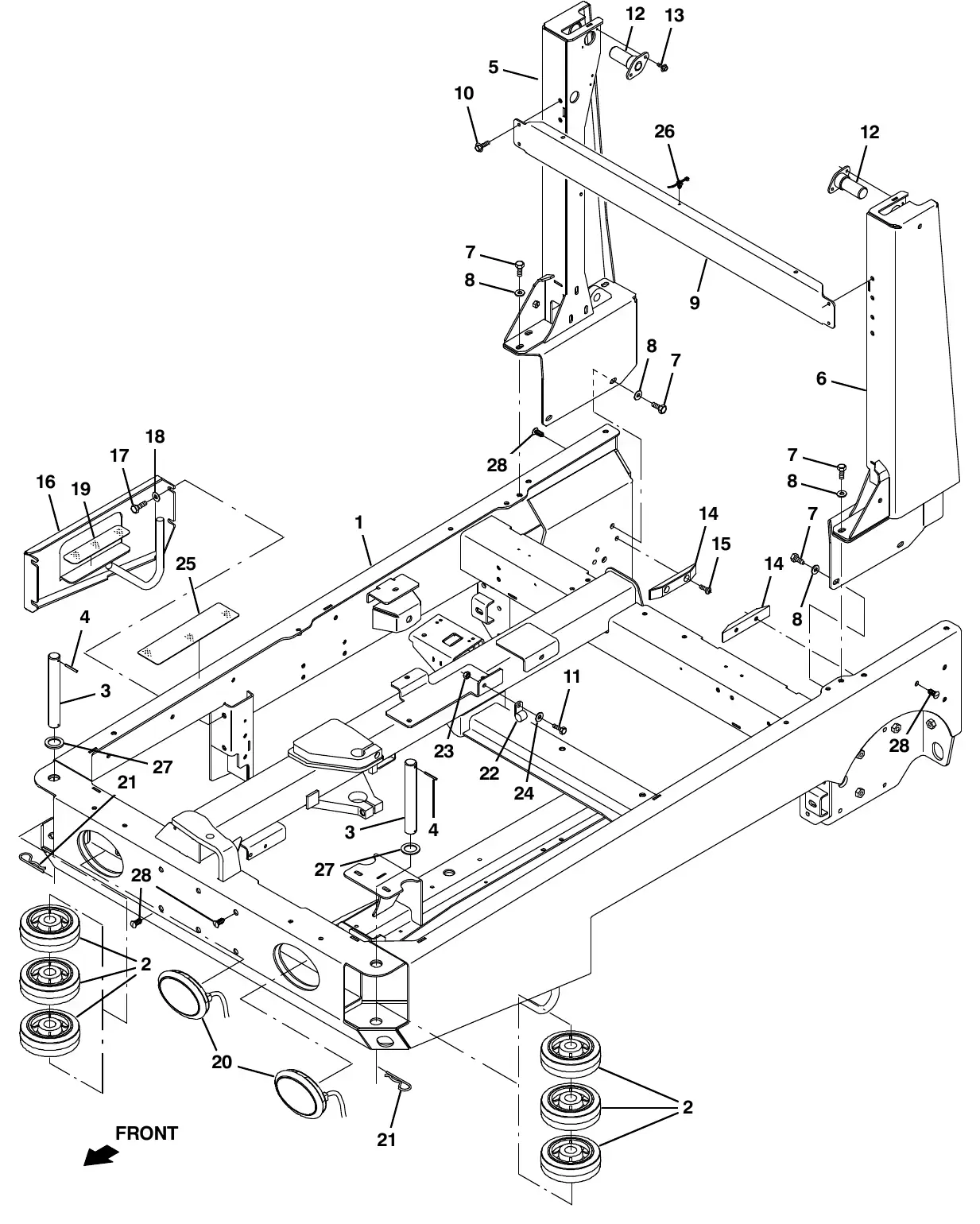

M20 main frame group

Standard partsSN 008000 and later

Tennant M20 main frame group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4016146	1	Frame Wldt, Main, Replmt [M20 & T20]Old # 9002401	$5,863.15/EA
2	TN4034399	6	Wheel, 06.0D 2.00W 1.19B, Gray RbrOld # 1060130	$21.60/EA
3	TN4038392	2	Pin, 30mmd X 215mmlOld # 1053838	$74.40/EA
4	TN4035025	2	Pin, Roll, .187d X 1.62l, .187/.192Old # 23146	$2.50/EA
5	TN4205148	1	Tower, Wldt, Lift, Rh, Replmt [M20]Old # 9002400	$576.96/EA
6	TN4205147	1	Tower, Wldt, Lift, Lh, Replmt [M20]Old # 9002399	$579.94/EA
7	TN4019758	10	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
8	TN4034138	10	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
9	TN4197845	1	Channel, Upper, Tower, LiftOld # 1017791	$101.20/EA
10	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
11	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
12	TN4035903	2	Pin Wldt, Pivot, HpprOld # 1019251	$53.70/EA
13	TN4012782	4	Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455	$3.40/EA
14	TN4036638	2	Block, Guide, HpprOld # 1021327	$21.34/EA
15	TN4029274	4	Screw, Pan, M8 X 1.25 X 25, SsOld # 367771	$3.30/EA
16	TN4030654	1	Panel Wldt, FillerOld # 1027916	$172.20/EA
17	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
18	TN4042903	4	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
19	TN4030470	1	Tread, Non - Skid, 01.9w 08.0lOld # 363458	$6.10/EA
20	TN4045141	2	Headlight, 12Vdc, Oval, LedOld # 1075367	$281.90/EA
21	TN4031623	2	Pin, Cotter, Hair, 1.00d .178 WirOld # 34411	$4.00/EA
22	TN4015029	1	Clamp, Cable, Stl, 1.50d X 1.00w, 1holeOld # 53466	$4.20/EA
23	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
24	TN4034137	1	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
25	TN4026685	1	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
26	TN4038889	1	Wire, Tie [W/.25” Fir Tree Clip]Old # 1210807	$1.90/EA
27	TN4035148	2	Washer, Flat, 1.26B 1.88D .13, Stl, PlOld # 1062566	$2.60/EA
28	TN4038798	12	Plug, Hole, Rnd, 0.38h .4 - .7, Blk NylOld # 1055605	$1.20/EA

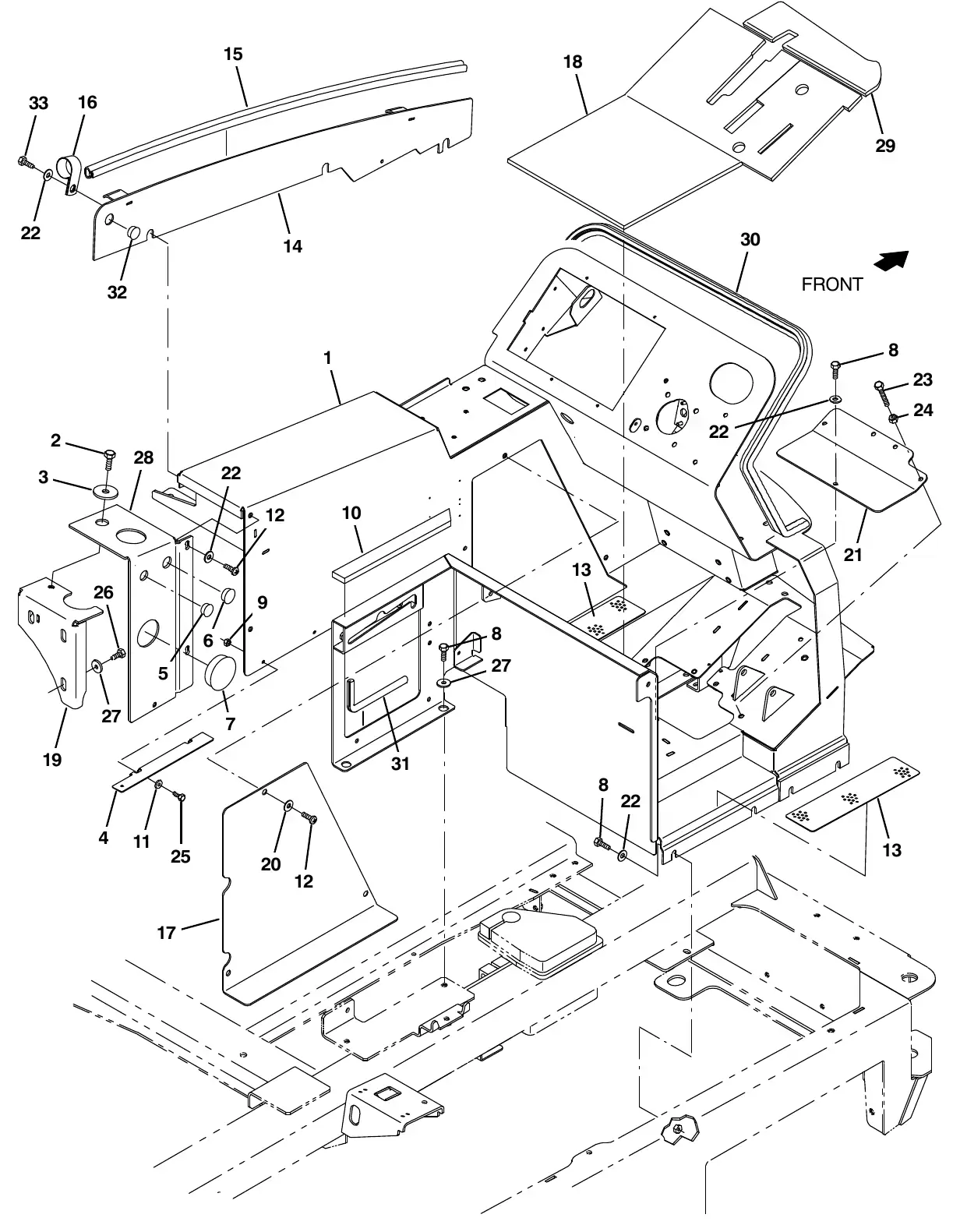

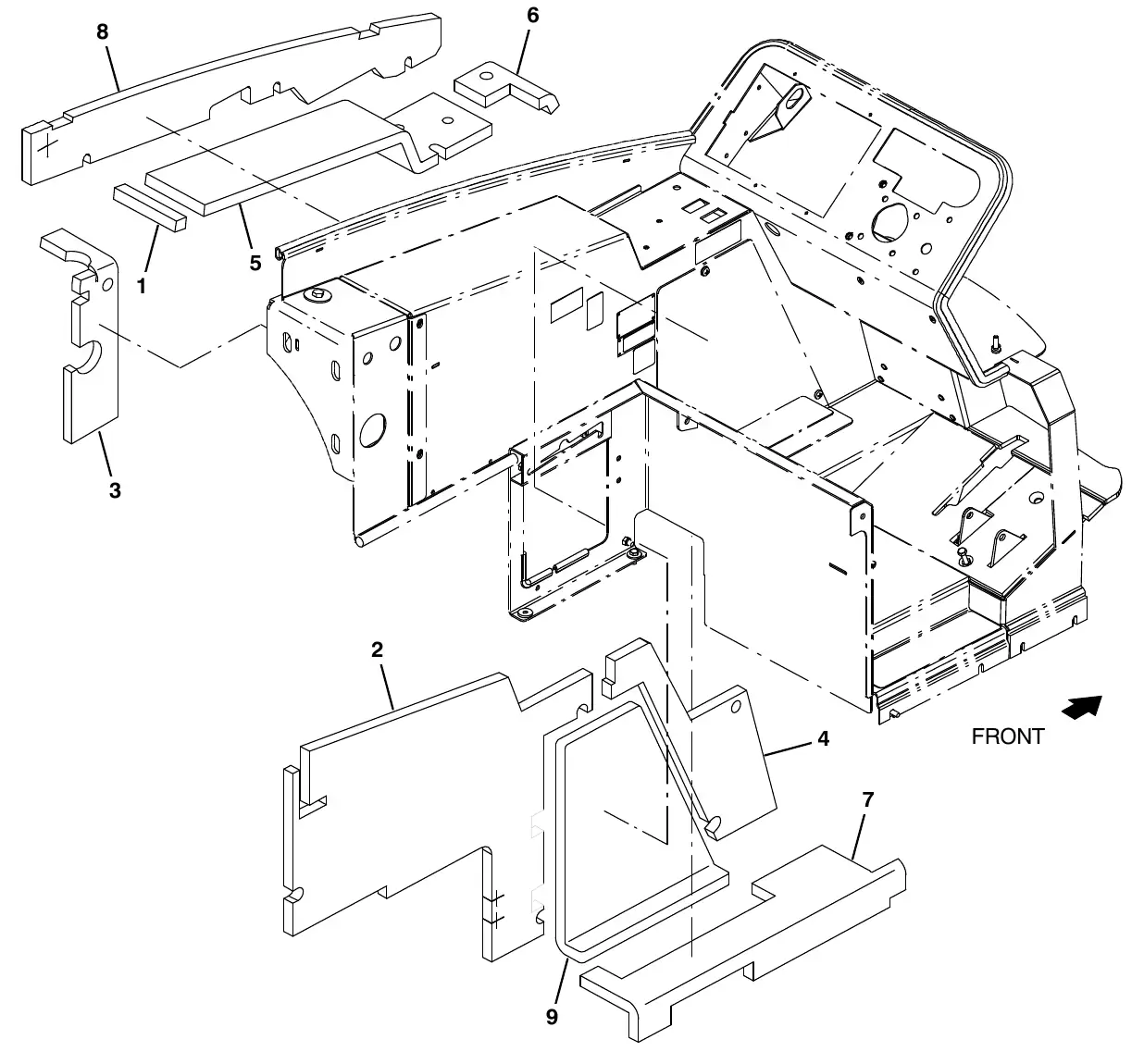

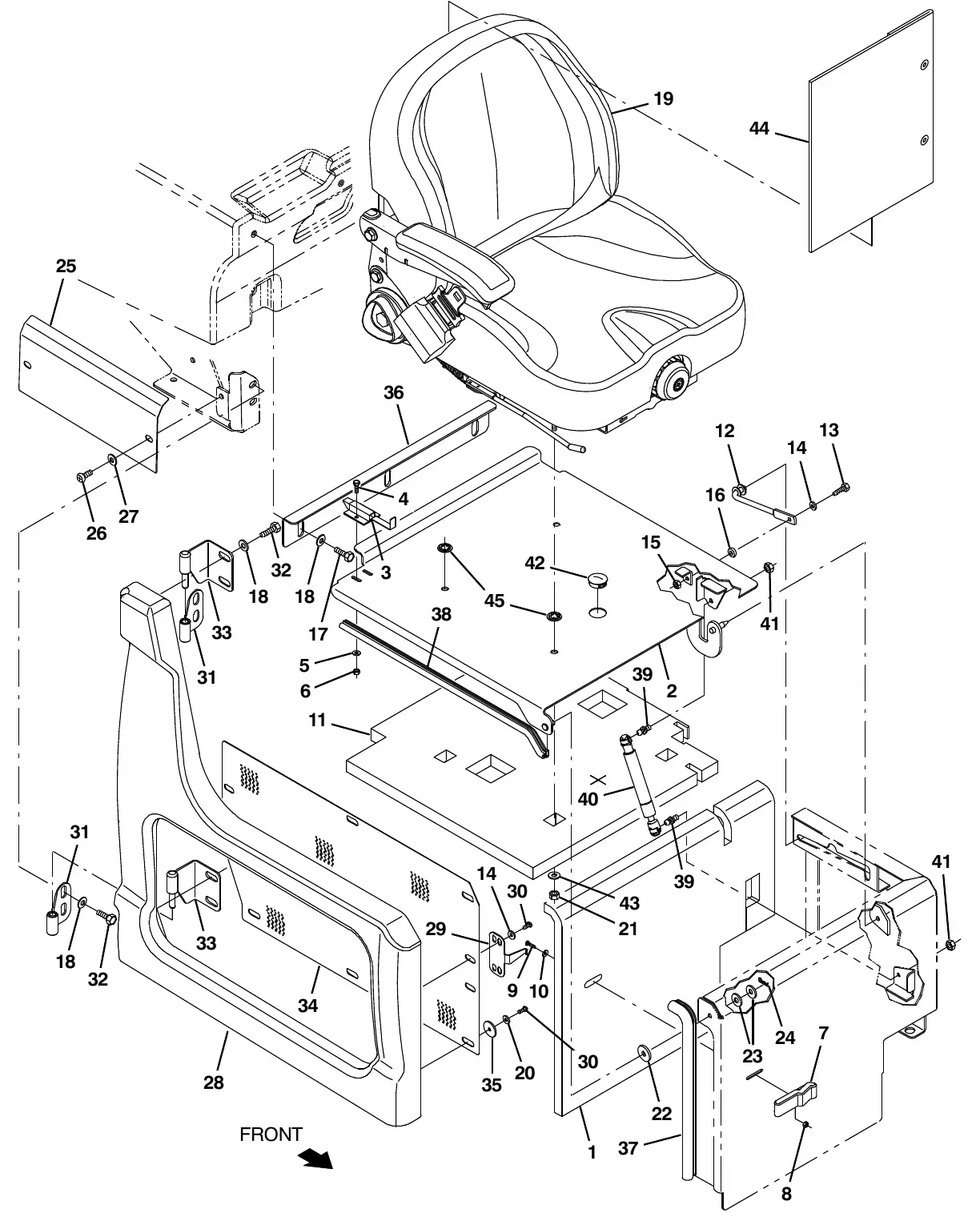

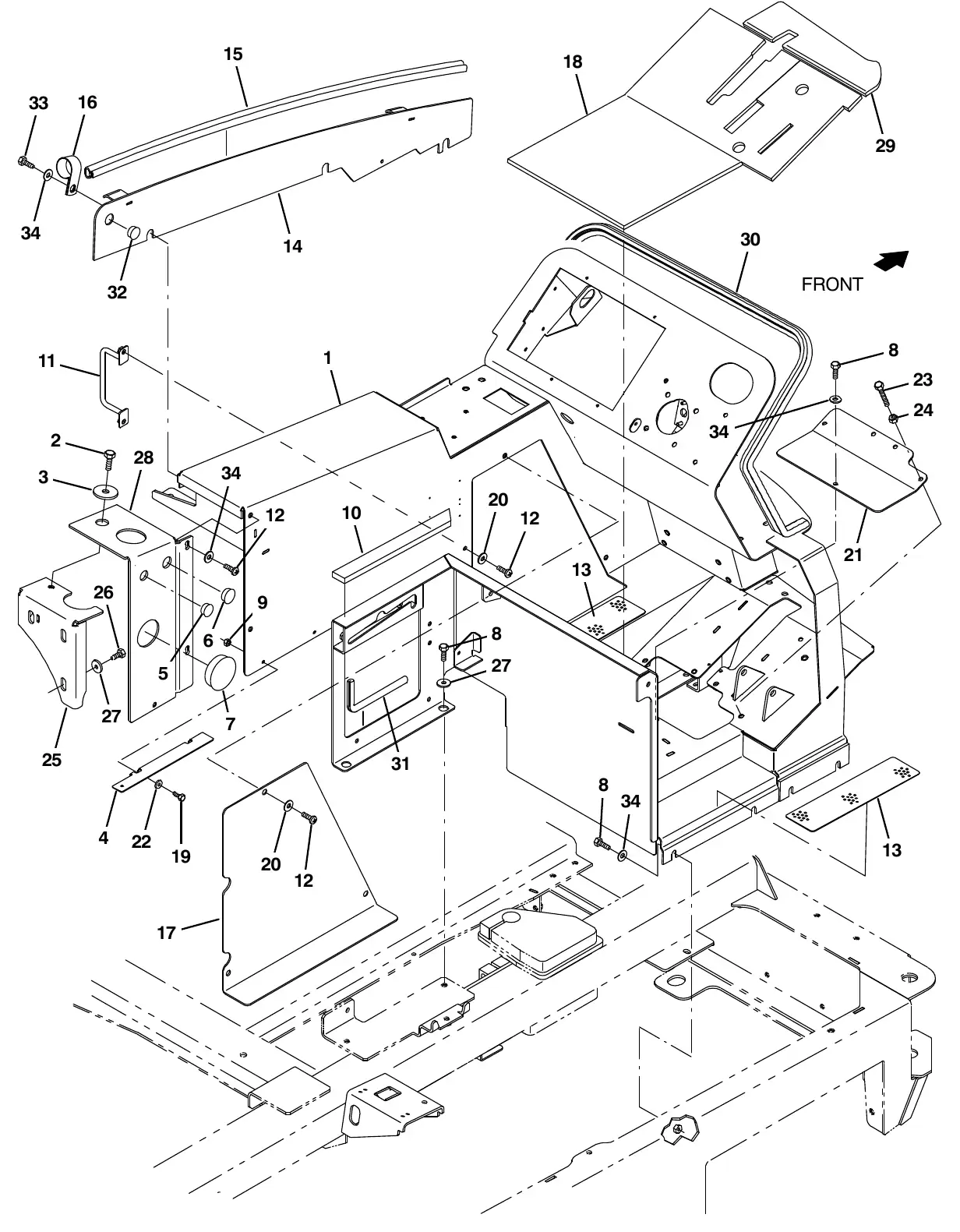

M20 operator station group

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 operator station group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (12)
1	TN4193454	1	Panel Wldt, Gas, ReplmtOld # 9016324	$2,145.24/EA
1	TN9016320	1	Panel Wldt, Gas, Replmt [W/Fast]Old # 9016320 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193452	1	Panel Wldt, Gas, W/ Es, ReplmtOld # 9016321	$2,113.93/EA
1	TN4193456	1	Panel Wldt, Gas, Replmt, TJ (Japan only)Old # 9016326	$2,129.48/EA
1	TN9016329	1	Panel Wldt, Gas, Replmt, TJ [W/Fast] (Japan only)Old # 9016329 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193459	1	Panel Wldt, Gas, Replmt, TJ, W/Es (Japan only)Old # 9016332	$2,129.48/EA
1	TN4024322	1	Panel Wldt, LPG, ReplmtOld # 9016335	$2,113.93/EA
1	TN9016336	1	Panel Wldt, LPG, Replmt [W/Fast]Old # 9016336 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193462	1	Panel Wldt, LPG, Replmt, W/EsOld # 9016337	$2,113.93/EA
1	TN4193457	1	Panel Wldt, LPG, Replmt, TJ (Japan only)Old # 9016327	$2,129.48/EA
1	TN9016330	1	Panel Wldt, LPG, Replmt, TJ [W/Fast] (Japan only)Old # 9016330 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193460	1	Panel Wldt, LPG, Replmt, TJ, W/Es (Japan only)Old # 9016333	$2,129.48/EA
2	TN4019758	1	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
3	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
4	TN4190204	2	Bracket, Mtg, InsulationOld # 1047169	$12.93/EA
5	TN4024314	1	Plug, Hole, Rnd, 0.88h .03 - .12, Blk NylOld # 82727	$3.40/EA
6	TN4042871	1	Plug, Hole, Rnd, 1.00h .03 - .12, Blk NylOld # 01493	$2.50/EA
7	TN4031389	1	Plug, Hole, Rnd, 2.50h .03 - .25, Blk NylOld # 1030017	$10.60/EA
8	TN4041844	12	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
9	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
10	Old # 1047295	1	Seal, Foam, 0.50Old # 1047295Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
11	TN4030705	1	Bracket Wldt, Mtg, HoseOld # 1071616	$26.97/EA
12	TN4032093	6	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
13	TN4026685	4	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
14	TN4193255	1	Panel Wldt, Adj [2007]Old # 1035832	$73.63/EA
15	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
16	TN4015029	5	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
17	TN4032850	1	Panel, Access, DoorOld # 1021834	$48.40/EA
18	TN4030622	1	Mat, FloorOld # 1027218	$116.30/EA
19	TN4041270	2	Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942	$2.50/EA
20	TN4015595	5	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4195877	1	Panel, Access, FloorOld # 1022699	$24.15/EA
22	TN4034136	2	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
23	TN4027729	1	Screw, Hex, M8 X 1.25 X 60, 8.8, FlOld # 363976	$3.40/EA
24	TN4019808	1	Nut, Hex, Std, M8 X 1.25Old # 39311	$2.50/EA
25	TN4190656	1	Bracket Wldt, Mtg, TankOld # 1035997	$61.32/EA
26	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4035242	5	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
28	TN4192844	1	Bracket, MtgOld # 1033975	$68.18/EA
29	TN4030625	1	Mat, FloorOld # 1027267	$27.40/EA
30	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
31	TN4036241	1	Molding, Afmkt, Trim, Pvc, .08 .11, 1ftOld # 1020168	$44.40/EA
32	TN4023358	1	Plug, Hole, Rnd, 0.81h, BlkOld # 80288	$1.40/EA
33	TN4156940	6	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
34	TN4034137	17	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

M20 operator station insulation group

Standard partsSN 008000 and later

Tennant M20 operator station insulation group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4045278	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034769	$3.60/EA
2	TN4045274	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034765	$149.40/EA
3	TN4044434	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1040841	$31.90/EA
4	TN4033266	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023464	$62.10/EA
5	TN4045273	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034764	$39.60/EA
6	TN4045275	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034766	$9.20/EA
7	TN4045277	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034768	$46.10/EA
8	TN4045279	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034770	$115.50/EA
9	TN4033283	1	Insulation, Flame - Retardant, 0.75 - 0.88Old # 1023569	$59.70/EA

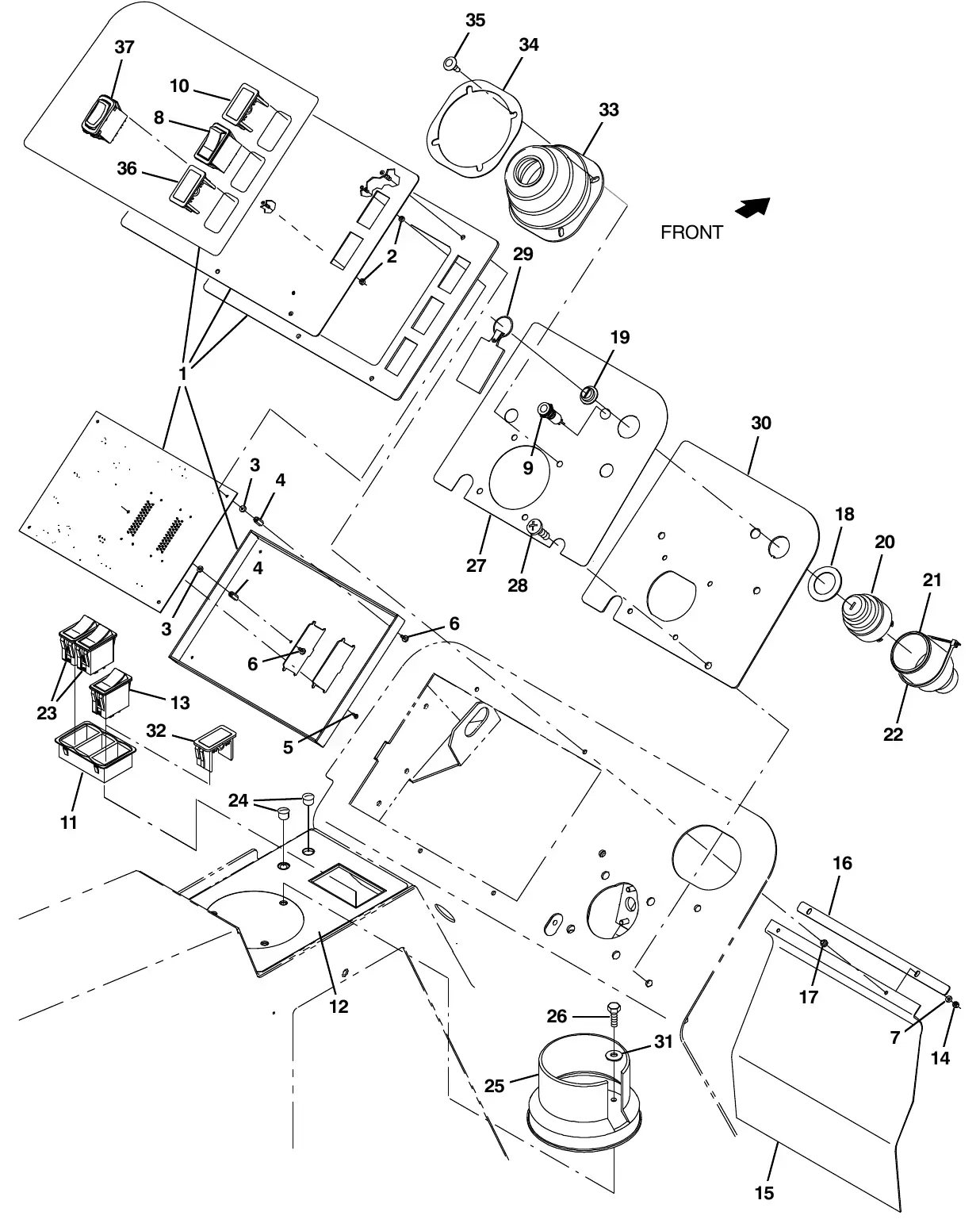

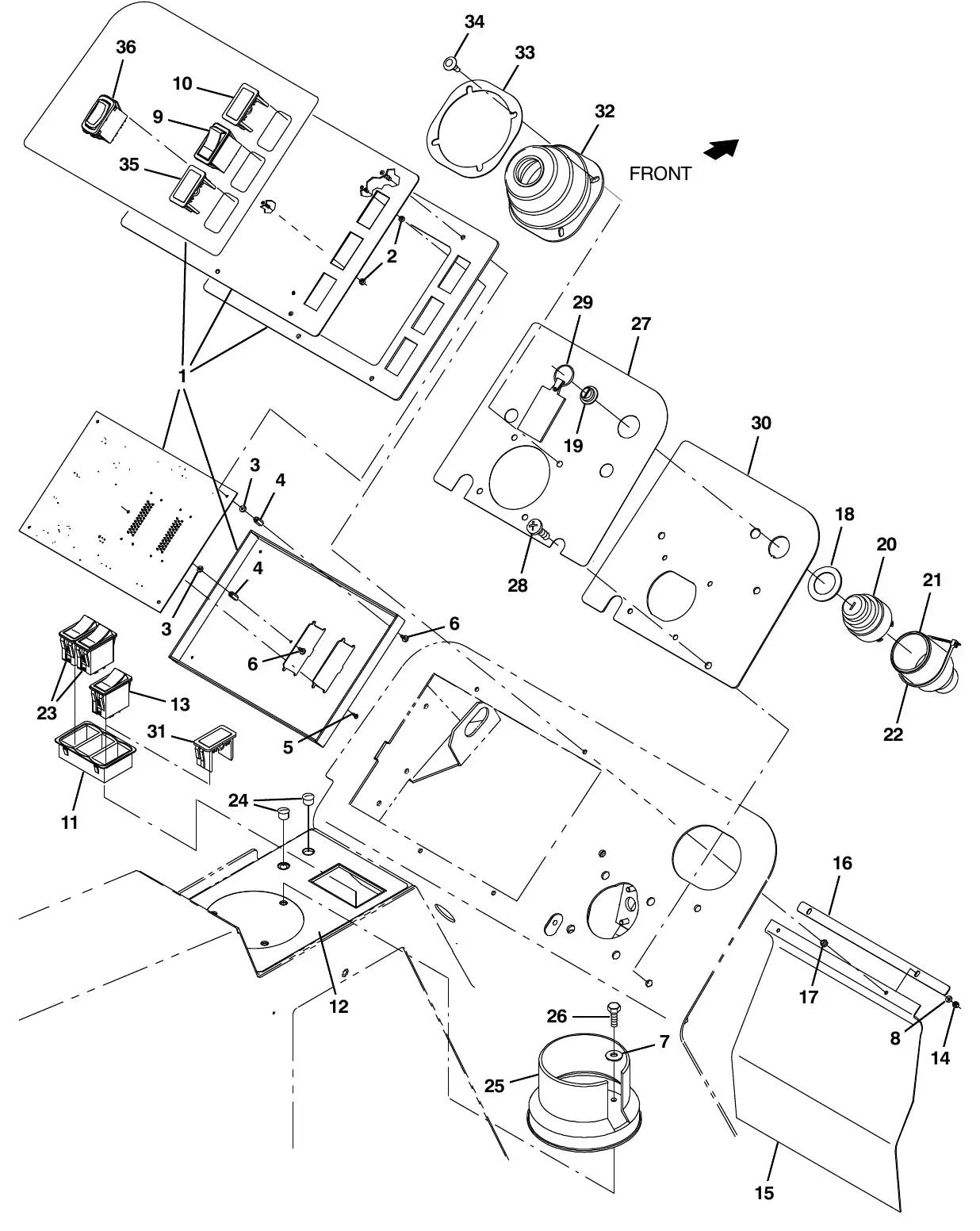

M20 instrument panel group

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 instrument panel group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (2)
1	TN4037853	1	Panel Assy, Instmt, W/ Label, AfmktFits SN 008000–010000 · Old # 1223896	$1,172.60/EA
1	TN4029735	1	Panel Assy, Instmt, W/ Label, AfmktFits SN 010001 and later · Old # 1263875	Call for price
2	TN4198475	5	Spacer, Rnd, .125l, AlmOld # 1006808	Call for price
3	TN4198594	5	Washer, Flat, 0.15b 0.31d .05, NylOld # 1008663	Call for price
4	TN4195865	5	Stand - Off, Hex, M3 X M14, AlmOld # 1022472	Call for price
5	TN4198561	5	Screw, Pan, #04 - 24 X 0.50l, Hi - LowOld # 1008240	Call for price
6	TN4195912	8	Screw, Pan, M3 X 6, [Seelscrew]Old # 1022905	Call for price
7	TN4034136	3	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
8	TN4042243	4	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
9	TN4019347	1	Switch, Rocker, Dpdt, On / Off / OnOld # 392171	$25.90/EA
10	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Old # 398501	$6.80/EA
11	TN4031384	1	Bezel, Switch [3 Gang]Old # 1029951	$21.90/EA
12	TN4037854	1	Label, Switch, Rocker [Drago]Old # 1223906	$35.20/EA
13	TN4037904	1	Switch, Rocker, Mom, Led (Dry Dust Control Only)Old # 1224603	$65.90/EA
14	TN4041852	4	Nut, Hex, Lock, #08 - 32, NlOld # 16968	$1.50/EA
15	TN4030979	1	Flap, BatteryOld # 1028769	$9.80/EA
16	TN4194573	1	Bar, Flat, Ss 0.06, 00.50 X 10.00l, 2slOld # 1028772	$3.85/EA
17	TN4031353	4	Washer, Shld, Nyl [8 - 32]Old # 1029362	$0.15/EA
18	TN4012418	1	Washer, Flat, 1.15b 1.75d .08, StlOld # 73736	$3.50/EA
19	TN4027368	1	Boot, .63id .29l .90wOld # 382516	$10.20/EA
20	TN4022110	1	Switch, Ignition [Ku]Old # 87536	$109.50/EA
	TN8003282	1	Key, Ignition [Set of 2]Old # 87866	$27.00/EA
21	TN4023075	1	Boot, Switch, IgnitionOld # 383165	$5.10/EA
22	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
23	TN4016541	2	Switch, Rocker, Dpdt, Mom / Off / MomOld # 398508	$27.40/EA
24	TN4029160	2	Plug, Hole, Rnd, 0.50h .03 - .12, Blk NylOld # 56992	$3.40/EA
25	TN4037805	1	Cup Holder, RwkOld # 223599	$56.40/EA
26	TN4041271	3	Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943	$2.50/EA
27	TN4223545	1	Label, Instrument Panel, Rh, [Drago]Old # 1223903	$40.30/EA
28	TN4032093	4	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
29	TN4044966	1	Keychain, Rectangle, Parts & ServiceOld # 1075003	$4.70/EA
30	TN4223544	1	Plate, Instrument, Rh [Drago]Old # 1223897	$11.11/EA
31	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7 (Wet Dust Control Only)Fits SN 010900 and later · Old # 398501	$6.80/EA
32	TN4014919	1	Boot, Bellows, 3.1l 4.4w 2.8h 1hole, NeoOld # 70622	$50.40/EA
33	TN4014930	1	Retainer, Boot, Steering ColumnOld # 70623	$10.20/EA
34	TN4016304	4	Rivet, Plstc, .250d X 0.90Old # 72970	$3.20/EA
35	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Fits SN 014001 and later · Old # 398501	$6.80/EA
36	TN4032200	1	Switch, Rocker [Mom,Off,Mom, Dual Led] (Detergent Metering Option Only)Fits SN 014001 and later · Old # 1255914	$78.81/EA

M20 seat group

Standard partsSN 008000 and later

Tennant M20 seat group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4045276	1	Insulation, Flame - retardant, 0.75 - 0.88Old # 1034767	$83.30/EA
2	TN4195199	1	Plate Wldt, SeatOld # 1019228	$218.26/EA
3	TN4034205	1	LatchOld # 1025736	$17.00/EA
4	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
5	TN4042244	2	Washer, Flat, #10Old # 19066	$2.50/EA
6	TN4041004	2	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
7	TN4014177	1	LatchOld # 49800	$40.40/EA
8	TN4043235	4	Nut, Hex, Lock, M4 X 0.7, NlOld # 02850	$2.50/EA
9	TN4041260	4	Screw, Pan, M4 X 0.7 X 25, 4.8Old # 06929	$2.50/EA
10	TN4042243	2	Washer, Flat, #08Old # 19065	$3.20/EA
11	TN4033275	1	Insulation, Flame - Retardant, 1.0Old # 1023499	$80.10/EA
12	TN4037355	1	Arm Wldt, Safety, Sppt, Seat, .38d 06.5dOld # 223080	$54.00/EA
13	TN4041271	1	Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943	$2.50/EA
14	TN4034133	9	Washer, Flat, 0.25 SaeOld # 32483	$2.50/EA
15	TN4041925	1	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
16	TN4039442	1	Spacer, Plstc, NyOld # 21851	$3.20/EA
17	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
18	TN4035242	11	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
19	TN4192066	1	Seat, Deluxe, Replmt [M20/T20/M30] (See Breakdowns)Old # 9018721	$1,220.30/EA
20	TN4042244	6	Washer, Flat,.25b 0.56d .05, Pl, 10Old # 19066	$2.50/EA
21	TN4034656	4	Nut, Hex, Lock, .31 - 18, NlOld # 32983	$2.50/EA
22	TN4028157	1	Washer, Flat, 0.41b 1.25d .12, PyeOld # 364749	$6.57/EA
23	TN4034138	2	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
24	TN4041620	1	Pin, Cotter, Hair, 0.31d .058 WirOld # 08085	$2.50/EA
25	TN4032874	1	Cover, LowerOld # 1022005	$21.70/EA
26	TN4032093	2	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
27	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
28	TN4035845	1	Shroud, SeatOld # 1018776	$418.20/EA
29	TN4034516	1	Bracket, Latch, Shrd, SeatOld # 1026825	$17.50/EA
30	TN4041965	8	Screw, Pan, M5 X 0.8 X 12, SsOld # 09200	$3.40/EA
31	TN4033611	2	Hinge Wldt, Shrd, RhOld # 1024464	$43.40/EA
32	TN4041844	8	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
33	TN4033607	2	Hinge Wldt, Shrd, RhOld # 1024425	$68.90/EA
34	TN4034218	1	Grill, SideOld # 1025916	$114.20/EA
35	TN4016794	6	Washer, Flat, 0.25 FendrOld # 41178	$2.50/EA
36	TN4195388	1	Bracket, Seat, AdjOld # 1020487	$35.91/EA
37	TN4031725	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588	$46.50/EA
38	TN4031792	1	Seal, Afmkt, Bulb, 90, 0.50d, 02ftOld # 1031206	$33.70/EA
39	TN4029776	2	Stud, Ball, .39d .31 - 16, GasspringOld # 58494	$8.40/EA
40	TN4032401	1	Gasspring, 135lb, 03.15strkOld # 1258921	$62.60/EA
41	TN4042967	2	Nut, Hex, Lock, .31 - 18, Nl, ThinOld # 01760	$3.40/EA
42	TN4028623	1	Plug, Hole, Rnd, 1.25H .03 - .12, Blk NylOld # 76888	$3.40/EA
43	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
44	TN4018295	1	Pouch (OPTION)Old # 68275	$34.86/EA
45	TN4043036	4	Nut, Push, Bolt Retention, Stl,5/16 ThrdOld # 1077073	$13.80/EA

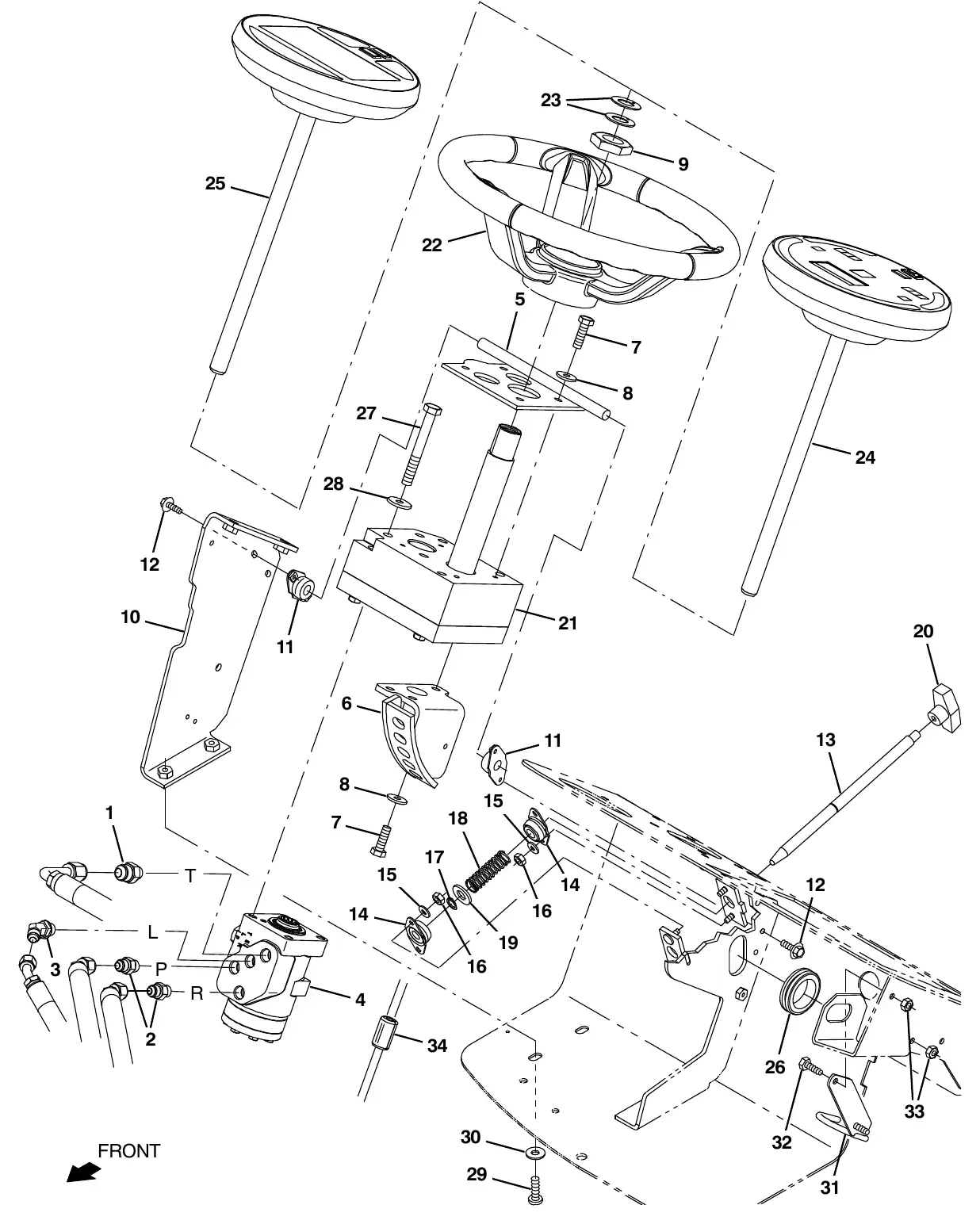

M20 steering group

Standard partsSN 008000 and later

Tennant M20 steering group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4029151	1	Fitting, Hyd, Str, Jm08/Om06Old # 56835	$10.50/EA
2	TN4029145	2	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
3	TN4013877	1	Fitting, Hyd, E45, Jm06/Om06Old # 47522	$21.70/EA
4	TN4033593	1	Steer - Control, Hyd05, 06.1 2030 (See Breakdowns)Old # 1024260	$816.30/EA
5	TN4226796	1	Plate, Wldt, Mtg, HousingOld # 1223514	$59.09/EA
6	TN4222412	1	Bracket Wldt, Steering, TiltOld # 1232054	$62.00/EA
7	TN4041844	7	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
8	TN4034136	7	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
9	TN4036795	1	Nut, Hex, Jam, 1.12 - 12Old # 1059073	$9.50/EA
10	TN4226795	1	Bracket Wldt, Steering, Tilt, RhOld # 1223511	$41.92/EA
11	TN4014957	2	Bearing, Flng, 2hole, 0.50bOld # 70709	$7.40/EA
12	TN4045568	4	Screw, Hex, M6 X 1.00 X 25, 9.8, SemsOld # 1036892	$2.50/EA
13	TN4226790	1	Pin, Locking, Steering, TiltOld # 1223504	$51.73/EA
14	TN4013879	2	Bearing, Flng, 2hole, 0.50b [Nyl]Old # 47585	$5.96/EA
15	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
16	TN4041925	4	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
17	TN4014958	1	Ring, Retaining, Ext, 0.50d, HdOld # 70717	$0.40/EA
18	TN4037087	1	Spring, Cmpr, 0.72od .06wir 02.3lOld # 22290	$4.10/EA
19	TN4034135	1	Washer, Flat, 0.53b 1.06d .10, Stl, PlOld # 32486	$2.60/EA
20	TN4040933	1	Knob, Tee, 0.38 - 16, 2.5 X 1.0 1.1l,PlstcOld # 04706	$11.80/EA
21	TN4023706	1	Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns)Old # 9015636	$931.80/EA
22	TN4035223	1	Wheel, Steering, 14.4dOld # 1056412	$194.20/EA
23	TN4040947	2	Washer, Thrust, 0.79b 1.42d 0.06[Garlok]Old # 04846	$10.00/EA
Item 24: choose your version (2)
24	TN4023704	1	Panel Kit, Pod, Afmkt [Std, M20/M30] (Repl By 9022287)Fits SN 008000–017145 · Old # 9015634	$1,198.60/EA
24	TN4018551	1	Panel Kit, Pod, CI [SWPR - SCRBR, Std]Fits SN 017146 and later · Old # 9022287	Call for price
26	TN4031957	1	Grommet, Rbr, 1.50id, F/1.8h, .19 MatlOld # 10632-13	$6.00/EA
27	TN4041290	4	Screw, Hex, M10 X 1.50 X 80, 8.8Old # 06965	$6.80/EA
28	TN4043561	4	Washer, Flat, 0.40b 1.12d .12, Stl, PlOld # 13248	$3.00/EA
29	TN4032093	6	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
30	TN4034137	6	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
31	TN4035560	1	Bracket Wldt, HoseFits SN 010230 and later · Old # 1230341	$31.92/EA
32	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsFits SN 010230 and later · Old # 08716	$3.20/EA
33	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlFits SN 010230 and later · Old # 08708	$2.50/EA
34	TN4227463	1	Inductor, Ferrite [Spit Case, 220@100hz]Fits SN 014001 and later · Old # 1213802	$11.80/EA

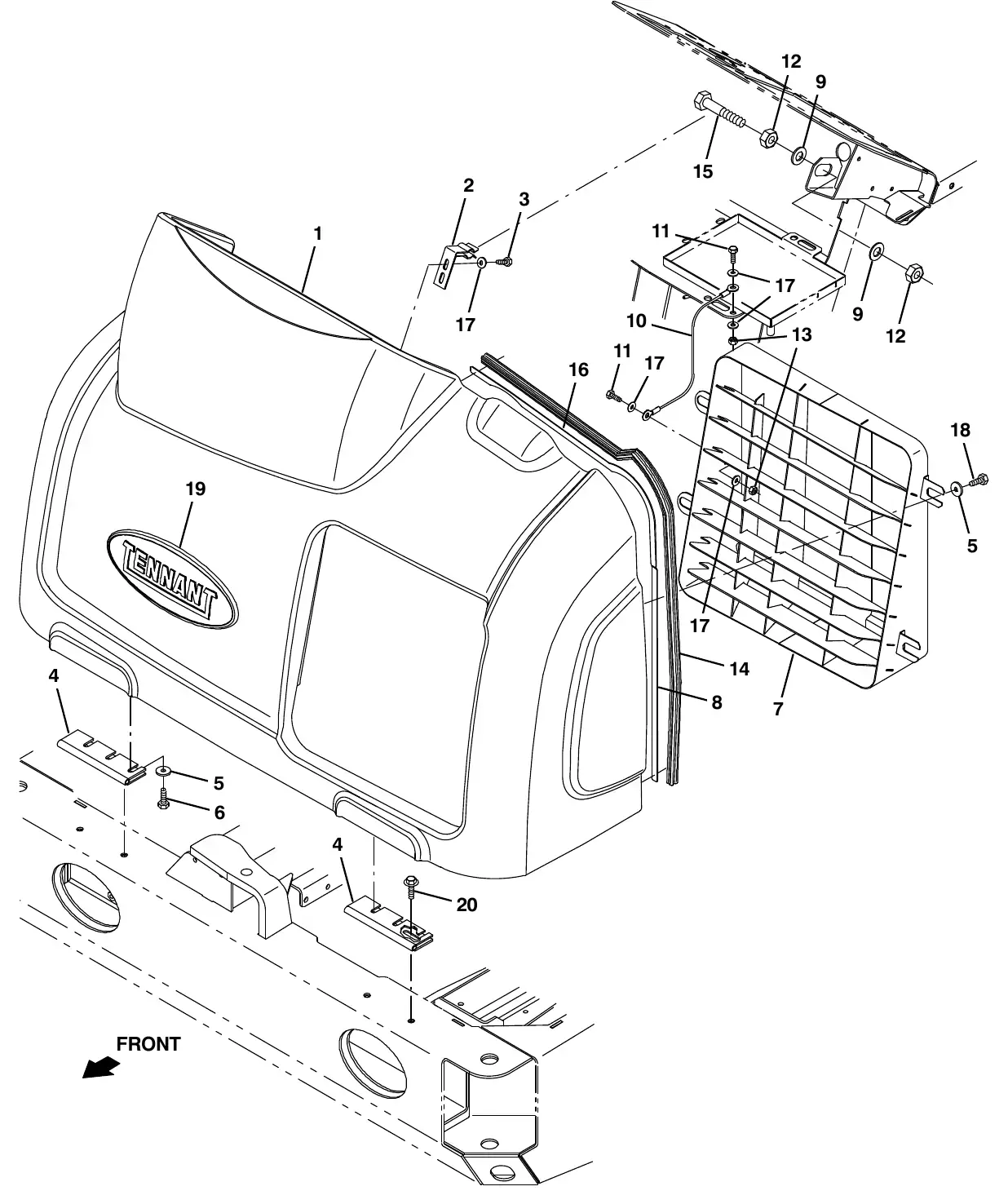

M20 front cover group

Standard partsSN 008000 and later

Tennant M20 front cover group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4032893	1	Shroud, Front, TrimmedOld # 1022069	$932.80/EA
2	TN4029931	1	Bracket Wldt, LatchOld # 1266312 · Replaces 1008916 (2022 list (rev. 08))	Call for price
3	TN4041270	2	Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942	$2.50/EA
4	TN4015921	2	Hinge, .38pin .11 3.5w 06.0l 6/0.38slOld # 71941	$48.10/EA
5	TN4035242	10	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
6	TN4041844	6	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
7	TN4045378	1	Grill Wldt, FrontOld # 1035068	$748.00/EA
8	TN4043571	1	Strip Mtg, SealOld # 1037971	$3.50/EA
9	TN4041212	2	Washer, Flat, 0.62 SaeOld # 15331	$4.10/EA
10	TN4019292	1	Cable, Glv .09d 016.5l .38eye /.38eyeOld # 391368	$33.50/EA
11	TN4041271	2	Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943	$2.50/EA
12	TN4041596	2	Nut, Hex, Std, M16 X 2.0Old # 07782	$3.40/EA
13	TN4041925	2	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
14	TN4040452	1	Seal, Sponge, 0.88 1.00W 43.0LOld # 1049919	$14.65/EA
15	TN4041570	1	Screw, Hex, M16 X 2.0 X 90, 8.8Old # 06988	$8.20/EA
16	TN4043570	1	Strip Mtg, SealOld # 1037970	$4.30/EA
17	TN4034136	6	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
18	TN4041828	4	Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735	$3.40/EA
19	TN4039887	1	Nameplate, Tennant, Domed, 10 InchOld # 1214251	$84.70/EA
20	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA

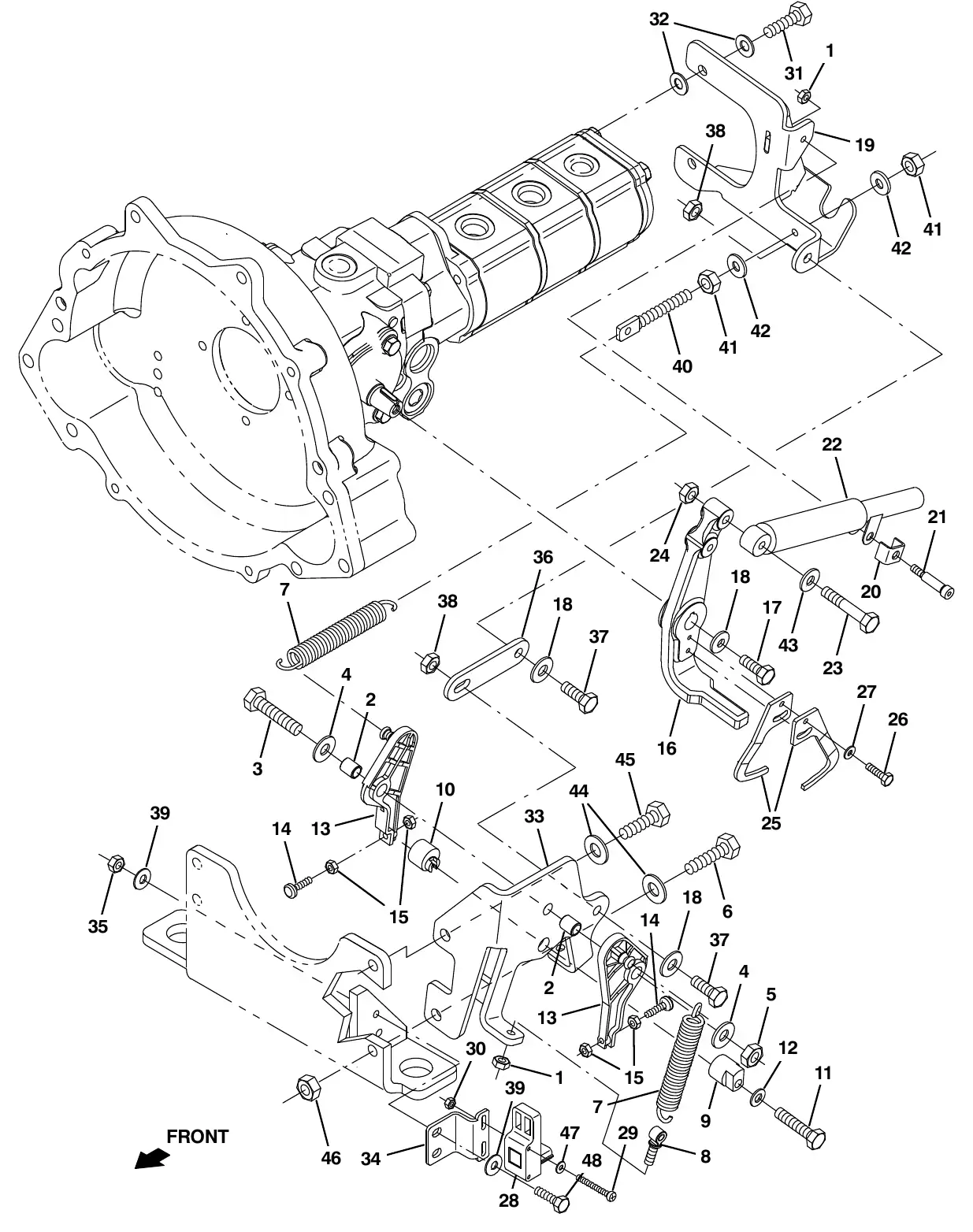

M20 Mitsubishi hydraulic pump linkage group (S/N 008000 - 015000)

Standard partsSN 008000 and laterMitsubishi · SN 008000–015000Fits: GasolineLPG

Tennant M20 Mitsubishi hydraulic pump linkage group (S/N 008000 - 015000) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4013573	2	Nut, Hex, Lock, .25 - 20, NlFits SN 008000–015000 · Printed as 4013573 (Tennant’s new number) · Old # 75934	$2.50/EA
2	TN4021145	2	Tube, 00.50d 00.38b 00.6l StlFits SN 008000–015000 · Printed as 4021145 (Tennant’s new number) · Old # 63234	$6.60/EA
3	TN4200713	1	Screw, Hex, .38 - 16 X 2.25, G5Fits SN 008000–015000 · Printed as 4200713 (Tennant’s new number) · Old # 27991	$3.23/EA
4	Old # 4200713	2	Washer, Flat, 0.38 StdFits SN 008000–015000 · Old # 4200713Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
5	TN4028758	1	Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN 008000–015000 · Printed as 4028758 (Tennant’s new number) · Old # 36643	$2.50/EA
6	TN4156940	5	Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 008000–015000 · Printed as 4156940 (Tennant’s new number) · Old # 39277	$3.20/EA
7	TN4043395	2	Spring, Extn, 0.75od X 0.12wir, 4.3lFits SN 008000–015000 · Printed as 4043395 (Tennant’s new number) · Old # 11842	$12.20/EA
8	TN4013918	1	Bolt, Eye, .25 - 20 X 1.40 X .25 EyeFits SN 008000–015000 · Printed as 4013918 (Tennant’s new number) · Old # 48079	$6.00/EA
9	TN4015051	1	Cam, Centering, PintleFits SN 008000–015000 · Printed as 4015051 (Tennant’s new number) · Old # 53947	$74.84/EA
10	TN4028669	1	Cam, Centering, PintleFits SN 008000–015000 · Printed as 4028669 (Tennant’s new number) · Old # 54655	$72.52/EA
11	TN4012778	1	Screw, Hex, M8 X 1.25 X 40, Ss, NlFits SN 008000–015000 · Printed as 4012778 (Tennant’s new number) · Old # 74440	$4.90/EA
12	TN4015595	1	Washer, Flat, 0.31 SaeFits SN 008000–015000 · Printed as 4015595 (Tennant’s new number) · Old # 39349	$2.50/EA
13	TN4015053	2	Arm, Cntrl, Pintle, CenteringFits SN 008000–015000 · Printed as 4015053 (Tennant’s new number) · Old # 53953	$26.60/EA
14	TN4015362	2	Bumper, Rbr, 0.5d 0.16t M5 X 08Fits SN 008000–015000 · Printed as 4015362 (Tennant’s new number) · Old # 54205	$18.50/EA
15	TN4014211	4	Nut, Hex, Std, M5 X 0.8, 8Fits SN 008000–015000 · Printed as 4014211 (Tennant’s new number) · Old # 50335	$3.30/EA
16	TN4030623	1	Arm, PintleFits SN 008000–015000 · Printed as 4030623 (Tennant’s new number) · Old # 1027233	$101.71/EA
17	TN4021295	1	Screw, Hex, .31 - 24 X 0.75, NlFits SN 008000–015000 · Printed as 4021295 (Tennant’s new number) · Old # 83879	$2.90/EA
18	TN4016796	6	Washer, Belleville, .31Fits SN 008000–015000 · Printed as 4016796 (Tennant’s new number) · Old # 41186	$3.50/EA
19	TN4194159	1	Bracket Wldt, Propel, PintleFits SN 008000–015000 · Printed as 4194159 (Tennant’s new number) · Old # 1027313	$48.78/EA
20	TN4021318	1	Bracket, Retainer, SafetyFits SN 008000–015000 · Printed as 4021318 (Tennant’s new number) · Old # 84170	$11.60/EA
21	TN4041517	1	Bolt, Shld, .31d X 1.00, .25 - 20Fits SN 008000–015000 · Printed as 4041517 (Tennant’s new number) · Old # 16213	$6.80/EA
22	TN4016337	1	Shock Absorber, 2.3 StrkFits SN 008000–015000 · Printed as 4016337 (Tennant’s new number) · Old # 73411	$115.00/EA
23	TN4019753	1	Screw, Hex, M8 X 1.25 X 50, 8.8Fits SN 008000–015000 · Printed as 4019753 (Tennant’s new number) · Old # 39278	$4.00/EA
24	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Printed as 4041926 (Tennant’s new number) · Old # 08709	$2.50/EA
25	TN4033213	2	Arm [Positioning]Fits SN 008000–015000 · Printed as 4033213 (Tennant’s new number) · Old # 1022787	$15.80/EA
26	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Fits SN 008000–015000 · Printed as 4041970 (Tennant’s new number) · Old # 09252	$3.40/EA
27	TN4042888	2	Washer, Flat, #10 SsFits SN 008000–015000 · Printed as 4042888 (Tennant’s new number) · Old # 01683	$2.60/EA
28	TN4033212	1	Sensor, Spd / Dir, 6 - 30vdcFits SN 008000–015000 · Printed as 4033212 (Tennant’s new number) · Old # 1022779	$285.30/EA
29	TN4041964	2	Screw, Pan, M4 X 0.7 X 35, SsFits SN 008000–015000 · Printed as 4041964 (Tennant’s new number) · Old # 09198	$3.20/EA
30	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsFits SN 008000–015000 · Printed as 4031247 (Tennant’s new number) · Old # 33932	$3.40/EA
31	TN4013460	2	Screw, Hex, .38 - 16 X 1.25, NlFits SN 008000–015000 · Printed as 4013460 (Tennant’s new number) · Old # 46559	$4.00/EA
32	TN4034134	4	Washer, Flat, 0.38 SaeFits SN 008000–015000 · Printed as 4034134 (Tennant’s new number) · Old # 32485	$2.50/EA
33	TN4030339	1	Bracket, Propel, G/Lpg [Mit 2013]Fits SN 008000–015000 · Printed as 4030339 (Tennant’s new number) · Old # 1070798	$27.17/EA
34	TN4182555	1	Angle, MtgFits SN 008000–015000 · Printed as 4182555 (Tennant’s new number) · Old # 1070819	$5.35/EA
35	TN4192517	1	Strap, SpptFits SN 008000–015000 · Printed as 4192517 (Tennant’s new number) · Old # 1032399	$11.82/EA
36	TN4034136	1	Washer, Flat, 0.25 StdFits SN 008000–015000 · Printed as 4034136 (Tennant’s new number) · Old # 32490	$2.50/EA
37	TN4042243	2	Washer, Flat, 0.19b 0.44d .05, Pl, 08Fits SN 008000–015000 · Printed as 4042243 (Tennant’s new number) · Old # 19065	$3.20/EA
38	TN4041600	2	Nut, Hex, Std, M8 X 1.25, SsFits SN 008000–015000 · Printed as 4041600 (Tennant’s new number) · Old # 07786	$3.40/EA
39	TN4021359	1	Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeFits SN 008000–015000 · Printed as 4021359 (Tennant’s new number) · Old # 386088	$24.20/EA

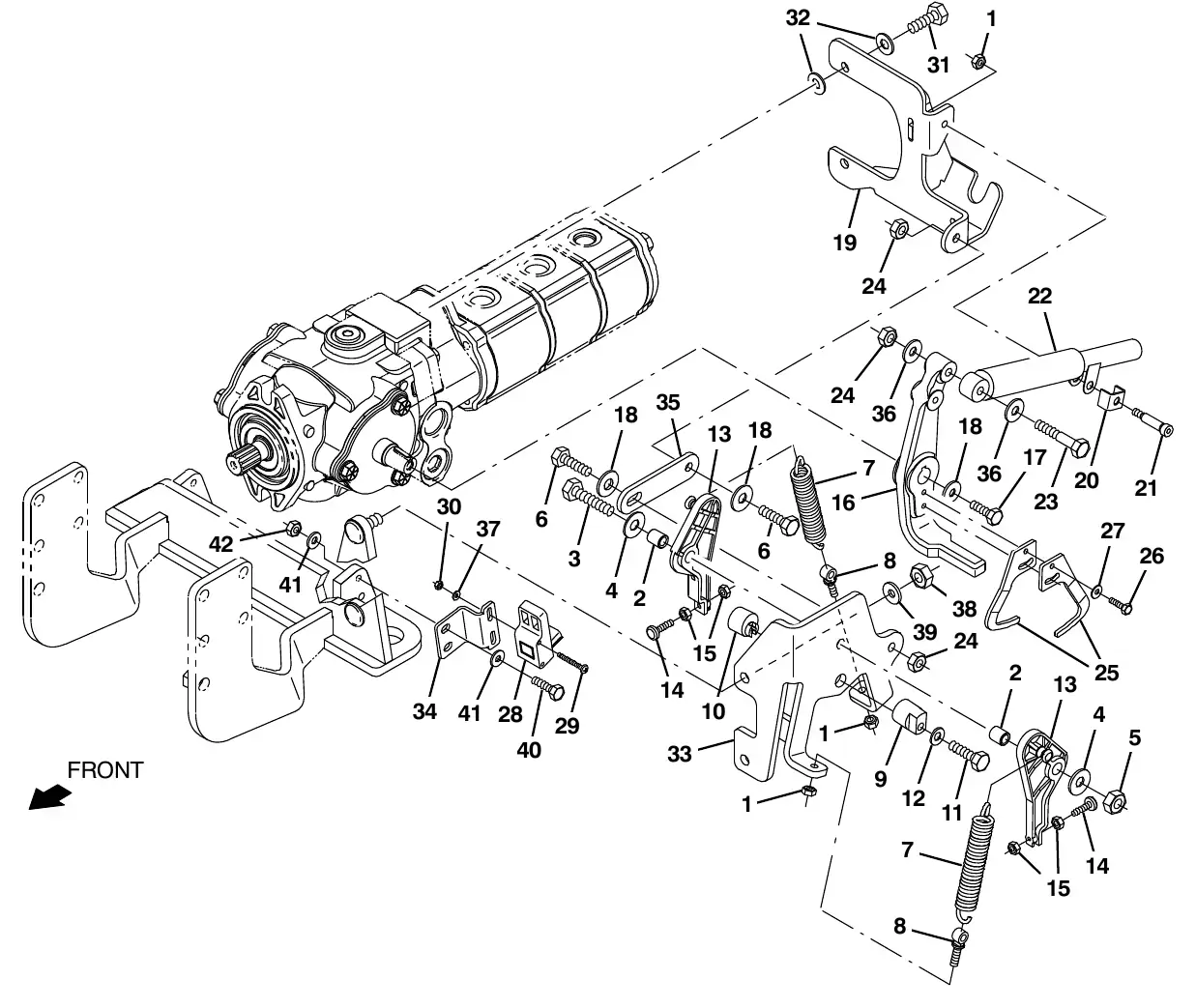

M20 Kubota hydraulic pump linkage group (S/N 014001 - 016999)

Standard partsSN 008000 and laterKubota · SN 014001–016999Fits: GasolineLPG

Tennant M20 Kubota hydraulic pump linkage group (S/N 014001 - 016999) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4013573	2	Nut, Hex, Lock, .25 - 20, NlFits SN 015001–016999 · Printed as 4013573 (Tennant’s new number) · Old # 75934	$2.50/EA
2	TN4021145	2	Tube, 00.50d 00.38b 00.6l StlFits SN 015001–016999 · Printed as 4021145 (Tennant’s new number) · Old # 63234	$6.60/EA
3	TN4200713	1	Screw, Hex, .38 - 16 X 2.25, G5Fits SN 015001–016999 · Printed as 4200713 (Tennant’s new number) · Old # 27991	$3.23/EA
4	TN4034138	2	Washer, Flat, 0.38 StdFits SN 015001–016999 · Printed as 4034138 (Tennant’s new number) · Old # 32492	$2.50/EA
5	TN4028758	1	Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN 015001–016999 · Printed as 4028758 (Tennant’s new number) · Old # 36643	$2.50/EA
6	TN4156940	5	Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 015001–016999 · Printed as 4156940 (Tennant’s new number) · Old # 39277	$3.20/EA
7	TN4043395	2	Spring, Extn, 0.75od X 0.12wir, 4.3lFits SN 015001–016999 · Printed as 4043395 (Tennant’s new number) · Old # 11842	$12.20/EA
8	TN4013918	1	Bolt, Eye, .25 - 20 X 1.40 X .25 EyeFits SN 015001–016999 · Printed as 4013918 (Tennant’s new number) · Old # 48079	$6.00/EA
9	TN4015051	1	Cam, Centering, PintleFits SN 015001–016999 · Printed as 4015051 (Tennant’s new number) · Old # 53947	$74.84/EA
10	TN4028669	1	Cam, Centering, PintleFits SN 015001–016999 · Printed as 4028669 (Tennant’s new number) · Old # 54655	$72.52/EA
11	TN4012778	1	Screw, Hex, M8 X 1.25 X 40, Ss, NlFits SN 015001–016999 · Printed as 4012778 (Tennant’s new number) · Old # 74440	$4.90/EA
12	TN4015595	1	Washer, Flat, 0.31 SaeFits SN 015001–016999 · Printed as 4015595 (Tennant’s new number) · Old # 39349	$2.50/EA
13	TN4015053	2	Arm, Cntrl, Pintle, CenteringFits SN 015001–016999 · Printed as 4015053 (Tennant’s new number) · Old # 53953	$26.60/EA
14	TN4015362	2	Bumper, Rbr, 0.5d 0.16t M5 X 08Fits SN 015001–016999 · Printed as 4015362 (Tennant’s new number) · Old # 54205	$18.50/EA
15	TN4014211	4	Nut, Hex, Std, M5 X 0.8, 8Fits SN 015001–016999 · Printed as 4014211 (Tennant’s new number) · Old # 50335	$3.30/EA
16	TN4194159	1	Arm, PintleFits SN 015001–016999 · Printed as 4194159 (Tennant’s new number) · Old # 1027313	$48.78/EA
17	TN4021295	1	Screw, Hex, .31 - 24 X 0.75, NlFits SN 015001–016999 · Printed as 4021295 (Tennant’s new number) · Old # 83879	$2.90/EA
18	TN4016796	6	Washer, Belleville, .31Fits SN 015001–016999 · Printed as 4016796 (Tennant’s new number) · Old # 41186	$3.50/EA
19	TN4194159	1	Bracket Wldt, Propel, PintleFits SN 015001–016999 · Printed as 4194159 (Tennant’s new number) · Old # 1027313	$48.78/EA
20	TN4021318	1	Bracket, Retainer, SafetyFits SN 015001–016999 · Printed as 4021318 (Tennant’s new number) · Old # 84170	$11.60/EA
21	TN4041517	1	Bolt, Shld, .31d X 1.00, .25 - 20Fits SN 015001–016999 · Printed as 4041517 (Tennant’s new number) · Old # 16213	$6.80/EA
22	TN4016337	1	Shock Absorber, 2.3 StrkFits SN 015001–016999 · Printed as 4016337 (Tennant’s new number) · Old # 73411	$115.00/EA
23	TN4019753	1	Screw, Hex, M8 X 1.25 X 50, 8.8Fits SN 015001–016999 · Printed as 4019753 (Tennant’s new number) · Old # 39278	$4.00/EA
24	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Printed as 4041926 (Tennant’s new number) · Old # 08709	$2.50/EA
25	TN4033213	2	Arm [Positioning]Fits SN 015001–016999 · Printed as 4033213 (Tennant’s new number) · Old # 1022787	$15.80/EA
26	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Fits SN 015001–016999 · Printed as 4041970 (Tennant’s new number) · Old # 09252	$3.40/EA
27	TN4042888	2	Washer, Flat, #10 SsFits SN 015001–016999 · Printed as 4042888 (Tennant’s new number) · Old # 01683	$2.60/EA
28	TN4033212	1	Sensor, Spd / Dir, 6 - 30vdcFits SN 015001–016999 · Printed as 4033212 (Tennant’s new number) · Old # 1022779	$285.30/EA
29	TN4041964	2	Screw, Pan, M4 X 0.7 X 35, SsFits SN 015001–016999 · Printed as 4041964 (Tennant’s new number) · Old # 09198	$3.20/EA
30	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsFits SN 015001–016999 · Printed as 4031247 (Tennant’s new number) · Old # 33932	$3.40/EA
31	TN4013460	2	Screw, Hex, .38 - 16 X 1.25, NlFits SN 015001–016999 · Printed as 4013460 (Tennant’s new number) · Old # 46559	$4.00/EA
32	TN4034134	4	Washer, Flat, 0.38 SaeFits SN 015001–016999 · Printed as 4034134 (Tennant’s new number) · Old # 32485	$2.50/EA
33	TN4194319	1	Bracket, Propel, DslFits SN 015001–016999 · Printed as 4194319 (Tennant’s new number) · Old # 1027692	$43.83/EA
34	TN4194321	1	Bracket, Mtg, SensorFits SN 015001–016999 · Printed as 4194321 (Tennant’s new number) · Old # 1027742	$12.12/EA
35	TN4192517	1	Strap, SpptFits SN 015001–016999 · Printed as 4192517 (Tennant’s new number) · Old # 1032399	$11.82/EA
36	TN4034136	1	Washer, Flat, 0.25 StdFits SN 015001–016999 · Printed as 4034136 (Tennant’s new number) · Old # 32490	$2.50/EA
37	TN4042243	2	Washer, Flat, 0.19b 0.44d .05, Pl, 08Fits SN 015001–016999 · Printed as 4042243 (Tennant’s new number) · Old # 19065	$3.20/EA
38	TN4016826	2	Nut, Hex, Lock, M10 X 1.5, NlFits SN 015001–016999 · Printed as 4016826 (Tennant’s new number) · Old # 41430	$4.00/EA
39	TN4016798	2	Screw, Hex, 06 - 20 X 0.38, Fmg/Ab, PlFits SN 015001–016999 · Printed as 4016798 (Tennant’s new number) · Old # 41189	Call for price
40	Old # 4200516	2	Screw, Hex, M6 X 1.00 X 25, 8.8Fits SN 015001–016999 · Old # 4200516Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
41	TN4034133	2	Washer, Flat, 0.25, SaeFits SN 015001–016999 · Printed as 4034133 (Tennant’s new number) · Old # 32483	$2.50/EA
42	TN4041925	2	Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Printed as 4041925 (Tennant’s new number) · Old # 08708	$2.50/EA

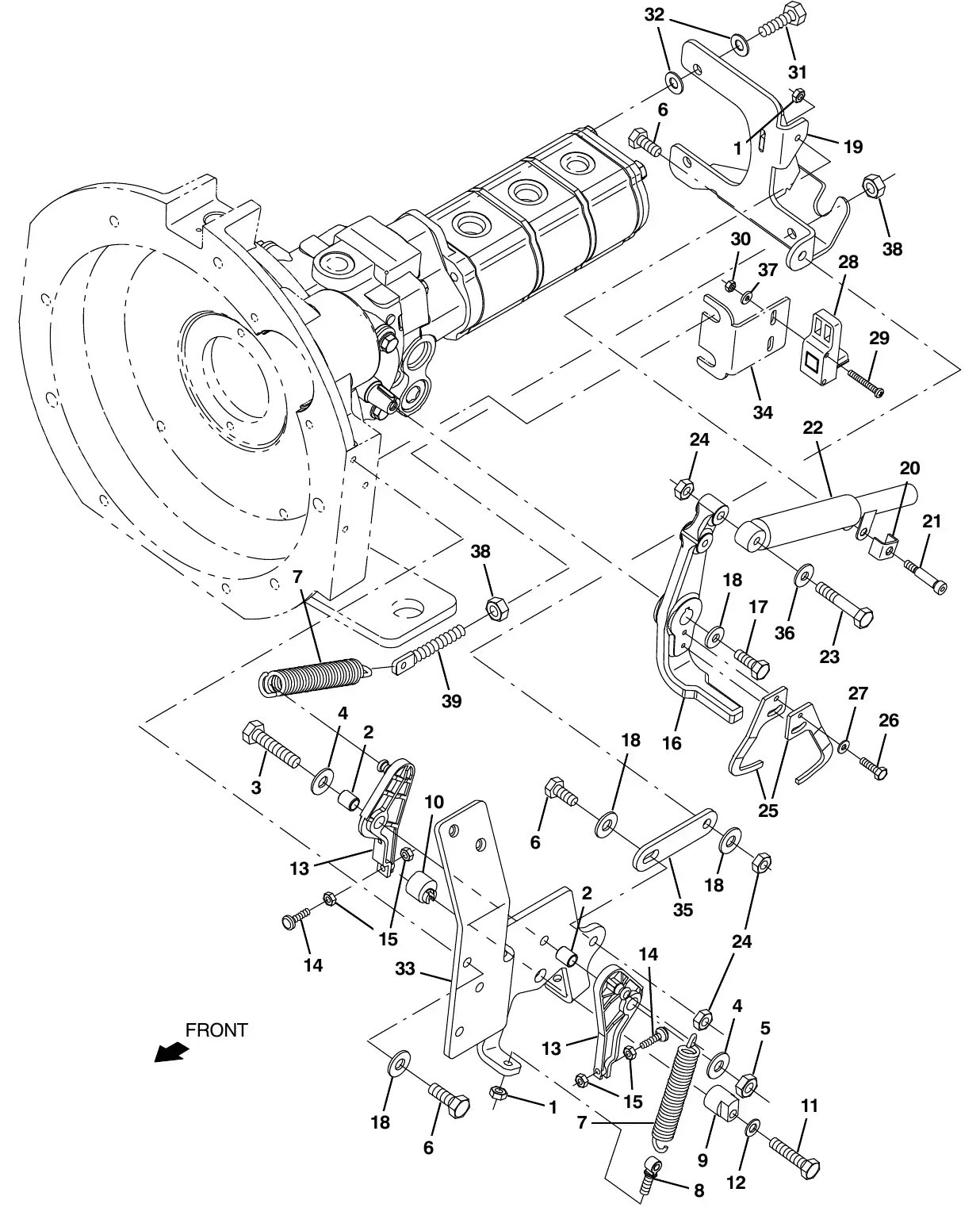

M20 PSI hydraulic pump linkage group (S/N 016001 - )

Standard partsSN 008000 and laterPSI · SN 016001 and laterFits: GasolineLPG

Tennant M20 PSI hydraulic pump linkage group (S/N 016001 - ) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4013573	2	Nut, Hex, Lock, .25 - 20, NlFits SN 017000 and later · Printed as 4013573 (Tennant’s new number) · Old # 75934	$2.50/EA
2	TN4021145	2	Tube, 00.50d 00.38b 00.6l StlFits SN 017000 and later · Printed as 4021145 (Tennant’s new number) · Old # 63234	$6.60/EA
3	TN4200713	1	Screw, Hex, .38 - 16 X 2.25, G5Fits SN 017000 and later · Printed as 4200713 (Tennant’s new number) · Old # 27991	$3.23/EA
4	Old # 4200713	2	Washer, Flat, 0.38 StdFits SN 017000 and later · Old # 4200713Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
5	TN4028758	1	Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN 017000 and later · Printed as 4028758 (Tennant’s new number) · Old # 36643	$2.50/EA
6	TN4156940	5	Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 017000 and later · Printed as 4156940 (Tennant’s new number) · Old # 39277	$3.20/EA
7	TN4043395	2	Spring, Extn, 0.75od X 0.12wir, 4.3lFits SN 017000 and later · Printed as 4043395 (Tennant’s new number) · Old # 11842	$12.20/EA
8	TN4013918	1	Bolt, Eye, .25 - 20 X 1.40 X .25 EyeFits SN 017000 and later · Printed as 4013918 (Tennant’s new number) · Old # 48079	$6.00/EA
9	TN4015051	1	Cam, Centering, PintleFits SN 017000 and later · Printed as 4015051 (Tennant’s new number) · Old # 53947	$74.84/EA
10	TN4028669	1	Cam, Centering, PintleFits SN 017000 and later · Printed as 4028669 (Tennant’s new number) · Old # 54655	$72.52/EA
11	TN4012778	1	Screw, Hex, M8 X 1.25 X 40, Ss, NlFits SN 017000 and later · Printed as 4012778 (Tennant’s new number) · Old # 74440	$4.90/EA
12	TN4015595	1	Washer, Flat, 0.31 SaeFits SN 017000 and later · Printed as 4015595 (Tennant’s new number) · Old # 39349	$2.50/EA
13	TN4015053	2	Arm, Cntrl, Pintle, CenteringFits SN 017000 and later · Printed as 4015053 (Tennant’s new number) · Old # 53953	$26.60/EA
14	TN4015362	2	Bumper, Rbr, 0.5d 0.16t M5 X 08Fits SN 017000 and later · Printed as 4015362 (Tennant’s new number) · Old # 54205	$18.50/EA
15	TN4014211	4	Nut, Hex, Std, M5 X 0.8, 8Fits SN 017000 and later · Printed as 4014211 (Tennant’s new number) · Old # 50335	$3.30/EA
16	TN4030623	1	Arm, PintleFits SN 017000 and later · Printed as 4030623 (Tennant’s new number) · Old # 1027233	$101.71/EA
17	TN4021295	1	Screw, Hex, .31 - 24 X 0.75, NlFits SN 017000 and later · Printed as 4021295 (Tennant’s new number) · Old # 83879	$2.90/EA
18	TN4016796	6	Washer, Belleville, .31Fits SN 017000 and later · Printed as 4016796 (Tennant’s new number) · Old # 41186	$3.50/EA
19	TN4194159	1	Bracket Wldt, Propel, PintleFits SN 017000 and later · Printed as 4194159 (Tennant’s new number) · Old # 1027313	$48.78/EA
20	TN4021318	1	Bracket, Retainer, SafetyFits SN 017000 and later · Printed as 4021318 (Tennant’s new number) · Old # 84170	$11.60/EA
21	TN4041517	1	Bolt, Shld, .31d X 1.00, .25 - 20Fits SN 017000 and later · Printed as 4041517 (Tennant’s new number) · Old # 16213	$6.80/EA
22	TN4016337	1	Shock Absorber, 2.3 StrkFits SN 017000 and later · Printed as 4016337 (Tennant’s new number) · Old # 73411	$115.00/EA
23	TN4019753	1	Screw, Hex, M8 X 1.25 X 50, 8.8Fits SN 017000 and later · Printed as 4019753 (Tennant’s new number) · Old # 39278	$4.00/EA
24	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Printed as 4041926 (Tennant’s new number) · Old # 08709	$2.50/EA
25	TN4033213	2	Arm [Positioning]Fits SN 017000 and later · Printed as 4033213 (Tennant’s new number) · Old # 1022787	$15.80/EA
26	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Fits SN 017000 and later · Printed as 4041970 (Tennant’s new number) · Old # 09252	$3.40/EA
27	TN4042888	2	Washer, Flat, #10 SsFits SN 017000 and later · Printed as 4042888 (Tennant’s new number) · Old # 01683	$2.60/EA
28	TN4033212	1	Sensor, Spd / Dir, 6 - 30vdcFits SN 017000 and later · Printed as 4033212 (Tennant’s new number) · Old # 1022779	$285.30/EA
29	TN4041964	2	Screw, Pan, M4 X 0.7 X 35, SsFits SN 017000 and later · Printed as 4041964 (Tennant’s new number) · Old # 09198	$3.20/EA
30	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsFits SN 017000 and later · Printed as 4031247 (Tennant’s new number) · Old # 33932	$3.40/EA
31	TN4013460	2	Screw, Hex, .38 - 16 X 1.25, NlFits SN 017000 and later · Printed as 4013460 (Tennant’s new number) · Old # 46559	$4.00/EA
32	TN4034134	4	Washer, Flat, 0.38 SaeFits SN 017000 and later · Printed as 4034134 (Tennant’s new number) · Old # 32485	$2.50/EA
33	TN4030339	1	Bracket, Propel, G/Lpg [Mit 2013]Fits SN 017000 and later · Printed as 4030339 (Tennant’s new number) · Old # 1070798	$27.17/EA
34	TN4182555	1	Angle, MtgFits SN 017000 and later · Printed as 4182555 (Tennant’s new number) · Old # 1070819	$5.35/EA
35	TN4192517	1	Strap, SpptFits SN 017000 and later · Printed as 4192517 (Tennant’s new number) · Old # 1032399	$11.82/EA
36	TN4034136	1	Washer, Flat, 0.25 StdFits SN 017000 and later · Printed as 4034136 (Tennant’s new number) · Old # 32490	$2.50/EA
37	TN4042243	2	Washer, Flat, 0.19b 0.44d .05, Pl, 08Fits SN 017000 and later · Printed as 4042243 (Tennant’s new number) · Old # 19065	$3.20/EA
38	TN4041600	2	Nut, Hex, Std, M8 X 1.25, SsFits SN 017000 and later · Printed as 4041600 (Tennant’s new number) · Old # 07786	$3.40/EA
39	TN4021359	1	Bolt, Eye, M8 X 1.25 X 070mm, 05.50 EyeFits SN 017000 and later · Printed as 4021359 (Tennant’s new number) · Old # 386088	$24.20/EA

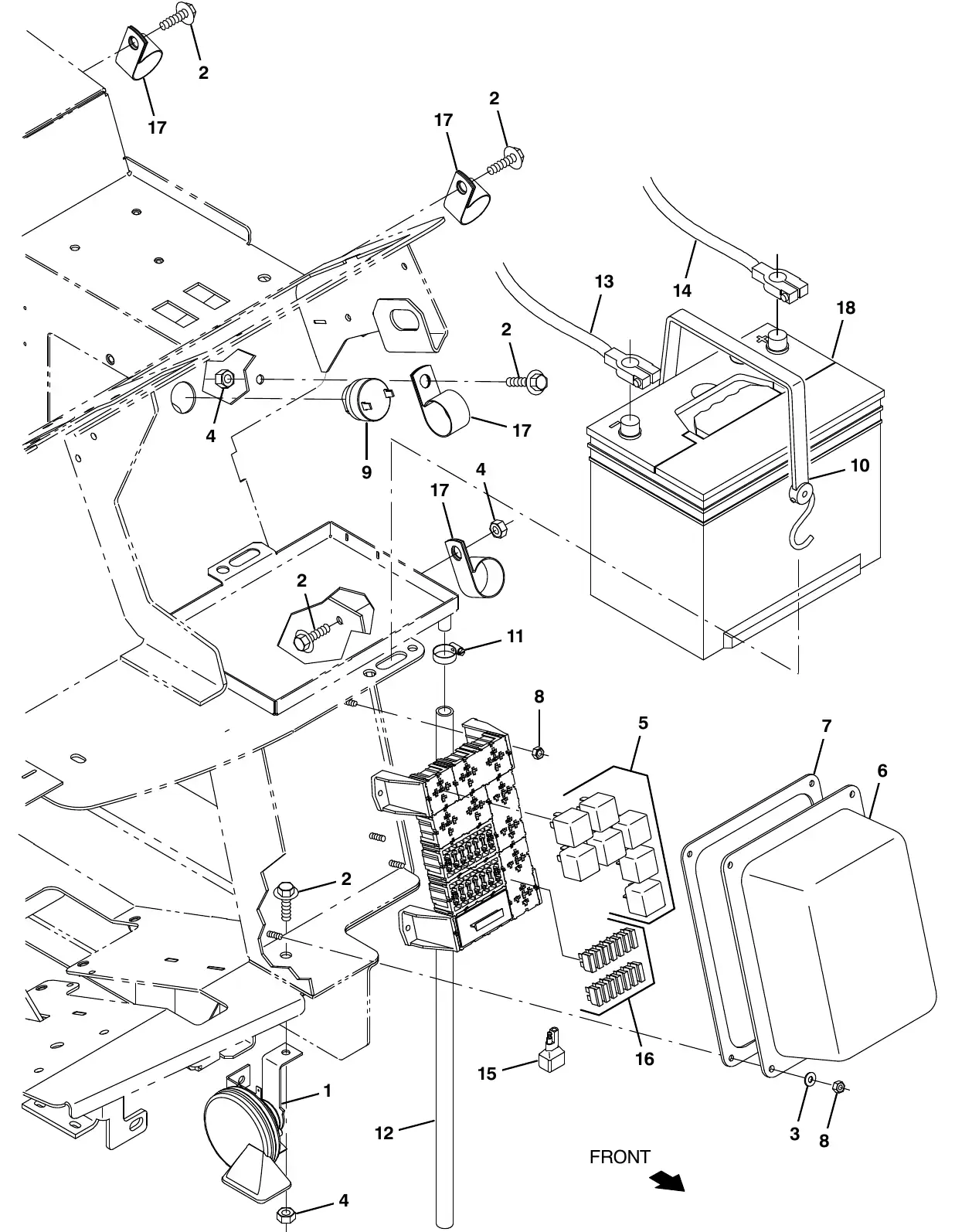

M20 battery and electrical group

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 battery and electrical group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4032292	1	Horn, 12vdc, Dba [Wolo]Old # 369704	$42.00/EA
2	TN4045637	5	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
3	TN4042244	4	Washer, Flat, #10Old # 19066	$2.50/EA
4	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
5	TN4029449	7	Relay, 12vdc, 40a, Spdt N/OOld # 57804	$16.30/EA
6	TN4033595	1	Cover, Fuse, BlockOld # 1024274	$112.70/EA
7	TN4034267	1	Gasket, Cover, Fuse BlockOld # 1026576	$11.90/EA
8	TN4041004	8	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
9	TN4036635	1	Alarm, Warning [Sonalert, St628]Old # 1021290	$55.10/EA
10	TN4031223	1	Strap, Rbr, Tie - Down, 2/Hooks 19.0lOld # 33671	$13.10/EA
11	TN4015366	1	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
12	TN4039094	1	Hose, Pvc, Clr, 0.50id 0.69od 30.00lOld # 20778	Call for price
13	TN4030568	1	Cable, Battery, 2ga, 62l, BlkOld # 1071481	$80.80/EA
14	TN4030569	1	Cable, Battery, 2ga, 60l, RedOld # 1071482	$78.90/EA
15	TN4040238	1	Diode, Ele, PlugOld # 222290	$13.00/EA
16	TN4011598	14	Fuse, 015aOld # 762514	$4.00/EA
17	TN4015029	4	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
18	TN4037557	1	Battery, 12vdc, 0475cca, Ah, WetOld # 10137	$218.28/EA

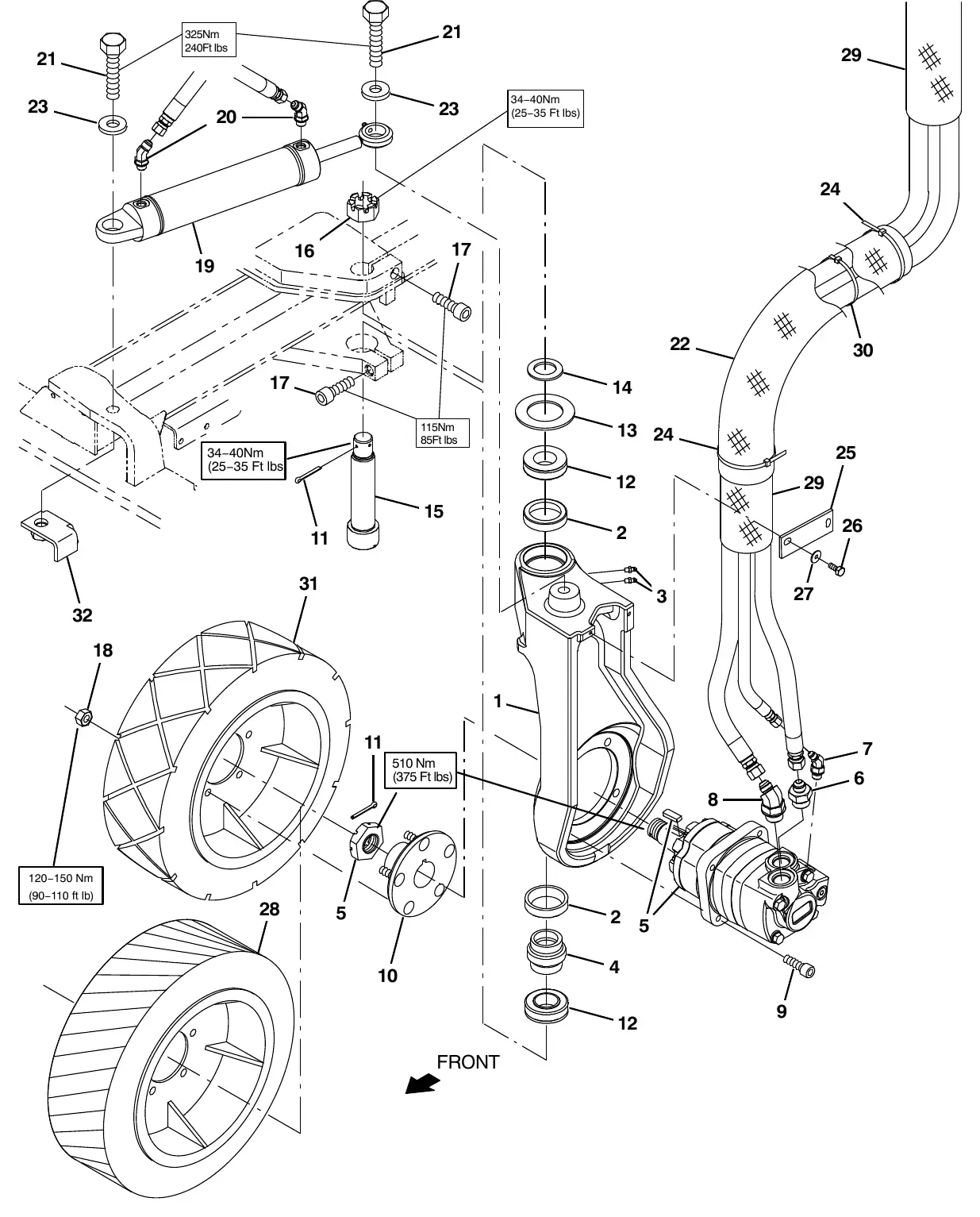

M20 wheel group, front drive

Standard partsSN 008000 and later

Tennant M20 wheel group, front drive parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4182964	1	Housing, Sppt, Front WheelOld # 1071061	Call for price
2	TN4014546	2	Bearing, Cup, 2.56d 0.55wOld # 51338	$11.70/EA
3	TN4013913	2	Fitting, Grease, Str Pm04 .63lOld # 47801	$6.00/EA
4	TN4028913	1	Seal, Drive, Rear, Grease CavOld # 374560	$28.60/EA
5	TN4026352	1	Motor, Hyd, Gear, Int 19.0 Bi - Dir 3000 (See Breakdowns)Old # 379609	Call for price
Item 6: choose your version (2)
6	TN4017334	1	Fitting, Hyd, Str, Jm10/Om12Fits SN 008000–012314 · Old # 42223	$12.60/EA
6	TN4017336	1	Fitting, Hyd, Str, Jm08/Om12Fits SN 012315 and later · Old # 42227	$15.50/EA
7	TN4019818	1	Fitting, Hyd, E45, Jm04/Om06Old # 393215	$43.70/EA
Item 8: choose your version (2)
8	TN4033591	1	Fitting, Hyd, E45, Jm10/Om12Fits SN 008000–012314 · Old # 1024249	$42.90/EA
8	TN4032402	1	Fitting, Hyd, E45, Jm08/Om12Fits SN 012315 and later · Old # 1258930	$31.30/EA
9	TN4042547	4	Screw, Soc, .50 - 13 X 1.50, AlOld # 19583	$5.80/EA
10	TN4015068	1	Hub Assy, Wheel, 5 Bolt 4.50bc Taper BOld # 54087	$202.20/EA
	TN4033528	5	Stud, Wheel, .50 - 20 X 1.50l, 0.370thOld # 32126	$4.20/EA
11	TN4041635	2	Pin, Cotter, .125 X 2.00Old # 08180	$2.50/EA
12	TN4014547	2	Bearing, Cone, 1.38b 0.71wOld # 51339	$46.30/EA
13	TN4028915	1	Washer, Flat, 2.16b 3.50d .16, FeltOld # 374563	$4.00/EA
14	TN4015062	1	Washer, Flat, 1.39b 2.12d .13, StlOld # 54051	$3.50/EA
15	TN4016329	1	Bolt, Shld, 1.37d X 5.13l,1.1 - 18 DrilledOld # 73281	$106.20/EA
16	TN4015063	1	Nut, Hex, Sltd, 1.12 - 18Old # 54052	$23.30/EA
17	TN4016287	2	Screw, Soc, M16 X 2.0 X 50, 12.9Old # 72926	$6.70/EA
18	TN4035377	5	Nut, Wheel, .50 - 20 X 60 AngleOld # 24339	$3.00/EA
19	TN4045221	1	Cylinder, Hyd, 2.0b,15.2l,09.00strk,3000Old # 1034270	$463.00/EA
20	TN4013877	2	Fitting, Hyd, E45, Jm06/Om06Old # 47522	$21.70/EA
21	TN4025656	1	Screw, Hex, .75 - 10 X 3.25, G5Old # 77345	$9.50/EA
22	TN4024610	1	Sleeve, Nyl, 2.38id 25.0lOld # 82832	$20.70/EA
23	TN4044540	2	Washer, Flat, .781b 1.63od .16, Stl, BlkOld # 1073487	$2.60/EA
24	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
25	TN4037146	1	Bar, Flat, Stl 0.19, 01.50 X 04.1lOld # 1052521	$5.30/EA
26	TN4041844	2	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
27	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
28	TN4034901	1	Tire, Drive, Scrbr, Pu, Grey, 18.0X6.0 (Optional Polyurethane)Old # 1061973	$1,442.80/EA
29	TN4029311	2	Sleeve, Nyl, #37 05.0lOld # 57315	$7.80/EA
30	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
31	TN4037134	1	Tire, Drive, Scrbr, Non - Skid, 18.0X6.0Old # 1059343	$1,386.50/EA
32	TN4034614	1	Bracket, Mtg, SpptOld # 1060521	$21.70/EA

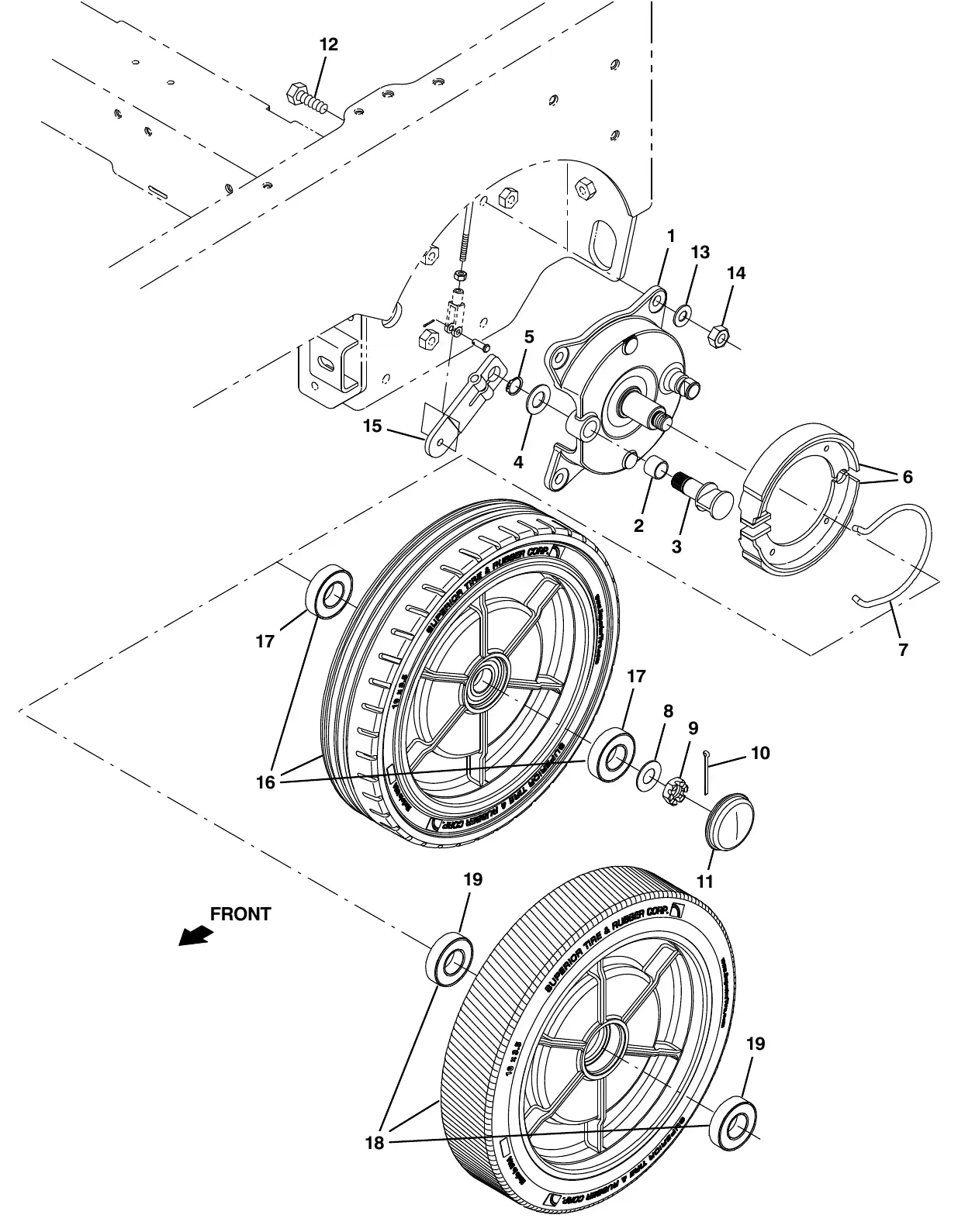

M20 wheel group, rear

Standard partsSN 008000 and later

Tennant M20 wheel group, rear parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
	TN4031682	2	Brake Assy, Drum, Mech, 07.0d 1.2wOld # 360023	$537.20/EA
1	TN8005524	1	Plate, Backing, BrakeOld # 360270	$283.10/EA
2	TN4031992	1	Bushing, Sleeve, 0.78b 0.86d 0.93l, BnzOld # 360271	$21.40/EA
3	TN8005525	1	Cam, Plt, Brake [Nickel]Old # 360272	$80.00/EA
4	TN4031993	1	Washer, Flat, M21.0b X 37d X 3Old # 360273	$5.30/EA
5	TN4031994	1	Retainer, Ring, BrakeOld # 360274	$3.50/EA
6	TN4031995	2	Shoe, Brake, 180 X 30mmOld # 360275	$84.00/EA
7	TN4031996	1	Spring, Wir, 0.25d, Return, BrakeOld # 360276	$22.30/EA
8	TN4014130	2	Washer, Flat, 0.76b 1.50d .06, SsOld # 49145	$5.20/EA
9	TN4021672	2	Nut, Hex, Sltd, .75 - 16Old # 86659	$8.20/EA
10	TN4041629	2	Pin, Cotter, .156 X 2.00Old # 08171	$3.40/EA
11	TN4015370	2	Cap, Hub, Dust 2.57d 0.77lOld # 54390	$13.50/EA
12	TN4041294	8	Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969	$4.00/EA
13	TN4034135	8	Washer, Flat, 0.50 SaeOld # 32486	$2.60/EA
14	TN4041927	8	Nut, Hex, Lock, M12 X 1.75,NlOld # 08711	$3.30/EA
15	TN4032592	2	Arm, Lever, Brake, 4.1 [Knott]Old # 360802	$82.50/EA
16	TN4045305	2	Tire Assy, Idler, 16.0 X 3.5, RubberOld # 1076240	$358.40/EA
17	TN4031697	2	Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074	$20.20/EA
18	TN4042875	2	Tire, Idle, 16 X 3.5, Pu, Siped Tread(Optional Polyurethane)Old # 1076680	$571.90/EA
19	TN4031697	2	Bearing, Ball, 1.18b 2.44d 0.63wOld # 360074	$20.20/EA

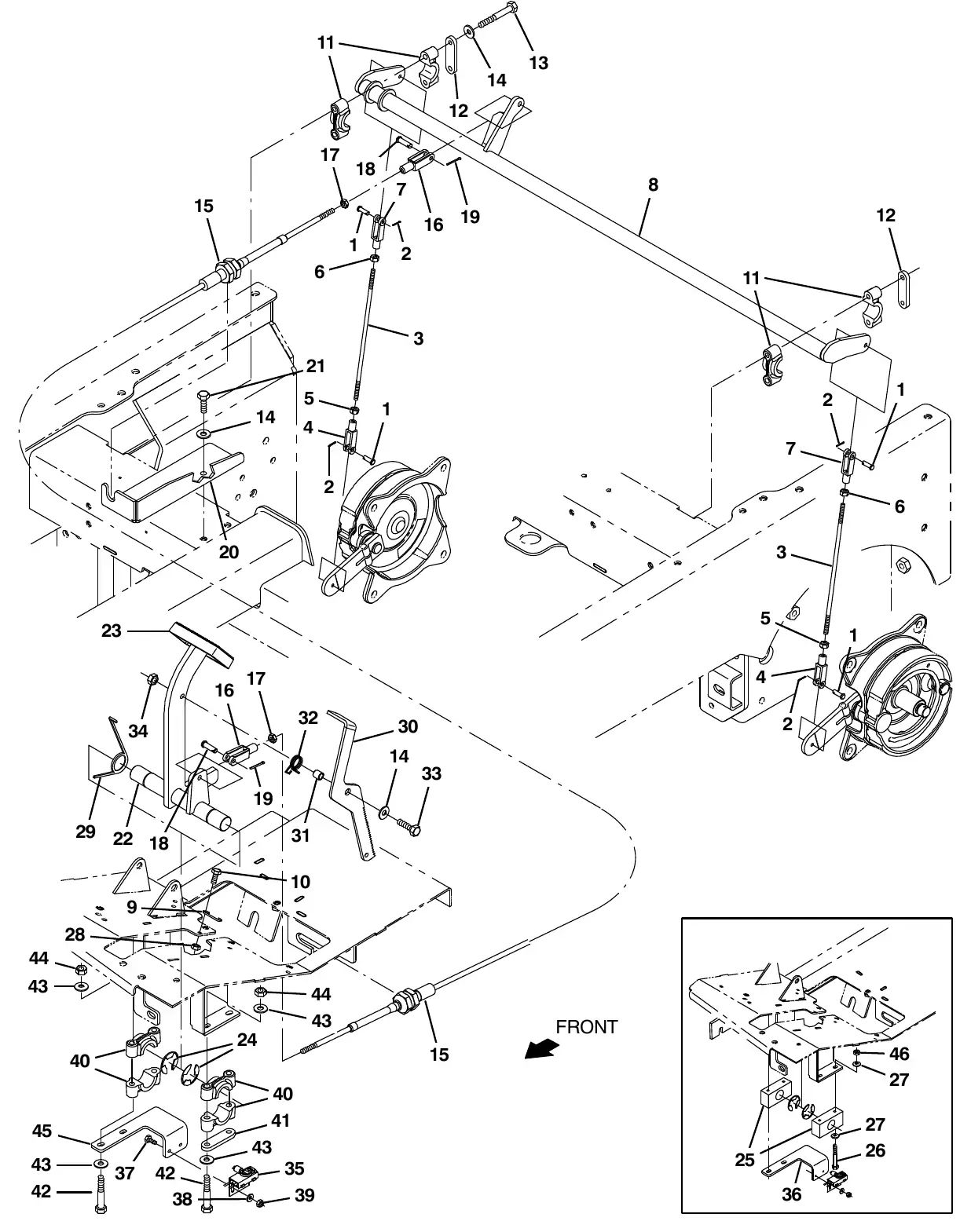

M20 brake pedal linkage group

Standard partsSN 008000 and later

Tennant M20 brake pedal linkage group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4044344	4	Pin, Clevis, 0.25d X 0.75lOld # 14605	$3.40/EA
2	TN4041628	4	Pin, Cotter, .062 X 0.50Old # 08170	$2.60/EA
3	TN4027767	2	RodOld # 364347	$33.10/EA
4	TN4044337	2	Clevis, Adj, 0.25 Pin, 0.25 - 28 Rh, PlOld # 14595-1	$9.90/EA
5	TN4028195	2	Nut, Hex, Std, .25 - 28, LhOld # 364948	$4.00/EA
6	TN4042941	2	Nut, Hex, Std, .25 - 28Old # 01714	$2.50/EA
7	TN4028178	2	Clevis, Adj, 0.25pin, 0.25 - 28left PlOld # 364864	$15.30/EA
8	TN4032890	1	Shaft Wldt, BrakeOld # 1022031	$119.58/EA
9	TN4015629	1	Spring, Wir, 0.08d, Brake, ParkingOld # 71367	$6.80/EA
10	TN4041270	2	Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942	$2.50/EA
11	TN4027058	4	Bearing, Split, 1.00bOld # 381502	$7.40/EA
12	TN4027324	2	Plate, SpptOld # 382224	$14.80/EA
13	TN4019754	4	Screw, Hex, M8 X 1.25 X 70, 8.8Old # 39279	$4.00/EA
14	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
15	TN4033919	1	Cable, Push / Pull, 063.0l 4.0, .31 - 24Old # 1025495	$306.60/EA
16	TN4029693	2	Clevis, Adj, 0.31pin, 0.31 - 24Old # 58311	$45.70/EA
17	TN4039080	2	Nut, Hex, Jam, .31 - 24Old # 20170	$2.50/EA
18	TN4018317	2	Pin, Clevis, 0.31d X 1.00lOld # 69582	$3.40/EA
19	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
20	TN4195882	1	Bracket, Mtg, CableOld # 1022736	$27.47/EA
21	TN4041844	2	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
22	TN4195848	1	Shaft Wldt, Pedal, BrakeOld # 1022243	$82.40/EA
23	TN4014535	1	Pad, Pedal, Brake, 3.96l 2.36w 0.75Old # 51109	$30.10/EA
24	TN4035052	2	Ring, Retaining, Ext, 0.98d, [E - Ring]Old # 23788	$2.40/EA
25	TN4022031	2	Bearing, Pillowblock, 1.02b [Solid Pye]Fits SN 008000–014000 · Old # 86751	$40.50/EA
26	TN4041003	4	Screw, Hex, M6 X 1.0 X 60, 8.8Fits SN 008000–014000 · Old # 06548	$3.43/EA
27	TN4034136	8	Washer, Flat, 0.25 StdFits SN 008000–014000 · Old # 32490	$2.50/EA
28	TN4041925	2	Nut, Hex, Lock, M6 X 1.0, NlOld # 08708	$2.50/EA
29	TN4028660	2	Spring, Tors, 1.13id .12wir 02.3coil RhOld # 54607	$17.10/EA
30	TN4033918	1	Pedal, Brake, LockOld # 1025487	$62.70/EA
31	TN4013461	1	Bushing, Sleeve, 0.37b 0.50d 0.50l, OibOld # 46563	$4.20/EA
32	TN4026776	1	Spring, Tors, 0.75id .06wir 02.8coilOld # 59009	$5.20/EA
33	TN4041280	1	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
34	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
35	TN4027224	1	Switch, Snap, 15a Nc, RlrOld # 59962	$124.90/EA
36	TN4034981	1	Bracket, Mtg, SwitchFits SN 008000–014000 · Old # 1228195	$16.30/EA
37	TN4035369	2	Screw, Hex, M5 X 0.80 X 16, SsOld # 24199	$3.00/EA
38	TN4042888	2	Washer, Flat, 10, SsOld # 01683	$2.60/EA
39	TN4041991	2	Nut, Hex, Lock, M5 X 0.80, Nl, SsOld # 09739	$3.30/EA
40	TN4027058	4	Bearing, Split, 1.00bFits SN 014001 and later · Old # 381502	$7.40/EA
41	TN4027324	1	Plate, SpptFits SN 014001 and later · Old # 382224	$14.80/EA
42	TN4019754	4	Screw, Hex, M8 X 1.25 X 70, 8.8Fits SN 014001 and later · Old # 39279	$4.00/EA
43	TN4034137	8	Washer, Flat, 0.31, StdFits SN 014001 and later · Old # 32491	$2.50/EA
44	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 014001 and later · Old # 08713	$3.30/EA
45	TN4213187	1	Bracket, Mtg, SwitchFits SN 014001 and later · Old # 1260032	Call for price
46	TN4041925	4	Nut, Hex, Lock, M6 X 1.00, NlFits SN 008000–014000 · Old # 08708	$2.50/EA

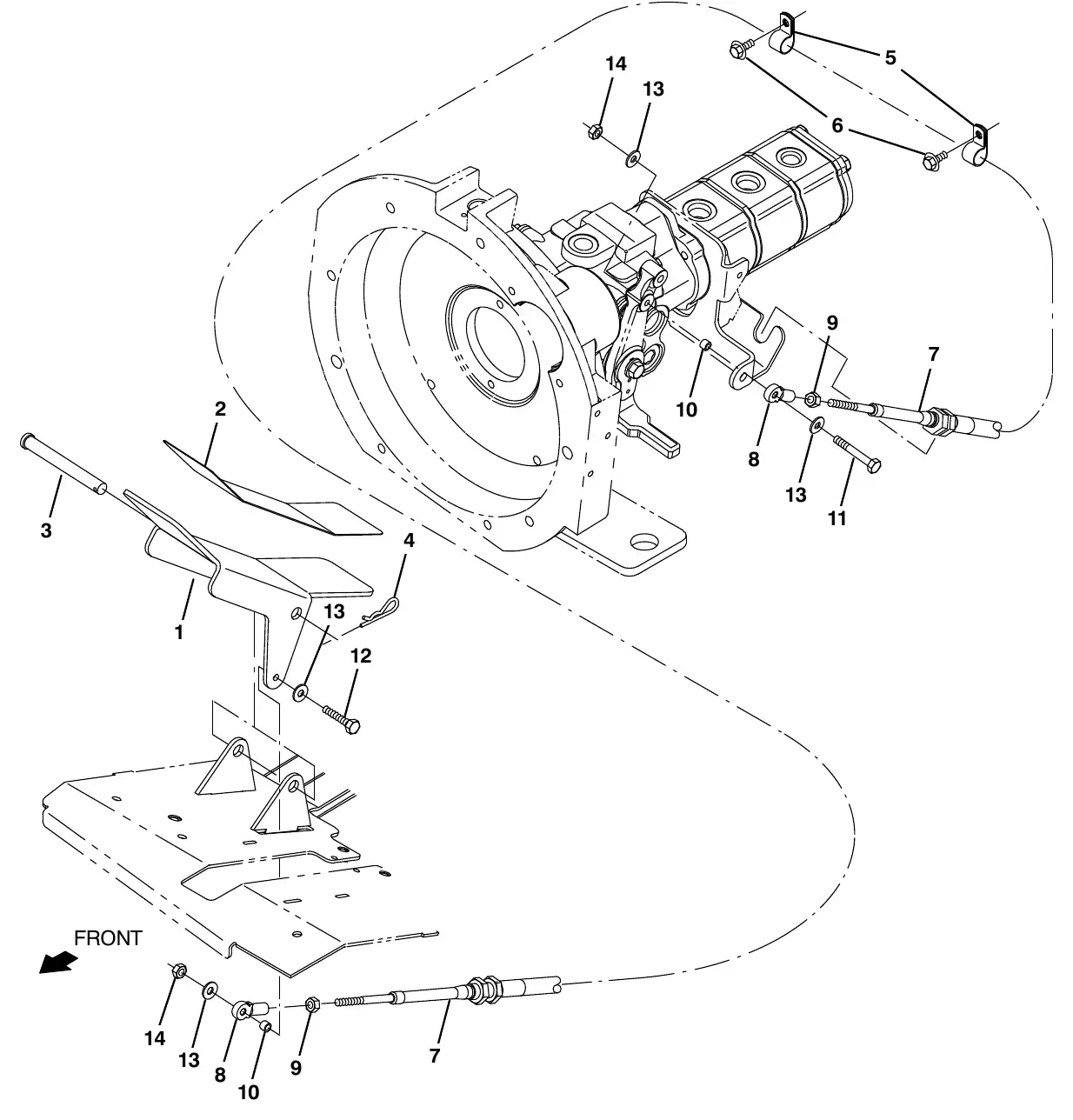

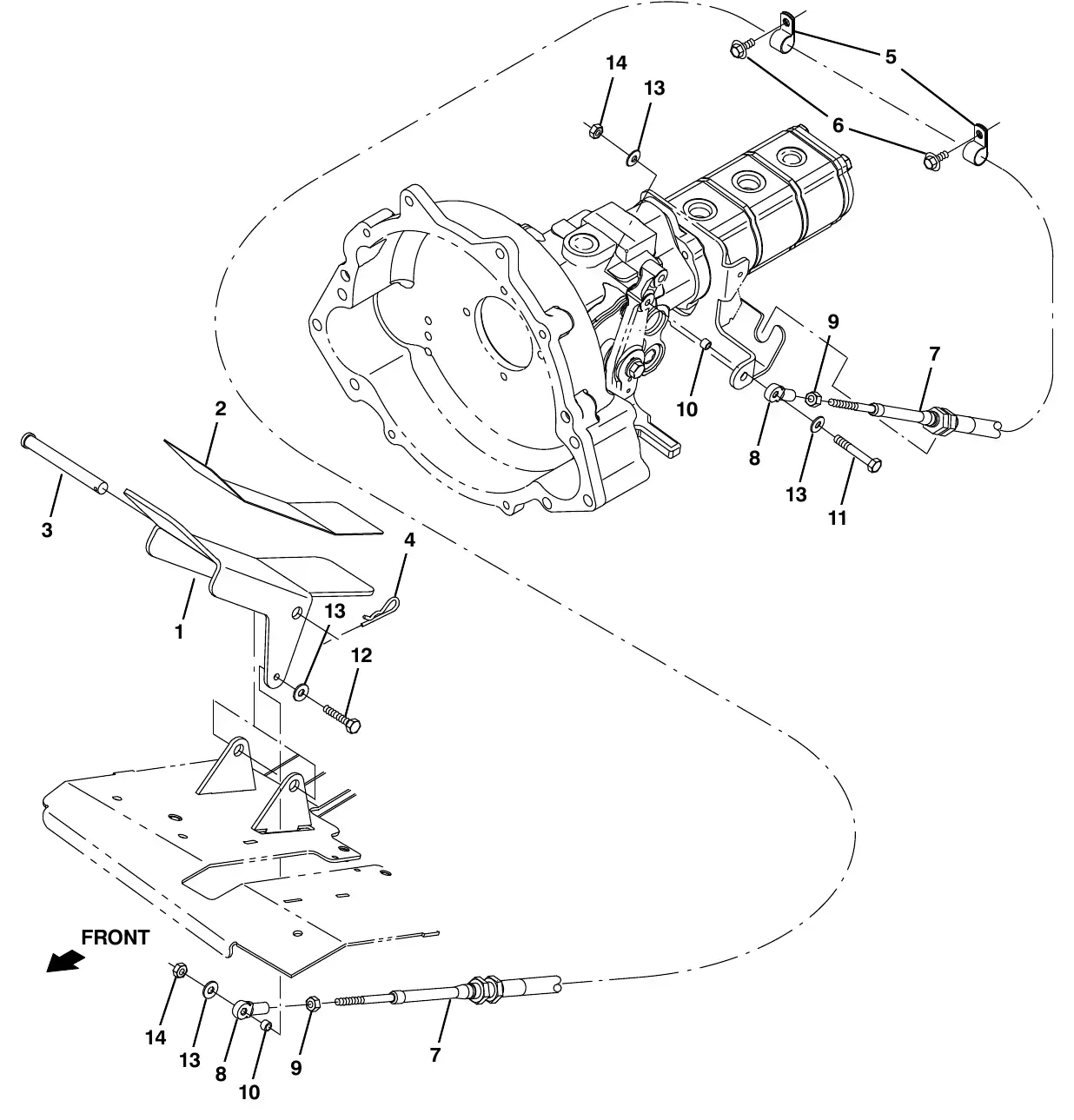

M20 directional pedal group

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 directional pedal group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4193625	1	Pedal, PropelOld # 1025140	$45.75/EA
2	TN4026685	1	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
3	TN4026850	1	Pin, Clevis, 0.50 D X 4.50lOld # 59668	$5.10/EA
4	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
5	TN4017933	2	Clamp, Cable, Stl, 0.69d X 0.62w, 1hOld # 67767	$4.20/EA
6	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
7	TN4045407	1	Cable, Push / Pull, 098.0l .25 - 28/.25 - 28Old # 1035482 · Replaces 1022345 (2022 list (rev. 08))	Call for price
8	TN4018302	2	Rod - End, .25 - 28rh Fem 0.25b [Teflon]Old # 68866	$44.50/EA
9	TN4042941	2	Nut, Hex, Std, .25 - 28Old # 01714	$2.50/EA
10	TN4017735	2	Tube, 00.38d 00.26b 00.3l Stl PltOld # 65441	$19.20/EA
11	TN4231432	1	Screw, Hex, .25 - 20 X 2.25, SsOld # 41399	$4.00/EA
12	TN4017319	1	Screw, Hex, .25 - 20 X 1.75, SsOld # 42180	$3.40/EA
13	TN4034136	4	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
14	TN4016793	2	Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169	$4.00/EA

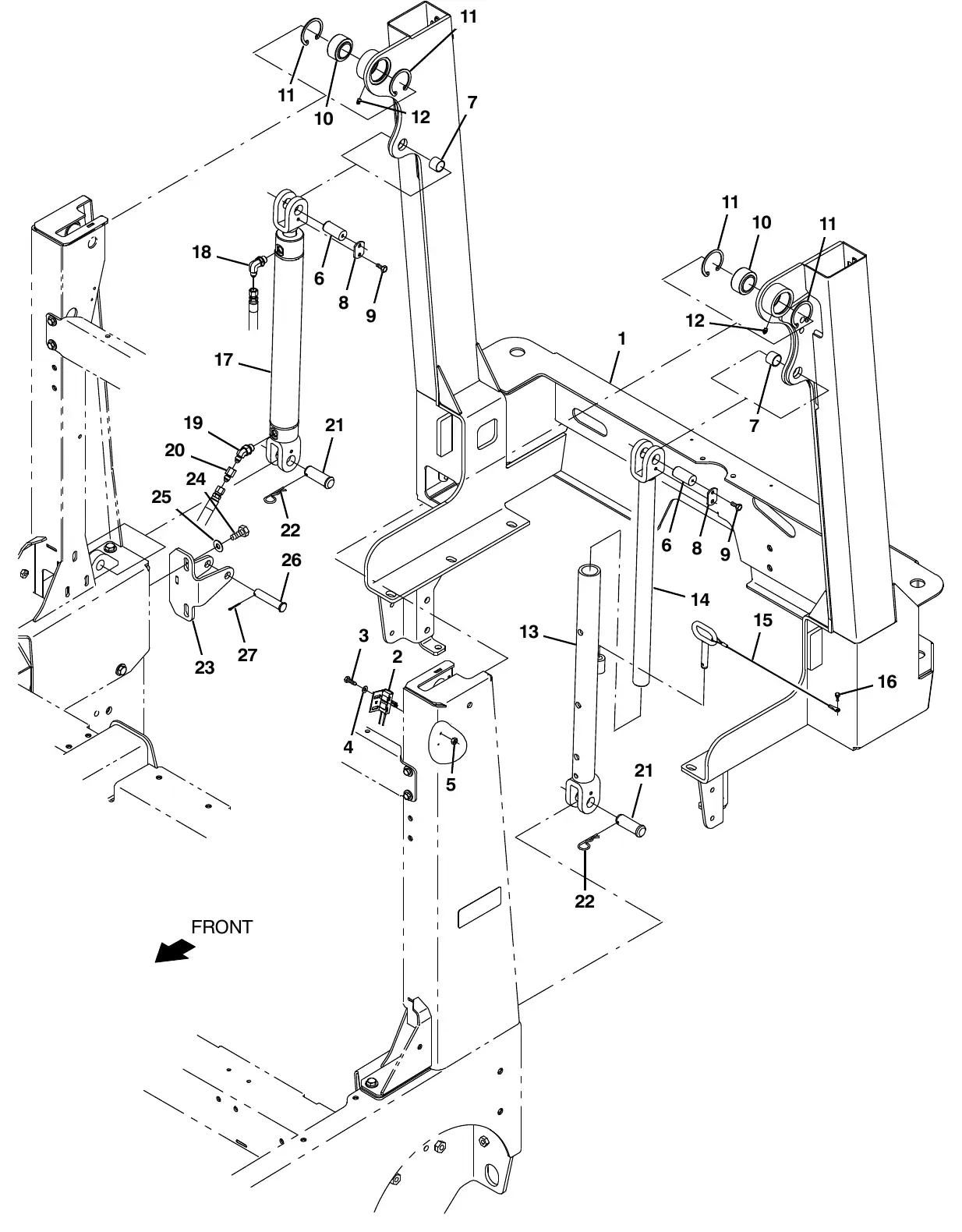

M20 hopper lift arms group

Standard partsSN 008000 and later

Tennant M20 hopper lift arms group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4030288	1	Frame Wldt, Lift, HpprOld # 1069933	$1,780.90/EA
2	TN4035032	1	Switch, Snap, 15a No, RlrOld # 23211	$136.10/EA
3	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
4	TN4042244	2	Washer, Flat, #10Old # 19066	$2.50/EA
5	TN4041603	2	Nut, Hex, Flng, M5 X 0.8Old # 07789	$5.80/EA
6	TN4035738	2	Pin, 0.87d 01.8l, 1/M6 X 1.0, 1cham,StlOld # 1018226	$20.00/EA
7	TN4028122	2	Bushing, Sleeve, 0.88b 1.00d 0.75l, BnzOld # 364587	$12.10/EA
8	TN4016283	2	Plate, Pin, Clevis, UpperOld # 72897	$16.40/EA
9	TN4044400	4	Screw, Hex, M6 X 1.0 X 20, 9.8, SemsOld # 1040467	$3.30/EA
10	TN4017311	2	Bearing, Self Align, 1.25b 2.00dOld # 42120-1	$52.20/EA
11	TN4026820	4	Ring, Retaining, Int, 2.00dOld # 59542	$4.00/EA
12	TN4041578	2	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
13	TN4035768	1	Tube Wldt, Arm, SafetyOld # 1018260	$295.90/EA
14	TN4035769	1	Rod Wldt, Arm, SafetyOld # 1018262	$251.20/EA
15	TN4035780	1	Pin, Arm, SafetyOld # 1018266	$40.10/EA
16	TN4041846	1	Screw, Hex, M4 X 0.7 X 10, FmgOld # 16944	$3.20/EA
17	TN4031370	1	Cylinder, Hyd, 2.0B 24.1L 15.00Strk 3000Old # 1029646	$560.00/EA
18	TN4013891	1	Fitting, Hyd, E90, Jm04/Om06Old # 47638	$18.30/EA
19	TN4019818	1	Fitting, Hyd, E45, Jm04/Om06Old # 393215	$43.70/EA
20	TN4034217	1	Fitting, Hyd, Rst, Jf04/Jm04, .028Old # 1025904	$55.20/EA
21	TN4035739	2	Pin, Clevis, 0.88d X 2.25lOld # 1018227	$29.90/EA
22	TN4043243	2	Pin, Cotter, Hair, 0.62d .120 WirOld # 02942	$3.40/EA
23	TN4035783	1	Plate Wldt, Arm, StopOld # 1018275	$39.20/EA
24	TN4041948	2	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
25	TN4042903	2	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
26	TN4035784	1	Pin, Clevis, 0.62d X 2.91lOld # 1018276	$24.90/EA
27	TN4041634	1	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA

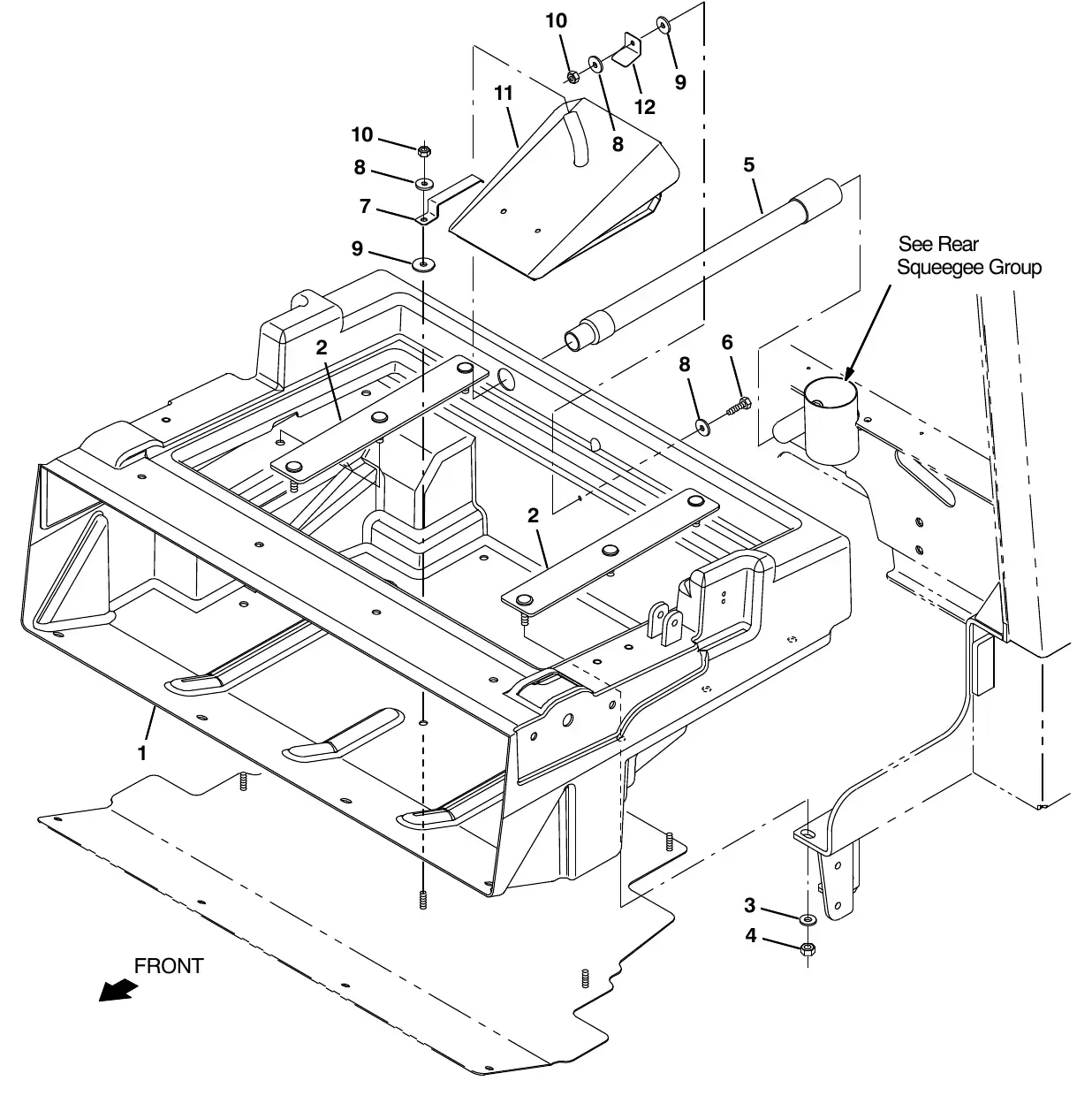

M20 hopper and debris screen group

Standard partsSN 008000 and later

Tennant M20 hopper and debris screen group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4035789	1	Hopper, Debris, Rm - Hg, TrimmedOld # 1018300	$716.90/EA
2	TN4035781	2	Bar, Mtg, HpprOld # 1018272	$28.50/EA
3	TN4011890	6	Washer, Flat, Belleville, M10Old # 763042	$3.40/EA
4	TN4041930	6	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
5	TN4035762	1	Hose Assy, W/1cuff, 1.0d 09l 1.0/Old # 1018239	$57.80/EA
6	TN4041943	1	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
7	TN4042127	1	Spring, Flat, Retainer, Angled ScreenOld # 1044323	$44.80/EA
8	TN4035242	3	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
9	TN4040233	2	Washer, Flat, 0.38b 1.25d .12, NeoOld # 222268	$4.00/EA
10	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
11	TN4044019	1	Screen Wldt, HpprOld # 1039163	$242.00/EA
12	TN4044026	1	Angle, RetainerOld # 1039215	$11.10/EA

M20 hopper cover and dust filter group

Standard partsSN 008000 and later

Tennant M20 hopper cover and dust filter group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4044648	2	Bracket, Cover, HpprOld # 1041984	$15.60/EA
2	TN4041245	4	Screw, Hex, M6 X 1.0 X 16, SsOld # 15678	$3.20/EA
3	TN4042901	4	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
4	TN4037480	2	Latch, YellowOld # 1222019	$40.40/EA
5	TN4041965	4	Screw, Pan, M5 X 0.8 X 12, SsOld # 09200	$3.40/EA
6	TN4041015	2	Screw, Pan, M3 X 0.5 X 20, 4.8Old # 06922	$3.40/EA
7	TN4042242	2	Washer, Flat, #06Old # 19064	$3.40/EA
8	TN4034651	2	Washer, Lock, Int, #06Old # 32975	$2.60/EA
9	TN4042963	2	Nut, Hex, Std, M3 X 0.5, 8Old # 01754	$2.50/EA
10	TN4044454	1	Cover, HpprOld # 1041006	$384.00/EA
11	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
12	TN4042902	4	Washer, Flat, 0.38b 0.88d .08, SsOld # 01685	$2.60/EA
13	TN4043553	1	Tray, Perma - FilterOld # 1037947	$127.10/EA
14	TN4041288	2	Screw, Hex, M10 X 1.50 X 60, 8.8Old # 06963	$4.00/EA
15	TN4019809	2	Nut, Hex, Std, M10 X 1.50Old # 39312	$3.40/EA
16	TN4045661	1	Strap, Mtg, Motor, .124.00WOld # 1037671	$43.90/EA
17	TN4028761	1	Strip, Rbr, 0.06 04.00w 05.0l Neo/60Old # 36658	$6.50/EA
18	TN4033948	1	Motor, Ele 12Vdc, ShakrOld # 1059542	$294.50/EA
19	TN4038145	1	Weight, EccentricOld # 1053320	$28.50/EA
20	TN4039093	2	Screw, Set, #10 - 24 X 0.25, NlOld # 20634	$3.40/EA
21	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
22	TN4035545	2	Bar, Mtg, Hppr CoverOld # 1018207	$14.80/EA
23	TN4041974	2	Screw, Hex, M10 X 1.5 X 20, SsOld # 09291	$5.80/EA
24	TN4037922	2	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
25	TN4045625	1	Shaker WldtOld # 1037235	$230.80/EA
26	Old # 36661	1	Strip, Rbr, 0.06 01.00W 04.0LOld # 36661Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
27	TN4039106	1	Switch, Temp, Sealed, NcOld # 1056298	$217.60/EA
28	TN4011910	1	Tie, Cable, Nyl, 15.3L . W 4.5 Max DOld # 763116	$3.40/EA

M20 hopper bumper group

Standard partsSN 008000 and later

Tennant M20 hopper bumper group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4031957	2	Grommet, Rbr, 1.50id, F/1.8h, .19 MatlOld # 10632-13	$6.00/EA
2	TN50646	1	Molding, Trim, Pvc,.18 - .31 07.5lOld # 50646 · no current Tennant number on file	Call for price
3	TN4034399	6	Wheel, 06.0d 2.00w 1.19b, Gray RbrOld # 1060130	$21.60/EA
4	TN4035546	2	Light, Tail, 12vdcOld # 1018208	$131.70/EA
5	TN4038392	2	Pin, 30mmd X 215mmlOld # 1053838	$74.40/EA
6	TN4035763	1	Bracket, Mtg, SwitchOld # 1018240	$16.65/EA
7	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
8	TN4034133	2	Washer, Flat, 0.25 SaeOld # 32483	$2.50/EA
9	TN4035025	2	Pin, Roll, .187d X 1.62l, .187/.192Old # 23146	$2.50/EA
10	TN4035148	2	Washer, Flat, 1.26B 1.88D .13, Stl, PlOld # 1062566	$2.60/EA
11	TN4035991	2	Screw, Pan, M4 X 0.7 X 20, SsOld # 12323	$3.30/EA
12	TN4043241	2	Washer, Lock, Int, #08, SsOld # 02938	$2.60/EA
13	TN4031623	2	Pin, Cotter, Hair, 1.00d .178 WirOld # 34411	$4.00/EA
14	TN4037765	1	Switch, Press, Adj [4 - 16 In Wtr]Old # 1052885	$72.10/EA
15	TN4033731	1	Fitting, Brs, E90, Pm02/Bm03Old # 32183	$9.90/EA
16	TN4032044	1	Hose, Afmkt, Vacuum, 0.16id, 03ftOld # 1031575	$16.60/EA
17	TN4042585	1	Pin, Roll, .125 D X 0.75l, .125/.129Old # 20021	$2.50/EA
18	TN4035787	2	Cap, Arm, LiftOld # 1018293	$15.60/EA
19	TN4041259	4	Screw, Pan, M4 X 0.7 X 20, 4.8Old # 06928	$2.50/EA
20	TN4035785	1	Plate Wldt, Mtg, SolenoidOld # 1018280	$47.60/EA
21	TN4035608	2	Screw, Hex, M12 X 1.75 X 30, SsOld # 12309	$6.00/EA
22	TN4034135	2	Washer, Flat, 0.50, SaeOld # 32486	$2.60/EA
23	TN4039424	1	LatchOld # 21623	$49.60/EA
24	TN4041272	4	Screw, Hex, M6 X 1.0 X 25, 8.8Old # 06944	$2.50/EA
25	TN4035782	1	Solenoid, Pull, 12vdc, DamperOld # 1018274	$167.10/EA

M20 hopper door group

Standard partsSN 008000 and later

Tennant M20 hopper door group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4043598	1	Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Old # 1038115	$223.30/EA
2	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4041878	2	Pin, Clevis, 0.37d X 1.75lOld # 17461	$4.00/EA
4	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
5	TN4037922	11	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
6	TN4035761	1	Plate, Bottom, HpprOld # 1018237	$220.70/EA
7	TN4040233	2	Washer, Flat, 0.38b 1.25d .12, NeoOld # 222268	$4.00/EA
8	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
9	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
10	TN4035760	1	Bracket, Lip, HpprOld # 1018236	$66.00/EA
11	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
12	TN4042902	4	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
13	TN4044017	1	Strap, Door, DumpOld # 1039155	$21.80/EA
14	TN4035765	1	Seal, Door, DumpOld # 1018245	$37.10/EA
15	TN4041931	9	Screw, Hex, M6 X 1.0 X 20, SsOld # 08716	$3.20/EA
16	TN4042901	14	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
17	TN4044016	1	Plate, Retainer, Door, DumpOld # 1039149	$61.40/EA
18	TN4044018	1	Seal, Door, DumpOld # 1039157	$132.90/EA
19	TN4026709	5	Bolt, Carriage, M06 X 1.0 X 30Old # 379791	$4.00/EA
20	TN4041928	9	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
21	TN4035767	1	Bracket, CoverOld # 1018253	$44.50/EA
22	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
23	TN4043611	1	Bracket Wldt, Pivot, Hppr Door, LhOld # 1038123	$90.80/EA
24	TN4043613	1	Bracket Wldt, Pivot, Hppr, RhOld # 1038134	$70.20/EA
25	TN4028819	2	Bushing, Flng, 1.00b 1.13d 0.50lOld # 367313	$15.30/EA
26	TN4041974	3	Screw, Hex, M10 X 1.5 X 20, SsOld # 09291	$5.80/EA
27	TN4041578	2	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
28	TN4044009	1	Door Wldt, HpprOld # 1039124	$358.40/EA
29	TN4042449	1	Bracket, Cover, HopperOld # 1044993	$60.20/EA
30	TN4041930	4	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA

M20 cylindrical scrub brush drive group, left side

Standard partsSN 008000 and later

Tennant M20 cylindrical scrub brush drive group, left side parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4036300	1	Housing Wldt, Brush, DriveOld # 1021019	$190.40/EA
2	TN4041243	4	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
3	TN4033536	1	Tube, Hyd, 08 Jf08/Jm08Old # 1023617	$72.10/EA
4	TN4030082	1	Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500Old # 1068811	$594.80/EA
5	TN4015800	1	Nut, Hex, Sltd, .75 - 18Old # 39527	$8.00/EA
6	TN4017776	2	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
7	TN4028729	1	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
8	TN4034229	1	Clamp, Hyd, 0.50dOld # 1026080	$8.70/EA
9	TN4038636	1	Bracket, SpptOld # 1054575	$39.20/EA
10	TN4031386	1	Door Wldt, BrushOld # 1029964	$74.90/EA
11	TN4042969	4	Screw, Hex, .38 - 16 X 0.75, NlOld # 01762	$3.20/EA
12	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
13	TN4036586	1	Plug Wldt, Drive, Brush, SweepOld # 1057643	$152.90/EA
	TN4018565	1	Latch Kit, Replmt [M20/T20/M30]Old # 9022313	Call for price
14	TN4032742	1	Latch, Cmpr, Yel GripOld # 1065134	$26.80/EA
15	TN4034247	1	Pawl, StrOld # 1026352	$6.00/EA
16	TN4041992	1	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
	TN4025173	2	Idler Door Kit, Replmt [M20/T20/M30/T12]Old # 9012832	$507.00/EA
17	TN4038684	1	Door Wldt, Brush, IdlerOld # 1054857	$205.40/EA
18	TN4035446	1	Plug Wldt, Drive, BrushOld # 25686	$179.60/EA
19	TN4043586	2	Bearing, Ball, 0.98b 2.05d 0.59wOld # 13534	$17.50/EA
20	TN4029109	1	Shaft, Brush, IdlerOld # 56078	$279.20/EA
21	TN4041941	2	Ring, Retaining, Ext, 1.00d, BasicOld # 09005	$2.50/EA
22	TN4035288	1	Nut, Hex, Sltd, M20 X 2.5, 8Old # 12295	$9.50/EA
23	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
24	TN4042784	1	Key, Sq, 0.25 X 0.25, 1.25lOld # 00927	$3.60/EA
25	TN4044946	1	Cap, Vinyl, 57mmid X 23mmlOld # 1074807	$3.70/EA
26	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
27	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
28	TN4038661	1	Bracket, Retainer, LhOld # 1054682	$18.60/EA

M20 cylindrical scrub brush drive group, right side

Standard partsSN 008000 and later

Tennant M20 cylindrical scrub brush drive group, right side parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4036300	1	Housing Wldt, Brush, DriveOld # 1021019	$190.40/EA
2	TN4041243	4	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
3	TN4034137	7	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
4	TN4030082	1	Motor, Hyd, Gear, Int 04.5 Bi - Dir 1500Old # 1068811	$594.80/EA
5	TN4015800	1	Nut, Hex, Sltd, .75 - 16Old # 39527	$8.00/EA
6	TN4017776	2	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
7	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
8	TN4034229	1	Clamp, Hyd, 0.50dOld # 1026080	$8.70/EA
9	TN4031386	1	Door Wldt, BrushOld # 1029964	$74.90/EA
10	TN4038642	1	Bracket, Retainer, RhOld # 1054610	$18.60/EA
11	TN4042969	4	Screw, Hex, .38 - 16 X 0.75, NlOld # 01762	$3.20/EA
12	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
13	TN4036586	1	Plug Wldt, Drive, Brush, SweepOld # 1057643	$152.90/EA
	TN4018565	1	Latch Kit, Replmt [M20/T20/M30]Old # 9022313	Call for price
14	TN4032742	1	Latch, Cmpr, Yel GripOld # 1065134	$26.80/EA
15	TN4034247	1	Pawl, StrOld # 1026352	$6.00/EA
16	TN4038636	1	Bracket, SpptOld # 1054575	$39.20/EA
	TN4025173	2	Idler Door Kit, Replmt [M20/T20/M30/T12]Old # 9012832	$507.00/EA
17	TN4038684	1	Door Wldt, Brush, IdlerOld # 1054857	$205.40/EA
18	TN4035446	1	Plug Wldt, Drive, BrushOld # 25686	$179.60/EA
19	TN4043586	2	Bearing, Ball, 0.98b 2.05d 0.59wOld # 13534	$17.50/EA
20	TN4041941	2	Ring, Retaining, Ext, 1.00d, BasicOld # 09005	$2.50/EA
21	TN4029109	1	Shaft, Brush, IdlerOld # 56078	$279.20/EA
22	TN4035288	1	Nut, Hex, Sltd, M20 X 2.5, 8Old # 12295	$9.50/EA
23	TN4041632	1	Pin, Cotter, .125 X 1.25Old # 08175	$2.50/EA
24	TN4042784	1	Key, Sq, 0.25 X 0.25, 1.25lOld # 00927	$3.60/EA
25	TN4044946	1	Cap, Vinyl, 57mmid X 23mmlOld # 1074807	$3.70/EA
26	TN4041992	1	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4038716	1	Tube, Hyd, Brush Return, W/ Cd [M20/T20]Old # 1055139	$158.30/EA
28	TN4019344	1	Fitting, Hyd, E90, Jf04/Jm04Old # 39210	$8.70/EA
29	TN4028729	1	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
30	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA

M20 cylindrical scrub brush head lift group

Standard partsSN 008000 and later

Tennant M20 cylindrical scrub brush head lift group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4031765	1	Bracket, Mtg, Scb Head, RhOld # 1030910	$36.50/EA
2	TN4031766	1	Bracket, Mtg, Scb Head, LhOld # 1030911	$26.60/EA
3	TN4041948	4	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
4	TN4034134	4	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
5	TN4041929	10	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
6	TN4017929	2	Rod - End, .50 - 20rh Fem 0.50bOld # 67555	$70.00/EA
7	TN4037934	2	Rod, Thrd, 2 End, .50 - 20 04.9l, Rh / LhOld # 1014705	$54.00/EA
8	TN4013991	2	Nut, Hex, Jam, .50 - 20Old # 48985	$3.40/EA
9	TN4015630	2	Nut, Hex, Jam, .50 - 20, LhOld # 71369	$4.00/EA
10	TN4027312	2	Rod - End, .50 - 20lh Fem 0.50 - 20studOld # 382099	$53.10/EA
11	TN4014600	2	Nut, Hex, Lock, .50 - 20, Nl, ThinOld # 51824	$3.30/EA
12	TN4036233	1	Tube Wldt, TorqueOld # 1020003	$219.70/EA
13	TN4017310	4	Bearing, Self Align, 0.75b 1.25dOld # 42120	$35.40/EA
14	TN4041578	4	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
15	TN4041294	2	Screw, Hex, M12 X 1.75 X 40, 8.8Old # 06969	$4.00/EA
16	TN4017232	2	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
17	TN4041993	2	Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741	$5.80/EA
18	TN4040938	2	Pin, Clevis, 0.75d X 2.00lOld # 04733-12	$7.60/EA
19	TN4041918	2	Pin, Cotter, .156 X 1.25Old # 08236	$3.40/EA
20	TN4037385	2	Screw, Hex, M5 X 0.8 X 10, FmgOld # 223198	$4.00/EA
21	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
22	TN4025261	2	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
23	TN4041878	2	Pin, Clevis, 0.37d X 1.75lOld # 17461	$4.00/EA
24	TN4022048	2	Pin, Cotter, Hair, 0.38d .072 WirOld # 86866	$2.50/EA
25	TN4044719	1	Spring, Extn, 2.00od 0.25wir 07.5lOld # 1042686	$23.40/EA
26	TN4030652	1	Bracket, Mtg, SpringOld # 1027810	$19.80/EA
27	TN4011904	1	Screw, Hex, M8 X 1.25 X 60, FlOld # 763090	Call for price
28	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
29	TN4035885	1	Bracket, Mtg, Lift, Scb HeadOld # 1019146	$31.00/EA
30	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
31	TN4016292	2	Screw, Hex, .50 - 13 X 1.50, 5Old # 39811	$4.00/EA
32	TN4028759	2	Nut, Hex, Lock, .50 - 13, Nl, ThinOld # 36644	$3.40/EA
33	TN4033870	3	Sleeve, P/M, 0.47b 0.75d 0.5l [430ss]Old # 1025100	$4.20/EA
34	TN4041051	1	Bracket Wldt, Brush Wrap, LhOld # 1052342	$443.90/EA
Item 35: choose your version (2)
35	TN4030120	1	Plate Wldt, Wrap, BrushFits SN 008000–014000 · Old # 1069562	$303.10/EA
35	TN4232148	1	Plate Wldt, Wrap, BrushFits SN 014001 and later · Old # 1077002	$306.50/EA
36	TN4040825	1	Bracket Wldt, Brush Wrap Mtg, RhOld # 1052124	$470.60/EA
37	TN4037712	10	Screw, Btn, M8 X 1.25 X 25, SsOld # 223470	$4.00/EA
38	TN4034137	20	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA

M20 cylindrical brush head skirt group

Standard partsSN 008000 and later

Tennant M20 cylindrical brush head skirt group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4032901	2	Skirt, Neo, .12, 05.39w 14.01l, 02 SlOld # 1022165	$57.10/EA
2	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
3	TN4034232	1	Skirt, Neo, .06, 26.99w 40.55l, 36 HoleOld # 1026108	$126.60/EA
4	TN4032923	1	Skirt, Neo, .06, 07.63w 51.52l, 11 HoleFits SN 008000–014000 · Old # 1022363	$50.20/EA
5	TN4032872	2	Retainer, SkirtOld # 1022003	$10.20/EA
6	TN4029864	7	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
7	TN4042901	6	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
8	TN4036282	1	Strip, Flap, RecirculationOld # 1020828	$29.10/EA
9	TN4041608	6	Screw, Hex, M6 X 1.0 X 35, SsOld # 07805	$3.30/EA
10	TN4041928	6	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
11	TN4044044	1	Bracket, Mtg, SkirtOld # 1039396	$102.90/EA
12	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
13	TN4042902	22	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
14	TN4032906	1	Bracket Wldt, Flap, RecirculationOld # 1022179	$204.40/EA
15	TN4041943	13	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
16	TN4034137	4	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
17	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
18	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
19	TN4036282	1	Strip, Flap, RecirculationOld # 1020828	$29.10/EA
20	TN4030999	1	Strap, Static, AfmktOld # 1028852	Call for price
21	TN4016787	7	Washer, Lock, Int - Ext, 0.31Old # 41141	$3.50/EA
22	TN4044265	1	Plate, Skirt, FrontOld # 1040018	$56.20/EA
23	TN4031209	1	Screw, Hex, M8 X 1.25 X 50, Ss, FlOld # 33401	$4.00/EA
24	TN4041929	1	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
25	TN4032872	2	Retainer, SkirtFits SN 008000–014000 · Old # 1022003	$10.20/EA
26	TN4029864	6	Screw, Hex, M6 X 1.0 X 16, FmgFits SN 008000–014000 · Old # 361339	$4.00/EA
27	TN4042901	6	Washer, Flat, 0.25, SsFits SN 008000–014000 · Old # 01684	$2.60/EA

M20 squeegee lift group, rear

Standard partsSN 008000 and later

Tennant M20 squeegee lift group, rear parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4034223	4	Link Assy, Rod - End, M12Old # 1026007	$131.30/EA
2	TN4017232	8	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
3	TN4041993	9	Nut, Hex, Lock, M12 X 1.75, Nl, SsOld # 09741	$5.80/EA
4	TN4013466	2	Spring, Extn, 0.88od X 0.14wir, 9.0lOld # 46785-1	$49.00/EA
5	TN4022266	2	Bolt, Eye, M10 X 1.50 X 064mm, 07.10 EyeOld # 386847	$11.60/EA
6	TN4042903	2	Washer, Flat, 0.44b 1.00d .08, SsOld # 01686	$3.30/EA
7	TN4041930	2	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
8	TN4032925	1	Angle, RhOld # 1022372	$22.80/EA
9	TN4032936	1	Angle, LhOld # 1022442	$20.50/EA
10	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
11	TN4042902	15	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
12	TN4041929	9	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
13	TN4015603	2	Spring, Flt, 0.08th, 4.50w X 07.0lOld # 71204	$28.80/EA
14	TN4033833	4	Block, CenteringOld # 1024648	$21.20/EA
15	TN4029273	4	Screw, Pan, M6 X 1.0 X 16, SsOld # 367770	$2.50/EA
16	TN4041928	4	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
17	TN4033831	4	Spacer, Pad, RbrOld # 1024641	$3.90/EA
18	TN4033838	2	Retainer, SpringOld # 1024703	$10.40/EA
19	TN4041945	4	Screw, Hex, M8 X 1.25 X 35, Ss, FlOld # 09023	$3.30/EA
20	TN4016797	4	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
21	TN4035960	4	Screw, Hex, M10 X 1.5 X 30, SsOld # 12317	$4.90/EA
22	TN4034203	1	Bellcrank, Lift, SqgeOld # 1025680	$116.80/EA
23	TN4028819	2	Bushing, Flng, 1.00b 1.13d 0.50lOld # 367313	$15.30/EA
24	TN4036077	2	Pin, Clevis, 0.37d X 2.00lOld # 29584	$3.90/EA
25	TN4035045	1	Ring, Retaining, Ext, 0.38d, [Selflock]Old # 23524-1	$2.40/EA
26	TN4041634	2	Pin, Cotter, .094 X 1.00Old # 08179	$2.50/EA
27	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
28	TN4041282	1	Screw, Hex, M8 X 1.25 X 60, 8.8Old # 06957	$3.40/EA
29	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
30	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
31	TN4033552	1	Chain, Str, 4/0, 08 LinkOld # 1023779	$5.50/EA
32	TN4032821	1	Plate Wldt, Lift, SqgeOld # 1021609	$180.10/EA

M20 squeegee group, rear

Standard partsSN 008000 and later

Tennant M20 squeegee group, rear parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4017376	1	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
	TN4013708	1	Squeegee Kit, Rear, Replmt [M20/T20]Old # 9004493	$1,254.10/EA
2	TN4033218	1	Squeegee Wldt, RearOld # 1022831	$631.30/EA
3	TN4033239	1	Clamp Wldt, FrontOld # 1023239	$102.00/EA
4	TN4043266	4	Strip, Non - Slip, 0.50w 06.0lOld # 03495	$3.40/EA
5	TN4039420	4	Pin, Grvd, 0.43d 01.8l [303ss]Old # 21603	$16.60/EA
6	TN4035383	4	Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555	$2.40/EA
7	TN4021717	1	Pin Wldt, FrontOld # 386298	$40.30/EA
8	TN4037481	1	Cam, Front, YellowOld # 1222020	$13.70/EA
9	TN4030695	1	Clamp Wldt, RearOld # 1028374	$121.90/EA
10	TN4039421	1	Bar Wldt, Retainer, Sqge, RearOld # 21606	$51.20/EA
11	TN4042045	1	Cam, Rear, YellowOld # 1208906	$7.60/EA
12	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
13	TN4021691	2	Bumper, SqgeOld # 386264	$25.40/EA
14	TN4030447	2	Wheel, 4.0d 0.89w 0.64bOld # 363162	$35.40/EA
15	TN4030457	2	Sleeve, P/M, 0.34b 0.63d 1.2l, BnzOld # 363301	$9.30/EA
16	TN4023495	2	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
17	TN4027793	2	Screw, Hex, M8 X 1.25 X 110, SsOld # 364441	$4.90/EA
18	TN4042902	8	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
19	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
20	TN4036824	2	Knob, Star, 2.75d 4ear, M8x1.25 FemOld # 1218322	$18.00/EA
21	TN4040927	2	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
22	TN4018105	2	Ring, Mtg, Sqge, .50lOld # 387433	$20.90/EA
23	TN4018131	2	Spring, Cmpr, 0.9od .042wir 02.0lOld # 387500	$3.50/EA
24	TN4038447	2	Stud, M8 X 1.25, 2.75l M8 X 1.25, SsOld # 1226700	$6.40/EA
Item 25: choose your version (2)
25	TN4032803	1	Hose, Vacuum, 3.00id X 019.0l, 1cuffFits SN 008000–010516 · Old # 1021511	$69.00/EACall for availability
25	TN4033033	1	Hose, Vacuum, 3.00id X 019.0l, 1cuffFits SN 010517 and later · Old # 1234534	$59.40/EA
Item 26: choose your version (2)
26	TN4035508	1	Blade, Sqge, Front, 49.58l [Linard]Old # 1017868	$90.00/EA
26	TN4030648	1	Blade, Sqge, Front, 49.58l Ure (Option)Old # 1027719	$274.30/EA
Item 27: choose your version (2)
27	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
27	TN4032198	1	Blade, Sqge, Rear, 53.78l Ure (Option)Old # 1031945	$305.50/EA
28	TN4045499	1	Tube, VacuumOld # 1036240	$32.10/EA
29	TN4045637	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
30	TN4032050	1	Hose Assy, SqgeOld # 1031610	$217.50/EA
31	TN4032859	1	Gasket, 3.23id 3.63od .16th, UreOld # 1021920	$4.30/EA

M20 squeegee linkage group, rear

Standard partsSN 008000 and later

Tennant M20 squeegee linkage group, rear parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4042902	8	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
2	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
3	TN4023499	2	Sleeve, P/M, 0.34b 0.63d 0.6l, BnzOld # 80409	$5.10/EA
4	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
5	TN4040607	2	Screw, Hex, M8 X 1.25 X 45, SsOld # 222505	$4.00/EA
6	TN4033268	1	Bracket Wldt, Mtg, SqgeOld # 1023476	$253.70/EA
7	TN4017703	1	Spring, Dsl, 1.00od 0.50id 1.7lOld # 65180	$25.80/EA
8	TN4034194	1	Bolt, Carriage, M10 X 1.5 X 70Old # 1025601	$3.40/EA
9	TN4041930	1	Nut, Hex, Lock, M10 X 1.5, Nl, SsOld # 08714	$3.30/EA
10	TN4045201	1	Crossmember Wldt [M20]Old # 1034149	$422.40/EA
	TN4020926	2	Caster Assy, F/ Sqge, Replmt[M20/T20]Old # 9017944	$432.80/EA
11	TN4036644	1	Bracket Wldt, Mtg, CasterOld # 1021404	$36.87/EA
12	TN4026503	1	Caster Kit, Rear Squeegee, AmOld # 9014285	$77.10/EA
13	TN4033916	1	Caster, PivotOld # 1025460	$106.20/EA
14	TN4023753	2	Bushing, Flng, 0.32b 0.50d 0.24l, BnzOld # 80950	$6.00/EA
15	TN4041578	1	Fitting, Grease, Str Pm04 .47lOld # 07259	$3.60/EA
16	TN4031208	1	Ring, Retaining, Ext, 0.62d, HdOld # 33373	$3.40/EA
17	TN4017061	1	Washer, Flat, 0.69b 1.19d .06, Stl, PlOld # 63468	$4.10/EA
18	TN4017115	1	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
19	TN4041585	2	Bushing, Sleeve, 0.62b 0.72d 0.50l, FglOld # 07449	$9.60/EA
20	TN4035383	2	Ring, Retaining, Ext, 0.38d, [E - Ring]Old # 24555	$2.40/EA
21	TN4037922	1	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
22	TN4019755	2	Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281	$4.00/EA
23	TN4037485	2	Knob Assy, Star, 1.12d 3ear M10, YellowOld # 1222043	$36.00/EA
24	TN4032802	2	Pin, 0.63d 01.8l, 1/M10h, 2chamOld # 1021497	$13.00/EA
25	TN4045431	2	Stop, RotationOld # 1035727	$4.00/EA
26	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA

M20 squeegee group, right side

Standard partsSN 008000 and later

Tennant M20 squeegee group, right side parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4031037	1	Frame Wldt, Sqge, RhOld # 1029132	$159.70/EA
2	TN4031035	1	Retainer, Sqge, Side, RhOld # 1029128	$48.80/EA
3	TN4037479	1	Latch, Door, YellowOld # 1222018	$18.30/EA
4	TN4014173	2	Screw, Pan, M4 X 0.7 X 10, SsOld # 49697	$3.40/EA
5	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
Item 6: choose your version (2)
6	TN4031774	1	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
6	TN4032169	1	Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823	$183.50/EA
7	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
8	TN4017115	2	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
9	TN4033219	2	Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846	$20.00/EA
10	TN4041954	2	Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081	$5.80/EA
11	TN4033625	1	Bracket, Mtg, Skirt, Brush DoorOld # 1024584	$65.20/EA
12	TN4033834	1	Bracket, Mtg, Skirt, DoorOld # 1024651	$69.30/EA
13	TN4033626	1	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
14	TN4035908	1	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
15	TN4033882	1	Bracket, Mtg, Skirt, Door, BrushOld # 1025151	$53.20/EA
16	TN4040584	6	Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463	$3.30/EA
17	TN4019813	4	Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135	$3.30/EA
18	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
19	TN4041605	2	Nut, Hex, Flng, M8 X 1.25Old # 07791	$2.50/EA

M20 squeegee lift group, right side

Standard partsSN 008000 and later

Tennant M20 squeegee lift group, right side parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
2	TN4025260	1	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4030954	1	Fitting, Hyd, Rst, SpclOld # 1028635	$77.30/EA
4	TN4033217	1	Bracket, Mtg, CylOld # 1022825	$24.30/EA
5	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsOld # 08716	$3.20/EA
6	TN4042902	3	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
7	TN4044039	1	Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348	$11.80/EA
8	TN4036275	2	Arm, Sqge, Side, RhOld # 1020548	$62.70/EA
9	TN4041878	1	Pin, Clevis, 0.37D X 1.75LOld # 17461	$4.00/EA
10	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
11	TN4022528	2	Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816	$5.20/EA
12	TN4021359	2	Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA
13	TN4041600	4	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
14	TN4033244	1	Arm Wldt, Sqge, Lift, RhOld # 1023306	Call for price
15	TN4015663	3	Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607	$12.50/EA
16	TN4023925	1	Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784	$25.30/EA
17	TN4032591	3	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
18	TN4019804	1	Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308	$3.40/EA
19	TN4016830	1	Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445	$5.10/EA
20	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
22	TN4017115	5	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
23	TN4016797	3	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
24	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
25	TN4035869	1	Door Wldt, Brush, RhOld # 1019031	$356.60/EA
26	TN4041948	3	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
27	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
28	TN4037483	1	Latch, Hook, YellowOld # 1222036	$35.00/EA
29	TN4041942	2	Screw, Hex, M6 X 1.0 X 25, SsOld # 09007	$3.30/EA
30	TN4016795	5	Washer, Flat, Belleville, .25Old # 41185	$3.40/EA
31	TN4026728	1	Screw, Hex, M12 X 1.75 X 55, SsOld # 379870	$7.60/EA
32	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
33	TN4017232	1	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
34	TN4033623	1	Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576	$76.50/EA

M20 squeegee group, left side

Standard partsSN 008000 and later

Tennant M20 squeegee group, left side parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4031019	1	Frame Wldt, Sqge, LhOld # 1028972	$181.40/EA
2	TN4031021	1	Retainer, Sqge, Side, LhOld # 1028979	$48.80/EA
3	TN4037479	1	Latch, Door, YellowOld # 1222018	$18.30/EA
4	TN4014173	2	Screw, Pan, M4 X 0.7 X 10, SsOld # 49697	$3.40/EA
5	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
Item 6: choose your version (2)
6	TN4031774	1	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
6	TN4032169	1	Blade, Sqge, .38 3.55w 038.3l, Ure (Option)Old # 1031823	$183.50/EA
7	TN4035645	2	Bushing, Flng, 0.63b 0.75d 0.38lOld # 25735	$10.60/EA
8	TN4017115	2	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
9	TN4033219	2	Nut, T, M10 X 1.50 X 15.8od X 13.0lOld # 1022846	$20.00/EA
10	TN4041954	2	Screw, Flt, M10 X 1.5 X 25, 10.9Old # 09081	$5.80/EA
11	TN4033625	1	Bracket, Mtg, Skirt, Brush DoorOld # 1024584	$65.20/EA
12	TN4033834	1	Bracket, Mtg, Skirt, DoorOld # 1024651	$69.30/EA
13	TN4033626	1	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
14	TN4035908	1	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
15	TN4033882	1	Bracket, Mtg, Skirt, Door, BrushOld # 1025151	$53.20/EA
16	TN4040584	6	Screw, Flt, M8 X 1.25 X 20, BlkOld # 222463	$3.30/EA
17	TN4019813	4	Screw, Btn, M8 X 1.25 X 20, BlkOld # 393135	$3.30/EA
18	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
19	TN4041605	2	Nut, Hex, Flng, M8 X 1.25Old # 07791	$2.50/EA

M20 squeegee lift group, left side

Standard partsSN 008000 and later

Tennant M20 squeegee lift group, left side parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4043614	1	Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Old # 1038137	$388.60/EA
2	TN4025260	1	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
3	TN4030954	1	Fitting, Hyd, Rst, SpclOld # 1028635	$77.30/EA
4	TN4033217	1	Bracket, Mtg, CylOld # 1022825	$24.30/EA
5	TN4041931	1	Screw, Hex, M6 X 1.00 X 20, SsOld # 08716	$3.20/EA
6	TN4042902	3	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
7	TN4044039	1	Sleeve, 0.49b 0.68d 1.2l [304ss]Old # 1039348	$11.80/EA
8	TN4033227	1	Arm Wldt, Lift, Sqge, LhOld # 1022978	$68.40/EA
9	TN4041878	1	Pin, Clevis, 0.37D X 1.75LOld # 17461	$4.00/EA
10	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
11	TN4017115	5	Washer, Thrust, 0.61b 1.25d .06, FglOld # 64425	$5.40/EA
12	TN4016797	3	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
13	TN4022528	2	Spring, Extn, 0.75od X 0.09wir, 2.5lOld # 87816	$5.20/EA
14	TN4021359	2	Bolt, Eye, M08 X 1.25 X 070mm, 05.50 EyeOld # 386088	$24.20/EA
15	TN4041600	4	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
16	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
17	TN4033245	2	Arm, Sqge, Side, LhOld # 1023307	$62.70/EA
18	TN4015663	3	Bushing, Sleeve, 0.63b 0.72d 0.38lOld # 71607	$12.50/EA
19	TN4023925	1	Cable, Glv .13d 015.8l .50eye /.50eyeOld # 81784	$25.30/EA
20	TN4032591	3	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
21	TN4019804	1	Screw, Soc, M8 X 1.25 X 25, 12.9Old # 39308	$3.40/EA
22	TN4016830	1	Screw, Soc, M8 X 1.25 X 35, 12.9Old # 41445	$5.10/EA
23	TN4015595	2	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
24	TN4041926	2	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
25	TN4041948	3	Screw, Hex, M10 X 1.5 X 25, SsOld # 09028	$4.00/EA
26	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
27	TN4033246	1	Door Wldt, Brush, LhOld # 1023314	$356.30/EA
28	TN4037484	1	Latch, Hook, YellowOld # 1222038	$35.60/EA
29	TN4041942	2	Screw, Hex, M6 X 1.0 X 25, SsOld # 09007	$3.30/EA
30	TN4016795	5	Washer, Flat, Belleville, .25Old # 41185	$3.40/EA
31	TN4026728	1	Screw, Hex, M12 X 1.75 X 55, SsOld # 379870	$7.60/EA
32	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
33	TN4017232	1	Washer, Flat, 0.56b 1.38d .11, SsOld # 41619	$4.10/EA
34	TN4033623	1	Hinge, .50pin .19 4.0w 06.0l 3/0.44slOld # 1024576	$76.50/EA

M20 solution tank group

Standard partsSN 008000 and later

Tennant M20 solution tank group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4030635	1	Tank, Soltn, W/ Label [M20]Old # 1027381	$1,196.60/EA
2	TN4018894	1	Plug, Hole, Soltn Tank, Blk PyuOld # 390994	$19.00/EA
3	TN4195360	2	Angle, Sppt, Tank, RearOld # 1020209	$14.45/EA
4	TN4041992	12	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
5	TN4035242	12	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
6	TN4044300	1	Bracket Wldt, Tank, Soltn, RhOld # 1040306	$56.66/EA
7	TN4033628	1	Bracket, Tank, Soltn, LhOld # 1024591	Call for price
8	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
9	TN4015595	4	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
10	TN4196365	2	Bracket, Soltn, Tank, CntrOld # 1024389	$28.79/EA
11	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
	TN4016484	1	Cover Kit, Soltn Tank, Rh [M20 & T20]Old # 9003069	$419.40/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
12	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
13	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
14	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
15	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
16	TN4031145	1	LatchOld # 367949	$35.40/EA
17	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
18	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
19	TN4032903	1	Cover, Tank, Soltn, Rh, TrimmedOld # 1022176	$230.40/EA
20	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
21	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
22	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4205387	1	Cover Kit, Tank, Soltn, Rh, Replmt, Ce (Japan and Europe Only)Old # 9003071	$414.81/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
12	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
13	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
14	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
15	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
16	TN4031145	1	LatchOld # 367949	$35.40/EA
17	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
18	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
19	TN1031233	1	Cover, Tank, Soltn, Rh, Trimmed, Ce (Japan and Europe Only)Old # 1031233 · current Tennant number (Tennant parts catalog)	Call for price
20	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
21	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
22	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4016483	1	Cover Kit, Tank, Soltn, Lh, ReplmtOld # 9003068	$416.30/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
23	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
24	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
25	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
26	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
27	TN4031145	1	LatchOld # 367949	$35.40/EA
28	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
29	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
30	TN4032907	1	Cover, Tank, Soltn, Lh, TrimmedOld # 1022182	$334.10/EA
31	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
32	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
33	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
	TN4205386	1	Cover Kit, Tank, Soltn, Lh, Replmt, Ce (Japan and Europe Only)Old # 9003070	$270.40/EA
	TN4014110	1	Latch Kit, Cover, Soltn, Replmt[M20/T20]Old # 9005165	$120.00/EA
23	TN4044235	1	Plate, Mtg, LatchOld # 1039757	$13.50/EA
24	TN4027333	4	Screw, Pan, Phl, 12 - 16 X 0.50, F/ PlstcOld # 382320	$2.50/EA
25	TN4039724	1	Catch, Latch, Tank CoverOld # 1048474	$10.20/EA
26	TN4040232	2	Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267	$2.50/EA
27	TN4031145	1	LatchOld # 367949	$35.40/EA
28	TN4039732	1	Bracket, Mtg, Latch, Tank CoverOld # 1048512	$18.60/EA
29	TN4041936	2	Rivet, Blind, .125d X 0.54 X .25d, AlmOld # 08875	$3.40/EA
30	TN1031235	1	Cover, Tank, Soltn, Lh, Trimmed, Ce (Japan and Europe Only)Old # 1031235 · current Tennant number (Tennant parts catalog)	Call for price
31	TN4043062	1	Bar, Rnd, Plstc, 0.31d 12.5lOld # 1047098	$6.70/EA
32	TN4043688	1	Seal, Bulb, Str, .50Hi .50W 047.2L, AdhOld # 1038805	$10.40/EA
33	TN1068277	1	Plug, Hole, Rnd, 0.38 H 1.0l, Brb, NylOld # 1068277 · current Tennant number (Tennant parts catalog)	Call for price
34	TN4025663	1	Fitting, Plstc, Pf12/Pf12, BhOld # 377349	$22.50/EA
35	TN4018369	1	Fitting, Plstc, E90, Pf12/Pm12Old # 69785	$11.80/EA
36	TN4021025	1	Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685	$78.50/EA
37	TN4035236	2	Plate, Label, Soltn Tank (ec - H20 only)Old # 1017101	$11.60/EA
38	TN4029542	4	Screw, Pan, 12 - 16 X 0.50, F/ Plstc (ec - H20 Only)Old # 360973	$4.00/EA
Item 39: choose your version (2)
39	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lFits SN 008000–014000 · Old # 1027290	$20.30/EA
39	TN4036552	1	Filter, Soltn, 080Mesh, Pm12 3.2D 08.0LFits SN 014001 and later · Old # 1057465	$106.70/EA

M20 solution tank drain group

Standard partsSN 008000 and later

Tennant M20 solution tank drain group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4017007	1	Tube Kit, Tank, Soltn, ReplmtOld # 9003793	$82.40/EA
2	TN4035042	1	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
3	TN4044649	1	Mount Wldt, Valve, Pinch, RhOld # 1042003	$57.10/EA
4	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
5	TN4040610	1	Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516	$3.40/EA
6	TN4034137	5	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
7	TN4041929	3	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
8	TN4033829	1	Bushing, Eccentric, AdjOld # 1024599	$46.80/EA
9	TN4034227	1	Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051	$2.60/EA
10	TN4012759	1	Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090	$12.10/EA
11	TN4026590	1	Screw, Flt, M8 X 1.25 X 30, SsOld # 79506	$4.00/EA
12	TN4030970	1	Washer, Thrust, 0.34b 1.50d .06Old # 1028701	$37.40/EA
13	TN4041242	1	Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648	$16.20/EA
14	TN4030958	1	Roller, BrgOld # 1028691	$16.90/EA
15	TN4030957	1	Tube, 0.50d 0.32b 00.4l, SsOld # 1028690	$9.40/EA
16	TN4035242	1	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4033619	1	Arm, PinchOld # 1024535	$52.30/EA
18	TN4041280	2	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
19	TN4023495	1	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
20	TN4028034	1	Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570	$3.20/EA
21	TN4016796	1	Washer, Flat, Belleville, .31Old # 41186	$3.50/EA
22	TN4034278	1	Handle, Valve, Pinch, RhOld # 1026727	$33.50/EA
23	TN4033276	1	Grip, HandleOld # 1023502	$4.10/EA
24	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
25	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
26	TN4032899	1	Plug, Hose, PyuOld # 1022137	$22.40/EA
27	TN4033917	1	Bracket, Retaining, HoseOld # 1025480	$16.40/EA
28	TN4041243	1	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
29	TN4044645	2	Tube, 2.90id 3.00od 02.4l, SsOld # 1041953	$43.70/EA
30	TN4017376	2	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
31	TN4033620	1	Strap, Retaining, HoseOld # 1024558	$21.00/EA
32	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
33	TN4035914	1	Hose, Drain, 3.00id X 48.0lOld # 1019424	$128.00/EA
34	TN4042902	2	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA

M20 solution control group (S/N 008000 - 014000)

Standard partsSN 008000 and later

Tennant M20 solution control group (S/N 008000 - 014000) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4042882	1	Valve Assy, Water, Solenoid, 12vdcFits SN 008000–014000 · Old # 1076692	$142.90/EA
2	TN4027714	1	Fitting, Plstc, Str, Bm10/Bm12Fits SN 008000–014000 · Old # 363543	$4.50/EA
3	TN4045588	1	Manifold, Bar, Spray, 37.5inchFits SN 008000–014000 · Old # 1036997	$130.40/EA
4	TN4026538	1	Fitting, Plstc, Str, Bm12/Pm12Fits SN 008000–014000 · Old # 79273-2	$7.90/EA
5	TN4043995	1	Fitting, Plstc, Cap, Pf12 HexFits SN 008000–014000 · Old # 1039064	$4.20/EA
6	TN4028471	1	Fitting, Plstc, Str, Bm10/Pm12Fits SN 008000–014000 · Old # 365095	$4.20/EA
7	TN4028483	1	Fitting, Plstc, Str, Bm10/Bm10Fits SN 008000–014000 · Old # 365164	$4.20/EA
8	TN4037982	1	Hose, Afmkt, Pvc, Brd, 0.62id, 01ft, ClrFits SN 008000–014000 · Old # 1015033	$60.00/EA
9	TN4017089	2	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810	$6.80/EA
10	TN4014222	6	Clamp, Cable, Ss, 1.12d X 0.38w, 1hFits SN 008000–014000 · Old # 50544	$8.40/EA
11	TN4041965	4	Screw, Pan, M5 X 0.8 X 12, SsFits SN 008000–014000 · Old # 09200	$3.40/EA
12	TN4041991	6	Nut, Hex, Lock, M5 X 0.8, Nl, SsFits SN 008000–014000 · Old # 09739	$3.30/EA
13	TN4017089	8	Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 008000–014000 · Old # 63810	$6.80/EA
14	TN4037981	1	Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 008000–014000 · Old # 1015032	$80.40/EA
15	TN4042901	2	Washer, Flat, 0.25, SsFits SN 008000–014000 · Old # 01684	$2.60/EA
16	TN4041928	2	Nut, Hex, Lock, M6 X 1.0, Ss, NlFits SN 008000–014000 · Old # 08712	$2.50/EA
17	TN4041931	2	Screw, Hex, M6 X 1.0 X 20, SsFits SN 008000–014000 · Old # 08716	$3.20/EA
18	TN4045142	1	Harness, Ele, Adaptor [2f, Dt To Faston]Fits SN 008000–010490 · Old # 1075394	$11.80/EA
19	TN4042888	4	Washer, Flat, 10, SsFits SN 008000–014000 · Old # 01683	$2.60/EA
20	TN4035367	2	Screw, Pan, Phl, M5 X 0.80 X 20, SsFits SN 008000–014000 · Old # 24196	$3.20/EA

M20 solution control group (S/N 014001 - )

Standard partsSN 008000 and later

Tennant M20 solution control group (S/N 014001 - ) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4031487	1	Valve, Check, 1.0psi, Bm08/Bm08Fits SN 014001 and later · Old # 1251530	$39.20/EA
2	TN4036844	1	Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrFits SN 014001 and later · Old # 1011412	$70.70/EA
3	TN4015366	10	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 014001 and later · Old # 54333	$5.10/EA
4	TN4021151	1	Fitting, Plstc, Tee, Bm08/Bm08/Bm08Fits SN 014001 and later · Old # 63245-1	$6.20/EA
5	TN4040279	1	Fitting, Plstc, E90, Bm06/Bm08Fits SN 014001 and later · Old # 222376	$3.20/EA
6	TN4037966	1	Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrFits SN 014001 and later · Old # 1014971	$18.70/EA
7	TN4017396	1	Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 014001 and later · Old # 43844	$4.20/EA
8	TN4213653	1	Valve, Vent, Bm06/Bm06Fits SN 014001 and later · Old # 1253873	$42.70/EA
9	TN4026539	1	Fitting, Plstc, Str, Bm08/Pm08Fits SN 014001 and later · Old # 79273-4	$6.20/EA
10	TN4042942	1	Spray Manifold Assy [M20/T20]Fits SN 014001 and later · Old # 1076854	$104.50/EA
11	TN4024607	4	Clamp, Cable, Stl, 0.63d X 0.75w, 1holeFits SN 014001 and later · Old # 82829	$2.60/EA
12	TN4041931	4	Screw, Hex, M6 X 1.00 X 20, SsFits SN 014001 and later · Old # 08716	$3.20/EA
13	TN4041925	4	Nut, Hex, Lock, M6 X 1.00, NlFits SN 014001 and later · Old # 08708	$2.50/EA
14	TN4042901	8	Washer, Flat, 0.27b 0.69d .05, SsFits SN 014001 and later · Old # 01684	$2.60/EA
15	TN4021350	4	Washer, Flat, 0.25b 1.12d .12, SsFits SN 014001 and later · Old # 386063	$5.80/EA
16	TN4037981	1	Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrFits SN 014001 and later · Old # 1015032	$80.40/EA
17	TN4028471	1	Fitting, Plstc, Str, Bm10/Pm12Fits SN 014001 and later · Old # 365095	$4.20/EA
18	TN4031503	1	Fitting, Plstc, E90, Bm10/Pf08Fits SN 014001 and later · Old # 1251921	$16.50/EA
19	TN4031872	1	Pump, Soltn, Ele, 12v, 3.6 GpmFits SN 014001 and later · Old # 1253561	$340.10/EA
20	TN4035811	1	Fitting, Plstc, E90, Bm08/Pf08s, SwivelFits SN 014001 and later · Old # 1018499	$4.20/EA
21	TN4034971	4	Screw, Hex, M5 X 0.80 X 30, SsFits SN 014001 and later · Old # 1228033	$1.20/EA

M20 recovery tank group

Standard partsSN 008000 and later

Tennant M20 recovery tank group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4036646	1	Tank, Recvy, TrimmedOld # 1021419	$1,407.00/EA
2	TN4033606	1	Plate, Tank, BottomOld # 1024403	$32.30/EA
3	TN4041992	17	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
4	TN4035242	15	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
5	TN4036258	1	Bracket, Sppt, Tank, LhOld # 1020335	$45.85/EA
6	TN4195376	1	Bracket, Sppt, Tank, RhOld # 1020331	$48.78/EA
7	TN4043997	2	Bracket, Sppt, Cover, Tank, RecvyOld # 1039072	$37.30/EA
8	TN4045637	4	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
9	TN4036308	1	Plate, Sppt, TankOld # 1021090	$25.50/EA
10	TN4032902	1	Cover, Tank, Recvy, TrimmedOld # 1022167	$632.00/EA
11	TN4032855	1	Gasket, Cover, Recvy TankOld # 1021879	$115.60/EA
12	TN4041928	2	Nut, Hex, Lock, M6 X 1.00, Ss, NlOld # 08712	$2.50/EA
13	TN4027617	2	Washer, Sealing, 0.28b 0.75d Ss, NeoOld # 76426	$3.50/EA
14	TN4034197	1	Plate, Mtg, Prop RodOld # 1025620	$19.50/EA
15	TN4034195	1	Bracket, Mtg, Prop RodOld # 1025619	$18.60/EA
16	TN4042955	4	Screw, Hex, .25 - 14 X 0.75, Fmg/Ab, SsOld # 1046798	$2.50/EA
17	TN4028662	1	Arm Wldt, Safety, Sppt, Seat, .38d 10.1lOld # 54615	$63.50/EA
18	TN4041931	1	Screw, Hex, M6 X 1.0 X 20, SsOld # 08716	$3.20/EA
19	TN4042901	1	Washer, Flat, 0.25, SsOld # 01684	$2.60/EA
20	TN4041928	1	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
21	TN4037482	1	Screen, Vacuum, YellowOld # 1222035	$21.60/EA
22	TN4035378	1	Cap Assy, Tank, DrainOld # 24358	$40.40/EA
23	TN4032112	1	Gasket, 4.05id 5.29od .19 [Buna]Old # 1031699	$9.00/EA
24	Old # 86636	1	Cover, TankOld # 86636Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
25	TN4021025	1	Sensor, Level, Liq, 14vdc 01a .62 - 11Old # 385685	$78.50/EA
26	TN4043993	2	Bracket, Mtg, Cover, Recvy TankOld # 1039049	$15.60/EA
27	TN4041828	6	Screw, Hex, M8 X 1.25 X 16, 8.8Old # 16735	$3.40/EA
28	TN4034137	6	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
29	TN4190934	1	Bracket, Sppt, Tank, RhOld # 1038941	$26.60/EA
30	TN4190932	1	Bracket, Sppt, Tank, LhOld # 1038927	$26.60/EA
31	TN4043530	1	Bracket, Protector, Float SwitchOld # 1037816	$43.60/EA
32	TN4041942	2	Screw, Hex, M6 X 1.00 X 25, SsOld # 09007	$3.30/EA
33	TN4038068	1	Cable, Camera, 236.2l [Hvs] (PRO PANEL ONLY)Old # 1224979	$97.07/EA
34	TN4038379	1	Bracket, Mtg, Camera [M20/M30] (PRO PANEL ONLY)Old # 1225989	$68.22/EA
35	TN4036872	1	Camera, Color, Fixed (PRO PANEL ONLY)Old # 1218851	$303.60/EA
36	TN4027333	2	Screw, Pan, Phl, 12 - 16 X 0.50, F/ Plstc (PRO PANEL ONLY)Old # 382320	$2.50/EA
37	TN4030489	1	Clip, Tie, 0.25d, Plstc (PRO PANEL ONLY)Old # 1071085	$1.60/EA
38	TN4011908	1	Tie, Cable, 11.3l, 2.75d Max (PRO PANEL ONLY)Old # 763114	$3.30/EA

M20 recovery tank drain group

Standard partsSN 008000 and later

Tennant M20 recovery tank drain group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4017008	1	Tube Kit, Tank, Recvy, ReplmtOld # 9003794	$82.40/EA
2	TN4035042	1	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
3	TN4044651	1	Mount Wldt, Valve, Pinch, LhOld # 1042010	$83.10/EA
4	TN4156940	1	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
5	TN4040610	1	Sleeve, P/M, 0.31b 0.50d 0.3l [430ss]Old # 222516	$3.40/EA
6	TN4034137	5	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
7	TN4041929	3	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
8	TN4033829	1	Bushing, Eccentric, AdjOld # 1024599	$46.80/EA
9	TN4034227	1	Washer, Flat, 0.79b 1.18d .06, NylOld # 1026051	$2.60/EA
10	TN4012759	1	Bushing, Sleeve, 0.75b 0.88d 0.25lOld # 74090	$12.10/EA
11	TN4026590	1	Screw, Flt, M8 X 1.25 X 30, SsOld # 79506	$4.00/EA
12	TN4030970	1	Washer, Thrust, 0.34b 1.50d .06Old # 1028701	$37.40/EA
13	TN4041242	1	Bushing, Flng, 0.50b 0.59d 0.38lOld # 15648	$16.20/EA
14	TN4030958	1	Roller, BrgOld # 1028691	$16.90/EA
15	TN4030957	1	Tube, 0.50d 0.32b 00.4l, SsOld # 1028690	$9.40/EA
16	TN4035242	1	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4033619	1	Arm, PinchOld # 1024535	$52.30/EA
18	TN4041280	2	Screw, Hex, M8 X 1.25 X 35, 8.8Old # 06955	$3.40/EA
19	TN4023495	1	Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Old # 80395	$5.10/EA
20	TN4028034	1	Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570	$3.20/EA
21	TN4016796	1	Washer, Flat, Belleville, .31Old # 41186	$3.50/EA
22	TN4030609	1	Handle, Valve, Pinch, LhOld # 1027039	$35.70/EA
23	TN4033276	1	Grip, HandleOld # 1023502	$4.10/EA
24	TN4035242	2	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
25	TN4041992	5	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
26	TN4032899	2	Plug, Hose, PyuOld # 1022137	$22.40/EA
27	TN4033917	1	Bracket, Retaining, HoseOld # 1025480	$16.40/EA
28	TN4041243	1	Screw, Hex, M8 X 1.25 X 16, SsOld # 15675	$3.40/EA
29	TN4044645	1	Tube, 2.90id 3.00od 02.4l, SsOld # 1041953	$43.70/EA
30	TN4017376	2	Clamp, Hose, Wormdrive, 2.50 - 3.50d, .50wOld # 43555	$6.20/EA
31	TN4033620	1	Strap, Retaining, HoseOld # 1024558	$21.00/EA
32	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
33	TN4035914	1	Hose, Drain, 3.00id X 48.0lOld # 1019424	$128.00/EA
34	TN4042902	2	Washer, Flat, 0.31, SsOld # 01685	$2.60/EA
35	TN4031802	1	Tube, Acrylic, Hose, PinchOld # 1031309	$37.20/EA
	TN4016700	1	Plug Kit, Drain, Recvy, Ci [M20 & T20]Old # 9003313	$616.10/EA
36	TN4032924	1	Plug, Drain, Expandable, 4.75 - 6.00Old # 1022370	$93.60/EA
37	TN4030692	1	Tube Wldt, Plug, DrainOld # 1028328	$153.20/EA
38	TN4030679	1	Pin, Lift, DrainOld # 1028173	$35.90/EA
39	TN4031301	1	Tube Assy, Plug, DrainOld # 1072885	$113.30/EA
40	TN4030933	1	Washer, Flat, .78b 1.75d .18, SsOld # 1028522	$7.70/EA
41	TN4030684	1	Handle Wldt, DrainOld # 1028211	$62.00/EA
42	TN4026774	1	Screw, Hex, M6 X 1.0 X 55, SsOld # 58979	$4.00/EA
43	TN4041928	1	Nut, Hex, Lock, M6 X 1.0, Ss, NlOld # 08712	$2.50/EA
44	TN4032591	2	Sleeve, 0.31b 0.50d 0.3l, SsOld # 360801	$4.00/EA
45	TN4045374	1	Seal, Shaft, Drain PlugOld # 1035044	$2.80/EA
46	TN4044228	1	Seal, Plug, Drain, NitrileOld # 1039652	$19.20/EA

M20 vacuum fan group, scrubbing

Standard partsSN 008000 and later

Tennant M20 vacuum fan group, scrubbing parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
	TN4193415	1	Fan Kit, Scb, Replmt [M20/T20/M30]Old # 9016241	$1,594.40/EA
1	TN4030069	1	Plate Wldt, Mtg, FanOld # 1068611	$197.90/EA
2	TN4034909	1	Impeller, 11.81d X 0.500bOld # 1062033	$473.30/EA
3	TN4015364	3	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274	$14.70/EA
	TN4024031	1	Motor Kit, Replmt [M20/T20/M30]Old # 9016242	$794.80/EA
4	TN4045187	1	Motor, Hyd, Gear, Ext 0.17 Lh 3000Old # 1076027	$748.20/EA
5	TN4041602	1	Nut, Hex, Std, M12 X 1.75, SsOld # 07788	$3.40/EA
6	TN4030456	1	Washer, Flat, Belleville, .50Old # 36328	$4.10/EA
7	TN4041943	4	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
8	TN4042902	4	Washer, Flat, 0.38b 0.88d .08, SsOld # 01685	$2.60/EA
9	TN4041929	4	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
10	TN4011921	1	Fitting, Hyd, Tee, Jf08/Jm08/Jm08, BrOld # 76315	$15.10/EA
11	TN4013874	1	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
12	TN4025261	1	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
13	TN4029146	1	Fitting, Hyd, Str, Jm08/Om10Old # 56692	$10.60/EA
14	TN4184443	3	Angle, Sppt, FanOld # 1068644	$11.30/EA
15	TN4156940	3	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
16	TN4035242	6	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
17	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
18	TN4036801	1	Housing, Fan, Radial Discharge, Sq InletOld # 1059100	$19.40/EA
19	TN4032056	1	Seal, Afmkt, Bulb, Str, .75d F/07ga 08ftOld # 1031617	$102.70/EA
20	TN4041944	2	Screw, Hex, M8 X 1.25 X 30, SsOld # 09011	$3.40/EA
21	TN4041945	1	Screw, Hex, M8 X 1.25 X 35, Fl, SsOld # 09023	$3.30/EA
22	TN4042902	3	Washer, Flat, 0.38b 0.88d .08, SsOld # 01685	$2.60/EA
23	TN4018541	1	Clamp, Cable, Ss, 2.50d X 1.00w, 1holeOld # 70157	$14.80/EA
24	TN4033549	1	Plate Wldt, Hose, VacuumOld # 1023754	$76.30/EA
25	TN4034634	1	Gasket, 2.00, 07.87w 10.24l, AdhOld # 1060716	$11.90/EA
26	TN4041992	4	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4035242	4	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA

M20 vacuum fan group, sweeping

Standard partsSN 008000 and later

Tennant M20 vacuum fan group, sweeping parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4016432	1	Housing Assy, Vacfan, SwprOld # 9002683	$381.00/EA
2	TN4027226	1	Seal, Ure, 0.38 0.75w 13.2l AdhOld # 59967	Call for price
3	TN4038019	1	Seal, Afmkt, Ure, Adh, 0.38, 0.75w 03ftOld # 1015221	$26.90/EA
4	TN4035737	1	Fan Wldt, Vac, InletOld # 1018216	$68.18/EA
5	TN4031280	4	Screw, Hex, .25 - 20 X 0.75, NlOld # 34323	$11.60/EA
6	TN4016794	4	Washer, Flat, 0.25 FenderOld # 41178	$2.50/EA
7	TN4012781	1	Impeller, 9.00d X 1.40w X 0.376bOld # 74454	$134.10/EA
8	TN4033118	1	Nut, Hex, Lock, .31 - 24, Nl, ThinOld # 31241	$3.40/EA
9	TN4034134	1	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
10	TN4026845	3	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 59649	$15.50/EA
11	TN4181494	1	Bar, Isolator, Vacfan [M20]Old # 1074010	$25.05/EA
12	TN4019761	3	Screw, Hex, M10 X 1.5 X 40, 8.8Old # 39285	$3.20/EA
13	TN4016826	3	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
14	TN4015365	1	Bracket, Mtg, MotorOld # 54275A	$43.80/EA
15	TN4015364	4	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274	$14.70/EA
16	TN4037922	10	Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563	$5.80/EA
17	TN4015802	4	Screw, Flt, Soc, .25 - 20 X 1.00, AlOld # 39534	$3.20/EA
18	TN4034654	4	Nut, Hex, Lock, .25 - 20, NlOld # 32981	$2.50/EA
19	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
20	TN4017332	1	Fitting, Hyd, Tee, Jf06/Jm06/Jm06, RunOld # 42215	$34.90/EA
21	TN4030523	1	Motor, Hyd, Gear, Ext 0.17 Lh 3000Old # 1071240	$1,451.00/EA
22	TN4025261	1	Fitting, Hyd, E90, Jm06/Om04Old # 77098	$15.50/EA
23	TN4034206	1	Muffler, Vacfan, 4.0idOld # 1025756	$70.70/EA
24	TN4035042	3	Clamp, Hose, Wormdrive, 3.56 - 4.50d, .50wOld # 23498	$6.20/EA
25	TN4034209	1	Tube, Transition, CastingOld # 1025841	$33.70/EA
26	TN4035735	1	Gasket, Hppr, TransitionOld # 1018209	$10.00/EA
27	TN4045637	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
28	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
29	TN4035766	1	Hose, Flex, Vacuum, 3.5d 32.0lOld # 1018252	$93.60/EA
30	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
31	TN4028758	4	Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643	$2.50/EA

M20 hydraulic hose group, steering and propel

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 hydraulic hose group, steering and propel exploded view (page 2) — Hydraulic Hose Group, Steering and Propel, SN 008000 and later. Manual pages 164, 165, 166. SES ref PF-U3ES-5KL3‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍⁠‌‍‍‌‍‍‌‍‌‍‍‌⁠‌‍‌‌‍‍‍‌‌‍⁠‍‌⁠‍

Tennant M20 hydraulic hose group, steering and propel parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4225025	1	Hose, Hyd, Tc08, Jfoee90/Jf08str, 96Old # 1229745	$110.50/EA
2	TN4224463	1	Hose, Hyd, Tc06, Jf06e45/Jf06str, 110.0Old # 1226062	$97.70/EA
3	TN4038431	2	Hose, Hyd, Tc06, Jf06e45/Jf06str, 45.0Old # 1226063	$66.90/EA
Item 4: choose your version (2)
4	TN4043678	1	Hose, Hyd, Spcl, Jf10str/Jf10str, 56.5 (Replaced by 1039148)Fits SN 008000–012314 · Old # 1038569	$91.80/EA
4	TN4032687	1	Hose, Hyd, Spcl, Jf08str/Jf08str, 056.5Fits SN 012315 and later · Old # 1262760 · Replaces 1253469 (2022 list (rev. 08))	Call for price
Item 5: choose your version (2)
5	TN4033273	1	Hose, Hyd, Spcl, Jf10e90/Jf10str, 63.0 (Replaced by 1039147)Fits SN 008000–012314 · Old # 1023488	$135.50/EA
5	TN4032686	1	Hose, Hyd, Spcl, Jf08e90l/Jf08str, 063.0Fits SN 012315 and later · Old # 1262759 · Replaces 1253468 (2022 list (rev. 08))	Call for price
6	TN4031422	1	Hose, Hyd,Med04, Jf04str/Jf04str, 066.0Old # 1030404	$67.20/EA
7	TN4018797	1	Hose Kit, Hyd, Propel, Replmt [Mt20/30]Fits SN 008000–012314 · Old # 9022976	Call for price

M20 hydraulic hose group, pump and vacuum fans

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 hydraulic hose group, pump and vacuum fans parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4015715	2	Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Old # 71741	$79.20/EA
2	TN4015813	1	Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Old # 396255	$41.60/EA
3	TN4041531	2	Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Old # 16431	$28.90/EA
4	TN4033532	1	Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Old # 1023607	$52.12/EA
5	TN4031283	1	Hose, Hyd, Suc20, Jf20e90/Jf20str, 032.0Old # 34351	$170.10/EA
6	TN4191362	1	Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Old # 1040655	$54.22/EA
7	TN4190722	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Old # 1036945	$35.20/EA
8	TN4015655	1	Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Old # 71556	$32.20/EA
9	TN4030676	1	Hose, Hyd, Med12, Jf12str/Jf12str, 066.0Old # 1028145	$85.20/EA
10	TN4040692	1	Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Old # 1050436	$257.10/EA
11	TN4034271	1	Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Old # 1026645	$63.00/EA
12	TN4033531	1	Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Old # 1023606	$53.50/EA

M20 hydraulic hose group, brush and hopper

Standard partsSN 008000 and later

Tennant M20 hydraulic hose group, brush and hopper parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4045578	1	Hose, Hyd, Tc06, Jf06str/Jf06str, 054.0Old # 1036939	$56.40/EA
2	TN4044412	2	Hose, Hyd, Tc04, Jf04str/Jf04str, 096.0Old # 1040628	$73.90/EA
3	TN4018068	1	Hose, Hyd, Tc04, Jf04e90/Jf04str, 020.0Old # 387281	$41.60/EA
4	TN4041067	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 138.0Old # 1042775	$87.00/EA
5	TN4041068	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 132.0Old # 1042776	$85.20/EA
6	TN4033841	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 48.0Old # 1024764	$69.90/EA
7	TN4033551	1	Hose, Hyd, Tc 06, Jf06str /Jf06e45, 56.0Old # 1023769	$49.30/EA
8	TN4029663	1	Hose, Hyd, Med04, Jf04e90/Jf04str, 016.0Old # 57946	$50.00/EA
9	TN4033923	1	Hose, Hyd, Tc08, Jf08e90/Jf08str, 13.0Old # 1025544	$52.70/EA
10	TN4027080	1	Hose, Hyd, Tc08, Jf08e90/Jf08str, 018.0Old # 381857	$39.30/EA
11	TN4220361	1	Sleeve, Nyl, 1.22id, 95.0lOld # 1235405	$16.10/EA

M20 hydraulic hose group, squeegee lift

Standard partsSN 008000 and later

Tennant M20 hydraulic hose group, squeegee lift parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4033836	1	Hose, Hyd, Spcl, Jf04str/Jf04str, 124.0Old # 1024688	$93.60/EA
2	TN4034183	1	Hose, Hyd, Spcl, Jf04str/Jf06str, 128.0Old # 1025551	$96.30/EA
3	TN4031748	2	Hose, Hyd,Tc 04, Jf04str /Jf04e45 , 35.0Old # 1030709	$58.10/EA
4	TN4029706	2	Hose, Hyd, Med04, Jf04str/Sm04, 028.0Old # 1263336 · Replaces 1045759 (2022 list (rev. 08))	Call for price
5	TN4029707	2	Hose, Hyd, Med04, Jf04str/Sm04, 024.0Old # 1263337 · Replaces 1037053 (2022 list (rev. 08))	Call for price
6	TN4220361	1	Sleeve, Nyl, 1.22id, 95.0lOld # 1235405	$16.10/EA

M20 hydraulic pumps group

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 hydraulic pumps group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4033592	1	Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns)Old # 1024251	$1,813.50/EA
2	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
3	TN4017335	1	Fitting, Hyd, E45, Jm08/Om08Old # 42226 · Replaces 44869 (2022 list (rev. 08))	$11.80/EA
Item 4: choose your version (2)
4	TN4015013	2	Fitting, Hyd, E90, Jm10/Om12Fits SN 008000–012314 · Old # 53076	$37.60/EA
4	TN4013892	1	Fitting, Hyd, E90, Jm08/Om12Fits SN 012315 and later · Old # 47655	$29.30/EA
5	TN4019758	2	Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283	$3.30/EA
6	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
7	TN4011841	1	Pump Kit, Mtg, Aux, Ci [M20 & T20]Old # 9007142	$1,593.60/EA
8	TN4017696	1	Seal, Org, .069 X 3.06idOld # 65145-1	$4.50/EA
9	TN4013874	2	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
10	TN4017934	1	Fitting, Hyd, Str, Jm20/Om16Old # 67811	$33.30/EA
11	TN4013873	1	Fitting, Hyd, E90, Jm06/Om08Old # 47512	$22.50/EA
12	TN4032402	1	Fitting, Hyd, E45, Jm08/Om12Fits SN 012315 and later · Old # 1258930	$31.30/EA
13	TN4015060	1	Fitting, Hyd, E45, Jf10/Jm10Fits SN 008000–012314 · Old # 54017	$48.90/EA

M20 hydraulic cooler and tubes group

Standard partsSN 008000 and later

Tennant M20 hydraulic cooler and tubes group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4030996	1	Tube, Hyd, SqgeOld # 1028822	$103.70/EA
2	TN4013458	1	Fitting, Hyd, E90, Jm12/Om12Old # 46481	$18.60/EA
3	TN4020261	1	Fitting, Hyd, E90, Jm12/Om12, LOld # 62471	$47.40/EA
4	TN4016764	2	Clamp, Cable, Stl, 0.44d X 0.62w, 1hOld # 40678	$3.60/EA
5	TN4012782	1	Screw, Hex, M6 X 1.0 X 12, FmgOld # 74455	$3.40/EA
6	TN4030997	2	Tube, Hyd, Rear Sqge [M20]Old # 1028823	$33.64/EA
7	TN4031672	2	Nut, Ftg, Hyd, 0.56 - 18Old # 35904	$3.23/EA
8	TN4014193	2	Fitting, Hyd, Cap, Jf04Old # 50161	$2.40/EA
9	TN4016826	2	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
10	TN4156940	2	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA
11	TN4034137	2	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
12	TN4015029	1	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
13	TN4027429	1	Fitting, Hyd, Cap, Jf08Old # 60090	$7.70/EA
14	TN4030995	1	Tube, Hyd, SqgeOld # 1028821	$101.50/EA
15	TN4013899	1	Fitting, Hyd, Str, Jf06/Jm04Old # 47752	$9.80/EA
16	TN4030506	1	Tube, Hyd, Main Return [G/Lp Mit2013]Old # 1071173	$122.10/EA
17	TN4041885	1	Fitting, Hyd, E90, Jf08/Jm08Old # 17980	$11.80/EA

M20 hydraulic reservoir group

Standard partsSN 008000 and later

Tennant M20 hydraulic reservoir group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4016144	1	Reservoir, Hyd, 10.0Gal, ReplmtOld # 9002398	$1,216.40/EA
2	TN8002771	1	Gauge, Sensing, LevelOld # 65215	$121.60/EA
3	TN4035786	1	Cap, Breather, Hyd, W ChainOld # 1018289	$114.70/EA
4	TN4029145	2	Fitting, Hyd, Str, Jm06/Om06Old # 56690	$9.60/EA
5	TN4013459	3	Fitting, Hyd, Plug, Om06Old # 46482	$4.20/EA
6	TN4017777	1	Fitting, Hyd, Str, Jm08/Om08Old # 44869	$7.00/EA
7	TN4044301	2	Pad, Tank, Hyd [W/Psa]Old # 1040318	$2.83/EA
8	TN4045640	2	Screw, Hex, M8 X 1.25 X 30, 9.8, SemsOld # 1037354	$2.50/EA
9	TN4045352	1	Insulation, Thermal, Hydraulic BlanketOld # 1034878	$145.60/EA
10	TN4033281	1	Fitting, Hyd, E45, Jm12/Om16Old # 1023545	$49.70/EA
11	TN4033485	1	Strainer, Hyd, 25gpm 100mesh PsiOld # 31613	$110.60/EA
12	TN4015701	1	Fitting, Hyd, E45, Jm20/Om20Old # 71726	$121.80/EA
13	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
14	TN4028724	1	Fitting, Hyd, E90, Jm04/Pm02Old # 55455	$8.50/EA
15	TN4029789	1	Send - Unit, Water, Temp, 04npt 113oh/195dOld # 58592	$27.20/EA
16	TN4016577	1	Fitting, Hyd, Plug, Om10Old # 40362	$4.20/EA
17	TN4033877	1	Indicator, Press, 60psiOld # 1025132	$73.50/EA

M20 hydraulic valve group

Standard partsSN 008000 and later

Tennant M20 hydraulic valve group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4031317	1	Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns)Old # 1072995	$3,016.30/EA
2	TN4191208	1	Bracket, Mtg, Valve [Combined]Old # 1039789	$21.61/EA
3	TN4191305	1	Bracket, Mtg, Valve, LowerOld # 1040117	$13.64/EA
4	TN4015807	2	Fitting, Hyd, E90, Om04/Qm04Old # 395974	$36.40/EA
5	TN4031235	1	Fitting, Hyd, Plug, Om04Old # 33812	$3.50/EA
6	TN4041992	8	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
7	TN4035242	8	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
8	TN4018308	2	Fitting, Hyd, E90, Jm08/Om08, LongOld # 69173	$58.60/EA
9	TN4191392	1	Fitting, Hyd, Str, Jm10/Om10, LongOld # 1040876	$14.90/EA
10	TN4014183	1	Fitting, Hyd, Tee, Jm08/Jm08/Om08, BrOld # 49933	$33.10/EA
11	TN4029148	1	Fitting, Hyd, E90, Jm06/Om06Old # 56820	$14.00/EA
12	TN4015703	1	Fitting, Hyd, E90, Jm06/Om06, LongOld # 71727	$32.20/EA
13	TN4015806	1	Fitting, Hyd, Str, Om04/Qm04Old # 395973	$26.30/EA
14	TN4025260	2	Fitting, Hyd, E90, Jm04/Om04Old # 77097	$14.70/EA
15	TN4017335	1	Fitting, Hyd, E45, Jm08/Om08Old # 42226	$11.80/EA
16	TN4013459	1	Fitting, Hyd, Plug, Om06Old # 46482	$4.20/EA
17	TN4028729	4	Fitting, Hyd, Str, Jm04/Om04Old # 55586	$6.20/EA
18	TN4026830	1	Fitting, Hyd, Str, Jm06/Om06, LongOld # 59577	$9.90/EA
19	TN4042137	1	Valve, Relief, 0600PsiOld # 1044367	$82.20/EA
20	TN8004297	1	Seal Kit, CartridgeOld # 373647	$22.60/EA
21	TN4200590	1	Fitting, Hyd, E45, Jf08/Jm08Old # 07797	$11.40/EA

M20 electrical wire harness group, main ( S/N 008000 - 014000)

Standard partsSN 008000 and later

Tennant M20 electrical wire harness group, main ( S/N 008000 - 014000) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4044970	1	Harness, Main [M30/M20]Fits SN 008000–014000 · Old # 1075079	$1,569.40/EA

M20 electrical wire harness group, main ( S/N 014001 - )

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 electrical wire harness group, main ( S/N 014001 - ) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (2)
1	TN4042973	1	Harness, Main [M30/M20] (Repl By 1077285)Fits SN 014001–016999 · Old # 1076951 · Replaces 1076973 (2022 list (rev. 08))	Call for price
1	TN4043053	1	Harness, Main [M30/M20 ]Fits SN 017000 and later · Old # 1077285	Call for price
2	TN4040238	2	Diode, Ele, PlugFits SN 014001 and later · Old # 222290	$13.00/EA

M20 electrical wire harness group, headlight

Standard partsSN 008000 and later‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‌⁠⁠‍‌‌‌‌‍‌‍‌‍‍‌‍⁠‍‍⁠⁠‌‌‌‍‌⁠‍‌

Tennant M20 electrical wire harness group, headlight parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4033578	1	Harness, Headlight [M20 And T20]Old # 1024141	$28.50/EA

M20 electrical wire harness group, hopper

Standard partsSN 008000 and later‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‍‌‌‍‍‍⁠‌⁠⁠‍⁠‌‍‍‍‌‌⁠⁠‌‍

Tennant M20 electrical wire harness group, hopper parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4179279	1	Harness, Hppr, Ele [M20/M30]Old # 1075080	$151.90/EA

M20 electrical wire harness group, hopper cover

Standard partsSN 008000 and later‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌⁠‍‍‌‍‌‍‌⁠⁠⁠‍‌⁠‍‍⁠⁠‍‌⁠‌⁠‌

Tennant M20 electrical wire harness group, hopper cover parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4032608	1	Harness, Hppr, Cover [M20]Old # 1064370	$47.60/EA

M20 electrical wire harness group, seat switch

Standard partsSN 008000 and later‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍‌‍‌⁠⁠‌‌‌‍‌‌‍⁠⁠‌⁠‌‍‌‌‍‌⁠‍‌‍‌⁠‌‌‌

Tennant M20 electrical wire harness group, seat switch parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (2)
1	TN4179302	1	Harness, Ele [Ce, Seat] (Repl By 101268193)Fits SN 008000–016999 · Old # 1075141	$35.90/EA
1	TN4209072	1	Harness, Ele [Ce, Seat]Fits SN 017000 and later · Old # 1268193	Call for price

M20 label group

Standard partsSN 008000 and laterFits: GasolineLPG

Tennant M20 label group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4025324	1	Label Set, Info/Hzrd, Swpr / ScrbrOld # 77221	$28.90/EA
2	TN4035239	1	Label Set, Hi TempOld # 1017141	$30.80/EA
3	TN4032752	3	Label, Logo, 05.75L 2Color [ES]Old # 1065343	$26.97/EA
4	TN4032751	3	Label, Logo, 07.95L 2Color [FaST]Old # 1065342	$11.11/EA
5	TN4040474	2	Label [User, Attention, ec - H2O]Old # 1050003	$4.34/EA
6	TN4031775	1	Label Set, Brush Indicator & RemovalOld # 1031017	$30.10/EA
7	TN4032466	1	Label Set, Info/Hzrd, Swpr / Scrbr, Tj (Japan Only)Old # 1032450	$162.79/EA
8	TN4036266	1	Label, Caution [Apply Parking Brake]Old # 1020434	$39.40/EA
9	TN4033871	1	Label, Caution [Apply Parking Brake] (Japan Only)Old # 1025101	Call for price
10	TN4032629	2	Label, Model, 2Color [M20]Old # 1064662	$21.30/EA
11	TN4035178	1	Label, Logo, 12.3L 4Color [ec - H2O]Old # 1062813	$36.60/EA
12	TN4032615	1	Label, Logo, 16.9L 4Color [ec - H2O]Old # 1064440	$27.20/EA

M20 recommended maintenance parts

Recommended maintenanceSN 008000 and laterFits: Diesel‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌⁠⁠⁠⁠‍‍‌‍‌⁠‌⁠‌‌‌‌⁠‌‌⁠⁠⁠‌⁠‌⁠

Tennant M20 recommended maintenance parts parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN82681	1	Bracket Wldt, Lpg MountOld # 82681 · no current Tennant number on file	Call for price
2	Old # 63810	4	Latch Assy, Lpg Tank Mtg, W/NutOld # 63810Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
3	Old # 51839	2	Nut Adjustable, Lpg Tank MtgOld # 51839Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
4	TN4014137	3	Tie, CableOld # 49263	$3.40/EA
5	TN82556	1	Bracket, VaporizerFits SN up to 001039 · Old # 82556 · no current Tennant number on file	Call for price
6	TN8004486	1	Vaporizer, LPGOld # 54930 · replaced by 8004486 (Tennant parts catalog)	Call for price
	TN4014789	1	Maint Kit, 400hr, Dsl [M20/T20]Old # 9006060	$306.60/EA
	TN8005623	1	Element, Fltr, Air [Dn]Old # 369746	$34.60/EA
	TN8002633	1	Element, Fltr, Oil, Spin - On [Ku]Old # 39703-2	$15.60/EA
	TN8005805	1	Element, Fltr, Fuel [Dn]Old # 1017126	$21.90/EA
	TN4033485	1	Strainer, Hyd, 25 Gpm 100 MeshOld # 31613	$110.60/EA
	TN4032809	1	Filter Assy, Hyd, 10micOld # 1021579	$128.30/EA
	TN4019823	1	Belt, V, 42.0L [Hc41]Old # 393244	$15.00/EA
	TN4039697	1	Filter, Panl, Syn, 4.2 X 20.0 X 30.0Old # 1048295AM	$329.30/EA
	TN4030627	1	Filter, Soltn, 20mesh, Pm12 3.1d 02.6lOld # 1027290	$20.30/EA
	TN8003282	1	Key, Ignition [Set Of 2]Old # 87866	$27.00/EA
	TN4037623	1	Battery, Wet, 12vdc 0600ccaOld # 10143	$274.80/EA
	TN4039111	2	Wheel, 3.0d 1.38w 0.50bOld # 20833	$80.80/EA
	TN4033626	2	Skirt, Neo, .06, 06.85w 27.95l, 08 HoleOld # 1024586	$33.60/EA
	TN4035908	2	Skirt, Neo, .18, 10.37w 27.95l, 12 H&SOld # 1019295	$67.60/EA
	TN4036240	1	Skirt, Neo, .06, 12.00w 45.88l, 07 HoleOld # 1020166	$70.20/EA
	TN4032877	1	Skirt, Neo, .06, 06.38w 40.86l, 06 HoleOld # 1022009	$34.70/EA
	TN4032876	1	Skirt, Rbr, .37, 04.50w 40.94l, 06 HoleOld # 1022007	$49.10/EA
	TN4035508	1	Blade, Sqge, Front, 49.58l [Linard]Old # 1017868	$90.00/EA
	TN4031803	1	Blade, Sqge, Rear, LinatexOld # 1031331	$120.00/EA
	TN4021294	2	Gasket, SqgeOld # 83874	$13.00/EA
	TN4031774	2	Blade, Sqge, .38 3.55w 038.3l, LinatexOld # 1031011	$93.40/EA
	TN4030648	1	Blade, Sqge, Front, 49.58l UreOld # 1027719	$274.30/EA
	TN4032198	1	Blade, Sqge, Rear, 53.78l UreOld # 1031945	$305.50/EA
	TN4032169	2	Blade, Sqge, .38 3.55w 038.3l, UreOld # 1031823	$183.50/EA
	TN4036799	1	Blade, Sqge, Side Brush, UrethaneOld # 1059091	$91.61/EA
	TN4036800	1	Blade, Sqge, Side Brush, UrethaneOld # 1059092	$55.85/EA
	TN4043022	1	Blade, Sqge, Side Brush, LinatexOld # 1046980	$59.89/EA
	TN4043073	1	Blade, Sqge, Side Brush, LinatexOld # 1047238	$31.51/EA
	Old # 16411	1	Paint, Airdry, Off - White, 12ozOld # 16411Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	Old # 16412	1	Paint, Airdry, Teal, 12oz, SolidOld # 16412Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN5000171	1	Paint, Airdry, Blk, 12ozOld # 377540	$67.20/EA
	TN5000170	1	Paint, Airdry, Gray, 12oz [Enamel]Old # 377538	$39.50/EA
	Old # 377537	1	Paint, Airdry, Iron Gray,12oz[Pwdr Coat]Old # 377537Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
	TN8005843	1	Oil, Hyd [El, Iso 100, 01gal]Old # 1057710	$58.70/EA
	TN8005844	1	Oil, Hyd [El, Iso 100, 05gal]Old # 1057711	$251.30/EA
	TN8004994	1	Oil, Hyd [El, Iso 68, 01gal]Old # 1069019	$48.70/EA
	TN8004995	1	Oil, Hyd [El, Iso 68, 05gal]Old # 1069020	$227.00/EA
	TN8005841	1	Oil, Hyd [El, Iso 32, 01gal]Old # 1057707	$58.70/EA
	TN8005842	1	Oil, Hyd [El, Iso 32, 05gal]Old # 1057708	$248.90/EA

M20 operator station group

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 operator station group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
Item 1: choose your version (6)
1	TN4193455	1	Panel Wldt, Dsl, ReplmtOld # 9016325	$2,145.24/EA
1	TN9016322	1	Panel Wldt, Dsl, Replmt [W/Fast]Old # 9016322 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193453	1	Panel Wldt, Dsl, W/ Es, ReplmtOld # 9016323	$2,145.24/EA
1	TN4193458	1	Panel Wldt, Dsl, Replmt, TJ (Japan only)Old # 9016328	$2,129.48/EA
1	TN9016331	1	Panel Wldt, Dsl, Replmt, TJ [W/Fast] (Japan only)Old # 9016331 · Tennant lists this number as obsolete with no replacement; call 800-440-6723	Call for price
1	TN4193461	1	Panel Wldt, Dsl, Replmt, TJ, W/Es (Japan only)Old # 9016334	$2,129.48/EA
2	TN4019758	1	Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283	$3.30/EA
3	TN4040927	1	Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414	$4.10/EA
4	TN4190204	2	Bracket, Mtg, InsulationOld # 1047169	$12.93/EA
5	TN4024314	1	Plug, Hole, Rnd, 0.88h .03 - .12, Blk NylOld # 82727	$3.40/EA
6	TN4042871	1	Plug, Hole, Rnd, 1.00h .03 - .12, Blk NylOld # 01493	$2.50/EA
7	TN4031389	1	Plug, Hole, Rnd, 2.50h .03 - .25, Blk NylOld # 1030017	$10.60/EA
8	TN4041844	12	Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931	$2.50/EA
9	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
10	Old # 1047295	1	Seal, Foam, 0.50Old # 1047295Number being confirmed with Tennant – call before ordering	Number being confirmed with Tennant – call before ordering
11	TN4034136	2	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
12	TN4032093	4	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
13	TN4026685	4	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
14	TN4033911	1	Panel Wldt, AdjOld # 1025435	$91.00/EA
15	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
16	TN4015029	5	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
17	TN4032850	1	Panel, Access, DoorOld # 1021834	$48.40/EA
18	TN4030622	1	Mat, FloorOld # 1027218	$116.30/EA
19	TN4190656	1	Bracket Wldt, Mtg, TankOld # 1035997	$61.32/EA
20	TN4015595	3	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
21	TN4195877	1	Panel, Access, FloorOld # 1022699	$24.15/EA
22	TN4034137	17	Washer, Flat, 0.31, StdOld # 32491	$2.50/EA
23	TN4027729	1	Screw, Hex, M8 X 1.25 X 60, 8.8, FlOld # 363976	$3.40/EA
24	TN4019808	1	Nut, Hex, Std, M8 X 1.25Old # 39311	$2.50/EA
25	TN4041270	2	Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942	$2.50/EA
26	TN4041992	3	Screw, Hex, M8 X 1.25 X 20, SsOld # 09740	$3.30/EA
27	TN4035242	5	Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218	$3.40/EA
28	TN4192844	1	Bracket, MtgOld # 1033975	$68.18/EA
29	TN4030625	1	Mat, FloorOld # 1027267	$27.40/EA
30	TN4031727	1	Seal, Afmkt, Bulb, 90, 0.75d F/11ga 08ftOld # 1030593	$83.40/EA
31	TN4036241	1	Molding, Afmkt, Trim, Pvc, .08 .11, 1ftOld # 1020168	$44.40/EA
32	TN4023358	1	Plug, Hole, Rnd, 0.81h, BlkOld # 80288	$1.40/EA
33	TN4156940	6	Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277	$3.20/EA

M20 instrument panel group

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 instrument panel group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4029735	1	Panel Assy, Instmt, W/ Label, AfmktOld # 1263875 · Replaces 1223896 (2022 list (rev. 08))	Call for price
2	TN4198475	5	Spacer, Rnd, .125l, AlmOld # 1006808	Call for price
3	TN4198594	5	Washer, Flat, 0.15b 0.31d .05, NylOld # 1008663	Call for price
4	TN4195865	5	Stand - Off, Hex, M3 X M14, AlmOld # 1022472	Call for price
5	TN4198561	5	Screw, Pan, #04 - 24 X 0.50l, Hi - LowOld # 1008240	Call for price
6	TN4195912	8	Screw, Pan, M3 X 6, [Seelscrew]Old # 1022905	Call for price
7	TN4042243	4	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
8	TN4019347	1	Switch, Rocker, Dpdt, On / Off / OnOld # 392171	$25.90/EA
9	TN4224042	1	Light, Indicator, GlowplugOld # 1225091	$83.83/EA
10	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Old # 398501	$6.80/EA
11	TN4031384	1	Bezel, Switch [3 Gang]Old # 1029951	$21.90/EA
12	TN4037854	1	Label, Switch, Rocker [Drago]Old # 1223906	$35.20/EA
13	TN4037904	1	Switch, Rocker, Mom, Led (Dry Dust Control Only)Old # 1224603	$65.90/EA
14	TN4041852	4	Nut, Hex, Lock, #08 - 32, NlOld # 16968	$1.50/EA
15	TN4030979	1	Flap, BatteryOld # 1028769	$9.80/EA
16	TN4194573	1	Bar, Flat, Ss 0.06, 00.50 X 10.00l, 2slOld # 1028772	$3.85/EA
17	TN4031353	4	Washer, Shld, Nyl [8 - 32]Old # 1029362	$0.15/EA
18	TN4012418	1	Washer, Flat, 1.15b 1.75d .08, StlOld # 73736	$3.50/EA
19	TN4027368	1	Boot, .63id .29l .90wOld # 382516	$10.20/EA
20	TN4022110	1	Switch, Ignition [Ku]Old # 87536	$109.50/EA
	TN8003282	1	Key, Ignition [Set Of 2]Old # 87866	$27.00/EA
21	TN4023075	1	Boot, Switch, IgnitionOld # 383165	$5.10/EA
22	TN4014138	2	Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266	$2.50/EA
23	TN4016541	2	Switch, Rocker, Dpdt, Mom / Off / MomOld # 398508	$27.40/EA
24	TN4029160	2	Plug, Hole, Rnd, 0.50h .03 - .12, Blk NylOld # 56992	$3.40/EA
25	TN4037805	1	Cup Holder, RwkOld # 223599	$56.40/EA
26	TN4041271	3	Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943	$2.50/EA
27	TN4218634	1	Label, Instrument Panel, Rh, Dsl [Drago]Old # 1239555	$61.91/EA
28	TN4032093	4	Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665	$3.40/EA
29	TN4044966	1	Keychain, Rectangle, Parts & ServiceOld # 1075003	$4.70/EA
30	TN4223544	1	Plate, Instrument, Rh [Drago]Old # 1223897	$11.11/EA
31	TN4034136	3	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
32	TN4016538	2	Plug, Hole, Rt, Rocker Switch, .87 X 1.7 (Wet Dust Control Only)Fits SN 010900 and later · Old # 398501	$6.80/EA
33	TN4014919	1	Boot, Bellows, 3.1l 4.4w 2.8h 1hole, NeoOld # 70622	$50.40/EA
34	TN4014930	1	Retainer, Boot, Steering ColumnOld # 70623	$10.20/EA
35	TN4016304	4	Rivet, Plstc, .250d X 0.90Old # 72970	$3.20/EA
36	TN4016538	1	Plug, Hole, Rt, Rocker Switch, .87 X 1.7Fits SN 014001 and later · Old # 398501	$6.80/EA
37	TN4032200	1	Switch, Rocker [Mom,Off,Mom, Dual Led] (Detergent Metering Option Only)Fits SN 014001 and later · Old # 1255914	$78.81/EA

M20 battery and electrical group

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 battery and electrical group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4032292	1	Horn, 12vdc, Dba [Wolo]Old # 369704	$42.00/EA
2	TN4045637	5	Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346	$2.50/EA
3	TN4042244	4	Washer, Flat, #10Old # 19066	$2.50/EA
4	TN4041926	3	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
5	TN4029449	7	Relay, 12vdc, 40a, Spdt N/OOld # 57804	$16.30/EA
6	TN4033595	1	Cover, Fuse, BlockOld # 1024274	$112.70/EA
7	TN4034267	1	Gasket, Cover, Fuse BlockOld # 1026576	$11.90/EA
8	TN4041004	8	Nut, Hex, Lock, M5 X 0.8, NlOld # 06549	$2.50/EA
9	TN4036635	1	Alarm, Warning [Sonalert, St628]Old # 1021290	$55.10/EA
10	TN4031223	1	Strap, Rbr, Tie - Down, 2/Hooks 19.0lOld # 33671	$13.10/EA
11	TN4015366	1	Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333	$5.10/EA
12	TN4039094	1	Hose, Pvc, Clr, 0.50id 0.69od 30.00lOld # 20778	Call for price
13	TN4027918	1	Cable, Battery, 02ga 60.0l Blk .41ringOld # 60295	$69.30/EA
14	TN4018303	1	Cable, Battery, 02ga 48.0l Red .41ringOld # 68869	$69.30/EA
15	TN4040238	1	Diode, Ele, PlugOld # 222290	$13.00/EA
16	TN4011598	14	Fuse, 015aOld # 762514	$4.00/EA
17	TN4015029	4	Clamp, Cable, Stl, 1.50d X 1.00w, 1hOld # 53466	$4.20/EA
18	TN4037623	1	Battery, Wet, 12Vdc 0600CcaOld # 10143	$274.80/EA

M20 directional pedal group

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 directional pedal group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4193625	1	Pedal, PropelOld # 1025140	$45.75/EA
2	TN4026685	1	Tread, Non - Skid, 03.0w 11.6lOld # 58819	$7.70/EA
3	TN4026850	1	Pin, Clevis, 0.50 D X 4.50lOld # 59668	$5.10/EA
4	TN4041914	1	Pin, Cotter, .125 X 1.00Old # 08182	$2.50/EA
5	TN4017933	2	Clamp, Cable, Stl, 0.69d X 0.62w, 1hOld # 67767	$4.20/EA
6	TN4029864	2	Screw, Hex, M6 X 1.0 X 16, FmgOld # 361339	$4.00/EA
7	TN4032922	1	Cable, Push / Pull, 098.0l .25 - 28/.25 - 28Old # 1022345	$293.20/EA
8	TN4018302	2	Rod - End, .25 - 28rh Fem 0.25b [Teflon]Old # 68866	$44.50/EA
9	TN4042941	2	Nut, Hex, Std, .25 - 28Old # 01714	$2.50/EA
10	TN4017735	2	Tube, 00.38d 00.26b 00.3l Stl PltOld # 65441	$19.20/EA
11	TN4231432	1	Screw, Hex, .25 - 20 X 2.25, SsOld # 41399	$4.00/EA
12	TN4017319	1	Screw, Hex, .25 - 20 X 1.75, SsOld # 42180	$3.40/EA
13	TN4034136	4	Washer, Flat, 0.25 StdOld # 32490	$2.50/EA
14	TN4016793	2	Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169	$4.00/EA

M20 hydraulic pump linkage group

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 hydraulic pump linkage group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4016793	2	Nut, Hex, Lock, .25 - 20, Nl, SsOld # 41169	$4.00/EA
2	TN4021145	2	Tube, 00.50d 00.38b 00.6l StlOld # 63234	$6.60/EA
3	TN4017355	1	Screw, Hex, .38 - 16 X 2.00, SsOld # 42467	$1.05/EA
4	TN4034138	2	Washer, Flat, 0.38 StdOld # 32492	$2.50/EA
5	TN4028758	1	Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643	$2.50/EA
6	TN4019759	1	Screw, Hex, M10 X 1.50 X 35, 8.8Old # 39284	$4.00/EA
7	TN4043395	2	Spring, Extn, 0.75od X 0.12wir, 4.3lOld # 11842	$12.20/EA
8	TN4013918	1	Bolt, Eye, .25 - 20 X 1.40 X .25 EyeOld # 48079	$6.00/EA
9	TN4015051	1	Cam, Centering, PintleOld # 53947	$74.84/EA
10	TN4028669	1	Cam, Centering, PintleOld # 54655	$72.52/EA
11	TN4012778	1	Screw, Hex, M8 X 1.25 X 40, Ss, NlOld # 74440	$4.90/EA
12	TN4015595	1	Washer, Flat, 0.31 SaeOld # 39349	$2.50/EA
13	TN4015053	2	Arm, Cntrl, Pintle, CenteringOld # 53953	$26.60/EA
14	TN4015362	2	Bumper, Rbr, 0.5d 0.16t M5 X 08Old # 54205	$18.50/EA
15	TN4014211	4	Nut, Hex, Std, M5 X 0.8, 8Old # 50335	$3.30/EA
16	TN4030623	1	Arm, PintleOld # 1027233	$101.71/EA
17	TN4021295	1	Screw, Hex, .31 - 24 X 0.75, NlOld # 83879	$2.90/EA
18	TN4016796	3	Washer, Belleville, .31Old # 41186	$3.50/EA
19	TN4194159	1	Bracket Wldt, Propel, PintleOld # 1027313	$48.78/EA
20	TN4021318	1	Bracket, Retainer, SafetyOld # 84170	$11.60/EA
21	TN4041517	1	Bolt, Shld, .31d X 1.00, .25 - 20Old # 16213	$6.80/EA
22	TN4016337	1	Shock Absorber, 2.3 StrkOld # 73411	$115.00/EA
23	TN4019753	1	Screw, Hex, M8 X 1.25 X 50, 8.8Old # 39278	$4.00/EA
24	TN4041926	1	Nut, Hex, Lock, M8 X 1.25, NlOld # 08709	$2.50/EA
25	TN4033213	2	Arm [Positioning]Old # 1022787	$15.80/EA
26	TN4041970	2	Screw, Hex, M5 X 0.8 X 20, 8.8Old # 09252	$3.40/EA
27	TN4042888	2	Washer, Flat, #10 SsOld # 01683	$2.60/EA
28	TN4033212	1	Sensor, Spd / Dir, 6 - 30vdcOld # 1022779	$285.30/EA
29	TN4041964	2	Screw, Pan, M4 X 0.7 X 35, SsOld # 09198	$3.20/EA
30	TN4031247	2	Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932	$3.40/EA
31	TN4039393	2	Screw, Hex, .38 - 16 X 1.25, G5Old # 21198	$3.30/EA
32	TN4034134	4	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
33	TN4194319	1	Bracket, Propel, DslOld # 1027692	$43.83/EA
34	TN4194321	1	Bracket, Mtg, SensorOld # 1027742	$12.12/EA
35	TN4041925	2	Nut, Hex, Lock, M6 X 1.00, NlOld # 08708	$2.50/EA
36	TN4192517	1	Strap, SpptOld # 1032399	$11.82/EA
37	TN4041943	2	Screw, Hex, M8 X 1.25 X 25, SsOld # 09010	$3.30/EA
38	TN4041929	2	Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713	$3.30/EA
39	TN4034133	4	Washer, Flat, 0.25, SaeOld # 32483	$2.50/EA
40	TN4021359	1	Bolt, Eye, M8X1.25, 2.75LOld # 386088	$24.20/EA
41	TN4041600	2	Nut, Hex, Std, M8 X 1.25, SsOld # 07786	$3.40/EA
42	TN4034137	2	Washer, Flat, 0.31 StdOld # 32491	$2.50/EA
43	TN4034136	1	Washer, Flat, 0.25, StdOld # 32490	$2.50/EA
44	TN4016797	2	Washer, Flat, Belleville, .38Old # 41187	$4.10/EA
45	TN4043258	1	Screw, Hex, M10 X 1.50 X 30, 8.8Old # 03192	$4.00/EA
46	TN4016826	1	Nut, Hex, Lock, M10 X 1.5, NlOld # 41430	$4.00/EA
47	TN4042243	2	Washer, Flat, 0.19b 0.44d .05, Pl, 08Old # 19065	$3.20/EA
48	TN4041272	2	Screw, Hex, M6 X 1.00 X 25, 8.8Old # 06944	$2.50/EA

M20 hydraulic hose group, steering and propel

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 hydraulic hose group, steering and propel parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4225025	1	Hose, Hyd, Tc08, Jfoee90/Jf08str, 96Old # 1229745	$110.50/EA
2	TN4224463	1	Hose, Hyd, Tc06, Jf06e45/Jf06str, 110.0Old # 1226062	$97.70/EA
3	TN4038431	2	Hose, Hyd, Tc06, Jf06e45/Jf06str, 45.0Old # 1226063	$66.90/EA
Item 4: choose your version (3)
4	TN4043678	1	Hose, Hyd, Spcl, Jf10str/Jf10str, 56.5 (Replaced by 1039148)Fits SN 008000–012314 · Old # 1038569	$91.80/EA
4	TN4216323	1	Hose, Hyd, Mold, Jf08str/Jf08str, 066.5 (Replaced by 1039148)Fits SN 012315–014038 · Old # 1253469	Call for price
4	TN4044015	1	Hose Kit, Hyd, Propel, Ci [M20/T20]Fits SN 014039 and later · Old # 1039148	$108.10/EA
Item 5: choose your version (3)
5	TN4033273	1	Hose, Hyd, Spcl, Jf10e90/Jf10str, 63.0 (Replaced by 1262760)Fits SN 008000–012314 · Old # 1023488	$135.50/EA
5	TN4216321	1	Hose, Hyd, Mold, Jf08str/Jf08str, 078.4 (Replaced by 1262760)Fits SN 012315–014038 · Old # 1253468	Call for price
5	TN4032687	1	Hose, Hyd, Spcl, Jf08str/Jf08str, 056.5Fits SN 014039 and later · Old # 1262760	Call for price
6	TN4031422	1	Hose, Hyd,Med04, Jf04str/Jf04str, 066.0Old # 1030404	$67.20/EA

M20 hydraulic hose group, pump and vacuum fans

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 hydraulic hose group, pump and vacuum fans parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4015715	2	Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Old # 71741	$79.20/EA
2	TN4015813	1	Hose, Hyd, Tc08, Jf08str/Jf08e90, 031.0Old # 396255	$41.60/EA
3	TN4041531	1	Hose, Hyd, Med06, Jf06str/Jf06str, 022.0Old # 16431	$28.90/EA
4	TN4033532	1	Hose, Hyd, Med08, Jf08str /Jf08e45, 21.0Old # 1023607	$52.12/EA
5	TN4031283	1	Hose, Hyd, Suc20, Jf20e90/Jf20str, 032.0Old # 34351	$170.10/EA
6	TN4191362	1	Hose, Hyd, Med10, Jf10Str/Jf10Str, 036.0Old # 1040655	$54.22/EA
7	TN4190722	1	Hose, Hyd, Tc08, Jf08str/Jf08str, 031.0Old # 1036945	$35.20/EA
8	TN4015655	1	Hose, Hyd, Med06, Jf06Str/Jf06Str, 042.0Old # 71556	$32.20/EA
9	TN4188134	1	Hose, Hyd, Med12, Jf12str/Jf12str, 060.0Old # 1052834	$92.82/EA
10	TN4040692	1	Hose, Hyd, Med12, Jf12e90/Jf12str, 029.0Old # 1050436	$257.10/EA
11	TN4034271	1	Hose, Hyd, Tc08, Jf08E45/Jf08Str, 026.0Old # 1026645	$63.00/EA
12	TN4033531	1	Hose, Hyd, Tc08, Jf08Str/Jf08Str, 021.0Old # 1023606	$53.50/EA

M20 hydraulic pumps group

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 hydraulic pumps group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4033592	1	Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns)Old # 1024251	$1,813.50/EA
2	TN4017776	1	Fitting, Hyd, E90, Jm08/Om08Old # 44868	$10.30/EA
3	TN4017335	1	Fitting, Hyd, E45, Jm08/Om08Old # 42226 · Replaces 44869 (2022 list (rev. 08))	$11.80/EA
Item 4: choose your version (2)
4	TN4015013	2	Fitting, Hyd, E90, Jm10/Om12Fits SN 008000–012314 · Old # 53076	$37.60/EA
4	TN4013892	2	Fitting, Hyd, E90, Jm08/Om12Fits SN 012315 and later · Old # 47655	$29.30/EA
5	TN4019758	2	Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283	$3.30/EA
6	TN4034134	2	Washer, Flat, 0.38 SaeOld # 32485	$2.50/EA
7	TN4011841	1	Pump Kit, Mtg, Aux, Ci [M20 & T20]Old # 9007142	$1,593.60/EA
8	TN4017696	1	Seal, Org, .069 X 3.06idOld # 65145-1	$4.50/EA
9	TN4013874	2	Fitting, Hyd, E45, Jm08/Om10Old # 47513	$34.20/EA
10	TN4017934	1	Fitting, Hyd, Str, Jm20/Om16Old # 67811	$33.30/EA
11	TN4013873	1	Fitting, Hyd, E90, Jm06/Om08Old # 47512	$22.50/EA
12	TN4015060	1	Fitting, Hyd, E45, Jf10/Jm10Fits SN 008000–012314 · Old # 54017	$48.90/EA

M20 electrical wire harness group, main ( S/N 014001 - )

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 electrical wire harness group, main ( s/n 014001 - ) exploded view (page 2) — Electrical Wire Harness Group, Main ( S/N 014001 - ), SN 008000 and later. Manual pages 144, 145, 146, 147, 148, 149. SES ref PF-KWSW-RFUJ‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌⁠‍⁠‍‍‌‍‌‌⁠‌‌‌‌‍⁠⁠⁠‍‍⁠⁠⁠‍⁠‍‌

Tennant M20 electrical wire harness group, main ( S/N 014001 - ) parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4042974	1	Harness, Main [M30/M20]Fits SN 014001 and later · Old # 1076973	$1,337.40/EA
2	TN4040238	2	Diode, Ele, PlugFits SN 014001 and later · Old # 222290	$13.00/EA

M20 label group

Standard partsSN 008000 and laterFits: Diesel

Tennant M20 label group parts, SN 008000 and later
Item	Part number	Qty	Description and notes	Price
1	TN4025324	1	Label Set, Info/Hzrd, Swpr / ScrbrOld # 77221	$28.90/EA
2	TN4035239	1	Label Set, Hi TempOld # 1017141	$30.80/EA
3	TN4032752	3	Label, Logo, 05.75L 2Color [ES]Old # 1065343	$26.97/EA
4	TN4032751	3	Label, Logo, 07.95L 2Color [FaST]Old # 1065342	$11.11/EA
5	TN4040474	2	Label [User, Attention, ec - H2O]Old # 1050003	$4.34/EA
6	TN4031775	1	Label Set, Brush Indicator & RemovalOld # 1031017	$30.10/EA
7	TN4032466	1	Label Set, Info/Hzrd, Swpr / Scrbr, Tj (Japan Only)Old # 1032450	$162.79/EA
8	TN4032629	2	Label, Model, 2Color [M20]Old # 1064662	$21.30/EA
9	TN4035178	1	Label, Logo, 12.3L 4Color [ec - H2O]Old # 1062813	$36.60/EA
10	TN4032615	1	Label, Logo, 16.9L 4Color [ec - H2O]Old # 1064440	$27.20/EA

M20 common parts and consumables

Brushes, squeegee blades, filters, belts, skirts and other parts from Tennant's M20 common parts and consumables sheet (rev 9/2023), which covers all M20 power types; lines marked Gasoline, LPG or Diesel fit only that engine.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌⁠⁠‌‌‌‍‌‌‍‍‌⁠‌‍‍⁠⁠‍‌‌‌‍⁠

Tennant Common Parts & Consumables sheet (rev 9/2023)SN 008000 and later

Tennant M20 common parts and consumables parts, SN 008000 and later
Part number	Description and notes	Price
TN4030645	performance, designed and Polyester Cylindrical BrushOld # 1027697Confirm fit before ordering: Tennant's current description differs	$682.90/EA
TN4034238	engineered specifically to fit CYLINDRICAL Polypropylene Cylindrical Brush 40” (1020 mm) /Old # 1026223Confirm fit before ordering: Tennant's current description differs	$616.50/EA
TN4031767	Heavy Duty Polypropylene Cylindrical Brush 2 x 40” (1020 mm) brushesOld # 1030969Confirm fit before ordering: Tennant's current description differs	$657.80/EA
TN4034237	Super Abrasive Cylindrical BrushOld # 1026222Confirm fit before ordering: Tennant's current description differs	$872.90/EA
TN4037187	Nylon Disk Scrub BrushOld # 1220235	$416.00/EA
TN4037188	Heavy Duty Polypropylene Disk Scrub Brush 1 x 16” (406 mm) brushOld # 1220236	$248.00/EA
TN4037455	Super Abrasive Disk Scrub BrushOld # 1221543	$545.70/EA
TN4037153	Polypropylene Disk Sweep Brush 1 x 24” (610 mm) brushOld # 1220185	$318.80/EA
TN4035508	Linard® Front SqueegeeOld # 1017868	$90.00/EA
TN4030648	Urethane Front SqueegeeOld # 1027719Confirm fit before ordering: Tennant's current description differs	$274.30/EA
TN4031803	• Less rework and low labor costs. Linatex® Rear SqueegeeOld # 1031331Confirm fit before ordering: Tennant's current description differs	$120.00/EA
TN4032198	Urethane Rear SqueegeeOld # 1031945Confirm fit before ordering: Tennant's current description differs	$305.50/EA
TN4021294	applications. Linatex® Rear Squeegee End GasketOld # 83874Confirm fit before ordering: Tennant's current description differs	$13.00/EA
TN4031774	• Premium Linatex® and Linatex® Left and Right Side SqueegeeOld # 1031011Confirm fit before ordering: Tennant's current description differs	$93.40/EA
TN4032169	Linard® rubber exhibits Urethane Left and Right Side SqueegeeOld # 1031823Confirm fit before ordering: Tennant's current description differs	$183.50/EA
TN4033862	outstanding strength and Linatex® Side Brush SqueegeeOld # 1025005	$72.00/EA
TN4030647	Urethane Side Brush SqueegeeOld # 1027716Confirm fit before ordering: Tennant's current description differs	$169.30/EA
TN4032809	Hydraulic Oil FilterOld # 1021579Confirm fit before ordering: Tennant's current description differs	$128.30/EA
TN4030627	20 Mesh Solution FilterOld # 1027290	$20.30/EA
TN4039697	Dust Panel Filter – SyntheticOld # 1048295AMConfirm fit before ordering: Tennant's current description differs	$329.30/EA
TN8005623	Air Filter Element – GM Gas / LP, Mitsubishi Gas / LP, DieselDieselGasolineLPGOld # 369746	$34.60/EA
TN8004565	Spin-On Oil Filter – GM Gas / LPGasolineLPGOld # 371972	$32.00/EA
TN8002631	Spin-On Oil Filter – Mitsubishi Gas / LPGasolineLPGOld # 393982	$30.00/EA
TN8002633	Spin-On Oil Filter – DieselDieselOld # 39703-2	$15.60/EA
TN8005188	Fuel Filter – GM Gas, Mitsubishi GasGasolineOld # 372440	$64.20/EA
TN8005332	Fuel Filter – GM LPLPGOld # 372615	$88.40/EA
TN8002010	Fuel Filter – Mitsubishi LPLPGOld # 9007380Confirm fit before ordering: Tennant's current description differs	$25.60/EA
TN8005805	Fuel Filter – DieselDieselOld # 1017126	$21.90/EA
TN4039111	Squeegee WheelOld # 20833	$80.80/EA
TN8003282	Ignition Key (set of 2)Old # 87866	$27.00/EA
TN4037557	12V, 475CCA Wet BatteryOld # 10137	$218.28/EA
TN8005314	Spark Plug – GM Gas / LPGasolineLPGOld # 372575Confirm fit before ordering: Tennant's current description differs	$13.30/EA
TN8004084	Spark Plug – Mitsubishi Gas / LPGasolineLPGOld # 9010622	$9.40/EA
TN8005311	39” Alternator Belt – GMOld # 372571	$156.70/EA
TN4030504	39” Alternator Belt – MitsubishiOld # 1071145	$53.20/EA
TN4019823	42” Alternator Belt – Diesel (for machine serial number above 002593)DieselOld # 393244Confirm fit before ordering: Tennant's current description differs	$15.00/EA
TN4033626	Side Door Inner SkirtOld # 1024586Confirm fit before ordering: Tennant's current description differs	$33.60/EA
TN4035908	Side Door Outer SkirtOld # 1019295	$67.60/EA
TN4036240	Front Tabbed SkirtOld # 1020166	$70.20/EA
TN4032877	Rear SkirtOld # 1022009	$34.70/EA
TN4032876	Rear Recirculation FlapOld # 1022007Confirm fit before ordering: Tennant's current description differs	$49.10/EA
TN4037134	18.0 X 6.0 Solid Hi Traction Tire AssemblyOld # 1059343	$1,386.50/EA

New to your Tennant M20? Start here

The first week with a new or new-to-you M20 gas/LPG, in plain steps from Tennant's operator manual 9016000 (SN 008000 and later). Teach these to every operator; they prevent most service calls. Bookmark this page for parts.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍‌‌‍‍⁠‌‍‌⁠‍⁠‌‍‍‍‍‌⁠‌⁠‌‍‌‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

1Daily checks before starting

Engine oil, coolant, hydraulic fluid and fuel levels; look for leaks.
Main and side brushes: cut off string, banding or plastic wrap.
Brush compartment skirts and seals, all squeegees and the tank cover seals.
Radiator and hydraulic cooler fins clear of debris.
Hopper dust filter, hopper and debris screen clean; vacuum fan screen clean.
Lights, horn, brakes and steering working.

2Starting, fuel and stopping

Sit in the seat, foot on the brake, direction pedal in neutral.
LPG: open the tank's service valve slowly. Opened too fast, its check valve stops the fuel; close it, wait a few seconds and reopen slowly.
Crank no more than 10 seconds, and rest the starter 15–20 seconds between tries.
Let the engine and hydraulics warm up 3–5 minutes. Turn the lights on.
To stop: turn off cleaning, set the parking brake and turn the key off. An LPG engine runs a few seconds after the key is off; stay seated until it stops.
Changing the LPG tank: wear gloves, keep flames and sparks away, close the valve and run the engine until it stops before disconnecting. Seat the new tank's collar on the pin, strap it, reconnect and open the valve slowly while checking for leaks.

3Cleaning well

Pick up large debris first, especially wire, string and wood that wrap around brushes.
Press 1-STEP to start all sweeping and scrubbing functions. The rear squeegee lifts by itself in reverse.
Drive straight, overlap passes by a few inches and avoid sharp turns.
Use the lowest brush pressure and solution flow that gets the floor clean.
Pick the right brush: heavy-duty polypropylene TN4031767 for compacted dirt and sand; polypropylene TN4034238 for general use; polyester TN4030645 for sensitive floors and wet work; super abrasive TN4034237 for stains, grease and tire marks.
Solution: for detergent scrubbing, water up to 140 °F (60 °C) with a recommended detergent, filled to just below the indicator tab. For FaST or ec-H2O, use only clean cool water under 70 °F (21 °C), no detergent.

4End of every shift

Empty the hopper: run the filter shaker (about 30 seconds) first. Raise the hopper only on level ground with at least 98 in (2.5 m) of ceiling clearance, and back up slowly.
Drain and clean the recovery tank: rinse debris through the demister tray drain, flush the vacuum hose, and rinse the vacuum screen. No steam cleaning; heat damages the tanks.
Drain the solution tank and ES filter if equipped, and check the squeegees.
Park on level ground away from anything flammable, set the brake and remove the key.

Shelf parts: rear squeegee blade TN4031803, side blades TN4031774 and the hopper dust filter TN4039697. All wear parts →

Get to know your M20

Standard touch panel

Tap a letter on the picture, or a line in the list.

AHorn
BFault / alert lightBlinks with a code on the display. See Fault codes.
CDisplay contrast button
DFuel level
EHour meterUse it to time the maintenance schedule.
FSolution tank level
GRecovery tank full lightEmpty the recovery tank.
HEngine speed button
IDisplay
JBrush pressure buttonUse the lowest pressure that gets the floor clean.
KBrush pressure lights
L1-STEP buttonStarts and stops all the selected sweeping and scrubbing functions at once.
Mec-H2O / ES / FaST button (option)Clean cool water only when using these.
NScrubbing buttons (blue)
OScrubbing main brush button
PScrubbing vacuum / squeegee button
QScrubbing side brush button (option)
RSweeping buttons (brown)
SSweeping main brush button
TSweeping vacuum button
USweeping side brush button
VSolution on/off buttons
WLess solution (−)
XSolution flow lights
YMore solution (+)
ZUSB port (service only)

Pro-Panel (option)

Tap a letter on the picture, or a line in the list.

Tennant M20 Pro-Panel touch screen with lettered controls — Pro-Panel (option), from Tennant operator manual 9016000 (SN 008000 and later).

AHorn
BFault / alert light
Cec-H2O / ES / FaST button (option)
DMachine status button
EHelp buttonOpens on-screen help for each control.
FEngine speed button
GMain brush pressure button
HSweeping buttons (brown)
ISweeping main brush button
JSweeping vacuum fan button
KSweeping side brush button (option)
LRearview camera button
MSolution control button
NScrubbing buttons (blue)
OScrubbing main brush button
PScrubbing vacuum / squeegee button
QScrubbing side brush button (option)
R1-STEP buttonStarts and stops all selected cleaning functions.
SVideo helpShort how-to videos on the screen.
TZone control 1
UZone control 2
VZone control 3
WZone control 4
XSolution on/off buttons
YUSB ports (service only)

Pedals and switches

Tap a letter on the picture, or a line in the list.

Tennant M20 pedals, ignition, light, hopper and shaker switches — Pedals and switches, from Tennant operator manual 9016000 (SN 008000 and later).

AParking brake pedalSet it before leaving the seat.
BBrake pedal
CDirectional pedalForward and reverse; keep it in neutral when starting.
DSpray nozzle / pressure washer switch (option)
EOperating and hazard lights switch
FSteering column tilt knob
GIgnition switchCrank no more than 10 seconds at a time.
HFilter shaker switchShake the dust filter before emptying the hopper.
IHopper door open/close switch
JHopper raise/lower switchOnly on level ground with 98 in (2.5 m) of clearance.

Machine overview: what everything is called

Tap a letter on the picture, or a line in the list.

Tennant M20 machine components, front and rear views — Machine overview: what everything is called, from Tennant operator manual 9016000 (SN 008000 and later).

AOverhead guard (option)
BInstrument panel
CFront shroud
DHeadlights
ESide brush (option)
FSide squeegee
GScrub head access door
HSeat shroud
IFaST, ES detergent or ec-H2O module compartment (option)
JSolution tank cover
KOperator seat
LSpray wand, nozzle behind the seat (option)
MTaillights
NBackup alarm (option)
ORecovery tank drain hose
PRecovery tank cover
QSolution tank drain hose
RHopper
SRear squeegee
TSqueegee protectors (option)
UVacuum wand (option)
VHopper safety pinAlways engage it before working under a raised hopper.
WEngine cover
XFuel tank

Habits that cause most M20 service calls

Detergent in a FaST or ec-H2O machine. Drain, rinse and refill with clean cool water before using those systems; detergent can make them fail.
Unapproved cleaning detergents. Tennant's manual says damage from improper detergent voids the manufacturer's warranty.
Skipping the daily filter shake and hopper cleaning, which leads to dusting, clogged filters and Thermo-Sentry trips.
Cranking the starter longer than 10 seconds, or working the engine cold.
Raising the hopper on a slope or under a low ceiling.

Questions about your M20? Call 800-440-6723 with your serial number.Troubleshooting →Fault codes →Maintenance schedule →

Tennant M20 troubleshooting

Common M20 problems, the usual cause and the part that fixes it, from Tennant's operator manual. Rows marked Technician need tools or testing; call 800-440-6723 to book service. Parts shown are for SN 008000 and later; check the parts lists for older machines.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍‌⁠⁠‌⁠‌‍‌⁠‌‌‌‌‍⁠‍‌⁠⁠‌‌‍‍

Tennant M20 problems, causes and fixes
Likely cause	Fix	Who	Part
Water is left on the floor or pickup is weak
The scrub vacuum fan is off.	Turn on the scrub vacuum fan / squeegee button.	You
The squeegee blades are worn.	Rotate the blades to a fresh edge or replace them.	You	TN4031803Blade, Sqge, Rear, Linatex · Old # 1031331$120.00/EA TN4031774Blade, Sqge, 37.08l Linatex · Old # 1031011$93.40/EA TN4035508Blade, Sqge, Front [Linard] · Old # 1017868$90.00/EA
The squeegee is out of adjustment, or debris is caught in it.	Clear the debris, then level the rear squeegee and set blade deflection.	You
There is no detergent in the solution tank, so the squeegee chatters.	Add detergent to the solution tank.	You
A vacuum hose is clogged, disconnected or damaged.	Flush, reconnect or replace the hose.	You	TN4032803Hose, Vacuum, 3.00id X 019.0l, 1cuff · Old # 1021511$69.00/EACall for availability
The vacuum screen in the recovery tank is dirty.	Clean the screen.	You	TN4037482Screen, Vacuum, Yellow · Old # 1222035$21.60/EA
The recovery tank cover is not fully closed, or its seals are worn.	Clear any obstruction, close the cover and replace worn seals.	You	TN4032855Gasket, Cover, Recvy Tank · Old # 1021879$115.60/EA
The scrub vacuum fan will not turn on
The vacuum fan / squeegee button is off.	Turn it on.	You
The recovery tank is full or filling with foam.	Drain the recovery tank. Use less detergent or add defoamer.	You
The recovery tank level sensor is dirty or stuck.	Clean or replace the sensor.	You	TN4021025Sensor, Level, Liq, 14vdc 01a .62 - 11 · Old # 385685$78.50/EA
Little or no solution reaches the floor
The solution tank is empty or solution flow is off.	Fill the tank and turn solution flow on.	You
The solution filter or supply lines are plugged.	Clean the 20-mesh solution filter and flush the lines.	You	TN4030627Filter, Soltn, 20mesh, Pm12 3.1d 02.6l · Old # 1027290$20.30/EA
Too much dust while sweeping
Brush skirts or dust seals are worn, damaged or out of adjustment.	Replace or adjust the skirts and seals.	You	TN4033626Skirt, Neo, .06, 06.85w 27.95l, 08 Hole · Old # 1024586$33.60/EA TN4035908Skirt, Neo, .18, 10.37w 27.95l, 12 H&S · Old # 1019295$67.60/EA TN4036240Skirt, Neo, .06, 12.00w 45.88l, 07 Hole · Old # 1020166$70.20/EA TN4032877Skirt, Neo, .06, 06.38w 40.86l, 06 Hole · Old # 1022009$34.70/EA
The hopper dust filter is clogged.	Run the filter shaker, then clean or replace the filter.	You	TN4039697Filter, Panl, Syn, 4.2 X 20.0 X 30.0 · Old # 1048295AM$329.30/EA
The sweep vacuum fan seal is damaged.	Replace the seal.	Technician	TN4027226Seal, Ure, 0.38 0.75w 13.2l Adh · Old # 59967Call for price
The Thermo-Sentry has tripped because of heat in the hopper.	Let it cool before restarting sweeping.	You
Poor sweeping
The main brush bristles are worn, or the wrong brush is fitted.	Replace the main brushes with the right type for the floor.	You	TN4034238Brush, Sweep / Scb, 40L, Polypropylene, Spiral · Old # 1026223$616.50/EA TN4030645Brush, Sweep / Scb, 40L, Polyester, Spiral · Old # 1027697$682.90/EA TN4031767Brush, Sweep / Scb, 40L, Heavy Duty Polypropylene, Spiral · Old # 1030969$657.80/EA
Brush pressure is too light or the brushes are not adjusted.	Increase brush pressure, then check the brush pattern and adjust.	You
Debris is caught in the main brush drive, or the hopper is full.	Clear the brush drive and empty the hopper.	You
The hopper lip skirts are worn or damaged.	Replace the lip skirts.	You
A main or side brush drive has failed.	Have the drive checked by a technician.	Technician
Poor scrubbing
1-STEP scrub is not on, or the solution tank is empty.	Turn on 1-STEP scrub and fill the solution tank.	You
The main brushes are worn, or debris is caught on them.	Remove debris and replace worn brushes.	You	TN4034238Brush, Sweep / Scb, 40L, Polypropylene, Spiral · Old # 1026223$616.50/EA TN4030645Brush, Sweep / Scb, 40L, Polyester, Spiral · Old # 1027697$682.90/EA TN4034237Super Abrasive Cylindrical Brush · Old # 1026222$872.90/EA
Brush pressure is too light, or the detergent or brush type is wrong.	Increase brush pressure and check the detergent and brush type.	You
The FaST system does not work
FaST is off, the FaST-PAK carton is empty, or the system is not primed.	Turn FaST on, replace or reconnect the carton and run it for a few minutes to prime.	You
The FaST supply hose or connector is clogged, or the filter screen is plugged.	Soak the connector and hose in warm water; drain the tank and clean the filter screen.	You	TN4038961Filter, In - Line, Pf06/Pf06 080mesh 02.6l · Old # 1005302$21.10/EA
A fuse has blown or the solution pump has failed.	Have the circuit and pump checked.	Technician
The ES (extended scrub) system does not work
ES is off, or water in either tank is too low.	Turn ES on and fill the recovery tank about half full and the solution tank.	You
The ES tank sensor is dirty or the ES pump filter is clogged.	Clean the sensor and the ES filter.	You
Sweeping or scrubbing won't turn on
The hopper is raised.	Lower the hopper completely.	You
There is a fire in the hopper.	Shut the machine off and put out the fire. Call emergency services if needed.	You
The recovery tank is full.	Run the vacuum for one minute of extra pickup, then empty the recovery tank.	You
ec-H2O light blinks red, stays red, or there's no water flow
Mineral buildup in the ec-H2O module, or water with low conductivity.	Run the module flush procedure. If it still flashes after a minute of scrubbing, add about 8 ml of salt per 40 L of water.	You
The module, solution pump or filter screen has failed or is clogged.	Clean the filter screen; have the module or pump checked if the light stays solid red.	Technician	TN4032809Filter Assy, Hyd, 10mic · Old # 1021579$128.30/EA

Tennant M20 fault codes

When a fault occurs the red indicator blinks and the display shows a code. On SN 008000 and later, turn the machine off, fix the cause and restart to clear it; on earlier Touch-N-Go panels a fault clears once it's gone and you press an action button such as 1-STEP. With the key on and the engine off, low oil pressure, low alternator voltage and check-engine faults are normal.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌⁠‍⁠‌‍‌⁠‌‍‌⁠‌‍⁠‍⁠⁠‍⁠‌⁠‌‌‌⁠⁠‌‍‌‍

SN 008000 and later (standard panel and Pro-Panel)

Tennant M20 fault codes, operator manual 9016000
Code	Cause	Fix	Who	Part
0x0010Parking brake	The parking brake is on.	Release the parking brake.	You
0x0701ec-H2O flush needed	Mineral deposits are plugging the ec-H2O module.	Run the ec-H2O module flush procedure.	You
0x0781Detergent empty	The detergent tank or FaST-PAK is empty.	Refill the detergent tank or replace the FaST-PAK carton.	You
0x0790Solution tank empty	The solution tank is empty.	Fill the solution tank.	You
0x0791Recovery tank full	The recovery tank is full.	Empty the recovery tank.	You
0x07A0Filter clogged	The hydraulic filter is clogged.	Shut the machine off and have the hydraulic filter replaced.	Technician	TN4032809Filter Assy, Hyd, 10mic · Old # 1021579$128.30/EA
0x07A1Hopper fire	Thermo-Sentry has detected a fire in the hopper.	Shut the machine off and put out the fire; call emergency services if needed.	You
0x07A2Hopper not home	The hopper isn't fully lowered.	Lower the hopper completely.	You
0x07A3Shaker clogged	The hopper dust filter is clogged.	Remove and clean the dust filter, or replace it.	You	TN4039697Filter, Panl, Syn, 4.2 X 20.0 X 30.0 · Old # 1048295AM$329.30/EA
0x07A4Seat empty	The engine is running with no one in the seat.	Sit in the operator seat; the machine won't run functions without an operator.	You
0x07B0Engine high temp	The engine is overheating.	Let it cool and top up coolant; if it returns, have the cooling system checked.	You
0x07B1Hydraulic high temp	Hydraulic fluid is too hot.	Shut the machine off and have it checked; clean the hydraulic cooler fins.	Technician
0x07B2Engine malfunction indicator	The engine controller has logged a fault.	Shut the machine off and have the engine diagnosed.	Technician
0x07B3Low fuel	The fuel tank is nearly empty.	Fill the gas tank or swap the LPG cylinder.	You
0x07B4Engine low oil pressure	Engine oil may be low.	Check the dipstick and add oil as needed.	You
0x07B5Engine alternator low voltage	The engine isn't getting enough charging voltage.	Shut the machine off and have the alternator and belt checked.	Technician	TN4030504Belt, Ribbed, Alternator, 41.5l · Old # 1071145$53.20/EA

Early machines (Touch-N-Go panel, service manual 331385)

F codes are faults; C codes are conditions, usually a button pressed when that function isn't available.

Tennant M20 fault and condition codes, early machines
Code	Meaning	What to do
F1HOPPER UP	Sweep or scrub was turned on while the hopper isn't down.	Lower the hopper fully; the hopper-down switch must close.
F3CLOGGED HYD.	The hydraulic filter is clogged.	Replace the hydraulic filter.
F4SHAKER FILTER	The sweep dust filter is clogged.	Shake, clean or replace the hopper dust filter.
F5HOPPER FIRE	The hopper is too hot, usually from a fire; sweeping shuts off.	Shut off, put out the fire and let the Thermo-Sentry cool.
F6SOL. TANK E	The solution tank is empty.	Fill the solution tank.
F7REC. TANK FULL	The recovery tank is full; scrubbing shuts off.	Empty the recovery tank.
F8HIGH ENG TEMP	Engine temperature is high.	Let it cool; check coolant level and radiator fins.
F9HIGH HYD TEMP	Hydraulic temperature is high.	Clean the hydraulic cooler; have the system checked if it returns.
F10LOW FUEL	Fuel is low (lowest gauge block blinks).	Refuel or swap the LPG cylinder.
F11OPEN SCB VAC	The rear squeegee may have broken away (option).	Reattach the squeegee and check the vacuum hose.
C1NO SQGE/VAC	Scrub vacuum was pressed while sweeping.	Scrub vacuum isn't available during sweeping.
C2NO SWEEP VAC	Sweep vacuum was pressed while scrubbing.	Sweep vacuum isn't available during scrubbing.
C3NO FAST MODE	FaST was selected on a machine not set up for FaST.	Enable FaST in configuration mode if the option is installed.
C4NO ES MODE	ES was selected on a machine not set up for ES.	Enable ES in configuration mode if the option is installed.
C5NO ES/FAST	ES or FaST was selected but neither is set up.	Enable the installed option in configuration mode.
C6NO SIDE BRUSH	The side brush was turned on without 1-STEP sweep or scrub.	Start 1-STEP first; the side brush can't run alone.

Any other code: call 800-440-6723 with the code and your serial number.

Tennant M20 maintenance schedule

Tennant's intervals for gas/LPG machines with the Mitsubishi engine, by hour-meter reading. Dusty sites need shorter intervals. Park on a level surface, set the brake, turn the machine off and remove the key before any maintenance.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌⁠⁠‍⁠‍‍‌‌‍‌‌⁠‌⁠‌‌‌⁠‌‌⁠⁠‍‌⁠‍‌

Tennant M20 scheduled maintenance
When	Task	Who	Part
Daily	Check engine oil and coolant levels	You
Daily	Check hydraulic fluid level	You
Daily	Check tank cover seals, main and side brushes, and all squeegee blades for damage and wear	You	TN4031803Blade, Sqge, Rear, Linatex · Old # 1031331$120.00/EA TN4031774Blade, Sqge, 37.08l Linatex · Old # 1031011$93.40/EA
Daily	Clean the recovery tank (and ES filter if equipped); clean the hopper, debris screen and hose	You	TN4017005Screen Kit, Hppr, Replmt [M20] · Old # 9003774$260.50/EA
Every 20 hours	Check, clean or replace the hopper dust filter	You	TN4039697Filter, Panl, Syn, 4.2 X 20.0 X 30.0 · Old # 1048295AM$329.30/EA
Every 50 hours	Clean the FaST / ec-H2O filter screen; rotate main brushes front to rear; check brush pattern and engine belt tension	You
Every 100 hours	Change engine oil and filter; drain LPG vaporizer oil buildup; clean radiator and hydraulic cooler; check scrub head skirt	Technician	TN8002631Element, Fltr, Oil, Spin - On (Mits) · Old # 393982$30.00/EA
Every 200 hours	Lubricate front wheel bearings, torque tubes, steering cylinder and hopper pivots; check brake adjustment and radiator hoses	Technician
Every 400 hours	Replace engine air filter and fuel filter; service rear wheel bearings	Technician	TN8005623Element, Fltr, Air [Dn] · Old # 369746$34.60/EA TN8002010Filter Kit, Fuelock, Lpg · Old # 9007380$25.60/EA TN8005188Filter, Fuel [Gm 1.6l/3.0l] · Old # 372440$64.20/EA
Every 800 hours	Replace hydraulic reservoir filler cap; check hydraulic hoses; flush cooling system; torque propel motor and front wheel nuts	Technician
Every 1,000 hours	Replace FaST system filters and spark plugs (Mitsubishi); inspect PCV system and radiator hoses	Technician	TN8004084Spark Plug – Mitsubishi Gas / LP · Old # 9010622$9.40/EA
Every 1,200 hours	Replace hydraulic fluid filter	Technician	TN4032809Filter Assy, Hyd, 10mic · Old # 1021579$128.30/EA
Every 2,400 hours	Change hydraulic fluid and replace the reservoir outlet strainer	Technician
Every 5,000 hours	Replace camshaft and balance shaft belts (Mitsubishi engine)	Technician

Fluids: engine oil 5W30 SG/SH; TennantTrue premium hydraulic fluid or equivalent; 50/50 water and ethylene glycol antifreeze; Lubriplate EMB grease for lube points.

Tennant M20 technician reference

For trained service technicians. Values come from Tennant's M20 service manual 331385 (2007, early machines) and operator manual 9016000 (SN 008000 and later); check current values with Tennant before adjusting a machine.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍‌‍‍⁠‌‍‌‍‌‍‍‌‌‌‍‌‌‌‌⁠‍‌‍‍‌⁠‌‌‌

Fuses (SN 008000 and later)

Relay panel fuses are behind the relay panel cover, with spare 15 A fuses in the panel drawer. Engine harness fuses and relays are in the fuse box in the engine compartment. Always replace a fuse with the same rating.

Tennant M20 relay panel fuses
Fuse	Rating	Circuit
FU1	15 A	Auxiliary relays and engine controls
FU2	15 A	Filter shaker
FU3	15 A	Horn
FU5	15 A	Scrub vacuum, main brush, squeegee down, hopper up
FU6	15 A	Enable, side brush, sweep vacuum
FU7	15 A	Solution, hopper latch and door, auto fill, reverse, shaker
FU8	15 A	ES, FaST, detergent, hopper down, spray wand
FU9	15 A	Lights
FU10	15 A	Unswitched power to the controller board
FU12	15 A	Spray nozzle pump
—	20 A	ec-H2O (near the ignition switch)

Relays (SN 008000 and later)

All are 12 VDC, 40 A. The FaST relay is behind the seat.

Tennant M20 relays
M1	Auxiliary 1
M2	Auxiliary 2
M3	Shaker
M4	Reverse
M5	Horn
M6	Shutdown
M7	Starter
M10	Spray wand (behind the battery)

Diagnostic and configuration modes (early Touch-N-Go panel)

Hold the 4/5 and Side Brush buttons, turn the key to RUN, and keep holding until CONFIG MODE shows. Press 2/3 to scroll through modes and 0/1 to select one.

Tennant M20 configuration and diagnostic modes
Mode	How to select	What it does
Self test	Scroll to SELF TEST, press 0/1	Checks every control board output for open or shorted loads and lists any problem by board pin. Unused option outputs read OPEN; DONE and the software date show when finished.
Manual mode	Scroll to MANUAL MODE, press 0/1	Lets a technician run functions regardless of sensor inputs, for example the ES pump regardless of float switches.
Input display	Scroll to INPUT MODE, press 0/1	Each panel LED shows one control board input: lit means the input is grounded. Used to test switches and sensors.
Pressure adjust	Scroll to PRESS. ADJ MODE, press 0/1	Sets low, medium and high down pressure for the main scrub brushes, main sweep brushes, side scrub and side sweep brush. Each bar is about 125 mA of valve current; pressing 4/5 resets all pressures to factory defaults.
ES / FaST setup	Scroll to ES MODE, FAST MODE or C5: NO ES/FAST	Enables the ES or FaST option (enabling one disables the other) or disables both.
Detergent level	Scroll to SET DET LEVEL	Heavy, normal (factory), light or off.
Water level	Scroll to SET WATER LEVEL	Heavy, normal (factory) or economy.
Side brush mode	Scroll to SIDE_BRUSH_MODE	Sets side sweep only, or side sweep and scrub. In sweep-only mode no solution goes to the side brush.
LCD contrast	Scroll to CONTRAST ADJUST	Adjusts display contrast.

Input display mode: what each light means

Panel LED and the control board input it shows
Panel light	Input (lit = grounded)
1-STEP scrub	Clogged hydraulic filter
Shaker	Clogged shaker filter
Squeegee / scrub vacuum	High engine temperature
1-STEP sweep	Hopper up selected
Sweep vacuum	Hopper down selected
Low engine speed	Reverse
High engine speed	Forward
ES	Thermo-Sentry
FaST	Hopper down position
Side brush	Impact sensor
Scrub pressure high	Hopper door open
Scrub pressure medium	Hopper door closed
Scrub pressure low	Solution tank empty
Solution level high	Solution tank full
Solution level medium	Recovery tank full
Solution level low	Recovery tank half full
Red warning	Open scrub vacuum (squeegee off)

Hydraulic and engine reference (early machines)

Tennant M20 hydraulic and engine reference values
Hydraulic reservoir / total	10 gal (38 L) / 12 gal (45 L)
Hydraulic fluid	Tennant 65869 above 45 °F (7 °C); 65870 below 45 °F
Propel pump relief	4,000 psi forward; 3,000 psi reverse
Side brush down pressure at test port G13 (±15%)	Low 300 psi, medium 330 psi, high 430 psi
Return filter bypass	35 psi
Engine governed speed	2,400 rpm (GM engine); 2,300 rpm (Mitsubishi)
Engine before SN 006000	GM 1.6 L gasoline/LPG, 32 hp governed at 2,400 rpm, 3.7 qt 5W30 oil with filter

Tennant M20 specifications

Gas/LPG machines, from Tennant's M20 specification sheet and operator manual 9016000.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌⁠‌⁠‍⁠‌⁠‌‍‌‍‍‌‌‌⁠‍‍⁠⁠⁠⁠‌⁠‍‍

Tennant M20 technical data
Cleaning path	40 in (1,020 mm); 54 in with scrubbing side brush; 56 in with sweeping side brush
Main brushes	2 cylindrical, 12 in (300 mm) diameter, 40 in long, 480 rpm, up to 425 lb down pressure
Side brush (option)	Scrubbing 16 in (410 mm); sweeping 21 in (533 mm); 150 rpm
Solution tank	56 gal (212 L); 74 gal (280 L) with ES
Recovery tank	73 gal (276 L), plus 16 gal (61 L) demisting chamber
Debris hopper	3.9 ft³ (110 L), 390 lb (177 kg); dumps up to 60 in (1,520 mm)
Dust filter	Synthetic fiber panel, 78 ft² (7.3 m²), 3 microns at 99%, timed beater-bar shaker
Engine (SN 008000 and later)	Mitsubishi 2.0 L, gasoline or LPG, governed at 2,300 rpm
Fuel capacity	Gasoline 11.2 gal (42 L); LPG 33 lb (15 kg) cylinder
Engine oil	5 qt (4.7 L) 5W30 SG/SH with filter
Hydraulic fluid	10 gal (38 L) reservoir, 12 gal (45 L) total
Travel speed	8 mph (12.9 km/h) forward, 3 mph (4.8 km/h) reverse
Gradeability	10° / 18% transport, 8° / 14% cleaning
Tires	Solid: front 18 × 5.5 in, rear (2) 16 × 3.5 in
Length × width × height	95 × 50 × 58 in (2,410 × 1,270 × 1,473 mm); 83.5 in with overhead guard; 58 in wide with side brush
Weight	3,300 lb (1,497 kg) empty; 5,200 lb (2,359 kg) GVWR
Minimum aisle turn	110 in (2,790 mm)
Sound level at operator	84 dB(A)

Tennant M20 kits and service bulletins

Replacement and update kits from Tennant’s M20 instruction bulletins (60 bulletins, 80 kits), with what each kit contains. Kits marked Call for availability aren’t in our online store; some may be discontinued, so call 800-440-6723 and we’ll check with Tennant.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌⁠⁠⁠‌‌‌‍‌⁠‍‍⁠⁠‍⁠‍⁠‍‍⁠‌⁠⁠‌⁠

TN4018398 instructions how to check hydraulic fluid level/add hydraulic fluid. Bill Of Materials For Scrub Kit, Conversion M20/T20/M30

Call for availability 800-440-6723

Replace the scrub head on M20/M30/T20 machines equipped with cylindrical scrub heads. cylindrical brushes

Old # 9021860 · Tennant instruction bulletin 9021884 rev. 00 (01-2024) · about 6- 7 hours · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 13 parts

Parts in kit TN4018398
Item	Part number	Qty	Description	Price
1	TN4040825Old # 1052124	1	Bracket Wldt, Brush Wrap Mtg, RH	$470.60/EA
2	TN4041051Old # 1052342	1	Bracket Wldt, Brush Wrap, LH	$443.90/EA
3	TN4038636Old # 1054575	2	Bracket, Sppt	$39.20/EA
4	TN4038642Old # 1054610	1	Bracket, Retainer, RH	$18.60/EA
5	TN4038661Old # 1054682	1	Bracket, Retainer, LH	$18.60/EA
6	TN4038684Old # 1054857	2	Door Wldt, Brush, Idler	$205.40/EA
7	TN4232148Old # 1077002	1	Plate Wldt, Wrap, Brush	$306.50/EA
8	TN4044719Old # 1042686	1	Spring, Extn, 2.00od 0.25wir 07.5l	$23.40/EA
9	TN4041992Old # 09740	8	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
10	TN4034137Old # 32491	32	Washer, Flat, 0.31, Std	$2.50/EA
11	TN4041929Old # 08713	10	Nut, Hex, Lock, M8 X 1.25, Nl, SS	$3.30/EA
12	TN4041943Old # 09010	4	Screw, Hex, M8 X 1.25 X 25, SS	$3.30/EA
13	TN4037712Old # 223470	10	Screw, Btn, M8 X 1.25 X 25, SS	$4.00/EA

TN4020962 Electrode Kit, 5 Plate, Hi Flow, Replmt

Call for availability 800-440-6723

Replace the ec- H2O electrode plate on T3, T5, T7, 5680, T20, T17, T16, T15, and T12 scrubbers and M17, M20, and M30 sweeper- scrubbers. ec-H2O

Old # 9018397 · Tennant instruction bulletin 9018398 rev. 00 (01-2024) · about 1- 2 hours · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 7 parts

Parts in kit TN4020962
Item	Part number	Qty	Description	Price
1	TN4034288Old # 1243570	1	Hose, Molded, BM08/BM05	Call for availability 800-440-6723
2	TN4032414Old # 1259255	1	Electrode, 5 Plate [De Nora]	Call for availability 800-440-6723
3	TN4040768Old # 1051266	1	Hose, PVC, Brd, 0.31id 0.53od, Bulk, Clr (0.854 ft)	Call for availability 800-440-6723
4	TN4015366Old # 54333	2	Clamp, Hose, Worm Drive, 0.31- 0.88d, .31w	$5.10/EA
5	TN4033062Old # 1235066	1	Bracket, Clamp, Electrode, Front [WS] - Module 1060516 Only	Call for availability 800-440-6723
6	TN4033367Old # 1237036	1	Plate, Mtg, Back - Module 1060516 Only	Call for availability 800-440-6723
7	TN4011910Old # 763116	1	Tie, Cable, Nyl, 15.3l .25w 4.50d Max - Module 1060516 Only	$3.40/EA

TN4018390 Nozzle Kit, Spray, CI [M20/T20]

Call for availability 800-440-6723

Install a spray nozzle kit onto: M20 sweeper scrubbers (NA serial numbers 014001- ) (CE serial numbers UO1500- )/ T20 scrubbers (NA serial numbers 013001- ) (CE serial numbers UO1400- ). SN 008000 and laterSN 014001 and laterspray nozzle

Old # 9021851 · Tennant instruction bulletin 9021861 rev. 00 (01-2024) · about 3 hours · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 43 parts

Parts in kit TN4018390
Item	Part number	Qty	Description	Price
1	TN4042944Old # 1076870	2	Valve, Water, Solenoid [12vdc, Bm08/Bm08]	$122.10/EA
2	TN4015366Old # 54333	10	Clamp, Hose, Wormdrive, 0.31- 0.88d, .31w	$5.10/EA
3	TN4017637Old # 64743	2	Fitting, Plstc, Str, Bm08/Pm06	$6.20/EA
4	TN4011920Old # 763149	4	Screw, Pan, 06- X 0.38, F/ Plstc	Call for availability 800-440-6723
5	TN4029123Old # 56186	1	Relay, 12vdc, 40a, Spdt N/O	$11.30/EA
6	TN5000159Old # 376716	2	Hose, PVC, Brd, 0.50ID 0.73OD, Bulk, Clr (1.8 in. (46 mm))	Call for availability 800-440-6723
7	TN4042976Old # 1076974	1	Harness, Spray, Nozzle	$59.01/EA
8	TN4035902Old # 1019250	1	Hose, Water, Coil	$192.50/EA
9	TN4028980Old # 769785	1	Nozzle, Spray, Gun	$90.00/EA
10	TN4030660Old # 1027976	1	Fitting, Brs, Str, Pf06/Pm12	$11.80/EA
11	TN4030624Old # 1027237	1	Bracket, Mtg, Spray Handle	$15.30/EA
12	TN4042902Old # 01685	2	Washer, Flat, 0.38b 0.88d .08, SS	$2.60/EA
13	TN4041943Old # 09010	2	Screw, Hex, M8 X 1.25 X 25, SS	$3.30/EA
14	TN4016537Old # 398500	1	Switch, Rocker, Dpdt On/None/On	$45.20/EA
15	TN4031379Old # 1029790	1	Bracket, Mtg, Spray Wand [FaST, Conv]	$26.25/EA
16	TN4041992Old # 09740	2	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
17	TN4035242Old # 1017218	2	Washer, Flat, 0.32b 1.00d .12, SS	$3.40/EA
18	TN4030661Old # 1027978	1	Fitting, Brs, Str, Pf06/Pf06 Bh	$23.25/EA
19	TN4017647Old # 64778	2	Fitting, Plstc, E90, Bm08/Pm06	$8.70/EA
20	TN4031028Old # 1029055	1	Wand, Clean- Out	$176.10/EA
21	TN4031029Old # 1029057	2	Clip, Grip, Finger, .875- 1.25	$5.15/EA
22	TN4039088Old # 20394	2	Screw, Hex, #10- 16 X 0.62, Fmg [Ab]	$3.30/EA
23	TN4042888Old # 01683	4	Washer, Flat, #10, SS	$2.60/EA
24	TN4029238Old # 375321	1	Fitting, Brs, Str, Pm08/Garden Hose	$10.40/EA
25	TN4042839Old # 01316	1	Washer, Flat, 0.66b 1.00d .12, Rbr	$3.50/EA
26	TN4031038Old # 1029153	1	Fitting, Brs, Spcl [Garden Hose]	$7.00/EA
27	TN4031039Old # 1029155	1	Coupling, Nozzle, Spray	$15.40/EA
28	TN4031040Old # 1029156	1	Nozzle	$69.50/EA
29	TN4031357Old # 1029399	1	Valve, Shutoff	$41.60/EA
30	TN4020528Old # 630146	3	Fitting, Plug, Pm06, Hdpe	$4.00/EA
31	TN4032111Old # 1254833	1	Manifold, Soln	$121.00/EA
32	TN4032116Old # 1254856	1	Plate, Manifold, Mtg	$25.55/EA
33	TN4034136Old # 32490	10	Washer, Flat, 0.25, Std	$2.50/EA
34	TN4032379Old # 1257800	6	Screw, Hex, M6 X 1.00 X 60, SS, Fl	$14.14/EA
35	TN4041928Old # 08712	4	Nut, Hex, Lock, M6 X 1.00, Nl, SS	$2.50/EA
36	TN4043042Old # 1077124	1	Bracket, Manifold, Stratus	$10.20/EA
37	TN5000159Old # 376716	1	Hose, PVC, Brd, 0.50ID 0.73OD, Bulk, Clr (99.6 in. (2530 mm))	Call for availability 800-440-6723
38	TN5000159Old # 376716	1	Hose, PVC, Brd, 0.50ID 0.73OD, Bulk, Clr (93.6 in. (2377 mm))	Call for availability 800-440-6723
39	TN5000159Old # 376716	1	Hose, PVC, Brd, 0.50ID 0.73OD, Bulk, Clr (51.6 in. (1311 mm))	Call for availability 800-440-6723
40	TN4041267Old # 06938	2	Screw, Pan, Phl, M5 X 0.80 X 40, 4.8	$1.82/EA
41	TN4041004Old # 06549	2	Nut, Hex, M5 X 0.80 X 16, 8.8	$2.50/EA
42	TN4017396Old # 43844	1	Clamp, Hose, Worm Drive, 0.25- 0.62D, .31W	$4.20/EA
43	TN5000159Old # 376716	1	Hose, PVC, Brd, 0.50ID 0.73OD, Bulk, Clr (72 in. (1829 mm))	Call for availability 800-440-6723

TN4187417 Parts Phantom, Manifold, Aftmkt

Call for availability 800-440-6723

Assemble a manifold assembly for: M20 sweeper scrubbers (NA serial numbers 014001- ) (CE serial numbers UO1500- ) M30 sweeper scrubbers (NA/CE serial Numbers 010001- ) T20 scrubbers (NA serial numbers 013001- ) (CE serial numbers UO1400- ). SN 008000 and laterSN 014001 and later

Old # 9021870 · Tennant instruction bulletin 9021896 rev. 00 (01-2024) · about 30 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 12 parts

Parts in kit TN4187417
Item	Part number	Qty	Description	Price
1	TN4042944Old # 1076870	1	Valve, Water, Solenoid [12vdc, BM08/BM08]	$122.10/EA
2	TN4032111Old # 1254833	1	Manifold, Soln	$121.00/EA
3	TN4032116Old # 1254856	1	Plate, Manifold, Mtg	$25.55/EA
4	TN4034136Old # 32490	6	Washer, Flat, 0.25, Std	$2.50/EA
5	TN4032379Old # 1257800	4	Screw, Hex, M6 X 1.00 X 60, SS, Fl	$14.14/EA
6	TN4041928Old # 08712	2	Nut, Hex, Lock, M6 X 1.00, NL, SS	$2.50/EA
7	TN4017637Old # 64743	1	Fitting, Plstc, Str, BM08/PM06	$6.20/EA
8	TN4020528Old # 630146	3	Fitting, Plug, PM06, Hdpe	$4.00/EA
9	TN5000159Old # 376716	1	Hose, PVC, Brd, 0.50ID 0.73OD, Bulk, Clr (1.8 in. (46 mm))	Call for availability 800-440-6723
10	TN4015366Old # 54333	2	Clamp, Hose, Worm Drive, 0.31- 0.88D, .31W	$5.10/EA
11	TN4011920Old # 763149	2	Screw, Pan, 06- X 0.38, F/Plstc	Call for availability 800-440-6723
12	TN4017647Old # 64778	1	Fitting, Plstc, E90, BM08/PM06	$8.70/EA

TN4018359 Metering Kit, Detgt, DI

Call for availability 800-440-6723

Install a detergent metering kit onto: M20 sweeper scrubbers (NA serial numbers 014001- )(CE serial numbers UO1500- ), M30 sweeper scrubbers (NA/CE serial numbers 010001- ), and T20 scrubbers (NA serial numbers 013001- ) (CE serial numbers UO1400- ). SN 008000 and laterSN 014001 and laterdetergent

Old # 9021849 · Tennant instruction bulletin 9021850 rev. 00 (04-2023) · about 3 hours · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 21 parts

Parts in kit TN4018359
Item	Part number	Qty	Description	Price
1	TN4032910Old # 1022229	1	Tank, Detgt, Trimmed (All)	$341.48/EA
2	TN4036929Old # 1011885	1	Cap, Tank (All)	$69.10/EA
3	TN4039132Old # 20952	1	Screen, Pump (All)	$13.70/EA
4	TN4039131Old # 20951	2	Fitting, Plstc, E90, Bm06/Bm06 (All)	$4.20/EA
6	TN4039117Old # 20944	1	Grommet, Pye, 0.37id, F/1.5h, .13 Matl (All)	$27.50/EA
7	TN4017396Old # 43844	4	Clamp, Hose, Wormdrive, 0.25- 0.62d, .31w (All)	$4.20/EA
8	TN4016324Old # 73260	1	Pump, Detgt, 14vdc, 150ml/Min 20PSI (All)	$792.20/EA
9	TN4192827Old # 1033792	1	Plate, Hsng [Fast] (M30)	Call for availability 800-440-6723
10	TN4035372Old # 24265	2	Screw, Pan, Phl, M4 X 0.70 X 16, SS (All)	$3.00/EA
11	TN4042888Old # 01683	3	Washer, Flat, 10, SS (All)	$2.60/EA
12	TN4026576Old # 79484	1	Fitting, Plstc, E90, Bm06/Pm12, Nyl (All)	$7.80/EA
14	TN4035382Old # 24544	1	Fitting, Plstc, Str, Pm12/Pm12 1.60l (All)	$6.20/EA
15	TN4013943Old # 76099	1	Screw, Hex, M8 X 1.25 X 25, Fmg (All)	$4.00/EA
16	TN4028471Old # 365095	1	Fitting, Plstc, Str, Bm10/Pm12 (M20/T20)	$4.20/EA
17	TN4018369Old # 69785	1	Fitting, Plstc, E90, Pf12/Pm12 (M20/T20)	$11.80/EA
18	TN4193627Old # 1025159	1	Bracket, Mtg, Detgt And Spray Wand (M20/T20)	$19.70/EA
19	TN4041992Old # 09740	6	Screw, Hex, M8 X 1.25 X 20, SS (M20/T20)	$3.30/EA
20	TN4035242Old # 1017218	6	Washer, Flat, 0.32b 1.00d .12, SS (M20/T20)	$3.40/EA
22	TN4195605Old # 1021325	1	Bracket, Mtg, Valve (M20/T20)	$20.50/EA
23	TN4032200Old # 1255914	1	Switch, Rocker [MOM, Off, MOM, Dual LED] (All)	$78.81/EA
24	TN4015366Old # 54333	2	Clamp, Hose, Worm Drive, 0.31- 0.88d, .31w (All)	$5.10/EA

TN4022024 Spotlight Kit, Blue, CI [T20/M20/M30]

$868.40/EA

Install the blue spotlight kit on M20/M30 sweeper scrubbers and T20 scrubbers. lights

Old # 9021235 · Tennant instruction bulletin 9021236 rev. 00 (05-2023) · about 3 hours · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 16 parts

Parts in kit TN4022024
Item	Part number	Qty	Description	Price
1	TN4033715Old # 1240687	2	Light, Spot, Blue, LED	$562.40/EA
2	TN4016789Old # 41143	2	Washer, Lock, Int- Ext, 0.50	$3.10/EA
3	TN4042916Old # 1076808	1	Brkt, Blu Spotlight, Fr, Cover Mtg	$56.60/EA
4	TN4032093Old # 1031665	3	Screw, Pan, M8 X 1.25 X 25, Blk	$3.40/EA
5	TN4016551Old # 39890	3	Washer, Flat, M8, Fendr	$4.10/EA
6	TN4041929Old # 08713	3	Nut, Hex, Lock, M8 X 1.25, Nl, SS	$3.30/EA
7	TN4042910Old # 1076789	1	Brkt, Blu Spotlight, RR, Frame Mtg	$22.32/EA
8	TN4035367Old # 24196	4	Screw, Pan, Phl, M5 X 0.80 X 20, SS	$3.20/EA
9	TN4042244Old # 19066	4	Washer, Flat, 0.25B 0.56D .05, PL, 10	$2.50/EA
10	TN4041991Old # 09739	4	Nut, Hex, Lock, M5 X 0.80, Nl, SS	$3.30/EA
11	TN4035919Old # 1019445	1	Bracket, Sppt, Revl Light	$55.20/EA
12	TN4041992Old # 09740	4	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
13	TN4035242Old # 1017218	4	Washer, Flat, 0.32B 1.00D .12, SS	$3.40/EA
14	TN4042993Old # 1076999	1	Harness, Blu Spotlight [T20,M20,M30]	$147.76/EA
15	TN4038889Old # 1210807	3	Wire, Tie [w/.25” Fir Tree Clip]	$1.90/EA
16	TN4011908Old # 763114	10	Tie, Cable, 11.3L, 2.75D Max	$3.30/EA

TN4187455 SpeedGleam 5 Burnisher Bill of Materials for Telemetry Kit, 3G- 4G, NA [B5, B7, T7]

Call for availability 800-440-6723

Upgrade a 3G telemetry module to a 4G telemetry module on B5, SpeedGleam 5, B7, SpeedGleam 7, T7, Speed Scrub Rider, T500e/SpeedScrub 500, T12, T16, T17, M17, M20, T20, M30, S20E, S20, and S30. telemetry

Old # 9021969 · Tennant instruction bulletin 9021976 rev. 00 (02-2023) · about 60 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 2 parts

Parts in kit TN4187455
Item	Part number	Qty	Description	Price
1	TN4031062Old # 1247507	1	Control Box Assy, Telem [USA, 4G]	Call for availability 800-440-6723
2	TN4031064Old # 1247522	2	Antenna, Telem [4G, 72”]	Call for availability 800-440-6723

TN4187456 SpeedScrub 500 Scrubber Bill of Materials for Telemetry Kit, 3G- 4G, NA [T500E]

Call for availability 800-440-6723

Old # 9021970 · Tennant instruction bulletin 9021976 rev. 00 (02-2023) · about 60 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 3 parts

Parts in kit TN4187456
Item	Part number	Qty	Description	Price
1	TN4031062Old # 1247507	1	Control Box Assy, Telem [USA, 4G]	Call for availability 800-440-6723
2	TN4031066Old # 1247569	2	Antenna, Telem [4G, 36]	Call for availability 800-440-6723
3	TN4038889Old # 1210807	2	Wire, Tie [w/.25” Fir Tree Clip]	$1.90/EA

TN4187457 Telemetry Kit, 3G- 4G, NA [T12]

Call for availability 800-440-6723

Old # 9021971 · Tennant instruction bulletin 9021976 rev. 00 (02-2023) · about 60 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 10 parts

Parts in kit TN4187457
Item	Part number	Qty	Description	Price
1	TN4031062Old # 1247507	1	Control Box Assy, Telem [USA, 4G]	Call for availability 800-440-6723
2	TN4031064Old # 1247522	2	Antenna, Telem [4G, 72”]	Call for availability 800-440-6723
3	TN4030314Old # 1070402	1	Angle, Mtg, Antenna, Telem	$18.69/EA
4	TN4044164Old # 140916	2	Clamp, Cable, Nyl, 0.62d, Nat	$3.40/EA
5	TN4035369Old # 24199	2	Screw, Hex, M5 X 0.80 X 16, SS	$3.00/EA
6	TN4042888Old # 01683	4	Washer, Flat, 10, SS	$2.60/EA
7	TN4041004Old # 06549	2	Nut, Hex, M5 X 0.80 X 16, 8.8	$2.50/EA
8	TN4036259Old # 1020341	1	Screw, Hex, M8 X 1.25 X 20, SS, SEMS	$3.50/EA
9	TN4042902Old # 01685	2	Washer, Flat, 0.38B 0.88D .08, SS	$2.60/EA
10	TN4041929Old # 08713	1	Nut, Hex, Lock, M8 X 1.25, NL, SS	$3.30/EA

TN4187458 Telemetry Kit, 3G- 4G, NA [T16]

Call for availability 800-440-6723

Old # 9021972 · Tennant instruction bulletin 9021976 rev. 00 (02-2023) · about 60 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 10 parts

Parts in kit TN4187458
Item	Part number	Qty	Description	Price
1	TN4031062Old # 1247507	1	Control Box Assy, Telem [USA, 4G]	Call for availability 800-440-6723
2	TN4031064Old # 1247522	2	Antenna, Telem [4G, 72”]	Call for availability 800-440-6723
3	TN4030314Old # 1070402	1	Angle, Mtg, Antenna, Telem	$18.69/EA
4	TN4044164Old # 140916	2	Clamp, Cable, Nyl, 0.62d, Nat	$3.40/EA
5	TN4041258Old # 06927	2	Screw, Pan, Phl, M4 X 0.70 X 16, 4.8	$3.30/EA
6	TN4042888Old # 01683	4	Washer, Flat, 10, SS	$2.60/EA
7	TN4041991Old # 09739	2	Nut, Hex, Lock, M5 X 0.80, NL, SS	$3.30/EA
8	TN4041271Old # 06943	1	Screw, Hex, M6 X 1.00 X 20, 8.8	$2.50/EA
9	TN4034133Old # 32483	2	Washer, Flat, 0.25, SAE	$2.50/EA
10	TN4041925Old # 08708	1	Nut, Hex, Lock, M6 X 1.00, NL	$2.50/EA

TN4187459 M20 Sweeper Scrubber/M30 Sweeper Scrubber Bill of Materials for Telemetry Kit, 3G- 4G, NA [T20/M20/M30]

Call for availability 800-440-6723

Old # 9021973 · Tennant instruction bulletin 9021976 rev. 00 (02-2023) · about 60 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 4 parts

Parts in kit TN4187459
Item	Part number	Qty	Description	Price
1	TN4031062Old # 1247507	1	Control Box Assy, Telem [USA, 4G]	Call for availability 800-440-6723
2	TN4217709Old # 1248350	2	Antenna, Telem [4G, 180”]	$50.89/EA
3	TN4011908Old # 763114	2	Tie, Cable, 11.3L, 2.75D Max	$3.30/EA
4	TN4028714Old # 55248	2	Mount, Cable Tie	$3.70/EA

TN4187460 M17 Sweeper Scrubber Bill of Materials for Telemetry Kit, 3G- 4G, NA [T17/M17]

Call for availability 800-440-6723

Old # 9021974 · Tennant instruction bulletin 9021976 rev. 00 (02-2023) · about 60 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 3 parts

Parts in kit TN4187460
Item	Part number	Qty	Description	Price
1	TN4031062Old # 1247507	1	Control Box Assy, Telem [USA, 4G]	Call for availability 800-440-6723
2	TN4217709Old # 1248350	2	Antenna, Telem [4G, 180”]	$50.89/EA
3	TN4038889Old # 1210807	4	Wire, Tie [w/.25” Fir Tree Clip]	$1.90/EA

TN4187461 Telemetry Kit, 3G- 4G, NA [S20/S30]

Call for availability 800-440-6723

Old # 9021975 · Tennant instruction bulletin 9021976 rev. 00 (02-2023) · about 60 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 6 parts

Parts in kit TN4187461
Item	Part number	Qty	Description	Price
1	TN4031062Old # 1247507	1	Control Box Assy, Telem [USA, 4G]	Call for availability 800-440-6723
2	TN4217657Old # 1247568	2	Antenna, Telem [4G, 108”]	Call for availability 800-440-6723
3	TN4011908Old # 763114	4	Tie, Cable, 11.3L, 2.75D Max	$3.30/EA
4	TN4028714Old # 55248	4	Mount, Cable Tie	$3.70/EA
5	TN4044164Old # 140916	4	Clamp, Cable, Nyl, 0.62d, Nat	$3.40/EA
6	TN4027333Old # 382320	4	Screw, Pan, Phl, 12- 16 X 0.50, F/ Plstc	$2.50/EA

TN4191538 Flasher Kit, Replmt, CI [M/T20]
Call for availability 800-440-6723
Replace a flasher on M20 sweeper scrubbers and T20 scrubbers. lights
Old # 9020695 · Tennant instruction bulletin 9020694 rev. 00 (02-2022) · about 15 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit
Kit includes 1 part
Parts in kit TN4191538
Item Part number Qty Description Price
1 TN4033517Old # 31922 1 Flasher, HD, 12VDC 25A [#10- 57300] Call for availability 800-440-6723

TN4018217 leaks. Turn off spacer (7). (Fig. 3) the machine and recheck the antifreeze level. Add antifreeze as necessary. Bill of Materials for Repair Kit, Sheave

$373.80/EA

Replace the sheave assembly on M20/M30/T20 machines equipped with Mitsubishi 2.0L Gas or LP engines. GasolineLPGMitsubishi engine

Old # 9021787 · Tennant instruction bulletin 9021788 rev. 00 (01-2022) · about 3 hours · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 13 parts

Parts in kit TN4018217
Item	Part number	Qty	Description	Price
1	TN4032383Old # 1257986	1	Sheave, Mach	$109.40/EA
2	TN4214590Old # 1257706	1	Plate Wldt, Shaft, Fan	$154.70/EA
3	TN4038766Old # 1055377	2	Bearing, Ball, 20mmb 42mmd 12mmw	$12.60/EA
4	TN4016811Old # 41358	3	Screw, Soc, M10 X 1.50 X 35, 12.9	$4.00/EA
5	TN4035242Old # 1017218	2	Washer, Flat, 0.32b 1.00d .12, SS	$3.40/EA
6	TN4041284Old # 06959	3	Screw, Hex, M8 X 1.25 X 100, 8.8	$4.00/EA
7	TN4030317Old # 1070431	1	Spacer, Fan, Taper [Mit 2013]	$107.60/EA
8	TN4042788Old # 00960	1	Key, Sq, 0.12 X 0.12, 0.50l	$3.60/EA
9	TN4178853Old # 1074849	2	Ring, Retaining, Int, 42mm	$1.20/EA
10	TN4156940Old # 39277	1	Screw, Hex, M8 X 1.25 X 25, 8.8	$3.20/EA
11	TN4034137Old # 32491	1	Washer, Flat, 0.31, Std	$2.50/EA
12	TN4033875Old # 1025121	2	Ring, Retaining, Shaft, Ext, 20mmd, HD	$19.30/EA
13	TN4203177Old # 16799	1	Adhesive, Anaerobic, 0.5ml [609]	Call for availability 800-440-6723

TN4018130 Sensor Kit Recovery Tank Afmkt Std

Call for availability 800-440-6723

Replace the recovery float sensor on M20/M30 sweeper scrubbers and T20 scrubbers without the optional ES system. ES (extended scrub)

Old # 9021418 · Tennant instruction bulletin 9021416 rev. 00 (06-2021) · about 45 minutes · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 2 parts

Parts in kit TN4018130
Item	Part number	Qty	Description	Price
1	TN4021025Old # 385685	1	Sensor, Level, Liq, 14VDC 01A .62- 11	$78.50/EA
2	TN4035907Old # 1019285	1	Bracket, Protector, Float Switch	Call for availability 800-440-6723

TN4018132 8 in. (16 mm) hole was drilled in the previous step. (Fig. 11) Bill Of Materials For Sensor Kit Recovery Tank Afmkt ES

Call for availability 800-440-6723

Replace the liquid level sensors on M20/M30/T20 machines equipped with the optional ES system. ES (extended scrub)

Old # 9021419 · Tennant instruction bulletin 9021417 rev. 00 (06-2021) · about M20- 1 hour, M30- 1.5 hours, T20- 2.5 hours · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 3 parts

Parts in kit TN4018132
Item	Part number	Qty	Description	Price
1	TN4021025Old # 385685	2	Sensor, Level, Liq, 14VDC 01A .62- 11	$78.50/EA
2	TN4035907Old # 1019285	2	Bracket, Protector, Float Switch	Call for availability 800-440-6723
3	TN4231946Old # 1076766	1	Harness, Elec, Rec Tank Jumper	Call for availability 800-440-6723

TN4024031 Motor Kit, Replmt [M20/T20/M30]

$794.80/EA

Replace scrub vacuum fan motor on M20 (NA serial numbers 006877- ) (CE serial numbers 1000- ) / T20 (NA serial numbers 005892- ) (CE serial numbers 1000- ) / M30 (serial numbers 004455- ) machines. SN 006877 and later

Old # 9016242 · Tennant instruction bulletin 9016245 rev. 00 (07-2019) · about 5- 7 hours (5 hours if hydraulic system is vacuumed down, 7 hours if hydraulic fluid is removed

Kit includes 10 parts

Parts in kit TN4024031
Item	Part number	Qty	Description	Price
1	TN4030528Old # 1071253	1	Motor, Hyd, Gear, Ext 0.17 LH 3000	Call for availability 800-440-6723
2	TN4041602Old # 07788	1	Nut, Hex, Std, M12 x 1.75, SS	$3.40/EA
3	TN4041943Old # 09010	4	Screw, Hex, M8 X 1.25 X 25, SS	$3.30/EA
4	TN4042902Old # 01685	4	Washer, Flat, 0.38B 0.88D .08, SS	$2.60/EA
5	TN4041929Old # 08713	4	Nut, Hex. Lock, M8 X 1.25, NL, SS	$3.30/EA
6	TN4011921Old # 76315	1	Fitting, Hyd, Tee, JF08/JM08/JM08, Br	$15.10/EA
7	TN4013874Old # 47513	1	Fitting, Hyd, E45, JM08/OM10	$34.20/EA
8	TN4025261Old # 77098	1	Fitting, Hyd, E90, JM06/OM04	$15.50/EA
9	TN4029146Old # 56692	1	Fitting, Hyd, Str, JM08/OM10	$10.60/EA
10	TN4030456Old # 36328	1	Washer, Flat, Belleville, .50	$4.10/EA

TN4022937 Panel Kit, Pod, Afmkt [M17, Touch Screen]
Call for availability 800-440-6723
Replace Pro- Panel assembly on M17/M20/M30/T20 machines. Pro-Panel
Old # 9015042 · Tennant instruction bulletin 9015637 rev. 01 (03-2020) · about 45- 60 minutes
Kit includes 1 part
Parts in kit TN4022937
Item Part number Qty Description Price
1 TN1215588Old # 1215588 1 Panel Assy [M17, UI, Touch Screen] Call for availability 800-440-6723
TN4023703 Panel Kit, Pod, Afmkt [Pro, M20/M30/T20]
$2,226.60/EA
Replace Pro- Panel assembly on M17/M20/M30/T20 machines. Pro-Panel
Old # 9015633 · Tennant instruction bulletin 9015637 rev. 01 (03-2020) · about 45- 60 minutes
Kit includes 1 part
Parts in kit TN4023703
Item Part number Qty Description Price
1 TN4224038Old # 1225047 1 Panel Assy [UI, Touchscreen] Call for availability 800-440-6723

TN4193415 Fan Kit, Scb, Replmt [M20/T20/M30]

$1,594.40/EA

Replace scrub vacuum fan motor on M20 sweeper scrubbers (serial numbers 006878- ), M30 sweeper scrubbers (serial numbers 006878- ), and T20 scrubbers (serial numbers 005893- ). SN 006878 and later

Old # 9016241 · Tennant instruction bulletin 9016244 rev. 00 (01-2018) · about 5- 7 hours (5 hours if hydraulic system is vacuumed down, 7 hours if hydraulic fluid is removed

Kit includes 21 parts

Parts in kit TN4193415
Item	Part number	Qty	Description	Price
1	TN4030069Old # 1068611	1	Plate Wldt, Mtg, Fan	$197.90/EA
2	TN4034909Old # 1062033	1	Impeller, 11.81d X 0.500b	$473.30/EA
3	TN4015364Old # 54274	3	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78h	$14.70/EA
4	TN4030528Old # 1071253	1	Motor, Hyd, Gear, Ext 0.17 Lh 3000	Call for availability 800-440-6723
5	TN4041602Old # 07788	1	Nut, Hex, Std, M12 X 1.75, SS	$3.40/EA
6	TN4041943Old # 09010	4	Screw, Hex, M8 X 1.25 X 25, SS	$3.30/EA
7	TN4042902Old # 01685	7	Washer, Flat, 0.38b 0.88d .08, SS	$2.60/EA
8	TN4041929Old # 08713	4	Nut, Hex, Lock, M8 X 1.25, Nl, SS	$3.30/EA
9	TN4011921Old # 76315	1	Fitting, Hyd, Tee, Jf08/Jm08/Jm08, Br	$15.10/EA
10	TN4013874Old # 47513	1	Fitting, Hyd, E45, Jm08/Om10	$34.20/EA
11	TN4025261Old # 77098	1	Fitting, Hyd, E90, Jm06/Om04	$15.50/EA
12	TN4029146Old # 56692	1	Fitting, Hyd, Str, Jm08/Om10	$10.60/EA
13	TN4184443Old # 1068644	3	Angle, Sppt, Fan	$11.30/EA
14	TN4032056Old # 1031617	1	Seal, Afmkt, Bulb, Str, .75d F/07ga 08ft	$102.70/EA
15	TN4156940Old # 39277	3	Screw, Hex, M8 X 1.25 X 25, 8.8	$3.20/EA
16	TN4035242Old # 1017218	6	Washer, Flat, 0.32b 1.00d .12, Ss	$3.40/EA
17	TN4041992Old # 09740	3	Screw, Hex, M8 X 1.25 X 20, Ss	$3.30/EA
18	TN4036801Old # 1059100	1	Housing, Fan, Radial Discharge, Sq Inlet	$19.40/EA
19	TN4030456Old # 36328	1	Washer, Flat, Belleville, .50	$4.10/EA
20	TN4041944Old # 09011	2	Screw, Hex, M8 X 1.25 X 30, SS	$3.40/EA
21	TN4041945Old # 09023	1	Screw, Hex, M8 X 1.25 X 35, Fl, SS	$3.30/EA

TN4024338 Connector Kit, DT06- 2S

Call for availability 800-440-6723

Update the wire harness on M20/T20/M30/M17/T17 machines to be equipped with a newer model solenoid water valve.

Old # 9016477 · Tennant instruction bulletin 9016476 rev. 01 (03-2022) · about 1 hour · Tennant says an authorized service provider should install it; SES is one. Have SES install this kit

Kit includes 2 parts

Parts in kit TN4024338
Item	Part number	Qty	Description	Price
1	TN4045183Old # 1075954	1	Harness, Ele [Wire Tail, DT, 2F]	Call for availability 800-440-6723
2	TN4179632Old # 1075953	2	Connector, Butt, Sealed [14- 16awg]	Call for availability 800-440-6723

TN4205425 Seat Kit, Lift, CI [M20 & T20]

Call for availability 800-440-6723

Install a seat lift kit onto M20/T20 machines.

Old # 9003283 · Tennant instruction bulletin 340841 rev. 00 (12-2006) · about 1 hour

Kit includes 7 parts

Parts in kit TN4205425
Item	Part number	Qty	Description	Price
1	TN4193010Old # 1034656	2	Bracket, Mtg	Call for availability 800-440-6723
2	TN4031564Old # 368391	1	Gasspring, 175lb	Call for availability 800-440-6723
3	TN4029776Old # 58494	2	Stud, Ball, .39D .31--16, Gasspring	$8.40/EA
4	TN4042967Old # 01760	2	Nut, Hex, Lock, .31--18, NL, SS	$3.40/EA
5	TN4042902Old # 01685	8	Washer, Flat, 0.38B 0.88D .08, SS	$2.60/EA
6	TN4041943Old # 09010	4	Screw, Hex, M8 X 1.25 X 25, SS	$3.30/EA
7	TN4041929Old # 08713	4	Nut, Hex, Lock, M8 X 1.25, NL, SS	$3.30/EA

TN4019664 Extinguisher Kit, Fire, CI [M20 & T20]

$218.90/EA

Install a fire extinguisher onto M20/T20 machines.

Old # 9001316 · Tennant instruction bulletin 340813 rev. 00 (11-2006) · about 15 minutes

Kit includes 3 parts

Parts in kit TN4019664
Item	Part number	Qty	Description	Price
1	TN4035427Old # 25312	1	Extinguisher, Fire, 1.5 Lb Dry	$206.60/EA
2	TN4027333Old # 382320	2	Screw, Pan, #12--16 X 0.50, F/Plastic	$2.50/EA
3	TN7000203Old # 1026898	1	Shroud, Eng, Extinguisher, Rwk	Call for availability 800-440-6723

TN4016486 Modif Kit, Hi--Amb Heat

Call for availability 800-440-6723

Install the M20 new product launch update kit.

Old # 9003091 · Tennant instruction bulletin 340829 rev. 01 (11-2006) · about 5 hours

Kit includes 26 parts

Parts in kit TN4016486
Item	Part number	Qty	Description	Price
1	TN4032250Old # 1032242	1	Spacer, Fan [6600/6650 07]	$181.00/EA
2	TN4045369Old # 1035031	1	Fan, Cooling, Pusher, 15.50D [2007]	$249.90/EA
3	TN4045064Old # 1033644	1	Belt, Ribbed, 38.5L	$73.00/EA
4	TN4016796Old # 41186	1	Washer, Flat, Belleville, .31	$3.50/EA
5	TN4041828Old # 16735	1	Screw, Hex, M8 X 1.25 X 16, 8.8	$3.40/EA
6	TN4013994Old # 48998	3	Screw, Flat, .38--16 X 1.00, Al	$5.10/EA
7	TN4041958Old # 09145	3	Screw, Pan, M6 X 1.00 X 16, 4.8	$3.40/EA
8	TN4045039Old # 1033428	1	Sheave, 5.00D [GM1.6L 2007]	$459.70/EA
9	TN4045378Old # 1035068	1	Grill Wldt, Front	$748.00/EA
10	TN4045352Old # 1034878	1	Insulation, Thermal, Hydraulic Blanket	$145.60/EA
11	TN4032036Old # 1031557	1	Seal, Afmkt, Bulb, Str, 1.00D F/11ga 08 ft	$159.70/EA
12	TN4035239Old # 1017141	1	Label Set, Hi Temp	$30.80/EA
13	TN4018310Old # 69234	1	Clamp, Cable, Stl, 1.00D X 0.75W, 1 Hole	$4.20/EA
14	TN4034137Old # 32491	1	Washer, Flat, 0.31, Std	$2.50/EA
15	TN4041844Old # 16931	1	Screw, Hex, M8 X 1.25 X 20, 8.8	$2.50/EA
16	TN1021287Old # 1021287	1	Panel, Shrd, Fan, Gas/LPG	Call for availability 800-440-6723
17	TN4193073Old # 1035222	1	Skirt, Debris, Engine Radiator	$50.70/EA
18	TN4042902Old # 01685	3	Washer, Flat, 0.38B 0.88D .08, SS	$2.60/EA
19	TN4193071Old # 1035214	1	Bracket, Tube, Coolant [M20/T20]	$8.89/EA
20	TN4029699Old # 58366	1	Clamp, Cable, Stl, 1.25D X 1.00W, 1 Hole	$5.10/EA
21	TN4041929Old # 08713	2	Nut, Hex, Lock, M8 X 1.25, NL, SS	$3.30/EA
22	TN4041992Old # 09740	2	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
23	TN4034138Old # 32492	1	Washer, Flat, 0.38, Std	$2.50/EA
24	TN4016794Old # 41178	3	Washer, Flat, 0.25, Fendr	$2.50/EA
25	TN4042426Old # 19207	1	Label, Info, Hyd Fluid, NA/CE	Call for availability 800-440-6723
26	TN4030823Old # 331381	1	Manual, Parts [M20 Gas/LPG En/Jp]*	$157.80/EA

TN4014459 Switch Kit, Replmt, Thermostat, Eng

Call for availability 800-440-6723

Replace the thermostat switch on ATLV4300, 6400, 6600/6650, 6200, M20, T20, M30, and S30 machines.

Old # 9005789 · Tennant instruction bulletin 9005795 rev. 00 (12-2008) · about 1 hour

Kit includes 2 parts

Parts in kit TN4014459
Item	Part number	Qty	Description	Price
1	TN4040710Old # 1050757	1	Switch, Thermostat, Water	$128.60/EA
2	TN4030581Old # 130097	2	Terminal, Fem, .25 X 0.32 16--14 Ga, F--Ins	Call for availability 800-440-6723

TN4183662 Kit

Call for availability 800-440-6723

Replace the PCV grommet on M20 / T20 / M30 / S30 machines equipped with Mitsubishi engines. GasolineLPGMitsubishi engine

Old # 322365 · Tennant instruction bulletin 328338 rev. 00 (04-2013) · about 30 minutes

Kit includes 2 parts

Parts in kit TN4183662
Item	Part number	Qty	Description	Price
	TN4183662Old # 322365	1	CS, Valve Kit, [M20/T20/M30/S30] CI	Call for availability 800-440-6723
1	TN4191416Old # 315253	1	CS, VR, Valve, Gasket, PCV	Call for availability 800-440-6723

TN4011832 Sheave Assy, Kit, Repair

$294.80/EACall for availability

Replace the sheave assembly on M20, M30, T20, S30, 8200/8210, 7400, and 6600/6650 machines equipped with GM 1.6L Gas or LP engines. SN 000000–007999GasolineLPGGM engine

Old # 9007088 · Tennant instruction bulletin 9007105 rev. 00 (10-2009) · about 3 hours

Kit includes 8 parts

Parts in kit TN4011832
Item	Part number	Qty	Description	Price
1	TN4038776Old # 1055425	1	SHEAVE, MACH [GM1.6L]	Call for availability 800-440-6723
2	TN4038767Old # 1055381	1	PLATE WLDT, FAN, HUB [GM 1.6L]	$87.00/EACall for availability
3	TN4038766Old # 1055377	2	BEARING, BALL, 20MM B 42MM D 12MM W	$12.60/EA
4	TN4039390Old # 21195	2	SCREW, HEX, .38--16 X 0.75, G5	$3.40/EA
5	TN4037922Old # 1014563	1	WASHER, FLAT, 0.40B 1.12D .12, SS	$5.80/EA
6	TN4034134Old # 32485	1	WASHER, FLAT, 0.38, SAE	$2.50/EA
7	TN4041844Old # 16931	2	SCREW, HEX, M8 X 1.25 X 20, 8.8	$2.50/EA
8	TN4015595Old # 39349	2	WASHER, FLAT, 0.31, SAE	$2.50/EA

TN4010444 Motor Kit, Side Brush, Replmt [MAKO]
Call for availability 800-440-6723
Replace the side brush motor on M20 / T20 / M30 machines.
Old # 9009501 · Tennant instruction bulletin 9009117 rev. 00 (07-2012) · about 1 hour
Kit includes 1 part
Parts in kit TN4010444
Item Part number Qty Description Price
1 TN4030083Old # 1068812 1 Motor, Hyd, Gear, Int 08.9 Bi--Dir 2500 $616.10/EA

TN4010426 Motor Kit, Main Brush, Replmt [S20]

Call for availability 800-440-6723

Replace the main brush motor and brush drive plug on S20, S30, M20, T20, M30, 800, and 7400 machines.

Old # 9009357 · Tennant instruction bulletin 9009356 rev. 01 (08-2013) · about 1.5 hours

Kit includes 2 parts

Parts in kit TN4010426
Item	Part number	Qty	Description	Price
1	TN4030081Old # 1068806	1	Motor, Hyd, Gear, Int 02.2 Bi- Dir 1500	Call for availability 800-440-6723
2	TN4036586Old # 1057643	1	Plug, Wldt, Drive, Brush	$152.90/EA

TN4010443 Motor Kit, Main Brush, Replmt [MAKO]
Call for availability 800-440-6723
Replace the main brush motor and brush drive plug on S20, S30, M20, T20, M30, 800, and 7400 machines.
Old # 9009500 · Tennant instruction bulletin 9009356 rev. 01 (08-2013) · about 1.5 hours
Kit includes 2 parts
Parts in kit TN4010443
Item Part number Qty Description Price
1 TN4030082Old # 1068811 1 Motor, Hyd, Gear, Int 04.5 Bi- Dir 1500 $594.80/EA
2 TN4036586Old # 1057643 1 Plug, Wldt, Drive, Brush $152.90/EA

TN4010446 Motor Kit, Main Brush, Replmt [S30 / 800]

Call for availability 800-440-6723

Replace the main brush motor and brush drive plug on S20, S30, M20, T20, M30, 800, and 7400 machines.

Old # 9009503 · Tennant instruction bulletin 9009356 rev. 01 (08-2013) · about 1.5 hours

Kit includes 2 parts

Parts in kit TN4010446
Item	Part number	Qty	Description	Price
1	TN4036398Old # 1057337	1	Motor, Hyd, Gear, Int 02.8 Bi- Dir 1500	Call for availability 800-440-6723
2	TN4036586Old # 1057643	1	Plug, Wldt, Drive, Brush	$152.90/EA

TN4027871 800] 1 Y 1 1057337 Motor, Hyd, Gear, Int 02.8 Bi- Dir 1500 1 Y 2 1057643 Plug, Wldt, Drive, Brush 1 Bill Of Materials For Motor Kit, Main Brush, Replmt [7400]

Call for availability 800-440-6723

Replace the main brush motor and brush drive plug on S20, S30, M20, T20, M30, 800, and 7400 machines.

Old # 9011025 · Tennant instruction bulletin 9009356 rev. 01 (08-2013) · about 1.5 hours

Kit includes 2 parts

Parts in kit TN4027871
Item	Part number	Qty	Description	Price
1	TN4030082Old # 1068811	1	Motor, Hyd, Gear, Int 04.5 Bi- Dir 1500	$594.80/EA
2	TN1072405Old # 1072405	1	Plug, Wldt, Drive, Brush [7400 H Series]	Call for availability 800-440-6723

TN4027818 instructions how to check hydraulic fluid level. Bill Of Materials For Scrub Kit, Conversion M20 / T20 / M30

Call for availability 800-440-6723

Replace the scrub head on M20 / M30 / T20 machines equipped with cylindrical scrub heads. cylindrical brushes

Old # 9010849 · Tennant instruction bulletin 9011272 rev. 01 (12-2015) · about 8 hours

Kit includes 13 parts

Parts in kit TN4027818
Item	Part number	Qty	Description	Price
1	TN4040825Old # 1052124	1	Bracket Wldt, Brush Wrap Mtg, RH	$470.60/EA
2	TN4041051Old # 1052342	1	Bracket Wldt, Brush Wrap, LH	$443.90/EA
3	TN4038636Old # 1054575	2	Bracket, Sppt	$39.20/EA
4	TN4038642Old # 1054610	1	Bracket, Retainer, RH	$18.60/EA
5	TN4038661Old # 1054682	1	Bracket, Retainer, LH	$18.60/EA
6	TN4038684Old # 1054857	2	Door Wldt, Brush, Idler	$205.40/EA
7	TN4030120Old # 1069562	1	Plate Wldt, Wrap, Brush	$303.10/EA
8	TN4044719Old # 1042686	1	Spring, Extn, 2.00od 0.25wir 07.5l	$23.40/EA
9	TN4041992Old # 09740	8	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
10	TN4034137Old # 32491	32	Washer, Flat, 0.31, Std	$2.50/EA
11	TN4041929Old # 08713	10	Nut, Hex, Lock, M8 X 1.25, Nl, SS	$3.30/EA
12	TN4041943Old # 09010	4	Screw, Hex, M8 X 1.25 X 25, SS	$3.30/EA
13	TN4037712Old # 223470	10	Screw, Btn, M8 X 1.25 X 25, SS	$4.00/EA

TN4012473 Kit
$1,782.70/EA
Install an ec--H20 system on M20 / M30 / T20 machines. overhead guardES (extended scrub)cylindrical brushes
Old # 9007882 · Tennant instruction bulletin 9007932 rev. 00 (08-2010) · about 5--12 hours
TN4012490 Kit
Call for availability 800-440-6723
Install an ec--H20 system on M20 / M30 / T20 machines. overhead guardES (extended scrub)cylindrical brushes
Old # 9007928 · Tennant instruction bulletin 9007932 rev. 00 (08-2010) · about 5--12 hours
TN4012491 Kit
Call for availability 800-440-6723
Install an ec--H20 system on M20 / M30 / T20 machines. overhead guardES (extended scrub)cylindrical brushes
Old # 9007929 · Tennant instruction bulletin 9007932 rev. 00 (08-2010) · about 5--12 hours
TN4012492 Kit
Call for availability 800-440-6723
Install an ec--H20 system on M20 / M30 / T20 machines. overhead guardES (extended scrub)cylindrical brushes
Old # 9007930 · Tennant instruction bulletin 9007932 rev. 00 (08-2010) · about 5--12 hours
TN4012493 Kit
Call for availability 800-440-6723
Install an ec--H20 system on M20 / M30 / T20 machines. overhead guardES (extended scrub)cylindrical brushes
Old # 9007931 · Tennant instruction bulletin 9007932 rev. 00 (08-2010) · about 5--12 hours

TN4013010 Housing Kit, Drive, Front, F/1037940 Rep

$1,226.30/EA

Replace the front wheel support housing on M20 / M30 / T20 machines. lights

Old # 9008248 · Tennant instruction bulletin 9008242 rev. 00 (03-2011) · about 1.25 hours

Kit includes 8 parts

Parts in kit TN4013010
Item	Part number	Qty	Description	Price
1	TN1064086Old # 1064086	1	Housing, Sppt, Rear Wheel	Call for availability 800-440-6723
2	TN4034614Old # 1060521	1	Bracket, Mtg, Sppt	$21.70/EA
3	TN4025656Old # 77345	2	Screw, Hex, .75--10 X 3.25, G5	$9.50/EA
4	TN4028913Old # 374560	1	Seal, Drive, Rear, Grease Cav *	$28.60/EA
5	TN4014546Old # 51338	2	Bearing, Cup, 2.56D 0.55W *	$11.70/EA
6	TN4014547Old # 51339	2	Bearing, Cone, 1.38B 0.71W *	$46.30/EA
7	TN4028915Old # 374563	1	Washer, Flat, 2.16B 3.50D .16, Felt	$4.00/EA
8	TN4015062Old # 54051	1	Washer, Flat, 1.39B 2.12D .13, Stl	$3.50/EA

TN4201180 Hose Kit, Replmt [GM1.6L 2010]

Call for availability 800-440-6723

Install the replacement hose kit on M20 machines (serial numbers 003123--003268) T20 machines (serial numbers 002141--002253) M30 machines (serial numbers 001321--001424) SN 000000–007999SN 003123–003268

Old # 9007992 · Tennant instruction bulletin 9007993 rev. 00 (04-2010) · about 1.25 hours

Kit includes 6 parts

Parts in kit TN4201180
Item	Part number	Qty	Description	Price
1	TN4034918Old # 1062116	1	Fitting, Plstc, Tee, BM10/BM10/BM10, Nyl	$6.20/EA
2	TN4014601Old # 51839	1	Fitting, Brs, E90, EM10/PM06	$17.40/EA
3	TN4038308Old # 1015547	1	Fitting, Adapter, Orifice, PF06/PM06	$58.87/EA
4	TN4017089Old # 63810	6	Clamp, Hose, Wormdrive, 0.56--1.06D, .56W	$6.80/EA
5	TN4035153Old # 1016561	1	Hose, Afmkt, Rbr, Heater, 0.62ID, 08FT	$50.20/EA
6	TN4038615Old # 1015897	1	Hose, Radiator, Mold, .75ID X .62ID (Gasoline machines only)	$73.90/EA

TN4015310 leaks. BILL OF MATERIALS FOR TUBE KIT, HYD, CASE DRAIN [M30]

Call for availability 800-440-6723

Replace the hydraulic case drain on M20 / T20 / M30 machines.

Old # 9006384 · Tennant instruction bulletin 9006383 rev. 01 (07-2010) · about 2 hours

Kit includes 5 parts

Parts in kit TN4015310
Item	Part number	Qty	Description	Price
1	TN4028729Old # 55586	1	FITTING, HYD, STR, JM04/OM04	$6.20/EA
2	TN4018068Old # 387281	1	HOSE, HYD, TC04, JF04E90/JF04STR, 020.0	$41.60/EA
3	TN4019344Old # 39210	1	FITTING, HYD, E90, JF04/JM04	$8.70/EA
4	TN4011909Old # 763115	4	TIE, CABLE, 6.0L, 1.25D MAX	$2.30/EA
5	TN4038717Old # 1055153	1	TUBE, HYD, BRUSH RETURN, W/ CD [M30]	Call for availability 800-440-6723

TN4015312 JF04STR, 020.0 1 Y 3 39210 FITTING, HYD, E90, JF04/JM04 1 Y 4 763115 TIE, CABLE, 6.0L, 1.25D MAX 4 Y 5 1055153 ) TUBE, HYD, BRUSH RETURN, W/ CD [M30] 1 BILL OF MATERIALS FOR TUBE KIT, HYD, CASE DRAIN [M20/T20]

$109.30/EA

Replace the hydraulic case drain on M20 / T20 / M30 machines.

Old # 9006386 · Tennant instruction bulletin 9006383 rev. 01 (07-2010) · about 2 hours

Kit includes 5 parts

Parts in kit TN4015312
Item	Part number	Qty	Description	Price
1	TN4028729Old # 55586	1	FITTING, HYD, STR, JM04/OM04	$6.20/EA
2	TN4018068Old # 387281	1	HOSE, HYD, TC04, JF04E90/JF04STR, 020.0	$41.60/EA
3	TN4019344Old # 39210	1	FITTING, HYD, E90, JF04/JM04	$8.70/EA
4	TN4011909Old # 763115	4	TIE, CABLE, 6.0L, 1.25D MAX	$2.30/EA
5	TN4038716Old # 1055139	1	TUBE, HYD, BRUSH RETURN, W/ CD [M20/T20]	$158.30/EA

TN4019669 Light Kit, Flsh, CI [M20 And T20]

$444.00/EA

Install a flashing light kit on M20 and T20 machines. lights

Old # 9001327 · Tennant instruction bulletin 340815 rev. 01 (03-2007) · about 1 hour

Kit includes 8 parts

Parts in kit TN4019669
Item	Part number	Qty	Description	Price
2	TN4035367Old # 24196	2	Screw, Pan, M5 X 0.8 X 20, SS	$3.20/EA
3	TN4042244Old # 19066	2	Washer, Flat, #10	$2.50/EA
4	TN4041991Old # 09739	2	Nut, Hex, Lock, M5 X 0.8, Nl, SS	$3.30/EA
5	TN4035919Old # 1019445	1	Bracket, Sppt, Revl Light	$55.20/EA
6	TN4041992Old # 09740	4	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
7	TN4035242Old # 1017218	4	Washer, Flat, 0.32b 1.00d .12, SS	$3.40/EA
8	TN4036226Old # 1019971	1	Harness, Warning / Backup [M20 & T20]	$27.50/EA
9	TN4013452Old # 46236	2	Clamp, Cable, Stl, 0.25D X 0.56W, 1Hole	$3.60/EA

TN4014110 Latch Kit, Cover, Soltn, Replmt [M20/T20]

$120.00/EA

Replace solution tank latches on M20 / T20 machines.

Old # 9005165 · Tennant instruction bulletin 9005111 rev. 00 (09-2008) · about 10--20 minutes

Kit includes 7 parts

Parts in kit TN4014110
Item	Part number	Qty	Description	Price
1	TN4044235Old # 1039757	1	Plate, Mtg, Latch	$13.50/EA
2	TN4027333Old # 382320	4	Screw, Pan, Phl, 12--16 X 0.50, F/Plstc	$2.50/EA
3	TN4039724Old # 1048474	1	Catch, Latch, Tank Cover	$10.20/EA
4	TN4040232Old # 222267	2	Screw, Pan, Phl, 12--20 X 0.50, Fmg/AB	$2.50/EA
5	TN4039732Old # 1048512	1	Bracket, Mtg, Latch, Tank Cover	$18.60/EA
6	TN4031145Old # 367949	1	Latch	$35.40/EA
7	TN4041936Old # 08875	2	Rivet, Blind, .125D X 0.54 X .25D, Alm	$3.40/EA

TN4017006 Hopper Kit, Modif, Screen, Filter
Call for availability 800-440-6723
Install/replace the filter tray on M20 machines (serial numbers 0000--2141). SN 000000–007999SN 000000–002141
Old # 9003789 · Tennant instruction bulletin 340870 rev. 01 (08-2007) · about 20 minutes
Kit includes 1 part
Parts in kit TN4017006
Item Part number Qty Description Price
1 TN4043553Old # 1037947 1 Tray, Perma--Filter $127.10/EA

TN4017005 Screen Kit, Replmt, Hopper [M20]

$260.50/EA

Replace the hopper screen on M20 machines.

Old # 9003774 · Tennant instruction bulletin 340863 rev. 00 (08-2007) · about 1 hour

Kit includes 6 parts

Parts in kit TN4017005
Item	Part number	Qty	Description	Price
1	TN4044019Old # 1039163	1	Screen Wldt, Hppr	$242.00/EA
2	TN4041943Old # 09010	1	Screw, Hex, M8 X 1.25 X 25, SS	$3.30/EA
3	TN4035242Old # 1017218	2	Washer, Flat, 0.32B 1.00D .12, SS	$3.40/EA
4	TN4040233Old # 222268	1	Washer, Flat, 0.38B 1.25D .12, Neo	$4.00/EA
5	TN4044026Old # 1039215	1	Angle, Retainer	$11.10/EA
6	TN4041929Old # 08713	1	Nut, Hex, Lock, M8 X 1.25, NL, SS	$3.30/EA

TN4016755 A/V Kit, Strobe, CI [M20/T20]

Call for availability 800-440-6723

Install a strobe light/alarm kit on M20 and T20 machines. overhead guardlights

Old # 9003489 · Tennant instruction bulletin 340857 rev. 00 (03-2007) · about 1.5 hours

Kit includes 13 parts

Parts in kit TN4016755
Item	Part number	Qty	Description	Price
1	TN4011838Old # 61920	1	Alarm Assy, Backup, 12--24vdc 82--107dba	Call for availability 800-440-6723
2	TN4035367Old # 24196	4	Screw, Pan, M5 X 0.8 X 20, SS	$3.20/EA
3	TN4042244Old # 19066	4	Washer, Flat, #10	$2.50/EA
4	TN4041991Old # 09739	4	Nut, Hex, Lock, M5 X 0.80, NL, SS	$3.30/EA
5	TN4035919Old # 1019445	1	Bracket, Sppt, Revl Light	$55.20/EA
6	TN4041992Old # 09740	4	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
7	TN4035242Old # 1017218	4	Washer, Flat, 0.32b 1.00d .12, SS	$3.40/EA
8	TN4036226Old # 1019971	1	Harness, Warning / Backup [M20 & T20]	$27.50/EA
9	TN4036203Old # 1019647	1	Harness, Warning / OHG [M20]	$23.56/EA
11	TN4014138Old # 49266	2	Tie, Cable, Nyl, 07.3L .19W 1.8 Max D	$2.50/EA
12	TN4011909Old # 763115	4	Tie, Cable, 6.0L, 1.25D Max	$2.30/EA
13	TN4035245Old # 1017250	1	Light, Strobe, Amb, 12--48VDC	Call for availability 800-440-6723
14	TN4013452Old # 46236	2	Clamp, Cable, Stl, 0.26D X 0.56W, 1 Hole	$3.60/EA

TN4044014 Hose Kit, Hyd, Propel, CI [M20/T20]

Call for availability 800-440-6723

Install a hydraulic propel hose kit on M20 / T20 machines.

Old # 1039147 · Tennant instruction bulletin 340860 rev. 00 (09-2007) · about 3 hours

Kit includes 2 parts

Parts in kit TN4044014
Item	Part number	Qty	Description	Price
1	TN4033273Old # 1023488	1	Hose, Hyd, Spcl, JF10E90/JF10Str, 063.0	$135.50/EA
2	TN4011910Old # 763116	2	Tie, Cable, Nyl, 15.3L. W 4.5 Max D	$3.40/EA

TN4044015 JF10Str, 063.0 1 Y 2 763116 Tie, Cable, Nyl, 15.3L. W 4.5 Max D 2 Bill of Materials for Hose Kit, Hyd, Propel, CI [M20/T20]

$108.10/EA

Install a hydraulic propel hose kit on M20 / T20 machines.

Old # 1039148 · Tennant instruction bulletin 340860 rev. 00 (09-2007) · about 3 hours

Kit includes 3 parts

Parts in kit TN4044015
Item	Part number	Qty	Description	Price
1	TN4043678Old # 1038569	1	Hose, Hyd, Spcl, JF10Str/JF10Str, 56.5	$91.80/EA
2	TN4015060Old # 54017	1	Fitting, Hyd, E45, JF10/JM10	$48.90/EA
3	TN4011910Old # 763116	2	Tie, Cable, Nyl, 15.3L. W 4.5 Max D	$3.40/EA

TN4016728 Sensor Kit, Repair, Thermo--Sentry [M20]

$70.30/EA

Replace the Thermo--Sentry sensor on M20 machines.

Old # 9003444 · Tennant instruction bulletin 340849 rev. 01 (04-2007) · about 1 hour

Kit includes 6 parts

Parts in kit TN4016728
Item	Part number	Qty	Description	Price
1	TN4045538Old # 1036611	1	Switch, Temp [160F]	$66.70/EACall for availability
2	TN4041015Old # 06922	2	Screw, Pan, M3 X 0.50 X 20, 4.8	$3.40/EA
3	TN4042242Old # 19064	2	Washer, Flat, #06	$3.40/EA
4	TN4034651Old # 32975	2	Washer, Lock, Int, #06	$2.60/EA
5	TN4042963Old # 01754	2	Nut, Hex, Std, M3 X .050, 8	$2.50/EA
6	TN4011910Old # 763116	1	Tie, Cable, Nyl, 15.3L W 4.5 Max D	$3.40/EA

TN4203071 Seal Kit, Cover, Front

Call for availability 800-440-6723

Install the front cover seal kit onto M20/T20 machines.

Old # 9003442 · Tennant instruction bulletin 340848 rev. 00 (03-2007) · about 1 hour

Kit includes 4 parts

Parts in kit TN4203071
Item	Part number	Qty	Description	Price
1	TN4031371Old # 1029652	1	Plate, Mtg, Seal	$25.20/EA
2	TN4194633Old # 1029545	1	Plate, Mtg, Seal	$33.94/EA
3	TN4029531Old # 360943	10	Screw, Pan, #10--14 X 0.75, F/Plstc	Call for availability 800-440-6723
4	TN1031543Old # 1031543	1	Seal, Aftmkt, Sponge, 0.88 1.00W 08ft	Call for availability 800-440-6723

TN4016730 Switch Kit, Float, Repair

$114.00/EA

Replace the float switch protector bracket on M20 machines.

Old # 9003449 · Tennant instruction bulletin 340850 rev. 00 (03-2007) · about 1 hour

Kit includes 4 parts

Parts in kit TN4016730
Item	Part number	Qty	Description	Price
1	TN4027617Old # 76426	2	Washer, Sealing, 0.28B 0.75D SS, Neo	$3.50/EA
2	TN4041942Old # 09007	2	Screw, Hex, M6 X 1.0 X 25, SS	$3.30/EA
3	TN4041928Old # 08712	2	Nut, Hex, Lock, M6 X 1.00, SS, NL	$2.50/EA
4	TN4043530Old # 1037816	1	Bracket, Protector, Float Switch	$43.60/EA

TN4016753 A/V Kit, Flsh, CI [M20/T20]

Call for availability 800-440-6723

Install a flashing light/alarm kit on M20 and T20 machines. overhead guardlights

Old # 9003487 · Tennant instruction bulletin 340856 rev. 00 (03-2007) · about 1.5 hours

Kit includes 13 parts

Parts in kit TN4016753
Item	Part number	Qty	Description	Price
1	TN4011838Old # 61920	1	Alarm Assy, Backup, 12--24vdc 82--107dba	Call for availability 800-440-6723
2	TN4035367Old # 24196	4	Screw, Pan, M5 X 0.8 X 20, SS	$3.20/EA
3	TN4042244Old # 19066	4	Washer, Flat, #10	$2.50/EA
4	TN4041991Old # 09739	4	Nut, Hex, Lock, M5 X 0.80, NL, SS	$3.30/EA
5	TN4035919Old # 1019445	1	Bracket, Sppt, Revl Light	$55.20/EA
6	TN4041992Old # 09740	4	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
7	TN4035242Old # 1017218	4	Washer, Flat, 0.32b 1.00d .12, SS	$3.40/EA
8	TN4036226Old # 1019971	1	Harness, Warning / Backup [M20 & T20]	$27.50/EA
9	TN4036203Old # 1019647	1	Harness, Warning / OHG [M20]	$23.56/EA
11	TN4014138Old # 49266	2	Tie, Cable, Nyl, 07.3L .19W 1.8 Max D	$2.50/EA
12	TN4011909Old # 763115	4	Tie, Cable, 6.0L, 1.25D Max	$2.30/EA
13	TN1017248Old # 1017248	1	Light, Flsh, Amb, 12--48VDC	Call for availability 800-440-6723
14	TN4013452Old # 46236	2	Clamp, Cable, Stl, 0.26D X 0.56W, 1 Hole	$3.60/EA

TN4016746 Lift Kit, Sqge, Replmt

Call for availability 800-440-6723

Install a squeegee lift replacement kit on M20/T20 machines.

Old # 9003478 · Tennant instruction bulletin 340855 rev. 00 (04-2007) · about 1.5 hours

Kit includes 5 parts

Parts in kit TN4016746
Item	Part number	Qty	Description	Price
1	TN4190906Old # 1038192	1	Angle, Lift, Sqge	Call for availability 800-440-6723
2	TN4042902Old # 01685	6	Washer, Flat, 0.38B 0.88D .08, SS	$2.60/EA
3	TN4041929Old # 08713	3	Nut, Hex, Lock, M8 X 1.25, NL, SS	$3.30/EA
4	TN4040607Old # 222505	2	Screw, Hex, M8 X 1.25 X 45, SS	$4.00/EA
5	TN4041282Old # 06957	1	Screw, Hex, M8 X 1.25 X 60, 8.8	$3.40/EA

TN4019724 OHG Harness (5) FIG. 11 Bill of Materials for Light Kit, Flsh, W/OHG, CI [M20 and T20]

$372.90/EA

Install an OHG flashing light kit on M20/T20 machines. overhead guardlights

Old # 9001718 · Tennant instruction bulletin 340820 rev. 02 (03-2007) · about 1 hour

Kit includes 7 parts

Parts in kit TN4019724
Item	Part number	Qty	Description	Price
1	TN1017248Old # 1017248	1	Light, Flsh, Amb, 12--48VDC	Call for availability 800-440-6723
2	TN4035367Old # 24196	2	Screw, Pan, M5 X 0.8 X 20, SS	$3.20/EA
3	TN4042244Old # 19066	2	Washer, Flat, #10	$2.50/EA
4	TN4041991Old # 09739	2	Nut, Hex, Lock, M5 X 0.80, NL, SS	$3.30/EA
5	TN4036203Old # 1019647	1	Harness, Warning / OHG [M20]	$23.56/EA
7	TN4011909Old # 763115	4	Tie, Cable, 6.0L, 1.25D Max	$2.30/EA
8	TN4014138Old # 49266	2	Tie, Cable, Nyl, 07.3L .19W 1.8 Max D	$2.50/EA

TN4019673 Wand Kit, Vacuum, CI [M20]

$1,037.30/EA

Install a vacuum wand kit on M20 machines.

Old # 9001334 · Tennant instruction bulletin 340817 rev. 04 (04-2008) · about 1 hour

Kit includes 10 parts

Parts in kit TN4019673
Item	Part number	Qty	Description	Price
1	TN4017746Old # 65580	1	Bag, Power	$159.30/EA
2	TN4016302Old # 72968	4	Rivet, Plstc, .250 X 0.898	$3.20/EA
3	TN4017057Old # 63448	1	Tube, Wand, Vacuum, Metal [1pick=1box]	Call for availability 800-440-6723
4	TN4018319Old # 69657	1	Hose Assy, W/2cuff, 1.5d 84l [Vacwand]	$303.60/EA
5	TN4017055Old # 63430	1	Shoe, Plstc, Sqge, 14.0	Call for availability 800-440-6723
6	TN4017060Old # 63451	1	Nozzle, Wand, Plstc, 14.0lg	Call for availability 800-440-6723
7	TN4017922Old # 67004	2	Clip, Grip, Finger, 1.00--1.88d White,Vyl	$26.10/EA
8	TN4042242Old # 19064	6	Washer, Flat, #06	$3.40/EA
9	TN4029085Old # 55845	2	Screw, Hex, M5 X 0.8 X 16, Fmg	$4.00/EA
10	TN4018360Old # 69659	1	Plunger	$20.65/EA

TN9002434 Panel Kit, Instmt, Repair [M20]

Call for availability 800-440-6723

Replace the control panel assembly on M20 machines. detergent

Old # 9002434 · Tennant instruction bulletin 340807 rev. 02 (02-2007) · about 1 hour

Kit includes 3 parts

Parts in kit TN9002434
Item	Part number	Qty	Description	Price
1	TN1018410Old # 1018410	1	Circuitboard Assy [M20/T20]	Call for availability 800-440-6723
2	TN1018410Old # 1018410	4	Nut, Hex, Lock, M4 X 0.70, NL, SS	Call for availability 800-440-6723
3	TN4031353Old # 1029362	4	Washer, Shld, Nyl [8--32]	$0.15/EA

TN4019671 Light Kit, Revl, CI [M20 & T20]

$767.90/EA

Install a revolving light kit on M20/T20 machines. lights

Old # 9001331 · Tennant instruction bulletin 340816 rev. 01 (03-2007) · about 1 hour

Kit includes 8 parts

Parts in kit TN4019671
Item	Part number	Qty	Description	Price
2	TN4035367Old # 24196	2	Screw, Pan, M5 X 0.8 X 20, SS	$3.20/EA
3	TN4042244Old # 19066	2	Washer, Flat, #10	$2.50/EA
4	TN4041991Old # 09739	2	Nut, Hex, Lock, M5 X 0.8, NL, SS	$3.30/EA
5	TN4035919Old # 1019445	1	Bracket, Sppt, Revl Light	$55.20/EA
6	TN4041992Old # 09740	4	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
7	TN4035242Old # 1017218	4	Washer, Flat, 0.32B 1.00D .12, SS	$3.40/EA
8	TN4036226Old # 1019971	1	Harness, Warning / Backup [M20 & T20]	$27.50/EA
9	TN4013452Old # 46236	2	Clamp, Cable, Stl, 0.25D X 0.56W, 1Hole	$3.60/EA

TN4019675 Guard Kit, Sqge, CI [M20]

$687.93/EA

Install a rear squeegee protector on M20 machines.

Old # 9001338 · Tennant instruction bulletin 340818 rev. 01 (04-2012) · about 3/4 hour

Kit includes 16 parts

Parts in kit TN4019675
Item	Part number	Qty	Description	Price
1	TN4030640Old # 1027560	2	Bracket Wldt, Guard, Sqge	$92.00/EA
2	TN4019759Old # 39284	4	Screw, Hex, M10 X 1.5 X 35, 8.8	$4.00/EA
3	TN4034138Old # 32492	10	Washer, Flat, 0.38, Std	$2.50/EA
4	TN4033860Old # 1024977	2	Bumper, Ure, 1.50D 1.25L	$35.00/EA
5	TN4039391Old # 21196	2	Screw, Hex, .38--16 X 0.88, G5	$2.50/EA
6	TN4038473Old # 1056195	1	Guard Wldt, Pntd, [M20 / T20]	Call for availability 800-440-6723
7	TN4041290Old # 06965	2	Screw, Hex, M10 X 1.5 X 80, 8.8	$6.80/EA
8	TN4016826Old # 41430	2	Nut, Hex, Lock, M10 X 1.5, NL	$4.00/EA
9	TN4031918Old # 369359	1	Pin, Hitch, .375D X 3.12L, PL	$7.50/EA
10	TN4029376Old # 57702	1	Cable, Glv, .06D 012.0L .26Eye/.26Eye	$9.50/EA
11	TN4029085Old # 55845	1	Screw, Hex, M5 X 0.8 X 16, Fmg	$4.00/EA
12	TN4042888Old # 01683	1	Washer, Flat, #10, SS	$2.60/EA
13	TN4042522Old # 1045444	2	Guard Wldt, Sqge	$171.70/EA
14	TN4019761Old # 39285	4	Screw, Hex, M10 X 1.5 X 40, 8.8	$3.20/EA
15	TN4194632Old # 1029543	2	Plate, Mtg	Call for availability 800-440-6723
16	TN4016797Old # 41187	4	Washer, Flat, Belleville, .38	$4.10/EA

TN4019723 OHG Harness (5) FIG. 11 Bill of Materials for Light Kit, Revl, W/OHG, CI [M20 and T20]

$164.46/EA

Install an OHG revolving light kit on M20/T20 machines. overhead guardlights

Old # 9001717 · Tennant instruction bulletin 340819 rev. 02 (03-2007) · about 1 hour

Kit includes 7 parts

Parts in kit TN4019723
Item	Part number	Qty	Description	Price
1	TN4035245Old # 1017250	1	Light, Strobe, Amb, 12--48VDC	Call for availability 800-440-6723
2	TN4035367Old # 24196	2	Screw, Pan, M5 X 0.8 X 20, SS	$3.20/EA
3	TN4042244Old # 19066	2	Washer, Flat, #10	$2.50/EA
4	TN4041991Old # 09739	2	Nut, Hex, Lock, M5 X 0.80, NL, SS	$3.30/EA
5	TN4036203Old # 1019647	1	Harness, Warning / OHG [M20]	$23.56/EA
7	TN4011909Old # 763115	4	Tie, Cable, 6.0L, 1.25D Max	$2.30/EA
8	TN4014138Old # 49266	2	Tie, Cable, Nyl, 07.3L .19W 1.8 Max D	$2.50/EA

TN9012811 Rad W/Screen Kit, Replmt [M20/T20 G/LP]

Call for availability 800-440-6723

Install a radiator screen kit on M20 / T20 machines. (Gas / LPG machines only). Tennant NA: M20 (Serial Numbers 000000- 003038), T20 (Serial Numbers 000000- 002092) Tennant CE: M20 (Serial Numbers 0000- 0195), T20 (Serial Numbers 0000- 0188) SN 000000–007999SN 000000–003038GasolineLPG

Old # 9012811 · Tennant instruction bulletin 9012828 rev. 00 (10-2014) · about 8 hours

Kit includes 45 parts

Parts in kit TN9012811
Item	Part number	Qty	Description	Price
1	TN4042691Old # 1045940	1	Radiator, W/ Hyd Cooler [Side X Side]	Call for availability 800-440-6723
2	TN4042665Old # 1045764	1	Cap, Radiator, 14PSI [Stant]	$10.90/EACall for availability
3	TN4190181Old # 1046962	1	Bracket, Mtg, Radiator	$26.70/EA
4	TN4041287Old # 06962	2	Screw, Hex, M10 X 1.50 X 45, 8.8	$4.00/EA
5	TN4015364Old # 54274	4	Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78h	$14.70/EA
6	TN4037922Old # 1014563	16	Washer, Flat, 0.40b 1.12d .12, SS	$5.80/EA
7	TN4016826Old # 41430	4	Nut, Hex, Lock, M10 X 1.5, Nl	$4.00/EA
8	TN4156940Old # 39277	2	Screw, Hex, M8 X 1.25 X 25, 8.8	$3.20/EA
9	TN4034137Old # 32491	2	Washer, Flat, 0.31, Std	$2.50/EA
10	TN4189416Old # 1043897	1	Bracket, Skirt, Rbr	$30.10/EA
11	TN4188116Old # 1052170	1	Skirt, Eng Fan, Gas / Lp	$83.33/EA
12	TN4029864Old # 361339	2	Screw, Hex, M6 X 1.00 X 16, Fmg	$4.00/EA
13	TN4045641Old # 1037355	2	Screw, Hex, M8 X 1.25 X , 9.8, SEMS	$2.50/EA
14	TN4016794Old # 41178	3	Washer, Flat, 0.25, Fendr	$2.50/EA
15	TN4045568Old # 1036892	3	Screw, Hex, M6 X 1.00 X 25, 9.8 SEMS	$2.50/EA
16	TN4014138Old # 49266	1	Tie, Cable, Nyl, 07.3l .19w 1.8 Max D	$2.50/EA
17	TN4044400Old # 1040467	2	Screw, Hex, M6 X 1.00 X 20, 9.8, SEMS	$3.30/EA
18	TN1071041Old # 1071041	1	Bracket Wldt, Radiator, Fan, Gas/LPG	Call for availability 800-440-6723
19	TN1071033Old # 1071033	1	Frame Wldt, Screen, Rad	Call for availability 800-440-6723
20	TN1071047Old # 1071047	1	Plate, Cover, Screen	Call for availability 800-440-6723
21	TN4038497Old # 1054428	1	Shroud, Fan	$126.20/EA
22	TN4032038Old # 1031566	1	Fan, Cooling, 14.1d, 6 Blade, 0.5b Taper	$174.80/EA
23	TN4180322Old # 1072505	1	Sheave, Mach [Gm1.6l 2615rpm Fan]	Call for availability 800-440-6723
24	TN1051534Old # 1051534	1	Concept, Latch	Call for availability 800-440-6723
25	TN4186796Old # 1058777	1	Bracket, Shrd, Fan, Upper, Sppt, Gas/Lpg	$36.56/EA
26	TN4036767Old # 1058753	1	Bracket, Shrd, Fan, Lower, Gas/Lpg	$10.20/EA
27	TN4185825Old # 1064443	1	Bracket, Shrd, Radiator, Gas/Lpg, CE	$29.80/EA
28	TN4036249Old # 1020234	2	Screw, Hex, M4 X 0.70 X 10, SS	$3.30/EA
29	TN4043235Old # 02850	2	Nut, Hex, Lock, M4 X 0.70, Nl	$2.50/EA
30	TN4029376Old # 57702	1	Cable, Glv .06d 012.0l .26eye /.26eye	$9.50/EA
31	TN4029864Old # 361339	2	Screw, Hex, M6 X 1.00 X 16, Fmg	$4.00/EA
32	TN4034133Old # 32483	4	Washer, Flat, 0.25, SAE	$2.50/EA
33	TN4045568Old # 1036892	4	Screw, Hex, M6 X 1.00 X 25, 9.8, SEMS	$2.50/EA
34	TN4041925Old # 08708	4	Nut, Hex, Lock, M6 X 1.00, Nl	$2.50/EA
35	TN4045637Old # 1037346	2	Screw, Hex, M8 X 1.25 X 25, 9.8, SEMS	$2.50/EA
36	TN4034137Old # 32491	2	Washer, Flat, 0.31, Std	$2.50/EA
37	TN4041926Old # 08709	2	Nut, Hex, Lock, M8 X 1.25, Nl	$2.50/EA
38	TN4045640Old # 1037354	3	Screw, Hex, M8 X 1.25 X 30, 9.8, SEMS	$2.50/EA
39	TN4045641Old # 1037355	1	Screw, Hex, M8 X 1.25 X 35, 9.8, SEMS	$2.50/EA
40	TN4038766Old # 1055377	2	Bearing, Ball, 20mm B 42mm D 12mm W	$12.60/EA
41	TN4037938Old # 1014747	1	Hose, Coolant, Mold, 1.25id To 1.62id	$69.40/EA
42	TN4189301Old # 1043322	1	Tube, Coolant, 1.3d, Lower	$74.20/EA
43	TN4014543Old # 51305	1	Fitting, Draincock, E90, .25npt	$15.10/EA
44	TN4016344Old # 73471	1	Hose, PVC, Clr, 0.38id 0.56od 022.0l	$7.60/EA
45	TN4017396Old # 43844	1	Clamp, Hose, Wormdrive, 0.25- 0.62d, .31w	$4.20/EA

TN4024992 mounting bracket (4) to the muffler. (Fig. 4) exhaust leaks. Bill Of Materials For Pipe Kit, Exhaust, Replmt [M20,T20,M30]

$764.70/EA

Replace the exhaust tube and heat shield on M20 / M30 / T20 Gas / LPG machines equipped with GM engines. SN 000000–007999GasolineLPGGM engine

Old # 9012597 · Tennant instruction bulletin 9012598 rev. 00 (02-2015) · about 2 hours

Kit includes 17 parts

Parts in kit TN4024992
Item	Part number	Qty	Description	Price
1	TN4044741Old # 1073731	1	Tube Wldt, Exhaust, 1.6D, 2 Hole Flng	Call for availability 800-440-6723
2	TN4036679Old # 1011216	2	Gasket, Exhaust, .07, 1.63ID, 2/3.4BC	$8.10/EA
3	TN4044492Old # 1073180	1	Shield, Heat	Call for availability 800-440-6723
4	TN4044612Old # 1073657	1	Bracket, Mtg, Muffler [M20/T20 2007]	Call for availability 800-440-6723
5	TN4037292Old # 1013031	1	Isolator, Rbr	$18.30/EA
6	TN4037297Old # 1013117	1	Rod, Hanger, Isolator	$57.90/EA
7	TN4040603Old # 222496	1	Sleeve, P/M, 0.32B 0.50D 0.9L [430SS]	$3.40/EA
8	TN4211062Old # 76904	1	Angle, Mtg, Stl, .19 1.3 1.3 01.0L 1Hole	Call for availability 800-440-6723
9	TN4041828Old # 16735	1	Screw, Hex, M8 X 1.25 X 16, 8.8	$3.40/EA
10	TN4034136Old # 32490	1	Washer, Flat, 0.25, Std	$2.50/EA
11	TN4035729Old # 27980	2	Nut, Hex, Flng, .38- 16	Call for availability 800-440-6723
12	TN4041992Old # 09740	1	Screw, Hex, M8 X 1.25 X 20, SS	$3.30/EA
13	TN4042902Old # 01685	4	Washer, Flat, 0.38B 0.88D .08, SS	$2.60/EA
14	TN4041929Old # 08713	2	Nut, Hex, Lock, M8 X 1.25, NL, SS	$3.30/EA
15	TN4040607Old # 222505	1	Screw, Hex, M8 X 1.25 X 45, SS	$4.00/EA
16	TN4019761Old # 39285	2	Screw, Hex, M10 X 1.50 X 40, 8.8	$3.20/EA
17	TN4041626Old # 08166	2	Nut, Hex, Stover, M10 X 1.50	$2.50/EA

TN4027830 Hose Kit, Coolant, Replmt [Mitsubishi]
$41.60/EA
Replace the lower coolant hose on M20 / M30 / T20 machines equipped with Mitsubishi engines. GasolineLPGMitsubishi engine
Old # 9010904 · Tennant instruction bulletin 9010906 rev. 00 (12-2014) · about 2 hours
Kit includes 1 part
Parts in kit TN4027830
Item Part number Qty Description Price
1 TN4182525Old # 1070731 1 Hose, Coolant, Lower, Mold [MIT2013] Call for availability 800-440-6723

TN4199593 Tube Wldt Kit, OHG, LH, Replmt

Call for availability 800-440-6723

Replace the left overhead guard tube on M20 / T20 / M30 machines. overhead guard

Old # 9009516 · Tennant instruction bulletin 9009517 rev. 00 (07-2015) · about 1 hour

Kit includes 4 parts

Parts in kit TN4199593
Item	Part number	Qty	Description	Price
1	TN4030100Old # 1069241	1	Tube Wldt, Leg, OHG, LH	$299.68/EA
2	TN4019758Old # 39283	1	Screw, Hex, M10 X 1.50 X 25, 8.8	$3.30/EA
3	TN4034138Old # 32492	2	Washer, Flat, 0.38, Std	$2.50/EA
4	TN4041606Old # 07792	1	Nut, Hex, Flng, M10 X 1.50	Call for availability 800-440-6723

TN4011841 Pump Kit, Mtg, Aux, CI [M20 & T20]

$1,593.60/EA

Replace the auxiliary hydraulic pump on M20 (serial numbers 000000- 003297), T20 (serial numbers 000000- 002282), and M30 (serial numbers 000000- 001462) machines. SN 000000–007999SN 000000–003297lights

Old # 9007142 · Tennant instruction bulletin 9007144 rev. 01 (08-2015) · about 2 hours

Kit includes 2 parts

Parts in kit TN4011841
Item	Part number	Qty	Description	Price
1	TN4186836Old # 1059195	1	Pump, Hyd, Gear, Ext, 3, 00.97 2500, CW	Call for availability 800-440-6723
2	TN4013874Old # 47513	1	Fitting, Hyd, E45, JM08 / OM10	$34.20/EA

TN4011842 OM10 1 Y 3 65245- 1 Seal, Org, .069 X 3.06ID 1 Bill Of Materials For Pump Kit, Mtg, Aux, CI [M30]

Call for availability 800-440-6723

Old # 9007143 · Tennant instruction bulletin 9007144 rev. 01 (08-2015) · about 2 hours

Kit includes 2 parts

Parts in kit TN4011842
Item	Part number	Qty	Description	Price
1	TN4186837Old # 1059196	1	Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW	Call for availability 800-440-6723
2	TN4013874Old # 47513	1	Fitting, Hyd, E45, JM08 / OM10	$34.20/EA

TN4016739 Motor Kit, Replmt [M20 & T20]

$658.80/EA

Replace scrub vacuum fan motor on M20 (Serial Numbers 000000- 006877) and T20 (Serial Numbers 000000- 005892) machines. SN 000000–007999SN 000000–006877

Old # 9003461 · Tennant instruction bulletin 340854 rev. 02 (12-2015) · about 5- 7 hours (5 hours if hydraulic system is vacuumed down, 7 hours if hydraulic fluid is removed

Kit includes 14 parts

Parts in kit TN4016739
Item	Part number	Qty	Description	Price
1	TN4030527Old # 1071252	1	Motor, Hyd, Gear, Ext 0.13 LH 3000	Call for availability 800-440-6723
2	TN4041602Old # 07788	1	Nut, Hex, Std, M12 x 1.75, SS	$3.40/EA
3	TN4028682Old # 54861	4	Screw, Flt, .38- 16 X 1.50 Al	$0.55/EA
4	TN4037922Old # 1014563	4	Washer, Flat, 0.40B 1.12D .12, SS	$5.80/EA
5	TN4028758Old # 36643	4	Nut, Hex. Lock, .38- 16, NL, Thin	$2.50/EA
6	TN4015802Old # 39534	4	Screw, Flat, .25- 20 X 1.00, Alm	$3.20/EA
7	TN4034654Old # 32981	4	Nut, Hex, Lock, .25- 20, Nl	$2.50/EA
8	TN4015364Old # 54274	4	Isolator, Vib, Bshg, 1.1D 0.6L .4B 0.78H	$14.70/EA
9	TN4000354Old # 1038573	2	Block, Fan, Scrub, Field Kit	Call for availability 800-440-6723
10	TN4011921Old # 76315	1	Fitting, Hyd, Tee, JF08/JM08/JM08, Br	$15.10/EA
11	TN4013874Old # 47513	1	Fitting, Hyd, E45, JM08/OM10	$34.20/EA
12	TN4025261Old # 77098	1	Fitting, Hyd, E90, JM06/OM04	$15.50/EA
13	TN4029146Old # 56692	1	Fitting, Hyd, Str, JM08/OM10	$10.60/EA
14	TN4030456Old # 36328	1	Washer, Flat, Belleville, .50	$4.10/EA

TN4016733 leaks. Run the scrub vacuum fan to ensure FIG. 21 it operates. Bill of Materials for Fan Kit, Scrub, Replmt [M20 & T20]

$1,750.60/EA

Replace scrub vacuum fan assembly on M20 (Serial Numbers 000000- 006877) and T20 (Serial Numbers 000000- 005892) machines. SN 000000–007999SN 000000–006877

Old # 9003455 · Tennant instruction bulletin 340853 rev. 03 (12-2015) · about 3.5 hours

Kit includes 5 parts

Parts in kit TN4016733
Item	Part number	Qty	Description	Price
1	TN4195871Old # 1022559	1	Housing Wldt, VacFan, Rear	Call for availability 800-440-6723
2	TN4011921Old # 76315	1	Fitting, Hyd, Tee, JF08/JM08/JM08, Br	$15.10/EA
3	TN4013874Old # 47513	1	Fitting, Hyd, E45, JM08/OM10	$34.20/EA
4	TN4025261Old # 77098	1	Fitting, Hyd, E90, JM06/OM04	$15.50/EA
5	TN4029146Old # 56692	1	Fitting, Hyd, Str, JM08/OM10	$10.60/EA

TN4019662 OHG Kit, CI [M20 and T20]

$3,559.40/EA

Install an overhead guard on M20/T20 machines. overhead guard

Old # 9001314 · Tennant instruction bulletin 340812 rev. 01 (03-2015) · about 1 hour

Kit includes 11 parts

Parts in kit TN4019662
Item	Part number	Qty	Description	Price
1	TN4032916Old # 1022276	1	Guard Wldt, Top, OHG	$480.30/EA
2	TN1022265Old # 1022265	1	Tube Wldt, Leg, OHG, LH, Pntd	Call for availability 800-440-6723
3	TN1022266Old # 1022266	1	Tube Wldt, Leg, OHG, RH, Pntd	Call for availability 800-440-6723
4	TN4043258Old # 03192	12	Screw, Hex, M10 X 1.5 X 30, 8.8	$4.00/EA
5	TN4034138Old # 32492	17	Washer, Flat, 0.38 Std	$2.50/EA
6	TN4016826Old # 41430	8	Nut, Hex, Lock, M10 X 1.5, Nl	$4.00/EA
7	TN4033561Old # 1023879	1	Bracket, Mtg, Mirror, Rearview	$16.40/EA
8	TN369787Old # 369787	1	Mirror, Flat, 5.1d	Call for availability 800-440-6723
9	TN4034137Old # 32491	1	Washer, Flat, 0.31, Std	$2.50/EA
10	TN4042533Old # 19313	1	Nut, Hex, Std, .31- 18	$2.50/EA
11	TN4037922Old # 1014563	3	Washer, Flat, 0.40B 1.12D .12,SS	$5.80/EA

TN4010414 Switch Kit, Press, Replmt [S30]
Call for availability 800-440-6723
Replace the pressure switch on M20, M30, S20, S30, 355, 385, 6500, 6550, 6600, 6650, 6400, 8200, 8210, 8400, and 8410 machines. lights
Old # 9009247 · Tennant instruction bulletin 9009246 rev. 00 (06-2015) · about 30 minutes
Kit includes 1 part
Parts in kit TN4010414
Item Part number Qty Description Price
1 TN4037765Old # 1052885 1 Switch, Press, Adj [4- 16 In Wtr] $72.10/EA
TN4011098 Control Box Assy Kit, Replmt, Telem [USA]
$1,623.00/EA
Replace telemetry module on 5680, 5700, 6100E, 6200E, M20, T20, M30, 8300, S20E, S20, S30, SS5, T5, T5E, T7, SSR, T12, T16, and T17 machines. telemetry
Old # 9010085 · Tennant instruction bulletin 9010087 rev. 01 (09-2015) · about 45 minutes
Kit includes 1 part
Parts in kit TN4011098
Item Part number Qty Description Price
1 TN4184642Old # 1069467 1 Control Box Assy, Telem [USA] Call for availability 800-440-6723
TN4033762 Kit
Call for availability 800-440-6723
Replace the steering column on M20 / T20 / M30 / S30 machines.
Old # 322305 · Tennant instruction bulletin 328288 rev. 00 (05-2011) · about S30 -- 1 hour (Pages 1--8
TN4022936 Panel Kit, Pod, Afmkt [M17,Standard LCD]
Call for availability 800-440-6723
Replace standard pod assembly on M20/M30/T20/M17 machines.
Old # 9015041 · Tennant instruction bulletin 9015638 rev. 03 (06-2021) · about 45- 90 minutes
Kit includes 1 part
Parts in kit TN4022936
Item Part number Qty Description Price
1 TN1219319Old # 1219319 1 Panel Assy [M17, UL, Standard LCD] Call for availability 800-440-6723
TN4023704 Panel Kit, Pod, Afmkt [Std, M20/M30]
$1,198.60/EA
Replace standard pod assembly on M20/M30/T20/M17 machines.
Old # 9015634 · Tennant instruction bulletin 9015638 rev. 03 (06-2021) · about 45- 90 minutes
Kit includes 1 part
Parts in kit TN4023704
Item Part number Qty Description Price
1 TN4037516Old # 1223006 1 Panel Assy, Console [Std M20/M30] Call for availability 800-440-6723
TN4023705 M30] 1 Bill Of Materials For Panel Kit, Pod, Afmkt [Std, T20]
Call for availability 800-440-6723
Replace standard pod assembly on M20/M30/T20/M17 machines.
Old # 9015635 · Tennant instruction bulletin 9015638 rev. 03 (06-2021) · about 45- 90 minutes
Kit includes 1 part
Parts in kit TN4023705
Item Part number Qty Description Price
1 TN4226512Old # 1223007 1 Panel Assy, Console [Std T20] Call for availability 800-440-6723

TN4197336 Telemetry Kit, LPG, CI [M20 / T20, USA] / Telemetry Kit, Dsl, CI [M20/T20, USA]

Call for availability 800-440-6723

Install the telemetry system on M20 / T20 machines. telemetry

Old # 9014028 · Tennant instruction bulletin 9014052 rev. 02 (12-2015) · about 1 hour

Kit includes 10 parts

Parts in kit TN4197336
Item	Part number	Qty	Description	Price
1	TN4184642Old # 1069467	1	Control Box Assy, Telem [USA, 3G]	Call for availability 800-440-6723
2	TN4029531Old # 360943	8	Screw, Pan, Phl, 10- 14 X 0.75, F/ Plstc	Call for availability 800-440-6723
3	TN4042243Old # 19065	8	Washer, Flat, 0.19B 0.44D .05, PL, 08	$3.20/EA
4	TN4030708Old # 1071641	1	Harness, Wire, Gas/LPG [MAKO, Telemetry]	$125.34/EA
4	TN4030280Old # 1069876	1	Harness, Wire, Dsl [M20 / T20, Telemetry]	$133.72/EA
5	TN4038889Old # 1210807	4	Wire, Tie [W/.25” Fir Tree Clip]	$1.90/EA
6	TN4043510Old # 130773	13	Tie, Cable, Nyl, 11.0L, .14W, 3.0 Max. D	Call for availability 800-440-6723
7	TN4033472Old # 315724	1	Antenna, Telem, 18.0 IN [GPRS]	Call for availability 800-440-6723
8	TN4228167Old # 1217542	1	Guard, Module	Call for availability 800-440-6723
9	TN4030121Old # 1069580	1	Label, Opertnl, Telem [FCC/IC]	$4.34/EA

TN4197337 Telemetry Kit, LPG, CI [M20 / T20, USA] / Telemetry Kit, Dsl, CI [M20/T20, USA]

Call for availability 800-440-6723

Install the telemetry system on M20 / T20 machines. telemetry

Old # 9014029 · Tennant instruction bulletin 9014052 rev. 02 (12-2015) · about 1 hour

Kit includes 10 parts

Parts in kit TN4197337
Item	Part number	Qty	Description	Price
1	TN4184642Old # 1069467	1	Control Box Assy, Telem [USA, 3G]	Call for availability 800-440-6723
2	TN4029531Old # 360943	8	Screw, Pan, Phl, 10- 14 X 0.75, F/ Plstc	Call for availability 800-440-6723
3	TN4042243Old # 19065	8	Washer, Flat, 0.19B 0.44D .05, PL, 08	$3.20/EA
4	TN4030708Old # 1071641	1	Harness, Wire, Gas/LPG [MAKO, Telemetry]	$125.34/EA
4	TN4030280Old # 1069876	1	Harness, Wire, Dsl [M20 / T20, Telemetry]	$133.72/EA
5	TN4038889Old # 1210807	4	Wire, Tie [W/.25” Fir Tree Clip]	$1.90/EA
6	TN4043510Old # 130773	13	Tie, Cable, Nyl, 11.0L, .14W, 3.0 Max. D	Call for availability 800-440-6723
7	TN4033472Old # 315724	1	Antenna, Telem, 18.0 IN [GPRS]	Call for availability 800-440-6723
8	TN4228167Old # 1217542	1	Guard, Module	Call for availability 800-440-6723
9	TN4030121Old # 1069580	1	Label, Opertnl, Telem [FCC/IC]	$4.34/EA

TN4026503 Caster Kit, Rear Squeegee, AM
$77.10/EA
Replace a rear squeegee caster wheel assembly on T17 / T20 / M17 / M20 / M30 machines.
Old # 9014285 · Tennant instruction bulletin 9014333 rev. 00 (09-2016) · about 30 minutes
Kit includes 1 part
Parts in kit TN4026503
Item Part number Qty Description Price
1 TN4036984Old # 1219758 1 Wheel Assy, 03.0d 1.38w 0.500b Call for availability 800-440-6723

TN4025234 leaks. Make adjustments as necessary. Bill Of Materials For Pipe Kit, Exhaust, Replmt [Mako Mitsu]

$415.30/EA

Replace the exhaust pipe on M20 / T20 / M30 machines equipped with Mitsubishi engines. GasolineLPGMitsubishi engine

Old # 9013159 · Tennant instruction bulletin 9013160 rev. 00 (04-2015) · about 2 hours

Kit includes 8 parts

Parts in kit TN4025234
Item	Part number	Qty	Description	Price
1	TN4030482Old # 1071003	1	Pipe, Exhaust, Flex [Mit 2013]	Call for availability 800-440-6723
2	TN4036679Old # 1011216	1	Gasket, Exhaust, 2hole, 3.4bc	$8.10/EA
3	TN9019296Old # 9019296	1	VR, Gasket, Manifold, Exh [Mit]	Call for availability 800-440-6723
4	TN4041625Old # 08165	3	Nut, Hex, Stover, M8	$3.40/EA
5	TN4041626Old # 08166	2	Nut, Hex, M10 X 1.50 [Stover]	$2.50/EA
6	TN4015595Old # 39349	3	Washer, Flat, 0.31, SAE	$2.50/EA
7	TN4019759Old # 39284	2	Screw, Hex, M10 X 1.5 X 35, 8.8	$4.00/EA
8	TN4030497Old # 1071113	1	Bracket, Muffler	$15.60/EA

Tennant M20 manuals and source documents

The documents this page was built from, plus the related manuals and kit instructions in our library. Sign in with a free account on our site to view or download them.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌⁠⁠‍‌‍‌⁠⁠‍‌‍‌⁠‍⁠‍‍⁠‌‌⁠‌‍‌‌‌⁠‌

Download this machine's parts list (Excel)Every part number with descriptions, quantities, our prices and links, ready for your purchasing team. Our contact details are on every page.Sign in to download the parts list Email me this page

Tennant M20 manuals
Document	Covers	Edition	Size	Open
M20 gas/LPG parts manualParts manual · 9016001	SN 008000 and later, gas/LPG	Rev. 12 (Oct 2025, current)	16.7 MB	Sign in to view or download Sign in to download
M20 diesel parts manualParts manual · 9016051	SN 008000 and later, diesel	Rev. 11 (Oct 2025, current)	10.5 MB	Sign in to view or download Sign in to download
M20 gas/LPG parts manualParts manual · 331381	SN 000000–007999, gas/LPG	Rev. 19 (May 2016, current for these machines)	19.0 MB	Sign in to view or download Sign in to download
M20 diesel parts manualParts manual · 331411	SN 000000–007999, diesel	Rev. 19 (May 2016, current for these machines)		Sign in to view or download Sign in to download
M20 gas/LPG parts manual, older editionParts manual · 9016001	SN 008000 and later, gas/LPG	Rev. 08 (Jul 2022, older edition)		Sign in to view or download Sign in to download
M20 diesel parts manual, older editionParts manual · 9016051	SN 008000 and later, diesel	Rev. 08 (Jul 2022, older edition)		Sign in to view or download Sign in to download
M20 gas/LPG parts manual, older editionParts manual · 9016001	SN 008000 and later; replaced by rev. 08 (2022)	Rev. 01 (Dec 2016, older edition)	11.1 MB	Sign in to view or download Sign in to download
M20 gas/LPG operator manualOperator manual · 9016000	SN 008000 and later, gas/LPG	Rev. 06 (Mar 2024, current)	6.4 MB	Sign in to view or download Sign in to download
M20 diesel operator manualOperator manual · 9016050	SN 008000 and later, diesel	Rev. 03 (Aug 2022, current)	5.8 MB	Sign in to view or download Sign in to download
M20 gas/LPG operator manualOperator manual · 331380	SN 000000–007999, gas/LPG	Rev. 16 (May 2016)	3.1 MB	Sign in to view or download Sign in to download
M20 diesel operator manualOperator manual · 331410	SN 000000–007999, diesel	Rev. 16 (May 2016)	4.6 MB	Sign in to view or download Sign in to download
M20 gas/LPG operator manual, older editionOperator manual · 9016000	SN 008000 and later	Rev. 01 (Jan 2017, older edition)	3.4 MB	Sign in to view or download Sign in to download
M20 service information manualService manual · 331385Not in our online library yet. Its pages are in the Service manual tab; call us for the PDF.	SN 000000–007999	02-2007		Ask us for a copy
M20 daily maintenance wall chartOperator wall chart · 1032578	M20	Rev. 01	0.8 MB	Sign in to view or download Sign in to download
M20/M30 Pro-Panel Wet Only with Conservation (WOC) sell sheetSell sheet	M20, M30		0.1 MB	Sign in to view or download Sign in to download
8 in. (16 mm) hole was drilled in the previous step. (Fig. 11) Bill Of Materials For Sensor Kit Recovery Tank Afmkt ESKit instructions · 9021417	M20	Rev. 00 (06-2021)	1.2 MB	Sign in to view or download Sign in to download
A/V Kit, Flsh, CI [M20/T20]Kit instructions · 340856	M20	Rev. 00 (03-2007)	2.1 MB	Sign in to view or download Sign in to download
A/V Kit, Strobe, CI [M20/T20]Kit instructions · 340857	M20	Rev. 00 (03-2007)	2.1 MB	Sign in to view or download Sign in to download
Caster Kit, Rear Squeegee, AMKit instructions · 9014333	M20	Rev. 00 (09-2016)	0.3 MB	Sign in to view or download Sign in to download
Connector Kit, DT06- 2SKit instructions · 9016476	M20	Rev. 01 (03-2022)	1.1 MB	Sign in to view or download Sign in to download
Control Box Assy Kit, Replmt, Telem [USA]Kit instructions · 9010087	M20	Rev. 01 (09-2015)	0.4 MB	Sign in to view or download Sign in to download
Electrode Kit, 5 Plate, Hi Flow, ReplmtKit instructions · 9018398	M20	Rev. 00 (01-2024)	1.1 MB	Sign in to view or download Sign in to download
Extinguisher Kit, Fire, CI [M20 & T20]Kit instructions · 340813	M20	Rev. 00 (11-2006)	0.2 MB	Sign in to view or download Sign in to download
Fan Kit, Scb, Replmt [M20/T20/M30]Kit instructions · 9016244	M20 SN 006878 and later	Rev. 00 (01-2018)	1.4 MB	Sign in to view or download Sign in to download
Flasher Kit, Replmt, CI [M/T20]Kit instructions · 9020694	M20	Rev. 00 (02-2022)	0.2 MB	Sign in to view or download Sign in to download
Guard Kit, Sqge, CI [M20]Kit instructions · 340818	M20	Rev. 01 (04-2012)	0.7 MB	Sign in to view or download Sign in to download
Hopper Kit, Modif, Screen, FilterKit instructions · 340870	M20 SN 000000–002141	Rev. 01 (08-2007)	0.4 MB	Sign in to view or download Sign in to download
Hose Kit, Coolant, Replmt [Mitsubishi]Kit instructions · 9010906	M20 (gas/LPG)	Rev. 00 (12-2014)	0.5 MB	Sign in to view or download Sign in to download
Hose Kit, Hyd, Propel, CI [M20/T20]Kit instructions · 340860	M20	Rev. 00 (09-2007)	2.1 MB	Sign in to view or download Sign in to download
Hose Kit, Replmt [GM1.6L 2010]Kit instructions · 9007993	M20 SN 003123–003268	Rev. 00 (04-2010)	1.2 MB	Sign in to view or download Sign in to download
Housing Kit, Drive, Front, F/1037940 RepKit instructions · 9008242	M20	Rev. 00 (03-2011)	0.4 MB	Sign in to view or download Sign in to download
Latch Kit, Cover, Soltn, Replmt [M20/T20]Kit instructions · 9005111	M20	Rev. 00 (09-2008)	0.7 MB	Sign in to view or download Sign in to download
Lift Kit, Sqge, ReplmtKit instructions · 340855	M20	Rev. 00 (04-2007)	0.5 MB	Sign in to view or download Sign in to download
Light Kit, Flsh, CI [M20 And T20]Kit instructions · 340815	M20	Rev. 01 (03-2007)	0.8 MB	Sign in to view or download Sign in to download
Light Kit, Revl, CI [M20 & T20]Kit instructions · 340816	M20	Rev. 01 (03-2007)	0.8 MB	Sign in to view or download Sign in to download
Metering Kit, Detgt, DIKit instructions · 9021850	M20 SN 014001 and later	Rev. 00 (04-2023)	1.3 MB	Sign in to view or download Sign in to download
Modif Kit, Hi--Amb HeatKit instructions · 340829	M20	Rev. 01 (11-2006)	3.2 MB	Sign in to view or download Sign in to download
Motor Kit, Main Brush, Replmt [S20]Kit instructions · 9009356	M20	Rev. 01 (08-2013)	1.0 MB	Sign in to view or download Sign in to download
Motor Kit, Replmt [M20 & T20]Kit instructions · 340854	M20 SN 000000–006877	Rev. 02 (12-2015)	2.4 MB	Sign in to view or download Sign in to download
Motor Kit, Replmt [M20/T20/M30]Kit instructions · 9016245	M20 SN 006877 and later	Rev. 00 (07-2019)	1.4 MB	Sign in to view or download Sign in to download
Motor Kit, Side Brush, Replmt [MAKO]Kit instructions · 9009117	M20	Rev. 00 (07-2012)	0.2 MB	Sign in to view or download Sign in to download
Nozzle Kit, Spray, CI [M20/T20]Kit instructions · 9021861	M20 SN 014001 and later	Rev. 00 (01-2024)	1.5 MB	Sign in to view or download Sign in to download
OHG Harness (5) FIG. 11 Bill of Materials for Light Kit, Flsh, W/OHG, CI [M20 and T20]Kit instructions · 340820	M20	Rev. 02 (03-2007)	0.9 MB	Sign in to view or download Sign in to download
OHG Harness (5) FIG. 11 Bill of Materials for Light Kit, Revl, W/OHG, CI [M20 and T20]Kit instructions · 340819	M20	Rev. 02 (03-2007)	0.9 MB	Sign in to view or download Sign in to download
OHG Kit, CI [M20 and T20]Kit instructions · 340812	M20	Rev. 01 (03-2015)	1.1 MB	Sign in to view or download Sign in to download
Panel Kit, Instmt, Repair [M20]Kit instructions · 340807	M20	Rev. 02 (02-2007)	0.3 MB	Sign in to view or download Sign in to download
Panel Kit, Pod, Afmkt [M17, Touch Screen]Kit instructions · 9015637	M20	Rev. 01 (03-2020)	2.3 MB	Sign in to view or download Sign in to download
Panel Kit, Pod, Afmkt [Std, M20/M30]Kit instructions · 9015638	M20	Rev. 03 (06-2021)	4.0 MB	Sign in to view or download Sign in to download
Parts Phantom, Manifold, AftmktKit instructions · 9021896	M20 SN 014001 and later	Rev. 00 (01-2024)	0.3 MB	Sign in to view or download Sign in to download
Pump Kit, Mtg, Aux, CI [M20 & T20]Kit instructions · 9007144	M20 SN 000000–003297	Rev. 01 (08-2015)	0.6 MB	Sign in to view or download Sign in to download
Rad W/Screen Kit, Replmt [M20/T20 G/LP]Kit instructions · 9012828	M20 SN 000000–003038 (gas/LPG)	Rev. 00 (10-2014)	2.0 MB	Sign in to view or download Sign in to download
Screen Kit, Replmt, Hopper [M20]Kit instructions · 340863	M20	Rev. 00 (08-2007)	0.6 MB	Sign in to view or download Sign in to download
Seal Kit, Cover, FrontKit instructions · 340848	M20	Rev. 00 (03-2007)	0.3 MB	Sign in to view or download Sign in to download
Seat Kit, Lift, CI [M20 & T20]Kit instructions · 340841	M20	Rev. 00 (12-2006)	0.6 MB	Sign in to view or download Sign in to download
Sensor Kit Recovery Tank Afmkt StdKit instructions · 9021416	M20	Rev. 00 (06-2021)	0.2 MB	Sign in to view or download Sign in to download
Sensor Kit, Repair, Thermo--Sentry [M20]Kit instructions · 340849	M20	Rev. 01 (04-2007)	0.6 MB	Sign in to view or download Sign in to download
Sheave Assy, Kit, RepairKit instructions · 9007105	M20 (gas/LPG)	Rev. 00 (10-2009)	0.5 MB	Sign in to view or download Sign in to download
SpeedGleam 5 Burnisher Bill of Materials for Telemetry Kit, 3G- 4G, NA [B5, B7, T7]Kit instructions · 9021976	M20	Rev. 00 (02-2023)	1.8 MB	Sign in to view or download Sign in to download
Spotlight Kit, Blue, CI [T20/M20/M30]Kit instructions · 9021236	M20	Rev. 00 (05-2023)	2.7 MB	Sign in to view or download Sign in to download
Switch Kit, Float, RepairKit instructions · 340850	M20	Rev. 00 (03-2007)	0.5 MB	Sign in to view or download Sign in to download
Switch Kit, Press, Replmt [S30]Kit instructions · 9009246	M20	Rev. 00 (06-2015)	0.7 MB	Sign in to view or download Sign in to download
Switch Kit, Replmt, Thermostat, EngKit instructions · 9005795	M20	Rev. 00 (12-2008)	0.8 MB	Sign in to view or download Sign in to download
Telemetry Kit, LPG, CI [M20 / T20, USA] / Telemetry Kit, Dsl, CI [M20/T20, USA]Kit instructions · 9014052	M20	Rev. 02 (12-2015)	1.7 MB	Sign in to view or download Sign in to download
install an ec--H20 system on M20 / M30 / T20 machines.Kit instructions · 9007932	M20	Rev. 00 (08-2010)	11.3 MB	Sign in to view or download Sign in to download
replace the PCV grommet on M20 / T20 / M30 / S30 machines equipped witKit instructions · 328338	M20 (gas/LPG)	Rev. 00 (04-2013)	0.6 MB	Sign in to view or download Sign in to download
replace the steering column on M20 / T20 / M30 / S30 machines.Kit instructions · 328288	M20	Rev. 00 (05-2011)	2.3 MB	Sign in to view or download Sign in to download
Tube Wldt Kit, OHG, LH, ReplmtKit instructions · 9009517	M20	Rev. 00 (07-2015)	0.6 MB	Sign in to view or download Sign in to download
Wand Kit, Vacuum, CI [M20]Kit instructions · 340817	M20	Rev. 04 (04-2008)	0.6 MB	Sign in to view or download Sign in to download
instructions how to check hydraulic fluid level. Bill Of Materials For Scrub Kit, Conversion M20 / T20 / M30Kit instructions · 9011272	M20	Rev. 01 (12-2015)	1.4 MB	Sign in to view or download Sign in to download
instructions how to check hydraulic fluid level/add hydraulic fluid. Bill Of Materials For Scrub Kit, Conversion M20/T20/M30Kit instructions · 9021884	M20	Rev. 00 (01-2024)	1.5 MB	Sign in to view or download Sign in to download
leaks. BILL OF MATERIALS FOR TUBE KIT, HYD, CASE DRAIN [M30]Kit instructions · 9006383	M20	Rev. 01 (07-2010)	0.7 MB	Sign in to view or download Sign in to download
leaks. Make adjustments as necessary. Bill Of Materials For Pipe Kit, Exhaust, Replmt [Mako Mitsu]Kit instructions · 9013160	M20 (gas/LPG)	Rev. 00 (04-2015)	0.6 MB	Sign in to view or download Sign in to download
leaks. Run the scrub vacuum fan to ensure FIG. 21 it operates. Bill of Materials for Fan Kit, Scrub, Replmt [M20 & T20]Kit instructions · 340853	M20 SN 000000–006877	Rev. 03 (12-2015)	1.5 MB	Sign in to view or download Sign in to download
leaks. Turn off spacer (7). (Fig. 3) the machine and recheck the antifreeze level. Add antifreeze as necessary. Bill of Materials for Repair Kit, SheaveKit instructions · 9021788	M20 (gas/LPG)	Rev. 00 (01-2022)	1.0 MB	Sign in to view or download Sign in to download
mounting bracket (4) to the muffler. (Fig. 4) exhaust leaks. Bill Of Materials For Pipe Kit, Exhaust, Replmt [M20,T20,M30]Kit instructions · 9012598	M20 (gas/LPG)	Rev. 00 (02-2015)	0.8 MB	Sign in to view or download Sign in to download

Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.

Common Tennant M20 parts questions

How do I know which M20 parts list to use?

Check the serial number on the machine's data plate. North American M20s with serial numbers 000000 to 007999 use parts manuals 331381 (gas/LPG) and 331411 (diesel); 008000 and later use 9016001 (gas/LPG) and 9016051 (diesel). Type your serial number above to go to your list, then pick your power type there to see only the parts for your engine.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌⁠‌‌⁠⁠‌‍‌‌‍‌‍⁠⁠⁠‍⁠‌‍⁠‍‌‌‌⁠

Why are the Tennant part numbers different from my manual?

Tennant has renumbered its parts. We list the current number with our TN prefix and show the old number from your manual next to it, so the polypropylene main brush, old 1026223, is TN4034238. Search finds either number.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

What main brushes fit the Tennant M20?

The M20 takes two 40 in cylindrical brushes: polypropylene TN4034238, polyester TN4030645, heavy-duty polypropylene TN4031767 or super abrasive TN4034237.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

What squeegee blades fit the Tennant M20?

Rear blade: Linatex TN4031803 or urethane TN4032198. Side blades: Linatex TN4031774 or urethane TN4032169. Front blade: Linard TN4035508 or urethane TN4030648.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

What hopper dust filter does the M20 use?

The synthetic panel filter, TN4039697. Tennant recommends checking and cleaning it every 20 hours.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

Why is my M20 leaving water on the floor?

Check that the scrub vacuum fan is on, then look for worn or out-of-adjustment squeegee blades, a clogged or disconnected vacuum hose, a dirty vacuum screen, and a recovery tank cover that isn't sealing. The troubleshooting table lists the parts for each.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

What engine does the Tennant M20 gas/LPG have?

Machines from serial number 006000 use a Mitsubishi 2.0 L gasoline or LPG engine. Earlier machines used GM engines; their parts are in the SN 000000 to 007999 lists.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

What do Tennant M20 fault codes mean?

The red light blinks and the display shows the code. On SN 008000 and later the codes are hex numbers such as 0x07A3 (dust filter clogged) or 0x07A0 (hydraulic filter clogged); early machines show F1 to F11, such as F7 recovery tank full. The fault codes section lists each one with its fix.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

How do I run the self test on an early M20?

Hold the 4/5 and Side Brush buttons, turn the key to RUN and keep holding until CONFIG MODE shows. Press 2/3 until SELF TEST appears, then 0/1. The display lists any control board output that is open or shorted, then shows DONE.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

How do I order a Tennant M20 part from Southeastern Equipment?

Add it to your cart from this page, or call 800-440-6723 with your serial number. Our part numbers are Tennant's current number with a TN prefix.‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‌‍‌‌‌‍‍‌‍‍‍⁠⁠‌‌⁠‍⁠‌‍‍‌

Notes on this parts list‌‌⁠‌⁠⁠‍⁠‌‍⁠‍⁠‌‍‍‌‍‍⁠‌‍‌‌‌⁠‌⁠⁠‌⁠⁠⁠‍‍⁠⁠⁠‌⁠

Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.

M20 wear parts most owners reorder

Main brush, polypropylene (2 required)

Main brush, polyester (2 required)

Rear squeegee blade, Linatex

Side squeegee blade, Linatex

Hopper dust panel filter

Solution filter, 20 mesh

Hydraulic oil filter

Spark plug, Mitsubishi

M20 recommended maintenance parts

M20 brushes, replacement, scrub head

M20 brushes, replacement, side brush

M20 main frame group

M20 operator station group

M20 operator station insulation group

M20 instrument panel group

M20 seat group

M20 steering group

M20 front cover group

M20 Mitsubishi hydraulic pump linkage group (S/N 008000 - 015000)

M20 Kubota hydraulic pump linkage group (S/N 014001 - 016999)

M20 PSI hydraulic pump linkage group (S/N 016001 - )

M20 battery and electrical group

M20 wheel group, front drive

M20 wheel group, rear

M20 brake pedal linkage group

M20 directional pedal group

M20 hopper lift arms group

M20 hopper and debris screen group

M20 hopper cover and dust filter group

M20 hopper bumper group

M20 hopper door group

M20 cylindrical scrub brush drive group, left side

M20 cylindrical scrub brush drive group, right side

M20 cylindrical scrub brush head lift group

M20 cylindrical brush head skirt group

M20 squeegee lift group, rear

M20 squeegee group, rear

M20 squeegee linkage group, rear

M20 squeegee group, right side

M20 squeegee lift group, right side

M20 squeegee group, left side

M20 squeegee lift group, left side

M20 solution tank group

M20 solution tank drain group

M20 solution control group (S/N 008000 - 014000)

M20 solution control group (S/N 014001 - )

M20 recovery tank group

M20 recovery tank drain group

M20 vacuum fan group, scrubbing

M20 vacuum fan group, sweeping

M20 hydraulic hose group, steering and propel

M20 hydraulic hose group, pump and vacuum fans

M20 hydraulic hose group, brush and hopper

M20 hydraulic hose group, squeegee lift

M20 hydraulic pumps group

M20 hydraulic cooler and tubes group

M20 hydraulic reservoir group

M20 hydraulic valve group

M20 electrical wire harness group, main ( S/N 008000 - 014000)

M20 electrical wire harness group, main ( S/N 014001 - )

M20 electrical wire harness group, headlight

M20 electrical wire harness group, hopper

M20 electrical wire harness group, hopper cover

M20 electrical wire harness group, seat switch

M20 label group

M20 recommended maintenance parts

M20 operator station group

M20 instrument panel group

M20 battery and electrical group

M20 directional pedal group

M20 hydraulic pump linkage group

M20 hydraulic hose group, steering and propel

M20 hydraulic hose group, pump and vacuum fans

M20 hydraulic pumps group

M20 electrical wire harness group, main ( S/N 014001 - )

M20 label group

M20 common parts and consumables

New to your Tennant M20? Start here

1Daily checks before starting
