Tennant M20 engine parts, SN 008000 and later
Engine parts from Tennant's North American M20 parts manuals for SN 008000 and later (9016001 rev. 12 (gas/LPG) + 9016051 rev. 11 (diesel)), gas, LPG and diesel. Use Your machine to pick your serial number, edition or another area.
Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.
Find your parts list →
1,843 lines from 9016001 rev. 12 (gas/LPG) + 9016051 rev. 11 (diesel). Checked against the manuals line by line on October 12, 2026 .
Tennant M20 integrated sweeper-scrubber. Shop M20 machines
Machine M20 rider sweeper-scrubber
Cleaning path 40 in (56 in with side brush)
Solution / recovery 56 / 73 gal
Hopper 3.9 ft³, 390 lb
Power Gasoline, LPG or diesel
Main brushes 2 × 40 in cylindrical
Your machine
You’re viewing the current manual (Rev 12, Oct 2025; diesel: Rev 11) . Enter your serial number or use the dropdown for your exact machine.
Where to find the serial number and power type The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable. Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ. Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies. How to read this list
Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

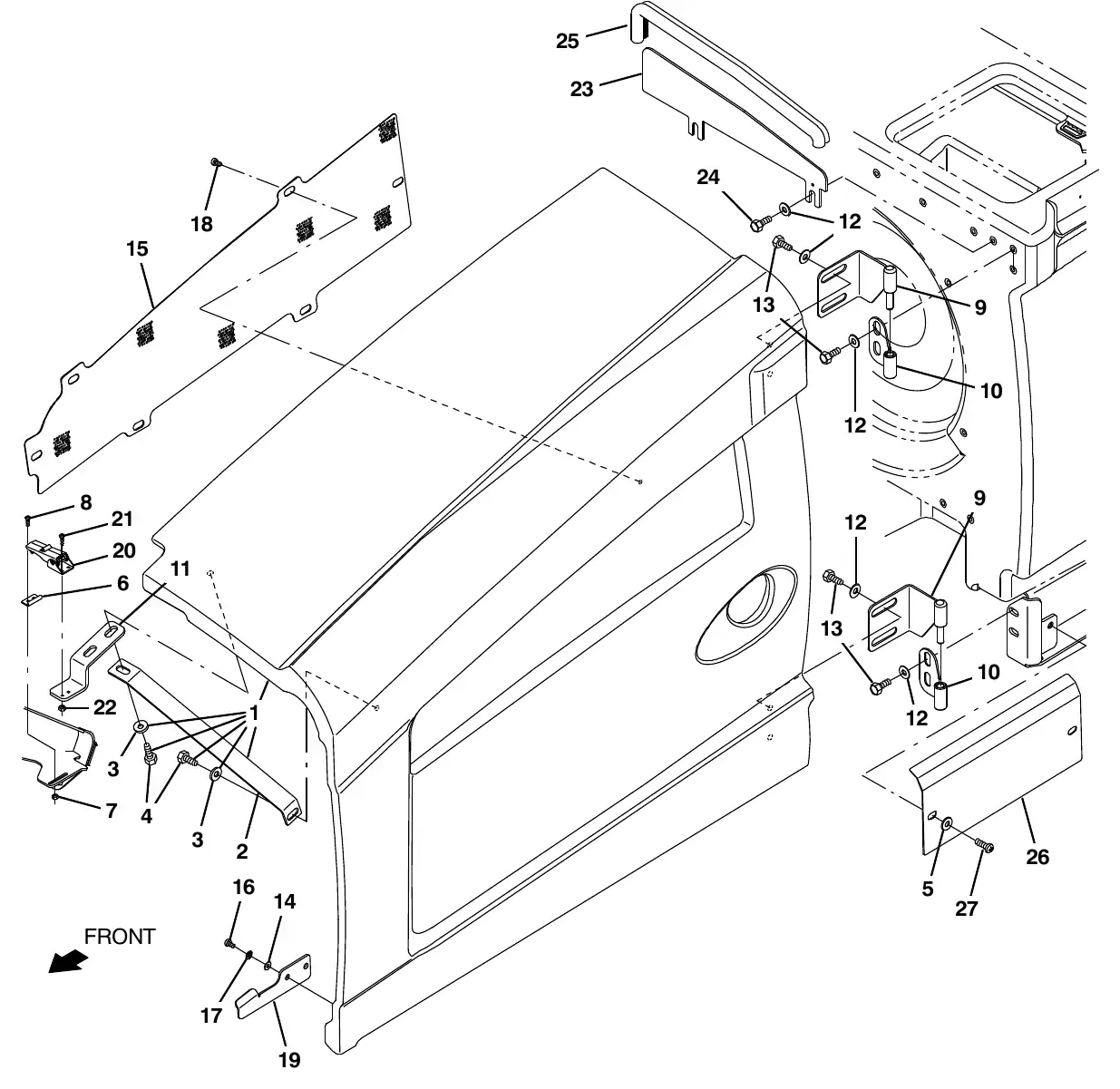

M20 engine cover group Standard parts SN 008000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Engine Cover Group, SN 008000 and later. Manual page 26. SES ref PF-AIF7-RYIL Tennant M20 engine cover group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4030566 1 Shroud Assy, EngFits SN 008000–015000 · Old # 1071439 $434.10/EA Add 2 TN4194117 1 Angle, Brace, ShrdFits SN 008000–015000 · Old # 1026628 $14.75/EA Add 3 TN4035242 2 Washer, Flat, 0.32b 1.00d .12, SsFits SN 008000–015000 · Old # 1017218 $3.40/EA Add 4 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–015000 · Old # 16931 $2.50/EA Add 5 TN4015595 2 Washer, Flat, 0.31 SaeFits SN 008000–015000 · Old # 39349 $2.50/EA Add 6 TN4024119 1 Bracket, Latch, Keeper [Southco]Fits SN 008000–015000 · Old # 384419 $4.50/EA Add 7 TN4031247 2 Nut, Hex, Lock, M4 X 0.7, Nl, SsFits SN 008000–015000 · Old # 33932 $3.40/EA Add 8 TN4035372 2 Screw, Pan, M4 X 0.7 X 16, SsFits SN 008000–015000 · Old # 24265 $3.00/EA Add 9 TN4033616 2 Hinge Wldt, Shrd, LhFits SN 008000–015000 · Old # 1024500 $68.90/EA Add 10 TN4033887 2 Hinge Wldt, Shrd, LhFits SN 008000–015000 · Old # 1025196 $42.60/EA Add 11 TN4036245 1 Bracket, Latch, CoverFits SN 008000–015000 · Old # 1020186 $13.50/EA Add 12 TN4035242 11 Washer, Flat, 0.32b 1.00d .12, SsFits SN 008000–015000 · Old # 1017218 $3.40/EA Add 13 TN4041844 7 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–015000 · Old # 16931 $2.50/EA Add 14 TN4016785 2 Washer, Lock, Int - Ext, 10Fits SN 008000–015000 · Old # 41139 $3.50/EA Add 15 TN4034277 1 Grill, EngFits SN 008000–015000 · Old # 1026726 $72.20/EA Add 16 TN4041965 2 Screw, Pan, M5 X 0.8 X 12, SsFits SN 008000–015000 · Old # 09200 $3.40/EA Add 17 TN4042244 2 Washer, Flat, #10Fits SN 008000–015000 · Old # 19066 $2.50/EA Add 18 TN4040232 6 Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbFits SN 008000–015000 · Old # 222267 $2.50/EA Add 19 TN4030910 1 Bracket, Guide, ShrdFits SN 008000–015000 · Old # 1028412 $19.50/EA Add 20 TN4037479 1 Latch, Door, YellowFits SN 008000–015000 · Old # 1222018 $18.30/EA Add 21 TN4041258 2 Screw, Pan, M4 X 0.7 X 16, 4.8Fits SN 008000–015000 · Old # 06927 $3.30/EA Add 22 TN4043235 2 Nut, Hex, Lock, M4 X 0.7, NlFits SN 008000–015000 · Old # 02850 $2.50/EA Add 23 TN4193841 1 Plate, Seal, SoundFits SN 008000–015000 · Old # 1025806 $15.80/EA Add 24 TN4041992 2 Screw, Hex, M8 X 1.25 X 20, SsFits SN 008000–015000 · Old # 09740 $3.30/EA Add 25 TN4031725 2 Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftFits SN 008000–015000 · Old # 1030588 $46.50/EA Add 26 TN4032874 1 Cover, LowerFits SN 008000–015000 · Old # 1022005 $21.70/EA Add 27 TN4032093 2 Screw, Pan, M8 X 1.25 X 25, BlkFits SN 008000–015000 · Old # 1031665 $3.40/EA Add
M20 Mitsubishi engine and mount group, gas (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline
Tap a number to see that part.

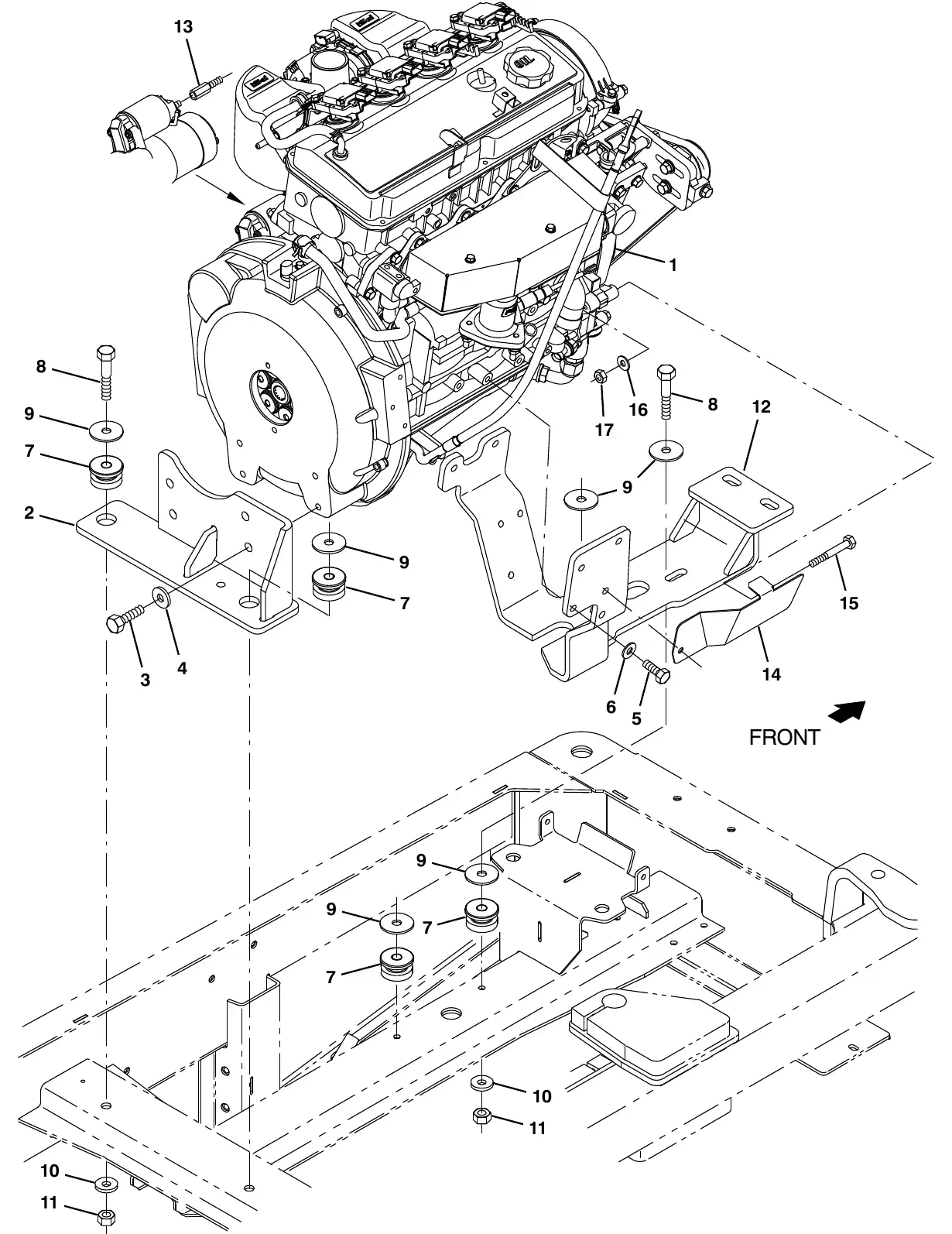

Enlarge Mitsubishi Engine and Mount Group, Gas (S/N 008000 - 015000), SN 008000 and later. Manual page 28. SES ref PF-F7EL-DO2B Tennant M20 Mitsubishi engine and mount group, gas (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003679 1 Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Fits SN 008000–015000 · Old # 9014202 $8,912.00/EA Add TN8002631 1 Element, Fltr, Oil, Spin - On (Mits)Fits SN 008000–015000 · Old # 393982 $30.00/EA Add 1 TN4182975 1 Engine, Gas [Mitsubishi]Fits SN 008000–015000 · Old # 1071155 Call for price TN8002631 1 Element, Fltr, Oil, Spin - On (Mits)Fits SN 008000–015000 · Old # 393982 $30.00/EA Add 2 TN4030335 1 Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Fits SN 008000–015000 · Old # 1070756 $68.38/EA Add 3 TN4016809 4 Screw, Hex, M12 X 1.75 X 30, 8.8Fits SN 008000–015000 · Old # 41346 $4.00/EA Add 4 TN4034135 4 Washer, Flat, 0.50 SaeFits SN 008000–015000 · Old # 32486 $2.60/EA Add 5 TN4041580 6 Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 008000–015000 · Old # 07299 $2.40/EA Add 6 TN4034138 6 Washer, Flat, 0.38 StdFits SN 008000–015000 · Old # 32492 $2.50/EA Add 7 TN4014538 4 Isolator, Vib, .50dFits SN 008000–015000 · Old # 51176 $37.60/EA Add 8 TN4041297 4 Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 008000–015000 · Old # 06972 $4.00/EA Add 9 TN4040927 4 Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 008000–015000 · Old # 04414 $4.10/EA Add 10 TN4034139 3 Washer, Flat, 0.50 StdFits SN 008000–015000 · Old # 32493 $3.50/EA Add 11 TN4041927 3 Nut, Hex, Lock, M12 X 1.75,NlFits SN 008000–015000 · Old # 08711 $3.30/EA Add 12 TN4030332 1 Bracket Wldt, Mtg, Engine [Mit 2013] (Repl By 1270775)Fits SN 008000–015000 · Old # 1070751 $192.32/EA Add 13 TN4207513 1 Brkt Wldt, Mtg, Frt, Engine [Psi Mako]Fits SN 008000–015000 · Old # 1270775 Call for price 14 TN4180344 1 Stand - Off, Hex, M8 X M8, MetalFits SN 008000–015000 · Old # 1072669 $38.57/EA Add 15 TN4212835 1 Plate, Guard, Hose, Hyd, SteeringFits SN 008000–015000 · Old # 1258789 $35.10/EA Add 16 TN4019755 1 Screw, Hex, M8 X 1.25 X 90, 8.8Fits SN 008000–015000 · Old # 39281 $4.00/EA Add 17 TN4034137 1 Washer, Flat, 0.31, StdFits SN 008000–015000 · Old # 32491 $2.50/EA Add 18 TN4041926 1 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Old # 08709 $2.50/EA Add
M20 Mitsubishi engine and mount group, LPG (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: LPG
Tap a number to see that part.

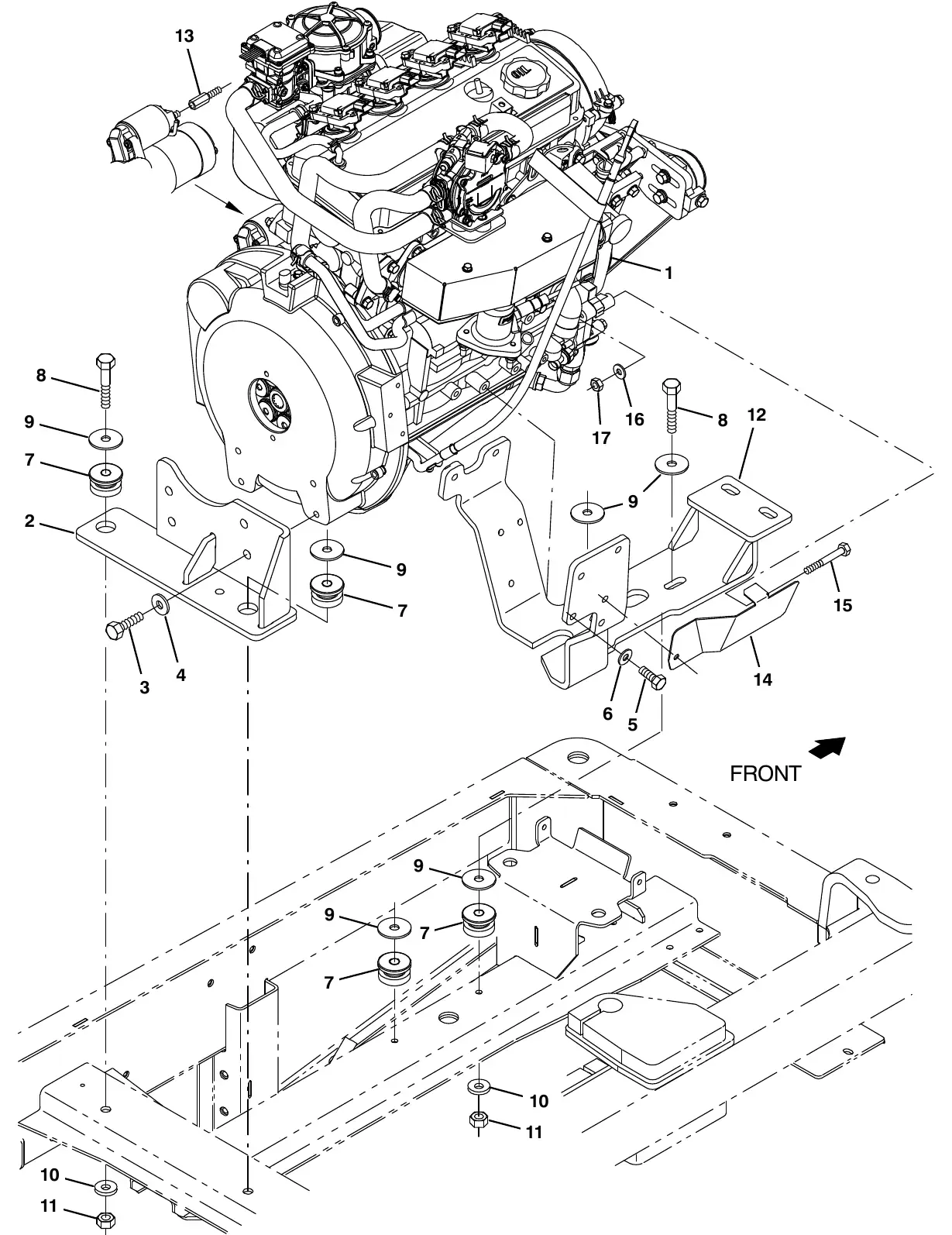

Enlarge Mitsubishi Engine and Mount Group, LPG (S/N 008000 - 015000), SN 008000 and later. Manual page 30. SES ref PF-G6XJ-F2OZ Tennant M20 Mitsubishi engine and mount group, LPG (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003679 1 Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Fits SN 008000–015000 · Old # 9014202 $8,912.00/EA Add TN8002631 1 Element, Fltr, Oil, Spin - On (Mits)Fits SN 008000–015000 · Old # 393982 $30.00/EA Add 1 TN4182078 1 Engine, LPG, 2.0L Dressed (PSI, MAKO)Old # 1070348 Call for price TN8002631 1 Element, Fltr, Oil, Spin - On (Mits)Fits SN 008000–015000 · Old # 393982 $30.00/EA Add 2 TN4030335 1 Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Fits SN 008000–015000 · Old # 1070756 $68.38/EA Add 3 TN4016809 4 Screw, Hex, M12 X 1.75 X 30, 8.8Fits SN 008000–015000 · Old # 41346 $4.00/EA Add 4 TN4034135 4 Washer, Flat, 0.50 SaeFits SN 008000–015000 · Old # 32486 $2.60/EA Add 5 TN4041580 6 Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 008000–015000 · Old # 07299 $2.40/EA Add 6 TN4034138 6 Washer, Flat, 0.38 StdFits SN 008000–015000 · Old # 32492 $2.50/EA Add 7 TN4014538 4 Isolator, Vib, .50dFits SN 008000–015000 · Old # 51176 $37.60/EA Add 8 TN4041297 4 Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 008000–015000 · Old # 06972 $4.00/EA Add 9 TN4040927 4 Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 008000–015000 · Old # 04414 $4.10/EA Add 10 TN4034139 3 Washer, Flat, 0.50 StdFits SN 008000–015000 · Old # 32493 $3.50/EA Add 11 TN4041927 3 Nut, Hex, Lock, M12 X 1.75,NlFits SN 008000–015000 · Old # 08711 $3.30/EA Add Item 12: choose your version (2) 12 TN4030332 3 Bracket Wldt, Mtg, Engine [Mit 2013] (Repl by 1270775)Fits SN 008000–015000 · Old # 1070751 $192.32/EA Add 12 TN4207513 1 Brkt Wldt, Mtg, Frt, Engine [Psi Mako]Old # 1270775 Call for price 13 TN4180344 1 Stand - Off, Hex, M8 X M8, MetalFits SN 008000–015000 · Old # 1072669 $38.57/EA Add 14 TN4212835 1 Plate, Guard, Hose, Hyd, SteeringFits SN 008000–015000 · Old # 1258789 $35.10/EA Add 15 TN4019755 1 Screw, Hex, M8 X 1.25 X 90, 8.8Fits SN 008000–015000 · Old # 39281 $4.00/EA Add 16 TN4034137 1 Washer, Flat, 0.31, StdFits SN 008000–015000 · Old # 32491 $2.50/EA Add 17 TN4041926 1 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Old # 08709 $2.50/EA Add

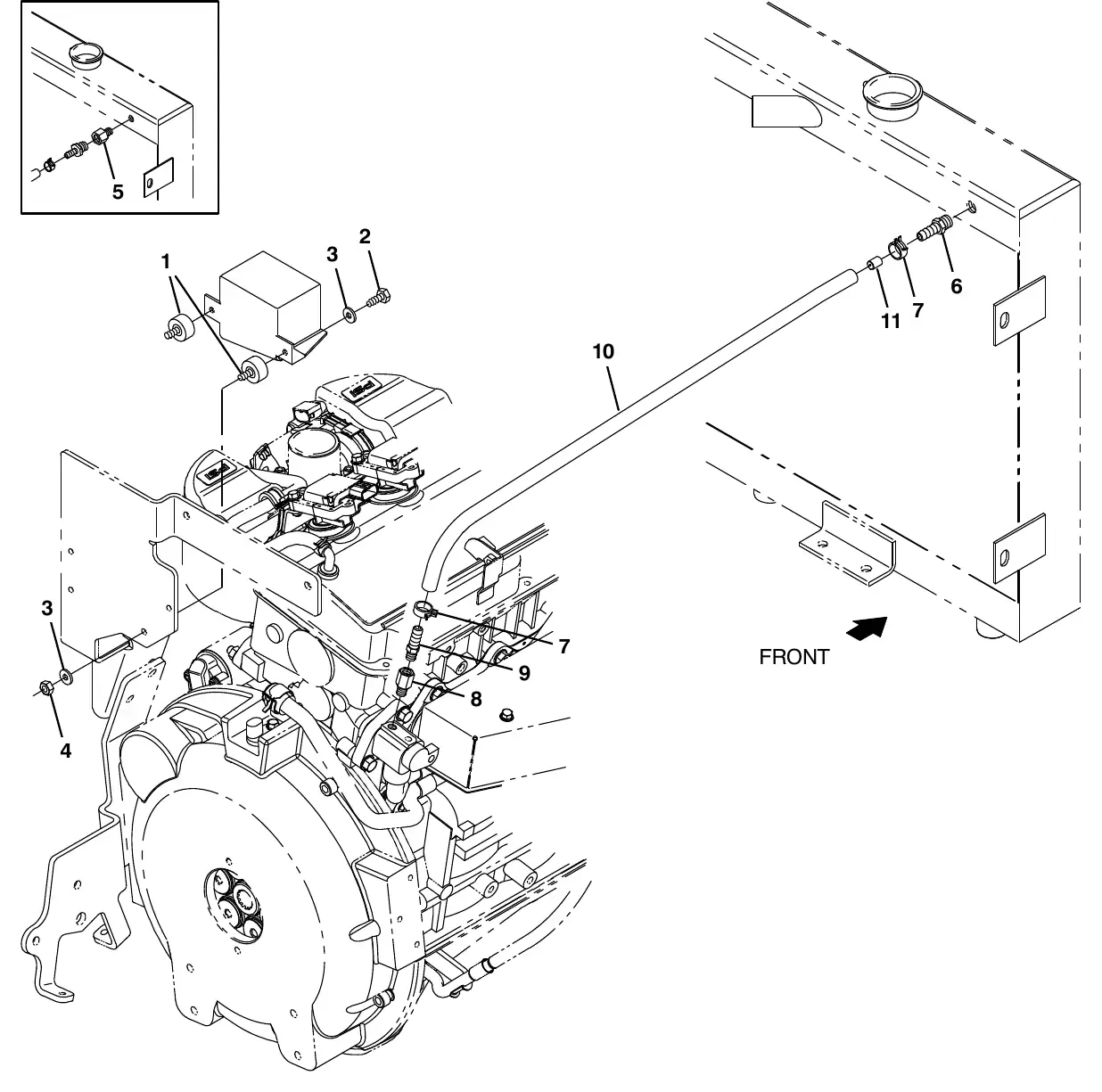

M20 Mitsubishi engine EFI group, gas (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline
Tap a number to see that part.
Enlarge Mitsubishi Engine EFI Group, Gas (S/N 008000 - 015000), SN 008000 and later. Manual page 32. SES ref PF-UU6R-CRXQ Tennant M20 Mitsubishi engine EFI group, gas (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8005190 2 Isolator, Box, RelayFits SN 008000–015000 · Old # 372470 $25.70/EA Add 2 TN4042535 2 Screw, Hex, .25 - 20 X 0.50, G5Fits SN 008000–015000 · Old # 19315 $2.50/EA Add 3 TN4034136 4 Washer, Flat, 0.25, StdFits SN 008000–015000 · Old # 32490 $2.50/EA Add 4 TN4042532 2 Nut, Hex, Std, .25 - 20Fits SN 008000–015000 · Old # 19312 $2.50/EA Add 5 TN4030567 1 Fitting, Brs, Str, Pf06/Pm04 (Obsolete, Replaced by None)Fits SN 008000–015000 · Old # 1071440 $66.00/EA Add 6 TN4044560 1 Fitting, Brs, Str, Bm06/Pm04Fits SN 008000–015000 · Old # 150516 · Replaces 36159 (2022 list (rev. 08)) $5.30/EA Add 7 TN4030949 2 Clamp, Hose, Spring Stl, 0.58d X 0.31wFits SN 008000–015000 · Old # 1072559 $3.20/EA Add 8 TN4030700 1 Fitting, Brs, Str, Pf02/Pm02 [Bspt]Fits SN 008000–015000 · Old # 1071502 $39.76/EA Add 9 TN4038789 1 Fitting, Brs, Str, Bm06/Pm02Fits SN 008000–015000 · Old # 1055552 $3.60/EA Add 10 TN4030929 1 Hose, Afmkt, Rbr, Heater, 0.38id, 03ftFits SN 008000–015000 · Old # 1072408 $68.40/EA Add 11 TN4029883 1 Fitting, Brass, Rst, .125”Fits SN 008000–015000 · Old # 1265088 Call for price

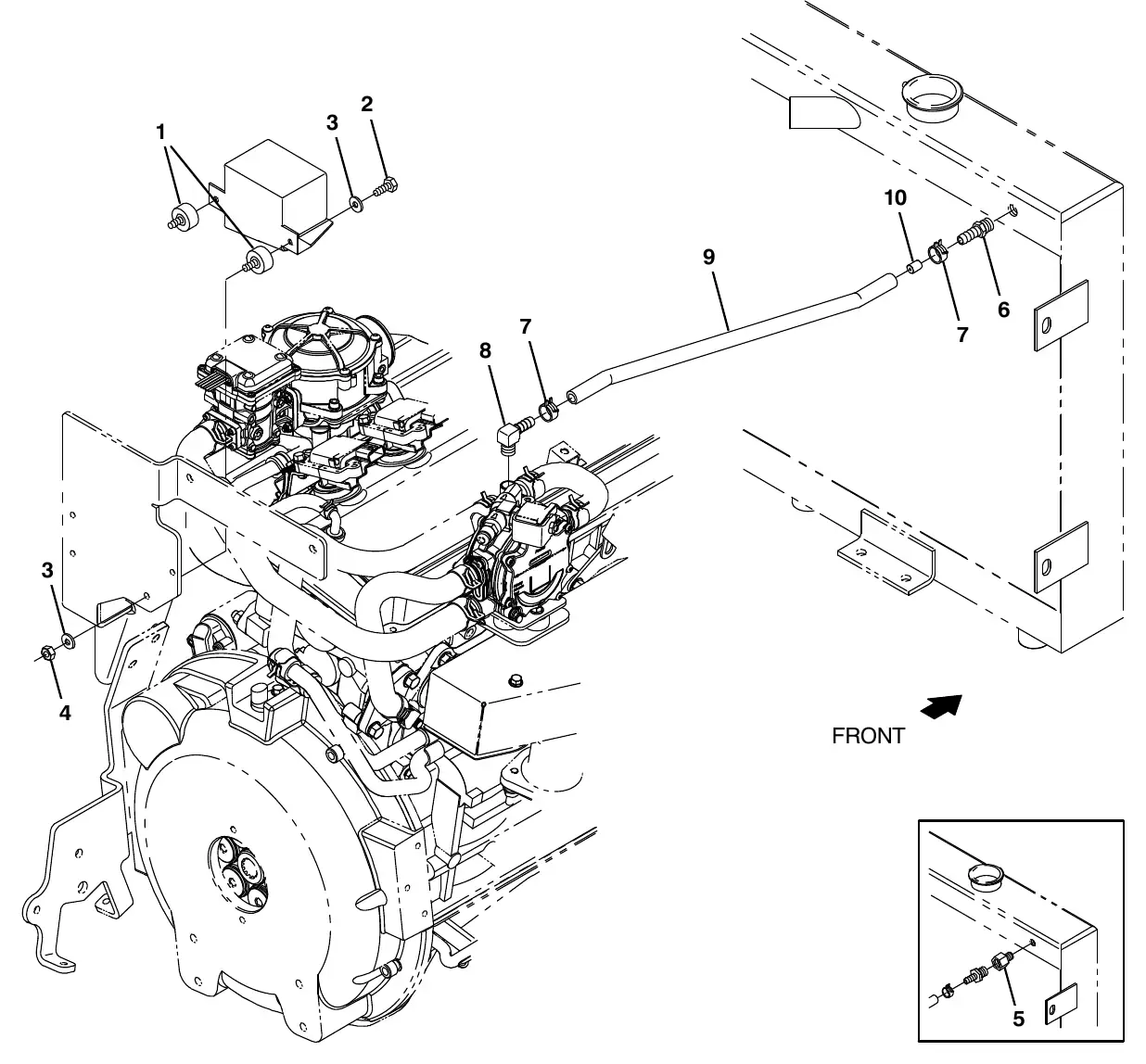

M20 Mitsubishi engine EFI group, LPG (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: LPG
Tap a number to see that part.
Enlarge Mitsubishi Engine EFI Group, LPG (S/N 008000 - 015000), SN 008000 and later. Manual page 34. SES ref PF-VHYL-QKMT Tennant M20 Mitsubishi engine EFI group, LPG (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8005190 2 Isolator, Box, RelayFits SN 008000–015000 · Old # 372470 $25.70/EA Add 2 TN4042535 2 Screw, Hex, .25 - 20 X 0.50, G5Fits SN 008000–015000 · Old # 19315 $2.50/EA Add 3 TN4034136 4 Washer, Flat, 0.25, StdFits SN 008000–015000 · Old # 32490 $2.50/EA Add 4 TN4042532 2 Nut, Hex, Std, .25 - 20Fits SN 008000–015000 · Old # 19312 $2.50/EA Add 5 TN4030567 1 Fitting, Brs, Str, Pf06/Pm04 (Obsolete, Replaced by None)Fits SN 008000–015000 · Old # 1071440 $66.00/EA Add 6 TN4044560 1 Fitting, Brs, Str, Bm06/Pm04Fits SN 008000–015000 · Old # 150516 · Replaces 36159 (2022 list (rev. 08)) $5.30/EA Add 7 TN4030949 2 Clamp, Hose, Spring Stl, 0.58d X 0.31wFits SN 008000–015000 · Old # 1072559 $3.20/EA Add 8 TN4197481 1 Fitting, Brs, E90, Bm06/Pm04Fits SN 008000–015000 · Old # 1015815 $8.50/EA Add 9 TN4030929 1 Hose, Afmkt, Rbr, Heater, 0.38id, 03ftFits SN 008000–015000 · Old # 1072408 $68.40/EA Add 10 TN4029883 1 Fitting, Brass, Rst, .125”Fits SN 008000–015000 · Old # 1265088 Call for price
M20 Mitsubishi engine air cleaner group, gas (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline
Tap a number to see that part.

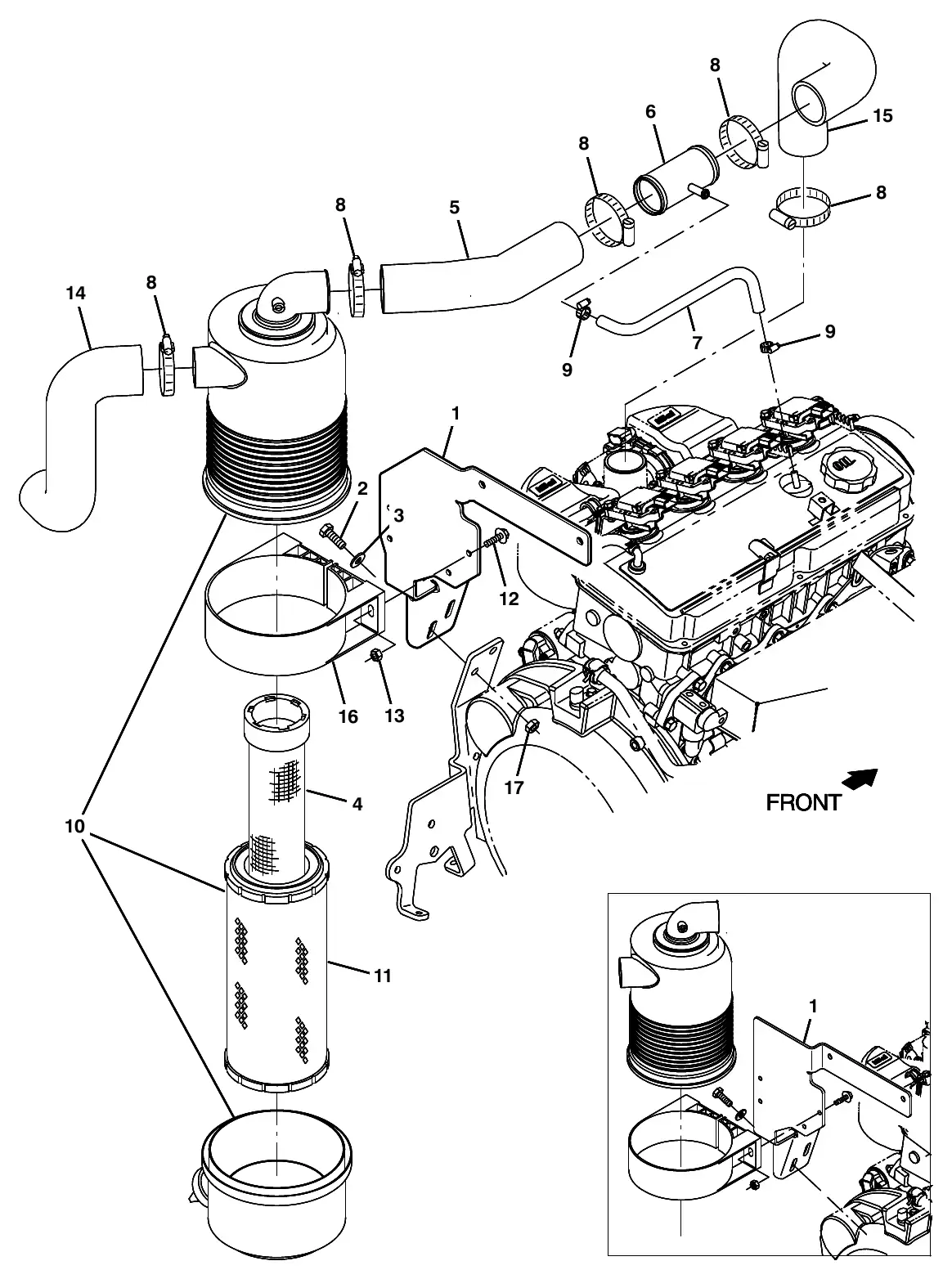

Enlarge Mitsubishi Engine Air Cleaner Group, Gas (S/N 008000 - 015000), SN 008000 and later. Manual page 36. SES ref PF-HRYO-NXPG Tennant M20 Mitsubishi engine air cleaner group, gas (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4208257 1 Bracket, Mtg, Fltr, Air [Psi]Printed as 4208257 (Tennant’s new number) · Old # 1272567 · Replaces 1070822 (2022 list (rev. 08)) Call for price 2 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 008000–015000 · Printed as 4156940 (Tennant’s new number) · Old # 39277 · Replaces 39277 (2022 list (rev. 08)) $3.20/EA Add 3 TN4034137 2 Washer, Flat, 0.31, StdFits SN 008000–015000 · Printed as 4034137 (Tennant’s new number) · Old # 32491 · Replaces 32491 (2022 list (rev. 08)) $2.50/EA Add 4 TN8002697 1 Element, Fltr, Air, Safety (OPTION)Fits SN 008000–015000 · Printed as 8002697 (Tennant’s new number) · Old # 398279 · Replaces 398279 (2022 list (rev. 08)) $52.20/EA Add 5 TN4182540 1 Hose, Intake, Mold [Epdm Mit 2013]Fits SN 008000–015000 · Printed as 4182540 (Tennant’s new number) · Old # 1070788 · Replaces 1070788 (2022 list (rev. 08)) $45.22/EA Add 6 TN4182561 1 Tube Wldt, Tee [Mit 2013]Fits SN 008000–015000 · Printed as 4182561 (Tennant’s new number) · Old # 1070833 · Replaces 1070833 (2022 list (rev. 08)) $95.68/EA Add 7 TN4027047 1 Hose, Drain,Overflow,Radiator[1pick=1ft]Fits SN 008000–015000 · Printed as 4027047 (Tennant’s new number) · Old # 381391 · Replaces 381391 (2022 list (rev. 08)) Call for price 8 TN4044328 5 Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 008000–015000 · Printed as 4044328 (Tennant’s new number) · Old # 14432 · Replaces 14432 (2022 list (rev. 08)) $5.30/EA Add 9 TN4015366 2 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–015000 · Printed as 4015366 (Tennant’s new number) · Old # 54333 · Replaces 54333 (2022 list (rev. 08)) $5.10/EA Add 10 TN4032296 1 Filter Assy, AirFits SN 008000–015000 · Printed as 4032296 (Tennant’s new number) · Old # 369745 · Replaces 369745 (2022 list (rev. 08)) $124.20/EA Add 11 TN8005623 1 Element, Fltr, Air [Dn]Fits SN 008000–015000 · Printed as 8005623 (Tennant’s new number) · Old # 369746 · Replaces 369746 (2022 list (rev. 08)) $34.60/EA Add 12 TN4045568 2 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 008000–015000 · Printed as 4045568 (Tennant’s new number) · Old # 1036892 · Replaces 1036892 (2022 list (rev. 08)) $2.50/EA Add 13 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlFits SN 008000–015000 · Printed as 4041925 (Tennant’s new number) · Old # 08708 · Replaces 08708 (2022 list (rev. 08)) $2.50/EA Add 14 TN4036284 1 Hose, Intake, Mold, 2.00id [Epdm]Fits SN 008000–015000 · Printed as 4036284 (Tennant’s new number) · Old # 1020949 · Replaces 1020949 (2022 list (rev. 08)) $59.99/EA Add 15 TN4182993 1 Hose, Intake, Mold, Gas [Epdm Mit 2013]Fits SN 008000–015000 · Printed as 4182993 (Tennant’s new number) · Old # 1071404 · Replaces 1071404 (2022 list (rev. 08)) $53.83/EA Add 16 TN4032297 1 Clamp, Mtg, Fltr, AirFits SN 008000–015000 · Printed as 4032297 (Tennant’s new number) · Old # 369747 · Replaces 369747 (2022 list (rev. 08)) $32.90/EA Add 17 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Printed as 4041926 (Tennant’s new number) · Old # 08709 · Replaces 08709 (2022 list (rev. 08)) $2.50/EA Add

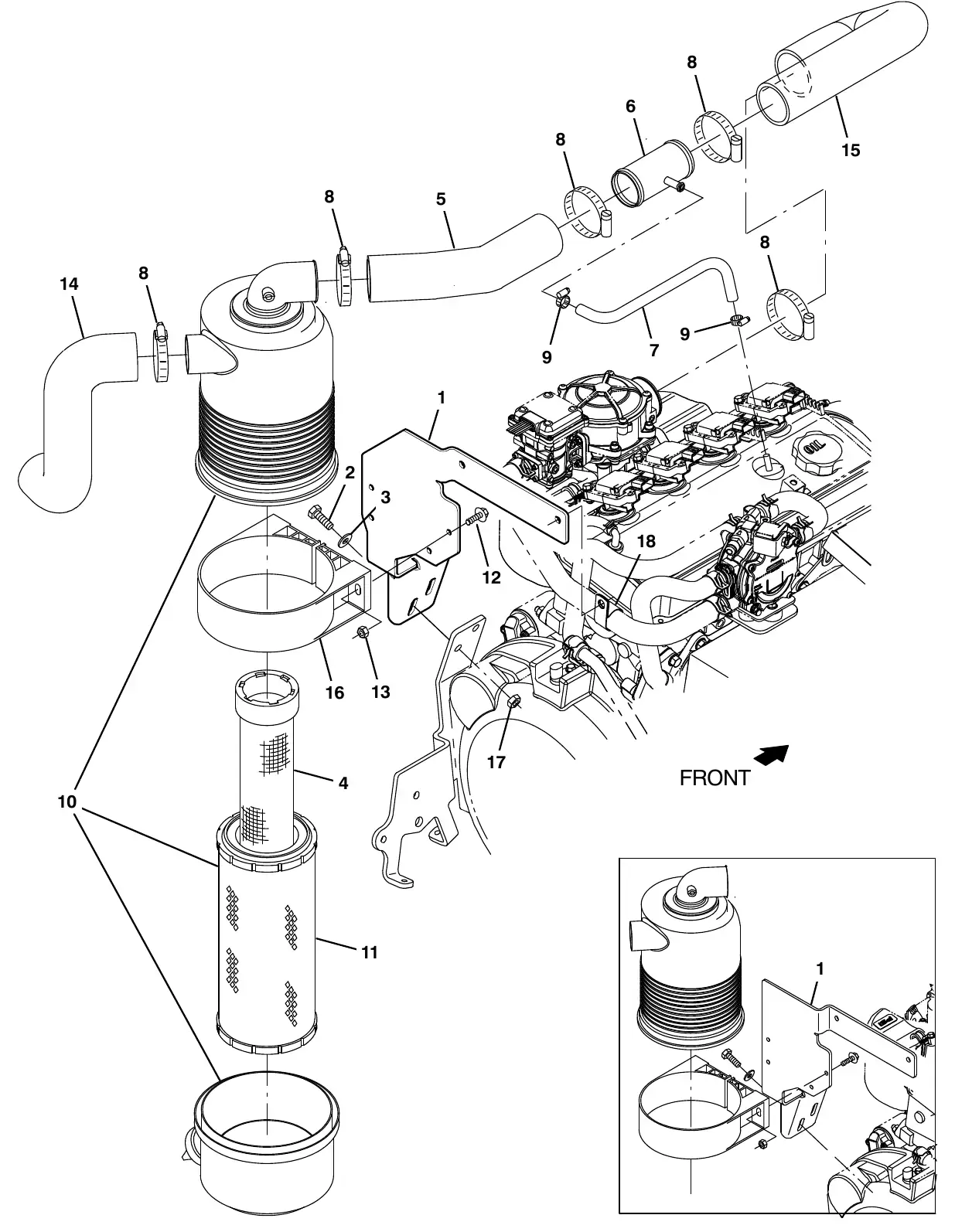

M20 Mitsubishi engine air cleaner group, LPG (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: LPG
Tap a number to see that part.
Enlarge Mitsubishi Engine Air Cleaner Group, LPG (S/N 008000 - 015000), SN 008000 and later. Manual page 38. SES ref PF-HCSU-ZUCI Tennant M20 Mitsubishi engine air cleaner group, LPG (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4208257 1 Bracket, Mtg, Fltr, Air [Psi]Printed as 4208257 (Tennant’s new number) · Old # 1272567 · Replaces 1070822 (2022 list (rev. 08)) Call for price 2 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 008000–015000 · Printed as 4156940 (Tennant’s new number) · Old # 39277 · Replaces 39277 (2022 list (rev. 08)) $3.20/EA Add 3 TN4034137 2 Washer, Flat, 0.31, StdFits SN 008000–015000 · Printed as 4034137 (Tennant’s new number) · Old # 32491 · Replaces 32491 (2022 list (rev. 08)) $2.50/EA Add 4 TN8002697 1 Element, Fltr, Air, Safety (OPTION)Fits SN 008000–015000 · Printed as 8002697 (Tennant’s new number) · Old # 398279 · Replaces 398279 (2022 list (rev. 08)) $52.20/EA Add 5 TN4182540 1 Hose, Intake, Mold [Epdm Mit 2013]Fits SN 008000–015000 · Printed as 4182540 (Tennant’s new number) · Old # 1070788 · Replaces 1070788 (2022 list (rev. 08)) $45.22/EA Add 6 TN4182561 1 Tube Wldt, Tee [Mit 2013]Fits SN 008000–015000 · Printed as 4182561 (Tennant’s new number) · Old # 1070833 · Replaces 1070833 (2022 list (rev. 08)) $95.68/EA Add 7 TN4027047 1 Hose, Drain,Overflow,Radiator[1pick=1ft]Fits SN 008000–015000 · Printed as 4027047 (Tennant’s new number) · Old # 381391 · Replaces 381391 (2022 list (rev. 08)) Call for price 8 TN4044328 5 Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 008000–015000 · Printed as 4044328 (Tennant’s new number) · Old # 14432 · Replaces 14432 (2022 list (rev. 08)) $5.30/EA Add 9 TN4015366 2 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–015000 · Printed as 4015366 (Tennant’s new number) · Old # 54333 · Replaces 54333 (2022 list (rev. 08)) $5.10/EA Add 10 TN4032296 1 Filter Assy, AirFits SN 008000–015000 · Printed as 4032296 (Tennant’s new number) · Old # 369745 · Replaces 369745 (2022 list (rev. 08)) $124.20/EA Add 11 TN8005623 1 Element, Fltr, Air [Dn]Fits SN 008000–015000 · Printed as 8005623 (Tennant’s new number) · Old # 369746 · Replaces 369746 (2022 list (rev. 08)) $34.60/EA Add 12 TN4045568 2 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 008000–015000 · Printed as 4045568 (Tennant’s new number) · Old # 1036892 · Replaces 1036892 (2022 list (rev. 08)) $2.50/EA Add 13 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlFits SN 008000–015000 · Printed as 4041925 (Tennant’s new number) · Old # 08708 · Replaces 08708 (2022 list (rev. 08)) $2.50/EA Add 14 TN4036284 1 Hose, Intake, Mold, 2.00id [Epdm]Fits SN 008000–015000 · Printed as 4036284 (Tennant’s new number) · Old # 1020949 · Replaces 1020949 (2022 list (rev. 08)) $59.99/EA Add 15 TN4182539 1 Hose, Intake, Mold, Lpg [Epdm Mit2013]Fits SN 008000–015000 · Printed as 4182539 (Tennant’s new number) · Old # 1070787 · Replaces 1070787 (2022 list (rev. 08)) $37.80/EA Add 16 TN4032297 1 Clamp, Mtg, Fltr, AirFits SN 008000–015000 · Printed as 4032297 (Tennant’s new number) · Old # 369747 · Replaces 369747 (2022 list (rev. 08)) $32.90/EA Add 17 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Printed as 4041926 (Tennant’s new number) · Old # 08709 · Replaces 08709 (2022 list (rev. 08)) $2.50/EA Add 18 TN4018310 1 Clamp, Cable, Stl, 1.00d X 0.75w, 1holeFits SN 008000–015000 · Printed as 4018310 (Tennant’s new number) · Old # 69234 · Replaces 69234 (2022 list (rev. 08)) $4.20/EA Add
M20 Mitsubishi engine alternator and fan group (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline LPG
Tap a number to see that part.

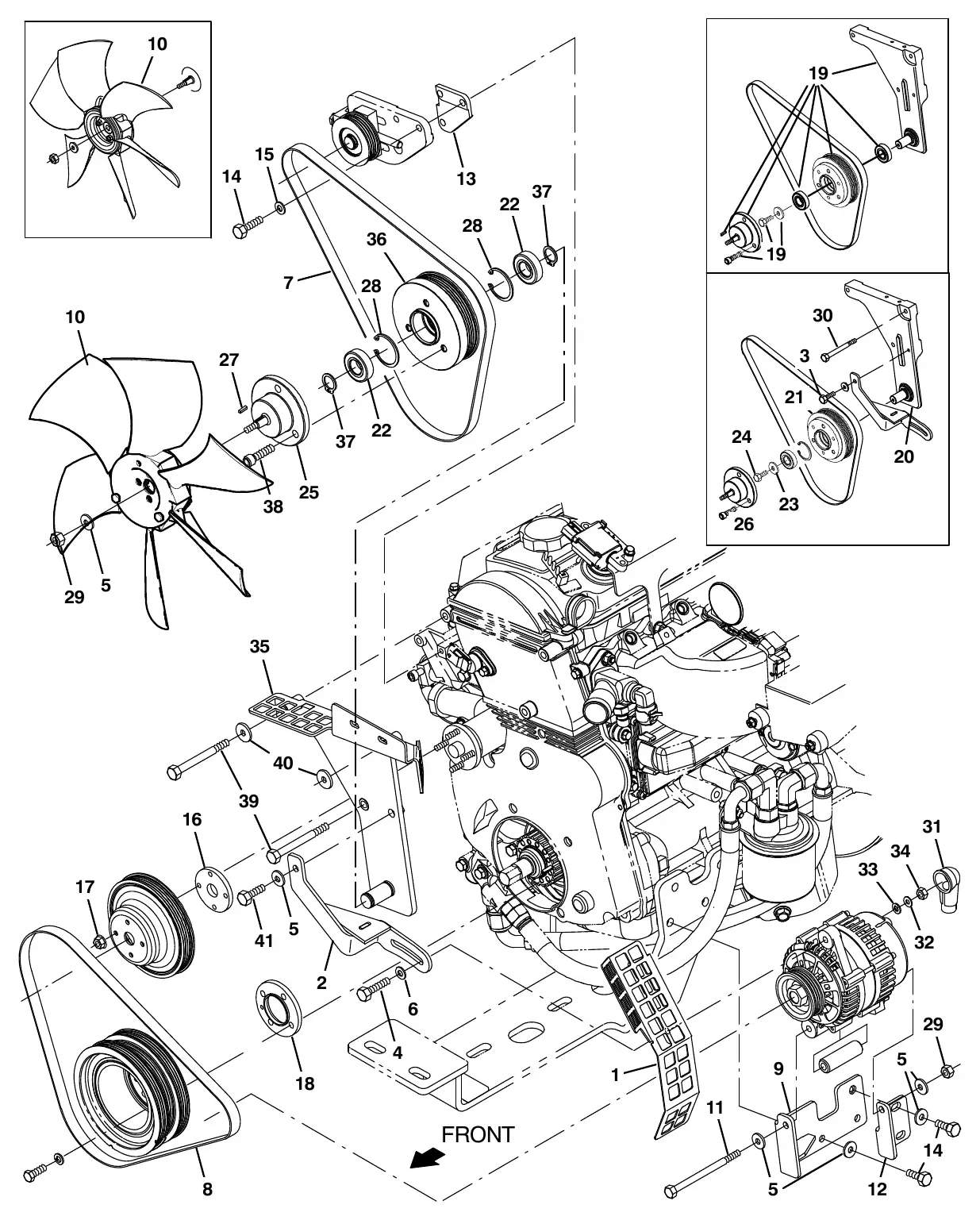

Enlarge Mitsubishi Engine Alternator and Fan Group (S/N 008000 - 015000), SN 008000 and later. Manual page 40. SES ref PF-FXV5-SGU5 Tennant M20 Mitsubishi engine alternator and fan group (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4030726 1 Guard, Fan, SideFits SN 008000–015000 · Old # 1071727 $21.60/EA Add 2 TN4182800 1 Arm Wldt, Alternator [Mit 2013]Fits SN 008000–015000 · Old # 1070890 $28.68/EA Add 3 TN4041844 1 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–012313 · Old # 16931 $2.50/EA Add 4 TN4043498 1 Screw, Hex, M8 X 1.25 X 40, 8.8, FlFits SN 008000–015000 · Old # 04375 $4.00/EA Add 5 TN4034137 7 Washer, Flat, 0.31, StdFits SN 008000–015000 · Old # 32491 $2.50/EA Add 6 TN4016796 1 Washer, Flat, Belleville, .31Fits SN 008000–015000 · Old # 41186 $3.50/EA Add 7 TN4030503 1 Belt, Ribbed, Fan, 42.13lFits SN 008000–015000 · Old # 1071144 $52.40/EA Add 8 TN4030504 1 Belt, Ribbed, Alternator, 41.5lFits SN 008000–015000 · Old # 1071145 $53.20/EA Add 9 TN4182536 1 Bracket Wldt, Alternator [Mit13]Fits SN 008000–015000 · Old # 1070764 $29.60/EA Add 10 TN4207904 1 Fan, Cooling, 14.1D, 6 Blade, 4 - Bolt (Repl 1031566)Fits SN 008000–015000 · Old # 1271534 · Replaces 1031566 (2022 list (rev. 08)) Call for price 11 TN4014179 1 Screw, Hex, M8 X 1.25 X 120, 8.8, FlFits SN 008000–015000 · Old # 49883 $6.70/EA Add 12 TN4182314 1 Bracket, Mtg, Alternator [Mit 2013]Fits SN 008000–015000 · Old # 1070619 $5.20/EA Add 13 TN4030493 1 Block, SpacerFits SN 008000–015000 · Old # 1071107 $41.60/EA Add 14 TN4028034 5 Screw, Hex, M8 X 1.25 X 30, 8.8Fits SN 008000–015000 · Old # 76570 $3.20/EA Add 15 TN4015595 2 Washer, Flat, 0.31, SaeFits SN 008000–015000 · Old # 39349 $2.50/EA Add 16 TN4186700 1 Vr, Spacer, Water Pump , Psi 2.0lFits SN 008000–015000 · Old # 9023269 · Replaces 1071108 (2022 list (rev. 08)) Call for price 17 TN4041604 4 Nut, Hex, Flng, M6 X 1.00Fits SN 008000–015000 · Old # 07790 $3.20/EA Add 18 TN4186701 1 Vr, Spacer, Crank Pulley, Psi 2.0lFits SN 008000–015000 · Old # 9023270 · Replaces 1071110 (2022 list (rev. 08)) Call for price 19 TN4018217 1 Repair Kit, SheaveFits SN 008000–010387 · Old # 9021787 · Have SES install this kit $373.80/EA Add 20 TN4044544 1 Plate Wldt, Shaft, Fan [Shaft Extended]Fits SN 010388–012313 · Old # 1073529 Call for price 21 TN4030316 1 Sheave, Mach [Mit 2615rpm Fan]Fits SN 010388–012313 · Old # 1070426 Call for price 22 TN4038766 2 Bearing, Ball, 20mm B 42mm D 12mm WFits SN 010388–015000 · Old # 1055377 $12.60/EA Add 23 TN4035242 1 Washer, Flat, 0.32b 1.00d .12, SsFits SN 010388–012313 · Old # 1017218 $3.40/EA Add 24 TN4041828 1 Screw, Hex, M8 X 1.25 X 16, 8.8Fits SN 010388–012313 · Old # 16735 $3.40/EA Add 25 TN4030317 1 Spacer, Fan, Taper [Mit 2013]Fits SN 010388–015000 · Old # 1070431 $107.60/EA Add 26 TN4232378 3 Screw, Soc, .38 - 16 X 1.25, AlFits SN 010388–012313 · Old # 10831 $3.80/EA Add 27 TN4042788 1 Key, Sq, 0.12 X 0.12, 0.50lFits SN 010388–015000 · Old # 00960 $3.60/EA Add 28 TN4178853 2 Ring, Retaining, Int, 42mmFits SN 010388–015000 · Old # 1074849 $1.20/EA Add 29 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Old # 08709 $2.50/EA Add 30 TN4019755 3 Screw, Hex, M8 X 1.25 X 90, 8.8Fits SN 008000–012313 · Old # 39281 $4.00/EA Add 31 TN4034851 1 Boot, Bulb, .50id 1.00id 2.50l, RedFits SN 008000–015000 · Old # 1016314 $5.40/EA Add 32 TN4042244 1 Washer, Flat, 0.25b 0.56d .05, Pl, 10Fits SN 008000–015000 · Old # 19066 $2.50/EA Add 33 TN4034655 1 Washer, Lock, Int, 0.25Fits SN 008000–015000 · Old # 32982 $2.60/EA Add 34 TN4041925 1 Nut, Hex, Lock, M6 X 1.00, NlFits SN 008000–015000 · Old # 08708 $2.50/EA Add 35 TN4214590 1 Plate Wldt, Shaft, FanFits SN 012314–015000 · Old # 1257706 $154.70/EA Add 36 TN4032383 1 Sheave, MachFits SN 012314–015000 · Old # 1257986 $109.40/EA Add 37 TN4033875 2 Ring, Retaining, Shaft, Ext, 20mmd, HdFits SN 012314–015000 · Old # 1025121 $19.30/EA Add 38 TN4016811 1 Screw, Soc, M10 X 1.50 X 35, 12.9Fits SN 012314–015000 · Old # 41358 $4.00/EA Add 39 TN4041284 3 Screw, Hex, M8 X 1.25 X 100, 8.8Fits SN 012314–015000 · Old # 06959 $4.00/EA Add 40 TN4035242 2 Washer, Flat, 0.32b 1.00d .12, SsFits SN 012314–015000 · Old # 1017218 $3.40/EA Add 41 TN4156940 1 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 012314–015000 · Old # 39277 $3.20/EA Add
M20 Mitsubishi engine muffler group (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline LPG
Tap a number to see that part.

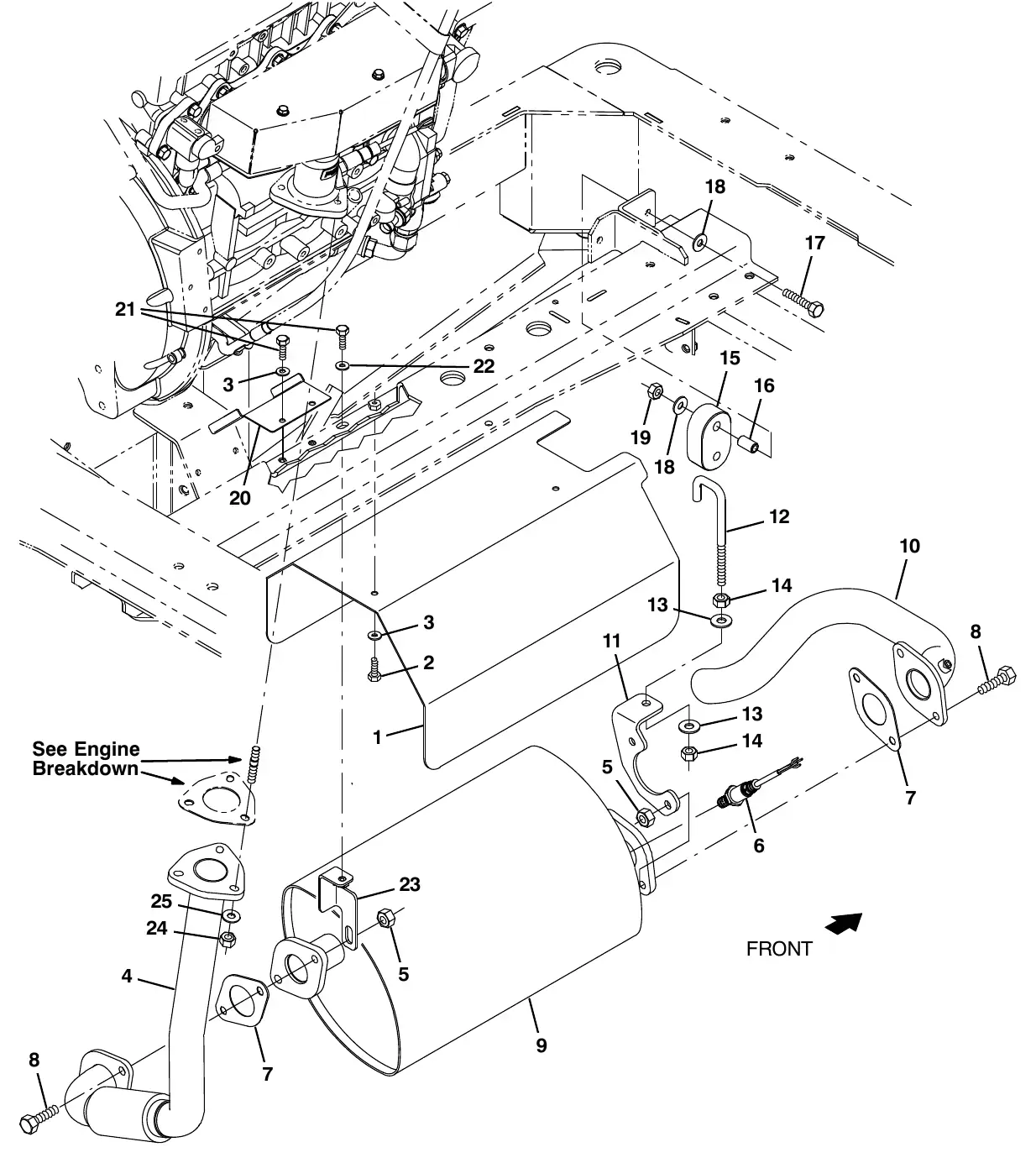

Enlarge Mitsubishi Engine Muffler Group (S/N 008000 - 015000), SN 008000 and later. Manual page 42. SES ref PF-4NSF-FI46 Tennant M20 Mitsubishi engine muffler group (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4031022 1 Channel, Shield, Muffler [M20/T20 2007]Fits SN 008000–015000 · Old # 1028994 $123.70/EA Add 2 TN4041931 2 Screw, Hex, M6 X 1.0 X 20, SsFits SN 008000–015000 · Old # 08716 $3.20/EA Add 3 TN4034133 4 Washer, Flat, 0.25, SaeFits SN 008000–015000 · Old # 32483 $2.50/EA Add 4 TN4025234 1 Pipe Kit, Exhaust, Replmt [Mako Mitsu]Old # 9013159 $415.30/EA Add 5 TN4041626 4 Nut, Hex, M10 X 1.50 [Stover]Fits SN 008000–015000 · Old # 08166 $2.50/EA Add 6 TN8005433 1 Sensor, OxygenFits SN 008000–015000 · Old # 1028558 $277.60/EA Add 7 TN4036679 2 Gasket, Exhaust, 2hole, 3.4bcFits SN 008000–015000 · Old # 1011216 $8.10/EA Add 8 TN4019759 4 Screw, Hex, M10 X 1.5 X 35, 8.8Fits SN 008000–015000 · Old # 39284 $4.00/EA Add 9 TN8005369 1 Muffler, Catalytic [Mit 2.0l 2013]Fits SN 008000–015000 · Old # 1071376 $1,859.30/EA Add 10 TN4030978 1 Tube, Exhaust, Flng, 1.5d [M20/T20 2007]Fits SN 008000–015000 · Old # 1028753 $210.10/EA Add 11 TN4031015 1 Bracket, Mtg, Muffler [M20/T20 2007]Fits SN 008000–015000 · Old # 1028929 $25.50/EA Add 12 TN4037297 1 Rod, Hanger, IsolatorFits SN 008000–015000 · Old # 1013117 $57.90/EA Add 13 TN4034138 2 Washer, Flat, 0.38, StdFits SN 008000–015000 · Old # 32492 $2.50/EA Add 14 TN4035408 2 Nut, Hex, Std, .38 - 16Fits SN 008000–015000 · Old # 25014 $2.40/EA Add 15 TN4037292 1 Isolator, RbrFits SN 008000–015000 · Old # 1013031 $18.30/EA Add 16 TN4040603 1 Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN 008000–015000 · Old # 222496 $3.40/EA Add 17 TN4040607 1 Screw, Hex, M8 X 1.25 X 45, SsFits SN 008000–015000 · Old # 222505 $4.00/EA Add 18 TN4042902 2 Washer, Flat, 0.38b 0.88d .08, SsFits SN 008000–015000 · Old # 01685 $2.60/EA Add 19 TN4041929 1 Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 008000–015000 · Old # 08713 $3.30/EA Add 20 TN4182994 1 Shield, Tray, Drip [Mit 2013]Fits SN 008000–015000 · Old # 1071418 $12.60/EA Add 21 TN4041271 3 Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 008000–015000 · Old # 06943 $2.50/EA Add 22 TN4034136 1 Washer, Flat, 0.25, StdFits SN 008000–015000 · Old # 32490 $2.50/EA Add 23 TN4030497 1 Bracket, MufflerFits SN 008000–015000 · Old # 1071113 $15.60/EA Add 24 TN4041625 3 Nut, Hex, Stover, M8Fits SN 008000–015000 · Old # 08165 $3.40/EA Add 25 TN4015595 3 Washer, Flat, 0.31, SaeFits SN 008000–015000 · Old # 39349 $2.50/EA Add
M20 Mitsubishi engine radiator and mount group (SN 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline LPG
Tap a number to see that part.

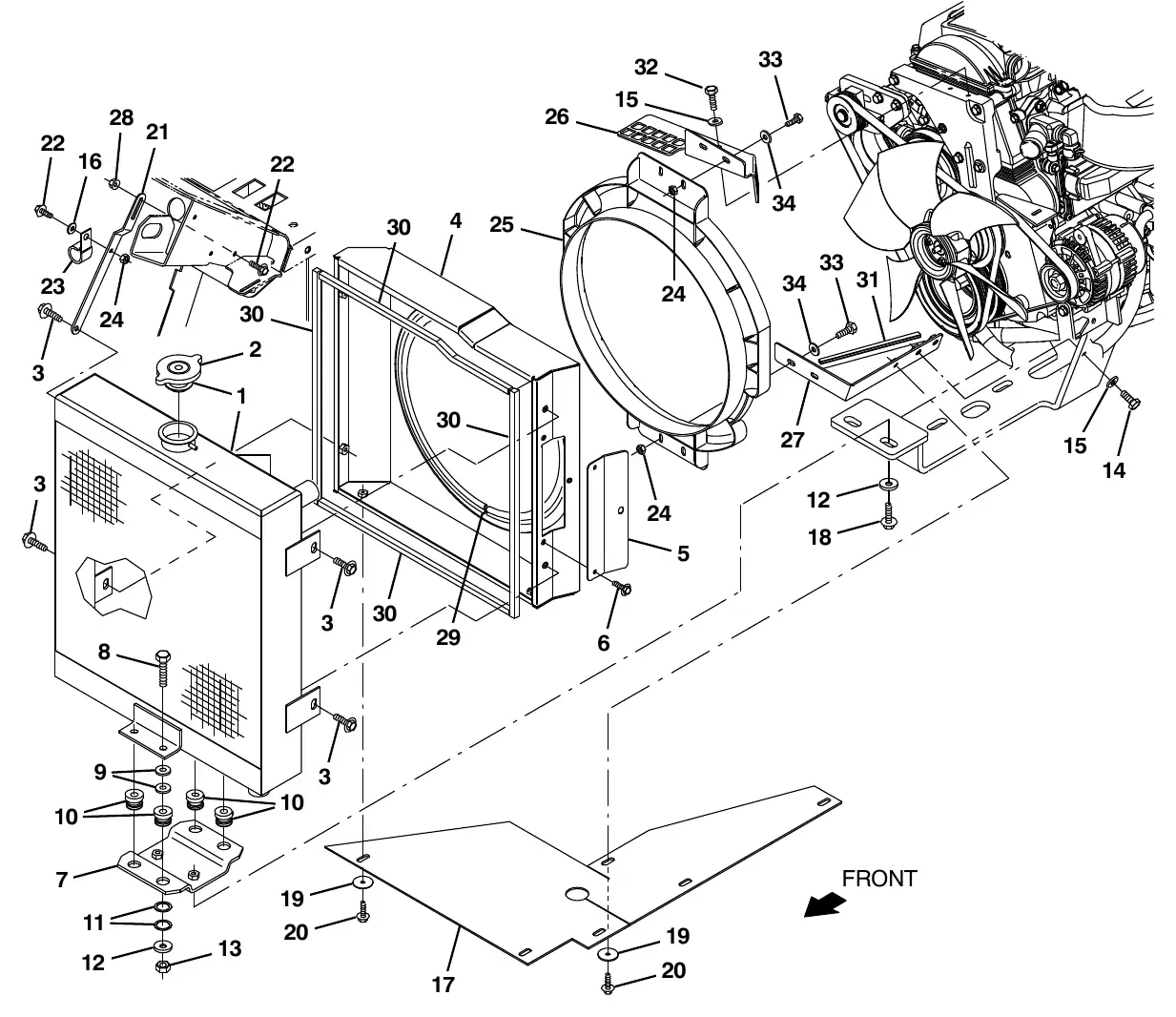

Enlarge Mitsubishi Engine Radiator and Mount Group (SN 008000 - 015000), SN 008000 and later. Manual page 44. SES ref PF-FK2U-SDPV Tennant M20 Mitsubishi engine radiator and mount group (SN 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4031438 1 Radiator, W/Hyd Cooler [Afmkt]Fits SN 008000–015000 · Old # 1249770 $1,665.50/EA Add 2 TN4029923 1 Cap, Radiator, 16Psi Sae 164Fits SN 008000–015000 · Old # 1265988 · Replaces 1045764 (2022 list (rev. 08)) Call for price 3 TN4045637 4 Screw, Hex, M8 X 1.25 X 25, 9.8, SemsFits SN 008000–015000 · Old # 1037346 $2.50/EA Add Item 4: choose your version (2) 4 TN4011220 1 Shrd Wldt,Fan,G/Lp, Replmt [M20/M30/T20]Fits SN 008000–015000 · Old # 9010096 $102.00/EA Add 4 TN4011221 1 Shrd Wldt,Fan,G/Lp, Replmt [TJ] (Japan Only)Fits SN 008000–015000 · Old # 9010097 $271.39/EA Add 5 TN4030382 1 Plate, Door, Clean - Out [Mit2013]Fits SN 008000–015000 · Old # 1070955 $6.40/EA Add 6 TN4045568 3 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 008000–015000 · Old # 1036892 $2.50/EA Add 7 TN4190181 1 Bracket, Mtg, RadiatorFits SN 008000–015000 · Old # 1046962 $26.70/EA Add 8 TN4041287 4 Screw, Hex, M10 X 1.50 X 45, 8.8Fits SN 008000–015000 · Old # 06962 $4.00/EA Add 9 TN4034138 8 Washer, Flat, 0.38, StdFits SN 008000–015000 · Old # 32492 $2.50/EA Add 10 TN4015364 4 Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN 008000–015000 · Old # 54274 $14.70/EA Add 11 TN4042008 8 Washer, Flat, 0.81b 1.06d .06, StlFits SN 008000–015000 · Old # 09832 $3.30/EA Add 12 TN4037922 4 Washer, Flat, 0.40b 1.12d .12, SsFits SN 008000–015000 · Old # 1014563 $5.80/EA Add 13 TN4016826 4 Nut, Hex, Lock, M10 X 1.5, NlFits SN 008000–015000 · Old # 41430 $4.00/EA Add 14 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 008000–015000 · Old # 39277 $3.20/EA Add 15 TN4034137 7 Washer, Flat, 0.31, StdFits SN 008000–015000 · Old # 32491 $2.50/EA Add 16 TN4034136 2 Washer, Flat, 0.25, StdFits SN 008000–015000 · Old # 32490 $2.50/EA Add 17 TN4030761 1 Skirt, Eng Fan, Gas / LpFits SN 008000–015000 · Old # 1071785 $73.00/EA Add 18 TN4045641 2 Screw, Hex, M8 X 1.25 X 35, 9.8, SemsFits SN 008000–015000 · Old # 1037355 $2.50/EA Add 19 TN4016794 7 Washer, Flat, 0.25, FendrFits SN 008000–015000 · Old # 41178 $2.50/EA Add 20 TN4045568 7 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 008000–015000 · Old # 1036892 $2.50/EA Add 21 TN4036225 1 Bracket, Mtg, RadiatorFits SN 008000–015000 · Old # 1019968 $18.60/EA Add 22 TN4044400 2 Screw, Hex, M6 X 1.00 X 20, 9.8, SemsFits SN 008000–015000 · Old # 1040467 $3.30/EA Add 23 TN4036443 1 Clip, Keeper, OpenFits SN 008000–015000 · Old # 30407 $1.70/EA Add 24 TN4041925 5 Nut, Hex, Lock, M6 X 1.00, NlFits SN 008000–015000 · Old # 08708 $2.50/EA Add 25 TN4038497 1 Shroud, FanFits SN 008000–015000 · Old # 1054428 $126.20/EA Add 26 TN4030318 1 Bracket, Shrd, Fan, Upper, Sppt, G/LpgFits SN 008000–015000 · Old # 1070434 Call for price 27 TN4030343 1 Bracket, Shrd, Fan, Lower, Sppt, G/LpgFits SN 008000–015000 · Old # 1070860 $24.40/EA Add 28 TN4041604 1 Nut, Hex, Flng, M6 X 1.00Fits SN 008000–015000 · Old # 07790 $3.20/EA Add 29 TN4039684 1 Seal, Afmkt, Bulb, Str, 0.58d 08ftFits SN 008000–015000 · Old # 1048166 $53.10/EA Add 30 TN4038013 4 Seal, Afmkt, Ure, Adh, 0.38, 0.38w 02ftFits SN 008000–015000 · Old # 1015205 $6.30/EA Add 31 TN4029367 1 Molding, Trim, Pvc, .08 - .11 06.8lFits SN 008000–015000 · Old # 57569 Call for price 32 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–015000 · Old # 16931 $2.50/EA Add 33 TN4041271 4 Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 008000–015000 · Old # 06943 $2.50/EA Add 34 TN4034133 4 Washer, Flat, 0.25, SaeFits SN 008000–015000 · Old # 32483 $2.50/EA Add

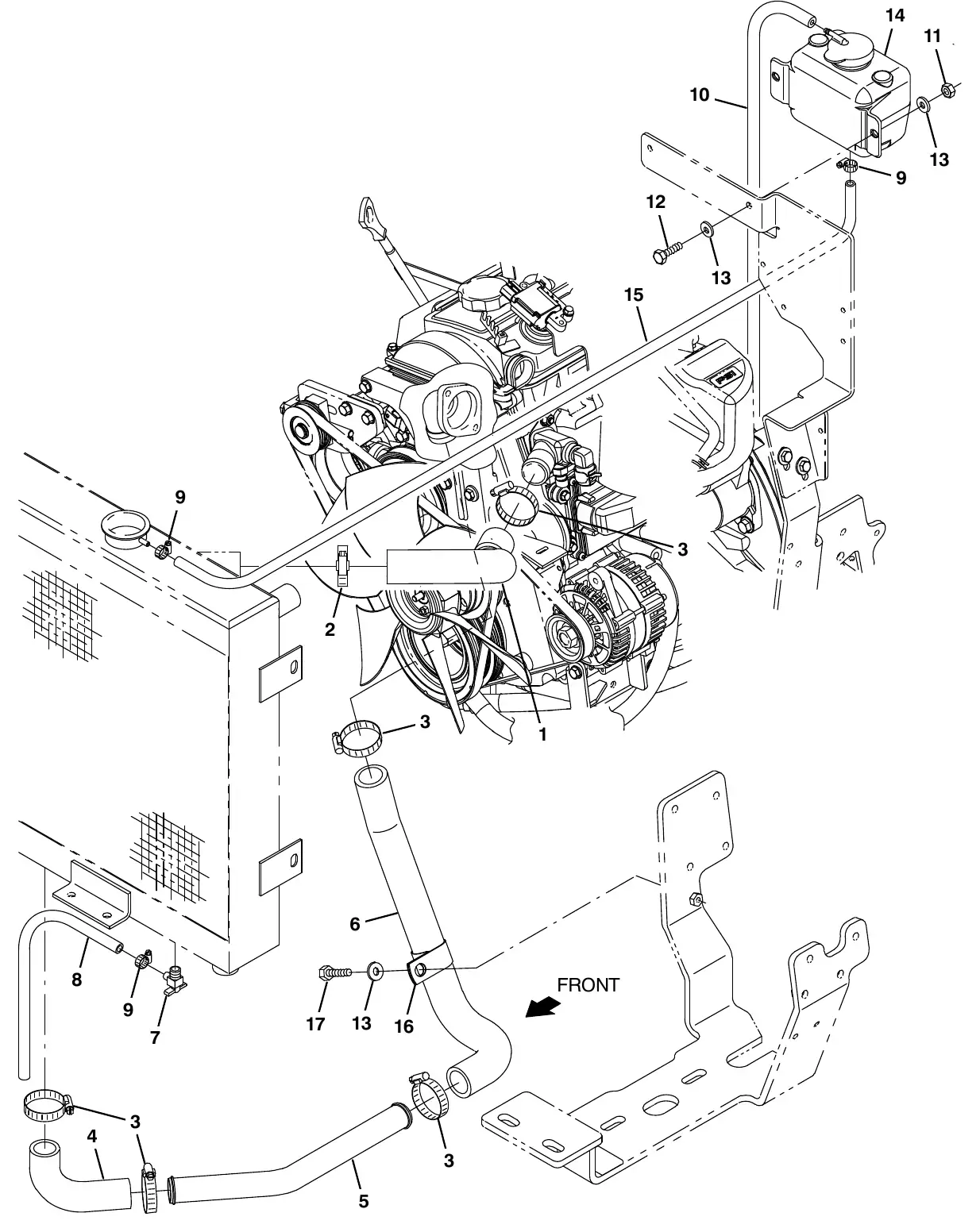

M20 Mitsubishi engine radiator hose group (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Mitsubishi Engine Radiator Hose Group (S/N 008000 - 015000), SN 008000 and later. Manual page 46. SES ref PF-HRCY-37S7 Tennant M20 Mitsubishi engine radiator hose group (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4030330 1 Hose, Coolant, Upper, Mold [Mit 2013]Fits SN 008000–015000 · Old # 1070732 $13.00/EA Add 2 TN4037088 1 Clamp, Hose, Wormdrive, 1.56 - 2.50d, .50wFits SN 008000–015000 · Old # 22297 $4.20/EA Add 3 TN4026556 5 Clamp, Hose, Wormdrive, 1.25 - 2.00d, .50wFits SN 008000–015000 · Old # 79381 $6.20/EA Add 4 TN4039550 1 Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Fits SN 008000–015000 · Old # 1007482 $20.40/EA Add 5 TN4030491 1 Tube, Coolant, 1.3d, Lower [Mit 2013]Fits SN 008000–015000 · Old # 1071099 $11.90/EA Add 6 TN4027830 1 Hose Kit, Coolant, Replmt [Mitsubishi}Fits SN 008000–015000 · Old # 9010904 $41.60/EA Add 7 TN4014543 1 Fitting, Draincock, E90, .25nptFits SN 008000–015000 · Old # 51305 $15.10/EA Add 8 TN4016344 1 Hose, Pvc, Clr, 0.38id 0.56od 022.0lFits SN 008000–015000 · Old # 73471 $7.60/EA Add 9 TN4017396 3 Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 008000–015000 · Old # 43844 $4.20/EA Add 10 TN4022521 1 Hose, Fuel, 0.18id, 29.0lFits SN 008000–015000 · Old # 87738 $19.40/EA Add 11 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Old # 08709 $2.50/EA Add 12 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 008000–015000 · Old # 39277 $3.20/EA Add 13 TN4034137 5 Washer, Flat, 0.31, StdFits SN 008000–015000 · Old # 32491 $2.50/EA Add 14 TN4038493 1 Tank, Coolant, 03.6w 04.1hi 05.5l,1literFits SN 008000–015000 · Old # 1054382 $119.90/EA Add 15 TN4037950 1 Hose, Afmkt, Coolant Recvy, 05ftFits SN 008000–015000 · Old # 1014843 $63.10/EA Add 16 TN4015029 1 Clamp, Cable, Stl, 1.50d X 1.00w, 1holeFits SN 008000–015000 · Old # 53466 $4.20/EA Add 17 TN4041844 1 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–015000 · Old # 16931 $2.50/EA Add
M20 Mitsubishi engine fuel tank group, gas (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: Gasoline
Tap a number to see that part.
Enlarge Mitsubishi Engine Fuel Tank Group, Gas (S/N 008000 - 015000), SN 008000 and later. Manual page 48. SES ref PF-IYDF-XIHJ Tennant M20 Mitsubishi engine fuel tank group, gas (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4194105 1 Tray Wldt, FuelFits SN 008000–015000 · Old # 1026550 $171.70/EA Add 2 TN4194130 1 Insulation, Flame - Retardant, 0.5Fits SN 008000–015000 · Old # 1026759 $80.60/EA Add 4 TN4034137 7 Washer, Flat, 0.31, StdFits SN 008000–015000 · Old # 32491 $2.50/EA Add 5 TN4041926 4 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Old # 08709 $2.50/EA Add 6 TN4203095 1 Tank, Fuel, 11.2gal, Gas, Replmt [2007]Fits SN 008000–015000 · Old # 9003610 $805.70/EA Add 7 TN8006208 1 Gasket, Sender, FuelFits SN 008000–015000 · Old # 1033897 $9.20/EA Add 8 TN8006221 1 Send - Unit, Fuel [2007]Fits SN 008000–015000 · Old # 1033901 $122.70/EA Add 9 TN8006207 1 Cap, Fuel, TankFits SN 008000–015000 · Old # 1032812 $36.90/EA Add 10 TN4013933 1 Fitting, Pipe, Plug, Pm02, Sq HeadFits SN 008000–015000 · Old # 48126 $2.93/EA Add 11 TN4033269 1 Hose, Fuel, 0.50id, 21.0lFits SN 008000–015000 · Old # 1023482 $10.10/EA Add 12 TN4015366 5 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 008000–015000 · Old # 54333 $5.10/EA Add 13 TN4037296 2 Connector, Fuel, QfFits SN 008000–015000 · Old # 1013086 $16.90/EA Add 14 TN4036932 2 Clamp, Cable, Stl, 2.00d X 0.75w, 1holeFits SN 008000–015000 · Old # 1011895 $5.05/EA Add 15 TN4041281 2 Screw, Hex, M8 X 1.25 X 45, 8.8Fits SN 008000–015000 · Old # 06956 $4.00/EA Add 16 TN4045263 1 Fuelline, .31d Str/Str,Plstc[M20/T20 07]Fits SN 008000–015000 · Old # 1034676 $52.10/EA Add 17 TN4030561 1 Fuelline, .31d Str/Str, Plstc [Mit 2013]Fits SN 008000–015000 · Old # 1071388 $56.80/EA Add 18 TN4037227 1 Fuelline, .31d Str/Str, PlstcFits SN 008000–015000 · Old # 1012248 $80.80/EA Add 19 TN4045069 2 Hose, Fuel, 0.31id [Evap Emission 07]Fits SN 008000–015000 · Old # 1033746 $13.00/EA Add 20 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlFits SN 008000–015000 · Old # 08708 $2.50/EA Add 21 TN4019173 2 Fitting, Brs, E90, Em05/Pm04Fits SN 008000–015000 · Old # 9000355 $6.30/EA Add 22 TN8005188 1 Filter, Fuel [Gm 1.6l/3.0l]Fits SN 008000–015000 · Old # 372440 $64.20/EA Add 23 TN8002487 1 Pump, FuelFits SN 008000–015000 · Old # 9006592 $1,016.40/EA Add 24 TN8005437 1 Manifold, Gas, Relief, ValveFits SN 008000–015000 · Old # 1028924 $1,128.00/EA Add 25 TN8047407 2 Fitting, Fuel, Str, 0.56 - 18 [07 Eng]Fits SN 008000–015000 · Old # 1029293 $148.20/EA Add 26 TN8005499 1 Fitting, Fuel, Str, 0.38 - 24 [07 Eng]Fits SN 008000–015000 · Old # 1029295 $140.10/EA Add 27 TN4041277 2 Screw, Hex, M6 X 1.0 X 50, 8.8Fits SN 008000–015000 · Old # 06949 $3.30/EA Add 28 TN4193651 2 Strap, Tank, GasFits SN 008000–015000 · Old # 1025229 $18.10/EA Add 29 TN4034133 2 Washer, Flat, 0.25, SaeFits SN 008000–015000 · Old # 32483 $2.50/EA Add 30 TN4034654 2 Nut, Hex, Lock, .25 - 20, NlFits SN 008000–015000 · Old # 32981 $2.50/EA Add 31 TN4218342 1 Molding, Trim, Pvc, .08 - .11 13.2lFits SN 008000–015000 · Old # 62595-15 Call for price 32 TN8044978 1 Harness, Manifold, GasFits SN 008000–015000 · Old # 385009 $257.35/EA Add 33 TN4041844 1 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–015000 · Old # 16931 $2.50/EA Add 34 TN8047304 1 Fitting, Fuel, Str, M10x1.0Fits SN 008000–015000 · Old # 9019145 $59.79/EA Add

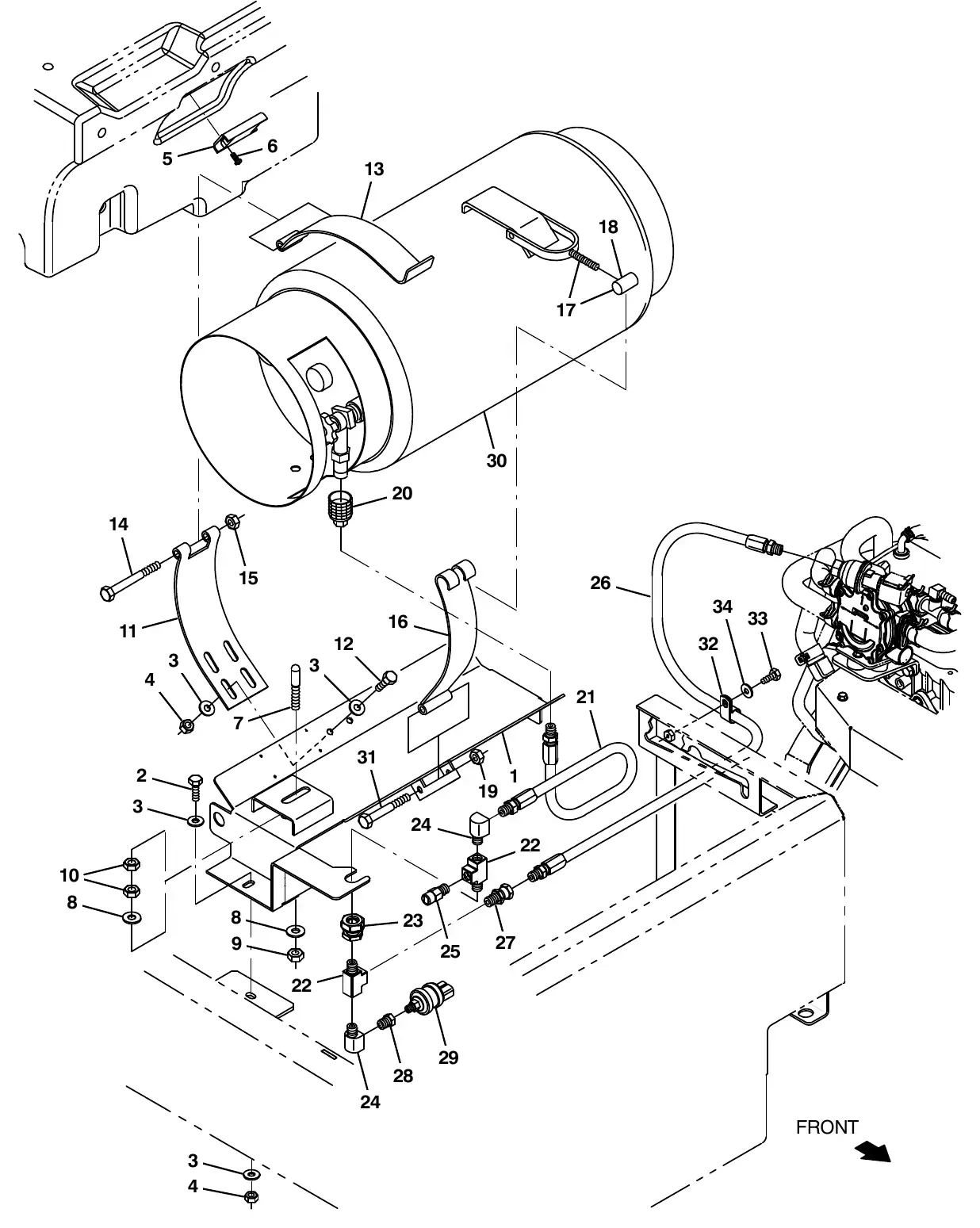

M20 Mitsubishi engine fuel tank group, LPG (S/N 008000 - 015000) Standard parts SN 008000 and later Mitsubishi · SN 008000–015000 Fits: LPG
Tap a number to see that part.
Enlarge Mitsubishi Engine Fuel Tank Group, LPG (S/N 008000 - 015000), SN 008000 and later. Manual page 50. SES ref PF-KI2A-5BX2 Tennant M20 Mitsubishi engine fuel tank group, LPG (S/N 008000 - 015000) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4035518 1 Tray Wldt, LpgFits SN 008000–015000 · Printed as 4035518 (Tennant’s new number) · Old # 1017947 $120.90/EA Add 2 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 008000–015000 · Printed as 4156940 (Tennant’s new number) · Old # 39277 $3.20/EA Add 3 TN4034137 8 Washer, Flat, 0.31, StdFits SN 008000–015000 · Printed as 4034137 (Tennant’s new number) · Old # 32491 $2.50/EA Add 4 TN4041926 4 Nut, Hex, Lock, M8 X 1.25, NlFits SN 008000–015000 · Printed as 4041926 (Tennant’s new number) · Old # 08709 $2.50/EA Add 5 TN4017052 1 Magnet, Drive BrushFits SN 008000–015000 · Printed as 4017052 (Tennant’s new number) · Old # 63378 $21.10/EA Add 6 TN4041965 2 Screw, Pan, M5 X 0.8 X 12, SsFits SN 008000–015000 · Printed as 4041965 (Tennant’s new number) · Old # 09200 $3.40/EA Add 7 TN4033855 1 Pin, Locating, LpgFits SN 008000–015000 · Printed as 4033855 (Tennant’s new number) · Old # 1024934 $13.43/EA Add 8 TN4034138 2 Washer, Flat, 0.38 StdFits SN 008000–015000 · Printed as 4034138 (Tennant’s new number) · Old # 32492 $2.50/EA Add 9 TN4016826 1 Nut, Hex, Lock, M10 X 1.5, NlFits SN 008000–015000 · Printed as 4016826 (Tennant’s new number) · Old # 41430 $4.00/EA Add 10 TN4034476 2 Nut, Hex, Jam, M10 X 1.5, SsFits SN 008000–015000 · Printed as 4034476 (Tennant’s new number) · Old # 32716 $4.00/EA Add 11 TN4029786 1 Strap, Mtg, Tank, LpgFits SN 008000–015000 · Printed as 4029786 (Tennant’s new number) · Old # 58589 $113.90/EA Add 12 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–015000 · Printed as 4041844 (Tennant’s new number) · Old # 16931 $2.50/EA Add 13 TN4029300 1 Strap, Mtg, Tank, Lpg, HingeFits SN 008000–015000 · Printed as 4029300 (Tennant’s new number) · Old # 57297 $114.90/EA Add 14 TN4031662 1 Screw, Hex, .38 - 16 X 3.75, 5Fits SN 008000–015000 · Printed as 4031662 (Tennant’s new number) · Old # 35710 $1.10/EA Add 15 TN4016826 1 Nut, Hex, Lock, .38 - 16, Nl, SsFits SN 008000–015000 · Printed as 4016826 (Tennant’s new number) · Old # 41430 $4.00/EA Add 16 TN4029787 1 Strap, Mtg, Tank, LpgFits SN 008000–015000 · Printed as 4029787 (Tennant’s new number) · Old # 58590 $88.70/EA Add 17 TN4015025 1 Latch Assy, Mtg, Tank, Lpg, W/NutFits SN 008000–015000 · Printed as 4015025 (Tennant’s new number) · Old # 53400-1 $56.90/EA Add 18 TN4015026 1 Nut, Adj, Mtg, Tank, LpgFits SN 008000–015000 · Printed as 4015026 (Tennant’s new number) · Old # 53400-4 $13.30/EA Add 19 TN4028758 1 Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN 008000–015000 · Printed as 4028758 (Tennant’s new number) · Old # 36643 $2.50/EA Add 20 TN4035691 1 Fitting, Brs, Qdc, Pf04, Lpg FemFits SN 008000–015000 · Printed as 4035691 (Tennant’s new number) · Old # 26496 $86.90/EA Add 21 TN4037354 1 Hose, Lpg, Med05, Pm04str/Sm04str, 14.0lFits SN 008000–015000 · Printed as 4037354 (Tennant’s new number) · Old # 22308-6 $46.90/EA Add 22 TN4041151 2 Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunFits SN 008000–015000 · Printed as 4041151 (Tennant’s new number) · Old # 150709 $14.40/EA Add 23 TN4026127 1 Fitting, Brs, Str, Pf04/Pf04, BhFits SN 008000–015000 · Printed as 4026127 (Tennant’s new number) · Old # 78122 $30.50/EA Add 24 TN4035699 2 Fitting, Brs, E90, Pf04/Pm04Fits SN 008000–015000 · Printed as 4035699 (Tennant’s new number) · Old # 27048 $5.30/EA Add 25 TN4035364 1 Valve, Lpg, Press Relief [Rego]Fits SN 008000–015000 · Printed as 4035364 (Tennant’s new number) · Old # 24047 $133.70/EA Add 26 TN4042556 1 Hose, Lpg, Med05, Pm04str/Sm04str, 55.0lFits SN 008000–015000 · Printed as 4042556 (Tennant’s new number) · Old # 19760 $82.40/EA Add 27 TN4041876 1 Fitting, Hyd, Str, Pf02/Pm04Fits SN 008000–015000 · Printed as 4041876 (Tennant’s new number) · Old # 17414 $7.90/EA Add 28 TN4232409 1 Fitting, Pipe, Str, Pm04/Sf04Fits SN 008000–015000 · Printed as 4232409 (Tennant’s new number) · Old # 11442-23 $6.70/EA Add 29 TN4035027 1 Switch, Press, 0070PSI SPST NC 12VDC 08AFits SN 008000–015000 · Printed as 4035027 (Tennant’s new number) · Old # 23156 $112.50/EA Add 30 TN4035401 1 Tank, Lpg, 33lb, W/ Gauge [Empty, Liq]Fits SN 008000–015000 · Printed as 4035401 (Tennant’s new number) · Old # 24928-1 $816.50/EA Add 31 TN4031659 1 Screw, Hex, .38 - 16 X 3.00, G5Fits SN 008000–015000 · Printed as 4031659 (Tennant’s new number) · Old # 35707 $1.15/EA Add 32 TN4017933 1 Clamp, Cable, Stl, 0.69d X 0.62w, 1holeFits SN 008000–015000 · Printed as 4017933 (Tennant’s new number) · Old # 67767 $4.20/EA Add 33 TN4041270 1 Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 008000–015000 · Printed as 4041270 (Tennant’s new number) · Old # 06942 $2.50/EA Add 34 TN4034133 1 Washer, Flat, 0.25, SaeFits SN 008000–015000 · Printed as 4034133 (Tennant’s new number) · Old # 32483 $2.50/EA Add

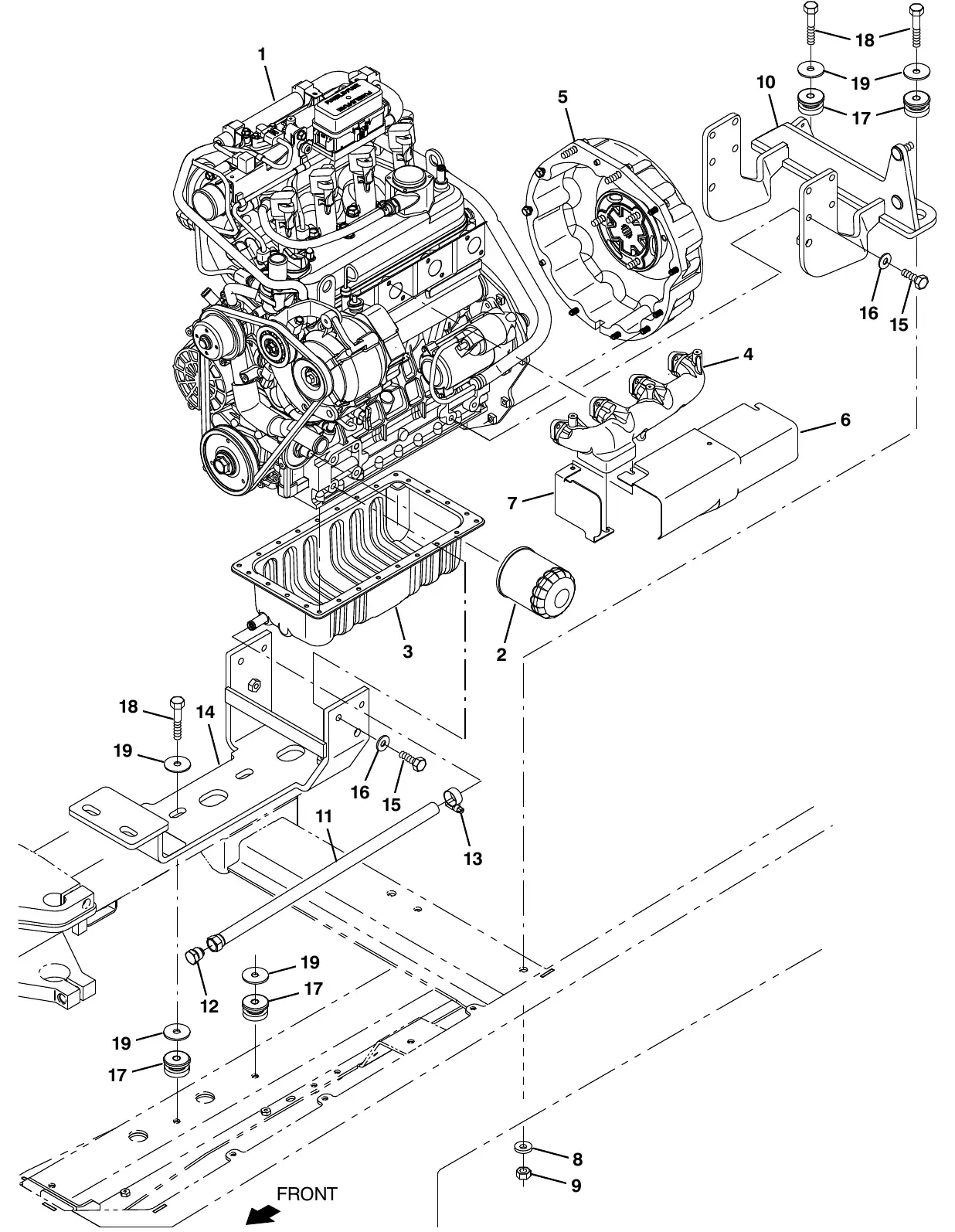

M20 Kubota engine and mount group, gas (S/N 015001 - 016999 ) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: Gasoline
Tap a number to see that part.
Enlarge Kubota Engine and Mount Group, Gas (S/N 015001 - 016999 ), SN 008000 and later. Manual page 54. SES ref PF-PZSV-YRAT Tennant M20 Kubota engine and mount group, gas (S/N 015001 - 016999 ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4208784 1 Engine, Gas, 1.6l [Kubota, Mako]9Fits SN 015001–016999 · Old # 1267430 Call for price 2 TN8002311 1 Element, Fltr, Oil, Spin - On [Ku]Fits SN 015001–016999 · Old # 9005007 Call for price 3 TN8047600 1 Pan, Oil, Kubota, 1.6l, LpgFits SN 015001–016999 · Old # 1023144 $288.66/EA Add 4 TN1268137 1 Manifold, ExhaustFits SN 015001–016999 · Old # 1268137 · no current Tennant number on file Call for price 5 TN1268133 1 Housing, Flywheel, [Kubota, Lpg]Fits SN 015001–016999 · Old # 1268133 · no current Tennant number on file Call for price 6 TN1268171 1 Shield, Exh, Manifold, Kub 1.6lFits SN 015001–016999 · Old # 1268171 · no current Tennant number on file Call for price 7 TN1268172 1 Shield, Exh, Man, Side, Kub 2.0lFits SN 015001–016999 · Old # 1268172 · no current Tennant number on file Call for price TN1268235 1 Module, Engine - Interface, KubotaFits SN 015001–016999 · Old # 1268235 · no current Tennant number on file Call for price TN8002511 1 Gasket, Cover, Head, CylFits SN 015001–016999 · Old # 70929 $31.00/EA Add TN8002424 1 Gasket, Pan, OilFits SN 015001–016999 · Old # 70889 $66.36/EA Add TN1269252 4 Spark PlugFits SN 015001–016999 · Old # 1269252 · no current Tennant number on file Call for price TN1268254 4 Coil, Spark PlugFits SN 015001–016999 · Old # 1268254 · no current Tennant number on file Call for price TN1269255 1 Interface CableFits SN 015001–016999 · Old # 1269255 · no current Tennant number on file Call for price 8 TN4034139 3 Washer, Flat, 0.50 StdFits SN 015001–016999 · Old # 32493 $3.50/EA Add 9 TN4041927 3 Nut, Hex, Lock, M12 X 1.75,NlFits SN 015001–016999 · Old # 08711 $3.30/EA Add 10 TN4209014 1 Bracket Wldt, Mtg, Engine, Rear [Mako]Fits SN 015001–016999 · Old # 1268041 Call for price 11 TN4030626 1 Hose, 0300, Low08, Jf08str / None, 19.0Fits SN 015001–016999 · Old # 1027273 $20.40/EA Add 12 TN4041528 1 Fitting, Hyd, Plug, Jm08Fits SN 015001–016999 · Old # 16376 $7.47/EA Add 13 TN4017089 1 Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 015001–016999 · Old # 63810 $6.80/EA Add 14 TN4190168 1 Bracket Wldt, Mtg, Eng, Front, DslFits SN 015001–016999 · Old # 1046810 $199.78/EA Add 15 TN4041580 12 Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 015001–016999 · Old # 07299 $2.40/EA Add 16 TN4034138 12 Washer, Flat, 0.38 StdFits SN 015001–016999 · Old # 32492 $2.50/EA Add 17 TN4014538 4 Isolator, Vib, .50dFits SN 015001–016999 · Old # 51176 $37.60/EA Add 18 TN4041297 4 Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 015001–016999 · Old # 06972 $4.00/EA Add 19 TN4040927 4 Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 015001–016999 · Old # 04414 $4.10/EA Add

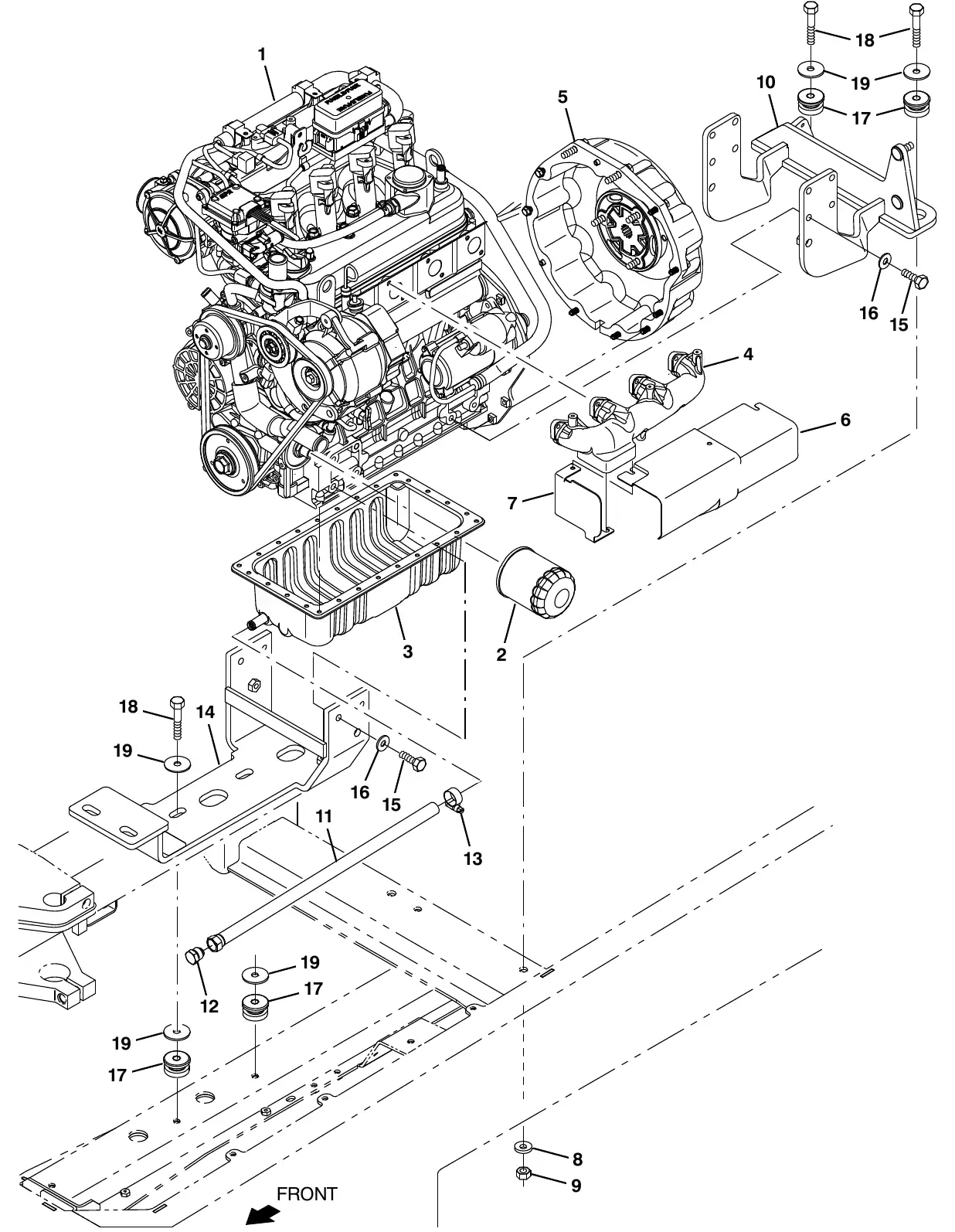

M20 Kubota engine and mount group, LPG (S/N 015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: LPG
Tap a number to see that part.
Enlarge Kubota Engine and Mount Group, LPG (S/N 015001 - 016999), SN 008000 and later. Manual page 56. SES ref PF-GJGL-JGKJ Tennant M20 Kubota engine and mount group, LPG (S/N 015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4208785 1 Engine, Lpg, 2.0 lL [PSI, MAKO]Fits SN 015001–016999 · Old # 1267431 Call for price 2 TN8002311 1 Element, Fltr, Oil, Spin - On [Ku]Fits SN 015001–016999 · Old # 9005007 Call for price 3 TN8047600 1 Oil Pan, Kubota, 1.6l, LpgFits SN 015001–016999 · Old # 1023144 $288.66/EA Add 4 TN8046564 1 Manifold, ExhaustFits SN 015001–016999 · Old # 9023096 Call for price 5 TN8046581 1 Housing, Flywheel, [Kubota, Lpg]Fits SN 015001–016999 · Old # 9023117 Call for price 6 TN4186291 1 Shield, Exh, Manifold, Kub 1.6lFits SN 015001–016999 · Old # 9023102 Call for price 7 TN4186292 1 Shield, Exh, Man, Side, Kub 2.0lFits SN 015001–016999 · Old # 9023103 Call for price TN8046570 1 Module, Engine - Interface, KubotaFits SN 015001–016999 · Old # 9023106 Call for price TN8002511 1 Gasket, Cover, Head, CylFits SN 015001–016999 · Old # 70929 $31.00/EA Add TN8002424 1 Gasket, Pan, OilFits SN 015001–016999 · Old # 70889 $66.36/EA Add TN8046573 4 Spark PlugFits SN 015001–016999 · Old # 9023109 Call for price TN8046572 4 Coil, Spark PlugFits SN 015001–016999 · Old # 9023108 Call for price TN8046574 1 Interface CableFits SN 015001–016999 · Old # 9023110 Call for price 8 TN4034139 3 Washer, Flat, 0.50 StdFits SN 015001–016999 · Old # 32493 $3.50/EA Add 9 TN4041927 3 Nut, Hex, Lock, M12 X 1.75,NlFits SN 015001–016999 · Old # 08711 $3.30/EA Add 10 TN4209014 1 Bracket Wldt, Mtg, Engine, Rear [Mako]Fits SN 015001–016999 · Old # 1268041 Call for price 11 TN4030626 1 Hose, 0300, Low08, Jf08str / None, 19.0Fits SN 015001–016999 · Old # 1027273 $20.40/EA Add 12 TN4041528 1 Fitting, Hyd, Plug, Jm08Fits SN 015001–016999 · Old # 16376 $7.47/EA Add 13 TN4017089 1 Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 015001–016999 · Old # 63810 $6.80/EA Add 14 TN4190168 1 Bracket Wldt, Mtg, Eng, Front, DslFits SN 015001–016999 · Old # 1046810 $199.78/EA Add 15 TN4041580 12 Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 015001–016999 · Old # 07299 $2.40/EA Add 16 TN4034138 12 Washer, Flat, 0.38 StdFits SN 015001–016999 · Old # 32492 $2.50/EA Add 17 TN4014538 4 Isolator, Vib, .50dFits SN 015001–016999 · Old # 51176 $37.60/EA Add 18 TN4041297 4 Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 015001–016999 · Old # 06972 $4.00/EA Add 19 TN4040927 4 Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 015001–016999 · Old # 04414 $4.10/EA Add

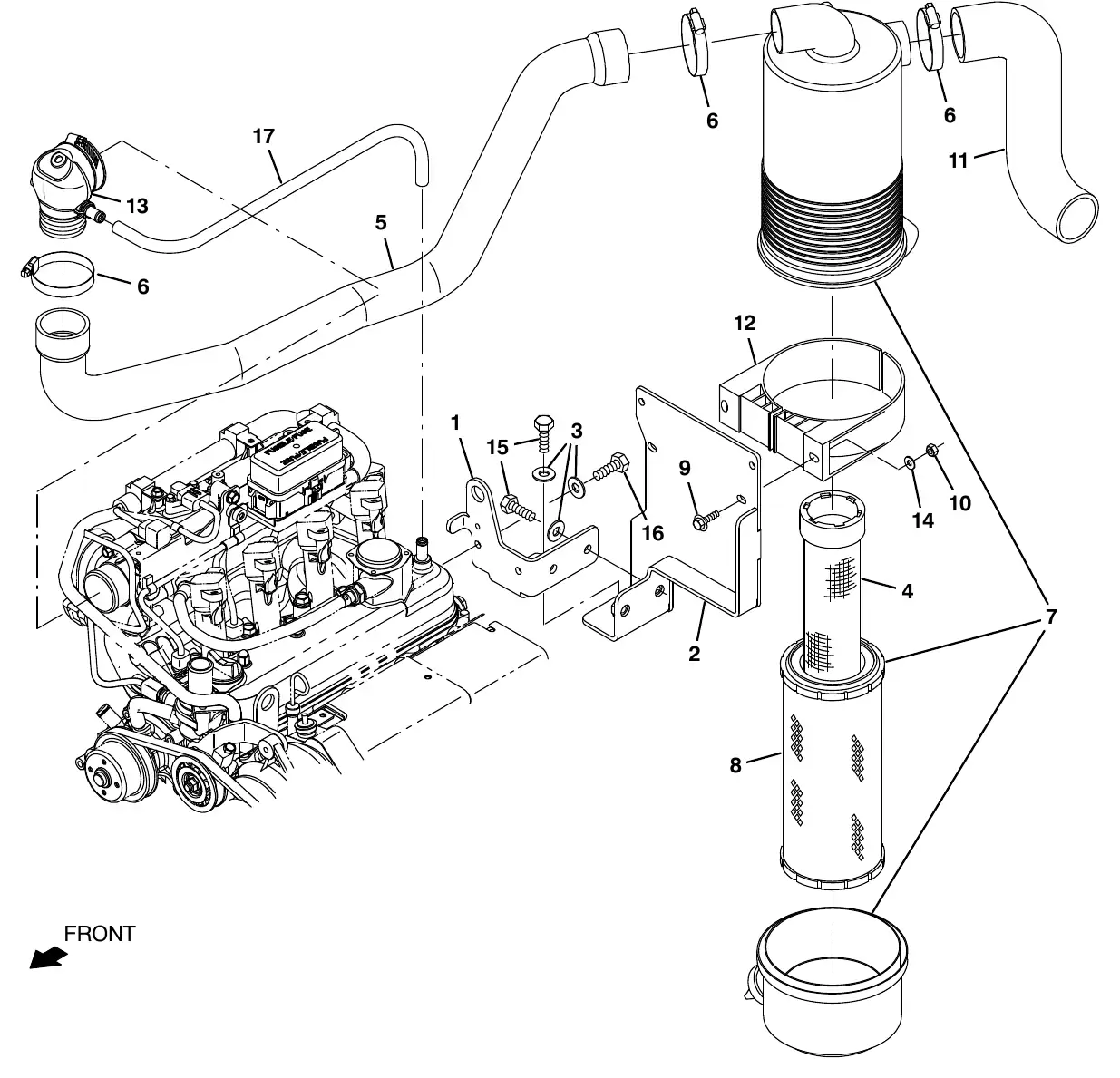

M20 Kubota engine air cleaner group, gas (S/N 015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: Gasoline
Tap a number to see that part.
Enlarge Kubota Engine Air Cleaner Group, Gas (S/N 015001 - 016999), SN 008000 and later. Manual page 58. SES ref PF-3FUD-4MIA Tennant M20 Kubota engine air cleaner group, gas (S/N 015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4209283 1 Bracket, Air Cleaner, CoolantFits SN 015001–016999 · Old # 1268759 Call for price 2 TN4209284 1 Bracket Wldt, Air Bracket, KubFits SN 015001–016999 · Old # 1268760 Call for price 3 TN4034138 5 Washer, Flat, 0.38, StdFits SN 015001–016999 · Old # 32492 $2.50/EA Add 4 TN8002697 1 Element, Fltr, Air, SafetyFits SN 015001–016999 · Old # 398279 $52.20/EA Add 5 TN4209036 1 Hose, Intake, MoldFits SN 015001–016999 · Old # 1268094 Call for price 6 TN4044328 3 Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 015001–016999 · Old # 14432 $5.30/EA Add 7 TN4032296 1 Filter Assy, AirFits SN 015001–016999 · Old # 369745 $124.20/EA Add 8 TN8005623 1 Element, Fltr, Air [Dn]Fits SN 015001–016999 · Old # 369746 $34.60/EA Add 9 TN4045637 2 Screw, Hex, M8 X 1.25 X 25, 9.8, SemsFits SN 015001–016999 · Old # 1037346 $2.50/EA Add 10 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Old # 08709 $2.50/EA Add 11 TN4036284 1 Hose, Intake, Mold, 2.00id [Epdm]Fits SN 015001–016999 · Old # 1020949 $59.99/EA Add 12 TN4032297 1 Clamp, Mtg, Fltr, AirFits SN 015001–016999 · Old # 369747 $32.90/EA Add 13 TN1268148 1 Elbow, Cobra, Intake, M20, KubFits SN 015001–016999 · Old # 1268148 · no current Tennant number on file Call for price 14 TN4034137 2 Washer, Flat, 0.31, StdFits SN 015001–016999 · Old # 32491 $2.50/EA Add 15 TN4019758 3 Screw, Hex, M10x1.50x25, 8.8Fits SN 015001–016999 · Old # 39283 $3.30/EA Add 16 TN8051237 2 Screw, Hex [Ku]Fits SN 015001–016999 · Old # 72999 $3.23/EA Add 17 TN1268234 1 Hose, Breather, Crankcase, Kub, 1.6l (Kubota)Fits SN 015001–016999 · Old # 1268234 · no current Tennant number on file Call for price

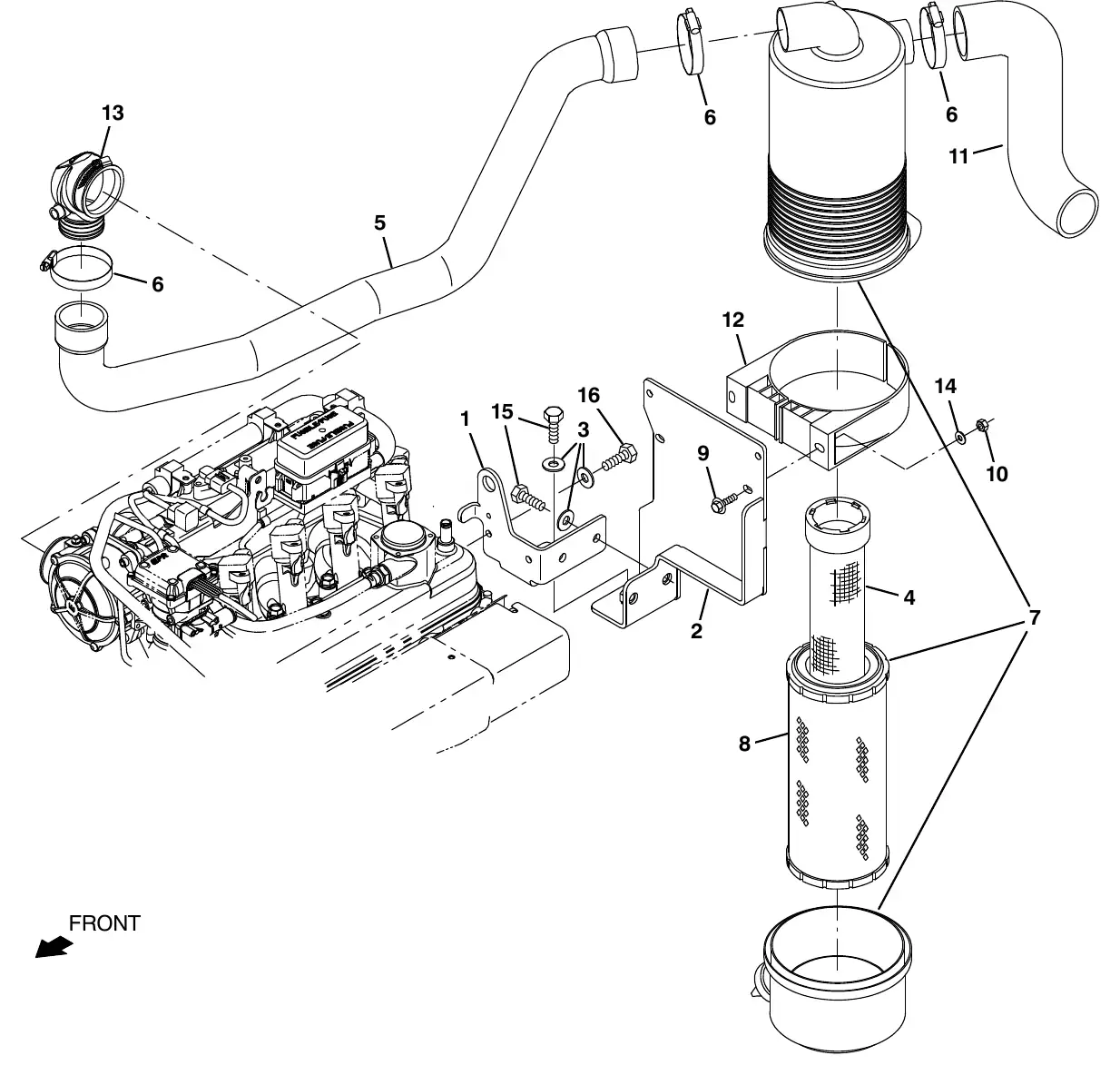

M20 Kubota engine air cleaner group, LPG (S/N (015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: LPG
Tap a number to see that part.
Enlarge Kubota Engine Air Cleaner Group, LPG (S/N (015001 - 016999), SN 008000 and later. Manual page 60. SES ref PF-WQ2M-YDMV Tennant M20 Kubota engine air cleaner group, LPG (S/N (015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4209283 1 Bracket, Air Cleaner, CoolantFits SN 015001–016999 · Old # 1268759 Call for price 2 TN4209284 1 Bracket Wldt, Air Bracket, KubFits SN 015001–016999 · Old # 1268760 Call for price 3 TN4034138 5 Washer, Flat, 0.38, StdFits SN 015001–016999 · Old # 32492 $2.50/EA Add 4 TN8002697 1 Element, Fltr, Air, SafetyFits SN 015001–016999 · Old # 398279 $52.20/EA Add 5 TN4209036 1 Hose, Intake, MoldFits SN 015001–016999 · Old # 1268094 Call for price 6 TN4044328 5 Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 015001–016999 · Old # 14432 $5.30/EA Add 7 TN4032296 1 Filter Assy, AirFits SN 015001–016999 · Old # 369745 $124.20/EA Add 8 TN8005623 1 Element, Fltr, Air [Dn]Fits SN 015001–016999 · Old # 369746 $34.60/EA Add 9 TN4045637 2 Screw, Hex, M8 X 1.25 X 25, 9.8, SemsFits SN 015001–016999 · Old # 1037346 $2.50/EA Add 10 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Old # 08709 $2.50/EA Add 11 TN4036284 1 Hose, Intake, Mold, 2.00id [Epdm]Fits SN 015001–016999 · Old # 1020949 $59.99/EA Add 12 TN4032297 1 Clamp, Mtg, Fltr, AirFits SN 015001–016999 · Old # 369747 $32.90/EA Add 13 TN1268148 1 Elbow, Cobra, Intake, M20, KubFits SN 015001–016999 · Old # 1268148 · no current Tennant number on file Call for price 14 TN4034137 2 Washer, Flat, 0.31, StdFits SN 015001–016999 · Old # 32491 $2.50/EA Add 15 TN4019758 3 Screw, Hex, M10x1.50x25, 8.8Fits SN 015001–016999 · Old # 39283 $3.30/EA Add 16 TN8051237 2 Screw, Hex [Ku]Fits SN 015001–016999 · Old # 72999 $3.23/EA Add

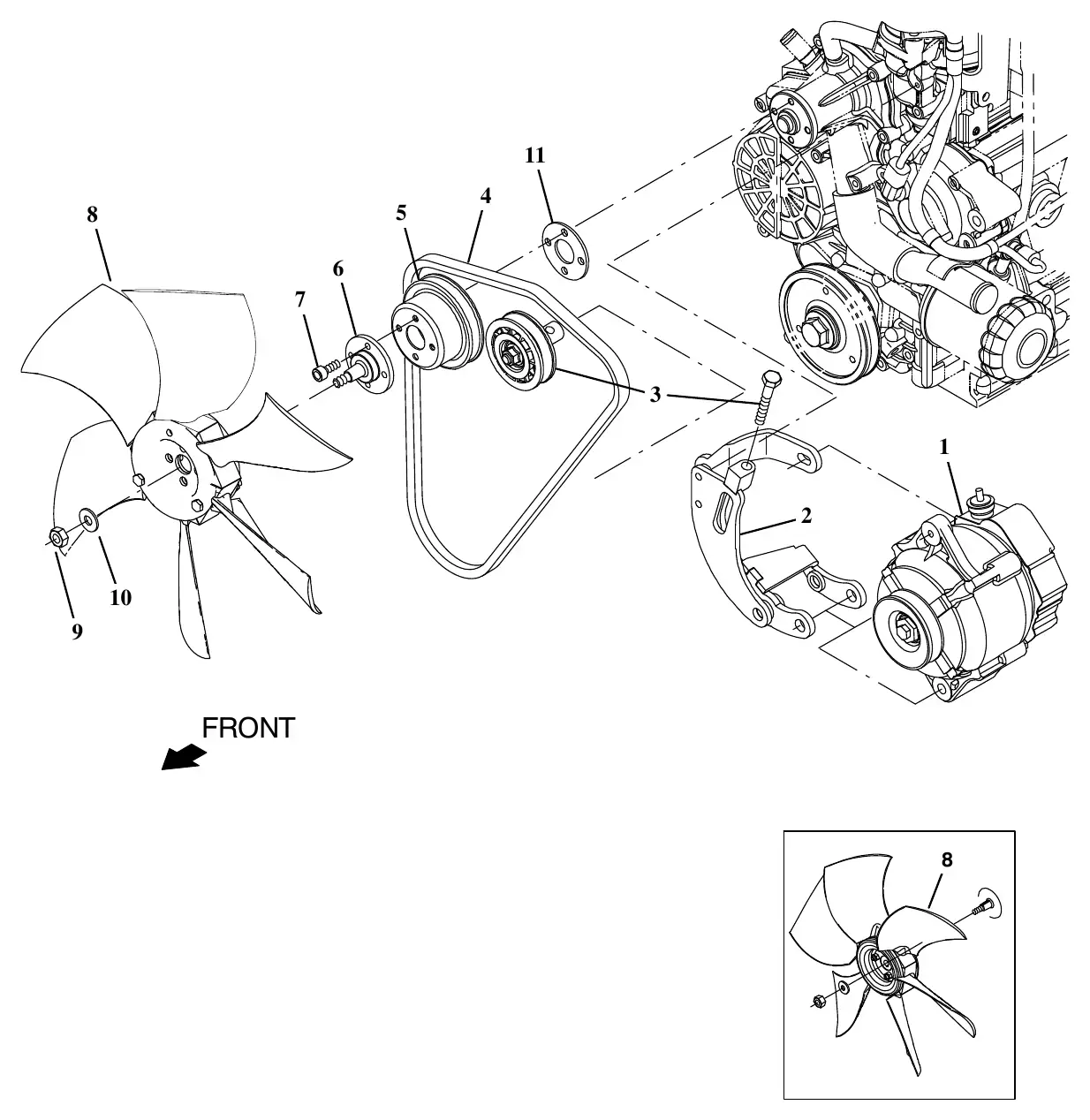

M20 Kubota engine alternator and fan group (S/N 015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Kubota Engine Alternator and Fan Group (S/N 015001 - 016999), SN 008000 and later. Manual page 62. SES ref PF-WA57-TE2N Tennant M20 Kubota engine alternator and fan group (S/N 015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8047292 1 Alternator 12v 90a [Kubota Eng]Fits SN 015001–016999 · Printed as 8047292 (Tennant’s new number) · Old # 9019123 Call for price 2 TN8046587 1 Bracket Wldt, Alternator [05 Series 90a]Fits SN 015001–016999 · Printed as 8046587 (Tennant’s new number) · Old # 9023159 Call for price 3 TN8046575 1 Adjuster, Belt, Kub, MakoFits SN 015001–016999 · Printed as 8046575 (Tennant’s new number) · Old # 9023111 Call for price 4 TN8046563 1 V - BeltFits SN 015001–016999 · Printed as 8046563 (Tennant’s new number) · Old # 9023095 Call for price 5 TN8046565 1 Pulley, V - Belt, Kubota, 2.0l, LpgFits SN 015001–016999 · Printed as 8046565 (Tennant’s new number) · Old # 9023097 Call for price 6 TN4045395 1 Spacer, Fan, Dsl [M20/T20]Fits SN 015001–016999 · Printed as 4045395 (Tennant’s new number) · Old # 1035341 $54.70/EA Add 7 TN4015635 4 Screw, Soc, M6 X 1.00 X 16, 12.9Fits SN 015001–016999 · Printed as 4015635 (Tennant’s new number) · Old # 71388 $4.80/EA Add 8 TN4032038 1 Fan, Cooling, 14.1D, G Blade, 4 Bolt (Repl 1031566)Fits SN 015001–016999 · Printed as 4032038 (Tennant’s new number) · Old # 1031566 $174.80/EA Add 9 TN4041926 1 Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Printed as 4041926 (Tennant’s new number) · Old # 08709 $2.50/EA Add 10 TN4034137 1 Washer, Flat, 0.31, StdFits SN 015001–016999 · Printed as 4034137 (Tennant’s new number) · Old # 32491 $2.50/EA Add

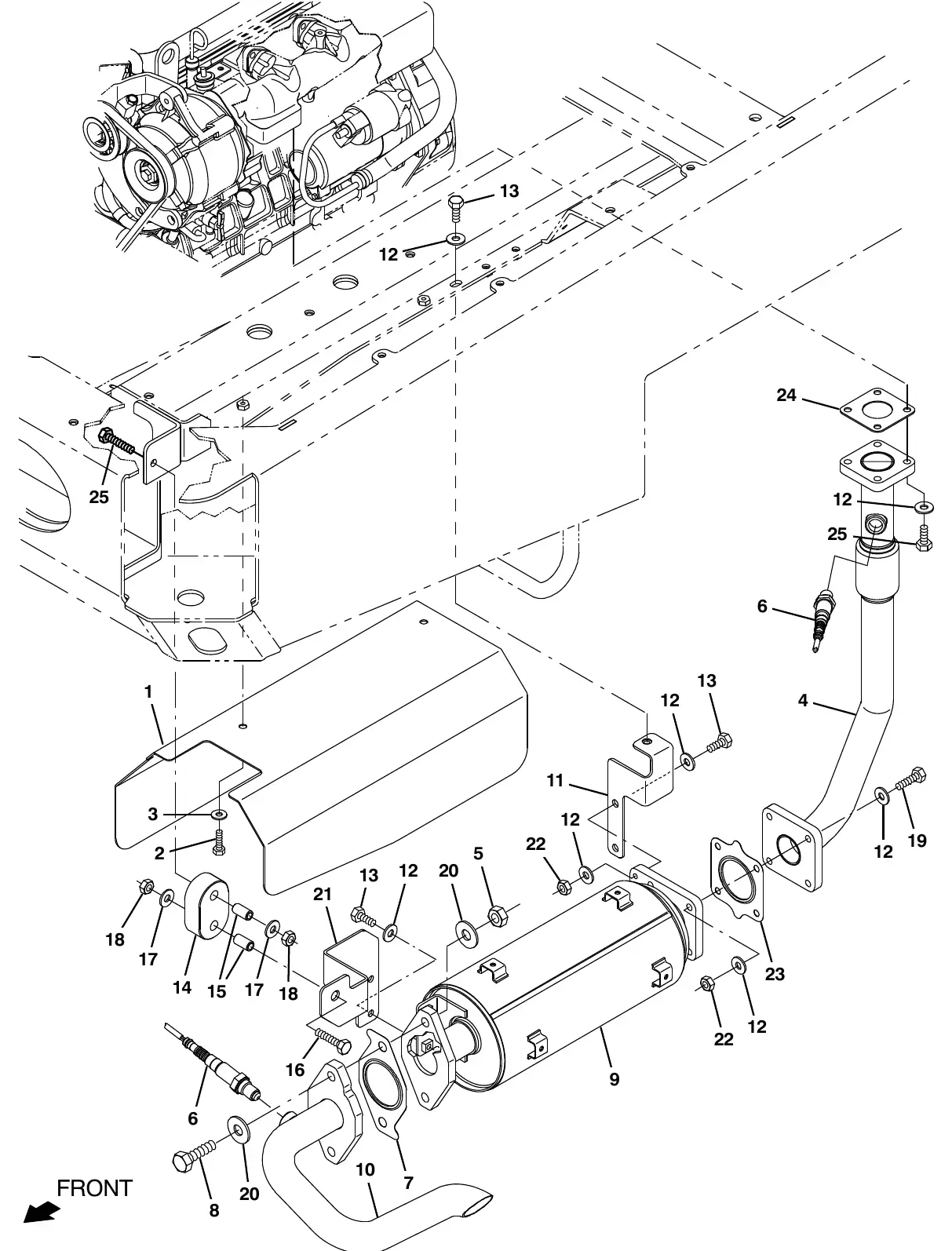

M20 Kubota engine muffler group (S/N 015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Kubota Engine Muffler Group (S/N 015001 - 016999), SN 008000 and later. Manual page 64. SES ref PF-26FI-DXD5 Tennant M20 Kubota engine muffler group (S/N 015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4031022 1 Channel, Shield, Muffler [M20/T20 2007]Fits SN 015001–016999 · Old # 1028994 $123.70/EA Add 2 TN4041931 2 Screw, Hex, M6 X 1.0 X 20, SsFits SN 015001–016999 · Old # 08716 $3.20/EA Add 3 TN4034136 4 Washer, Flat, 0.25, StdFits SN 015001–016999 · Old # 32490 $2.50/EA Add 4 TN8046600 1 Pipe, Exhaust, Flex (Kubota)Fits SN 015001–016999 · Old # 9023162 Call for price 5 TN4041627 4 Nut, Hex, Stover, M12 X 1.75Fits SN 015001–016999 · Old # 08167 Call for price 6 TN4186293 1 Sensor, O2, KubotaFits SN 015001–016999 · Old # 9023104 Call for price 7 TN8046568 1 Gasket, Exhaust, Cat, Kub, M20, 2 - HoleFits SN 015001–016999 · Old # 9023100 Call for price 8 TN4041295 4 Screw, Hex, M12 X 1.75 X 45, 8.8Fits SN 015001–016999 · Old # 06970 Call for price 9 TN8046566 1 Muffler, Cat, Kubota, 1.6l, LpgFits SN 015001–016999 · Old # 9023098 Call for price 10 TN8046601 1 Tube, Exhaust, Tailpipe [Kubota]Fits SN 015001–016999 · Old # 9023163 Call for price 11 TN4209020 1 Bracket Wldt, Sppt, Muffler [Mako]Fits SN 015001–016999 · Old # 1268048 Call for price 12 TN4034137 2 Washer, Flat, 0.31, StdFits SN 015001–016999 · Old # 32491 $2.50/EA Add 13 TN4041844 3 Screw, Hex, M8 x 1.25 x .20, 8.8Fits SN 015001–016999 · Old # 16931 $2.50/EA Add 14 TN4037292 1 Isolator, RbrFits SN 015001–016999 · Old # 1013031 $18.30/EA Add 15 TN4040603 2 Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN 015001–016999 · Old # 222496 $3.40/EA Add 16 TN4040607 2 Screw, Hex, M8 X 1.25 X 45, SsFits SN 015001–016999 · Old # 222505 $4.00/EA Add 17 TN4042902 2 Washer, Flat, 0.38b 0.88d .08, SsFits SN 015001–016999 · Old # 01685 $2.60/EA Add 18 TN4041929 1 Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 015001–016999 · Old # 08713 $3.30/EA Add 19 TN4016807 3 Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 015001–016999 · Old # 41342 $3.40/EA Add 20 TN4034139 1 Washer, Flat, 0.56b 1.38d .11, Stl, PlFits SN 015001–016999 · Old # 32493 $3.50/EA Add 21 TN4209021 1 Bracket, Sppt, Muffler [Mako]Fits SN 015001–016999 · Old # 1268049 Call for price 22 TN4041625 3 Nut, Hex, Stover, M8Fits SN 015001–016999 · Old # 08165 $3.40/EA Add 23 TN8046567 1 Gasket, Exhaust, Cat, Kub, M20Fits SN 015001–016999 · Old # 9023099 Call for price 24 TN8002405 1 Gasket [Ku]Fits SN 015001–016999 · Old # 51332 $14.90/EA Add 25 TN4019804 4 Screw, Soc, M8 X 1.25 X 25, 12.9Fits SN 015001–016999 · Old # 39308 $3.40/EA Add

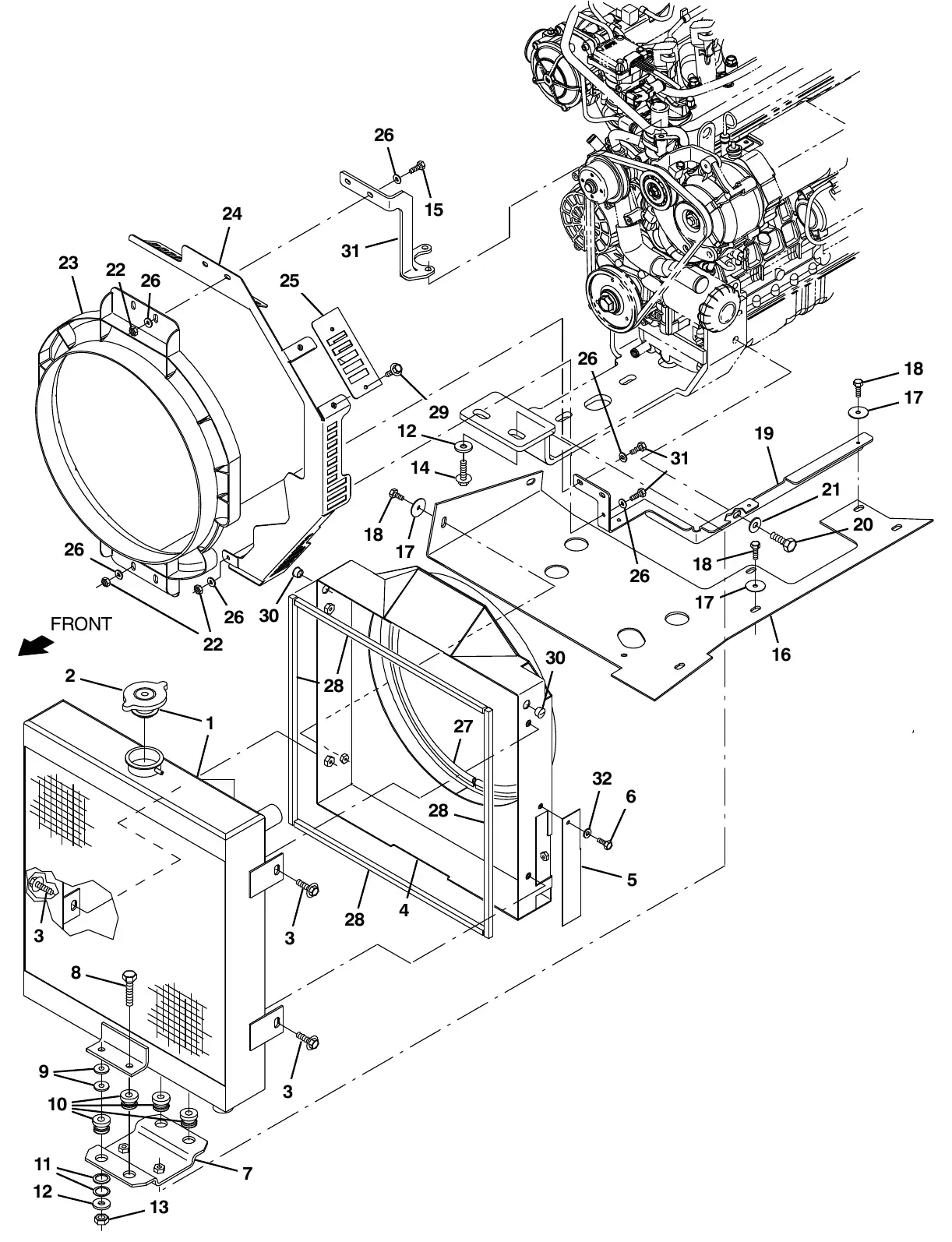

M20 Kubota engine radiator and mount group (S/N 015001 - 016999 ) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Kubota Engine Radiator and Mount Group (S/N 015001 - 016999 ), SN 008000 and later. Manual page 66. SES ref PF-EQ5Z-SGZJ Tennant M20 Kubota engine radiator and mount group (S/N 015001 - 016999 ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4031438 1 Radiator, W/Hyd Cooler [Afmkt]Fits SN 015001–016999 · Old # 1249770 $1,665.50/EA Add 2 TN4029923 1 Cap, Radiator, 16Psi Sae 164Fits SN 015001–016999 · Old # 1265988 Call for price 3 TN4045640 4 Screw, Hex, M8 X 1.25 X 30, 9.8, SemsFits SN 015001–016999 · Old # 1037354 $2.50/EA Add 4 TN4186598 1 Shroud Wldt, Fan, Eng, DslFits SN 015001–016999 · Old # 1058699 $155.44/EA Add 5 TN4189910 1 Bracket, CoverFits SN 015001–016999 · Old # 1045433 $18.60/EA Add 6 TN4041270 3 Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 015001–016999 · Old # 06942 $2.50/EA Add 7 TN4190181 1 Bracket, Mtg, RadiatorFits SN 015001–016999 · Old # 1046962 $26.70/EA Add 8 TN4041287 4 Screw, Hex, M10 X 1.50 X 45, 8.8Fits SN 015001–016999 · Old # 06962 $4.00/EA Add 9 TN4034138 8 Washer, Flat, 0.38, StdFits SN 015001–016999 · Old # 32492 $2.50/EA Add 10 TN4015364 4 Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN 015001–016999 · Old # 54274 $14.70/EA Add 11 TN4042008 8 Washer, Flat, 0.81b 1.06d .06, StlFits SN 015001–016999 · Old # 09832 $3.30/EA Add 12 TN4037922 4 Washer, Flat, 0.40b 1.12d .12, SsFits SN 015001–016999 · Old # 1014563 $5.80/EA Add 13 TN4016826 4 Nut, Hex, Lock, M10 X 1.5, NlFits SN 015001–016999 · Old # 41430 $4.00/EA Add 14 TN4045641 2 Screw, Hex, M8 X 1.25 X 35, 9.8, SemsFits SN 015001–016999 · Old # 1037355 $2.50/EA Add 15 TN4041271 4 Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 015001–016999 · Old # 06943 $2.50/EA Add 16 TN4041022 1 Skirt, Fan, Eng, DslFits SN 015001–016999 · Old # 1052175 $88.78/EA Add 17 TN4016794 7 Washer, Flat, 0.25, FendrFits SN 015001–016999 · Old # 41178 $2.50/EA Add 18 TN4039853 7 Screw, Hex, M6 X 1.00 X 25, FmgFits SN 015001–016999 · Old # 222159 Call for price 19 TN4209082 1 Bracket, Sppt, Skirt, M20Fits SN 015001–016999 · Old # 1268243 Call for price 20 TN4019758 2 Screw, Hex, M10x1.50x25, 8.8Fits SN 015001–016999 · Old # 39283 $3.30/EA Add 21 TN4034134 2 Washer, Flat, 0.38, SaeFits SN 015001–016999 · Old # 32485 $2.50/EA Add 22 TN4041925 5 Nut, Hex, Lock, M6 X 1.00, NlFits SN 015001–016999 · Old # 08708 $2.50/EA Add 23 TN4038497 1 Shroud, FanFits SN 015001–016999 · Old # 1054428 $126.20/EA Add 24 TN4209095 1 Guard Wldt, Fan, Side, Kubota, MakoFits SN 015001–016999 · Old # 1268317 Call for price 25 TN4209096 1 Guard, Alternator [Mako, Kubota]Fits SN 015001–016999 · Old # 1268318 Call for price 26 TN4034133 4 Washer, Flat, 0.25, SaeFits SN 015001–016999 · Old # 32483 $2.50/EA Add 27 TN4039684 1 Seal, Afmkt, Bulb, Str, 0.58d 08ftFits SN 015001–016999 · Old # 1048166 $53.10/EA Add 28 TN4038013 4 Seal, Afmkt, Ure, Adh, 0.38, 0.38w 02ftFits SN 015001–016999 · Old # 1015205 $6.30/EA Add 29 TN4045268 2 Screw, Hex, M6 X 1.00 X 16, Sems, SsFits SN 015001–016999 · Old # 1034731 Call for price 30 TN4043205 2 Plug, Hole, Rnd, 0.56h .03 - .12, Blk NylFits SN 015001–016999 · Old # 02431 $3.40/EA Add 31 TN4209087 1 Bracket, Shroud, Fan, UpperFits SN 015001–016999 · Old # 1268287 Call for price

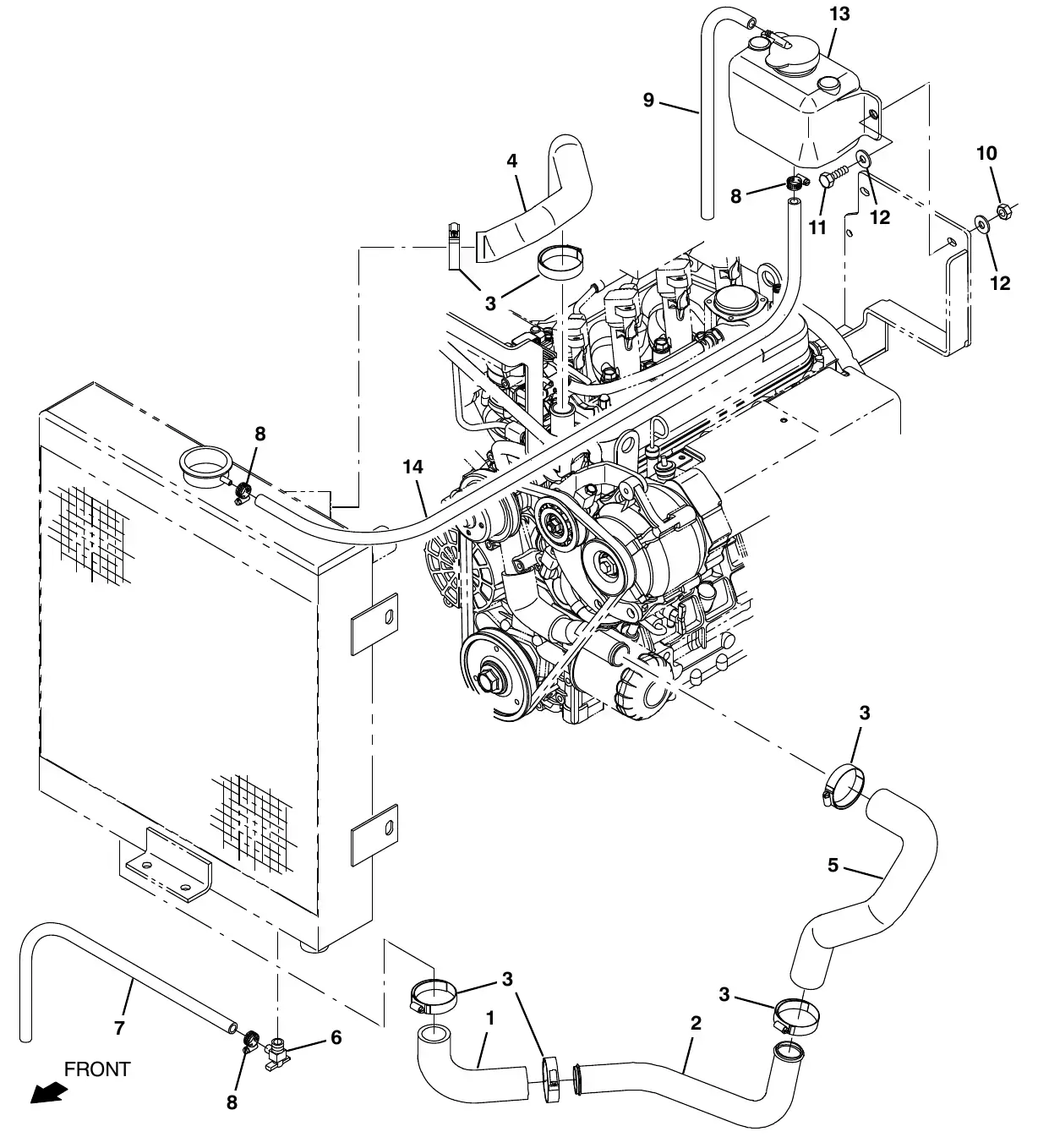

M20 Kubota engine radiator hose group (S/N (015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Kubota Engine Radiator Hose Group (S/N (015001 - 016999), SN 008000 and later. Manual page 68. SES ref PF-4XF7-KLN4 Tennant M20 Kubota engine radiator hose group (S/N (015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4039550 1 Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Fits SN 015001–016999 · Old # 1007482 $20.40/EA Add 2 TN4191486 1 Tube, Radiator, Lower, Dsl [M30]Fits SN 015001–016999 · Old # 1041494 Call for price 3 TN4026556 6 Clamp, Hose, Wormdrive, 1.25 - 2.00d, .50wFits SN 015001–016999 · Old # 79381 $6.20/EA Add 4 TN4030509 1 Hose, Radiator, Upper, DslFits SN 015001–016999 · Old # 1071195 $23.30/EA Add 5 TN4209070 1 Hose, Coolant, Lower, Mako, KubFits SN 015001–016999 · Old # 1268177 Call for price 6 TN4014543 1 Fitting, Draincock, E90, .25nptFits SN 015001–016999 · Old # 51305 $15.10/EA Add 7 TN4016344 1 Hose, Pvc, Clr, 0.38id 0.56od 022.0lFits SN 015001–016999 · Old # 73471 $7.60/EA Add 8 TN4017396 3 Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 015001–016999 · Old # 43844 $4.20/EA Add 9 TN4022521 1 Hose, Fuel, 0.18id, 29.0lFits SN 015001–016999 · Old # 87738 $19.40/EA Add 10 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Old # 08709 $2.50/EA Add 11 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 015001–016999 · Old # 39277 $3.20/EA Add 12 TN4034137 2 Washer, Flat, 0.31, StdFits SN 015001–016999 · Old # 32491 $2.50/EA Add 13 TN4038493 1 Tank, Coolant, 03.6w 04.1hi 05.5l,1literFits SN 015001–016999 · Old # 1054382 $119.90/EA Add 14 TN4037950 1 Hose, Afmkt, Coolant Recvy, 05ftFits SN 015001–016999 · Old # 1014843 $63.10/EA Add

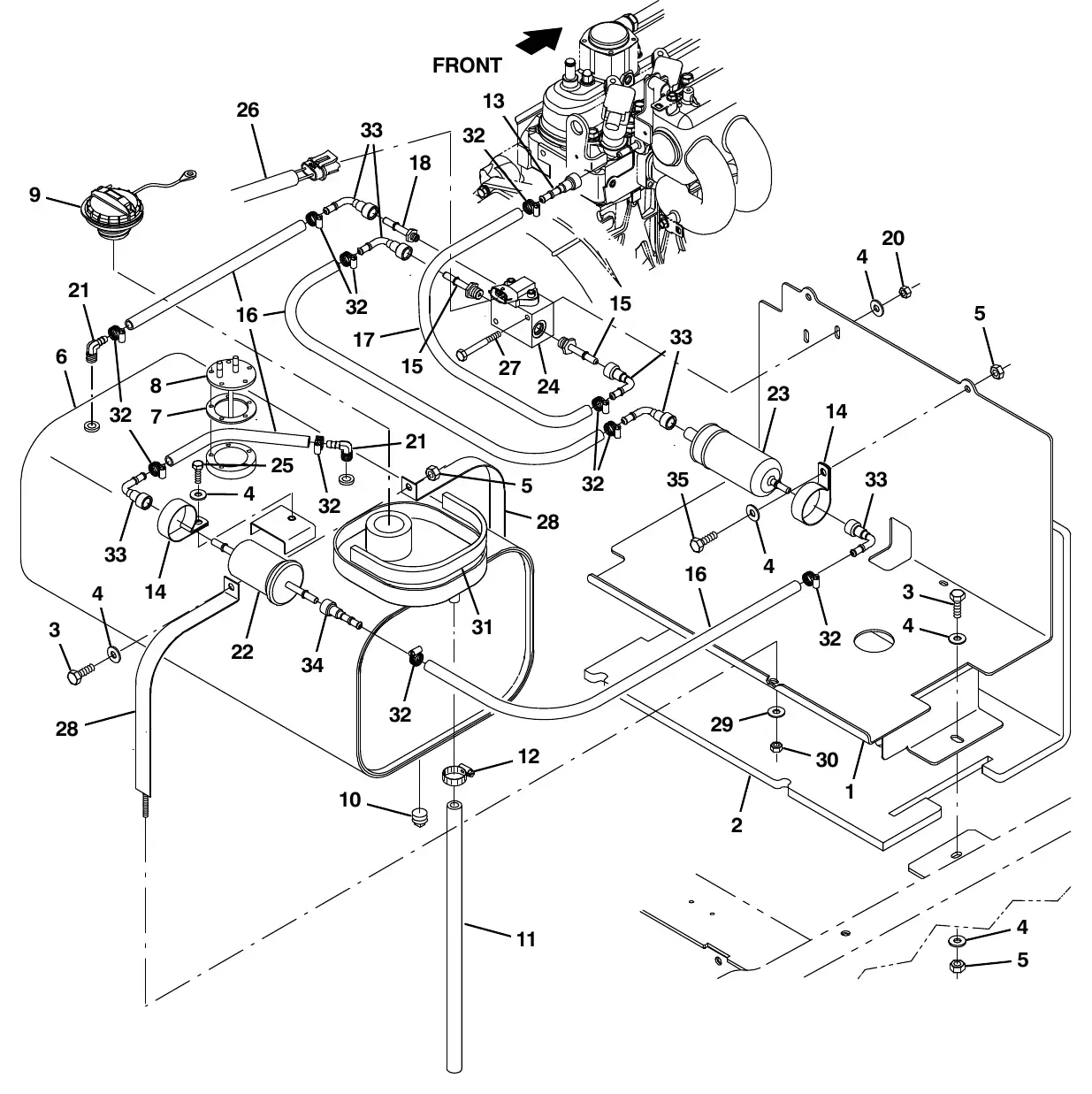

M20 Kubota engine fuel tank group, gas (S/N 015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: Gasoline
Tap a number to see that part.
Enlarge Kubota Engine Fuel Tank Group, Gas (S/N 015001 - 016999), SN 008000 and later. Manual page 70. SES ref PF-F6TN-UZKI Tennant M20 Kubota engine fuel tank group, gas (S/N 015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4194105 1 Tray Wldt, FuelFits SN 015001–016999 · Old # 1026550 $171.70/EA Add 2 TN4194130 1 Insulation, Flame - Retardant, 0.5Fits SN 015001–016999 · Old # 1026759 $80.60/EA Add 3 TN4156940 3 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 015001–016999 · Old # 39277 $3.20/EA Add 4 TN4034137 7 Washer, Flat, 0.31, StdFits SN 015001–016999 · Old # 32491 $2.50/EA Add 5 TN4041926 4 Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Old # 08709 $2.50/EA Add 6 TN4203095 1 Tank, Fuel, 11.2gal, Gas, Replmt [2007]Fits SN 015001–016999 · Old # 9003610 $805.70/EA Add 7 TN8006208 1 Gasket, Sender, FuelFits SN 015001–016999 · Old # 1033897 $9.20/EA Add 8 TN8006221 1 Send - Unit, Fuel [2007]Fits SN 015001–016999 · Old # 1033901 $122.70/EA Add 9 TN8006207 1 Cap, Fuel, TankFits SN 015001–016999 · Old # 1032812 $36.90/EA Add 10 TN4013933 1 Fitting, Pipe, Plug, Pm02, Sq HeadFits SN 015001–016999 · Old # 48126 $2.93/EA Add 11 TN4033269 1 Hose, Fuel, 0.50id, 21.0lFits SN 015001–016999 · Old # 1023482 $10.10/EA Add 12 TN4015366 1 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 015001–016999 · Old # 54333 $5.10/EA Add 13 TN8047304 1 Fitting, Fuel, Str, M10x1.0Fits SN 015001–016999 · Old # 9019145 $59.79/EA Add 14 TN4036932 2 Clamp, Cable, Stl, 2.00d X 0.75w, 1holeFits SN 015001–016999 · Old # 1011895 $5.05/EA Add 15 TN8047407 2 Fitting, Fuel, Str, 0.56 - 18 [07 Eng]Fits SN 015001–016999 · Old # 1029293 $148.20/EA Add 16 TN4045069 4 Hose, Fuel, 0.31id [Evap Emission 07]Fits SN 015001–016999 · Old # 1033746 $13.00/EA Add 17 TN4209331 1 Hose, Fuel, 0.31Id, ServiceFits SN 015001–016999 · Old # 1269215 Call for price 18 TN8005499 1 Fitting, Fuel, Str, 0.38 - 24 [07 Eng]Fits SN 015001–016999 · Old # 1029295 $140.10/EA Add 19 TN4041281 1 Screw, Hex, M8 X 1.25 X 45, 8.8Fits SN 015001–016999 · Old # 06956 $4.00/EA Add 20 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlFits SN 015001–016999 · Old # 08708 $2.50/EA Add 21 TN4019173 2 Fitting, Brs, E90, Em05/Pm04Fits SN 015001–016999 · Old # 9000355 $6.30/EA Add 22 TN8005188 1 Filter, FuelFits SN 015001–016999 · Old # 372440 $64.20/EA Add 23 TN8005962 1 Pump, Fuel, High PrddFits SN 015001–016999 · Old # 1011107 $1,162.70/EA Add 24 TN8005437 1 Manifold, Gas, Relief, ValveFits SN 015001–016999 · Old # 1028924 $1,128.00/EA Add 25 TN4041844 1 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 015001–016999 · Old # 16931 $2.50/EA Add 26 TN8044978 1 Harness, Manifold, GasFits SN 015001–016999 · Old # 385009 $257.35/EA Add 27 TN4041277 2 Screw, Hex, M6 X 1.0 X 50, 8.8Fits SN 015001–016999 · Old # 06949 $3.30/EA Add 28 TN4193651 2 Strap, Tank, GasFits SN 015001–016999 · Old # 1025229 $18.10/EA Add 29 TN4034133 2 Washer, Flat, 0.25, SaeFits SN 015001–016999 · Old # 32483 $2.50/EA Add 30 TN4034654 2 Nut, Hex, Lock, .25 - 20, NlFits SN 015001–016999 · Old # 32981 $2.50/EA Add 31 TN4218342 1 Molding, Trim, Pvc, .08 - .11 13.2lFits SN 015001–016999 · Old # 62595-15 Call for price 32 TN4017396 10 Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 015001–016999 · Old # 43844 $4.20/EA Add 33 TN4036222 5 Connector, Fuel, E90, QfFits SN 015001–016999 · Old # 1019939 $18.90/EA Add 34 TN4037296 1 Connector, Fuel, QfFits SN 015001–016999 · Old # 1013086 $16.90/EA Add

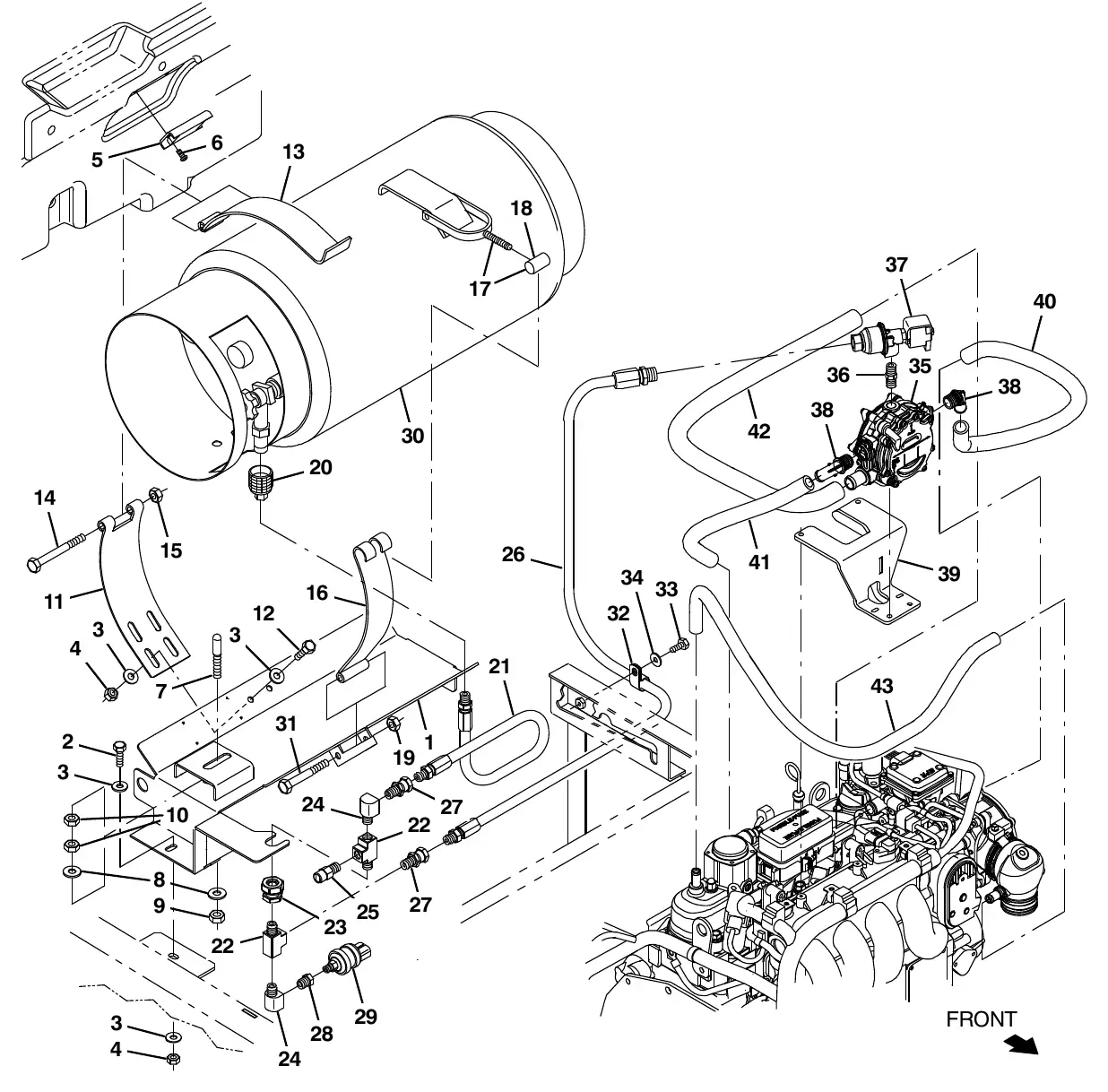

M20 Kubota engine fuel tank group, LPG ( S/N 015001 - 016999) Standard parts SN 008000 and later Kubota · SN 015001–016999 Fits: LPG
Tap a number to see that part.
Enlarge Kubota Engine Fuel Tank Group, LPG ( S/N 015001 - 016999), SN 008000 and later. Manual page 72. SES ref PF-IUJT-NTPE Tennant M20 Kubota engine fuel tank group, LPG ( S/N 015001 - 016999) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4035518 1 Tray Wldt, LpgFits SN 015001–016999 · Old # 1017947 $120.90/EA Add 2 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 015001–016999 · Old # 39277 $3.20/EA Add 3 TN4034137 8 Washer, Flat, 0.31, StdFits SN 015001–016999 · Old # 32491 $2.50/EA Add 4 TN4041926 4 Nut, Hex, Lock, M8 X 1.25, NlFits SN 015001–016999 · Old # 08709 $2.50/EA Add 5 TN4017052 1 Magnet, Drive BrushFits SN 015001–016999 · Old # 63378 $21.10/EA Add 6 TN4041965 2 Screw, Pan, M5 X 0.8 X 12, SsFits SN 015001–016999 · Old # 09200 $3.40/EA Add 7 TN4033855 1 Pin, Locating, LpgFits SN 015001–016999 · Old # 1024934 $13.43/EA Add 8 TN4034138 2 Washer, Flat, 0.38 StdFits SN 015001–016999 · Old # 32492 $2.50/EA Add 9 TN4016826 1 Nut, Hex, Lock, M10 X 1.5, NlFits SN 015001–016999 · Old # 41430 $4.00/EA Add 10 TN4034476 2 Nut, Hex, Jam, M10 X 1.5, SsFits SN 015001–016999 · Old # 32716 $4.00/EA Add 11 TN4029786 1 Strap, Mtg, Tank, LpgFits SN 015001–016999 · Old # 58589 $113.90/EA Add 12 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 015001–016999 · Old # 16931 $2.50/EA Add 13 TN4029300 1 Strap, Mtg, Tank, Lpg, HingeFits SN 015001–016999 · Old # 57297 $114.90/EA Add 14 TN4031662 1 Screw, Hex, .38 - 16 X 3.75, 5Fits SN 015001–016999 · Old # 35710 $1.10/EA Add 15 TN4026793 1 Nut, Hex, Lock, .38 - 16, Nl, SsFits SN 015001–016999 · Old # 59156 $4.00/EA Add 16 TN4029787 1 Strap, Mtg, Tank, LpgFits SN 015001–016999 · Old # 58590 $88.70/EA Add 17 TN4015025 1 Latch Assy, Mtg, Tank, Lpg, W/NutFits SN 015001–016999 · Old # 53400-1 $56.90/EA Add 18 TN4015026 1 Nut, Adj, Mtg, Tank, LpgFits SN 015001–016999 · Old # 53400-4 $13.30/EA Add 19 TN4028758 1 Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN 015001–016999 · Old # 36643 $2.50/EA Add 20 TN4035691 1 Fitting, Brs, Qdc, Pf04, Lpg FemFits SN 015001–016999 · Old # 26496 $86.90/EA Add 21 TN4037354 1 Hose, Lpg, Med05, Pm04str/Sm04str, 14.0lFits SN 015001–016999 · Old # 22308-6 $46.90/EA Add 22 TN4041151 2 Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunFits SN 015001–016999 · Old # 150709 $14.40/EA Add 23 TN4026127 1 Fitting, Brs, Str, Pf04/Pf04, BhFits SN 015001–016999 · Old # 78122 $30.50/EA Add 24 TN4035699 2 Fitting, Brs, E90, Pf04/Pm04Fits SN 015001–016999 · Old # 27048 $5.30/EA Add 25 TN4035364 1 Valve, Lpg, Press Relief [Rego]Fits SN 015001–016999 · Old # 24047 $133.70/EA Add 26 TN4042556 1 Hose, Lpg, Med05, Pm04str/Sm04str, 55.0lFits SN 015001–016999 · Old # 19760 $82.40/EA Add 28 TN4041876 1 Fitting, Hyd, Str, Pf02/Pm04Fits SN 015001–016999 · Old # 17414 $7.90/EA Add 27 TN4232409 2 Fitting, Pipe, Str, Pm04/Sf04Fits SN 015001–016999 · Old # 11442-23 $6.70/EA Add 29 TN4035027 1 Switch, Press, 12vdc 08a Spst Nc 0070psiFits SN 015001–016999 · Old # 23156 $112.50/EA Add 30 TN4035401 1 Tank, Lpg, 33lb, W/ Gauge [Empty, Liq]Fits SN 015001–016999 · Old # 24928-1 $816.50/EA Add 31 TN4031659 1 Screw, Hex, .38 - 16 X 3.00, 5Fits SN 015001–016999 · Old # 35707 $1.15/EA Add 32 TN4017933 1 Clamp, Cable, Stl, 0.69d X 0.62w, 1holeFits SN 015001–016999 · Old # 67767 $4.20/EA Add 33 TN4041270 1 Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 015001–016999 · Old # 06942 $2.50/EA Add 34 TN4034133 1 Washer, Flat, 0.25, SaeFits SN 015001–016999 · Old # 32483 $2.50/EA Add 35 TN1268151 1 Assy, Regulator, Lpg, M20, Kub (Kubota)Fits SN 015001–016999 · Old # 1268151 · no current Tennant number on file Call for price 36 TN4016530 1 Fitting, Brs, Str, Pm04/Pm04 (Kubota)Fits SN 015001–016999 · Old # 398468 $3.60/EA Add 37 TN1268170 1 Valve, Lock - Off, Kub, Lpg (Kubota)Fits SN 015001–016999 · Old # 1268170 · no current Tennant number on file Call for price 38 TN1268236 2 Connector, Vaporizer (Kubota)Fits SN 015001–016999 · Old # 1268236 · no current Tennant number on file Call for price 39 TN4209104 1 Bracket Wldt, Mtg, Vaporizer (Kubota)Fits SN 015001–016999 · Old # 1268366 Call for price 40 TN1268182 1 Hose, Vaporizer, 5/8” Id X 14.5” Length (Kubota)Fits SN 015001–016999 · Old # 1268182 · no current Tennant number on file Call for price 41 TN1268183 1 Hose, Vaporizer, 5/8” Id X 30” Length (Kubota)Fits SN 015001–016999 · Old # 1268183 · no current Tennant number on file Call for price 42 TN1268181 1 Hose, Lp Vapor, 3/4” Id X 21.25” Length (Kubota)Fits SN 015001–016999 · Old # 1268181 · no current Tennant number on file Call for price 43 TN1268234 1 Hose, Breather, Crankcase, Kub, 1.6l (Kubota)Fits SN 015001–016999 · Old # 1268234 · no current Tennant number on file Call for price
M20 PSI engine and mount group, gas (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline
Tap a number to see that part.

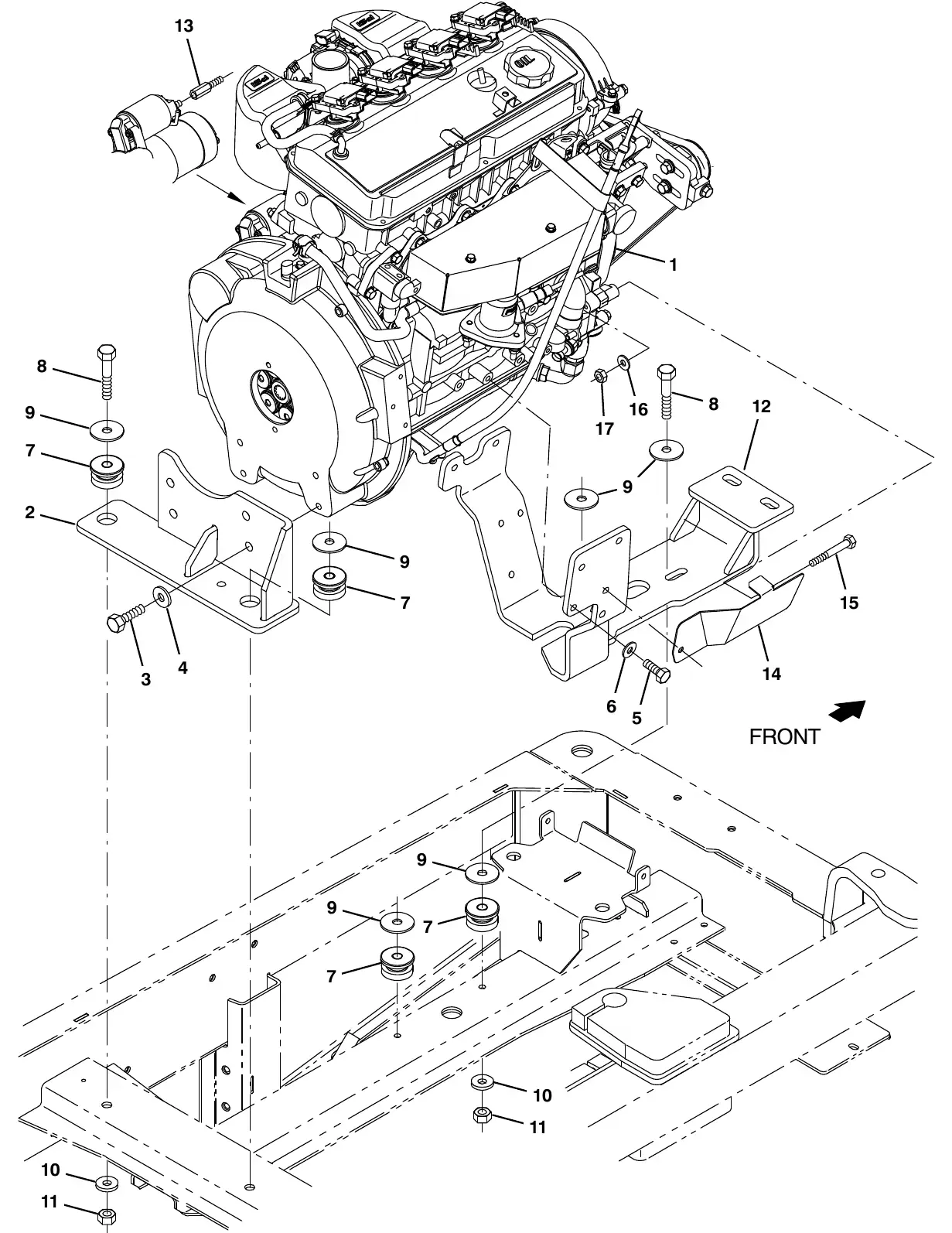

Enlarge PSI Engine and Mount Group, Gas (S/N 017000 - ), SN 008000 and later. Manual page 76. SES ref PF-2ATP-ODJZ Tennant M20 PSI engine and mount group, gas (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4208268 1 Engine, Gas, 2.0l, Dressed [Psi, Mako]Fits SN 017000 and later · Printed as 4208268 (Tennant’s new number) · Old # 1272743 Call for price TN8002631 1 Element, Fltr, Oil, Spin - On (Mits)Fits SN 017000 and later · Printed as 8002631 (Tennant’s new number) · Old # 393982 $30.00/EA Add 2 TN4030335 1 Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Fits SN 017000 and later · Printed as 4030335 (Tennant’s new number) · Old # 1070756 $68.38/EA Add 3 TN4016809 4 Screw, Hex, M12 X 1.75 X 30, 8.8Fits SN 017000 and later · Printed as 4016809 (Tennant’s new number) · Old # 41346 $4.00/EA Add 4 TN4034135 4 Washer, Flat, 0.50 SaeFits SN 017000 and later · Printed as 4034135 (Tennant’s new number) · Old # 32486 $2.60/EA Add 5 TN4041580 6 Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 017000 and later · Printed as 4041580 (Tennant’s new number) · Old # 07299 $2.40/EA Add 6 TN4034138 6 Washer, Flat, 0.38 StdFits SN 017000 and later · Old # 32492 $2.50/EA Add 7 TN4014538 4 Isolator, Vib, .50dFits SN 017000 and later · Printed as 4014538 (Tennant’s new number) · Old # 51176 $37.60/EA Add 8 TN4041297 4 Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 017000 and later · Printed as 4041297 (Tennant’s new number) · Old # 06972 $4.00/EA Add 9 TN4040927 4 Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 017000 and later · Printed as 4040927 (Tennant’s new number) · Old # 04414 $4.10/EA Add 10 TN4034139 3 Washer, Flat, 0.50 StdFits SN 017000 and later · Printed as 4034139 (Tennant’s new number) · Old # 32493 $3.50/EA Add 11 TN4041927 3 Nut, Hex, Lock, M12 X 1.75,NlFits SN 017000 and later · Printed as 4041927 (Tennant’s new number) · Old # 08711 $3.30/EA Add 12 TN4207513 1 Brkt Wldt, Mtg, Frt, Engine [Psi Mako]Fits SN 017000 and later · Printed as 4207513 (Tennant’s new number) · Old # 1270775 Call for price 13 TN4180344 1 Stand - Off, Hex, M8 X M8, MetalFits SN 017000 and later · Printed as 4180344 (Tennant’s new number) · Old # 1072669 $38.57/EA Add 14 TN4209004 1 Plate, Guard, Hose, Hyd, SteeringFits SN 017000 and later · Printed as 4209004 (Tennant’s new number) · Old # 1267942 Call for price 15 TN4019755 1 Screw, Hex, M8 X 1.25 X 90, 8.8Fits SN 017000 and later · Printed as 4019755 (Tennant’s new number) · Old # 39281 $4.00/EA Add 16 TN4034137 1 Washer, Flat, 0.31, StdFits SN 017000 and later · Printed as 4034137 (Tennant’s new number) · Old # 32491 $2.50/EA Add 17 TN4041926 1 Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Printed as 4041926 (Tennant’s new number) · Old # 08709 $2.50/EA Add

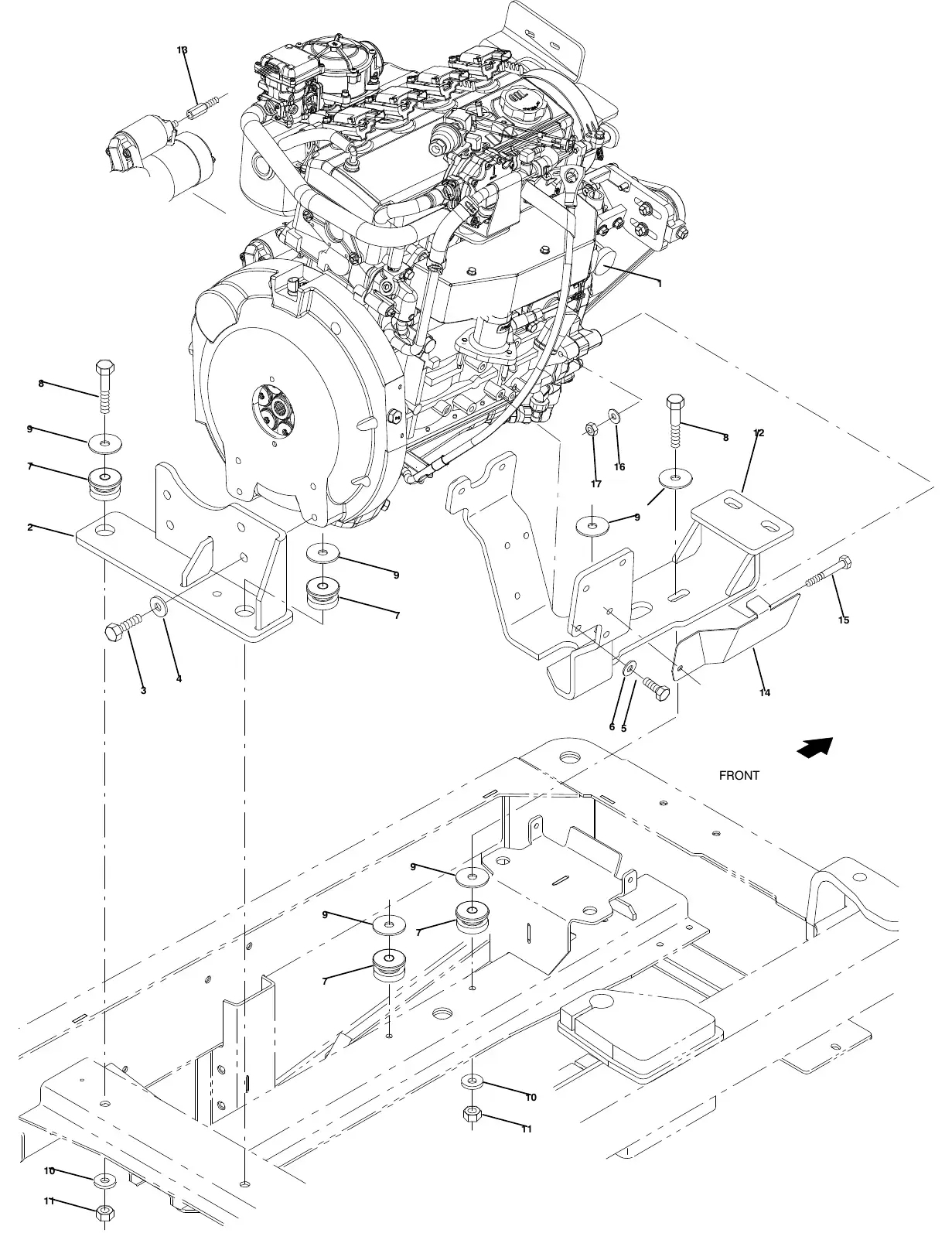

M20 PSI engine and mount group, LPG (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: LPG
Tap a number to see that part.
Enlarge PSI Engine and Mount Group, LPG (S/N 017000 - ), SN 008000 and later. Manual page 78. SES ref PF-3ZXY-LTHR Tennant M20 PSI engine and mount group, LPG (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4207512 1 Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Fits SN 017000 and later · Printed as 4207512 (Tennant’s new number) · Old # 1270771 Call for price TN8002631 1 Element, Fltr, Oil, Spin - On (Mits)Fits SN 017000 and later · Printed as 8002631 (Tennant’s new number) · Old # 393982 $30.00/EA Add 2 TN4030335 1 Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Fits SN 017000 and later · Printed as 4030335 (Tennant’s new number) · Old # 1070756 $68.38/EA Add 3 TN4016809 4 Screw, Hex, M12 X 1.75 X 30, 8.8Fits SN 017000 and later · Old # 41346 $4.00/EA Add 4 TN4034135 4 Washer, Flat, 0.50 SaeFits SN 017000 and later · Printed as 4034135 (Tennant’s new number) · Old # 32486 $2.60/EA Add 5 TN4041580 6 Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 017000 and later · Printed as 4041580 (Tennant’s new number) · Old # 07299 $2.40/EA Add 6 TN4034138 6 Washer, Flat, 0.38 StdFits SN 017000 and later · Printed as 4034138 (Tennant’s new number) · Old # 32492 $2.50/EA Add 7 TN4014538 4 Isolator, Vib, .50dFits SN 017000 and later · Printed as 4014538 (Tennant’s new number) · Old # 51176 $37.60/EA Add 8 TN4041297 4 Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 017000 and later · Printed as 4041297 (Tennant’s new number) · Old # 06972 $4.00/EA Add 9 TN4040927 4 Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 017000 and later · Printed as 4040927 (Tennant’s new number) · Old # 04414 $4.10/EA Add 10 TN4034139 3 Washer, Flat, 0.50 StdFits SN 017000 and later · Printed as 4034139 (Tennant’s new number) · Old # 32493 $3.50/EA Add 11 TN4041927 3 Nut, Hex, Lock, M12 X 1.75,NlFits SN 017000 and later · Printed as 4041927 (Tennant’s new number) · Old # 08711 $3.30/EA Add 12 TN4207513 1 Brkt Wldt, Mtg, Frt, Engine [Psi Mako]Fits SN 017000 and later · Printed as 4207513 (Tennant’s new number) · Old # 1270775 Call for price 13 TN4180344 1 Stand - Off, Hex, M8 X M8, MetalFits SN 017000 and later · Printed as 4180344 (Tennant’s new number) · Old # 1072669 $38.57/EA Add 14 TN4209004 1 Plate, Guard, Hose, Hyd, SteeringFits SN 017000 and later · Old # 1267942 Call for price 15 Old # 4209004 1 Screw, Hex, M8 X 1.25 X 90, 8.8Fits SN 017000 and later · Old # 4209004Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 16 TN4034137 1 Washer, Flat, 0.31, StdFits SN 017000 and later · Printed as 4034137 (Tennant’s new number) · Old # 32491 $2.50/EA Add 17 TN4041926 1 Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Printed as 4041926 (Tennant’s new number) · Old # 08709 $2.50/EA Add
M20 PSI engine EFI group, gas (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline
Tap a number to see that part.
Enlarge PSI Engine EFI Group, Gas (S/N 017000 - ), SN 008000 and later. Manual page 80. SES ref PF-IMKU-7Q2J Tennant M20 PSI engine EFI group, gas (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8005190 2 Isolator, Box, RelayFits SN 017000 and later · Old # 372470 $25.70/EA Add 2 TN4042535 2 Screw, Hex, .25 - 20 X 0.50, G5Fits SN 017000 and later · Old # 19315 $2.50/EA Add 3 TN4034136 4 Washer, Flat, 0.25, StdFits SN 017000 and later · Old # 32490 $2.50/EA Add 4 TN4042532 2 Nut, Hex, Std, .25 - 20Fits SN 017000 and later · Old # 19312 $2.50/EA Add 5 TN4030567 1 Fitting, Brs, Str, Pf06/Pm04 (Obsolete, Replaced by None)Fits SN 017000 and later · Old # 1071440 $66.00/EA Add 6 TN4044560 1 Fitting, Brs, Str, Bm06/Pm04Fits SN 017000 and later · Old # 150516 $5.30/EA Add 7 TN4030949 2 Clamp, Hose, Spring Stl, 0.58d X 0.31wFits SN 017000 and later · Old # 1072559 $3.20/EA Add 8 TN4030700 1 Fitting, Brs, Str, Pf02/Pm02 [Bspt]Fits SN 017000 and later · Old # 1071502 $39.76/EA Add 9 TN4038789 1 Fitting, Brs, Str, Bm06/Pm02Fits SN 017000 and later · Old # 1055552 $3.60/EA Add 10 TN4030929 1 Hose, Afmkt, Rbr, Heater, 0.38id, 03ftFits SN 017000 and later · Old # 1072408 $68.40/EA Add 11 TN4029883 1 Fitting, Brass, Rst, .125”Fits SN 017000 and later · Old # 1265088 Call for price
M20 PSI engine EFI group, LPG (S/N 17000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: LPG
Tap a number to see that part.
Enlarge PSI Engine EFI Group, LPG (S/N 17000 - ), SN 008000 and later. Manual page 82. SES ref PF-VZ2E-TXHL Tennant M20 PSI engine EFI group, LPG (S/N 17000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8005190 2 Isolator, Box, RelayFits SN 017000 and later · Old # 372470 $25.70/EA Add 2 TN4042535 2 Screw, Hex, .25 - 20 X 0.50, G5Fits SN 017000 and later · Old # 19315 $2.50/EA Add 3 TN4034136 4 Washer, Flat, 0.25, StdFits SN 017000 and later · Old # 32490 $2.50/EA Add 4 TN4042532 2 Nut, Hex, Std, .25 - 20Fits SN 017000 and later · Old # 19312 $2.50/EA Add 5 TN4030567 1 Fitting, Brs, Str, Pf06/Pm04 (Obsolete, Replaced by None)Fits SN 017000 and later · Old # 1071440 $66.00/EA Add 6 TN4044560 1 Fitting, Brs, Str, Bm06/Pm04Fits SN 017000 and later · Old # 150516 $5.30/EA Add 7 TN4030949 2 Clamp, Hose, Spring Stl, 0.58d X 0.31wFits SN 017000 and later · Old # 1072559 $3.20/EA Add 8 TN4197481 1 Fitting, Brs, E90, Bm06/Pm04Fits SN 017000 and later · Old # 1015815 $8.50/EA Add 9 TN4030929 1 Hose, Afmkt, Rbr, Heater, 0.38id, 03ftFits SN 017000 and later · Old # 1072408 $68.40/EA Add 10 TN4029883 1 Fitting, Brass, Rst, .125”Fits SN 017000 and later · Old # 1265088 Call for price

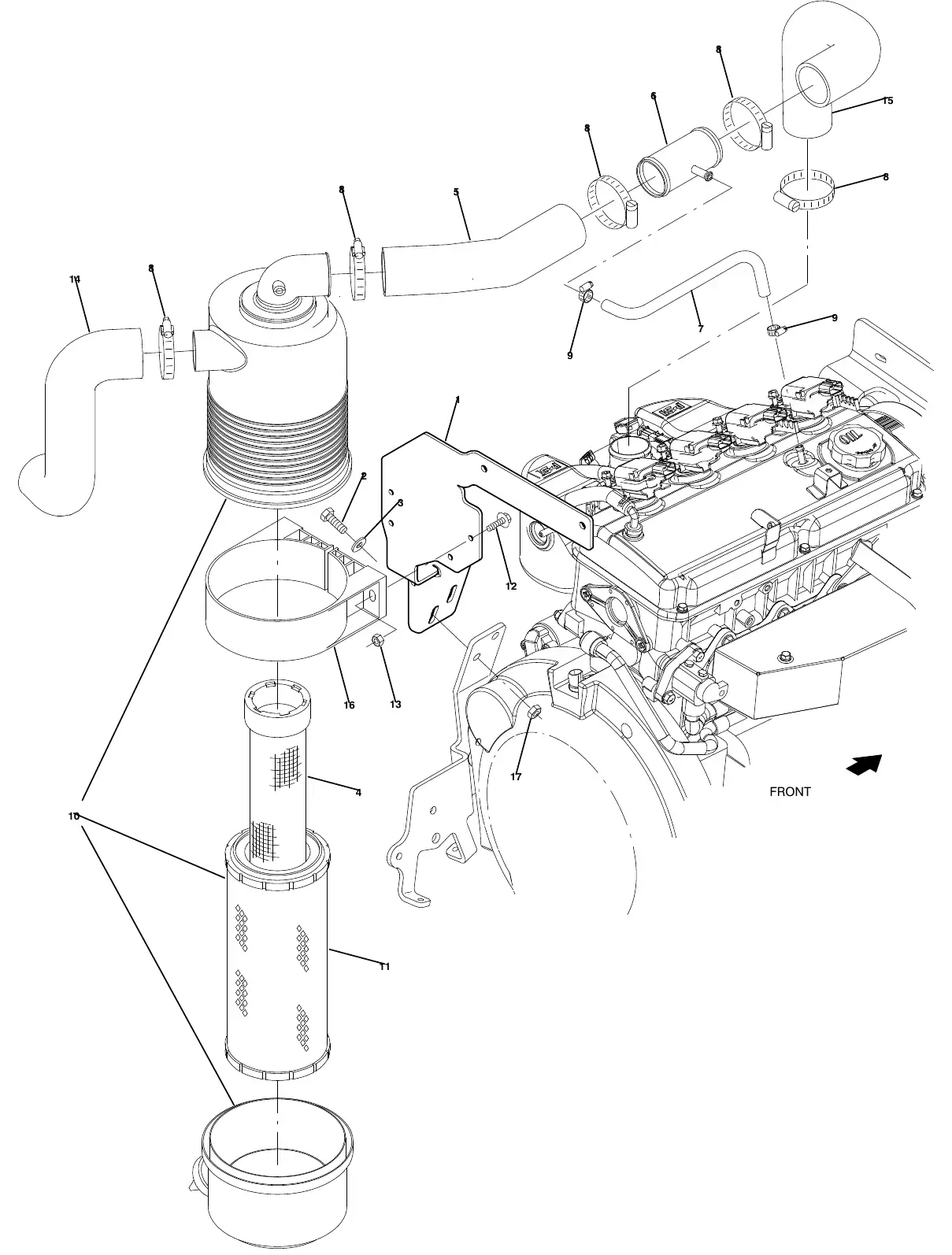

M20 PSI engine air cleaner group, gas (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline
Tap a number to see that part.
Enlarge PSI Engine Air Cleaner Group, Gas (S/N 017000 - ), SN 008000 and later. Manual page 84. SES ref PF-RYHT-ZPB5 Tennant M20 PSI engine air cleaner group, gas (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4208257 1 Bracket, Mtg, Fltr, Air [Mit 2013]Fits SN 017000 and later · Old # 1272567 Call for price 2 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 017000 and later · Old # 39277 $3.20/EA Add 3 TN4034137 2 Washer, Flat, 0.31, StdFits SN 017000 and later · Old # 32491 $2.50/EA Add 4 TN8002697 1 Element, Fltr, Air, Safety (OPTION)Fits SN 017000 and later · Old # 398279 $52.20/EA Add 5 TN4182540 1 Hose, Intake, Mold [Epdm Mit 2013]Fits SN 017000 and later · Old # 1070788 $45.22/EA Add 6 TN4182561 1 Tube Wldt, Tee [Mit 2013]Fits SN 017000 and later · Old # 1070833 $95.68/EA Add 7 TN4027047 1 Hose, Drain,Overflow,Radiator[1pick=1ft]Fits SN 017000 and later · Old # 381391 Call for price 8 TN4044328 5 Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 017000 and later · Old # 14432 $5.30/EA Add 9 TN4015366 2 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 017000 and later · Old # 54333 $5.10/EA Add 10 TN4032296 1 Filter Assy, AirFits SN 017000 and later · Old # 369745 $124.20/EA Add 11 TN8005623 1 Element, Fltr, Air [Dn]Fits SN 017000 and later · Old # 369746 $34.60/EA Add 12 TN4045568 2 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 017000 and later · Old # 1036892 $2.50/EA Add 13 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlFits SN 017000 and later · Old # 08708 $2.50/EA Add 14 TN4036284 1 Hose, Intake, Mold, 2.00id [Epdm]Fits SN 017000 and later · Old # 1020949 $59.99/EA Add 15 TN4182993 1 Hose, Intake, Mold, Gas [Epdm Mit 2013]Fits SN 017000 and later · Old # 1071404 $53.83/EA Add 16 TN4032297 1 Clamp, Mtg, Fltr, AirFits SN 017000 and later · Old # 369747 $32.90/EA Add 17 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Old # 08709 $2.50/EA Add

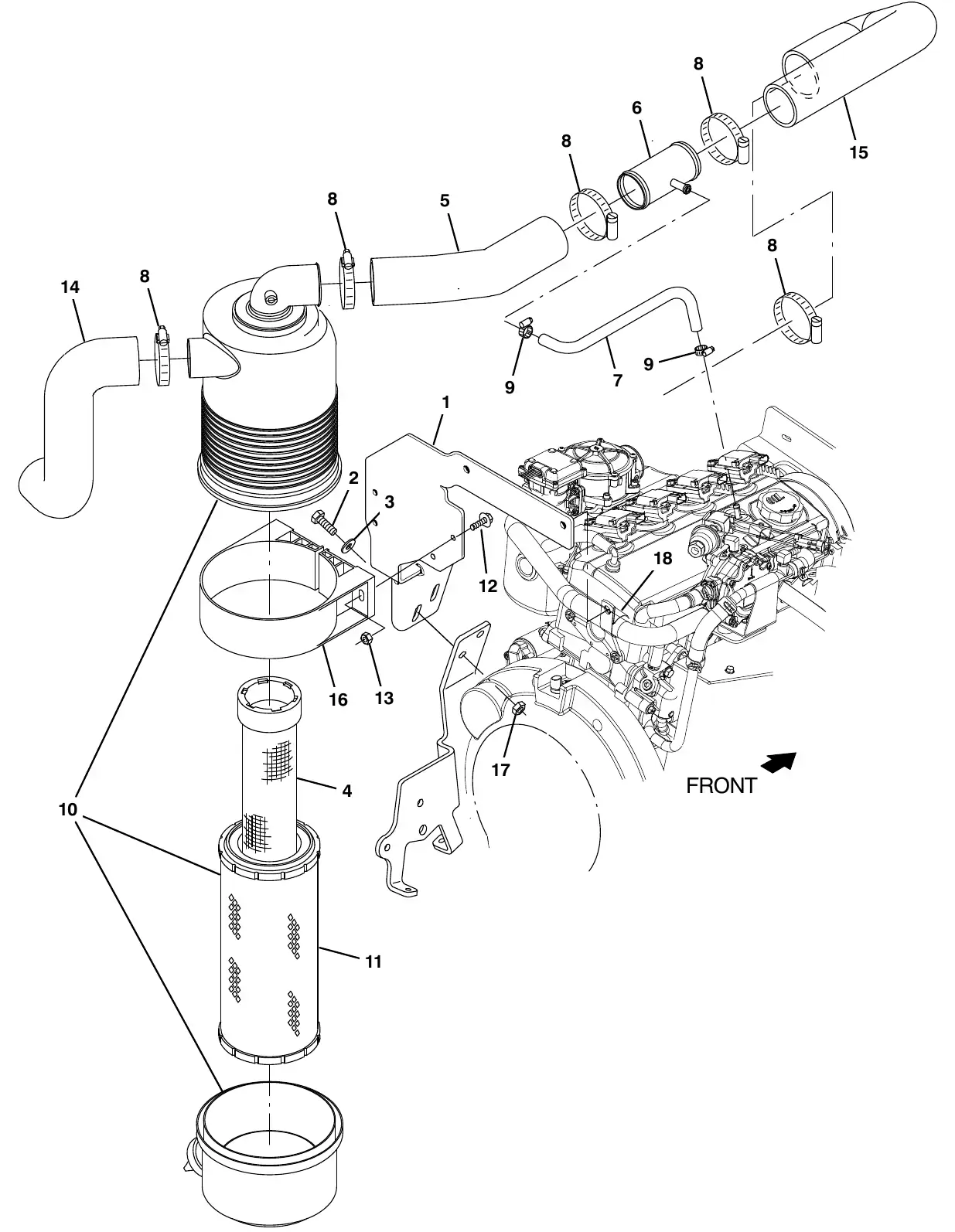

M20 PSI engine air cleaner group, LPG (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: LPG
Tap a number to see that part.
Enlarge PSI Engine Air Cleaner Group, LPG (S/N 017000 - ), SN 008000 and later. Manual page 86. SES ref PF-2CB5-Z6RD Tennant M20 PSI engine air cleaner group, LPG (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4208257 1 Bracket, Mtg, Fltr, Air [Psi]Fits SN 017000 and later · Old # 1272567 Call for price 2 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 017000 and later · Old # 39277 $3.20/EA Add 3 TN4034137 2 Washer, Flat, 0.31, StdFits SN 017000 and later · Old # 32491 $2.50/EA Add 4 TN8002697 1 Element, Fltr, Air, Safety (OPTION)Fits SN 017000 and later · Old # 398279 $52.20/EA Add 5 TN4182540 1 Hose, Intake, Mold [Epdm Mit 2013]Fits SN 017000 and later · Old # 1070788 $45.22/EA Add 6 TN4182561 1 Tube Wldt, Tee [Mit 2013]Fits SN 017000 and later · Old # 1070833 $95.68/EA Add 7 TN4027047 1 Hose, Drain,Overflow,Radiator[1pick=1ft]Fits SN 017000 and later · Old # 381391 Call for price 8 TN4044328 5 Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 017000 and later · Old # 14432 $5.30/EA Add 9 TN4015366 2 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 017000 and later · Old # 54333 $5.10/EA Add 10 TN4032296 1 Filter Assy, AirFits SN 017000 and later · Old # 369745 $124.20/EA Add 11 TN8005623 1 Element, Fltr, Air [Dn]Fits SN 017000 and later · Old # 369746 $34.60/EA Add 12 TN4045568 2 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 017000 and later · Old # 1036892 $2.50/EA Add 13 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlFits SN 017000 and later · Old # 08708 $2.50/EA Add 14 TN4036284 1 Hose, Intake, Mold, 2.00id [Epdm]Fits SN 017000 and later · Old # 1020949 $59.99/EA Add 15 TN4182539 1 Hose, Intake, Mold, Lpg [Epdm Mit2013]Fits SN 017000 and later · Old # 1070787 $37.80/EA Add 16 TN4032297 1 Clamp, Mtg, Fltr, AirFits SN 017000 and later · Old # 369747 $32.90/EA Add 17 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Old # 08709 $2.50/EA Add 18 TN4018310 1 Clamp, Cable, Stl, 1.00d X 0.75w, 1holeFits SN 017000 and later · Old # 69234 $4.20/EA Add

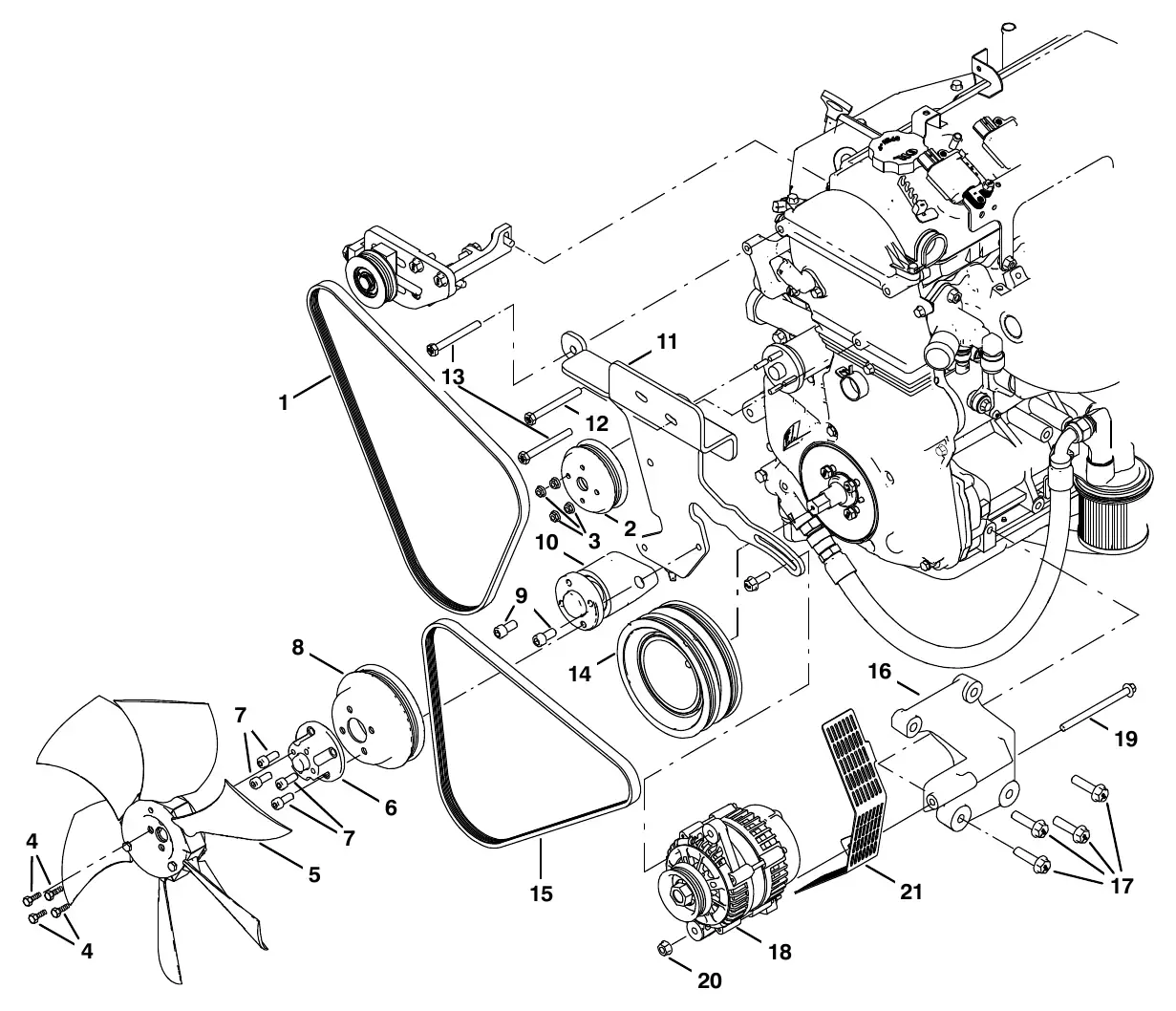

M20 PSI engine alternator and fan group (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge PSI Engine Alternator and Fan Group (S/N 017000 - ), SN 008000 and later. Manual page 88. SES ref PF-FKRU-GWJ7 Tennant M20 PSI engine alternator and fan group (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 Old # 4238302 1 VR, Belt, 4 - RIB, 1090MMFits SN 017000 and later · Old # 4238302Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 2 TN4238303 1 Pulley, Water Pump, PSIFits SN 017000 and later · Old # 4238303 · current Tennant number (Tennant parts catalog) Call for price 3 TN8048120 4 Nut, FlangeFits SN 017000 and later · Printed as 8048120 (Tennant’s new number) · Old # 9010609 $2.60/EA Add 4 TN374174 4 Screw, SOC, M8 X 1.25 X 25, 12.9Fits SN 017000 and later · Old # 374174 · current Tennant number (Tennant parts catalog) Call for price 5 TN4207904 1 Fan, Cooling, 14.1D, 6 Blade, 4 - BoltFits SN 017000 and later · Printed as 4207904 (Tennant’s new number) · Old # 1271534 Call for price 6 TN4238304 1 Space, Fan, PSIFits SN 017000 and later · Old # 4238304 · current Tennant number (Tennant parts catalog) Call for price 7 TN4014170 4 Screw, SOC, M8 X 1.25 X 16, 12.9Fits SN 017000 and later · Printed as 4014170 (Tennant’s new number) · Old # 49609 Call for price 8 TN4238305 1 Pulley, Fan, PSIFits SN 017000 and later · Old # 4238305 · current Tennant number (Tennant parts catalog) Call for price 9 TN4043111 2 Screw, SOC, .38 - 16 X 0.75, ALFits SN 017000 and later · Printed as 4043111 (Tennant’s new number) · Old # 10829 Call for price 10 TN4238306 1 ASM, Drive, Fan, PSIFits SN 017000 and later · Old # 4238306 · current Tennant number (Tennant parts catalog) Call for price 11 TN4238307 1 Brkt, Fan, PSIFits SN 017000 and later · Old # 4238307 · current Tennant number (Tennant parts catalog) Call for price 12 TN4041283 1 Screw, Hex, M8 X 1.25 X 80, 8.8Fits SN 017000 and later · Printed as 4041283 (Tennant’s new number) · Old # 06958 Call for price 13 TN4238308 2 Bolt, HXCP, M8X1.25X75Fits SN 017000 and later · Old # 4238308 · current Tennant number (Tennant parts catalog) Call for price 14 TN8003973 1 Pulley Assy, Damper, TorsionalFits SN 017000 and later · Printed as 8003973 (Tennant’s new number) · Old # 9010516 $171.80/EA Add 15 TN4030713 1 Belt, Ribbed, Alternator, 40.25LFits SN 017000 and later · Printed as 4030713 (Tennant’s new number) · Old # 1071680 Call for price 16 TN4238309 1 Brkt, Alternator, PSIFits SN 017000 and later · Old # 4238309 · current Tennant number (Tennant parts catalog) Call for price 17 TN4238310 4 Bolt, HXFL, M10X1.25 - 40Fits SN 017000 and later · Old # 4238310 · current Tennant number (Tennant parts catalog) Call for price 18 TN4238311 1 Alternator, 70A, PSIFits SN 017000 and later · Old # 4238311 · current Tennant number (Tennant parts catalog) Call for price 19 TN4238312 1 Bolt, HXCP, M8X1.25X110Fits SN 017000 and later · Old # 4238312 · current Tennant number (Tennant parts catalog) Call for price 20 TN8044984 1 Nut, Flng, M8Fits SN 017000 and later · Printed as 8044984 (Tennant’s new number) · Old # 385015 $6.70/EA Add 21 TN4238313 1 Hose, Coolant, PSIFits SN 017000 and later · Old # 4238313 · current Tennant number (Tennant parts catalog) Call for price
M20 PSI engine muffler group (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge PSI Engine Muffler Group (S/N 017000 - ), SN 008000 and later. Manual page 90. SES ref PF-KU5N-HZA2 Tennant M20 PSI engine muffler group (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4031022 1 Channel, Shield, Muffler [M20/T20 2007]Fits SN 017000 and later · Old # 1028994 $123.70/EA Add 2 TN4041931 2 Screw, Hex, M6 X 1.0 X 20, SsFits SN 017000 and later · Old # 08716 $3.20/EA Add 3 TN4034133 4 Washer, Flat, 0.25, SaeFits SN 017000 and later · Old # 32483 $2.50/EA Add 4 TN4025234 1 Pipe Kit, Exhaust, Replmt [Mako Mitsu]Fits SN 017000 and later · Old # 9013159 $415.30/EA Add 5 TN4041626 4 Nut, Hex, M10 X 1.50 [Stover]Fits SN 017000 and later · Old # 08166 $2.50/EA Add 6 TN8005433 1 Sensor, OxygenFits SN 017000 and later · Old # 1028558 $277.60/EA Add 7 TN4036679 2 Gasket, Exhaust, 2hole, 3.4bcFits SN 017000 and later · Old # 1011216 $8.10/EA Add 8 TN4019759 4 Screw, Hex, M10 X 1.5 X 35, 8.8Fits SN 017000 and later · Old # 39284 $4.00/EA Add 9 TN8005369 1 Muffler, Catalytic [Mit 2.0l 2013]Fits SN 017000 and later · Old # 1071376 $1,859.30/EA Add 10 TN4030978 1 Tube, Exhaust, Flng, 1.5d [M20/T20 2007]Fits SN 017000 and later · Old # 1028753 $210.10/EA Add 11 TN4031015 1 Bracket, Mtg, Muffler [M20/T20 2007]Fits SN 017000 and later · Old # 1028929 $25.50/EA Add 12 TN4037297 1 Rod, Hanger, IsolatorFits SN 017000 and later · Old # 1013117 $57.90/EA Add 13 TN4034138 2 Washer, Flat, 0.38, StdFits SN 017000 and later · Old # 32492 $2.50/EA Add 14 TN4035408 2 Nut, Hex, Std, .38 - 16Fits SN 017000 and later · Old # 25014 $2.40/EA Add 15 TN4037292 1 Isolator, RbrFits SN 017000 and later · Old # 1013031 $18.30/EA Add 16 TN4040603 1 Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN 017000 and later · Old # 222496 $3.40/EA Add 17 TN4040607 1 Screw, Hex, M8 X 1.25 X 45, SsFits SN 017000 and later · Old # 222505 $4.00/EA Add 18 TN4042902 2 Washer, Flat, 0.38b 0.88d .08, SsFits SN 017000 and later · Old # 01685 $2.60/EA Add 19 TN4041929 1 Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 017000 and later · Old # 08713 $3.30/EA Add 20 TN4182994 1 Shield, Tray, Drip [Mit 2013]Fits SN 017000 and later · Old # 1071418 $12.60/EA Add 21 TN4041271 3 Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 017000 and later · Old # 06943 $2.50/EA Add 22 TN4034136 1 Washer, Flat, 0.25, StdFits SN 017000 and later · Old # 32490 $2.50/EA Add 23 TN4030497 1 Bracket, MufflerFits SN 017000 and later · Old # 1071113 $15.60/EA Add 24 TN4041625 3 Nut, Hex, Stover, M8Fits SN 017000 and later · Old # 08165 $3.40/EA Add 25 TN4015595 3 Washer, Flat, 0.31, SaeFits SN 017000 and later · Old # 39349 $2.50/EA Add

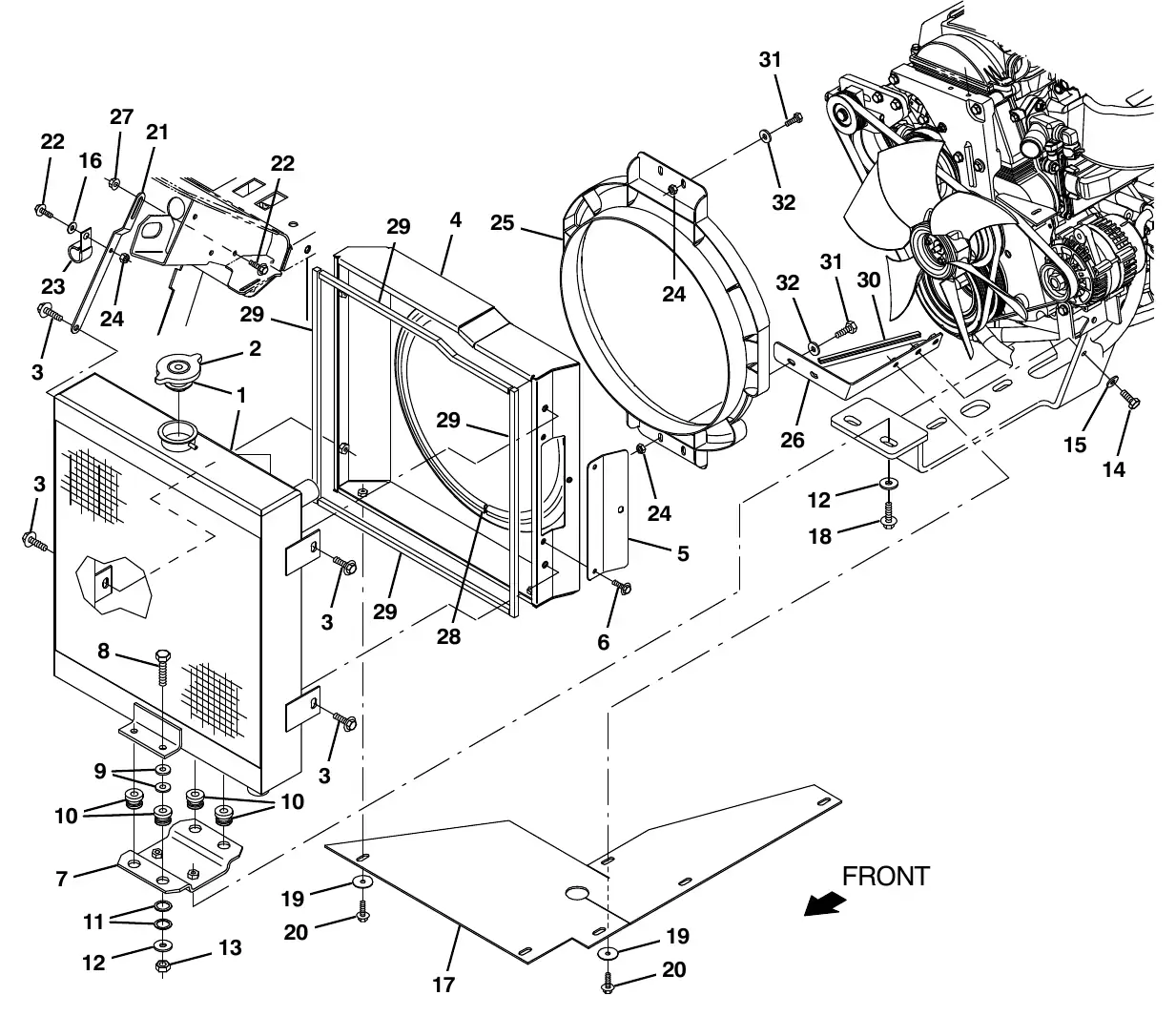

M20 PSI engine radiator and mount group (SN 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge PSI Engine Radiator and Mount Group (SN 017000 - ), SN 008000 and later. Manual page 92. SES ref PF-5OHL-A2IE Tennant M20 PSI engine radiator and mount group (SN 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4031438 1 Radiator, W/ Hyd Cooler [Afmkt]Fits SN 017000 and later · Old # 1249770 $1,665.50/EA Add 2 TN4029923 1 Cap, Radiator, 16Psi Sae 16Psi, Sae 164Fits SN 017000 and later · Old # 1265988 Call for price 3 TN4045637 4 Screw, Hex, M8 X 1.25 X 25, 9.8, SemsFits SN 017000 and later · Old # 1037346 $2.50/EA Add Item 4: choose your version (2) 4 TN4011220 1 Shrd Wldt,Fan,G/Lp, Replmt [M20/M30/T20]Fits SN 017000 and later · Old # 9010096 $102.00/EA Add 4 TN4011221 1 Shrd Wldt,Fan,G/Lp, Replmt [TJ] (Japan Only)Fits SN 017000 and later · Old # 9010097 $271.39/EA Add 5 TN4030382 1 Plate, Door, Clean - Out [Mit2013]Fits SN 017000 and later · Old # 1070955 $6.40/EA Add 6 TN4045568 3 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 017000 and later · Old # 1036892 $2.50/EA Add 7 TN4190181 1 Bracket, Mtg, RadiatorFits SN 017000 and later · Old # 1046962 $26.70/EA Add 8 TN4041287 4 Screw, Hex, M10 X 1.50 X 45, 8.8Fits SN 017000 and later · Old # 06962 $4.00/EA Add 9 TN4034138 8 Washer, Flat, 0.38, StdFits SN 017000 and later · Old # 32492 $2.50/EA Add 10 TN4015364 4 Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN 017000 and later · Old # 54274 $14.70/EA Add 11 TN4042008 8 Washer, Flat, 0.81b 1.06d .06, StlFits SN 017000 and later · Old # 09832 $3.30/EA Add 12 TN4037922 4 Washer, Flat, 0.40b 1.12d .12, SsFits SN 017000 and later · Old # 1014563 $5.80/EA Add 13 TN4016826 4 Nut, Hex, Lock, M10 X 1.5, NlFits SN 017000 and later · Old # 41430 $4.00/EA Add 14 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 017000 and later · Old # 39277 $3.20/EA Add 15 TN4034137 6 Washer, Flat, 0.31, StdFits SN 017000 and later · Old # 32491 $2.50/EA Add 16 TN4034136 2 Washer, Flat, 0.25, StdFits SN 017000 and later · Old # 32490 $2.50/EA Add 17 TN4030761 1 Skirt, Eng Fan, Gas / LpFits SN 017000 and later · Old # 1071785 $73.00/EA Add 18 TN4045641 2 Screw, Hex, M8 X 1.25 X 35, 9.8, SemsFits SN 017000 and later · Old # 1037355 $2.50/EA Add 19 TN4016794 7 Washer, Flat, 0.25, FendrFits SN 017000 and later · Old # 41178 $2.50/EA Add 20 TN4045568 7 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 017000 and later · Old # 1036892 $2.50/EA Add 21 TN4036225 1 Bracket, Mtg, RadiatorFits SN 017000 and later · Old # 1019968 $18.60/EA Add 22 TN4044400 2 Screw, Hex, M6 X 1.00 X 20, 9.8, SemsFits SN 017000 and later · Old # 1040467 $3.30/EA Add 23 TN4036443 1 Clip, Keeper, OpenFits SN 017000 and later · Old # 30407 $1.70/EA Add 24 TN4041925 5 Nut, Hex, Lock, M6 X 1.00, NlFits SN 017000 and later · Old # 08708 $2.50/EA Add 25 TN4038497 1 Shroud, FanFits SN 017000 and later · Old # 1054428 $126.20/EA Add 26 TN4030343 1 Bracket, Shrd, Fan, Lower, Sppt, G/LpgFits SN 017000 and later · Old # 1070860 $24.40/EA Add 27 TN4041604 1 Nut, Hex, Flng, M6 X 1.00Fits SN 017000 and later · Old # 07790 $3.20/EA Add 28 TN4039684 1 Seal, Afmkt, Bulb, Str, 0.58d 08ftFits SN 017000 and later · Old # 1048166 $53.10/EA Add 29 TN4038013 4 Seal, Afmkt, Ure, Adh, 0.38, 0.38w 02ftFits SN 017000 and later · Old # 1015205 $6.30/EA Add 30 TN4029367 1 Molding, Trim, Pvc, .08 - .11 06.8lFits SN 017000 and later · Old # 57569 Call for price 31 TN4041271 4 Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 017000 and later · Old # 06943 $2.50/EA Add 32 TN4034133 4 Washer, Flat, 0.25, SaeFits SN 017000 and later · Old # 32483 $2.50/EA Add
M20 PSI engine radiator hose group (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge PSI Engine Radiator Hose Group (S/N 017000 - ), SN 008000 and later. Manual page 94. SES ref PF-UI4P-XQWN Tennant M20 PSI engine radiator hose group (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4030330 1 Hose, Coolant, Mold, 1.25id To 1.62idFits SN 017000 and later · Printed as 4030330 (Tennant’s new number) · Old # 1070732 $13.00/EA Add 2 TN4037088 1 Clamp, Hose, Wormdrive, 1.56 - 2.50d, .50wFits SN 017000 and later · Printed as 4037088 (Tennant’s new number) · Old # 22297 $4.20/EA Add 3 TN4026556 5 Clamp, Hose, Wormdrive, 1.25 - 2.00d, .50wFits SN 017000 and later · Printed as 4026556 (Tennant’s new number) · Old # 79381 $6.20/EA Add 4 TN4039550 1 Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Fits SN 017000 and later · Printed as 4039550 (Tennant’s new number) · Old # 1007482 $20.40/EA Add 5 TN4030491 1 Tube, Coolant, 1.3d, Lower [Mit 2013]Fits SN 017000 and later · Printed as 4030491 (Tennant’s new number) · Old # 1071099 $11.90/EA Add 6 TN4027830 1 Hose Kit, Coolant, Replmt [Mitsubishi}Fits SN 017000 and later · Printed as 4027830 (Tennant’s new number) · Old # 9010904 $41.60/EA Add 7 TN4014543 1 Fitting, Draincock, E90, .25nptFits SN 017000 and later · Printed as 4014543 (Tennant’s new number) · Old # 51305 $15.10/EA Add 8 TN4016344 1 Hose, Pvc, Clr, 0.38id 0.56od 022.0lFits SN 017000 and later · Printed as 4016344 (Tennant’s new number) · Old # 73471 $7.60/EA Add 9 TN4017396 3 Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 017000 and later · Printed as 4017396 (Tennant’s new number) · Old # 43844 $4.20/EA Add 10 TN4022521 1 Hose, Fuel, 0.18id, 29.0lFits SN 017000 and later · Printed as 4022521 (Tennant’s new number) · Old # 87738 $19.40/EA Add 11 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Printed as 4041926 (Tennant’s new number) · Old # 08709 $2.50/EA Add 12 TN4156940 2 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 017000 and later · Printed as 4156940 (Tennant’s new number) · Old # 39277 $3.20/EA Add 13 TN4034137 2 Washer, Flat, 0.31, StdFits SN 017000 and later · Printed as 4034137 (Tennant’s new number) · Old # 32491 $2.50/EA Add 14 TN4038493 1 Tank, Coolant, 03.6w 04.1hi 05.5l,1literFits SN 017000 and later · Printed as 4038493 (Tennant’s new number) · Old # 1054382 $119.90/EA Add 15 TN4037950 1 Hose, Afmkt, Coolant Recvy, 05ftFits SN 017000 and later · Printed as 4037950 (Tennant’s new number) · Old # 1014843 $63.10/EA Add 16 TN4015029 1 Clamp, Cable, Stl, 1.50d X 1.00w, 1holeFits SN 017000 and later · Printed as 4015029 (Tennant’s new number) · Old # 53466 $4.20/EA Add 17 TN4041844 1 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 017000 and later · Printed as 4041844 (Tennant’s new number) · Old # 16931 $2.50/EA Add

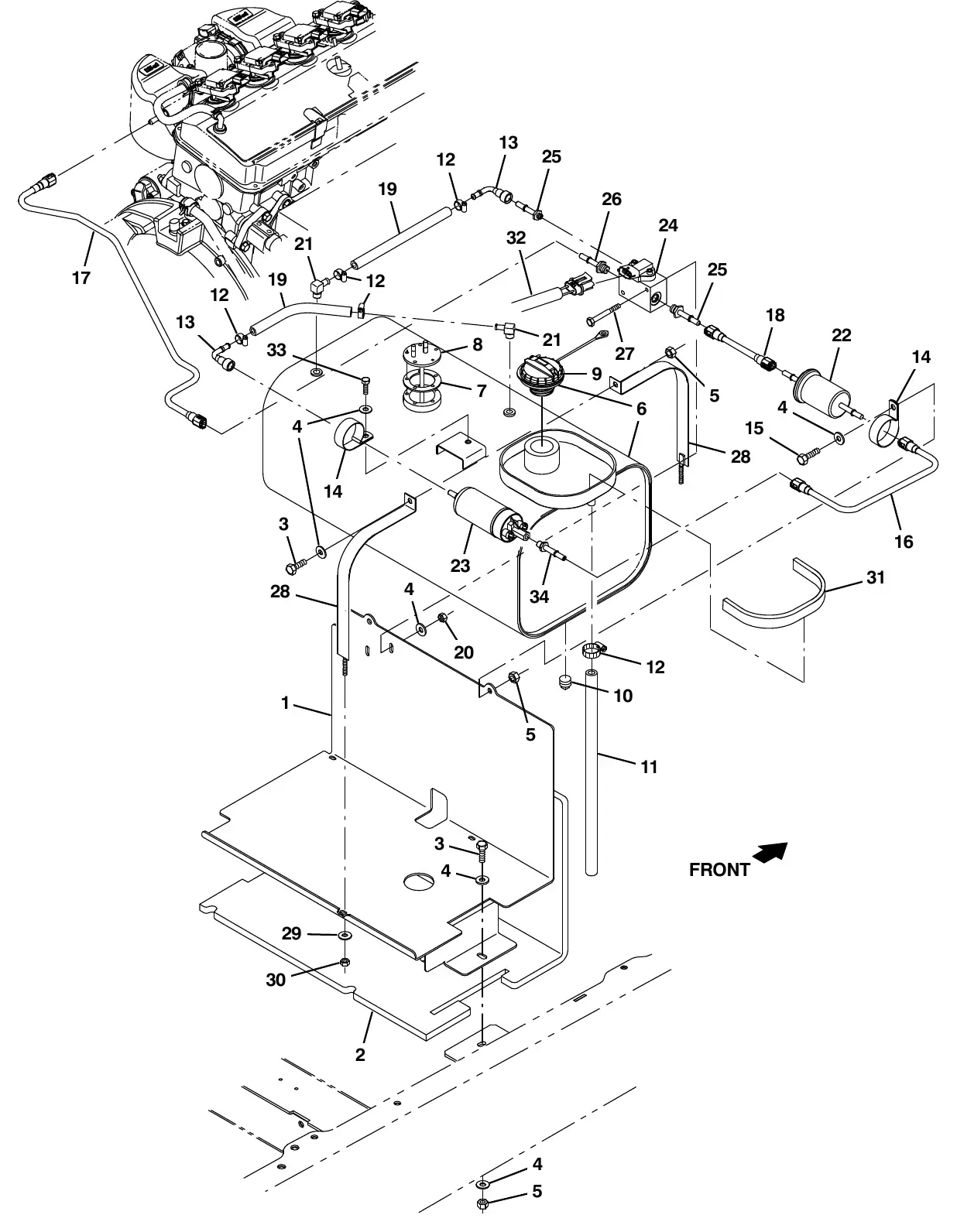

M20 PSI engine fuel tank group, gas (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: Gasoline
Tap a number to see that part.
Enlarge PSI Engine Fuel Tank Group, Gas (S/N 017000 - ), SN 008000 and later. Manual page 96. SES ref PF-P5L3-TAPX Tennant M20 PSI engine fuel tank group, gas (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4194105 1 Tray Wldt, FuelFits SN 017000 and later · Old # 1026550 $171.70/EA Add 2 TN4194130 1 Insulation, Flame - Retardant, 0.5Fits SN 017000 and later · Old # 1026759 $80.60/EA Add 3 TN4156940 3 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 017000 and later · Old # 39277 $3.20/EA Add 4 TN4034137 7 Washer, Flat, 0.31, StdFits SN 017000 and later · Old # 32491 $2.50/EA Add 5 TN4041926 4 Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Old # 08709 $2.50/EA Add 6 TN4203095 1 Tank, Fuel, 11.2gal, Gas, Replmt [2007]Fits SN 017000 and later · Old # 9003610 $805.70/EA Add 7 TN8006208 1 Gasket, Sender, FuelFits SN 017000 and later · Old # 1033897 $9.20/EA Add 8 TN8006221 1 Send - Unit, Fuel [2007]Fits SN 017000 and later · Old # 1033901 $122.70/EA Add 9 TN8006207 1 Cap, Fuel, TankFits SN 017000 and later · Old # 1032812 $36.90/EA Add 10 TN4013933 1 Fitting, Pipe, Plug, Pm02, Sq HeadFits SN 017000 and later · Old # 48126 $2.93/EA Add 11 TN4033269 1 Hose, Fuel, 0.50id, 21.0lFits SN 017000 and later · Old # 1023482 $10.10/EA Add 12 TN4015366 5 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 017000 and later · Old # 54333 $5.10/EA Add 13 TN4037296 2 Connector, Fuel, QfFits SN 017000 and later · Old # 1013086 $16.90/EA Add 14 TN4036932 2 Clamp, Cable, Stl, 2.00d X 0.75w, 1holeFits SN 017000 and later · Old # 1011895 $5.05/EA Add 15 TN4041281 2 Screw, Hex, M8 X 1.25 X 45, 8.8Fits SN 017000 and later · Old # 06956 $4.00/EA Add 16 TN4045263 1 Fuelline, .31d Str/Str,Plstc[M20/T20 07]Fits SN 017000 and later · Old # 1034676 $52.10/EA Add 17 TN4030561 1 Fuelline, .31d Str/Str, Plstc [Mit 2013]Fits SN 017000 and later · Old # 1071388 $56.80/EA Add 18 TN4037227 1 Fuelline, .31d Str/Str, PlstcFits SN 017000 and later · Old # 1012248 $80.80/EA Add 19 TN4045069 2 Hose, Fuel, 0.31id [Evap Emission 07]Fits SN 017000 and later · Old # 1033746 $13.00/EA Add 20 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlFits SN 017000 and later · Old # 08708 $2.50/EA Add 21 TN4019173 2 Fitting, Brs, E90, Em05/Pm04Fits SN 017000 and later · Old # 9000355 $6.30/EA Add 22 TN8005188 1 Filter, Fuel [Gm 1.6l/3.0l]Fits SN 017000 and later · Old # 372440 $64.20/EA Add 23 TN8002487 1 Pump, FuelFits SN 017000 and later · Old # 9006592 $1,016.40/EA Add 24 TN8005437 1 Manifold, Gas, Relief, ValveFits SN 017000 and later · Old # 1028924 $1,128.00/EA Add 25 TN8047407 2 Fitting, Fuel, Str, 0.56 - 18 [07 Eng]Fits SN 017000 and later · Old # 1029293 $148.20/EA Add 26 TN8005499 1 Fitting, Fuel, Str, 0.38 - 24 [07 Eng]Fits SN 017000 and later · Old # 1029295 $140.10/EA Add 27 TN4041277 2 Screw, Hex, M6 X 1.0 X 50, 8.8Fits SN 017000 and later · Old # 06949 $3.30/EA Add 28 TN4193651 2 Strap, Tank, GasFits SN 017000 and later · Old # 1025229 $18.10/EA Add 29 TN4034133 2 Washer, Flat, 0.25, SaeFits SN 017000 and later · Old # 32483 $2.50/EA Add 30 TN4034654 2 Nut, Hex, Lock, .25 - 20, NlFits SN 017000 and later · Old # 32981 $2.50/EA Add 31 TN4218342 1 Molding, Trim, Pvc, .08 - .11 13.2lFits SN 017000 and later · Old # 62595-15 Call for price 32 TN8044978 1 Harness, Manifold, GasFits SN 017000 and later · Old # 385009 $257.35/EA Add 33 TN4041844 1 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 0017000 and later · Old # 16931 $2.50/EA Add 34 TN8047304 1 Fitting, Fuel, Str, M10x1.0Fits SN 0017000 and later · Old # 9019145 $59.79/EA Add
M20 PSI engine fuel tank group, LPG (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: LPG
Tap a number to see that part.
Enlarge PSI Engine Fuel Tank Group, LPG (S/N 017000 - ), SN 008000 and later. Manual page 98. SES ref PF-XORH-WUPS Tennant M20 PSI engine fuel tank group, LPG (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4035518 1 Tray Wldt, LpgFits SN 017000 and later · Old # 1017947 $120.90/EA Add 2 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 017000 and later · Old # 39277 $3.20/EA Add 3 TN4034137 8 Washer, Flat, 0.31, StdFits SN 017000 and later · Old # 32491 $2.50/EA Add 4 TN4041926 4 Nut, Hex, Lock, M8 X 1.25, NlFits SN 017000 and later · Old # 08709 $2.50/EA Add 5 TN4017052 1 Magnet, Drive BrushFits SN 017000 and later · Old # 63378 $21.10/EA Add 6 TN4041965 2 Screw, Pan, M5 X 0.8 X 12, SsFits SN 017000 and later · Old # 09200 $3.40/EA Add 7 TN4033855 1 Pin, Locating, LpgFits SN 017000 and later · Old # 1024934 $13.43/EA Add 8 TN4034138 2 Washer, Flat, 0.38 StdFits SN 017000 and later · Old # 32492 $2.50/EA Add 9 TN4016826 1 Nut, Hex, Lock, M10 X 1.5, NlFits SN 017000 and later · Old # 41430 $4.00/EA Add 10 TN4034476 2 Nut, Hex, Jam, M10 X 1.5, SsFits SN 017000 and later · Old # 32716 $4.00/EA Add 11 TN4029786 1 Strap, Mtg, Tank, LpgFits SN 017000 and later · Old # 58589 $113.90/EA Add 12 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 017000 and later · Old # 16931 $2.50/EA Add 13 TN4029300 1 Strap, Mtg, Tank, Lpg, HingeFits SN 017000 and later · Old # 57297 $114.90/EA Add 14 TN4031662 1 Screw, Hex, .38 - 16 X 3.75, 5Fits SN 017000 and later · Old # 35710 $1.10/EA Add 15 TN4026793 1 Nut, Hex, Lock, .38 - 16, Nl, SsFits SN 017000 and later · Old # 59156 $4.00/EA Add 16 TN4029787 1 Strap, Mtg, Tank, LpgFits SN 017000 and later · Old # 58590 $88.70/EA Add 17 TN4015025 1 Latch Assy, Mtg, Tank, Lpg, W/NutFits SN 017000 and later · Old # 53400-1 $56.90/EA Add 18 TN4015026 1 Nut, Adj, Mtg, Tank, LpgFits SN 017000 and later · Old # 53400-4 $13.30/EA Add 19 TN4028758 1 Nut, Hex, Lock, .38 - 16, Nl, ThinFits SN 017000 and later · Old # 36643 $2.50/EA Add 20 TN4035691 1 Fitting, Brs, Qdc, Pf04, Lpg FemFits SN 017000 and later · Old # 26496 $86.90/EA Add 21 TN4037354 1 Hose, Lpg, Med05, Pm04str/Sm04str, 14.0lFits SN 017000 and later · Old # 22308-6 $46.90/EA Add 22 TN4041151 2 Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunFits SN 017000 and later · Old # 150709 $14.40/EA Add 23 TN4026127 1 Fitting, Brs, Str, Pf04/Pf04, BhFits SN 017000 and later · Old # 78122 $30.50/EA Add 24 TN4035699 2 Fitting, Brs, E90, Pf04/Pm04Fits SN 017000 and later · Old # 27048 $5.30/EA Add 25 TN4035364 1 Valve, Lpg, Press Relief [Rego]Fits SN 017000 and later · Old # 24047 $133.70/EA Add 26 TN4042556 1 Hose, Lpg, Med05, Pm04str/Sm04str, 55.0lFits SN 017000 and later · Old # 19760 $82.40/EA Add 28 TN4041876 1 Fitting, Hyd, Str, Pf02/Pm04Fits SN 017000 and later · Old # 17414 $7.90/EA Add 27 TN4232409 1 Fitting, Pipe, Str, Pm04/Sf04Fits SN 017000 and later · Old # 11442-23 $6.70/EA Add 29 TN4035027 1 Switch, Press, 12vdc 08a Spst Nc 0070psiFits SN 017000 and later · Old # 23156 $112.50/EA Add 30 TN4035401 1 Tank, Lpg, 33lb, W/ Gauge [Empty, Liq]Fits SN 017000 and later · Old # 24928-1 $816.50/EA Add 31 TN4031659 1 Screw, Hex, .38 - 16 X 3.00, 5Fits SN 017000 and later · Old # 35707 $1.15/EA Add 32 TN4017933 1 Clamp, Cable, Stl, 0.69d X 0.62w, 1holeFits SN 017000 and later · Old # 67767 $4.20/EA Add 33 TN4041270 1 Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 017000 and later · Old # 06942 $2.50/EA Add 34 TN4034133 1 Washer, Flat, 0.25, SaeFits SN 017000 and later · Old # 32483 $2.50/EA Add

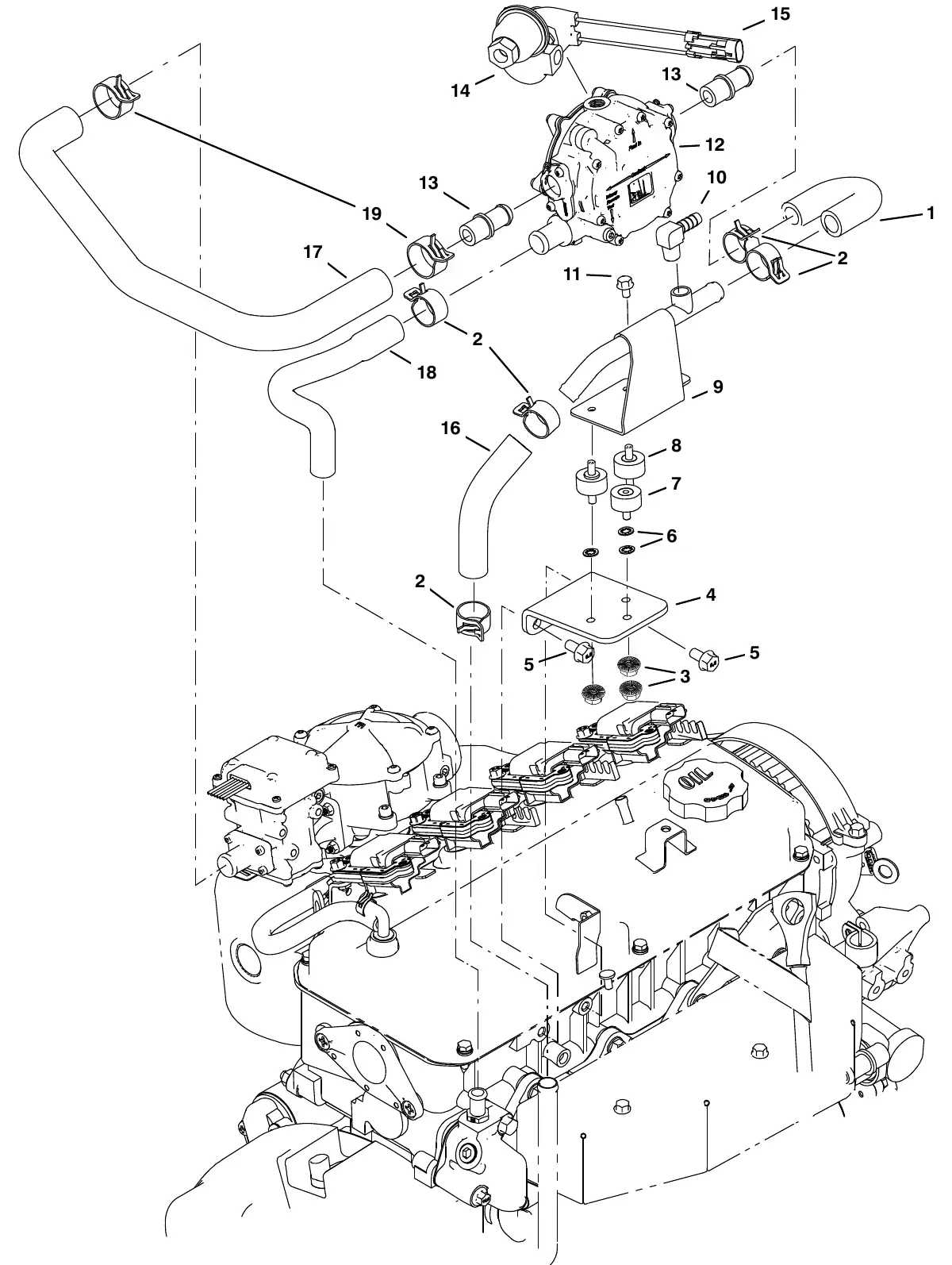

M20 PSI engine vaporizer group, LPG (S/N 017000 - ) Standard parts SN 008000 and later PSI · SN 017000 and later Fits: LPG
Tap a number to see that part.
Enlarge PSI Engine Vaporizer Group, LPG (S/N 017000 - ), SN 008000 and later. Manual page 100. SES ref PF-RFWJ-JRXD Tennant M20 PSI engine vaporizer group, LPG (S/N 017000 - ) parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4238314 1 Hose, Coolant, PSIFits SN 017000 and later · Old # 4238314 · current Tennant number (Tennant parts catalog) Call for price 2 TN8003170 5 Clamp, Hose, Spring, 0.62DFits SN 017000 and later · Printed as 8003170 (Tennant’s new number) · Old # 384979 $4.10/EA Add 3 TN8003837 3 Nut, M6 - 1.0 FLANGE [MIT]Fits SN 017000 and later · Printed as 8003837 (Tennant’s new number) · Old # 9010264 $2.60/EA Add 4 TN8003845 1 Brkt, Vaporizer [MIT 20/24M TILT]Fits SN 017000 and later · Printed as 8003845 (Tennant’s new number) · Old # 9010275 $60.60/EA Add 5 TN8003850 2 Bolt, M8 - 1.25 X 16 FL HD [MIT]Fits SN 017000 and later · Printed as 8003850 (Tennant’s new number) · Old # 9010280 $3.50/EA Add 6 TN4034655 3 Washer, Lock, INT, 0.25Washer, Lock, INT, 0.25Fits SN 017000 and later · Printed as 4034655 (Tennant’s new number) · Old # 32982 $2.60/EA Add 7 TN4238315 1 ISO, Regulator, P/S, PSIFits SN 017000 and later · Old # 4238315 · current Tennant number (Tennant parts catalog) Call for price 8 TN4238316 2 ISO, Regulator, S/S, PSIFits SN 017000 and later · Old # 4238316 · current Tennant number (Tennant parts catalog) Call for price 9 TN4238317 1 Tube, Brkt, CoolantFits SN 017000 and later · Old # 4238317 · current Tennant number (Tennant parts catalog) Call for price 10 TN4197481 1 Fitting, BRS, E90, BM06/PM04Fits SN 017000 and later · Printed as 4197481 (Tennant’s new number) · Old # 1015815 $8.50/EA Add 11 TN8003835 1 Bolt, M6 - 1.0 X 10 FL HD [MIT]Fits SN 017000 and later · Printed as 8003835 (Tennant’s new number) · Old # 9010262 $3.40/EA Add 12 TN8002154 1 RegulatorFits SN 017000 and later · Printed as 8002154 (Tennant’s new number) · Old # 9008193 $475.20/EA Add 13 TN8003843 2 Fitting, 1/2 X 5/8 Hose,Plastic[MIT]Fits SN 017000 and later · Printed as 8003843 (Tennant’s new number) · Old # 9010273 $14.40/EA Add 14 TN4015547 1 Valve, Lock OffFits SN 017000 and later · Printed as 4015547 (Tennant’s new number) · Old # 9006620 $374.70/EA Add 15 TN8003872 1 Fitting, 1/4MPT X 1/4MPT, 90DEG[MIT]Fits SN 017000 and later · Printed as 8003872 (Tennant’s new number) · Old # 9010317 $24.30/EA Add 16 TN4238318 1 Hose, Coolant, PSIFits SN 017000 and later · Old # 4238318 · current Tennant number (Tennant parts catalog) Call for price 17 TN8003846 1 Hose, Fuel, Molded [MIT 20/24M]Fits SN 017000 and later · Printed as 8003846 (Tennant’s new number) · Old # 9010276 $29.60/EA Add 18 TN4238319 1 Hose, Coolant, PSIFits SN 017000 and later · Old # 4238319 · current Tennant number (Tennant parts catalog) Call for price 19 TN8003844 2 Clamp, Tension [MIT 29]Fits SN 017000 and later · Printed as 8003844 (Tennant’s new number) · Old # 9010274 $6.10/EA Add
M20 electrical wire harness group, Gasoline/LPG engine Standard parts SN 008000 and later Fits: Gasoline LPG
Tennant M20 electrical wire harness group, Gasoline/LPG engine parts, SN 008000 and later Item Part number Qty Description and notes Price TN8005427 1 Harness, Wire, Eng, Gas [Mit, 2.0l]Fits SN 008000–015000 · Old # 1071653 $1,434.90/EA Add 1 TN4015796 2 Relay, 12vdc, 20a, SpdtOld # 394916 $15.40/EA Add 2 TN4029449 1 Relay, 12vdc, 40a, SpdtOld # 57804 $16.30/EA Add 3 TN8004955 3 Fuse, 20 Amp, [Min - 20]Old # 372237 $5.20/EA Add 4 TN8004953 1 Fuse, 5 Amp, [Min - 5]Old # 372235 $5.50/EA Add 5 TN8044970 1 Fuse, 10 AmpOld # 384999 $1.75/EA Add TN8005428 1 Harness, Wire, Eng, Lpg [Mit, 2.Ol]Fits SN 008000–015000 · Old # 1071654 $1,268.00/EA Add 1 TN4015796 2 Relay, 12vdc, 20a, SpdtOld # 394916 $15.40/EA Add 2 TN4029449 1 Relay, 12vdc, 40a, SpdtOld # 57804 $16.30/EA Add 3 TN8004955 3 Fuse, 20 Amp, [Min - 20]Old # 372237 $5.20/EA Add 4 TN8004953 1 Fuse, 5 Amp, [Min - 5]Old # 372235 $5.50/EA Add 5 TN8044970 1 Fuse, 10 AmpOld # 384999 $1.75/EA Add 6 TN4045313 1 Fuse, Blade, 070a, 32vdc [Maxi]Old # 1076351 $3.40/EA Add Old # 1268233 1 Harness, Engine, KubotaFits SN 015001 and later · Old # 1268233Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering

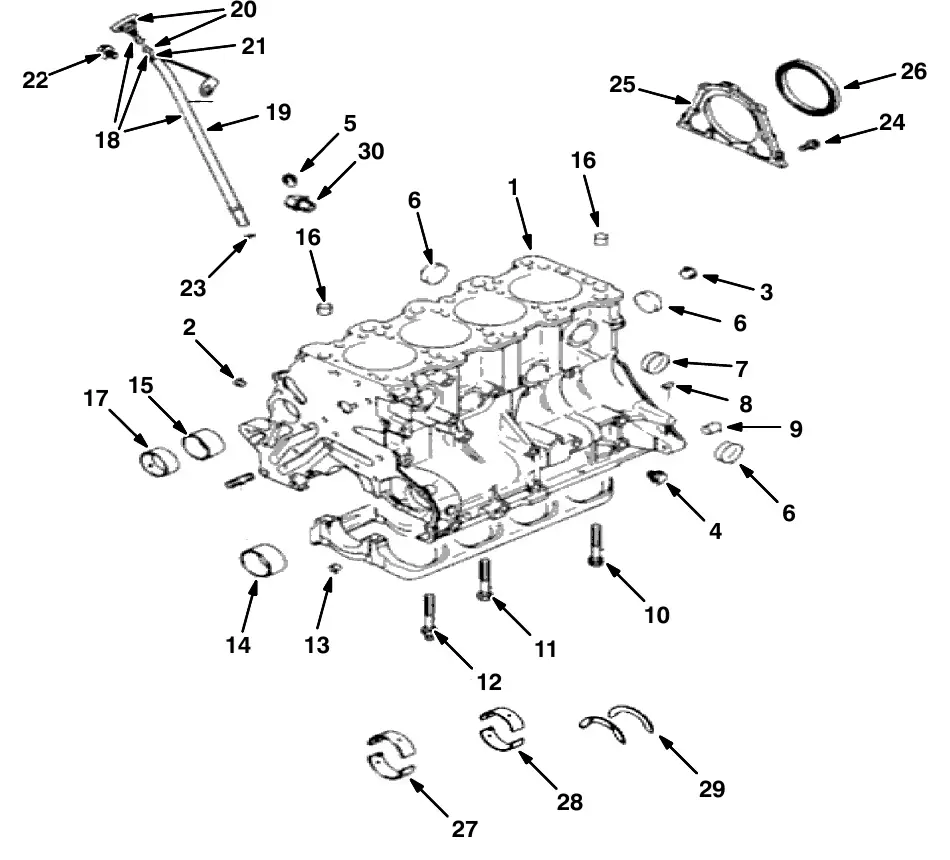

M20 cylinder block group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Cylinder Block Group, SN 008000 and later. Manual page 336. SES ref PF-AY6G-LJR5 Tennant M20 cylinder block group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003898 1 Block Assy, CylinderOld # 9010419 $5,928.20/EA Add 2 TN8003899 2 Plug, TaperOld # 9010420 $3.23/EA Add 3 TN8003900 1 Plug, TaperOld # 9010421 $3.23/EA Add 4 TN8003901 1 PlugOld # 9010422 $2.83/EA Add 5 TN8003902 1 Plug, TaperOld # 9010423 $5.45/EA Add 6 TN8003903 7 Cap, SealOld # 9010424 $2.60/EA Add 7 TN8003904 2 Cap, SealOld # 9010425 $4.10/EA Add 8 TN8003905 2 Pin, DowelOld # 9010426 $2.30/EA Add 9 TN8003906 2 Bushing, KnockOld # 9010427 $2.83/EA Add 10 TN8003907 2 Bolt, Cap, BearingOld # 9010428 $3.43/EA Add 11 TN8003908 7 Bolt, Cap, BearingOld # 9010429 $4.44/EA Add 12 TN8003909 1 Bolt, Cap, BearingOld # 9010430 $4.85/EA Add 13 TN8003910 2 BushingOld # 9010431 $2.40/EA Add Item 14: choose your version (2) 14 TN8003911 1 Bearing, Std, BalancerOld # 9010432 $64.44/EA Add 14 TN8003912 1 Bearing, Oversize [1.0]Old # 9010433 $66.16/EA Add Item 15: choose your version (2) 15 TN8003913 1 Bearing, Std, BalancerOld # 9010434 $93.43/EA Add 15 TN8003914 1 Bearing, Oversize [1.0]Old # 9010435 $93.43/EA Add 16 TN8003915 2 Bushing, KnockOld # 9010436 $3.50/EA Add Item 17: choose your version (2) 17 TN8003932 1 Bearing, Shaft, Std, BalancerOld # 9010458 $66.16/EA Add 17 TN8003933 1 Bearing, Shaft, Balancer [ Ovrsz]Old # 9010459 $69.89/EA Add 18 TN8003916 1 Dipstick Assy, GuageOld # 9010439 $46.90/EA Add 19 TN8003917 1 Dipstick, Guage, GuideOld # 9010440 $41.24/EA Add 20 TN8003337 1 Dipstick, OilOld # 9015866 $17.60/EA Add 21 TN8048109 1 O - RingOld # 9010438 $2.20/EA Add 22 TN8003918 1 Bolt, FlangeOld # 9010441 $1.50/EA Add 23 TN8048110 1 O - RingOld # 9010442 $2.80/EA Add 24 TN8003919 5 Bolt, FlangeOld # 9010444 $1.25/EA Add 25 TN8003920 1 Seal, Case, Oil, RearOld # 9010445 $31.10/EA Add 26 TN8003921 1 Seal, OilOld # 9010446 $21.60/EA Add Item 27: choose your version (5) 27 TN8003922 4 Bearing, Cshft [Green Std 1,2,4,5]Old # 9010447 $9.80/EA Add 27 TN8003923 4 Bearing, Cshft [Yellow Std 1,2,4,5] (Repl by9010454)Old # 9010448 $9.80/EA Add 27 TN8003928 4 Bearing, Cshft[No Color Std 1,2,4,5]Old # 9010454 $9.80/EA Add 27 TN8003925 4 Bearing, Cshft [ Lan Std 1,2,4,5]Old # 9010450 $9.80/EA Add 27 TN8003926 4 Bearing, Cshft [ Red Std 1,2,4,5]Old # 9010451 $9.80/EA Add Item 28: choose your version (5) 28 TN4027498 1 Bearing, Cshft [ Green Std 3]Old # 9010452 Call for price 28 TN8003927 1 Bearing, Cshft [ Yellow Std 3]Old # 9010453 $8.99/EA Add 28 TN8003928 1 Bearing, Cshft [ No Color Std 3]Old # 9010454 $9.80/EA Add 28 TN8003929 1 Bearing, Cshft [ Lan Std 3]Old # 9010455 $9.80/EA Add 28 TN8003930 1 Bearing, Cshft [ Black Std 3]Old # 9010456 $14.30/EA Add 29 TN8003931 1 Bearing, Thrust, CshftOld # 9010457 $9.39/EA Add 30 TN8048111 1 Drain, Water, JointOld # 9010443 $16.97/EA Add
M20 rocker cover group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 rocker cover group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003934 1 Valve, PcvOld # 9010460 $15.90/EA Add 2 TN8003935 1 Valve, Gasket, PcvOld # 9010461 $4.20/EA Add 3 TN8003936 6 Bolt, Rocker, CoverOld # 9010462 $2.20/EA Add 4 TN8003937 1 Cap, Oil, FillerOld # 9010464 $9.70/EA Add 5 TN8003939 1 Cover Assy, RockerOld # 9010466 $178.30/EA Add 6 TN8003938 1 Gasket, Cover, RockerOld # 9010465 $27.70/EA Add
M20 cylinder head group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 cylinder head group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4026470 1 Head Kit, Cyl [Mitsubishi 2015 12mm]Old # 9014162 $6,997.80/EA Add TN8047663 1 Head Assy, Cylinder[Mits 2015 12mm]Old # 9014161 Call for price 2 TN8003944 2 StudOld # 9010473 $3.90/EA Add 3 TN8003941 2 Seal, CapOld # 9010469 $2.80/EA Add 4 TN8003942 3 StudOld # 9010470 $2.50/EA Add 5 TN8003910 2 BushingOld # 9010431 $2.40/EA Add 6 TN8003940 1 Gasket, Cylinder, HeadOld # 9010468 $51.30/EA Add TN8003938 1 Gasket, Cover, RockerOld # 9010465 $27.70/EA Add TN8003678 4 Plug, Spark [Mitsubishi 2015 12mm]Old # 9014160 $5.00/EA Add 7 TN8003943 1 Seal, Cam Shaft, FrontOld # 9010471 $12.20/EA Add 8 TN8003918 2 Bolt, FlangeOld # 9010441 $1.50/EA Add 9 TN8003946 1 Thurst, CaseOld # 9010480 $13.20/EA Add 10 TN8003947 2 ScrewOld # 9010481 $1.50/EA Add 11 TN8003948 1 O - RingOld # 9010482 $6.60/EA Add 12 TN8003950 10 Cylinder Assy, Head, BoltOld # 9010484 $7.50/EA Add 13 TN8003949 1 GasketOld # 9010483 $5.50/EA Add 14 TN8003951 1 CoverOld # 9010485 $6.30/EA Add

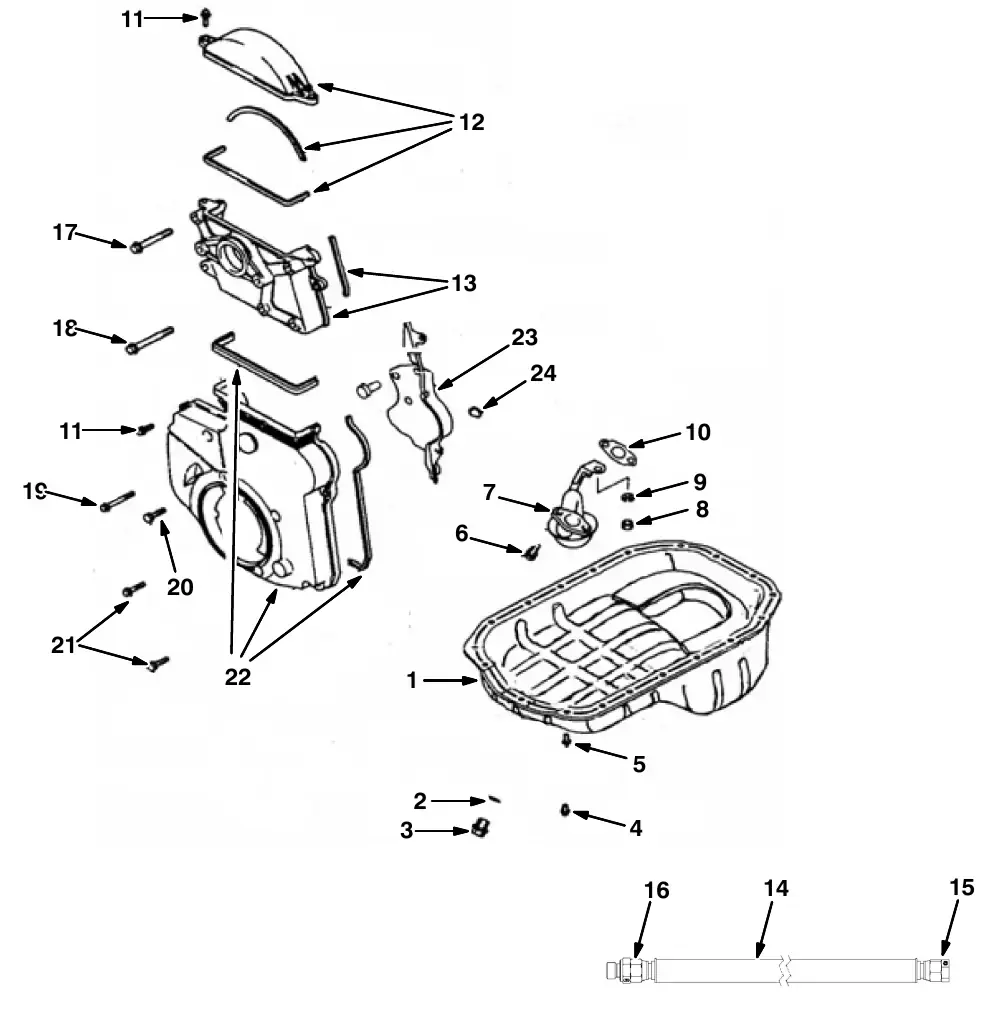

M20 front cover and oil pan group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Front Cover and Oil Pan Group, SN 008000 and later. Manual page 340. SES ref PF-RBUR-TLZB Tennant M20 front cover and oil pan group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003952 1 Pan, OilOld # 9010487 $119.50/EA Add 2 TN8003953 1 Gasket, Plug, Drain, OilOld # 9010488 $1.90/EA Add 3 TN8003954 1 Plug, Oil, DrainOld # 9010489 $5.30/EA Add 4 TN8003955 17 Bolt, FlangeOld # 9010490 $1.31/EA Add 5 TN8003956 2 Bolt, FlangeOld # 9010491 $1.40/EA Add 6 TN8003957 2 Washer, BoltOld # 9010492 $2.12/EA Add 7 TN8003958 1 Screen, OilOld # 9010493 $41.92/EA Add 8 TN8003959 1 Nut, StrainerOld # 9010494 $1.31/EA Add 9 TN8003960 1 Washer, StrainerOld # 9010495 $1.21/EA Add 10 TN8003961 1 Gasket, ScreenOld # 9010496 $2.80/EA Add 11 TN8003962 8 Bolt, FlangeOld # 9010497 $1.50/EA Add 12 TN8003963 1 Cover Assy, Front, Upper [T - Belt]Old # 9010498 $14.40/EA Add 13 TN8003964 1 Bracket Assy, Coil, IgnitionOld # 9010502 $53.30/EA Add 14 TN8048102 1 Hose, Drain, Oil [Mit 20/24m]Old # 9010311 $68.70/EA Add 15 TN8003870 1 Plug, Flare, 37deg [Mit]Old # 9010312 $12.20/EA Add 16 TN8048103 1 Fitting, 37deg [Mit]Old # 9010313 $20.20/EA Add 17 TN8003965 3 Bolt, FlangeOld # 9010503 $3.50/EA Add 18 TN8003966 1 Bolt, FlangeOld # 9010504 $3.40/EA Add 19 TN8003967 1 Bolt, FlangeOld # 9010505 $2.40/EA Add 20 TN8003968 2 BoltOld # 9010506 $1.80/EA Add 21 TN8003969 2 BoltOld # 9010507 $1.50/EA Add 22 TN8003970 1 Cover, Lower, Front [T - Belt]Old # 9010508 $72.10/EA Add 23 TN8003971 1 Cover, Rear [T - Belt]Old # 9010511 $15.00/EA Add 24 TN8048112 1 Plug, RubberOld # 9010512 $2.60/EA Add

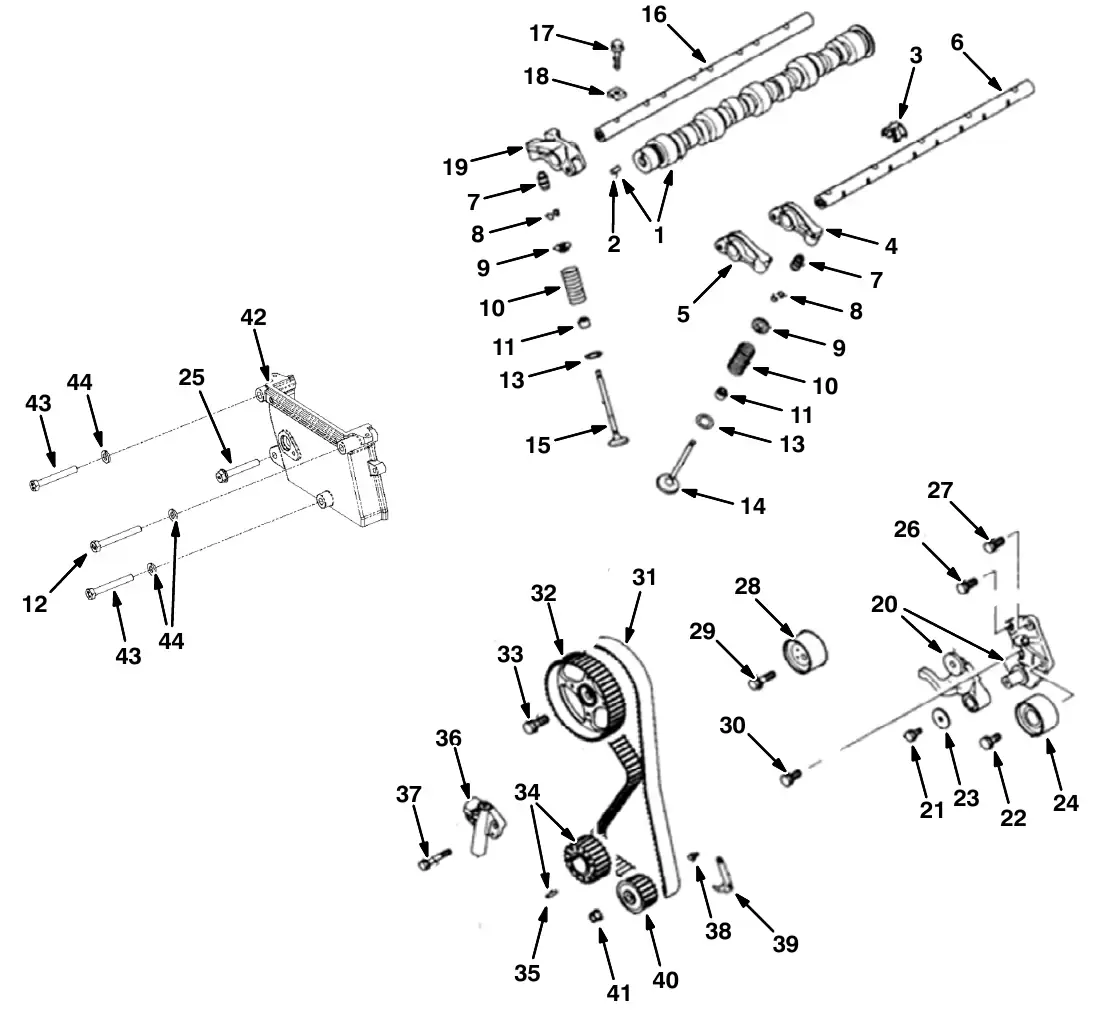

M20 camshaft and valve group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Camshaft and Valve Group, SN 008000 and later. Manual page 342. SES ref PF-LS6Q-ANV4 Tennant M20 camshaft and valve group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8004012 1 Camshaft AssyOld # 9010530 $549.95/EA Add 2 TN8004017 1 Pin, DowelOld # 9010535 $2.30/EA Add 3 TN8004014 4 Shaft, Spring, RockerOld # 9010532 $4.40/EA Add 4 TN8004015 4 Arm Assy, Rocker [B]Old # 9010533 $31.11/EA Add 5 TN8004016 4 Arm Assy, Rocker [A]Old # 9010534 $37.21/EA Add 6 TN8004013 1 Shaft, Arm , RockerOld # 9010531 $43.43/EA Add 7 TN8004018 16 Adjuster Assy, LashOld # 9010536 $29.50/EA Add 8 TN8004019 32 Valve, Spring, LockOld # 9010537 $1.52/EA Add 9 TN8004020 16 Valve, Spring, RetainerOld # 9010538 $5.15/EA Add 10 TN8004021 16 Valve, SpringOld # 9010539 $7.58/EA Add 11 TN8004022 16 Valve, Seal, StemOld # 9010540 $5.90/EA Add 12 TN8003828 1 Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 $7.00/EA Add 13 TN8004023 16 Valve, Spring, SeatOld # 9010541 $1.50/EA Add 14 TN8004024 8 Valve, InletOld # 9010542 $20.40/EA Add 15 TN8004025 8 Valve, ExhaustOld # 9010543 $18.80/EA Add 16 TN8004026 1 Shaft, Arm, RockerOld # 9010544 $43.43/EA Add 17 TN8004027 13 Bolt, FlangeOld # 9010545 $1.80/EA Add 18 TN8004028 13 Shaft, Cap, RockerOld # 9010546 $2.30/EA Add 19 TN8004029 4 Arm Assy, Rocker [C]Old # 9010547 $41.65/EA Add 20 TN8004030 1 Bracket, Pulley, TensionerOld # 9010548 $183.10/EA Add 21 TN8004031 1 Bolt, WasherOld # 9010549 $2.30/EA Add 22 TN8004032 1 Bolt, WasherOld # 9010550 $3.10/EA Add 23 TN8004033 1 WasherOld # 9010551 $10.00/EA Add 24 TN8004034 1 Pulley, IdlerOld # 9010552 $54.20/EA Add 25 TN8003829 1 Bolt, M8 - 1.25 X 55 Fi Hd [Mit]Old # 9010254 $3.33/EA Add 26 TN8004035 1 Bolt, SealOld # 9010554 $3.50/EA Add 27 TN8004036 1 Bolt, WasherOld # 9010555 $3.80/EA Add 28 TN8004037 1 Pulley, TensionerOld # 9010556 $48.00/EA Add 29 TN8004038 1 Bolt, WasherOld # 9010557 $3.90/EA Add 30 TN8004032 1 Bolt, WasherOld # 9010550 $3.10/EA Add 31 TN8004039 1 Belt, TimingOld # 9010559 $165.80/EA Add 32 TN8004040 1 Sprocket, CamshaftOld # 9010560 $31.90/EA Add 33 TN8004041 1 Bolt, FlangeOld # 9010561 $2.83/EA Add 34 TN8004042 1 Sprocket Assy, CshftOld # 9010562 $25.90/EA Add 35 TN8048116 1 Pin, SpringOld # 9010563 $8.30/EA Add 36 TN8004043 1 TensionerOld # 9010564 $201.60/EA Add 37 TN8004044 2 Bolt, FlangeOld # 9010565 $2.60/EA Add 38 TN8003956 2 Bolt, FlangeOld # 9010491 $1.40/EA Add 39 TN8004045 1 Bracket, Indicator, TimingOld # 9010567 $4.14/EA Add 40 TN8004046 1 Sprocket, Pump, OilOld # 9010568 $15.70/EA Add 41 TN8004047 1 NutOld # 9010569 $2.65/EA Add 42 TN8003825 1 Cover, Timing, Gear [Mit 2.0/2.4l]Old # 9010250 $349.80/EA Add 43 TN8003826 2 Bolt, M8 - 1.25 X 65 Hxhd [Mit]Old # 9010251 $1.80/EA Add 44 TN8003894 3 Washer, Lock, M8 [Mit]Old # 9010380 · Replaces 9010252 (2022 list (rev. 08)) $1.20/EA Add

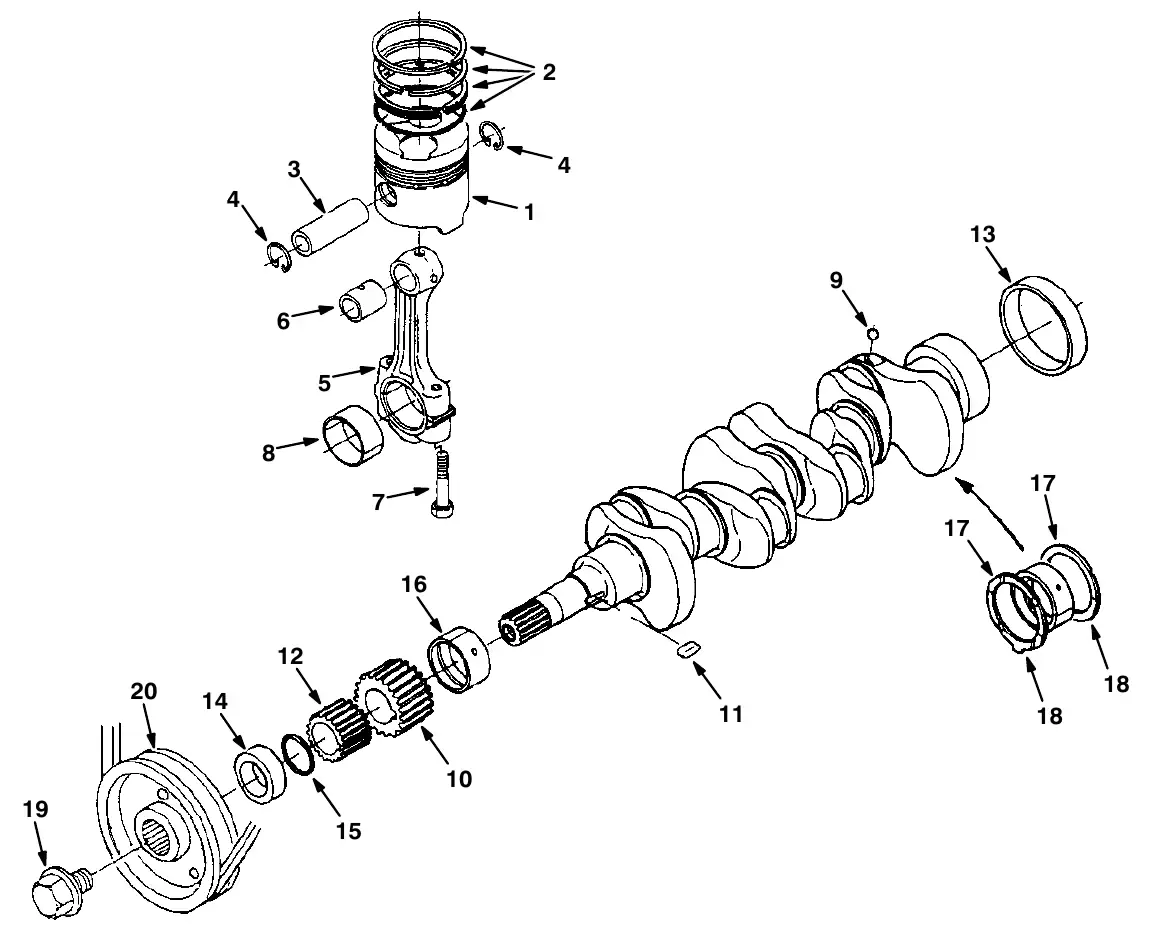

M20 piston and crankshaft group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 piston and crankshaft group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003972 1 Crankshaft AssyOld # 9010513 $996.06/EA Add 2 TN8048113 1 KeyOld # 9010514 $4.20/EA Add 3 TN8048114 1 Washer, SpecialOld # 9010515 $6.80/EA Add 4 TN4186701 1 Spacer, Crank Pulley, PSI 2.0LOld # 9023270 Call for price 5 TN8003973 1 Pulley Assy, Damper, TorsionalOld # 9010516 $171.80/EA Add 6 TN8003974 4 Bolt, WasherOld # 9010517 $2.20/EA Add 7 TN8048115 1 Bolt, Sprocket, CshftOld # 9010518 $11.20/EA Add 8 TN8003975 1 Pin, DowelOld # 9010519 $4.85/EA Add 9 TN8003976 4 Rod Assy, ConnectingOld # 9010520 $185.94/EA Add 10 TN8004003 8 NutOld # 9010521 $3.03/EA Add Item 11: choose your version (3) 11 TN8004004 4 Bearing, Rod, Connect [Yellow Std]Old # 9010522 $8.89/EA Add 11 TN8004005 4 Bearing, Rod, Connect [No Color Std]Old # 9010523 $9.49/EA Add 11 TN8004006 4 Bearing, Rod, Connect [Lan Std]Old # 9010524 $9.49/EA Add 12 TN8004007 8 Bolt, ConnectingOld # 9010525 $22.83/EA Add Item 13: choose your version (3) 13 TN8004008 4 Piston, Pin [Std A]Old # 9010526 $63.43/EA Add 13 TN8004009 4 Piston, Pin [Std B]Old # 9010527 $63.43/EA Add 13 TN8004010 4 Piston, Pin [Std C]Old # 9010528 $63.43/EA Add 14 TN8004011 1 Piston Set, RingOld # 9010529 $109.58/EA Add
M20 balancer group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 balancer group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8004048 1 Bolt, Belt, Balancer, TrainOld # 9010570 $3.50/EA Add 2 TN8004049 1 Tensioner, Timing, BeltOld # 9010571 $33.80/EA Add 3 TN8004050 1 Flange, Sprocket, CshftOld # 9010572 $4.34/EA Add 4 TN8004070 1 Bolt, FlangeOld # 9010600 $2.90/EA Add 5 TN8004051 1 Washer, Belt, Balancer, TrainOld # 9010574 $3.30/EA Add 6 TN8004052 1 Belt, TimingOld # 9010575 $30.70/EA Add 7 TN8004053 1 Sprocket, Shaft, BalancerOld # 9010576 $10.30/EA Add 8 TN8004054 1 Spacer, Belt, Balancer, TrainOld # 9010577 $11.50/EA Add 9 TN8004055 1 Shaft, Right, BalancerOld # 9010578 $136.45/EA Add 10 TN8004056 1 Shaft, Left, BalancerOld # 9010579 $115.65/EA Add 11 TN8004057 1 Sprocket, CshftOld # 9010580 $27.55/EA Add
M20 oil pump and pressure switch group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 oil pump and pressure switch group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8004058 1 Pump, OilOld # 9010582 $316.00/EA Add 2 TN9010592 1 Pump, Gear, Drive, OilOld # 9010592 · current Tennant number (Tennant parts catalog) $399.00/EA Add 3 TN8004060 1 Seal, OilOld # 9010585 $13.90/EA Add 4 TN8004061 1 Seal, OilOld # 9010586 $16.90/EA Add 5 TN8004062 1 Plug, TapperOld # 9010587 $5.50/EA Add 6 TN8003905 2 Pin, DowelOld # 9010426 $2.30/EA Add 7 TN8004063 1 ScrewOld # 9010589 $41.92/EA Add 8 TN8004064 4 Bolt, FlangeOld # 9010590 $1.82/EA Add 9 TN9010591 1 Pump, Gear, OilOld # 9010591 · current Tennant number (Tennant parts catalog) Call for price 10 TN8004071 1 Seal, OilOld # 9010601 $13.20/EA Add 11 TN8004065 1 Gasket, Case, FrontOld # 9010593 $9.90/EA Add 12 TN8004066 3 Bolt, WasherOld # 9010594 $2.90/EA Add 13 TN8004067 1 Bolt, WasherOld # 9010595 $2.90/EA Add 14 TN8048117 1 Plug, CapOld # 9010596 $7.40/EA Add 15 TN8048118 1 O - RingOld # 9010597 $3.60/EA Add 16 TN8004068 1 Bolt, FlangeOld # 9010598 $2.90/EA Add 17 TN8004069 1 Bolt, FlangeOld # 9010599 $2.73/EA Add 18 TN8004070 1 Bolt, FlangeOld # 9010600 $2.90/EA Add 19 TN8004059 1 Bolt, FlangeOld # 9010583 $3.50/EA Add 20 TN8003832 1 Sender, Oil, Press [Mit] (3 Prong)Old # 9010259 $295.90/EA Add
M20 water pump group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 water pump group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8004072 1 Pump, WaterOld # 9010602 $226.70/EA Add 2 TN8004073 1 Gasket, Pump, WaterOld # 9010603 $8.20/EA Add 3 TN8004074 1 Bolt, FlangeOld # 9010604 $2.60/EA Add 4 TN8003965 1 Bolt, FlangeOld # 9010503 $3.50/EA Add 5 TN8004075 2 Bolt, FlangeOld # 9010606 $1.50/EA Add 6 TN8004076 1 Bolt, FlangeOld # 9010607 $1.50/EA Add 7 TN8004077 1 Pulley, Pump, WaterOld # 9010612 $31.20/EA Add 8 TN8048120 4 Nut, FlangeOld # 9010609 $2.60/EA Add 9 TN8048121 4 Washer, SpringOld # 9010610 $1.50/EA Add 10 TN4186700 1 Spacer, Water Pump, PSI 2.0LOld # 9023269 Call for price

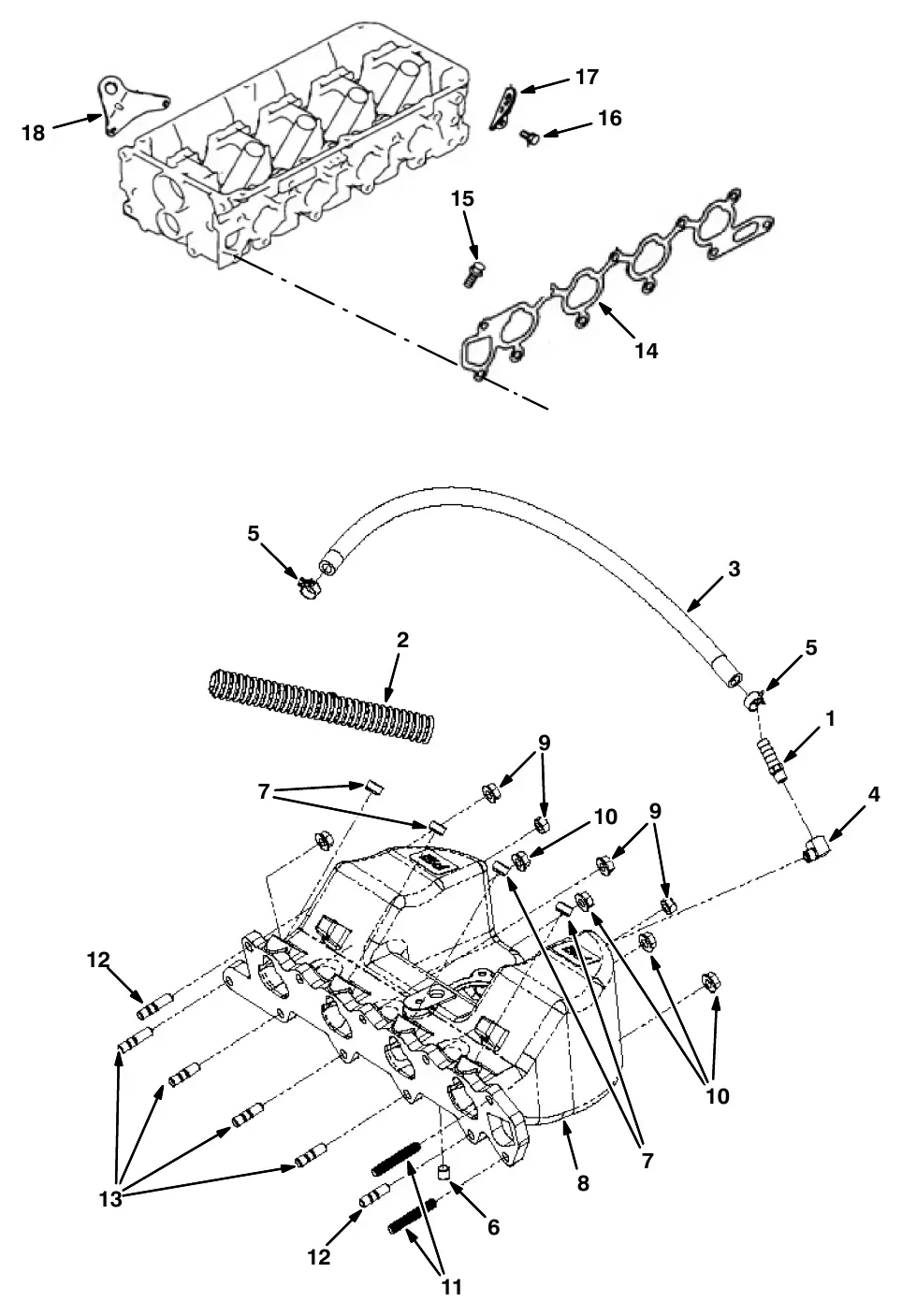

M20 intake manifold gasket group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Intake Manifold Gasket Group, SN 008000 and later. Manual page 348. SES ref PF-GFGD-KIIC Tennant M20 intake manifold gasket group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003895 1 Fitting, 1/8 Mpt X 3/8 Hb [Mit]Old # 9010382 $10.95/EA Add 2 TN8003851 17” Loom, Convoluted, Split 5/8 [Mit]Old # 9010281 $28.73/EA Add 3 TN8044972 20” Hose, Fuel, .38d, Rbr[16”L]Old # 385001 $16.00/EA Add 4 TN8048107 1 Elbow, 1/8m X 1/8f, 90 [Mit]Old # 9010383 $13.40/EA Add 5 TN8048058 2 Clamp, 3/8id [Mit Olive Green]Old # 9010282 $4.15/EA Add 6 TN8048104 1 Plug, 1/8 Npt, Brs, Skt Hd [Mit]Old # 9010283 · replaced by 8048104 (Tennant parts catalog) Call for price 7 TN8048059 4 Plug, Injector [Mit]Old # 9010284 $3.10/EA Add 8 TN8003852 1 Manifold, Intake [Mit 20/24m Tilt]Old # 9010285 $950.90/EA Add 9 TN8003853 2 Nut, M8 - 1.25 [Mit]Old # 9010286 $3.50/EA Add 10 TN8044984 7 Nut, Flng, M8Old # 385015 $6.70/EA Add 11 TN8003854 2 Stud, M8 - 1.25 X 50 Full Thrd [Mit]Old # 9010287 $6.70/EA Add 12 TN8003855 2 Stud, M8 - 1.25 X 35 [Mit Double End]Old # 9010288 $4.20/EA Add 13 TN8003896 4 Stud, M8 - 1.25 X 30 [Mit Double End]Old # 9010384 $5.90/EA Add 14 TN8004078 1 Gasket, Manifold, IntakeOld # 9010613 $19.90/EA Add 15 TN8004075 2 Bolt, FlangeOld # 9010606 $1.50/EA Add 16 TN8004079 1 Bolt, Manifold, InletOld # 9010615 $1.50/EA Add 17 TN8004080 1 Hanger, EngineOld # 9010617 $4.30/EA Add 18 TN8004081 1 Hanger, EngineOld # 9010618 $13.30/EA Add
M20 exhaust manifold gasket group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 exhaust manifold gasket group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003859 1 Gasket, Manifold, Exh [Mit]Old # 9010296 $58.20/EA Add 2 TN8003860 7 Stud, M8 - 1.25 X 40 [Mit]Old # 9010297 $4.90/EA Add 3 TN8004596 3 Stud, Manifold, Intake, M8 X 28Old # 372020 $29.60/EA Add 4 TN8003861 1 Manifold, Exhaust [Mit 2.0/2.4l]Old # 9010298 $548.40/EA Add 5 TN8003862 1 Shield, Heat, Lower [Mit 20/24m]Old # 9010302 $89.20/EA Add 6 TN8003863 1 Shield, Heat, Upper [Mit 20/24m]Old # 9010303 $137.20/EA Add 7 TN8047578 10 Nut [2.4l Mit]Old # 9015915 $2.40/EA Add 8 TN8003835 5 Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 $3.40/EA Add 9 TN8047579 2 Nut [2.4l Mit]Old # 9015916 $2.90/EA Add 10 TN8004082 1 Gasket, Manifold, ExhaustOld # 9010619 $22.80/EA Add
M20 fan tensioner and pump mount group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 fan tensioner and pump mount group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8045530 1 Ring, RetainingOld # 371562 $38.80/EA Add 2 TN8003797 1 Plate, Tensioner, Adj [Mit 2.0/2.4l]Old # 9010222 $122.00/EA Add 3 TN8003798 1 Bar, Tensioner, Mtg [Mit 2.0/2.4l]Old # 9010223 $29.30/EA Add 4 TN8003799 1 Pulley, Tensioner, Assy[Mit2.0/2.4l]Old # 9010224 $346.10/EA Add 5 TN8003800 1 Bracket, Tensioner, [Mit 2.0/2.4l]Old # 9010225 $105.30/EA Add 6 TN8003801 2 Bolt, 3/8 - 16 X 1 1/4 Hxhd [Mit]Old # 9010226 $2.20/EA Add 7 TN8045487 2 Washer, Lock, 0.38Old # 371509 $2.60/EA Add 8 TN8003802 3 Washer, Flat 3/8, SaeOld # 9010227 $1.50/EA Add 9 TN8003803 1 Bolt, 3/8 - 16 X 4.5 [Mit]Old # 9010228 $8.50/EA Add 10 TN8003804 4 Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 $3.50/EA Add 11 TN8003805 2 Bolt, M8 - 1.25 X 20 Fl Hd [Mit]Old # 9010230 $3.30/EA Add 12 TN8003806 1 Bolt, M8 - 1.25 X 25 Soc Hd [Mit]Old # 9010231 $8.20/EA Add 13 TN8004085 1 Bracket, Pump, MtgOld # 9010623 $59.39/EA Add 14 TN8004086 1 Bolt, WasherOld # 9010624 $2.83/EA Add 15 TN8004087 2 Bolt, WasherOld # 9010625 $3.54/EA Add
M20 flywheel group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 flywheel group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003807 6 Bolt, M8 - 1.25 X 15, Hx Hd [Mit]Old # 9010232 $2.60/EA Add 2 TN8003808 1 Flywheel, Flatface [Mit 20/24m]Old # 9010233 $421.50/EA Add 3 TN8003809 1 Coupling, Flywheel [Mit20/24m]Old # 9010234 $1,151.80/EA Add 4 TN8003810 3 Pin, Flywheel [Mit 20/20m]Old # 9010235 $4.10/EA Add 5 TN8003811 7 Bolt, Flywheel [Mit 20/24m]Old # 9010236 $5.20/EA Add 6 TN8003876 2 Bolt, M12 - 1.75 X 25, Hex Hd [Mit]Old # 9010359 $3.43/EA Add 7 TN8003812 1 Cover, Dust [Mit 2.0l]Old # 9010237 $73.93/EA Add 8 TN8003813 1 Housing, Flywheel [Mit 2.0l]Old # 9010238 $629.53/EA Add 9 TN8003877 2 Washer, Lock, M12 [Mit]Old # 9010360 $8.18/EA Add 10 TN8003814 1 Nut, M10 - 1.25 Flg [Mit]Old # 9010239 $1.50/EA Add 11 TN8003815 2 Bolt, M6 - 1.0 X 20 Fl Hd [Mit]Old # 9010240 $3.60/EA Add 12 TN8003816 4 Bolt, M10 - 1.25 X 30 Soc Hd [Mit]Old # 9010241 $7.40/EA Add 13 TN8003817 2 Bolt, M10 - 1.25 X 45 Soc Hd [Mit]Old # 9010242 $8.38/EA Add
M20 remote oil filter group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 remote oil filter group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002631 1 Element, Fltr, Oil, Spin - On (Mits)Old # 393982 $30.00/EA Add 2 TN8005673 1 Mount, Fltr, RemoteOld # 371503 $221.60/EA Add 3 TN8048105 1 Fitting, Str, 10 - 10 Orb, 37fi [Mit]Old # 9010371 $12.40/EA Add 4 TN8003890 1 Plug, 3/8npt X 5/16, Brs [Mit]Old # 9010372 $14.40/EA Add 5 TN8048106 1 Adapter, Filter, Oil, Remote [Mit]Old # 9010373 $100.00/EA Add 6 TN8003891 1 Bracket, Filter, Oil, Remote [Mit]Old # 9010374 $24.40/EA Add 7 TN8003892 1 Hose, 90xstr,Flter, Oil, Remote[Mit]Old # 9010376 $240.10/EA Add 8 TN8003892 1 Hose, 90xstr,Flter, Oil, Remote[Mit]Old # 9010376 $240.10/EA Add 9 TN8004090 1 ElbowOld # 9010628 $49.40/EA Add 10 TN8048122 1 ElbowOld # 9010629 $99.80/EA Add 11 TN8003893 1 Gasket, Oil, Adapter [Mit 2.0/2.4]Old # 9010377 $29.80/EA Add 12 TN8044984 3 Nut, Flng, M8Old # 385015 $6.70/EA Add 13 TN8003828 1 Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 $7.00/EA Add 14 TN8004091 2 WasherOld # 9010630 $1.21/EA Add 15 TN8003804 3 Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 $3.50/EA Add 16 TN8003894 1 Washer, Lock, M8 [Mit]Old # 9010380 $1.20/EA Add 17 TN8004092 2 BoltOld # 9010631 $5.35/EA Add 18 TN8004090 1 ElbowOld # 9010628 $49.40/EA Add
M20 coolant group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tennant M20 coolant group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003856 1 O - Ring [Mit 208 Buna - N]Old # 9010289 $2.80/EA Add 2 TN8048100 1 Housing, T - Stat, 2 Holes [Mit]Old # 9010290 $153.60/EA Add 3 TN8003857 1 Tube, Water, Line [Mit]Old # 9010291 $87.60/EA Add 4 TN8044980 1 Fitting, E90Old # 385011 $24.70/EA Add 5 TN8003170 2 Clamp, Hose, Spring, 0.62dOld # 384979 $4.10/EA Add 6 TN8004093 1 Gasket, OutletOld # 9010632 $38.40/EA Add 7 TN8048101 1 Outlet, Water, W/Plug [Mit 2.0/2.4l]Old # 9010294 $48.60/EA Add 8 TN8044984 2 Nut, Flng, M8Old # 385015 $6.70/EA Add 9 TN8003858 2 Cap, Rubber, 5/8id [Mit 2.0/2.4l]Old # 9010295 $7.70/EA Add 10 TN4027831 1 Thermostat Kit, Coolant, Replmt [Mitsub]Old # 9010905 $35.10/EA Add 11 TN8003795 1 Housing, ThermostatOld # 9010215 $94.30/EA Add 12 TN8004105 1 Tube, Pump, WaterOld # 9010910 $14.90/EA Add 13 TN8003599 2 Seal, Tube, Water [Mit 2.0l]Old # 9013530 $27.70/EA Add
M20 DSR coolant group, LPG engine Mitsubishi engine breakdown SN 008000 and later Fits: LPG
Tennant M20 DSR coolant group, LPG engine parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003864 1 Bolt, M8 - 1.25 X 12 [Mit]Old # 9010305 $6.10/EA Add 2 TN8003856 1 O - Ring [Mit 208 Buna - N]Old # 9010289 $2.80/EA Add 3 TN8003865 1 Tube, Cooling, Line [Mit]Old # 9010306 $103.30/EA Add 4 TN8003866 1 Gasket, Water Supply [Mit 2.0/2.4l]Old # 9010307 $32.00/EA Add 5 TN8003867 1 Fitting, 1/2 Mpt X 5/8bh 90deg [Mit]Old # 9010308 $40.80/EA Add 6 TN8003868 1 Plate, Water, Outlet [Mit Bypass]Old # 9010309 $61.30/EA Add 7 TN8003869 2 Bolt, M8 - 1.25 X 25 Flg Hd [Mit]Old # 9010310 $2.40/EA Add

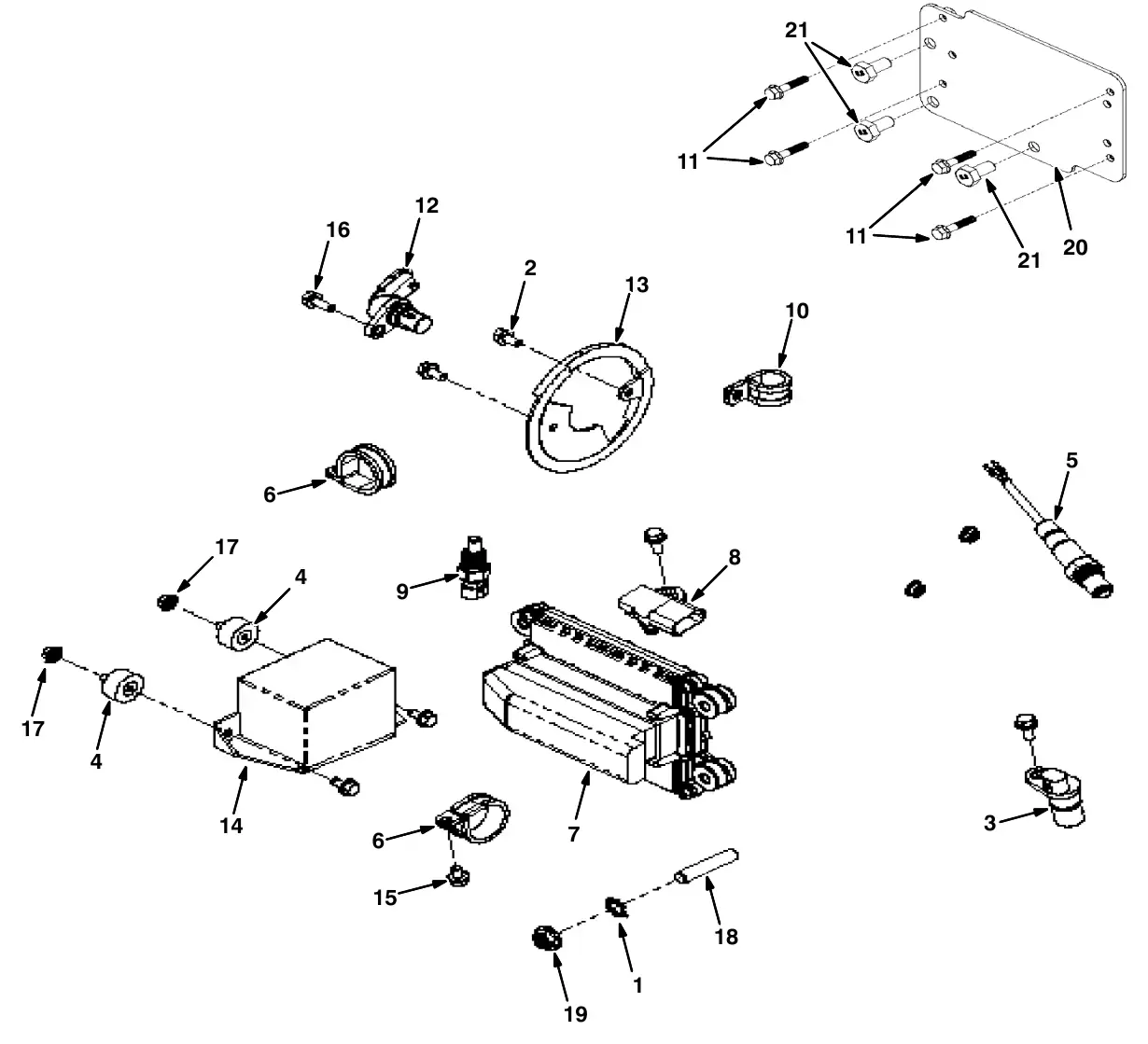

M20 electrical group Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline LPG
Tap a number to see that part.
Enlarge Electrical Group, SN 008000 and later. Manual page 358. SES ref PF-LU74-BU52 Tennant M20 electrical group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003830 1 Washer, Star, M10 [Mit]Old # 9010255 $1.50/EA Add 2 TN8003831 2 Bolt, M6 - 1.0 X 12 Fl Hd Pl [Mit]Old # 9010256 $1.31/EA Add 3 TN8005197 1 Sensor, Spd, Timing Wheel [3.0l]Old # 372492 $412.60/EA Add 4 TN8001829 2 IsolatorOld # 9008805 $11.80/EA Add 5 TN8005433 1 Sensor, Oxygen, TailpipeOld # 1028558 $277.60/EA Add 6 TN8048054 2 Clamp, 1/4 Hole [Mit #20]Old # 9010257 $28.89/EA Add Item 7: choose your version (2) 7 TN8005370 1 Module, Ecu, Gas [Mit 2.0l 2013]Old # 1071397 $1,347.10/EA Add 7 TN8005426 1 Module, Ecu, Lpg [Mit 2.0l 2013]Old # 1071398 $1,360.50/EA Add 8 TN8005198 1 Sensor [Tmap]Old # 372493 $206.90/EA Add 9 TN8004155 1 Sensor, Temp, CoolantOld # 372891 $126.90/EA Add 10 TN8048055 1 Clamp, 0.75d [Mit]Old # 9010258 $21.92/EA Add 11 TN8003824 4 Bolt, M6 - 1.0 X 30 Fl Hd [Mit]Old # 9010249 $7.27/EA Add 12 TN8003833 1 Sensor, Camshaft [Mit]Old # 9010260 $426.00/EA Add 13 TN8003834 1 Cam, Sensor, Wheel [Mit 2.0/2.4l]Old # 9010261 $123.40/EA Add Item 14: choose your version (2) 14 TN8005427 1 Harness, Wire, Eng, Gas [Mit, 2.0l]Old # 1071653 $1,434.90/EA Add 14 TN8005428 1 Harness, Wire, Eng, Lpg [Mit, 2.Ol]Old # 1071654 $1,268.00/EA Add 15 TN8003835 3 Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 $3.40/EA Add 16 TN8003836 3 Bolt, M6 - 1.0 X 16 Fl Hd [Mit]Old # 9010263 $2.73/EA Add 17 TN8003837 4 Nut, M6 - 1.0 Flange [Mit]Old # 9010264 $2.60/EA Add 18 TN8003878 1 Stud, M10 - 1.25 X 50, Full Thrd [Mit]Old # 9010366 $5.60/EA Add 19 TN8003889 1 Nut, M10 - 1.25, Hx Flg [Mit]Old # 9010367 $1.90/EA Add 20 TN8003822 1 Plate, Mtg, Ecu [Mit 2.0/2.4l]Old # 9010247 $37.67/EA Add 21 TN8003823 3 Bolt, M10 - 1.25 X 20 Hxhd [Mit]Old # 9010248 $3.43/EA Add
M20 fuel rail group, gasoline engine Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline
Tennant M20 fuel rail group, gasoline engine parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8047549 1 Manifold, Fuel [2.4l Mit]Old # 9015878 $733.10/EA Add 2 TN8003873 2 Bolt, M8 - 1.25 X 16, Soc Hd [Mit]Old # 9010327 $2.42/EA Add
M20 throttle body group, gasoline engine Mitsubishi engine breakdown SN 008000 and later Fits: Gasoline
Tennant M20 throttle body group, gasoline engine parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003838 1 Throttle Body [Mit, Bosch]Old # 9010266 $714.50/EA Add 2 TN8003839 1 Gasket, Throttle [Mit 40mm]Old # 9010268 $3.60/EA Add 3 TN8003874 4 Washer, 1/4 Flat [Mit]Old # 9010330 $1.30/EA Add 4 TN8003875 4 Bolt, M6 - 1.0 X 45, Skt Hd [Mit]Old # 9010331 $3.10/EA Add
M20 throttle body group, LPG engine Mitsubishi engine breakdown SN 008000 and later Fits: LPG
Tennant M20 throttle body group, LPG engine parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003838 1 Throttle Body [Mit , Bosch]Old # 9010266 $714.50/EA Add 2 TN8006239 1 Seal, Org, LpgOld # 1037311 $13.10/EA Add 3 TN8002571 1 AdapterOld # 9006619 $80.90/EA Add 4 TN8048056 1 Spacer, Ring, Throttle [Mit 40mm]Old # 9010267 $8.10/EA Add 5 TN8003839 1 Gasket, Throttle [Mit 40mm]Old # 9010268 $3.60/EA Add 6 TN8003840 4 Bolt, M6 - 1.0 X 25 Soc Hd [Mit]Old # 9010269 $1.90/EA Add 7 TN8003841 4 Washer, Lock, M6 [Mit]Old # 9010270 $1.20/EA Add 8 TN8003842 4 Bolt, M6 - 1.0 X 85 Soc Hd [Mit]Old # 9010271 $3.20/EA Add
M20 vaporizer group, LPG engine Mitsubishi engine breakdown SN 008000 and later Fits: LPG
Tennant M20 vaporizer group, LPG engine parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8048057 1 Hose Assy, Upper, Tap [Mit]Old # 9010272 $152.20/EA Add 2 TN8001829 3 IsolatorOld # 9008805 $11.80/EA Add 3 TN8003170 6 Clamp, Hose, Spring, 0.62dOld # 384979 $4.10/EA Add 4 TN8001828 1 Plate, Mtg [Epr]Old # 9008804 $71.50/EA Add 5 TN8003843 2 Fitting, 1/2 X 5/8 Hose,Plastic[Mit]Old # 9010273 $14.40/EA Add 6 TN8003844 2 Clamp, Tension [Mit #29]Old # 9010274 $6.10/EA Add 7 TN8002154 1 RegulatorOld # 9008193 $475.20/EA Add TN8004088 1 Repair Kit, Vaporizer (Obsolete, Replaced by None)Old # 9010626 $275.10/EA Add 8 TN8003845 1 Bracket, Vaporizer [Mit 20/24m Tilt]Old # 9010275 $60.60/EA Add 9 TN8003846 1 Hose, Fuel, Molded [Mit 20/24m]Old # 9010276 $29.60/EA Add 10 TN8003847 1 Hose, Coolant, Molded [Mit 20/24m]Old # 9010277 $22.00/EA Add 11 TN8003848 1 Hose, Coolant, Molded [Mit 20/24m]Old # 9010278 $15.90/EA Add 12 TN8003849 1 Hose, Coolant, Molded [Mit 20/24m]Old # 9010279 $11.50/EA Add 13 TN8003835 3 Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 $3.40/EA Add 14 TN8003850 2 Bolt, M8 - 1.25 X 16 Fl Hd [Mit]Old # 9010280 $3.50/EA Add 15 TN8003837 1 Nut, M6 - 1.0 Flange [Mit]Old # 9010264 $2.60/EA Add 16 TN4015547 1 Lock - Off, 12v, Lpg [Mit]Old # 9006620 $374.70/EA Add 17 TN8002010 1 Filter Kit, Fuelock, LpgOld # 9007380 $25.60/EA Add 18 TN8003872 1 Fitting, 1/4mpt X 1/4mpt, 90deg[Mit]Old # 9010317 $24.30/EA Add 19 TN8046709 1 Fitting, Hose, PlasticOld # 9021786 $15.20/EA Add
M20 electronic pressure regulator (EPR) group, LPG engine Mitsubishi engine breakdown SN 008000 and later Fits: LPG
Tennant M20 electronic pressure regulator (EPR) group, LPG engine parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8048104 2 Plug, 1/8npt, Brs [Mit]Old # 9010314 $37.20/EA Add 2 TN8001830 1 Regulator, Press, Electronic [Epr]Old # 9008806 $1,412.00/EA Add 3 TN8048470 1 Fitting, Barb, 3/4” [Epr]Old # 9008807 $12.40/EA Add 4 TN8002570 1 Mixer , LpgOld # 9006618 $479.40/EA Add TN8004095 1 Repair Kit, MixerOld # 9010634 $155.10/EA Add 5 TN8048471 4 Screw, Soc, M4 X 0.70 X 16Old # 9008808 $5.20/EA Add 6 TN8002012 4 Stud, M05 - 0.8Old # 9007424 $12.90/EA Add 7 TN8002011 4 Nut, Flng, M05 - 0.8Old # 9007423 $2.60/EA Add

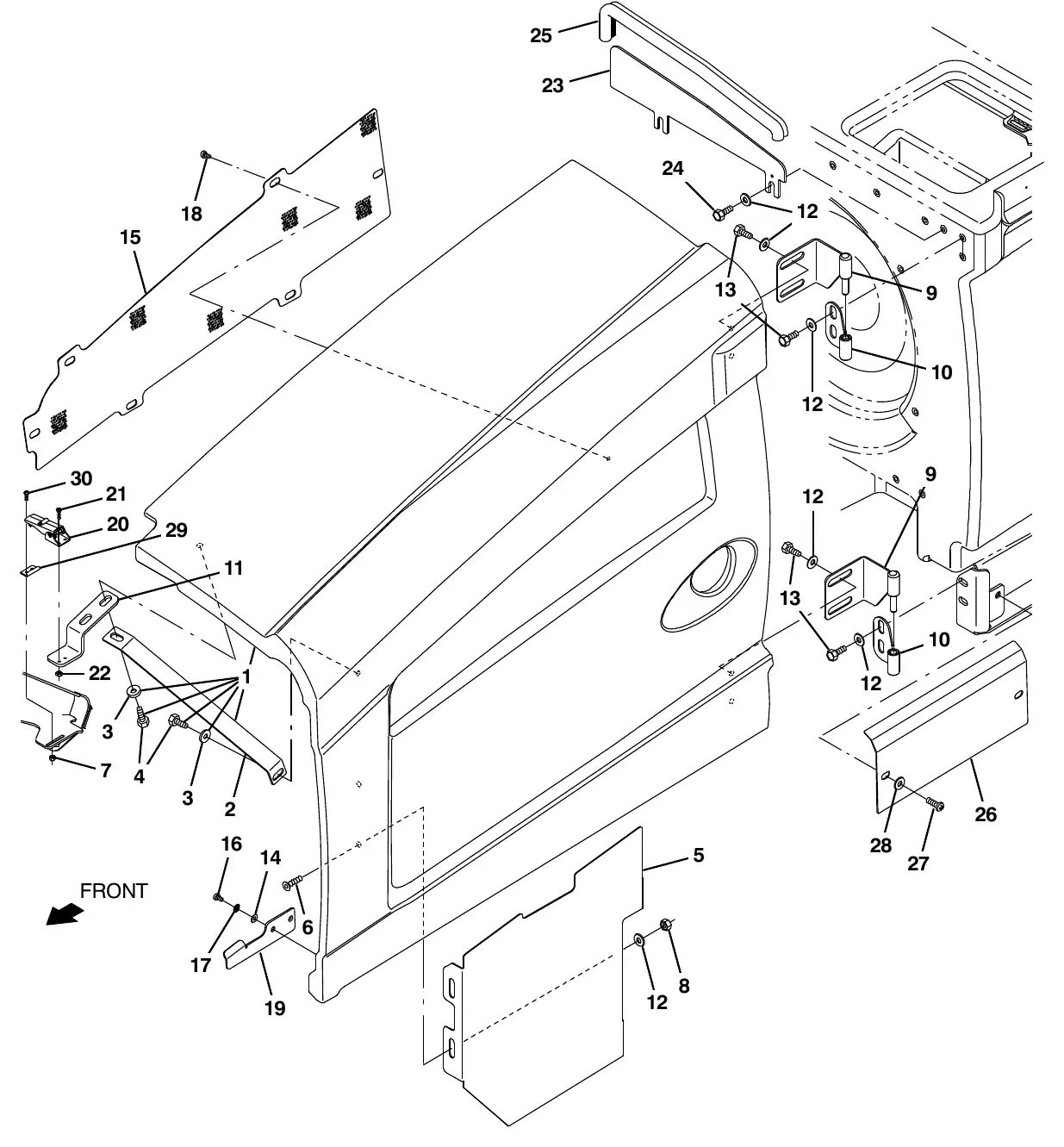

M20 engine cover group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.
Enlarge Engine Cover Group, SN 008000 and later. Manual page 24. SES ref PF-74RM-PA76 Tennant M20 engine cover group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4045021 1 Shroud Assy, EngOld # 1033156 $743.80/EA Add 2 TN4194117 1 Angle, Brace, ShrdOld # 1026628 $14.75/EA Add 3 TN4035242 2 Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 $3.40/EA Add 4 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 $2.50/EA Add 5 TN4032873 1 Bracket, Shield, HeatOld # 1022004 $49.88/EA Add 6 TN4012756 4 Screw, Flt, M8 X 1.25 X 25Old # 74077 $4.00/EA Add 7 TN4031247 2 Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 $3.40/EA Add 8 TN4041926 4 Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 $2.50/EA Add 9 TN4033616 2 Hinge Wldt, Shrd, LhOld # 1024500 $68.90/EA Add 10 TN4033887 2 Hinge Wldt, Shrd, LhOld # 1025196 $42.60/EA Add 11 TN4036245 1 Bracket, Latch, CoverOld # 1020186 $13.50/EA Add 12 TN4035242 15 Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 $3.40/EA Add 13 TN4041844 7 Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 $2.50/EA Add 14 TN4016785 2 Washer, Lock, Int - Ext, 10Old # 41139 $3.50/EA Add 15 TN4034277 1 Grill, EngOld # 1026726 $72.20/EA Add 16 TN4041965 2 Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 $3.40/EA Add 17 TN4042244 2 Washer, Flat, #10Old # 19066 $2.50/EA Add 18 TN4040232 6 Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267 $2.50/EA Add 19 TN4030910 1 Bracket, Guide, ShrdOld # 1028412 $19.50/EA Add 20 TN4037479 1 Latch, Door, YellowOld # 1222018 $18.30/EA Add 21 TN4041258 2 Screw, Pan, M4 X 0.7 X 16, 4.8Old # 06927 $3.30/EA Add 22 TN4043235 2 Nut, Hex, Lock, M4 X 0.7, NlOld # 02850 $2.50/EA Add 23 TN4193841 1 Plate, Seal, SoundOld # 1025806 $15.80/EA Add 24 TN4041992 2 Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 $3.30/EA Add 25 TN4031725 2 Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588 $46.50/EA Add 26 TN4032874 1 Cover, LowerOld # 1022005 $21.70/EA Add 27 TN4032093 2 Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 $3.40/EA Add 28 TN4015595 2 Washer, Flat, 0.31 SaeOld # 39349 $2.50/EA Add 29 TN4024119 1 Bracket, Latch, Keeper [Southco]Old # 384419 $4.50/EA Add 30 TN4035372 2 Screw, Pan, M4 X 0.7 X 16, SsOld # 24265 $3.00/EA Add

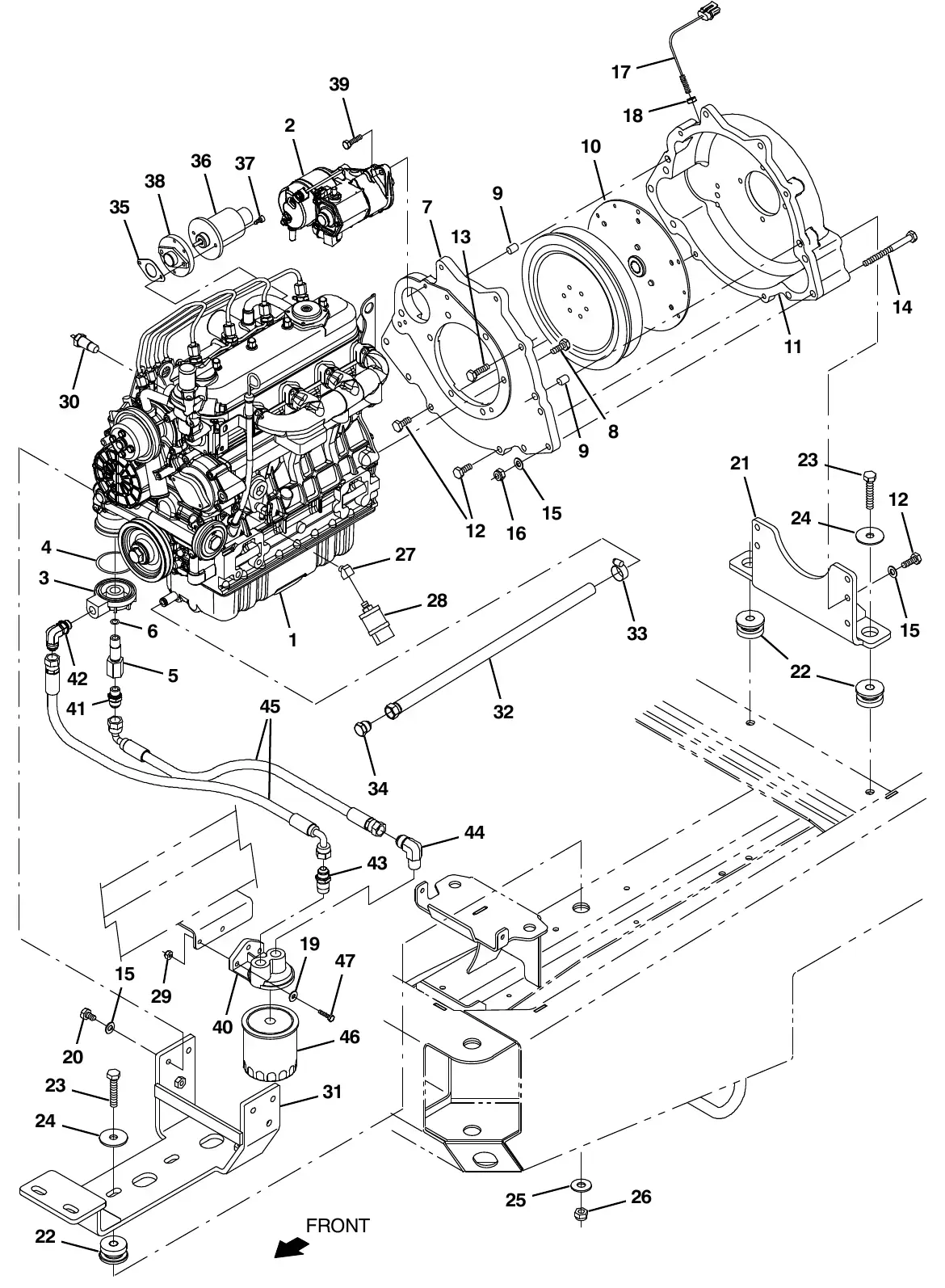

M20 engine and mount group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.
Enlarge Engine and Mount Group, SN 008000 and later. Manual page 26. SES ref PF-GJA7-N5RP Tennant M20 engine and mount group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4030902 1 Engine Assy, Dsl, 25hp [Ku V1505 Tier4f] (See Engine Breakdown)Old # 1072224 $8,119.00/EA Add 2 TN8002147 1 Motor, Starter, 12vdc [Kubota] (See Engine Breakdown)Old # 74405 $2,482.50/EA Add 3 TN8005448 1 Base, Fltr, Oil [Ku]Old # 368056 $151.13/EA Add 4 TN8002493 1 Seal, OrgOld # 70907 $11.40/EA Add 5 TN8045887 1 Pipe, Fltr, Oil [Ku]Old # 368059 $36.67/EA Add 6 TN8002496 1 Seal, OrgOld # 70911 $3.80/EA Add 7 TN4029084 1 Housing, Flywheel, Mach [1505, Kubo]Old # 55837 $275.23/EA Add 8 TN4041580 6 Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 $2.40/EA Add 9 TN4028687 2 Pin, Dowel, Cyl Block [1pk=4]Old # 54911-16 $18.69/EA Add 10 TN4042428 1 Coupling, Drive, Flex, 09.5d / 13toothOld # 19252 $252.50/EA Add 11 TN4029784 1 Housing, Flywheel, Mach [1505, Kubo]Old # 58566 $632.46/EA Add 12 TN4019758 6 Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283 $3.30/EA Add 13 TN4019759 2 Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 $4.00/EA Add 14 TN4041291 5 Screw, Hex, M10 X 1.5 X 110, 8.8Old # 06966 $3.33/EA Add 15 TN4034134 13 Washer, Flat, 0.38, SaeOld # 32485 $2.50/EA Add 16 TN4016826 5 Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 $4.00/EA Add 17 TN4026735 1 Magnet, PickupOld # 380521 $339.00/EA Add 18 TN4039081 1 Nut, Hex, Jam, .38 - 24Old # 20171 $2.50/EA Add 19 TN4034137 2 Washer, Flat, 0.31, StdOld # 32491 $2.50/EA Add 20 TN4041580 4 Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 $2.40/EA Add 21 TN4195931 1 Bracket Wldt, Mtg, Eng, Rear, DslOld # 1023074 $111.61/EA Add 22 TN4014538 3 Isolator, Vib, .50dOld # 51176 $37.60/EA Add 23 TN4041297 3 Screw, Hex, M12 X 1.75 X 60, 8.8Old # 06972 $4.00/EA Add 24 TN4040927 3 Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 $4.10/EA Add 25 TN4034139 1 Washer, Flat, 0.50, StdOld # 32493 $3.50/EA Add 26 TN4041927 1 Nut, Hex, Lock, M12 X 1.75,NlOld # 08711 $3.30/EA Add 27 TN4035402 1 Fitting, Brs, E45, Pf02/Pm02Old # 24976 $5.30/EA Add 28 TN79399 1 Switch, Press, Dpdt 0006psiOld # 79399 · current Tennant number (Tennant parts catalog) Call for price 29 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 $2.50/EA Add 30 Old # 1050757 1 Switch, Thermostat, WaterOld # 1050757Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 31 TN4190168 1 Bracket Wldt, Mtg, Eng, Front, DslOld # 1046810 $199.78/EA Add 32 TN4030626 1 Hose, 0300, 08, Jf08str / None, 19.0Old # 1027273 $20.40/EA Add 33 TN4017089 1 Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 $6.80/EA Add 34 TN4041528 1 Fitting, Hyd, Plug, Jm08Old # 16376 $7.47/EA Add 35 TN8002867 1 Gasket, Solenoid, Throttle [Ku]Old # 70165 $5.40/EA Add 36 TN4015634 1 Actuator, Govnr, DslOld # 71385 $1,093.90/EA Add 37 TN4015635 4 Screw, Soc, M6 X 1.00 X 16, 12.9Old # 71388 $4.80/EA Add 38 TN8002583 1 Adapter, Actuator, Govnr, Eng, DslOld # 393401 $180.26/EA Add 39 TN4028034 2 Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 $3.20/EA Add 40 TN4028211 1 Bracket, Mtg, Fltr, Oil, RemoteOld # 364972 $188.87/EA Add 41 TN4029035 1 Fitting, Hyd, Str, SpclOld # 367591 $9.80/EA Add 42 TN4031221 1 Fitting, Hyd, E90, Jm08/Om16 MetricOld # 33595 $46.30/EA Add 43 TN4041246 1 Fitting, Hyd, Str, Jm08/Pm08Old # 15687 $11.20/EA Add 44 TN4014602 1 Fitting, Hyd, E90, Jm08/Pm08Old # 51869 $17.57/EA Add 45 TN4026831 2 Hose, Hyd, Med08, Jf08e90/Jf08str, 032.0Old # 59578 $51.70/EA Add 46 TN8002633 1 Element, Fltr, Oil, Spin - OnOld # 39703-2 $15.60/EA Add 47 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 $3.20/EA Add

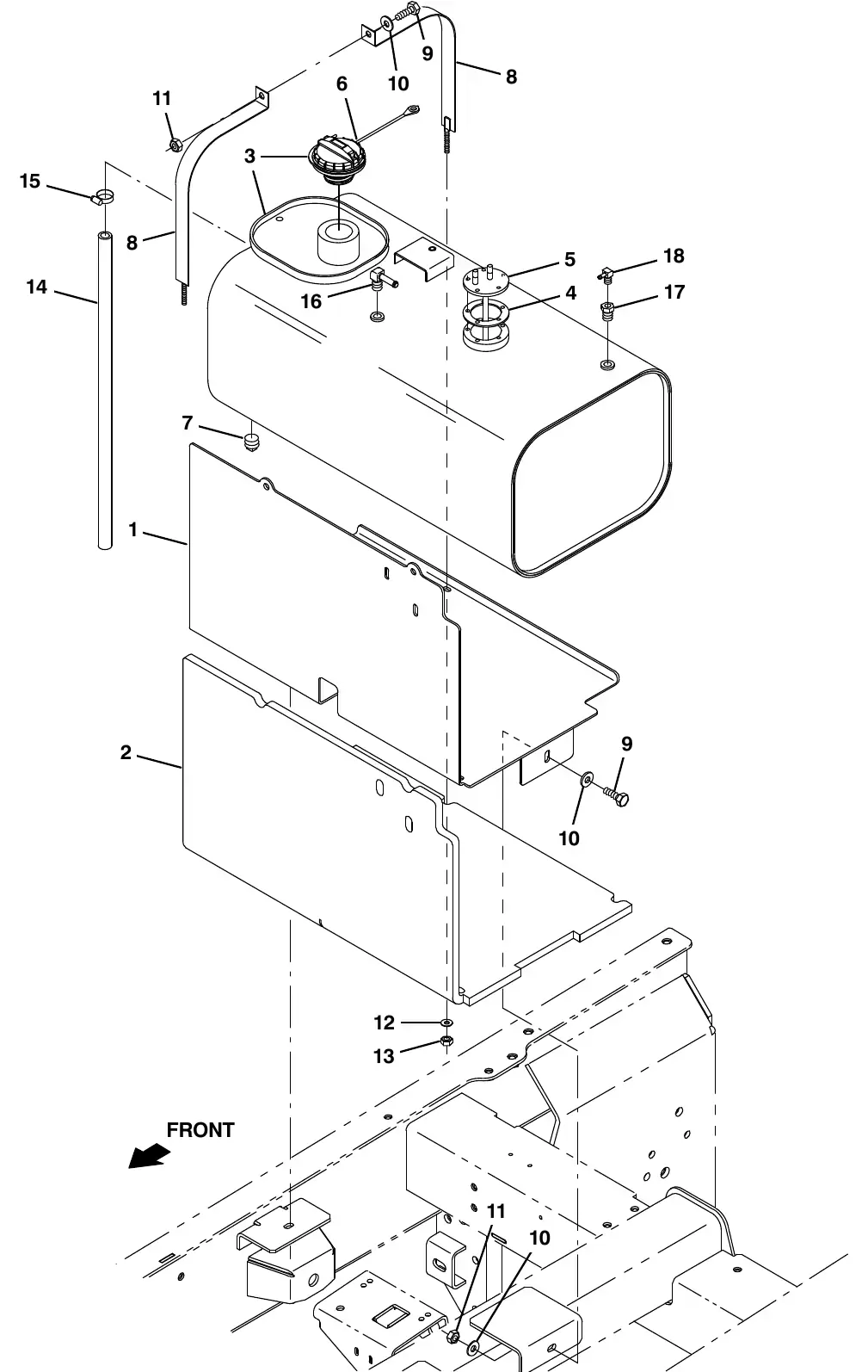

M20 engine fuel tank group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.
Enlarge Engine Fuel Tank Group, SN 008000 and later. Manual page 28. SES ref PF-Y6SW-2VOX Tennant M20 engine fuel tank group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4194105 1 Tray Wldt, FuelOld # 1026550 $171.70/EA Add 2 TN4194130 1 Insulation, Flame - Retardant, 0.5Old # 1026759 $80.60/EA Add 3 TN4017037 1 Tank, Fuel, 11.2gal, Dsl, Replmt, Na[08]Old # 9003934 $581.56/EA Add 4 TN8006208 1 Gasket, Sender, FuelOld # 1033897 $9.20/EA Add 5 TN8006221 1 Send - Unit, Fuel [2007]Old # 1033901 $122.70/EA Add 6 TN8006207 1 Cap, Fuel, TankOld # 1032812 $36.90/EA Add 7 TN4013933 1 Fitting, Pipe, Plug, Pm02, Sq HeadOld # 48126 $2.93/EA Add 3 TN4203401 1 Tank, Fuel, 11.2gal, Dsl, Replmt, Tj[08] (Japan Only)Old # 9003958 $578.12/EA Add 4 TN8006208 1 Gasket, Sender, FuelOld # 1033897 $9.20/EA Add 5 TN8006221 1 Send - Unit, Fuel [2007]Old # 1033901 $122.70/EA Add 6 TN8006207 1 Cap, Fuel, TankOld # 1032812 $36.90/EA Add 7 TN4013933 1 Fitting, Pipe, Plug, Pm02, Sq HeadOld # 48126 $2.93/EA Add 8 TN4193651 2 Strap, Tank, GasOld # 1025229 $18.10/EA Add 9 TN4156940 3 Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 $3.20/EA Add 10 TN4034137 7 Washer, Flat, 0.31, StdOld # 32491 $2.50/EA Add 11 TN4041926 5 Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 $2.50/EA Add 12 TN4034133 2 Washer, Flat, 0.25, SaeOld # 32483 $2.50/EA Add 13 TN4034654 2 Nut, Hex, Lock, .25 - 20, NlOld # 32981 $2.50/EA Add 14 TN4033269 1 Hose, Fuel, 0.50id 21.0lOld # 1023482 $10.10/EA Add 15 TN4015366 1 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 $5.10/EA Add 16 TN4019173 1 Fitting, Brs, E90, Em05/Pm04Old # 9000355 $6.30/EA Add 17 TN4041876 1 Fitting, Hyd, Str, Pf02/Pm04Old # 17414 $7.90/EA Add 18 TN4033731 1 Fitting, Brs, E90, Pm02/Bm03Old # 32183 $9.90/EA Add

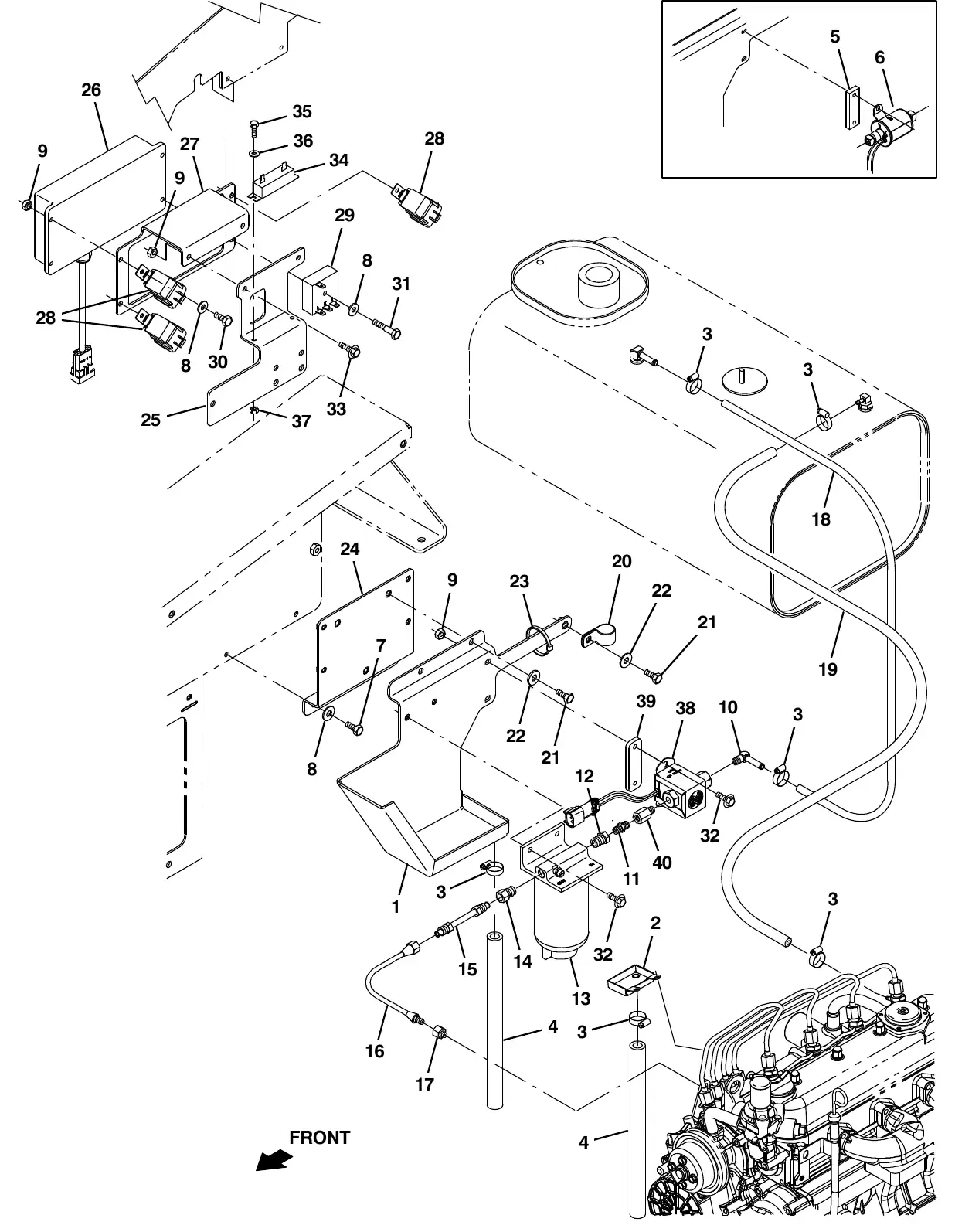

M20 engine fuel line group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.
Enlarge Engine Fuel Line Group, SN 008000 and later. Manual page 30. SES ref PF-YL7U-6I2Q Tennant M20 engine fuel line group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4192532 1 Tray Wldt, Drip, DslOld # 1032512 $130.70/EA Add 2 TN4192519 1 Tray Wldt, Drip, FuelOld # 1032424 $54.94/EA Add 3 TN4015366 6 Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 $5.10/EA Add 4 TN4039305 1 Hose, Afmkt, Pvc, Clr 0.38id 03ftOld # 1006416 $18.70/EA Add 5 TN4028165 1 Bar, Flat, Stl 0.38, 01.00 X 03.3lFits SN 008000–011669 · Old # 364779 $18.90/EA Add 6 TN4021954 1 Pump Kit, Fuel, ReplmtFits SN 008000–011669 · Old # 9020940 $214.50/EA Add 7 TN4041270 2 Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942 $2.50/EA Add 8 TN4034136 6 Washer, Flat, 0.25, StdOld # 32490 $2.50/EA Add 9 TN4041925 10 Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 $2.50/EA Add 10 TN4015006 1 Fitting, Brs, E90, Em05/Pm02Old # 53029 $85.70/EA Add 11 TN4013878 1 Fitting, Hyd, Str, Pm02/Pm02Old # 47566 $7.90/EA Add 12 TN4041876 1 Fitting, Hyd, Str, Pf02/Pm04Old # 17414 $7.90/EA Add 13 TN4035192 1 Filter Assy, Fuel, DslOld # 1016827 $44.60/EA Add TN8005805 1 Element, Fltr, Fuel [Dn]Old # 1017126 $21.90/EA Add 14 TN4026121 1 Fitting, Brs, Str, If05/Pm04Old # 78043 $4.20/EA Add 15 TN4033605 1 Fuelline, .31d 04.0l 05if/05if, StlOld # 1024380 $11.41/EA Add 16 TN4018734 1 Hose, 0050, 04, If05str / Im05str, 10.0Old # 70173 $52.70/EA Add 17 TN4028464 1 Fitting, Hyd, Str, Metric, Om10/If05Old # 365066 $26.80/EA Add 18 TN4022521 1 Hose, Fuel, 0.18id 29.0lOld # 87738 $19.40/EA Add 19 TN4028491 1 Hose, Fuel, 0.31id 22.0lOld # 365190 $6.10/EA Add 20 TN4018310 1 Clamp, Cable, Stl, 1.00d X 0.75w, 1hOld # 69234 $4.20/EA Add 21 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 $2.50/EA Add 22 TN4034137 3 Washer, Flat, 0.31, StdOld # 32491 $2.50/EA Add 23 TN4014138 2 Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 $2.50/EA Add 24 TN4194597 1 Bracket, Mtg, Ecu [M20/T20 2007]Old # 1029082 $44.44/EA Add 25 TN4187038 1 Bracket, Mtg, Coolant, Tank, Dsl [2010]Old # 1059488 $32.42/EA Add 26 TN4044432 1 Control, Govnr [All Purpose]Old # 1040835 $1,342.80/EA Add 27 TN4194330 1 Bracket, Mtg, Govnr Control, DslOld # 1027922 $28.28/EA Add 28 TN4029123 3 Relay, 12vdc, 40a, Spdt N/OOld # 56186 $11.30/EA Add 29 TN4026354 1 Timer, 12vdc, 10 SecOld # 379656 $85.60/EA Add 30 TN4041271 3 Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943 $2.50/EA Add 31 TN4041275 1 Screw, Hex, M6 X 1.0 X 40, 8.8Old # 06947 $3.40/EA Add 32 TN4044400 4 Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 $3.30/EA Add 33 TN4045568 2 Screw, Hex, M6 X 1.00 X 25, 9.8, SemsOld # 1036892 $2.50/EA Add 34 TN4015650 1 Resistor, 022.00ohm, 0040wattOld # 71539 $59.40/EA Add 35 TN4041969 2 Screw, Hex, M5 X 0.80 X 16, 8.8Old # 09244 $2.50/EA Add 36 TN4042244 2 Washer, Flat, 0.25b 0.56d .05, Pl, 10Old # 19066 $2.50/EA Add 37 TN4041004 2 Nut, Hex, Lock, M5 X 0.80, NlOld # 06549 $2.50/EA Add 38 TN4031505 1 Pump, FuelFits SN 011670 and later · Old # 1251982 $179.30/EA Add 39 TN4031510 1 Bar, Flat, Stl 0.25, 01.00 X 03.3lFits SN 011670 and later · Old # 1252042 $35.90/EA Add 40 TN4042904 1 Fitting, Extension 1/8 - Npsf X 20Fits SN 011670 and later · Old # 1076774 $3.70/EA Add

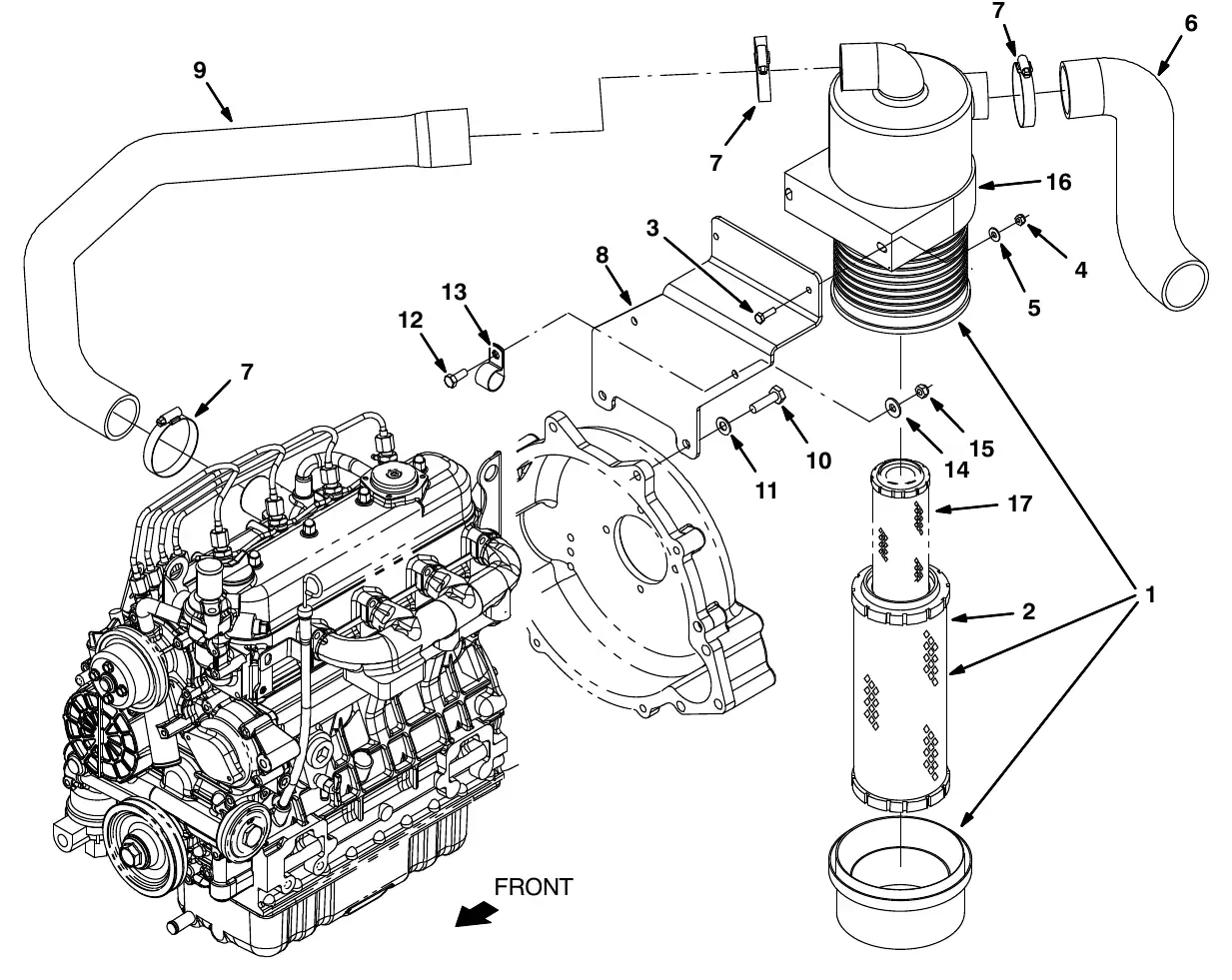

M20 engine air cleaner group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.
Enlarge Engine Air Cleaner Group, SN 008000 and later. Manual page 32. SES ref PF-WVRG-GADR Tennant M20 engine air cleaner group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4032296 1 Filter Assy, AirOld # 369745 $124.20/EA Add 2 TN8005623 1 Element, Fltr, Air [Dn]Old # 369746 $34.60/EA Add 3 TN4041271 2 Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943 $2.50/EA Add 4 TN4041925 2 Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 $2.50/EA Add 5 TN4034133 2 Washer, Flat, 0.25, SaeOld # 32483 $2.50/EA Add 6 TN4036284 1 Hose, Intake, Mold, 2.00id [Epdm]Old # 1020949 $59.99/EA Add 7 TN4044328 3 Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wOld # 14432 $5.30/EA Add 8 TN4033842 1 Bracket, Mtg, Air Fltr, DslOld # 1024772 Call for price 9 TN4033564 1 Hose, Intake, Mold, 1.75id 1.75id DslOld # 1023892 $72.92/EA Add 10 TN4019759 2 Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 $4.00/EA Add 11 TN4034134 2 Washer, Flat, 0.38, SaeOld # 32485 $2.50/EA Add 12 TN4041992 1 Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 $3.30/EA Add 13 TN4018310 1 Clamp, Cable, Stl, 1.00d X 0.75w, 1hOld # 69234 $4.20/EA Add 14 TN4042902 1 Washer, Flat, 0.31, SsOld # 01685 $2.60/EA Add 15 TN4041929 1 Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 $3.30/EA Add 16 TN4032297 1 Clamp, Mtg, Fltr, AirOld # 369747 $32.90/EA Add 17 TN8002697 1 Element, Fltr, Air, Safety (Option)Old # 398279 $52.20/EA Add

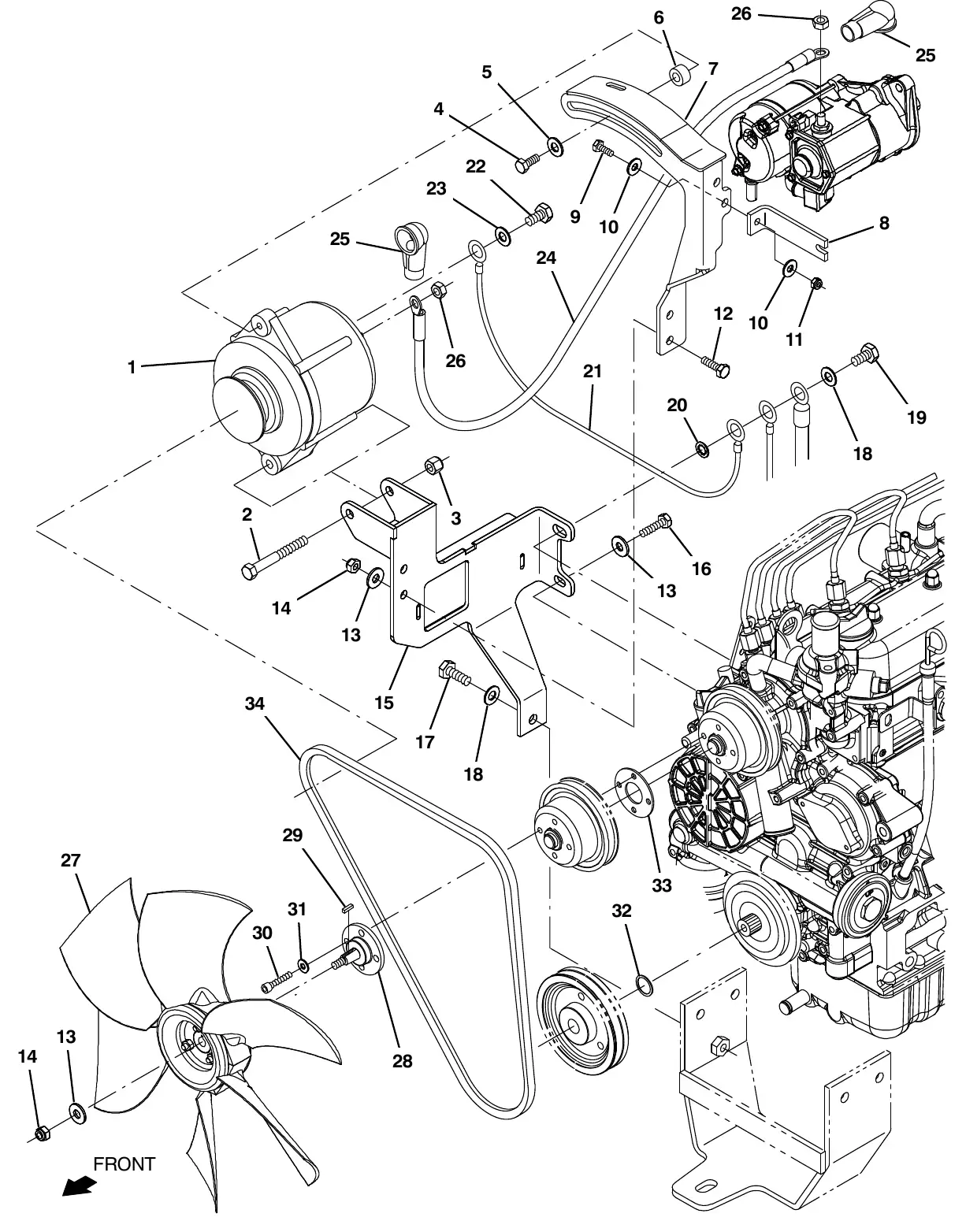

M20 engine alternator group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.
Enlarge Engine Alternator Group, SN 008000 and later. Manual page 34. SES ref PF-TPY3-SNZE Tennant M20 engine alternator group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4019747 1 Alternator, 12vdc, 075a [Valeo]Old # 392611 $330.60/EA Add 2 TN4031659 1 Screw, Hex, .38 - 16 X 3.00, G5Old # 35707 $1.15/EA Add 3 TN4026793 1 Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156 $4.00/EA Add 4 TN4028947 1 Screw, Hex, .31 - 18 X 1.00, G5Old # 76955 $2.50/EA Add 5 TN4016796 1 Washer, Flat, Belleville, .31Old # 41186 $3.50/EA Add 6 TN4012419 1 Tube, 0.38id 0.75od 00.3l, SsOld # 73737 $16.10/EA Add 7 TN4045562 1 Arm Wldt, Alternator, DslOld # 1036847 $67.57/EA Add 8 TN4045563 1 Bracket, Sppt, Alternator, DslOld # 1036859 $11.80/EA Add 9 TN4041271 1 Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 $2.50/EA Add 10 TN4034133 2 Washer, Flat, 0.25, SaeOld # 32483 $2.50/EA Add 11 TN4041925 1 Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 $2.50/EA Add 12 TN4156940 2 Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 $3.20/EA Add 13 TN4034137 4 Washer, Flat, 0.31, StdOld # 32491 $2.50/EA Add 14 TN4041926 3 Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 $2.50/EA Add 15 TN4045561 1 Bracket Wldt, Mtg, Alternator, DslOld # 1036844 $118.12/EA Add 16 TN4028034 1 Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 $3.20/EA Add 17 TN4019758 1 Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283 $3.30/EA Add 18 TN4034138 2 Washer, Flat, 0.38, StdOld # 32492 $2.50/EA Add 19 TN4031222 1 Screw, Hex, M10 X 1.25 X 35, 8.8Old # 33612 $3.40/EA Add 20 TN4034661 1 Washer, Lock, Int, 0.38Old # 32988 $2.60/EA Add 21 TN4033431 1 Wire, 10ga 16.0l Blk .25ring /.38ringOld # 31525 $12.80/EA Add 22 TN4017298 1 Screw, Hex, 10 - 24 X 0.50, SsOld # 42011 $3.40/EA Add 23 TN4042888 1 Washer, Flat, 10, SsOld # 01683 $2.60/EA Add 24 TN4031374 1 Cable, 06ga 16.0l Red .38ring /.38ringOld # 1029689 $19.45/EA Add 25 TN4034851 2 Boot, 90deg .50id 1.00id 2.50l, RedOld # 1016314 $5.40/EA Add 26 TN4016814 2 Nut, Hex, Std, M8 X 1.25, BrsOld # 41361 $3.40/EA Add 27 Old # 1271534 1 (Repl 1031566)Old # 1271534Number being confirmed with Tennant – call before ordering · Replaces 1031566 (2022 list (rev. 08)) Number being confirmed with Tennant – call before ordering 28 TN4045395 1 Spacer, Fan, Dsl [M20/T20]Old # 1035341 $54.70/EA Add 29 TN4042788 1 Key, Sq, 0.12 X 0.12, 0.50lOld # 00960 $3.60/EA Add 30 TN4015635 4 Screw, Soc, M6 X 1.00 X 16, 12.9Old # 71388 $4.80/EA Add 31 TN4042244 4 Washer, Flat, 10Old # 19066 $2.50/EA Add 32 TN4044023 1 Washer, Flat, 1.10b 1.50d .12, Stl, PlOld # 1039208 $3.33/EA Add 33 TN4044025 1 Spacer, FanOld # 1039212 $6.90/EA Add 34 TN4019823 1 Belt, V, 42.0l [Hc41]Old # 393244 $15.00/EA Add
M20 engine muffler group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.

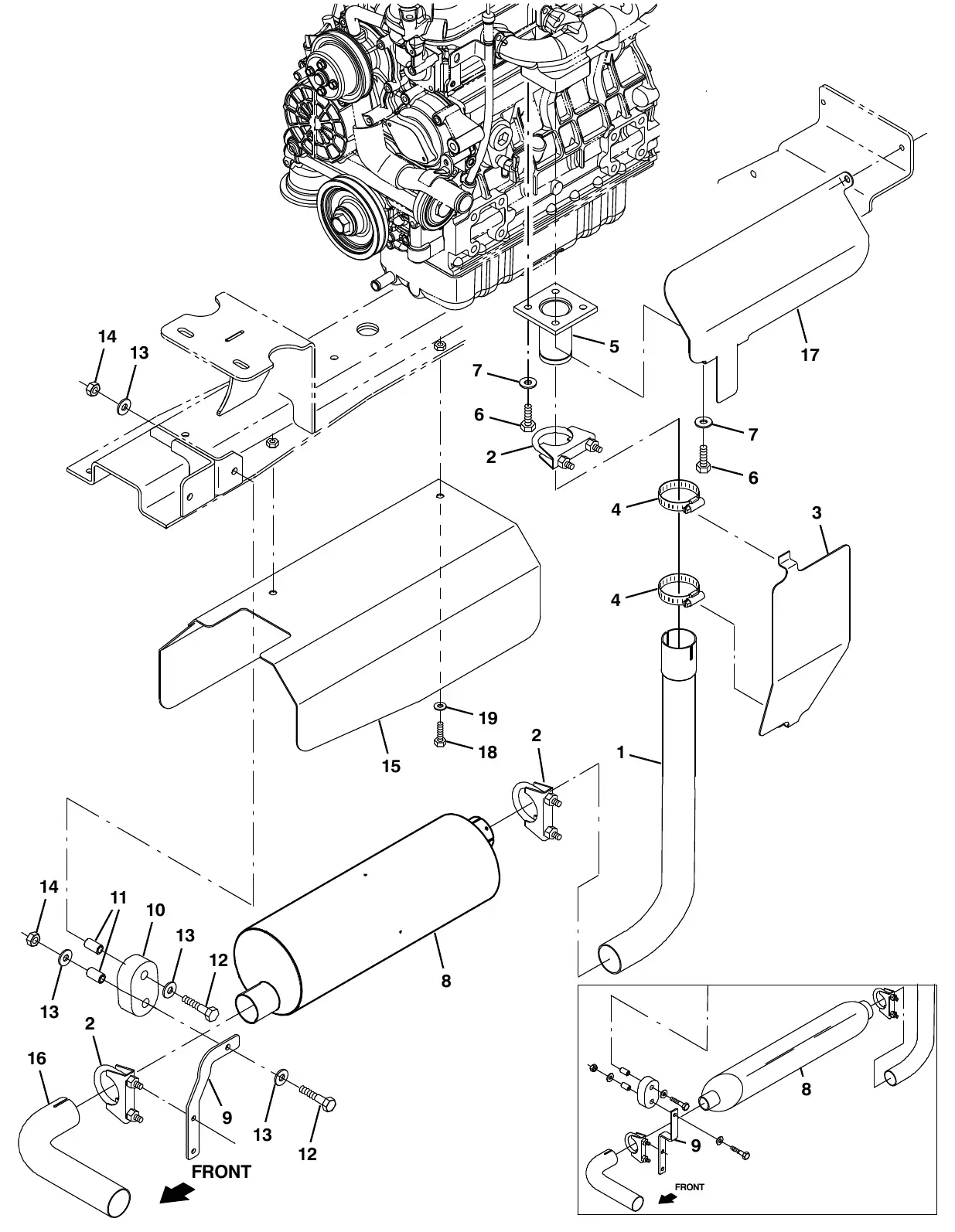

Enlarge Engine Muffler Group, SN 008000 and later. Manual page 36. SES ref PF-W2RU-J5Y6 Tennant M20 engine muffler group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4033604 1 Tube, Exhaust, DslOld # 1024357 $57.00/EA Add 2 TN4035092 3 Clamp, Muffler, 1.62dOld # 24012 $6.20/EA Add 3 TN4016151 1 Plate, Shield, Heat, Dsl, ReplmtOld # 9002411 $96.05/EA Add 4 TN4026556 2 Clamp, Hose, Wormdrive, 1.25 - 2.00D, .50WOld # 79381 $6.20/EA Add 5 TN4012780 1 Tube Wldt, Exhaust, 1.5d, 4 Hole FlngOld # 74452 $60.30/EA Add 6 TN4041844 4 Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 $2.50/EA Add 7 TN4034137 4 Washer, Flat, 0.31, StdOld # 32491 $2.50/EA Add Item 8: choose your version (2) 8 TN4031201 1 Muffler, Exhaust (Repl By 1274854)Fits SN 008000–016999 · Old # 33333 $649.00/EA Add 8 TN4205342 1 Muffler, Exhaust, Axial InletFits SN 017000 and later · Old # 1274854 Call for price Item 9: choose your version (2) 9 TN4035523 1 Bracket, Muffler, Hanger, Front (Repl By 1275151)Fits SN 008000–016999 · Old # 1017969 $27.50/EA Add 9 TN4006476 1 Bracket, Exhaust [M20/T20 Dsl]Fits SN 017000 and later · Old # 1275151 Call for price 10 TN4037292 1 Isolator, RbrOld # 1013031 $18.30/EA Add 11 TN4040603 2 Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Old # 222496 $3.40/EA Add 12 TN4040607 2 Screw, Hex, M8 X 1.25 X 45, SsOld # 222505 $4.00/EA Add 13 TN4042902 4 Washer, Flat, 0.31, SsOld # 01685 $2.60/EA Add 14 TN4041929 2 Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 $3.30/EA Add 15 TN4031022 1 Channel, Shield, Muffler [M20/T20 2007]Old # 1028994 $123.70/EA Add 16 TN4032843 1 Tube, Exhaust, 1.5dOld # 1021789 $45.20/EA Add 17 TN4032214 1 Shield, Heat, DslOld # 1032010 $25.35/EA Add 18 TN4041931 2 Screw, Hex, M6 X 1.0 X 20, SsOld # 08716 $3.20/EA Add 19 TN4034133 2 Washer, Flat, 0.25, SaeOld # 32483 $2.50/EA Add
M20 engine radiator group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.

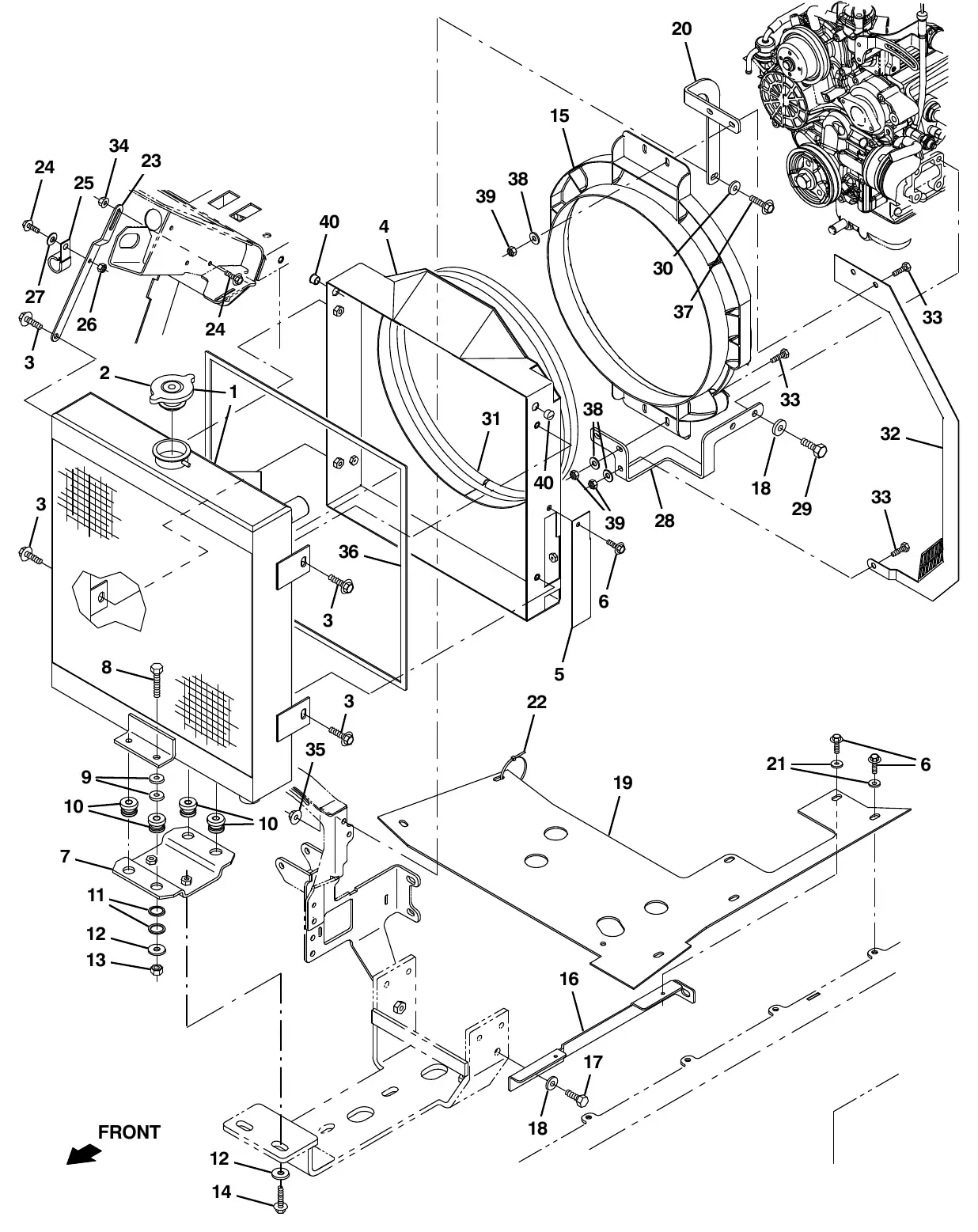

Enlarge Engine Radiator Group, SN 008000 and later. Manual page 38. SES ref PF-PHKQ-3SNF Tennant M20 engine radiator group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4031438 1 Radiator, W/ Hyd Cooler [Afmkt]Old # 1249770 $1,665.50/EA Add 2 TN4029923 1 Cap, Radiator, 16Psi Sae 164Old # 1265988 · Replaces 1045764 (2022 list (rev. 08)) Call for price 3 TN4045637 4 Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 $2.50/EA Add 4 TN4186598 1 Shroud Wldt, Fan, Eng, DslOld # 1058699 $155.44/EA Add 5 TN4189910 1 Bracket, CoverOld # 1045433 $18.60/EA Add 6 TN4045568 6 Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 $2.50/EA Add 7 TN4190181 1 Bracket, Mtg, RadiatorOld # 1046962 $26.70/EA Add 8 TN4019761 4 Screw, Hex, M10 X 1.50 X 40, 8.8Old # 39285 $3.20/EA Add 9 TN4034138 8 Washer, Flat, 0.38, StdOld # 32492 $2.50/EA Add 10 TN4015364 4 Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274 $14.70/EA Add 11 TN4042008 8 Washer, Flat, 0.81b 1.06d .06, StlOld # 09832 $3.30/EA Add 12 TN4037922 6 Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 $5.80/EA Add 13 TN4016826 4 Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 $4.00/EA Add 14 TN4045641 2 Screw, Hex, M8 X 1.25 X 35, 9.8, SemsOld # 1037355 $2.50/EA Add 15 TN4038497 1 Shroud, FanOld # 1054428 $126.20/EA Add 16 TN4041020 1 Bracket, SpptOld # 1052164 $24.24/EA Add 17 TN4019758 1 Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283 $3.30/EA Add 18 TN4034134 3 Washer, Flat, 0.38, SaeOld # 32485 $2.50/EA Add 19 TN4041022 1 Skirt, Fan, Eng, DslOld # 1052175 $88.78/EA Add 20 TN4036763 1 Bracket, Mtg, Fan, Shrd, Upper, DslOld # 1058732 $14.24/EA Add 21 TN4016794 3 Washer, Flat, 0.25, FendrOld # 41178 $2.50/EA Add 22 TN4014138 2 Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 $2.50/EA Add 23 TN4036225 1 Bracket, Mtg, RadiatorOld # 1019968 $18.60/EA Add 24 TN4044400 2 Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 $3.30/EA Add 25 TN4036443 1 Clip, Keeper, OpenOld # 30407 $1.70/EA Add 26 TN4041925 1 Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 $2.50/EA Add 27 TN4034136 1 Washer, Flat, 0.25, StdOld # 32490 $2.50/EA Add 28 TN4036761 1 Bracket, Mtg, Fan, Shrd, Lower, DslOld # 1058730 $15.25/EA Add 29 TN4041580 2 Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 $2.40/EA Add 30 TN4034138 2 Washer, Flat, 0.38, StdOld # 32492 $2.50/EA Add 31 TN4172037 1 Seal, Bulb, Str, 0.38h .75w Adh, 52 LOld # 376735 Call for price 32 TN4032613 1 Bracket, Shrd, Radiator, Dsl, CeOld # 1064434 $56.20/EA Add 33 TN4041271 5 Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 $2.50/EA Add 34 TN4041604 1 Nut, Hex, Flng, M6 X 1.00Old # 07790 $3.20/EA Add 35 TN4041605 1 Nut, Hex, Flng, M8 X 1.25Old # 07791 $2.50/EA Add 36 TN4029283 1 Seal, Rbr, Clsd, .13, .38w 72.0l, AdhOld # 367812 $33.10/EA Add 37 TN4045637 1 Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 $2.50/EA Add 38 TN4034133 5 Washer, Flat, 0.25, SaeOld # 32483 $2.50/EA Add 39 TN4041925 5 Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 $2.50/EA Add 40 TN4043205 2 Plug, Hole, Rnd, 0.56h .03 - .12, Blk NylOld # 02431 $3.40/EA Add
M20 engine radiator hose group Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.

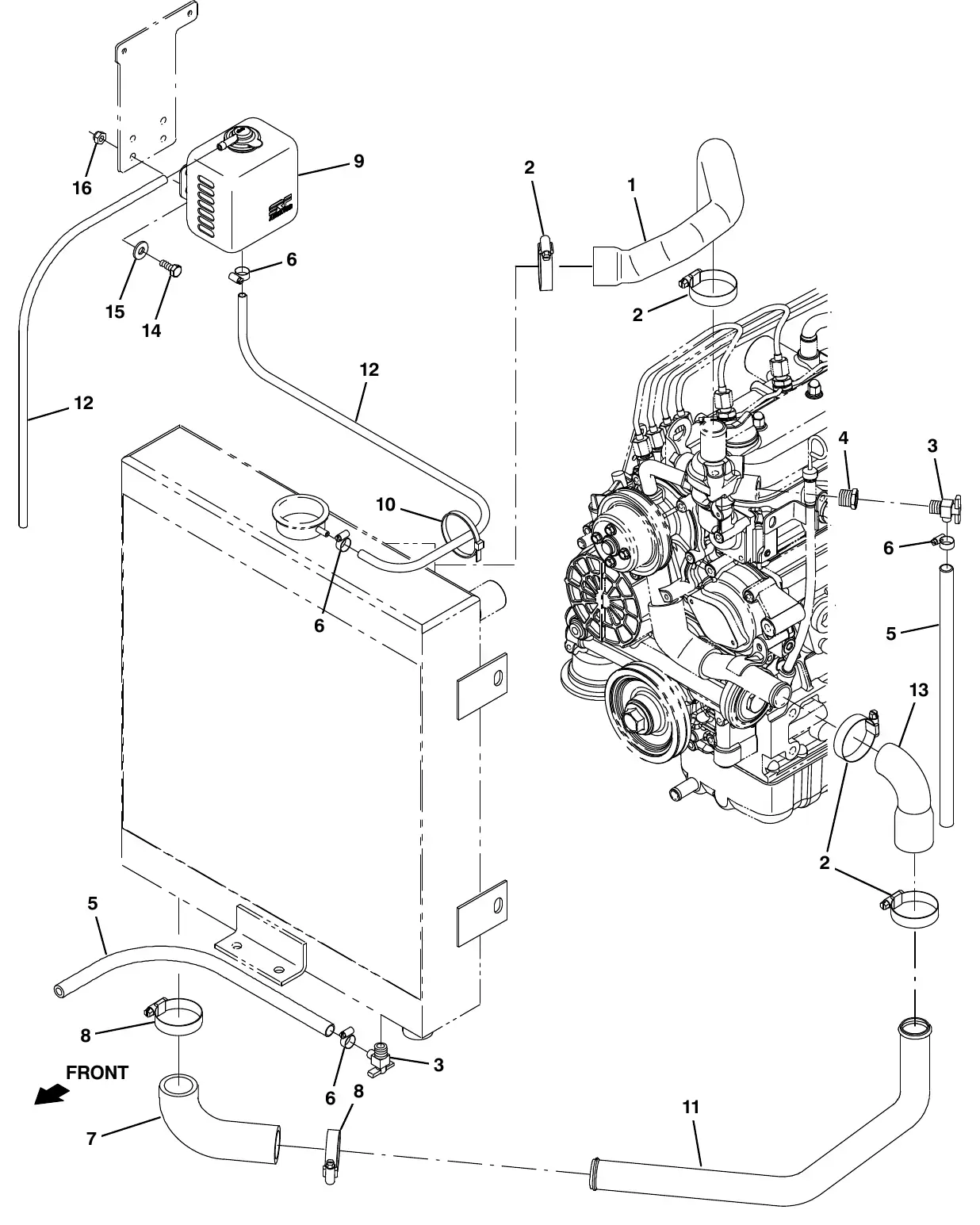

Enlarge Engine Radiator Hose Group, SN 008000 and later. Manual page 40. SES ref PF-GA2A-S2LD Tennant M20 engine radiator hose group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4030509 1 Hose, Radiator, Upper, DslOld # 1071195 $23.30/EA Add 2 TN4043367 4 Clamp, Hose, Wormdrive, 0.81 - 1.50d, .50wOld # 11399 $5.10/EA Add 3 TN4014543 2 Fitting, Draincock, E90, .25nptOld # 51305 $15.10/EA Add 4 TN4044377 1 Fitting, Brs, Str, Pf04/Pm06, BshgOld # 150006 $5.30/EA Add 5 TN4016344 2 Hose, Pvc, Clr, 0.38id 0.56od 022.0lOld # 73471 $7.60/EA Add 6 TN4017396 4 Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 $4.20/EA Add 7 TN4039550 1 Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Old # 1007482 $20.40/EA Add 8 TN4026556 2 Clamp, Hose, Wormdrive, 1.25 - 2.00D, .50WOld # 79381 $6.20/EA Add 9 TN4038493 1 Tank, Coolant, 03.6W 04.1HI 05.5L,1LiterOld # 1054382 $119.90/EA Add 10 TN4014138 2 Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 $2.50/EA Add 11 TN4033236 1 Tube, Radiator, Lower, DslOld # 1023180 $33.03/EA Add 12 TN4037984 1 Hose, Afmkt, Coolant Recvy, 08ftOld # 1015041 $62.40/EA Add 13 TN4034915 1 Hose, Radiator, Lower, DslOld # 1062103 $20.65/EA Add 14 TN4041844 2 Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 $2.50/EA Add 15 TN4034137 2 Washer, Flat, 0.31, StdOld # 32491 $2.50/EA Add 16 TN4041926 2 Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 $2.50/EA Add
M20 electrical wire harness group, diesel engine Standard parts SN 008000 and later Fits: Diesel
Tap a number to see that part.

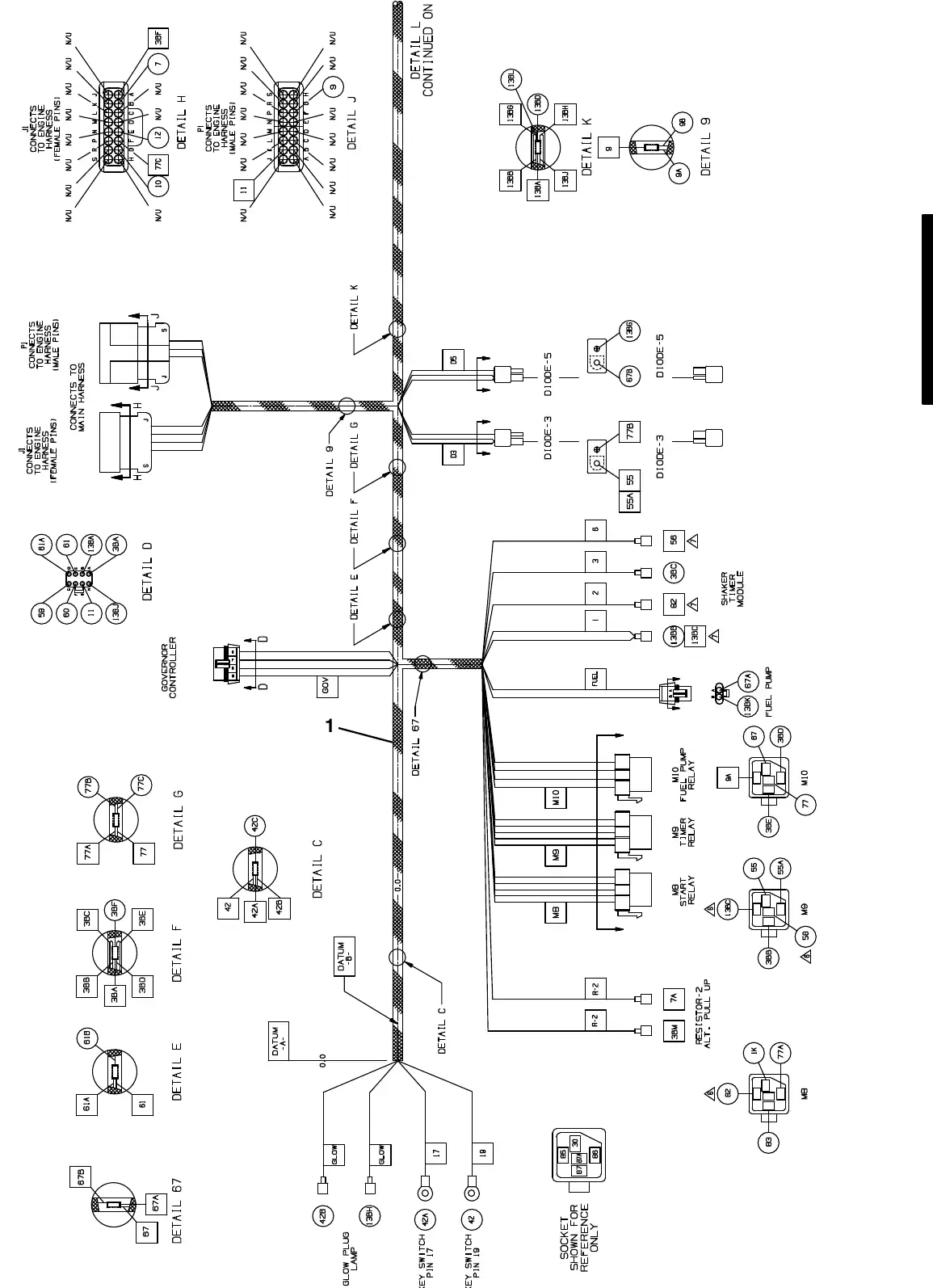

Enlarge Electrical Wire Harness Group, Diesel Engine, SN 008000 and later. Manual page 151. SES ref PF-WOC6-7YI4 Tennant M20 electrical wire harness group, diesel engine parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN4044976 1 Harness, Eng, Dsl [M20/T20/M30]Old # 1075129 $201.31/EA Add
M20 crankcase group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tap a number to see that part.

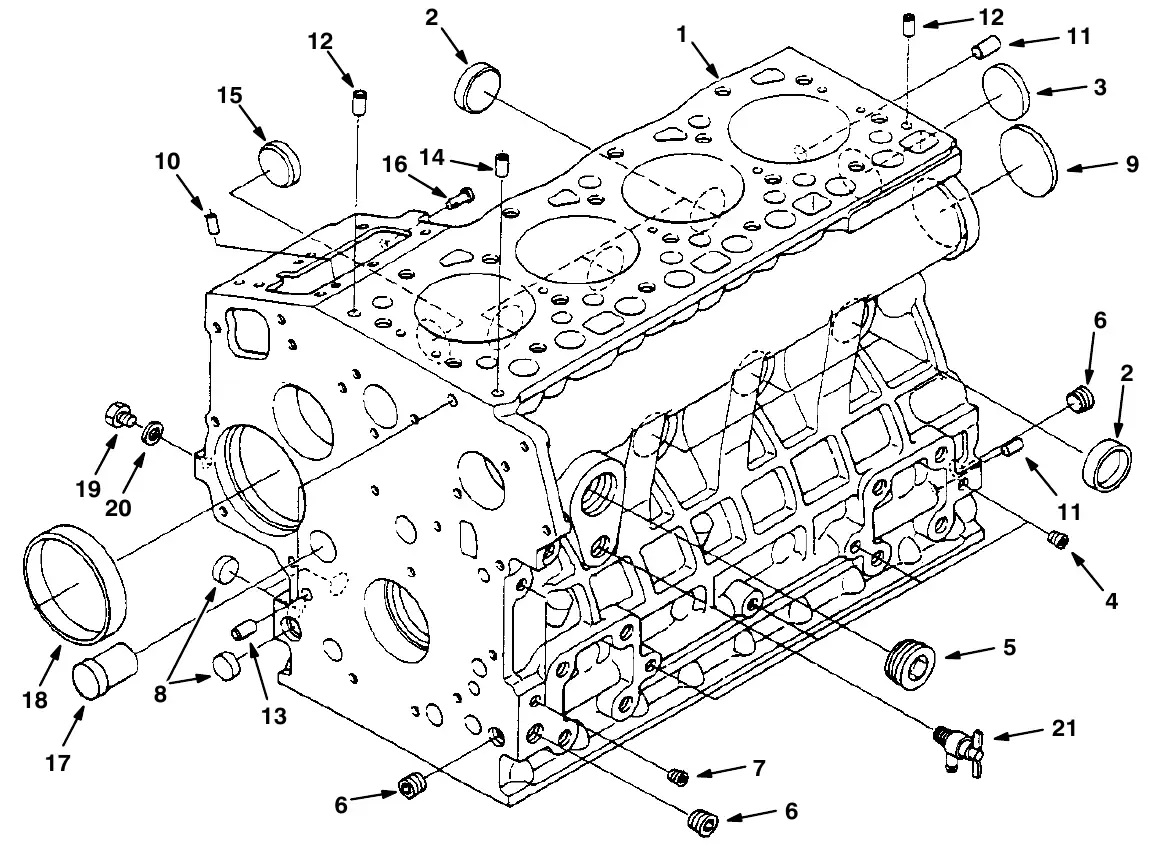

Enlarge Crankcase Group, SN 008000 and later. Manual page 272. SES ref PF-Y4TQ-WEV4 Tennant M20 crankcase group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002762 1 Crankcase, Complt [Ku]Old # 9004335 $11,441.68/EA Add 2 TN8002561 6 Plug, Cup, Sealing [Ku]Old # 70998 $5.96/EA Add 3 TN8002909 1 Plug, Cup, Sealing [Ku]Old # 39087 $8.59/EA Add 4 TN8002910 4 Fitting, Pipe, Plug [Ku]Old # 39088 $5.00/EA Add 5 TN8002562 1 Plug, Eng [Ku]Old # 70999 $18.69/EA Add 6 TN8002565 3 Fitting, Pipe, Plug [Ku]Old # 71985 Call for price 7 TN8002902 2 Fitting, Pipe, Plug [Ku]Old # 39051 $5.25/EA Add 8 TN8004840 3 Plug, Cup, Sealing [Ku]Old # 361436 $3.33/EA Add 9 TN8002566 1 Plug, Cup, Sealing [Ku]Old # 71986 $5.45/EA Add 10 TN8002567 2 Pin, Dowel [Ku]Old # 71987 Call for price 11 TN8002568 2 Pin, Dowel [Ku]Old # 71988 $4.24/EA Add 12 TN8049852 2 Pin, Straight [Ku]Old # 9004431 $1.72/EA Add 13 TN8051525 2 Pin, Eng [Ku]Old # 71990 $10.10/EA Add 14 TN8002569 1 Tube, Pin [Ku]Old # 71991 $4.24/EA Add 15 TN8002640 1 Plug, Cup, Sealing [Ku]Old # 71992 $8.28/EA Add 16 TN8049780 1 Pin, Start, SpringOld # 9004337 $8.89/EA Add 17 TN8002641 1 Plug, Eng [Ku]Old # 71993 $20.50/EA Add 18 TN8002422 1 Bushing, Gear, Gov [Ku]Old # 70887 $51.51/EA Add 19 TN8002903 1 Fitting, Plug [Ku]Old # 39062 $5.15/EA Add 20 TN8002588 1 GasketOld # 393570 Call for price 21 TN8002423 1 Fitting, Draincock [Ku]Old # 70888 $22.02/EA Add
M20 oil pan group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 oil pan group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8047600 1 Pan, Oil, DslOld # 1023144 $288.66/EA Add 2 TN8002424 1 Gasket, Pan, OilOld # 70889 $66.36/EA Add 3 TN8049781 26 Bolt [Ku]Old # 9004338 $1.72/EA Add 4 Old # 70888 1 Filter, Oil [Ku]Old # 70888Number being confirmed with Tennant – call before ordering · Replaces 9003888 (2022 list (rev. 08)) Number being confirmed with Tennant – call before ordering 5 TN8044761 1 Screw, Hex [Ku]Old # 39094 $1.50/EA Add 6 Old # 9004339 1 O - Ring [Ku]Old # 9004339Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 7 Old # 9004435 1 Gauge, Oil [Ku]Old # 9004435Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 8 Old # 361428 1 Dipstick, Oil [Ku]Old # 361428Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 9 TN8004677 1 Seal, Org [Ku]Old # 361366 $3.43/EA Add 10 TN8002906 1 Screw, Hex [Ku]Old # 39073 $1.40/EA Add TN66187 1 Gasket SetOld # 66187 · current Tennant number (Tennant parts catalog) $270.00/EA Add 11 TN8049787 1 Plug, Gauge, Oil [Ku]Old # 9004348 $15.76/EA Add
M20 cylinder head group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 cylinder head group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002642 1 Ear, Lifting, Eng [Ku]Old # 71996 $16.77/EA Add 2 TN8002643 1 Ear, Lifting, Eng [Ku]Old # 71997 $19.29/EA Add 3 TN8002906 2 Screw, Hex [Ku]Old # 39073 $1.40/EA Add 4 TN8002764 1 Head, Cylinder [Ku]Old # 9004340 $1,878.62/EA Add 5 TN8002584 1 Cap, SealingOld # 393504 $11.65/EA Add 6 TN8002910 2 Fitting, Pipe, Plug [Ku]Old # 39088 $5.00/EA Add 7 TN8004160 4 Guide, Valve, InletOld # 372906 $20.75/EA Add 8 TN8004161 4 Guide, Valve, ExhaustOld # 372907 $21.60/EA Add 9 TN8002644 3 Cap, Sealing, Eng [Ku]Old # 71999 $9.20/EA Add 10 TN8002428 18 Screw, Hex, Head, Cyl [Ku]Old # 70897 $21.25/EA Add 11 TN8002765 1 Gasket, Head, Cyl [Ku]Old # 9004341 $241.09/EA Add TN8002842 1 Gasket Set, UpperOld # 66194 $371.18/EA Add 12 TN8051527 1 Fitting, Pipe, Plug [Ku]Old # 72010 $7.35/EA Add
M20 gear case group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tap a number to see that part.

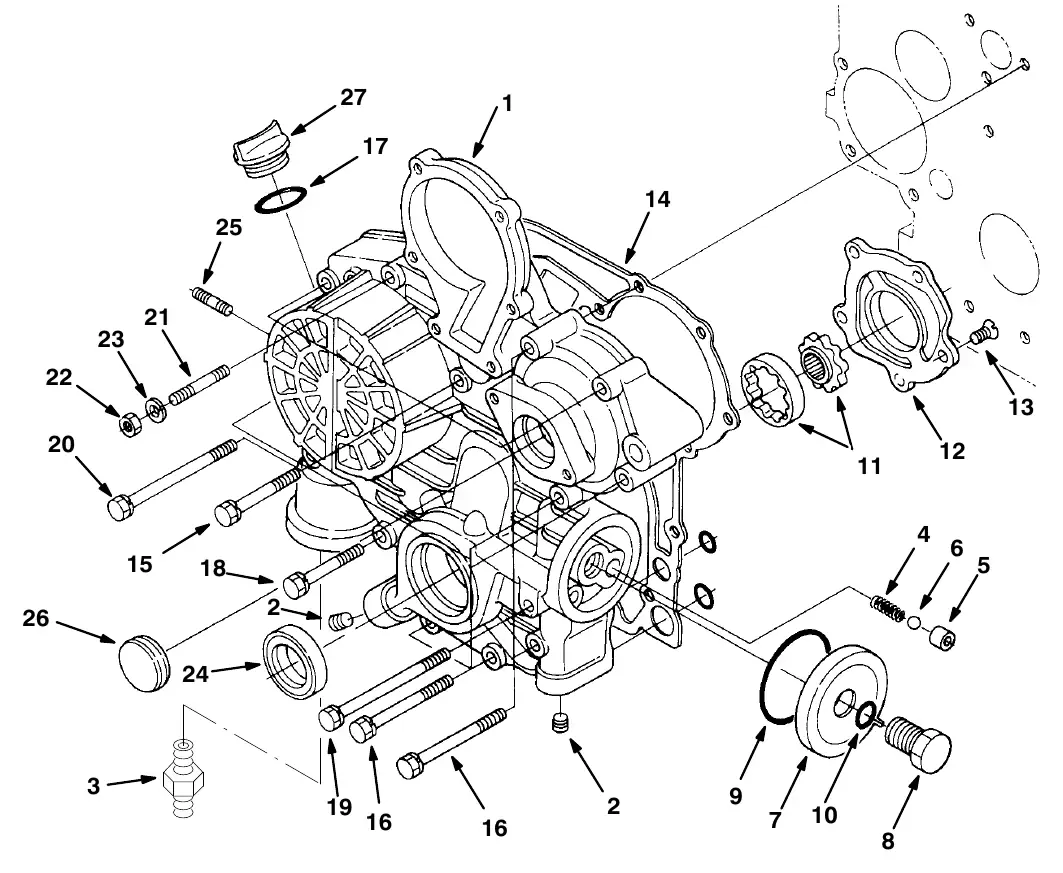

Enlarge Gear Case Group, SN 008000 and later. Manual page 276. SES ref PF-553Q-ISOR Tennant M20 gear case group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002812 1 Crankcase, Comp [Ku]Old # 9004432 $796.58/EA Add 2 TN8046197 5 Fitting, Pipe, Plug [Ku]Old # 361401 $15.86/EA Add 3 TN8050434 1 Fitting, Fltr, Oil [Ku]Old # 12916 $32.12/EA Add 4 TN8051510 1 Spring, Cmpr, Relief [Ku]Old # 70900 $4.75/EA Add 5 TN8051511 1 Tube, Seat, Valve, Oil [Ku]Old # 70901 $32.12/EA Add 6 TN8051512 1 Ball, Relief, Oil [Ku]Old # 70902 $3.23/EA Add 7 TN8051513 1 CoverOld # 70905 $125.85/EA Add 8 TN8051514 1 BoltOld # 70906 $24.95/EA Add 9 TN8002493 1 Seal, Org [Ku]Old # 70907 $11.40/EA Add 10 TN8002496 1 Seal, OrgOld # 70911 $3.80/EA Add 11 TN8002491 1 Pump, Oil, Eng [Ku]Old # 70903 $257.15/EA Add 12 TN8002492 1 Cover, Pump, OilOld # 70904 $41.61/EA Add 13 TN8051528 5 Screw, Flt [Ku]Old # 72013 $3.33/EA Add 14 TN8002497 1 Gasket, Case, Gear [Ku]Old # 70912 $27.70/EA Add 15 TN8051235 3 Screw, Hex [Ku]Old # 72993 $2.40/EA Add 16 Old # 72994 6 BoltOld # 72994Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 17 TN8002498 1 Seal, OrgOld # 70913 $10.20/EA Add 18 TN8051529 1 Screw, Hex [Ku]Old # 72014 $3.90/EA Add 19 TN8051540 2 Screw, Hex [Ku]Old # 72015 $1.50/EA Add 20 TN8051541 1 BoltOld # 72016 $8.08/EA Add 21 TN8049785 1 Stud [Ku]Old # 9004346 $3.80/EA Add 22 TN8002919 1 Nut, Hex [Ku]Old # 39121 $0.55/EA Add 23 TN8002905 1 Washer, Lock, Split [Ku]Old # 39065 $3.60/EA Add 24 TN8004817 1 Seal, Oil, Front [Ku]Old # 361389 $18.20/EA Add 25 TN8049786 2 Stud [Ku]Old # 9004347 $3.65/EA Add 26 TN8051544 1 CoverOld # 72019 $15.15/EA Add 27 TN8004680 1 Cap, Filler, Oil [Ku]Old # 361374 $22.00/EA Add
M20 water pump group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 water pump group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002805 1 Pump, Water Assy [Ku]Old # 9004402 $661.80/EA Add 2 TN8002502 1 Flange, Pump, Water [Ku]Old # 70919 $63.13/EA Add 3 TN4203504 1 Bearing [Ku]Old # 9004403 $86.90/EA Add 4 TN8049828 1 Seal, Mechanical Assy [Ku]Old # 9004404 $98.48/EA Add 5 TN8049829 1 Impeller, Pump, Water [Ku]Old # 9004405 $80.75/EA Add 6 TN8004843 1 Fitting, Pipe, Water [Ku]Old # 361440 $17.10/EA Add 7 TN8002503 1 Gasket, Pump, Water [Ku]Old # 70920 $26.40/EA Add 8 TN8002806 4 Bolt [Ku]Old # 9004406 $1.90/EA Add 9 TN8049840 2 Bolt [Ku]Old # 9004407 $3.80/EA Add 10 TN8002746 1 Pipe, Water [Kubota]Old # 9003868 $84.30/EA Add 11 TN8002747 1 Pipe, Water [Kubota]Old # 9003869 $38.80/EA Add 12 TN8002748 2 Clamp [Kubota]Old # 9003870 $8.30/EA Add 13 TN8004437 1 Sheave, Fan [Ku]Old # 55847 $95.40/EA Add 14 TN8043698 4 Bolt, FlngOld # 393588 $4.90/EA Add
M20 main bearing case group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 main bearing case group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002767 1 Bearing, Case [Ku]Old # 9004349 $258.66/EA Add 2 TN8002815 1 Crankshaft, Metal [Ku]Old # 9004436 $59.99/EA Add 3 TN8002648 2 Screw, Hex, Case, Brg, Main [Ku]Old # 72998 $22.12/EA Add 4 TN8002768 1 Gasket, Bearing, Case [Ku]Old # 9004350 $9.80/EA Add 5 TN8002506 1 Cover, Brg Case, Eng [Ku]Old # 70923 $107.97/EA Add 6 TN8002507 1 Seal, Oil, Rear [Ku]Old # 70924 $67.47/EA Add 7 TN8002508 1 Gasket, Case, Gear [Ku]Old # 70925 $14.75/EA Add 8 TN8044938 8 BoltOld # 384871 Call for price 9 TN8005670 9 BoltOld # 371017 $3.33/EA Add 10 TN8002816 1 Case, Main, Brg AssyOld # 9004437 $223.11/EA Add 11 TN8002529 1 Bearing, Cshft, Std [Ku]Old # 70948 $58.08/EA Add 12 TN8002648 2 Screw, Hex, Case, Brg, Main [Ku]Old # 72998 $22.12/EA Add 13 TN8002663 3 Screw, Hex, Case, Brg, Main [Ku]Old # 73479 $31.71/EA Add 14 TN8002817 1 Case, Main, Brg AssyOld # 9004438 $246.04/EA Add 15 TN8002529 1 Bearing, Cshft, Std [Ku]Old # 70948 $58.08/EA Add 16 TN8002648 2 Screw, Hex, Case, Brg, Main [Ku]Old # 72998 $22.12/EA Add 17 TN8002818 1 Case, Main, Brg AssyOld # 9004439 $226.24/EA Add 18 TN8002529 1 Bearing, Cshft, Std [Ku]Old # 70948 $58.08/EA Add 19 TN8002648 2 Screw, Hex, Case, Brg, Main [Ku]Old # 72998 $22.12/EA Add
M20 head cover group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 head cover group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002813 1 Cover, Cyl Head Assy [Ku]Old # 9004433 $277.65/EA Add 2 TN8002511 1 Gasket, Cover, Head, Cyl [Ku]Old # 70929 $31.00/EA Add 3 TN372912 1 Shield, BreatherOld # 372912 · current Tennant number (Tennant parts catalog) Call for price 4 TN8004167 1 Valve, Breather, CompltOld # 372928 $107.54/EA Add 5 TN4170138 1 Cover, BreatherOld # 384874 Call for price 6 TN8002666 4 Screw, Hex, W/ Washer [Ku]Old # 73482 $0.55/EA Add 7 TN30125 1 Pipe, WaterOld # 30125 · no current Tennant number on file Call for price 8 TN8004164 1 Tube, BreatherOld # 372913 $14.55/EA Add 9 TN8004158 1 Clamp, HoseOld # 372901 $3.60/EA Add 10 TN8004159 1 Clamp, HoseOld # 372904 $10.00/EA Add 11 TN8002667 4 Nut, Hex, CapOld # 73483 $6.85/EA Add 12 TN8002668 4 Gasket, F/ Bolt [Ku]Old # 73484 $2.35/EA Add 13 TN8004680 1 Cap, Filler, Oil [Ku]Old # 361374 $22.00/EA Add 14 TN8002498 1 Seal, OrgOld # 70913 $10.20/EA Add
M20 manifold group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 manifold group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8045862 1 Manifold Assy, InletOld # 372905 $201.50/EA Add 2 TN8002665 1 Pipe, Breather [Ku]Old # 73481 $17.45/EA Add 3 TN8002516 1 Gasket, Manifold, Intake [Ku]Old # 70934 $26.40/EA Add 4 TN8002806 2 Bolt [Ku]Old # 9004406 $1.90/EA Add 5 Old # 72994 3 BoltOld # 72994Number being confirmed with Tennant – call before ordering · Replaces 384872 (2022 list (rev. 08)) Number being confirmed with Tennant – call before ordering 6 TN8002670 1 Manifold, Exhaust [Ku]Old # 73487 $284.21/EA Add 7 TN8002517 1 Gasket, Manifold, ExhaustOld # 70935 $48.40/EA Add 8 TN8002671 8 Stud [Ku]Old # 73488 $4.90/EA Add 9 TN8002672 8 NutOld # 73489 $3.25/EA Add 10 TN8002405 1 Gasket [Ku]Old # 51332 $14.90/EA Add 11 TN8052077 3 Screw, Hex [Ku]Old # 40409 $3.30/EA Add
M20 valve, rocker arm group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 valve, rocker arm group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002518 4 Valve, Intake [Ku]Old # 70936 $54.60/EA Add 2 TN8002519 4 Valve, Exhaust [Ku]Old # 70937 $58.60/EA Add 3 TN8002673 8 Spring, Valve [Ku]Old # 73491 $9.19/EA Add 4 TN8002674 8 Retainer, Spring, Valve [Ku]Old # 73492 $4.25/EA Add 5 TN8002675 8 Retainer, Spring [Ku]Old # 73493 $15.50/EA Add 6 TN8002676 8 Seal, Stem, Valve [Ku]Old # 73494 $14.70/EA Add 7 TN8004818 8 Cap, Valve [Ku]Old # 361392 $13.70/EA Add 8 TN8049841 1 Shaft, Rocker, Arm [Ku]Old # 9004409 $74.64/EA Add 9 TN8043708 2 BoltOld # 393598 $4.44/EA Add 10 TN8051243 4 Bracket, Mtg, Rocker Arm [Ku]Old # 73497 $60.10/EA Add 11 TN8051244 4 Stud [Ku]Old # 73498 $10.80/EA Add 12 TN8051245 4 Nut, Hex [Ku]Old # 73499 $6.85/EA Add 13 TN8051246 4 Washer, Flat [Ku]Old # 73500 $3.15/EA Add 14 TN8049842 1 Pin, Spring [Ku]Old # 9004410 $1.52/EA Add 15 TN8002678 2 Washer, Shaft, Rocker [Ku]Old # 73502 $4.34/EA Add 16 TN8004897 2 Washer, Flat [Ku]Old # 361589 $4.24/EA Add 17 TN8051248 3 Spring, Cmpr, Rocker [Ku]Old # 73504 $4.14/EA Add 18 TN8002680 8 Arm, Rocker [Ku]Old # 73506 $121.00/EA Add 19 TN8051250 8 Screw, Adj, Rocker Arm [Ku]Old # 73507 $8.59/EA Add 20 TN8051251 8 Nut, Hex [Ku]Old # 73508 $8.59/EA Add
M20 fuel camshaft group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 fuel camshaft group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003211 1 CamshaftOld # 84636 $712.15/EA Add 2 TN8002794 1 Bearing, Ball [Ku]Old # 9004368 $76.66/EA Add 3 TN8002795 1 Bearing, Ball [Ku]Old # 9004369 $76.66/EA Add 4 TN8049855 1 Gear, Injection, Pump [Ku]Old # 9004445 $108.07/EA Add 5 TN8051312 1 Nut, Cap, Cam [Ku]Old # 73593 Call for price 6 TN8051313 1 Key, Woodruff [Ku]Old # 73594 Call for price 7 TN8051315 1 Stopper, Fuel [Ku]Old # 73596 Call for price 8 TN8052091 2 Bolt, Hex [Ku]Old # 41973 $3.50/EA Add TN8051316 1 Shaft, GovnrOld # 73597 $1,109.49/EA Add 9 TN8049801 1 Shaft, Governor [Ku]Old # 9004371 $100.70/EA Add 10 TN8051317 1 Holder, Gear [Ku]Old # 73598 Call for price 11 TN8051318 1 Gear, Govnr [Ku]Old # 73599 $163.78/EA Add 12 TN8051319 1 Holder, Govnr [Ku]Old # 73600 Call for price 13 TN8002057 2 Weight, Comp, Govnr [Ku]Old # 73601 Call for price 14 TN8002058 2 Shaft, Govnr [Ku]Old # 73602 $35.45/EA Add 15 TN8002796 2 Shaft, Governor, Weight [Ku]Old # 9004372 $26.97/EA Add 16 TN8051518 1 Sleeve, Govnr [Ku]Old # 70977 Call for price 17 TN8051519 1 Washer, Thrust [Ku]Old # 70978 $11.62/EA Add 18 TN8049802 1 Bearing, Ball [Ku]Old # 9004373 $76.66/EA Add 19 TN8051320 1 Ring, Snap [Ku]Old # 73603 Call for price 20 TN8051321 1 Screw, Set [Ku]Old # 73604 $8.08/EA Add
M20 camshaft group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tap a number to see that part.

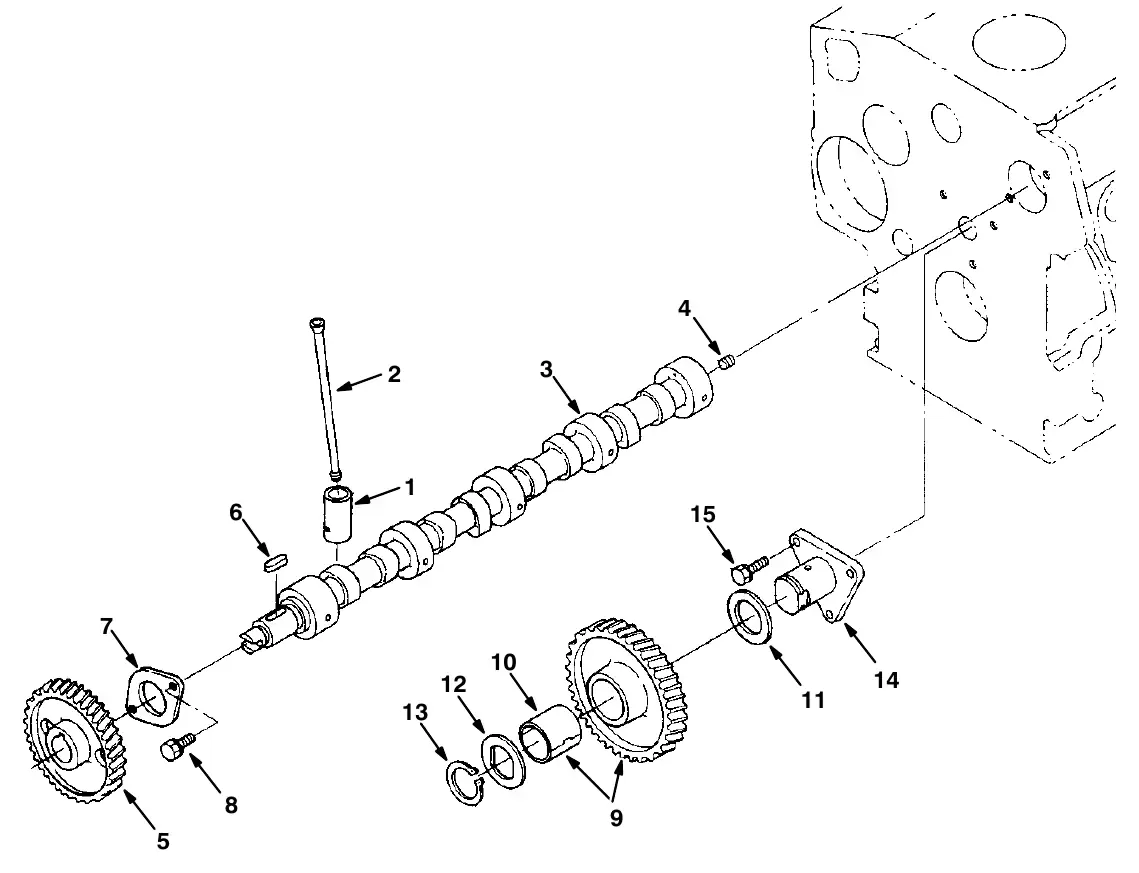

Enlarge Camshaft Group, SN 008000 and later. Manual page 284. SES ref PF-GV2E-F77W Tennant M20 camshaft group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8005264 8 Tappet [Ku]Old # 12895 · Replaces 9004358 (2022 list (rev. 08)) $41.61/EA Add 2 TN8002681 8 Rod, Push, Valve [Ku]Old # 73509 $9.90/EA Add 3 TN8002819 1 Crankshaft AssyOld # 9004440 $1,095.14/EA Add 4 TN8044787 1 Screw, Set [Ku]Old # 39197 $4.44/EA Add 5 TN8051252 1 Gear, Camshaft [Ku]Old # 73511 Call for price 6 TN8051253 1 Key [Ku]Old # 73512 $3.43/EA Add 7 TN8051254 1 Stopper, Cam [Ku]Old # 73513 Call for price 8 TN8052091 2 Bolt, Hex [Ku]Old # 41973 $3.50/EA Add 9 TN8051255 1 Gear, Idler, Cam [Ku]Old # 73514 $463.62/EA Add 10 TN8002682 1 Bushing, Gear, Idler [Ku]Old # 73515 $30.10/EA Add 11 TN8051256 1 Collar, Gear [Ku]Old # 73516 $11.82/EA Add 12 TN8051257 1 Washer, Collar, Gear [Ku]Old # 73517 $10.10/EA Add 13 TN8051258 1 Ring, Snap [Ku]Old # 73518 $7.88/EA Add 14 TN8051282 1 Shaft, Idler, Gear [Ku]Old # 73519 $177.15/EA Add 15 TN8052091 3 Bolt, Hex [Ku]Old # 41973 $3.50/EA Add
M20 piston and crankshaft group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tap a number to see that part.
Enlarge Piston and Crankshaft Group, SN 008000 and later. Manual page 286. SES ref PF-2NED-F2TQ Tennant M20 piston and crankshaft group parts, SN 008000 and later Item Part number Qty Description and notes Price Item 1: choose your version (2) 1 TN8002683 4 Piston, Eng [Ku]Old # 73520 $320.37/EA Add 1 TN8002684 4 Piston, Eng [Ku]Old # 73521 $516.82/EA Add Item 2: choose your version (2) 2 TN8002791 4 Ring, Piston Assy [Ku]Old # 9004361 $159.58/EA Add 2 TN8002820 4 Piston, Ring Assy [Ku]Old # 9004441 $159.28/EA Add 3 TN8002685 4 Pin, Piston [Ku]Old # 73522 $19.90/EA Add 4 TN8002686 8 Ring, Snap, Piston [Ku]Old # 73523 $5.35/EA Add 5 TN8002687 4 Rod Assy, Connecting [Ku]Old # 73524 $579.94/EA Add 6 TN8004819 4 Bushing, Pin, Piston [Ku]16241 - 21351Old # 361395 $28.08/EA Add 7 TN8002688 8 Screw, Rod, Connecting [Ku]Old # 73525 $15.15/EA Add Item 8: choose your version (3) 8 TN8002522 4 Bearing, Rod, Connecting, Std [Ku]Old # 70941 $63.02/EA Add 8 TN8002843 4 Bearing, Rod, Connecting [ - .2mm, Ku]Old # 66204 $71.31/EA Add 8 TN8002846 4 Bearing, Rod, Connecting [ - .4mm, Ku]Old # 66207 $76.26/EA Add TN8002689 1 CrankshaftOld # 73526 $5,928.20/EA Add 9 TN8051283 4 Ball, Cshft [Ku]Old # 73527 $2.83/EA Add 10 TN8002720 1 Gear, Cshft [Ku]Old # 73528 $254.22/EA Add 11 TN8002721 1 Key [Ku]Old # 73529 $5.15/EA Add 12 TN8002722 1 Gear, Pump, Oil [Ku]Old # 73530 $114.89/EA Add 13 TN8002523 1 Bearing, Cshft [Ku]Old # 70942 $123.42/EA Add 14 TN8002524 1 Collar, Crank, Front [Ku]Old # 70943 $84.52/EA Add 15 TN8002792 1 Ring [Ku]Old # 9004363 $10.40/EA Add Item 16: choose your version (3) 16 TN8002526 1 Bearing, Cshft, Std [Ku]Old # 70945 $97.16/EA Add 16 TN8002527 1 Bearing, Cshft, - .2mm [Ku]Old # 70946 $76.15/EA Add 16 TN8002528 1 Bearing, Cshft [Ku]Old # 70947 $93.12/EA Add Item 17: choose your version (3) 17 TN8006116 2 Bearing, Thrust, Std [Ku]Old # 10844 $22.83/EA Add 17 TN8002534 2 Bearing, Thrust [Ku]Old # 70954 $24.95/EA Add 17 TN8002535 2 Bearing, Thrust [ - .4mm, Ku]Old # 70955 Call for price 18 TN8006117 2 Bearing, Thrust, Std [Ku]Old # 10845 $30.40/EA Add 19 TN8002723 2 Screw, Hex, Cshft [Ku]Old # 73532 $22.39/EA Add 20 TN8002991 2 Sheave, Cshft [Ku]Old # 393400 $126.38/EA Add
M20 flywheel group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 flywheel group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002536 1 FlywheelOld # 70956 $1,339.77/EA Add 2 TN8002248 1 Gear, Ring [Ku]Old # 9004442 $143.02/EA Add 3 TN8002724 6 Screw, Hex, Flywheel [Ku]Old # 73533 $25.55/EA Add 4 TN8049446 1 Indicator, Timing [Ku]Old # 9003891 $17.78/EA Add 5 TN8049853 1 Bolt [Ku]Old # 9004443 $3.33/EA Add 6 TN8049854 1 Washer, Plain [Ku]Old # 9004444 $1.31/EA Add
M20 starter breakdown, 74405 Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 starter breakdown, 74405 parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002147 1 Starter, 12vdc [Kubota]Old # 74405 $2,482.50/EA Add 2 TN70196 1 YokeOld # 70196 · current Tennant number (Tennant parts catalog) $731.70/EA Add 3 TN8051485 1 Armature, Motor [Ku]Old # 70197 $600.04/EA Add 4 TN8051486 1 BearingOld # 70198 $66.66/EA Add 5 TN8051487 1 BearingOld # 70199 $55.05/EA Add 6 TN70200 1 ClutchOld # 70200 · current Tennant number (Tennant parts catalog) Call for price 7 TN8051488 1 Frame, End, DriveOld # 70201 Call for price 8 TN70202 1 Switch, Magneto [Ku]Old # 70202 · current Tennant number (Tennant parts catalog) $1,173.00/EA Add 9 TN70203 1 Frame, EndOld # 70203 · current Tennant number (Tennant parts catalog) $227.80/EA Add 10 TN70204 1 BrushholderOld # 70204 · current Tennant number (Tennant parts catalog) Call for price 11 TN8051489 4 Spring, BrushOld # 70205 $13.43/EA Add 12 TN70206 1 GearOld # 70206 · current Tennant number (Tennant parts catalog) Call for price 13 TN8051500 1 RetainerOld # 70207 Call for price 14 TN8051288 5 Retainer, Gear, Starter [Ku]Old # 73545 Call for price 15 TN8051501 1 SpringOld # 70208 Call for price 16 TN8051290 1 Spring, Ext [Ku]Old # 73547 Call for price 17 TN8051502 2 BoltOld # 70209 Call for price 18 TN8048533 2 Seal, OrgOld # 20433 $25.65/EA Add 19 TN8051503 2 BoltOld # 70210 Call for price 20 TN8048531 2 BoltOld # 20432 $10.10/EA Add 21 TN70211 1 CoverOld # 70211 · current Tennant number (Tennant parts catalog) $44.40/EA Add 22 TN8051294 1 Nut, Hex [Ku]Old # 73551 $7.68/EA Add 23 TN8051504 1 NutOld # 70212 $9.19/EA Add 24 TN8051505 1 Tube, Drain, StarterOld # 70213 $37.77/EA Add
M20 nozzle holder and glow plug group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 nozzle holder and glow plug group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002727 1 Pipe, OverflowOld # 73554 $68.36/EA Add 2 TN8051297 1 Fitting, Fuel [Ku]Old # 73555 $24.70/EA Add 3 TN8002710 1 Gasket, F/ Bolt [Ku]Old # 40166 $4.30/EA Add TN8004679 1 Hose, Fuel [Ku]Old # 361373 $6.80/EA Add 4 TN8002799 2 Pipe, Fuel, Overflow [Ku]Old # 9004389 $4.85/EA Add 5 TN8002800 4 Pipe, Clip [Ku]Old # 9004390 $3.20/EA Add 6 TN8004165 1 Housing Assy, NozzleOld # 372917 $525.80/EA Add 7 TN8002249 1 Gasket [Ku]Old # 9004450 $4.95/EA Add 8 TN8002260 1 Seal, Heat [Ku]Old # 9004451 $16.60/EA Add 9 TN8002540 1 Tube, Injector, Pipe #1 [Ku]Old # 70965 $42.93/EA Add 10 TN8002541 1 Tube, Injector, Pipe #2 [Ku]Old # 70966 $82.55/EA Add 11 TN8002542 1 Tube, Injector, Pipe #32 [Ku]Old # 70967 $82.55/EA Add 12 TN8002543 3 Pipe, Injector, # 4Old # 70968 $82.55/EA Add 13 TN8048250 3 Clamp, Tube, Inj, Pipe #1 [Ku]Old # 30131 $8.20/EA Add 14 TN39507 4 Clamp, PipeOld # 39507 · current Tennant number (Tennant parts catalog) Call for price 15 TN8043682 1 Screw, W / WasherOld # 393566 $4.90/EA Add 16 TN8003212 3 Glowplug [Ku]Old # 84638 $156.70/EA Add 17 TN8002031 3 Cord, Ele, GlowplugOld # 73560 $35.10/EA Add 18 TN8002802 3 Nut, Flange [Ku]Old # 9004393 $3.45/EA Add
M20 nozzle holder breakdown Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 nozzle holder breakdown parts, SN 008000 and later Item Part number Qty Description and notes Price TN8004165 4 Housing Assy, NozzleOld # 372917 $525.80/EA Add 1 TN8049823 1 Nut [Ku]Old # 9004395 $14.34/EA Add 2 TN8049824 1 Washer, Adjusting [Ku]Old # 9004396 $7.88/EA Add 3 TN8049825 1 Nozzle, Spring [Ku]Old # 9004397 $15.55/EA Add 4 TN8044706 1 Spacer [Ku]Old # 388500 Call for price 5 TN8049826 1 Rod, Push [Ku]Old # 9004398 $69.99/EA Add 6 TN8049827 1 Nut, Nozzle [Ku]Old # 9004399 $50.90/EA Add 7 TN8002803 1 Washer, Plain [Ku]Old # 9004400 $10.71/EA Add 8 TN8002804 1 Nozzle [Ku]Old # 9004401 $280.98/EA Add
M20 injection pump group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tap a number to see that part.

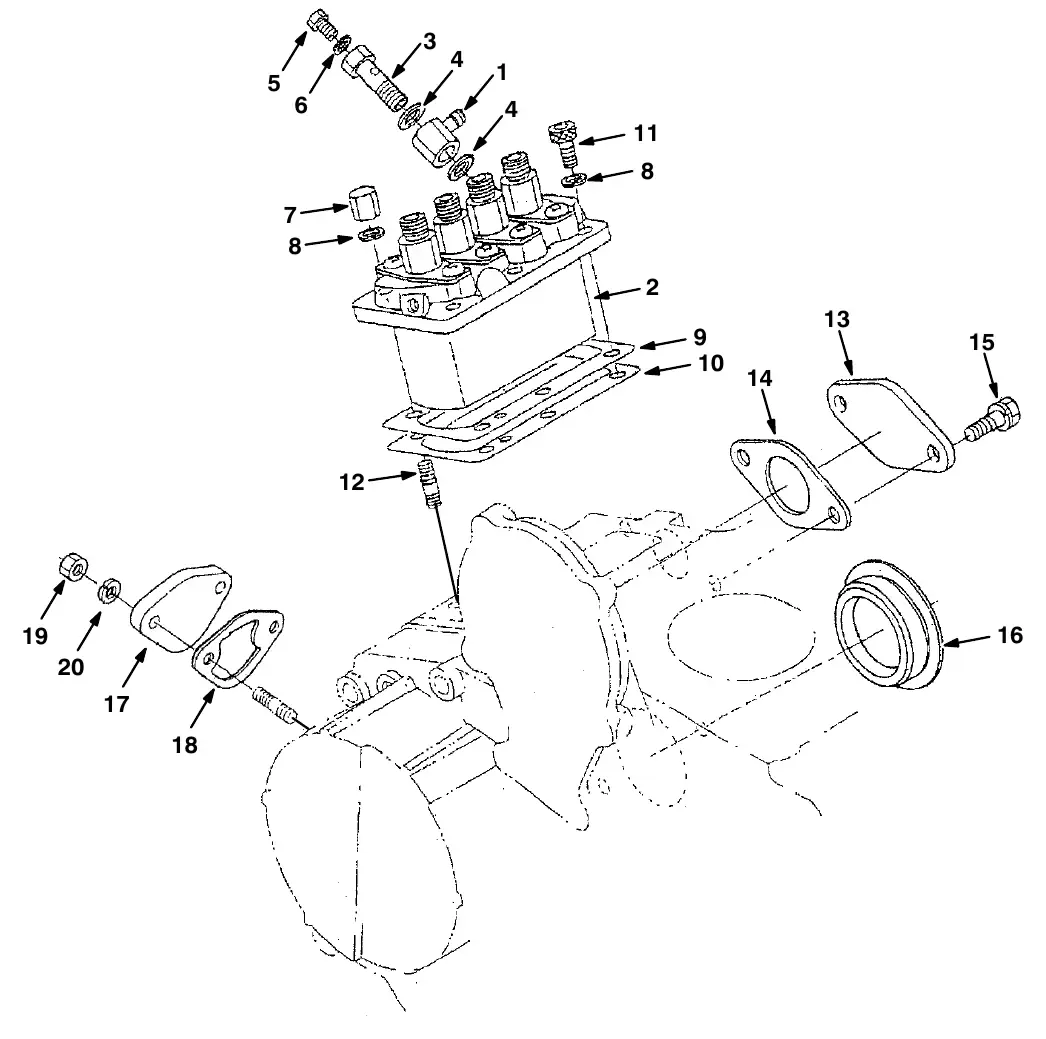

Enlarge Injection Pump Group, SN 008000 and later. Manual page 292. SES ref PF-475R-UV5L Tennant M20 injection pump group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 Old # 9004376 1 Eye, Joint [Ku]Old # 9004376Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 2 TN8003210 1 Pump, Injection [Kubo]Old # 84635 $2,983.20/EA Add 3 TN8003215 1 Follower, Screw, Pump, Injection[Ku]Old # 84651 $91.10/EA Add 4 TN8002054 2 Gasket, Ftg, Banjo [Ku]Old # 73588 $3.50/EA Add 5 TN8002055 1 Screw, Hex [Ku]Old # 73589 $24.60/EA Add 6 TN8002056 1 Gasket, F/ Screw [Ku]Old # 73590 $3.50/EA Add 7 TN8002033 3 Nut [Ku]Old # 73563 $27.85/EA Add 8 TN8002905 6 Washer, Lock, Split [Ku]Old # 39065 $3.60/EA Add Item 9: choose your version (2) 9 TN8002545 1 ShimOld # 70972 $9.80/EA Add 9 TN8002546 1 ShimOld # 70973 $12.63/EA Add 10 TN8003213 1 Shim, Pump, InjectionOld # 84644 $20.40/EA Add 11 TN8051298 3 Bolt [Ku]Old # 73561 $4.14/EA Add 12 TN8002032 3 Stud [Ku]Old # 73562 $3.65/EA Add 13 TN8002261 1 Cover, Solenoid [Ku]Old # 9004454 $22.83/EA Add 14 TN8002867 1 Gasket, Solenoid, Throttle [Ku]Old # 70165 $5.40/EA Add 15 TN8002951 2 Bolt, Hex [Ku]Old # 39160 $3.33/EA Add 16 TN8002868 1 Cover, Hole, Pump [Ku]Old # 70188 $28.31/EA Add 17 TN8051299 1 Cover, Hole, Pump, Fuel [Ku]Old # 73565 $15.35/EA Add 18 TN8002547 1 Gasket, Pump, Fuel [Ku]Old # 70974 $14.24/EA Add 19 TN8002919 2 Nut, Hex [Ku]Old # 39121 $0.55/EA Add 20 TN8002905 2 Washer, Lock, Split [Ku]Old # 39065 $3.60/EA Add
M20 injection pump breakdown Diesel engine breakdown SN 008000 and later Fits: Diesel
Tap a number to see that part.

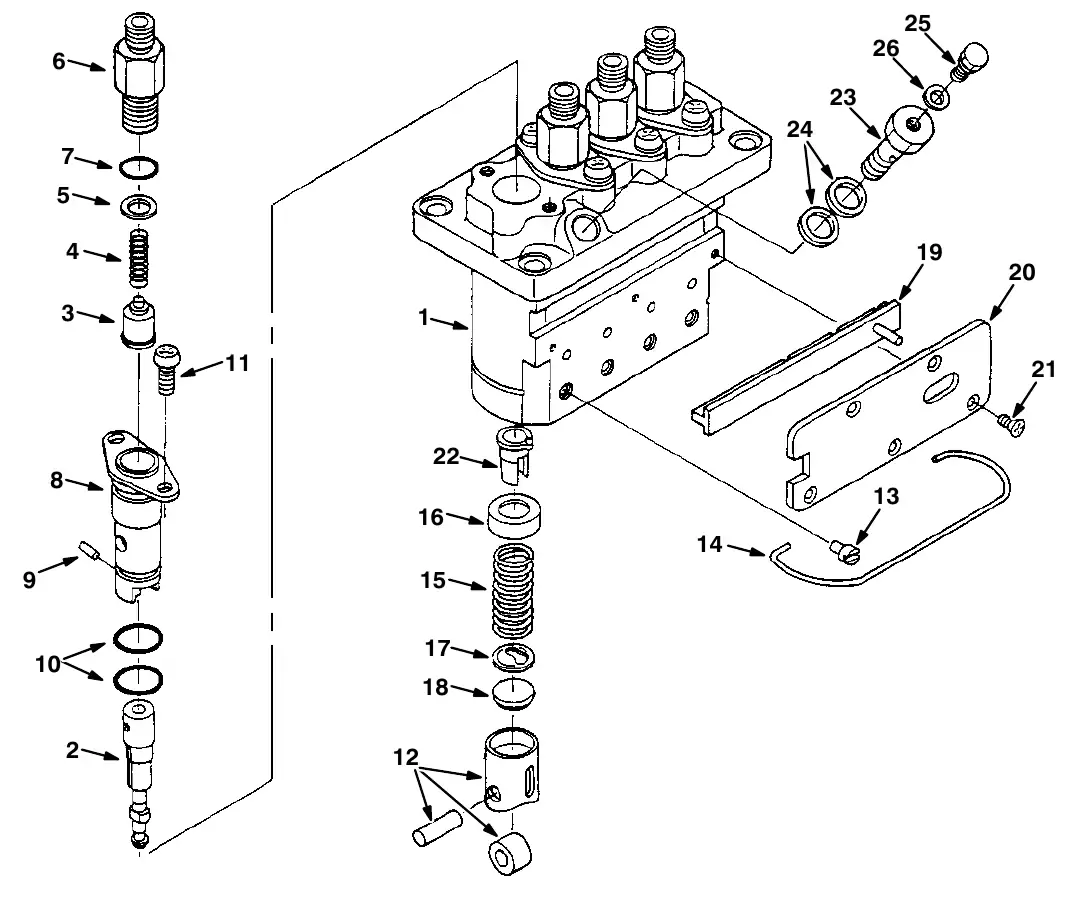

Enlarge Injection Pump Breakdown, SN 008000 and later. Manual page 294. SES ref PF-K7A4-VDGL Tennant M20 injection pump breakdown parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8003210 1 Pump, Injection [Kubo]Old # 84635 $2,983.20/EA Add 2 TN8003214 4 Plunger, Pump, Inj [Ku]Old # 84648 $423.80/EA Add 3 TN8002034 4 Valve, Eng [Delivery, Ku]Old # 73567 $148.57/EA Add 4 TN8002035 4 Spring, Cmpr, Valve, Injector [Ku]Old # 73568 $20.91/EA Add 5 TN8002036 4 Gasket, Valve, Injector [Ku]Old # 73569 $14.95/EA Add 6 TN8051300 4 Holder, Valve, Inj [Ku]Old # 73570 $114.94/EA Add 7 TN8002037 4 Seal, Org [Ku]Old # 73571 $23.43/EA Add 8 TN8002038 4 Flange, Sleeve [Ku]Old # 73572 Call for price 9 TN8002039 4 Pin, Joint, Inj [Ku]Old # 73573 $14.54/EA Add 10 TN8002050 8 Seal, Org [Ku]Old # 73574 $28.99/EA Add 11 TN8002051 8 Screw, Hex [Ku]Old # 73575 $22.93/EA Add 12 TN8051301 4 Tappet, Pump, Injection [Ku]Old # 73576 Call for price 13 TN8051302 4 Pin, Tappet [Ku]Old # 73577 Call for price 14 TN8051303 1 Pin, ClampOld # 73578 Call for price 15 TN8002052 4 Spring, Cmpr, Plunger [Ku]Old # 73579 Call for price 16 TN8051304 4 Seat, Spring, Upper, Injector [Ku]Old # 73580 $21.51/EA Add 17 TN8051305 4 Seat, Spring, Lower, Injector [Ku]Old # 73581 $61.11/EA Add 18 TN8002053 1 Shim, Tappet, Injection [Ku]Old # 73582 $6.36/EA Add 19 TN8050698 1 Control, FuelOld # 84649 Call for price 20 TN8050699 1 PlateOld # 84650 Call for price 21 TN8051308 5 Screw, Pump, Injection [Ku]Old # 73585 $36.97/EA Add 22 TN8051309 4 Sleeve, Cntrl, Pump, Injection [Ku]Old # 73586 Call for price 23 TN8003215 1 Follower, Screw, Pump, Injection[Ku]Old # 84651 $91.10/EA Add 24 TN8002054 2 Gasket, Ftg, Banjo [Ku]Old # 73588 $3.50/EA Add 25 TN8002055 1 Screw, Hex [Ku]Old # 73589 $24.60/EA Add 26 TN8002056 1 Gasket, F/ Screw [Ku]Old # 73590 $3.50/EA Add
M20 idling group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 idling group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 Old # 9004446 1 Idling, Apparatus [Ku]Old # 9004446Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 2 TN8049857 1 Bolt, Adjustment Assy [Ku]Old # 9004447 $21.01/EA Add 3 TN8002059 1 Nut, Hex [Ku]Old # 73606 $2.90/EA Add 4 TN8004681 1 Nut, Cap [Ku]Old # 361375 $4.75/EA Add 5 TN8002710 2 Gasket, F/ Bolt [Ku]Old # 40166 $4.30/EA Add 6 TN8005834 1 Cap, Screw, Idler [Ku]Old # 30136 $9.60/EA Add 7 TN8002060 1 Screw, Adj, Stop [Ku]Old # 73610 $4.85/EA Add 8 TN8049803 1 Nut, Lock [Ku]Old # 9004374 $6.06/EA Add 9 TN8004681 1 Nut, Cap [Ku]Old # 361375 $4.75/EA Add 10 TN8002710 2 Gasket, F/ Bolt [Ku]Old # 40166 $4.30/EA Add 11 TN8049804 1 Gasket [Ku]Old # 9004375 $7.50/EA Add
M20 speed control plate group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 speed control plate group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002551 1 Plate, Cntrl, Spd [Ku]Old # 70982 $386.63/EA Add 2 TN8051326 2 Lever, Cntrl, Spd [Ku]Old # 73619 $24.24/EA Add 3 Old # 9004385 1 O - Ring [Ku]Old # 9004385Number being confirmed with Tennant – call before ordering Number being confirmed with Tennant – call before ordering 4 TN8052076 2 Pin, Spring [Ku]Old # 40407 $2.83/EA Add 5 TN8051327 2 Washer, Flat [Ku]Old # 73621 $5.96/EA Add 6 TN8051328 2 Nut, Hex [Ku]Old # 73622 $4.44/EA Add 7 TN8051329 1 Lever, Plate, Cntrl [Ku]Old # 73623 $57.27/EA Add 8 TN8002063 1 Lever, Stop [Ku]Old # 73624 $25.55/EA Add 9 TN8002552 1 Seal, Oil [Ku]Old # 70983 $11.62/EA Add 10 TN8051330 1 Spring, Tors [Ku]Old # 73625 $9.49/EA Add 11 TN8002064 1 Shaft, Lever, Spd [Ku]Old # 73626 $76.86/EA Add 12 TN8002553 1 Gasket, Cover, Spd [Ku]Old # 70984 $7.88/EA Add 13 TN8052091 2 Bolt, Hex [Ku]Old # 41973 $3.50/EA Add 14 TN8049786 2 Stud [Ku]Old # 9004347 · Replaces 9004386 (2022 list (rev. 08)) $3.65/EA Add 15 TN8002919 2 Nut, Hex [Ku]Old # 39121 $0.55/EA Add 16 TN8002905 2 Washer, Lock, Split [Ku]Old # 39065 $3.60/EA Add 17 TN8049859 1 Bolt [Ku]Old # 9004449 $1.52/EA Add 18 TN8002710 1 Gasket, F/ Bolt [Ku]Old # 40166 $4.30/EA Add
M20 governor group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 governor group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8002797 1 Spring, Start [Ku]Old # 9004379 $5.96/EA Add 2 TN8049858 1 Spring, Governor [Ku]Old # 9004448 $16.77/EA Add 3 TN9004775 1 Lever Assy, Fork [KU]Old # 9004775 · current Tennant number (Tennant parts catalog) Call for price 4 TN8049809 1 Lever, Fork [Ku]Old # 9004381 $481.67/EA Add 5 TN8049820 1 Lever, Fork, Shaft [Ku]Old # 9004382 $64.54/EA Add 6 TN4017493 1 Belt Kit, W/ Installation ToolOld # 9004283 $66.10/EA Add 7 TN8051520 1 Bearing, Ball [Ku]Old # 70989 Call for price 8 TN8002066 1 Cover, Lever, Gov [Ku]Old # 73631 $13.64/EA Add 9 TN8004836 1 Gasket, Cover, Gov [Ku]Old # 361430 $3.33/EA Add 10 TN8051526 2 Screw, Hex [Ku]Old # 71995 $3.84/EA Add 11 TN8002557 1 Collar, Govnr [Ku]Old # 70991 $4.44/EA Add 12 TN8002558 1 Bearing, Ball [Ku]Old # 70992 $16.36/EA Add
M20 water flange group Diesel engine breakdown SN 008000 and later Fits: Diesel
Tennant M20 water flange group parts, SN 008000 and later Item Part number Qty Description and notes Price 1 TN8005464 1 Flange, Water [Ku]Old # 368090 $88.48/EA Add 2 TN8003127 1 Pipe, Water, ReturnOld # 384859 $6.80/EA Add 3 TN8002067 2 Fitting, Pipe, Plug [Ku]Old # 73632 $10.70/EA Add 4 TN8002559 1 Gasket, Hsg, Thermostat [Ku]Old # 70994 $8.10/EA Add 5 TN8052091 3 Bolt, Hex [Ku]Old # 41973 $3.50/EA Add 6 Old # 72994 1 BoltOld # 72994Number being confirmed with Tennant – call before ordering · Replaces 384872 (2022 list (rev. 08)) Number being confirmed with Tennant – call before ordering 7 TN8002068 1 Hose, Water [Ku]Old # 73633 $18.70/EA Add 8 TN8002069 2 Clamp, Hose, Heater [Ku]Old # 73634 $10.80/EA Add 9 TN8006119 1 Thermostat, 180deg, 1.7d [Ku]Old # 10852 $106.70/EA Add 10 TN8006118 1 GasketOld # 10851 $12.90/EA Add 11 TN8005465 1 Housing, Thermostat [Ku]Old # 368091 $30.30/EA Add 12 TN8052079 2 Bolt [Ku]Old # 40418 $2.53/EA Add
Notes on this parts list
Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list. Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups. Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those. Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.
