Tennant M20 engine parts, SN 008000 and later: 2022 manual (rev. 08)
Engine parts from Tennant's North American M20 parts manuals for SN 008000 and later (9016001 rev. 08 (gas/LPG) + 9016051 rev. 08 (diesel)), gas, LPG and diesel. Use Your machine to pick your serial number, edition or another area.
Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.
Find your parts list →1,318 lines from 9016001 rev. 08 (gas/LPG) + 9016051 rev. 08 (diesel). Checked against the manuals line by line on .
- Machine
- M20 rider sweeper-scrubber
- Cleaning path
- 40 in (56 in with side brush)
- Solution / recovery
- 56 / 73 gal
- Hopper
- 3.9 ft³, 390 lb
- Power
- Gasoline, LPG or diesel
- Main brushes
- 2 × 40 in cylindrical
Your machine
You’re viewing the 2022 manual (Rev 08, Jul 2022). The current manual is Rev 12 (Oct 2025). Enter your serial number or use the dropdown for your exact machine.
Where to find the serial number and power type
- The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
- Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
- Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.
How to read this list
Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

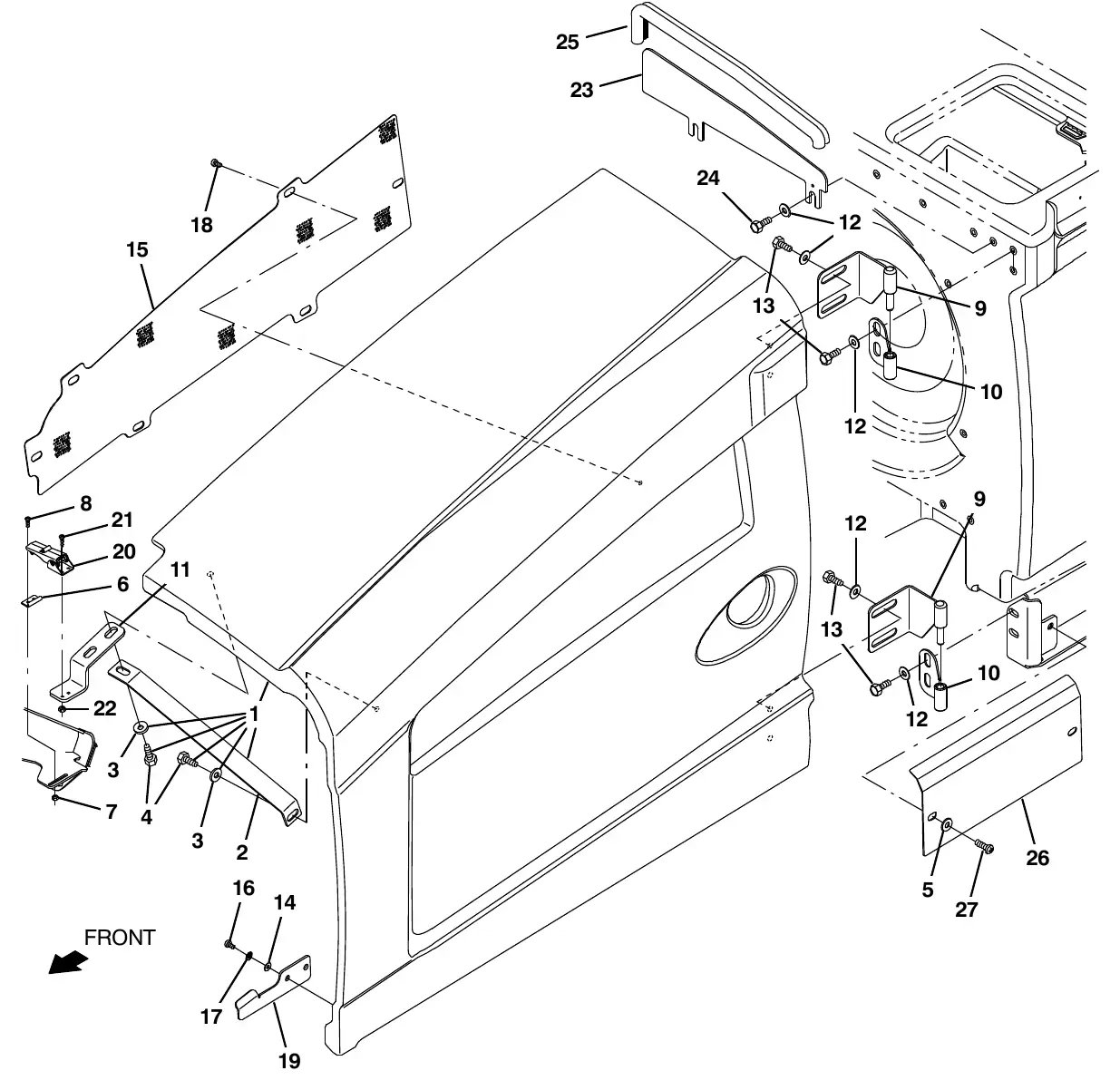

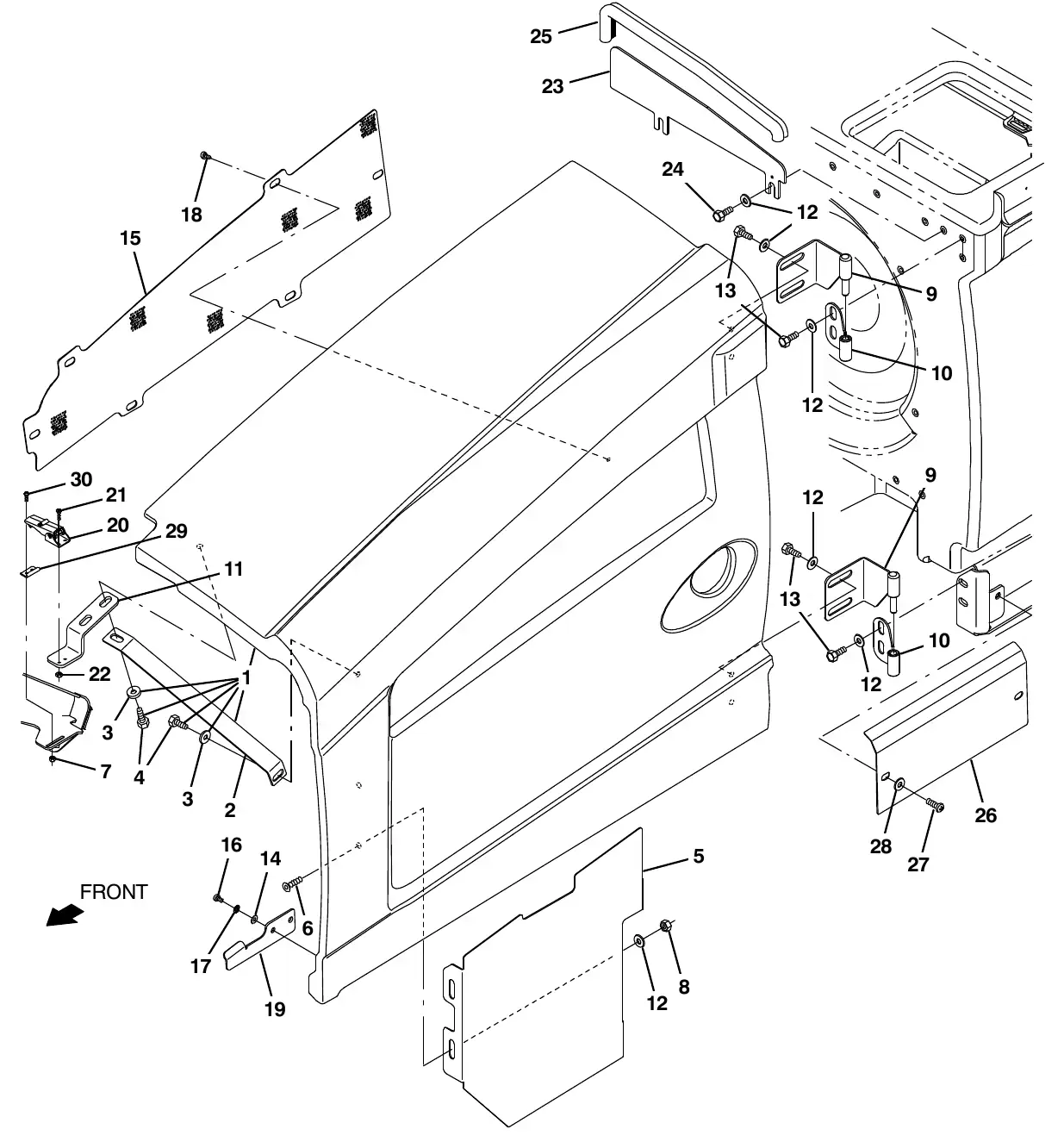

M20 Engine Cover Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030566 | 1 | Shroud Assy, EngOld # 1071439 | $434.10/EA |
| 2 | TN4194117 | 1 | Angle, Brace, ShrdOld # 1026628 | $14.75/EA |
| 3 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 4 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 5 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 6 | TN4024119 | 1 | Bracket, Latch, Keeper [Southco]Old # 384419 | $4.50/EA |
| 7 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 8 | TN4035372 | 2 | Screw, Pan, M4 X 0.7 X 16, SsOld # 24265 | $3.00/EA |
| 9 | TN4033616 | 2 | Hinge Wldt, Shrd, LhOld # 1024500 | $68.90/EA |
| 10 | TN4033887 | 2 | Hinge Wldt, Shrd, LhOld # 1025196 | $42.60/EA |
| 11 | TN4036245 | 1 | Bracket, Latch, CoverOld # 1020186 | $13.50/EA |
| 12 | TN4035242 | 11 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 13 | TN4041844 | 7 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 14 | TN4016785 | 2 | Washer, Lock, Int - Ext, 10Old # 41139 | $3.50/EA |
| 15 | TN4034277 | 1 | Grill, EngOld # 1026726 | $72.20/EA |
| 16 | TN4041965 | 2 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 17 | TN4042244 | 2 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 18 | TN4040232 | 6 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267 | $2.50/EA |
| 19 | TN4030910 | 1 | Bracket, Guide, ShrdOld # 1028412 | $19.50/EA |
| 20 | TN4037479 | 1 | Latch, Door, YellowOld # 1222018 | $18.30/EA |
| 21 | TN4041258 | 2 | Screw, Pan, M4 X 0.7 X 16, 4.8Old # 06927 | $3.30/EA |
| 22 | TN4043235 | 2 | Nut, Hex, Lock, M4 X 0.7, NlOld # 02850 | $2.50/EA |
| 23 | TN4193841 | 1 | Plate, Seal, SoundOld # 1025806 | $15.80/EA |
| 24 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4031725 | 2 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588 | $46.50/EA |
| 26 | TN4032874 | 1 | Cover, LowerOld # 1022005 | $21.70/EA |
| 27 | TN4032093 | 2 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |

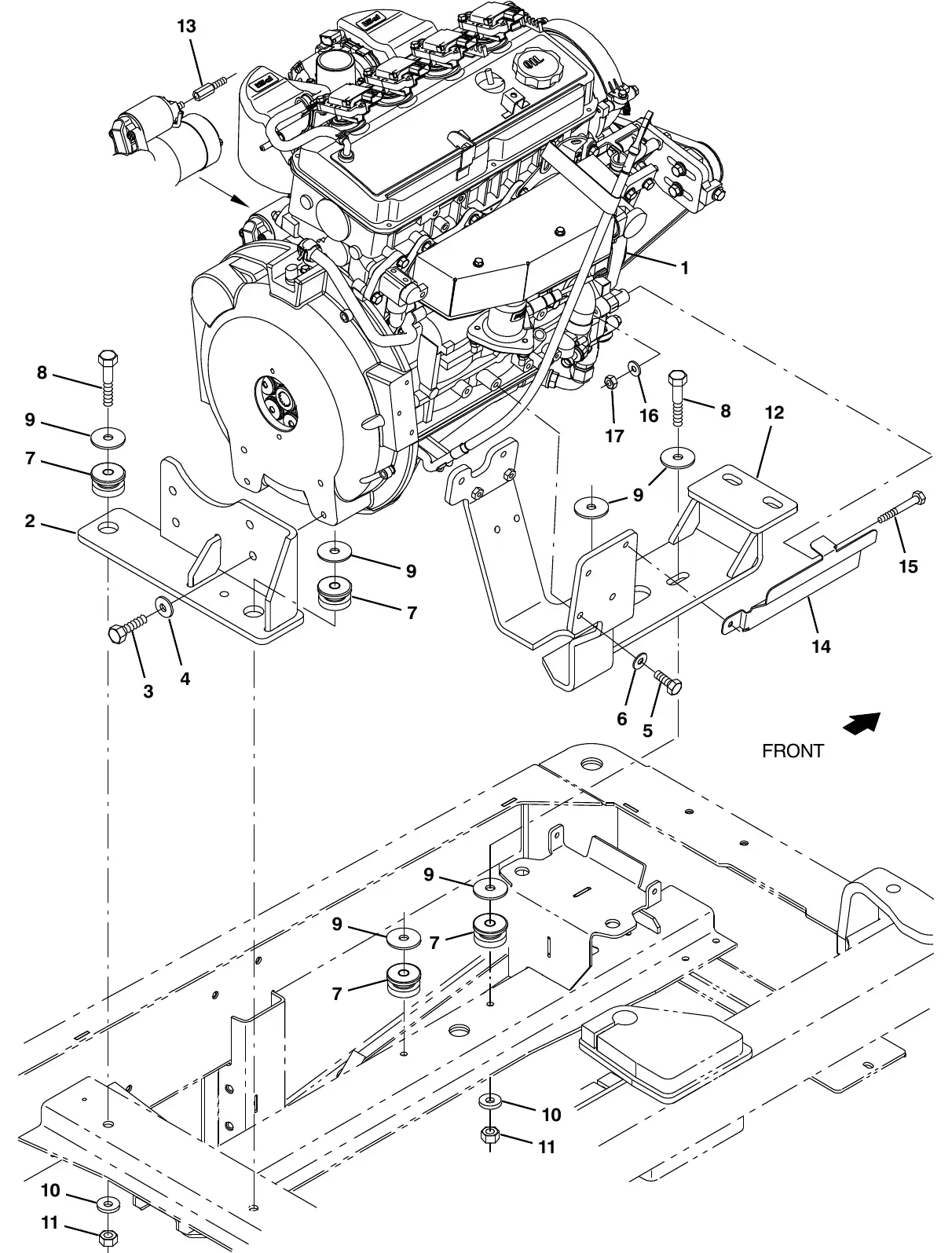

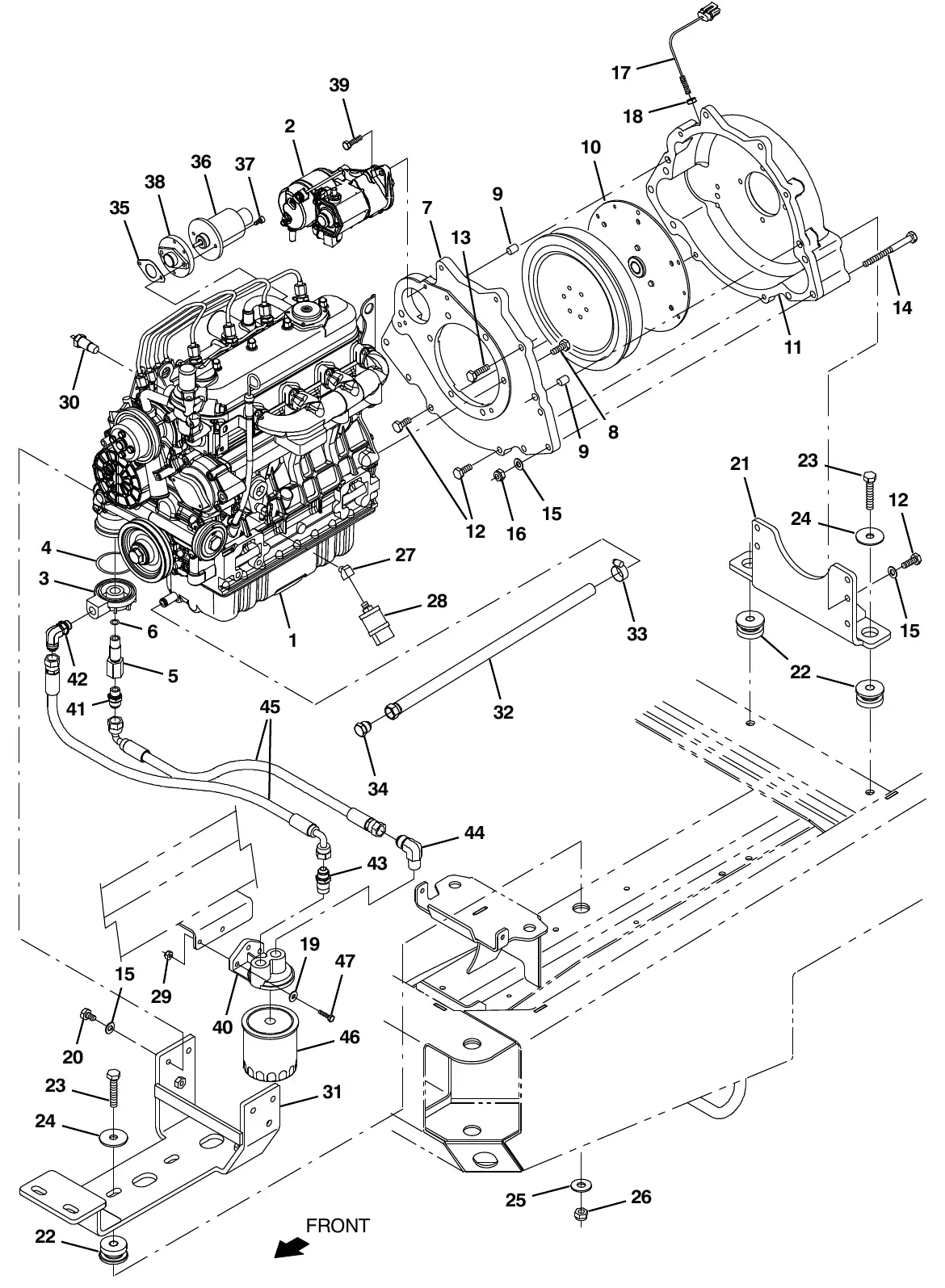

M20 Mitsubishi Engine and Mount Group, Gas
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003679 | 1 | Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Old # 9014202 | $8,912.00/EA |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Old # 393982 | $30.00/EA | |
| 2 | TN4030335 | 1 | Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Old # 1070756 | $68.38/EA |
| 3 | TN4016809 | 4 | Screw, Hex, M12 X 1.75 X 30, 8.8Old # 41346 | $4.00/EA |
| 4 | TN4034135 | 4 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 5 | TN4041580 | 6 | Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 | $2.40/EA |
| 6 | TN4034138 | 6 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 7 | TN4014538 | 4 | Isolator, Vib, .50dOld # 51176 | $37.60/EA |
| 8 | TN4041297 | 4 | Screw, Hex, M12 X 1.75 X 60, 8.8Old # 06972 | $4.00/EA |
| 9 | TN4040927 | 4 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 10 | TN4034139 | 3 | Washer, Flat, 0.50 StdOld # 32493 | $3.50/EA |
| 11 | TN4041927 | 3 | Nut, Hex, Lock, M12 X 1.75,NlOld # 08711 | $3.30/EA |
| 12 | TN4030332 | 1 | Bracket Wldt, Mtg, Engine [Mit 2013]Old # 1070751 | $192.32/EA |
| 13 | TN4180344 | 1 | Stand - Off, Hex, M8 X M8, MetalOld # 1072669 | $38.57/EA |
| 14 | TN4212835 | 1 | Plate, Guard, Hose, Hyd, SteeringOld # 1258789 | $35.10/EA |
| 15 | TN4019755 | 1 | Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281 | $4.00/EA |
| 16 | TN4034137 | 1 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 17 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |

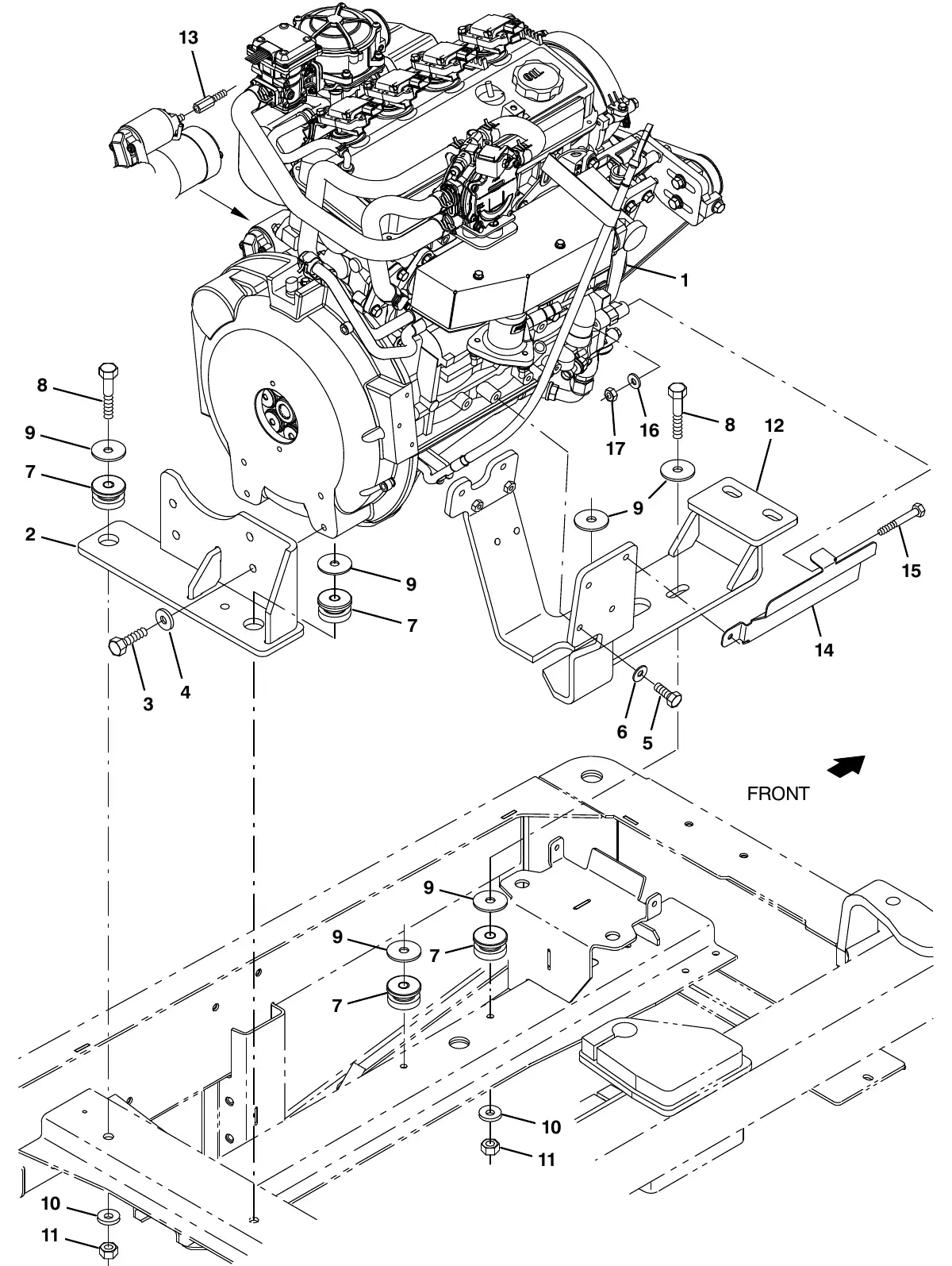

M20 Mitsubishi Engine and Mount Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003679 | 1 | Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Old # 9014202 | $8,912.00/EA |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Old # 393982 | $30.00/EA | |
| 2 | TN4030335 | 1 | Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Old # 1070756 | $68.38/EA |
| 3 | TN4016809 | 4 | Screw, Hex, M12 X 1.75 X 30, 8.8Old # 41346 | $4.00/EA |
| 4 | TN4034135 | 4 | Washer, Flat, 0.50 SaeOld # 32486 | $2.60/EA |
| 5 | TN4041580 | 6 | Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 | $2.40/EA |
| 6 | TN4034138 | 6 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 7 | TN4014538 | 4 | Isolator, Vib, .50dOld # 51176 | $37.60/EA |
| 8 | TN4041297 | 4 | Screw, Hex, M12 X 1.75 X 60, 8.8Old # 06972 | $4.00/EA |
| 9 | TN4040927 | 4 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 10 | TN4034139 | 3 | Washer, Flat, 0.50 StdOld # 32493 | $3.50/EA |
| 11 | TN4041927 | 3 | Nut, Hex, Lock, M12 X 1.75,NlOld # 08711 | $3.30/EA |
| 12 | TN4030332 | 1 | Bracket Wldt, Mtg, Engine [Mit 2013]Old # 1070751 | $192.32/EA |
| 13 | TN4180344 | 1 | Stand - Off, Hex, M8 X M8, MetalOld # 1072669 | $38.57/EA |
| 14 | TN4212835 | 1 | Plate, Guard, Hose, Hyd, SteeringOld # 1258789 | $35.10/EA |
| 15 | TN4019755 | 1 | Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281 | $4.00/EA |
| 16 | TN4034137 | 1 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 17 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |

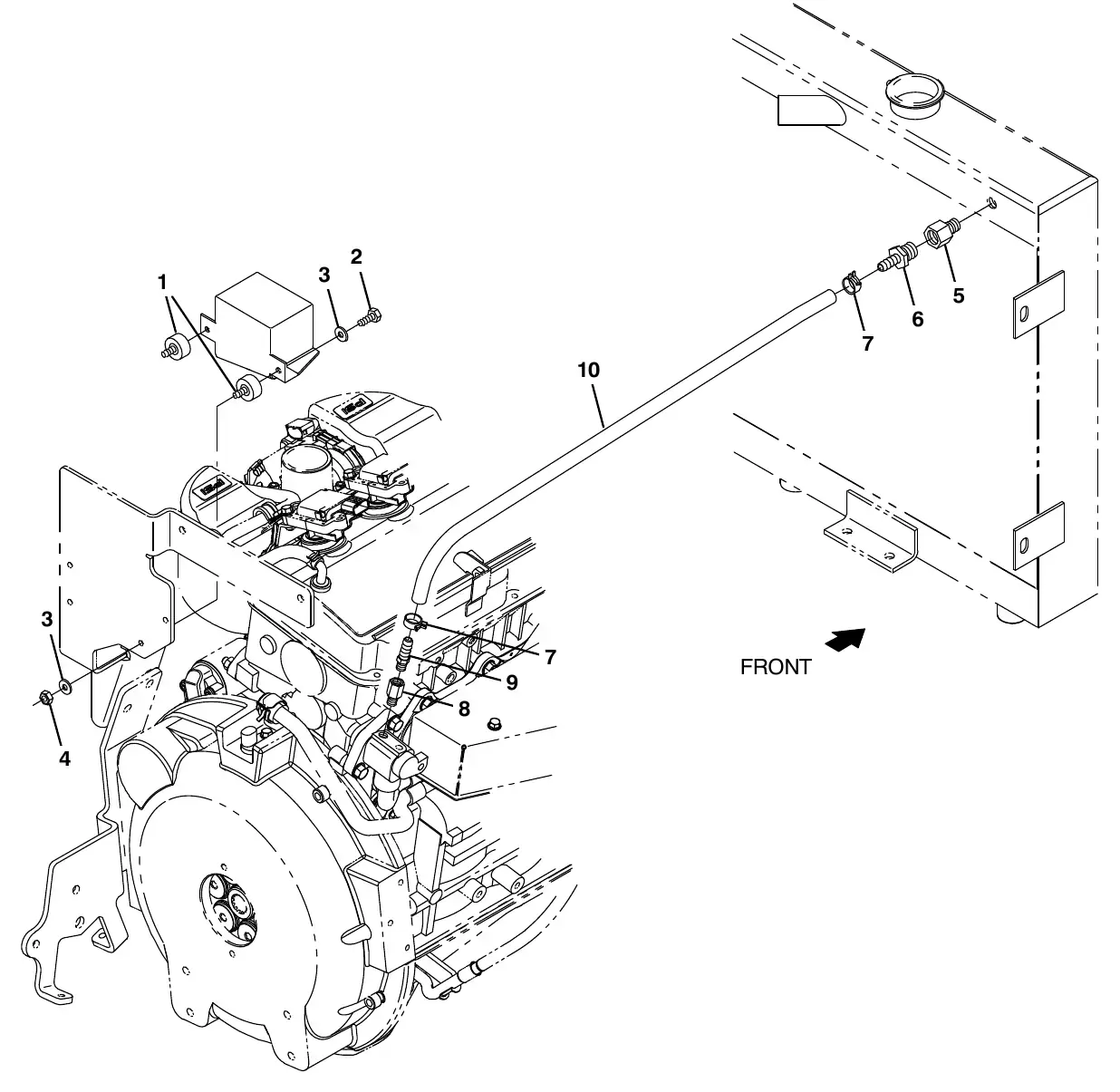

M20 Mitsubishi Engine EFI Group, Gasoline
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005190 | 2 | Isolator, Box, RelayOld # 372470 | $25.70/EA |
| 2 | TN4042535 | 2 | Screw, Hex, .25 - 20 X 0.50, G5Old # 19315 | $2.50/EA |
| 3 | TN4034136 | 4 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 4 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Old # 19312 | $2.50/EA |
| 5 | TN4030567 | 1 | Fitting, Brs, Str, Pf06/Pm04Old # 1071440 | $66.00/EA |
| 6 | TN4175233 | 1 | Fitting, Brs, Str, Bm06/Pm06Old # 36159 · Replaced by 150516 in the 2025 list (rev. 12) | $4.60/EA |
| 7 | TN4030949 | 2 | Clamp, Hose, Spring Stl, 0.58d X 0.31wOld # 1072559 | $3.20/EA |
| 8 | TN4030700 | 1 | Fitting, Brs, Str, Pf02/Pm02 [Bspt]Old # 1071502 | $39.76/EA |
| 9 | TN4038789 | 1 | Fitting, Brs, Str, Bm06/Pm02Old # 1055552 | $3.60/EA |
| 10 | TN4030929 | 1 | Hose, Afmkt, Rbr, Heater, 0.38id, 03ftOld # 1072408 | $68.40/EA |

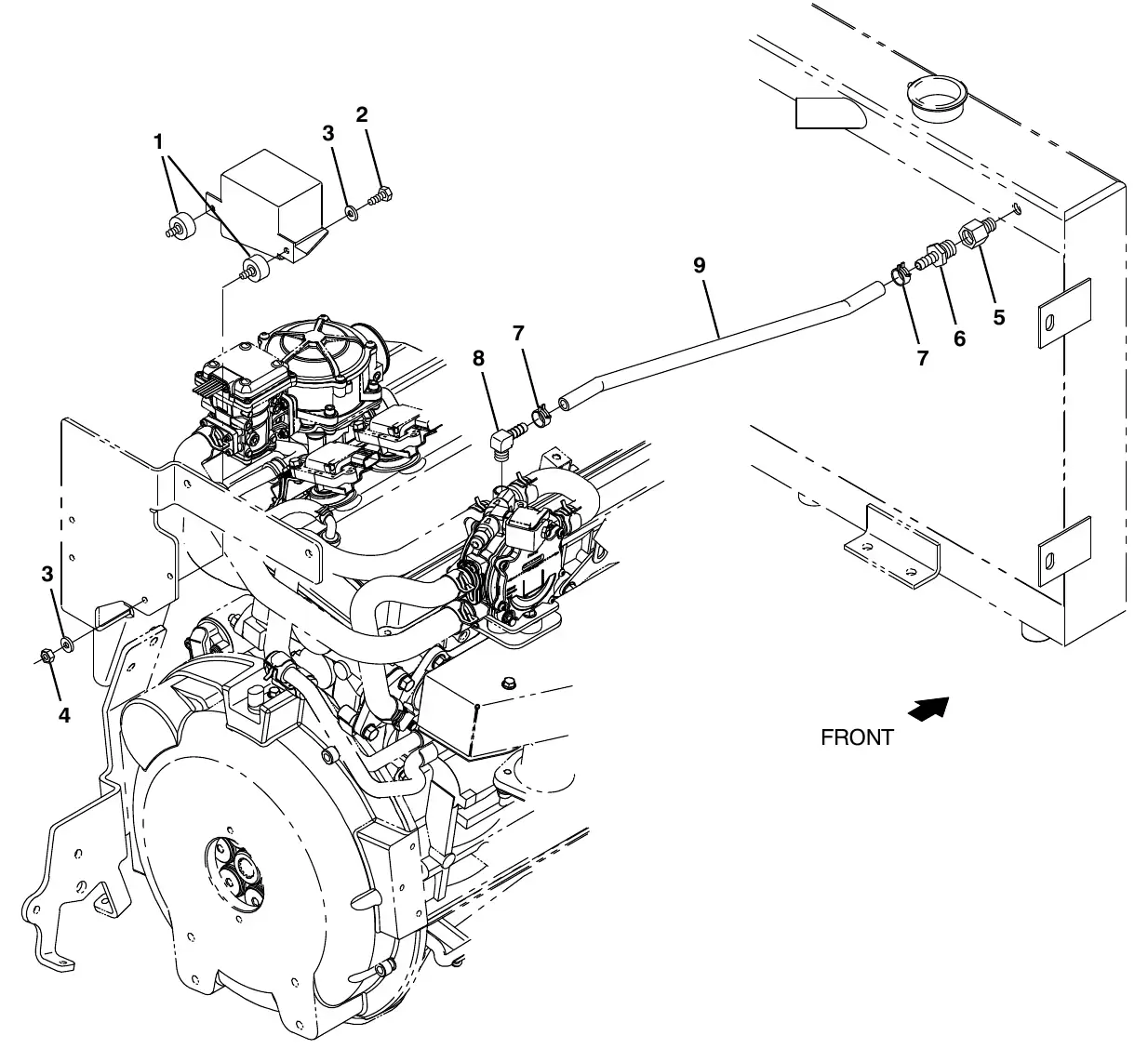

M20 Mitsubishi Engine EFI Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005190 | 2 | Isolator, Box, RelayOld # 372470 | $25.70/EA |
| 2 | TN4042535 | 2 | Screw, Hex, .25 - 20 X 0.50, G5Old # 19315 | $2.50/EA |
| 3 | TN4034136 | 4 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 4 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Old # 19312 | $2.50/EA |
| 5 | TN4030567 | 1 | Fitting, Brs, Str, Pf06/Pm04Old # 1071440 | $66.00/EA |
| 6 | TN4175233 | 1 | Fitting, Brs, Str, Bm06/Pm06Old # 36159 · Replaced by 150516 in the 2025 list (rev. 12) | $4.60/EA |
| 7 | TN4030949 | 2 | Clamp, Hose, Spring Stl, 0.58d X 0.31wOld # 1072559 | $3.20/EA |
| 8 | TN4197481 | 1 | Fitting, Brs, E90, Bm06/Pm04Old # 1015815 | $8.50/EA |
| 9 | TN4030929 | 1 | Hose, Afmkt, Rbr, Heater, 0.38id, 03ftOld # 1072408 | $68.40/EA |

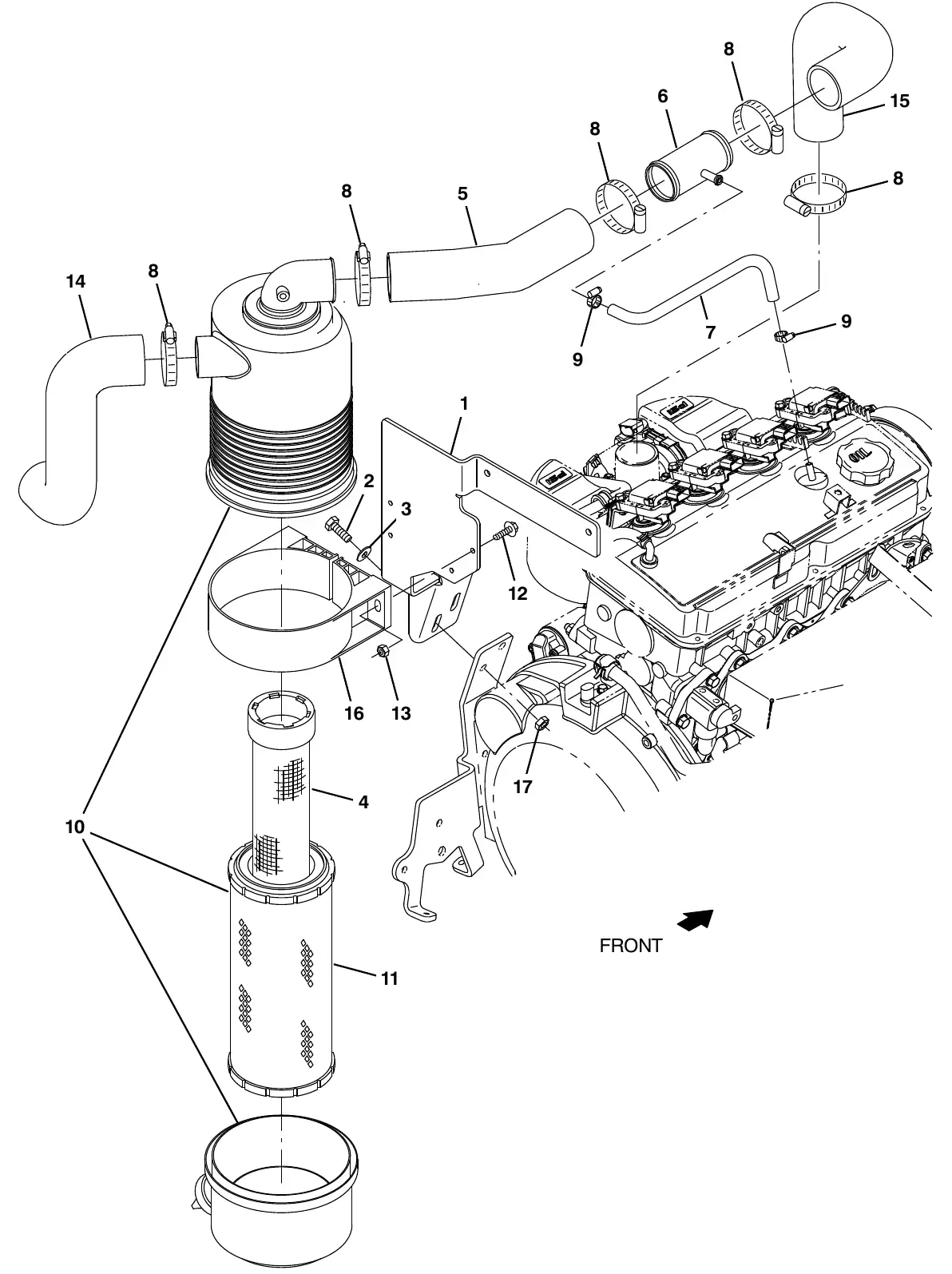

M20 Mitsubishi Engine Air Cleaner Group, Gasoline
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182557 | 1 | Bracket, Mtg, Fltr, Air [Mit 2013]Old # 1070822 · Replaced by 4208257 in the 2025 list (rev. 12) | $47.43/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 · Replaced by 4156940 in the 2025 list (rev. 12) | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 · Replaced by 4034137 in the 2025 list (rev. 12) | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Old # 398279 · Replaced by 8002697 in the 2025 list (rev. 12) | $52.20/EA |
| 5 | TN4182540 | 1 | Hose, Intake, Mold [Epdm Mit 2013]Old # 1070788 · Replaced by 4182540 in the 2025 list (rev. 12) | $45.22/EA |
| 6 | TN4182561 | 1 | Tube Wldt, Tee [Mit 2013]Old # 1070833 · Replaced by 4182561 in the 2025 list (rev. 12) | $95.68/EA |
| 7 | TN4027047 | 1 | Hose, Drain,Overflow,Radiator[1pick=1ft]Old # 381391 · Replaced by 4027047 in the 2025 list (rev. 12) | Call for price |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wOld # 14432 · Replaced by 4044328 in the 2025 list (rev. 12) | $5.30/EA |
| 9 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 · Replaced by 4015366 in the 2025 list (rev. 12) | $5.10/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirOld # 369745 · Replaced by 4032296 in the 2025 list (rev. 12) | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Old # 369746 · Replaced by 8005623 in the 2025 list (rev. 12) | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 · Replaced by 4045568 in the 2025 list (rev. 12) | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 · Replaced by 4041925 in the 2025 list (rev. 12) | $2.50/EA |
| 14 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Old # 1020949 · Replaced by 4036284 in the 2025 list (rev. 12) | $59.99/EA |
| 15 | TN4182993 | 1 | Hose, Intake, Mold, Gas [Epdm Mit 2013]Old # 1071404 · Replaced by 4182993 in the 2025 list (rev. 12) | $53.83/EA |
| 16 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirOld # 369747 · Replaced by 4032297 in the 2025 list (rev. 12) | $32.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 · Replaced by 4041926 in the 2025 list (rev. 12) | $2.50/EA |

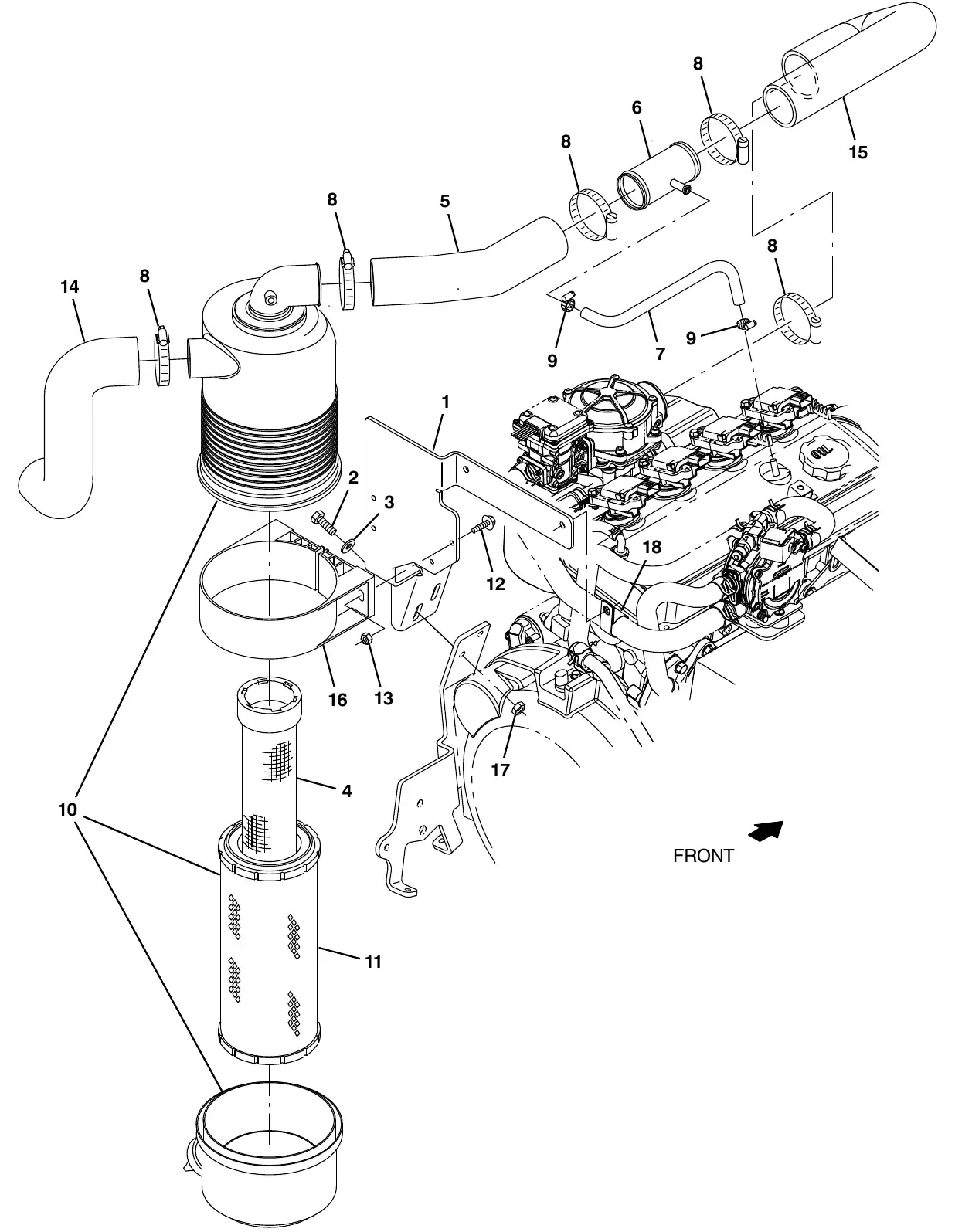

M20 Mitsubishi Engine Air Cleaner Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182557 | 1 | Bracket, Mtg, Fltr, Air [Mit 2013]Old # 1070822 · Replaced by 4208257 in the 2025 list (rev. 12) | $47.43/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 · Replaced by 4156940 in the 2025 list (rev. 12) | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 · Replaced by 4034137 in the 2025 list (rev. 12) | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Old # 398279 · Replaced by 8002697 in the 2025 list (rev. 12) | $52.20/EA |
| 5 | TN4182540 | 1 | Hose, Intake, Mold [Epdm Mit 2013]Old # 1070788 · Replaced by 4182540 in the 2025 list (rev. 12) | $45.22/EA |
| 6 | TN4182561 | 1 | Tube Wldt, Tee [Mit 2013]Old # 1070833 · Replaced by 4182561 in the 2025 list (rev. 12) | $95.68/EA |
| 7 | TN4027047 | 1 | Hose, Drain,Overflow,Radiator[1pick=1ft]Old # 381391 · Replaced by 4027047 in the 2025 list (rev. 12) | Call for price |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wOld # 14432 · Replaced by 4044328 in the 2025 list (rev. 12) | $5.30/EA |
| 9 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 · Replaced by 4015366 in the 2025 list (rev. 12) | $5.10/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirOld # 369745 · Replaced by 4032296 in the 2025 list (rev. 12) | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Old # 369746 · Replaced by 8005623 in the 2025 list (rev. 12) | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 · Replaced by 4045568 in the 2025 list (rev. 12) | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 · Replaced by 4041925 in the 2025 list (rev. 12) | $2.50/EA |
| 14 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Old # 1020949 · Replaced by 4036284 in the 2025 list (rev. 12) | $59.99/EA |
| 15 | TN4182539 | 1 | Hose, Intake, Mold, Lpg [Epdm Mit2013]Old # 1070787 · Replaced by 4182539 in the 2025 list (rev. 12) | $37.80/EA |
| 16 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirOld # 369747 · Replaced by 4032297 in the 2025 list (rev. 12) | $32.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 · Replaced by 4041926 in the 2025 list (rev. 12) | $2.50/EA |
| 18 | TN4018310 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeOld # 69234 · Replaced by 4018310 in the 2025 list (rev. 12) | $4.20/EA |

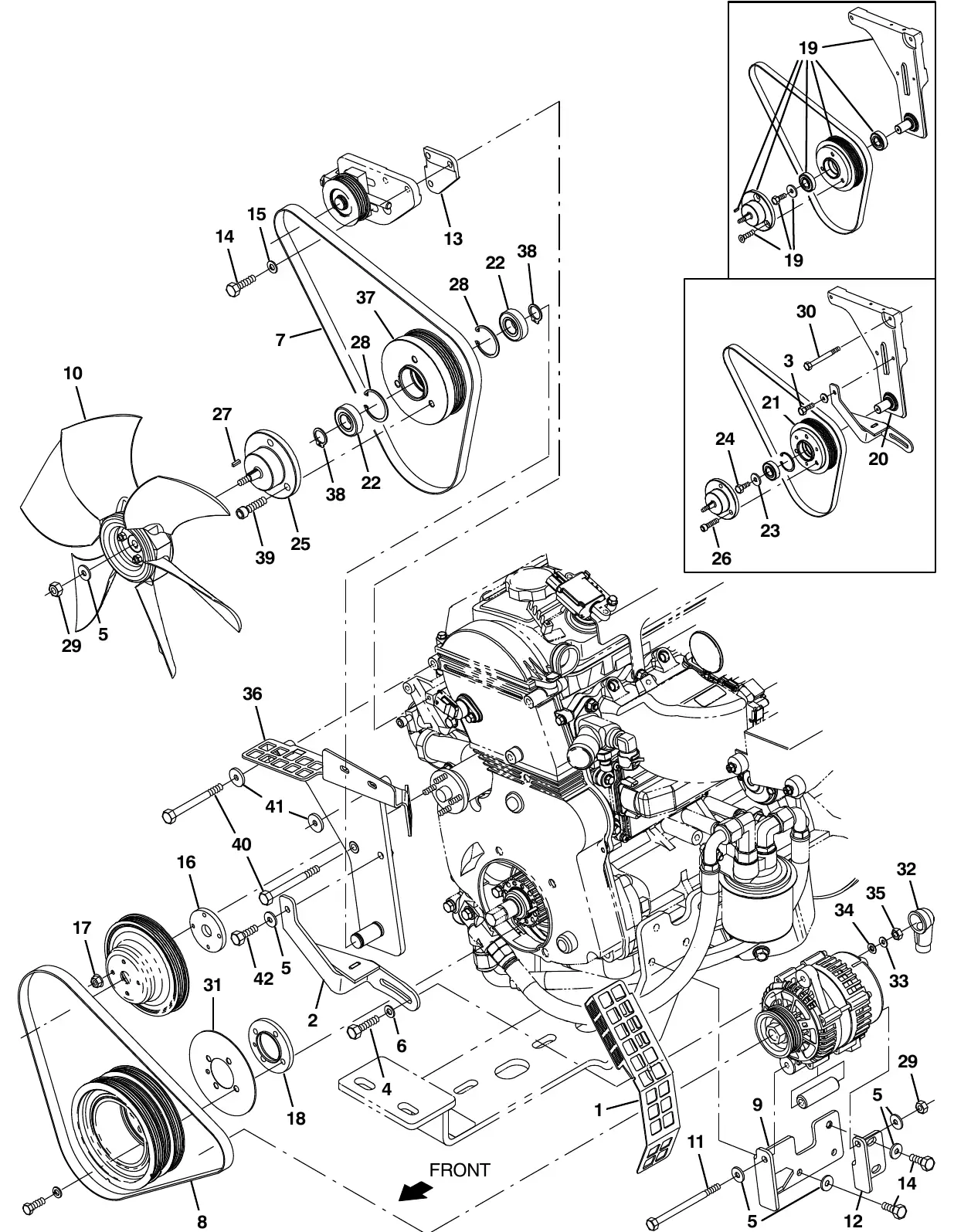

M20 Mitsubishi Engine Alternator and Fan Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030726 | 1 | Guard, Fan, SideOld # 1071727 | $21.60/EA |
| 2 | TN4182800 | 1 | Arm Wldt, Alternator [Mit 2013]Old # 1070890 | $28.68/EA |
| 3 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 008000–012313 · Old # 16931 | $2.50/EA |
| 4 | TN4043498 | 1 | Screw, Hex, M8 X 1.25 X 40, 8.8, FlOld # 04375 | $4.00/EA |
| 5 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 6 | TN4016796 | 1 | Washer, Flat, Belleville, .31Old # 41186 | $3.50/EA |
| 7 | TN4030503 | 1 | Belt, Ribbed, Fan, 42.13lOld # 1071144 | $52.40/EA |
| 8 | TN4030504 | 1 | Belt, Ribbed, Alternator, 41.5lOld # 1071145 | $53.20/EA |
| 9 | TN4182536 | 1 | Bracket Wldt, Alternator [Mit13]Old # 1070764 | $29.60/EA |
| 10 | TN4032038 | 1 | Fan, Cooling, 14.1d, 6 Blade, 0.5b TaperOld # 1031566 · Replaced by 1271534 in the 2025 list (rev. 12) | $174.80/EA |
| 11 | TN4014179 | 1 | Screw, Hex, M8 X 1.25 X 120, 8.8, FlOld # 49883 | $6.70/EA |
| 12 | TN4182314 | 1 | Bracket, Mtg, Alternator [Mit 2013]Old # 1070619 | $5.20/EA |
| 13 | TN4030493 | 1 | Block, SpacerOld # 1071107 | $41.60/EA |
| 14 | TN4028034 | 5 | Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 | $3.20/EA |
| 15 | TN4015595 | 2 | Washer, Flat, 0.31, SaeOld # 39349 | $2.50/EA |
| 16 | TN4030494 | 1 | Spacer, Pump, WaterOld # 1071108 · Replaced by 9023269 in the 2025 list (rev. 12) | $34.00/EA |
| 17 | TN4041604 | 4 | Nut, Hex, Flng, M6 X 1.00Old # 07790 | $3.20/EA |
| 18 | TN4030495 | 1 | Spacer, CrankfshaftOld # 1071110 · Replaced by 9023270 in the 2025 list (rev. 12) | $90.10/EA |
| 19 | TN4018217 | 1 | Repair Kit, SheaveFits SN 008000–010387 · Old # 9021787 · Have SES install this kit | $373.80/EA |
| 20 | TN4044544 | 1 | Plate Wldt, Shaft, Fan [Shaft Extended]Fits SN 010388–012313 · Old # 1073529 | Call for price |
| 21 | TN4030316 | 1 | Sheave, Mach [Mit 2615rpm Fan]Fits SN 010388–012313 · Old # 1070426 | Call for price |
| 22 | TN4038766 | 2 | Bearing, Ball, 20mm B 42mm D 12mm WFits SN 010388 and later · Old # 1055377 | $12.60/EA |
| 23 | TN4035242 | 1 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 010388–012313 · Old # 1017218 | $3.40/EA |
| 24 | TN4041828 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8Fits SN 010388–012313 · Old # 16735 | $3.40/EA |
| 25 | TN4030317 | 1 | Spacer, Fan, Taper [Mit 2013]Fits SN 010388 and later · Old # 1070431 | $107.60/EA |
| 26 | TN4232378 | 3 | Screw, Soc, .38 - 16 X 1.25, AlFits SN 010388–012313 · Old # 10831 | $3.80/EA |
| 27 | TN4042788 | 1 | Key, Sq, 0.12 X 0.12, 0.50lFits SN 010388 and later · Old # 00960 | $3.60/EA |
| 28 | TN4178853 | 2 | Ring, Retaining, Int, 42mmFits SN 010388 and later · Old # 1074849 · Replaces 48998 (2016 list (rev. 01)) | $1.20/EA |
| 29 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 30 | TN4019755 | 3 | Screw, Hex, M8 X 1.25 X 90, 8.8Old # 39281 | $4.00/EA |
| 31 | TN4180279 | 1 | Plate, Shield, DustOld # 1072421 · Not in the 2025 list (rev. 12) | $16.20/EA |
| 32 | TN4034851 | 1 | Boot, Bulb, .50id 1.00id 2.50l, RedOld # 1016314 | $5.40/EA |
| 33 | TN4042244 | 1 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Old # 19066 | $2.50/EA |
| 34 | TN4034655 | 1 | Washer, Lock, Int, 0.25Old # 32982 | $2.60/EA |
| 35 | TN4041925 | 1 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 36 | TN4214590 | 1 | Plate Wldt, Shaft, FanFits SN 012314 and later · Old # 1257706 | $154.70/EA |
| 37 | TN4032383 | 1 | Sheave, MachFits SN 012314 and later · Old # 1257986 | $109.40/EA |
| 38 | TN4033875 | 2 | Ring, Retaining, Shaft, Ext, 20mmd, HdFits SN 012314 and later · Old # 1025121 | $19.30/EA |
| 39 | TN4016811 | 1 | Screw, Soc, M10 X 1.50 X 35, 12.9Fits SN 012314 and later · Old # 41358 | $4.00/EA |
| 40 | TN4041284 | 3 | Screw, Hex, M8 X 1.25 X 100, 8.8Fits SN 012314 and later · Old # 06959 | $4.00/EA |
| 41 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 012314 and later · Old # 1017218 | $3.40/EA |
| 42 | TN4156940 | 1 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 012314 and later · Old # 39277 | $3.20/EA |

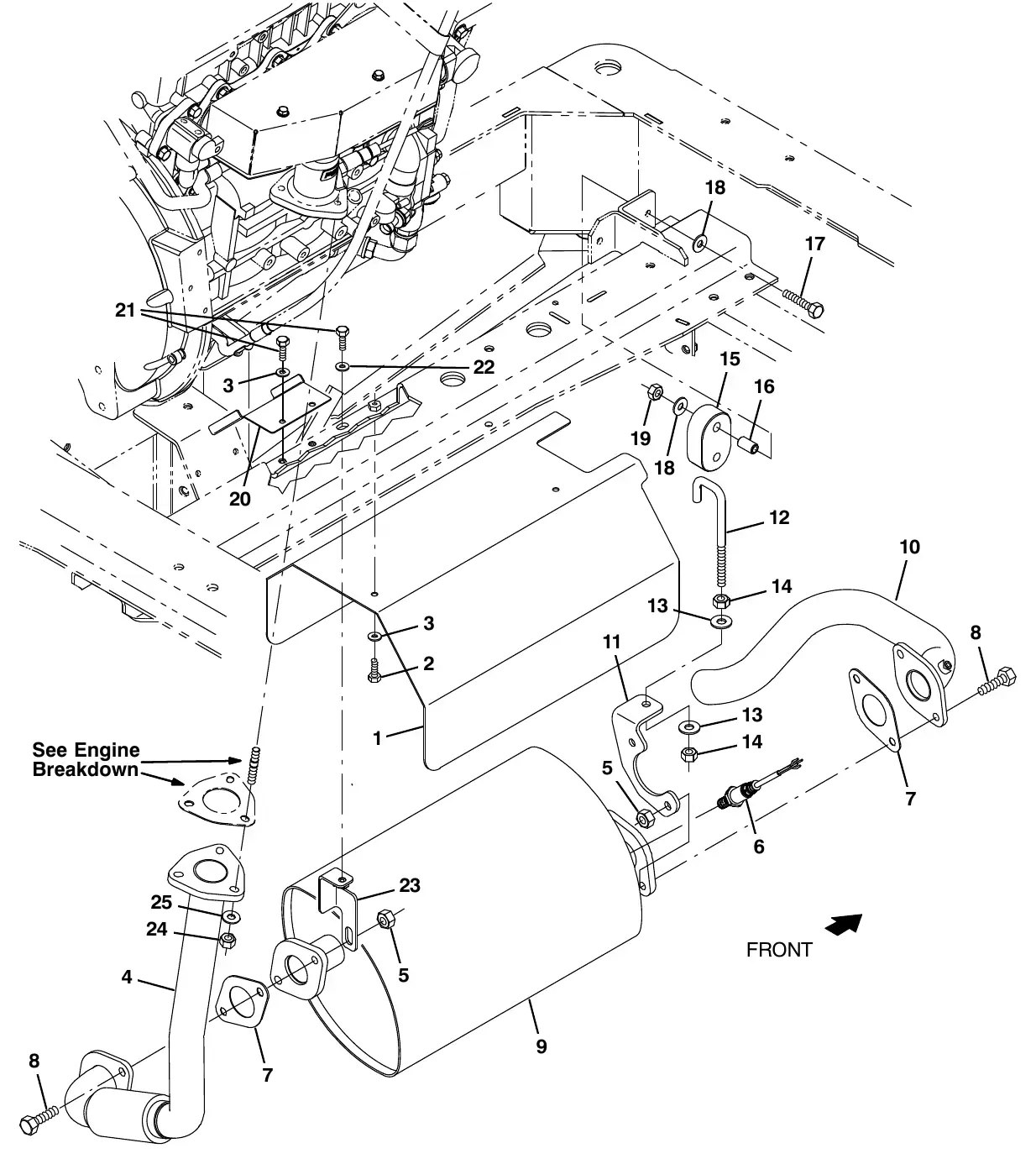

M20 Mitsubishi Engine Muffler Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031022 | 1 | Channel, Shield, Muffler [M20/T20 2007]Old # 1028994 | $123.70/EA |
| 2 | TN4041931 | 2 | Screw, Hex, M6 X 1.0 X 20, SsOld # 08716 | $3.20/EA |
| 3 | TN4034133 | 4 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 4 | TN4025234 | 1 | Pipe Kit, Exhaust, Replmt [Mako Mitsu]Old # 9013159 | $415.30/EA |
| 5 | TN4041626 | 4 | Nut, Hex, M10 X 1.50 [Stover]Old # 08166 | $2.50/EA |
| 6 | TN8005433 | 1 | Sensor, OxygenOld # 1028558 | $277.60/EA |
| 7 | TN4036679 | 2 | Gasket, Exhaust, 2hole, 3.4bcOld # 1011216 | $8.10/EA |
| 8 | TN4019759 | 4 | Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 | $4.00/EA |
| 9 | TN8005369 | 1 | Muffler, Catalytic [Mit 2.0l 2013]Old # 1071376 | $1,859.30/EA |
| 10 | TN4030978 | 1 | Tube, Exhaust, Flng, 1.5d [M20/T20 2007]Old # 1028753 | $210.10/EA |
| 11 | TN4031015 | 1 | Bracket, Mtg, Muffler [M20/T20 2007]Old # 1028929 | $25.50/EA |
| 12 | TN4037297 | 1 | Rod, Hanger, IsolatorOld # 1013117 | $57.90/EA |
| 13 | TN4034138 | 2 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 14 | TN4035408 | 2 | Nut, Hex, Std, .38 - 16Old # 25014 | $2.40/EA |
| 15 | TN4037292 | 1 | Isolator, RbrOld # 1013031 | $18.30/EA |
| 16 | TN4040603 | 1 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Old # 222496 | $3.40/EA |
| 17 | TN4040607 | 1 | Screw, Hex, M8 X 1.25 X 45, SsOld # 222505 | $4.00/EA |
| 18 | TN4042902 | 2 | Washer, Flat, 0.38b 0.88d .08, SsOld # 01685 | $2.60/EA |
| 19 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 20 | TN4182994 | 1 | Shield, Tray, Drip [Mit 2013]Old # 1071418 | $12.60/EA |
| 21 | TN4041271 | 3 | Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 | $2.50/EA |
| 22 | TN4034136 | 1 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 23 | TN4030497 | 1 | Bracket, MufflerOld # 1071113 | $15.60/EA |
| 24 | TN4041625 | 3 | Nut, Hex, Stover, M8Old # 08165 | $3.40/EA |
| 25 | TN4015595 | 3 | Washer, Flat, 0.31, SaeOld # 39349 | $2.50/EA |

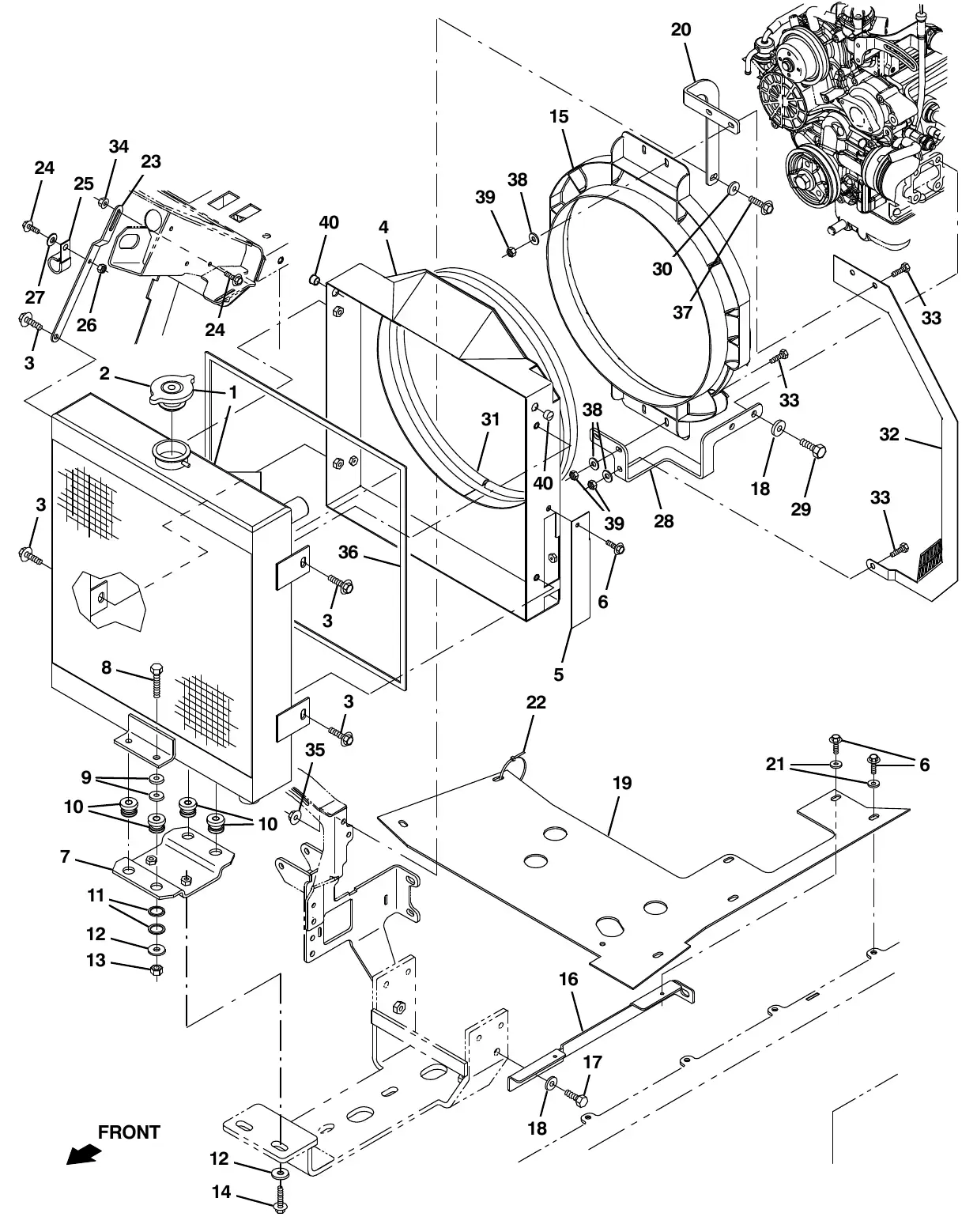

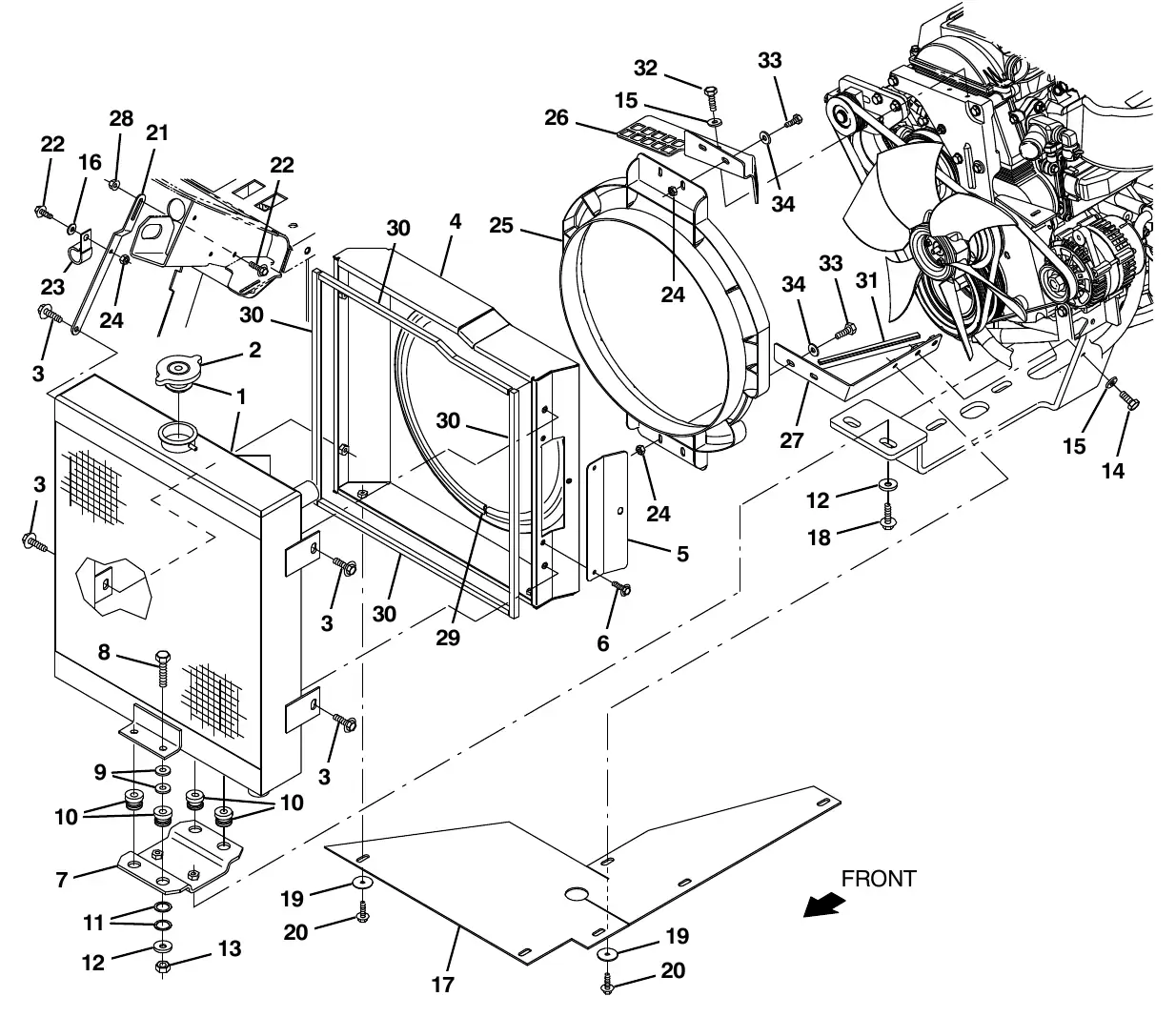

M20 Mitsubishi Engine Radiator and Mount Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031438 | 1 | Radiator, W/Hyd Cooler [Afmkt]Old # 1249770 · Replaces 1045940 (2016 list (rev. 01)) | $1,665.50/EA |
| 2 | TN4042665 | 1 | Cap, Radiator, 14Psi [Stant]Old # 1045764 · Replaced by 1265988 in the 2025 list (rev. 12) | $10.90/EACall for availability |
| 3 | TN4045637 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4011220 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [M20/M30/T20]Old # 9010096 | $102.00/EA |
| 4 | TN4011221 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [TJ] (Japan Only)Old # 9010097 | $271.39/EA |
| 5 | TN4030382 | 1 | Plate, Door, Clean - Out [Mit2013]Old # 1070955 | $6.40/EA |
| 6 | TN4045568 | 3 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 7 | TN4190181 | 1 | Bracket, Mtg, RadiatorOld # 1046962 | $26.70/EA |
| 8 | TN4041287 | 4 | Screw, Hex, M10 X 1.50 X 45, 8.8Old # 06962 | $4.00/EA |
| 9 | TN4034138 | 8 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 10 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274 | $14.70/EA |
| 11 | TN4042008 | 8 | Washer, Flat, 0.81b 1.06d .06, StlOld # 09832 | $3.30/EA |
| 12 | TN4037922 | 4 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
| 13 | TN4016826 | 4 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 14 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 15 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 16 | TN4034136 | 2 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 17 | TN4030761 | 1 | Skirt, Eng Fan, Gas / LpOld # 1071785 | $73.00/EA |
| 18 | TN4045641 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, SemsOld # 1037355 | $2.50/EA |
| 19 | TN4016794 | 7 | Washer, Flat, 0.25, FendrOld # 41178 | $2.50/EA |
| 20 | TN4045568 | 7 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 21 | TN4036225 | 1 | Bracket, Mtg, RadiatorOld # 1019968 | $18.60/EA |
| 22 | TN4044400 | 2 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 23 | TN4036443 | 1 | Clip, Keeper, OpenOld # 30407 | $1.70/EA |
| 24 | TN4041925 | 5 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 25 | TN4038497 | 1 | Shroud, FanOld # 1054428 | $126.20/EA |
| 26 | TN4030318 | 1 | Bracket, Shrd, Fan, Upper, Sppt, G/LpgOld # 1070434 | Call for price |
| 27 | TN4030343 | 1 | Bracket, Shrd, Fan, Lower, Sppt, G/LpgOld # 1070860 | $24.40/EA |
| 28 | TN4041604 | 1 | Nut, Hex, Flng, M6 X 1.00Old # 07790 | $3.20/EA |
| 29 | TN4039684 | 1 | Seal, Afmkt, Bulb, Str, 0.58d 08ftOld # 1048166 | $53.10/EA |
| 30 | TN4038013 | 4 | Seal, Afmkt, Ure, Adh, 0.38, 0.38w 02ftOld # 1015205 | $6.30/EA |
| 31 | TN4029367 | 1 | Molding, Trim, Pvc, .08 - .11 06.8lOld # 57569 | Call for price |
| 32 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 33 | TN4041271 | 4 | Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 | $2.50/EA |
| 34 | TN4034133 | 4 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |

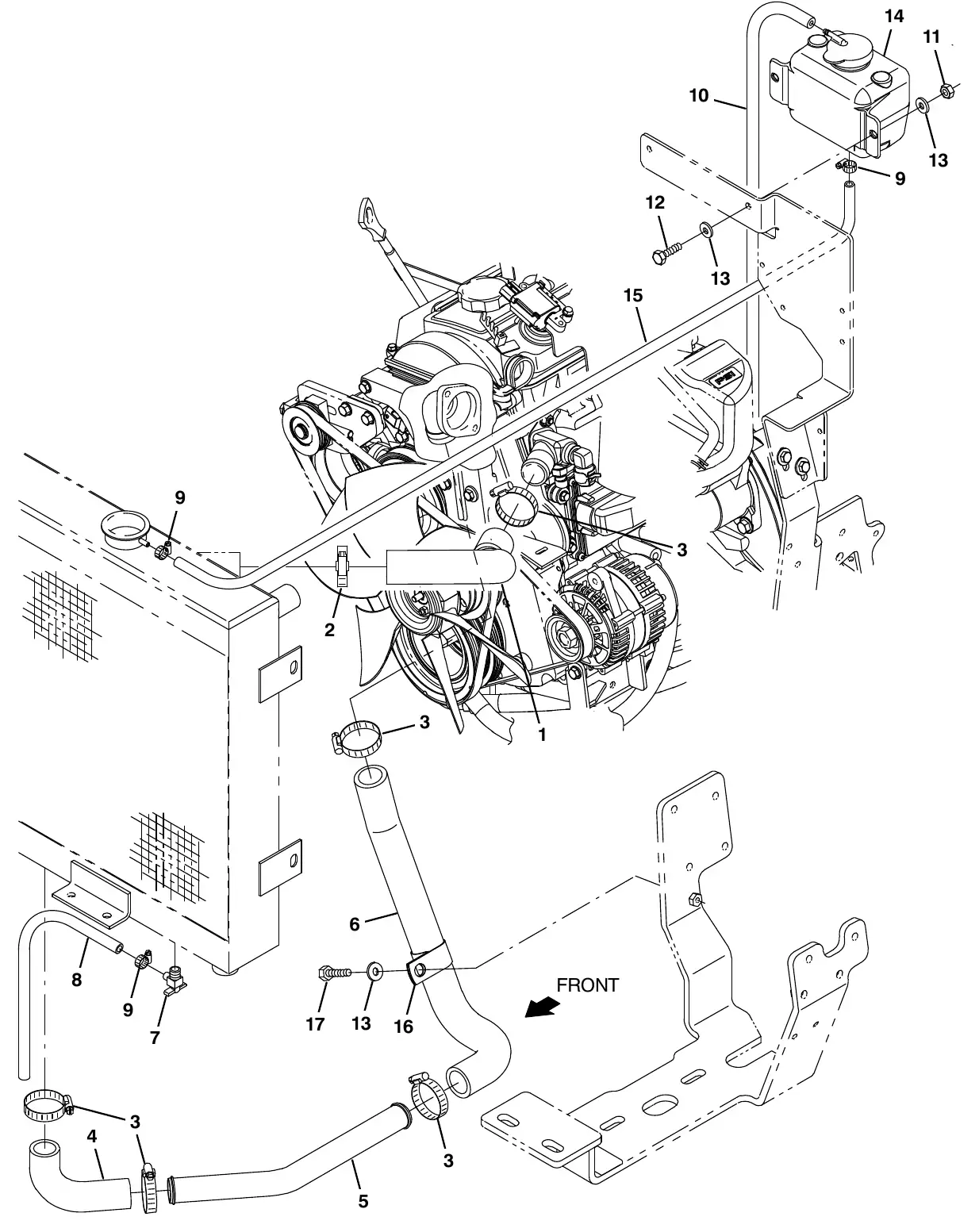

M20 Mitsubishi Engine Radiator Hose Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030330 | 1 | Hose, Coolant, Upper, Mold [Mit 2013]Old # 1070732 | $13.00/EA |
| 2 | TN4037088 | 1 | Clamp, Hose, Wormdrive, 1.56 - 2.50d, .50wOld # 22297 | $4.20/EA |
| 3 | TN4026556 | 5 | Clamp, Hose, Wormdrive, 1.25 - 2.00d, .50wOld # 79381 | $6.20/EA |
| 4 | TN4039550 | 1 | Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Old # 1007482 | $20.40/EA |
| 5 | TN4030491 | 1 | Tube, Coolant, 1.3d, Lower [Mit 2013]Old # 1071099 | $11.90/EA |
| 6 | TN4027830 | 1 | Hose Kit, Coolant, Replmt [Mitsubishi}Old # 9010904 | $41.60/EA |
| 7 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptOld # 51305 | $15.10/EA |
| 8 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 022.0lOld # 73471 | $7.60/EA |
| 9 | TN4017396 | 3 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 10 | TN4022521 | 1 | Hose, Fuel, 0.18id, 29.0lOld # 87738 | $19.40/EA |
| 11 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 12 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 13 | TN4034137 | 5 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 14 | TN4038493 | 1 | Tank, Coolant, 03.6w 04.1hi 05.5l,1literOld # 1054382 | $119.90/EA |
| 15 | TN4037950 | 1 | Hose, Afmkt, Coolant Recvy, 05ftOld # 1014843 | $63.10/EA |
| 16 | TN4015029 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1holeOld # 53466 | $4.20/EA |
| 17 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |

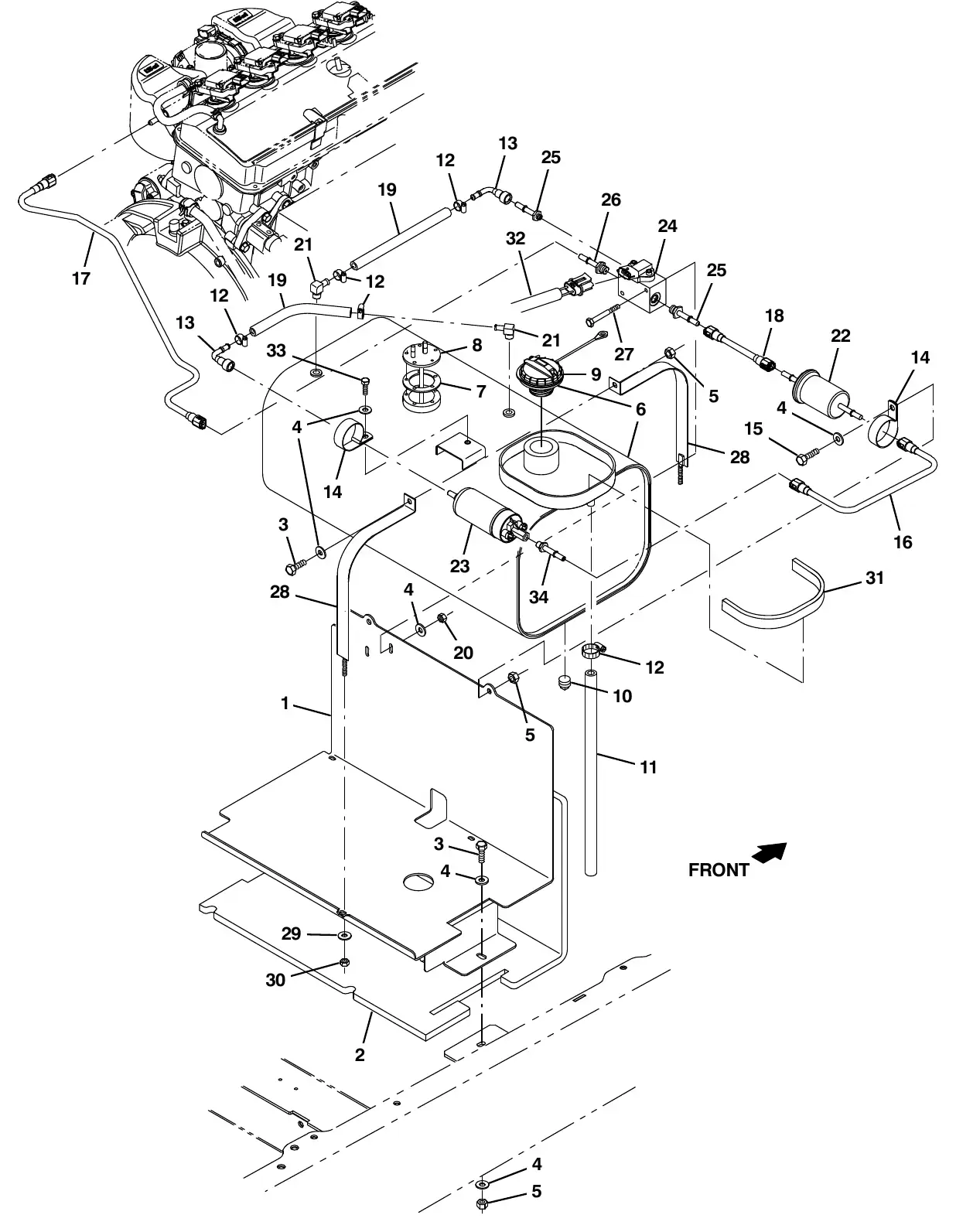

M20 Engine Fuel Tank Group, Gasoline
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194105 | 1 | Tray Wldt, FuelOld # 1026550 | $171.70/EA |
| 2 | TN4194130 | 1 | Insulation, Flame - Retardant, 0.5Old # 1026759 | $80.60/EA |
| 3 | TN4156940 | 3 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 4 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 5 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 6 | TN4203095 | 1 | Tank, Fuel, 11.2gal, Gas, Replmt [2007]Old # 9003610 | $805.70/EA |
| 7 | TN8006208 | 1 | Gasket, Sender, FuelOld # 1033897 | $9.20/EA |
| 8 | TN8006221 | 1 | Send - Unit, Fuel [2007]Old # 1033901 | $122.70/EA |
| 9 | TN8006207 | 1 | Cap, Fuel, TankOld # 1032812 | $36.90/EA |
| 10 | TN4013933 | 1 | Fitting, Pipe, Plug, Pm02, Sq HeadOld # 48126 | $2.93/EA |
| 11 | TN4033269 | 1 | Hose, Fuel, 0.50id, 21.0lOld # 1023482 | $10.10/EA |
| 12 | TN4015366 | 5 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 13 | TN4037296 | 2 | Connector, Fuel, QfOld # 1013086 | $16.90/EA |
| 14 | TN4036932 | 2 | Clamp, Cable, Stl, 2.00d X 0.75w, 1holeOld # 1011895 | $5.05/EA |
| 15 | TN4041281 | 2 | Screw, Hex, M8 X 1.25 X 45, 8.8Old # 06956 | $4.00/EA |
| 16 | TN4045263 | 1 | Fuelline, .31d Str/Str,Plstc[M20/T20 07]Old # 1034676 | $52.10/EA |
| 17 | TN4030561 | 1 | Fuelline, .31d Str/Str, Plstc [Mit 2013]Old # 1071388 | $56.80/EA |
| 18 | TN4037227 | 1 | Fuelline, .31d Str/Str, PlstcOld # 1012248 | $80.80/EA |
| 19 | TN4045069 | 2 | Hose, Fuel, 0.31id [Evap Emission 07]Old # 1033746 | $13.00/EA |
| 20 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 21 | TN4019173 | 2 | Fitting, Brs, E90, Em05/Pm04Old # 9000355 | $6.30/EA |
| 22 | TN8005188 | 1 | Filter, Fuel [Gm 1.6l/3.0l]Old # 372440 | $64.20/EA |
| 23 | TN8002487 | 1 | Pump, FuelOld # 9006592 | $1,016.40/EA |
| 24 | TN8005437 | 1 | Manifold, Gas, Relief, ValveOld # 1028924 | $1,128.00/EA |
| 25 | TN8047407 | 2 | Fitting, Fuel, Str, 0.56 - 18 [07 Eng]Old # 1029293 | $148.20/EA |
| 26 | TN8005499 | 1 | Fitting, Fuel, Str, 0.38 - 24 [07 Eng]Old # 1029295 | $140.10/EA |
| 27 | TN4041277 | 2 | Screw, Hex, M6 X 1.0 X 50, 8.8Old # 06949 | $3.30/EA |
| 28 | TN4193651 | 2 | Strap, Tank, GasOld # 1025229 | $18.10/EA |
| 29 | TN4034133 | 2 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 30 | TN4034654 | 2 | Nut, Hex, Lock, .25 - 20, NlOld # 32981 | $2.50/EA |
| 31 | TN4218342 | 1 | Molding, Trim, Pvc, .08 - .11 13.2lOld # 62595-15 | Call for price |
| 32 | TN8044978 | 1 | Harness, Manifold, GasOld # 385009 | $257.35/EA |
| 33 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 34 | TN8047304 | 1 | Fitting, Fuel, Str, M10x1.0Old # 9019145 | $59.79/EA |

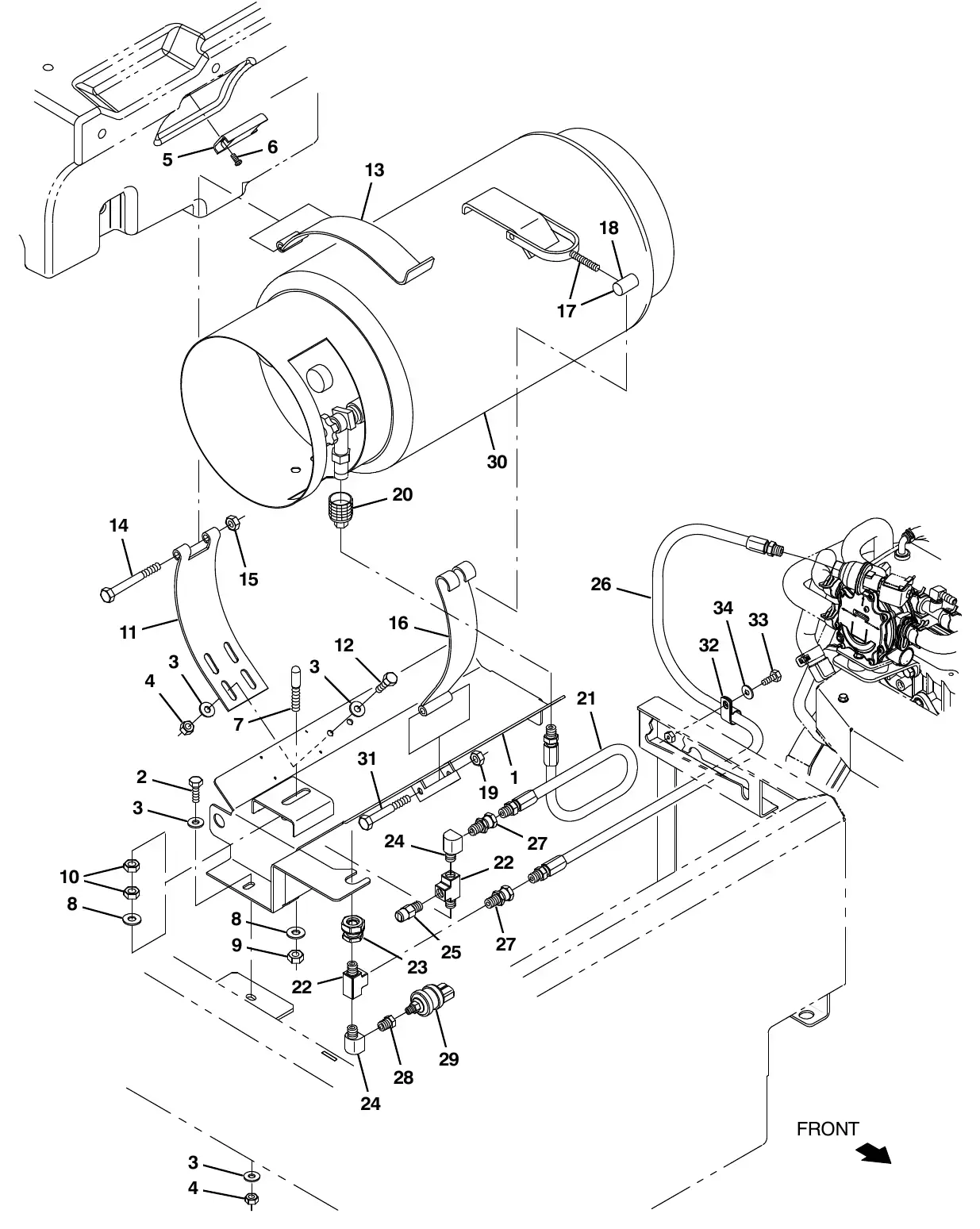

M20 Engine Fuel Tank Group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035518 | 1 | Tray Wldt, LpgOld # 1017947 | $120.90/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 8 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 4 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 5 | TN4017052 | 1 | Magnet, Drive BrushOld # 63378 | $21.10/EA |
| 6 | TN4041965 | 2 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 7 | TN4033855 | 1 | Pin, Locating, LpgOld # 1024934 | $13.43/EA |
| 8 | TN4034138 | 2 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 9 | TN4016826 | 1 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 10 | TN4034476 | 2 | Nut, Hex, Jam, M10 X 1.5, SsOld # 32716 | $4.00/EA |
| 11 | TN4029786 | 1 | Strap, Mtg, Tank, LpgOld # 58589 | $113.90/EA |
| 12 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 13 | TN4029300 | 1 | Strap, Mtg, Tank, Lpg, HingeOld # 57297 | $114.90/EA |
| 14 | TN4031662 | 1 | Screw, Hex, .38 - 16 X 3.75, 5Old # 35710 | $1.10/EA |
| 15 | TN4026793 | 1 | Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156 | $4.00/EA |
| 16 | TN4029787 | 1 | Strap, Mtg, Tank, LpgOld # 58590 | $88.70/EA |
| 17 | TN4015025 | 1 | Latch Assy, Mtg, Tank, Lpg, W/NutOld # 53400-1 | $56.90/EA |
| 18 | TN4015026 | 1 | Nut, Adj, Mtg, Tank, LpgOld # 53400-4 | $13.30/EA |
| 19 | TN4028758 | 1 | Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643 | $2.50/EA |
| 20 | TN4035691 | 1 | Fitting, Brs, Qdc, Pf04, Lpg FemOld # 26496 | $86.90/EA |
| 21 | TN4037354 | 1 | Hose, Lpg, Med05, Pm04str/Sm04str, 14.0lOld # 22308-6 | $46.90/EA |
| 22 | TN4041151 | 2 | Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunOld # 150709 | $14.40/EA |
| 23 | TN4026127 | 1 | Fitting, Brs, Str, Pf04/Pf04, BhOld # 78122 | $30.50/EA |
| 24 | TN4035699 | 2 | Fitting, Brs, E90, Pf04/Pm04Old # 27048 | $5.30/EA |
| 25 | TN4035364 | 1 | Valve, Lpg, Press Relief [Rego]Old # 24047 | $133.70/EA |
| 26 | TN4042556 | 1 | Hose, Lpg, Med05, Pm04str/Sm04str, 55.0lOld # 19760 | $82.40/EA |
| 28 | TN4041876 | 1 | Fitting, Hyd, Str, Pf02/Pm04Old # 17414 | $7.90/EA |
| 27 | TN4232409 | 2 | Fitting, Pipe, Str, Pm04/Sf04Old # 11442-23 | $6.70/EA |
| 29 | TN4035027 | 1 | Switch, Press, 12vdc 08a Spst Nc 0070psiOld # 23156 | $112.50/EA |
| 30 | TN4035401 | 1 | Tank, Lpg, 33lb, W/ Gauge [Empty, Liq]Old # 24928-1 | $816.50/EA |
| 31 | TN4031659 | 1 | Screw, Hex, .38 - 16 X 3.00, 5Old # 35707 | $1.15/EA |
| 32 | TN4017933 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1holeOld # 67767 | $4.20/EA |
| 33 | TN4041270 | 1 | Screw, Hex, M6 X 1.00 X 16, 8.8Old # 06942 | $2.50/EA |
| 34 | TN4034133 | 1 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
M20 Electrical Wire Harness Group, Gasoline/LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtOld # 57804 | $16.30/EA |
| 2 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtOld # 57804 | $16.30/EA |
| TN8005428 | 1 | Harness, Wire, Eng, Lpg [Mit, 2.Ol]Old # 1071654 | $1,268.00/EA | |
| 1 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtOld # 394916 | $15.40/EA |
| 1 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtOld # 394916 | $15.40/EA |
| TN8005427 | 1 | Harness, Wire, Eng, Gas [Mit, 2.0l]Old # 1071653 | $1,434.90/EA | |
| 3 | TN8004955 | 3 | Fuse, 20 Amp, [Min20]Old # 372237 | $5.20/EA |
| 4 | TN8004953 | 1 | Fuse, 5 Amp, [Min5]Old # 372235 | $5.50/EA |
| 5 | TN8044970 | 1 | Fuse, 10 AmpOld # 384999 | $1.75/EA |
| 3 | TN8004955 | 3 | Fuse, 20 Amp, [Min20]Old # 372237 | $5.20/EA |
| 4 | TN8004953 | 1 | Fuse, 5 Amp, [Min5]Old # 372235 | $5.50/EA |
| 5 | TN8044970 | 1 | Fuse, 10 AmpOld # 384999 | $1.75/EA |
| 6 | TN4045313 | 1 | Fuse, Blade, 070a, 32vdc [Maxi]Old # 1076351 | $3.40/EA |

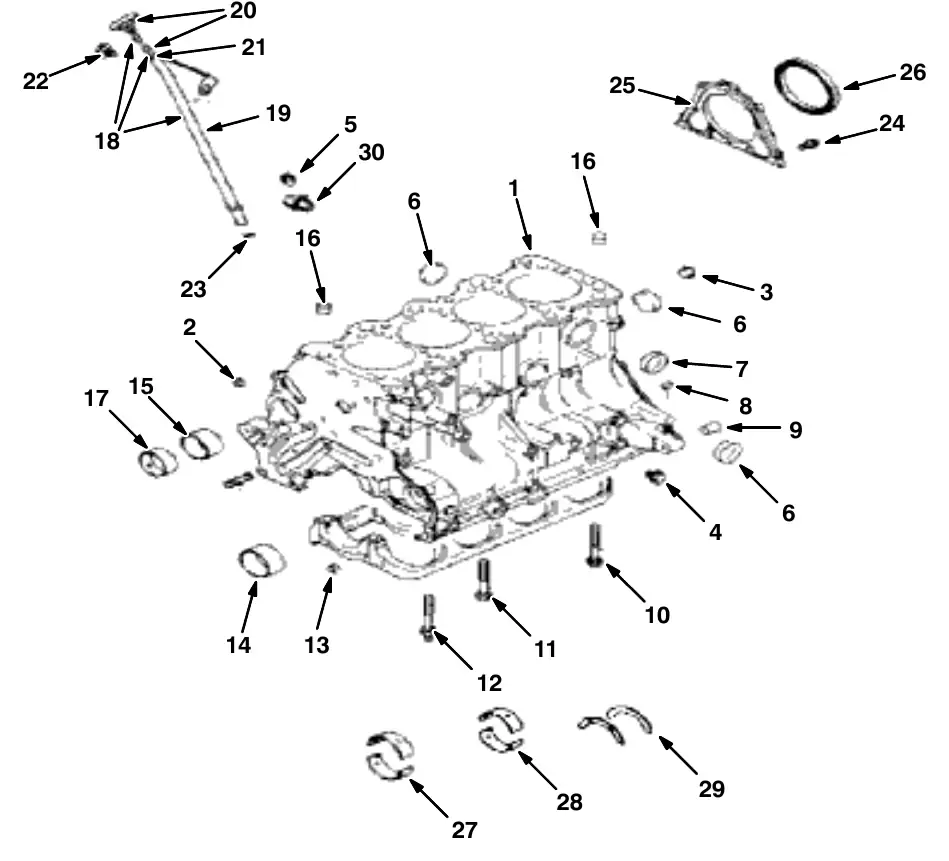

M20 Cylinder Block Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003898 | 1 | Block Assy, CylinderOld # 9010419 | $5,928.20/EA |
| 2 | TN8003899 | 2 | Plug, TaperOld # 9010420 | $3.23/EA |
| 3 | TN8003900 | 1 | Plug, TaperOld # 9010421 | $3.23/EA |
| 4 | TN8003901 | 1 | PlugOld # 9010422 | $2.83/EA |
| 5 | TN8003902 | 1 | Plug, TaperOld # 9010423 | $5.45/EA |
| 6 | TN8003903 | 7 | Cap, SealOld # 9010424 | $2.60/EA |
| 7 | TN8003904 | 2 | Cap, SealOld # 9010425 | $4.10/EA |
| 8 | TN8003905 | 2 | Pin, DowelOld # 9010426 | $2.30/EA |
| 9 | TN8003906 | 2 | Bushing, KnockOld # 9010427 | $2.83/EA |
| 10 | TN8003907 | 2 | Bolt, Cap, BearingOld # 9010428 | $3.43/EA |
| 11 | TN8003908 | 7 | Bolt, Cap, BearingOld # 9010429 | $4.44/EA |
| 12 | TN8003909 | 1 | Bolt, Cap, BearingOld # 9010430 | $4.85/EA |
| 13 | TN8003910 | 2 | BushingOld # 9010431 | $2.40/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN8003911 | 1 | Bearing, Std, BalancerOld # 9010432 | $64.44/EA |
| 14 | TN8003912 | 1 | Bearing, Oversize [1.0]Old # 9010433 | $66.16/EA |
| Item 15: choose your version (2) | ||||
| 15 | TN8003913 | 1 | Bearing, Std, BalancerOld # 9010434 | $93.43/EA |
| 15 | TN8003914 | 1 | Bearing, Oversize [1.0]Old # 9010435 | $93.43/EA |
| 16 | TN8003915 | 2 | Bushing, KnockOld # 9010436 | $3.50/EA |
| Item 17: choose your version (2) | ||||
| 17 | TN8003932 | 1 | Bearing, Shaft, Std, BalancerOld # 9010458 | $66.16/EA |
| 17 | TN8003933 | 1 | Bearing, Shaft, Balancer [ Ovrsz]Old # 9010459 | $69.89/EA |
| 18 | TN8003916 | 1 | Dipstick Assy, GuageOld # 9010439 | $46.90/EA |
| 19 | TN8003917 | 1 | Dipstick, Guage, GuideOld # 9010440 | $41.24/EA |
| 20 | TN8003337 | 1 | Dipstick, OilOld # 9015866 · Replaces 9010437 (2016 list (rev. 01)) | $17.60/EA |
| 21 | TN8048109 | 1 | O - RingOld # 9010438 | $2.20/EA |
| 22 | TN8003918 | 1 | Bolt, FlangeOld # 9010441 | $1.50/EA |
| 23 | TN8048110 | 1 | O - RingOld # 9010442 | $2.80/EA |
| 24 | TN8003919 | 5 | Bolt, FlangeOld # 9010444 | $1.25/EA |
| 25 | TN8003920 | 1 | Seal, Case, Oil, RearOld # 9010445 | $31.10/EA |
| 26 | TN8003921 | 1 | Seal, OilOld # 9010446 | $21.60/EA |
| Item 27: choose your version (5) | ||||
| 27 | TN8003922 | 4 | Bearing, Cshft [Green Std 1,2,4,5]Old # 9010447 | $9.80/EA |
| 27 | TN8003923 | 4 | Bearing, Cshft [Yellow Std 1,2,4,5]Old # 9010448 | $9.80/EA |
| 27 | TN8003924 | 4 | Bearing, Cshft[No Color Std 1,2,4,5]Old # 9010449 · Not in the 2025 list (rev. 12) | Call for price |
| 27 | TN8003925 | 4 | Bearing, Cshft [ Lan Std 1,2,4,5]Old # 9010450 | $9.80/EA |
| 27 | TN8003926 | 4 | Bearing, Cshft [ Red Std 1,2,4,5]Old # 9010451 | $9.80/EA |
| Item 28: choose your version (5) | ||||
| 28 | TN4027498 | 1 | Bearing, Cshft [ Green Std 3]Old # 9010452 | Call for price |
| 28 | TN8003927 | 1 | Bearing, Cshft [ Yellow Std 3]Old # 9010453 | $8.99/EA |
| 28 | TN8003928 | 1 | Bearing, Cshft [ No Color Std 3]Old # 9010454 | $9.80/EA |
| 28 | TN8003929 | 1 | Bearing, Cshft [ Lan Std 3]Old # 9010455 | $9.80/EA |
| 28 | TN8003930 | 1 | Bearing, Cshft [ Black Std 3]Old # 9010456 | $14.30/EA |
| 29 | TN8003931 | 1 | Bearing, Thrust, CshftOld # 9010457 | $9.39/EA |
| 30 | TN8048111 | 1 | Drain, Water, JointOld # 9010443 | $16.97/EA |
M20 Rocker Cover Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8003935 | 1 | Valve, Gasket, PcvOld # 9010461 | $4.20/EA |
| 4 | TN8003937 | 1 | Cap, Oil, FillerOld # 9010464 | $9.70/EA |
| 3 | TN8003936 | 6 | Bolt, Rocker, CoverOld # 9010462 | $2.20/EA |
| 6 | TN8003938 | 1 | Gasket, Cover, RockerOld # 9010465 | $27.70/EA |
| 1 | TN8003934 | 1 | Valve, PcvOld # 9010460 | $15.90/EA |
| 5 | TN8003939 | 1 | Cover Assy, RockerOld # 9010466 | $178.30/EA |
M20 Cylinder Head Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN8003678 | 4 | Plug, Spark [Mitsubishi 2015 12mm]Old # 9014160 | $5.00/EA | |
| 11 | TN8003948 | 1 | O - RingOld # 9010482 | $6.60/EA |
| 7 | TN8003943 | 1 | Seal, Cam Shaft, FrontOld # 9010471 | $12.20/EA |
| 13 | TN8003949 | 1 | GasketOld # 9010483 | $5.50/EA |
| 2 | TN8003944 | 2 | StudOld # 9010473 | $3.90/EA |
| 4 | TN8003942 | 3 | StudOld # 9010470 | $2.50/EA |
| 8 | TN8003918 | 2 | Bolt, FlangeOld # 9010441 | $1.50/EA |
| 10 | TN8003947 | 2 | ScrewOld # 9010481 | $1.50/EA |
| 12 | TN8003950 | 10 | Cylinder Assy, Head, BoltOld # 9010484 | $7.50/EA |
| 14 | TN8003951 | 1 | CoverOld # 9010485 | $6.30/EA |
| 6 | TN8003940 | 1 | Gasket, Cylinder, HeadOld # 9010468 | $51.30/EA |
| TN8003938 | 1 | Gasket, Cover, RockerOld # 9010465 | $27.70/EA | |
| 1 | TN4026470 | 1 | Head Kit, Cyl [Mitsubishi 2015 12mm]Old # 9014162 | $6,997.80/EA |
| TN8047663 | 1 | Head Assy, Cylinder[Mits 2015 12mm]Old # 9014161 | Call for price | |
| 3 | TN8003941 | 2 | Seal, CapOld # 9010469 | $2.80/EA |
| 5 | TN8003910 | 2 | BushingOld # 9010431 | $2.40/EA |
| 9 | TN8003946 | 1 | Thurst, CaseOld # 9010480 | $13.20/EA |

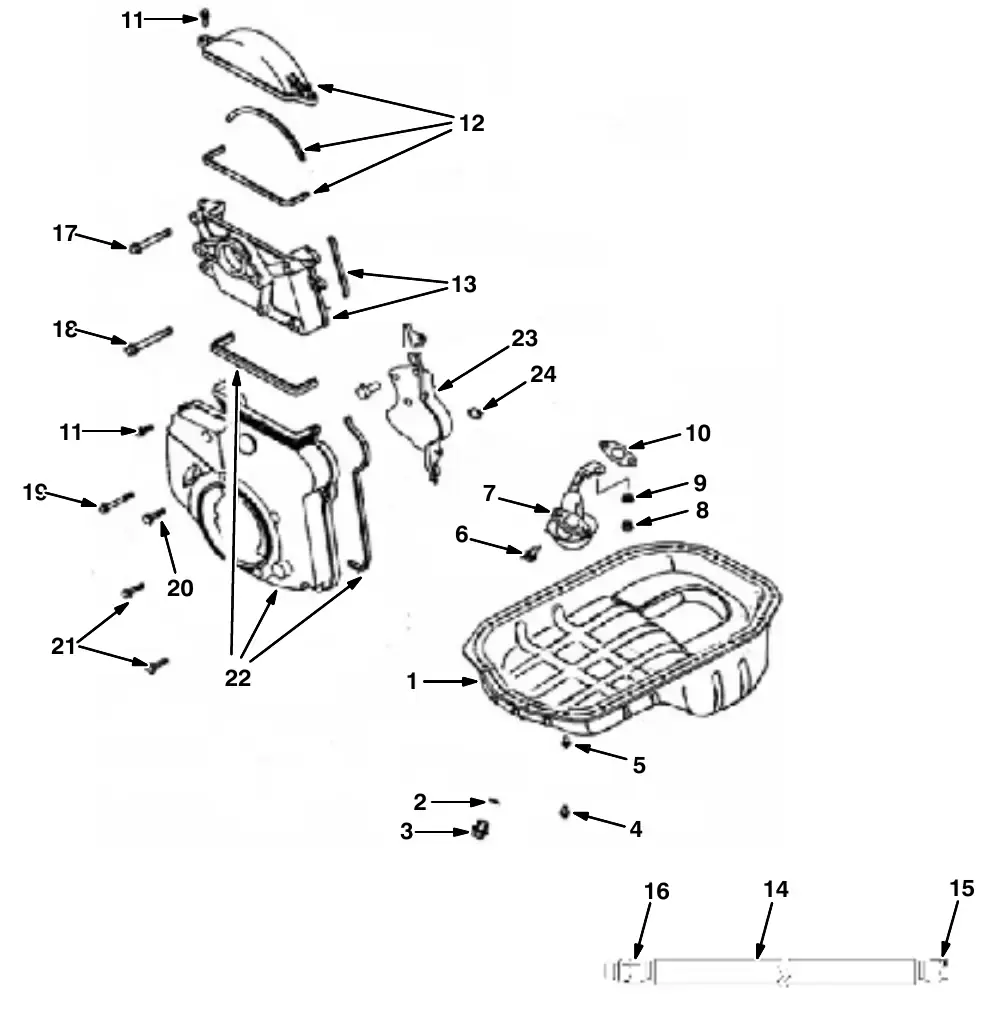

M20 Front Cover and Oil Pan Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003952 | 1 | Pan, OilOld # 9010487 | $119.50/EA |
| 2 | TN8003953 | 1 | Gasket, Plug, Drain, OilOld # 9010488 | $1.90/EA |
| 3 | TN8003954 | 1 | Plug, Oil, DrainOld # 9010489 | $5.30/EA |
| 4 | TN8003955 | 17 | Bolt, FlangeOld # 9010490 | $1.31/EA |
| 5 | TN8003956 | 2 | Bolt, FlangeOld # 9010491 | $1.40/EA |
| 6 | TN8003957 | 2 | Washer, BoltOld # 9010492 | $2.12/EA |
| 7 | TN8003958 | 1 | Screen, OilOld # 9010493 | $41.92/EA |
| 8 | TN8003959 | 1 | Nut, StrainerOld # 9010494 | $1.31/EA |
| 9 | TN8003960 | 1 | Washer, StrainerOld # 9010495 | $1.21/EA |
| 10 | TN8003961 | 1 | Gasket, ScreenOld # 9010496 | $2.80/EA |
| 11 | TN8003962 | 8 | Bolt, FlangeOld # 9010497 | $1.50/EA |
| 12 | TN8003963 | 1 | Cover Assy, Front, Upper [T - Belt]Old # 9010498 | $14.40/EA |
| 13 | TN8003964 | 1 | Bracket Assy, Coil, IgnitionOld # 9010502 | $53.30/EA |
| 14 | TN8048102 | 1 | Hose, Drain, Oil [Mit 20/24m]Old # 9010311 | $68.70/EA |
| 15 | TN8003870 | 1 | Plug, Flare, 37deg [Mit]Old # 9010312 | $12.20/EA |
| 16 | TN8048103 | 1 | Fitting, 37deg [Mit]Old # 9010313 | $20.20/EA |
| 17 | TN8003965 | 3 | Bolt, FlangeOld # 9010503 | $3.50/EA |
| 18 | TN8003966 | 1 | Bolt, FlangeOld # 9010504 | $3.40/EA |
| 19 | TN8003967 | 1 | Bolt, FlangeOld # 9010505 | $2.40/EA |
| 20 | TN8003968 | 2 | BoltOld # 9010506 | $1.80/EA |
| 21 | TN8003969 | 2 | BoltOld # 9010507 | $1.50/EA |
| 22 | TN8003970 | 1 | Cover, Lower, Front [T - Belt]Old # 9010508 | $72.10/EA |
| 23 | TN8003971 | 1 | Cover, Rear [T - Belt]Old # 9010511 | $15.00/EA |
| 24 | TN8048112 | 1 | Plug, RubberOld # 9010512 | $2.60/EA |

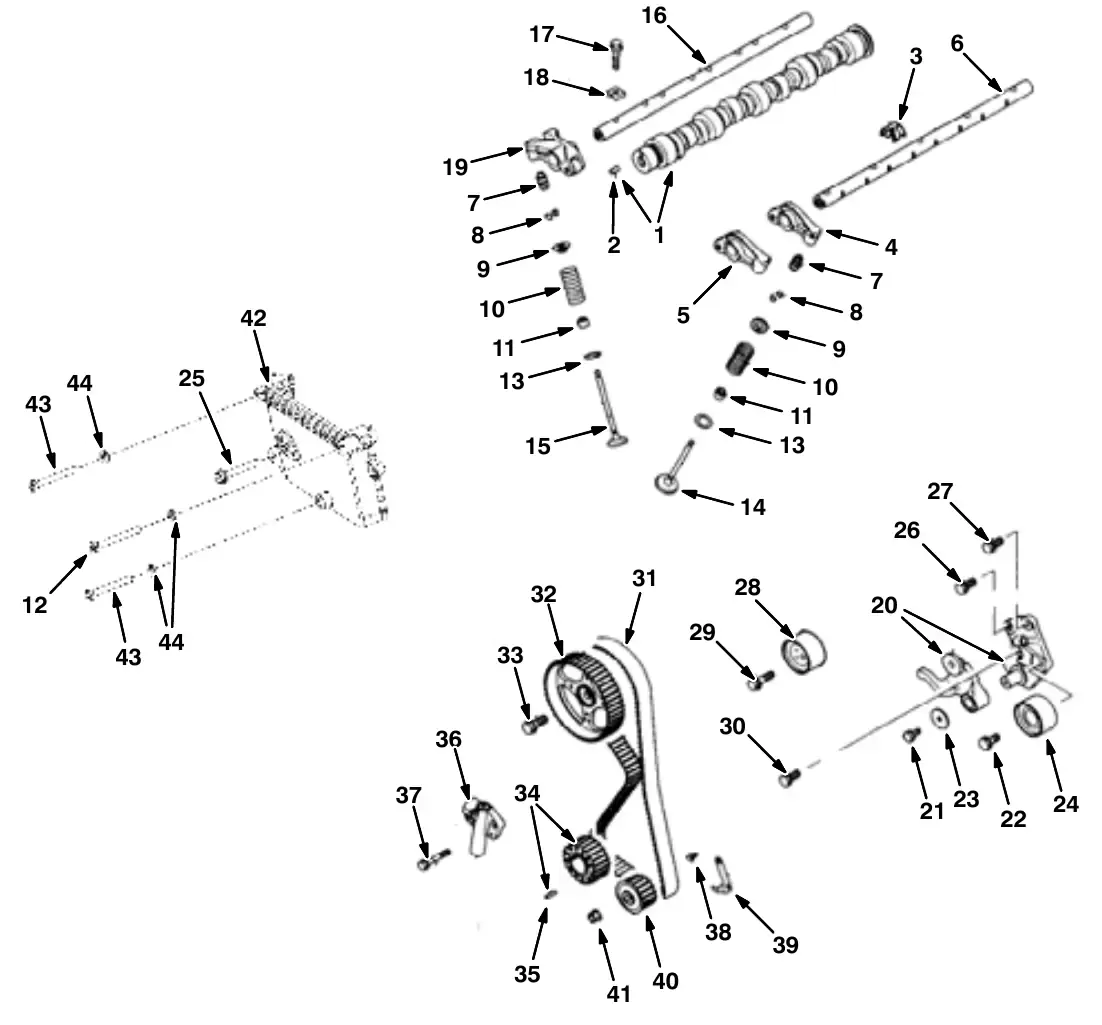

M20 Camshaft and Valve Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004012 | 1 | Camshaft AssyOld # 9010530 | $549.95/EA |
| 2 | TN8004017 | 1 | Pin, DowelOld # 9010535 | $2.30/EA |
| 3 | TN8004014 | 4 | Shaft, Spring, RockerOld # 9010532 | $4.40/EA |
| 4 | TN8004015 | 4 | Arm Assy, Rocker [B]Old # 9010533 | $31.11/EA |
| 5 | TN8004016 | 4 | Arm Assy, Rocker [A]Old # 9010534 | $37.21/EA |
| 6 | TN8004013 | 1 | Shaft, Arm , RockerOld # 9010531 | $43.43/EA |
| 7 | TN8004018 | 16 | Adjuster Assy, LashOld # 9010536 | $29.50/EA |
| 8 | TN8004019 | 32 | Valve, Spring, LockOld # 9010537 | $1.52/EA |
| 9 | TN8004020 | 16 | Valve, Spring, RetainerOld # 9010538 | $5.15/EA |
| 10 | TN8004021 | 16 | Valve, SpringOld # 9010539 | $7.58/EA |
| 11 | TN8004022 | 16 | Valve, Seal, StemOld # 9010540 | $5.90/EA |
| 12 | TN8003828 | 1 | Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 | $7.00/EA |
| 13 | TN8004023 | 16 | Valve, Spring, SeatOld # 9010541 | $1.50/EA |
| 14 | TN8004024 | 8 | Valve, InletOld # 9010542 | $20.40/EA |
| 15 | TN8004025 | 8 | Valve, ExhaustOld # 9010543 | $18.80/EA |
| 16 | TN8004026 | 1 | Shaft, Arm, RockerOld # 9010544 | $43.43/EA |
| 17 | TN8004027 | 13 | Bolt, FlangeOld # 9010545 | $1.80/EA |
| 18 | TN8004028 | 13 | Shaft, Cap, RockerOld # 9010546 | $2.30/EA |
| 19 | TN8004029 | 4 | Arm Assy, Rocker [C]Old # 9010547 | $41.65/EA |
| 20 | TN8004030 | 1 | Bracket, Pulley, TensionerOld # 9010548 | $183.10/EA |
| 21 | TN8004031 | 1 | Bolt, WasherOld # 9010549 | $2.30/EA |
| 22 | TN8004032 | 1 | Bolt, WasherOld # 9010550 | $3.10/EA |
| 23 | TN8004033 | 1 | WasherOld # 9010551 | $10.00/EA |
| 24 | TN8004034 | 1 | Pulley, IdlerOld # 9010552 | $54.20/EA |
| 25 | TN8003829 | 1 | Bolt, M8 - 1.25 X 55 Fi Hd [Mit]Old # 9010254 | $3.33/EA |
| 26 | TN8004035 | 1 | Bolt, SealOld # 9010554 | $3.50/EA |
| 27 | TN8004036 | 1 | Bolt, WasherOld # 9010555 | $3.80/EA |
| 28 | TN8004037 | 1 | Pulley, TensionerOld # 9010556 | $48.00/EA |
| 29 | TN8004038 | 1 | Bolt, WasherOld # 9010557 | $3.90/EA |
| 30 | TN8004032 | 1 | Bolt, WasherOld # 9010550 | $3.10/EA |
| 31 | TN8004039 | 1 | Belt, TimingOld # 9010559 | $165.80/EA |
| 32 | TN8004040 | 1 | Sprocket, CamshaftOld # 9010560 | $31.90/EA |
| 33 | TN8004041 | 1 | Bolt, FlangeOld # 9010561 | $2.83/EA |
| 34 | TN8004042 | 1 | Sprocket Assy, CshftOld # 9010562 | $25.90/EA |
| 35 | TN8048116 | 1 | Pin, SpringOld # 9010563 | $8.30/EA |
| 36 | TN8004043 | 1 | TensionerOld # 9010564 | $201.60/EA |
| 37 | TN8004044 | 2 | Bolt, FlangeOld # 9010565 | $2.60/EA |
| 38 | TN8003956 | 2 | Bolt, FlangeOld # 9010491 | $1.40/EA |
| 39 | TN8004045 | 1 | Bracket, Indicator, TimingOld # 9010567 | $4.14/EA |
| 40 | TN8004046 | 1 | Sprocket, Pump, OilOld # 9010568 | $15.70/EA |
| 41 | TN8004047 | 1 | NutOld # 9010569 | $2.65/EA |
| 42 | TN8003825 | 1 | Cover, Timing, Gear [Mit 2.0/2.4l]Old # 9010250 | $349.80/EA |
| 43 | TN8003826 | 2 | Bolt, M8 - 1.25 X 65 Hxhd [Mit]Old # 9010251 | $1.80/EA |
| 44 | TN8003827 | 3 | Washer, Lock, M8 [Mit]Old # 9010252 · Replaced by 9010380 in the 2025 list (rev. 12) | $1.10/EA |
M20 Piston and Crankshaft Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003972 | 1 | Crankshaft AssyOld # 9010513 | $996.06/EA |
| 2 | TN8048113 | 1 | KeyOld # 9010514 | $4.20/EA |
| 3 | TN8048114 | 1 | Washer, SpecialOld # 9010515 | $6.80/EA |
| 4 | TN8003973 | 1 | Pulley Assy, Damper, TorsionalOld # 9010516 | $171.80/EA |
| 5 | TN8003974 | 4 | Bolt, WasherOld # 9010517 | $2.20/EA |
| 6 | TN8048115 | 1 | Bolt, Sprocket, CshftOld # 9010518 | $11.20/EA |
| 7 | TN8003975 | 1 | Pin, DowelOld # 9010519 | $4.85/EA |
| 8 | TN8003976 | 4 | Rod Assy, ConnectingOld # 9010520 | $185.94/EA |
| 9 | TN8004003 | 8 | NutOld # 9010521 | $3.03/EA |
| Item 10: choose your version (3) | ||||
| 10 | TN8004004 | 4 | Bearing, Rod, Connect [Yellow Std]Old # 9010522 | $8.89/EA |
| 10 | TN8004005 | 4 | Bearing, Rod, Connect [No Color Std]Old # 9010523 | $9.49/EA |
| 10 | TN8004006 | 4 | Bearing, Rod, Connect [ Lan Std]Old # 9010524 | $9.49/EA |
| 11 | TN8004007 | 8 | Bolt, ConnectingOld # 9010525 | $22.83/EA |
| Item 12: choose your version (3) | ||||
| 12 | TN8004008 | 4 | Piston, Pin [Std A]Old # 9010526 | $63.43/EA |
| 12 | TN8004009 | 4 | Piston, Pin [Std B]Old # 9010527 | $63.43/EA |
| 12 | TN8004010 | 4 | Piston, Pin [Std C]Old # 9010528 | $63.43/EA |
| 13 | TN8004011 | 1 | Piston Set, RingOld # 9010529 | $109.58/EA |
M20 Balancer Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 6 | TN8004052 | 1 | Belt, TimingOld # 9010575 | $30.70/EA |
| 2 | TN8004049 | 1 | Tensioner, Timing, BeltOld # 9010571 | $33.80/EA |
| 1 | TN8004048 | 1 | Bolt, Belt, Balancer, TrainOld # 9010570 | $3.50/EA |
| 3 | TN8004050 | 1 | Flange, Sprocket, CshftOld # 9010572 | $4.34/EA |
| 4 | TN8004070 | 1 | Bolt, FlangeOld # 9010600 | $2.90/EA |
| 5 | TN8004051 | 1 | Washer, Belt, Balancer, TrainOld # 9010574 | $3.30/EA |
| 7 | TN8004053 | 1 | Sprocket, Shaft, BalancerOld # 9010576 | $10.30/EA |
| 8 | TN8004054 | 1 | Spacer, Belt, Balancer, TrainOld # 9010577 | $11.50/EA |
| 9 | TN8004055 | 1 | Shaft, Right, BalancerOld # 9010578 | $136.45/EA |
| 10 | TN8004056 | 1 | Shaft, Left, BalancerOld # 9010579 | $115.65/EA |
| 11 | TN8004057 | 1 | Sprocket, CshftOld # 9010580 | $27.55/EA |
M20 Oil Pump and Pressure Switch Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 20 | TN8003832 | 1 | Sender, Oil, Press [Mit] (3 Prong)Old # 9010259 | $295.90/EA |
| 4 | TN8004061 | 1 | Seal, OilOld # 9010586 | $16.90/EA |
| 3 | TN8004060 | 1 | Seal, OilOld # 9010585 | $13.90/EA |
| 10 | TN8004071 | 1 | Seal, OilOld # 9010601 | $13.20/EA |
| 14 | TN8048117 | 1 | Plug, CapOld # 9010596 | $7.40/EA |
| 15 | TN8048118 | 1 | O - RingOld # 9010597 | $3.60/EA |
| 1 | TN8004058 | 1 | Pump, OilOld # 9010582 | $316.00/EA |
| 11 | TN8004065 | 1 | Gasket, Case, FrontOld # 9010593 | $9.90/EA |
| 2 | TN9010592 | 1 | Pump, Gear, Drive, OilOld # 9010592 · current Tennant number (Tennant parts catalog) | $399.00/EA |
| 5 | TN8004062 | 1 | Plug, TapperOld # 9010587 | $5.50/EA |
| 6 | TN8003905 | 2 | Pin, DowelOld # 9010426 | $2.30/EA |
| 7 | TN8004063 | 1 | ScrewOld # 9010589 | $41.92/EA |
| 8 | TN8004064 | 4 | Bolt, FlangeOld # 9010590 | $1.82/EA |
| 9 | TN9010591 | 1 | Pump, Gear, OilOld # 9010591 · current Tennant number (Tennant parts catalog) | Call for price |
| 12 | TN8004066 | 3 | Bolt, WasherOld # 9010594 | $2.90/EA |
| 13 | TN8004067 | 1 | Bolt, WasherOld # 9010595 | $2.90/EA |
| 16 | TN8004068 | 1 | Bolt, FlangeOld # 9010598 | $2.90/EA |
| 17 | TN8004069 | 1 | Bolt, FlangeOld # 9010599 | $2.73/EA |
| 18 | TN8004070 | 1 | Bolt, FlangeOld # 9010600 | $2.90/EA |
| 19 | TN8004059 | 1 | Bolt, FlangeOld # 9010583 | $3.50/EA |
M20 Water Pump Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004072 | 1 | Pump, WaterOld # 9010602 | $226.70/EA |
| 2 | TN8004073 | 1 | Gasket, Pump, WaterOld # 9010603 | $8.20/EA |
| 4 | TN8003965 | 1 | Bolt, FlangeOld # 9010503 | $3.50/EA |
| 5 | TN8004075 | 2 | Bolt, FlangeOld # 9010606 | $1.50/EA |
| 6 | TN8004076 | 1 | Bolt, FlangeOld # 9010607 | $1.50/EA |
| 7 | TN8004077 | 1 | Pulley, Pump, WaterOld # 9010612 | $31.20/EA |
| 8 | TN8048120 | 4 | Nut, FlangeOld # 9010609 | $2.60/EA |
| 9 | TN8048121 | 4 | Washer, SpringOld # 9010610 | $1.50/EA |
| 3 | TN8004074 | 1 | Bolt, FlangeOld # 9010604 | $2.60/EA |

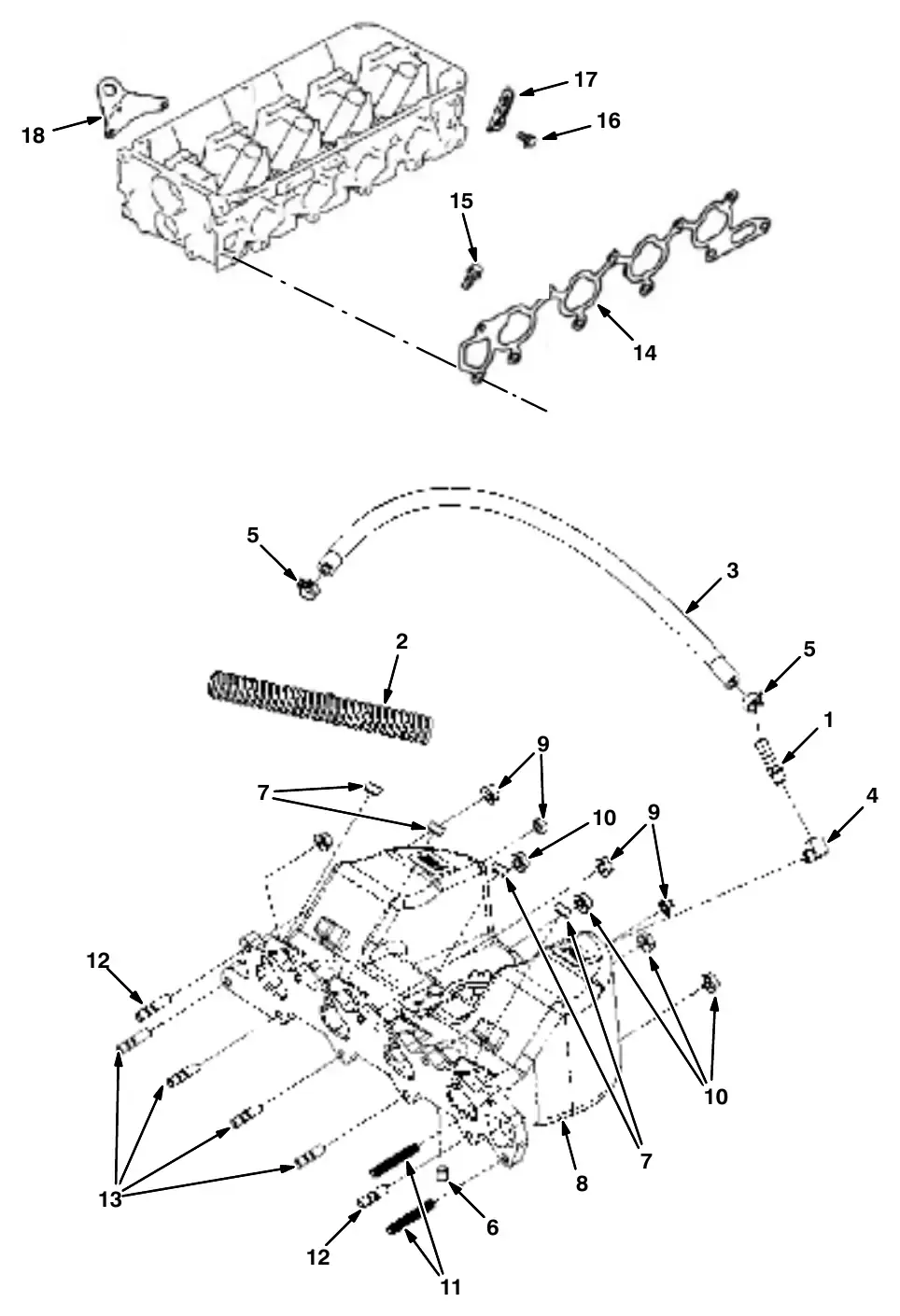

M20 Intake Manifold Gasket Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003895 | 1 | Fitting, 1/8 Mpt X 3/8 Hb [Mit]Old # 9010382 | $10.95/EA |
| 2 | TN8003851 | 17” | Loom, Convoluted, Split 5/8 [Mit]Old # 9010281 | $28.73/EA |
| 3 | TN8044972 | 20” | Hose, Fuel, .38d, Rbr[16”L]Old # 385001 | $16.00/EA |
| 4 | TN8048107 | 1 | Elbow, 1/8m X 1/8f, 90 [Mit]Old # 9010383 | $13.40/EA |
| 5 | TN8048058 | 2 | Clamp, 3/8id [Mit Olive Green]Old # 9010282 | $4.15/EA |
| 6 | TN8048104 | 1 | Plug, 1/8 Npt, Brs, Skt Hd [Mit]Old # 9010283 · replaced by 8048104 (Tennant parts catalog) | Call for price |
| 7 | TN8048059 | 4 | Plug, Injector [Mit]Old # 9010284 | $3.10/EA |
| 8 | TN8003852 | 1 | Manifold, Intake [Mit 20/24m Tilt]Old # 9010285 | $950.90/EA |
| 9 | TN8003853 | 2 | Nut, M8 - 1.25 [Mit]Old # 9010286 | $3.50/EA |
| 10 | TN8044984 | 7 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 11 | TN8003854 | 2 | Stud, M8 - 1.25 X 50 Full Thrd [Mit]Old # 9010287 | $6.70/EA |
| 12 | TN8003855 | 2 | Stud, M8 - 1.25 X 35 [Mit Double End]Old # 9010288 | $4.20/EA |
| 13 | TN8003896 | 4 | Stud, M8 - 1.25 X 30 [Mit Double End]Old # 9010384 | $5.90/EA |
| 14 | TN8004078 | 1 | Gasket, Manifold, IntakeOld # 9010613 | $19.90/EA |
| 15 | TN8004075 | 2 | Bolt, FlangeOld # 9010606 | $1.50/EA |
| 16 | TN8004079 | 1 | Bolt, Manifold, InletOld # 9010615 | $1.50/EA |
| 17 | TN8004080 | 1 | Hanger, EngineOld # 9010617 | $4.30/EA |
| 18 | TN8004081 | 1 | Hanger, EngineOld # 9010618 | $13.30/EA |
M20 Exhaust Manifold Gasket Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003859 | 1 | Gasket, Manifold, Exh [Mit]Old # 9010296 | $58.20/EA |
| 2 | TN8003860 | 7 | Stud, M8 - 1.25 X 40 [Mit]Old # 9010297 | $4.90/EA |
| 8 | TN8003835 | 5 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 10 | TN8004082 | 1 | Gasket, Manifold, ExhaustOld # 9010619 | $22.80/EA |
| 3 | TN8004596 | 3 | Stud, Manifold, Intake, M8 X 28Old # 372020 | $29.60/EA |
| 5 | TN8003862 | 1 | Shield, Heat, Lower [Mit 20/24m]Old # 9010302 | $89.20/EA |
| 7 | TN8047578 | 10 | Nut [2.4l Mit]Old # 9015915 · Replaces 385015 (2016 list (rev. 01)) | $2.40/EA |
| 9 | TN8047579 | 2 | Nut [2.4l Mit]Old # 9015916 · Replaces 9010239 (2016 list (rev. 01)) | $2.90/EA |
| 4 | TN8003861 | 1 | Manifold, Exhaust [Mit 2.0/2.4l]Old # 9010298 | $548.40/EA |
| 6 | TN8003863 | 1 | Shield, Heat, Upper [Mit 20/24m]Old # 9010303 | $137.20/EA |
M20 Fan Tensioner and Pump Mount Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 4 | TN8003799 | 1 | Pulley, Tensioner, Assy[Mit2.0/2.4l]Old # 9010224 | $346.10/EA |
| 2 | TN8003797 | 1 | Plate, Tensioner, Adj [Mit 2.0/2.4l]Old # 9010222 | $122.00/EA |
| 6 | TN8003801 | 2 | Bolt, 3/8 - 16 X 1 1/4 Hxhd [Mit]Old # 9010226 | $2.20/EA |
| 7 | TN8045487 | 2 | Washer, Lock, 0.38Old # 371509 | $2.60/EA |
| 9 | TN8003803 | 1 | Bolt, 3/8 - 16 X 4.5 [Mit]Old # 9010228 | $8.50/EA |
| 10 | TN8003804 | 4 | Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 | $3.50/EA |
| 1 | TN8045530 | 1 | Ring, RetainingOld # 371562 | $38.80/EA |
| 3 | TN8003798 | 1 | Bar, Tensioner, Mtg [Mit 2.0/2.4l]Old # 9010223 | $29.30/EA |
| 5 | TN8003800 | 1 | Bracket, Tensioner, [Mit 2.0/2.4l]Old # 9010225 | $105.30/EA |
| 8 | TN8003802 | 3 | Washer, Flat 3/8, SaeOld # 9010227 | $1.50/EA |
| 11 | TN8003805 | 2 | Bolt, M8 - 1.25 X 20 Fl Hd [Mit]Old # 9010230 | $3.30/EA |
| 12 | TN8003806 | 1 | Bolt, M8 - 1.25 X 25 Soc Hd [Mit]Old # 9010231 | $8.20/EA |
| 13 | TN8004085 | 1 | Bracket, Pump, MtgOld # 9010623 | $59.39/EA |
| 14 | TN8004086 | 1 | Bolt, WasherOld # 9010624 | $2.83/EA |
| 15 | TN8004087 | 2 | Bolt, WasherOld # 9010625 | $3.54/EA |
M20 Flywheel Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 3 | TN8003809 | 1 | Coupling, Flywheel [Mit20/24m]Old # 9010234 | $1,151.80/EA |
| 1 | TN8003807 | 6 | Bolt, M8 - 1.25 X 15, Hx Hd [Mit]Old # 9010232 | $2.60/EA |
| 4 | TN8003810 | 3 | Pin, Flywheel [Mit 20/20m]Old # 9010235 | $4.10/EA |
| 5 | TN8003811 | 7 | Bolt, Flywheel [Mit 20/24m]Old # 9010236 | $5.20/EA |
| 2 | TN8003808 | 1 | Flywheel, Flatface [Mit 20/24m]Old # 9010233 | $421.50/EA |
| 6 | TN8003876 | 2 | Bolt, M12 - 1.75 X 25, Hex Hd [Mit]Old # 9010359 | $3.43/EA |
| 7 | TN8003812 | 1 | Cover, Dust [Mit 2.0l]Old # 9010237 | $73.93/EA |
| 8 | TN8003813 | 1 | Housing, Flywheel [Mit 2.0l]Old # 9010238 | $629.53/EA |
| 9 | TN8003877 | 2 | Washer, Lock, M12 [Mit]Old # 9010360 | $8.18/EA |
| 10 | TN8003814 | 1 | Nut, M10 - 1.25 Flg [Mit]Old # 9010239 | $1.50/EA |
| 11 | TN8003815 | 2 | Bolt, M6 - 1.0 X 20 Fl Hd [Mit]Old # 9010240 | $3.60/EA |
| 12 | TN8003816 | 4 | Bolt, M10 - 1.25 X 30 Soc Hd [Mit]Old # 9010241 | $7.40/EA |
| 13 | TN8003817 | 2 | Bolt, M10 - 1.25 X 45 Soc Hd [Mit]Old # 9010242 | $8.38/EA |
M20 Ignition Coil and Spark Plug Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 5 | TN8003678 | 4 | Plug, Spark [Mitsubishi 2015 12mm]Old # 9014160 | $5.00/EA |
| 2 | TN8003819 | 4 | Coil, Ignition [Mit 2.0/2.4l]Old # 9010244 | $221.10/EA |
| 6 | TN8003945 | 4 | Seal, OilOld # 9010479 | $6.60/EA |
| 1 | TN8003818 | 1 | Bracket, Coil [Mit 2.0/2.4l]Old # 9010243 | $69.60/EA |
| 3 | TN8044984 | 2 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 4 | TN8003815 | 4 | Bolt, M6 - 1.0 X 20 Fl Hd [Mit]Old # 9010240 | $3.60/EA |
M20 Starter / Alternator Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8003821 | 1 | Starter, Motor [Mit 2.0/2.4l]Old # 9010246 | $808.70/EA |
| 3 | TN8003796 | 1 | Alternator, 7si [Mit Df Sur - Belt]Old # 9010217 | $786.90/EA |
| 1 | TN8003820 | 2 | Bolt, M10 - 1.50 X 30 [Mit]Old # 9010245 | $5.20/EA |
| 4 | TN8048052 | 1 | Spacer, Alternator [Mit 2.0/2.4l]Old # 9010219 | $12.40/EA |
M20 Remote Oil Filter Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 7 | TN8003892 | 1 | Hose, 90xstr,Flter, Oil, Remote[Mit]Old # 9010376 | $240.10/EA |
| 8 | TN8003892 | 1 | Hose, 90xstr,Flter, Oil, Remote[Mit]Old # 9010376 | $240.10/EA |
| 1 | TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Old # 393982 | $30.00/EA |
| 9 | TN8004090 | 1 | ElbowOld # 9010628 | $49.40/EA |
| 18 | TN8004090 | 1 | ElbowOld # 9010628 | $49.40/EA |
| 10 | TN8048122 | 1 | ElbowOld # 9010629 | $99.80/EA |
| 3 | TN8048105 | 1 | Fitting, Str, 10 - 10 Orb, 37fi [Mit]Old # 9010371 | $12.40/EA |
| 4 | TN8003890 | 1 | Plug, 3/8npt X 5/16, Brs [Mit]Old # 9010372 | $14.40/EA |
| 13 | TN8003828 | 1 | Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 | $7.00/EA |
| 15 | TN8003804 | 3 | Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 | $3.50/EA |
| 16 | TN8003894 | 1 | Washer, Lock, M8 [Mit]Old # 9010380 | $1.20/EA |
| 11 | TN8003893 | 1 | Gasket, Oil, Adapter [Mit 2.0/2.4]Old # 9010377 | $29.80/EA |
| 2 | TN8005673 | 1 | Mount, Fltr, RemoteOld # 371503 | $221.60/EA |
| 5 | TN8048106 | 1 | Adapter, Filter, Oil, Remote [Mit]Old # 9010373 | $100.00/EA |
| 6 | TN8003891 | 1 | Bracket, Filter, Oil, Remote [Mit]Old # 9010374 | $24.40/EA |
| 12 | TN8044984 | 3 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 14 | TN8004091 | 2 | WasherOld # 9010630 | $1.21/EA |
| 17 | TN8004092 | 2 | BoltOld # 9010631 | $5.35/EA |
M20 Coolant Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 9 | TN8003858 | 2 | Cap, Rubber, 5/8id [Mit 2.0/2.4l]Old # 9010295 | $7.70/EA |
| 10 | TN4027831 | 1 | Thermostat Kit, Coolant, Replmt [Mitsub]Old # 9010905 | $35.10/EA |
| 13 | TN8003599 | 2 | Seal, Tube, Water [Mit 2.0l]Old # 9013530 | $27.70/EA |
| 1 | TN8003856 | 1 | O - Ring [Mit 208 Buna - N]Old # 9010289 | $2.80/EA |
| 12 | TN8004105 | 1 | Tube, Pump, WaterOld # 9010910 | $14.90/EA |
| 5 | TN8003170 | 2 | Clamp, Hose, Spring, 0.62dOld # 384979 | $4.10/EA |
| 6 | TN8004093 | 1 | Gasket, OutletOld # 9010632 | $38.40/EA |
| 2 | TN8048100 | 1 | Housing, T - Stat, 2 Holes [Mit]Old # 9010290 | $153.60/EA |
| 11 | TN8003795 | 1 | Housing, ThermostatOld # 9010215 | $94.30/EA |
| 3 | TN8003857 | 1 | Tube, Water, Line [Mit]Old # 9010291 | $87.60/EA |
| 4 | TN8044980 | 1 | Fitting, E90Old # 385011 | $24.70/EA |
| 7 | TN8048101 | 1 | Outlet, Water, W/Plug [Mit 2.0/2.4l]Old # 9010294 | $48.60/EA |
| 8 | TN8044984 | 2 | Nut, Flng, M8Old # 385015 | $6.70/EA |
M20 DSR Coolant Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8003856 | 1 | O - Ring [Mit 208 Buna - N]Old # 9010289 | $2.80/EA |
| 3 | TN8003865 | 1 | Tube, Cooling, Line [Mit]Old # 9010306 | $103.30/EA |
| 1 | TN8003864 | 1 | Bolt, M8 - 1.25 X 12 [Mit]Old # 9010305 | $6.10/EA |
| 4 | TN8003866 | 1 | Gasket, Water Supply [Mit 2.0/2.4l]Old # 9010307 | $32.00/EA |
| 5 | TN8003867 | 1 | Fitting, 1/2 Mpt X 5/8bh 90deg [Mit]Old # 9010308 | $40.80/EA |
| 6 | TN8003868 | 1 | Plate, Water, Outlet [Mit Bypass]Old # 9010309 | $61.30/EA |
| 7 | TN8003869 | 2 | Bolt, M8 - 1.25 X 25 Flg Hd [Mit]Old # 9010310 | $2.40/EA |
M20 Electrical Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003830 | 1 | Washer, Star, M10 [Mit]Old # 9010255 | $1.50/EA |
| 2 | TN8003831 | 2 | Bolt, M6 - 1.0 X 12 Fl Hd Pl [Mit]Old # 9010256 | $1.31/EA |
| 3 | TN8005197 | 1 | Sensor, Spd, Timing Wheel [3.0l]Old # 372492 | $412.60/EA |
| 4 | TN8001829 | 2 | IsolatorOld # 9008805 | $11.80/EA |
| 5 | TN8005433 | 1 | Sensor, Oxygen, TailpipeOld # 1028558 | $277.60/EA |
| 6 | TN8048054 | 2 | Clamp, 1/4 Hole [Mit #20]Old # 9010257 | $28.89/EA |
| Item 7: choose your version (2) | ||||
| 7 | TN8005370 | 1 | Module, Ecu, Gas [Mit 2.0l 2013]Old # 1071397 | $1,347.10/EA |
| 7 | TN8005426 | 1 | Module, Ecu, Lpg [Mit 2.0l 2013]Old # 1071398 | $1,360.50/EA |
| 8 | TN8005198 | 1 | Sensor [Tmap]Old # 372493 | $206.90/EA |
| 9 | TN8004155 | 1 | Sensor, Temp, CoolantOld # 372891 | $126.90/EA |
| 10 | TN8048055 | 1 | Clamp, 0.75d [Mit]Old # 9010258 | $21.92/EA |
| 11 | TN8003824 | 4 | Bolt, M6 - 1.0 X 30 Fl Hd [Mit]Old # 9010249 | $7.27/EA |
| 12 | TN8003833 | 1 | Sensor, Camshaft [Mit]Old # 9010260 | $426.00/EA |
| 13 | TN8003834 | 1 | Cam, Sensor, Wheel [Mit 2.0/2.4l]Old # 9010261 | $123.40/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN8005427 | 1 | Harness, Wire, Eng, Gas [Mit, 2.0l]Old # 1071653 | $1,434.90/EA |
| 14 | TN8005428 | 1 | Harness, Wire, Eng, Lpg [Mit, 2.Ol]Old # 1071654 | $1,268.00/EA |
| 15 | TN8003835 | 3 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 16 | TN8003836 | 3 | Bolt, M6 - 1.0 X 16 Fl Hd [Mit]Old # 9010263 | $2.73/EA |
| 17 | TN8003837 | 4 | Nut, M6 - 1.0 Flange [Mit]Old # 9010264 | $2.60/EA |
| 18 | TN8003878 | 1 | Stud, M10 - 1.25 X 50, Full Thrd [Mit]Old # 9010366 | $5.60/EA |
| 19 | TN8003889 | 1 | Nut, M10 - 1.25, Hx Flg [Mit]Old # 9010367 | $1.90/EA |
| 20 | TN8003822 | 1 | Plate, Mtg, Ecu [Mit 2.0/2.4l]Old # 9010247 | $37.67/EA |
| 21 | TN8003823 | 3 | Bolt, M10 - 1.25 X 20 Hxhd [Mit]Old # 9010248 | $3.43/EA |
M20 Fuel Rail Group, Gasoline Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
M20 Throttle Body Group, Gasoline Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003838 | 1 | Throttle Body [Mit, Bosch]Old # 9010266 | $714.50/EA |
| 2 | TN8003839 | 1 | Gasket, Throttle [Mit 40mm]Old # 9010268 | $3.60/EA |
| 3 | TN8003874 | 4 | Washer, 1/4 Flat [Mit]Old # 9010330 | $1.30/EA |
| 4 | TN8003875 | 4 | Bolt, M6 - 1.0 X 45, Skt Hd [Mit]Old # 9010331 | $3.10/EA |
M20 Throttle Body Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003838 | 1 | Throttle Body [Mit , Bosch]Old # 9010266 | $714.50/EA |
| 2 | TN8006239 | 1 | Seal, Org, LpgOld # 1037311 | $13.10/EA |
| 5 | TN8003839 | 1 | Gasket, Throttle [Mit 40mm]Old # 9010268 | $3.60/EA |
| 3 | TN8002571 | 1 | AdapterOld # 9006619 | $80.90/EA |
| 4 | TN8048056 | 1 | Spacer, Ring, Throttle [Mit 40mm]Old # 9010267 | $8.10/EA |
| 6 | TN8003840 | 4 | Bolt, M6 - 1.0 X 25 Soc Hd [Mit]Old # 9010269 | $1.90/EA |
| 7 | TN8003841 | 4 | Washer, Lock, M6 [Mit]Old # 9010270 | $1.20/EA |
| 8 | TN8003842 | 4 | Bolt, M6 - 1.0 X 85 Soc Hd [Mit]Old # 9010271 | $3.20/EA |
M20 Vaporizer Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | TN8001829 | 3 | IsolatorOld # 9008805 | $11.80/EA |
| 17 | TN8002010 | 1 | Filter Kit, Fuelock, LpgOld # 9007380 | $25.60/EA |
| 13 | TN8003835 | 3 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 5 | TN8003843 | 2 | Fitting, 1/2 X 5/8 Hose,Plastic[Mit]Old # 9010273 | $14.40/EA |
| 15 | TN8003837 | 1 | Nut, M6 - 1.0 Flange [Mit]Old # 9010264 | $2.60/EA |
| 7 | TN8002154 | 1 | RegulatorOld # 9008193 | $475.20/EA |
| 10 | TN8003847 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010277 | $22.00/EA |
| 16 | TN4015547 | 1 | Lock - Off, 12v, Lpg [Mit]Old # 9006620 | $374.70/EA |
| 3 | TN8003170 | 6 | Clamp, Hose, Spring, 0.62dOld # 384979 | $4.10/EA |
| 11 | TN8003848 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010278 | $15.90/EA |
| 12 | TN8003849 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010279 | $11.50/EA |
| 18 | TN8003872 | 1 | Fitting, 1/4mpt X 1/4mpt, 90deg[Mit]Old # 9010317 | $24.30/EA |
| 14 | TN8003850 | 2 | Bolt, M8 - 1.25 X 16 Fl Hd [Mit]Old # 9010280 | $3.50/EA |
| 9 | TN8003846 | 1 | Hose, Fuel, Molded [Mit 20/24m]Old # 9010276 | $29.60/EA |
| 1 | TN8048057 | 1 | Hose Assy, Upper, Tap [Mit]Old # 9010272 | $152.20/EA |
| 4 | TN8001828 | 1 | Plate, Mtg [Epr]Old # 9008804 | $71.50/EA |
| 6 | TN8003844 | 2 | Clamp, Tension [Mit #29]Old # 9010274 | $6.10/EA |
| TN8004088 | 1 | Repair Kit, VaporizerOld # 9010626 | $275.10/EA | |
| 8 | TN8003845 | 1 | Bracket, Vaporizer [Mit 20/24m Tilt]Old # 9010275 | $60.60/EA |
| 19 | TN8046709 | 1 | Fitting, Hose, PlasticOld # 9021786 | $15.20/EA |
M20 Electronic Pressure Regulator (EPR) Group, LPG Engine
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 6 | TN8002012 | 4 | Stud, M05 - 0.8Old # 9007424 | $12.90/EA |
| 7 | TN8002011 | 4 | Nut, Flng, M05 - 0.8Old # 9007423 | $2.60/EA |
| 2 | TN8001830 | 1 | Regulator, Press, Electronic [Epr]Old # 9008806 | $1,412.00/EA |
| TN8004095 | 1 | Repair Kit, MixerOld # 9010634 | $155.10/EA | |
| 5 | TN8048471 | 4 | Screw, Soc, M4 X 0.70 X 16Old # 9008808 | $5.20/EA |
| 3 | TN8048470 | 1 | Fitting, Barb, 3/4” [Epr]Old # 9008807 | $12.40/EA |
| 1 | TN8048104 | 2 | Plug, 1/8npt, Brs [Mit]Old # 9010314 | $37.20/EA |
| 4 | TN8002570 | 1 | Mixer , LpgOld # 9006618 | $479.40/EA |
M20 Engine Cover Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045021 | 1 | Shroud Assy, EngOld # 1033156 | $743.80/EA |
| 2 | TN4194117 | 1 | Angle, Brace, ShrdOld # 1026628 | $14.75/EA |
| 3 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 4 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 5 | TN4032873 | 1 | Bracket, Shield, HeatOld # 1022004 | $49.88/EA |
| 6 | TN4012756 | 4 | Screw, Flt, M8 X 1.25 X 25Old # 74077 | $4.00/EA |
| 7 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 8 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 9 | TN4033616 | 2 | Hinge Wldt, Shrd, LhOld # 1024500 | $68.90/EA |
| 10 | TN4033887 | 2 | Hinge Wldt, Shrd, LhOld # 1025196 | $42.60/EA |
| 11 | TN4036245 | 1 | Bracket, Latch, CoverOld # 1020186 | $13.50/EA |
| 12 | TN4035242 | 15 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 13 | TN4041844 | 7 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 14 | TN4016785 | 2 | Washer, Lock, Int - Ext, 10Old # 41139 | $3.50/EA |
| 15 | TN4034277 | 1 | Grill, EngOld # 1026726 | $72.20/EA |
| 16 | TN4041965 | 2 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 17 | TN4042244 | 2 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 18 | TN4040232 | 6 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267 | $2.50/EA |
| 19 | TN4030910 | 1 | Bracket, Guide, ShrdOld # 1028412 | $19.50/EA |
| 20 | TN4037479 | 1 | Latch, Door, YellowOld # 1222018 | $18.30/EA |
| 21 | TN4041258 | 2 | Screw, Pan, M4 X 0.7 X 16, 4.8Old # 06927 | $3.30/EA |
| 22 | TN4043235 | 2 | Nut, Hex, Lock, M4 X 0.7, NlOld # 02850 | $2.50/EA |
| 23 | TN4193841 | 1 | Plate, Seal, SoundOld # 1025806 | $15.80/EA |
| 24 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4031725 | 2 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588 | $46.50/EA |
| 26 | TN4032874 | 1 | Cover, LowerOld # 1022005 | $21.70/EA |
| 27 | TN4032093 | 2 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 28 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 29 | TN4024119 | 1 | Bracket, Latch, Keeper [Southco]Old # 384419 | $4.50/EA |
| 30 | TN4035372 | 2 | Screw, Pan, M4 X 0.7 X 16, SsOld # 24265 | $3.00/EA |
M20 Engine and Mount Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030902 | 1 | Engine Assy, Dsl, 25hp [Ku V1505 Tier4f] (See Engine Breakdown)Old # 1072224 | $8,119.00/EA |
| 2 | TN8002147 | 1 | Motor, Starter, 12vdc [Kubota] (See Engine Breakdown)Old # 74405 | $2,482.50/EA |
| 3 | TN8005448 | 1 | Base, Fltr, Oil [Ku]Old # 368056 | $151.13/EA |
| 4 | TN8002493 | 1 | Seal, OrgOld # 70907 | $11.40/EA |
| 5 | TN8045887 | 1 | Pipe, Fltr, Oil [Ku]Old # 368059 | $36.67/EA |
| 6 | TN8002496 | 1 | Seal, OrgOld # 70911 | $3.80/EA |
| 7 | TN4029084 | 1 | Housing, Flywheel, Mach [1505, Kubo]Old # 55837 | $275.23/EA |
| 8 | TN4041580 | 6 | Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 | $2.40/EA |
| 9 | TN4028687 | 2 | Pin, Dowel, Cyl Block [1pk=4]Old # 54911-16 | $18.69/EA |
| 10 | TN4042428 | 1 | Coupling, Drive, Flex, 09.5d / 13toothOld # 19252 | $252.50/EA |
| 11 | TN4029784 | 1 | Housing, Flywheel, Mach [1505, Kubo]Old # 58566 | $632.46/EA |
| 12 | TN4019758 | 6 | Screw, Hex, M10 X 1.5 X 25, 8.8Old # 39283 | $3.30/EA |
| 13 | TN4019759 | 2 | Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 | $4.00/EA |
| 14 | TN4041291 | 5 | Screw, Hex, M10 X 1.5 X 110, 8.8Old # 06966 | $3.33/EA |
| 15 | TN4034134 | 13 | Washer, Flat, 0.38, SaeOld # 32485 | $2.50/EA |
| 16 | TN4016826 | 5 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 17 | TN4026735 | 1 | Magnet, PickupOld # 380521 | $339.00/EA |
| 18 | TN4039081 | 1 | Nut, Hex, Jam, .38 - 24Old # 20171 | $2.50/EA |
| 19 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 20 | TN4041580 | 4 | Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 | $2.40/EA |
| 21 | TN4195931 | 1 | Bracket Wldt, Mtg, Eng, Rear, DslOld # 1023074 | $111.61/EA |
| 22 | TN4014538 | 3 | Isolator, Vib, .50dOld # 51176 | $37.60/EA |
| 23 | TN4041297 | 3 | Screw, Hex, M12 X 1.75 X 60, 8.8Old # 06972 | $4.00/EA |
| 24 | TN4040927 | 3 | Washer, Flat, 0.53b 1.88d .12, Stl, PlOld # 04414 | $4.10/EA |
| 25 | TN4034139 | 1 | Washer, Flat, 0.50, StdOld # 32493 | $3.50/EA |
| 26 | TN4041927 | 1 | Nut, Hex, Lock, M12 X 1.75,NlOld # 08711 | $3.30/EA |
| 27 | TN4035402 | 1 | Fitting, Brs, E45, Pf02/Pm02Old # 24976 | $5.30/EA |
| 28 | TN79399 | 1 | Switch, Press, Dpdt 0006psiOld # 79399 · current Tennant number (Tennant parts catalog) | Call for price |
| 29 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 30 | Old # 1050757 | 1 | Switch, Thermostat, WaterOld # 1050757Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 31 | TN4190168 | 1 | Bracket Wldt, Mtg, Eng, Front, DslOld # 1046810 | $199.78/EA |
| 32 | TN4030626 | 1 | Hose, 0300, 08, Jf08str / None, 19.0Old # 1027273 | $20.40/EA |
| 33 | TN4017089 | 1 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wOld # 63810 | $6.80/EA |
| 34 | TN4041528 | 1 | Fitting, Hyd, Plug, Jm08Old # 16376 | $7.47/EA |
| 35 | TN8002867 | 1 | Gasket, Solenoid, Throttle [Ku]Old # 70165 | $5.40/EA |
| 36 | TN4015634 | 1 | Actuator, Govnr, DslOld # 71385 | $1,093.90/EA |
| 37 | TN4015635 | 4 | Screw, Soc, M6 X 1.00 X 16, 12.9Old # 71388 | $4.80/EA |
| 38 | TN8002583 | 1 | Adapter, Actuator, Govnr, Eng, DslOld # 393401 | $180.26/EA |
| 39 | TN4028034 | 2 | Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 | $3.20/EA |
| 40 | TN4028211 | 1 | Bracket, Mtg, Fltr, Oil, RemoteOld # 364972 | $188.87/EA |
| 41 | TN4029035 | 1 | Fitting, Hyd, Str, SpclOld # 367591 | $9.80/EA |
| 42 | TN4031221 | 1 | Fitting, Hyd, E90, Jm08/Om16 MetricOld # 33595 | $46.30/EA |
| 43 | TN4041246 | 1 | Fitting, Hyd, Str, Jm08/Pm08Old # 15687 | $11.20/EA |
| 44 | TN4014602 | 1 | Fitting, Hyd, E90, Jm08/Pm08Old # 51869 | $17.57/EA |
| 45 | TN4026831 | 2 | Hose, Hyd, Med08, Jf08e90/Jf08str, 032.0Old # 59578 | $51.70/EA |
| 46 | TN8002633 | 1 | Element, Fltr, Oil, Spin - OnOld # 39703-2 | $15.60/EA |
| 47 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
M20 Engine Fuel Tank Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194105 | 1 | Tray Wldt, FuelOld # 1026550 | $171.70/EA |
| 2 | TN4194130 | 1 | Insulation, Flame - Retardant, 0.5Old # 1026759 | $80.60/EA |
| 3 | TN4017037 | 1 | Tank, Fuel, 11.2gal, Dsl, Replmt, Na[08]Old # 9003934 | $581.56/EA |
| 4 | TN8006208 | 1 | Gasket, Sender, FuelOld # 1033897 | $9.20/EA |
| 5 | TN8006221 | 1 | Send - Unit, Fuel [2007]Old # 1033901 | $122.70/EA |
| 6 | TN8006207 | 1 | Cap, Fuel, TankOld # 1032812 | $36.90/EA |
| 7 | TN4013933 | 1 | Fitting, Pipe, Plug, Pm02, Sq HeadOld # 48126 | $2.93/EA |
| 3 | TN4203401 | 1 | Tank, Fuel, 11.2gal, Dsl, Replmt, Tj[08] (Japan Only)Old # 9003958 | $578.12/EA |
| 4 | TN8006208 | 1 | Gasket, Sender, FuelOld # 1033897 | $9.20/EA |
| 5 | TN8006221 | 1 | Send - Unit, Fuel [2007]Old # 1033901 | $122.70/EA |
| 6 | TN8006207 | 1 | Cap, Fuel, TankOld # 1032812 | $36.90/EA |
| 7 | TN4013933 | 1 | Fitting, Pipe, Plug, Pm02, Sq HeadOld # 48126 | $2.93/EA |
| 8 | TN4193651 | 2 | Strap, Tank, GasOld # 1025229 | $18.10/EA |
| 9 | TN4156940 | 3 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 10 | TN4034137 | 7 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 11 | TN4041926 | 5 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 12 | TN4034133 | 2 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 13 | TN4034654 | 2 | Nut, Hex, Lock, .25 - 20, NlOld # 32981 | $2.50/EA |
| 14 | TN4033269 | 1 | Hose, Fuel, 0.50id 21.0lOld # 1023482 | $10.10/EA |
| 15 | TN4015366 | 1 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 16 | TN4019173 | 1 | Fitting, Brs, E90, Em05/Pm04Old # 9000355 | $6.30/EA |
| 17 | TN4041876 | 1 | Fitting, Hyd, Str, Pf02/Pm04Old # 17414 | $7.90/EA |
| 18 | TN4033731 | 1 | Fitting, Brs, E90, Pm02/Bm03Old # 32183 | $9.90/EA |
M20 Engine Fuel Line Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4192532 | 1 | Tray Wldt, Drip, DslOld # 1032512 | $130.70/EA |
| 2 | TN4192519 | 1 | Tray Wldt, Drip, FuelOld # 1032424 | $54.94/EA |
| 3 | TN4015366 | 6 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wOld # 54333 | $5.10/EA |
| 4 | TN4039305 | 1 | Hose, Afmkt, Pvc, Clr 0.38id 03ftOld # 1006416 | $18.70/EA |
| 5 | TN4028165 | 1 | Bar, Flat, Stl 0.38, 01.00 X 03.3lFits SN 008000–011669 · Old # 364779 | $18.90/EA |
| 6 | TN4021954 | 1 | Pump Kit, Fuel, ReplmtFits SN 008000–011669 · Old # 9020940 | $214.50/EA |
| 7 | TN4041270 | 2 | Screw, Hex, M6 X 1.0 X 16, 8.8Old # 06942 | $2.50/EA |
| 8 | TN4034136 | 6 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 9 | TN4041925 | 10 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 10 | TN4015006 | 1 | Fitting, Brs, E90, Em05/Pm02Old # 53029 | $85.70/EA |
| 11 | TN4013878 | 1 | Fitting, Hyd, Str, Pm02/Pm02Old # 47566 | $7.90/EA |
| 12 | TN4041876 | 1 | Fitting, Hyd, Str, Pf02/Pm04Old # 17414 | $7.90/EA |
| 13 | TN4035192 | 1 | Filter Assy, Fuel, DslOld # 1016827 | $44.60/EA |
| TN8005805 | 1 | Element, Fltr, Fuel [Dn]Old # 1017126 | $21.90/EA | |
| 14 | TN4026121 | 1 | Fitting, Brs, Str, If05/Pm04Old # 78043 | $4.20/EA |
| 15 | TN4033605 | 1 | Fuelline, .31d 04.0l 05if/05if, StlOld # 1024380 | $11.41/EA |
| 16 | TN4018734 | 1 | Hose, 0050, 04, If05str / Im05str, 10.0Old # 70173 | $52.70/EA |
| 17 | TN4028464 | 1 | Fitting, Hyd, Str, Metric, Om10/If05Old # 365066 | $26.80/EA |
| 18 | TN4022521 | 1 | Hose, Fuel, 0.18id 29.0lOld # 87738 | $19.40/EA |
| 19 | TN4028491 | 1 | Hose, Fuel, 0.31id 22.0lOld # 365190 | $6.10/EA |
| 20 | TN4018310 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1hOld # 69234 | $4.20/EA |
| 21 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 22 | TN4034137 | 3 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 23 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 24 | TN4194597 | 1 | Bracket, Mtg, Ecu [M20/T20 2007]Old # 1029082 | $44.44/EA |
| 25 | TN4187038 | 1 | Bracket, Mtg, Coolant, Tank, Dsl [2010]Old # 1059488 | $32.42/EA |
| 26 | TN4044432 | 1 | Control, Govnr [All Purpose]Old # 1040835 | $1,342.80/EA |
| 27 | TN4194330 | 1 | Bracket, Mtg, Govnr Control, DslOld # 1027922 | $28.28/EA |
| 28 | TN4029123 | 3 | Relay, 12vdc, 40a, Spdt N/OOld # 56186 | $11.30/EA |
| 29 | TN4026354 | 1 | Timer, 12vdc, 10 SecOld # 379656 | $85.60/EA |
| 30 | TN4041271 | 3 | Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943 | $2.50/EA |
| 31 | TN4041275 | 1 | Screw, Hex, M6 X 1.0 X 40, 8.8Old # 06947 | $3.40/EA |
| 32 | TN4044400 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 33 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8, SemsOld # 1036892 | $2.50/EA |
| 34 | TN4015650 | 1 | Resistor, 022.00ohm, 0040wattOld # 71539 | $59.40/EA |
| 35 | TN4041969 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Old # 09244 | $2.50/EA |
| 36 | TN4042244 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Old # 19066 | $2.50/EA |
| 37 | TN4041004 | 2 | Nut, Hex, Lock, M5 X 0.80, NlOld # 06549 | $2.50/EA |
| 38 | TN4031505 | 1 | Pump, FuelFits SN 011670 and later · Old # 1251982 | $179.30/EA |
| 39 | TN4031510 | 1 | Bar, Flat, Stl 0.25, 01.00 X 03.3lFits SN 011670 and later · Old # 1252042 | $35.90/EA |
| 40 | TN4042904 | 1 | Fitting, Extension 1/8 - Npsf X 20Fits SN 011670 and later · Old # 1076774 | $3.70/EA |
M20 Engine Air Cleaner Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032296 | 1 | Filter Assy, AirOld # 369745 | $124.20/EA |
| 2 | TN8005623 | 1 | Element, Fltr, Air [Dn]Old # 369746 | $34.60/EA |
| 3 | TN4041271 | 2 | Screw, Hex, M6 X 1.0 X 20, 8.8Old # 06943 | $2.50/EA |
| 4 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 5 | TN4034133 | 2 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 6 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Old # 1020949 | $59.99/EA |
| 7 | TN4044328 | 3 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wOld # 14432 | $5.30/EA |
| 8 | TN4033842 | 1 | Bracket, Mtg, Air Fltr, DslOld # 1024772 | Call for price |
| 9 | TN4033564 | 1 | Hose, Intake, Mold, 1.75id 1.75id DslOld # 1023892 | $72.92/EA |
| 10 | TN4019759 | 2 | Screw, Hex, M10 X 1.5 X 35, 8.8Old # 39284 | $4.00/EA |
| 11 | TN4034134 | 2 | Washer, Flat, 0.38, SaeOld # 32485 | $2.50/EA |
| 12 | TN4041992 | 1 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 13 | TN4018310 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1hOld # 69234 | $4.20/EA |
| 14 | TN4042902 | 1 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 15 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 16 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirOld # 369747 | $32.90/EA |
| 17 | TN8002697 | 1 | Element, Fltr, Air, Safety (Option)Old # 398279 | $52.20/EA |
M20 Engine Alternator Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019747 | 1 | Alternator, 12vdc, 075a [Valeo]Old # 392611 | $330.60/EA |
| 2 | TN4031659 | 1 | Screw, Hex, .38 - 16 X 3.00, G5Old # 35707 | $1.15/EA |
| 3 | TN4026793 | 1 | Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156 | $4.00/EA |
| 4 | TN4028947 | 1 | Screw, Hex, .31 - 18 X 1.00, G5Old # 76955 | $2.50/EA |
| 5 | TN4016796 | 1 | Washer, Flat, Belleville, .31Old # 41186 | $3.50/EA |
| 6 | TN4012419 | 1 | Tube, 0.38id 0.75od 00.3l, SsOld # 73737 | $16.10/EA |
| 7 | TN4045562 | 1 | Arm Wldt, Alternator, DslOld # 1036847 | $67.57/EA |
| 8 | TN4045563 | 1 | Bracket, Sppt, Alternator, DslOld # 1036859 | $11.80/EA |
| 9 | TN4041271 | 1 | Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 | $2.50/EA |
| 10 | TN4034133 | 2 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 11 | TN4041925 | 1 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 12 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 13 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 14 | TN4041926 | 3 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 15 | TN4045561 | 1 | Bracket Wldt, Mtg, Alternator, DslOld # 1036844 | $118.12/EA |
| 16 | TN4028034 | 1 | Screw, Hex, M8 X 1.25 X 30, 8.8Old # 76570 | $3.20/EA |
| 17 | TN4019758 | 1 | Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283 | $3.30/EA |
| 18 | TN4034138 | 2 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 19 | TN4031222 | 1 | Screw, Hex, M10 X 1.25 X 35, 8.8Old # 33612 | $3.40/EA |
| 20 | TN4034661 | 1 | Washer, Lock, Int, 0.38Old # 32988 | $2.60/EA |
| 21 | TN4033431 | 1 | Wire, 10ga 16.0l Blk .25ring /.38ringOld # 31525 | $12.80/EA |
| 22 | TN4017298 | 1 | Screw, Hex, 10 - 24 X 0.50, SsOld # 42011 | $3.40/EA |
| 23 | TN4042888 | 1 | Washer, Flat, 10, SsOld # 01683 | $2.60/EA |
| 24 | TN4031374 | 1 | Cable, 06ga 16.0l Red .38ring /.38ringOld # 1029689 | $19.45/EA |
| 25 | TN4034851 | 2 | Boot, 90deg .50id 1.00id 2.50l, RedOld # 1016314 | $5.40/EA |
| 26 | TN4016814 | 2 | Nut, Hex, Std, M8 X 1.25, BrsOld # 41361 | $3.40/EA |
| 27 | TN4032038 | 1 | Fan, Cooling, 14.1d, 6 Blade, 0.5b TaperOld # 1031566 · Replaced by 1271534 in the 2025 list (rev. 11) | $174.80/EA |
| 28 | TN4045395 | 1 | Spacer, Fan, Dsl [M20/T20]Old # 1035341 | $54.70/EA |
| 29 | TN4042788 | 1 | Key, Sq, 0.12 X 0.12, 0.50lOld # 00960 | $3.60/EA |
| 30 | TN4015635 | 4 | Screw, Soc, M6 X 1.00 X 16, 12.9Old # 71388 | $4.80/EA |
| 31 | TN4042244 | 4 | Washer, Flat, 10Old # 19066 | $2.50/EA |
| 32 | TN4044023 | 1 | Washer, Flat, 1.10b 1.50d .12, Stl, PlOld # 1039208 | $3.33/EA |
| 33 | TN4044025 | 1 | Spacer, FanOld # 1039212 | $6.90/EA |
| 34 | TN4019823 | 1 | Belt, V, 42.0l [Hc41]Old # 393244 | $15.00/EA |
M20 Engine Muffler Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4033604 | 1 | Tube, Exhaust, DslOld # 1024357 | $57.00/EA |
| 2 | TN4035092 | 3 | Clamp, Muffler, 1.62dOld # 24012 | $6.20/EA |
| 3 | TN4016151 | 1 | Plate, Shield, Heat, Dsl, ReplmtOld # 9002411 | $96.05/EA |
| 4 | TN4026556 | 2 | Clamp, Hose, Wormdrive, 1.25 - 2.00D, .50WOld # 79381 | $6.20/EA |
| 5 | TN4012780 | 1 | Tube Wldt, Exhaust, 1.5d, 4 Hole FlngOld # 74452 | $60.30/EA |
| 6 | TN4041844 | 4 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 7 | TN4034137 | 4 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 8 | TN4031201 | 1 | Muffler, ExhaustOld # 33333 | $649.00/EA |
| 9 | TN4035523 | 1 | Bracket, Muffler, Hanger, FrontOld # 1017969 | $27.50/EA |
| 10 | TN4037292 | 1 | Isolator, RbrOld # 1013031 | $18.30/EA |
| 11 | TN4040603 | 2 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Old # 222496 | $3.40/EA |
| 12 | TN4040607 | 2 | Screw, Hex, M8 X 1.25 X 45, SsOld # 222505 | $4.00/EA |
| 13 | TN4042902 | 4 | Washer, Flat, 0.31, SsOld # 01685 | $2.60/EA |
| 14 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsOld # 08713 | $3.30/EA |
| 15 | TN4031022 | 1 | Channel, Shield, Muffler [M20/T20 2007]Old # 1028994 | $123.70/EA |
| 16 | TN4032843 | 1 | Tube, Exhaust, 1.5dOld # 1021789 | $45.20/EA |
| 17 | TN4032214 | 1 | Shield, Heat, DslOld # 1032010 | $25.35/EA |
| 18 | TN4041931 | 2 | Screw, Hex, M6 X 1.0 X 20, SsOld # 08716 | $3.20/EA |
| 19 | TN4034133 | 2 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
M20 Engine Radiator Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031438 | 1 | Radiator, W/ Hyd Cooler [Afmkt]Old # 1249770 | $1,665.50/EA |
| 2 | TN4042665 | 1 | Cap, Radiator, 14Psi [Stant]Old # 1045764 · Replaced by 1265988 in the 2025 list (rev. 11) | $10.90/EACall for availability |
| 3 | TN4045637 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 4 | TN4186598 | 1 | Shroud Wldt, Fan, Eng, DslOld # 1058699 | $155.44/EA |
| 5 | TN4189910 | 1 | Bracket, CoverOld # 1045433 | $18.60/EA |
| 6 | TN4045568 | 6 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsOld # 1036892 | $2.50/EA |
| 7 | TN4190181 | 1 | Bracket, Mtg, RadiatorOld # 1046962 | $26.70/EA |
| 8 | TN4019761 | 4 | Screw, Hex, M10 X 1.50 X 40, 8.8Old # 39285 | $3.20/EA |
| 9 | TN4034138 | 8 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 10 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hOld # 54274 | $14.70/EA |
| 11 | TN4042008 | 8 | Washer, Flat, 0.81b 1.06d .06, StlOld # 09832 | $3.30/EA |
| 12 | TN4037922 | 6 | Washer, Flat, 0.40b 1.12d .12, SsOld # 1014563 | $5.80/EA |
| 13 | TN4016826 | 4 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 14 | TN4045641 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, SemsOld # 1037355 | $2.50/EA |
| 15 | TN4038497 | 1 | Shroud, FanOld # 1054428 | $126.20/EA |
| 16 | TN4041020 | 1 | Bracket, SpptOld # 1052164 | $24.24/EA |
| 17 | TN4019758 | 1 | Screw, Hex, M10 X 1.50 X 25, 8.8Old # 39283 | $3.30/EA |
| 18 | TN4034134 | 3 | Washer, Flat, 0.38, SaeOld # 32485 | $2.50/EA |
| 19 | TN4041022 | 1 | Skirt, Fan, Eng, DslOld # 1052175 | $88.78/EA |
| 20 | TN4036763 | 1 | Bracket, Mtg, Fan, Shrd, Upper, DslOld # 1058732 | $14.24/EA |
| 21 | TN4016794 | 3 | Washer, Flat, 0.25, FendrOld # 41178 | $2.50/EA |
| 22 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 23 | TN4036225 | 1 | Bracket, Mtg, RadiatorOld # 1019968 | $18.60/EA |
| 24 | TN4044400 | 2 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsOld # 1040467 | $3.30/EA |
| 25 | TN4036443 | 1 | Clip, Keeper, OpenOld # 30407 | $1.70/EA |
| 26 | TN4041925 | 1 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 27 | TN4034136 | 1 | Washer, Flat, 0.25, StdOld # 32490 | $2.50/EA |
| 28 | TN4036761 | 1 | Bracket, Mtg, Fan, Shrd, Lower, DslOld # 1058730 | $15.25/EA |
| 29 | TN4041580 | 2 | Screw, Hex, M10 X 1.25 X 25, 8.8Old # 07299 | $2.40/EA |
| 30 | TN4034138 | 2 | Washer, Flat, 0.38, StdOld # 32492 | $2.50/EA |
| 31 | TN4172037 | 1 | Seal, Bulb, Str, 0.38h .75w Adh, 52 LOld # 376735 | Call for price |
| 32 | TN4032613 | 1 | Bracket, Shrd, Radiator, Dsl, CeOld # 1064434 | $56.20/EA |
| 33 | TN4041271 | 5 | Screw, Hex, M6 X 1.00 X 20, 8.8Old # 06943 | $2.50/EA |
| 34 | TN4041604 | 1 | Nut, Hex, Flng, M6 X 1.00Old # 07790 | $3.20/EA |
| 35 | TN4041605 | 1 | Nut, Hex, Flng, M8 X 1.25Old # 07791 | $2.50/EA |
| 36 | TN4029283 | 1 | Seal, Rbr, Clsd, .13, .38w 72.0l, AdhOld # 367812 | $33.10/EA |
| 37 | TN4045637 | 1 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsOld # 1037346 | $2.50/EA |
| 38 | TN4034133 | 5 | Washer, Flat, 0.25, SaeOld # 32483 | $2.50/EA |
| 39 | TN4041925 | 5 | Nut, Hex, Lock, M6 X 1.00, NlOld # 08708 | $2.50/EA |
| 40 | TN4043205 | 2 | Plug, Hole, Rnd, 0.56h .03 - .12, Blk NylOld # 02431 | $3.40/EA |
M20 Engine Radiator Hose Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030509 | 1 | Hose, Radiator, Upper, DslOld # 1071195 | $23.30/EA |
| 2 | TN4043367 | 4 | Clamp, Hose, Wormdrive, 0.81 - 1.50d, .50wOld # 11399 | $5.10/EA |
| 3 | TN4014543 | 2 | Fitting, Draincock, E90, .25nptOld # 51305 | $15.10/EA |
| 4 | TN4044377 | 1 | Fitting, Brs, Str, Pf04/Pm06, BshgOld # 150006 | $5.30/EA |
| 5 | TN4016344 | 2 | Hose, Pvc, Clr, 0.38id 0.56od 022.0lOld # 73471 | $7.60/EA |
| 6 | TN4017396 | 4 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wOld # 43844 | $4.20/EA |
| 7 | TN4039550 | 1 | Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Old # 1007482 | $20.40/EA |
| 8 | TN4026556 | 2 | Clamp, Hose, Wormdrive, 1.25 - 2.00D, .50WOld # 79381 | $6.20/EA |
| 9 | TN4038493 | 1 | Tank, Coolant, 03.6W 04.1HI 05.5L,1LiterOld # 1054382 | $119.90/EA |
| 10 | TN4014138 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DOld # 49266 | $2.50/EA |
| 11 | TN4033236 | 1 | Tube, Radiator, Lower, DslOld # 1023180 | $33.03/EA |
| 12 | TN4037984 | 1 | Hose, Afmkt, Coolant Recvy, 08ftOld # 1015041 | $62.40/EA |
| 13 | TN4034915 | 1 | Hose, Radiator, Lower, DslOld # 1062103 | $20.65/EA |
| 14 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 15 | TN4034137 | 2 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 16 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
M20 Electrical Wire Harness Group, Diesel Engine
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044976 | 1 | Harness, Eng, Dsl [M20/T20/M30]Old # 1075129 | $201.31/EA |
M20 Crankcase Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002762 | 1 | Crankcase, Complt [Ku]Old # 9004335 | $11,441.68/EA |
| 2 | TN8002561 | 6 | Plug, Cup, Sealing [Ku]Old # 70998 | $5.96/EA |
| 3 | TN8002909 | 1 | Plug, Cup, Sealing [Ku]Old # 39087 | $8.59/EA |
| 4 | TN8002910 | 4 | Fitting, Pipe, Plug [Ku]Old # 39088 | $5.00/EA |
| 5 | TN8002562 | 1 | Plug, Eng [Ku]Old # 70999 | $18.69/EA |
| 6 | TN8002565 | 3 | Fitting, Pipe, Plug [Ku]Old # 71985 | Call for price |
| 7 | TN8002902 | 2 | Fitting, Pipe, Plug [Ku]Old # 39051 | $5.25/EA |
| 8 | TN8004840 | 3 | Plug, Cup, Sealing [Ku]Old # 361436 | $3.33/EA |
| 9 | TN8002566 | 1 | Plug, Cup, Sealing [Ku]Old # 71986 | $5.45/EA |
| 10 | TN8002567 | 2 | Pin, Dowel [Ku]Old # 71987 | Call for price |
| 11 | TN8002568 | 2 | Pin, Dowel [Ku]Old # 71988 | $4.24/EA |
| 12 | TN8049852 | 2 | Pin, Straight [Ku]Old # 9004431 | $1.72/EA |
| 13 | TN8051525 | 2 | Pin, Eng [Ku]Old # 71990 | $10.10/EA |
| 14 | TN8002569 | 1 | Tube, Pin [Ku]Old # 71991 | $4.24/EA |
| 15 | TN8002640 | 1 | Plug, Cup, Sealing [Ku]Old # 71992 | $8.28/EA |
| 16 | TN8049780 | 1 | Pin, Start, SpringOld # 9004337 | $8.89/EA |
| 17 | TN8002641 | 1 | Plug, Eng [Ku]Old # 71993 | $20.50/EA |
| 18 | TN8002422 | 1 | Bushing, Gear, Gov [Ku]Old # 70887 | $51.51/EA |
| 19 | TN8002903 | 1 | Fitting, Plug [Ku]Old # 39062 | $5.15/EA |
| 20 | TN8002588 | 1 | GasketOld # 393570 | Call for price |
| 21 | TN8002423 | 1 | Fitting, Draincock [Ku]Old # 70888 | $22.02/EA |
M20 Oil Pan Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8047600 | 1 | Pan, Oil, DslOld # 1023144 | $288.66/EA |
| 2 | TN8002424 | 1 | Gasket, Pan, OilOld # 70889 | $66.36/EA |
| 3 | TN8049781 | 26 | Bolt [Ku]Old # 9004338 | $1.72/EA |
| 4 | TN9003888 | 1 | Filter, Oil [Ku]Old # 9003888 · current Tennant number (Tennant parts catalog) · Replaced by 70888 in the 2025 list (rev. 11) | $93.10/EA |
| 5 | TN8044761 | 1 | Screw, Hex [Ku]Old # 39094 | $1.50/EA |
| 6 | Old # 9004339 | 1 | O - Ring [Ku]Old # 9004339Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 7 | Old # 9004435 | 1 | Gauge, Oil [Ku]Old # 9004435Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 8 | Old # 361428 | 1 | Dipstick, Oil [Ku]Old # 361428Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 9 | TN8004677 | 1 | Seal, Org [Ku]Old # 361366 | $3.43/EA |
| 10 | TN8002906 | 1 | Screw, Hex [Ku]Old # 39073 | $1.40/EA |
| TN66187 | 1 | Gasket SetOld # 66187 · current Tennant number (Tennant parts catalog) | $270.00/EA | |
| 11 | TN8049787 | 1 | Plug, Gauge, Oil [Ku]Old # 9004348 | $15.76/EA |
M20 Cylinder Head Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002642 | 1 | Ear, Lifting, Eng [Ku]Old # 71996 | $16.77/EA |
| 2 | TN8002643 | 1 | Ear, Lifting, Eng [Ku]Old # 71997 | $19.29/EA |
| 3 | TN8002906 | 2 | Screw, Hex [Ku]Old # 39073 | $1.40/EA |
| 4 | TN8002764 | 1 | Head, Cylinder [Ku]Old # 9004340 | $1,878.62/EA |
| 5 | TN8002584 | 1 | Cap, SealingOld # 393504 | $11.65/EA |
| 6 | TN8002910 | 2 | Fitting, Pipe, Plug [Ku]Old # 39088 | $5.00/EA |
| 7 | TN8004160 | 4 | Guide, Valve, InletOld # 372906 | $20.75/EA |
| 8 | TN8004161 | 4 | Guide, Valve, ExhaustOld # 372907 | $21.60/EA |
| 9 | TN8002644 | 3 | Cap, Sealing, Eng [Ku]Old # 71999 | $9.20/EA |
| 10 | TN8002428 | 18 | Screw, Hex, Head, Cyl [Ku]Old # 70897 | $21.25/EA |
| 11 | TN8002765 | 1 | Gasket, Head, Cyl [Ku]Old # 9004341 | $241.09/EA |
| TN8002842 | 1 | Gasket Set, UpperOld # 66194 | $371.18/EA | |
| 12 | TN8051527 | 1 | Fitting, Pipe, Plug [Ku]Old # 72010 | $7.35/EA |
M20 Gear Case Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002812 | 1 | Crankcase, Comp [Ku]Old # 9004432 | $796.58/EA |
| 2 | TN8046197 | 5 | Fitting, Pipe, Plug [Ku]Old # 361401 | $15.86/EA |
| 3 | TN8050434 | 1 | Fitting, Fltr, Oil [Ku]Old # 12916 | $32.12/EA |
| 4 | TN8051510 | 1 | Spring, Cmpr, Relief [Ku]Old # 70900 | $4.75/EA |
| 5 | TN8051511 | 1 | Tube, Seat, Valve, Oil [Ku]Old # 70901 | $32.12/EA |
| 6 | TN8051512 | 1 | Ball, Relief, Oil [Ku]Old # 70902 | $3.23/EA |
| 7 | TN8051513 | 1 | CoverOld # 70905 | $125.85/EA |
| 8 | TN8051514 | 1 | BoltOld # 70906 | $24.95/EA |
| 9 | TN8002493 | 1 | Seal, Org [Ku]Old # 70907 | $11.40/EA |
| 10 | TN8002496 | 1 | Seal, OrgOld # 70911 | $3.80/EA |
| 11 | TN8002491 | 1 | Pump, Oil, Eng [Ku]Old # 70903 | $257.15/EA |
| 12 | TN8002492 | 1 | Cover, Pump, OilOld # 70904 | $41.61/EA |
| 13 | TN8051528 | 5 | Screw, Flt [Ku]Old # 72013 | $3.33/EA |
| 14 | TN8002497 | 1 | Gasket, Case, Gear [Ku]Old # 70912 | $27.70/EA |
| 15 | TN8051235 | 3 | Screw, Hex [Ku]Old # 72993 | $2.40/EA |
| 16 | TN8044939 | 4 | BoltOld # 384872 · Not in the 2025 list (rev. 11) | $2.45/EA |
| 17 | TN8051236 | 2 | Screw, Hex [Ku]Old # 72994 | $2.45/EA |
| 18 | TN8051529 | 1 | Screw, Hex [Ku]Old # 72014 | $3.90/EA |
| 19 | TN8051540 | 2 | Screw, Hex [Ku]Old # 72015 | $1.50/EA |
| 20 | TN8051541 | 1 | BoltOld # 72016 | $8.08/EA |
| 21 | TN8049785 | 1 | Stud [Ku]Old # 9004346 | $3.80/EA |
| 22 | TN8002919 | 1 | Nut, Hex [Ku]Old # 39121 | $0.55/EA |
| 23 | TN8002905 | 1 | Washer, Lock, Split [Ku]Old # 39065 | $3.60/EA |
| 24 | TN8004817 | 1 | Seal, Oil, Front [Ku]Old # 361389 | $18.20/EA |
| 25 | TN8049786 | 2 | Stud [Ku]Old # 9004347 | $3.65/EA |
| 26 | TN8051544 | 1 | CoverOld # 72019 | $15.15/EA |
| 27 | TN8004680 | 1 | Cap, Filler, Oil [Ku]Old # 361374 | $22.00/EA |
| 28 | TN8002498 | 1 | Seal, OrgOld # 70913 | $10.20/EA |
M20 Water Pump Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 13 | TN8004437 | 1 | Sheave, Fan [Ku]Old # 55847 | $95.40/EA |
| 1 | TN8002805 | 1 | Pump, Water Assy [Ku]Old # 9004402 | $661.80/EA |
| 2 | TN8002502 | 1 | Flange, Pump, Water [Ku]Old # 70919 | $63.13/EA |
| 7 | TN8002503 | 1 | Gasket, Pump, Water [Ku]Old # 70920 | $26.40/EA |
| 11 | TN8002747 | 1 | Pipe, Water [Kubota]Old # 9003869 | $38.80/EA |
| 3 | TN4203504 | 1 | Bearing [Ku]Old # 9004403 | $86.90/EA |
| 4 | TN8049828 | 1 | Seal, Mechanical Assy [Ku]Old # 9004404 | $98.48/EA |
| 5 | TN8049829 | 1 | Impeller, Pump, Water [Ku]Old # 9004405 | $80.75/EA |
| 6 | TN8004843 | 1 | Fitting, Pipe, Water [Ku]Old # 361440 | $17.10/EA |
| 8 | TN8002806 | 4 | Bolt [Ku]Old # 9004406 | $1.90/EA |
| 9 | TN8049840 | 2 | Bolt [Ku]Old # 9004407 | $3.80/EA |
| 10 | TN8002746 | 1 | Pipe, Water [Kubota]Old # 9003868 | $84.30/EA |
| 12 | TN8002748 | 2 | Clamp [Kubota]Old # 9003870 | $8.30/EA |
| 14 | TN8043698 | 4 | Bolt, FlngOld # 393588 | $4.90/EA |
M20 Main Bearing Case Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002767 | 1 | Bearing, Case [Ku]Old # 9004349 | $258.66/EA |
| 2 | TN8002815 | 1 | Crankshaft, Metal [Ku]Old # 9004436 | $59.99/EA |
| 3 | TN8002648 | 2 | Screw, Hex, Case, Brg, Main [Ku]Old # 72998 | $22.12/EA |
| 4 | TN8002768 | 1 | Gasket, Bearing, Case [Ku]Old # 9004350 | $9.80/EA |
| 5 | TN8002506 | 1 | Cover, Brg Case, Eng [Ku]Old # 70923 | $107.97/EA |
| 6 | TN8002507 | 1 | Seal, Oil, Rear [Ku]Old # 70924 | $67.47/EA |
| 7 | TN8002508 | 1 | Gasket, Case, Gear [Ku]Old # 70925 | $14.75/EA |
| 8 | TN8044938 | 8 | BoltOld # 384871 | Call for price |
| 9 | TN8005670 | 9 | BoltOld # 371017 | $3.33/EA |
| 10 | TN8002816 | 1 | Case, Main, Brg AssyOld # 9004437 | $223.11/EA |
| 11 | TN8002529 | 1 | Bearing, Cshft, Std [Ku]Old # 70948 | $58.08/EA |
| 12 | TN8002648 | 2 | Screw, Hex, Case, Brg, Main [Ku]Old # 72998 | $22.12/EA |
| 13 | TN8002663 | 3 | Screw, Hex, Case, Brg, Main [Ku]Old # 73479 | $31.71/EA |
| 14 | TN8002817 | 1 | Case, Main, Brg AssyOld # 9004438 | $246.04/EA |
| 15 | TN8002529 | 1 | Bearing, Cshft, Std [Ku]Old # 70948 | $58.08/EA |
| 16 | TN8002648 | 2 | Screw, Hex, Case, Brg, Main [Ku]Old # 72998 | $22.12/EA |
| 17 | TN8002818 | 1 | Case, Main, Brg AssyOld # 9004439 | $226.24/EA |
| 18 | TN8002529 | 1 | Bearing, Cshft, Std [Ku]Old # 70948 | $58.08/EA |
| 19 | TN8002648 | 2 | Screw, Hex, Case, Brg, Main [Ku]Old # 72998 | $22.12/EA |
M20 Head Cover Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 6 | TN8002666 | 4 | Screw, Hex, W/ Washer [Ku]Old # 73482 | $0.55/EA |
| 1 | TN8002813 | 1 | Cover, Cyl Head Assy [Ku]Old # 9004433 | $277.65/EA |
| 2 | TN8002511 | 1 | Gasket, Cover, Head, Cyl [Ku]Old # 70929 | $31.00/EA |
| 3 | TN372912 | 1 | Shield, BreatherOld # 372912 · current Tennant number (Tennant parts catalog) | Call for price |
| 4 | TN8004167 | 1 | Valve, Breather, CompltOld # 372928 | $107.54/EA |
| 5 | TN4170138 | 1 | Cover, BreatherOld # 384874 | Call for price |
| 7 | TN30125 | 1 | Pipe, WaterOld # 30125 · no current Tennant number on file | Call for price |
| 8 | TN8004164 | 1 | Tube, BreatherOld # 372913 | $14.55/EA |
| 9 | TN8004158 | 1 | Clamp, HoseOld # 372901 | $3.60/EA |
| 10 | TN8004159 | 1 | Clamp, HoseOld # 372904 | $10.00/EA |
| 11 | TN8002667 | 4 | Nut, Hex, CapOld # 73483 | $6.85/EA |
| 12 | TN8002668 | 4 | Gasket, F/ Bolt [Ku]Old # 73484 | $2.35/EA |
| 13 | TN8004680 | 1 | Cap, Filler, Oil [Ku]Old # 361374 | $22.00/EA |
| 14 | TN8002498 | 1 | Seal, OrgOld # 70913 | $10.20/EA |
M20 Manifold Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 10 | TN8002405 | 1 | Gasket [Ku]Old # 51332 | $14.90/EA |
| 1 | TN8045862 | 1 | Manifold Assy, InletOld # 372905 | $201.50/EA |
| 2 | TN8002665 | 1 | Pipe, Breather [Ku]Old # 73481 | $17.45/EA |
| 3 | TN8002516 | 1 | Gasket, Manifold, Intake [Ku]Old # 70934 | $26.40/EA |
| 4 | TN8002806 | 2 | Bolt [Ku]Old # 9004406 | $1.90/EA |
| 5 | TN8044939 | 3 | BoltOld # 384872 · Replaced by 72994 in the 2025 list (rev. 11) | $2.45/EA |
| 6 | TN8002670 | 1 | Manifold, Exhaust [Ku]Old # 73487 | $284.21/EA |
| 7 | TN8002517 | 1 | Gasket, Manifold, ExhaustOld # 70935 | $48.40/EA |
| 8 | TN8002671 | 8 | Stud [Ku]Old # 73488 | $4.90/EA |
| 9 | TN8002672 | 8 | NutOld # 73489 | $3.25/EA |
| 11 | TN8052077 | 3 | Screw, Hex [Ku]Old # 40409 | $3.30/EA |
M20 Valve, Rocker Arm Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002518 | 4 | Valve, Intake [Ku]Old # 70936 | $54.60/EA |
| 2 | TN8002519 | 4 | Valve, Exhaust [Ku]Old # 70937 | $58.60/EA |
| 3 | TN8002673 | 8 | Spring, Valve [Ku]Old # 73491 | $9.19/EA |
| 4 | TN8002674 | 8 | Retainer, Spring, Valve [Ku]Old # 73492 | $4.25/EA |
| 5 | TN8002675 | 8 | Retainer, Spring [Ku]Old # 73493 | $15.50/EA |
| 6 | TN8002676 | 8 | Seal, Stem, Valve [Ku]Old # 73494 | $14.70/EA |
| 7 | TN8004818 | 8 | Cap, Valve [Ku]Old # 361392 | $13.70/EA |
| 8 | TN8049841 | 1 | Shaft, Rocker, Arm [Ku]Old # 9004409 | $74.64/EA |
| 9 | TN8043708 | 2 | BoltOld # 393598 | $4.44/EA |
| 10 | TN8051243 | 4 | Bracket, Mtg, Rocker Arm [Ku]Old # 73497 | $60.10/EA |
| 11 | TN8051244 | 4 | Stud [Ku]Old # 73498 | $10.80/EA |
| 12 | TN8051245 | 4 | Nut, Hex [Ku]Old # 73499 | $6.85/EA |
| 13 | TN8051246 | 4 | Washer, Flat [Ku]Old # 73500 | $3.15/EA |
| 14 | TN8049842 | 1 | Pin, Spring [Ku]Old # 9004410 | $1.52/EA |
| 15 | TN8002678 | 2 | Washer, Shaft, Rocker [Ku]Old # 73502 | $4.34/EA |
| 16 | TN8004897 | 2 | Washer, Flat [Ku]Old # 361589 | $4.24/EA |
| 17 | TN8051248 | 3 | Spring, Cmpr, Rocker [Ku]Old # 73504 | $4.14/EA |
| 18 | TN8002680 | 8 | Arm, Rocker [Ku]Old # 73506 | $121.00/EA |
| 19 | TN8051250 | 8 | Screw, Adj, Rocker Arm [Ku]Old # 73507 | $8.59/EA |
| 20 | TN8051251 | 8 | Nut, Hex [Ku]Old # 73508 | $8.59/EA |
M20 Fuel Camshaft Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003211 | 1 | CamshaftOld # 84636 | $712.15/EA |
| 2 | TN8002794 | 1 | Bearing, Ball [Ku]Old # 9004368 | $76.66/EA |
| 3 | TN8002795 | 1 | Bearing, Ball [Ku]Old # 9004369 | $76.66/EA |
| 4 | TN8049855 | 1 | Gear, Injection, Pump [Ku]Old # 9004445 | $108.07/EA |
| 5 | TN8051312 | 1 | Nut, Cap, Cam [Ku]Old # 73593 | Call for price |
| 6 | TN8051313 | 1 | Key, Woodruff [Ku]Old # 73594 | Call for price |
| 7 | TN8051315 | 1 | Stopper, Fuel [Ku]Old # 73596 | Call for price |
| 8 | TN8052091 | 2 | Bolt, Hex [Ku]Old # 41973 | $3.50/EA |
| TN8051316 | 1 | Shaft, GovnrOld # 73597 | $1,109.49/EA | |
| 9 | TN8049801 | 1 | Shaft, Governor [Ku]Old # 9004371 | $100.70/EA |
| 10 | TN8051317 | 1 | Holder, Gear [Ku]Old # 73598 | Call for price |
| 11 | TN8051318 | 1 | Gear, Govnr [Ku]Old # 73599 | $163.78/EA |
| 12 | TN8051319 | 1 | Holder, Govnr [Ku]Old # 73600 | Call for price |
| 13 | TN8002057 | 2 | Weight, Comp, Govnr [Ku]Old # 73601 | Call for price |
| 14 | TN8002058 | 2 | Shaft, Govnr [Ku]Old # 73602 | $35.45/EA |
| 15 | TN8002796 | 2 | Shaft, Governor, Weight [Ku]Old # 9004372 | $26.97/EA |
| 16 | TN8051518 | 1 | Sleeve, Govnr [Ku]Old # 70977 | Call for price |
| 17 | TN8051519 | 1 | Washer, Thrust [Ku]Old # 70978 | $11.62/EA |
| 18 | TN8049802 | 1 | Bearing, Ball [Ku]Old # 9004373 | $76.66/EA |
| 19 | TN8051320 | 1 | Ring, Snap [Ku]Old # 73603 | Call for price |
| 20 | TN8051321 | 1 | Screw, Set [Ku]Old # 73604 | $8.08/EA |
M20 Camshaft Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN9004358 | 8 | Tappet [Ku]Old # 9004358 · current Tennant number (Tennant parts catalog) · Replaced by 12895 in the 2025 list (rev. 11) | $26.10/EA |
| 2 | TN8002681 | 8 | Rod, Push, Valve [Ku]Old # 73509 | $9.90/EA |
| 3 | TN8002819 | 1 | Crankshaft AssyOld # 9004440 | $1,095.14/EA |
| 4 | TN8044787 | 1 | Screw, Set [Ku]Old # 39197 | $4.44/EA |
| 5 | TN8051252 | 1 | Gear, Camshaft [Ku]Old # 73511 | Call for price |
| 6 | TN8051253 | 1 | Key [Ku]Old # 73512 | $3.43/EA |
| 7 | TN8051254 | 1 | Stopper, Cam [Ku]Old # 73513 | Call for price |
| 8 | TN8052091 | 2 | Bolt, Hex [Ku]Old # 41973 | $3.50/EA |
| 9 | TN8051255 | 1 | Gear, Idler, Cam [Ku]Old # 73514 | $463.62/EA |
| 10 | TN8002682 | 1 | Bushing, Gear, Idler [Ku]Old # 73515 | $30.10/EA |
| 11 | TN8051256 | 1 | Collar, Gear [Ku]Old # 73516 | $11.82/EA |
| 12 | TN8051257 | 1 | Washer, Collar, Gear [Ku]Old # 73517 | $10.10/EA |
| 13 | TN8051258 | 1 | Ring, Snap [Ku]Old # 73518 | $7.88/EA |
| 14 | TN8051282 | 1 | Shaft, Idler, Gear [Ku]Old # 73519 | $177.15/EA |
| 15 | TN8052091 | 3 | Bolt, Hex [Ku]Old # 41973 | $3.50/EA |
M20 Piston and Crankshaft Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| Item 1: choose your version (2) | ||||
| 1 | TN8002683 | 4 | Piston, Eng [Ku]Old # 73520 | $320.37/EA |
| 1 | TN8002684 | 4 | Piston, Eng [Ku]Old # 73521 | $516.82/EA |
| Item 2: choose your version (2) | ||||
| 2 | TN8002791 | 4 | Ring, Piston Assy [Ku]Old # 9004361 | $159.58/EA |
| 2 | TN8002820 | 4 | Piston, Ring Assy [Ku]Old # 9004441 | $159.28/EA |
| 3 | TN8002685 | 4 | Pin, Piston [Ku]Old # 73522 | $19.90/EA |
| 4 | TN8002686 | 8 | Ring, Snap, Piston [Ku]Old # 73523 | $5.35/EA |
| 5 | TN8002687 | 4 | Rod Assy, Connecting [Ku]Old # 73524 | $579.94/EA |
| 6 | TN8004819 | 4 | Bushing, Pin, Piston [Ku]16241 - 21351Old # 361395 | $28.08/EA |
| 7 | TN8002688 | 8 | Screw, Rod, Connecting [Ku]Old # 73525 | $15.15/EA |
| Item 8: choose your version (3) | ||||
| 8 | TN8002522 | 4 | Bearing, Rod, Connecting, Std [Ku]Old # 70941 | $63.02/EA |
| 8 | TN8002843 | 4 | Bearing, Rod, Connecting [ - .2mm, Ku]Old # 66204 | $71.31/EA |
| 8 | TN8002846 | 4 | Bearing, Rod, Connecting [ - .4mm, Ku]Old # 66207 | $76.26/EA |
| TN8002689 | 1 | CrankshaftOld # 73526 | $5,928.20/EA | |
| 9 | TN8051283 | 4 | Ball, Cshft [Ku]Old # 73527 | $2.83/EA |
| 10 | TN8002720 | 1 | Gear, Cshft [Ku]Old # 73528 | $254.22/EA |
| 11 | TN8002721 | 1 | Key [Ku]Old # 73529 | $5.15/EA |
| 12 | TN8002722 | 1 | Gear, Pump, Oil [Ku]Old # 73530 | $114.89/EA |
| 13 | TN8002523 | 1 | Bearing, Cshft [Ku]Old # 70942 | $123.42/EA |
| 14 | TN8002524 | 1 | Collar, Crank, Front [Ku]Old # 70943 | $84.52/EA |
| 15 | TN8002792 | 1 | Ring [Ku]Old # 9004363 | $10.40/EA |
| Item 16: choose your version (3) | ||||
| 16 | TN8002526 | 1 | Bearing, Cshft, Std [Ku]Old # 70945 | $97.16/EA |
| 16 | TN8002527 | 1 | Bearing, Cshft, - .2mm [Ku]Old # 70946 | $76.15/EA |
| 16 | TN8002528 | 1 | Bearing, Cshft [Ku]Old # 70947 | $93.12/EA |
| Item 17: choose your version (3) | ||||
| 17 | TN8006116 | 2 | Bearing, Thrust, Std [Ku]Old # 10844 | $22.83/EA |
| 17 | TN8002534 | 2 | Bearing, Thrust [Ku]Old # 70954 | $24.95/EA |
| 17 | TN8002535 | 2 | Bearing, Thrust [ - .4mm, Ku]Old # 70955 | Call for price |
| 18 | TN8006117 | 2 | Bearing, Thrust, Std [Ku]Old # 10845 | $30.40/EA |
| 19 | TN8002723 | 2 | Screw, Hex, Cshft [Ku]Old # 73532 | $22.39/EA |
| 20 | TN8002991 | 2 | Sheave, Cshft [Ku]Old # 393400 | $126.38/EA |
M20 Flywheel Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002536 | 1 | FlywheelOld # 70956 | $1,339.77/EA |
| 2 | TN8002248 | 1 | Gear, Ring [Ku]Old # 9004442 | $143.02/EA |
| 3 | TN8002724 | 6 | Screw, Hex, Flywheel [Ku]Old # 73533 | $25.55/EA |
| 4 | TN8049446 | 1 | Indicator, Timing [Ku]Old # 9003891 | $17.78/EA |
| 5 | TN8049853 | 1 | Bolt [Ku]Old # 9004443 | $3.33/EA |
| 6 | TN8049854 | 1 | Washer, Plain [Ku]Old # 9004444 | $1.31/EA |
M20 Starter Breakdown, 74405
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002147 | 1 | Starter, 12vdc [Kubota]Old # 74405 | $2,482.50/EA |
| 2 | TN70196 | 1 | YokeOld # 70196 · current Tennant number (Tennant parts catalog) | $731.70/EA |
| 3 | TN8051485 | 1 | Armature, Motor [Ku]Old # 70197 | $600.04/EA |
| 4 | TN8051486 | 1 | BearingOld # 70198 | $66.66/EA |
| 5 | TN8051487 | 1 | BearingOld # 70199 | $55.05/EA |
| 6 | TN70200 | 1 | ClutchOld # 70200 · current Tennant number (Tennant parts catalog) | Call for price |
| 7 | TN8051488 | 1 | Frame, End, DriveOld # 70201 | Call for price |
| 8 | TN70202 | 1 | Switch, Magneto [Ku]Old # 70202 · current Tennant number (Tennant parts catalog) | $1,173.00/EA |
| 9 | TN70203 | 1 | Frame, EndOld # 70203 · current Tennant number (Tennant parts catalog) | $227.80/EA |
| 10 | TN70204 | 1 | BrushholderOld # 70204 · current Tennant number (Tennant parts catalog) | Call for price |
| 11 | TN8051489 | 4 | Spring, BrushOld # 70205 | $13.43/EA |
| 12 | TN70206 | 1 | GearOld # 70206 · current Tennant number (Tennant parts catalog) | Call for price |
| 13 | TN8051500 | 1 | RetainerOld # 70207 | Call for price |
| 14 | TN8051288 | 5 | Retainer, Gear, Starter [Ku]Old # 73545 | Call for price |
| 15 | TN8051501 | 1 | SpringOld # 70208 | Call for price |
| 16 | TN8051290 | 1 | Spring, Ext [Ku]Old # 73547 | Call for price |
| 17 | TN8051502 | 2 | BoltOld # 70209 | Call for price |
| 18 | TN8048533 | 2 | Seal, OrgOld # 20433 | $25.65/EA |
| 19 | TN8051503 | 2 | BoltOld # 70210 | Call for price |
| 20 | TN8048531 | 2 | BoltOld # 20432 | $10.10/EA |
| 21 | TN70211 | 1 | CoverOld # 70211 · current Tennant number (Tennant parts catalog) | $44.40/EA |
| 22 | TN8051294 | 1 | Nut, Hex [Ku]Old # 73551 | $7.68/EA |
| 23 | TN8051504 | 1 | NutOld # 70212 | $9.19/EA |
| 24 | TN8051505 | 1 | Tube, Drain, StarterOld # 70213 | $37.77/EA |
M20 Nozzle Holder and Glow Plug Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 3 | TN8002710 | 1 | Gasket, F/ Bolt [Ku]Old # 40166 | $4.30/EA |
| 1 | TN8002727 | 1 | Pipe, OverflowOld # 73554 | $68.36/EA |
| 2 | TN8051297 | 1 | Fitting, Fuel [Ku]Old # 73555 | $24.70/EA |
| TN8004679 | 1 | Hose, Fuel [Ku]Old # 361373 | $6.80/EA | |
| 4 | TN8002799 | 2 | Pipe, Fuel, Overflow [Ku]Old # 9004389 | $4.85/EA |
| 5 | TN8002800 | 4 | Pipe, Clip [Ku]Old # 9004390 | $3.20/EA |
| 6 | TN8004165 | 1 | Housing Assy, NozzleOld # 372917 | $525.80/EA |
| 7 | TN8002249 | 1 | Gasket [Ku]Old # 9004450 | $4.95/EA |
| 8 | TN8002260 | 1 | Seal, Heat [Ku]Old # 9004451 | $16.60/EA |
| 9 | TN8002540 | 1 | Tube, Injector, Pipe #1 [Ku]Old # 70965 | $42.93/EA |
| 10 | TN8002541 | 1 | Tube, Injector, Pipe #2 [Ku]Old # 70966 | $82.55/EA |
| 11 | TN8002542 | 1 | Tube, Injector, Pipe #32 [Ku]Old # 70967 | $82.55/EA |
| 12 | TN8002543 | 3 | Pipe, Injector, # 4Old # 70968 | $82.55/EA |
| 13 | TN8048250 | 3 | Clamp, Tube, Inj, Pipe #1 [Ku]Old # 30131 | $8.20/EA |
| 14 | TN39507 | 4 | Clamp, PipeOld # 39507 · current Tennant number (Tennant parts catalog) | Call for price |
| 15 | TN8043682 | 1 | Screw, W / WasherOld # 393566 | $4.90/EA |
| 16 | TN8003212 | 3 | Glowplug [Ku]Old # 84638 | $156.70/EA |
| 17 | TN8002031 | 3 | Cord, Ele, GlowplugOld # 73560 | $35.10/EA |
| 18 | TN8002802 | 3 | Nut, Flange [Ku]Old # 9004393 | $3.45/EA |
M20 Nozzle Holder Breakdown
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN8004165 | 4 | Housing Assy, NozzleOld # 372917 | $525.80/EA | |
| 1 | TN8049823 | 1 | Nut [Ku]Old # 9004395 | $14.34/EA |
| 2 | TN8049824 | 1 | Washer, Adjusting [Ku]Old # 9004396 | $7.88/EA |
| 3 | TN8049825 | 1 | Nozzle, Spring [Ku]Old # 9004397 | $15.55/EA |
| 4 | TN8044706 | 1 | Spacer [Ku]Old # 388500 | Call for price |
| 5 | TN8049826 | 1 | Rod, Push [Ku]Old # 9004398 | $69.99/EA |
| 6 | TN8049827 | 1 | Nut, Nozzle [Ku]Old # 9004399 | $50.90/EA |
| 7 | TN8002803 | 1 | Washer, Plain [Ku]Old # 9004400 | $10.71/EA |
| 8 | TN8002804 | 1 | Nozzle [Ku]Old # 9004401 | $280.98/EA |
M20 Injection Pump Group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Old # 9004376 | 1 | Eye, Joint [Ku]Old # 9004376Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 2 | TN8003210 | 1 | Pump, Injection [Kubo]Old # 84635 | $2,983.20/EA |
| 3 | TN8003215 | 1 | Follower, Screw, Pump, Injection[Ku]Old # 84651 | $91.10/EA |
| 4 | TN8002054 | 2 | Gasket, Ftg, Banjo [Ku]Old # 73588 | $3.50/EA |
| 5 | TN8002055 | 1 | Screw, Hex [Ku]Old # 73589 | $24.60/EA |
| 6 | TN8002056 | 1 | Gasket, F/ Screw [Ku]Old # 73590 | $3.50/EA |
| 7 | TN8002033 | 3 | Nut [Ku]Old # 73563 | $27.85/EA |
| 8 | TN8002905 | 6 | Washer, Lock, Split [Ku]Old # 39065 | $3.60/EA |
| Item 9: choose your version (2) | ||||
| 9 | TN8002545 | 1 | ShimOld # 70972 | $9.80/EA |
| 9 | TN8002546 | 1 | ShimOld # 70973 | $12.63/EA |
| 10 | TN8003213 | 1 | Shim, Pump, InjectionOld # 84644 | $20.40/EA |
| 11 | TN8051298 | 3 | Bolt [Ku]Old # 73561 | $4.14/EA |
| 12 | TN8002032 | 3 | Stud [Ku]Old # 73562 | $3.65/EA |
| 13 | TN8002261 | 1 | Cover, Solenoid [Ku]Old # 9004454 | $22.83/EA |
| 14 | TN8002867 | 1 | Gasket, Solenoid, Throttle [Ku]Old # 70165 | $5.40/EA |
| 15 | TN8002951 | 2 | Bolt, Hex [Ku]Old # 39160 | $3.33/EA |
| 16 | TN8002868 | 1 | Cover, Hole, Pump [Ku]Old # 70188 | $28.31/EA |
| 17 | TN8051299 | 1 | Cover, Hole, Pump, Fuel [Ku]Old # 73565 | $15.35/EA |
| 18 | TN8002547 | 1 | Gasket, Pump, Fuel [Ku]Old # 70974 | $14.24/EA |
| 19 | TN8002919 | 2 | Nut, Hex [Ku]Old # 39121 | $0.55/EA |
| 20 | TN8002905 | 2 | Washer, Lock, Split [Ku]Old # 39065 | $3.60/EA |
M20 Injection Pump Breakdown
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003210 | 1 | Pump, Injection [Kubo]Old # 84635 | $2,983.20/EA |
| 2 | TN8003214 | 4 | Plunger, Pump, Inj [Ku]Old # 84648 | $423.80/EA |
| 3 | TN8002034 | 4 | Valve, Eng [Delivery, Ku]Old # 73567 | $148.57/EA |
| 4 | TN8002035 | 4 | Spring, Cmpr, Valve, Injector [Ku]Old # 73568 | $20.91/EA |
| 5 | TN8002036 | 4 | Gasket, Valve, Injector [Ku]Old # 73569 | $14.95/EA |
| 6 | TN8051300 | 4 | Holder, Valve, Inj [Ku]Old # 73570 | $114.94/EA |
| 7 | TN8002037 | 4 | Seal, Org [Ku]Old # 73571 | $23.43/EA |
| 8 | TN8002038 | 4 | Flange, Sleeve [Ku]Old # 73572 | Call for price |
| 9 | TN8002039 | 4 | Pin, Joint, Inj [Ku]Old # 73573 | $14.54/EA |
| 10 | TN8002050 | 8 | Seal, Org [Ku]Old # 73574 | $28.99/EA |
| 11 | TN8002051 | 8 | Screw, Hex [Ku]Old # 73575 | $22.93/EA |
| 12 | TN8051301 | 4 | Tappet, Pump, Injection [Ku]Old # 73576 | Call for price |
| 13 | TN8051302 | 4 | Pin, Tappet [Ku]Old # 73577 | Call for price |
| 14 | TN8051303 | 1 | Pin, ClampOld # 73578 | Call for price |
| 15 | TN8002052 | 4 | Spring, Cmpr, Plunger [Ku]Old # 73579 | Call for price |
| 16 | TN8051304 | 4 | Seat, Spring, Upper, Injector [Ku]Old # 73580 | $21.51/EA |
| 17 | TN8051305 | 4 | Seat, Spring, Lower, Injector [Ku]Old # 73581 | $61.11/EA |
| 18 | TN8002053 | 1 | Shim, Tappet, Injection [Ku]Old # 73582 | $6.36/EA |
| 19 | TN8050698 | 1 | Control, FuelOld # 84649 | Call for price |
| 20 | TN8050699 | 1 | PlateOld # 84650 | Call for price |
| 21 | TN8051308 | 5 | Screw, Pump, Injection [Ku]Old # 73585 | $36.97/EA |
| 22 | TN8051309 | 4 | Sleeve, Cntrl, Pump, Injection [Ku]Old # 73586 | Call for price |
| 23 | TN8003215 | 1 | Follower, Screw, Pump, Injection[Ku]Old # 84651 | $91.10/EA |
| 24 | TN8002054 | 2 | Gasket, Ftg, Banjo [Ku]Old # 73588 | $3.50/EA |
| 25 | TN8002055 | 1 | Screw, Hex [Ku]Old # 73589 | $24.60/EA |
| 26 | TN8002056 | 1 | Gasket, F/ Screw [Ku]Old # 73590 | $3.50/EA |
M20 Idling Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 5 | TN8002710 | 2 | Gasket, F/ Bolt [Ku]Old # 40166 | $4.30/EA |
| 10 | TN8002710 | 2 | Gasket, F/ Bolt [Ku]Old # 40166 | $4.30/EA |
| 1 | Old # 9004446 | 1 | Idling, Apparatus [Ku]Old # 9004446Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 2 | TN8049857 | 1 | Bolt, Adjustment Assy [Ku]Old # 9004447 | $21.01/EA |
| 3 | TN8002059 | 1 | Nut, Hex [Ku]Old # 73606 | $2.90/EA |
| 4 | TN8004681 | 1 | Nut, Cap [Ku]Old # 361375 | $4.75/EA |
| 6 | TN8005834 | 1 | Cap, Screw, Idler [Ku]Old # 30136 | $9.60/EA |
| 7 | TN8002060 | 1 | Screw, Adj, Stop [Ku]Old # 73610 | $4.85/EA |
| 8 | TN8049803 | 1 | Nut, Lock [Ku]Old # 9004374 | $6.06/EA |
| 9 | TN8004681 | 1 | Nut, Cap [Ku]Old # 361375 | $4.75/EA |
| 11 | TN8049804 | 1 | Gasket [Ku]Old # 9004375 | $7.50/EA |
M20 Speed Control Plate Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 18 | TN8002710 | 1 | Gasket, F/ Bolt [Ku]Old # 40166 | $4.30/EA |
| 1 | TN8002551 | 1 | Plate, Cntrl, Spd [Ku]Old # 70982 | $386.63/EA |
| 2 | TN8051326 | 2 | Lever, Cntrl, Spd [Ku]Old # 73619 | $24.24/EA |
| 3 | Old # 9004385 | 1 | O - Ring [Ku]Old # 9004385Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 4 | TN8052076 | 2 | Pin, Spring [Ku]Old # 40407 | $2.83/EA |
| 5 | TN8051327 | 2 | Washer, Flat [Ku]Old # 73621 | $5.96/EA |
| 6 | TN8051328 | 2 | Nut, Hex [Ku]Old # 73622 | $4.44/EA |
| 7 | TN8051329 | 1 | Lever, Plate, Cntrl [Ku]Old # 73623 | $57.27/EA |
| 8 | TN8002063 | 1 | Lever, Stop [Ku]Old # 73624 | $25.55/EA |
| 9 | TN8002552 | 1 | Seal, Oil [Ku]Old # 70983 | $11.62/EA |
| 10 | TN8051330 | 1 | Spring, Tors [Ku]Old # 73625 | $9.49/EA |
| 11 | TN8002064 | 1 | Shaft, Lever, Spd [Ku]Old # 73626 | $76.86/EA |
| 12 | TN8002553 | 1 | Gasket, Cover, Spd [Ku]Old # 70984 | $7.88/EA |
| 13 | TN8052091 | 2 | Bolt, Hex [Ku]Old # 41973 | $3.50/EA |
| 14 | TN9004386 | 2 | Stud [Ku]Old # 9004386 · current Tennant number (Tennant parts catalog) · Replaced by 9004347 in the 2025 list (rev. 11) | $2.80/EA |
| 15 | TN8002919 | 2 | Nut, Hex [Ku]Old # 39121 | $0.55/EA |
| 16 | TN8002905 | 2 | Washer, Lock, Split [Ku]Old # 39065 | $3.60/EA |
| 17 | TN8049859 | 1 | Bolt [Ku]Old # 9004449 | $1.52/EA |
M20 Governor Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 6 | TN4017493 | 1 | Belt Kit, W/ Installation ToolOld # 9004283 | $66.10/EA |
| 1 | TN8002797 | 1 | Spring, Start [Ku]Old # 9004379 | $5.96/EA |
| 2 | TN8049858 | 1 | Spring, Governor [Ku]Old # 9004448 | $16.77/EA |
| 3 | TN9004775 | 1 | Lever Assy, Fork [KU]Old # 9004775 · current Tennant number (Tennant parts catalog) | Call for price |
| 4 | TN8049809 | 1 | Lever, Fork [Ku]Old # 9004381 | $481.67/EA |
| 5 | TN8049820 | 1 | Lever, Fork, Shaft [Ku]Old # 9004382 | $64.54/EA |
| 7 | TN8051520 | 1 | Bearing, Ball [Ku]Old # 70989 | Call for price |
| 8 | TN8002066 | 1 | Cover, Lever, Gov [Ku]Old # 73631 | $13.64/EA |
| 9 | TN8004836 | 1 | Gasket, Cover, Gov [Ku]Old # 361430 | $3.33/EA |
| 10 | TN8051526 | 2 | Screw, Hex [Ku]Old # 71995 | $3.84/EA |
| 11 | TN8002557 | 1 | Collar, Govnr [Ku]Old # 70991 | $4.44/EA |
| 12 | TN8002558 | 1 | Bearing, Ball [Ku]Old # 70992 | $16.36/EA |
M20 Water Flange Group
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 10 | TN8006118 | 1 | GasketOld # 10851 | $12.90/EA |
| 7 | TN8002068 | 1 | Hose, Water [Ku]Old # 73633 | $18.70/EA |
| 11 | TN8005465 | 1 | Housing, Thermostat [Ku]Old # 368091 | $30.30/EA |
| 1 | TN8005464 | 1 | Flange, Water [Ku]Old # 368090 | $88.48/EA |
| 2 | TN8003127 | 1 | Pipe, Water, ReturnOld # 384859 | $6.80/EA |
| 3 | TN8002067 | 2 | Fitting, Pipe, Plug [Ku]Old # 73632 | $10.70/EA |
| 4 | TN8002559 | 1 | Gasket, Hsg, Thermostat [Ku]Old # 70994 | $8.10/EA |
| 5 | TN8052091 | 3 | Bolt, Hex [Ku]Old # 41973 | $3.50/EA |
| 6 | TN8044939 | 1 | BoltOld # 384872 · Replaced by 72994 in the 2025 list (rev. 11) | $2.45/EA |
| 8 | TN8002069 | 2 | Clamp, Hose, Heater [Ku]Old # 73634 | $10.80/EA |
| 9 | TN8006119 | 1 | Thermostat, 180deg, 1.7d [Ku]Old # 10852 | $106.70/EA |
| 12 | TN8052079 | 2 | Bolt [Ku]Old # 40418 | $2.53/EA |
Notes on this parts list
- This is Tennant's 2022 manual (rev. 08). The current manual is Tennant's October 2025 edition: open the current manual.
- Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
- Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
- Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
- Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.
