Tennant M20 gas/LPG engine parts, SN 000000–007999
Gas/LPG engine parts from Tennant's North American M20 parts manuals for SN 000000–007999 (331381 rev. 19 (gas/LPG) + 331411 rev. 19 (diesel)), gas, LPG and diesel. Use Your machine to pick your serial number, edition or another area.
Tennant part numbers changed. In November 2025 Tennant renumbered all of its parts. Every line here shows the new number and the old one, so an old printed manual still works: look up the old number and it takes you to the new one.
Find your parts list →1,514 lines from 331381 rev. 19 (gas/LPG) + 331411 rev. 19 (diesel). Checked against the manuals line by line on .
- Machine
- M20 rider sweeper-scrubber
- Cleaning path
- 40 in (56 in with side brush)
- Solution / recovery
- 56 / 73 gal
- Hopper
- 3.9 ft³, 390 lb
- Power
- Gasoline, LPG or diesel
- Main brushes
- 2 × 40 in cylindrical
Your machine
You’re viewing the manual for SN 000000–007999 (Rev 19, May 2016), Tennant’s latest for these machines. Enter your serial number or use the dropdown for your exact machine.
Where to find the serial number and power type
- The machine serial number is on the data plate (on the frame by the operator’s seat). Type it and the page shows only the parts for your machine, including the right engine groups; a serial from the other range opens that list. We never need the engine model: engine plates are often unreadable.
- Power: gasoline, LPG (propane) or diesel. Gas and LPG machines share most parts; engine and fuel groups differ.
- Parts list edition: Tennant’s October 2025 lists are current. The 2022 and 2016 editions stay available for older printed copies.
How to read this list
Type your machine serial number under Your machine to see only your parts, or pick your power type. Tennant renumbered its parts in November 2025: the TN number is the current Tennant number with our prefix, and "Old #" is the earlier number your printed manual may show; search finds either. "Replaces" and "Replaced by" show what changed between Tennant's editions.

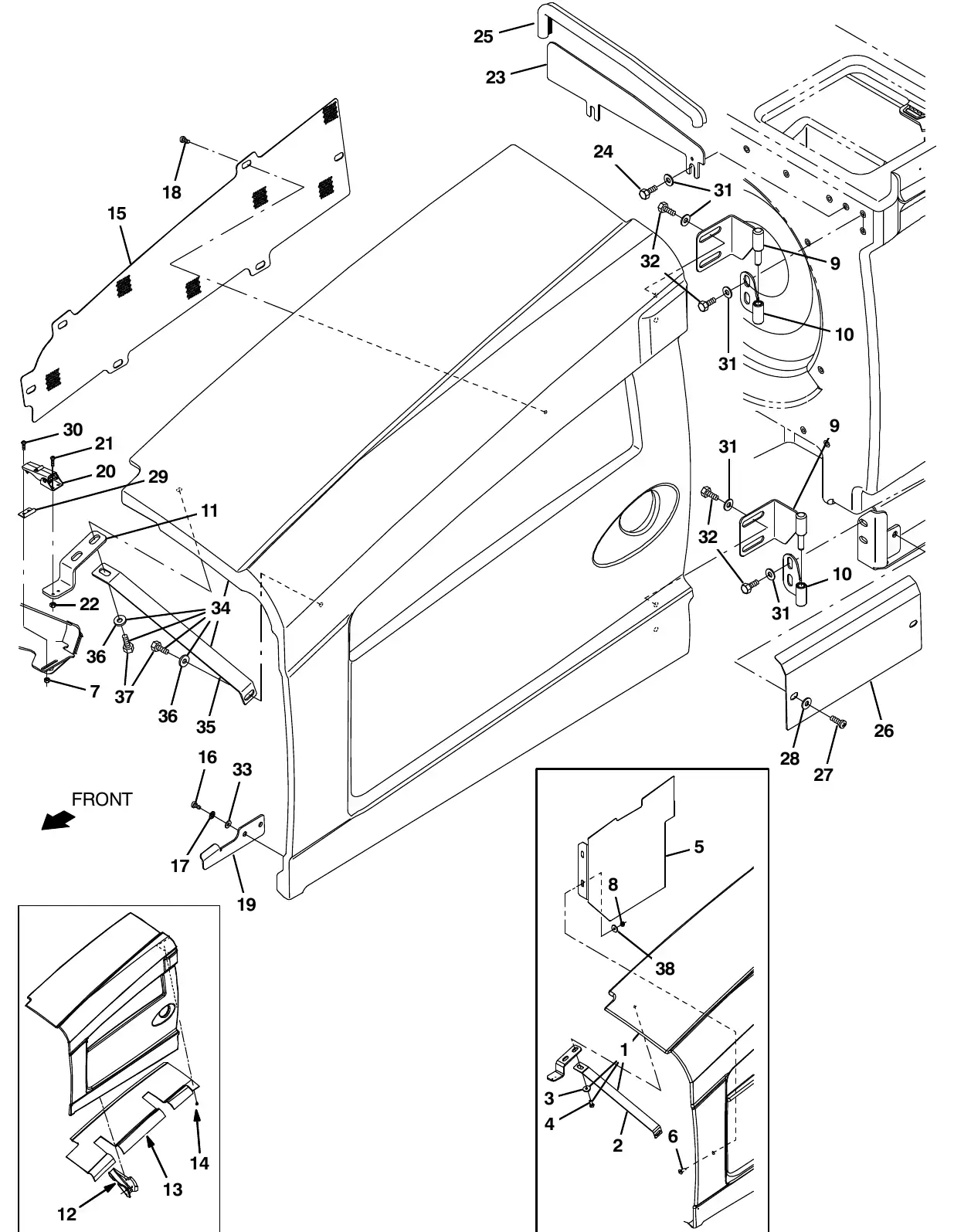

M20 engine cover group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045021 | 1 | Shroud Assy, EngFits SN up to 005999 · Old # 1033156 | $743.80/EA |
| 2 | TN4194117 | 1 | Angle, Brace, ShrdFits SN up to 005999 · Old # 1026628 | $14.75/EA |
| 3 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 005999 · Old # 1017218 | $3.40/EA |
| 4 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN up to 005999 · Old # 16931 | $2.50/EA |
| 5 | TN4032873 | 1 | Bracket, Shield, HeatFits SN up to 005999 · Old # 1022004 | $49.88/EA |
| 6 | TN4012756 | 4 | Screw, Flt, M8 X 1.25 X 25Fits SN up to 005999 · Old # 74077 | $4.00/EA |
| 7 | TN4031247 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsOld # 33932 | $3.40/EA |
| 8 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 005999 · Old # 08709 | $2.50/EA |
| 9 | TN4033616 | 2 | Hinge Wldt, Shrd, LhOld # 1024500 | $68.90/EA |
| 10 | TN4033887 | 2 | Hinge Wldt, Shrd, LhOld # 1025196 | $42.60/EA |
| 11 | TN4036245 | 1 | Bracket, Latch, CoverOld # 1020186 | $13.50/EA |
| 12 | TN1028516 | 1 | Insulation, Shrd, Eng, GussetFits SN up to 001327 · Old # 1028516 · current Tennant number (Tennant parts catalog) | Call for price |
| 13 | TN1026665 | 1 | Insulation, Flame - Retardant, 0.5Fits SN up to 001327 · Old # 1026665 · current Tennant number (Tennant parts catalog) | Call for price |
| 14 | Old # 21168 | 14 | Clip, .250h, Plstc [Pine - Tree]Fits SN up to 001327 · Old # 21168Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 15 | TN4034277 | 1 | Grill, EngOld # 1026726 | $72.20/EA |
| 16 | TN4041965 | 2 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 17 | TN4042244 | 2 | Washer, Flat, #10Old # 19066 | $2.50/EA |
| 18 | TN4040232 | 6 | Screw, Pan, Phl, 06 - 20 X 0.50, Fmg/AbOld # 222267 | $2.50/EA |
| 19 | TN4030910 | 1 | Bracket, Guide, ShrdOld # 1028412 | $19.50/EA |
| 20 | TN4024118 | 1 | Latch, Door [Southco 91 - 562 - 07]Old # 384418 | $25.30/EA |
| 21 | TN4041258 | 2 | Screw, Pan, M4 X 0.7 X 16, 4.8Old # 06927 | $3.30/EA |
| 22 | TN4043235 | 2 | Nut, Hex, Lock, M4 X 0.7, NlOld # 02850 | $2.50/EA |
| 23 | TN4193841 | 1 | Plate, Seal, SoundOld # 1025806 | $15.80/EA |
| 24 | TN4041992 | 2 | Screw, Hex, M8 X 1.25 X 20, SsOld # 09740 | $3.30/EA |
| 25 | TN4031725 | 2 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 02ftOld # 1030588 | $46.50/EA |
| 26 | TN4032874 | 1 | Cover, LowerOld # 1022005 | $21.70/EA |
| 27 | TN4032093 | 2 | Screw, Pan, M8 X 1.25 X 25, BlkOld # 1031665 | $3.40/EA |
| 28 | TN4015595 | 2 | Washer, Flat, 0.31 SaeOld # 39349 | $2.50/EA |
| 29 | TN4024119 | 1 | Bracket, Latch, Keeper [Southco]Old # 384419 | $4.50/EA |
| 30 | TN4035372 | 2 | Screw, Pan, M4 X 0.7 X 16, SsOld # 24265 | $3.00/EA |
| 31 | TN4035242 | 11 | Washer, Flat, 0.32b 1.00d .12, SsOld # 1017218 | $3.40/EA |
| 32 | TN4041844 | 7 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 33 | TN4016785 | 2 | Washer, Lock, Int - Ext, 10Old # 41139 | $3.50/EA |
| 34 | TN4030566 | 1 | Shroud Assy, EngFits SN 006000 and later · Old # 1071439 | $434.10/EA |
| 35 | TN4194117 | 1 | Angle, Brace, ShrdFits SN 006000 and later · Old # 1026628 | $14.75/EA |
| 36 | TN4035242 | 2 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 006000 and later · Old # 1017218 | $3.40/EA |
| 37 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 006000 and later · Old # 16931 | $2.50/EA |
| 38 | TN4035242 | 4 | Washer, Flat, 0.32b 1.00d .12, SsFits SN up to 005999 · Old # 1017218 | $3.40/EA |

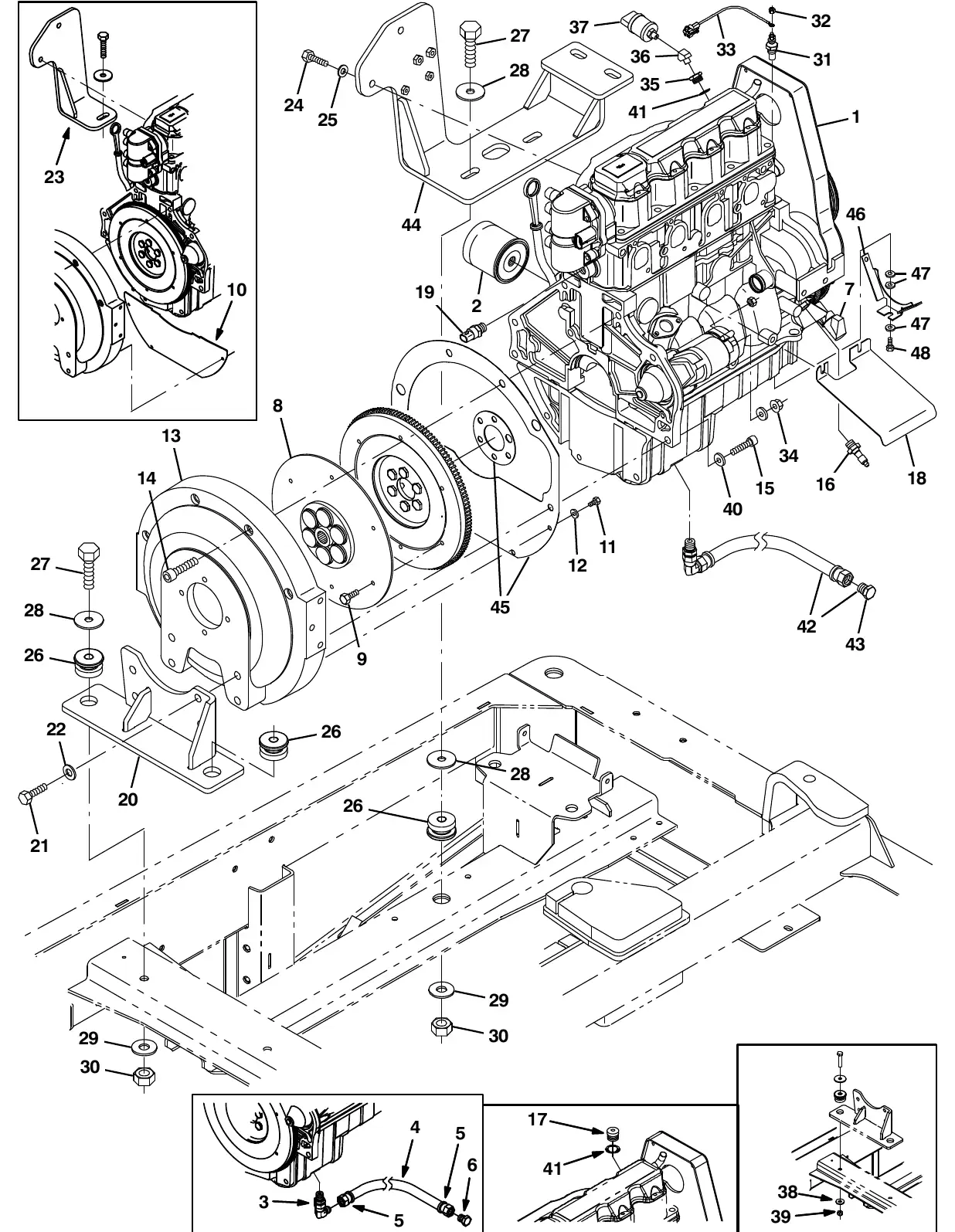

M20 GM engine and mount group (000000 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4027885 | 1 | Engine [Long Block Gm 1.6l] (See Engine Breakdown)Fits SN up to 005999 · Old # 372862 | Call for price |
| 2 | TN8004565 | 1 | Element, Fltr, Oil, Eng, Spin - On (GM)Fits SN up to 005999 · Old # 371972 | $32.00/EA |
| 3 | TN8005294 | 1 | Fitting, E90, M14 X .56Fits SN up to 001999 · Old # 372541 | $126.60/EA |
| 4 | TN8005706 | 1 | Hose, Hyd, 26.0lFits SN up to 001999 · Old # 371855 | $106.00/EA |
| 5 | TN8005718 | 2 | Fitting, End, HoseFits SN up to 001999 · Old # 371876 | $40.90/EA |
| 6 | TN8003870 | 1 | Fitting, Pipe, PlugFits SN up to 001999 · Old # 371890 · replaced by 8003870 (Tennant parts catalog) | Call for price |
| 7 | TN8004584 | 1 | Sensor, Position, CshftFits SN up to 005999 · Old # 372002 | $154.00/EA |
| 8 | TN8005713 | 1 | Coupling, Drive, 13tFits SN up to 005999 · Old # 371866 | $504.72/EA |
| 9 | TN9008395 | 6 | Screw, Hex, M07 - 1.00 X 20.0, 8.8Fits SN up to 005999 · Old # 9008395 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 10 | TN4011739 | 1 | Cover, Hsng, Flywheel (Replaced By 9006895)Fits SN up to 003122 · Old # 371868 · replaced by 4011739 (Tennant parts catalog) | Call for price |
| 11 | TN4042535 | 4 | Screw, Hex, .25 - 20 X 0.50, 5Fits SN up to 005999 · Old # 19315 | $2.50/EA |
| 12 | TN4034136 | 4 | Washer, Flat, 0.25 StdFits SN up to 005999 · Old # 32490 | $2.50/EA |
| 13 | TN8005714 | 1 | Housing, PumpFits SN up to 005999 · Old # 371869 | $1,341.28/EA |
| 14 | TN8045677 | 4 | Screw, Soc, M12 X 1.75 X 55, 10.9Fits SN up to 005999 · Old # 371870 | $13.03/EA |
| 15 | TN4043112 | 2 | Screw, Soc, .38 - 16 X 1.50, AlFits SN up to 005999 · Old # 10832 | $5.45/EA |
| Item 16: choose your version (2) | ||||
| 16 | TN8004580 | 1 | Switch, Indicator, Oil PressFits SN up to 003122 · Old # 371996 | $63.10/EA |
| 16 | TN8002155 | 1 | Switch, Indicator, Oil Press [2010]Fits SN 003123–005999 · Old # 9008197 | $103.30/EA |
| 17 | TN8005707 | 1 | Fitting, Pipe, Plug, Metric, M18,SocFits SN up to 001999 · Old # 371860 | $75.00/EA |
| 18 | TN8005304 | 1 | Shield, Starter [1.6l]Fits SN up to 005999 · Old # 372556 | $221.59/EA |
| 19 | TN8004173 | 1 | Sensor, Temp, CoolantFits SN up to 005999 · Old # 372953 | $155.20/EA |
| 20 | TN4196128 | 1 | Bracket Wldt, Mtg, Eng, Back, Gas/LpgFits SN up to 005999 · Old # 1023288 | $120.70/EA |
| 21 | TN4016291 | 4 | Screw, Hex, .50 - 13 X 1.25, 5Fits SN up to 005999 · Old # 39810 | $0.75/EA |
| 22 | TN4034135 | 4 | Washer, Flat, 0.50 SaeFits SN up to 005999 · Old # 32486 | $2.60/EA |
| 23 | TN4036831 | 1 | Mount Wldt, Eng, Gas/LpgFits SN up to 003038 · Old # 1011353 | $237.05/EA |
| 24 | TN4019758 | 2 | Screw, Hex, M10 X 1.5 X 25, 8.8Fits SN up to 005999 · Old # 39283 | $3.30/EA |
| 25 | TN4034134 | 2 | Washer, Flat, 0.38 SaeFits SN up to 005999 · Old # 32485 | $2.50/EA |
| 26 | TN4014538 | 3 | Isolator, Vib, .50dFits SN up to 005999 · Old # 51176 | $37.60/EA |
| 27 | TN4041297 | 3 | Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN up to 005999 · Old # 06972 | $4.00/EA |
| 28 | TN4040927 | 4 | Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN up to 005999 · Old # 04414 | $4.10/EA |
| 29 | TN4034139 | 3 | Washer, Flat, 0.50 StdFits SN up to 005999 · Old # 32493 | $3.50/EA |
| 30 | TN4041927 | 3 | Nut, Hex, Lock, M12 X 1.75,NlFits SN up to 005999 · Old # 08711 | $3.30/EA |
| 31 | TN8006202 | 1 | Sensor, Temp, Water [Rework For 1.6GM]Fits SN up to 005999 · Old # 1042028 | $193.25/EA |
| 32 | TN4014211 | 1 | Nut, Hex, Std, M5 X 0.8, 8Fits SN up to 005999 · Old # 50335 | $3.30/EA |
| 33 | TN4194761 | 1 | Wire, 16ga 09.6l Brown Mp280/ #10ringFits SN up to 005999 · Old # 1030073 | $19.20/EA |
| 34 | TN4016814 | 1 | Nut, Hex, Std, M8 X 1.25, BrsFits SN up to 005999 · Old # 41361 | $3.40/EA |
| 35 | TN8005526 | 1 | Fitting, Pipe, Bshg, M18 X 1.5Fits SN 002000–005999 · Old # 1031439 | $240.70/EA |
| 36 | TN4035402 | 1 | Fitting, Brs, E45, Pf02/Pm02Fits SN 002000–005999 · Old # 24976 | $5.30/EA |
| 37 | TN4038715 | 1 | Switch, Press, 0006psi DpdtFits SN 002000–005999 · Old # 1055106 | $65.00/EA |
| 38 | TN4034139 | 2 | Washer, Flat, 0.50, StdFits SN up to 001337 · Old # 32493 | $3.50/EA |
| 39 | TN4041927 | 2 | Nut, Hex, Lock, M12 X 1.75,NlFits SN up to 001337 · Old # 08711 | $3.30/EA |
| 40 | TN8005719 | 2 | Washer, Flat, 0.38, HardenedFits SN up to 005999 · Old # 371877 | $10.50/EA |
| 41 | TN8003189 | 1 | Gasket, Plug, Relief Valve,Oil PressFits SN up to 005999 · Old # 385029 | $19.90/EA |
| 42 | TN8002573 | 1 | Hose, Drain, Eng OilFits SN 002000–005999 · Old # 9006634 | $308.10/EA |
| 43 | TN8002574 | 1 | Fitting, PlugFits SN 002000–005999 · Old # 9006635 | $9.70/EA |
| 44 | TN4189945 | 1 | Bracket Wldt, Mtg, EngFits SN 003039–005999 · Old # 1046022 | $190.88/EA |
| 45 | TN4011739 | 1 | Plate Kit, RepairFits SN 003123–005999 · Old # 9006895 | $61.11/EA |
| 46 | TN4035791 | 1 | Plate, Guard, Belt [Gm 1.6l]Fits SN 003086–005999 · Old # 1056566 | $21.61/EA |
| 47 | TN4034136 | 3 | Washer, Flat, 0.25, StdFits SN 003086–005999 · Old # 32490 | $2.50/EA |
| 48 | TN4041271 | 1 | Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 003086–005999 · Old # 06943 | $2.50/EA |

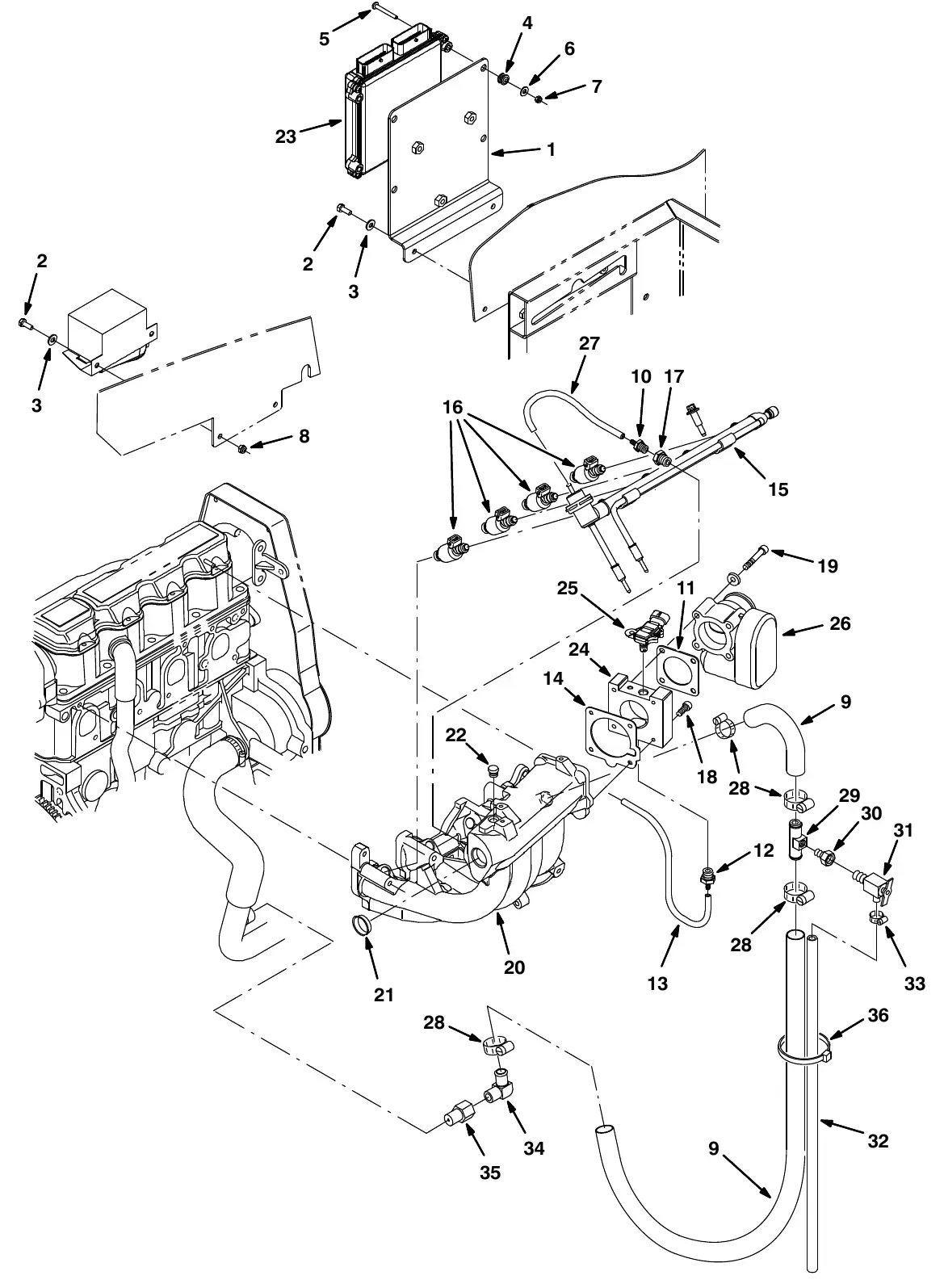

M20 GM engine EFI group, gasoline (000000 - 001999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1018939 | 1 | Bracket, Mtg [Ecu]Fits SN up to 001999 · Old # 1018939 · current Tennant number (Tennant parts catalog) | $30.90/EA |
| 2 | TN4041270 | 4 | Screw, Hex, M6 X 1.0 X 16, 8.8Fits SN up to 001999 · Old # 06942 | $2.50/EA |
| 3 | TN4034133 | 4 | Washer, Flat, 0.25 SaeFits SN up to 001999 · Old # 32483 | $2.50/EA |
| 4 | TN4013454 | 4 | Grommet, Rbr, 0.20id, F/0.4h, .12 MatlFits SN up to 001999 · Old # 46314 | $0.55/EA |
| 5 | TN4041267 | 4 | Screw, Pan, M5 X 0.8 X 40, 4.8Fits SN up to 001999 · Old # 06938 | $1.82/EA |
| 6 | TN4042888 | 8 | Washer, Flat, #10, SsFits SN up to 001999 · Old # 01683 | $2.60/EA |
| 7 | TN4041004 | 4 | Nut, Hex, Lock, M5 X 0.8, NlFits SN up to 001999 · Old # 06549 | $2.50/EA |
| 8 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 001999 · Old # 08708 | $2.50/EA |
| 9 | TN1022364 | 1 | Hose, HeaterFits SN up to 001999 · Old # 1022364 · current Tennant number (Tennant parts catalog) | $30.80/EA |
| 10 | TN8005295 | 1 | Fitting, Str, .19brb X .12mptFits SN up to 001999 · Old # 372542 | $6.67/EA |
| 11 | TN8005298 | 1 | Gasket, Body, Throttle [1.6l]Fits SN up to 001999 · Old # 372545 | $8.20/EA |
| 12 | TN8005296 | 1 | Fitting, Vacuum [M16 - 15 - 6h]Fits SN up to 001999 · Old # 372543 | Call for price |
| 13 | TN8005194 | 1 | Hose, 9.5mm X 450mm [Pcv]Fits SN up to 001999 · Old # 372489 | $28.08/EA |
| 14 | TN8005297 | 1 | Gasket, Manifold, IntakeFits SN up to 001999 · Old # 372544 | $33.80/EA |
| 15 | TN8005308 | 1 | Rail, Injector, Gas, W/ Press RegFits SN up to 001999 · Old # 372566 | $2,560.22/EA |
| 16 | TN8005307 | 4 | Injector Kit, Fuel, GasFits SN up to 001999 · Old # 372563 | $956.77/EA |
| 17 | TN8005292 | 1 | Bushing, M06 - 1.50 X .25 - 27nptFits SN up to 001999 · Old # 372537 | $91.61/EA |
| 18 | TN4041000 | 4 | Screw, Soc, M6 X 1.0 X 25, 12.9Fits SN up to 001999 · Old # 06532 | $0.45/EA |
| 19 | TN4041577 | 4 | Screw, Soc, M6 X 1.0 X 45, 12.9Fits SN up to 001999 · Old # 07255 | $13.15/EA |
| 20 | TN8005300 | 1 | Manifold, Intake [1.6l]Fits SN up to 001999 · Old # 372547 | $802.09/EA |
| 21 | TN8005301 | 1 | Plug, Manifold, IntakeFits SN up to 001999 · Old # 372549 | $16.45/EA |
| 22 | TN8005302 | 1 | Plug, Port, Sensor [Map]Fits SN up to 001999 · Old # 372550 | $29.36/EA |
| 23 | TN8004133 | 1 | Module, Ecu, Gas [Gm 1.6l]Fits SN up to 001999 · Old # 372858 | $0.00/EACall for availability |
| 24 | TN8005291 | 1 | Adapter, Intake, Throttle BodyFits SN up to 001999 · Old # 372534 | $296.54/EA |
| 25 | TN8005198 | 1 | Sensor [Tmap]Fits SN up to 001999 · Old # 372493 | $206.90/EA |
| 26 | TN384974 | 1 | Housing, Throttle, 40mm [Bosch]Fits SN up to 001999 · Old # 384974 · current Tennant number (Tennant parts catalog) | Call for price |
| 27 | TN8005299 | 1 | Hose, Fuel, .19Fits SN up to 001999 · Old # 372546 | $14.14/EA |
| 28 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN up to 001999 · Old # 63810 | $6.80/EA |
| 29 | TN4021270 | 1 | Tube, Air Bleed, .62d 2.2l .12npt AlmFits SN up to 001999 · Old # 83578 | Call for price |
| 30 | TN4038620 | 1 | Fitting, Brs, Str, Pf04/Pm02Fits SN up to 001999 · Old # 1015930 | $16.45/EA |
| 31 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptFits SN up to 001999 · Old # 51305 | $15.10/EA |
| 32 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 22.00lFits SN up to 001999 · Old # 73471 | $7.60/EA |
| 33 | TN4017396 | 1 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN up to 001999 · Old # 43844 | $4.20/EA |
| 34 | TN4014601 | 1 | Fitting, Brs, E90, Em10/Pm06Fits SN up to 001999 · Old # 51839 | $17.40/EA |
| 35 | TN4038308 | 1 | Fitting, Adapter, Orifice, Pf06/Pm06Fits SN up to 001999 · Old # 1015547 | $58.87/EA |
| 36 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN up to 001999 · Old # 49266 | $2.50/EA |

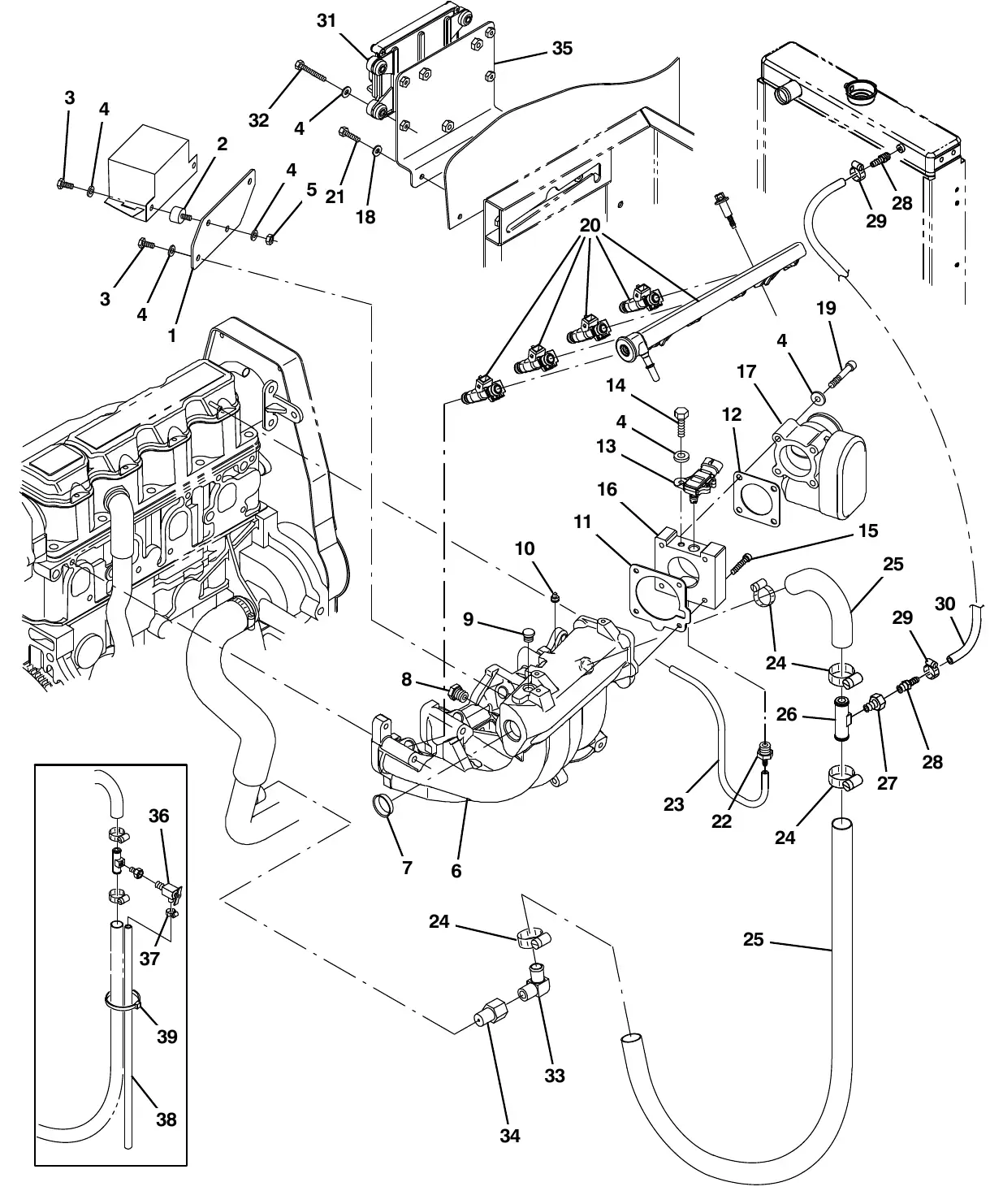

M20 GM engine EFI group, gasoline (002000 - 003122)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8047053 | 1 | Plate, Mtg, RelayFits SN 002000–003122 · Old # 1031312 | $56.76/EA |
| 2 | TN8005190 | 2 | Isolator, Box, RelayFits SN 002000–003122 · Old # 372470 | $25.70/EA |
| 3 | TN4042535 | 4 | Screw, Hex, .25 - 20 X 0.50, G5Fits SN 002000–003122 · Old # 19315 | $2.50/EA |
| 4 | TN4034136 | 13 | Washer, Flat, 0.25, StdFits SN 002000–003122 · Old # 32490 | $2.50/EA |
| 5 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Fits SN 002000–003122 · Old # 19312 | $2.50/EA |
| 6 | TN8005300 | 1 | Manifold, Intake [1.6l]Fits SN 002000–003122 · Old # 372547 | $802.09/EA |
| 7 | TN8005301 | 1 | Plug, Manifold, IntakeFits SN 002000–003122 · Old # 372549 | $16.45/EA |
| 8 | TN8044969 | 1 | Fitting, Plug, M16, Intake ManifoldFits SN 002000–003122 · Old # 384995 | $16.15/EA |
| 9 | TN8005302 | 1 | Plug, Port, Sensor [Map]Fits SN 002000–003122 · Old # 372550 | $29.36/EA |
| 10 | TN8045799 | 1 | Plug, .12npt, SsFits SN 002000–003122 · Old # 372548 | $2.10/EA |
| TN4203053 | 1 | Gasket Kit, Repair, Gas [Gm1.6l 2007]Fits SN 002000–003122 · Old # 9003390 | $27.09/EA | |
| 11 | TN8005297 | 1 | Gasket, Manifold, IntakeFits SN 002000–003122 · Old # 372544 | $33.80/EA |
| 12 | TN8005298 | 1 | Gasket, Body, Throttle [1.6l]Fits SN 002000–003122 · Old # 372545 | $8.20/EA |
| 13 | TN8005198 | 1 | Sensor [T Map]Fits SN 002000–003122 · Old # 372493 | $206.90/EA |
| 14 | TN4042536 | 1 | Screw, Hex, .25 - 20 X 0.75, G5Fits SN 002000–003122 · Old # 19317 | $3.20/EA |
| 15 | TN4041000 | 4 | Screw, Soc, M6 X 1.00 X 25, 12.9Fits SN 002000–003122 · Old # 06532 | $0.45/EA |
| 16 | TN8005291 | 1 | Adapter, Intake, Throttle BodyFits SN 002000–003122 · Old # 372534 | $296.54/EA |
| 17 | TN384974 | 1 | Housing, Throttle, 40mm [Bosch]Fits SN 002000–003122 · Old # 384974 · current Tennant number (Tennant parts catalog) | Call for price |
| 18 | TN4034133 | 2 | Washer, Flat, 0.25, SaeFits SN 002000–003122 · Old # 32483 | $2.50/EA |
| 19 | TN4041577 | 4 | Screw, Soc, M6 X 1.00 X 45, 12.9Fits SN 002000–003122 · Old # 07255 | $13.15/EA |
| 20 | TN8003177 | 1 | Rail, Injector, Fuel, PlstcFits SN 002000–003122 · Old # 384992 | $2,234.40/EA |
| 21 | TN4041270 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 002000–003122 · Old # 06942 | $2.50/EA |
| 22 | TN8005296 | 1 | Fitting, Vacuum [M16 - 15 - 6h]Fits SN 002000–003122 · Old # 372543 | Call for price |
| 23 | TN8003164 | 1 | Hose, Vacuum, 0.22id X 15.0lFits SN 002000–003122 · Old # 384972 | $2.60/EA |
| 24 | TN4017089 | 4 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 002000–003122 · Old # 63810 | $6.80/EA |
| 25 | TN1022364 | 1 | Hose, HeaterFits SN 002000–003122 · Old # 1022364 · current Tennant number (Tennant parts catalog) | $30.80/EA |
| 26 | TN4021270 | 1 | Tube, Bleed, Air, .62od 2.2l .12npt, AlmFits SN 002000–003122 · Old # 83578 | Call for price |
| 27 | TN4038620 | 2 | Fitting, Brs, Str, Pf04/Pm02Fits SN 002000–003122 · Old # 1015930 | $16.45/EA |
| 28 | TN4044560 | 2 | Fitting, Brs, Str, Bm06/Pm05Fits SN 002493–003122 · Old # 150516 | $5.30/EA |
| 29 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 002493–003122 · Old # 54333 | $5.10/EA |
| 30 | TN4189340 | 1 | Hose, Heater, 0.38IDFits SN 002493–003122 · Old # 1043481 | $3.23/EA |
| 31 | TN8005435 | 1 | Module, Ecu, Gas [Gm1.6l 2700]Fits SN 002000–003122 · Old # 1028711 | Call for price |
| 32 | TN4041274 | 4 | Screw, Hex, M6 X 1.00 X 35, 8.8Fits SN 002000–003122 · Old # 06946 | $3.40/EA |
| 33 | TN4014601 | 1 | Fitting, Brs, E90, Em10/Pm06Fits SN 002000–003122 · Old # 51839 | $17.40/EA |
| 34 | TN4038308 | 1 | Fitting, Adapter, Orifice, Pf06/Pm06Fits SN 002000–003122 · Old # 1015547 | $58.87/EA |
| 35 | TN4194597 | 1 | Bracket, Mtg, Ecu [M20/T20 2007]Fits SN 002000–003122 · Old # 1029082 | $44.44/EA |
| 36 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptFits SN 002000–002492 · Old # 51305 | $15.10/EA |
| 37 | TN4017396 | 1 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 002000–002492 · Old # 43844 | $4.20/EA |
| 38 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 022.0lFits SN 002000–002492 · Old # 73471 | $7.60/EA |
| 39 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN 002000–002492 · Old # 49266 | $2.50/EA |

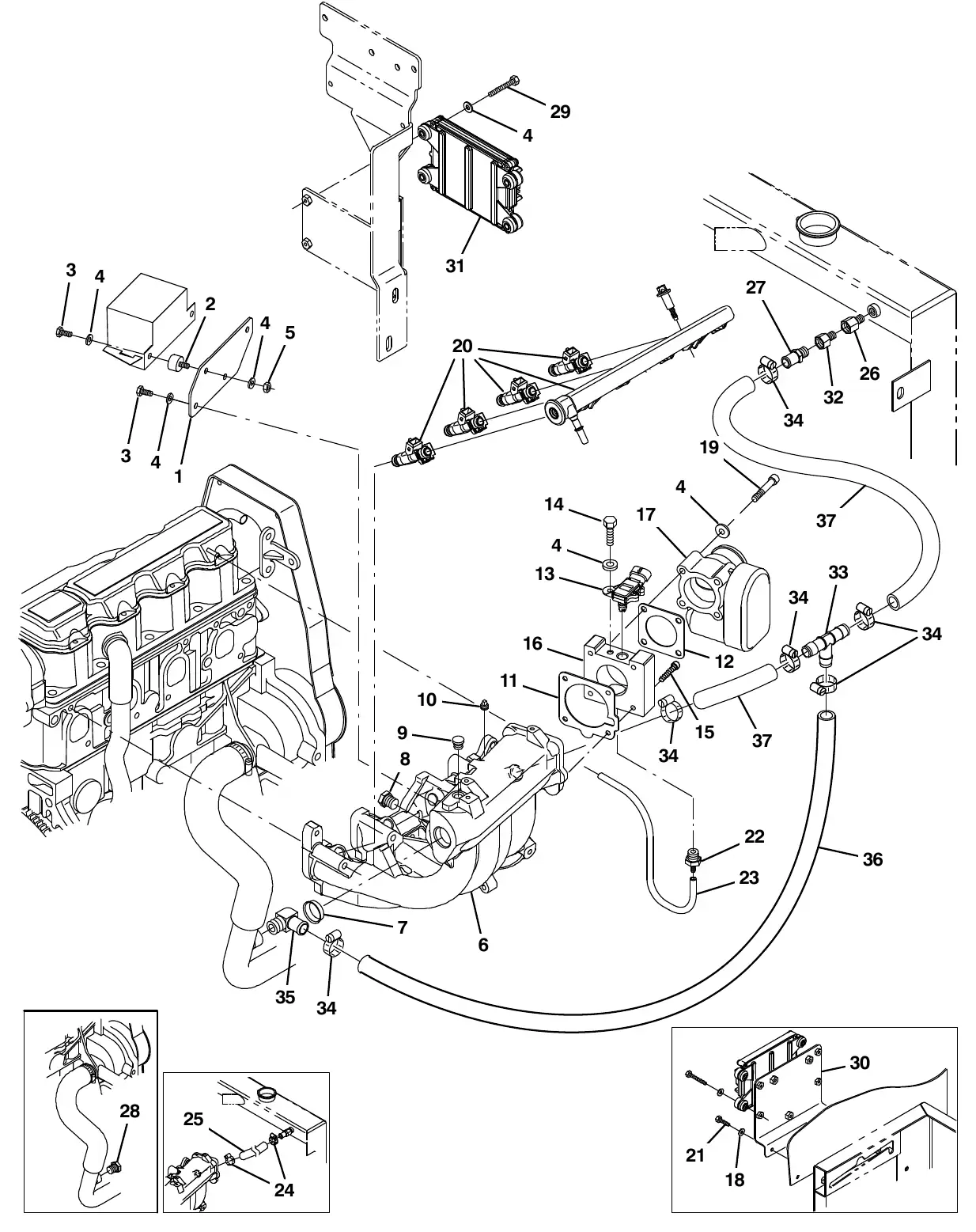

M20 GM engine EFI group, gasoline (003123 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8047053 | 1 | Plate, Mtg, RelayFits SN 003123–005999 · Old # 1031312 | $56.76/EA |
| 2 | TN8005190 | 2 | Isolator, Box, RelayFits SN 003123–005999 · Old # 372470 | $25.70/EA |
| 3 | TN4042535 | 4 | Screw, Hex, .25 - 20 X 0.50, G5Fits SN 003123–005999 · Old # 19315 | $2.50/EA |
| 4 | TN4034136 | 13 | Washer, Flat, 0.25, StdFits SN 003123–005999 · Old # 32490 | $2.50/EA |
| 5 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Fits SN 003123–005999 · Old # 19312 | $2.50/EA |
| 6 | TN8005300 | 1 | Manifold, Intake [1.6l]Fits SN 003123–005999 · Old # 372547 | $802.09/EA |
| 7 | TN8005301 | 1 | Plug, Manifold, IntakeFits SN 003123–005999 · Old # 372549 | $16.45/EA |
| 8 | TN8044969 | 1 | Fitting, Plug, M16, Intake ManifoldFits SN 003123–005999 · Old # 384995 | $16.15/EA |
| 9 | TN8005302 | 1 | Plug, Port, Sensor [Map]Fits SN 003123–005999 · Old # 372550 | $29.36/EA |
| 10 | TN8045799 | 1 | Plug, .12npt, SsFits SN 003123–005999 · Old # 372548 | $2.10/EA |
| TN4203053 | 1 | Gasket Kit, Repair, Gas [Gm1.6l 2007]Fits SN 003123–005999 · Old # 9003390 | $27.09/EA | |
| 11 | TN8005297 | 1 | Gasket, Manifold, IntakeFits SN 003123–005999 · Old # 372544 | $33.80/EA |
| 12 | TN8005298 | 1 | Gasket, Body, Throttle [1.6l]Fits SN 003123–005999 · Old # 372545 | $8.20/EA |
| 13 | TN8005198 | 1 | Sensor [T Map]Fits SN 003123–005999 · Old # 372493 | $206.90/EA |
| 14 | TN4042536 | 1 | Screw, Hex, .25 - 20 X 0.75, G5Fits SN 003123–005999 · Old # 19317 | $3.20/EA |
| 15 | TN4041000 | 4 | Screw, Soc, M6 X 1.00 X 25, 12.9Fits SN 003123–005999 · Old # 06532 | $0.45/EA |
| 16 | TN8002571 | 1 | AdapterFits SN 003123–005999 · Old # 9006619 | $80.90/EA |
| 17 | TN384974 | 1 | Housing, Throttle, 40mm [Bosch]Fits SN 003123–005999 · Old # 384974 · current Tennant number (Tennant parts catalog) | Call for price |
| 18 | TN4034133 | 2 | Washer, Flat, 0.25, SaeFits SN 003123–003170 · Old # 32483 | $2.50/EA |
| 19 | TN4041577 | 4 | Screw, Soc, M6 X 1.00 X 45, 12.9Fits SN 003123–005999 · Old # 07255 | $13.15/EA |
| 20 | TN8003177 | 1 | Rail, Injector, Fuel, PlstcFits SN 003123–005999 · Old # 384992 | $2,234.40/EA |
| 21 | TN4041270 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 003123–003170 · Old # 06942 | $2.50/EA |
| 22 | TN8005296 | 1 | Fitting, Vacuum [M16 - 15 - 6h]Fits SN 003123–005999 · Old # 372543 | Call for price |
| 23 | TN8003164 | 1 | Hose, Vacuum, 0.22id X 15.0lFits SN 003123–005999 · Old # 384972 | $2.60/EA |
| 24 | TN4017089 | 2 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 003123–003268 · Old # 63810 | $6.80/EA |
| 25 | TN4218132 | 1 | Hose, Heater, 0.62id, 024.0lFits SN 003123–003268 · Old # 61869 | Call for price |
| 26 | TN4041066 | 1 | Fitting, Brs, Str, Pf06/Pm04Fits SN 003123–005999 · Old # 1042772 | $7.00/EA |
| 27 | TN4035717 | 1 | Fitting, Brs, Str, Em10/Pm06Fits SN 003123–005999 · Old # 27767 | $10.50/EA |
| 28 | TN4011527 | 1 | Fitting, Hyd, Plug, Pm06Fits SN 003123–003268 · Old # 762282 | $3.74/EA |
| 29 | TN4041274 | 4 | Screw, Hex, M6 X 1.00 X 35, 8.8Fits SN 003123–005999 · Old # 06946 | $3.40/EA |
| 30 | TN4194597 | 1 | Bracket, Mtg, Ecu [M20/T20 2007]Fits SN 003123–003170 · Old # 1029082 | $44.44/EA |
| 31 | TN8005905 | 1 | Module, Ecu, Gas [Gm1.6l 2010]Fits SN 003123–005999 · Old # 1056232 | $818.34/EA |
| 32 | TN4038308 | 1 | Fitting, Adapter, Orifice, Pf06/Pm06Fits SN 003123–005999 · Old # 1015547 | $58.87/EA |
| 33 | TN4034918 | 1 | Fitting, Plstc, Tee, Bm10/Bm10/Bm10Fits SN 003269–005999 · Old # 1062116 | $6.20/EA |
| 34 | TN4017089 | 7 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 003269–005999 · Old # 63810 | $6.80/EA |
| 35 | TN4014601 | 1 | Fitting, Brs, E90, Em10/Pm06Fits SN 003269–005999 · Old # 51839 | $17.40/EA |
| 36 | TN4035152 | 1 | Hose, Afmkt, Rbr, Heater, 0.62id, 02ftFits SN 003269–005999 · Old # 1016560 | $21.00/EA |
| 37 | TN4038615 | 1 | Hose, Radiator, Mold, .75Id X .62Id (Cut in two)Fits SN 003269–005999 · Old # 1015897 | $73.90/EA |

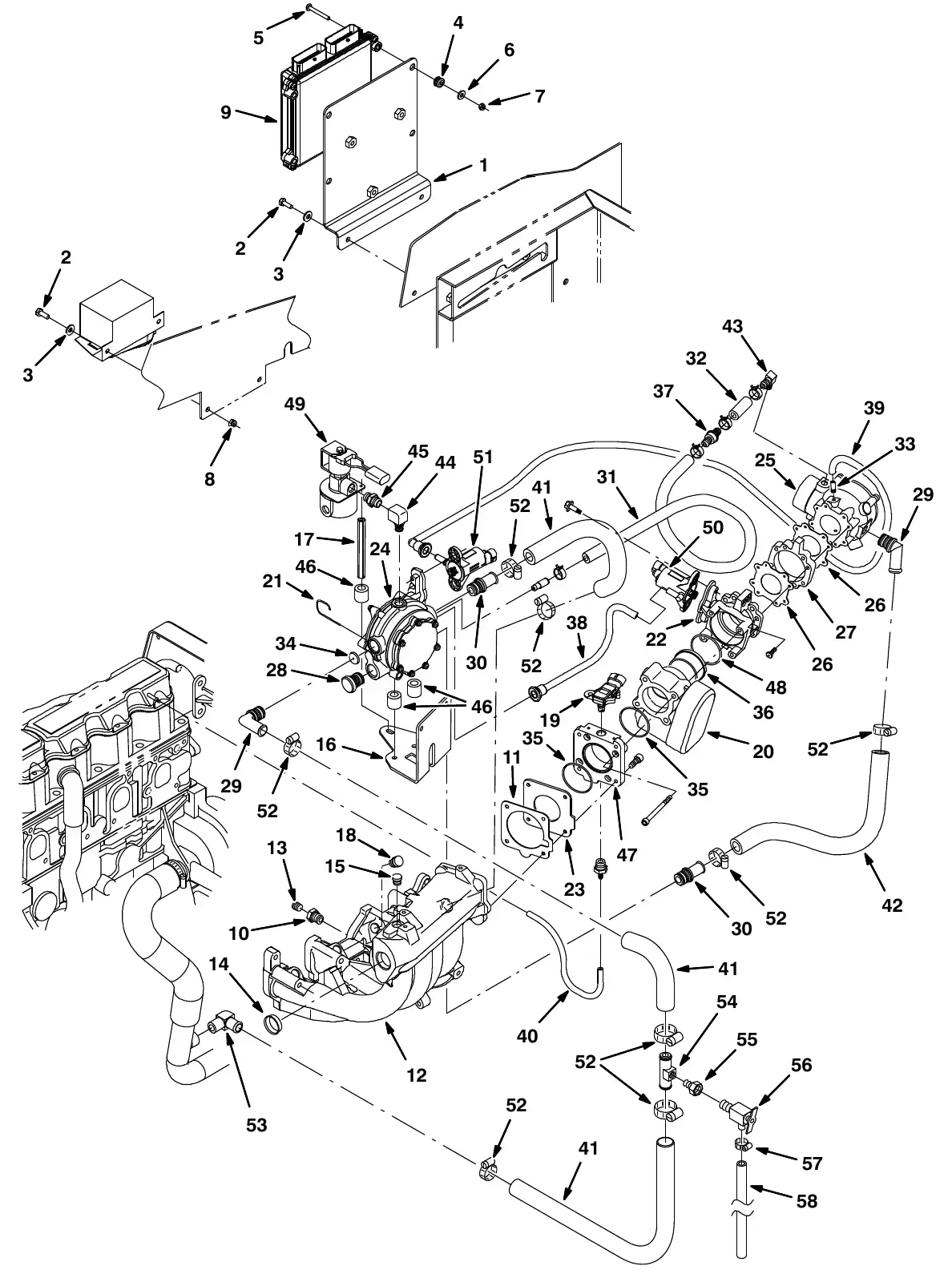

M20 GM engine EFI group, LPG (000000 - 001999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1018939 | 1 | Bracket, Mtg [Ecu]Fits SN up to 001999 · Old # 1018939 · current Tennant number (Tennant parts catalog) | $30.90/EA |
| 2 | TN4041270 | 4 | Screw, Hex, M6 X 1.0 X 16, 8.8Fits SN up to 001999 · Old # 06942 | $2.50/EA |
| 3 | TN4034133 | 4 | Washer, Flat, 0.25 SaeFits SN up to 001999 · Old # 32483 | $2.50/EA |
| 4 | TN4013454 | 4 | Grommet, Rbr, 0.20id, F/0.4h, .12 MatlFits SN up to 001999 · Old # 46314 | $0.55/EA |
| 5 | TN4041267 | 4 | Screw, Pan, M5 X 0.8 X 40, 4.8Fits SN up to 001999 · Old # 06938 | $1.82/EA |
| 6 | TN4042888 | 8 | Washer, Flat, #10, SsFits SN up to 001999 · Old # 01683 | $2.60/EA |
| 7 | TN4041004 | 4 | Nut, Hex, Lock, M5 X 0.8, NlFits SN up to 001999 · Old # 06549 | $2.50/EA |
| 8 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 001999 · Old # 08708 | $2.50/EA |
| 9 | TN8004132 | 1 | Module, Ecu, Lpg [Gm 1.6l]Fits SN up to 001999 · Old # 372857 | Call for price |
| 10 | TN8005292 | 1 | Bushing, M06 - 1.50 X .25 - 27nptFits SN up to 001999 · Old # 372537 | $91.61/EA |
| 11 | TN8005297 | 1 | Gasket, Manifold, IntakeFits SN up to 001999 · Old # 372544 | $33.80/EA |
| 12 | TN8005300 | 1 | Manifold, Intake [1.6l]Fits SN up to 001999 · Old # 372547 | $802.09/EA |
| 13 | TN8045799 | 1 | Plug, .12npt, SsFits SN up to 001999 · Old # 372548 | $2.10/EA |
| 14 | TN8005301 | 1 | Plug, Manifold, IntakeFits SN up to 001999 · Old # 372549 | $16.45/EA |
| 15 | TN8005302 | 1 | Plug, Port, Sensor [Map]Fits SN up to 001999 · Old # 372550 | $29.36/EA |
| 16 | TN8045809 | 1 | Bracket, Reg [1.6l]Fits SN up to 001999 · Old # 372576 | $262.94/EA |
| 17 | TN4030349 | 1 | Spacer, Sppt, Fltr Lock OffFits SN up to 001999 · Old # 372577 | $188.06/EA |
| 18 | TN8005315 | 4 | Plug, Hole, InjectorFits SN up to 001999 · Old # 372579 | $29.50/EA |
| 19 | TN8005198 | 1 | Sensor [Tmap]Fits SN up to 001999 · Old # 372493 | $206.90/EA |
| 20 | TN372482 | 1 | Housing, Throttle, 40mm [Bosch]Fits SN up to 001999 · Old # 372482 · current Tennant number (Tennant parts catalog) | Call for price |
| 21 | TN8005288 | 5 | Pin, RetainerFits SN up to 001999 · Old # 372523 | $15.00/EA |
| 22 | TN8005316 | 1 | Adapter, Valve, Fuel TrimFits SN up to 001999 · Old # 372580 | $620.20/EA |
| 23 | TN8005317 | 1 | Adapter, PlateFits SN up to 001999 · Old # 372582 | $119.17/EA |
| 24 | TN8005272 | 1 | Regulator, LpgFits SN up to 001999 · Old # 372500 | $786.10/EA |
| 25 | TN8004156 | 1 | Mixer, Lpg [Gm 1.6l]Fits SN up to 001999 · Old # 372898 | $668.40/EA |
| 26 | TN8005326 | 2 | GasketFits SN up to 001999 · Old # 372608 | $12.90/EA |
| 27 | TN8005330 | 1 | Adapter, Throttle BodyFits SN up to 001999 · Old # 372612 | $72.01/EA |
| 28 | TN8005284 | 1 | Fitting, CapFits SN up to 001999 · Old # 372515 | $45.40/EA |
| 29 | TN8005283 | 2 | Fitting, E70Fits SN up to 001999 · Old # 372512 | $49.60/EA |
| 30 | TN4030348 | 2 | Fitting, StrFits SN up to 001999 · Old # 372514 | Call for price |
| 31 | TN8005277 | 1 | Hose, Balancing, Press, 680mmFits SN up to 001999 · Old # 372506 | $61.21/EA |
| 32 | TN8005278 | 1 | Hose, Balancing, Press, 045mmFits SN up to 001999 · Old # 372507 | $15.05/EA |
| 33 | TN8005282 | 1 | Fitting, Hose, Vacuum, .25Fits SN up to 001999 · Old # 372511 | $13.90/EA |
| 34 | TN8005286 | 1 | Restrictor, Jet, CoolantFits SN up to 001999 · Old # 372517 | $21.04/EA |
| 35 | TN8005192 | 1 | Seal, OrgFits SN up to 001999 · Old # 372484 | $26.40/EA |
| 36 | TN8045785 | 1 | Sleeve, Throttle, Plstc [Bosch]Fits SN up to 001999 · Old # 372498 | $21.97/EA |
| 37 | TN8005310 | 1 | Valve, CheckFits SN up to 001999 · Old # 372569 | $35.91/EA |
| 38 | TN8005327 | 1 | Hose, 170mm [Ftv - Ptv]Fits SN up to 001999 · Old # 372609 | $110.98/EA |
| 39 | TN8005323 | 1 | Hose, Valve, Press Trim, 350mmFits SN up to 001999 · Old # 372605 | $83.78/EA |
| 40 | TN8005325 | 1 | Hose, 9.5mm X 290mm [Pcv]Fits SN up to 001999 · Old # 372607 | $31.63/EA |
| 41 | TN8005289 | 1 | Hose, Mold, .62 To .75Fits SN up to 001999 · Old # 372528 | $128.47/EA |
| 42 | TN8005324 | 1 | Hose, 355mm [Fl - Vrp]Fits SN up to 001999 · Old # 372606 | $49.09/EA |
| 43 | TN8005281 | 1 | Fitting, E90Fits SN up to 001999 · Old # 372510 | $14.10/EA |
| 44 | TN8005329 | 1 | Fitting, Str, E90, .25nptFits SN up to 001999 · Old # 372611 | $17.40/EA |
| 45 | TN8005328 | 1 | Fitting, Nipple, .25npt, BrsFits SN up to 001999 · Old # 372610 | $12.30/EA |
| 46 | TN8005287 | 3 | Isolator, Mtg, Vaporizer, RbrFits SN up to 001999 · Old # 372518 | $48.70/EA |
| 47 | TN8045804 | 1 | Adapter [1.6]Fits SN up to 001999 · Old # 372558 | $225.63/EA |
| 48 | TN8005331 | 1 | Seal, Org, Throttle BodyFits SN up to 001999 · Old # 372613 | $9.40/EA |
| 49 | TN8005274 | 1 | Valve, Fuelock, Lpg, Wire ConnectorFits SN up to 001999 · Old # 372503 | $195.80/EA |
| TN8005332 | 1 | Filter Kit, Fuelock, LpgFits SN up to 001999 · Old # 372615 | $88.40/EA | |
| 50 | TN8005273 | 1 | Valve, Trim, Fuel, Normal FlowFits SN up to 001999 · Old # 372501 | $127.57/EA |
| 51 | TN8005199 | 1 | Valve, Body, Throttle, LpgFits SN up to 001999 · Old # 372497 | $129.30/EA |
| 52 | TN4017089 | 9 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN up to 001999 · Old # 63810 | $6.80/EA |
| 53 | TN4014601 | 1 | Fitting, Brs, E90, Em10/Pm06Fits SN up to 001999 · Old # 51839 | $17.40/EA |
| 54 | TN4021270 | 1 | Tube, Air Bleed, .62d 2.2l .12npt AlmFits SN up to 001999 · Old # 83578 | Call for price |
| 55 | TN4038620 | 1 | Fitting, Brs, Str, Pf04/Pm02Fits SN up to 001999 · Old # 1015930 | $16.45/EA |
| 56 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptFits SN up to 001999 · Old # 51305 | $15.10/EA |
| 57 | TN4017396 | 1 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN up to 001999 · Old # 43844 | $4.20/EA |
| 58 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 22.00lFits SN up to 001999 · Old # 73471 | $7.60/EA |

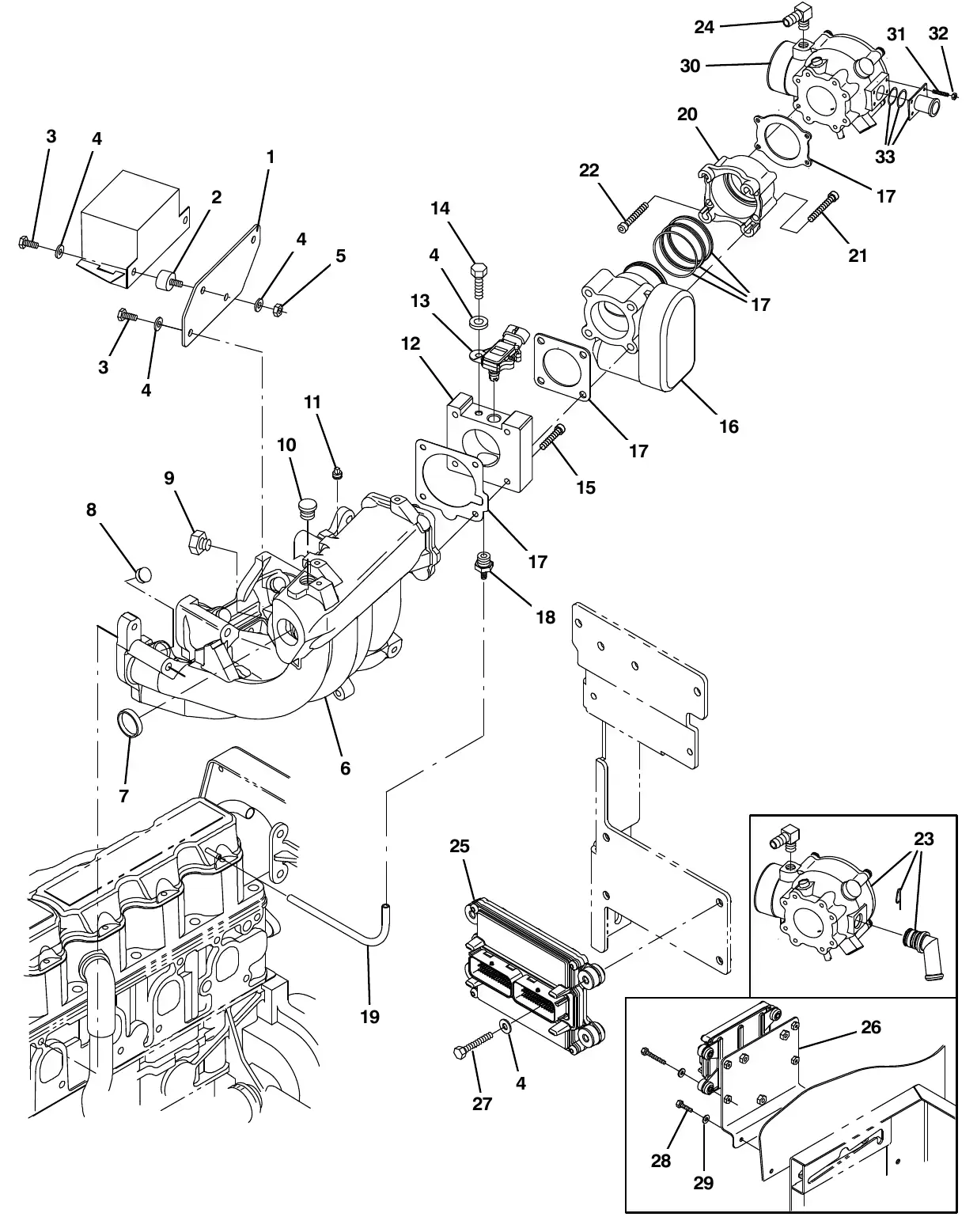

M20 GM engine EFI group, LPG (002000 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8047053 | 1 | Plate, Mtg, RelayFits SN 002000–005999 · Old # 1031312 | $56.76/EA |
| 2 | TN8005190 | 2 | Isolator, Box, RelayFits SN 002000–005999 · Old # 372470 | $25.70/EA |
| 3 | TN4042535 | 4 | Screw, Hex, .25 - 20 X 0.50, G5Fits SN 002000–005999 · Old # 19315 | $2.50/EA |
| 4 | TN4034136 | 9 | Washer, Flat, 0.25, StdFits SN 002000–005999 · Old # 32490 | $2.50/EA |
| 5 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Fits SN 002000–005999 · Old # 19312 | $2.50/EA |
| 6 | TN8005300 | 1 | Manifold, Intake [1.6l]Fits SN 002000–005999 · Old # 372547 | $802.09/EA |
| 7 | TN8005301 | 1 | Plug, Manifold, IntakeFits SN 002000–005999 · Old # 372549 | $16.45/EA |
| 8 | TN8005315 | 4 | Plug, Hole, InjectorFits SN 002000–005999 · Old # 372579 | $29.50/EA |
| 9 | TN8044969 | 1 | Fitting, Plug, M16, Intake ManifoldFits SN 002000–005999 · Old # 384995 | $16.15/EA |
| 10 | TN8005302 | 1 | Plug, Port, Sensor [Map]Fits SN 002000–005999 · Old # 372550 | $29.36/EA |
| 11 | TN8045799 | 1 | Plug, .12npt, SsFits SN 002000–005999 · Old # 372548 | $2.10/EA |
| Item 12: choose your version (2) | ||||
| 12 | TN8005291 | 1 | Adapter, Intake, Throttle BodyFits SN 002000–003122 · Old # 372534 | $296.54/EA |
| 12 | TN8002571 | 1 | AdapterFits SN 003123–005999 · Old # 9006619 | $80.90/EA |
| 13 | TN8005198 | 1 | Sensor [T Map]Fits SN 002000–005999 · Old # 372493 | $206.90/EA |
| 14 | TN4042536 | 1 | Screw, Hex, .25 - 20 X 0.75, G5Fits SN 002000–005999 · Old # 19317 | $3.20/EA |
| 15 | TN4041000 | 4 | Screw, Soc, M6 X 1.00 X 25, 12.9Fits SN 002000–005999 · Old # 06532 | $0.45/EA |
| 16 | TN384974 | 1 | Housing, Throttle, 40mm [Bosch]Fits SN 002000–005999 · Old # 384974 · current Tennant number (Tennant parts catalog) | Call for price |
| 17 | TN8002714 | 1 | Gasket Kit, Repair, Lpg [Gm1.6l 2007]Fits SN 002000–005999 · Old # 9003391 | $258.70/EA |
| 18 | TN8005296 | 1 | Fitting, Vacuum [M16 - 15 - 6h]Fits SN 002000–005999 · Old # 372543 | Call for price |
| 19 | TN8003164 | 1 | Hose, Vacuum, 0.22id X 15.0lFits SN 002000–005999 · Old # 384972 | $2.60/EA |
| 20 | TN4020972 | 1 | Adapter, Valve, 400mm [Bosch]Fits SN 002000–005999 · Old # 384996 | Call for price |
| 21 | TN4041951 | 4 | Screw, Soc, M8 X 1.25 X 70, 12.9Fits SN 002000–005999 · Old # 09037 | $11.60/EA |
| 22 | TN8003176 | 4 | Bolt, Soc Head, M5 X 80 X 35Fits SN 002000–005999 · Old # 384991 | $2.60/EA |
| 23 | TN8003171 | 1 | Mixer, W/70deg FtgFits SN 002000–003122 · Old # 384980 | $809.80/EA |
| 24 | TN8005281 | 1 | Fitting, E90Fits SN 002000–005999 · Old # 372510 | $14.10/EA |
| Item 25: choose your version (2) | ||||
| 25 | TN1028722 | 1 | Module, Ecu, Lpg [Gm1.6l 2700]Fits SN 002000–003122 · Old # 1028722 · no current Tennant number on file | Call for price |
| 25 | TN8005906 | 1 | Module, Ecu, Lpg [Gm1.6l 2010]Fits SN 003123–005999 · Old # 1056233 | $1,491.60/EA |
| 26 | TN4194597 | 1 | Bracket, Mtg, EcuFits SN 002000–003170 · Old # 1029082 | $44.44/EA |
| 27 | TN4041274 | 4 | Screw, Hex, M6 X 1.00 X 35, 8.8Fits SN 002000–005999 · Old # 06946 | $3.40/EA |
| 28 | TN4041270 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 002000–003170 · Old # 06942 | $2.50/EA |
| 29 | TN4034133 | 2 | Washer, Flat, 0.25, SaeFits SN 002000–003170 · Old # 32483 | $2.50/EA |
| 30 | TN8002570 | 1 | Mixer , LpgFits SN 003123–005999 · Old # 9006618 | $479.40/EA |
| TN8004095 | 1 | Repair Kit, MixerFits SN 003123–005999 · Old # 9010634 | $155.10/EA | |
| 31 | TN8002012 | 4 | Stud, M05 - 0.8Fits SN 003123–005999 · Old # 9007424 | $12.90/EA |
| 32 | TN8002011 | 4 | Nut, Flng, M05 - 0.8Fits SN 003123–005999 · Old # 9007423 | $2.60/EA |
| 33 | TN8005902 | 1 | Fitting, Fuel [Mixer E100Lp 2010]Fits SN 003123–005999 · Old # 1055170 | $39.10/EA |

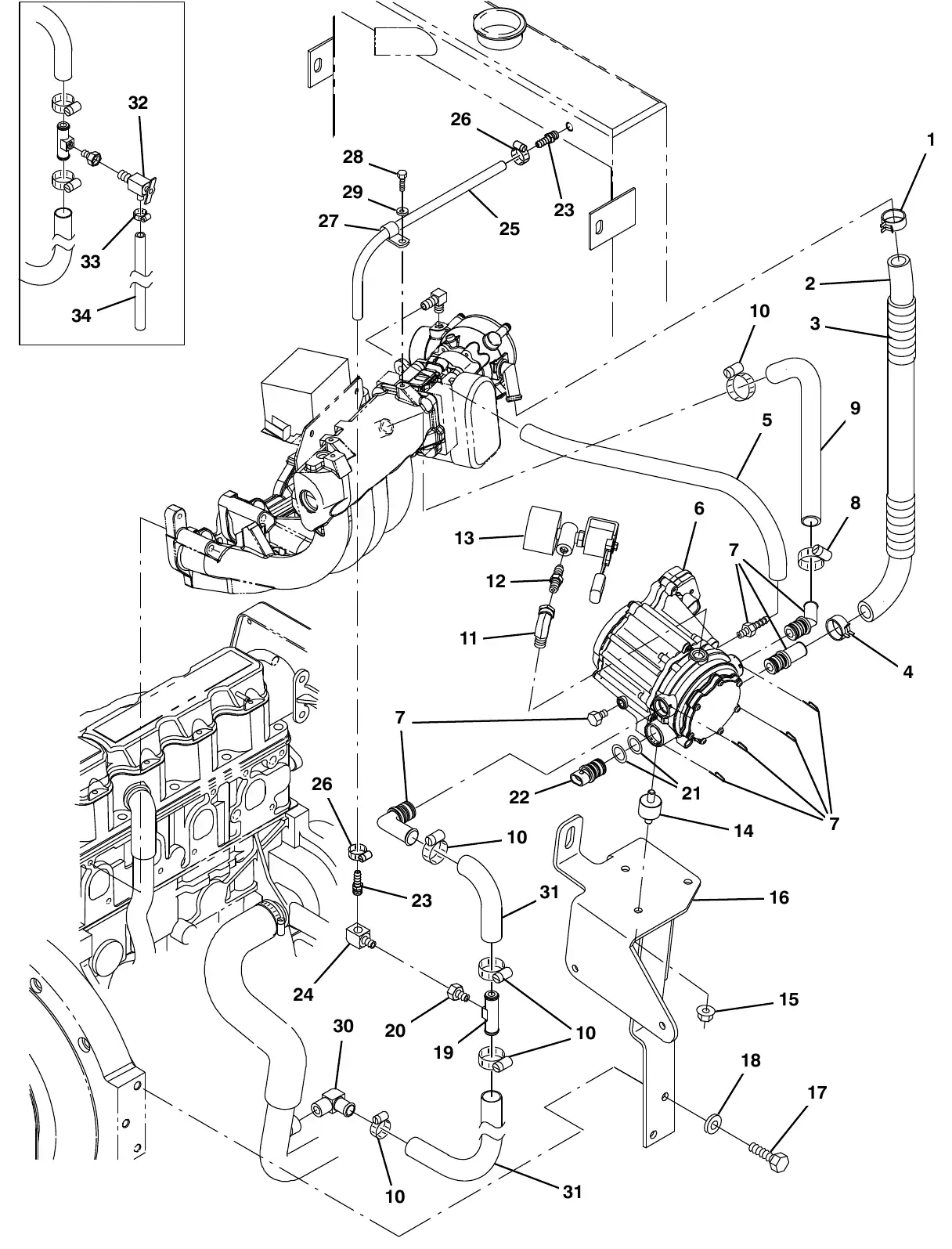

M20 GM engine vaporizer group, LPG (002000 - 003122)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003160 | 1 | Clamp, Hose, Spring, 0.75dFits SN 002000–003122 · Old # 384970 | $3.30/EA |
| 2 | TN8003172 | 1 | Hose [Mixer To Epr]Fits SN 002000–003122 · Old # 384983 | $35.40/EA |
| 3 | TN8003162 | 1 | Cover, HoseFits SN 002000–003122 · Old # 384971 | $7.50/EA |
| 4 | TN8003170 | 1 | Clamp, Hose, Spring, 0.62dFits SN 002000–003122 · Old # 384979 | $4.10/EA |
| 5 | TN8003165 | 1 | Hose, Supply, Gas, .25idFits SN 002000–003122 · Old # 384973 | $13.40/EA |
| 6 | TN8003168 | 1 | Regulator [Ep]Fits SN 002000–003122 · Old # 384977 | $3,094.90/EA |
| 7 | TN8003169 | 1 | Fitting Kit [Epr]Fits SN 002000–003122 · Old # 384978 | $351.20/EA |
| 8 | TN8005293 | 1 | Clamp, Hose, 1.0Fits SN 002000–003122 · Old # 372539 | $4.65/EA |
| 9 | TN8003173 | 1 | Hose [Epr To Manifold]Fits SN 002000–003122 · Old # 384984 | $51.20/EA |
| 10 | TN4017089 | 5 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 002000–003122 · Old # 63810 | $6.80/EA |
| 11 | TN4043371 | 1 | Fitting, Hyd, E90, SpclFits SN 002000–003122 · Old # 11442-1 | $11.80/EA |
| 12 | TN8005290 | 1 | Fitting, Nipple, .25malFits SN 002000–003122 · Old # 372529 | $6.10/EA |
| 13 | TN8003166 | 1 | Valve, Lock OffFits SN 002000–003122 · Old # 384975 | Call for price |
| TN8005332 | 1 | Filter Kit, Fuelock, LpgFits SN 002000–003122 · Old # 372615 | $88.40/EA | |
| 14 | TN8003175 | 3 | Isolator [Epr]Fits SN 002000–003122 · Old # 384986 | $37.00/EA |
| 15 | TN4041605 | 3 | Nut, Hex, Flng, M8 X 1.25Fits SN 002000–003122 · Old # 07791 | $2.50/EA |
| 16 | TN8047402 | 1 | Bracket Wldt, Mtg, Regulator, LpgFits SN 002000–003122 · Old # 1028343 | $343.00/EA |
| 17 | TN8005694 | 2 | ScrewFits SN 002000–003122 · Old # 371770 | $2.60/EA |
| 18 | TN8005719 | 2 | Washer, Flat, 0.38, HardenedFits SN 002000–003122 · Old # 371877 | $10.50/EA |
| 19 | TN4021270 | 1 | Tube, Bleed, Air, .62od 2.2l .12npt, AlmFits SN 002000–003122 · Old # 83578 | Call for price |
| 20 | TN4038620 | 1 | Fitting, Brs, Str, Pf04/Pm02Fits SN 002000–003122 · Old # 1015930 | $16.45/EA |
| 21 | TN8006175 | 2 | Seal, Org, Sensor, Temp [Epr]Fits SN 002000–003122 · Old # 1041151 | $5.50/EA |
| 22 | TN8006176 | 1 | Sensor, Temp [Epr]Fits SN 002000–003122 · Old # 1041152 | $71.10/EA |
| 23 | TN4044560 | 2 | Fitting, Brs, Str, Bm06/Pm05Fits SN 002493–003122 · Old # 150516 | $5.30/EA |
| 24 | TN4035699 | 1 | Fitting, Brs, E90, Pf04/Pm04Fits SN 002493–003122 · Old # 27048 | $5.30/EA |
| 25 | TN4189340 | 1 | Hose, Heater, 0.38idFits SN 002493–003122 · Old # 1043481 | $3.23/EA |
| 26 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 002493–003122 · Old # 54333 | $5.10/EA |
| 27 | TN4017933 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1holeFits SN 002493–003122 · Old # 67767 | $4.20/EA |
| 28 | TN4041270 | 1 | Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 002493–003122 · Old # 06942 | $2.50/EA |
| 29 | TN4034136 | 1 | Washer, Flat, 0.25, StdFits SN 002493–003122 · Old # 32490 | $2.50/EA |
| 30 | TN4014601 | 1 | Fitting, Brs, E90, Em10/Pm06Fits SN 002000–003122 · Old # 51839 | $17.40/EA |
| 31 | TN8005289 | 1 | Hose, Mold, .62 To .75 (Cut in 2)Fits SN 002000–003122 · Old # 372528 | $128.47/EA |
| 32 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptFits SN 002000–002492 · Old # 51305 | $15.10/EA |
| 33 | TN4017396 | 1 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 002000–002492 · Old # 43844 | $4.20/EA |
| 34 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 022.0lFits SN 002000–002492 · Old # 73471 | $7.60/EA |

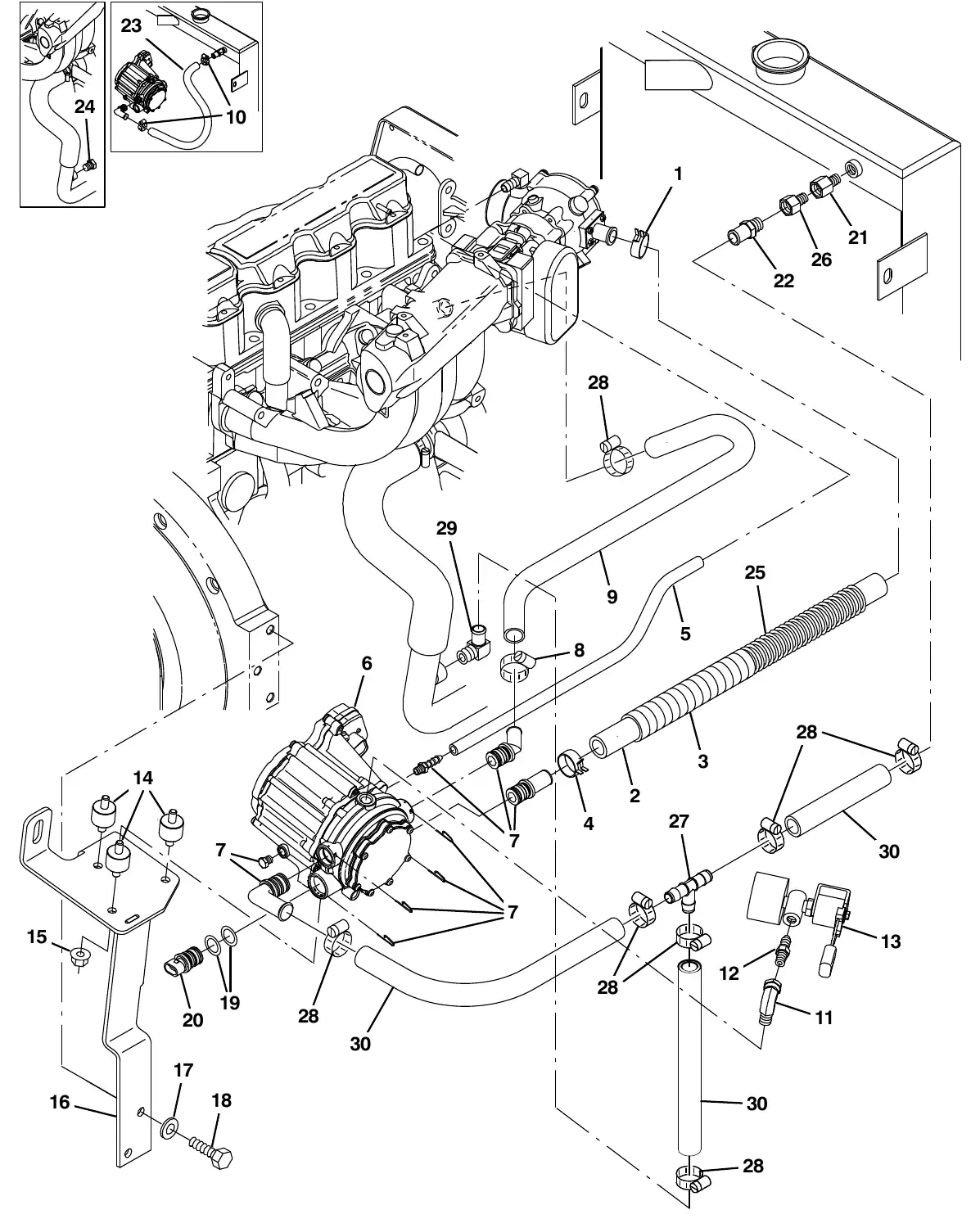

M20 GM engine vaporizer group, LPG (003123 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003160 | 1 | Clamp, Hose, Spring, 0.75dFits SN 003123–005999 · Old # 384970 | $3.30/EA |
| 2 | TN8002014 | 1 | Hose, Fuel [Mixer To Epr, 22.5”L]Fits SN 003123–005999 · Old # 9007552 | $25.96/EA |
| 3 | TN8003162 | 1 | Cover, HoseFits SN 003123–005999 · Old # 384971 | $7.50/EA |
| 4 | TN8003170 | 1 | Clamp, Hose, Spring, 0.62dFits SN 003123–005999 · Old # 384979 | $4.10/EA |
| 5 | TN8003165 | 1 | Hose, Supply, Gas, .25idFits SN 003123–005999 · Old # 384973 | $13.40/EA |
| 6 | TN8003168 | 1 | Regulator [Ep]Fits SN 003123–005999 · Old # 384977 | $3,094.90/EA |
| 7 | TN8003169 | 1 | Fitting Kit [Epr]Fits SN 003123–005999 · Old # 384978 | $351.20/EA |
| 8 | TN8005293 | 1 | Clamp, Hose, 1.0Fits SN 003123–005999 · Old # 372539 | $4.65/EA |
| 9 | TN8003173 | 1 | Hose [Epr To Manifold]Fits SN 003123–005999 · Old # 384984 | $51.20/EA |
| 10 | TN4017089 | 3 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 003123–003268 · Old # 63810 | $6.80/EA |
| 11 | TN4043371 | 1 | Fitting, Hyd, E90, SpclFits SN 003123–005999 · Old # 11442-1 | $11.80/EA |
| 12 | TN8005290 | 1 | Fitting, Nipple, .25malFits SN 003123–005999 · Old # 372529 | $6.10/EA |
| 13 | TN4015547 | 1 | Valve, Lock Off [Gm 1.6L 2010]Fits SN 003123–005999 · Old # 9006620 | $374.70/EA |
| TN8002010 | 1 | Filter Kit, Fuelock, LpgFits SN 003123–005999 · Old # 9007380 | $25.60/EA | |
| 14 | TN8003175 | 3 | Isolator [Epr]Fits SN 003123–005999 · Old # 384986 | $37.00/EA |
| 15 | TN4041605 | 3 | Nut, Hex, Flng, M8 X 1.25Fits SN 003123–005999 · Old # 07791 | $2.50/EA |
| 16 | TN8005908 | 1 | Bracket Wldt, Mtg, Reg, Lpg[Gm 2010]Fits SN 003123–005999 · Old # 1056300 | $76.94/EA |
| 17 | TN8005694 | 2 | ScrewFits SN 003123–005999 · Old # 371770 | $2.60/EA |
| 18 | TN8005719 | 2 | Washer, Flat, 0.38, HardenedFits SN 003123–005999 · Old # 371877 | $10.50/EA |
| 19 | TN8006175 | 2 | Seal, Org, Sensor, Temp [Epr]Fits SN 003123–005999 · Old # 1041151 | $5.50/EA |
| 20 | TN8006176 | 1 | Sensor, Temp [Epr]Fits SN 003123–005999 · Old # 1041152 | $71.10/EA |
| 21 | TN4041066 | 2 | Fitting, Brs, Str, Pf06/Pm04Fits SN 003123–005999 · Old # 1042772 | $7.00/EA |
| 22 | TN4035717 | 1 | Fitting, Brs, Str, Em10/Pm06Fits SN 003123–005999 · Old # 27767 | $10.50/EA |
| 23 | TN4043325 | 1 | Hose, Heater, 0.62id, 038.0lFits SN 003123–003268 · Old # 13048 | $57.07/EA |
| 24 | TN4011527 | 1 | Fitting, Hyd, Plug, Pm06Fits SN 003123–003268 · Old # 762282 | $3.74/EA |
| 25 | TN8002015 | 1 | Spring, 3/4 X 16 [Gm1.6L 2010 Lpg]Fits SN 003123–005999 · Old # 9007553 | $28.98/EA |
| 26 | TN4038308 | 1 | Fitting, Adapter, Orifice, Pf06/Pm06Fits SN 003123–005999 · Old # 1015547 | $58.87/EA |
| 27 | TN4034918 | 1 | Fitting, Plstc, Tee, Bm10/Bm10/Bm10Fits SN 003269–005999 · Old # 1062116 | $6.20/EA |
| 28 | TN4017089 | 7 | Clamp, Hose, Wormdrive, 0.56 - 1.06d, .56wFits SN 003269–005999 · Old # 63810 | $6.80/EA |
| 29 | TN4014601 | 1 | Fitting, Brs, E90, Em10/Pm06Fits SN 003269–005999 · Old # 51839 | $17.40/EA |
| 30 | TN4035153 | 1 | Hose, Afmkt, Rbr, Heater, 0.62id, 08ftFits SN 003269–005999 · Old # 1016561 | $50.20/EA |

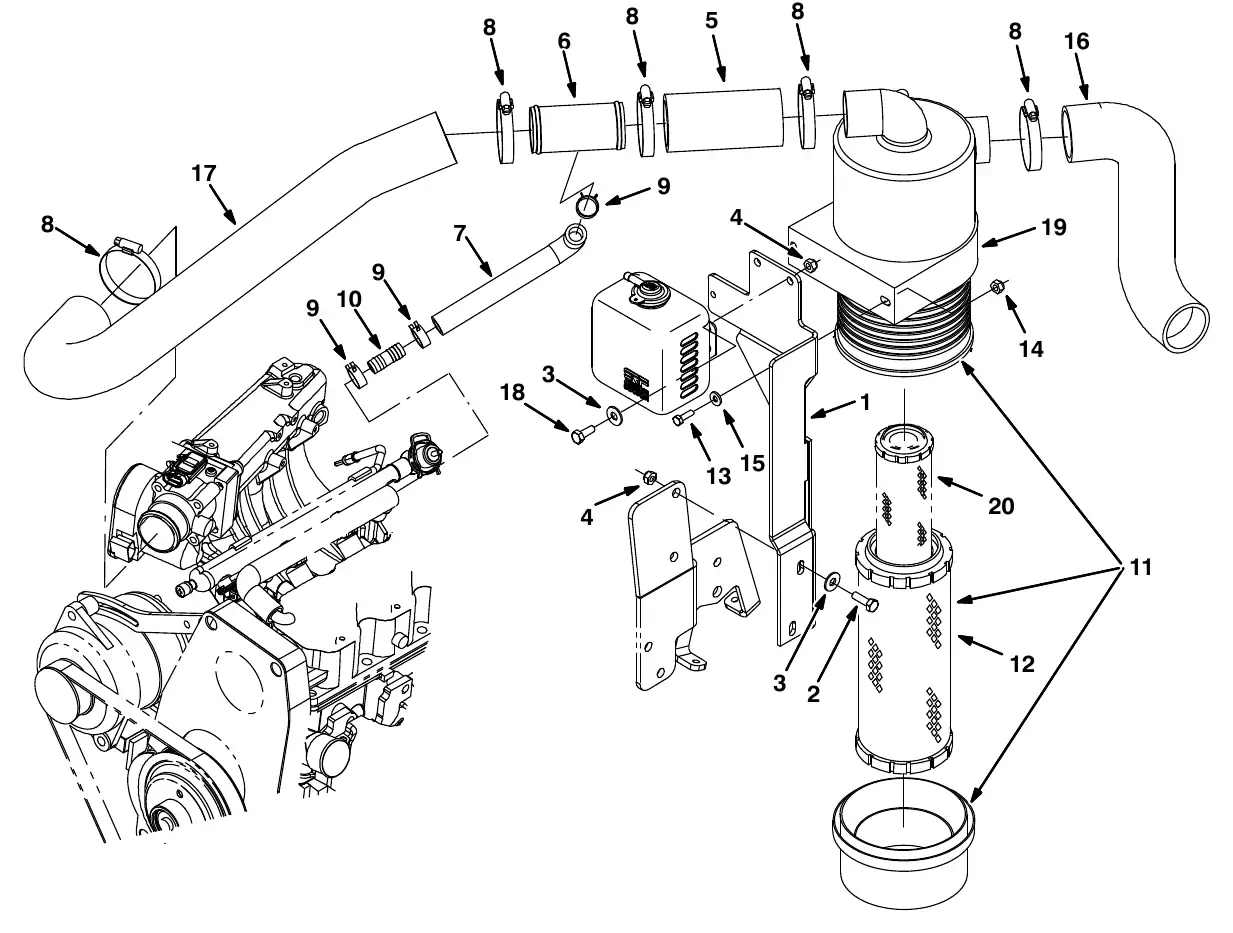

M20 GM engine air cleaner group, gasoline (000000 - 001999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194326 | 1 | Bracket, Mtg, Fltr, AirFits SN up to 001999 · Old # 1027856 | Call for price |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 001999 · Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 4 | Washer, Flat, 0.31, StdFits SN up to 001999 · Old # 32491 | $2.50/EA |
| 4 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 001999 · Old # 08709 | $2.50/EA |
| 5 | TN15543-2 | 1 | Hose, Rbr, 2.00id 2.50od 05.0lFits SN up to 001999 · Old # 15543-2 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 6 | TN4036909 | 1 | Tube Wldt, TeeFits SN up to 001999 · Old # 1011780 | $78.30/EA |
| 7 | TN1021514 | 1 | Hose, Heater, E90, 0.62id 07.0 2.0Fits SN up to 001999 · Old # 1021514 · current Tennant number (Tennant parts catalog) | $14.60/EA |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN up to 001999 · Old # 14432 | $5.30/EA |
| 9 | TN4036934 | 3 | Clamp, Hose, Spring Stl, 0.86d X 0.38wFits SN up to 001999 · Old # 1011899 | $0.60/EA |
| 10 | TN4028483 | 1 | Fitting, Plstc, Str, Bm10/Bm10Fits SN up to 001999 · Old # 365164 | $4.20/EA |
| 11 | TN4032296 | 1 | Filter Assy, AirFits SN up to 001999 · Old # 369745 | $124.20/EA |
| 12 | TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN up to 001999 · Old # 369746 | $34.60/EA |
| 13 | TN4041271 | 2 | Screw, Hex, M6 X 1.0 X 20, 8.8Fits SN up to 001999 · Old # 06943 | $2.50/EA |
| 14 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 001999 · Old # 08708 | $2.50/EA |
| 15 | TN4034133 | 2 | Washer, Flat, 0.25 SaeFits SN up to 001999 · Old # 32483 | $2.50/EA |
| 16 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Fits SN up to 001999 · Old # 1020949 | $59.99/EA |
| 17 | TN8005810 | 1 | Hose, Intake, Mold, 2.00id, Gas [Epdm]Fits SN up to 001999 · Old # 1017978 | $63.73/EA |
| 18 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN up to 001999 · Old # 16931 | $2.50/EA |
| 19 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirFits SN up to 001999 · Old # 369747 | $32.90/EA |
| 20 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Fits SN up to 001999 · Old # 398279 | $52.20/EA |

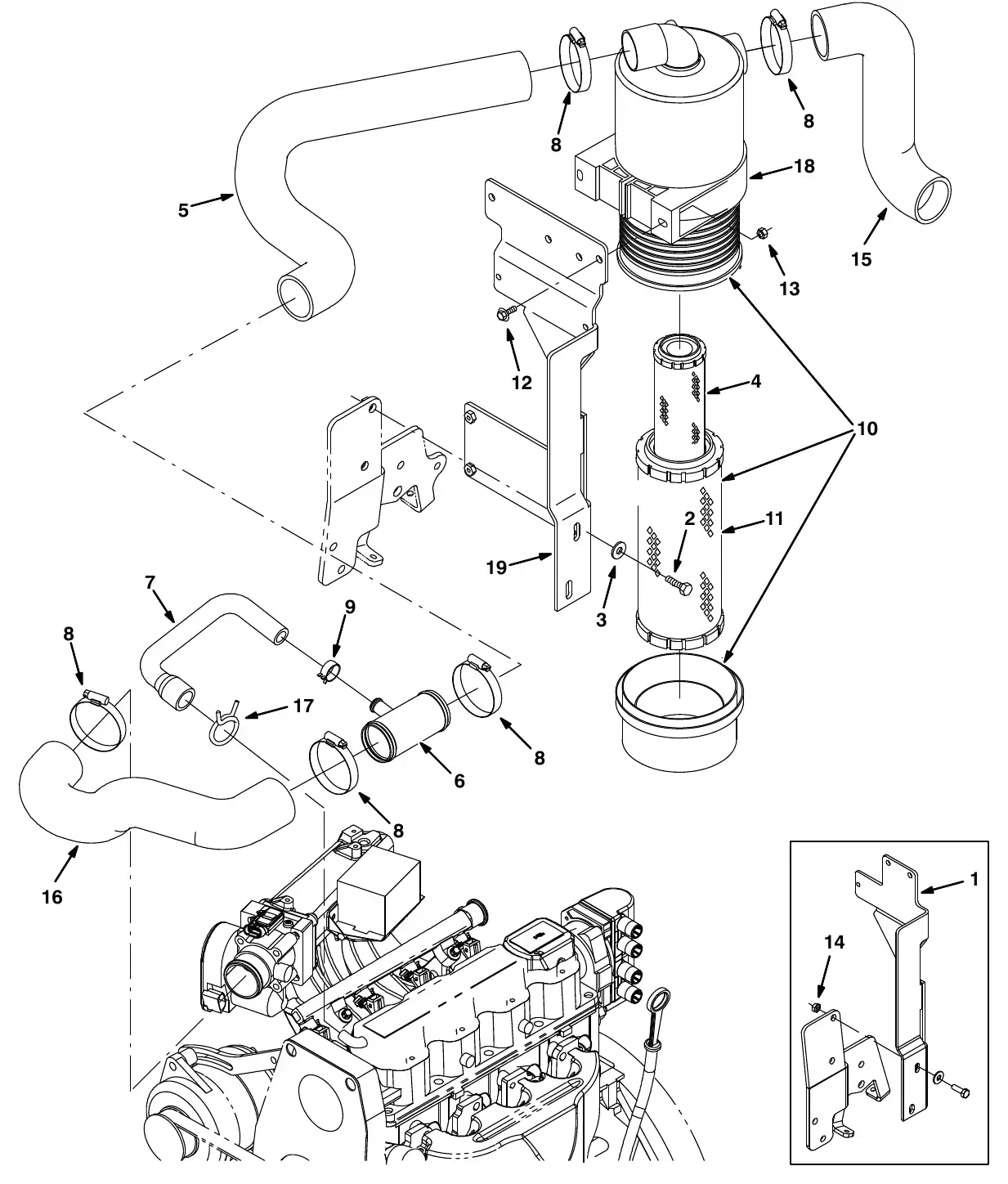

M20 GM engine air cleaner group, gasoline (002000 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194326 | 1 | Bracket, Mtg, Fltr, AirFits SN 002000–003122 · Old # 1027856 | Call for price |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 002000–005999 · Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 002000–005999 · Old # 32491 | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Fits SN 002000–005999 · Old # 398279 | $52.20/EA |
| 5 | TN4032052 | 1 | Hose, Intake, Mold, 2.0id [Epdm M20/T20]Fits SN 002000–005999 · Old # 1031614 | $59.19/EA |
| 6 | TN4036909 | 1 | Tube Wldt, TeeFits SN 002000–005999 · Old # 1011780 | $78.30/EA |
| 7 | TN8005601 | 1 | Hose, Vent, E90, 0.62id[Gm1.6l 2007]Fits SN 002000–005999 · Old # 1032323 | $35.66/EA |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 002000–005999 · Old # 14432 | $5.30/EA |
| 9 | TN4036934 | 1 | Clamp, Hose, Spring Stl, 0.86d X 0.38wFits SN 002000–005999 · Old # 1011899 | $0.60/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirFits SN 002000–005999 · Old # 369745 | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN 002000–005999 · Old # 369746 | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 002000–005999 · Old # 1036892 | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlFits SN 002000–005999 · Old # 08708 | $2.50/EA |
| 14 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 002000–007328 · Old # 08709 | $2.50/EA |
| 15 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Fits SN 002000–005999 · Old # 1020949 | $59.99/EA |
| 16 | TN1031609 | 1 | Hose, Intake, Mold, 2.0id, GasFits SN 002000–005999 · Old # 1031609 · current Tennant number (Tennant parts catalog) | Call for price |
| 17 | TN8005705 | 1 | Clamp, Spring, 1.50Fits SN 002000–005999 · Old # 371854 | $5.45/EA |
| 18 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirFits SN 002000–005999 · Old # 369747 | $32.90/EA |
| 19 | TN4188693 | 1 | Bracket, Mtg, Fltr, AirFits SN 003123–005999 · Old # 1056355 | $61.91/EA |

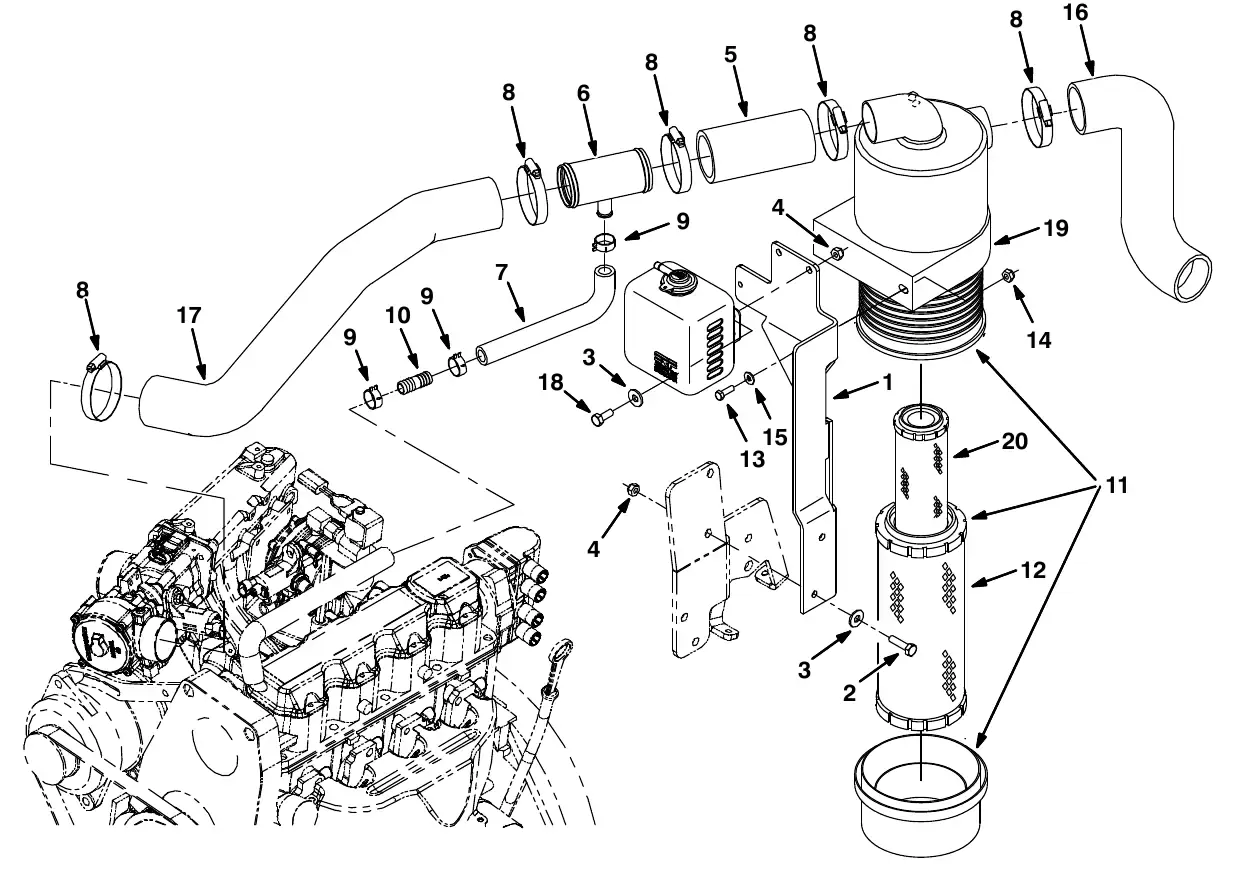

M20 GM engine air cleaner group, LPG (000000 - 001999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194326 | 1 | Bracket, Mtg, Fltr, AirFits SN up to 001999 · Old # 1027856 | Call for price |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 001999 · Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 4 | Washer, Flat, 0.31, StdFits SN up to 001999 · Old # 32491 | $2.50/EA |
| 4 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 001999 · Old # 08709 | $2.50/EA |
| 5 | TN15543-2 | 1 | Hose, Rbr, 2.00id 2.50od 05.0lFits SN up to 001999 · Old # 15543-2 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 6 | TN4036909 | 1 | Tube Wldt, TeeFits SN up to 001999 · Old # 1011780 | $78.30/EA |
| 7 | TN1021514 | 1 | Hose, Heater, E90, 0.62id 07.0 2.0Fits SN up to 001999 · Old # 1021514 · current Tennant number (Tennant parts catalog) | $14.60/EA |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN up to 001999 · Old # 14432 | $5.30/EA |
| 9 | TN4036934 | 3 | Clamp, Hose, Spring Stl, 0.86d X 0.38wFits SN up to 001999 · Old # 1011899 | $0.60/EA |
| 10 | TN4028483 | 1 | Fitting, Plstc, Str, Bm10/Bm10Fits SN up to 001999 · Old # 365164 | $4.20/EA |
| 11 | TN4032296 | 1 | Filter Assy, AirFits SN up to 001999 · Old # 369745 | $124.20/EA |
| 12 | TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN up to 001999 · Old # 369746 | $34.60/EA |
| 13 | TN4041271 | 2 | Screw, Hex, M6 X 1.0 X 20, 8.8Fits SN up to 001999 · Old # 06943 | $2.50/EA |
| 14 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 001999 · Old # 08708 | $2.50/EA |
| 15 | TN4034133 | 2 | Washer, Flat, 0.25 SaeFits SN up to 001999 · Old # 32483 | $2.50/EA |
| 16 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Fits SN up to 001999 · Old # 1020949 | $59.99/EA |
| 17 | TN4035525 | 1 | Hose, Intake, Mold, 2.00id, Lpg [Epdm]Fits SN up to 001999 · Old # 1017987 | $63.67/EA |
| 18 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN up to 001999 · Old # 16931 | $2.50/EA |
| 19 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirFits SN up to 001999 · Old # 369747 | $32.90/EA |
| 20 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Fits SN up to 001999 · Old # 398279 | $52.20/EA |

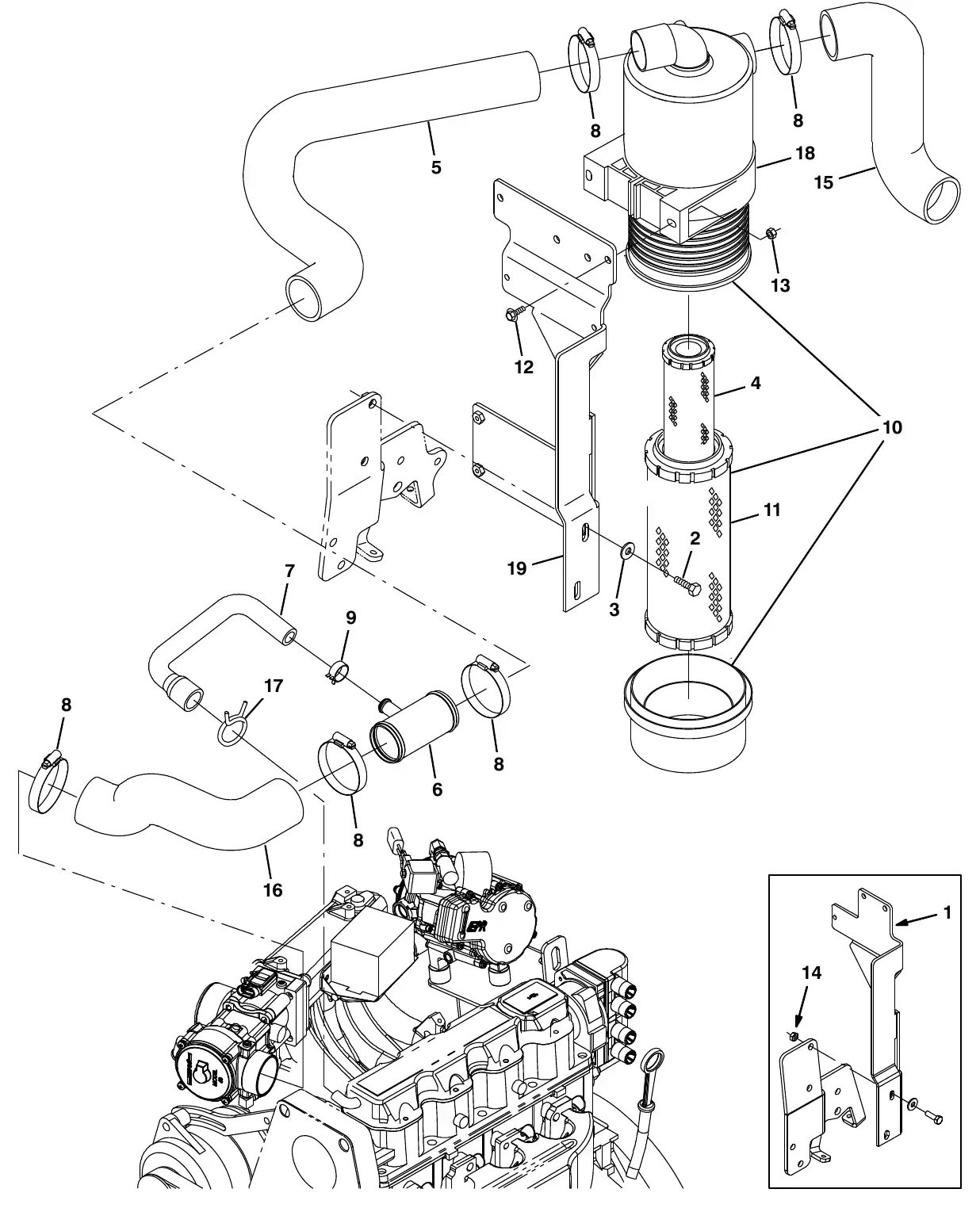

M20 GM engine air cleaner group, LPG (002000 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194326 | 1 | Bracket, Mtg, Fltr, AirFits SN 002000–003122 · Old # 1027856 | Call for price |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 002000–005999 · Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 002000–005999 · Old # 32491 | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Fits SN 002000–005999 · Old # 398279 | $52.20/EA |
| 5 | TN4032052 | 1 | Hose, Intake, Mold, 2.0id [Epdm M20/T20]Fits SN 002000–005999 · Old # 1031614 | $59.19/EA |
| 6 | TN4036909 | 1 | Tube Wldt, TeeFits SN 002000–005999 · Old # 1011780 | $78.30/EA |
| 7 | TN8005601 | 1 | Hose, Vent, E90, 0.62id[Gm1.6l 2007]Fits SN 002000–005999 · Old # 1032323 | $35.66/EA |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 002000–005999 · Old # 14432 | $5.30/EA |
| 9 | TN4036934 | 1 | Clamp, Hose, Spring Stl, 0.86d X 0.38wFits SN 002000–005999 · Old # 1011899 | $0.60/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirFits SN 002000–005999 · Old # 369745 | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN 002000–005999 · Old # 369746 | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 002000–005999 · Old # 1036892 | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlFits SN 002000–005999 · Old # 08708 | $2.50/EA |
| 14 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 002000–007328 · Old # 08709 | $2.50/EA |
| 15 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Fits SN 002000–005999 · Old # 1020949 | $59.99/EA |
| Item 16: choose your version (2) | ||||
| 16 | TN4192138 | 1 | Hose, Intake, Mold, 2.0id, LpgFits SN 002000–003122 · Old # 1031553 | $36.30/EA |
| 16 | TN4188388 | 1 | Hose, Intake, Mold, 2.0id, Lpg [Gm 2010]Fits SN 003123–005999 · Old # 1054558 | $24.54/EA |
| 17 | TN8005705 | 1 | Clamp, Spring, 1.50Fits SN 002000–005999 · Old # 371854 | $5.45/EA |
| 18 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirFits SN 002000–005999 · Old # 369747 | $32.90/EA |
| 19 | TN4188693 | 1 | Bracket, Mtg, Fltr, AirFits SN 003123–005999 · Old # 1056355 | $61.91/EA |

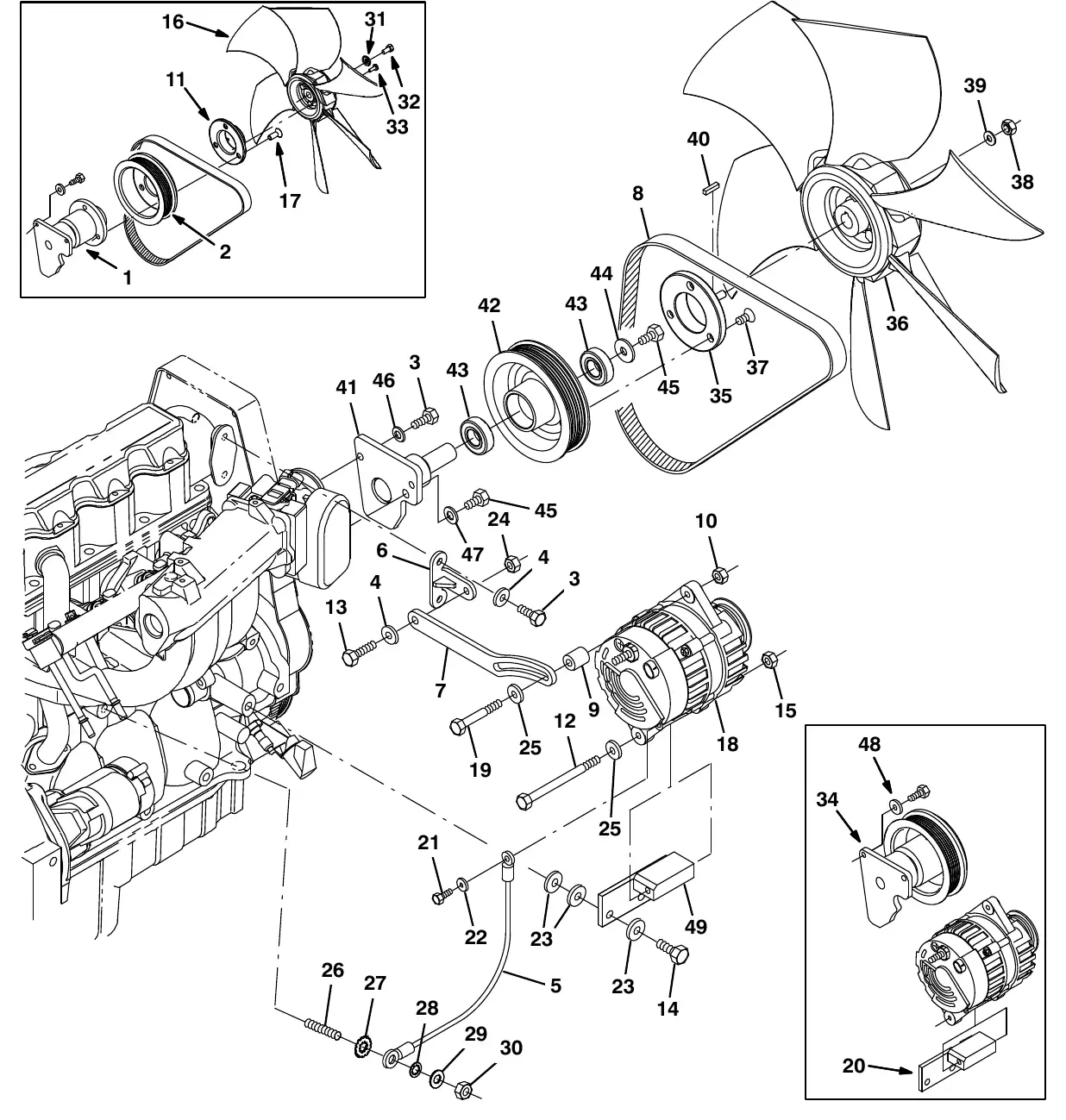

M20 GM engine alternator and fan group (000000 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005710 | 1 | Base Assy, Fan, W/O PulleyFits SN up to 001999 · Old # 371863 | $597.72/EA |
| 2 | TN4045039 | 1 | Sheave, 5.00dia [Gm1.6l 2007]Fits SN up to 001999 · Old # 1033428 | $459.70/EA |
| 3 | TN4041844 | 4 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN up to 005999 · Old # 16931 | $2.50/EA |
| 4 | TN8005712 | 5 | Washer, Flat, 0.31, HardenedFits SN up to 005999 · Old # 371865 | $10.85/EA |
| 5 | TN4033431 | 1 | Wire, 10ga 16.0l Blk .25ring /.38ringFits SN up to 005999 · Old # 31525 | $12.80/EA |
| 6 | TN8005715 | 1 | Bracket, Anchor, Strap, AlternatorFits SN up to 005999 · Old # 371871 | $77.87/EA |
| 7 | TN8005716 | 1 | Strap, Adj, AlternatorFits SN up to 005999 · Old # 371872 | $149.48/EA |
| 8 | TN4045064 | 1 | Belt, Ribbed, 38.5lFits SN up to 005999 · Old # 1033644 | $73.00/EA |
| 9 | TN8005305 | 1 | Spacer, Strap, Adj, AlternatorFits SN up to 005999 · Old # 372557 | $29.90/EA |
| 10 | TN4019808 | 1 | Nut, Hex, Std, M8 X 1.25Fits SN up to 005999 · Old # 39311 | $2.50/EA |
| 11 | TN4032250 | 1 | Spacer, FanFits SN up to 001999 · Old # 1032242 | $181.00/EA |
| 12 | TN4016249 | 1 | Screw, Hex, .31 - 18 X 4.50, 5Fits SN up to 005999 · Old # 39785 | $4.30/EA |
| 13 | TN4028953 | 1 | Screw, Hex, .31 - 18 X 1.75, 5Fits SN up to 005999 · Old # 76958 | $2.93/EA |
| 14 | TN4041286 | 2 | Screw, Hex, M10 X 1.5 X 20, 8.8Fits SN up to 005999 · Old # 06961 | $3.40/EA |
| 15 | TN4034656 | 1 | Nut, Hex, Lock, .31 - 18, NlFits SN up to 005999 · Old # 32983 | $2.50/EA |
| 16 | TN4045369 | 1 | Fan, Cooling, Pusher, 15.5D [2007]Fits SN up to 001999 · Old # 1035031 | $249.90/EA |
| 17 | TN4013994 | 3 | Screw, Flt, .38 - 16 X 1.00, AlFits SN up to 001999 · Old # 48998 | $5.10/EA |
| 18 | TN8002970 | 1 | Alternator, 12vdc 075a [Multi Grv]Fits SN up to 005999 · Old # 393209 | $336.90/EA |
| 19 | TN4027729 | 1 | Screw, Hex, M8 X 1.25 X 60, 8.8, FlFits SN up to 005999 · Old # 363976 | $3.40/EA |
| 20 | TN4011775 | 1 | Bracket Kit, Alternator, RepairFits SN up to 003122 · Old # 9006917 | $150.69/EA |
| 21 | TN4017298 | 1 | Screw, Hex, #10 - 24 X 0.50, SsFits SN up to 005999 · Old # 42011 | $3.40/EA |
| 22 | TN4042244 | 1 | Washer, Flat, #10Fits SN up to 005999 · Old # 19066 | $2.50/EA |
| 23 | TN4034134 | 4 | Washer, Flat, 0.38 SaeFits SN up to 005999 · Old # 32485 | $2.50/EA |
| 24 | TN4042533 | 1 | Nut, Hex, Std, .31 - 18Fits SN up to 005999 · Old # 19313 | $2.50/EA |
| 25 | TN4015595 | 2 | Washer, Flat, 0.31 SaeFits SN up to 005999 · Old # 39349 | $2.50/EA |
| 26 | TN4024389 | 1 | Stud, M10 X 1.50 [35]Fits SN up to 005999 · Old # 384442 | $9.60/EA |
| 27 | TN4034661 | 1 | Washer, Lock, Int, 0.38Fits SN up to 005999 · Old # 32988 | $2.60/EA |
| 28 | TN4016788 | 1 | Washer, Lock, Int - Ext, 0.38Fits SN up to 005999 · Old # 41142 | $3.40/EA |
| 29 | TN4034134 | 1 | Washer, Flat, 0.38 SaeFits SN up to 005999 · Old # 32485 | $2.50/EA |
| 30 | TN4034476 | 1 | Nut, Hex, Jam, M10 X 1.5, SsFits SN up to 005999 · Old # 32716 | $4.00/EA |
| 31 | TN4016796 | 1 | Washer, Flat, Belleville, .31Fits SN up to 001999 · Old # 41186 | $3.50/EA |
| 32 | TN4041828 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8Fits SN up to 001999 · Old # 16735 | $3.40/EA |
| 33 | TN4041958 | 3 | Screw, Pan, M6 X 1.00 X 16, 4.8Fits SN up to 001999 · Old # 09145 | $3.40/EA |
| 34 | TN4011832 | 1 | Sheave Assy Kit, RepairFits SN 002000–003122 · Old # 9007088 | $294.80/EACall for availability |
| 35 | TN4045415 | 1 | Spacer, Fan, Taper [2007]Fits SN 002000–005999 · Old # 1035530 | $202.10/EA |
| Item 36: choose your version (2) | ||||
| 36 | TN8006233 | 1 | Fan, Cooling, 15.5d, 6 Blade, .5b TaperFits SN 002000–003038 · Old # 1035771 | $180.00/EA |
| 36 | TN4042791 | 1 | Fan, Cooling, 16.0d, 6 BladeFits SN 003039–005999 · Old # 1046237 | $175.10/EA |
| 37 | TN4013993 | 3 | Screw, Flt, .38 - 16 X 0.75, AlFits SN 002000–005999 · Old # 48996 | $4.00/EA |
| 38 | TN4041926 | 1 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 002000–005999 · Old # 08709 | $2.50/EA |
| 39 | TN4034137 | 1 | Washer, Flat, 0.31, StdFits SN 002000–005999 · Old # 32491 | $2.50/EA |
| 40 | TN4042788 | 1 | Key, Sq, 0.12 X 0.12, 0.50lFits SN 002000–005999 · Old # 00960 | $3.60/EA |
| 41 | TN4038767 | 1 | Plate Wldt, Fan, Hub [Gm 1.6l]Fits SN 003123–005999 · Old # 1055381 | $87.00/EACall for availability |
| 42 | TN4038776 | 1 | Sheave, Mach [Gm1.6l]Fits SN 003123–005999 · Old # 1055425 | Call for price |
| 43 | TN4038766 | 2 | Bearing, Ball, 20mm B 42mm D 12mm WFits SN 003123–005999 · Old # 1055377 | $12.60/EA |
| 44 | TN4037922 | 1 | Washer, Flat, 0.40b 1.12d .12, SsFits SN 003123–005999 · Old # 1014563 | $5.80/EA |
| 45 | TN4039390 | 2 | Screw, Hex, .38 - 16 X 0.75, G5Fits SN 003123–005999 · Old # 21195 | $3.40/EA |
| 46 | TN4015595 | 2 | Washer, Flat, 0.31, SaeFits SN 003123–005999 · Old # 39349 | $2.50/EA |
| 47 | TN4034134 | 1 | Washer, Flat, 0.38, SaeFits SN 003123–005999 · Old # 32485 | $2.50/EA |
| 48 | TN8005712 | 2 | Washer, Flat, 0.31, HardenedFits SN up to 003122 · Old # 371865 | $10.85/EA |
| 49 | TN4198589 | 1 | Bracket Wldt, Alternator, Lower [Gm1.6l]Fits SN 003123–005999 · Old # 1008640 | $223.21/EA |

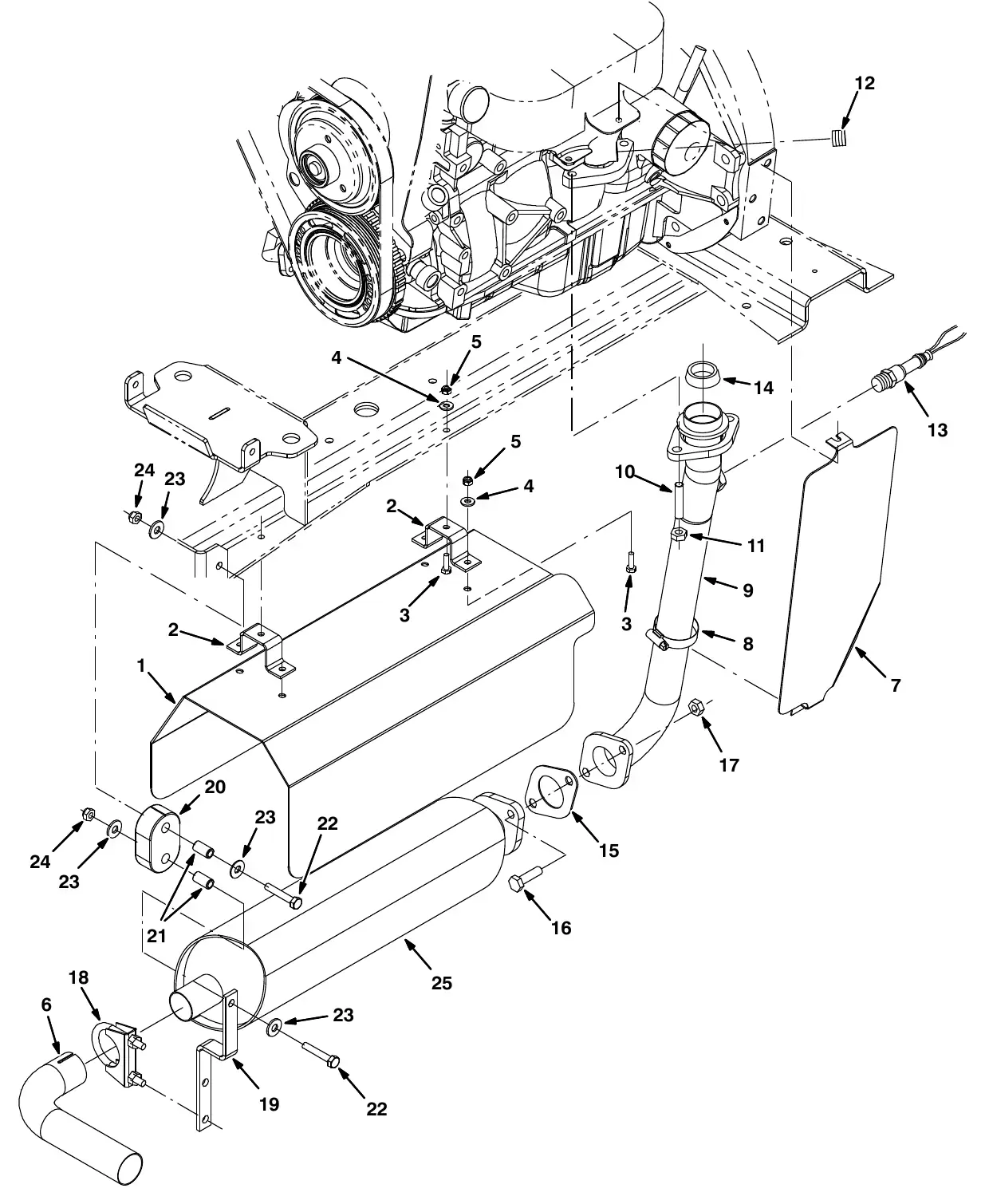

M20 GM engine muffler group (000000 - 001999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031022 | 1 | Channel, Shield, MufflerFits SN up to 001999 · Old # 1020602 · replaced by 4031022 (Tennant parts catalog) | Call for price |
| 2 | TN1022113 | 2 | Bracket, Retainer, Shield, HeatFits SN up to 001999 · Old # 1022113 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 3 | TN4041931 | 6 | Screw, Hex, M6 X 1.0 X 20, SsFits SN up to 001999 · Old # 08716 | $3.20/EA |
| 4 | TN4034133 | 6 | Washer, Flat, 0.25 SaeFits SN up to 001999 · Old # 32483 | $2.50/EA |
| 5 | TN4041928 | 6 | Nut, Hex, Lock, M6 X 1.0, Ss, NlFits SN up to 001999 · Old # 08712 | $2.50/EA |
| 6 | TN4032843 | 1 | Tube, Exhaust, 1.5dFits SN up to 001999 · Old # 1021789 | $45.20/EA |
| 7 | TN4016140 | 1 | Plate, Shield, Heat, Gas/Lpg, ReplmtFits SN up to 001999 · Old # 9002394 | $137.90/EA |
| 8 | TN4026556 | 1 | Clamp, Hose, Wormdrive, 1.25 - 2.00D, .50WFits SN up to 001999 · Old # 79381 | $6.20/EA |
| 9 | TN4035535 | 1 | Tube Wldt, Exhaust, Gas/LpgFits SN up to 001999 · Old # 1018142 | Call for price |
| 10 | TN4024389 | 2 | Stud, M10 X 1.50 [35]Fits SN up to 001999 · Old # 384442 | $9.60/EA |
| 11 | TN4041626 | 2 | Nut, Hex, M10 X 1.50 [Stover]Fits SN up to 001999 · Old # 08166 | $2.50/EA |
| 12 | TN8005707 | 1 | Fitting, Pipe, Plug, Metric, M18,SocFits SN up to 001999 · Old # 371860 | $75.00/EA |
| 13 | TN8005196 | 1 | Sensor, OxygenFits SN up to 001999 · Old # 372491 | $264.10/EA |
| 14 | TN8005708 | 1 | Gasket, Flng, Pipe, ExhaustFits SN up to 001999 · Old # 371861 | $144.50/EA |
| 15 | TN4036679 | 1 | Gasket, Exhaust, 2hole, 3.4bcFits SN up to 001999 · Old # 1011216 | $8.10/EA |
| 16 | TN4019759 | 2 | Screw, Hex, M10 X 1.5 X 35, 8.8Fits SN up to 001999 · Old # 39284 | $4.00/EA |
| 17 | TN4041626 | 2 | Nut, Hex, M10 X 1.5 [Stover]Fits SN up to 001999 · Old # 08166 | $2.50/EA |
| 18 | TN4035092 | 1 | Clamp, Muffler, 1.62dFits SN up to 001999 · Old # 24012 | $6.20/EA |
| 19 | TN4035523 | 1 | Bracket, Muffler, Hanger, FrontFits SN up to 001999 · Old # 1017969 | $27.50/EA |
| 20 | TN4037292 | 1 | Isolator, RbrFits SN up to 001999 · Old # 1013031 | $18.30/EA |
| 21 | TN4040603 | 2 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN up to 001999 · Old # 222496 | $3.40/EA |
| 22 | TN4040607 | 2 | Screw, Hex, M8 X 1.25 X 45, SsFits SN up to 001999 · Old # 222505 | $4.00/EA |
| 23 | TN4042902 | 4 | Washer, Flat, 0.31, SsFits SN up to 001999 · Old # 01685 | $2.60/EA |
| 24 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 001999 · Old # 08713 | $3.30/EA |
| Item 25: choose your version (2) | ||||
| 25 | TN1022794 | 1 | Muffler, Short [Non - Catalytic Gm1.6/3.0]Fits SN up to 001999 · Old # 1022794 · no current Tennant number on file | $308.90/EA |
| 25 | TN8005803 | 1 | Muffler, Catalytic [Gm 1.6]Fits SN up to 001999 · Old # 1016624 | $2,206.14/EA |

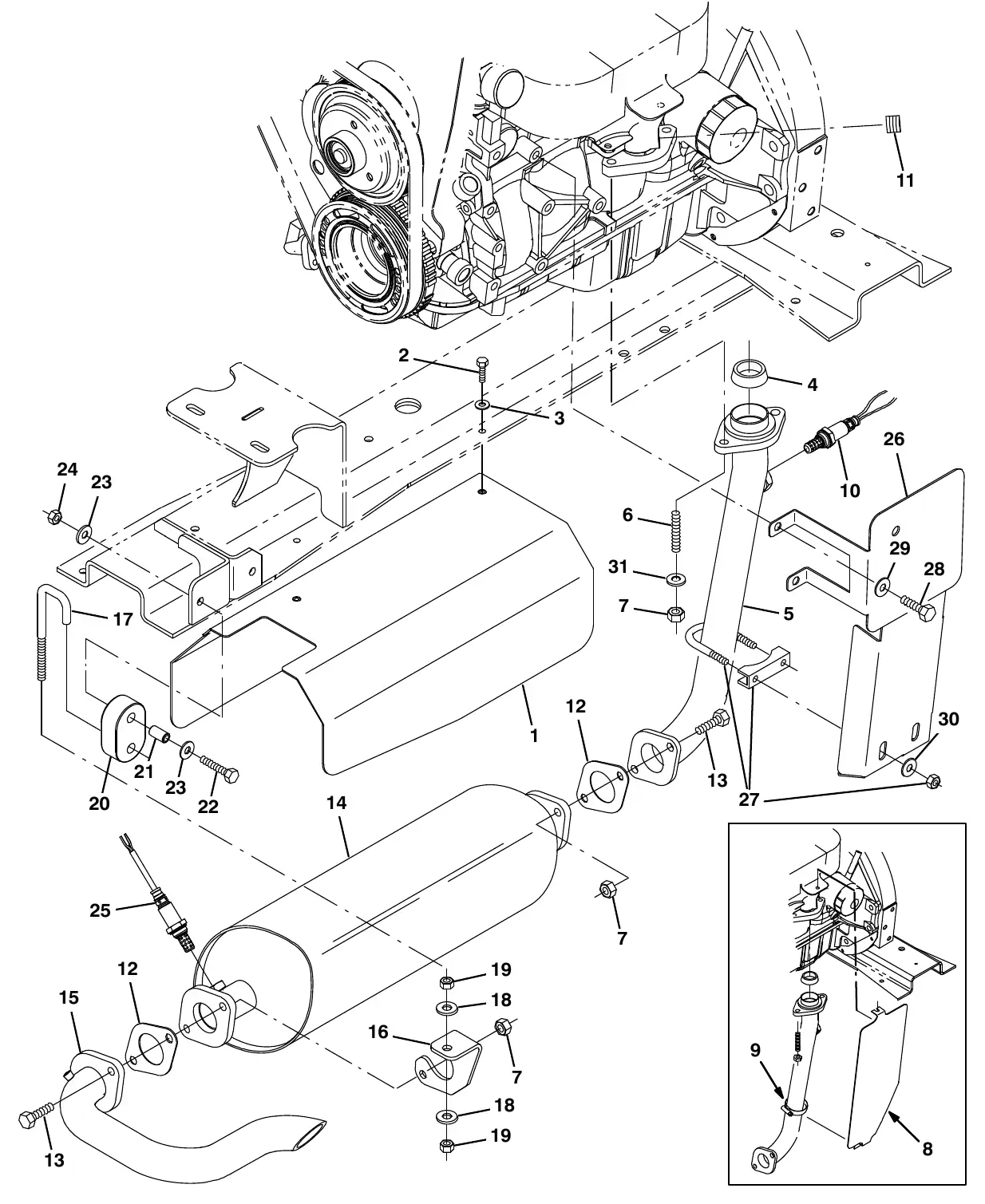

M20 GM engine muffler group (002000 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031022 | 1 | Channel, Shield, Muffler [M20/T20 2007]Fits SN 002000–005999 · Old # 1028994 | $123.70/EA |
| 2 | TN4041931 | 2 | Screw, Hex, M6 X 1.0 X 20, SsFits SN 002000–005999 · Old # 08716 | $3.20/EA |
| 3 | TN4034133 | 2 | Washer, Flat, 0.25, SaeFits SN 002000–005999 · Old # 32483 | $2.50/EA |
| 4 | TN8005708 | 1 | Gasket, Flng, Pipe, ExhaustFits SN 002000–005999 · Old # 371861 | $144.50/EA |
| 5 | TN4024992 | 1 | Pipe Kit, Exhaust, Replmt [M20.T20, M30]Fits SN 002000–005999 · Old # 9012597 | $764.70/EA |
| 6 | TN4024389 | 2 | Stud, M10 X 1.50 [35]Fits SN 002000–005999 · Old # 384442 | $9.60/EA |
| 7 | TN4041626 | 6 | Nut, Hex, M10 X 1.50 [Stover]Fits SN 002000–005999 · Old # 08166 | $2.50/EA |
| 8 | TN4016140 | 1 | Plate, Shield, Heat, Gas/Lpg, ReplmtFits SN 002000–002395 · Old # 9002394 | $137.90/EA |
| 9 | TN4026556 | 1 | Clamp, Hose, Wormdrive, 1.25 - 2.00D, .50WFits SN 002000–002395 · Old # 79381 | $6.20/EA |
| Item 10: choose your version (2) | ||||
| 10 | TN8005434 | 1 | Sensor, Oxygen [Gm 1.6L/3.0L 2007]Fits SN 002000–003122 · Old # 1028559 | $260.90/EA |
| 10 | TN8005433 | 1 | Sensor, Exhaust, TailpipeFits SN 003123–005999 · Old # 1028558 | $277.60/EA |
| 11 | TN8005707 | 1 | Fitting, Pipe, Plug, Metric, M18,SocFits SN 002000–005999 · Old # 371860 | $75.00/EA |
| 12 | TN4036679 | 2 | Gasket, Exhaust, 2hole, 3.4bcFits SN 002000–005999 · Old # 1011216 | $8.10/EA |
| 13 | TN4019759 | 4 | Screw, Hex, M10 X 1.5 X 35, 8.8Fits SN 002000–005999 · Old # 39284 | $4.00/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN8005432 | 1 | Muffler, Catalytic [Gm 1.6l 2007]Fits SN 002000–003122 · Old # 1028136 | $4,996.80/EA |
| 14 | TN8005907 | 1 | Muffler, Catalytic [Gm 1.6l 2010]Fits SN 003123–005999 · Old # 1056241 | $1,640.30/EA |
| 15 | TN4030978 | 1 | Tube, Exhaust, Flng, 1.5d [M20/T20 2007]Fits SN 002000–005999 · Old # 1028753 | $210.10/EA |
| 16 | TN4031015 | 1 | Bracket, Mtg, Muffler [M20/T20 2007]Fits SN 002000–005999 · Old # 1028929 | $25.50/EA |
| 17 | TN4037297 | 1 | Rod, Hanger, IsolatorFits SN 002000–005999 · Old # 1013117 | $57.90/EA |
| 18 | TN4034138 | 2 | Washer, Flat, 0.38, StdFits SN 002000–005999 · Old # 32492 | $2.50/EA |
| 19 | TN4035408 | 2 | Nut, Hex, Std, .38 - 16Fits SN 002000–005999 · Old # 25014 | $2.40/EA |
| 20 | TN4037292 | 1 | Isolator, RbrFits SN 002000–005999 · Old # 1013031 | $18.30/EA |
| 21 | TN4040603 | 1 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN 002000–005999 · Old # 222496 | $3.40/EA |
| 22 | TN4040607 | 1 | Screw, Hex, M8 X 1.25 X 45, SsFits SN 002000–005999 · Old # 222505 | $4.00/EA |
| 23 | TN4042902 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits SN 002000–005999 · Old # 01685 | $2.60/EA |
| 24 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 002000–005999 · Old # 08713 | $3.30/EA |
| 25 | TN8005433 | 1 | Sensor, Exhaust, TailpipeFits SN 002000–005999 · Old # 1028558 | $277.60/EA |
| Item 26: choose your version (2) | ||||
| 26 | TN4017018 | 1 | Shield, Heat, Gas/Lpg, ReplmtFits SN 002396–005999 · Old # 9003832 | $106.60/EA |
| 26 | TN4203817 | 1 | Shield, Heat, Gas/Lpg, Replmt (Japan Only)Fits SN 002396–005999 · Old # 9004983 | $139.08/EA |
| 27 | TN4035092 | 1 | Clamp, Muffler, 1.62dFits SN 002396–005999 · Old # 24012 | $6.20/EA |
| 28 | TN4041286 | 2 | Screw, Hex, M10 X 1.50 X 20, 8.8Fits SN 002396–005999 · Old # 06961 | $3.40/EA |
| 29 | TN4034134 | 2 | Washer, Flat, 0.38, SaeFits SN 002396–005999 · Old # 32485 | $2.50/EA |
| 30 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 002396–005999 · Old # 32491 | $2.50/EA |
| 31 | TN4016797 | 2 | Washer, Flat, Belleville, .38Fits SN 002000–005999 · Old # 41187 | $4.10/EA |

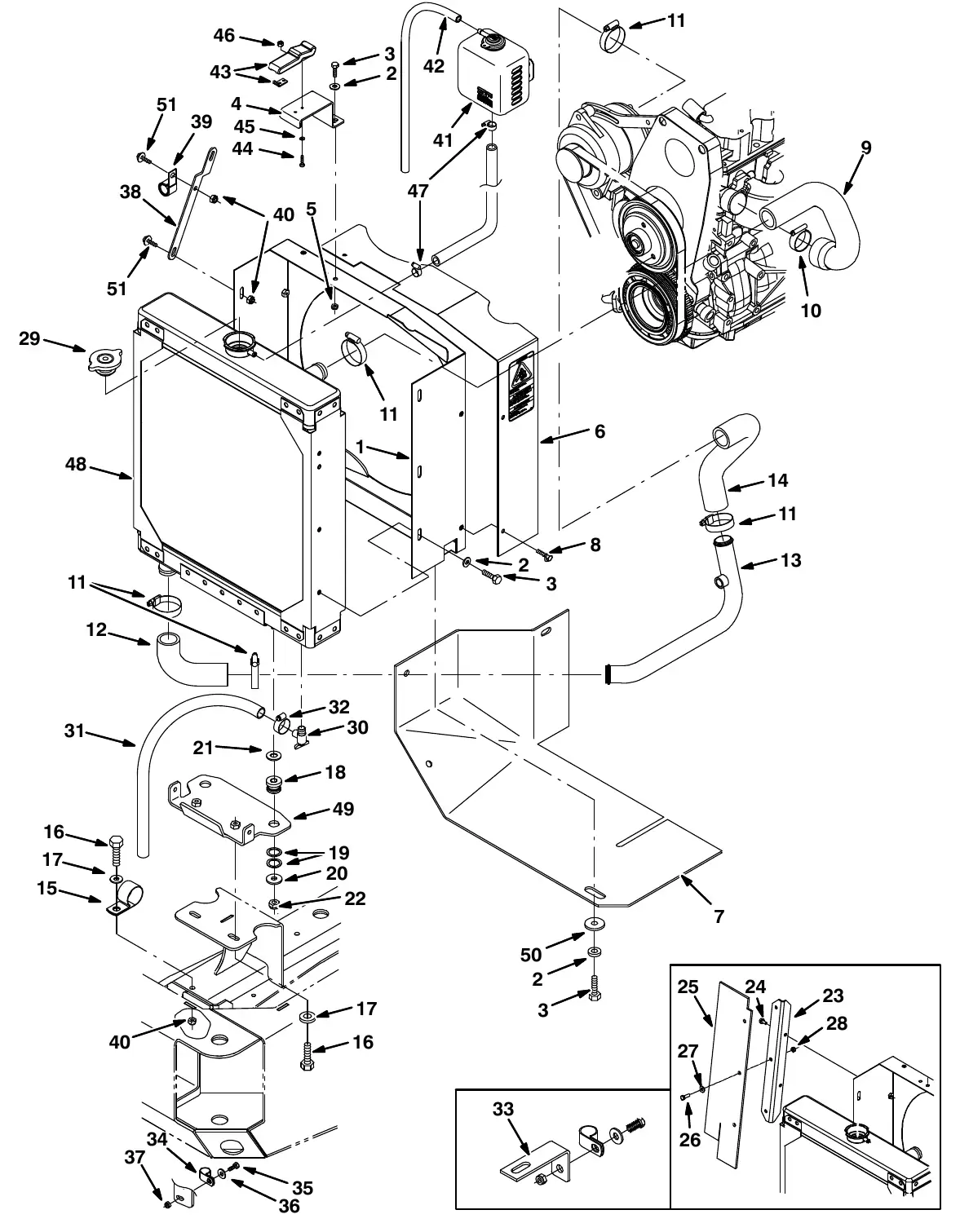

M20 GM engine radiator group (000000 - 003038)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4190921 | 1 | Panel Wldt, Shrd, FanFits SN up to 003038 · Old # 1038499 | $106.45/EA |
| 2 | TN4034136 | 9 | Washer, Flat, 0.25 StdFits SN up to 003038 · Old # 32490 | $2.50/EA |
| 3 | TN4041270 | 13 | Screw, Hex, M6 X 1.0 X 16, 8.8Fits SN up to 003038 · Old # 06942 | $2.50/EA |
| 4 | TN4195150 | 1 | Bracket, Mtg, LatchFits SN up to 003038 · Old # 1018463 | $19.09/EA |
| 5 | TN4041925 | 5 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 003038 · Old # 08708 | $2.50/EA |
| 6 | TN4203415 | 1 | Plate, Guard, Fan Shrd, Gas/Lpg, ReplmtFits SN up to 003038 · Old # 9003997 | $191.50/EA |
| 7 | TN4193073 | 1 | Skirt, Debris, Eng RadiatorFits SN up to 003038 · Old # 1035222 | $50.70/EA |
| 8 | TN4012782 | 3 | Screw, Hex, M6 X 1.0 X 12, FmgFits SN up to 003038 · Old # 74455 | $3.40/EA |
| 9 | TN4036913 | 1 | Hose, Radiator, Upper, MoldFits SN up to 003038 · Old # 1011799 | $57.50/EA |
| 10 | TN4037088 | 1 | Clamp, Hose, Wormdrive, 1.56 - 2.50d, .50wFits SN up to 003038 · Old # 22297 | $4.20/EA |
| 11 | TN4026556 | 7 | Clamp, Hose, Wormdrive, 1.25 - 2.00D, .50WFits SN up to 003038 · Old # 79381 | $6.20/EA |
| 12 | TN4039550 | 1 | Hose, Rbr, E90 1.25id 1.25id 04.2 03.1Fits SN up to 003038 · Old # 1007482 | $20.40/EA |
| 13 | TN4195207 | 1 | Tube, Coolant, Lower, 1.3dFits SN up to 003038 · Old # 1019273 | $99.50/EA |
| 14 | TN4035906 | 1 | Hose, Radiator, Lower, MoldFits SN up to 003038 · Old # 1019265 | $36.50/EA |
| 15 | TN4015029 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hFits SN up to 003038 · Old # 53466 | $4.20/EA |
| 16 | TN4156940 | 3 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 003038 · Old # 39277 | $3.20/EA |
| 17 | TN4034137 | 3 | Washer, Flat, 0.31, StdFits SN up to 003038 · Old # 32491 | $2.50/EA |
| 18 | TN4015364 | 2 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN up to 003038 · Old # 54274 | $14.70/EA |
| 19 | TN4042008 | 4 | Washer, Flat, 0.81b 1.06d .06, StlFits SN up to 003038 · Old # 09832 | $3.30/EA |
| 20 | TN4037922 | 2 | Washer, Flat, 0.40b 1.12d .12, SsFits SN up to 003038 · Old # 1014563 | $5.80/EA |
| 21 | TN4034135 | 2 | Washer, Flat, 0.50 SaeFits SN up to 003038 · Old # 32486 | $2.60/EA |
| 22 | TN4016826 | 2 | Nut, Hex, Lock, M10 X 1.5, NlFits SN up to 003038 · Old # 41430 | $4.00/EA |
| 23 | TN1027099 | 1 | Plate, Mtg, SealFits SN up to 001261 · Old # 1027099 · current Tennant number (Tennant parts catalog) | Call for price |
| 24 | TN4012782 | 2 | Screw, Hex, M6 X 1.0 X 12, FmgFits SN up to 001261 · Old # 74455 | $3.40/EA |
| 25 | TN1027103 | 1 | Seal, RadiatorFits SN up to 001261 · Old # 1027103 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 26 | TN4041271 | 4 | Screw, Hex, M6 X 1.0 X 20, 8.8Fits SN up to 003038 · Old # 06943 | $2.50/EA |
| 27 | TN4034133 | 3 | Washer, Flat, 0.25 SaeFits SN up to 001261 · Old # 32483 | $2.50/EA |
| 28 | TN4041925 | 3 | Nut, Hex, Lock, M6 X 1.0, NlFits SN up to 001261 · Old # 08708 | $2.50/EA |
| 29 | TN4042665 | 1 | Cap, Radiator, 14psi [Stant Ao - 2516]Fits SN up to 003038 · Old # 1045764 | $10.90/EACall for availability |
| 30 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptFits SN up to 003038 · Old # 51305 | $15.10/EA |
| 31 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 22.00lFits SN up to 003038 · Old # 73471 | $7.60/EA |
| 32 | TN4017396 | 1 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN up to 003038 · Old # 43844 | $4.20/EA |
| 33 | TN4193845 | 1 | Bracket, Ftg, BhFits SN up to 002241 · Old # 1026003 | $11.31/EA |
| 34 | TN4017933 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1hFits SN up to 003038 · Old # 67767 | $4.20/EA |
| 35 | TN4041992 | 1 | Screw, Hex, M8 X 1.25 X 20, SsFits SN up to 003038 · Old # 09740 | $3.30/EA |
| 36 | TN4042902 | 1 | Washer, Flat, 0.31, SsFits SN up to 003038 · Old # 01685 | $2.60/EA |
| 37 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN up to 003038 · Old # 08713 | $3.30/EA |
| 38 | TN4036225 | 1 | Bracket, Mtg, RadiatorFits SN up to 003038 · Old # 1019968 | $18.60/EA |
| 39 | TN4036443 | 1 | Clip, Keeper, OpenFits SN up to 003038 · Old # 30407 | $1.70/EA |
| 40 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 003038 · Old # 08709 | $2.50/EA |
| 41 | TN4033557 | 1 | Tank, Coolant, 04.7 03.3 4.7deep, 1literFits SN up to 003038 · Old # 1023853 | $50.00/EA |
| 42 | TN4037984 | 1 | Hose, Afmkt, Coolant Recvy, 05ftFits SN up to 003038 · Old # 1015041 | $62.40/EA |
| 43 | TN4014177 | 1 | LatchFits SN up to 003038 · Old # 49800 | $40.40/EA |
| 44 | TN4041258 | 2 | Screw, Pan, M4 X 0.70 X 16, 4.8Fits SN up to 003038 · Old # 06927 | $3.30/EA |
| 45 | TN4042242 | 2 | Washer, Flat, #06Fits SN up to 003038 · Old # 19064 | $3.40/EA |
| 46 | TN4043235 | 2 | Nut, Hex, Lock, M4 X 0.7, NlFits SN up to 003038 · Old # 02850 | $2.50/EA |
| 47 | TN4017396 | 2 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN up to 003038 · Old # 43844 | $4.20/EA |
| Item 48: choose your version (2) | ||||
| 48 | TN4042498 | 1 | Radiator Kit, Replmt, CiFits SN up to 002492 · Old # 1045316 | $1,069.60/EA |
| 48 | TN4044474 | 1 | RadiatorFits SN 002493–003038 · Old # 1041291 | $1,030.20/EA |
| 49 | TN4190653 | 1 | Bracket, Sppt, Radiator, UpperFits SN 001338–003038 · Old # 1035976 | $28.79/EA |
| 50 | TN4016794 | 3 | Washer, Flat, 0.25, FendrFits SN up to 003038 · Old # 41178 | $2.50/EA |
| 51 | TN4044400 | 2 | Screw, Hex, M6 X 1.0 X 20, 9.8, SemsFits SN up to 003038 · Old # 1040467 | $3.30/EA |
M20 GM engine radiator and mount group (003039 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042691 | 1 | Radiator, W/ Hyd Cooler [Side X Side]Fits SN 003039–005999 · Old # 1045940 | Call for price |
| 2 | TN4042665 | 1 | Cap, Radiator, 14Psi [Stant]Fits SN 003039–005999 · Old # 1045764 | $10.90/EACall for availability |
| 3 | TN4045637 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsFits SN 003039–005999 · Old # 1037346 | $2.50/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4015584 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [M20/M30/T20]Fits SN 003039–005999 · Old # 9006811 | $216.96/EA |
| 4 | TN4202620 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [TJ] (Japan Only)Fits SN 003039–005999 · Old # 9006813 | $190.39/EA |
| 5 | TN4189910 | 1 | Bracket, CoverFits SN 003039–005999 · Old # 1045433 | $18.60/EA |
| 6 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 003039–005999 · Old # 1036892 | $2.50/EA |
| 7 | TN4190181 | 1 | Bracket, Mtg, RadiatorFits SN 003039–005999 · Old # 1046962 | $26.70/EA |
| 8 | TN4041287 | 4 | Screw, Hex, M10 X 1.50 X 45, 8.8Fits SN 003039–005999 · Old # 06962 | $4.00/EA |
| 9 | TN4034138 | 8 | Washer, Flat, 0.38, StdFits SN 003039–005999 · Old # 32492 | $2.50/EA |
| 10 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN 003039–005999 · Old # 54274 | $14.70/EA |
| 11 | TN4042008 | 8 | Washer, Flat, 0.81b 1.06d .06, StlFits SN 003039–005999 · Old # 09832 | $3.30/EA |
| 12 | TN4037922 | 6 | Washer, Flat, 0.40b 1.12d .12, SsFits SN 003039–005999 · Old # 1014563 | $5.80/EA |
| 13 | TN4016826 | 4 | Nut, Hex, Lock, M10 X 1.5, NlFits SN 003039–005999 · Old # 41430 | $4.00/EA |
| 14 | TN4156940 | 4 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 003039–005999 · Old # 39277 | $3.20/EA |
| 15 | TN4034137 | 12 | Washer, Flat, 0.31, StdFits SN 003039–005999 · Old # 32491 | $2.50/EA |
| 16 | TN4189416 | 1 | Bracket, Skirt, RbrFits SN 003039–005999 · Old # 1043897 | $30.10/EA |
| 17 | TN4034133 | 2 | Washer, Flat, 0.25, SaeFits SN 003039–005999 · Old # 32483 | $2.50/EA |
| 18 | TN4034136 | 2 | Washer, Flat, 0.25, StdFits SN 003039–005999 · Old # 32490 | $2.50/EA |
| 19 | TN4188116 | 1 | Skirt, Eng Fan, Gas / LpFits SN 003039–005999 · Old # 1052170 | $83.33/EA |
| 20 | TN4029864 | 2 | Screw, Hex, M6 X 1.00 X 16, FmgFits SN 003039–005999 · Old # 361339 | $4.00/EA |
| 21 | TN4045641 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, SemsFits SN 003039–005999 · Old # 1037355 | $2.50/EA |
| 22 | TN4016794 | 3 | Washer, Flat, 0.25, FendrFits SN 003039–005999 · Old # 41178 | $2.50/EA |
| 23 | TN4045568 | 3 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 003039–005999 · Old # 1036892 | $2.50/EA |
| 24 | TN4014138 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DFits SN 003039–005999 · Old # 49266 | $2.50/EA |
| 25 | TN4036225 | 1 | Bracket, Mtg, RadiatorFits SN 003039–005999 · Old # 1019968 | $18.60/EA |
| 26 | TN4044400 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsFits SN 003039–005999 · Old # 1040467 | $3.30/EA |
| 27 | TN4036443 | 1 | Clip, Keeper, OpenFits SN 003039–005999 · Old # 30407 | $1.70/EA |
| 28 | TN4041925 | 1 | Nut, Hex, Lock, M6 X 1.00, NlFits SN 003039–005999 · Old # 08708 | $2.50/EA |
| 29 | TN4042719 | 1 | Shroud Wldt, Fan, 16.25d [Side X Side]Fits SN 003039–005999 · Old # 1046039 | $141.20/EA |
| 30 | TN4041625 | 1 | Nut, Hex, Stover, M8 X 1.25Fits SN 003039–005999 · Old # 08165 | $3.40/EA |
| 31 | TN4189904 | 1 | Bracket, Fan, RhFits SN 003039–005999 · Old # 1045419 | $35.95/EA |
| 32 | TN4042644 | 1 | Bracket Wldt, Mtg, Fan, UpperFits SN 003039–005999 · Old # 1045530 | $58.73/EA |
| 33 | TN4189903 | 1 | Bracket, Fan, LhFits SN 003039–005999 · Old # 1045415 | $23.86/EA |
| 34 | TN4189913 | 1 | Bracket, Fan, Upper, LhFits SN 003039–005999 · Old # 1045447 | $39.14/EA |
| 35 | TN4041844 | 9 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 003039–005999 · Old # 16931 | $2.50/EA |
| 36 | TN4019758 | 2 | Screw, Hex, M10 X 1.50 X 25, 8.8Fits SN 003039–005999 · Old # 39283 | $3.30/EA |
| 37 | TN4041604 | 1 | Nut, Hex, Flng, M6 X 1.00Fits SN 003039–005999 · Old # 07790 | $3.20/EA |
M20 GM engine radiator hose group (003039 - 005999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037938 | 1 | Hose, Coolant, Mold, 1.125id To 1.50idFits SN 003039–005999 · Old # 1014747 | $69.40/EA |
| 2 | TN4037088 | 1 | Clamp, Hose, Wormdrive, 1.562.50d, .50wFits SN 003039–005999 · Old # 22297 | $4.20/EA |
| 3 | TN4026556 | 5 | Clamp, Hose, Wormdrive, 1.252.00d, .50wFits SN 003039–005999 · Old # 79381 | $6.20/EA |
| 4 | TN4039550 | 1 | Hose, Rbr, E90, 1.25id 1.25idFits SN 003039–005999 · Old # 1007482 | $20.40/EA |
| 5 | TN4189301 | 1 | Tube, Coolant, 1.3d, LowerFits SN 003039–005999 · Old # 1043322 | $74.20/EA |
| 6 | TN4035906 | 1 | Hose, Radiator, Lower, MoldFits SN 003039–005999 · Old # 1019265 | $36.50/EA |
| 7 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptFits SN 003039–005999 · Old # 51305 | $15.10/EA |
| 8 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 022.0lFits SN 003039–005999 · Old # 73471 | $7.60/EA |
| 9 | TN4017396 | 3 | Clamp, Hose, Wormdrive, 0.250.62d, .31wFits SN 003039–005999 · Old # 43844 | $4.20/EA |
| 10 | TN4033557 | 1 | Tank, Coolant, 03.30w 4.7hi 04.7l,1literFits SN 003039–003122 · Old # 1023853 | $50.00/EA |
| Item 11: choose your version (2) | ||||
| 11 | TN4037984 | 1 | Hose, Afmkt, Coolant Recvy, 05ftFits SN 003039–003122 · Old # 1015041 | $62.40/EA |
| 11 | TN4022521 | 1 | Hose, Fuel, 0.18id, 29.0lFits SN 003123–005999 · Old # 87738 | $19.40/EA |
| 12 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 003039–005999 · Old # 08709 | $2.50/EA |
| 13 | TN4029699 | 1 | Clamp, Cable, Stl, 1.25d X 1.00w, 1holeFits SN 003039–005999 · Old # 58366 | $5.10/EA |
| 14 | TN4041943 | 1 | Screw, Hex, M8 X 1.25 X 25, SsFits SN 003039–005999 · Old # 09010 | $3.30/EA |
| 15 | TN4042902 | 3 | Washer, Flat, 0.38b 0.88d .08, SsFits SN 003039–005999 · Old # 01685 | $2.60/EA |
| 16 | TN4041929 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 003039–005999 · Old # 08713 | $3.30/EA |
| 17 | TN4193071 | 1 | Bracket, Tube, CoolantFits SN 003039–005999 · Old # 1035214 | $8.89/EA |
| 18 | TN4041992 | 1 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 003039–005999 · Old # 09740 | $3.30/EA |
| 19 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 003039–005999 · Old # 16931 | $2.50/EA |
| 20 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 003039–005999 · Old # 32491 | $2.50/EA |
| 21 | TN4038493 | 1 | Tank, Coolant, 03.6w 04.1hi 05.5l,1literFits SN 003123–005999 · Old # 1054382 | $119.90/EA |
M20 Mitsubishi engine and mount group, gas (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182975 | 1 | Engine, Gas [Mitsubishi] (See Engine Breakdown)Fits SN 006000–007114 · Old # 1071155 | Call for price |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Fits SN 006000 and later · Old # 393982 | $30.00/EA | |
| 1 | TN8003679 | 1 | Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Fits SN 007115 and later · Old # 9014202 | $8,912.00/EA |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Fits SN 006000 and later · Old # 393982 | $30.00/EA | |
| 2 | TN4030335 | 1 | Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Fits SN 006000 and later · Old # 1070756 | $68.38/EA |
| 3 | TN4041293 | 4 | Screw, Hex, M12 X 1.75 X 35, 8.8Fits SN 006000 and later · Old # 06968 | $3.20/EA |
| 4 | TN4034135 | 4 | Washer, Flat, 0.50 SaeFits SN 006000 and later · Old # 32486 | $2.60/EA |
| 5 | TN4041580 | 6 | Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 006000 and later · Old # 07299 | $2.40/EA |
| 6 | TN4034134 | 6 | Washer, Flat, 0.38 SaeFits SN 006000 and later · Old # 32485 | $2.50/EA |
| 7 | TN4014538 | 4 | Isolator, Vib, .50dFits SN 006000 and later · Old # 51176 | $37.60/EA |
| 8 | TN4041297 | 4 | Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 006000 and later · Old # 06972 | $4.00/EA |
| 9 | TN4040927 | 4 | Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 006000 and later · Old # 04414 | $4.10/EA |
| 10 | TN4034139 | 3 | Washer, Flat, 0.50 StdFits SN 006000 and later · Old # 32493 | $3.50/EA |
| 11 | TN4041927 | 3 | Nut, Hex, Lock, M12 X 1.75,NlFits SN 006000 and later · Old # 08711 | $3.30/EA |
| 12 | TN4030332 | 1 | Bracket Wldt, Mtg, Engine [Mit 2013]Fits SN 006000 and later · Old # 1070751 | $192.32/EA |
| 13 | TN4180344 | 1 | Stand - Off, Hex, M8 X M8, MetalFits SN 006000 and later · Old # 1072669 | $38.57/EA |
M20 Mitsubishi engine and mount group, LPG (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182078 | 1 | Engine, LPG [Mitsubishi] (See Engine Breakdown)Fits SN 006000–007114 · Old # 1070348 | Call for price |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Fits SN 006000 and later · Old # 393982 | $30.00/EA | |
| 1 | TN8003679 | 1 | Engine, Block, Long [Mits 12mm] (See Engine Breakdown)Fits SN 007115 and later · Old # 9014202 | $8,912.00/EA |
| TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Fits SN 006000 and later · Old # 393982 | $30.00/EA | |
| 2 | TN4030335 | 1 | Bracket Wldt, Mtg, Eng, Rear [Mit 2013]Fits SN 006000 and later · Old # 1070756 | $68.38/EA |
| 3 | TN4041293 | 4 | Screw, Hex, M12 X 1.75 X 35, 8.8Fits SN 006000 and later · Old # 06968 | $3.20/EA |
| 4 | TN4034135 | 4 | Washer, Flat, 0.50 SaeFits SN 006000 and later · Old # 32486 | $2.60/EA |
| 5 | TN4041580 | 6 | Screw, Hex, M10 X 1.25 X 25, 8.8Fits SN 006000 and later · Old # 07299 | $2.40/EA |
| 6 | TN4034134 | 6 | Washer, Flat, 0.38 SaeFits SN 006000 and later · Old # 32485 | $2.50/EA |
| 7 | TN4014538 | 4 | Isolator, Vib, .50dFits SN 006000 and later · Old # 51176 | $37.60/EA |
| 8 | TN4041297 | 4 | Screw, Hex, M12 X 1.75 X 60, 8.8Fits SN 006000 and later · Old # 06972 | $4.00/EA |
| 9 | TN4040927 | 4 | Washer, Flat, 0.53b 1.88d .12, Stl, PlFits SN 006000 and later · Old # 04414 | $4.10/EA |
| 10 | TN4034139 | 3 | Washer, Flat, 0.50 StdFits SN 006000 and later · Old # 32493 | $3.50/EA |
| 11 | TN4041927 | 3 | Nut, Hex, Lock, M12 X 1.75,NlFits SN 006000 and later · Old # 08711 | $3.30/EA |
| 12 | TN4030332 | 1 | Bracket Wldt, Mtg, Engine [Mit 2013]Fits SN 006000 and later · Old # 1070751 | $192.32/EA |
| 13 | TN4180344 | 1 | Stand - Off, Hex, M8 X M8, MetalFits SN 006000 and later · Old # 1072669 | $38.57/EA |
M20 Mitsubishi engine EFI group, gasoline (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005190 | 2 | Isolator, Box, RelayFits SN 006000 and later · Old # 372470 | $25.70/EA |
| 2 | TN4042535 | 2 | Screw, Hex, .25 - 20 X 0.50, G5Fits SN 006000 and later · Old # 19315 | $2.50/EA |
| 3 | TN4034136 | 4 | Washer, Flat, 0.25, StdFits SN 006000 and later · Old # 32490 | $2.50/EA |
| 4 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Fits SN 006000 and later · Old # 19312 | $2.50/EA |
| 5 | TN4030567 | 1 | Fitting, Brs, Str, Pf06/Pm04Fits SN 006000 and later · Old # 1071440 | $66.00/EA |
| 6 | TN4175233 | 1 | Fitting, Brs, Str, Bm06/Pm06Fits SN 006000 and later · Old # 36159 | $4.60/EA |
| 7 | TN4030949 | 2 | Clamp, Hose, Spring Stl, 0.58d X 0.31wFits SN 006000 and later · Old # 1072559 | $3.20/EA |
| 8 | TN4030700 | 1 | Fitting, Brs, Str, Pf02/Pm02 [Bspt]Fits SN 006000 and later · Old # 1071502 | $39.76/EA |
| 9 | TN4038789 | 1 | Fitting, Brs, Str, Bm06/Pm02Fits SN 006000 and later · Old # 1055552 | $3.60/EA |
| 10 | TN4030929 | 1 | Hose, Afmkt, Rbr, Heater, 0.38id, 03ftFits SN 006000 and later · Old # 1072408 | $68.40/EA |
M20 Mitsubishi engine EFI group, LPG (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005190 | 2 | Isolator, Box, RelayFits SN 006000 and later · Old # 372470 | $25.70/EA |
| 2 | TN4042535 | 2 | Screw, Hex, .25 - 20 X 0.50, G5Fits SN 006000 and later · Old # 19315 | $2.50/EA |
| 3 | TN4034136 | 4 | Washer, Flat, 0.25, StdFits SN 006000 and later · Old # 32490 | $2.50/EA |
| 4 | TN4042532 | 2 | Nut, Hex, Std, .25 - 20Fits SN 006000 and later · Old # 19312 | $2.50/EA |
| 5 | TN4030567 | 1 | Fitting, Brs, Str, Pf06/Pm04Fits SN 006000 and later · Old # 1071440 | $66.00/EA |
| 6 | TN4175233 | 1 | Fitting, Brs, Str, Bm06/Pm06Fits SN 006000 and later · Old # 36159 | $4.60/EA |
| 7 | TN4030949 | 2 | Clamp, Hose, Spring Stl, 0.58d X 0.31wFits SN 006000 and later · Old # 1072559 | $3.20/EA |
| 8 | TN4197481 | 1 | Fitting, Brs, E90, Bm06/Pm04Fits SN 006000 and later · Old # 1015815 | $8.50/EA |
| 9 | TN4030929 | 1 | Hose, Afmkt, Rbr, Heater, 0.38id, 03ftFits SN 006000 and later · Old # 1072408 | $68.40/EA |
M20 Mitsubishi engine air cleaner group, gasoline (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182557 | 1 | Bracket, Mtg, Fltr, Air [Mit 2013]Fits SN 006000 and later · Old # 1070822 | $47.43/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 006000 and later · Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 006000 and later · Old # 32491 | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Fits SN 006000 and later · Old # 398279 | $52.20/EA |
| 5 | TN4182540 | 1 | Hose, Intake, Mold [Epdm Mit 2013]Fits SN 006000 and later · Old # 1070788 | $45.22/EA |
| 6 | TN4182561 | 1 | Tube Wldt, Tee [Mit 2013]Fits SN 006000 and later · Old # 1070833 | $95.68/EA |
| 7 | TN4027047 | 1 | Hose, Drain,Overflow,Radiator[1pick=1ft]Fits SN 006000 and later · Old # 381391 | Call for price |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 006000 and later · Old # 14432 | $5.30/EA |
| 9 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 006000 and later · Old # 54333 | $5.10/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirFits SN 006000 and later · Old # 369745 | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN 006000 and later · Old # 369746 | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 006000 and later · Old # 1036892 | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlFits SN 006000 and later · Old # 08708 | $2.50/EA |
| 14 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Fits SN 006000 and later · Old # 1020949 | $59.99/EA |
| 15 | TN4182993 | 1 | Hose, Intake, Mold, Gas [Epdm Mit 2013]Fits SN 006000 and later · Old # 1071404 | $53.83/EA |
| 16 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirFits SN 006000 and later · Old # 369747 | $32.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 006000 and later · Old # 08709 | $2.50/EA |
M20 Mitsubishi engine air cleaner group, LPG (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4182557 | 1 | Bracket, Mtg, Fltr, Air [Mit 2013]Fits SN 006000 and later · Old # 1070822 | $47.43/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 006000 and later · Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN 006000 and later · Old # 32491 | $2.50/EA |
| 4 | TN8002697 | 1 | Element, Fltr, Air, Safety (OPTION)Fits SN 006000 and later · Old # 398279 | $52.20/EA |
| 5 | TN4182540 | 1 | Hose, Intake, Mold [Epdm Mit 2013]Fits SN 006000 and later · Old # 1070788 | $45.22/EA |
| 6 | TN4182561 | 1 | Tube Wldt, Tee [Mit 2013]Fits SN 006000 and later · Old # 1070833 | $95.68/EA |
| 7 | TN4027047 | 1 | Hose, Drain,Overflow,Radiator[1pick=1ft]Fits SN 006000 and later · Old # 381391 | Call for price |
| 8 | TN4044328 | 5 | Clamp, Hose, Wormdrive, 1.81 - 2.75d, .50wFits SN 006000 and later · Old # 14432 | $5.30/EA |
| 9 | TN4015366 | 2 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 006000 and later · Old # 54333 | $5.10/EA |
| 10 | TN4032296 | 1 | Filter Assy, AirFits SN 006000 and later · Old # 369745 | $124.20/EA |
| 11 | TN8005623 | 1 | Element, Fltr, Air [Dn]Fits SN 006000 and later · Old # 369746 | $34.60/EA |
| 12 | TN4045568 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 006000 and later · Old # 1036892 | $2.50/EA |
| 13 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlFits SN 006000 and later · Old # 08708 | $2.50/EA |
| 14 | TN4036284 | 1 | Hose, Intake, Mold, 2.00id [Epdm]Fits SN 006000 and later · Old # 1020949 | $59.99/EA |
| 15 | TN4182539 | 1 | Hose, Intake, Mold, Lpg [Epdm Mit2013]Fits SN 006000 and later · Old # 1070787 | $37.80/EA |
| 16 | TN4032297 | 1 | Clamp, Mtg, Fltr, AirFits SN 006000 and later · Old # 369747 | $32.90/EA |
| 17 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 006000 and later · Old # 08709 | $2.50/EA |
| 18 | TN4018310 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeFits SN 006000 and later · Old # 69234 | $4.20/EA |
M20 Mitsubishi engine alternator and fan group (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030726 | 1 | Guard, Fan, SideFits SN 006000 and later · Old # 1071727 | $21.60/EA |
| 2 | TN4182800 | 1 | Arm Wldt, Alternator [Mit 2013]Fits SN 006000 and later · Old # 1070890 | $28.68/EA |
| 3 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 006000 and later · Old # 16931 | $2.50/EA |
| 4 | TN4043498 | 1 | Screw, Hex, M8 X 1.25 X 40, 8.8, FlFits SN 006000 and later · Old # 04375 | $4.00/EA |
| 5 | TN4034137 | 7 | Washer, Flat, 0.31, StdFits SN 006000 and later · Old # 32491 | $2.50/EA |
| 6 | TN4016796 | 1 | Washer, Flat, Belleville, .31Fits SN 006000 and later · Old # 41186 | $3.50/EA |
| 7 | TN4030503 | 1 | Belt, Ribbed, Fan, 42.13lFits SN 006000 and later · Old # 1071144 | $52.40/EA |
| 8 | TN4030504 | 1 | Belt, Ribbed, Alternator, 41.5lFits SN 006000 and later · Old # 1071145 | $53.20/EA |
| 9 | TN4182536 | 1 | Bracket Wldt, Alternator [Mit13]Fits SN 006000 and later · Old # 1070764 | $29.60/EA |
| 10 | TN4156940 | 3 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 006000 and later · Old # 39277 | $3.20/EA |
| 11 | TN4014179 | 1 | Screw, Hex, M8 X 1.25 X 120, 8.8, FlFits SN 006000 and later · Old # 49883 | $6.70/EA |
| 12 | TN4182314 | 1 | Bracket, Mtg, Alternator [Mit 2013]Fits SN 006000 and later · Old # 1070619 | $5.20/EA |
| 13 | TN4030493 | 1 | Block, SpacerFits SN 006000 and later · Old # 1071107 | $41.60/EA |
| 14 | TN4028034 | 2 | Screw, Hex, M8 X 1.25 X 30, 8.8Fits SN 006000 and later · Old # 76570 | $3.20/EA |
| 15 | TN4015595 | 2 | Washer, Flat, 0.31, SaeFits SN 006000 and later · Old # 39349 | $2.50/EA |
| 16 | TN4030494 | 1 | Spacer, Pump, WaterFits SN 006000 and later · Old # 1071108 | $34.00/EA |
| 17 | TN4041604 | 4 | Nut, Hex, Flng, M6 X 1.00Fits SN 006000 and later · Old # 07790 | $3.20/EA |
| 18 | TN4030495 | 1 | Spacer, CrankfshaftFits SN 006000 and later · Old # 1071110 | $90.10/EA |
| 19 | TN4044544 | 1 | Plate Wldt, Shaft, Fan [Shaft Extended]Fits SN 006000 and later · Old # 1073529 | Call for price |
| 20 | TN4030316 | 1 | Sheave, Mach [Mit 2615rpm Fan]Fits SN 006000 and later · Old # 1070426 | Call for price |
| 21 | TN4038766 | 2 | Bearing, Ball, 20mm B 42mm D 12mm WFits SN 006000 and later · Old # 1055377 | $12.60/EA |
| 22 | TN4035242 | 1 | Washer, Flat, 0.32b 1.00d .12, SsFits SN 006000 and later · Old # 1017218 | $3.40/EA |
| 23 | TN4041828 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8Fits SN 006000 and later · Old # 16735 | $3.40/EA |
| 24 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 006000 and later · Old # 08709 | $2.50/EA |
| 25 | TN4019755 | 3 | Screw, Hex, M8 X 1.25 X 90, 8.8Fits SN 006000 and later · Old # 39281 | $4.00/EA |
| 26 | TN4030317 | 1 | Spacer, Fan, Taper [Mit 2013]Fits SN 006000 and later · Old # 1070431 | $107.60/EA |
| 27 | TN4032038 | 1 | Fan, Cooling, 14.1d, 6 Blade, 0.5b TaperFits SN 006000 and later · Old # 1031566 | $174.80/EA |
| 28 | TN4013994 | 3 | Screw, Flt, Soc, .38 - 16 X 1.00, AlFits SN 006000 and later · Old # 48998 | $5.10/EA |
| 29 | TN4042788 | 1 | Key, Sq, 0.12 X 0.12, 0.50lFits SN 006000 and later · Old # 00960 | $3.60/EA |
| 30 | TN4180279 | 1 | Plate, Shield, DustFits SN 006000 and later · Old # 1072421 | $16.20/EA |
M20 Mitsubishi engine muffler group (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031022 | 1 | Channel, Shield, Muffler [M20/T20 2007]Fits SN 006000 and later · Old # 1028994 | $123.70/EA |
| 2 | TN4041931 | 2 | Screw, Hex, M6 X 1.0 X 20, SsFits SN 006000 and later · Old # 08716 | $3.20/EA |
| 3 | TN4034133 | 4 | Washer, Flat, 0.25, SaeFits SN 006000 and later · Old # 32483 | $2.50/EA |
| 4 | TN4025234 | 1 | Pipe Kit, Exhaust, Replmt [Mako Mitsu]Fits SN 006000 and later · Old # 9013159 | $415.30/EA |
| 5 | TN4041626 | 4 | Nut, Hex, M10 X 1.50 [Stover]Fits SN 006000 and later · Old # 08166 | $2.50/EA |
| 6 | TN8005433 | 1 | Sensor, Exhaust, TailpipeFits SN 006000 and later · Old # 1028558 | $277.60/EA |
| 7 | TN4036679 | 2 | Gasket, Exhaust, 2hole, 3.4bcFits SN 006000 and later · Old # 1011216 | $8.10/EA |
| 8 | TN4019759 | 4 | Screw, Hex, M10 X 1.5 X 35, 8.8Fits SN 006000 and later · Old # 39284 | $4.00/EA |
| 9 | TN8005369 | 1 | Muffler, Catalytic [Mit 2.0l 2013]Fits SN 006000 and later · Old # 1071376 | $1,859.30/EA |
| 10 | TN4030978 | 1 | Tube, Exhaust, Flng, 1.5d [M20/T20 2007]Fits SN 006000 and later · Old # 1028753 | $210.10/EA |
| 11 | TN4031015 | 1 | Bracket, Mtg, Muffler [M20/T20 2007]Fits SN 006000 and later · Old # 1028929 | $25.50/EA |
| 12 | TN4037297 | 1 | Rod, Hanger, IsolatorFits SN 006000 and later · Old # 1013117 | $57.90/EA |
| 13 | TN4034138 | 2 | Washer, Flat, 0.38, StdFits SN 006000 and later · Old # 32492 | $2.50/EA |
| 14 | TN4035408 | 2 | Nut, Hex, Std, .38 - 16Fits SN 006000 and later · Old # 25014 | $2.40/EA |
| 15 | TN4037292 | 1 | Isolator, RbrFits SN 006000 and later · Old # 1013031 | $18.30/EA |
| 16 | TN4040603 | 1 | Sleeve, P/M, 0.31b 0.50d 0.9l [430ss]Fits SN 006000 and later · Old # 222496 | $3.40/EA |
| 17 | TN4040607 | 1 | Screw, Hex, M8 X 1.25 X 45, SsFits SN 006000 and later · Old # 222505 | $4.00/EA |
| 18 | TN4042902 | 2 | Washer, Flat, 0.38b 0.88d .08, SsFits SN 006000 and later · Old # 01685 | $2.60/EA |
| 19 | TN4041929 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl, SsFits SN 006000 and later · Old # 08713 | $3.30/EA |
| 20 | TN4182994 | 1 | Shield, Tray, Drip [Mit 2013]Fits SN 006000 and later · Old # 1071418 | $12.60/EA |
| 21 | TN4041271 | 3 | Screw, Hex, M6 X 1.00 X 20, 8.8Fits SN 006000 and later · Old # 06943 | $2.50/EA |
| 22 | TN4034136 | 1 | Washer, Flat, 0.25, StdFits SN 006000 and later · Old # 32490 | $2.50/EA |
| 23 | TN4030497 | 1 | Bracket, MufflerFits SN 006000 and later · Old # 1071113 | $15.60/EA |
| 24 | TN4041625 | 3 | Nut, Hex, Stover, M8Fits SN 006000 and later · Old # 08165 | $3.40/EA |
| 25 | TN4015595 | 3 | Washer, Flat, 0.31, SaeFits SN 006000 and later · Old # 39349 | $2.50/EA |
M20 Mitsubishi engine radiator and mount group (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042691 | 1 | Radiator, W/ Hyd Cooler [Side X Side]Fits SN 006000 and later · Old # 1045940 | Call for price |
| 2 | TN4042665 | 1 | Cap, Radiator, 14Psi [Stant]Fits SN 006000 and later · Old # 1045764 | $10.90/EACall for availability |
| 3 | TN4045637 | 4 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsFits SN 006000 and later · Old # 1037346 | $2.50/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN4011220 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [M20/M30/T20]Fits SN 006000 and later · Old # 9010096 | $102.00/EA |
| 4 | TN4011221 | 1 | Shrd Wldt,Fan,G/Lp, Replmt [TJ] (Japan Only)Fits SN 006000 and later · Old # 9010097 | $271.39/EA |
| 5 | TN4030382 | 1 | Plate, Door, Clean - Out [Mit2013]Fits SN 006000 and later · Old # 1070955 | $6.40/EA |
| 6 | TN4045568 | 3 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 006000 and later · Old # 1036892 | $2.50/EA |
| 7 | TN4190181 | 1 | Bracket, Mtg, RadiatorFits SN 006000 and later · Old # 1046962 | $26.70/EA |
| 8 | TN4041287 | 4 | Screw, Hex, M10 X 1.50 X 45, 8.8Fits SN 006000 and later · Old # 06962 | $4.00/EA |
| 9 | TN4034138 | 8 | Washer, Flat, 0.38, StdFits SN 006000 and later · Old # 32492 | $2.50/EA |
| 10 | TN4015364 | 4 | Isolator, Vib, Bshg, 1.1d 0.6l .4b 0.78hFits SN 006000 and later · Old # 54274 | $14.70/EA |
| 11 | TN4042008 | 8 | Washer, Flat, 0.81b 1.06d .06, StlFits SN 006000 and later · Old # 09832 | $3.30/EA |
| 12 | TN4037922 | 4 | Washer, Flat, 0.40b 1.12d .12, SsFits SN 006000 and later · Old # 1014563 | $5.80/EA |
| 13 | TN4016826 | 4 | Nut, Hex, Lock, M10 X 1.5, NlFits SN 006000 and later · Old # 41430 | $4.00/EA |
| 14 | TN4156940 | 8 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 006000 and later · Old # 39277 | $3.20/EA |
| 15 | TN4034137 | 11 | Washer, Flat, 0.31, StdFits SN 006000 and later · Old # 32491 | $2.50/EA |
| 16 | TN4034136 | 2 | Washer, Flat, 0.25, StdFits SN 006000 and later · Old # 32490 | $2.50/EA |
| 17 | TN4030761 | 1 | Skirt, Eng Fan, Gas / LpFits SN 006000 and later · Old # 1071785 | $73.00/EA |
| 18 | TN4045641 | 2 | Screw, Hex, M8 X 1.25 X 35, 9.8, SemsFits SN 006000 and later · Old # 1037355 | $2.50/EA |
| 19 | TN4016794 | 7 | Washer, Flat, 0.25, FendrFits SN 006000 and later · Old # 41178 | $2.50/EA |
| 20 | TN4045568 | 7 | Screw, Hex, M6 X 1.00 X 25, 9.8 SemsFits SN 006000 and later · Old # 1036892 | $2.50/EA |
| 21 | TN4036225 | 1 | Bracket, Mtg, RadiatorFits SN 006000 and later · Old # 1019968 | $18.60/EA |
| 22 | TN4044400 | 2 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsFits SN 006000 and later · Old # 1040467 | $3.30/EA |
| 23 | TN4036443 | 1 | Clip, Keeper, OpenFits SN 006000 and later · Old # 30407 | $1.70/EA |
| 24 | TN4041925 | 1 | Nut, Hex, Lock, M6 X 1.00, NlFits SN 006000 and later · Old # 08708 | $2.50/EA |
| 25 | TN4038497 | 1 | Shroud, FanFits SN 006000 and later · Old # 1054428 | $126.20/EA |
| 26 | TN4030318 | 1 | Bracket, Shrd, Fan, Upper, Sppt, G/LpgFits SN 006000 and later · Old # 1070434 | Call for price |
| 27 | TN4030343 | 1 | Bracket, Shrd, Fan, Lower, Sppt, G/LpgFits SN 006000 and later · Old # 1070860 | $24.40/EA |
| 28 | TN4041604 | 1 | Nut, Hex, Flng, M6 X 1.00Fits SN 006000 and later · Old # 07790 | $3.20/EA |
| 29 | TN4039684 | 1 | Seal, Afmkt, Bulb, Str, 0.58d 08ftFits SN 006000 and later · Old # 1048166 | $53.10/EA |
| 30 | TN4038013 | 4 | Seal, Afmkt, Ure, Adh, 0.38, 0.38w 02ftFits SN 006000 and later · Old # 1015205 | $6.30/EA |
| 31 | TN4029367 | 1 | Molding, Trim, Pvc, .08 - .11 06.8lFits SN 006000 and later · Old # 57569 | Call for price |
| 32 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 006000 and later · Old # 08709 | $2.50/EA |
M20 Mitsubishi engine radiator hose group (006000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030330 | 1 | Hose, Coolant, Upper, Mold [Mit 2013]Fits SN 006000 and later · Old # 1070732 | $13.00/EA |
| 2 | TN4037088 | 1 | Clamp, Hose, Wormdrive, 1.56 - 2.50d, .50wFits SN 006000 and later · Old # 22297 | $4.20/EA |
| 3 | TN4026556 | 5 | Clamp, Hose, Wormdrive, 1.25 - 2.00d, .50wFits SN 006000 and later · Old # 79381 | $6.20/EA |
| 4 | TN4039550 | 1 | Hose, Rbr, E90, 1.25id 1.25id 04.2 03.1Fits SN 006000 and later · Old # 1007482 | $20.40/EA |
| 5 | TN4030491 | 1 | Tube, Coolant, 1.3d, Lower [Mit 2013]Fits SN 006000 and later · Old # 1071099 | $11.90/EA |
| 6 | TN4027830 | 1 | Hose Kit, Coolant, Replmt [Mitsubishi}Fits SN 006000 and later · Old # 9010904 | $41.60/EA |
| 7 | TN4014543 | 1 | Fitting, Draincock, E90, .25nptFits SN 006000 and later · Old # 51305 | $15.10/EA |
| 8 | TN4016344 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 022.0lFits SN 006000 and later · Old # 73471 | $7.60/EA |
| 9 | TN4017396 | 3 | Clamp, Hose, Wormdrive, 0.25 - 0.62d, .31wFits SN 006000 and later · Old # 43844 | $4.20/EA |
| 10 | TN4022521 | 1 | Hose, Fuel, 0.18id, 29.0lFits SN 006000 and later · Old # 87738 | $19.40/EA |
| 11 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 006000 and later · Old # 08709 | $2.50/EA |
| 12 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 006000 and later · Old # 39277 | $3.20/EA |
| 13 | TN4034137 | 5 | Washer, Flat, 0.31, StdFits SN 006000 and later · Old # 32491 | $2.50/EA |
| 14 | TN4038493 | 1 | Tank, Coolant, 03.6w 04.1hi 05.5l,1literFits SN 006000 and later · Old # 1054382 | $119.90/EA |
| 15 | TN4037950 | 1 | Hose, Afmkt, Coolant Recvy, 05ftFits SN 006000 and later · Old # 1014843 | $63.10/EA |
| 16 | TN4015029 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1holeFits SN 006000 and later · Old # 53466 | $4.20/EA |
| 17 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 006000 and later · Old # 16931 | $2.50/EA |
M20 engine fuel tank group, gasoline (000000 - 001999)
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194105 | 1 | Tray Wldt, FuelFits SN up to 001999 · Old # 1026550 | $171.70/EA |
| 2 | TN87730 | 1 | Hose, Fuel, 0.31id 12.0lFits SN up to 001999 · Old # 87730 · current Tennant number (Tennant parts catalog) | $5.10/EA |
| 3 | TN4194130 | 1 | Insulation, Flame - Retardant, 0.5Fits SN up to 001999 · Old # 1026759 | $80.60/EA |
| 4 | TN4036993 | 1 | Hose, Fuel, 0.31id 24.0lFits SN up to 001999 · Old # 1012160 | $54.84/EA |
| 5 | TN8005962 | 1 | Pump, Fuel, Hi Press [Gm 1.6l/3.0l]Fits SN up to 001999 · Old # 1011107 | $1,162.70/EA |
| 6 | TN8005188 | 1 | Filter, Fuel [Gm 1.6l/3.0l]Fits SN up to 001999 · Old # 372440 | $64.20/EA |
| 7 | TN4037296 | 1 | Connector, Fuel, QfFits SN up to 001999 · Old # 1013086 | $16.90/EA |
| 8 | TN4019173 | 1 | Fitting, Brs, E90, Em05/Pm04Fits SN up to 001999 · Old # 9000355 | $6.30/EA |
| 9 | TN4016142 | 1 | Tank, Fuel, 11.26Gal, gas, ReplmtFits SN up to 001999 · Old # 9002395 | $1,042.52/EA |
| 10 | TN4013937 | 1 | Cap, Tank, Fuel, 2.3neck 2.6dFits SN up to 001999 · Old # 48267 | $26.10/EA |
| TN1039521 | 1 | Send - Unit, FuelFits SN up to 001999 · Old # 1039521 · current Tennant number (Tennant parts catalog) | $92.40/EA | |
| 11 | TN4193651 | 4 | Strap, Tank, GasFits SN up to 001999 · Old # 1025229 | $18.10/EA |
| 12 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 001999 · Old # 39277 | $3.20/EA |
| 13 | TN4034137 | 2 | Washer, Flat, 0.31, StdFits SN up to 001999 · Old # 32491 | $2.50/EA |
| 14 | TN4041926 | 2 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 001999 · Old # 08709 | $2.50/EA |
| 15 | TN4034133 | 4 | Washer, Flat, 0.25 SaeFits SN up to 001999 · Old # 32483 | $2.50/EA |
| 16 | TN4034654 | 4 | Nut, Hex, Lock, .25 - 20, NlFits SN up to 001999 · Old # 32981 | $2.50/EA |
| 17 | TN4033269 | 1 | Hose, Fuel, 0.50id 21.0lFits SN up to 001999 · Old # 1023482 | $10.10/EA |
| 18 | TN4015366 | 1 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN up to 001999 · Old # 54333 | $5.10/EA |
| 19 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN up to 001999 · Old # 39277 | $3.20/EA |
| 20 | TN4195215 | 1 | Bracket, Mtg, FuelFits SN up to 001999 · Old # 1019416 | $12.93/EA |
| 21 | TN4037296 | 1 | Connector, Fuel, QfFits SN up to 001999 · Old # 1013086 | $16.90/EA |
| 22 | TN4036222 | 1 | Connector, Fuel, E90, QfFits SN up to 001999 · Old # 1019939 | $18.90/EA |
| 23 | TN4039392 | 2 | Screw, Hex, .38 - 16 X 1.00, 5Fits SN up to 001999 · Old # 21197 | $3.30/EA |
| 24 | TN4034138 | 2 | Washer, Flat, 0.38 StdFits SN up to 001999 · Old # 32492 | $2.50/EA |
| 25 | TN4036932 | 2 | Clamp, Cable, Stl, 2.00d X 0.75w, 1 HoleFits SN up to 001999 · Old # 1011895 | $5.05/EA |
| 26 | TN4023582 | 1 | Sleeve, P/M, 0.43b 1.00d 1.0l, StlFits SN up to 001999 · Old # 383912 | $4.15/EA |
| 27 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN up to 001999 · Old # 16931 | $2.50/EA |
| 28 | TN4041281 | 1 | Screw, Hex, M8 X 1.25 X 45, 8.8Fits SN up to 001999 · Old # 06956 | $4.00/EA |
| 29 | TN4034137 | 6 | Washer, Flat, 0.31, StdFits SN up to 001999 · Old # 32491 | $2.50/EA |
| 30 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlFits SN up to 001999 · Old # 08709 | $2.50/EA |
| 31 | TN1026664 | 1 | Fuelline, .31d Str/Str, PlstcFits SN up to 001999 · Old # 1026664 · current Tennant number (Tennant parts catalog) | Call for price |
| 32 | TN1019394 | 1 | Fuelline, .31d Str/Str, PlstcFits SN up to 001999 · Old # 1019394 · current Tennant number (Tennant parts catalog) | Call for price |
| 33 | TN4035699 | 1 | Fitting, Brs, E90, Pf04/Pm04Fits SN up to 001999 · Old # 27048 | $5.30/EA |
| 34 | TN4016530 | 1 | Fitting, Brs, Str, Pm04/Pm04Fits SN up to 001999 · Old # 398468 | $3.60/EA |
| 35 | TN8047492 | 1 | Valve, Ball, 04pf, Chm W/ HandleFits SN up to 001999 · Old # 1019940 | $19.49/EA |
| 36 | TN4168767 | 1 | Fitting, Brs, Str, Bm05/Pm04Fits SN up to 001999 · Old # 392629 | $3.43/EA |
| 37 | TN4015366 | 4 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN up to 001999 · Old # 54333 | $5.10/EA |
M20 engine fuel tank group, gasoline (002000 - )
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4194105 | 1 | Tray Wldt, FuelFits SN 002000 and later · Old # 1026550 | $171.70/EA |
| 2 | TN4194130 | 1 | Insulation, Flame - Retardant, 0.5Fits SN 002000 and later · Old # 1026759 | $80.60/EA |
| 3 | TN4156940 | 4 | Screw, Hex, M8 X 1.25 X 25, 8.8Fits SN 002000 and later · Old # 39277 | $3.20/EA |
| 4 | TN4034137 | 8 | Washer, Flat, 0.31, StdFits SN 002000 and later · Old # 32491 | $2.50/EA |
| 5 | TN4041926 | 5 | Nut, Hex, Lock, M8 X 1.25, NlFits SN 002000 and later · Old # 08709 | $2.50/EA |
| 6 | TN4203095 | 1 | Tank, Fuel, 11.2gal, Gas, Replmt [2007]Fits SN 002000 and later · Old # 9003610 | $805.70/EA |
| 7 | TN8006208 | 1 | Gasket, Sender, FuelFits SN 002000 and later · Old # 1033897 | $9.20/EA |
| 8 | TN8006221 | 1 | Send - Unit, Fuel [2007]Fits SN 002000 and later · Old # 1033901 | $122.70/EA |
| 9 | TN8006207 | 1 | Cap, Fuel, TankFits SN 002000 and later · Old # 1032812 | $36.90/EA |
| 10 | TN4013933 | 1 | Fitting, Pipe, Plug, Pm02, Sq HeadFits SN 002000 and later · Old # 48126 | $2.93/EA |
| 11 | TN4033269 | 1 | Hose, Fuel, 0.50id, 21.0lFits SN 002000 and later · Old # 1023482 | $10.10/EA |
| 12 | TN4015366 | 5 | Clamp, Hose, Wormdrive, 0.31 - 0.88d, .31wFits SN 002000 and later · Old # 54333 | $5.10/EA |
| 13 | TN4037296 | 2 | Connector, Fuel, QfFits SN 002000 and later · Old # 1013086 | $16.90/EA |
| 14 | TN4036932 | 2 | Clamp, Cable, Stl, 2.00d X 0.75w, 1holeFits SN 002000 and later · Old # 1011895 | $5.05/EA |
| 15 | TN4041281 | 2 | Screw, Hex, M8 X 1.25 X 45, 8.8Fits SN 002000 and later · Old # 06956 | $4.00/EA |
| 16 | TN4045263 | 1 | Fuelline, .31d Str/Str,Plstc[M20/T20 07]Fits SN 002000 and later · Old # 1034676 | $52.10/EA |
| 17 | TN4193009 | 1 | Fuelline, .31d Str/Str,Plstc[M20/T20 07]Fits SN 002000–005999 · Old # 1034655 | $35.96/EA |
| 18 | TN4037227 | 1 | Fuelline, .31d Str/Str, PlstcFits SN 002000 and later · Old # 1012248 | $80.80/EA |
| 19 | TN4045069 | 2 | Hose, Fuel, 0.31id [Evap Emission 07]Fits SN 002000 and later · Old # 1033746 | $13.00/EA |
| 20 | TN4041925 | 2 | Nut, Hex, Lock, M6 X 1.00, NlFits SN 002000 and later · Old # 08708 | $2.50/EA |
| 21 | TN4019173 | 2 | Fitting, Brs, E90, Em05/Pm04Fits SN 002000 and later · Old # 9000355 | $6.30/EA |
| 22 | TN8005188 | 1 | Filter, Fuel [Gm 1.6l/3.0l]Fits SN 002000 and later · Old # 372440 | $64.20/EA |
| 23 | TN8002487 | 1 | Pump, FuelFits SN 002000 and later · Old # 9006592 | $1,016.40/EA |
| 24 | TN8005437 | 1 | Manifold, Gas, Relief, ValveFits SN 002000 and later · Old # 1028924 | $1,128.00/EA |
| 25 | TN8047407 | 2 | Fitting, Fuel, Str, 0.56 - 18 [07 Eng]Fits SN 002000 and later · Old # 1029293 | $148.20/EA |
| 26 | TN8005499 | 1 | Fitting, Fuel, Str, 0.38 - 24 [07 Eng]Fits SN 002000 and later · Old # 1029295 | $140.10/EA |
| 27 | TN4041277 | 2 | Screw, Hex, M6 X 1.0 X 50, 8.8Fits SN 002000 and later · Old # 06949 | $3.30/EA |
| 28 | TN4193651 | 4 | Strap, Tank, GasFits SN 002000 and later · Old # 1025229 | $18.10/EA |
| 29 | TN4034133 | 4 | Washer, Flat, 0.25, SaeFits SN 002000 and later · Old # 32483 | $2.50/EA |
| 30 | TN4034654 | 4 | Nut, Hex, Lock, .25 - 20, NlFits SN 002000 and later · Old # 32981 | $2.50/EA |
| 31 | TN4218342 | 1 | Molding, Trim, Pvc, .08 - .11 13.2lFits SN 002000 and later · Old # 62595-15 | Call for price |
| 32 | TN8044978 | 1 | Harness, Manifold, GasFits SN 002000 and later · Old # 385009 | $257.35/EA |
| 33 | TN4041844 | 1 | Screw, Hex, M8 X 1.25 X 20, 8.8Fits SN 002000 and later · Old # 16931 | $2.50/EA |
| 34 | TN4030561 | 1 | Fuelline, .31d Str/Str, Plstc [Mit 2013]Fits SN 006000 and later · Old # 1071388 | $56.80/EA |
M20 engine fuel tank group, LPG
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035518 | 1 | Tray Wldt, LpgOld # 1017947 | $120.90/EA |
| 2 | TN4156940 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Old # 39277 | $3.20/EA |
| 3 | TN4034137 | 8 | Washer, Flat, 0.31, StdOld # 32491 | $2.50/EA |
| 4 | TN4041926 | 4 | Nut, Hex, Lock, M8 X 1.25, NlOld # 08709 | $2.50/EA |
| 5 | TN4017052 | 1 | Magnet, Drive BrushOld # 63378 | $21.10/EA |
| 6 | TN4041965 | 2 | Screw, Pan, M5 X 0.8 X 12, SsOld # 09200 | $3.40/EA |
| 7 | TN4033855 | 1 | Pin, Locating, LpgOld # 1024934 | $13.43/EA |
| 8 | TN4034138 | 2 | Washer, Flat, 0.38 StdOld # 32492 | $2.50/EA |
| 9 | TN4016826 | 1 | Nut, Hex, Lock, M10 X 1.5, NlOld # 41430 | $4.00/EA |
| 10 | TN4034476 | 2 | Nut, Hex, Jam, M10 X 1.5, SsOld # 32716 | $4.00/EA |
| 11 | TN4029786 | 1 | Strap, Mtg, Tank, LpgOld # 58589 | $113.90/EA |
| 12 | TN4041844 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Old # 16931 | $2.50/EA |
| 13 | TN4029300 | 1 | Strap, Mtg, Tank, Lpg, HingeOld # 57297 | $114.90/EA |
| 14 | TN4031662 | 1 | Screw, Hex, .38 - 16 X 3.75, 5Old # 35710 | $1.10/EA |
| 15 | TN4026793 | 1 | Nut, Hex, Lock, .38 - 16, Nl, SsOld # 59156 | $4.00/EA |
| 16 | TN4029787 | 1 | Strap, Mtg, Tank, LpgOld # 58590 | $88.70/EA |
| 17 | TN4015025 | 1 | Latch Assy, Mtg, Tank, Lpg, W/NutOld # 53400-1 | $56.90/EA |
| 18 | TN4015026 | 1 | Nut, Adj, Mtg, Tank, LpgOld # 53400-4 | $13.30/EA |
| 19 | TN4028758 | 1 | Nut, Hex, Lock, .38 - 16, Nl, ThinOld # 36643 | $2.50/EA |
| 20 | TN4035691 | 1 | Fitting, Brs, Qdc, Pf04, Lpg FemOld # 26496 | $86.90/EA |
| 21 | TN4037354 | 1 | Hose, Lpg, Med05, Pm04str/Sm04str, 14.0lOld # 22308-6 | $46.90/EA |
| 22 | TN4041151 | 2 | Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunOld # 150709 | $14.40/EA |
| 23 | TN4026127 | 1 | Fitting, Brs, Str, Pf04/Pf04, BhOld # 78122 | $30.50/EA |
| 24 | TN4035699 | 2 | Fitting, Brs, E90, Pf04/Pm04Old # 27048 | $5.30/EA |
| 25 | TN4035364 | 1 | Valve, Lpg, Press Relief [Rego]Old # 24047 | $133.70/EA |
| 26 | TN4042556 | 1 | Hose, Lpg, Med05, Pm04str/Sm04str, 55.0lOld # 19760 | $82.40/EA |
| 27 | TN4019748 | 1 | Fitting, Pipe, E45, SpclFits SN up to 007077 · Old # 392645 | $11.80/EA |
| 28 | TN4041876 | 1 | Fitting, Hyd, Str, Pf02/Pm04Old # 17414 | $7.90/EA |
| 29 | TN4035027 | 1 | Switch, Press, 12vdc 08a Spst Nc 0070psiOld # 23156 | $112.50/EA |
| 30 | TN4035401 | 1 | Tank, Lpg, 33lb, W/ Gauge [Empty, Liq]Old # 24928-1 | $816.50/EA |
| 31 | TN4031659 | 1 | Screw, Hex, .38 - 16 X 3.00, 5Old # 35707 | $1.15/EA |
| 32 | TN4018310 | 1 | Clamp, Cable, Stl, 1.00d X 0.75w, 1holeFits SN 006000–007077 · Old # 69234 | $4.20/EA |
| 33 | TN4041992 | 1 | Screw, Hex, M8 X 1.25 X 20, SsFits SN 006000–007077 · Old # 09740 | $3.30/EA |
| 34 | TN4034137 | 1 | Washer, Flat, 0.31, StdFits SN 006000–007077 · Old # 32491 | $2.50/EA |
| 35 | TN4232409 | 1 | Fitting, Pipe, Str, Pm04/Sf04Fits SN 007078 and later · Old # 11442-23 | $6.70/EA |
| 36 | TN4017933 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1holeFits SN 007078 and later · Old # 67767 | $4.20/EA |
| 37 | TN4041270 | 1 | Screw, Hex, M6 X 1.00 X 16, 8.8Fits SN 007078 and later · Old # 06942 | $2.50/EA |
| 38 | TN4034133 | 1 | Washer, Flat, 0.25, SaeFits SN 007078 and later · Old # 32483 | $2.50/EA |
M20 electrical wire harness group, Gasoline/LPG engine
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| TN8005960 | 1 | Harness, Eng [1.6l, Gm, E - cntrl]Fits SN up to 001999 · Old # 1011018 | $1,199.58/EA | |
| 1 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtFits SN up to 001999 · Old # 394916 | $15.40/EA |
| 2 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtFits SN up to 001999 · Old # 57804 | $16.30/EA |
| 3 | TN8004953 | 1 | Fuse, 5 Amp, [Min - 5]Fits SN up to 001999 · Old # 372235 | $5.50/EA |
| 4 | TN8004955 | 1 | Fuse, 20 Amp, [Min - 20]Fits SN up to 001999 · Old # 372237 | $5.20/EA |
| 5 | TN8004954 | 2 | Fuse, 15 Amp, [Min - 15]Fits SN up to 001999 · Old # 372236 | $2.40/EA |
| 6 | TN4168122 | 1 | Fuse, 50ampFits SN up to 001999 · Old # 394921 | $8.38/EA |
| 7 | TN8047679 | 1 | Harness, Injector, Gas [1.6l,Gm,E - cntrl]Fits SN up to 001999 · Old # 1011019 | $204.53/EA |
| 8 | TN8005961 | 1 | Harness, Injector, Lpg [1.6l,Gm,E - cntrl]Fits SN up to 001999 · Old # 1011020 | $215.43/EA |
| TN8003178 | 1 | Harness, Wire, Eng, Gas [Gm 1.6L]Fits SN 002000–003122 · Old # 384997 | $2,113.93/EA | |
| 9 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtFits SN 002000–003122 · Old # 394916 | $15.40/EA |
| 10 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtFits SN 002000–003122 · Old # 57804 | $16.30/EA |
| 11 | TN8004955 | 1 | Fuse, 20 Amp, [Min - 20]Fits SN 002000–003122 · Old # 372237 | $5.20/EA |
| 12 | TN8004953 | 1 | Fuse, 5 Amp, [Min - 5]Fits SN 002000–003122 · Old # 372235 | $5.50/EA |
| 13 | TN8004954 | 2 | Fuse, 15 Amp, [Min - 15]Fits SN 002000–003122 · Old # 372236 | $2.40/EA |
| 14 | TN8044970 | 1 | Fuse, 10 AmpFits SN 002000–003122 · Old # 384999 | $1.75/EA |
| 15 | TN8003179 | 1 | Fuse, 60 AmpFits SN 002000–003122 · Old # 384998 | $13.45/EA |
| TN8046539 | 1 | Harness, Wire, Eng, Gas [Gm 1.6L 10]Fits SN 003123–005999 · Old # 1063457 | $878.90/EA | |
| 9 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtFits SN 003123–005999 · Old # 394916 | $15.40/EA |
| 10 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtFits SN 003123–005999 · Old # 57804 | $16.30/EA |
| 11 | TN8004955 | 1 | Fuse, 20 Amp, [Min - 20]Fits SN 003123–005999 · Old # 372237 | $5.20/EA |
| 12 | TN8004953 | 1 | Fuse, 5 Amp, [Min - 5]Fits SN 003123–005999 · Old # 372235 | $5.50/EA |
| 13 | TN8004954 | 2 | Fuse, 15 Amp, [Min - 15]Fits SN 003123–005999 · Old # 372236 | $2.40/EA |
| 14 | TN8044970 | 1 | Fuse, 10 AmpFits SN 003123–005999 · Old # 384999 | $1.75/EA |
| 15 | TN8003179 | 1 | Fuse, 60 AmpFits SN 003123–005999 · Old # 384998 | $13.45/EA |
| TN8044968 | 1 | Harness, Wire, Eng, Lpg [Gm 1.6l]Fits SN 002000–003122 · Old # 384990 | $3,321.28/EA | |
| 16 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtFits SN 002000–003122 · Old # 394916 | $15.40/EA |
| 17 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtFits SN 002000–003122 · Old # 57804 | $16.30/EA |
| 18 | TN8004955 | 1 | Fuse, 20 Amp, [Min - 20]Fits SN 002000–003122 · Old # 372237 | $5.20/EA |
| 19 | TN8004953 | 1 | Fuse, 5 Amp, [Min - 5]Fits SN 002000–003122 · Old # 372235 | $5.50/EA |
| 20 | TN8004954 | 2 | Fuse, 15 Amp, [Min - 15]Fits SN 002000–003122 · Old # 372236 | $2.40/EA |
| 21 | TN8044970 | 1 | Fuse, 10 AmpFits SN 002000–003122 · Old # 384999 | $1.75/EA |
| 22 | TN8003179 | 1 | Fuse, 60 AmpFits SN 002000–003122 · Old # 384998 | $13.45/EA |
| TN8005584 | 1 | Harness, Wire, Eng, Lpg [Gm 1.6L 10]Fits SN 003123–005999 · Old # 1063456 | $2,025.70/EA | |
| 16 | TN4015796 | 2 | Relay, 12vdc, 20a, SpdtFits SN 003123–005999 · Old # 394916 | $15.40/EA |
| 17 | TN4029449 | 1 | Relay, 12vdc, 40a, SpdtFits SN 003123–005999 · Old # 57804 | $16.30/EA |
| 18 | TN8004955 | 1 | Fuse, 20 Amp, [Min - 20]Fits SN 003123–005999 · Old # 372237 | $5.20/EA |
| 19 | TN8004953 | 1 | Fuse, 5 Amp, [Min - 5]Fits SN 003123–005999 · Old # 372235 | $5.50/EA |
| 20 | TN8004954 | 2 | Fuse, 15 Amp, [Min - 15]Fits SN 003123–005999 · Old # 372236 | $2.40/EA |
| 21 | TN8044970 | 1 | Fuse, 10 AmpFits SN 003123–005999 · Old # 384999 | $1.75/EA |
| 22 | TN8003179 | 1 | Fuse, 60 AmpFits SN 003123–005999 · Old # 384998 | $13.45/EA |
| TN8005427 | 1 | Harness, Wire, Eng, Gas [ Mit, 2.0L]Fits SN 006000 and later · Old # 1071653 | $1,434.90/EA | |
| TN8005428 | 1 | Harness, Wire, Eng, Lpg[ Mit, 2.0L]Fits SN 006000 and later · Old # 1071654 | $1,268.00/EA |
M20 electrical wire harness group, Gasoline/LPG engine adapter harness without telemetry
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030709 | 1 | Harness, Wire, Gas/Lpg [Eng Adapt]Fits SN 002000 and later · Old # 1071642 | $252.58/EA |
M20 cylinder head and valves group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005313 | 1 | Cap, Filler, Oil, W/ OrgOld # 372574 | $30.40/EA |
| 2 | TN372573 | 1 | Seal, Org, CapOld # 372573 · current Tennant number (Tennant parts catalog) | Call for price |
| 3 | TN8004587 | 1 | Cover, Hsng, CamshaftOld # 372007 | $227.60/EACall for availability |
| 4 | TN8004576 | 8 | Bolt, Camshaft CoverOld # 371990 | $38.20/EA |
| 5 | TN8004588 | 1 | Gasket, Cover, Hsng, CamshaftOld # 372008 | $257.50/EA |
| 6 | TN8002713 | 8 | Seal, Seat, ValveOld # 9003345 | $37.30/EA |
| 7 | TN8004594 | 1 | Housing, CamshaftOld # 372018 | $715.30/EA |
| 8 | TN8004595 | 1 | Tube [Pcv]Old # 372019 | $20.65/EA |
| 9 | TN8004600 | 8 | Arm, Rocker, ValveOld # 372030 | $92.42/EA |
| 10 | TN8004601 | 8 | Seat, Spring, Valve, 0.333Old # 372031 | $48.68/EA |
| 11 | TN8004603 | 16 | Key, Valve StemOld # 372033 | $15.15/EA |
| 12 | TN8004604 | 4 | Cap, Spring, ValveOld # 372034 | $22.83/EA |
| 13 | Old # 372035 | 8 | Screw, Adj, Valve, HydOld # 372035Number being confirmed with Tennant – call before ordering | Number being confirmed with Tennant – call before ordering |
| 14 | TN8004606 | 8 | Spring, ValveOld # 372036 | $32.13/EA |
| 15 | TN8004607 | 4 | Seat, Rotator, ValveOld # 372037 | $112.92/EA |
| 16 | TN8004602 | 4 | Seat, Spring, ValveOld # 372032 | $18.08/EA |
| 17 | TN8004608 | 4 | Valve, ExhaustOld # 372038 | $103.36/EA |
| 18 | TN8004609 | 1 | Valve, IntakeOld # 372039 | $55.79/EA |
| 19 | TN8004598 | 1 | Gasket, Head, CylOld # 372022 | $219.60/EA |
| 20 | TN8004599 | 1 | Head, CylOld # 372023 | $5,074.20/EA |
| Item 21: choose your version (6) | ||||
| 21 | TN8045736 | 4 | Seat, Valve, Exhaust, [+0.2mm]Old # 372024 | $45.15/EA |
| 21 | TN8045737 | 4 | Seat, Valve, Exhaust, StdOld # 372025 | $79.49/EA |
| 21 | TN8045738 | 4 | Seat, Valve, Exhaust, [+0.4mm]Old # 372026 | $45.75/EA |
| 21 | TN372027 | 4 | Seat, Valve, Intake, StdOld # 372027 · current Tennant number (Tennant parts catalog) | Call for price |
| 21 | TN8045739 | 4 | Seat, Valve, Intake, [+0.2mm]Old # 372028 | $46.76/EA |
| 21 | TN8045740 | 4 | Seat, Valve, Intake, [+0.4mm]Old # 372029 | $47.07/EA |
| 22 | TN8004583 | 2 | Pin, Lock, Cyl Head, 14mm X 17mmOld # 371999 | $60.80/EA |
| 23 | TN8045742 | 2 | Bolt, Hsng, ThermostatOld # 372048 | $29.60/EA |
| 24 | TN8004615 | 1 | Thermostat, W/ Hsng And SealOld # 372047 | $279.80/EA |
| 25 | TN8045705 | 2 | Bolt, Tube [Pvc], M6 X 1 X 15Old # 371957 | $18.45/EA |
| 26 | TN4032759 | 1 | Gasket, Tube [Pcv]Old # 371958 | $27.50/EA |
| 27 | TN8045704 | 2 | Clamp, Hose, 1.75 [Pcv]Old # 371954 | $29.60/EA |
| 28 | TN8005752 | 1 | Hose [Pcv]Old # 371955 | $42.10/EA |
| 29 | TN8005753 | 1 | Tube [Pcv]Old # 371956 | $40.99/EA |
| 30 | TN8004150 | 10 | Bolt, Head. CylOld # 372882 | $33.30/EA |
M20 crankshaft and pistion group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005738 | 1 | Piston, W/ Pin, StdOld # 371932 | $225.63/EA |
| 2 | TN8005737 | 4 | Ring Kit, Piston, Std 78.95 - 79.02mmOld # 371931 | $368.25/EA |
| 3 | TN8005740 | 4 | Rod, Connecting, M08 X 45Old # 371934 | $285.33/EA |
| 4 | TN371935 | 8 | Bolt, Connecting RodOld # 371935 · current Tennant number (Tennant parts catalog) | Call for price |
| 5 | TN8005739 | 1 | Bearing Kit, Rod, Connecting, StdOld # 371933 | $190.99/EA |
| Item 6: choose your version (4) | ||||
| 6 | TN8004519 | 4 | Bearing Kit, Cshft, 1.995 - 2.001mm (Brown Blue)Old # 371966 | $177.76/EA |
| 6 | TN8004560 | 4 | Bearing Kit, Cshft, 2.120 - 2.126mmOld # 371967 | $248.26/EA |
| 6 | TN8004561 | 4 | Bearing Kit, Cshft, 2.114 - 2.120mm (Green)Old # 371968 | $33.43/EA |
| 6 | TN8004562 | 4 | Bearing Kit, Cshft, 1.989 - 1.995mm (Std Brown)Old # 371969 | $38.38/EA |
| Item 7: choose your version (2) | ||||
| 7 | TN8004563 | 1 | Bearing Kit, Cshft, 1.989 - 1.995mm (Brown - Middle)Old # 371970 | $100.84/EA |
| 7 | TN8004564 | 1 | Bearing Kit, Cshft, 1.995 - 2.001mm (Green - Middle)Old # 371971 | $171.70/EA |
| 8 | TN8005749 | 10 | Bolt, M10 X 1.50 X 75mmOld # 371946 | $30.60/EA |
| Item 9: choose your version (2) | ||||
| 9 | TN8005743 | 1 | Bolt, M12 X 1.75 X 62mmOld # 371938 | $18.95/EA |
| 9 | TN8044961 | 1 | Bolt, Pulley, CshftOld # 384961 | $18.95/EA |
| 10 | TN8005742 | 1 | Washer, Sheave, CshftOld # 371937 | $123.62/EA |
| 11 | TN8005741 | 1 | Sheave, CshftOld # 371936 | $864.60/EA |
| 12 | TN8005748 | 1 | Seal, Oil, CshftOld # 371945 | $140.00/EA |
| 13 | TN8004571 | 1 | FlywheelOld # 371979 | $568.68/EA |
| TN8004569 | 1 | Gear, Ring, StarterOld # 371977 | $64.37/EA | |
| 14 | TN8004568 | 6 | Bolt, FlywheelOld # 371976 | $23.20/EA |
| 15 | TN8004570 | 2 | Pin, Lock, TransmissionOld # 371978 | $23.43/EA |
| 16 | TN8005746 | 6 | Plug, Hole, Coolant, Eng BlockOld # 371942 | $28.27/EA |
| 17 | TN8004583 | 2 | Pin, Lock, Cyl Head, 14mm X 17mmOld # 371999 | $60.80/EA |
| Item 18: choose your version (2) | ||||
| 18 | TN371962 | 1 | Starter, 12vdc [Gm] (Before Mar. 2006)Old # 371962 · no current Tennant number on file | Call for price |
| 18 | TN8003158 | 1 | Starter, 12vdc [Delco] (Mar. 2006 and Newer)Old # 384963 | $1,197.10/EA |
| Item 19: choose your version (2) | ||||
| 19 | TN8004516 | 1 | Bolt, M08 X 1.25 X 25mmOld # 371963 | $6.36/EA |
| 19 | TN8003159 | 1 | Bolt, M08 X 1.25 X 25mmOld # 384964 | $13.20/EA |
| 20 | TN8004517 | 1 | Stud, Starter, M08 X 1.25Old # 371964 | $41.51/EA |
| 21 | TN8005747 | 1 | Block, Short, Eng, W/ Piston & RingOld # 371944 | Call for price |
| 22 | TN8004518 | 1 | CrankshaftOld # 371965 | $1,483.89/EA |
M20 oil and water pump group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005312 | 1 | Pump, OilOld # 372572 | Call for price |
| 2 | TN8045701 | 5 | Bolt, Cover, Oil Pump, M6 X 14Old # 371947 | $4.34/EA |
| 3 | TN371948 | 1 | Cover, Pump, OilOld # 371948 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 4 | TN371949 | 1 | Gear, Ring, Drive, Oil PumpOld # 371949 · Tennant lists this number as obsolete with no replacement; call 800-440-6723 | Call for price |
| 5 | TN371950 | 1 | Gear, Drive, Oil PumpOld # 371950 · current Tennant number (Tennant parts catalog) | Call for price |
| 6 | TN8004582 | 1 | Gasket, Plug, Relief Valve,Oil PressOld # 371998 | $20.15/EA |
| 7 | TN8004578 | 1 | Plug, Bore, Valve, Relief, Oil PressOld # 371994 | Call for price |
| 8 | TN8045730 | 1 | Spring, Valve, Relief, Oil PressOld # 371993 | $21.11/EA |
| 9 | TN8004581 | 1 | Valve, Relief, Oil PressOld # 371997 | $80.60/EA |
| 10 | TN8004586 | 1 | Seal, Org, Oil PumpOld # 372005 | $123.60/EA |
| 11 | TN8005751 | 1 | Seal, Org, Hsng, Oil PumpOld # 371951 | $20.45/EA |
| 12 | TN8045702 | 1 | Plug, Hsng, Oil PumpOld # 371952 | $20.65/EA |
| 13 | TN8004573 | 1 | Gasket, Pump, OilOld # 371984 | $36.20/EA |
| 14 | TN8004574 | 1 | Seal, Org, Press Switch / Drain PlugOld # 371987 | $14.50/EA |
| Item 15: choose your version (2) | ||||
| 15 | TN8004580 | 1 | Switch, Indicator, Oil PressOld # 371996 | $63.10/EA |
| 15 | TN8002155 | 1 | Switch, Indicator, Oil Press [2010]Old # 9008197 | $103.30/EA |
| 16 | TN8045707 | 2 | Pin, Ring, Lock, Hsng, Water PumpOld # 371983 | $37.47/EA |
| 17 | TN8045708 | 6 | Bolt, Pump, OilOld # 371986 | $9.80/EA |
| 18 | TN8005309 | 1 | Seal, Org, Water PumpOld # 372567 | $28.00/EA |
| 19 | TN8004572 | 1 | Pump, Water [Gm]Old # 371981 | $763.90/EA |
| 20 | TN8045706 | 3 | Bolt, Cover, Water PumpOld # 371980 | $6.20/EACall for availability |
| 21 | TN8045732 | 1 | Screen, Oil Pump, W/ Suc PipeOld # 372001 | $43.73/EA |
| 22 | TN8045709 | 1 | Bolt, Bracket,Screen,Oil Pump,M6x1x1Old # 371991 | $15.05/EA |
| Item 23: choose your version (2) | ||||
| 23 | TN8045731 | 1 | Bracket, Screen, Oil PumpOld # 372000 | Call for price |
| 23 | TN8044963 | 1 | Bracket, Screen, Oil PumpOld # 384966 | $20.80/EA |
| 24 | TN8004576 | 2 | Bolt, Oil Pump Screen/Camshaft CoverOld # 371990 | $38.20/EA |
| 25 | TN8004575 | 1 | Seal, Ring, Pipe, Suc, Oil PumpOld # 371988 | $29.86/EA |
| 26 | TN8004584 | 1 | Sensor, Position, CshftOld # 372002 | $154.00/EA |
| 27 | TN8044964 | 1 | Bolt, Bracket, Sensor,Cshft PositionOld # 384968 | $14.44/EA |
| 28 | TN8004585 | 1 | Bracket, Sensor, Position, CshftOld # 372003 | $86.00/EA |
| 29 | TN372004 | 3 | Bolt, Sensor, Position, CshftOld # 372004 · current Tennant number (Tennant parts catalog) | Call for price |
M20 oil pan and filter group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN371960 | 1 | Pan, Oil, W/ Baffle / Plug / SealOld # 371960 · current Tennant number (Tennant parts catalog) | Call for price |
| 2 | TN8004574 | 1 | Seal, Org, Press Switch / Drain PlugOld # 371987 | $14.50/EA |
| 3 | TN8004577 | 1 | Plug, Drain, Oil Pan, M14 X 1.5 X 12Old # 371992 | $21.00/EA |
| Item 4: choose your version (2) | ||||
| 4 | TN8004515 | 15 | Bolt, M06 X 1.00 X 13mmOld # 371961 | $30.70/EA |
| 4 | TN8044962 | 15 | Bolt, Pan, OilOld # 384962 | $15.10/EA |
| 5 | TN8005754 | 1 | Gasket, Pan, OilOld # 371959 | $67.27/EA |
| 6 | TN8004565 | 1 | Element, Fltr, Oil, Eng, Spin - On (GM)Old # 371972 | $32.00/EA |
| 7 | TN8004566 | 1 | Fitting, Fltr, OilOld # 371973 | $57.82/EA |
| 8 | TN8005306 | 1 | Dipstick, OilOld # 372560 | $37.40/EA |
| 9 | TN8004579 | 1 | Seal, Org, Cap, Fltr, OilOld # 371995 | $53.50/EA |
| 10 | TN8005744 | 1 | Tube, DsOld # 371940 | $298.50/EA |
| 11 | TN8005745 | 1 | Sealant, Tube, DsOld # 371941 | $52.10/EA |
| 12 | TN8004567 | 1 | Valve, By - Pass, Oil FltrOld # 371975 | $90.70/EA |
| 13 | TN8045700 | 1 | Plug, Hole, Core, Eng BlockOld # 371943 | $36.46/EA |
M20 manifold group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004597 | 4 | Stud, Manifold, M8 X 96Old # 372021 | $62.20/EA |
| 2 | TN8004616 | 8 | Nut, Manifold, Exhaust, M8 X 1.25Old # 372049 | $38.20/EA |
| 3 | TN8004617 | 1 | Manifold, ExhaustOld # 372050 | $1,046.90/EA |
| 4 | TN8004618 | 1 | Gasket, Manifold, ExhaustOld # 372051 | $52.10/EA |
| 5 | TN8004619 | 1 | Shield, Manifold, ExhaustOld # 372052 | $129.58/EA |
| 6 | TN8004620 | 1 | Gasket, Manifold, IntakeOld # 372053 | $193.30/EA |
| 7 | TN8004627 | 5 | Bolt, Shield, Manifold, ExhaustOld # 372066 | $25.90/EA |
| 8 | TN8004596 | 13 | Stud, Manifold, M8 X 28Old # 372020 | $29.60/EA |
M20 camshaft group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8045733 | 1 | Ball, CamshaftOld # 372009 | $14.34/EA |
| 2 | TN8045734 | 1 | Retainer, CamshaftOld # 372010 | $42.53/EA |
| 3 | TN8045735 | 2 | Bolt, Retainer, Camshaft, M6 X 1 X 16Old # 372011 | $20.30/EA |
| 4 | TN8004589 | 1 | CamshaftOld # 372012 | $689.67/EA |
| 5 | TN8004590 | 1 | Seal, Org, Bolt, Cover, Camshaft HsngOld # 372013 | $106.00/EA |
| 6 | TN8004591 | 1 | Cover, Hsng, CamshaftOld # 372014 | $726.30/EACall for availability |
| 7 | TN8004592 | 3 | Bolt, Cover, Camshaft, M6 X 1 X 22Old # 372015 | $16.70/EA |
| 8 | TN8004593 | 1 | Seal, Org, Bolt, Cover, Camshaft HsngOld # 372016 | Call for price |
| 9 | TN8002278 | 1 | Pulley, Tension, Belt, TimingOld # 9004674 | $919.20/EA |
| 10 | TN8004610 | 1 | Sprocket, CamshaftOld # 372040 | $458.10/EA |
| 11 | TN4172793 | 1 | Washer, Sprkt, CamshaftOld # 372017 | Call for price |
| 12 | TN8045741 | 1 | Bolt, Sprocket, Camshaft, M10x1.25x60Old # 372041 | $15.30/EA |
| 13 | TN8005840 | 1 | Belt, Timing [Gm1.6l]Old # 1057029 | $60.70/EA |
| 14 | TN8004611 | 1 | Cover, Belt, Timing, Upper FrontOld # 372043 | $802.50/EACall for availability |
| 15 | TN8004515 | 6 | Bolt, Eng Cover, M6 X 1 X 13Old # 371961 | $30.70/EA |
| 16 | TN8004614 | 1 | Bolt, Tensioner, Timing Belt,M8x1.25x48Old # 372046 | $33.00/EA |
| 17 | TN8004612 | 1 | Cover, Belt, Timing, Lower FrontOld # 372044 | $270.50/EACall for availability |
| 18 | TN8005333 | 1 | Housing, CamshaftOld # 372616 | $261.60/EA |
| 19 | TN8002889 | 1 | Sprocket, CrankshaftOld # 388552 | $149.40/EA |
| 20 | TN8002279 | 1 | Bolt, Tensioner [GM]Old # 9004675 | $18.70/EA |
M20 ignition group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005322 | 1 | Wire Set, Sparkplug [1.6l]Old # 372603 | $395.90/EA |
| 2 | TN8004621 | 2 | Retainer, Sparkplug, 2 WayOld # 372055 | $0.00/EACall for availability |
| 3 | TN8004622 | 1 | Retainer, Sparkplug, 3 WayOld # 372056 | $28.90/EA |
| 4 | TN8004623 | 1 | Bracket, Retaining, Wire, SparkplugOld # 372057 | $20.50/EA |
| 5 | TN8004624 | 1 | Bracket, Retaining, Wire, SparkplugOld # 372058 | $22.05/EA |
| 6 | TN8004625 | 1 | Bracket, Retaining, Wire, SparkplugOld # 372059 | $22.05/EA |
| 7 | TN8004626 | 1 | Coil, IgnitionOld # 372060 | $1,224.10/EA |
| 8 | TN8005314 | 4 | SparkplugOld # 372575 | $13.30/EA |
M20 cylinder block group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003898 | 1 | Block Assy, CylinderOld # 9010419 | $5,928.20/EA |
| 2 | TN8003899 | 2 | Plug, TaperOld # 9010420 | $3.23/EA |
| 3 | TN8003900 | 1 | Plug, TaperOld # 9010421 | $3.23/EA |
| 4 | TN8003901 | 1 | PlugOld # 9010422 | $2.83/EA |
| 5 | TN8003902 | 1 | Plug, TaperOld # 9010423 | $5.45/EA |
| 6 | TN8003903 | 7 | Cap, SealOld # 9010424 | $2.60/EA |
| 7 | TN8003904 | 2 | Cap, SealOld # 9010425 | $4.10/EA |
| 8 | TN8003905 | 2 | Pin, DowelOld # 9010426 | $2.30/EA |
| 9 | TN8003906 | 2 | Bushing, KnockOld # 9010427 | $2.83/EA |
| 10 | TN8003907 | 2 | Bolt, Cap, BearingOld # 9010428 | $3.43/EA |
| 11 | TN8003908 | 7 | Bolt, Cap, BearingOld # 9010429 | $4.44/EA |
| 12 | TN8003909 | 1 | Bolt, Cap, BearingOld # 9010430 | $4.85/EA |
| 13 | TN8003910 | 2 | BushingOld # 9010431 | $2.40/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN8003911 | 1 | Bearing, Std, BalancerOld # 9010432 | $64.44/EA |
| 14 | TN8003912 | 1 | Bearing, Oversize [1.0]Old # 9010433 | $66.16/EA |
| Item 15: choose your version (2) | ||||
| 15 | TN8003913 | 1 | Bearing, Std, BalancerOld # 9010434 | $93.43/EA |
| 15 | TN8003914 | 1 | Bearing, Oversize [1.0]Old # 9010435 | $93.43/EA |
| 16 | TN8003915 | 2 | Bushing, KnockOld # 9010436 | $3.50/EA |
| Item 17: choose your version (2) | ||||
| 17 | TN8003932 | 1 | Bearing, Shaft, Std, BalancerOld # 9010458 | $66.16/EA |
| 17 | TN8003933 | 1 | Bearing, Shaft, Balancer [ Ovrsz]Old # 9010459 | $69.89/EA |
| 18 | TN8003916 | 1 | Dipstick Assy, GuageOld # 9010439 | $46.90/EA |
| 19 | TN8003917 | 1 | Dipstick, Guage, GuideOld # 9010440 | $41.24/EA |
| 20 | TN9010437 | 1 | Dipstick, Rod, GuageOld # 9010437 · no current Tennant number on file | Call for price |
| 21 | TN8048109 | 1 | O - RingOld # 9010438 | $2.20/EA |
| 22 | TN8003918 | 1 | Bolt, FlangeOld # 9010441 | $1.50/EA |
| 23 | TN8048110 | 1 | O - RingOld # 9010442 | $2.80/EA |
| 24 | TN8003919 | 5 | Bolt, FlangeOld # 9010444 | $1.25/EA |
| 25 | TN8003920 | 1 | Seal, Case, Oil, RearOld # 9010445 | $31.10/EA |
| 26 | TN8003921 | 1 | Seal, OilOld # 9010446 | $21.60/EA |
| Item 27: choose your version (5) | ||||
| 27 | TN8003922 | 4 | Bearing, Cshft [Green Std 1,2,4,5]Old # 9010447 | $9.80/EA |
| 27 | TN8003923 | 4 | Bearing, Cshft [Yellow Std 1,2,4,5]Old # 9010448 | $9.80/EA |
| 27 | TN8003924 | 4 | Bearing, Cshft[No Color Std 1,2,4,5]Old # 9010449 | Call for price |
| 27 | TN8003925 | 4 | Bearing, Cshft [ Lan Std 1,2,4,5]Old # 9010450 | $9.80/EA |
| 27 | TN8003926 | 4 | Bearing, Cshft [ Red Std 1,2,4,5]Old # 9010451 | $9.80/EA |
| Item 28: choose your version (5) | ||||
| 28 | TN4027498 | 1 | Bearing, Cshft [ Green Std 3]Old # 9010452 | Call for price |
| 28 | TN8003927 | 1 | Bearing, Cshft [ Yellow Std 3]Old # 9010453 | $8.99/EA |
| 28 | TN8003928 | 1 | Bearing, Cshft [ No Color Std 3]Old # 9010454 | $9.80/EA |
| 28 | TN8003929 | 1 | Bearing, Cshft [ Lan Std 3]Old # 9010455 | $9.80/EA |
| 28 | TN8003930 | 1 | Bearing, Cshft [ Black Std 3]Old # 9010456 | $14.30/EA |
| 29 | TN8003931 | 1 | Bearing, Thrust, CshftOld # 9010457 | $9.39/EA |
| 30 | TN8048111 | 1 | Drain, Water, JointOld # 9010443 | $16.97/EA |
M20 rocker cover group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003934 | 1 | Valve, PcvOld # 9010460 | $15.90/EA |
| 2 | TN8003935 | 1 | Valve, Gasket, PcvOld # 9010461 | $4.20/EA |
| 3 | TN8003936 | 6 | Bolt, Rocker, CoverOld # 9010462 | $2.20/EA |
| 4 | TN9010463 | 1 | Gasket, Oil, Filler, CapOld # 9010463 · no current Tennant number on file | Call for price |
| 5 | TN8003937 | 1 | Cap, Oil, FillerOld # 9010464 | $9.70/EA |
| 6 | TN8003938 | 1 | Gasket, Cover, RockerOld # 9010465 | $27.70/EA |
| 7 | TN8003939 | 1 | Cover Assy, RockerOld # 9010466 | $178.30/EA |
M20 cylinder head group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4027499 | 1 | Head Assy, CylinderOld # 9010467 | Call for price |
| 2 | TN8003944 | 2 | StudOld # 9010473 | $3.90/EA |
| 3 | TN8003941 | 2 | Seal, CapOld # 9010469 | $2.80/EA |
| 4 | TN8003942 | 3 | StudOld # 9010470 | $2.50/EA |
| 5 | TN8003910 | 2 | BushingOld # 9010431 | $2.40/EA |
| 1 | TN4026470 | 1 | Head Kit, Cyl [Mitsubishi 2015 12mm]Old # 9014162 | $6,997.80/EA |
| 2 | TN8003944 | 2 | StudOld # 9010473 | $3.90/EA |
| 3 | TN8003941 | 2 | Seal, CapOld # 9010469 | $2.80/EA |
| 4 | TN8003942 | 3 | StudOld # 9010470 | $2.50/EA |
| 5 | TN8003910 | 2 | BushingOld # 9010431 | $2.40/EA |
| 6 | TN8003940 | 1 | Gasket, Cylinder, HeadOld # 9010468 | $51.30/EA |
| 7 | TN8003943 | 1 | Seal, Cam Shaft, FrontOld # 9010471 | $12.20/EA |
| 8 | TN8003918 | 2 | Bolt, FlangeOld # 9010441 | $1.50/EA |
| 9 | TN8003946 | 1 | Thurst, CaseOld # 9010480 | $13.20/EA |
| 10 | TN8003947 | 2 | ScrewOld # 9010481 | $1.50/EA |
| 11 | TN8003948 | 1 | O - RingOld # 9010482 | $6.60/EA |
| 12 | TN8003950 | 10 | Cylinder Assy, Head, BoltOld # 9010484 | $7.50/EA |
| 13 | TN8003949 | 1 | GasketOld # 9010483 | $5.50/EA |
| 14 | TN8003951 | 1 | CoverOld # 9010485 | $6.30/EA |
M20 front cover and oil pan group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003952 | 1 | Pan, OilOld # 9010487 | $119.50/EA |
| 2 | TN8003953 | 1 | Gasket, Plug, Drain, OilOld # 9010488 | $1.90/EA |
| 3 | TN8003954 | 1 | Plug, Oil, DrainOld # 9010489 | $5.30/EA |
| 4 | TN8003955 | 17 | Bolt, FlangeOld # 9010490 | $1.31/EA |
| 5 | TN8003956 | 2 | Bolt, FlangeOld # 9010491 | $1.40/EA |
| 6 | TN8003957 | 2 | Washer, BoltOld # 9010492 | $2.12/EA |
| 7 | TN8003958 | 1 | Screen, OilOld # 9010493 | $41.92/EA |
| 8 | TN8003959 | 1 | Nut, StrainerOld # 9010494 | $1.31/EA |
| 9 | TN8003960 | 1 | Washer, StrainerOld # 9010495 | $1.21/EA |
| 10 | TN8003961 | 1 | Gasket, ScreenOld # 9010496 | $2.80/EA |
| 11 | TN8003962 | 8 | Bolt, FlangeOld # 9010497 | $1.50/EA |
| 12 | TN8003963 | 1 | Cover Assy, Front, Upper [T - Belt]Old # 9010498 | $14.40/EA |
| 13 | TN8003964 | 1 | Bracket Assy, Coil, IgnitionOld # 9010502 | $53.30/EA |
| 14 | TN8048102 | 1 | Hose, Drain, Oil [Mit 20/24m]Old # 9010311 | $68.70/EA |
| 15 | TN8003870 | 1 | Plug, Flare, 37deg [Mit]Old # 9010312 | $12.20/EA |
| 16 | TN8048103 | 1 | Fitting, 37deg [Mit]Old # 9010313 | $20.20/EA |
| 17 | TN8003965 | 3 | Bolt, FlangeOld # 9010503 | $3.50/EA |
| 18 | TN8003966 | 1 | Bolt, FlangeOld # 9010504 | $3.40/EA |
| 19 | TN8003967 | 1 | Bolt, FlangeOld # 9010505 | $2.40/EA |
| 20 | TN8003968 | 2 | BoltOld # 9010506 | $1.80/EA |
| 21 | TN8003969 | 2 | BoltOld # 9010507 | $1.50/EA |
| 22 | TN8003970 | 1 | Cover, Lower, Front [T - Belt]Old # 9010508 | $72.10/EA |
| 23 | TN8003971 | 1 | Cover, Rear [T - Belt]Old # 9010511 | $15.00/EA |
| 24 | TN8048112 | 1 | Plug, RubberOld # 9010512 | $2.60/EA |
M20 camshaft and valve group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004012 | 1 | Camshaft AssyOld # 9010530 | $549.95/EA |
| 2 | TN8004017 | 1 | Pin, DowelOld # 9010535 | $2.30/EA |
| 3 | TN8004014 | 4 | Shaft, Spring, RockerOld # 9010532 | $4.40/EA |
| 4 | TN8004015 | 4 | Arm Assy, Rocker [B]Old # 9010533 | $31.11/EA |
| 5 | TN8004016 | 4 | Arm Assy, Rocker [A]Old # 9010534 | $37.21/EA |
| 6 | TN8004013 | 1 | Shaft, Arm , RockerOld # 9010531 | $43.43/EA |
| 7 | TN8004018 | 16 | Adjuster Assy, LashOld # 9010536 | $29.50/EA |
| 8 | TN8004019 | 32 | Valve, Spring, LockOld # 9010537 | $1.52/EA |
| 9 | TN8004020 | 16 | Valve, Spring, RetainerOld # 9010538 | $5.15/EA |
| 10 | TN8004021 | 16 | Valve, SpringOld # 9010539 | $7.58/EA |
| 11 | TN8004022 | 16 | Valve, Seal, StemOld # 9010540 | $5.90/EA |
| 12 | TN8003828 | 1 | Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 | $7.00/EA |
| 13 | TN8004023 | 16 | Valve, Spring, SeatOld # 9010541 | $1.50/EA |
| 14 | TN8004024 | 8 | Valve, InletOld # 9010542 | $20.40/EA |
| 15 | TN8004025 | 8 | Valve, ExhaustOld # 9010543 | $18.80/EA |
| 16 | TN8004026 | 1 | Shaft, Arm, RockerOld # 9010544 | $43.43/EA |
| 17 | TN8004027 | 13 | Bolt, FlangeOld # 9010545 | $1.80/EA |
| 18 | TN8004028 | 13 | Shaft, Cap, RockerOld # 9010546 | $2.30/EA |
| 19 | TN8004029 | 4 | Arm Assy, Rocker [C]Old # 9010547 | $41.65/EA |
| 20 | TN8004030 | 1 | Bracket, Pulley, TensionerOld # 9010548 | $183.10/EA |
| 21 | TN8004031 | 1 | Bolt, WasherOld # 9010549 | $2.30/EA |
| 22 | TN8004032 | 1 | Bolt, WasherOld # 9010550 | $3.10/EA |
| 23 | TN8004033 | 1 | WasherOld # 9010551 | $10.00/EA |
| 24 | TN8004034 | 1 | Pulley, IdlerOld # 9010552 | $54.20/EA |
| 25 | TN8003829 | 1 | Bolt, M8 - 1.25 X 55 Fi Hd [Mit]Old # 9010254 | $3.33/EA |
| 26 | TN8004035 | 1 | Bolt, SealOld # 9010554 | $3.50/EA |
| 27 | TN8004036 | 1 | Bolt, WasherOld # 9010555 | $3.80/EA |
| 28 | TN8004037 | 1 | Pulley, TensionerOld # 9010556 | $48.00/EA |
| 29 | TN8004038 | 1 | Bolt, WasherOld # 9010557 | $3.90/EA |
| 30 | TN8004032 | 1 | Bolt, WasherOld # 9010550 | $3.10/EA |
| 31 | TN8004039 | 1 | Belt, TimingOld # 9010559 | $165.80/EA |
| 32 | TN8004040 | 1 | Sprocket, CamshaftOld # 9010560 | $31.90/EA |
| 33 | TN8004041 | 1 | Bolt, FlangeOld # 9010561 | $2.83/EA |
| 34 | TN8004042 | 1 | Sprocket Assy, CshftOld # 9010562 | $25.90/EA |
| 35 | TN8048116 | 1 | Pin, SpringOld # 9010563 | $8.30/EA |
| 36 | TN8004043 | 1 | TensionerOld # 9010564 | $201.60/EA |
| 37 | TN8004044 | 2 | Bolt, FlangeOld # 9010565 | $2.60/EA |
| 38 | TN8003956 | 2 | Bolt, FlangeOld # 9010491 | $1.40/EA |
| 39 | TN8004045 | 1 | Bracket, Indicator, TimingOld # 9010567 | $4.14/EA |
| 40 | TN8004046 | 1 | Sprocket, Pump, OilOld # 9010568 | $15.70/EA |
| 41 | TN8004047 | 1 | NutOld # 9010569 | $2.65/EA |
| 42 | TN8003825 | 1 | Cover, Timing, Gear [Mit 2.0/2.4l]Old # 9010250 | $349.80/EA |
| 43 | TN8003826 | 2 | Bolt, M8 - 1.25 X 65 Hxhd [Mit]Old # 9010251 | $1.80/EA |
| 44 | TN8003827 | 3 | Washer, Lock, M8 [Mit]Old # 9010252 | $1.10/EA |
M20 piston and crankshaft group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003972 | 1 | Crankshaft AssyOld # 9010513 | $996.06/EA |
| 2 | TN8048113 | 1 | KeyOld # 9010514 | $4.20/EA |
| 3 | TN8048114 | 1 | Washer, SpecialOld # 9010515 | $6.80/EA |
| 4 | TN8003973 | 1 | Pulley Assy, Damper, TorsionalOld # 9010516 | $171.80/EA |
| 5 | TN8003974 | 4 | Bolt, WasherOld # 9010517 | $2.20/EA |
| 6 | TN8048115 | 1 | Bolt, Sprocket, CshftOld # 9010518 | $11.20/EA |
| 7 | TN8003975 | 1 | Pin, DowelOld # 9010519 | $4.85/EA |
| 8 | TN8003976 | 4 | Rod Assy, ConnectingOld # 9010520 | $185.94/EA |
| 9 | TN8004003 | 8 | NutOld # 9010521 | $3.03/EA |
| Item 10: choose your version (3) | ||||
| 10 | TN8004004 | 4 | Bearing, Rod, Connect [Yellow Std]Old # 9010522 | $8.89/EA |
| 10 | TN8004005 | 4 | Bearing, Rod, Connect [No Color Std]Old # 9010523 | $9.49/EA |
| 10 | TN8004006 | 4 | Bearing, Rod, Connect [ Lan Std]Old # 9010524 | $9.49/EA |
| 11 | TN8004007 | 8 | Bolt, ConnectingOld # 9010525 | $22.83/EA |
| Item 12: choose your version (3) | ||||
| 12 | TN8004008 | 4 | Piston, Pin [Std A]Old # 9010526 | $63.43/EA |
| 12 | TN8004009 | 4 | Piston, Pin [Std B]Old # 9010527 | $63.43/EA |
| 12 | TN8004010 | 4 | Piston, Pin [Std C]Old # 9010528 | $63.43/EA |
| 13 | TN8004011 | 1 | Piston Set, RingOld # 9010529 | $109.58/EA |
M20 balancer group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004048 | 1 | Bolt, Belt, Balancer, TrainOld # 9010570 | $3.50/EA |
| 2 | TN8004049 | 1 | Tensioner, Timing, BeltOld # 9010571 | $33.80/EA |
| 3 | TN8004050 | 1 | Flange, Sprocket, CshftOld # 9010572 | $4.34/EA |
| 4 | TN8004070 | 1 | Bolt, FlangeOld # 9010600 | $2.90/EA |
| 5 | TN8004051 | 1 | Washer, Belt, Balancer, TrainOld # 9010574 | $3.30/EA |
| 6 | TN8004052 | 1 | Belt, TimingOld # 9010575 | $30.70/EA |
| 7 | TN8004053 | 1 | Sprocket, Shaft, BalancerOld # 9010576 | $10.30/EA |
| 8 | TN8004054 | 1 | Spacer, Belt, Balancer, TrainOld # 9010577 | $11.50/EA |
| 9 | TN8004055 | 1 | Shaft, Right, BalancerOld # 9010578 | $136.45/EA |
| 10 | TN8004056 | 1 | Shaft, Left, BalancerOld # 9010579 | $115.65/EA |
| 11 | TN8004057 | 1 | Sprocket, CshftOld # 9010580 | $27.55/EA |
M20 oil pump and pressure switch group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004058 | 1 | Pump, OilOld # 9010582 | $316.00/EA |
| 2 | TN9010592 | 1 | Pump, Gear, Drive, OilOld # 9010592 · current Tennant number (Tennant parts catalog) | $399.00/EA |
| 3 | TN8004060 | 1 | Seal, OilOld # 9010585 | $13.90/EA |
| 4 | TN8004061 | 1 | Seal, OilOld # 9010586 | $16.90/EA |
| 5 | TN8004062 | 1 | Plug, TapperOld # 9010587 | $5.50/EA |
| 6 | TN8003905 | 2 | Pin, DowelOld # 9010426 | $2.30/EA |
| 7 | TN8004063 | 1 | ScrewOld # 9010589 | $41.92/EA |
| 8 | TN8004064 | 4 | Bolt, FlangeOld # 9010590 | $1.82/EA |
| 9 | TN9010591 | 1 | Pump, Gear, OilOld # 9010591 · current Tennant number (Tennant parts catalog) | Call for price |
| 10 | TN8004071 | 1 | Seal, OilOld # 9010601 | $13.20/EA |
| 11 | TN8004065 | 1 | Gasket, Case, FrontOld # 9010593 | $9.90/EA |
| 12 | TN8004066 | 3 | Bolt, WasherOld # 9010594 | $2.90/EA |
| 13 | TN8004067 | 1 | Bolt, WasherOld # 9010595 | $2.90/EA |
| 14 | TN8048117 | 1 | Plug, CapOld # 9010596 | $7.40/EA |
| 15 | TN8048118 | 1 | O - RingOld # 9010597 | $3.60/EA |
| 16 | TN8004068 | 1 | Bolt, FlangeOld # 9010598 | $2.90/EA |
| 17 | TN8004069 | 1 | Bolt, FlangeOld # 9010599 | $2.73/EA |
| 18 | TN8004070 | 1 | Bolt, FlangeOld # 9010600 | $2.90/EA |
| 19 | TN8004059 | 1 | Bolt, FlangeOld # 9010583 | $3.50/EA |
| 20 | TN8003832 | 1 | Sender, Oil, Press [Mit] (3 Prong)Old # 9010259 | $295.90/EA |
M20 water pump group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8004072 | 1 | Pump, WaterOld # 9010602 | $226.70/EA |
| 2 | TN8004073 | 1 | Gasket, Pump, WaterOld # 9010603 | $8.20/EA |
| 3 | TN8004074 | 1 | Bolt, FlangeOld # 9010604 | $2.60/EA |
| 4 | TN8003965 | 1 | Bolt, FlangeOld # 9010503 | $3.50/EA |
| 5 | TN8004075 | 2 | Bolt, FlangeOld # 9010606 | $1.50/EA |
| 6 | TN8004076 | 1 | Bolt, FlangeOld # 9010607 | $1.50/EA |
| 7 | TN8004077 | 1 | Pulley, Pump, WaterOld # 9010612 | $31.20/EA |
| 8 | TN8048120 | 4 | Nut, FlangeOld # 9010609 | $2.60/EA |
| 9 | TN8048121 | 4 | Washer, SpringOld # 9010610 | $1.50/EA |
M20 intake manifold gasket group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003895 | 1 | Fitting, 1/8 Mpt X 3/8 Hb [Mit]Old # 9010382 | $10.95/EA |
| 2 | TN8003851 | 17” | Loom, Convoluted, Split 5/8 [Mit]Old # 9010281 | $28.73/EA |
| 3 | TN8044972 | 20” | Hose, Fuel, .38d, Rbr[16”L]Old # 385001 | $16.00/EA |
| 4 | TN8048107 | 1 | Elbow, 1/8m X 1/8f, 90 [Mit]Old # 9010383 | $13.40/EA |
| 5 | TN8048058 | 2 | Clamp, 3/8id [Mit Olive Green]Old # 9010282 | $4.15/EA |
| 6 | TN8048104 | 1 | Plug, 1/8 Npt, Brs, Skt Hd [Mit]Old # 9010283 · replaced by 8048104 (Tennant parts catalog) | Call for price |
| 7 | TN8048059 | 4 | Plug, Injector [Mit]Old # 9010284 | $3.10/EA |
| 8 | TN8003852 | 1 | Manifold, Intake [Mit 20/24m Tilt]Old # 9010285 | $950.90/EA |
| 9 | TN8003853 | 2 | Nut, M8 - 1.25 [Mit]Old # 9010286 | $3.50/EA |
| 10 | TN8044984 | 7 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 11 | TN8003854 | 2 | Stud, M8 - 1.25 X 50 Full Thrd [Mit]Old # 9010287 | $6.70/EA |
| 12 | TN8003855 | 2 | Stud, M8 - 1.25 X 35 [Mit Double End]Old # 9010288 | $4.20/EA |
| 13 | TN8003896 | 4 | Stud, M8 - 1.25 X 30 [Mit Double End]Old # 9010384 | $5.90/EA |
| 14 | TN8004078 | 1 | Gasket, Manifold, IntakeOld # 9010613 | $19.90/EA |
| 15 | TN8004075 | 2 | Bolt, FlangeOld # 9010606 | $1.50/EA |
| 16 | TN8004079 | 1 | Bolt, Manifold, InletOld # 9010615 | $1.50/EA |
| 17 | TN8004080 | 1 | Hanger, EngineOld # 9010617 | $4.30/EA |
| 18 | TN8004081 | 1 | Hanger, EngineOld # 9010618 | $13.30/EA |
M20 exhaust manifold gasket group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003859 | 1 | Gasket, Manifold, Exh [Mit]Old # 9010296 | $58.20/EA |
| 2 | TN8003860 | 7 | Stud, M8 - 1.25 X 40 [Mit]Old # 9010297 | $4.90/EA |
| 3 | TN8004596 | 3 | Stud, Manifold, Intake, M8 X 28Old # 372020 | $29.60/EA |
| 4 | TN8003861 | 1 | Manifold, Exhaust [Mit 2.0/2.4l]Old # 9010298 | $548.40/EA |
| 5 | TN8003862 | 1 | Shield, Heat, Lower [Mit 20/24m]Old # 9010302 | $89.20/EA |
| 6 | TN8003863 | 1 | Shield, Heat, Upper [Mit 20/24m]Old # 9010303 | $137.20/EA |
| 7 | TN8044984 | 10 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 8 | TN8003835 | 5 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 9 | TN8003814 | 2 | Nut, M10 - 1.25 Flg [Mit]Old # 9010239 | $1.50/EA |
| 10 | TN8004082 | 1 | Gasket, Manifold, ExhaustOld # 9010619 | $22.80/EA |
M20 fan tensioner and pump mount group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8045530 | 1 | Ring, RetainingOld # 371562 | $38.80/EA |
| 2 | TN8003797 | 1 | Plate, Tensioner, Adj [Mit 2.0/2.4l]Old # 9010222 | $122.00/EA |
| 3 | TN8003798 | 1 | Bar, Tensioner, Mtg [Mit 2.0/2.4l]Old # 9010223 | $29.30/EA |
| 4 | TN8003799 | 1 | Pulley, Tensioner, Assy[Mit2.0/2.4l]Old # 9010224 | $346.10/EA |
| 5 | TN8003800 | 1 | Bracket, Tensioner, [Mit 2.0/2.4l]Old # 9010225 | $105.30/EA |
| 6 | TN8003801 | 2 | Bolt, 3/8 - 16 X 1 1/4 Hxhd [Mit]Old # 9010226 | $2.20/EA |
| 7 | TN8045487 | 2 | Washer, Lock, 0.38Old # 371509 | $2.60/EA |
| 8 | TN8003802 | 3 | Washer, Flat 3/8, SaeOld # 9010227 | $1.50/EA |
| 9 | TN8003803 | 1 | Bolt, 3/8 - 16 X 4.5 [Mit]Old # 9010228 | $8.50/EA |
| 10 | TN8003804 | 4 | Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 | $3.50/EA |
| 11 | TN8003805 | 2 | Bolt, M8 - 1.25 X 20 Fl Hd [Mit]Old # 9010230 | $3.30/EA |
| 12 | TN8003806 | 1 | Bolt, M8 - 1.25 X 25 Soc Hd [Mit]Old # 9010231 | $8.20/EA |
| 13 | TN8004085 | 1 | Bracket, Pump, MtgOld # 9010623 | $59.39/EA |
| 14 | TN8004086 | 1 | Bolt, WasherOld # 9010624 | $2.83/EA |
| 15 | TN8004087 | 2 | Bolt, WasherOld # 9010625 | $3.54/EA |
M20 flywheel group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003807 | 6 | Bolt, M8 - 1.25 X 15, Hx Hd [Mit]Old # 9010232 | $2.60/EA |
| 2 | TN8003808 | 1 | Flywheel, Flatface [Mit 20/24m]Old # 9010233 | $421.50/EA |
| 3 | TN8003809 | 1 | Coupling, Flywheel [Mit20/24m]Old # 9010234 | $1,151.80/EA |
| 4 | TN8003810 | 3 | Pin, Flywheel [Mit 20/20m]Old # 9010235 | $4.10/EA |
| 5 | TN8003811 | 7 | Bolt, Flywheel [Mit 20/24m]Old # 9010236 | $5.20/EA |
| 6 | TN8003876 | 2 | Bolt, M12 - 1.75 X 25, Hex Hd [Mit]Old # 9010359 | $3.43/EA |
| 7 | TN8003812 | 1 | Cover, Dust [Mit 2.0l]Old # 9010237 | $73.93/EA |
| 8 | TN8003813 | 1 | Housing, Flywheel [Mit 2.0l]Old # 9010238 | $629.53/EA |
| 9 | TN8003877 | 2 | Washer, Lock, M12 [Mit]Old # 9010360 | $8.18/EA |
| 10 | TN8003814 | 1 | Nut, M10 - 1.25 Flg [Mit]Old # 9010239 | $1.50/EA |
| 11 | TN8003815 | 2 | Bolt, M6 - 1.0 X 20 Fl Hd [Mit]Old # 9010240 | $3.60/EA |
| 12 | TN8003816 | 4 | Bolt, M10 - 1.25 X 30 Soc Hd [Mit]Old # 9010241 | $7.40/EA |
| 13 | TN8003817 | 2 | Bolt, M10 - 1.25 X 45 Soc Hd [Mit]Old # 9010242 | $8.38/EA |
M20 ignition coil and spark plug group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003818 | 1 | Bracket, Coil [Mit 2.0/2.4l]Old # 9010243 | $69.60/EA |
| 2 | TN8003819 | 4 | Coil, Ignition [Mit 2.0/2.4l]Old # 9010244 | $221.10/EA |
| 3 | TN8044984 | 2 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 4 | TN8003815 | 4 | Bolt, M6 - 1.0 X 20 Fl Hd [Mit]Old # 9010240 | $3.60/EA |
| Item 5: choose your version (2) | ||||
| 5 | TN8004084 | 4 | Plug, Spark [Torch K6rf - 11 14mm]Old # 9010622 | $9.40/EA |
| 5 | TN8003678 | 4 | Plug, Spark [Mitsubishi 2015 12mm]Old # 9014160 | $5.00/EA |
| 6 | TN8003945 | 4 | Seal, OilOld # 9010479 | $6.60/EA |
M20 starter / alternator group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003820 | 2 | Bolt, M10 - 1.50 X 30 [Mit]Old # 9010245 | $5.20/EA |
| 2 | TN8003821 | 1 | Starter, Motor [Mit 2.0/2.4l]Old # 9010246 | $808.70/EA |
| 3 | TN8003796 | 1 | Alternator, 7si [Mit Df Sur - Belt]Old # 9010217 | $786.90/EA |
| 4 | TN8048052 | 1 | Spacer, Alternator [Mit 2.0/2.4l]Old # 9010219 | $12.40/EA |
M20 remote oil filter group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002631 | 1 | Element, Fltr, Oil, Spin - On (Mits)Old # 393982 | $30.00/EA |
| 2 | TN8005673 | 1 | Mount, Fltr, RemoteOld # 371503 | $221.60/EA |
| 3 | TN8048105 | 4 | Fitting, Str, 10 - 10 Orb, 37fi [Mit]Old # 9010371 | $12.40/EA |
| 4 | TN8003890 | 1 | Plug, 3/8npt X 5/16, Brs [Mit]Old # 9010372 | $14.40/EA |
| 5 | TN8048106 | 1 | Adapter, Filter, Oil, Remote [Mit]Old # 9010373 | $100.00/EA |
| 6 | TN8003891 | 1 | Bracket, Filter, Oil, Remote [Mit]Old # 9010374 | $24.40/EA |
| 7 | TN4027399 | 1 | Hose, 90x90,Filter, Oil, Remote[Mit]Old # 9010375 | Call for price |
| 8 | TN8003892 | 1 | Hose, 90xstr,Flter, Oil, Remote[Mit]Old # 9010376 | $240.10/EA |
| 9 | TN8004090 | 1 | ElbowOld # 9010628 | $49.40/EA |
| 10 | TN8048122 | 1 | ElbowOld # 9010629 | $99.80/EA |
| 11 | TN8003893 | 1 | Gasket, Oil, Adapter [Mit 2.0/2.4]Old # 9010377 | $29.80/EA |
| 12 | TN8044984 | 3 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 13 | TN8003828 | 1 | Bolt, M8 - 1.25 X 70 Hxhd [Mit]Old # 9010253 | $7.00/EA |
| 14 | TN8004091 | 2 | WasherOld # 9010630 | $1.21/EA |
| 15 | TN8003804 | 3 | Bolt, M8 - 1.25 X 25 [Mit]Old # 9010229 | $3.50/EA |
| 16 | TN8003894 | 1 | Washer, Lock, M8 [Mit]Old # 9010380 | $1.20/EA |
| 17 | TN8004092 | 2 | BoltOld # 9010631 | $5.35/EA |
M20 coolant group
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003856 | 1 | O - Ring [Mit 208 Buna - N]Old # 9010289 | $2.80/EA |
| 2 | TN8048100 | 1 | Housing, T - Stat, 2 Holes [Mit]Old # 9010290 | $153.60/EA |
| 3 | TN8003857 | 1 | Tube, Water, Line [Mit]Old # 9010291 | $87.60/EA |
| 4 | TN8044980 | 1 | Fitting, E90Old # 385011 | $24.70/EA |
| 5 | TN8003170 | 2 | Clamp, Hose, Spring, 0.62dOld # 384979 | $4.10/EA |
| 6 | TN8004093 | 1 | Gasket, OutletOld # 9010632 | $38.40/EA |
| 7 | TN8048101 | 1 | Outlet, Water, W/Plug [Mit 2.0/2.4l]Old # 9010294 | $48.60/EA |
| 8 | TN8044984 | 2 | Nut, Flng, M8Old # 385015 | $6.70/EA |
| 9 | TN8003858 | 2 | Cap, Rubber, 5/8id [Mit 2.0/2.4l]Old # 9010295 | $7.70/EA |
| 10 | TN4027831 | 1 | Thermostat Kit, Coolant, Replmt [Mitsub]Old # 9010905 | $35.10/EA |
| 11 | TN8003795 | 1 | Housing, ThermostatOld # 9010215 | $94.30/EA |
| 12 | TN8004105 | 1 | Tube, Pump, WaterOld # 9010910 | $14.90/EA |
| 13 | TN8003599 | 2 | Seal, Tube, Water [Mit 2.0l]Old # 9013530 | $27.70/EA |
M20 DSR coolant group, LPG engine
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003864 | 1 | Bolt, M8 - 1.25 X 12 [Mit]Old # 9010305 | $6.10/EA |
| 2 | TN8003856 | 1 | O - Ring [Mit 208 Buna - N]Old # 9010289 | $2.80/EA |
| 3 | TN8003865 | 1 | Tube, Cooling, Line [Mit]Old # 9010306 | $103.30/EA |
| 4 | TN8003866 | 1 | Gasket, Water Supply [Mit 2.0/2.4l]Old # 9010307 | $32.00/EA |
| 5 | TN8003867 | 1 | Fitting, 1/2 Mpt X 5/8bh 90deg [Mit]Old # 9010308 | $40.80/EA |
| 6 | TN8003868 | 1 | Plate, Water, Outlet [Mit Bypass]Old # 9010309 | $61.30/EA |
| 7 | TN8003869 | 2 | Bolt, M8 - 1.25 X 25 Flg Hd [Mit]Old # 9010310 | $2.40/EA |
M20 electrical group
Tap a number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003830 | 1 | Washer, Star, M10 [Mit]Old # 9010255 | $1.50/EA |
| 2 | TN8003831 | 2 | Bolt, M6 - 1.0 X 12 Fl Hd Pl [Mit]Old # 9010256 | $1.31/EA |
| 3 | TN8005197 | 1 | Sensor, Spd, Timing Wheel [3.0l]Old # 372492 | $412.60/EA |
| 4 | TN8001829 | 2 | IsolatorOld # 9008805 | $11.80/EA |
| 5 | TN8005433 | 1 | Sensor, Exhaust, TailpipeOld # 1028558 | $277.60/EA |
| 6 | TN8048054 | 2 | Clamp, 1/4 Hole [Mit #20]Old # 9010257 | $28.89/EA |
| Item 7: choose your version (2) | ||||
| 7 | TN8005370 | 1 | Module, Ecu, Gas [Mit 2.0l 2013]Old # 1071397 | $1,347.10/EA |
| 7 | TN8005426 | 1 | Module, Ecu, Lpg [Mit 2.0l 2013]Old # 1071398 | $1,360.50/EA |
| 8 | TN8005198 | 1 | Sensor [Tmap]Old # 372493 | $206.90/EA |
| 9 | TN8004155 | 1 | Sensor, Temp, CoolantOld # 372891 | $126.90/EA |
| 10 | TN8048055 | 1 | Clamp, 0.75d [Mit]Old # 9010258 | $21.92/EA |
| 11 | TN8003824 | 4 | Bolt, M6 - 1.0 X 30 Fl Hd [Mit]Old # 9010249 | $7.27/EA |
| 12 | TN8003833 | 1 | Sensor, Camshaft [Mit]Old # 9010260 | $426.00/EA |
| 13 | TN8003834 | 1 | Cam, Sensor, Wheel [Mit 2.0/2.4l]Old # 9010261 | $123.40/EA |
| Item 14: choose your version (2) | ||||
| 14 | TN8005427 | 1 | Harness, Wire, Eng, Gas [Mit, 2.0l]Old # 1071653 | $1,434.90/EA |
| 14 | TN8005428 | 1 | Harness, Wire, Eng, Lpg [Mit, 2.Ol]Old # 1071654 | $1,268.00/EA |
| 15 | TN8003835 | 3 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 16 | TN8003836 | 3 | Bolt, M6 - 1.0 X 16 Fl Hd [Mit]Old # 9010263 | $2.73/EA |
| 17 | TN8003837 | 4 | Nut, M6 - 1.0 Flange [Mit]Old # 9010264 | $2.60/EA |
| 18 | TN8003878 | 1 | Stud, M10 - 1.25 X 50, Full Thrd [Mit]Old # 9010366 | $5.60/EA |
| 19 | TN8003889 | 1 | Nut, M10 - 1.25, Hx Flg [Mit]Old # 9010367 | $1.90/EA |
| 20 | TN8003822 | 1 | Plate, Mtg, Ecu [Mit 2.0/2.4l]Old # 9010247 | $37.67/EA |
| 21 | TN8003823 | 3 | Bolt, M10 - 1.25 X 20 Hxhd [Mit]Old # 9010248 | $3.43/EA |
M20 fuel rail group, gasoline engine
M20 throttle body group, gasoline engine
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003838 | 1 | Actuator [Mit , Bosch]Old # 9010266 | $714.50/EA |
| 2 | TN8003839 | 1 | Gasket, Throttle [Mit 40mm]Old # 9010268 | $3.60/EA |
| 3 | TN8003874 | 4 | Washer, 1/4 Flat [Mit]Old # 9010330 | $1.30/EA |
| 4 | TN8003875 | 4 | Bolt, M6 - 1.0 X 45, Skt Hd [Mit]Old # 9010331 | $3.10/EA |
M20 throttle body group, LPG engine
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003838 | 1 | Actuator [Mit , Bosch]Old # 9010266 | $714.50/EA |
| 2 | TN8006239 | 1 | Seal, Org, Lpg, MixerOld # 1037311 | $13.10/EA |
| 3 | TN8002571 | 1 | AdapterOld # 9006619 | $80.90/EA |
| 4 | TN8048056 | 1 | Spacer, Ring, Throttle [Mit 40mm]Old # 9010267 | $8.10/EA |
| 5 | TN8003839 | 1 | Gasket, Throttle [Mit 40mm]Old # 9010268 | $3.60/EA |
| 6 | TN8003840 | 4 | Bolt, M6 - 1.0 X 25 Soc Hd [Mit]Old # 9010269 | $1.90/EA |
| 7 | TN8003841 | 4 | Washer, Lock, M6 [Mit]Old # 9010270 | $1.20/EA |
| 8 | TN8003842 | 4 | Bolt, M6 - 1.0 X 85 Soc Hd [Mit]Old # 9010271 | $3.20/EA |
M20 vaporizer group, LPG engine
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8048057 | 1 | Hose Assy, Upper, Tap [Mit]Old # 9010272 | $152.20/EA |
| 2 | TN8001829 | 3 | IsolatorOld # 9008805 | $11.80/EA |
| 3 | TN8003170 | 6 | Clamp, Hose, Spring, 0.62dOld # 384979 | $4.10/EA |
| 4 | TN8001828 | 1 | Plate, Mtg [Epr]Old # 9008804 | $71.50/EA |
| 5 | TN8003843 | 2 | Fitting, 1/2 X 5/8 Hose,Plastic[Mit]Old # 9010273 | $14.40/EA |
| 6 | TN8003844 | 2 | Clamp, Tension [Mit #29]Old # 9010274 | $6.10/EA |
| 7 | TN8002154 | 1 | RegulatorOld # 9008193 | $475.20/EA |
| TN8004088 | 1 | Repair Kit, VaporizerOld # 9010626 | $275.10/EA | |
| 8 | TN8003845 | 1 | Bracket, Vaporizer [Mit 20/24m Tilt]Old # 9010275 | $60.60/EA |
| 9 | TN8003846 | 1 | Hose, Fuel, Molded [Mit 20/24m]Old # 9010276 | $29.60/EA |
| 10 | TN8003847 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010277 | $22.00/EA |
| 11 | TN8003848 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010278 | $15.90/EA |
| 12 | TN8003849 | 1 | Hose, Coolant, Molded [Mit 20/24m]Old # 9010279 | $11.50/EA |
| 13 | TN8003835 | 3 | Bolt, M6 - 1.0 X 10 Fl Hd [Mit]Old # 9010262 | $3.40/EA |
| 14 | TN8003850 | 2 | Bolt, M8 - 1.25 X 16 Fl Hd [Mit]Old # 9010280 | $3.50/EA |
| 15 | TN8003837 | 1 | Nut, M6 - 1.0 Flange [Mit]Old # 9010264 | $2.60/EA |
| 16 | TN4015547 | 1 | Lock - Off, 12v, Lpg [Mit]Old # 9006620 | $374.70/EA |
| 17 | TN8002010 | 1 | Filter Kit, Fuelock, LpgOld # 9007380 | $25.60/EA |
| 18 | TN8003872 | 1 | Fitting, 1/4mpt X 1/4mpt, 90deg[Mit]Old # 9010317 | $24.30/EA |
M20 electronic pressure regulator (EPR) group, LPG engine
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8048104 | 2 | Plug, 1/8npt, Brs [Mit]Old # 9010314 | $37.20/EA |
| 2 | TN8001830 | 1 | Regulator, Press, Electronic [Epr]Old # 9008806 | $1,412.00/EA |
| 3 | TN8048470 | 1 | Fitting, Barb, 3/4” [Epr]Old # 9008807 | $12.40/EA |
| 4 | TN8002570 | 1 | Mixer , LpgOld # 9006618 | $479.40/EA |
| TN8004095 | 1 | Repair Kit, MixerOld # 9010634 | $155.10/EA | |
| 5 | TN8048471 | 4 | Screw, Soc, M4 X 0.70 X 16Old # 9008808 | $5.20/EA |
| 6 | TN8002012 | 4 | Stud, M05 - 0.8Old # 9007424 | $12.90/EA |
| 7 | TN8002011 | 4 | Nut, Flng, M05 - 0.8Old # 9007423 | $2.60/EA |
Notes on this parts list
- Sections marked Gasoline, LPG or Diesel fit only that power type; unmarked sections fit every M20 on this list.
- Engine groups carry a badge with the engine and machine serial range; your machine serial number shows only your engine's groups.
- Rows marked "Confirm fit" have a current Tennant description that doesn't match the manual's. Call before ordering those.
- Lines marked "Number being confirmed with Tennant – call before ordering" are held until our parts desk confirms Tennant's current number.
