Tennant/Nobles - 4016813 - Bearing, Ball, 0.59B 1.26D 0.35W[2Seal] (Replaces Tennant 41360)

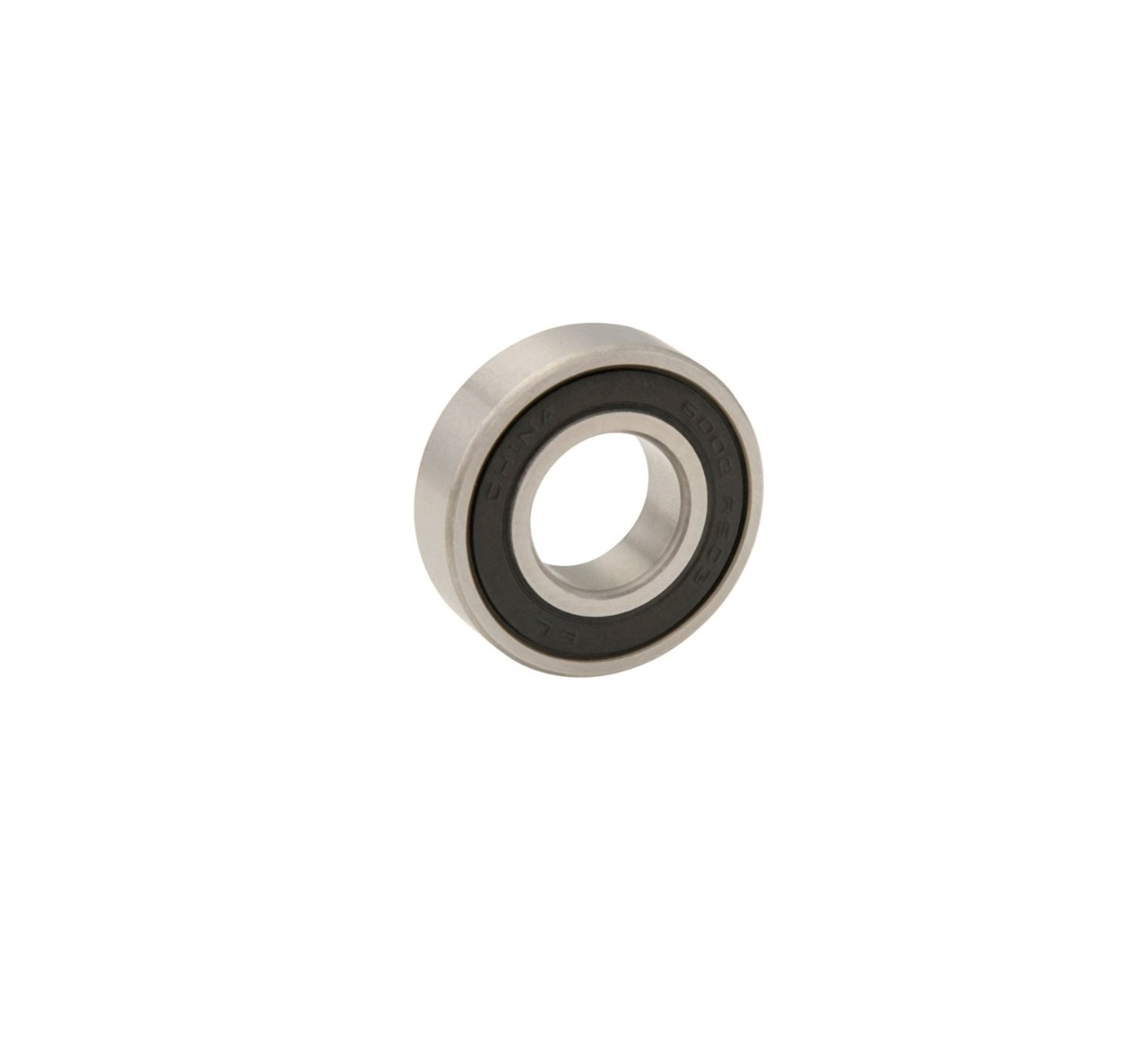

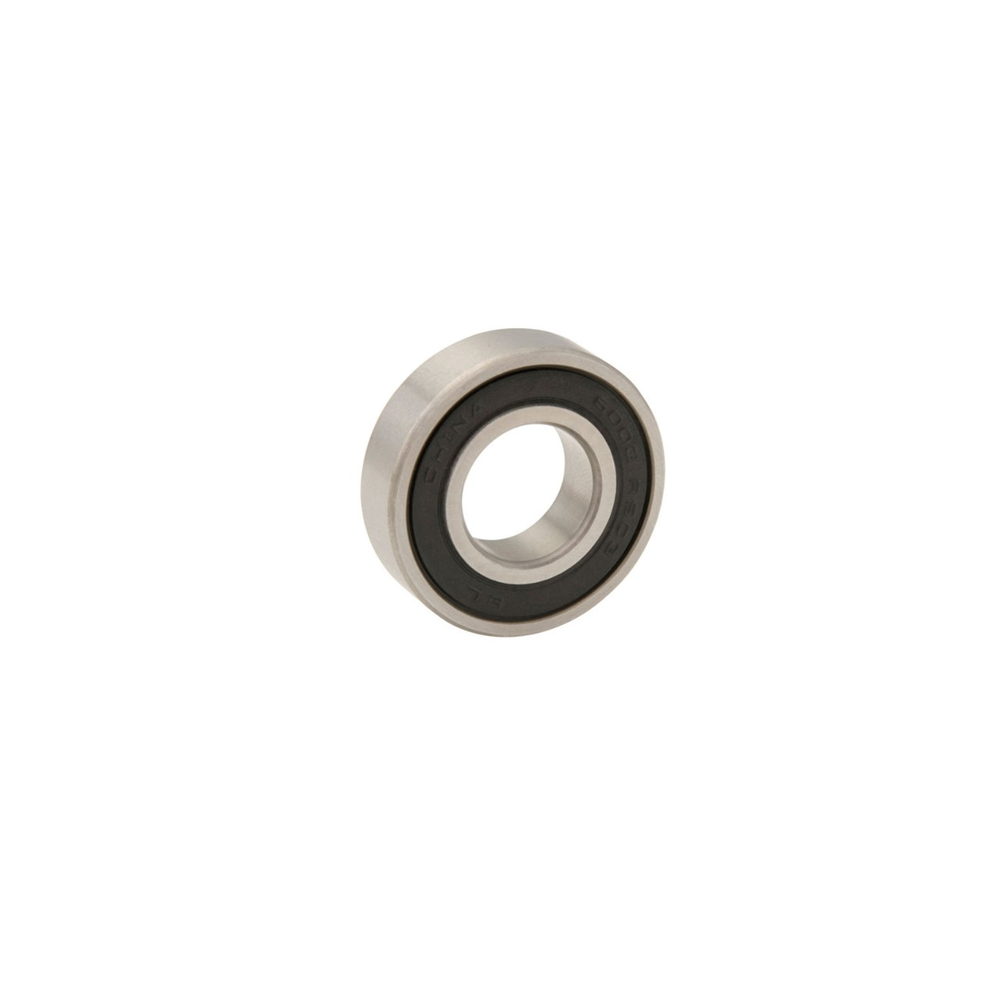

Tennant 4016813 is a double-sealed ball bearing with a 0.59 in (15.0 mm) bore, a 1.26 in (32.0 mm) outside diameter and a width of 0.35 in (8.9 mm), also listed as 41360. Tennant's description reads Bearing, Ball, 0.59B 1.26D 0.35W[2Seal].

It is a scrub head and main brush bearing across many machines. Tennant's catalog lists 2 in the Main Brush Group of the 3640 and 3640E sweepers, 4 in the Scrub Head Group - Contd of the R14 rider carpet cleaner, and 2 in the Scrub Head Drive Group, Model 700C, 700 mm (28 in), of the 5700. Parts manuals in the fitment index include the T12, T7, T15, T5E, 810D, 5680, 1610, T16 and 5400. Tennant gives no bearing number or load rating.
