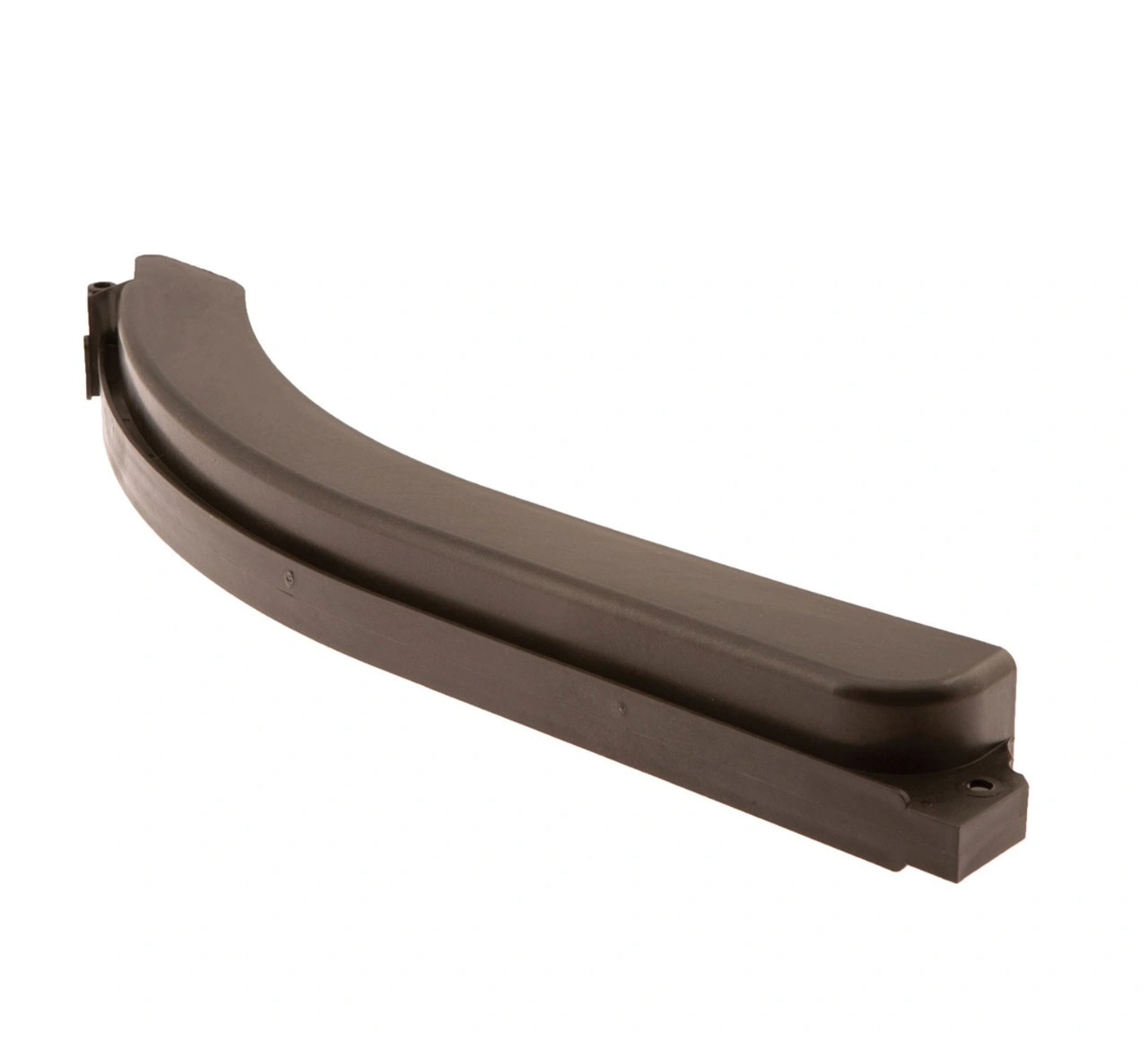

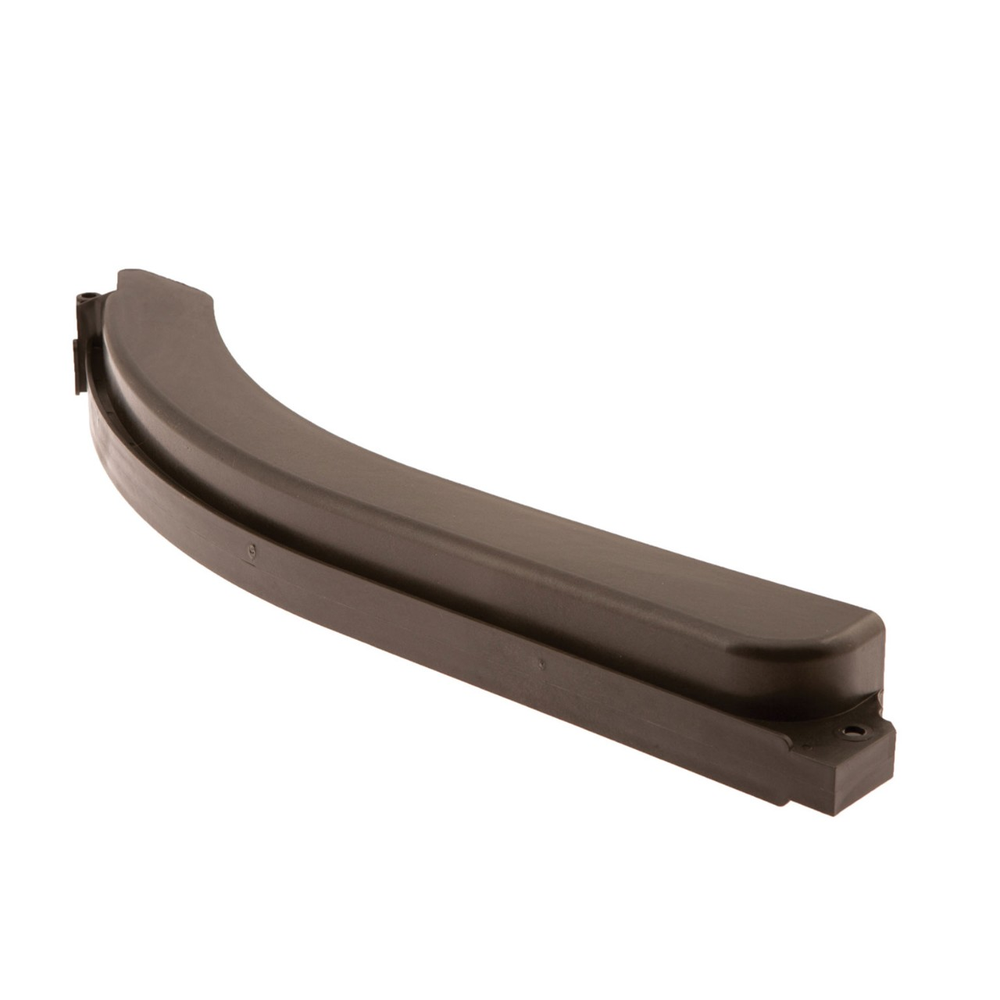

Tennant/Nobles - 4035503 - Retainer, Sqge, Rh (Replaces Tennant 1017832)

This is the right-hand side squeegee retainer for the disk scrub head: Tennant 4035503 (Retainer, Sqge, Rh), also listed as 1017832. It is item 2 in the right side squeegee group on the Tennant T7, T7AMR and Nobles Speed Scrub Rider, 1 per machine, and it is listed for disk heads only.

The side squeegee blade slides onto the retainer, and the retainer pivots open on a pin. Tennant's instruction for reaching the brushes or pads is to pull the pin, swing the retainer toward the front and pull the side squeegee back; when you close it, push the pin all the way through the bottom. The left-hand retainer is a separate part, Tennant 4035483.
