| Models | 5680 28 in | 5680 32 in | 5680 36 in |
| Cleaning path | 28 in (700 mm) | 32 in (800 mm) | 36 in (900 mm) |
| Productivity, theoretical max | 33,320 ft²/hr (3,095 m²/hr) | 38,080 ft²/hr (3,540 m²/hr) | 42,840 ft²/hr (3,980 m²/hr) |
| Estimated coverage, conventional | 20,800 ft²/hr (1,930 m²/hr) | 24,000 ft²/hr (2,230 m²/hr) | 27,200 ft²/hr (2,530 m²/hr) |
| Estimated coverage, ec-H2O | 23,400 ft²/hr (2,175 m²/hr) | 27,000 ft²/hr (2,510 m²/hr) | 30,600 ft²/hr (2,845 m²/hr) |
| Deck types | Disk or cylindrical | ||
| Brush motors | 2 x 0.75 hp | ||
| Brush/pad speed | Disk 200 rpm; cylindrical 750 rpm | ||
| Brush/pad down pressure | Disk 100 or 200 lb (45 or 91 kg); cylindrical 85 lb (39 kg) | ||
| Solution tank | 30 gal (114 L) | ||
| Solution flow, conventional | 0 to 1.5 gal/min (0 to 5.7 L/min) | ||
| Solution flow, ec-H2O | 0.22 gal/min (0.83 L/min) | 0.33 gal/min (1.25 L/min) | 0.44 gal/min (1.66 L/min) |
| Recovery tank | 40 gal (151 L) | ||
| Vacuum motor | 0.8 hp, three-stage | ||
| Vacuum airflow | 65 cfm (1.84 m³/min) | ||
| Vacuum water lift (sealed) | 73 in (1,854 mm) | ||
| System voltage | 36 V | ||
| Run time (Tennant rating) | Up to 3.5 hours with 240 Ah batteries; up to 4.5 hours with 360 Ah batteries | ||
| Cleaning technology | Conventional (standard); ec-H2O NanoClean (optional) | ||
| Length | Disk 64 in (1,625 mm); cylindrical 63 in (1,600 mm) | ||
| Width without squeegee | 30 in (762 mm) | 34 in (864 mm) | 38 in (965 mm) |
| Width with squeegee | 37.5 in (950 mm) | 42 in (1,070 mm) | 45.5 in (1,160 mm) |
| Height | 43 in (1,090 mm) | ||
| Weight with batteries | 805 lb (365 kg) | ||
| Sound level (operator’s ear) | 75 dBA | ||
| Model Numbers | ERTN5680 | ||
Specifications from Tennant. Technical specs may include optional equipment that is not included with all units.

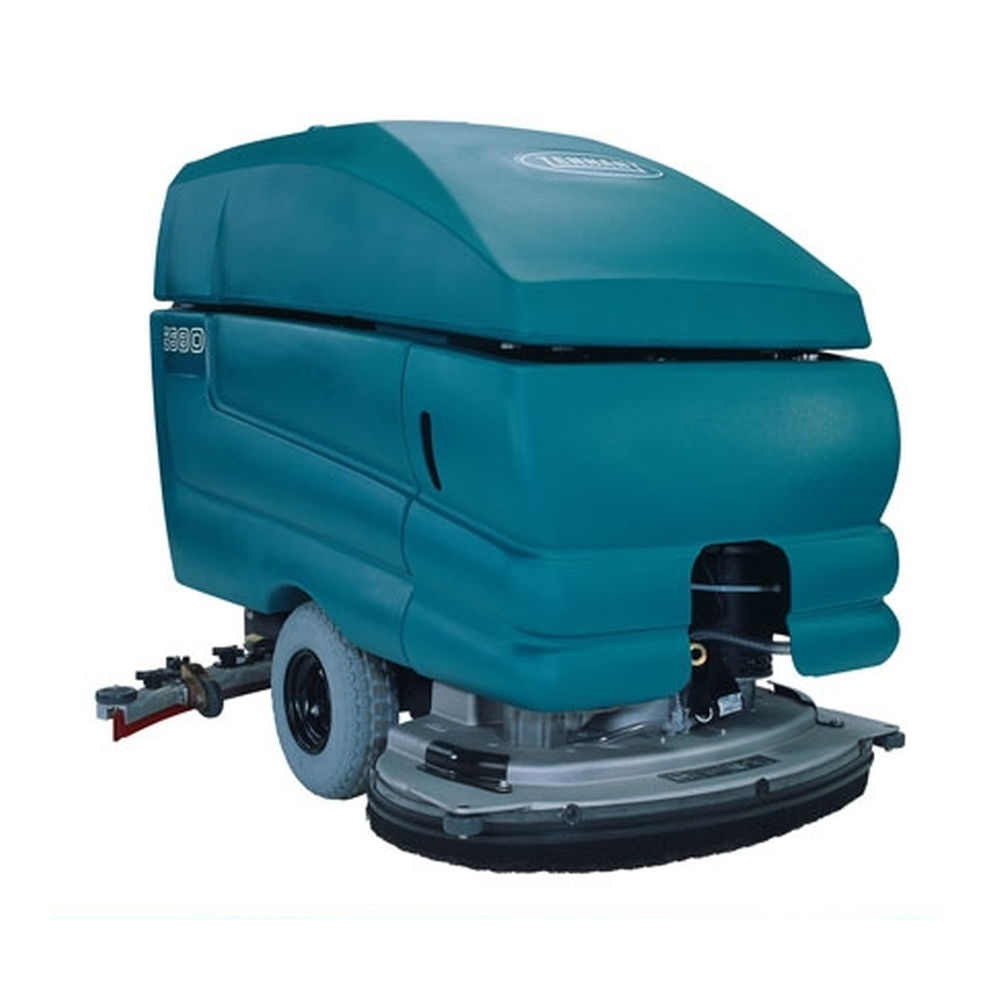

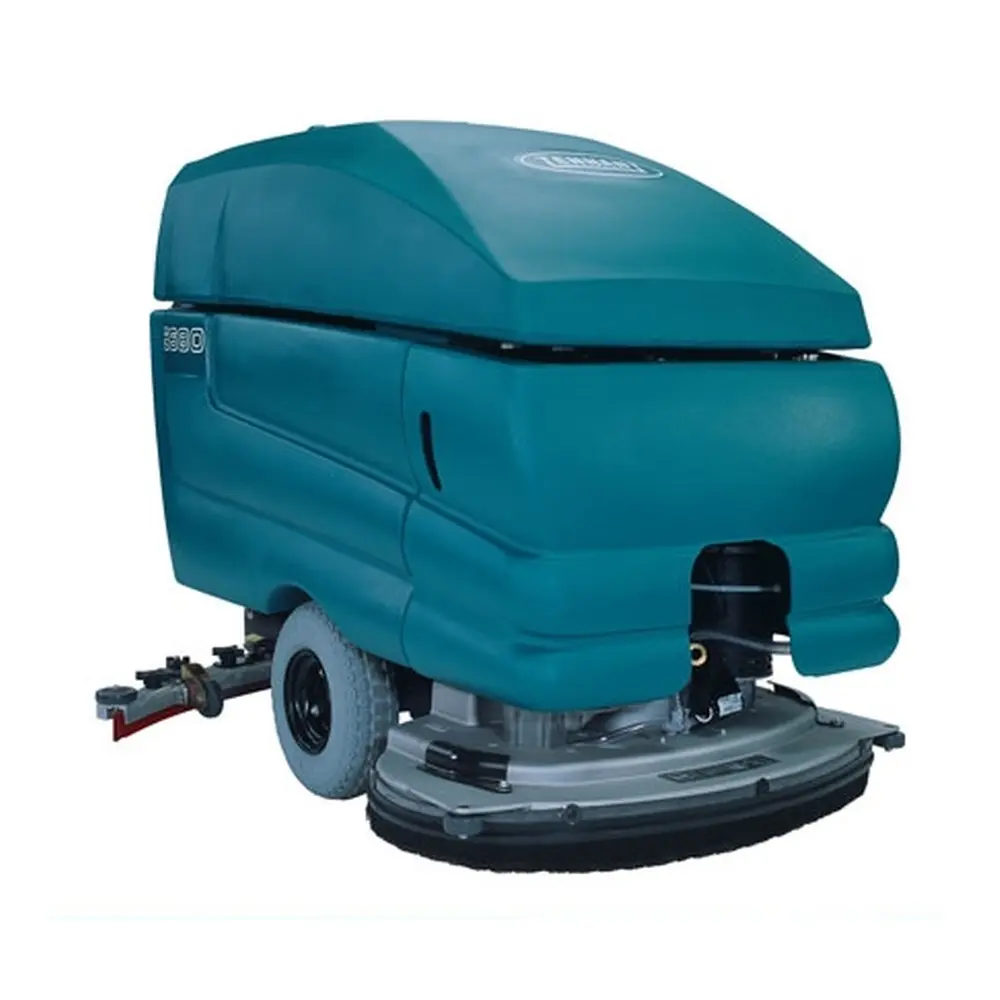

Reconditioned Tennant 5680 Walk-Behind Floor Scrubber
Our Take (from the SES Sales Team)
"If you are looking for a floor scrubber that can take anything that you are willing to throw at it, the Tennant 5680 is it. Known by contractors as the "workhorse" of the Tennant fleet, the 5680 is known for its simple design and reliable operation. With one switch to engage the scrubbing system and a choice of 2 brush pressure settings, the 5680 offers heavy-duty capabilities with a streamlined operation. When using the 5680 you'll quickly realize that Tennant had the end user in mind, as most areas of maintenance on the machine are easily accessible."
“Jerry was terrific, the Tennant reman unit we purchased looks and works like NEW” — Jeffrey A., Google review
Heavy-duty walk-behind scrubbing, reconditioned and built to your floors
The Tennant 5680 is a self-propelled, battery-powered walk-behind scrubber for warehouses, manufacturing plants, schools, retail stores and other large floors. A 30 gal solution tank, a 40 gal recovery tank and a three-stage vacuum with 73 in of water lift let one operator cover a lot of floor between fills, and the Quick-Train controls keep training short.
This is a reconditioned unit that you configure with the options above. Choose the scrub deck and size, brushes or pads, batteries, cleaning technology and add-ons, and the price updates as you build it.
Condition: Reconditioned. See how we recondition equipment.
How the options above fit together
Build yours in six choices
Pick the scrub deck
Disk or cylindrical, each in 28, 32 or 36 in. The table below shows which fits your floors.
Choose brushes or pads
Disk decks take poly, nylon or super abrasive brushes, or a pad driver with red scrub pads. Cylindrical decks take poly, heavy-duty poly, nylon or abrasive brushes. Already stocked up? Pick No Brushes.
Select batteries
Crown wet batteries in 205, 240 or 305 Ah, Crown AGM in 220 or 330 Ah, or no batteries if you already have a 36 V set.
Add battery watering
Running wet batteries? The 36 V battery watering kit fills all six cells at once.
Standard cleaning or ec-H2O
Run conventional detergent, or add ec-H2O NanoClean to scrub with electrically converted water (more below).
Add the options you want
A transport kit, plus solid or foam-filled tires in place of the standard pneumatic tires.
Disk or cylindrical
Which deck fits your floors?
| Deck | Sizes | Scrub action | Best fit |
|---|---|---|---|
| Disk | 28, 32, 36 in | Two disk brushes or pad drivers at 200 rpm; 100 or 200 lb down pressure | Everyday scrubbing of sealed concrete, VCT and other smooth floors. Disk decks also take pad drivers and red scrub pads. |
| Cylindrical | 28, 32, 36 in | Two cylindrical brushes at 750 rpm; 85 lb down pressure | Grout lines, textured tile and uneven floors. Cylindrical brushes also sweep up small debris as they scrub. |
ec-H2O NanoClean: scrub with water
Features
- ✓Disk or cylindrical decks in 28, 32 or 36 in, so the same machine fits smooth, grouted or textured floors
- ✓30 gal solution and 40 gal recovery tanks for long runs between empty and fill
- ✓One switch lowers the brushes and starts the scrub system, with two brush pressure settings on disk decks
- ✓Corrosion-resistant aluminum scrub deck, composite frame and polyethylene body and tanks
- ✓Squeegee blades change without tools, and the height-adjustable console keeps the controls within easy reach
Tennant 5680 by deck size
Specifications
| Models | 5680 28 in | 5680 32 in | 5680 36 in |
| Cleaning path | 28 in (700 mm) | 32 in (800 mm) | 36 in (900 mm) |
| Productivity, theoretical max | 33,320 ft²/hr (3,095 m²/hr) | 38,080 ft²/hr (3,540 m²/hr) | 42,840 ft²/hr (3,980 m²/hr) |
| Brush/pad speed | Disk 200 rpm; cylindrical 750 rpm | ||
| Brush/pad down pressure | Disk 100 or 200 lb (45 or 91 kg); cylindrical 85 lb (39 kg) | ||
| Solution tank | 30 gal (114 L) | ||
| Recovery tank | 40 gal (151 L) | ||
| Vacuum airflow | 65 cfm (1.84 m³/min) | ||
| Vacuum water lift (sealed) | 73 in (1,854 mm) | ||
| System voltage | 36 V | ||
| Run time (Tennant rating) | Up to 3.5 hours with 240 Ah batteries; up to 4.5 hours with 360 Ah batteries | ||
| Model Numbers | ERTN5680 | ||
Talk it through with us
Not sure which deck, brushes or battery package fits your floors and shifts? Our equipment specialists can help you build the right machine. Call or chat with our team before you order.
