Kaivac 1700 Series parts list and diagrams
Every part number in every Kaivac 1700 Series parts list from 2006 to 2026, for the KV1715, KV1720, KV1750, CE1750 and KV17501 no-touch cleaning systems, with each edition's own drawings, troubleshooting, maintenance and specs. Pick your model and serial range to see your machine's parts.
Online manuals: 1750 S/N 13409+· 1715 S/N 1-44 / 1720 S/N 1-161 / 1750 S/N 1-4998· 1715 S/N 45+ / 1750 S/N 8001-13408· 1720 S/N 162+ / 1750 S/N 4999-8000· 1700 Series· No-Touch Cleaning (NTC) Release 1 (02/2020)· No-Touch Cleaning (NTC) (10/2017)· No-Touch Cleaning (NTC) (2026)· No-Touch Cleaning (NTC) Release 5 (07/2025)
Complete list: every line of the parts lists in Kaivac's 1700 Series manuals of 2006, 2006 (revised), 2009 and Aug 2016, and the 1750 sections of its No-Touch Cleaning manuals of 2017, 2020 and 2026, plus every part labeled on the 2016 drawings. Checked .
New to your 1700 Series? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Voltage
- 120V (CE1750: 240V)
- Vacuum
- 3-stage vac motor with HEPA exhaust filter
- Pump
- 500 psi (the wiring diagram also covers a 150 psi pump)
- Power cord
- 50 ft (15.2 m) with in-line GFCI
- Pressure hose
- 45 ft (13.7 m)
- Vac hose
- 25 ft (7.6 m), plus a 20 ft (6.1 m) stretch hose
Wear parts most 1700 Series owners reorder
Kaivac lists wheels, hoses, seals, gaskets, cords, casters and squeegees as normal wear items, and its maintenance checks cover the HEPA filter, water tank filter and float shutoff.
Hepa filter
$28.90/EAMushroom filter
$8.64/EAFloat shut off
$43.43/EA14.5 squeegee head with ss wheels
$60.62/EASqueegee head brush complete
$72.40/EA50ft in line gfci 12,3 yellow/110v only
$248.20/EAFlat free tire 8in 1/2 hub
$67.63/EA5 in caster , mounting plate
$41.86/EA
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, pages 1-1 and 3-1. SES ref PF-HAMF-2OMZ
Your machine
How to tell which you have
- Model: The model and serial number are on the serial plate on the black box. KV1715 machines have their own pump; KV1720 machines have a 1720 black box; the CE1750 is the 240V machine; KV17501 is the battery machine. Source: Kaivac 1700 Series manuals (covers and black box pages); Kaivac NTC manual 02/2020, section 5.
- Serial range: Each serial range uses its own edition of the parts list. Kaivac prints no serial breaks for the 2017, 2020 and 2026 manuals, so those are listed by the year the machine was built. Source: Kaivac 1700 Series manual covers (2006, 2009, Rev. 080816); Kaivac NTC manuals 10/2017, 02/2020 and 2026.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are the Kaivac number with KV in front, so Kaivac CSS144 is KVCSS144. Kaivac labels parts on its drawings by part number, not item number: the On drawing column shows the label exactly as printed, and tapping it on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

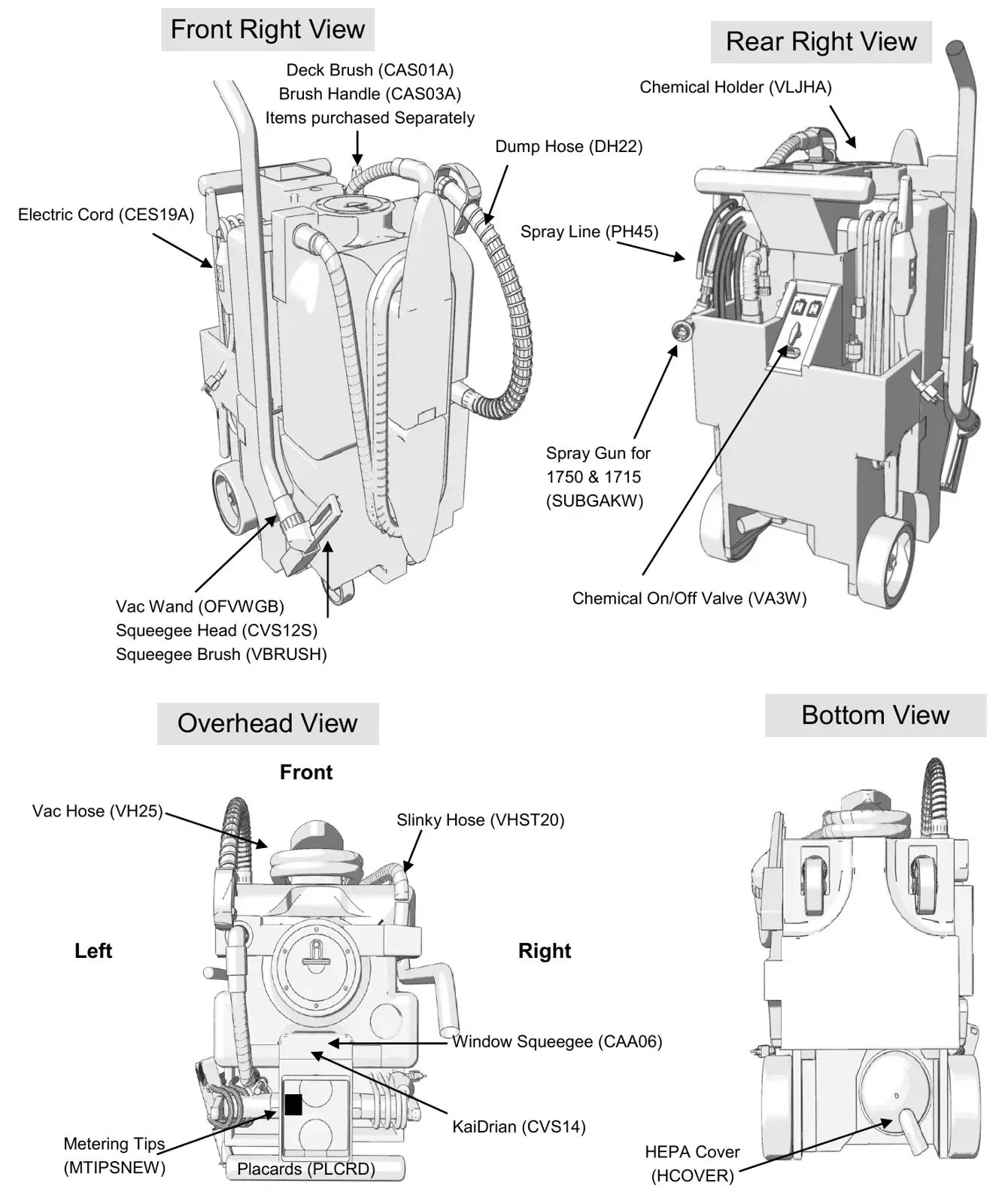

Kaivac 1700 Series Tool arrangement and accessories (Aug 2016 manual) parts
The tools and accessories that come with the machine, as Kaivac lays them out on the cart, plus the standard accessories and the 1750 and 1715 accessory kits. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual pages 2-2, list 3-21, 3-22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CES19A | KVCES19A | 1 | 50FT IN LINE GFCI 12,3 YELLOW/110V ONLYSource: Rev. 080816, page 3-21. | $248.20/EA |
| PH45 | KVPH45 | 1 | PRESSURE HOSE ASSEM 45 FTSource: Rev. 080816, page 3-21. | $320.24/EA |
| SUBGAKW | KVSUBGAKW | 1 | PRESSURE GUN GREEN DOTSource: Rev. 080816, page 3-21. | $105.05/EA |
| MTIPSNEW | KVMTIPSNEW | 1 | METERING TIP PACKSource: Rev. 080816, page 3-21. | $45.09/EA |
| VH25 | KVVH25 | 1 | VAC HOSE 25 FTPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $206.21/EA |
| VHST20 | KVVHST20Kaivac VHST20 | 1 | BLACK STRETCH BLACK CUFFS 20 FTPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| OFVWGB | KVOFVWGB | 1 | VAC WAND W/ STRAP & GROUT BRUSHPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $81.23/EA |
| VBRUSH | KVVBRUSH | 1 | SQUEEGEE HEAD BRUSH COMPLETEPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $72.40/EA |
| CVS12S | KVCVS12S | 1 | 14.5 SQUEEGEE HEAD WITH SS WHEELSPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $60.62/EA |
| CAA06 | KVCAA06Kaivac CAA06 | 1 | WINDOW SQUEEGEE COMPLETEPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| CVS14 | KVCVS14 | 1 | KAIDRAIN GULPER TOOLPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $20.75/EA |
| PLCRD | KVPLCRD | 1 | PLACARD FOR 1200 1700 2100 SERIES UNITSPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $29.10/EA |
| VH25 | KVVH25 | 1 | VAC HOSE 25 FTPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $206.21/EA |
| VHST20 | KVVHST20Kaivac VHST20 | 1 | BLACK STRETCH BLACK CUFFS 20 FTPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| OFVWGB | KVOFVWGB | 1 | VAC WAND W/ STRAP & GROUT BRUSHPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $81.23/EA |
| VBRUSH | KVVBRUSH | 1 | SQUEEGEE HEAD BRUSH COMPLETEPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $72.40/EA |
| CAA06 | KVCAA06Kaivac CAA06 | 1 | WINDOW SQUEEGEE COMPLETEPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| CVS14 | KVCVS14 | 1 | KAIDRAIN GULPER TOOLPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $20.75/EA |
| PLCRD | KVPLCRD | 1 | PLACARD FOR 1200 1700 2100 SERIES UNITSPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $29.10/EA |
| CAS01A | KVCAS01A | Deck BrushShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 2-2. | $56.24/EA | |
| VLJHA | KVVLJHA | VAC LID, JUG HOLDER ASSEMIncludes gasket (drawing 3-9). Also shown on this drawing; listed under Vac tank assembly (manual page 3-19); Source: Rev. 080816, page 2-2. | $72.96/EA | |
| CAS03A | KVCAS03A | Telescopic Brush HandleShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 2-2. | $24.14/EA | |
| DH25 | KVDH25Kaivac DH25 | STAY CLEAN DUMP HOSE 1.5 X 22.5 INAlso shown on this drawing; listed under Vac tank assembly (manual page 3-18); Replaces DH22 (Rev. 121713); Source: Rev. 080816, page 2-2. | Call to confirm part: 800-440-6723 | |
| VA3W | KVVA3WKaivac VA3W | VALVE ASSEM. 3 WAYAlso shown on this drawing; listed under Black box assembly (manual page 3-19); Source: Rev. 080816, page 2-2. | Call to confirm part: 800-440-6723 | |
| HCOVER | KVHCOVER | HEPA COVERAlso shown on this drawing; listed under HEPA housing assembly (manual page 3-15); Source: Rev. 080816, page 2-2. | $8.02/EA | |
| – | KVCSS152 | 2 | 3/8-16X2 THUMB SCREW ZINCSource: Rev. 080816, page 3-21. | $3.53/EA |
| – | KVCSS156 | 2 | 3/8 X 3/4 T THUMB SCREW YELLOWSource: Rev. 080816, page 3-21. | $4.57/EA |
| – | KVCSS157 | 2 | 3/8 X 2 T THUMB SCREW YELLOWSource: Rev. 080816, page 3-21. | $5.83/EA |
| – | KVKMB16 | 6 | 3/8 SST FLAT WASHERSource: Rev. 080816, page 3-21. | $0.27/EA |
| – | KVCSS137 | 2 | 3/8 SPLIT LOCK WASHERSource: Rev. 080816, page 3-21. | $0.25/EA |
| – | KVUFHKaivac UFH | 1 | FILL HOSE 6 FTReplaces FH6FT (Rev. 121713); Source: Rev. 080816, page 3-21. | Call to confirm part: 800-440-6723 |
| – | KVCHCAPA | 1 | CHEM CAP W/SAFETY CHECK VALVE AND SCREENSource: Rev. 080816, page 3-21. | $19.54/EA |
| – | KV1700ACC | 1 | 1700 SERIES ACCESSORY KITSource: Rev. 080816, page 3-21. | $647.00/EA |
| – | KV1700ACC | 1750 ACCESSORY KITComplete assembly. Source: Rev. 080816, page 3-22. | $647.00/EA | |
| – | KVHC5 | 1 | HOSE CONNECTORPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $2.25/EA |
| – | KVDRWED | 1 | DOOR WEDGIEPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $10.96/EA |
| – | KVTBAG | 1 | TOTE BAGPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $39.49/EA |
| – | KVCVS13 | 1 | BLOW NOZZLEPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $12.14/EA |
| – | KVSUBBLHSST | 1 | 33 FT BLOW HOSEPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | $145.10/EA |
| – | KVMANUAL1750Kaivac MANUAL1750 | 1 | MANUAL FOR 1700 SERIESPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| – | KVKYQSKaivac KYQS | 1 | QUICK START CD 1700 SERIESPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| – | KVKTDVDKaivac KTDVD | 1 | KAITUTOR TRAINING DVD DISKPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| – | KVSTFKaivac STF | 1 | SMART TOWEL FLYERPart of 1700 Series Accessory Kit (1700ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| – | KV1715ACCKaivac 1715ACC | 1715 ACCESSORY KITComplete assembly. Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 | |
| – | KVHC5 | 1 | HOSE CONNECTORPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $2.25/EA |
| – | KVDRWED | 1 | DOOR WEDGIEPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $10.96/EA |
| – | KVTBAG | 1 | TOTE BAGPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $39.49/EA |
| – | KVCVS13 | 1 | BLOW NOZZLEPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $12.14/EA |
| – | KVSUBBLHSST | 1 | 33 FT BLOW HOSEPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | $145.10/EA |
| – | KVMANUAL1750Kaivac MANUAL1750 | 1 | MANUAL FOR 1700 SERIESPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| – | KVKYQSKaivac KYQS | 1 | QUICK START CD 1700 SERIESPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| – | KVKTDVDKaivac KTDVD | 1 | KAITUTOR TRAINING DVD DISKPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |
| – | KVSTFKaivac STF | 1 | SMART TOWEL FLYERPart of 1715 Accessory Kit (1715ACC). Source: Rev. 080816, page 3-22. | Call to confirm part: 800-440-6723 |

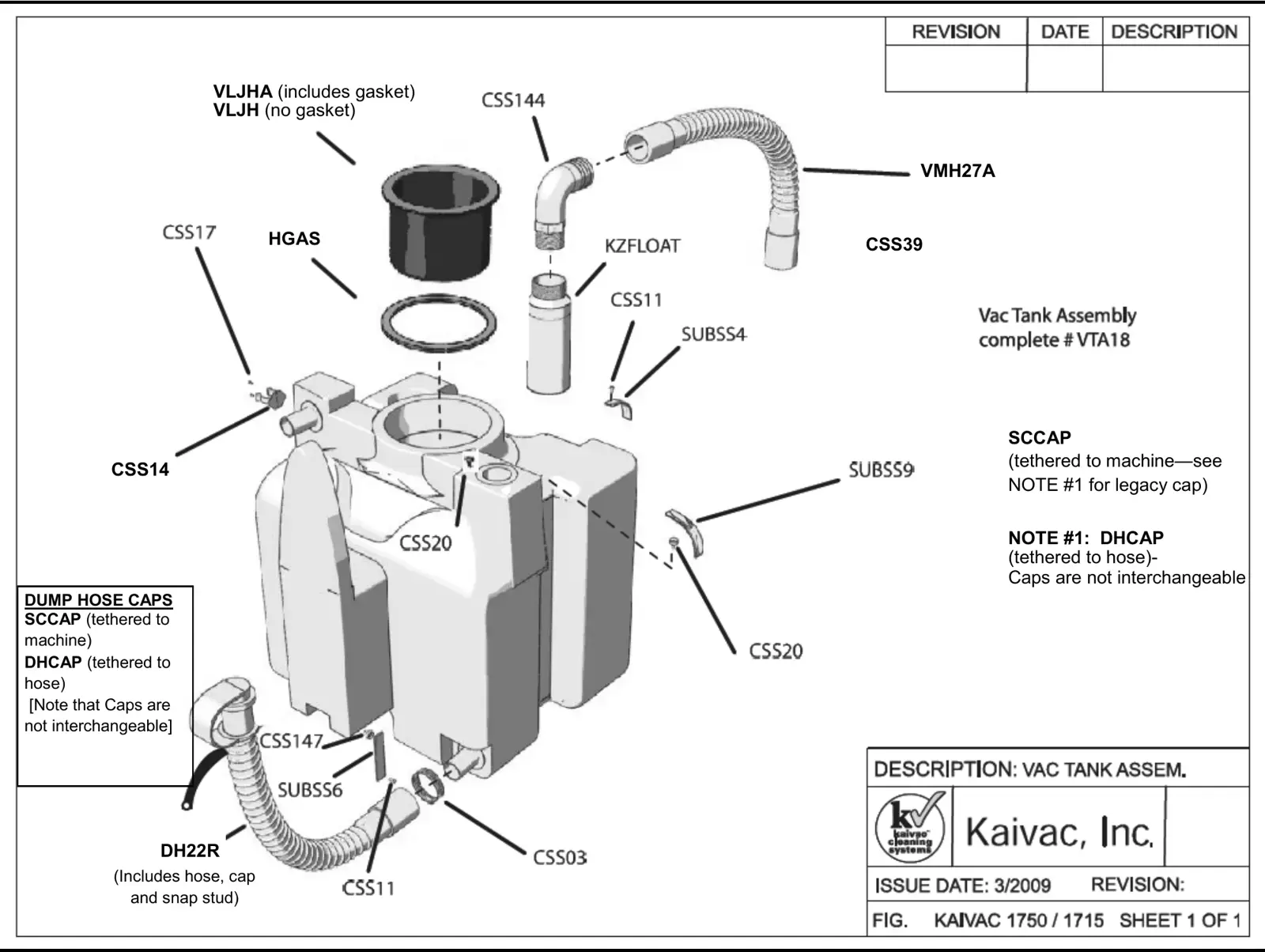

Kaivac 1700 Series Vac tank assembly (Aug 2016 manual) parts
The vac tank, its lid and jug holder, the float shutoff, dump hose and caps. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual pages 3-9, list 3-18, 3-19.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| VTA18 | KVVTA18 | VAC TANK ASSEMBLY 1700Complete assembly. Source: Rev. 080816, page 3-18. | $936.95/EA | |
| – | KVVTY18Kaivac VTY18 | 1 | VAC TANK YELLOW 18 LBS 1700 S ASSEMPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | Call to confirm part: 800-440-6723 |
| KZFLOAT | KVKZFLOAT | 1 | FLOAT SHUT OFFPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $43.43/EA |
| CSS144 | KVCSS144 | 1 | 1 1/4 NPT X 1 1/2 HOSE BARBPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $11.69/EA |
| – | KVDH25Kaivac DH25 | 1 | STAY CLEAN DUMP HOSE 1.5 X 22.5 INPart of Vac Tank Assembly 1700 (VTA18). Replaces DH22 (Rev. 121713); Source: Rev. 080816, page 3-18. | Call to confirm part: 800-440-6723 |
| CSS03 | KVCSS03 | 1 | 1 9/16 - 2 1/2 HOSE CLAMPPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $5.02/EA |
| CSS14 | KVCSS14 | 1 | 13 CLAMP , FOR TOOLSPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $6.58/EA |
| CSS17 | KVCSS17 | 2 | NO 8 FLAT HEAD SQUARE SCREWPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $0.23/EA |
| SUBSS11 | KVSUBSS11 | 1 | 11 IN SNAP AND STRAPPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $3.18/EA |
| CSS20 | KVCSS20 | 4 | SNAP STUDPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $1.70/EA |
| CSS147 | KVCSS147 | 2 | MALE SNAP 18-8 SS 8-32 X 1/2Part of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $3.49/EA |
| – | KVCSS145 | 2 | BRASS INSERT 8-32--21/64 LONGPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | $3.15/EA |
| – | KVGR2Kaivac GR2 | 1 | KV LOGO STICKERPart of Vac Tank Assembly 1700 (VTA18). Replaces GR14 (Rev. 121713); Source: Rev. 080816, page 3-18. | Call to confirm part: 800-440-6723 |
| – | KVNFSILKaivac NFSIL | 1 | NFSI LABELPart of Vac Tank Assembly 1700 (VTA18). Source: Rev. 080816, page 3-18. | Call to confirm part: 800-440-6723 |
| VLJHA | KVVLJHA | 1 | VAC LID, JUG HOLDER ASSEMComplete assembly. Includes gasket (drawing 3-9); Source: Rev. 080816, page 3-19. | $72.96/EA |
| VLJH | KVVLJHKaivac VLJH | 1 | VAC LID , JUG HOLDERPart of Vac Lid, Jug Holder Assem (VLJHA). No gasket (drawing 3-9); Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| HGAS | KVHGAS | 1 | HEPA BLOW COVER GASKETPart of Vac Lid, Jug Holder Assem (VLJHA). Source: Rev. 080816, page 3-19. | $15.45/EA |
| VMH27A | KVVMH27A | VAC MOTOR HOSE SHORT CUFFAlso shown on this drawing; listed under Vac motor and cover (manual page 3-20); Source: Rev. 080816, page 3-9. | $31.36/EA | |
| CSS39 | KVCSS39 | 1 1/16 - 2 HOSE CLAMPAlso shown on this drawing; listed under Vac motor and cover (manual page 3-20); Source: Rev. 080816, page 3-9. | $5.82/EA | |
| CSS11 | KVCSS11 | NO 10 X 3/4 SELF DRILLINGAlso shown on this drawing; listed under Water tank assembly (manual page 3-18); Source: Rev. 080816, page 3-9. | $0.24/EA | |
| SUBSS4 | KVSUBSS4 | 4 IN SNAP AND STRAPAlso shown on this drawing; listed under Water tank assembly (manual page 3-18); Source: Rev. 080816, page 3-9. | $2.85/EA | |
| SCCAP | KVSCCAP | Stay Clean Cap W/ Tether OnlyTethered to the machine; not interchangeable with DHCAP (drawing 3-9). Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-9. | $22.29/EA | |
| SUBSS9 | KVSUBSS9 | 9 In. Snap And StrapShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-9. | $2.44/EA | |
| DHCAP | KVDHCAP | Replacement Dump Hose Cap AsmTethered to the hose; not interchangeable with SCCAP (drawing 3-9). Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-9. | $30.25/EA | |
| SUBSS6 | KVSUBSS6 | 6 IN SNAP AND STRAPAlso shown on this drawing; listed under Water tank assembly (manual page 3-18); Source: Rev. 080816, page 3-9. | $2.85/EA | |
| DH22R | KVDH22RKaivac DH22R | Includes hose, cap and snap studIncludes hose, cap and snap stud (drawing 3-9). Shown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-9. | Call to confirm part: 800-440-6723 |

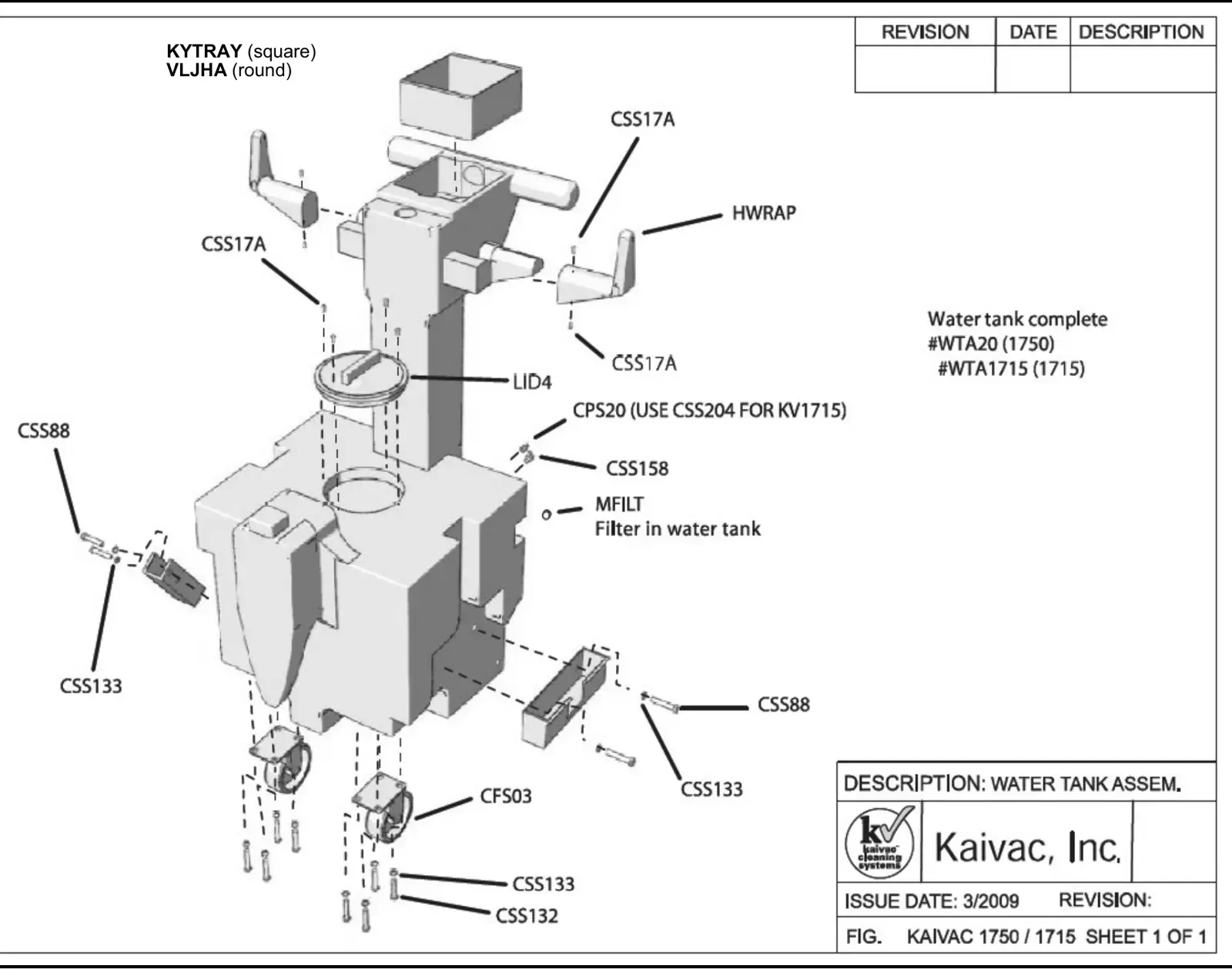

Kaivac 1700 Series Water tank assembly (Aug 2016 manual) parts
The water tank, its lid, filter, sight tube, casters and mounting hardware. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual pages 3-10, list 3-18.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| WTA20 | KVWTA20 | 1 | WATER TANK ASSEMBLY 1700Complete assembly. Source: Rev. 080816, page 3-18. | $884.17/EA |
| – | KVWTY20Kaivac WTY20 | 1 | WATER TANK YELLOW 20 LBS 1700 S ASSEMBLYPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | Call to confirm part: 800-440-6723 |
| CSS158 | KVCSS158 | 1 | 90 DEG BRASS 3/8 NPT X 1/2 HS.Part of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $14.40/EA |
| – | KVCSS142 | 1 | 3/8 INCH BRASS HOSE BARBPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $5.06/EA |
| MFILT | KVMFILT | 1 | MUSHROOM FILTERPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $8.64/EA |
| LID4 | KVLID4 | 1 | LID WITH TETHER 4 1/4 INPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $16.35/EA |
| CSS17A | KVCSS17A | 4 | 8 SST SCREW 3/4Part of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.41/EA |
| – | KVCSS11 | 1 | NO 10 X 3/4 SELF DRILLINGPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.24/EA |
| CFS03 | KVCFS03 | 2 | 5 IN CASTER , MOUNTING PLATEPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $41.86/EA |
| – | KVKMB16 | 12 | 3/8 SST FLAT WASHERPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.27/EA |
| CSS132 | KVCSS132 | 8 | 5/16-18X1 BUTTON HEADPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $1.75/EA |
| CSS133 | KVCSS133 | 8 | 5/16 SPLIT LOCK WASHER 300 SSPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.31/EA |
| – | KVCSS11 | 4 | NO 10 X 3/4 SELF DRILLINGPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.24/EA |
| – | KVSUBSS4 | 2 | 4 IN SNAP AND STRAPPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $2.85/EA |
| – | KVSUBSS6 | 2 | 6 IN SNAP AND STRAPPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $2.85/EA |
| CSS158 | KVCSS158 | 1 | 90 DEG BRASS 3/8 NPT X 1/2 HS.Part of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $14.40/EA |
| – | KVST16 | 1 | SIGHT TUBE 16 INCHPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $3.56/EA |
| – | KVCPS70 | 1 | HOSE TIE DOWN , BLACKPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.55/EA |
| – | KVCSS11 | 1 | NO 10 X 3/4 SELF DRILLINGPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.24/EA |
| – | KVFIG8LABELKaivac FIG8LABEL | 1 | FIGURE 8 LABEL 1-1/4 X 3-1/4Part of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | Call to confirm part: 800-440-6723 |
| – | KVWDVTC | 2 | OMNIFLEX VAC TANK TOOL CUPPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $17.65/EA |
| CSS88 | KVCSS88 | 2 | 1/4-20 X 3/4 SST SCREWPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.61/EA |
| CSS133 | KVCSS133 | 2 | 5/16 SPLIT LOCK WASHER 300 SSPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.31/EA |
| – | KVCSS205 | 2 | 9/16 EXTERNAL TOOTH LOCK WASHERPart of Water Tank Assembly 1700 (WTA20). Source: Rev. 080816, page 3-18. | $0.35/EA |
| KYTRAY | KVKYTRAYKaivac KYTRAY | (square)Shown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-10. | Call to confirm part: 800-440-6723 | |
| VLJHA | KVVLJHA | VAC LID, JUG HOLDER ASSEMIncludes gasket (drawing 3-9). Also shown on this drawing; listed under Vac tank assembly (manual page 3-19); Source: Rev. 080816, page 3-10. | $72.96/EA | |
| HWRAP | KVHWRAP | Hose Wrap Ears YellowShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-10. | $7.68/EA | |
| WTA1715 | KVWTA1715Kaivac WTA1715 | Water tank complete (1715)Shown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-10. | Call to confirm part: 800-440-6723 | |
| CPS20 | KVCPS20 | 3/8 Npt X 1/2 Brass Hose BarbShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-10. | $10.04/EA | |
| CSS204 | KVCSS204 | 3/8 Brass Hex Head Core PlugUse for KV1715 in place of CPS20 (drawing 3-10). Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-10. | $7.60/EA | |
| – | KVFLAGLABKaivac FLAGLAB | 1 | ASSEMBLED IN AMERICA FLAG LABELSource: Rev. 080816, page 3-18. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Black box assembly (Aug 2016 manual) parts
The black box frame, axle, wheels, power cord and the assemblies mounted in it. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual pages 3-11, list 3-19.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

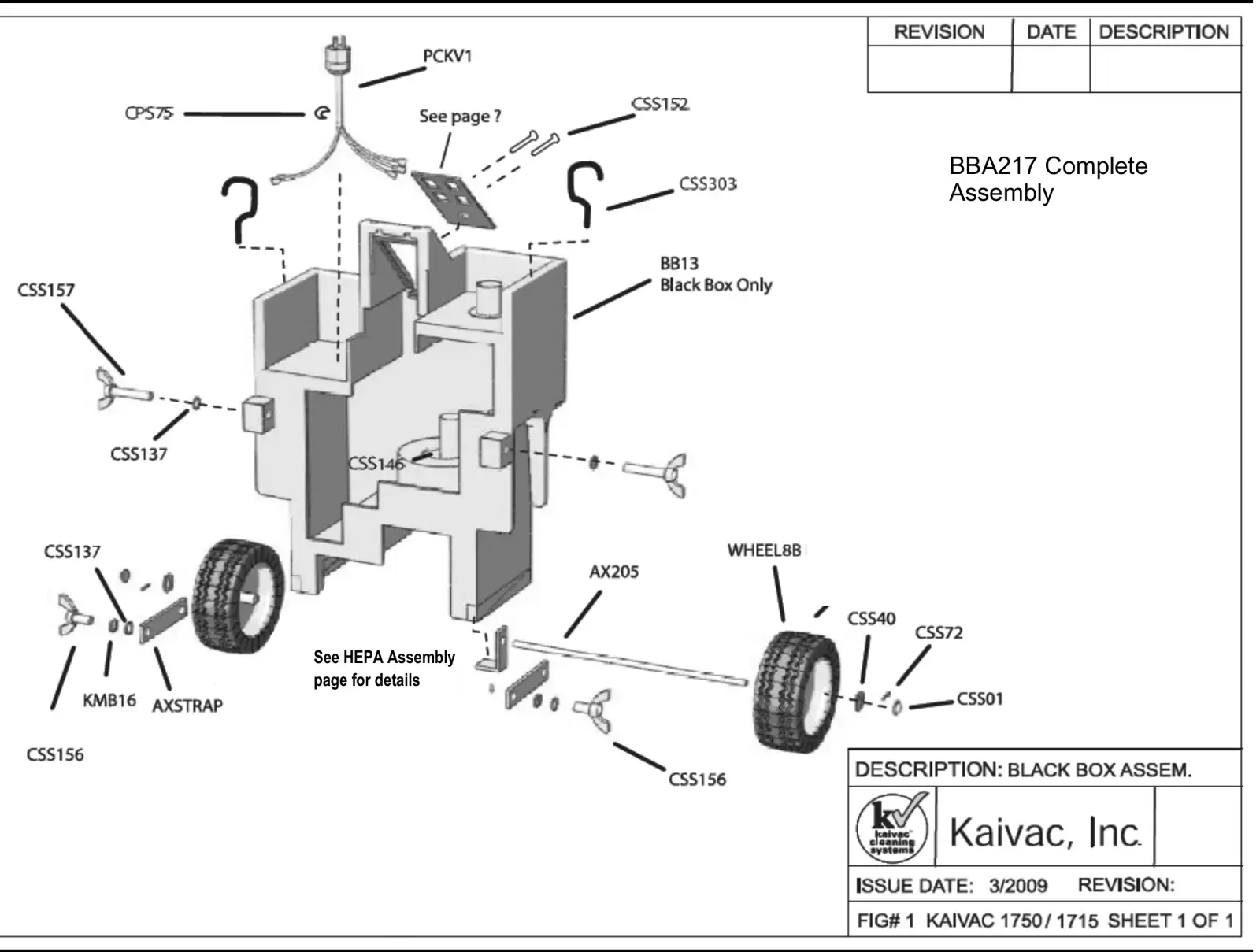

| BBA217 | KVBBA217Kaivac BBA217 | 1 | BLACK BOX ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVBBA1750240VEUKaivac BBA1750240VEU | 1 | BLACK BOX ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVBBA1750240VUKKaivac BBA1750240VUK | 1 | BLACK BOX ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVBBA1750240VAUSKaivac BBA1750240VAUS | 1 | BLACK BOX ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| BB13 | KVBB13 | 1 | BLACK BX 1700 S W/ GROMMET ASSEMPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $316.94/EA |
| – | KVSP1750Kaivac SP1750 | 1 | SERIAL PLATE 1750 SERIESPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVSERIALLABELKaivac SERIALLABEL | 2 | SERIAL NUMBER LABELPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVVA3WKaivac VA3W | 1 | VALVE ASSEM. 3 WAYPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVCPS65 | 3 | 1/2 IN CLAMPPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $2.45/EA |
| – | KVCSS17A | 2 | 8 SST SCREW 3/4Part of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $0.41/EA |

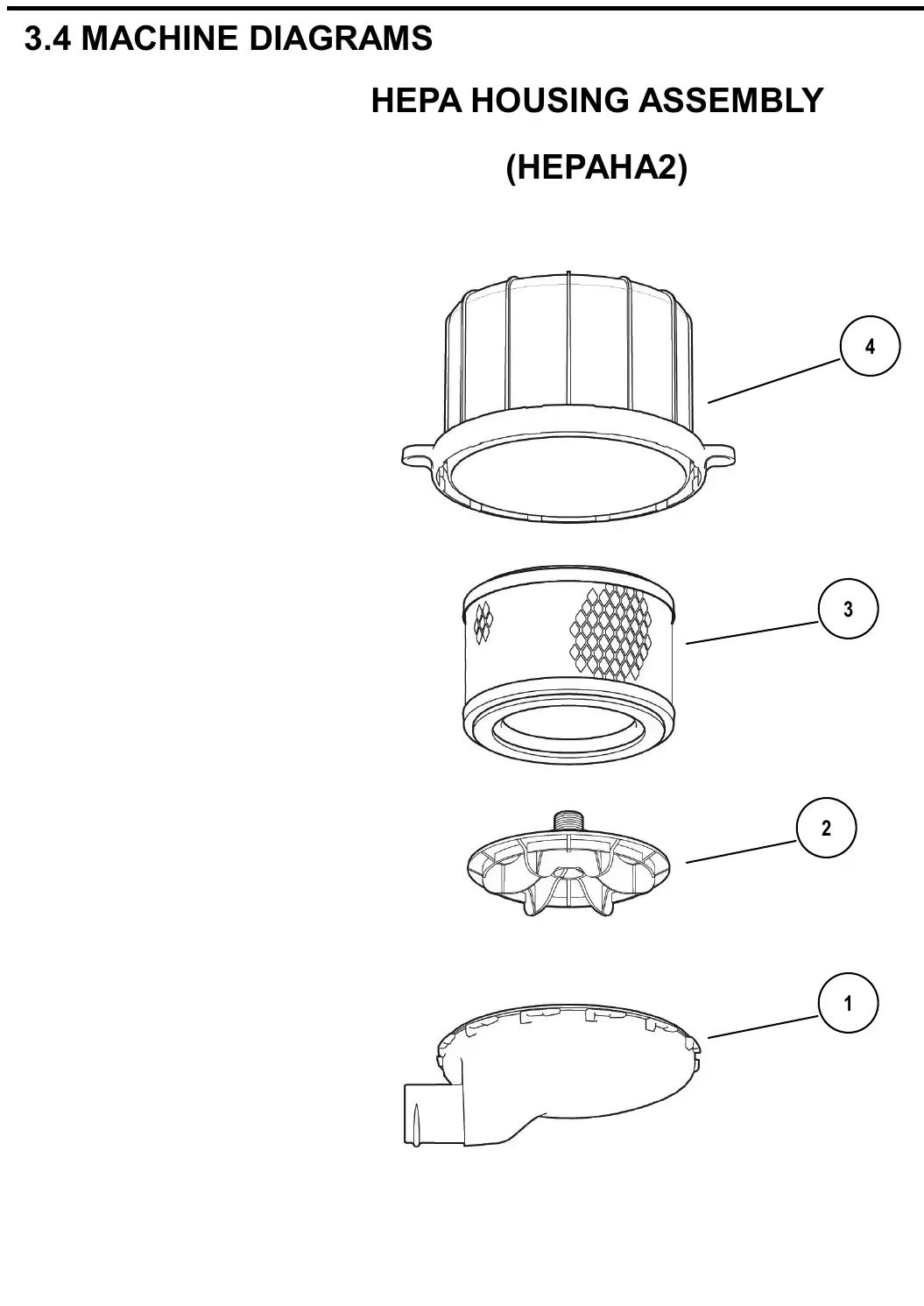

| – | KVHEPAHA2 | 1 | HEPA HOUSING ASSEMBLYPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $74.65/EA |
| – | KVHEPALABKaivac HEPALAB | 1 | HEPA WARNING LABELPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVCSS07 | 2 | 5/16-18 X 1 HEX HEADPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $2.04/EA |

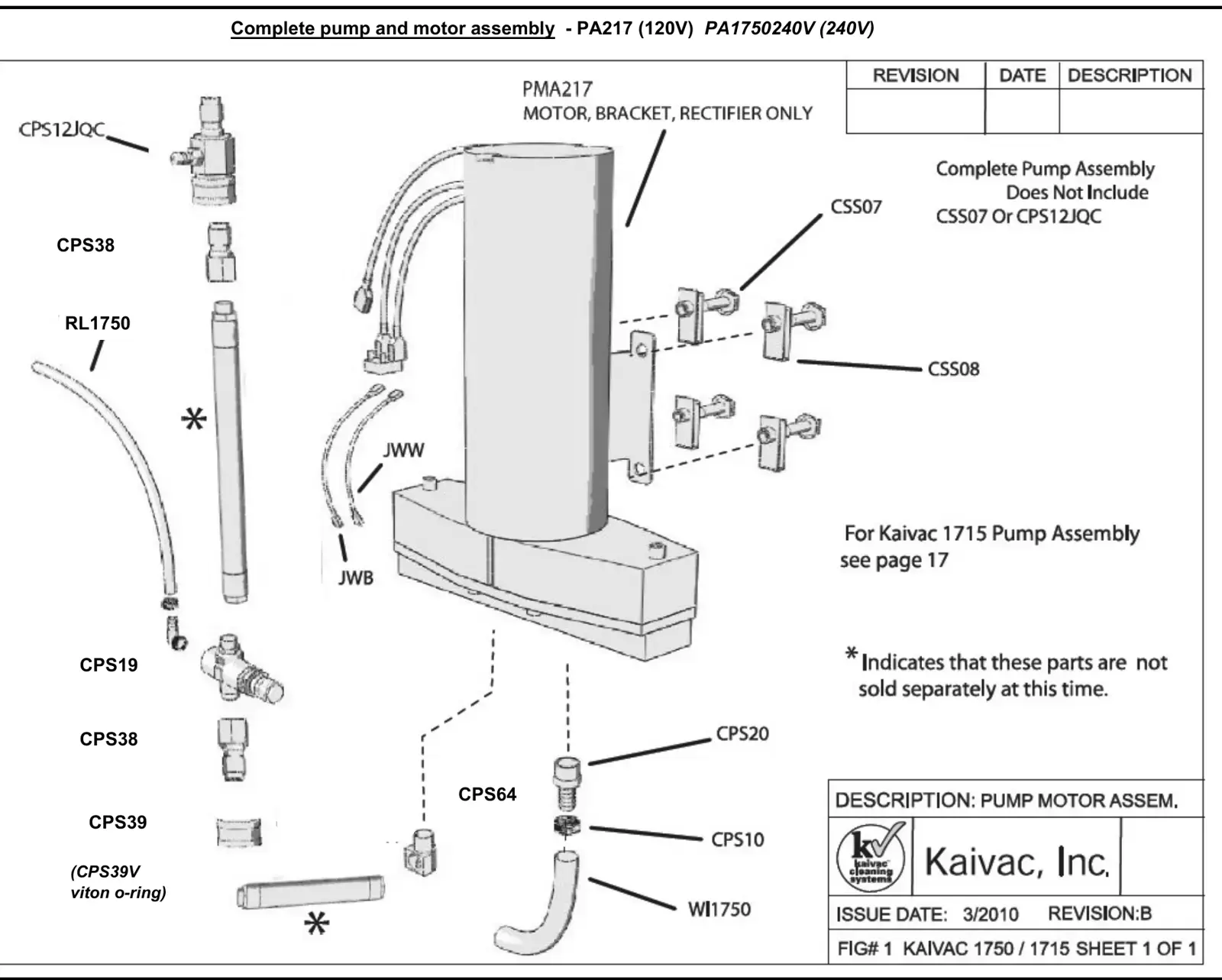

| – | KVPA217 | 1 | PUMP ASSEM COMPLETE FOR KV1750Part of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $1,778.13/EA |
| – | KVPA1750240V-2Kaivac PA1750240V-2 | 1 | PUMP ASSY COMPLETE KV1750 240VPart of Black Box Assembly (BBA217). Replaces PA1750240V (Rev. 121713); Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVCSS07 | 2 | 5/16-18 X 1 HEX HEADPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $2.04/EA |
| PCKV1A | KVPCKV1AKaivac PCKV1A | 1 | 22 IN. POWER CORD WITH MOLDEDPart of Black Box Assembly (BBA217). Replaces PCKV1 (Rev. 121713); Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| CPS75 | KVCPS75 | 1 | CABLE CLAMP FOR EXT. CORDPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $0.41/EA |
| – | KVCSS11 | 2 | NO 10 X 3/4 SELF DRILLINGPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $0.24/EA |
| – | KVCSS130 | 1 | RUBBER CUSHIONED STEEL LOOPPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $1.96/EA |
| – | KVSPADC | 1 | SWITCH PANAL ASSEM DUAL CHEM.Part of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $230.32/EA |
| – | KVCSS17A | 6 | 8 SST SCREW 3/4Part of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $0.41/EA |
| – | KVCPS12JQCKaivac CPS12JQC | 1 | QUICK CONNECT INJECTORPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVCSS21F | 1 | SNAP GRIP HOSE CLAMP SIZE CPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $1.06/EA |
| – | KVCSS136 | 1 | 6 NATURAL CABLE TIEPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $0.22/EA |
| AX205 | KVAX205 | 1 | AXLE 20.5 IN X 1/2 DIA 303 SSTPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $50.32/EA |
| AXSTRAP | KVAXSTRAP | 2 | AXLE STRAPPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $19.79/EA |
| WHEEL8B | KVWHEEL8B | 2 | FLAT FREE TIRE 8IN 1/2 HUBPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $67.63/EA |
| CSS40 | KVCSS40 | 6 | 1/2 DIA WASHERSPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $0.67/EA |
| CSS72 | KVCSS72 | 2 | COTTER PIN 1/8 DIA X 11/4 LGPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $0.43/EA |
| CSS01 | KVCSS01 | 2 | 1/2 IN PUSH CAP NUTPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $1.55/EA |
| CSS303 | KVCSS303Kaivac CSS303 | 2 | YELLOW CORD / HOSE HOOKPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVCSS175 | 1 | 3/4 ID X 1 3/8 OD GROMMETPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $2.19/EA |
| – | KVPL002Kaivac PL002 | 1 | 7/8 - 1/4- 20 PLUG, EXHAUST PORT CAPPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVOMLAB2Kaivac OMLAB2 | 1 | OMNIFLEX MAINTENANCE LABEL BLADESPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| – | KVVMA1700R | 1 | HE 120V VMA 1700Part of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | $562.13/EA |
| – | KVVMASM240VKaivac VMASM240V | 1 | 1750 VAC MOTOR ASSEMBLY 240VPart of Black Box Assembly (BBA217). Source: Rev. 080816, page 3-19. | Call to confirm part: 800-440-6723 |
| CSS152 | KVCSS152 | 3/8-16X2 THUMB SCREW ZINCAlso shown on this drawing; listed under Tool arrangement and accessories (manual page 3-21); Source: Rev. 080816, page 3-11. | $3.53/EA | |
| CSS157 | KVCSS157 | 3/8 X 2 T THUMB SCREW YELLOWAlso shown on this drawing; listed under Tool arrangement and accessories (manual page 3-21); Source: Rev. 080816, page 3-11. | $5.83/EA | |
| CSS137 | KVCSS137 | 3/8 SPLIT LOCK WASHERAlso shown on this drawing; listed under Tool arrangement and accessories (manual page 3-21); Source: Rev. 080816, page 3-11. | $0.25/EA | |
| CSS146 | KVCSS146 | Steel Push Retainer 1/4 InchShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-11. | $0.35/EA | |
| KMB16 | KVKMB16 | 3/8 SST FLAT WASHERAlso shown on this drawing; listed under Water tank assembly (manual page 3-18); Source: Rev. 080816, page 3-11. | $0.27/EA | |
| CSS156 | KVCSS156 | 3/8 X 3/4 T THUMB SCREW YELLOWAlso shown on this drawing; listed under Tool arrangement and accessories (manual page 3-21); Source: Rev. 080816, page 3-11. | $4.57/EA |
Kaivac 1700 Series Pump and motor assembly (1750) (Aug 2016 manual) parts
The KV1750 pump and motor assembly, its fittings, water and return lines. Kaivac marks some fittings as not sold separately. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual pages 3-12, list 3-20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| PA217 | KVPA217 | 1 | 1750 PUMP ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-20. | $1,778.13/EA |
| PA1750240V-2 | KVPA1750240V-2Kaivac PA1750240V-2 | 1 | 1750 PUMP ASSEMBLYComplete assembly. Replaces PA1750240V (Rev. 121713); Source: Rev. 080816, page 3-20. | Call to confirm part: 800-440-6723 |
| P217AM | KVP217AM | 1 | PUMP SERIES 217V-110/M9253FPart of Pump Assem Complete For Kv1750 (PA217). Source: Rev. 080816, page 3-20. | $1,607.16/EA |
| – | KVPUMP217240VDCKaivac PUMP217240VDC | 1 | PUMP SERIES 217V-095/M11 240VPart of Pump Assem Complete For Kv1750 (PA217). Replaces PUMP217240V (Rev. 121713); Source: Rev. 080816, page 3-20. | Call to confirm part: 800-440-6723 |
| WL1750 | KVWL1750 | 1 | WATER LINE FOR 1750Part of Pump Assem Complete For Kv1750 (PA217). Printed on drawing 3-12 as WI1750; Source: Rev. 080816, page 3-20. | $23.95/EA |
| RL1750 | KVRL1750 | 1 | RETURN LINE FOR 1750Part of Pump Assem Complete For Kv1750 (PA217). Source: Rev. 080816, page 3-20. | $25.54/EA |
| CSS08 | KVCSS08 | 2 | 5/16-18 U-NUTPart of Pump Assem Complete For Kv1750 (PA217). Source: Rev. 080816, page 3-20. | $2.05/EA |
| JWW | KVJWW | 1 | JUMPER WIRE WHITE 12 INPart of Pump Assem Complete For Kv1750 (PA217). Source: Rev. 080816, page 3-20. | $5.60/EA |
| JWB | KVJWB | 1 | JUMPER WIRE BLACK 12 INPart of Pump Assem Complete For Kv1750 (PA217). Source: Rev. 080816, page 3-20. | $5.79/EA |
| – | KVCSS127 | 1 | QUICK DISCONNECT TERMINALPart of Pump Assem Complete For Kv1750 (PA217). Source: Rev. 080816, page 3-20. | $1.75/EA |
| – | KVCSS64 | 1 | TIE WRAP FOR FILTERSPart of Pump Assem Complete For Kv1750 (PA217). Source: Rev. 080816, page 3-20. | $1.14/EA |
| PMA217 | KVPMA217 | Motor W/Rect & Brckt & U-Nuts & CamMotor, bracket and rectifier only (drawing 3-12). Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $746.99/EA | |
| CPS12JQC | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORAlso shown on this drawing; listed under Black box assembly (manual page 3-19); Source: Rev. 080816, page 3-12. | Call to confirm part: 800-440-6723 | |
| CSS07 | KVCSS07 | 5/16-18 X 1 HEX HEADAlso shown on this drawing; listed under Black box assembly (manual page 3-19); Source: Rev. 080816, page 3-12. | $2.04/EA | |
| CPS38 | KVCPS38 | 3/8 Qd PlugShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $16.28/EA | |
| CPS19 | KVCPS19 | Unloader Valve For PumpShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $235.12/EA | |
| CPS20 | KVCPS20 | 3/8 Npt X 1/2 Brass Hose BarbShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $10.04/EA | |
| CPS64 | KVCPS64 | 90 Deg. 3/8 M X 3/8 FShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $16.70/EA | |
| CPS39 | KVCPS39 | 3/8 Qd Coupling FemaleShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $39.99/EA | |
| CPS10 | KVCPS10 | 7/16 - 25/32 Hose ClampShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $4.57/EA | |
| CPS39V | KVCPS39V | Fkm O-RingShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-12. | $1.77/EA |

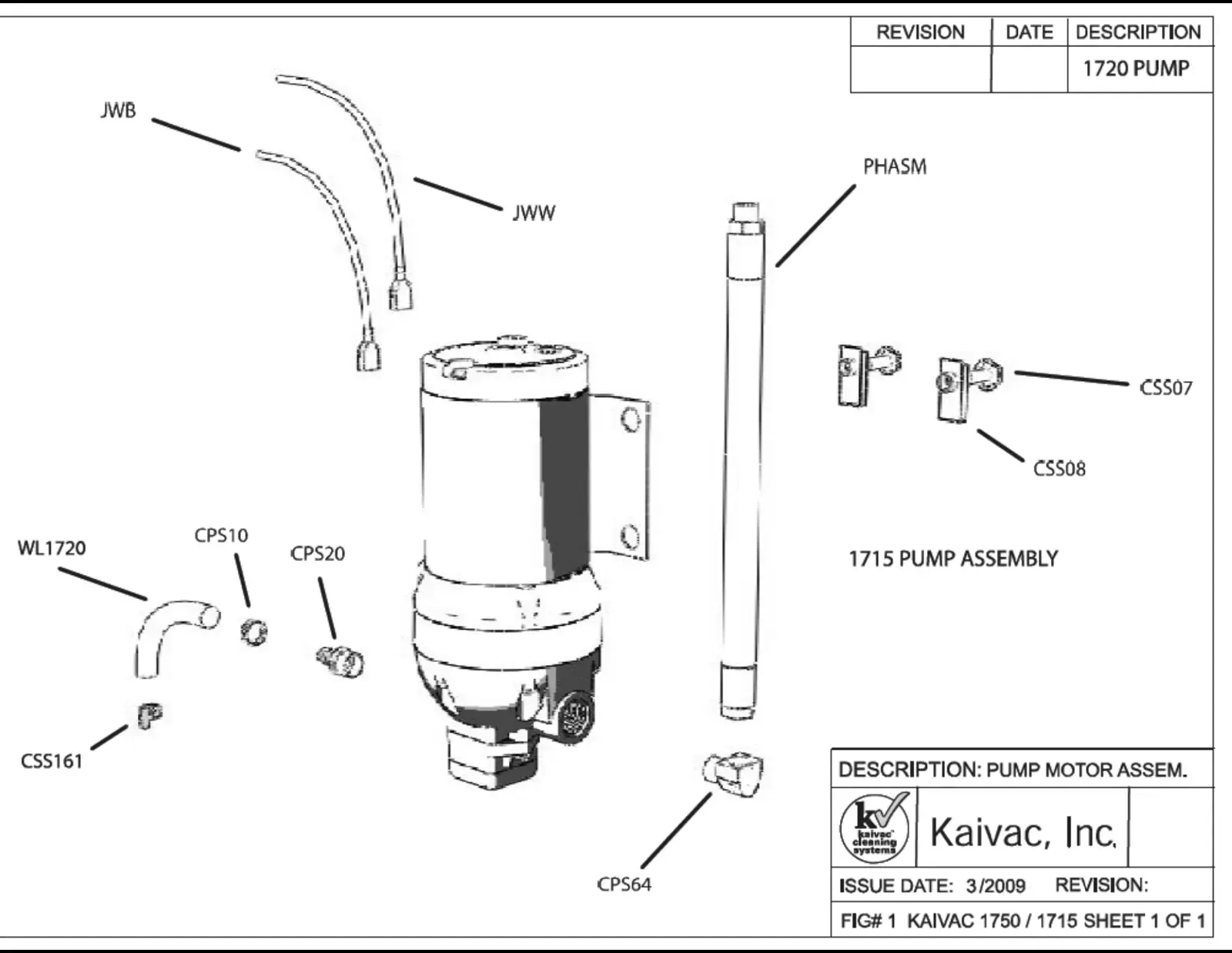

Kaivac 1700 Series Pump assembly (1715) (Aug 2016 manual) parts
The KV1715 pump assembly. Kaivac's parts list has no separate lines for it, so every part here is from the drawing. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual page 3-13.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| JWB | KVJWB | JUMPER WIRE BLACK 12 INAlso shown on this drawing; listed under Pump and motor assembly (1750) (manual page 3-20); Source: Rev. 080816, page 3-13. | $5.79/EA | |
| PHASM | KVPHASM | Pulse Hose 24 InchShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-13. | $40.83/EA | |
| JWW | KVJWW | JUMPER WIRE WHITE 12 INAlso shown on this drawing; listed under Pump and motor assembly (1750) (manual page 3-20); Source: Rev. 080816, page 3-13. | $5.60/EA | |
| CSS07 | KVCSS07 | 5/16-18 X 1 HEX HEADAlso shown on this drawing; listed under Black box assembly (manual page 3-19); Source: Rev. 080816, page 3-13. | $2.04/EA | |
| CSS08 | KVCSS08 | 5/16-18 U-NUTAlso shown on this drawing; listed under Pump and motor assembly (1750) (manual page 3-20); Source: Rev. 080816, page 3-13. | $2.05/EA | |
| CPS10 | KVCPS10 | 7/16 - 25/32 Hose ClampShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-13. | $4.57/EA | |
| WL1720 | KVWL1720 | Water Line 1720Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-13. | $16.28/EA | |
| CPS20 | KVCPS20 | 3/8 Npt X 1/2 Brass Hose BarbShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-13. | $10.04/EA | |
| CSS161 | KVCSS161Kaivac CSS161 | Part shown on the drawingShown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-13. | Call to confirm part: 800-440-6723 | |
| CPS64 | KVCPS64 | 90 Deg. 3/8 M X 3/8 FShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-13. | $16.70/EA |

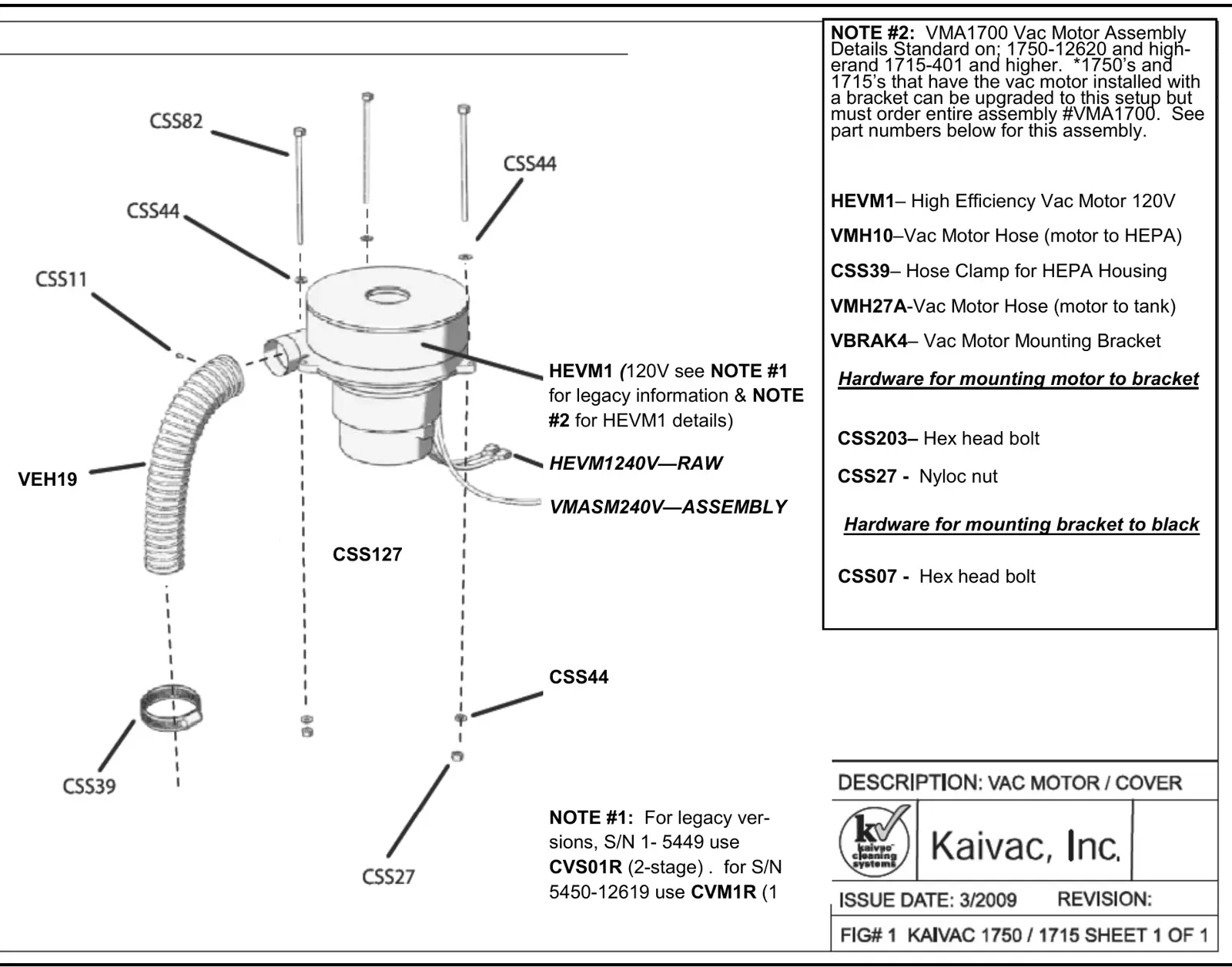

Kaivac 1700 Series Vac motor and cover (Aug 2016 manual) parts
The vac motor, its hoses, mounting bracket and hardware, with notes on older motors. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual pages 3-14, list 3-20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| VMA1700 | KVVMA1700Kaivac VMA1700 | 1 | VAC MOTOR ASSEMBLYComplete assembly. Standard on 1750 S/N 12620 and later, 1715 S/N 401 and later (drawing 3-14); Source: Rev. 080816, page 3-20. | Call to confirm part: 800-440-6723 |
| VMASM240V | KVVMASM240VKaivac VMASM240V | 1 | VAC MOTOR ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-20. | Call to confirm part: 800-440-6723 |
| HEVM1 | KVHEVM1 | 1 | HIGH EFFICIENCY 120V VAC MOTORPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $356.54/EA |
| HEVM1240V | KVHEVM1240V | 1 | HIGH EFFICIENCY VAC MOTOR 240VPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $397.12/EA |
| CSS127 | KVCSS127 | 3 | QUICK DISCONNECT TERMINALPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $1.75/EA |
| VEH19 | KVVEH19 | 1 | VAC MOTOR EXHAUST HOSE 19 INCHPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $18.64/EA |
| CSS39 | KVCSS39 | 1 | 1 1/16 - 2 HOSE CLAMPPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $5.82/EA |
| CSS11 | KVCSS11 | 4 | NO 10 X 3/4 SELF DRILLINGPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $0.24/EA |
| VBRAK4 | KVVBRAK4 | 1 | VAC MOTOR BRKT KV1700Part of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $37.03/EA |
| CSS27 | KVCSS27 | 2 | 1/4 NYLOC NUTPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $0.47/EA |
| CSS44 | KVCSS44 | 2 | 1/4 FLAT WASHERPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $0.15/EA |
| – | KVCSS08 | 2 | 5/16-18 U-NUTPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $2.05/EA |
| CSS203 | KVCSS203 | 2 | HEX HEAD BOLT 1/4 20 X 1 1/4Part of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $0.47/EA |
| – | KVCSS153 | 2 | 1/4-20 U NUT FOR VAC MOTORPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $1.40/EA |
| VMH27A | KVVMH27A | 1 | VAC MOTOR HOSE SHORT CUFFPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $31.36/EA |
| – | KVCVS08A | 1 | BLACK 1 1/2 HOSE CUFFPart of Vac Motor Assembly (VMA1700). Source: Rev. 080816, page 3-20. | $5.81/EA |
| CSS82 | KVCSS82 | 1/4-20 X 5In Lng ScrewShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-14. | $1.57/EA | |
| VMH10 | KVVMH10 | Vac Motor Hose 10 InchShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-14. | $6.07/EA | |
| CSS07 | KVCSS07 | 5/16-18 X 1 HEX HEADAlso shown on this drawing; listed under Black box assembly (manual page 3-19); Source: Rev. 080816, page 3-14. | $2.04/EA | |
| CVS01AR | KVCVS01ARKaivac CVS01AR | As Replacement On Older Units OnlyLegacy vac motor, S/N 1–5449 (drawing 3-14). Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Replaces CVS01R (Rev. 121713); Source: Rev. 080816, page 3-14. | Call to confirm part: 800-440-6723 | |
| CVM1R | KVCVM1R | 3 Stage 120 Volt Vac Motor W/ GasketLegacy vac motor, S/N 5450–12619 (drawing 3-14). Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-14. | $367.78/EA |
Kaivac 1700 Series HEPA housing assembly (Aug 2016 manual) parts
The HEPA filter, keeper, housing and cover. This drawing uses Kaivac's item numbers 1 to 4. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual page 3-15.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVHCOVER | HEPA COVERPart of Hepa Housing Assembly (HEPAHA2). Source: Rev. 080816, page 3-15. | $8.02/EA | |
| 2 | KVFKEEP2 | HEPA FILTER KEEPERPart of Hepa Housing Assembly (HEPAHA2). Source: Rev. 080816, page 3-15. | $7.44/EA | |
| 3 | KVHEPA | HEPA FILTERPart of Hepa Housing Assembly (HEPAHA2). Source: Rev. 080816, page 3-15. | $28.90/EA | |
| 4 | KVHEPAH2 | HEPA FILTER HOUSINGPart of Hepa Housing Assembly (HEPAHA2). Source: Rev. 080816, page 3-15. | $12.91/EA | |
| HEPAHA2 | KVHEPAHA2 | HEPA HOUSING ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-15. | $74.65/EA |

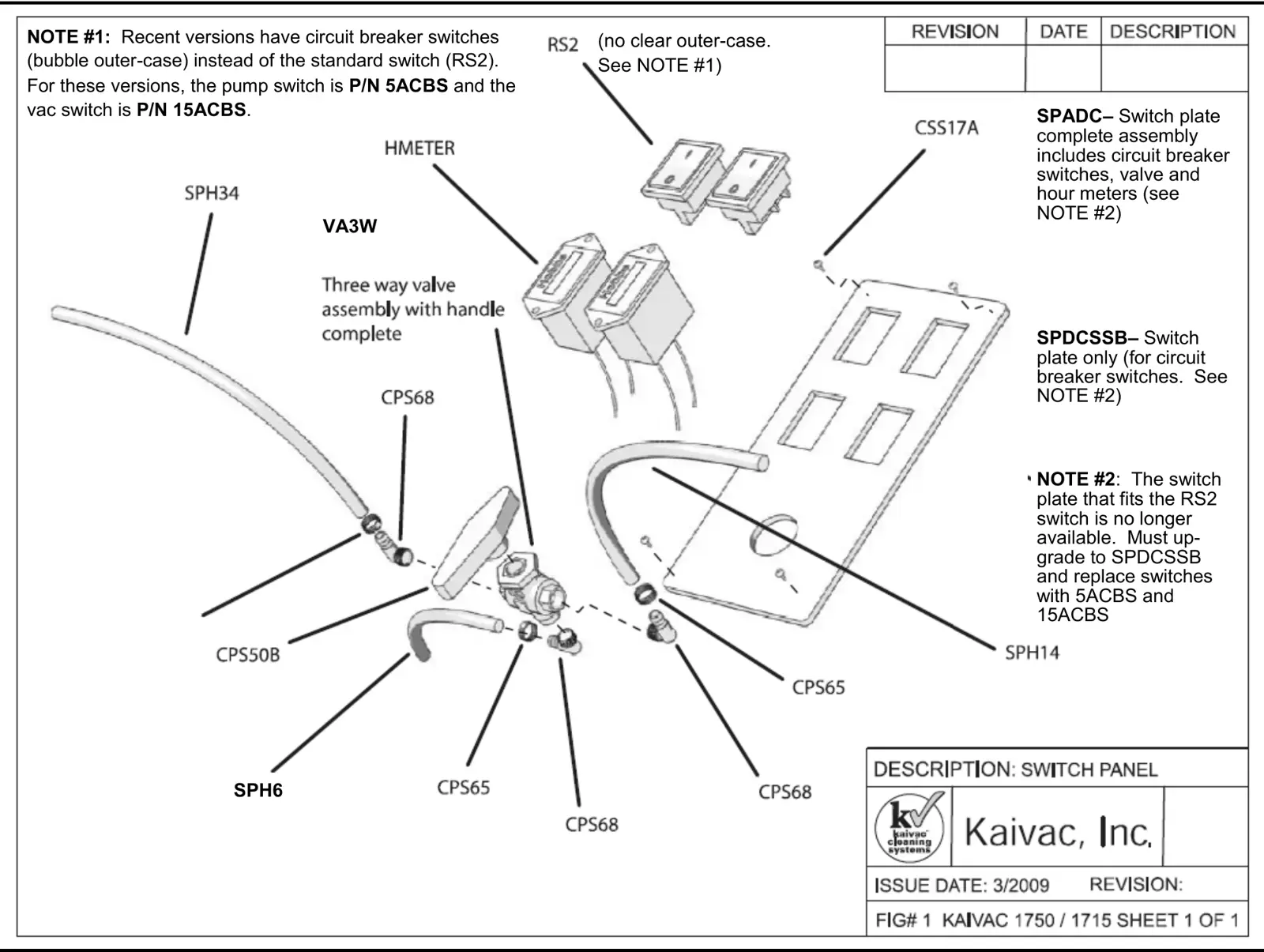

Kaivac 1700 Series Switch panel and 3-way valve (Aug 2016 manual) parts
The switch panel with its circuit breaker switches and hour meters, and the 3-way chemical valve with its hoses. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual pages 3-16, list 3-20, 3-21.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| VA3W | KVVA3WKaivac VA3W | VALVE ASSEM 3 WAY FOR KV1750Complete assembly. Source: Rev. 080816, page 3-20. | Call to confirm part: 800-440-6723 | |
| – | KVCPS50AKaivac CPS50A | 3 WAY BRASS VALVE WITH VITON SEALPart of Valve Assem. 3 Way (VA3W). Drawing 3-16 prints CPS50B; Source: Rev. 080816, page 3-20. | Call to confirm part: 800-440-6723 | |
| CPS68 | KVCPS68 | 90 DEG. 1/8 NPT MALE XPart of Valve Assem. 3 Way (VA3W). Source: Rev. 080816, page 3-20. | $8.29/EA | |
| CPS65 | KVCPS65 | 1/2 IN CLAMPPart of Valve Assem. 3 Way (VA3W). Source: Rev. 080816, page 3-20. | $2.45/EA | |
| SPH34 | KVSPH34 | SWITCH PANEL HOSE 34 INPart of Valve Assem. 3 Way (VA3W). Source: Rev. 080816, page 3-20. | $19.38/EA | |
| SPH6 | KVSPH6 | 6 INCH 1/4 NYLON HOSEPart of Valve Assem. 3 Way (VA3W). Source: Rev. 080816, page 3-20. | $2.49/EA | |
| SPH14 | KVSPH14 | SWITCH PANAL HOSE 14 INCHPart of Valve Assem. 3 Way (VA3W). Source: Rev. 080816, page 3-20. | $6.99/EA | |
| SPADC | KVSPADC | 1 | 1700 SERIES SWITCH PANEL ASSEMBLYComplete assembly. Source: Rev. 080816, page 3-21. | $230.32/EA |
| SPDCSSB | KVSPDCSSB | 1 | SWITCH PNL DUALCHEM FOR BREAKER SWITCHPart of Switch Panal Assem Dual Chem. (SPADC). Switch plate for the circuit breaker switches (drawing 3-16); Source: Rev. 080816, page 3-21. | $56.67/EA |
| HMETER | KVHMETER | 2 | SNAP IN DIGITAL HOUR METERPart of Switch Panal Assem Dual Chem. (SPADC). Source: Rev. 080816, page 3-21. | $57.21/EA |
| – | KVJWW | 2 | JUMPER WIRE WHITE 12 INPart of Switch Panal Assem Dual Chem. (SPADC). Source: Rev. 080816, page 3-21. | $5.60/EA |
| – | KVJWB5 | 2 | JUMPER WIRE BLACK 5 INPart of Switch Panal Assem Dual Chem. (SPADC). Source: Rev. 080816, page 3-21. | $10.16/EA |
| – | KVCSS123 | 2 | QUICK CONNECT PIGGY BACK TERMPart of Switch Panal Assem Dual Chem. (SPADC). Source: Rev. 080816, page 3-21. | $1.59/EA |
| 15ACBS | KV15ACBS | 1 | 15 AMP CIRCUIT BREAKER SWITCHPart of Switch Panal Assem Dual Chem. (SPADC). Source: Rev. 080816, page 3-21. | $33.80/EA |
| 5ACBS | KV5ACBS | 1 | 5 AMP CIRCUIT BREAKER SWITCHPart of Switch Panal Assem Dual Chem. (SPADC). Source: Rev. 080816, page 3-21. | $33.81/EA |
| RS2 | KVRS2 | On/Off Ster Switch KaivacOlder standard switch; its switch plate is no longer available (drawing 3-16). Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-16. | $15.14/EA | |
| CSS17A | KVCSS17A | 8 SST SCREW 3/4Also shown on this drawing; listed under Water tank assembly (manual page 3-18); Source: Rev. 080816, page 3-16. | $0.41/EA | |
| CPS50B | KVCPS50BKaivac CPS50B | Knob (Black)Drawing 3-16 prints CPS50B; Kaivac's 3-way valve list prints CPS50A. Shown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-16. | Call to confirm part: 800-440-6723 |

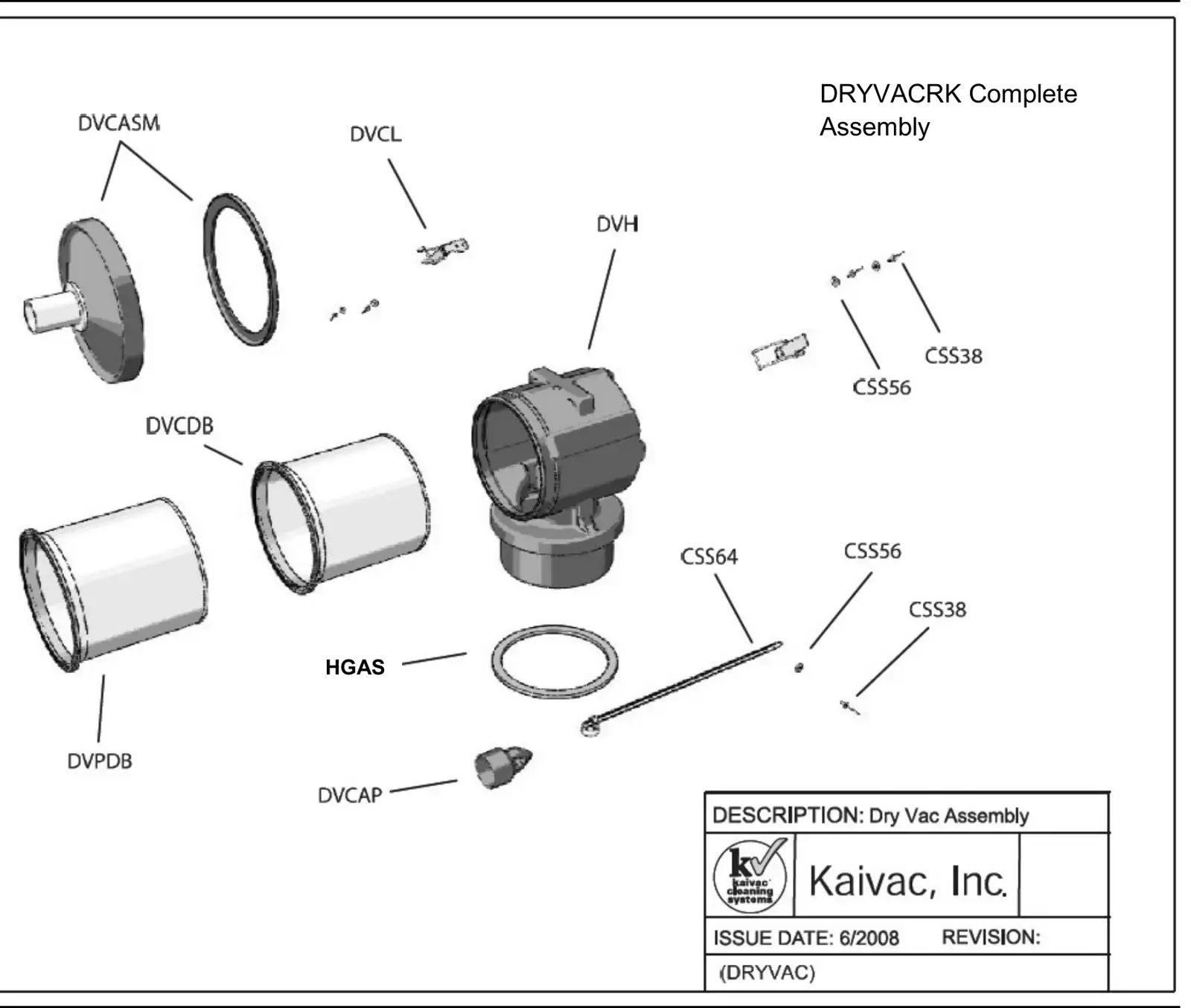

Kaivac 1700 Series Dry vac assembly (option) (Aug 2016 manual) parts
The optional dry vac kit. Kaivac's parts list has no lines for it, so every part here is from the drawing. From Kaivac's Aug 2016 manual (Rev. 080816), for the KV1715 S/N 409 and later, the KV1750 S/N 13409 and later and the CE1750 S/N 497 and later. Manual page 3-17.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| DRYVACRK | KVDRYVACRK | Dry Vac Retro Kit CompleteShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-17. | $649.51/EA | |
| DVCASM | KVDVCASMKaivac DVCASM | Part shown on the drawingShown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-17. | Call to confirm part: 800-440-6723 | |
| DVCL | KVDVCLKaivac DVCL | Part shown on the drawingShown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-17. | Call to confirm part: 800-440-6723 | |
| DVH | KVDVHKaivac DVH | Part shown on the drawingShown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-17. | Call to confirm part: 800-440-6723 | |
| CSS38 | KVCSS38Kaivac CSS38 | Part shown on the drawingShown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-17. | Call to confirm part: 800-440-6723 | |
| CSS56 | KVCSS56 | 1/8 Rivet Back Up PlateShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-17. | $0.21/EA | |
| DVCDB | KVDVCDB | Cloth Filter BagShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-17. | $5.89/EA | |
| CSS64 | KVCSS64 | TIE WRAP FOR FILTERSAlso shown on this drawing; listed under Pump and motor assembly (1750) (manual page 3-20); Source: Rev. 080816, page 3-17. | $1.14/EA | |
| HGAS | KVHGAS | HEPA BLOW COVER GASKETAlso shown on this drawing; listed under Vac tank assembly (manual page 3-19); Source: Rev. 080816, page 3-17. | $15.45/EA | |
| DVPDB | KVDVPDB | Paper Filter BagShown on the drawing; not in Kaivac's parts list. Name from our catalog (the drawing prints only the number); Source: Rev. 080816, page 3-17. | $2.23/EA | |
| DVCAP | KVDVCAPKaivac DVCAP | Part shown on the drawingShown on the drawing; not in Kaivac's parts list; Source: Rev. 080816, page 3-17. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Water Tank Assembly (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the water Tank Assembly drawing and its parts list. Manual pages 13, list 20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 manual, page 20. | $0.41/EA | |
| HWRAP | KVHWRAP | HOSE WRAP EARSource: 2006 manual, page 20. | $7.68/EA | |
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 manual, page 20. | $0.41/EA | |
| – | KVLID4 | 4” LIDSource: 2006 manual, page 20. | $16.35/EA | |
| CPS20 | KVCPS20 | 1/2” BRASS BARBSource: 2006 manual, page 20. | $10.04/EA | |
| – | KVCSS142 | 3/8” BRASS BARBSource: 2006 manual, page 20. | $5.06/EA | |
| – | KVCSS158 | 3/8” HOSE BARB 90 DEG.Source: 2006 manual, page 20. | $14.40/EA | |
| – | KVMFILT | MUSHROOM FILTER IN WATER TANKSource: 2006 manual, page 20. | $8.64/EA | |
| CSS88 | KVCSS88 | 1/4 - 20 X 3/4” SST SCREWSource: 2006 manual, page 20. | $0.61/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCK WASHERSource: 2006 manual, page 20. | $0.31/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCK WASHERSource: 2006 manual, page 20. | $0.31/EA | |
| – | KVCSS132 | 5/16 - 18 X 1” BUTTON HEAD SCREWSource: 2006 manual, page 20. | $1.75/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCK WASHERSource: 2006 manual, page 20. | $0.31/EA | |
| CSS88 | KVCSS88 | 1/4 - 20 X 3/4” SST SCREWSource: 2006 manual, page 20. | $0.61/EA | |
| – | KVWTY20Kaivac WTY20 | WATER TANK ONLYSource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 manual, page 20. | $0.41/EA |
Kaivac 1700 Series Vac Tank Assembly (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the vac Tank Assembly drawing and its parts list. Manual pages 14, list 20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | KVCSS144 | 1 1/4 NPT X 1 1/2 HOSE BARBSource: 2006 manual, page 20. | $11.69/EA | |
| VMH26 | KVVMH26Kaivac VMH26 | VAC MOTOR HOSE 26” 1 1/2” DIASource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| KZFLOAT | KVKZFLOAT | FLOAT SHUT OFFSource: 2006 manual, page 20. | $43.43/EA | |
| CSS11 | KVCSS11 | SELF TAP SCREWSource: 2006 manual, page 20. | $0.24/EA | |
| SUBSS4 | KVSUBSS4 | 4” SNAP AND STRAPSource: 2006 manual, page 20. | $2.85/EA | |
| – | KVSUBSS11 | 11” SNAP AND STRAPSource: 2006 manual, page 20. | $3.18/EA | |
| CSS20 | KVCSS20 | SNAP STUDSource: 2006 manual, page 20. | $1.70/EA | |
| CSS151 | KVCSS151Kaivac CSS151 | THUMB SCREWSource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS155 | KVCSS155Kaivac CSS155 | 1/2 - 20 ZP NUTSource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS03 | KVCSS03 | 1 9/16 - 2 1/2 HOSE CLAMPSource: 2006 manual, page 20. | $5.02/EA | |
| DH26 | KVDH26Kaivac DH26 | DUMP HOSE W/MOLDED CUFFSSource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| SUBSS6 | KVSUBSS6 | 6” SNAP AND STRAPSource: 2006 manual, page 20. | $2.85/EA | |
| CSS147 | KVCSS147 | MALE SNAPSource: 2006 manual, page 20. | $3.49/EA | |
| CSS12 | KVCSS12Kaivac CSS12 | #15 TOOL CLAMPSource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS17 | KVCSS17 | #8 FLAT HEAD SCREWSource: 2006 manual, page 20. | $0.23/EA | |
| GAS02 | KVGAS02Kaivac GAS02 | LID GASKETSource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| CVS06VA | KVCVS06VAKaivac CVS06VA | 6” BLACK LIDSource: 2006 manual, page 20. | Call to confirm part: 800-440-6723 | |
| – | KVCSS17A | SST SCREW 3/4”Source: 2006 manual, page 20. | $0.41/EA |
Kaivac 1700 Series Black Box Assembly for 1750 (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the black Box Assembly for 1750 drawing and its parts list. Manual pages 22, list 21.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| PCKV1 | KVPCKV1Kaivac PCKV1 | 22” POWER CORD W/PLUGSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| – | KVSPDCKaivac SPDC | PANEL PLATE ONLYSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS157 | KVCSS157 | 3/8 -16 X 3” STUDSource: 2006 manual, page 21. | $5.83/EA | |
| CSS152 | KVCSS152 | THUMB SCREWSource: 2006 manual, page 21. | $3.53/EA | |
| BB13 | KVBB13 | BLACK BOX ONLYSource: 2006 manual, page 21. | $316.94/EA | |
| AX205 | KVAX205 | AXLE 20.5” X 1/2” DIASource: 2006 manual, page 21. | $50.32/EA | |
| WHEEL8B | KVWHEEL8B | FLAT FREE TIRE 8”Source: 2006 manual, page 21. | $67.63/EA | |
| – | KVCSS40 | 1/2” DIA WASHERSSource: 2006 manual, page 21. | $0.67/EA | |
| CSS72 | KVCSS72 | COTTER PIN 1/8 DIASource: 2006 manual, page 21. | $0.43/EA | |
| – | KVCSS01 | 1/2” PUSH CAP NUTSource: 2006 manual, page 21. | $1.55/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 manual, page 21. | $4.57/EA | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPERSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACH COVERSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| – | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4” COUPLINGSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| HEPA | KVHEPA | HEPA FILTERSource: 2006 manual, page 21. | $28.90/EA | |
| CSS17A | KVCSS17A | SST SCREWSource: 2006 manual, page 21. | $0.41/EA | |
| – | KVCSS146 | STEEL PUSH REATINER 1/4”Source: 2006 manual, page 21. | $0.35/EA | |
| AXCLIP | KVAXCLIPKaivac AXCLIP | AXLE CLIPSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| AXSTRAP | KVAXSTRAP | AXLE STRAPSource: 2006 manual, page 21. | $19.79/EA | |
| CSS137 | KVCSS137 | 3/8 SPLIT LOCK WASHERSource: 2006 manual, page 21. | $0.25/EA | |
| KMB16 | KVKMB16 | 3/8 FLAT WASHERSource: 2006 manual, page 21. | $0.27/EA | |
| CSS152 | KVCSS152 | 3/8-16 X 1.25” STUDSource: 2006 manual, page 21. | $3.53/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 manual, page 21. | $4.57/EA | |
| CPS75 | KVCPS75 | CLAMPSource: 2006 manual, page 21. | $0.41/EA |
Kaivac 1700 Series Pump Motor Assembly (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the pump Motor Assembly drawing and its parts list. Manual pages 24, list 21.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS07 | KVCSS07 | 5/16 -18 X 1 HEX HEADSource: 2006 manual, page 21. | $2.04/EA | |
| – | KVCSS08 | 5/16 - U-NUTSource: 2006 manual, page 21. | $2.05/EA | |
| – | KVCPS20 | 3/8 X 1/2 HOSE BARBSource: 2006 manual, page 21. | $10.04/EA | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 manual, page 21. | $4.57/EA | |
| – | KVCPS09Kaivac CPS09 | WIRE REINFORCED HOSE 6”Source: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS143 | KVCSS143Kaivac CSS143 | 3/8 90 DEG. BARBSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 manual, page 21. | $4.57/EA | |
| – | KVCPS13Kaivac CPS13 | 3/8 WIRE REINFORCED HOSESource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CPS14 | KVCPS14Kaivac CPS14 | PILSE HOSESource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CPS38 | KVCPS38 | 3/8 QD PLUGSource: 2006 manual, page 21. | $16.28/EA | |
| CPS12JQC | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORSource: 2006 manual, page 21. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Vac Motor Assembly (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the vac Motor Assembly drawing and its parts list. Manual pages 17, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS82 | KVCSS82 | 1/4 - 20 X 5” SCREWSource: 2006 manual, page 22. | $1.57/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 manual, page 22. | $0.15/EA | |
| CSS27 | KVCSS27 | 1/4 NYLOC NUTSource: 2006 manual, page 22. | $0.47/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 manual, page 22. | $0.15/EA | |
| CVS01A | KVCVS01AKaivac CVS01A | VAC MOTORReplaced by CVM1 in the 2006 revised manual; Source: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVCSS127 | QD TERMINALSource: 2006 manual, page 22. | $1.75/EA | |
| VACCOVER | KVVACCOVERKaivac VACCOVER | VAC MOTOR COVERReplaced by VCOV230V in the 2006 revised manual; Source: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 manual, page 22. | $0.15/EA | |
| CSS82 | KVCSS82 | 1/4 - 20 X 5” SCREWSource: 2006 manual, page 22. | $1.57/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 manual, page 22. | $0.15/EA | |
| CSS27 | KVCSS27 | 1/4 NYLOC NUTSource: 2006 manual, page 22. | $0.47/EA | |
| CVA1GR | KVCVA1GRKaivac CVA1GR | 1” DIA GREY HOSE 1.5’Source: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS03 | KVCSS03 | 1 9/16 HOSE CLAMPSource: 2006 manual, page 22. | $5.02/EA | |
| CSS17 | KVCSS17 | FLAT HEAD SCREWSource: 2006 manual, page 22. | $0.23/EA | |
| HFH115 | KVHFH115Kaivac HFH115 | HEPA FILTER HOSESource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS11 | KVCSS11 | 3/4 SELF TAPPERSource: 2006 manual, page 22. | $0.24/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 manual, page 22. | $0.15/EA | |
| CSS82 | KVCSS82 | 1/4 - 20 X 5” SCREWSource: 2006 manual, page 22. | $1.57/EA |
Kaivac 1700 Series Hepa Filter Assembly (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the hepa Filter Assembly drawing and its parts list. Manual pages 26, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS154 | KVCSS154Kaivac CSS154 | 1/4 X 2 1/2 CARRIAGE BOLTSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| HEPA | KVHEPA | HEPA FILTERSource: 2006 manual, page 22. | $28.90/EA | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4 COUPLING NUTSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS149 | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVCSS121Kaivac CSS121 | FENDER WASHERSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACHMENT COVERSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPERSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS146 | KVCSS146 | STEEL PUSH RETAINER 1/4”Source: 2006 manual, page 22. | $0.35/EA |
Kaivac 1700 Series Control Panel Assembly (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the control Panel Assembly drawing and its parts list. Manual pages 19, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 manual, page 22. | $0.41/EA | |
| – | KVSPDCKaivac SPDC | SWITCH PANEL DUAL CHEMSource: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVSPH14Kaivac SPH14 | SWITCH PANEL HOSE 14”Source: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CPS65 | KVCPS65 | 1/2” CLAMPSource: 2006 manual, page 22. | $2.45/EA | |
| CPS68 | KVCPS68 | 90 DEG. 1/8 NPT MALESource: 2006 manual, page 22. | $8.29/EA | |
| CPS65 | KVCPS65 | 1/2” CLAMPSource: 2006 manual, page 22. | $2.45/EA | |
| SPH9 | KVSPH9Kaivac SPH9 | SWITCH PANEL HOSE 9”Source: 2006 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CPS65 | KVCPS65 | 1/2” CLAMPSource: 2006 manual, page 22. | $2.45/EA | |
| CPS68 | KVCPS68 | 90 DEG. 1/8 NPT MALESource: 2006 manual, page 22. | $8.29/EA | |
| SPH34 | KVSPH34 | SWITCH PANEL HOSE 34”Source: 2006 manual, page 22. | $19.38/EA | |
| HMETER | KVHMETER | HOUR METERSource: 2006 manual, page 22. | $57.21/EA | |
| RS2 | KVRS2 | ROCKER SWITCH 2 WAYSource: 2006 manual, page 22. | $15.14/EA |
Kaivac 1700 Series Black Box Assembly for 1720 (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the black Box Assembly for 1720 drawing and its parts list. Manual pages 22, list 21.5.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| PCKV1 | KVPCKV1Kaivac PCKV1 | 22” POWER CORD W/PLUGSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| – | KVSPDCKaivac SPDC | PANFI PLATF ONLY |Source: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS157 | KVCSS157 | 3/8 -16 X 3”STUD |Source: 2006 manual, page 21.5. | $5.83/EA | |
| CSS152 | KVCSS152 | THUMB SCREWSource: 2006 manual, page 21.5. | $3.53/EA | |
| BB13 | KVBB13 | BLACK BOX ONLYSource: 2006 manual, page 21.5. | $316.94/EA | |
| AX205 | KVAX205 | AXLE 20.5”X 1/2” DIASource: 2006 manual, page 21.5. | $50.32/EA | |
| WHEEL8A | KVWHEEL8AKaivac WHEEL8A | TIRE 8”Source: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| – | KVCSS40 | 1/2” DIA WASHERSSource: 2006 manual, page 21.5. | $0.67/EA | |
| CSS72 | KVCSS72 | COTTER PIN 1/8 DIASource: 2006 manual, page 21.5. | $0.43/EA | |
| – | KVCSS01 | 1/2” PUSH CAP NUTSource: 2006 manual, page 21.5. | $1.55/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 manual, page 21.5. | $4.57/EA | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPERSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACH COVERSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| – | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4” CQUPLINGSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| HEPA | KVHEPA | HEPA FILTERSource: 2006 manual, page 21.5. | $28.90/EA | |
| CSS17A | KVCSS17A | SST SCREWSource: 2006 manual, page 21.5. | $0.41/EA | |
| – | KVCSS146 | STEEL PUSH REATINER 1/4”Source: 2006 manual, page 21.5. | $0.35/EA | |
| AXCLIP | KVAXCLIPKaivac AXCLIP | AXLE CLIP |Source: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| AXSTRAP | KVAXSTRAP | AXLE STRAPSource: 2006 manual, page 21.5. | $19.79/EA | |
| CSS137 | KVCSS137 | 3/8 SPLIT LOCK WASHERSource: 2006 manual, page 21.5. | $0.25/EA | |
| KMB16 | KVKMB16 | 3/8 FLAT WASHERSource: 2006 manual, page 21.5. | $0.27/EA | |
| CSS152 | KVCSS152 | 3/8-16 X 1.25”STUDSource: 2006 manual, page 21.5. | $3.53/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 manual, page 21.5. | $4.57/EA | |
| CPS75 | KVCPS75 | CLAMPSource: 2006 manual, page 21.5. | $0.41/EA |
Kaivac 1700 Series Pump Motor Assembly (KV1720) (2006 manual) parts
From Kaivac's 2006 manual, for the KV1750 S/N 1-4998, the KV1720 S/N 1-161 and the KV1715 S/N 1-44: the pump Motor Assembly (KV1720) drawing and its parts list. Manual pages 24, list 21.5.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS07 | KVCSS07 | 5/16 -18 X 1 HEX HEADSource: 2006 manual, page 21.5. | $2.04/EA | |
| – | KVCSS08 | 5/16 - U-NUTSource: 2006 manual, page 21.5. | $2.05/EA | |
| – | KVCSS166Kaivac CSS166 | RUBBER STANDOFFSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 manual, page 21.5. | $4.57/EA | |
| WL1720 | KVWL1720 | WATER LINESource: 2006 manual, page 21.5. | $16.28/EA | |
| CSS143 | KVCSS143Kaivac CSS143 | 3/8 90 DEG. BARBSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 manual, page 21.5. | $4.57/EA | |
| RL1720 | KVRL1720Kaivac RL1720 | 3/8 WIRE REINFORCED HOSESource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS14 | KVCPS14Kaivac CPS14 | PILSE HOSESource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS38 | KVCPS38 | 3/8 QD PLUGSource: 2006 manual, page 21.5. | $16.28/EA | |
| CPS12JQC | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORSource: 2006 manual, page 21.5. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Water Tank Assembly (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the water Tank Assembly drawing and its parts list. Manual pages 13, list 20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 revised manual, page 20. | $0.41/EA | |
| HWRAP | KVHWRAP | HOSE WRAP EARSource: 2006 revised manual, page 20. | $7.68/EA | |
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 revised manual, page 20. | $0.41/EA | |
| – | KVLID4 | 4” LIDSource: 2006 revised manual, page 20. | $16.35/EA | |
| CPS20 | KVCPS20 | 1/2” BRASS BARBSource: 2006 revised manual, page 20. | $10.04/EA | |
| – | KVCSS142 | 3/8” BRASS BARBSource: 2006 revised manual, page 20. | $5.06/EA | |
| – | KVCSS158 | 3/8” HOSE BARB 90 DEG.Source: 2006 revised manual, page 20. | $14.40/EA | |
| – | KVMFILT | MUSHROOM FILTER IN WATER TANKSource: 2006 revised manual, page 20. | $8.64/EA | |
| CSS88 | KVCSS88 | 1/4 - 20 X 3/4” SST SCREWSource: 2006 revised manual, page 20. | $0.61/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCK WASHERSource: 2006 revised manual, page 20. | $0.31/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCK WASHERSource: 2006 revised manual, page 20. | $0.31/EA | |
| – | KVCSS132 | 5/16 - 18 X 1” BUTTON HEAD SCREWSource: 2006 revised manual, page 20. | $1.75/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCK WASHERSource: 2006 revised manual, page 20. | $0.31/EA | |
| CSS88 | KVCSS88 | 1/4 - 20 X 3/4” SST SCREWSource: 2006 revised manual, page 20. | $0.61/EA | |
| – | KVWTY20Kaivac WTY20 | WATER TANK ONLYSource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 revised manual, page 20. | $0.41/EA |
Kaivac 1700 Series Vac Tank Assembly (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the vac Tank Assembly drawing and its parts list. Manual pages 14, list 20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | KVCSS144 | 1 1/4 NPT X 1 1/2 HOSE BARBSource: 2006 revised manual, page 20. | $11.69/EA | |
| VMH26 | KVVMH26Kaivac VMH26 | VAC MOTOR HOSE 26” 1 1/2” DIASource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| KZFLOAT | KVKZFLOAT | FLOAT SHUT OFFSource: 2006 revised manual, page 20. | $43.43/EA | |
| CSS11 | KVCSS11 | SELF TAP SCREWSource: 2006 revised manual, page 20. | $0.24/EA | |
| SUBSS4 | KVSUBSS4 | 4” SNAP AND STRAPSource: 2006 revised manual, page 20. | $2.85/EA | |
| – | KVSUBSS11 | 11” SNAP AND STRAPSource: 2006 revised manual, page 20. | $3.18/EA | |
| CSS20 | KVCSS20 | SNAP STUDSource: 2006 revised manual, page 20. | $1.70/EA | |
| CSS151 | KVCSS151Kaivac CSS151 | THUMB SCREWSource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS155 | KVCSS155Kaivac CSS155 | 1/2 - 20 ZP NUTSource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS03 | KVCSS03 | 1 9/16 - 2 1/2 HOSE CLAMPSource: 2006 revised manual, page 20. | $5.02/EA | |
| DH26 | KVDH26Kaivac DH26 | DUMP HOSE W/MOLDED CUFFSSource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| SUBSS6 | KVSUBSS6 | 6” SNAP AND STRAPSource: 2006 revised manual, page 20. | $2.85/EA | |
| CSS147 | KVCSS147 | MALE SNAPSource: 2006 revised manual, page 20. | $3.49/EA | |
| CSS12 | KVCSS12Kaivac CSS12 | #15 TOOL CLAMPSource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS17 | KVCSS17 | #8 FLAT HEAD SCREWSource: 2006 revised manual, page 20. | $0.23/EA | |
| GAS02 | KVGAS02Kaivac GAS02 | LID GASKETSource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| CVS06VA | KVCVS06VAKaivac CVS06VA | 6” BLACK LIDSource: 2006 revised manual, page 20. | Call to confirm part: 800-440-6723 | |
| – | KVCSS17A | SST SCREW 3/4”Source: 2006 revised manual, page 20. | $0.41/EA |
Kaivac 1700 Series Black Box Assembly for 1750 (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the black Box Assembly for 1750 drawing and its parts list. Manual pages 22, list 21.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| PCKV1 | KVPCKV1Kaivac PCKV1 | 22” POWER CORD W/PLUGSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| – | KVSPDCKaivac SPDC | PANEL PLATE ONLYSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS157 | KVCSS157 | 3/8 -16 X 3” STUDSource: 2006 revised manual, page 21. | $5.83/EA | |
| CSS152 | KVCSS152 | THUMB SCREWSource: 2006 revised manual, page 21. | $3.53/EA | |
| BB13 | KVBB13 | BLACK BOX ONLYSource: 2006 revised manual, page 21. | $316.94/EA | |
| AX205 | KVAX205 | AXLE 20.5” X 1/2” DIASource: 2006 revised manual, page 21. | $50.32/EA | |
| WHEEL8B | KVWHEEL8B | FLAT FREE TIRE 8”Source: 2006 revised manual, page 21. | $67.63/EA | |
| – | KVCSS40 | 1/2” DIA WASHERSSource: 2006 revised manual, page 21. | $0.67/EA | |
| CSS72 | KVCSS72 | COTTER PIN 1/8 DIASource: 2006 revised manual, page 21. | $0.43/EA | |
| – | KVCSS01 | 1/2” PUSH CAP NUTSource: 2006 revised manual, page 21. | $1.55/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 revised manual, page 21. | $4.57/EA | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPERSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACH COVERSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| – | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4” COUPLINGSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| HEPA | KVHEPA | HEPA FILTERSource: 2006 revised manual, page 21. | $28.90/EA | |
| CSS17A | KVCSS17A | SST SCREWSource: 2006 revised manual, page 21. | $0.41/EA | |
| – | KVCSS146 | STEEL PUSH REATINER 1/4”Source: 2006 revised manual, page 21. | $0.35/EA | |
| AXCLIP | KVAXCLIPKaivac AXCLIP | AXLE CLIPSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| AXSTRAP | KVAXSTRAP | AXLE STRAPSource: 2006 revised manual, page 21. | $19.79/EA | |
| CSS137 | KVCSS137 | 3/8 SPLIT LOCK WASHERSource: 2006 revised manual, page 21. | $0.25/EA | |
| KMB16 | KVKMB16 | 3/8 FLAT WASHERSource: 2006 revised manual, page 21. | $0.27/EA | |
| CSS152 | KVCSS152 | 3/8-16 X 1.25” STUDSource: 2006 revised manual, page 21. | $3.53/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 revised manual, page 21. | $4.57/EA | |
| CPS75 | KVCPS75 | CLAMPSource: 2006 revised manual, page 21. | $0.41/EA |
Kaivac 1700 Series Pump Motor Assembly (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the pump Motor Assembly drawing and its parts list. Manual pages 24, list 21.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS07 | KVCSS07 | 5/16 -18 X 1 HEX HEADSource: 2006 revised manual, page 21. | $2.04/EA | |
| – | KVCSS08 | 5/16 - U-NUTSource: 2006 revised manual, page 21. | $2.05/EA | |
| – | KVCPS20 | 3/8 X 1/2 HOSE BARBSource: 2006 revised manual, page 21. | $10.04/EA | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 revised manual, page 21. | $4.57/EA | |
| – | KVCPS09Kaivac CPS09 | WIRE REINFORCED HOSE 6”Source: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS143 | KVCSS143Kaivac CSS143 | 3/8 90 DEG. BARBSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 revised manual, page 21. | $4.57/EA | |
| – | KVCPS13Kaivac CPS13 | 3/8 WIRE REINFORCED HOSESource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CPS14 | KVCPS14Kaivac CPS14 | PILSE HOSESource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 | |
| CPS38 | KVCPS38 | 3/8 QD PLUGSource: 2006 revised manual, page 21. | $16.28/EA | |
| CPS12JQC | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORSource: 2006 revised manual, page 21. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Vac Motor Assembly (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the vac Motor Assembly drawing and its parts list. Manual pages 17, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS82 | KVCSS82 | 1/4 - 20 X 5” SCREWSource: 2006 revised manual, page 22. | $1.57/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 revised manual, page 22. | $0.15/EA | |
| CSS27 | KVCSS27 | 1/4 NYLOC NUTSource: 2006 revised manual, page 22. | $0.47/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 revised manual, page 22. | $0.15/EA | |
| CVM1 | KVCVM1Kaivac CVM1 | VAC MOTORReplaces CVS01A (2006 manual); Source: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS127 | KVCSS127 | QD TERMINALSource: 2006 revised manual, page 22. | $1.75/EA | |
| VCOV230V | KVVCOV230VKaivac VCOV230V | VAC MOTOR COVERReplaces VACCOVER (2006 manual); Source: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 revised manual, page 22. | $0.15/EA | |
| CSS82 | KVCSS82 | 1/4 - 20 X 5” SCREWSource: 2006 revised manual, page 22. | $1.57/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 revised manual, page 22. | $0.15/EA | |
| CSS27 | KVCSS27 | 1/4 NYLOC NUTSource: 2006 revised manual, page 22. | $0.47/EA | |
| CVA1GR | KVCVA1GRKaivac CVA1GR | 1” DIA GREY HOSE 1.5’Source: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVCSS03 | 1 9/16 HOSE CLAMPSource: 2006 revised manual, page 22. | $5.02/EA | |
| CSS17 | KVCSS17 | FLAT HEAD SCREWSource: 2006 revised manual, page 22. | $0.23/EA | |
| HFH115 | KVHFH115Kaivac HFH115 | HEPA FILTER HOSESource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS11 | KVCSS11 | 3/4 SELF TAPPERSource: 2006 revised manual, page 22. | $0.24/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHERSource: 2006 revised manual, page 22. | $0.15/EA | |
| CSS82 | KVCSS82 | 1/4 - 20 X 5” SCREWSource: 2006 revised manual, page 22. | $1.57/EA |
Kaivac 1700 Series Hepa Filter Assembly (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the hepa Filter Assembly drawing and its parts list. Manual pages 26, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS154 | KVCSS154Kaivac CSS154 | 1/4 X 2 1/2 CARRIAGE BOLTSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| HEPA | KVHEPA | HEPA FILTERSource: 2006 revised manual, page 22. | $28.90/EA | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4 COUPLING NUTSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS149 | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVCSS121Kaivac CSS121 | FENDER WASHERSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACHMENT COVERSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPERSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS146 | KVCSS146 | STEEL PUSH RETAINER 1/4”Source: 2006 revised manual, page 22. | $0.35/EA |
Kaivac 1700 Series Control Panel Assembly (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the control Panel Assembly drawing and its parts list. Manual pages 19, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2006 revised manual, page 22. | $0.41/EA | |
| – | KVSPDCKaivac SPDC | SWITCH PANEL DUAL CHEMSource: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVSPH14Kaivac SPH14 | SWITCH PANEL HOSE 14”Source: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CPS65 | KVCPS65 | 1/2” CLAMPSource: 2006 revised manual, page 22. | $2.45/EA | |
| CPS68 | KVCPS68 | 90 DEG. 1/8 NPT MALESource: 2006 revised manual, page 22. | $8.29/EA | |
| CPS65 | KVCPS65 | 1/2” CLAMPSource: 2006 revised manual, page 22. | $2.45/EA | |
| SPH9 | KVSPH9Kaivac SPH9 | SWITCH PANEL HOSE 9”Source: 2006 revised manual, page 22. | Call to confirm part: 800-440-6723 | |
| CPS65 | KVCPS65 | 1/2” CLAMPSource: 2006 revised manual, page 22. | $2.45/EA | |
| CPS68 | KVCPS68 | 90 DEG. 1/8 NPT MALESource: 2006 revised manual, page 22. | $8.29/EA | |
| SPH34 | KVSPH34 | SWITCH PANEL HOSE 34”Source: 2006 revised manual, page 22. | $19.38/EA | |
| HMETER | KVHMETER | HOUR METERSource: 2006 revised manual, page 22. | $57.21/EA | |
| RS2 | KVRS2 | ROCKER SWITCH 2 WAYSource: 2006 revised manual, page 22. | $15.14/EA |
Kaivac 1700 Series Black Box Assembly for 1720 (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the black Box Assembly for 1720 drawing and its parts list. Manual pages 22, list 21.5.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| PCKV1 | KVPCKV1Kaivac PCKV1 | 22” POWER CORD W/PLUGSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| – | KVSPDCKaivac SPDC | PANFI PLATF ONLY |Source: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS157 | KVCSS157 | 3/8 -16 X 3”STUD |Source: 2006 revised manual, page 21.5. | $5.83/EA | |
| CSS152 | KVCSS152 | THUMB SCREWSource: 2006 revised manual, page 21.5. | $3.53/EA | |
| BB13 | KVBB13 | BLACK BOX ONLYSource: 2006 revised manual, page 21.5. | $316.94/EA | |
| AX205 | KVAX205 | AXLE 20.5”X 1/2” DIASource: 2006 revised manual, page 21.5. | $50.32/EA | |
| WHEEL8A | KVWHEEL8AKaivac WHEEL8A | TIRE 8”Source: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| – | KVCSS40 | 1/2” DIA WASHERSSource: 2006 revised manual, page 21.5. | $0.67/EA | |
| CSS72 | KVCSS72 | COTTER PIN 1/8 DIASource: 2006 revised manual, page 21.5. | $0.43/EA | |
| – | KVCSS01 | 1/2” PUSH CAP NUTSource: 2006 revised manual, page 21.5. | $1.55/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 revised manual, page 21.5. | $4.57/EA | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPERSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACH COVERSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| – | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4” CQUPLINGSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| HEPA | KVHEPA | HEPA FILTERSource: 2006 revised manual, page 21.5. | $28.90/EA | |
| CSS17A | KVCSS17A | SST SCREWSource: 2006 revised manual, page 21.5. | $0.41/EA | |
| – | KVCSS146 | STEEL PUSH REATINER 1/4”Source: 2006 revised manual, page 21.5. | $0.35/EA | |
| AXCLIP | KVAXCLIPKaivac AXCLIP | AXLE CLIP |Source: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| AXSTRAP | KVAXSTRAP | AXLE STRAPSource: 2006 revised manual, page 21.5. | $19.79/EA | |
| CSS137 | KVCSS137 | 3/8 SPLIT LOCK WASHERSource: 2006 revised manual, page 21.5. | $0.25/EA | |
| KMB16 | KVKMB16 | 3/8 FLAT WASHERSource: 2006 revised manual, page 21.5. | $0.27/EA | |
| CSS152 | KVCSS152 | 3/8-16 X 1.25”STUDSource: 2006 revised manual, page 21.5. | $3.53/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4” WING NUT YELLOWSource: 2006 revised manual, page 21.5. | $4.57/EA | |
| CPS75 | KVCPS75 | CLAMPSource: 2006 revised manual, page 21.5. | $0.41/EA |
Kaivac 1700 Series Pump Motor Assembly (KV1720) (2006 revised manual) parts
From Kaivac's 2006 revised manual, for the KV1750 S/N 4999-8000 and the KV1720 S/N 162 and later: the pump Motor Assembly (KV1720) drawing and its parts list. Manual pages 24, list 21.5.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS07 | KVCSS07 | 5/16 -18 X 1 HEX HEADSource: 2006 revised manual, page 21.5. | $2.04/EA | |
| – | KVCSS08 | 5/16 - U-NUTSource: 2006 revised manual, page 21.5. | $2.05/EA | |
| – | KVCSS166Kaivac CSS166 | RUBBER STANDOFFSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 revised manual, page 21.5. | $4.57/EA | |
| WL1720 | KVWL1720 | WATER LINESource: 2006 revised manual, page 21.5. | $16.28/EA | |
| CSS143 | KVCSS143Kaivac CSS143 | 3/8 90 DEG. BARBSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS10 | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2006 revised manual, page 21.5. | $4.57/EA | |
| RL1720 | KVRL1720Kaivac RL1720 | 3/8 WIRE REINFORCED HOSESource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS14 | KVCPS14Kaivac CPS14 | PILSE HOSESource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 | |
| CPS38 | KVCPS38 | 3/8 QD PLUGSource: 2006 revised manual, page 21.5. | $16.28/EA | |
| CPS12JQC | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORSource: 2006 revised manual, page 21.5. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Water Tank Assembly (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the water Tank Assembly drawing and its parts list. Manual pages 13, list 20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2009 manual, page 20. | $0.41/EA | |
| HWRAP | KVHWRAP | HOSE WRAP EARSource: 2009 manual, page 20. | $7.68/EA | |
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2009 manual, page 20. | $0.41/EA | |
| LID4 | KVLID4 | 4” LIDSource: 2009 manual, page 20. | $16.35/EA | |
| CPS20 | KVCPS20 | 1/2” BRASS BARBSource: 2009 manual, page 20. | $10.04/EA | |
| – | KVCSS142 | 3/8” BRASS BARBSource: 2009 manual, page 20. | $5.06/EA | |
| – | KVCSS158 | 3/8” HOSE BARB 90 DEG.Source: 2009 manual, page 20. | $14.40/EA | |
| MFILT | KVMFILT | MUSHROOM FILTER IN WATER TANKSource: 2009 manual, page 20. | $8.64/EA | |
| CSS88 | KVCSS88 | 1/4 - 20 X 3/4” SST SCREWSource: 2009 manual, page 20. | $0.61/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCKWASHERSource: 2009 manual, page 20. | $0.31/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCK WASHERSource: 2009 manual, page 20. | $0.31/EA | |
| – | KVCSS132 | 5/16 - 18 X 1”BUTTON HEAD SCREWSource: 2009 manual, page 20. | $1.75/EA | |
| CSS133 | KVCSS133 | 5/16 SPLIT LOCKWASHERSource: 2009 manual, page 20. | $0.31/EA | |
| CSS88 | KVCSS88 | 1/4 - 20 X 3/4” SST SCREWSource: 2009 manual, page 20. | $0.61/EA | |
| – | KVWTY20Kaivac WTY20 | WATER TANK ONLYSource: 2009 manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS17A | KVCSS17A | SST SCREW 3/4”Source: 2009 manual, page 20. | $0.41/EA | |
| – | KVCFS03 | 5” CASTER W/BRAKESource: 2009 manual, page 20. | $41.86/EA |
Kaivac 1700 Series Vac Tank Assembly (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the vac Tank Assembly drawing and its parts list. Manual pages 14, list 20.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | KVCSS144 | 1 1/4 NPT X 1 1/2 HOSE BARBSource: 2009 manual, page 20. | $11.69/EA | |
| VMH26 | KVVMH26Kaivac VMH26 | VAC MOTOR HOSE 26” 1 1/2” DIASource: 2009 manual, page 20. | Call to confirm part: 800-440-6723 | |
| – | KVKZFLOAT | FLOAT SHUT OFFSource: 2009 manual, page 20. | $43.43/EA | |
| – | KVCSS11 | SELF TAP SCREWSource: 2009 manual, page 20. | $0.24/EA | |
| SUBSS4 | KVSUBSS4 | 4” SNAP AND STRAPSource: 2009 manual, page 20. | $2.85/EA | |
| – | KVSUBSS11 | 11” SNAP AND STRAPSource: 2009 manual, page 20. | $3.18/EA | |
| CSS20 | KVCSS20 | SNAP STUDSource: 2009 manual, page 20. | $1.70/EA | |
| CSS03 | KVCSS03 | 1 9/16 - 2 1/2 HOSE CLAMPSource: 2009 manual, page 20. | $5.02/EA | |
| DH26 | KVDH26Kaivac DH26 | DUMP HOSE W/MOLDED CUFFSSource: 2009 manual, page 20. | Call to confirm part: 800-440-6723 | |
| SUBSS6 | KVSUBSS6 | 6” SNAP AND STRAPSource: 2009 manual, page 20. | $2.85/EA | |
| CSS147 | KVCSS147 | MALE SNAPSource: 2009 manual, page 20. | $3.49/EA | |
| CSS12 | KVCSS12Kaivac CSS12 | #15 TOOL CLAMPSource: 2009 manual, page 20. | Call to confirm part: 800-440-6723 | |
| CSS17 | KVCSS17 | #8 FLAT HEAD SCREWSource: 2009 manual, page 20. | $0.23/EA | |
| GAS02 | KVGAS02Kaivac GAS02 | LID GASKETSource: 2009 manual, page 20. | Call to confirm part: 800-440-6723 | |
| – | KVCVS06VAKaivac CVS06VA | 6” BLACK LIDSource: 2009 manual, page 20. | Call to confirm part: 800-440-6723 | |
| – | KVCSS17A | SST SCREW 3/4”Source: 2009 manual, page 20. | $0.41/EA | |
| – | KVVLJHKaivac VLJH | VAC LID JUG HOLDERSource: 2009 manual, page 20. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Black Box Assembly for 1750 (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the black Box Assembly for 1750 drawing and its parts list. Manual pages 22, list 21.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| PCKV1 | KVPCKV1Kaivac PCKV1 | 22” POWERCORDW/PLUGSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS157 | KVCSS157 | 3/8 -16 X 3” STUDSource: 2009 manual, page 21. | $5.83/EA | |
| CSS152 | KVCSS152 | THUMB SCREWSource: 2009 manual, page 21. | $3.53/EA | |
| BB13 | KVBB13 | BLACK BOX ONLYSource: 2009 manual, page 21. | $316.94/EA | |
| AX205 | KVAX205 | AXLE 20.5” X 1/2” DIASource: 2009 manual, page 21. | $50.32/EA | |
| WHEEL8B | KVWHEEL8B | FLAT FREE TIRE 8”Source: 2009 manual, page 21. | $67.63/EA | |
| CSS40 | KVCSS40 | 1/2” DIAWASHERSSource: 2009 manual, page 21. | $0.67/EA | |
| CSS72 | KVCSS72 | COTTER PIN 1/8 DIASource: 2009 manual, page 21. | $0.43/EA | |
| – | KVCSS01 | 1/2” PUSH CAP NUTSource: 2009 manual, page 21. | $1.55/EA | |
| CSS156 | KVCSS156 | 3/8” X 3/4”WING NUT YELLOWSource: 2009 manual, page 21. | $4.57/EA | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPERSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUTSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACH COVERSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |
| – | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4”COUPLINGSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |
| HEPA | KVHEPA | HEPA FILTERSource: 2009 manual, page 21. | $28.90/EA | |
| CSS17A | KVCSS17A | SST SCREWSource: 2009 manual, page 21. | $0.41/EA | |
| – | KVCSS146 | STEEL PUSH REATINER 1/4”Source: 2009 manual, page 21. | $0.35/EA | |
| AXCLIP | KVAXCLIPKaivac AXCLIP | AXLE CLIPSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |
| – | KVAXSTRAP | AXLE STRAPSource: 2009 manual, page 21. | $19.79/EA | |
| CSS137 | KVCSS137 | 3/8 SPLIT LOCKWASHERSource: 2009 manual, page 21. | $0.25/EA | |
| KMB16 | KVKMB16 | 3/8 FLATWASHERSource: 2009 manual, page 21. | $0.27/EA | |
| CPS75 | KVCPS75 | CLAMPSource: 2009 manual, page 21. | $0.41/EA |
Kaivac 1700 Series Pump Motor Assembly 1750 (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the pump Motor Assembly 1750 parts list. Manual page 21.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | KVCSS07 | 5/16 -18 X 1 HEX HEADSource: 2009 manual, page 21. | $2.04/EA | |||
| – | KVCSS08 | 5/16 - U-NUTSource: 2009 manual, page 21. | $2.05/EA | |||
| – | KVCPS20 | 3/8 X 1/2 HOSE BARBSource: 2009 manual, page 21. | $10.04/EA | |||
| – | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2009 manual, page 21. | $4.57/EA | |||
| – | KVWL1750 | 3/8 WIRE REINFORCED HOSESource: 2009 manual, page 21. | $23.95/EA | |||
| – | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series Pump Motor Assembly 1715 (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the pump Motor Assembly 1715 parts list. Manual page 21.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | KVCSS07 | 5/16 - 18 X 1HEX HEADSource: 2009 manual, page 21. | $2.04/EA | |||
| – | KVPHASM | PULSE HOSE ASSEMBLYSource: 2009 manual, page 21. | $40.83/EA | |||
| – | KVCSS08 | 5/16 - U - NUTSource: 2009 manual, page 21. | $2.05/EA | |||
| – | KVCPS64 | 90 DEG. 3/8 F X 3/8 MSource: 2009 manual, page 21. | $16.70/EA | |||
| – | KVCPS20 | 3/8 X 1/2 HOSE BARBSource: 2009 manual, page 21. | $10.04/EA | |||
| – | KVCPS10 | 7/16 X 25/32 HOSE CLAMPSource: 2009 manual, page 21. | $4.57/EA | |||
| – | KVWL1720 | WATER INLET LINE FOR 1720Source: 2009 manual, page 21. | $16.28/EA | |||
| – | KVCSS161Kaivac CSS161 | SIZE 6 YELLOW TURN KEY CLAMPSource: 2009 manual, page 21. | Call to confirm part: 800-440-6723 | |||
| – | KVJWB | JUMPER WIRE BLACKSource: 2009 manual, page 21. | $5.79/EA | |||
| – | KVJWW | JUMPER WIRE WHITESource: 2009 manual, page 21. | $5.60/EA |
Kaivac 1700 Series Vac Motor Assembly | (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the vac Motor Assembly | drawing and its parts list. Manual pages 25, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS82 | KVCSS82 | 1/4-20X 5”SCREW |Source: 2009 manual, page 22. | $1.57/EA | |
| CSS44 | KVCSS44 | 1/4 FLAT WASHER |Source: 2009 manual, page 22. | $0.15/EA | |
| CSS27 | KVCSS27 | 1/4 NYLOC NUTSource: 2009 manual, page 22. | $0.47/EA | |
| VM3ST | KVVM3STKaivac VM3ST | VAC MOTOR |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS127 | KVCSS127 | OD TERMINAL |Source: 2009 manual, page 22. | $1.75/EA | |
| CSS82 | KVCSS82 | 1/4-20X 5” SCREW |Source: 2009 manual, page 22. | $1.57/EA | |
| CSS39 | KVCSS39 | 19/16 HOSE CLAMP |Source: 2009 manual, page 22. | $5.82/EA | |
| – | KVCSS17 | FLAT HEAD SCREW |Source: 2009 manual, page 22. | $0.23/EA | |
| HFH115 | KVHFH115Kaivac HFH115 | HEPA FILTER HOSE |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS11 | KVCSS11 | 3/4 SELE TAPPER |Source: 2009 manual, page 22. | $0.24/EA |
Kaivac 1700 Series Hepa Filter Assembly | (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the hepa Filter Assembly | drawing and its parts list. Manual pages 18, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS154 | KVCSS154Kaivac CSS154 | 1/4 X 2 1/2 CARRIAGE BOLT |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVHEPKaivac HEP | HEPA FILTER |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS150 | KVCSS150Kaivac CSS150 | 1/4 COUPLING NUT |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS149 | KVCSS149Kaivac CSS149 | THREADED STUDSource: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVCSS121Kaivac CSS121 | FENDER WASHER |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUT |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| BATTACH | KVBATTACHKaivac BATTACH | BLOW ATTACHMENT COVER |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS148 | KVCSS148Kaivac CSS148 | WING NUT |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| FKEEP | KVFKEEPKaivac FKEEP | FILTER KEEPER |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CSS146 | KVCSS146 | STEEL PUSH RETAINER 1/4” |Source: 2009 manual, page 22. | $0.35/EA |
Kaivac 1700 Series Control Panel Assembly | (2009 manual) parts
From Kaivac's 2009 manual, for the KV1715 S/N 45-408 and the KV1750 S/N 8001-13408: the control Panel Assembly | drawing and its parts list. Manual pages 19, list 22.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| CSS17A | KVCSS17A | SST SCREW 3/4” |Source: 2009 manual, page 22. | $0.41/EA | |
| – | KVSPDCKaivac SPDC | SWITCH PANEL DUAL CHEM |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| – | KVSPH14Kaivac SPH14 | SWITCH PANEL HOSE 14” |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CPS65 | KVCPS65 | 1/2" CLAMP |Source: 2009 manual, page 22. | $2.45/EA | |
| CPS68 | KVCPS68 | 90 DEG. 1/8 NPT MALE |Source: 2009 manual, page 22. | $8.29/EA | |
| CPS65 | KVCPS65 | 1/2” CLAMP |Source: 2009 manual, page 22. | $2.45/EA | |
| SPH9 | KVSPH9Kaivac SPH9 | SWITCH PANEL HOSE 9” |Source: 2009 manual, page 22. | Call to confirm part: 800-440-6723 | |
| CPS65 | KVCPS65 | 1/2” CLAMP |Source: 2009 manual, page 22. | $2.45/EA | |
| CPS68 | KVCPS68 | 90 DEG. 1/8 NPT MALE |Source: 2009 manual, page 22. | $8.29/EA | |
| SPH34 | KVSPH34 | SWITCH PANEL HOSE 34” |Source: 2009 manual, page 22. | $19.38/EA | |
| HMETER | KVHMETER | HOUR METER |Source: 2009 manual, page 22. | $57.21/EA | |
| RS2 | KVRS2 | ROCKER SWITCH 2 WAY |Source: 2009 manual, page 22. | $15.14/EA |
Kaivac 1700 Series 1700/17001 Vac Tank Assembly (NTC manual 10/2017) parts
From Kaivac's NTC manual 10/2017, for KV1750 machines built 2017-2019: the 1700/17001 Vac Tank Assembly drawing and its parts list. Manual page 25.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVSUBSS11 | Source: NTC manual 10/2017, page 25. | $3.18/EA | |
| 11 | KVINKaivac IN | SNAP AND STRAPSource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 2 | KVCSS20 | SNAP STUDSource: NTC manual 10/2017, page 25. | $1.70/EA | |
| 3 | KVCSS144 | 1 1/4 NPT X 1 1/2 HOSE BARBSource: NTC manual 10/2017, page 25. | $11.69/EA | |
| 4 | KVVLJHA | VAC LID, JUG HOLDER ASSEMBLYSource: NTC manual 10/2017, page 25. | $72.96/EA | |
| 5 | KVCSS17 | #8 FLAT HEAD SQUARE SCREWSource: NTC manual 10/2017, page 25. | $0.23/EA | |
| 6 | KVCSS14 | 13 CLAMP, FOR TOOLSSource: NTC manual 10/2017, page 25. | $6.58/EA | |
| 7 | KVDH25Kaivac DH25 | 26” X 1.5” DUMP HOSE 2” CUFFSource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 8 | KVCSS03 | 1 9/16 - 2 1/2 HOSE CLAMPSource: NTC manual 10/2017, page 25. | $5.02/EA | |
| 9 | KVKZFLOAT | FLOAT SHUT OFFSource: NTC manual 10/2017, page 25. | $43.43/EA |
Kaivac 1700 Series 1700/17001 Water Tank Assembly (NTC manual 10/2017) parts
From Kaivac's NTC manual 10/2017, for KV1750 machines built 2017-2019: the 1700/17001 Water Tank Assembly drawing and its parts list. Manual page 25.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVVLJHA | VAC LID, JUG HOLDER ASSEMBLYSource: NTC manual 10/2017, page 25. | $72.96/EA | |
| 2 | KVCSS17A | Source: NTC manual 10/2017, page 25. | $0.41/EA | |
| 8 | KVSSTKaivac SST | SCREW 3/4Source: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 3 | KVLID4 | LID WITH TETHER 4 1/2 INSource: NTC manual 10/2017, page 25. | $16.35/EA | |
| 4 | KVCSS88 | 1/4 20 X 3/4 SST SCREWSource: NTC manual 10/2017, page 25. | $0.61/EA | |
| 5 | KVWDVTC | TOOL CUPSource: NTC manual 10/2017, page 25. | $17.65/EA | |
| 6 | KVCSS133 | 5/16 SPLIT LOCK WASHER 300 SSSource: NTC manual 10/2017, page 25. | $0.31/EA | |
| 7 | KVCSS132 | 5/16-18X1 BUTTON HEADSource: NTC manual 10/2017, page 25. | $1.75/EA | |
| 8 | KVCFS03 | Source: NTC manual 10/2017, page 25. | $41.86/EA | |
| 5 | KVINKaivac IN | CASTER, MOUNTING PLATESource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 9A | KVCSS158 | Source: NTC manual 10/2017, page 25. | $14.40/EA | |
| 90 | KVDEGKaivac DEG | BRASS 3/8 NPT X 1/2 HOSESource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 9B | KVCSS143Kaivac CSS143 | 3/8 INSource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 90 | KVDEGKaivac DEG | BRASS BARBSource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 10A | KVST16 | SIGHT TUBE 16 IN 1/2 IDSource: NTC manual 10/2017, page 25. | $3.56/EA | |
| 10B | KVST14Kaivac ST14 | SIGHT TUBE 13 1/2 IN IDSource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 11A | KVCSS114 | NYLON SNAP GRIP CLAMP SIZE FSource: NTC manual 10/2017, page 25. | $1.75/EA | |
| 11B | KVCSS21Kaivac CSS21 | SNAP GRIP HOSE CLAMP SIZE DSource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 12 | KVCSS158 | Source: NTC manual 10/2017, page 25. | $14.40/EA | |
| 90 | KVDEGKaivac DEG | BRASS 3/8 NPT X 1/2 HOSESource: NTC manual 10/2017, page 25. | Call to confirm part: 800-440-6723 | |
| 13 | KVMFILT | MUSHROOM FILTERSource: NTC manual 10/2017, page 25. | $8.64/EA | |
| 14 | KVCSS142 | 3/8 IN BRASS HOSE BARBSource: NTC manual 10/2017, page 25. | $5.06/EA | |
| 15 | KVSUBSS4 | 4 IN SNAP AND STRAPSource: NTC manual 10/2017, page 25. | $2.85/EA | |
| 16 | KVSUBSS6 | 6 IN SNAP AND STRAPSource: NTC manual 10/2017, page 25. | $2.85/EA |
Kaivac 1700 Series 1750/17501 Black Box Assembly (NTC manual 10/2017) parts
From Kaivac's NTC manual 10/2017, for KV1750 machines built 2017-2019: the 1750/17501 Black Box Assembly drawing and its parts list. Manual page 26.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 9 | KVHEPAHA2 | HEPA HOUSING ASSEMBLYSource: NTC manual 10/2017, page 26. | $74.65/EA | |
| 1 | KVVA3WKaivac VA3W | VALVE ASSEMBLY 3 WAYSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 10 | KVAXSTRAP | AXLE STRAPSource: NTC manual 10/2017, page 26. | $19.79/EA | |
| 2A | KVSPADC | SWITCH PANEL ASSEMBLYSource: NTC manual 10/2017, page 26. | $230.32/EA | |
| 11 | KVKMB16 | 3/8 SST FLAT WASHER TMSource: NTC manual 10/2017, page 26. | $0.27/EA | |
| 2B | KVSPADCEKaivac SPADCE | SWITCH PANEL ASSEMBLY FOR ETLSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 12 | KVCSS72 | COTTER PIN 1/8 DIA X 11/4 LGSource: NTC manual 10/2017, page 26. | $0.43/EA | |
| 3 | KVCSS17A | #8 SST SCREW 3/4Source: NTC manual 10/2017, page 26. | $0.41/EA | |
| 13 | KVCSS40 | 1/2 DIA WASHERSSource: NTC manual 10/2017, page 26. | $0.67/EA | |
| 4A | KVPA217 | PUMP ASSEMBLY COMPLETE KV1750Source: NTC manual 10/2017, page 26. | $1,778.13/EA | |
| 14A | KVVMA1700R | HE 120V VMA 1700Source: NTC manual 10/2017, page 26. | $562.13/EA | |
| 4B | KVPA217EKaivac PA217E | PUMP ASSEMBLY COMPLETE FOR KV1750 ETLSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 14B | KVVMA1700EKaivac VMA1700E | HE 120V VMA 1700 ETLSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 4C | KVPA1750240V-2Kaivac PA1750240V-2 | PUMP ASSEMBLY COMPLETE KV1750Source: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 14C | KVVMASM240VKaivac VMASM240V | 1750 VAC MOTOR ASSEMBLY 240VSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 5A | KVSPLATE17Kaivac SPLATE17 | SPLASH PLATE FOR 1700Source: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 15 | KVAX205 | AXLE 20.5 IN X 1/2 DIA 303 SSTSource: NTC manual 10/2017, page 26. | $50.32/EA | |
| 5B | KVSPLATE17BKaivac SPLATE17B | SPLASH PLATE 17001 - 27501 kaivacSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 16A | KVPCKV1AKaivac PCKV1A | POWER CORD MOLDED W/ GROMMETSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 6 | KVCSS01 | 1/2 IN PUSH CAP NUTSource: NTC manual 10/2017, page 26. | $1.55/EA | |
| 16B | KVPCKV1TAKaivac PCKV1TA | POWER CORD MOLDED W/ GROMMET & TWIST LOCKSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 7 | KVWHEEL8B | FLAT FREE TIRE 8 IN 1/2 HUBSource: NTC manual 10/2017, page 26. | $67.63/EA | |
| 16C | KVCES20Kaivac CES20 | (AUS, EU, UK) 50’ PRONG CORD WITH RCDSource: NTC manual 10/2017, page 26. | Call to confirm part: 800-440-6723 | |
| 8 | KVCSS156 | 3/8 X 3/4 T THUMB SCREW YELLOWSource: NTC manual 10/2017, page 26. | $4.57/EA |
Kaivac 1700 Series 1700/17001 Switch Plate Assembly (NTC manual 10/2017) parts
From Kaivac's NTC manual 10/2017, for KV1750 machines built 2017-2019: the 1700/17001 Switch Plate Assembly drawing and its parts list. Manual page 27.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVSPDCSSB | SWITCH PNL DUALCHEM FOR BREAKER SWITCHSource: NTC manual 10/2017, page 27. | $56.67/EA | |
| 2 | KV5ACBS | 5 AMP PUMP CIRCUIT BREAKER SWITCHSource: NTC manual 10/2017, page 27. | $33.81/EA | |
| 3 | KVCSS123 | QUICK CONNECT PIGGY BACK TERMSource: NTC manual 10/2017, page 27. | $1.59/EA | |
| 4 | KV15ACBS | 15 AMP VAC CIRCUIT BREAKER SWITCH WHTSource: NTC manual 10/2017, page 27. | $33.80/EA | |
| 5 | KVHMETER | SNAP IN DIGITAL HOUR METERSource: NTC manual 10/2017, page 27. | $57.21/EA | |
| 6 | KVJWW | JUMPER WIRE WHITE 12 INSource: NTC manual 10/2017, page 27. | $5.60/EA | |
| 7 | KVJWB5 | JUMPER WIRE BLACK 5 INSource: NTC manual 10/2017, page 27. | $10.16/EA |
Kaivac 1700 Series 1700/17001 Valve Assembly (NTC manual 10/2017) parts
From Kaivac's NTC manual 10/2017, for KV1750 machines built 2017-2019: the 1700/17001 Valve Assembly parts list. Manual page 27.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVCPS50AKaivac CPS50A | 3 WAY BRASS VALVE WITH VITON SEAL(INCLUDES KNOB)Source: NTC manual 10/2017, page 27. | Call to confirm part: 800-440-6723 | ||
| 2 | KVCPS50B | BLACK KNOB 3 WAY VALVESource: NTC manual 10/2017, page 27. | $8.29/EA | ||
| 3 | KVCPS68 | 90 DEG 1/8 NPT M X 1/4 BARBSource: NTC manual 10/2017, page 27. | $8.29/EA | ||
| 4 | KVCPS65 | 1/2 IN CLAMPSource: NTC manual 10/2017, page 27. | $2.45/EA | ||
| 5 | KVSPH34 | SWITCH PANEL HOSESource: NTC manual 10/2017, page 27. | $19.38/EA | ||
| 34 | KVINKaivac IN | Source: NTC manual 10/2017, page 27. | Call to confirm part: 800-440-6723 | ||
| 6 | KVSPH18Kaivac SPH18 | SWITCH PANEL HOSESource: NTC manual 10/2017, page 27. | Call to confirm part: 800-440-6723 | ||
| 18 | KVINKaivac IN | Source: NTC manual 10/2017, page 27. | Call to confirm part: 800-440-6723 | ||
| 7 | KVSPH9Kaivac SPH9 | SWITCH PANEL HOSESource: NTC manual 10/2017, page 27. | Call to confirm part: 800-440-6723 | ||
| 9 | KVINKaivac IN | Source: NTC manual 10/2017, page 27. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/17501 Pump Assembly (NTC manual 10/2017) parts
From Kaivac's NTC manual 10/2017, for KV1750 machines built 2017-2019: the 1750/17501 Pump Assembly drawing and its parts list. Manual page 28.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVPMA217 | MOTOR ONLYSource: NTC manual 10/2017, page 28. | $746.99/EA | |
| 2 | KVCSS08 | 5/16-18 U-NUTSource: NTC manual 10/2017, page 28. | $2.05/EA | |
| 3 | KVWL1750 | WATER LINE FOR 1750Source: NTC manual 10/2017, page 28. | $23.95/EA | |
| 4 | KVCSS127 | QUICK DISCONNECT TERMINALSource: NTC manual 10/2017, page 28. | $1.75/EA | |
| 5 | KVJWB | JUMPER WIRE BLACK 12 INSource: NTC manual 10/2017, page 28. | $5.79/EA | |
| 6 | KVJWW | JUMPER WIRE WHITE 12 INSource: NTC manual 10/2017, page 28. | $5.60/EA | |
| 7 | KVRL1750 | RETURN LINE FOR 1750Source: NTC manual 10/2017, page 28. | $25.54/EA | |
| 8 | KVCPS38 | 3/8 QD PLUGSource: NTC manual 10/2017, page 28. | $16.28/EA | |
| 9 | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORSource: NTC manual 10/2017, page 28. | Call to confirm part: 800-440-6723 | |
| 10 | KVCPS14BKaivac CPS14B | PULSE HOSE SHORTSource: NTC manual 10/2017, page 28. | Call to confirm part: 800-440-6723 | |
| 11 | KVCPS14Kaivac CPS14 | PULSE HOSE LONGSource: NTC manual 10/2017, page 28. | Call to confirm part: 800-440-6723 | |
| 12 | KVPUMPSPARE217Kaivac PUMPSPARE217 | PUMP ONLYSource: NTC manual 10/2017, page 28. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1700/17001 Vac Motor Assembly (NTC manual 10/2017) parts
From Kaivac's NTC manual 10/2017, for KV1750 machines built 2017-2019: the 1700/17001 Vac Motor Assembly drawing and its parts list. Manual page 28.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1A | KVHEVM1 | HIGH EFFICIENCY 120V VAC MOTORSource: NTC manual 10/2017, page 28. | $356.54/EA | |
| 1B | KVHEVM1240V | HIGH EFFICIENCY VAC MOTOR 240VSource: NTC manual 10/2017, page 28. | $397.12/EA | |
| 2 | KVCSS39 | 1 1/16 - 2 HOSE CLAMPSource: NTC manual 10/2017, page 28. | $5.82/EA | |
| 3 | KVVEH19 | VAC MOTOR EXHAUST HOSE 19 INSource: NTC manual 10/2017, page 28. | $18.64/EA | |
| 4 | KVCSS11 | NO 10 X 3/4 SELF DRILLINGSource: NTC manual 10/2017, page 28. | $0.24/EA | |
| 5 | KVCSS27 | 1/4 NYLOC NUTSource: NTC manual 10/2017, page 28. | $0.47/EA | |
| 6 | KVVBRAK4 | VAC MOTOR BRKT KV1700Source: NTC manual 10/2017, page 28. | $37.03/EA | |
| 7 | KVCSS08 | 5/16-18 U-NUTSource: NTC manual 10/2017, page 28. | $2.05/EA | |
| 8 | KVCSS203 | HEX HEAD BOLT 1/4 20 X 1 1/4Source: NTC manual 10/2017, page 28. | $0.47/EA | |
| 9 | KVCSS44 | 1/4 FLAT WASHERSource: NTC manual 10/2017, page 28. | $0.15/EA | |
| 10 | KVVMH27A | VAC MOTOR HOSE SHORT CUFFSource: NTC manual 10/2017, page 28. | $31.36/EA |
Kaivac 1700 Series 1700/17001 Vac Tank Assembly (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 1700/17001 Vac Tank Assembly drawing and its parts list. Manual page 30.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVSUBSS11 | 11 IN SNAP AND STRAPSource: NTC manual 02/2020, page 30. | $3.18/EA | |
| 2 | KVCSS20 | SNAP STUDSource: NTC manual 02/2020, page 30. | $1.70/EA | |
| 3 | KVCSS144 | 1 1/4 NPT X 1 1/2 HOSE BARBSource: NTC manual 02/2020, page 30. | $11.69/EA | |
| 4 | KVVLJHA | VAC LID, JUG HOLDER ASSEMBLYSource: NTC manual 02/2020, page 30. | $72.96/EA | |
| 5 | KVCSS17 | #8 FLAT HEAD SQUARE SCREWSource: NTC manual 02/2020, page 30. | $0.23/EA | |
| 6 | KVCSS14 | 13 CLAMP, FOR TOOLSSource: NTC manual 02/2020, page 30. | $6.58/EA | |
| 7 | KVDH25Kaivac DH25 | 26” X 1.5” DUMP HOSE 2” CUFFSource: NTC manual 02/2020, page 30. | Call to confirm part: 800-440-6723 | |
| 8 | KVCSS03 | 1 9/16 - 2 1/2 HOSE CLAMPSource: NTC manual 02/2020, page 30. | $5.02/EA | |
| 9 | KVKZFLOAT | FLOAT SHUT OFFSource: NTC manual 02/2020, page 30. | $43.43/EA |
Kaivac 1700 Series 1700/17001 Water Tank Assembly (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 1700/17001 Water Tank Assembly drawing and its parts list. Manual page 30.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVVLJHA | VAC LID, JUG HOLDER ASSEMBLYSource: NTC manual 02/2020, page 30. | $72.96/EA | |
| 2 | KVCSS17A | 8 SST SCREW 3/4Source: NTC manual 02/2020, page 30. | $0.41/EA | |
| 3 | KVLID4 | LID WITH TETHER 4 1/2 INSource: NTC manual 02/2020, page 30. | $16.35/EA | |
| 4 | KVCSS88 | 1/4 20 X 3/4 SST SCREWSource: NTC manual 02/2020, page 30. | $0.61/EA | |
| 5 | KVWDVTC | TOOL CUPSource: NTC manual 02/2020, page 30. | $17.65/EA | |
| 6 | KVCSS133 | 5/16 SPLIT LOCK WASHER 300 SSSource: NTC manual 02/2020, page 30. | $0.31/EA | |
| 7 | KVCSS132 | 5/16-18X1 BUTTON HEADSource: NTC manual 02/2020, page 30. | $1.75/EA | |
| 8 | KVCFS03 | 5 IN CASTER, MOUNTING PLATESource: NTC manual 02/2020, page 30. | $41.86/EA | |
| 9A | KVCSS158 | 90 DEG BRASS 3/8 NPT X 1/2 HOSESource: NTC manual 02/2020, page 30. | $14.40/EA | |
| 9B | KVCSS143Kaivac CSS143 | 3/8 IN 90 DEG BRASS BARBSource: NTC manual 02/2020, page 30. | Call to confirm part: 800-440-6723 | |
| 10A | KVST16 | SIGHT TUBE 16 IN 1/2 IDSource: NTC manual 02/2020, page 30. | $3.56/EA | |
| 10B | KVST14Kaivac ST14 | SIGHT TUBE 13 1/2 IN IDSource: NTC manual 02/2020, page 30. | Call to confirm part: 800-440-6723 | |
| 11A | KVCSS114 | NYLON SNAP GRIP CLAMP SIZE FSource: NTC manual 02/2020, page 30. | $1.75/EA | |
| 11B | KVCSS21Kaivac CSS21 | SNAP GRIP HOSE CLAMP SIZE DSource: NTC manual 02/2020, page 30. | Call to confirm part: 800-440-6723 | |
| 12 | KVCSS158 | 90 DEG BRASS 3/8 NPT X 1/2 HOSESource: NTC manual 02/2020, page 30. | $14.40/EA | |
| 13 | KVMFILT | MUSHROOM FILTERSource: NTC manual 02/2020, page 30. | $8.64/EA | |
| 14 | KVCSS142 | 3/8 IN BRASS HOSE BARBSource: NTC manual 02/2020, page 30. | $5.06/EA | |
| 15 | KVSUBSS4 | 4 IN SNAP AND STRAPSource: NTC manual 02/2020, page 30. | $2.85/EA | |
| 16 | KVSUBSS6 | 6 IN SNAP AND STRAPSource: NTC manual 02/2020, page 30. | $2.85/EA |
Kaivac 1700 Series 1750/17501 Pump Assembly (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 1750/17501 Pump Assembly drawing and its parts list. Manual page 31.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVP217AM | MOTOR ONLYSource: NTC manual 02/2020, page 31. | $1,607.16/EA | |
| 2 | KVCSS08 | 5/16-18 U-NUTSource: NTC manual 02/2020, page 31. | $2.05/EA | |
| 3 | KVWL1750 | WATER LINE FOR 1750Source: NTC manual 02/2020, page 31. | $23.95/EA | |
| 4 | KVCSS127 | QUICK DISCONNECT TERMINALSource: NTC manual 02/2020, page 31. | $1.75/EA | |
| 5 | KVJWB | JUMPER WIRE BLACK 12 INSource: NTC manual 02/2020, page 31. | $5.79/EA | |
| 6 | KVJWW | JUMPER WIRE WHITE 12 INSource: NTC manual 02/2020, page 31. | $5.60/EA | |
| 7 | KVRL1750 | RETURN LINE FOR 1750Source: NTC manual 02/2020, page 31. | $25.54/EA | |
| 8 | KVCPS38 | 3/8 QD PLUGSource: NTC manual 02/2020, page 31. | $16.28/EA | |
| 9 | KVCPS12JQCKaivac CPS12JQC | QUICK CONNECT INJECTORSource: NTC manual 02/2020, page 31. | Call to confirm part: 800-440-6723 | |
| 10 | KVCPS14BKaivac CPS14B | PULSE HOSE SHORTSource: NTC manual 02/2020, page 31. | Call to confirm part: 800-440-6723 | |
| 11 | KVCPS14Kaivac CPS14 | PULSE HOSE LONGSource: NTC manual 02/2020, page 31. | Call to confirm part: 800-440-6723 | |
| 12 | KVPUMPSPARE217Kaivac PUMPSPARE217 | PUMP ONLYSource: NTC manual 02/2020, page 31. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1700/17001 Vac Motor Assembly (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 1700/17001 Vac Motor Assembly drawing and its parts list. Manual page 31.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1A | KVHEVM1 | HIGH EFFICIENCY 120V VAC MOTORSource: NTC manual 02/2020, page 31. | $356.54/EA | |
| 1B | KVHEVM1240V | HIGH EFFICIENCY VAC MOTOR 240VSource: NTC manual 02/2020, page 31. | $397.12/EA | |
| 1C | KVCVM36VKaivac CVM36V | 2 STAGE VAC MOTOR 36VSource: NTC manual 02/2020, page 31. | Call to confirm part: 800-440-6723 | |
| 2 | KVCSS39 | 1 1/16 - 2 HOSE CLAMPSource: NTC manual 02/2020, page 31. | $5.82/EA | |
| 3 | KVVEH19 | VAC MOTOR EXHAUST HOSE 19 INSource: NTC manual 02/2020, page 31. | $18.64/EA | |
| 4 | KVCSS11 | NO 10 X 3/4 SELF DRILLINGSource: NTC manual 02/2020, page 31. | $0.24/EA | |
| 5 | KVCSS27 | 1/4 NYLOC NUTSource: NTC manual 02/2020, page 31. | $0.47/EA | |
| 6 | KVVBRAK4 | VAC MOTOR BRKT KV1700Source: NTC manual 02/2020, page 31. | $37.03/EA | |
| 7 | KVCSS08 | 5/16-18 U-NUTSource: NTC manual 02/2020, page 31. | $2.05/EA | |
| 8 | KVCSS203 | HEX HEAD BOLT 1/4 20 X 1 1/4Source: NTC manual 02/2020, page 31. | $0.47/EA | |
| 9 | KVCSS44 | 1/4 FLAT WASHERSource: NTC manual 02/2020, page 31. | $0.15/EA | |
| 10 | KVVMH27A | VAC MOTOR HOSE SHORT CUFFSource: NTC manual 02/2020, page 31. | $31.36/EA |
Kaivac 1700 Series 1750/17501/27501 AC Black Box Assembly (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 1750/17501/27501 AC Black Box Assembly drawing and its parts list. Manual page 34.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 9 | KVHEPAHA2 | HEPA HOUSING ASSEMBLYSource: NTC manual 02/2020, page 34. | $74.65/EA | |
| 1 | KVVA3WKaivac VA3W | VALVE ASSEMBLY 3 WAYSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 10 | KVAXSTRAP | AXLE STRAPSource: NTC manual 02/2020, page 34. | $19.79/EA | |
| 2A | KVSPADC | SWITCH PANEL ASSEMBLYSource: NTC manual 02/2020, page 34. | $230.32/EA | |
| 11 | KVKMB16 | 3/8 SST FLAT WASHER TMSource: NTC manual 02/2020, page 34. | $0.27/EA | |
| 2B | KVSPADCEKaivac SPADCE | SWITCH PANEL ASSEMBLY FOR ETLSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 12 | KVCSS72 | COTTER PIN 1/8 DIA X 11/4 LGSource: NTC manual 02/2020, page 34. | $0.43/EA | |
| 3 | KVCSS17A | #8 SST SCREW 3/4Source: NTC manual 02/2020, page 34. | $0.41/EA | |
| 13 | KVCSS40 | 1/2 DIA WASHERSSource: NTC manual 02/2020, page 34. | $0.67/EA | |
| 4A | KVPA217 | PUMP ASSEMBLY COMPLETE KV1750Source: NTC manual 02/2020, page 34. | $1,778.13/EA | |
| 14A | KVVMA1700R | HE 120V VMA 1700Source: NTC manual 02/2020, page 34. | $562.13/EA | |
| 4B | KVPA217EKaivac PA217E | PUMP ASSEMBLY COMPLETE FOR KV1750 ETLSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 14B | KVVMA1700EKaivac VMA1700E | HE 120V VMA 1700 ETLSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 4C | KVPA1750240V-2Kaivac PA1750240V-2 | PUMP ASSEMBLY COMPLETE KV1750Source: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 14C | KVVMASM240VKaivac VMASM240V | 1750 VAC MOTOR ASSEMBLY 240VSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 5A | KVSPLATE17Kaivac SPLATE17 | SPLASH PLATE FOR 1700Source: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 15 | KVAX205 | AXLE 20.5 IN X 1/2 DIA 303 SSTSource: NTC manual 02/2020, page 34. | $50.32/EA | |
| 5B | KVSPLATE17BKaivac SPLATE17B | SPLASH PLATE 17001 - 27501 kaivacSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 16A | KVPCKV1AKaivac PCKV1A | POWER CORD MOLDED W/ GROMMETSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 6 | KVCSS01 | 1/2 IN PUSH CAP NUTSource: NTC manual 02/2020, page 34. | $1.55/EA | |
| 16B | KVPCKV1TAKaivac PCKV1TA | POWER CORD MOLDED W/ GROMMET & TWIST LOCKSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 7 | KVWHEEL8B | FLAT FREE TIRE 8 IN 1/2 HUBSource: NTC manual 02/2020, page 34. | $67.63/EA | |
| 16C | KVCES20Kaivac CES20 | (AUS, EU, UK) 50’ PRONG CORD WITH RCDSource: NTC manual 02/2020, page 34. | Call to confirm part: 800-440-6723 | |
| 8 | KVCSS156 | 3/8 X 3/4 T THUMB SCREW YELLOWSource: NTC manual 02/2020, page 34. | $4.57/EA |
Kaivac 1700 Series 1700/17001/27501 Switch Panel Assembly (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 1700/17001/27501 Switch Panel Assembly drawing and its parts list. Manual page 36.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVSPDCSSB | SWITCH PNL DUAL CHEM FOR BREAKER SWITCHSource: NTC manual 02/2020, page 36. | $56.67/EA | |
| 2 | KV5ACBS | Source: NTC manual 02/2020, page 36. | $33.81/EA | |
| 5 | KVAMPKaivac AMP | PUMP CIRCUIT BREAKER SWITCHSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 3 | KVCSS123 | QUICK CONNECT PIGGY BACK TERMSource: NTC manual 02/2020, page 36. | $1.59/EA | |
| 4 | KV15ACBS | Source: NTC manual 02/2020, page 36. | $33.80/EA | |
| 15 | KVAMPKaivac AMP | VAC CIRCUIT BREAKER SWITCH WHTSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 5 | KVHMETER | SNAP IN DIGITAL HOUR METERSource: NTC manual 02/2020, page 36. | $57.21/EA | |
| 6 | KVJWW | JUMPER WIRE WHITE 12 INSource: NTC manual 02/2020, page 36. | $5.60/EA | |
| 7 | KVJWB5 | JUMPER WIRE BLACK 5 INSource: NTC manual 02/2020, page 36. | $10.16/EA |
Kaivac 1700 Series 17501 Battery Switch Panel Assembly (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 17501 Battery Switch Panel Assembly drawing and its parts list. Manual page 36.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KV18AEMS2Kaivac 18AEMS2 | 18A ELECTROMAGNETIC SWITCH HEAVY DUTYSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 2 | KVUBBCKaivac UBBC | UNIVERSAL BREAKER BUTTON COVERSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 3 | KV20ACBBKaivac 20ACBB | Source: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 20A | KVCIRCUITKaivac CIRCUIT | BREAKER BUTTONSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 4 | KV10ACBBKaivac 10ACBB | Source: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 10A | KVCIRCUITKaivac CIRCUIT | BREAKER BUTTONSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 5 | KVHMETER | SNAP IN DIGITAL HOUR METERSource: NTC manual 02/2020, page 36. | $57.21/EA | |
| 6 | KVSPSCSSBBKaivac SPSCSSBB | SWITCH PNL SINGLE CHEM FOR BRKR SWITCH TM BATTSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 7 | KVJWR5Kaivac JWR5 | 12 GA. JUMPER WIRE RED 5 INSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 8 | KVJWB2L3Kaivac JWB2L3 | JUMPER WIRE BLACK 2X 1/4 F LEADS TO 1X 1/4 M LEADSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 | |
| 9 | KVJWR2L3Kaivac JWR2L3 | JUMPER WIRE RED 2X 1/4 F LEADS TO 1X 1/4 M LEADSource: NTC manual 02/2020, page 36. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1700/17001/27001 Valve Assemblies (NTC manual 02/2020) parts
From Kaivac's NTC manual 02/2020, for KV1750 and KV17501 machines built 2020-2025: the 1700/17001/27001 Valve Assemblies parts list. Manual page 37.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVCPS50AKaivac CPS50A | 3 WAY BRASS VALVE WITH VITON SEAL(INCLUDES KNOB) 2Source: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 | ||
| 2 | KVCPS50B | BLACK KNOB 3 WAY VALVESource: NTC manual 02/2020, page 37. | $8.29/EA | ||
| 3 | KVCPS68 | 90 DEG 1/8 NPT M X 1/4 BARBSource: NTC manual 02/2020, page 37. | $8.29/EA | ||
| 4 | KVCPS65 | 1/2 IN CLAMPSource: NTC manual 02/2020, page 37. | $2.45/EA | ||
| 5A | KVSPH43Kaivac SPH43 | SWITCH PANEL HOSESource: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 | ||
| 43 | KVINKaivac IN | Source: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 | ||
| 5B | KVSPH34 | SWITCH PANEL HOSESource: NTC manual 02/2020, page 37. | $19.38/EA | ||
| 34 | KVINKaivac IN | 4Source: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 | ||
| 6 | KVSPH18Kaivac SPH18 | SWITCH PANEL HOSESource: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 | ||
| 18 | KVINKaivac IN | Source: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 | ||
| 7 | KVSPH9Kaivac SPH9 | SWITCH PANEL HOSESource: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 | ||
| 9 | KVINKaivac IN | Source: NTC manual 02/2020, page 37. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750 Vac Tank Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750 Vac Tank Assembly parts list. Manual page 31.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVSUBSS11 | Source: NTC manual 2026, page 31. | $3.18/EA | ||
| 11 | KVINKaivac IN | SNAP AND STRAPSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | ||
| 2 | KVCSS20 | SNAP STUDSource: NTC manual 2026, page 31. | $1.70/EA | ||
| 3 | KVCSS144 | 1 1/4 NPT X 1 1/2 HOSE BARBSource: NTC manual 2026, page 31. | $11.69/EA | ||
| 4 | KVGA0008Kaivac GA0008 | VAC LID, JUG HOLDER ASSEMBLYSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | ||
| 5 | KVCSS17 | #8 FLAT HEAD SQUARE SCREWSource: NTC manual 2026, page 31. | $0.23/EA | ||
| 6 | KVCSS14 | 13 CLAMP, FOR TOOLSSource: NTC manual 2026, page 31. | $6.58/EA | ||
| 7 | KVDH25Kaivac DH25 | 26 " X 1.5" DUMP HOSE 2" CUFFSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | ||
| 8 | KVCSS03 | 1 9/16-2 1/2 HOSE CLAMPSource: NTC manual 2026, page 31. | $5.02/EA | ||
| 9 | KVKZFLOAT | FLOAT SHUT OFFSource: NTC manual 2026, page 31. | $43.43/EA | ||
| 10 | KVCSS147 | SCREW - MACHINE - SNAP STUD - 18-8 SSTSource: NTC manual 2026, page 31. | $3.49/EA | ||
| 11 | KVCSS145 | INSERT - NON FLANGED - 8-32Source: NTC manual 2026, page 31. | $3.15/EA |
Kaivac 1700 Series 1750 Water Tank Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750 Water Tank Assembly drawing and its parts list. Manual page 31.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | KVGA0008Kaivac GA0008 | VAC LID, JUG HOLDER ASSEMBLYSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 2 | KVCSS17A | Source: NTC manual 2026, page 31. | $0.41/EA | |
| 8 | KVSSTKaivac SST | SCREW 3/4Source: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 3 | KVLID4 | LID WITH TETHER 4 1/2 INSource: NTC manual 2026, page 31. | $16.35/EA | |
| 4 | KVHWS002Kaivac HWS002 | 1/4 20 X 314Source: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 5S | KVWIDEKaivac WIDE | TRUSS SCREWSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 5 | KVWDVTC | TOOL CUPSource: NTC manual 2026, page 31. | $17.65/EA | |
| 6 | KVCSS133 | 5/16 SPLIT LOCK WASHER 300 SSSource: NTC manual 2026, page 31. | $0.31/EA | |
| 7 | KVCSS132 | 5/16-18 X1 BUTTON HEADSource: NTC manual 2026, page 31. | $1.75/EA | |
| 8 | KVCFS03 | 5 IN CASTER, MOUNTING PLATESource: NTC manual 2026, page 31. | $41.86/EA | |
| 9 | KVCSS143Kaivac CSS143 | 3/8 INSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 90 | KVDEGKaivac DEG | BRASS BARBSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 10 | KVST15Kaivac ST15 | SIGHT TUBE 14.75 IN 3/8 IDSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 11 | KVCSS21Kaivac CSS21 | SNAP GRIP HOSE CLAMP SIZE DSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 12 | KVMFILT | MUSHROOM FILTERSource: NTC manual 2026, page 31. | $8.64/EA | |
| 13 | KVCSS205 | WASHER - EXT TOOTH LOCK - ZINC - 9/16Source: NTC manual 2026, page 31. | $0.35/EA | |
| 14 | KVCSS158 | 90 DEG BRASS 3/8 NPT X 1/2 HOSESource: NTC manual 2026, page 31. | $14.40/EA | |
| 15 | KVSUBSS4 | Source: NTC manual 2026, page 31. | $2.85/EA | |
| 4 | KVINKaivac IN | SNAP AND STRAPSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 16 | KVSUBSS6 | Source: NTC manual 2026, page 31. | $2.85/EA | |
| 6 | KVINKaivac IN | SNAP AND STRAPSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 17 | KVHWM003Kaivac HWM003 | CABLE CLAMP 7116 BLACKSource: NTC manual 2026, page 31. | Call to confirm part: 800-440-6723 | |
| 18 | KVCSS11 | NO 10 X 3/4 SELF DRILLINGSource: NTC manual 2026, page 31. | $0.24/EA |
Kaivac 1700 Series 1750/2750 AC Black Box Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 AC Black Box Assembly parts list. Manual page 33.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 11 | KVCSS40 | WASHER -FLAT -ZINC -1/2Source: NTC manual 2026, page 33. | $0.67/EA | |||
| 14 | KVCSS07 | BOLT - MACHINE - HEX - FLANGED - BLACK OXIDE - 5/16Source: NTC manual 2026, page 33. | $2.04/EA | |||
| 7A | KVWHEEL8B | FLAT FREE TIRE 8 IN 1/2 HUBSource: NTC manual 2026, page 33. | $67.63/EA | |||
| 1A | KVVA3WSKaivac VA3WS | VALVE ASSEMBLY3 WAY17001 SSTSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 7B | KVWHEEL10Kaivac WHEEL10 | FLAT FREE TIRE 10 IN 5/8 HUBSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 1B | KV430000Kaivac 430000 | VALVE ASSEMBLY 3 WAY 27001 SSTSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 8 | KVCSS72 | COTTER PIN 1/8 DIA X 11/4 LGSource: NTC manual 2026, page 33. | $0.43/EA | |||
| 2A | KVSPADC | SWITCH PANEL ASSEMBLYSource: NTC manual 2026, page 33. | $230.32/EA | |||
| 9 | KVHEPAHA2 | HEPA HOUSING ASSEMBLYSource: NTC manual 2026, page 33. | $74.65/EA | |||
| 2B | KVSPADCEKaivac SPADCE | SWITCH PANEL ASSEMBLY FOR ETLSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 10 | KVAXSTRAP | AXLE STRAPSource: NTC manual 2026, page 33. | $19.79/EA | |||
| 3 | KVCSS17A | #8 SST SCREW 3/4Source: NTC manual 2026, page 33. | $0.41/EA | |||
| 4A | KVPA217 | PUMP ASSEMBLY COMPLETE KV1750Source: NTC manual 2026, page 33. | $1,778.13/EA | |||
| 12 | KVCSS39 | CLAMP -HOSE -WORM -1 1/16Source: NTC manual 2026, page 33. | $5.82/EA | |||
| 4B | KVPA217EKaivac PA217E | PUMP ASSEMBLY COMPLETE FOR KV1750 ETLSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 13 | KVCPS12JQCSKaivac CPS12JQCS | SST INJECTORSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 4C | KVPA1750240V-2Kaivac PA1750240V-2 | PUMP ASSEMBLY COMPLETE KV1750Source: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 5A | KVVMA1700R | HE 120V VMA 1700 REPLACEMENT VMA1700Source: NTC manual 2026, page 33. | $562.13/EA | |||
| 15A | KVAX205 | AXLE 20.5IN X 1/2 DIA 303 SSTSource: NTC manual 2026, page 33. | $50.32/EA | |||
| 5B | KVVMA27001RKaivac VMA27001R | HE 120V VMA 27001 REPLACEMENT VMA27001Source: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 15B | KVAX21Kaivac AX21 | AXLE 21 1 N X 5.8 DIA 303 STSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 5C | KVVM1A01Kaivac VM1A01 | HE 120V VMA 1700 ETL REPLACEMENT VMA1700ESource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 16 | KVCSS175 | HARDWARE-GROMMET-BUNASource: NTC manual 2026, page 33. | $2.19/EA | |||
| 5D | KVVM2A01Kaivac VM2A01 | 1750 VAC MOTOR ASSEMBLY 240V REPLACEMENT V MASM240VSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 17 | KVCSS130 | CLAMP-VIBRATION DAMPING LOOP -7/8Source: NTC manual 2026, page 33. | $1.96/EA | |||
| 5E | KVVM2A02Kaivac VM2A02 | VAC MOTOR-ASSEMBLY- 27001 24fNAC REPLACEMENTVMA27001240VSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 18A | KVPCKV1AKaivac PCKV1A | POWER CORD MOLDED W/ GROMMETSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 5A | KVCSS01 | 1/2 IN PUSH CAP NUTSource: NTC manual 2026, page 33. | $1.55/EA | |||
| 18B | KVPCKV1TAKaivac PCKV1TA | POWER CORD MOLDED W/ GROMMET & TWIST LOCKSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 5B | KVCSS43Kaivac CSS43 | 5/8 PUSH CAP NUTSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 | |||
| 18C | KVCES20IKaivac CES20I | 50' P RONG CORD WITH RCD INTERNATIONALSource: NTC manual 2026, page 33. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/2750 DC Black Box Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 DC Black Box Assembly parts list. Manual page 34.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 9 | KVCSS07 | BOLT - MACHINE - HEX- FLANGED - BLACK OXIDE - 5/16Source: NTC manual 2026, page 34. | $2.04/EA | |||
| 11A | KVCSS40 | 1/2 DIA WASHERSSource: NTC manual 2026, page 34. | $0.67/EA | |||
| 13A | KVVM3D08Kaivac VM3D08 | 36V VAC MOTOR 1700 REPLACEMENT VMA1700BSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 1 | KVSPADCBKaivac SPADCB | SWITCH PANEL ASS EM DUAL CHEM BATTSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 13B | KVVM3D11Kaivac VM3D11 | 36V VAC MOTOR 27001 REPLACEMENT VMA27001 BSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 2 | KVCSS17A | 8 SST SCREW 3/4Source: NTC manual 2026, page 34. | $0.41/EA | |||
| 14 | KVCSS74Kaivac CSS74 | 10-24 NUTSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 3 | KVPA217BKaivac PA217B | PUMP ASSEMBLY COMPLETE FOR KV17501, KV27501Source: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 15 | KVCSS95Kaivac CSS95 | 10 WASHERSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 4A | KVCSS01 | 1/2 IN PUSH CAP NUTSource: NTC manual 2026, page 34. | $1.55/EA | |||
| 16 | KVCSS380Kaivac CSS380 | 10-24 X 1 IN SST FLAT SCREWSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 4B | KVCSS43Kaivac CSS43 | 5/8 PUSH CAP NUTSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 17 | KVCSS375Kaivac CSS375 | NO 10 18-8 SST SCREWSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 5A | KVWHEEL8B | FLAT FREE TIRE 8 IN 1/2 HUBSource: NTC manual 2026, page 34. | $67.63/EA | |||
| 18A | KVVA3WBSKaivac VA3WBS | VALVE ASSEM. 3 WAY BATTSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 5B | KVWHEEL10Kaivac WHEEL10 | FLAT FREE TIRE 10 IN 5/8 HUBSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 18B | KVVA3WB27SKaivac VA3WB27S | VALVE ASS EM. 3 WAY BATT 2700Source: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 6 | KVCSS39 | CLAMP - HOSE - WORM - 1 1/16Source: NTC manual 2026, page 34. | $5.82/EA | |||
| 19 | KVQCINT2AKaivac QCINT2A | QUICK CHANGE INTERFACE - 36VDC GEN 2 METALSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 7 | KVHEPAHA2 | HEPA HOUSING ASSEMBLYSource: NTC manual 2026, page 34. | $74.65/EA | |||
| 20 | KVCSS11 | NO 10 X 314 SELF DRILLINGSource: NTC manual 2026, page 34. | $0.24/EA | |||
| 8 | KVAXSTRAP | AXLE STRAPSource: NTC manual 2026, page 34. | $19.79/EA | |||
| 21 | KVCPS12JQCSKaivac CPS12JQCS | SST INJECTORSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 22 | KVEACG00Kaivac EACG00 | CHARGER - INPUT 100-240VAC OUTPUT 42VDC 4ASource: NTC manual 2026, page 34. i | Call to confirm part: 800-440-6723 | |||
| 10 | KVCSS72 | COTTER PIN 1/8 DIA X 11/4 LGSource: NTC manual 2026, page 34. | $0.43/EA | |||
| 23 | KVCSS17A | #8 SST SCREW 3/4Source: NTC manual 2026, page 34. | $0.41/EA | |||
| 24 | KVGP0010Kaivac GP0010 | GEN 2 CORD WRAP CLEATSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 11B | KVCSS46Kaivac CSS46 | 5/8 DIA WASHERSSource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 | |||
| 25 | KVCSS175 | HARDWARE - GROMMET - BUNASource: NTC manual 2026, page 34. | $2.19/EA | |||
| 12A | KVAX205 | AXLE 20.5 IN 1/2 DIA 303 SSTSource: NTC manual 2026, page 34. | $50.32/EA | |||
| 26 | KVCSS130 | CLAMP - VIBRATION DAMPING LOOP - 7/8Source: NTC manual 2026, page 34. | $1.96/EA | |||
| 12B | KVAX21Kaivac AX21 | AXLE 21 IN 5/8 DIASource: NTC manual 2026, page 34. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/2750 AC Pump Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 AC Pump Assembly parts list. Manual page 35.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1A | KVP217AM | PUMP MOTOR -RAW-1700 17001 27001 500 PSI 120VACSource: NTC manual 2026, page 35. | $1,607.16/EA | ||
| 1B | KVPUMP217240VDCKaivac PUMP217240VDC | PUMP MOTOR -ASSEMBLY -1700 17001 27001 500 PSI 240VACSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 2 | KVCSS08 | 5/16-18 U-NUTSource: NTC manual 2026, page 35. | $2.05/EA | ||
| 3 | KVWL1750 | WATER LINE FOR 1750Source: NTC manual 2026, page 35. | $23.95/EA | ||
| 4 | KVCSS127 | QUICK DISCONNECT TERMINALSource: NTC manual 2026, page 35. | $1.75/EA | ||
| 5 | KVJWB | JUMPER WIRE BLACK 12 INSource: NTC manual 2026, page 35. | $5.79/EA | ||
| 6 | KVJWW | JUMPER WIRE WHITE 12 INSource: NTC manual 2026, page 35. | $5.60/EA | ||
| 7 | KVRL1750 | RETURN LINE FOR 1750Source: NTC manual 2026, page 35. | $25.54/EA | ||
| 8 | KVCPS38 | 3/8QD PLUGSource: NTC manual 2026, page 35. | $16.28/EA | ||
| 9 | KVCPS12JQCSKaivac CPS12JQCS | QUICK CONNECT INJECTOR 316 SSTSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 10 | KVCPS14BKaivac CPS14B | PULSE HOSE SHORTSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 11 | KVCPS14Kaivac CPS14 | PULSE HOSE LONGSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 12 | KVPUMPSPARE217Kaivac PUMPSPARE217 | PUMP ONLYSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/2750 DC Pump Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 DC Pump Assembly parts list. Manual page 35.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVP217AMBKaivac P217AMB | PUMP ASSEMBLY 500 PSI 36VDCSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 2 | KVCSS08 | 5/16-18 U-NUTSource: NTC manual 2026, page 35. | $2.05/EA | ||
| 3 | KVWL1750 | WATER LINE FOR 1750Source: NTC manual 2026, page 35. | $23.95/EA | ||
| 4 | KVRL1750 | RETURN LINE FOR 1750Source: NTC manual 2026, page 35. | $25.54/EA | ||
| 5 | KVCPS38 | 3/8QD PLUGSource: NTC manual 2026, page 35. | $16.28/EA | ||
| 6 | KVCPS12JQCSKaivac CPS12JQCS | QUICK CONNECT INJECTOR 316 SSTSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 7 | KVCPS14BKaivac CPS14B | PULSE HOSE SHORTSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 8 | KVCPS14Kaivac CPS14 | PULSE HOSE LONGSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 | ||
| 9 | KVPUMPSPARE217Kaivac PUMPSPARE217 | PUMP ONLYSource: NTC manual 2026, page 35. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/2750 AC Vac Motor Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 AC Vac Motor Assembly parts list. Manual page 36.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 3 | KVCSS44 | WASHER - FLAT - ZINC -1/4 - .31310 X .75000Source: NTC manual 2026, page 36. | $0.15/EA | |||
| 6 | KVCSS203 | BOLT -MACHINE -HEX -ZINC -1/4-20 X 11/41NSource: NTC manual 2026, page 36. | $0.47/EA | |||
| 1A | KVHEVM1 | HIGH EFFICIENCY 120V VAC MOTORSource: NTC manual 2026, page 36. | $356.54/EA | |||
| 1B | KVHEVM1240V | HIGH EFFICIENCYVAC MOTOR 24 0V 4NTL)Source: NTC manual 2026, page 36. | $397.12/EA | |||
| 2 | KVCSS27 | NUT - HEX - LOCKING - ZINC - 1/4-20Source: NTC manual 2026, page 36. | $0.47/EA | |||
| 4 | KVCSS153 | NUT -CLIP ON - BLACK STEEL -1/4-20Source: NTC manual 2026, page 36. | $1.40/EA | |||
| 5 | KVCSS08 | NUT -CLIP ON - BLACK STEEL - 5/16-18Source: NTC manual 2026, page 36. | $2.05/EA | |||
| 8 | KVCVS08A | CUFF -RIGID 11/ 2 BLACKSource: NTC manual 2026, page 36. | $5.81/EA | |||
| 9A | KVVMH27A | VAC MOTOR HOSE -RAW -INTAKE 281N 1700 17001Source: NTC manual 2026, page 36. | $31.36/EA | |||
| 9B | KVVMH34AKaivac VMH34A | VAC MOTOR HOSE SHORT CUFF 34 INSource: NTC manual 2026, page 36. | Call to confirm part: 800-440-6723 | |||
| 10 | KVCSS11 | SCREW - DRILLING - HEX - FLANGED - ZINC - N0.10 X 3/41NSource: NTC manual 2026, page 36. | $0.24/EA | |||
| 11 | KVVEH19 | VAC MOTOR HOSE - RAW - EXHAUST 181/41N 1700 170012100 27001Source: NTC manual 2026, page 36. | $18.64/EA | |||
| 12 | KVCSS39 | 11/16 - 2 WORM HOSE CLAMPSource: NTC manual 2026, page 36. | $5.82/EA | |||
| 13 | KVCSS135Kaivac CSS135 | AC /DC EMC /RFI FILTER (INTL)Source: NTC manual 2026, page 36. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/2750 DC Vac Motor Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 DC Vac Motor Assembly parts list. Manual page 37.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| 3 | KVCSS44 | WASHER - FLAT - ZINC -1/4 - .31310 X . 75000Source: NTC manual 2026, page 37. | $0.15/EA | |||
| 6 | KVCSS203 | BOLT -MACHINE -HEX -ZINC -1/4-20 X 11/41NSource: NTC manual 2026, page 37. | $0.47/EA | |||
| 1 | KVCVM36VKaivac CVM36V | 2 STAGE VAC MOTOR 3 6VDCSource: NTC manual 2026, page 37. | Call to confirm part: 800-440-6723 | |||
| 2 | KVCSS27 | NUT - HEX - LOCKING - ZINC - 1/4-20Source: NTC manual 2026, page 37. | $0.47/EA | |||
| 4 | KVCSS153 | NUT -CLIP ON -BLACK STEEL -1/4-20Source: NTC manual 2026, page 37. | $1.40/EA | |||
| 5 | KVCSS08 | NUT -CLIP ON -BLACK STEEL - 5/16-18Source: NTC manual 2026, page 37. | $2.05/EA | |||
| 8 | KVCVS08A | CUFF -RIGID 11/ 2 BLACKSource: NTC manual 2026, page 37. | $5.81/EA | |||
| 9A | KVVMH27A | VAC MOTOR HOSE -RAW -INTAKE 281N 1700 17001Source: NTC manual 2026, page 37. | $31.36/EA | |||
| 9B | KVVMH34AKaivac VMH34A | VAC MOTOR HOSE SHORT CUFF 34 INSource: NTC manual 2026, page 37. | Call to confirm part: 800-440-6723 | |||
| 10 | KVCSS11 | SCREW - DRILLING - HEX - FLANGED - ZINC - N0.10 X 3/41NSource: NTC manual 2026, page 37. | $0.24/EA | |||
| 11 | KVVEH19 | VAC MOTOR HOSE - RAW - EXHAUST 181/41N 1700 170012100 27001Source: NTC manual 2026, page 37. | $18.64/EA | |||
| 12 | KVCSS39 | 11/16 - 2 WORM HOSE CLAMPSource: NTC manual 2026, page 37. | $5.82/EA |
Kaivac 1700 Series 1750/2750 AC Switch Panel Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 AC Switch Panel Assembly parts list. Manual page 38.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVSPDCSSB | SWITCH PNL DUAL CHEM FOR BREAKER SWITCHSource: NTC manual 2026, page 38. | $56.67/EA | ||
| 2 | KV5ACBS | S AMP PUMP CIRCUIT BREAKER SWITCHSource: NTC manual 2026, page 38. | $33.81/EA | ||
| 3 | KVCSS123 | QUICK CONNECT PIGGY BACK TERMSource: NTC manual 2026, page 38. | $1.59/EA | ||
| 4 | KV15ACBS | 1S AMP VAC CIRCUIT BREAKER SWITCH WHTSource: NTC manual 2026, page 38. | $33.80/EA | ||
| 6 | KVJWW | JUMPER WIRE WHITE 12 INSource: NTC manual 2026, page 38. | $5.60/EA | ||
| 7 | KVJWB5 | JUMPER WIRE BLACK S INSource: NTC manual 2026, page 38. | $10.16/EA |
Kaivac 1700 Series 1750/2750 DC Switch Panel Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 DC Switch Panel Assembly parts list. Manual page 38.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVHESB01Kaivac HESB01 | SWITCH - ELECTROMAGNETIC - 2S.1A HEAVY DUTYSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 | ||
| 2 | KVUBBCKaivac UBBC | UNIVERSAL BREAKER BUTTON COVERSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 | ||
| 3 | KV20ACBBKaivac 20ACBB | 20A CIRCUIT BREAKER BUTTONSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 | ||
| 4 | KV10ACBBKaivac 10ACBB | 10A CIRCUIT BREAKER BUTTONSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 | ||
| 6 | KVSPDCSSBBKaivac SPDCSSBB | SWITCH PNL DUAL CHEM FOR BRKR SWITCH BATTSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 | ||
| 7 | KVJWR5Kaivac JWR5 | 12 GA. JUMPER WIRE RED S INSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 | ||
| 8 | KVJWB12Kaivac JWB12 | JUMPER WIRE BL.ACK 12GA 1/4F TO BARE 12 INSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 | ||
| 9 | KVJWR12Kaivac JWR12 | JUMPER WIRE RED 12GA 1/4F TO BARE 121NSource: NTC manual 2026, page 38. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/2750 Valve Assemblies (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 Valve Assemblies parts list. Manual page 39.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVCPS50AKaivac CPS50A | 3 WAY BRASS VALVE WITH VITON SEAL(INCLUDES KNOB)Source: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 2 | KVCPS50B | BLACK KNOB 3 WAY VALVE 5Source: NTC manual 2026, page 39. | $8.29/EA | ||
| 3 | KVCPS68 | 90 DEG 1/8 NPT M X 1/4 BARBSource: NTC manual 2026, page 39. | $8.29/EA | ||
| 4 | KVCPS65 | 1/2 IN CLAMPSource: NTC manual 2026, page 39. | $2.45/EA | ||
| 5A | KVSPH43Kaivac SPH43 | SWITCH PANEL HOSESource: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 43 | KVINKaivac IN | Source: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 5B | KVSPH34 | SWITCH PANEL HOSESource: NTC manual 2026, page 39. | $19.38/EA | ||
| 34 | KVINKaivac IN | Source: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 6 | KVSPH18Kaivac SPH18 | SWITCH PANEL HOSESource: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 18 | KVINKaivac IN | Source: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 7 | KVSPH9Kaivac SPH9 | SWITCH PANEL HOSESource: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 9 | KVINKaivac IN | IJSource: NTC manual 2026, page 39. | Call to confirm part: 800-440-6723 | ||
| 1 | KVHEPA | HEPA FILTERSource: NTC manual 2026, page 39. | $28.90/EA | ||
| 2 | KVFKEEP2 | HEPA FILTER KEEPERSource: NTC manual 2026, page 39. | $7.44/EA | ||
| 3 | KVHCOVER | HEPA COVERSource: NTC manual 2026, page 39. | $8.02/EA |
Kaivac 1700 Series 1750/2750 DC Interface Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 DC Interface Assembly parts list. Manual page 40.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | KVNTCPPBRAKKaivac NTCPPBRAK | NTC POWER PACK BRACKETSource: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 | ||
| 2 | KVBINTRAILKaivac BINTRAIL | BATTERY INTERFACE GUIDE RAILSource: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 | ||
| 3 | KVCSS184Kaivac CSS184 | NUT - HEX-18-8 SSTSource: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 | ||
| 4 | KVCSS109Kaivac CSS109 | WASHER - FLAT -18-8 SST -1/8Source: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 | ||
| 5 | KVHWS001Kaivac HWS001 | SCREW - MACHINE - PHILLIPS - PAN -18-8 SSTSource: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 | ||
| 6 | KVBINTPLUGKaivac BINTPLUG | BATTERY INTERFACE WIRE HARNESS & PLUGSource: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 | ||
| 7 | KVBINTBASEKaivac BINTBASE | BATTERY INTERFACE PLUG BASESource: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 | ||
| 8 | KVCSS183Kaivac CSS183 | SCREW - MACHINE - PHILLIPS - PAN -18-8 SSTSource: NTC manual 2026, page 40. | Call to confirm part: 800-440-6723 |
Kaivac 1700 Series 1750/2750 DC Vac Motor Assembly (NTC manual 2026) parts
From Kaivac's NTC manual 2026, for current KV1750 and KV17501 machines: the 1750/2750 DC Vac Motor Assembly parts list. Manual page 37.
No drawing for this list. Kaivac prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| On drawing | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 7 | KVVBRAK4 | BRACKET -VAC MOTOR -1700 2700Source: NTC manual 2026, page 37. | $37.03/EA |
Kaivac 1700 Series Electrical: Wiring Diagram Kaivac 1700 series
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Wiring Diagram Kaivac 1700 series, as printed in the manual |
|---|---|
| Manual page | 18 |
Kaivac 1700 Series Electrical: Wiring Diagram Kaivac 1700 series
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Wiring Diagram Kaivac 1700 series, as printed in the manual |
|---|---|
| Manual page | 18 |
Kaivac 1700 Series Electrical: 1250 AC Electrical Diagram
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: 1250 AC Electrical Diagram, as printed in the manual |
|---|---|
| Manual page | 17 |
Kaivac 1700 Series Electrical: 1250 DC Electrical Diagram
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: 1250 DC Electrical Diagram, as printed in the manual |
|---|---|
| Manual page | 18 |
Kaivac 1700 Series Electrical: AC Electrical Diagram
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: AC Electrical Diagram, as printed in the manual |
|---|---|
| Manual page | 19 |
Kaivac 1700 Series Electrical: DC Electrical Diagram
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: DC Electrical Diagram, as printed in the manual |
|---|---|
| Manual page | 20 |
New to your Kaivac 1700 Series? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your 1700 Series. Everything here comes from Kaivac's operator and parts manual, rewritten in plain steps, with the parts you need linked to the list above.
1Set it up out of the box
- Wrap the placard (KVPLCRD) around the push handles. Set the tote bag (KVTBAG) aside for the extra tools.
- Slide the vac wand (KVOFVWGB) sections together until the locking pin clicks in.
- Fit the plastic elbow to the vac tank. Attach the vac motor hose (KVVMH27A) to the elbow and the vac motor inlet.
- Make sure the dump hose is on its cap and tether, and the vac lid is on the tank.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 2-1. SES ref PF-RO2Y-GOET
2Get ready to clean
- Fill the water tank with clean, cool water.
- Put the chemical feed line and cap on your chemical bottle. Pick the tip the placard shows from the metering tip pack (KVMTIPSNEW).
- With a high-foaming chemical, pour 2 capfuls of foam inhibitor into the vac hose with the vac running.
- Check every hose and spray line. If you find damage, stop until it is repaired.
- Plug in and test the GFCI on the GFCI power cord (KVCES19A).
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 2-3. SES ref PF-RO2Y-GOET
3Clean with the S.I.M.P.L.E. steps
- Set up: fill with clean, cool water, add 1 cap of KaiDri for spot-free rinsing and put the metering tip in the cap barb.
- Inject: spray the chemical in low pressure mode with a fan spray.
- Brush heavily soiled areas by hand.
- Rinse: pressure wash with fresh water in high pressure mode, with a fan spray.
- Extract: vacuum up the water.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 2-6. SES ref PF-RO2Y-GOET
4Empty and rinse the vac tank
- Disconnect the dump hose (KVDH25) and drain the tank in the proper place.
- Take off the vac lid. Rinse the inside of the tank with the pressure gun or another water source.
- Lock the front caster wheels. Tip the machine to the left and slightly forward to drain the rest.
- Put the dump hose back on and unlock the wheels.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 2-4. SES ref PF-RO2Y-GOET
Questions about your 1700 Series? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Kaivac 1700 Series troubleshooting
Problems, likely causes and fixes from Kaivac's troubleshooting tables. Always unplug the machine before lifting the electric cover.
| Likely cause | Fix | Part |
|---|---|---|
| No power to pump or vac motor | ||
| Not plugged in, switch off, GFCI tripped or building circuit overloaded | Plug it in, turn the switches on, test and reset the GFCI, and reset the building circuit. | |
| Loose switch wires or connections | Unplug it and check for loose wires under the panel. | |
| Electrical burning smell | ||
| Vac motor or pump motor hung up | Release pressure on the hose and jog the switch. If that fails, replace the vac motor (KVHEVM1 / KVHEVM1240V) or pump (KVP217AM / KVPUMP217240VDC). | |
| No or weak vacuum | ||
| Vac tank full, float screen dirty or float stuck | Empty the vac tank. Spray the float screen clean, or tap the float (KVKZFLOAT) to free it. | |
| Worn squeegee blades or wheels | Replace the blades or wheels on the squeegee head (KVCVS12S). | |
| Exhaust plugged or HEPA filter clogged | Remove the HEPA filter (KVHEPA) and clean it. | |
| Moisture from the exhaust | ||
| Vac tank full, float shutoff missing or too much foam | Dump the vac tank, replace a missing float shutoff (KVKZFLOAT) and use a defoamer. | |
| No water from pump or low pressure | ||
| Out of water, or gun nozzle or tank filter plugged | Fill the tank. Clean the gun orifice with an Allen wrench, and clean the water tank filter (KVMFILT). | |
| No chemical flow | ||
| Out of chemical, valve off, or safety cap loose or plugged | Refill the chemical, turn the 3-way valve (KVVA3W) on, and tighten or replace the safety cap (KVCHCAPA). | |
| Metering tip plugged | Check the metering tip for a clog and clear it. | |
| Wheels won't roll, or they rub | ||
| Debris around the axle or tight bearings | Clear the axle and grease the bearings. | |
| Floor streaks | ||
| Worn squeegee blades or wheels | Replace the wheels or blades on the squeegee head (KVCVS12S). | |
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, pages 3-3, 3-4 and 3-5. SES ref PF-QV5Z-4VBR
Still stuck? Call 800-440-6723 and have your model and serial number ready. SES stocks Kaivac parts and can help you find the cause.
Kaivac 1700 Series maintenance schedule
Kaivac's maintenance checks. Where Kaivac gives no interval, the task is listed as needed. Unplug the machine before any maintenance.
| Task | How often | Part |
|---|---|---|
| Test the GFCI on the power cord (KVCES19A). | Before every use | |
| Check the cord for tears or cuts in the insulation. Don't use a damaged cord. | Before every use | |
| Wipe the pressure hose (KVPH45) clean. | After every use | |
| Replace the HEPA filter (KVHEPA). Heavy use means the shorter interval. | Every 3 to 6 months | |
| Check the squeegee blades and wheels on the squeegee head (KVCVS12S) and replace them when worn. Rough floors wear them faster. | As needed | |
| If the spray gun won't give a pinpoint pattern, take the orifice out with an Allen wrench and flush it. If the nozzle gets stiff, grease it with lithium grease. | As needed | |
| Check the water tank filter (KVMFILT) and clean it. Empty the water tank so mildew and bacteria can't grow. | As needed | |
| Empty, flush, clean and disinfect the vac tank. Keep the float shutoff (KVKZFLOAT) screen clear: a plugged screen cuts suction. | As needed | |
| Clean the vac wand coupling threads with a wire brush and grease them. | As needed | |
| Watch for leaks at hoses, fittings, the wand and tanks. Stop using the machine until a leak is fixed. | As needed |
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, pages 1-3 and 3-1. SES ref PF-FIBW-MUGI
Kaivac 1700 Series specifications
From Kaivac's operator and parts manual. Kaivac prints no tank capacities or weights in this manual.
| Voltage | 120V (CE1750: 240V) |
|---|---|
| Vacuum | 3-stage vac motor with HEPA exhaust filter |
| Pump | 500 psi (the wiring diagram also covers a 150 psi pump) |
| Circuit breaker switches | 15 A vac, 5 A pump |
| Hour meters | 2, digital |
| Power cord | 50 ft (15.2 m) with in-line GFCI |
| Pressure hose | 45 ft (13.7 m) |
| Vac hose | 25 ft (7.6 m), plus a 20 ft (6.1 m) stretch hose |
| Blow hose | 33 ft (10.1 m) |
| Squeegee head | 14.5 in (36.8 cm), in the 1750 accessory kit |
| HEPA filter | Replace every 3 to 6 months |
| Warranty | Up to 5 years on rotomolded parts when only Kaivac chemicals are used |
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, pages 1-1, 3-1, 3-6, 3-8, 3-16, 3-20, 3-21 and 3-22. SES ref PF-D7QW-FI7D
Kaivac 1700 Series manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Online manuals
Read the 1700 Series manuals in your browser, with clickable part numbers. No sign-in needed.
- 1700 Series operator manual, free to read (Operator manual: 1750 S/N 13409+)
- 1700 Series operator manual, free to read (Operator manual: 1715 S/N 1-44 / 1720 S/N 1-161 / 1750 S/N 1-4998)
- 1700 Series operator manual, free to read (Operator manual: 1715 S/N 45+ / 1750 S/N 8001-13408)
- 1700 Series operator manual, free to read (Operator manual: 1720 S/N 162+ / 1750 S/N 4999-8000)
- 1700 Series operator manual, free to read (Operator manual: 1700 Series)
- 1700 Series operator manual, free to read (Operator manual: No-Touch Cleaning (NTC) Release 1 (02/2020))
- 1700 Series operator manual, free to read (Operator manual: No-Touch Cleaning (NTC) (10/2017))
- 1700 Series operator manual, free to read (Operator manual: No-Touch Cleaning (NTC) (2026))
- 1700 Series operator manual, free to read (Operator manual: No-Touch Cleaning (NTC) Release 5 (07/2025))
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SES1700 Series operator & parts manual, Rev. 080816Operator & parts manual · Aug 2016 file | KV1715 S/N 409+, KV1750 S/N 13409+, CE1750 S/N 497+ | Rev. 080816, 08/08/16 | 3.2 MB | Sign in to view or downloadSign in to download |
| PDFby SES1700 Series operator & parts manual, Rev. 121713Operator & parts manual · the owner's guide on this page is written from it | KV1715 S/N 409+, KV1750 S/N 13409+, CE1750 S/N 497+ | Rev. 121713, 12/17/13 | 3.2 MB | Sign in to view or downloadSign in to download |
| PDFby SES1700 Series operator & parts manual (2009)Operator & parts manual · searchable copy | KV1715 S/N 45-408, KV1750 S/N 8001-13408 | 2009 | 3.7 MB | Sign in to view or downloadSign in to download |
| PDFby SES1700 Series operator & parts manual (2006, revised)Operator & parts manual · searchable copy | KV1750 S/N 4999-8000, KV1720 S/N 162+ | 2006 revised | 3.3 MB | Sign in to view or downloadSign in to download |
| PDFby SES1700 Series operator & parts manual (2006)Operator & parts manual · searchable copy; Kaivac's KV1715 S/N 1-44 download is this manual | KV1750 S/N 1-4998, KV1720 S/N 1-161, KV1715 S/N 1-44 | 2006 | 3.2 MB | Sign in to view or downloadSign in to download |
| PDFby SESNo-Touch Cleaning (NTC) operator & parts manualFamily manual (1250, 1750, 2750) · 1750 sections | KV1750 built 2017-2019 | 10/2017 | 5.3 MB | Sign in to view or downloadSign in to download |
| PDFby SESNo-Touch Cleaning (NTC) operator & parts manual, Release 1Family manual · adds the KV17501 battery machine | KV1750 and KV17501 built 2020-2025 | 02/27/20 | 5.0 MB | Sign in to view or downloadSign in to download |
| PDFby SESNo-Touch Cleaning operator's manual (2026)Kaivac's current manual | KV1750 and KV17501, current | 2026 | 7.3 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Kaivac 1700 Series parts questions
How do I empty the vac tank on a Kaivac 1700 Series?
Disconnect the dump hose and drain it in the proper place. Take off the vac lid and rinse the tank, then lock the front casters and tip the machine left and slightly forward to drain the rest.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 2-4. SES ref PF-B2WS-TWFX
How often do I change the HEPA filter on a Kaivac 1700 Series?
Every 3 to 6 months, depending on use. A clogged HEPA filter also causes weak suction and moisture from the exhaust.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, pages 3-1 and 3-3. SES ref PF-B2WS-TWFX
Why is the vacuum weak on my Kaivac 1700 Series?
Common causes are a full vac tank, a dirty float screen or stuck float, worn squeegee blades or wheels, a loose access lid, or a plugged hose or HEPA filter.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 3-3. SES ref PF-B2WS-TWFX
Why won't the pump or vac motor on my Kaivac 1700 turn on?
Check that it's plugged in, the switches are on, the GFCI isn't tripped and the building circuit isn't overloaded. If those are fine, unplug it and check for loose wires under the panel.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 3-3. SES ref PF-B2WS-TWFX
Which metering tip should I use on my Kaivac?
Use the tip the placard lists for your chemical. The placard wraps around the push handles.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, pages 2-1 and 2-3. SES ref PF-B2WS-TWFX
Are the two dump hose caps on the Kaivac 1750 interchangeable?
No. One cap is tethered to the machine and the other to the hose, and Kaivac says they are not interchangeable.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 3-9. SES ref PF-B2WS-TWFX
Can I use other chemicals in a Kaivac 1700 Series machine?
Yes, if Kaivac approves them, with the standard 1-year parts and labor warranty. Chemicals Kaivac hasn't approved have no warranty. Using only Kaivac chemicals extends the warranty up to 5 years on rotomolded parts.
Source: Kaivac 1700 Series Operator & Parts Manual Rev. 121713, page 1-1. SES ref PF-B2WS-TWFX
Notes on this parts list
Places where Kaivac's drawings and parts list disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Pump drawing (page 3-12) prints WI1750; Kaivac's parts list prints WL1750, Water Line for 1750. This page uses WL1750.
- Switch panel drawing (page 3-16) prints CPS50B; the 3-way valve list (page 3-20) prints CPS50A, 3-way brass valve. Our catalog's KVCPS50B is a black knob, so both lines say call to confirm.
- Vac motor: the drawing and list heading say VMA1700; the black box list line is VMA1700R (HE 120V). Both are on this page.
- Older vac motors: serial 1 to 5449 used CVS01R (2-stage); serial 5450 to 12619 used CVM1R. VMA1700 is standard on KV1750 serial 12620 and later and KV1715 serial 401 and later (drawing page 3-14).
- Page 3-12 says the 1715 pump assembly is on "page 17"; it is manual page 3-13. Page 3-11 has a "See page ?" note Kaivac never filled in.
- Kaivac's descriptions are copied as printed, including its spellings (for example SWITCH PANAL).
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
- KV1715 S/N 1-44: the manual Kaivac posts for this range is the 2006 KV1720 / KV1750 manual, which has no KV1715 pump pages. This page shows that manual's common parts for these machines; for the pump, call 800-440-6723.
- Machines built from 2017 on: Kaivac's No-Touch Cleaning manuals (10/2017, 02/2020, 2026) give no serial breaks, so the Serial range list names them by the year the machine was built. If you are not sure which you have, leave Serial range on Not sure.
- 2026 manual: Kaivac's 2026 file is a scanned layout. Each of its part numbers on this page was checked against Kaivac's Release 5 (07/2025), 2020 and 2017 manuals; a number none of them prints says call to confirm.
- Aug 2016 manual (Rev. 080816): it replaces PCKV1 with PCKV1A, CVS01R with CVS01AR, CPS14 with CPS14B, GR14 with GR2 and FH6FT with UFH, and adds the 240V pump and vac motor numbers; the rows say which number they replace.
