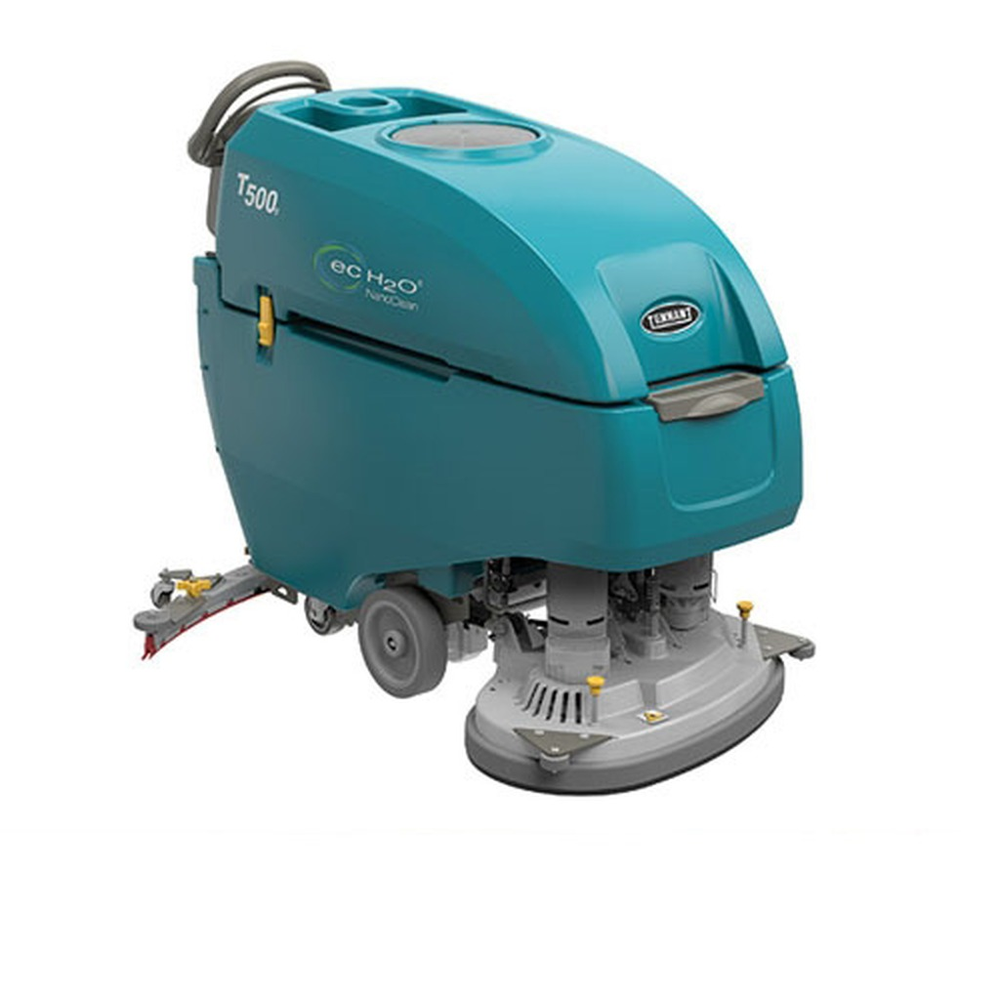

New Tennant T500/T500e Walk-Behind Floor Scrubber
Our Take (from the SES Sales Team)
“The T500e is a solid choice when a building has outgrown a 20-inch scrubber but still has hallways, doorways and aisles that a rider can't handle well. With 22.5 gallons of solution and a 27-gallon recovery tank, an operator can work a long school corridor, a grocery sales floor or a hospital wing without constant trips to the drain. It drives itself, and the controls are simple enough for rotating night crews.
The packages here differ only in deck width. The 26-inch is the most maneuverable and suits classrooms, offices and furnished areas. The 28-inch is the all-around middle option. The 32-inch covers the most floor, about 25,700 square feet an hour in Tennant's practical rating, and makes sense for open retail, warehouse and gym floors where turning room isn't an issue. All three come with the standard 225 Ah wet battery set.”
Tennant T500e: a mid-size dual-disc walk-behind floor scrubber
The Tennant T500e is a battery-powered, self-propelled walk-behind floor scrubber for mid-size floors, offered here with a dual-disc scrub deck in a 26 in (650 mm), 28 in (700 mm) or 32 in (800 mm) cleaning path. It carries a 22.5 gal (85 L) solution tank and a 27 gal (102 L) recovery tank, so it can run long routes between dump-and-fill stops. Tennant rates it for virtually any hard floor surface condition, and Tennant shows it working hospital corridors and grocery aisles. The T500e replaces Tennant's earlier T5e.
Choose your configuration
Compare the T500e deck sizes
| 26 in dual disc | 28 in dual disc | 32 in dual disc | |
|---|---|---|---|
| Estimated coverage (conventional) | 20,571 sq ft/hr | 22,286 sq ft/hr | 25,714 sq ft/hr |
| Down pressure (low / high) | 65 / 120 lb | 70 / 120 lb | 75 / 120 lb |
| Squeegee width | 38.3 in | 41.3 in | 46.6 in |
| Aisle turnaround width | 59 in | 59.6 in | 61.6 in |
| Best for | Narrower aisles and furnished areas | General-purpose mid-size routes | Open floors where coverage matters most |
| Packages here | T500e-1001D | T500e-1002D | T500e-1003D |
Reading the model numbers: All three packages are the conventional (water and detergent) T500e with four 6 V, 225 Ah wet batteries, Tennant's standard battery set for this machine. The last digit of the package number tracks the deck: 1001D is 26 in, 1002D is 28 in and 1003D is 32 in.
Features:
- Insta-Fit™ pad and brush installation with gimbal-mounted heads for quick, ergonomic changes
- Foot-activated squeegee lift and a redesigned squeegee with an integrated p-trap that stops drips after cleaning
- Accessible front fill port, and tanks that are easy to clean to help reduce mold, bacteria and other contaminants
- Propel direction switch and speed settings within easy reach of the operator
- Yellow touch points on daily maintenance areas; Smart-Fill™ automatic battery watering and IRIS® Asset Manager are available options

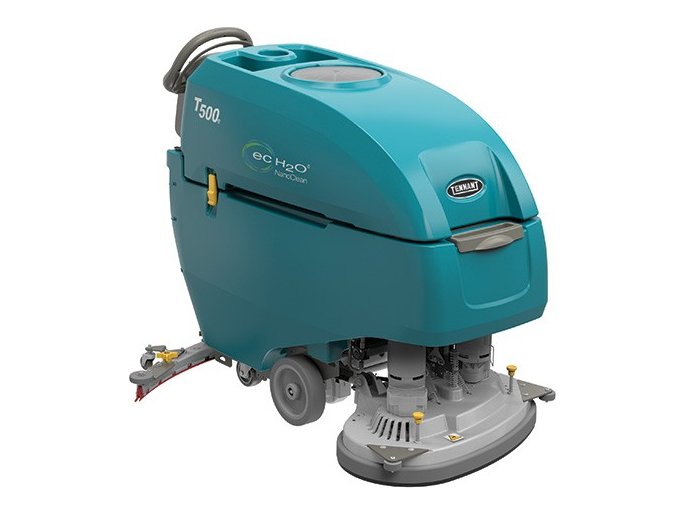

T500e with dual-disc deck

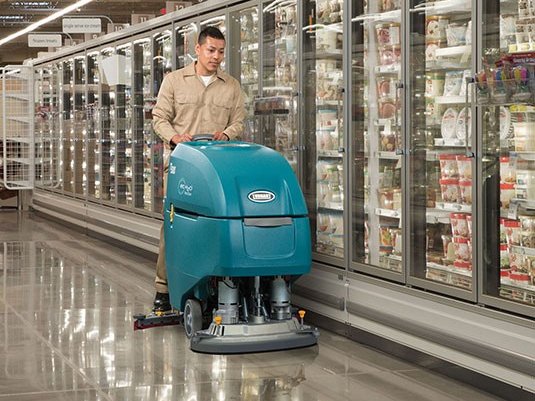

Scrubbing a grocery aisle

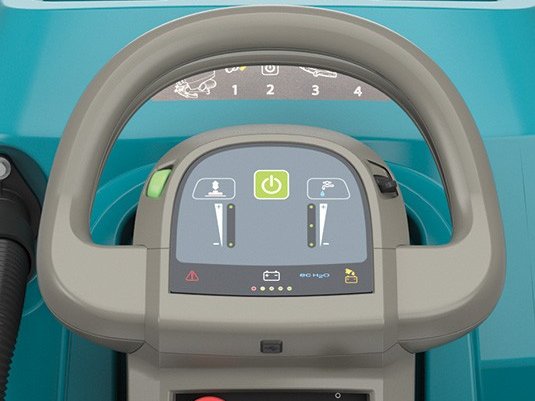

Operator controls
T500e 26 / 28 / 32 in
Specifications
| Models | T500e 26 in | T500e 28 in | T500e 32 in |
| Cleaning Path | 26 in (65 cm) dual disc | 28 in (70 cm) dual disc | 32 in (80 cm) dual disc |
| Theoretical Max Productivity | 28,600 sq ft/hr (2,657 m²/hr) | 30,800 sq ft/hr (2,861 m²/hr) | 35,200 sq ft/hr (3,270 m²/hr) |
| Estimated Coverage (conventional) | 20,571 sq ft/hr (1,911 m²/hr) | 22,286 sq ft/hr (2,070 m²/hr) | 25,714 sq ft/hr (2,389 m²/hr) |
| Solution / Recovery Tank | 22.5 gal (85 L) / 27 gal (102 L) | ||
| Scrub Motors | Two 24 VDC, 0.75 hp (0.55 kW) | ||
| Brush / Pad Speed | 220 rpm | ||
| Down Pressure (low / high) | 65 / 120 lb (29.5 / 54.5 kg) | 70 / 120 lb (32 / 54.5 kg) | 75 / 120 lb (34 / 54.5 kg) |
| Vacuum Water Lift | 34 in (864 mm) | ||
| Speed | Scrub up to 2.5 mph (4.0 km/h); transport up to 2.7 mph (4.3 km/h) | ||
| Batteries | 24 V, four 6 V, 225 Ah wet | ||
| Run Time (Tennant rating) | Up to 4.5 hr with optional 260 Ah wet batteries | Up to 4.5 hr with optional 260 Ah wet batteries | Up to 4.2 hr with optional 260 Ah wet batteries |
| Charger | On-board | ||
| Sound Level | 67.4 dBA | ||
| Squeegee Width | 38.3 in (97 cm) | 41.3 in (105 cm) | 46.6 in (123 cm) |
| Dimensions (L x W x H) | 58.5 x 27.5 x 43.3 in (149 x 70 x 110 cm) | 59.1 x 29.5 x 43.3 in (150 x 75 x 110 cm) | 61.1 x 33.5 x 43.3 in (155 x 85 x 110 cm) |
| Weight With Batteries | 610 lb (277 kg) | 620 lb (281 kg) | 645 lb (293 kg) |
| Model Numbers | T500e-1001D | T500e-1002D | T500e-1003D |
Technical specs may include optional equipment that is not included with all units.
| Option | Availability | Battery Type | Brush Speed (RPM) | Charger Type | Cleaning Path (inches) | Condition | Deck Type | Equipment Type | List Price | Machine Type | Manufacturer | Our Price | Power Source | Propulsion | Recovery Tank Size (gal) | Shipping Designation | Solution Tank Size (gal) | Sound Level (dBA) | Warranty Information | Unit | Purchase | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
New Tennant T500e 32" Disk Walk-Behind Scrubber - 225AH Battery
ENTNT500E-1003D
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 17,741.00 | Equipment | Tennant | 17,741.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$17,741.00/EA
|
||||||||||||
|
New Tennant T500e 28" Disk Walk-Behind Scrubber - 225AH Battery
ENTNT500E-1002D
|
Ships from Supplier - Availability May Vary | New | Walk-Behind Scrubbers | 16,827.00 | Equipment | Tennant | 16,827.00 | Qualifies for Free/Flat Rate Shipping | Full Factory Warranty |
$16,827.00/EA
|
||||||||||||
|
New Tennant T500e 26" Disk Walk-Behind Scrubber - 225AH Battery
ENTNT500E-1001D
|
Usually Ships in 3 to 5 Weeks | Wet | 220 | On-board Available | 26 | New | Disk | Walk-Behind Scrubbers | 15,992.00 | Equipment | Tennant | 15,992.00 | Battery | Self-propelled | 27 | Qualifies for Free/Flat Rate Shipping | 22.5 | 62 | Full Factory Warranty |
$15,992.00/EA
|
