Advance SC750 / SC800 parts list and diagrams

Every part number in Advance's parts list for the SC750, SC800, SC750 ST and SC800 ST automatic scrubber/dryers, with the manual's drawings, troubleshooting, maintenance and specs. Each part number links to that part in our store.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

Online manuals: Operator· Service

Complete list: every parts line in Advance's SC750, SC800, SC750 ST, SC800 ST Parts List, form 56042535 (7/2010, revised 12/2019, rev M), for the disk, cylindrical and REV builds, with the control, electrical, solution and squeegee lists for each. Checked November 11, 2026.

New to your SC750 / SC800? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →

Advance SC750 / SC800. See the SC750 / SC800

Batteries: 24 V, 312 Ah (four 6 V batteries)
Solution tank: SC750 and SC750 ST: 21 gal (79.5 L) maximum. SC800 and SC800 ST: 25 gal (94.6 L) maximum
Gross weight: SC750: 942 lb (427.3 kg); SC750-28R: 969 lb (439.5 kg); SC800: 994 lb (450.9 kg); SC800-28R: 1,021 lb (463.1 kg)
Sound pressure level: 61 dB(A); 64 dB(A) on the 28R models; uncertainty 3.0 dB(A)
Gradeability: 2% (1.15°) transporting and cleaning

Wear parts most SC750 and SC800 owners reorder

Advance's recommended spare parts page marks carbon brushes, brush blades and squeegee blade kits as wear parts, and the rear caster as ordinary maintenance. These are the ones on the parts list.

Blade Kit-Squeegee Gum (26” & 28” models)
p/n: AD56112330

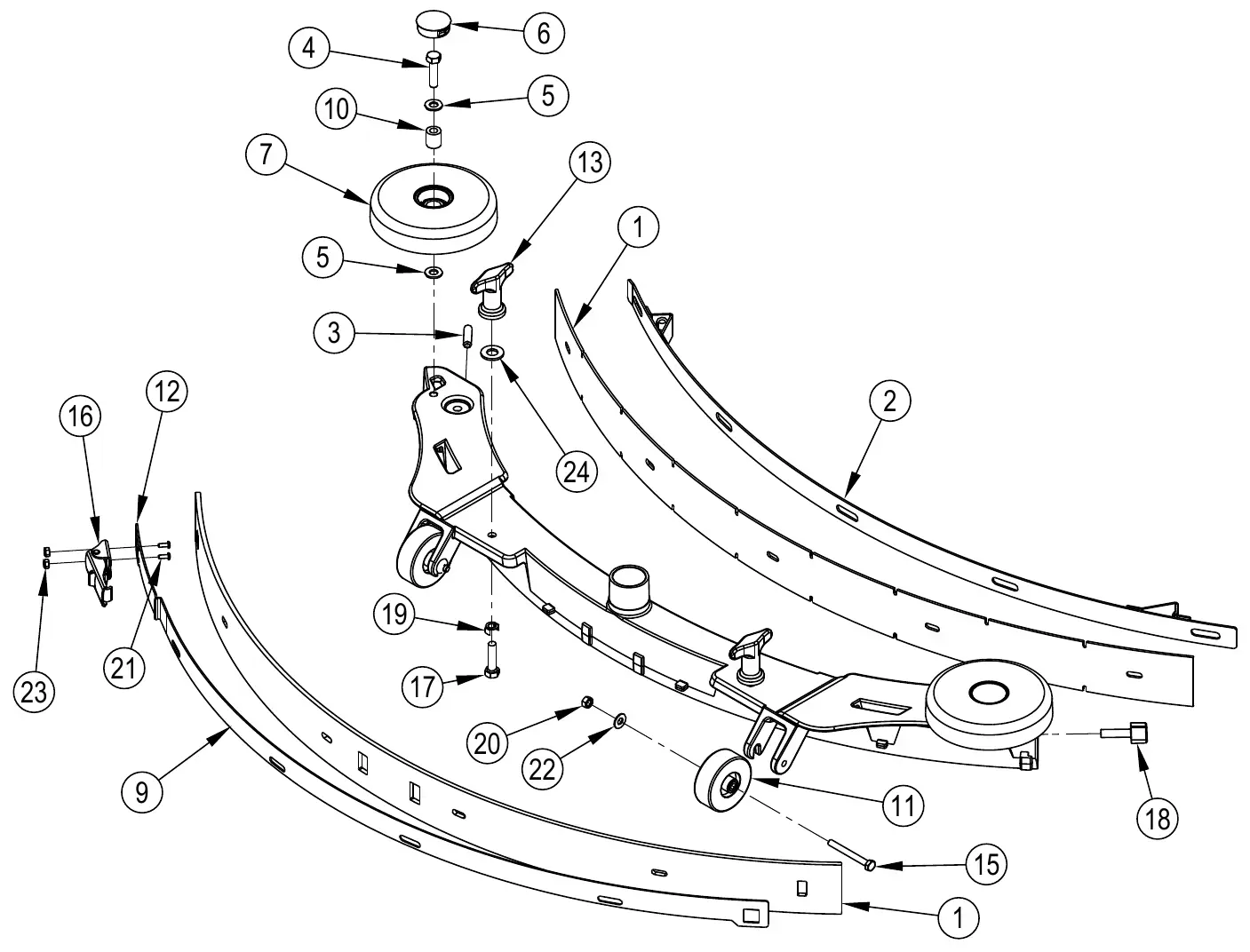

See it on the diagram: Squeegee assy
$35.18/EA
Quantity for AD56112330
Blade Kit-Squeegee Gum (32” & 34” models)
p/n: AD56115334
See it on the diagram: Squeegee assy
$46.55/EA
Quantity for AD56115334
Carbon Brush Set of 2 (for 56384102)
p/n: AD56397098
See it on the diagram: Recovery system
$23.35/EA
Quantity for AD56397098
No photo yet
Carbon Brush (for 56112240)
p/n: AD56112242
See it on the diagram: Scrub system-disk
$138.74/EA
Quantity for AD56112242
No photo yet
Carbon Brush (for 56112543)
p/n: AD40628A
See it on the diagram: Chassis system-disk
$32.48/EA
Quantity for AD40628A
Blade
p/n: AD56407391
See it on the diagram: Scrub system-cylindrical
$11.69/EA
Quantity for AD56407391
Caster, Rear
p/n: AD56112308
See it on the diagram: Chassis system-disk
$106.33/EA
Quantity for AD56112308
No photo yet
Brush Cap Assy (for 56112111)
p/n: AD56412257
See it on the diagram: Scrub system-cylindrical
Call to confirm part: 800-440-6723

Source: Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form 56042535 (rev M), page 43. SES ref PF-CJG5-EWLR‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌‌⁠‍‍‍‌⁠⁠‌‍‍‍⁠‍‍⁠‍‍‌‍⁠‍

Your machine

ModelScrub deck

How to tell which you have

Nameplate: the model and serial number are on the nameplate in the battery compartment. Pick your model number from the list above.
Model name: the parts list ties 26D, 28D and 34D to disk scrub decks, 28C and 32C to cylindrical scrub decks, and the REV deck to the 28R. The number is the deck size in inches. The SC750 and SC800 differ in tank size.
ST models: the SC750 ST and SC800 ST have palm drive buttons and a reverse button. The other models have a drive paddle.
Serial number 4000068715: the paddle, handle and main harness lines change at this serial number. Those lines say which side they cover.
Machines made after June 2014: Advance's instructions for use cover machines manufactured after June 2014.

How to read this list

Our part numbers are the Advance number with AD in front, so Advance 56112330 is AD56112330. Each line shows the item number on the drawing. Lines with no item number are optional parts, service kits or parts not shown on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Some small parts have no part number of their own and come in a kit; the note names the kit. Prices were current on November 11, 2026; your cart always shows the current price. Have your machine serial number ready when you call.

Advance SC750 / SC800 Battery charger system parts

The onboard charger, its cord and adapters, the charge LED, bracket and decal. Manual page 3.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‍‌⁠‌⁠‌⁠‌⁠‍‍‌‌‍‍‌‌‌‍‌‌‍‍‌‌⁠‍‌‍

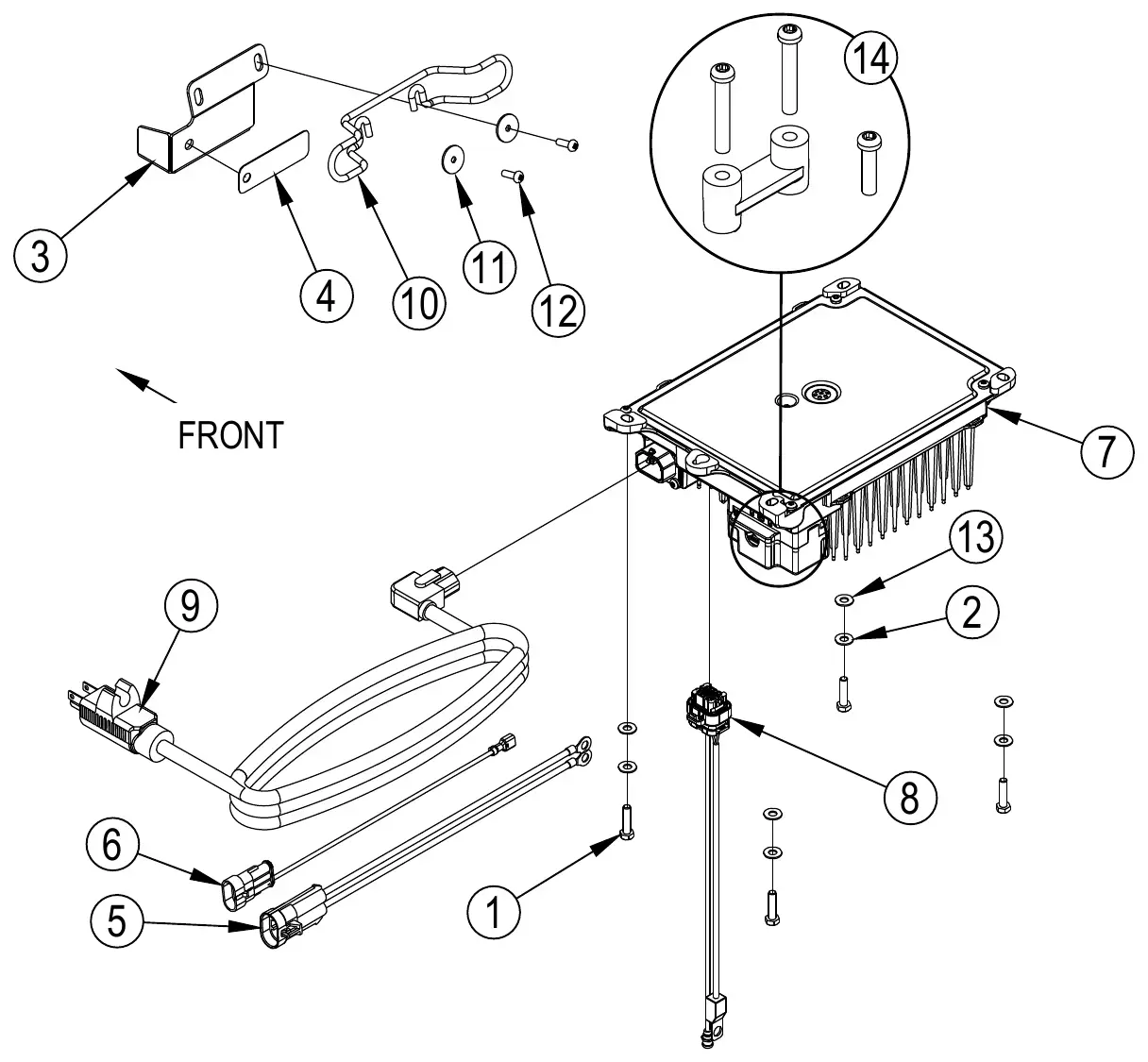

Advance SC750 / SC800 battery charger system drawing, manual page 3 — Battery charger system, manual page 3. Numbers on the drawing match the Item column. SES ref PF-7RE4-DZFL‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‍‌⁠‌⁠‌⁠‌⁠‍‍‌‌‍‍‌‌‌‍‌‌‍‍‌‌⁠‍‌‍

Advance SC750 / SC800 Battery charger system parts (manual page 3, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56003431	4	Scr Hex SS M6-1.00X16MM	$10.30/EA Quantity for AD56003431
2	AD56009064	4	Wsh Int Shprf 1/4	$11.69/EA Quantity for AD56009064
3	AD56383502	1	Bracket-LED	$45.74/EA Quantity for AD56383502
4	AD56383503	1	Decal-Charger LED	$13.07/EA Quantity for AD56383503
5	AD56383586	1	Adapter-Charger DeltaQ Power	$24.72/EA Quantity for AD56383586
6	AD56383886	1	Adapter-Interlock	$17.46/EA Quantity for AD56383886
7	AD56383856	1	Charger-Onboard 24VDC 650W s TSB-FC-2015-007Standard on model 56112780. Charger 56112544 has been replaced in production by 56383856. To replace 56112544 order Onboard Charger Kit 56383869. i	$1,206.67/EA Quantity for AD56383856
8	AD56383857	1	Indicator-Charge LED W/Temp	$121.64/EA Quantity for AD56383857
9	AD56383866	1	Cord-AC Nema IEC320 – DeltaQ	$72.07/EA Quantity for AD56383866
10	AD9095149000	1	Battery Cable Support	$4.83/EA Quantity for AD9095149000
11	AD56009096	2	Wsh Flt .193X.875X.060	$10.30/EA Quantity for AD56009096
12	AD964004	2	Screw M5X16 PN ST PH	$12.85/EA Quantity for AD964004
13	AD56002859Replaces Advance 87026A	4	Washer .250 FLAT SS	$10.30/EA Quantity for AD56002859
14	AD56384043	1	Strain Relief Kit	$16.09/EA Quantity for AD56384043
–	AD56478523	8	Tie-CableNot shown.	$11.69/EA Quantity for AD56478523

Advance SC750 / SC800 Chassis system-disk parts

The chassis for the disk builds: frame, transaxle, wheels, rear caster, actuator, water filter and hardware. Manual pages 4, list 5.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‌‍⁠‌‌‌⁠‍‍‌‌⁠‍‌⁠‍‌‍⁠⁠⁠⁠⁠⁠‌‍‍⁠⁠⁠

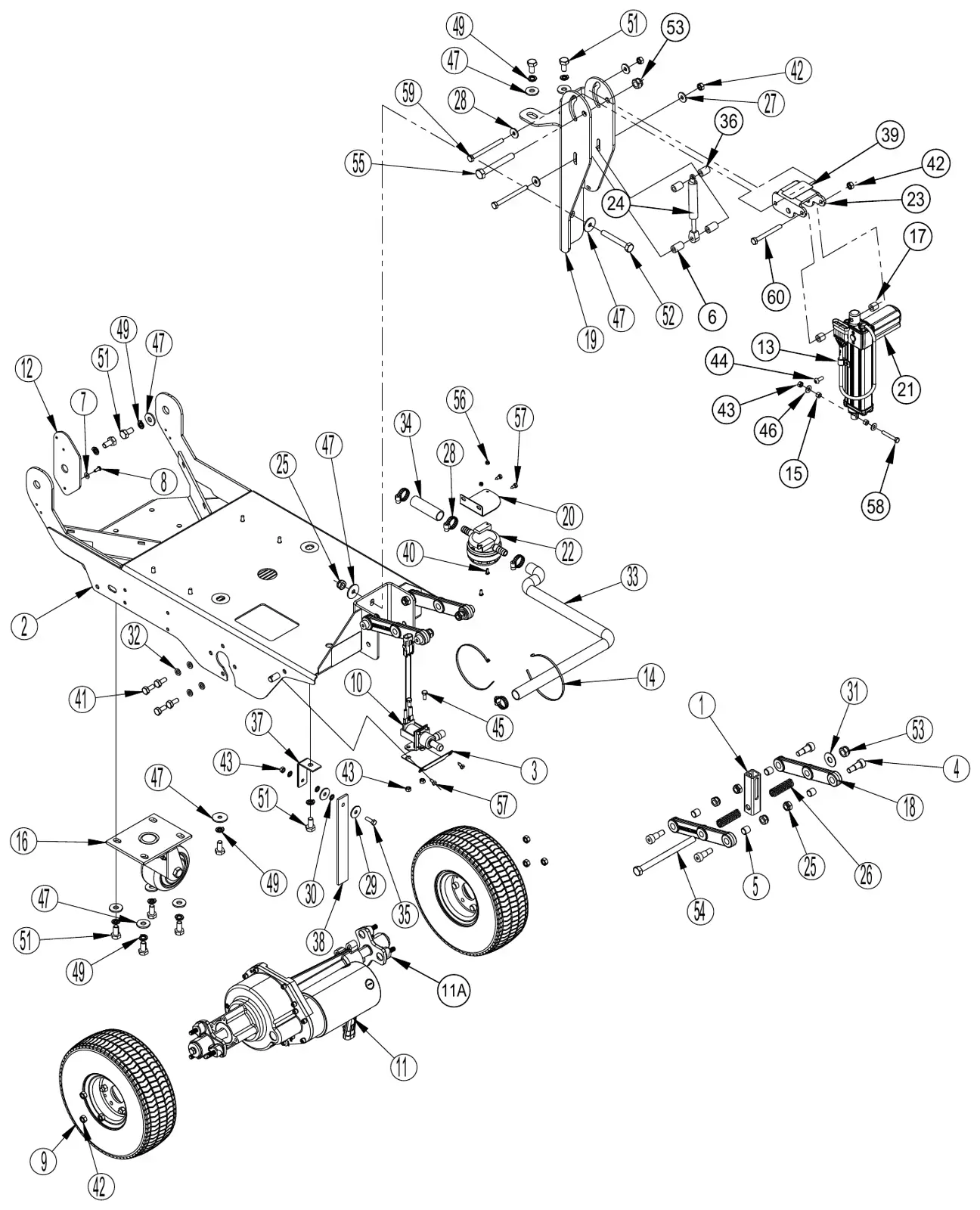

Advance SC750 / SC800 chassis system-disk drawing, manual page 4 — Chassis system-disk, manual page 4. Numbers on the drawing match the Item column. SES ref PF-NZLK-TXBA‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‌‍⁠‌‌‌⁠‍‍‌‌⁠‍‌⁠‍‌‍⁠⁠⁠⁠⁠⁠‌‍‍⁠⁠⁠

Advance SC750 / SC800 Chassis system-disk parts (manual pages 4, list 5, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56109717	1	Tube Jack Motor Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$18.96/EA Quantity for AD56109717
2	AD56112765	1	Chassis Weldt Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$611.13/EA Quantity for AD56112765
3	AD61932A	1	Bracket, Solution Valve Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD61932A
4	AD56003883	8	SCR-SOC SHD M12X16MMX M10-1.50 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D Revised or new since last update.	$4.27/EA Quantity for AD56003883
5	AD56112548	8	Bushing Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56112548
6	AD9096113000	2	Spacer Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.50/EA Quantity for AD9096113000
7	AD56001954	1	Wsh, Flt SAE #10 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.33/EA Quantity for AD56001954
8	AD56009029	1	Scr, Pan Phil Thd Form 10-24 X .50 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56009029
9	AD56112109	2	Tire Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$171.85/EA Quantity for AD56112109
10	AD56112147	1	Solenoid Valve Assy (L1) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$189.43/EA Quantity for AD56112147
11	AD56112543	1	Transaxle Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$1,945.12/EA Quantity for AD56112543
11A	AD56380158	2	Flange Kit (for 56112543) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$121.15/EA Quantity for AD56380158
–	AD56382670	1	Kit Transaxle Motor (for 56112543) (M1) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D Optional, not included.	$712.53/EA Quantity for AD56382670
–	AD40628A	4	Carbon Brush (for 56112543) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D Optional, not included.	$32.48/EA Quantity for AD40628A
12	AD56112768	1	Connector Brkt Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.07/EA Quantity for AD56112768
13	AD56323260	1	Clamp, Hose Support Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56323260
14	AD56478523	1	Tie, Cable Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56478523
15	AD1462258000	2	Spacer 6.1 X 10 X 6.5 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD1462258000
16	AD56112308	1	Caster, Rear Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$106.33/EA Quantity for AD56112308
17	AD9096112000	2	Spacer Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.50/EA Quantity for AD9096112000
18	AD56382618	4	Lever Kit Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$29.53/EA Quantity for AD56382618
19	AD9097368000	1	Support, Jack Motor Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$84.49/EA Quantity for AD9097368000
20	AD9097370000	1	Bracket, Filter Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD9097370000
21	AD40280A	1	Actuator (M2) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$945.48/EA Quantity for AD40280A
22	AD9100000362	1	Filter Water TSB-FC-2013-127 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$23.21/EA Quantity for AD9100000362
–	AD9100000860Replaces Advance 9095215000	1	Filter and Seal (for 9100000362) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D Optional, not included.	$35.50/EA Quantity for AD9100000860
23	AD9097456000Advance 9097456000	1	Lever Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	Call to confirm part: 800-440-6723
24	AD54689A	1	Gas Spring 500n Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$40.81/EA Quantity for AD54689A
25	AD80223A	9	Nut, M10-1.5 Nylock Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD80223A
26	ADE04016	2	Spring Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.50/EA Quantity for ADE04016
27	AD56001939Replaces Advance 170860	4	Washer, Flat 5/16 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.33/EA Quantity for AD56001939
28	AD722030	4	Clamp, Hose Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$9.35/EA Quantity for AD722030
29	AD980205	2	Washer, .31 I.D. X 1.06 O.D. Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD980205
30	AD980614	3	Washer, 1/4” Starlock, External Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD980614
31	AD56001879Replaces Advance 980648	1	Washer 17/32 X 1 1/16 Plain Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56001879
32	AD980652	8	Washer, 5/16 Lock Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.33/EA Quantity for AD980652
33	AD30828A	1	Hose, Clear X25.00 Long Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD30828A
34	AD30829A	1	Hose, Clear X 3.00 Long Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD30829A
35	AD56002454Replaces Advance 56003942	1	Scr-Hex SS M6-1 X 20MM Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$15.40/EA Quantity for AD56002454
36	AD61937A	2	Spacer, .590od X .328id Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.98/EA Quantity for AD61937A
37	AD61949A	1	Bracket, Ground Strap Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD61949A
38	AD69639A	1	Strap, Static Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.07/EA Quantity for AD69639A
39	AD71017A	1	Label, Moving Parts Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$16.09/EA Quantity for AD71017A
40	AD80057A	2	Screw, M4-.7x10 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.98/EA Quantity for AD80057A
41	AD56003179Replaces Advance 80183A	8	Bolt, M8-1.25 X 20, Hex Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.33/EA Quantity for AD56003179
42	AD80198A	9	Nut, M8 -1.25 Nylock S.S. Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD80198A
43	AD80199A	4	Nut, M6 -1.00 Nylock S.S. Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD80199A
44	AD80208A	1	Screw, M6 X 1.00 X 10mm Pan Head Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD80208A
45	AD56003211	2	Scr Hex Hd SS M6-1.0 X 12MM Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56003211
46	AD56002859Replaces Advance 87026A	2	Washer, 1/4 Flat S.S. Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56002859
47	AD87054A	10	Washer Fender .375 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.08/EA Quantity for AD87054A
49	AD88612A	10	Washer, Lock M10 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD88612A
51	AD56003483Replaces Advance 88614A	10	Screw, M10-1.5 X 20mm Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56003483
52	AD88616A	1	Screw, Hex Hd M10x75 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD88616A
53	AD56003312Replaces Advance 88618A	2	Nut, M12 Nylon Insert Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56003312
54	AD88619A	1	Screw, Hex Hd M12x160 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$4.27/EA Quantity for AD88619A
55	AD88620A	1	Screw, Hex Hd M12x90 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD88620A
56	AD88623A	2	Nut, M4-.7 Nylock Insert Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.08/EA Quantity for AD88623A
57	AD88624A	4	Screw, M5 X 12mm Hex Self Tap Tri-Lobe Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD88624A
58	AD88626A	1	Screw M6-1 X 40mm Hex Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD88626A
59	AD56003390	2	Screw, M8 X 90 Hex Head Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56003390
60	AD88635A	1	Screw, M8 X75 Hex Head Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.08/EA Quantity for AD88635A

Advance SC750 / SC800 Chassis system-cylindrical parts

The chassis for the cylindrical builds: frame, transaxle, wheels, rear caster, actuator, water filter and hardware. Manual pages 6, list 7.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‌‍‍‌‌‌‌⁠‍‍‍‍‌‍⁠‍‌⁠‍⁠⁠‍‌‍‍‌⁠⁠

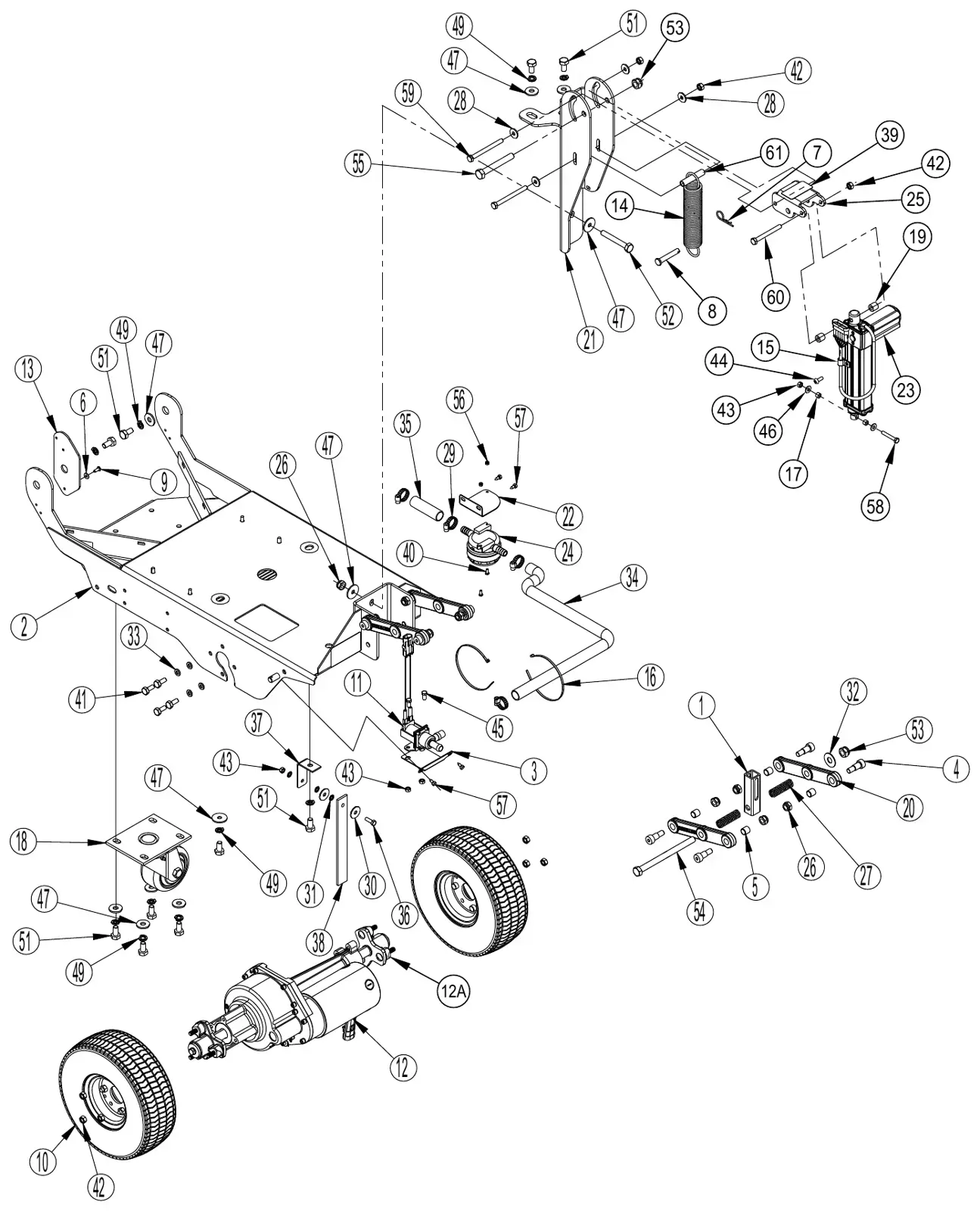

Advance SC750 / SC800 chassis system-cylindrical drawing, manual page 6 — Chassis system-cylindrical, manual page 6. Numbers on the drawing match the Item column. SES ref PF-7VLG-DLSF‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‌‍‍‌‌‌‌⁠‍‍‍‍‌‍⁠‍‌⁠‍⁠⁠‍‌‍‍‌⁠⁠

Advance SC750 / SC800 Chassis system-cylindrical parts (manual pages 6, list 7, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56109717	1	Tube Jack Motor Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$18.96/EA Quantity for AD56109717
2	AD56112765	1	Chassis Weldt Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$611.13/EA Quantity for AD56112765
3	AD61932A	1	Bracket, Solution Valve Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD61932A
4	AD56003883	8	SCR-SOC SHD M12X16MMX M10-1.50 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C Revised or new since last update.	$4.27/EA Quantity for AD56003883
5	AD56112548	8	Bushing Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56112548
6	AD56001954	1	Wsh, Flt SAE #10 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.33/EA Quantity for AD56001954
7	AD56002959	1	Pin, Cotter Hair Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56002959
8	AD56003656	1	Pin-Clevis .375 X 2.25 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.85/EA Quantity for AD56003656
9	AD56009029	1	Scr, Pan Phil Thd Form 10-24 X .50 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56009029
10	AD56112109	2	Tire Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$171.85/EA Quantity for AD56112109
11	AD56112147	1	Solenoid Valve Assy (L1) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$189.43/EA Quantity for AD56112147
12	AD56112543	1	Transaxle Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$1,945.12/EA Quantity for AD56112543
12A	AD56380158	2	Flange Kit (for 56112543) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$121.15/EA Quantity for AD56380158
–	AD56382670	1	Kit Transaxle Motor (for 56112543) (M1) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C Optional, not included.	$712.53/EA Quantity for AD56382670
–	AD40628A	4	Carbon Brush (for 56112543) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C Optional, not included.	$32.48/EA Quantity for AD40628A
13	AD56112768	1	Connector Brkt Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.07/EA Quantity for AD56112768
14	AD56422075	1	Spring Extension Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$27.75/EA Quantity for AD56422075
15	AD56323260	1	Clamp, Hose Support Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56323260
16	AD56478523	1	Tie, Cable Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56478523
17	AD1462258000	2	Spacer 6.1 X 10 X 6.5 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD1462258000
18	AD56112308	1	Caster, Rear Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$106.33/EA Quantity for AD56112308
19	AD9096112000	2	Spacer Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.50/EA Quantity for AD9096112000
20	AD56382618	4	Lever Kit Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$29.53/EA Quantity for AD56382618
21	AD9097368000	1	Support, Jack Motor Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$84.49/EA Quantity for AD9097368000
22	AD9097370000	1	Bracket, Filter Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD9097370000
23	AD40280A	1	Actuator (M2) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$945.48/EA Quantity for AD40280A
24	AD9100000362	1	Filter Water TSB-FC-2013-127 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$23.21/EA Quantity for AD9100000362
–	AD9100000860Replaces Advance 9095215000	1	Filter and Seal (for 9100000362) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C Optional, not included.	$35.50/EA Quantity for AD9100000860
25	AD9097456000Advance 9097456000	1	Lever Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	Call to confirm part: 800-440-6723
26	AD80223A	9	Nut, M10-1.5 Nylock Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD80223A
27	ADE04016	2	Spring Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.50/EA Quantity for ADE04016
28	AD56001939Replaces Advance 170860	4	Washer, Flat 5/16 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.33/EA Quantity for AD56001939
29	AD722030	4	Clamp, Hose Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$9.35/EA Quantity for AD722030
30	AD980205	2	Washer, .31 I.D. X 1.06 O.D. Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD980205
31	AD980614	3	Washer, 1/4” Starlock, External Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD980614
32	AD56001879Replaces Advance 980648	1	Washer 17/32 X 1 1/16 Plain Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56001879
33	AD980652	8	Washer, 5/16 Lock Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.33/EA Quantity for AD980652
34	AD30828A	1	Hose, Clear X25.00 Long Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD30828A
35	AD30829A	1	Hose, Clear X 3.00 Long Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD30829A
36	AD56002454Replaces Advance 56003942	1	Scr-Hex SS M6-1 X 20MM Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$15.40/EA Quantity for AD56002454
37	AD61949A	1	Bracket, Ground Strap Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD61949A
38	AD69639A	1	Strap, Static Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.07/EA Quantity for AD69639A
39	AD71017A	1	Label, Moving Parts Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$16.09/EA Quantity for AD71017A
40	AD80057A	2	Screw, M4-.7x10 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.98/EA Quantity for AD80057A
41	AD56003179Replaces Advance 80183A	8	Bolt, M8-1.25 X 20, Hex Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.33/EA Quantity for AD56003179
42	AD80198A	9	Nut, M8 -1.25 Nylock S.S. Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD80198A
43	AD80199A	4	Nut, M6 -1.00 Nylock S.S. Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD80199A
44	AD80208A	1	Screw, M6 X 1.00 X 10mm Pan Head Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD80208A
45	AD56003211	2	Scr Hex Hd SS M6-1.0 X 12MM Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56003211
46	AD56002859Replaces Advance 87026A	2	Washer, 1/4 Flat S.S. Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56002859
47	AD87054A	10	Washer Fender .375 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.08/EA Quantity for AD87054A
49	AD88612A	10	Washer, Lock M10 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD88612A
51	AD56003483Replaces Advance 88614A	10	Screw, M10-1.5 X 20mm Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56003483
52	AD88616A	1	Screw, Hex Hd M10x75 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD88616A
53	AD56003312Replaces Advance 88618A	2	Nut, M12 Nylon Insert Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56003312
54	AD88619A	1	Screw, Hex Hd M12x160 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$4.27/EA Quantity for AD88619A
55	AD88620A	1	Screw, Hex Hd M12x90 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD88620A
56	AD88623A	2	Nut, M4-.7 Nylock Insert Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.08/EA Quantity for AD88623A
57	AD88624A	4	Screw, M5 X 12mm Hex Self Tap Tri-Lobe Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD88624A
58	AD88626A	1	Screw M6-1 X 40mm Hex Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD88626A
59	AD56003390	2	Screw, M8 X 90 Hex Head Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56003390
60	AD88635A	1	Screw, M8 X75 Hex Head Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.08/EA Quantity for AD88635A
61	AD56112520	1	Spacer Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56112520

Advance SC750 / SC800 Chassis system-REV parts

The chassis for the REV builds: frame, transaxle, wheels, caster, lifting support, onboard charger kit and hardware. Manual pages 8, list 9.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‍⁠‍‌⁠‍‍‌‌‌‍⁠‌‌⁠⁠⁠‍‍‌⁠⁠‌‍⁠‍

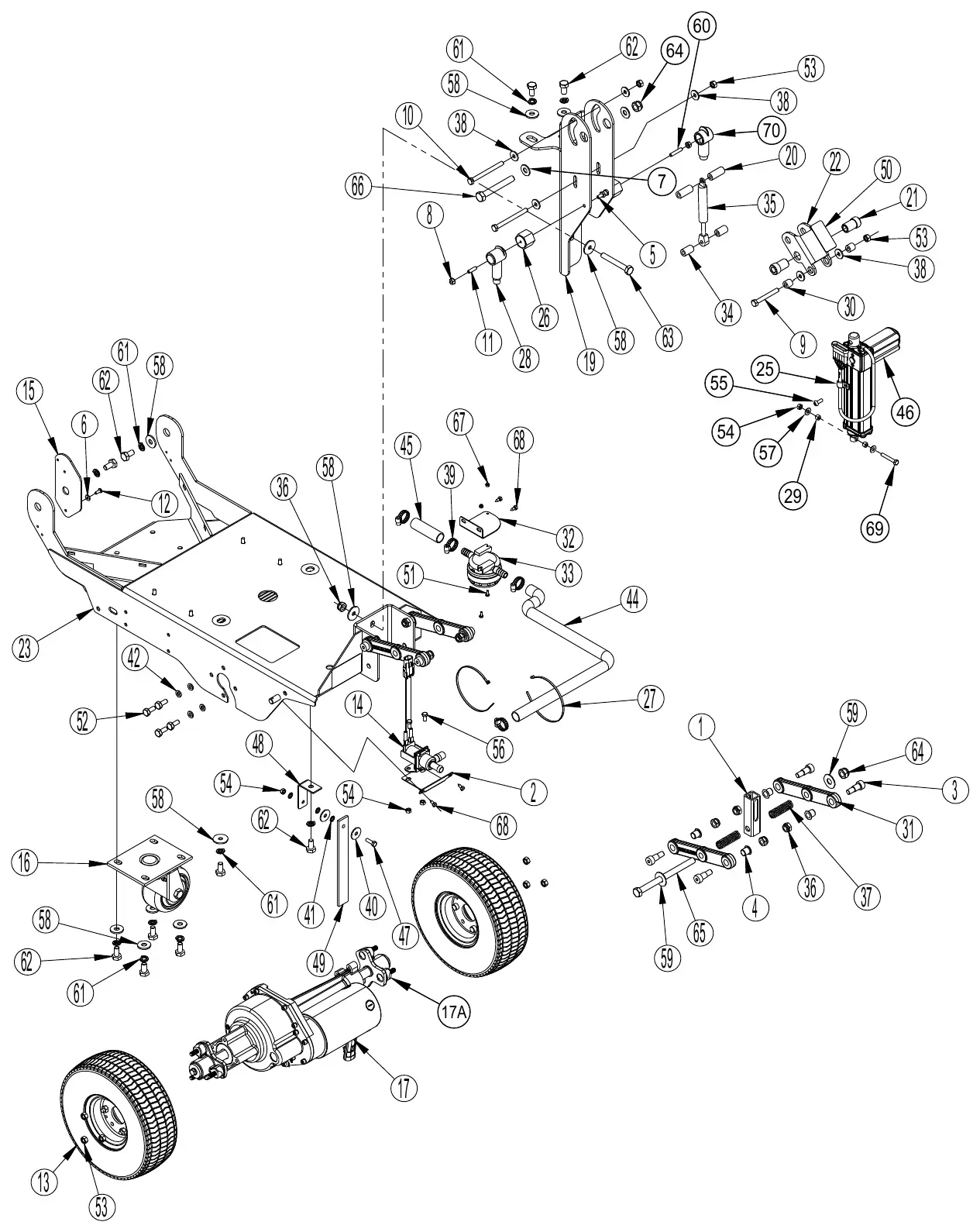

Advance SC750 / SC800 chassis system-rev drawing, manual page 8 — Chassis system-REV, manual page 8. Numbers on the drawing match the Item column. SES ref PF-LZLH-6SRE‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‍⁠‍‌⁠‍‍‌‌‌‍⁠‌‌⁠⁠⁠‍‍‌⁠⁠‌‍⁠‍

Advance SC750 / SC800 Chassis system-REV parts (manual pages 8, list 9, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56109717	1	Tube Jack Motor Fits 2 of 15 versions SC750-28R, SC800-28R	$18.96/EA Quantity for AD56109717
2	AD61932A	1	Bracket, Solution Valve Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD61932A
3	AD56003883	8	SCR-SOC SHD M12X16MMX M10-1.50 Fits 2 of 15 versions SC750-28R, SC800-28R Revised or new since last update.	$4.27/EA Quantity for AD56003883
4	AD9097008000	8	Bush Flanged GFM1214-09 Fits 2 of 15 versions SC750-28R, SC800-28R	$10.42/EA Quantity for AD9097008000
5	AD56001854	2	Scr-Hex 1/4-20 X .50 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56001854
6	AD56001954	1	Wsh, Flt SAE #10 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.33/EA Quantity for AD56001954
7	AD56002918	2	Wsh Flt SAE SS 1/2 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56002918
8	AD56002561	2	Nut, Hex W/ Shprf 1/4-20 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56002561
9	AD88635A	1	Screw M8-1.25 X 75MM Hex Fits 2 of 15 versions SC750-28R, SC800-28R	$12.08/EA Quantity for AD88635A
10	AD56003390	2	Scr-Hex M8-1.25 X 90mm Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56003390
11	AD56009020	1	Stud Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56009020
12	AD56009029	1	Scr, Pan Phil Thd Form 10-24 X .50 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56009029
13	AD56112109	2	Wheel Fits 2 of 15 versions SC750-28R, SC800-28R	$171.85/EA Quantity for AD56112109
14	AD56112147	1	Solenoid Valve Assy Fits 2 of 15 versions SC750-28R, SC800-28R	$189.43/EA Quantity for AD56112147
15	AD56112768	1	Connector Brkt Fits 2 of 15 versions SC750-28R, SC800-28R	$13.07/EA Quantity for AD56112768
16	AD56112308	1	Caster-Swivel 4.00 X 2.00 Fits 2 of 15 versions SC750-28R, SC800-28R	$106.33/EA Quantity for AD56112308
17	AD56112543	1	Transaxle Fits 2 of 15 versions SC750-28R, SC800-28R	$1,945.12/EA Quantity for AD56112543
17A	AD56380158	2	Flange Kit (for 56112543) Fits 2 of 15 versions SC750-28R, SC800-28R	$121.15/EA Quantity for AD56380158
–	AD56382670	1	Kit Transaxle Motor (for 56112543) (M1) Fits 2 of 15 versions SC750-28R, SC800-28R Optional, not included.	$712.53/EA Quantity for AD56382670
–	AD40628A	4	Carbon Brush (for 56112543) Fits 2 of 15 versions SC750-28R, SC800-28R Optional, not included.	$32.48/EA Quantity for AD40628A
18	AD56383869	1	Kit-OBC SC750 Fits 2 of 15 versions SC750-28R, SC800-28R Charger 56112544 has been replaced in production by 56383856. To replace 56112544 order Onboard Charger Kit 56383869. Not shown.	$1,869.35/EA Quantity for AD56383869
19	AD56112711	1	Lifting Support Weldt Fits 2 of 15 versions SC750-28R, SC800-28R	$97.79/EA Quantity for AD56112711
20	AD56112715	2	Spacer Nylon Fits 2 of 15 versions SC750-28R, SC800-28R	$27.75/EA Quantity for AD56112715
21	AD56112716	2	Spacer Nylon Fits 2 of 15 versions SC750-28R, SC800-28R	$38.06/EA Quantity for AD56112716
22	AD56112719	1	Lever Fits 2 of 15 versions SC750-28R, SC800-28R	$23.35/EA Quantity for AD56112719
23	AD56112765	1	Chassis Weldt Fits 2 of 15 versions SC750-28R, SC800-28R	$611.13/EA Quantity for AD56112765
24	AD56383866	1	Cord-AC NEMA IEC320 - DELTAQ Fits 2 of 15 versions SC750-28R, SC800-28R Not shown.	$72.07/EA Quantity for AD56383866
25	AD56323260	1	Clamp, Hose Support Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56323260
26	AD56469858	2	Electrical Mount Fits 2 of 15 versions SC750-28R, SC800-28R	$13.07/EA Quantity for AD56469858
27	AD56478523	10	Tie, Cable Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56478523
28	AD56493357	1	Insulator, Terminal Fits 2 of 15 versions SC750-28R, SC800-28R	$13.07/EA Quantity for AD56493357
29	AD1462258000	2	Spacer 6.1 X 10 X 6.5 Fits 2 of 15 versions SC750-28R, SC800-28R	$13.76/EA Quantity for AD1462258000
30	AD9096112000	2	Spacer Fits 2 of 15 versions SC750-28R, SC800-28R	$12.50/EA Quantity for AD9096112000
31	AD56382618	4	Lever Kit Fits 2 of 15 versions SC750-28R, SC800-28R	$29.53/EA Quantity for AD56382618
32	AD9097370000	1	Bracket, Filter Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD9097370000
33	AD9100000362	1	Filter Water TSB-FC-2013-127 Fits 2 of 15 versions SC750-28R, SC800-28R	$23.21/EA Quantity for AD9100000362
–	AD9100000860Replaces Advance 9095215000	1	Filter and Seal (for 9100000362) Fits 2 of 15 versions SC750-28R, SC800-28R Optional, not included.	$35.50/EA Quantity for AD9100000860
34	AD9096113000	2	Spacer Fits 2 of 15 versions SC750-28R, SC800-28R	$12.50/EA Quantity for AD9096113000
35	AD54689A	1	Gas Spring 500n Fits 2 of 15 versions SC750-28R, SC800-28R	$40.81/EA Quantity for AD54689A
36	AD80223A	9	Nut, M10-1.5 Nylock Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD80223A
37	ADE04016	2	Spring Fits 2 of 15 versions SC750-28R, SC800-28R	$12.50/EA Quantity for ADE04016
38	AD56001939Replaces Advance 170860	6	Washer, Flat 5/16 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.33/EA Quantity for AD56001939
39	AD722030	4	Clamp, Hose Fits 2 of 15 versions SC750-28R, SC800-28R	$9.35/EA Quantity for AD722030
40	AD980205	2	Washer, .31 I.D. X 1.06 O.D. Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD980205
41	AD980614	3	Washer, 1/4” Starlock, External Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD980614
42	AD980652	8	Washer, 5/16 Lock Fits 2 of 15 versions SC750-28R, SC800-28R	$11.33/EA Quantity for AD980652
43	AD980657	4	Washer, Lock 1/4 Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD980657
44	AD56266134	1	Hose Spiral .50 X 22.00 Fits 2 of 15 versions SC750-28R, SC800-28R	$13.70/EA Quantity for AD56266134
45	AD30829A	1	Hose, Clear X 3.00 Long Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD30829A
46	AD40280A	1	Actuator Fits 2 of 15 versions SC750-28R, SC800-28R	$945.48/EA Quantity for AD40280A
47	AD56002454Replaces Advance 56003942	1	Scr-Hex SS M6-1 X 20MM Fits 2 of 15 versions SC750-28R, SC800-28R	$15.40/EA Quantity for AD56002454
48	AD61949A	1	Bracket, Ground Strap Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD61949A
49	AD69639A	1	Strap, Static Fits 2 of 15 versions SC750-28R, SC800-28R	$13.07/EA Quantity for AD69639A
50	AD71017A	1	Label, Moving Parts Fits 2 of 15 versions SC750-28R, SC800-28R	$16.09/EA Quantity for AD71017A
51	AD80057A	2	Screw, M4-.7x10 Fits 2 of 15 versions SC750-28R, SC800-28R	$10.98/EA Quantity for AD80057A
52	AD56003179Replaces Advance 80183A	8	Bolt, M8-1.25 X 20, Hex Fits 2 of 15 versions SC750-28R, SC800-28R	$11.33/EA Quantity for AD56003179
53	AD80198A	9	Nut, M8 -1.25 Nylock S.S. Fits 2 of 15 versions SC750-28R, SC800-28R	$13.76/EA Quantity for AD80198A
54	AD80199A	4	Nut, M6 -1.00 Nylock S.S. Fits 2 of 15 versions SC750-28R, SC800-28R	$13.76/EA Quantity for AD80199A
55	AD80208A	1	Screw, M6 X 1.00 X 10mm Pan Head Fits 2 of 15 versions SC750-28R, SC800-28R	$13.76/EA Quantity for AD80208A
56	AD56003211	2	Scr Hex Hd SS M6-1.0 X 12MM Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD56003211
57	AD56002859Replaces Advance 87026A	6	Washer, 1/4 Flat S.S. Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD56002859
58	AD87054A	10	Washer Fender .375 Fits 2 of 15 versions SC750-28R, SC800-28R	$12.08/EA Quantity for AD87054A
59	AD87607A	2	Washer, Nylon 1.25 X .52 X .06 Flat Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD87607A
60	AD56009203	1	Stud 1/4-20X1.31 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56009203
61	AD88612A	10	Washer, Lock M10 Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD88612A
62	AD56003483Replaces Advance 88614A	10	Screw, M10-1.5 X 20mm Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56003483
63	AD88616A	1	Screw, Hex Hd M10x75 Fits 2 of 15 versions SC750-28R, SC800-28R	$13.76/EA Quantity for AD88616A
64	AD56003312Replaces Advance 88618A	2	Nut, M12 Nylon Insert Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56003312
65	AD88619A	1	Screw, M12-1.75 X 160mm Hex Fits 2 of 15 versions SC750-28R, SC800-28R	$4.27/EA Quantity for AD88619A
66	AD88620A	1	Screw, Hex Hd M12x90 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD88620A
67	AD88623A	2	Nut, M4-.7 Nylock Insert Fits 2 of 15 versions SC750-28R, SC800-28R	$12.08/EA Quantity for AD88623A
68	AD88624A	4	Screw, M5 X 12mm Hex Self Tap Tri-Lobe Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD88624A
69	AD88626A	1	Screw M6-1 X 40mm Hex Fits 2 of 15 versions SC750-28R, SC800-28R	$13.76/EA Quantity for AD88626A
70	AD56385219Advance 56385219	1	Terminal-Insul-Cap 1.5 In x 4.0 In Fits 2 of 15 versions SC750-28R, SC800-28R	Call to confirm part: 800-440-6723

Advance SC750 / SC800 Detergent injection system-EcoFlex™ parts

The EcoFlex detergent pump, hoses, bottle, brackets and caps. Advance says detergent injection is standard on model 56112780. Manual page 10.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‍‌⁠⁠‌⁠‍‍⁠‌⁠⁠‍⁠⁠‌⁠‍⁠‍⁠⁠⁠‍‍

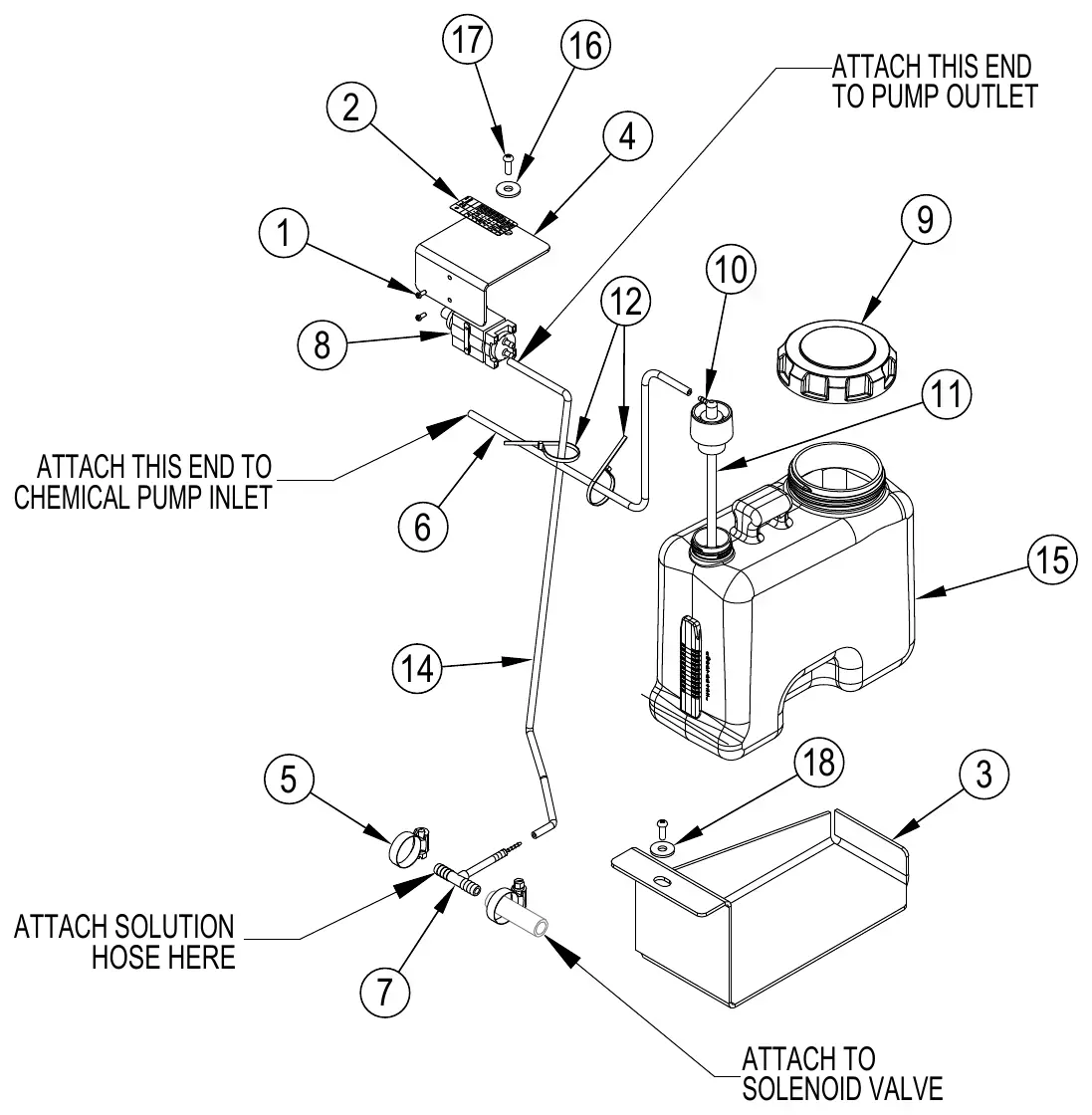

Advance SC750 / SC800 detergent injection system-ecoflex™ drawing, manual page 10 — Detergent injection system-EcoFlex™, manual page 10. Numbers on the drawing match the Item column. SES ref PF-GWYO-C7S7‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‍‌⁠⁠‌⁠‍‍⁠‌⁠⁠‍⁠⁠‌⁠‍⁠‍⁠⁠⁠‍‍

Advance SC750 / SC800 Detergent injection system-EcoFlex™ parts (manual page 10, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56002539	2	Scr, Pan Phil Thd Form 6-32 X .31	$11.69/EA Quantity for AD56002539
2	AD56016331	1	Decal-Chemical Ratio	$16.09/EA Quantity for AD56016331
3	AD56112125	1	Bracket-Bottle Support	$66.90/EA Quantity for AD56112125
4	AD56112126	1	Bracket-Pump Mount	$33.79/EA Quantity for AD56112126
5	AD722030	2	Clamp- Hose	$9.35/EA Quantity for AD722030
6	AD56306169	1	Hose, Chem Resistant, 17.00	$11.69/EA Quantity for AD56306169
7	AD56314983	1	Tee Assembly	$11.69/EA Quantity for AD56314983
8	AD56315241	1	Pump-Chemical (M6)	$283.67/EA Quantity for AD56315241
9	AD9100001512	1	Cap, Plastic F Chemical Tank	$7.29/EA Quantity for AD9100001512
10	AD56315523	1	Cap, Dry Break, 1/8 Barb, 90	$32.42/EA Quantity for AD56315523
11	AD56315527	1	Insert, Dry Break	$13.07/EA Quantity for AD56315527
12	AD56325219	2	Tie, Cable	$11.69/EA Quantity for AD56325219
13	–		Deleted
14	AD56413692	1	Hose, Chem Resistant, 21.00	$16.09/EA Quantity for AD56413692
15	AD56601544	1	Chemical Bottle Assy	$49.49/EA Quantity for AD56601544
–	AD56601545	1	Chemical Bottle Assy (Includes 9, 11 &15)Optional, not included.	$142.86/EA Quantity for AD56601545
16	AD56002098	1	Wsh-Flat SAE 1/4	$11.33/EA Quantity for AD56002098
17	AD56003627	2	Scr-Pan Phil M6-1 X 16mm	$12.85/EA Quantity for AD56003627
18	AD56009060	1	Wsh Flt SS .260X1.000X.074	$11.33/EA Quantity for AD56009060

Advance SC750 / SC800 Control system-SC750, SC800 parts

The drive paddle, speed limit and drive potentiometers, handle bar, knob and paddle harness for the non-ST models. Manual page 11.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌‍‍‌‌⁠‍‍⁠⁠‌‍⁠⁠‍‌‍⁠‍‌⁠‍

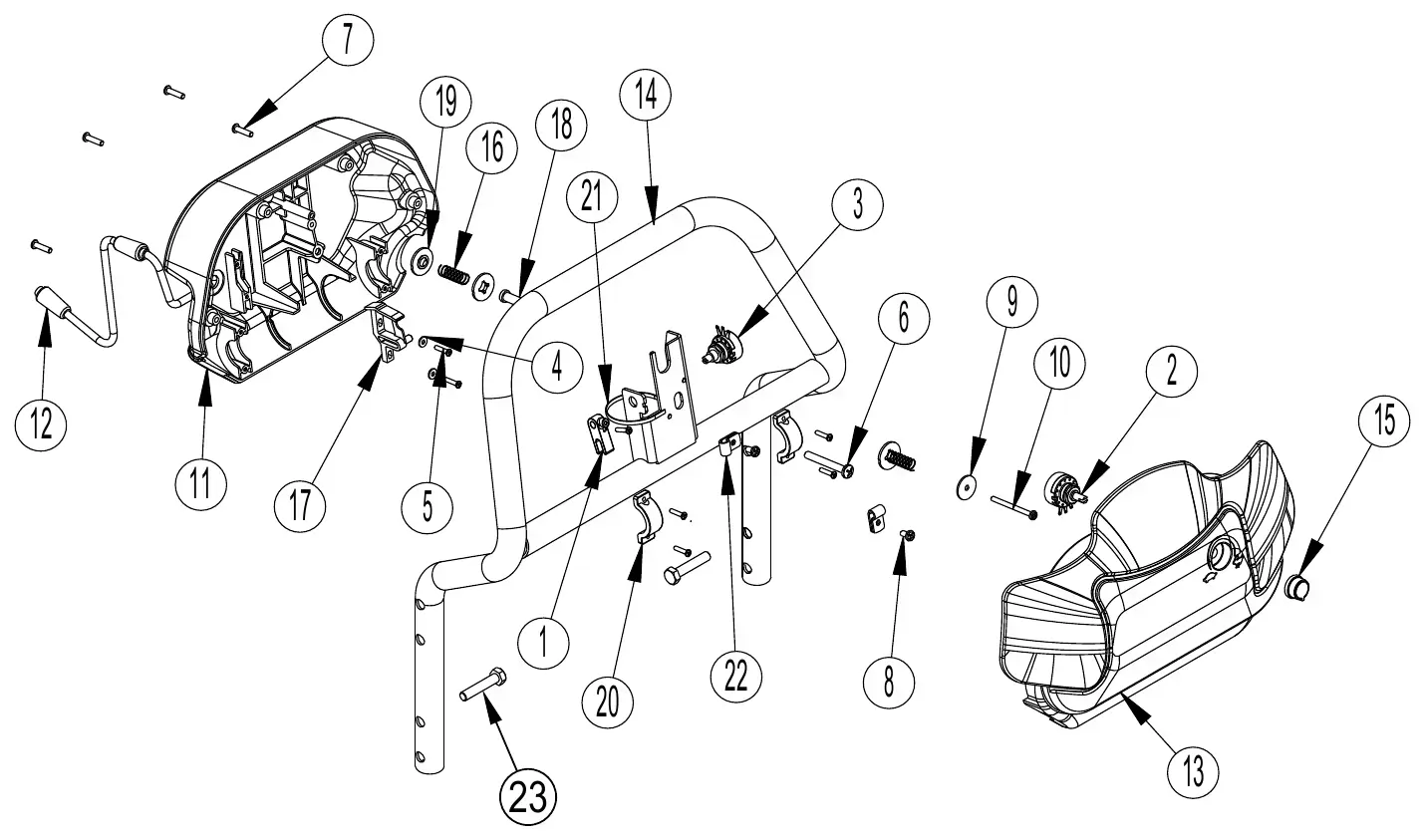

Advance SC750 / SC800 control system-sc750, sc800 drawing, manual page 11 — Control system-SC750, SC800, manual page 11. Numbers on the drawing match the Item column. SES ref PF-TL2E-VC2K‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌‍‍‌‌⁠‍‍⁠⁠‌‍⁠⁠‍‌‍⁠‍‌⁠‍

Advance SC750 / SC800 Control system-SC750, SC800 parts (manual page 11, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
–	AD56112218	1	Paddle Assembly (1-22) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Only used on machines before serial number 4000068715.	$421.35/EA Quantity for AD56112218
–	AD56383361	1	Paddle Assembly (1-22) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Only used on machines after serial number 4000068714.	$443.56/EA Quantity for AD56383361
1	AD56109648	1	Potentiometer Fork Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.30/EA Quantity for AD56109648
2	AD56396197	1	Potentiometer-Speed Limit (R2) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$61.23/EA Quantity for AD56396197
3	AD56397029	1	Potentiometer-5k (R1) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$93.70/EA Quantity for AD56397029
4	AD56002006	2	Wsh, Flt SAE #6 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56002006
5	AD56003197	7	Scr, Pan Phil Plastite 6-18 X .62 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56003197
6	AD56003527	1	Scr, Pan Phil Plastite 1/4-1 X 2.00 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56003527
7	AD56003545	4	Scr, Pan Phil Plastite 8-10 X .75 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.33/EA Quantity for AD56003545
8	AD56009030	2	Scr, Pan Phil Thd Form 10-24 X .38 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.30/EA Quantity for AD56009030
9	AD56009096	1	Wsh, Flt .193 X .875 X .060 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.30/EA Quantity for AD56009096
10	AD56009287	1	Scr, Pan Phil Type B 8 X 2.00 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.30/EA Quantity for AD56009287
11	AD56109716	1	Paddle-Back Cover Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$39.43/EA Quantity for AD56109716
12	AD56112179	1	Harness-Paddle Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Only used on machines before serial number 4000068715.	$152.73/EA Quantity for AD56112179
12	AD56383358	1	Harness-Paddle Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Only used on machines after serial number 4000068714.	$102.07/EA Quantity for AD56383358
13	AD56315230	1	Paddle, Front Cover Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$87.37/EA Quantity for AD56315230
14	AD56112767	1	Weldment-Handle Bar Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$100.68/EA Quantity for AD56112767
15	AD56315280	1	Knob Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$13.07/EA Quantity for AD56315280
16	AD56325654	2	Spring - Compression Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56325654
17	AD56397015	1	Cam Controller Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$14.70/EA Quantity for AD56397015
18	AD56397109	1	Sleeve Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$26.25/EA Quantity for AD56397109
19	AD56397170	3	Washer, Plastic Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.30/EA Quantity for AD56397170
20	AD56397171	2	Clamp Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56397171
21	AD56478246	1	Tie, Cable Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56478246
22	AD56481890	2	Clamp-P Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56481890
23	AD56002094	4	Scr-Hex 5/16-18 x 1.50 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56002094

Advance SC750 / SC800 Control system-SC750 ST, SC800 ST parts

The handle, palm switches, access plate, speed limit potentiometer and handle harness for the ST models. Manual page 12.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‍⁠‌⁠‍‌‌⁠‍‍‍‍⁠‍⁠‌⁠‍‍‌‌‍‌⁠⁠‌‌‌‌‍‌

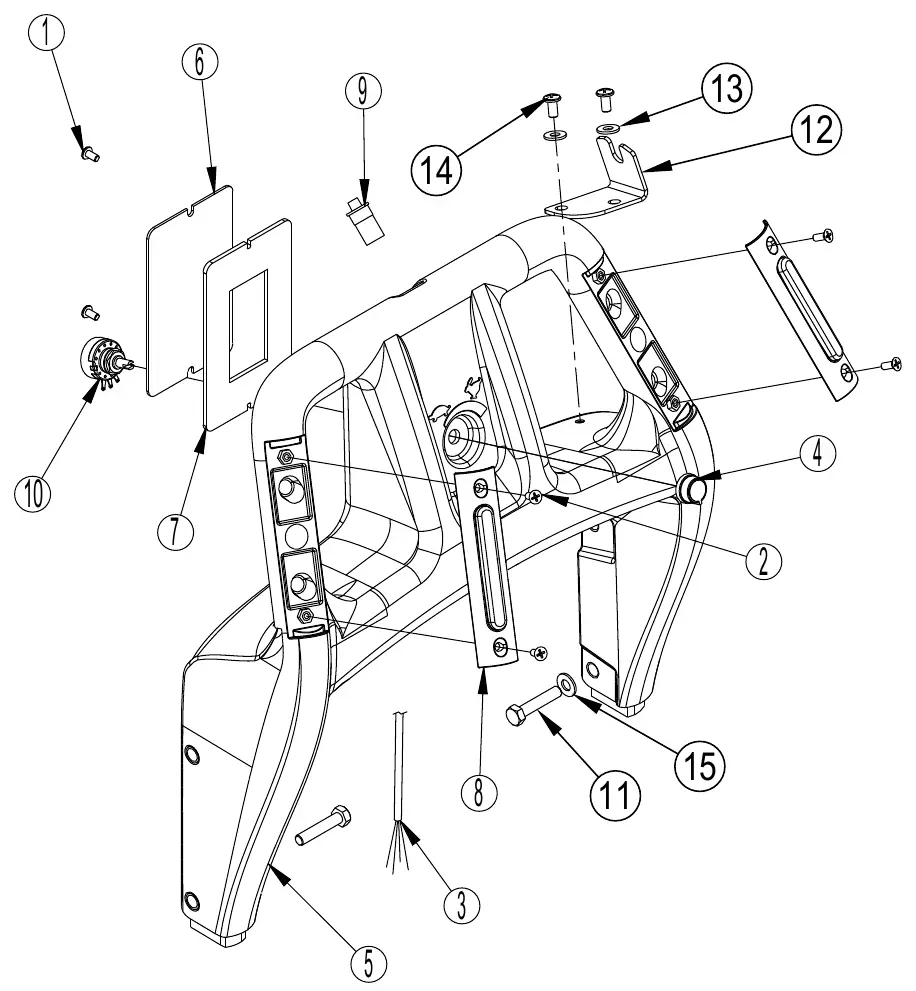

Advance SC750 / SC800 control system-sc750 st, sc800 st drawing, manual page 12 — Control system-SC750 ST, SC800 ST, manual page 12. Numbers on the drawing match the Item column. SES ref PF-B5SB-WPVT‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‍⁠‌⁠‍‌‌⁠‍‍‍‍⁠‍⁠‌⁠‍‍‌‌‍‌⁠⁠‌‌‌‌‍‌

Advance SC750 / SC800 Control system-SC750 ST, SC800 ST parts (manual page 12, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
–	AD56112219Advance 56112219	1	Handle Assembly (1-10) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Only used on machines before serial number 4000068715.	Call to confirm part: 800-440-6723
–	AD56383382	1	Handle Assy (1-10) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Only used on machines after serial number 4000068714.	$1,308.69/EA Quantity for AD56383382
1	AD56002043	2	Scr-Pan Phil 10-24 X .38 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$10.30/EA Quantity for AD56002043
2	AD56002178	4	Scr, Flt Phil 10-24 X .50 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$13.07/EA Quantity for AD56002178
3	AD56112186	1	Harness-Handle Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Only used on machines before serial number 4000068715.	$167.59/EA Quantity for AD56112186
3	AD56383368	1	Harness-Handle Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Only used on machines after serial number 4000068714.	$130.92/EA Quantity for AD56383368
4	AD56315280	1	Knob Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$13.07/EA Quantity for AD56315280
5	AD56315931	1	Handle, Rotomold Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$421.71/EA Quantity for AD56315931
6	AD56315932	1	Access Plate Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$18.96/EA Quantity for AD56315932
7	AD56315933	1	Gasket, Access Panel Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56315933
8	AD56315935	2	Palm Switch Assembly (S4 / S5) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$71.84/EA Quantity for AD56315935
9	AD56315945	1	Switch, Spst Mom. (S6) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$55.17/EA Quantity for AD56315945
10	AD56315929	1	Potentiometer-Speed Limit (R2) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$87.37/EA Quantity for AD56315929
11	AD56003005	4	Scr Hex 5/16-18 X 1.75 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$10.30/EA Quantity for AD56003005
12	AD56112769	1	Squeegee Holder Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$14.70/EA Quantity for AD56112769
13	AD56002098	2	Wsh-Flt SAE 1/4 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.33/EA Quantity for AD56002098
14	AD56002145	2	Scr-Pan Phil 1/4-20 x .50 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$12.85/EA Quantity for AD56002145
15	AD56001939	4	Wsh-Flt SAE 5/16 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.33/EA Quantity for AD56001939

Advance SC750 / SC800 Decal system parts

Machine decals, including the model and EcoFlex decals. Manual page 13.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‌⁠‌⁠‌‍‌⁠‍‍‍‍‌⁠‌‍‌‌⁠⁠⁠‌‍⁠⁠⁠‍‌

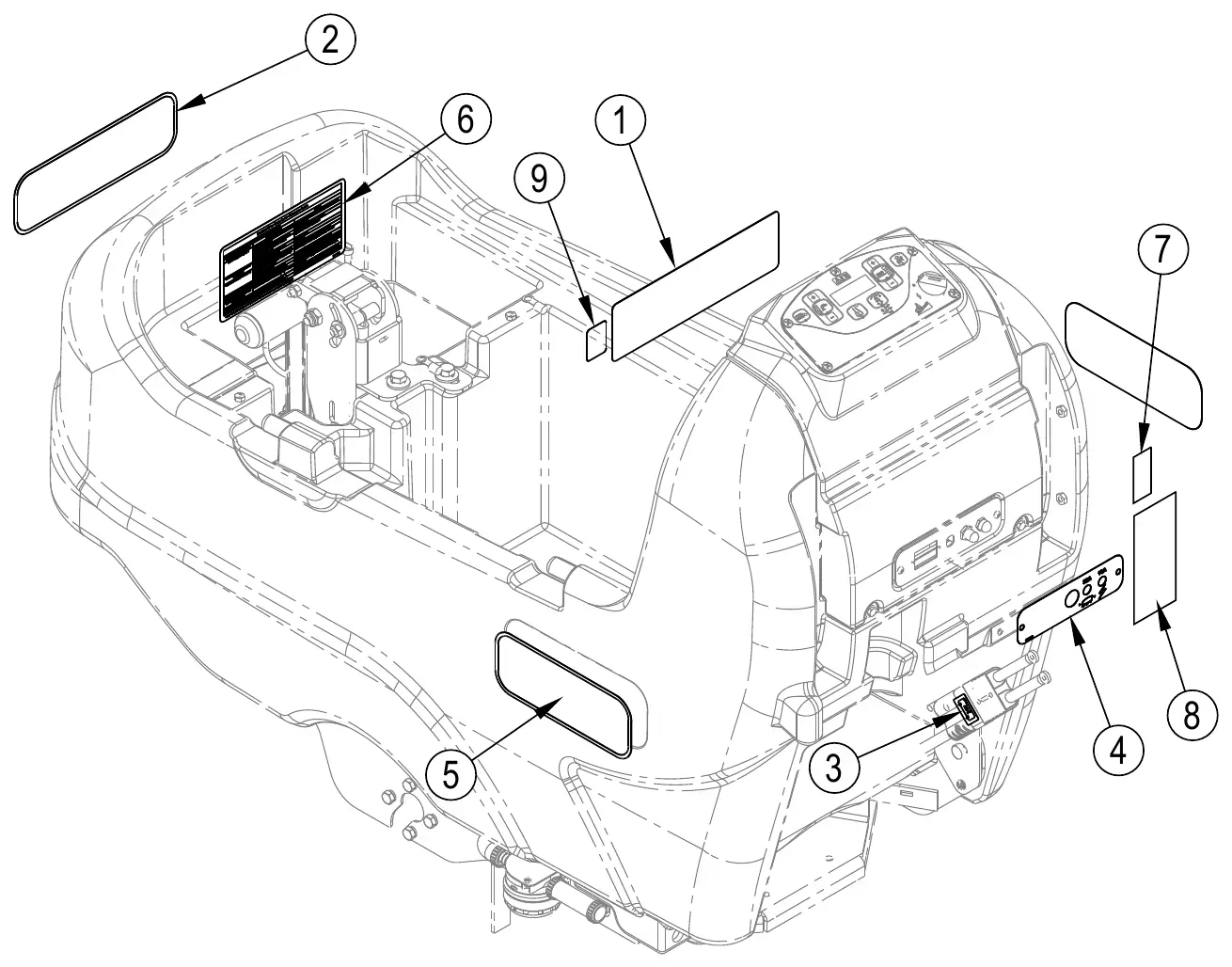

Advance SC750 / SC800 decal system drawing, manual page 13 — Decal system, manual page 13. Numbers on the drawing match the Item column. SES ref PF-JYO3-HRLC‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‌⁠‌⁠‌‍‌⁠‍‍‍‍‌⁠‌‍‌‌⁠⁠⁠‌‍⁠⁠⁠‍‌

Advance SC750 / SC800 Decal system parts (manual page 13, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56014601	1	Decal, Caution	$43.68/EA Quantity for AD56014601
2	AD56016730	1	Decal-Advance	$16.09/EA Quantity for AD56016730
3	AD56054192	1	Decal, Charger	$17.46/EA Quantity for AD56054192
4	AD56112168	1	Decal-Circuit Breaker	$16.09/EA Quantity for AD56112168
5	AD56112525	2	Decal-SC750 Fits 4 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R	$13.07/EA Quantity for AD56112525
5	AD56112526Advance 56112526	2	Decal-SC800 Fits 6 of 15 versions SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	Call to confirm part: 800-440-6723
5	AD56112527Advance 56112527	2	Decal-SC750 ST Fits 2 of 15 versions SC750 ST-26D, SC750 ST-28C	Call to confirm part: 800-440-6723
5	AD56112528Advance 56112528	2	Decal-SC800 ST Fits 3 of 15 versions SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	Call to confirm part: 800-440-6723
5	AD56112529	2	Decal-SC750 EcoFlex Fits 6 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C	$13.07/EA Quantity for AD56112529
5	AD56112530	2	Decal-SC800 EcoFlex Fits 9 of 15 versions SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$13.07/EA Quantity for AD56112530
6	AD56112292	1	Decal-Error Codes	$16.09/EA Quantity for AD56112292
7	AD71362A	1	Decal-NFSI	$13.07/EA Quantity for AD71362A
8	AD56112539	1	Decal-Warning/Wiring	$14.70/EA Quantity for AD56112539
9	AD56394259	1	Decal- Prop 65Revised or new since last update.	$4.39/EA Quantity for AD56394259

Advance SC750 / SC800 Electrical system-SC750, SC800 parts

The control panel, electrical panel, speed controller, circuit breakers, relays, contactor, fuse, battery cables and main harness for the non-ST models. Manual pages 14, list 15.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌⁠⁠‍‍‌⁠‍‍‌‍‍⁠‍‌‌⁠‍‌⁠⁠‌⁠‍‌‍‍

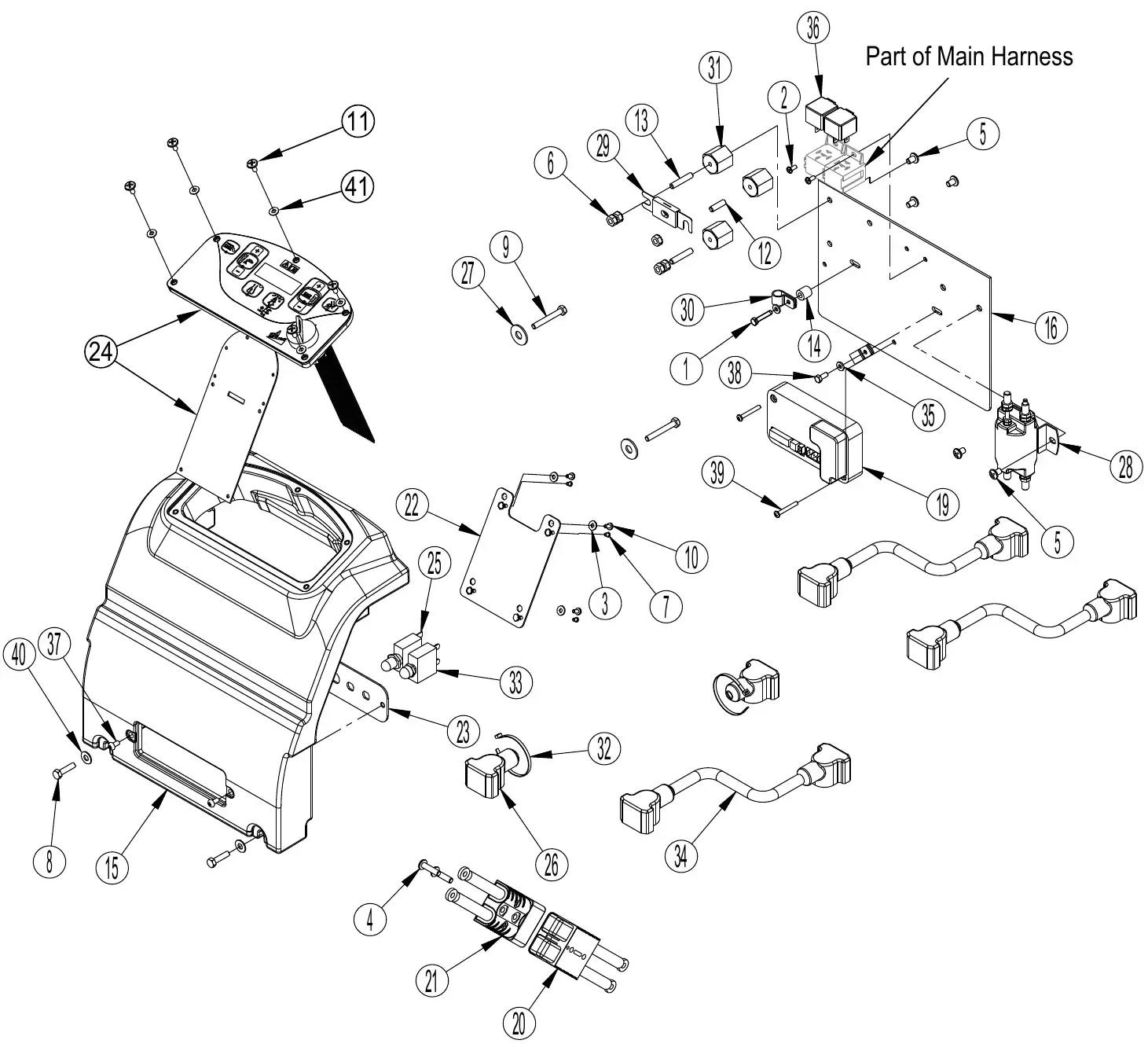

Advance SC750 / SC800 electrical system-sc750, sc800 drawing, manual page 14 — Electrical system-SC750, SC800, manual page 14. Numbers on the drawing match the Item column. SES ref PF-43W2-DZ5H‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌⁠⁠‍‍‌⁠‍‍‌‍‍⁠‍‌‌⁠‍‌⁠⁠‌⁠‍‌‍‍

Advance SC750 / SC800 Electrical system-SC750, SC800 parts (manual pages 14, list 15, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD33003964	1	Screw, Hex Thd To Hd M5x25 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD33003964
2	AD56001818	2	Scr-Pan Phil 8-32 X .38 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56001818
3	AD56002140	4	Wsh, Flt SAE #8 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$12.85/EA Quantity for AD56002140
4	AD56002292	2	Scr-Pan Phil 1/4-20 X 1.00 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56002292
5	AD56002462	5	Scr-Pan Phil 1/4-20 X .38 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$14.37/EA Quantity for AD56002462
6	AD56002561	5	Nut, Hex W/ Shprf 1/4-20 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56002561
7	AD56003336	4	Scr-Pan Phil Blk 6-32 X .19 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$8.80/EA Quantity for AD56003336
8	AD56003430	2	Scr-Hex SS M6-1 X 25mm Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.87/EA Quantity for AD56003430
9	AD56003631	2	Scr-Hex M6-1 X 45mm Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$12.85/EA Quantity for AD56003631
10	AD56003653	4	Scr-Pan Phil M4-0.7 X 8mm Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.33/EA Quantity for AD56003653
11	AD56003808	5	Scr- Truss Phil Blk M5-0.8 X 12mm Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56003808
12	AD56009020	1	Stud Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56009020
13	AD56009203	2	Stud, 1/4-20 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56009203
14	AD56046309	1	Spacer, Phenolic Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$13.07/EA Quantity for AD56046309
15	AD56112112	1	Control Panel Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$251.69/EA Quantity for AD56112112
16	AD56112115	1	Electrical Panel Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$55.65/EA Quantity for AD56112115
17	AD56112169	1	Cable-Jumper Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Not shown.	$11.69/EA Quantity for AD56112169
18	AD56112174	1	Harness-Main Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Only used on machines before serial number 4000068715. Not shown.	$1,105.25/EA Quantity for AD56112174
18	AD56383891	1	Harness-Main Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Only used on machines after serial number 4000068714.	$705.38/EA Quantity for AD56383891
19	AD56112187	1	Speed Controller 70a 24v (A2) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$583.85/EA Quantity for AD56112187
20	AD56112188	1	Harness-Connector Battery Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Revised or new since last update.	$144.37/EA Quantity for AD56112188
21	AD56112189	1	Harness Connector Panel Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Revised or new since last update.	$218.25/EA Quantity for AD56112189
22	AD56112535	1	Bracket-Pcb Mount Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$26.25/EA Quantity for AD56112535
23	AD56383359	1	Plate-Circuit Breaker Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Circuit breaker plates 56112122 and 56112540 are obsolete and have been replaced by 5638359. Revised or new since last update.	$11.69/EA Quantity for AD56383359
24	AD56112351	1	Kit AXP Control Board Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$1,962.82/EA Quantity for AD56112351
–	AD56303553	1	Switch-Key (S3) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Not shown.	$87.37/EA Quantity for AD56303553
–	AD56303526	1	Replacement Key Set (for 56303553) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Optional, not included.	$30.91/EA Quantity for AD56303526
–	AD56112253	1	Kit-Interface Panel (Membrane Switch, Membrane Panel, Gasket) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Optional, not included.	$371.04/EA Quantity for AD56112253
25	AD56315256	1	Circuit Breaker, 30 Amp (CB1) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$13.07/EA Quantity for AD56315256
26	AD56372673	2	Boot-Battery Post Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$8.80/EA Quantity for AD56372673
27	AD56385358	2	Washer Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$5.91/EA Quantity for AD56385358
28	AD56397088	1	Contactor, 24v Spdt (K2) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$141.48/EA Quantity for AD56397088
29	AD56412089	1	Fuse, 150 Amp (F1) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$19.83/EA Quantity for AD56412089
30	AD56442011	2	Clamp-P Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56442011
31	AD56469858	3	Electrical Mount Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$13.07/EA Quantity for AD56469858
32	AD56478246	2	Tie, Cable Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD56478246
33	AD56507644	1	Circuit Breaker, 10 Amp (CB2) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$23.35/EA Quantity for AD56507644
34	AD40172A	3	Cable, Battery Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$23.35/EA Quantity for AD40172A
35	AD980643	2	Washer 7/16 Od X .036 Thk Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD980643
36	AD41075A	2	Relay, 40a (K1 / K3) Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$20.48/EA Quantity for AD41075A
37	AD56003346Advance 56003346	2	SCR PAN PHIL M5 X 10.0 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R Revised or new since last update.	Call to confirm part: 800-440-6723
38	AD80249A	1	Screw, Hex Thd To Hd M5 x 12 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$11.69/EA Quantity for AD80249A
39	AD80380A	2	Screw, 8-32 X 1 1/4” P.H. Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.30/EA Quantity for AD80380A
40	AD56002859Replaces Advance 87026A	2	Washer, 1/4 Flat S.S. Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$10.30/EA Quantity for AD56002859
41	AD56384075	5	Washer-Black Nylon-6/6 Fits 10 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R	$8.80/EA Quantity for AD56384075

Advance SC750 / SC800 Electrical system-SC750 ST, SC800 ST parts

The control panel, electrical panel, ST control board, speed controller, breakers, relay, contactor, battery cables and main harness for the ST models. Manual pages 16, list 17.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠⁠‌‌⁠‍‍⁠‍‍⁠‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‍‍⁠⁠⁠‍‌

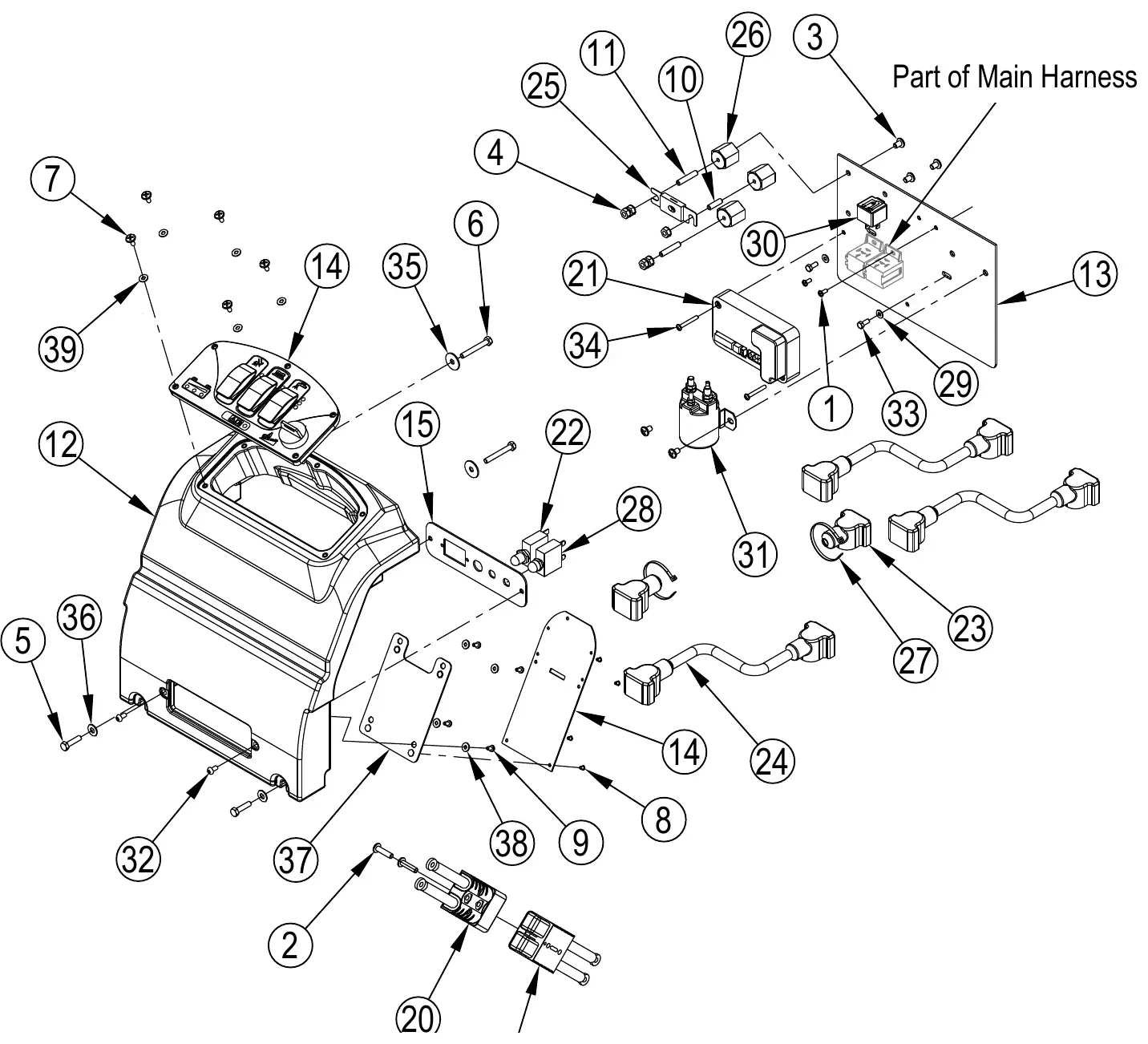

Advance SC750 / SC800 electrical system-sc750 st, sc800 st drawing, manual page 16 — Electrical system-SC750 ST, SC800 ST, manual page 16. Numbers on the drawing match the Item column. SES ref PF-ZMXA-AQPX‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠⁠‌‌⁠‍‍⁠‍‍⁠‌‌⁠⁠‍⁠‍⁠⁠‌‌‌‍‍⁠⁠⁠‍‌

Advance SC750 / SC800 Electrical system-SC750 ST, SC800 ST parts (manual pages 16, list 17, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56001818	2	Scr-Pan Phil 8-32 X .38 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56001818
2	AD56002292	2	Scr-Pan Phil 1/4-20 X 1.00 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56002292
3	AD56002462	5	Scr-Pan Phil 1/4-20 X .38 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$14.37/EA Quantity for AD56002462
4	AD56002561	5	Nut, Hex W/ Shprf 1/4-20 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56002561
5	AD56003430	2	Scr, Hex Ss M6-1 X 25mm Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$10.87/EA Quantity for AD56003430
6	AD56003631	2	Scr, Hex M6-1 X 45mm Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$12.85/EA Quantity for AD56003631
7	AD56003808	5	Scr- Truss Phil Blk M5-0.8 X 12mm Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56003808
8	AD56003336	4	Scr-Pan Phil Blk 6-32 x .19 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$8.80/EA Quantity for AD56003336
9	AD56003653	4	Scr-Pan Phil M4-0.7 x 8mm Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.33/EA Quantity for AD56003653
10	AD56009020	1	Stud Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56009020
11	AD56009203	2	Stud, 1/4-20 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56009203
12	AD56112112	1	Control Panel Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$251.69/EA Quantity for AD56112112
13	AD56112115	1	Electrical Panel Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$55.65/EA Quantity for AD56112115
14	AD56112352	1	Kit ST Control Board Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$1,308.69/EA Quantity for AD56112352
–	AD56112190	3	Switch-Momentary Rocker (S7 / S8 / S9) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Not shown.	$84.49/EA Quantity for AD56112190
–	AD56303553	1	Switch-Key (S3) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Not shown.	$87.37/EA Quantity for AD56303553
–	AD56303526	1	Replacement Key Set (for 56303553) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Optional, not included.	$30.91/EA Quantity for AD56303526
–	AD56112254	1	Kit-Interface Panel ST (Membrane Switch, Membrane Panel, Gasket) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Optional, not included.	$290.81/EA Quantity for AD56112254
15	AD56383359	1	Plate-Circuit Breaker Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Circuit breaker plates 56112122 and 56112540 are obsolete and have been replaced by 5638359. Revised or new since last update.	$11.69/EA Quantity for AD56383359
17	AD56112169	1	Cable-Jumper Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Not shown.	$11.69/EA Quantity for AD56112169
18	AD56112174	1	Harness-Main Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Only used on machines before serial number 4000068715. Not shown.	$1,105.25/EA Quantity for AD56112174
18	AD56383891	1	Harness-Main Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Only used on machines after serial number 4000068714.	$705.38/EA Quantity for AD56383891
19	AD56112188	1	Harness Connector Battery Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Revised or new since last update.	$144.37/EA Quantity for AD56112188
20	AD56112189	1	Harness Connector Panel Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Revised or new since last update.	$218.25/EA Quantity for AD56112189
21	AD56112241	1	Speed Controller 70a 24v (A2) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$679.97/EA Quantity for AD56112241
22	AD56315256	1	Circuit Breaker, 30 Amp (CB1) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$13.07/EA Quantity for AD56315256
23	AD56372673	2	Boot-Battery Post Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$8.80/EA Quantity for AD56372673
24	AD40172A	3	Cable, Battery Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$23.35/EA Quantity for AD40172A
25	AD56412089	1	Fuse, 150 Amp (F1) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$19.83/EA Quantity for AD56412089
26	AD56469858	3	Electrical Mount Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$13.07/EA Quantity for AD56469858
27	AD56478246	2	Tie, Cable Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56478246
28	AD56507644	1	Circuit Breaker, 10 Amp (CB2) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$23.35/EA Quantity for AD56507644
29	AD980643	2	Washer 7/16 Od X .036 Thk Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD980643
30	AD41075A	1	Relay, 40a (K1) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$20.48/EA Quantity for AD41075A
31	AD56412179	1	Contactor 24 VDC (K2) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$119.65/EA Quantity for AD56412179
32	AD56003346Advance 56003346	2	SCR PAN PHIL M5 X 10.0 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D Revised or new since last update.	Call to confirm part: 800-440-6723
33	AD80249A	2	Screw, Hex Thd To Hd M5x12 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD80249A
34	AD80380A	2	Screw, 8-32 X 1 1/4” P.H. Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$10.30/EA Quantity for AD80380A
35	AD56009002	2	Washer Flat .266x.906x.060 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$10.30/EA Quantity for AD56009002
36	AD56002859Replaces Advance 87026A	2	Washer, 1/4 Flat S.S. Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$10.30/EA Quantity for AD56002859
37	AD56112535	1	Bracket-PCB Mount Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$26.25/EA Quantity for AD56112535
38	AD56002140	4	Wsh-Flt SAE 8 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$12.85/EA Quantity for AD56002140
39	AD56384075	5	Washer-Black Nylon-6/6 Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$8.80/EA Quantity for AD56384075

Advance SC750 / SC800 Recovery system parts

The recovery tank and lid, vacuum motor, suction and drain hoses, float cage and ball, debris tray and gaskets. Manual pages 18, list 19.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‍‌‍⁠⁠‌⁠‍‍‍⁠‍‌‌‍⁠‍‌‍‍⁠⁠‍‍‍⁠⁠

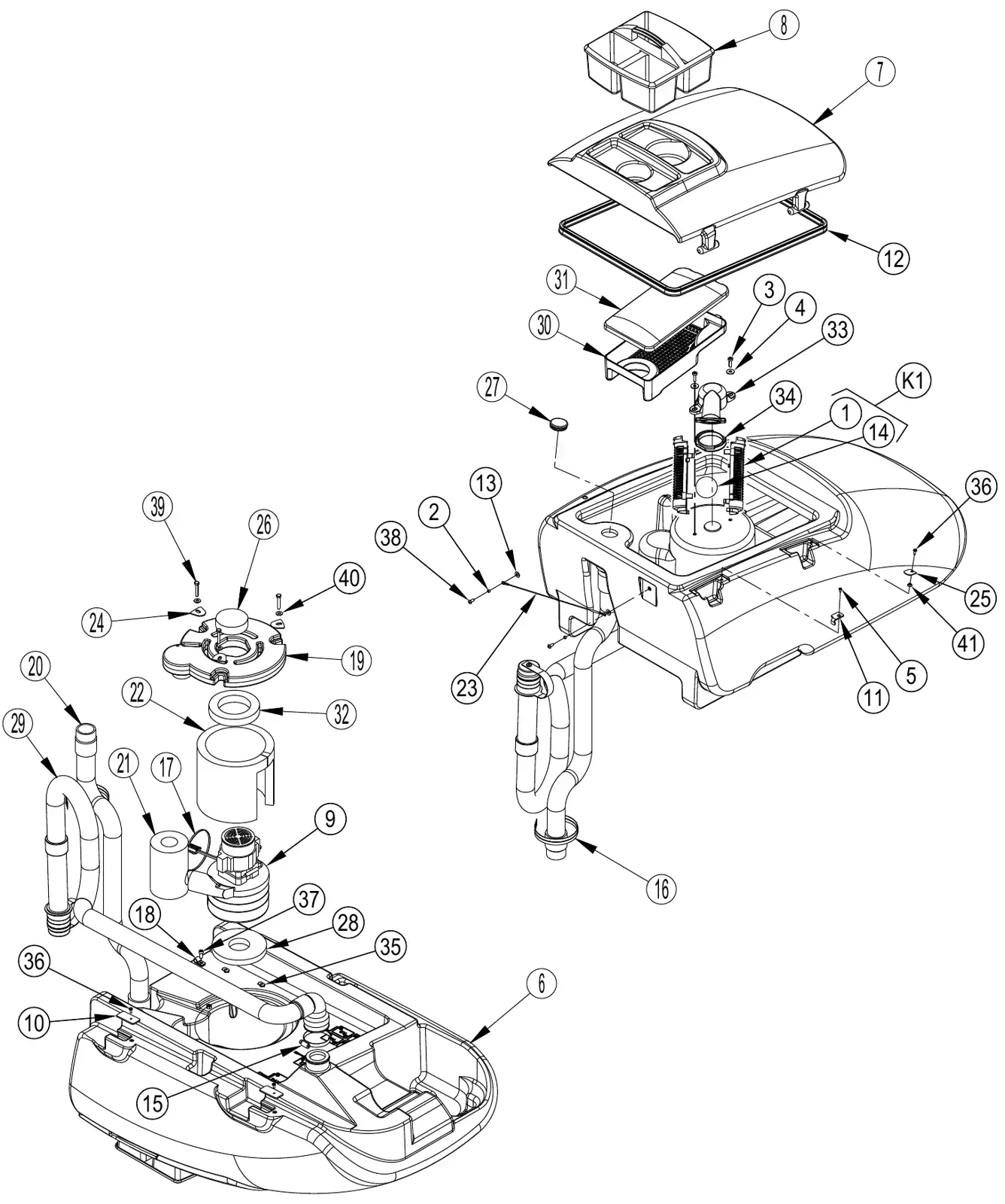

Advance SC750 / SC800 recovery system drawing, manual page 18 — Recovery system, manual page 18. Numbers on the drawing match the Item column. SES ref PF-JZ24-X52V‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‍‌‍⁠⁠‌⁠‍‍‍⁠‍‌‌‍⁠‍‌‍‍⁠⁠‍‍‍⁠⁠

Advance SC750 / SC800 Recovery system parts (manual pages 18, list 19, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	K1	2	Cage, Float	Included in kitKit-Float Ball Cage · AD56112303 ›
2	AD56001954	2	Wsh, Flt Std #10	$11.33/EA Quantity for AD56001954
3	AD56003896	2	Scr-Pan Phil SS M6-1.0 X 20MM	$10.30/EA Quantity for AD56003896
4	AD56003638	2	Wsh, Flt SS 6mm	$12.85/EA Quantity for AD56003638
5	AD56003823	1	Scr-Flt Phil SS M4-0.7 X 8mm	$10.30/EA Quantity for AD56003823
6	AD56112106	1	Recovery Tank (SC750 models) Fits 6 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C	$785.75/EA Quantity for AD56112106
6	AD56112102	1	Recovery Tank (SC800 models) Fits 9 of 15 versions SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$901.81/EA Quantity for AD56112102
7	AD56112107	1	Recovery Lid (SC750 models) Fits 6 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C	$307.81/EA Quantity for AD56112107
7	AD56112103	1	Recovery Lid (SC800 models) Fits 9 of 15 versions SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$341.13/EA Quantity for AD56112103
8	AD56112222	1	Utility Caddy	$11.69/EA Quantity for AD56112222
9	AD56384102	1	Motor-Vac-24v-Dephi Connector (M5)	$269.64/EA Quantity for AD56384102
–	AD56397098	1	Carbon Brush Set of 2 (for 56384102)Optional, not included.	$23.35/EA Quantity for AD56397098
10	AD56112293	2	Retainer Plate	$11.69/EA Quantity for AD56112293
11	AD56112296	1	Retainer Plate	$11.69/EA Quantity for AD56112296
12	AD56112297	1	Gasket-Recovery Lid	$29.53/EA Quantity for AD56112297
13	AD56151092	2	Bushing	$13.07/EA Quantity for AD56151092
14	K1	1	Ball, Float	Included in kitKit-Float Ball Cage · AD56112303 ›
15	AD56440213	2	Clamp- Hose SAE #32	$10.30/EA Quantity for AD56440213
16	AD56477613	2	Tie, Cable	$13.07/EA Quantity for AD56477613
17	AD56478523	1	Tie, Cable	$11.69/EA Quantity for AD56478523
18	AD56323260	2	Clamp-P	$11.69/EA Quantity for AD56323260
19	AD9100001246	1	Cover-Vacuum Motor PKD	$21.94/EA Quantity for AD9100001246
20	AD56112316	1	Suction Hose	$39.43/EA Quantity for AD56112316
21	AD9096442000	1	Insulation Tube	$16.09/EA Quantity for AD9096442000
22	AD9096491000	1	Panel, Acoustic Insulation	$16.09/EA Quantity for AD9096491000
23	AD9096634000	1	Stop Tank Cable	$30.52/EA Quantity for AD9096634000
24	AD9096638000	3	Vacuum Cover Plate	$13.76/EA Quantity for AD9096638000
25	AD9096643000	1	Tank Cover Plate	$12.50/EA Quantity for AD9096643000
26	AD56344168	1	Filter	$10.30/EA Quantity for AD56344168
27	AD1466138000	1	Cap Black PPL DE 42 x 11.5 PKD	$51.38/EA Quantity for AD1466138000
28	AD9096918000	1	Gasket Vacuum Motor	$48.62/EA Quantity for AD9096918000
29	AD56112310	1	Drain Hose-Recovery	$80.22/EA Quantity for AD56112310
30	AD9097384000	1	Debris Tray	$18.96/EA Quantity for AD9097384000
31	AD9097477000	1	Debris Tray Cover	$14.70/EA Quantity for AD9097477000
32	AD9097555000	1	Gasket, Vacuum Motor	$29.53/EA Quantity for AD9097555000
33	AD9097587000	1	Support Float System	$11.69/EA Quantity for AD9097587000
34	AD9100000928	1	Gasket Float Support Pkd	$10.30/EA Quantity for AD9100000928
35	AD9097589000	2	Nut Drivin 6x6 SS	$11.69/EA Quantity for AD9097589000
36	AD80057A	3	Screw, M4-.7x10	$10.98/EA Quantity for AD80057A
37	AD80208A	2	Screw M6-1 X 10mm P.P.Hd	$13.76/EA Quantity for AD80208A
38	AD80363A	2	Screw M5-.8x12 Bt	$11.69/EA Quantity for AD80363A
39	AD56003420Replaces Advance 80410A	3	Screw, 6mm X 1.00 X 35mm Lg Hex	$10.30/EA Quantity for AD56003420
40	AD56002859Replaces Advance 87026A	3	Washer, 1/4 Flat S.S.	$10.30/EA Quantity for AD56002859
41	AD9096679000	1	Spacer	$12.50/EA Quantity for AD9096679000
K1	AD56112303	1	Kit-Float Ball CageService kit. Contains items 1 and 14. Includes items 1, 14.	$71.84/EA Quantity for AD56112303

Advance SC750 / SC800 Scrub system-disk parts

The disk scrub deck: brush plates, motor gearbox assemblies, brush skirts, hoses, latch and gimbal, in 26 in, 28 in and 34 in versions. Manual pages 20, list 21.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‍‍‌⁠‍‌⁠‍‍‌‌‍‌‍‌‍‍‍‍‌‌‌⁠⁠‍

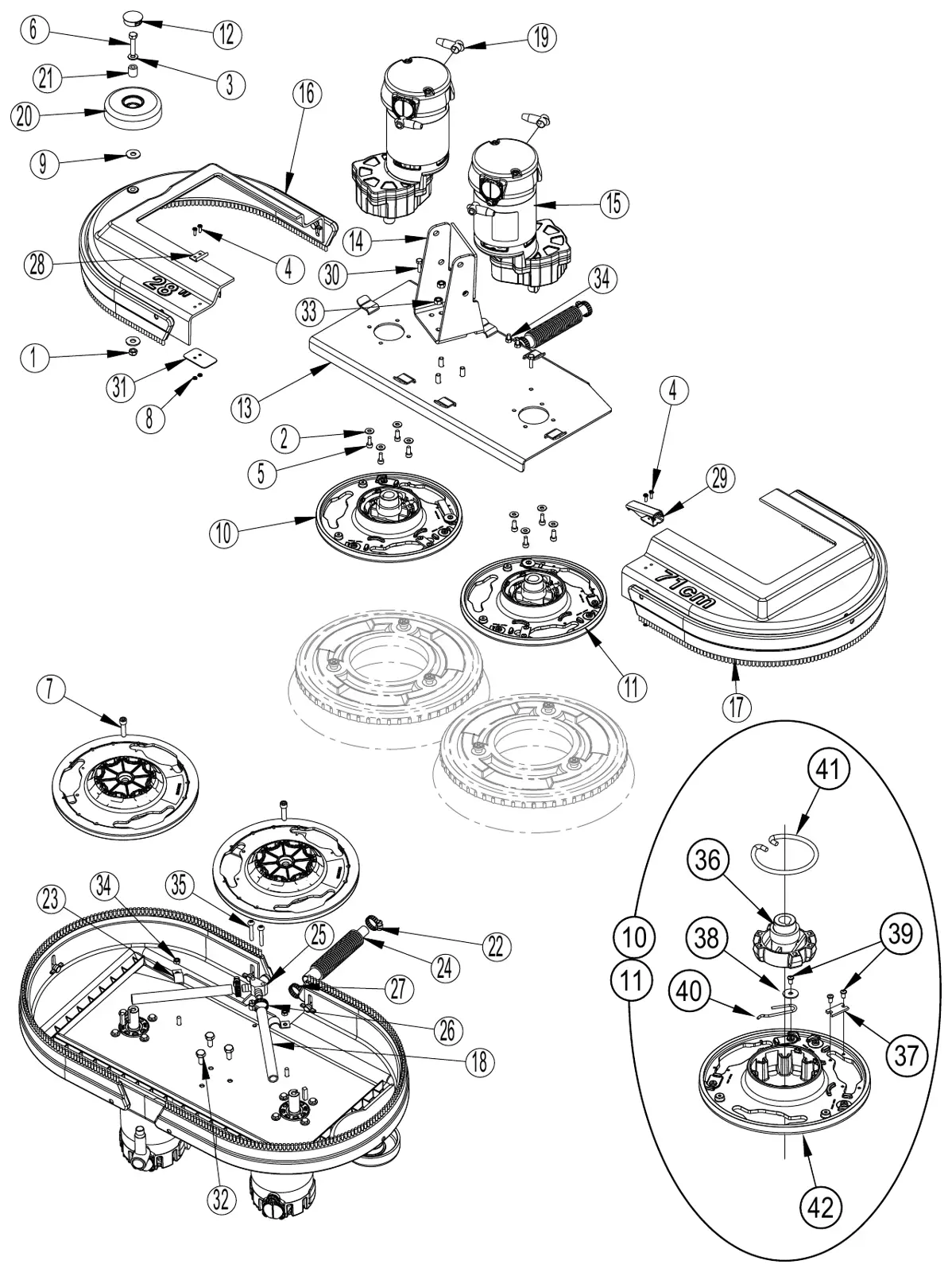

Advance SC750 / SC800 scrub system-disk drawing, manual page 20 — Scrub system-disk, manual page 20. Numbers on the drawing match the Item column. SES ref PF-GMPT-XC5Q‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‍‍‌⁠‍‌⁠‍‍‌‌‍‌‍‌‍‍‍‍‌‌‌⁠⁠‍

Advance SC750 / SC800 Scrub system-disk parts (manual pages 20, list 21, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56002851	1	Nut, Hex Nyl Loc-Thin SS 5/16-18 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56002851
2	AD56002859	8	Wsh, Flt SAE SS 1/4 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56002859
3	AD56002938	1	Wsh, Flt SAE SS 5/16 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56002938
4	AD56003997	4	Scr-Button Soc SS M4-0.7 x 12 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$8.80/EA Quantity for AD56003997
5	AD56003425	8	Scr Soc SS M6-1X14MM Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.85/EA Quantity for AD56003425
6	AD56003455	1	Scr- Hex SS 5/16-18 X 1.50 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56003455
7	AD56003798	2	Scr, Soc Hd 5/16-18 X 1.25 Zinc Plated Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56003798
8	AD56003949	4	Nut-Hex Nyl Loc SS M4-0.7 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$8.80/EA Quantity for AD56003949
9	AD56009213	2	Wsh, Flt .392x1.00x.075 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56009213
10	AD56109651	1	Brush Plate Assy – CCW (36-43) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$407.56/EA Quantity for AD56109651
11	AD56109652	1	Brush Plate Assy – CW (36-43) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$407.56/EA Quantity for AD56109652
12	AD56111444	1	Button Plug-1.25 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56111444
13	AD56112757	1	Brush Plate Weldt 26D (26” models) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D	$140.12/EA Quantity for AD56112757
–	AD56112758	1	Brush Plate Weldt 28D (28” models) Fits 2 of 15 versions SC750-28D, SC800-28D Not shown.	$174.60/EA Quantity for AD56112758
–	AD56112759	1	Brush Plate Weldt 34D (34” models) Fits 2 of 15 versions SC800-34D, SC800 ST-34D On machines before April 2015, the Motor Gearbox Assy could interfere with the Recovery Tank, causing blown or shorted fuses and broken electrical stud connections. Not shown.	$189.43/EA Quantity for AD56112759
–	AD56112759	1	Brush Plate Weldt 34D (34” models) Fits 2 of 15 versions SC800-34D, SC800 ST-34D On machines after March 2015 the Motor Gearbox Assy mounting holes were rotated 25 degrees so the motor no longer interferes. Not shown.	$189.43/EA Quantity for AD56112759
14	AD56112523	1	Linkage Bracket Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$73.23/EA Quantity for AD56112523
15	AD56112240	2	Motor Gearbox Assy (M3 / M4) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$1,192.61/EA Quantity for AD56112240
–	AD56112242	2	Carbon Brush (for 56112240) Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D Optional, not included.	$138.74/EA Quantity for AD56112242
16	AD56112257	1	Brush Skirt Assy-26D Left (26” models) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D	$103.07/EA Quantity for AD56112257
16	AD56112259	1	Brush Skirt Assy-28D Left (28” models) Fits 2 of 15 versions SC750-28D, SC800-28D	$130.92/EA Quantity for AD56112259
16	AD56112261	1	Brush Skirt Assy-34D Left (34” models) Fits 2 of 15 versions SC800-34D, SC800 ST-34D	$87.37/EA Quantity for AD56112261
17	AD56112258	1	Brush Skirt Assy-26D Right (26” models) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D	$103.07/EA Quantity for AD56112258
17	AD56112260	1	Brush Skirt Assy-28D Right (28” models) Fits 2 of 15 versions SC750-28D, SC800-28D	$130.92/EA Quantity for AD56112260
17	AD56112262	1	Brush Skirt Assy-34D Right (34” models) Fits 2 of 15 versions SC800-34D, SC800 ST-34D	$129.54/EA Quantity for AD56112262
–	AD56112305	1	Kit-Bristle Skirt 26 (26” models / Includes two skirts and mounting hardware) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D Not shown.	$152.92/EA Quantity for AD56112305
–	AD56112306	1	Kit-Bristle Skirt 28 (28” models / Includes two skirts and mounting hardware) Fits 2 of 15 versions SC750-28D, SC800-28D Not shown.	$167.59/EA Quantity for AD56112306
–	AD56112307	1	Kit-Bristle Skirt 34 (34” models / Includes two skirts and mounting hardware) Fits 2 of 15 versions SC800-34D, SC800 ST-34D Not shown.	$187.09/EA Quantity for AD56112307
18	AD34705A	2	Hose-Solution 6.00 (26” models) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D	$10.30/EA Quantity for AD34705A
18	AD56397207	2	Hose, PVC Clear 7.00 (28” models) Fits 2 of 15 versions SC750-28D, SC800-28D	$11.69/EA Quantity for AD56397207
18	AD30453A	2	Hose-Clear Vinyl (34” models) Fits 2 of 15 versions SC800-34D, SC800 ST-34D	$10.30/EA Quantity for AD30453A
19	AD56409538	4	Terminal Insulator (28” & 34” models) Fits 4 of 15 versions SC750-28D, SC800-28D, SC800-34D, SC800 ST-34D	$13.07/EA Quantity for AD56409538
20	AD56601450	1	Wheel, 4.00 OD Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$15.57/EA Quantity for AD56601450
21	AD56601499	1	Bushing, Nylon Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56601499
22	AD722030	1	Clamp, Hose Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$9.35/EA Quantity for AD722030
23	AD782002	2	Clamp, Manifold Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD782002
24	AD30412A	1	Hose, Solution Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$52.74/EA Quantity for AD30412A
25	AD38014A	1	Splitter, Solution Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$21.85/EA Quantity for AD38014A
26	AD50248A	2	Clamp, Hose Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD50248A
27	AD53571A	1	Clamp, Hose Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD53571A
28	AD55451A	1	Keeper, Latch Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD55451A
29	AD56115427	1	Latch Assembly Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$14.70/EA Quantity for AD56115427
30	AD56002454Replaces Advance 56003942	2	Scr-Hex SS M6-1 X 20MM Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$15.40/EA Quantity for AD56002454
31	AD69186A	1	Tab, Latch, Brush Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$12.08/EA Quantity for AD69186A
32	AD56003435	3	Scr Hex SS M8-1.25X20MM Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56003435
33	AD80198A	3	Nut, M8 -1.25 Nylock S.S. Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD80198A
34	AD80199A	4	Nut, M6 -1.00 Nylock S.S. Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$13.76/EA Quantity for AD80199A
35	AD56003950	2	Scr-Pan Phil SS M6-1.0 X 35MM Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$8.80/EA Quantity for AD56003950
36	AD56112521	1	Gimbal Assembly Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$63.46/EA Quantity for AD56112521
37	AD56366455	1	Plate, Stop Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56366455
38	AD56009002	1	Wsh, Flt .266 x .906 x .060 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$10.30/EA Quantity for AD56009002
39	AD56009247	3	Scr, Pan Phil Plastite 10-14 x .38 Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.69/EA Quantity for AD56009247
40	AD56109653	1	Spring Retainer Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$11.33/EA Quantity for AD56109653
41	AD56601056	1	Spring, Brush Holder Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$18.96/EA Quantity for AD56601056
42	AD56601118	1	Brush Plate Fits 8 of 15 versions SC750-26D, SC750-28D, SC750 ST-26D, SC800-26D, SC800-28D, SC800-34D, SC800 ST-26D, SC800 ST-34D	$31.05/EA Quantity for AD56601118

Advance SC750 / SC800 Scrub system-cylindrical parts

The cylindrical scrub deck: brush housing, motors, drive and idler ends, hopper, belts, manifolds and wheels, in 28 in and 32 in versions. Manual pages 22, list 23.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌‌‌‌‌⁠‌⁠‍‍‍‌‍⁠‌‌‌‌‍‌‍‌‌⁠⁠‍‍‌‌

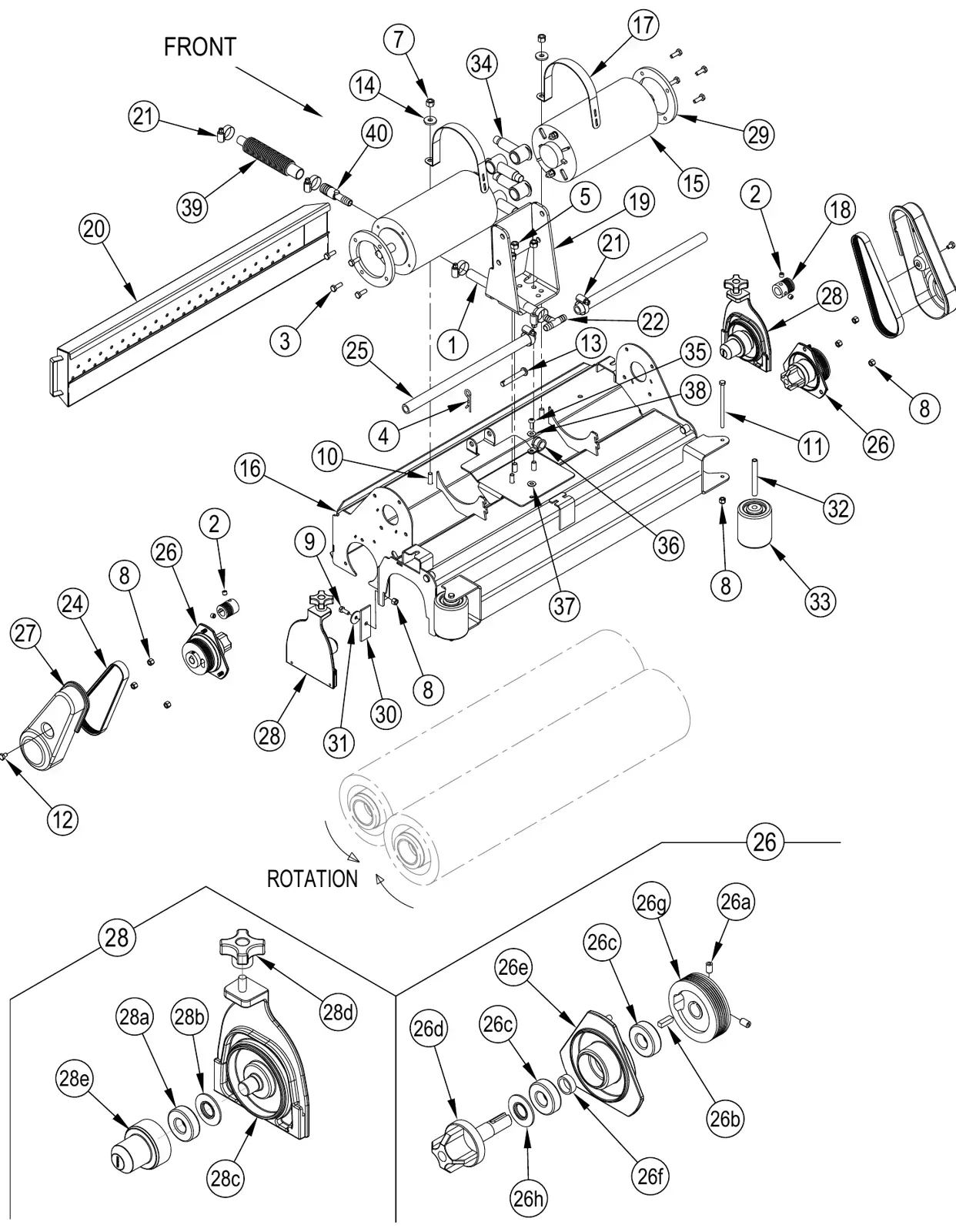

Advance SC750 / SC800 scrub system-cylindrical drawing, manual page 22 — Scrub system-cylindrical, manual page 22. Numbers on the drawing match the Item column. SES ref PF-AGBB-7ZLV‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌‌‌‌‌⁠‌⁠‍‍‍‌‍⁠‌‌‌‌‍‌‍‌‌⁠⁠‍‍‌‌

Advance SC750 / SC800 Scrub system-cylindrical parts (manual pages 22, list 23, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56397207	1	Hose Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56397207
2	AD56002086	4	Scr, Soc Set Loc 5/16-18 X .25 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56002086
3	AD56002948	8	Scr,Hex Hd Loc 1/4-20x.75 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.07/EA Quantity for AD56002948
4	AD56003222	1	Pin, Cotter Hair Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56003222
5	AD56003389	3	Nut-Hex Nyl Loc M8-1.25 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.33/EA Quantity for AD56003389
7	AD56003405	2	Nut, Hex Nyl Loc SS M8-1.25 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56003405
8	AD56003426	10	Nut, Hex Nyl Loc SS M6-1 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.33/EA Quantity for AD56003426
9	AD56003431	2	Scr, Hex SS M6-1 X 16mm Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56003431
10	AD56003436	2	Scr, Hex SS M8-1.25 X 25mm Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56003436
11	AD56003939	2	Scr-Hex SS M6-1 X 95MM Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$8.80/EA Quantity for AD56003939
12	AD56009019	2	Scr, Hex Thd Form 1/4-20 X .38 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56009019
13	AD56003656	1	Pin-Clevis .375 X 2.25 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.85/EA Quantity for AD56003656
14	AD56009122	2	Wsh, Flt .344 X .938 X .125 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56009122
15	AD56112111	2	Motor-24 Vdc 3/4hp (M3 / M4) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$1,236.30/EA Quantity for AD56112111
–	AD56412257Advance 56412257	1	Brush Cap Assy (for 56112111) Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C Optional, not included.	Call to confirm part: 800-440-6723
16	AD56112760	1	Brush Housing Weldt-28 (28” models) Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C	$1,003.19/EA Quantity for AD56112760
16	AD56112761	1	Brush Housing Weldt-32 (32” models) Fits 1 of 15 versions SC800-32C	$814.60/EA Quantity for AD56112761
17	AD56112165	2	Strap-Motor Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$16.09/EA Quantity for AD56112165
18	AD56112166	2	Sheave-Poly-V Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD56112166
19	AD56112523	1	Linkage Bracket Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$73.23/EA Quantity for AD56112523
20	AD56112762	1	Hopper Weldt-28 (28” models) Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C	$232.96/EA Quantity for AD56112762
20	AD56112763	1	Hopper Weldt-32 (32” models) Fits 1 of 15 versions SC800-32C	$298.49/EA Quantity for AD56112763
21	AD56112771	6	Clamp- Hose SAE #10 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56112771
22	AD56262549	1	Tee, Barb Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56262549
24	AD56315321	2	Belt, Auto Tension Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$26.25/EA Quantity for AD56315321
25	AD56315355	2	Manifold, PVC 28 (28” models) Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C	$13.07/EA Quantity for AD56315355
25	AD56315647	2	Manifold, PVC 32 (32” models) Fits 1 of 15 versions SC800-32C	$17.46/EA Quantity for AD56315647
26	AD56115318	2	Drive End Assy Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$100.68/EA Quantity for AD56115318
26a	AD56002930	2	Scr, Soc Set Loc 1/4-20 x .38 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56002930
26b	AD56003237	1	Key, Sq .19 x .62 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56003237
26c	AD56106070	2	Bearing, Ball Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD56106070
26d	AD56115319	1	Spindle-Long Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C For machines built before October 2016, replace spindle 26d and sheave 26g as a pair: order one 26d for every 26g replaced.	$14.37/EA Quantity for AD56115319
26e	AD56381765	1	Bearing, Plate Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$15.57/EA Quantity for AD56381765
26f	AD56407389	1	Spacer Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.07/EA Quantity for AD56407389
26g	AD56115316	1	Sheave, Poly-V Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C For machines built before October 2016, replace spindle 26d and sheave 26g as a pair: order one 26d for every 26g replaced.	$39.43/EA Quantity for AD56115316
26h	AD56407558	1	Washer, Bearing Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56407558
27	AD56115314	2	Guard Assy-Belt Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$28.44/EA Quantity for AD56115314
28	AD56115344	2	Idler End Assy Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$51.43/EA Quantity for AD56115344
28a	AD56106070	1	Bearing, Ball Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.76/EA Quantity for AD56106070
28b	AD56407558	1	Washer, Bearing Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56407558
28c	AD56315447	1	Idler Bearing Plate Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$25.70/EA Quantity for AD56315447
28d	AD56407303	1	Knob Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56407303
28e	AD56115273	1	Hub-Idler Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$15.57/EA Quantity for AD56115273
29	AD56316197	2	Plate, Motor Spacer Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$26.25/EA Quantity for AD56316197
30	AD56407391	2	Blade Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56407391
31	AD56009060	2	Wsh Flt SS .260X1.000X.074 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.33/EA Quantity for AD56009060
32	AD56412176	2	Bushing Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$47.12/EA Quantity for AD56412176
33	AD56412459	2	Wheel Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$14.70/EA Quantity for AD56412459
34	AD56409538	4	Terminal Insulator Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$13.07/EA Quantity for AD56409538
35	AD56002066	1	Scr Pan Phil 1/4-20 X .62 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56002066
36	AD54779A	1	Clamp P 5/8 Steel Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$12.08/EA Quantity for AD54779A
37	AD56009064	1	Wsh Int Shprf 1/4 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56009064
38	AD56002859Replaces Advance 87026A	1	Washer, 1/4 Flat S.S. Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$10.30/EA Quantity for AD56002859
39	AD30412A	1	Hose-Solution Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$52.74/EA Quantity for AD30412A
40	AD56315625	1	Barb-Coupler 1/2 x 3/4 Fits 5 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800-32C, SC800 ST-28C	$11.69/EA Quantity for AD56315625

Advance SC750 / SC800 Scrub system-REV parts

The REV scrub deck: deck, motors, pad drivers, linkage, solution hoses and the service kits Advance lists for it. Manual pages 24, list 25.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‍⁠⁠‌‍‌‌⁠‍‍⁠⁠‍‌⁠‍⁠‌‍‌‍⁠‍⁠⁠‌‌‍

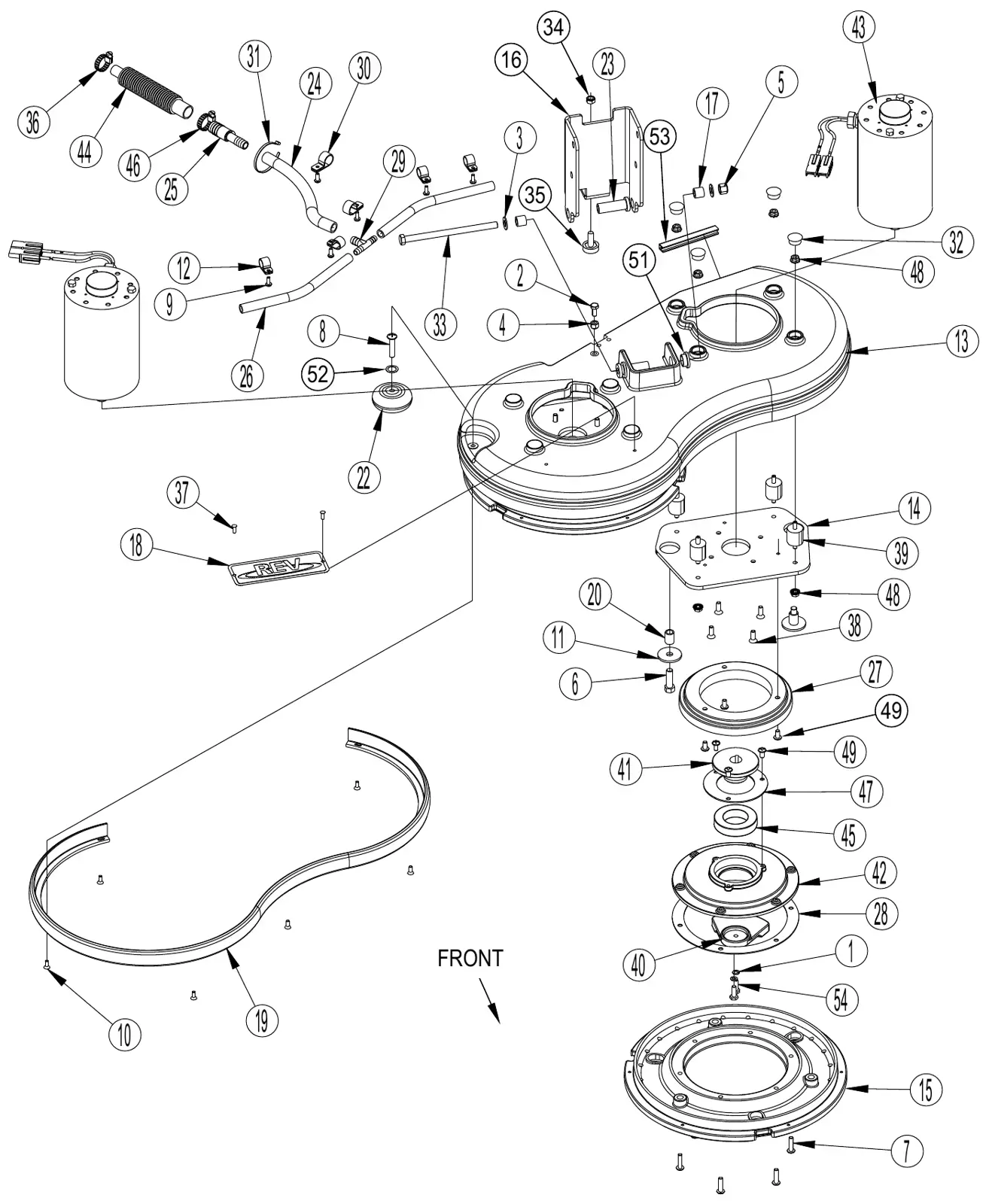

Advance SC750 / SC800 scrub system-rev drawing, manual page 24 — Scrub system-REV, manual page 24. Numbers on the drawing match the Item column. SES ref PF-IKAE-TPWO‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‍⁠⁠‌‍‌‌⁠‍‍⁠⁠‍‌⁠‍⁠‌‍‌‍⁠‍⁠⁠‌‌‍

Advance SC750 / SC800 Scrub system-REV parts (manual pages 24, list 25, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	K6	4	Helical Spring Lock Washer Washer Lock 1/4 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
2	K6	1	Scr- Hex SS 1/4-20 X .62 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
3	K6	2	Wsh-Flt SAE SS 3/8 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
4	K6	1	Nut-Hex Nyl Loc SS 1/4-20 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
5	K6	1	Nut-Hex Nyl Loc SS 3/8-16 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
6	K2	4	Scr-Hex Hd Loc 3/8-16x1.25 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Stabilizer Stud · AD56112741 ›
7	K5	12	Scr-Pan Phil Loc SS1/4-20X1.00 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Pad Driver · AD56112744 ›
8	K6	1	Scr-Pan Phil Loc SS5/16-18X1.50 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
9	K3	6	Scr, Pan Phil Thd Form 10-24 X .50 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
10	K4	6	Scr, Flt Phil Thd Form 10-24x.50 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Bumper · AD56112743 ›
11	K2	4	Wsh, Flt .406 X 1.500 X .125 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Stabilizer Stud · AD56112741 ›
12	K3	4	Clamp-P Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
13	AD56112700	1	Rev Deck Fits 2 of 15 versions SC750-28R, SC800-28R	$901.81/EA Quantity for AD56112700
14	AD56601815	2	Motor Plate Fits 2 of 15 versions SC750-28R, SC800-28R	$54.26/EA Quantity for AD56601815
15	K5	2	Pad Driver Assy Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Pad Driver · AD56112744 ›
–	AD56112751	2	Kit-Pad Driver Hook 14 Fits 2 of 15 versions SC750-28R, SC800-28R Not shown.	$194.41/EA Quantity for AD56112751
16	AD56112776	1	Bracket-Linkage Fits 2 of 15 versions SC750-28R, SC800-28R	$64.01/EA Quantity for AD56112776
17	AD56112707	2	Bushing-Nylon Fits 2 of 15 versions SC750-28R, SC800-28R	$23.35/EA Quantity for AD56112707
18	AD56112723Advance 56112723	1	Decal-Rev Embossed Fits 2 of 15 versions SC750-28R, SC800-28R	Call to confirm part: 800-440-6723
19	K4	1	Bumper Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Bumper · AD56112743 ›
20	K2	4	Sleeve Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Stabilizer Stud · AD56112741 ›
21	AD56112726	2	Jumper Fits 2 of 15 versions SC750-28R, SC800-28R Not shown.	$48.62/EA Quantity for AD56112726
22	AD56112735	1	Wheel Fits 2 of 15 versions SC750-28R, SC800-28R	$21.85/EA Quantity for AD56112735
23	AD56112737	2	Bushing Fits 2 of 15 versions SC750-28R, SC800-28R	$51.38/EA Quantity for AD56112737
24	K3	1	Hose PVC Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
25	K3	1	Barb, Coupler 1/2 X 3/4 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
26	K3	2	Hose PVC Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
27	–	2	Shield Splash Fits 2 of 15 versions SC750-28R, SC800-28R
28	K8	2	Gasket Driver Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Driver · AD9098983000 ›
29	K3	1	Tee, Barb Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
30	K3	2	Clamp-P Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
31	K3	1	Tie, Cable Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Solution Hose · AD56112742 ›
32	AD56900041	8	Plug, Cap Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56900041
33	K6	1	Screw 3/8-16 X 6.00 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
34	AD56002851		Nut, Hex Nyl Loc-Thin SS 5/16-18 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56002851
35	AD56401783		Leveler Fits 2 of 15 versions SC750-28R, SC800-28R	$13.07/EA Quantity for AD56401783
36	AD722030	1	Clamp, Hose Fits 2 of 15 versions SC750-28R, SC800-28R	$9.35/EA Quantity for AD722030
37	K6	2	Rivet, 0.156 Dia X 1/2 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
38	K6	8	Scr-Flt Phil Loc SS 1/4-20x.75 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
39	K1	8	Isolator-40 Duro 1/4-20 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Isolator · AD56112740 ›
40	AD56390002	2	Weight Counter Fits 2 of 15 versions SC750-28R, SC800-28R	$29.16/EA Quantity for AD56390002
41	K9	2	Eccentric Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Eccentric · AD9098984000 ›
42	AD56390027	2	Driver Motor Fits 2 of 15 versions SC750-28R, SC800-28R	$34.91/EA Quantity for AD56390027
43	AD56112749	2	Motor, 24VDC (M3 / M4) Fits 2 of 15 versions SC750-28R, SC800-28R	$1,076.41/EA Quantity for AD56112749
–	AD56413628	2	Brush and Spring Kit Motor Fits 2 of 15 versions SC750-28R, SC800-28R Not shown.	$298.49/EA Quantity for AD56413628
–	AD40645A	4	Connector Housing Pp75 Black Fits 2 of 15 versions SC750-28R, SC800-28R Not shown.	$16.09/EA Quantity for AD40645A
–	AD40657A	4	Connector Contact Fits 2 of 15 versions SC750-28R, SC800-28R Not shown.	$10.30/EA Quantity for AD40657A
44	AD30412A	1	Hose, Solution Fits 2 of 15 versions SC750-28R, SC800-28R	$52.74/EA Quantity for AD30412A
45	AD50736A	2	Bearing Fits 2 of 15 versions SC750-28R, SC800-28R	$64.01/EA Quantity for AD50736A
46	AD53571A	1	Clamp, Hose Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD53571A
47	K8	2	Retainer, Bearing Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Driver · AD9098983000 ›
48	K1	16	Nut, Serrated Flange Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Isolator · AD56112740 ›
49	K6	12	Scr-Pan Phil Loc SS 1/4-20X.50 Fits 2 of 15 versions SC750-28R, SC800-28R	Included in kitKit-Deck Hardware REV2 · AD56112745 ›
50	–		Intentionally Omitted Fits 2 of 15 versions SC750-28R, SC800-28R
51	AD56420160	2	Bearing Flange E00201 Fits 2 of 15 versions SC750-28R, SC800-28R	$13.07/EA Quantity for AD56420160
52	AD56009265	1	Wsh Wave .531 X .781 X .013 Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD56009265
53	AD56112753	1	Trim Fits 2 of 15 versions SC750-28R, SC800-28R	$10.30/EA Quantity for AD56112753
54	AD56003221	4	Scr-Hex Loc SS 1/4-20 X .75 Fits 2 of 15 versions SC750-28R, SC800-28R	$11.69/EA Quantity for AD56003221
K1	AD56112740	1	Kit-IsolatorService kit. Includes items 39, 48.	$57.03/EA Quantity for AD56112740
K2	AD56112741	1	Kit-Stabilizer StudService kit. Includes items 6, 11, 20.	$33.79/EA Quantity for AD56112741
K3	AD56112742	1	Kit-Solution HoseService kit. Includes items 9, 12, 24, 25, 26, 29, 30, 31.	$26.25/EA Quantity for AD56112742
K4	AD56112743	1	Kit-BumperService kit. Includes items 10, 19.	$50.01/EA Quantity for AD56112743
K5	AD56112744	2	Kit-Pad DriverService kit. Includes items 7, 15.	$518.15/EA Quantity for AD56112744
K6	AD56112745	1	Kit-Deck Hardware REV2Service kit. Includes items 1, 2, 3, 4, 5, 8, 33, 37, 38, 49.	$22.25/EA Quantity for AD56112745
K8	AD9098983000	2	Kit-DriverService kit. Includes items 28, 47.	$121.15/EA Quantity for AD9098983000
K9	AD9098984000	2	Kit-EccentricService kit. Includes item 41.	$91.42/EA Quantity for AD9098984000
–	AD56384450	2	Pad Maroon Spp14Optional, not included.	$182.30/EA Quantity for AD56384450
–	AD56112734	2	Pad Micro Fiber-14 InOptional, not included.	$74.67/EA Quantity for AD56112734
–	AD56112746	2	Velcro 2 Sided 14Optional, not included.	$47.12/EA Quantity for AD56112746
–	AD56112708	2	Brush Nylon REV-14Optional, not included.	$77.51/EA Quantity for AD56112708
–	AD56390007	2	Kit-Brush Screw (includes 3 brush screws)Optional, not included.	$10.30/EA Quantity for AD56390007

Advance SC750 / SC800 Solution system parts

The solution tank, level hose, shut-off ball valve, fittings and brackets. Manual page 26.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠⁠‍⁠⁠‌⁠‍‍‍‍‍‍‌⁠⁠‌‍‍⁠⁠⁠⁠‌‌‌‌‍⁠‌‍

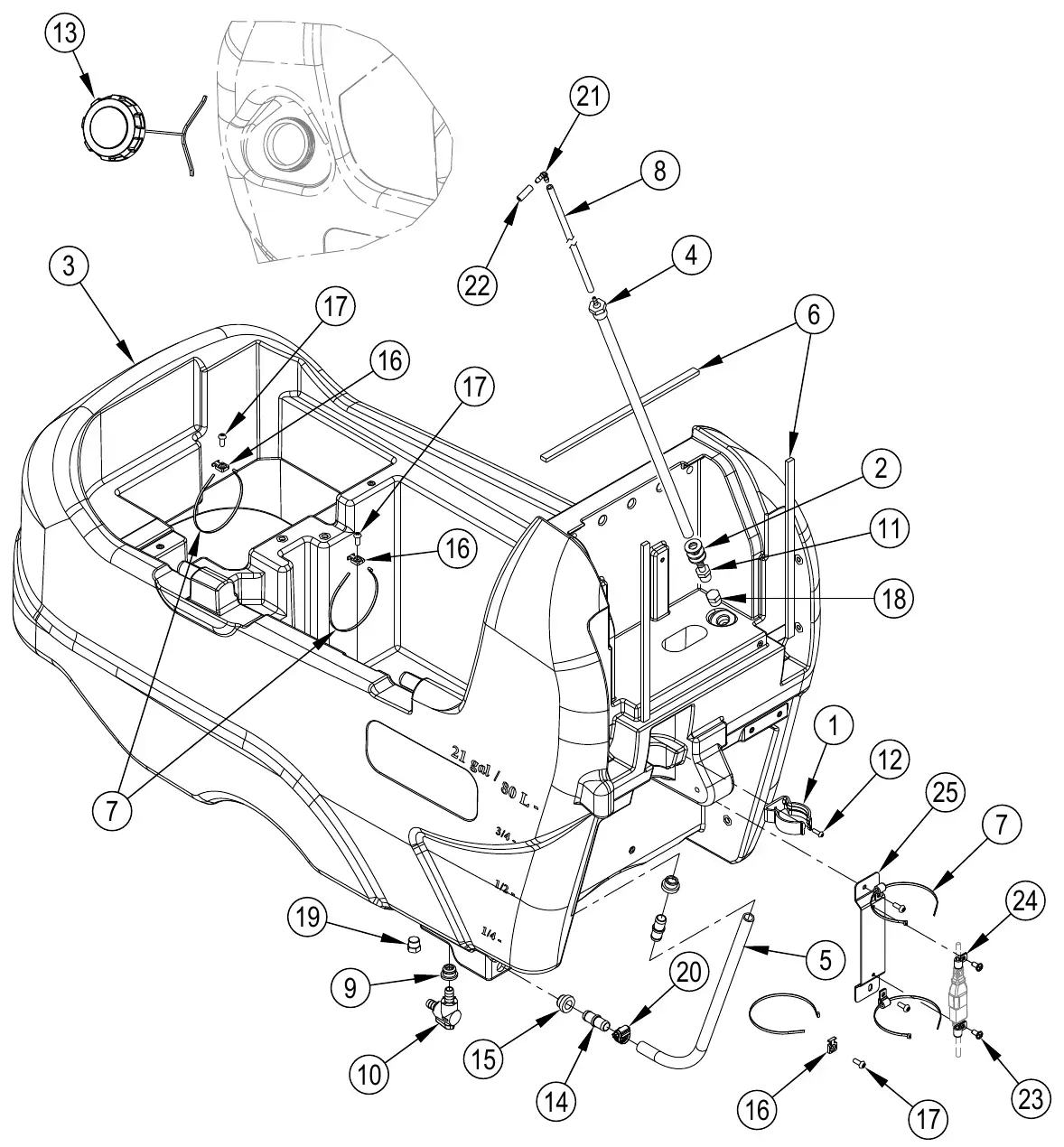

Advance SC750 / SC800 solution system drawing, manual page 26 — Solution system, manual page 26. Numbers on the drawing match the Item column. SES ref PF-23DT-VDSB‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠⁠‍⁠⁠‌⁠‍‍‍‍‍‍‌⁠⁠‌‍‍⁠⁠⁠⁠‌‌‌‌‍⁠‌‍

Advance SC750 / SC800 Solution system parts (manual page 26, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	ADL08812967	1	Clamp, Hose D.50	$11.69/EA Quantity for ADL08812967
2	AD56002918	3	Wsh, Flt SAE SS 1/2 (SC750, SC800)	$11.69/EA Quantity for AD56002918
3	AD56112105	1	Solution Tank (SC750, SC750 ST models) Fits 6 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C	$1,046.88/EA Quantity for AD56112105
3	AD56112101	1	Solution Tank (SC800, SC800 ST models) Fits 9 of 15 versions SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$945.48/EA Quantity for AD56112101
4	AD56112145	1	Tube-Pressure Sensing (SC750, SC800)	$17.46/EA Quantity for AD56112145
5	AD56383997	1	Hose-PVC-5/8X19	$10.30/EA Quantity for AD56383997
6	AD56419275	3	Gasket, .25 X .50	$11.69/EA Quantity for AD56419275
7	AD56478523	5	Tie, CableQuantity of these parts increased by 1 each in production as of November 6, 2014.	$11.69/EA Quantity for AD56478523
8	AD56112551	1	Hose (SC750, SC800)Hose 56601273 is obsolete. To replace 56601273 order Solution Level Kit 56112554.	$14.70/EA Quantity for AD56112551
9	AD9095286000	1	Gasket	$10.98/EA Quantity for AD9095286000
10	AD9097028000	1	Ball Valve 90°	$31.05/EA Quantity for AD9097028000
11	AD56054691	1	Adaptor-Barb Male (SC750, SC800)	$11.69/EA Quantity for AD56054691
12	AD80176A	1	Screw M5-0.8 X 12MM PPHD SS	$11.69/EA Quantity for AD80176A
13	AD56510442	1	Cap-Extra Vent	$59.88/EA Quantity for AD56510442
14	AD56112775	2	Connector-Straight	$18.96/EA Quantity for AD56112775
15	AD31242A	2	Bushing	$16.09/EA Quantity for AD31242A
16	AD52548A	3	Tab, 1/4” ScrewQuantity of these parts increased by 1 each in production as of November 6, 2014.	$11.69/EA Quantity for AD52548A
17	AD80208A	5	Screw, M6 X 1.00 X 10mm Pan HeadQuantity of these parts increased by 1 each in production as of November 6, 2014.	$13.76/EA Quantity for AD80208A
18	AD56305547	1	Plug, 1/2 Hex Pipe (SC750 ST, SC800 ST) Fits 5 of 15 versions SC750 ST-26D, SC750 ST-28C, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56305547
19	AD56261421	1	Plug-Hex Pipe (SC800, SC800 ST models) Fits 9 of 15 versions SC800-26D, SC800-28D, SC800-28C, SC800-32C, SC800-34D, SC800-28R, SC800 ST-26D, SC800 ST-28C, SC800 ST-34D	$11.69/EA Quantity for AD56261421
20	AD166USP	1	Hose Clamp 3/8-7/8	$10.30/EA Quantity for AD166USP
21	AD56112552	1	Elbow 3/16 X 3/16 PolyHose 56601273 is obsolete. To replace 56601273 order Solution Level Kit 56112554.	$8.80/EA Quantity for AD56112552
22	AD56112550	1	HoseHose 56601273 is obsolete. To replace 56601273 order Solution Level Kit 56112554.	$8.80/EA Quantity for AD56112550
23	AD56009062	2	Scr, Pan Phil Thd Form 1/4-20 x .50	$10.30/EA Quantity for AD56009062
24	AD56323260	4	Clamp, Hose Support	$11.69/EA Quantity for AD56323260
25	AD56383383	1	Power Cord Bracket	$18.96/EA Quantity for AD56383383

Advance SC750 / SC800 Squeegee assy parts

The squeegee tool: blade kits, front and rear straps, latch, wheels and knobs, in 26 in and 28 in or 32 in and 34 in versions. Manual page 27.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠‌⁠‍‍⁠‌‌‍‍⁠⁠‍⁠⁠‍⁠‍‌⁠⁠‌⁠‌‍

Advance SC750 / SC800 squeegee assy drawing, manual page 27 — Squeegee assy, manual page 27. Numbers on the drawing match the Item column. SES ref PF-GLGA-TUY3‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠‌⁠‍‍⁠‌‌‍‍⁠⁠‍⁠⁠‍⁠‍‌⁠⁠‌⁠‌‍

Advance SC750 / SC800 Squeegee assy parts (manual page 27, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
–	AD56112313	1	Squeegee Assy (26” & 28” models) Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C	$789.80/EA Quantity for AD56112313
–	AD56112315	1	Squeegee Assy (32” & 34” models) Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D	$740.96/EA Quantity for AD56112315
1	AD56112330	1	Blade Kit-Squeegee Gum (26” & 28” models) Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Blade kits include both front and rear blades.	$35.18/EA Quantity for AD56112330
1	AD56115334	1	Blade Kit-Squeegee Gum (32” & 34” models) Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Blade kits include both front and rear blades.	$46.55/EA Quantity for AD56115334
2	AD60466A	1	Strap-Squeegee Front (26” & 28” models) Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C	$51.38/EA Quantity for AD60466A
2	AD60546A	1	Strap-Squeegee Front (32” & 34” models) Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D	$57.77/EA Quantity for AD60546A
3	AD88632A	1	Scr, Soc Setscrew, Set M8-1.25 X 30mm	$11.69/EA Quantity for AD88632A
4	AD56003302	2	Scr Hex Thd/Hd Ss 5/16-18x1.25	$11.69/EA Quantity for AD56003302
5	AD56002938	4	Wsh, Flt SAE SS 5/16	$10.30/EA Quantity for AD56002938
6	AD56111444	2	Button Plug-1.25	$10.30/EA Quantity for AD56111444
7	AD56112108	2	Wheel	$13.76/EA Quantity for AD56112108
9	AD56112213	1	Strap-Squeegee Rear (26” & 28” models) Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C	$33.79/EA Quantity for AD56112213
9	AD56115293	1	Strap-Assy (32” & 34” models) Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Entire rear squeegee strap and latch assembly for 32 and 34 in models. Contains the rear strap and items 12, 16, 21 and 23.	$87.37/EA Quantity for AD56115293
10	AD56601499	2	Bushing, Nylon	$11.69/EA Quantity for AD56601499
11	AD9099133000	2	Wheel 60x20 With Bushing	$12.08/EA Quantity for AD9099133000
12	AD56112300	1	Rear Latch Strap	$11.69/EA Quantity for AD56112300
13	AD56370711	2	Nut Thumb	$21.85/EA Quantity for AD56370711
15	AD88629A	2	Screw, Hex Thd To Hd M6-1x55	$12.08/EA Quantity for AD88629A
16	AD9098321000	1	Latch Squeegee	$41.86/EA Quantity for AD9098321000
17	AD56002884	2	Scr Hex SS 5/16-18 X 1.25	$15.40/EA Quantity for AD56002884
18	AD54647A	1	Knob, M8 X 30	$13.76/EA Quantity for AD54647A
19	AD60564A	2	Shim, Squeegee Knob	$12.50/EA Quantity for AD60564A
20	AD80199A	2	Nut, M6 -1.00 Nyloc S.S.	$13.76/EA Quantity for AD80199A
21	AD56002909	2	Scr-Pan Phil SS 6-32 x .38	$10.30/EA Quantity for AD56002909
22	AD56002859Replaces Advance 87026A	2	Washer, 1/4 Flat S.S.	$10.30/EA Quantity for AD56002859
23	AD56002907	2	Nut-Hex Nyl Loc SS 6-32	$11.69/EA Quantity for AD56002907
24	AD56384502	2	Washer-Polyurethane	$27.75/EA Quantity for AD56384502
–	AD56112330	1	Blade Kit-Squeegee Gum Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Squeegee blade kit for 56112313. Blade kits include both front and rear blades.	$35.18/EA Quantity for AD56112330
–	AD56112331	1	Blade Kit-Squeegee Linatex Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Squeegee blade kit for 56112313. Blade kits include both front and rear blades. Optional, not included.	$62.59/EA Quantity for AD56112331
–	AD56112332	1	Blade Kit-Squeegee PU Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Squeegee blade kit for 56112313. Blade kits include both front and rear blades. Optional, not included.	$81.54/EA Quantity for AD56112332
–	AD56115334	1	Blade Kit-Squeegee Gum Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Squeegee blade kit for 56112315. Blade kits include both front and rear blades.	$46.55/EA Quantity for AD56115334
–	AD56115333	1	Blade Kit-Squeegee Linatex Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Squeegee blade kit for 56112315. Blade kits include both front and rear blades. Optional, not included.	$113.44/EA Quantity for AD56115333
–	AD56115335	1	Blade Kit-Squeegee PU Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Squeegee blade kit for 56112315. Blade kits include both front and rear blades. Optional, not included.	$147.57/EA Quantity for AD56115335

Advance SC750 / SC800 Squeegee system parts

The squeegee mount and lift: plate, springs, cable, lever, knobs and hardware. Manual pages 28, list 29.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‍‍⁠⁠‌‌⁠‍‍⁠⁠⁠‍‌‍⁠⁠⁠‍‍‌‌‍‌‌‍‍‌⁠

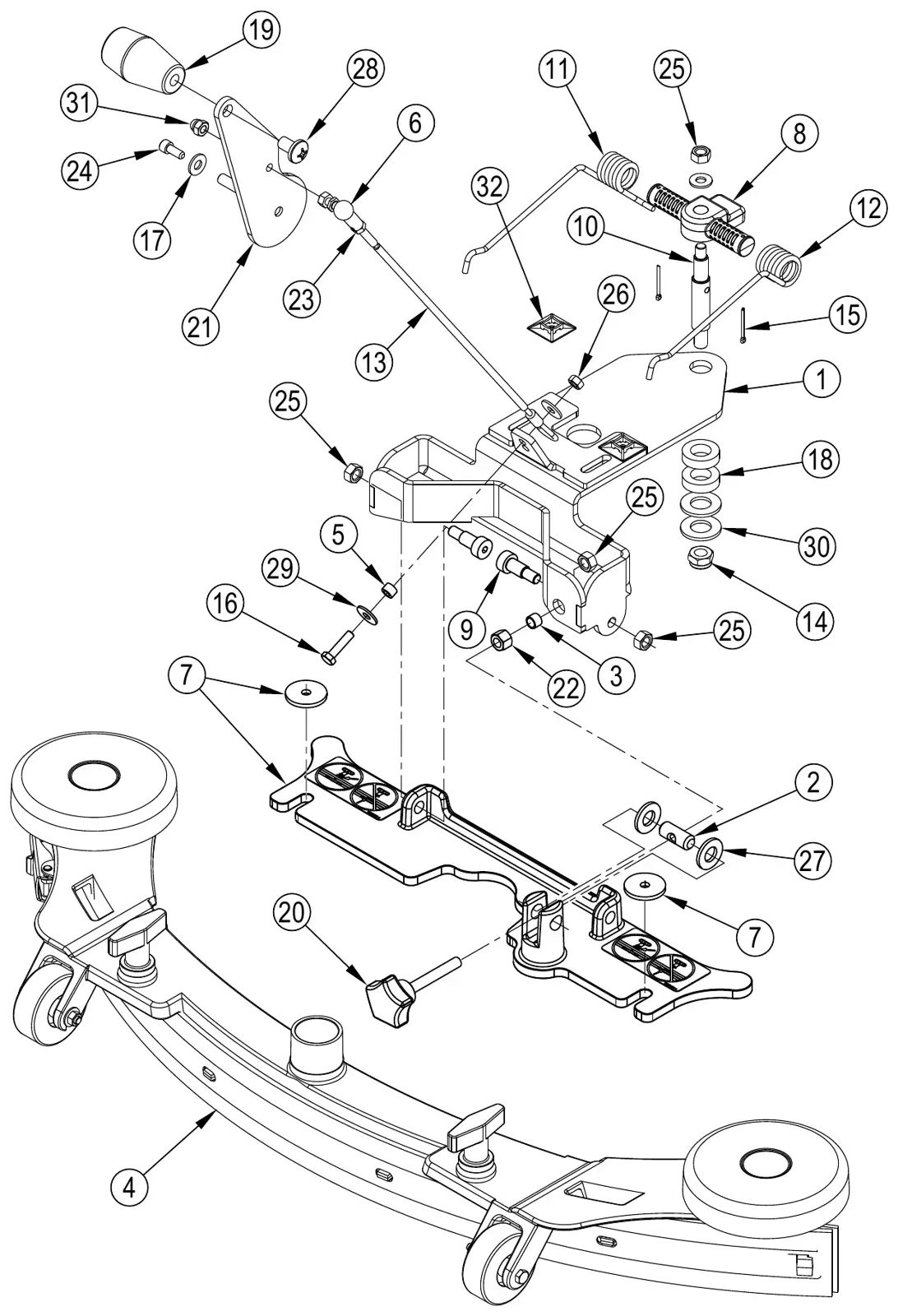

Advance SC750 / SC800 squeegee system drawing, manual page 28 — Squeegee system, manual page 28. Numbers on the drawing match the Item column. SES ref PF-WHZE-ZN3I‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‍‍⁠⁠‌‌⁠‍‍⁠⁠⁠‍‌‍⁠⁠⁠‍‍‌‌‍‌‌‍‍‌⁠

Advance SC750 / SC800 Squeegee system parts (manual pages 28, list 29, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
1	AD56112770	1	Plate-Squeegee Weldt	$80.22/EA Quantity for AD56112770
2	ADL08601509	1	Pivot Support	$18.89/EA Quantity for ADL08601509
3	ADL08602422	1	Spacer	$15.57/EA Quantity for ADL08602422
4	AD56112313	1	Squeegee Assy (26” & 28” models / Includes Gum Rubber Blades) Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C	$789.80/EA Quantity for AD56112313
4	AD56112315	1	Squeegee Assy (32” & 34” models / Includes Gum Rubber Blades) Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D	$740.96/EA Quantity for AD56112315
5	AD1451252000	1	Spacer 6.5x10x4.5	$8.80/EA Quantity for AD1451252000
6	AD1458479000	1	Joint, Ball M6	$23.35/EA Quantity for AD1458479000
7	AD56384513	1	Squeegee Bracket Kit TSB-FC-2014-031Used on machines after October 2015. For machines built before November 2015 refer to TSB-FC-2014-031.	$154.15/EA Quantity for AD56384513
8	AD9100000515	1	Support Squeegee Spring SIP	$6.89/EA Quantity for AD9100000515
9	AD9096495000	2	Shoulder Screw M10 X 16	$4.27/EA Quantity for AD9096495000
10	AD9096497000	1	Shaft	$13.76/EA Quantity for AD9096497000
11	AD9096537000	1	Push Squeegee Spring	$12.50/EA Quantity for AD9096537000
12	AD9096538000	1	Push Squeegee Spring	$12.50/EA Quantity for AD9096538000
13	AD9097366000	1	Cable, Squeegee Lifting	$16.17/EA Quantity for AD9097366000
14	AD80223A	1	Nut, M10-1.5 Nylock	$11.69/EA Quantity for AD80223A
15	AD925044	2	Pin, Cotter-.094 X 1.00	$11.69/EA Quantity for AD925044
16	AD56003430	1	Scr Hex SS M6-1.00X25MM	$10.87/EA Quantity for AD56003430
17	AD56001939Replaces Advance 980651	2	Washer, 5/16 Flat	$11.33/EA Quantity for AD56001939
18	AD38708A	2	Spacer	$23.35/EA Quantity for AD38708A
19	AD52557A	1	Knob, Lift	$24.72/EA Quantity for AD52557A
20	AD54699A	1	Knob, M8 X 55	$10.98/EA Quantity for AD54699A
21	AD61952A	1	Lever, Squeegee Lift	$15.68/EA Quantity for AD61952A
22	AD56003352Replaces Advance 80163A	1	Nut M8-1.25 Hex	$12.85/EA Quantity for AD56003352
23	AD80171A	1	Nut, M6 Hex	$13.76/EA Quantity for AD80171A
24	AD80179A	1	Screw, M6 X 15	$11.69/EA Quantity for AD80179A
25	AD80198A	4	Nut, M8 -1.25 Nylock S.S.	$13.76/EA Quantity for AD80198A
26	AD80199A	1	Nut, M6 -1.00 Nylock S.S.	$13.76/EA Quantity for AD80199A
27	AD80424A	2	Washer Flat	$11.69/EA Quantity for AD80424A
28	AD85389A	1	Screw, 3/8-16 X 5/8	$4.70/EA Quantity for AD85389A
29	AD87007A	2	Washer Control Shaft	$11.69/EA Quantity for AD87007A
30	AD87613A	2	Washer Flat1.22 X .64 X .10 Nylon	$11.69/EA Quantity for AD87613A
31	AD88640A	1	Nut, M6-1 Acorn	$11.69/EA Quantity for AD88640A
32	AD9096635000	2	Self-Adhesive Sideburns	$10.30/EA Quantity for AD9096635000

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 before serial number 4000068715 parts

The parts Advance numbers on its ladder diagram key, sc750 and sc800 before serial number 4000068715 drawing. Manual pages 30, list 31.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌⁠⁠‌‍‌⁠‍‍‍‌‌‍‍⁠‌⁠‍‌‍‌‌‌‌‍⁠⁠‍‌‌⁠

Advance SC750 / SC800 ladder diagram key, sc750 and sc800 before serial number 4000068715 drawing, manual page 30 — Ladder diagram key, SC750 and SC800 before serial number 4000068715, manual page 30. Numbers on the drawing match the Item column. SES ref PF-DVPP-BNHM‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌⁠⁠‌‍‌⁠‍‍‍‌‌‍‍⁠‌⁠‍‌‍‌‌‌‌‍⁠⁠‍‌‌⁠

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 before serial number 4000068715 parts (manual pages 30, list 31, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
A1	AD56112351	1	Kit AXP Control Board	$1,962.82/EA Quantity for AD56112351
A2	AD56112187	1	Speed Controller 70A 24V	$583.85/EA Quantity for AD56112187
A3	AD56383869	1	Kit-OBC SC750 (Optional)	$1,869.35/EA Quantity for AD56383869
A4	AD56393718Advance 56393718	1	Hour Meter (Optional)	Call to confirm part: 800-440-6723
A5	AD56112136Advance 56112136	1	Laser Module (Optional)	Call to confirm part: 800-440-6723
BAT	–		Battery-24VDCOptional. i
F1	AD56412089	1	Fuse, 150 Amp	$19.83/EA Quantity for AD56412089
CB1	AD56315256	1	Circuit Breaker-30 Amp	$13.07/EA Quantity for AD56315256
CB2	AD56507644	1	Circuit Breaker-10 Amp	$23.35/EA Quantity for AD56507644
K1	AD41075A	1	Contactor-Vacuum	$20.48/EA Quantity for AD41075A
K2	AD56397088	1	Contactor-Brush	$141.48/EA Quantity for AD56397088
K3	AD41075A	1	Contactor-Brush Remove	$20.48/EA Quantity for AD41075A
L1	AD56112147	1	Solenoid-Solution	$189.43/EA Quantity for AD56112147
M1	AD56382670	1	Kit Transaxle Motor	$712.53/EA Quantity for AD56382670
M2	AD40280A	1	Motor-Actuator	$945.48/EA Quantity for AD40280A
M3	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M3	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M3	AD56112749	1	Motor, 24VDC (REV)	$1,076.41/EA Quantity for AD56112749
M4	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M4	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M4	AD56112749	1	Motor, 24VDC (REV)	$1,076.41/EA Quantity for AD56112749
M5	AD56384102	1	Motor-Vacuum	$269.64/EA Quantity for AD56384102
M6	AD56315241	1	Pump-Chemical (Optional)	$283.67/EA Quantity for AD56315241
R1	AD56397029	1	Potentiometer, 5K Ohm, Throttle	$93.70/EA Quantity for AD56397029
R2	AD56396197	1	Potentiometer-Speed Limit	$61.23/EA Quantity for AD56396197
R3	–	1	Part of Main Wiring Harness
S0	–	1	Part of M2
S1	–	1	Part of M2
S2	–	1	Part of M2
S3	AD56303553	1	Switch, Key	$87.37/EA Quantity for AD56303553

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 after serial number 4000068715 parts

The parts Advance numbers on its ladder diagram key, sc750 and sc800 after serial number 4000068715 drawing. Manual pages 32, list 33.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‍‌‍⁠‌⁠‍‍⁠⁠‍‌‌⁠‌‍‍⁠‌‌‍‌‍‍

Advance SC750 / SC800 ladder diagram key, sc750 and sc800 after serial number 4000068715 drawing, manual page 32 — Ladder diagram key, SC750 and SC800 after serial number 4000068715, manual page 32. Numbers on the drawing match the Item column. SES ref PF-KNM3-VRCW‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‍‌‍⁠‌⁠‍‍⁠⁠‍‌‌⁠‌‍‍⁠‌‌‍‌‍‍

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 after serial number 4000068715 parts (manual pages 32, list 33, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
A1	AD56112351	1	Kit AXP Control Board	$1,962.82/EA Quantity for AD56112351
A2	AD56112187	1	Speed Controller 70A 24V	$583.85/EA Quantity for AD56112187
A3	AD56383869	1	Kit-OBC SC750 (Optional)	$1,869.35/EA Quantity for AD56383869
A4	AD56393718Advance 56393718	1	Hour Meter (Optional)	Call to confirm part: 800-440-6723
A5	AD56112136Advance 56112136	1	Laser Module (Optional)	Call to confirm part: 800-440-6723
BAT	–		Battery-24VDCOptional. i
F1	AD56412089	1	Fuse, 150 Amp	$19.83/EA Quantity for AD56412089
CB1	AD56315256	1	Circuit Breaker-30 Amp	$13.07/EA Quantity for AD56315256
CB2	AD56507644	1	Circuit Breaker-10 Amp	$23.35/EA Quantity for AD56507644
K1	AD41075A	1	Contactor-Vacuum	$20.48/EA Quantity for AD41075A
K2	AD56397088	1	Contactor-Brush	$141.48/EA Quantity for AD56397088
K3	AD41075A	1	Contactor-Brush Remove	$20.48/EA Quantity for AD41075A
L1	AD56112147	1	Solenoid-Solution	$189.43/EA Quantity for AD56112147
M1	AD56382670	1	Kit Transaxle Motor	$712.53/EA Quantity for AD56382670
M2	AD40280A	1	Motor-Actuator	$945.48/EA Quantity for AD40280A
M3	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M3	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M3	AD56112749	1	Motor, 24VDC (REV)	$1,076.41/EA Quantity for AD56112749
M4	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M4	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M4	AD56112749	1	Motor, 24VDC (REV)	$1,076.41/EA Quantity for AD56112749
M5	AD56384102	1	Motor-Vacuum	$269.64/EA Quantity for AD56384102
M6	AD56315241	1	Pump-Chemical (Optional)	$283.67/EA Quantity for AD56315241
R1	AD56397029	1	Potentiometer, 5K Ohm, Throttle	$93.70/EA Quantity for AD56397029
R2	AD56396197	1	Potentiometer-Speed Limit	$61.23/EA Quantity for AD56396197
R3	–	1	Part of Main Wiring Harness
S0	–	1	Part of M2
S1	–	1	Part of M2
S2	–	1	Part of M2
S3	AD56303553	1	Switch, Key	$87.37/EA Quantity for AD56303553

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 after June 2014 parts

The parts Advance numbers on its ladder diagram key, sc750 and sc800 after june 2014 drawing. Manual pages 34, list 35.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‍‍‌‌‌⁠‍‍‌‌‌⁠⁠‍⁠⁠‌‍‌‌⁠⁠⁠‌‌⁠

Advance SC750 / SC800 ladder diagram key, sc750 and sc800 after june 2014 drawing, manual page 34 — Ladder diagram key, SC750 and SC800 after June 2014, manual page 34. Numbers on the drawing match the Item column. SES ref PF-ILMR-SNDU‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‍‍‌‌‌⁠‍‍‌‌‌⁠⁠‍⁠⁠‌‍‌‌⁠⁠⁠‌‌⁠

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 after June 2014 parts (manual pages 34, list 35, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
A1	AD56112351	1	Kit AXP Control Board	$1,962.82/EA Quantity for AD56112351
A2	AD56112187	1	Speed Controller 70A 24V	$583.85/EA Quantity for AD56112187
A3	AD56383869	1	Kit-OBC SC750 (Optional)	$1,869.35/EA Quantity for AD56383869
A4	AD56393718Advance 56393718	1	Hour Meter (Optional)	Call to confirm part: 800-440-6723
A5	AD56112136Advance 56112136	1	Laser Module (Optional)	Call to confirm part: 800-440-6723
BAT	–		Battery-24VDCOptional. i
F1	AD56412089	1	Fuse, 150 Amp	$19.83/EA Quantity for AD56412089
CB1	AD56315256	1	Circuit Breaker-30 Amp	$13.07/EA Quantity for AD56315256
CB2	AD56507644	1	Circuit Breaker-10 Amp	$23.35/EA Quantity for AD56507644
K1	AD41075A	1	Contactor-Vacuum	$20.48/EA Quantity for AD41075A
K2	AD56397088	1	Contactor-Brush	$141.48/EA Quantity for AD56397088
K3	AD41075A	1	Contactor-Brush Remove	$20.48/EA Quantity for AD41075A
L1	AD56112147	1	Solenoid-Solution	$189.43/EA Quantity for AD56112147
M1	AD56382670	1	Kit Transaxle Motor	$712.53/EA Quantity for AD56382670
M2	AD40280A	1	Motor-Actuator	$945.48/EA Quantity for AD40280A
M3	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M3	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M3	AD56112749	1	Motor, 24VDC (REV)	$1,076.41/EA Quantity for AD56112749
M4	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M4	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M4	AD56112749	1	Motor, 24VDC (REV)	$1,076.41/EA Quantity for AD56112749
M5	AD56384102	1	Motor-Vacuum	$269.64/EA Quantity for AD56384102
M6	AD56315241	1	Pump-Chemical (Optional)	$283.67/EA Quantity for AD56315241
R1	AD56397029	1	Potentiometer, 5K Ohm, Throttle	$93.70/EA Quantity for AD56397029
R2	AD56396197	1	Potentiometer-Speed Limit	$61.23/EA Quantity for AD56396197
R3	–	1	Part of Main Wiring Harness
S0	–	1	Part of M2
S1	–	1	Part of M2
S2	–	1	Part of M2
S3	AD56303553	1	Switch, Key	$87.37/EA Quantity for AD56303553

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST before serial number 4000068715 parts

The parts Advance numbers on its ladder diagram key, sc750 st and sc800 st before serial number 4000068715 drawing. Manual pages 36, list 37.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‌⁠⁠⁠‌⁠‍‍‌‍‍⁠‌⁠‌‍‍‌⁠⁠⁠‍⁠‌‌‌‌

Advance SC750 / SC800 ladder diagram key, sc750 st and sc800 st before serial number 4000068715 drawing, manual page 36 — Ladder diagram key, SC750 ST and SC800 ST before serial number 4000068715, manual page 36. Numbers on the drawing match the Item column. SES ref PF-NOUD-XFGU‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‌⁠⁠⁠‌⁠‍‍‌‍‍⁠‌⁠‌‍‍‌⁠⁠⁠‍⁠‌‌‌‌

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST before serial number 4000068715 parts (manual pages 36, list 37, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
A1	AD56112352	1	Kit ST Control Board	$1,308.69/EA Quantity for AD56112352
A2	AD56112241	1	Speed Controller 70a 24v	$679.97/EA Quantity for AD56112241
A4	AD56393718Advance 56393718	1	Hour Meter (Optional)	Call to confirm part: 800-440-6723
BAT	–		Battery-24VDCOptional. i
F1	AD56412089	1	Fuse, 150 Amp	$19.83/EA Quantity for AD56412089
CB1	AD56315256	1	Circuit Breaker-30 Amp	$13.07/EA Quantity for AD56315256
CB2	AD56507644	1	Circuit Breaker-10 Amp	$23.35/EA Quantity for AD56507644
K1	AD41075A	1	Contactor-Vacuum	$20.48/EA Quantity for AD41075A
K2	AD56412179	1	Contactor 24 VDC (Brush)	$119.65/EA Quantity for AD56412179
L1	AD56112147	1	Solenoid-Solution	$189.43/EA Quantity for AD56112147
M1	AD56382670	1	Kit Transaxle Motor	$712.53/EA Quantity for AD56382670
M2	AD40280A	1	Motor-Actuator	$945.48/EA Quantity for AD40280A
M3	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M3	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M4	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M4	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M5	AD56384102	1	Motor-Vacuum	$269.64/EA Quantity for AD56384102
R2	AD56315929	1	Potentiometer-Speed Limit	$87.37/EA Quantity for AD56315929
R3	–	1	Part of Main Wiring Harness
R4	–	1	Resistor-4.75K
S0	–	1	Part of M2
S1	–	1	Part of M2
S2	–	1	Part of M2
S3	AD56303553	1	Switch, Key	$87.37/EA Quantity for AD56303553
S4	AD56315935	1	Switch-Traction	$71.84/EA Quantity for AD56315935
S5	AD56315935	1	Switch-Traction	$71.84/EA Quantity for AD56315935
S6	AD56315945	1	Switch-Reverse	$55.17/EA Quantity for AD56315945
S7	AD56112190	1	Switch-Vacuum	$84.49/EA Quantity for AD56112190
S8	AD56112190	1	Switch-Scrub	$84.49/EA Quantity for AD56112190
S9	AD56112190	1	Switch-Solution	$84.49/EA Quantity for AD56112190

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST after serial number 4000068715 parts

The parts Advance numbers on its ladder diagram key, sc750 st and sc800 st after serial number 4000068715 drawing. Manual pages 38, list 39.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‌⁠⁠‌‍‍‍‌⁠‍‍‍‌⁠‍‍⁠‌⁠‍‌⁠‍⁠‌⁠⁠‌‍‌

Advance SC750 / SC800 ladder diagram key, sc750 st and sc800 st after serial number 4000068715 drawing, manual page 38 — Ladder diagram key, SC750 ST and SC800 ST after serial number 4000068715, manual page 38. Numbers on the drawing match the Item column. SES ref PF-T2GV-RLEW‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‌⁠⁠‌‍‍‍‌⁠‍‍‍‌⁠‍‍⁠‌⁠‍‌⁠‍⁠‌⁠⁠‌‍‌

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST after serial number 4000068715 parts (manual pages 38, list 39, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
A1	AD56112352	1	Kit ST Control Board	$1,308.69/EA Quantity for AD56112352
A2	AD56112241	1	Speed Controller 70a 24v	$679.97/EA Quantity for AD56112241
A4	AD56393718Advance 56393718	1	Hour Meter (Optional)	Call to confirm part: 800-440-6723
BAT	–		Battery-24VDCOptional. i
F1	AD56412089	1	Fuse, 150 Amp	$19.83/EA Quantity for AD56412089
CB1	AD56315256	1	Circuit Breaker-30 Amp	$13.07/EA Quantity for AD56315256
CB2	AD56507644	1	Circuit Breaker-10 Amp	$23.35/EA Quantity for AD56507644
K1	AD41075A	1	Contactor-Vacuum	$20.48/EA Quantity for AD41075A
K2	AD56412179	1	Contactor 24 VDC (Brush)	$119.65/EA Quantity for AD56412179
L1	AD56112147	1	Solenoid-Solution	$189.43/EA Quantity for AD56112147
M1	AD56382670	1	Kit Transaxle Motor	$712.53/EA Quantity for AD56382670
M2	AD40280A	1	Motor-Actuator	$945.48/EA Quantity for AD40280A
M3	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M3	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M4	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M4	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M5	AD56384102	1	Motor-Vacuum	$269.64/EA Quantity for AD56384102
R2	AD56315929	1	Potentiometer-Speed Limit	$87.37/EA Quantity for AD56315929
R3	–	1	Part of Main Wiring Harness
R4	–	1	Resistor-4.75K
S0	–	1	Part of M2
S1	–	1	Part of M2
S2	–	1	Part of M2
S3	AD56303553	1	Switch, Key	$87.37/EA Quantity for AD56303553
S4	AD56315935	1	Switch-Traction	$71.84/EA Quantity for AD56315935
S5	AD56315935	1	Switch-Traction	$71.84/EA Quantity for AD56315935
S6	AD56315945	1	Switch-Reverse	$55.17/EA Quantity for AD56315945
S7	AD56112190	1	Switch-Vacuum	$84.49/EA Quantity for AD56112190
S8	AD56112190	1	Switch-Scrub	$84.49/EA Quantity for AD56112190
S9	AD56112190	1	Switch-Solution	$84.49/EA Quantity for AD56112190

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST after June 2014 parts

The parts Advance numbers on its ladder diagram key, sc750 st and sc800 st after june 2014 drawing. Manual pages 40, list 41.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‍‌‌‌‍⁠⁠‌⁠‍‍‌‍⁠‌‍‌⁠⁠‌‌⁠‌‌⁠‍‍⁠‍⁠‌‍‍⁠

Advance SC750 / SC800 ladder diagram key, sc750 st and sc800 st after june 2014 drawing, manual page 40 — Ladder diagram key, SC750 ST and SC800 ST after June 2014, manual page 40. Numbers on the drawing match the Item column. SES ref PF-SICI-QDL6‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‍‌‌‌‍⁠⁠‌⁠‍‍‌‍⁠‌‍‌⁠⁠‌‌⁠‌‌⁠‍‍⁠‍⁠‌‍‍⁠

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST after June 2014 parts (manual pages 40, list 41, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
A1	AD56112352	1	Kit ST Control Board	$1,308.69/EA Quantity for AD56112352
A2	AD56112241	1	Speed Controller 70a 24v	$679.97/EA Quantity for AD56112241
A4	AD56393718Advance 56393718	1	Hour Meter (Optional)	Call to confirm part: 800-440-6723
BAT	–		Battery-24VDCOptional. i
F1	AD56412089	1	Fuse, 150 Amp	$19.83/EA Quantity for AD56412089
CB1	AD56315256	1	Circuit Breaker-30 Amp	$13.07/EA Quantity for AD56315256
CB2	AD56507644	1	Circuit Breaker-10 Amp	$23.35/EA Quantity for AD56507644
K1	AD41075A	1	Contactor-Vacuum	$20.48/EA Quantity for AD41075A
K2	AD56412179	1	Contactor 24 VDC (Brush)	$119.65/EA Quantity for AD56412179
L1	AD56112147	1	Solenoid-Solution	$189.43/EA Quantity for AD56112147
M1	AD56382670	1	Kit Transaxle Motor	$712.53/EA Quantity for AD56382670
M2	AD40280A	1	Motor-Actuator	$945.48/EA Quantity for AD40280A
M3	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M3	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M4	AD56112240	1	Motor Gearbox Assy (Disk)	$1,192.61/EA Quantity for AD56112240
M4	AD56112111	1	Motor-24 VDC 3/4HP (Cylindrical)	$1,236.30/EA Quantity for AD56112111
M5	AD56384102	1	Motor-Vacuum	$269.64/EA Quantity for AD56384102
R2	AD56315929	1	Potentiometer-Speed Limit	$87.37/EA Quantity for AD56315929
R3	–	1	Part of Main Wiring Harness
R4	–	1	Resistor-4.75K
S0	–	1	Part of M2
S1	–	1	Part of M2
S2	–	1	Part of M2
S3	AD56303553	1	Switch, Key	$87.37/EA Quantity for AD56303553
S4	AD56315935	1	Switch-Traction	$71.84/EA Quantity for AD56315935
S5	AD56315935	1	Switch-Traction	$71.84/EA Quantity for AD56315935
S6	AD56315945	1	Switch-Reverse	$55.17/EA Quantity for AD56315945
S7	AD56112190	1	Switch-Vacuum	$84.49/EA Quantity for AD56112190
S8	AD56112190	1	Switch-Scrub	$84.49/EA Quantity for AD56112190
S9	AD56112190	1	Switch-Solution	$84.49/EA Quantity for AD56112190

Advance SC750 / SC800 Optional kits & accessories parts

Advance's optional kits and accessories, squeegee blade kits, and scrub brushes and pads by deck size. Manual page 42.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‌‌⁠‌‍‌⁠‍‍⁠‍‌⁠‍‍⁠‌‍‍‌‍‍‌‍‍⁠

No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.

Advance SC750 / SC800 Optional kits & accessories parts (manual page 42, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
–	AD56115334	Qty on machine: 1	Blade Kit-Squeegee Gum Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Squeegee blade kit for 56112315. Blade kits include both front and rear blades.	$46.55/EA Quantity for AD56115334
–	AD56112330	Qty on machine: 1	Blade Kit-Squeegee Gum Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Squeegee blade kit for 56112313. Blade kits include both front and rear blades.	$35.18/EA Quantity for AD56112330
–	AD56115335	Qty on machine: 1	Blade Kit-Squeegee PU Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Squeegee blade kit for 56112315. Optional, not included. Blade kits include both front and rear blades.	$147.57/EA Quantity for AD56115335
–	AD56115333	Qty on machine: 1	Blade Kit-Squeegee Linatex Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Squeegee blade kit for 56112315. Optional, not included. Blade kits include both front and rear blades.	$113.44/EA Quantity for AD56115333
–	AD56505195	Qty on machine: 2	Pad Retainer for 56505750 Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$30.34/EA Quantity for AD56505195
–	AD56505195	Qty on machine: 2	Pad Retainer for 56505750 Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$30.34/EA Quantity for AD56505195
–	AD56505195	Qty on machine: 2	Pad Retainer for 56505750 Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$30.34/EA Quantity for AD56505195
–	AD56505805	Qty on machine: 2	ProLite Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$98.75/EA Quantity for AD56505805
–	AD56112331	Qty on machine: 1	Blade Kit-Squeegee Linatex Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Squeegee blade kit for 56112313. Optional, not included. Blade kits include both front and rear blades.	$62.59/EA Quantity for AD56112331
–	AD56505784	Qty on machine: 2	Prolene Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$94.59/EA Quantity for AD56505784
–	AD56505764	Qty on machine: 2	Prolene Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$68.42/EA Quantity for AD56505764
–	AD56412046	Qty on machine: 2	Prolene Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C 28 in cylindrical scrub brush. Optional, not included.	$165.24/EA Quantity for AD56412046
–	AD56112332	Qty on machine: 1	Blade Kit-Squeegee PU Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Squeegee blade kit for 56112313. Optional, not included. Blade kits include both front and rear blades.	$81.54/EA Quantity for AD56112332
–	AD56407475	Qty on machine: 2	Prolene Fits 1 of 15 versions SC800-32C 32 in cylindrical scrub brush. Optional, not included.	$185.36/EA Quantity for AD56407475
–	AD56505780	Qty on machine: 2	Short Trim Pad Holder Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$264.99/EA Quantity for AD56505780
–	AD56505788	Qty on machine: 2	MidLite Grit 180 Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$241.48/EA Quantity for AD56505788
–	AD56505782	Qty on machine: 2	Dyna Grit 80 Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$290.97/EA Quantity for AD56505782
–	AD56505783	Qty on machine: 2	AgLite Grit 500 Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$236.02/EA Quantity for AD56505783
–	AD56505787	Qty on machine: 2	MidGrit 240 Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$256.79/EA Quantity for AD56505787
–	AD56412191	Qty on machine: 2	Soft Nylon Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C 28 in cylindrical scrub brush. Optional, not included.	$165.24/EA Quantity for AD56412191
–	AD56505800	Qty on machine: 2	Short Trim Pad Holder Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$101.41/EA Quantity for AD56505800
–	AD56505760	Qty on machine: 2	Short Trim Pad Holder Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$101.41/EA Quantity for AD56505760
–	AD56505766	Qty on machine: 2	Union Mix Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$107.21/EA Quantity for AD56505766
–	AD56505761	Qty on machine: 2	Magna Grit 46 Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$201.79/EA Quantity for AD56505761
–	AD56505804	Qty on machine: 2	Prolene Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$92.31/EA Quantity for AD56505804
–	AD56505807	Qty on machine: 2	MidGrit 240 Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$187.09/EA Quantity for AD56505807
–	AD56505801	Qty on machine: 2	Magna Grit 46 Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$270.16/EA Quantity for AD56505801
–	AD56412195	Qty on machine: 2	Magna Grit 46 Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C 28 in cylindrical scrub brush. Optional, not included.	$278.30/EA Quantity for AD56412195
–	AD56407473	Qty on machine: 2	Soft Nylon Fits 1 of 15 versions SC800-32C 32 in cylindrical scrub brush. Optional, not included.	$268.77/EA Quantity for AD56407473
–	AD56407474	Qty on machine: 2	Hard Nylon Fits 1 of 15 versions SC800-32C 32 in cylindrical scrub brush. Optional, not included.	$284.28/EA Quantity for AD56407474
–	AD56407476	Qty on machine: 2	MidLite Grit 180 Fits 1 of 15 versions SC800-32C 32 in cylindrical scrub brush. Optional, not included.	$339.23/EA Quantity for AD56407476
–	AD56407477	Qty on machine: 2	Dyna Grit 80 Fits 1 of 15 versions SC800-32C 32 in cylindrical scrub brush. Optional, not included.	$319.45/EA Quantity for AD56407477
–	AD56407478	Qty on machine: 2	Magna Grit 46 Fits 1 of 15 versions SC800-32C 32 in cylindrical scrub brush. Optional, not included.	$378.03/EA Quantity for AD56407478
–	AD56383869	Qty on machine: 1	Kit-OBC SC750Optional, not included. Onboard Charger Kit 56112547 is no longer available and has been replaced by 56383869.	$1,869.35/EA Quantity for AD56383869
–	AD56112141	Qty on machine: 1	Kit-VacuumWand With Tote BagOptional, not included.	$501.94/EA Quantity for AD56112141
–	AD56601527	Qty on machine: 1	Kit-Battery WateringOptional, not included.	$473.09/EA Quantity for AD56601527
–	AD56302198	Qty on machine: 1	Kit-Hour MeterOptional, not included.	$160.57/EA Quantity for AD56302198
–	AD56112138Advance 56112138	Qty on machine: 1	Kit-Laser (SC750, SC800 only)Optional, not included.	Call to confirm part: 800-440-6723
–	AD56112140	Qty on machine: 1	Kit-Wet Floor Sign HolderOptional, not included.	$85.85/EA Quantity for AD56112140
–	AD56112312	Qty on machine: 1	Kit-Mop HolderOptional, not included.	$102.07/EA Quantity for AD56112312
–	AD56112222	Qty on machine: 1	Utility CaddyOptional, not included.	$11.69/EA Quantity for AD56112222
–	AD56112255	Qty on machine: 1	Programmer With CableOptional, not included.	$1,163.09/EA Quantity for AD56112255
–	AD56397453Advance 56397453	Qty on machine: 6	Indicator-Battery Level (1 per battery)Optional, not included.	Call to confirm part: 800-440-6723
–	AD56384137Advance 56384137	Qty on machine: 1	Idler W/O-Ring KitOptional, not included.	Call to confirm part: 800-440-6723
–	AD56112221	Qty on machine: 1	Kit-Parking BrakeOptional, not included.	$589.29/EA Quantity for AD56112221
–	AD56112355	Qty on machine: 1	Kit-Refilling HoseOptional, not included.	$103.43/EA Quantity for AD56112355
–	AD56044438	Qty on machine: 1	Literature Pack (manufactured before July 2014)Optional, not included.	$31.05/EA Quantity for AD56044438
–	AD56044683Advance 56044683	Qty on machine: 1	Literature Pack (manufactured after June 2014)Optional, not included.	Call to confirm part: 800-440-6723
–	AD56505765	Qty on machine: 2	ProLite Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$81.50/EA Quantity for AD56505765
–	AD56505763	Qty on machine: 2	AgLite Grit 500 Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$200.61/EA Quantity for AD56505763
–	AD56505767	Qty on machine: 2	MidGrit 240 Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$194.41/EA Quantity for AD56505767
–	AD56505768	Qty on machine: 2	MidLite Grit 180 Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$194.41/EA Quantity for AD56505768
–	AD56505762	Qty on machine: 2	Dyna Grit 80 Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D 26 in disk scrub brush. Optional, not included.	$195.22/EA Quantity for AD56505762
–	AD56505806	Qty on machine: 2	Union Mix Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$96.86/EA Quantity for AD56505806
–	AD56505803	Qty on machine: 2	AgLite Grit 500 Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$229.62/EA Quantity for AD56505803
–	AD56505808	Qty on machine: 2	MidLite Grit 180 Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$187.09/EA Quantity for AD56505808
–	AD56505802	Qty on machine: 2	Dyna Grit 80 Fits 2 of 15 versions SC750-28D, SC800-28D 28 in disk scrub brush. Optional, not included.	$187.09/EA Quantity for AD56505802
–	AD56505785	Qty on machine: 2	ProLite Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$88.51/EA Quantity for AD56505785
–	AD56505786	Qty on machine: 2	Union Mix Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$113.81/EA Quantity for AD56505786
–	AD56505781	Qty on machine: 2	Magna Grit 46 Fits 2 of 15 versions SC800-34D, SC800 ST-34D 34 in disk scrub brush. Optional, not included.	$408.60/EA Quantity for AD56505781
–	AD56412192	Qty on machine: 2	Hard Nylon Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C 28 in cylindrical scrub brush. Optional, not included.	$218.71/EA Quantity for AD56412192
–	AD56412193	Qty on machine: 2	MidLite Grit 180 Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C 28 in cylindrical scrub brush. Optional, not included.	$253.10/EA Quantity for AD56412193
–	AD56412194	Qty on machine: 2	Dyna Grit 80 Fits 4 of 15 versions SC750-28C, SC750 ST-28C, SC800-28C, SC800 ST-28C 28 in cylindrical scrub brush. Optional, not included.	$279.50/EA Quantity for AD56412194
–	AD56384450	Qty on machine: 2	Pad Maroon Spp14 Fits 2 of 15 versions SC750-28R, SC800-28R REV pads and brush. Optional, not included.	$182.30/EA Quantity for AD56384450
–	AD56112734	Qty on machine: 2	Pad Micro Fiber-14 In Fits 2 of 15 versions SC750-28R, SC800-28R REV pads and brush. Optional, not included.	$74.67/EA Quantity for AD56112734
–	AD56112746	Qty on machine: 2	Velcro 2 Sided 14 Fits 2 of 15 versions SC750-28R, SC800-28R REV pads and brush. Optional, not included.	$47.12/EA Quantity for AD56112746
–	AD56112708	Qty on machine: 2	Brush Nylon REV-14 Fits 2 of 15 versions SC750-28R, SC800-28R REV pads and brush. Optional, not included.	$77.51/EA Quantity for AD56112708

Advance SC750 / SC800 Recommended spare parts

Advance's recommended spare parts, grouped as wear parts, ordinary maintenance and extraordinary maintenance. Manual page 43.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌‍⁠‌⁠‍‍‍‍‌‌‍‌‌‌‍‌⁠⁠⁠‌‍⁠‍⁠‌‌⁠‍

No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.

Advance SC750 / SC800 Recommended spare parts (manual page 43, Advance SC750, SC800, SC750 ST, SC800 ST Parts List, form no. 56042535, 7/2010 revised 12/2019 REV M)
Item	Part number	Qty	Description and notes	Price
–	AD56115334	Qty on machine: 1	Blade Kit-Squeegee Gum Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Wear part. Squeegee blade kit for 56112315. Blade kits include both front and rear blades.	$46.55/EA Quantity for AD56115334
–	AD56112330	Qty on machine: 1	Blade Kit-Squeegee Gum Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Wear part. Squeegee blade kit for 56112313. Blade kits include both front and rear blades.	$35.18/EA Quantity for AD56112330
–	AD56112308	Qty on machine: 1	Caster, RearOrdinary maintenance.	$106.33/EA Quantity for AD56112308
–	AD56115335	Qty on machine: 1	Blade Kit-Squeegee PU Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Wear part. Squeegee blade kit for 56112315. Blade kits include both front and rear blades.	$147.57/EA Quantity for AD56115335
–	AD9100000703Replaces Advance 9097290000	Qty on machine: 1	Filling HoseExtraordinary maintenance.	$50.01/EA Quantity for AD9100000703
–	AD56115333	Qty on machine: 1	Blade Kit-Squeegee Linatex Fits 3 of 15 versions SC800-32C, SC800-34D, SC800 ST-34D Wear part. Squeegee blade kit for 56112315. Blade kits include both front and rear blades.	$113.44/EA Quantity for AD56115333
–	AD56397098	Qty on machine: 1	Carbon Brush Set of 2 (for 56384102)Wear part.	$23.35/EA Quantity for AD56397098
–	AD56407391	Qty on machine: 2	BladeWear part.	$11.69/EA Quantity for AD56407391
–	AD56112306	Qty on machine: 1	Kit-Bristle Skirt 28 (28” models / Includes two skirts and mounting hardware) Fits 2 of 15 versions SC750-28D, SC800-28D Extraordinary maintenance.	$167.59/EA Quantity for AD56112306
–	AD56115344	Qty on machine: 2	Idler End AssyExtraordinary maintenance.	$51.43/EA Quantity for AD56115344
–	AD56315321	Qty on machine: 2	Belt, Auto TensionExtraordinary maintenance.	$26.25/EA Quantity for AD56315321
–	AD56115314	Qty on machine: 2	Guard Assy-BeltExtraordinary maintenance.	$28.44/EA Quantity for AD56115314
–	AD56112316	Qty on machine: 1	Suction HoseExtraordinary maintenance.	$39.43/EA Quantity for AD56112316
–	AD56112310	Qty on machine: 1	Drain Hose-RecoveryExtraordinary maintenance.	$80.22/EA Quantity for AD56112310
–	AD56112331	Qty on machine: 1	Blade Kit-Squeegee Linatex Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Wear part. Squeegee blade kit for 56112313. Blade kits include both front and rear blades.	$62.59/EA Quantity for AD56112331
–	AD56112109	Qty on machine: 2	TireExtraordinary maintenance.	$171.85/EA Quantity for AD56112109
–	AD56115318	Qty on machine: 2	Drive End AssyExtraordinary maintenance.	$100.68/EA Quantity for AD56115318
–	AD9100000362	Qty on machine: 1	Filter Water TSB-FC-2013-127Extraordinary maintenance.	$23.21/EA Quantity for AD9100000362
–	AD56112108	Qty on machine: 2	WheelExtraordinary maintenance.	$13.76/EA Quantity for AD56112108
–	AD56112332	Qty on machine: 1	Blade Kit-Squeegee PU Fits 12 of 15 versions SC750-26D, SC750-28D, SC750-28C, SC750-28R, SC750 ST-26D, SC750 ST-28C, SC800-26D, SC800-28D, SC800-28C, SC800-28R, SC800 ST-26D, SC800 ST-28C Wear part. Squeegee blade kit for 56112313. Blade kits include both front and rear blades.	$81.54/EA Quantity for AD56112332
–	AD56112147	Qty on machine: 1	Solenoid Valve Assy (L1)Extraordinary maintenance.	$189.43/EA Quantity for AD56112147
–	AD56370711	Qty on machine: 2	Nut ThumbExtraordinary maintenance.	$21.85/EA Quantity for AD56370711
–	AD56109716	Qty on machine: 1	Paddle-Back CoverExtraordinary maintenance.	$39.43/EA Quantity for AD56109716
–	AD56384102	Qty on machine: 1	Motor-Vac-24v-Dephi Connector (M5)Extraordinary maintenance.	$269.64/EA Quantity for AD56384102
–	AD56112261	Qty on machine: 1	Brush Skirt Assy-34D Left (34” models) Fits 2 of 15 versions SC800-34D, SC800 ST-34D Extraordinary maintenance.	$87.37/EA Quantity for AD56112261
–	AD56109653	Qty on machine: 1	Spring RetainerExtraordinary maintenance.	$11.33/EA Quantity for AD56109653
–	AD9097028000	Qty on machine: 1	Ball Valve 90°Extraordinary maintenance.	$31.05/EA Quantity for AD9097028000
–	AD9096635000	Qty on machine: 2	Self-Adhesive SideburnsExtraordinary maintenance.	$10.30/EA Quantity for AD9096635000
–	AD40628A	Qty on machine: 4	Carbon Brush (for 50981A)Wear part.	$32.48/EA Quantity for AD40628A
–	AD56303526	Qty on machine: 1	Replacement Key Set (for 56303553)Extraordinary maintenance.	$30.91/EA Quantity for AD56303526
–	AD56112307	Qty on machine: 1	Kit-Bristle Skirt 34 (34” models / Includes two skirts and mounting hardware) Fits 2 of 15 versions SC800-34D, SC800 ST-34D Extraordinary maintenance.	$187.09/EA Quantity for AD56112307
–	AD56407303	Qty on machine: 2	Knob (for 56115344)Extraordinary maintenance.	$10.30/EA Quantity for AD56407303
–	AD56412459	Qty on machine: 2	WheelExtraordinary maintenance.	$14.70/EA Quantity for AD56412459
–	AD56315256	Qty on machine: 1	Circuit Breaker, 30 Amp (CB1)Extraordinary maintenance.	$13.07/EA Quantity for AD56315256
–	AD56112262	Qty on machine: 1	Brush Skirt Assy-34D Right (34” models) Fits 2 of 15 versions SC800-34D, SC800 ST-34D Extraordinary maintenance.	$129.54/EA Quantity for AD56112262
–	AD56112351	Qty on machine: 1	Kit AXP Control BoardExtraordinary maintenance.	$1,962.82/EA Quantity for AD56112351
–	AD56112257	Qty on machine: 1	Brush Skirt Assy-26D Left (26” models) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D Extraordinary maintenance.	$103.07/EA Quantity for AD56112257
–	AD56112258	Qty on machine: 1	Brush Skirt Assy-26D Right (26” models) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D Extraordinary maintenance.	$103.07/EA Quantity for AD56112258
–	AD40280A	Qty on machine: 1	Actuator (M2)Extraordinary maintenance.	$945.48/EA Quantity for AD40280A
–	AD56303553	Qty on machine: 1	Switch-Key (for 56112351) (S3)Extraordinary maintenance.	$87.37/EA Quantity for AD56303553
–	AD56112187	Qty on machine: 1	Speed Controller 70a 24v (A2)Extraordinary maintenance.	$583.85/EA Quantity for AD56112187
–	AD56344168	Qty on machine: 1	FilterExtraordinary maintenance.	$10.30/EA Quantity for AD56344168
–	AD56601450	Qty on machine: 1	Wheel, 4.00 OdExtraordinary maintenance.	$15.57/EA Quantity for AD56601450
–	AD56601118	Qty on machine: 1	Brush PlateExtraordinary maintenance.	$31.05/EA Quantity for AD56601118
–	AD56112111	Qty on machine: 2	Motor-24 Vdc 3/4hp (M3 / M4)Extraordinary maintenance.	$1,236.30/EA Quantity for AD56112111
–	AD56382670	Qty on machine: 1	Kit Transaxle Motor (for 56112543) (M1)Extraordinary maintenance.	$712.53/EA Quantity for AD56382670
–	AD56315230	Qty on machine: 1	Paddle, Front CoverExtraordinary maintenance.	$87.37/EA Quantity for AD56315230
–	AD56112253	Qty on machine: 1	Kit-Interface Panel (Membrane Switch, Membrane Panel, Gasket)Extraordinary maintenance.	$371.04/EA Quantity for AD56112253
–	AD56507644	Qty on machine: 1	Circuit Breaker, 10 Amp (CB2)Extraordinary maintenance.	$23.35/EA Quantity for AD56507644
–	AD41075A	Qty on machine: 2	Relay, 40A (K1 / K3)Extraordinary maintenance.	$20.48/EA Quantity for AD41075A
–	AD9096634000	Qty on machine: 1	Stop Tank CableExtraordinary maintenance.	$30.52/EA Quantity for AD9096634000
–	AD56112305	Qty on machine: 1	Kit-Bristle Skirt 26 (26” models / Includes two skirts and mounting hardware) Fits 4 of 15 versions SC750-26D, SC750 ST-26D, SC800-26D, SC800 ST-26D Extraordinary maintenance.	$152.92/EA Quantity for AD56112305
–	AD56112521	Qty on machine: 1	Gimbal AssemblyExtraordinary maintenance.	$63.46/EA Quantity for AD56112521
–	AD56383997	Qty on machine: 1	Hose-PVC-5/8X19Extraordinary maintenance.	$10.30/EA Quantity for AD56383997
–	AD56112242	Qty on machine: 2	Carbon Brush (for 56112240)Wear part.	$138.74/EA Quantity for AD56112242
–	AD56412257Advance 56412257	Qty on machine: 1	Brush Cap Assy (for 56112111)Wear part.	Call to confirm part: 800-440-6723
–	AD56112543	Qty on machine: 1	TransaxleExtraordinary maintenance.	$1,945.12/EA Quantity for AD56112543
–	AD56380158	Qty on machine: 2	Flange Kit (for 56112543)Extraordinary maintenance.	$121.15/EA Quantity for AD56380158
–	AD9100000860Replaces Advance 9095215000	Qty on machine: 1	Filter and Seal (for 9100000362)Extraordinary maintenance.	$35.50/EA Quantity for AD9100000860
–	AD9097456000Advance 9097456000	Qty on machine: 1	LeverExtraordinary maintenance.	Call to confirm part: 800-440-6723
–	AD54689A	Qty on machine: 1	Gas Spring 500nExtraordinary maintenance.	$40.81/EA Quantity for AD54689A
–	AD56396197	Qty on machine: 1	Potentiometer-Speed Limit (R2)Extraordinary maintenance.	$61.23/EA Quantity for AD56396197
–	AD56397029	Qty on machine: 1	Potentiometer-5k (R1)Extraordinary maintenance.	$93.70/EA Quantity for AD56397029
–	AD56315280	Qty on machine: 1	KnobExtraordinary maintenance.	$13.07/EA Quantity for AD56315280
–	AD56397088	Qty on machine: 1	Contactor, 24v Spdt (K2)Extraordinary maintenance.	$141.48/EA Quantity for AD56397088
–	AD56412089	Qty on machine: 1	Fuse, 150 Amp (F1)Extraordinary maintenance.	$19.83/EA Quantity for AD56412089
–	AD56112303	Qty on machine: 1	Kit-Float Ball CageExtraordinary maintenance. Includes items 1, 14 (Recovery system).	$71.84/EA Quantity for AD56112303
–	AD56109651	Qty on machine: 1	Brush Plate Assy – CCWExtraordinary maintenance.	$407.56/EA Quantity for AD56109651
–	AD56109652	Qty on machine: 1	Brush Plate Assy – CWExtraordinary maintenance.	$407.56/EA Quantity for AD56109652
–	AD56112523	Qty on machine: 1	Linkage BracketExtraordinary maintenance.	$73.23/EA Quantity for AD56112523
–	AD56112240	Qty on machine: 2	Motor Gearbox Assy (M3 / M4)Extraordinary maintenance.	$1,192.61/EA Quantity for AD56112240
–	AD56112259	Qty on machine: 1	Brush Skirt Assy-28D Left (28” models) Fits 2 of 15 versions SC750-28D, SC800-28D Extraordinary maintenance.	$130.92/EA Quantity for AD56112259
–	AD56112260	Qty on machine: 1	Brush Skirt Assy-28D Right (28” models) Fits 2 of 15 versions SC750-28D, SC800-28D Extraordinary maintenance.	$130.92/EA Quantity for AD56112260
–	AD30412A	Qty on machine: 1	Hose, SolutionExtraordinary maintenance.	$52.74/EA Quantity for AD30412A
–	AD56366455	Qty on machine: 1	Plate, StopExtraordinary maintenance.	$11.69/EA Quantity for AD56366455
–	AD56601056	Qty on machine: 1	Spring, Brush HolderExtraordinary maintenance.	$18.96/EA Quantity for AD56601056
–	AD56112523	Qty on machine: 1	Linkage BracketExtraordinary maintenance.	$73.23/EA Quantity for AD56112523
–	AD30412A	Qty on machine: 1	Hose-SolutionExtraordinary maintenance.	$52.74/EA Quantity for AD30412A
–	ADL08812967	Qty on machine: 1	Clamp, Hose D.50Extraordinary maintenance.	$11.69/EA Quantity for ADL08812967
–	AD56112145	Qty on machine: 1	Tube-Pressure SensingExtraordinary maintenance.	$17.46/EA Quantity for AD56112145
–	AD56419275	Qty on machine: 3	Gasket, .25 X .50Extraordinary maintenance.	$11.69/EA Quantity for AD56419275
–	AD56112554	Qty on machine: 1	Solution Level KitExtraordinary maintenance.	$25.83/EA Quantity for AD56112554
–	AD56112345	Qty on machine: 1	Fill Hose SupportExtraordinary maintenance.	$51.38/EA Quantity for AD56112345
–	AD56601599	Qty on machine: 1	Cap-Raw With TetherExtraordinary maintenance.	$19.04/EA Quantity for AD56601599
–	AD9096505000Advance 9096505000	Qty on machine: 2	Wheel 90x20 With BushingExtraordinary maintenance.	Call to confirm part: 800-440-6723
–	AD9096052000	Qty on machine: 1	Squeegee Spring SupportExtraordinary maintenance.	$12.08/EA Quantity for AD9096052000
–	AD52557A	Qty on machine: 1	Knob, LiftExtraordinary maintenance.	$24.72/EA Quantity for AD52557A

New to your Advance SC750 / SC800? Start here

Before first use: charge the batteries overnight before you run the machine the first time.

Set up, run and look after your SC750 or SC800. Everything here comes from Advance's instructions for use, rewritten in plain steps, with the parts you need linked to the list above.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

1Check the batteries

Check that the batteries are connected to the machine.
Turn the key switch ON and look at the battery indicator.
Charge the batteries before use if the gauge is not full or the green light is off.
If your machine has an onboard charger, read the charger maker's manual to set the charger for your battery type.

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), page A-10. SES ref PF-NUYU-NGNY‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‌‍‍⁠‌⁠‍‍⁠‍‍‍⁠‍‌‌⁠‌⁠‍⁠⁠‍‌‌‌‌⁠

2Fit brushes or pads

Raise the scrub deck and turn the key switch off. Remove the key.
Disk deck: put pads on the pad holders, line up the lugs on the brush with the holes in the mounting plate and turn to lock. Turn the outside edge of the brush toward the rear of the machine.
Cylindrical deck: loosen the black knobs on the idler assemblies and remove the idlers. Slide the brush into the housing, lift slightly, push and turn until it seats. Put the idlers back.
REV deck: put a microfiber pad (AD56112734) straight on the pad driver. For a maroon pad (AD56384450), put the standard red pad on the driver first and a 2-sided velcro (AD56112746) between the red and maroon pads. Without that, the pad driver is damaged.
REV brushes: turn the brush screw clockwise until tight and hand tighten only.

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), pages A-11, A-12, A-13 and A-14. SES ref PF-NUYU-NGNY‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‌‍‍⁠‌⁠‍‍⁠‍‍‍⁠‍‌‌⁠‌⁠‍⁠⁠‍‌‌‌‌⁠

3Fill the tank and fit the squeegee

Fill the solution tank with water and the right cleaning chemical. Stay under 21 gal (79.5 L) on the SC750 and SC750 ST, and 25 gal (94.6 L) on the SC800 and SC800 ST.
Keep the level at least 3 in (7.5 cm) below the bottom of the solution fill. Use only low-foaming, non-flammable liquid detergents. Keep the water at or under 130 °F (54.4 °C).
Slide the squeegee onto the mount bracket and tighten the two thumb nuts. Connect the recovery hose to the squeegee inlet.
Lower the squeegee and move ahead a little. Turn the adjustment knob until the rear blade (AD56112330 / AD56115334) touches the floor evenly across its full width and bends over slightly.

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), page A-15. SES ref PF-NUYU-NGNY‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‌‍‍⁠‌⁠‍‍⁠‍‍‍⁠‍‌‌⁠‌⁠‍⁠⁠‍‌‌‌‌⁠

4Scrub a floor

Turn the key switch ON and check the battery indicator.
Press and hold the solution switch for 5 seconds to pre-wet the floor. Then press the scrub switch.
Lower the squeegee with the squeegee lever.
Push the drive paddle forward, or press a palm button on ST models, and keep moving at a slow walking speed while the brushes turn. Standing still can damage the floor.
Empty the recovery tank when the shut-off float stops the pick-up.

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), pages A-18 and A-19. SES ref PF-NUYU-NGNY‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌‌‍‍⁠‌⁠‍‍⁠‍‍‍⁠‍‌‌⁠‌⁠‍⁠⁠‍‌‌‌‌⁠

Questions about your SC750 / SC800? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →

Advance SC750 / SC800 troubleshooting

Problems, likely causes and fixes from Advance's troubleshooting table. Turn the key switch off before any service.

Advance SC750 / SC800 problems, causes and fixes
Likely cause	Fix	Part
Poor water pick-up
Worn or torn squeegee blades	Reverse or replace the blades (AD56112330 / AD56115334).	AD56112330Blade Kit-Squeegee Gum (26” & 28” models)$35.18/EA Quantity for AD56112330
Squeegee out of adjustment, or debris caught in the squeegee	Adjust it so the blades touch the floor evenly across the full width. Clean the squeegee tool.
Recovery tank full, or vacuum hose clogged	Empty the recovery tank. Remove debris from the hose.
Recovery tank drain hose leak, or recovery tank cover gasket leak	Secure the cap or replace the drain hose (AD56112310). Seat the cover properly or replace the gasket (AD56112297).	AD56112310Drain Hose-Recovery$80.22/EA Quantity for AD56112310 AD56112297Gasket-Recovery Lid$29.53/EA Quantity for AD56112297
Using too much solution, or foam filter cover not seated	Adjust the solution flow at the control panel. Seat the cover properly.
Poor scrubbing performance
Worn brush or pad, wrong brush or pad type, wrong cleaning chemical, moving too fast, or not enough solution	Rotate or replace the brushes. For the wrong type or chemical, call SES service. Slow down. Increase the solution flow at the control panel.
Inadequate solution flow or no solution
Solution tank empty, lines, valves, filter or trough clogged, shut-off valve closed, or solution solenoid valve	Fill the tank. Flush the lines and trough and clean the solution filter (AD9100000362). Open the shut-off valve. Clean or replace the valve (AD56112147).	AD9100000362Filter Water TSB-FC-2013-127$23.21/EA Quantity for AD9100000362 AD56112147Solenoid Valve Assy (L1)$189.43/EA Quantity for AD56112147
Machine does not run
Battery connector disconnected, main system controller, or tripped 10 Amp circuit breaker	Reconnect the battery connectors. Check the error fault codes (see the service manual). Check for an electrical short circuit and reset the breaker (AD56507644).	AD56507644Circuit Breaker, 10 Amp (CB2)$23.35/EA Quantity for AD56507644
No forward or reverse wheel drive
Drive system speed controller, tripped 30 Amp circuit breaker, or emergency stop switch tripped	Check the error fault codes (see the service manual). Check for drive motor overload and reset the breaker (AD56315256). Reset the emergency stop switch.	AD56315256Circuit Breaker, 30 Amp (CB1)$13.07/EA Quantity for AD56315256
Vacuum shuts off and the display shows the Recovery Tank FULL indicator when the tank is not full
Plugged squeegee hose, or vacuuming large amounts of water at a high travel speed	Clear the debris. Slow down or disable the auto shut-off feature (see the service manual).
Poor sweeping performance (cylindrical system)
Hopper full, brushes worn, or bristles have taken a set	Empty and clean the hopper. Replace the brushes. Rotate the brushes.
No detergent flow (EcoFlex models only)
Empty detergent cartridge, plugged or kinked detergent line, dry seal cap not sealed, or detergent pump wiring disconnected or backwards	Fill the cartridge. Purge the system and straighten the lines. Reseat the dry seal cap. Connect or reconnect the wiring.

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), page A-23. SES ref PF-5XRD-ZT5X‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‌⁠⁠‌⁠‌⁠‍‍‍‌‌‍‌⁠⁠‍‍‌‌⁠‍‍‍‌‌‍‌

Still stuck? SES is an Advance service center. Call 800-440-6723 and have your model and serial number ready.

Advance SC750 / SC800 maintenance schedule

Advance's maintenance schedule, after-use steps and lubrication list. Turn the key switch off and remove the key before changing brushes or opening any access panel.

Advance SC750 / SC800 maintenance
Task	How often	Part
Charge the batteries.	Daily
Check and clean the tanks and hoses.	Daily
Check, clean and rotate the brushes or pads.	Daily
Check and clean the squeegee. Reverse or replace the blades (AD56112330 / AD56115334) if they are cut, torn, wavy or worn.	Daily	AD56112330Blade Kit-Squeegee Gum (26” & 28” models)$35.18/EA Quantity for AD56112330
Check and clean the vacuum shut-off float (AD56112303).	Daily	AD56112303Kit-Float Ball Cage$71.84/EA Quantity for AD56112303
Empty and clean the debris tray (AD9097384000) in the recovery tank. On cylindrical machines, also clean the hopper.	Daily	AD9097384000Debris Tray$18.96/EA Quantity for AD9097384000
Raise the brushes and squeegee, move to a service area and turn the key switch off.	After every use
Empty the solution tank through the solution drain hose and rinse it. Replace kinked or damaged solution hoses.	After every use
Empty the recovery tank through the drain hose (AD56112310). Rinse the tank and the shut-off float, and replace kinked or damaged hoses.	After every use	AD56112310Drain Hose-Recovery$80.22/EA Quantity for AD56112310
Take off the brushes or pad holders. Rinse them in warm water and hang them to dry. Let buffing pads dry fully before use.	After every use
Take off the squeegee, rinse it in warm water and hang it to dry. Store the machine in a clean, dry place.	After every use
Check the water level in each battery cell, unless you have gel batteries. Use distilled or demineralized water and do not overfill.	Weekly
Inspect the scrub housing skirts.	Weekly
Inspect and clean the solution filter (AD9100000362).	Weekly	AD9100000362Filter Water TSB-FC-2013-127$23.21/EA Quantity for AD9100000362
Clean the solution manifolds on cylindrical machines.	Weekly
EcoFlex models only: purge the detergent system.	Weekly
Oil the squeegee linkage pivot points, the squeegee angle knob threads and the squeegee tool end wheels with light machine oil.	Monthly
Oil the brush linkage pivot points and the pivot points on the REV deck.	Monthly
Oil the scrub deck bumper wheels.	Monthly
Grease the rear caster wheel swivels.	Every quarter
Have the vacuum motor carbon brushes (brush set (AD56397098)) checked once a year or after 300 operating hours. Call SES service: 800-440-6723.	Yearly	AD56397098Carbon Brush Set of 2 (for 56384102)$23.35/EA Quantity for AD56397098
Have the brush and drive motor carbon brushes checked every 500 hours or once a year.	Yearly
Motor damage from skipped carbon brush service is not covered under warranty.	Yearly

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), pages A-20, A-21 and A-22. SES ref PF-YXVS-E6PB‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠⁠‍⁠‍‍‌‌⁠‍‍‍‍‍‌⁠‌‌‍⁠‍‌⁠‍‍⁠‍⁠⁠‌‌‍

Advance SC750 / SC800 specifications

From Advance's instructions for use. Model-specific values are shown by model.

Advance SC750 / SC800 technical data
Batteries	24 V, 312 Ah (four 6 V batteries)
Solution tank	SC750 and SC750 ST: 21 gal (79.5 L) maximum. SC800 and SC800 ST: 25 gal (94.6 L) maximum
Detergent cartridge (EcoFlex)	1.25 gal (4.73 L) maximum
Maximum water temperature	130 °F (54.4 °C)
Gross weight	SC750: 942 lb (427.3 kg); SC750-28R: 969 lb (439.5 kg); SC800: 994 lb (450.9 kg); SC800-28R: 1,021 lb (463.1 kg)
Transport weight	SC750: 932 lb (422.7 kg); SC750-28R: 959 lb (435.0 kg); SC800: 984 lb (446.3 kg); SC800-28R: 1,011 lb (458.5 kg)
Sound pressure level	61 dB(A); 64 dB(A) on the 28R models; uncertainty 3.0 dB(A)
Protection grade	IPX4; N/A on the 28R models
Gradeability	2% (1.15°) transporting and cleaning
EcoFlex detergent ratio	Locked at 1:400 except while overriding the EcoFlex cleaning mode

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), pages A-4, A-10, A-15, A-16, A-18 and A-24. SES ref PF-5X5L-KNWQ‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌⁠‌⁠‍⁠‌⁠‌⁠‍‍‍⁠⁠⁠⁠‍‍‍⁠‍‍‌‍‍‌‌⁠

Advance SC750 / SC800 manuals and source documents

The documents this page was built from. Sign in with a free account on our site to view or download them.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌‍‌‌⁠⁠‍‌⁠‍‍‍‌‌⁠‍‍⁠‍‍‌‌‌‌‍⁠⁠

Online manuals

Read the SC750 / SC800 manuals in your browser, with clickable part numbers. No sign-in needed.

SC750 / SC800 operator manual, free to read
SC750 / SC800 service manual, free to read

Share this pageSend the link to whoever orders your parts.Email me this page

Advance SC750 / SC800 manuals
Document	Covers	Edition	Size	Open
PDFby SESSC750 / SC800 parts listParts list with drawings, 48 pages	SC750, SC800, SC750 ST, SC800 ST (all builds)	7/2010, revised 12/2019 (rev M)	5.8 MB	Sign in to view or download Sign in to download
PDFby SESSC750 / SC800 instructions for useOperator manual, 100 pages in four languages	SC750, SC800, SC750 ST, SC800 ST	5/2014, revised 8/2017 (rev D)	20.6 MB	Sign in to view or download Sign in to download

Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.

Common Advance SC750 / SC800 parts questions

What batteries does the Advance SC750 / SC800 use?

Four 6 volt batteries, giving 24 V and 312 Ah. The machine comes from the factory with enough cables for four 6 volt batteries. Ask your Advance dealer for the recommended batteries.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), pages A-10 and A-24. SES ref PF-KHRB-BQLQ‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠⁠‌⁠‍‍‍‌‌‌‍‌‍⁠‍‌‍‍‍‍⁠‍‌

How much solution does the SC800 tank hold?

Fill the SC800 and SC800 ST to a maximum of 25 gal (94.6 L), and the SC750 and SC750 ST to 21 gal (79.5 L). Do not fill above 3 in (7.5 cm) from the bottom of the solution fill.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), page A-15. SES ref PF-KHRB-BQLQ‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠⁠‌⁠‍‍‍‌‌‌‍‌‍⁠‍‌‍‍‍‍⁠‍‌

How often should the carbon brushes on my SC750 or SC800 be checked?

Have the vacuum motor carbon brushes checked once a year or after 300 operating hours. Check the brush and drive motor carbon brushes every 500 hours or once a year. Motor damage from skipped service is not covered under warranty.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), page A-20. SES ref PF-KHRB-BQLQ‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠⁠‌⁠‍‍‍‌‌‌‍‌‍⁠‍‌‍‍‍‍⁠‍‌

What water temperature can I use in the SC750 / SC800 tank?

Keep it at or under 130 °F (54.4 °C). Use only low-foaming, non-flammable liquid detergents made for machine use.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

How do I purge the detergent system on an EcoFlex SC750 or SC800?

Remove the detergent cartridge and turn the key switch ON. Press and hold the solution and detergent switches for 3 seconds. The purge takes 10 seconds. For the weekly purge, first install a cartridge filled with clean water.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), page A-16. SES ref PF-KHRB-BQLQ‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠⁠‌⁠‍‍‍‌‌‌‍‌‍⁠‍‌‍‍‍‍⁠‍‌

Can I clean the SC750 / SC800 with a pressure washer?

No. Advance says not to clean this machine with a pressure washer.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), page A-4. SES ref PF-KHRB-BQLQ‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠⁠‌⁠‍‍‍‌‌‌‍‌‍⁠‍‌‍‍‍‍⁠‍‌

What slope can the SC750 / SC800 work on?

Not more than a 2 percent gradient. Advance also says to clean only while driving up a ramp, to avoid sudden stops and to use low speed down hills.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‍‍⁠⁠⁠‍‍‌⁠‍‌‌‍⁠‌⁠‌‌‌

Source: Advance SC750, SC800, SC750 ST, SC800 ST Instructions for Use, form 56091123 (rev D), pages A-4, A-18 and A-24. SES ref PF-KHRB-BQLQ‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‌⁠‌‌⁠⁠‌⁠‍‍‍‌‌‌‍‌‍⁠‍‌‍‍‍‍⁠‍‌

Notes on this parts list

Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.‌‌⁠‌‍‌⁠‌‍⁠‍‍‌‍⁠‌‍‍‌‍‍⁠‌⁠‍‍‍‍‌‍‍‍‍⁠‌‍‍‍⁠‌‍⁠

The table of contents calls page 10 "Chemical Injection System-EcoFlex". The page itself is headed "Detergent Injection System-EcoFlex". This page uses the page heading.
Model number 56112013 is the SC750 ST-28C on the cover of both manuals. The specification table in the instructions for use (page A-24) prints it under "SC750 ST-28D". This page lists it as the SC750 ST-28C.
Models 56384869, 56384870, 56384871 and 56384872 (SC800 ST-28C, SC800 ST-26D, SC800-26D, SC800-28R) are on both covers, but no parts line is named for them. The Your machine choices place them by deck and size.
The note on the electrical lists says circuit breaker plates 56112122 and 56112540 are replaced by a seven-digit number that matches no plate on the list. The plate on the list is 56383359.
Brush Plate Weldt 34D, 56112759, is printed twice on the disk scrub list with different notes (before April 2015 and after March 2015). Both lines are here as printed.
The recommended spares list shows "Carbon Brush (for 50981A)" under 40628A. 50981A is not on any list. On the chassis lists 40628A is the carbon brush for transaxle 56112543.
The optional kits list prints the pad retainer 56505195 as "for 56505750" under all three disk sizes. The brush selector guide shows the pad holders as 56505760 (26 in) and 56505800 (28 in and 34 in). 56505750 is not on any list.
Gas spring 54689A is printed as 54689a on the recommended spares list. It is listed as printed.
Item 7 on the battery charger list is printed "Charger-Onboard 24VDC 650W s", with a stray letter s. It is listed as printed.
Several lines have no part number and refer to a kit: items 1 and 14 on the recovery list and most small parts on the REV scrub list. Item 27 (Shield Splash) on the REV scrub list has neither a number nor a kit. Call us to confirm these.
Some item numbers are skipped in the printed lists: 48 and 50 on the disk and cylindrical chassis lists, 6 and 23 on the cylindrical scrub list, 8 and 14 on the squeegee assembly list, and 16 on the ST electrical list.
Item 43 on the REV chassis list and item 19 on the ST electrical list have no callout on the drawing and are not marked Not shown.
Solution system lines marked "(SC750, SC800)" have no matching ST line, so they are shown for every model.
The EcoFlex decals and the lines marked "SC750, SC800 only" do not say which builds they fit, so they are shown for every model of that name.
Descriptions are copied as Advance prints them, including its spellings (for example "Dephi").

Wear parts most SC750 and SC800 owners reorder

Blade Kit-Squeegee Gum (26” & 28” models)

Blade Kit-Squeegee Gum (32” & 34” models)

Carbon Brush Set of 2 (for 56384102)

Carbon Brush (for 56112240)

Carbon Brush (for 56112543)

Blade

Caster, Rear

Brush Cap Assy (for 56112111)

Advance SC750 / SC800 Battery charger system parts

Advance SC750 / SC800 Chassis system-disk parts

Advance SC750 / SC800 Chassis system-cylindrical parts

Advance SC750 / SC800 Chassis system-REV parts

Advance SC750 / SC800 Detergent injection system-EcoFlex™ parts

Advance SC750 / SC800 Control system-SC750, SC800 parts

Advance SC750 / SC800 Control system-SC750 ST, SC800 ST parts

Advance SC750 / SC800 Decal system parts

Advance SC750 / SC800 Electrical system-SC750, SC800 parts

Advance SC750 / SC800 Electrical system-SC750 ST, SC800 ST parts

Advance SC750 / SC800 Recovery system parts

Advance SC750 / SC800 Scrub system-disk parts

Advance SC750 / SC800 Scrub system-cylindrical parts

Advance SC750 / SC800 Scrub system-REV parts

Advance SC750 / SC800 Solution system parts

Advance SC750 / SC800 Squeegee assy parts

Advance SC750 / SC800 Squeegee system parts

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 before serial number 4000068715 parts

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 after serial number 4000068715 parts

Advance SC750 / SC800 Ladder diagram key, SC750 and SC800 after June 2014 parts

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST before serial number 4000068715 parts

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST after serial number 4000068715 parts

Advance SC750 / SC800 Ladder diagram key, SC750 ST and SC800 ST after June 2014 parts

Advance SC750 / SC800 Optional kits & accessories parts

Advance SC750 / SC800 Recommended spare parts

New to your Advance SC750 / SC800? Start here

1Check the batteries

2Fit brushes or pads

3Fill the tank and fit the squeegee

4Scrub a floor

Advance SC750 / SC800 troubleshooting

Advance SC750 / SC800 maintenance schedule

Advance SC750 / SC800 specifications

Advance SC750 / SC800 manuals and source documents

Online manuals

Common Advance SC750 / SC800 parts questions

What batteries does the Advance SC750 / SC800 use?

How much solution does the SC800 tank hold?

How often should the carbon brushes on my SC750 or SC800 be checked?

What water temperature can I use in the SC750 / SC800 tank?

How do I purge the detergent system on an EcoFlex SC750 or SC800?

Can I clean the SC750 / SC800 with a pressure washer?

What slope can the SC750 / SC800 work on?

Notes on this parts list

Not Sure Which Machine Fits Your Floors?
