Advance SC6500 parts list and diagrams
Every part number in Advance's SC6500 rider scrubber parts list, with the manual's drawings, troubleshooting, maintenance and specs. It covers the 40, 45 and 48 in machines with cylindrical or disc scrub decks. Each part number links to that part in our store.
Online manuals: Operator· Service
Complete list: every parts line in Advance's SC6500 Parts List (form 56042608, Rev M), for the 40, 45 and 48 in cylindrical and disc models, with and without EcoFlex. Checked .
New to your SC6500? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Cleaning path
- 40 in (101 cm), 45 in (114 cm) or 48 in (122 cm)
- Solution tank
- 70 gal (265 L)
- Batteries
- 36 V, 450 Ah
- Transport speed
- Forward 6.0 mph (9.5 km/h), reverse 3.0 mph (5.0 km/h)
- Minimum aisle turn width
- 84 in (214 cm)
Wear parts most SC6500 owners reorder
Advance's maintenance pages tell you to check, reverse or replace the squeegee blades, skirt blades, filters, vacuum float and side brooms. These are those parts on the parts list.
Blade Kit-Sqgee Linatex F
$153.39/EABlade Kit-Sqgee Linatex G (45”)
$153.11/EABlade Kit-Linatex Squeegee H (48”)
$135.21/EABlade - Skirt, Linatex
$77.59/EAKit, Linatex 40 Disk Blade
$135.67/EAKit, Linatex (45” & 48”) Disk Blade
$123.63/EASidebroom (Standard)
$191.71/EA- No photo yet
Filter
$34.67/EA - No photo yet
Filter
$15.44/EA Ball, Float
$11.69/EA
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-18, A-21, A-22 and A-24; Advance SC6500 Parts List, form 56042608 (Rev M), pages 56 and 57. SES ref PF-ADB3-34DT
Your machine
How to tell which you have
- Read the nameplate: the model number and serial number are on the nameplate on the machine (Instructions for Use, page A-3). Match the model number to the choices above.
- Size: the number in the model name is the scrub path: 40 in (101 cm), 45 in (114 cm) or 48 in (122 cm). The squeegee letter goes with it: F on the 40 in, G on the 45 in and H on the 48 in.
- Cylindrical or disc: C models scrub with two cylindrical brushes and have a hopper and a side broom switch. D models scrub with disc brushes: two 20 in (50.8 cm) on the 40 in and three on the 45 in and 48 in.
- EcoFlex: EcoFlex models have a detergent cartridge behind the side access panel and a detergent switch on the control panel. The Instructions for Use lists the EcoFlex models as obsolete.
How to read this list
Our part numbers are the Advance number with AD in front, so Advance 56413056 is AD56413056. Each line shows the item number on the drawing. Lines tagged with a model fit only that model; lines with no tag fit every model. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

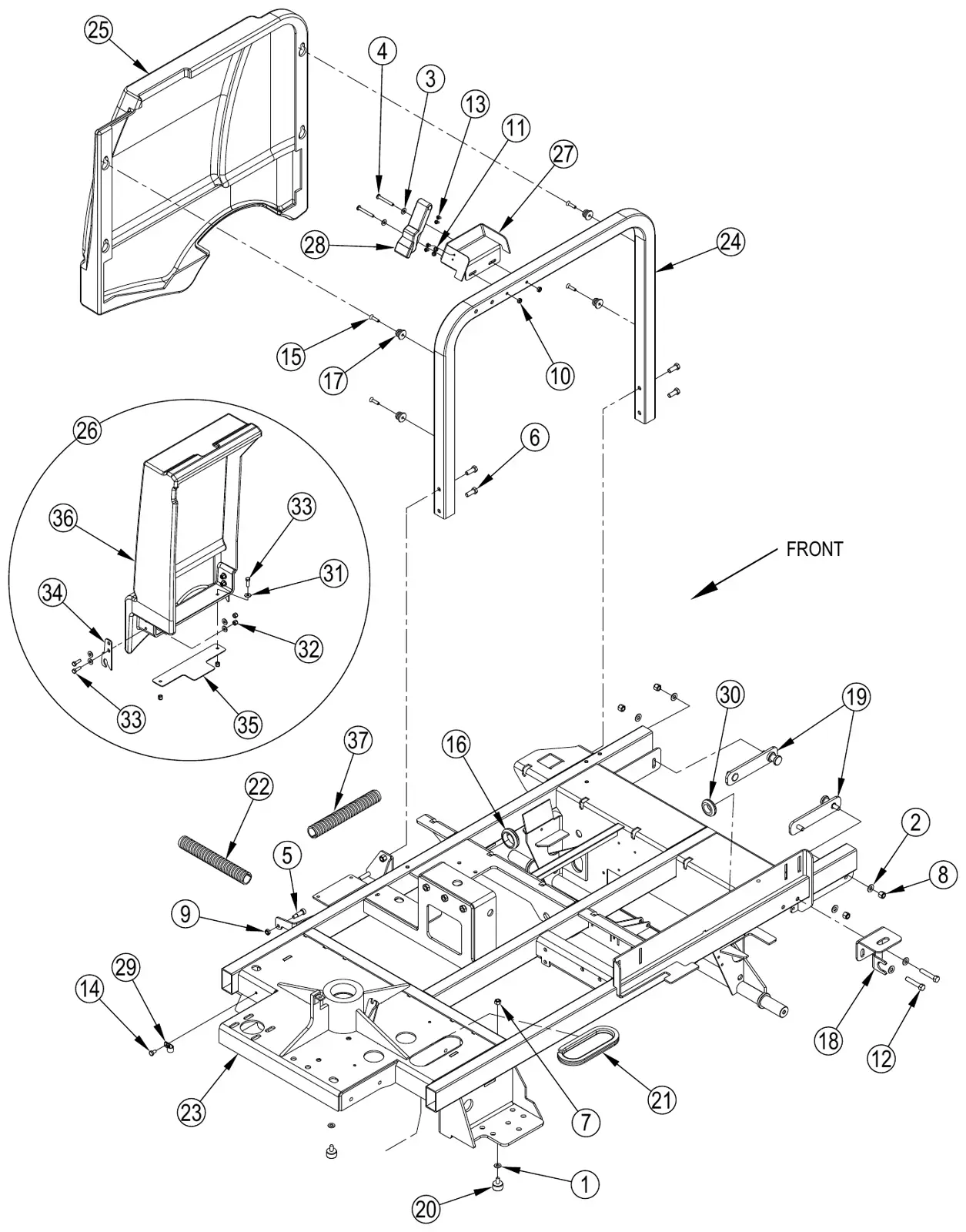

Advance SC6500 Chassis system parts
The chassis weldment, side panels, latches, hinges, bumpers, supports and trim. Manual pages 2, list 3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56001939 | 2 | Wsh, Flt SAE 5/16 | $11.33/EA |
| 2 | AD56002063 | 6 | Wsh, Flt SAE 3/8 | $11.33/EA |
| 3 | AD56002098 | 2 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 4 | AD56002108 | 2 | Scr-Pan Phil 1/4-20 X 2.00 | $10.30/EA |
| 5 | AD56002624 | 1 | Scr-Soc Shd .38 X 1.25 X 5/16-18 | $11.69/EA |
| 6 | AD56002663 | 4 | Scr-Hex 3/8-16 X 1.00 | $12.85/EA |
| 7 | AD56002701 | 2 | Nut, Hex Nyl Loc 5/16-18 | $12.85/EA |
| 8 | AD56002769 | 8 | Nut-Hex Nyl Loc 3/8-16 | $10.30/EA |
| 9 | AD56002826 | 1 | Nut, Hex Nyl Loc-Thin 5/16-18 | $13.07/EA |
| 10 | AD56002840 | 2 | Nut, Hex Nyl Loc-Thin 1/4-20 | $11.69/EA |
| 11 | AD56002849 | 2 | Nut, Hex Nyl Loc-Thin Ss 10-24 | $10.30/EA |
| 12 | AD56003031 | 2 | Scr-Hex Hd Loc 3/8-16x2.00 | $11.69/EA |
| 13 | AD56003189 | 4 | Scr-Pan Phil Ss 10-24 X .38 | $10.30/EA |
| 14 | AD56009033 | 1 | Scr, Hex Thd Form 1/4-20 X .50 | $11.69/EA |
| 15 | AD56009101 | 4 | Scr, Flt Phil Thd Form 1/4-20x1.00 | $11.69/EA |
| 16 | AD56054715 | 1 | Grommet | $11.69/EA |
| 17 | AD56365777 | 4 | Lug, Brush Driver | $17.69/EA |
| 18 | AD56413254 | 1 | Support | $31.05/EA |
| 19 | AD56413373 | 2 | Pin Plate Weldt TSB-FC-2016-001 | $59.88/EA |
| 20 | AD56413714 | 2 | Bumper, Rubber | $23.35/EA |
| 21 | AD56413724 | 1 | Trim, Edge | $11.69/EA |
| 22 | AD56413847 | 1 | Conduit | $20.48/EA |
| 23 | AD56414060 | 1 | Weldment-Chassis | $3,489.10/EA |
| 24 | AD56414104 | 1 | Support-Chassis TSB-FC-2016-001 | $300.52/EA |
| 25 | AD56414106 | 1 | Rear Side Panel | $331.19/EA |
| 26 | AD56414116 | 1 | Side Panel Assembly (#31-36) | $314.69/EA |
| 27 | AD56414118 | 1 | Bracket-Latch TSB-FC-2015-038 | $21.85/EA |
| 28 | AD56462746 | 1 | Latch | $152.73/EA |
| 29 | AD56486112 | 1 | Clamp-P | $11.69/EA |
| 30 | AD56486116 | 1 | Grommet | $11.69/EA |
| 31 | AD56002098 | 10 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 32 | AD56003403 | 6 | Nut-Hex Nyl Loc M6-1 | $11.33/EA |
| 33 | AD56003454 | 6 | Scr-Hex Thd To Hd Ss M6-1 X 20mm | $11.33/EA |
| 34 | AD56413433 | 2 | Hinge | $17.46/EA |
| 35 | AD56413796 | 1 | Plate | $23.35/EA |
| 36 | AD56414110Advance 56414110 | 1 | Front Side Panel | Call to confirm part: 800-440-6723 |
| 37 | AD56394460Advance 56394460 | 1 | Conduit-Black-1.5 | Call to confirm part: 800-440-6723 |

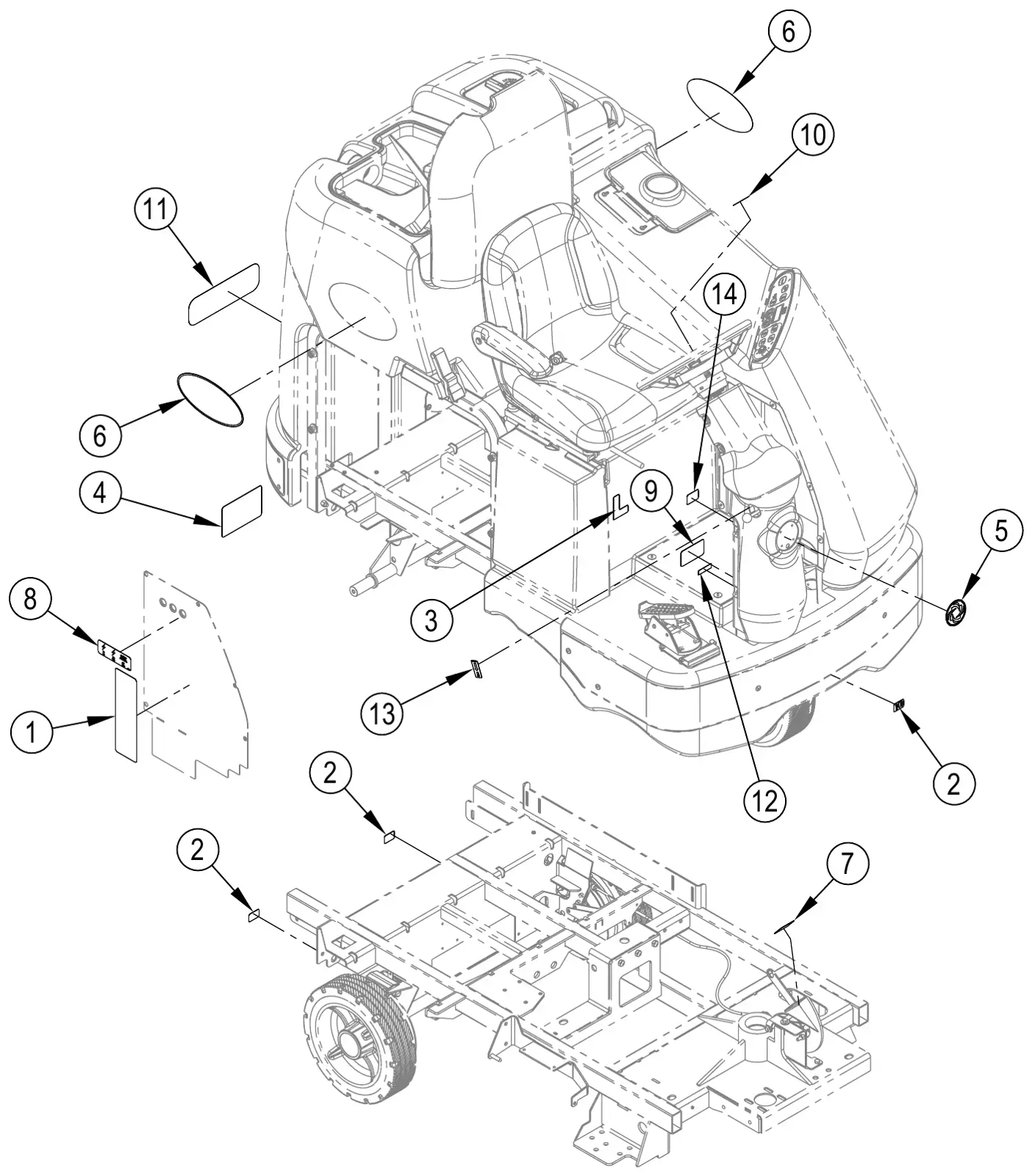

Advance SC6500 Decal system parts
The decals and the pedal mat. The two SC6500 decals fit different builds, as tagged. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56014601 | 1 | Decal, Caution | $43.68/EA |
| 2 | AD56015370 | 3 | Decal, Tie Down | $33.79/EA |
| 3 | AD56015179 | 1 | Decal, Emergency | $18.96/EA |
| 4 | AD56015272 | 1 | Decal, Battery Wiring Diagram | $17.46/EA |
| 5 | AD56015276 | 1 | Decal, Logo | $16.23/EA |
| 6 | AD56414141 | 2 | Decal-SC6500Fits 6 of 12 versionsSC6500 40C, SC6500 40D, SC6500 45C, SC6500 45D, SC6500 48C, SC6500 48D | $13.07/EA |
| 6 | AD56414142 | 2 | Decal- SC6500-EcoFlexFits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $16.09/EA |
| 7 | AD56413797 | 1 | Mat, Pedal | $11.69/EA |
| 8 | AD56015374 | 1 | Decal, Circuit Breaker | $17.46/EA |
| 9 | AD56016401 | 1 | Decal, Parking Brake | $17.46/EA |
| 10 | AD56016421Replaces Advance 56015281 | 1 | Decal, Logo 2 Inch | $13.07/EA |
| 11 | AD56016730 | 1 | Decal, Advance | $16.09/EA |
| 12 | AD56014450 | 1 | Decal Patent | $17.46/EA |
| 13 | AD56414074 | 1 | Decal-Tilt Wheel | $5.91/EA |
| 14 | AD56394259 | 1 | Decal-Prop 65 | $4.39/EA |

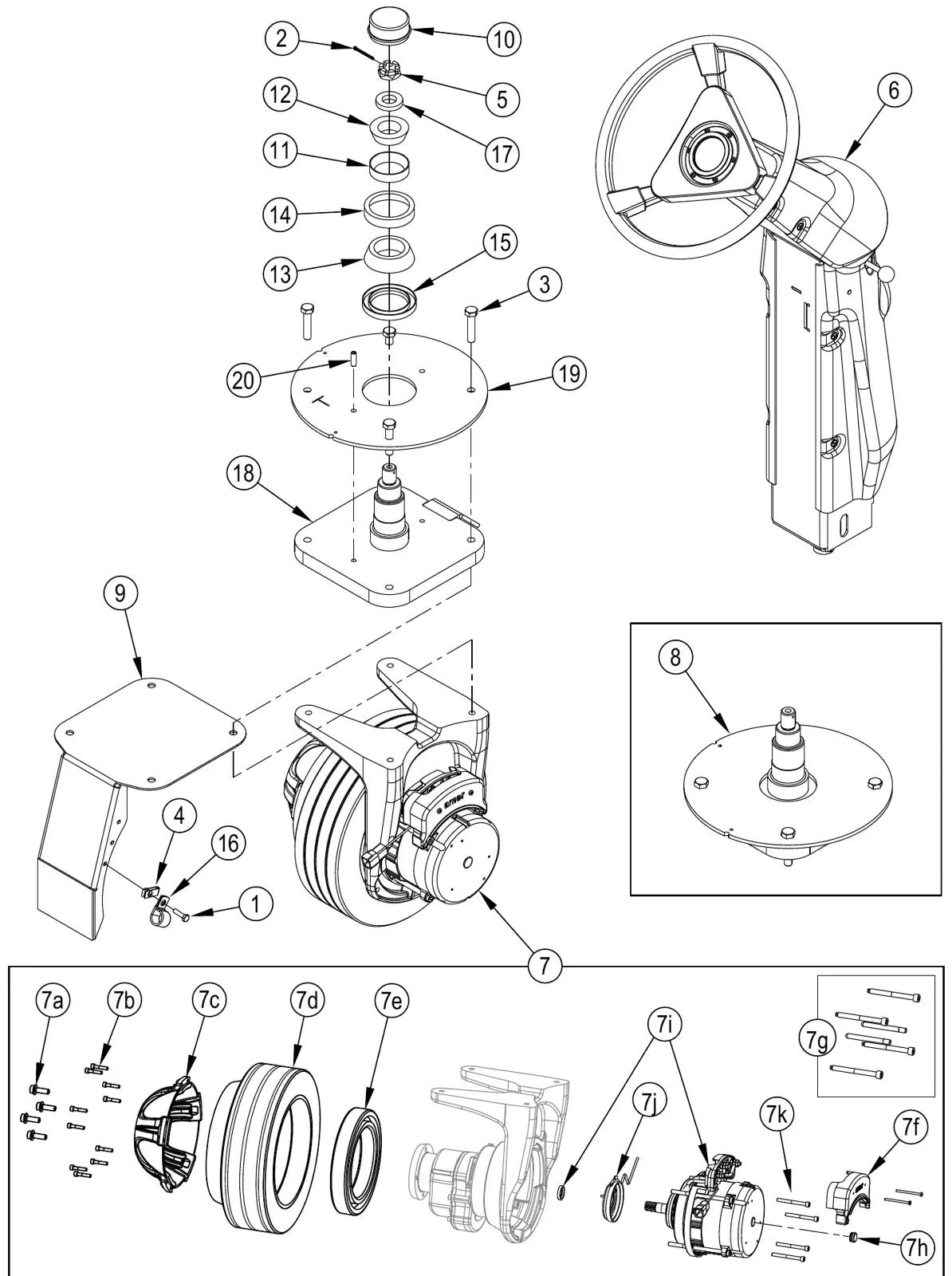

Advance SC6500 Drive wheel system parts
The drive wheel, hub, bearings, drive motor kits, front spindle and steering plate. Advance's notes on serial-number changes are on the lines. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56002093 | 1 | Scr-Hex 1/4-20 X 1.00 TSB-FC-2016-250Note 1: for machines built before S/N 1000061187, order Traction Harness Kit 56384713 for service repair. Note 2: from S/N 1000061187 the traction harness and routing changed to improve harness life. | $12.85/EA |
| 2 | AD56002181 | 1 | Pin-Cotter, 1/8 X 1 1/2 | $11.33/EA |
| 3 | AD56003708 | 4 | Scr-Hex M12-1.75 X 55mm | $11.69/EA |
| 4 | AD56009289 | 1 | Nut, Retainer 1/4-20 TSB-FC-2016-250Note 1: for machines built before S/N 1000061187, order Traction Harness Kit 56384713 for service repair. Note 2: from S/N 1000061187 the traction harness and routing changed to improve harness life. | $11.69/EA |
| 5 | AD56110817 | 1 | Nut, Castle 7/8-14 | $48.62/EA |
| 6 | – | 1 | Steering ASM | See Steering ASM drawing › |
| 7 | AD56414198 | 1 | Wheel-Drive-AC (M1) TSB-FC-2016-264 | $9,449.85/EA |
| 7a | AD56414211 | 1 | Screw Kit-M10x30 | $66.90/EA |
| 7b | AD56414212 | 1 | Screw Kit- M6x30 | $74.61/EA |
| 7c | AD56414213 | 1 | Hub-Drive Wheel | $112.65/EA |
| 7d | AD56414214 | 1 | Wheel-3.94x350 | $2,980.71/EA |
| 7e | AD56414215 | 1 | Bearing-Drive Wheel | $334.36/EA |
| 7f | AD56414216 | 1 | Terminal Cover Kit | $27.75/EA |
| 7g | AD56385392Advance 56385392 | 1 | Tire Puller Kit | Call to confirm part: 800-440-6723 |
| 7h | AD56384866 | 1 | Plug-Hole-20MM TSB-FC-2016-264Note 4: not on machines built after October 2017. | $8.80/EA |
| 7i | AD56385140 | 1 | Wheel Drive Motor Kit | $2,742.78/EA |
| 7j | AD56118177 | 1 | Drive Motor Encoder Kit | $1,890.30/EA |
| 7k | AD56385388 | 4 | Screw-Drive Wheel Motor-M8 | $32.42/EA |
| 8 | AD56384935 | 1 | Spindle Kit-FrontNote 3: machines built before S/N 1000062888 that have Front Spindle Weldment 56414201 need Front Spindle Kit 56384935 for service repair or replacement. | $574.47/EA |
| 9 | AD56414206 | 1 | Splash-Guard TSB-FC-2016-250Note 1: for machines built before S/N 1000061187, order Traction Harness Kit 56384713 for service repair. Note 2: from S/N 1000061187 the traction harness and routing changed to improve harness life. | $84.49/EA |
| 10 | AD56483135 | 1 | Cap, Grease | $36.68/EA |
| 11 | AD56492697 | 1 | Bearing, Cup | $83.12/EA |
| 12 | AD56492699 | 1 | Bearing, Cone | $74.61/EA |
| 13 | AD56492700 | 1 | Bearing, Cone | $95.04/EA |
| 14 | AD56492702 | 1 | Bearing, Cup | $61.27/EA |
| 15 | AD56493191 | 1 | Seal, Radial Lip | $40.81/EA |
| 16 | AD56496276 | 1 | Clamp, Hose Support TSB-FC-2016-250Note 1: for machines built before S/N 1000061187, order Traction Harness Kit 56384713 for service repair. Note 2: from S/N 1000061187 the traction harness and routing changed to improve harness life. | $10.30/EA |
| 17 | AD56497241 | 1 | Bushing | $85.97/EA |
| 18 | AD56384933Advance 56384933 | 1 | Front Spindle Weldment | Call to confirm part: 800-440-6723 |
| 19 | AD56384932Advance 56384932 | 1 | Plate-Steering | Call to confirm part: 800-440-6723 |
| 20 | AD56002734 | 2 | Pin-Spr .31 x 1 | $11.69/EA |

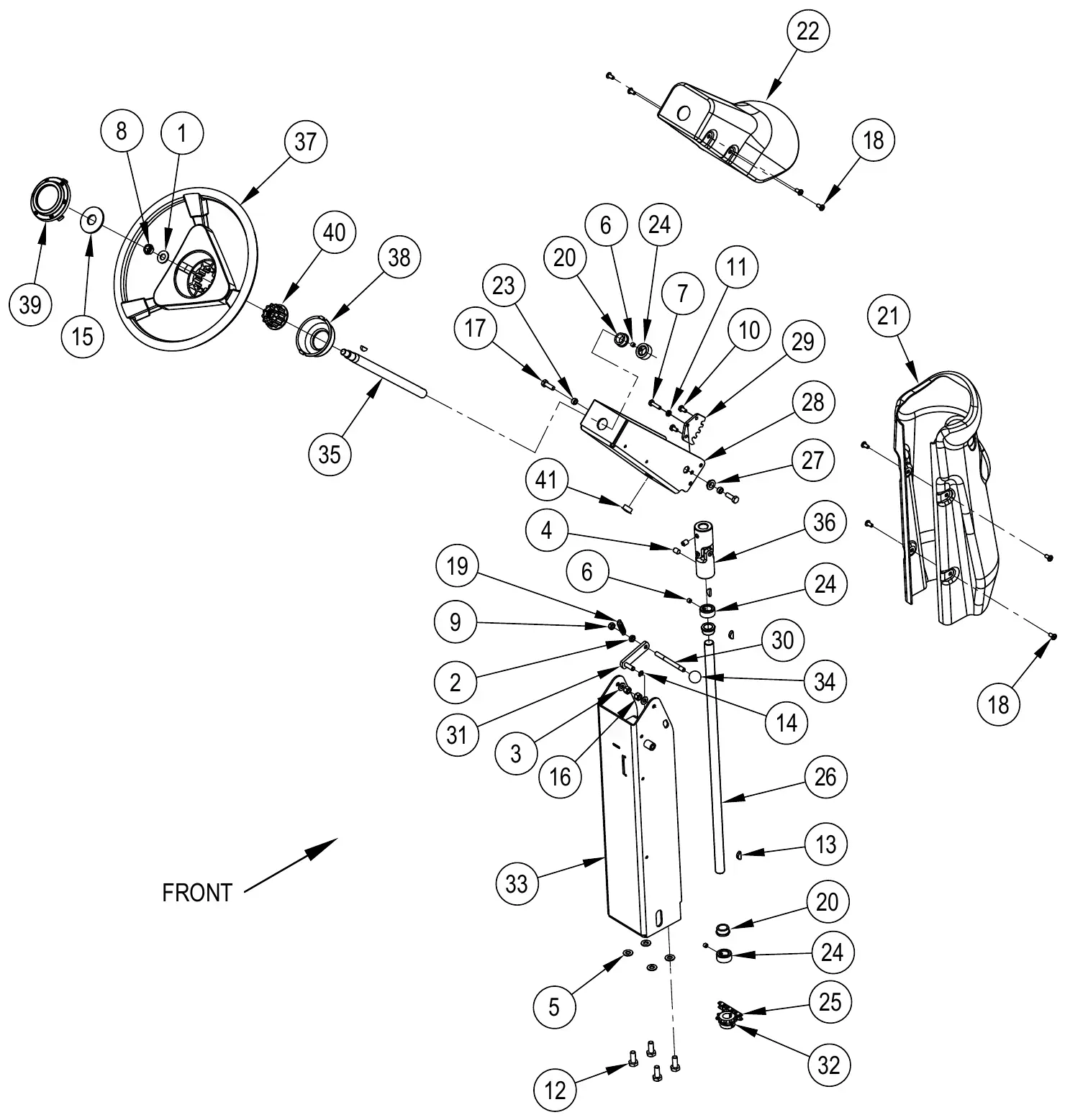

Advance SC6500 Drive wheel system - steering assy parts
The steering column, steering wheel, shafts, universal joint, chain, sprocket, tilt ratchet and shrouds. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56001879 | 1 | Wsh-Flt Sae 1/2 | $10.30/EA |
| 2 | AD56001884 | 1 | Nut, Hex Jam 5/16-24 | $12.85/EA |
| 3 | AD56001939 | 2 | Wsh, Flt Sae 5/16 | $11.33/EA |
| 4 | AD56001958 | 2 | Scr, Soc Set Loc 3/8-16 X .50 | $11.69/EA |
| 5 | AD56002063 | 4 | Wsh, Flt Sae 3/8 | $11.33/EA |
| 6 | AD56002086 | 3 | Scr, Soc Set Loc 5/16-18 X .25 | $10.30/EA |
| 7 | AD56002093 | 1 | Scr-Hex 1/4-20 X 1.00 | $12.85/EA |
| 8 | AD56002843 | 1 | Nut, Hex Nyl Loc-Thin 1/2-13 | $10.30/EA |
| 9 | AD56002866 | 1 | Nut, Hex Nyl Loc-Thin 5/16-24 | $11.69/EA |
| 10 | AD56003039 | 2 | Scr-Hex Hd Loc 1/4-20x.50 | $11.69/EA |
| 11 | AD56003145 | 1 | Nut-Hex Jam Ss 1/4-20 | $12.85/EA |
| 12 | AD56003186 | 4 | Scr, Hex Thd To Hd M10-1.5 X 25mm | $12.85/EA |
| 13 | AD56003228 | 4 | Key, Wdf .75 X .19 | $11.69/EA |
| 14 | AD56003261 | 1 | Ring, Ret Ext Type E 0.31 Dia | $11.69/EA |
| 15 | AD56003342 | 1 | Wsh-Flt .88x2.25x.13 | $12.85/EA |
| 16 | AD56003389 | 2 | Nut-Hex Nyl Loc M8-1.25 | $11.33/EA |
| 17 | AD56003436 | 2 | Scr-Hex Ss M8-1.25 X 25mm | $10.30/EA |
| 18 | AD56009062 | 8 | Scr, Pan Phil Thd Form 1/4-20 X .50 | $10.30/EA |
| 19 | AD56112054 | 1 | Spring, Extension .43 X .175 | $13.07/EA |
| 20 | AD56250414 | 3 | Bearing, Flange | $13.07/EA |
| 21 | AD56314295Advance 56314295 | 1 | Shroud, Lower Column | Call to confirm part: 800-440-6723 |
| 22 | AD56314296Advance 56314296 | 1 | Shroud Upper Column | Call to confirm part: 800-440-6723 |
| 23 | AD56320595 | 2 | Bushing .32x.50x.28 | $34.91/EA |
| 24 | AD56367095 | 3 | Collar, Shaft | $27.75/EA |
| 25 | AD56412198 | 1 | Chain, Roller | $66.90/EA |
| 26 | AD56413175 | 1 | Shaft, Lower Steering | $45.74/EA |
| 27 | AD56413211 | 2 | Bearing, Flange .625 X .500 X .250 | $14.70/EA |
| 28 | AD56413657 | 1 | Column, Upper | $107.69/EA |
| 29 | AD56414075 | 1 | Ratchet-Steering Column | $8.80/EA |
| 30 | AD56414078 | 1 | Rod-Tilt Wheel | $23.35/EA |
| 31 | AD56414081 | 1 | Steering Pawl Weldment | $33.79/EA |
| 32 | AD56414082 | 1 | Sprocket-10 Tooth | $13.76/EA |
| 33 | AD56414084 | 1 | Lower Column Weldment | $211.28/EA |
| 34 | AD56414088 | 1 | Knob-Tilt Wheel | $8.80/EA |
| 35 | AD56420059 | 1 | Shaft, Upper Steering | $133.28/EA |
| 36 | AD56454081 | 1 | Universal Joint | $225.98/EA |
| 37 | AD56497306 | 1 | Steering Wheel | $230.02/EA |
| 38 | AD56497308 | 1 | Cap | $18.96/EA |
| 39 | AD56497543 | 1 | Cap | $44.52/EA |
| 40 | AD56497560 | 1 | Wheel Adapter | $40.81/EA |
| 41 | AD56900041 | 1 | Plug, Cap | $11.69/EA |

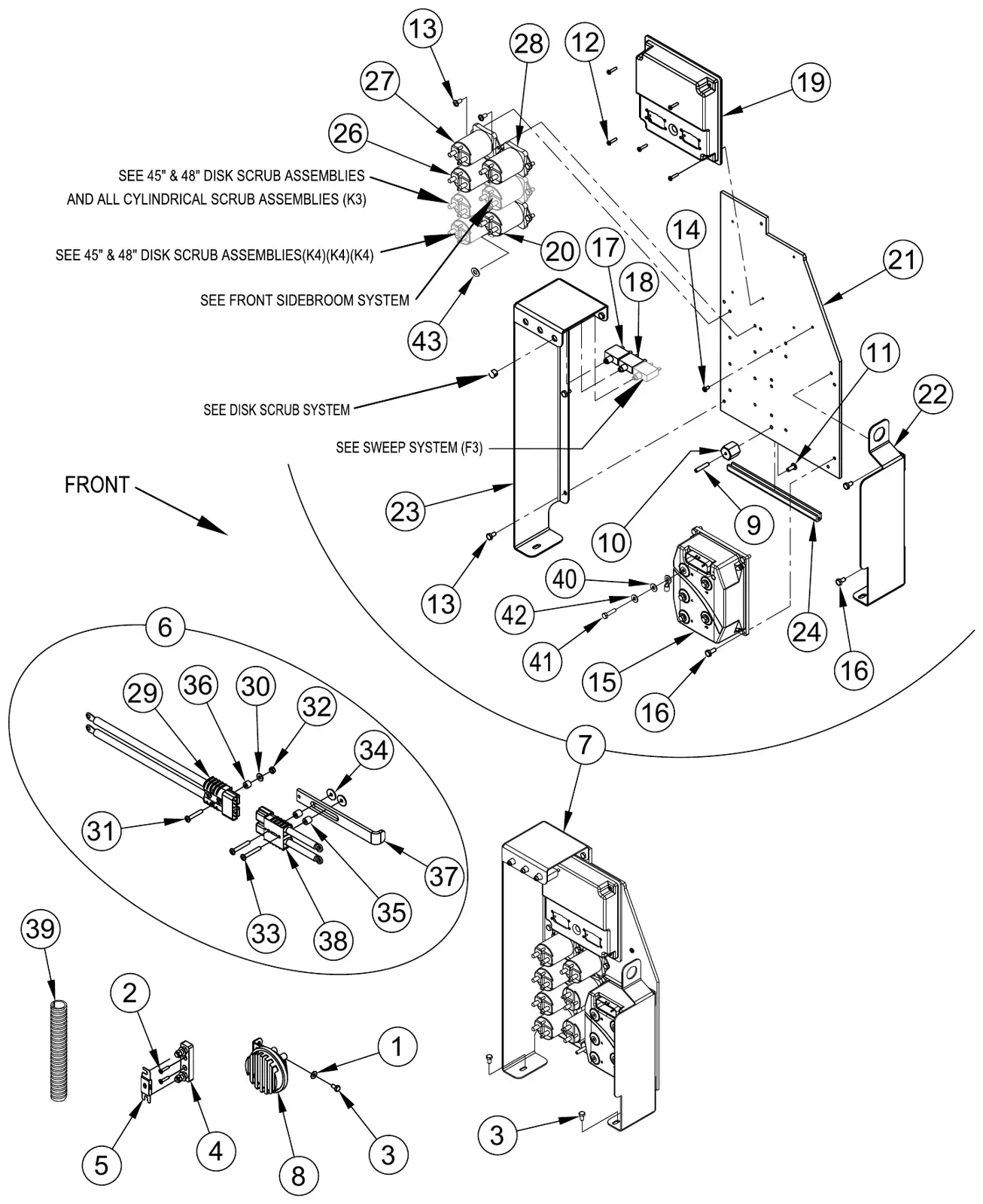

Advance SC6500 Electrical system parts
The fuse block, circuit breakers, contactors, speed control, battery disconnect, horn, circuit board box and electrical mounts. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56002098 | 1 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 2 | AD56002417 | 2 | Scr, Flt Phil 10-24 X .88 | $12.85/EA |
| 3 | AD56009033 | 3 | Scr, Hex Thd Form 1/4-20 X .50 | $11.69/EA |
| 4 | AD56303295 | 1 | Fuse Block | $84.49/EA |
| 5 | AD56410044 | 1 | Fuse, 250 Amp (F4) | $115.53/EA |
| 6 | AD56413067 | 1 | Disconnect, Battery (#29-38) | $254.81/EA |
| 7 | – | 1 | Electrical Component Assy (#9-28) | |
| 8 | AD56482365 | 1 | Horn 36v (H4) | $248.58/EA |
| 9 | AD56009203 | 1 | Stud, 1/4-20 | $11.69/EA |
| 10 | AD56469858 | 1 | Electrical Mount | $13.07/EA |
| 11 | AD56002066 | 1 | Scr, Pan Phil 1/4-20 X .62 | $11.69/EA |
| 12 | AD56003698 | 5 | Scr, Pan Phil Thd Form 8-32 X .75 | $4.39/EA |
| 13 | AD56009033 | 15 | Scr, Hex Thd Form 1/4-20 X .50 | $11.69/EA |
| 14 | AD56009030 | 1 | Scr, Pan Phil Thd Form 10-24 X .38 | $10.30/EA |
| 15 | AD56414210Advance 56414210 | 1 | Speed Control (A1) | Call to confirm part: 800-440-6723 |
| 16 | AD56009250 | 4 | Scr Hex Thd Form 1/4-20x.62 | $11.69/EA |
| 17 | AD56413406 | 1 | Circuit Breaker, 3.0 Amp (Control / F1) | $14.70/EA |
| 18 | AD56413407 | 1 | Circuit Breaker, 15 Amp (Auxiliary / F2) | $14.70/EA |
| 19 | AD56414222 | 1 | Pcb Box Assembly (A2) | $959.51/EA |
| 20 | AD56413516 | 1 | Contactor, 36vdc 200A (Main / K7) | $90.82/EA |
| 21 | AD56414199 | 1 | Mount, Electrical | $189.43/EA |
| 22 | AD56413623 | 1 | Mount, Electrical Panel | $66.90/EA |
| 23 | AD56413627 | 1 | Mount, Electrical | $54.26/EA |
| 24 | AD56413841 | 1 | Edge Trim, .25 | $11.69/EA |
| 26 | AD56413516 | 1 | Contactor, 36vdc 200A (Right Brush / K2) | $90.82/EA |
| 27 | AD56413516 | 1 | Contactor, 36vdc 200A (Vacuum / K1) | $90.82/EA |
| 28 | AD56413516 | 1 | Contactor, 36vdc 200A (Auxiliary / K5) | $90.82/EA |
| 29 | AD56409444 | 1 | Connector Assy | $276.66/EA |
| 30 | AD56002098 | 1 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 31 | AD56002786 | 1 | Scr, Pan Phil 1/4-20 X 1.50 | $12.85/EA |
| 32 | AD56002840 | 1 | Nut, Hex Nyl Loc-Thin 1/4-20 | $11.69/EA |
| 33 | AD56002997 | 2 | Scr, Pan Phil 1/4-20 X 1.75 | $11.69/EA |
| 34 | AD56009002 | 2 | Wsh, Flt .266 X .906 X .060 | $10.30/EA |
| 35 | AD56046309 | 2 | Spacer, Phenolic | $13.07/EA |
| 36 | AD56050872 | 1 | Spacer, Phenolic | $13.07/EA |
| 37 | AD56413132 | 1 | Bar, Disconnect | $33.79/EA |
| 38 | AD56413217 | 1 | Connector Assy | $119.65/EA |
| 39 | AD56413847 | 1 | Conduit | $20.48/EA |
| 40 | AD56002098 | 5 | Wsh, Flt Sae 1/4 | $11.33/EA |
| 41 | AD56003358 | 5 | Scr-Hex M6-1 X 25mm | $10.30/EA |
| 42 | AD56009064 | 5 | Wsh, Int Shprf ¼ | $11.69/EA |
| 43 | AD56009052 | 1 | Wsh, Int-Shprf 5/16 | $10.30/EA |
| – | AD56409485 | 5 | Cable, BatteryNot shown. | $45.74/EA |
| – | AD56414097 | 1 | Harness-MainNot shown. | $945.48/EA |
| – | AD56384713 | 1 | Traction Harness Kit TSB-FC-2016-250Not shown. Note 1: for machines built before S/N 1000061187, order Traction Harness Kit 56384713 for service repair. | $552.62/EA |
| – | AD56414231 | 1 | Harness-TractionNot shown. Note 2: from S/N 1000061187 the traction harness and routing changed to improve harness life. | $290.81/EA |
| – | AD56413219 | 1 | Cable Asm, Blk 4-1Not shown. | $27.75/EA |
| – | AD56413220 | 1 | Cable Asm, Red 1-3Not shown. | $71.84/EA |
| – | AD56413221 | 1 | Cable Asm, Red 6-1Not shown. | $10.84/EA |
| – | AD56413222 | 1 | Cable Asm, Red 4-1Not shown. | $23.35/EA |
| – | AD56478246 | 5 | Tie, CableNot shown. | $11.69/EA |
| – | AD56477613 | 32 | Tie, CableNot shown. | $13.07/EA |
Advance SC6500 Rear wheel system parts

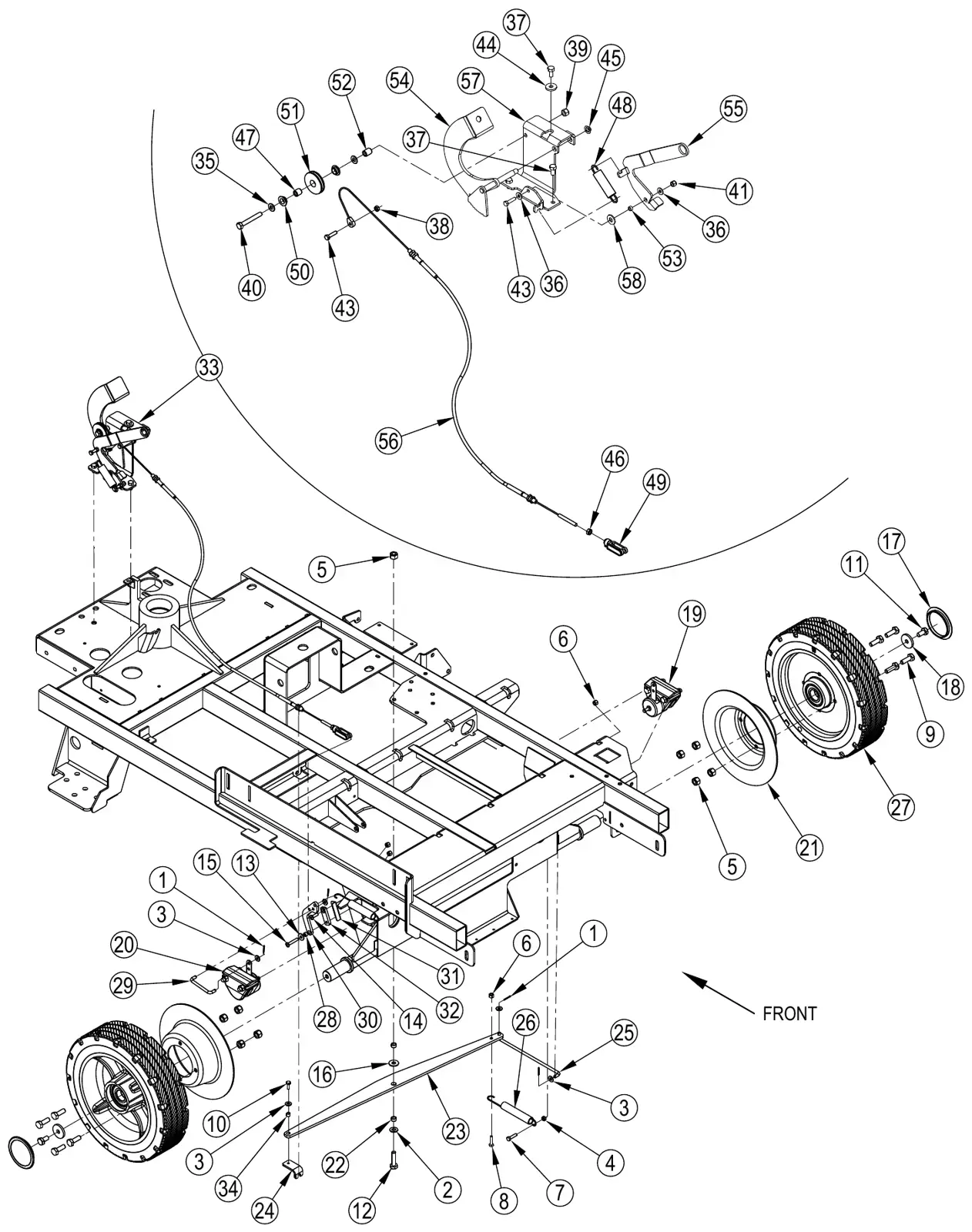

The rear wheels, brakes, brake linkage and the brake pedal assembly. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56001882 | 4 | Pin-Cotter 1/16 x 3/4 | $12.85/EA |
| 2 | AD56002063 | 1 | Wsh, Flt SAE 3/8 | $11.33/EA |
| 3 | AD56002098 | 5 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 4 | AD56003350 | 1 | Nut-Hex M6-1 | $11.69/EA |
| 5 | AD56003406 | 9 | Nut-Hex Nyl Loc M10-1.5 | $11.69/EA |
| 6 | AD56003426 | 4 | Nut, Hex Nyl Loc Ss M6-1 | $11.33/EA |
| 7 | AD56003430 | 1 | Scr-Hex Ss M6-1 x 25mm | $10.87/EA |
| 8 | AD56003430 | 1 | Scr Hex Ss M6-1.00 x25mm | $10.87/EA |
| 9 | AD56003439 | 8 | Scr-Hex Ss M10-1.5 x 30mm | $11.69/EA |
| 10 | AD56003441 | 1 | Scr, Hex Loc M6-1 x 16mm | $11.69/EA |
| 11 | AD56003442 | 2 | Scr, Hex Loc M10-1.5 x 20mm | $11.69/EA |
| 12 | AD56003491 | 1 | Scr-Hex M10-1.5 X 40mm | $12.85/EA |
| 13 | AD56003638 | 1 | Wsh, Flt Ss 6mm | $12.85/EA |
| 14 | AD56003896 | 1 | Scr-Pan Phil Ss M6-1 x 20mm | $10.30/EA |
| 15 | AD56003950 | 1 | Scr-Pan Phil Ss M6-1 x 35mm | $8.80/EA |
| 16 | AD56009213 | 1 | Wsh-Flt .392 x 1.00 x.075 | $11.69/EA |
| 17 | AD56116032 | 2 | Cap-Hub | $8.80/EA |
| 18 | AD56367117 | 2 | Wsh, Flt .406 x 1.5 x .1875 | $33.79/EA |
| 19 | AD56413024 | 1 | Brake-Ccw Rh | $130.92/EA |
| 20 | AD56413025 | 1 | Brake-Cw Lh | $119.65/EA |
| 21 | AD56394640Replaces Advance 56413293 | 2 | Rotor | $157.91/EA |
| 22 | AD56413498 | 2 | Spacer-Bushing .410 x.500 x.280 | $11.69/EA |
| 23 | AD56413500 | 1 | Equalizer | $61.27/EA |
| 24 | AD56413501 | 1 | Yoke | $20.48/EA |
| 25 | AD56413598 | 1 | Linkage, Brake | $25.75/EA |
| 26 | AD56413812 | 2 | Spring_Ng | $35.17/EA |
| 27 | AD56414062 | 2 | Wheel-Rear-14in-3.5in | $611.13/EA |
| – | AD56414064 | 4 | Bearing-Ball-30mm x 62mm x 16mm for 56414062 (2 per wheel)Not shown. | $16.09/EA |
| 28 | AD56414076Advance 56414076 | 1 | Bushing .257 x .375 x .265 | Call to confirm part: 800-440-6723 |
| 29 | AD56414089 | 1 | Link-Brake | $18.54/EA |
| 30 | AD56414090 | 1 | Lever-Brake | $14.70/EA |
| 31 | AD56414092 | 1 | Stop-Lever | $8.80/EA |
| 32 | AD56414093 | 1 | Spacer-Lever | $13.07/EA |
| 33 | – | 1 | Brake Pedal Assy (#35-58) | |
| 34 | AD56453849 | 1 | Bushing .26 x.37 x.28 | $38.69/EA |
| 35 | AD56002938 | 2 | Wsh, Flt SAE SS 5/16 | $10.30/EA |
| 36 | AD56002098 | 2 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 37 | AD56002929 | 3 | Scr-Hex Hd Loc 5/16-18x.62 | $12.85/EA |
| 38 | AD56003350 | 1 | Nut-Hex M6-1 | $11.69/EA |
| 39 | AD56003389 | 1 | Nut-Hex Nyl Loc M8-1.25 | $11.33/EA |
| 40 | AD56003398 | 1 | Scr-Hex M8-1.25 x 60mm | $11.69/EA |
| 41 | AD56003403 | 1 | Nut-Hex Nyl Loc M6-1 | $11.33/EA |
| 43 | AD56003695 | 2 | Scr-Hex Thd to Hd SS M6-1 x 25mm | $11.69/EA |
| 44 | AD56009122 | 1 | Wsh, Flt .344 x .938 x .125 | $11.69/EA |
| 45 | AD56009123 | 1 | Nut, Push Cap 3/8 | $10.30/EA |
| 46 | AD56009142 | 1 | Nut, Hex Machine 1/4-28 | $12.85/EA |
| 47 | AD56228052 | 1 | Bushing .31 x .50 x .53 | $46.56/EA |
| 48 | AD56397348 | 1 | Spring, Extension | $26.25/EA |
| 49 | AD56407133 | 1 | Yoke, Clevis | $42.32/EA |
| 50 | AD56413211 | 2 | Bearing, Flange .625 x .500 x .250 | $14.70/EA |
| 51 | AD56413508 | 1 | Pulley | $17.46/EA |
| 52 | AD56413787 | 1 | Spacer | $12.85/EA |
| 53 | AD56413888 | 1 | Bushing .265 x .375 x .180 | $16.17/EA |
| 54 | AD56413989 | 1 | Brake Pedal Weldt | $119.65/EA |
| 55 | AD56384105 | 1 | Lever-Pawl-Brake | $21.85/EA |
| 56 | AD56414127 | 1 | Cable Assy | $43.68/EA |
| 57 | AD56384106 | 1 | Bracket-Brake Pedal | $51.83/EA |
| 58 | AD56632681 | 1 | Washer, 3/8 PL. Nylon | $5.91/EA |

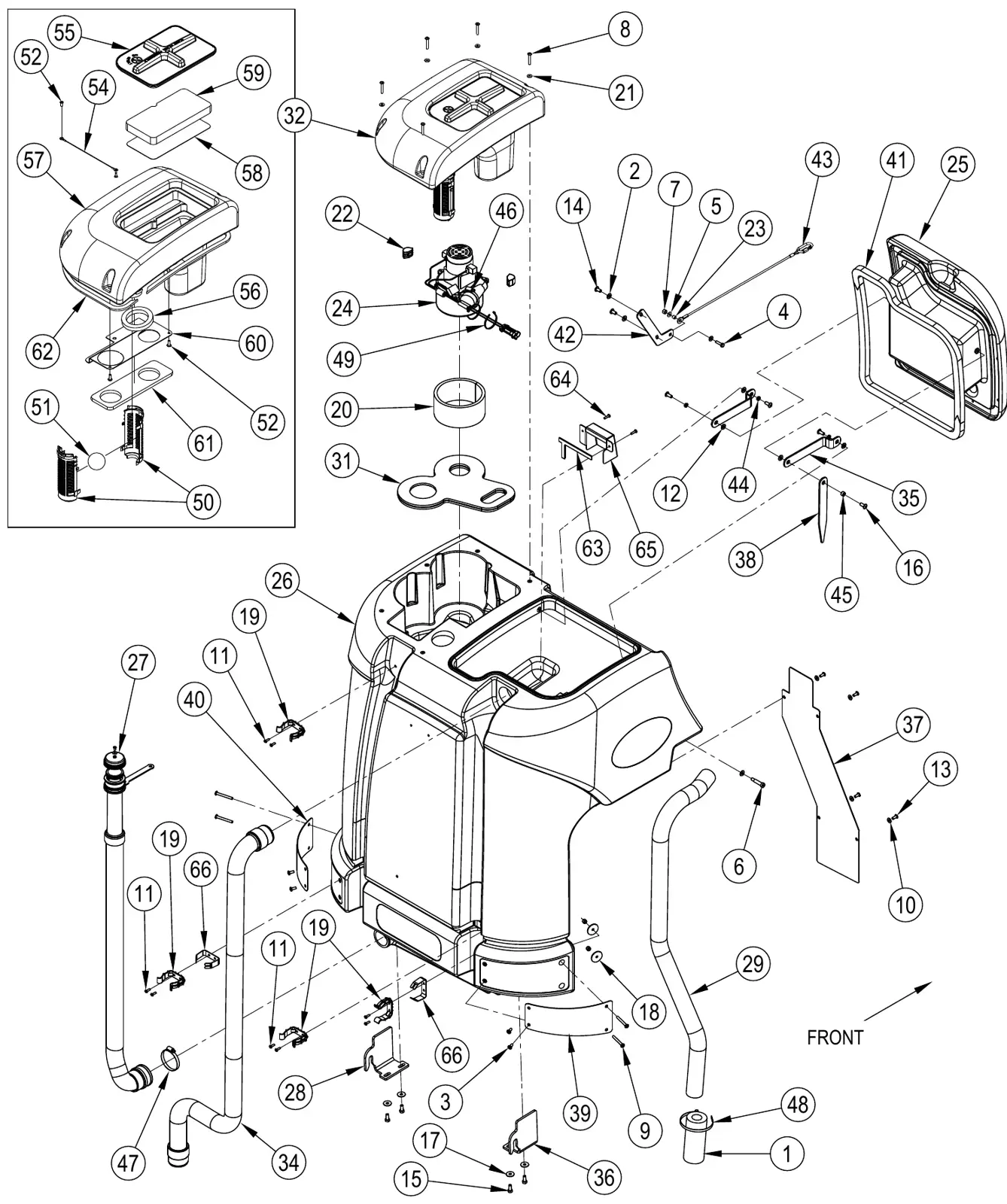

Advance SC6500 Recovery system parts
The recovery tank and lid, vacuum motor, vacuum and drain hoses, float, filter parts, gaskets and rear bumpers. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56391807 | 1 | Foam, Acoustical | $27.75/EA |
| 2 | AD56001939 | 3 | Wsh, Flt SAE 5/16 | $11.33/EA |
| 3 | AD56002066 | 4 | Scr, Pan Phil 1/4-20 x .62 | $11.69/EA |
| 4 | AD56002507 | 1 | Scr, Pan Phil 1/4-20 x .75 | $11.69/EA |
| 5 | AD56002098 | 2 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 6 | AD56002624 | 1 | Scr, Soc Shd .38 x 1.25 x 5/16-18 | $11.69/EA |
| 7 | AD56002708 | 5 | Nut, Hex Nyl Loc 1/4-20 | $10.30/EA |
| 8 | AD56002905 | 5 | Scr Pan Phil SS 1/4-20 x 1.50 | $11.69/EA |
| 9 | AD56002788 | 4 | Scr, Pan Phil 1/4-20 x 2.25 | $12.85/EA |
| 10 | AD56002859 | 4 | Wsh, Flt SAE SS 1/4 | $10.30/EA |
| 11 | AD56002896 | 8 | Scr, Pan Phil SS 10-24 x .62 | $10.30/EA |
| 12 | AD56002938 | 4 | Wsh, Flt SAE SS 5/16 | $10.30/EA |
| 13 | AD56002989 | 4 | Scr, Pan Phil SS 1/4-20 x .62 | $11.69/EA |
| 14 | AD56003003 | 2 | Scr, Pan Phil 5/16-18 x .62 | $14.37/EA |
| 15 | AD56003012 | 4 | Scr, Hex SS 5/16-18 x .75 | $11.69/EA |
| 16 | AD56003014 | 4 | Scr, Pan Phil Ss 5/16-18 x .75 | $11.69/EA |
| 17 | AD56003696 | 4 | Wsh, Flt SS .33 x 1.00 x.060 | $11.69/EA |
| 18 | AD56009225 | 4 | Wsh, Fender .281 x 1.50 x.074 | $12.85/EA |
| 19 | AD56212236 | 4 | Clamp, Plastic | $24.72/EA |
| 20 | AD56314488 | 1 | Muffler, Vac | $29.53/EA |
| 21 | AD56003923 | 5 | Wsh-Flt SS .266 x .906 x .060 | $8.80/EA |
| 22 | AD56315141 | 2 | Mount, Vibration | $13.07/EA |
| 23 | AD56368989 | 1 | Bushing | $13.07/EA |
| 24 | AD56410065 | 1 | Vac Motor Assy (M5) | $283.67/EA |
| 25 | AD56413091 | 1 | Lid, Recovery Tank | $254.81/EA |
| 26 | AD56413150 | 1 | Tank, Recovery | $2,907.50/EA |
| 27 | AD56384012 | 1 | Hose-Drain-Pu | $71.84/EA |
| – | AD56601411 | 1 | Drain Hose Cap KitOptional, not included. | $16.09/EA |
| 28 | AD56413163 | 1 | Mount, Recovery Tank | $38.06/EA |
| 29 | AD56413171 | 1 | Hose, Vac 2.00 x 42.00 x 975018 | $33.79/EA |
| 31 | AD56382651 | 1 | Seal Assembly Vac Fan | $103.43/EA |
| 32 | AD56413196 | 1 | Top Cover Assy (50-62) | $458.25/EA |
| 33 | AD56383247 | 1 | Harness-Recovery TankNot shown. | $100.68/EA |
| 34 | AD56384655 | 1 | Hose-Vacuum-Pu Kit TSB-FC-2015-046 | $123.91/EA |
| 35 | AD56413404 | 2 | Arm, Lid Hinge | $31.05/EA |
| 36 | AD56413555 | 1 | Hinge Plate, Right | $40.81/EA |
| 37 | AD56413577 | 1 | Panel, Exhaust | $87.37/EA |
| 38 | AD56413589 | 1 | Prop | $16.09/EA |
| 39 | AD56413960 | 1 | Bumper-Right Rear | $24.72/EA |
| 40 | AD56413961 | 1 | Bumper-Left Rear | $24.72/EA |
| 41 | AD56414192Advance 56414192 | 1 | Recovery Lid Gasket Assy | Call to confirm part: 800-440-6723 |
| 42 | AD56413458 | 1 | Plate, Cable Mount | $11.69/EA |
| 43 | AD56382992 | 1 | Cable Assy-Quick Link-19.5 IN | $17.46/EA |
| 44 | AD56413800 | 3 | Bushing .32 x.50 x.18 | $17.23/EA |
| 45 | AD56413801 | 1 | Bushing .32 x.50 x.35 | $18.89/EA |
| 46 | AD56440213 | 1 | Clamp, Hose SAE #32 | $10.30/EA |
| 47 | AD56456797 | 1 | Clamp, Hose SAE #36Revised or new since last update. | $12.85/EA |
| 48 | AD56477613 | 1 | Tie, Cable | $13.07/EA |
| 49 | AD56478246 | 1 | Tie, Cable | $11.69/EA |
| 50 | AD56324497 | 2 | Cage, Float | $11.69/EA |
| 51 | AD56391690 | 1 | Ball, Float | $11.69/EA |
| 52 | AD56009191 | 4 | Scr, Pan Phil Plastite 10-14 x .50 | $10.30/EA |
| 54 | AD56314400 | 1 | Wire Rope, 9 Inch | $13.07/EA |
| 55 | AD56109539 | 1 | Vac Filter Lid | $37.01/EA |
| 56 | AD56314760 | 1 | Gasket, Vacuum Duct | $13.07/EA |
| 57 | AD56413155 | 1 | Top, Recovery Tank | $314.97/EA |
| 58 | AD56413194 | 1 | Screen, Filter | $16.09/EA |
| 59 | AD56413195 | 1 | Filter | $15.44/EA |
| 60 | AD56413408 | 1 | Plate, Vac Cover | $40.81/EA |
| 61 | AD56413416 | 1 | Gasket, Vac Fan Top | $17.46/EA |
| 62 | AD56383979 | 1 | Gasket-Strip-59 x.5 x.25 | $8.80/EA |
| 63 | AD56414176 | 1 | Gasket-Strip .12 x.5 x 7.5 | $18.96/EA |
| 64 | AD56009005 | 2 | Scr Panphils Type Ab 10-16 x.75 | $10.30/EA |
| 65 | AD56414134 | 1 | Deflector-Water | $45.74/EA |
| 66 | AD56385477 | 2 | Clip-Spring | $16.47/EA |

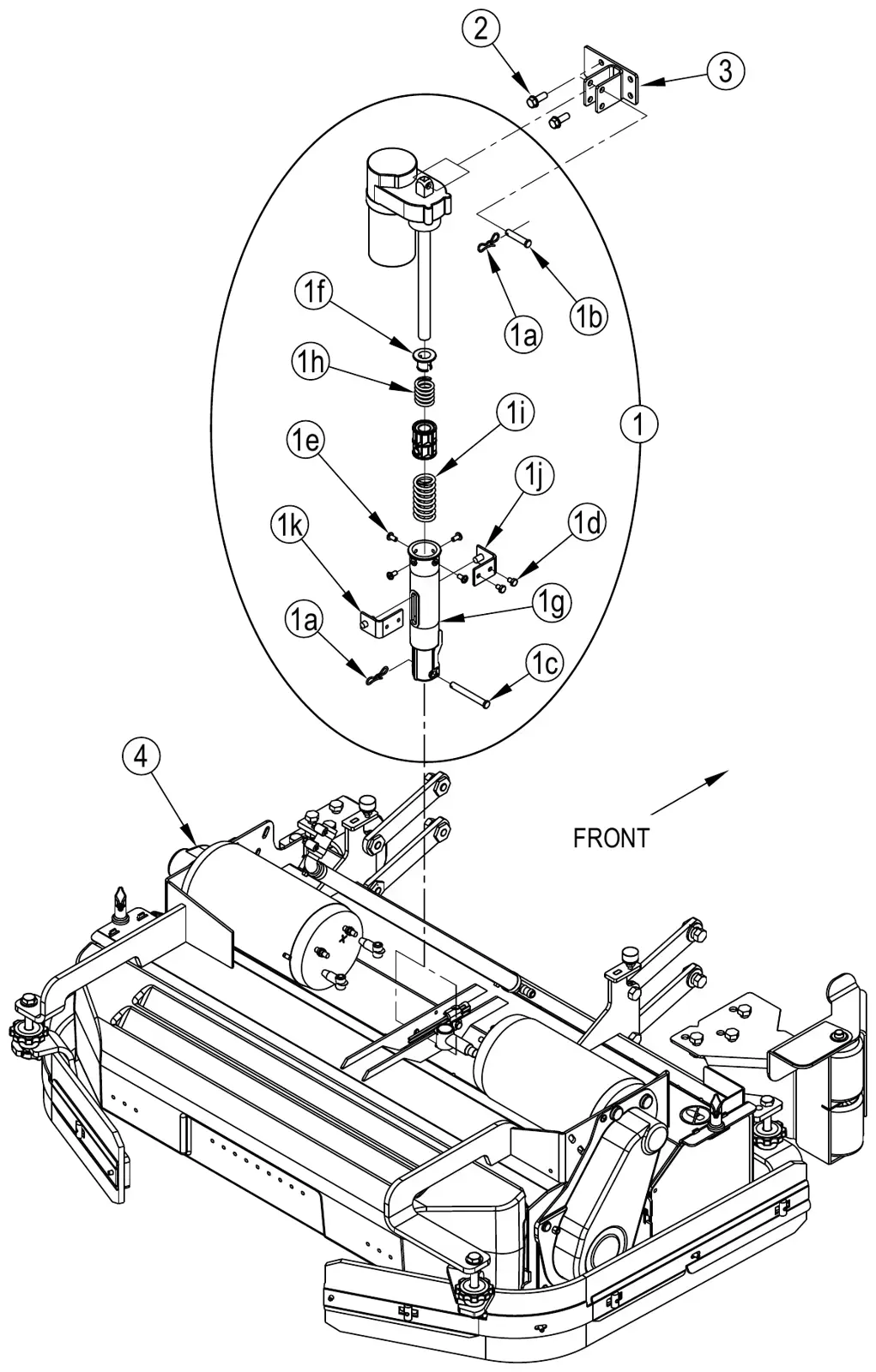

Advance SC6500 Scrub system - cylindrical parts
The deck actuator kit, housing springs, mount weldment and the 40, 45 and 48 in cylindrical scrub assemblies. Cylindrical models only. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56383970 | 1 | Deck Actuator Kit (M2)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $654.69/EA |
| 1a | AD56004040 | 2 | Pin-Bow Tie-5/16-3/8 x 1.88 x .091Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $5.91/EA |
| 1b | AD56003597 | 1 | Pin-Clevis .375 X 1.75Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 1c | AD56003704 | 1 | Pin-Clevis .38 X 3.00Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 1d | AD56009019 | 2 | Scr, Hex Thd Form 1/4-20 X .38Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 1e | AD56009062 | 4 | Scr, Pan Phil Thd Form 1/4-20 X .50Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 1f | AD56383887 | 1 | Cap-Actuator SpringFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $8.80/EA |
| 1g | AD56412262 | 1 | Housing SpringFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $68.96/EA |
| 1h | AD56413828 | 1 | Spring, Upper HousingFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $18.96/EA |
| 1i | AD56413829 | 1 | Spring, Lower HousingFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $33.79/EA |
| 1j | AD56420019 | 1 | Nut RetainerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $50.01/EA |
| 1k | AD56420020 | 1 | Nut RetainerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $50.01/EA |
| 2 | AD56002256 | 2 | Scr, Hex Type 1 3/8-16 X 1.00Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 3 | AD56413455 | 1 | Mount WeldmentFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $64.01/EA |
| 4 | AD56414119 | 1 | 40 In Cyl Scrub AssyFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $7,850.36/EA |
| 4 | AD56414121 | 1 | 45 In Cyl Scrub AssyFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $10,322.13/EA |
| 4 | AD56414120 | 1 | 48 In Cyl Scrub AssyFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $10,322.13/EA |

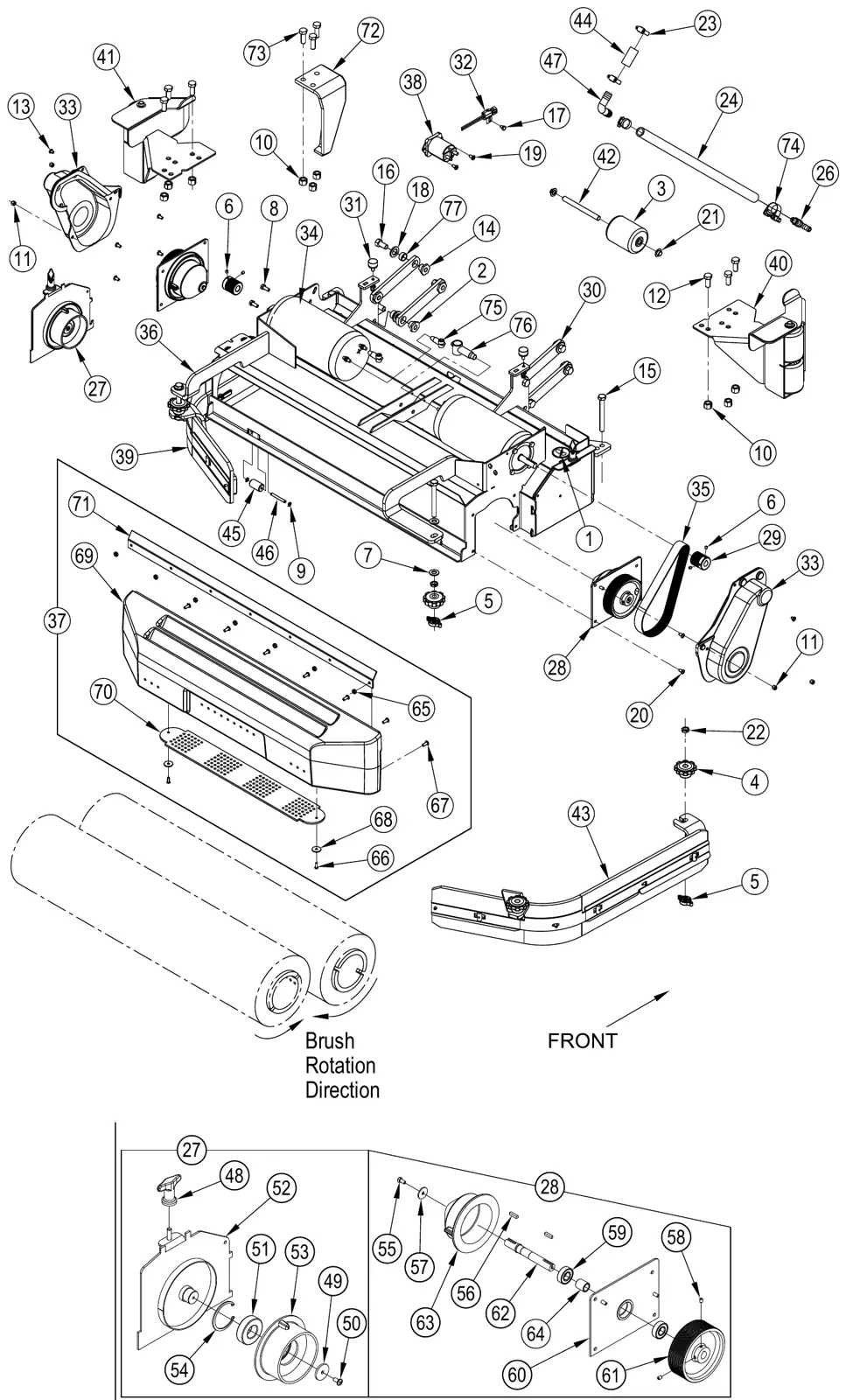

Advance SC6500 Scrub system - cylindrical - scrub assy parts
The cylindrical scrub assembly: broom idler and drive lug assemblies, sheaves, belt guard, motor kit, rollers and arms. Lines are tagged by size. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56414119 | 1 | 40 In Cyl Scrub AssyFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $7,850.36/EA |
| – | AD56414121 | 1 | 45 In Cyl Scrub AssyFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $10,322.13/EA |
| – | AD56414120 | 1 | 48 In Cyl Scrub AssyFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $10,322.13/EA |
| 1 | AD56016163 | 2 | Decal, No StepFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $13.07/EA |
| 2 | AD56380646 | 2 | Bushing Cam 1/2-20 3/4 OdFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $15.57/EA |
| 3 | AD56407006 | 2 | Wheel, RollerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $43.68/EA |
| 4 | AD56380149 | 4 | Knob-M12-1.75 ThruFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $12.08/EA |
| 5 | AD56601578 | 4 | KnobFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $13.76/EA |
| 6 | AD56001841 | 4 | Scr, Soc Set Loc 1/4-20 x .25Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 7 | AD56001879 | 4 | Wsh, Flt SAE 1/2Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 8 | AD56003179 | 8 | Scr-Hex Thd to Hd M8-1.25 x 20mmFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.33/EA |
| 9 | AD56003268 | 4 | Ring, Ret Ext Type E Reinf. 0.25 DiaFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 10 | AD56003312 | 14 | Nut, Hex Nyl Loc M12-1.75Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 11 | AD56003403 | 6 | Nut, Hex Nyl Loc M6-1Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.33/EA |
| 12 | AD56003453 | 6 | Scr, Hex M12-1.75 x 305mmFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 13 | AD56003627 | 2 | Scr, Pan Phil M6-1 x 16mmFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $12.85/EA |
| 14 | AD56380614 | 6 | Bushing 1/2-20 x 3/4 OdFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $15.57/EA |
| 15 | AD56003707 | 4 | Scr, Hex Thd To Hd M12-1.75 x 110mmFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $4.27/EA |
| 16 | AD56003909 | 8 | Scr-Hex Ss 1/2-20 x 1.00Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $8.80/EA |
| 17 | AD56009019 | 1 | Scr, Hex Thd Form 1/4-20 x .38Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 18 | AD56009022 | 8 | Wsh, Flt .754 X 1.250 x .120Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 19 | AD56009062 | 2 | Scr, Pan Phil Thd Form 1/4-20 x .50Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 20 | AD56003897 | 8 | Scr-Pan Phil Loc Ss 1/4-20 x.50Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $8.80/EA |
| 21 | AD56009097 | 4 | Nut, Push Cap 1/2Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 22 | AD56003657 | 4 | Nut Hex Jam M12-1.75Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 23 | AD56112771 | 4 | Clamp, Hose SAE #10Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 24 | AD56303394 | 1 | Hose, Spiral .75 x 25.00Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $25.70/EA |
| 26 | AD56305760 | 1 | Tee, Barb 3/4 x 1/2 x 1/2Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 27 | AD56414164 | 2 | Broom Idler Assy (48-54)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $298.49/EA |
| 28 | AD56414123 | 2 | Broom Drive Lug Assy (55-64)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $436.56/EA |
| 29 | AD56414124 | 2 | Sheave, Poly VFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $24.03/EA |
| 30 | AD56380153 | 2 | Arm Parallel 6 InFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $36.67/EA |
| 31 | AD56413714 | 2 | Bumper RubberFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $23.35/EA |
| 32 | AD56413393 | 1 | Resistor Assy, 10k Ohm (40” / R2)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $26.25/EA |
| 32 | AD56413391 | 1 | Resistor Assy, 40k Ohm (45” & 48” / R2)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $29.53/EA |
| 33 | AD56414178 | 2 | Belt Guard AssyFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $76.09/EA |
| 34 | AD56382654 | 2 | Kit 36VDC 1.5HP Motor (M9 / M10)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $1,672.03/EA |
| – | AD56381479 | 1 | Kit Brush Amer Motor (for 56382654)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $71.84/EA |
| 35 | AD56414125 | 2 | Belt-Auto TensionFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $38.06/EA |
| 36 | AD56413962 | 1 | Cyl Scrub Deck Weldt-40 (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $2,253.50/EA |
| 36 | AD56413963 | 1 | Cyl Scrub Deck Weld’t-45 (45”)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $2,399.24/EA |
| 36 | AD56413964 | 1 | Cyl Scrub Deck Weld’t-48 (48”)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $1,744.56/EA |
| 37 | AD56413331 | 1 | Hopper Assembly-40 (40”) (65-71)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $439.48/EA |
| 37 | AD56413443 | 1 | Hopper Assembly-45 (65-71)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $552.62/EA |
| 37 | AD56413346 | 1 | Hopper Assembly-48 (48”) (65-71)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $560.45/EA |
| 38 | AD56413516 | 1 | Contactor, 36vdc 200A (K3)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $90.82/EA |
| 39 | AD56413871 | 1 | Left Skirt Assembly (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $512.97/EA |
| 39 | AD56413556 | 1 | Left Skirt Assembly (45” & 48”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $457.25/EA |
| 40 | AD56414139 | 1 | Right Guard AssyFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $392.85/EA |
| 41 | AD56414140 | 1 | Left Guard Assy (45” & 48”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $385.85/EA |
| 42 | AD56413596 | 2 | PinFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 43 | AD56413609 | 1 | Right Skirt AssemblyFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $530.78/EA |
| 44 | AD56413813 | 1 | Hose, .75 Clear PVCFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 45 | AD56413817 | 2 | Roller, RearFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $13.07/EA |
| 46 | AD56413818 | 2 | PinFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $13.07/EA |
| 47 | AD56900272 | 1 | Barb, 3/4 90 Deg. ElbowFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 48 | AD56370711Replaces Advance 56414161 | 1 | Knob-Thumb NutFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $21.85/EA |
| 49 | AD56009199 | 1 | Wsh, Flt Brass .266 x 1.250 x .125Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 50 | AD56009069 | 1 | Scr, Pan Phil Loc 1/4-20 x .50Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 51 | AD56111531 | 1 | Bearing- BallFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $52.74/EA |
| 52 | AD56394331 | 1 | Broom HangerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $29.48/EA |
| 53 | AD56109690 | 1 | Idler, BrushFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $13.76/EA |
| 54 | AD56003314 | 1 | Ring, RetainerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 55 | AD56003155 | 1 | Scr, Hex M6-1 x 12mmFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.33/EA |
| 56 | AD56003238 | 2 | Key, Sq .19 x .78Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 57 | AD56009060 | 1 | Wsh, Flt SS .260 x 1.000 x .074Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.33/EA |
| 58 | AD56002930 | 2 | Scr, Soc Set Loc 1/4-20 x .38Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 59 | AD56303050 | 2 | Bearing, BallFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $35.17/EA |
| 60 | AD56384572 | 1 | Broom HangerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $40.34/EA |
| 61 | AD56414122 | 1 | Sheave, Poly VFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $134.79/EA |
| 62 | AD56413620 | 1 | Shaft, Broom Drive LugFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $55.65/EA |
| 63 | AD56109628 | 1 | Drive LugFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $64.22/EA |
| 64 | AD56413877 | 1 | SpacerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $14.37/EA |
| 65 | AD56002850 | 7 | Nut, Hex Nyl Loc-Thin Ss 1/4-20Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 66 | AD56002896 | 2 | Scr, Pan Phil SS 10-24 x .62Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 67 | AD56002989 | 7 | Scr, Pan Phil SS 1/4-20 x .62Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 68 | AD56009060 | 2 | Wsh, Flt SS .260 X 1.000 x .074Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.33/EA |
| 69 | AD56413333 | 1 | Hopper, 40 In. (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $269.64/EA |
| 69 | AD56413444 | 1 | Hopper, 45 In. (45”)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $283.67/EA |
| 69 | AD56413348 | 1 | Hopper, 48 In. (48”)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $298.49/EA |
| 70 | AD56413338 | 1 | Screen, Hopper-40 In. (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $48.62/EA |
| 70 | AD56413446 | 1 | Screen, Hopper-45 In. (45”)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $76.09/EA |
| 70 | AD56413349 | 1 | Screen, Hopper-48 In. (48”)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $106.33/EA |
| 71 | AD56413339 | 1 | Threshold, Hopper-40 In. (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $84.49/EA |
| 71 | AD56413447 | 1 | Threshold, Hopper-45 In. (45”)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $129.54/EA |
| 71 | AD56413350 | 1 | Threshold, Hopper-48 In. (48”)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $112.65/EA |
| 72 | AD56413965 | 1 | Roll Bar Weldt (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $145.76/EA |
| 73 | AD56003453 | 3 | Scr Hex Ss M12-1.75 x 35mm (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $11.69/EA |
| 74 | AD56394097 | 1 | Clamp-Hose-29mm-31mmFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $18.14/EA |
| 75 | AD56409538 | 3 | Insulator, TerminalFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $13.07/EA |
| 76 | AD56493357 | 1 | Insulator, TerminalFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $13.07/EA |
| 77 | AD56380152 | 8 | Bearing IGUSFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $31.05/EA |

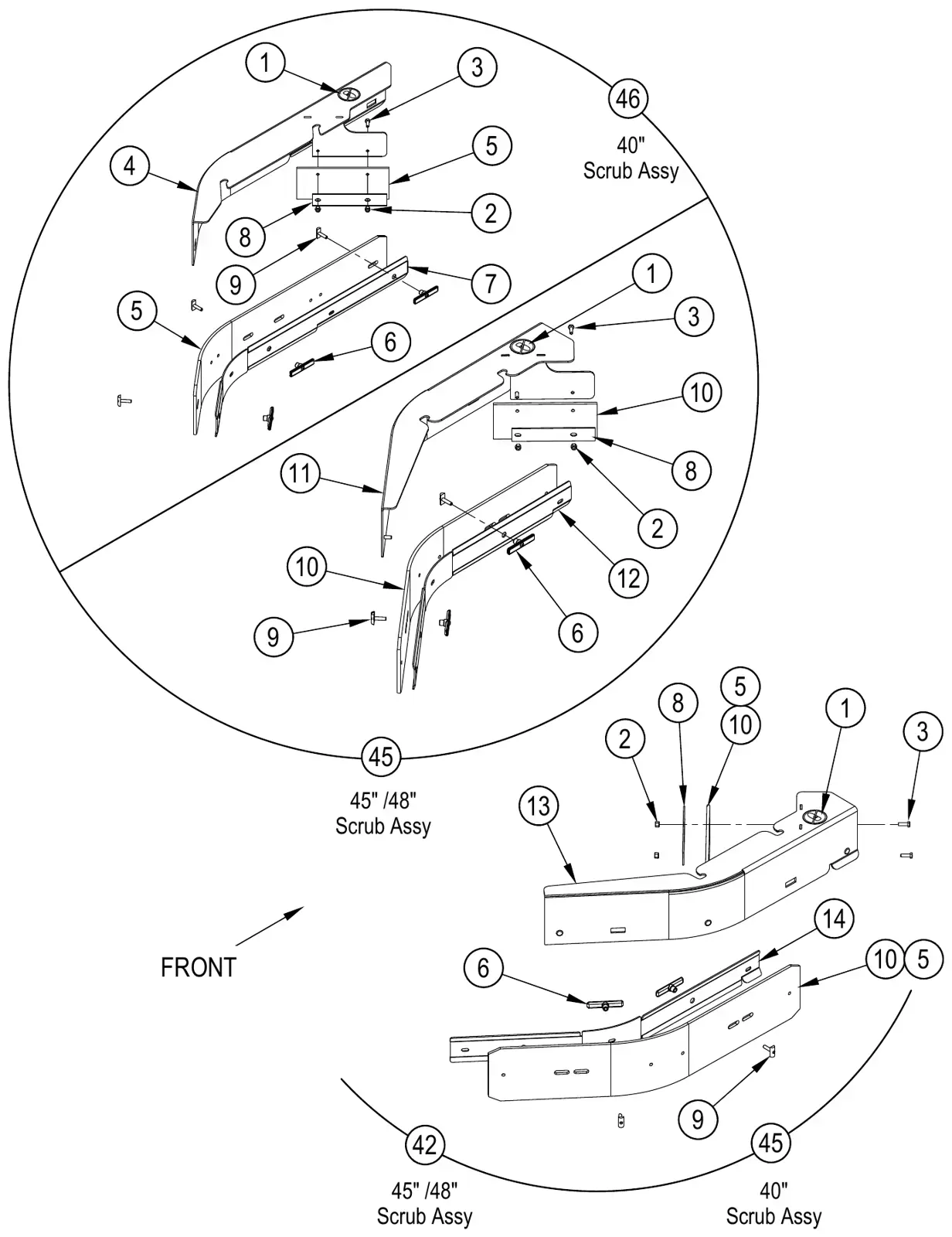

Advance SC6500 Scrub system - cylindrical - skirt & bumper assy parts

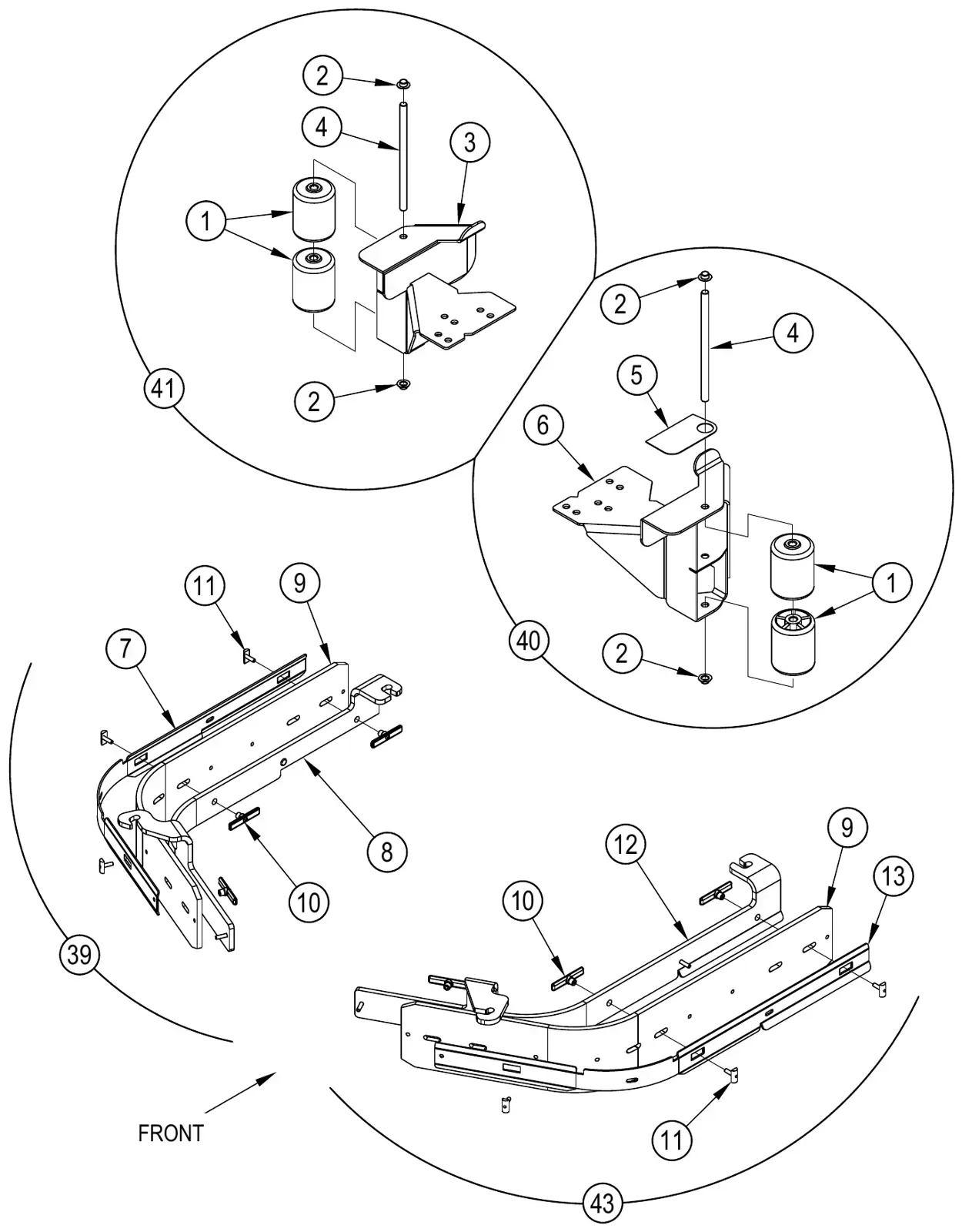

The skirt and guard assemblies for cylindrical models, with skirt blades in linatex, gum rubber or polyurethane, straps, retainers and brackets. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 39 | AD56413871 | 1 | Left Skirt Assembly (#7-11 / 40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $512.97/EA |
| 39 | AD56413556 | 1 | Left Skirt Assembly (#7-11 / 45” & 48”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $457.25/EA |
| 40 | AD56414139 | 1 | Right Guard Assy (#1, 2, 4, 5, 6)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $392.85/EA |
| 41 | AD56414140 | 1 | Left Guard Assy (#1-4 / 45” & 48”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $385.85/EA |
| 43 | AD56413609 | 1 | Right Skirt Assembly (#9-13)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $530.78/EA |
| 1 | AD56407006 | 4 | Wheel, RollerFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $43.68/EA |
| 2 | AD56009097 | 4 | Nut, Push cap 1/2Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $10.30/EA |
| 3 | AD56414136 | 1 | Left Guard WeldtFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $254.81/EA |
| 4 | AD56413590 | 2 | PinFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $11.69/EA |
| 5 | AD56413721 | 1 | Grip SurfaceFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $20.48/EA |
| 6 | AD56414135 | 1 | Right Guard WeldtFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $254.81/EA |
| 7 | AD56413860 | 1 | Strap, Skirt-LTFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $87.37/EA |
| 8 | AD56413969 | 1 | Left Bracket Weldt-40 (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $269.64/EA |
| 8 | AD56413970 | 1 | Left Bracket Weldt 45-48 (45” & 48”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $276.66/EA |
| 9 | AD56413654 | 2 | Blade - Skirt, LinatexFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $77.59/EA |
| – | AD56413820 | 2 | Skirt, Gum RubberFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $80.40/EA |
| – | AD56413743 | 2 | Skirt, PolyurethaneFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $241.63/EA |
| 10 | AD56413717 | 6 | Thumb NutFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $21.85/EA |
| 11 | AD56413850 | 6 | Skirt Retainer AssyFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $34.00/EA |
| 12 | AD56413971 | 1 | Right Bracket WeldtFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $261.96/EA |
| 13 | AD56413857 | 1 | Strap, Skirt-RTFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $92.18/EA |

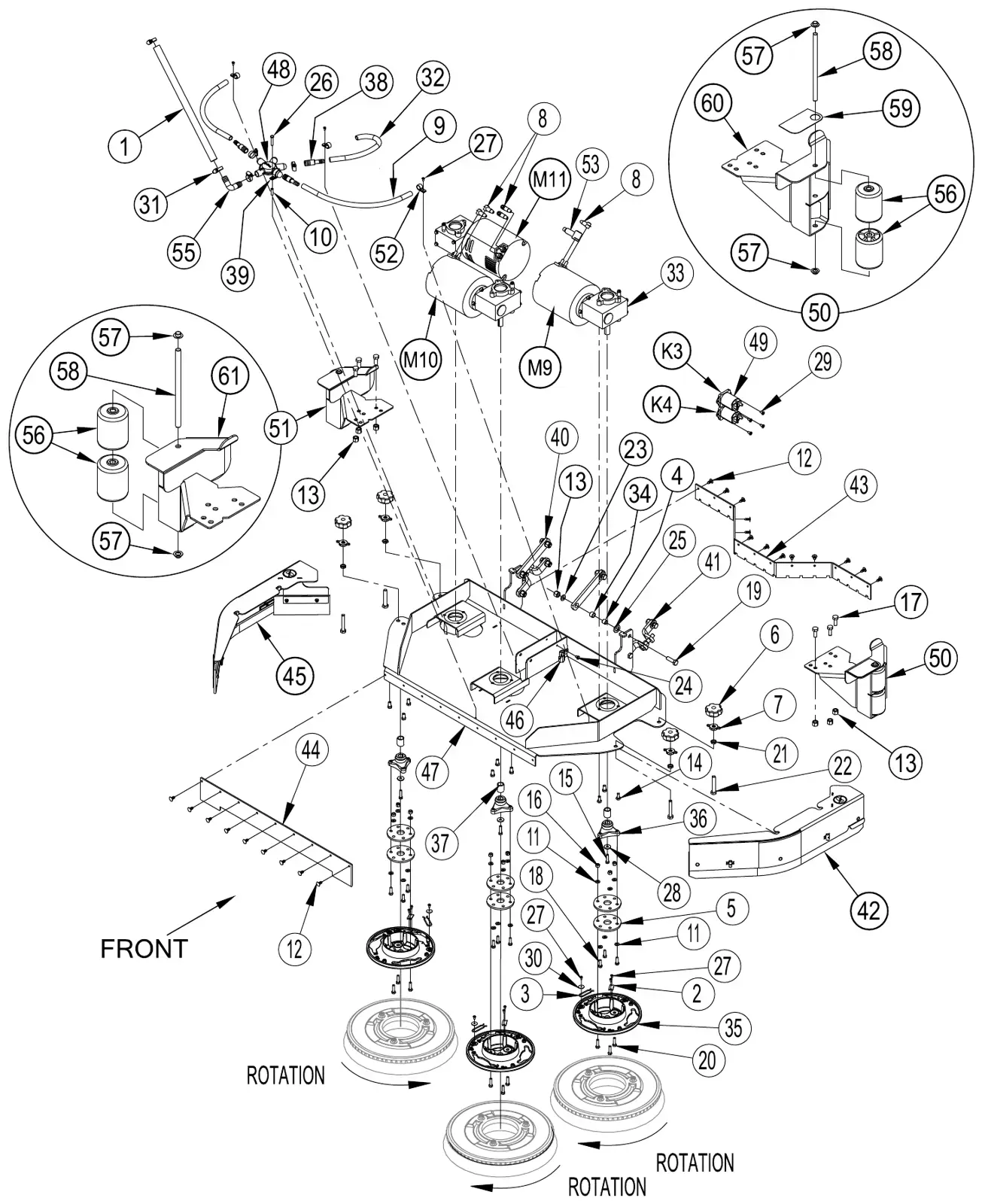

Advance SC6500 Scrub system - disk parts

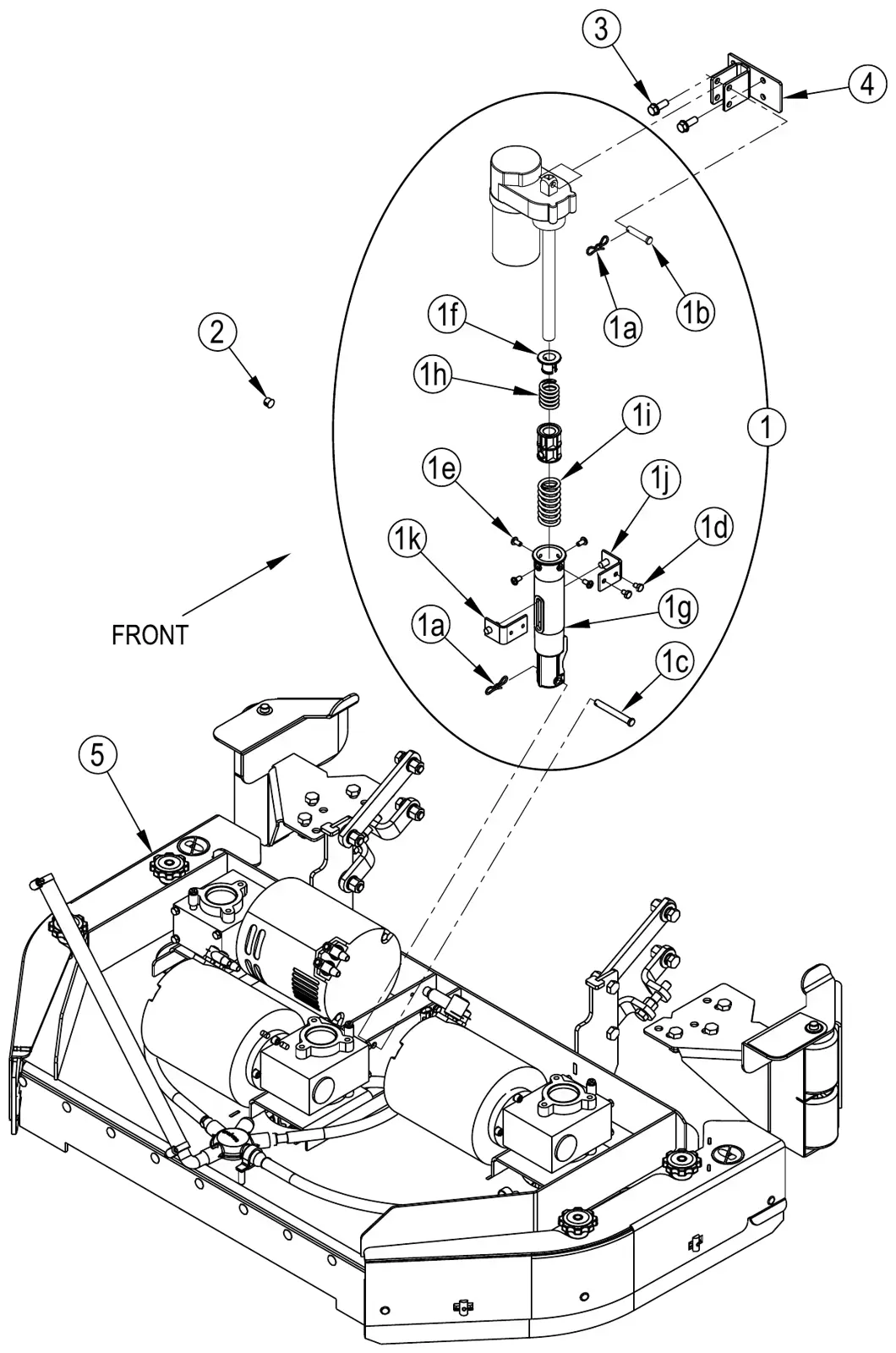

The deck actuator kit, housing springs and mount weldment for disc models. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56383970 | 1 | Deck Actuator Kit (M2)Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $654.69/EA |
| 1a | AD56004040 | 2 | Pin-Bow Tie-5/16-3/8 x 1.88 x .091Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $5.91/EA |
| 1b | AD56003597 | 1 | Pin-Clevis .375 X 1.75Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 1c | AD56003704 | 1 | Pin-Clevis .38 X 3.00Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 1d | AD56009019 | 2 | Scr, Hex Thd Form 1/4-20 X .38Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 1e | AD56009062 | 4 | Scr, Pan Phil Thd Form 1/4-20 X .50Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 1f | AD56383887 | 1 | Cap-Actuator SpringFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $8.80/EA |
| 1g | AD56412262 | 1 | Housing SpringFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $68.96/EA |
| 1h | AD56413828 | 1 | Spring, Upper HousingFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $18.96/EA |
| 1i | AD56413829 | 1 | Spring, Lower HousingFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $33.79/EA |
| 1j | AD56420019 | 1 | Nut RetainerFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $50.01/EA |
| 1k | AD56420020 | 1 | Nut RetainerFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $50.01/EA |
| 2 | AD56323560 | 1 | Plug, CapFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 3 | AD56002256 | 2 | Scr, Hex Type 1 3/8-16 X 1.00Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 4 | AD56413455 | 1 | Mount WeldmentFits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $64.01/EA |
| 5 | AD56414165 | 1 | Scrub Assembly-40 In DiskFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $6,905.55/EA |
| 5 | AD56414166 | 1 | Scrub Assembly-45 In DiskFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $11,630.13/EA |
| 5 | AD56414167 | 1 | Scrub Assembly-48 In DiskFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $10,612.79/EA |
Advance SC6500 Scrub system - disk - 40 inch scrub assy parts
The 40 in disc scrub assembly: brush drive discs, brush holders, gearbox, hubs, front and rear blades and skirt assemblies. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56414165 | 1 | Scrub Assembly-40 In DiskFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $6,905.55/EA |
| 1 | AD56264262 | 1 | HoseFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $39.45/EA |
| 2 | AD56366455 | 2 | Plate, StopFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 3 | AD56366463 | 2 | Spring RetainerFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 4 | AD56367206 | 8 | BushingFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $13.07/EA |
| 5 | AD56383238 | 4 | Brush Drive DiscFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $8.80/EA |
| 6 | AD56380149 | 4 | Knob-M12-1.75 ThruFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $12.08/EA |
| 7 | AD56601578 | 4 | KnobFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $13.76/EA |
| 8 | AD56409538 | 1 | Insulator, TerminalFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $13.07/EA |
| 9 | AD56471220 | 1 | BushingFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $37.93/EA |
| 10 | AD56002938 | 12 | Wsh, Flt Sae Ss 5/16Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 11 | AD56003263 | 16 | Rivet, Nylon Tree Push-In (.25)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 12 | AD56003450 | 14 | Nut Hx Nyl Loc SS M12-1.75Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $12.85/EA |
| 13 | AD56002885 | 6 | Scr, Hex SS 3/8-16 X .75Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $13.07/EA |
| 14 | AD56003372 | 2 | Scr, Hex Loc Ss 5/16-18 X 1.25Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 15 | AD56003405 | 6 | Nut, Hex Nyl Loc Ss M8-1.25Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 16 | AD56003905 | 3 | Scr-Hex SS M12-1.75 X 30mmFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $8.80/EA |
| 17 | AD56003477 | 6 | Scr, Hex Loc Ss M8-1 X 25mmFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 18 | AD56003906 | 8 | Scr-Hex SS M12-1.75 X 40mmFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $8.80/EA |
| 19 | AD56003639 | 6 | Scr, Hex Ss M8-1.25 X 30mmFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 20 | AD56003657 | 4 | Nut, Hex Jam Ss M12-1.75Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 21 | AD56003658 | 4 | Scr, Hex Thd To Hd Ss M12-1.75 X 70mmFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 22 | AD56009017 | 8 | Wsh, Flt Harden .516x.938 X.75Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 23 | AD56009019 | 1 | Scr, Hex Thd Form 1/4-20 X .38Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 24 | AD56009022 | 8 | Wsh, Flt .754 X 1.250 X .120Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 25 | AD56009028 | 1 | Scr, Hex Thd Form 1/4-20 X 1.50Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 26 | AD56009030 | 8 | Scr, Pan Phil Thd Form 10-24 X .38Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 27 | AD56009057 | 2 | Wsh, Flt Harden .344x1.000x.120/.135Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 28 | AD56009096 | 2 | Wsh, Flt .193 X .875 X .060Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 29 | AD56112771 | 2 | Clamp, Hose Sae #10Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 30 | AD56304586 | 8 | Bearing .750 X .625 X .500Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $13.07/EA |
| 31 | AD56314030 | 2 | Brush HolderFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $87.50/EA |
| 32 | AD56314108 | 2 | Hub, DriveFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $43.68/EA |
| 33 | AD56314109 | 2 | SpacerFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 34 | AD56315625 | 2 | Barb, Coupler 1/2 X 3/4Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 35 | AD56410223 | 1 | Clamp, PFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 36 | AD56413302 | 2 | Arm Parallel 6 InFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $38.06/EA |
| 37 | AD56413303 | 2 | Arm, Adjustable AsmFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $103.43/EA |
| 38 | AD56413318 | 1 | Blade, FrontFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $31.05/EA |
| 39 | AD56413319 | 1 | Blade, RearFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $35.17/EA |
| 40 | AD56413966 | 1 | Weldment-40 DiskFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $814.60/EA |
| 41 | AD56413336 | 1 | Gearbox Assembly, 20” (M9)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $3,707.25/EA |
| – | AD56410182 | 1 | Bearing B.E. (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $70.41/EA |
| – | AD56410183 | 1 | Bearing F.E. (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $82.06/EA |
| – | AD56412266 | 1 | Brush Board Assy (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $785.75/EA |
| – | AD56407500 | 1 | Brush Assy Kit (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $254.81/EA |
| – | AD56389395 | 1 | Brush Spring Set (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $125.28/EA |
| – | AD56407196 | 1 | Gearbox (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $2,396.05/EA |
| 42 | AD56413390 | 1 | Resistor Assy, 1k Ohm (R2)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $31.05/EA |
| 43 | AD56413426 | 1 | Manifold, SolutionFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $84.49/EA |
| 44 | AD56414139 | 1 | Right Guard Assy (#52-56)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $392.85/EA |
| 45 | AD56413307 | 1 | Right Skirt AssemblyFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $487.25/EA |
| 46 | AD56413313 | 1 | Left Skirt AssemblyFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $545.61/EA |
| 47 | AD56385564 | 2 | Clamp,PFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 48 | AD56459064 | 2 | Hose, PVC Clear 21.00 In.Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $27.75/EA |
| 49 | AD56493357 | 1 | Insulator, TerminalFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $13.07/EA |
| 51 | AD56900272 | 1 | Barb, 3/4 90 Deg. ElbowFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 52 | AD56407006 | 2 | Wheel, RollerFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $43.68/EA |
| 53 | AD56009097 | 2 | Nut, Push Cap 1/2Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 54 | AD56413590 | 1 | PinFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 55 | AD56413721 | 1 | Grip SurfaceFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $20.48/EA |
| 56 | AD56414135 | 1 | Right Guard WeldtFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $254.81/EA |
| 57 | AD56413965 | 1 | Roll Bar Weldt 40Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $145.76/EA |
| 58 | AD56003453 | 3 | Scr Hex SS M12-1.75 X 35MMFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $11.69/EA |

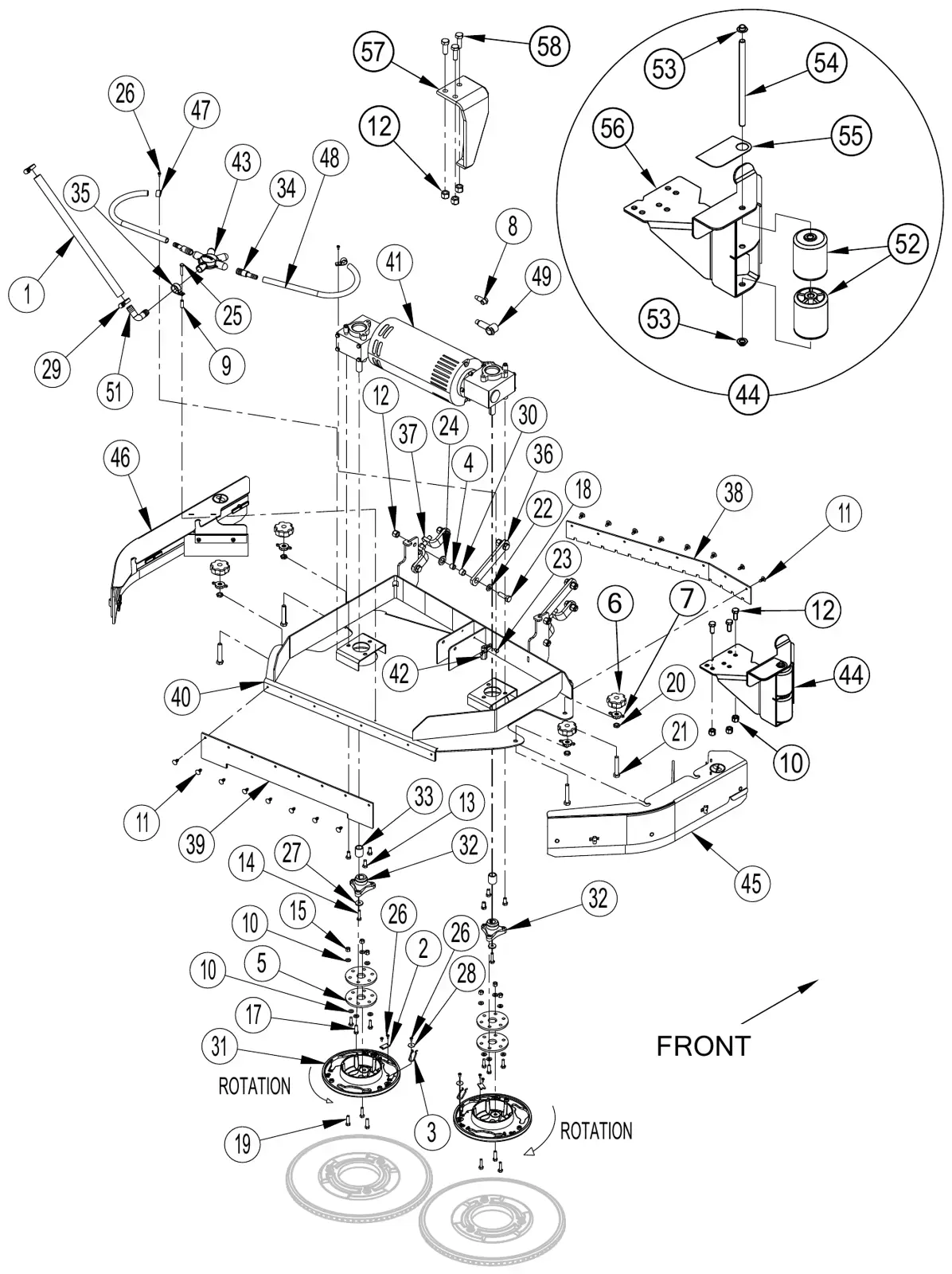

Advance SC6500 Scrub system - disk - 45 & 48 inch scrub assy parts
The 45 in and 48 in disc scrub assembly: gearmotors, gearboxes, brush drive discs, brush holders, front and rear blades and skirt assemblies. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56414166 | 1 | Scrub Assembly-45 In DiskFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $11,630.13/EA |
| – | AD56414167 | 1 | Scrub Assembly-48 In DiskFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $10,612.79/EA |
| 1 | AD56264262 | 1 | HoseFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $39.45/EA |
| 2 | AD56366455 | 3 | Plate, StopFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 3 | AD56366463 | 3 | Spring RetainerFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 4 | AD56367206 | 8 | BushingFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 5 | AD56383238 | 6 | Brush Drive DiscFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $8.80/EA |
| 6 | AD56380149 | 4 | Knob-M12-1.75 ThruFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $12.08/EA |
| 7 | AD56601578 | 4 | KnobFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.76/EA |
| 8 | AD56409538 | 5 | Insulator, TerminalFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 9 | AD56459064 | 2 | Hose, PVC Clear 21.00 InFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $27.75/EA |
| 10 | AD56471220 | 1 | BushingFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $37.93/EA |
| 11 | AD56002938 | 18 | Wsh, Flt SAE SS 5/16Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 12 | AD56003263 | 22 | Rivet, Nylon Tree Push-In (.25)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 13 | AD56003450 | 14 | Nut Hx Nyl Loc SS M12-1.75Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $12.85/EA |
| 14 | AD56002885 | 9 | Scr, Hex SS 3/8-16 X .75Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 15 | AD56003372 | 3 | Scr, Hex Loc SS 5/16-18 X 1.25Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 16 | AD56003405 | 9 | Nut, Hex Nyl Loc SS M8-1.25Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 17 | AD56003905 | 6 | Scr-Hex SS M12-1.75 X 30MMFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $8.80/EA |
| 18 | AD56003477 | 9 | Scr, Hex Loc SS M8-1 X 25mmFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 19 | AD56003906 | 8 | Scr-Hex SS M12-1.75 X 40MMFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $8.80/EA |
| 20 | AD56003639 | 9 | Scr, Hex SS M8-1.25 X 30mmFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 21 | AD56003657 | 4 | Nut, Hex Jam SS M12-1.75Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 22 | AD56003658 | 4 | Scr, Hex Thd To Hd SS M12-1.75 X 70mmFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 23 | AD56009017 | 8 | Wsh, Flt Harden .516x.938 X.75Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 24 | AD56009019 | 1 | Scr, Hex Thd Form 1/4-20 X .38Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 25 | AD56009022 | 8 | Wsh, Flt .754 X 1.250 X .120Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 26 | AD56009028 | 1 | Scr, Hex Thd Form 1/4-20 X 1.50Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 27 | AD56009030 | 12 | Scr, Pan Phil Thd Form 10-24 X .38Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 28 | AD56009057 | 3 | Wsh, Flt Harden .344x1.000x.120/.135Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 29 | AD56009062 | 4 | Scr, Pan Phil Thd Form 1/4-20 X .50Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 30 | AD56009096 | 3 | Wsh, Flt .193 X .875 X .060Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 31 | AD56112771 | 5 | Clamp, Hose SAE #10Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 32 | AD56380543 | 1 | Hose PVC Clear 15.00 In.Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 33 | AD56303083 | 3 | Gearmotor (M9, M10, M11)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $2,544.29/EA |
| – | AD56303444 | 4 | Carbon Brush Assy (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $17.46/EA |
| – | AD56303419 | 4 | Brush Spring (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $33.79/EA |
| – | AD56303084Advance 56303084 | 1 | Motor-Scrub-36vdcFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | Call to confirm part: 800-440-6723 |
| – | AD56303085 | 1 | Gearbox-Scrub DeckFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $592.48/EA |
| – | AD56002158 | 3 | Scr Soc Hd 5/16-18 X .88Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 34 | AD56304586 | 8 | Bearing .750 X .625 X .500Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 35 | AD56314030 | 3 | Brush HolderFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $87.50/EA |
| 36 | AD56314108 | 3 | Hub, DriveFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $43.68/EA |
| 37 | AD56314109 | 3 | SpacerFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 38 | AD56315625 | 3 | Barb, Coupler 1/2 X 3/4Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 39 | AD56410223 | 1 | Clamp, PFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 40 | AD56413302 | 2 | Arm Parallel 6 InFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $38.06/EA |
| 41 | AD56413303 | 2 | Arm, Adjustable AssyFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $103.43/EA |
| 42 | AD56413307 | 1 | Right Skirt AssemblyFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $487.25/EA |
| 43 | AD56413374 | 1 | Blade FrontFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $35.17/EA |
| 44 | AD56413379 | 1 | Blade, RearFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $38.06/EA |
| 45 | AD56413381 | 1 | Left Skirt AssemblyFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $538.62/EA |
| 46 | AD56413392 | 1 | Resistor Assy, 20k Ohm (R2)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $32.42/EA |
| 47 | AD56413979 | 1 | Weldment-45 Disk DeckFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $3,613.19/EA |
| 47 | AD56413995 | 1 | Weldment-48 Disk DeckFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $887.11/EA |
| 48 | AD56413426 | 1 | Manifold, SolutionFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $84.49/EA |
| 49 | AD56413516 | 2 | Contactor, 36vdc 200A (K3, K4)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $90.82/EA |
| 50 | AD56414139 | 1 | Right Guard Assy (#56-60)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $392.85/EA |
| 51 | AD56414140 | 1 | Left Guard Assy (#56-58 & 61)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $385.85/EA |
| 52 | AD56385564 | 3 | Clamp, PFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 53 | AD56493357 | 1 | Insulator, TerminalFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 55 | AD56900272 | 1 | Barb, 3/4 90 Deg. ElbowFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 56 | AD56407006 | 2 | Wheel, Roller (qty per assy)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $43.68/EA |
| 57 | AD56009097 | 2 | Nut, Push Cap 1/2 (qty per assy)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 58 | AD56413590 | 1 | Pin (qty per assy)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 59 | AD56413721 | 1 | Grip SurfaceFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $20.48/EA |
| 60 | AD56414135 | 1 | Right Guard WeldtFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $254.81/EA |
| 61 | AD56414136 | 1 | Left Guard WeldtFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $254.81/EA |
Advance SC6500 Scrub system - disk - skirt assy parts
The skirt assemblies for disc models: skirt weldments, straps, retainers and blade kits in linatex, gum rubber or polyurethane. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 45 | AD56413307 | 1 | Right Skirt Assembly (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $487.25/EA |
| 46 | AD56413313 | 1 | Left Skirt Assembly (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $545.61/EA |
| 42 | AD56413307 | 1 | Right Skirt Assembly (45” & 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $487.25/EA |
| 45 | AD56413381 | 1 | Left Skirt Assembly (45” & 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $538.62/EA |
| 1 | AD56016163 | 1 | Decal, No Step (qty per skirt assy)Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 2 | AD56003426 | 2 | Nut, Hex Nyl loc SS M6-1.00 (qty per skirt assy)Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.33/EA |
| 3 | AD56003454 | 2 | Scr, Hex Thd to Hd SS M6-1.00 x 20mm (qty per skirt assy)Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.33/EA |
| 4 | AD56413980 | 1 | Skirt Weldt-Left 40D (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $174.60/EA |
| 5 | AD56413768 | 1 | Kit, Linatex 40 Disk BladeFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $135.67/EA |
| – | AD56413767 | 1 | Kit, Gum Rubber 40 Disk BladeFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $90.82/EA |
| – | AD56413754 | 1 | Kit, Polyurethane 40 Disk BladeFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $596.31/EA |
| 6 | AD56413717 | 3 | Thumb Nut (40” / qty per skirt assy)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $21.85/EA |
| 6 | AD56413717 | 2 | Thumb Nut (45” & 48” / qty per skirt assy)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $21.85/EA |
| 7 | AD56413981 | 1 | Strap-Left 40D (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $40.81/EA |
| 8 | AD56413991 | 1 | Strap (qty per skirt assy)Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $8.80/EA |
| 9 | AD56413850 | 3 | Skirt Retainer Assy (40” / qty per skirt assy)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $34.00/EA |
| 9 | AD56413850 | 2 | Skirt Retainer Assy (45” & 48” / qty per skirt assy)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $34.00/EA |
| 10 | AD56413770 | 1 | Kit, Linatex (45” & 48”) Disk BladeFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $123.63/EA |
| – | AD56413769 | 1 | Kit, Gum Rubber (45” & 48”) Disk BladeFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $77.47/EA |
| – | AD56413755 | 1 | Kit, Polyurethane (45” & 48”) Disk BladeFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $465.40/EA |
| 11 | AD56413982 | 1 | Skirt Weldt-Left 45D-48D (45” & 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $174.60/EA |
| 12 | AD56413983 | 1 | Strap-Left 45D-48D (45” & 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $90.82/EA |
| 13 | AD56413984 | 1 | Skirt Weldt-Right Disk (40”, 45” & 48”)Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $189.43/EA |
| 14 | AD56413985 | 1 | Strap-Right 40D-45D-48D (40”, 45” & 48”)Fits 6 of 12 versionsSC6500 40D, SC6500 40D EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $20.87/EA |

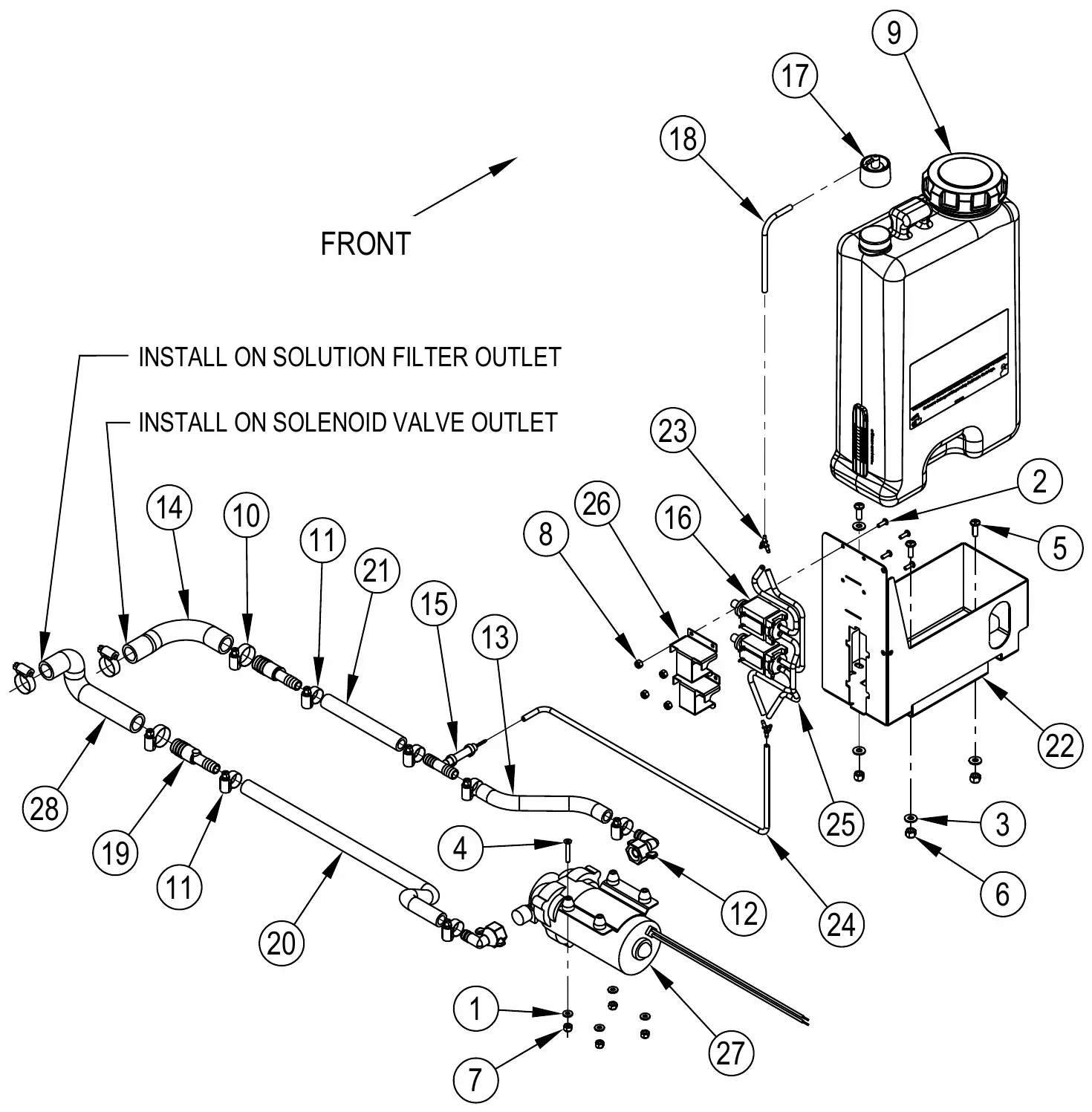

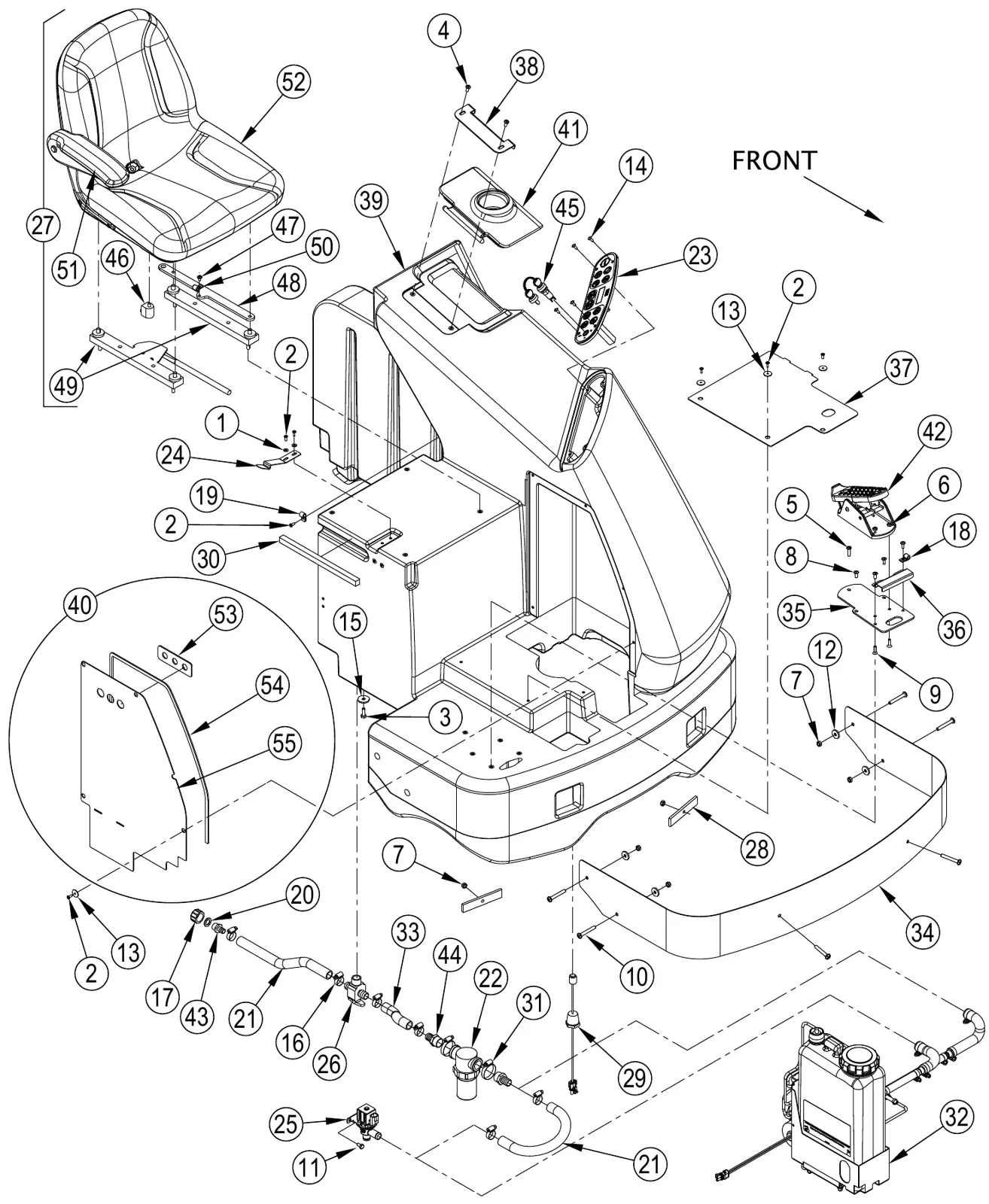

Advance SC6500 Solution system parts
The solution tank, solution filter, solenoid valve kit, liquid level switch, hoses, touch pad, key switch and seat mounting. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56001954 | 2 | Wsh, Flt SAE #10 | $11.33/EA |
| 2 | AD56001993 | 11 | Scr-Pan Phil 10-24 x .50 | $10.30/EA |
| 3 | AD56002037 | 4 | Scr-Hex 5/16-18 x .88 | $11.69/EA |
| 4 | AD56002066 | 2 | Scr-Pan Phil 1/4-20 x .62 | $11.69/EA |
| 5 | AD56002292 | 1 | Scr-Pan Phil 1/4-20 x 1.00 | $11.69/EA |
| 6 | AD56002708 | 2 | Nut, Hex Nyl Loc 1/4-20 | $10.30/EA |
| 7 | AD56002826 | 6 | Nut, Hex Nyl Loc-Thin 5/16-18 | $13.07/EA |
| 8 | AD56002989 | 4 | Scr-Pan Phil Ss 1/4-20 x .62 | $11.69/EA |
| 9 | AD56003086 | 2 | Scr-Flt Phil Ss 1/4-20 x .88 | $11.69/EA |
| 10 | AD56003718 | 6 | Scr-Pan Phil 5/16-18 x 2.25 | $12.85/EA |
| 11 | AD56009033 | 2 | Scr, Hex Thd Form 1/4-20 x .50 | $11.69/EA |
| 12 | AD56009057 | 4 | Wsh, Flt Harden .344 x 1.000 x.120/.135 | $11.69/EA |
| 13 | AD56009096 | 8 | Wsh, Flt .193 x .875 x .060 | $10.30/EA |
| 14 | AD56009206 | 4 | Scr-Truss Phil Blk 10-24 x .50 | $10.30/EA |
| 15 | AD56009294 | 4 | Wsh, Flt .354 x 1.247 x .120 | $10.30/EA |
| 16 | AD56112771 | 6 | Clamp- Hose SAE #10 (qty of 4 on EcoFlex models)Qty is 4 on EcoFlex models. | $11.69/EA |
| 17 | AD56255076 | 1 | Cap, Pipe Ght Nylon | $11.69/EA |
| 18 | AD56323260 | 1 | Clamp, Hose Support | $11.69/EA |
| 19 | AD56342319 | 1 | Clamp-P | $11.69/EA |
| 20 | AD56368776 | 1 | Washer-Rubber | $10.30/EA |
| 21 | AD56392193 | 2 | Hose, .75 X 14.00 (qty of 1 on EcoFlex models)Qty is 1 on EcoFlex models. | $32.48/EA |
| 22 | AD56407162 | 1 | Filter | $34.67/EA |
| – | AD56384157 | 1 | Gasket-FilterNot shown. | $13.07/EA |
| 23 | AD56381083 | 1 | Touch Pad Asm (A3) | $829.29/EA |
| – | AD56383138 | 1 | Panel Assembly (for 56381083)Not shown. | $290.81/EA |
| 24 | AD56413482 | 1 | Clip | $38.06/EA |
| 25 | AD56394394 | 1 | Solenoid Valve Kit TSB-FC-2020-003 | $128.85/EA |
| – | AD56118185 | 1 | Solenoid Seal Kit (for 56394394) | $52.05/EA |
| 26 | AD56413581 | 1 | Valve, T Shutoff | $88.73/EA |
| 27 | AD56413619 | 1 | Seat Mounting Assembly (46-52) | $538.62/EA |
| 28 | AD56413653 | 2 | Mount Plate, Bumper | $13.07/EA |
| 29 | AD56413669 | 1 | Switch, Liquid Level (S5) | $141.10/EA |
| 30 | AD56413811 | 1 | Gasket, .62 x .62 x 11.50” | $11.69/EA |
| 31 | AD56413839 | 2 | Clamp- Hose SAE #20 | $11.69/EA |
| 32 | AD56381105 | 1 | Detergent Metering Assembly (see page 33) | $1,599.51/EA |
| 33 | AD56413876 | 1 | Hose .75 x 5.50 | $11.69/EA |
| 34 | AD56413975 | 1 | Bumper-Front | $160.57/EA |
| 35 | AD56414066Advance 56414066 | 1 | Plate-Pedal Adapter | Call to confirm part: 800-440-6723 |
| 36 | AD56414067Advance 56414067 | 1 | Cover-Adapter | Call to confirm part: 800-440-6723 |
| 37 | AD56414108 | 1 | Floor Plate | $63.21/EA |
| 38 | AD56414109 | 1 | Bracket-Lid Mount | $12.44/EA |
| 39 | AD56414112 | 1 | Solution Tank | $2,128.09/EA |
| 40 | AD56414115 | 1 | Eletrical Panel Assy (53-55) | $320.34/EA |
| 41 | AD56414117 | 1 | Solution Lid Assembly | $253.46/EA |
| – | AD56413682 | 1 | Solution Lid GasketNot shown. | $23.35/EA |
| 42 | AD56385084 | 1 | Foot Pedal Assy (R1) TSB-FC-2017-053 | $254.81/EA |
| 43 | AD56900273 | 1 | Barb | $10.30/EA |
| 44 | AD56900292 | 2 | Barb, Adapter 3/4 x 3/4npt | $11.69/EA |
| 45 | AD1450372000 | 1 | Key Switch (S1) | $85.85/EA |
| – | AD1462887000 | 1 | Key, ReplacementNot shown. | $51.38/EA |
| 46 | AD7-82-00050 | 1 | Switch | $21.85/EA |
| 47 | AD56003603 | 1 | Scr, Pan Phil Thd Form 1/4-20 x .38 | $10.30/EA |
| 48 | AD56109274 | 1 | Strap | $29.53/EA |
| 49 | AD56109300 | 1 | Slide, Seat | $80.22/EA |
| 50 | AD56323260 | 1 | Clamp, Hose Support | $11.69/EA |
| 51 | AD56383189 | 1 | Arm Rest Kit-R/H Only | $90.04/EA |
| 52 | AD56383292 | 1 | Seat-11.25 In. Mount | $378.03/EA |
| 53 | AD56413625 | 1 | Gasket, Panel | $21.77/EA |
| 54 | AD56413626 | 1 | Gasket, Circuit Break Er | $10.30/EA |
| 55 | AD56414218 | 1 | Cover-Electrical | $84.49/EA |
Advance SC6500 Solution system - detergent metering kit parts
The EcoFlex detergent metering parts: pumps, hoses, fittings, chemical bottle assembly, dry break cap and mounts. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56381105 | 1 | Detergent Metering Assy | $1,599.51/EA |
| 1 | AD56001954 | 4 | Wsh, Flt SAE #10 | $11.33/EA |
| 2 | AD56002003 | 4 | Scr-Pan Phil 8-32 x .50 | $11.69/EA |
| 3 | AD56002098 | 4 | Wsh, Flt SAE 1/4 | $11.33/EA |
| 4 | AD56002136 | 4 | Scr-Flt Phil 10-24 1.25 | $12.85/EA |
| 5 | AD56002507 | 3 | Scr-Pan Phil 1/4-20 x .75 | $11.69/EA |
| 6 | AD56002708 | 3 | Nut, Hex Nyl Loc 1/4- 20 | $10.30/EA |
| 7 | AD56002768 | 4 | Nut, Hex Nyl Loc 10-24 | $11.69/EA |
| 8 | AD56002808 | 4 | Nut, Hex Nyl Loc 8-32 | $11.69/EA |
| 9 | AD56510892Replaces Advance 56111855 | 1 | Chem Bottle Assy-Ecoflex | $269.84/EA |
| 10 | AD56112771 | 4 | Clamp- Hose SAE #10 | $11.69/EA |
| 11 | AD56219932 | 6 | Clamp- Hose SAE #6 | $10.30/EA |
| 12 | AD56261246 | 2 | Elbow | $11.69/EA |
| 13 | AD56262180 | 1 | Hose, Spiral .50 | $13.76/EA |
| 14 | AD56410162 | 1 | Hose, Spiral .750 | $13.76/EA |
| 15 | AD56314983 | 1 | Tee Assembly | $11.69/EA |
| 16 | AD56314984 | 2 | Pump, Detergent (M13 / M16) | $254.81/EA |
| 17 | AD56315523 | 1 | Cap, Dry Break, 1/8 Barb, 90 | $32.42/EA |
| 18 | AD56315524 | 1 | Hose, Chem Resistant, 7.50 | $10.30/EA |
| 19 | AD56315625 | 2 | Barb, Coupler 1/2 x 3/4 | $11.69/EA |
| 20 | AD56412275 | 1 | Hose, Spiral .50 | $13.76/EA |
| 21 | AD56412276 | 1 | Hose, Spiral .50 | $12.08/EA |
| 22 | AD56413330 | 1 | Plate, Mount, Chemical Meter | $182.30/EA |
| 23 | AD56413691 | 2 | Fitting, Y, Barb, .125 | $11.69/EA |
| 24 | AD56413692 | 1 | Hose, Chem Resistant, 21.00 | $16.09/EA |
| 25 | AD56413693 | 4 | Hose, Chem Resistant, 5.00 | $11.69/EA |
| 26 | AD56413775 | 2 | Bracket, Pump Mount | $42.32/EA |
| 27 | AD56413810 | 1 | Pump, 36vdc (M12) | $611.13/EA |
| 28 | AD56481452 | 1 | Hose, Spiral .750 | $34.91/EA |
| – | AD56478246 | 2 | Tie CableNot shown. | $11.69/EA |

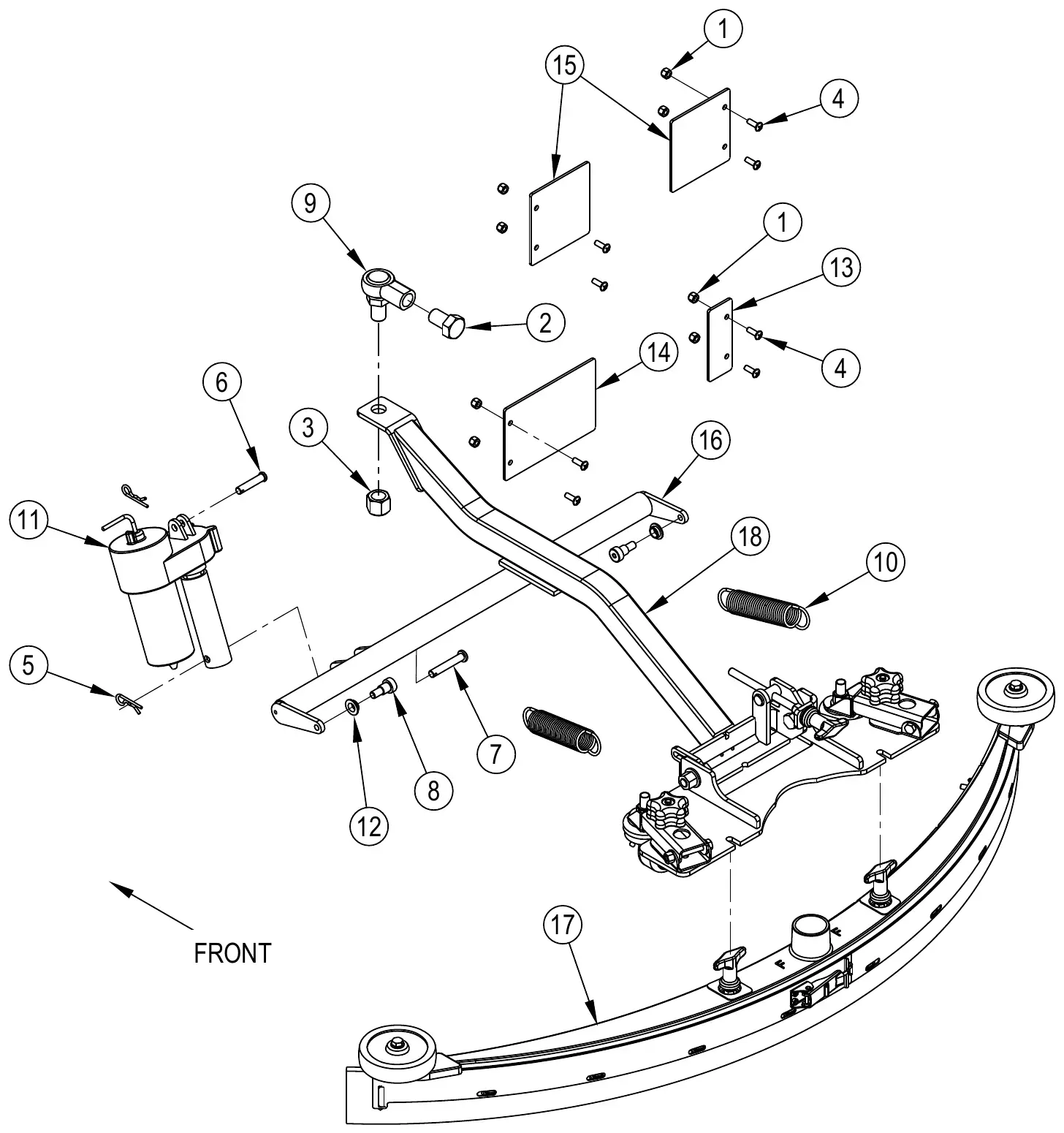

Advance SC6500 Squeegee system parts
The squeegee lift arm, actuator, stop plates and the complete 40, 45 and 48 in squeegee assemblies. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56002491 | 4 | Nut-Hex Nyl Loc Ss 1/4-20 | $11.33/EA |
| 2 | AD56002739 | 1 | Scr-Hex 3/4-16 X 1.25 Grade8 | $11.69/EA |
| 3 | AD56002863 | 1 | Nut, Hex Nyl Loc 3/4-16 | $11.69/EA |
| 4 | AD56002957 | 4 | Scr-Pan Phil Ss 1/4-20 X .75 | $11.69/EA |
| 5 | AD56003222 | 2 | Pin, Cotter Hair | $11.69/EA |
| 6 | AD56003597 | 1 | Pin-Clevis .375 X 1.75 | $11.69/EA |
| 7 | AD56003656 | 1 | Pin-Clevis .375 X 2.25 | $12.85/EA |
| 8 | AD56003912 | 2 | Scr-Soc Shd Ss .50 X .50 X 3/8-16 | $8.80/EA |
| 9 | AD56380431 | 1 | Rod End | $50.31/EA |
| 10 | AD56412216 | 2 | Spring, Extension | $62.63/EA |
| 11 | AD56413111 | 1 | Actuator 36v (M3) | $528.12/EA |
| 12 | AD56413211 | 2 | Bearing, Flange .625 X .500 X .250 | $14.70/EA |
| 13 | AD56413776 | 1 | Stop Plate, Small (40”)Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $13.07/EA |
| 14 | AD56413778 | 1 | Stop Plate, Large (40”)Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $23.35/EA |
| 15 | AD56413777 | 2 | Stop Plate, Medium (45” & 48”)Fits 8 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 16 | AD56413994 | 1 | Squeegee Lift Arm Weldment | $113.77/EA |
| 17 | AD56414159 | 1 | Squeegee Assembly-F (40”)Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $1,242.11/EA |
| 17 | AD56414154 | 1 | Squeegee Assembly G (45”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $1,526.96/EA |
| 17 | AD56414130 | 1 | Squeegee Assembly H (48”)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $1,371.17/EA |
| 18 | – | 1 | Squeegee Arm Assembly | See Squeegee Arm Assembly drawing › |

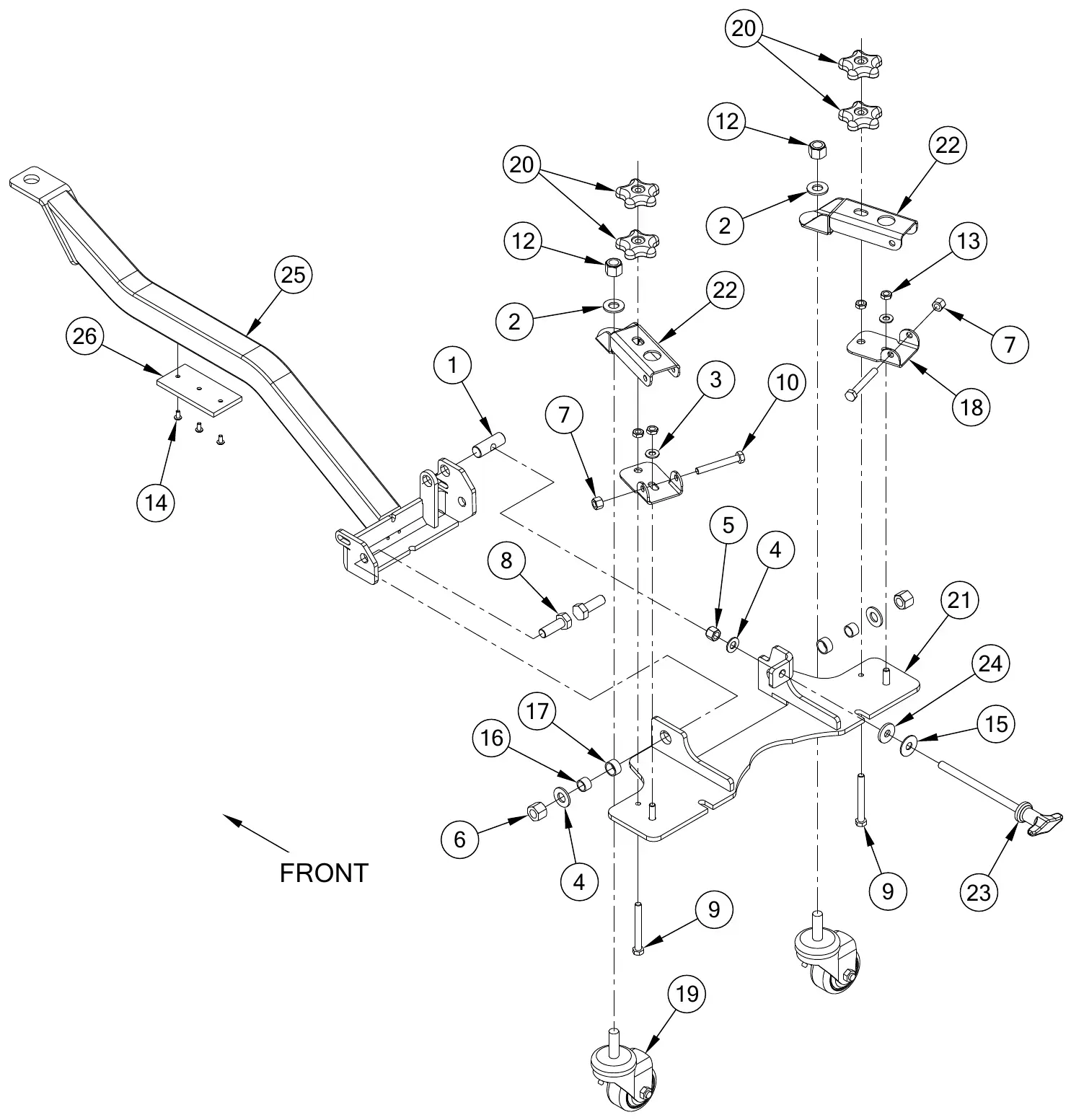

Advance SC6500 Squeegee system - squeegee arm assy parts
The squeegee arm assembly: mount weldment, caster wheels, adjustment knobs and wear pad. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | – | 1 | Squeegee Arm Assembly | |
| 1 | AD56324369 | 1 | Pin | $63.46/EA |
| 2 | AD56002918 | 4 | Wsh-Flt SAE SS 1/2 | $11.69/EA |
| 3 | AD56002938 | 2 | Wsh-Flt SAE SS 5/16 | $10.30/EA |
| 4 | AD56002910 | 1 | Wsh-Flt SAE SS 3/8 | $11.69/EA |
| 5 | AD56002769 | 1 | Nut, Hex Nyl Loc 3/8-16 | $10.30/EA |
| 6 | AD56003450 | 2 | Nut-Hex Nyl Loc SS M12-1.75 | $12.85/EA |
| 7 | AD56003405 | 2 | Nut, Hex Nyl Loc Ss M8-1.25 | $10.30/EA |
| 8 | AD56003453 | 2 | Scr-Hex SS M12-1.75 X 35mm | $11.69/EA |
| 9 | AD56003649 | 2 | Scr Hx Thd2 Hd Ss 5/16-18x2.75 | $14.37/EA |
| 10 | AD56003464 | 2 | Scr, Hex SS M8-1.25 X 60mm | $11.69/EA |
| 12 | AD56002770 | 2 | Nut Hex Nyl Loc 1/2-13 | $11.33/EA |
| 13 | AD56009086 | 4 | Nut, Hex Jam 5/16-18 | $12.85/EA |
| 14 | AD56003913 | 3 | Scr-Pan Phil Loc SS 10-24 X .38 | $8.80/EA |
| 15 | AD56151068 | 1 | Washer, Fibre | $4.27/EA |
| 16 | AD56360627 | 2 | Bushing | $46.56/EA |
| 17 | AD56370878 | 2 | Bearing, Sleeve | $13.07/EA |
| 18 | AD56111936 | 2 | Bracket | $12.85/EA |
| 19 | AD56407344 | 2 | Caster Wheel | $167.59/EA |
| 20 | AD56396254 | 4 | Knob | $11.69/EA |
| 21 | AD56413972 | 1 | Squeegee Mount Weldt | $160.57/EA |
| 22 | AD56413974 | 2 | Bracket | $67.39/EA |
| 23 | AD56414163 | 1 | Knob | $35.17/EA |
| 24 | AD56413599 | 1 | Washer, Rubber | $14.70/EA |
| 25 | AD56413973 | 1 | Squeegee Arm Weldment | $480.12/EA |
| 26 | AD56413742 | 1 | Pad, Wear, Squeegee Arm | $11.69/EA |

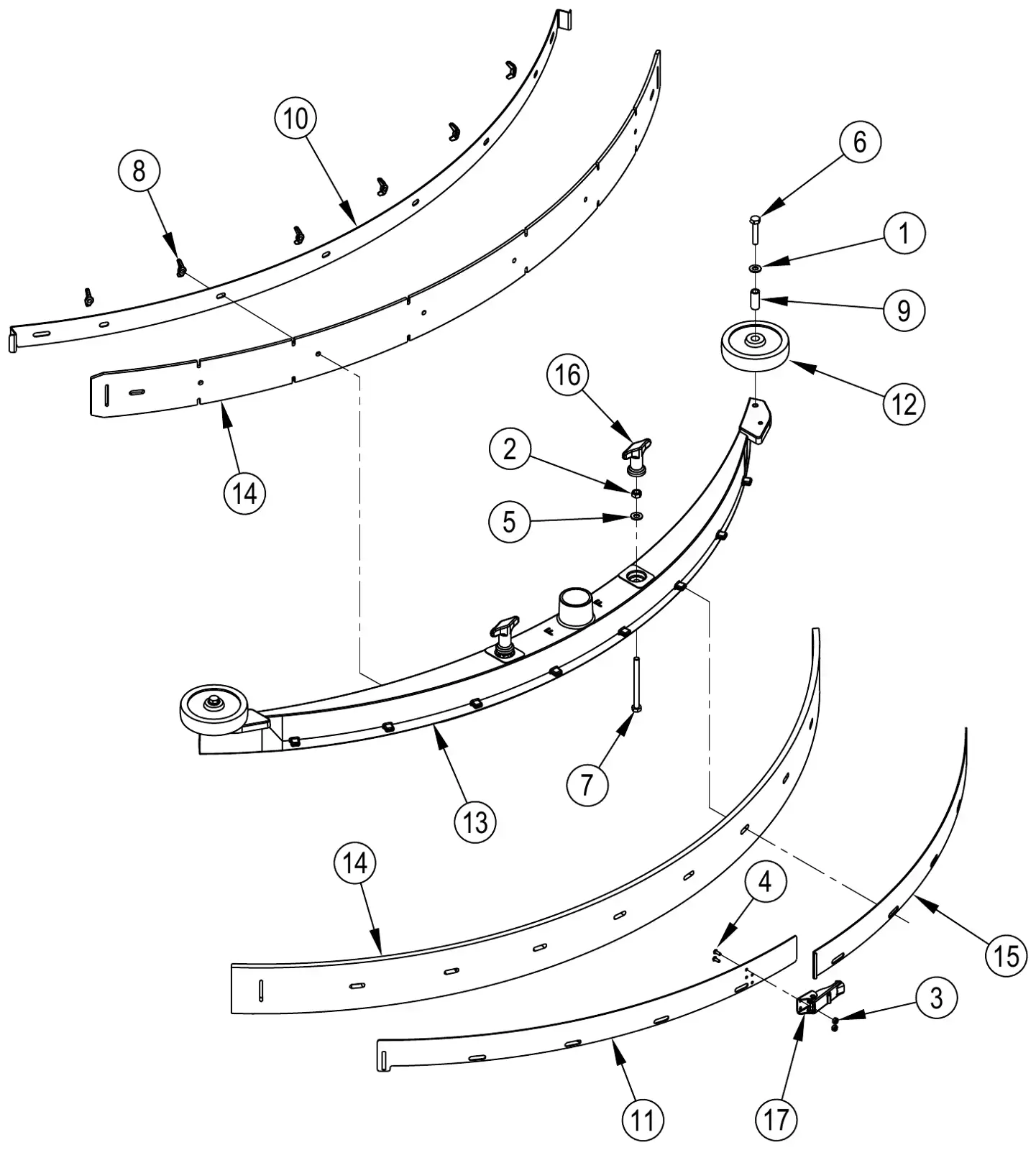

Advance SC6500 Squeegee system - squeegee assy F-40 inch parts
The 40 in squeegee (F): straps, wheels, cast body, latch and blade kits. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56414159 | 1 | Squeegee Assembly F (40”)Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $1,242.11/EA |
| 1 | AD56001939 | 2 | Wsh, Flt Sae 5/16Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $11.33/EA |
| 2 | AD56002851 | 2 | Nut, Hex Nyl Loc-Thin Ss 5/16-18Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 3 | AD56002907 | 2 | Nut-Hex Nyl Loc Ss 6-32Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 4 | AD56002909 | 2 | Scr-Pan Phil Ss 6-32 X .38Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 5 | AD56002938 | 2 | Wsh-Flt Sae Ss 5/16Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 6 | AD56003437 | 2 | Scr-Hex Ss M8-1.25 X 40mmFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $13.07/EA |
| 7 | AD56003481 | 2 | Scr-Hex Thd To Hd Ss 5/16-18 X 3.50Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $11.69/EA |
| 8 | AD56009111 | 6 | Nut, Wing Ss 1/4-20Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $10.30/EA |
| 9 | AD56109581 | 2 | BushingFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $15.57/EA |
| 10 | AD56109614 | 1 | Strap - Front FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $83.12/EA |
| 11 | AD56109615 | 1 | Strap - Rear FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $24.72/EA |
| 12 | AD56111639 | 2 | Wheel 4.00 Dia.Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $51.38/EA |
| 13 | AD56413037 | 1 | Squeegee , Cast FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $480.12/EA |
| 14 | AD56413762 | 1 | Blade Kit-Sqgee Linatex FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $153.39/EA |
| – | AD56413761 | 1 | Kit, Gum Rubber Squeegee Blade FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $87.18/EA |
| – | AD56413745 | 1 | Kit, Polyurethane Squeegee Blade FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $345.44/EA |
| 15 | AD56413329 | 1 | Strap, Rear FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $52.74/EA |
| 16 | AD56370711 | 2 | Nut ThumbFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $21.85/EA |
| 17 | AD56471194 | 1 | Latch AssemblyFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $42.32/EA |

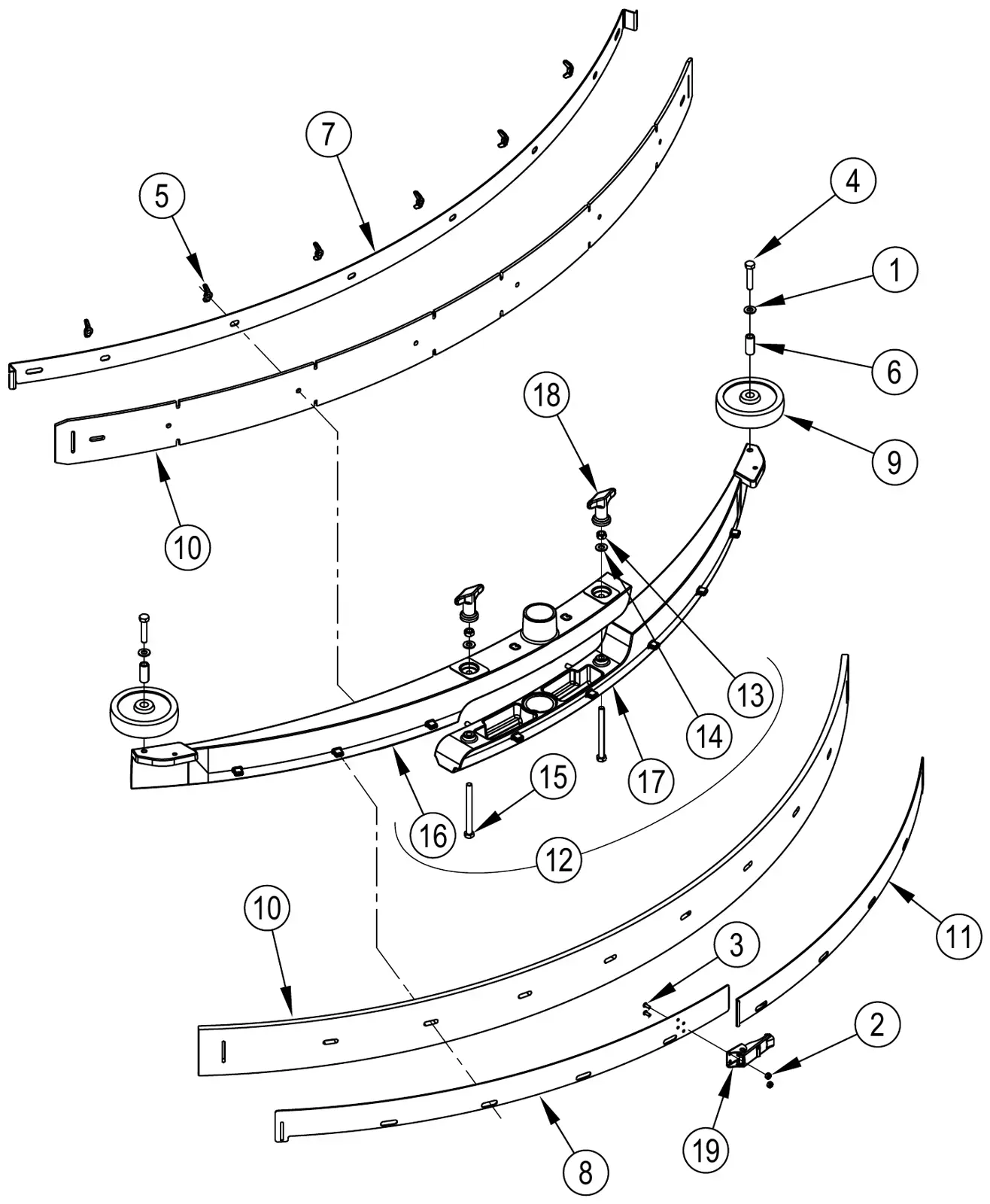

Advance SC6500 Squeegee system - squeegee assy G-45 inch parts
The 45 in squeegee (G): straps, wheels, cast body, latch and blade kits. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56414154 | 1 | Squeegee Assembly G (45”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $1,526.96/EA |
| 1 | AD56001939 | 2 | Wsh, Flt Sae 5/16Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $11.33/EA |
| 2 | AD56002907 | 2 | Nut-Hex Nyl Loc Ss 6-32Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $11.69/EA |
| 3 | AD56002909 | 2 | Scr-Pan Phil Ss 6-32 X .38Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $10.30/EA |
| 4 | AD56003437 | 2 | Scr-Hex Ss M8-1.25 X 40mmFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $13.07/EA |
| 5 | AD56009111 | 6 | Nut, Wing Ss 1/4-20Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $10.30/EA |
| 6 | AD56109581 | 2 | BushingFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $15.57/EA |
| 7 | AD56109617 | 1 | Strap - Front GFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $90.82/EA |
| 8 | AD56109618 | 1 | Strap - Rear GFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $36.67/EA |
| 9 | AD56111639 | 2 | Wheel 4.00 Dia.Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $51.38/EA |
| 10 | AD56413757 | 1 | Blade Kit-Sqgee Linatex G (45”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $153.11/EA |
| – | AD56413756 | 1 | Kit, Gum Rubber Squeegee Blade G (45”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $115.02/EA |
| – | AD56413746 | 1 | Kit, Polyurethane Squeegee Blade G (45”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $376.75/EA |
| 11 | AD56413521 | 1 | Strap, Rear “G”Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $50.01/EA |
| 12 | AD56413680 | 1 | Squeegee Cast Assy G (45”) (#13-17)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $603.32/EA |
| 13 | AD56002851 | 2 | Nut, Hex Nyl Loc-Thin SS 5/16-18Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $11.69/EA |
| 14 | AD56002938 | 2 | Wsh-Flt Sae Ss 5/16Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $10.30/EA |
| 15 | AD56003481 | 2 | Scr, Hex Thd to Hd SS 5/16-18 x 3.50Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $11.69/EA |
| 16 | – | 1 | Squeegee, Cast G Top (45”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | |
| 17 | – | 1 | Squeegee, Cast G Bottom (45”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | |
| 18 | AD56370711 | 2 | Nut ThumbFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $21.85/EA |
| 19 | AD56471194 | 1 | Latch AssemblyFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $42.32/EA |

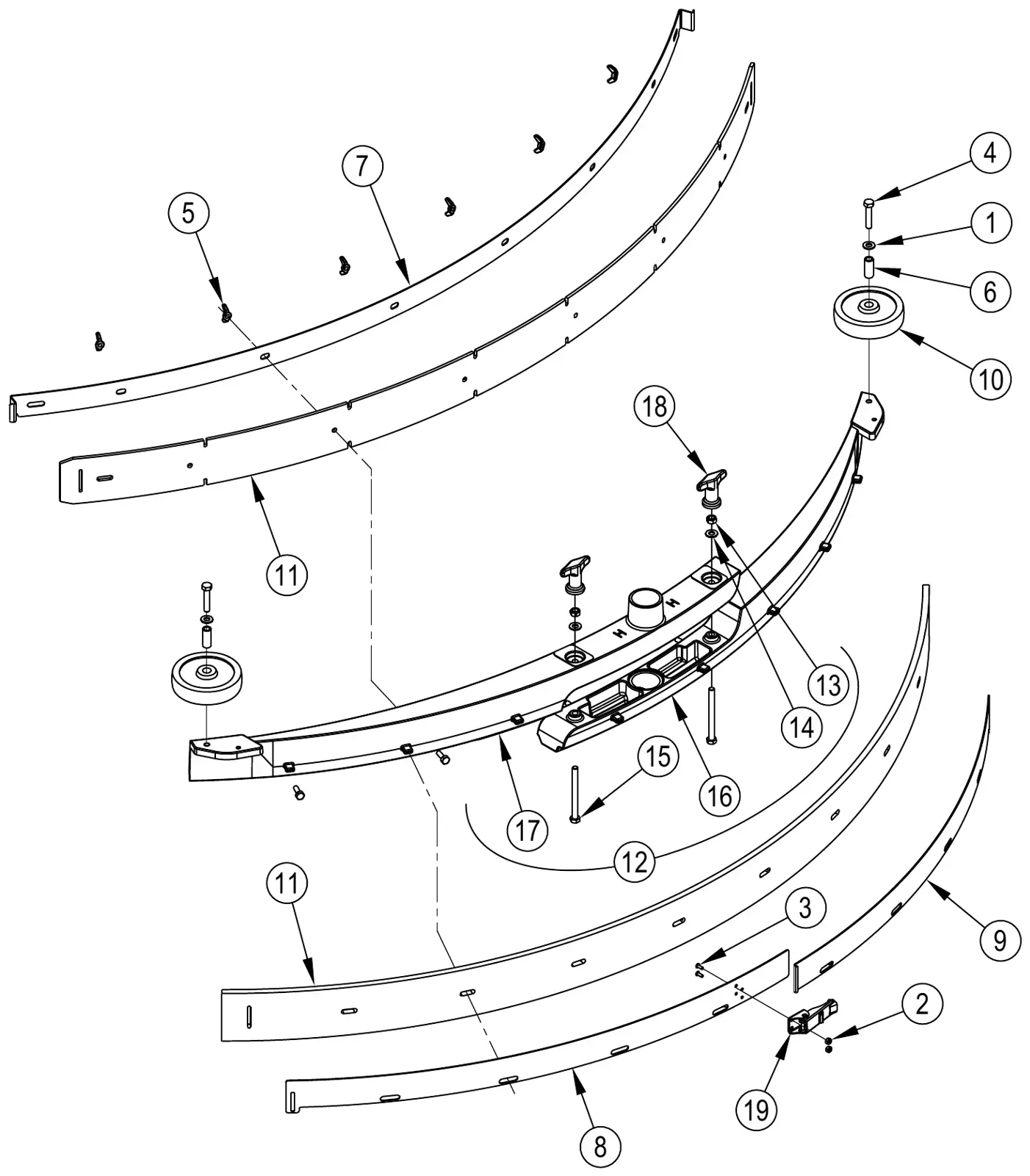

Advance SC6500 Squeegee system - squeegee assy H-48 inch parts
The 48 in squeegee (H): straps, wheels, cast body, latch and blade kits. Manual pages 42, list 43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56414130 | 1 | Squeegee Assembly H (48”)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $1,371.17/EA |
| 1 | AD56001939 | 2 | Wsh, Flt Sae 5/16Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.33/EA |
| 2 | AD56002907 | 2 | Nut-Hex Nyl Loc Ss 6-32Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 3 | AD56002909 | 2 | Scr-Pan Phil Ss 6-32 X .38Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 4 | AD56003437 | 2 | Scr-Hex Ss M8-1.25 X 40mmFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $13.07/EA |
| 5 | AD56009111 | 6 | Nut, Wing Ss 1/4-20Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 6 | AD56109581 | 2 | BushingFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $15.57/EA |
| 7 | AD56109620 | 1 | Strap - Front HFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $63.17/EA |
| 8 | AD56109621 | 1 | Strap - Rear HFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $32.42/EA |
| 9 | AD56109677 | 1 | Strap - Rear HFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $74.61/EA |
| 10 | AD56111639 | 2 | Wheel 4.00 Dia.Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $51.38/EA |
| 11 | AD56413766 | 1 | Blade Kit-Linatex Squeegee H (48”)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $135.21/EA |
| – | AD56413765 | 1 | Kit, Gum Rubber Squeegee Blade H (48”)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $111.08/EA |
| – | AD56413747 | 1 | Kit, Polyurethane Squeegee Blade H (48”)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $441.68/EA |
| 12 | AD56413679 | 1 | Squeegee Cast Assy H (48”) (#13-17)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $705.38/EA |
| 13 | AD56002851 | 2 | Nut, Hex Nyl Loc-Thin SS 5/16-18Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 14 | AD56002938 | 2 | Wsh-Flt Sae Ss 5/16Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $10.30/EA |
| 15 | AD56003481 | 2 | Scr, Hex Thd to Hd SS 5/16-18 x 3.50Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $11.69/EA |
| 16 | – | 1 | Squeegee, Cast H Bottom (48”)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | |
| 17 | – | 1 | Squeegee, Cast H Top (48”)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | |
| 18 | AD56370711 | 2 | Nut ThumbFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $21.85/EA |
| 19 | AD56471194 | 1 | Latch AssemblyFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $42.32/EA |

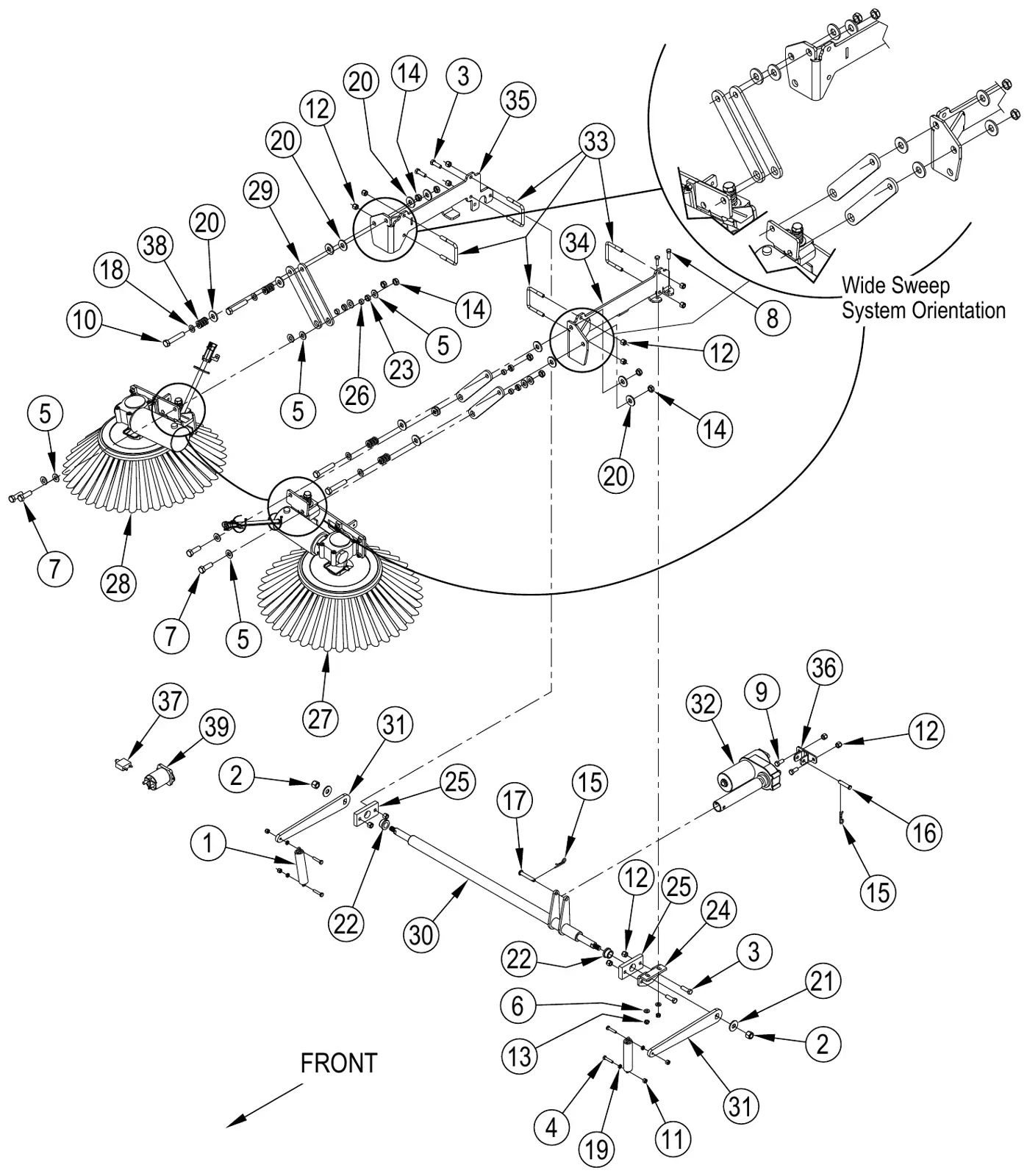

Advance SC6500 Sweep system parts
The side broom lift parts: brackets, lift arm, actuator, chain, links, left and right side broom assemblies, circuit breaker and contactor. Manual pages 44, list 45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56407335 | 2 | Chain Assembly | $47.12/EA |
| 2 | AD56002908Advance 56002908 | 2 | Nut Hex Nyl Loc Ss 1/2-20Note: all machines built before August 2018 need to order Side Broom Lift Arm Assembly Kit 56394125 to replace Side Broom Lift Arm weldment 56413053. | Call to confirm part: 800-440-6723 |
| 3 | AD56001858 | 4 | Scr, Hex 3/8-16 X 1.25 | $11.69/EA |
| 4 | AD56001878 | 4 | Scr, Hex 1/4-20 X 1.25 | $11.69/EA |
| 5 | AD56001879 | 12 | Wsh, Flt SAE 1/2 | $10.30/EA |
| 6 | AD56001939 | 2 | Wsh, Flt SAE 5/16 | $11.33/EA |
| 7 | AD56001968 | 4 | Scr, Hex 1/2-13 X 1.50 | $11.69/EA |
| 8 | AD56002037 | 2 | Scr, Hex 5/16-18 X .88 | $11.69/EA |
| 9 | AD56002271 | 2 | Scr, Hex 3/8-16 X .88 | $11.69/EA |
| 10 | AD56002680 | 4 | Scr, Hex 1/2-13 X 2.75 | $14.37/EA |
| 11 | AD56002708 | 4 | Nut, Hex Nyl Loc 1/4-20 | $10.30/EA |
| 12 | AD56002769 | 14 | Nut, Hex Nyl Loc 3/8-16 | $10.30/EA |
| 13 | AD56002826 | 2 | Nut, Hex Nyl Loc-Thin 5/16-18 | $13.07/EA |
| 14 | AD56002843 | 8 | Nut, Hex Nyl Loc-Thin 1/2-13 | $10.30/EA |
| 15 | AD56004040 | 2 | Pin, BowTie | $5.91/EA |
| 16 | AD56003597 | 1 | Pin, Clevis .375 X 1.75 | $11.69/EA |
| 17 | AD56003656 | 1 | Pin, Clevis .375 X 2.25 | $12.85/EA |
| 18 | AD56009017 | 4 | Wsh, Flt Harden .516x.938 x.75 | $10.30/EA |
| 19 | AD56009087 | 4 | Nut, Hex Jam 1/4-20 | $12.85/EA |
| 20 | AD56009115 | 12 | Wsh, Flt Harden .594x1.375 x.134 | $11.69/EA |
| 21 | AD56002892 | 2 | Wsh Flt Std Ss 1/2Note: all machines built before August 2018 need to order Side Broom Lift Arm Assembly Kit 56394125 to replace Side Broom Lift Arm weldment 56413053. | $6.20/EA |
| 22 | AD56303071 | 2 | Bearing, Flange | $14.70/EA |
| 23 | AD56304893 | 4 | Bearing, Sleeve .625 x .750 x .250 | $14.70/EA |
| 24 | AD56305080 | 1 | Bracket, Side Broom Lift | $36.67/EA |
| 25 | AD56305091 | 2 | Pillow Block | $18.96/EA |
| 26 | AD56365030 | 4 | Bushing .50 x.62 x.27 | $13.07/EA |
| 27 | AD56413039 | 1 | Left Side Broom Assembly | $1,592.41/EA |
| 28 | AD56413040 | 1 | Right Side Broom Assembly | $1,831.27/EA |
| 29 | AD56413048 | 4 | Link | $32.42/EA |
| 30 | AD56394101 | 1 | Sidebroom Lift Arm WeldmentNote: all machines built before August 2018 need to order Side Broom Lift Arm Assembly Kit 56394125 to replace Side Broom Lift Arm weldment 56413053. | $154.12/EA |
| 31 | AD56394103 | 2 | Arm-LiftNote: all machines built before August 2018 need to order Side Broom Lift Arm Assembly Kit 56394125 to replace Side Broom Lift Arm weldment 56413053. | $31.21/EA |
| 32 | AD56413129 | 1 | Actuator, Motor 36V (M4) | $631.92/EA |
| 33 | AD56413403 | 4 | Clamp, Wide | $10.30/EA |
| 34 | AD56413453 | 1 | Sidebroom Brkt Weld’t, Lt | $174.60/EA |
| 35 | AD56413454 | 1 | Sidebroom Brkt Weld’t, Rt | $160.57/EA |
| 36 | AD56413479 | 1 | Actuator Mount | $59.88/EA |
| 37 | AD56413822 | 1 | Circuit Breaker, 20 Amp | $30.52/EA |
| 38 | AD56416508 | 4 | Spring, Die | $40.81/EA |
| 39 | AD56413516 | 1 | Contactor, 36vdc 200a (K6) | $90.82/EA |

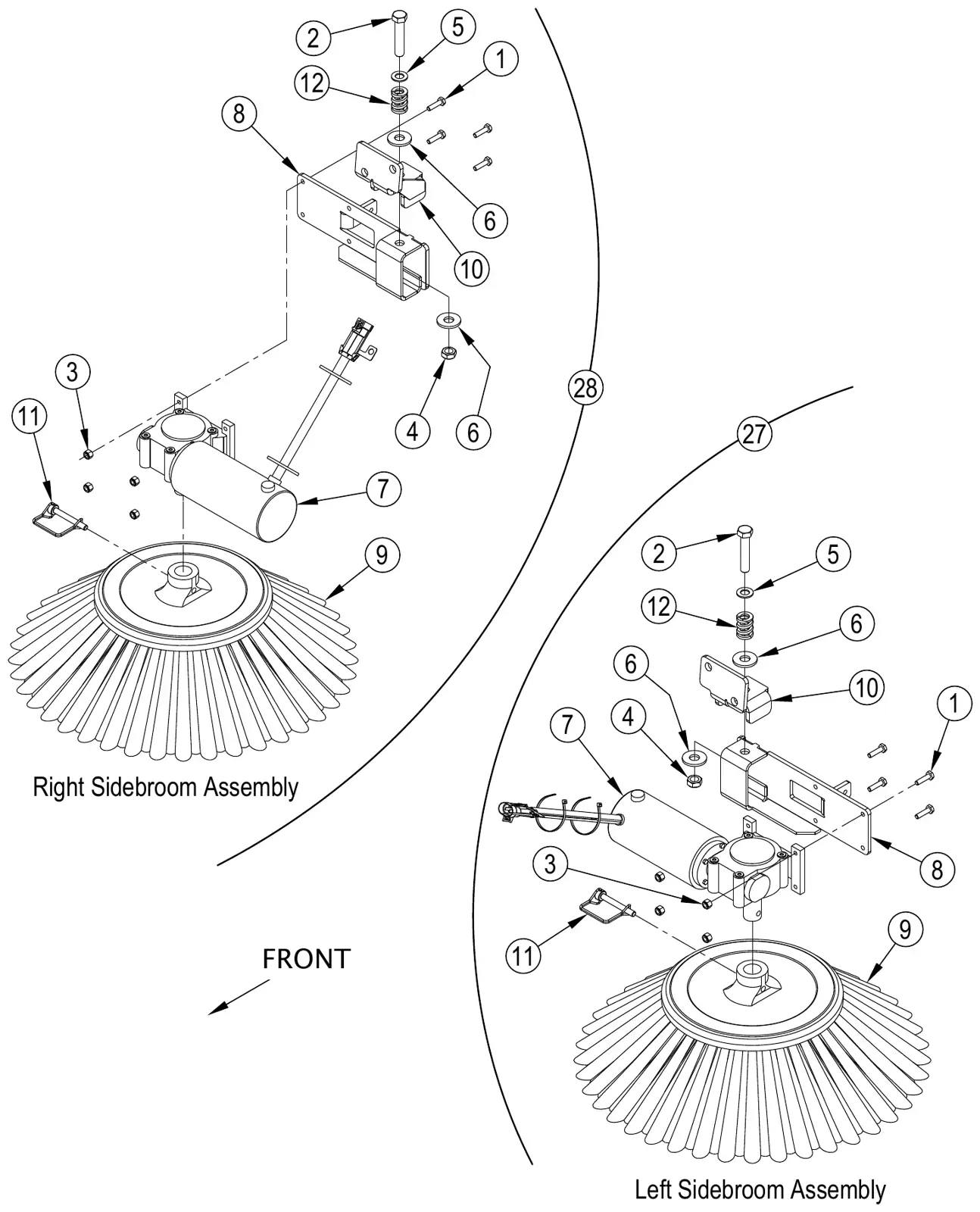

Advance SC6500 Sweep system - side broom assy parts
The left and right side broom assemblies: gearmotors, brackets, springs, pin and the standard or commercial side broom. Manual pages 46, list 47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 27 | AD56413039 | 1 | Left Side Broom Assembly | $1,592.41/EA |
| 28 | AD56413040 | 1 | Right Side Broom Assembly | $1,831.27/EA |
| 1 | AD56002093 | 4 | Scr, Hex 1/4-20 X 1.00 | $12.85/EA |
| 2 | AD56002533 | 1 | Scr, Hex 1/2-13 X 2.50 | $11.33/EA |
| 3 | AD56002708 | 4 | Nut, Hex Nyl Loc 1/4-20 | $10.30/EA |
| 4 | AD56002843 | 1 | Nut, Hex Nyl Loc-Thin 1/2-13 | $10.30/EA |
| 5 | AD56009017 | 1 | Wsh, Flt Harden .516x.938 X.75 | $10.30/EA |
| 6 | AD56009115 | 2 | Wsh, Flt Harden .594x1.375x.134 | $11.69/EA |
| 7 | AD56413695 | 1 | Gearmotor Assembly, 36VDC (Left-56413039 / M7) | $1,046.88/EA |
| – | AD56413696 | 1 | Gearmotor Assembly, 36VDC (Right-56413040 / M8)Not shown. | $1,134.10/EA |
| – | AD56385098 | 1 | Motor Brush Kit 2PC (for 56413695 / 56413696)Not shown. | $67.39/EA |
| 8 | AD56394247 | 1 | Broom Bracket Weldment-Left (56413039)Note 1: for machines built before January 2019 order Sidebroom Bracket Kit-Left 56394257 to replace the Sidebroom Bracket Weldment 56413051 and Spring Mount Weldment, Lt 56413142. | $53.59/EA |
| – | AD56394250 | 1 | Broom Bracket Weldment-Right (56413040)Not shown. Note 2: for machines built before January 2019 order Sidebroom Bracket Kit-Right 56394258 to replace the Sidebroom Bracket Weldment 56413062 and Spring Mount Weldment, Rt 56413143. | $52.48/EA |
| 9 | AD56413056 | 1 | Sidebroom (Standard) | $191.71/EA |
| – | AD56380335 | 1 | Sidebroom (Commercial Option)Optional, not included. | $173.61/EA |
| 10 | AD56394252 | 1 | Spring Mt Broom Wldmt-Left (56413039)Note 1: for machines built before January 2019 order Sidebroom Bracket Kit-Left 56394257 to replace the Sidebroom Bracket Weldment 56413051 and Spring Mount Weldment, Lt 56413142. | $33.78/EA |
| – | AD56394255 | 1 | Spring Mt Sidebroom Wldmt-Rt (56413040)Not shown. Note 2: for machines built before January 2019 order Sidebroom Bracket Kit-Right 56394258 to replace the Sidebroom Bracket Weldment 56413062 and Spring Mount Weldment, Rt 56413143. | $33.78/EA |
| 11 | AD56413845 | 1 | Pin, .31 With Retainer | $4.27/EA |
| 12 | AD56416508 | 1 | Spring, Die | $40.81/EA |
Advance SC6500 Ladder diagram - wiring key parts
The key to Advance's ladder diagram: each electrical part and the reference it carries on the diagram. The diagram itself is not reproduced here. Manual page 49.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| A1 | AD56414210Advance 56414210 | Qty on machine: 1 | Speed Control | Call to confirm part: 800-440-6723 | |
| A2 | AD56414222 | Qty on machine: 1 | PCB Board Assembly | $959.51/EA | |
| A3 | AD56381083 | Qty on machine: 1 | Switch/Display Panel Assembly | $829.29/EA | |
| BT1 | – | BatteryOptional. i | |||
| D1 | – | Qty on machine: 1 | Diode | ||
| D2 | – | Qty on machine: 1 | Diode (part of M15) | ||
| F1 | AD56413406 | Qty on machine: 1 | Circuit Breaker, 3 Amp (Control Circuit) | $14.70/EA | |
| F2 | AD56413407 | Qty on machine: 1 | Circuit Breaker, 15 Amp (Auxiliary Circuit) | $14.70/EA | |
| F3 | AD56413822 | Qty on machine: 1 | Circuit Breaker, 20 Amp (Side Brooms) | $30.52/EA | |
| F4 | AD56410044 | Qty on machine: 1 | Fuse, 250 Amp | $115.53/EA | |
| H1 | AD56412177 | Qty on machine: 1 | Backup Alarm (optional) | $50.01/EA | |
| H2 | AD56305223 | Qty on machine: 1 | Strobe Light (optional) | $443.56/EA | |
| H3 | AD56314313Replaces Advance 56409239 | Qty on machine: 1 | Headlight (optional) | $273.24/EA | |
| H4 | AD56482365 | Qty on machine: 1 | Horn | $248.58/EA | |
| K1 | AD56413516 | Qty on machine: 1 | Contactor, Vacuum | $90.82/EA | |
| K2 | AD56413516 | Qty on machine: 1 | Contactor, Right Brush (all models) | $90.82/EA | |
| K3 | AD56413516 | Qty on machine: 1 | Contactor, Center Brush (45” & 48” disk and all cylindrical)Fits 10 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $90.82/EA | |
| K4 | AD56413516 | Qty on machine: 1 | Contactor, Left Brush (45” & 48” disk only)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $90.82/EA | |
| K5 | AD56413516 | Qty on machine: 1 | Contactor, Auxiliary | $90.82/EA | |
| K6 | AD56413516 | Qty on machine: 1 | Contactor, Side Brooms | $90.82/EA | |
| K7 | AD56413516 | Qty on machine: 1 | Contactor, Main | $90.82/EA | |
| L1 | AD56394394 | Qty on machine: 1 | Solenoid Valve Kit TSB-FC-2020-003 | $128.85/EA | |
| M1 | AD56414198 | Qty on machine: 1 | Wheel-Drive-AC | $9,449.85/EA | |
| M2 | AD56383970 | Qty on machine: 1 | Deck Actuator Kit | $654.69/EA | |
| M3 | AD56413111 | Qty on machine: 1 | Lift Actuator, Squeegee | $528.12/EA | |
| M4 | AD56413129 | Qty on machine: 1 | Lift Actuator, Side Broom | $631.92/EA | |
| M5 | AD56410065 | Qty on machine: 1 | Motor Assy, Vac | $283.67/EA | |
| – | AD56212223 | Qty on machine: 1 | Carbon Brush SetNot shown. | $24.72/EA | |
| M6 | AD56410065 | Qty on machine: 1 | Motor Assy, Vac (Optional) | $283.67/EA | |
| – | AD56212223 | Qty on machine: 1 | Carbon Brush SetNot shown. | $24.72/EA | |
| M7 | AD56413695 | Qty on machine: 1 | Gearmotor Assy, 36VDC (Left-cylindrical models only)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $1,046.88/EA | |
| – | AD56385098 | Qty on machine: 1 | Motor Brush Kit 2PC (Carbon Brush kit for 56413695)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $67.39/EA | |
| M8 | AD56413696 | Qty on machine: 1 | Gearmotor Assy, 36VDC (Right-cylindrical models only)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $1,134.10/EA | |
| – | AD56385098 | Qty on machine: 1 | Motor Brush Kit 2PC (Carbon Brush kit for 56413696)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $67.39/EA | |
| M9 | AD56413336 | Qty on machine: 1 | Gearbox Assy (40” disk)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $3,707.25/EA | |
| – | AD56410182 | Qty on machine: 1 | Bearing B.E. (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $70.41/EA | |
| – | AD56410183 | Qty on machine: 1 | Bearing F.E. (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $82.06/EA | |
| – | AD56412266 | Qty on machine: 1 | Brush Board Assy (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $785.75/EA | |
| – | AD56407500 | Qty on machine: 1 | Brush Assy Kit (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $254.81/EA | |
| – | AD56389395 | Qty on machine: 1 | Brush Spring Set (for 56413336)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $125.28/EA | |
| M9 | AD56303083 | Qty on machine: 1 | Gearmotor (45” & 48” disk right motor)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $2,544.29/EA | |
| – | AD56303444 | Qty on machine: 4 | Carbon Brush Assy (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $17.46/EA | |
| – | AD56303419 | Qty on machine: 4 | Brush Spring (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $33.79/EA | |
| M9 | AD56382654 | Qty on machine: 1 | Kit 36VDC 1.5HP Motor (all cylindrical right motor)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $1,672.03/EA | |
| – | AD56381479 | Qty on machine: 1 | Kit Brush Amer Motor (for 56382654)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $71.84/EA | |
| M10 | AD56303083 | Qty on machine: 1 | Gearmotor (45” & 48” disk center motor)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $2,544.29/EA | |
| – | AD56303444 | Qty on machine: 4 | Carbon Brush Assy (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $17.46/EA | |
| – | AD56303419 | Qty on machine: 4 | Brush Spring (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $33.79/EA | |
| M10 | AD56382654 | Qty on machine: 1 | Kit 36VDC 1.5HP Motor (all cylindrical left motor)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $1,672.03/EA | |
| – | AD56381479 | Qty on machine: 1 | Kit Brush Amer Motor (for 56382654)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $71.84/EA | |
| M11 | AD56303083 | Qty on machine: 1 | Gearmotor (45” & 48” disk left motor)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $2,544.29/EA | |
| – | AD56303444 | Qty on machine: 4 | Carbon Brush Assy (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $17.46/EA | |
| – | AD56303419 | Qty on machine: 4 | Brush Spring (for 56303083)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $33.79/EA | |
| M12 | AD56413810 | Qty on machine: 1 | Pump-Solution Control (ECOFLEX)Fits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $611.13/EA | |
| M13 | AD56314984 | Qty on machine: 1 | Pump-Detergent (ECOFLEX)Fits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $254.81/EA | |
| M15 | AD56212014 | Qty on machine: 1 | Pump, Accessory (optional) | $829.29/EA | |
| – | AD56109587 | Qty on machine: 1 | Pump Head Assy (for 56212014)Optional, not included. | $276.66/EA | |
| – | AD56109588 | Qty on machine: 1 | Check Valve Assy (for 56212014)Optional, not included. | $54.96/EA | |
| M16 | AD56314984 | Qty on machine: 1 | Pump-Detergent (ECOFLEX)Fits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $254.81/EA | |
| R1 | AD56454740 | Qty on machine: 1 | Potentiometer, 5K Ohm | $59.88/EA | |
| R2 | AD56413390 | Qty on machine: 1 | Resistor Assy, 1k Ohm (40” disk)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $31.05/EA | |
| R2 | AD56413393 | Qty on machine: 1 | Resistor Assy, 10k Ohm (40” cylindrical)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $26.25/EA | |
| R2 | AD56413392 | Qty on machine: 1 | Resistor Assy, 20k Ohm (45” & 48” disk)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $32.42/EA | |
| R2 | AD56413391 | Qty on machine: 1 | Resistor Assy, 40k Ohm (45” & 48” cylindrical)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $29.53/EA | |
| S1 | AD1450372000 | Qty on machine: 1 | Switch, Key | $85.85/EA | |
| – | AD1462887000 | Qty on machine: 1 | Key, ReplacementNot shown. | $51.38/EA | |
| S2 | AD56409613 | Qty on machine: 1 | Switch, Seat | $110.58/EA | |
| S3 | AD56305053 | Qty on machine: 1 | Switch, Batter Interlock (optional) | $160.57/EA | |
| S5 | AD56413669 | Qty on machine: 1 | Switch, Solution Empty | $141.10/EA |
Advance SC6500 Optional kits & accessories parts
Advance's optional kits and accessories, including disc and cylindrical scrub brushes. Manual pages 52, list 54.
Wiring drawing: the manufacturer prints no item numbers on it.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56394489 | 1 | Kit, Battery Tray OnlyOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $379.71/EA |
| – | AD56413821 | 1 | Vacuum Motor Kit, (2nd Vac Motor)Optional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $603.32/EA |
| – | AD56413089 | 1 | Kit, Heavy Front BumperOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $981.05/EA |
| – | AD56414188 | 1 | Bumper Tube KitOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $2,081.67/EA |
| – | AD56413764 | 1 | Kit, Deluxe SeatOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $1,147.12/EA |
| – | AD56413687 | 1 | Kit, Spray WandOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $2,423.46/EA |
| – | AD56413649 | 1 | Kit, Warning BeaconOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $313.73/EA |
| – | AD56413681 | 1 | Kit, Back-Up AlarmOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $195.23/EA |
| – | AD56413774 | 1 | Kit, Overhead GuardOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $2,896.33/EA |
| – | AD56394262 | 1 | Seat Belt Kit-Std Seat-SC6500Optional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $706.06/EA |
| – | AD56314313 | 1 | Kit, HeadlightOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $273.24/EA |
| – | AD56413773 | 1 | Kit, Operator Foot GuardOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $189.40/EA |
| – | AD56413685 | 1 | Kit, Solution Auto-FillOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $295.97/EA |
| – | AD56413819 | 1 | Kit, Floor MatOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $50.92/EA |
| – | AD56314981 | 1 | Kit, Battery WateringOptional Kits. Optional, not included. Replacement parts for the kits are on each kit's instruction sheet (Note 1). | $538.62/EA |
| – | AD56505790 | 2 | Short Trim Pad HolderFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $147.99/EA |
| – | AD56505195 | 2 | Pad Retainer for 56505750Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $30.34/EA |
| – | AD56505791 | 2 | MagnaGritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $464.05/EA |
| – | AD56505792 | 2 | DynaGritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $339.23/EA |
| – | AD56505793 | 2 | AgLiteFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $388.40/EA |
| – | AD56505794 | 2 | ProleneFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $123.37/EA |
| – | AD56505795 | 2 | ProLiteFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $207.86/EA |
| – | AD56505796 | 2 | Union MixFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $189.43/EA |
| – | AD56505797 | 2 | MidGritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $320.04/EA |
| – | AD56505798 | 2 | MidLite GritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $368.18/EA |
| – | AD56505830 | 2 | Short Trim Pad HolderFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $280.01/EA |
| – | AD56505195 | 2 | Pad Retainer for 56505750Fits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $30.34/EA |
| – | AD56505831 | 2 | MagnaGritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $339.23/EA |
| – | AD56505832 | 2 | DynaGritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $290.97/EA |
| – | AD56505833 | 2 | AgLiteFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $356.18/EA |
| – | AD56505834 | 2 | ProleneFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $81.50/EA |
| – | AD56505835 | 2 | ProLiteFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $124.69/EA |
| – | AD56505836 | 2 | Union MixFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $124.69/EA |
| – | AD56505837 | 2 | MidGritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $339.23/EA |
| – | AD56505838 | 2 | MidLite GritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $270.67/EA |
| – | AD56505780 | 2 | Short Trim Pad HolderFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $264.99/EA |
| – | AD56505195 | 2 | Pad Retainer for 56505750Fits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $30.34/EA |
| – | AD56505781 | 2 | MagnaGritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $408.60/EA |
| – | AD56505782 | 2 | DynaGritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $290.97/EA |
| – | AD56505783 | 2 | AgLiteFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $236.02/EA |
| – | AD56505784 | 2 | ProleneFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $94.59/EA |
| – | AD56505785 | 2 | ProLiteFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $88.51/EA |
| – | AD56505786 | 2 | Union MixFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $113.81/EA |
| – | AD56505787 | 2 | MidGritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $256.79/EA |
| – | AD56505788 | 2 | MidLite GritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $241.48/EA |
| – | AD56413113 | 2 | Soft NylonFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $492.17/EA |
| – | AD56413114 | 2 | Hard NylonFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $394.44/EA |
| – | AD56413118 | 2 | ProleneFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $347.61/EA |
| – | AD56413115 | 2 | 180 GritFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $426.24/EA |
| – | AD56413116 | 2 | 80 GritFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $467.13/EA |
| – | AD56413434 | 2 | Soft NylonFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $498.83/EA |
| – | AD56413435 | 2 | Hard NylonFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $529.50/EA |
| – | AD56413439 | 2 | ProleneFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $360.03/EA |
| – | AD56413436 | 2 | 180 GritFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $556.05/EA |
| – | AD56413437 | 2 | 80 GritFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $685.79/EA |
| – | AD56413352 | 2 | Soft NylonFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $515.83/EA |
| – | AD56413353 | 2 | Hard NylonFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $602.72/EA |
| – | AD56413357 | 2 | ProleneFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $368.31/EA |
| – | AD56413354 | 2 | 180 GritFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $773.90/EA |
| – | AD56413355 | 2 | 80 GritFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $915.96/EA |
Advance SC6500 Optional kits & accessories (continued) parts
Squeegee, disc deck and cylindrical skirt blade kits, battery accessories, a programmer and the literature pack. Manual page 55.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | AD56413762 | Qty on machine: 1 | Blade Kit-Sqgee Linatex F (Std)Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $153.39/EA | ||
| – | AD56413757 | Qty on machine: 1 | Blade Kit-Sqgee Linatex G (Std)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $153.11/EA | ||
| – | AD56413766 | Qty on machine: 1 | Blade Kit-Linatex Squeegee H (Std)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $135.21/EA | ||
| – | AD56413768 | Qty on machine: 1 | Blade Kit-Disc Linatex 40 (Std)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $135.67/EA | ||
| – | AD56413770 | Qty on machine: 1 | Blade Kit-Disc Linatex (Std)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $123.63/EA | ||
| – | AD56413654 | Qty on machine: 2 | Skirt-Blade-Side-Linatex (Std)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $77.59/EA | ||
| – | AD56413761 | Qty on machine: 1 | Kit, Gum Rubber Squeegee Blade FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $87.18/EA | ||
| – | AD56413745 | Qty on machine: 1 | Kit, Polyurethane Squeegee Blade FFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $345.44/EA | ||
| – | AD56413756 | Qty on machine: 1 | Kit, Gum Rubber Squeegee Blade GFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $115.02/EA | ||
| – | AD56413746 | Qty on machine: 1 | Kit, Polyurethane Squeegee Blade GFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $376.75/EA | ||
| – | AD56413765 | Qty on machine: 1 | Kit, Gum Rubber Squeegee Blade HFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $111.08/EA | ||
| – | AD56413747 | Qty on machine: 1 | Kit, Polyurethane Squeegee Blade HFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $441.68/EA | ||
| – | AD56413767 | Qty on machine: 1 | Kit, Gum Rubber 40 Disk BladeFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $90.82/EA | ||
| – | AD56413754 | Qty on machine: 1 | Kit, Polyurethane 40 Disk BladeFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $596.31/EA | ||
| – | AD56413769 | Qty on machine: 1 | Kit, Gum Rubber 45/48 Disk BladeFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $77.47/EA | ||
| – | AD56413755 | Qty on machine: 1 | Kit, Poyurethane 45/48 Disk BladeFits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $465.40/EA | ||
| – | AD56413820 | Qty on machine: 2 | Skirt, Gum RubberFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $80.40/EA | ||
| – | AD56413743 | Qty on machine: 2 | Skirt, PolyurethaneFits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $241.63/EA | ||
| – | AD56394484 | Qty on machine: 1 | Kit, Battery Roll Out – No BattOptional Battery Kit. Optional, not included. | $1,098.81/EA | ||
| – | AD56383571 | Qty on machine: 1 | Programmer-UserAccessories. Optional, not included. | $1,398.42/EA | ||
| – | AD56383572 | Qty on machine: 1 | Programmer Cable-MolexAccessories. Optional, not included. | $143.58/EA | ||
| – | AD56303429 | Qty on machine: 1 | Cart, Battery ExchangeAccessories. Optional, not included. | $8,868.38/EA | ||
| – | AD56303430 | Qty on machine: 1 | Rack, Battery StorageAccessories. Optional, not included. | $4,143.80/EA | ||
| – | AD56044645 | Qty on machine: 1 | Literature PackAccessories. Optional, not included. | $102.07/EA |
Advance SC6500 Recommended spare parts - wear items
Advance's recommended wear items by model: scrub brushes, pad holders, side brooms and blade kits. Manual page 56.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | ||
|---|---|---|---|---|---|---|
| – | AD56413056 | Side Broom (Standard)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $191.71/EA | |||
| – | AD56413056 | Side Broom (Standard)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $191.71/EA | |||
| – | AD56413056 | Side Broom (Standard)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $191.71/EA | |||
| – | AD56413768 | Blade Kit-Disc Linatex 40 (Std)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $135.67/EA | |||
| – | AD56413770 | Blade Kit-Disc Linatex 45/48 (Std)Fits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $123.63/EA | |||
| – | AD56413770 | Blade Kit-Disc Linatex 45/48 (Std)Fits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $123.63/EA | |||
| – | AD56413654 | Skirt-Blade-Side-Linatex (Std)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $77.59/EA | |||
| – | AD56413654 | Skirt-Blade-Side-Linatex (Std)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $77.59/EA | |||
| – | AD56413654 | Skirt-Blade-Side-Linatex (Std)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $77.59/EA | |||
| – | AD56413762 | Blade Kit-Sqgee Linatex (Std)Fits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $153.39/EA | |||
| – | AD56413757 | Blade Kit-Sqgee Linatex (Std)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $153.11/EA | |||
| – | AD56413766 | Blade Kit-Linatex Squeegee (Std)Fits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $135.21/EA | |||
| – | AD56505790 | Short Trim Pad HolderFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $147.99/EA | |||
| – | AD56505830 | Short Trim Pad HolderFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $280.01/EA | |||
| – | AD56505780 | Short Trim Pad HolderFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $264.99/EA | |||
| – | AD56505195 | Pad Retainer for 56505750Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $30.34/EA | |||
| – | AD56505195 | Pad Retainer for 56505750Fits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $30.34/EA | |||
| – | AD56505195 | Pad Retainer for 56505750Fits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $30.34/EA | |||
| – | AD56505791 | MagnaGritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $464.05/EA | |||
| – | AD56505831 | MagnaGritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $339.23/EA | |||
| – | AD56505781 | MagnaGritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $408.60/EA | |||
| – | AD56505792 | DynaGritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $339.23/EA | |||
| – | AD56505832 | DynaGritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $290.97/EA | |||
| – | AD56505782 | DynaGritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $290.97/EA | |||
| – | AD56505793 | AgLiteFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $388.40/EA | |||
| – | AD56505833 | AgLiteFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $356.18/EA | |||
| – | AD56505783 | AgLiteFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $236.02/EA | |||
| – | AD56505794 | ProleneFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $123.37/EA | |||
| – | AD56505834 | ProleneFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $81.50/EA | |||
| – | AD56505784 | ProleneFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $94.59/EA | |||
| – | AD56505795 | ProLiteFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $207.86/EA | |||
| – | AD56505835 | ProLiteFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $124.69/EA | |||
| – | AD56505785 | ProLiteFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $88.51/EA | |||
| – | AD56505796 | Union MixFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $189.43/EA | |||
| – | AD56505836 | Union MixFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $124.69/EA | |||
| – | AD56505786 | Union MixFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $113.81/EA | |||
| – | AD56505797 | MidGritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $320.04/EA | |||
| – | AD56505837 | MidGritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $339.23/EA | |||
| – | AD56505787 | MidGritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $256.79/EA | |||
| – | AD56505798 | MidLite GritFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $368.18/EA | |||
| – | AD56505838 | MidLite GritFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $270.67/EA | |||
| – | AD56505788 | MidLite GritFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $241.48/EA | |||
| – | AD56413113 | Soft NylonFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $492.17/EA | |||
| – | AD56413434 | Soft NylonFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $498.83/EA | |||
| – | AD56413352 | Soft NylonFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $515.83/EA | |||
| – | AD56413114 | Hard NylonFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $394.44/EA | |||
| – | AD56413435 | Hard NylonFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $529.50/EA | |||
| – | AD56413353 | Hard NylonFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $602.72/EA | |||
| – | AD56413118 | ProleneFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $347.61/EA | |||
| – | AD56413439 | ProleneFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $360.03/EA | |||
| – | AD56413357 | ProleneFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $368.31/EA | |||
| – | AD56413115 | 180 GritFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $426.24/EA | |||
| – | AD56413436 | 180 GritFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $556.05/EA | |||
| – | AD56413354 | 180 GritFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $773.90/EA | |||
| – | AD56413116 | 80 GritFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $467.13/EA | |||
| – | AD56413437 | 80 GritFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $685.79/EA | |||
| – | AD56413355 | 80 GritFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $915.96/EA | |||
| – | AD56380335 | Side Broom (Optional)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $173.61/EA | |||
| – | AD56380335 | Side Broom (Optional)Fits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $173.61/EA | |||
| – | AD56380335 | Side Broom (Optional)Fits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $173.61/EA | |||
| – | AD56413767 | Kit, Gum Rubber 40 Disk BladeFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $90.82/EA | |||
| – | AD56413754 | Kit, Polyurethane 40 Disk BladeFits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $596.31/EA | |||
| – | AD56413769 | Kit, Gum Rubber 45/48 Disk BladeFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $77.47/EA | |||
| – | AD56413769 | Kit, Gum Rubber 45/48 Disk BladeFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $77.47/EA | |||
| – | AD56413755 | Kit, Poyurethane 45/48 Disk BladeFits 2 of 12 versionsSC6500 45D, SC6500 45D EcoFlex | $465.40/EA | |||
| – | AD56413755 | Kit, Poyurethane 45/48 Disk BladeFits 2 of 12 versionsSC6500 48D, SC6500 48D EcoFlex | $465.40/EA | |||
| – | AD56413820 | Skirt, Gum RubberFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $80.40/EA | |||
| – | AD56413820 | Skirt, Gum RubberFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $80.40/EA | |||
| – | AD56413820 | Skirt, Gum RubberFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $80.40/EA | |||
| – | AD56413743 | Skirt, PolyurethaneFits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $241.63/EA | |||
| – | AD56413743 | Skirt, PolyurethaneFits 2 of 12 versionsSC6500 45C, SC6500 45C EcoFlex | $241.63/EA | |||
| – | AD56413743 | Skirt, PolyurethaneFits 2 of 12 versionsSC6500 48C, SC6500 48C EcoFlex | $241.63/EA | |||
| – | AD56413761 | Kit, Gum Rubber Squeegee BladeFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $87.18/EA | |||
| – | AD56413745 | Kit, Polyurethane Squeegee BladeFits 4 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 40D, SC6500 40D EcoFlex | $345.44/EA | |||
| – | AD56413756 | Kit, Gum Rubber Squeegee BladeFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $115.02/EA | |||
| – | AD56413746 | Kit, Polyurethane Squeegee BladeFits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex | $376.75/EA | |||
| – | AD56413765 | Kit, Gum Rubber Squeegee BladeFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $111.08/EA | |||
| – | AD56413747 | Kit, Polyurethane Squeegee BladeFits 4 of 12 versionsSC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $441.68/EA |
Advance SC6500 Recommended spare parts - periodic service items and spares
Advance's recommended periodic service items and spares, with Advance's class W, O or E for each. Manual page 57.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | AD56414139 | Right Guard Assy (All)Periodic service item, class E (extra-ordinary maintenance). Chassis. | $392.85/EA | ||
| – | AD56414140 | Left Guard Assy (45” & 48” Only)Fits 8 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 45D, SC6500 45D EcoFlex, SC6500 48C, SC6500 48C EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $385.85/EA | ||
| – | AD56407006 | Wheel, RollerPeriodic service item, class O (ordinary maintenance). Chassis. | $43.68/EA | ||
| – | AD56462746 | LatchPeriodic service item, class O (ordinary maintenance). Chassis. | $152.73/EA | ||
| – | AD56410044 | Fuse, 250 AmpPeriodic service item, class O (ordinary maintenance). Electrical Components. | $115.53/EA | ||
| – | AD56482365 | Horn,36 VPeriodic service item, class E (extra-ordinary maintenance). Electrical Components. | $248.58/EA | ||
| – | AD56414210Advance 56414210 | Speed ControlPeriodic service item, class E (extra-ordinary maintenance). Electrical Components. | Call to confirm part: 800-440-6723 | ||
| – | AD56413406 | Circuit Breaker, 3.0 Amp.Periodic service item, class O (ordinary maintenance). Electrical Components. | $14.70/EA | ||
| – | AD56413407 | Circuit Breaker, 15 Amp.Periodic service item, class O (ordinary maintenance). Electrical Components. | $14.70/EA | ||
| – | AD56413822 | Circuit Breaker, 20 Amp-Sweep SystemPeriodic service item, class O (ordinary maintenance). Electrical Components. | $30.52/EA | ||
| – | AD56414222 | PCB Box AssemblyPeriodic service item, class E (extra-ordinary maintenance). Electrical Components. | $959.51/EA | ||
| – | AD56413516 | Contactor, 36Vdc 200APeriodic service item, class O (ordinary maintenance). Electrical Components. | $90.82/EA | ||
| – | AD56381083 | Touch Pad AssyPeriodic service item, class E (extra-ordinary maintenance). Electrical Components. | $829.29/EA | ||
| – | AD1450372000 | Key Switch w/ KeyPeriodic service item, class E (extra-ordinary maintenance). Electrical Components. | $85.85/EA | ||
| – | AD1462887000 | Key, ReplacementPeriodic service item, class E (extra-ordinary maintenance). Electrical Components. | $51.38/EA | ||
| – | AD56601052 | Foot Pedal AssyPeriodic service item, class E (extra-ordinary maintenance). Electrical Components. | $269.64/EA | ||
| – | AD56212236 | Clamp PlasticPeriodic service item, class O (ordinary maintenance). Recovery System. | $24.72/EA | ||
| – | AD56314760 | Gasket, Vacuum DuctPeriodic service item, class O (ordinary maintenance). Recovery System. | $13.07/EA | ||
| – | AD56410065 | Vac Motor AssyPeriodic service item, class E (extra-ordinary maintenance). Recovery System. | $283.67/EA | ||
| – | AD56384012 | Hose-Drain-Pu (Incudes Hose Cap)Periodic service item, class E (extra-ordinary maintenance). Recovery System. | $71.84/EA | ||
| – | AD56601411 | Drain Hose Cap KitPeriodic service item, class O (ordinary maintenance). Recovery System. | $16.09/EA | ||
| – | AD56413171 | Hose, Vac 2.00 x 42.00 x 975018Periodic service item, class E (extra-ordinary maintenance). Recovery System. | $33.79/EA | ||
| – | AD56384655 | Hose-Vacuum-Pu KitPeriodic service item, class E (extra-ordinary maintenance). Recovery System. | $123.91/EA | ||
| – | AD56414192Advance 56414192 | Gasket, Recovery Lid AssyPeriodic service item, class O (ordinary maintenance). Recovery System. | Call to confirm part: 800-440-6723 | ||
| – | AD56413194 | Screen FilterPeriodic service item, class O (ordinary maintenance). Recovery System. | $16.09/EA | ||
| – | AD56413195 | FilterPeriodic service item, class O (ordinary maintenance). Recovery System. | $15.44/EA | ||
| – | AD56412262 | Housing, Spring-Actuator-Deck (All)Periodic service item, class E (extra-ordinary maintenance). Scrub System. | $68.96/EA | ||
| – | AD56383970 | Deck Actuator Kit (All)Periodic service item, class E (extra-ordinary maintenance). Scrub System. | $654.69/EA | ||
| – | AD56407006 | Wheel, Roller (All)Periodic service item, class O (ordinary maintenance). Scrub System. | $43.68/EA | ||
| – | AD56414164 | Broom Idler Assy-Cyl (All)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $298.49/EA | ||
| – | AD56414123 | Broom Drive Lug Assy-Cyl (All)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $436.56/EA | ||
| – | AD56414178 | Belt Guard Assy-Cyl (All)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $76.09/EA | ||
| – | AD56414125 | Belt-Auto Tension-Cyl (All)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $38.06/EA | ||
| – | AD56382654 | Kit 36VDC 1.5HP Motor-Cyl (All)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $1,672.03/EA | ||
| – | AD56381479 | Kit Brush AMER Motor-Cyl (All)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $71.84/EA | ||
| – | AD56413871 | Left Skirt Assy-Cyl (40”)Fits 2 of 12 versionsSC6500 40C, SC6500 40C EcoFlex | $512.97/EA | ||
| – | AD56413556 | Left Skirt Assy-Cyl (45”,48”)Fits 4 of 12 versionsSC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $457.25/EA | ||
| – | AD56413609 | Right Skirt Assy-Cyl (All)Fits 6 of 12 versionsSC6500 40C, SC6500 40C EcoFlex, SC6500 45C, SC6500 45C EcoFlex, SC6500 48C, SC6500 48C EcoFlex | $530.78/EA | ||
| – | AD56413336 | Gearbox Assy-Disk (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $3,707.25/EA | ||
| – | AD56407500 | Brush Assy Kit-Disk (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $254.81/EA | ||
| – | AD56407196 | Gearbox-Disk (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $2,396.05/EA | ||
| – | AD56413307 | Right Skirt Assy-Disk (40”Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $487.25/EA | ||
| – | AD56413313 | Left Skirt Assy-Disk (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $545.61/EA | ||
| – | AD56413318 | Blade, Front-Disk (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $31.05/EA | ||
| – | AD56413319 | Blade, Rear-Disk (40”)Fits 2 of 12 versionsSC6500 40D, SC6500 40D EcoFlex | $35.17/EA | ||
| – | AD56303083 | Gearmotor-Disk (45”, 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $2,544.29/EA | ||
| – | AD56303444 | Carbon Brush Assy-Disk (45”, 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $17.46/EA | ||
| – | AD56413307 | Right Skirt Assy-Disk (45”, 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $487.25/EA | ||
| – | AD56413381 | Left Skirt Assy-Disk (45”, 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $538.62/EA | ||
| – | AD56413374 | Blade, Front-Disk (45”, 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $35.17/EA | ||
| – | AD56413379 | Blade, Rear-Disk (45”, 48”)Fits 4 of 12 versionsSC6500 45D, SC6500 45D EcoFlex, SC6500 48D, SC6500 48D EcoFlex | $38.06/EA | ||
| – | AD56407162 | Filter-SolutionPeriodic service item, class O (ordinary maintenance). Solution System. | $34.67/EA | ||
| – | AD56384157 | Gasket-FilterPeriodic service item, class O (ordinary maintenance). Solution System. | $13.07/EA | ||
| – | AD56413581 | Valve, T ShutoffPeriodic service item, class E (extra-ordinary maintenance). Solution System. | $88.73/EA | ||
| – | AD56413669 | Switch, Liquid LevelPeriodic service item, class E (extra-ordinary maintenance). Solution System. | $141.10/EA | ||
| – | AD56394394 | Solenoid Valve KitPeriodic service item, class E (extra-ordinary maintenance). Solution System. | $128.85/EA | ||
| – | AD56314984 | Pump, Detergent-EcoFlexFits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $254.81/EA | ||
| – | AD56315523 | Cap, Dry Bread, 1/8 Barb, 90-EcoFlexFits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $32.42/EA | ||
| – | AD56413810 | Pump, 36VDC –EcoFlexFits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $611.13/EA | ||
| – | AD56510892Replaces Advance 56111855 | Chemical Bottle Assy-EcoFlexFits 6 of 12 versionsSC6500 40C EcoFlex, SC6500 40D EcoFlex, SC6500 45C EcoFlex, SC6500 45D EcoFlex, SC6500 48C EcoFlex, SC6500 48D EcoFlex | $269.84/EA | ||
| – | AD56413111 | Actuator 36Vdc-SqueegeePeriodic service item, class E (extra-ordinary maintenance). Squeegee System. | $528.12/EA | ||
| – | AD56407344 | Caster WheelPeriodic service item, class O (ordinary maintenance). Squeegee System. | $167.59/EA | ||
| – | AD56009111 | Nut, Wing SS ¼-20Periodic service item, class E (extra-ordinary maintenance). Squeegee System. | $10.30/EA | ||
| – | AD56111639 | Wheel 4.00 Dia.Periodic service item, class E (extra-ordinary maintenance). Squeegee System. | $51.38/EA | ||
| – | AD56370711 | Nut ThumbPeriodic service item, class E (extra-ordinary maintenance). Squeegee System. | $21.85/EA | ||
| – | AD56471194 | Latch AssyPeriodic service item, class O (ordinary maintenance). Squeegee System. | $42.32/EA | ||
| – | AD56413039 | Left Side Broom AssyPeriodic service item, class E (extra-ordinary maintenance). Sweep System. | $1,592.41/EA | ||
| – | AD56413040 | Right Side Broom AssyPeriodic service item, class E (extra-ordinary maintenance). Sweep System. | $1,831.27/EA | ||
| – | AD56413129 | Actuator Motor 36VdcPeriodic service item, class E (extra-ordinary maintenance). Sweep System. | $631.92/EA | ||
| – | AD56413048 | LinkPeriodic service item, class E (extra-ordinary maintenance). Sweep System. | $32.42/EA | ||
| – | AD56413695 | Gearmotor Assy 36Vdc-LeftPeriodic service item, class E (extra-ordinary maintenance). Sweep System. | $1,046.88/EA | ||
| – | AD56413696 | Gearmotor Assy 36Vdc-RightPeriodic service item, class E (extra-ordinary maintenance). Sweep System. | $1,134.10/EA | ||
| – | AD56385098 | Motor Brush Kit 2PCPeriodic service item, class O (ordinary maintenance). Sweep System. | $67.39/EA | ||
| – | AD56413845 | Pin, .31 w/ RetainerPeriodic service item, class O (ordinary maintenance). Sweep System. | $4.27/EA | ||
| – | AD56412198 | Chain, RollerPeriodic service item, class E (extra-ordinary maintenance). Steering System. | $66.90/EA | ||
| – | AD56413211 | Bearing, FlangePeriodic service item, class E (extra-ordinary maintenance). Steering System. | $14.70/EA | ||
| – | AD56414075 | Ratchet-Steering ColumnPeriodic service item, class E (extra-ordinary maintenance). Steering System. | $8.80/EA | ||
| – | AD56414078 | Rod-Tilt WheelPeriodic service item, class E (extra-ordinary maintenance). Steering System. | $23.35/EA | ||
| – | AD56414082 | Sprocket-10 ToothPeriodic service item, class E (extra-ordinary maintenance). Steering System. | $13.76/EA | ||
| – | AD56454081 | Universal JointPeriodic service item, class E (extra-ordinary maintenance). Steering System. | $225.98/EA | ||
| – | AD56414198 | Qty on machine: 1 | Wheel-Drive-ACPeriodic service item, class E (extra-ordinary maintenance). Front Wheel System. | $9,449.85/EA | |
| – | AD56414214 | Qty on machine: 1 | Wheel-3.94x350Periodic service item, class O (ordinary maintenance). Front Wheel System. | $2,980.71/EA | |
| – | AD56413024 | Brake-Ccw RhPeriodic service item, class E (extra-ordinary maintenance). Rear Wheel & Brake System. | $130.92/EA | ||
| – | AD56413025 | Brake-Cw LhPeriodic service item, class E (extra-ordinary maintenance). Rear Wheel & Brake System. | $119.65/EA | ||
| – | AD56394640Replaces Advance 56413293 | RotorPeriodic service item, class E (extra-ordinary maintenance). Rear Wheel & Brake System. | $157.91/EA | ||
| – | AD56414127 | Cable AssyPeriodic service item, class E (extra-ordinary maintenance). Rear Wheel & Brake System. | $43.68/EA | ||
| – | AD56407133 | Yoke, ClevisPeriodic service item, class E (extra-ordinary maintenance). Rear Wheel & Brake System. | $42.32/EA | ||
| – | AD56414062 | Wheel-Rear-14in-3.5inPeriodic service item, class E (extra-ordinary maintenance). Rear Wheel & Brake System. | $611.13/EA | ||
| – | AD56414064 | Bearing-Ball-30mm X 62mm X 16mm (56414062 2 per Wheel)Periodic service item, class E (extra-ordinary maintenance). Rear Wheel & Brake System. | $16.09/EA |
Advance SC6500 Electrical: Ladder Diagram-1
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Ladder Diagram-1, as printed in the manual |
|---|---|
| Manual page | 48 |
Advance SC6500 Electrical: Ladder Diagram-2
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Ladder Diagram-2, as printed in the manual |
|---|---|
| Manual page | 50 |
New to your Advance SC6500? Start here
Set up, run and look after your SC6500. Everything here comes from Advance's instructions for use, rewritten in plain steps, with the parts you need linked to the list above.
1Fill the tank and fit the squeegee
- Fill the solution tank with no more than 70 gal (264 L) of solution. Keep the level at least 3 in (7.5 cm) below the bottom of the fill opening.
- Mix water with the right cleaning chemical for the job and follow the dilution directions on the chemical label. Use only low-foaming, non-flammable liquid detergent made for machines, and keep the water at or below 130 °F (54.4 °C).
- Slide the squeegee assembly (AD56414159 / AD56414154 / AD56414130) onto the squeegee mount bracket and tighten the thumb nuts.
- Connect the recovery hose to the squeegee inlet with the hose clamp.
- Lower the squeegee and move the machine ahead slightly. Set the tilt and height knobs so the rear blade touches the floor evenly across its full width and bends over slightly.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-12, A-13 and A-21. SES ref PF-JSZT-EZNN
2Install the brushes
- Raise the scrub deck, turn the key switch off (O) and take the key out.
- Take off both side skirt assemblies. Loosen the two large knobs on each skirt and slide it off the scrub deck. On cylindrical machines, slide each skirt forward slightly first.
- Disc machines: line up the lugs on the brush (or pad holder) with the holes in the mounting plate and turn to lock it. Turn the outside edge of the brush toward the front of the machine.
- Cylindrical machines: loosen the black knobs on top of the idler assemblies until they drop far enough to clear the notches, then remove the idlers. Slide the brush into the housing, lift slightly, then push and turn until it seats. Put the idlers and skirts back on.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-10 and A-11. SES ref PF-JSZT-EZNN
3Scrub a floor
- Adjust the seat and the steering wheel to a comfortable position. Turn the key switch ON (I) and check the battery indicator and hour meter.
- Release the parking brake. Press the front of the drive pedal to go forward or the rear to go in reverse. Press harder for more speed.
- Press the solution switch and hold it for 5 seconds to pre-wet the floor. Do this before you press Scrub ON.
- Press Scrub ON once for regular scrub, twice for heavy scrub or three times for extreme scrub.
- Drive forward in a straight line at a normal walking speed and overlap each pass by 2 to 3 in (50 to 75 mm). Keep the machine moving while the brushes turn or you can damage the floor.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), page A-16. SES ref PF-JSZT-EZNN
4Empty, clean and charge after use
- Press the Scrub OFF switch. It raises and stops the brush, squeegee, vacuum, solution and detergent systems. Then drive to a service area.
- Empty the solution tank: take the solution drain hose out of its storage clamp, point it at a disposal site, remove the plug and rinse the tank with clean water.
- Empty the recovery tank: pull the drain hose (AD56384012) from its storage area and point it at a disposal site. Hold the end above the water level in the tank, then remove the plug. Rinse the tank with clean water.
- Take off the brushes or pad holders, rinse them in warm water and hang them up to dry. Take off the squeegee, rinse it in warm water and put it back on its mount.
- Plug in the charger every day after use and let it finish a full charge.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-18 and A-20. SES ref PF-JSZT-EZNN
Questions about your SC6500? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Advance SC6500 troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting table. Turn the key switch off (O) and take the key out before any service.
| Likely cause | Fix | Part |
|---|---|---|
| Poor water pick-up | ||
| Worn or torn squeegee blades | Reverse or replace the squeegee blades (AD56413762 / AD56413757 / AD56413766). | |
| Recovery tank full | Empty the recovery tank. | |
| Recovery tank cover gasket leak | Seat the cover properly or replace the gasket (AD56414192). | |
| Vacuum hose clogged | Remove the debris. | |
| Poor scrubbing performance | ||
| Worn brush or pad | Rotate or replace the brushes. | |
| Scrub motors do not run | ||
| Tripped 20 Amp (F3) circuit breaker | Check for an electrical short circuit and reset the 20 Amp breaker (AD56413822). | |
| Inadequate solution flow or no solution | ||
| Solution tank empty | Fill the solution tank. | |
| Solution lines, valves, filter or trough clogged | Flush the lines and the trough and clean the solution filter (AD56407162). | |
| Solution solenoid valve plugged or defective | Clean or replace the valve (AD56394394). Call SES service. | |
| Machine does not run | ||
| Emergency stop switch tripped | Reconnect the battery connectors. | |
| Poor sweeping performance (cylindrical) | ||
| Hopper full | Empty and clean the hopper. | |
| No detergent flow (EcoFlex only) | ||
| Empty detergent cartridge | Fill the detergent cartridge. | |
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), page A-25. SES ref PF-K7ZY-GABF
Still stuck? SES is an Advance service center. Call 800-440-6723 and have your model and serial number ready.
Advance SC6500 maintenance schedule
Advance's maintenance schedule, lubrication and battery pages. Turn the key switch off (O) and take the key out before any service.
| Task | How often | Part |
|---|---|---|
| Charge the batteries. | Daily | |
| Check and clean the tanks and hoses. | Daily | |
| Check, clean and rotate the brushes or pads. | Daily | |
| Check and clean the squeegee. Reverse or replace the blades (AD56413762 / AD56413757 / AD56413766) if they are cut, torn, wavy or worn. | Daily | |
| Check and clean the vacuum shut-off float (AD56391690) and the vacuum motor foam filter (AD56413195). | Daily | |
| Cylindrical machines: clean the hopper. | Daily | |
| Check the water level in each battery cell. | Weekly | |
| Inspect the scrub housing skirts. Reverse or replace the skirt blades (AD56413654 / AD56413768 / AD56413770) when they wear. | Weekly | |
| Inspect and clean the solution filter (AD56407162). | Weekly | |
| Check the foot and parking brake for wear and adjustment. | Weekly | |
| Cylindrical machines: clean the solution trough. EcoFlex machines: purge the detergent system. | Weekly | |
| Do the side broom maintenance. Replace the side broom (AD56413056) when the bristles wear down to 3 in (7.62 cm) or stop working well. | Weekly | |
| Pump a small amount of grease into each grease fitting until grease seeps out around the bearings. Grease the squeegee caster wheel axle and pivot, the steering wheel shaft universal joint, the steering chain and the squeegee mount angle adjustment knob threads. | Monthly | |
| Apply light machine oil or synthetic lubricant spray to the squeegee tool end wheels, the brake pedal (parking brake) linkage and the side skirt height adjustment knobs. | Monthly | |
| Have Advance check the vacuum motor carbon brushes once a year or after 300 operating hours. | Yearly | |
| Have Advance check the brush and drive motor carbon brushes every 500 hours or once a year. Call SES service: 800-440-6723. | Yearly |
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-18, A-19, A-20, A-21, A-22 and A-24. SES ref PF-R2C3-65EX
Advance SC6500 specifications
From the technical specifications in Advance's Instructions for Use.
| Cleaning path | 40 in (101 cm), 45 in (114 cm) or 48 in (122 cm) |
|---|---|
| Scrub brushes | Cylindrical: two brushes, 8.5 in (21.6 cm) diameter. Disc: two 20 in (50.8 cm) on the 40 in, three 16 in (40.6 cm) on the 45 in, three 17 in (43 cm) on the 48 in |
| Brush speed | Cylindrical: 630 rpm. Disc: 240 rpm on the 40 in, 225 rpm on the 45 in and 48 in |
| Batteries | 36 V, 450 Ah |
| Solution tank | 70 gal (265 L) |
| Recovery tank | 70 gal (265 L) |
| Transport speed | Forward 6.0 mph (9.5 km/h), reverse 3.0 mph (5.0 km/h) |
| Gradeability | Transport 16% (9°), cleaning 10.5% (6°) |
| Transport weight (empty tanks, with batteries) | Cylindrical: 2,897 lb (1,314 kg) on the 40 in, 2,937 lb (1,332 kg) on the 45 in, 2,982 lb (1,353 kg) on the 48 in. Disc: 2,792 lb (1,266 kg), 2,842 lb (1,289 kg), 2,892 lb (1,312 kg) |
| Length and height | 73.5 in (187 cm) long, 58.5 in (148.6 cm) high, 84 in (213 cm) high with the overhead guard |
| Width with squeegee | 40 in: 49 in (125 cm) “F”; 45 in: 54 in (137 cm) “G”; 48 in: 57 in (145 cm) “H” |
| Minimum aisle turn width | 84 in (214 cm) |
| Sweeping path | 57 in (145 cm) with side brooms, cylindrical models |
| Sound level | 70 dB(A), uncertainty 3.0 dB(A) |
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-28 and A-29. SES ref PF-KBJ2-ULPY
Advance SC6500 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Online manuals
Read the SC6500 manuals in your browser, with clickable part numbers. No sign-in needed.
- SC6500 operator manual, free to read
- SC6500 service manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESSC6500 parts listParts list with exploded drawings, 64 pages | SC6500 40, 45 and 48 in, cylindrical and disc, with and without EcoFlex | 1/2014, revised 5/2020, Rev M (this page) | 6.3 MB | Sign in to view or downloadSign in to download |
| PDFby SESSC6500 instructions for useOperator manual in four languages, 120 pages (English is section A) | SC6500 40, 45 and 48 in, cylindrical and disc, with and without EcoFlex | 2/2014, revised 1/2020, Rev F | 18.0 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance SC6500 parts questions
What do 40C, 40D, 45C and 48D mean on an Advance SC6500?
The number is the scrub path: 40, 45 or 48 in (101, 114 or 122 cm). C is the cylindrical brush system and D is the disc system. EcoFlex models add a detergent system.
Sources: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-14 and A-28; Advance SC6500 Parts List, form 56042608 (Rev M), page 56. SES ref PF-HAO2-U475
How do I empty the recovery tank on an SC6500?
Drive to a disposal site and pull the drain hose from its rear storage area. Hold the end above the water level in the tank, then remove the plug. Squeeze the hose to control the flow.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-16 and A-18. SES ref PF-HAO2-U475
Why does my SC6500 leave water behind?
Check the squeegee blades first. Reverse or replace them if they are cut, torn, wavy or worn. Also check that the recovery tank is not full, the drain hose cap and tank cover are seated and the vacuum hose is clear.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-21 and A-25. SES ref PF-HAO2-U475
How often do I check the SC6500 battery water?
At least once a week. Charge first, then remove the vent caps and fill each cell with distilled or demineralized water to the level indicator. Do not fill the batteries before charging and do not overfill them.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), page A-20. SES ref PF-HAO2-U475
How do I change the side skirt blades on an SC6500?
Loosen the retainer knobs and slide each skirt forward, then off the scrub deck. Take off the blade hardware. Turn the main blade so a clean edge faces the center of the machine, or replace the blades as a set if all four edges are worn.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), page A-22. SES ref PF-HAO2-U475
How steep a slope can an SC6500 handle?
The spec table gives 10.5% (6°) for cleaning and 16% (9°) for transport. The cautions page rates scrubbing at 10%. Drive slowly on inclines, go straight up or down and do not turn on an incline.
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), pages A-2 and A-28. SES ref PF-HAO2-U475
What goes in the SC6500 solution tank?
Up to 70 gal (264 L) of water and a low-foaming, non-flammable liquid detergent made for machines. Keep the level 3 in (7.5 cm) below the bottom of the fill opening and the water at or below 130 °F (54.4 °C).
Source: Advance SC6500 Instructions for Use, form 56091095 (rev F), page A-12. SES ref PF-HAO2-U475
Notes on this parts list
Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- The Instructions for Use cover lists six active models (56414010, 56414012, 56414014, 56414016, 56414018, 56414020) and marks the six EcoFlex versions (56414011, 56414013, 56414015, 56414017, 56414019, 56414021) as obsolete. The parts list covers all twelve and so does the Your machine menu.
- Advance marks lines for a model only through the section (cylindrical or disc), a printed size such as (40”) or (45” & 48”), the words EcoFlex, cylindrical or disc, and the model columns of the recommended spares tables. Lines with none of these fit every model.
- The decal list prints Decal-SC6500 (56414141) and Decal-SC6500-EcoFlex (56414142) with no model note. This page shows the first for the non-EcoFlex models and the second for the EcoFlex models, going by the names.
- Advance prints the cylindrical scrub assembly parts list on page 19 with its sub-assembly drawing at the bottom of the page. This page joins that sub-assembly drawing under the page 18 drawing so every item has a callout.
- Some lines have no part number printed: Steering Assy (drive wheel item 6), Electrical Component Assy (item 7), Brake Pedal Assy (item 33), the squeegee arm assembly, and the cast squeegee top and bottom on the 45 in and 48 in squeegees. Call us to confirm them.
- The 40 in disc drawing (page 24) has no callout 16, but the list on page 25 has item 16, Scr-Hex SS M12-1.75 X 30mm. The recovery tank drawing does not show item 33, the recovery tank harness, which Advance marks as not shown.
- Items 16 and 21 on the solution list print the quantities for the standard build (6 and 2). Advance's note says the quantities are 4 and 1 on EcoFlex models.
- The troubleshooting table (page A-25) says to check the 20 Amp (F3) breaker when the scrub motors do not run. The wiring key (page 49) labels F3 as the 20 Amp side brooms breaker. This page follows the troubleshooting text as printed.
- The cautions page (A-2) gives 10% as the maximum scrubbing incline. The specification table (A-28) gives 10.5% (6°) for cleaning.
- The solution tank fill instructions (A-12) give 264 L for 70 gal. The specification table (A-28) gives 265 L.
- The spares list (page 57) describes Hose-Drain-Pu as including the hose cap. The recovery list (page 15) shows Drain Hose Cap Kit as a separate optional line.
- The optional kits and spares lists print Pad Retainer 56505195 as “for 56505750”, a number that is not on the parts list. The brush selector guide (page 58) prints the same retainer as “for” the short trim pad holders 56505790, 56505830 and 56505780.
- Descriptions are copied as Advance prints them, including its spellings (for example Eletrical Panel Assy, Circuit Break Er and Poyurethane).
