Tennant T20 Diesel options, breakdowns and engine parts list and diagrams
Option kits, component breakdowns and engine parts for the Tennant T20 Diesel, from Tennant's parts manual, with the manual's drawings. Each part number links to that part in our store, and the standard parts are on a companion page.
Complete list: the options, component breakdowns and engine sections of Tennant T20 Diesel Rider Scrubber Parts Manual 9016251 Rev. 11 (10-2025), S/N 008000 and later, 1713 part lines. The standard parts, maintenance items and owner's guide are on the T20 Diesel parts list page. Checked .
New to your T20 Diesel? Start here → Standard parts and maintenance items → Manuals (free sign-in) →
- Cleaning path, cylindrical head
- 40 in (1,020 mm); 54 in (1,370 mm) with the scrubbing side brush
- Cleaning path, disk head
- 42 in (1,070 mm)
- Solution tank
- 80 gal (303 L)
- Recovery tank
- 95 gal (360 L)
- Engine
- Kubota V1505-B, 4-cylinder diesel, 91.4 cu in (1,500 cc), 34 hp (24.6 kW) at 2,400 rpm governed
Your machine
How to tell which you have
- Scrub head: Tennant's parts manual has separate parts groups for Cylindrical, Disk (manual pages 57, 59, 61, 63, 65, 67, 73, 75, 93, 95, 97, 99…). Pick yours to see only its groups; parts every build shares always show.
- If you are not sure which you have, leave it on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

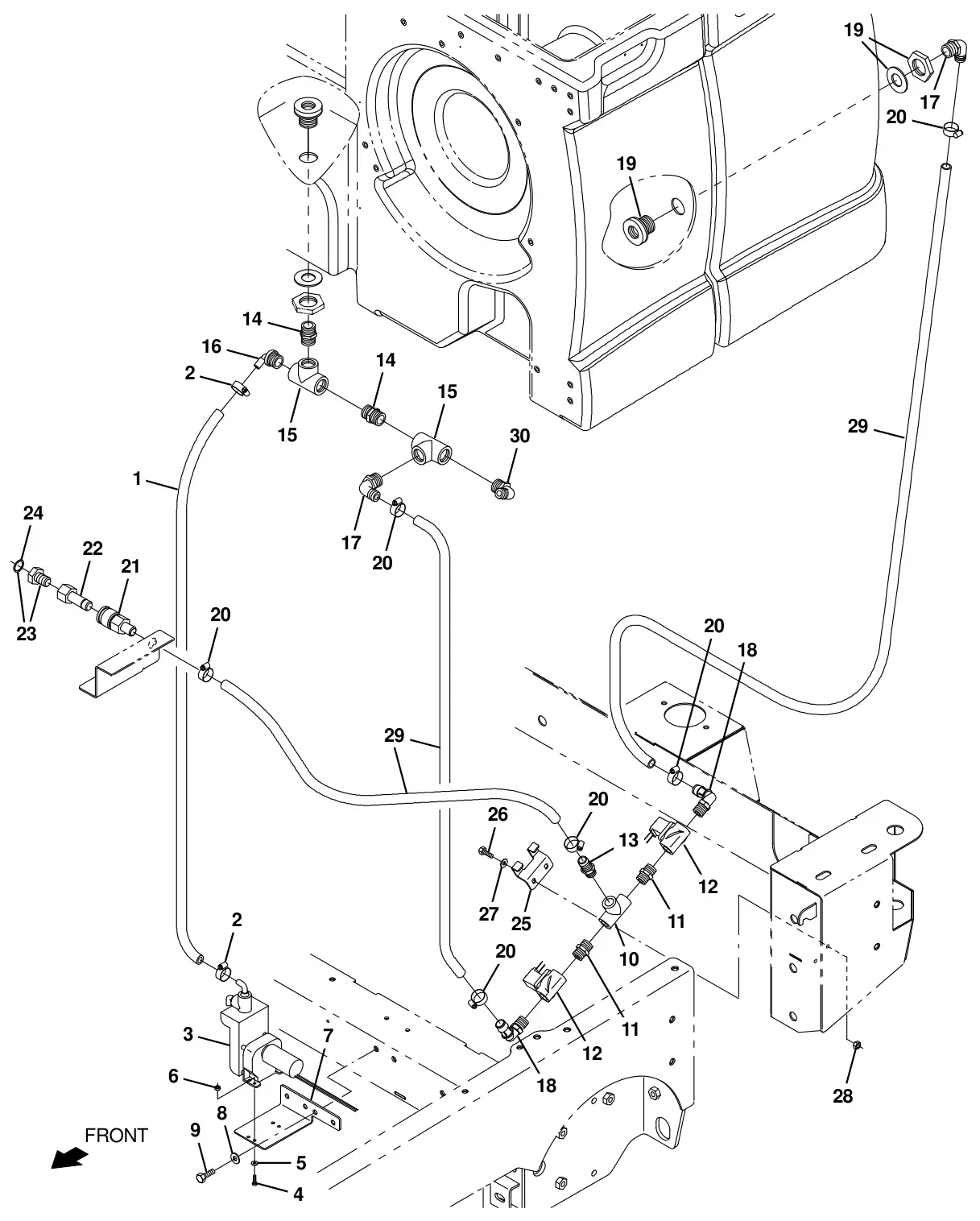

Tennant T20 Diesel ES Pump Group (option) parts
The parts Tennant numbers on its es pump group (option) drawing. Manual pages 167, list 168.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4016800Replaces Tennant 41295 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 48.00lSerial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 008000 and later. | $4.20/EA |
| 3 | TN4016324Replaces Tennant 73260 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns)Serial 008000 and later. | $792.20/EA |
| 4 | TN4035372Replaces Tennant 24265 | 2 | Screw, Pan, M4 X 0.7 X 16, SsSerial 008000 and later. | $3.00/EA |
| 5 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, #10, SsSerial 008000 and later. | $2.60/EA |
| 6 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsSerial 008000 and later. | $3.40/EA |
| 7 | TN4195605Replaces Tennant 1021325 | 1 | Bracket, Mtg, ValveSerial 008000 and later. | $20.50/EA |
| 8 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31, SsSerial 008000 and later. | $2.60/EA |
| 9 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, SsSerial 008000 and later. | $3.30/EA |
| 10 | TN4026578Replaces Tennant 79497 | 1 | Fitting, Plstc, Tee, Pf08/Pf08/Pf08Serial 008000 and later. | $10.30/EA |
| 11 | TN4021662Replaces Tennant 86508 | 2 | Fitting, Plstc, Str, Pm08/Pm08Serial 008000 and later. | $6.90/EA |
| 12 | TN4016339Replaces Tennant 73433 | 2 | Valve, Water, Solenoid, 12vdc 0.08pfSerial 008000 and later. | $535.70/EA |
| 13 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08, NylSerial 008000 and later. | $6.20/EA |
| 14 | TN4035382Replaces Tennant 24544 | 2 | Fitting, Plstc, Str, Pm12/Pm12 1.60lSerial 008000 and later. | $6.20/EA |
| 15 | TN4017317Replaces Tennant 42133A | 2 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Serial 008000 and later. | $17.60/EA |
| 16 | TN4026576Replaces Tennant 79484 | 1 | Fitting, Plstc, E90, Bm06/Pm12, NylSerial 008000 and later. | $7.80/EA |
| 17 | TN4044360Replaces Tennant 14877 | 2 | Fitting, Plstc, E90, Bm12/Pm12Serial 008000 and later. | $6.20/EA |
| 18 | TN4021149Replaces Tennant 63244-2 | 2 | Fitting, Plstc, E90, Bm12/Pm08Serial 008000 and later. | $6.90/EA |
| 19 | TN4025663Replaces Tennant 377349 | 1 | Fitting, Plstc, Pf12/Pf12, BhSerial 008000 and later. | $22.50/EA |
| 20 | TN4017089Replaces Tennant 63810 | 6 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 and later. | $6.80/EA |
| 21 | TN4035365Replaces Tennant 24105 | 1 | Fitting, Brs, Qdc, Bm12/Qf08Serial 008000 and later. | $101.81/EA |
| 22 | TN4030863Replaces Tennant 33295 | 1 | Fitting, Brs, Qdc, Pf08 [Parker Bh3f]Serial 008000 and later. | $9.60/EA |
| 23 | TN4029239Replaces Tennant 375322 | 1 | Fitting Kit, Hose, GardenComplete assembly. Serial 008000 and later. | $19.09/EA |
| 24 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrPart of Fitting Kit, Hose, Garden (375322). Serial 008000 and later. | $3.50/EA |
| 25 | TN4197702Replaces Tennant 1016837 | 1 | Bracket, Mtg, ValveSerial 008000 and later. | $13.03/EA |
| 26 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M6 X 1.0 X 20, SsSerial 008000 and later. | $3.20/EA |
| 27 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.25, SsSerial 008000 and later. | $2.60/EA |
| 28 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Ss, NlSerial 008000 and later. | $2.50/EA |
| 29 | TN4197211Replaces Tennant 1015044 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 12ftSerial 008000 and later. | $35.86/EA |
| 30 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12Serial 008000 and later. | $7.90/EA |

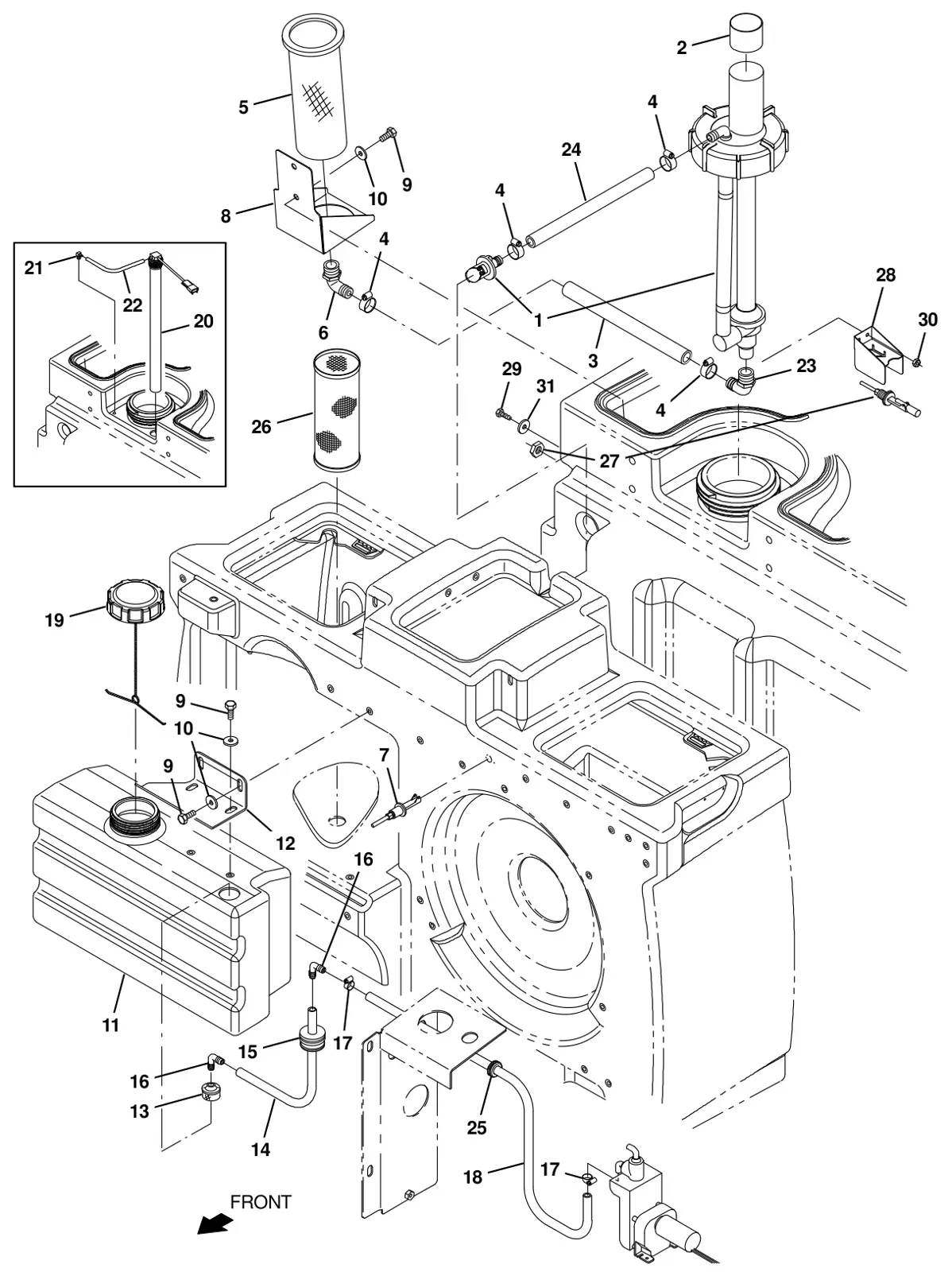

Tennant T20 Diesel ES Tanks Group (option) parts
The parts Tennant numbers on its es tanks group (option) drawing. Manual pages 169, list 170.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

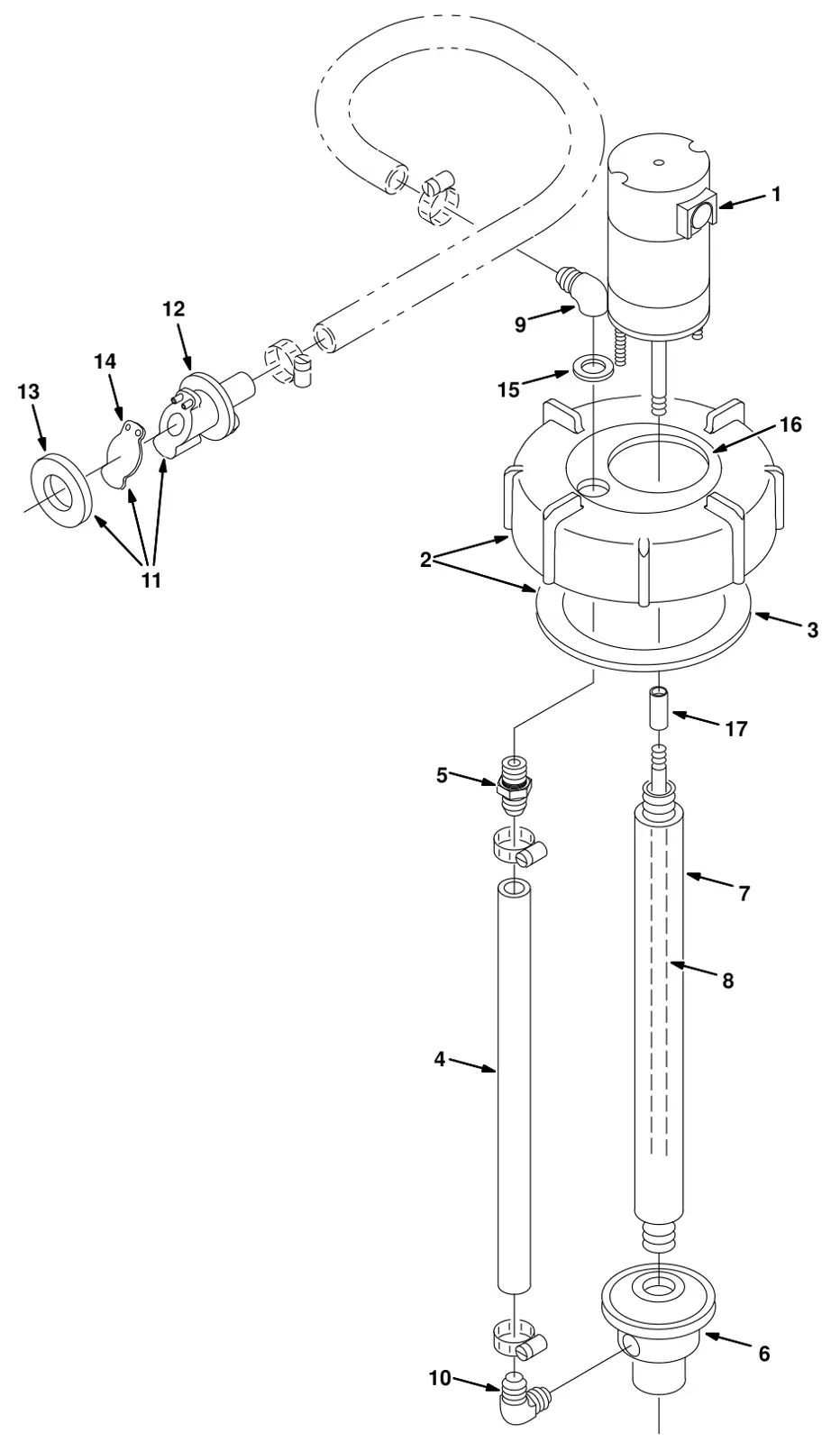

| 1 | TN4036630Replaces Tennant 1021210 | 1 | Pump Assy, Column, Es (See Breakdowns)Serial 008000 and later. | $1,762.90/EA |
| 2 | TN4030959Replaces Tennant 1028697 | 1 | Sleeve, Rbr, 3.50b 3.58d 1.8lSerial 008000 and later. | $11.01/EA |
| 3 | TN4037988Replaces Tennant 1015048 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 01ftSerial 008000 and later. | $14.65/EA |
| 4 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 and later. | $6.80/EA |
| 5 | TN4022231Replaces Tennant 386652 | 1 | Strainer, Soltn, 20 Mesh, Cyl 3.5d 9.5lSerial 008000 and later. | $101.80/EA |
| 6 | TN4035381Replaces Tennant 24543 | 1 | Fitting, Plstc, E90, Bm12/Pf12Serial 008000 and later. | $8.40/EA |
| 7 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11Serial 008000 and later. | $78.50/EA |
| 8 | TN4195222Replaces Tennant 1019636 | 1 | Bracket, Mtg, StrainerSerial 008000 and later. | $53.53/EA |
| 9 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M8 X 1.25 X 20, SsSerial 008000 and later. | $3.30/EA |
| 10 | TN4035242Replaces Tennant 1017218 | 6 | Washer, Flat, 0.32b 1.00d .12, SsSerial 008000 and later. | $3.40/EA |
| 11 | TN4032910Replaces Tennant 1022229 | 1 | Tank, Detgt, TrimmedSerial 008000 and later. | $341.48/EA |
| 12 | TN4193627Replaces Tennant 1025159 | 1 | Bracket, Mtg, Detgt And Spray WandSerial 008000 and later. | $19.70/EA |
| 13 | TN4039132Replaces Tennant 20952 | 1 | Screen, PumpSerial 008000 and later. | $13.70/EA |
| 14 | TN4037967Replaces Tennant 1014974 | 1 | Hose, Afmkt, Pvc, Brd 0.38id 02ftSerial 008000 and later. | $22.40/EA |
| 15 | TN4039117Replaces Tennant 20944 | 1 | Grommet, Pye, 0.37id, F/1.5h, .13 MatlSerial 008000 and later. | $27.50/EA |
| 16 | TN4039131Replaces Tennant 20951 | 2 | Fitting, Plstc, E90, Bm06/Bm06Serial 008000 and later. | $4.20/EA |
| 17 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 008000 and later. | $4.20/EA |
| 18 | TN4016800Replaces Tennant 41295 | 1 | Hose, Pvc, Clr, 0.38id 0.56od 48.00lSerial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | TN4036929Replaces Tennant 1011885 | 1 | Cap, TankSerial 008000 and later. | $69.10/EA |
| 20 | TN1072877Tennant 1072877 | 1 | Switch Assy, Press, 3.0, 17.5l TubeSerial 008000 to 011138. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4033731Replaces Tennant 32183 | 1 | Fitting, Brs, E90, Pm02/Bm03Serial 008000 to 011138. | $9.90/EA |
| 22 | TN4032040Replaces Tennant 1031572 | 1 | Hose, Afmkt, Vacuum, 0.16id, 01ftSerial 008000 to 011138. | $12.50/EA |
| 23 | TN4044360Replaces Tennant 14877 | 1 | Fitting, Plstc, E90, Bm12/Pm12Serial 008000 and later. | $6.20/EA |
| 24 | TN4037982Replaces Tennant 1015033 | 1 | Hose, Afmkt, Pvc, Brd 0.62Id, 01Ft, ClrSerial 008000 and later. | $60.00/EA |
| 25 | TN4032003Replaces Tennant 10632-2 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .12 MatlSerial 008000 and later. | $0.80/EA |
| 26 | TN4043976Replaces Tennant 1039019 | 1 | Filter, Soltn, 020mesh, Pm12 3.2d 08.0lSerial 008000 and later. | $51.50/EA |
| 27 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11Serial 011139 and later. | $78.50/EA |
| 28 | TN4043530Replaces Tennant 1037816 | 1 | Bracket, Protector, Float SwitchSerial 011139 and later. | $43.60/EA |
| 29 | TN4041942Replaces Tennant 09007 | 2 | Screw, Hex, M6 X 1.00 X 25, SsSerial 011139 and later. | $3.30/EA |
| 30 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 011139 and later. | $2.50/EA |
| 31 | TN4027617Replaces Tennant 76426 | 2 | Washer, Sealing, 0.28b 0.75d Ss, NeoSerial 011139 and later. | $3.50/EA |

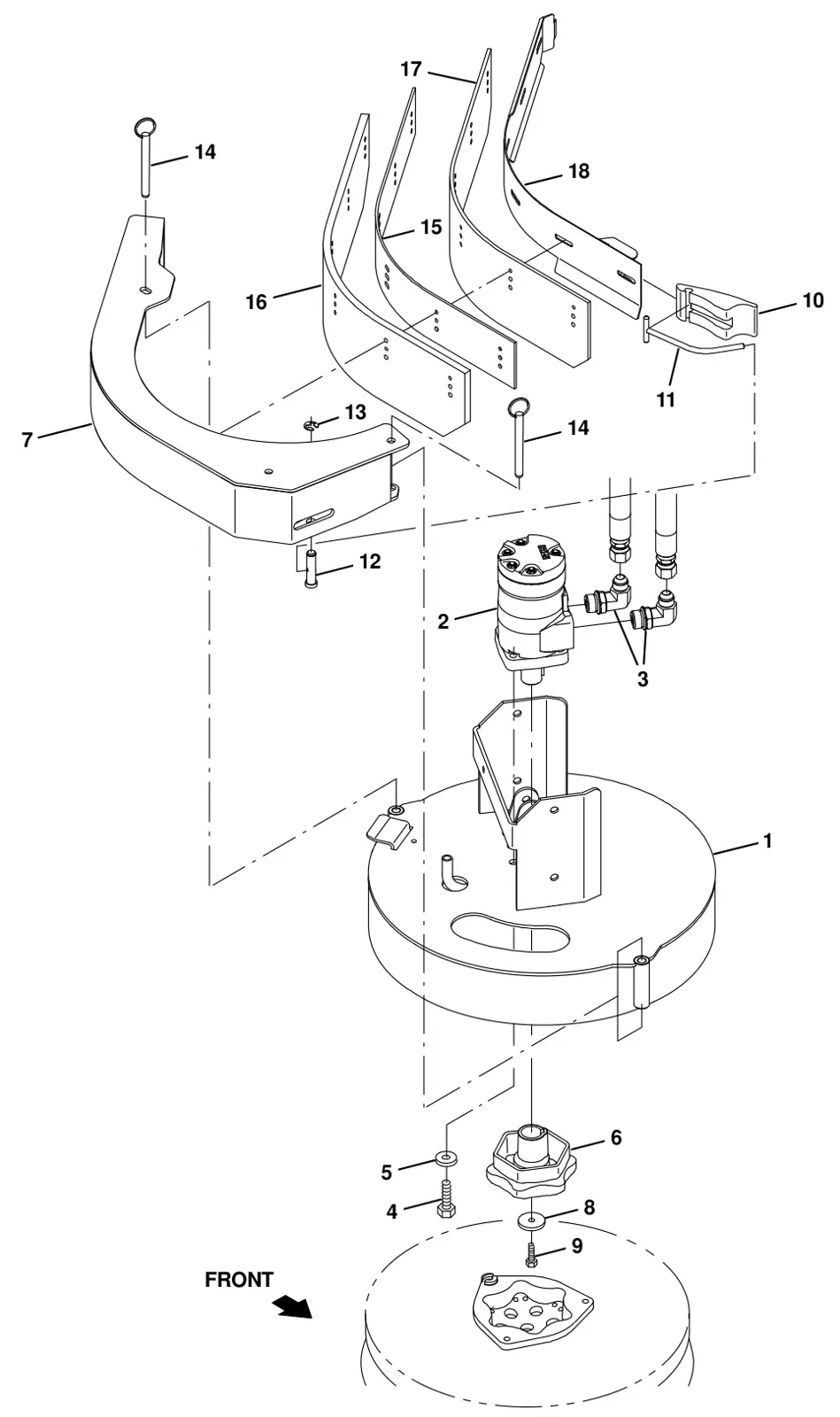

Tennant T20 Diesel side Brush Motor Group (option) parts
The parts Tennant numbers on its side brush motor group (option) drawing. Manual pages 171, list 172.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043026Replaces Tennant 1047002 | 1 | Bracket Wldt, Mtg, Side Brush FixedSerial 008000 and later. | $473.90/EA |
| 2 | TN4030083Replaces Tennant 1068812 | 1 | Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500Complete assembly. Serial 008000 and later. | $616.10/EA |
| – | TN8005882Replaces Tennant 22615 | 1 | Seal Kit, Motor [Cl]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1068812). Serial 008000 and later. | $112.10/EA |
| 3 | TN4029149Replaces Tennant 56821 | 2 | Fitting, Hyd, E90, Jm08/Om10Serial 008000 and later. | $36.80/EA |
| 4 | TN4042969Replaces Tennant 01762 | 4 | Screw, Hex, .38-16 X 0.75, NlSerial 008000 and later. | $3.20/EA |
| 5 | TN4034138Replaces Tennant 32492 | 4 | Washer, Flat, 0.38 StdSerial 008000 and later. | $2.50/EA |
| 6 | TN4041657Replaces Tennant 1042968 | 1 | Hub, Drive, Brush, Disk, 1.00b [6t]Serial 008000 and later. | $121.80/EA |
| 7 | TN4043021Replaces Tennant 1046976 | 1 | Bumper Wldt, Brush, SideSerial 008000 and later. | $184.00/EA |
| 8 | TN4042424Replaces Tennant 19191 | 1 | SpacerSerial 008000 and later. | $9.00/EA |
| 9 | TN4035411Replaces Tennant 25046 | 1 | Screw, Hex, .25-20 X 1.00, 5Serial 008000 and later. | $3.20/EA |
| 10 | TN4037481Replaces Tennant 1222020 | 1 | Cam, Front, YelSerial 008000 and later. | $13.70/EA |
| 11 | TN4021717Replaces Tennant 386298 | 1 | Pin Wldt, FrontSerial 008000 and later. | $40.30/EA |
| 12 | TN4039420Replaces Tennant 21603 | 1 | Pin, Grvd, 0.43d 01.8l [303ss]Serial 008000 and later. | $16.60/EA |
| 13 | TN4035383Replaces Tennant 24555 | 1 | Ring, Retaining, Ext, 0.38d, [E-Ring]Serial 008000 and later. | $2.40/EA |
| 14 | TN4031918Replaces Tennant 369359 | 2 | Pin, Hitch, .375d X 3.12l, PlSerial 008000 and later. | $7.50/EA |
| 15 | TN4043024Replaces Tennant 1046995 | 1 | Spacer, Sqge, Side BrushSerial 008000 and later. | $20.00/EA |
| 16 | TN4043022Replaces Tennant 1046980 | 1 | Blade, Sqge, Side Brush, LinatexSerial 008000 and later. | $59.89/EA |
| 16 | TN4036799Replaces Tennant 1059091 | 1 | Blade, Sqge, Side Brush, UrethaneSerial 008000 and later. | $91.61/EA |
| 17 | TN4043073Replaces Tennant 1047238 | 1 | Blade, Sqge, Side Brush, LinatexSerial 008000 and later. | $31.51/EA |
| 17 | TN4036800Replaces Tennant 1059092 | 1 | Blade, Sqge, Side Brush, UrethaneSerial 008000 and later. | $55.85/EA |
| 18 | TN4043029Replaces Tennant 1047060 | 1 | Plate Wldt, Retainer, SqgeSerial 008000 and later. | $107.80/EA |

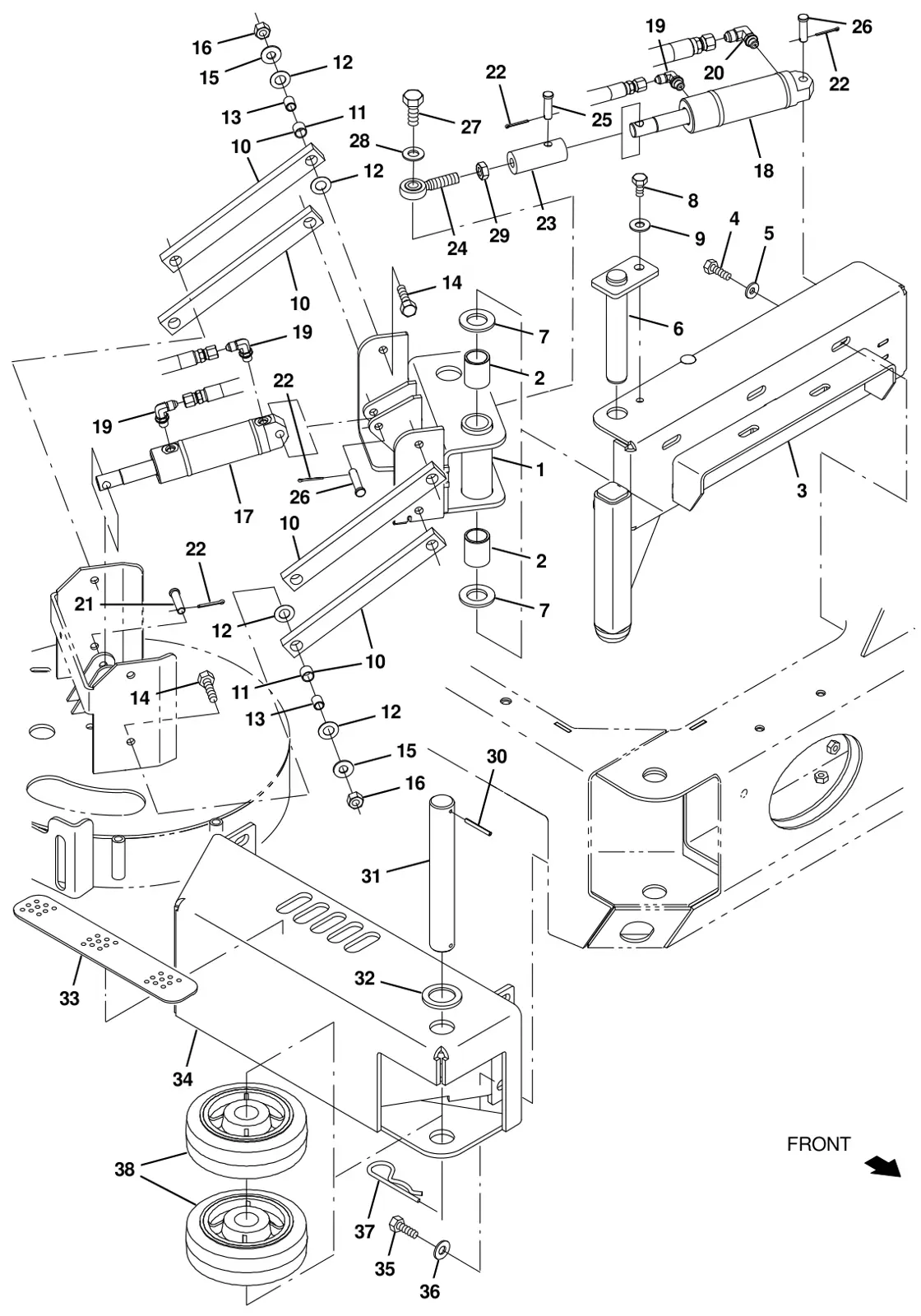

Tennant T20 Diesel side Brush Lift Group (option) parts
The parts Tennant numbers on its side brush lift group (option) drawing. Manual pages 173, list 174.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036647Replaces Tennant 1021439 | 1 | Pivot Wldt, Brush, SideSerial 008000 and later. | $330.60/EA |
| 2 | TN4015898Replaces Tennant 71868 | 2 | Bushing, Sleeve, 1.00b 1.13d 1.50l, FglSerial 008000 and later. | $13.70/EA |
| 3 | TN4032801Replaces Tennant 1021473 | 1 | Channel Wldt, PivotSerial 008000 and later. | $329.10/EA |
| 4 | TN4041943Replaces Tennant 09010 | 5 | Screw, Hex, M8 X 1.25 X 25, SsSerial 008000 and later. | $3.30/EA |
| 5 | TN4016796Replaces Tennant 41186 | 5 | Washer, Flat, Belleville, .31Serial 008000 and later. | $3.50/EA |
| 6 | TN4032822Replaces Tennant 1021617 | 1 | Pin WldtSerial 008000 and later. | $42.00/EA |
| 7 | TN4015900Replaces Tennant 71869 | 2 | Washer, Thrust, 1.00b 1.75d 0.13w, FbrSerial 008000 and later. | $27.10/EA |
| 8 | TN4041828Replaces Tennant 16735 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial 008000 and later. | $3.40/EA |
| 9 | TN4034137Replaces Tennant 32491 | 1 | Washer, Flat, 0.31, StdSerial 008000 and later. | $2.50/EA |
| 10 | TN4021139Replaces Tennant 63175-1 | 4 | Arm, LinkComplete assembly. Serial 008000 and later. | $62.20/EA |
| 11 | TN4021144Replaces Tennant 63233 | 2 | Bushing, Sleeve, 0.50b 0.59d 0.50l, BnzPart of Arm, Link (63175-1). Serial 008000 and later. | $8.40/EA |
| 12 | TN4026841Replaces Tennant 59633 | 16 | Bearing, Thrust, 0.53b 1.00d 0.03wSerial 008000 and later. | $6.30/EA |
| 13 | TN4030655Replaces Tennant 1027926 | 8 | Sleeve, P/M, 0.37b 0.50d 0.6l [430ss]Serial 008000 and later. | $4.20/EA |
| 14 | TN4031575Replaces Tennant 36845 | 8 | Screw, Hex, .38-16 X 1.50, SsSerial 008000 and later. | $4.00/EA |
| 15 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.31, SsSerial 008000 and later. | $2.60/EA |
| 16 | TN4026793Replaces Tennant 59156 | 8 | Nut, Hex, Lock, .38-16, Nl, SsSerial 008000 and later. | $4.00/EA |
| 17 | TN4043614Replaces Tennant 1038137 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500Serial 008000 and later. | $388.60/EA |
| 18 | TN4043598Replaces Tennant 1038115 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500Serial 008000 and later. | $223.30/EA |
| 19 | TN4025260Replaces Tennant 77097 | 3 | Fitting, Hyd, E90, Jm04/Om04Serial 008000 and later. | $14.70/EA |
| 20 | TN4025261Replaces Tennant 77098 | 1 | Fitting, Hyd, E90, Jm06/Om04Serial 008000 and later. | $15.50/EA |
| 21 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37d X 1.50lSerial 008000 and later. | $3.90/EA |
| 22 | TN4041634Replaces Tennant 08179 | 4 | Pin, Cotter, .094 X 1.00Serial 008000 and later. | $2.50/EA |
| 23 | TN4032808Replaces Tennant 1021564 | 1 | Adapter, Rod-End, Side BrushSerial 008000 and later. | $56.00/EA |
| 24 | TN4015904Replaces Tennant 71874 | 1 | Rod-End, .50-20rh Mal 0.50bSerial 008000 and later. | $42.70/EA |
| 25 | TN4036074Replaces Tennant 29557 | 1 | Pin, Clevis, 0.37d X 1.31lSerial 008000 and later. | $3.20/EA |
| 26 | TN4041878Replaces Tennant 17461 | 2 | Pin, Clevis, 0.37d X 1.75lSerial 008000 and later. | $4.00/EA |
| 27 | TN4016809Replaces Tennant 41346 | 1 | Screw, Hex, M12 X 1.75 X 30, 8.8Serial 008000 and later. | $4.00/EA |
| 28 | TN4034135Replaces Tennant 32486 | 1 | Washer, Flat, 0.50 SaeSerial 008000 and later. | $2.60/EA |
| 29 | TN4013991Replaces Tennant 48985 | 1 | Nut, Hex, Jam, .50-20Serial 008000 and later. | $3.40/EA |
| 30 | TN4035025Replaces Tennant 23146 | 1 | Pin, Roll, .187d X 1.62l, .187/.192Serial 008000 and later. | $2.50/EA |
| 31 | TN4038392Replaces Tennant 1053838 | 1 | Pin, 30mmd X 215mmlSerial 008000 and later. | $74.40/EA |
| 32 | TN4013894Replaces Tennant 47719 | 1 | Washer, Flat, 1.26b 1.88d .13, StlSerial 008000 and later. | $4.10/EA |
| 33 | TN4024613Replaces Tennant 82839 | 1 | Tread, Non-Skid, 02.2w 11.5lSerial 008000 and later. | $6.10/EA |
| 34 | TN4032919Replaces Tennant 1022318 | 1 | Guard Wldt, Brush, SideSerial 008000 and later. | $562.80/EA |
| 35 | TN4035960Replaces Tennant 12317 | 4 | Screw, Hex, M10 X 1.5 X 30, SsSerial 008000 and later. | $4.90/EA |
| 36 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, SsSerial 008000 and later. | $3.30/EA |
| 37 | TN4031623Replaces Tennant 34411 | 1 | Pin, Cotter, Hair, 1.00d .178 WirSerial 008000 and later. | $4.00/EA |
| 37 | TN4034399Replaces Tennant 1060130 | 2 | Wheel, 06.0D 2.00W 1.19B, Gray RbrSerial 008000 and later. | $21.60/EA |

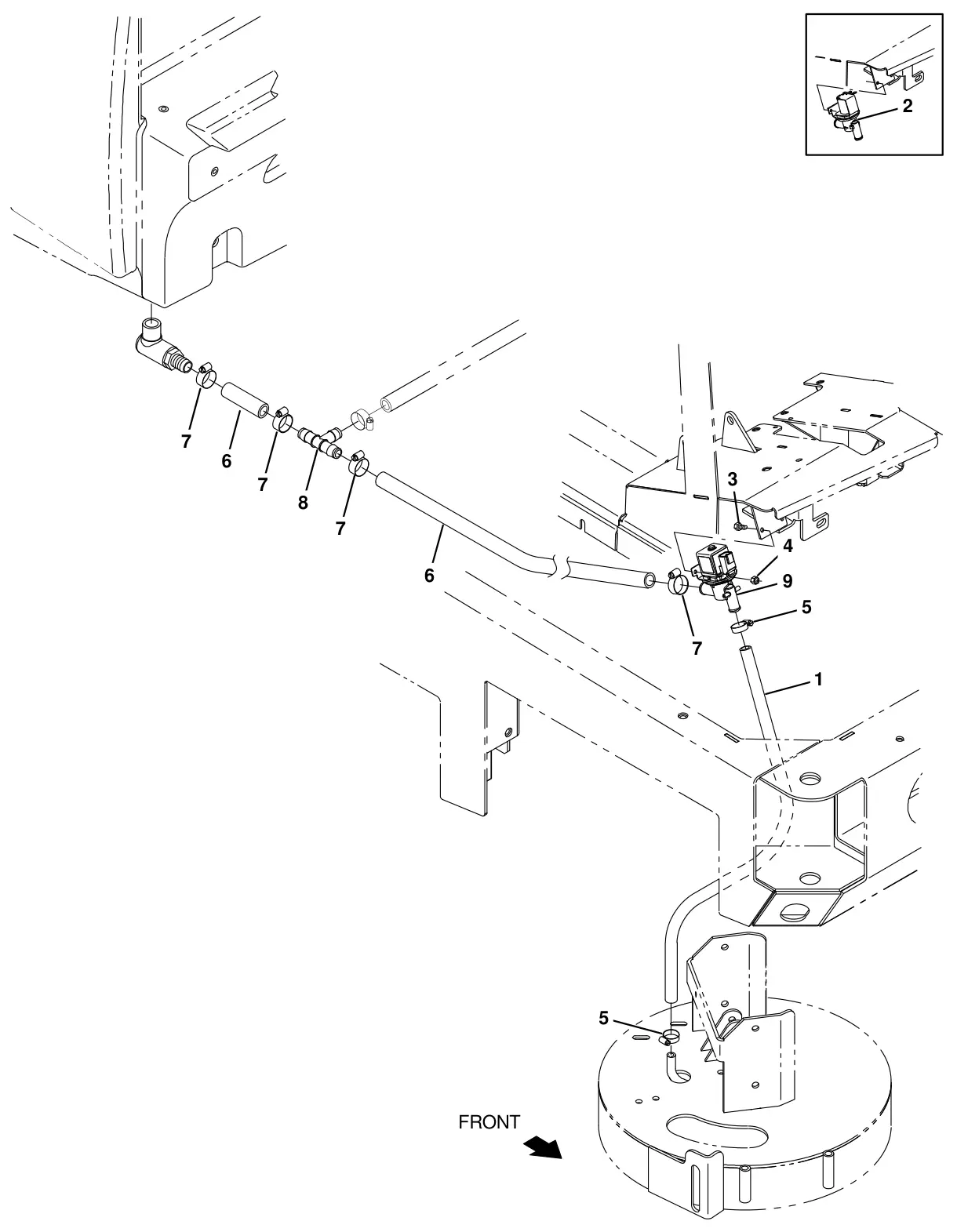

Tennant T20 Diesel side Brush Solution Control Group (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its side brush solution control group (s/n 008000 - 013000) (option) drawing. Manual pages 175, list 176.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN50178Tennant 50178 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 26.00lSerial 008000 to 013000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4024340Replaces Tennant 9016494 | 1 | Valve Kit, Replacement 12v St FlowSerial 008000 to 009613. | $90.00/EA |
| 3 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.8 X 12, SsSerial 008000 to 013000. | $3.30/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.8, Nl, SsSerial 008000 to 013000. | $3.30/EA |
| 5 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 to 013000. | $5.10/EA |
| 6 | TN4037981Replaces Tennant 1015032 | 1 | Hose, Afmkt, Pvc, Brd 0.62id 08ftSerial 008000 to 013000. | $80.40/EA |
| 7 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 to 013000. | $6.80/EA |
| 8 | TN4034918Replaces Tennant 1062116 | 1 | Fitting, Plstc, Tee, Bm10/Bm10/Bm10, NylSerial 008000 to 013000. | $6.20/EA |
| 9 | TN4045102Replaces Tennant 1075241 | 1 | Valve Assy, Water, Solenoid, 12vdcSerial 009614 to 013000. | $88.70/EA |

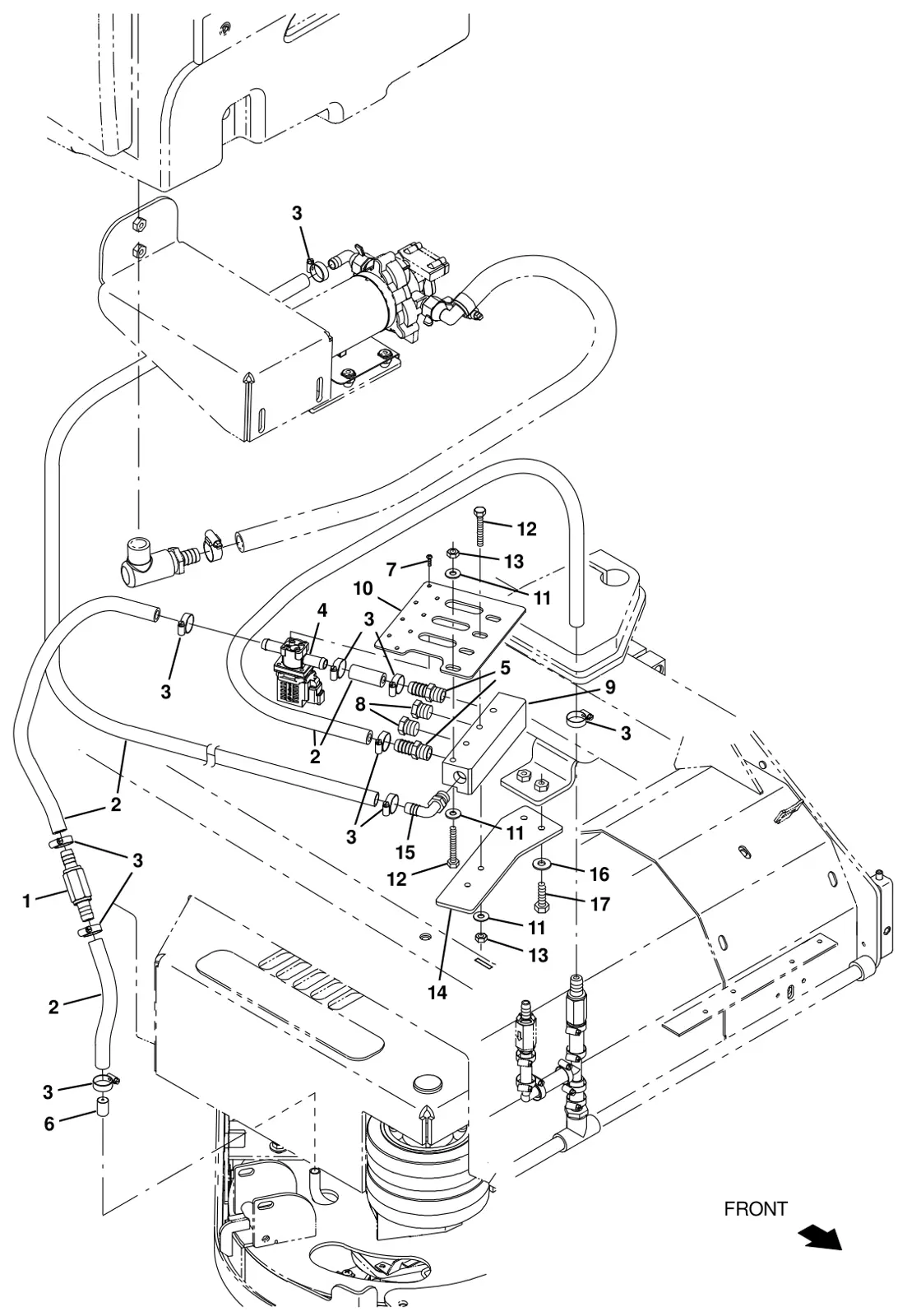

Tennant T20 Diesel side Brush Solution Control Group (S/N 013001 -) (option) parts
The parts Tennant numbers on its side brush solution control group (s/n 013001 -) (option) drawing. Manual pages 177, list 178.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031487Replaces Tennant 1251530 | 1 | Valve, Check, 1.0psi, Bm08/Bm08Serial 013001 and later. | $39.20/EA |
| 2 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 013001 and later. | $70.70/EA |
| 3 | TN4015366Replaces Tennant 54333 | 6 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 4 | TN4042944Replaces Tennant 1076870 | 1 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Serial 013001 and later. | $122.10/EA |
| 5 | TN4017637Replaces Tennant 64743 | 2 | Fitting, Plstc, Str, Bm08/Pm06Serial 013001 and later. | $6.20/EA |
| 6 | TN4032259Replaces Tennant 1256639 | 1 | Fitting, Plastic, Rst, 3.00mmSerial 013001 and later. | $29.60/EA |
| 7 | TN4011920Replaces Tennant 763149 | 2 | Screw, Pan, 06-X 0.38, F/ PlstcSerial 013001 and later. | $1.50/EA |
| 8 | TN4020528Replaces Tennant 630146 | 2 | Fitting, Plug, Pm06, HdpeSerial 013001 and later. | $4.00/EA |
| 9 | TN4032111Replaces Tennant 1254833 | 1 | Manifold, SolnSerial 013001 and later. | $121.00/EA |
| 10 | TN4032116Replaces Tennant 1254856 | 1 | Plate, Manifold, MtgSerial 013001 and later. | $25.55/EA |
| 11 | TN4034136Replaces Tennant 32490 | 1 | Washer, Flat, 0.25, StdSerial 013001 and later. | $2.50/EA |
| 12 | TN4032379Replaces Tennant 1257800 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlSerial 013001 and later. | $14.14/EA |
| 13 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 013001 and later. | $2.50/EA |
| 14 | TN4043042Replaces Tennant 1077124 | 1 | Bracket, Manifold, StratusSerial 013001 and later. | $10.20/EA |
| 15 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 16 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 013001 and later. | $2.50/EA |
| 17 | TN4156940Replaces Tennant 39277 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Serial 013001 and later. | $3.20/EA |

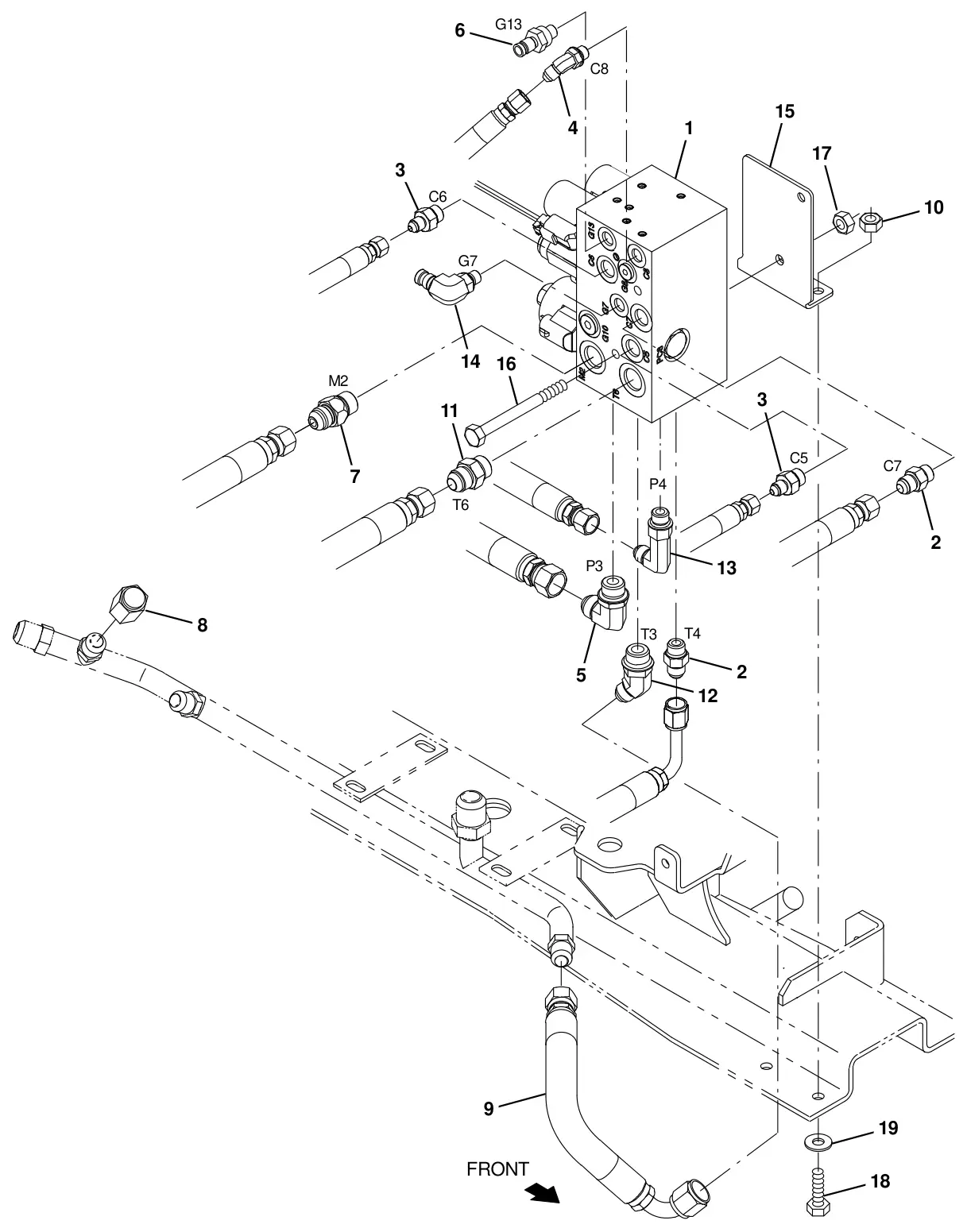

Tennant T20 Diesel side Brush Hydraulic Valve Group (option) parts
The parts Tennant numbers on its side brush hydraulic valve group (option) drawing. Manual pages 179, list 180.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

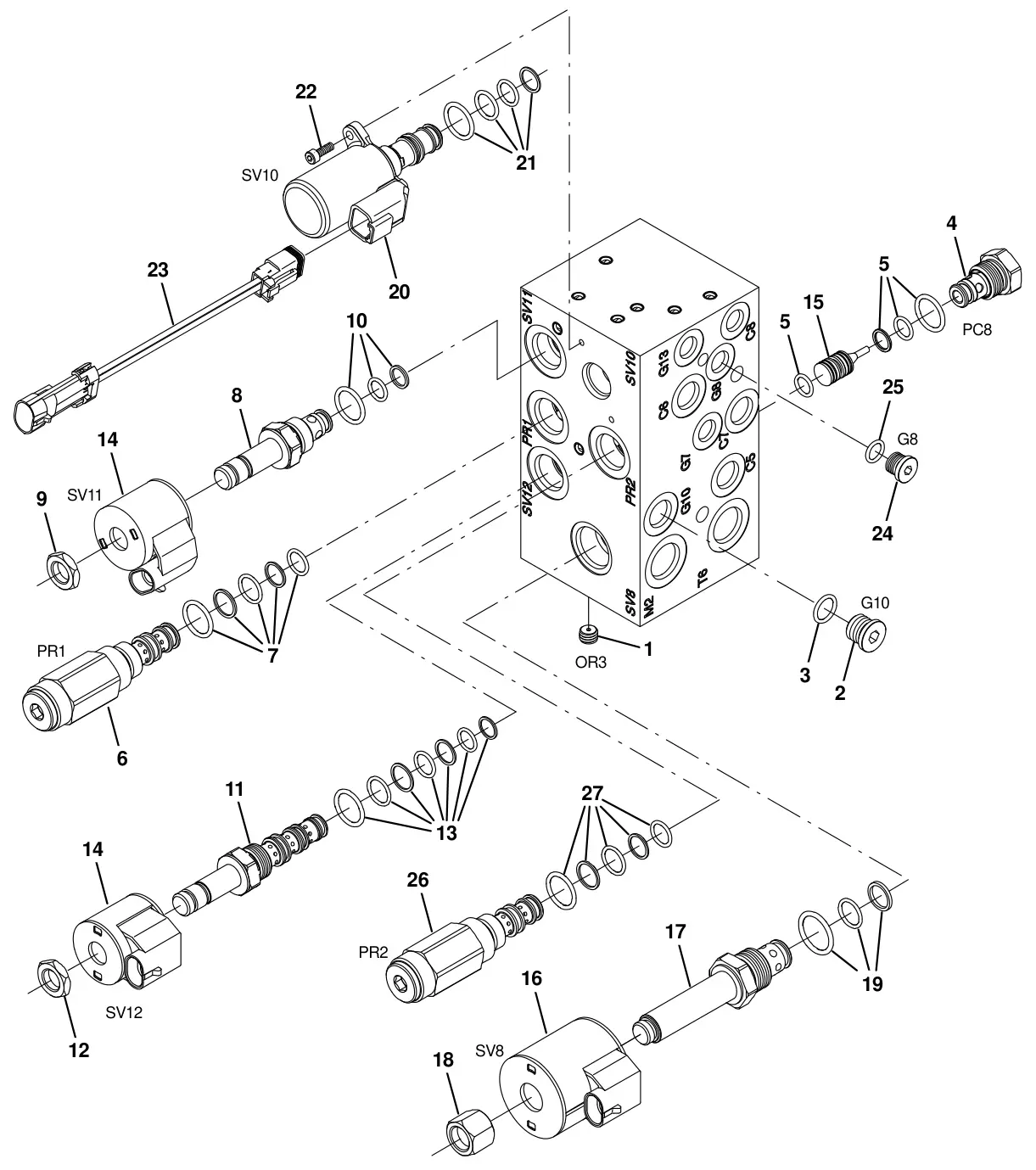

| 1 | TN4031319Replaces Tennant 1072997 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns)Serial 008000 and later. | $1,504.00/EA |
| 2 | TN4029145Replaces Tennant 56690 | 2 | Fitting, Hyd, Str, Jm06/Om06Serial 008000 and later. | $9.60/EA |
| 3 | TN4028732Replaces Tennant 55685 | 2 | Fitting, Hyd, Str, Jm04/Om06Serial 008000 and later. | $7.90/EA |
| 4 | TN4031286Replaces Tennant 34359 | 1 | Fitting, Hyd, E45, Jm04/Om04Serial 008000 and later. | $11.80/EA |
| 5 | TN4017776Replaces Tennant 44868 | 1 | Fitting, Hyd, E90, Jm08/Om08Serial 008000 and later. | $10.30/EA |
| 6 | TN4015806Replaces Tennant 395973 | 1 | Fitting, Hyd, Str, Om04/Qm04Serial 008000 and later. | $26.30/EA |
| 7 | TN4034233Replaces Tennant 1026119 | 1 | Valve, Hyd, Check, Jm08/Om08 5000psiSerial 008000 and later. | $41.50/EA |
| 8 | TN4027429Replaces Tennant 60090 | 1 | Fitting, Hyd, Cap, Jf08Serial 008000 and later. | $7.70/EA |
| 9 | TN4045589Replaces Tennant 1037011 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 012.0Serial 008000 and later. | $39.49/EA |
| 10 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 008000 and later. | $3.30/EA |
| 11 | TN4017777Replaces Tennant 44869 | 1 | Fitting, Hyd, Str, Jm08/Om08Serial 008000 and later. | $7.00/EA |
| 12 | TN4017335Replaces Tennant 42226 | 1 | Fitting, Hyd, E45, Jm08/Om08Serial 008000 and later. | $11.80/EA |
| 13 | TN4015703Replaces Tennant 71727 | 1 | Fitting, Hyd, E90, Jf06/Jm06, LongSerial 008000 and later. | $32.20/EA |
| 14 | TN4015807Replaces Tennant 395974 | 1 | Fitting, Hyd, E90, Om04/Qm04Serial 008000 and later. | $36.40/EA |
| 15 | TN4042495Replaces Tennant 1045272 | 1 | Bracket, Valve, Sba [M20 And T20]Serial 008000 and later. | $14.45/EA |
| 16 | TN4027793Replaces Tennant 364441 | 2 | Screw, Hex, M8 X 1.25 X 110, SsSerial 008000 and later. | $4.90/EA |
| 17 | TN4041926Replaces Tennant 08709 | 2 | Nut, Hex, Lock, M8 X 1.25, NlSerial 008000 and later. | $2.50/EA |
| 18 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 008000 and later. | $3.30/EA |
| 19 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 008000 and later. | $2.50/EA |

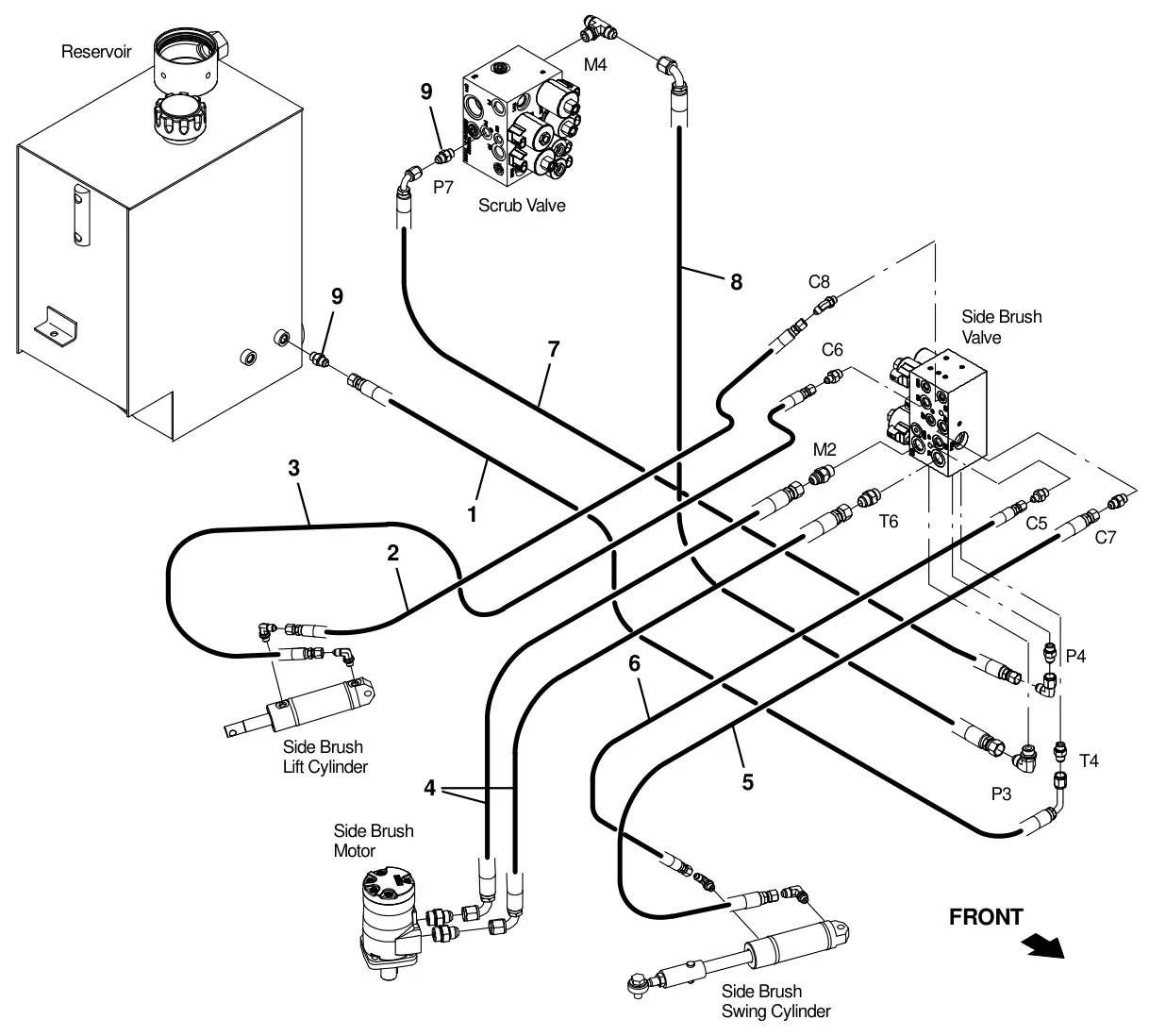

Tennant T20 Diesel side Brush Hydraulic Hose Group (option) parts
The parts Tennant numbers on its side brush hydraulic hose group (option) drawing. Manual pages 181, list 182.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029569Replaces Tennant 361047 | 1 | Hose, Hyd, Med06, Jf06e90l/Jf06str,038.0Serial 008000 and later. | $42.00/EA |
| 2 | TN4033270Replaces Tennant 1023485 | 1 | Hose, Hyd, Tc06, Jf04str/Jf04str, 033.0Serial 008000 and later. | $41.92/EA |
| 3 | TN4034220Replaces Tennant 1025990 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04str, 39.0Serial 008000 and later. | $51.70/EA |
| 4 | TN4045583Replaces Tennant 1036965 | 2 | Hose, Hyd, Tc08, Jf08Str/Jf08Str, 034.0Serial 008000 and later. | $50.50/EA |
| 5 | TN4034221Replaces Tennant 1025991 | 1 | Hose, Hyd, Tc06, Jf06str /Jf06str, 23.0Serial 008000 and later. | $32.90/EA |
| 6 | TN4034222Replaces Tennant 1025992 | 1 | Hose, Hyd, Tc04, Jf04str /Jf04str, 20.0Serial 008000 and later. | $30.60/EA |
| 7 | TN4045574Replaces Tennant 1036906 | 1 | Hose, Hyd, Tc06, Jf06str /Jf06e90, 74.0Serial 008000 and later. | $57.60/EA |
| 8 | TN4030689Replaces Tennant 1028270 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 084.0Serial 008000 and later. | $70.70/EA |
| 9 | TN4029145Replaces Tennant 56690 | 2 | Fitting, Hyd, Str, Jm06/Om06Serial 008000 and later. | $9.60/EA |

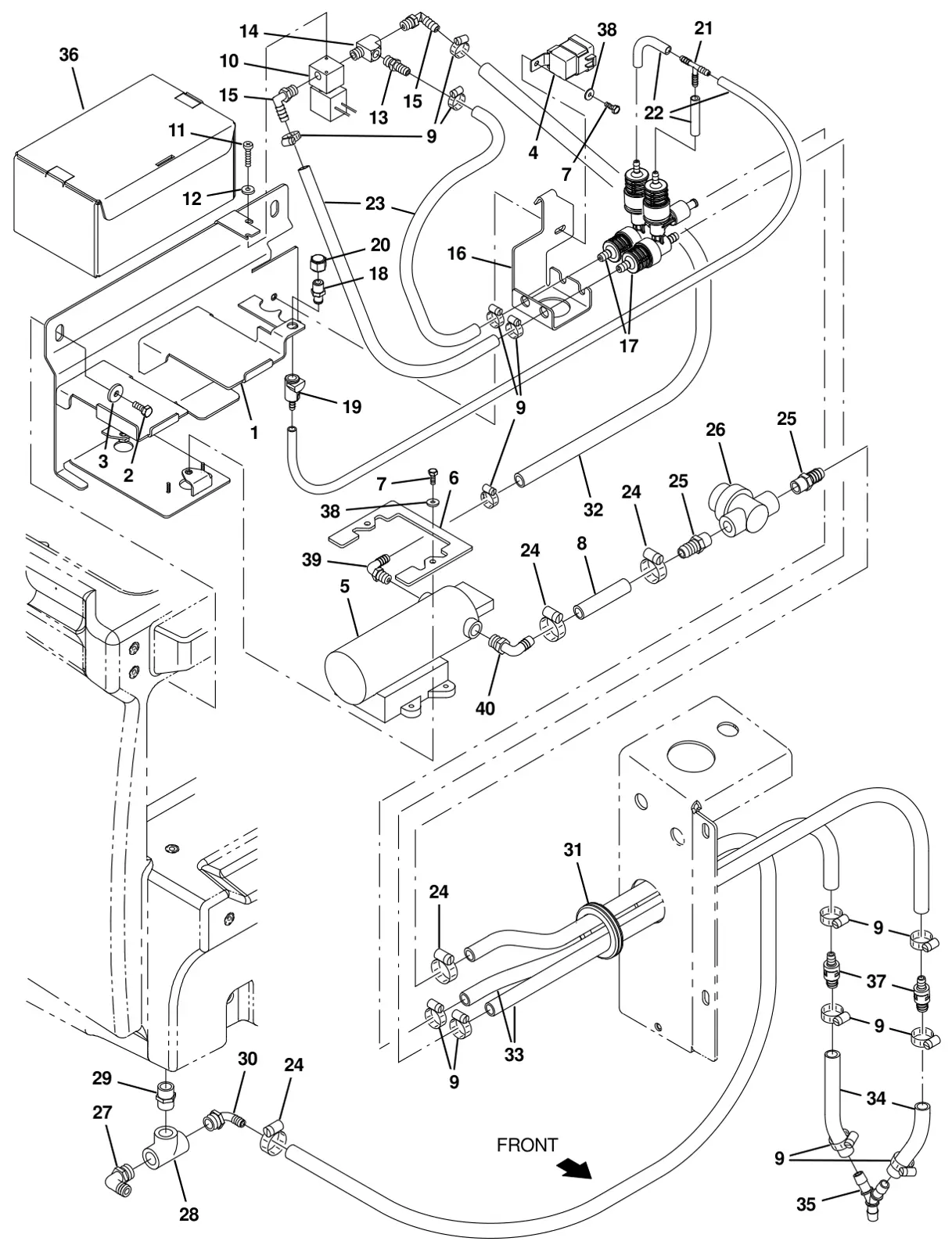

Tennant T20 Diesel faST Pumps and Detergent Group (option) parts
The parts Tennant numbers on its fast pumps and detergent group (option) drawing. Manual pages 183, list 184.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4189669Replaces Tennant 1044342 | 1 | Bracket Wldt, Mtg [FaST Gen 2+]Serial 008000 and later. | $167.05/EA |
| 2 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, SsSerial 008000 and later. | $3.30/EA |
| 3 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsSerial 008000 and later. | $3.40/EA |
| 4 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoSerial 008000 and later. | $11.30/EA |
| 5 | TN4045556Replaces Tennant 1036801 | 1 | Pump, Soltn, 13.7vdc, 65psi [FaST Ii+]Serial 008000 and later. | $593.80/EA |
| 6 | TN4191121Replaces Tennant 1039357 | 1 | Bracket, Retainer, PumpSerial 008000 and later. | $9.15/EA |
| 7 | TN4041245Replaces Tennant 15678 | 3 | Screw, Hex, M6 X 1.00 X 16, SsSerial 008000 and later. | $3.20/EA |
| 8 | TN4036839Replaces Tennant 1011403 | 1 | Hose, Afmkt, Pvc, Brd, 0.50Id, 01Ft, ClrSerial 008000 and later. | $19.40/EA |
| 9 | TN4017396Replaces Tennant 43844 | 14 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 008000 and later. | $4.20/EA |
| 10 | TN4035534Replaces Tennant 1018098 | 1 | Valve, Water, Solenoid, 12vdc 6.0mm Pf04Serial 008000 and later. | $329.20/EA |
| 11 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial 008000 and later. | $3.40/EA |
| 12 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 008000 and later. | $2.60/EA |
| 13 | TN4041118Replaces Tennant 150540 | 1 | Fitting, Plstc, Str, Bm06/Pm04Serial 008000 and later. | $4.20/EA |
| 14 | TN4041151Replaces Tennant 150709 | 1 | Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunSerial 008000 and later. | $14.40/EA |
| 15 | TN4029298Replaces Tennant 57248 | 2 | Fitting, Plstc, E90, Bm06/Pm04, NylSerial 008000 and later. | $7.00/EA |
| 16 | TN4189680Replaces Tennant 1044343 | 1 | Bracket, Mtg [FaST Gen 2+]Serial 008000 and later. | $23.03/EA |
| 17 | TN4010349Replaces Tennant 9008868 | 2 | FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns)Serial 008000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4038978Replaces Tennant 1005435 | 1 | Fitting, Plstc, Pipe, Cap, Pf04Serial 008000 and later. | $4.20/EA |
| 19 | TN4038929Replaces Tennant 1002898 | 1 | Fitting, Plstc, Str, Bm04, Cplg, FemSerial 008000 and later. | $58.00/EA |
| 20 | TN4038930Replaces Tennant 1002899 | 2 | Fitting, Plstc, Str, Pm04, Cplg, MalSerial 008000 and later. | $31.30/EA |
| 21 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04Serial 008000 and later. | $10.60/EA |
| 22 | TN4037973Replaces Tennant 1014986 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 02ftSerial 008000 and later. | $18.70/EA |
| 23 | TN4039305Replaces Tennant 1006416 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 03ftSerial 008000 and later. | $18.70/EA |
| 24 | TN4015366Replaces Tennant 54333 | 8 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 and later. | $5.10/EA |
| 25 | TN4044578Replaces Tennant 150538 | 2 | Fitting, Plstc, Str, Bm06/Pm06Serial 008000 and later. | $5.30/EA |
| 26 | TN4038961Replaces Tennant 1005302 | 1 | Filter, In-Line, Pf06/Pf06 080mesh 02.6lSerial 008000 and later. | $21.10/EA |
| 27 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12Serial 008000 and later. | $7.90/EA |
| 28 | TN4017317Replaces Tennant 42133A | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Serial 008000 and later. | $17.60/EA |
| 29 | TN4035382Replaces Tennant 24544 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lSerial 008000 and later. | $6.20/EA |
| 30 | TN4038988Replaces Tennant 1005552 | 1 | Fitting, Plstc, E90, Bm08/Pm12, NylSerial 008000 and later. | $7.90/EA |
| 31 | TN4032002Replaces Tennant 10632-19 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlSerial 008000 and later. | $1.50/EA |
| 32 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, ClrSerial 008000 and later. | $33.10/EA |
| 33 | TN4033588Replaces Tennant 1024237 | 1 | Hose, Afmkt, Pvc, Wir, 0.50id, 03ft, ClrSerial 008000 and later. | $27.20/EA |
| 34 | TN4037960Replaces Tennant 1014929 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 01ftSerial 008000 and later. | $21.00/EA |
| 35 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 008000 and later. | $11.00/EA |
| 36 | TN4035218Replaces Tennant 1017022 | 1 | Detergent, Pkg, 2 Liter, Sgl [665]Serial 008000 and later. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | TN4045437Replaces Tennant 1035794 | 2 | Valve, Check, 0005psi Bm06/Bm08Serial 008000 and later. | $35.90/EA |
| 38 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flat, 0.27B 0.69D .05, SsSerial 008000 and later. | $2.60/EA |
| 39 | TN4040112Replaces Tennant 1049254 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10Serial 008000 and later. | $11.80/EA |
| 40 | TN4040113Replaces Tennant 1049259 | 1 | Fitting, NylY, Qdc, E90, Bm06/ Qm10Serial 008000 and later. | $10.60/EA |

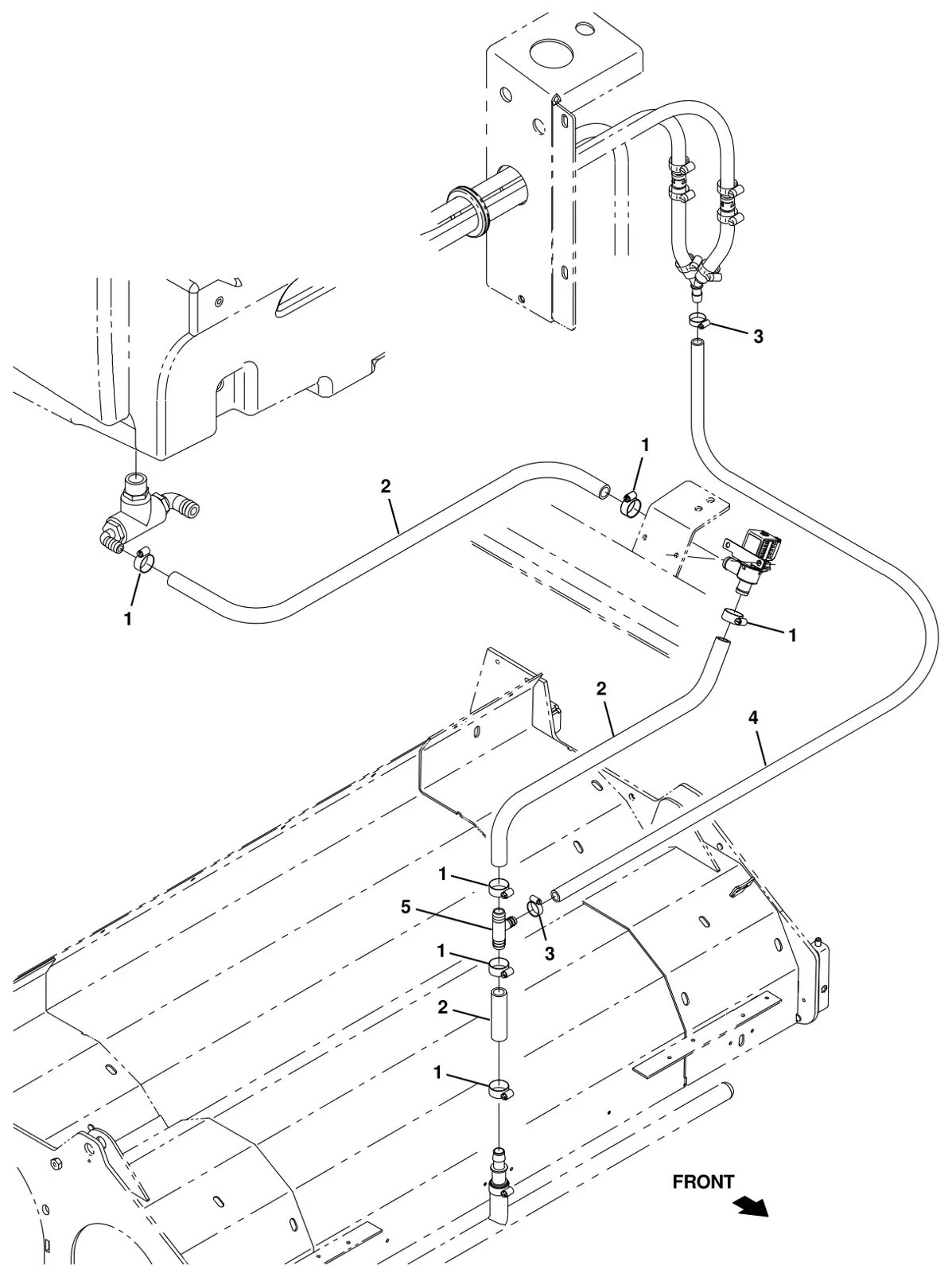

Tennant T20 Diesel faST Solution Supply Group, Cylindrical Scrub Head (option) parts
The parts Tennant numbers on its fast solution supply group, cylindrical scrub head (option) drawing. Manual pages 185, list 186.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089Replaces Tennant 63810 | 6 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 and later. | $6.80/EA |
| 2 | TN4037981Replaces Tennant 1015032 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrSerial 008000 and later. | $80.40/EA |
| 3 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 and later. | $5.10/EA |
| 4 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 008000 and later. | $70.70/EA |
| 5 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 008000 and later. | $5.30/EA |

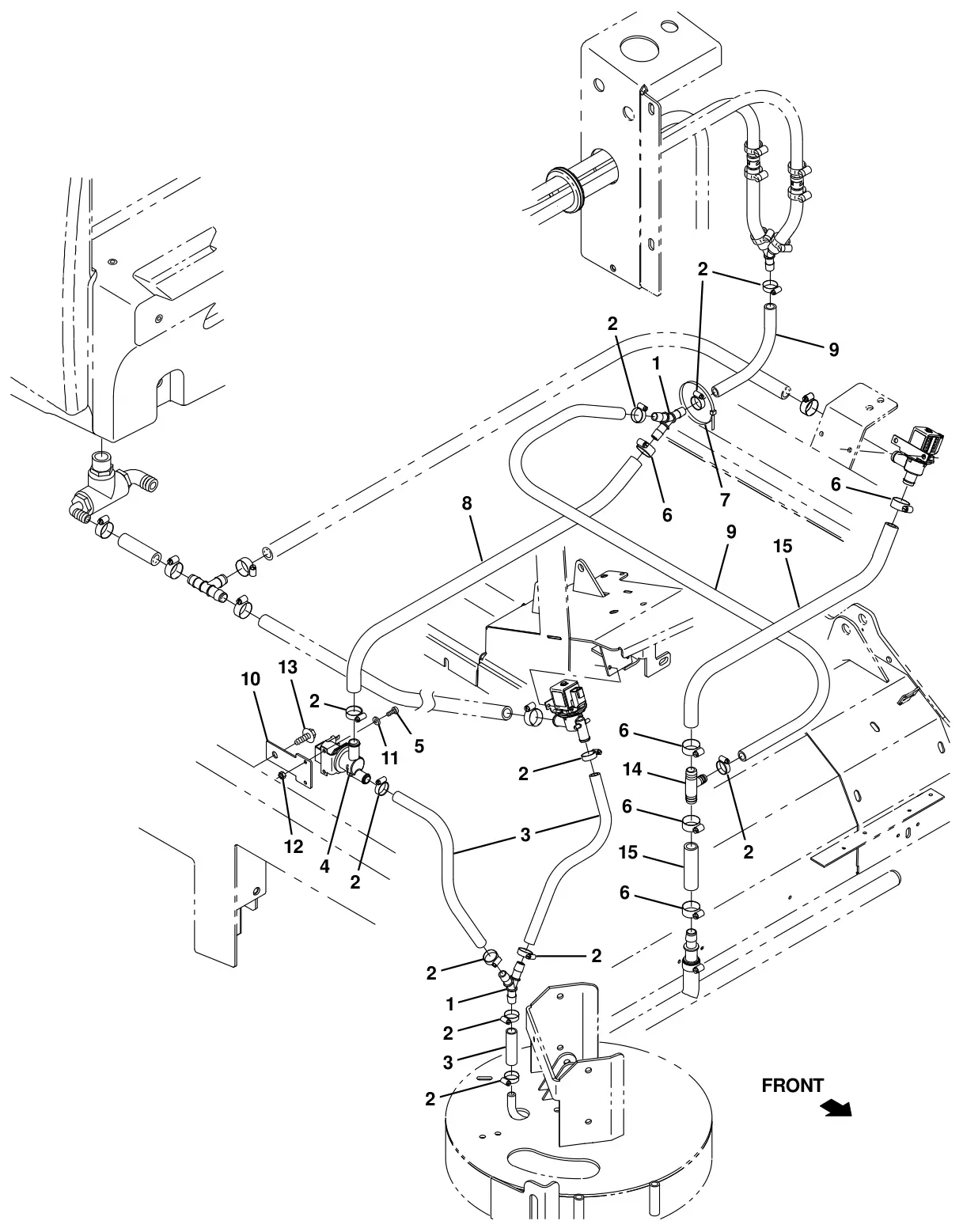

Tennant T20 Diesel faST Solution Supply Group with Side Brush, Cylindrical Scrub Head (option) parts
The parts Tennant numbers on its fast solution supply group with side brush, cylindrical scrub head (option) drawing. Manual pages 187, list 188.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375Replaces Tennant 1010668 | 2 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 008000 and later. | $11.00/EA |
| 2 | TN4015366Replaces Tennant 54333 | 11 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 and later. | $5.10/EA |
| 3 | TN4037991Replaces Tennant 1015067 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 08ftSerial 008000 and later. | $50.20/EA |
| 4 | TN4043533Replaces Tennant 1037825 | 1 | Valve, Solenoid, 12vdc, Water FlowSerial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial 008000 and later. | $3.40/EA |
| 6 | TN4017089Replaces Tennant 63810 | 5 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 and later. | $6.80/EA |
| 7 | TN4011910Replaces Tennant 763116 | 1 | Tie, Cable, Nyl, 15.3l . W 4.5 Max DFits T20 · cylindrical scrub head. Serial 008000 and later. | $3.40/EA |
| 8 | TN4033443Replaces Tennant 31543 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0Serial 008000 and later. | $37.40/EA |
| 9 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 008000 and later. | $70.70/EA |
| 10 | TN4031717Replaces Tennant 1030511 | 1 | Plate, Mtg, ValveSerial 008000 and later. | $4.75/EA |
| 11 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 008000 and later. | $2.60/EA |
| 12 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 008000 and later. | $3.30/EA |
| 13 | TN4013943Replaces Tennant 76099 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 008000 and later. | $4.00/EA |
| 14 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 008000 and later. | $5.30/EA |
| 15 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrSerial 008000 and later. | $31.50/EA |

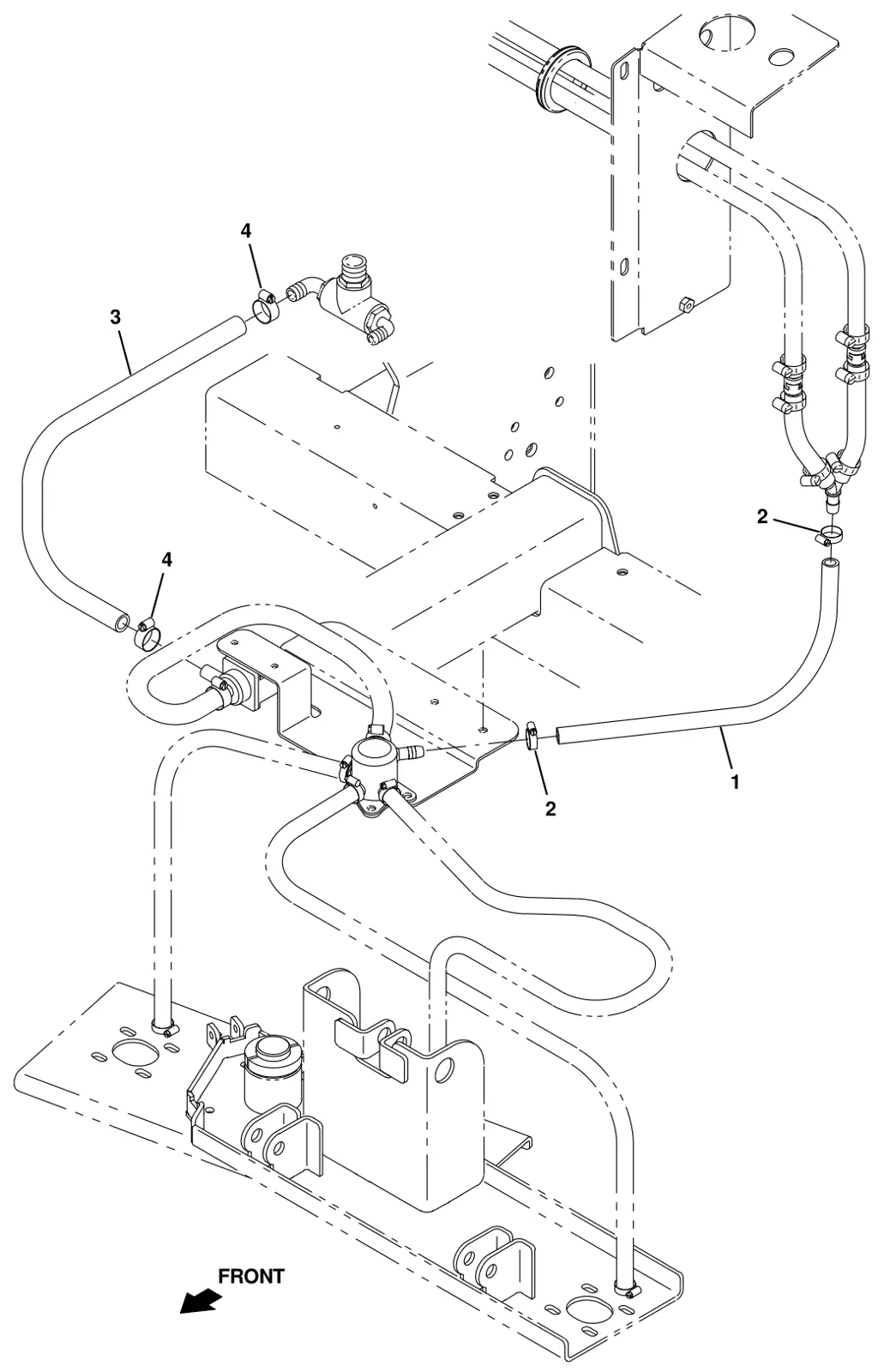

Tennant T20 Diesel faST Solution Supply Group, Disk Scrub Head (option) parts
The parts Tennant numbers on its fast solution supply group, disk scrub head (option) drawing. Manual pages 189, list 190.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 008000 and later. | $70.70/EA |
| 2 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 and later. | $5.10/EA |
| 3 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrSerial 008000 and later. | $31.50/EA |
| 4 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 and later. | $6.80/EA |

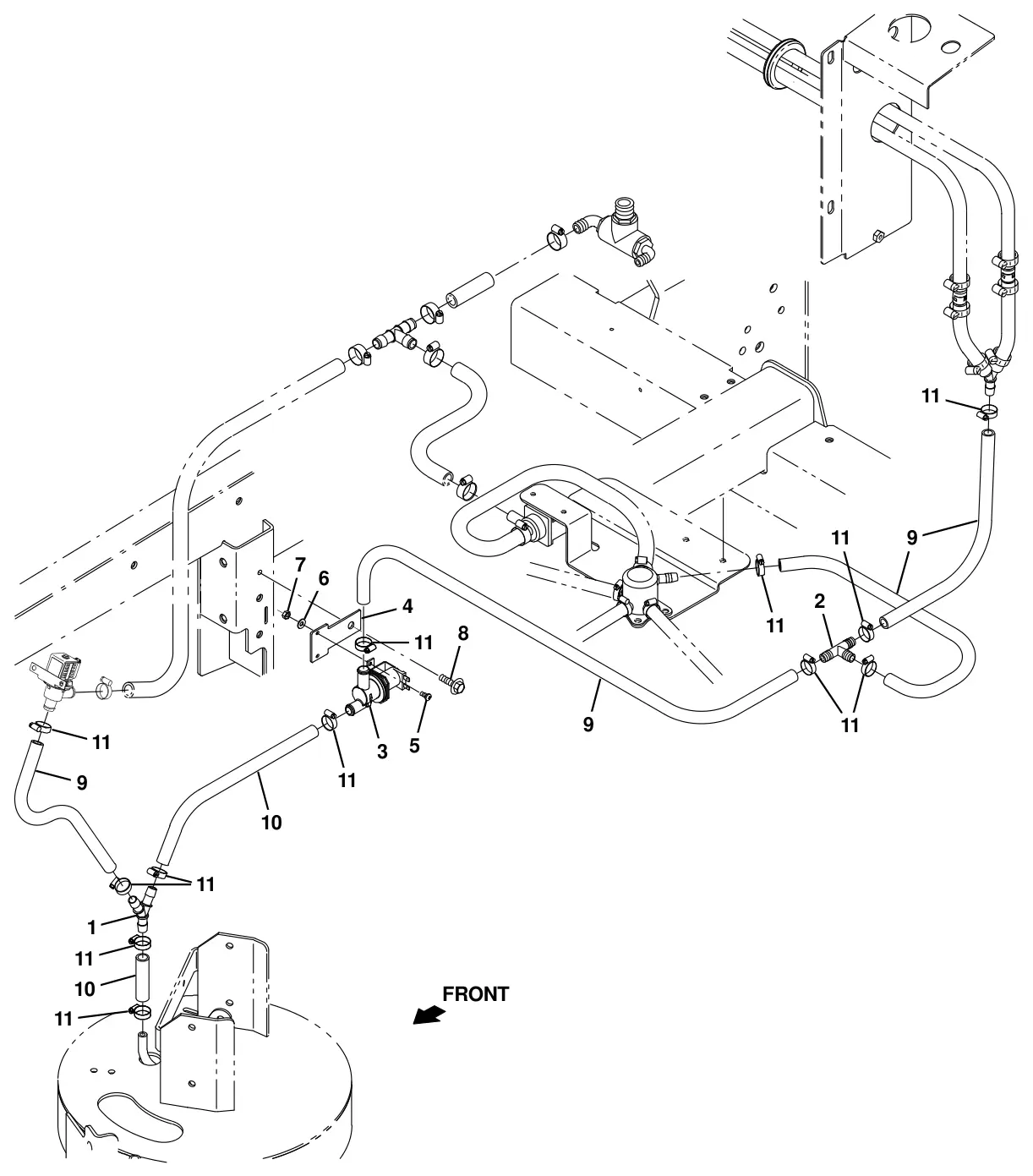

Tennant T20 Diesel faST Solution Supply Group with Side Brush, Disk Scrub Head (option) parts
The parts Tennant numbers on its fast solution supply group with side brush, disk scrub head (option) drawing. Manual pages 191, list 192.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 008000 and later. | $11.00/EA |
| 2 | TN4021151Replaces Tennant 63245-1 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Bm08Serial 008000 and later. | $6.20/EA |
| 3 | TN4043533Replaces Tennant 1037825 | 1 | Valve, Solenoid, 12vdc, Water FlowSerial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4031717Replaces Tennant 1030511 | 11 | Plate, Mtg, ValveSerial 008000 and later. | $4.75/EA |
| 5 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial 008000 and later. | $3.40/EA |
| 6 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 008000 and later. | $2.60/EA |
| 7 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 008000 and later. | $3.30/EA |
| 8 | TN4013943Replaces Tennant 76099 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 008000 and later. | $4.00/EA |
| 9 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 008000 and later. | $70.70/EA |
| 10 | TN4037991Replaces Tennant 1015067 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 08ftSerial 008000 and later. | $50.20/EA |
| 11 | TN4015366Replaces Tennant 54333 | 11 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 and later. | $5.10/EA |

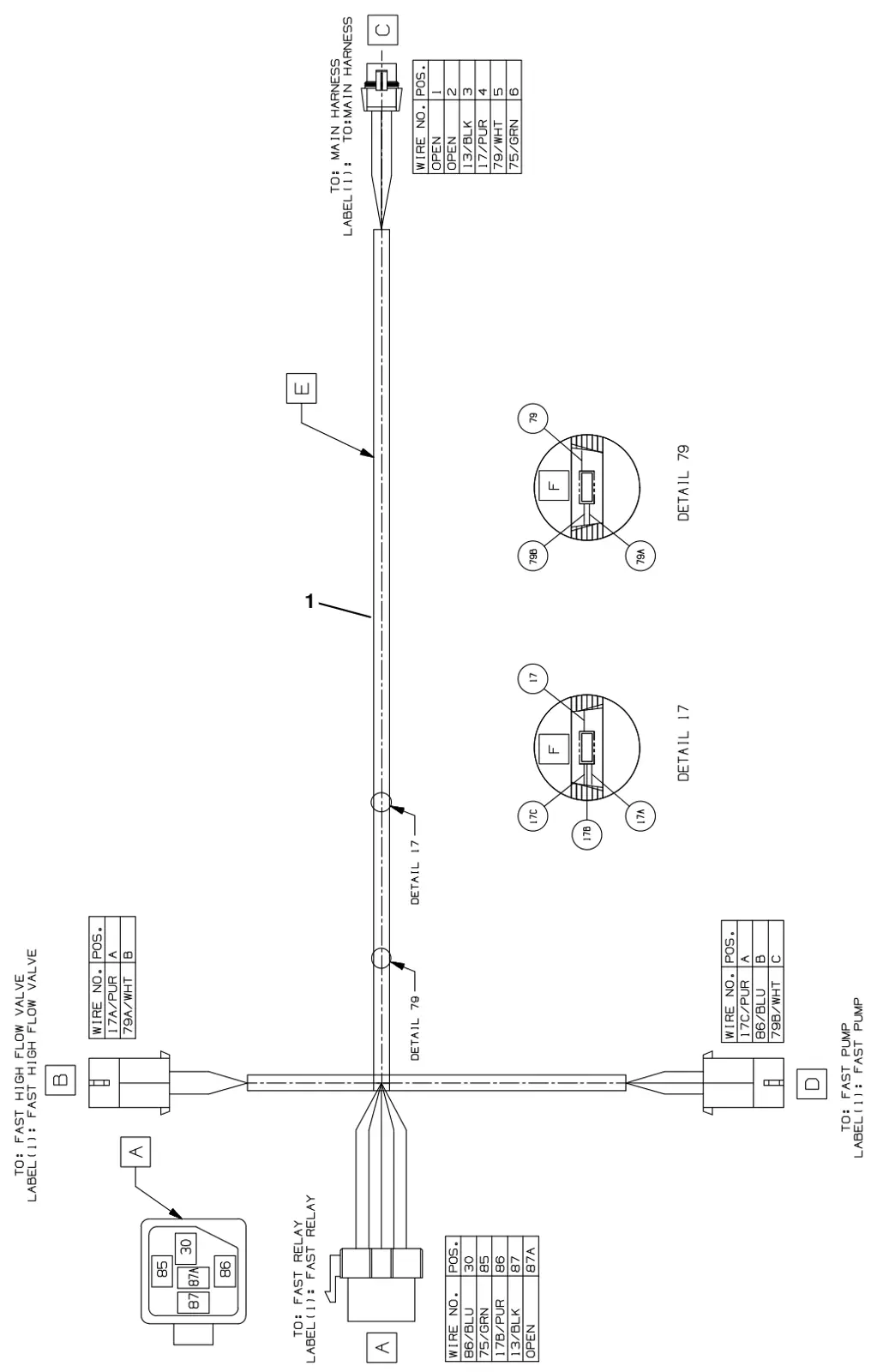

Tennant T20 Diesel faST Wire Harness Group (option) parts
The parts Tennant numbers on its fast wire harness group (option) drawing. Manual pages 193, list 194.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1075138Tennant 1075138 | 1 | Harness, Wire [FaST Gen 2, M20/T20]Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |

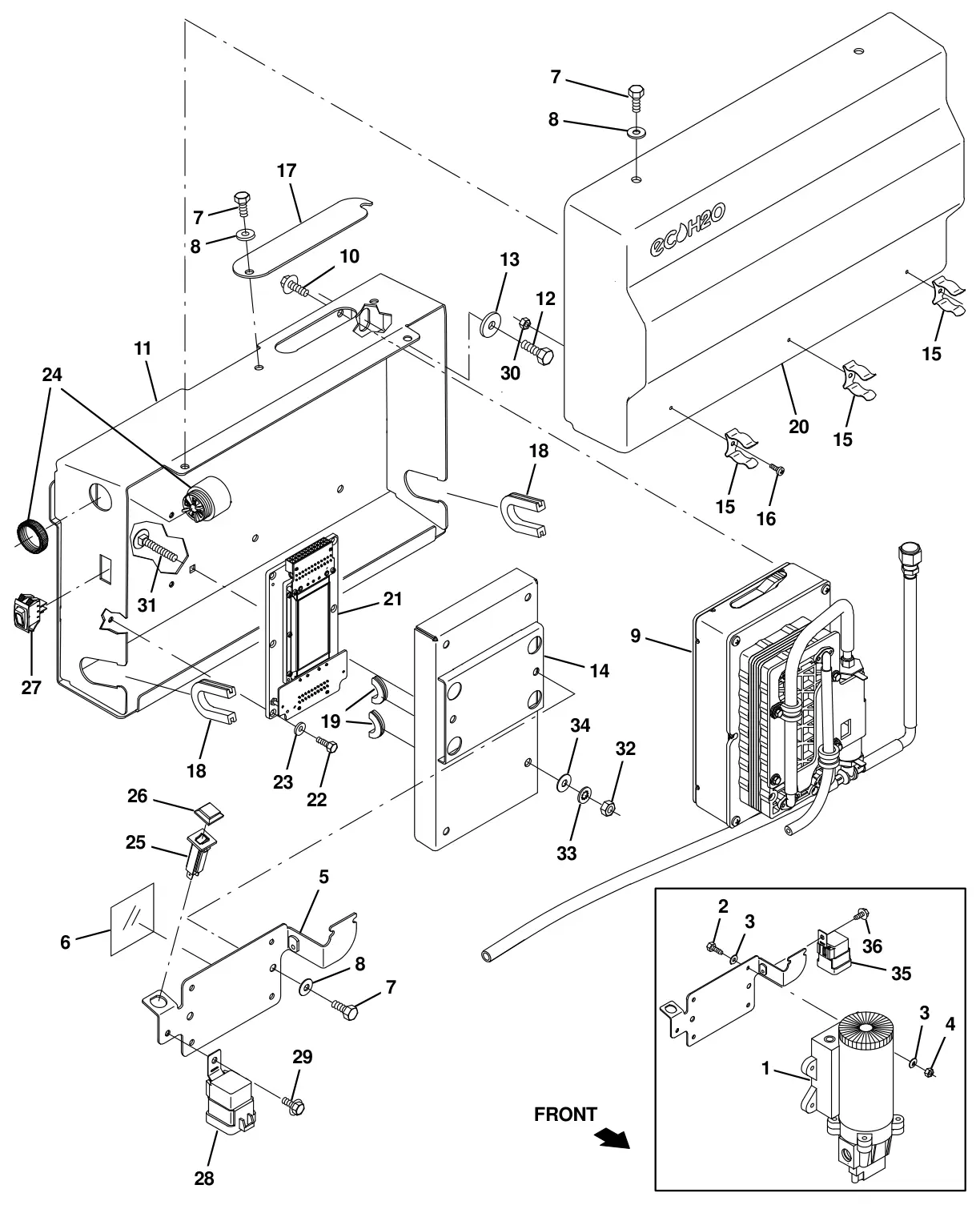

Tennant T20 Diesel ec-H2O Solution Pump Group (option) parts
The parts Tennant numbers on its ec-h2o solution pump group (option) drawing. Manual pages 195, list 196.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034620Replaces Tennant 1060624 | 1 | Pump, Soltn, Ele, 13.7vdc,12/28psiSerial 008000 to 013000. | $621.40/EA |
| 2 | TN4041970Replaces Tennant 09252 | 4 | Screw, Hex, M5 X 0.80 X 20, 8.8Serial 008000 to 013000. | $3.40/EA |
| 3 | TN4042244Replaces Tennant 19066 | 8 | Washer, Flat, 10Serial 008000 to 013000. | $2.50/EA |
| 4 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlSerial 008000 to 013000. | $2.50/EA |
| 5 | TN4187222Replaces Tennant 1060273 | 1 | Plate, Mtg, PumpSerial 008000 and later. | $31.31/EA |
| 6 | TN4187047Replaces Tennant 1059677 | 1 | Strip, Rbr, 0.06 03.54w 03.5l [Neo/60]Serial 008000 and later. | $2.83/EA |
| 7 | TN4041994Replaces Tennant 09744 | 6 | Screw, Hex, M6 X 1.00 X 12, SsSerial 008000 and later. | $3.40/EA |
| 8 | TN4042901Replaces Tennant 01684 | 6 | Washer, Flat, 0.27b 0.69d .05, SsSerial 008000 and later. | $2.60/EA |
| 9 | TN4012473Replaces Tennant 9007882 | 1 | Module Kit, Replmt [Ec-H20] (See Breakdowns)Serial 008000 and later. | $1,782.70/EA |
| 10 | TN4044400Replaces Tennant 1040467 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsSerial 008000 and later. | $3.30/EA |
| 11 | TN4187224Replaces Tennant 1060292 | 1 | Plate Wldt, MtgSerial 008000 and later. | $165.64/EA |
| 12 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, SsSerial 008000 and later. | $3.30/EA |
| 13 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsSerial 008000 and later. | $3.40/EA |
| 14 | TN4187215Replaces Tennant 1060185 | 1 | Cover Wldt, Power SupplySerial 008000 and later. | $68.18/EA |
| 15 | TN4031029Replaces Tennant 1029057 | 3 | Clip, Grip, Finger, 0.88-1.25dSerial 008000 and later. | $5.15/EA |
| 16 | TN4035991Replaces Tennant 12323 | 3 | Screw, Pan, Phl, M4 X 0.70 X 20, SsSerial 008000 and later. | $3.30/EA |
| 17 | TN4187223Replaces Tennant 1060291 | 1 | Plate, InspectionSerial 008000 and later. | $5.96/EA |
| 18 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01FtSerial 008000 and later. | $44.40/EA |
| 19 | TN4032006Replaces Tennant 10632-4 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .06 MatlSerial 008000 and later. | $2.50/EA |
| 20 | TN4034636Replaces Tennant 1060719 | 1 | Cover, TrimmedSerial 008000 and later. | $164.73/EA |
| 21 | TN4031068Replaces Tennant 1247720 | 1 | Circuitboard Assy [Dc To Dc Conv.]Serial 008000 and later. | $712.80/EA |
| 22 | TN4041967Replaces Tennant 09206 | 4 | Screw, Hex, M4 X 0.70 X 12, 8.8Serial 008000 and later. | $3.30/EA |
| 23 | TN4042243Replaces Tennant 19065 | 4 | Washer, Flat, 08Serial 008000 and later. | $3.20/EA |
| 24 | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 9-48vdc, 95 Db(A) [Ec-H20]Serial 008000 and later. | $75.90/EA |
| 25 | TN4032584Replaces Tennant 1064183 | 1 | Circuitbreaker, 02.0a, ResetableSerial 008000 and later. | $13.40/EA |
| 26 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerSerial 008000 and later. | $12.60/EA |
| 27 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomSerial 008000 and later. | $7.70/EA |
| 28 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoSerial 008000 and later. | $11.30/EA |
| 29 | TN4037385Replaces Tennant 223198 | 1 | Screw, Hex, M5 X 0.80 X 10, FmgSerial 008000 and later. | $4.00/EA |
| 30 | TN4031247Replaces Tennant 33932 | 3 | Nut, Hex, Lock, M4 X 0.70, Nl, SsSerial 008000 and later. | $3.40/EA |
| 31 | TN4185338Replaces Tennant 1062804 | 4 | Bolt, Carriage, M06 X 1.00 X 40, 4.6Serial 008000 and later. | $1.52/EA |
| 32 | TN4016812Replaces Tennant 41359 | 4 | Nut, Hex, Std, M6 X 1.00, 8 | $3.40/EA |
| 33 | TN4034655Replaces Tennant 32982 | 4 | Washer, Lock, Int, 0.25 | $2.60/EA |
| 34 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, Sae | $2.50/EA |
| 35 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoSerial 008000 to 013000. | $11.30/EA |
| 36 | TN4037385Replaces Tennant 223198 | 1 | Screw, Hex, M5 X 0.80 X 10, FmgSerial 008000 to 013000. | $4.00/EA |

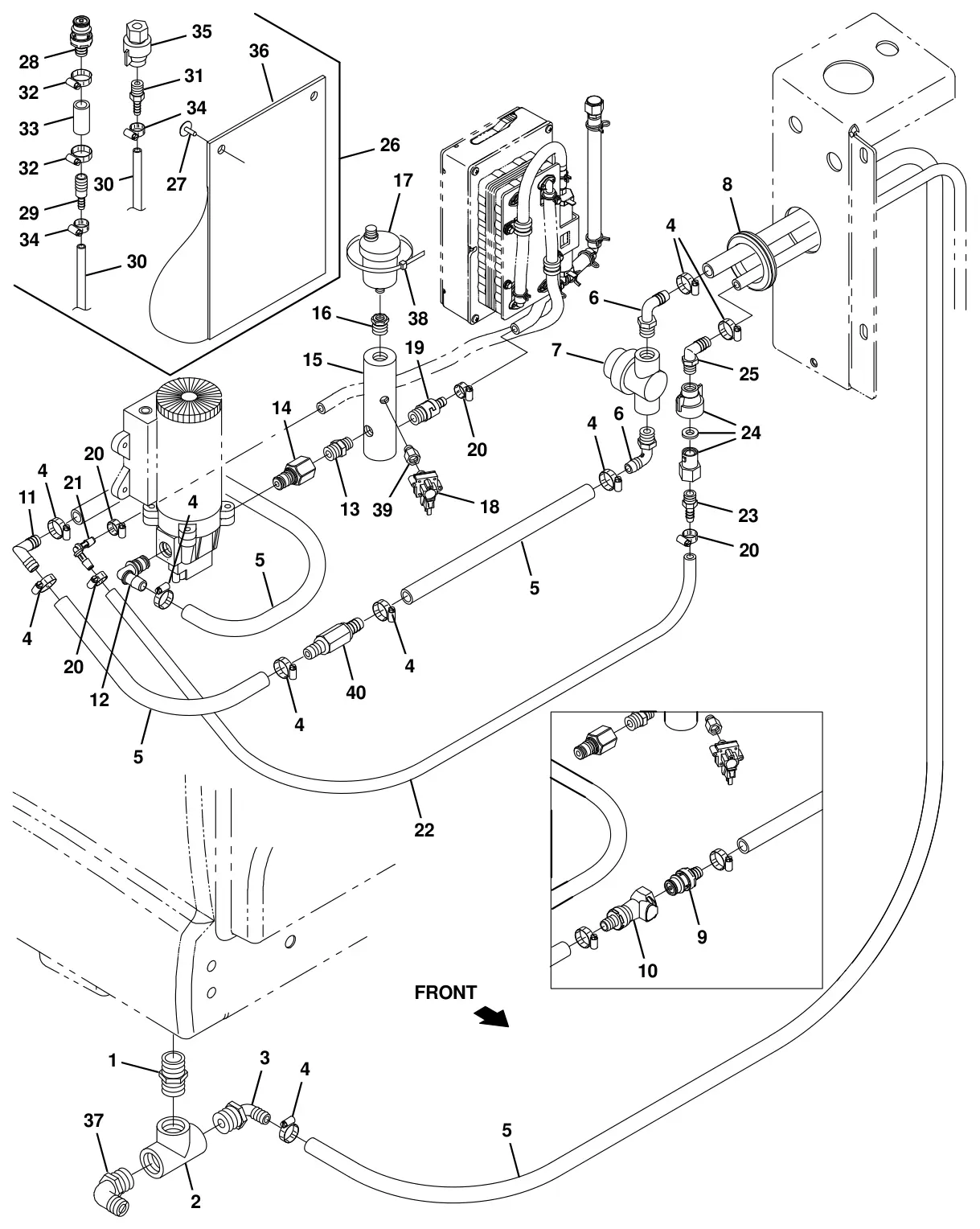

Tennant T20 Diesel ec-H2O Solution Pump Supply Group (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its ec-h2o solution pump supply group (s/n 008000 - 013000) (option) drawing. Manual pages 197, list 198.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035382Replaces Tennant 24544 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lSerial 008000 to 013000. | $6.20/EA |
| 2 | TN4017317Replaces Tennant 42133A | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Serial 008000 to 013000. | $17.60/EA |
| 3 | TN4038988Replaces Tennant 1005552 | 1 | Fitting, Plstc, E90, Bm08/Pm12, NylSerial 008000 to 013000. | $7.90/EA |
| 4 | TN4015366Replaces Tennant 54333 | 9 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 to 013000. | $5.10/EA |
| 5 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrSerial 008000 to 013000. | $75.50/EA |
| 6 | TN4017647Replaces Tennant 64778 | 2 | Fitting, Plstc, E90, Bm08/Pm06Serial 008000 to 013000. | $8.70/EA |
| 7 | TN4038961Replaces Tennant 1005302 | 1 | Filter, In-Line, Pf06/Pf06 080mesh 02.6lSerial 008000 to 013000. | $21.10/EA |
| 8 | TN4032002Replaces Tennant 10632-19 | 3 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlSerial 008000 to 013000. | $1.50/EA |
| 9 | TN4035458Replaces Tennant 1017415 | 1 | Insert, Cplg, Qm, Bm08 (Repl by 1531530)Serial 008000 to 013000. | $34.70/EA |
| 10 | TN4035457Replaces Tennant 1017413 | 1 | Housing, Cplg, Qf / Pm08 (Repl by 1531530)Serial 008000 to 013000. | $37.90/EA |
| 11 | TN4017096Replaces Tennant 63987-1 | 1 | Fitting, Plstc, E90, Bm08/Bm08Serial 008000 to 013000. | $7.80/EA |
| 12 | TN4040112Replaces Tennant 1049254 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10Serial 008000 to 013000. | $11.80/EA |
| 13 | TN4038956Replaces Tennant 1005219 | 1 | Fitting, Plstc, Str, Pm04/Pm06, NylSerial 008000 to 013000. | $4.20/EA |
| 14 | TN4037143Replaces Tennant 1059372 | 1 | Fitting, Plstc, Str, Pf06/Qm10, PvcSerial 008000 to 013000. | $13.00/EA |
| 15 | TN4034619Replaces Tennant 1060596 | 1 | Manifold, WaterSerial 008000 to 013000. | $44.30/EA |
| 16 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06Serial 008000 to 013000. | $8.70/EA |
| 17 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float TypeSerial 008000 to 013000. | $64.30/EA |
| 18 | TN4036776Replaces Tennant 1058935 | 1 | Switch, Press, 50 Psi, Pm02Serial 008000 to 013000. | $115.30/EA |
| 19 | TN4034632Replaces Tennant 1060693 | 1 | Valve, Check, 0005psi Pm04/Bm06Serial 008000 to 013000. | $55.50/EA |
| 20 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 008000 to 013000. | $4.20/EA |
| 21 | TN4187030Replaces Tennant 1059391 | 1 | Fitting, Plstc, E90, Bm05/Bm05, NylSerial 008000 to 013000. | $4.40/EA |
| 22 | TN4041050Replaces Tennant 1052336 | 2 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrSerial 008000 to 013000. | $48.50/EA |
| 23 | TN4040814Replaces Tennant 1052017 | 1 | Fitting, Plstc, Str, Bm05/Pm04Serial 008000 to 013000. | $2.60/EA |
| 24 | TN4030539Replaces Tennant 1071280 | 1 | Fitting Assy, Qdc, Pf04Serial 008000 to 013000. | $8.70/EA |
| 25 | TN4017747Replaces Tennant 65581 | 1 | Fitting, Plstc, E90, Bm08/Pm04Serial 008000 to 013000. | $2.55/EA |
| 26 | TN4197576Replaces Tennant 9014281 | 1 | ec-H2O Kit, Flush, Replmt[M20, M30&T20]Complete assembly. Serial 008000 to 013000. | $99.60/EA |
| 27 | TN4016302Replaces Tennant 72968 | 2 | Rivet, Plstc, .250d X 0.90Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $3.20/EA |
| 28 | TN4035458Replaces Tennant 1017415 | 1 | Insert, Cplg, Qm, Bm08Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $34.70/EA |
| 29 | TN4020535Replaces Tennant 630164 | 1 | Fitting, Plstc, Str, Bm04/Bm08Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $7.90/EA |
| 30 | TN4039304Replaces Tennant 1006415 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $51.70/EA |
| 31 | TN4014520Replaces Tennant 50901 | 1 | Fitting, Plstc, Str, Bm04/Pm04Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $3.60/EA |
| 32 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $5.10/EA |
| 33 | TN4036839Replaces Tennant 1011403 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $19.40/EA |
| 34 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $4.20/EA |
| 35 | TN4030539Replaces Tennant 1071280 | 1 | Fitting Assy, Qdc, Pf04Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $8.70/EA |
| 36 | TN4013988Replaces Tennant 48790 | 1 | PouchPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 008000 to 013000. | $32.02/EA |
| 37 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12Serial 008000 to 013000. | $7.90/EA |
| 38 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DSerial 008000 to 013000. | $2.50/EA |
| 39 | TN4035142Replaces Tennant 1062403 | 1 | Fitting, Brs, Snubber, Pm02/Pf02Serial 008000 to 013000. | $37.10/EA |
| 40 | TN4031487Replaces Tennant 1251530 | 1 | Valve, Check, 1.0psi, Bm08/Bm08Serial 008000 to 013000. | $39.20/EA |

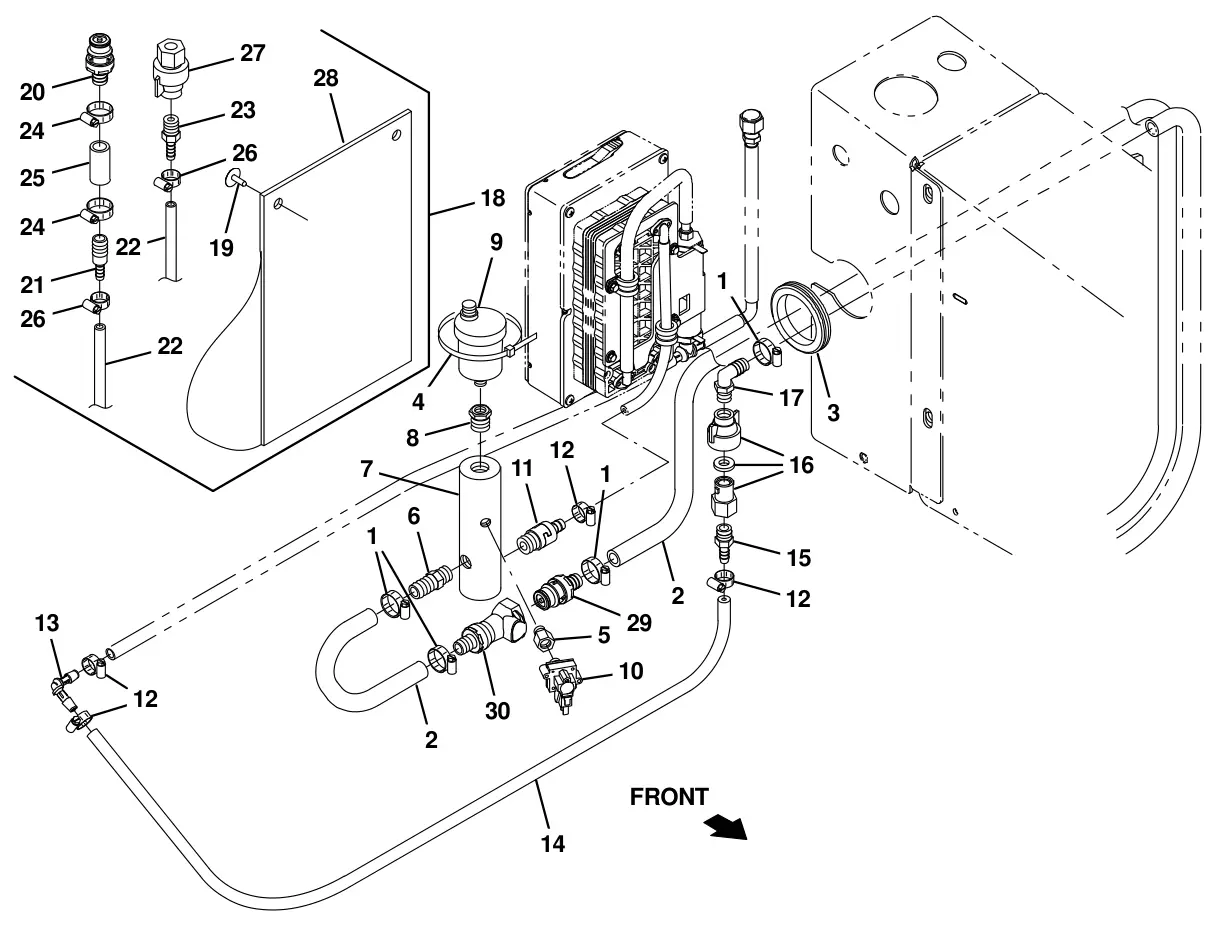

Tennant T20 Diesel ec-H2O Solution Pump Supply Group (S/N 013001 -) (option) parts
The parts Tennant numbers on its ec-h2o solution pump supply group (s/n 013001 -) (option) drawing. Manual pages 199, list 200.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 2 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrSerial 013001 and later. | $75.50/EA |
| 3 | TN4032002Replaces Tennant 10632-19 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlSerial 013001 and later. | $1.50/EA |
| 4 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DSerial 013001 and later. | $2.50/EA |
| 5 | TN4035142Replaces Tennant 1062403 | 1 | Fitting, Brs, Snubber, Pm02/Pf02Serial 013001 and later. | $37.10/EA |
| 6 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04Serial 013001 and later. | $1.35/EA |
| 7 | TN4034619Replaces Tennant 1060596 | 1 | Manifold, WaterSerial 013001 and later. | $44.30/EA |
| 8 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06Serial 013001 and later. | $8.70/EA |
| 9 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float TypeSerial 013001 and later. | $64.30/EA |
| 10 | TN4036776Replaces Tennant 1058935 | 1 | Switch, Press, 50 Psi, Pm02Serial 013001 and later. | $115.30/EA |
| 11 | TN4034632Replaces Tennant 1060693 | 1 | Valve, Check, 0005psi Pm04/Bm06Serial 013001 and later. | $55.50/EA |
| 12 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 013001 and later. | $4.20/EA |
| 13 | TN4187030Replaces Tennant 1059391 | 1 | Fitting, Plstc, E90, Bm05/Bm05, NylSerial 013001 and later. | $4.40/EA |
| 14 | TN4041050Replaces Tennant 1052336 | 1 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrSerial 013001 and later. | $48.50/EA |
| 15 | TN4040814Replaces Tennant 1052017 | 1 | Fitting, Plstc, Str, Bm05/Pm04Serial 013001 and later. | $2.60/EA |
| 16 | TN4030539Replaces Tennant 1071280 | 1 | Fitting Assy, Qdc, Pf04Serial 013001 and later. | $8.70/EA |
| 17 | TN4017747Replaces Tennant 65581 | 1 | Fitting, Plstc, E90, Bm08/Pm04Serial 013001 and later. | $2.55/EA |
| 18 | TN4197576Replaces Tennant 9014281 | 1 | ec-H2O Kit, Flush, Replmt[M20, M30&T20]Complete assembly. Serial 013001 and later. | $99.60/EA |
| 19 | TN4016302Replaces Tennant 72968 | 2 | Rivet, Plstc, .250d X 0.90Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $3.20/EA |
| 20 | TN4035458Replaces Tennant 1017415 | 1 | Insert, Cplg, Qm, Bm08Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $34.70/EA |
| 21 | TN4020535Replaces Tennant 630164 | 1 | Fitting, Plstc, Str, Bm04/Bm08Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $7.90/EA |
| 22 | TN4039304Replaces Tennant 1006415 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $51.70/EA |
| 23 | TN4014520Replaces Tennant 50901 | 1 | Fitting, Plstc, Str, Bm04/Pm04Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $3.60/EA |
| 24 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $5.10/EA |
| 25 | TN4036839Replaces Tennant 1011403 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $19.40/EA |
| 26 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $4.20/EA |
| 27 | TN4030539Replaces Tennant 1071280 | 1 | Fitting Assy, Qdc, Pf04Part of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $8.70/EA |
| 28 | TN4013988Replaces Tennant 48790 | 1 | PouchPart of ec-H2O Kit, Flush, Replmt[M20, M30&T20] (9014281). Serial 013001 and later. | $32.02/EA |
| 29 | TN4035458Replaces Tennant 1017415 | 1 | Insert, Cplg, Qm, Bm08Serial 013001 and later. | $34.70/EA |
| 30 | TN4035457Replaces Tennant 1017413 | 1 | Housing, Cplg, Qf / Pm08Serial 013001 and later. | $37.90/EA |

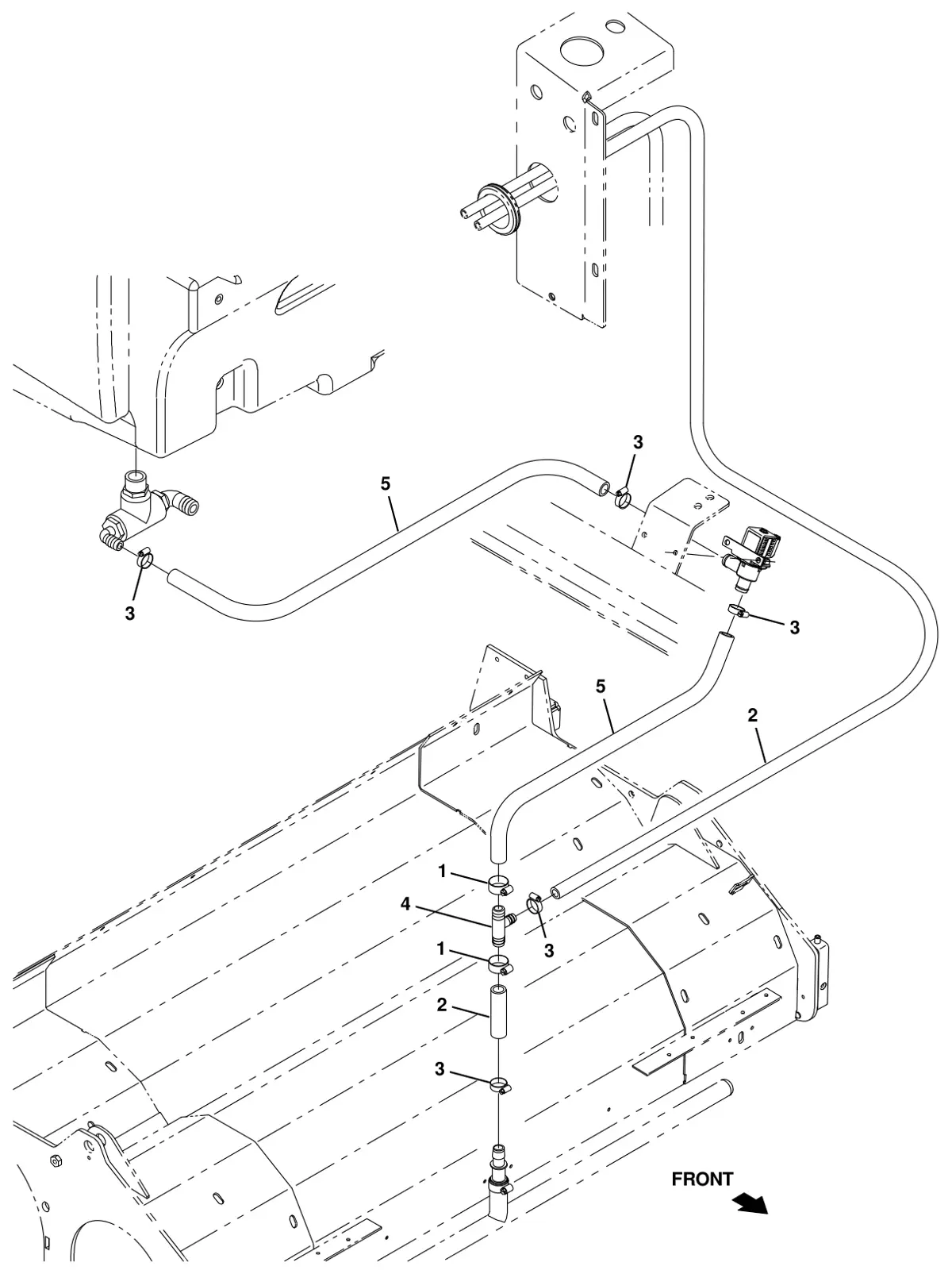

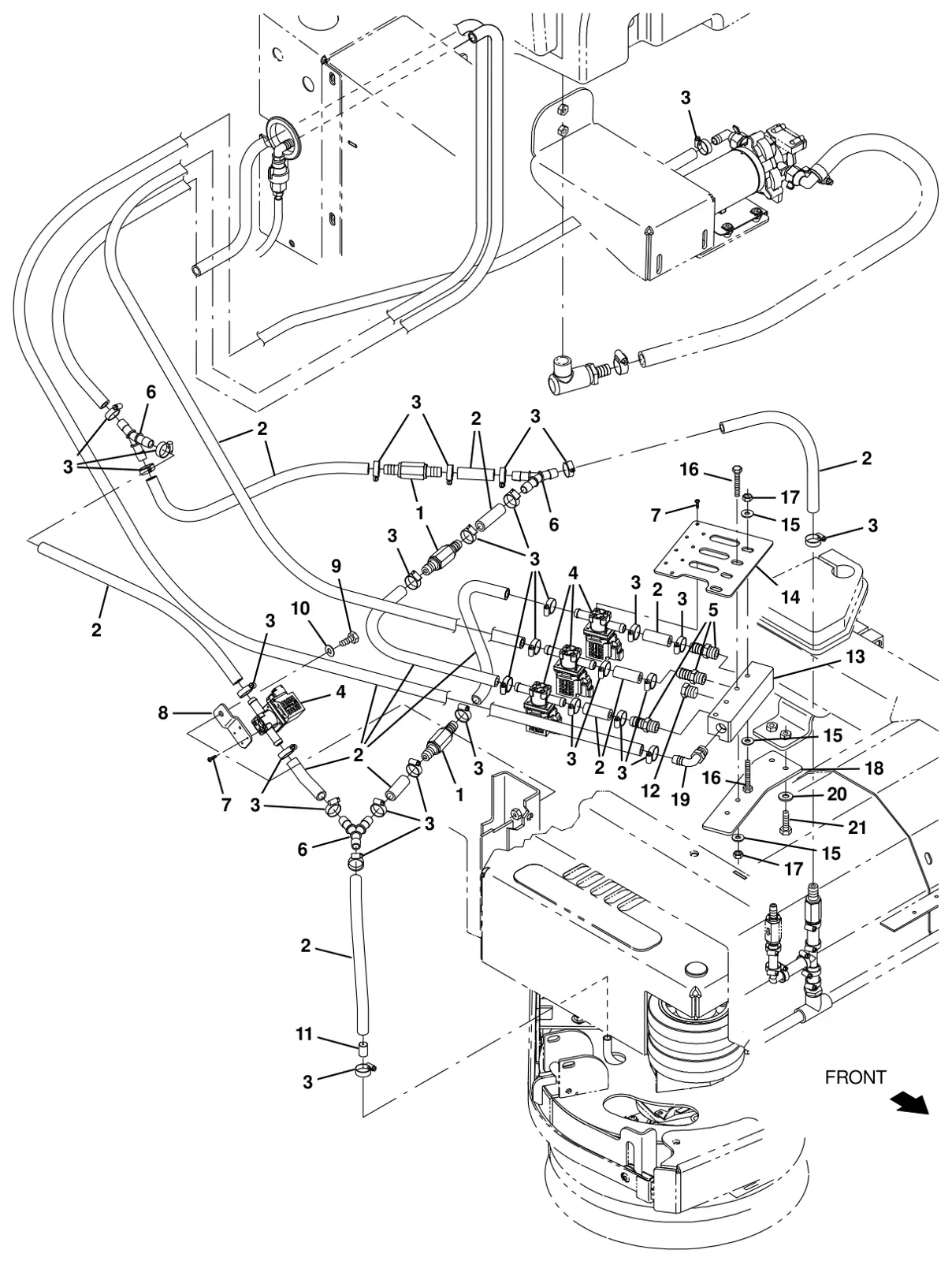

Tennant T20 Diesel ec-H2O Solution Supply Group, Cylindrical Scrub Head (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, cylindrical scrub head (s/n 008000 - 013000) (option) drawing. Manual pages 201, list 202.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 to 013000. | $6.80/EA |
| 2 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrSerial 008000 to 013000. | $75.50/EA |
| 3 | TN4015366Replaces Tennant 54333 | 5 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 to 013000. | $5.10/EA |
| 4 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 008000 to 013000. | $5.30/EA |
| 5 | TN4037981Replaces Tennant 1015032 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrSerial 008000 to 013000. | $80.40/EA |

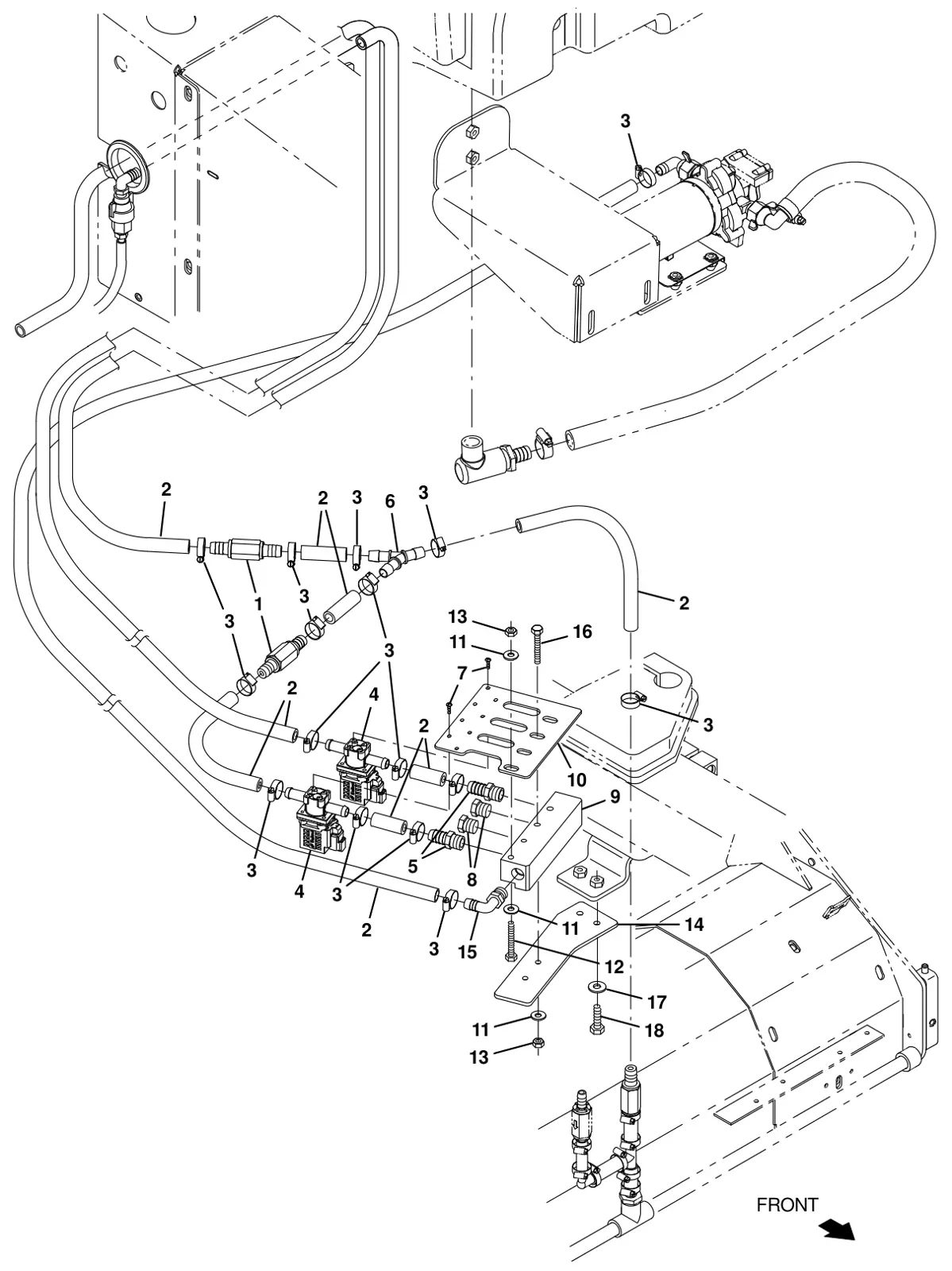

Tennant T20 Diesel ec-H2O Solution Supply Group, Cylindrical Scrub Head (S/N 013001 -) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, cylindrical scrub head (s/n 013001 -) (option) drawing. Manual pages 203, list 204.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031487Replaces Tennant 1251530 | 2 | Valve, Check, 1.0psi, Bm08/Bm08Serial 013001 and later. | $39.20/EA |
| 2 | TN4036844Replaces Tennant 1011412 | 2 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 013001 and later. | $70.70/EA |
| 3 | TN4015366Replaces Tennant 54333 | 6 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 4 | TN4042944Replaces Tennant 1076870 | 2 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Serial 013001 and later. | $122.10/EA |
| 5 | TN4017637Replaces Tennant 64743 | 2 | Fitting, Plstc, Str, Bm08/Pm06Serial 013001 and later. | $6.20/EA |
| 6 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 013001 and later. | $11.00/EA |
| 7 | TN4032374Replaces Tennant 1257563 | 4 | Screw, Pan, Torx, 06-19 X 0.38, F/ PlstcSerial 013001 and later. | $13.74/EA |
| 8 | TN4020528Replaces Tennant 630146 | 2 | Fitting, Plug, Pm06, HdpeSerial 013001 and later. | $4.00/EA |
| 9 | TN4032111Replaces Tennant 1254833 | 1 | Manifold, SolnSerial 013001 and later. | $121.00/EA |
| 10 | TN4032116Replaces Tennant 1254856 | 1 | Plate, Manifold, MtgSerial 013001 and later. | $25.55/EA |
| 11 | TN4034136Replaces Tennant 32490 | 1 | Washer, Flat, 0.25, StdSerial 013001 and later. | $2.50/EA |
| 12 | TN4032379Replaces Tennant 1257800 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlSerial 013001 and later. | $14.14/EA |
| 13 | TN4041928Replaces Tennant 08712 | 1 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 013001 and later. | $2.50/EA |
| 14 | TN4043042Replaces Tennant 1077124 | 1 | Bracket, Manifold, StratusSerial 013001 and later. | $10.20/EA |
| 15 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 16 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 013001 and later. | $2.50/EA |
| 17 | TN4156940Replaces Tennant 39277 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Serial 013001 and later. | $3.20/EA |

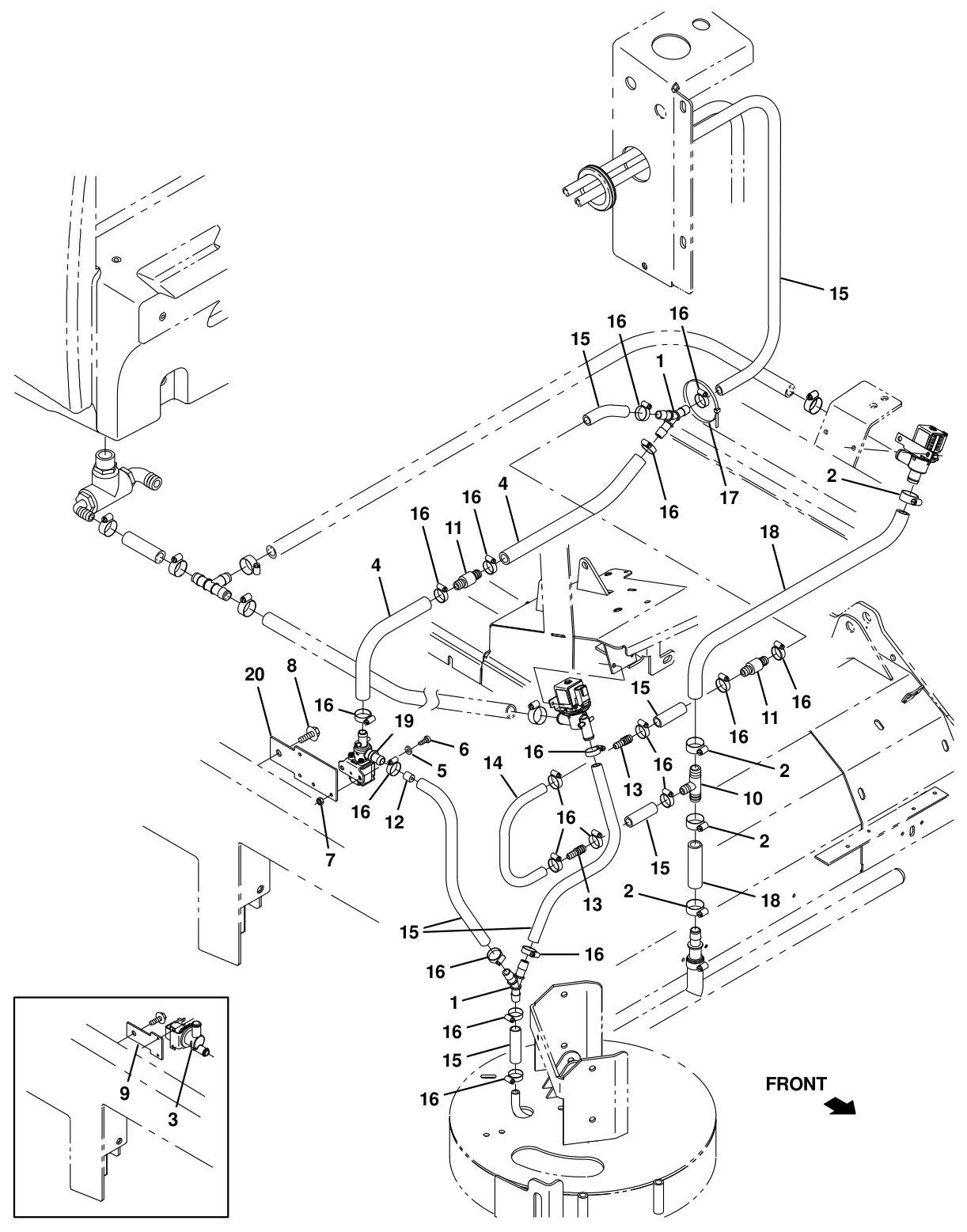

Tennant T20 Diesel ec-H2O Solution Supply Group, Cylindrical Scrub Head with Side Brush (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, cylindrical scrub head with side brush (s/n 008000 - 013000) (option) drawing. Manual pages 205, list 206.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 008000 to 013000. | $11.00/EA |
| 2 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 to 013000. | $6.80/EA |
| 3 | TN4043533Replaces Tennant 1037825 | 1 | Valve Assy, Water, Solenoid, 12vdcSerial 008000 to 011183. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4033443Replaces Tennant 31543 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0Serial 008000 to 013000. | $37.40/EA |
| 5 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 008000 to 013000. | $2.60/EA |
| 6 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsSerial 008000 to 013000. | $3.20/EA |
| 7 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 008000 to 013000. | $3.30/EA |
| 8 | TN4013943Replaces Tennant 76099 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 008000 to 013000. | $4.00/EA |
| 9 | TN4031717Replaces Tennant 1030511 | 1 | Plate, Mtg, ValveSerial 008000 to 011183. | $4.75/EA |
| 10 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 008000 to 013000. | $5.30/EA |
| 11 | TN4040370Replaces Tennant 1010614 | 2 | Valve, Check, 2gpm .5psi Bm08/Bm08Serial 008000 to 013000. | $55.50/EA |
| 12 | TN4034713Replaces Tennant 1061045 | 1 | Plug, RestrictorSerial 008000 to 013000. | $22.30/EA |
| 13 | TN4040278Replaces Tennant 222375 | 2 | Fitting, Plstc, Str, Bm06/Bm08Serial 008000 to 013000. | $4.20/EA |
| 14 | TN4037967Replaces Tennant 1014974 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrSerial 008000 to 013000. | $22.40/EA |
| 15 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 008000 to 013000. | $70.70/EA |
| 16 | TN4015366Replaces Tennant 54333 | 18 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 to 013000. | $5.10/EA |
| 17 | TN4011910Replaces Tennant 763116 | 1 | Tie, Cable, Nyl, 15.3l . W 4.5 Max DFits T20 · cylindrical scrub head. Serial 008000 to 013000. | $3.40/EA |
| 18 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrSerial 008000 to 013000. | $31.50/EA |
| 19 | TN4042930Replaces Tennant 1076824 | 1 | Valve Assy, Water, Solenoid, 12vdcSerial 011184 to 013000. | $132.30/EA |
| 20 | TN4042912Replaces Tennant 1076793 | 1 | Plate, Mtg, ValveSerial 011184 to 013000. | $30.81/EA |
Tennant T20 Diesel ec-H2O Solution Supply Group, Cylindrical Scrub Head with Side Brush (S/N 013001 -) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, cylindrical scrub head with side brush (s/n 013001 -) (option) drawing. Manual pages 207, list 208.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031487Replaces Tennant 1251530 | 3 | Valve, Check, 1.0psi, Bm08/Bm08Serial 013001 and later. | $39.20/EA |
| 2 | TN4036914Replaces Tennant 1011835 | 2 | Hose, Afmkt, Pvc, Brd, 0.50id, 20ft, ClrSerial 013001 and later. | $109.50/EA |
| 3 | TN4015366Replaces Tennant 54333 | 30 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 4 | TN4042944Replaces Tennant 1076870 | 4 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Serial 013001 and later. | $122.10/EA |
| 5 | TN4017637Replaces Tennant 64743 | 3 | Fitting, Plstc, Str, Bm08/Pm06Serial 013001 and later. | $6.20/EA |
| 6 | TN4040375Replaces Tennant 1010668 | 3 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 013001 and later. | $11.00/EA |
| 7 | TN4032374Replaces Tennant 1257563 | 8 | Screw, Pan, Torx, 06-19 X 0.38, F/ PlstcSerial 013001 and later. | $13.74/EA |
| 8 | TN4032241Replaces Tennant 1256174 | 1 | Bracket, Solenoid, Ech2oSerial 013001 and later. | $9.49/EA |
| 9 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, SsSerial 013001 and later. | $3.30/EA |
| 10 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 013001 and later. | $2.60/EA |
| 11 | TN4032259Replaces Tennant 1256639 | 1 | Fitting, Plastic, Rst, 3.00mmSerial 013001 and later. | $29.60/EA |
| 12 | TN4020528Replaces Tennant 630146 | 1 | Fitting, Plug, Pm06, HdpeSerial 013001 and later. | $4.00/EA |
| 13 | TN4032111Replaces Tennant 1254833 | 1 | Manifold, SolnSerial 013001 and later. | $121.00/EA |
| 14 | TN4032116Replaces Tennant 1254856 | 1 | Plate, Manifold, MtgSerial 013001 and later. | $25.55/EA |
| 15 | TN4034136Replaces Tennant 32490 | 6 | Washer, Flat, 0.25, StdSerial 013001 and later. | $2.50/EA |
| 16 | TN4032379Replaces Tennant 1257800 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlSerial 013001 and later. | $14.14/EA |
| 17 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 013001 and later. | $2.50/EA |
| 18 | TN4043042Replaces Tennant 1077124 | 1 | Bracket, Manifold, StratusSerial 013001 and later. | $10.20/EA |
| 19 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 20 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 013001 and later. | $2.50/EA |
| 21 | TN4156940Replaces Tennant 39277 | 2 | Screw, Hex, M8 X 1.25 X 25, 8.8Serial 013001 and later. | $3.20/EA |

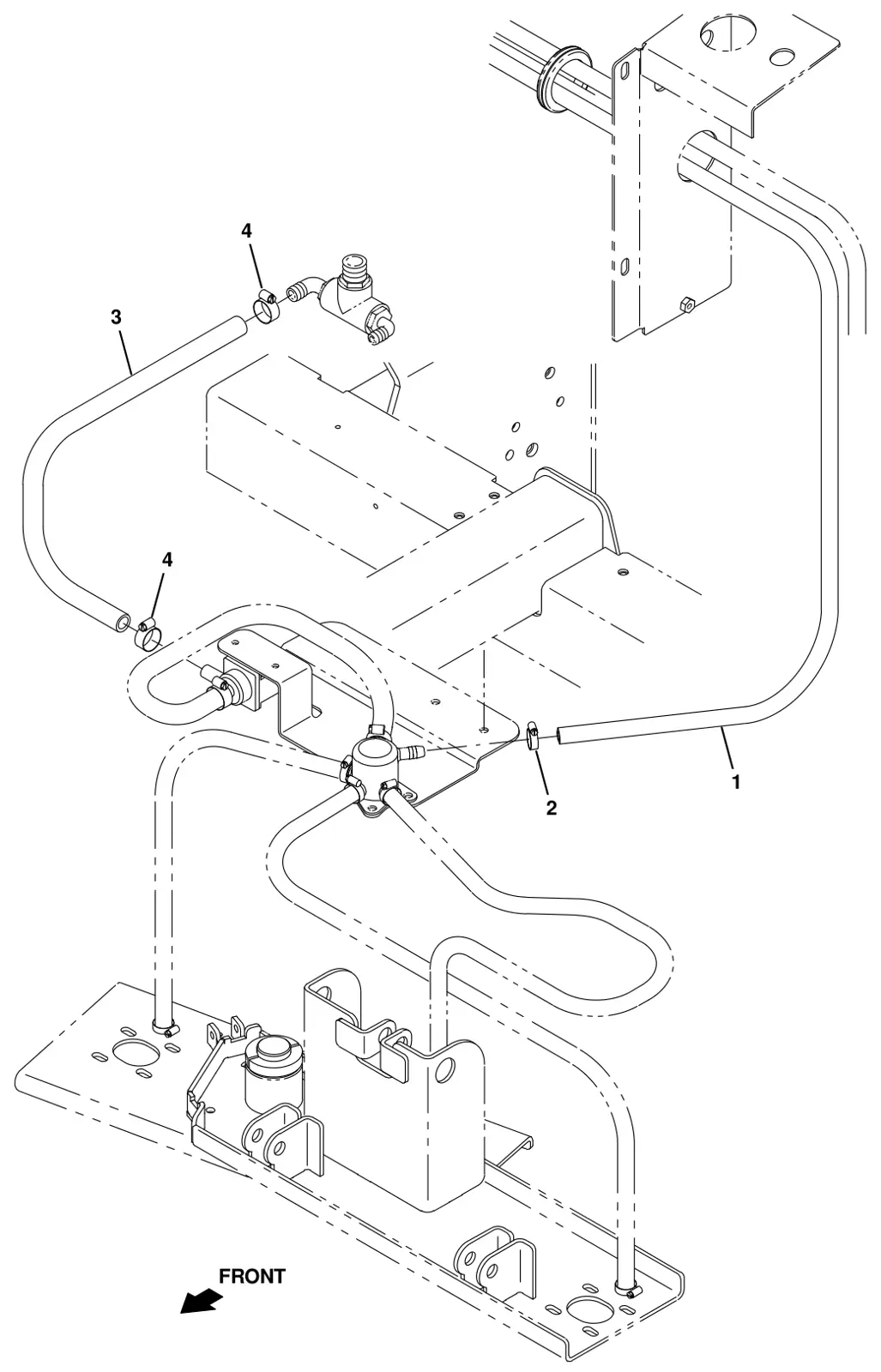

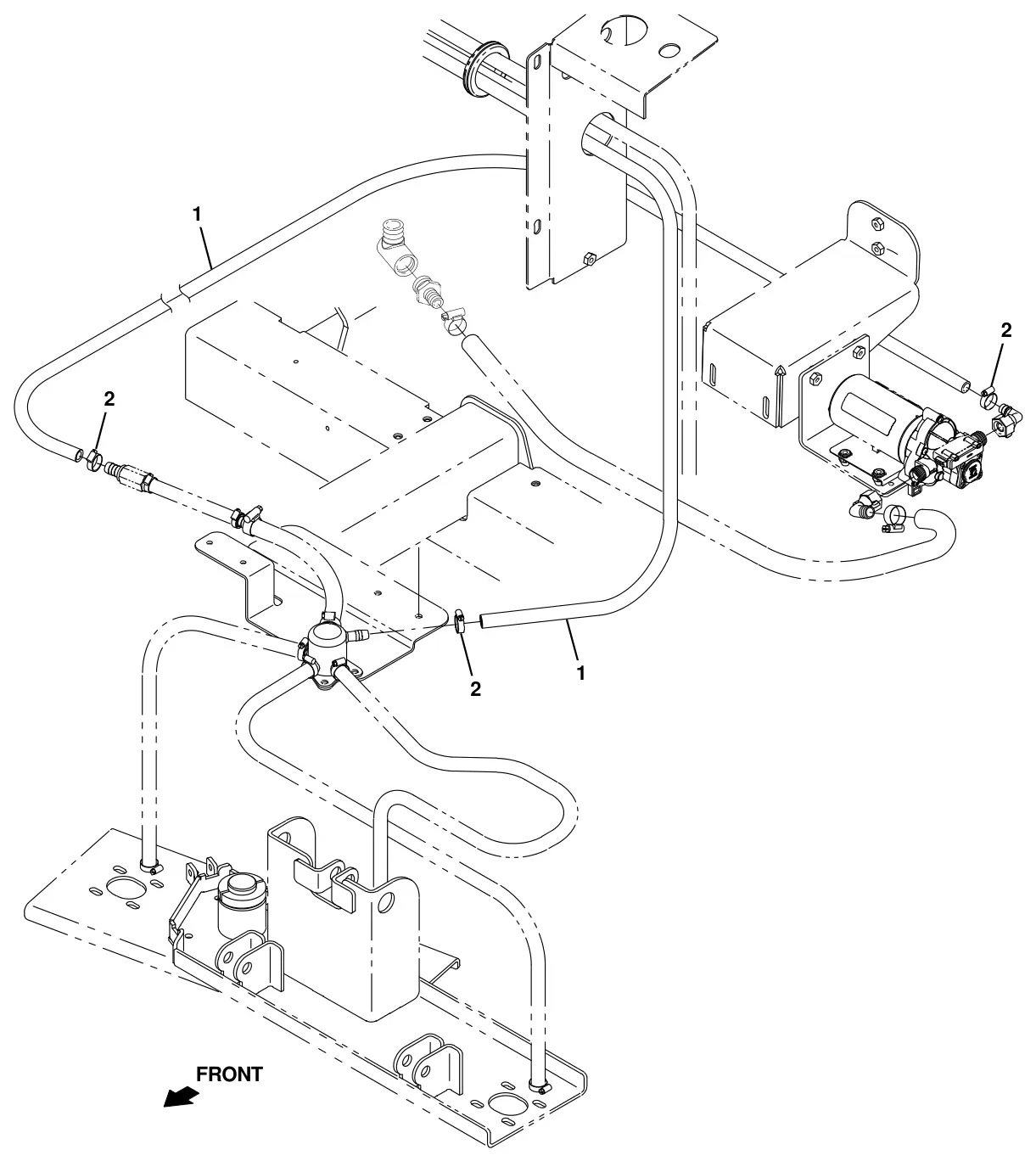

Tennant T20 Diesel ec-H2O Solution Supply Group, Disk Scrub Head (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, disk scrub head (s/n 008000 - 013000) (option) drawing. Manual pages 209, list 210.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50Id, 08Ft, ClrSerial 008000 to 013000. | $70.70/EA |
| 2 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88D, .31WSerial 008000 to 013000. | $5.10/EA |
| 3 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62Id, 03Ft, ClrSerial 008000 to 013000. | $31.50/EA |
| 4 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.56-1.06D, .56WSerial 008000 to 013000. | $6.80/EA |
Tennant T20 Diesel ec-H2O Solution Supply Group, Disk Scrub Head (S/N 013001 -) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, disk scrub head (s/n 013001 -) (option) drawing. Manual pages 211, list 212.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50Id, 08Ft, ClrSerial 013001 and later. | $70.70/EA |
| 2 | TN4015366Replaces Tennant 54333 | 3 | Clamp, Hose, Wormdrive, 0.31-0.88D, .31WSerial 013001 and later. | $5.10/EA |

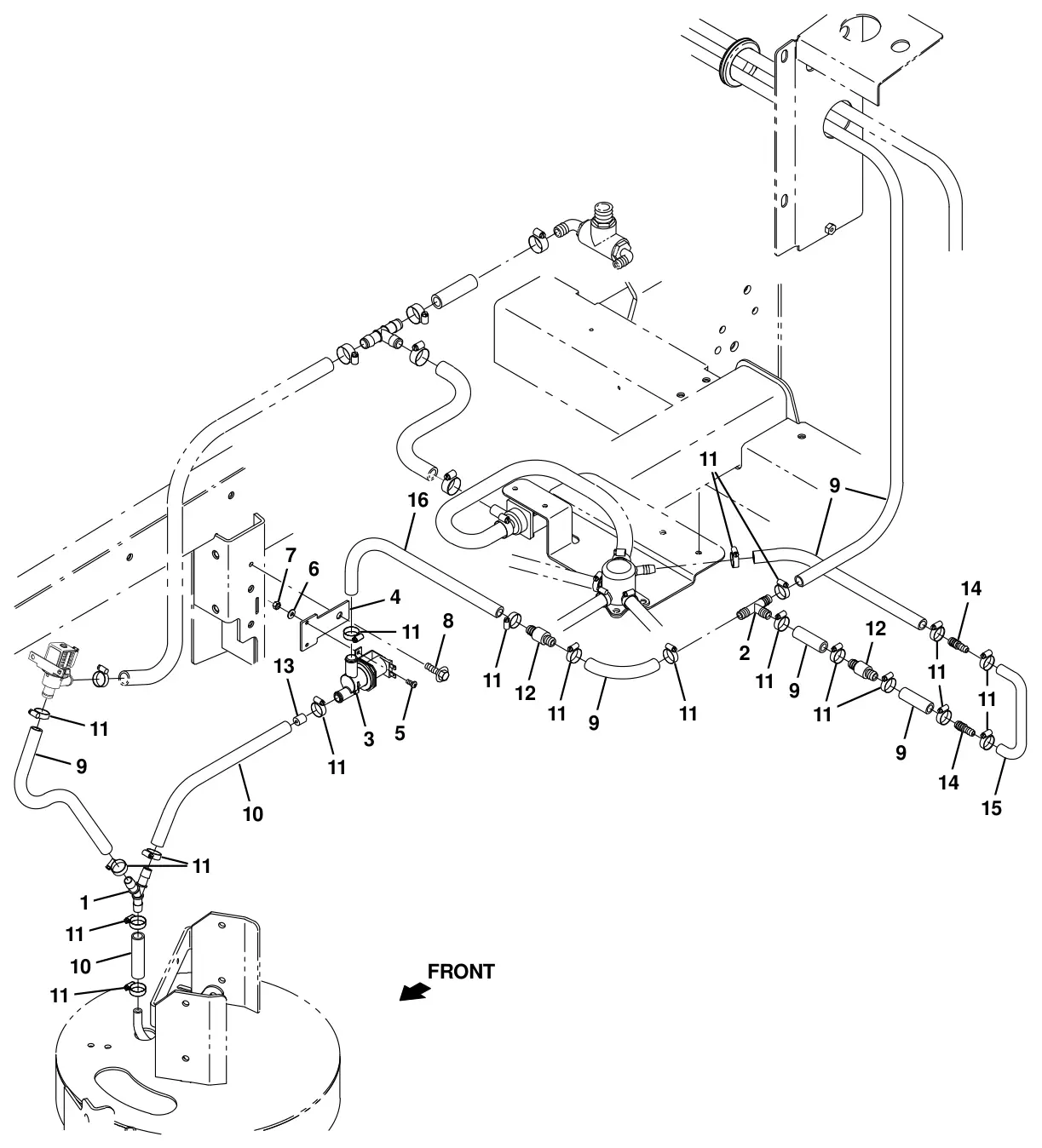

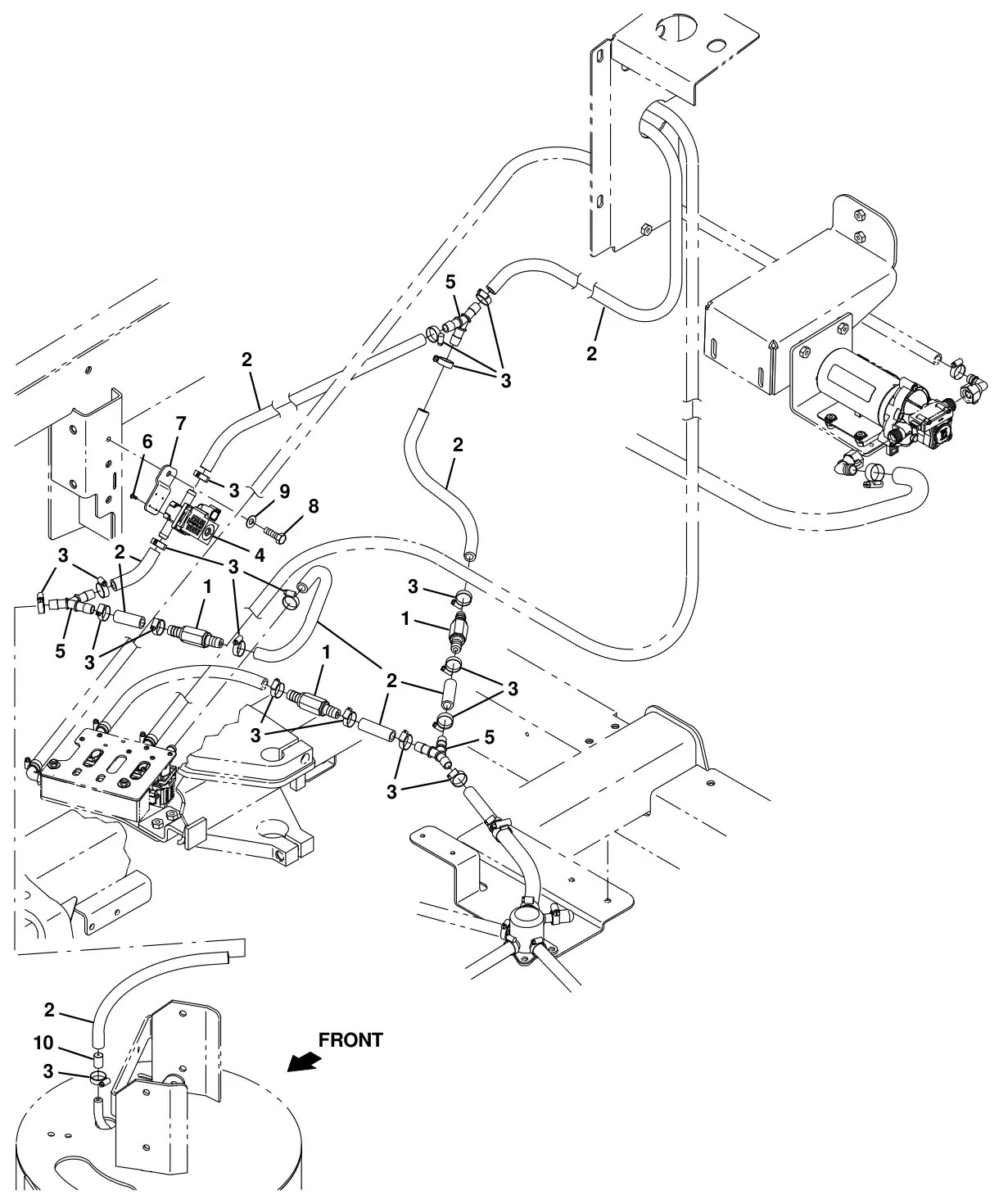

Tennant T20 Diesel ec-H2O Solution Supply Group, Disk Scrub Head with Side Brush (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, disk scrub head with side brush (s/n 008000 - 013000) (option) drawing. Manual pages 213, list 214.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 008000 to 013000. | $11.00/EA |
| 2 | TN4021151Replaces Tennant 63245-1 | 1 | Fitting, Plstc, Tee, Bm08/Bm08/Bm08Serial 008000 to 013000. | $6.20/EA |
| 3 | TN4189257Replaces Tennant 9021167 | 1 | Valve Kit, Water, ReplmtFits T20 · disk scrub head. Serial 008000 to 001183. | $50.00/EA |
| 4 | TN4031717Replaces Tennant 1030511 | 11 | Plate, Mtg, ValveSerial 008000 to 011183. | $4.75/EA |
| 5 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, SsSerial 008000 to 013000. | $3.40/EA |
| 6 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 008000 to 013000. | $2.60/EA |
| 7 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsSerial 008000 to 013000. | $3.30/EA |
| 8 | TN4013943Replaces Tennant 76099 | 1 | Screw, Hex, M8 X 1.25 X 25, FmgSerial 008000 to 013000. | $4.00/EA |
| 9 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 008000 to 013000. | $70.70/EA |
| 10 | TN4037991Replaces Tennant 1015067 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 08ftSerial 008000 to 013000. | $50.20/EA |
| 11 | TN4015366Replaces Tennant 54333 | 20 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 to 013000. | $5.10/EA |
| 12 | TN4040370Replaces Tennant 1010614 | 2 | Valve, Check, 2Gpm .5Psi Bm08/Bm08Serial 008000 to 013000. | $55.50/EA |
| 13 | TN4034713Replaces Tennant 1061045 | 1 | Plug, RestrictorSerial 008000 to 013000. | $22.30/EA |
| 14 | TN4040278Replaces Tennant 222375 | 2 | Fitting, Plstc, Str, BM06/BM08Serial 008000 to 013000. | $4.20/EA |
| 15 | TN4037967Replaces Tennant 1014974 | 1 | Hose, Afmkt, Pvc, Brd, 0.38Id, 02Ft, ClrSerial 008000 to 013000. | $22.40/EA |
| 16 | TN4033443Replaces Tennant 31543 | 1 | Hose, Heater, E90, 0.62Id, 24.0 4.0Serial 008000 to 013000. | $37.40/EA |
| 17 | TN4042930Replaces Tennant 1076824 | 1 | Valve Assy, Water, Solenoid, 12vdcSerial 011184 to 013000. | $132.30/EA |
| 18 | TN4042912Replaces Tennant 1076793 | 1 | Plate, Mtg, ValveSerial 011184 to 013000. | $30.81/EA |
Tennant T20 Diesel ec-H2O Solution Supply Group, Disk Scrub Head with Side Brush (S/N 013001 -) (option) parts
The parts Tennant numbers on its ec-h2o solution supply group, disk scrub head with side brush (s/n 013001 -) (option) drawing. Manual pages 215, list 216.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031487Replaces Tennant 1251530 | 3 | Valve, Check, 1.0psi, Bm08/Bm08Serial 013001 and later. | $39.20/EA |
| 2 | TN4036914Replaces Tennant 1011835 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 20ft, ClrSerial 013001 and later. | $109.50/EA |
| 3 | TN4015366Replaces Tennant 54333 | 18 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 4 | TN4042944Replaces Tennant 1076870 | 1 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Serial 013001 and later. | $122.10/EA |
| 5 | TN4040375Replaces Tennant 1010668 | 3 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 013001 and later. | $11.00/EA |
| 6 | TN4032374Replaces Tennant 1257563 | 2 | Screw, Pan, Torx, 06-19 X 0.38, F/ PlstcSerial 013001 and later. | $13.74/EA |
| 7 | TN4032241Replaces Tennant 1256174 | 1 | Bracket, Solenoid, Ech2oSerial 013001 and later. | $9.49/EA |
| 8 | TN4041992Replaces Tennant 09740 | 1 | Screw, Hex, M8 X 1.25 X 20, SsSerial 013001 and later. | $3.30/EA |
| 9 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flat, 0.38b 0.88d .08, SsSerial 013001 and later. | $2.60/EA |
| 10 | TN4032259Replaces Tennant 1256639 | 1 | Fitting, Plastic, Rst, 3.00mmSerial 013001 and later. | $29.60/EA |

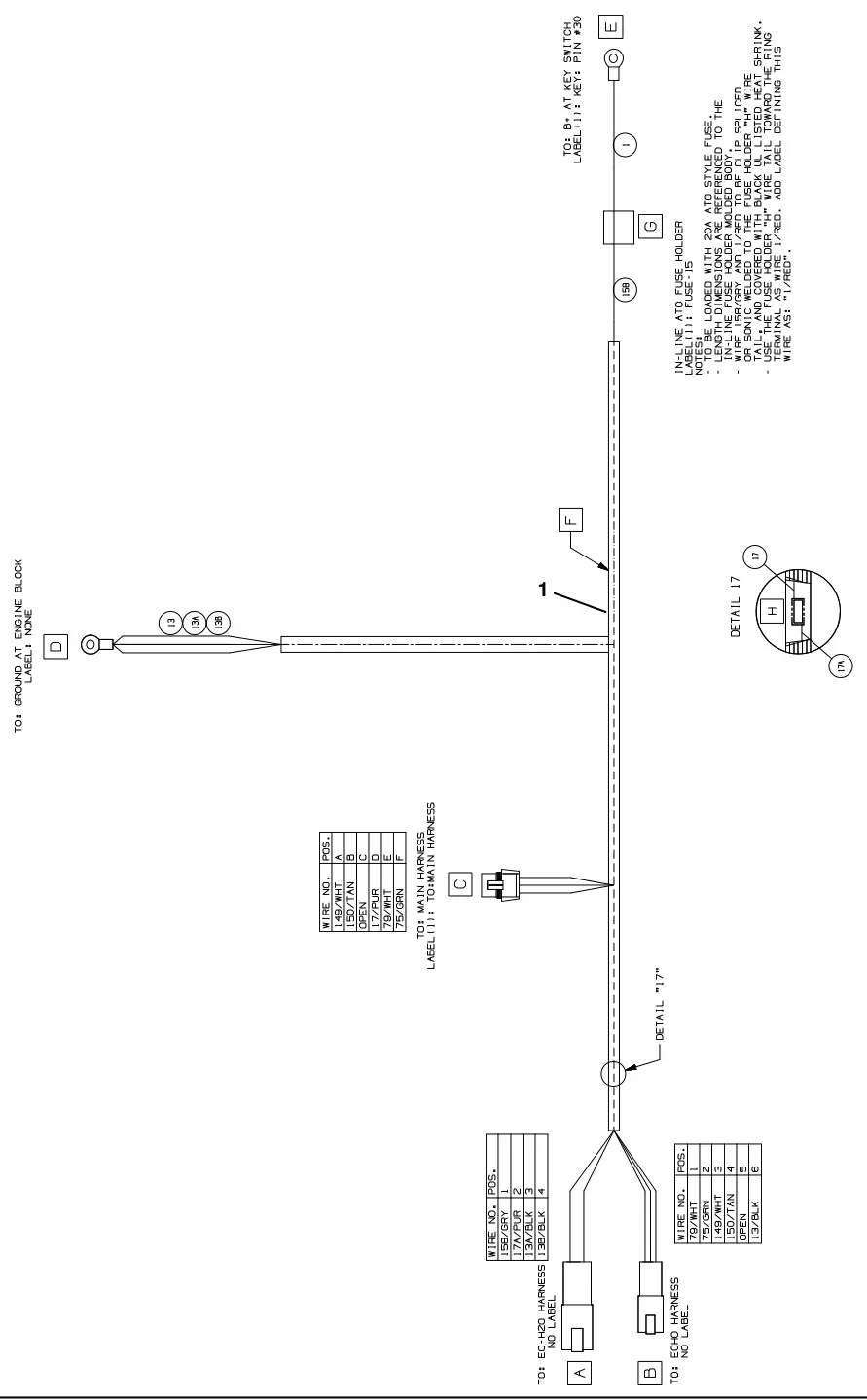

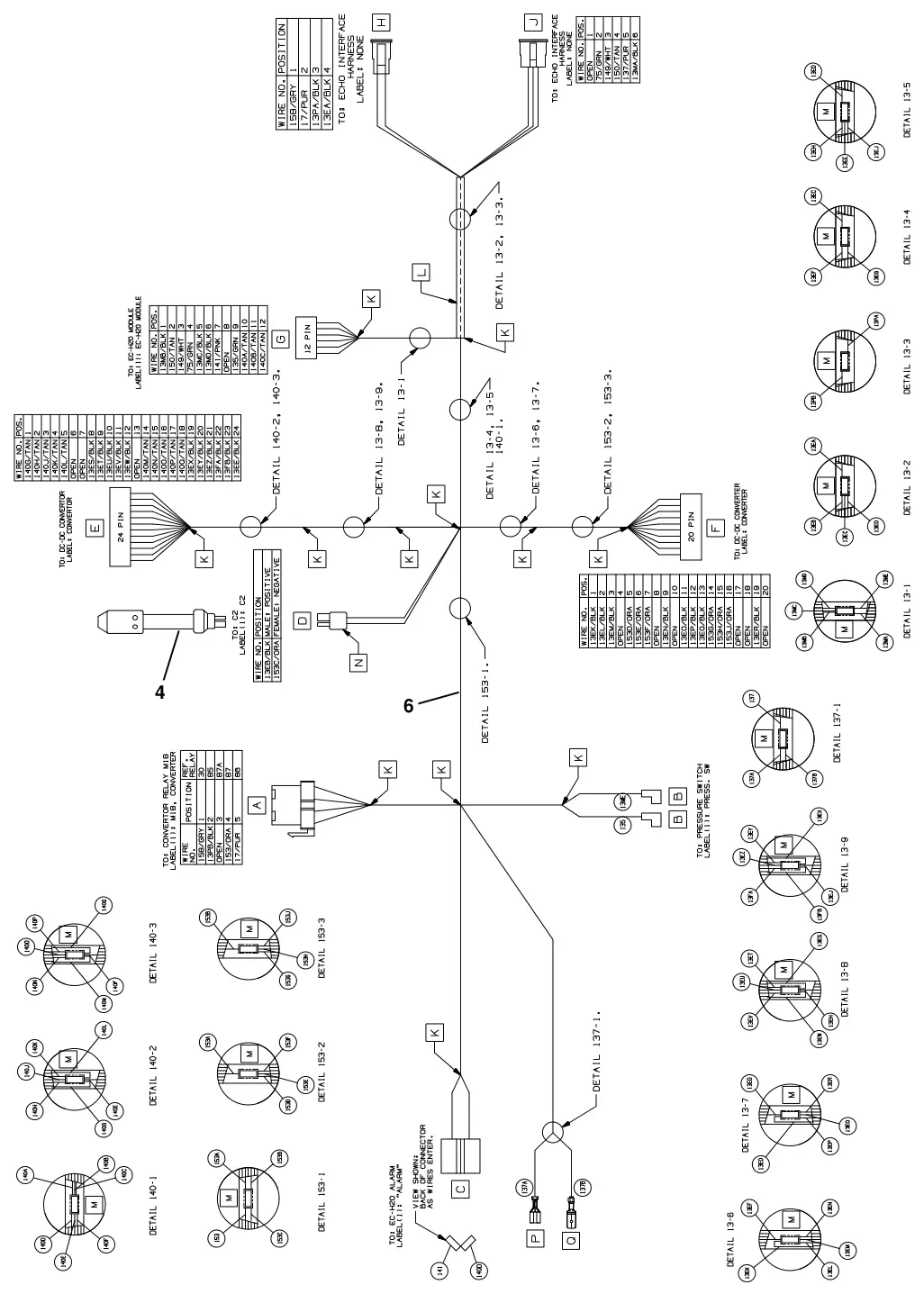

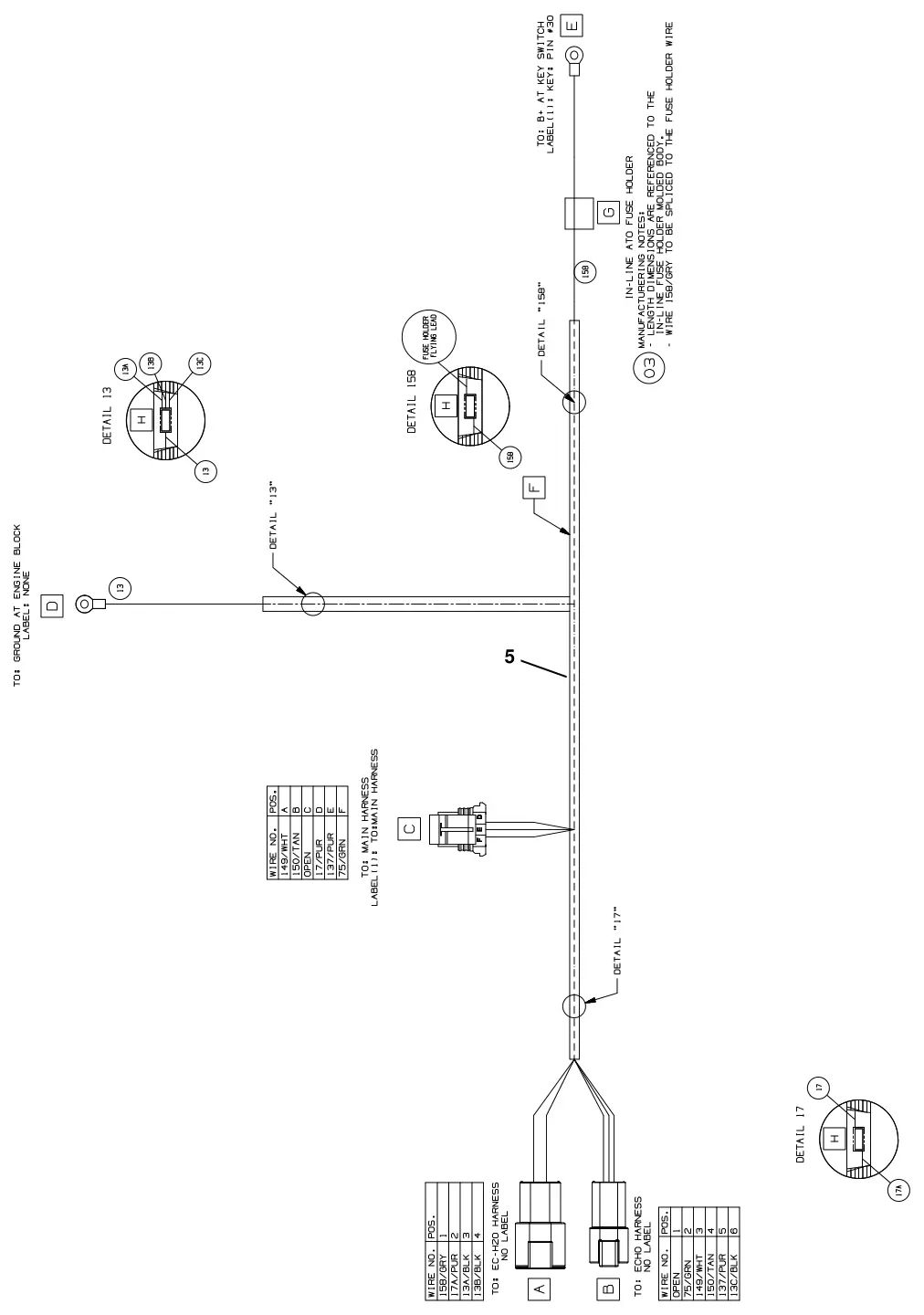

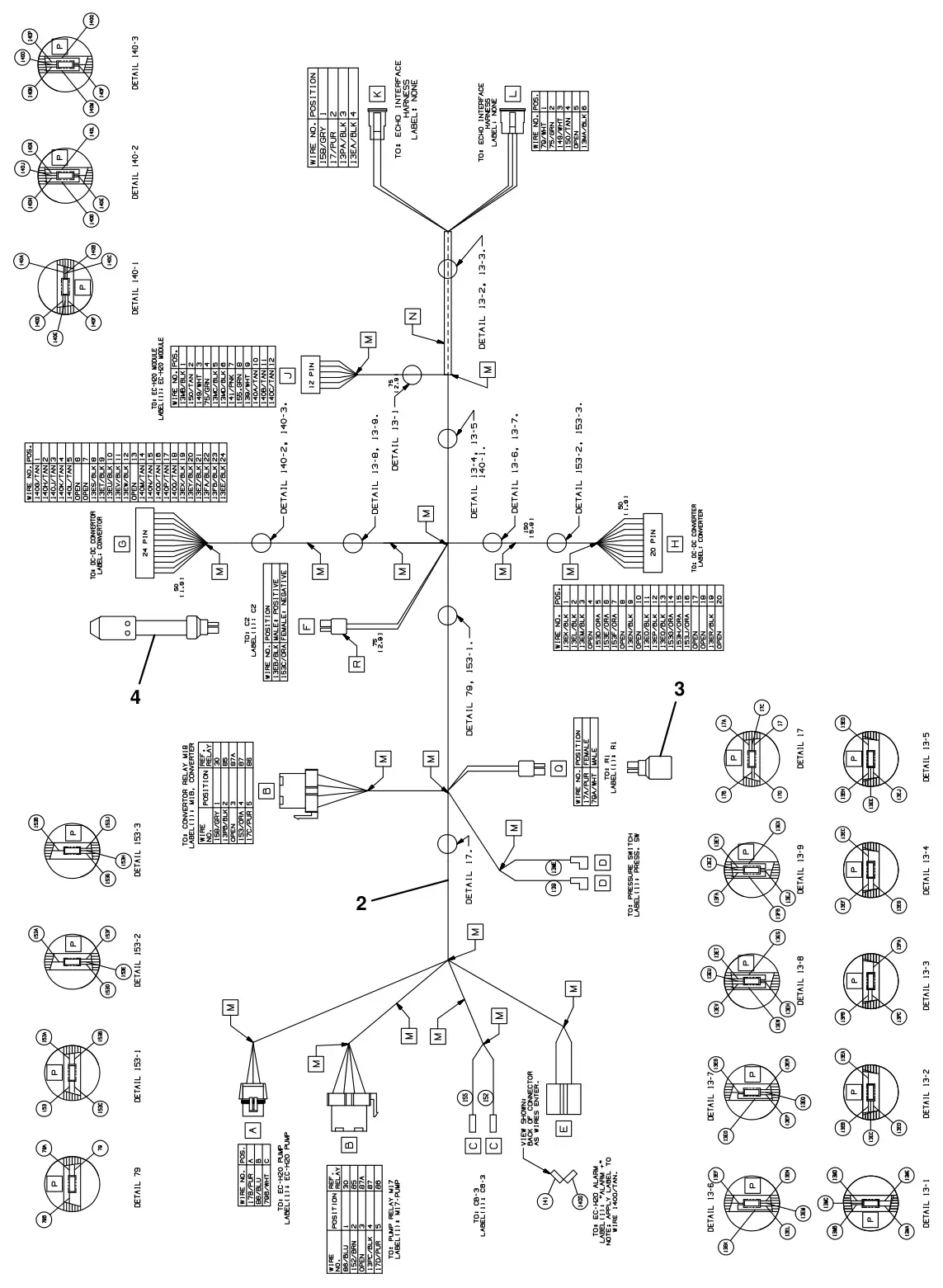

Tennant T20 Diesel ec-H2O Wire Harnesses Group (option) parts
The parts Tennant numbers on its ec-h2o wire harnesses group (option) drawing. Manual pages 219, list 221.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4044977Replaces Tennant 1075140 | 1 | Harness, Ele [Ech2o, Interface]Serial 008000 to 013000. | $89.60/EA |
| 2 | TN4034646Replaces Tennant 1060871 | 1 | Harness, Wire [Ec-H2o]Serial 008000 to 013000. | $240.18/EA |
| 3 | TN4034647Replaces Tennant 1060880 | 1 | Resistor, Ele, Plug [430 , 2w]Serial 008000 and later. | $9.49/EA |
| 4 | TN4034648Replaces Tennant 1060881 | 1 | Capacitor, Plug [4700uf, 25v]Serial 008000 and later. | $15.35/EA |
| 5 | TN4042979Replaces Tennant 1076976 | 1 | Harness, Ele [Ech2o, Interface]Serial 013001 and later. | $83.95/EA |
| 6 | TN4042972Replaces Tennant 1076937 | 1 | Harness, Wire [Ec-H2o]Serial 013001 and later. | $166.72/EA |
Tennant T20 Diesel backup Alarm Kit (option) parts
Backup Alarm Kit (option) from Tennant's parts list. Manual page 222.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019666Replaces Tennant 9001321 | 1 | Alarm Kit, Backup, Ci [M20 And T20]Complete assembly. Serial 008000 and later. | $349.80/EA |
| 1 | TN4011838Replaces Tennant 9007131 | 1 | Alarm Assy, Backup, 12/48VdcPart of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $162.50/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $3.20/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 10Part of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $2.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $3.30/EA |
| 5 | TN4035919Replaces Tennant 1019445 | 1 | Bracket, Sppt, Strobe LightPart of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $55.20/EA |
| 6 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $3.30/EA |
| 7 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $3.40/EA |
| 8 | TN4036226Replaces Tennant 1019971 | 1 | Harness, Warning / Backup [M20 & T20]Part of Alarm Kit, Backup, Ci [M20 And T20] (9001321). Serial 008000 and later. | $27.50/EA |
Tennant T20 Diesel light Kit, Flashing (option) parts
Light Kit, Flashing (option) from Tennant's parts list. Manual page 223.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019669Replaces Tennant 9001327 | 1 | Light Kit, Flsh, Ci [M20 And T20]Complete assembly. Serial 008000 and later. | $444.00/EA |
| 1 | TN4032682Replaces Tennant 1262183 | 1 | Light, Flashing, Amb, LedPart of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $148.90/EA |
| – | TN4023554Replaces Tennant 383820 | 2 | Terminal, Bullet, Mal, .156d, 22-18gaPart of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $2.50/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $3.20/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 10Part of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $2.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $3.30/EA |
| 5 | TN4035919Replaces Tennant 1019445 | 1 | Bracket, Sppt, Strobe LightPart of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $55.20/EA |
| 6 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $3.30/EA |
| 7 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $3.40/EA |
| 8 | TN4036226Replaces Tennant 1019971 | 1 | Harness, Warning / Backup [M20 & T20]Part of Light Kit, Flsh, Ci [M20 And T20] (9001327). Serial 008000 and later. | $27.50/EA |
| 9 | TN4013452Replaces Tennant 46236 | 2 | Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleSerial 008000 and later. | $3.60/EA |
Tennant T20 Diesel light Kit, Strobe (option) parts
Light Kit, Strobe (option) from Tennant's parts list. Manual page 224.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019671Replaces Tennant 9001331 | 1 | Light Kit, Strobe, Ci [M20 And T20]Complete assembly. Serial 008000 and later. | $767.90/EA |
| 1 | TN4032682Replaces Tennant 1262183 | 1 | Light, Flashing, Amb, LedPart of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $148.90/EA |
| – | TN4023554Replaces Tennant 383820 | 2 | Terminal, Bullet, Mal, .156d, 22-18gaPart of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $2.50/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $3.20/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 10Part of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $2.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $3.30/EA |
| 5 | TN4035919Replaces Tennant 1019445 | 1 | Bracket, Sppt, Strobel LightPart of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $55.20/EA |
| 6 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $3.30/EA |
| 7 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $3.40/EA |
| 8 | TN4036226Replaces Tennant 1019971 | 1 | Harness, Warning / Backup [M20 & T20]Part of Light Kit, Strobe, Ci [M20 And T20] (9001331). Serial 008000 and later. | $27.50/EA |
| 9 | TN4013452Replaces Tennant 46236 | 2 | Clamp, Cable, Stl, 0.25D X 0.56W, 1HoleSerial 008000 and later. | $3.60/EA |
Tennant T20 Diesel light Kit, Flashing Overhead Guard (option) parts
Light Kit, Flashing Overhead Guard (option) from Tennant's parts list. Manual page 225.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019724Replaces Tennant 9001718 | 1 | Light Kit, Flsh, W/Ohg, Ci[M20 And T20]Complete assembly. Serial 008000 and later. | $372.90/EA |
| 1 | TN4032682Replaces Tennant 1262183 | 1 | Light, Flashing, Amb, LedPart of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $148.90/EA |
| – | TN4023554Replaces Tennant 383820 | 2 | Terminal, Bullet, Mal, .156d, 22-18gaPart of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $2.50/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $3.20/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 10Part of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $2.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $3.30/EA |
| 5 | TN4036203Replaces Tennant 1019647 | 1 | Harness, Warning / Ohg [M20]Part of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $23.56/EA |
| 6 | TN4032000Replaces Tennant 10632-17 | 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlPart of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $3.20/EA |
| 7 | TN4011909Replaces Tennant 763115 | 4 | Tie, Cable, 6.0l, 1.25d MaxPart of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $2.30/EA |
| 8 | TN4014138Replaces Tennant 49266 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Light Kit, Flsh, W/Ohg, Ci[M20 And T20] (9001718). Serial 008000 and later. | $2.50/EA |
Tennant T20 Diesel light Kit, Strobe Overhead Guard (option) parts
Light Kit, Strobe Overhead Guard (option) from Tennant's parts list. Manual page 226.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019723Replaces Tennant 9001717 | 1 | Light Kit, Strobe, W/Ohg, Ci [M20 And T20]Complete assembly. Serial 008000 and later. | $164.46/EA |
| 1 | TN4032682Replaces Tennant 1262183 | 1 | Light, Flashing, Amb, LedPart of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $148.90/EA |
| – | TN4023554Replaces Tennant 383820 | 2 | Terminal, Bullet, Mal, .156d, 22-18gaPart of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $2.50/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $3.20/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 10Part of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $2.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $3.30/EA |
| 5 | TN4036203Replaces Tennant 1019647 | 1 | Harness, Warning / Ohg [M20]Part of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $23.56/EA |
| 6 | TN4032000Replaces Tennant 10632-17 | 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlPart of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $3.20/EA |
| 7 | TN4011909Replaces Tennant 763115 | 4 | Tie, Cable, 6.0l, 1.25d MaxPart of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $2.30/EA |
| 8 | TN4014138Replaces Tennant 49266 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Light Kit, Strobe, W/Ohg, Ci [M20 And T20] (9001717). Serial 008000 and later. | $2.50/EA |

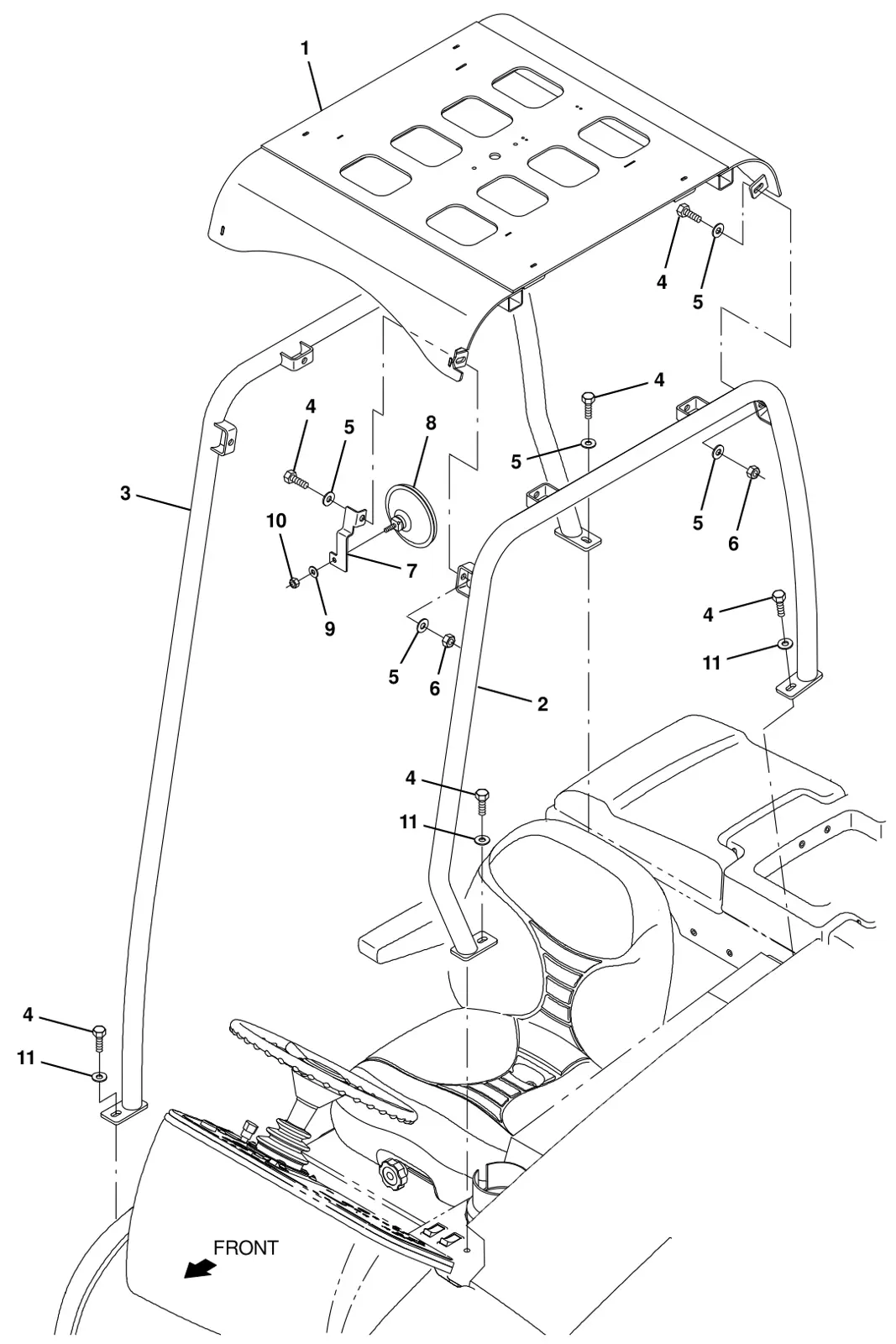

Tennant T20 Diesel overhead Guard Kit (option) parts
The parts Tennant numbers on its overhead guard kit (option) drawing. Manual pages 227, list 228.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019662Replaces Tennant 9001314 | 1 | Ohg Kit, Ci [M20 And T20]Complete assembly. Serial 008000 and later. | $3,559.40/EA |
| 1 | TN4032916Replaces Tennant 1022276 | 1 | Guard Wldt, Top, OhgPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $480.30/EA |
| 2 | TN4030100Replaces Tennant 1069241 | 1 | Tube Wldt, Leg, Ohg, Lh, PntdPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $299.68/EA |
| 3 | TN4030101Replaces Tennant 1069253 | 1 | Tube Wldt, Leg, Ohg, Rh, PntdPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $451.40/EA |
| 4 | TN4043258Replaces Tennant 03192 | 12 | Screw, Hex, M10 X 1.5 X 30, 8.8Part of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $4.00/EA |
| 5 | TN4034138Replaces Tennant 32492 | 17 | Washer, Flat, 0.38 StdPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $2.50/EA |
| 6 | TN4016826Replaces Tennant 41430 | 8 | Nut, Hex, Lock, M10 X 1.5, NlPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $4.00/EA |
| 7 | TN4033561Replaces Tennant 1023879 | 1 | Bracket, Mtg, Mirror, RearviewPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $16.40/EA |
| 8 | TN4040671Replaces Tennant 1050295 | 1 | Mirror, Convex, 0.50DPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $27.80/EA |
| 9 | TN4034137Replaces Tennant 32491 | 1 | Washer, Flat, 0.31, StdPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $2.50/EA |
| 10 | TN4042533Replaces Tennant 19313 | 1 | Nut, Hex, Std, .31-18Part of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $2.50/EA |
| 11 | TN4037922Replaces Tennant 1014563 | 3 | Washer, Flat, 0.40b 1.12d .12, SsPart of Ohg Kit, Ci [M20 And T20] (9001314). Serial 008000 and later. | $5.80/EA |

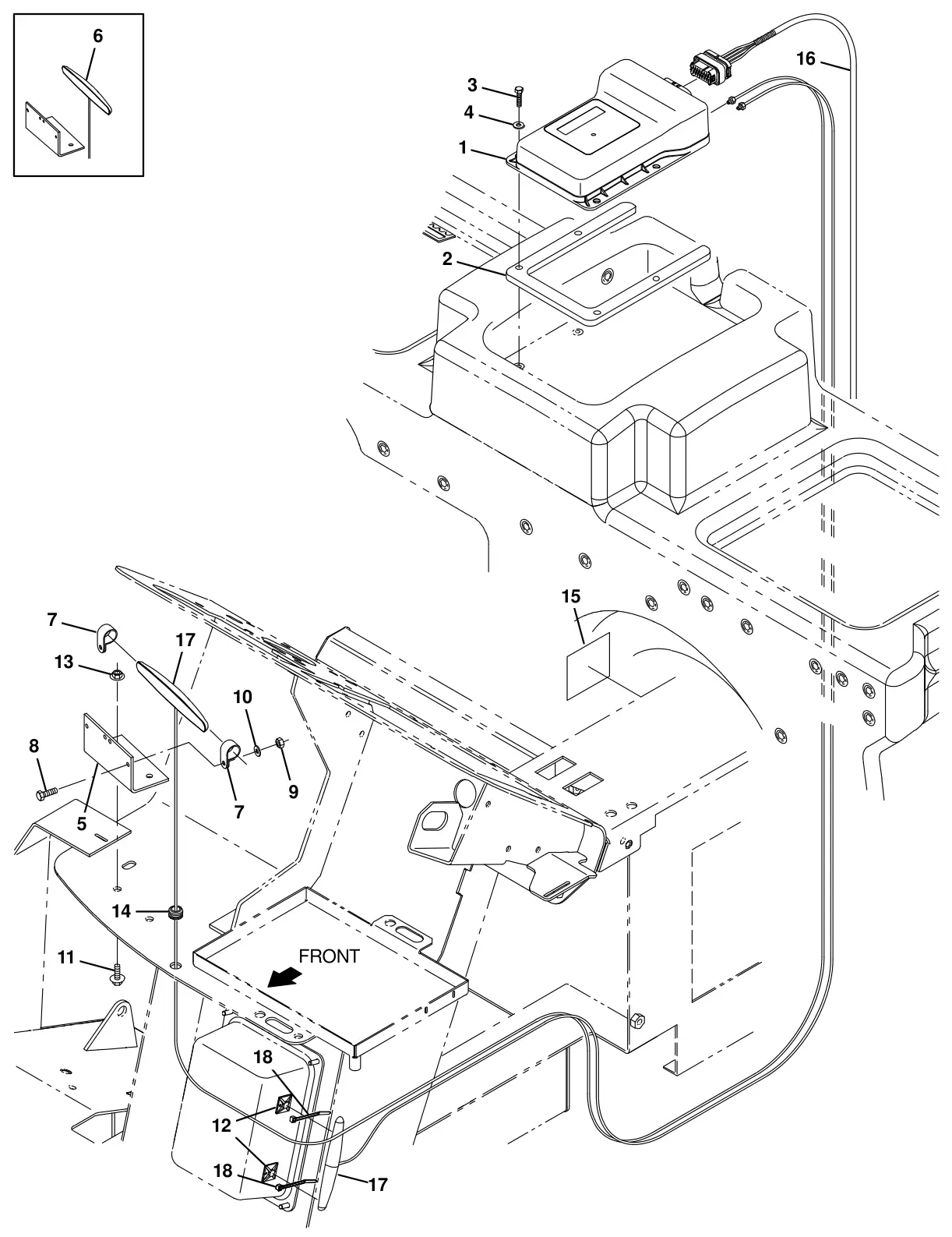

Tennant T20 Diesel telemetry Group (S/N 008000 - 016088) (option) parts
The parts Tennant numbers on its telemetry group (s/n 008000 - 016088) (option) drawing. Manual pages 229, list 230.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019020Replaces Tennant 9023153 | 1 | Upgrade Kit, POD, Tel, CI [M20/30, Std]Serial 008000 to 016088. | $1,809.92/EA |
| 1 | TN4019019Replaces Tennant 9023152 | 1 | Upgrade Kit, POD, Tel, CI [T/M20/30, Std] (Pro-Panel)Serial 008000 to 016088. | $2,095.75/EA |
| 2 | TN4030486Replaces Tennant 1071062 | 1 | Bracket, Spacer, ControlboxSerial 008000 to 016088. | $14.44/EA |
| 3 | TN4041970Replaces Tennant 09252 | 4 | Screw,Hex, M5 X 0.80 X 29, 8.8Serial 008000 to 016088. | $3.40/EA |
| 4 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, SsSerial 008000 to 016088. | $2.60/EA |
| 5 | TN4030314Replaces Tennant 1070402 | 1 | Angle, mtg, Antenna, TelemSerial 008000 to 016088. | $18.69/EA |
| 6 | TN4031064Replaces Tennant 1070659 | 1 | Antenna, Telem, 70 In [Gprs]Serial 008000 to 011019. | $54.80/EA |
| 7 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62D, NatSerial 008000 to 016088. | $3.40/EA |
| 8 | TN4041969Replaces Tennant 09244 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Serial 008000 to 016088. | $2.50/EA |
| 9 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlSerial 008000 to 016088. | $2.50/EA |
| 10 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Serial 008000 to 016088. | $2.50/EA |
| 11 | TN4044400Replaces Tennant 1040467 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsSerial 008000 to 016088. | $3.30/EA |
| 12 | TN4028714Replaces Tennant 55248 | 2 | Mount, Cable TieSerial 011020 to 016088. | $3.70/EA |
| 13 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M6 X 1.00Serial 008000 to 016088. | $3.20/EA |
| 14 | TN4031956Replaces Tennant 10632-12 | 1 | Grommet, Rbr, 0.38id, F/0.5H, .12 MatlSerial 008000 to 016088. | $3.30/EA |
| 15 | TN4030121Replaces Tennant 1069580 | 1 | Label, Opertnl, Telem [Fcc/Ic]Serial 008000 to 016088. | $4.34/EA |
| 16 | TN4044978Replaces Tennant 1075143 | 1 | Harness, Ele [Telem]Serial 008000 to 016088. | $97.55/EA |
| 17 | TN4217709Replaces Tennant 1248350 | 2 | Antenna, Telem [4g, 180”]Serial 011020 to 016088. | $50.89/EA |
| 18 | TN4011908Replaces Tennant 763114 | 2 | Tie, Cable, 11.3l, 2.75d MaxSerial 011020 to 016088. | $3.30/EA |
Tennant T20 Diesel telemetry Panel Kit, Std (S/N 016089 -) (option) parts
The parts Tennant numbers on its telemetry panel kit, std (s/n 016089 -) (option) drawing. Manual pages 231, list 232.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018562Replaces Tennant 9022293 | 1 | Panel Kit, POD Teleml, CI [M20/M30, STD]Complete assembly. Serial 016089 and later. | $1,724.07/EA |
| 1 | TN4214247Replaces Tennant 1256678 | 1 | Panel Ass, Console [SWPR-SCRBR, Telem]Part of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $1,419.05/EA |
| 2 | TN4030314Replaces Tennant 1070402 | 1 | Angle, Mtg, Antenna, TelemPart of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $18.69/EA |
| 3 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M6 X 1.00Part of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $3.20/EA |
| 4 | TN4044400Replaces Tennant 1040467 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsPart of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $3.30/EA |
| 5 | TN4031064Replaces Tennant 1247569 | 1 | Antenna, Telem [4G, 36”]Part of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $54.80/EA |
| 6 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62D, NatPart of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $3.40/EA |
| 7 | TN4041969Replaces Tennant 09244 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Part of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $2.50/EA |
| 8 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $2.50/EA |
| 9 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $2.50/EA |
| – | TN4032434Replaces Tennant 1259755 | 1 | Label, Mach, Telem [BG95/BG96]Part of Panel Kit, POD Teleml, CI [M20/M30, STD] (9022293). Serial 016089 and later. | $27.78/EA |
Tennant T20 Diesel telemetry Panel Kit, Pro-Panel (S/N 016089 -) (option) parts
The parts Tennant numbers on its telemetry panel kit, pro-panel (s/n 016089 -) (option) drawing. Manual pages 233, list 234.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018561Replaces Tennant 9022292 | 1 | Panel Kit, POD Telem, CI [T/M20/M30, PRO]Complete assembly. Serial 016089 and later. | $2,010.91/EA |
| 1 | TN4214246Replaces Tennant 1256677 | 1 | Panel Assy, [UI, Touchscreen, Telem]Part of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $1,664.48/EA |
| 2 | TN4030314Replaces Tennant 1070402 | 1 | Angle, Mtg, Antenna, TelemPart of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $18.69/EA |
| 3 | TN4044400Replaces Tennant 1040467 | 2 | Screw, Hex, H6 X 1.00 X 20, 9.8, SemsPart of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $3.30/EA |
| 4 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M6 X 1.00Part of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $3.20/EA |
| 5 | TN4031064Replaces Tennant 1247569 | 1 | Antenna, Telem [4G, 36]Part of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $54.80/EA |
| 6 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62D, NatPart of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $3.40/EA |
| 7 | TN4041969Replaces Tennant 09244 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Part of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $2.50/EA |
| 8 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80 X 16, 8.8Part of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $2.50/EA |
| 9 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $2.50/EA |
| – | TN4032434Replaces Tennant 1259755 | 1 | Label, Mach, Telem [BG95/BG96]Part of Panel Kit, POD Telem, CI [T/M20/M30, PRO] (9022292). Serial 016089 and later. | $27.78/EA |
Tennant T20 Diesel vacuum Wand Kit (option) parts
The parts Tennant numbers on its vacuum wand kit (option) drawing. Manual pages 235, list 236.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016489Replaces Tennant 9003134 | 1 | Wand Kit, Vac, Sqge, Ci [T20]Complete assembly. Serial 008000 and later. | $874.40/EA |
| 1 | TN4017746Replaces Tennant 65580 | 1 | Bag, PowerPart of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $159.30/EA |
| 2 | TN4016302Replaces Tennant 72968 | 4 | Rivet, Plstc, .250 X 0.898Part of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $3.20/EA |
| 3 | TN4042249Replaces Tennant 190722 | 1 | Wand, Chm, Dbl Bend [1 Pk= 1 Box Of 2pc]Part of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $174.70/EA |
| 4 | TN4022033Replaces Tennant 86767 | 1 | Hose Assy, W/2cuff, 1.5d 90l 1.5/1.5Part of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $78.40/EA |
| 5 | TN4031356Replaces Tennant 1029396 | 1 | Fitting, Alm, Str, Bm24/Bm48Part of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $164.30/EA |
| 6 | TN4026556Replaces Tennant 79381 | 1 | Clamp, Hose, Wormdrive, 1.25-2.00D, .50WPart of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $6.20/EA |
| 7 | TN4043605Replaces Tennant 13840 | 1 | Nozzle Assy, Tool, Wand, 14.0 InchPart of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $145.30/EA |
| 8 | TN4029085Replaces Tennant 55845 | 2 | Screw, Hex, M5 X 0.8 X 16, FmgPart of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $4.00/EA |
| 9 | TN4017922Replaces Tennant 67004 | 2 | Clip, Grip, Finger, 1.00-1.88d White,VylPart of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $26.10/EA |
| 10 | TN4042242Replaces Tennant 19064 | 6 | Washer, Flat, #06Part of Wand Kit, Vac, Sqge, Ci [T20] (9003134). Serial 008000 and later. | $3.40/EA |
Tennant T20 Diesel power Wand Hose Assembly (option) parts
The parts Tennant numbers on its power wand hose assembly (option) drawing. Manual pages 237, list 238.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017732Replaces Tennant 65341 | 1 | Hose Assy, Wand, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁComplete assembly. Serial 008000 and later. | $288.70/EA |
| 1 | TN4029497Replaces Tennant 578318000 | 1 | Fitting, Stl, Qdc, Bm04Part of Hose Assy, Wand, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). Serial 008000 and later. | $19.09/EA |
| 2 | TN4029481Replaces Tennant 578160000 | 2 | Clamp, Á Á Á Á Á Á Hose, Á Á Ear, Á Á Á Á 11-Á Á 13mm, Á Á Á Á Ss Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assy, Wand, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). Serial 008000 and later. | $4.24/EA |
| 3 | TN4029633Replaces Tennant 578820000 | 1 | Hose, Á Á Á Á Pvc, Á Á Á Á Brd, Á Á 0.25id Á Á Á Á 0.44od Á Á Á Á 157.2l,Clr Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assy, Wand, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). Serial 008000 and later. | $27.80/EA |
| 4 | TN4029457Replaces Tennant 578072000 | 2 | Cuff, Swivel, 1.5 Blk Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assy, Wand, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). Serial 008000 and later. | $31.71/EA |
| 5 | TN4041029Replaces Tennant 578276000 | 1 | Hose, Vacuum, 1.50id X 10ft, Gray Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assy, Wand, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). Serial 008000 and later. | $83.90/EA |
| 6 | TN4029456Replaces Tennant 578071000 | 1 | Fitting, Brs, Qdc, Bm04/Pf04 Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assy, Wand, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). Serial 008000 and later. | $52.02/EA |
| 7 | TN4031356Replaces Tennant 1029396 | 1 | Fitting, Alm, Str, Bm24/Bm48Serial 008000 and later. | $164.30/EA |
Tennant T20 Diesel power Wand Assembly (option) parts
The parts Tennant numbers on its power wand assembly (option) drawing. Manual pages 239, list 240.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017731Replaces Tennant 65340 | 1 | Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁComplete assembly. Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4029460Replaces Tennant 578077000 | 1 | Bracket, Wand, Valve MtgPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $67.47/EA |
| 2 | TN4029451Replaces Tennant 578061000 | 2 | Adapter, Á Á Á Á Á Á Head Á Á Á Á / Wand Á Á Á Á [17b/E] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $22.12/EA |
| 3 | TN4045657Replaces Tennant 578214000 | 1 | Fitting, Á Á Á Á Plstc, Á Á Á Á E90, Á Á Á Á Bm04/Pm02 Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $4.20/EA |
| 4 | TN4029645Replaces Tennant 579112 | 1 | Fitting Spray Nozzle Adapter Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $12.52/EA |
| 5 | TN4027633Replaces Tennant 602036000 | 2 | Rivet, Blind [S2500 Drvblock] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $3.03/EA |
| 6 | TN4029454Replaces Tennant 578066000 | 1 | Fitting, Brs, Tip [75, .125k-Jet] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $25.45/EA |
| 7 | TN4017760Replaces Tennant 65610 | 1 | Brush, Power Wand, W/ FaSTener, PypPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4029452Replaces Tennant 578063000 | 1 | Head, Á Á Á Á Wand Á Á Á Á [17b/E] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4029461Replaces Tennant 578078000 | 2 | Retainer, Á Á Á Á Á Á Sqge, Á Á Á Á Wand Á Á Á Á [17b/E] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $48.68/EA |
| 10 | TN4029459Replaces Tennant 578074000 | 2 | Blade, Sqge, 300.8mml, Wand [17b/E, G] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $62.92/EA |
| 11 | TN4029473Replaces Tennant 578124000 | 1 | Bracket, Axle, 1 Hole [17b/E] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $9.90/EA |
| 12 | TN4029611Replaces Tennant 578439 | 1 | Nut, Thumb, M6 X 1.0, 30d Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $6.60/EA |
| 13 | TN4029488Replaces Tennant 578228000 | 1 | Spring, Cmpr, 0.40od .04wir 00.6l, SsPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $14.54/EA |
| 14 | TN4029477Replaces Tennant 578143000 | 1 | Screw, Á Á Á Á Set, Á Á Á Á M6 Á Á X Á Á 1.00 Á Á X Á Á 40, Á Á Ss Á Á [Cuppt] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $6.97/EA |
| 15 | TN4029475Replaces Tennant 578126000 | 1 | Axle, Á Á Á Á Wand Á Á Á Á [17b/E] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $37.17/EA |
| 16 | TN4029474Replaces Tennant 578125000 | 2 | Wheel, 41.3d 19.1w, Rbr Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $10.71/EA |
| 17 | TN4029472Replaces Tennant 578123000 | 1 | Bracket, Axle, 3 Hole [17b/E] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $21.61/EA |
| 18 | TN4029480Replaces Tennant 578155000 | 1 | Handle Wldt, WandPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $87.20/EA |
| 19 | TN4029479Replaces Tennant 578154000 | 1 | Bracket, Á Á Á Á Á Á Á Á Á Wand, Á Á Á Á Á Á Handle Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $24.64/EA |
| 20 | TN4029464Replaces Tennant 578091000 | 1 | Fitting, Á Á Á Á Brs, Á Á Á Á Qdc, Á Á Pm04, Á Á Á Á Plug Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $20.91/EA |
| 21 | TN4029483Replaces Tennant 578164000 | 1 | Grommet, 0.38id, F/0.6h, .06 Matl Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $3.33/EA |
| 22 | TN4029634Replaces Tennant 578821000 | 1 | Hose, Pyu, 0.25id 0.38od 1220mml, Blk Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $17.37/EA |
| 23 | TN4029482Replaces Tennant 578161000 | 2 | Clamp, Hose, Ear, 8-11mm, Ss Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $5.15/EA |
| 24 | TN4029465Replaces Tennant 578094000 | 1 | Fitting, Nyl, Str, Bm04/Pm04Part of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $3.33/EA |
| 25 | TN4029453Replaces Tennant 578064000 | 1 | Valve, Á Á Á Á Cntrl, Á Á Á Á Water Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $81.10/EA |
| 26 | TN4044388Replaces Tennant 150208 | 1 | Fitting, Á Á Á Á Brs, Á Á Á Á Str, Á Á Pm02, Á Á Á Á Plug Á Á Á Á [Skhd] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $4.20/EA |
| 27 | TN4029450Replaces Tennant 578060000 | 1 | Wand, Dbl Bend, 38.1mmd Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Wand Assy, Power Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). Serial 008000 and later. | $140.90/EA |
| 28 | TN4017748Replaces Tennant 65582 | 1 | Brush, Power Wand, W/ FaSTener, Abr Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁSerial 008000 and later. | $179.84/EA |
Tennant T20 Diesel power Wand Pump and Mount Group (option) parts
The parts Tennant numbers on its power wand pump and mount group (option) drawing. Manual pages 241, list 242.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoSerial 008000 and later. | $11.30/EA |
| 2 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt, On / None / OnSerial 008000 and later. | $45.20/EA |
| 3 | TN4195644Replaces Tennant 1021881 | 1 | Harness, Spray, NozzleSerial 008000 and later. | $83.10/EA |
| 4 | TN4017746Replaces Tennant 65580 | 1 | Bag, PowerSerial 008000 and later. | $159.30/EA |
| 5 | TN4016302Replaces Tennant 72968 | 4 | Rivet, Plstc, .250d X 0.90Serial 008000 and later. | $3.20/EA |
| 6 | TN4017922Replaces Tennant 67004 | 1 | Clip, Grip, Finger, 1.00-1.88d White,VylSerial 008000 and later. | $26.10/EA |
| 7 | TN4041968Replaces Tennant 09228 | 1 | Screw, Hex, M4 X 0.7 X 20, 8.8Serial 008000 and later. | $3.30/EA |
| 8 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flat, #06Serial 008000 and later. | $3.40/EA |
| 9 | TN4017733Replaces Tennant 65342 | 1 | Fitting, Brs, Qdc, Pm04/Qf06Serial 008000 and later. | $63.80/EA |
| 10 | TN4026127Replaces Tennant 78122 | 1 | Fitting, Brs, Str, Pf04/Pf04, BhSerial 008000 and later. | $30.50/EA |
| 11 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04Serial 008000 and later. | $1.35/EA |
| 12 | TN4015366Replaces Tennant 54333 | 4 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 and later. | $5.10/EA |
| 13 | TN4196177Replaces Tennant 1023585 | 1 | Bracket, Mtg, PumpSerial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, SsSerial 008000 and later. | $3.30/EA |
| 15 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 008000 and later. | $2.50/EA |
| 16 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 008000 and later. | $5.30/EA |
| 17 | TN4035811Replaces Tennant 1018499 | 2 | Fitting, Plstc, E90, Bm08/Pf08s, SwivelSerial 008000 and later. | $4.20/EA |
| 18 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 and later. | $6.80/EA |
| 19 | TN4034280Replaces Tennant 1026743 | 1 | Pump, DiaphragmSerial 008000 and later. | $370.80/EA |
| 20 | TN4041268Replaces Tennant 06939 | 4 | Screw, Pan, M5 X 0.80 X 45, 4.8Serial 008000 and later. | $3.40/EA |
| 21 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, #10Serial 008000 and later. | $2.50/EA |
| 22 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlSerial 008000 and later. | $2.50/EA |
| 23 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrSerial 008000 and later. | $75.50/EA |
| 24 | TN4031423Replaces Tennant 1030407 | 1 | Bracket, Mtg, WandSerial 008000 and later. | $33.03/EA |
| 25 | TN4023194Replaces Tennant 61212 | 1 | TraySerial 008000 and later. | $69.69/EA |
| 26 | TN4042901Replaces Tennant 01684 | 2 | Washer,Flat 0.25, SsSerial 008000 and later. | $2.60/EA |
| 27 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Ss, NlSerial 008000 and later. | $2.50/EA |
| 28 | TN4039393Replaces Tennant 21198 | 2 | Screw, Hex, .38-16 X 1.25, G5Serial 008000 and later. | $3.30/EA |
| 29 | TN4029273Replaces Tennant 367770 | 2 | Screw, Pan, M6 X 1.0 X 16, SsSerial 008000 and later. | $2.50/EA |
| 30 | TN4029437Replaces Tennant 57769 | 1 | Strap, Rbr, 13.2l [2/S Hooks]Serial 008000 and later. | $44.50/EA |
| 31 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flat, 0.38, StdSerial 008000 and later. | $2.50/EA |
| 32 | TN4016197Replaces Tennant 397648 | 2 | Nut, Isolator, .38-16 Wall Th .015 - .437Serial 008000 and later. | $5.76/EA |
Tennant T20 Diesel power Wand Pump and Mount Group with Spray Nozzle (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its power wand pump and mount group with spray nozzle (s/n 008000 - 013000) (option) drawing. Manual pages 243, list 244.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 008000 to 013000. | $11.00/EA |
| 2 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flat, 0.38, StdSerial 008000 to 013000. | $2.50/EA |
| 3 | TN4016197Replaces Tennant 397648 | 2 | Nut, Isolator, .38-16 Wall Th .015 - .437Serial 008000 to 013000. | $5.76/EA |
| 4 | TN4017746Replaces Tennant 65580 | 1 | Bag, PowerSerial 008000 to 013000. | $159.30/EA |
| 5 | TN4016302Replaces Tennant 72968 | 4 | Rivet, Plstc, .250d X 0.90Serial 008000 to 013000. | $3.20/EA |
| 6 | TN4017922Replaces Tennant 67004 | 1 | Clip, Grip, Finger, 1.00-1.88d White,VylSerial 008000 to 013000. | $26.10/EA |
| 7 | TN4041968Replaces Tennant 09228 | 1 | Screw, Hex, M4 X 0.7 X 20, 8.8Serial 008000 to 013000. | $3.30/EA |
| 8 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flat, #06Serial 008000 to 013000. | $3.40/EA |
| 9 | TN4017733Replaces Tennant 65342 | 1 | Fitting, Brs, Qdc, Pm04/Qf06Serial 008000 to 013000. | $63.80/EA |
| 10 | TN4026127Replaces Tennant 78122 | 1 | Fitting, Brs, Str, Pf04/Pf04, BhSerial 008000 to 013000. | $30.50/EA |
| 11 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04Serial 008000 to 013000. | $1.35/EA |
| 12 | TN4015366Replaces Tennant 54333 | 4 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 008000 to 013000. | $5.10/EA |
| 13 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrSerial 008000 to 013000. | $75.50/EA |
| 14 | TN4031423Replaces Tennant 1030407 | 1 | Bracket, Mtg, WandSerial 008000 to 013000. | $33.03/EA |
| 15 | TN4023194Replaces Tennant 61212 | 1 | TraySerial 008000 to 013000. | $69.69/EA |
| 16 | TN4042901Replaces Tennant 01684 | 2 | Washer,Flat 0.25, SsSerial 008000 to 013000. | $2.60/EA |
| 17 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Ss, NlSerial 008000 to 013000. | $2.50/EA |
| 18 | TN4039393Replaces Tennant 21198 | 2 | Screw, Hex, .38-16 X 1.25, G5Serial 008000 to 013000. | $3.30/EA |
| 19 | TN4029273Replaces Tennant 367770 | 2 | Screw, Pan, M6 X 1.0 X 16, SsSerial 008000 to 013000. | $2.50/EA |
| 20 | TN4029437Replaces Tennant 57769 | 1 | Strap, Rbr, 13.2l [2/S Hooks]Serial 008000 to 013000. | $44.50/EA |
Tennant T20 Diesel power Wand Solution Control and Mount Group (S/N 013001 -) (option) parts
The parts Tennant numbers on its power wand solution control and mount group (s/n 013001 -) (option) drawing. Manual pages 245, list 246.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoSerial 013001 and later. | $11.30/EA |
| 2 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt, On / None / OnSerial 013001 and later. | $45.20/EA |
| 3 | TN4195644Replaces Tennant 1021881 | 1 | Harness, Spray, NozzleSerial 013001 and later. | $83.10/EA |
| 4 | TN4017746Replaces Tennant 65580 | 1 | Bag, PowerSerial 013001 and later. | $159.30/EA |
| 5 | TN4016302Replaces Tennant 72968 | 4 | Rivet, Plstc, .250d X 0.90Serial 013001 and later. | $3.20/EA |
| 6 | TN4017922Replaces Tennant 67004 | 1 | Clip, Grip, Finger, 1.00-1.88d White,VylSerial 013001 and later. | $26.10/EA |
| 7 | TN4041968Replaces Tennant 09228 | 1 | Screw, Hex, M4 X 0.7 X 20, 8.8Serial 013001 and later. | $3.30/EA |
| 8 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flat, #06Serial 013001 and later. | $3.40/EA |
| 9 | TN4017733Replaces Tennant 65342 | 1 | Fitting, Brs, Qdc, Pm04/Qf06Serial 013001 and later. | $63.80/EA |
| 10 | TN4026127Replaces Tennant 78122 | 1 | Fitting, Brs, Str, Pf04/Pf04, BhSerial 013001 and later. | $30.50/EA |
| 11 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04Serial 013001 and later. | $1.35/EA |
| 12 | TN4015366Replaces Tennant 54333 | 9 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 13 | TN4042944Replaces Tennant 1076870 | 2 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Serial 013001 and later. | $122.10/EA |
| 14 | TN4017637Replaces Tennant 64743 | 2 | Fitting, Plstc, Str, Bm08/Pm06Serial 013001 and later. | $6.20/EA |
| 15 | TN4032374Replaces Tennant 1257563 | 4 | Screw, Pan, Torx, 06-19 X 0.38, F/ PlstcSerial 013001 and later. | $13.74/EA |
| 16 | TN4020528Replaces Tennant 630146 | 2 | Fitting, Plug, Pm06, HdpeSerial 013001 and later. | $4.00/EA |
| 17 | TN4032111Replaces Tennant 1254833 | 1 | Manifold, SolnSerial 013001 and later. | $121.00/EA |
| 18 | TN4032116Replaces Tennant 1254856 | 1 | Plate, Manifold, MtgSerial 013001 and later. | $25.55/EA |
| 19 | TN4034136Replaces Tennant 32490 | 6 | Washer, Flat, 0.25, StdSerial 013001 and later. | $2.50/EA |
| 20 | TN4032379Replaces Tennant 1257800 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlSerial 013001 and later. | $14.14/EA |
| 21 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 013001 and later. | $2.50/EA |
| 22 | TN4043042Replaces Tennant 1077124 | 1 | Bracket, Manifold, StratusSerial 013001 and later. | $10.20/EA |
| 23 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 24 | TN4031423Replaces Tennant 1030407 | 1 | Bracket, Mtg, WandSerial 013001 and later. | $33.03/EA |
| 25 | TN4023194Replaces Tennant 61212 | 1 | TraySerial 013001 and later. | $69.69/EA |
| 26 | TN4042901Replaces Tennant 01684 | 2 | Washer,Flat 0.25, SsSerial 013001 and later. | $2.60/EA |
| 27 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Ss, NlSerial 013001 and later. | $2.50/EA |
| 28 | TN4039393Replaces Tennant 21198 | 2 | Screw, Hex, .38-16 X 1.25, G5Serial 013001 and later. | $3.30/EA |
| 29 | TN4029273Replaces Tennant 367770 | 2 | Screw, Pan, M6 X 1.0 X 16, SsSerial 013001 and later. | $2.50/EA |
| 30 | TN4029437Replaces Tennant 57769 | 1 | Strap, Rbr, 13.2l [2/S Hooks]Serial 013001 and later. | $44.50/EA |
| 31 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flat, 0.38, StdSerial 013001 and later. | $2.50/EA |
| 32 | TN4016197Replaces Tennant 397648 | 2 | Nut, Isolator, .38-16 Wall Th .015 - .437Serial 013001 and later. | $5.76/EA |
| 33 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 013001 and later. | $70.70/EA |
| 34 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 013001 and later. | $2.60/EA |
| 35 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 013001 and later. | $3.30/EA |
Tennant T20 Diesel spray Nozzle Kit (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its spray nozzle kit (s/n 008000 - 013000) (option) drawing. Manual pages 247, list 248.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016493Replaces Tennant 9003139 | 1 | Nozzle kit, Spray, Ci [T20]Complete assembly. Serial 008000 to 013000. | $1,205.40/EA |
| 1 | TN4196177Replaces Tennant 1023585 | 1 | Bracket, Mtg, PumpPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $2.50/EA |
| 3 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $3.30/EA |
| 4 | TN4034280Replaces Tennant 1026743 | 1 | Pump, DiaphragmPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $370.80/EA |
| 5 | TN4041268Replaces Tennant 06939 | 4 | Screw, Pan, M5 X 0.80 X 45, 4.8Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $3.40/EA |
| 6 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, #10Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $2.50/EA |
| 7 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $2.50/EA |
| 8 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $5.30/EA |
| 9 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $6.80/EA |
| 10 | TN4035811Replaces Tennant 1018499 | 1 | Fitting, Plstc, E90, Bm08/Pf08s, SwivelPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $4.20/EA |
| 11 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $5.10/EA |
| 12 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $8.70/EA |
| 13 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $11.30/EA |
| 14 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt, On / None / OnPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $45.20/EA |
| 15 | TN4031379Replaces Tennant 1029790 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $26.25/EA |
| 16 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $3.40/EA |
| 17 | TN4031028Replaces Tennant 1029055 | 1 | Wand, Clean-OutPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $176.10/EA |
| 18 | TN4035902Replaces Tennant 1019250 | 1 | Hose, Water, Coil, 0.38id 0.56odPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $192.50/EA |
| 19 | TN4028980Replaces Tennant 769785 | 1 | Nozzle, Spray, GunPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $90.00/EA |
| 20 | TN4030660Replaces Tennant 1027976 | 1 | Fitting, Brs, Str, Pf06/Pm12Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $11.80/EA |
| 21 | TN4030624Replaces Tennant 1027237 | 1 | Bracket, Mtg, Spray HandlePart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $15.30/EA |
| 22 | TN4030661Replaces Tennant 1027978 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $23.25/EA |
| 23 | TN4195644Replaces Tennant 1021881 | 1 | Harness, Spray, NozzlePart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $83.10/EA |
| 24 | TN4031029Replaces Tennant 1029057 | 2 | Clip, Grip, Finger, .875-1.25Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $5.15/EA |
| 25 | TN4039088Replaces Tennant 20394 | 2 | Screw, Hex, #10-16 X 0.62, Fmg [Ab]Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $3.30/EA |
| 26 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, #10, SsPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $2.60/EA |
| 27 | TN4029238Replaces Tennant 375321 | 1 | Fitting, Brs, Str, Pm08/Garden HosePart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $10.40/EA |
| 28 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $3.50/EA |
| 29 | TN4031038Replaces Tennant 1029153 | 1 | Fitting, Brs, Spcl [Garden Hose]Part of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $7.00/EA |
| 30 | TN4031039Replaces Tennant 1029155 | 1 | Coupling, Nozzle, SprayPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $15.40/EA |
| 31 | TN4031040Replaces Tennant 1029156 | 1 | NozzlePart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $69.50/EA |
| 32 | TN4031357Replaces Tennant 1029399 | 1 | Valve, ShutoffPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $41.60/EA |
| 33 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrPart of Nozzle kit, Spray, Ci [T20] (9003139). Serial 008000 to 013000. | $75.50/EA |
Tennant T20 Diesel spray Nozzle Group (S/N 013001 -) (option) parts
The parts Tennant numbers on its spray nozzle group (s/n 013001 -) (option) drawing. Manual pages 249, list 250.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042944Replaces Tennant 1076870 | 1 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Serial 013001 and later. | $122.10/EA |
| 2 | TN4015366Replaces Tennant 54333 | 8 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 3 | TN4017637Replaces Tennant 64743 | 2 | Fitting, Plstc, Str, Bm08/Pm06Serial 013001 and later. | $6.20/EA |
| 4 | TN4032374Replaces Tennant 1257563 | 4 | Screw, Pan, Torx, 06-19 X 0.38, F/ PlstcSerial 013001 and later. | $13.74/EA |
| 5 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 40a, Spdt N/OSerial 013001 and later. | $11.30/EA |
| 6 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 013001 and later. | $70.70/EA |
| 7 | TN4042976Replaces Tennant 1076974 | 1 | Harness, Spray, NozzleSerial 013001 and later. | $59.01/EA |
| 8 | TN4035902Replaces Tennant 1019250 | 1 | Hose, Water, CoilSerial 013001 and later. | $192.50/EA |
| 9 | TN4028980Replaces Tennant 769785 | 1 | Nozzle, Spray, GunSerial 013001 and later. | $90.00/EA |
| 10 | TN4030660Replaces Tennant 1027976 | 1 | Fitting, Brs, Str, Pf06/Pm12Serial 013001 and later. | $11.80/EA |
| 11 | TN4030624Replaces Tennant 1027237 | 1 | Bracket, Mtg, Spray HandleSerial 013001 and later. | $15.30/EA |
| 12 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 013001 and later. | $2.60/EA |
| 13 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 013001 and later. | $3.30/EA |
| 14 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt On/None/OnSerial 013001 and later. | $45.20/EA |
| 15 | TN4031379Replaces Tennant 1029790 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Serial 013001 and later. | $26.25/EA |
| 16 | TN4019813Replaces Tennant 393135 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkSerial 013001 and later. | $3.30/EA |
| 17 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 013001 and later. | $2.50/EA |
| 18 | TN4030661Replaces Tennant 1027978 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhSerial 013001 and later. | $23.25/EA |
| 19 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 20 | TN4031028Replaces Tennant 1029055 | 1 | Wand, Clean-OutSerial 013001 and later. | $176.10/EA |
| 21 | TN4031029Replaces Tennant 1029057 | 2 | Clip, Grip, Finger, .875-1.25Serial 013001 and later. | $5.15/EA |
| 22 | TN4039088Replaces Tennant 20394 | 2 | Screw, Hex, #10-16 X 0.62, Fmg [Ab]Serial 013001 and later. | $3.30/EA |
| 23 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, #10, SsSerial 013001 and later. | $2.60/EA |
| 24 | TN4029238Replaces Tennant 375321 | 1 | Fitting, Brs, Str, Pm08/Garden HoseSerial 013001 and later. | $10.40/EA |
| 25 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrSerial 013001 and later. | $3.50/EA |
| 26 | TN4031038Replaces Tennant 1029153 | 1 | Nipple, HoseSerial 013001 and later. | $7.00/EA |
| 27 | TN4031039Replaces Tennant 1029155 | 1 | Coupling, Nozzle, SpraySerial 013001 and later. | $15.40/EA |
| 28 | TN4031040Replaces Tennant 1029156 | 1 | NozzleSerial 013001 and later. | $69.50/EA |
| 29 | TN4031357Replaces Tennant 1029399 | 1 | Valve, ShutoffSerial 013001 and later. | $41.60/EA |
| 30 | TN4020528Replaces Tennant 630146 | 2 | Fitting, Plug, Pm06, HdpeSerial 013001 and later. | $4.00/EA |
| 31 | TN4032111Replaces Tennant 1254833 | 1 | Manifold, SolnSerial 013001 and later. | $121.00/EA |
| 32 | TN4032116Replaces Tennant 1254856 | 1 | Plate, Manifold, MtgSerial 013001 and later. | $25.55/EA |
| 33 | TN4034136Replaces Tennant 32490 | 6 | Washer, Flat, 0.25, StdSerial 013001 and later. | $2.50/EA |
| 34 | TN4032379Replaces Tennant 1257800 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlSerial 013001 and later. | $14.14/EA |
| 35 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 013001 and later. | $2.50/EA |
| 36 | TN4043042Replaces Tennant 1077124 | 1 | Bracket, Manifold, StratusSerial 013001 and later. | $10.20/EA |
| 37 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
Tennant T20 Diesel spray Nozzle Kit with Power Wand (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its spray nozzle kit with power wand (s/n 008000 - 013000) (option) drawing. Manual pages 251, list 252.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016690Replaces Tennant 9003282 | 1 | Nozzle Kit, Spray, W/Pwr Wand, Ci [T20]Complete assembly. Serial 008000 to 013000. | $534.27/EA |
| 1 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Part of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $8.70/EA |
| 2 | TN4031379Replaces Tennant 1029790 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Part of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $26.25/EA |
| 3 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $3.40/EA |
| 4 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, SsPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $3.30/EA |
| 5 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $11.00/EA |
| 6 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $6.80/EA |
| 7 | TN4035902Replaces Tennant 1019250 | 1 | Hose, Water, Coil, 0.38id 0.56odPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $192.50/EA |
| 8 | TN4028980Replaces Tennant 769785 | 1 | Nozzle, Spray, GunPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $90.00/EA |
| 9 | TN4030660Replaces Tennant 1027976 | 1 | Fitting, Brs, Str, Pf06/Pm12Part of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $11.80/EA |
| 10 | TN4030624Replaces Tennant 1027237 | 1 | Bracket, Mtg, Spray HandlePart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $15.30/EA |
| 11 | TN4030661Replaces Tennant 1027978 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $23.25/EA |
| 12 | TN4031029Replaces Tennant 1029057 | 2 | Clip, Grip, Finger, .875-1.25Part of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $5.15/EA |
| 13 | TN4039088Replaces Tennant 20394 | 2 | Screw, Hex, #10-16 X 0.62, Fmg [Ab]Part of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $3.30/EA |
| 14 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, #10, SsPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $2.60/EA |
| 15 | TN4029238Replaces Tennant 375321 | 1 | Fitting, Brs, Str, Pm08/Garden HosePart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $10.40/EA |
| 16 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $3.50/EA |
| 17 | TN4031038Replaces Tennant 1029153 | 1 | Fitting, Brs, Spcl [Garden Hose]Part of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $7.00/EA |
| 18 | TN4031039Replaces Tennant 1029155 | 1 | Coupling, Nozzle, SprayPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $15.40/EA |
| 19 | TN4031040Replaces Tennant 1029156 | 1 | NozzlePart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $69.50/EA |
| 20 | TN4031357Replaces Tennant 1029399 | 1 | Valve, ShutoffPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $41.60/EA |
| 21 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, ClrPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $75.50/EA |
| 22 | TN4031028Replaces Tennant 1029055 | 1 | Wand, Clean-OutPart of Nozzle Kit, Spray, W/Pwr Wand, Ci [T20] (9003282). Serial 008000 to 013000. | $176.10/EA |
Tennant T20 Diesel spray Nozzle Group with Power Wand (S/N 013001 -) (option) parts
The parts Tennant numbers on its spray nozzle group with power wand (s/n 013001 -) (option) drawing. Manual pages 253, list 254.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4042944Replaces Tennant 1076870 | 1 | Valve, Water, Solenoid [12vdc, Bm08/Bm08Serial 013001 and later. | $122.10/EA |
| 2 | TN4015366Replaces Tennant 54333 | 12 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 3 | TN4017637Replaces Tennant 64743 | 2 | Fitting, Plstc, Str, Bm08/Pm06Serial 013001 and later. | $6.20/EA |
| 4 | TN4032374Replaces Tennant 1257563 | 4 | Screw, Pan, Torx, 06-19 X 0.38, F/ PlstcSerial 013001 and later. | $13.74/EA |
| 5 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, NylSerial 013001 and later. | $11.00/EA |
| 6 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, ClrSerial 013001 and later. | $70.70/EA |
| 7 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 013001 and later. | $3.30/EA |
| 8 | TN4035902Replaces Tennant 1019250 | 1 | Hose, Water, CoilSerial 013001 and later. | $192.50/EA |
| 9 | TN4028980Replaces Tennant 769785 | 1 | Nozzle, Spray, GunSerial 013001 and later. | $90.00/EA |
| 10 | TN4030660Replaces Tennant 1027976 | 1 | Fitting, Brs, Str, Pf06/Pm12Serial 013001 and later. | $11.80/EA |
| 11 | TN4030624Replaces Tennant 1027237 | 1 | Bracket, Mtg, Spray HandleSerial 013001 and later. | $15.30/EA |
| 12 | TN4043042Replaces Tennant 1077124 | 1 | Bracket, Manifold, StratusSerial 013001 and later. | $10.20/EA |
| 13 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 14 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 013001 and later. | $2.60/EA |
| 15 | TN4031379Replaces Tennant 1029790 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Serial 013001 and later. | $26.25/EA |
| 16 | TN4019813Replaces Tennant 393135 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkSerial 013001 and later. | $3.30/EA |
| 17 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 013001 and later. | $2.50/EA |
| 18 | TN4030661Replaces Tennant 1027978 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhSerial 013001 and later. | $23.25/EA |
| 19 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 20 | TN4031028Replaces Tennant 1029055 | 1 | Wand, Clean-OutSerial 013001 and later. | $176.10/EA |
| 21 | TN4031029Replaces Tennant 1029057 | 2 | Clip, Grip, Finger, .875-1.25Serial 013001 and later. | $5.15/EA |
| 22 | TN4039088Replaces Tennant 20394 | 2 | Screw, Hex, #10-16 X 0.62, Fmg [Ab]Serial 013001 and later. | $3.30/EA |
| 23 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, #10, SsSerial 013001 and later. | $2.60/EA |
| 24 | TN4029238Replaces Tennant 375321 | 1 | Fitting, Brs, Str, Pm08/Garden HoseSerial 013001 and later. | $10.40/EA |
| 25 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrSerial 013001 and later. | $3.50/EA |
| 26 | TN4031038Replaces Tennant 1029153 | 1 | Nipple, HoseSerial 013001 and later. | $7.00/EA |
| 27 | TN4031039Replaces Tennant 1029155 | 1 | Coupling, Nozzle, SpraySerial 013001 and later. | $15.40/EA |
| 28 | TN4031040Replaces Tennant 1029156 | 1 | NozzleSerial 013001 and later. | $69.50/EA |
| 29 | TN4031357Replaces Tennant 1029399 | 1 | Valve, ShutoffSerial 013001 and later. | $41.60/EA |
| 30 | TN4020528Replaces Tennant 630146 | 2 | Fitting, Plug, Pm06, HdpeSerial 013001 and later. | $4.00/EA |
| 31 | TN4032111Replaces Tennant 1254833 | 1 | Manifold, SolnSerial 013001 and later. | $121.00/EA |
| 32 | TN4032116Replaces Tennant 1254856 | 1 | Plate, Manifold, MtgSerial 013001 and later. | $25.55/EA |
| 33 | TN4034136Replaces Tennant 32490 | 6 | Washer, Flat, 0.25, StdSerial 013001 and later. | $2.50/EA |
| 34 | TN4032379Replaces Tennant 1257800 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlSerial 013001 and later. | $14.14/EA |
| 35 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 013001 and later. | $2.50/EA |
Tennant T20 Diesel transport Kit (option) parts
The parts Tennant numbers on its transport kit (option) drawing. Manual pages 255, list 256.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016495Replaces Tennant 9003143 | 1 | Transport Kit, Ci [T20]Complete assembly. Serial 008000 and later. | $364.80/EA |
| 1 | TN4044424Replaces Tennant 1040800 | 2 | Bracket, Latch, CoverPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $31.40/EA |
| 2 | TN4041994Replaces Tennant 09744 | 6 | Screw, Hex, M6 X 1.0 X 12, SsPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $3.40/EA |
| 3 | TN4042901Replaces Tennant 01684 | 6 | Washer, Flat, 0.25, SsPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $2.60/EA |
| 4 | TN4191356Replaces Tennant 1040633 | 2 | Plate, Hook, LatchPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $16.40/EA |
| 5 | TN4036273Replaces Tennant 1020526 | 2 | Bracket, Retaining, HosePart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $57.10/EA |
| 6 | TN4037480Replaces Tennant 1222019 | 2 | Latch, YellowPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $40.40/EA |
| 7 | TN4041965Replaces Tennant 09200 | 4 | Screw, Pan, M5 X 0.8 X 12, SsPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $3.40/EA |
| 8 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $3.30/EA |
| 9 | TN4019813Replaces Tennant 393135 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $3.30/EA |
| 10 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdPart of Transport Kit, Ci [T20] (9003143). Serial 008000 and later. | $2.50/EA |
Tennant T20 Diesel squeegee Guard Kit (option) parts
The parts Tennant numbers on its squeegee guard kit (option) drawing. Manual pages 257, list 258.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016490Replaces Tennant 9003135 | 1 | Guard Kit, Sqge, Ci [T20]Complete assembly. Serial 008000 and later. | $808.64/EA |
| 1 | TN4192071Replaces Tennant 1030557 | 1 | Support Wldt, Sqge, Lh RearPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $73.60/EA |
| 2 | TN4031715Replaces Tennant 1030503 | 1 | Support Wldt, Sqge, Rh RearPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $72.70/EA |
| 3 | TN4194805Replaces Tennant 1030522 | 4 | Link, .25 1.4w 3.2l 2/.5hPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $10.20/EA |
| 4 | TN4042903Replaces Tennant 01686 | 14 | Washer, Flat, 0.44b 1.00d .08, SsPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $3.30/EA |
| 5 | TN4035960Replaces Tennant 12317 | 12 | Screw, Hex, M10 X 1.5 X 30, SsPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $4.90/EA |
| 6 | TN4031718Replaces Tennant 1030515 | 1 | Channel Wldt, Guard, SqgePart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $74.30/EA |
| 7 | TN4033860Replaces Tennant 1024977 | 2 | Bumper, Ure, 1.50d 1.25lPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $35.00/EA |
| 8 | TN4039391Replaces Tennant 21196 | 2 | Screw, Hex, .38-16 X 0.88, G5Part of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $2.50/EA |
| 9 | TN4038473Replaces Tennant 1054338 | 1 | Guard Wldt, SqgePart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $278.85/EA |
| 10 | TN4041290Replaces Tennant 06965 | 2 | Screw, Hex, M10 X 1.5 X 80, 8.8Part of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $6.80/EA |
| 11 | TN4034138Replaces Tennant 32492 | 8 | Washer, Flat, 0.38, StdPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $2.50/EA |
| 12 | TN4016826Replaces Tennant 41430 | 2 | Nut, Hex, Lock, M10 X 1.5, NlPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $4.00/EA |
| 13 | TN4031918Replaces Tennant 369359 | 1 | Pin, Hitch, .375d X 3.12l, PlPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $7.50/EA |
| 14 | TN4029376Replaces Tennant 57702 | 1 | Cable, Glv .06d 012.0l .26eye /.26eyePart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $9.50/EA |
| 15 | TN4037385Replaces Tennant 223198 | 1 | Screw, Hex, M5 X 0.8 X 10, FmgPart of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $4.00/EA |
| 16 | TN4042522Replaces Tennant 1045444 | 2 | Guard Wldt, Sqge [M20/T20/M30]Part of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $171.70/EA |
| 17 | TN4041287Replaces Tennant 06962 | 4 | Screw, Hex, M10 X 1.5 X 45, 8.8Part of Guard Kit, Sqge, Ci [T20] (9003135). Serial 008000 and later. | $4.00/EA |
Tennant T20 Diesel pressure Washer Mount Group (option) parts
The parts Tennant numbers on its pressure washer mount group (option) drawing. Manual pages 259, list 260.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043994Replaces Tennant 1039056 | 1 | Hose, Rbr, 25ftSerial 008000 and later. | $124.40/EA |
| 2 | TN4044659Replaces Tennant 1042051 | 2 | Fitting, Ss, Qdc, FemSerial 008000 and later. | $156.60/EA |
| 3 | TN4032407Replaces Tennant 1259146 | 2 | Fitting, Swivel, Str, Pf06/Pm04, StlSerial 008000 and later. | $8.90/EA |
| 4 | TN4043990Replaces Tennant 1039042 | 1 | Handle, Gun, TriggerSerial 008000 and later. | $124.30/EA |
| 5 | TN4043991Replaces Tennant 1039044 | 1 | Wand, Str, Ss, 28lSerial 008000 and later. | $80.80/EA |
| 6 | TN4042150Replaces Tennant 1044428 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Serial 008000 and later. | $7.00/EA |
| 7 | TN4044669Replaces Tennant 1042191 | 1 | Fitting, Ss, Qdc, MalSerial 008000 and later. | $51.20/EA |
| 8 | TN4044642Replaces Tennant 1041935 | 1 | Nozzle, Spray [Pressure Washer]Serial 008000 and later. | $56.90/EA |
| 9 | TN4017922Replaces Tennant 67004 | 3 | Clip, Grip, Finger, 1.00-1.88d White,VylSerial 008000 and later. | $26.10/EA |
| 10 | TN4039088Replaces Tennant 20394 | 3 | Screw, Hex, 10-16 X 0.62, Fmg/Ab, PlSerial 008000 and later. | $3.30/EA |
| 11 | TN4042888Replaces Tennant 01683 | 6 | Washer, Flat, 10, SsSerial 008000 and later. | $2.60/EA |
| 12 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoSerial 008000 and later. | $11.30/EA |
| 13 | TN4044442Replaces Tennant 1040899 | 1 | Switch, Rocker, PrgrsvSerial 008000 and later. | $138.30/EA |
| 14 | TN4178877Replaces Tennant 1074983 | 1 | Harness, Ele [Press. Wash]Serial 008000 to 013000. | $111.70/EA |
| 15 | TN4014138Replaces Tennant 49266 | 5 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DSerial 008000 and later. | $2.50/EA |
| 16 | TN4017746Replaces Tennant 65580 | 1 | Bag, PowerSerial 008000 and later. | $159.30/EA |
| 17 | TN4016302Replaces Tennant 72968 | 2 | Rivet, Plstc, .250D X 0.90Serial 008000 and later. | $3.20/EA |
| 18 | TN4042978Replaces Tennant 1076975 | 1 | Harness, Ele [Press. Wash]Serial 013001 and later. | $213.72/EA |
| 19 | TN4040238Replaces Tennant 222290 | 1 | Diode, Ele, PlugSerial 013001 and later. | $13.00/EA |
Tennant T20 Diesel pressure Washer Solution Group (S/N 008000 - 013000) (option) parts
The parts Tennant numbers on its pressure washer solution group (s/n 008000 - 013000) (option) drawing. Manual pages 261, list 262.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038244Replaces Tennant 1225829 | 1 | Pump, Hyd, Press WasherSerial 008000 to 013000. | $2,428.30/EA |
| 2 | TN4043992Replaces Tennant 1039046 | 1 | Valve, NeedleSerial 008000 to 013000. | $168.90/EA |
| 3 | TN4017089Replaces Tennant 63810 | 10 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 008000 to 013000. | $6.80/EA |
| 4 | TN4025657Replaces Tennant 377334 | 4 | Fitting, Brs, Str, Bm12/Pm12Serial 008000 to 013000. | $9.80/EA |
| 5 | TN4043978Replaces Tennant 1039037 | 1 | Filter, Y, In-Line, .75Serial 008000 to 013000. | $108.10/EA |
| 6 | TN4042460Replaces Tennant 1045034 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, ClrSerial 008000 to 013000. | $65.50/EA |
| 7 | TN4044478Replaces Tennant 1041351 | 1 | Fitting, Brs, E90, Bm12/Pm12Serial 008000 to 013000. | $19.70/EA |
| 8 | TN4025663Replaces Tennant 377349 | 1 | Fitting, Plstc, Pf12/Pf12, BhSerial 008000 to 013000. | $22.50/EA |
| 9 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11Serial 008000 to 013000. | $78.50/EA |
| 10 | TN4030627Replaces Tennant 1027290 | 1 | Filter, Soltn, 020mesh, Pm12 3.1d 02.6lSerial 008000 to 013000. | $20.30/EA |
| 11 | TN4041645Replaces Tennant 1042859 | 2 | Fitting, Brs, Str, Bm12/Pm08Serial 008000 to 013000. | $9.90/EA |
| 12 | TN4191727Replaces Tennant 1042579 | 1 | Fitting, Brs, E90, Pf08/Pm06Serial 008000 to 013000. | $15.10/EA |
| 13 | TN4042150Replaces Tennant 1044428 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Serial 008000 to 013000. | $7.00/EA |
| 14 | TN4032002Replaces Tennant 10632-19 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlSerial 008000 to 013000. | $1.50/EA |
| 15 | TN4034280Replaces Tennant 1026743 | 1 | Pump, DiaphragmSerial 008000 to 013000. | $370.80/EA |
| 16 | TN4196177Replaces Tennant 1023585 | 1 | Plate, Mtg, PumpSerial 008000 to 013000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4041268Replaces Tennant 06939 | 4 | Screw, Pan, Phl, M5 X 0.80 X 45, 4.8Serial 008000 to 013000. | $3.40/EA |
| 18 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Serial 008000 to 013000. | $2.50/EA |
| 19 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlSerial 008000 to 013000. | $2.50/EA |
| 20 | TN4035386Replaces Tennant 24584 | 2 | Fitting, Brs, E90, Pf06/Pm06, SpclSerial 008000 to 013000. | $6.90/EA |
| 21 | TN7007024Replaces Tennant 9016315 | 1 | Bracket, Mtg, Pump, Hp, ReplmtSerial 008000 to 013000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4041243Replaces Tennant 15675 | 1 | Screw, Hex, M8 X 1.25 X 16, SsSerial 008000 to 013000. | $3.40/EA |
| 23 | TN4034137Replaces Tennant 32491 | 3 | Washer, Flat, 0.31, StdSerial 008000 to 013000. | $2.50/EA |
| 24 | TN4044669Replaces Tennant 1042191 | 1 | Fitting, Ss, Qdc, MalSerial 008000 to 013000. | $51.20/EA |
| 25 | TN4223620Replaces Tennant 1224328 | 1 | Valve, Drain, Pm12, Qtr TurnSerial 008000 to 013000. | $40.24/EA |
| 26 | TN4223623Replaces Tennant 1224329 | 1 | Fitting, Tee, Pf12/Pf12/Pf12, BrsSerial 008000 to 013000. | $68.54/EA |
| 27 | TN4222135Replaces Tennant 1231375 | 2 | Fitting, Plstc, E90, Bm12/Pf08Serial 008000 to 013000. | $2.50/EA |
| 28 | TN4034859Replaces Tennant 1227137 | 1 | Valve, Hyd, Press WasherSerial 008000 to 013000. | $35.70/EA |
| 29 | TN4223626Replaces Tennant 1224331 | 1 | Fitting, Brs, Str, Pm06/ Pm06Serial 008000 to 013000. | $22.10/EA |
| 30 | TN4224054Replaces Tennant 1225174 | 1 | Bracket Wldt, MtgSerial 008000 to 013000. | $74.43/EA |
| 31 | TN4041844Replaces Tennant 16931 | 3 | Screw, Hex, M8 X 1.25 X 20, 8.8Serial 008000 to 013000. | $2.50/EA |
| 32 | TN4035242Replaces Tennant 1017218 | 3 | Washer, Flat, 0.32b 1.00d .12, SsSerial 008000 to 013000. | $3.40/EA |
| 33 | TN4224047Replaces Tennant 1225146 | 1 | Plate, Mtg, Light, Hp Spray (Flashing or Strobe Light Option Only)Serial 008000 to 013000. | $12.35/EA |
| 34 | TN4041844Replaces Tennant 16931 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8 (Flashing or Strobe Light Option Only)Serial 008000 to 013000. | $2.50/EA |
| 35 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss (Flashing or Strobe Light Option Only)Serial 008000 to 013000. | $3.40/EA |
| 36 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, SsSerial 008000 to 013000. | $3.30/EA |
Tennant T20 Diesel pressure Washer Solution Group (S/N 013001 -) (option) parts
The parts Tennant numbers on its pressure washer solution group (s/n 013001 -) (option) drawing. Manual pages 263, list 264.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038244Replaces Tennant 1225829 | 1 | Pump, Hyd, Press WasherSerial 013001 and later. | $2,428.30/EA |
| 2 | TN4043992Replaces Tennant 1039046 | 1 | Valve, NeedleSerial 013001 and later. | $168.90/EA |
| 3 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56wSerial 013001 and later. | $6.80/EA |
| 4 | TN4026537Replaces Tennant 79273-1 | 2 | Fitting, Plstc, Str, Bm08/Pm12Serial 013001 and later. | $8.70/EA |
| 5 | TN4044669Replaces Tennant 1042191 | 1 | Fitting, Ss, Qdc, MalSerial 013001 and later. | $51.20/EA |
| 6 | TN4042460Replaces Tennant 1045034 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, ClrSerial 013001 and later. | $65.50/EA |
| 7 | TN4223623Replaces Tennant 1224329 | 1 | Fitting, Tee, Pf12/Pf12/Pf12, BrsSerial 013001 and later. | $68.54/EA |
| 8 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .62-11Serial 013001 and later. | $78.50/EA |
| 9 | TN4223620Replaces Tennant 1224328 | 1 | Valve, Drain, Pm12, Qtr TurnSerial 013001 and later. | $40.24/EA |
| 10 | TN4041645Replaces Tennant 1042859 | 1 | Fitting, Brs, Str, Bm12/Pm08Serial 013001 and later. | $9.90/EA |
| 11 | TN4191727Replaces Tennant 1042579 | 1 | Fitting, Brs, E90, Pf08/Pm06Serial 013001 and later. | $15.10/EA |
| 12 | TN4042150Replaces Tennant 1044428 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp]Serial 013001 and later. | $7.00/EA |
| 13 | TN4032002Replaces Tennant 10632-19 | 1 | Grommet, Rbr, 2.13id, F/2.5h, .12 MatlSerial 013001 and later. | $1.50/EA |
| 14 | TN4034859Replaces Tennant 1227137 | 1 | Valve, Hyd, Press WasherSerial 013001 and later. | $35.70/EA |
| 15 | TN4035386Replaces Tennant 24584 | 2 | Fitting, Brs, E90, Pf06/Pm06, SpclSerial 013001 and later. | $6.90/EA |
| 16 | TN7007024Replaces Tennant 9016315 | 1 | Bracket, Mtg, Pump, Hp, ReplmtSerial 013001 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4041243Replaces Tennant 15675 | 1 | Screw, Hex, M8 X 1.25 X 16, SsSerial 013001 and later. | $3.40/EA |
| 18 | TN4034137Replaces Tennant 32491 | 1 | Washer, Flat, 0.31, StdSerial 013001 and later. | $2.50/EA |
| 19 | TN4026539Replaces Tennant 79273-4 | 1 | Fitting, Plstc, Str, Bm08/Pm08Serial 013001 and later. | $6.20/EA |
| 20 | TN4223626Replaces Tennant 1224331 | 1 | Fitting, Brs, Str, Pm06/ Pm06Serial 013001 and later. | $22.10/EA |
| 21 | TN4224054Replaces Tennant 1225174 | 1 | Bracket Wldt, MtgSerial 013001 and later. | $74.43/EA |
| 22 | TN4041844Replaces Tennant 16931 | 3 | Screw, Hex, M8 X 1.25 X 20, 8.8Serial 013001 and later. | $2.50/EA |
| 23 | TN4035242Replaces Tennant 1017218 | 3 | Washer, Flat, 0.32b 1.00d .12, SsSerial 013001 and later. | $3.40/EA |
| 24 | TN4224047Replaces Tennant 1225146 | 1 | Plate, Mtg, Light, Hp Spray (Flashing or Strobe Light Option Only)Serial 013001 and later. | $12.35/EA |
| 25 | TN4041844Replaces Tennant 16931 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8 (Flashing or Strobe Light Option Only)Serial 013001 and later. | $2.50/EA |
| 26 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss (Flashing or Strobe Light Option Only)Serial 013001 and later. | $3.40/EA |
| 27 | TN4036914Replaces Tennant 1011835 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 20.0ft, ClrSerial 013001 and later. | $109.50/EA |
| 28 | TN4015366Replaces Tennant 54333 | 12 | Clamp, Hose, Wormdrive, 0.31-0.88d, .31wSerial 013001 and later. | $5.10/EA |
| 29 | TN4042944Replaces Tennant 1076870 | 2 | Valve, Water, Solenoid [12vdc, Bm08/Bm08]Serial 013001 and later. | $122.10/EA |
| 30 | TN4017637Replaces Tennant 64743 | 2 | Fitting, Plstc, Str, Bm08/Pm06Serial 013001 and later. | $6.20/EA |
| 31 | TN4032374Replaces Tennant 1257563 | 4 | Screw, Pan, Torx, 06-19 X 0.38, F/ PlstcSerial 013001 and later. | $13.74/EA |
| 32 | TN4020528Replaces Tennant 630146 | 2 | Fitting, Plug, Pm06, HdpeSerial 013001 and later. | $4.00/EA |
| 33 | TN4032111Replaces Tennant 1254833 | 1 | Manifold, SolnSerial 013001 and later. | $121.00/EA |
| 34 | TN4032116Replaces Tennant 1254856 | 1 | Plate, Manifold, MtgSerial 013001 and later. | $25.55/EA |
| 35 | TN4034136Replaces Tennant 32490 | 6 | Washer, Flat, 0.25, StdSerial 013001 and later. | $2.50/EA |
| 36 | TN4032379Replaces Tennant 1257800 | 4 | Screw, Hex, M6 X 1.00 X 60, Ss, FlSerial 013001 and later. | $14.14/EA |
| 37 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 013001 and later. | $2.50/EA |
| 38 | TN4043042Replaces Tennant 1077124 | 1 | Bracket, Manifold, StratusSerial 013001 and later. | $10.20/EA |
| 39 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Serial 013001 and later. | $8.70/EA |
| 40 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.38b 0.88d .08, SsSerial 013001 and later. | $2.60/EA |
| 41 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 013001 and later. | $3.30/EA |
Tennant T20 Diesel pressure Washer Hydraulic Hoses Group (option) parts
The parts Tennant numbers on its pressure washer hydraulic hoses group (option) drawing. Manual pages 265, list 266.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043680Replaces Tennant 1038571 | 1 | Valve, Hyd, Press WasherSerial 008000 and later. | $242.50/EA |
| 2 | TN4224046Replaces Tennant 1225144 | 1 | Bracket, Valve, MtgSerial 008000 and later. | $45.71/EA |
| 3 | TN4041277Replaces Tennant 06949 | 2 | Screw, Hex, M6 X 1.00 X 50, 8.8Serial 008000 and later. | $3.30/EA |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, SsSerial 008000 and later. | $2.50/EA |
| 5 | TN4034136Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdSerial 008000 and later. | $2.50/EA |
| 6 | TN4016768Replaces Tennant 40755 | 2 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, RunSerial 008000 and later. | $20.10/EA |
| 7 | TN4224365Replaces Tennant 1226044 | 2 | Hose, Hyd, Tc08, Jfoee90/Jf08str, 72Serial 008000 and later. | $98.70/EA |
| 8 | TN4031958Replaces Tennant 10632-14 | 2 | Grommet, Rbr, 1.00id, F/1.4h, .12 MatlSerial 008000 and later. | $4.90/EA |
| 9 | TN4045583Replaces Tennant 1036965 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 034.0Serial 008000 and later. | $50.50/EA |
| 10 | TN4031528Replaces Tennant 34379 | 1 | Hose, Hyd, Med04, Jf04e90/Jf04str, 072.0Serial 008000 and later. | $61.20/EA |
| 11 | TN4017336Replaces Tennant 42227 | 2 | Fitting, Hyd, Str, Jm08/Om12Serial 008000 and later. | $15.50/EA |
| 12 | TN4028732Replaces Tennant 55685 | 1 | Fitting, Hyd, Str, Jm04/Om06Serial 008000 and later. | $7.90/EA |
| 13 | TN4013891Replaces Tennant 47638 | 1 | Fitting, Hyd, E90, Jm04/Om06Serial 008000 and later. | $18.30/EA |
| 14 | TN4190729Replaces Tennant 1037072 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 052.0Serial 008000 and later. | $54.15/EA |
| 15 | TN4175108Replaces Tennant 361037 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 027.0Serial 008000 and later. | $38.08/EA |
| 16 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, SsSerial 008000 and later. | $3.30/EA |
| 17 | TN4200590Replaces Tennant 07797 | 3 | Fitting, Hyd, E45, Jf08/Jm08Serial 008000 and later. | $11.40/EA |
| 18 | TN4223616Replaces Tennant 1224326 | 1 | Sleeve, Nyl, 0.69id 20.0l [Asb11]Serial 008000 and later. | $5.30/EA |
| 19 | TN4223618Replaces Tennant 1224327 | 2 | Sleeve, Nyl, 1.06id 22.0l [Asb15]Serial 008000 and later. | $9.00/EA |
| 20 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 008000 and later. | $2.50/EA |
| 21 | TN4029672Replaces Tennant 57988 | 1 | Fitting, Hyd, Tee, Jf04/Jm04/Jm04, Run (DISK HEAD ONLY)Fits T20 · disk scrub head. Serial 008000 and later. | $18.30/EA |
Tennant T20 Diesel heavy Duty Bumper Kit (option) parts
Heavy Duty Bumper Kit (option) from Tennant's parts list. Manual page 267.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016494Replaces Tennant 9003142 | 1 | Bumper Kit, Hd, Ci [T20]Complete assembly. Serial 008000 and later. | $642.06/EA |
| 1 | TN4030653Replaces Tennant 1027850 | 1 | Plate, Bmpr, LhPart of Bumper Kit, Hd, Ci [T20] (9003142). Serial 008000 and later. | $207.56/EA |
| 2 | TN4030641Replaces Tennant 1027588 | 1 | Plate, Bmpr, RhPart of Bumper Kit, Hd, Ci [T20] (9003142). Serial 008000 and later. | $209.07/EA |
| 3 | TN4041287Replaces Tennant 06962 | 4 | Screw, Hex, M10 X 1.50 X 45, 8.8Part of Bumper Kit, Hd, Ci [T20] (9003142). Serial 008000 and later. | $4.00/EA |
| 4 | TN4041948Replaces Tennant 09028 | 4 | Screw, Hex, M10 X 1.50 X 25, SsPart of Bumper Kit, Hd, Ci [T20] (9003142). Serial 008000 and later. | $4.00/EA |
| 4 | TN4043258Replaces Tennant 03192 | 4 | Screw, Hex, M10 X 1.50 X 30, 8.8Part of Bumper Kit, Hd, Ci [T20] (9003142). Serial 008000 and later. | $4.00/EA |
| 4 | TN4034138Replaces Tennant 32492 | 12 | Washer, Flat, 0.38, StdPart of Bumper Kit, Hd, Ci [T20] (9003142). Serial 008000 and later. | $2.50/EA |
Tennant T20 Diesel fire Extinguisher Kit (option) parts
Fire Extinguisher Kit (option) from Tennant's parts list. Manual page 268.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019664Replaces Tennant 9001316 | 1 | Extinguisher Kit, Fire, Ci [M20 And T20]Complete assembly. Serial 008000 and later. | $218.90/EA |
| 1 | TN4035427Replaces Tennant 25312 | 1 | Extinguisher, Fire, 2.5 Lb DryPart of Extinguisher Kit, Fire, Ci [M20 And T20] (9001316). Serial 008000 and later. | $206.60/EA |
| 2 | TN4027333Replaces Tennant 382320 | 2 | Screw, Pan, #12-16 X 0.50, F/ PlstcPart of Extinguisher Kit, Fire, Ci [M20 And T20] (9001316). Serial 008000 and later. | $2.50/EA |
Tennant T20 Diesel rear Squeegee Guard Group (option) parts
The parts Tennant numbers on its rear squeegee guard group (option) drawing. Manual pages 269, list 270.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4192071Replaces Tennant 1030557 | 1 | Support Wldt, Sqge, Lh RearSerial 008000 and later. | $73.60/EA |
| 2 | TN4031715Replaces Tennant 1030503 | 1 | Support Wldt, Sqge, Rh RearSerial 008000 and later. | $72.70/EA |
| 3 | TN4194805Replaces Tennant 1030522 | 4 | Link, .25 1.4w 3.2l 2/.5hSerial 008000 and later. | $10.20/EA |
| 4 | TN4042903Replaces Tennant 01686 | 14 | Washer, Flat, 0.44b 1.00d .08, SsSerial 008000 and later. | $3.30/EA |
| 5 | TN4035960Replaces Tennant 12317 | 12 | Screw, Hex, M10 X 1.5 X 30, SsSerial 008000 and later. | $4.90/EA |
| 6 | TN4031718Replaces Tennant 1030515 | 1 | Channel Wldt, Guard, SqgeSerial 008000 and later. | $74.30/EA |
| 7 | TN4033860Replaces Tennant 1024977 | 2 | Bumper, Ure, 1.50d 1.25lSerial 008000 and later. | $35.00/EA |
| 8 | TN4039391Replaces Tennant 21196 | 2 | Screw, Hex, .38-16 X 0.88, G5Serial 008000 and later. | $2.50/EA |
| 9 | TN4038473Replaces Tennant 1054338 | 1 | Guard Wldt, SqgeSerial 008000 and later. | $278.85/EA |
| 10 | TN4041290Replaces Tennant 06965 | 2 | Screw, Hex, M10 X 1.5 X 80, 8.8Serial 008000 and later. | $6.80/EA |
| 11 | TN4034138Replaces Tennant 32492 | 8 | Washer, Flat, 0.38, StdSerial 008000 and later. | $2.50/EA |
| 12 | TN4016826Replaces Tennant 41430 | 2 | Nut, Hex, Lock, M10 X 1.5, NlSerial 008000 and later. | $4.00/EA |
| 13 | TN4031918Replaces Tennant 369359 | 1 | Pin, Hitch, .375d X 3.12l, PlSerial 008000 and later. | $7.50/EA |
| 14 | TN4029376Replaces Tennant 57702 | 1 | Cable, Glv .06d 012.0l .26eye /.26eyeSerial 008000 and later. | $9.50/EA |
| 15 | TN4037385Replaces Tennant 223198 | 1 | Screw, Hex, M5 X 0.8 X 10, FmgSerial 008000 and later. | $4.00/EA |
| 16 | TN4042522Replaces Tennant 1045444 | 2 | Guard Wldt, Sqge [M20/T20/M30]Serial 008000 and later. | $171.70/EA |
| 17 | TN4041287Replaces Tennant 06962 | 4 | Screw, Hex, M10 X 1.5 X 45, 8.8Serial 008000 and later. | $4.00/EA |
Tennant T20 Diesel front Cover Latch Group (option) parts
The parts Tennant numbers on its front cover latch group (option) drawing. Manual pages 271, list 272.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4026848Replaces Tennant 59661 | 1 | LatchSerial 008000 and later. | $65.80/EA |
| 2 | TN4231810Replaces Tennant 1076703 | 1 | Bracket, Mtg, LatchSerial 008000 and later. | $67.27/EA |
| 3 | TN4231811Replaces Tennant 1076704 | 1 | Lever, LatchSerial 008000 and later. | $43.58/EA |
| 4 | TN4039882Replaces Tennant 222190 | 1 | Grip, HandleSerial 008000 and later. | $5.10/EA |
| 5 | TN4023520Replaces Tennant 80491 | 2 | Sleeve, P/M, 0.25b 0.38d 0.2l [430ss]Serial 008000 and later. | $5.10/EA |
| 6 | TN4035411Replaces Tennant 25046 | 3 | Screw, Hex, .25-20 X 1.00, G5Serial 008000 and later. | $3.20/EA |
| 7 | TN4034502Replaces Tennant 32895 | 1 | Screw, Hex, .50-13 X 3.50, G5Serial 008000 and later. | $5.10/EA |
| 8 | TN4040927Replaces Tennant 04414 | 2 | Washer, Flat, 0.53b 1.88d .12, Stl, PlSerial 008000 and later. | $4.10/EA |
| 9 | TN4034157Replaces Tennant 32523 | 2 | Nut, Hex, Jam, .50-13Serial 008000 and later. | $3.30/EA |
| 10 | TN4041271Replaces Tennant 06943 | 2 | Screw, Hex, M6 X 1.00 X 20, 8.8Serial 008000 and later. | $2.50/EA |
| 11 | TN4034136Replaces Tennant 32490 | 8 | Washer, Flat, 0.25, StdSerial 008000 and later. | $2.50/EA |
| 12 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, NlSerial 008000 and later. | $2.50/EA |
| 13 | TN4041270Replaces Tennant 06942 | 2 | Screw, Hex, M6 X 1.00 X 16, 8.8Serial 008000 and later. | $2.50/EA |
Tennant T20 Diesel detergent Metering Group (S/N 013001 -) (option) parts
The parts Tennant numbers on its detergent metering group (s/n 013001 -) (option) drawing. Manual pages 273, list 274.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036552Replaces Tennant 1057465 | 1 | Filter, Soltn, 080mesh, Pm12 3.2d 08.0lSerial 013001 and later. | $106.70/EA |
| 2 | TN4028471Replaces Tennant 365095 | 1 | Fitting, Plstc, Str, Bm10/Pm12Serial 013001 and later. | $4.20/EA |
| 3 | TN4018369Replaces Tennant 69785 | 1 | Fitting, Plstc, E90, Pf12/Pm12Serial 013001 and later. | $11.80/EA |
| 4 | TN4032910Replaces Tennant 1022229 | 1 | Tank, Detgt, TrimmedSerial 013001 and later. | $341.48/EA |
| 5 | TN4036929Replaces Tennant 1011885 | 1 | Cap, TankSerial 013001 and later. | $69.10/EA |
| 6 | TN4193627Replaces Tennant 1025159 | 6 | Bracket, Mtg, Detgt And Spray WandSerial 013001 and later. | $19.70/EA |
| 7 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M8 X 1.25 X 20, SsSerial 013001 and later. | $3.30/EA |
| 8 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, SsSerial 013001 and later. | $3.40/EA |
| 9 | TN4039132Replaces Tennant 20952 | 1 | Screen, PumpSerial 013001 and later. | $13.70/EA |
| 10 | TN4039131Replaces Tennant 20951 | 2 | Fitting, Plstc, E90, Bm06/Bm06Serial 013001 and later. | $4.20/EA |
| 11 | TN4037961Replaces Tennant 1014930 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 08ftSerial 013001 and later. | $18.40/EA |
| 12 | TN4039117Replaces Tennant 20944 | 1 | Grommet, Pye, 0.37id, F/1.5h, .13 MatlSerial 013001 and later. | $27.50/EA |
| 13 | TN4017396Replaces Tennant 43844 | 1 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31wSerial 013001 and later. | $4.20/EA |
| 14 | TN4032003Replaces Tennant 10632-2 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .12 MatlSerial 013001 and later. | $0.80/EA |
| 15 | TN4016324Replaces Tennant 73260 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psiSerial 013001 and later. | $792.20/EA |
| 16 | TN4195605Replaces Tennant 1021325 | 1 | Bracket, Mtg, ValveSerial 013001 and later. | $20.50/EA |
| 17 | TN4035372Replaces Tennant 24265 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, SsSerial 013001 and later. | $3.00/EA |
| 18 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsSerial 013001 and later. | $2.60/EA |
| 19 | TN4026576Replaces Tennant 79484 | 1 | Fitting, Plstc, E90, Bm06/Pm12, NylSerial 013001 and later. | $7.80/EA |
| 20 | TN4017317Replaces Tennant 42133A | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12Serial 013001 and later. | $17.60/EA |
| 21 | TN4035382Replaces Tennant 24544 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60lSerial 013001 and later. | $6.20/EA |
| 22 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.7, Nl, SsSerial 013001 and later. | $3.40/EA |
Tennant T20 Diesel spotlight Kit, Blue (option) parts
The parts Tennant numbers on its spotlight kit, blue (option) drawing. Manual pages 275, list 276.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022024Replaces Tennant 9021235 | 1 | Spotlight Kit, Blue, Ci [T20/M20]Complete assembly. Serial 008000 and later. | $868.40/EA |
| 1 | TN4033715Replaces Tennant 1240687 | 2 | Light, Spot, Blue, LedPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $562.40/EA |
| 2 | TN4016789Replaces Tennant 41143 | 2 | Washer, Lock, Int-Ext, 0.50Part of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.10/EA |
| 3 | TN4042916Replaces Tennant 1076808 | 1 | Brkt, Blu Spotlight, Fr, Cover MtgPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $56.60/EA |
| 4 | TN4032093Replaces Tennant 1031665 | 3 | Screw, Pan, M8 X 1.25 X 25, BlkPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.40/EA |
| 5 | TN4016551Replaces Tennant 39890 | 3 | Washer, Flat, M8, FendrPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $4.10/EA |
| 6 | TN4041929Replaces Tennant 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.30/EA |
| 7 | TN4042910Replaces Tennant 1076789 | 1 | Brkt, Blu Spotlight, Rr, Frame MtgPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $22.32/EA |
| 8 | TN4035367Replaces Tennant 24196 | 4 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.20/EA |
| 9 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $2.50/EA |
| 10 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.30/EA |
| 11 | TN4035919Replaces Tennant 1019445 | 1 | Bracket, Sppt, Revl LightPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $55.20/EA |
| 12 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.30/EA |
| 13 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.40/EA |
| 14 | TN4042993Replaces Tennant 1076999 | 1 | Harness, Blu Spotlight [T20/M20/M30]Part of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $147.76/EA |
| – | TN4038626Replaces Tennant 1016029 | 1 | Fuse, Blade, 005a, 32vdc [Atof]Part of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.40/EA |
| 15 | TN4038889Replaces Tennant 1210807 | 3 | Wire, Tie [W/.25” Fir Tree Clip]Part of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $1.90/EA |
| 16 | TN4011908Replaces Tennant 763114 | 10 | Tie, Cable, 11.3l, 2.75d MaxPart of Spotlight Kit, Blue, Ci [T20/M20] (9021235). Serial 008000 and later. | $3.30/EA |
Tennant T20 Diesel frame Tie Down and Tow Group (option) parts
Frame Tie Down and Tow Group (option) from Tennant's parts list. Manual page 277.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4231806Replaces Tennant 1076696 | 1 | Guard Wldt, Sqge, Tie-Down, Side, RhSerial 008000 and later. | $207.60/EA |
| 2 | TN4231808Replaces Tennant 1076698 | 1 | Guard Wldt, Sqge, Tie-Down, Side, LhSerial 008000 and later. | $207.60/EA |
| 3 | TN4231939Replaces Tennant 1076740 | 1 | Tow Wldt, Bumper, FrontSerial 008000 and later. | $143.93/EA |
| 4 | TN4042889Replaces Tennant 1076741 | 1 | Anchor [Shackle], .50 BoltSerial 008000 and later. | $25.30/EA |
| 5 | TN4041293Replaces Tennant 06968 | 4 | Screw, Hex, M12 X 1.75 X 35, 8.8Serial 008000 and later. | $3.20/EA |
| 6 | TN4034135Replaces Tennant 32486 | 4 | Washer, Flat, 0.53b 1.06d .10, Stl, PlSerial 008000 and later. | $2.60/EA |
| 7 | TN4031489Replaces Tennant 1251735 | 1 | Label, Hook, WinchSerial 008000 and later. | $4.95/EA |
| 8 | TN4231809Replaces Tennant 1076699 | 1 | Plate, Shim, Guard, Sqge, Tie-DownSerial 008000 and later. | $45.40/EA |
| 9 | TN4025658Replaces Tennant 77347 | 6 | Screw, Hex, M10 X 1.50 X 35, SsSerial 008000 and later. | $4.00/EA |
| 10 | TN4034138Replaces Tennant 32492 | 6 | Washer, Flat, 0.38, StdSerial 008000 and later. | $2.50/EA |
Tennant T20 Diesel documentation Group (Online Only) (option) parts
Documentation Group (Online Only) (option) from Tennant's parts list. Manual page 278.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4024034Replaces Tennant 9016250 | 1 | Manual, Oprtr, [T20 Dsl, En Na Sn 8000 - ]Serial 008000 and later. | $93.68/EA |
| – | TN4045662Replaces Tennant 1037749 | 1 | Instr, Maint, Wall Chart [T20]Serial 008000 and later. | $223.86/EA |
| – | TN4193419Replaces Tennant 9016252 | 1 | Manual, Oprtr, [T20 Dsl, Es Na Sn 8000 - ]Serial 008000 and later. | $93.68/EA |
| – | TN4193420Replaces Tennant 9016253 | 1 | Manual, Oprtr, [T20 Dsl, Fr Na Sn 8000 - ]Serial 008000 and later. | $93.68/EA |
| – | TN4024319Replaces Tennant 9016254 | 1 | Manual, Oprtr, [T20 Dsl, Jp, Sn 8000 - ]Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4024320Replaces Tennant 9016255 | 1 | Manual, Oprtr, [T20 Dsl, Cn, Sn 8000 - ]Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN9016286Tennant 9016286 | 1 | Manual, Oprtr, [T20 Dsl, Ptb, Sn 8000 - ]Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4193418Replaces Tennant 9016251 | 1 | Manual, Parts, [T20 Dsl, En Na Sn 8000 - ]Serial 008000 and later. | $157.92/EA |
| – | TN4193387Replaces Tennant 9016205 | 1 | Manual, Service, [T20 G/Lp/D, Sn 8000 - ]Serial 008000 and later. | $321.18/EA |
| – | TN8003218Replaces Tennant 84660 | 1 | Manual, Engine [Kubota, V1505e]Serial 008000 and later. | $211.37/EA |
| – | TN9006257Tennant 9006257 | 1 | Media, Cd-Rom, Training [Ec-H2o Tennant]Serial 008000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T20 Diesel extended Scrub Pump Breakdown, 1021210 (component breakdown) parts
The parts Tennant numbers on its extended scrub pump breakdown, 1021210 (component breakdown) drawing. Manual pages 282, list 283.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4036630Replaces Tennant 1021210 | 1 | Pump Assy, Column, EsComplete assembly. | $1,762.90/EA |
| 1 | TN8002651Replaces Tennant 9002708 | 1 | Motor, Ele, 12vdc, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $856.93/EA |
| – | TN8003651Replaces Tennant 78829 | 1 | Kit, Brush, Motor, ElePart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $307.90/EA |
| 2 | TN4035378Replaces Tennant 24358 | 1 | Cap Assy, Tank, DrainPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $40.40/EA |
| 3 | TN4032112Replaces Tennant 1031699 | 1 | Gasket, 4.05id 5.29od .19 [Buna]Part of Pump Assy, Column, Es (See Breakdowns) (1021210). | $9.00/EA |
| 4 | TN8050826Replaces Tennant 78833 | 1 | Tube, Vinyl, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $66.86/EA |
| 5 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08, NylPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $6.20/EA |
| 6 | TN8003656Replaces Tennant 78843 | 1 | Housing Kit, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $262.10/EA |
| 7 | TN8003652Replaces Tennant 78836 | 1 | Column, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $118.57/EA |
| 8 | TN8002652Replaces Tennant 9002709 | 1 | Shaft, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $257.35/EA |
| 9 | TN8050828Replaces Tennant 78838 | 1 | Fitting, E, GrPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $36.66/EA |
| 10 | TN8050829Replaces Tennant 78839 | 1 | Fitting, Plstc, E90, Pf Bm [Es Pump]Part of Pump Assy, Column, Es (See Breakdowns) (1021210). | $16.87/EA |
| 11 | TN8003655Replaces Tennant 78842 | 1 | Kit, Valve, Check, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $205.38/EA |
| 12 | TN8003653Replaces Tennant 78840 | 1 | Valve, Check, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $165.50/EA |
| 13 | TN8002662Replaces Tennant 73342 | 1 | Gasket, .25 1.88d 1.0id [Poron]Part of Pump Assy, Column, Es (See Breakdowns) (1021210). | $3.65/EA |
| 14 | TN8003654Replaces Tennant 78841 | 1 | Flapper, Valve, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $109.82/EA |
| 15 | TN8050825Replaces Tennant 78830 | 1 | Washer, RbrPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $20.71/EA |
| 16 | TN8049214Replaces Tennant 22790 | 1 | Insert, Cap, Mount, Es PumpPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $82.42/EA |
| 17 | TN8005801Replaces Tennant 23285 | 1 | Sleeve, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $59.69/EA |
Tennant T20 Diesel hydraulic Motor Breakdown, 379609 (component breakdown) parts
The parts Tennant numbers on its hydraulic motor breakdown, 379609 (component breakdown) drawing. Manual pages 284, list 285.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026352Replaces Tennant 379609 | 1 | Motor, Hyd, Gear, [Int], 19.0 X 3000Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN8002102Replaces Tennant 74165 | 1 | Shaft, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $850.20/EA |
| 2 | TN8002103Replaces Tennant 74166 | 1 | Housing, Brg, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $269.47/EA |
| 3 | TN8002104Replaces Tennant 74167 | 1 | Retainer, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $390.90/EA |
| 4 | TN8002105Replaces Tennant 74168 | 8 | Screw, Cap, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $5.90/EA |
| 5 | TN8003621Replaces Tennant 37616 | 1 | Drive, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $111.00/EA |
| 6 | TN8003630Replaces Tennant 37756 | 1 | Geroler, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $592.06/EA |
| 7 | TN8002092Replaces Tennant 74122 | 1 | Plate, Valve, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $349.36/EA |
| 8 | TN4014991Replaces Tennant 52405 | 1 | Valve, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $69.89/EA |
| 9 | TN8002093Replaces Tennant 74123 | 1 | Valve, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $272.20/EA |
| 10 | TN8005491Replaces Tennant 34178 | 2 | Spring, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $4.30/EA |
| 11 | TN8002895Replaces Tennant 38968 | 1 | Ring, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $23.53/EA |
| 12 | TN8002094Replaces Tennant 74125 | 3 | Bolt, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $14.95/EA |
| 13 | TN8003887Replaces Tennant 38255 | 1 | Bolt, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $16.87/EA |
| 14 | TN8045139Replaces Tennant 373297 | 1 | Housing, ValvePart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN4028397Replaces Tennant 373298 | 1 | PlugPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $43.53/EA |
| 16 | TN8045128Replaces Tennant 373260 | 2 | Plug, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $24.00/EA |
| 17 | TN8045140Replaces Tennant 373299 | 1 | PlugPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4028396Replaces Tennant 373291 | 2 | SpringPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $4.70/EA |
| 19 | TN8045105Replaces Tennant 373217 | 1 | Piston, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $25.49/EA |
| 20 | TN8004223Replaces Tennant 373226 | 2 | Poppet, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $7.90/EA |
| 21 | TN8004227Replaces Tennant 373236 | 2 | Sleeve, Dashpo, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN8002165Replaces Tennant 45622 | 1 | Nut, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $64.70/EA |
| 23 | TN8002166Replaces Tennant 45623 | 1 | Key, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $17.60/EA |
| 24 | TN8003766Replaces Tennant 79828 | 1 | Seal Kit, ShaftPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $140.00/EA |
| 25 | TN8005457Replaces Tennant 33580 | 1 | Seal Kit, RearPart of Motor, Hyd, Gear, Int 19.0 Bi-Dir 3000 (See Breakdowns) (379609). | $59.50/EA |
| 26 | TN4026637Replaces Tennant 79729 | 1 | Instr, Repair, Motor, Hyd, Gear | $4.00/EA |
Tennant T20 Diesel hydraulic Pump Breakdown, 1024251 (component breakdown) parts
The parts Tennant numbers on its hydraulic pump breakdown, 1024251 (component breakdown) drawing. Manual pages 286, list 287.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4033592Replaces Tennant 1024251 | 1 | Pump, Hyd, Piston, Var, 1.24 4000, CwComplete assembly. | $1,813.50/EA |
| 1 | TN373681Tennant 373681 | 1 | Shaft, PumpPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8045195Replaces Tennant 373427 | 1 | Cover, EndPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $1,326.78/EA |
| 3 | TN8004244Replaces Tennant 373389 | 1 | HousingPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $824.67/EA |
| 4 | TN8006141Replaces Tennant 02706 | 1 | Pump Kit, Hyd, Rotating [Cessna]Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $576.71/EA |
| 5 | TN8045211Replaces Tennant 373493 | 1 | Plate, CamPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8002864Replaces Tennant 70096 | 1 | Washer, Flat, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $7.88/EA |
| 7 | TN8051813Replaces Tennant 55926 | 1 | Ring, Retaining, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $5.30/EA |
| 8 | TN8045197Replaces Tennant 373434 | 2 | Ring, RetainingPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $3.33/EA |
| 9 | TN8002118Replaces Tennant 74225 | 1 | Bearing, Thrust, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $12.30/EA |
| 10 | TN8002119Replaces Tennant 74226 | 2 | Race, Brg, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $6.97/EA |
| 11 | TN8045151Replaces Tennant 373327 | 1 | Insert, Plt, Cam, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $42.63/EA |
| 12 | TN8045179Replaces Tennant 373391 | 6 | Washer, Pump, Hyd [En]Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $3.33/EA |
| 13 | TN8045161Replaces Tennant 373346 | 6 | Screw, CapPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $4.44/EA |
| 14 | TN8004260Replaces Tennant 373494 | 1 | Valve, Relief, 4000 PsiPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $486.30/EA |
| 15 | TN8004354Replaces Tennant 373678 | 1 | Valve, Relief, 3000 PsiPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $144.74/EA |
| 16 | TN8004232Replaces Tennant 373317 | 2 | Bearing, Cone, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $42.32/EA |
| 17 | TN8004245Replaces Tennant 373393 | 1 | Plate, CoverPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $1,844.56/EA |
| 18 | TN8004246Replaces Tennant 373394 | 1 | Plate, CoverPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $353.90/EA |
| 19 | TN8002865Replaces Tennant 70100 | 2 | Pin, Dowel, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $4.04/EA |
| 20 | TN8045162Replaces Tennant 373347 | 2 | Screw, CapPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $4.85/EA |
| 21 | TN8045163Replaces Tennant 373348 | 2 | Screw, CapPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN8002126Replaces Tennant 74237 | 1 | Key, Shaft, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $3.23/EA |
| 23 | TN373679Tennant 373679 | 1 | Coupler, PumpPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN373680Tennant 373680 | 1 | Ring, LockPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | TN8004247Replaces Tennant 373395 | 2 | Bearing, CupPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $28.18/EA |
| 26 | TN8002108Replaces Tennant 74180 | 1 | Plate, Valve, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $215.43/EA |
| 27 | TN8006154Replaces Tennant 13907 | 1 | Fitting, Hyd, Plug, Om08Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $7.60/EA |
| 28 | TN8004250Replaces Tennant 373413 | 1 | Actuator, Valve, By-Pass [En]Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $170.19/EA |
| 29 | TN8004248Replaces Tennant 373398 | 1 | Seal Kit, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $236.10/EA |
| 30 | TN8004249Replaces Tennant 373402 | 1 | Shim KitPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $479.45/EA |
| 31 | TN8004255Replaces Tennant 373429 | 1 | Instr, Repair, Pump | $1.72/EA |
Tennant T20 Diesel hydraulic Motor Breakdown, 71729 (component breakdown) parts
Hydraulic Motor Breakdown, 71729 (component breakdown) from Tennant's parts list. Manual page 288.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4015708Replaces Tennant 71729 | 1 | Motor, Hyd Gear In 4.5 B 1500Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN8004514Replaces Tennant 37555 | 4 | ScrewPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $4.40/EA |
| 2 | TN8005776Replaces Tennant 31354 | 1 | Flange MountingPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $105.75/EA |
| 3 | TN8006045Replaces Tennant 16695 | 1 | Race ThrustPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $43.50/EA |
| 4 | TN8002167Replaces Tennant 45628 | 1 | Thrust BearingPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $15.60/EA |
| 5 | TN8005777Replaces Tennant 31375 | 1 | Shaft, OutputPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $304.08/EA |
| 6 | TN8002086Replaces Tennant 74100 | 1 | HousinglPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $153.62/EA |
| 7 | TN8005778Replaces Tennant 31379 | 1 | DrivePart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $52.12/EA |
| 8 | TN8002085Replaces Tennant 74094 | 1 | Spacer PlatePart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $52.62/EA |
| 9 | TN8047405Replaces Tennant 31383 | 1 | Gerotor SetPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $273.71/EA |
| 10 | TN8051369Replaces Tennant 74095 | 1 | End CapPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $101.10/EA |
| 11 | TN8051596Replaces Tennant 65241 | 5 | Cap ScrewPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $3.74/EA |
| 12 | TN4012760Replaces Tennant 74098 | 1 | Plug #4Part of Motor, Hyd Gear In 4.5 B 1500 (71729). | $5.00/EA |
| 13 | TN4012761Replaces Tennant 74099 | 2 | Plug #10Part of Motor, Hyd Gear In 4.5 B 1500 (71729). | $4.05/EA |
| 14 | TN4042771Replaces Tennant 00500-15 | 1 | Key-Wdruff 0.25 1.00Part of Motor, Hyd Gear In 4.5 B 1500 (71729). | $4.60/EA |
| 15 | TN4015800Replaces Tennant 39527 | 1 | Nut-Hxslot .75-16 PltdPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $8.00/EA |
| 16 | TN8002969Replaces Tennant 61490 | 1 | Seal Replmt KitPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $114.70/EA |
| 17 | TN8002133Replaces Tennant 74250 | 1 | Instr. Repair Info, MotorPart of Motor, Hyd Gear In 4.5 B 1500 (71729). | $4.12/EA |
Tennant T20 Diesel hydraulic Motor Breakdown, 1029379 (component breakdown) parts
Hydraulic Motor Breakdown, 1029379 (component breakdown) from Tennant's parts list. Manual page 289.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010444Replaces Tennant 1029379 | 1 | Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500Complete assembly. | $613.20/EA |
| 1 | TN8004514Replaces Tennant 37555 | 4 | Screw, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $4.40/EA |
| 2 | TN8005776Replaces Tennant 31354 | 1 | Flange, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $105.75/EA |
| 3 | TN8006045Replaces Tennant 16695 | 1 | Ace, Thrust, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $43.50/EA |
| 4 | TN8002167Replaces Tennant 45628 | 1 | Bearing, ThrustPart of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $15.60/EA |
| 5 | TN8005827Replaces Tennant 28854 | 1 | Shaft, Output, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $176.45/EA |
| 6 | TN8002086Replaces Tennant 74100 | 1 | Housing, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $153.62/EA |
| 7 | TN8048818Replaces Tennant 21955 | 1 | Drive [Cl]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8002085Replaces Tennant 74094 | 1 | Plate, Spacer, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $52.62/EA |
| 9 | TN8048819Replaces Tennant 21956 | 1 | Gerotor Set [Cl]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $283.61/EA |
| 10 | TN8051591Replaces Tennant 65230 | 1 | End Cap, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8048820Replaces Tennant 21958 | 5 | Cap Screw ClPart of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $3.74/EA |
| 12 | TN4042771Replaces Tennant 00500-15 | 1 | Key, Woodruff, 0.25 1.00 [Asa#0808]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $4.60/EA |
| 13 | TN8002969Replaces Tennant 61490 | 1 | Seal Kit, Motor [Cl]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $114.70/EA |
| 14 | TN8002133Replaces Tennant 74250 | 1 | Instr, Motor, Hyd, Repair [En]Part of Motor, Hyd, Gear, Int 08.9 Bi-Dir 2500 (1029379). | $4.12/EA |
Tennant T20 Diesel hydraulic Valve Breakdown, 1072997 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1072997 (component breakdown) drawing. Manual pages 290, list 291.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4031319Replaces Tennant 1072997 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpmComplete assembly. | $1,504.00/EA |
| 1 | TN8004284Replaces Tennant 373633 | 1 | Plug, Orifice, Valve, Hyd, .040Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $12.95/EA |
| 2 | TN8006153Replaces Tennant 13904 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $7.60/EA |
| 3 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id 06Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $4.40/EA |
| 4 | TN8004340Replaces Tennant 373656 | 1 | Valve, CheckPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $52.60/EA |
| 5 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $22.60/EA |
| 6 | TN8004344Replaces Tennant 373661 | 1 | Valve, ReliefPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $125.50/EA |
| 7 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $22.60/EA |
| 8 | TN8004345Replaces Tennant 373662 | 1 | Stem, Valve, HydPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $147.30/EA |
| 9 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, Nyl PatchPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $4.20/EA |
| 10 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $22.60/EA |
| 11 | TN8004341Replaces Tennant 373657 | 1 | Stem, Valve, Hyd [4w2p]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $185.50/EA |
| 12 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $4.20/EA |
| 13 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $22.60/EA |
| 14 | TN8004291Replaces Tennant 373640 | 3 | Solenoid, #8, 12vdcPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $73.70/EA |
| 15 | TN8004342Replaces Tennant 373658 | 1 | Spool, Pilot, HydPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $44.30/EA |
| 16 | TN8004293Replaces Tennant 373642 | 1 | Solenoid, #10, 12vdcPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $88.20/EA |
| 17 | TN8004346Replaces Tennant 373663 | 1 | Valve, Stem, NoPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $213.30/EA |
| 18 | TN8045252Replaces Tennant 373670 | 1 | Nut, SolenoidPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $6.80/EA |
| 19 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $25.60/EA |
| 20 | TN8004187Replaces Tennant 9011347 | 1 | Valve Assy [Proportional]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $351.30/EA |
| 21 | TN8004184Replaces Tennant 9011343 | 1 | Seal Kit, Valve [Ehpr98]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $26.70/EA |
| 22 | TN8004185Replaces Tennant 9011345 | 2 | Screw, Mtg [Ehpr98]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $3.10/EA |
| 23 | TN8004186Replaces Tennant 9011346 | 1 | Harness, Jumper [Deutsch To Mpack]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $35.00/EA |
| 24 | TN8006153Replaces Tennant 13904 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $7.60/EA |
| 25 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id 06Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $4.40/EA |
| 26 | TN8004355Replaces Tennant 373683 | 1 | Valve, ReliefPart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $153.10/EA |
| 27 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $22.60/EA |
Tennant T20 Diesel hydraulic Valve Breakdown, 1072996 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1072996 (component breakdown) drawing. Manual pages 292, list 293.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4031318Replaces Tennant 1072996 | 1 | Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpmComplete assembly. | $2,125.80/EA |
| 1 | TN8004348Replaces Tennant 373665 | 1 | Plug, Orifice, Valve, Hyd, .046Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $12.52/EA |
| 2 | TN4012760Replaces Tennant 74098 | 4 | Fitting, Hyd, Plug, Om04Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $5.00/EA |
| 3 | TN4029251Replaces Tennant 77003 | 1 | Seal, Org, .072 X 00.35id #04Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $4.40/EA |
| 4 | TN8006153Replaces Tennant 13904 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $7.60/EA |
| 5 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id #06Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $4.40/EA |
| 6 | TN8006154Replaces Tennant 13907 | 2 | Fitting, Hyd, Plug, Om08Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $7.60/EA |
| 7 | TN4029253Replaces Tennant 77006 | 2 | Seal, Org, .087 X 00.64id #08Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $6.00/EA |
| 8 | TN8004342Replaces Tennant 373658 | 2 | Spool, Pilot, HydPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $44.30/EA |
| 9 | TN8004282Replaces Tennant 373631 | 2 | Valve, CheckPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $59.10/EA |
| 10 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $22.60/EA |
| 11 | TN8004349Replaces Tennant 373666 | 2 | Valve, ReliefPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $133.50/EA |
| 12 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $22.60/EA |
| 13 | TN8004341Replaces Tennant 373657 | 2 | Stem, Valve, Hyd, 4w2pPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $185.50/EA |
| 14 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $4.20/EA |
| 15 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $22.60/EA |
| 16 | TN8004350Replaces Tennant 373667 | 1 | Stem, Valve, HydPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $144.10/EA |
| 17 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $4.20/EA |
| 18 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $25.60/EA |
| 19 | TN8004346Replaces Tennant 373663 | 2 | Valve, Stem, NoPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $213.30/EA |
| 20 | TN8045252Replaces Tennant 373670 | 1 | Nut, SolenoidPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $6.80/EA |
| 21 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $25.60/EA |
| 22 | TN8004351Replaces Tennant 373668 | 1 | Valve, CheckPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $118.80/EA |
| 23 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $46.60/EA |
| 24 | TN8004293Replaces Tennant 373642 | 3 | Solenoid, #10, 12vdcPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $88.20/EA |
| 25 | TN8004291Replaces Tennant 373640 | 2 | Solenoid, #8, 12vdcPart of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $73.70/EA |
| 26 | TN8004187Replaces Tennant 9011347 | 1 | Valve Assy [Proportional]Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $351.30/EA |
| 27 | TN8004184Replaces Tennant 9011343 | 1 | Seal Kit, Valve [Ehpr98]Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $26.70/EA |
| 28 | TN8004185Replaces Tennant 9011345 | 2 | Screw, Mtg [Ehpr98]Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $3.10/EA |
| 29 | TN8004186Replaces Tennant 9011346 | 1 | Harness, Jumper [Deutsch To Mpack]Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $35.00/EA |
| 30 | TN8045250Replaces Tennant 373669 | 1 | Plug, Orifice, Valve, Hyd, .063Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 08gpm (See Breakdowns) (1072996). | $11.82/EA |
Tennant T20 Diesel hydraulic Steering Valve Breakdown, 1024260 (component breakdown) parts
The parts Tennant numbers on its hydraulic steering valve breakdown, 1024260 (component breakdown) drawing. Manual pages 294, list 295.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4033593Replaces Tennant 1024260 | 1 | Steer-Control, Hyd05, 06.1 2030Complete assembly. | $816.30/EA |
| 1 | TN8051403Replaces Tennant 74183 | 7 | Screw, Valve, SteeringPart of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8051405Replaces Tennant 74185 | 1 | Cap, End, Valve, SteeringPart of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN8002112Replaces Tennant 74193 | 1 | Spacer, Valve, SteeringPart of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $17.78/EA |
| 4 | TN8002117Replaces Tennant 74222 | 1 | Plate, Wear, Steering ValvePart of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8002122Replaces Tennant 74232 | 1 | Pin, Valve, SteeringPart of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8005935Replaces Tennant 21935 | 1 | Bearing Kit [Cl]Part of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $39.98/EA |
| 7 | TN8048811Replaces Tennant 21933 | 1 | Plug Assy [Cl]Part of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $42.32/EA |
| 8 | TN8048812Replaces Tennant 21934 | 1 | Valve Assy, Relief [Cl]Part of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $236.04/EA |
| 9 | TN8002129Replaces Tennant 74243 | 1 | Ring, Retainer, Steering ValvePart of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $5.96/EA |
| 10 | TN8002114Replaces Tennant 74196 | 1 | Spring Kit, Scu [Cl]Part of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $45.35/EA |
| 11 | TN8002130Replaces Tennant 74244 | 1 | Seal Kit, Steering [Cl]Part of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $62.30/EA |
| 12 | TN8002131Replaces Tennant 74245 | 1 | Instr, Valve, Steering, RepairPart of Steer-Control, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T20 Diesel metering Solution Pump Breakdown, 73260 (component breakdown) parts
Metering Solution Pump Breakdown, 73260 (component breakdown) from Tennant's parts list. Manual page 296.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4016324Replaces Tennant 73260 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psiComplete assembly. | $792.20/EA |
| 1 | TN8002729Replaces Tennant 63923 | 1 | Tubing Connctr.Kit, Gorman PmpPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns) (73260). | $91.36/EA |
| 2 | TN8005913Replaces Tennant 21659 | 1 | Valve Kit, Poppet, Gorman RuppPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns) (73260). | $118.80/EA |
| 3 | TN8005912Replaces Tennant 21657 | 1 | Kit, Bellows, Pump, DetgtPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns) (73260). | $249.77/EA |
| 4 | TN8003657Replaces Tennant 78875 | 1 | Motor, Ele, Gear, 14vdc, Pump, DetgtPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns) (73260). | $540.96/EA |
| 5 | TN8006136Replaces Tennant 02430 | 1 | Crank Kit, Pump, F/79323, ReplmtPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (See Breakdowns) (73260). | $112.01/EA |
Tennant T20 Diesel water Pump Breakdown, 1026743 (component breakdown) parts
Water Pump Breakdown, 1026743 (component breakdown) from Tennant's parts list. Manual page 297.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4034280Replaces Tennant 1026743 | 1 | Pump, DiaphragmComplete assembly. | $370.80/EA |
| 1 | TN8005597Replaces Tennant 1031802 | 1 | Complete Pump Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $251.40/EA |
| 2 | TN8005598Replaces Tennant 1031803 | 1 | Hsg & Switch Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $121.04/EA |
| 3 | TN8005592Replaces Tennant 1031796 | 1 | Switch Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $83.12/EA |
| 4 | TN8005593Replaces Tennant 1031797 | 1 | Chech Valve Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $36.60/EA |
| 5 | TN8005594Replaces Tennant 1031798 | 1 | Upper Hsg Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $23.63/EA |
| 6 | TN8005595Replaces Tennant 1031799 | 1 | Bypass Valve Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $85.45/EA |
| 7 | TN8005596Replaces Tennant 1031800 | 1 | Diaphragm Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $59.59/EA |
| 8 | TN8047054Replaces Tennant 1031801 | 1 | Motor Kit, Pump, Repair,Part of Pump, Diaphragm (1026743). | $167.21/EA |
| 9 | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 02cav, Mp280 SealedPart of Pump, Diaphragm (1026743). | $7.90/EA |
| 10 | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Diaphragm (1026743). | $4.20/EA |
| – | TN4026210Replaces Tennant 78951 | 2 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of Pump, Diaphragm (1026743). | $0.55/EA |
| – | TN4043117Replaces Tennant 10917 | 2 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of Pump, Diaphragm (1026743). | $3.60/EA |
Tennant T20 Diesel ec-H2O Module Assembly Breakdown, 9007882 (component breakdown) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9007882 (component breakdown) drawing. Manual pages 298, list 299.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012473Replaces Tennant 9007882 | 1 | Module Kit, Replmt [Ec-H20]Complete assembly. | $1,782.70/EA |
| 1 | TN4037967Replaces Tennant 1014974 | 2 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $22.40/EA |
| 2 | TN4021946Replaces Tennant 607775 | 5 | Clamp, Hose, Wir, .63 - .66, BlkPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $4.20/EA |
| 3 | TN4034613Replaces Tennant 1060517 | 1 | Fitting, Plstc, Tee, Bm06/Pm02/Bm06Part of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $6.20/EA |
| 4 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $18.70/EA |
| 5 | TN4039131Replaces Tennant 20951 | 1 | Fitting, Plstc, E90, Bm06/Bm06Part of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $4.20/EA |
| 6 | TN4041118Replaces Tennant 150540 | 1 | Fitting, Plstc, Str, Bm06/Pm04Part of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $4.20/EA |
| 7 | TN4038978Replaces Tennant 1005435 | 1 | Fitting, Plstc, Pipe, Cap, Pf04Part of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $4.20/EA |
| 8 | TN4036516Replaces Tennant 1038159 | 1 | Electrode, CylindricalPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $753.50/EA |
| 9 | TN4013410Replaces Tennant 44961 | 1 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $3.40/EA |
| 10 | TN4187263Replaces Tennant 1060695 | 1 | Fitting, Plstc, Str, Pm02/Bm05Part of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $4.20/EA |
| 11 | TN4038223Replaces Tennant 1053464 | 3 | Clamp, Hose, Wir, .52 - .56, YelPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $2.73/EA |
| 12 | TN4041050Replaces Tennant 1052336 | 1 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $48.50/EA |
| 13 | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High FlowPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $753.50/EA |
| 14 | TN4012474Replaces Tennant 9007883 | 1 | Controller Kit, Replmt [Ec-H20]Part of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $544.60/EA |
| 15 | TN4035120Replaces Tennant 1016354 | 2 | Clamp, Cable, Ss, 0.50d X 0.50w [Insul]Part of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $4.10/EA |
| 16 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $0.25/EA |
| 17 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $2.60/EA |
| 18 | TN4043241Replaces Tennant 02938 | 4 | Washer, Lock, Int, 08, SsPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $2.60/EA |
| 19 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $2.50/EA |
| 20 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $10.60/EA |
| 21 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [Ec-H20] (See Breakdowns) (9007882). | $5.10/EA |
Tennant T20 Diesel seat Breakdown, 9018721 (component breakdown) parts
The parts Tennant numbers on its seat breakdown, 9018721 (component breakdown) drawing. Manual pages 300, list 301.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4192066Replaces Tennant 9018721 | 1 | Seat, Deluxe, Replmt [M20/T20/M30]Complete assembly. | $1,220.30/EA |
| 1 | TN8003570Replaces Tennant 9012585 | 1 | Track Assy, SlidePart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $187.20/EA |
| 2 | TN8003571Replaces Tennant 9012587 | 1 | Bellows, SeatPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $49.09/EA |
| 3 | TN8003572Replaces Tennant 9012589 | 1 | Knobs, Adjmt, WeightPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $30.10/EA |
| 4 | TN4021172Replaces Tennant 9018734 | 1 | Seatbelt, Retract, Orange, ReplmtPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $353.90/EA |
| 5 | TN8003574Replaces Tennant 9012591 | 1 | Switch, SeatPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $25.90/EA |
| 6 | TN8003575Replaces Tennant 9012592 | 1 | ArmrestPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $121.91/EA |
| 7 | TN8003576Replaces Tennant 9012593 | 1 | Pad, ArmrestPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $60.60/EA |
| 8 | TN8003577Replaces Tennant 9012594 | 1 | Cover, CushionPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $147.20/EA |
| 9 | TN8003578Replaces Tennant 9012595 | 1 | Cover, BackrestPart of Seat, Deluxe, Replmt [M20/T20/M30](See Breakdowns) (9018721). | $164.20/EA |
Tennant T20 Diesel steering Gearbox Breakdown, 9015636 (component breakdown) parts
The parts Tennant numbers on its steering gearbox breakdown, 9015636 (component breakdown) drawing. Manual pages 302, list 303.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4023706Replaces Tennant 9015636 | 1 | Gearbox Kit, Steering, Afmkt[M20/30/T20]Complete assembly. | $931.80/EA |
| 1 | TN4223567Replaces Tennant 1224091 | 1 | Housing, Gear, TopPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $108.37/EA |
| 2 | TN4223568Replaces Tennant 1224092 | 1 | Housing, Gear, BottomPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $215.43/EA |
| 3 | TN4226508Replaces Tennant 1222953 | 2 | Gear, SteeringPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $25.76/EA |
| 4 | TN4223569Replaces Tennant 1224093 | 1 | Shaft, Gear, OrbitalPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $209.07/EA |
| 5 | TN4223570Replaces Tennant 1224094 | 1 | Shaft. SterringPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $157.76/EA |
| 6 | TN4027202Replaces Tennant 59861 | 4 | Ring, Retaining, Ext, 1.25dPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $3.40/EA |
| 7 | TN4038864Replaces Tennant 1210624 | 4 | Bushing, Flng, 1.25b 1.41d 0.50lPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $6.20/EA |
| 8 | TN4011883Replaces Tennant 763024 | 4 | Washer, Thrust, 1.26b 1.97d 0.13, BnzPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $7.50/EA |
| 9 | TN4016807Replaces Tennant 41342 | 4 | Screw, Hex, M8 X 1.25 X 40, 8.8Part of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $3.40/EA |
| 10 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flat, 0.31, SaePart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $2.50/EA |
| 11 | TN4042789Replaces Tennant 00961 | 2 | Key, Sq, 0.19 X 0.19, 0.50lPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $4.20/EA |
| 12 | TN4020610Replaces Tennant 83043 | 2 | Pin, Dowel, 0.2502d X 1.00lPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $2.42/EA |
| 13 | TN4036601Replaces Tennant 1057785 | 2 | Bearing, Journal, 0.75b 0.88d 0.75lPart of Gearbox Kit, Steering, Afmkt[M20/30/T20] (See Breakdowns) (9015636). | $5.50/EA |
Tennant T20 Diesel faST Injector Assembly Breakdown, 9008868 (component breakdown) parts
FaST Injector Assembly Breakdown, 9008868 (component breakdown) from Tennant's parts list. Manual page 304.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4010349Replaces Tennant 9008868 | 1 | FaST Kit, Injector [M20/T20/m30 FaST III}Complete assembly. No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN9008757Tennant 9008757 | 1 | FaST Kit, Ci [inj Rebld, M30/M20 III]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN9008848Tennant 9008848 | 1 | FaST Kit, Seal, injector, Ci [FaST III]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). | $4.10/EA |
| 3 | TN4016470Replaces Tennant 9003009 | 1 | FaST Kit, Ci, Injector Filters[FaST Ii+]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). | $71.60/EA |
| 4 | TN1059878Tennant 1059878 | 1 | Plate Assy, Orifice, 0.0105Id, GreenPart of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). | $22.80/EA |
| 5 | TN1042710Tennant 1042710 | 1 | Plug, Orifice, 0.060, Ss [FaST Ii+]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). | $18.30/EA |
| 6 | TN1059234Tennant 1059234 | 1 | Insert, :Lrg [Venturi, FaST III]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). | $11.80/EA |
| 7 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi [FaST Ii+]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi [FaST Ii+]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdowns) (9008868). No longer available from the manufacturer. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant T20 Diesel water Pump Motor Breakdown, 1225829 (component breakdown) parts
Water Pump Motor Breakdown, 1225829 (component breakdown) from Tennant's parts list. Manual page 305.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4038244Replaces Tennant 1225829 | 1 | Pump, Hyd, Press WasherComplete assembly. | $2,428.30/EA |
| 1 | TN9004290Tennant 9004290 | 1 | Valve KitPart of Pump, Hyd, Press Washer (1225829). | $115.00/EA |
| 2 | TN9004291Tennant 9004291 | 1 | Piston KitPart of Pump, Hyd, Press Washer (1225829). | $444.80/EA |
| 3 | TN9004288Tennant 9004288 | 1 | Seal Kit [Buna]Part of Pump, Hyd, Press Washer (1225829). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN9004272Tennant 9004272 | 1 | Seal Kit [Vitron]Part of Pump, Hyd, Press Washer (1225829). | $601.00/EA |
| 4 | TN9004289Tennant 9004289 | 1 | Seal Kit, OilPart of Pump, Hyd, Press Washer (1225829). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN9004292Tennant 9004292 | 1 | Ring Kit, SpptPart of Pump, Hyd, Press Washer (1225829). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4034859Replaces Tennant 1227137 | 1 | Valve, Hyd, Press WasherPart of Pump, Hyd, Press Washer (1225829). | $35.70/EA |
Tennant T20 Diesel crankcase Group (diesel engine) parts
The parts Tennant numbers on its crankcase group (diesel engine) drawing. Manual pages 308, list 309.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002762Replaces Tennant 9004335 | 1 | Crankcase, Complt [Ku]Complete assembly. | $11,441.68/EA |
| 2 | TN8002561Replaces Tennant 70998 | 6 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.96/EA |
| 3 | TN8002909Replaces Tennant 39087 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $8.59/EA |
| 4 | TN8002910Replaces Tennant 39088 | 4 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.00/EA |
| 5 | TN8002562Replaces Tennant 70999 | 1 | Plug, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $18.69/EA |
| 6 | TN8002565Replaces Tennant 71985 | 3 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8002902Replaces Tennant 39051 | 2 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.25/EA |
| 8 | TN8004840Replaces Tennant 361436 | 3 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $3.33/EA |
| 9 | TN8002566Replaces Tennant 71986 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.45/EA |
| 10 | TN8002567Replaces Tennant 71987 | 2 | Pin, Dowel [Ku]Part of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8002568Replaces Tennant 71988 | 2 | Pin, Dowel [Ku]Part of Crankcase, Complt [Ku] (9004335). | $4.24/EA |
| 12 | TN8049852Replaces Tennant 9004431 | 2 | Pin, Straight [Ku]Part of Crankcase, Complt [Ku] (9004335). | $1.72/EA |
| 13 | TN8051525Replaces Tennant 71990 | 2 | Pin, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $10.10/EA |
| 14 | TN8002569Replaces Tennant 71991 | 1 | Tube, Pin [Ku]Part of Crankcase, Complt [Ku] (9004335). | $4.24/EA |
| 15 | TN8002640Replaces Tennant 71992 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $8.28/EA |
| 16 | TN8049780Replaces Tennant 9004337 | 1 | Pin, Start, SpringPart of Crankcase, Complt [Ku] (9004335). | $8.89/EA |
| 17 | TN8002641Replaces Tennant 71993 | 1 | Plug, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $20.50/EA |
| 18 | TN8002422Replaces Tennant 70887 | 1 | Bushing, Gear, Gov [Ku]Part of Crankcase, Complt [Ku] (9004335). | $51.51/EA |
| 19 | TN8002903Replaces Tennant 39062 | 1 | Fitting, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.15/EA |
| 20 | TN8002588Replaces Tennant 393570 | 1 | GasketPart of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN8002423Replaces Tennant 70888 | 1 | Fitting, Draincock [Ku] | $22.02/EA |
Tennant T20 Diesel oil Pan Group (diesel engine) parts
Oil Pan Group (diesel engine) from Tennant's parts list. Manual page 310.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8047600Replaces Tennant 1023144 | 1 | Pan, Oil, Dsl | $288.66/EA |
| 2 | TN8002424Replaces Tennant 70889 | 1 | Gasket, Pan, Oil | $66.36/EA |
| 3 | TN8049781Replaces Tennant 9004338 | 26 | Bolt [Ku] | $1.72/EA |
| 4 | TN8002423Replaces Tennant 70888 | 1 | Filter, Oil [Ku] | $22.02/EA |
| 5 | TN8044761Replaces Tennant 39094 | 1 | Screw, Hex [Ku] | $1.50/EA |
| 6 | TN8002763Replaces Tennant 9004339 | 1 | O-Ring [Ku] | $6.67/EA |
| 7 | TN8002814Replaces Tennant 9004435 | 1 | Gauge, Oil [Ku] | $43.53/EA |
| 8 | TN8004835Replaces Tennant 361428 | 1 | Dipstick, Oil [Ku]Complete assembly. | $193.52/EA |
| 9 | TN8004677Replaces Tennant 361366 | 1 | Seal, Org [Ku]Part of Dipstick, Oil [Ku] (361428). | $3.43/EA |
| 10 | TN8002906Replaces Tennant 39073 | 1 | Screw, Hex [Ku] | $1.40/EA |
| – | TN66187Tennant 66187 | 1 | Gasket Set | $270.00/EA |
| 11 | TN8049787Replaces Tennant 9004348 | 1 | Plug, Gauge, Oil [Ku] | $15.76/EA |
Tennant T20 Diesel cylinder Head Group (diesel engine) parts
Cylinder Head Group (diesel engine) from Tennant's parts list. Manual page 311.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002642Replaces Tennant 71996 | 1 | Ear, Lifting, Eng [Ku] | $16.77/EA |
| 2 | TN8002643Replaces Tennant 71997 | 1 | Ear, Lifting, Eng [Ku] | $19.29/EA |
| 3 | TN8002906Replaces Tennant 39073 | 2 | Screw, Hex [Ku] | $1.40/EA |
| 4 | TN8002764Replaces Tennant 9004340 | 1 | Head, Cylinder [Ku]Complete assembly. | $1,878.62/EA |
| 5 | TN8002584Replaces Tennant 393504 | 1 | Cap, SealingPart of Head, Cylinder [Ku] (9004340). | $11.65/EA |
| 6 | TN8002910Replaces Tennant 39088 | 2 | Fitting, Pipe, Plug [Ku]Part of Head, Cylinder [Ku] (9004340). | $5.00/EA |
| 7 | TN8004160Replaces Tennant 372906 | 4 | Guide, Valve, InletPart of Head, Cylinder [Ku] (9004340). | $20.75/EA |
| 8 | TN8004161Replaces Tennant 372907 | 4 | Guide, Valve, ExhaustPart of Head, Cylinder [Ku] (9004340). | $21.60/EA |
| 9 | TN8002644Replaces Tennant 71999 | 3 | Cap, Sealing, Eng [Ku]Part of Head, Cylinder [Ku] (9004340). | $9.20/EA |
| 10 | TN8002428Replaces Tennant 70897 | 18 | Screw, Hex, Head, Cyl [Ku] | $21.25/EA |
| 11 | TN8002765Replaces Tennant 9004341 | 1 | Gasket, Head, Cyl [Ku] | $241.09/EA |
| – | TN8002842Replaces Tennant 66194 | 1 | Gasket Set, Upper | $371.18/EA |
| 12 | TN8051527Replaces Tennant 72010 | 1 | Fitting, Pipe, Plug [Ku] | $7.35/EA |
Tennant T20 Diesel gear Case Group (diesel engine) parts
The parts Tennant numbers on its gear case group (diesel engine) drawing. Manual pages 312, list 313.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002812Replaces Tennant 9004432 | 1 | Crankcase, Comp [Ku]Complete assembly. | $796.58/EA |
| 2 | TN8046197Replaces Tennant 361401 | 5 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Comp [Ku] (9004432). | $15.86/EA |
| 3 | TN8050434Replaces Tennant 12916 | 1 | Fitting, Fltr, Oil [Ku]Part of Crankcase, Comp [Ku] (9004432). | $32.12/EA |
| 4 | TN8051510Replaces Tennant 70900 | 1 | Spring, Cmpr, Relief [Ku]Part of Crankcase, Comp [Ku] (9004432). | $4.75/EA |
| 5 | TN8051511Replaces Tennant 70901 | 1 | Tube, Seat, Valve, Oil [Ku]Part of Crankcase, Comp [Ku] (9004432). | $32.12/EA |
| 6 | TN8051512Replaces Tennant 70902 | 1 | Ball, Relief, Oil [Ku]Part of Crankcase, Comp [Ku] (9004432). | $3.23/EA |
| 7 | TN8051513Replaces Tennant 70905 | 1 | CoverPart of Crankcase, Comp [Ku] (9004432). | $125.85/EA |
| 8 | TN8051514Replaces Tennant 70906 | 1 | BoltPart of Crankcase, Comp [Ku] (9004432). | $24.95/EA |
| 9 | TN8002493Replaces Tennant 70907 | 1 | Seal, Org [Ku]Part of Crankcase, Comp [Ku] (9004432). | $11.40/EA |
| 10 | TN8002496Replaces Tennant 70911 | 1 | Seal, OrgPart of Crankcase, Comp [Ku] (9004432). | $3.80/EA |
| 11 | TN8002491Replaces Tennant 70903 | 1 | Pump, Oil, Eng [Ku]Part of Crankcase, Comp [Ku] (9004432). | $257.15/EA |
| 12 | TN8002492Replaces Tennant 70904 | 1 | Cover, Pump, OilPart of Crankcase, Comp [Ku] (9004432). | $41.61/EA |
| 13 | TN8051528Replaces Tennant 72013 | 5 | Screw, Flt [Ku] | $3.33/EA |
| 14 | TN8002497Replaces Tennant 70912 | 1 | Gasket, Case, Gear [Ku] | $27.70/EA |
| 15 | TN8051235Replaces Tennant 72993 | 3 | Screw, Hex [Ku] | $2.40/EA |
| 16 | TN8051236Replaces Tennant 72994 | 6 | Bolt | $2.45/EA |
| 17 | TN8002498Replaces Tennant 70913 | 1 | Seal, Org | $10.20/EA |
| 18 | TN8051529Replaces Tennant 72014 | 1 | Screw, Hex [Ku] | $3.90/EA |
| 19 | TN8051540Replaces Tennant 72015 | 2 | Screw, Hex [Ku] | $1.50/EA |
| 20 | TN8051541Replaces Tennant 72016 | 1 | Bolt | $8.08/EA |
| 21 | TN8049785Replaces Tennant 9004346 | 1 | Stud [Ku] | $3.80/EA |
| 22 | TN8002919Replaces Tennant 39121 | 1 | Nut, Hex [Ku] | $0.55/EA |
| 23 | TN8002905Replaces Tennant 39065 | 1 | Washer, Lock, Split [Ku] | $3.60/EA |
| 24 | TN8004817Replaces Tennant 361389 | 1 | Seal, Oil, Front [Ku] | $18.20/EA |
| 25 | TN8049786Replaces Tennant 9004347 | 2 | Stud [Ku] | $3.65/EA |
| 26 | TN8051544Replaces Tennant 72019 | 1 | Cover | $15.15/EA |
| 27 | TN8004680Replaces Tennant 361374 | 1 | Cap, Filler, Oil [Ku] | $22.00/EA |
Tennant T20 Diesel water Pump Group (diesel engine) parts
Water Pump Group (diesel engine) from Tennant's parts list. Manual page 314.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002805Replaces Tennant 9004402 | 1 | Pump, Water Assy [Ku]Complete assembly. | $661.80/EA |
| 2 | TN8002502Replaces Tennant 70919 | 1 | Flange, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $63.13/EA |
| 3 | TN4203504Replaces Tennant 9004403 | 1 | Bearing [Ku]Part of Pump, Water Assy [Ku] (9004402). | $86.90/EA |
| 4 | TN8049828Replaces Tennant 9004404 | 1 | Seal, Mechanical Assy [Ku]Part of Pump, Water Assy [Ku] (9004402). | $98.48/EA |
| 5 | TN8049829Replaces Tennant 9004405 | 1 | Impeller, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $80.75/EA |
| 6 | TN8004843Replaces Tennant 361440 | 1 | Fitting, Pipe, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $17.10/EA |
| 7 | TN8002503Replaces Tennant 70920 | 1 | Gasket, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $26.40/EA |
| 8 | TN8002806Replaces Tennant 9004406 | 4 | Bolt [Ku] | $1.90/EA |
| 9 | TN8049840Replaces Tennant 9004407 | 2 | Bolt [Ku] | $3.80/EA |
| 10 | TN8002746Replaces Tennant 9003868 | 1 | Pipe, Water [Kubota] | $84.30/EA |
| 11 | TN8002747Replaces Tennant 9003869 | 1 | Pipe, Water [Kubota] | $38.80/EA |
| 12 | TN8002748Replaces Tennant 9003870 | 2 | Clamp [Kubota] | $8.30/EA |
| 13 | TN8004437Replaces Tennant 55847 | 1 | Sheave, Fan [Ku] | $95.40/EA |
| 14 | TN8043698Replaces Tennant 393588 | 4 | Bolt, Flng | $4.90/EA |
Tennant T20 Diesel main Bearing Case Group (diesel engine) parts
Main Bearing Case Group (diesel engine) from Tennant's parts list. Manual page 315.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002767Replaces Tennant 9004349 | 1 | Bearing, Case [Ku]Complete assembly. | $258.66/EA |
| 2 | TN8002815Replaces Tennant 9004436 | 1 | Crankshaft, Metal [Ku]Part of Bearing, Case [Ku] (9004349). | $59.99/EA |
| 3 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Bearing, Case [Ku] (9004349). | $22.12/EA |
| 4 | TN8002768Replaces Tennant 9004350 | 1 | Gasket, Bearing, Case [Ku] | $9.80/EA |
| 5 | TN8002506Replaces Tennant 70923 | 1 | Cover, Brg Case, Eng [Ku] | $107.97/EA |
| 6 | TN8002507Replaces Tennant 70924 | 1 | Seal, Oil, Rear [Ku] | $67.47/EA |
| 7 | TN8002508Replaces Tennant 70925 | 1 | Gasket, Case, Gear [Ku] | $14.75/EA |
| 8 | TN8044938Replaces Tennant 384871 | 8 | Bolt | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN8005670Replaces Tennant 371017 | 9 | Bolt | $3.33/EA |
| 10 | TN8002816Replaces Tennant 9004437 | 1 | Case, Main, Brg AssyComplete assembly. | $223.11/EA |
| 11 | TN8002529Replaces Tennant 70948 | 1 | Bearing, Cshft, Std [Ku]Part of Case, Main, Brg Assy (9004437). | $58.08/EA |
| 12 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Case, Main, Brg Assy (9004437). | $22.12/EA |
| 13 | TN8002663Replaces Tennant 73479 | 3 | Screw, Hex, Case, Brg, Main [Ku] | $31.71/EA |
| 14 | TN8002817Replaces Tennant 9004438 | 1 | Case, Main, Brg AssyComplete assembly. | $246.04/EA |
| 15 | TN8002529Replaces Tennant 70948 | 1 | Bearing, Cshft, Std [Ku]Part of Case, Main, Brg Assy (9004438). | $58.08/EA |
| 16 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Case, Main, Brg Assy (9004438). | $22.12/EA |
| 17 | TN8002818Replaces Tennant 9004439 | 1 | Case, Main, Brg AssyComplete assembly. | $226.24/EA |
| 18 | TN8002529Replaces Tennant 70948 | 1 | Bearing, Cshft, Std [Ku]Part of Case, Main, Brg Assy (9004439). | $58.08/EA |
| 19 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Case, Main, Brg Assy (9004439). | $22.12/EA |
Tennant T20 Diesel head Cover Group (diesel engine) parts
Head Cover Group (diesel engine) from Tennant's parts list. Manual page 316.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002813Replaces Tennant 9004433 | 1 | Cover, Cyl Head Assy [Ku]Complete assembly. | $277.65/EA |
| 2 | TN8002511Replaces Tennant 70929 | 1 | Gasket, Cover, Head, Cyl [Ku]Part of Cover, Cyl Head Assy [Ku] (9004433). | $31.00/EA |
| 3 | TN372912Tennant 372912 | 1 | Shield, BreatherPart of Cover, Cyl Head Assy [Ku] (9004433). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8004167Replaces Tennant 372928 | 1 | Valve, Breather, CompltPart of Cover, Cyl Head Assy [Ku] (9004433). | $107.54/EA |
| 5 | TN4170138Replaces Tennant 384874 | 1 | Cover, BreatherPart of Cover, Cyl Head Assy [Ku] (9004433). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8002666Replaces Tennant 73482 | 4 | Screw, Hex, W/ Washer [Ku]Part of Cover, Cyl Head Assy [Ku] (9004433). | $0.55/EA |
| 7 | TN30125Tennant 30125 | 1 | Pipe, WaterPart of Cover, Cyl Head Assy [Ku] (9004433). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8004164Replaces Tennant 372913 | 1 | Tube, Breather | $14.55/EA |
| 9 | TN8004158Replaces Tennant 372901 | 1 | Clamp, Hose | $3.60/EA |
| 10 | TN8004159Replaces Tennant 372904 | 1 | Clamp, Hose | $10.00/EA |
| 11 | TN8002667Replaces Tennant 73483 | 4 | Nut, Hex, Cap | $6.85/EA |
| 12 | TN8002668Replaces Tennant 73484 | 4 | Gasket, F/ Bolt [Ku] | $2.35/EA |
| 13 | TN8004680Replaces Tennant 361374 | 1 | Cap, Filler, Oil [Ku] | $22.00/EA |
| 14 | TN8002498Replaces Tennant 70913 | 1 | Seal, Org | $10.20/EA |
Tennant T20 Diesel manifold Group (diesel engine) parts
Manifold Group (diesel engine) from Tennant's parts list. Manual page 317.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8045862Replaces Tennant 372905 | 1 | Manifold Assy, InletComplete assembly. | $201.50/EA |
| 2 | TN8002665Replaces Tennant 73481 | 1 | Pipe, Breather [Ku]Part of Manifold Assy, Inlet (372905). | $17.45/EA |
| 3 | TN8002516Replaces Tennant 70934 | 1 | Gasket, Manifold, Intake [Ku]Part of Manifold Assy, Inlet (372905). | $26.40/EA |
| 4 | TN8002806Replaces Tennant 9004406 | 2 | Bolt [Ku] | $1.90/EA |
| 5 | TN8051236Replaces Tennant 72994 | 3 | Bolt | $2.45/EA |
| 6 | TN8002670Replaces Tennant 73487 | 1 | Manifold, Exhaust [Ku] | $284.21/EA |
| 7 | TN8002517Replaces Tennant 70935 | 1 | Gasket, Manifold, Exhaust | $48.40/EA |
| 8 | TN8002671Replaces Tennant 73488 | 8 | Stud [Ku] | $4.90/EA |
| 9 | TN8002672Replaces Tennant 73489 | 8 | Nut | $3.25/EA |
| 10 | TN8002405Replaces Tennant 51332 | 1 | Gasket [Ku] | $14.90/EA |
| 11 | TN8052077Replaces Tennant 40409 | 3 | Screw, Hex [Ku] | $3.30/EA |
Tennant T20 Diesel valve, Rocker Arm Group (diesel engine) parts
Valve, Rocker Arm Group (diesel engine) from Tennant's parts list. Manual page 318.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002518Replaces Tennant 70936 | 4 | Valve, Intake [Ku] | $54.60/EA |
| 2 | TN8002519Replaces Tennant 70937 | 4 | Valve, Exhaust [Ku] | $58.60/EA |
| 3 | TN8002673Replaces Tennant 73491 | 8 | Spring, Valve [Ku] | $9.19/EA |
| 4 | TN8002674Replaces Tennant 73492 | 8 | Retainer, Spring, Valve [Ku] | $4.25/EA |
| 5 | TN8002675Replaces Tennant 73493 | 8 | Retainer, Spring [Ku] | $15.50/EA |
| 6 | TN8002676Replaces Tennant 73494 | 8 | Seal, Stem, Valve [Ku] | $14.70/EA |
| 7 | TN8004818Replaces Tennant 361392 | 8 | Cap, Valve [Ku] | $13.70/EA |
| 8 | TN8049841Replaces Tennant 9004409 | 1 | Shaft, Rocker, Arm [Ku] | $74.64/EA |
| 9 | TN8043708Replaces Tennant 393598 | 2 | Bolt | $4.44/EA |
| 10 | TN8051243Replaces Tennant 73497 | 4 | Bracket, Mtg, Rocker Arm [Ku] | $60.10/EA |
| 11 | TN8051244Replaces Tennant 73498 | 4 | Stud [Ku] | $10.80/EA |
| 12 | TN8051245Replaces Tennant 73499 | 4 | Nut, Hex [Ku] | $6.85/EA |
| 13 | TN8051246Replaces Tennant 73500 | 4 | Washer, Flat [Ku] | $3.15/EA |
| 14 | TN8049842Replaces Tennant 9004410 | 1 | Pin, Spring [Ku] | $1.52/EA |
| 15 | TN8002678Replaces Tennant 73502 | 2 | Washer, Shaft, Rocker [Ku] | $4.34/EA |
| 16 | TN8004897Replaces Tennant 361589 | 2 | Washer, Flat [Ku] | $4.24/EA |
| 17 | TN8051248Replaces Tennant 73504 | 3 | Spring, Cmpr, Rocker [Ku] | $4.14/EA |
| 18 | TN8002680Replaces Tennant 73506 | 8 | Arm, Rocker [Ku]Complete assembly. | $121.00/EA |
| 19 | TN8051250Replaces Tennant 73507 | 8 | Screw, Adj, Rocker Arm [Ku]Part of Arm, Rocker [Ku] (73506). | $8.59/EA |
| 20 | TN8051251Replaces Tennant 73508 | 8 | Nut, Hex [Ku]Part of Arm, Rocker [Ku] (73506). | $8.59/EA |
Tennant T20 Diesel fuel Camshaft Group (diesel engine) parts
Fuel Camshaft Group (diesel engine) from Tennant's parts list. Manual page 319.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003211Replaces Tennant 84636 | 1 | Camshaft | $712.15/EA |
| 2 | TN8002794Replaces Tennant 9004368 | 1 | Bearing, Ball [Ku] | $76.66/EA |
| 3 | TN8002795Replaces Tennant 9004369 | 1 | Bearing, Ball [Ku] | $76.66/EA |
| 4 | TN8049855Replaces Tennant 9004445 | 1 | Gear, Injection, Pump [Ku] | $108.07/EA |
| 5 | TN8051312Replaces Tennant 73593 | 1 | Nut, Cap, Cam [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8051313Replaces Tennant 73594 | 1 | Key, Woodruff [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8051315Replaces Tennant 73596 | 1 | Stopper, Fuel [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8052091Replaces Tennant 41973 | 2 | Bolt, Hex [Ku] | $3.50/EA |
| – | TN8051316Replaces Tennant 73597 | 1 | Shaft, GovnrComplete assembly. | $1,109.49/EA |
| 9 | TN8049801Replaces Tennant 9004371 | 1 | Shaft, Governor [Ku]Part of Shaft, Govnr (73597). | $100.70/EA |
| 10 | TN8051317Replaces Tennant 73598 | 1 | Holder, Gear [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8051318Replaces Tennant 73599 | 1 | Gear, Govnr [Ku]Part of Shaft, Govnr (73597). | $163.78/EA |
| 12 | TN8051319Replaces Tennant 73600 | 1 | Holder, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8002057Replaces Tennant 73601 | 2 | Weight, Comp, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN8002058Replaces Tennant 73602 | 2 | Shaft, Govnr [Ku]Part of Shaft, Govnr (73597). | $35.45/EA |
| 15 | TN8002796Replaces Tennant 9004372 | 2 | Shaft, Governor, Weight [Ku]Part of Shaft, Govnr (73597). | $26.97/EA |
| 16 | TN8051518Replaces Tennant 70977 | 1 | Sleeve, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN8051519Replaces Tennant 70978 | 1 | Washer, Thrust [Ku]Part of Shaft, Govnr (73597). | $11.62/EA |
| 18 | TN8049802Replaces Tennant 9004373 | 1 | Bearing, Ball [Ku] | $76.66/EA |
| 19 | TN8051320Replaces Tennant 73603 | 1 | Ring, Snap [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN8051321Replaces Tennant 73604 | 1 | Screw, Set [Ku] | $8.08/EA |
Tennant T20 Diesel camshaft Group (diesel engine) parts
The parts Tennant numbers on its camshaft group (diesel engine) drawing. Manual pages 320, list 321.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005264Replaces Tennant 12895 | 8 | Tappet [Ku] | $41.61/EA |
| 2 | TN8002681Replaces Tennant 73509 | 8 | Rod, Push, Valve [Ku] | $9.90/EA |
| 3 | TN8002819Replaces Tennant 9004440 | 1 | Crankshaft AssyComplete assembly. | $1,095.14/EA |
| 4 | TN8044787Replaces Tennant 39197 | 1 | Screw, Set [Ku]Part of Crankshaft Assy (9004440). | $4.44/EA |
| 5 | TN8051252Replaces Tennant 73511 | 1 | Gear, Camshaft [Ku]Part of Crankshaft Assy (9004440). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8051253Replaces Tennant 73512 | 1 | Key [Ku]Part of Crankshaft Assy (9004440). | $3.43/EA |
| 7 | TN8051254Replaces Tennant 73513 | 1 | Stopper, Cam [Ku]Part of Crankshaft Assy (9004440). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8052091Replaces Tennant 41973 | 2 | Bolt, Hex [Ku]Part of Crankshaft Assy (9004440). | $3.50/EA |
| 9 | TN8051255Replaces Tennant 73514 | 1 | Gear, Idler, Cam [Ku]Complete assembly. | $463.62/EA |
| 10 | TN8002682Replaces Tennant 73515 | 1 | Bushing, Gear, Idler [Ku]Part of Gear, Idler, Cam [Ku] (73514). | $30.10/EA |
| 11 | TN8051256Replaces Tennant 73516 | 1 | Collar, Gear [Ku] | $11.82/EA |
| 12 | TN8051257Replaces Tennant 73517 | 1 | Washer, Collar, Gear [Ku] | $10.10/EA |
| 13 | TN8051258Replaces Tennant 73518 | 1 | Ring, Snap [Ku] | $7.88/EA |
| 14 | TN8051282Replaces Tennant 73519 | 1 | Shaft, Idler, Gear [Ku] | $177.15/EA |
| 15 | TN8052091Replaces Tennant 41973 | 3 | Bolt, Hex [Ku] | $3.50/EA |
Tennant T20 Diesel piston and Crankshaft Group (diesel engine) parts
The parts Tennant numbers on its piston and crankshaft group (diesel engine) drawing. Manual pages 322, list 323.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002683Replaces Tennant 73520 | 4 | Piston, Eng [Ku] | $320.37/EA |
| 1 | TN8002684Replaces Tennant 73521 | 4 | Piston, Eng [Ku] | $516.82/EA |
| 2 | TN8002791Replaces Tennant 9004361 | 4 | Ring, Piston Assy [Ku] | $159.58/EA |
| 2 | TN8002820Replaces Tennant 9004441 | 4 | Piston, Ring Assy [Ku] | $159.28/EA |
| 3 | TN8002685Replaces Tennant 73522 | 4 | Pin, Piston [Ku] | $19.90/EA |
| 4 | TN8002686Replaces Tennant 73523 | 8 | Ring, Snap, Piston [Ku] | $5.35/EA |
| 5 | TN8002687Replaces Tennant 73524 | 4 | Rod Assy, Connecting [Ku]Complete assembly. | $579.94/EA |
| 6 | TN8004819Replaces Tennant 361395 | 4 | Bushing, Pin, Piston [Ku]16241-21351Part of Rod Assy, Connecting [Ku] (73524). | $28.08/EA |
| 7 | TN8002688Replaces Tennant 73525 | 8 | Screw, Rod, Connecting [Ku]Part of Rod Assy, Connecting [Ku] (73524). | $15.15/EA |
| 8 | TN8002522Replaces Tennant 70941 | 4 | Bearing, Rod, Connecting, Std [Ku]Part of Rod Assy, Connecting [Ku] (73524). | $63.02/EA |
| 8 | TN8002843Replaces Tennant 66204 | 4 | Bearing, Rod, Connecting [ - .2mm, Ku]Part of Rod Assy, Connecting [Ku] (73524). | $71.31/EA |
| 8 | TN8002846Replaces Tennant 66207 | 4 | Bearing, Rod, Connecting [ - .4mm, Ku]Part of Rod Assy, Connecting [Ku] (73524). | $76.26/EA |
| – | TN8002689Replaces Tennant 73526 | 1 | CrankshaftComplete assembly. | $5,928.20/EA |
| 9 | TN8051283Replaces Tennant 73527 | 4 | Ball, Cshft [Ku]Part of Crankshaft (73526). | $2.83/EA |
| 10 | TN8002720Replaces Tennant 73528 | 1 | Gear, Cshft [Ku]Part of Crankshaft (73526). | $254.22/EA |
| 11 | TN8002721Replaces Tennant 73529 | 1 | Key [Ku]Part of Crankshaft (73526). | $5.15/EA |
| 12 | TN8002722Replaces Tennant 73530 | 1 | Gear, Pump, Oil [Ku]Part of Crankshaft (73526). | $114.89/EA |
| 13 | TN8002523Replaces Tennant 70942 | 1 | Bearing, Cshft [Ku]Part of Crankshaft (73526). | $123.42/EA |
| 14 | TN8002524Replaces Tennant 70943 | 1 | Collar, Crank, Front [Ku] | $84.52/EA |
| 15 | TN8002792Replaces Tennant 9004363 | 1 | Ring [Ku] | $10.40/EA |
| 16 | TN8002526Replaces Tennant 70945 | 1 | Bearing, Cshft, Std [Ku] | $97.16/EA |
| 16 | TN8002527Replaces Tennant 70946 | 1 | Bearing, Cshft, - .2mm [Ku] | $76.15/EA |
| 16 | TN8002528Replaces Tennant 70947 | 1 | Bearing, Cshft [Ku] | $93.12/EA |
| 17 | TN8006116Replaces Tennant 10844 | 2 | Bearing, Thrust, Std [Ku] | $22.83/EA |
| 17 | TN8002534Replaces Tennant 70954 | 2 | Bearing, Thrust [Ku] | $24.95/EA |
| 17 | TN8002535Replaces Tennant 70955 | 2 | Bearing, Thrust [ - .4mm, Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN8006117Replaces Tennant 10845 | 2 | Bearing, Thrust, Std [Ku] | $30.40/EA |
| 19 | TN8002723Replaces Tennant 73532 | 2 | Screw, Hex, Cshft [Ku] | $22.39/EA |
| 20 | TN8002991Replaces Tennant 393400 | 2 | Sheave, Cshft [Ku] | $126.38/EA |
Tennant T20 Diesel flywheel Group (diesel engine) parts
Flywheel Group (diesel engine) from Tennant's parts list. Manual page 324.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002536Replaces Tennant 70956 | 1 | FlywheelComplete assembly. | $1,339.77/EA |
| 2 | TN8002248Replaces Tennant 9004442 | 1 | Gear, Ring [Ku]Part of Flywheel (70956). | $143.02/EA |
| 3 | TN8002724Replaces Tennant 73533 | 6 | Screw, Hex, Flywheel [Ku] | $25.55/EA |
| 4 | TN8049446Replaces Tennant 9003891 | 1 | Indicator, Timing [Ku] | $17.78/EA |
| 5 | TN8049853Replaces Tennant 9004443 | 1 | Bolt [Ku] | $3.33/EA |
| 6 | TN8049854Replaces Tennant 9004444 | 1 | Washer, Plain [Ku] | $1.31/EA |
Tennant T20 Diesel starter Breakdown, 74405 (diesel engine) parts
Starter Breakdown, 74405 (diesel engine) from Tennant's parts list. Manual page 325.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002147Replaces Tennant 74405 | 1 | Starter, 12vdc [Kubota]Complete assembly. | $2,482.50/EA |
| 2 | TN70196Tennant 70196 | 1 | YokePart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $731.70/EA |
| 3 | TN8051485Replaces Tennant 70197 | 1 | Armature, Motor [Ku]Part of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $600.04/EA |
| 4 | TN8051486Replaces Tennant 70198 | 1 | BearingPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $66.66/EA |
| 5 | TN8051487Replaces Tennant 70199 | 1 | BearingPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $55.05/EA |
| 6 | TN70200Tennant 70200 | 1 | ClutchPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8051488Replaces Tennant 70201 | 1 | Frame, End, DrivePart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN70202Tennant 70202 | 1 | Switch, Magneto [Ku]Part of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $1,173.00/EA |
| 9 | TN70203Tennant 70203 | 1 | Frame, EndPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $227.80/EA |
| 10 | TN70204Tennant 70204 | 1 | BrushholderPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8051489Replaces Tennant 70205 | 4 | Spring, BrushPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $13.43/EA |
| 12 | TN70206Tennant 70206 | 1 | GearPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8051500Replaces Tennant 70207 | 1 | RetainerPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN8051288Replaces Tennant 73545 | 5 | Retainer, Gear, Starter [Ku]Part of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN8051501Replaces Tennant 70208 | 1 | SpringPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN8051290Replaces Tennant 73547 | 1 | Spring, Ext [Ku]Part of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN8051502Replaces Tennant 70209 | 2 | BoltPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN8048533Replaces Tennant 20433 | 2 | Seal, OrgPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $25.65/EA |
| 19 | TN8051503Replaces Tennant 70210 | 2 | BoltPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN8048531Replaces Tennant 20432 | 2 | BoltPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $10.10/EA |
| 21 | TN70211Tennant 70211 | 1 | CoverPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $44.40/EA |
| 22 | TN8051294Replaces Tennant 73551 | 1 | Nut, Hex [Ku]Part of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $7.68/EA |
| 23 | TN8051504Replaces Tennant 70212 | 1 | NutPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $9.19/EA |
| 24 | TN8051505Replaces Tennant 70213 | 1 | Tube, Drain, StarterPart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $37.77/EA |
Tennant T20 Diesel nozzle Holder and Glow Plug Group (diesel engine) parts
Nozzle Holder and Glow Plug Group (diesel engine) from Tennant's parts list. Manual page 326.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002727Replaces Tennant 73554 | 1 | Pipe, Overflow | $68.36/EA |
| 2 | TN8051297Replaces Tennant 73555 | 1 | Fitting, Fuel [Ku] | $24.70/EA |
| 3 | TN8002710Replaces Tennant 40166 | 1 | Gasket, F/ Bolt [Ku] | $4.30/EA |
| – | TN8004679Replaces Tennant 361373 | 1 | Hose, Fuel [Ku]Complete assembly. | $6.80/EA |
| 4 | TN8002799Replaces Tennant 9004389 | 2 | Pipe, Fuel, Overflow [Ku]Part of Hose, Fuel [Ku] (361373). | $4.85/EA |
| 5 | TN8002800Replaces Tennant 9004390 | 4 | Pipe, Clip [Ku]Part of Hose, Fuel [Ku] (361373). | $3.20/EA |
| 6 | TN8004165Replaces Tennant 372917 | 1 | Housing Assy, NozzleComplete assembly. | $525.80/EA |
| 7 | TN8002249Replaces Tennant 9004450 | 1 | Gasket [Ku]Part of Housing Assy, Nozzle (372917). | $4.95/EA |
| 8 | TN8002260Replaces Tennant 9004451 | 1 | Seal, Heat [Ku]Part of Housing Assy, Nozzle (372917). | $16.60/EA |
| 9 | TN8002540Replaces Tennant 70965 | 1 | Tube, Injector, Pipe #1 [Ku] | $42.93/EA |
| 10 | TN8002541Replaces Tennant 70966 | 1 | Tube, Injector, Pipe #2 [Ku] | $82.55/EA |
| 11 | TN8002542Replaces Tennant 70967 | 1 | Tube, Injector, Pipe #32 [Ku] | $82.55/EA |
| 12 | TN8002543Replaces Tennant 70968 | 3 | Pipe, Injector, # 4 | $82.55/EA |
| 13 | TN8048250Replaces Tennant 30131 | 3 | Clamp, Tube, Inj, Pipe #1 [Ku] | $8.20/EA |
| 14 | TN39507Tennant 39507 | 4 | Clamp, Pipe | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN8043682Replaces Tennant 393566 | 1 | Screw, W / Washer | $4.90/EA |
| 16 | TN8003212Replaces Tennant 84638 | 3 | Glowplug [Ku] | $156.70/EA |
| 17 | TN8002031Replaces Tennant 73560 | 3 | Cord, Ele, Glowplug | $35.10/EA |
| 18 | TN8002802Replaces Tennant 9004393 | 3 | Nut, Flange [Ku] | $3.45/EA |
Tennant T20 Diesel nozzle Holder Breakdown (diesel engine) parts
Nozzle Holder Breakdown (diesel engine) from Tennant's parts list. Manual page 327.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN8004165Replaces Tennant 372917 | 4 | Housing Assy, NozzleComplete assembly. | $525.80/EA |
| 1 | TN8049823Replaces Tennant 9004395 | 1 | Nut [Ku]Part of Housing Assy, Nozzle (372917). | $14.34/EA |
| 2 | TN8049824Replaces Tennant 9004396 | 1 | Washer, Adjusting [Ku]Part of Housing Assy, Nozzle (372917). | $7.88/EA |
| 3 | TN8049825Replaces Tennant 9004397 | 1 | Nozzle, Spring [Ku]Part of Housing Assy, Nozzle (372917). | $15.55/EA |
| 4 | TN8044706Replaces Tennant 388500 | 1 | Spacer [Ku]Part of Housing Assy, Nozzle (372917). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8049826Replaces Tennant 9004398 | 1 | Rod, Push [Ku]Part of Housing Assy, Nozzle (372917). | $69.99/EA |
| 6 | TN8049827Replaces Tennant 9004399 | 1 | Nut, Nozzle [Ku] | $50.90/EA |
| 7 | TN8002803Replaces Tennant 9004400 | 1 | Washer, Plain [Ku] | $10.71/EA |
| 8 | TN8002804Replaces Tennant 9004401 | 1 | Nozzle [Ku] | $280.98/EA |
Tennant T20 Diesel injection Pump Group (diesel engine) parts
The parts Tennant numbers on its injection pump group (diesel engine) drawing. Manual pages 328, list 329.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8049805Replaces Tennant 9004376 | 1 | Eye, Joint [Ku] | $17.88/EA |
| 2 | TN8003210Replaces Tennant 84635 | 1 | Pump, Injection [Kubo]Complete assembly. | $2,983.20/EA |
| 3 | TN8003215Replaces Tennant 84651 | 1 | Follower, Screw, Pump, Injection[Ku]Part of Pump, Injection [Kubo] (84635). | $91.10/EA |
| 4 | TN8002054Replaces Tennant 73588 | 2 | Gasket, Ftg, Banjo [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
| 5 | TN8002055Replaces Tennant 73589 | 1 | Screw, Hex [Ku]Part of Pump, Injection [Kubo] (84635). | $24.60/EA |
| 6 | TN8002056Replaces Tennant 73590 | 1 | Gasket, F/ Screw [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
| 7 | TN8002033Replaces Tennant 73563 | 3 | Nut [Ku] | $27.85/EA |
| 8 | TN8002905Replaces Tennant 39065 | 6 | Washer, Lock, Split [Ku] | $3.60/EA |
| 9 | TN8002545Replaces Tennant 70972 | 1 | Shim | $9.80/EA |
| 9 | TN8002546Replaces Tennant 70973 | 1 | Shim | $12.63/EA |
| 10 | TN8003213Replaces Tennant 84644 | 1 | Shim, Pump, Injection | $20.40/EA |
| 11 | TN8051298Replaces Tennant 73561 | 3 | Bolt [Ku] | $4.14/EA |
| 12 | TN8002032Replaces Tennant 73562 | 3 | Stud [Ku] | $3.65/EA |
| 13 | TN8002261Replaces Tennant 9004454 | 1 | Cover, Solenoid [Ku] | $22.83/EA |
| 14 | TN8002867Replaces Tennant 70165 | 1 | Gasket, Solenoid, Throttle [Ku] | $5.40/EA |
| 15 | TN8002951Replaces Tennant 39160 | 2 | Bolt, Hex [Ku] | $3.33/EA |
| 16 | TN8002868Replaces Tennant 70188 | 1 | Cover, Hole, Pump [Ku] | $28.31/EA |
| 17 | TN8051299Replaces Tennant 73565 | 1 | Cover, Hole, Pump, Fuel [Ku] | $15.35/EA |
| 18 | TN8002547Replaces Tennant 70974 | 1 | Gasket, Pump, Fuel [Ku] | $14.24/EA |
| 19 | TN8002919Replaces Tennant 39121 | 2 | Nut, Hex [Ku] | $0.55/EA |
| 20 | TN8002905Replaces Tennant 39065 | 2 | Washer, Lock, Split [Ku] | $3.60/EA |
Tennant T20 Diesel injection Pump Breakdown (diesel engine) parts
The parts Tennant numbers on its injection pump breakdown (diesel engine) drawing. Manual pages 330, list 331.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003210Replaces Tennant 84635 | 1 | Pump, Injection [Kubo]Complete assembly. | $2,983.20/EA |
| 2 | TN8003214Replaces Tennant 84648 | 4 | Plunger, Pump, Inj [Ku]Part of Pump, Injection [Kubo] (84635). | $423.80/EA |
| 3 | TN8002034Replaces Tennant 73567 | 4 | Valve, Eng [Delivery, Ku]Part of Pump, Injection [Kubo] (84635). | $148.57/EA |
| 4 | TN8002035Replaces Tennant 73568 | 4 | Spring, Cmpr, Valve, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $20.91/EA |
| 5 | TN8002036Replaces Tennant 73569 | 4 | Gasket, Valve, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $14.95/EA |
| 6 | TN8051300Replaces Tennant 73570 | 4 | Holder, Valve, Inj [Ku]Part of Pump, Injection [Kubo] (84635). | $114.94/EA |
| 7 | TN8002037Replaces Tennant 73571 | 4 | Seal, Org [Ku]Part of Pump, Injection [Kubo] (84635). | $23.43/EA |
| 8 | TN8002038Replaces Tennant 73572 | 4 | Flange, Sleeve [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN8002039Replaces Tennant 73573 | 4 | Pin, Joint, Inj [Ku]Part of Pump, Injection [Kubo] (84635). | $14.54/EA |
| 10 | TN8002050Replaces Tennant 73574 | 8 | Seal, Org [Ku]Part of Pump, Injection [Kubo] (84635). | $28.99/EA |
| 11 | TN8002051Replaces Tennant 73575 | 8 | Screw, Hex [Ku]Part of Pump, Injection [Kubo] (84635). | $22.93/EA |
| 12 | TN8051301Replaces Tennant 73576 | 4 | Tappet, Pump, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8051302Replaces Tennant 73577 | 4 | Pin, Tappet [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN8051303Replaces Tennant 73578 | 1 | Pin, ClampPart of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN8002052Replaces Tennant 73579 | 4 | Spring, Cmpr, Plunger [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN8051304Replaces Tennant 73580 | 4 | Seat, Spring, Upper, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $21.51/EA |
| 17 | TN8051305Replaces Tennant 73581 | 4 | Seat, Spring, Lower, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $61.11/EA |
| 18 | TN8002053Replaces Tennant 73582 | 1 | Shim, Tappet, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | $6.36/EA |
| 19 | TN8050698Replaces Tennant 84649 | 1 | Control, FuelPart of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN8050699Replaces Tennant 84650 | 1 | PlatePart of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN8051308Replaces Tennant 73585 | 5 | Screw, Pump, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | $36.97/EA |
| 22 | TN8051309Replaces Tennant 73586 | 4 | Sleeve, Cntrl, Pump, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN8003215Replaces Tennant 84651 | 1 | Follower, Screw, Pump, Injection[Ku]Part of Pump, Injection [Kubo] (84635). | $91.10/EA |
| 24 | TN8002054Replaces Tennant 73588 | 2 | Gasket, Ftg, Banjo [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
| 25 | TN8002055Replaces Tennant 73589 | 1 | Screw, Hex [Ku]Part of Pump, Injection [Kubo] (84635). | $24.60/EA |
| 26 | TN8002056Replaces Tennant 73590 | 1 | Gasket, F/ Screw [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
Tennant T20 Diesel idling Group (diesel engine) parts
Idling Group (diesel engine) from Tennant's parts list. Manual page 332.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8049856Replaces Tennant 9004446 | 1 | Idling, Apparatus [Ku]Complete assembly. | $55.35/EA |
| 2 | TN8049857Replaces Tennant 9004447 | 1 | Bolt, Adjustment Assy [Ku]Part of Idling, Apparatus [Ku] (9004446). | $21.01/EA |
| 3 | TN8002059Replaces Tennant 73606 | 1 | Nut, Hex [Ku]Part of Idling, Apparatus [Ku] (9004446). | $2.90/EA |
| 4 | TN8004681Replaces Tennant 361375 | 1 | Nut, Cap [Ku]Part of Idling, Apparatus [Ku] (9004446). | $4.75/EA |
| 5 | TN8002710Replaces Tennant 40166 | 2 | Gasket, F/ Bolt [Ku]Part of Idling, Apparatus [Ku] (9004446). | $4.30/EA |
| 6 | TN8005834Replaces Tennant 30136 | 1 | Cap, Screw, Idler [Ku]Part of Idling, Apparatus [Ku] (9004446). | $9.60/EA |
| 7 | TN8002060Replaces Tennant 73610 | 1 | Screw, Adj, Stop [Ku] | $4.85/EA |
| 8 | TN8049803Replaces Tennant 9004374 | 1 | Nut, Lock [Ku] | $6.06/EA |
| 9 | TN8004681Replaces Tennant 361375 | 1 | Nut, Cap [Ku] | $4.75/EA |
| 10 | TN8002710Replaces Tennant 40166 | 2 | Gasket, F/ Bolt [Ku] | $4.30/EA |
| 11 | TN8049804Replaces Tennant 9004375 | 1 | Gasket [Ku] | $7.50/EA |
Tennant T20 Diesel speed Control Plate Group (diesel engine) parts
Speed Control Plate Group (diesel engine) from Tennant's parts list. Manual page 333.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002551Replaces Tennant 70982 | 1 | Plate, Cntrl, Spd [Ku]Complete assembly. | $386.63/EA |
| 2 | TN8051326Replaces Tennant 73619 | 2 | Lever, Cntrl, Spd [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $24.24/EA |
| 3 | TN8002798Replaces Tennant 9004385 | 1 | O-Ring [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $4.14/EA |
| 4 | TN8052076Replaces Tennant 40407 | 2 | Pin, Spring [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $2.83/EA |
| 5 | TN8051327Replaces Tennant 73621 | 2 | Washer, Flat [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $5.96/EA |
| 6 | TN8051328Replaces Tennant 73622 | 2 | Nut, Hex [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $4.44/EA |
| 7 | TN8051329Replaces Tennant 73623 | 1 | Lever, Plate, Cntrl [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $57.27/EA |
| 8 | TN8002063Replaces Tennant 73624 | 1 | Lever, Stop [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $25.55/EA |
| 9 | TN8002552Replaces Tennant 70983 | 1 | Seal, Oil [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $11.62/EA |
| 10 | TN8051330Replaces Tennant 73625 | 1 | Spring, Tors [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $9.49/EA |
| 11 | TN8002064Replaces Tennant 73626 | 1 | Shaft, Lever, Spd [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $76.86/EA |
| 12 | TN8002553Replaces Tennant 70984 | 1 | Gasket, Cover, Spd [Ku] | $7.88/EA |
| 13 | TN8052091Replaces Tennant 41973 | 2 | Bolt, Hex [Ku] | $3.50/EA |
| 14 | TN8049786Replaces Tennant 9004347 | 2 | Stud [Ku] | $3.65/EA |
| 15 | TN8002919Replaces Tennant 39121 | 2 | Nut, Hex [Ku] | $0.55/EA |
| 16 | TN8002905Replaces Tennant 39065 | 2 | Washer, Lock, Split [Ku] | $3.60/EA |
| 17 | TN8049859Replaces Tennant 9004449 | 1 | Bolt [Ku] | $1.52/EA |
| 18 | TN8002710Replaces Tennant 40166 | 1 | Gasket, F/ Bolt [Ku] | $4.30/EA |
Tennant T20 Diesel governor Group (diesel engine) parts
Governor Group (diesel engine) from Tennant's parts list. Manual page 334.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002797Replaces Tennant 9004379 | 1 | Spring, Start [Ku] | $5.96/EA |
| 2 | TN8049858Replaces Tennant 9004448 | 1 | Spring, Governor [Ku] | $16.77/EA |
| 3 | TN9004775Tennant 9004775 | 1 | Lever Assy, Fork [KU]Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8049809Replaces Tennant 9004381 | 1 | Lever, Fork [Ku]Part of Lever Assy, Fork [KU] (9004775). | $481.67/EA |
| 5 | TN8049820Replaces Tennant 9004382 | 1 | Lever, Fork, Shaft [Ku]Part of Lever Assy, Fork [KU] (9004775). | $64.54/EA |
| 6 | TN4017493Replaces Tennant 9004283 | 1 | Belt Kit, W/ Installation ToolPart of Lever Assy, Fork [KU] (9004775). | $66.10/EA |
| 7 | TN8051520Replaces Tennant 70989 | 1 | Bearing, Ball [Ku]Part of Lever Assy, Fork [KU] (9004775). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8002066Replaces Tennant 73631 | 1 | Cover, Lever, Gov [Ku] | $13.64/EA |
| 9 | TN8004836Replaces Tennant 361430 | 1 | Gasket, Cover, Gov [Ku] | $3.33/EA |
| 10 | TN8051526Replaces Tennant 71995 | 2 | Screw, Hex [Ku] | $3.84/EA |
| 11 | TN8002557Replaces Tennant 70991 | 1 | Collar, Govnr [Ku] | $4.44/EA |
| 12 | TN8002558Replaces Tennant 70992 | 1 | Bearing, Ball [Ku] | $16.36/EA |
Tennant T20 Diesel water Flange Group (diesel engine) parts
Water Flange Group (diesel engine) from Tennant's parts list. Manual page 335.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005464Replaces Tennant 368090 | 1 | Flange, Water [Ku]Complete assembly. | $88.48/EA |
| 2 | TN8003127Replaces Tennant 384859 | 1 | Pipe, Water, ReturnPart of Flange, Water [Ku] (368090). | $6.80/EA |
| 3 | TN8002067Replaces Tennant 73632 | 2 | Fitting, Pipe, Plug [Ku] | $10.70/EA |
| 4 | TN8002559Replaces Tennant 70994 | 1 | Gasket, Hsg, Thermostat [Ku] | $8.10/EA |
| 5 | TN8052091Replaces Tennant 41973 | 3 | Bolt, Hex [Ku] | $3.50/EA |
| 6 | TN8051236Replaces Tennant 72994 | 1 | Bolt | $2.45/EA |
| 7 | TN8002068Replaces Tennant 73633 | 1 | Hose, Water [Ku] | $18.70/EA |
| 8 | TN8002069Replaces Tennant 73634 | 2 | Clamp, Hose, Heater [Ku] | $10.80/EA |
| 9 | TN8006119Replaces Tennant 10852 | 1 | Thermostat, 180deg, 1.7d [Ku] | $106.70/EA |
| 10 | TN8006118Replaces Tennant 10851 | 1 | Gasket | $12.90/EA |
| 11 | TN8005465Replaces Tennant 368091 | 1 | Housing, Thermostat [Ku] | $30.30/EA |
| 12 | TN8052079Replaces Tennant 40418 | 2 | Bolt [Ku] | $2.53/EA |
Tennant T20 Diesel ec-h2o wire harnesses group, drawing 1
| What it shows | ec-H2O Wire Harnesses Group, drawing 1, as printed in the manual |
|---|---|
| Manual page | 217 |
Tennant T20 Diesel ec-h2o wire harnesses group, drawing 2
| What it shows | ec-H2O Wire Harnesses Group, drawing 2, as printed in the manual |
|---|---|
| Manual page | 218 |
Tennant T20 Diesel ec-h2o wire harnesses group, drawing 4
| What it shows | ec-H2O Wire Harnesses Group, drawing 4, as printed in the manual |
|---|---|
| Manual page | 220 |
Tennant T20 Diesel manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9016251 Rev. 11 (10-2025), S/N 008000 and later, 336 pages | T20 Diesel | Rev. 11 (10-2025) | 336 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 9016250 Rev. 00 (08-2016), diesel, S/N 008000 and later, North America | T20 Diesel | Rev. 00 (08-2016) | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
