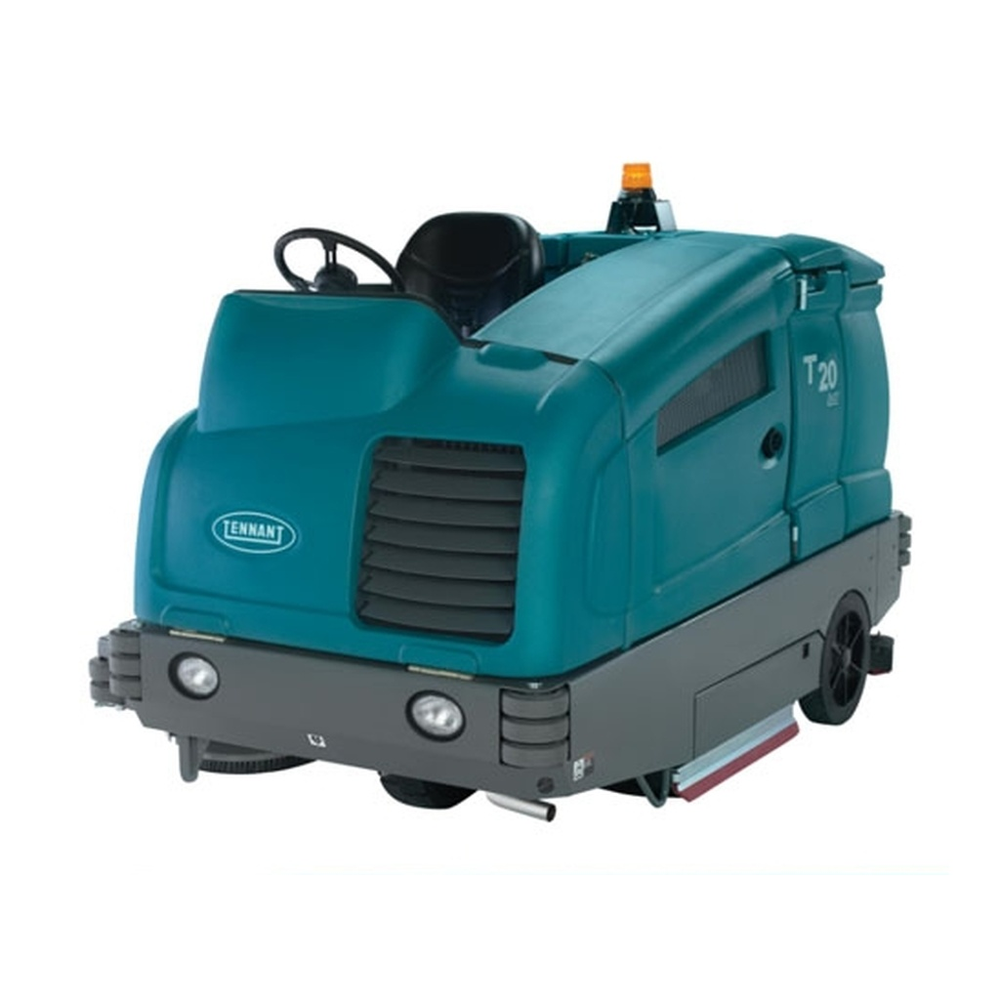

Reconditioned Tennant T20 Diesel Rider Floor Scrubber
Our Take (from the SES Sales Team)
“The diesel T20 is for heavy industrial cleaning where the work is outdoors or in very large, well-ventilated spaces: loading docks, yards, parking structures and plant floors. It runs a full shift on fuel with no charging, and the 80 gal solution tank keeps refill stops down.
The main choice is the deck. Cylindrical sweeps light debris into a tray while scrubbing and suits dirty or uneven surfaces. Disk gives a slightly wider 42 in path on smoother concrete. Diesel is not a good fit for enclosed indoor areas. Our technicians recondition each unit before it ships.”
A diesel industrial rider scrubber for outdoor and heavy-duty floors.
The Tennant T20 is a heavy-duty industrial ride-on scrubber-dryer for plants, warehouses, parking structures and other tough environments. This unit is diesel powered, with an 80 gal (303 L) solution tank and a 95 gal (360 L) recovery tank.
It cleans a 40 in (1,020 mm) path with the cylindrical deck or 42 in (1,070 mm) with the disk deck, up to 54 in (1,370 mm) with the optional side brush, at up to 8 mph (12.9 km/h). The deck is chosen on this page, and the available options can change.
Condition: Reconditioned. See how we recondition equipment.
Configured to order
Features
- ✓ErgoSpace operator compartment for visibility
- ✓Grip-N-Go corner rollers protect the machine and facility
- ✓SmartRelease squeegee and no-tool brush change
- ✓On-board diagnostics and EasyOpen service access
- ✓Touch-N-Go operation and Hygienic tanks with Variable Drain Valve
- ✓Disk or cylindrical deck; cylindrical sweeps light debris into a tray
- ✓Diesel power suited to outdoor and well-ventilated industrial areas
Tennant T20 Diesel
Specifications
| Models | Tennant T20 Diesel |
| Power source | Diesel engine |
| Cleaning path | 40 or 42 in (1,020 or 1,070 mm), cylindrical or disk deck; 54 in (1,370 mm) with optional side brush |
| Scrub deck options | Cylindrical: 12 in (300 mm) brushes at 480 rpm; or disk: 14 in (360 mm) brushes at 230 rpm |
| Brush down pressure (disk) | Up to 400 lb (181 kg) |
| Solution tank | 80 gal (303 L); 125 gal (473 L) with optional ES Extended Scrub |
| Recovery tank | 95 gal (360 L), plus 15 gal (57 L) demisting chamber |
| Debris tray (cylindrical) | 1.1 ft³ (31 L), up to 110 lb (50 kg) |
| Speed | Up to 8.0 mph (12.9 km/h) forward |
| Rear squeegee width | 51 in (1,300 mm) |
| Dimensions (L x W x H) | 95 x 50 x 58 in (2,410 x 1,270 x 1,473 mm); 83.5 in (2,120 mm) high with overhead guard |
| Weight | 3,300 lb (1,497 kg) empty; GVW 4,900 lb (2,223 kg) |
| Minimum aisle turn | 110 in (2,790 mm) |
| Gradeability | 10° (18%) transport at gross weight; 8° (14%) cleaning |
| Ground clearance | 3 in (76 mm) |
| Model Numbers | Tennant T20 (diesel) |
Technical specs may include optional equipment that is not included with all units.
