Tennant S30 Diesel options, breakdowns and engine parts list and diagrams
Option kits, component breakdowns and engine parts for the Tennant S30 Diesel, from Tennant's parts manual, with the manual's drawings. Each part number links to that part in our store, and the standard parts are on a companion page.
Complete list: the options, component breakdowns and engine sections of Tennant S30 Diesel Sweeper Parts Manual 9013315 Rev. 02 (11-2015), S/N 006501 and later, 1022 part lines. The standard parts, maintenance items and owner's guide are on the S30 Diesel parts list page. Checked .
New to your S30 Diesel? Start here → Standard parts and maintenance items → Manuals (free sign-in) →
- Cleaning path
- 62.5 in (1,590 mm) with one side brush; 80 in (2,030 mm) with two
- Hopper
- 14 cu ft (395 L); up to 1,080 lb (490 kg) plastic, 1,200 lb (545 kg) steel
- Engine
- Kubota V1505-B, 4-cylinder diesel, 91.4 cu in (1,500 cc), 34 hp (24.6 kW) at 2,400 rpm governed
- Top speed
- 8 mph (13 km/h) S30 and S30 XP; 15 mph (24 km/h) S30 X4; 3 mph (5 km/h) in reverse
- Weight
- 3,520 lb (1,595 kg) empty; 5,700 lb (2,585 kg) GVWR
Your machine
How to tell which you have
- S30 Diesel.
- S30 XP Diesel.
- S30 X4 Diesel.
- If you are not sure, pick Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

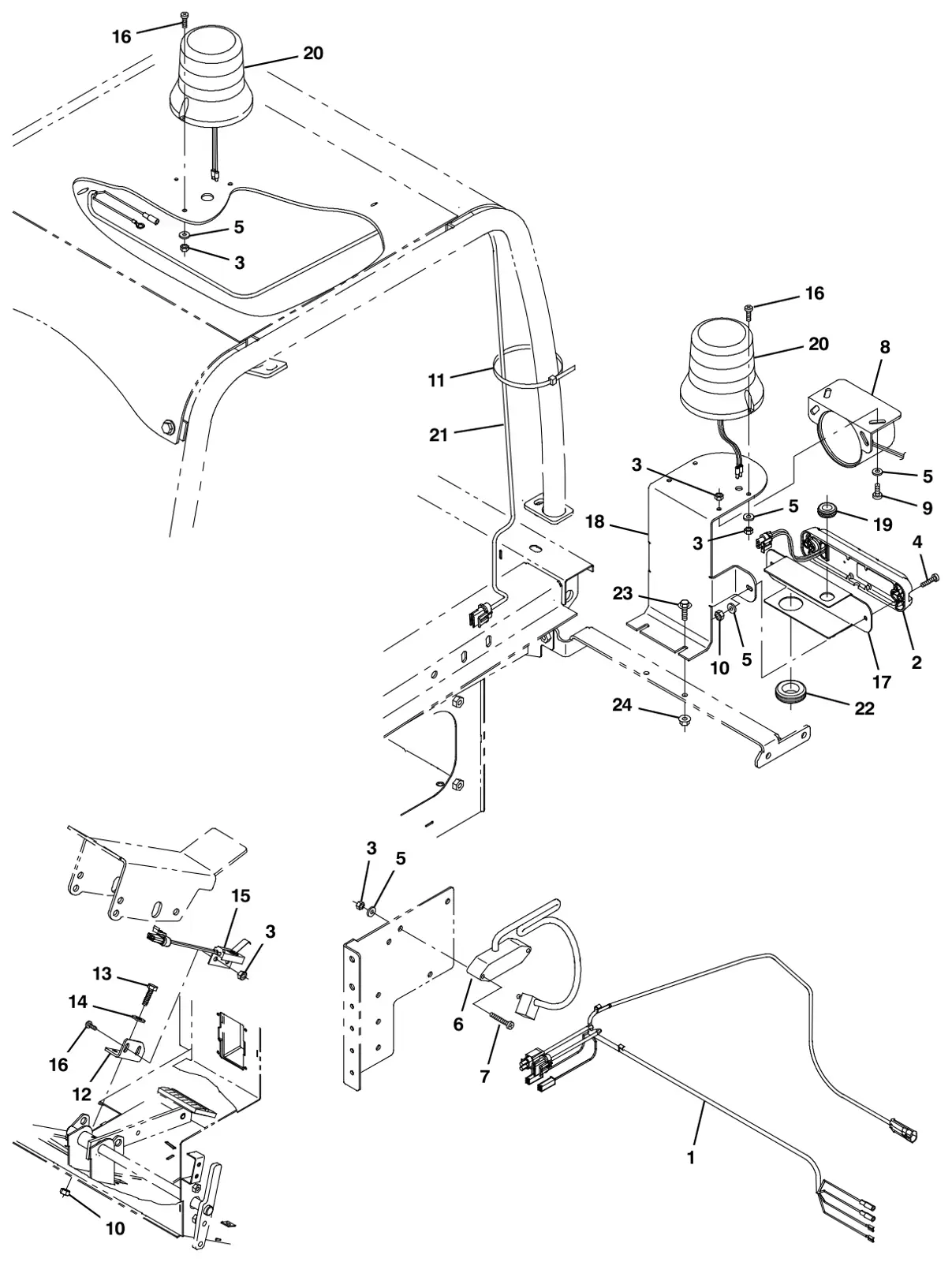

Tennant S30 Diesel indoor Light Kit (option) parts
The parts Tennant numbers on its indoor light kit (option) drawing. Manual pages 3-2, list 3-3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012989Replaces Tennant 9008199 | 1 | Light Kit, Inside, Ci [S30]Complete assembly. Serial 006501 and later. | $1,752.30/EA |
| 1 | TN4045212Replaces Tennant 1034191 | 1 | Harness, Backup, Rev [S30]Part of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $41.50/EA |
| 2 | TN4045480Replaces Tennant 1036173 | 1 | Light, Led, White, 1224vdcPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $193.30/EA |
| 3 | TN4041004Replaces Tennant 06549 | 6 | Nut, Hex, Lock, M5 X 0.80, NlPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $2.50/EA |
| 4 | TN4041266Replaces Tennant 06935 | 2 | Screw, Pan, Phl, M5 X 0.80 X 25, 4.8Part of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $3.40/EA |
| 5 | TN4042244Replaces Tennant 19066 | 8 | Washer, Flat, 10Part of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $2.50/EA |
| 6 | TN4202751Replaces Tennant 9007181 | 1 | Flasher, 1280vdc, 2aPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4041267Replaces Tennant 06938 | 2 | Screw, Pan, Phl, M5 X 0.80 X 40, 4.8Part of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $1.82/EA |
| 8 | TN4011838Replaces Tennant 9007131 | 1 | Alarm Assy, Backup, 1224vdc 82107dbaPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $162.50/EA |
| 9 | TN4041958Replaces Tennant 09145 | 2 | Screw, Pan, Phl, M6 X 1.00 X 16, 4.8Part of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $3.40/EA |
| 10 | TN4041599Replaces Tennant 07785 | 4 | Nut, Hex, Std, M6 X 1.00, SsPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $2.50/EA |
| 11 | TN4014138Replaces Tennant 49266 | 4 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $2.50/EA |
| 12 | TN4045587Replaces Tennant 1036995 | 1 | Bracket, Switch, ReversePart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $8.59/EA |
| 13 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M6 X 1.00 X 20, SsPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $3.20/EA |
| 14 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flat, 0.25, SaePart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $2.50/EA |
| 15 | TN4044232Replaces Tennant 1039735 | 1 | Switch, Snap, 15a NoPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $109.00/EA |
| 16 | TN4041264Replaces Tennant 06933 | 4 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $3.40/EA |
| 17 | TN4034739Replaces Tennant 1061203 | 1 | Bracket, LightPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $20.00/EA |
| 18 | TN4034722Replaces Tennant 1061140 | 1 | Bracket, Alarm, BackupPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $43.30/EA |
| 19 | TN4032009Replaces Tennant 10632-9 | 1 | Grommet, Rbr, 0.63id, F/0.8h, .12 MatlPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | $4.04/EA |
| 20 | TN4024284Replaces Tennant 82200 | 1 | Light, Flsh, 12vdc, Amb, RwkPart of Light Kit, Inside, Ci [S30] (9008199). Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8002935Replaces Tennant 9000879 | 1 | Lens, Amb, F/ Strobe / FlasherSerial 006501 and later. | $34.24/EA |
| – | TN8002933Replaces Tennant 9000846 | 1 | Lamp, Bulb, FlshSerial 006501 and later. | $19.10/EA |
| – | TN4000109Replaces Tennant 1027798 | 1 | Lens, Red, F/ Strobe / FlasherSerial 006501 and later. | $34.61/EA |
| – | TN4000111Replaces Tennant 1027800 | 1 | Lens, Blu, F/ Strobe / FlasherSerial 006501 and later. | $47.37/EA |
| 21 | TN4031770Replaces Tennant 1030973 | 1 | Harness, Ohg [S30]Part of the assembly above. Serial 006501 and later. | $28.40/EA |
| 22 | TN4031958Replaces Tennant 10632-14 | 1 | Grommet, Rbr, 1.00id, F/1.4h, .12 MatlPart of the assembly above. Serial 006501 and later. | $4.90/EA |
| 23 | TN4045568Replaces Tennant 1036892 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8, SemsPart of the assembly above. Serial 006501 and later. | $2.50/EA |
| 24 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M6 X 1.00Part of the assembly above. Serial 006501 and later. | $3.20/EA |

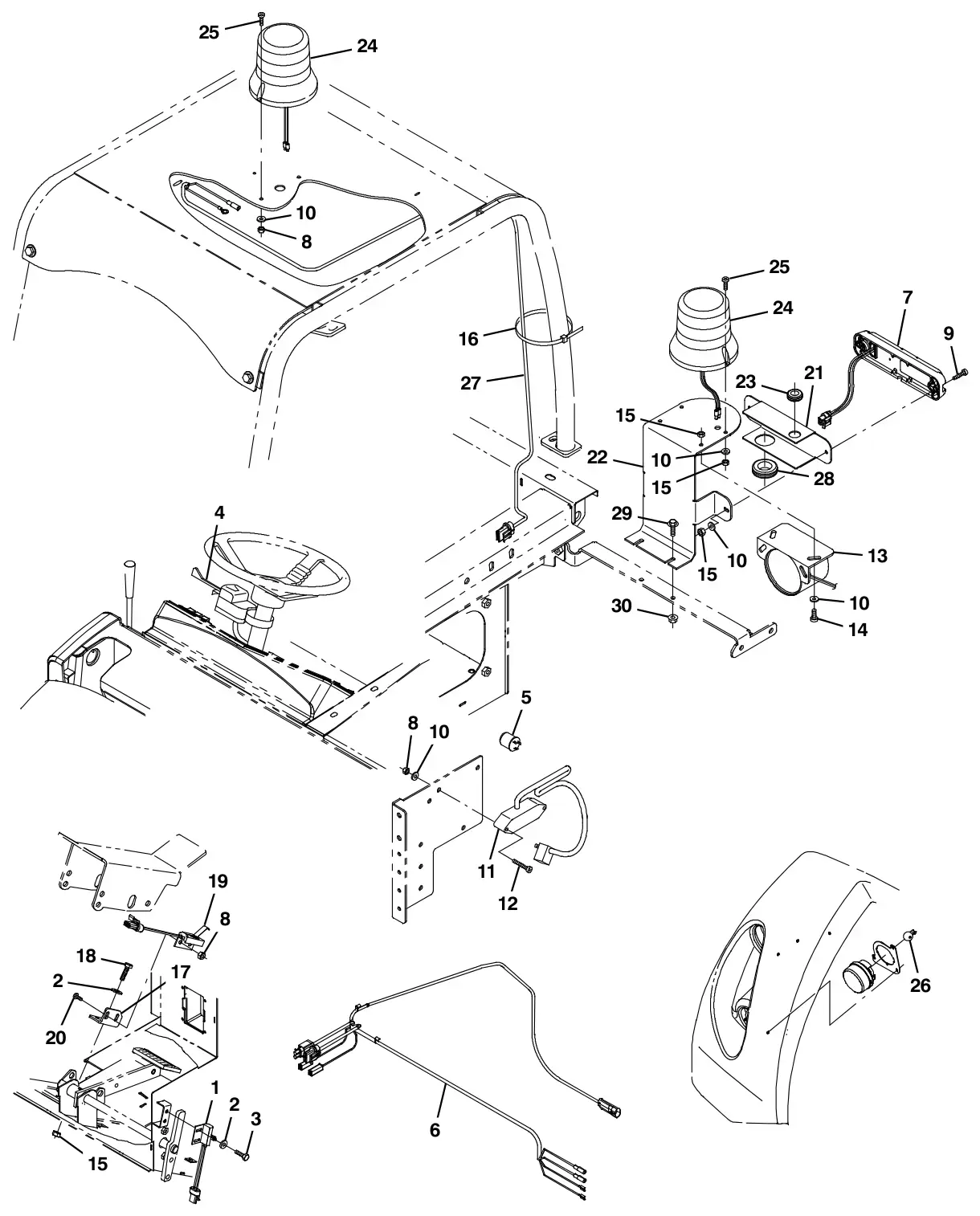

Tennant S30 Diesel outdoor Light Kit (option) parts
The parts Tennant numbers on its outdoor light kit (option) drawing. Manual pages 3-4, list 3-5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012987Replaces Tennant 9008198 | 1 | Light Kit, outdoor, Ci [S30]Complete assembly. Serial 006501 and later. | $697.43/EA |
| 1 | TN4044266Replaces Tennant 1040019 | 1 | Switch, Limit, 15a, NcPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $94.20/EA |
| 2 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, SaePart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $2.50/EA |
| 3 | TN4041969Replaces Tennant 09244 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $2.50/EA |
| 4 | TN4021899Replaces Tennant 60751 | 1 | Switch, Turn SignalPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $358.70/EA |
| 5 | TN4033517Replaces Tennant 31922 | 1 | Flasher, Hd, 12vdc 25a [1057300]Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $63.70/EA |
| 6 | TN4045212Replaces Tennant 1034191 | 1 | Harness, Backup, Rev [S30]Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $41.50/EA |
| 7 | TN4045480Replaces Tennant 1036173 | 1 | Light, Led, White, 1224vdcPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $193.30/EA |
| 8 | TN4041004Replaces Tennant 06549 | 8 | Nut, Hex, Lock, M5 X 0.80, NlPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $2.50/EA |
| 9 | TN4041266Replaces Tennant 06935 | 2 | Screw, Pan, Phl, M5 X 0.80 X 25, 4.8Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $3.40/EA |
| 10 | TN4042244Replaces Tennant 19066 | 8 | Washer, Flat, 10Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $2.50/EA |
| 11 | TN4045586Replaces Tennant 1036985 | 1 | Flasher, 1280vdc, 2aPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $69.90/EA |
| 12 | TN4041267Replaces Tennant 06938 | 2 | Screw, Pan, Phl, M5 X 0.80 X 40, 4.8Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $1.82/EA |
| 13 | TN4011838Replaces Tennant 9007131 | 1 | Alarm Assy, Backup, 1224vdc 82107dbaPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $162.50/EA |
| 14 | TN4041958Replaces Tennant 09145 | 2 | Screw, Pan, Phl, M6 X 1.00 X 16, 4.8Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $3.40/EA |
| 15 | TN4041599Replaces Tennant 07785 | 4 | Nut, Hex, Std, M6 X 1.00, SsPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $2.50/EA |
| 16 | TN4014138Replaces Tennant 49266 | 4 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $2.50/EA |
| 17 | TN4045587Replaces Tennant 1036995 | 1 | Bracket, Switch, ReversePart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $8.59/EA |
| 18 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M6 X 1.00 X 20, SsPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $3.20/EA |
| 19 | TN4044232Replaces Tennant 1039735 | 1 | Switch, Snap, 15a NoPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $109.00/EA |
| 20 | TN4041264Replaces Tennant 06933 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $3.40/EA |
| 21 | TN4034739Replaces Tennant 1061203 | 1 | Bracket, LightPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $20.00/EA |
| 22 | TN4034722Replaces Tennant 1061140 | 1 | Bracket, Alarm, BackupPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $43.30/EA |
| 23 | TN4032009Replaces Tennant 10632-9 | 1 | Grommet, Rbr, 0.63id, F/0.8h, .12 MatlPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | $4.04/EA |
| 24 | TN4020843Replaces Tennant 83159 | 1 | Light, Strobe, Amb, 1248vdc, RwkPart of Light Kit, outdoor, Ci [S30] (9008198). Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8002935Replaces Tennant 9000879 | 1 | Lens, Amb, F/ Strobe / FlasherSerial 006501 and later. | $34.24/EA |
| – | TN8002932Replaces Tennant 9000845 | 1 | Lamp, Bulb, StrobeSerial 006501 and later. | $44.30/EA |
| – | TN4000109Replaces Tennant 1027798 | 1 | Lens, Red, F/ Strobe / FlasherSerial 006501 and later. | $34.61/EA |
| – | TN4000111Replaces Tennant 1027800 | 1 | Lens, Blu, F/ Strobe / FlasherSerial 006501 and later. | $47.37/EA |
| 25 | TN4041264Replaces Tennant 06933 | 2 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Part of the assembly above. Serial 006501 and later. | $3.40/EA |
| 26 | TN4045481Replaces Tennant 1036183 | 2 | Lamp, Clr, 12vdc [#3157 Series]Part of the assembly above. Serial 006501 and later. | $17.70/EA |
| 27 | TN4031770Replaces Tennant 1030973 | 1 | Harness, Ohg [S30]Part of the assembly above. Serial 006501 and later. | $28.40/EA |
| 28 | TN4031958Replaces Tennant 10632-14 | 1 | Grommet, Rbr, 1.00id, F/1.4h, .12 MatlPart of the assembly above. Serial 006501 and later. | $4.90/EA |
| 29 | TN4045568Replaces Tennant 1036892 | 2 | Screw, Hex, M6 X 1.00 X 25, 9.8, SemsPart of the assembly above. Serial 006501 and later. | $2.50/EA |
| 30 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M6 X 1.00Part of the assembly above. Serial 006501 and later. | $3.20/EA |

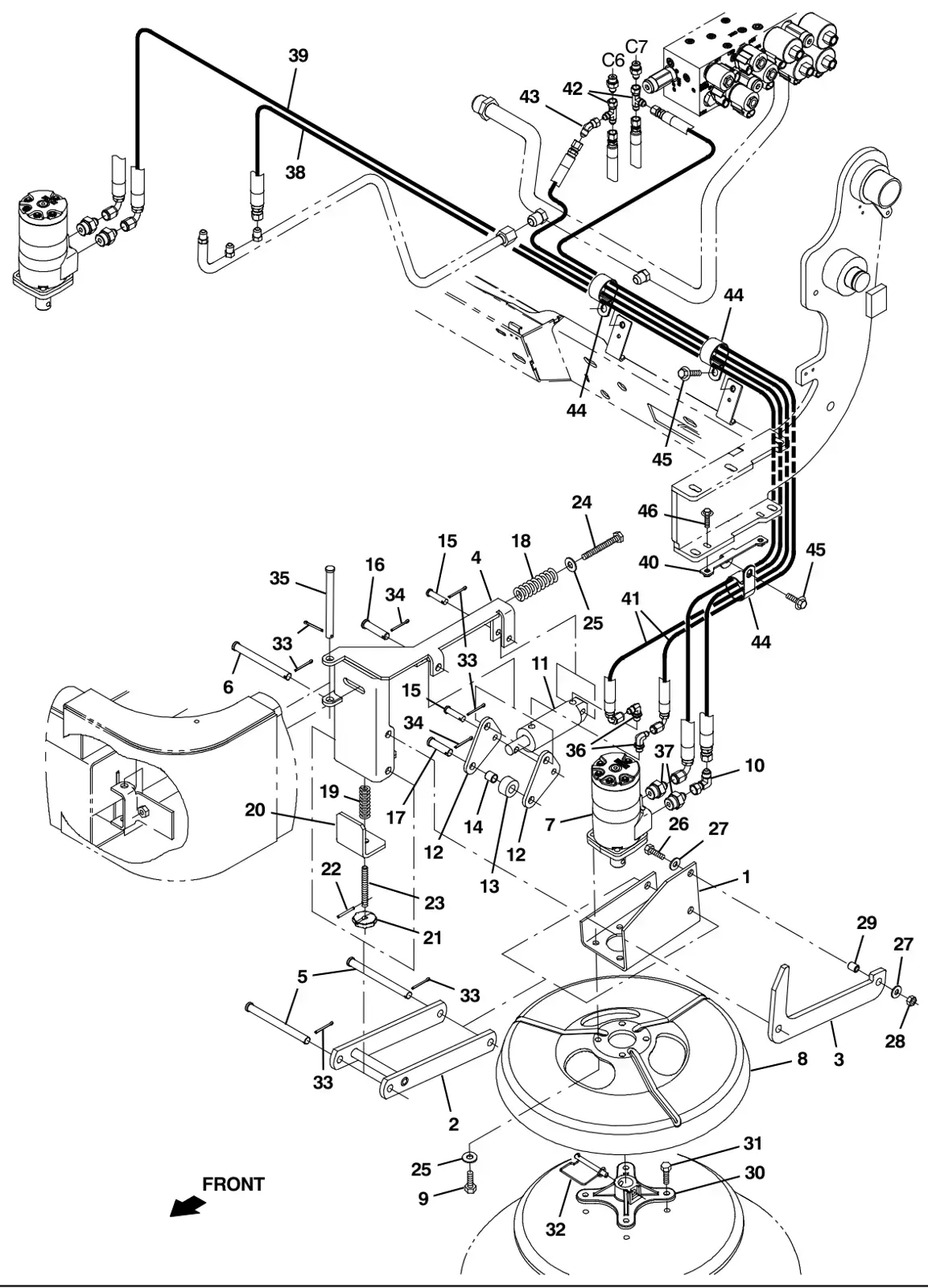

Tennant S30 Diesel left Hand Side Brush Kit, S30 XP and X4 (option) parts
The parts Tennant numbers on its left hand side brush kit, s30 xp and x4 (option) drawing. Manual pages 3-6, list 3-7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017441Replaces Tennant 9004070 | 1 | Brush Kit, Side, Lh, Ci [S30]Complete assembly. Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $1,148.70/EA |
| 1 | TN4032192Replaces Tennant 1031916 | 1 | Bracket, Mtg, Motor, Side BrushPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $28.50/EA |
| 2 | TN4031373Replaces Tennant 1029682 | 1 | Arm Wldt, Brush, SidePart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $104.50/EA |
| 3 | TN4034261Replaces Tennant 1026459 | 1 | Arm, Linkage, Side BrushPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $26.50/EA |
| 4 | TN4044227Replaces Tennant 1039649 | 1 | Pivot Wldt, Brush, SidePart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $257.30/EA |
| 5 | TN4014540Replaces Tennant 51225 | 2 | Pin, Clevis, 0.50d X 5.50lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $6.80/EA |
| 6 | TN4014572Replaces Tennant 51538 | 1 | Pin, Clevis, 0.50d X 5.00lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $11.80/EA |
| 7 | TN4036399Replaces Tennant 1057338 | 1 | Motor, Hyd, Gear, Int 17.9 BiDir 2500Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $746.40/EA |
| 8 | TN4038454Replaces Tennant 1054256 | 1 | Guard, BrushPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $39.90/EA |
| 9 | TN4013460Replaces Tennant 46559 | 4 | Screw, Hex, .3816 X 1.25, NlPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $4.00/EA |
| 10 | TN4033134Replaces Tennant 313552 | 1 | Fitting, Hyd, E90, Ff06/Fm06Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $9.80/EA |
| 11 | TN4044458Replaces Tennant 1041034 | 1 | Cylinder, Hyd, 1.5b 06.3l 01.50strk 2500Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $381.30/EA |
| 12 | TN4034262Replaces Tennant 1026462 | 2 | Lever, Lift, BrushPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $11.80/EA |
| 13 | TN4034265Replaces Tennant 1026525 | 1 | Tube, 0.59id 1.25od 00.6l, StlPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $24.00/EA |
| 14 | TN4026842Replaces Tennant 59634 | 1 | Bushing, Sleeve, 0.50b 0.59d 0.62l, FglPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $7.80/EA |
| 15 | TN4036075Replaces Tennant 29558 | 2 | Pin, Clevis, 0.37d X 1.50lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $3.90/EA |
| 16 | TN4014571Replaces Tennant 51534 | 1 | Pin, Clevis, 0.50d X 2.00lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $4.90/EA |
| 17 | TN4017370Replaces Tennant 43290 | 1 | Pin, Clevis, 0.50d X 1.75lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $6.00/EA |
| 18 | TN4013421Replaces Tennant 45261 | 1 | Spring, Cmpr, 0.97od .11wir 02.5lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $5.20/EA |
| 19 | TN4037087Replaces Tennant 22290 | 1 | Spring, Cmpr, 0.72od .06wir 02.3lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $4.10/EA |
| 20 | TN4045509Replaces Tennant 1036333 | 1 | AnglePart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4044012Replaces Tennant 1039141 | 1 | KnobPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN4043606Replaces Tennant 13865 | 1 | Pin, Roll, .125d X 1.25l, .125/.129Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $3.20/EA |
| 23 | TN4044022Replaces Tennant 1039199 | 1 | Rod, Thrd, M10x1.5 80lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4041290Replaces Tennant 06965 | 1 | Screw, Hex, M10 X 1.5 X 80, 8.8Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $6.80/EA |
| 25 | TN4034138Replaces Tennant 32492 | 5 | Washer, Flat, 0.38, StdPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $2.50/EA |
| 26 | TN4028034Replaces Tennant 76570 | 1 | Screw, Hex, M8 X 1.25 X 30, 8.8Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $3.20/EA |
| 27 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $2.50/EA |
| 28 | TN4041926Replaces Tennant 08709 | 1 | Nut, Hex, Lock, M8 X 1.25, NlPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $2.50/EA |
| 29 | TN4023495Replaces Tennant 80395 | 1 | Sleeve, P/M, 0.31b 0.50d 0.7l [430ss]Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $5.10/EA |
| 30 | TN4013493Replaces Tennant 47501 | 1 | Hub, Adapter, Brush, 1.00bPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $80.70/EA |
| 31 | TN4015791Replaces Tennant 39394 | 4 | Screw, Hex, .3109 X 1.25, WoodPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $3.20/EA |
| 32 | TN4021323Replaces Tennant 84581 | 1 | Pin Assy, Side Brush W/ ClipPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $21.50/EA |
| 33 | TN4041914Replaces Tennant 08182 | 6 | Pin, Cotter, .125 X 1.00Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $2.50/EA |
| 34 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter, .094 X 0.75Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $2.50/EA |
| 35 | TN4039888Replaces Tennant 222196 | 1 | Pin, Clevis, 0.50d X 4.25lPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $6.00/EA |
| 36 | TN4011551Replaces Tennant 762427 | 2 | Fitting, Hyd, E90, Fm04/Om04Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $23.30/EA |
| 37 | TN4011562Replaces Tennant 762439 | 2 | Fitting, Hyd, Str, Fm06/Om10Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $13.10/EA |
| 38 | TN4033002Replaces Tennant 1067661 | 1 | Hose, Hyd, Tc06, Ff06e90/Ff06str, 102.0Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $48.60/EA |
| 39 | TN4032956Replaces Tennant 1067105 | 1 | Hose, Hyd, Tc08, Ff06e90/Ff06str, 134.0Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $85.70/EA |
| 40 | TN4039808Replaces Tennant 1213656 | 2 | Clip, Keeper, OpenPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $19.80/EA |
| 41 | TN4032942Replaces Tennant 1067088 | 2 | Hose, Hyd, Tc04, Ff04e90/Ff04str, 126.0Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $60.00/EA |
| 42 | TN4028295Replaces Tennant 767422 | 2 | Fitting, Hyd, Tee, Ff04/Fm04/Fm04, RunPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $20.20/EA |
| 43 | TN4040550Replaces Tennant 1011123 | 1 | Fitting, Hyd, E45, Ff04/Fm04Part of Brush Kit, Side, Lh, Ci [S30] (9004070). Fits S30 X4 Diesel, S30 XP Diesel. Serial 006501 and later. | $17.57/EA |
| 44 | TN4015030Replaces Tennant 53468 | 3 | Clamp, Cable, Stl, 1.75d X 1.00w, 1holePart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $4.30/EA |
| 45 | TN4045637Replaces Tennant 1037346 | 3 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $2.50/EA |
| 46 | TN4045636Replaces Tennant 1037345 | 2 | Screw, Hex, M6 X 1.00 X 30, 9.8, SemsPart of Brush Kit, Side, Lh, Ci [S30] (9004070). Serial 006501 and later. | $2.50/EA |

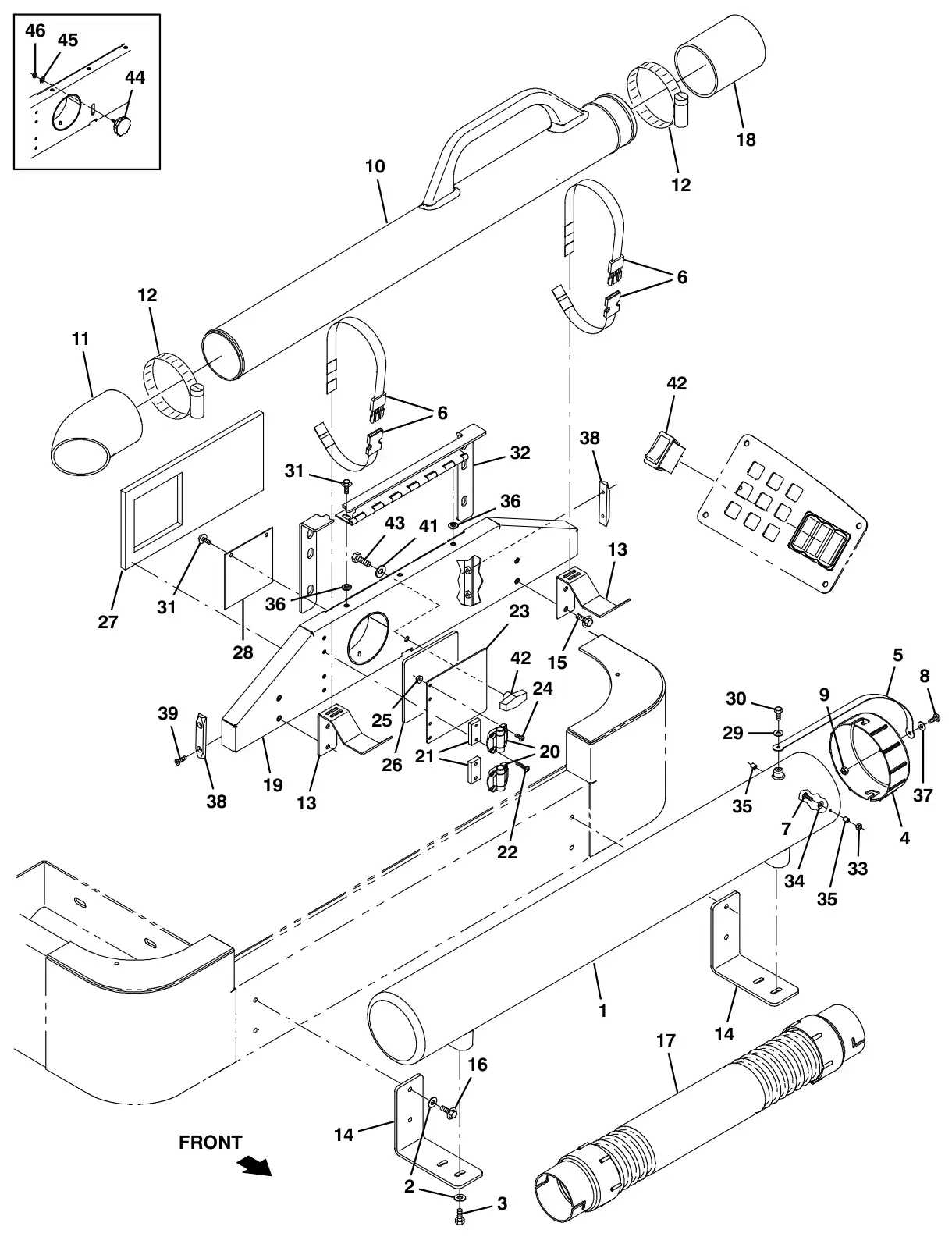

Tennant S30 Diesel vacuum Wand Kit (option) parts
The parts Tennant numbers on its vacuum wand kit (option) drawing. Manual pages 3-8, list 3-9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026122Replaces Tennant 9013873 | 1 | Wand Kit, Vacuum, Ci [Roto. S30]Complete assembly. Serial 006501 and later. | $1,181.46/EA |
| 1 | TN4032485Replaces Tennant 1032752 | 1 | Tube, HosePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $64.75/EA |
| 2 | TN4034137Replaces Tennant 32491 | 8 | Washer, Flat, 0.31, StdPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.50/EA |
| 3 | TN4041844Replaces Tennant 16931 | 4 | Screw, Hex, M8 X 1.25 X 20, 8.8Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.50/EA |
| 4 | TN4044596Replaces Tennant 1041473 | 1 | Cap, Enclosure, HosePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $25.80/EA |
| 5 | TN4044621Replaces Tennant 1041754 | 1 | Strap, Cap, EnclosurePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.43/EA |
| 6 | TN4031158Replaces Tennant 367974 | 2 | Strap, Pyp, 0.07 1.0w 18.5l, W/ BucklePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $21.00/EA |
| 7 | TN4041265Replaces Tennant 06934 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, 4.8Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.40/EA |
| 8 | TN4041958Replaces Tennant 09145 | 1 | Screw, Pan, Phl, M6 X 1.00 X 16, 4.8Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.40/EA |
| 9 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M6 X 1.00, NlPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.50/EA |
| 10 | TN4032477Replaces Tennant 1032584 | 1 | Wand, VacuumPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $45.29/EA |
| 11 | TN4032480Replaces Tennant 1032707 | 1 | Hose, Nozzle, FloorPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $93.98/EA |
| 12 | TN4026555Replaces Tennant 79380 | 2 | Clamp, Hose, Wormdrive, 3.754.62d, .62wPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $10.50/EA |
| 13 | TN4039872Replaces Tennant 1214153 | 2 | Bracket, Mtg, WandPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $22.83/EA |
| 14 | TN4043023Replaces Tennant 1046993 | 2 | Bracket, Mtg, TubePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $28.60/EA |
| 15 | TN4036259Replaces Tennant 1020341 | 4 | Screw, Hex, M8 X 1.25 X 20, Ss, SemsPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.50/EA |
| 16 | TN4011892Replaces Tennant 763045 | 4 | Screw, Hex, M8 X 1.25 X 20, FmgPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $4.90/EA |
| 17 | TN4044724Replaces Tennant 1042718 | 1 | Hose Assy, W/2cuff, 4.0d 156l 4.0/4.0Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $317.20/EA |
| 18 | TN4044637Replaces Tennant 1041882 | 1 | Hose, RbrPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $90.24/EA |
| 19 | TN4197038Replaces Tennant 9013446 | 1 | Door Wldt, Hppr, VacWand, Replmt, NaPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $486.52/EA |
| 19 | TN4197039Replaces Tennant 9013447 | 1 | Door Wldt, Hppr, VacWand, Replmt, CePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $471.27/EA |
| 19 | TN4197040Replaces Tennant 9013448 | 1 | Door Wldt, Hppr, VacWand, Replmt, JpPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $409.45/EA |
| 20 | TN4031146Replaces Tennant 367950 | 2 | Hinge, .40pin 2.2w 02.0l, 4/0.21hPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $78.50/EA |
| 21 | TN4039870Replaces Tennant 1214152 | 2 | Block, Spacer, HingePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $13.03/EA |
| 22 | TN4041266Replaces Tennant 06935 | 4 | Screw, Pan, Phl, M5 X 0.80 X 25, 4.8Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.40/EA |
| 23 | TN4039889Replaces Tennant 1214258 | 1 | Door , VacuumPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $13.70/EA |
| 24 | TN4041263Replaces Tennant 06932 | 4 | Screw, Pan, Phl, M5 X 0.80 X 10, 4.8Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.30/EA |
| 25 | TN4041603Replaces Tennant 07789 | 4 | Nut, Hex, Flng, M5 X 0.80Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $5.80/EA |
| 26 | TN4043974Replaces Tennant 1039007 | 1 | Seal, Ure, .25, 06.0w 06.0l, AdhPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $7.55/EA |
| 27 | TN4045425Replaces Tennant 1035660 | 1 | Gasket, Ure, .50, 07.47w, 15.47l, AdhPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $27.50/EA |
| 28 | TN4043979Replaces Tennant 1039038 | 1 | Flap, Wand, VacuumPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $5.76/EA |
| 29 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.60/EA |
| 30 | TN4027509Replaces Tennant 383000 | 1 | Screw, Hex, 1216 X 0.75Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $1.52/EA |
| 31 | TN4044400Replaces Tennant 1040467 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.30/EA |
| 32 | TN4039854Replaces Tennant 1214034 | 1 | Bracket Wldt, Door, FrontPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $61.91/EA |
| 33 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.50/EA |
| 34 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.50/EA |
| 35 | TN4022793Replaces Tennant 610943 | 2 | Sleeve, P/M, 0.22b 0.32d 0.4l, PlPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.23/EA |
| 36 | TN4039800Replaces Tennant 1213565 | 2 | Sleeve, FlangePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $3.60/EA |
| 37 | TN4042901Replaces Tennant 01684 | 1 | Washer, Flat, 0.27b 0.69d .05, SsPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.60/EA |
| 38 | TN4039840Replaces Tennant 1213971 | 2 | Block, NylonPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $25.55/EA |
| 39 | TN4041953Replaces Tennant 09062 | 4 | Screw, Flt, Soc, M6 X 1.00 X 16, 10.9Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $2.40/EA |
| 40 | TN4040933Replaces Tennant 04706 | 1 | Knob, Tee, 0.3816, 2.5 X 1.0 1.1l,PlstcPart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006784 and later. | $11.80/EA |
| 41 | TN4034134Replaces Tennant 32485 | 1 | Washer, Flat, 0.38, SaePart of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006784 and later. | $2.50/EA |
| 42 | TN4016250Replaces Tennant 397889 | 1 | Switch, Rocker, Dpst, On / None / On (S30 ONLY)Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006501 and later. | $43.70/EA |
| 43 | TN4039390Replaces Tennant 21195 | 1 | Screw, Hex, .3816 X 0.75, G5Part of Wand Kit, Vacuum, Ci [Roto. S30] (9013873). Serial 006784 and later. | $3.40/EA |
| 44 | TN4043087Replaces Tennant 1047543 | 1 | Knob, Rnd, 2.38d 0.88l M6 X 1.0, PlstcSerial 006501 to 006783. | $9.90/EA |
| 45 | TN4171131Replaces Tennant 32490 | 1 | Washer, Flat, 0.25, StdSerial 006501 to 006783. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 46 | TN4041925Replaces Tennant 08708 | 1 | Nut, Hex, Lock, M6 X 1.00, NlSerial 006501 to 006783. | $2.50/EA |

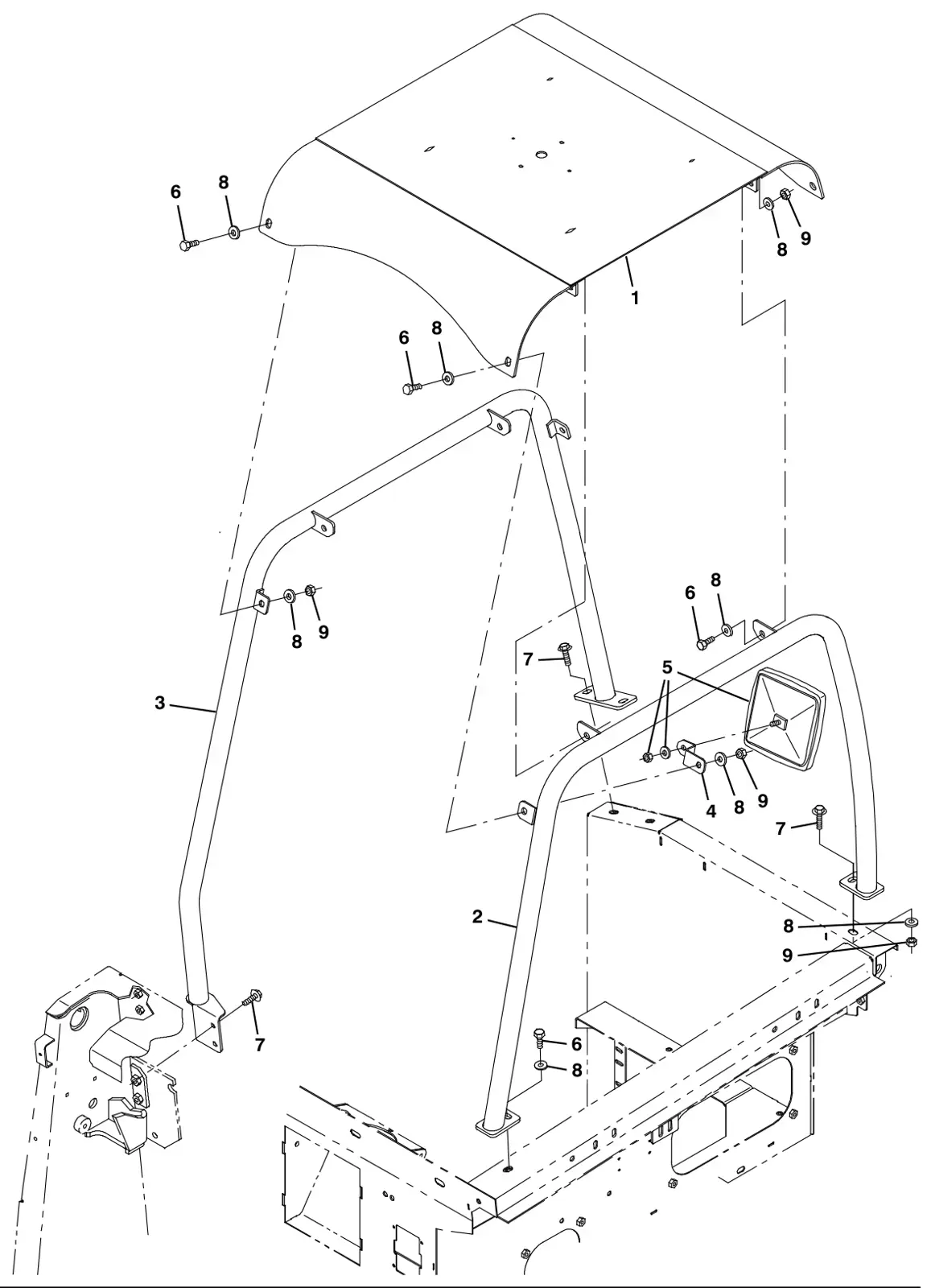

Tennant S30 Diesel overhead Guard Kit (option) parts
The parts Tennant numbers on its overhead guard kit (option) drawing. Manual pages 3-10, list 3-11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4013001Replaces Tennant 9008200 | 1 | Ohg Kit, Ci [S30]Complete assembly. Serial 006501 and later. | $2,718.40/EA |
| 1 | TN4032254Replaces Tennant 1032262 | 1 | Guard Wldt, Ohg, TopPart of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $395.01/EA |
| 2 | TN4032234Replaces Tennant 1032067 | 1 | Leg Wldt, Guard, LhPart of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $318.50/EA |
| 3 | TN4034709Replaces Tennant 1061016 | 1 | Leg Wldt, Guard, RhPart of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $277.30/EA |
| 4 | TN4032481Replaces Tennant 1032722 | 1 | Bracket, Mtg, MirrorPart of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $14.24/EA |
| 5 | TN4013996Replaces Tennant 49034 | 1 | Mirror, Convex, 06.7 X 06.2Part of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $78.20/EA |
| 6 | TN4019758Replaces Tennant 39283 | 8 | Screw, Hex, M10 X 1.5 X 25, 8.8Part of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $3.30/EA |
| 7 | TN4045642Replaces Tennant 1037358 | 5 | Screw, Hex, M10 X 1.50 X 35, 9.8, SemsPart of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $4.00/EA |
| 8 | TN4034138Replaces Tennant 32492 | 17 | Washer, Flat, 0.38, StdPart of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $2.50/EA |
| 9 | TN4016826Replaces Tennant 41430 | 9 | Nut, Hex, Lock, M10 X 1.5, NlPart of Ohg Kit, Ci [S30] (9008200). Serial 006501 and later. | $4.00/EA |

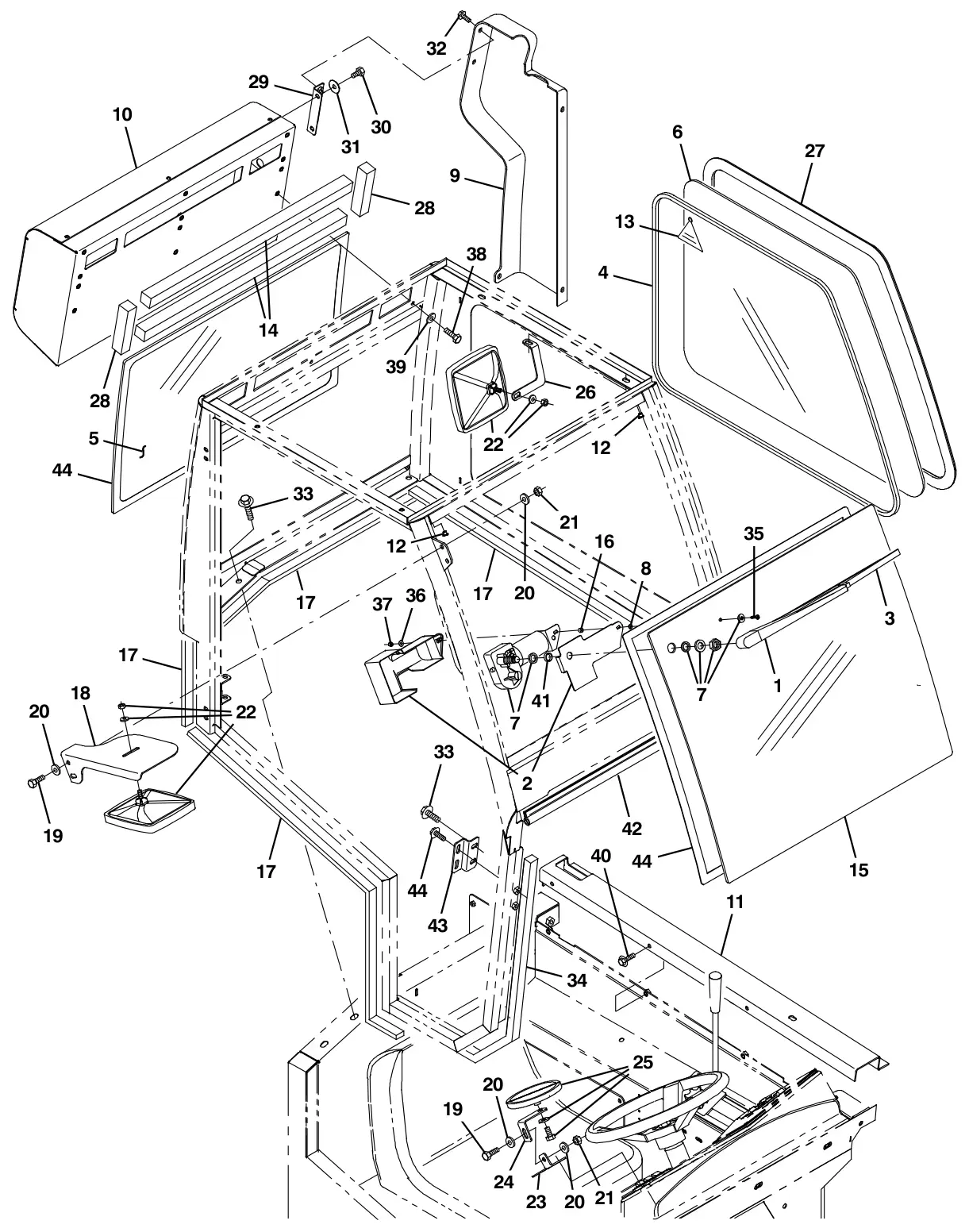

Tennant S30 Diesel cab Group (option) parts
The parts Tennant numbers on its cab group (option) drawing. Manual pages 3-12, list 3-13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4031463Replaces Tennant 1062083 | 1 | Arm, Wiper, WindshieldSerial 006501 and later. | $76.90/EA |
| 2 | TN4184258Replaces Tennant 1067891 | 1 | Plate, Motor, Wiper, CabSerial 006501 and later. | $23.03/EA |
| 3 | TN4034913Replaces Tennant 1062084 | 1 | Blade, Wiper, WindshieldSerial 006501 and later. | $42.30/EA |
| 4 | TN4010410Replaces Tennant 9009219 | 1 | Seal, Afmkt, Rbr, Wndw, 10ft [Zipper]Serial 006501 and later. | $25.86/EA |
| 5 | TN4184255Replaces Tennant 1067875 | 1 | Pane, Glass, Wndw, RearSerial 006501 and later. | $340.50/EA |
| 6 | TN4184254Replaces Tennant 1067874 | 1 | Pane, Glass, Wndw, Lh Side, CabSerial 006501 and later. | $82.01/EA |
| 7 | TN4033299Replaces Tennant 1067872 | 1 | Motor, Wiper, CabSerial 006501 and later. | $362.19/EA |
| 8 | TN4027617Replaces Tennant 76426 | 1 | Washer, Sealing, 0.28b 0.75d Ss, NeoSerial 006501 and later. | $3.50/EA |
| 9 | TN4033297Replaces Tennant 1067869 | 1 | Cover, Hose, Plstc, CabSerial 006501 and later. | $227.86/EA |

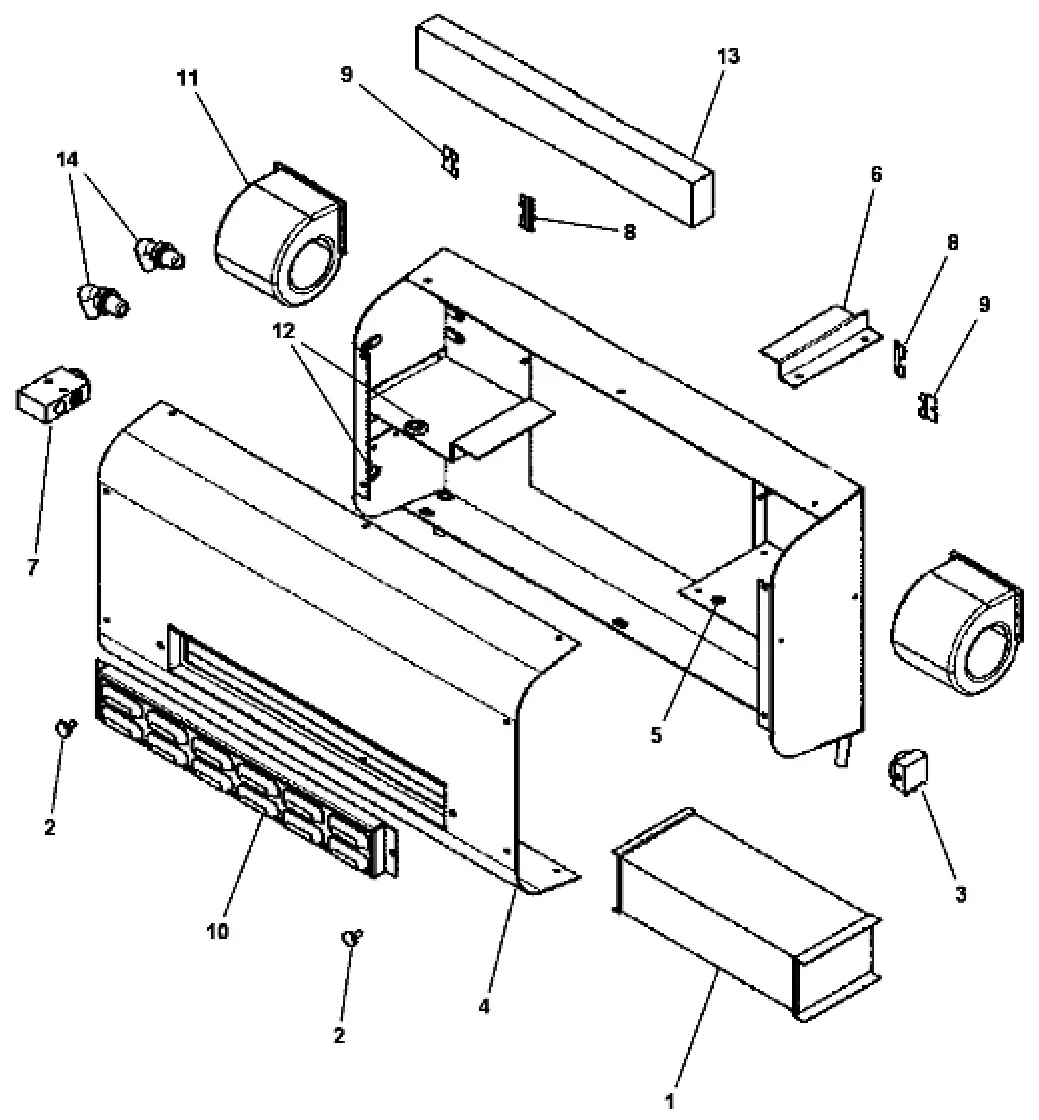

| 10 | TN4033315Replaces Tennant 1067918 | 1 | Heater Unit, W/ A/C & Fan (See Breakdowns)Serial 006501 and later. | $2,329.16/EA |
| 11 | TN4034618Replaces Tennant 1060586 | 1 | Lip Wldt, Oprtr Station / CabSerial 006501 and later. | $150.89/EA |
| 12 | TN4026993Replaces Tennant 80061 | 2 | Plug, Hole, Rnd, 0.30h 0.3lSerial 006501 and later. | $3.40/EA |
| 13 | TN4184271Replaces Tennant 1067911 | 1 | Label, Info [Exit]Serial 006501 and later. | $31.51/EA |
| 14 | TN4030129Replaces Tennant 1069688 | 2 | Seal, Afmkt, Foam, 1.18 X 1.18, 03ftSerial 006501 and later. | $26.80/EA |
| 15 | TN4033303Replaces Tennant 1067878 | 1 | Pane, Glass, Wndw, FrontSerial 006501 and later. | $452.10/EA |
| 16 | TN4030098Replaces Tennant 1069211 | 1 | Spacer, Plstc, 0.18b 0.27d 0.27lSerial 006501 and later. | $7.05/EA |
| 17 | TN4030127Replaces Tennant 1069681 | 1 | Seal, Foam, .50, 1.00w 72.00l, AdhSerial 006501 and later. | $15.40/EA |
| 18 | TN4040092Replaces Tennant 1049061 | 1 | Bracket, Mtg, MirrorSerial 006501 and later. | $27.51/EA |
| 19 | TN4041992Replaces Tennant 09740 | 3 | Screw, Hex, M8 X 1.25 X 20, SsSerial 006501 and later. | $3.30/EA |
| 20 | TN4015595Replaces Tennant 39349 | 6 | Washer, Flat, 0.31, SaeSerial 006501 and later. | $2.50/EA |
| 21 | TN4041929Replaces Tennant 08713 | 3 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial 006501 and later. | $3.30/EA |
| 22 | TN4013996Replaces Tennant 49034 | 2 | Mirror, Convex, 06.7 X 06.2Serial 006501 and later. | $78.20/EA |
| 23 | TN4040033Replaces Tennant 1048740 | 1 | Bracket, Mtg, Mirror, LowerSerial 006501 and later. | $13.13/EA |
| 24 | TN4040084Replaces Tennant 1049017 | 1 | Bracket, Mtg, Mirror, UpperSerial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | TN4040671Replaces Tennant 1050295 | 1 | Mirror, Convex, 0.50dSerial 006501 and later. | $27.80/EA |
| 26 | TN4040035Replaces Tennant 1048743 | 1 | Bracket, Mtg, MirrorSerial 006501 and later. | $14.34/EA |
| 27 | TN4010409Replaces Tennant 9009218 | 1 | Seal, Afmkt, Rbr, Wndw, 10ftSerial 006501 and later. | $77.16/EA |
| 28 | TN4030128Replaces Tennant 1069687 | 2 | Seal, Afmkt, Foam, 1.18 X 1.18, 01ftSerial 006501 and later. | $7.88/EA |
| 29 | TN4184056Replaces Tennant 1066952 | 1 | Bracket, Mtg, CoverSerial 006501 and later. | $23.03/EA |
| 30 | TN4041828Replaces Tennant 16735 | 2 | Screw, Hex, M8 X 1.25 X 16, 8.8Serial 006501 and later. | $3.40/EA |
| 31 | TN4030109Replaces Tennant 1069326 | 2 | Washer, Flat, 0.31, Sae, BlkSerial 006501 and later. | $2.90/EA |
| 32 | TN4044400Replaces Tennant 1040467 | 5 | Screw, Hex, M6 X 1.00 X 20, 9.8, SemsSerial 006501 and later. | $3.30/EA |
| 33 | TN4045642Replaces Tennant 1037358 | 6 | Screw, Hex, M10 X 1.50 X 35, 9.8, SemsSerial 006501 and later. | $4.00/EA |
| 34 | TN4045637Replaces Tennant 1037346 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsSerial 006501 and later. | $2.50/EA |
| 35 | TN4184492Replaces Tennant 1069316 | 1 | Screw, Pan, Phl, M4 X 0.70 X 20, BlkSerial 006501 and later. | $5.15/EA |
| 36 | TN4037123Replaces Tennant 1059252 | 2 | Washer, Flat, 0.19b 0.50d .03, Stl, BlkSerial 006501 and later. | $3.30/EA |
| 37 | TN4043235Replaces Tennant 02850 | 1 | Nut, Hex, Lock, M4 X 0.70, NlSerial 006501 and later. | $2.50/EA |
| 38 | TN4156940Replaces Tennant 39277 | 6 | Screw, Hex, M8 X 1.25 X 25, 8.8Serial 006501 and later. | $3.20/EA |
| 39 | TN4034137Replaces Tennant 32491 | 6 | Washer, Flat, 0.31, StdSerial 006501 and later. | $2.50/EA |
| 40 | TN4045637Replaces Tennant 1037346 | 3 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsSerial 006501 and later. | $2.50/EA |
| 41 | TN4184468Replaces Tennant 1069210 | 1 | Spacer, Plstc, 0.62b 0.75d 0.27lSerial 006501 and later. | $4.85/EA |
| 42 | TN4192146Replaces Tennant 1031616 | 1 | Seal, Afmkt, Bulb, Str, .75d F/07ga 03ftSerial 006501 and later. | $77.30/EA |
| 43 | TN4184473Replaces Tennant 1069232 | 1 | Bracket, Mtg, CabSerial 006501 and later. | $17.88/EA |
| 44 | TN4181492Replaces Tennant 1074001 | 1 | Molding, Wndw, Glass, BulkSerial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |

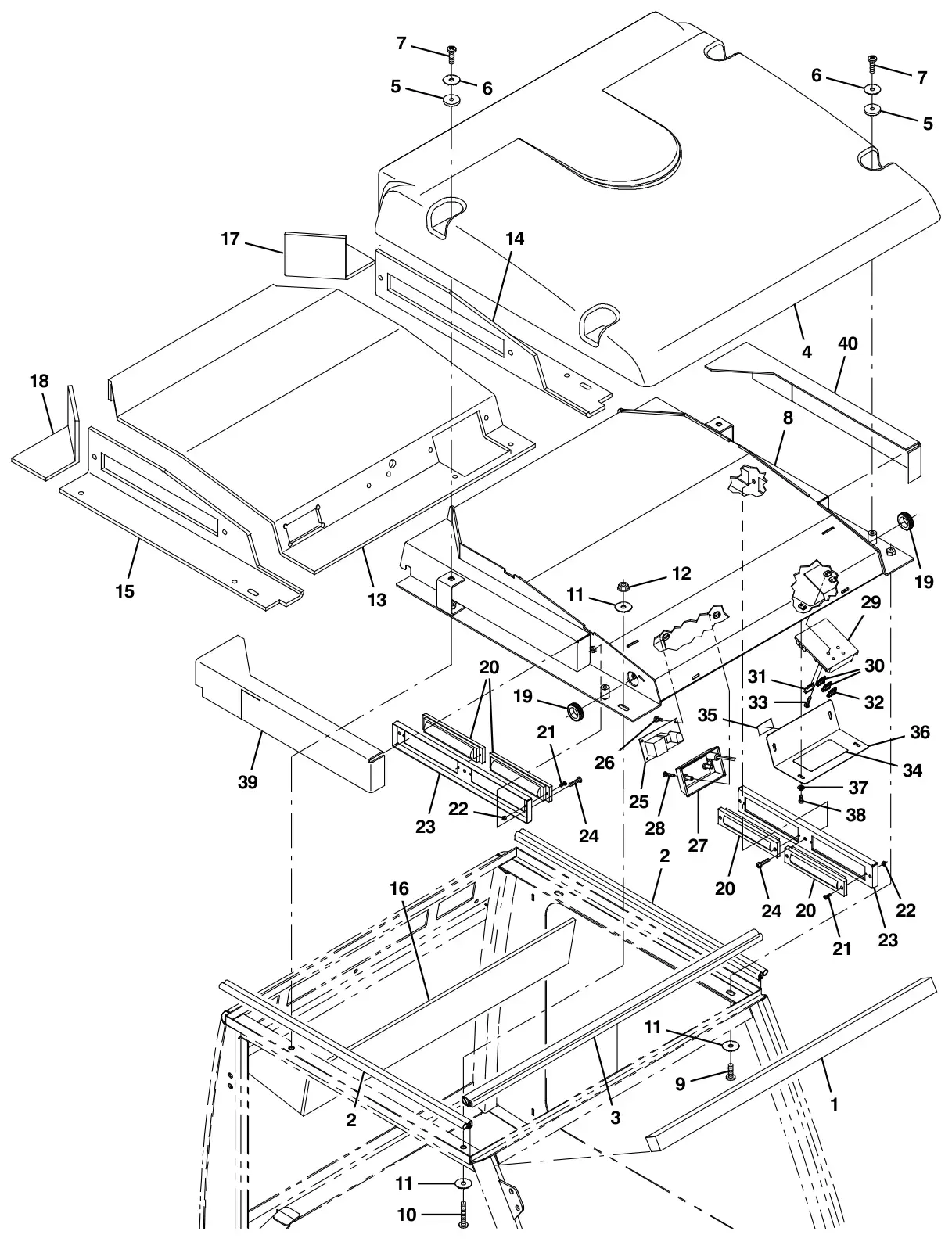

Tennant S30 Diesel cab Cover Group (option) parts
The parts Tennant numbers on its cab cover group (option) drawing. Manual pages 3-14, list 3-15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030129Replaces Tennant 1069688 | 1 | Seal, Afmkt, Foam, 1.18 X 1.18, 03ftSerial 006501 and later. | $26.80/EA |
| 2 | TN4031793Replaces Tennant 1031207 | 2 | Seal, Afmkt, Bulb, 90, 0.50d, 03ftSerial 006501 and later. | $40.50/EA |
| 3 | TN4031726Replaces Tennant 1030592 | 1 | Seal, Afmkt, Bulb, 90, 0.75d F/11ga 03ftSerial 006501 and later. | $66.60/EA |
| 4 | TN4033300Replaces Tennant 1067873 | 1 | Panel, Roof, Plstc, CabSerial 006501 and later. | $618.70/EA |
| 5 | TN4033310Replaces Tennant 1067887 | 4 | Washer, Cab, Shld, GlassSerial 006501 and later. | $2.50/EA |
| 6 | TN4030109Replaces Tennant 1069326 | 4 | Washer, Flat, 0.31, Sae, BlkSerial 006501 and later. | $2.90/EA |
| 7 | TN1069310Tennant 1069310 | 4 | Screw, Pan, Phl, M8 X 1.25 X 25, BlkSerial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4184089Replaces Tennant 1067217 | 1 | Panel Wldt, Top, CabSerial 006501 and later. | $590.85/EA |
| 9 | TN1069310Tennant 1069310 | 2 | Screw, Pan, Phl, M8 X 1.25 X 25, BlkSerial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4184466Replaces Tennant 1069201 | 2 | Screw, Pan, Phl, M8 X 1.25 X 50, BlkSerial 006501 and later. | $2.42/EA |
| 11 | TN4034625Replaces Tennant 1060648 | 5 | Washer, Flat, 0.31b 0.67d .07, Stl, BlkSerial 006501 and later. | $3.03/EA |
| 12 | TN4041605Replaces Tennant 07791 | 1 | Nut, Hex, Flng, M8 X 1.25Serial 006501 and later. | $2.50/EA |
| 13 | TN4184444Replaces Tennant 1068687 | 1 | Insulation, Sound, Liner, TopSerial 006501 and later. | $86.97/EA |
| 14 | TN4184447Replaces Tennant 1068690 | 1 | Insulation, Sound, Liner, LhSerial 006501 and later. | $43.58/EA |
| 15 | TN4184446Replaces Tennant 1068689 | 1 | Insulation, Sound, Liner, RhSerial 006501 and later. | $43.58/EA |
| 16 | TN4184445Replaces Tennant 1068688 | 1 | Insulation, Sound, LinerSerial 006501 and later. | $23.81/EA |
| 17 | TN4184471Replaces Tennant 1069229 | 1 | Insulation, Sound, Liner, Side, LhSerial 006501 and later. | $23.35/EA |
| 18 | TN4184472Replaces Tennant 1069231 | 1 | Insulation, Sound, Liner, Side, RhSerial 006501 and later. | $24.24/EA |
| 19 | TN4031953Replaces Tennant 10632 | 2 | Grommet, Rbr, 0.89id, F/1.2h, .14 MatlSerial 006501 and later. | $2.55/EA |
| 20 | TN1067909Tennant 1067909 | 4 | Louver, Rt, RollSerial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN4184491Replaces Tennant 1069314 | 8 | Screw, Pan, Phl, M3 X 0.50 X 12, BlkSerial 006501 and later. | $2.42/EA |
| 22 | TN4042963Replaces Tennant 01754 | 8 | Nut, Hex, Std, M3 X 0Serial 006501 and later. | $2.50/EA |
| 23 | TN4184040Replaces Tennant 1066933 | 2 | Plate, VentSerial 006501 and later. | $32.42/EA |
| 24 | TN4184494Replaces Tennant 1069318 | 6 | Screw, Pan, Phl, M5 X 0.80 X 25, BlkSerial 006501 and later. | $2.42/EA |
| 25 | TN4030074Replaces Tennant 1068751 | 1 | Controls, Ac/Heater [S30]Serial 006501 and later. | $245.40/EA |
| 26 | TN4030107Replaces Tennant 1069315 | 4 | Screw, Pan, Phl, M4 X 0.70 X 10, BlkSerial 006501 and later. | $1.52/EA |
| 27 | TN4033309Replaces Tennant 1067886 | 1 | Light, Dome, CabSerial 006501 and later. | $21.30/EA |
| 28 | TN4184493Replaces Tennant 1069317 | 1 | Screw, Pan, Phl, M4 X 0.70 X 25, BlkSerial 006501 and later. | $2.12/EA |
| 29 | TN4033298Replaces Tennant 1067870 | 1 | Fuseholder, CabSerial 006501 and later. | $55.93/EA |
| 30 | TN4038626Replaces Tennant 1016029 | 2 | Fuse, Blade, 005a, 32vdcSerial 006501 and later. | $3.40/EA |
| 31 | TN4022828Replaces Tennant 611140 | 1 | Fuse, Blade, 020a, 32vdcSerial 006501 and later. | $3.70/EA |
| 32 | TN4033314Replaces Tennant 1067917 | 1 | Fuse, Blade, 002a, 32vdcSerial 006501 and later. | $6.67/EA |
| 33 | TN4184493Replaces Tennant 1069317 | 4 | Screw, Pan, Phl, M4 X 0.70 X 25, BlkSerial 006501 and later. | $2.12/EA |
| 34 | TN4184270Replaces Tennant 1067910 | 1 | Label [Fuse Block]Serial 006501 and later. | $9.49/EA |
| 35 | TN4184495Replaces Tennant 1069330 | 1 | Label, Circuitbreaker [Fuse Box]Serial 006501 and later. | $5.05/EA |
| 36 | TN4184069Replaces Tennant 1066972 | 1 | Cover, FuseSerial 006501 and later. | $18.08/EA |
| 37 | TN4037123Replaces Tennant 1059252 | 4 | Washer, Flat, 0.19b 0.50d .03, Stl, BlkSerial 006501 and later. | $3.30/EA |
| 38 | TN4030107Replaces Tennant 1069315 | 4 | Screw, Pan, Phl, M4 X 0.70 X 10, BlkSerial 006501 and later. | $1.52/EA |
| 39 | TN4030895Replaces Tennant 1072046 | 1 | Insulation, Heat, Liner, RhSerial 006501 and later. | $25.45/EA |
| 40 | TN4030896Replaces Tennant 1072047 | 1 | Insulation, Heat, Liner, LhSerial 006501 and later. | $25.45/EA |

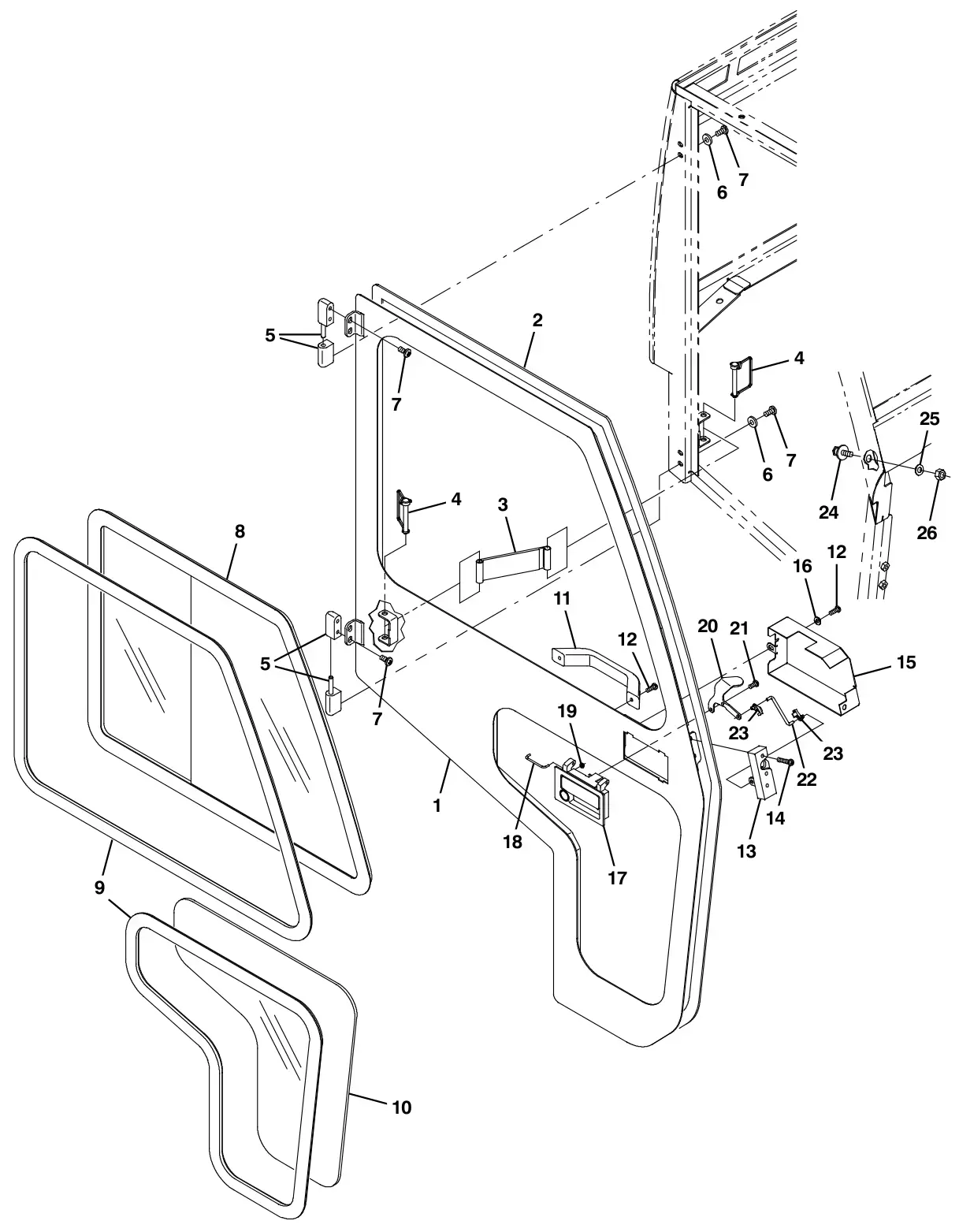

Tennant S30 Diesel cab Door Group (option) parts
The parts Tennant numbers on its cab door group (option) drawing. Manual pages 3-16, list 3-17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022621Replaces Tennant 9014656 | 1 | Door Assy, Cab [S30]Complete assembly. Serial 006501 and later. | $4,278.50/EA |
| 1 | TN4032978Replaces Tennant 1067216 | 1 | Door Wldt, RhPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $693.57/EA |
| 2 | TN4038283Replaces Tennant 1015261 | 1 | Seal, Afmkt, Bulb, Str, 0.76, 0.93w 20ftPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $99.79/EA |
| 3 | TN4033313Replaces Tennant 1067895 | 1 | Strap, Door, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $23.03/EA |
| 4 | TN4033306Replaces Tennant 1067881 | 2 | Pin, Lock, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $2.53/EA |
| 5 | TN4033304Replaces Tennant 1067879 | 2 | Hinge, Bracket, Door, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $26.50/EA |
| 6 | TN4030109Replaces Tennant 1069326 | 4 | Washer, Flat, 0.31, Sae, BlkPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $2.90/EA |
| 7 | TN4030105Replaces Tennant 1069311 | 8 | Screw, Pan, Phl, M8 X 1.25 X 16, BlkPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $3.20/EA |
| 8 | TN4033302Replaces Tennant 1067877 | 1 | Pane, Wndw, Slide, Rh, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $582.97/EA |
| 9 | TN4201925Replaces Tennant 9009220 | 2 | Seal, Afmkt, Rbr, Wndw, 08ftPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $57.47/EA |
| 10 | TN4033301Replaces Tennant 1067876 | 1 | Pane, Wndw, Lower, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $53.53/EA |
| 11 | TN4033311Replaces Tennant 1067889 | 1 | Handle, Door, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $17.40/EA |
| 12 | TN4030106Replaces Tennant 1069312 | 4 | Screw, Pan, Phl, M6 X 1.0 X 16, BlkPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $3.03/EA |
| 13 | TN4033308Replaces Tennant 1067885 | 1 | Latch, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $39.34/EA |
| 14 | TN4184490Replaces Tennant 1069313 | 3 | Screw, Pan, Phl, M6 X 1.0 X 35, BlkPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $3.23/EA |
| 15 | TN4184073Replaces Tennant 1066980 | 1 | Cover, LatchPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $46.59/EA |
| 16 | TN4030108Replaces Tennant 1069322 | 2 | Washer, Flat, 0.25, Sae, BlkPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $3.20/EA |
| 17 | TN4033312Replaces Tennant 1067890 | 1 | Handle, Locking, CabPart of Door Assy, Cab [S30] (9014656). Serial 006501 and later. | $102.52/EA |
| – | TN4033316Replaces Tennant 1067919 | 1 | Key, Latch, Door AssySerial 006501 and later. | $4.20/EA |
| 18 | TN4035204Replaces Tennant 1062944 | 1 | Rod, Handle, CabPart of the assembly above. Serial 006501 and later. | $15.75/EA |
| 19 | TN4184259Replaces Tennant 1067907 | 1 | Retainer, Shaft, 0.12id .38od X .052Part of the assembly above. Serial 006501 and later. | $2.10/EA |
| 20 | TN4032869Replaces Tennant 1066957 | 1 | Bracket, Handle, LatchPart of the assembly above. Serial 006501 and later. | $38.68/EA |
| 21 | TN4012451Replaces Tennant 74027 | 2 | Screw, Pan, Phl, M6 X 1.00 X 12, Nl, PlPart of the assembly above. Serial 006501 and later. | $3.20/EA |
| 22 | TN4035205Replaces Tennant 1062952 | 1 | Rod, Latch, CabPart of the assembly above. Serial 006501 and later. | $11.90/EA |
| 23 | TN4033305Replaces Tennant 1067880 | 2 | Clip, Rod, CabPart of the assembly above. Serial 006501 and later. | $1.45/EA |
| 24 | TN4033307Replaces Tennant 1067884 | 1 | Stud, Strike, CabPart of the assembly above. Serial 006501 and later. | $6.90/EA |
| 25 | TN4034138Replaces Tennant 32492 | 1 | Washer, Flat, 0.38, StdPart of the assembly above. Serial 006501 and later. | $2.50/EA |
| 26 | TN4035408Replaces Tennant 25014 | 1 | Nut, Hex, Std, .3816Part of the assembly above. Serial 006501 and later. | $2.40/EA |

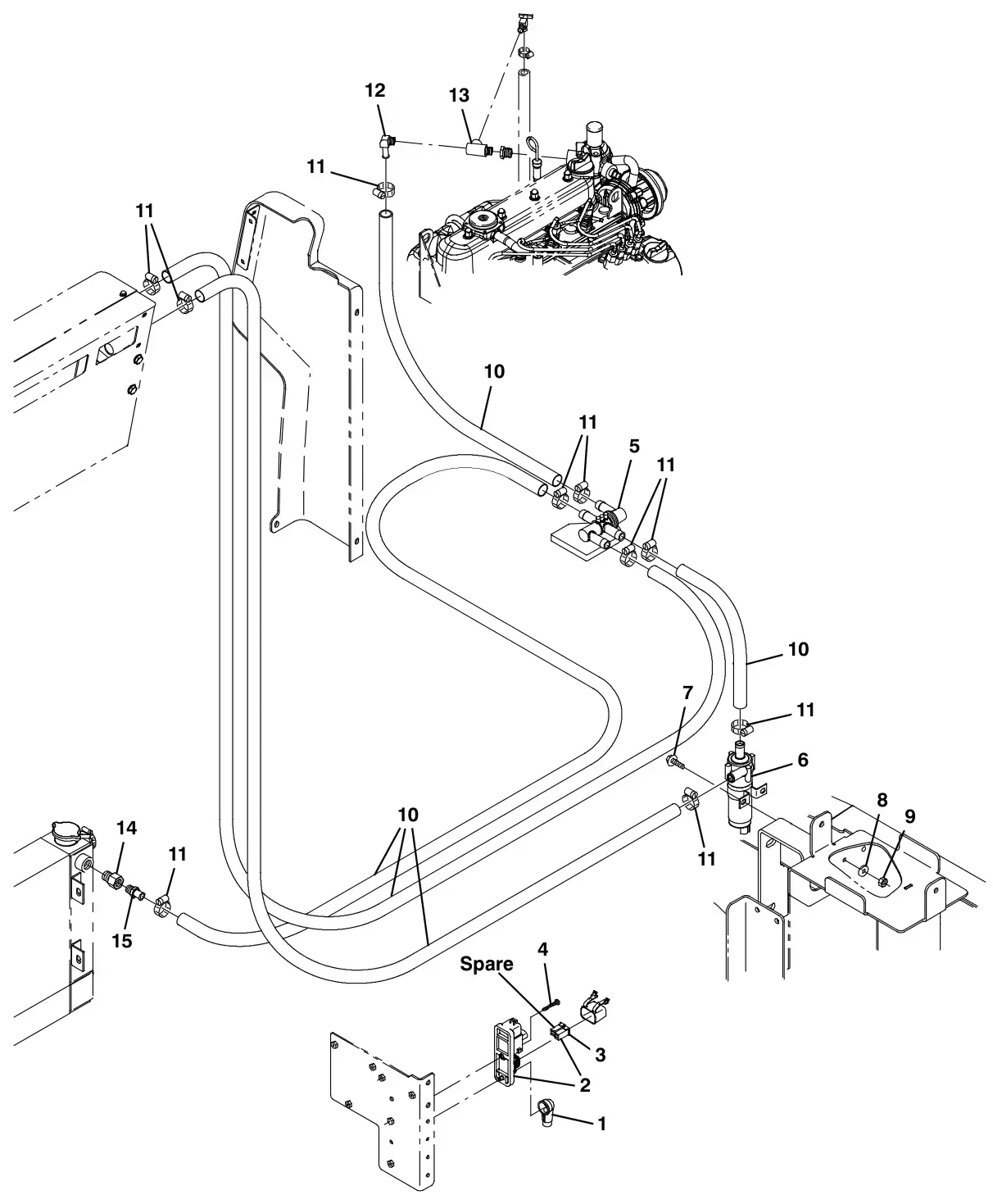

Tennant S30 Diesel cab Heater Group (option) parts
The parts Tennant numbers on its cab heater group (option) drawing. Manual pages 3-18, list 3-19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034851Replaces Tennant 1016314 | 1 | Boot, 90deg .50id 1.00id 2.50l, RedSerial 006501 and later. | $5.40/EA |
| 2 | TN4031033Replaces Tennant 1029105 | 1 | Relay Assy, 12vdc [2f/1r]Complete assembly. Serial 006501 and later. | $61.90/EA |
| 3 | TN4045498Replaces Tennant 1036230 | 1 | Fuse, 60a, 32vdc [Fem Maxi]Part of Relay Assy, 12vdc [2f/1r] (1029105). Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN06940Tennant 06940 | 1 | Screw, Pan, Phl, M5 X 0.80 X 50, 4.8Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4042465Replaces Tennant 1045063 | 1 | Valve, HeaterSerial 006501 and later. | $326.70/EA |
| 6 | TN4042123Replaces Tennant 1044279 | 1 | Pump Assy, Water, 12vdcSerial 006501 and later. | $544.00/EA |
| 7 | TN4039853Replaces Tennant 222159 | 2 | Screw, Hex, M6 X 1.00 X 25, FmgSerial 006501 and later. | $6.00/EA |
| 8 | TN4171131Replaces Tennant 32490 | 2 | Washer, Flat, 0.25, StdSerial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, NlSerial 006501 and later. | $2.50/EA |
| 10 | TN4035155Replaces Tennant 1016563 | 1 | Hose, Afmkt, Rbr, Heater, 0.62id, 20ftSerial 006501 and later. | $64.80/EA |
| 11 | TN4017089Replaces Tennant 63810 | 10 | Clamp, Hose, Wormdrive, 0.561.06d, .56wSerial 006501 and later. | $6.80/EA |
| 12 | TN4042686Replaces Tennant 1045888 | 1 | Fitting, Brs, E90, Bm10/Pm04Serial 006501 and later. | $8.59/EA |
| 13 | TN4041151Replaces Tennant 150709 | 1 | Fitting, Brs, Tee, Pf04/Pf04/Pm04, RunSerial 006501 and later. | $14.40/EA |
| 14 | TN4013482Replaces Tennant 47167 | 1 | Fitting, Brs, Str, Pf06/Pm08Serial 006501 and later. | $4.95/EA |
| 15 | TN4035717Replaces Tennant 27767 | 1 | Fitting, Brs, Str, Em10/Pm06Serial 006501 and later. | $10.50/EA |

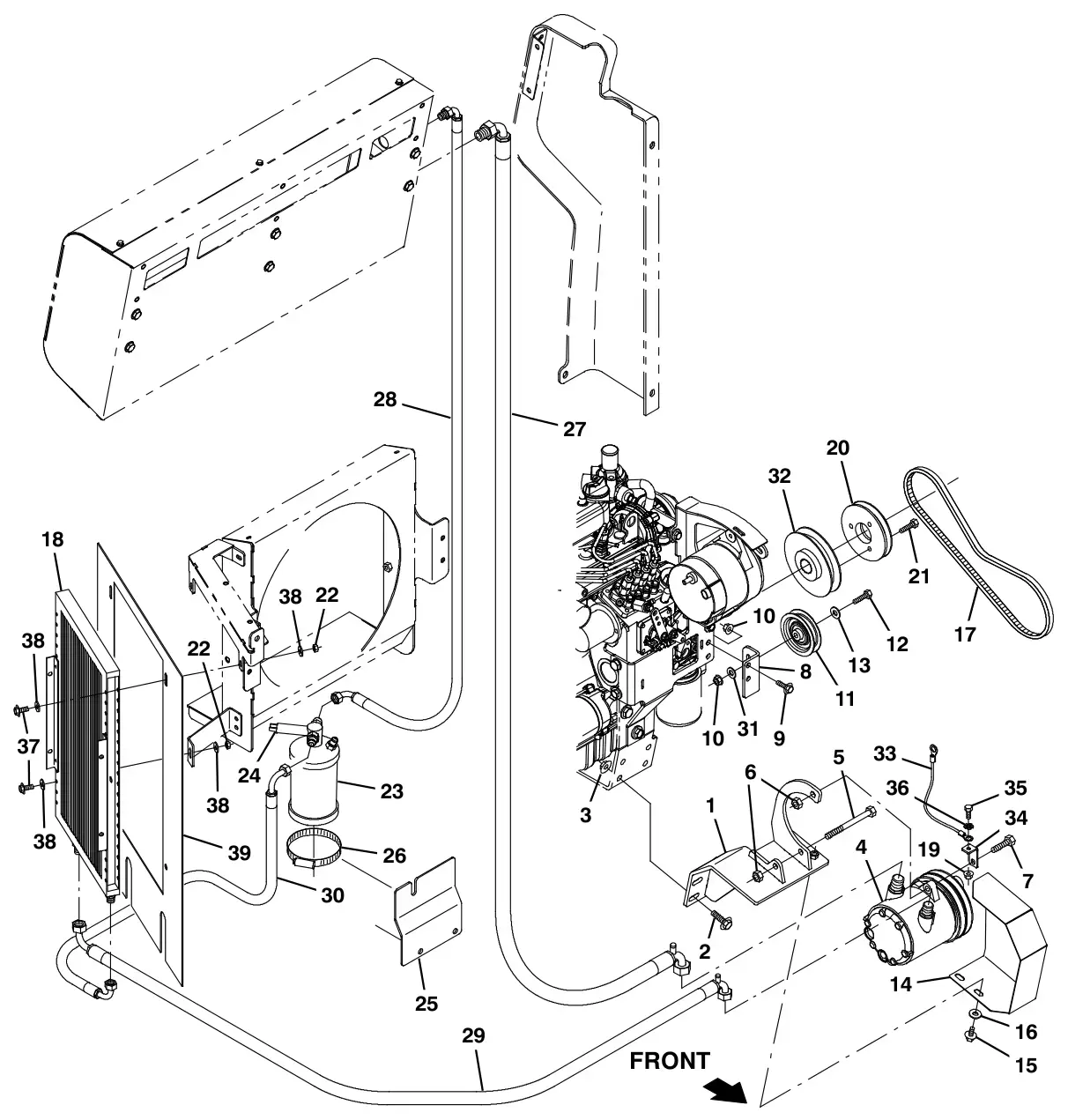

Tennant S30 Diesel cab Air Conditioner Group (option) parts
The parts Tennant numbers on its cab air conditioner group (option) drawing. Manual pages 3-20, list 3-21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045528Replaces Tennant 1036564 | 1 | Bracket Wldt, Mtg, CompressorSerial 006501 and later. | $124.33/EA |
| 2 | TN4045642Replaces Tennant 1037358 | 4 | Screw, Hex, M10 X 1.50 X 35, 9.8, SemsSerial 006501 and later. | $4.00/EA |
| 3 | TN4041606Replaces Tennant 07792 | 4 | Nut, Hex, Flng, M10 X 1.50Serial 006501 and later. | $4.00/EA |
| 4 | TN4020058Replaces Tennant 393359 | 1 | Compressor, A/C [134, Tm08hd]Serial 006501 and later. | $1,910.90/EA |
| 5 | TN4041291Replaces Tennant 06966 | 1 | Screw, Hex, M10 X 1.50 X 110, 8.8Serial 006501 and later. | $3.33/EA |
| 6 | TN4016826Replaces Tennant 41430 | 2 | Nut, Hex, Lock, M10 X 1.5, NlSerial 006501 and later. | $4.00/EA |
| 7 | TN4019761Replaces Tennant 39285 | 1 | Screw, Hex, M10 X 1.50 X 40, 8.8Serial 006501 and later. | $3.20/EA |
| 8 | TN4043020Replaces Tennant 1046946 | 1 | Plate, IdlerSerial 006501 and later. | $10.10/EA |
| 9 | TN4045640Replaces Tennant 1037354 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsSerial 006501 and later. | $2.50/EA |
| 10 | TN4041605Replaces Tennant 07791 | 3 | Nut, Hex, Flng, M8 X 1.25Serial 006501 and later. | $2.50/EA |
| 11 | TN4023892Replaces Tennant 81710 | 1 | Sheave, Flat, 2.6d 0.62w 0.38bSerial 006501 and later. | $53.30/EA |
| 12 | TN4041280Replaces Tennant 06955 | 1 | Screw, Hex, M8 X 1.25 X 35, 8.8Serial 006501 and later. | $3.40/EA |
| 13 | TN4034137Replaces Tennant 32491 | 1 | Washer, Flat, 0.31, StdSerial 006501 and later. | $2.50/EA |
| 14 | TN4044284Replaces Tennant 1040126 | 1 | Guard, Belt, CompressorSerial 006501 and later. | $64.60/EA |
| 15 | TN4041844Replaces Tennant 16931 | 2 | Screw, Hex, M8 X 1.25 X 20, 8.8Serial 006501 and later. | $2.50/EA |
| 16 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdSerial 006501 and later. | $2.50/EA |
| 17 | TN4036700Replaces Tennant 1058133 | 1 | Belt, V, 37.3l [Ax]Serial 006501 and later. | $31.50/EA |
| 18 | TN4044635Replaces Tennant 1041870 | 1 | Condenser, AcSerial 006501 and later. | $360.80/EA |
| 19 | TN4041604Replaces Tennant 07790 | 1 | Nut, Hex, Flng, M6 X 1.00Serial 006501 and later. | $3.20/EA |
| 20 | TN4020090Replaces Tennant 393370 | 1 | Sheave, 01grv, 04.1pd 1.6b [Xl]Serial 006501 and later. | $122.92/EA |
| 21 | TN4028952Replaces Tennant 76957 | 3 | Screw, Hex, .3118 X 1.50, G5Serial 006501 and later. | $2.40/EA |
| 22 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.00, NlSerial 006501 and later. | $2.50/EA |
| 23 | TN4042459Replaces Tennant 1045033 | 1 | Dryer, A/CSerial 006501 and later. | $111.50/EA |
| 24 | TN4042483Replaces Tennant 1045203 | 1 | Switch, A/C [Binary]Serial 006501 and later. | $36.40/EA |
| 25 | TN4042662Replaces Tennant 1045681 | 1 | Bracket, SpptSerial 006501 and later. | $24.64/EA |
| 26 | TN4017376Replaces Tennant 43555 | 1 | Clamp, Hose, Wormdrive, 2.503.50d, .50wSerial 006501 and later. | $6.20/EA |
| 27 | TN4042476Replaces Tennant 1045151 | 1 | Hose, A/C, 10, E90/E90, 060.0l [R134]Serial 006501 and later. | $147.10/EA |
| 28 | TN4042477Replaces Tennant 1045153 | 1 | Hose, A/C, 06, E90/E90, 052.0l [R134]Serial 006501 and later. | $102.27/EA |
| 29 | TN4042478Replaces Tennant 1045155 | 1 | Hose, A/C, 08, E90/E90, 052.0l [R134]Serial 006501 and later. | $143.30/EA |
| 30 | TN4042479Replaces Tennant 1045156 | 1 | Hose, A/C, 06, E90/E90, 021.0l [R134]Serial 006501 and later. | $101.25/EA |
| 31 | TN4016796Replaces Tennant 41186 | 1 | Washer, Flat, Belleville, .31Serial 006501 and later. | $3.50/EA |
| 32 | TN4020091Replaces Tennant 393371 | 1 | Sheave, 01grv, Rwk 393400 [3v]Serial 006501 and later. | $291.59/EA |
| 33 | TN4033431Replaces Tennant 31525 | 1 | Wire, 10ga 16.0l Blk .25ring /.38ringSerial 006501 and later. | $12.80/EA |
| 34 | TN4043071Replaces Tennant 1047225 | 1 | Angle, Mtg, GroundSerial 006501 and later. | $9.19/EA |
| 35 | TN4041271Replaces Tennant 06943 | 1 | Screw, Hex, M6 X 1.00 X 20, 8.8Serial 006501 and later. | $2.50/EA |
| 36 | TN4016786Replaces Tennant 41140 | 1 | Washer, Lock, Intext, 0.25Serial 006501 and later. | $3.40/EA |
| 37 | TN4029085Replaces Tennant 55845 | 4 | Screw, Hex, M5 X 0.80 X 16, FmgSerial 006501 and later. | $4.00/EA |
| 38 | TN4042244Replaces Tennant 19066 | 8 | Washer, Flat, 10Serial 006501 and later. | $2.50/EA |
| 39 | TN4030897Replaces Tennant 1072054 | 1 | Skirt, A/CSerial 006501 and later. | $37.52/EA |

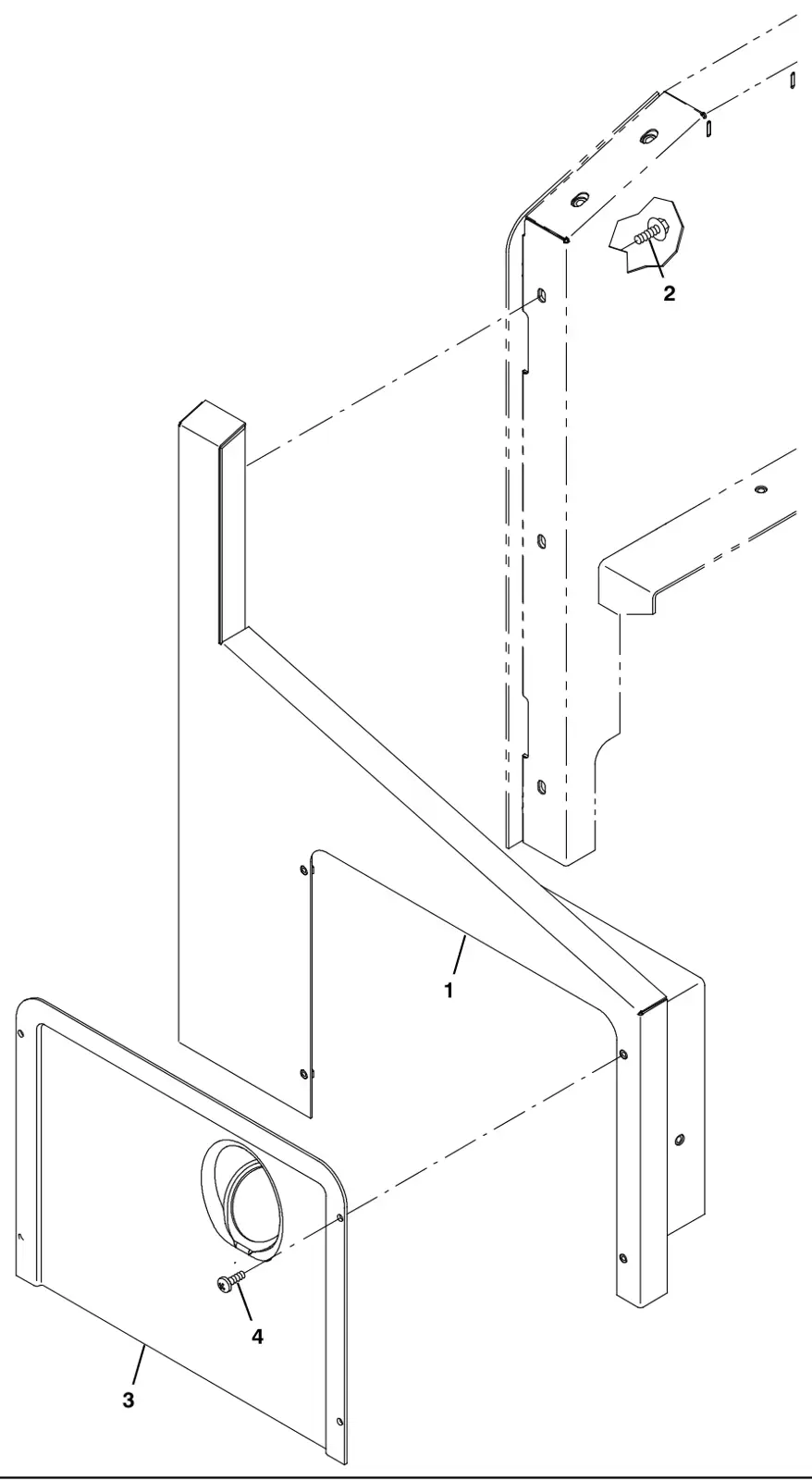

Tennant S30 Diesel cab Fuel Cover Group (option) parts
The parts Tennant numbers on its cab fuel cover group (option) drawing. Manual pages 3-22, list 3-23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045537Replaces Tennant 1036608 | 1 | Panel Wldt, SideSerial 006501 and later. | $305.63/EA |
| 2 | TN4045637Replaces Tennant 1037346 | 3 | Screw, Hex, M8 X 1.25 X 25, 9.8, SemsSerial 006501 and later. | $2.50/EA |
| 3 | TN4013742Replaces Tennant 9004526 | 1 | Cover, Dsl, W/ Label, ReplmtSerial 006501 and later. | $215.26/EA |
| 4 | TN4042643Replaces Tennant 1045525 | 4 | Screw, Pan, Phl, M6 X 1.00 X 12, BlkSerial 006501 and later. | $1.50/EA |
Tennant S30 Diesel cab Wire Harness Group (option) parts
Cab Wire Harness Group (option) from Tennant's parts list. Manual page 3-24.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4184272Replaces Tennant 1067912 | 1 | Harness, Wire, CabSerial 006501 and later. | $268.36/EA |

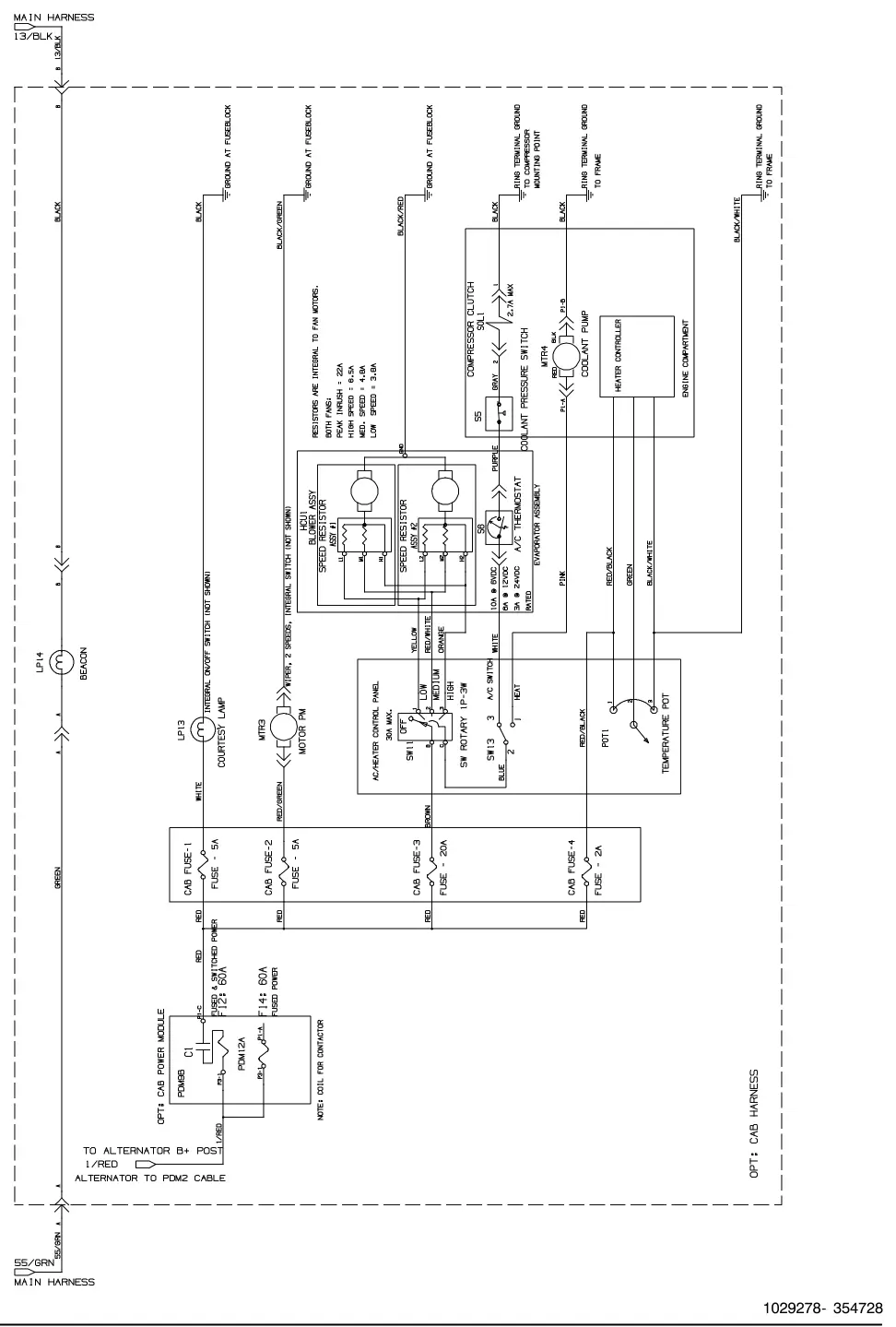

Tennant S30 Diesel cab Wire Harness Electrical Schematic (option) parts
Cab Wire Harness Electrical Schematic (option) from Tennant's parts list. Manual page 3-26.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012984Replaces Tennant 9008195 | 1 | Bumper Kit, Corner, Ci, [S30]Complete assembly. Serial 006501 and later. | $1,413.20/EA |
| 1 | TN4034617Replaces Tennant 1060546 | 1 | Angle Wldt, Bmpr, Tower, LhPart of Bumper Kit, Corner, Ci, [S30] (9008195). Serial 006501 and later. | $254.60/EA |
| 2 | TN4034727Replaces Tennant 1061162 | 1 | Angle Wldt, Bmpr, Tower, RhPart of Bumper Kit, Corner, Ci, [S30] (9008195). Serial 006501 and later. | $254.60/EA |
| 3 | TN4034758Replaces Tennant 1061629 | 2 | Bracket Wldt, Mtg, BmprPart of Bumper Kit, Corner, Ci, [S30] (9008195). Serial 006501 and later. | $82.00/EA |
| 4 | TN4041672Replaces Tennant 1043176 | 2 | Pin, Hitch, .500d X 6.00l, PlPart of Bumper Kit, Corner, Ci, [S30] (9008195). Serial 006501 and later. | $13.10/EA |
| 5 | TN4022061Replaces Tennant 87172 | 2 | Cable, Glv .13d 010.0l .52eye /.52eyePart of Bumper Kit, Corner, Ci, [S30] (9008195). Serial 006501 and later. | $18.50/EA |
| 6 | TN4045642Replaces Tennant 1037358 | 8 | Screw, Hex, M10 X 1.5 X 35, 9.8, SemsPart of Bumper Kit, Corner, Ci, [S30] (9008195). Serial 006501 and later. | $4.00/EA |
Tennant S30 Diesel telemetry Group (option) parts
Telemetry Group (option) from Tennant's parts list. Manual page 3-27.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Intl]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Serial 006501 and later. | $2.50/EA |
| 3 | TN4041264Replaces Tennant 06933 | 4 | Screw, Pan, Phl, M5 X 0.80 X 16, 4.8Serial 006501 and later. | $3.40/EA |
| 4 | TN4217657Replaces Tennant 1070324 | 1 | Antenna, Telem, 110 In [Gprs]Serial 006501 and later. | $81.51/EA |
| 5 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62d, NatSerial 006501 and later. | $3.40/EA |
| 6 | TN4029542Replaces Tennant 360973 | 2 | Screw, Pan, 1216 X 0.50, F/ PlstcSerial 006501 and later. | $4.00/EA |
| 7 | TN4030499Replaces Tennant 1071132 | 1 | Harness, Ele [Extn, Telemetry]Serial 006501 and later. | $42.02/EA |
| – | TN4030121Replaces Tennant 1069580 | 1 | Label, Opertnl, Telem [Fcc/Ic]Serial 006501 and later. | $4.34/EA |

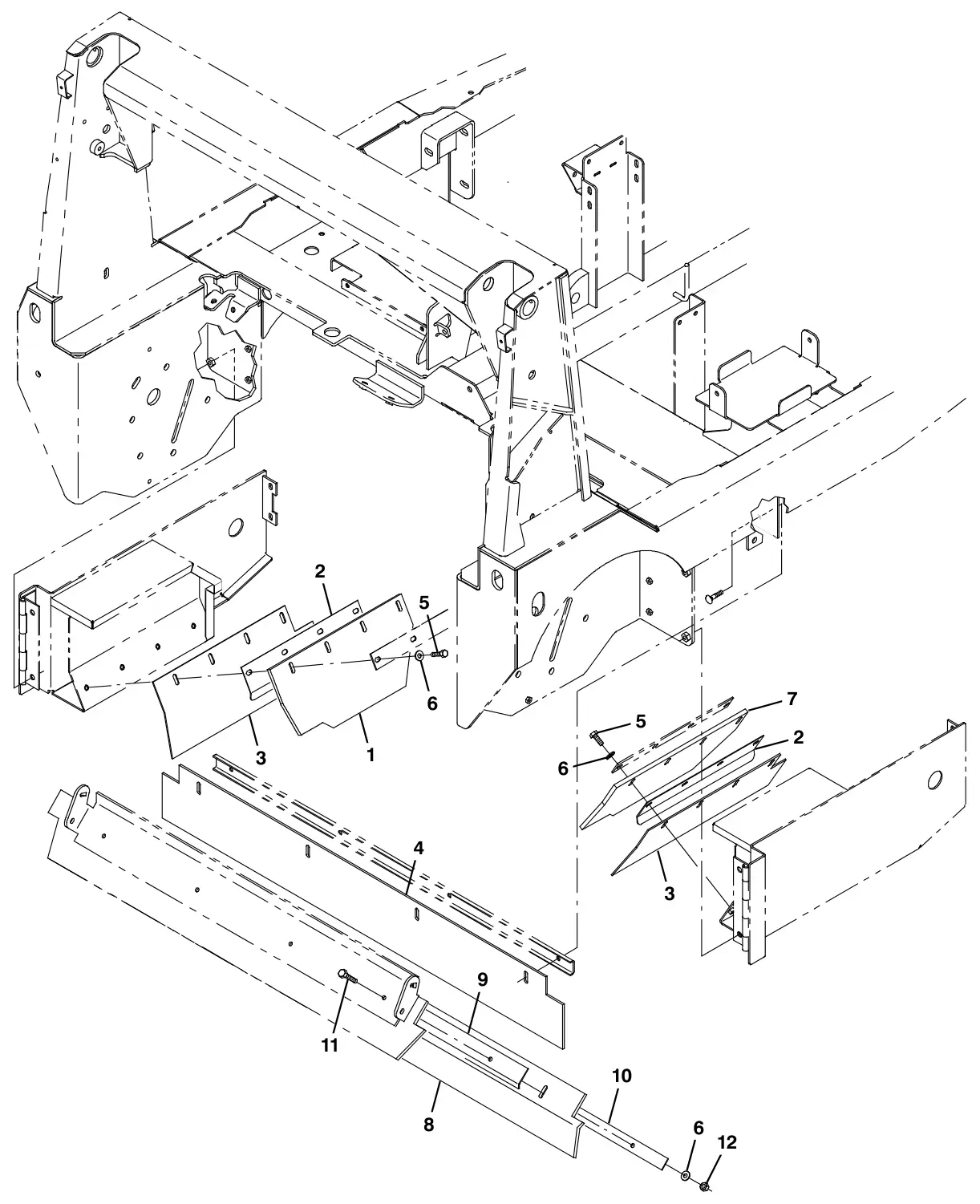

Tennant S30 Diesel side and Rear Skirt Kit (option) parts
The parts Tennant numbers on its side and rear skirt kit (option) drawing. Manual pages 3-28, list 3-29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4025225Replaces Tennant 9013137 | 1 | Skirt Kit, Side/ Rear [S30]Complete assembly. Serial 006501 and later. | $521.40/EA |
| 1 | TN4039510Replaces Tennant 1212911 | 1 | Skirt Assy, Door, Brush, RhPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $64.20/EA |
| 2 | TN4042501Replaces Tennant 1045352 | 2 | Bracket, SkirtPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $24.50/EA |
| 3 | TN4039243Replaces Tennant 1212134 | 2 | Skirt, Door, BrushPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $25.70/EA |
| 4 | TN4042500Replaces Tennant 1045348 | 1 | Skirt, Neo, .18, 06.74w 50.00l, 04/ SlPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $53.70/EA |
| 5 | TN4028034Replaces Tennant 76570 | 8 | Screw, Hex, M8 X 1.25 X 30, 8.8Part of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $3.20/EA |
| 6 | TN4034137Replaces Tennant 32491 | 12 | Washer, Flat, 0.31, StdPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $2.50/EA |
| 7 | TN4039509Replaces Tennant 1212910 | 1 | Skirt Assy, Door, Brush, LhPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $64.20/EA |
| 8 | TN4039511Replaces Tennant 1212912 | 1 | Skirt, Neo, .18, 6.42w X 48.73l, 04/SlPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $81.60/EA |
| 9 | TN4039508Replaces Tennant 1212908 | 1 | Retainer, Blade, DeflectorPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $27.00/EA |
| 10 | TN4039513Replaces Tennant 1212959 | 1 | Retainer, Blade, DeflectorPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $15.80/EA |
| 11 | TN4016807Replaces Tennant 41342 | 4 | Screw, Hex, M8 X 1.25 X 40, 8.8Part of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $3.40/EA |
| 12 | TN4041926Replaces Tennant 08709 | 4 | Nut, Hex, Lock, M8 X 1.25, NlPart of Skirt Kit, Side/ Rear [S30] (9013137). Serial 006501 and later. | $2.50/EA |
Tennant S30 Diesel fire Extinguisher Kit (option) parts
Fire Extinguisher Kit (option) from Tennant's parts list. Manual page 3-30.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017036Replaces Tennant 9003933 | 1 | Extinguisher Kit, Fire, Ci [S30]Complete assembly. Serial 006501 and later. | $437.30/EA |
| 1 | TN4035427Replaces Tennant 25312 | 1 | Extinguisher, Fire, 2.5 Lb DryPart of Extinguisher Kit, Fire, Ci [S30] (9003933). Serial 006501 and later. | $206.60/EA |
| 2 | TN4041264Replaces Tennant 06933 | 2 | Screw, Pan, M5 X 0.80 X 16, 4.8Part of Extinguisher Kit, Fire, Ci [S30] (9003933). Serial 006501 and later. | $3.40/EA |
| 3 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Extinguisher Kit, Fire, Ci [S30] (9003933). Serial 006501 and later. | $2.50/EA |
Tennant S30 Diesel documentation Group (option) parts
Documentation Group (option) from Tennant's parts list. Manual page 3-31.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017449Replaces Tennant 9004087 | 1 | Manual, Oprtr [S30, Dsl En Na]Serial 006501 and later. | $93.68/EA |
| – | TN4025430Replaces Tennant 9013315 | 1 | Manual, Parts [S30, Dsl En]Serial 006501 and later. | $157.80/EA |
| – | TN4203462Replaces Tennant 9004088 | 1 | Manual, Oprtr [S30, Dsl Es Na]Serial 006501 and later. | $93.68/EA |
| – | TN4203463Replaces Tennant 9004089 | 1 | Manual, Oprtr [S30, Dsl Fr Na]Serial 006501 and later. | $93.68/EA |
| – | TN4017450Replaces Tennant 9004090 | 1 | Manual, Oprtr [S30, Dsl Jp]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4012957Replaces Tennant 9008178 | 1 | Video, Oprtr, Dvd [S30 En Es Fr]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4017448Replaces Tennant 9004086 | 1 | Manual, Service [S30 EN]Serial 006501 and later. | $319.37/EA |
| – | TN8003218Replaces Tennant 84660 | 1 | Manual, Eng [Kubo, V1505e]Serial 006501 and later. | $211.37/EA |
| – | TN4203546Replaces Tennant 9004645 | 1 | Manual, Oprtr [S30 Dsl, Cz, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203547Replaces Tennant 9004646 | 1 | Manual, Oprtr [S30 Dsl, De, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203548Replaces Tennant 9004647 | 1 | Manual, Oprtr [S30 Dsl, Dk, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203549Replaces Tennant 9004648 | 1 | Manual, Oprtr [S30 Dsl, En, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203550Replaces Tennant 9004649 | 1 | Manual, Oprtr [S30 Dsl, Es, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203551Replaces Tennant 9004650 | 1 | Manual, Oprtr [S30 Dsl, Fi, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203552Replaces Tennant 9004651 | 1 | Manual, Oprtr [S30 Dsl, Fr, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203553Replaces Tennant 9004652 | 1 | Manual, Oprtr [S30 Dsl, Gr, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203554Replaces Tennant 9004653 | 1 | Manual, Oprtr [S30 Dsl, Hu, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203555Replaces Tennant 9004654 | 1 | Manual, Oprtr [S30 Dsl, It, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203556Replaces Tennant 9004655 | 1 | Manual, Oprtr [S30 Dsl, Nl, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203557Replaces Tennant 9004656 | 1 | Manual, Oprtr [S30 Dsl, No, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203558Replaces Tennant 9004657 | 1 | Manual, Oprtr [S30 Dsl, Pl, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203559Replaces Tennant 9004658 | 1 | Manual, Oprtr [S30 Dsl, Pt, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203560Replaces Tennant 9004659 | 1 | Manual, Oprtr [S30 Dsl, Ru, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203561Replaces Tennant 9004660 | 1 | Manual, Oprtr [S30 Dsl, Se, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203562Replaces Tennant 9004661 | 1 | Manual, Oprtr [S30 Dsl, Tr, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203563Replaces Tennant 9004662 | 1 | Manual, Oprtr [S30 Dsl, Ee, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203564Replaces Tennant 9004663 | 1 | Manual, Oprtr [S30 Dsl, Lv, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203565Replaces Tennant 9004664 | 1 | Manual, Oprtr [S30 Dsl, Lt, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203566Replaces Tennant 9004665 | 1 | Manual, Oprtr [S30 Dsl, Sk, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203567Replaces Tennant 9004666 | 1 | Manual, Oprtr [S30 Dsl, Si, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203757Replaces Tennant 9004727 | 1 | Manual, Oprtr [S30 Dsl, Bg, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4203758Replaces Tennant 9004728 | 1 | Manual, Oprtr [S30 Dsl, Ro, Ce]Serial 006501 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4025432Replaces Tennant 9013317 | 1 | Instr, Maint, Wall Chart (ONLINE ONLY)Serial 006501 and later. | $3.52/EA |

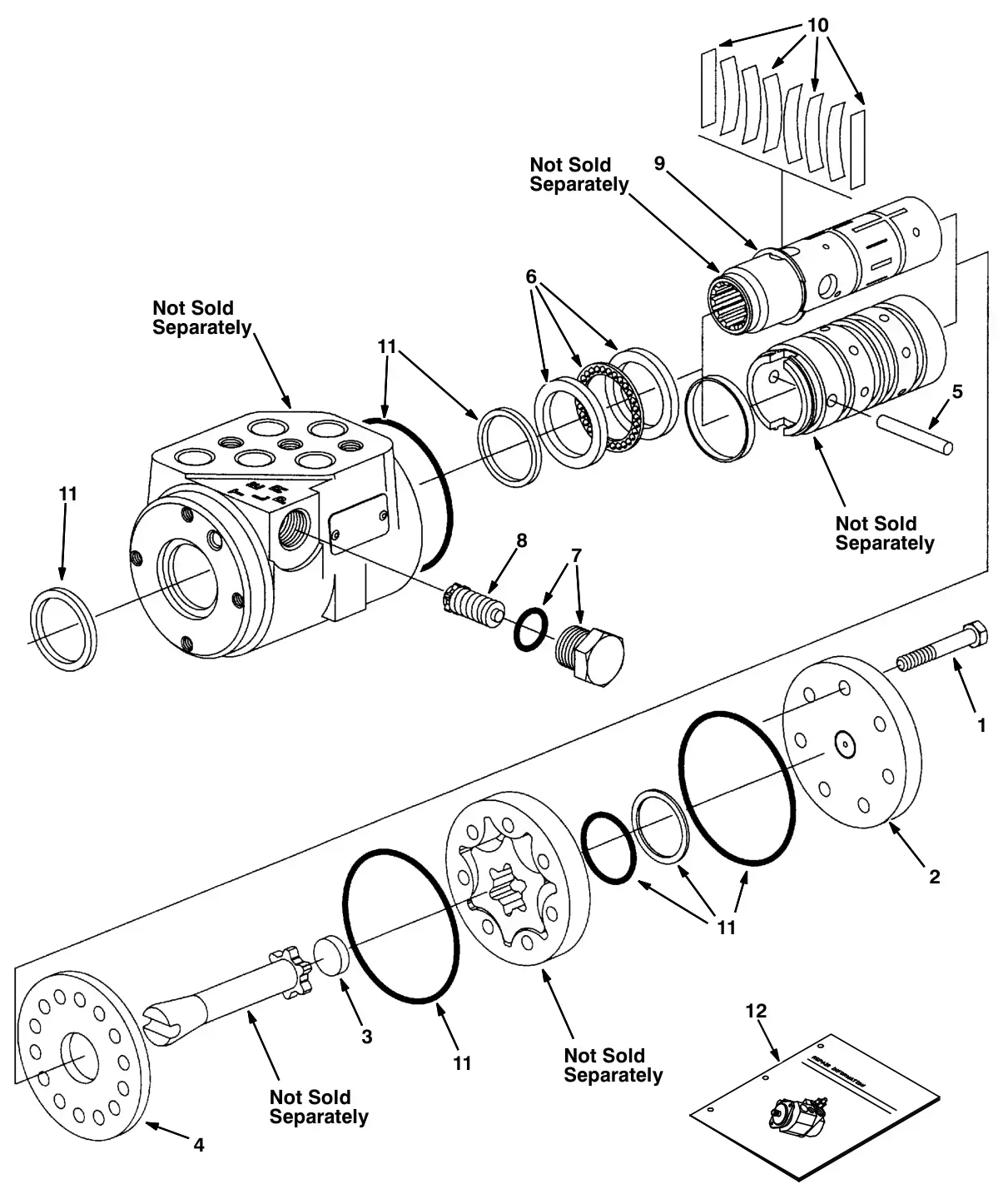

Tennant S30 Diesel hydraulic Steering Valve Breakdown, 1024260 (component breakdown) parts
The parts Tennant numbers on its hydraulic steering valve breakdown, 1024260 (component breakdown) drawing. Manual pages 4-2, list 4-3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4033593Replaces Tennant 1024260 | 1 | SteerControl, Hyd05, 06.1 2030Complete assembly. | $816.30/EA |
| 1 | TN8051403Replaces Tennant 74183 | 7 | Screw, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8051405Replaces Tennant 74185 | 1 | Cap, End, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN8002112Replaces Tennant 74193 | 1 | Spacer, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (1024260). | $17.78/EA |
| 4 | TN8002117Replaces Tennant 74222 | 1 | Plate, Wear, Steering ValvePart of SteerControl, Hyd05, 06.1 2030 (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8002122Replaces Tennant 74232 | 1 | Pin, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8005935Replaces Tennant 21935 | 1 | Bearing Kit [Cl]Part of SteerControl, Hyd05, 06.1 2030 (1024260). | $39.98/EA |
| 7 | TN8048811Replaces Tennant 21933 | 1 | Plug Assy [Cl]Part of SteerControl, Hyd05, 06.1 2030 (1024260). | $42.32/EA |
| 8 | TN8048812Replaces Tennant 21934 | 1 | Valve Assy, Relief [Cl]Part of SteerControl, Hyd05, 06.1 2030 (1024260). | $236.04/EA |
| 9 | TN8002129Replaces Tennant 74243 | 1 | Ring, Retainer, Steering ValvePart of SteerControl, Hyd05, 06.1 2030 (1024260). | $5.96/EA |
| 10 | TN8002114Replaces Tennant 74196 | 1 | Spring Kit, Scu [Cl]Part of SteerControl, Hyd05, 06.1 2030 (1024260). | $45.35/EA |
| 11 | TN8002130Replaces Tennant 74244 | 1 | Seal Kit, Steering [Cl]Part of SteerControl, Hyd05, 06.1 2030 (1024260). | $62.30/EA |
| 12 | TN8002131Replaces Tennant 74245 | 1 | Instr, Valve, Steering, RepairPart of SteerControl, Hyd05, 06.1 2030 (1024260). | Call to confirm part: 800-440-6723Call 800-440-6723 |

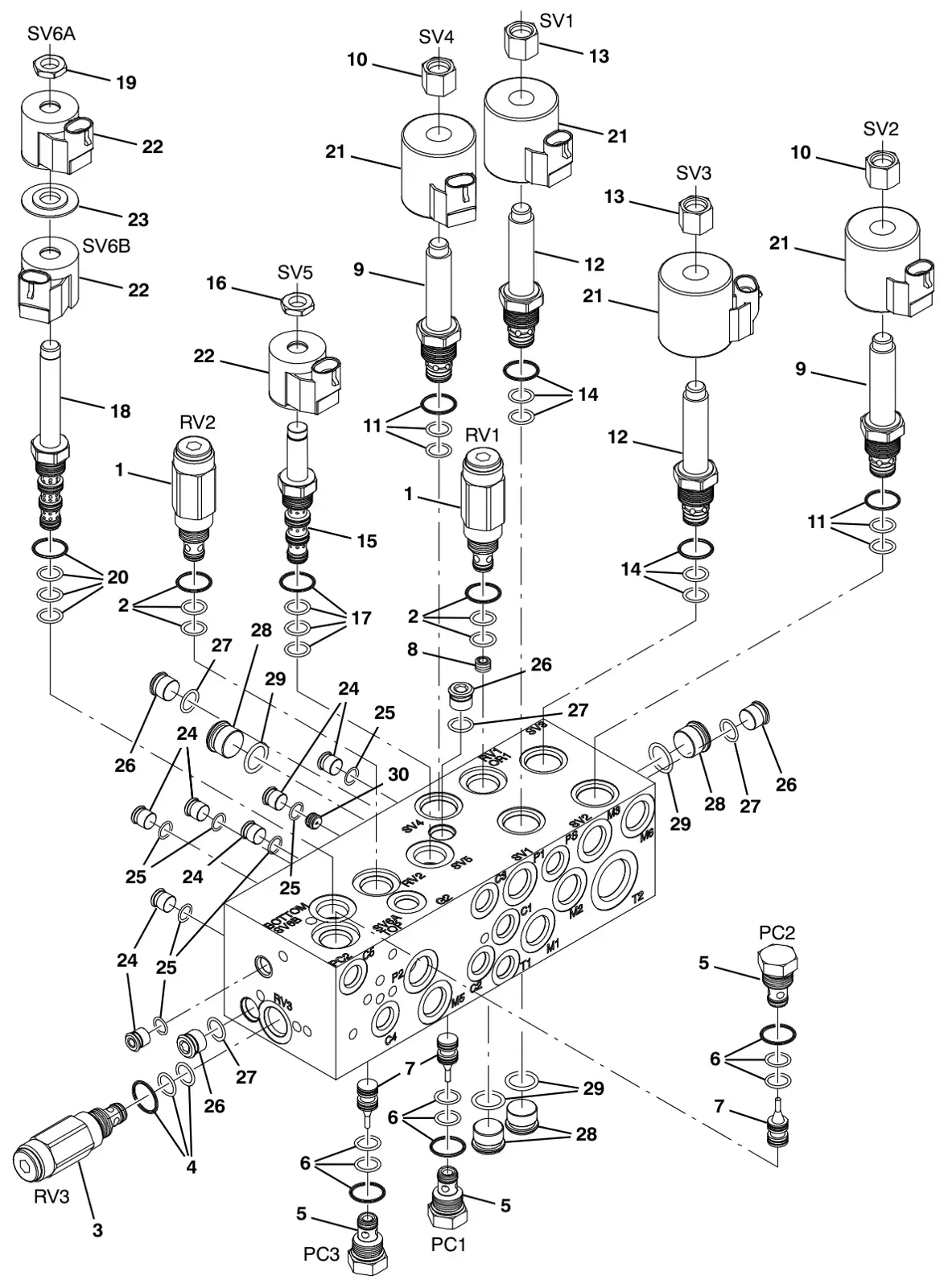

Tennant S30 Diesel hydraulic Valve Breakdown, 1040091 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1040091 (component breakdown) drawing. Manual pages 4-4, list 4-5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4044276Replaces Tennant 1040091 | 1 | Valve, Hyd, Solenoid, 12vdc [06s]Complete assembly. | $1,814.30/EA |
| 1 | TN8004359Replaces Tennant 373691 | 2 | Valve, ReliefPart of Valve, Hyd, Solenoid, 12vdc [06s] (See Breakdowns) (1040091). | $78.20/EA |
| 2 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 3 | TN8004360Replaces Tennant 373692 | 1 | Valve, ReliefPart of the assembly above. | $79.89/EA |
| 4 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 5 | TN8004340Replaces Tennant 373656 | 3 | Valve, CheckPart of the assembly above. | $52.60/EA |
| 6 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 7 | TN8004342Replaces Tennant 373658 | 3 | Spool, Pilot, HydPart of the assembly above. | $44.30/EA |
| 8 | TN8004363Replaces Tennant 373694 | 1 | Plug, Orifice, Valve, Hyd, .040Part of the assembly above. | $9.60/EA |
| 9 | TN8004346Replaces Tennant 373663 | 2 | Valve, Stem, NoPart of the assembly above. | $213.30/EA |
| 10 | TN8004357Replaces Tennant 373685 | 1 | Nut, Coil, Nyl Patch | $8.50/EA |
| 11 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, Cartridge | $25.60/EA |
| 12 | TN8004358Replaces Tennant 373690 | 2 | Valve, Stem, NoPart of the assembly above. | $168.90/EA |
| 13 | TN8004357Replaces Tennant 373685 | 1 | Nut, Coil, Nyl Patch | $8.50/EA |
| 14 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, Cartridge | $25.60/EA |
| 15 | TN8004341Replaces Tennant 373657 | 1 | Stem, Valve, Hyd [4w2p]Part of the assembly above. | $185.50/EA |
| 16 | TN8004356Replaces Tennant 373684 | 1 | Nut, Coil, Nyl Patch | $3.80/EA |
| 17 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 18 | TN8004288Replaces Tennant 373637 | 1 | Valve, Cntrl, SolenoidPart of the assembly above. | $311.30/EA |
| 19 | TN8004356Replaces Tennant 373684 | 1 | Nut, Coil, Nyl Patch | $3.80/EA |
| 20 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 21 | TN8004293Replaces Tennant 373642 | 4 | Solenoid, #10, 12vdcPart of the assembly above. | $88.20/EA |
| 22 | TN8004291Replaces Tennant 373640 | 3 | Solenoid, #8, 12vdcPart of the assembly above. | $73.70/EA |
| 23 | TN8004290Replaces Tennant 373639 | 1 | Spacer, Coil, #8Part of the assembly above. | $8.50/EA |
| 24 | TN4012760Replaces Tennant 74098 | 7 | Fitting, Hyd, Plug, Om04Part of the assembly above. | $5.00/EA |
| 25 | TN4029251Replaces Tennant 77003 | 1 | Seal, Org, .072 X 00.35id #04 | $4.40/EA |
| 26 | TN8006153Replaces Tennant 13904 | 4 | Fitting, Plug, Org, #6, Valve [Cec]Part of the assembly above. | $7.60/EA |
| 27 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id #06 | $4.40/EA |
| 28 | TN8006154Replaces Tennant 13907 | 4 | Fitting, Hyd, Plug, Om08Part of the assembly above. | $7.60/EA |
| 29 | TN4029253Replaces Tennant 77006 | 1 | Seal, Org, .087 X 00.64id #08 | $6.00/EA |
| 30 | TN8004348Replaces Tennant 373665 | 1 | Plug, Orifice, Valve, Hyd, .046Part of the assembly above. | $12.52/EA |

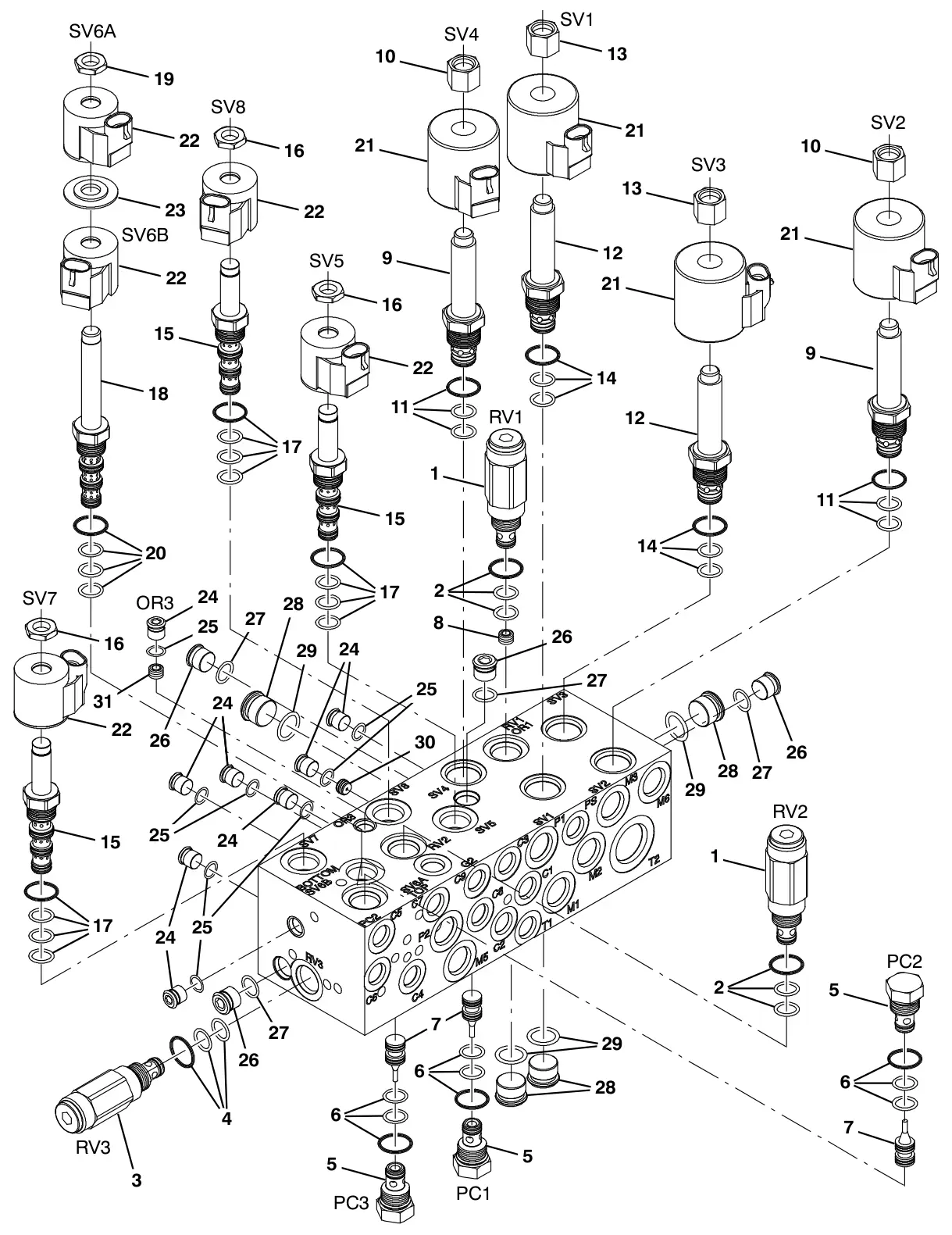

Tennant S30 Diesel hydraulic Valve Breakdown, 1034671 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1034671 (component breakdown) drawing. Manual pages 4-6, list 4-7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4045262Replaces Tennant 1034671 | 1 | Valve, Hyd, Solenoid, 12vdc [06s]Complete assembly. | $2,329.16/EA |
| 1 | TN8004359Replaces Tennant 373691 | 2 | Valve, ReliefPart of Valve, Hyd, Solenoid, 12vdc [08s] (See Breakdowns) (1034671). | $78.20/EA |
| 2 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 3 | TN8004360Replaces Tennant 373692 | 1 | Valve, ReliefPart of the assembly above. | $79.89/EA |
| 4 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 5 | TN8004340Replaces Tennant 373656 | 3 | Valve, CheckPart of the assembly above. | $52.60/EA |
| 6 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 7 | TN8004342Replaces Tennant 373658 | 3 | Spool, Pilot, HydPart of the assembly above. | $44.30/EA |
| 8 | TN8004363Replaces Tennant 373694 | 1 | Plug, Orifice, Valve, Hyd, .040Part of the assembly above. | $9.60/EA |
| 9 | TN8004346Replaces Tennant 373663 | 2 | Valve, Stem, NoPart of the assembly above. | $213.30/EA |
| 10 | TN8004357Replaces Tennant 373685 | 1 | Nut, Coil, Nyl Patch | $8.50/EA |
| 11 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, Cartridge | $25.60/EA |
| 12 | TN8004358Replaces Tennant 373690 | 2 | Valve, Stem, NoPart of the assembly above. | $168.90/EA |
| 13 | TN8004357Replaces Tennant 373685 | 1 | Nut, Coil, Nyl Patch | $8.50/EA |
| 14 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, Cartridge | $25.60/EA |
| 15 | TN8004341Replaces Tennant 373657 | 3 | Stem, Valve, Hyd [4w2p]Part of the assembly above. | $185.50/EA |
| 16 | TN8004356Replaces Tennant 373684 | 1 | Nut, Coil, Nyl Patch | $3.80/EA |
| 17 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 18 | TN8004288Replaces Tennant 373637 | 1 | Valve, Cntrl, SolenoidPart of the assembly above. | $311.30/EA |
| 19 | TN8004356Replaces Tennant 373684 | 1 | Nut, Coil, Nyl Patch | $3.80/EA |
| 20 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 21 | TN8004293Replaces Tennant 373642 | 4 | Solenoid, #10, 12vdcPart of the assembly above. | $88.20/EA |
| 22 | TN8004291Replaces Tennant 373640 | 5 | Solenoid, #8, 12vdcPart of the assembly above. | $73.70/EA |
| 23 | TN8004290Replaces Tennant 373639 | 1 | Spacer, Coil, #8Part of the assembly above. | $8.50/EA |
| 24 | TN4012760Replaces Tennant 74098 | 8 | Fitting, Hyd, Plug, Om04Part of the assembly above. | $5.00/EA |
| 25 | TN4029251Replaces Tennant 77003 | 1 | Seal, Org, .072 X 00.35id #04 | $4.40/EA |
| 26 | TN8006153Replaces Tennant 13904 | 4 | Fitting, Plug, Org, #6, Valve [Cec]Part of the assembly above. | $7.60/EA |
| 27 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id #06 | $4.40/EA |
| 28 | TN8006154Replaces Tennant 13907 | 4 | Fitting, Hyd, Plug, Om08Part of the assembly above. | $7.60/EA |
| 29 | TN4029253Replaces Tennant 77006 | 1 | Seal, Org, .087 X 00.64id #08 | $6.00/EA |
| 30 | TN8004348Replaces Tennant 373665 | 1 | Plug, Orifice, Valve, Hyd, .046Part of the assembly above. | $12.52/EA |
| 31 | TN8004362Replaces Tennant 373693 | 1 | Plug, Orifice, Valve, Hyd, .035Part of the assembly above. | $10.10/EA |
Tennant S30 Diesel AC and Heater Box Breakdown, 1067918 (component breakdown) parts
AC and Heater Box Breakdown, 1067918 (component breakdown) from Tennant's parts list. Manual page 4-9.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4033315Replaces Tennant 1067918 | 1 | Heater & A/C Assy, W/FanComplete assembly. | $2,329.16/EA |
| 1 | TN8002268Replaces Tennant 9004590 | 1 | Coil, Heater / EvaporatorPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $371.18/EA |
| 2 | TN8002269Replaces Tennant 9004591 | 2 | KnobPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $6.95/EA |
| 3 | TN8002270Replaces Tennant 9004592 | 1 | Thermostat, Heater/AirPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $100.20/EA |
| 4 | TN8049960Replaces Tennant 9004593 | 1 | CoverPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $347.19/EA |
| 5 | TN8049961Replaces Tennant 9004594 | 1 | Grommet, Rbr, .25Id .375OdPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $3.43/EA |
| 6 | TN8049962Replaces Tennant 9004595 | 1 | Bracket, Coil, MtgPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $59.09/EA |
| 7 | TN8002271Replaces Tennant 9004596 | 1 | Valve, ExpansionPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $237.70/EA |
| 8 | TN8049963Replaces Tennant 9004597 | 2 | Clip, Keeper, Blower MtgPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $18.99/EA |
| 9 | TN8002272Replaces Tennant 9004598 | 2 | Clip, Keeper, Blower MtgPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $18.99/EA |
| 10 | TN8002273Replaces Tennant 9004599 | 1 | Cover, AccessPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $98.09/EA |
| 11 | TN8002274Replaces Tennant 9004600 | 2 | Blown, Fan, MotorPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $315.73/EA |
| 12 | TN8049964Replaces Tennant 9004601 | 2 | Grommet, Rbr, .50Id 1.0OdPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $2.73/EA |
| 13 | TN8002275Replaces Tennant 9004602 | 1 | FilterPart of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $156.70/EA |
| 14 | TN8002276Replaces Tennant 9004603 | 2 | Fitting, E90, Bm10/Pm08Part of Heater Unit, W/ A/C & Fan (See Breakdowns) (1067918). | $28.77/EA |

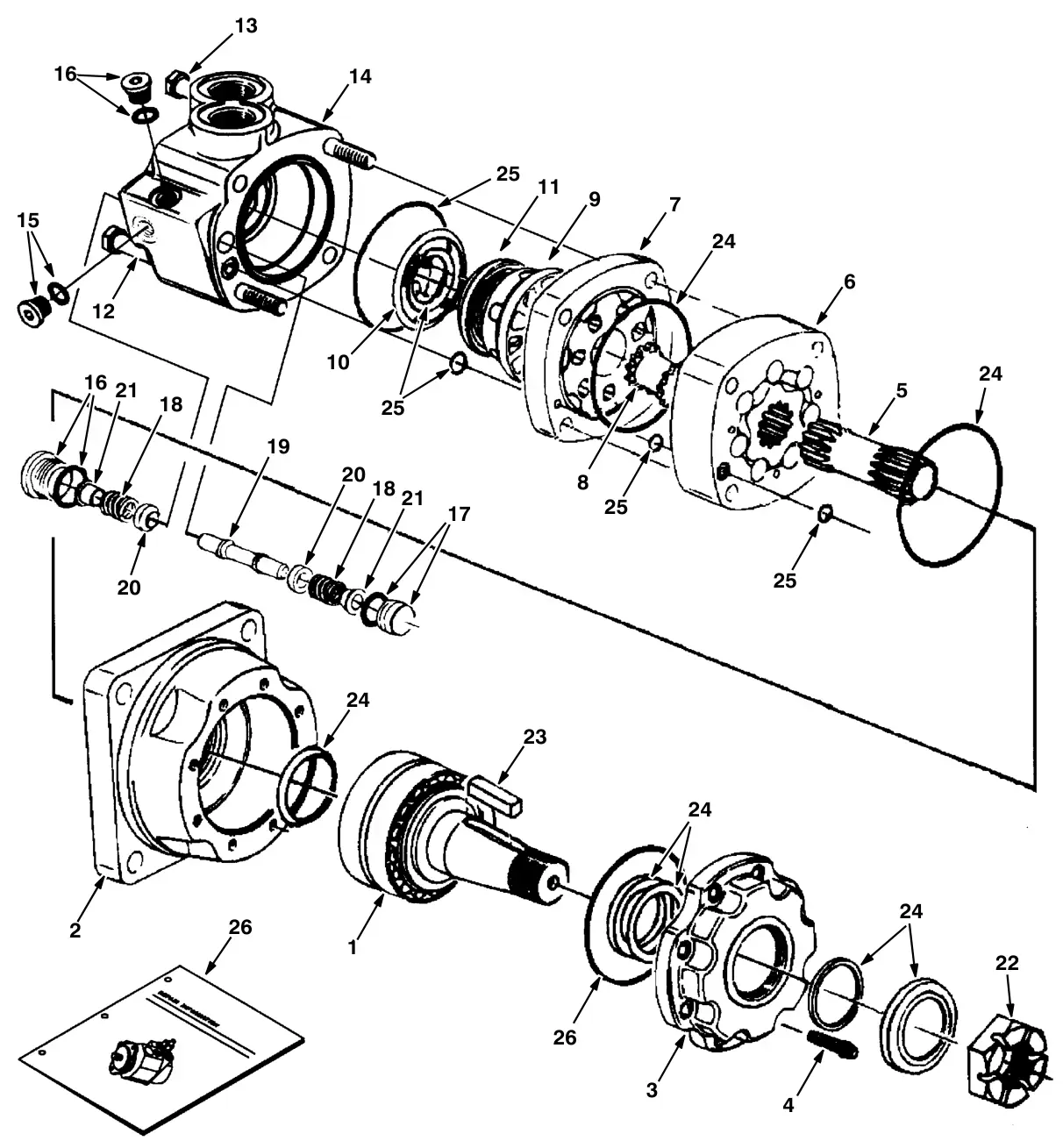

Tennant S30 Diesel hydraulic Motor Breakdown, 1054901 (component breakdown) parts
The parts Tennant numbers on its hydraulic motor breakdown, 1054901 (component breakdown) drawing. Manual pages 4-10, list 4-11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4038692Replaces Tennant 1054901 | 1 | Motor, Hyd, Gear, Int 17.1 Bidir 3000Complete assembly. | $2,382.60/EA |
| 1 | TN8002102Replaces Tennant 74165 | 1 | Shaft, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $850.20/EA |
| 2 | TN8002103Replaces Tennant 74166 | 1 | Housing, Brg, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $269.47/EA |
| 3 | TN8002104Replaces Tennant 74167 | 1 | Retainer, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $390.90/EA |
| 4 | TN8002105Replaces Tennant 74168 | 8 | Screw, Cap, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $5.90/EA |
| 5 | TN8004257Replaces Tennant 373435 | 1 | Drive, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $117.56/EA |
| 6 | TN8045198Replaces Tennant 373436 | 1 | Geroler, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $908.70/EA |
| 7 | TN8002092Replaces Tennant 74122 | 1 | Plate, Valve, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $349.36/EA |
| 8 | TN4014991Replaces Tennant 52405 | 1 | Valve, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $69.89/EA |
| 9 | TN8002093Replaces Tennant 74123 | 1 | Valve, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $272.20/EA |
| 10 | TN8005491Replaces Tennant 34178 | 2 | Spring, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $4.30/EA |
| 11 | TN8002895Replaces Tennant 38968 | 1 | Ring, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $23.53/EA |
| 12 | TN8045199Replaces Tennant 373437 | 3 | Bolt, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $15.76/EA |
| 13 | TN8045200Replaces Tennant 373438 | 1 | Bolt, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $17.37/EA |
| 14 | TN8045139Replaces Tennant 373297 | 1 | Housing, ValvePart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN4028397Replaces Tennant 373298 | 1 | PlugPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $43.53/EA |
| 16 | TN8004263Replaces Tennant 373545 | 2 | Plug, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $23.43/EA |
| 17 | TN8045140Replaces Tennant 373299 | 1 | PlugPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4028396Replaces Tennant 373291 | 2 | SpringPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $4.70/EA |
| 19 | TN8045219Replaces Tennant 373543 | 1 | Piston, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $115.65/EA |
| 20 | TN8004223Replaces Tennant 373226 | 2 | Poppet, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $7.90/EA |
| 21 | TN8004227Replaces Tennant 373236 | 2 | Sleeve, Dashpo, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | TN8002165Replaces Tennant 45622 | 1 | Nut, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $64.70/EA |
| 23 | TN8002166Replaces Tennant 45623 | 1 | Key, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $17.60/EA |
| 24 | TN8003766Replaces Tennant 79828 | 1 | Kit, Seal, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $140.00/EA |
| 25 | TN8005457Replaces Tennant 33580 | 1 | Kit, Seal, Motor, HydPart of Motor, Hyd, Gear, Int 17.1 BiDir 3000 (See Breakdowns) (1054901). | $59.50/EA |
| 26 | TN8002132Replaces Tennant 74249 | 1 | Instr, Repair, Motor, Hyd, Gear | $4.49/EA |

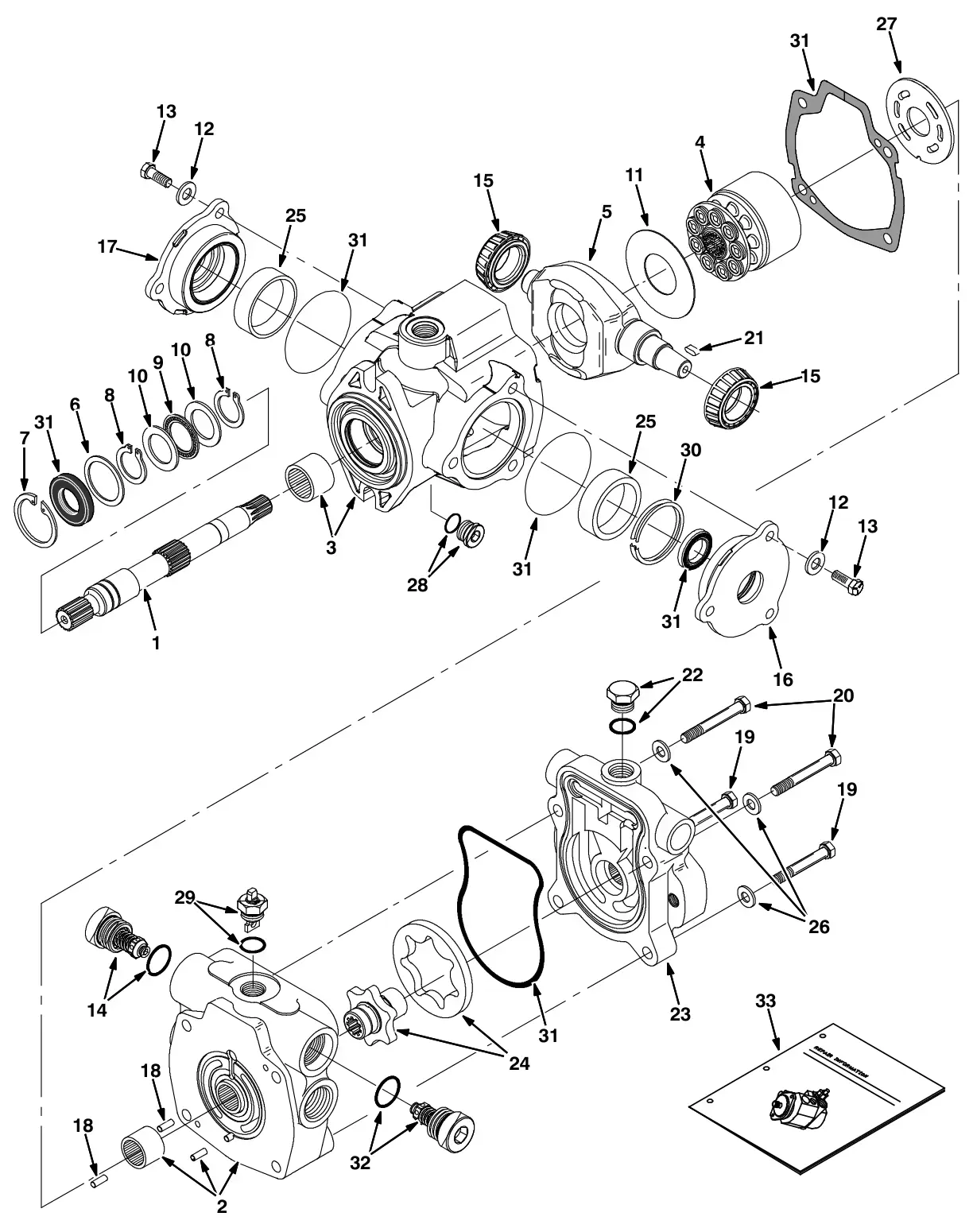

Tennant S30 Diesel hydraulic Piston Pump Breakdown, 1054905 (component breakdown) parts
The parts Tennant numbers on its hydraulic piston pump breakdown, 1054905 (component breakdown) drawing. Manual pages 4-12, list 4-13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4038694Replaces Tennant 1054905 | 1 | Pump, Hyd, Piston, Var, 1.24 4500, CwComplete assembly. | $1,858.00/EA |
| 1 | TN8004368Replaces Tennant 373699 | 1 | Driveshaft, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $190.39/EA |
| 2 | TN8045196Replaces Tennant 373430 | 1 | Cover, EndPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN8004244Replaces Tennant 373389 | 1 | HousingPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $824.67/EA |
| 4 | TN8006141Replaces Tennant 02706 | 1 | Kit, Rotating, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $576.71/EA |
| 5 | TN8045211Replaces Tennant 373493 | 1 | CamPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8002864Replaces Tennant 70096 | 1 | Washer, Flt, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $7.88/EA |
| 7 | TN8051813Replaces Tennant 55926 | 1 | Ring, Retaining, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $5.30/EA |
| 8 | TN8045197Replaces Tennant 373434 | 2 | Ring, RetainingPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $3.33/EA |
| 9 | TN8002118Replaces Tennant 74225 | 1 | Bearing, Thrust, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $12.30/EA |
| 10 | TN8002119Replaces Tennant 74226 | 2 | Race, Bearing, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $6.97/EA |
| 11 | TN8045151Replaces Tennant 373327 | 1 | Insert, Plate, Cam, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $42.63/EA |
| 12 | TN8045179Replaces Tennant 373391 | 6 | Washer, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $3.33/EA |
| 13 | TN8045161Replaces Tennant 373346 | 6 | Screw, CapPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $4.44/EA |
| 14 | TN8002135Replaces Tennant 74259 | 1 | Valve, Relief, PumpPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $176.93/EA |
| 15 | TN8004232Replaces Tennant 373317 | 2 | Bearing, Cone, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $42.32/EA |
| 16 | TN8004245Replaces Tennant 373393 | 1 | Plate, CoverPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $1,844.56/EA |
| 17 | TN8004246Replaces Tennant 373394 | 1 | Plate, CoverPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $353.90/EA |
| 18 | TN8002865Replaces Tennant 70100 | 2 | Pin, Dowel, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $4.04/EA |
| 19 | TN373336Tennant 373336 | 2 | Screw, Cap, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN373337Tennant 373337 | 2 | Screw, Cap, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN8002126Replaces Tennant 74237 | 1 | Key, Shaft, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $3.23/EA |
| 22 | TN8006154Replaces Tennant 13907 | 1 | Fitting, Plug, ORingPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $7.60/EA |
| 23 | TN8004369Replaces Tennant 373700 | 1 | Adaptor Assy, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $218.87/EA |
| 24 | TN8004370Replaces Tennant 373701 | 1 | Gerotor, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $384.81/EA |
| 25 | TN8004247Replaces Tennant 373395 | 2 | Bearing, CupPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $28.18/EA |
| 26 | TN373396Tennant 373396 | 4 | WasherPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | TN8002108Replaces Tennant 74180 | 1 | Plate, Valve, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $215.43/EA |
| 28 | TN8006154Replaces Tennant 13907 | 1 | Fitting, Plug, ORingPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $7.60/EA |
| 29 | TN8004250Replaces Tennant 373413 | 1 | Actuator, Valve, BypassPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $170.19/EA |
| 30 | TN8004249Replaces Tennant 373402 | 1 | Kit, ShimPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $479.45/EA |
| 31 | TN8004248Replaces Tennant 373398 | 1 | Kit, Seal, Hyd, PumpPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $236.10/EA |
| 32 | TN8004256Replaces Tennant 373431 | 1 | Valve, Relief, 3500psiPart of Pump, Hyd, Piston, Var, 1.24 4500, Cw (See Breakdowns) (1054905). | $380.90/EA |
| 33 | TN8004255Replaces Tennant 373429 | 1 | Instr, Repair, Pump | $1.72/EA |
Tennant S30 Diesel hydraulic Piston Pump Breakdown, 1029255 (component breakdown) parts
The parts Tennant numbers on its hydraulic piston pump breakdown, 1029255 (component breakdown) drawing. Manual pages 4-14, list 4-15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8051404Replaces Tennant 74184 | 1 | Nut, Jam | $3.43/EA |
| 2 | TN8051411Replaces Tennant 74223 | 8 | Screw, Cap | $6.36/EA |
| 3 | TN8003014Replaces Tennant 61882 | 1 | Rotating Kit | $1,378.85/EA |
| 4 | TN8045184Replaces Tennant 373407 | 1 | Piston, Servo | $395.42/EA |
| 5 | TN8051416Replaces Tennant 74254 | 1 | Follower, Piston | $227.96/EA |
| 6 | TN8051418Replaces Tennant 74256 | 1 | Plate, Cover En | $51.51/EA |
| 7 | TN8051419Replaces Tennant 74257 | 1 | Plate, Cover En | $64.54/EA |
| 8 | TN8051420Replaces Tennant 74258 | 1 | Camplate S/A En | $530.05/EA |
| 9 | TN8002127Replaces Tennant 74240 | 2 | Race, Bearing Ce | $14.24/EA |
| 10 | TN8002115Replaces Tennant 74210 | 1 | Bearing | $8.59/EA |
| 11 | TN8004388Replaces Tennant 373720 | 1 | Seal Kit, Pump En | $130.30/EA |
| 12 | TN8002136Replaces Tennant 74262 | 6 | Screw, Cap En | $10.00/EA |
| – | TN8045185Replaces Tennant 373408 | 1 | Housing S/A EnComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8045186Replaces Tennant 373409 | 1 | Housing EnPart of Housing S/A En (373408). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN8004484Replaces Tennant 37462 | 1 | BearingPart of Housing S/A En (373408). | $35.96/EA |
| 15 | TN8050850Replaces Tennant 79742 | 1 | Plug S/A EnPart of Housing S/A En (373408). | $9.39/EA |
| 16 | TN8045187Replaces Tennant 373410 | 1 | Cradle Sub Assy EnComplete assembly. | $434.91/EA |
| 17 | TN8045106Replaces Tennant 373218 | 2 | Dowel Bushing EnPart of Cradle Sub Assy En (373410). | $2.83/EA |
| 18 | TN8045190Replaces Tennant 373414 | 1 | Bushing EnPart of Cradle Sub Assy En (373410). | $122.41/EA |
| 19 | TN8045191Replaces Tennant 373415 | 1 | Cap Screw EnPart of Cradle Sub Assy En (373410). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN8050853Replaces Tennant 79747 | 2 | Cap Screw En | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN8002137Replaces Tennant 74265 | 1 | Shaft, Drive Sp En | $179.58/EA |
| 22 | TN8002138Replaces Tennant 74266 | 1 | Nut En | $1.40/EA |
| 23 | TN8002139Replaces Tennant 74267 | 1 | Lockwasher En | $1.40/EA |
| 24 | TN8004483Replaces Tennant 37460 | 1 | Washer | $7.27/EA |
| 25 | TN8006154Replaces Tennant 13907 | 2 | Plug #8 | $7.60/EA |
| 26 | TN8003707Replaces Tennant 79779 | 1 | Plug,#12 ORing Ph | $5.96/EA |
| 27 | TN8002141Replaces Tennant 74272 | 1 | Arm, Control En | $21.67/EA |
| 28 | TN8002142Replaces Tennant 74273 | 1 | Control, Manual (See Breakdowns) | $977.40/EA |
| 29 | TN8002144Replaces Tennant 74276 | 3 | Orifice, Valve En | $13.80/EA |
| 30 | TN8051429Replaces Tennant 74280 | 1 | Washer En | $6.16/EA |
| 31 | TN8051430Replaces Tennant 74281 | 8 | Washer En | $4.34/EA |
Tennant S30 Diesel hydraulic Piston Pump Breakdown, 1029255 (component breakdown) parts
The parts Tennant numbers on its hydraulic piston pump breakdown, 1029255 (component breakdown) drawing. Manual pages 4-16, list 4-17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002135Replaces Tennant 74259 | 1 | Relief Valve Sa En | $176.93/EA |
| 2 | TN8004388Replaces Tennant 373720 | 1 | Seal Kit, Pump En | $130.30/EA |
| 3 | TN8045171Replaces Tennant 373374 | 2 | Screw, Cap En | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8045172Replaces Tennant 373375 | 2 | Screw, Cap En | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8003015Replaces Tennant 61886 | 1 | Valve Plate | $260.48/EA |
| 6 | TN8045183Replaces Tennant 373406 | 1 | Repair Info,Pmp En | $3.52/EA |
| 7 | TN8045189Replaces Tennant 373412 | 1 | Backplate S/A EnComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8005459Replaces Tennant 34159 | 1 | BearingPart of Backplate S/A En (373412). | $31.31/EA |
| 9 | TN8003693Replaces Tennant 79748 | 1 | Roll Pin EnPart of Backplate S/A En (373412). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN8045259Replaces Tennant 373703 | 1 | Key En | $9.19/EA |
| 11 | TN8051426Replaces Tennant 74271 | 1 | Charge Pmp Adap EnComplete assembly. | $414.91/EA |
| 12 | TN8003694Replaces Tennant 79749 | 1 | Bushing EnPart of Charge Pmp Adap En (74271). | $16.65/EA |
| 13 | TN8050854Replaces Tennant 79750 | 1 | Plug EnPart of Charge Pmp Adap En (74271). | $21.61/EA |
| 14 | TN8003695Replaces Tennant 79751 | 1 | Shims EnPart of Charge Pmp Adap En (74271). | $3.33/EA |
| 15 | TN8050855Replaces Tennant 79752 | 1 | Spring EnPart of Charge Pmp Adap En (74271). | $14.54/EA |
| 16 | TN8050856Replaces Tennant 79753 | 1 | Poppet EnPart of Charge Pmp Adap En (74271). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN8051427Replaces Tennant 74274 | 1 | Geroter,Ring In En | $82.11/EA |
| 18 | TN8002143Replaces Tennant 74275 | 1 | Geroter,Ring Ot En | $79.18/EA |
| 19 | TN8051428Replaces Tennant 74277 | 1 | Coupler En | $59.29/EA |
| 20 | TN8002145Replaces Tennant 74278 | 2 | Ring, Retaining En | $11.82/EA |
| 21 | TN8004250Replaces Tennant 373413 | 1 | Actuator, Valve En | $170.19/EA |
| 22 | TN8051431Replaces Tennant 74282 | 4 | Washer En | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN8004354Replaces Tennant 373678 | 1 | Valve, Relief, 3000psi | $144.74/EA |
Tennant S30 Diesel hydraulic Manual Control Breakdown, 74273 (component breakdown) parts
The parts Tennant numbers on its hydraulic manual control breakdown, 74273 (component breakdown) drawing. Manual pages 4-18, list 4-19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN8002142Replaces Tennant 74273 | 1 | Control, ManualComplete assembly. | $977.40/EA |
| 1 | TN8003696Replaces Tennant 79754 | 1 | Housing,ControlPart of Control, Manual (See Breakdowns) (74273). | $470.76/EA |
| 2 | TN8003697Replaces Tennant 79755 | 1 | PlugPart of Control, Manual (See Breakdowns) (74273). | $40.40/EA |
| 3 | TN8003705Replaces Tennant 79776 | 1 | Seal Kit,CntrlPart of Control, Manual (See Breakdowns) (74273). | $59.50/EA |
| 4 | TN8050857Replaces Tennant 79756 | 1 | Ring, RetainingPart of Control, Manual (See Breakdowns) (74273). | $3.00/EA |
| 5 | TN8050858Replaces Tennant 79757 | 2 | Spring,RetainerPart of Control, Manual (See Breakdowns) (74273). | $14.34/EA |
| 6 | TN8050859Replaces Tennant 79758 | 1 | Spring, CntrPart of Control, Manual (See Breakdowns) (74273). | $8.90/EA |
| 7 | TN8050860Replaces Tennant 79759 | 1 | Valve SpoolPart of Control, Manual (See Breakdowns) (74273). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8003698Replaces Tennant 79760 | 1 | Screw, SetPart of Control, Manual (See Breakdowns) (74273). | $6.06/EA |
| 9 | TN8003699Replaces Tennant 79761 | 1 | Link, FeedbackPart of Control, Manual (See Breakdowns) (74273). | $18.38/EA |
| 10 | TN8003700Replaces Tennant 79762 | 1 | Dowel PinPart of Control, Manual (See Breakdowns) (74273). | $54.44/EA |
| 11 | TN8003701Replaces Tennant 79763 | 1 | Ring, RetainingPart of Control, Manual (See Breakdowns) (74273). | $3.30/EA |
| 12 | TN4026638Replaces Tennant 79764 | 1 | Bell CrankPart of Control, Manual (See Breakdowns) (74273). | $32.63/EA |
| 13 | TN8003702Replaces Tennant 79765 | 1 | Screw, SetPart of Control, Manual (See Breakdowns) (74273). | $13.64/EA |
| 14 | TN8003703Replaces Tennant 79766 | 1 | Shaft, InputPart of Control, Manual (See Breakdowns) (74273). | $92.30/EA |
| 15 | TN8003704Replaces Tennant 79767 | 1 | Pin, HeadedPart of Control, Manual (See Breakdowns) (74273). | $33.73/EA |
Tennant S30 Diesel seat Breakdown, 1073641 (component breakdown) parts
The parts Tennant numbers on its seat breakdown, 1073641 (component breakdown) drawing. Manual pages 4-20, list 4-21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4044589Replaces Tennant 1073641 | 1 | SeatComplete assembly. | $1,132.60/EA |
| 1 | TN8003570Replaces Tennant 9012585 | 1 | Track Assy, SlidePart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $187.20/EA |
| 2 | TN8003571Replaces Tennant 9012587 | 1 | Bellows, SeatPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $49.09/EA |
| 3 | TN8003572Replaces Tennant 9012589 | 1 | Knobs, Adjmt, WeightPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $30.10/EA |
| 4 | TN8003573Replaces Tennant 9012590 | 1 | SeatbeltPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $213.20/EA |
| 5 | TN8003574Replaces Tennant 9012591 | 1 | Switch, SeatPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $25.90/EA |
| 6 | TN8003575Replaces Tennant 9012592 | 1 | ArmrestPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $121.91/EA |
| 7 | TN8003576Replaces Tennant 9012593 | 1 | Pad, ArmrestPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $60.60/EA |
| 8 | TN8003577Replaces Tennant 9012594 | 1 | Cover, CushionPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $147.20/EA |
| 9 | TN8003578Replaces Tennant 9012595 | 1 | Cover, BackrestPart of Seat, Deluxe (S30XP Only) (See Breakdowns) (1073641). | $164.20/EA |
Tennant S30 Diesel hydraulic Flow Divider Valve Breakdown, 1033685 (component breakdown) parts
Hydraulic Flow Divider Valve Breakdown, 1033685 (component breakdown) from Tennant's parts list. Manual page 4-22.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4045066Replaces Tennant 1033685 | 1 | Valve, Hyd, Flow Divider, Propel [4w]Complete assembly. | $709.22/EA |
| 1 | TN8006153Replaces Tennant 13904 | 3 | Fitting, Plug, Org, #6, Valve [Cec]Part of Valve, Hyd, Flow Divider, Propel [4w] (See Breakdowns) (1033685). | $7.60/EA |
| 2 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id 06 | $4.40/EA |
| 3 | TN8004373Replaces Tennant 373705 | 1 | Valve, Hyd, Flow CntrlPart of the assembly above. | $179.07/EA |
| 4 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, Cartridge | $25.60/EA |
| 5 | TN8004374Replaces Tennant 373706 | 1 | Valve, Hyd, Flow DividerPart of the assembly above. | $215.33/EA |
| 6 | TN8045248Replaces Tennant 373655 | 1 | Seal Kit, Cartridge | $26.97/EA |
Tennant S30 Diesel crankcase Group (engine) parts
The parts Tennant numbers on its crankcase group (engine) drawing. Manual pages 5-2, list 5-3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002762Replaces Tennant 9004335 | 1 | Crankcase, Complt [Ku]Complete assembly. | $11,441.68/EA |
| 2 | TN8002561Replaces Tennant 70998 | 6 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.96/EA |
| 3 | TN8002909Replaces Tennant 39087 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $8.59/EA |
| 4 | TN8002910Replaces Tennant 39088 | 4 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.00/EA |
| 5 | TN8002562Replaces Tennant 70999 | 1 | Plug, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $18.69/EA |
| 6 | TN8002565Replaces Tennant 71985 | 3 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8002902Replaces Tennant 39051 | 2 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.25/EA |
| 8 | TN8004840Replaces Tennant 361436 | 3 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $3.33/EA |
| 9 | TN8002566Replaces Tennant 71986 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.45/EA |
| 10 | TN8002567Replaces Tennant 71987 | 2 | Pin, Dowel [Ku]Part of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8002568Replaces Tennant 71988 | 2 | Pin, Dowel [Ku]Part of Crankcase, Complt [Ku] (9004335). | $4.24/EA |
| 12 | TN8049852Replaces Tennant 9004431 | 2 | Pin, Straight [Ku]Part of Crankcase, Complt [Ku] (9004335). | $1.72/EA |
| 13 | TN8051525Replaces Tennant 71990 | 2 | Pin, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $10.10/EA |
| 14 | TN8002569Replaces Tennant 71991 | 1 | Tube, Pin [Ku]Part of Crankcase, Complt [Ku] (9004335). | $4.24/EA |
| 15 | TN8002640Replaces Tennant 71992 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $8.28/EA |
| 16 | TN8049780Replaces Tennant 9004337 | 1 | Pin, Start, SpringPart of Crankcase, Complt [Ku] (9004335). | $8.89/EA |
| 17 | TN8002641Replaces Tennant 71993 | 1 | Plug, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $20.50/EA |
| 18 | TN8002422Replaces Tennant 70887 | 1 | Bushing, Gear, Gov [Ku]Part of Crankcase, Complt [Ku] (9004335). | $51.51/EA |
| 19 | TN8002903Replaces Tennant 39062 | 1 | Fitting, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.15/EA |
| 20 | TN8002588Replaces Tennant 393570 | 1 | GasketPart of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN8002423Replaces Tennant 70888 | 1 | Fitting, Draincock [Ku] | $22.02/EA |
Tennant S30 Diesel oil Pan Group (engine) parts
The parts Tennant numbers on its oil pan group (engine) drawing. Manual page 5-4.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8047600Replaces Tennant 1023144 | 1 | Pan, Oil, Dsl | $288.66/EA |
| 2 | TN8002424Replaces Tennant 70889 | 1 | Gasket, Pan, Oil | $66.36/EA |
| 3 | TN8049781Replaces Tennant 9004338 | 26 | Bolt [Ku] | $1.72/EA |
| 4 | TN9003888Tennant 9003888 | 1 | Filter, Oil [Ku] | $93.10/EA |
| 5 | TN8044761Replaces Tennant 39094 | 1 | Screw, Hex [Ku] | $1.50/EA |
| 6 | TN8002763Replaces Tennant 9004339 | 1 | ORing [Ku] | $6.67/EA |
| 7 | TN8002814Replaces Tennant 9004435 | 1 | Gauge, Oil [Ku] | $43.53/EA |
| 8 | TN8004835Replaces Tennant 361428 | 1 | Dipstick, Oil [Ku]Complete assembly. | $193.52/EA |
| 9 | TN8004677Replaces Tennant 361366 | 1 | Seal, Org [Ku]Part of Dipstick, Oil [Ku] (361428). | $3.43/EA |
| 10 | TN8002906Replaces Tennant 39073 | 1 | Screw, Hex [Ku] | $1.40/EA |
| – | TN66187Tennant 66187 | 1 | Gasket Set | $270.00/EA |
| 11 | TN8049787Replaces Tennant 9004348 | 1 | Plug, Gauge, Oil [Ku] | $15.76/EA |
Tennant S30 Diesel cylinder Head Group (engine) parts
The parts Tennant numbers on its cylinder head group (engine) drawing. Manual page 5-5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002642Replaces Tennant 71996 | 1 | Ear, Lifting, Eng [Ku] | $16.77/EA |
| 2 | TN8002643Replaces Tennant 71997 | 1 | Ear, Lifting, Eng [Ku] | $19.29/EA |
| 3 | TN8002906Replaces Tennant 39073 | 2 | Screw, Hex [Ku] | $1.40/EA |
| 4 | TN8002764Replaces Tennant 9004340 | 1 | Head, Cylinder [Ku]Complete assembly. | $1,878.62/EA |
| 5 | TN8002584Replaces Tennant 393504 | 1 | Cap, SealingPart of Head, Cylinder [Ku] (9004340). | $11.65/EA |
| 6 | TN8002910Replaces Tennant 39088 | 2 | Fitting, Pipe, Plug [Ku]Part of Head, Cylinder [Ku] (9004340). | $5.00/EA |
| 7 | TN8004160Replaces Tennant 372906 | 4 | Guide, Valve, InletPart of Head, Cylinder [Ku] (9004340). | $20.75/EA |
| 8 | TN8004161Replaces Tennant 372907 | 4 | Guide, Valve, ExhaustPart of Head, Cylinder [Ku] (9004340). | $21.60/EA |
| 9 | TN361372Tennant 361372 | 3 | Plug, Cup, Sealing [Ku]Part of Head, Cylinder [Ku] (9004340). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN8002428Replaces Tennant 70897 | 18 | Screw, Hex, Head, Cyl [Ku] | $21.25/EA |
| 11 | TN8002765Replaces Tennant 9004341 | 1 | Gasket, Head, Cyl [Ku] | $241.09/EA |
| – | TN8002842Replaces Tennant 66194 | 1 | Gasket Set, Upper | $371.18/EA |
| 12 | TN8051527Replaces Tennant 72010 | 1 | Fitting, Pipe, Plug [Ku] | $7.35/EA |
Tennant S30 Diesel gear Case Group (engine) parts
The parts Tennant numbers on its gear case group (engine) drawing. Manual pages 5-6, list 5-7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002812Replaces Tennant 9004432 | 1 | Crankcase, Comp [Ku]Complete assembly. | $796.58/EA |
| 2 | TN8046197Replaces Tennant 361401 | 5 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Comp [Ku] (9004432). | $15.86/EA |
| 3 | TN8050434Replaces Tennant 12916 | 1 | Fitting, Fltr, Oil [Ku]Part of Crankcase, Comp [Ku] (9004432). | $32.12/EA |
| 4 | TN8051510Replaces Tennant 70900 | 1 | Spring, Cmpr, Relief [Ku]Part of Crankcase, Comp [Ku] (9004432). | $4.75/EA |
| 5 | TN8051511Replaces Tennant 70901 | 1 | Tube, Seat, Valve, Oil [Ku]Part of Crankcase, Comp [Ku] (9004432). | $32.12/EA |
| 6 | TN8051512Replaces Tennant 70902 | 1 | Ball, Relief, Oil [Ku]Part of Crankcase, Comp [Ku] (9004432). | $3.23/EA |
| 7 | TN8051513Replaces Tennant 70905 | 1 | CoverPart of Crankcase, Comp [Ku] (9004432). | $125.85/EA |
| 8 | TN8051514Replaces Tennant 70906 | 1 | BoltPart of Crankcase, Comp [Ku] (9004432). | $24.95/EA |
| 9 | TN8002493Replaces Tennant 70907 | 1 | Seal, Org [Ku]Part of Crankcase, Comp [Ku] (9004432). | $11.40/EA |
| 10 | TN8002496Replaces Tennant 70911 | 1 | Seal, OrgPart of Crankcase, Comp [Ku] (9004432). | $3.80/EA |
| 11 | TN8002491Replaces Tennant 70903 | 1 | Pump, Oil, Eng [Ku]Part of Crankcase, Comp [Ku] (9004432). | $257.15/EA |
| 12 | TN8002492Replaces Tennant 70904 | 1 | Cover, Pump, OilPart of Crankcase, Comp [Ku] (9004432). | $41.61/EA |
| 13 | TN8051528Replaces Tennant 72013 | 5 | Screw, Flt [Ku] | $3.33/EA |
| 14 | TN8002497Replaces Tennant 70912 | 1 | Gasket, Case, Gear [Ku] | $27.70/EA |
| 15 | TN8051235Replaces Tennant 72993 | 3 | Screw, Hex [Ku] | $2.40/EA |
| 16 | TN8044939Replaces Tennant 384872 | 4 | Bolt | $2.45/EA |
| 17 | TN8051236Replaces Tennant 72994 | 2 | Screw, Hex [Ku] | $2.45/EA |
| 18 | TN8051529Replaces Tennant 72014 | 1 | Screw, Hex [Ku] | $3.90/EA |
| 19 | TN8051540Replaces Tennant 72015 | 2 | Screw, Hex [Ku] | $1.50/EA |
| 20 | TN8051541Replaces Tennant 72016 | 1 | Bolt | $8.08/EA |
| 21 | TN8049785Replaces Tennant 9004346 | 1 | Stud [Ku] | $3.80/EA |
| 22 | TN8002919Replaces Tennant 39121 | 1 | Nut, Hex [Ku] | $0.55/EA |
| 23 | TN8002905Replaces Tennant 39065 | 1 | Washer, Lock, Split [Ku] | $3.60/EA |
| 24 | TN8004817Replaces Tennant 361389 | 1 | Seal, Oil, Front [Ku] | $18.20/EA |
| 25 | TN8049786Replaces Tennant 9004347 | 2 | Stud [Ku] | $3.65/EA |
| 26 | TN8051544Replaces Tennant 72019 | 1 | Cover | $15.15/EA |
| 27 | TN8004680Replaces Tennant 361374 | 1 | Cap, Filler, Oil [Ku] | $22.00/EA |
| 28 | TN8002498Replaces Tennant 70913 | 1 | Seal, Org | $10.20/EA |
Tennant S30 Diesel water Pump Group (engine) parts
The parts Tennant numbers on its water pump group (engine) drawing. Manual page 5-8.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002805Replaces Tennant 9004402 | 1 | Pump, Water Assy [Ku]Complete assembly. | $661.80/EA |
| 2 | TN8002502Replaces Tennant 70919 | 1 | Flange, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $63.13/EA |
| 3 | TN4203504Replaces Tennant 9004403 | 1 | Bearing [Ku]Part of Pump, Water Assy [Ku] (9004402). | $86.90/EA |
| 4 | TN8049828Replaces Tennant 9004404 | 1 | Seal, Mechanical Assy [Ku]Part of Pump, Water Assy [Ku] (9004402). | $98.48/EA |
| 5 | TN8049829Replaces Tennant 9004405 | 1 | Impeller, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $80.75/EA |
| 6 | TN8004843Replaces Tennant 361440 | 1 | Fitting, Pipe, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $17.10/EA |
| 7 | TN8002503Replaces Tennant 70920 | 1 | Gasket, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $26.40/EA |
| 8 | TN8002806Replaces Tennant 9004406 | 4 | Bolt [Ku] | $1.90/EA |
| 9 | TN8049840Replaces Tennant 9004407 | 2 | Bolt [Ku] | $3.80/EA |
| 10 | TN8002746Replaces Tennant 9003868 | 1 | Pipe, Water [Kubota] | $84.30/EA |
| 11 | TN8002747Replaces Tennant 9003869 | 1 | Pipe, Water [Kubota] | $38.80/EA |
| 12 | TN8002748Replaces Tennant 9003870 | 2 | Clamp [Kubota] | $8.30/EA |
| 13 | TN8004437Replaces Tennant 55847 | 1 | Sheave, Fan [Ku] | $95.40/EA |
| 14 | TN8043698Replaces Tennant 393588 | 4 | Bolt, Flng | $4.90/EA |
Tennant S30 Diesel main Bearing Case Group (engine) parts
Main Bearing Case Group (engine) from Tennant's parts list. Manual page 5-9.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002767Replaces Tennant 9004349 | 1 | Bearing, Case [Ku]Complete assembly. | $258.66/EA |
| 2 | TN8002815Replaces Tennant 9004436 | 1 | Crankshaft, Metal [Ku]Part of Bearing, Case [Ku] (9004349). | $59.99/EA |
| 3 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Bearing, Case [Ku] (9004349). | $22.12/EA |
| 4 | TN8002768Replaces Tennant 9004350 | 1 | Gasket, Bearing, Case [Ku] | $9.80/EA |
| 5 | TN8002506Replaces Tennant 70923 | 1 | Cover, Brg Case, Eng [Ku] | $107.97/EA |
| 6 | TN8002507Replaces Tennant 70924 | 1 | Seal, Oil, Rear [Ku] | $67.47/EA |
| 7 | TN8002508Replaces Tennant 70925 | 1 | Gasket, Case, Gear [Ku] | $14.75/EA |
| 8 | TN8044938Replaces Tennant 384871 | 8 | Bolt | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN8005670Replaces Tennant 371017 | 9 | Bolt | $3.33/EA |
| 10 | TN8002816Replaces Tennant 9004437 | 1 | Case, Main, Brg AssyComplete assembly. | $223.11/EA |
| 11 | TN8002529Replaces Tennant 70948 | 1 | Bearing, Cshft, Std [Ku]Part of Case, Main, Brg Assy (9004437). | $58.08/EA |
| 12 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Case, Main, Brg Assy (9004437). | $22.12/EA |
| 13 | TN8002663Replaces Tennant 73479 | 3 | Screw, Hex, Case, Brg, Main [Ku] | $31.71/EA |
| 14 | TN8002817Replaces Tennant 9004438 | 1 | Case, Main, Brg AssyComplete assembly. | $246.04/EA |
| 15 | TN8002529Replaces Tennant 70948 | 1 | Bearing, Cshft, Std [Ku]Part of Case, Main, Brg Assy (9004438). | $58.08/EA |
| 16 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Case, Main, Brg Assy (9004438). | $22.12/EA |
| 17 | TN8002818Replaces Tennant 9004439 | 1 | Case, Main, Brg AssyComplete assembly. | $226.24/EA |
| 18 | TN8002529Replaces Tennant 70948 | 1 | Bearing, Cshft, Std [Ku]Part of Case, Main, Brg Assy (9004439). | $58.08/EA |
| 19 | TN8002648Replaces Tennant 72998 | 2 | Screw, Hex, Case, Brg, Main [Ku]Part of Case, Main, Brg Assy (9004439). | $22.12/EA |
Tennant S30 Diesel - Head Cover Group (engine) parts
The parts Tennant numbers on its - head cover group (engine) drawing. Manual page 218.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002813Replaces Tennant 9004433 | 1 | Cover, Cyl Head Assy [Ku]Complete assembly. | $277.65/EA |
| 2 | TN8002511Replaces Tennant 70929 | 1 | Gasket, Cover, Head, Cyl [Ku]Part of Cover, Cyl Head Assy [Ku] (9004433). | $31.00/EA |
| 3 | TN372912Tennant 372912 | 1 | Shield, BreatherPart of Cover, Cyl Head Assy [Ku] (9004433). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8004167Replaces Tennant 372928 | 1 | Valve, Breather, CompltPart of Cover, Cyl Head Assy [Ku] (9004433). | $107.54/EA |
| 5 | TN4170138Replaces Tennant 384874 | 1 | Cover, BreatherPart of Cover, Cyl Head Assy [Ku] (9004433). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8002666Replaces Tennant 73482 | 4 | Screw, Hex, W/ Washer [Ku]Part of Cover, Cyl Head Assy [Ku] (9004433). | $0.55/EA |
| 7 | TN30125Tennant 30125 | 1 | Pipe, WaterPart of Cover, Cyl Head Assy [Ku] (9004433). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8004164Replaces Tennant 372913 | 1 | Tube, Breather | $14.55/EA |
| 9 | TN8004158Replaces Tennant 372901 | 1 | Clamp, Hose | $3.60/EA |
| 10 | TN8004159Replaces Tennant 372904 | 1 | Clamp, Hose | $10.00/EA |
| 11 | TN8002667Replaces Tennant 73483 | 4 | Nut, Hex, Cap | $6.85/EA |
| 12 | TN8002668Replaces Tennant 73484 | 4 | Gasket, F/ Bolt [Ku] | $2.35/EA |
| 13 | TN8004680Replaces Tennant 361374 | 1 | Cap, Filler, Oil [Ku] | $22.00/EA |
| 14 | TN8002498Replaces Tennant 70913 | 1 | Seal, Org | $10.20/EA |
Tennant S30 Diesel manifold Group (engine) parts
The parts Tennant numbers on its manifold group (engine) drawing. Manual page 5-11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8045862Replaces Tennant 372905 | 1 | Manifold Assy, InletComplete assembly. | $201.50/EA |
| 2 | TN8002665Replaces Tennant 73481 | 1 | Pipe, Breather [Ku]Part of Manifold Assy, Inlet (372905). | $17.45/EA |
| 3 | TN8002516Replaces Tennant 70934 | 1 | Gasket, Manifold, Intake [Ku]Part of Manifold Assy, Inlet (372905). | $26.40/EA |
| 4 | TN8002806Replaces Tennant 9004406 | 2 | Bolt [Ku] | $1.90/EA |
| 5 | TN8044939Replaces Tennant 384872 | 3 | Bolt | $2.45/EA |
| 6 | TN8002670Replaces Tennant 73487 | 1 | Manifold, Exhaust [Ku] | $284.21/EA |
| 7 | TN8002517Replaces Tennant 70935 | 1 | Gasket, Manifold, Exhaust | $48.40/EA |
| 8 | TN8002671Replaces Tennant 73488 | 8 | Stud [Ku] | $4.90/EA |
| 9 | TN8002672Replaces Tennant 73489 | 8 | Nut | $3.25/EA |
| 10 | TN8002405Replaces Tennant 51332 | 1 | Gasket [Ku] | $14.90/EA |
| 11 | TN8052077Replaces Tennant 40409 | 3 | Screw, Hex [Ku] | $3.30/EA |
Tennant S30 Diesel valve, Rocker Arm Group (engine) parts
Valve, Rocker Arm Group (engine) from Tennant's parts list. Manual page 5-12.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002518Replaces Tennant 70936 | 4 | Valve, Intake [Ku] | $54.60/EA |
| 2 | TN8002519Replaces Tennant 70937 | 4 | Valve, Exhaust [Ku] | $58.60/EA |
| 3 | TN8002673Replaces Tennant 73491 | 8 | Spring, Valve [Ku] | $9.19/EA |
| 4 | TN8002674Replaces Tennant 73492 | 8 | Retainer, Spring, Valve [Ku] | $4.25/EA |
| 5 | TN8002675Replaces Tennant 73493 | 8 | Retainer, Spring [Ku] | $15.50/EA |
| 6 | TN8002676Replaces Tennant 73494 | 8 | Seal, Stem, Valve [Ku] | $14.70/EA |
| 7 | TN8004818Replaces Tennant 361392 | 8 | Cap, Valve [Ku] | $13.70/EA |
| 8 | TN8049841Replaces Tennant 9004409 | 1 | Shaft, Rocker, Arm [Ku] | $74.64/EA |
| 9 | TN8043708Replaces Tennant 393598 | 2 | Bolt | $4.44/EA |
| 10 | TN8051243Replaces Tennant 73497 | 4 | Bracket, Mtg, Rocker Arm [Ku] | $60.10/EA |
| 11 | TN8051244Replaces Tennant 73498 | 4 | Stud [Ku] | $10.80/EA |
| 12 | TN8051245Replaces Tennant 73499 | 4 | Nut, Hex [Ku] | $6.85/EA |
| 13 | TN8051246Replaces Tennant 73500 | 4 | Washer, Flat [Ku] | $3.15/EA |
| 14 | TN8049842Replaces Tennant 9004410 | 1 | Pin, Spring [Ku] | $1.52/EA |
| 15 | TN8002678Replaces Tennant 73502 | 2 | Washer, Shaft, Rocker [Ku] | $4.34/EA |
| 16 | TN8004897Replaces Tennant 361589 | 2 | Washer, Flat [Ku] | $4.24/EA |
| 17 | TN8051248Replaces Tennant 73504 | 3 | Spring, Cmpr, Rocker [Ku] | $4.14/EA |
| 18 | TN8002680Replaces Tennant 73506 | 8 | Arm, Rocker [Ku]Complete assembly. | $121.00/EA |
| 19 | TN8051250Replaces Tennant 73507 | 8 | Screw, Adj, Rocker Arm [Ku]Part of Arm, Rocker [Ku] (73506). | $8.59/EA |
| 20 | TN8051251Replaces Tennant 73508 | 8 | Nut, Hex [Ku]Part of Arm, Rocker [Ku] (73506). | $8.59/EA |
Tennant S30 Diesel fuel Camshaft Group (engine) parts
The parts Tennant numbers on its fuel camshaft group (engine) drawing. Manual page 5-13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003211Replaces Tennant 84636 | 1 | Camshaft | $712.15/EA |
| 2 | TN8002794Replaces Tennant 9004368 | 1 | Bearing, Ball [Ku] | $76.66/EA |
| 3 | TN8002795Replaces Tennant 9004369 | 1 | Bearing, Ball [Ku] | $76.66/EA |
| 4 | TN8049855Replaces Tennant 9004445 | 1 | Gear, Injection, Pump [Ku] | $108.07/EA |
| 5 | TN8051312Replaces Tennant 73593 | 1 | Nut, Cap, Cam [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8051313Replaces Tennant 73594 | 1 | Key, Woodruff [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8051315Replaces Tennant 73596 | 1 | Stopper, Fuel [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8052091Replaces Tennant 41973 | 2 | Bolt, Hex [Ku] | $3.50/EA |
| – | TN8051316Replaces Tennant 73597 | 1 | Shaft, GovnrComplete assembly. | $1,109.49/EA |
| 9 | TN8049801Replaces Tennant 9004371 | 1 | Shaft, Governor [Ku]Part of Shaft, Govnr (73597). | $100.70/EA |
| 10 | TN8051317Replaces Tennant 73598 | 1 | Holder, Gear [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8051318Replaces Tennant 73599 | 1 | Gear, Govnr [Ku]Part of Shaft, Govnr (73597). | $163.78/EA |
| 12 | TN8051319Replaces Tennant 73600 | 1 | Holder, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8002057Replaces Tennant 73601 | 2 | Weight, Comp, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN8002058Replaces Tennant 73602 | 2 | Shaft, Govnr [Ku]Part of Shaft, Govnr (73597). | $35.45/EA |
| 15 | TN8002796Replaces Tennant 9004372 | 2 | Shaft, Governor, Weight [Ku]Part of Shaft, Govnr (73597). | $26.97/EA |
| 16 | TN8051518Replaces Tennant 70977 | 1 | Sleeve, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN8051519Replaces Tennant 70978 | 1 | Washer, Thrust [Ku]Part of Shaft, Govnr (73597). | $11.62/EA |
| 18 | TN8049802Replaces Tennant 9004373 | 1 | Bearing, Ball [Ku] | $76.66/EA |
| 19 | TN8051320Replaces Tennant 73603 | 1 | Ring, Snap [Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN8051321Replaces Tennant 73604 | 1 | Screw, Set [Ku] | $8.08/EA |
Tennant S30 Diesel camshaft Group (engine) parts
The parts Tennant numbers on its camshaft group (engine) drawing. Manual pages 5-14, list 5-15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN9004358Tennant 9004358 | 8 | Tappet [Ku] | $26.10/EA |
| 2 | TN8002681Replaces Tennant 73509 | 8 | Rod, Push, Valve [Ku] | $9.90/EA |
| 3 | TN8002819Replaces Tennant 9004440 | 1 | Crankshaft AssyComplete assembly. | $1,095.14/EA |
| 4 | TN8044787Replaces Tennant 39197 | 1 | Screw, Set [Ku]Part of Crankshaft Assy (9004440). | $4.44/EA |
| 5 | TN8051252Replaces Tennant 73511 | 1 | Gear, Camshaft [Ku]Part of Crankshaft Assy (9004440). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8051253Replaces Tennant 73512 | 1 | Key [Ku]Part of Crankshaft Assy (9004440). | $3.43/EA |
| 7 | TN8051254Replaces Tennant 73513 | 1 | Stopper, Cam [Ku]Part of Crankshaft Assy (9004440). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8052091Replaces Tennant 41973 | 2 | Bolt, Hex [Ku]Part of Crankshaft Assy (9004440). | $3.50/EA |
| 9 | TN8051255Replaces Tennant 73514 | 1 | Gear, Idler, Cam [Ku]Complete assembly. | $463.62/EA |
| 10 | TN8002682Replaces Tennant 73515 | 1 | Bushing, Gear, Idler [Ku]Part of Gear, Idler, Cam [Ku] (73514). | $30.10/EA |
| 11 | TN8051256Replaces Tennant 73516 | 1 | Collar, Gear [Ku] | $11.82/EA |
| 12 | TN8051257Replaces Tennant 73517 | 1 | Washer, Collar, Gear [Ku] | $10.10/EA |
| 13 | TN8051258Replaces Tennant 73518 | 1 | Ring, Snap [Ku] | $7.88/EA |
| 14 | TN8051282Replaces Tennant 73519 | 1 | Shaft, Idler, Gear [Ku] | $177.15/EA |
| 15 | TN8052091Replaces Tennant 41973 | 3 | Bolt, Hex [Ku] | $3.50/EA |
Tennant S30 Diesel piston and Crankshaft Group (engine) parts
The parts Tennant numbers on its piston and crankshaft group (engine) drawing. Manual pages 5-16, list 5-17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002683Replaces Tennant 73520 | 4 | Piston, Eng [Ku] | $320.37/EA |
| 1 | TN8002684Replaces Tennant 73521 | 4 | Piston, Eng [Ku] | $516.82/EA |
| 2 | TN8002791Replaces Tennant 9004361 | 4 | Ring, Piston Assy [Ku] | $159.58/EA |
| 2 | TN8002820Replaces Tennant 9004441 | 4 | Piston, Ring Assy [Ku] | $159.28/EA |
| 3 | TN8002685Replaces Tennant 73522 | 4 | Pin, Piston [Ku] | $19.90/EA |
| 4 | TN8002686Replaces Tennant 73523 | 8 | Ring, Snap, Piston [Ku] | $5.35/EA |
| 5 | TN8002687Replaces Tennant 73524 | 4 | Rod Assy, Connecting [Ku]Complete assembly. | $579.94/EA |
| 6 | TN8004819Replaces Tennant 361395 | 4 | Bushing, Pin, Piston [Ku]1624121351Part of Rod Assy, Connecting [Ku] (73524). | $28.08/EA |
| 7 | TN8002688Replaces Tennant 73525 | 8 | Screw, Rod, Connecting [Ku]Part of Rod Assy, Connecting [Ku] (73524). | $15.15/EA |
| 8 | TN8002522Replaces Tennant 70941 | 4 | Bearing, Rod, Connecting, Std [Ku]Part of Rod Assy, Connecting [Ku] (73524). | $63.02/EA |
| 8 | TN8002843Replaces Tennant 66204 | 4 | Bearing, Rod, Connecting [- .2mm, Ku]Part of Rod Assy, Connecting [Ku] (73524). | $71.31/EA |
| 8 | TN8002846Replaces Tennant 66207 | 4 | Bearing, Rod, Connecting [- .4mm, Ku]Part of Rod Assy, Connecting [Ku] (73524). | $76.26/EA |
| – | TN8002689Replaces Tennant 73526 | 1 | CrankshaftComplete assembly. | $5,928.20/EA |
| 9 | TN8051283Replaces Tennant 73527 | 4 | Ball, Cshft [Ku]Part of Crankshaft (73526). | $2.83/EA |
| 10 | TN8002720Replaces Tennant 73528 | 1 | Gear, Cshft [Ku]Part of Crankshaft (73526). | $254.22/EA |
| 11 | TN8002721Replaces Tennant 73529 | 1 | Key [Ku]Part of Crankshaft (73526). | $5.15/EA |
| 12 | TN8002722Replaces Tennant 73530 | 1 | Gear, Pump, Oil [Ku]Part of Crankshaft (73526). | $114.89/EA |
| 13 | TN8002523Replaces Tennant 70942 | 1 | Bearing, Cshft [Ku]Part of Crankshaft (73526). | $123.42/EA |
| 14 | TN8002524Replaces Tennant 70943 | 1 | Collar, Crank, Front [Ku] | $84.52/EA |
| 15 | TN8002792Replaces Tennant 9004363 | 1 | Ring [Ku] | $10.40/EA |
| 16 | TN8002526Replaces Tennant 70945 | 1 | Bearing, Cshft, Std [Ku] | $97.16/EA |
| 16 | TN8002527Replaces Tennant 70946 | 1 | Bearing, Cshft, - .2mm [Ku] | $76.15/EA |
| 16 | TN8002528Replaces Tennant 70947 | 1 | Bearing, Cshft [Ku] | $93.12/EA |
| 17 | TN8006116Replaces Tennant 10844 | 2 | Bearing, Thrust, Std [Ku] | $22.83/EA |
| 17 | TN8002534Replaces Tennant 70954 | 2 | Bearing, Thrust [Ku] | $24.95/EA |
| 17 | TN8002535Replaces Tennant 70955 | 2 | Bearing, Thrust [- .4mm, Ku] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN8006117Replaces Tennant 10845 | 2 | Bearing, Thrust, Std [Ku] | $30.40/EA |
| 19 | TN8002723Replaces Tennant 73532 | 2 | Screw, Hex, Cshft [Ku] | $22.39/EA |
| 20 | TN8002991Replaces Tennant 393400 | 2 | Sheave, Cshft [Ku] | $126.38/EA |
Tennant S30 Diesel flywheel Group (engine) parts
The parts Tennant numbers on its flywheel group (engine) drawing. Manual page 5-18.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002536Replaces Tennant 70956 | 1 | FlywheelComplete assembly. | $1,339.77/EA |
| 2 | TN8002248Replaces Tennant 9004442 | 1 | Gear, Ring [Ku]Part of Flywheel (70956). | $143.02/EA |
| 3 | TN8002724Replaces Tennant 73533 | 6 | Screw, Hex, Flywheel [Ku] | $25.55/EA |
| 4 | TN8049446Replaces Tennant 9003891 | 1 | Indicator, Timing [Ku] | $17.78/EA |
| 5 | TN8049853Replaces Tennant 9004443 | 1 | Bolt [Ku] | $3.33/EA |
| 6 | TN8049854Replaces Tennant 9004444 | 1 | Washer, Plain [Ku] | $1.31/EA |
Tennant S30 Diesel starter Breakdown, 74405 (engine) parts
Starter Breakdown, 74405 (engine) from Tennant's parts list. Manual page 5-19.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002147Replaces Tennant 74405 | 1 | Starter, 12vdc [Kubota]Complete assembly. | $2,482.50/EA |
| 2 | TN70196Tennant 70196 | 1 | YokePart of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $731.70/EA |
| 3 | TN8051485Replaces Tennant 70197 | 1 | Armature, Motor [Ku]Part of Motor, Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $600.04/EA |
| 4 | TN8051486Replaces Tennant 70198 | 1 | Bearing | $66.66/EA |
| 5 | TN8051487Replaces Tennant 70199 | 1 | Bearing | $55.05/EA |
| 6 | TN70200Tennant 70200 | 1 | ClutchPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8051488Replaces Tennant 70201 | 1 | Frame, End, DrivePart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN70202Tennant 70202 | 1 | Switch, Magneto [Ku]Part of the assembly above. | $1,173.00/EA |
| 9 | TN70203Tennant 70203 | 1 | Frame, EndPart of the assembly above. | $227.80/EA |
| 10 | TN70204Tennant 70204 | 1 | BrushholderPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8051489Replaces Tennant 70205 | 4 | Spring, Brush | $13.43/EA |
| 12 | TN70206Tennant 70206 | 1 | GearPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8051500Replaces Tennant 70207 | 1 | RetainerPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN8051288Replaces Tennant 73545 | 5 | Retainer, Gear, Starter [Ku]Part of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN8051501Replaces Tennant 70208 | 1 | SpringPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN8051290Replaces Tennant 73547 | 1 | Spring, Ext [Ku]Part of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN8051502Replaces Tennant 70209 | 2 | BoltPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN8048533Replaces Tennant 20433 | 2 | Seal, OrgPart of the assembly above. | $25.65/EA |
| 19 | TN8051503Replaces Tennant 70210 | 2 | BoltPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN8048531Replaces Tennant 20432 | 2 | BoltPart of the assembly above. | $10.10/EA |
| 21 | TN70211Tennant 70211 | 1 | CoverPart of the assembly above. | $44.40/EA |
| 22 | TN8051294Replaces Tennant 73551 | 1 | Nut, Hex [Ku]Part of the assembly above. | $7.68/EA |
| 23 | TN8051504Replaces Tennant 70212 | 1 | NutPart of the assembly above. | $9.19/EA |
| 24 | TN8051505Replaces Tennant 70213 | 1 | Tube, Drain, StarterPart of the assembly above. | $37.77/EA |
Tennant S30 Diesel nozzle Holder and Glow Plug Group (engine) parts
Nozzle Holder and Glow Plug Group (engine) from Tennant's parts list. Manual page 5-20.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002727Replaces Tennant 73554 | 1 | Pipe, Overflow | $68.36/EA |
| 2 | TN8051297Replaces Tennant 73555 | 1 | Fitting, Fuel [Ku] | $24.70/EA |
| 3 | TN8002710Replaces Tennant 40166 | 1 | Gasket, F/ Bolt [Ku] | $4.30/EA |
| – | TN8004679Replaces Tennant 361373 | 1 | Hose, Fuel [Ku]Complete assembly. | $6.80/EA |
| 4 | TN8002799Replaces Tennant 9004389 | 2 | Pipe, Fuel, Overflow [Ku]Part of Hose, Fuel [Ku] (361373). | $4.85/EA |
| 5 | TN8002800Replaces Tennant 9004390 | 4 | Pipe, Clip [Ku]Part of Hose, Fuel [Ku] (361373). | $3.20/EA |
| 6 | TN8004165Replaces Tennant 372917 | 1 | Housing Assy, NozzleComplete assembly. | $525.80/EA |
| 7 | TN8002249Replaces Tennant 9004450 | 1 | Gasket [Ku]Part of Housing Assy, Nozzle (372917). | $4.95/EA |
| 8 | TN8002260Replaces Tennant 9004451 | 1 | Seal, Heat [Ku]Part of Housing Assy, Nozzle (372917). | $16.60/EA |
| 9 | TN8002540Replaces Tennant 70965 | 1 | Tube, Injector, Pipe #1 [Ku] | $42.93/EA |
| 10 | TN8002541Replaces Tennant 70966 | 1 | Tube, Injector, Pipe #2 [Ku] | $82.55/EA |
| 11 | TN8002542Replaces Tennant 70967 | 1 | Tube, Injector, Pipe #32 [Ku] | $82.55/EA |
| 12 | TN8002543Replaces Tennant 70968 | 3 | Pipe, Injector, # 4 | $82.55/EA |
| 13 | TN8048250Replaces Tennant 30131 | 3 | Clamp, Tube, Inj, Pipe #1 [Ku] | $8.20/EA |
| 14 | TN39507Tennant 39507 | 4 | Clamp, Pipe | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN8043682Replaces Tennant 393566 | 1 | Screw, W / Washer | $4.90/EA |
| 16 | TN8003212Replaces Tennant 84638 | 3 | Glowplug [Ku] | $156.70/EA |
| 17 | TN8002031Replaces Tennant 73560 | 3 | Cord, Ele, Glowplug | $35.10/EA |
| 18 | TN8002802Replaces Tennant 9004393 | 3 | Nut, Flange [Ku] | $3.45/EA |
Tennant S30 Diesel nozzle Holder Breakdown (engine) parts
Nozzle Holder Breakdown (engine) from Tennant's parts list. Manual page 5-21.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN8004165Replaces Tennant 372917 | 4 | Housing Assy, NozzleComplete assembly. | $525.80/EA |
| 1 | TN8049823Replaces Tennant 9004395 | 1 | Nut [Ku]Part of Housing Assy, Nozzle (372917). | $14.34/EA |
| 2 | TN8049824Replaces Tennant 9004396 | 1 | Washer, Adjusting [Ku]Part of Housing Assy, Nozzle (372917). | $7.88/EA |
| 3 | TN8049825Replaces Tennant 9004397 | 1 | Nozzle, Spring [Ku]Part of Housing Assy, Nozzle (372917). | $15.55/EA |
| 4 | TN8044706Replaces Tennant 388500 | 1 | Spacer [Ku]Part of Housing Assy, Nozzle (372917). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8049826Replaces Tennant 9004398 | 1 | Rod, Push [Ku]Part of Housing Assy, Nozzle (372917). | $69.99/EA |
| 6 | TN8049827Replaces Tennant 9004399 | 1 | Nut, Nozzle [Ku] | $50.90/EA |
| 7 | TN8002803Replaces Tennant 9004400 | 1 | Washer, Plain [Ku] | $10.71/EA |
| 8 | TN4091478Replaces Tennant 9001101 | 1 | Fender, Lh | $810.42/EA |
Tennant S30 Diesel injection Pump Group (engine) parts
The parts Tennant numbers on its injection pump group (engine) drawing. Manual pages 5-22, list 5-23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8049805Replaces Tennant 9004376 | 1 | Eye, Joint [Ku] | $17.88/EA |
| 2 | TN8003210Replaces Tennant 84635 | 1 | Pump, Injection [Kubo]Complete assembly. | $2,983.20/EA |
| 3 | TN8003215Replaces Tennant 84651 | 1 | Follower, Screw, Pump, Injection[Ku]Part of Pump, Injection [Kubo] (84635). | $91.10/EA |
| 4 | TN8002054Replaces Tennant 73588 | 2 | Gasket, Ftg, Banjo [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
| 5 | TN8002055Replaces Tennant 73589 | 1 | Screw, Hex [Ku]Part of Pump, Injection [Kubo] (84635). | $24.60/EA |
| 6 | TN8002056Replaces Tennant 73590 | 1 | Gasket, F/ Screw [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
| 7 | TN8002033Replaces Tennant 73563 | 3 | Nut [Ku] | $27.85/EA |
| 8 | TN8002905Replaces Tennant 39065 | 6 | Washer, Lock, Split [Ku] | $3.60/EA |
| 9 | TN8002545Replaces Tennant 70972 | 1 | Shim | $9.80/EA |
| 9 | TN8002546Replaces Tennant 70973 | 1 | Shim | $12.63/EA |
| 10 | TN8003213Replaces Tennant 84644 | 1 | Shim, Pump, Injection | $20.40/EA |
| 11 | TN8051298Replaces Tennant 73561 | 3 | Bolt [Ku] | $4.14/EA |
| 12 | TN8002032Replaces Tennant 73562 | 3 | Stud [Ku] | $3.65/EA |
| 13 | TN8002261Replaces Tennant 9004454 | 1 | Cover, Solenoid [Ku] | $22.83/EA |
| 14 | TN8002867Replaces Tennant 70165 | 1 | Gasket, Solenoid, Throttle [Ku] | $5.40/EA |
| 15 | TN8002951Replaces Tennant 39160 | 2 | Bolt, Hex [Ku] | $3.33/EA |
| 16 | TN8002868Replaces Tennant 70188 | 1 | Cover, Hole, Pump [Ku] | $28.31/EA |
| 17 | TN8051299Replaces Tennant 73565 | 1 | Cover, Hole, Pump, Fuel [Ku] | $15.35/EA |
| 18 | TN8002547Replaces Tennant 70974 | 1 | Gasket, Pump, Fuel [Ku] | $14.24/EA |
| 19 | TN8002919Replaces Tennant 39121 | 2 | Nut, Hex [Ku] | $0.55/EA |
| 20 | TN8002905Replaces Tennant 39065 | 2 | Washer, Lock, Split [Ku] | $3.60/EA |
Tennant S30 Diesel injection Pump Breakdown (engine) parts
The parts Tennant numbers on its injection pump breakdown (engine) drawing. Manual pages 5-24, list 5-25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003210Replaces Tennant 84635 | 1 | Pump, Injection [Kubo]Complete assembly. | $2,983.20/EA |
| 2 | TN8003214Replaces Tennant 84648 | 4 | Plunger, Pump, Inj [Ku]Part of Pump, Injection [Kubo] (84635). | $423.80/EA |
| 3 | TN8002034Replaces Tennant 73567 | 4 | Valve, Eng [Delivery, Ku]Part of Pump, Injection [Kubo] (84635). | $148.57/EA |
| 4 | TN8002035Replaces Tennant 73568 | 4 | Spring, Cmpr, Valve, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $20.91/EA |
| 5 | TN8002036Replaces Tennant 73569 | 4 | Gasket, Valve, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $14.95/EA |
| 6 | TN8051300Replaces Tennant 73570 | 4 | Holder, Valve, Inj [Ku]Part of Pump, Injection [Kubo] (84635). | $114.94/EA |
| 7 | TN8002037Replaces Tennant 73571 | 4 | Seal, Org [Ku]Part of Pump, Injection [Kubo] (84635). | $23.43/EA |
| 8 | TN8002038Replaces Tennant 73572 | 4 | Flange, Sleeve [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN8002039Replaces Tennant 73573 | 4 | Pin, Joint, Inj [Ku]Part of Pump, Injection [Kubo] (84635). | $14.54/EA |
| 10 | TN8002050Replaces Tennant 73574 | 8 | Seal, Org [Ku]Part of Pump, Injection [Kubo] (84635). | $28.99/EA |
| 11 | TN8002051Replaces Tennant 73575 | 8 | Screw, Hex [Ku]Part of Pump, Injection [Kubo] (84635). | $22.93/EA |
| 12 | TN8051301Replaces Tennant 73576 | 4 | Tappet, Pump, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8051302Replaces Tennant 73577 | 4 | Pin, Tappet [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN8051303Replaces Tennant 73578 | 1 | Pin, ClampPart of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | TN8002052Replaces Tennant 73579 | 4 | Spring, Cmpr, Plunger [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN8051304Replaces Tennant 73580 | 4 | Seat, Spring, Upper, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $21.51/EA |
| 17 | TN8051305Replaces Tennant 73581 | 4 | Seat, Spring, Lower, Injector [Ku]Part of Pump, Injection [Kubo] (84635). | $61.11/EA |
| 18 | TN8002053Replaces Tennant 73582 | 1 | Shim, Tappet, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | $6.36/EA |
| 19 | TN8050698Replaces Tennant 84649 | 1 | Control, FuelPart of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN8050699Replaces Tennant 84650 | 1 | PlatePart of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | TN8051308Replaces Tennant 73585 | 5 | Screw, Pump, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | $36.97/EA |
| 22 | TN8051309Replaces Tennant 73586 | 4 | Sleeve, Cntrl, Pump, Injection [Ku]Part of Pump, Injection [Kubo] (84635). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | TN8003215Replaces Tennant 84651 | 1 | Follower, Screw, Pump, Injection[Ku]Part of Pump, Injection [Kubo] (84635). | $91.10/EA |
| 24 | TN8002054Replaces Tennant 73588 | 2 | Gasket, Ftg, Banjo [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
| 25 | TN8002055Replaces Tennant 73589 | 1 | Screw, Hex [Ku]Part of Pump, Injection [Kubo] (84635). | $24.60/EA |
| 26 | TN8002056Replaces Tennant 73590 | 1 | Gasket, F/ Screw [Ku]Part of Pump, Injection [Kubo] (84635). | $3.50/EA |
Tennant S30 Diesel idling Group (engine) parts
The parts Tennant numbers on its idling group (engine) drawing. Manual page 5-26.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8049856Replaces Tennant 9004446 | 1 | Idling, Apparatus [Ku]Complete assembly. | $55.35/EA |
| 2 | TN8049857Replaces Tennant 9004447 | 1 | Bolt, Adjustment Assy [Ku]Part of Idling, Apparatus [Ku] (9004446). | $21.01/EA |
| 3 | TN8002059Replaces Tennant 73606 | 1 | Nut, Hex [Ku]Part of Idling, Apparatus [Ku] (9004446). | $2.90/EA |
| 4 | TN8004681Replaces Tennant 361375 | 1 | Nut, Cap [Ku]Part of Idling, Apparatus [Ku] (9004446). | $4.75/EA |
| 5 | TN8002710Replaces Tennant 40166 | 2 | Gasket, F/ Bolt [Ku]Part of Idling, Apparatus [Ku] (9004446). | $4.30/EA |
| 6 | TN8005834Replaces Tennant 30136 | 1 | Cap, Screw, Idler [Ku]Part of Idling, Apparatus [Ku] (9004446). | $9.60/EA |
| 7 | TN8002060Replaces Tennant 73610 | 1 | Screw, Adj, Stop [Ku] | $4.85/EA |
| 8 | TN8049803Replaces Tennant 9004374 | 1 | Nut, Lock [Ku] | $6.06/EA |
| 9 | TN8004681Replaces Tennant 361375 | 1 | Nut, Cap [Ku] | $4.75/EA |
| 10 | TN8002710Replaces Tennant 40166 | 2 | Gasket, F/ Bolt [Ku] | $4.30/EA |
| 11 | TN8049804Replaces Tennant 9004375 | 1 | Gasket [Ku] | $7.50/EA |
Tennant S30 Diesel speed Control Plate Group (engine) parts
Speed Control Plate Group (engine) from Tennant's parts list. Manual page 5-27.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002551Replaces Tennant 70982 | 1 | Plate, Cntrl, Spd [Ku]Complete assembly. | $386.63/EA |
| 2 | TN8051326Replaces Tennant 73619 | 2 | Lever, Cntrl, Spd [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $24.24/EA |
| 3 | TN8002798Replaces Tennant 9004385 | 1 | ORing [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $4.14/EA |
| 4 | TN8052076Replaces Tennant 40407 | 2 | Pin, Spring [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $2.83/EA |
| 5 | TN8051327Replaces Tennant 73621 | 2 | Washer, Flat [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $5.96/EA |
| 6 | TN8051328Replaces Tennant 73622 | 2 | Nut, Hex [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $4.44/EA |
| 7 | TN8051329Replaces Tennant 73623 | 1 | Lever, Plate, Cntrl [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $57.27/EA |
| 8 | TN8002063Replaces Tennant 73624 | 1 | Lever, Stop [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $25.55/EA |
| 9 | TN8002552Replaces Tennant 70983 | 1 | Seal, Oil [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $11.62/EA |
| 10 | TN8051330Replaces Tennant 73625 | 1 | Spring, Tors [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $9.49/EA |
| 11 | TN8002064Replaces Tennant 73626 | 1 | Shaft, Lever, Spd [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $76.86/EA |
| 12 | TN8002553Replaces Tennant 70984 | 1 | Gasket, Cover, Spd [Ku] | $7.88/EA |
| 13 | TN8052091Replaces Tennant 41973 | 2 | Bolt, Hex [Ku] | $3.50/EA |
| 14 | TN9004386Tennant 9004386 | 2 | Stud [Ku] | $2.80/EA |
| 15 | TN8002919Replaces Tennant 39121 | 2 | Nut, Hex [Ku] | $0.55/EA |
| 16 | TN8002905Replaces Tennant 39065 | 2 | Washer, Lock, Split [Ku] | $3.60/EA |
| 17 | TN8049859Replaces Tennant 9004449 | 1 | Bolt [Ku] | $1.52/EA |
| 18 | TN8002710Replaces Tennant 40166 | 1 | Gasket, F/ Bolt [Ku] | $4.30/EA |
Tennant S30 Diesel governor Group (engine) parts
The parts Tennant numbers on its governor group (engine) drawing. Manual page 5-28.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002797Replaces Tennant 9004379 | 1 | Spring, Start [Ku] | $5.96/EA |
| 2 | TN8049858Replaces Tennant 9004448 | 1 | Spring, Governor [Ku] | $16.77/EA |
| 3 | TN9004775Tennant 9004775 | 1 | Lever Assy, Fork [KU]Complete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8049809Replaces Tennant 9004381 | 1 | Lever, Fork [Ku]Part of Lever Assy, Fork [KU] (9004775). | $481.67/EA |
| 5 | TN8049820Replaces Tennant 9004382 | 1 | Lever, Fork, Shaft [Ku]Part of Lever Assy, Fork [KU] (9004775). | $64.54/EA |
| 6 | TN4017493Replaces Tennant 9004283 | 1 | Belt Kit, W/ Installation ToolPart of Lever Assy, Fork [KU] (9004775). | $66.10/EA |
| 7 | TN8051520Replaces Tennant 70989 | 1 | Bearing, Ball [Ku]Part of Lever Assy, Fork [KU] (9004775). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8002066Replaces Tennant 73631 | 1 | Cover, Lever, Gov [Ku] | $13.64/EA |
| 9 | TN8004836Replaces Tennant 361430 | 1 | Gasket, Cover, Gov [Ku] | $3.33/EA |
| 10 | TN8051526Replaces Tennant 71995 | 2 | Screw, Hex [Ku] | $3.84/EA |
| 11 | TN8002557Replaces Tennant 70991 | 1 | Collar, Govnr [Ku] | $4.44/EA |
| 12 | TN8002558Replaces Tennant 70992 | 1 | Bearing, Ball [Ku] | $16.36/EA |
Tennant S30 Diesel water Flange Group (engine) parts
The parts Tennant numbers on its water flange group (engine) drawing. Manual page 5-29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8005464Replaces Tennant 368090 | 1 | Flange, Water [Ku]Complete assembly. | $88.48/EA |
| 2 | TN8003127Replaces Tennant 384859 | 1 | Pipe, Water, ReturnPart of Flange, Water [Ku] (368090). | $6.80/EA |
| 3 | TN8002067Replaces Tennant 73632 | 2 | Fitting, Pipe, Plug [Ku] | $10.70/EA |
| 4 | TN8002559Replaces Tennant 70994 | 1 | Gasket, Hsg, Thermostat [Ku] | $8.10/EA |
| 5 | TN8052091Replaces Tennant 41973 | 3 | Bolt, Hex [Ku] | $3.50/EA |
| 6 | TN8044939Replaces Tennant 384872 | 1 | Bolt | $2.45/EA |
| 7 | TN8002068Replaces Tennant 73633 | 1 | Hose, Water [Ku] | $18.70/EA |
| 8 | TN8002069Replaces Tennant 73634 | 2 | Clamp, Hose, Heater [Ku] | $10.80/EA |
| 9 | TN8006119Replaces Tennant 10852 | 1 | Thermostat, 180deg, 1.7d [Ku] | $106.70/EA |
| 10 | TN8006118Replaces Tennant 10851 | 1 | Gasket | $12.90/EA |
| 11 | TN8005465Replaces Tennant 368091 | 1 | Housing, Thermostat [Ku] | $30.30/EA |
| 12 | TN8052079Replaces Tennant 40418 | 2 | Bolt [Ku] | $2.53/EA |
Tennant S30 Diesel cab wire harness electrical schematic, drawing
| What it shows | Cab Wire Harness Electrical Schematic, drawing, as printed in the manual |
|---|---|
| Manual page | 3-25 |
Tennant S30 Diesel cab wire harness electrical schematic, drawing 1
| What it shows | Cab Wire Harness Electrical Schematic, drawing 1, as printed in the manual |
|---|---|
| Manual page | 3-25 |
Tennant S30 Diesel ac and heater box breakdown, 1067918, drawing
| What it shows | AC and Heater Box Breakdown, 1067918, drawing, as printed in the manual |
|---|---|
| Manual page | 4-8 |
Tennant S30 Diesel ac and heater box breakdown, 1067918, drawing 1
| What it shows | AC and Heater Box Breakdown, 1067918, drawing 1, as printed in the manual |
|---|---|
| Manual page | 4-8 |
Tennant S30 Diesel manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9013315 Rev. 02 (11-2015), S/N 006501 and later, 264 pages | S30 Diesel | Rev. 02 (11-2015) | 264 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 9004087 (07-2014), S30 Diesel, 74 pages | S30 Diesel | 74 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
