Tennant CS5 parts list and diagrams
Find any part on the Tennant CS5 battery micro-scrubber in Tennant's own drawings, with our price on each part we sell. One parts manual covers all six CS5 models, so pick your battery and market under Your machine to see the battery and charger cord that fit yours.
Complete list: every line of the parts list in Tennant CS5 Compact Series Micro-Scrubber Parts Manual 9021061 Rev. 03 (04-2022), Global, 294 printed part lines, with the parts numbered on its drawings. Checked .
New to your CS5? Start here → Manuals (free sign-in) →
- Scrubbing path
- 11.02 in (280 mm), one disk brush
- Solution tank
- 1.32 gal (5 L)
- Battery
- 36V lithium-ion, 5.5Ah or 7.5Ah
- Weight
- 40.34 lb (18.3 kg) without battery, 43.65 to 44.53 lb (19.8 to 20.2 kg) with battery
Maintenance and wear parts for the CS5
Tennant's recommended spare parts for the CS5: wear parts first, then service parts. Keep these on the shelf.
Brush, scrub, disk, 28cm pyp, medium [standard]
$114.40/EADriver asm., pad, 28cm
$170.40/EAPad, scrub, 28cm, white, [pkg of 5 pads]
$93.00/EABlade kit, squeegee, 28cm, linatex, front [standard]
$25.00/EABlade kit, squeegee, 28cm, linatex, rear [standard]
$25.00/EASqueegee asm., 28cm, linatex, front [standard]
$93.40/EASqueegee asm., 28cm, linatex, rear [standard]
$107.00/EAFilter cs5 solution tank
$10.20/EAFilter, air inlet
$9.20/EAValve kit, suction
$52.40/EABattery, lithium ion, 36v, 5.5ah
$521.10/EACharger, battery, 36vdc
$123.20/EA
Source: Tennant CS5 parts manual 9021061 Rev. 03 (04-2022), page 4. SES ref PF-BUH6-U74O
Your machine
How to tell which you have
- Battery: the CS5 runs on one 36V lithium-ion battery, 5.5Ah or 7.5Ah; the size is printed on the battery. One charger fits both (parts manual cover and page 7; operator manual page 8).
- Market: the model number on the machine's data label tells you: 1251580 is the North American model (5.5Ah), 1251584 (5.5Ah) and LPTB03175 (7.5Ah) the EMEA models, 1251582 (5.5Ah, China / Australia and New Zealand) and LPTB03301 (7.5Ah, Australia and New Zealand), 1251585 the Export Asia-Pacific model (5.5Ah). Only the battery and the charger power cord differ (parts manual cover, pages 2, 4 and 7).
- If you are not sure, leave both on Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Tennant CS5 recommended spare parts list
Recommended spare parts list from Tennant's parts list. Manual page 4.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4111090Replaces Tennant SPPV02438 | BRUSH, SCRUB, DISK, 28CM PYP, MEDIUM [STANDARD]Recommended spare parts list: wear parts. | $114.40/EA | |
| – | TN4111427Replaces Tennant SPPV02580 | BRUSH, SCRUB, DISK, 28CM PYP, SOFT [OPTION]Recommended spare parts list: wear parts. | $37.30/EA | |
| – | TN4111428Replaces Tennant SPPV02581 | BRUSH, SCRUB, DISK, 28CM PYP, HARD [OPTION]Recommended spare parts list: wear parts. | $39.30/EA | |
| – | TN4111429Replaces Tennant SPPV02582 | DRIVER ASM., PAD, 28CMRecommended spare parts list: wear parts. | $170.40/EA | |
| – | TN4111440Replaces Tennant SPPV02583 | PAD, SCRUB, 28CM, WHITE, [PKG OF 5 PADS]Recommended spare parts list: wear parts. | $93.00/EA | |
| – | TN4111441Replaces Tennant SPPV02584 | PAD, SCRUB, 28CM, RED, [PKG OF 5 PADS]Recommended spare parts list: wear parts. | $93.00/EA | |
| – | TN4132809Replaces Tennant KTRI06148 | BLADE KIT, SQUEEGEE, 28CM, LINATEX, FRONT [STANDARD]Recommended spare parts list: wear parts. | $25.00/EA | |
| – | TN4132810Replaces Tennant KTRI06149 | BLADE KIT, SQUEEGEE, 28CM, LINATEX, REAR [STANDARD]Recommended spare parts list: wear parts. | $25.00/EA | |
| – | TN4132811Replaces Tennant KTRI06150 | BLADE KIT, SQUEEGEE, 28CM, GUM RUBBER, FRONT [OPTION]Recommended spare parts list: wear parts. | $10.00/EA | |
| – | TN4132812Replaces Tennant KTRI06151 | BLADE KIT, SQUEEGEE, 28CM, GUM RUBBER, REAR [OPTION]Recommended spare parts list: wear parts. | $10.00/EA | |
| – | TN4132814Replaces Tennant KTRI06152 | BLADE KIT, SQUEEGEE, 28CM, PYU, FRONT [OPTION]Recommended spare parts list: wear parts. | $30.00/EA | |
| – | TN4132815Replaces Tennant KTRI06153 | BLADE KIT, SQUEEGEE, 28CM, PYU, REAR [OPTION]Recommended spare parts list: wear parts. | $30.00/EA | |
| – | TN4072356Replaces Tennant MPVR12311 | WHEEL, FRONT, WALL ROLLERRecommended spare parts list: service parts. | $16.00/EA | |
| – | TN4132816Replaces Tennant KTRI06154 | SQUEEGEE ASM., 28CM, LINATEX, FRONT [STANDARD]Recommended spare parts list: service parts. | $93.40/EA | |
| – | TN4132818Replaces Tennant KTRI06155 | SQUEEGEE ASM., 28CM, LINATEX, REAR [STANDARD]Recommended spare parts list: service parts. | $107.00/EA | |
| – | TN4046433Replaces Tennant MECE00813 | BOARD MAIN RV1 CS5 (HANDLE)Recommended spare parts list: service parts. | $68.74/EA | |
| – | TN4046434Replaces Tennant MECE00814 | BOARD MAIN RV1 CS5 36VDCRecommended spare parts list: service parts. | $146.30/EA | |
| – | TN4131304Replaces Tennant MECI00588 | MICROSWITCHRecommended spare parts list: service parts. | $12.80/EA | |
| – | TN4131336Replaces Tennant MECI00681 | SWITCHRecommended spare parts list: service parts. | $11.00/EA | |
| – | TN4117986Replaces Tennant MFVR00305 | DRIVE DISKRecommended spare parts list: service parts. | $16.55/EA | |
| – | TN4132991Replaces Tennant KTRI06361 | MOTOR, BRUSH, 36V, 100W, W/KEYRecommended spare parts list: service parts. | $537.40/EA | |
| – | TN4132789Replaces Tennant KTRI06106 | CARBON BRUSH, BRUSH MOTORRecommended spare parts list: service parts. | $36.08/EA | |
| – | TN4105191Replaces Tennant MOCC00481 | MOTOR, VACUUMRecommended spare parts list: service parts. | $52.40/EA | |
| – | TN4072299Replaces Tennant MPVR12254 | SWITCH ON-OFFRecommended spare parts list: service parts. | $3.70/EA | |
| – | TN4072680Replaces Tennant MPVR12348 | FILTER CS5 SOLUTION TANKRecommended spare parts list: service parts. | $10.20/EA | |
| – | TN4072788Replaces Tennant MPVR12484 | FILTER, AIR INLETRecommended spare parts list: service parts. | $9.20/EA | |
| – | TN4060558Replaces Tennant PPEL00140 | PUMP 24VDCRecommended spare parts list: service parts. | $58.80/EA | |
| – | TN4123163Replaces Tennant RTRT00708 | WHEEL D.200Recommended spare parts list: service parts. | $24.80/EA | |
| – | TN4081117Replaces Tennant TBFX01282 | HOSE, REAR SQUEEGEERecommended spare parts list: service parts. | $34.90/EA | |
| – | TN4081118Replaces Tennant TBFX01283 | HOSE, FRONT SQUEEGEERecommended spare parts list: service parts. | $34.20/EA | |
| – | TN4132734Replaces Tennant KTRI06048 | COVER ASSY, RECOVERY TANK [CS5]Recommended spare parts list: service parts. | $125.30/EA | |
| – | TN4132772Replaces Tennant KTRI06097 | TANK ASM., RECOVERYRecommended spare parts list: service parts. | $130.40/EA | |
| – | TN4137379Replaces Tennant GUGO00622 | GASKET, RECOVERY TANK LIDRecommended spare parts list: service parts. | $14.90/EA | |
| – | TN4132785Replaces Tennant KTRI06104 | TANK ASM., SOLUTIONRecommended spare parts list: service parts. | $165.60/EA | |
| – | TN4132787Replaces Tennant KTRI06105 | VALVE KIT, SUCTIONRecommended spare parts list: service parts. | $52.40/EA | |
| – | TN4132739Replaces Tennant KTRI06057 | BATTERY, LITHIUM ION, 36V, 5.5AHFits CS5, 5.5Ah battery, North America, CS5, 5.5Ah battery, EMEA, CS5, 5.5Ah battery, China / Australia and New Zealand, CS5, 5.5Ah battery, Export APAC. Recommended spare parts list: service parts. | $521.10/EA | |
| – | TN4132741Replaces Tennant KTRI06058 | BATTERY, LITHIUM ION, 36V, 7.5AHFits CS5, 7.5Ah battery, EMEA, CS5, 7.5Ah battery, Australia and New Zealand. Recommended spare parts list: service parts. | $655.04/EA | |
| – | TN4161439Replaces Tennant BACA00263 | CHARGER, BATTERY, 36VDCRecommended spare parts list: service parts. | $123.20/EA | |
| – | TN4053839Replaces Tennant MECB02131 | CORD, POWER, CHARGER, 120V [NA]Fits CS5, 5.5Ah battery, North America. Recommended spare parts list: service parts. | $34.20/EA | |
| – | TN4053838Replaces Tennant MECB02130 | CORD, POWER, CHARGER, 230V [CE]Fits CS5, 5.5Ah battery, EMEA, CS5, 7.5Ah battery, EMEA. Recommended spare parts list: service parts. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4053843Replaces Tennant MECB02135 | CORD, POWER, CHARGER, 230V [UK]Fits CS5, 5.5Ah battery, EMEA, CS5, 7.5Ah battery, EMEA. Recommended spare parts list: service parts. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | TN4053841Replaces Tennant MECB02133 | CORD, POWER, CHARGER, 240V [CN]Fits CS5, 5.5Ah battery, China / Australia and New Zealand. Recommended spare parts list: service parts. | $44.44/EA | |
| – | TN4053842Replaces Tennant MECB02134 | CORD, POWER, CHARGER, 220V [BRZ]Fits CS5, 5.5Ah battery, Export APAC. Recommended spare parts list: service parts. | $34.14/EA | |
| – | TN4053850Replaces Tennant MECB02142 | CORD, POWER, CHARGER, 220V [S KOREA]Fits CS5, 5.5Ah battery, Export APAC. Recommended spare parts list: service parts. | $50.00/EA | |
| – | TN4053888Replaces Tennant MECB02180 | CORD, POWER, CHARGER, 220V [AUS]Fits CS5, 5.5Ah battery, China / Australia and New Zealand, CS5, 7.5Ah battery, Australia and New Zealand. Recommended spare parts list: service parts. | Call to confirm part: 800-440-6723Call 800-440-6723 |

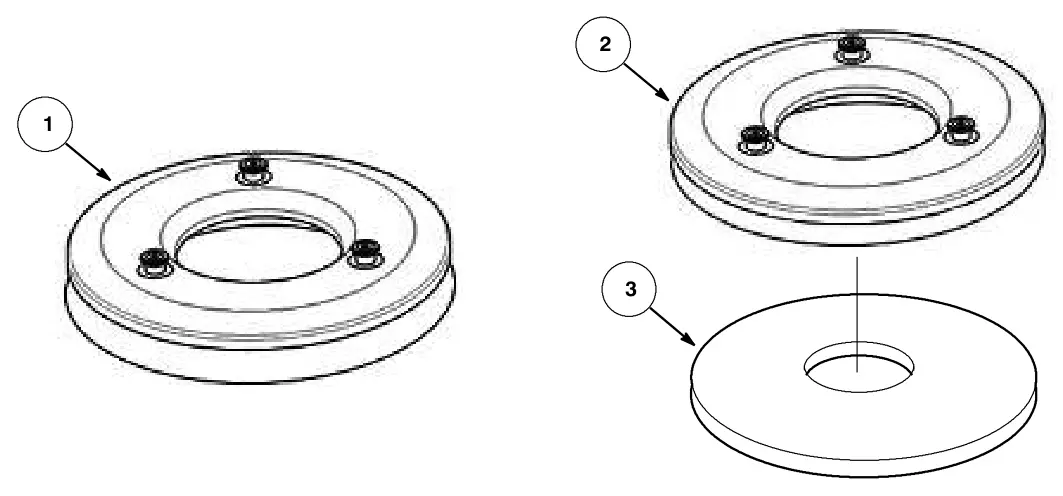

Tennant CS5 brushes / pad driver and pads parts
The parts Tennant numbers on its brushes / pad driver and pads drawing. Manual page 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4111090Replaces Tennant SPPV02438 | 1 | BRUSH, SCB, DISK, 28CM PYP, MED (STANDARD) | $114.40/EA |
| 1 | TN4111427Replaces Tennant SPPV02580 | 1 | BRUSH, SCB, DISK, 28CM PYP, SOFT (OPTION) | $37.30/EA |
| 1 | TN4111428Replaces Tennant SPPV02581 | 1 | BRUSH, SCB, DISK, 28CM PYP, HARD (OPTION) | $39.30/EA |
| 2 | TN4111429Replaces Tennant SPPV02582 | 1 | PAD DRIVER, 28CM (OPTION) | $170.40/EA |
| 3 | TN4111440Replaces Tennant SPPV02583 | 1 | PAD, SCRUB 28CM, WHITE, PKG OF 5 | $93.00/EA |
| 3 | TN4111441Replaces Tennant SPPV02584 | 1 | PAD, SCRUB 28CM, RED, PKG OF 5 | $93.00/EA |

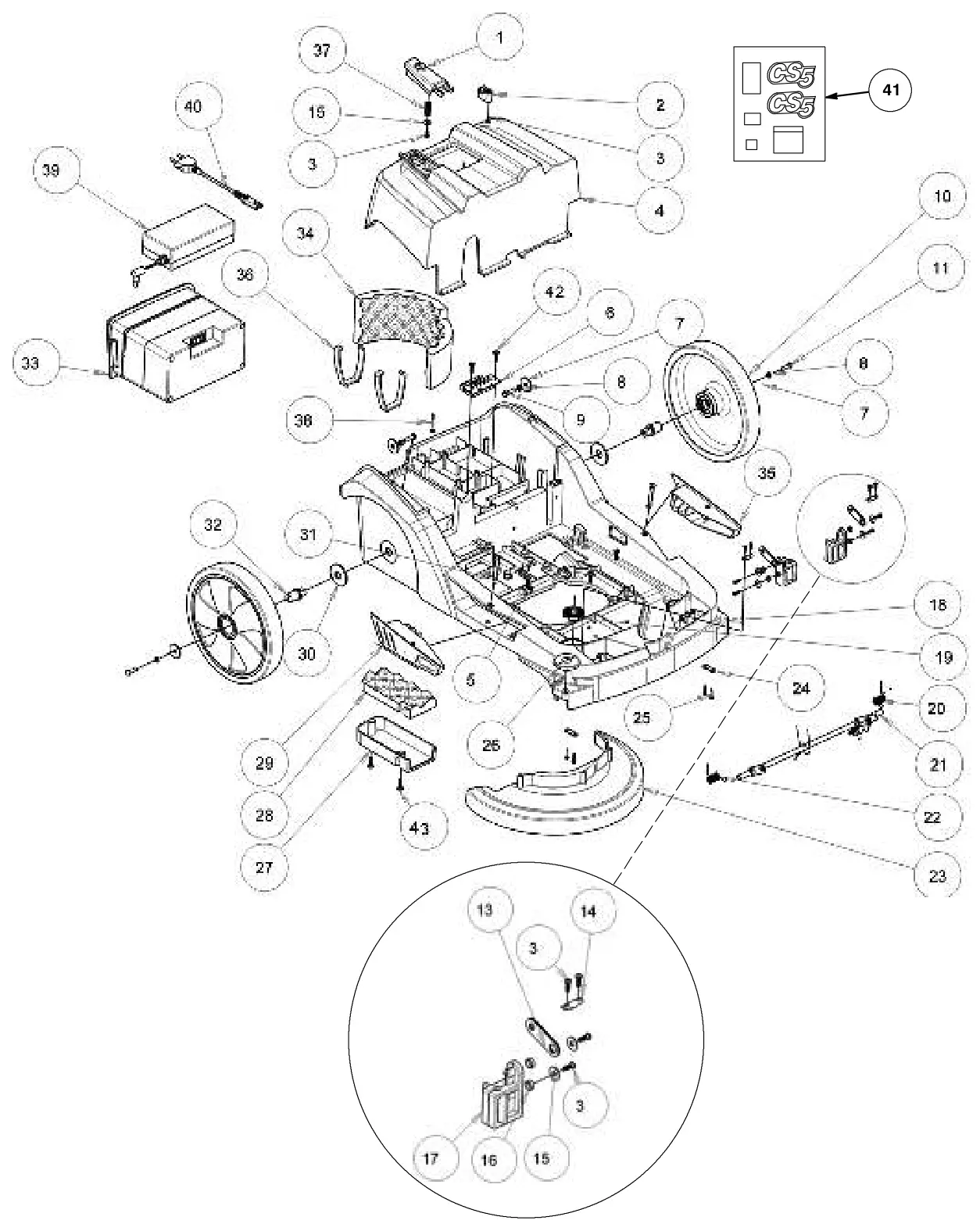

Tennant CS5 frame and battery group parts
The parts Tennant numbers on its frame and battery group drawing. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4072299Replaces Tennant MPVR12254 | 1 | SWITCH ON-OFF CS5 | $3.70/EA |
| 2 | TN4072332Replaces Tennant MPVR12288 | 1 | CONNECT.BRACKET CS5BUTTON ON-OFF | $1.31/EA |
| 3 | TN4051613Replaces Tennant VTVT01494 | 10 | SCREW TC+ M.3,5-10 | $15.25/EA |
| 4 | TN4070596Replaces Tennant MPVR12664 | 1 | CRANKCASE REAR CS5 | $26.46/EA |
| 5 | TN4050549Replaces Tennant 897669 | 9 | SCREW STS KN1031-Neu 4x16 - H2 | $0.65/EA |
| 6 | TN4053691Replaces Tennant MECB02081 | 1 | BOARD, PCB, WIRING [COMPL.] | $79.80/EA |
| 7 | TN4056189Replaces Tennant VTVR00636 | 4 | WASHER 5x20 UNI6593 INOX | $15.25/EA |
| 8 | TN4057487Replaces Tennant 897644 | 4 | WASHER D. 5 INX GRW UNI 1751 | $2.40/EA |
| 9 | TN4048791Replaces Tennant 897170 | 2 | SCREW TE 5X20 | $0.30/EA |
| 10 | TN4123163Replaces Tennant RTRT00708 | 2 | WHEEL D.200 CS5 | $24.80/EA |
| 11 | TN4048790Replaces Tennant 897145 | 2 | SCREW TE 5X16 UNI5739 INX | $3.30/EA |
| 13 | TN4100723Replaces Tennant LAFN11375 | 2 | ARM | $0.81/EA |
| 14 | TN4156360Replaces Tennant ALTR00107 | 2 | SHAFT | $5.96/EA |
| 15 | TN4059106Replaces Tennant VTRS00017 | 5 | WASHER STEEL INOX 4X12 | $2.40/EA |
| 16 | TN4100730Replaces Tennant LAFN11383 | 4 | SPACER | $4.44/EA |
| 17 | TN4072320Replaces Tennant MPVR12274 | 2 | SUPPORT REAR SQUEEGEE CS5 | $17.68/EA |
| 18 | TN4070600Replaces Tennant MPVR12668 | 1 | FRAME CS5 | $38.50/EA |
| 19 | TN4072680Replaces Tennant MPVR12348 | 1 | FILTER CS5 SOLUTION TANK | $10.20/EA |
| 20 | TN4106745Replaces Tennant MLML00508 | 1 | SPRING RH FLOOR WIPER | $0.75/EA |
| 21 | TN4100724Replaces Tennant LAFN11376 | 1 | LEVER | $27.27/EA |
| 22 | TN4106746Replaces Tennant MLML00509 | 1 | SPRING LH FLOOR WIPER | $0.75/EA |
| 23 | TN4075082Replaces Tennant MPVR12228 | 1 | CRANKCASE BRUSH CS5 | $22.83/EA |
| 24 | TN4100725Replaces Tennant LAFN11377 | 2 | PLATE | $1.41/EA |
| 25 | TN4051613Replaces Tennant VTVT01494 | 4 | SCREW TCB 3,5X10 | $15.25/EA |
| 26 | TN4072356Replaces Tennant MPVR12311 | 1 | WHEEL FRONT SQUEEGEE | $16.00/EA |
| 27 | TN4072765Replaces Tennant MPVR12452 | 1 | COVER CS5 | $19.49/EA |
| 28 | TN4135049Replaces Tennant ITSO00107 | 1 | INSULATOR CS5 | $21.82/EA |
| 29 | TN4075076Replaces Tennant MPVR12222 | 1 | LEVER RIGHT | $19.29/EA |
| 30 | TN4057085Replaces Tennant VTRS00612 | 2 | WASHER D.12 X 36 INOX | $2.40/EA |
| 31 | TN4075078Replaces Tennant MPVR12224 | 2 | PIN CS5 | $1.41/EA |
| 32 | TN4156361Replaces Tennant ALTR00108 | 2 | SHAFT | $9.09/EA |
| 33 | TN4132739Replaces Tennant KTRI06057 | 1 | BATTERY, LITHIUM ION 36V, 5.5AHFits CS5, 5.5Ah battery, North America, CS5, 5.5Ah battery, EMEA, CS5, 5.5Ah battery, China / Australia and New Zealand, CS5, 5.5Ah battery, Export APAC. CS5 Call2Recycle Battery Program available in the US and Canada. HELP protect our environment!. | $521.10/EA |
| 33 | TN4132741Replaces Tennant KTRI06058 | 1 | BATTERY, LITHIUM ION 36V, 7.5AHFits CS5, 7.5Ah battery, EMEA, CS5, 7.5Ah battery, Australia and New Zealand. CS5 Call2Recycle Battery Program available in the US and Canada. HELP protect our environment!. | $655.04/EA |
| 34 | TN4135050Replaces Tennant ITSO00108 | 1 | INSULATOR CS5 | $22.73/EA |
| 35 | TN4075077Replaces Tennant MPVR12223 | 1 | LEVER LEFT | $19.19/EA |
| 36 | TN4072766Replaces Tennant MPVR12453 | 2 | SPRING CS5 | $22.93/EA |
| 37 | TN4106749Replaces Tennant MLML00512 | 1 | SPRING CS5 ON-OFF | $1.11/EA |
| 38 | TN4051608Replaces Tennant VTVT01489 | 1 | SCREW TCB-TC 3.5X32 | $3.33/EA |
| 39 | TN4161439Replaces Tennant BACA00263 | 1 | CHARGER, 36VDC (Compatible w/ 5.5AH & 7.5Ah Battery) | $123.20/EA |
| 40 | TN4053839Replaces Tennant MECB02131 | 1 | CORD, POWER, CHRGR, 120V [NA]Fits CS5, 5.5Ah battery, North America. | $34.20/EA |
| 40 | TN4053838Replaces Tennant MECB02130 | 1 | CORD, POWER, CHRGR, 230V [CE]Fits CS5, 5.5Ah battery, EMEA, CS5, 7.5Ah battery, EMEA. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 40 | TN4053843Replaces Tennant MECB02135 | 1 | CORD, POWER, CHRGR, 230V [UK]Fits CS5, 5.5Ah battery, EMEA, CS5, 7.5Ah battery, EMEA. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 40 | TN4053841Replaces Tennant MECB02133 | 1 | CORD, POWER, CHRGR, 240V [CN]Fits CS5, 5.5Ah battery, China / Australia and New Zealand. | $44.44/EA |
| 40 | TN4053888Replaces Tennant MECB02180 | 1 | CORD, POWER, CHRGR, 240V [AUS]Fits CS5, 5.5Ah battery, China / Australia and New Zealand, CS5, 7.5Ah battery, Australia and New Zealand. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 40 | TN4053842Replaces Tennant MECB02134 | 1 | CORD, POWER, CHRGR, 220V [BRZ]Fits CS5, 5.5Ah battery, Export APAC. | $34.14/EA |
| 40 | TN4053850Replaces Tennant MECB02142 | 1 | CORD, POWER, CHRGR, 220V [S KOREA]Fits CS5, 5.5Ah battery, Export APAC. | $50.00/EA |
| 41 | TN4132849Replaces Tennant KTRI06198 | 1 | LABEL KIT, MACHINE, CS5 | $82.42/EA |
| 42 | TN4051846Replaces Tennant 897574 | 2 | SCREW, TCB, TC, M5X10, UNI9707, TZ | $3.33/EA |
| 43 | TN4051610Replaces Tennant VTVT01491 | 2 | SCREW STS KN1031-Neu 4x16 - H2 | $3.33/EA |

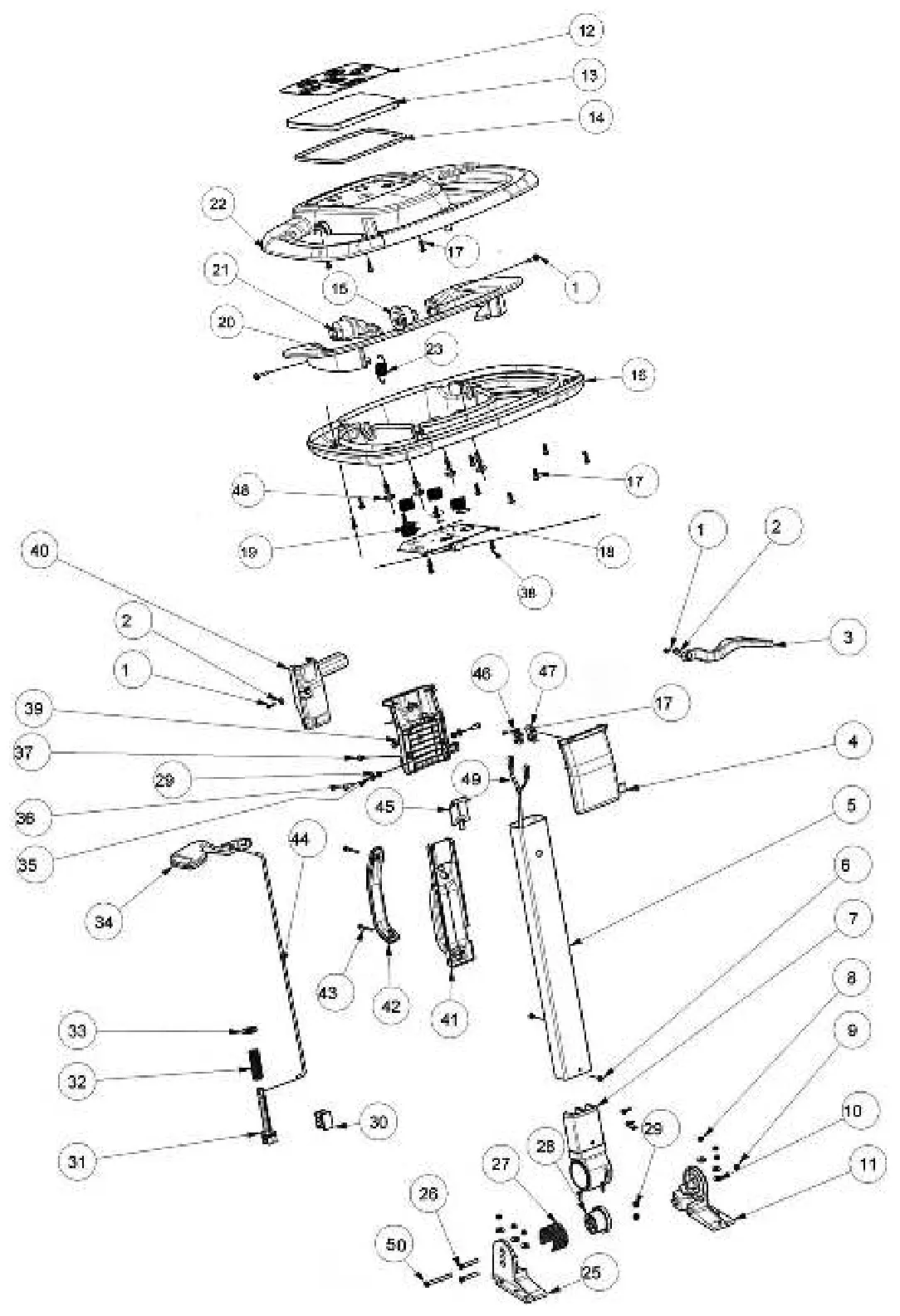

Tennant CS5 control handle group parts
The parts Tennant numbers on its control handle group drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4049335Replaces Tennant VTVT28553 | 4 | SCREW TCB-TC 3.5X16 | $3.30/EA |
| 2 | TN4059106Replaces Tennant VTRS00017 | 2 | WASHER STEEL INOX 4X12 | $2.40/EA |
| 3 | TN4072313Replaces Tennant MPVR12269 | 1 | LEVER CS5 | $5.80/EA |
| 4 | TN4070603Replaces Tennant MPVR12671 | 1 | SUPPORT ANTERIOR BOARD CS5 | $7.60/EA |
| 5 | TN4117998Replaces Tennant MFVR00317 | 1 | HANDLE ALUMINIUM CS5 | $57.37/EA |
| 6 | TN4051846Replaces Tennant 897574 | 2 | SCREW SELF TAPPING 4.8X9.5 SUS | $3.33/EA |
| 7 | TN4072305Replaces Tennant MPVR12260 | 1 | ARTICULATION HANDLE CS5 | $9.50/EA |
| 8 | TN4000052Replaces Tennant VTDD01693 | 6 | NUT, M5, INOX | $2.80/EA |
| 9 | TN4058469Replaces Tennant VTDD01699 | 1 | NUT M6 INOX+ZINC.B. | $0.30/EA |
| 10 | TN4057471Replaces Tennant 897384 | 6 | WASHER D. 5X14 INX | $2.40/EA |
| 11 | TN4072304Replaces Tennant MPVR12259 | 1 | SUPPORT HANDLE CS5 | $52.00/EA |
| 12 | TN4142347Replaces Tennant ETET16760 | 1 | LABEL, CONSOLE | $6.77/EA |
| 13 | TN4072324Replaces Tennant MPVR12278 | 1 | GLASS BOARD CS5 | $4.85/EA |
| 14 | TN4137377Replaces Tennant GUGO00620 | 1 | MOUSSE BOARD CS5 | $1.31/EA |
| 15 | TN4072327Replaces Tennant MPVR12281 | 1 | BLADE LH PADDLE CS5 | $12.93/EA |
| 16 | TN4070608Replaces Tennant MPVR12676 | 1 | BASE CS5 BOARD | $18.65/EA |
| 17 | TN4051613Replaces Tennant VTVT01494 | 15 | SCREW TC+ M.3,5-10 | $15.25/EA |
| 18 | TN4046433Replaces Tennant MECE00813 | 1 | BOARD MAIN RV1 CS5 | $68.74/EA |
| 19 | TN4106753Replaces Tennant MLML00518 | 4 | SPRING TOUCH CS5 | $0.71/EA |
| 20 | TN4072311Replaces Tennant MPVR12266 | 1 | LEVER CS5 | $17.98/EA |
| 21 | TN4072326Replaces Tennant MPVR12280 | 1 | BLADE RH PADDLE CS5 | $13.23/EA |
| 22 | TN4070607Replaces Tennant MPVR12675 | 1 | BOARD CS5 | $22.10/EA |
| 23 | TN4106742Replaces Tennant MLML00505 | 1 | SPRING PADDLE | $1.41/EA |
| 25 | TN4072303Replaces Tennant MPVR12258 | 1 | SUPPORT HANDLE CS5 | $52.00/EA |
| 26 | TN4051607Replaces Tennant VTVT01488 | 2 | SCREW M6X40 UNI933 A2 | $0.35/EA |
| 27 | TN4100755Replaces Tennant LAFN11415 | 18 | PIN HANDLE CS5 | $0.70/EA |
| 28 | TN4072333Replaces Tennant MPVR12289 | 1 | BLOCK CS5BUTTON ON-OFF | $2.53/EA |
| 29 | TN4048143Replaces Tennant 897105 | 4 | NUT M6 INOX+ZIN. | $2.80/EA |
| 30 | TN4118003Replaces Tennant MFVR00320 | 1 | SUPPORT | $3.30/EA |
| 31 | TN4072306Replaces Tennant MPVR12261 | 1 | RACK HANDLE CS5 | $1.25/EA |
| 32 | TN4106740Replaces Tennant MLML00503 | 1 | SPRING BLOCK ARTICULATION HANDLE | $1.10/EA |
| 33 | TN4059307Replaces Tennant 897538 | 1 | WASHER D.14 | $0.20/EA |
| 34 | TN4072315Replaces Tennant MPVR12270 | 1 | LEVER CS5 | $6.80/EA |
| 35 | TN4059304Replaces Tennant 897106 | 2 | WASHER D.6 UNI 6592 INOX | $2.50/EA |
| 36 | TN4053542Replaces Tennant 897446 | 2 | SCREW TBEI M 6-16 | $3.30/EA |
| 37 | TN4051611Replaces Tennant VTVT01492 | 2 | SCREW STS KN1038 5x16 - T20 | $23.33/EA |
| 38 | TN4051864Replaces Tennant VTVT01717 | 3 | SCREW M3x8 UNI9707 ZN | $15.25/EA |
| 39 | TN4070602Replaces Tennant MPVR12670 | 1 | SUPPORT REAR BOARD CS5 | $7.70/EA |
| 40 | TN4070601Replaces Tennant MPVR12669 | 1 | LEVER ANTERIOR SQUEEGEE CS5 | $49.39/EA |
| 41 | TN4070606Replaces Tennant MPVR12674 | 1 | SUPPORT OUTLET HANDLE CS5 | $6.20/EA |
| 42 | TN4070605Replaces Tennant MPVR12673 | 1 | COVERING OUTLET HANDLE CS5 | $3.94/EA |
| 43 | TN4053741Replaces Tennant VTVT00890 | 2 | SCREW TC+ M.4-40 | $3.33/EA |
| 44 | TN4100741Replaces Tennant LAFN11397 | 1 | ROD CS5 HANDLE | $4.90/EA |
| 45 | TN4070604Replaces Tennant MPVR12672 | 1 | CAP OUTLET HANDLE CS5 | $2.53/EA |
| 46 | TN4131304Replaces Tennant MECI00588 | 1 | MICROSWITCH | $12.80/EA |
| 47 | TN4072790Replaces Tennant MPVR12486 | 1 | SUPPORT CS5 | $1.21/EA |
| 48 | TN4050551Replaces Tennant VTVT01073 | 4 | SCREW STS KN1039 6x16 - T25 A2 | $3.30/EA |
| 49 | TN4053693Replaces Tennant MECB02082 | 1 | WIRING, DISPLAY, CS5 | $40.10/EA |
| 50 | TN4051603Replaces Tennant VTVT01484 | 1 | SCREW TCEI 6X60 INOX | $23.33/EA |
Tennant CS5 squeegee diverter valve group parts

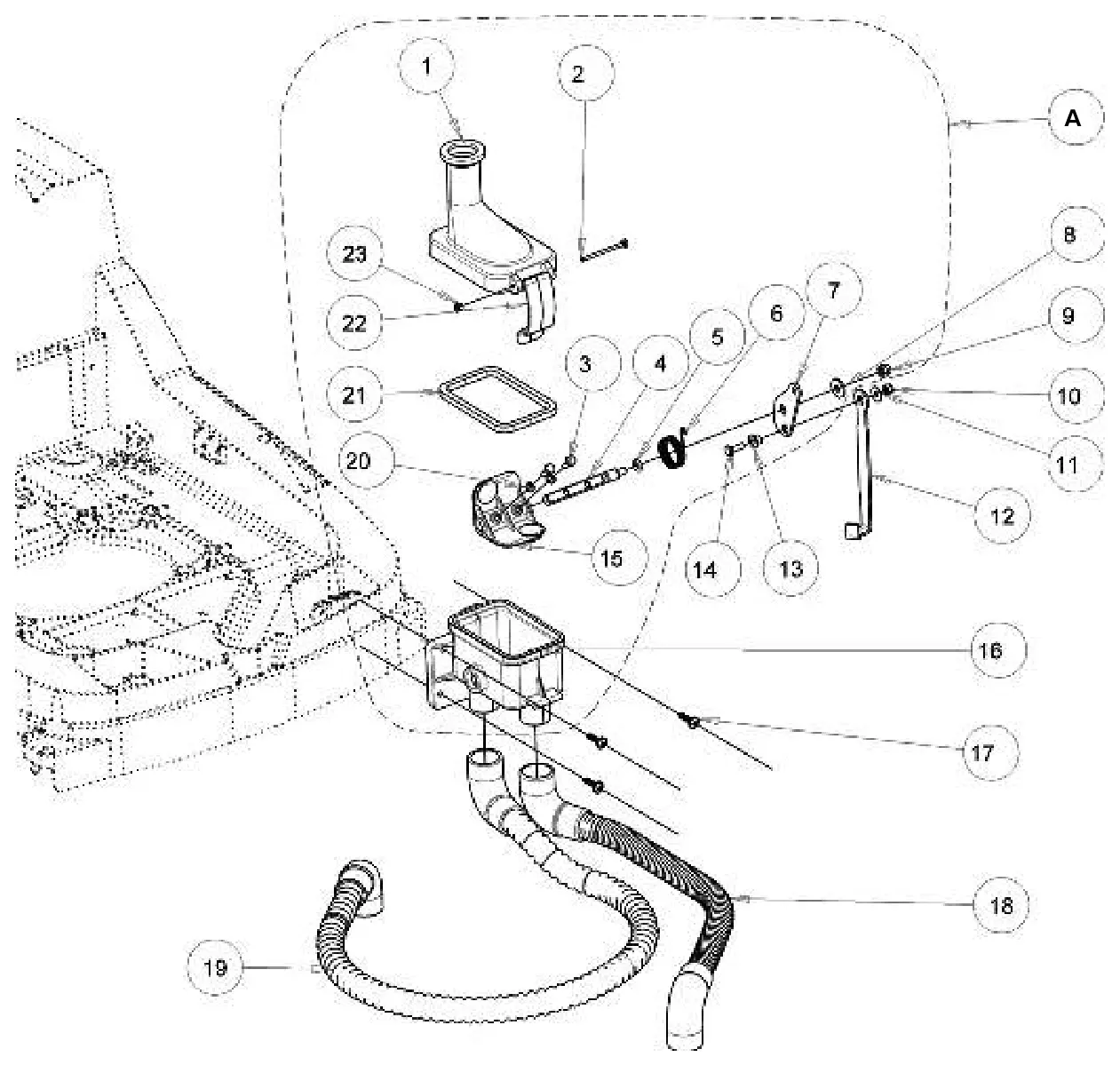

The parts Tennant numbers on its squeegee diverter valve group drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| A | TN4132787Replaces Tennant KTRI06105 | 1 | VALVE KIT, SUCTION [CS5]Complete assembly. | $52.40/EA |
| 1 | TN4072301Replaces Tennant MPVR12256 | 1 | COVER VALVE CS5Part of Valve Kit, Suction (KTRI06105). | $5.15/EA |
| 2 | Not sold separatelyTennant N/A | 1 | SCREW M3X40 A2 CROSSHEADPart of Valve Kit, Suction (KTRI06105). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Valve kit, suction (TN4132787) |
| 3 | TN4049104Replaces Tennant 897151 | 2 | SCREW TE M 4X 10 INXPart of Valve Kit, Suction (KTRI06105). | $3.30/EA |
| 4 | Not sold separatelyTennant N/A | 1 | SHAFTPart of Valve Kit, Suction (KTRI06105). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Valve kit, suction (TN4132787) |
| 5 | Not sold separatelyTennant N/A | 1 | O-RING NBR70 5,8X1,78Part of Valve Kit, Suction (KTRI06105). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Valve kit, suction (TN4132787) |
| 6 | TN4106747Replaces Tennant MLML00510 | 1 | SPRING VALVEPart of Valve Kit, Suction (KTRI06105). | $1.21/EA |
| 7 | Not sold separatelyTennant N/A | 1 | BRACKETPart of Valve Kit, Suction (KTRI06105). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Valve kit, suction (TN4132787) |
| 8 | TN4057471Replaces Tennant 897384 | 1 | WASHER D. 5X14 INXPart of Valve Kit, Suction (KTRI06105). | $2.40/EA |
| 9 | TN4058803Replaces Tennant VTDD15517 | 1 | NUT M 5 INXPart of Valve Kit, Suction (KTRI06105). | $2.83/EA |
| 10 | TN4048141Replaces Tennant 897276 | 1 | NUT M 4 ATB A2 | $2.80/EA |
| 11 | TN4059106Replaces Tennant VTRS00017 | 1 | WASHER STEEL INOX 4X12 | $2.40/EA |
| 12 | TN4100720Replaces Tennant LAFN11372 | 1 | LEVER | $4.50/EA |
| 13 | TN4100738Replaces Tennant LAFN11392 | 1 | SPACERPart of the assembly above. | $3.43/EA |
| 14 | TN4053573Replaces Tennant 897453 | 1 | SCREW TE M4x12 UNI 5739 INOXPart of the assembly above. | $3.30/EA |
| 15 | Not sold separatelyTennant N/A | 1 | VALVE CS5Part of the assembly above. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes itCall 800-440-6723 |
| 16 | Not sold separatelyTennant N/A | 1 | BODY VALVE CS5Part of the assembly above. | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Call 800-440-6723 for the assembly that includes itCall 800-440-6723 |
| 17 | TN4050549Replaces Tennant 897669 | 3 | SCREW STS KN1031-Neu 4x16 - H2 | $0.65/EA |
| 18 | TN4081118Replaces Tennant TBFX01283 | 1 | HOSE, FRONT SQUEEGEE | $34.20/EA |
| 19 | TN4081117Replaces Tennant TBFX01282 | 1 | HOSE, REAR SQUEEGEE | $34.90/EA |
| 20 | TN4057489Replaces Tennant 897204 | 2 | WASHER D. 4 GROVER A2 UNI1751Part of the assembly above. | $2.40/EA |
| 21 | TN4137378Replaces Tennant GUGO00621 | 1 | GASKET CS5Part of the assembly above. | $1.80/EA |
| 22 | TN4072329Replaces Tennant MPVR12283 | 1 | CAP CS5Part of the assembly above. | $1.90/EA |
| 23 | TN4060865Replaces Tennant 9018496 | 1 | NUT M 3 AUTOBL.DIN 985 IX.A2Part of the assembly above. | $2.80/EA |
Tennant CS5 brush motor group parts

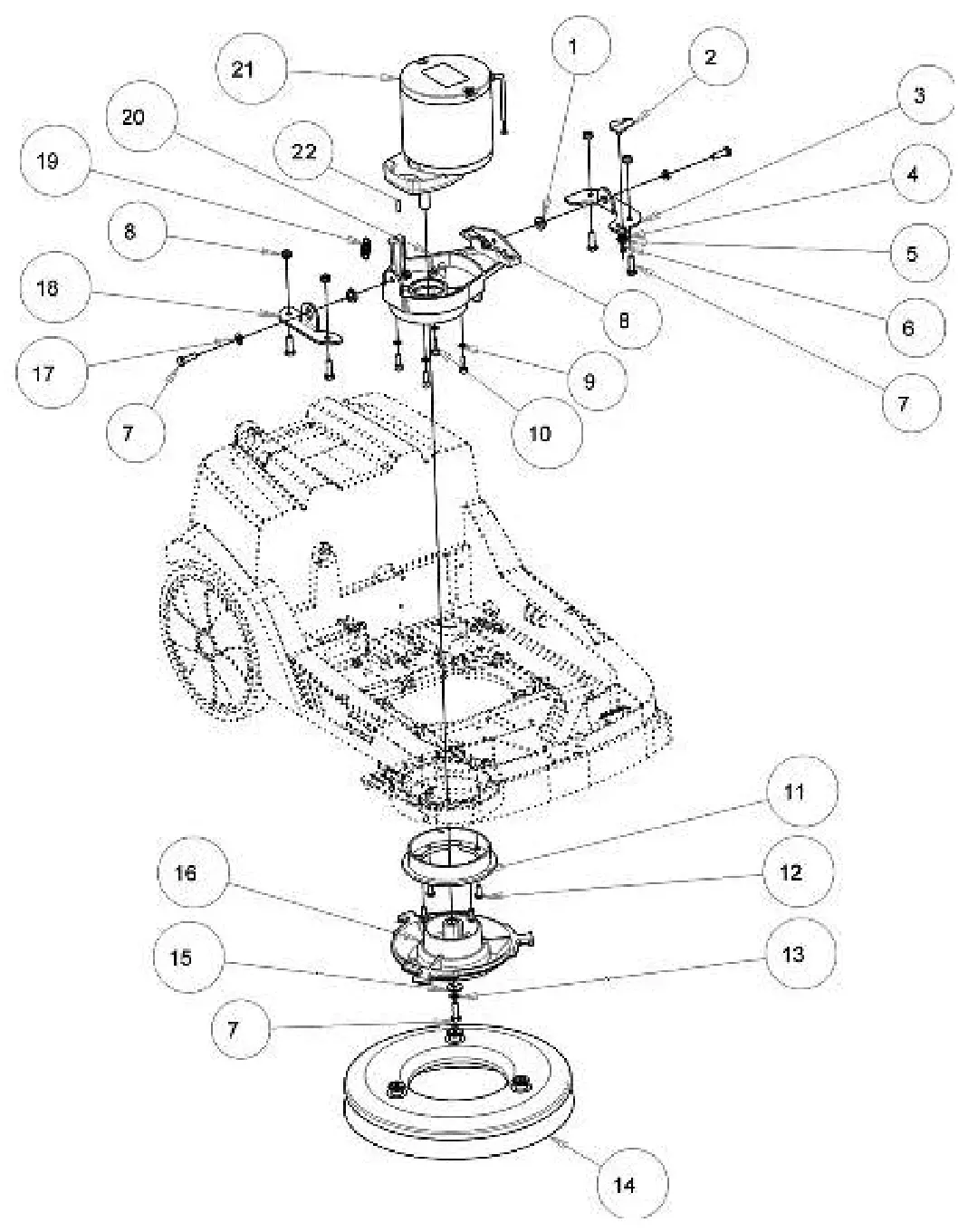

The parts Tennant numbers on its brush motor group drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4100726Replaces Tennant LAFN11378 | 2 | SPACER | $4.34/EA |
| 2 | TN4072789Replaces Tennant MPVR12485 | 1 | SMALL KNOB CS5 | $1.21/EA |
| 3 | TN4100721Replaces Tennant LAFN11373 | 1 | BRACKET | $3.74/EA |
| 4 | TN4106755Replaces Tennant MLML00524 | 1 | SPRING LEVER TRACTION CS5 | $10.30/EA |
| 5 | TN4059501Replaces Tennant 897156 | 1 | WASHER D. 4 INX | $2.40/EA |
| 6 | TN4053576Replaces Tennant VTVT00820 | 1 | SCREW TC+ M.3,5-10 | $3.33/EA |
| 7 | TN4048866Replaces Tennant 897287 | 7 | SCREW TE 6X20 UNI5739 INX | $0.30/EA |
| 8 | TN4048143Replaces Tennant 897105 | 6 | NUT M6 INOX+ZIN. | $2.80/EA |
| 9 | TN4057487Replaces Tennant 897644 | 4 | WASHER D. 5 INX GRW UNI 1751 | $2.40/EA |
| 10 | TN4049078Replaces Tennant VTVT17720 | 4 | SCREW TCEI M 5X16 INOX | $3.30/EA |
| 11 | TN4075083Replaces Tennant MPVR12229 | 1 | FLANGE SQUEEGEE CS5 | $21.11/EA |
| 12 | TN4048859Replaces Tennant VTVT13795 | 4 | SCREW TCB-TC 5X12 SW.FORM | $17.57/EA |
| 13 | TN4057479Replaces Tennant 897129 | 1 | WASHER D. 6 INX GRW UNI 1751 | $2.50/EA |
| 14 | TN4111090Replaces Tennant SPPV02438 | 1 | BRUSH, SCB, DISK, 28CM PYP, MED (STANDARD) | $114.40/EA |
| 15 | TN4057474Replaces Tennant 897112 | 1 | WASHER D. 6X18 INX UNI 6593 | $2.50/EA |
| 16 | TN4117986Replaces Tennant MFVR00305 | 1 | DRIVE DISK CS5 | $16.55/EA |
| 17 | TN4059304Replaces Tennant 897106 | 2 | WASHER D.6 UNI 6592 INOX | $2.50/EA |
| 18 | TN4100722Replaces Tennant LAFN11374 | 1 | BRACKET | $3.74/EA |
| 19 | TN4106741Replaces Tennant MLML00504 | 1 | SPRING MOTOR BRUSH | $1.21/EA |
| 20 | TN4117985Replaces Tennant MFVR00304 | 1 | SUPPORT CS5 | $18.79/EA |
| 21 | TN4132991Replaces Tennant KTRI06361 | 1 | MOTOR, BRUSH 100W, W/KEY [MOCC00477]Complete assembly. | $537.40/EA |
| – | TN4132789Replaces Tennant KTRI06106 | 1 | VR, BRUSH, MOTOR 4 PCS=1KIT [CS5] | $36.08/EA |
| 22 | TN4054522Replaces Tennant VTVR29979 | 1 | KEY, 6604 4X4X15, MOTORPart of the assembly above. | $6.20/EA |
Tennant CS5 vacuum motor group parts

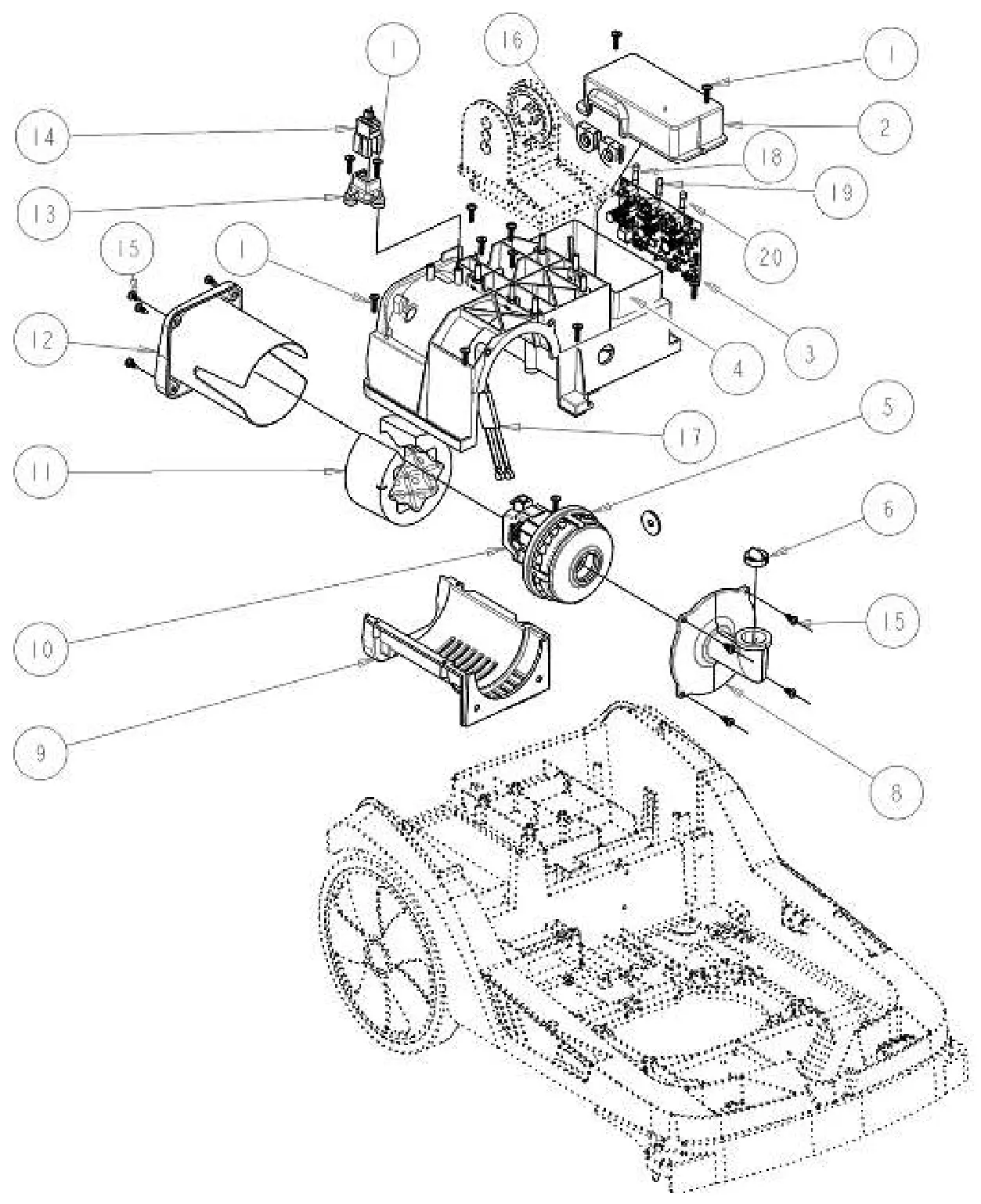

The parts Tennant numbers on its vacuum motor group drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4051610Replaces Tennant VTVT01491 | 21 | SCREW STS KN1031-Neu 4x16 - H2 | $3.33/EA |
| 2 | TN4072298Replaces Tennant MPVR12253 | 1 | COVER ELETTRONIC BOARD CS5 | $4.44/EA |
| 3 | TN4046434Replaces Tennant MECE00814 | 1 | BOARD MAIN RV1 CS5 36VDC | $146.30/EA |
| 3 | TN4053691Replaces Tennant MECB02081 | 1 | WIRING CT5 COMPL.(BOARD+WIRES) | $79.80/EA |
| 4 | TN4072292Replaces Tennant MPVR12247 | 1 | SUPPORT VACUUM MOTOR CS5 | $23.53/EA |
| 5 | TN4072297Replaces Tennant MPVR12252 | 1 | GASKET VACUUM MOTOR CS5 | $8.10/EA |
| 6 | TN4072788Replaces Tennant MPVR12484 | 1 | FILTER, AIR INLET [CS5] | $9.20/EA |
| 8 | TN4072294Replaces Tennant MPVR12249 | 1 | FLANGE VACUUM MOTOR CS5 | $4.85/EA |
| 9 | TN4072293Replaces Tennant MPVR12248 | 1 | SUPPORT LOWER VACUUM MOTOR CS5 | $6.97/EA |
| 10 | TN4105191Replaces Tennant MOCC00481 | 1 | VACUUM CS5 | $52.40/EA |
| 11 | TN4135051Replaces Tennant ITSO00109 | 1 | INSULATOR CS5 | $2.40/EA |
| 12 | TN4070609Replaces Tennant MPVR12677 | 1 | FLANGE VACUUM MOTOR CS5 | $9.95/EA |
| 13 | TN4072334Replaces Tennant MPVR12290 | 1 | SUPPORT BUTTON | $1.31/EA |
| 14 | TN4131336Replaces Tennant MECI00681 | 1 | SWITCH CS5 | $11.00/EA |
| 15 | TN4049995Replaces Tennant VTVT48694 | 8 | SCREW TCB TC 5 X12 UNI 9707 TZ | $3.30/EA |
| 16 | TN4121061Replaces Tennant MEVR02904 | 2 | FAIR, LEAD | $46.97/EA |
| 17 | TN4053854Replaces Tennant MECB02146 | 1 | WIRING, VACUUM MOTOR, CS5 | $8.38/EA |
| 18 | TN4120823Replaces Tennant MEVR02701 | 1 | FUSE 5X20 F2A | $1.30/EA |
| 19 | TN4121478Replaces Tennant MEVR01127 | 1 | FUSE 5X20 5A F | $1.31/EA |
| 20 | TN4118539Replaces Tennant MEVR04016 | 1 | FUSE 5X20 6.3A T | $2.63/EA |
Tennant CS5 tank group parts

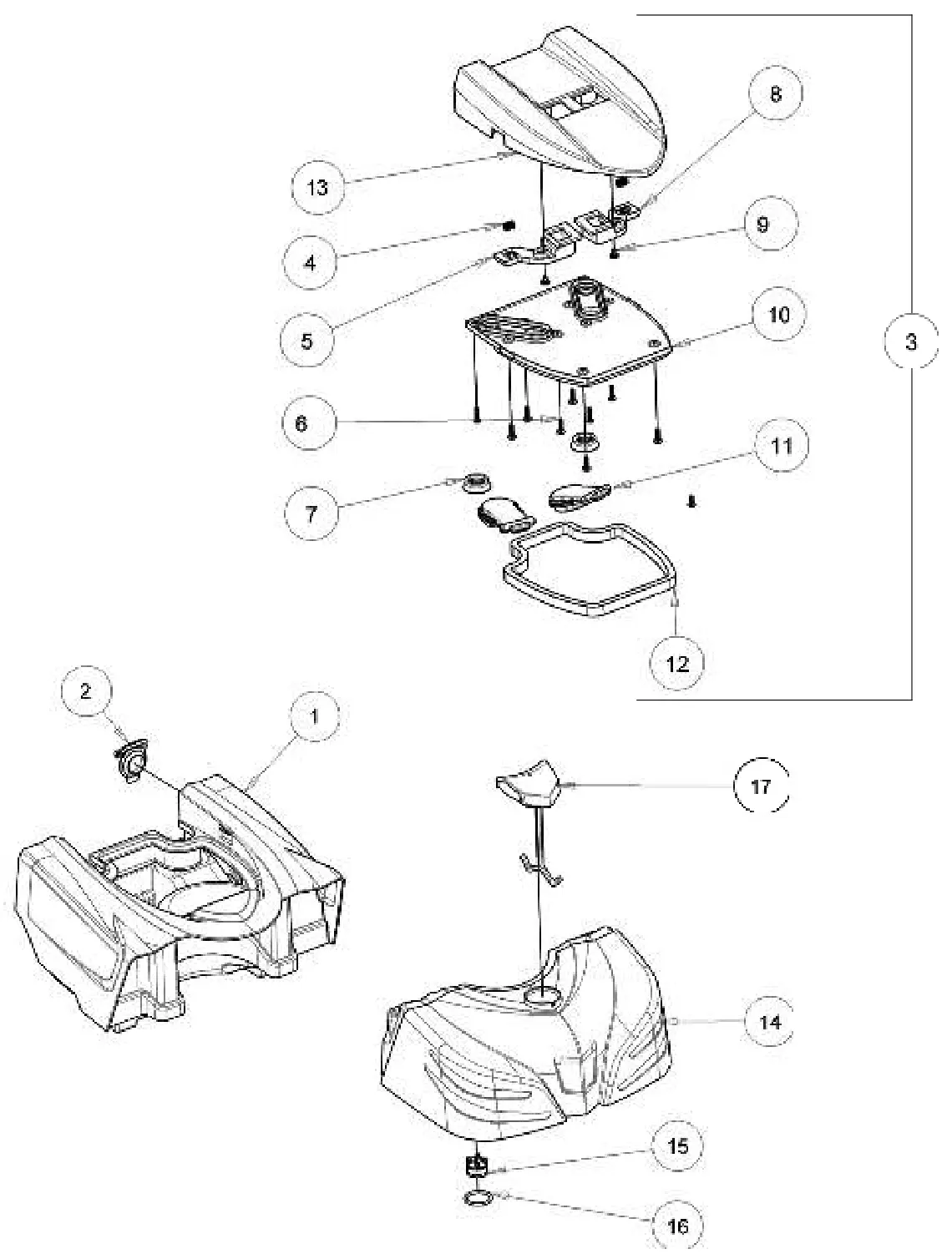

The parts Tennant numbers on its tank group drawing. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4132772Replaces Tennant KTRI06097 | 1 | TANK ASSY, RECOVERY [CS5]Complete assembly. | $130.40/EA |
| 2 | TN4072328Replaces Tennant MPVR12282 | 1 | CAP CS5Part of Tank Asm., Recovery (KTRI06097). | $11.80/EA |
| 3 | TN4132734Replaces Tennant KTRI06048 | 1 | COVER ASSY, RECOVERY TANK [CS5]Complete assembly. | $125.30/EA |
| 4 | TN4106748Replaces Tennant MLML00511 | 2 | SPRING CS5 COVERPart of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $1.21/EA |
| 5 | TN4075092Replaces Tennant MPVR12238 | 1 | LEVER LEFTPart of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $23.03/EA |
| 6 | TN4050549Replaces Tennant 897669 | 10 | SCREW STS KN1031-Neu 4x16 - H2Part of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $0.65/EA |
| 7 | TN4072870Replaces Tennant MPVR12539 | 2 | GASKET COVER EPDM CS5Part of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $1.80/EA |
| 8 | TN4075091Replaces Tennant MPVR12237 | 1 | LEVER RIGHTPart of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $4.25/EA |
| 9 | TN4051846Replaces Tennant 897574 | 2 | SCREW SELF TAPPING 4.8X9.5 SUSPart of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $3.33/EA |
| 10 | Not sold separatelyTennant N/A | 1 | BASE COVER RECOVERY TANK CS5Part of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Cover assy, recovery tank [cs5] (TN4132734) |
| 11 | TN4072323Replaces Tennant MPVR12277 | 2 | FLOATER CS5Part of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $17.37/EA |
| 12 | TN4137379Replaces Tennant GUGO00622 | 1 | GASKET CS5Part of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | $14.90/EA |
| 13 | Not sold separatelyTennant N/A | 1 | COVER RECOVERY TANK CS5Part of Cover Assy, Recovery Tank [Cs5] (KTRI06048). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Cover assy, recovery tank [cs5] (TN4132734) |
| 14 | TN4132785Replaces Tennant KTRI06104 | 1 | TANK ASSY, SOLUTION [CS5]Complete assembly. | $165.60/EA |
| 15 | TN4072682Replaces Tennant MPVR12350 | 1 | VALVE D25Part of Tank Asm., Solution (KTRI06104). | $30.80/EA |
| 16 | TN4137376Replaces Tennant GUGO00618 | 1 | O-RING NBR70 4106 EPDM70Part of Tank Asm., Solution (KTRI06104). | $1.90/EA |
| 17 | TN4072291Replaces Tennant MPVR12246 | 1 | CAP SOLUTION TANK CS5Part of Tank Asm., Solution (KTRI06104). | $7.88/EA |
Tennant CS5 squeegee group parts

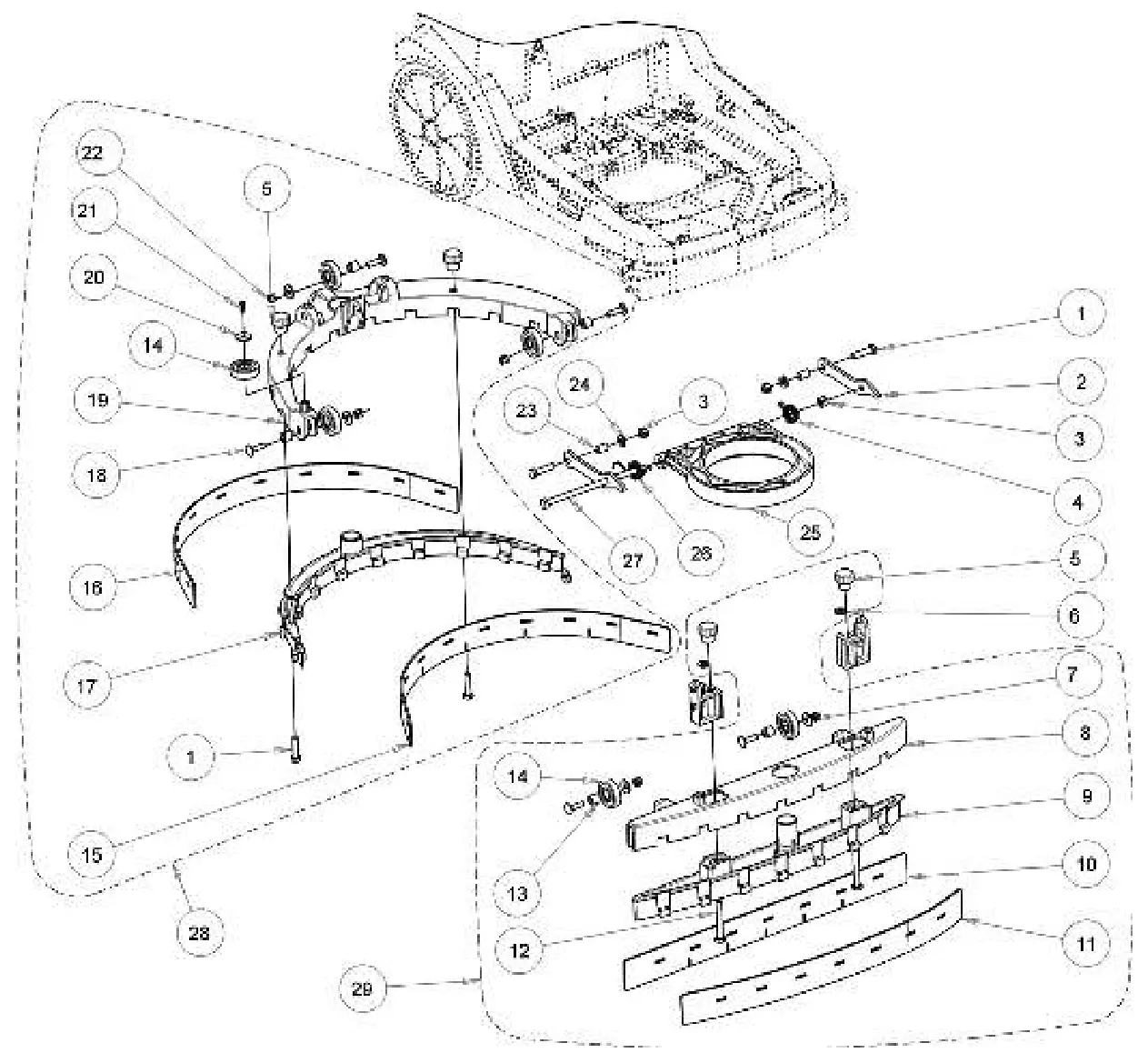

The parts Tennant numbers on its squeegee group drawing. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4048880Replaces Tennant 897532 | 4 | SCREW TE M 6X 25 UNI 5739 INX | $3.30/EA |
| 2 | TN4100727Replaces Tennant LAFN11380 | 2 | BRACKET | $4.55/EA |
| 3 | TN4048143Replaces Tennant 897105 | 3 | NUT M6 INOX+ZIN. | $2.80/EA |
| 4 | TN4106743Replaces Tennant MLML00506 | 1 | SPRING RH FLOOR WIPER | $2.12/EA |
| 5 | TN4072679Replaces Tennant MPVR12347 | 4 | SMALL KNOB CS5 SQUEEGEE | $8.90/EA |
| 6 | TN4057479Replaces Tennant 897129 | 2 | WASHER D. 6 INX GRW UNI 1751 | $2.50/EA |
| 7 | TN4057471Replaces Tennant 897384 | 5 | WASHER D. 5X14 INX | $2.40/EA |
| 8 | TN4075087Replaces Tennant MPVR12233 | 1 | BODY FRONT SQUEEGEE CS5 | $36.50/EA |
| 9 | TN4075088Replaces Tennant MPVR12234 | 1 | JOINT FRONT SQUEEGEE CS5 | $25.50/EA |
| – | TN4132809Replaces Tennant KTRI06148 | 1 | BLADE KIT, SQUEEGEE, 28CM, LINATEX, STRAIGHT [STD]Complete assembly. | $25.00/EA |
| 10 | Not sold separatelyTennant N/A | 1 | BLADE, SQUEEGEE, STRAIGHT, REAR, LINATEXPart of Blade Kit, Squeegee, 28Cm, Linatex, Front [Standard] (KTRI06148). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, linatex, front [standard] (TN4132809) |
| 11 | Not sold separatelyTennant N/A | 1 | BLADE, SQUEEGEE, STRAIGHT, FRONT, LINATEXPart of Blade Kit, Squeegee, 28Cm, Linatex, Front [Standard] (KTRI06148). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, linatex, front [standard] (TN4132809) |
| – | TN4132811Replaces Tennant KTRI06150 | 1 | BLADE KIT, SQGE, 28CM, GUM RUB, STRAIGHT [OPTION]Complete assembly. | $10.00/EA |
| 10 | Not sold separatelyTennant N/A | 1 | BLADE, SQUEEGEE, STRAIGHT, REAR, GUM RUBBERPart of Blade Kit, Squeegee, 28Cm, Gum Rubber, Front [Option] (KTRI06150). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, gum rubber, front [option] (TN4132811) |
| 11 | Not sold separatelyTennant N/A | 1 | BLADE, SQUEEGEE, STRAIGHT, FRONT, GUM RUBBERPart of Blade Kit, Squeegee, 28Cm, Gum Rubber, Front [Option] (KTRI06150). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, gum rubber, front [option] (TN4132811) |
| – | TN4132814Replaces Tennant KTRI06152 | 1 | BLADE KIT, SQGE, 28CM, PYU, STRAIGHT [OPTION]Complete assembly. | $30.00/EA |
| 10 | Not sold separatelyTennant N/A | 1 | BLADE, SQUEEGEE, STRAIGHT, REAR, PYUPart of Blade Kit, Squeegee, 28Cm, Pyu, Front [Option] (KTRI06152). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, pyu, front [option] (TN4132814) |
| 11 | Not sold separatelyTennant N/A | 1 | BLADE, SQUEEGEE, STRAIGHT, FRONT, PYUPart of Blade Kit, Squeegee, 28Cm, Pyu, Front [Option] (KTRI06152). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, pyu, front [option] (TN4132814) |
| 12 | TN4048881Replaces Tennant 897450 | 2 | SCREW TE M 6x45 INOX | $3.30/EA |
| 13 | TN4100728Replaces Tennant LAFN11381 | 5 | SPACER | $4.90/EA |
| 14 | TN4072203Replaces Tennant MPVR12239 | 6 | WHEEL CS5 | $15.30/EA |
| – | TN4132810Replaces Tennant KTRI06149 | 1 | BLADE KIT, SQGE, 28CM, LINATEX, PARABOLIC [STD]Complete assembly. | $25.00/EA |
| 15 | Not sold separatelyTennant N/A | 1 | BLADE, SQGE, PARABOLIC, FRONT, LINATEXPart of Blade Kit, Squeegee, 28Cm, Linatex, Rear [Standard] (KTRI06149). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, linatex, rear [standard] (TN4132810) |
| 16 | Not sold separatelyTennant N/A | 1 | BLADE, SQGE, PARABOLIC, REAR, LINATEXPart of Blade Kit, Squeegee, 28Cm, Linatex, Rear [Standard] (KTRI06149). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, linatex, rear [standard] (TN4132810) |
| – | TN4132812Replaces Tennant KTRI06151 | 1 | BLADE KIT, SQGE, 28CM, GUM RUB, PARABOLIC [OPTION]Complete assembly. | $10.00/EA |
| 15 | Not sold separatelyTennant N/A | 1 | BLADE, SQGE, PARABOLIC, FRONT, GUM BUBBERPart of Blade Kit, Squeegee, 28Cm, Gum Rubber, Rear [Option] (KTRI06151). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, gum rubber, rear [option] (TN4132812) |
| 16 | Not sold separatelyTennant N/A | 1 | BLADE, SQGE, PARABOLIC, REAR, GUM RUBBERPart of Blade Kit, Squeegee, 28Cm, Gum Rubber, Rear [Option] (KTRI06151). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, gum rubber, rear [option] (TN4132812) |
| – | TN4132815Replaces Tennant KTRI06153 | 1 | BLADE KIT, SQGE, 28CM, PYU, PARABOLIC [OPTION]Complete assembly. | $30.00/EA |
| 15 | Not sold separatelyTennant N/A | 1 | BLADE, SQGE, PARABOLIC, FRONT, PYUPart of Blade Kit, Squeegee, 28Cm, Pyu, Rear [Option] (KTRI06153). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, pyu, rear [option] (TN4132815) |
| 16 | Not sold separatelyTennant N/A | 1 | BLADE, SQGE, PARABOLIC REAR, PYUPart of Blade Kit, Squeegee, 28Cm, Pyu, Rear [Option] (KTRI06153). | Not sold separately. Tennant prints N/A: not available separately, order the assembly. Order Blade kit, squeegee, 28cm, pyu, rear [option] (TN4132815) |
| 17 | TN4075086Replaces Tennant MPVR12232 | 1 | JOINT REAR SQUEEGEE CS5 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4051842Replaces Tennant 897635 | 5 | SCREW M5x25 | $3.30/EA |
| 19 | TN4075085Replaces Tennant MPVR12231 | 1 | BODY REAR SQUEEGEE CS5 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | TN4059308Replaces Tennant 897149 | 1 | WASHER 4-16 INOX A2 | $2.50/EA |
| 21 | TN4053576Replaces Tennant VTVT00820 | 1 | SCREW TC+ M.3,5-10 | $3.33/EA |
| 22 | TN4000051Replaces Tennant VTDD00297 | 5 | NUT M 5 INX ZINC | $15.25/EA |
| 23 | TN4100732Replaces Tennant LAFN11385 | 2 | SPACER | $3.33/EA |
| 24 | TN4059304Replaces Tennant 897106 | 2 | WASHER D.6 UNI 6592 INOX | $2.50/EA |
| 25 | TN4075084Replaces Tennant MPVR12230 | 1 | SUPPORT SQUEEGEE CS5 | $7.25/EA |
| 26 | TN4106744Replaces Tennant MLML00507 | 1 | SPRING LH FLOOR WIPER | $1.52/EA |
| 27 | TN4051615Replaces Tennant VTVT01496 | 1 | SCREW M6X130 | $3.33/EA |
| 28 | TN4132818Replaces Tennant KTRI06155 | 1 | SQUEEGEE ASM., 28CM, LINATEX, PAROBOLIC [STD] | $107.00/EA |
| 29 | TN4132816Replaces Tennant KTRI06154 | 1 | SQUEEGEE ASM., 28CM, LINATEX, STRAIGHT [STD] | $93.40/EA |

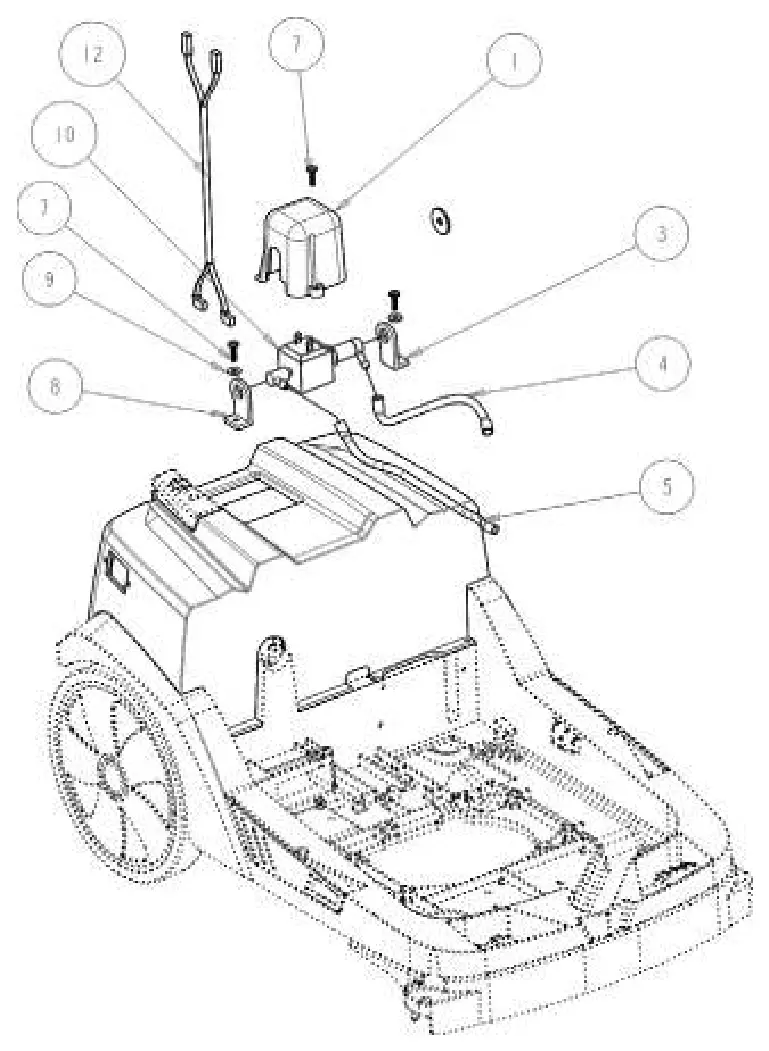

Tennant CS5 solution pump group parts
The parts Tennant numbers on its solution pump group drawing. Manual page 20.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4072325Replaces Tennant MPVR12279 | 1 | COVERING PUMP CS5 | $2.25/EA |
| 3 | TN4072802Replaces Tennant MPVR12498 | 1 | SUPPORT DX | $1.21/EA |
| 4 | TN4084762Replaces Tennant TBBP00730 | 1 | TUBE 5X8 | $5.00/EA |
| 5 | TN4084761Replaces Tennant TBBP00729 | 1 | TUBE 5X8 | $5.40/EA |
| 7 | TN4050549Replaces Tennant 897669 | 3 | SCREW STS KN1031-Neu 4x16 - H2 | $0.65/EA |
| 8 | TN4072803Replaces Tennant MPVR12499 | 1 | SUPPORT SX | $1.31/EA |
| 9 | TN4059106Replaces Tennant VTRS00017 | 2 | WASHER STEEL INOX 4X12 | $2.40/EA |
| 10 | TN4060558Replaces Tennant PPEL00140 | 1 | PUMP 24VDC | $58.80/EA |
| 12 | TN4053694Replaces Tennant MECB02083 | 1 | WIRING, WATER PUMP, CS5 | $10.40/EA |

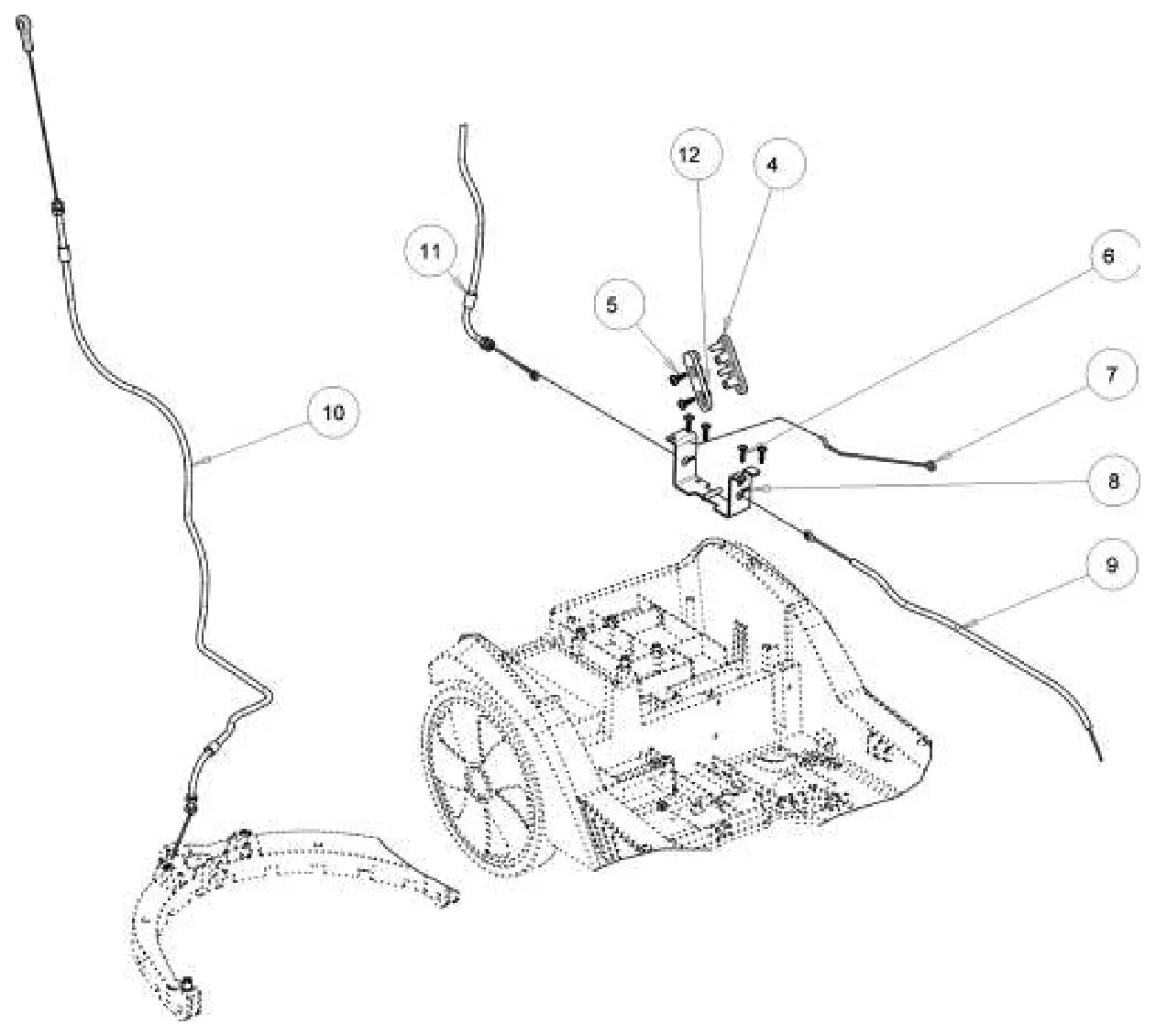

Tennant CS5 cable group parts
The parts Tennant numbers on its cable group drawing. Manual page 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 4 | TN4071033Replaces Tennant MPVR12725 | 1 | BRACKET SX | $30.20/EA |
| 5 | TN4050550Replaces Tennant VTVT01072 | 2 | SCREW STS KN1038 5x16 - T20 A2 | $2.00/EA |
| 6 | TN4051610Replaces Tennant VTVT01491 | 4 | SCREW STS KN1031-Neu 4x16 - H2 | $3.33/EA |
| 7 | TN4160588Replaces Tennant CMCV00479 | 1 | CABLE CS5 | $16.00/EA |
| 8 | TN4100734Replaces Tennant LAFN11388 | 1 | BRACKET | $28.08/EA |
| 9 | TN4160587Replaces Tennant CMCV00478 | 1 | CABLE WIPER CS5 | $14.20/EA |
| 10 | TN4160585Replaces Tennant CMCV00476 | 1 | CABLE FLOOR WIPER CS5 | $24.00/EA |
| 11 | TN4160586Replaces Tennant CMCV00477 | 1 | CABLE VALVE+FLOOR WIPER CS5 | $24.90/EA |
| 12 | TN4071032Replaces Tennant MPVR12724 | 1 | BRACKET DX | $30.20/EA |

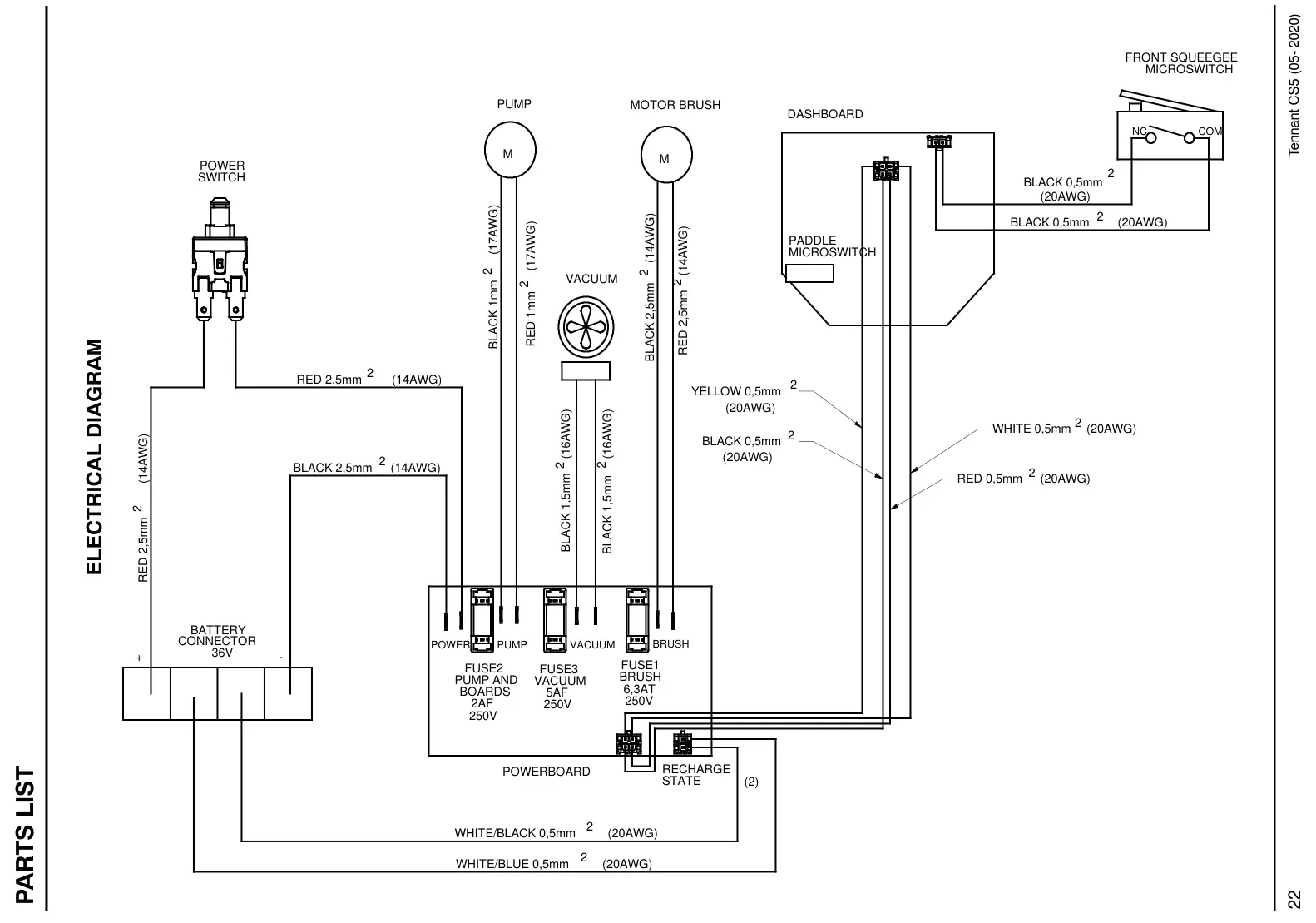

Tennant CS5 electrical diagram
| What it shows | Electrical diagram, as printed in the manual |
|---|---|
| Manual page | 22 |
New to your Tennant CS5? Start here
Set up, run and look after your CS5 micro-scrubber. Everything here comes from Tennant's CS5 operator manual, rewritten in plain steps, with the parts linked to the list above. The CS5 runs on one 36V lithium-ion battery and scrubs an 11.02 in (280 mm) path.
1Unpack and set it up
- Lift the machine out of the box by its handle, stand it on the floor and set the handle at a right angle to the machine.
- Take out the dirty water tank and the detergent tank, tilt the machine back and rest the handle on the floor.
- Cut the ties on the rear squeegee, then fit the front squeegee (TN4132816) and the bumper wheel (TN4072356).
- Take the shipping lock off the main switch. Keep the box: it protects the machine and battery if you ever ship it.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), page 11. SES ref PF-HEYB-Y2GS
2Charge the battery
- Charge with the battery charger (TN4161439) that came with the machine only, indoors, between 39.2°F and 104°F (4°C and 40°C).
- Plug the charger's jack into the socket on the battery (TN4132739 / TN4132741), then plug the charger into the wall.
- When the charger's light turns green, unplug it from the wall and from the battery.
- To take the battery out, switch the machine off, press the two sliding catches and lift it from its housing.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 13 and 14. SES ref PF-HEYB-Y2GS
3Fit the brush or pad driver
- Press the main switch, then the brush button on the console.
- Lay the brush (TN4111090 / TN4111427 / TN4111428) or pad driver (TN4111429) on the floor in front of the machine.
- Tip the machine back on its handle, set the brush housing over the brush and lower the machine.
- Tap the brush control lever a few times until the brush locks onto the hub. To release it, tip the machine back and hold the brush button for 3 seconds.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), page 13. SES ref PF-HEYB-Y2GS
4Scrub and dry
- Press the main switch, then the brush button or the ECO button. Vacuum and solution flow come on with the brush.
- Lower the squeegee with its lever and squeeze the brush control lever to start.
- Set the solution flow with the drop button (three drops is the most) and watch that solution reaches the brush.
- The CS5 dries going forward or backward. To dry in reverse, pull the squeegee lever up.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 16 and 17. SES ref PF-HEYB-Y2GS
Questions about your CS5? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Tennant CS5 troubleshooting
Problems, likely causes and fixes from Tennant's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Machine does not work | ||
| Flat battery or main switch off | Charge the battery (TN4132739 / TN4132741) and press the main switch. | |
| Brush does not turn | ||
| Brush button not pressed or brush control lever not squeezed | Press the brush button and squeeze the brush control lever. | |
| Uneven scrubbing | ||
| Worn brush or pad | Replace the brush (TN4111090 / TN4111427 / TN4111428) or pad (TN4111440 / TN4111441). | |
| No solution at the brush | ||
| Empty detergent tank, dirty filter or a blocked solution hose | Fill the tank, clean the detergent tank filter (TN4072680) and clear the hose. | |
| Water left behind or weak vacuum | ||
| Worn squeegee blades, full dirty water tank, or a clogged, loose or damaged suction hose | Replace the front (TN4132809 / TN4132811 / TN4132814) or rear (TN4132810 / TN4132812 / TN4132815) blades, empty the tank, and clear or reconnect the front (TN4081118) or rear (TN4081117) hose. | |
| Dirty diverter valve | Clean the diverter valve (TN4132787). | |
| Battery runs down early | ||
| Battery charger not working | Replace the battery charger (TN4161439). | |
| Logo light flashes slowly and the buzzer beeps twice | ||
| Machine not level when the brush lever is squeezed | Set the machine down flat on the floor. | |
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 24 and 25. SES ref PF-MRTR-6H4X
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Tennant CS5 maintenance schedule
Tennant's maintenance schedule for the CS5.
| Task | How often | Part |
|---|---|---|
| Take the battery out before any maintenance, and empty both tanks. | Every day | |
| Empty and rinse the dirty water tank. | Every day | |
| Rinse the front squeegee hose (TN4081118) and rear squeegee hose (TN4081117) by running water through them. | Every day | |
| Wipe the front (TN4132809 / TN4132811 / TN4132814) and rear (TN4132810 / TN4132812 / TN4132815) squeegee blades and the squeegee suction ports with a damp cloth. | Every day | |
| Check that the floats (TN4072323) in the dirty water tank lid move freely and wipe the lid seals (TN4137379). Do not clean seals with ethyl alcohol. | Every week | |
| Take out and wash the detergent tank filter (TN4072680) and the suction filter (TN4072788). | Every week | |
| Open the diverter valve (TN4132787), clear any buildup in its chamber and wipe its seals. | Every week | |
| Check the squeegee blades for wear. Flip a worn blade to its second edge, or replace it when both edges are worn. | Every week | |
| Check the brush (TN4111090 / TN4111427 / TN4111428): the red tufts are shorter than the black ones. When the black bristles wear down to the red ones, replace the brush. | Every month | |
| Empty both tanks and park the CS5 standing upright. Left flat, its weight bends the brush bristles and the squeegee blades. | When storing it | |
| For long storage take the battery out, charge it fully and recharge it regularly. Clean the blades, the diverter valve and the hoses first. | When storing it | |
| Do not use a pressure washer, steam, solvents or hydrocarbon cleaners on the machine. | When storing it |
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 12, 20, 21, 22, 23 and 24. SES ref PF-EB6B-2KU2
Tennant CS5 specifications
From Tennant's documents for the CS5.
| Scrubbing path | 11.02 in (280 mm), one disk brush |
|---|---|
| Squeegee width | 14.96 in (380 mm) |
| Solution tank | 1.32 gal (5 L) |
| Recovery tank | 1.32 gal (5 L) |
| Productivity | up to 10,505 sq ft/h (976 m²/h), about 6,875 sq ft/h (639 m²/h) in practice |
| Battery | 36V lithium-ion, 5.5Ah or 7.5Ah |
| Motors | brush 0.134 hp (100 W) at 160 rpm, vacuum 0.21 hp (160 W) |
| Maximum speed | 2.17 mph (3.5 km/h) |
| Slope | 2% maximum |
| Weight | 40.34 lb (18.3 kg) without battery, 43.65 to 44.53 lb (19.8 to 20.2 kg) with battery |
| Water and detergent temperature | 104°F (40°C) maximum |
| Sound level | 63 dB(A) |
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 7 and 8. SES ref PF-LYQW-CAI7
Tennant CS5 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 9021061 Rev. 03 (04-2022), Global, all six CS5 models, 22 pages | CS5 | Rev. 03 (04-2022) | 22 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant PLDC04335 Rev. 07 (12-2021), North America, model 1251580, 84 pages (English, Spanish, French) | CS5 | Rev. 07 (12-2021) | 84 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Tennant CS5 parts questions
Why is my Tennant CS5 leaving water behind?
Check the squeegee blades first: a rounded or cracked edge leaves water, so flip the blade or replace it. Also empty the dirty water tank (a float shuts the vacuum off when it is full), clear or reconnect the squeegee suction hoses, and clean the diverter valve.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 22 and 25. SES ref PF-QIMP-MU2I
How do I change the brush on a CS5?
Switch the machine on, tip it back on its handle and hold the brush button for 3 seconds to drop the brush. To fit one, lay it on the floor, lower the brush housing over it and tap the brush control lever until it locks on.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), page 13. SES ref PF-QIMP-MU2I
When should I replace the CS5 brush?
The brush has a few red tufts that are shorter than the rest. When the black bristles have worn down to the length of the red ones, replace it. Tennant lists the brush check as a monthly job.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 23 and 24. SES ref PF-QIMP-MU2I
Can the CS5 dry the floor going backward?
Yes. It dries going forward or backward. To dry in reverse, pull the squeegee lever upward.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), page 17. SES ref PF-QIMP-MU2I
How should I store the CS5?
Empty both tanks and park it standing upright with the handle folded forward. Stored flat, its weight bends the brush bristles and the squeegee blades. For long breaks take the battery out, charge it fully and keep it charged.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 12 and 20. SES ref PF-QIMP-MU2I
What do the CS5 battery lights mean?
All three lights on means a full battery, red and yellow about 30%, red alone about 10%. A blinking red light means the battery is nearly flat and the brush and vacuum shut off after a few seconds. Charge it with the supplied charger only.
Source: Tennant CS5 operator manual PLDC04335 Rev. 07 (12-2021), pages 14 and 16. SES ref PF-QIMP-MU2I
Does this parts list fit my CS5?
It is Tennant's global CS5 parts manual for all six models: 5.5Ah machines for North America, EMEA, China / Australia and New Zealand and Export Asia-Pacific, and 7.5Ah machines for EMEA and Australia and New Zealand. Pick yours under Your machine. Only the battery and the charger cord differ.
Source: Tennant CS5 parts manual 9021061 Rev. 03 (04-2022), page 1. SES ref PF-QIMP-MU2I
