Tennant 8300 options, breakdowns and engine parts list and diagrams
Option kits, component breakdowns and engine parts for the Tennant 8300, from Tennant's parts manual, with the manual's drawings. Each part number links to that part in our store, and the standard parts are on a companion page.
Complete list: the options, component breakdowns and engine sections of Tennant 8300 Sweeper Scrubber Parts Manual 330630 Rev. 20 (8-2015), 1868 part lines. The standard parts, maintenance items and owner's guide are on the 8300 parts list page. Checked .
New to your 8300? Start here → Standard parts and maintenance items → Manuals (free sign-in) →
- Scrubbing path
- 40 in (1,020 mm) Max Pro 1000; 48 in (1,220 mm) Max Pro 1200
- Sweeping path
- 50 in (1,270 mm) with one side brush; 64 in (1,625 mm) with two
- Solution and recovery tanks
- 57 gal (216 L) each; 90 gal (340 L) with ES
- Power
- 36 V battery, 380 to 750 Ah at the 6-hour rate
- Top speed
- 4.5 mph (7.2 km/h) forward, 3 mph (4.8 km/h) reverse
Your machine
How to tell which you have
- 8300 · Max Pro 1000 disc brush.
- 8300 · Max Pro 1200 disc brush.
- 8300 · Max Pro 1000 cylindrical brush.
- 8300 · Max Pro 1200 cylindrical brush.
- If you are not sure, pick Not sure and every line stays on the list.
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

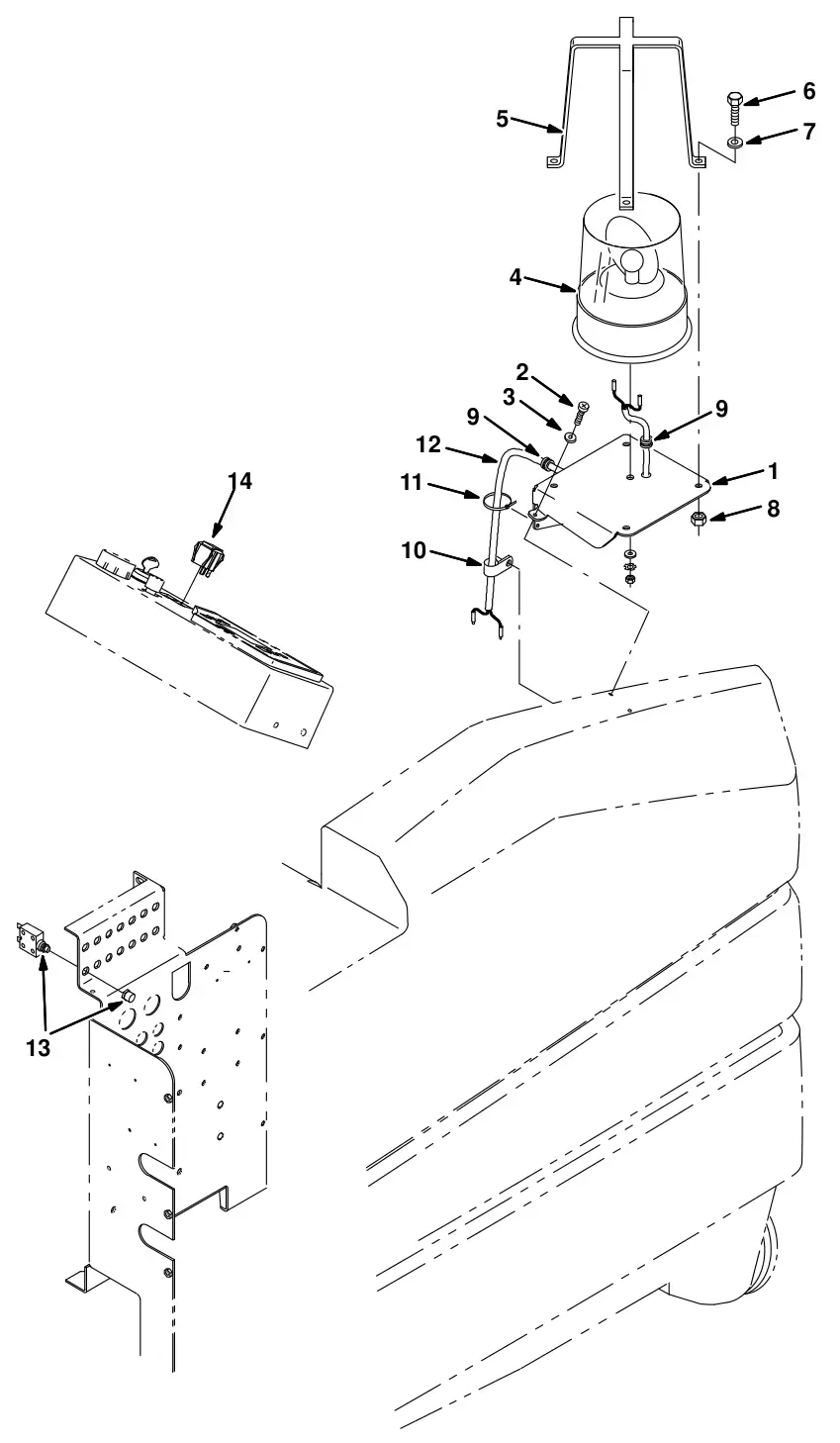

Tennant 8300 revolving Light Kit (000000 - 006999) (option) parts
The parts Tennant numbers on its revolving light kit (000000 - 006999) (option) drawing. Manual pages 3-4, list 3-5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018073Replaces Tennant 387301 | 1 | Kit, CI, Light, Revl W/O OHGComplete assembly. Serial up to 006999. | $617.72/EA |
| 1 | TN4169435Replaces Tennant 387157 | 1 | Bracket, MtgPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $287.04/EA |
| 2 | TN4029531Replaces Tennant 360943 | 5 | Screw, Pan, #10-14 X 0.75, F/PlstcPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $2.50/EA |
| 3 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flt, #10Part of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $2.50/EA |
| 4 | TN4022328Replaces Tennant 87709 | 1 | Light, Revl, 36vdc, Amb, Rework 44684Part of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $244.80/EA |
| – | TN4017771Replaces Tennant 44681-1 | 1 | Lens, Amber, Light, RevlPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $43.73/EA |
| – | TN4013424Replaces Tennant 45283 | 1 | Lamp, 40vdc, 0.9a, [50cp#1062]Part of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $28.10/EA |
| 5 | TN4013422Replaces Tennant 45272 | 1 | Guard Wldt, Light, Revl/FlshPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $154.20/EA |
| 6 | TN4156940Replaces Tennant 39277 | 4 | Screw, Hex, M08 X 1.25 X 25, 8.8Part of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $3.20/EA |
| 7 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flt, .31 SaePart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $2.50/EA |
| 8 | TN4041605Replaces Tennant 07791 | 4 | Nut, Hex, Flng, M08 X 1.25Part of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $2.50/EA |
| 9 | TN4031956Replaces Tennant 10632-12 | 2 | Grommet, Rbr, 0.38id, F/ 0.5h, .12matlPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $3.30/EA |
| 10 | TN4035687Replaces Tennant 26395-2 | 1 | Clamp, Cable, Stl, 0.38d X 0.38w, 1hPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $4.20/EA |
| 11 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $2.50/EA |
| 12 | TN4169248Replaces Tennant 386609 | 1 | Harness, Light, Revl, ShrdPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $49.59/EA |
| 13 | TN4023151Replaces Tennant 383722 | 1 | Circuitbreaker, 15.0 APart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $15.90/EA |
| 14 | TN4032527Replaces Tennant 360520 | 1 | Switch, RockerPart of Kit, CI, Light, Revl W/O OHG (387301). Serial up to 006999. | $50.70/EA |
| – | TN4017770Replaces Tennant 44681 | 1 | Lens, Rev. Light, RedSerial up to 006999. | $24.74/EA |
| – | TN4017772Replaces Tennant 44681-2 | 1 | Lens, Rev. Light, BlueSerial up to 006999. | $73.63/EA |

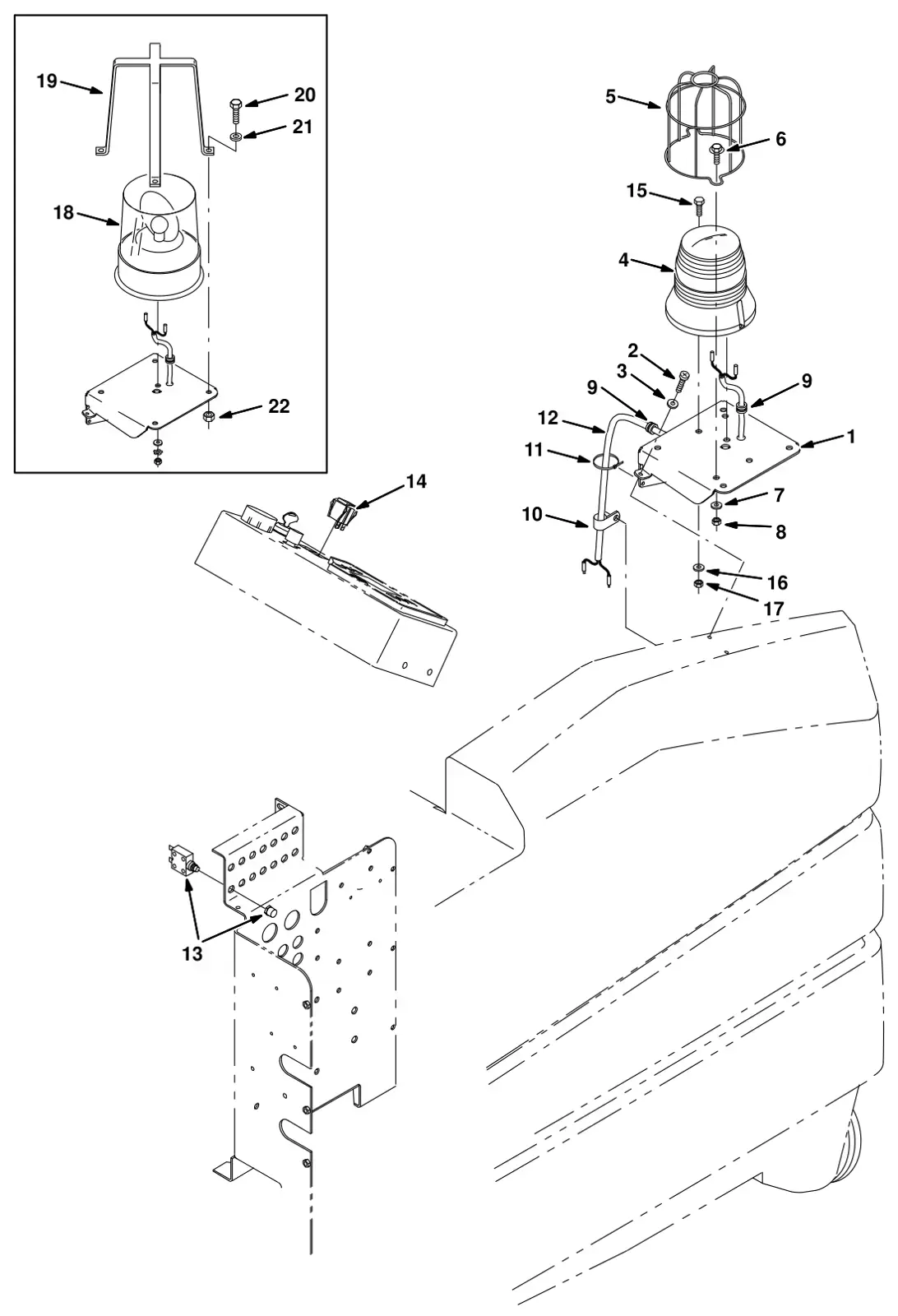

Tennant 8300 revolving Light Kit (007000 -) (option) parts
The parts Tennant numbers on its revolving light kit (007000 -) (option) drawing. Manual pages 3-6, list 3-7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011811Replaces Tennant 9006949 | 1 | Light Kit, Revl, W/O Ohg, Iron Gray, CiComplete assembly. Serial 007000 and later. | $640.30/EA |
| 1 | TN4036372Replaces Tennant 1057069 | 1 | Bracket, Mtg, Iron GrayPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $103.70/EA |
| 2 | TN4029531Replaces Tennant 360943 | 5 | Screw, Pan, #10-14 X 0.75, F/PlstcPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $2.50/EA |
| 3 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flt, #10Part of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $2.50/EA |
| 4 | TN4035245Replaces Tennant 1017250 | 1 | Light, Strobe, Amb, 12-48vdcPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8002935Replaces Tennant 9000879 | 1 | Lens, Amb, F/ Revl / FlasherPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $34.24/EA |
| – | TN8002932Replaces Tennant 9000845 | 1 | Lamp, Bulb, StrobePart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $44.30/EA |
| 5 | TN4044043Replaces Tennant 1039392 | 1 | Guard, Light, Revl / StrobePart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $76.00/EA |
| 6 | TN4035956Replaces Tennant 12316 | 2 | Screw, Hex, M5 X 0.80 X 25, SsPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $3.40/EA |
| 7 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, SsPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $2.60/EA |
| 8 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $3.30/EA |
| 9 | TN4031956Replaces Tennant 10632-12 | 2 | Grommet, Rbr, 0.38id, F/ 0.5h, .12matlPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $3.30/EA |
| 10 | TN4035687Replaces Tennant 26395-2 | 1 | Clamp, Cable, Stl, 0.38d X 0.38w, 1hPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $4.20/EA |
| 11 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $2.50/EA |
| 12 | TN4169248Replaces Tennant 386609 | 1 | Harness, Light, Revl, ShrdPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $49.59/EA |
| 13 | TN4023151Replaces Tennant 383722 | 1 | Circuitbreaker, 15.0 APart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $15.90/EA |
| 14 | TN4032527Replaces Tennant 360520 | 1 | Switch, RockerPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007000 and later. | $50.70/EA |
| 15 | TN4041969Replaces Tennant 09244 | 2 | Screw, Hex, M5 X 0.80 X 16, 8.8Part of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $2.50/EA |
| 16 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $2.50/EA |
| 17 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Light Kit, Revl, W/O Ohg, Iron Gray, Ci (9006949). Serial 007194 and later. | $2.50/EA |
| – | TN4000109Replaces Tennant 1027798 | 1 | Lens, Red, F/ Revl / FlasherSerial 007194 and later. | $34.61/EA |
| – | TN4000111Replaces Tennant 1027800 | 1 | Lens, Blu, F/ Revl / FlasherSerial 007194 and later. | $47.37/EA |
| 18 | TN4022328Replaces Tennant 87709 | 1 | Light, Revl, 36vdc, Amb, Rework 44684Complete assembly. Serial 007000 to 007193. | $244.80/EA |
| – | TN4017771Replaces Tennant 44681-1 | 1 | Lens, Amber, Light, RevlPart of Light, Revl, 36vdc, Amb, Rework 44684 (87709). Serial 007000 to 007193. | $43.73/EA |
| – | TN4013424Replaces Tennant 45283 | 1 | Lamp, 40vdc, 0.9a, [50cp#1062]Part of Light, Revl, 36vdc, Amb, Rework 44684 (87709). Serial 007000 to 007193. | $28.10/EA |
| 19 | TN4188813Replaces Tennant 1056464 | 1 | Guard Wldt, Light, Revl/Flsh, Iron GraySerial 007000 to 007193. | $46.17/EA |
| 20 | TN4156940Replaces Tennant 39277 | 4 | Screw, Hex, M08 X 1.25 X 25, 8.8Serial 007000 to 007193. | $3.20/EA |
| 21 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flt, .31 SaeSerial 007000 to 007193. | $2.50/EA |
| 20 | TN4041605Replaces Tennant 07791 | 4 | Nut, Hex, Flng, M08 X 1.25Serial 007000 to 007193. | $2.50/EA |
| – | TN4017770Replaces Tennant 44681 | 1 | Lens, Rev. Light, RedSerial 007000 to 007193. | $24.74/EA |
| – | TN4017772Replaces Tennant 44681-2 | 1 | Lens, Rev. Light, BlueSerial 007000 to 007193. | $73.63/EA |

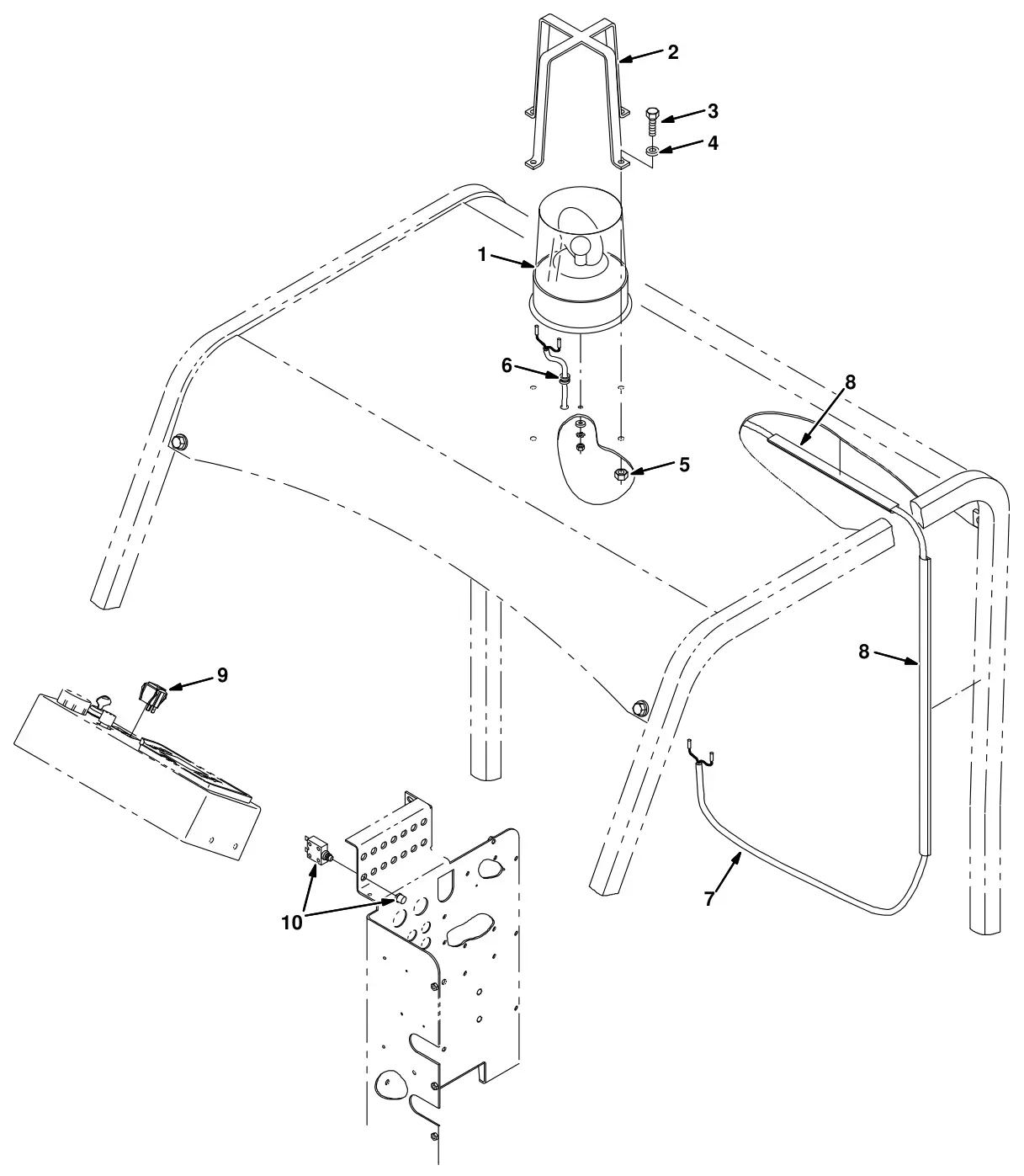

Tennant 8300 revolving Light Kit, Overhead Guard (000000 - 006999) (option) parts
The parts Tennant numbers on its revolving light kit, overhead guard (000000 - 006999) (option) drawing. Manual pages 3-8, list 3-9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018072Replaces Tennant 387300 | 1 | Light Kit, Revl, W/ Ohg, Ci [7300/8300]Complete assembly. Serial up to 006999. | $315.81/EA |
| 1 | TN4022328Replaces Tennant 87709 | 1 | Light, Revl, 36vdc, Amb, Rework 44684Part of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $244.80/EA |
| – | TN4017771Replaces Tennant 44681-1 | 1 | Lens, Amber, Light, RevlPart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $43.73/EA |
| – | TN4013424Replaces Tennant 45283 | 1 | Lamp, 40vdc, 0.9a, [50cp#1062]Part of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $28.10/EA |
| 2 | TN4013422Replaces Tennant 45272 | 1 | Guard Wldt, Light, Revl/FlshPart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $154.20/EA |
| 3 | TN4156940Replaces Tennant 39277 | 4 | Screw, Hex, M08 X 1.25 X 25, 8.8Part of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $3.20/EA |
| 4 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flt, .31 SaePart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $2.50/EA |
| 5 | TN4041605Replaces Tennant 07791 | 4 | Nut, Hex, Flng, M08 X 1.25Part of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $2.50/EA |
| 6 | TN4031956Replaces Tennant 10632-12 | 1 | Grommet, Rbr, 0.38id, F/ 0.5h, .12matlPart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $3.30/EA |
| 7 | TN4169244Replaces Tennant 386605 | 1 | Harness, Warning Light, AlarmPart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $61.91/EA |
| 8 | TN4032367Replaces Tennant 1064050 | 2 | Duct, Afmkt, Vyl, 0.40 X 0.75 .25D, 04FtPart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $23.80/EA |
| 9 | TN4032527Replaces Tennant 360520 | 1 | Switch, RockerPart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $50.70/EA |
| 10 | TN4023151Replaces Tennant 383722 | 1 | Circuitbreaker, 15.0 APart of Light Kit, Revl, W/ Ohg, Ci [7300/8300] (387300). Serial up to 006999. | $15.90/EA |
| – | TN4017770Replaces Tennant 44681 | 1 | Lens, Rev. Light, RedSerial up to 006999. | $24.74/EA |
| – | TN4017772Replaces Tennant 44681-2 | 1 | Lens, Rev. Light, BlueSerial up to 006999. | $73.63/EA |

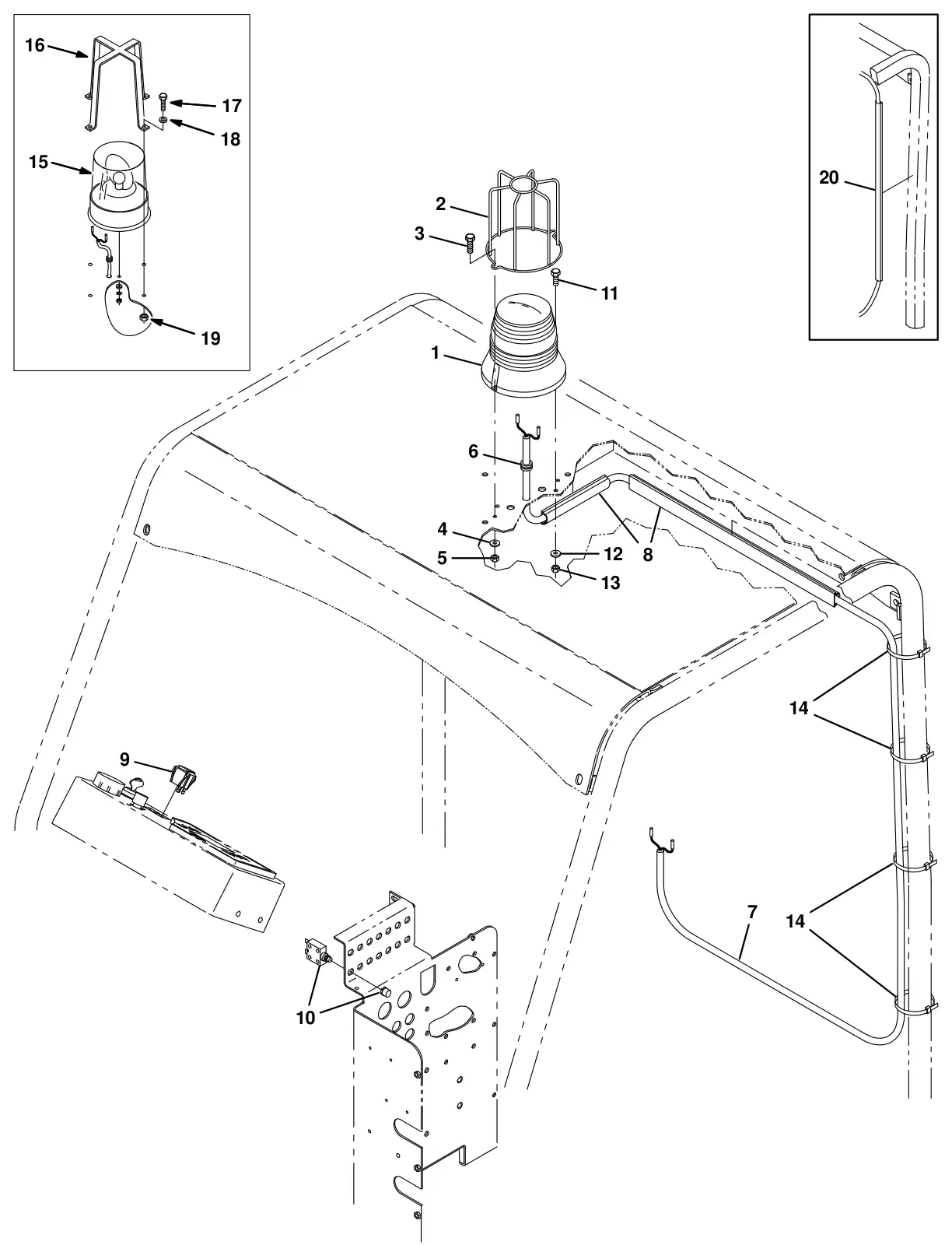

Tennant 8300 revolving Light Kit, Overhead Guard (007000 -) (option) parts
The parts Tennant numbers on its revolving light kit, overhead guard (007000 -) (option) drawing. Manual pages 3-10, list 3-11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011810Replaces Tennant 9006948 | 1 | Kit, CI, Light, Revl W/ OhgComplete assembly. Serial 007000 and later. | $632.16/EA |
| 1 | TN4035245Replaces Tennant 1017250 | 1 | Light, Strobe, Amb, 12-48vdcPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8002935Replaces Tennant 9000879 | 1 | Lens, Amb, F/ Revl / FlasherPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $34.24/EA |
| – | TN8002932Replaces Tennant 9000845 | 1 | Lamp, Bulb, StrobePart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $44.30/EA |
| 2 | TN4044043Replaces Tennant 1039392 | 1 | Guard, Light, Revl / StrobePart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $76.00/EA |
| 3 | TN4035956Replaces Tennant 12316 | 4 | Screw, Hex, M5 X 0.80 X 25, SsPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $3.40/EA |
| 4 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, SsPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $2.60/EA |
| 5 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $3.30/EA |
| 6 | TN4031956Replaces Tennant 10632-12 | 1 | Grommet, Rbr, 0.38id, F/ 0.5h, .12matlPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007000 and later. | $3.30/EA |
| 7 | TN4169244Replaces Tennant 386605 | 1 | Harness, Warning Light, AlarmPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007000 and later. | $61.91/EA |
| 8 | TN4032367Replaces Tennant 1064050 | 1 | Duct, Afmkt, Vyl, 0.40 X 0.75 .25D, 04FtPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007000 and later. | $23.80/EA |
| 9 | TN4032527Replaces Tennant 360520 | 1 | Switch, RockerPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007000 and later. | $50.70/EA |
| 10 | TN4023151Replaces Tennant 383722 | 1 | Circuitbreaker, 15.0 APart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007000 and later. | $15.90/EA |
| 11 | TN4041969Replaces Tennant 09244 | Screw, Hex, M5 X 0.80 X 16, 8.8Part of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $2.50/EA | |
| 12 | TN4042244Replaces Tennant 19066 | Washer, Flat, 0.25b 0.56d .05, Pl, 10Part of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $2.50/EA | |
| 13 | TN4041004Replaces Tennant 06549 | Nut, Hex, Lock, M5 X 0.80, NlPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007194 and later. | $2.50/EA | |
| 14 | TN4013410Replaces Tennant 44961 | 4 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Kit, CI, Light, Revl W/ Ohg (9006948). Serial 007343 and later. | $3.40/EA |
| – | TN4000109Replaces Tennant 1027798 | 1 | Lens, Red, F/ Revl / FlasherSerial 007194 and later. | $34.61/EA |
| – | TN4000111Replaces Tennant 1027800 | 1 | Lens, Blu, F/ Revl / FlasherSerial 007194 and later. | $47.37/EA |
| 15 | TN4022328Replaces Tennant 87709 | 1 | Light, Revl, 36vdc, Amb, Rework 44684Complete assembly. Serial 007000 to 007193. | $244.80/EA |
| – | TN4017771Replaces Tennant 44681-1 | 1 | Lens, Amber, Light, RevlPart of Light, Revl, 36vdc, Amb, Rework 44684 (87709). Serial 007000 to 007193. | $43.73/EA |
| – | TN4013424Replaces Tennant 45283 | 1 | Lamp, 40vdc, 0.9a, [50cp#1062]Part of Light, Revl, 36vdc, Amb, Rework 44684 (87709). Serial 007000 to 007193. | $28.10/EA |
| 16 | TN4188813Replaces Tennant 1056464 | 1 | Guard Wldt, Light, Revl/Flsh, Iron GraySerial 007000 to 007193. | $46.17/EA |
| 17 | TN4156940Replaces Tennant 39277 | 4 | Screw, Hex, M08 X 1.25 X 25, 8.8Serial 007000 to 007193. | $3.20/EA |
| 18 | TN4015595Replaces Tennant 39349 | 4 | Washer, Flt, .31 SaeSerial 007000 to 007193. | $2.50/EA |
| 19 | TN4041605Replaces Tennant 07791 | 4 | Nut, Hex, Flng, M08 X 1.25Serial 007000 to 007193. | $2.50/EA |
| – | TN4017770Replaces Tennant 44681 | 1 | Lens, Rev. Light, RedSerial 007000 to 007193. | $24.74/EA |
| – | TN4017772Replaces Tennant 44681-2 | 1 | Lens, Rev. Light, BlueSerial 007000 to 007193. | $73.63/EA |
| 20 | TN4032367Replaces Tennant 1064050 | 1 | Duct, Afmkt, Vyl, 0.40 X 0.75 .25D, 04FtSerial 007000 to 007342. | $23.80/EA |

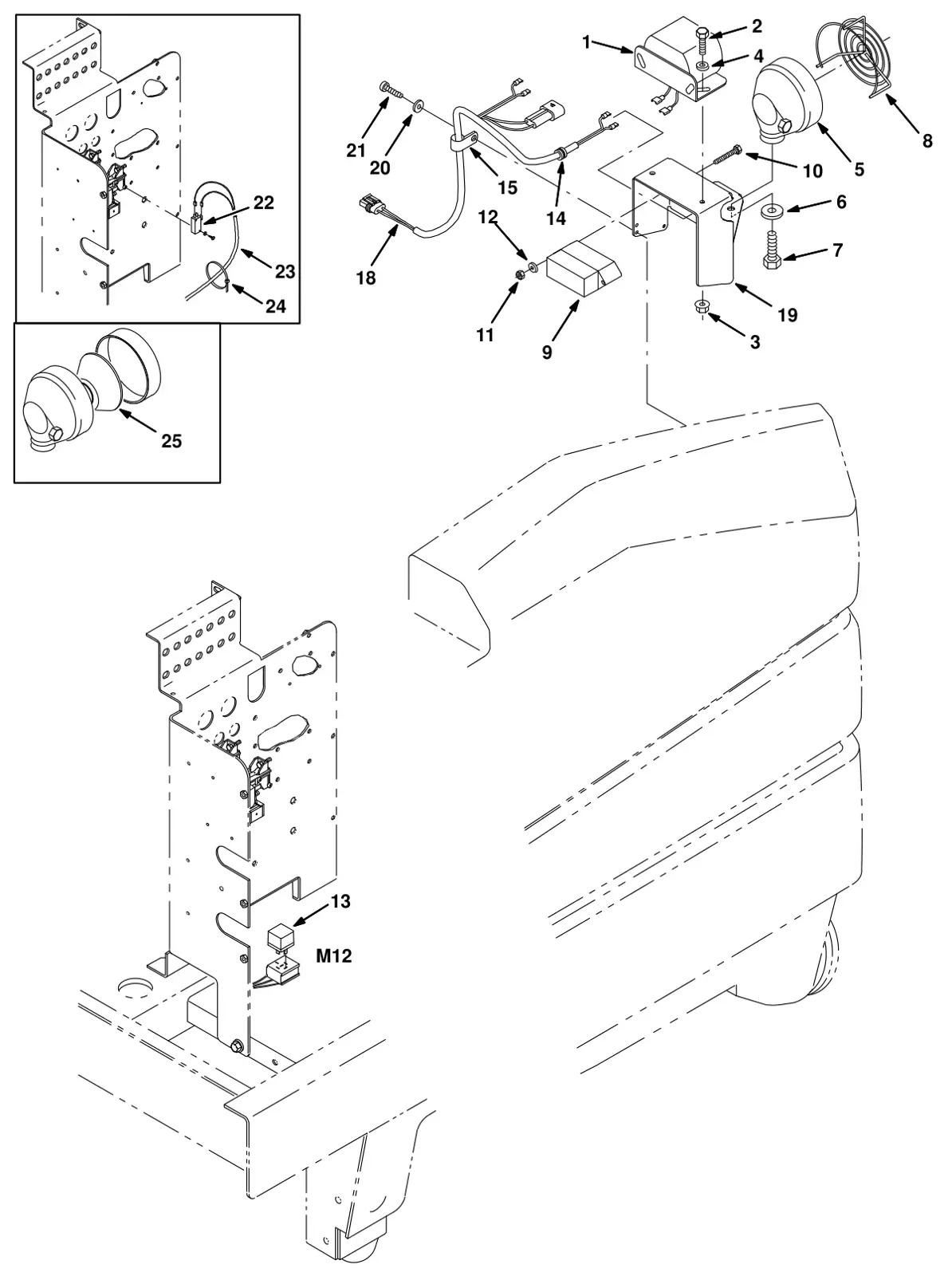

Tennant 8300 backup Alarm Kit (000000 - 006999) (option) parts
The parts Tennant numbers on its backup alarm kit (000000 - 006999) (option) drawing. Manual pages 3-12, list 3-13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4169510Replaces Tennant 387308 | 1 | Kit, CI, Alarm, Backup, 36VdcComplete assembly. Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4011838Replaces Tennant 9007131 | 1 | Alarm Assy, Backup, 12/48VdcPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $162.50/EA |
| 2 | TN4041271Replaces Tennant 06943 | 2 | Screw, Hex, M06 X 1.0 X 20, 8.8Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.50/EA |
| 3 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M06 X 1.0Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $3.20/EA |
| 4 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flt, #10Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.50/EA |
| 5 | TN4015956Replaces Tennant 72172 | 1 | Light, Spot, 36vdc, 60w Rework 72173Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $328.02/EA |
| 6 | TN4034135Replaces Tennant 32486 | 1 | Washer, Flt, .50 SaePart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.60/EA |
| 7 | TN4016279Replaces Tennant 39807 | 1 | Screw, Hex, .50-13 X 0.75, 5Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.73/EA |
| 8 | TN4214838Replaces Tennant 72174 | 1 | Guard, LightPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $77.55/EA |
| 9 | TN4015955Replaces Tennant 72164 | 1 | Flasher, 12/48vdc 5a #6309/12-48vdcPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $84.18/EA |
| 10 | TN4041277Replaces Tennant 06949 | 2 | Screw, Hex, M06 X 1.0 X 50, 8.8Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $3.30/EA |
| 11 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M06 X 1.0, NlPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.50/EA |
| 12 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flt, .25 SaePart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.50/EA |
| 13 | TN4016544Replaces Tennant 398526 | 1 | Relay, 36vdc, 5a, Spdt, [Greenwich]Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $16.30/EA |
| 14 | TN4031956Replaces Tennant 10632-12 | 1 | Grommet, Rbr, 0.38id, F/ 0.5h, .12matlPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $3.30/EA |
| 15 | TN4035687Replaces Tennant 26395-2 | 1 | Clamp, Cable, Stl, 0.38d X 0.38w, 1hPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $4.20/EA |
| 16 | TN4034653Replaces Tennant 32980 | 2 | Washer, Lock, Int, #10Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.60/EA |
| 17 | TN38622Tennant 38622 | 1 | SpringPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4169245Replaces Tennant 386606 | 1 | Harness, Backup Alarm, ShrdPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $28.08/EA |
| 19 | TN387158Tennant 387158 | 1 | Bracket, MtgPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $257.30/EA |
| 20 | TN4042244Replaces Tennant 19066 | 5 | Washer, Flt, #10Part of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.50/EA |
| 21 | TN4029531Replaces Tennant 360943 | 6 | Screw, Pan, #10-14 X 0.75, F/PlstcPart of Kit, CI, Alarm, Backup, 36Vdc (387308). Serial up to 006999. | $2.50/EA |
| 22 | TN4036051Replaces Tennant 28622 | 1 | Kit, Switch, MicroSerial up to 003545. | $173.22/EA |
| 23 | TN4169518Replaces Tennant 387344 | 1 | Harness, Wire, Jumper, Reverse SwitchSerial up to 003545. | $174.63/EA |
| 24 | TN4014138Replaces Tennant 49266 | 4 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DSerial up to 003545. | $2.50/EA |
| 25 | TN4013431Replaces Tennant 45391 | 1 | Headlight, 36Vdc, 60 Watt 1.7ASerial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |

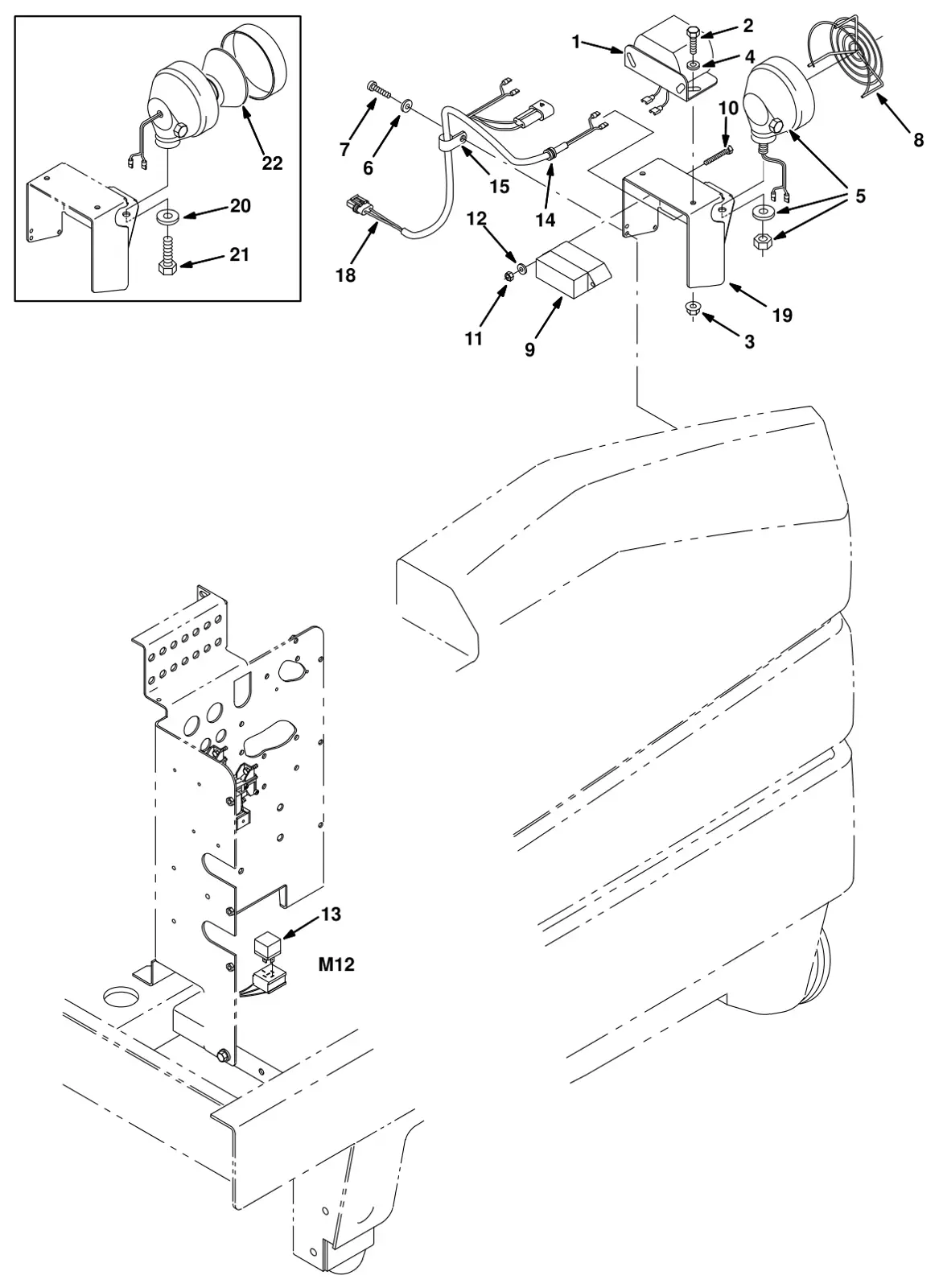

Tennant 8300 backup Alarm Kit (007000 -) (option) parts
The parts Tennant numbers on its backup alarm kit (007000 -) (option) drawing. Manual pages 3-14, list 3-15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011799Replaces Tennant 9006947 | 1 | Alarm Kit, Backup / A/V, Iron Gray, CiComplete assembly. Serial 007000 and later. | $1,070.30/EA |
| 1 | TN4011838Replaces Tennant 9007131 | 1 | Alarm Assy, Backup, 12/48VdcPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $162.50/EA |
| 2 | TN4041271Replaces Tennant 06943 | 2 | Screw, Hex, M06 X 1.0 X 20, 8.8Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $2.50/EA |
| 3 | TN4041604Replaces Tennant 07790 | 2 | Nut, Hex, Flng, M06 X 1.0Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $3.20/EA |
| 4 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flt, #10Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $2.50/EA |
| 5 | TN4015956Replaces Tennant 72172 | 1 | Light, Spot, 36vdc, 60w Rework 72173Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $328.02/EA |
| 6 | TN4042244Replaces Tennant 19066 | 5 | Washer, Flt, #10Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $2.50/EA |
| 7 | TN4029531Replaces Tennant 360943 | 6 | Screw, Pan, #10-14 X 0.75, F/PlstcPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $2.50/EA |
| 8 | TN4214838Replaces Tennant 72174 | 1 | Guard, LightPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $77.55/EA |
| 9 | TN4015955Replaces Tennant 72164 | 1 | Flasher, 12/48vdc 5a #6309/12-48vdcPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $84.18/EA |
| 10 | TN4041277Replaces Tennant 06949 | 2 | Screw, Hex, M06 X 1.0 X 50, 8.8Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $3.30/EA |
| 11 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M06 X 1.0, NlPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $2.50/EA |
| 12 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flt, .25 SaePart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $2.50/EA |
| 13 | TN4016544Replaces Tennant 398526 | 1 | Relay, 36vdc, 5a, Spdt, [Greenwich]Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $16.30/EA |
| 14 | TN4031956Replaces Tennant 10632-12 | 1 | Grommet, Rbr, 0.38id, F/ 0.5h, .12matlPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $3.30/EA |
| 15 | TN4035687Replaces Tennant 26395-2 | 1 | Clamp, Cable, Stl, 0.38d X 0.38w, 1hPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $4.20/EA |
| 16 | TN4034653Replaces Tennant 32980 | 2 | Washer, Lock, Int, #10Part of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $2.60/EA |
| 17 | TN38622Tennant 38622 | 1 | SpringPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | TN4169245Replaces Tennant 386606 | 1 | Harness, Backup Alarm, ShrdPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $28.08/EA |
| 19 | TN4188819Replaces Tennant 1056480 | 1 | Bracket, Mtg, Iron GrayPart of Alarm Kit, Backup / A/V, Iron Gray, Ci (9006947). Serial 007000 and later. | $153.31/EA |
| 20 | TN4034135Replaces Tennant 32486 | 1 | Washer, Flt, .50 SaeSerial 007000 to 007632. | $2.60/EA |
| 21 | TN4016279Replaces Tennant 39807 | 1 | Screw, Hex, .50-13 X 0.75, 5Serial 007000 to 007632. | $2.73/EA |
| 22 | TN4013431Replaces Tennant 45391 | 1 | Headlight, 36Vdc, 60 Watt 1.7ASerial 007000 to 007632. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 rear Bumper Kit (000000 - 006999) (option) parts
Rear Bumper Kit (000000 - 006999) (option) from Tennant's parts list. Manual page 3-16.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021792Replaces Tennant 386417 | 1 | Kit, Ci, Bumper, RearComplete assembly. Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4169149Replaces Tennant 386415 | 1 | Bumper, Rear, RhPart of Kit, Ci, Bumper, Rear (386417). Serial up to 006999. | $210.59/EA |
| 2 | TN4169150Replaces Tennant 386416 | 1 | Bumper, Rear, LhPart of Kit, Ci, Bumper, Rear (386417). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4041948Replaces Tennant 09028 | 6 | Screw, Hex, M10 X 1.5 X 25, SsPart of Kit, Ci, Bumper, Rear (386417). Serial up to 006999. | $4.00/EA |
| 4 | TN4042903Replaces Tennant 01686 | 6 | Washer, Flt, .38 SsPart of Kit, Ci, Bumper, Rear (386417). Serial up to 006999. | $3.30/EA |
| 5 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsPart of Kit, Ci, Bumper, Rear (386417). Serial up to 006999. | $3.30/EA |
Tennant 8300 rear Bumper Kit (007000 -) (option) parts
Rear Bumper Kit (007000 -) (option) from Tennant's parts list. Manual page 3-17.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011790Replaces Tennant 9006925 | 1 | Kit, Ci, Bumper, RearComplete assembly. Serial 007000 and later. | $329.36/EA |
| 1 | TN4188815Replaces Tennant 1056473 | 1 | Bumper, Rear, Rh, Iron GrayPart of Kit, Ci, Bumper, Rear (9006925). Serial 007000 and later. | $83.22/EA |
| 2 | TN4188816Replaces Tennant 1056474 | 1 | Bumper, Rear, Lh, Iron GrayPart of Kit, Ci, Bumper, Rear (9006925). Serial 007000 and later. | $207.15/EA |
| 3 | TN4041948Replaces Tennant 09028 | 6 | Screw, Hex, M10 X 1.5 X 25, SsPart of Kit, Ci, Bumper, Rear (9006925). Serial 007000 and later. | $4.00/EA |
| 4 | TN4042903Replaces Tennant 01686 | 6 | Washer, Flt, .38 SsPart of Kit, Ci, Bumper, Rear (9006925). Serial 007000 and later. | $3.30/EA |
| 5 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SsPart of Kit, Ci, Bumper, Rear (9006925). Serial 007000 and later. | $3.30/EA |

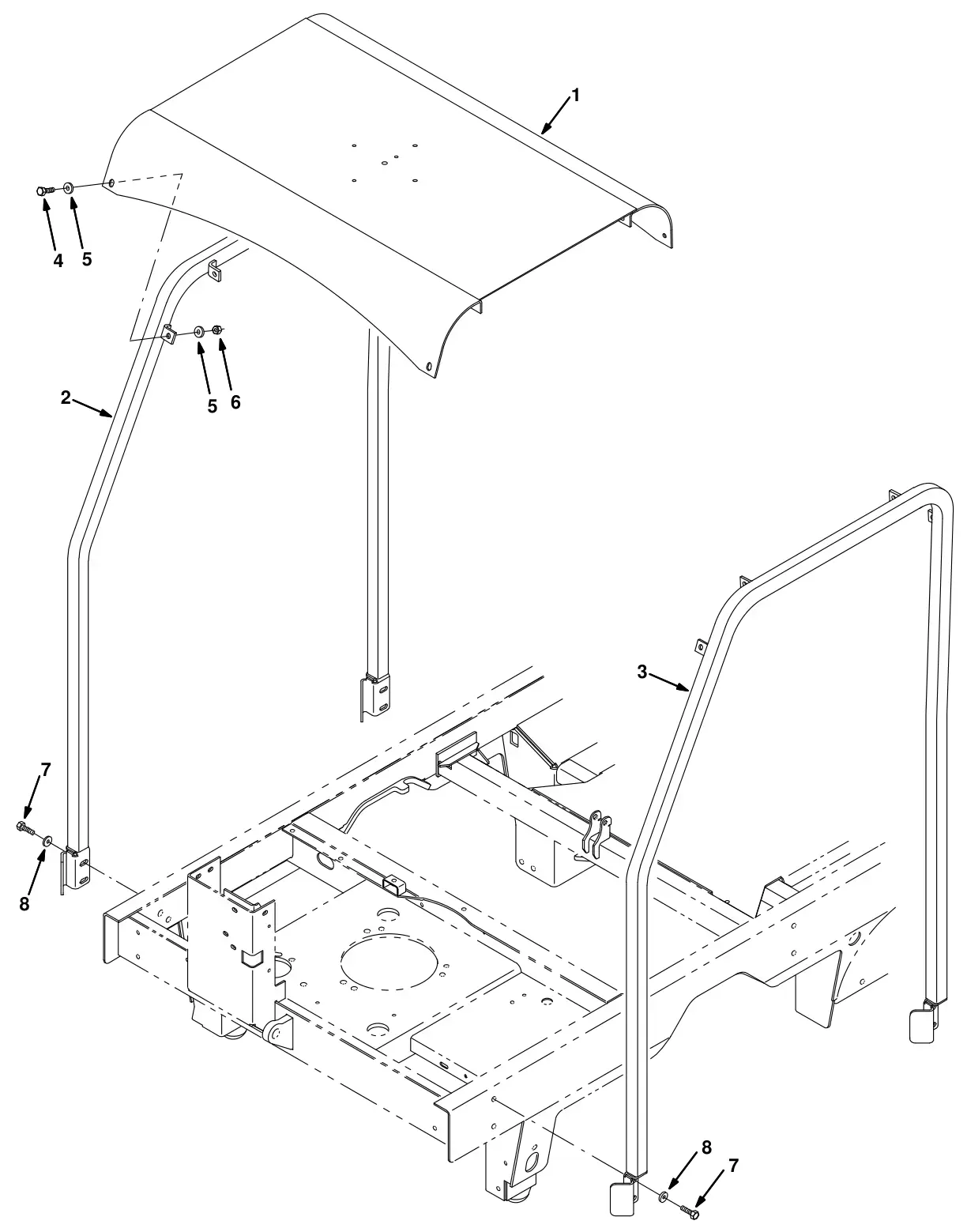

Tennant 8300 overhead Guard Kit (000000 - 006999) (option) parts
The parts Tennant numbers on its overhead guard kit (000000 - 006999) (option) drawing. Manual pages 3-18, list 3-19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022276Replaces Tennant 386875 | 1 | Kit, Ci, Ohg, [7300/8300]Complete assembly. Serial up to 006999. | $4,473.49/EA |
| 1 | TN4169261Replaces Tennant 386642 | 1 | Guard Wldt, Oprtr, TopPart of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $1,496.92/EA |
| 2 | TN4022301Replaces Tennant 386983 | 1 | Tube, Guard, Oprtr, Pnt, RhPart of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $1,210.38/EA |
| 3 | TN4169379Replaces Tennant 386984 | 1 | Tube, Guard, Oprtr, Pnt, LhPart of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $402.06/EA |
| 4 | TN4041286Replaces Tennant 06961 | 8 | Screw, Hex, M10 X 1.5 X 20, 8.8Part of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $3.40/EA |
| 5 | TN4034138Replaces Tennant 32492 | 16 | Washer, Flt, .38 StdPart of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $2.50/EA |
| 6 | TN4016826Replaces Tennant 41430 | 8 | Nut, Hex, Lock, M10 X 1.5, NlPart of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $4.00/EA |
| 7 | TN4041948Replaces Tennant 09028 | 8 | Screw, Hex, M10 X 1.5 X 25, SsPart of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $4.00/EA |
| 8 | TN4042903Replaces Tennant 01686 | 8 | Washer, Flt, .38 SsPart of Kit, Ci, Ohg, [7300/8300] (386875). Serial up to 006999. | $3.30/EA |

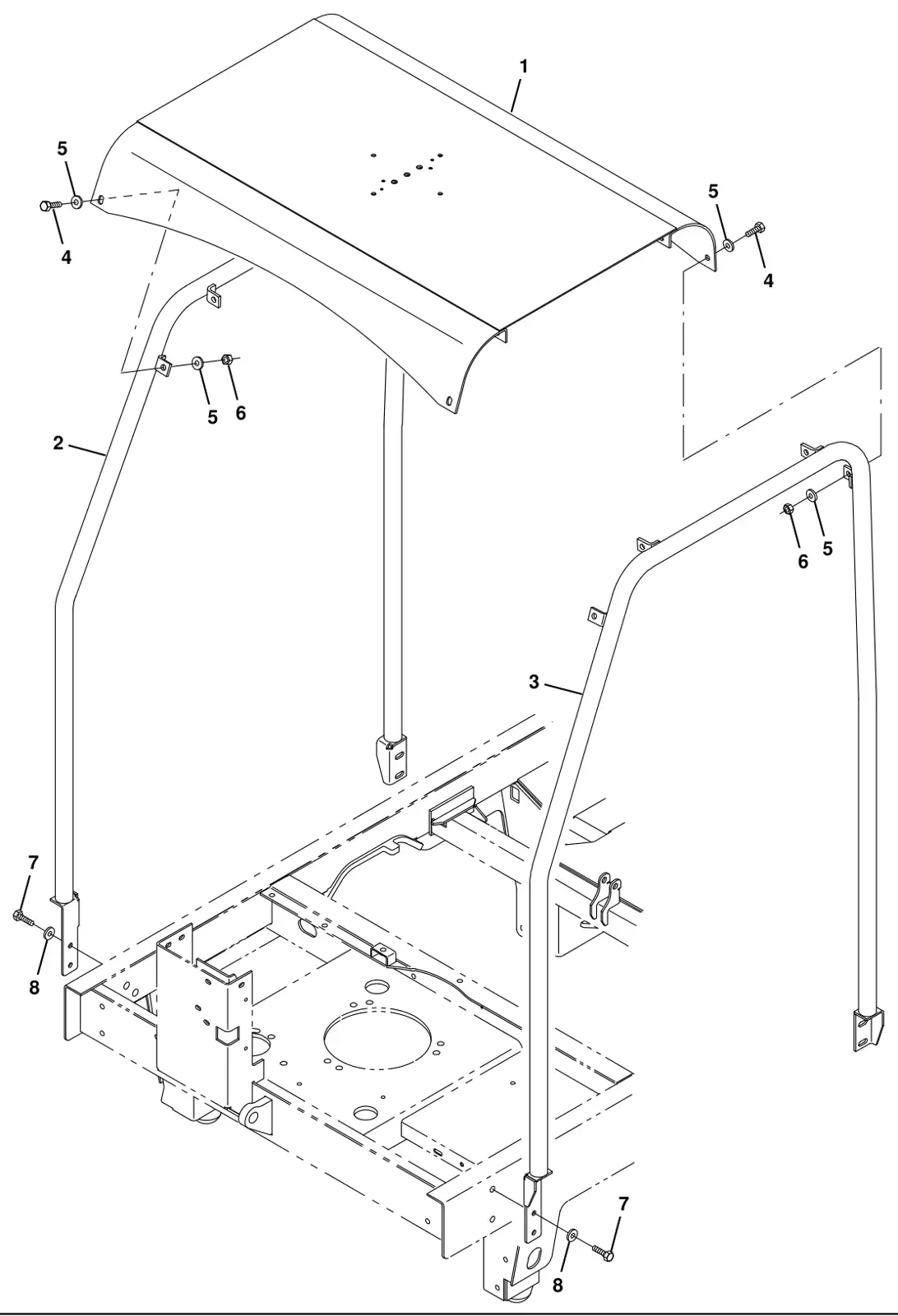

Tennant 8300 overhead Guard Kit (007000 -) (option) parts
The parts Tennant numbers on its overhead guard kit (007000 -) (option) drawing. Manual pages 3-20, list 3-21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011794Replaces Tennant 9006935 | 1 | Ohg Kit, Iron Gray, Ci [7300/8300]Complete assembly. Serial 007000 and later. | $3,672.46/EA |
| 1 | TN4188817Replaces Tennant 1056476 | 1 | Guard Wldt, Oprtr, Top, Iron GrayPart of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $954.75/EA |
| 2 | TN4182071Replaces Tennant 1070329 | 1 | Tube Wldt, Guard, Oprtr,RhPart of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $525.96/EA |
| 3 | TN4182075Replaces Tennant 1070336 | 1 | Tube Wldt, Guard, Oprtr,LhPart of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $561.60/EA |
| 4 | TN4041286Replaces Tennant 06961 | 8 | Screw, Hex, M10 X 1.5 X 20, 8.8Part of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $3.40/EA |
| 5 | TN4034138Replaces Tennant 32492 | 16 | Washer, Flt, .38 StdPart of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $2.50/EA |
| 6 | TN4016826Replaces Tennant 41430 | 8 | Nut, Hex, Lock, M10 X 1.5, NlPart of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $4.00/EA |
| 7 | TN4041948Replaces Tennant 09028 | 8 | Screw, Hex, M10 X 1.5 X 25, SsPart of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $4.00/EA |
| 8 | TN4042903Replaces Tennant 01686 | 8 | Washer, Flt, .38 SsPart of Ohg Kit, Iron Gray, Ci [7300/8300] (9006935). Serial 007000 and later. | $3.30/EA |

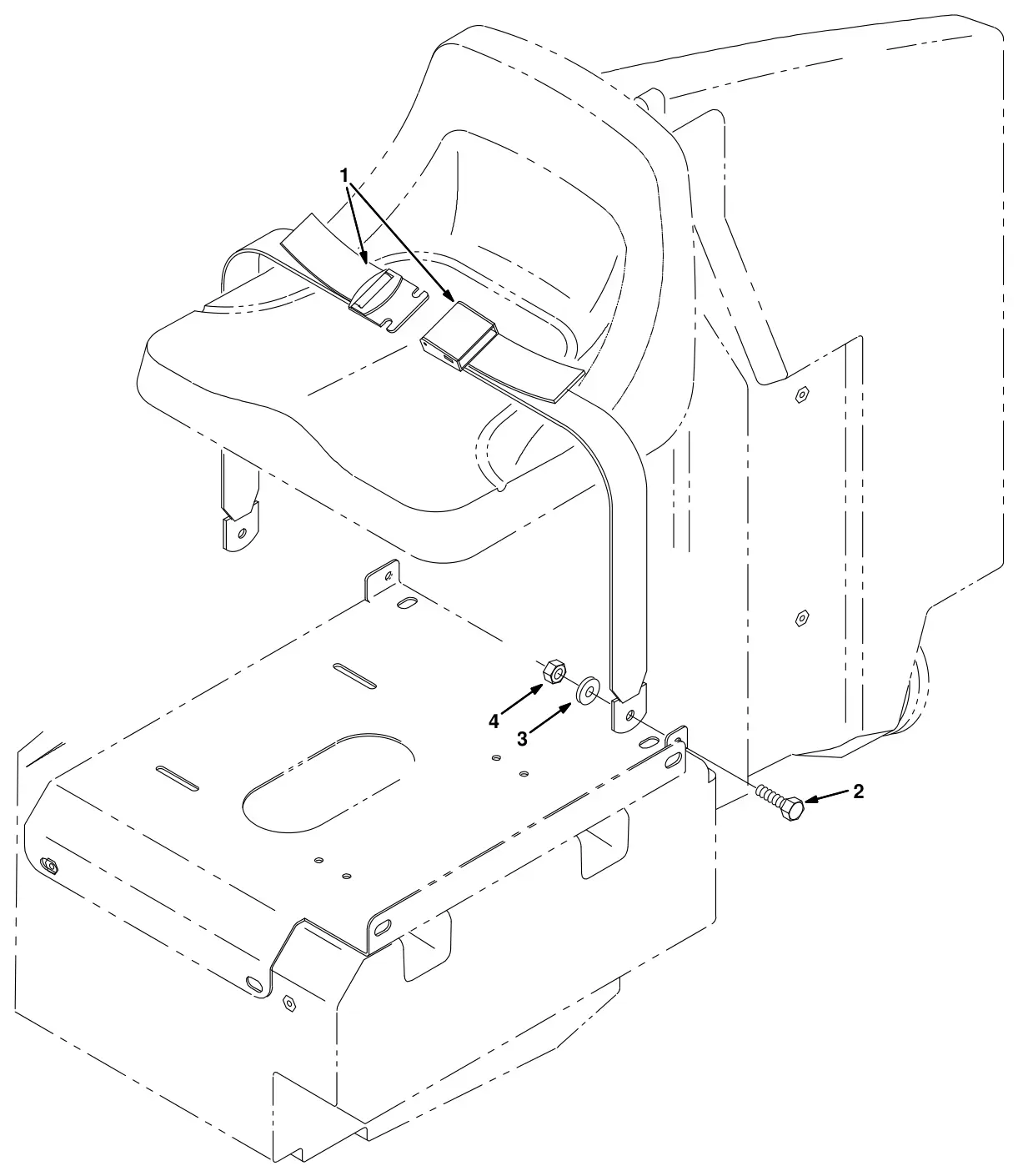

Tennant 8300 seat Belt Kit (option) parts
The parts Tennant numbers on its seat belt kit (option) drawing. Manual pages 3-22, list 3-23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022290Replaces Tennant 386958 | 1 | Kit, Ci, SeatbeltComplete assembly. | $95.10/EA |
| 1 | TN4036448Replaces Tennant 30533 | 1 | SeatbeltPart of Kit, Ci, Seatbelt (386958). | $141.00/EA |
| 2 | TN4041286Replaces Tennant 06961 | 2 | Screw, Hex, M10 X 1.5 X 20, 8.8Part of Kit, Ci, Seatbelt (386958). | $3.40/EA |
| 3 | TN4034139Replaces Tennant 32493 | 2 | Washer, Flt, .50 StdPart of Kit, Ci, Seatbelt (386958). | $3.50/EA |
| 4 | TN4016826Replaces Tennant 41430 | 2 | Nut, Hex, Lock, M10 X 1.5, NlPart of Kit, Ci, Seatbelt (386958). | $4.00/EA |

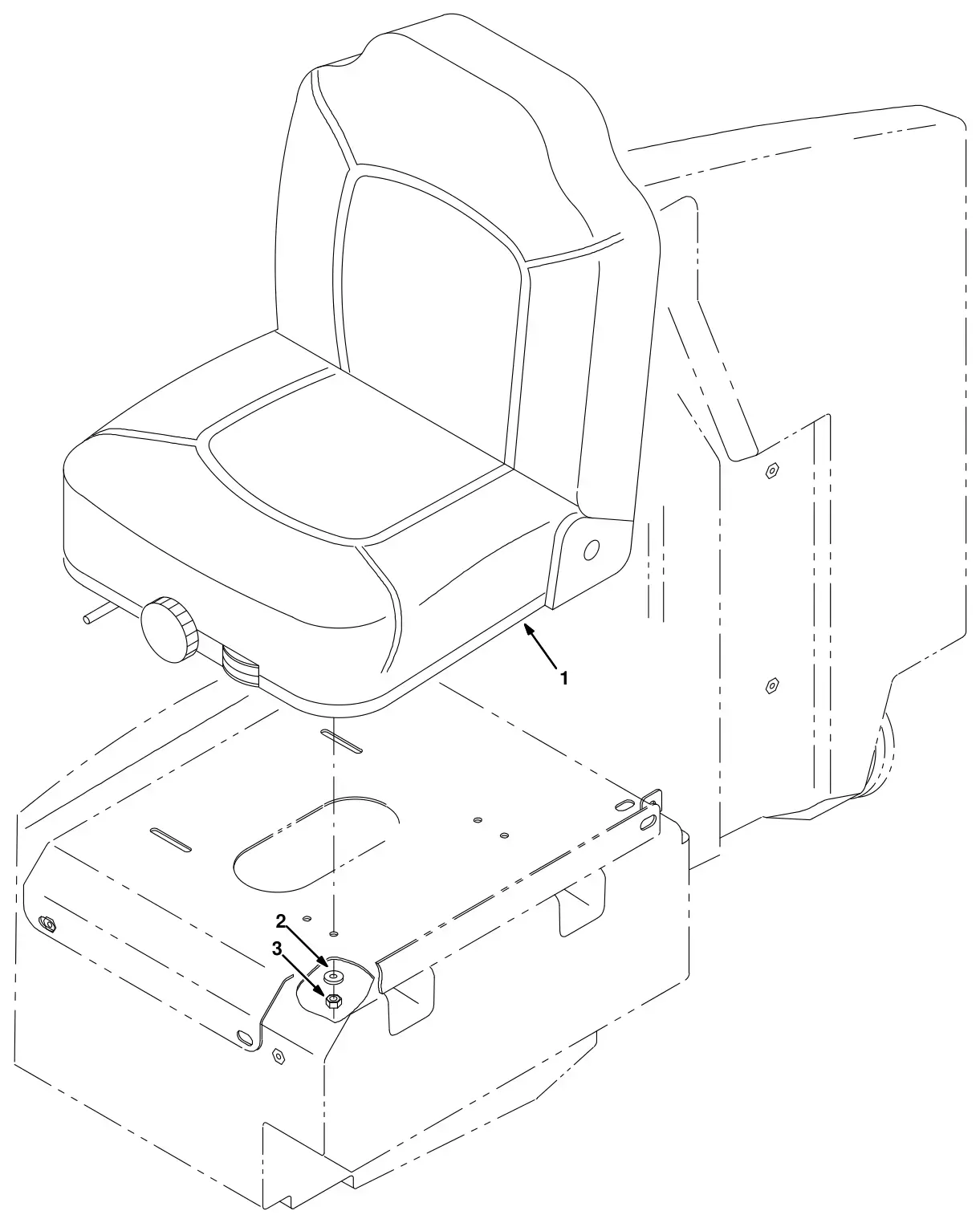

Tennant 8300 suspension Seat Kit (option) parts
The parts Tennant numbers on its suspension seat kit (option) drawing. Manual pages 3-24, list 3-25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022294Replaces Tennant 386963 | 1 | Kit, Ci, Seat, SuspensionComplete assembly. | $1,567.61/EA |
| 1 | TN4037803Replaces Tennant 223595 | 1 | Seat, SuspensionPart of Kit, Ci, Seat, Suspension (386963). | $1,245.80/EA |
| 2 | TN4034137Replaces Tennant 32491 | 4 | Washer, Flt, .31 StdPart of Kit, Ci, Seat, Suspension (386963). | $2.50/EA |
| 3 | TN4034656Replaces Tennant 32983 | 4 | Nut, Hex, Lock, .31-18, NlPart of Kit, Ci, Seat, Suspension (386963). | $2.50/EA |

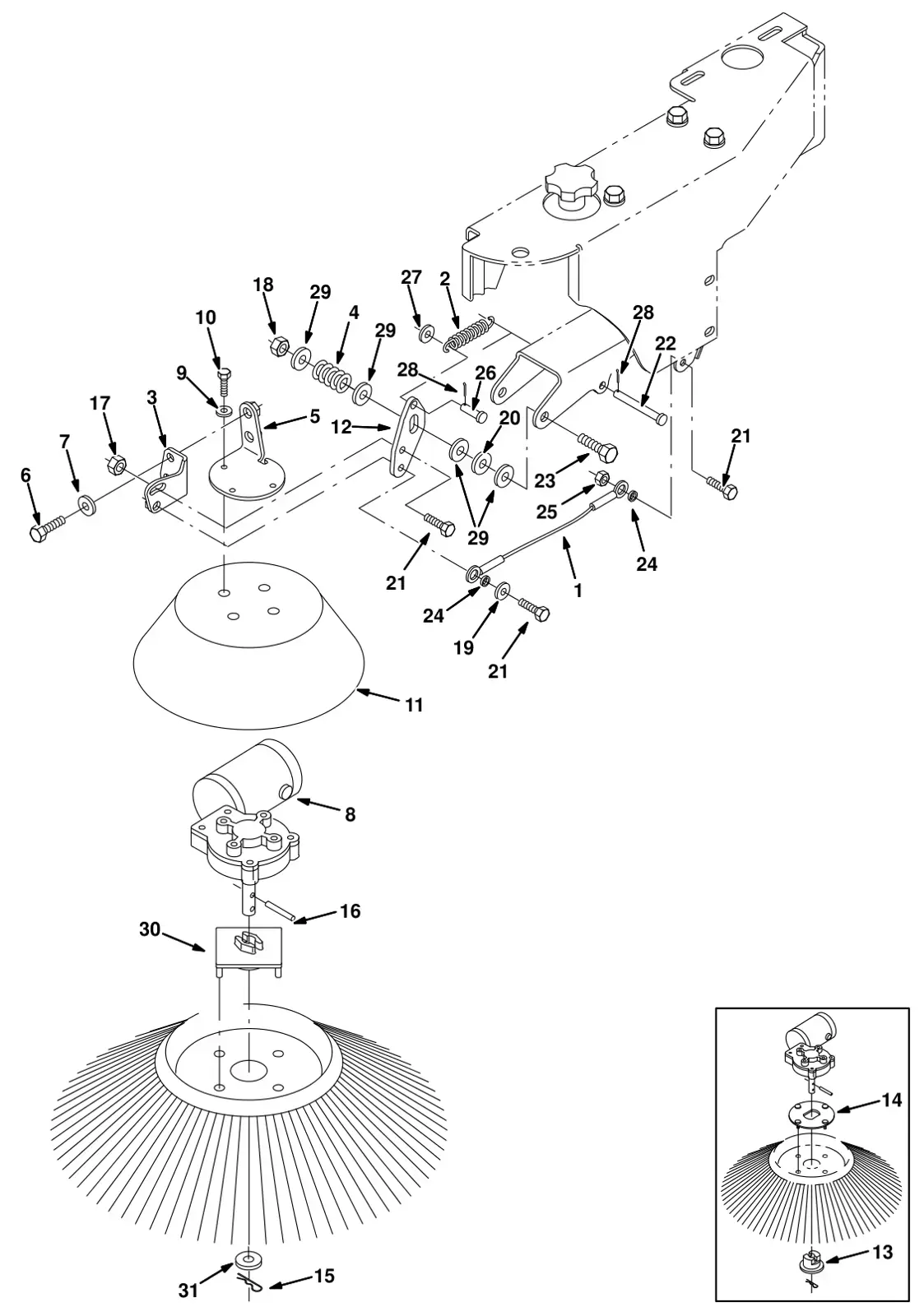

Tennant 8300 left Side Brush Motor and Pivot Group (option) parts
The parts Tennant numbers on its left side brush motor and pivot group (option) drawing. Manual pages 3-26, list 3-27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4022061Replaces Tennant 87172 | 1 | Cable, .13d, 10.0l, .51eye /.51eye | $18.50/EA |
| 2 | TN4041984Replaces Tennant 09480 | 1 | Spring, Extn, 1.10od X 0.15wir, 3.2l | $22.00/EA |
| 3 | TN4036318Replaces Tennant 1056894 | 2 | Bracket, Mtg, Motor, Iron Gray | $30.10/EA |
| 4 | TN4032090Replaces Tennant 360357 | 2 | Spring, Die, 1.00od 0.50id 1.25l | $28.00/EA |
| 5 | TN4036317Replaces Tennant 1056892 | 1 | Bracket, Mtg, Motor, Iron Gray | $102.90/EA |
| 6 | TN4042002Replaces Tennant 09770 | 2 | Screw, Hex, M10 X 1.5 X 25, Ss, Nl | $6.80/EA |
| 7 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flat, .38 Ss | $3.30/EA |
| 8 | TN4039630Replaces Tennant 1008275 | 1 | Motor, Ele, 36Vdc 0.08Hp 0068Rpm 04.5AComplete assembly. | $840.30/EA |
| – | TN8003360Replaces Tennant 81919 | 1 | Kit, Brush, Motor, ElePart of Motor, Ele, 36Vdc 0.08Hp 0068Rpm 04.5A (1008275). | $25.80/EA |
| – | TN8003293Replaces Tennant 80127 | 2 | Cap, Brush, Motor, ElePart of Motor, Ele, 36Vdc 0.08Hp 0068Rpm 04.5A (1008275). | $4.10/EA |
| – | TN8005624Replaces Tennant 369795 | 2 | Brushholder, Motor, ElePart of Motor, Ele, 36Vdc 0.08Hp 0068Rpm 04.5A (1008275). | $22.50/EA |
| – | TN8005625Replaces Tennant 369796 | 2 | Clip, Motor, ElePart of Motor, Ele, 36Vdc 0.08Hp 0068Rpm 04.5A (1008275). | $5.90/EA |
| 9 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flt, .25 Ss | $2.60/EA |
| 9 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flt, .25 Ss | $2.60/EA |
| 10 | TN4041245Replaces Tennant 15678 | 4 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 11 | TN4022235Replaces Tennant 386666 | 1 | Guard, Brush, Side | $130.90/EA |
| 12 | TN4036334Replaces Tennant 1056909 | 1 | Plate, Iron Gray | $18.60/EA |
| 13 | TN4022234Replaces Tennant 386664 | 1 | Adapter, BrushSerial up to 004071. | $117.70/EA |
| 14 | TN4022233Replaces Tennant 386663 | 1 | Plate, Adapter, BrushSerial up to 004071. | $70.90/EA |
| 15 | TN4017779Replaces Tennant 44906 | 1 | Pin, Hair Cotter, 0.69 D .092 Wir | $4.00/EA |
| 16 | TN4043366Replaces Tennant 11398 | 1 | Pin, Roll, .250 D X 2.00l, .250/.256 | $3.40/EA |
| 17 | TN4041605Replaces Tennant 07791 | 1 | Nut, Hex, Flng, M08 X 1.25 | $2.50/EA |
| 18 | TN4041927Replaces Tennant 08711 | 1 | Nut, Hex, Lock, M12 X 1.75,Nl | $3.30/EA |
| 19 | TN4034137Replaces Tennant 32491 | 1 | Washer, Flt, .31 Std | $2.50/EA |
| 20 | TN4022046Replaces Tennant 86860 | 1 | Bearing, Thrust | $10.00/EA |
| 21 | TN4156940Replaces Tennant 39277 | 3 | Screw, Hex, M08 X 1.25 X 25, 8.8 | $3.20/EA |
| 22 | TN4029373Replaces Tennant 57598 | 1 | Pin, Clevis, 0.37 D X 3.25l | $9.40/EA |
| 23 | TN4041299Replaces Tennant 06974 | 1 | Screw, Hex, M12 X 1.75 X 80, 8.8 | $4.00/EA |
| 24 | TN4032591Replaces Tennant 360801 | 2 | Sleeve | $4.00/EA |
| 25 | TN4041926Replaces Tennant 08709 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl | $2.50/EA |
| 26 | TN4040939Replaces Tennant 04733-2 | 1 | Pin, Clevis, 0.37 D X 0.62l | $6.00/EA |
| 27 | TN4042902Replaces Tennant 01685 | 1 | Washer, Flt, .31 Ss | $2.60/EA |
| 28 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 29 | TN4034135Replaces Tennant 32486 | 4 | Washer, Flt, .50 Sae | $2.60/EA |
| 30 | TN4035464Replaces Tennant 1017441 | 1 | Plate, Adapter, BrushSerial 004072 and later. | $0.00/EA |
| 31 | TN4035498Replaces Tennant 1017802 | 1 | Washer, .625 B, 2.50 Od, .211 T, SsSerial 004072 and later. | $11.80/EA |

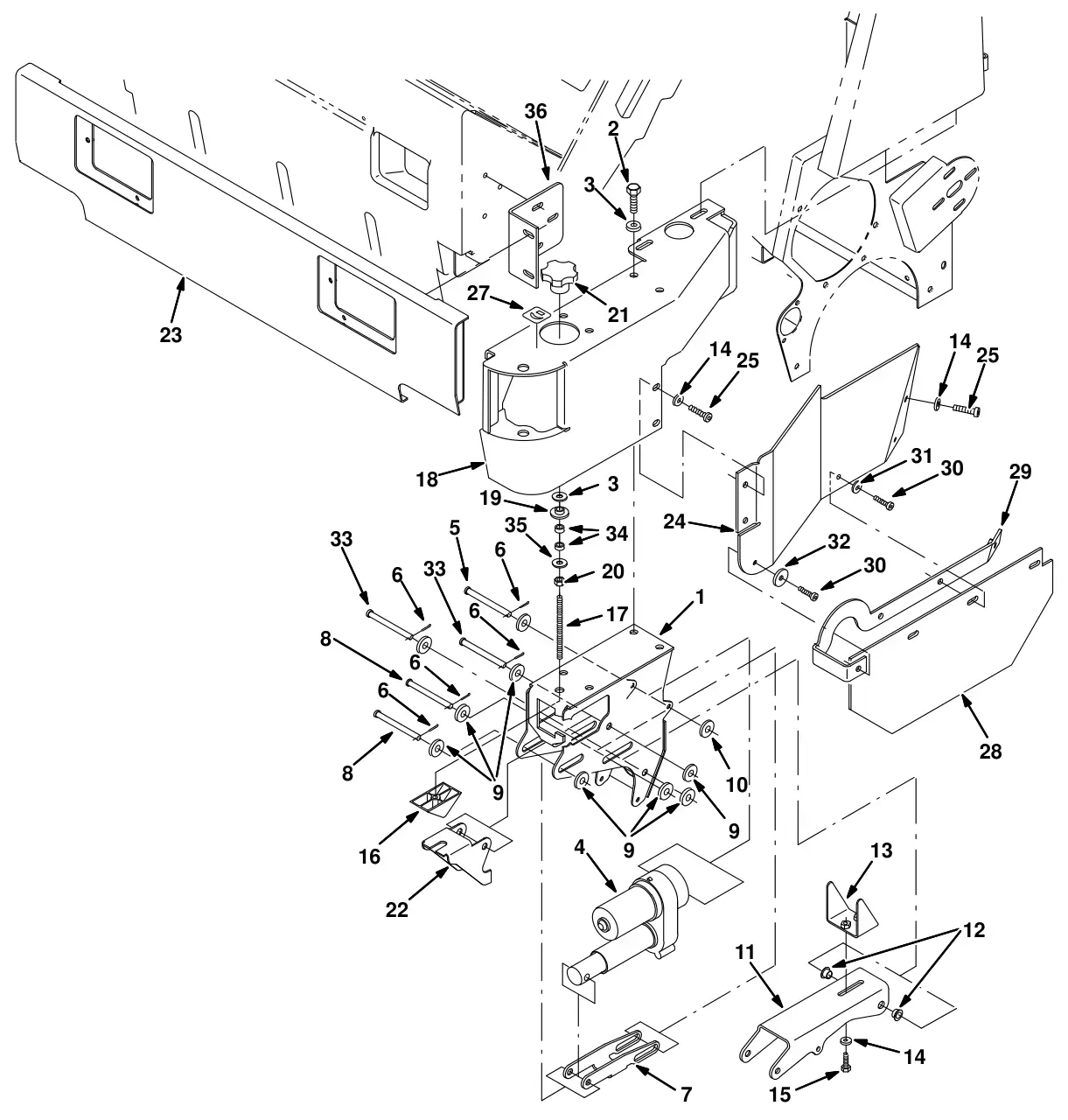

Tennant 8300 left Side Brush Lift Group (option) parts
The parts Tennant numbers on its left side brush lift group (option) drawing. Manual pages 3-28, list 3-29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036312Replaces Tennant 1056887 | 1 | Housing Wldt, Brush, Side, Iron Gray | $160.58/EA |
| 2 | TN4041974Replaces Tennant 09291 | 4 | Screw, Hex, M10 X 1.5 X 20, Ss | $5.80/EA |
| 3 | TN4034138Replaces Tennant 32492 | 4 | Washer, Flt, .38 Std | $2.50/EA |
| 4 | TN4038470Replaces Tennant 1054296 | 1 | Actuator, 36vdc, 01.8strk, 300lb | $402.20/EA |
| 5 | TN4034303Replaces Tennant 49914 | 1 | Pin, Clevis, 0.37D X 4.00L | $25.70/EA |
| 6 | TN4018580Replaces Tennant 39005 | 5 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 7 | TN4036313Replaces Tennant 1056888 | 1 | Bracket, Iron Gray | $51.70/EA |
| 8 | TN4014567Replaces Tennant 51528 | 2 | Pin, Clevis, 0.50D X 4.00L | $13.10/EA |
| 9 | TN4034135Replaces Tennant 32486 | 8 | Washer, Flat, .50 Sae | $2.60/EA |
| 10 | TN4034134Replaces Tennant 32485 | 2 | Washer, Flt, .38 Sae | $2.50/EA |
| 11 | TN4036314Replaces Tennant 1056889 | 1 | Channel, Iron Gray | $50.70/EA |
| 12 | TN4041242Replaces Tennant 15648 | 2 | Bushing, Flng, 1.50B 0.59D 0.38L | $16.20/EA |
| 13 | TN4036315Replaces Tennant 1056890 | 1 | Bracket, Iron Gray | $46.27/EA |
| 14 | TN4034137Replaces Tennant 32491 | 5 | Washer, Flt, .31 Std | $2.50/EA |
| 15 | TN4041844Replaces Tennant 16931 | 2 | Screw, Hex, M08 X 1.25 X 20, 8.8 | $2.50/EA |
| 16 | TN4022232Replaces Tennant 386658 | 1 | Block, Adj | $13.60/EA |
| 17 | TN4018043Replaces Tennant 387151 | 1 | Shaft, Thrd | $45.40/EA |
| 18 | TN4022241Replaces Tennant 386753 | 1 | Bumper Wldt, LhSerial up to 006999. | $428.40/EA |
| 18 | TN4035825Replaces Tennant 1056679 | 1 | Bumper Wldt, Lh, Iron GraySerial 007000 and later. | $293.51/EA |
| 19 | TN4030254Replaces Tennant 363087 | 1 | Spacer, Flanged | $6.00/EA |
| 20 | TN4035408Replaces Tennant 25014 | 1 | Nut, Hex, Std, .38-16 | $2.40/EA |
| 21 | TN4016806Replaces Tennant 41341 | 1 | Knob, Plastic | $38.10/EA |
| 22 | TN4036335Replaces Tennant 1056910 | 1 | Bracket, Pivot, Iron Gray | $21.60/EA |
| 23 | TN4022129Replaces Tennant 386646 | 1 | Bumper WldtSerial up to 006999. | $277.89/EA |
| 23 | TN4035757Replaces Tennant 1056499 | 1 | Bumper Wldt, Iron GraySerial 007000 and later. | $216.00/EA |
| 24 | TN4022541Replaces Tennant 387085 | 1 | Door, Brush, LhSerial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4035771Replaces Tennant 1056514 | 1 | Door, Brush, Lh, Iron GraySerial 007000 and later. | $96.29/EA |
| 25 | TN4028034Replaces Tennant 76570 | 3 | Screw, Hex, M08 X 1.25 X 30, 8.8 | $3.20/EA |
| 26 | TN4017117Replaces Tennant 64489 | 1 | Washer, 0.81b 1.24d .03, Stl, Pl | $5.20/EA |
| 27 | TN4018093Replaces Tennant 387405 | 1 | Label, Brush, Side, Adj | $12.50/EA |
| 28 | TN4018124Replaces Tennant 387468 | 1 | Skirt | $40.00/EA |
| 29 | TN4036347Replaces Tennant 1056935 | 1 | Strip, Iron Gray | $72.93/EA |
| 30 | TN4037712Replaces Tennant 223470 | 4 | Screw, Btn, M08 X 1.25 X 25, Ss | $4.00/EA |
| 31 | TN4015595Replaces Tennant 39349 | 3 | Washer, Flt, .31 Sae | $2.50/EA |
| 32 | TN4036089Replaces Tennant 30013 | 1 | Washer, Flat, .31 Fender | $2.40/EA |
| 33 | TN4039888Replaces Tennant 222196 | 2 | Pin, Clevis, 0.50 D X 4.00l | $6.00/EA |
| 34 | TN4018866Replaces Tennant 390879 | 2 | Sleeve, P/M, 0.625D 0.406B 0.38L 430Ss | $6.20/EA |
| 35 | TN4034138Replaces Tennant 32492 | 1 | Washer, Flat, 0.38 Std | $2.50/EA |
| 36 | TN4018077Replaces Tennant 387317 | 1 | Angle, Bumper, Mtg, LhSerial up to 006999. | $104.62/EA |
| 36 | TN4035856Replaces Tennant 1056802 | 1 | Angle, Bmpr, Mtg, Lh, Iron GraySerial 007000 and later. | $30.20/EA |

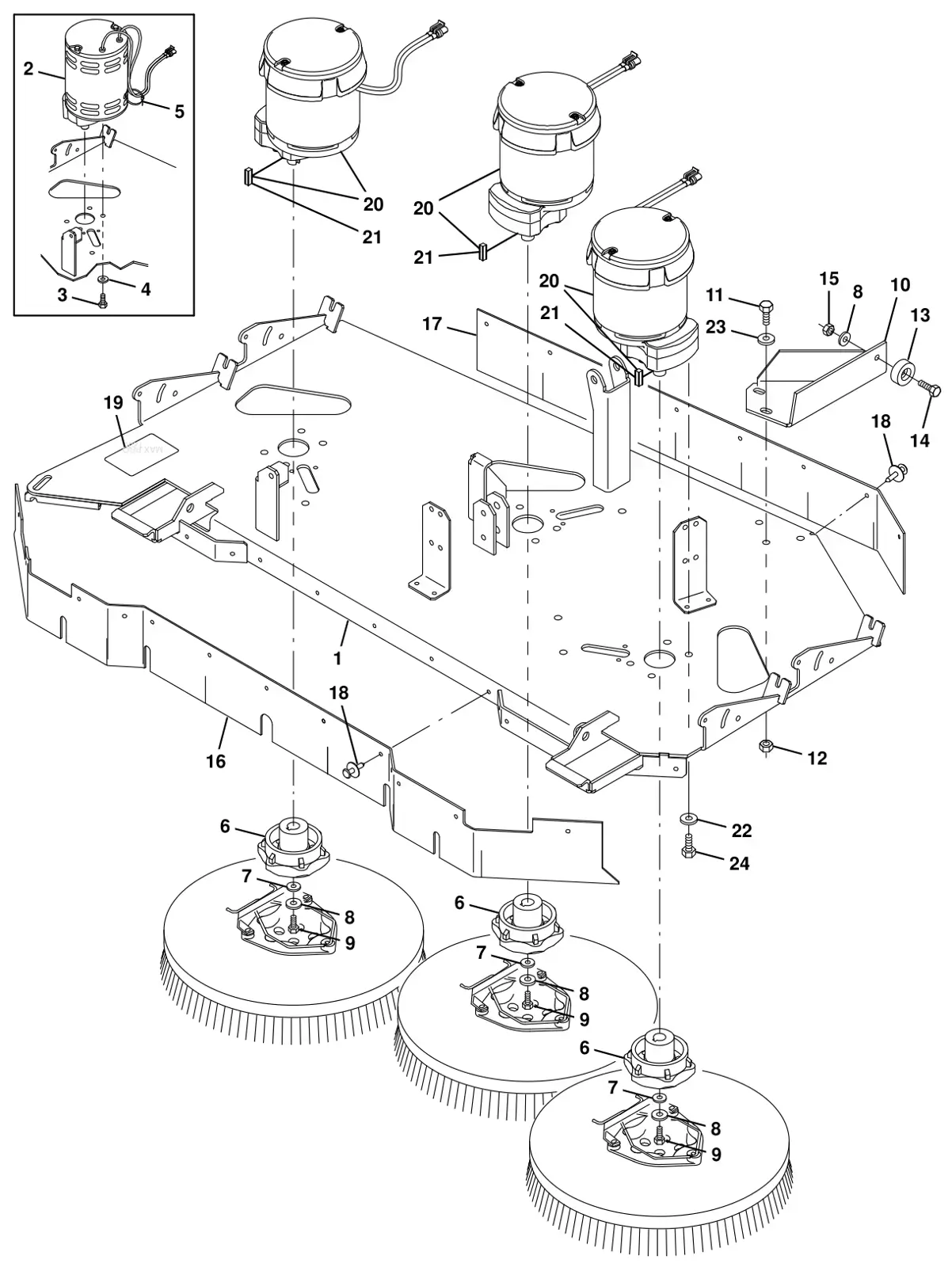

Tennant 8300 max Pro 1200 (Disc - Brush) Scrub Head Frame Group (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) scrub head frame group (option) drawing. Manual pages 3-30, list 3-31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036331Replaces Tennant 1056902 | 1 | Frame Wldt, Scb Head, 3 Brush, Ele, GrayFits 8300 · Max Pro 1200 disc brush. | $1,225.00/EA |
| 2 | TN4011284Replaces Tennant 386687 | 3 | Motor, Gear, Ele, 1.0hp, 36vdc, 300rpm (See Breakdown) (Replaced by 9010162)Serial up to 007321. | $993.70/EA |
| 3 | TN4031276Replaces Tennant 34195 | 12 | Screw, Hex, .38-16 X 1.00, NlFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial up to 007321. | $4.00/EA |
| 4 | TN4042903Replaces Tennant 01686 | 12 | Washer, Flt, .38 SsSerial up to 007321. | $3.30/EA |
| 5 | TN4014137Replaces Tennant 49263 | 3 | Tie, Cable, Nyl, 11.4l .19w 3.0 Max DFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial up to 007321. | $3.40/EA |
| 6 | TN4025667Replaces Tennant 377364 | 3 | Hub, Drive, BrushFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $186.50/EA |
| 7 | TN4016796Replaces Tennant 41186 | 3 | Washer, Belleville, .31Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $3.50/EA |
| 8 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flt, .31 Ss | $2.60/EA |
| 9 | TN4033527Replaces Tennant 32124 | 3 | Screw, Hex, .31-18 X 1.00, Ss, NlFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $6.00/EA |
| 10 | TN4035890Replaces Tennant 1056841 | 1 | Bracket, Stop, FrameFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $38.20/EA |
| 11 | TN4041948Replaces Tennant 09028 | 3 | Screw, Hex, M10 X 1.5 X 25, Ss | $4.00/EA |
| 12 | TN4041930Replaces Tennant 08714 | 3 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 13 | TN4044390Replaces Tennant 15023 | 1 | Bumper, Pye | $14.70/EA |
| 14 | TN4041943Replaces Tennant 09010 | 1 | Screw, Hex, M08 X 1.25 X 25, Ss | $3.30/EA |
| 15 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 16 | TN4022254Replaces Tennant 386825 | 1 | Skirt, Front, Scrub Head, 3-Brush, EleFits 8300 · Max Pro 1200 disc brush. | $33.20/EA |
| 17 | TN4022255Replaces Tennant 386826 | 1 | Skirt, Rear, Scrub Head, 3-Brush, EleFits 8300 · Max Pro 1200 disc brush. | $34.40/EA |
| 18 | TN4016302Replaces Tennant 72968 | 21 | Rivet, Plstc, .250 X 0.898 | $3.20/EA |
| 19 | TN4028480Replaces Tennant 365156 | 1 | Label Set, Info/Hzrd, [Maxpro] | $78.90/EA |
| 20 | TN4011284Replaces Tennant 9010162 | 3 | Motor Kit, Ele 36vdc 300rpm 1.0hpComplete assembly. Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 007322 and later. | $993.70/EA |
| 21 | TN4042785Replaces Tennant 00928 | 1 | Key Square 0.25X 0.25, 01.00LPart of Motor Kit, Ele 36vdc 300rpm 1.0hp (9010162). Serial 007322 and later. | $3.60/EA |
| – | TN8005758Replaces Tennant 1066573 | 1 | Brush Kit, MoterPart of Motor Kit, Ele 36vdc 300rpm 1.0hp (9010162). Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 007322 and later. | $116.80/EA |
| 22 | TN4035242Replaces Tennant 1017218 | 12 | Washer, Flat, 0.32b 1.00d .12, SsFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 007322 and later. | $3.40/EA |
| 23 | TN4042903Replaces Tennant 01686 | 3 | Washer, Flt, .38 Ss | $3.30/EA |
| 24 | TN4036504Replaces Tennant 12333 | 12 | Screw, Hex, M8 X 1.25 X 25, Ss, NlFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 007322 and later. | $4.00/EA |

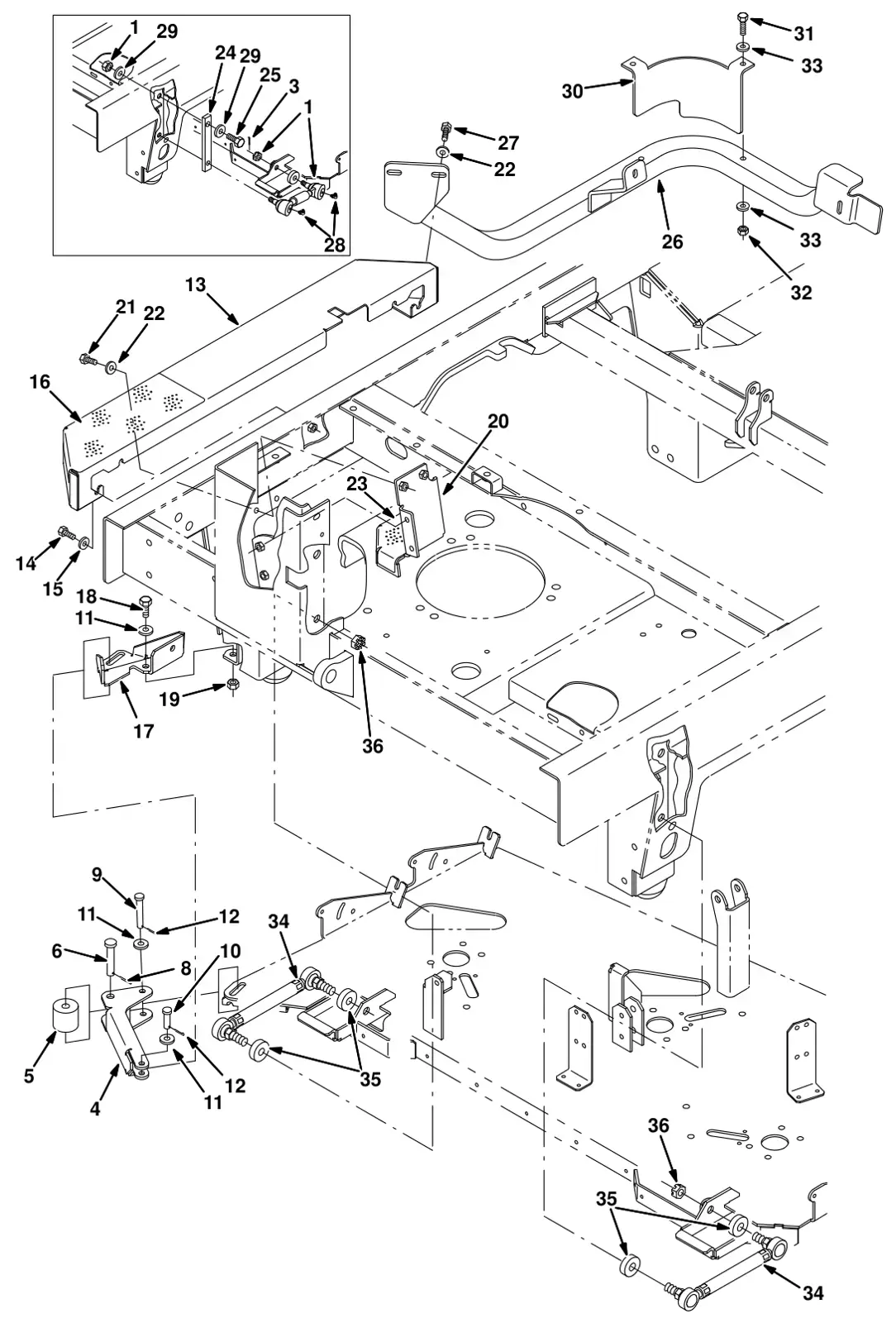

Tennant 8300 max Pro 1200 (Disc - Brush) Scrub Head Linkage Group (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) scrub head linkage group (option) drawing. Manual pages 3-32, list 3-33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4014444Replaces Tennant 363113 | 2 | Link Wldt, Head, Drag (Replaced by 9005751)Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 004780. | $203.40/EA |
| 2 | TN4044332Replaces Tennant 14524 | 2 | Spacer, WasherSerial up to 004780. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN4041921Replaces Tennant 08346 | 4 | Pin, Cotter, .125 X 0.75Serial up to 004780. | $2.50/EA |
| 4 | TN4042330Replaces Tennant 1001099 | 1 | Guard, Kick In, Scb HeadSerial up to 006999. | $428.75/EA |
| 4 | TN4039127Replaces Tennant 1056390 | 1 | Guard, Kick In, Scb Head, Iron GraySerial 007000 and later. | $84.30/EA |
| 5 | TN4016300Replaces Tennant 72946 | 1 | Roller | $27.10/EA |
| 6 | TN4040988Replaces Tennant 06279 | 1 | Pin, Clevis, 0.50 D X 2.50l | $4.00/EA |
| 7 | TN4041927Replaces Tennant 08711 | 2 | Nut, Hex, Std, M12 X 2.0Serial up to 004780. | $3.30/EA |
| 8 | TN4041914Replaces Tennant 08182 | 1 | Pin, Cotter, .125 X 1.00 | $2.50/EA |
| 9 | TN4028486Replaces Tennant 365180 | 1 | Pin, Clevis, 0.38 D X 2.50l | $6.00/EA |
| 10 | TN4036074Replaces Tennant 29557 | 1 | Pin, Clevis, 0.37 D X 1.31l | $3.20/EA |
| 11 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flt, .38 Ss | $3.30/EA |
| 12 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 13 | TN4022256Replaces Tennant 386827 | 1 | Bumper, Side, Scb Head, WideFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $552.57/EA |
| 13 | TN4188859Replaces Tennant 1056681 | 1 | Bumper, Side, Scb Head, Wide, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $245.54/EA |
| 14 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M08 X 1.25 X 20, Ss | $3.30/EA |
| 15 | TN4034137Replaces Tennant 32491 | 6 | Washer, Flt, .31 Std | $2.50/EA |
| 16 | TN4169401Replaces Tennant 387080 | 1 | Tread, Floor, 12.5 X 5.75Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $5.40/EA |
| 17 | TN4169348Replaces Tennant 386876 | 1 | Bracket, Adaptor, Mtg, Kick In, FrameFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $229.89/EA |
| 17 | TN4188833Replaces Tennant 1056505 | 1 | Bracket, Adapter, Mtg, Kick In, FrameFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $73.27/EA |
| 18 | TN4041948Replaces Tennant 09028 | 2 | Screw, Hex, M10 X 1.5 X 25, Ss | $4.00/EA |
| 19 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 20 | TN4169437Replaces Tennant 387162 | 1 | BracketFits 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $309.77/EA |
| 20 | TN4035772Replaces Tennant 1056516 | 1 | Bracket, Step, Iron GrayFits 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $61.11/EA |
| 21 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M08 X 1.25 X 20, Ss | $3.30/EA |
| 22 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flt, .31 Ss | $2.60/EA |
| 23 | TN4169480Replaces Tennant 387230 | 1 | Tread, StepFits 8300 · Max Pro 1200 disc brush. | $4.44/EA |
| 24 | TN24254Tennant 24254 | 2 | Spacer, PlateFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial up to 004780. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | TN4041294Replaces Tennant 06969 | 2 | Screw, Hex, M12 X 1.75 X 40, 8.8Serial up to 004780. | $4.00/EA |
| 26 | TN4018057Replaces Tennant 387245 | 1 | Guard Wldt, Sqge (MP 20)Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $948.29/EA |
| 26 | TN4188840Replaces Tennant 1056517 | 1 | Guard Wldt, Sqge, Rear, GrayFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $695.38/EA |
| 27 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M08 X 1.25 X 25, Ss | $3.30/EA |
| 28 | TN4041988Replaces Tennant 09718 | 4 | Fitting, Grease, E90 Pm04 .75LFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 004780. | $5.96/EA |
| 29 | TN4034135Replaces Tennant 32486 | 4 | Washer, Flt, .50 SaeSerial up to 004780. | $2.60/EA |
| 30 | TN4198531Replaces Tennant 1007486 | 1 | Guard, BumperFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $294.50/EA |
| 30 | TN4189053Replaces Tennant 1057073 | 1 | Guard, Bmpr, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $44.00/EA |
| 31 | TN4014172Replaces Tennant 49694 | 2 | Screw, Hex, M 8 X 1.25 X 50, SsFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $6.60/EA |
| 32 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M 8 X 1.25, Nl, Ss | $3.30/EA |
| 33 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 34 | TN4040655Replaces Tennant 1050193 | 2 | Link Assy, Rod-End, .63-18Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 004781 and later. | $130.50/EA |
| 35 | TN4036370Replaces Tennant 1057066 | 4 | Tube, 0.69id 1.25od 00.4l, Rod-End, GraySerial 004781 and later. | $9.10/EA |
| 36 | TN4016770Replaces Tennant 40814 | 4 | Nut, Hex, Lock, .62-18, Nl, ThinSerial 004781 and later. | $4.00/EA |

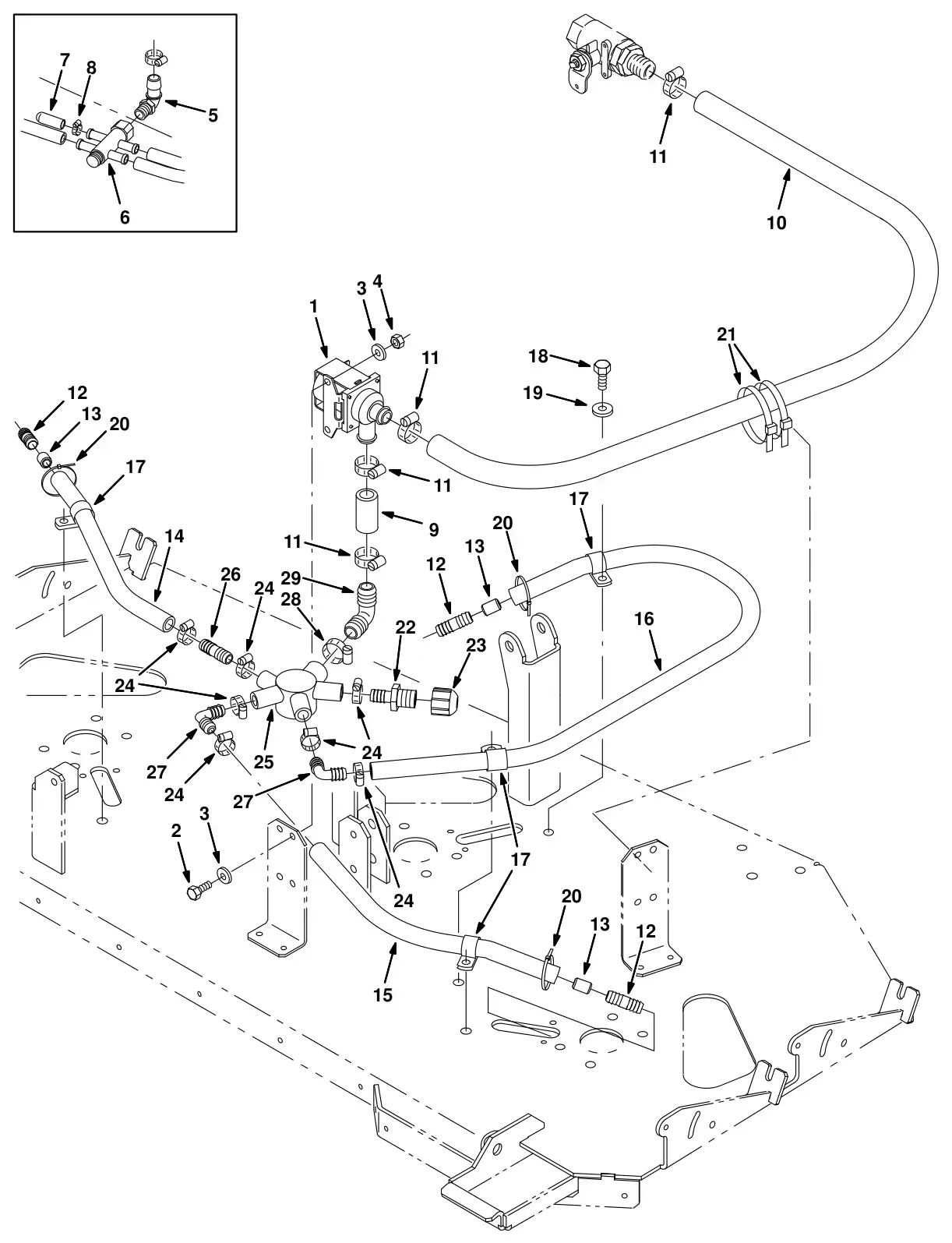

Tennant 8300 max Pro 1200 (Disc - Brush) Solution Valve Group (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) solution valve group (option) drawing. Manual pages 3-34, list 3-35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024342Replaces Tennant 84028 | 1 | Valve, Water | $111.10/EA |
| 2 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 3 | TN4171131Replaces Tennant 32490 | 4 | Washer, Flt, .25 Std | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4021149Replaces Tennant 63244-2 | 1 | Fitting, Plstc, E90, Bm12/Pm08Serial up to 003817. | $6.90/EA |
| 6 | TN4016301Replaces Tennant 72950 | 1 | Manifold, PlasticFits 8300 · Max Pro 1200 disc brush. Serial up to 003817. | $59.79/EA |
| 7 | TN4039097Replaces Tennant 20807 | 1 | Cap, Neoprene BlackFits 8300 · Max Pro 1200 disc brush. Serial up to 003817. | $4.00/EA |
| 8 | TN4015366Replaces Tennant 54333 | 1 | Clamp, Hose, Wormdrive, 0.31-0.88dSerial up to 003817. | $5.10/EA |
| 9 | TN4041841Replaces Tennant 16914 | 1 | Hose, Pvc, Brd, 0.75id 1.00od 02.00l | $15.25/EA |
| 10 | TN4016345Replaces Tennant 73474 | 1 | Hose, Pvc, Brd, 0.75id 1.00od 44.50l | $28.99/EA |
| 11 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 12 | TN4028132Replaces Tennant 364631 | 3 | Fitting, Plstc, Str, Bm08/Bm08Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $3.33/EA |
| 13 | TN4211596Replaces Tennant 77334 | 3 | Fitting, Plstc, Rst, .50od/.31idFits 8300 · Max Pro 1200 disc brush. | $2.90/EA |
| 14 | TN4014129Replaces Tennant 49142 | 1 | Hose, Pvc, Brd, 0.50id 0.80od 18.00lFits 8300 · Max Pro 1200 disc brush. | $20.20/EA |
| 15 | TN4037736Replaces Tennant 223515 | 1 | Hose, Pvc, Brd, 0.50id 0.75od 14.00lFits 8300 · Max Pro 1200 disc brush. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4021023Replaces Tennant 385682 | 1 | Hose, Pvc, Brd, 0.50id 0.73od 33.00lFits 8300 · Max Pro 1200 disc brush. | $30.40/EA |
| 17 | TN4017933Replaces Tennant 67767 | 4 | Clamp, Cable, Stl, 0.69d X 0.62w, 1h | $4.20/EA |
| 18 | TN4034939Replaces Tennant 12273 | 4 | Screw, Hex, M08 X 1.25 X 20, Ss, Nl | $4.00/EA |
| 19 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flt, .31 Ss | $2.60/EA |
| 20 | TN4014138Replaces Tennant 49266 | 3 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max D | $2.50/EA |
| 21 | TN4013410Replaces Tennant 44961 | 2 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max D | $3.40/EA |
| 22 | TN4026539Replaces Tennant 79273-4 | 1 | Fitting, Plstc, Str, Bm08/Pm08Serial 003818 and later. | $6.20/EA |
| 23 | TN4038310Replaces Tennant 1015558 | 1 | Fitting, Plstc, Cap, Pf08Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 003818 and later. | $46.50/EA |
| 24 | TN4015366Replaces Tennant 54333 | 7 | Clamp, Hose, Wormdrive, 0.31-0.88dSerial 003818 and later. | $5.10/EA |
| 25 | TN4037252Replaces Tennant 1012528 | 1 | Manifold, Soltn, CntrlFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 003818 and later. | $42.70/EA |
| 26 | TN4028132Replaces Tennant 364631 | 1 | Fitting, Plstc, Str, Bm08/Bm08Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 003818 and later. | $3.33/EA |
| 27 | TN4017096Replaces Tennant 63987-1 | 2 | Fitting, Plstc, E90, Bm08/Bm08Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. Serial 003818 and later. | $7.80/EA |
| 28 | TN4022043Replaces Tennant 86824 | 1 | Clamp, Hose, Wormdrive, 0.50-1.06dFits 8300 · Max Pro 1200 disc brush. Serial 003818 and later. | $6.20/EA |
| 29 | TN4016760Replaces Tennant 40566 | 1 | Fitting, Plstc, E90, Bm12/Bm12Serial 003818 and later. | $11.01/EA |

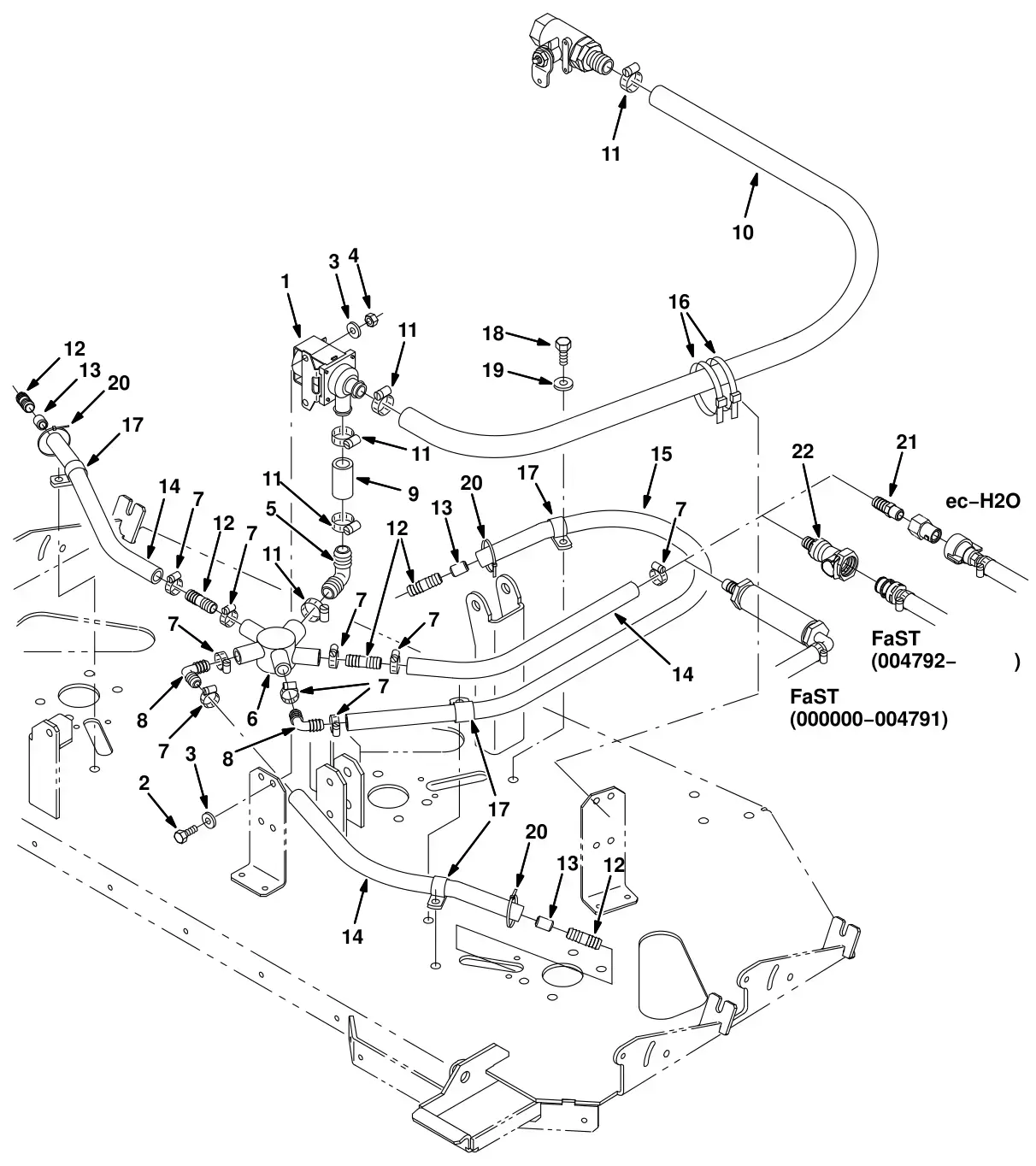

Tennant 8300 max Pro 1200 (Disc - Brush) Solution Valve Group (FaST/ec-H2O) (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) solution valve group (fast/ec-h2o) (option) drawing. Manual pages 3-36, list 3-37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024342Replaces Tennant 84028 | 1 | Valve, Water | $111.10/EA |
| 2 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 3 | TN4171131Replaces Tennant 32490 | 4 | Washer, Flt, .25 Std | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4016760Replaces Tennant 40566 | 1 | Fitting, Plstc, E90, Bm12/Bm12 | $11.01/EA |
| 6 | TN4037252Replaces Tennant 1012528 | 1 | Manifold, Soltn, CntrlFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $42.70/EA |
| 7 | TN4015366Replaces Tennant 54333 | 9 | Clamp, Hose, Wormdrive, 0.31-0.88d | $5.10/EA |
| 8 | TN4017096Replaces Tennant 63987-1 | 2 | Fitting, Plstc, E90, Bm08/Bm08Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $7.80/EA |
| 9 | TN4037988Replaces Tennant 1015048 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 1 FtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $14.65/EA |
| 10 | TN4037985Replaces Tennant 1015045 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 8 Ft | $83.30/EA |
| 11 | TN4017089Replaces Tennant 63810 | 5 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 12 | TN4028132Replaces Tennant 364631 | 5 | Fitting, Plstc, Str, Bm08/Bm08Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $3.33/EA |
| 13 | TN4211596Replaces Tennant 77334 | 3 | Fitting, Plstc, Rst, .50od/.31idFits 8300 · Max Pro 1200 disc brush. | $2.90/EA |
| 14 | TN4036862Replaces Tennant 1011521 | 3 | Hose, Afmkt Replmt, Pvc, Brd 0.50id 2 Ft | $21.00/EA |
| 15 | TN4039302Replaces Tennant 1006401 | 1 | Hose, Afmkt Replmt, Pvc, Brd 0.50id 3 FtFits 8300 · Max Pro 1200 disc brush. | $32.10/EA |
| 16 | TN4013410Replaces Tennant 44961 | 2 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max D | $3.40/EA |
| 17 | TN4017933Replaces Tennant 67767 | 4 | Clamp, Cable, Stl, 0.69d X 0.62w, 1h | $4.20/EA |
| 18 | TN4034939Replaces Tennant 12273 | 4 | Screw, Hex, M08 X 1.25 X 20, Ss, Nl | $4.00/EA |
| 19 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flt, .31 Ss | $2.60/EA |
| 20 | TN4014138Replaces Tennant 49266 | 3 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max D | $2.50/EA |
| 21 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04 (ec-H2O) | $1.35/EA |
| 22 | TN4035457Replaces Tennant 1017413 | 1 | Housing, Cplg, Qf / Pm08 (FaST)Serial 003747 and later. | $37.90/EA |

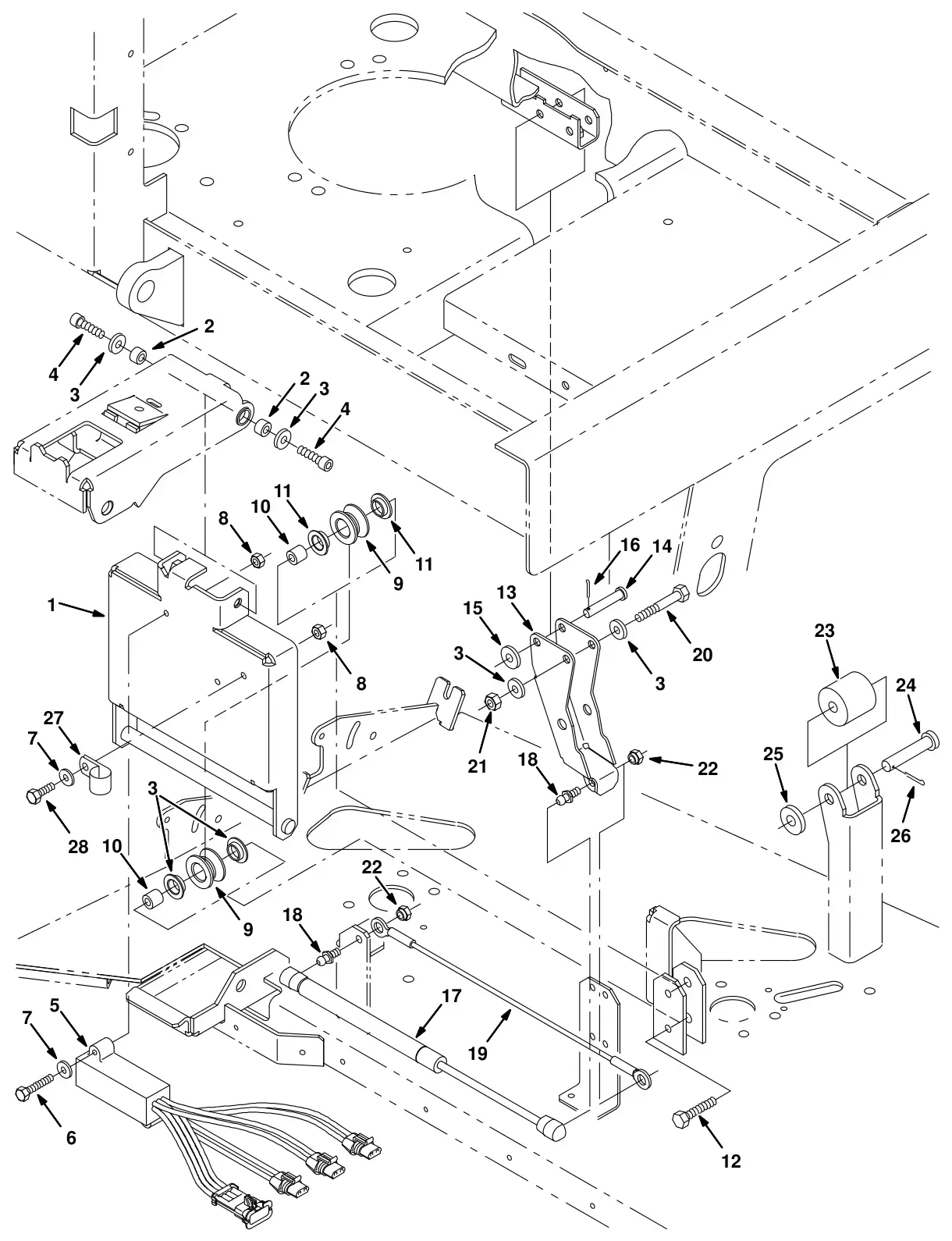

Tennant 8300 max Pro 1200 (Disc - Brush) Edge Scrub Group (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) edge scrub group (option) drawing. Manual pages 3-38, list 3-39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035893Replaces Tennant 1056844 | 1 | Rail Wldt, Lift, Disk Head, Iron GrayFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $204.50/EA |
| 2 | TN4040622Replaces Tennant 222556 | 2 | Sleeve | $5.80/EA |
| 3 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flt, .31 Ss | $2.60/EA |
| 4 | TN4019804Replaces Tennant 39308 | 2 | Screw, Soc, M08 X 1.25 X 25, 12.9 | $3.40/EA |
| 5 | TN4030455Replaces Tennant 363238 | 1 | Shunt, 3 Std Mtrs, Scrub 515, YellowFits 8300 · Max Pro 1200 disc brush. | $273.00/EA |
| 6 | TN4031245Replaces Tennant 33930 | 2 | Screw, Hex, M06 X 1.0 X 40, Ss | $3.40/EA |
| 7 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flt, .25 Ss | $2.60/EA |
| 8 | TN4041928Replaces Tennant 08712 | 3 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 9 | TN4030257Replaces Tennant 363120 | 2 | Roller | $39.90/EA |
| 10 | TN4040234Replaces Tennant 222277 | 2 | Sleeve | $4.10/EA |
| 11 | TN4040946Replaces Tennant 04843 | 4 | Bushing, Flng, 0.63b 0.72d 0.25l | $9.60/EA |
| 12 | TN4040607Replaces Tennant 222505 | 2 | Screw, Hex, M08 X 1.25 X 45, Ss | $4.00/EA |
| 13 | TN4035894Replaces Tennant 1056845 | 1 | Arm Wldt, Pivot, Side, Gray [7300/8300] | $90.90/EA |
| 14 | TN4036077Replaces Tennant 29584 | 1 | Pin, Clevis, 0.37 D X 2.00l | $3.90/EA |
| 15 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flt, .38 Ss | $3.30/EA |
| 16 | TN4018580Replaces Tennant 39005 | 1 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 17 | TN4028175Replaces Tennant 364858 | 1 | Gasspring, 56lb, 6.3strk | $102.40/EA |
| 18 | TN4029776Replaces Tennant 58494 | 2 | Stud, Ball, .39d .31-16, Gasspring | $8.40/EA |
| 19 | TN4027783Replaces Tennant 364404 | 1 | Cable, .13d, 15.5l, .50eye /.50eye | $32.40/EA |
| 20 | TN4025329Replaces Tennant 77270 | 1 | Screw, Hex, M08 X 1.25 X 60, SsFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $6.60/EA |
| 21 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 22 | TN4044348Replaces Tennant 14725 | 2 | Nut, Retainer, .31-18 | $15.20/EA |
| 23 | TN4016300Replaces Tennant 72946 | 1 | Roller | $27.10/EA |
| 24 | TN4040988Replaces Tennant 06279 | 1 | Pin, Clevis, 0.50 D X 2.50l | $4.00/EA |
| 25 | TN4034139Replaces Tennant 32493 | 1 | Washer, Flt, .50 Std | $3.50/EA |
| 26 | TN4041914Replaces Tennant 08182 | 1 | Pin, Cotter, .125 X 1.00 | $2.50/EA |
| 27 | TN4017933Replaces Tennant 67767 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1h | $4.20/EA |
| 28 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M06 X 1.0 X 20, Ss | $3.20/EA |

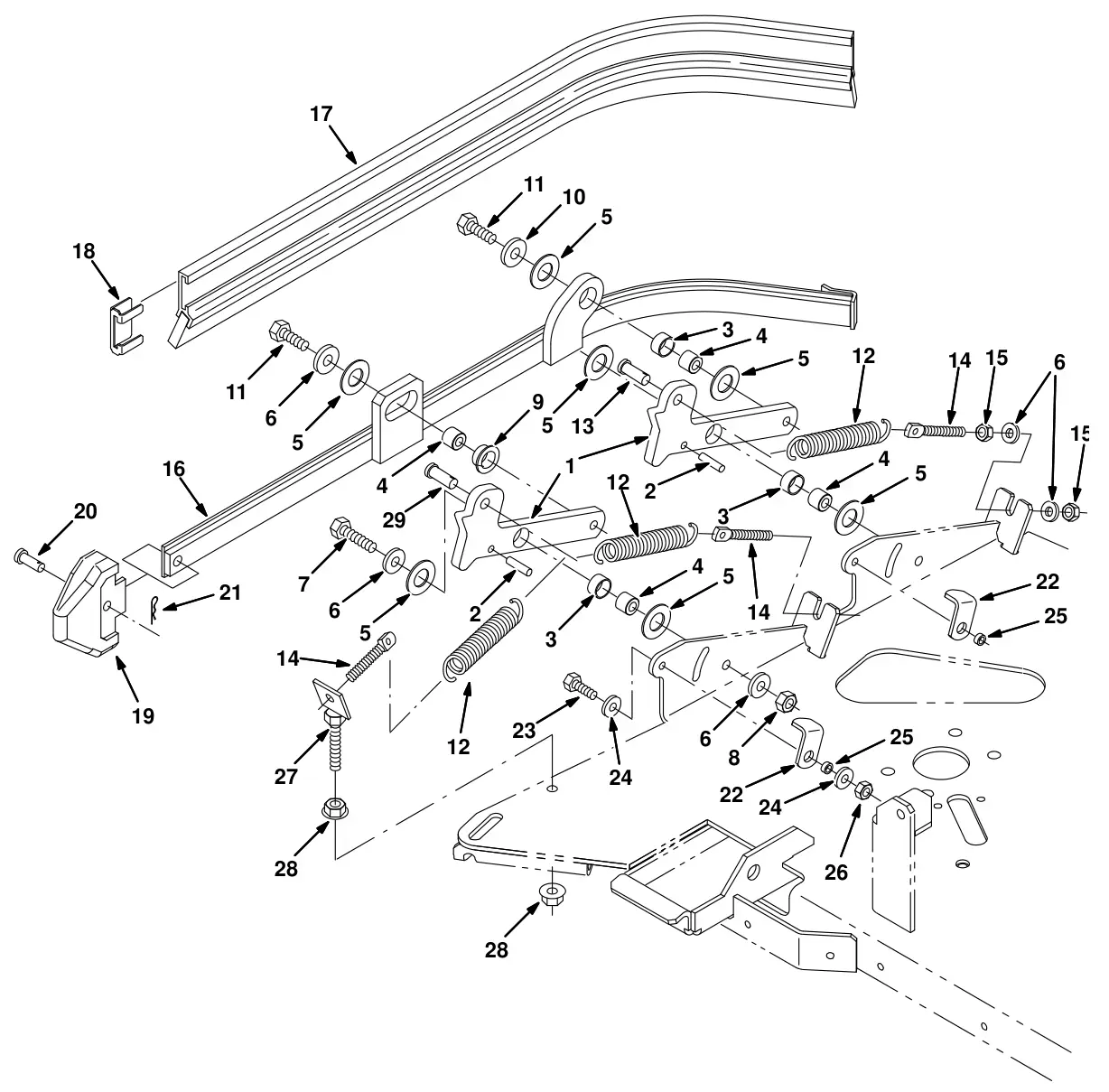

Tennant 8300 max Pro 1200 (Disc - Brush) Right Side Squeegee Group (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) right side squeegee group (option) drawing. Manual pages 3-40, list 3-41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036295Replaces Tennant 1056863 | 2 | Arm, Mtg, Side Sqge Frame, Ele, GrayFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $46.60/EA |
| 2 | TN4041875Replaces Tennant 17404 | 2 | Pin, Roll, .250 D X 0.75l, .250/.256 | $3.30/EA |
| 3 | TN4015663Replaces Tennant 71607 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38l | $12.50/EA |
| 4 | TN4021770Replaces Tennant 386356 | 4 | Sleeve, .335b X .62d X .52l, SstFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $4.90/EA |
| 5 | TN4017115Replaces Tennant 64425 | 7 | Washer, Thrust, 0.61b 1.25d .06, Fgl | $5.40/EA |
| 6 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flt, .31 Ss | $2.60/EA |
| 7 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, Ss | $3.30/EA |
| 8 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 9 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38l | $10.60/EA |
| 10 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flt, .38 Ss | $3.30/EA |
| 11 | TN4036504Replaces Tennant 12333 | 2 | Screw, Hex, M08 X 1.25 X 25, Ss, NlFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $4.00/EA |
| 12 | TN4022528Replaces Tennant 87816 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5l | $5.20/EA |
| 13 | TN4028054Replaces Tennant 76653 | 2 | Pin, Clevis, 0.37 D X 1.00lFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $3.30/EA |
| 14 | TN4021359Replaces Tennant 386088 | 2 | Bolt, Eye, M8 X 1.25, 2.75l | $24.20/EA |
| 15 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M08 X 1.25, Ss | $3.40/EA |
| 16 | TN4021690Replaces Tennant 386263 | 1 | Frame Wldt, Sqge, Side, Rh | $234.90/EA |
| 17 | TN4021678Replaces Tennant 386260 | 1 | Squeegee, Side | $66.47/EA |
| 18 | TN4022032Replaces Tennant 86759 | 1 | Retainer, Sqge | $11.30/EA |
| 19 | TN4022303Replaces Tennant 386986 | 1 | Guide, Point, Side Sqge | $37.70/EA |
| 20 | TN4022304Replaces Tennant 386987 | 1 | Pin, Clevis, 0.31d 0.88l | $4.00/EA |
| 21 | TN4022048Replaces Tennant 86866 | 1 | Pin, Hair Cotter, 0.38 D .072 WirFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $2.50/EA |
| 22 | TN4021790Replaces Tennant 386391 | 2 | Latch, Double Scrub, Side SqgeFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $9.60/EA |
| 23 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M06 X 1.0 X 20, Ss | $3.20/EA |
| 24 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flt, .25 Ss | $2.60/EA |
| 25 | TN4023520Replaces Tennant 80491 | 2 | SleeveFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $5.10/EA |
| 26 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 27 | TN4039556Replaces Tennant 1007632 | 1 | Bracket Wldt, Mtg, SpringFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $22.34/EA |
| 28 | TN4035729Replaces Tennant 27980 | 2 | Nut, Hex, Flng, .38-16Fits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $3.00/EA |
| 29 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37d X 1.50lFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $3.90/EA |

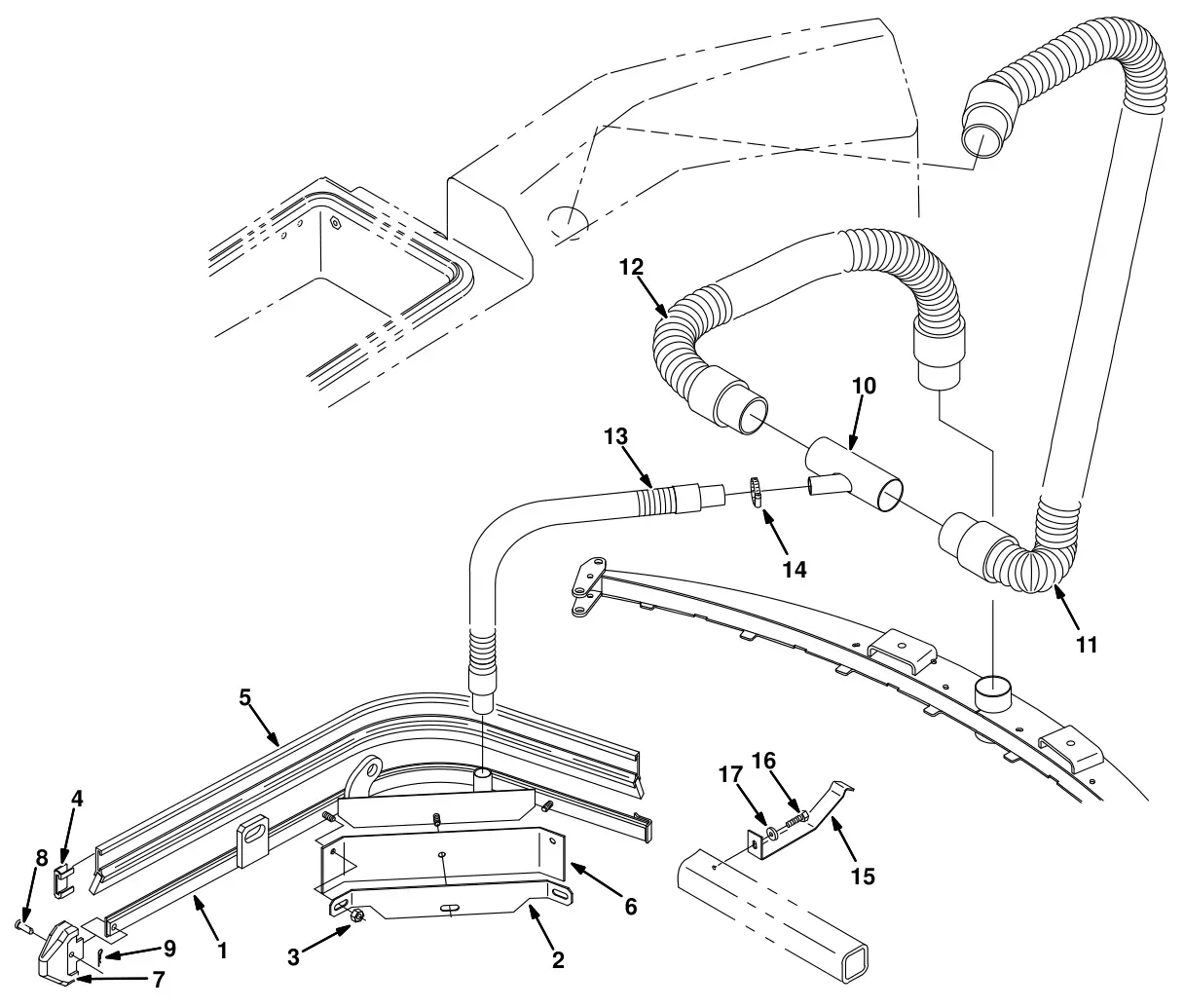

Tennant 8300 max Pro 1200 (Disc - Brush) Right Side Vacuumized Squeegee Group (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) right side vacuumized squeegee group (option) drawing. Manual pages 3-42, list 3-43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018135Replaces Tennant 387509 | 1 | Frame Assy, Sqge, Side, Vacuum, RhFits 8300 · Max Pro 1200 disc brush. | $319.32/EA |
| 2 | TN4018137Replaces Tennant 387516 | 1 | Retainer, Blade, FrontFits 8300 · Max Pro 1200 disc brush. | $35.96/EA |
| 3 | TN4041929Replaces Tennant 08713 | 3 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 4 | TN4022032Replaces Tennant 86759 | 1 | Retainer, Sqge | $11.30/EA |
| 5 | TN4018143Replaces Tennant 387545 | 1 | Blade Assy, Sqge, SideFits 8300 · Max Pro 1200 disc brush. | $92.30/EA |
| 6 | TN4018145Replaces Tennant 387546 | 1 | Blade, SqueegeeFits 8300 · Max Pro 1200 disc brush. | $19.01/EA |
| 7 | TN4022303Replaces Tennant 386986 | 1 | Guide, Point, Side Sqge | $37.70/EA |
| 8 | TN4022304Replaces Tennant 386987 | 1 | Pin, Clevis, 0.31 D X 0.88l | $4.00/EA |
| 9 | TN4022048Replaces Tennant 86866 | 1 | Pin, Hair Cotter, 0.38 D .072 WirFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $2.50/EA |
| 10 | TN4021845Replaces Tennant 386518 | 1 | Tube WldtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $130.50/EA |
| 11 | TN4021844Replaces Tennant 386514 | 1 | Hose, Vacuum, 58.5lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 003545. | $76.00/EA |
| 11 | TN4038948Replaces Tennant 1005133 | 1 | Hose Assy, W/2cuff, 2.0d 75lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $87.50/EA |
| 12 | TN4018058Replaces Tennant 387256 | 1 | Hose, Vacuum, 35.0lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 003545. | $71.50/EA |
| 12 | TN4038949Replaces Tennant 1005135 | 1 | Hose Assy, W/2cuff, 2.0d 26lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $54.40/EA |
| 13 | TN4018138Replaces Tennant 387517 | 1 | Hose Assy, W/2 Cuff, 1.0d 41.0lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 003545. | $68.10/EA |
| 13 | TN4016547Replaces Tennant 398802 | 1 | Hose Assy, W/2 Cuff, 1.0D 44L 1.0/1.0Fits 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $88.48/EA |
| 14 | TN4043367Replaces Tennant 11399 | 1 | Clamp, Hose, Wormdrive, 0.81-1.50d | $5.10/EA |
| 15 | TN4042619Replaces Tennant 1002464 | 1 | Bracket, Tube , TeeFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $50.80/EA |
| 16 | TN4029864Replaces Tennant 361339 | 1 | Screw, Hex, M 6 X 1.0 X 16, FmgSerial 003546 and later. | $4.00/EA |
| 17 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25 SaeSerial 003546 and later. | $2.50/EA |

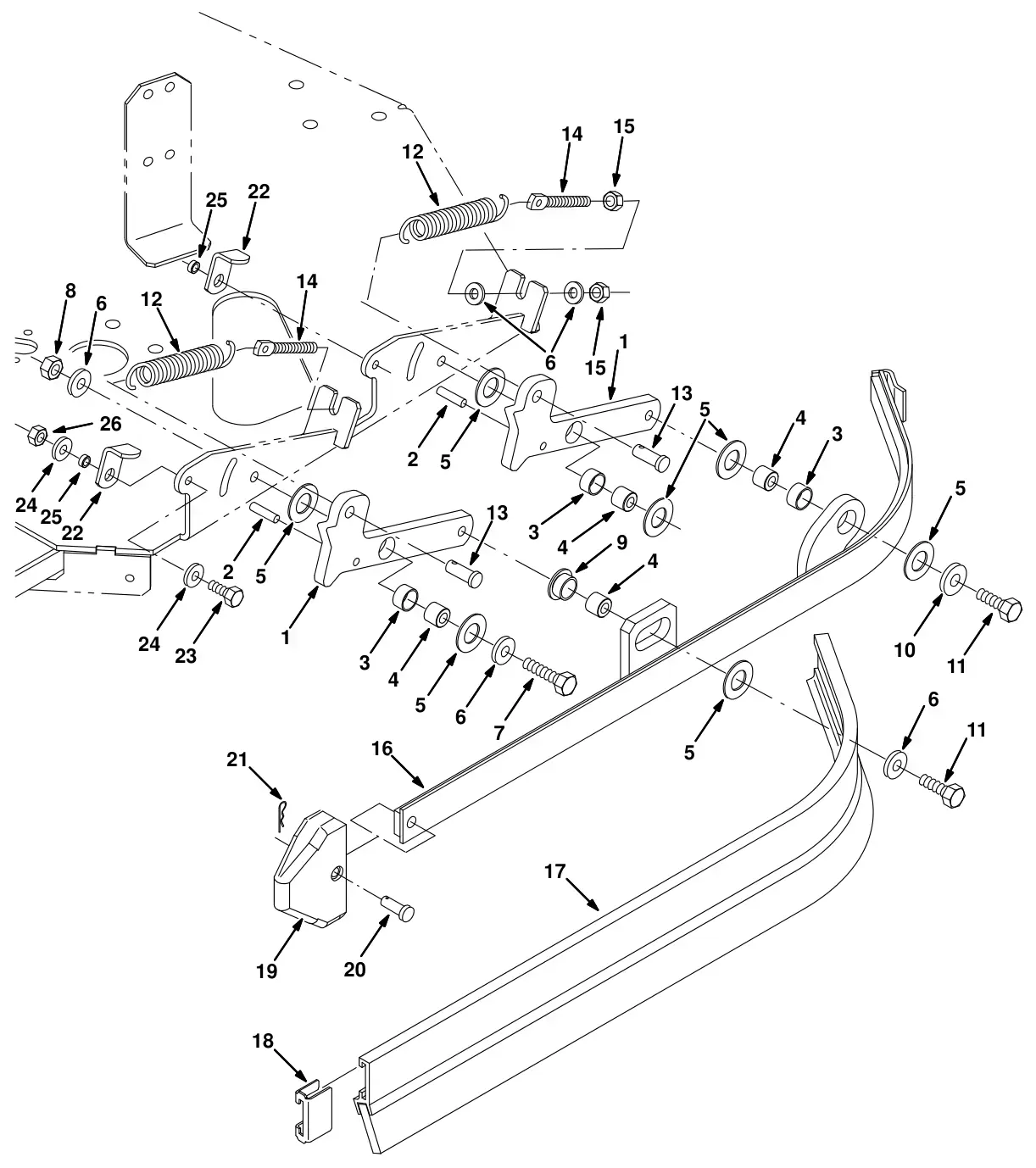

Tennant 8300 max Pro 1200 (Disc - Brush) Left Side Squeegee Group (option) parts
The parts Tennant numbers on its max pro 1200 (disc - brush) left side squeegee group (option) drawing. Manual pages 3-44, list 3-45.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036295Replaces Tennant 1056863 | 2 | Arm, Mtg, Side Sqge Frame, Ele, GrayFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $46.60/EA |
| 2 | TN4041875Replaces Tennant 17404 | 2 | Pin, Roll, .250 D X 0.75l, .250/.256 | $3.30/EA |
| 3 | TN4015663Replaces Tennant 71607 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38l | $12.50/EA |
| 4 | TN4021770Replaces Tennant 386356 | 4 | Sleeve, .335b X .62d X .52l, SstFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $4.90/EA |
| 5 | TN4017115Replaces Tennant 64425 | 7 | Washer, Thrust, 0.61b 1.25d .06, Fgl | $5.40/EA |
| 6 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flt, .31 Ss | $2.60/EA |
| 7 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, Ss | $3.30/EA |
| 8 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 9 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38l | $10.60/EA |
| 10 | TN4042903Replaces Tennant 01686 | 2 | Washer, Flt, .38 Ss | $3.30/EA |
| 11 | TN4036504Replaces Tennant 12333 | 2 | Screw, Hex, M08 X 1.25 X 25, Ss, NlFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $4.00/EA |
| 12 | TN4022528Replaces Tennant 87816 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5l | $5.20/EA |
| 13 | TN4028054Replaces Tennant 76653 | 2 | Pin, Clevis, 0.37 D X 1.00lFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $3.30/EA |
| 14 | TN4021359Replaces Tennant 386088 | 2 | Bolt, Eye, M8 X 1.25, 2.75l | $24.20/EA |
| 15 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M08 X 1.25, Ss | $3.40/EA |
| 16 | TN4021679Replaces Tennant 386262 | 1 | Frame Wldt, Sqge, Side, Lh | $244.60/EA |
| 17 | TN4021678Replaces Tennant 386260 | 1 | Squeegee, Side | $66.47/EA |
| 18 | TN4022032Replaces Tennant 86759 | 1 | Retainer, Sqge | $11.30/EA |
| 19 | TN4022303Replaces Tennant 386986 | 1 | Guide, Point, Side Sqge | $37.70/EA |
| 20 | TN4022304Replaces Tennant 386987 | 1 | Pin, Clevis, 0.31d 0.88l | $4.00/EA |
| 21 | TN4022048Replaces Tennant 86866 | 1 | Pin, Hair Cotter, 0.38 D .072 WirFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $2.50/EA |
| 22 | TN4021790Replaces Tennant 386391 | 2 | Latch, Double Scrub, Side SqgeFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $9.60/EA |
| 23 | TN4041931Replaces Tennant 08716 | 2 | Screw, Hex, M06 X 1.0 X 20, Ss | $3.20/EA |
| 24 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flt, .25 Ss | $2.60/EA |
| 25 | TN4023520Replaces Tennant 80491 | 2 | SleeveFits 8300 · Max Pro 1000 disc brush, 8300 · Max Pro 1200 disc brush. | $5.10/EA |
| 26 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |

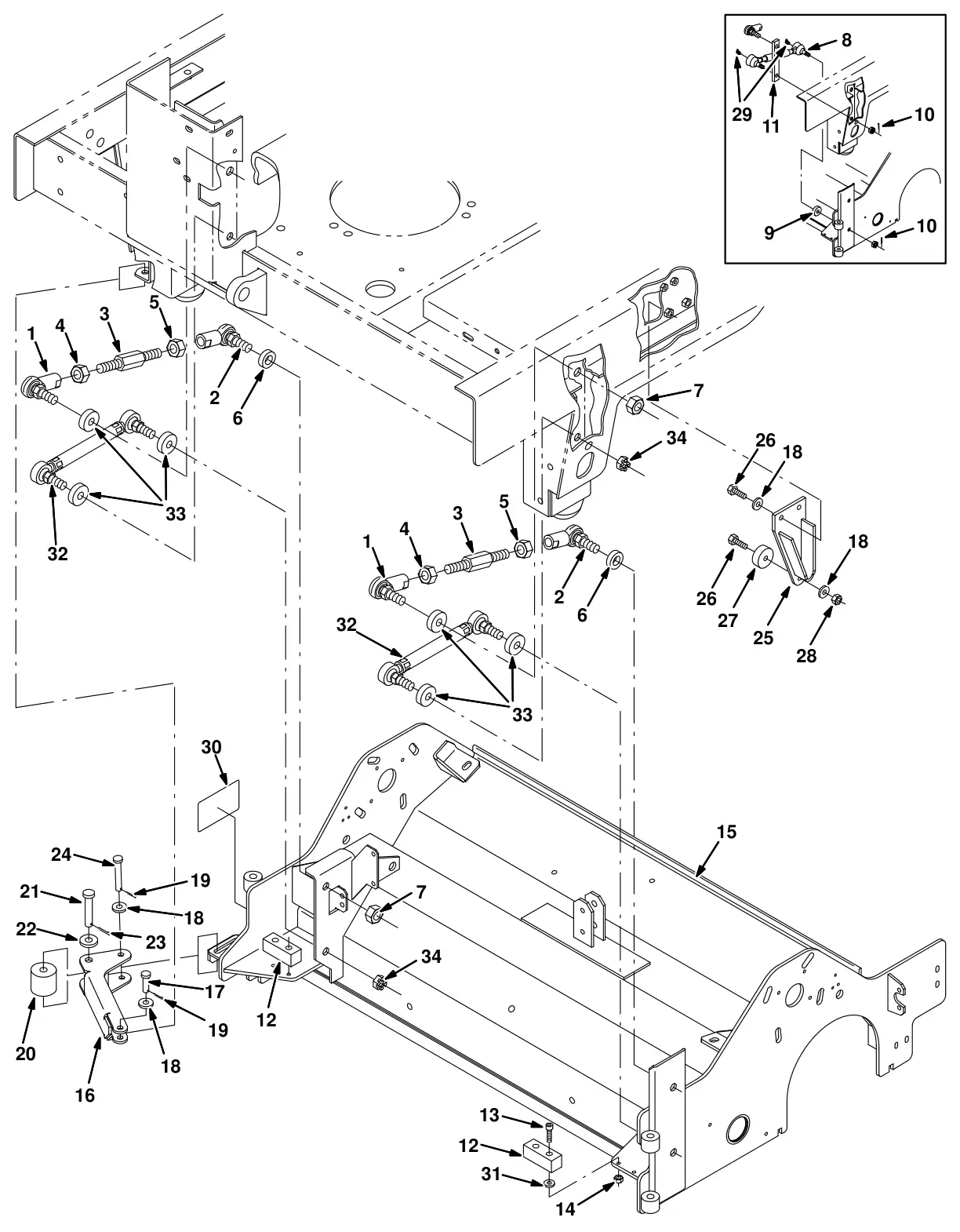

Tennant 8300 max Pro 1000 (Cylindrical Brush) Scrub Head Frame and Linkage Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) scrub head frame and linkage group (option) drawing. Manual pages 3-46, list 3-47.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025331Replaces Tennant 77275 | 2 | Rod-End, .62-18rh Fem 0.50-18studFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $79.80/EA |
| 2 | TN4021353Replaces Tennant 386070 | 2 | Rod-End, .625-18, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $53.00/EA |
| 3 | TN4021354Replaces Tennant 386071 | 2 | Rod, LinkFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $55.90/EA |
| 4 | TN4025332Replaces Tennant 77276 | 2 | Nut, Hex, Jam, .62-18, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.00/EA |
| 5 | TN4025333Replaces Tennant 77277 | 2 | Nut, Hex, Jam, .62-18, Ss, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $22.00/EA |
| 6 | TN4036370Replaces Tennant 1057066 | 2 | Tube, 0.69id 1.25od 00.4l, Rod-End, Gray | $9.10/EA |
| 7 | TN4016770Replaces Tennant 40814 | 4 | Nut, Hex, Lock, .62-18, Nl, Thin | $4.00/EA |
| 8 | TN4014444Replaces Tennant 363113 | 2 | Link Wldt, Head, Drag (Replaced by 9005751)Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 004780. | $203.40/EA |
| 9 | TN4044332Replaces Tennant 14524 | 2 | Spacer, WasherSerial up to 004780. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4041921Replaces Tennant 08346 | 4 | Pin, Cotter, .125 X 0.75Serial up to 004780. | $2.50/EA |
| 11 | TN4022265Replaces Tennant 386844 | 2 | Spacer, PlateFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 004780. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4022274Replaces Tennant 386865 | 2 | BumperFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $14.70/EA |
| 13 | TN4035368Replaces Tennant 24198 | 4 | Screw, Pan, M05 X 0.8 X 25, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.80/EA |
| 14 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M05 X 0.8, Nl, Ss | $3.30/EA |
| 15 | TN4035897Replaces Tennant 1056848 | 1 | Housing Wldt, Brush, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush. | $1,634.10/EA |
| 16 | TN4042330Replaces Tennant 1001099 | 1 | Guard, Kick In, Scb HeadSerial up to 006999. | $428.75/EA |
| 16 | TN4039127Replaces Tennant 1056390 | 1 | Guard, Kick In, Scb Head, Iron GraySerial 007000 and later. | $84.30/EA |
| 17 | TN4036074Replaces Tennant 29557 | 1 | Pin, Clevis, 0.37 D X 1.31l | $3.20/EA |
| 18 | TN4042903Replaces Tennant 01686 | 5 | Washer, Flt, .38 Ss | $3.30/EA |
| 19 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 20 | TN4016300Replaces Tennant 72946 | 1 | Roller | $27.10/EA |
| 21 | TN4040988Replaces Tennant 06279 | 1 | Pin, Clevis, 0.50 D X 2.50l | $4.00/EA |
| 22 | TN4034139Replaces Tennant 32493 | 1 | Washer, Flt, .50 Std | $3.50/EA |
| 23 | TN4041914Replaces Tennant 08182 | 1 | Pin, Cotter, .125 X 1.00 | $2.50/EA |
| 24 | TN4028486Replaces Tennant 365180 | 1 | Pin, Clevis, 0.38 D X 2.50l | $6.00/EA |
| 25 | TN4035755Replaces Tennant 1056494 | 1 | Plate Wldt, Stop, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $41.11/EA |
| 26 | TN4041943Replaces Tennant 09010 | 3 | Screw, Hex, M08 X 1.25 X 25, Ss | $3.30/EA |
| 27 | TN4044390Replaces Tennant 15023 | 1 | Bumper, Pye | $14.70/EA |
| 28 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 29 | TN4041988Replaces Tennant 09718 | 4 | Fitting, Grease, E90 Pm04 .75LFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 004780. | $5.96/EA |
| 30 | TN4028480Replaces Tennant 365156 | 1 | Label Set, Info/Hzrd, [Max Pro] | $78.90/EA |
| 31 | TN4043561Replaces Tennant 13248 | 4 | Washer, 0.40B 1.12D .12, Stl, Pl | $3.00/EA |
| 32 | TN4040655Replaces Tennant 1050193 | 2 | Link Assy, Rod-End, .63-18Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 004781 and later. | $130.50/EA |
| 33 | TN4036370Replaces Tennant 1057066 | 6 | Tube, 0.69id 1.25od 00.4l, Rod-End, GraySerial 004781 and later. | $9.10/EA |
| 34 | TN4016770Replaces Tennant 40814 | 4 | Nut, Hex, Lock, .62-18, Nl, ThinSerial 004781 and later. | $4.00/EA |

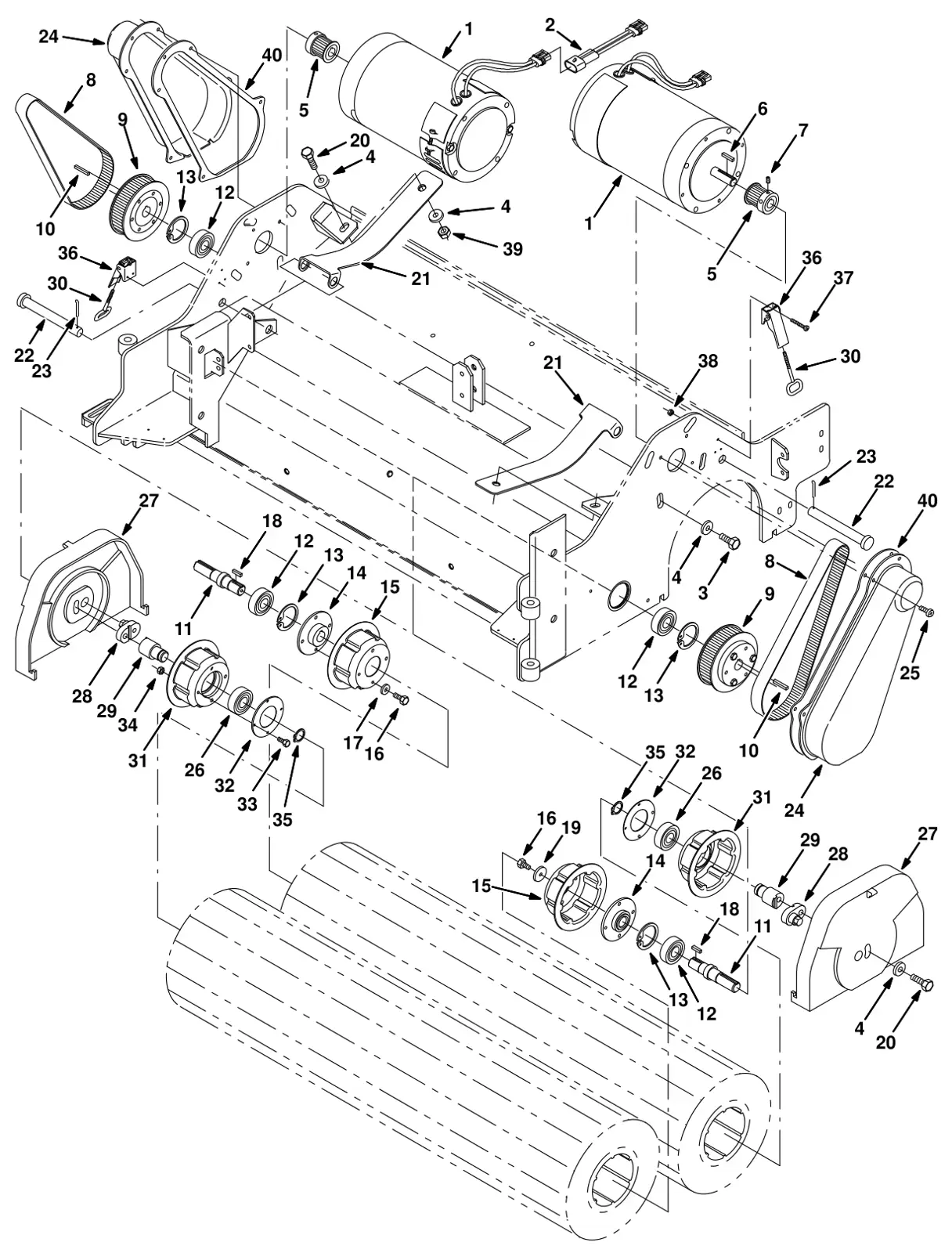

Tennant 8300 max Pro 1000 (Cylindrical Brush) Scrub Head Drive Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) scrub head drive group (option) drawing. Manual pages 3-48, list 3-49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025687Replaces Tennant 386050 | 2 | Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398)Serial up to 003887. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4025687Replaces Tennant 377398 | 2 | Motor, Ele, 36vdc 1.50hp 1500rpm 43.0aComplete assembly. Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 003888 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8003018Replaces Tennant 621478 | 2 | Brush, CarbonPart of Motor, Ele, 36vdc 1.50hp 1500rpm 43.0a (377398). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 003888 and later. | $50.60/EA |
| 2 | TN4030471Replaces Tennant 363468 | 1 | Wire Assy, Jumper Reverse, [515]Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $45.30/EA |
| 3 | TN4041974Replaces Tennant 09291 | 8 | Screw, Hex, M10 X 1.5 X 20, Ss | $5.80/EA |
| 4 | TN4042903Replaces Tennant 01686 | 14 | Washer, Flt, .38 Ss | $3.30/EA |
| 5 | TN4020633Replaces Tennant 83052 | 2 | Sprocket, Timing, 23tooth, 0.625bFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $167.20/EA |
| 6 | TN4042778Replaces Tennant 00912 | 2 | Key, Sq, 0.19 X 0.19, 01.00l | $3.60/EA |
| 7 | TN4019826Replaces Tennant 39327 | 4 | Screw, Set, Soc, .25-20 X 0.31, AlFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $4.30/EA |
| 8 | TN4021346Replaces Tennant 386053 | 2 | Belt, Drive (Cylindrical Brush)Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $120.80/EA |
| 9 | TN4029235Replaces Tennant 375301 | 2 | Sprocket, Timing, 4.261pd, 68 Grv, PlFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $452.60/EA |
| 10 | TN4042781Replaces Tennant 00918 | 2 | Key, Sq, 0.19 X 0.19, 01.25lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.50/EA |
| 11 | TN4021347Replaces Tennant 386058 | 2 | Shaft, Drive, BrushFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $151.00/EA |
| 12 | TN4013455Replaces Tennant 46390 | 4 | Bearing, Ball, 0.79b 1.85d 0.55w | $16.00/EA |
| 13 | TN4042815Replaces Tennant 10464 | 4 | Ring, Retaining, Int, 1.85d, BasicFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.20/EA |
| 14 | TN4035895Replaces Tennant 1056846 | 2 | Hub Wldt, Drive, Brush, Iron Gray | $65.40/EA |
| 15 | TN4035896Replaces Tennant 1056847 | 2 | Plug, Drive, Brush, Spl, Iron Gray | $38.50/EA |
| 16 | TN4041245Replaces Tennant 15678 | 10 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 17 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flt, .25 Ss | $2.60/EA |
| 18 | TN4042777Replaces Tennant 00911 | 2 | Key, Sq, 0.19 X 0.19, 00.75l | $3.60/EA |
| 19 | TN4021350Replaces Tennant 386063 | 2 | Washer, 0.25b 1.12d .12, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $5.80/EA |
| 20 | TN4035960Replaces Tennant 12317 | 4 | Screw, Hex, M10 X 1.5 X 30, Ss | $4.90/EA |
| 21 | TN4036376Replaces Tennant 1057089 | 2 | Spring, Motor, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $64.82/EA |
| 22 | TN4021355Replaces Tennant 386072 | 2 | Pin, Clevis, .625 Dia X 5.25lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $9.60/EA |
| 23 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 24 | TN4021351Replaces Tennant 386066 | 2 | Cover, DriveFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $181.50/EA |
| 25 | TN4013979Replaces Tennant 48732 | 10 | Screw, Pan, M06 X 1.0 X 10, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $4.00/EA |
| – | TN4025433Replaces Tennant 9013343 | 1 | Parts Kit, Brush, Cylrcl[Max Pro]Complete assembly. Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $692.20/EA |
| 26 | TN4013455Replaces Tennant 46390 | 6 | Bearing, Ball, 0.79b 1.85d 0.55wPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $16.00/EA |
| 27 | TN4021356Replaces Tennant 386080 | 2 | Cover, IdlerPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $231.50/EA |
| 28 | TN4022263Replaces Tennant 386841 | 2 | Cam, FrontPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $42.00/EA |
| 29 | TN4022264Replaces Tennant 386842 | 2 | Cam, RearPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $37.70/EA |
| 30 | TN4021696Replaces Tennant 386274 | 2 | Hook Wldt, LatchPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $25.30/EA |
| 31 | TN4036556Replaces Tennant 1057512 | 2 | Plug, Drive, Brush, Spl, Iron GrayPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $45.80/EA |
| 32 | TN4035877Replaces Tennant 1056838 | 2 | Retainer, Brg, Iron GrayPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $11.60/EA |
| 33 | TN4041990Replaces Tennant 09738 | 8 | Screw, Hex, M05 X 0.8 X 12, SsPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.30/EA |
| 34 | TN4041004Replaces Tennant 06549 | 8 | Nut, Hex, Lock, M05 X 0.8, NlPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $2.50/EA |
| 35 | TN4035690Replaces Tennant 26428 | 2 | Ring, Retaining, Ext, 0.75d, HdPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $3.90/EA |
| 36 | TN4021677Replaces Tennant 386257 | 2 | LatchPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $25.80/EA |
| 37 | TN4041964Replaces Tennant 09198 | 6 | Screw, Pan, M04 X 0.7 X 35, SsPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $3.20/EA |
| 38 | TN4031247Replaces Tennant 33932 | 6 | Nut, Hex, Lock, M04 X 0.7, Nl, SsPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $3.40/EA |
| 39 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SS | $3.30/EA |
| 40 | TN4042327Replaces Tennant 1001062 | 2 | Gasket, CoverFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $15.80/EA |
Tennant 8300 max Pro 1000 (Cylindrical Brush) Solution Valve Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) solution valve group (option) drawing. Manual pages 3-50, list 3-51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024342Replaces Tennant 84028 | 1 | Valve, Water | $111.10/EA |
| 2 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 3 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4189018Replaces Tennant 1056873 | 2 | Angle, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $15.55/EA |
| 6 | TN4018310Replaces Tennant 69234 | 3 | Clamp, Cable, Stl, 1.00d X 0.62w, 1h | $4.20/EA |
| 7 | TN4041243Replaces Tennant 15675 | 7 | Screw, Hex, M08 X 1.25 X 16, Ss | $3.40/EA |
| 8 | TN4041926Replaces Tennant 08709 | 5 | Nut, Hex, Lock, M08 X 1.25,Nl | $2.50/EA |
| 9 | TN4042902Replaces Tennant 01685 | 9 | Washer, Flt, .31 Ss | $2.60/EA |
| 10 | TN4016345Replaces Tennant 73474 | 1 | Hose, Pvc, Brd, 0.75id 1.00od 44.50l | $28.99/EA |
| 11 | TN4016760Replaces Tennant 40566 | 3 | Fitting, Plstc, E90, Bm12/Bm12 | $11.01/EA |
| 12 | TN4028185Replaces Tennant 364899 | 1 | Hose, Pvc, Brd, 0.75id 1.03od 01.50lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4028183Replaces Tennant 364896 | 1 | Hose, Pvc, Brd, 0.75id 1.03od 11.00lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4016804Replaces Tennant 41315 | 1 | Fitting, Plstc, Tee, Bm12/Bm12/Bm12Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $7.00/EA |
| 15 | TN4028182Replaces Tennant 364895 | 1 | Hose, Pvc, Brd, 0.75ID 1.03OD 05.00LFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4043367Replaces Tennant 11399 | 6 | Clamp, Hose, Wormdrive, 0.81-1.50d | $5.10/EA |
| 17 | TN4041841Replaces Tennant 16914 | 1 | Hose, Pvc, Brd, 0.75ID 1.00OD 02.00L | $15.25/EA |
Tennant 8300 max Pro 1000 (Cylindrical Brush) Solution Valve Group (FaST/ec-H2O) (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) solution valve group (fast/ec-h2o) (option) drawing. Manual pages 3-52, list 3-53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024342Replaces Tennant 84028 | 1 | Valve, Water | $111.10/EA |
| 2 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 3 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4189018Replaces Tennant 1056873 | 2 | Angle, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $15.55/EA |
| 6 | TN4018310Replaces Tennant 69234 | 2 | Clamp, Cable, Stl, 1.00d X 0.62w, 1h | $4.20/EA |
| 7 | TN4041243Replaces Tennant 15675 | 5 | Screw, Hex, M08 X 1.25 X 16, Ss | $3.40/EA |
| 8 | TN4041926Replaces Tennant 08709 | 3 | Nut, Hex, Lock, M08 X 1.25,Nl | $2.50/EA |
| 9 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flt, .31 Ss | $2.60/EA |
| 10 | TN4037985Replaces Tennant 1015045 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 8 Ft | $83.30/EA |
| 11 | TN4016760Replaces Tennant 40566 | 3 | Fitting, Plstc, E90, Bm12/Bm12 | $11.01/EA |
| 12 | TN4037988Replaces Tennant 1015048 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 1 FtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $14.65/EA |
| 13 | TN4036862Replaces Tennant 1011521 | 1 | Hose, Afmkt Replmt, Pvc, Brd 0.50id 2 Ft | $21.00/EA |
| 14 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08, Nyl | $6.20/EA |
| 15 | TN4036839Replaces Tennant 1011403 | 1 | Hose, Afmkt Replmt, Pvc, Brd 0.50id 1 Ft | $19.40/EA |
| 16 | TN4043367Replaces Tennant 11399 | 6 | Clamp, Hose, Wormdrive, 0.81-1.50d | $5.10/EA |
| 17 | TN4026598Replaces Tennant 79572 | 1 | Fitting, Plstc, E90, Pf08/Pf08Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $1.95/EA |
| 18 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08 Nyl | $11.00/EA |
| 19 | TN4037998Replaces Tennant 1015097 | 1 | Tube Assy, Spray Bar 40” [7300/8300]Fits 8300 · Max Pro 1000 cylindrical brush. | $191.42/EA |
| 20 | TN4041588Replaces Tennant 07471 | 1 | Clamp, Cable, Stl, 0.75d X 0.75w, 1hFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.60/EA |
| 21 | TN4036565Replaces Tennant 1057531 | 1 | Bracket, Bar, Spray, 40.0 [7300/8300]Fits 8300 · Max Pro 1000 cylindrical brush. | $129.23/EA |
| 22 | TN4014178Replaces Tennant 49826 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss, Nl | $3.40/EA |
| 23 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flat, 0.38 Std | $2.50/EA |
| 24 | TN4026539Replaces Tennant 79273-4 | 1 | Fitting, Plstc, Str, Bm08/Pm08 | $6.20/EA |
| 25 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 26 | TN4015366Replaces Tennant 54333 | 6 | Clamp, Hose, Wormdrive, 0.31-0.88d | $5.10/EA |
| 27 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04 (ec-H2O) | $1.35/EA |
| 28 | TN4035457Replaces Tennant 1017413 | 1 | Housing, Cplg, Qf / Pm08 (FaST)Serial 004792 and later. | $37.90/EA |
Tennant 8300 max Pro 1000 (Cylindrical Brush) Edge Scrub Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) edge scrub group (option) drawing. Manual pages 3-54, list 3-55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030257Replaces Tennant 363120 | 2 | Roller | $39.90/EA |
| 2 | TN4040234Replaces Tennant 222277 | 2 | Sleeve | $4.10/EA |
| 3 | TN4040946Replaces Tennant 04843 | 4 | Bushing, Flng, 0.63b 0.72d 0.25l | $9.60/EA |
| 4 | TN4040607Replaces Tennant 222505 | 2 | Screw, Hex, M08 X 1.25 X 45, Ss | $4.00/EA |
| 5 | TN4035892Replaces Tennant 1056843 | 1 | Rail Wldt, Lift, Cyl Head, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $174.80/EA |
| 6 | TN4040622Replaces Tennant 222556 | 2 | Sleeve | $5.80/EA |
| 7 | TN4017933Replaces Tennant 67767 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1h | $4.20/EA |
| 8 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M06 X 1.0 X 20, Ss | $3.20/EA |
| 9 | TN4019804Replaces Tennant 39308 | 2 | Screw, Soc, M08 X 1.25 X 25, 12.9 | $3.40/EA |
| 10 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flt, .31 Ss | $2.60/EA |
| 11 | TN4030454Replaces Tennant 363237 | 1 | Shunt, 2Hd Mtrs, Scrub 515, RedFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1000 disc brush. | $308.70/EA |
| 12 | TN4031245Replaces Tennant 33930 | 2 | Screw, Hex, M06 X 1.0 X 40, Ss | $3.40/EA |
| 13 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flt, .25 Ss | $2.60/EA |
| 14 | TN4041928Replaces Tennant 08712 | 3 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 15 | TN4030446Replaces Tennant 363152 | 1 | Actuator, 36vdc, 02.7stroke 500lbFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. | $670.20/EA |
| 16 | TN4014571Replaces Tennant 51534 | 2 | Pin, Clevis, 0.50D X 2.00L | $4.90/EA |
| 17 | TN4041914Replaces Tennant 08182 | 2 | Pin, Cotter, .125 X 1.00 | $2.50/EA |
| 18 | TN4029776Replaces Tennant 58494 | 2 | Stud, Ball, .39d .31-16, Gasspring | $8.40/EA |
| 19 | TN4044348Replaces Tennant 14725 | 2 | Nut, Retainer, .31-18 | $15.20/EA |
| 20 | TN4035894Replaces Tennant 1056845 | 1 | Arm Wldt, Pivot, Side, Gray [7300/8300] | $90.90/EA |
| 21 | TN4036077Replaces Tennant 29584 | 1 | Pin, Clevis, 0.37 D X 2.00l | $3.90/EA |
| 22 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flt, .38 Ss | $3.30/EA |
| 23 | TN4018580Replaces Tennant 39005 | 1 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 24 | TN4028175Replaces Tennant 364858 | 1 | Gasspring, 56lb, 6.3strk | $102.40/EA |
| 25 | TN4027783Replaces Tennant 364404 | 1 | Cable, .13d, 15.5l, .50eye /.50eye | $32.40/EA |
Tennant 8300 max Pro 1000 (Cylindrical Brush) Right Side Squeegee Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) right side squeegee group (option) drawing. Manual pages 3-56, list 3-57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021817Replaces Tennant 386495 | 1 | Guard Wldt, RhFits 8300 · Max Pro 1000 cylindrical brush. Serial up to 006999. | $559.54/EA |
| 1 | TN4036297Replaces Tennant 1056874 | 1 | Guard Wldt, Rh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush. Serial 007000 and later. | $423.75/EA |
| 2 | TN4042005Replaces Tennant 09774 | 2 | Screw, Hex, M12 X 1.75 X 50, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.60/EA |
| 3 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, Ss | $5.80/EA |
| 4 | TN4031243Replaces Tennant 33925 | 4 | Washer, Flat, M12, 13x24x2.5ssFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 5 | TN4021695Replaces Tennant 386269 | 1 | Arm Wldt, Front, RhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $92.00/EA |
| 5 | TN4035753Replaces Tennant 1056491 | 1 | Arm Wldt, Front, Rh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $91.66/EA |
| 6 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38l | $10.60/EA |
| 7 | TN4015663Replaces Tennant 71607 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38l | $12.50/EA |
| 8 | TN4017115Replaces Tennant 64425 | 7 | Washer, Thrust, 0.61b 1.25d .06, Fgl | $5.40/EA |
| 9 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flt, .38 Ss | $3.30/EA |
| 10 | TN4022275Replaces Tennant 386868 | 4 | Screw, Hex, M08x1.25 X12,SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 11 | TN4021694Replaces Tennant 386268 | 1 | Arm Wldt, Rear, RhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $87.99/EA |
| 11 | TN4035752Replaces Tennant 1056490 | 1 | Arm Wldt, Rear, Rh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $77.90/EA |
| 12 | TN4021690Replaces Tennant 386263 | 1 | Frame Wldt, Sqge, Side, Rh | $234.90/EA |
| 13 | TN4021678Replaces Tennant 386260 | 1 | Squeegee, Side | $66.47/EA |
| 14 | TN4022303Replaces Tennant 386986 | 1 | Guide, Point, Side Sqge | $37.70/EA |
| 15 | TN4022032Replaces Tennant 86759 | 1 | Clip, Sqge | $11.30/EA |
| 16 | TN4022304Replaces Tennant 386987 | 1 | Pin, Clevis, 0.31d 0.88l | $4.00/EA |
| 17 | TN4041620Replaces Tennant 08085 | 1 | Pin, Hair Cotter, 0.31 D .058 WirFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $2.50/EA |
| 18 | TN4022528Replaces Tennant 87816 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5l | $5.20/EA |
| 19 | TN4021359Replaces Tennant 386088 | 2 | Bolt, Eye, M8 X 1.25, 2.75l | $24.20/EA |
| 20 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M08 X 1.25, Ss | $3.40/EA |
| 21 | TN4016801Replaces Tennant 41305 | 2 | Pin, Clevis, 0.37 D X 0.75lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 22 | TN4189019Replaces Tennant 1056875 | 2 | Arm, Latch, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $9.90/EA |
| 23 | TN4041994Replaces Tennant 09744 | 2 | Screw, Hex, M06 X 1.0 X 12, Ss | $3.40/EA |
| 24 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 25 | TN4041875Replaces Tennant 17404 | 2 | Pin, Roll, .250 D X 0.75l, .250/.256 | $3.30/EA |
| 26 | TN4014964Replaces Tennant 70756 | 1 | Bumper, Rbr, 2.0d 0.75t .38-16Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $29.10/EA |
| 27 | TN4042913Replaces Tennant 01692 | 1 | Nut, Hex, Std, .38-16, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $0.20/EA |
| 28 | TN4015981Replaces Tennant 72439 | 1 | LatchFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $70.00/EA |
| 29 | TN4041848Replaces Tennant 16949 | 4 | Screw, Hex, .25-20 X 0.75, SemsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
Tennant 8300 max Pro 1000 (Cylindrical Brush) Left Side Squeegee Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) left side squeegee group (option) drawing. Manual pages 3-58, list 3-59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021818Replaces Tennant 386496 | 1 | Guard Wldt, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $521.36/EA |
| 1 | TN4035756Replaces Tennant 1056495 | 1 | Guard Wldt, Lh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $424.05/EA |
| 2 | TN4042005Replaces Tennant 09774 | 2 | Screw, Hex, M12 X 1.75 X 50, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.60/EA |
| 3 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, Ss | $5.80/EA |
| 4 | TN4031243Replaces Tennant 33925 | 4 | Washer, Flat, M12, 13x24x2.5ssFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 5 | TN4021698Replaces Tennant 386276 | 1 | Arm Wldt, Front, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $115.00/EA |
| 5 | TN4035754Replaces Tennant 1056493 | 1 | Arm Wldt, Front, Lh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush. Serial 007000 and later. | $91.39/EA |
| 6 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38l | $10.60/EA |
| 7 | TN4015663Replaces Tennant 71607 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38l | $12.50/EA |
| 8 | TN4017115Replaces Tennant 64425 | 7 | Washer, Thrust, 0.61b 1.25d .06, Fgl | $5.40/EA |
| 9 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flt, .38 Ss | $3.30/EA |
| 10 | TN4022275Replaces Tennant 386868 | 4 | Screw, Hex, M08x1.25 X12,SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 11 | TN4021697Replaces Tennant 386275 | 1 | Arm Wldt, Rear, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $100.00/EA |
| 11 | TN4188826Replaces Tennant 1056492 | 1 | Arm Wldt, Rear, Lh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $84.20/EA |
| 12 | TN4021679Replaces Tennant 386262 | 1 | Frame Wldt, Sqge, Side, Lh | $244.60/EA |
| 13 | TN4021678Replaces Tennant 386260 | 1 | Squeegee, Side | $66.47/EA |
| 14 | TN4022303Replaces Tennant 386986 | 1 | Guide, Point, Side Sqge | $37.70/EA |
| 15 | TN4022032Replaces Tennant 86759 | 1 | Clip, Sqge | $11.30/EA |
| 16 | TN4022304Replaces Tennant 386987 | 1 | Pin, Clevis, 0.31d 0.88l | $4.00/EA |
| 17 | TN4041620Replaces Tennant 08085 | 1 | Pin, Hair Cotter, 0.31 D .058 WirFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $2.50/EA |
| 18 | TN4022528Replaces Tennant 87816 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5l | $5.20/EA |
| 19 | TN4021359Replaces Tennant 386088 | 2 | Bolt, Eye, M8 X 1.25, 2.75l | $24.20/EA |
| 20 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M08 X 1.25, Ss | $3.40/EA |
| 21 | TN4016801Replaces Tennant 41305 | 2 | Pin, Clevis, 0.37 D X 0.75lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 22 | TN4189019Replaces Tennant 1056875 | 2 | Arm, Latch, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $9.90/EA |
| 23 | TN4041994Replaces Tennant 09744 | 2 | Screw, Hex, M06 X 1.0 X 12, Ss | $3.40/EA |
| 24 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 25 | TN4041875Replaces Tennant 17404 | 2 | Pin, Roll, .250 D X 0.75l, .250/.256 | $3.30/EA |
| 26 | TN4026848Replaces Tennant 59661 | 1 | LatchFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $65.80/EA |
| 27 | TN4041848Replaces Tennant 16949 | 4 | Screw, Hex, .25-20 X 0.75, SemsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
Tennant 8300 max Pro 1000 (Cylindrical Brush) Debris Tray Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) debris tray group (option) drawing. Manual pages 3-60, list 3-61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018550Replaces Tennant 387671 | 1 | Tray, Debris, 40L, W/HolesFits 8300 · Max Pro 1000 cylindrical brush. | $405.60/EA |
| 2 | TN4041931Replaces Tennant 08716 | 5 | Screw, Hex, M6X1.0X20, Ss | $3.20/EA |
| 3 | TN4042901Replaces Tennant 01684 | 5 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 5 | Nut, Hex, Lock, M6X1.0, Ss, Nl | $2.50/EA |
| 5 | TN4036562Replaces Tennant 1057526 | 1 | Angle, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush. | $51.70/EA |
Tennant 8300 max Pro 1000 (Cylindrical Brush) Vacuumized Debris Tray Group (option) parts
The parts Tennant numbers on its max pro 1000 (cylindrical brush) vacuumized debris tray group (option) drawing. Manual pages 3-62, list 3-63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021710Replaces Tennant 386282 | 1 | Tray, Debris, 40.0lFits 8300 · Max Pro 1000 cylindrical brush. | $445.50/EA |
| 2 | TN4022070Replaces Tennant 87244 | 1 | Clip, Spring, Prop ArmFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $40.70/EA |
| 3 | TN4042901Replaces Tennant 01684 | 14 | Washer, Flt, .25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4041994Replaces Tennant 09744 | 2 | Screw, Hex, M06 X 1.0 X 12, Ss | $3.40/EA |
| 6 | TN4021819Replaces Tennant 386500 | 1 | Screen WldtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $85.70/EA |
| 7 | TN4036560Replaces Tennant 1057520 | 1 | Tube Wldt, Vacuum, Scrbr Head, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $116.00/EA |
| 8 | TN4041928Replaces Tennant 08712 | 7 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 9 | TN4021840Replaces Tennant 386504 | 1 | Gasket, FoamFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $13.80/EA |
| 10 | TN4036561Replaces Tennant 1057521 | 1 | Tube Wldt, Upper, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $103.20/EA |
| 11 | TN4041931Replaces Tennant 08716 | 7 | Screw, Hex, M06 X 1.0 X 20, Ss | $3.20/EA |
| 12 | TN222788Tennant 222788 | 1 | Hose Assy, W/2cuff, 1.0d, 23lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 003545. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4018138Replaces Tennant 387517 | 1 | Hose Assy, W/2cuff, 1.0d, 41lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $68.10/EA |
| 13 | TN4021845Replaces Tennant 386518 | 1 | Tube WldtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $130.50/EA |
| 14 | TN4021844Replaces Tennant 386514 | 1 | Hose, Vacuum, 58.5lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 003545. | $76.00/EA |
| 14 | TN4038948Replaces Tennant 1005133 | 1 | Hose Assy, W/2cuff, 2.0d 75lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $87.50/EA |
| 15 | TN4018058Replaces Tennant 387256 | 1 | Hose, Vacuum, 35.0lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 003545. | $71.50/EA |
| 15 | TN4038949Replaces Tennant 1005135 | 1 | Hose Assy, W/2cuff, 2.0d 26lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $54.40/EA |
| 16 | TN4036562Replaces Tennant 1057526 | 1 | Angle, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush. | $51.70/EA |
| 17 | TN4044328Replaces Tennant 14432 | 2 | Clamp, Hose, Wormdrive, 1.81-2.75dFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $5.30/EA |
| 18 | TN4043367Replaces Tennant 11399 | 1 | Clamp, Hose, Wormdrive, 0.81-1.50d | $5.10/EA |
| 19 | TN4042619Replaces Tennant 1002464 | 1 | Bracket, Tube , TeeFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $50.80/EA |
| 20 | TN4029864Replaces Tennant 361339 | 1 | Screw, Hex, M 6 X 1.0 X 16, FmgSerial 003546 and later. | $4.00/EA |
| 21 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25 SaeSerial 003546 and later. | $2.50/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Scrub Head Frame and Linkage Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) scrub head frame and linkage group (option) drawing. Manual pages 3-64, list 3-65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025331Replaces Tennant 77275 | 2 | Rod-End, .62-18rh Fem 0.50-18studFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $79.80/EA |
| 2 | TN4021353Replaces Tennant 386070 | 2 | Rod-End, .625-18, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $53.00/EA |
| 3 | TN4021354Replaces Tennant 386071 | 2 | Rod, LinkFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $55.90/EA |
| 4 | TN4025332Replaces Tennant 77276 | 2 | Nut, Hex, Jam, .62-18, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.00/EA |
| 5 | TN4025333Replaces Tennant 77277 | 2 | Nut, Hex, Jam, .62-18, Ss, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $22.00/EA |
| 6 | TN4036370Replaces Tennant 1057066 | 2 | Tube, 0.69id 1.25od 00.4l, Rod-End, Gray | $9.10/EA |
| 7 | TN4016770Replaces Tennant 40814 | 4 | Nut, Hex, Lock, .62-18, Nl, Thin | $4.00/EA |
| 8 | TN4014444Replaces Tennant 363113 | 2 | Link Wldt, Head, Drag (Replaced by 9005751)Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 004780. | $203.40/EA |
| 9 | TN4044332Replaces Tennant 14524 | 2 | Spacer, WasherSerial up to 004780. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4041921Replaces Tennant 08346 | 4 | Pin, Cotter, .125 X 0.75Serial up to 004780. | $2.50/EA |
| 11 | TN4022265Replaces Tennant 386844 | 2 | Spacer, PlateFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 004780. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4022274Replaces Tennant 386865 | 2 | BumperFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $14.70/EA |
| 13 | TN4035368Replaces Tennant 24198 | 4 | Screw, Pan, M05 X 0.8 X 25, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.80/EA |
| 14 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M05 X 0.8, Nl, Ss | $3.30/EA |
| 15 | TN4036332Replaces Tennant 1056903 | 1 | Housing Wldt, Brush, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush. | $1,360.22/EA |
| 16 | TN4042330Replaces Tennant 1001099 | 1 | Guard, Kick In, Scb HeadSerial up to 006999. | $428.75/EA |
| 16 | TN4039127Replaces Tennant 1056390 | 1 | Guard, Kick In, Scb Head, Iron GraySerial 007000 and later. | $84.30/EA |
| 17 | TN4036074Replaces Tennant 29557 | 1 | Pin, Clevis, 0.37 D X 1.31l | $3.20/EA |
| 18 | TN4042903Replaces Tennant 01686 | 7 | Washer, Flt, .38 Ss | $3.30/EA |
| 19 | TN4018580Replaces Tennant 39005 | 2 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 20 | TN4016300Replaces Tennant 72946 | 1 | Roller | $27.10/EA |
| 21 | TN4040988Replaces Tennant 06279 | 1 | Pin, Clevis, 0.50 D X 2.50l | $4.00/EA |
| 22 | TN4034139Replaces Tennant 32493 | 1 | Washer, Flt, .50 Std | $3.50/EA |
| 23 | TN4041914Replaces Tennant 08182 | 1 | Pin, Cotter, .125 X 1.00 | $2.50/EA |
| 24 | TN4028486Replaces Tennant 365180 | 1 | Pin, Clevis, 0.38 D X 2.50l | $6.00/EA |
| 25 | TN4035755Replaces Tennant 1056494 | 2 | Plate Wldt, Stop, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $41.11/EA |
| 26 | TN4041943Replaces Tennant 09010 | 3 | Screw, Hex, M08 X 1.25 X 25, Ss | $3.30/EA |
| 27 | TN4044390Replaces Tennant 15023 | 1 | Bumper, Pye | $14.70/EA |
| 28 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 29 | TN4169348Replaces Tennant 386876 | 1 | Bracket, Adaptor, Mtg, Kick In, FrameFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $229.89/EA |
| 29 | TN4188833Replaces Tennant 1056505 | 1 | Bracket, Adapter, Mtg, Kick In, FrameFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $73.27/EA |
| 30 | TN4041948Replaces Tennant 09028 | 1 | Screw, Hex, M10 X 1.5 X 25, Ss | $4.00/EA |
| 31 | TN4041930Replaces Tennant 08714 | 1 | Nut, Hex, Lock, M10 X 1.5, Nl, Ss | $3.30/EA |
| 32 | TN4022256Replaces Tennant 386827 | 1 | Bumper, Side, Scb Head, WideFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $552.57/EA |
| 32 | TN4188859Replaces Tennant 1056681 | 1 | Bumper, Side, Scb Head, Wide, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $245.54/EA |
| 33 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M08 X 1.25 X 20, Ss | $3.30/EA |
| 34 | TN4042902Replaces Tennant 01685 | 8 | Screw, Hex, M08 X 1.25 X 20, Ss | $2.60/EA |
| 35 | TN4018057Replaces Tennant 387245 | 1 | Guard Wldt, Sqge (MP 20)Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $948.29/EA |
| 35 | TN4188840Replaces Tennant 1056517 | 1 | Guard Wldt, Sqge, Rear, GrayFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $695.38/EA |
| 36 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M08 X 1.25 X 25, Ss | $3.30/EA |
| 37 | TN4169401Replaces Tennant 387080 | 1 | Tread, Floor, 12.5 X 5.75Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $5.40/EA |
| 38 | TN4041988Replaces Tennant 09718 | 4 | Fitting, Grease, E90 Pm04 .75LFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 004780. | $5.96/EA |
| 39 | TN4028480Replaces Tennant 365156 | 1 | Label Set, Info/Hzrd, [Max Pro] | $78.90/EA |
| 40 | TN4043561Replaces Tennant 13248 | 4 | Washer, 0.40B 1.12D .12, Stl, Pl | $3.00/EA |
| 41 | TN4198531Replaces Tennant 1007486 | 1 | Guard, BumperFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $294.50/EA |
| 41 | TN4189053Replaces Tennant 1057073 | 1 | Guard, Bmpr, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $44.00/EA |
| 42 | TN4014172Replaces Tennant 49694 | 2 | Screw, Hex, M 8 X 1.25 X 50, SsFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $6.60/EA |
| 43 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flat, 0.31 Ss | $2.60/EA |
| 44 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M 8 X 1.25, Nl, Ss | $3.30/EA |
| 45 | TN4040655Replaces Tennant 1050193 | 2 | Link Assy, Rod-End, .63-18Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 004781 and later. | $130.50/EA |
| 46 | TN4036370Replaces Tennant 1057066 | 6 | Tube, 0.69id 1.25od 00.4l, Rod-End, GraySerial 004781 and later. | $9.10/EA |
| 47 | TN4016770Replaces Tennant 40814 | 4 | Nut, Hex, Lock, .62-18, Nl, ThinSerial 004781 and later. | $4.00/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Scrub Head Drive Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) scrub head drive group (option) drawing. Manual pages 3-68, list 3-69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025687Replaces Tennant 386050 | 2 | Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398AM)Serial up to 003887. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4025687Replaces Tennant 377398 | 2 | Motor, Ele, 36Vdc 1.50Hp 1500Rpm 43.0AComplete assembly. Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 003888 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8003018Replaces Tennant 621478 | 2 | Brush, CarbonPart of Motor, Ele, 36vdc 1.50hp 1500rpm 43.0a (377398). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 003888 and later. | $50.60/EA |
| 2 | TN4030471Replaces Tennant 363468 | 1 | Wire Assy, Jumper Reverse, [515]Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $45.30/EA |
| 3 | TN4041974Replaces Tennant 09291 | 8 | Screw, Hex, M10 X 1.5 X 20, Ss | $5.80/EA |
| 4 | TN4042903Replaces Tennant 01686 | 14 | Washer, Flt, .38 Ss | $3.30/EA |
| 5 | TN4020633Replaces Tennant 83052 | 2 | Sprocket, Timing, 23tooth, 0.625bFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $167.20/EA |
| 6 | TN4042778Replaces Tennant 00912 | 2 | Key, Sq, 0.19 X 0.19, 01.00l | $3.60/EA |
| 7 | TN4019826Replaces Tennant 39327 | 4 | Screw, Set, Soc, .25-20 X 0.31, AlFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $4.30/EA |
| 8 | TN4021346Replaces Tennant 386053 | 2 | Belt, Drive (Cylindrical Brush)Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $120.80/EA |
| 9 | TN4029235Replaces Tennant 375301 | 2 | Sprocket, Timing, 4.261Pd, 68Grv, PlFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $452.60/EA |
| 10 | TN4042781Replaces Tennant 00918 | 2 | Key, Sq, 0.19 X 0.19, 01.25lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.50/EA |
| 11 | TN4021347Replaces Tennant 386058 | 2 | Shaft, Drive, BrushFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $151.00/EA |
| 12 | TN4013455Replaces Tennant 46390 | 6 | Bearing, Ball, 0.79b 1.85d 0.55w | $16.00/EA |
| 13 | TN4042815Replaces Tennant 10464 | 4 | Ring, Retaining, Int, 1.85d, BasicFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.20/EA |
| 14 | TN4035895Replaces Tennant 1056846 | 2 | Hub Wldt, Drive, Brush, Iron Gray | $65.40/EA |
| 15 | TN4035896Replaces Tennant 1056847 | 2 | Plug, Drive, Brush, Spl, Iron Gray | $38.50/EA |
| 16 | TN4041245Replaces Tennant 15678 | 10 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 17 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flt, .25 Ss | $2.60/EA |
| 18 | TN4042777Replaces Tennant 00911 | 2 | Key, Sq, 0.19 X 0.19, 00.75l | $3.60/EA |
| 19 | TN4021350Replaces Tennant 386063 | 2 | Washer, 0.25b 1.12d .12, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $5.80/EA |
| 20 | TN4021696Replaces Tennant 386274 | 2 | Hook Wldt, LatchFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $25.30/EA |
| 21 | TN4036376Replaces Tennant 1057089 | 2 | Spring, Motor, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $64.82/EA |
| 22 | TN4021355Replaces Tennant 386072 | 2 | Pin, Clevis, .625 Dia X 5.25lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $9.60/EA |
| 23 | TN4043243Replaces Tennant 02942 | 2 | Pin, Hair Cotter, 0.62 D .120 Wir | $3.40/EA |
| 24 | TN4021351Replaces Tennant 386066 | 2 | Cover, DriveFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $181.50/EA |
| 25 | TN4013979Replaces Tennant 48732 | 10 | Screw, Pan, M06 X 1.0 X 10, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $4.00/EA |
| – | TN4025433Replaces Tennant 9013343 | 1 | Parts Kit, Brush, Cylrcl[Max Pro]Complete assembly. Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $692.20/EA |
| 26 | TN4013455Replaces Tennant 46390 | 6 | Bearing, Ball, 0.79b 1.85d 0.55wPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $16.00/EA |
| 27 | TN4021356Replaces Tennant 386080 | 2 | Cover, IdlerPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $231.50/EA |
| 28 | TN4022263Replaces Tennant 386841 | 2 | Cam, FrontPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $42.00/EA |
| 29 | TN4022264Replaces Tennant 386842 | 2 | Cam, RearPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $37.70/EA |
| 30 | TN4021696Replaces Tennant 386274 | 2 | Hook Wldt, LatchPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $25.30/EA |
| 31 | TN4036556Replaces Tennant 1057512 | 2 | Plug, Drive, Brush, Spl, Iron GrayPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $45.80/EA |
| 32 | TN4035877Replaces Tennant 1056838 | 2 | Retainer, Brg, Iron GrayPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $11.60/EA |
| 33 | TN4041990Replaces Tennant 09738 | 8 | Screw, Hex, M05 X 0.8 X 12, SsPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.30/EA |
| 34 | TN4041004Replaces Tennant 06549 | 8 | Nut, Hex, Lock, M05 X 0.8, NlPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $2.50/EA |
| 35 | TN4035690Replaces Tennant 26428 | 2 | Ring, Retaining, Ext, 0.75d, HdPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $3.90/EA |
| 36 | TN4021677Replaces Tennant 386257 | 2 | LatchPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $25.80/EA |
| 37 | TN4041964Replaces Tennant 09198 | 6 | Screw, Pan, M04 X 0.7 X 35, SsPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $3.20/EA |
| 38 | TN4031247Replaces Tennant 33932 | 6 | Nut, Hex, Lock, M04 X 0.7, Nl, SsPart of Parts Kit, Brush, Cylrcl[Max Pro] (9013343). | $3.40/EA |
| 39 | TN4041930Replaces Tennant 08714 | 2 | Nut, Hex, Lock, M10 X 1.5, Nl, SS | $3.30/EA |
| 40 | TN4042327Replaces Tennant 1001062 | 2 | Gasket, CoverFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $15.80/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Solution Valve Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) solution valve group (option) drawing. Manual pages 3-70, list 3-71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024342Replaces Tennant 84028 | 1 | Valve, Water | $111.10/EA |
| 2 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 3 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4189018Replaces Tennant 1056873 | 2 | Angle, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $15.55/EA |
| 6 | TN4018310Replaces Tennant 69234 | 3 | Clamp, Cable, Stl, 1.00d X 0.62w, 1h | $4.20/EA |
| 7 | TN4041243Replaces Tennant 15675 | 7 | Screw, Hex, M08 X 1.25 X 16, Ss | $3.40/EA |
| 8 | TN4041926Replaces Tennant 08709 | 5 | Nut, Hex, Lock, M08 X 1.25,Nl | $2.50/EA |
| 9 | TN4042902Replaces Tennant 01685 | 9 | Washer, Flt, .31 Ss | $2.60/EA |
| 10 | TN4016345Replaces Tennant 73474 | 1 | Hose, Pvc, Brd, 0.75id 1.00od 44.50l | $28.99/EA |
| 11 | TN4016760Replaces Tennant 40566 | 3 | Fitting, Plstc, E90, Bm12/Bm12 | $11.01/EA |
| 12 | TN4028185Replaces Tennant 364899 | 1 | Hose, Pvc, Brd, 0.75id 1.03od 01.50lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4028183Replaces Tennant 364896 | 1 | Hose, Pvc, Brd, 0.75id 1.03od 11.00lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4016804Replaces Tennant 41315 | 1 | Fitting, Plstc, Tee, Bm12/Bm12/Bm12Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $7.00/EA |
| 15 | TN4028182Replaces Tennant 364895 | 1 | Hose, Pvc, Brd, 0.75id 1.03od 05.00lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | TN4043367Replaces Tennant 11399 | 6 | Clamp, Hose, Wormdrive, 0.81-1.50d | $5.10/EA |
| 17 | TN4041841Replaces Tennant 16914 | 1 | Hose, Pvc, Brd, 0.75id 1.00od 2.00l | $15.25/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Solution Valve Group (FaST/ec-H2O) (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) solution valve group (fast/ec-h2o) (option) drawing. Manual pages 3-72, list 3-73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4024342Replaces Tennant 84028 | 1 | Valve, Water | $111.10/EA |
| 2 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 3 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4189018Replaces Tennant 1056873 | 2 | Angle, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $15.55/EA |
| 6 | TN4018310Replaces Tennant 69234 | 2 | Clamp, Cable, Stl, 1.00d X 0.62w, 1h | $4.20/EA |
| 7 | TN4041243Replaces Tennant 15675 | 5 | Screw, Hex, M08 X 1.25 X 16, Ss | $3.40/EA |
| 8 | TN4041926Replaces Tennant 08709 | 3 | Nut, Hex, Lock, M08 X 1.25,Nl | $2.50/EA |
| 9 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flt, .31 Ss | $2.60/EA |
| 10 | TN4037985Replaces Tennant 1015045 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 8 Ft | $83.30/EA |
| 11 | TN4016760Replaces Tennant 40566 | 3 | Fitting, Plstc, E90, Bm12/Bm12 | $11.01/EA |
| 12 | TN4037988Replaces Tennant 1015048 | 1 | Hose, Afmkt, Pvc, Brd 0.75id 1 FtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $14.65/EA |
| 13 | TN4036862Replaces Tennant 1011521 | 1 | Hose, Afmkt Replmt, Pvc, Brd 0.50id 2 Ft | $21.00/EA |
| 14 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08, Nyl | $6.20/EA |
| 15 | TN4036839Replaces Tennant 1011403 | 1 | Hose, Afmkt Replmt, Pvc, Brd 0.50id 1 Ft | $19.40/EA |
| 16 | TN4043367Replaces Tennant 11399 | 6 | Clamp, Hose, Wormdrive, 0.81-1.50d | $5.10/EA |
| 17 | TN4026598Replaces Tennant 79572 | 1 | Fitting, Plstc, E90, Pf08/Pf08Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $1.95/EA |
| 18 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08 Nyl | $11.00/EA |
| 19 | TN4040386Replaces Tennant 1010832 | 1 | Bar Assy, Spray [7300/8300]Fits 8300 · Max Pro 1200 cylindrical brush. | $559.14/EA |
| 20 | TN4041588Replaces Tennant 07471 | 1 | Clamp, Cable, Stl, 0.75d X 0.75w, 1hFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.60/EA |
| 21 | TN4036564Replaces Tennant 1057530 | 1 | Bracket, Bar, Spray, 48.0 [7300/8300]Fits 8300 · Max Pro 1200 cylindrical brush. | $105.80/EA |
| 22 | TN4014178Replaces Tennant 49826 | 2 | Screw, Hex, M8 X 1.25 X 16, Ss, Nl | $3.40/EA |
| 23 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flat, 0.38 Std | $2.50/EA |
| 24 | TN4026539Replaces Tennant 79273-4 | 1 | Fitting, Plstc, Str, Bm08/Pm08 | $6.20/EA |
| 25 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 26 | TN4015366Replaces Tennant 54333 | 6 | Clamp, Hose, Wormdrive, 0.31-0.88d | $5.10/EA |
| 27 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04 (ec-H2O) | $1.35/EA |
| 28 | TN4035457Replaces Tennant 1017413 | 1 | Housing, Cplg, Qf / Pm08 (FaST)Serial 004792 and later. | $37.90/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Edge Scrub Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) edge scrub group (option) drawing. Manual pages 3-74, list 3-75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030257Replaces Tennant 363120 | 2 | Roller | $39.90/EA |
| 2 | TN4040234Replaces Tennant 222277 | 2 | Sleeve | $4.10/EA |
| 3 | TN4040946Replaces Tennant 04843 | 4 | Bushing, Flng, 0.63b 0.72d 0.25l | $9.60/EA |
| 4 | TN4040607Replaces Tennant 222505 | 2 | Screw, Hex, M08 X 1.25 X 45, Ss | $4.00/EA |
| 5 | TN4035892Replaces Tennant 1056843 | 1 | Rail Wldt, Lift, Cyl Head, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $174.80/EA |
| 6 | TN4040622Replaces Tennant 222556 | 2 | Sleeve | $5.80/EA |
| 7 | TN4017933Replaces Tennant 67767 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1h | $4.20/EA |
| 8 | TN4041931Replaces Tennant 08716 | 1 | Screw, Hex, M06 X 1.0 X 20, Ss | $3.20/EA |
| 9 | TN4019804Replaces Tennant 39308 | 2 | Screw, Soc, M08 X 1.25 X 25, 12.9 | $3.40/EA |
| 10 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flt, .31 Ss | $2.60/EA |
| 11 | TN4030454Replaces Tennant 363237 | 1 | Shunt, 2Hd Mtrs, Scrub 515, RedFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1000 disc brush. | $308.70/EA |
| 12 | TN4031245Replaces Tennant 33930 | 2 | Screw, Hex, M06 X 1.0 X 40, Ss | $3.40/EA |
| 13 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flt, .25 Ss | $2.60/EA |
| 14 | TN4041928Replaces Tennant 08712 | 3 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 15 | TN4025329Replaces Tennant 77270 | 1 | Screw, Hex, M08 X 1.25 X 60, SsFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $6.60/EA |
| 16 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 17 | TN4029776Replaces Tennant 58494 | 2 | Stud, Ball, .39d .31-16, Gasspring | $8.40/EA |
| 18 | TN4044348Replaces Tennant 14725 | 2 | Nut, Retainer, .31-18 | $15.20/EA |
| 19 | TN4035894Replaces Tennant 1056845 | 1 | Arm Wldt, Pivot, Side, Gray [7300/8300] | $90.90/EA |
| 20 | TN4036077Replaces Tennant 29584 | 1 | Pin, Clevis, 0.37 D X 2.00l | $3.90/EA |
| 21 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flt, .38 Ss | $3.30/EA |
| 22 | TN4018580Replaces Tennant 39005 | 1 | Pin, Cotter, .094 X 0.75 | $2.50/EA |
| 23 | TN4028175Replaces Tennant 364858 | 1 | Gasspring, 56lb, 6.3strk | $102.40/EA |
| 24 | TN4027783Replaces Tennant 364404 | 1 | Cable, .13d, 15.5l, .50eye /.50eye | $32.40/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Right Side Squeegee Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) right side squeegee group (option) drawing. Manual pages 3-76, list 3-77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018065Replaces Tennant 387271 | 1 | Guard Wldt, Rh, [Mp1200]Fits 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $632.16/EA |
| 1 | TN4188882Replaces Tennant 1056800 | 1 | Guard Wldt, Rh, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $507.60/EA |
| 2 | TN4042005Replaces Tennant 09774 | 2 | Screw, Hex, M12 X 1.75 X 50, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.60/EA |
| 3 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, Ss | $5.80/EA |
| 4 | TN4031243Replaces Tennant 33925 | 4 | Washer, Flat, M12, 13x24x2.5ssFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 5 | TN4021695Replaces Tennant 386269 | 1 | Arm Wldt, Front, RhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $92.00/EA |
| 5 | TN4035753Replaces Tennant 1056491 | 1 | Arm Wldt, Front, Rh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $91.66/EA |
| 6 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38l | $10.60/EA |
| 7 | TN4015663Replaces Tennant 71607 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38l | $12.50/EA |
| 8 | TN4017115Replaces Tennant 64425 | 7 | Washer, Thrust, 0.61b 1.25d .06, Fgl | $5.40/EA |
| 9 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flt, .38 Ss | $3.30/EA |
| 10 | TN4022275Replaces Tennant 386868 | 4 | Screw, Hex, M08x1.25 X12,SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 11 | TN4021694Replaces Tennant 386268 | 1 | Arm Wldt, Rear, RhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $87.99/EA |
| 11 | TN4035752Replaces Tennant 1056490 | 1 | Arm Wldt, Rear, Rh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $77.90/EA |
| 12 | TN4021690Replaces Tennant 386263 | 1 | Frame Wldt, Sqge, Side, Rh | $234.90/EA |
| 13 | TN4021678Replaces Tennant 386260 | 1 | Squeegee, Side | $66.47/EA |
| 14 | TN4022303Replaces Tennant 386986 | 1 | Guide, Point, Side Sqge | $37.70/EA |
| 15 | TN4022032Replaces Tennant 86759 | 1 | Retainer, Sqge | $11.30/EA |
| 16 | TN4022304Replaces Tennant 386987 | 1 | Pin, Clevis, 0.31d 0.88l | $4.00/EA |
| 17 | TN4041620Replaces Tennant 08085 | 1 | Pin, Hair Cotter, 0.31 D .058 WirFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $2.50/EA |
| 18 | TN4022528Replaces Tennant 87816 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5l | $5.20/EA |
| 19 | TN4021359Replaces Tennant 386088 | 2 | Bolt, Eye, M8 X 1.25, 2.75l | $24.20/EA |
| 20 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M08 X 1.25, Ss | $3.40/EA |
| 21 | TN4016801Replaces Tennant 41305 | 2 | Pin, Clevis, 0.37 D X 0.75lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 22 | TN4189019Replaces Tennant 1056875 | 2 | Arm, LatchFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $9.90/EA |
| 23 | TN4041994Replaces Tennant 09744 | 2 | Screw, Hex, M06 X 1.0 X 12, Ss | $3.40/EA |
| 24 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 25 | TN4041875Replaces Tennant 17404 | 2 | Pin, Roll, .250 D X 0.75l, .250/.256 | $3.30/EA |
| 26 | TN4014964Replaces Tennant 70756 | 1 | Bumper, Rbr, 2.0d 0.75t .38-16Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $29.10/EA |
| 27 | TN4042913Replaces Tennant 01692 | 1 | Nut, Hex, Std, .38-16, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $0.20/EA |
| 28 | TN4015981Replaces Tennant 72439 | 1 | LatchFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $70.00/EA |
| 29 | TN4041848Replaces Tennant 16949 | 4 | Screw, Hex, .25-20 X 0.75, SemsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Left Side Squeegee Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) left side squeegee group (option) drawing. Manual pages 3-78, list 3-79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021818Replaces Tennant 386496 | 1 | Guard Wldt, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $521.36/EA |
| 1 | TN4035756Replaces Tennant 1056495 | 1 | Guard Wldt, Lh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $424.05/EA |
| 2 | TN4042005Replaces Tennant 09774 | 2 | Screw, Hex, M12 X 1.75 X 50, SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $6.60/EA |
| 3 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, Ss | $5.80/EA |
| 4 | TN4031243Replaces Tennant 33925 | 4 | Washer, Flat, M12, 13x24x2.5ssFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 5 | TN4021698Replaces Tennant 386276 | 1 | Arm Wldt, Front, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $115.00/EA |
| 5 | TN4188826Replaces Tennant 1056492 | 1 | Arm Wldt, Rear, Lh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $84.20/EA |
| 6 | TN4035645Replaces Tennant 25735 | 1 | Bushing, Flng, 0.63b 0.75d 0.38l | $10.60/EA |
| 7 | TN4015663Replaces Tennant 71607 | 3 | Bushing, Sleeve, 0.63b 0.72d 0.38l | $12.50/EA |
| 8 | TN4017115Replaces Tennant 64425 | 7 | Washer, Thrust, 0.61b 1.25d .06, Fgl | $5.40/EA |
| 9 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flt, .38 Ss | $3.30/EA |
| 10 | TN4022275Replaces Tennant 386868 | 4 | Screw, Hex, M08x1.25 X12,SsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 11 | TN4021697Replaces Tennant 386275 | 1 | Arm Wldt, Rear, LhFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 006999. | $100.00/EA |
| 11 | TN4188826Replaces Tennant 1056492 | 1 | Arm Wldt, Rear, Lh, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial 007000 and later. | $84.20/EA |
| 12 | TN4021679Replaces Tennant 386262 | 1 | Frame Wldt, Sqge, Side, Lh | $244.60/EA |
| 13 | TN4021678Replaces Tennant 386260 | 1 | Squeegee, Side | $66.47/EA |
| 14 | TN4022303Replaces Tennant 386986 | 1 | Guide, Point, Side Sqge | $37.70/EA |
| 15 | TN4022032Replaces Tennant 86759 | 1 | Clip, Sqge | $11.30/EA |
| 16 | TN4022304Replaces Tennant 386987 | 1 | Pin, Clevis, 0.31d 0.88l | $4.00/EA |
| 17 | TN4041620Replaces Tennant 08085 | 1 | Pin, Hair Cotter, 0.31 D .058 WirFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $2.50/EA |
| 18 | TN4022528Replaces Tennant 87816 | 2 | Spring, Extn, 0.75od X 0.09wir, 2.5l | $5.20/EA |
| 19 | TN4021359Replaces Tennant 386088 | 2 | Bolt, Eye, M8 X 1.25, 2.75l | $24.20/EA |
| 20 | TN4041600Replaces Tennant 07786 | 4 | Nut, Hex, Std, M08 X 1.25, Ss | $3.40/EA |
| 21 | TN4016801Replaces Tennant 41305 | 2 | Pin, Clevis, 0.37 D X 0.75lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
| 22 | TN4189019Replaces Tennant 1056875 | 2 | Arm, Latch, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $9.90/EA |
| 23 | TN4041994Replaces Tennant 09744 | 2 | Screw, Hex, M06 X 1.0 X 12, Ss | $3.40/EA |
| 24 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 Ss | $2.60/EA |
| 25 | TN4041875Replaces Tennant 17404 | 2 | Pin, Roll, .250 D X 0.75l, .250/.256 | $3.30/EA |
| 26 | TN4026848Replaces Tennant 59661 | 1 | LatchFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $65.80/EA |
| 27 | TN4041848Replaces Tennant 16949 | 4 | Screw, Hex, .25-20 X 0.75, SemsFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.40/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Debris Tray Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) debris tray group (option) drawing. Manual pages 3-80, list 3-81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4018553Replaces Tennant 387672 | 1 | Tray, Debris, 48L, W/HolesFits 8300 · Max Pro 1200 cylindrical brush. | $410.60/EA |
| 2 | TN4041931Replaces Tennant 08716 | 5 | Screw, Hex, M6X1.0X20, Ss | $3.20/EA |
| 3 | TN4042901Replaces Tennant 01684 | 5 | Washer, Flat, 0.25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 5 | Nut, Hex, Lock, M6X1.0, Ss, Nl | $2.50/EA |
| 5 | TN4036563Replaces Tennant 1057527 | 1 | Angle, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush. | $54.80/EA |
Tennant 8300 max Pro 1200 (Cylindrical Brush) Vacuumized Debris Tray Group (option) parts
The parts Tennant numbers on its max pro 1200 (cylindrical brush) vacuumized debris tray group (option) drawing. Manual pages 3-82, list 3-83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4021843Replaces Tennant 386513 | 1 | Tray, Debris, 48.0lFits 8300 · Max Pro 1200 cylindrical brush. | $319.30/EA |
| 2 | TN4022070Replaces Tennant 87244 | 1 | Clip, Spring, Prop ArmFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $40.70/EA |
| 3 | TN4042901Replaces Tennant 01684 | 14 | Washer, Flt, .25 Ss | $2.60/EA |
| 4 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 5 | TN4041994Replaces Tennant 09744 | 2 | Screw, Hex, M06 X 1.0 X 12, Ss | $3.40/EA |
| 6 | TN4021819Replaces Tennant 386500 | 1 | Screen WldtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $85.70/EA |
| 7 | TN4036560Replaces Tennant 1057520 | 1 | Tube Wldt, Vacuum, Scrbr Head, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $116.00/EA |
| 8 | TN4041928Replaces Tennant 08712 | 7 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 9 | TN4021840Replaces Tennant 386504 | 1 | Gasket, FoamFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $13.80/EA |
| 10 | TN4036561Replaces Tennant 1057521 | 1 | Tube Wldt, Upper, Iron GrayFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $103.20/EA |
| 11 | TN4041931Replaces Tennant 08716 | 7 | Screw, Hex, M06 X 1.0 X 20, Ss | $3.20/EA |
| 12 | TN222788Tennant 222788 | 1 | Hose Assy, W/2cuff, 1.0d, 23lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. Serial up to 003545. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4018138Replaces Tennant 387517 | 1 | Hose Assy, W/2cuff, 1.0d, 41lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $68.10/EA |
| 13 | TN4021845Replaces Tennant 386518 | 1 | Tube WldtFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $130.50/EA |
| 14 | TN4021844Replaces Tennant 386514 | 1 | Hose, Vacuum, 58.5lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 003545. | $76.00/EA |
| 14 | TN4038948Replaces Tennant 1005133 | 1 | Hose Assy, W/2cuff, 2.0d 75lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $87.50/EA |
| 15 | TN4018058Replaces Tennant 387256 | 1 | Hose, Vacuum, 35.0lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 003545. | $71.50/EA |
| 15 | TN4038949Replaces Tennant 1005135 | 1 | Hose Assy, W/2cuff, 2.0d 26lFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $54.40/EA |
| 16 | TN4036563Replaces Tennant 1057527 | 1 | Angle, Iron GrayFits 8300 · Max Pro 1200 cylindrical brush. | $54.80/EA |
| 17 | TN4044328Replaces Tennant 14432 | 2 | Clamp, Hose, Wormdrive, 1.81-2.75dFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $5.30/EA |
| 18 | TN4043367Replaces Tennant 11399 | 1 | Clamp, Hose, Wormdrive, 0.81-1.50d | $5.10/EA |
| 19 | TN4042619Replaces Tennant 1002464 | 1 | Bracket, Tube , TeeFits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 003546 and later. | $50.80/EA |
| 20 | TN4029864Replaces Tennant 361339 | 1 | Screw, Hex, M 6 X 1.0 X 16, FmgSerial 003546 and later. | $4.00/EA |
| 21 | TN4034133Replaces Tennant 32483 | 1 | Washer, Flat, 0.25 SaeSerial 003546 and later. | $2.50/EA |
Tennant 8300 ES Pump Group (option) parts
The parts Tennant numbers on its es pump group (option) drawing. Manual pages 3-84, list 3-85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4189011Replaces Tennant 1056864 | 1 | Angle, Mtg, Es, Iron Gray | $52.92/EA |
| 2 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flt, .31 Ss | $2.60/EA |
| 3 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M08 X 1.25 X 25, Ss | $3.30/EA |
| 4 | TN4029239Replaces Tennant 375322 | 1 | Kit, Fitting, Garden HoseComplete assembly. | $19.09/EA |
| 5 | TN4042839Replaces Tennant 01316 | 1 | Washer, Rbr, .12 0.66b 1.00dPart of Kit, Fitting, Garden Hose (375322). | $3.50/EA |
| 6 | TN4035365Replaces Tennant 24105 | 1 | Fitting, Brs, Qdc, Bm12/Qf08 | $101.81/EA |
| 7 | TN4189013Replaces Tennant 1056866 | 1 | Bracket, Mtg, Es, Iron Gray | $12.93/EA |
| 8 | TN4041243Replaces Tennant 15675 | 2 | Screw, Hex, M08 X 1.25 X 16, Ss | $3.40/EA |
| 9 | TN4032315Replaces Tennant 369865 | 1 | Pump, Solution, Impeller, 36vdc | $619.60/EA |
| 10 | TN4042901Replaces Tennant 01684 | 7 | Washer, Flt, .25 Ss | $2.60/EA |
| 11 | TN4041928Replaces Tennant 08712 | 7 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 12 | TN4041942Replaces Tennant 09007 | 4 | Screw, Hex, M06 X 1.0 X 25, Ss | $3.30/EA |
| 13 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12 | $7.90/EA |
| 14 | TN4017089Replaces Tennant 63810 | 8 | Clamp, Hose, Wormdrive, 0.56-1.06d | $6.80/EA |
| 15 | TN4037987Replaces Tennant 1015047 | 2 | Hose, Afmkt, Pvc, Brd, 0.75Id, 02Ft, Clr | $11.82/EA |
| 16 | TN4039303Replaces Tennant 1006410 | 1 | Hose, Afmkt, Pvc, Brd, 0.75Id, 03Ft, Clr | $14.75/EA |
| 17 | TN4026538Replaces Tennant 79273-2 | 2 | Fitting, Plstc, Str, Bm12/Pm12 | $7.90/EA |
| 18 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08 | $6.20/EA |
| 19 | TN4026578Replaces Tennant 79497 | 1 | Fitting, Plstc, Tee, Pf08/Pf08/Pf08 | $10.30/EA |
| 20 | TN4021662Replaces Tennant 86508 | 2 | Fitting, Plstc, Str, Pm08/Pm08 | $6.90/EA |
| 21 | TN4016821Replaces Tennant 41410 | 2 | Valve, Solenoid, 36vdc | $542.10/EA |
| 22 | TN4035878Replaces Tennant 1056839 | 1 | Bracket, Sppt, Auto Fill, Iron Gray | $24.95/EA |
| 23 | TN4041245Replaces Tennant 15678 | 3 | Screw, Hex, M06 X 1.0 X 16, Ss | $3.20/EA |
| 24 | TN4021148Replaces Tennant 63244-1 | 1 | Fitting, Plstc, E90, Bm08/Pm08 | $6.20/EA |
| 25 | TN4021149Replaces Tennant 63244-2 | 1 | Fitting, Plstc, E90, Bm12/Pm08 | $6.90/EA |
| 26 | TN4036555Replaces Tennant 10575 | 1 | Fitting, Plstc, E45, Pf12/Pf12 | $21.70/EA |
| 27 | TN4035382Replaces Tennant 24544 | 1 | Fitting, Plstc, Str, Pm12/Pm12 | $6.20/EA |
| 28 | TN4044360Replaces Tennant 14877 | 1 | Fitting, Plstc, E90, Bm12/Pm12 | $6.20/EA |
| 29 | TN4031234Replaces Tennant 33807 | 1 | Plug, Hole, Rnd, 0.44h .03 - .12, Blk Nyl | $3.33/EA |
| 30 | TN4030863Replaces Tennant 33295 | 1 | Fitting, Qm, Male | $9.60/EA |
| 31 | TN4013527Replaces Tennant 75611 | 1 | Fitting, Plstc, Plug, Pm12 | $9.60/EA |
| 32 | TN4016538Replaces Tennant 398501 | 1 | Plug, Hole, Rt, Rocker Switch, .87 X 1.7 | $6.80/EA |
Tennant 8300 ES Tank Group (option) parts
The parts Tennant numbers on its es tank group (option) drawing. Manual pages 3-86, list 3-87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089Replaces Tennant 63810 | 3 | Clamp, Hose, Wormdrive, 0.56-1.06d, .56w | $6.80/EA |
| 2 | TN4044360Replaces Tennant 14877 | 2 | Fitting, Plstc, E90, Bm12/Pm12 | $6.20/EA |
| 3 | TN4018063Replaces Tennant 387266 | 1 | Hose, Vyl, Brd, .75id 28.0l | $6.97/EA |
| 4 | TN4035381Replaces Tennant 24543 | 1 | Fitting, Plstc, E90, Bm12/Pf12 | $8.40/EA |
| 5 | TN4022231Replaces Tennant 386652 | 1 | Strainer, Pump, Es | $101.80/EA |
| 6 | TN1072879Tennant 1072879 | 1 | Switch, Press, Dual, 02Pf 14 Inch TubeSerial up to 003426. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4041929Replaces Tennant 08713 | 1 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 8 | TN4043566Replaces Tennant 13292 | 1 | Hose, Vacuum, 0.16id X 05.0lSerial up to 003426. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4029531Replaces Tennant 360943 | 4 | Screw, Pan, #10-14 X 0.75, F/ Plstc | $2.50/EA |
| 10 | TN4017922Replaces Tennant 67004 | 1 | Clip, Finger Grip | $26.10/EA |
| 11 | TN4036342Replaces Tennant 1056923 | 1 | Angle, Wand, Clean-Out, Iron Gray | $8.89/EA |
| 12 | TN4189033Replaces Tennant 1056924 | 1 | Plate, Wand, Clean-Out, Iron Gray | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN4041967Replaces Tennant 09206 | 1 | Screw, Hex, M04 X 0.7 X 12, 8.8 | $3.30/EA |
| 14 | TN4043235Replaces Tennant 02850 | 1 | Nut, Hex, Lock, M04 X 0.7, Nl | $2.50/EA |
| 15 | TN4022544Replaces Tennant 387109 | 1 | Wand, Clean-Out | $111.71/EA |
| 16 | TN4018046Replaces Tennant 387159 | 1 | Nozzle, Water | $77.38/EA |
| 17 | TN4018047Replaces Tennant 387160 | 1 | Fitting, Plstc, Str, 08pmxgarden | $6.77/EA |
| 18 | TN4169436Replaces Tennant 387161 | 1 | Washer, Rbr, .68idx1.0od | $3.03/EA |
| 19 | TN4022324Replaces Tennant 387045 | 1 | Strainer, Tank, Solution | $69.51/EA |
| 20 | TN4031295Replaces Tennant 1072875 | 1 | Switch, Press, 3.0Inch 02Pf 08 Inch Tube | $183.00/EA |
| 21 | TN4169785Replaces Tennant 382991 | 1 | Valve, Flow Control, Hose Adapter | $30.00/EA |
| 22 | TN4018054Replaces Tennant 387236 | 1 | Hose, Vyl, Brd, .62id 55.0l | $21.92/EA |
| 23 | TN4171947Replaces Tennant 375308 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 50.00l | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | TN4014138Replaces Tennant 49266 | 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max D | $2.50/EA |
| 25 | TN4018310Replaces Tennant 69234 | 1 | Clamp, Cable, Stl, 1.00d X 0.62w, 1h | $4.20/EA |
| 26 | TN4014178Replaces Tennant 49826 | 1 | Screw, Hex, M08 X 1.25 X 16, Ss, Nl | $3.40/EA |
| 27 | TN4169398Replaces Tennant 387061 | 1 | Bracket, Full | $21.95/EA |
| 28 | TN4041944Replaces Tennant 09011 | 1 | Screw, Hex, M08 X 1.25 X 30, Ss | $3.40/EA |
| 29 | TN4017054Replaces Tennant 63416 | 1 | Washer, 0.31b 0.88d .12, Rbr | $3.40/EA |
| 30 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flt, .31 Ss | $2.60/EA |
| 31 | TN4033545Replaces Tennant 375302 | 2 | Strainer, Soltn, Switch Guard (Repl By 1019285)Serial 003427 to 004029. | $20.70/EA |
| 32 | TN4016712Replaces Tennant 222822 | 2 | Sensor, Level, Liquid [Magnetic]Serial 003427 to 003859. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | TN4021025Replaces Tennant 385685 | 2 | Sensor, Level, Liquid [Magnetic]Serial 003860 and later. | $78.50/EA |
| 33 | TN4032302Replaces Tennant 369766 | 2 | Harness, Sensor, JumperSerial 003427 to 003859. | $60.20/EA |
| 34 | TN4035907Replaces Tennant 1019285 | 2 | Bracket, Protector, Float SwitchSerial 004030 and later. | $22.50/EA |
Tennant 8300 ES Drain Assembly (option) parts
The parts Tennant numbers on its es drain assembly (option) drawing. Manual pages 3-88, list 3-89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018123Replaces Tennant 387467 | 1 | Kit, Drain Hose, Solution SideComplete assembly. | $387.00/EA |
| 1 | TN4034143Replaces Tennant 32501 | 1 | Kit, Cap, DrainPart of Kit, Drain Hose, Solution Side (387467). | $28.00/EA |
| 2 | TN4034456Replaces Tennant 32613 | 1 | Cap, Tank, Drain, 2.25 Thread PyePart of Kit, Drain Hose, Solution Side (387467). | $9.20/EA |
| 3 | TN4034457Replaces Tennant 32614 | 1 | Gasket, CapPart of Kit, Drain Hose, Solution Side (387467). | $4.30/EA |
| 4 | TN4034469Replaces Tennant 32669 | 1 | Ring, Retaining, Ext, 0.75d, SsPart of Kit, Drain Hose, Solution Side (387467). | $6.00/EA |
| 5 | TN4034146Replaces Tennant 32508 | 1 | StrapPart of Kit, Drain Hose, Solution Side (387467). | $9.50/EA |
| 6 | TN4044362Replaces Tennant 14880 | 1 | Cap, Tank, Drain, 3.85 Thread PyePart of Kit, Drain Hose, Solution Side (387467). | $15.30/EA |
| 7 | TN4035378Replaces Tennant 24358 | 1 | Cap, TankPart of Kit, Drain Hose, Solution Side (387467). | $40.40/EA |
| 8 | TN4032112Replaces Tennant 1031699 | 1 | Gasket, .19, 4.05id 5.29od [Buna]Part of Kit, Drain Hose, Solution Side (387467). | $9.00/EA |
| 9 | TN4026551Replaces Tennant 79320 | 1 | Gasket, Cap, DrainPart of Kit, Drain Hose, Solution Side (387467). | $7.40/EA |
| 10 | TN4016825Replaces Tennant 41421 | 1 | SealPart of Kit, Drain Hose, Solution Side (387467). | $30.80/EA |
| 11 | TN4044358Replaces Tennant 14864 | 1 | Cover, InsertPart of Kit, Drain Hose, Solution Side (387467). | $17.50/EA |
| 12 | TN4016835Replaces Tennant 41454 | 1 | Clamp, Hose, Plstc, 1.60d X 0.62wPart of Kit, Drain Hose, Solution Side (387467). | $29.60/EA |
| 13 | TN4035956Replaces Tennant 12316 | 1 | Screw, Hex, M05 X 0.8 X 25, SsPart of Kit, Drain Hose, Solution Side (387467). | $3.40/EA |
| 14 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flt, #10 SsPart of Kit, Drain Hose, Solution Side (387467). | $2.60/EA |
| 15 | TN4041991Replaces Tennant 09739 | 1 | Nut, Hex, Lock, M05 X 0.8, Nl, SsPart of Kit, Drain Hose, Solution Side (387467). | $3.30/EA |
| 16 | TN4016834Replaces Tennant 41451 | 1 | Gasket, LidPart of Kit, Drain Hose, Solution Side (387467). | $8.10/EA |
| 17 | TN4021797Replaces Tennant 386423 | 1 | Hose Assy, DrainPart of Kit, Drain Hose, Solution Side (387467). | $42.60/EA |
Tennant 8300 ec-H2O Solution Pump Group (option) parts
The parts Tennant numbers on its ec-h2o solution pump group (option) drawing. Manual pages 3-90, list 3-91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4188622Replaces Tennant 1055336 | 1 | Bracket Wldt, Module | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4045637Replaces Tennant 1037346 | 3 | Screw, Hex, M8 X 1.25 X 25, 9.8, Sems | $2.50/EA |
| 3 | TN4014909Replaces Tennant 9006270 | 1 | Module Kit, Replmt [ec-H2O] (See Breakdowns) | $2,181.10/EA |
| 4 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, Blind | $5.10/EA |
| 5 | TN4044400Replaces Tennant 1040467 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, Sems | $3.30/EA |
| 6 | TN4039006Replaces Tennant 1005866 | 1 | Pump, Soltn, Ele, 36vdc (See Breakdowns) | $438.90/EA |
| 7 | TN4041858Replaces Tennant 17188 | 1 | Clamp, Hose, Wormdrive, 2.50-3.50d, .50w | $7.00/EA |
| 8 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 9 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06 | $8.70/EA |
| 10 | TN4035689Replaces Tennant 26426 | 1 | Fitting, Brs, Tee, Pf02/Pf02/Pm02, Run | $6.90/EA |
| 11 | TN4038972Replaces Tennant 1005375 | 1 | Fitting, Plstc, Str, Bm06/Pm02, Nyl | $2.25/EA |
| 12 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float Type | $64.30/EA |
| 13 | TN4188130Replaces Tennant 1052683 | 1 | Bracket, Component | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | TN4041828Replaces Tennant 16735 | 1 | Screw, Hex, M8 X 1.25 X 16, 8.8 | $3.40/EA |
| 15 | TN4028034Replaces Tennant 76570 | 2 | Screw, Hex, M8 X 1.25 X 30, 8.8 | $3.20/EA |
| 16 | TN4171131Replaces Tennant 32490 | 3 | Washer, Flat, 0.25, Std | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | TN4024607Replaces Tennant 82829 | 1 | Clamp, Cable, Stl, 0.63d X 0.75w, 1hole | $2.60/EA |
| 18 | TN4041926Replaces Tennant 08709 | 1 | Nut, Hex, Lock, M8 X 1.25, Nl | $2.50/EA |
| 19 | TN4032584Replaces Tennant 1064183 | 3 | Circuitbreaker, 02.0A, Resetable | $13.40/EA |
| 20 | TN4032601Replaces Tennant 1064191 | 3 | Boot, Circuitbreaker | $12.60/EA |
| 21 | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 9-48vdc, 95 Db(A) [Ec-H20] | $75.90/EA |
| 22 | TN4035225Replaces Tennant 1056416 | 1 | Resistor, 011.00 Ohm, 0040Watt [5%] | $113.50/EA |
| 23 | TN4035634Replaces Tennant 12312 | 2 | Screw, Hex, M5 X 0.80 X 12, 8.8 | $4.00/EA |
| 24 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 25 | TN4041603Replaces Tennant 07789 | 2 | Nut, Hex, Flng, M5 X 0.80 | $5.80/EA |
| 26 | TN4026537Replaces Tennant 79273-1 | 1 | Fitting, Plstc, Str, Bm08/Pm12 | $8.70/EA |
| 27 | TN4017396Replaces Tennant 43844 | 18 | Clamp, Hose, Wormdrive, 0.25-0.62D, .31W | $4.20/EA |
| 28 | TN4035458Replaces Tennant 1017415 | 2 | Insert, Cplg, Qm, Bm08 | $34.70/EA |
| 29 | TN4035457Replaces Tennant 1017413 | 2 | Housing, Cplg, Qf / Pm08 | $37.90/EA |
| 30 | TN4017637Replaces Tennant 64743 | 1 | Fitting, Plstc, Str, Bm08/Pm06 | $6.20/EA |
| 31 | TN4038961Replaces Tennant 1005302 | 1 | Filter, In-Line, Pf06/Pf06 080mesh 02.6l | $21.10/EA |
| 32 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 33 | TN4035247Replaces Tennant 1017255 | 1 | Fitting, Plstc, Y, Bm06/Bm06/Bm06, Nyl | $12.60/EA |
| 34 | TN4044557Replaces Tennant 150511 | 1 | Fitting, Brs, Str, Bm06/Pf04 | $6.20/EA |
| 35 | TN4038747Replaces Tennant 1055255 | 1 | Valve, Check, 0030psi Pm04/Pf04 | $178.20/EA |
| 36 | TN4037742Replaces Tennant 1052832 | 1 | Fitting, Plstc, Tee, Bm05/Bm05/Pm04 | $13.20/EA |
| 37 | TN4022062Replaces Tennant 87173 | 1 | Fitting, Plstc, Tee, Bm06/Bm06/Bm06 | $6.67/EA |
| 38 | TN4038746Replaces Tennant 1055254 | 1 | Switch, Press, 25 Psi, Pm02 | $74.20/EA |
| 39 | TN4044379Replaces Tennant 150016 | 1 | Fitting, Brs, Str, Bm06/Pf02, Spcl | $18.10/EA |
| 40 | TN4040814Replaces Tennant 1052017 | 1 | Fitting, Plstc, Str, Bm05/Pm04 | $2.60/EA |
| 41 | TN4041715Replaces Tennant 1043866 | 1 | Fitting Assy, Qdc, Pf04 | $36.80/EA |
| 42 | TN4016765Replaces Tennant 40678-1 | 1 | Clamp, Cable, Stl, 0.88d X 0.62w, 1hole | $4.20/EA |
| 43 | TN4032087Replaces Tennant 360352 | 1 | Tube, 0.34id 0.62od 00.2l, Stl | $19.09/EA |
| 44 | TN4020535Replaces Tennant 630164 | 1 | Fitting, Plstc, Str, Bm04/Bm08 | $7.90/EA |
| 45 | TN4017396Replaces Tennant 43844 | 1 | Clamp, Hose, Wormdrive, 0.25-0.62d, .31w | $4.20/EA |
| 46 | TN4199316Replaces Tennant 1011411 | 1 | Hose, Afmkt, Pvc, Brd, 0.25id, 03ft | $33.84/EA |
| 47 | TN4041050Replaces Tennant 1052336 | 1 | Hose, Afmkt, Pvc, Brd, 0.31Id, 03Ft, Clr | $48.50/EA |
| 48 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, Clr | $70.70/EA |
Tennant 8300 ec-H2O Switch and Label Group (option) parts
The parts Tennant numbers on its ec-h2o switch and label group (option) drawing. Manual pages 3-92, list 3-93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4025628Replaces Tennant 377084 | 1 | Switch, Rocker, Prgrsv | $27.40/EA |
| 2 | TN4044628Replaces Tennant 1041822 | 1 | Light, Led, .312d, 2 Volt [Tri-Color] | $104.60/EA |
| 3 | TN4038824Replaces Tennant 1055883 | 1 | Bushing, Light, Led | $24.07/EA |
| 4 | TN4017372Replaces Tennant 43454 | 1 | Washer, Flat, 0.34b 0.69d .06, Nyl | $3.40/EA |
| 5 | TN4188692Replaces Tennant 1056331 | 1 | Label Set, Opertnl [7300 ec-H2O] | $61.51/EA |
| 6 | TN4040474Replaces Tennant 1050003 | 1 | Label [User, Attention, Ec-H2o] | $4.34/EA |
| 7 | TN4040238Replaces Tennant 222290 | 1 | Diode, Ele, Plug | $13.00/EA |
| 8 | TN4044437Replaces Tennant 1040868 | 1 | Capacitor, Plug [.01 Uf, 200v] | $17.40/EA |
| 9 | TN4037721Replaces Tennant 1052755 | 1 | Label, Front [Ec-H2o, T15] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN4032614Replaces Tennant 1056944 | 2 | Label, Tank [ec-H20] | $37.50/EA |
Tennant 8300 ec-H2O Wire Harnesses Group (option) parts
ec-H2O Wire Harnesses Group (option) from Tennant's parts list. Manual page 3-94.
Tennant 8300 ec-H2O Install Kits (option) parts
ec-H2O Install Kits (option) from Tennant's parts list. Manual page 3-95.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4014793Replaces Tennant 9006106 | 1 | Ec-H2o Kit, Cylrcl, 1000mm, Ci [73/8300] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4014795Replaces Tennant 9006107 | 1 | Ec-H2o Kit, Cylrcl, 1200mm, Ci[73/8300] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4014797Replaces Tennant 9006108 | 1 | Ec-H2o Kit, Disk, Ci [7300/8300] | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 positive Solution Control Drain Kit, Recovery Tank (000000 - 006999) (option) parts
The parts Tennant numbers on its positive solution control drain kit, recovery tank (000000 - 006999) (option) drawing. Manual pages 3-96, list 3-97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022548Replaces Tennant 387127 | 1 | Kit, Ci, Drain, Soltn, Pos, Cntrl, RecvyComplete assembly. Serial up to 006999. | $1,312.00/EA |
| – | TN4169477Replaces Tennant 387221 | 1 | Cap AssyPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4013980Replaces Tennant 48733 | 1 | Cap, DustPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $73.60/EA |
| 2 | TN8005724Replaces Tennant 371905 | 1 | Gasket, Cap, DustPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $4.40/EA |
| 3 | TN4013981Replaces Tennant 48734 | 1 | Fitting, Coupler, Hose, Shank, FemPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $76.50/EA |
| 4 | TN4042560Replaces Tennant 19903 | 1 | Chain, Sash, #35, 07.2l 13 LinkPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $3.50/EA |
| 5 | TN4040116Replaces Tennant 1049269 | 1 | Valve, Ball, Drain, 1.50ID, Ss, RwkPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $628.50/EA |
| 6 | TN4035040Replaces Tennant 23456 | 1 | Cap, Tank, Drain, 6.17 Thread PyePart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flt, .25 SsPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $2.60/EA |
| 8 | TN4041994Replaces Tennant 09744 | 3 | Screw, Hex, M6 X 1.00 X 12, SsPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $3.40/EA |
| 9 | TN4032115Replaces Tennant 1031700 | 1 | Gasket, .19, 2.00Id 5.38OD [BUNA]Part of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $16.60/EA |
| 10 | TN4039116Replaces Tennant 20932 | 1 | Washer, PolyePart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $12.50/EA |
| 11 | TN4013529Replaces Tennant 75635 | 1 | Hose Assy, W/1cuff, 1.5d 120l 1.5/Part of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4041606Replaces Tennant 07792 | 2 | Nut, Hex, Flng, M10 X 1.5Part of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $4.00/EA |
| 13 | TN4012782Replaces Tennant 74455 | 1 | Screw, Hex, M6 X 1.0 X 12, FmgPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $3.40/EA |
| 14 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flt, .38 StdPart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $2.50/EA |
| 15 | TN4019759Replaces Tennant 39284 | 2 | Screw, Hex, M10 X 1.5 X 35, 8.8Part of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $4.00/EA |
| 16 | TN4018052Replaces Tennant 387213 | 1 | Bumper, Posi Drain, Recvy SidePart of Kit, Ci, Drain, Soltn, Pos, Cntrl, Recvy (387127). Serial up to 006999. | $136.15/EA |
Tennant 8300 positive Solution Control Drain Kit, Recovery Tank (007000 -) (option) parts
The parts Tennant numbers on its positive solution control drain kit, recovery tank (007000 -) (option) drawing. Manual pages 3-98, list 3-99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011797Replaces Tennant 9006940 | 1 | Drain Kit, Gray, Ci [Posi Cntrl/Recvy]Complete assembly. Serial 007000 and later. | $1,145.20/EA |
| – | TN4169477Replaces Tennant 387221 | 1 | Cap AssyPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4013980Replaces Tennant 48733 | 1 | Cap, DustPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $73.60/EA |
| 2 | TN8005724Replaces Tennant 371905 | 1 | Gasket, Cap, DustPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $4.40/EA |
| 3 | TN4013981Replaces Tennant 48734 | 1 | Fitting, Coupler, Hose, Shank, FemPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $76.50/EA |
| 4 | TN4042560Replaces Tennant 19903 | 1 | Chain, Sash, #35, 07.2l 13 LinkPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $3.50/EA |
| 5 | TN4040116Replaces Tennant 1049269 | 1 | Valve, Ball, Drain, 1.50ID, Ss, RwkPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $628.50/EA |
| 6 | TN4035040Replaces Tennant 23456 | 1 | Cap, Tank, Drain, 6.17 Thread PyePart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flt, .25 SsPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $2.60/EA |
| 8 | TN4041994Replaces Tennant 09744 | 3 | Screw, Hex, M6 X 1.00 X 12, SsPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $3.40/EA |
| 9 | TN4032115Replaces Tennant 1031700 | 1 | Gasket, .19, 2.00Id 5.38OD [BUNA]Part of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $16.60/EA |
| 10 | TN4039116Replaces Tennant 20932 | 1 | Washer, PolyePart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $12.50/EA |
| 11 | TN4013529Replaces Tennant 75635 | 1 | Hose Assy, W/1cuff, 1.5d 120l 1.5/Part of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | TN4041606Replaces Tennant 07792 | 2 | Nut, Hex, Flng, M10 X 1.5Part of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $4.00/EA |
| 13 | TN4012782Replaces Tennant 74455 | 1 | Screw, Hex, M6 X 1.0 X 12, FmgPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $3.40/EA |
| 14 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flt, .38 StdPart of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $2.50/EA |
| 15 | TN4019759Replaces Tennant 39284 | 2 | Screw, Hex, M10 X 1.5 X 35, 8.8Part of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $4.00/EA |
| 16 | TN4188881Replaces Tennant 1056799 | 1 | Bumper, Side, Recvy, Gray [Posi Drain]Part of Drain Kit, Gray, Ci [Posi Cntrl/Recvy] (9006940). Serial 007000 and later. | $76.26/EA |
Tennant 8300 positive Solution Control Drain Kit, Solution Tank (000000 - 006999) (option) parts
The parts Tennant numbers on its positive solution control drain kit, solution tank (000000 - 006999) (option) drawing. Manual pages 3-100, list 3-101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018127Replaces Tennant 387483 | 1 | Kit, Ci, Drain, Soltn, Pos Cntrl, SoltnComplete assembly. Serial up to 006999. | $1,565.10/EA |
| 1 | TN4013980Replaces Tennant 48733 | 1 | Cap, DustPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $73.60/EA |
| 2 | TN8005724Replaces Tennant 371905 | 1 | Gasket, Cap, DustPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $4.40/EA |
| 3 | TN4013981Replaces Tennant 48734 | 1 | Fitting, Coupler, Hose, Shank, FemPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $76.50/EA |
| 4 | TN4042560Replaces Tennant 19903 | 1 | Chain, Sash, #35, 07.2l 13 LinkPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $3.50/EA |
| 5 | TN4040116Replaces Tennant 1049269 | 1 | Valve, Ball, Drain, 1.50ID, Ss, RwkPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $628.50/EA |
| 6 | TN4035040Replaces Tennant 23456 | 1 | Cap, Tank, Drain, 6.17 Thread PyePart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flt, .25 SsPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $2.60/EA |
| 8 | TN4041994Replaces Tennant 09744 | 3 | Screw, Hex, M6 X 1.00 X 12, SsPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $3.40/EA |
| 9 | TN4032115Replaces Tennant 1031700 | 1 | Gasket, .19, 2.00Id 5.38OD [BUNA]Part of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $16.60/EA |
| 10 | TN4039116Replaces Tennant 20932 | 1 | Washer, PolyePart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $12.50/EA |
| 11 | TN4022547Replaces Tennant 387126 | 1 | Bumper, Posi Drain, Recvy SidePart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $505.10/EA |
| 12 | TN4041606Replaces Tennant 07792 | 2 | Nut, Hex, Flng, M10 X 1.5Part of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $4.00/EA |
| 13 | TN4012782Replaces Tennant 74455 | 1 | Screw, Hex, M6 X 1.0 X 12, FmgPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $3.40/EA |
| 14 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flt, .38 StdPart of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $2.50/EA |
| 15 | TN4019759Replaces Tennant 39284 | 2 | Screw, Hex, M10 X 1.5 X 35, 8.8Part of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | $4.00/EA |
| 16 | TN4013529Replaces Tennant 75635 | 1 | Hose Assy, W/1cuff, 1.5d 120l 1.5/Part of Kit, Ci, Drain, Soltn, Pos Cntrl, Soltn (387483). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 positive Solution Control Drain Kit, Solution Tank (007000 -) (option) parts
The parts Tennant numbers on its positive solution control drain kit, solution tank (007000 -) (option) drawing. Manual pages 3-102, list 3-103.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011813Replaces Tennant 9006959 | 1 | Drain Kit, Gray, Ci [Posi Cntrl/Soltn]Complete assembly. Serial 007000 and later. | $1,233.60/EA |
| 1 | TN4013980Replaces Tennant 48733 | 1 | Cap, DustPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $73.60/EA |
| 2 | TN8005724Replaces Tennant 371905 | 1 | Gasket, Cap, DustPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $4.40/EA |
| 3 | TN4013981Replaces Tennant 48734 | 1 | Fitting, Coupler, Hose, Shank, FemPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $76.50/EA |
| 4 | TN4042560Replaces Tennant 19903 | 1 | Chain, Sash, #35, 07.2l 13 LinkPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $3.50/EA |
| 5 | TN4040116Replaces Tennant 1049269 | 1 | Valve, Ball, Drain, 1.50ID, Ss, RwkPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $628.50/EA |
| 6 | TN4035040Replaces Tennant 23456 | 1 | Cap, Tank, Drain, 6.17 Thread PyePart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN4042901Replaces Tennant 01684 | 3 | Washer, Flt, .25 SsPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $2.60/EA |
| 8 | TN4041994Replaces Tennant 09744 | 3 | Screw, Hex, M6 X 1.00 X 12, SsPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $3.40/EA |
| 9 | TN4032115Replaces Tennant 1031700 | 1 | Gasket, .19, 2.00Id 5.38OD [BUNA]Part of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $16.60/EA |
| 10 | TN4039116Replaces Tennant 20932 | 1 | Washer, PolyePart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $12.50/EA |
| 11 | TN4188878Replaces Tennant 1056796 | 1 | Bumper, Side, Soltn, Gray [Posi Drain]Part of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $160.69/EA |
| 12 | TN4041606Replaces Tennant 07792 | 2 | Nut, Hex, Flng, M10 X 1.5Part of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $4.00/EA |
| 13 | TN4012782Replaces Tennant 74455 | 1 | Screw, Hex, M6 X 1.0 X 12, FmgPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $3.40/EA |
| 14 | TN4034138Replaces Tennant 32492 | 2 | Washer, Flt, .38 StdPart of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $2.50/EA |
| 15 | TN4019759Replaces Tennant 39284 | 2 | Screw, Hex, M10 X 1.5 X 35, 8.8Part of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | $4.00/EA |
| 16 | TN4013529Replaces Tennant 75635 | 1 | Hose Assy, W/1cuff, 1.5d 120l 1.5/Part of Drain Kit, Gray, Ci [Posi Cntrl/Soltn] (9006959). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 low Water Level Kit (option) parts
The parts Tennant numbers on its low water level kit (option) drawing. Manual pages 3-104, list 3-105.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022315Replaces Tennant 387003 | 1 | Kit, Ci, Indicator, Low Water LevelComplete assembly. | $230.80/EA |
| 1 | TN4029397Replaces Tennant 375431 | 1 | Kit, Replmt, Press Switch/34” TubePart of Kit, Ci, Indicator, Low Water Level (387003). | $204.70/EA |
Tennant 8300 detergent Metering Kit (option) parts
The parts Tennant numbers on its detergent metering kit (option) drawing. Manual pages 3-106, list 3-107.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021816Replaces Tennant 386482 | 1 | Kit, Ci, Detgt MeteringComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4021379Replaces Tennant 386163 | 1 | Tank, DetergentPart of Kit, Ci, Detgt Metering (386482). | $316.23/EA |
| 2 | TN4035378Replaces Tennant 24358 | 1 | Cap, TankPart of Kit, Ci, Detgt Metering (386482). | $40.40/EA |
| 3 | TN4032112Replaces Tennant 1031699 | 1 | Gasket, .19, 4.05id 5.29od [Buna]Part of Kit, Ci, Detgt Metering (386482). | $9.00/EA |
| 4 | TN4021671Replaces Tennant 86636 | 1 | Cover, TankPart of Kit, Ci, Detgt Metering (386482). | $34.30/EA |
| 5 | TN4039117Replaces Tennant 20944 | 2 | Grommet, Pye, 0.37id, F/ 1.5h, .13matlPart of Kit, Ci, Detgt Metering (386482). | $27.50/EA |
| 6 | TN4039131Replaces Tennant 20951 | 1 | Fitting, Plstc, E90, 06bm/06bmPart of Kit, Ci, Detgt Metering (386482). | $4.20/EA |
| 7 | TN4027357Replaces Tennant 382452 | 1 | Hose, Pvc, Brd, 0.38id 0.60od 15.00lPart of Kit, Ci, Detgt Metering (386482). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4039130Replaces Tennant 20950 | 1 | Fitting, Plstc, Str, Bm06/Bm06Part of Kit, Ci, Detgt Metering (386482). | $4.20/EA |
| 9 | TN4039132Replaces Tennant 20952 | 1 | Screen, PumpPart of Kit, Ci, Detgt Metering (386482). | $13.70/EA |
| 10 | TN4189014Replaces Tennant 1056867 | 1 | Plate, Mtg, Tank, Detgt, Iron GrayPart of Kit, Ci, Detgt Metering (386482). | $14.65/EA |
| 11 | TN4042902Replaces Tennant 01685 | 4 | Washer, Flt, .31 SsPart of Kit, Ci, Detgt Metering (386482). | $2.60/EA |
| 12 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Detgt Metering (386482). | $3.30/EA |
| 13 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, SsPart of Kit, Ci, Detgt Metering (386482). | $3.30/EA |
| 14 | TN4021774Replaces Tennant 386364 | 1 | Pump, Detgt, 36vdc (See Breakdown)Part of Kit, Ci, Detgt Metering (386482). | $789.60/EA |
| 15 | TN4035991Replaces Tennant 12323 | 4 | Screw, Pan, M04 X 0.7 X 20, SsPart of Kit, Ci, Detgt Metering (386482). | $3.30/EA |
| 16 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M04 X 0.7, Nl, SsPart of Kit, Ci, Detgt Metering (386482). | $3.40/EA |
| 17 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flt, #08 SsPart of Kit, Ci, Detgt Metering (386482). | $2.60/EA |
| 18 | TN4189017Replaces Tennant 1056872 | 1 | Angle, Mtg, Pump, Detgt, Iron GrayPart of Kit, Ci, Detgt Metering (386482). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | TN4037968Replaces Tennant 1014976 | 2 | Hose, Afmkt, Pvc, Brd, 0.38Id, 08Ft, ClrPart of Kit, Ci, Detgt Metering (386482). | $31.90/EA |
| 20 | TN4021799Replaces Tennant 386432 | 1 | Bracket, Retaining, Tank, DetgtPart of Kit, Ci, Detgt Metering (386482). | $63.53/EA |
| 21 | TN4041945Replaces Tennant 09023 | 2 | Screw, Hex, M08 X 1.25 X 35, SsPart of Kit, Ci, Detgt Metering (386482). | $3.30/EA |
| 22 | TN4016342Replaces Tennant 73467 | 1 | Fitting, Plstc, Str, Bm06/Pm12Part of Kit, Ci, Detgt Metering (386482). | $6.00/EA |
| 23 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.25-0.62dPart of Kit, Ci, Detgt Metering (386482). | $4.20/EA |
Tennant 8300 power Wand Hose Assembly (option) parts
The parts Tennant numbers on its power wand hose assembly (option) drawing. Manual pages 3-108, list 3-109.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017732Replaces Tennant 65341 | 1 | Hose Assembly Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁComplete assembly. | $288.70/EA |
| 1 | TN4029497Replaces Tennant 578318000 | 1 | Fitting, Quick DisconnectPart of Hose Assembly Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). | $19.09/EA |
| 2 | TN4029481Replaces Tennant 578160000 | 2 | Á Á Clamp, Á Á Á Á Hose Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assembly Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). | $4.24/EA |
| 3 | TN4029633Replaces Tennant 578820000 | 1 | Á Á Hose Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assembly Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). | $27.80/EA |
| 4 | TN4029457Replaces Tennant 578072000 | 2 | Cuff, Swivel Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assembly Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). | $31.71/EA |
| 5 | TN4041029Replaces Tennant 578276000 | 1 | Hose, Vacuum Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assembly Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). | $83.90/EA |
| 6 | TN4029456Replaces Tennant 578071000 | 1 | Fitting, Quick Disconnect Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Hose Assembly Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65341). | $52.02/EA |
| 7 | TN4013958Replaces Tennant 48609 | 1 | Fitting, Plstc, Str, Bm24/Bm32 | $32.60/EA |
Tennant 8300 power Wand Assembly (option) parts
The parts Tennant numbers on its power wand assembly (option) drawing. Manual pages 3-110, list 3-111.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017731Replaces Tennant 65340 | 1 | Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4029460Replaces Tennant 578077000 | 1 | Bracket, MtgPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $67.47/EA |
| 2 | TN4029451Replaces Tennant 578061000 | 2 | Á Á Adaptor Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $22.12/EA |
| 3 | TN4045657Replaces Tennant 578214000 | 1 | Á Á Fitting, Á Á Á Á Elbow Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $4.20/EA |
| 4 | TN4029645Replaces Tennant 579112 | 1 | Adaptor Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $12.52/EA |
| 5 | TN4027633Replaces Tennant 602036000 | 2 | Rivet, Pop Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $3.03/EA |
| 6 | TN4029454Replaces Tennant 578066000 | 1 | Nozzle, Spray Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $25.45/EA |
| 7 | TN4017760Replaces Tennant 65610 | 1 | Brush, Block, Scrub, PolyPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4029452Replaces Tennant 578063000 | 1 | Á Á Head, Á Á Á Á Wand Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4029461Replaces Tennant 578078000 | 2 | Á Á Strip, Á Á Retainer Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $48.68/EA |
| 10 | TN4029459Replaces Tennant 578074000 | 2 | Blade, Squeegee Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $62.92/EA |
| 11 | TN4029473Replaces Tennant 578124000 | 1 | Bracket Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $9.90/EA |
| 12 | TN4029611Replaces Tennant 578439 | 1 | Nut, Thumb, M6 X 30mm Dia Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $6.60/EA |
| 13 | TN4029488Replaces Tennant 578228000 | 1 | Spring, CompressionPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $14.54/EA |
| 14 | TN4029477Replaces Tennant 578143000 | 1 | Á Á Stud, Á Á Adj Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $6.97/EA |
| 15 | TN4029475Replaces Tennant 578126000 | 1 | Á Á Axle, Á Á Wand Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $37.17/EA |
| 16 | TN4029474Replaces Tennant 578125000 | 2 | Wheel Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $10.71/EA |
| 17 | TN4029472Replaces Tennant 578123000 | 1 | Bracket Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $21.61/EA |
| 18 | TN4029480Replaces Tennant 578155000 | 1 | Handle, WandPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $87.20/EA |
| 19 | TN4029479Replaces Tennant 578154000 | 1 | Á Á Á Handle, Á Á Á Á Á Á Wand Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $24.64/EA |
| 20 | TN4029464Replaces Tennant 578091000 | 1 | Á Á Plug, Á Á Qm, Á Á Á Á .25npt Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $20.91/EA |
| 21 | TN4029483Replaces Tennant 578164000 | 1 | Grommet Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $3.33/EA |
| 22 | TN4029634Replaces Tennant 578821000 | 1 | Hose, Wand Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $17.37/EA |
| 23 | TN4029482Replaces Tennant 578161000 | 2 | Clamp, Hose Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $5.15/EA |
| 24 | TN4029465Replaces Tennant 578094000 | 1 | Fitting, Hose, Barbed, .25npt MalPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $3.33/EA |
| 25 | TN4029453Replaces Tennant 578064000 | 1 | Á Á Valve, Á Á Á Á Water Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $81.10/EA |
| 26 | TN4044388Replaces Tennant 150208 | 1 | Á Á Plug Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $4.20/EA |
| 27 | TN4029450Replaces Tennant 578060000 | 1 | Wand Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á ÁPart of Kit, Wand, Power [5400] Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á (65340). | $140.90/EA |
| 28 | TN4017748Replaces Tennant 65582 | 1 | Brush, Block, Scrub, Ab Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á Á | $179.84/EA |
Tennant 8300 power Wand Pump and Fittings Group (option) parts
The parts Tennant numbers on its power wand pump and fittings group (option) drawing. Manual pages 3-112, list 3-113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4189011Replaces Tennant 1056864 | 1 | Angle, Mtg, Es, Iron Gray | $52.92/EA |
| 2 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M08 X 1.25 X 25, Ss | $3.30/EA |
| 3 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flt, .31 Ss | $2.60/EA |
| 4 | TN4017733Replaces Tennant 65342 | 1 | Fitting, Brs, Qdc, Pm04/Qf06 | $63.80/EA |
| 5 | TN4026127Replaces Tennant 78122 | 1 | Fitting, Brs, Str, Pf04/Pf04 Bkhd | $30.50/EA |
| 6 | TN4189012Replaces Tennant 1056865 | 1 | Bracket, Wand, Power, Iron Gray | $31.61/EA |
| 7 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, Ss | $3.30/EA |
| 8 | TN4013959Replaces Tennant 48610 | 1 | Fitting, Plstc, Str, Bm08/Pm04 | $1.35/EA |
| 9 | TN4015366Replaces Tennant 54333 | 4 | Clamp, Hose, Wormdrive, 0.31-0.88d | $5.10/EA |
| 10 | TN4032220Replaces Tennant 84057 | 1 | Hose, Pvc, Wir, 0.50id 0.74od 47.00l | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN4017747Replaces Tennant 65581 | 2 | Fitting, Plstc, E90, Bm08/Pm04 | $2.55/EA |
| 12 | TN4018078Replaces Tennant 387321 | 1 | Pump Assy, Power Wand (See Breakdown) | $263.55/EA |
| 13 | TN4041942Replaces Tennant 09007 | 4 | Screw, Hex, M06 X 1.0 X 25, Ss | $3.30/EA |
| 14 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flt, .25 Ss | $2.60/EA |
| 15 | TN4041928Replaces Tennant 08712 | 4 | Nut, Hex, Lock, M06 X 1.0, Nl, Ss | $2.50/EA |
| 16 | TN4021141Replaces Tennant 63184 | 1 | Hose, Pvc, Wir, 0.50id 0.75od 15.50l | $26.87/EA |
| 17 | TN4026537Replaces Tennant 79273-1 | 1 | Fitting, Plstc, Str, Bm08/Pm12 | $8.70/EA |
Tennant 8300 power Wand Mount Group (option) parts
The parts Tennant numbers on its power wand mount group (option) drawing. Manual pages 3-114, list 3-115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4039825Replaces Tennant 222117 | 1 | Switch, Rocker | $64.20/EA |
| 2 | TN4017746Replaces Tennant 65580 | 1 | Bag, Power | $159.30/EA |
| 3 | TN4016302Replaces Tennant 72968 | 2 | Rivet, Plstc, .250 X 0.898 | $3.20/EA |
| 4 | TN4017922Replaces Tennant 67004 | 1 | Clip, Finger Grip | $26.10/EA |
| 5 | TN4041968Replaces Tennant 09228 | 1 | Screw, Hex, M04 X 0.7 X 20, 8.8 | $3.30/EA |
| 6 | TN4042242Replaces Tennant 19064 | 2 | Washer, Flt, #06 | $3.40/EA |
| 7 | TN4043235Replaces Tennant 02850 | 1 | Nut, Hex, Lock, M04 X 0.7, Nl | $2.50/EA |
| 8 | TN4022537Replaces Tennant 387050 | 1 | Tray Wldt, Power WandSerial up to 006999. | $231.49/EA |
| 8 | TN4188876Replaces Tennant 1056793 | 1 | Tray Wldt, Power Wand, Iron GraySerial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4034939Replaces Tennant 12273 | 3 | Screw, Hex, M08 X 1.25 X 20, Ss, Nl | $4.00/EA |
| 10 | TN4169559Replaces Tennant 387422 | 1 | Harness, Power Wand, [7300/8300] | $160.29/EA |
| 10 | TN4169247Replaces Tennant 386608 | 1 | Harness, Power Wand, [7300/8300] | $360.27/EA |
| 10 | TN4169559Replaces Tennant 387422 | 1 | Harness, Power Wand, [7300/8300] | $160.29/EA |
| 11 | TN4014138Replaces Tennant 49266 | 4 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DSerial up to 003545. | $2.50/EA |
| 12 | TN4042902Replaces Tennant 01685 | 3 | Washer, Flt, .31 | $2.60/EA |
Tennant 8300 vacuum Wand Kit (option) parts
The parts Tennant numbers on its vacuum wand kit (option) drawing. Manual pages 3-116, list 3-117.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018061Replaces Tennant 387262 | 1 | Kit, Ci, Vacuum Wand, [7300/8300]Complete assembly. | $337.86/EA |
| 1 | TN4022033Replaces Tennant 86767 | 1 | Hose Assy, Pvc, W/ Cuff, 1.5d, 90.0lPart of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | $78.40/EA |
| 2 | TN4013958Replaces Tennant 48609 | 1 | Fitting, Plstc, Str, Bm24/Bm32Part of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | $32.60/EA |
| 3 | TN4017057Replaces Tennant 63448 | 1 | Tube, Wand, Vacuum, MetalPart of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4017060Replaces Tennant 63451 | 1 | Nozzle, Wand, Plstc, 14.0lgPart of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4017055Replaces Tennant 63430 | 1 | Shoe, Plstc, Sqge, 14inchPart of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4017922Replaces Tennant 67004 | 2 | Clip, Finger GripPart of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | $26.10/EA |
| 7 | TN4029531Replaces Tennant 360943 | 2 | Screw, Pan, #10-14X0.75, F/PlstcPart of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | $2.50/EA |
| 8 | TN4042242Replaces Tennant 19064 | 6 | Washer, Flt, #06Part of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | $3.40/EA |
| 9 | TN4016302Replaces Tennant 72968 | 4 | Rivet, Plstc, .250 X 0.898Part of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | $3.20/EA |
| 10 | TN4017746Replaces Tennant 65580 | 1 | Bag, PowerPart of Kit, Ci, Vacuum Wand, [7300/8300] (387262). | $159.30/EA |
Tennant 8300 max Pro 1200 Rear Squeegee Group (000000 - 006999) (option) parts
The parts Tennant numbers on its max pro 1200 rear squeegee group (000000 - 006999) (option) drawing. Manual pages 3-118, list 3-119.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022271Replaces Tennant 386861 | 1 | Kit, CI, Squeegee, Rear [Max Pro 1200]Complete assembly. Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $1,687.40/EA |
| 1 | TN4036298Replaces Tennant 1056877 | 1 | Frame Wldt, Sqge 48.0lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $788.50/EA |
| 2 | TN4022259Replaces Tennant 386833 | 1 | Blade, Sqge, Front 48.0lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $99.69/EA |
| 3 | TN4022261Replaces Tennant 386835 | 1 | Clamp Wldt, Front 48.0lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $87.60/EA |
| 4 | TN4039420Replaces Tennant 21603 | 4 | PinPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $16.60/EA |
| 5 | TN4035383Replaces Tennant 24555 | 4 | Ring, Retaining, ExtPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $2.40/EA |
| 6 | TN4021717Replaces Tennant 386298 | 1 | Pin Wldt, FrontPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $40.30/EA |
| 7 | TN4039418Replaces Tennant 21601 | 1 | CamPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4022260Replaces Tennant 386834 | 1 | Blade, Sqge, Rear 48.0lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $139.68/EA |
| 9 | TN4022262Replaces Tennant 386836 | 1 | Clamp Wldt, Rear 48.0lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $85.00/EA |
| 10 | TN4039421Replaces Tennant 21606 | 1 | Bar Wldt, Retainer, Sqge, RearPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $51.20/EA |
| 11 | TN4042045Replaces Tennant 21602 | 1 | Cam, RearPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $7.60/EA |
| 12 | TN4043266Replaces Tennant 03495 | 4 | Strip, NonslipPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $3.40/EA |
| 13 | TN4021294Replaces Tennant 83874 | 2 | Gasket, SqgePart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $13.00/EA |
| 14 | TN4021691Replaces Tennant 386264 | 2 | Bumper, SqgePart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $25.40/EA |
| 15 | TN4018103Replaces Tennant 387431 | 1 | Screw, Hex, M08 X 1.25 X 130 SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $7.40/EA |
| 16 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flt, .31 SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $2.60/EA |
| 17 | TN4040604Replaces Tennant 222497 | 1 | SleevePart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $5.70/EA |
| 18 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $3.30/EA |
| 19 | TN4042001Replaces Tennant 09767 | 1 | Screw, Hex, M08 X 1.25 X 70, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $6.70/EA |
| 20 | TN4018106Replaces Tennant 387435 | 1 | Channel WldtPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $223.30/EA |
| 21 | TN4021394Replaces Tennant 386234 | 1 | Pivot Wldt, GuardPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $40.00/EA |
| 22 | TN4035608Replaces Tennant 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $6.00/EA |
| 23 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flt, .50 SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $4.10/EA |
| 24 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $5.80/EA |
| 25 | TN4044020Replaces Tennant 1039190 | 1 | Pin, Clevis, 0.25d X 2.00lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $16.00/EA |
| 26 | TN4041633Replaces Tennant 08178 | 1 | Pin, Cotter, .062 X 0.75Part of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $2.50/EA |
| 27 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $2.60/EA |
| 28 | TN4018055Replaces Tennant 387237 | 2 | Stud, .31-18 2.75l M8 X 1.25, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | TN4036388Replaces Tennant 370100 | 2 | Knob, 4-Prong W/.31-18, InsertPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $5.20/EA |
| 30 | TN4040927Replaces Tennant 04414 | 2 | Washer, 0.53b 1.88d .12, Stl, PlPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $4.10/EA |
| 31 | TN4018105Replaces Tennant 387433 | 2 | Ring, Mtg, Sqge, .50lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $20.90/EA |
| 32 | TN4018107Replaces Tennant 387436 | 1 | Bumper, Poly-EPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $56.60/EA |
| 33 | TN4018109Replaces Tennant 387438 | 1 | Bumper, Poly-EPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $18.50/EA |
| 34 | TN4018131Replaces Tennant 387500 | 2 | Spring, Cmpr, .87od .042wir 2.0lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $3.50/EA |
| 35 | TN4030457Replaces Tennant 363301 | 1 | Sleeve, 0.62d 0.34b 1.19l BnzPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $9.30/EA |
| 36 | TN4030447Replaces Tennant 363162 | 1 | Wheel, 4.0d 0.89w 0.64bPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $35.40/EA |
| 37 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M08 X 1.25 X 25, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $3.30/EA |
| 38 | TN4022266Replaces Tennant 386847 | 1 | Bolt, Eye, M10x1.5 X 2.0 X .28 EyePart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $11.60/EA |
| 39 | TN4015337Replaces Tennant 71100 | 1 | Spring, Extn, 1.69od X 0.20wir, 9.5lPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $26.30/EA |
| 40 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $4.00/EA |
| 41 | TN4169569Replaces Tennant 387446 | 1 | Channel, Stop, LhPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $27.17/EA |
| 42 | TN4169570Replaces Tennant 387447 | 1 | Channel, Stop, RhPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $27.07/EA |
| 43 | TN4028125Replaces Tennant 364614 | 2 | Bumper, Neo, 1.5d .63t .31hPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $7.70/EA |
| 44 | TN4018101Replaces Tennant 387429 | 4 | Sleeve, P/M, 0.44b 0.75d 0.5l [430ss]Part of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $2.80/EA |
| 45 | TN4015035Replaces Tennant 53782 | 4 | Washer, Thrust, 0.75b 1.25d 0.06wPart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $4.10/EA |
| 46 | TN4018102Replaces Tennant 387430 | 2 | Plate, SlidePart of Kit, CI, Squeegee, Rear [Max Pro 1200] (386861). Serial up to 006999. | $23.86/EA |
| 47 | TN4018060Replaces Tennant 387258 | 1 | Blade, Sqge, Front, Mp1200, TileFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial up to 006999. | $121.71/EA |
Tennant 8300 max Pro 1200 Rear Squeegee Group (007000 -) (option) parts
The parts Tennant numbers on its max pro 1200 rear squeegee group (007000 -) (option) drawing. Manual pages 3-120, list 3-121.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011792Replaces Tennant 9006931 | 1 | Squeegee Assy Kit, Rear, Ci [Mp1200]Complete assembly. Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $1,640.24/EA |
| 1 | TN4036298Replaces Tennant 1056877 | 1 | Frame Wldt, Sqge 48.0lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $788.50/EA |
| 2 | TN4022259Replaces Tennant 386833 | 1 | Blade, Sqge, Front 48.0lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $99.69/EA |
| 3 | TN4022261Replaces Tennant 386835 | 1 | Clamp Wldt, Front 48.0lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $87.60/EA |
| 4 | TN4039420Replaces Tennant 21603 | 4 | PinPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $16.60/EA |
| 5 | TN4035383Replaces Tennant 24555 | 4 | Ring, Retaining, ExtPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $2.40/EA |
| 6 | TN4021717Replaces Tennant 386298 | 1 | Pin Wldt, FrontPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $40.30/EA |
| 7 | TN4039418Replaces Tennant 21601 | 1 | CamPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4022260Replaces Tennant 386834 | 1 | Blade, Sqge, Rear 48.0lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $139.68/EA |
| 9 | TN4022262Replaces Tennant 386836 | 1 | Clamp Wldt, Rear 48.0lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $85.00/EA |
| 10 | TN4039421Replaces Tennant 21606 | 1 | Bar Wldt, Retainer, Sqge, RearPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $51.20/EA |
| 11 | TN4042045Replaces Tennant 21602 | 1 | Cam, RearPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $7.60/EA |
| 12 | TN4043266Replaces Tennant 03495 | 4 | Strip, NonslipPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $3.40/EA |
| 13 | TN4021294Replaces Tennant 83874 | 2 | Gasket, SqgePart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $13.00/EA |
| 14 | TN4021691Replaces Tennant 386264 | 2 | Bumper, SqgePart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $25.40/EA |
| 15 | TN4018103Replaces Tennant 387431 | 1 | Screw, Hex, M08 X 1.25 X 130 SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $7.40/EA |
| 16 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flt, .31 SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $2.60/EA |
| 17 | TN4040604Replaces Tennant 222497 | 1 | SleevePart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $5.70/EA |
| 18 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $3.30/EA |
| 19 | TN4042001Replaces Tennant 09767 | 1 | Screw, Hex, M08 X 1.25 X 70, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $6.70/EA |
| 20 | TN4035857Replaces Tennant 1056805 | 1 | Channel Wldt, Iron GrayPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $186.00/EA |
| 21 | TN4035740Replaces Tennant 1056466 | 1 | Plate Wldt, Pivot, Guard, Iron GrayPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $36.40/EA |
| 22 | TN4035608Replaces Tennant 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $6.00/EA |
| 23 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flt, .50 SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $4.10/EA |
| 24 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $5.80/EA |
| 25 | TN4044020Replaces Tennant 1039190 | 1 | Pin, Clevis, 0.25d X 2.00lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $16.00/EA |
| 26 | TN4041633Replaces Tennant 08178 | 1 | Pin, Cotter, .062 X 0.75Part of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $2.50/EA |
| 27 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $2.60/EA |
| 28 | TN4018055Replaces Tennant 387237 | 2 | Stud, .31-18 2.75l M8 X 1.25, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | TN4036388Replaces Tennant 370100 | 2 | Knob, 4-Prong W/.31-18, InsertPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $5.20/EA |
| 30 | TN4040927Replaces Tennant 04414 | 2 | Washer, 0.53b 1.88d .12, Stl, PlPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $4.10/EA |
| 31 | TN4018105Replaces Tennant 387433 | 2 | Ring, Mtg, Sqge, .50lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $20.90/EA |
| 32 | TN4018107Replaces Tennant 387436 | 1 | Bumper, Poly-EPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $56.60/EA |
| 33 | TN4018109Replaces Tennant 387438 | 1 | Bumper, Poly-EPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $18.50/EA |
| 34 | TN4018131Replaces Tennant 387500 | 2 | Spring, Cmpr, .87od .042wir 2.0lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $3.50/EA |
| 35 | TN4030457Replaces Tennant 363301 | 1 | Sleeve, 0.62d 0.34b 1.19l BnzPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $9.30/EA |
| 36 | TN4030447Replaces Tennant 363162 | 1 | Wheel, 4.0d 0.89w 0.64bPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $35.40/EA |
| 37 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M08 X 1.25 X 25, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $3.30/EA |
| 38 | TN4022266Replaces Tennant 386847 | 1 | Bolt, Eye, M10x1.5 X 2.0 X .28 EyePart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $11.60/EA |
| 39 | TN4015337Replaces Tennant 71100 | 1 | Spring, Extn, 1.69od X 0.20wir, 9.5lPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $26.30/EA |
| 40 | TN4034476Replaces Tennant 32716 | 2 | Nut, Hex, Jam, M10 X 1.5, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $4.00/EA |
| 41 | TN4188884Replaces Tennant 1056806 | 1 | Bracket, Stop, Bar, Lh, Iron GrayPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $37.10/EA |
| 42 | TN4188885Replaces Tennant 1056807 | 1 | Bracket, Stop, Bar, Rh, Iron GrayPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $32.13/EA |
| 43 | TN4028125Replaces Tennant 364614 | 2 | Bumper, Neo, 1.5d .63t .31hPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $7.70/EA |
| 44 | TN4018101Replaces Tennant 387429 | 4 | Sleeve, P/M, 0.44b 0.75d 0.5l [430ss]Part of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $2.80/EA |
| 45 | TN4015035Replaces Tennant 53782 | 4 | Washer, Thrust, 0.75b 1.25d 0.06wPart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $4.10/EA |
| 46 | TN4018102Replaces Tennant 387430 | 2 | Plate, SlidePart of Squeegee Assy Kit, Rear, Ci [Mp1200] (9006931). Serial 007000 and later. | $23.86/EA |
| 47 | TN4018060Replaces Tennant 387258 | 1 | Blade, Sqge, Front, Mp1200, TileFits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. Serial 007000 and later. | $121.71/EA |
Tennant 8300 max Pro 1200 Rear Squeegee Group for Vacuumized Side Squeegee (000000 - 006999) (option) parts
The parts Tennant numbers on its max pro 1200 rear squeegee group for vacuumized side squeegee (000000 - 006999) (option) drawing. Manual pages 3-122, list 3-123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022270Replaces Tennant 386860 | 1 | Kit, CI, Squeegee, Rear (Max Pro 1000)Part of the assembly above. Serial up to 006999. | $1,412.20/EA |
| 1 | TN4036291Replaces Tennant 1056856 | 1 | Frame Wldt, Sqge, Iron GrayPart of the assembly above. Serial up to 006999. | $666.40/EA |
| 2 | TN4021711Replaces Tennant 386283 | 1 | Blade, Sqge, FrontPart of the assembly above. Serial up to 006999. | $98.60/EA |
| 3 | TN4021713Replaces Tennant 386285 | 1 | Clamp Wldt, FrontPart of the assembly above. Serial up to 006999. | $76.20/EA |
| 4 | TN4039420Replaces Tennant 21603 | 4 | PinPart of the assembly above. Serial up to 006999. | $16.60/EA |
| 5 | TN4035383Replaces Tennant 24555 | 4 | Ring, Retaining, ExtPart of the assembly above. Serial up to 006999. | $2.40/EA |
| 6 | TN4021717Replaces Tennant 386298 | 1 | Pin Wldt, FrontPart of the assembly above. Serial up to 006999. | $40.30/EA |
| 7 | TN4039418Replaces Tennant 21601 | 1 | CamPart of the assembly above. Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4021712Replaces Tennant 386284 | 1 | Blade, Sqge, RearPart of the assembly above. Serial up to 006999. | $116.66/EA |
| 9 | TN4021714Replaces Tennant 386286 | 1 | Clamp Wldt, RearPart of the assembly above. Serial up to 006999. | $76.20/EA |
| 10 | TN4039421Replaces Tennant 21606 | 1 | Bar Wldt, Retainer, Sqge, RearPart of the assembly above. Serial up to 006999. | $51.20/EA |
| 11 | TN4042045Replaces Tennant 21602 | 1 | Cam, RearPart of the assembly above. Serial up to 006999. | $7.60/EA |
| 12 | TN4043266Replaces Tennant 03495 | 4 | Strip, NonslipPart of the assembly above. Serial up to 006999. | $3.40/EA |
| 13 | TN4021294Replaces Tennant 83874 | 2 | Gasket, SqgePart of the assembly above. Serial up to 006999. | $13.00/EA |
| 14 | TN4021691Replaces Tennant 386264 | 2 | Bumper, SqgePart of the assembly above. Serial up to 006999. | $25.40/EA |
| 15 | TN4021718Replaces Tennant 386299 | 1 | Screw, Hex, M08 X 1.25 X 100, SsPart of the assembly above. Serial up to 006999. | $5.10/EA |
| 16 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flt, .31 SsPart of the assembly above. Serial up to 006999. | $2.60/EA |
| 17 | TN4040604Replaces Tennant 222497 | 1 | SleevePart of the assembly above. Serial up to 006999. | $5.70/EA |
| 18 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of the assembly above. Serial up to 006999. | $3.30/EA |
| 19 | TN4042001Replaces Tennant 09767 | 1 | Screw, Hex, M08 X 1.25 X 70, SsPart of the assembly above. Serial up to 006999. | $6.70/EA |
| 20 | TN4021692Replaces Tennant 386266 | 1 | Channel WldtPart of the assembly above. Serial up to 006999. | $143.00/EA |
| 21 | TN4021394Replaces Tennant 386234 | 1 | Pivot Wldt, GuardPart of the assembly above. Serial up to 006999. | $40.00/EA |
| 22 | TN4035608Replaces Tennant 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, SsPart of the assembly above. Serial up to 006999. | $6.00/EA |
| 23 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flt, .50 SsPart of the assembly above. Serial up to 006999. | $4.10/EA |
| 24 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, SsPart of the assembly above. Serial up to 006999. | $5.80/EA |
| 25 | TN4044020Replaces Tennant 1039190 | 1 | Pin, Clevis, 0.25d X 2.00lPart of the assembly above. Serial up to 006999. | $16.00/EA |
| 26 | TN4041633Replaces Tennant 08178 | 1 | Pin, Cotter, .062 X 0.75Part of the assembly above. Serial up to 006999. | $2.50/EA |
| 27 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 SsPart of the assembly above. Serial up to 006999. | $2.60/EA |
| 28 | TN4018055Replaces Tennant 387237 | 2 | Stud, .31-18 2.75l M8 X 1.25, SsPart of the assembly above. Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | TN4036388Replaces Tennant 370100 | 2 | Knob, 4-Prong W/.31-18, InsertPart of the assembly above. Serial up to 006999. | $5.20/EA |
| 30 | TN4040927Replaces Tennant 04414 | 2 | Washer, 0.53b 1.88d .12, Stl, PlPart of the assembly above. Serial up to 006999. | $4.10/EA |
| 31 | TN4018105Replaces Tennant 387433 | 2 | Ring, Mtg, Sqge, .50lPart of the assembly above. Serial up to 006999. | $20.90/EA |
| 32 | TN4018131Replaces Tennant 387500 | 2 | Spring, Cmpr, .87od .042wir 2.0lPart of the assembly above. Serial up to 006999. | $3.50/EA |
| 33 | TN4018111Replaces Tennant 387448 | 1 | Bumper, Poly-EPart of the assembly above. Serial up to 006999. | $60.00/EA |
| 34 | TN4018109Replaces Tennant 387438 | 1 | Bumper, Poly-EPart of the assembly above. Serial up to 006999. | $18.50/EA |
| 35 | TN4018059Replaces Tennant 387257 | 1 | Blade, Sqge, Front, Mp1000, Tile | $111.71/EA |
Tennant 8300 max Pro 1200 Rear Squeegee Group for Vacuumized Side Squeegee (007000 -) (option) parts
The parts Tennant numbers on its max pro 1200 rear squeegee group for vacuumized side squeegee (007000 -) (option) drawing. Manual pages 3-124, list 3-125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011791Replaces Tennant 9006930 | 1 | Squeegee Assy Kit, Rear, Ci [Mp1000]Complete assembly. Serial 007000 and later. | $1,352.00/EA |
| 1 | TN4036291Replaces Tennant 1056856 | 1 | Frame Wldt, Sqge, Iron GrayPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $666.40/EA |
| 2 | TN4021711Replaces Tennant 386283 | 1 | Blade, Sqge, FrontPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $98.60/EA |
| 3 | TN4021713Replaces Tennant 386285 | 1 | Clamp Wldt, FrontPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $76.20/EA |
| 4 | TN4039420Replaces Tennant 21603 | 4 | PinPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $16.60/EA |
| 5 | TN4035383Replaces Tennant 24555 | 4 | Ring, Retaining, ExtPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $2.40/EA |
| 6 | TN4021717Replaces Tennant 386298 | 1 | Pin Wldt, FrontPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $40.30/EA |
| 7 | TN4039418Replaces Tennant 21601 | 1 | CamPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN4021712Replaces Tennant 386284 | 1 | Blade, Sqge, RearPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $116.66/EA |
| 9 | TN4021714Replaces Tennant 386286 | 1 | Clamp Wldt, RearPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $76.20/EA |
| 10 | TN4039421Replaces Tennant 21606 | 1 | Bar Wldt, Retainer, Sqge, RearPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $51.20/EA |
| 11 | TN4042045Replaces Tennant 21602 | 1 | Cam, RearPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $7.60/EA |
| 12 | TN4043266Replaces Tennant 03495 | 4 | Strip, NonslipPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $3.40/EA |
| 13 | TN4021294Replaces Tennant 83874 | 2 | Gasket, SqgePart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $13.00/EA |
| 14 | TN4021691Replaces Tennant 386264 | 2 | Bumper, SqgePart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $25.40/EA |
| 15 | TN4021718Replaces Tennant 386299 | 1 | Screw, Hex, M08 X 1.25 X 100, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $5.10/EA |
| 16 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flt, .31 SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $2.60/EA |
| 17 | TN4040604Replaces Tennant 222497 | 1 | SleevePart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $5.70/EA |
| 18 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $3.30/EA |
| 19 | TN4042001Replaces Tennant 09767 | 1 | Screw, Hex, M08 X 1.25 X 70, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $6.70/EA |
| 20 | TN4035744Replaces Tennant 1056471 | 1 | Channel Wldt, Guard, Rh, Iron GrayPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $161.10/EA |
| 21 | TN4035740Replaces Tennant 1056466 | 1 | Plate Wldt, Pivot, Guard, Iron GrayPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $36.40/EA |
| 22 | TN4035608Replaces Tennant 12309 | 2 | Screw, Hex, M12 X 1.75 X 30, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $6.00/EA |
| 23 | TN4017232Replaces Tennant 41619 | 2 | Washer, Flt, .50 SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $4.10/EA |
| 24 | TN4041993Replaces Tennant 09741 | 2 | Nut, Hex, Lock, M12 X 1.75,Nl, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $5.80/EA |
| 25 | TN4044020Replaces Tennant 1039190 | 1 | Pin, Clevis, 0.25d X 2.00lPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $16.00/EA |
| 26 | TN4041633Replaces Tennant 08178 | 1 | Pin, Cotter, .062 X 0.75Part of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $2.50/EA |
| 27 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flt, .25 SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $2.60/EA |
| 28 | TN4018055Replaces Tennant 387237 | 2 | Stud, .31-18 2.75l M8 X 1.25, SsPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | TN4036388Replaces Tennant 370100 | 2 | Knob, 4-Prong W/.31-18, InsertPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $5.20/EA |
| 30 | TN4040927Replaces Tennant 04414 | 2 | Washer, 0.53b 1.88d .12, Stl, PlPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $4.10/EA |
| 31 | TN4018105Replaces Tennant 387433 | 2 | Ring, Mtg, Sqge, .50lPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $20.90/EA |
| 32 | TN4018131Replaces Tennant 387500 | 2 | Spring, Cmpr, .87od .042wir 2.0lPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $3.50/EA |
| 33 | TN4018111Replaces Tennant 387448 | 1 | Bumper, Poly-EPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $60.00/EA |
| 34 | TN4018109Replaces Tennant 387438 | 1 | Bumper, Poly-EPart of Squeegee Assy Kit, Rear, Ci [Mp1000] (9006930). Serial 007000 and later. | $18.50/EA |
| 35 | TN4018059Replaces Tennant 387257 | 1 | Blade, Sqge, Front, Mp1000, Tile | $111.71/EA |
Tennant 8300 max Pro 1000 Urethane Squeegee Kit (option) parts
The parts Tennant numbers on its max pro 1000 urethane squeegee kit (option) drawing. Manual page 3-126.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019678Replaces Tennant 9001397 | 1 | Blade Kit, Sqge, Ure, [Mp1000]Complete assembly. Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. | $1,053.13/EA |
| 1 | TN4033199Replaces Tennant 1022564 | 1 | Blade, Sqge, RearPart of Blade Kit, Sqge, Ure, [Mp1000] (9001397). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. | $409.25/EA |
| 2 | TN4033200Replaces Tennant 1022565 | 1 | Blade, Sqge, FrontPart of Blade Kit, Sqge, Ure, [Mp1000] (9001397). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. | $293.20/EA |
| 3 | TN4035909Replaces Tennant 1019344 | 2 | Squeegee, Side, Ure, [7300/830]Part of Blade Kit, Sqge, Ure, [Mp1000] (9001397). | $236.80/EA |
Tennant 8300 max Pro 1200 Urethane Squeegee Kit (option) parts
The parts Tennant numbers on its max pro 1200 urethane squeegee kit (option) drawing. Manual page 3-127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019679Replaces Tennant 9001398 | 1 | Blade Kit, Sqge, Ure, [Mp1200]Complete assembly. Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $1,054.64/EA |
| 1 | TN4033197Replaces Tennant 1022558 | 1 | Blade, Sqge, RearPart of Blade Kit, Sqge, Ure, [Mp1200] (9001398). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $332.19/EA |
| 2 | TN4032938Replaces Tennant 1022465 | 1 | Blade, Sqge, FrontPart of Blade Kit, Sqge, Ure, [Mp1200] (9001398). Fits 8300 · Max Pro 1200 cylindrical brush, 8300 · Max Pro 1200 disc brush. | $281.59/EA |
| 3 | TN4035909Replaces Tennant 1019344 | 2 | Squeegee, Side, Ure, [7300/830]Part of Blade Kit, Sqge, Ure, [Mp1200] (9001398). | $236.80/EA |
Tennant 8300 telemetry Group (007304 -) (option) parts
The parts Tennant numbers on its telemetry group (007304 -) (option) drawing. Manual pages 3-128, list 3-129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem [USA]Serial 007304 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem [INTL]Serial 007304 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4041271Replaces Tennant 06943 | 4 | Screw, Hex, M6 X 1.00 X 20, 8.8Serial 007304 and later. | $2.50/EA |
| 3 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.00, NlSerial 007304 and later. | $2.50/EA |
| 4 | TN1070831Tennant 1070831 | 1 | Plate, noduleSerial 007304 and later. | $13.30/EA |
| 5 | TN4030336Replaces Tennant 1070757 | 1 | Shunt, 050Mv 400ASerial 007304 and later. | $79.29/EA |
| 6 | TN4041265Replaces Tennant 06934 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, 4.8Serial 007304 and later. | $3.40/EA |
| 7 | TN4034661Replaces Tennant 32988 | 2 | Washer, Lock, Int, 0.38Serial 007304 and later. | $2.60/EA |
| 8 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, NlSerial 007304 and later. | $2.50/EA |
| 9 | TN4031064Replaces Tennant 1070659 | 1 | Antenna, Telem, 70 In [Gprs]Serial 007304 and later. | $54.80/EA |
| 10 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62d, NatSerial 007304 and later. | $3.40/EA |
| 11 | TN4038688Replaces Tennant 1054875 | 2 | Screw, Hex, M5 X 1.0 X 16, BlkSerial 007304 and later. | $1.50/EA |
| 12 | TN4037123Replaces Tennant 1059252 | 2 | Washer, Flat, 0.19b 0.50d .03, Stl, BlkSerial 007304 and later. | $3.30/EA |
| 13 | TN4030331Replaces Tennant 1070741 | 1 | Harness, Ele [Telemetry, 7300/8300]Complete assembly. Serial 007304 and later. | $58.98/EA |
| – | TN8001835Replaces Tennant 9009990 | 1 | Fuse, 002A, 250Vdc, CartridgePart of Harness, Ele [Telemetry, 7300/8300] (1070741). Serial 007304 and later. | $5.20/EA |
| 14 | TN4030333Replaces Tennant 1070752 | 1 | Cable, 1/0Ga, Blk [7300/8300, Telemetry]Serial 007304 and later. | $29.90/EA |
| 15 | TN4014138Replaces Tennant 49266 | 6 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DSerial 007304 and later. | $2.50/EA |
| 16 | TN4017933Replaces Tennant 67767 | 1 | Clamp, Cable, Stl, 0.69d X 0.62w, 1holeSerial 007304 and later. | $4.20/EA |
| 17 | TN4030121Replaces Tennant 1069580 | 1 | Label, Opertnl, Telem [Fcc/Ic]Serial 007304 and later. | $4.34/EA |
Tennant 8300 battery Rollout Kit (option) parts
The parts Tennant numbers on its battery rollout kit (option) drawing. Manual pages 3-130, list 3-131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022323Replaces Tennant 387043 | 1 | Kit, Ci, Battery, RolloutComplete assembly. | $2,068.40/EA |
| 1 | TN4169372Replaces Tennant 386968 | 1 | Cable, Safety, BatteryPart of Kit, Ci, Battery, Rollout (387043). | $46.97/EA |
| 2 | TN4189030Replaces Tennant 1056916 | 2 | Channel, Battery, R/O, Iron GrayPart of Kit, Ci, Battery, Rollout (387043). | $55.55/EA |
| 3 | TN4031927Replaces Tennant 369415 | 20 | Bearing, Needle, 0.25b 0.88d 0.50wPart of Kit, Ci, Battery, Rollout (387043). | $40.10/EA |
| 4 | TN4041608Replaces Tennant 07805 | 20 | Screw, Hex, M06 X 1.0 X 35, SsPart of Kit, Ci, Battery, Rollout (387043). | $3.30/EA |
| 5 | TN4041928Replaces Tennant 08712 | 20 | Nut, Hex, Lock, M06 X 1.0, Nl, SsPart of Kit, Ci, Battery, Rollout (387043). | $2.50/EA |
| 6 | TN4189029Replaces Tennant 1056915 | 4 | Angle, Battery, R/O, Iron GrayPart of Kit, Ci, Battery, Rollout (387043). | $34.24/EA |
| 7 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M08 X 1.25 X 20, SsPart of Kit, Ci, Battery, Rollout (387043). | $3.30/EA |
| 8 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Battery, Rollout (387043). | $3.30/EA |
| 9 | TN4169246Replaces Tennant 386607 | 1 | Harness, Battery, Rollout [7300/8300]Part of Kit, Ci, Battery, Rollout (387043). | $75.10/EA |
| 10 | TN4036587Replaces Tennant 1057644 | 1 | Bar Wldt, Battery, R/OPart of Kit, Ci, Battery, Rollout (387043). | $125.60/EA |
| 11 | TN4036351Replaces Tennant 1056940 | 1 | Stop Wldt, Iron GrayPart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $100.20/EA |
| 12 | TN4025659Replaces Tennant 377341 | 1 | Switch, Limit, NoPart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $141.40/EA |
| 13 | TN4035369Replaces Tennant 24199 | 4 | Screw, Hex, M5 X 0.8 X 16, SsPart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $3.00/EA |
| 14 | TN4042888Replaces Tennant 01683 | 6 | Washer, Flat, #10 SsPart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $2.60/EA |
| 15 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M 5 X 0,8, Nl, SsPart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $3.30/EA |
| 16 | TN4043189Replaces Tennant 02129 | 1 | Bolt, Shld, .38DX0.38, .31-18Part of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $19.60/EA |
| 17 | TN4015595Replaces Tennant 39349 | 1 | Washer, Flat, 0.31 SaePart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $2.50/EA |
| 18 | TN4042967Replaces Tennant 01760 | 1 | Nut, Hex, Lock, .31-18, Nl, ThinPart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $3.40/EA |
| 19 | TN4039356Replaces Tennant 1007107 | 1 | Latch, HandlePart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $247.20/EA |
| 20 | TN4042902Replaces Tennant 01685 | 2 | Washer, Flat, 0.31 SsPart of Kit, Ci, Battery, Rollout (387043). Serial 003685 and later. | $2.60/EA |
| 21 | TN4042902Replaces Tennant 01685 | 5 | Washer, Flt, .31 SsSerial up to 003684. | $2.60/EA |
| 22 | TN4031247Replaces Tennant 33932 | 5 | Nut, Hex, Lock, M 4 X 0.7, Nl SsSerial up to 003684. | $3.40/EA |
| 23 | TN4041945Replaces Tennant 09023 | 1 | Screw, Hex, M08 X 1.25 X 35, SsSerial up to 003684. | $3.30/EA |
| 24 | TN4041964Replaces Tennant 09198 | 2 | Screw, Pan, M04 X 0.7 X 35, SsSerial up to 003684. | $3.20/EA |
| 25 | TN4230705Replaces Tennant 387027 | 1 | Switch, No (Replaced by 398454)Serial up to 003684. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | TN4230705Replaces Tennant 387441 | 1 | Stop Wldt (Replaced by 398454)Serial up to 003684. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 battery Forklift Kit (option) parts
The parts Tennant numbers on its battery forklift kit (option) drawing. Manual pages 3-132, list 3-133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022313Replaces Tennant 387000 | 1 | Kit, Ci, Fork Lift, BatteryComplete assembly. | $866.08/EA |
| 1 | TN4189023Replaces Tennant 1056883 | 1 | Cradle Wldt, Battery, Iron GrayPart of Kit, Ci, Fork Lift, Battery (387000). | $666.40/EA |
| 2 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M08 X 1.25 X 20, SsPart of Kit, Ci, Fork Lift, Battery (387000). | $3.30/EA |
| 3 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Fork Lift, Battery (387000). | $3.30/EA |
Tennant 8300 battery Kit, 500AH Wet (option) parts
The parts Tennant numbers on its battery kit, 500ah wet (option) drawing. Manual pages 3-134, list 3-135.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022284Replaces Tennant 386932 | 1 | Battery Kit, Wet, 36vdc 0500ah, CiComplete assembly. | $11,383.46/EA |
| 1 | TN4021751Replaces Tennant 386335 | 1 | Battery, Wet, 36vdc 0500ahPart of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, Gray [Anderson]Part of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | $165.60/EA |
| 3 | TN4036319Replaces Tennant 1056895 | 1 | Spacer, Battery, Rh, Iron GrayPart of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | $39.69/EA |
| 4 | TN4036330Replaces Tennant 1056896 | 1 | Spacer, Battery, Lh, Iron GrayPart of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | $37.88/EA |
| 5 | TN4036299Replaces Tennant 1056878 | 1 | Spacer, Battery, Rear, Iron GrayPart of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | $26.87/EA |
| 6 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M8 X 1.25 X 20, SsPart of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsPart of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | $2.60/EA |
| 8 | TN4041605Replaces Tennant 07791 | 6 | Nut, Hex, Flng, M8 X 1.25Part of Battery Kit, Wet, 36vdc 0500ah, Ci (386932). | $2.50/EA |
Tennant 8300 battery Kit, 600AH (000000 - 006999) (option) parts
The parts Tennant numbers on its battery kit, 600ah (000000 - 006999) (option) drawing. Manual pages 3-136, list 3-137.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022285Replaces Tennant 386934 | 1 | Kit, Ci, Battery, 36vdc, 600ah, SealedComplete assembly. Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4021750Replaces Tennant 386334 | 1 | Battery, 36vdc, 600ah, SealedPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $29,242.90/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $165.60/EA |
| 3 | TN4169234Replaces Tennant 386573 | 1 | Spacer, Battery, RhPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $91.51/EA |
| 4 | TN4169235Replaces Tennant 386574 | 1 | Spacer, Battery, LhPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $75.45/EA |
| 5 | TN4036299Replaces Tennant 1056878 | 1 | Spacer, Battery, Rear, Iron GrayPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $26.87/EA |
| 6 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M08 X 1.25 X 20, SsPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flt, .31 SsPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $2.60/EA |
| 8 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M08 X 1.25,Nl, SsPart of Kit, Ci, Battery, 36vdc, 600ah, Sealed (386934). Serial up to 006999. | $3.30/EA |
Tennant 8300 battery Kit, 600AH (007000 -) (option) parts
The parts Tennant numbers on its battery kit, 600ah (007000 -) (option) drawing. Manual pages 3-138, list 3-139.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011796Replaces Tennant 9006938 | 1 | Battery Kit, 36vdc 0600ah, Sealed, CiComplete assembly. Serial 007000 and later. | $27,548.03/EA |
| 1 | TN4021750Replaces Tennant 386334 | 1 | Battery, 36vdc, 600ah, SealedPart of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). Serial 007000 and later. | $29,242.90/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). Serial 007000 and later. | $165.60/EA |
| 3 | TN4188872Replaces Tennant 1056787 | 1 | Spacer, Battery, Rh, Iron GrayPart of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). Serial 007000 and later. | $69.08/EA |
| 4 | TN4188873Replaces Tennant 1056788 | 1 | Spacer, Battery, Lh, Iron GrayPart of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). Serial 007000 and later. | $73.73/EA |
| 5 | TN4036299Replaces Tennant 1056878 | 1 | Spacer, Battery, Rear, Iron GrayPart of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). Serial 007000 and later. | $26.87/EA |
| 6 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M08 X 1.25 X 20, SsPart of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). Serial 007000 and later. | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flt, .31 SsPart of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). Serial 007000 and later. | $2.60/EA |
| 8 | TN4041605Replaces Tennant 07791 | 6 | Nut, Hex, Flng, M8 X 1.25Part of Battery Kit, 36vdc 0600ah, Sealed, Ci (9006938). | $2.50/EA |
Tennant 8300 battery Kit, 750AH Wet (option) parts
The parts Tennant numbers on its battery kit, 750ah wet (option) drawing. Manual pages 3-140, list 3-141.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022287Replaces Tennant 386936 | 1 | Kit, Ci, Battery, 36vdc, 750ah, WetComplete assembly. | $12,596.68/EA |
| 1 | TN1076528Replaces Tennant 1018515 | 1 | Battery, Wet, 36vdc 0750ahPart of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $9,334.00/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, 350a, Gray [Anderson]Part of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $165.60/EA |
| 3 | TN4036319Replaces Tennant 1056895 | 1 | Spacer, Battery, Rh, Iron GrayPart of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $39.69/EA |
| 4 | TN4036330Replaces Tennant 1056896 | 1 | Spacer, Battery, Lh, Iron GrayPart of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $37.88/EA |
| 5 | TN4036299Replaces Tennant 1056878 | 1 | Spacer, Battery, Rear, Iron GrayPart of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $26.87/EA |
| 6 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M8 X 1.25 X 20, SsPart of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $2.60/EA |
| 8 | TN4041605Replaces Tennant 07791 | 6 | Nut, Hex, Flng, M8 X 1.25Part of Kit, Ci, Battery, 36vdc, 750ah, Wet (386936). | $2.50/EA |
Tennant 8300 battery Kit, 1000AH Wet (000000 - 006999) (option) parts
The parts Tennant numbers on its battery kit, 1000ah wet (000000 - 006999) (option) drawing. Manual pages 3-142, list 3-143.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN386939Tennant 386939 | 1 | Kit, Ci, Battery, 36vdc, 1000Ah, WetComplete assembly. Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial up to 006999. | $15,282.20/EA |
| 1 | TN4021753Replaces Tennant 386337 | 1 | Battery, 36vdc 1000Ah WetPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial up to 006999. | $15,646.30/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Serial up to 006999. | $165.60/EA |
| 3 | TN4169271Replaces Tennant 386677 | 1 | Spacer, Battery, RhPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial up to 006999. | $327.24/EA |
| 4 | TN4169272Replaces Tennant 386678 | 1 | Spacer, Battery, LhPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial up to 006999. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN4036299Replaces Tennant 386575 | 1 | Spacer, Battery, RearPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial up to 006999. | $26.87/EA |
| 6 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M8 X 1.25 X 20, SsPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Serial up to 006999. | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Serial up to 006999. | $2.60/EA |
| 8 | TN4041929Replaces Tennant 08713 | 6 | Nut, Hex, Lock, M8 X 1.25, Nl, SsPart of Kit, Ci, Battery, 36vdc, 1000Ah, Wet (386939). Serial up to 006999. | $3.30/EA |
Tennant 8300 battery Kit, 1000AH Wet (007000 -) (option) parts
The parts Tennant numbers on its battery kit, 1000ah wet (007000 -) (option) drawing. Manual pages 3-144, list 3-145.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4202655Replaces Tennant 9006939 | 1 | Battery Kit, 36vdc 1000ah, Wet, Gray, CiComplete assembly. Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial 007000 and later. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN4021753Replaces Tennant 386337 | 1 | Battery, 36vdc 1000Ah WetPart of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial 007000 and later. | $15,646.30/EA |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). Serial 007000 and later. | $165.60/EA |
| 3 | TN4188875Replaces Tennant 1056791 | 1 | Spacer, Battery, Rh, Iron GrayPart of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial 007000 and later. | $33.43/EA |
| 4 | TN4188874Replaces Tennant 1056790 | 1 | Spacer, Battery, Lh, Iron GrayPart of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1000 disc brush. Serial 007000 and later. | $35.75/EA |
| 5 | TN4036299Replaces Tennant 1056878 | 1 | Spacer, Battery, Rear, Iron GrayPart of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). Serial 007000 and later. | $26.87/EA |
| 6 | TN4041992Replaces Tennant 09740 | 6 | Screw, Hex, M8 X 1.25 X 20, SsPart of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). Serial 007000 and later. | $3.30/EA |
| 7 | TN4042902Replaces Tennant 01685 | 6 | Washer, Flat, 0.38b 0.88d .08, SsPart of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). Serial 007000 and later. | $2.60/EA |
| 8 | TN4041605Replaces Tennant 07791 | 6 | Nut, Hex, Flng, M8 X 1.25Part of Battery Kit, 36vdc 1000ah, Wet, Gray, Ci (9006939). | $2.50/EA |
Tennant 8300 battery Tray Group (option) parts
Battery Tray Group (option) from Tennant's parts list. Manual page 3-146.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018503Replaces Tennant 387622 | 1 | Tray Wldt, Battery, 500Ah, 750Ah | $381.18/EA |
Tennant 8300 battery Charger Group, 120A, 36V, 60Hz (500Ah Batteries) (option) parts
Battery Charger Group, 120A, 36V, 60Hz (500Ah Batteries) (option) from Tennant's parts list. Manual page 3-147.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4041768Replaces Tennant 398285 | 1 | Charger, 36V/120A 60H/1Ph 480VComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Andersn 350A,GrayPart of Charger, 36V/120A 60H/1Ph 480V (398285). | $165.60/EA |
| 1 | TN4016508Replaces Tennant 398288 | 1 | Charger, 36V/120A 60H/3Ph 480VComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Andersn 350A,GrayPart of Charger, 36V/120A 60H/3Ph 480V (398288). | $165.60/EA |
| 1 | TN398316Tennant 398316 | 1 | Charger, 36Vdc 120A Tri-Vac 1PH 50HZComplete assembly. International Only. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Charger, 36Vdc 120A Tri-Vac 1PH 50HZ (398316). International Only. | $165.60/EA |
| 1 | TN4016509Replaces Tennant 398289 | 1 | Charger, 36Vdc 120A Tri-Vac 3PH 50HZComplete assembly. International Only. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Charger, 36Vdc 120A Tri-Vac 3PH 50HZ (398289). International Only. | $165.60/EA |
Tennant 8300 battery Charger Group, 93A, 36V, 60Hz (600Ah Batteries) (option) parts
Battery Charger Group, 93A, 36V, 60Hz (600Ah Batteries) (option) from Tennant's parts list. Manual page 3-148.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN386338Tennant 386338 | 1 | Charger, 36V/93A 60Hz, 1Ph, SealedComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Charger, 36V/93A 60Hz, 1Ph, Sealed (386338). | $165.60/EA |
| 1 | TN386344Tennant 386344 | 1 | Charger, 36V/93A 60Hz, 3Ph, SealedComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Charger, 36V/93A 60Hz, 3Ph, Sealed (386344). | $165.60/EA |
Tennant 8300 battery Charger Group, 150A, 36V, 60Hz (750Ah Batteries) (option) parts
Battery Charger Group, 150A, 36V, 60Hz (750Ah Batteries) (option) from Tennant's parts list. Manual page 3-149.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036941Replaces Tennant 398292 | 1 | Charger, 36V/150A 60HzComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Charger, 36V/150A 60Hz (398292). | $165.60/EA |
Tennant 8300 battery Charger Group, 36vdc/160A, 480 VAC (option) parts
Battery Charger Group, 36vdc/160A, 480 VAC (option) from Tennant's parts list. Manual page 3-150.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036941Replaces Tennant 1219389 | 1 | Charger, 36Vdc/160A, 480 VacComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042945Replaces Tennant 01726 | 1 | Connector, Anderson, 350A, GrayPart of Charger, 36Vdc/160A, 480 Vac (1219389). | $165.60/EA |
Tennant 8300 fire Extinguisher Kit (option) parts
Fire Extinguisher Kit (option) from Tennant's parts list. Manual page 3-151.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018119Replaces Tennant 387457 | 1 | Kit, CI, Extinguisher, Fire, [7300/8300]Complete assembly. | $243.81/EA |
| 1 | TN4035427Replaces Tennant 25312 | 1 | Extinguisher, FirePart of Kit, CI, Extinguisher, Fire, [7300/8300] (387457). | $206.60/EA |
| 2 | TN4029542Replaces Tennant 360973 | 2 | Screw, Pan, #12-16 x 0.50, F/PlstcPart of Kit, CI, Extinguisher, Fire, [7300/8300] (387457). | $4.00/EA |
Tennant 8300 documentation Group (option) parts
Documentation Group (option) from Tennant's parts list. Manual page 3-152.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4030790Replaces Tennant 330630 | 1 | Manual Pkg, (8300 Ele Na) | $256.94/EA |
| – | TN330631Tennant 330631 | 1 | Manual, Fiche, (8300 Ele) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4030791Replaces Tennant 330635 | 1 | Manual, Service, (8300 Ele Na) | $311.60/EA |
| – | TN4177090Replaces Tennant 330632 | 1 | Manual, Oprtr, (8300 Ele Es Na) | $256.94/EA |
| – | TN4177091Replaces Tennant 330633 | 1 | Manual, Oprtr, (8300 Ele Fr Na) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4044639Replaces Tennant 387496 | 1 | Video, Operator, Vhs, Ntsc [8300] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN4044639Replaces Tennant 1041885 | 1 | Video, Oprtr, Training, Dvd [8300] | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN9006257Tennant 9006257 | 1 | Media, Cd-Rom, Training [ec-H2O TENNANT] | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 electric Motor Breakdown, 17363 (component breakdown) parts
The parts Tennant numbers on its electric motor breakdown, 17363 (component breakdown) drawing. Manual pages 4-2, list 4-3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN9004050Replaces Tennant 17363 | 1 | Fan vacuum, 36vComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN8003674Replaces Tennant 37926 | 1 | HousingPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $20.60/EA |
| 2 | TN8003318Replaces Tennant 61298 | 1 | FanPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $27.07/EA |
| 3 | TN8006132Replaces Tennant 01982 | 2 | ClampPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $4.14/EA |
| 4 | TN8006151Replaces Tennant 11756 | 2 | Brush mechanismPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $27.40/EA |
| 5 | TN8006110Replaces Tennant 01969 | 2 | ScrewPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $3.45/EA |
| 6 | TN8006133Replaces Tennant 01983 | 1 | Comm. bracketPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $30.10/EA |
| 7 | TN8006099Replaces Tennant 01856 | 1 | Spring, loadPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $2.35/EA |
| 8 | TN8003672Replaces Tennant 37909 | 1 | DiscPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $4.14/EA |
| 9 | TN8006098Replaces Tennant 01842 | 1 | BearingPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $35.75/EA |
| 10 | TN8006097Replaces Tennant 01837 | 1 | BearingPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $33.84/EA |
| 11 | TN8003673Replaces Tennant 37912 | 1 | Washer, fl neo, 10.8x22x1.5Part of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $4.24/EA |
| 12 | TN8006062Replaces Tennant 18627 | 1 | SpacerPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $12.83/EA |
| 13 | TN8006131Replaces Tennant 01971 | 1 | FanPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $6.57/EA |
| 14 | TN8006063Replaces Tennant 18628 | 3 | Fan, rotatingPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $13.70/EA |
| 15 | TN8006065Replaces Tennant 18630 | 2 | SpacerPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $18.89/EA |
| 16 | TN8003319Replaces Tennant 61300 | 1 | Fan, stationaryPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $24.95/EA |
| 17 | TN8003317Replaces Tennant 61297 | 1 | Fan, stationaryPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $23.53/EA |
| 18 | TN18631Replaces Tennant 61301 | 1 | ShellPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $17.30/EA |
| 19 | TN8003671Replaces Tennant 378983 | 1 | WasherPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $4.14/EA |
| 20 | TN8003675Replaces Tennant 37929 | 1 | NutPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $4.24/EA |
| – | TN4043124Replaces Tennant 10925 | 1 | Connector, 2 conductorPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $10.50/EA |
| – | TN4043125Replaces Tennant 10926 | 2 | Terminal, femalePart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $3.40/EA |
| 21 | TN8003342Replaces Tennant 60386 | 1 | Bracket, far EndPart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $102.92/EA |
| 22 | TN8005918Replaces Tennant 21765 | 1 | ArmaturePart of Fan Assy, Vacuum (See Breakdown) (Replaced by 398520) (17363). | $241.69/EA |
Tennant 8300 electric Motor Breakdown, 398520 (component breakdown) parts
The parts Tennant numbers on its electric motor breakdown, 398520 (component breakdown) drawing. Manual pages 4-4, list 4-5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN9004050Replaces Tennant 398520 | 1 | Fan, VacuumComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN8002698Replaces Tennant 398511 | 1 | HousingPart of Fan Assy, Vacuum (See Breakdown) (398520). | $21.60/EA |
| 2 | TN8002699Replaces Tennant 398512 | 1 | FanPart of Fan Assy, Vacuum (See Breakdown) (398520). | $5.30/EA |
| 3 | TN8002700Replaces Tennant 398513 | 2 | Brush MechanismPart of Fan Assy, Vacuum (See Breakdown) (398520). | $14.90/EA |
| 4 | TN398514Tennant 398514 | 1 | Comm. BracketPart of Fan Assy, Vacuum (See Breakdown) (398520). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8006099Replaces Tennant 01856 | 1 | SpringPart of Fan Assy, Vacuum (See Breakdown) (398520). | $2.35/EA |
| 6 | TN8002701Replaces Tennant 398515 | 1 | BearingPart of Fan Assy, Vacuum (See Breakdown) (398520). | $14.44/EA |
| 7 | TN8006097Replaces Tennant 01837 | 1 | BearingPart of Fan Assy, Vacuum (See Breakdown) (398520). | $33.84/EA |
| 8 | TN8003673Replaces Tennant 37912 | 1 | Washer, Neo.Part of Fan Assy, Vacuum (See Breakdown) (398520). | $4.24/EA |
| 9 | TN8052057Replaces Tennant 398516 | 1 | SpacerPart of Fan Assy, Vacuum (See Breakdown) (398520). | $8.59/EA |
| 10 | TN8006131Replaces Tennant 01971 | 1 | FanPart of Fan Assy, Vacuum (See Breakdown) (398520). | $6.57/EA |
| 11 | TN8006063Replaces Tennant 18628 | 3 | Vacuum FanPart of Fan Assy, Vacuum (See Breakdown) (398520). | $13.70/EA |
| 12 | TN8052058Replaces Tennant 398517 | 2 | SpacerPart of Fan Assy, Vacuum (See Breakdown) (398520). | $7.98/EA |
| 13 | TN8003319Replaces Tennant 61300 | 1 | Stationary FanPart of Fan Assy, Vacuum (See Breakdown) (398520). | $24.95/EA |
| 14 | TN8003317Replaces Tennant 61297 | 1 | Stationary FanPart of Fan Assy, Vacuum (See Breakdown) (398520). | $23.53/EA |
| 15 | TN8002702Replaces Tennant 398518 | 1 | ShellPart of Fan Assy, Vacuum (See Breakdown) (398520). | $24.40/EA |
| 16 | TN8003675Replaces Tennant 37929 | 1 | NutPart of Fan Assy, Vacuum (See Breakdown) (398520). | $4.24/EA |
| 17 | TN8003342Replaces Tennant 60386 | 1 | Bracket, Fan EndPart of Fan Assy, Vacuum (See Breakdown) (398520). | $102.92/EA |
| 18 | TN8002703Replaces Tennant 398519 | 1 | ArmaturePart of Fan Assy, Vacuum (See Breakdown) (398520). | $218.26/EA |
| – | TN4037412Replaces Tennant 223264 | 1 | Seal, FanPart of Fan Assy, Vacuum (See Breakdown) (398520). | $6.70/EA |
| – | TN4043124Replaces Tennant 10925 | 1 | Connector, 2 ConductorPart of Fan Assy, Vacuum (See Breakdown) (398520). | $10.50/EA |
| – | TN4043125Replaces Tennant 10926 | 2 | Terminal, FemalePart of Fan Assy, Vacuum (See Breakdown) (398520). | $3.40/EA |
Tennant 8300 electric Motor Breakdown, 222409 (component breakdown) parts
Electric Motor Breakdown, 222409 (component breakdown) from Tennant's parts list. Manual page 4-6.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4038141Replaces Tennant 222409 | 1 | Motor Assy,EE Vac Fan | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN222623Tennant 222623 | 1 | Bearing KitPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN222635Tennant 222635 | 2 | BearingPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN222637Tennant 222637 | 2 | Snap RingPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8005977Replaces Tennant 222638 | 1 | Wavy WasherPart of the assembly above. | $5.15/EA |
| 5 | TN8005975Replaces Tennant 222625 | 1 | Brush KitPart of the assembly above. | $83.20/EA |
| 6 | TN222627Tennant 222627 | 4 | Brush&Spring AssyPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8005976Replaces Tennant 222629 | 4 | Brush Holder CapPart of the assembly above. | $24.60/EA |
| 8 | TN4043124Replaces Tennant 10925 | 1 | Connector, 2 ConductorPart of the assembly above. | $10.50/EA |
| 9 | TN4035380Replaces Tennant 24537 | 2 | Terminal, FemalePart of the assembly above. | $3.20/EA |
| 10 | TN4042778Replaces Tennant 00912 | 1 | Key, SquarePart of the assembly above. | $3.60/EA |
Tennant 8300 electric Motor Breakdown, 374201 (component breakdown) parts
Electric Motor Breakdown, 374201 (component breakdown) from Tennant's parts list. Manual page 4-7.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4038141Replaces Tennant 374201 | 1 | Motor Assy,EE Vac Fan | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN375176Tennant 375176 | 1 | Bearing KitPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8005975Replaces Tennant 222625 | 1 | Brush KitPart of the assembly above. | $83.20/EA |
| 3 | TN222627Tennant 222627 | 4 | Brush&Spring AssyPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8005976Replaces Tennant 222629 | 4 | Brush Holder CapPart of the assembly above. | $24.60/EA |
| 5 | TN4043124Replaces Tennant 10925 | 1 | Connector, 2 ConductorPart of the assembly above. | $10.50/EA |
| 6 | TN4035380Replaces Tennant 24537 | 2 | Terminal, FemalePart of the assembly above. | $3.20/EA |
| 7 | TN4042778Replaces Tennant 00912 | 1 | Key, SquarePart of the assembly above. | $3.60/EA |
Tennant 8300 electric Motor Breakdown, 1053284 (component breakdown) parts
Electric Motor Breakdown, 1053284 (component breakdown) from Tennant's parts list. Manual page 4-8.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4038141Replaces Tennant 1053284 | 1 | Motor, ele, 36Vdc 2500Rpm, 0.75Hp | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | TN8006161Replaces Tennant 1039817 | 1 | Brush Kit, Motor, ElePart of the assembly above. | $91.60/EA |
| 2 | TN4043124Replaces Tennant 10925 | 1 | Connector, 2 ConductorPart of the assembly above. | $10.50/EA |
| 3 | TN4035380Replaces Tennant 24537 | 2 | Terminal, FemalePart of the assembly above. | $3.20/EA |
| 4 | TN4042778Replaces Tennant 00912 | 1 | Key, SquarePart of the assembly above. | $3.60/EA |
Tennant 8300 electric Motor Breakdown, 383709 (component breakdown) parts
Electric Motor Breakdown, 383709 (component breakdown) from Tennant's parts list. Manual page 4-9.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4038802Replaces Tennant 383709 | 1 | Motor Assy | $1,003.60/EA |
| – | TN384207Tennant 384207 | 1 | Bearing KitPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN384256Tennant 384256 | 2 | BearingPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN222637Tennant 222637 | 2 | Snap RingPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | TN8003357Replaces Tennant 384257 | 2 | BrushPart of the assembly above. | $22.55/EA |
| – | TN384258Tennant 384258 | 2 | Screw, 6-32Part of the assembly above. | $3.00/EA |
| – | TN384259Tennant 384259 | 2 | Spring, Retaining, BrushPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN4042778Replaces Tennant 00912 | 1 | Key, SquarePart of the assembly above. | $3.60/EA |
Tennant 8300 electric Motor Breakdown, 386050 (component breakdown) parts
Electric Motor Breakdown, 386050 (component breakdown) from Tennant's parts list. Manual page 4-10.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4025687Replaces Tennant 386050 | Motor, Ele, 36 Vdc 1500 Rpm 1.5 HpComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 1 | TN8002731Replaces Tennant 41367 | 4 | BrushPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | $46.16/EA |
| 2 | TN8002732Replaces Tennant 41368 | 1 | BearingPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | $36.87/EA |
| 3 | TN41371Tennant 41371 | 1 | BearingPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4042781Replaces Tennant 00918 | 1 | Key, Sq, 0.19 X 0.19, 01.25LPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). Fits 8300 · Max Pro 1000 cylindrical brush, 8300 · Max Pro 1200 cylindrical brush. | $3.50/EA |
| 5 | TN8044887Replaces Tennant 387250 | 1 | Spring, BearingPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | $4.04/EA |
| 6 | TN8005926Replaces Tennant 21800 | 1 | Ring, BrushPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | $61.91/EA |
| 7 | TN8003759Replaces Tennant 60189 | 4 | SpringPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | $10.10/EA |
| 8 | TN8044888Replaces Tennant 387251 | 1 | Armature Assy, CompltPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN4035380Replaces Tennant 24537 | 2 | Terminal, [Metripk630], Fem 10Part of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | $3.20/EA |
| 10 | TN4043124Replaces Tennant 10925 | 1 | Connector, 2-ConductorPart of Motor, Ele, 36vdc 1500rpm 1.5hp (See Breakdown) (Repl By 377398) (386050). | $10.50/EA |
Tennant 8300 electric Motor Breakdown, 386679 (component breakdown) parts
Electric Motor Breakdown, 386679 (component breakdown) from Tennant's parts list. Manual page 4-11.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018157Replaces Tennant 386679 | Motor, Gear, Ele, 1.5Hp, 36Vdc, 300RpmComplete assembly. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 1 | TN387371Tennant 387371 | 1 | Brush KitPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN387373Tennant 387373 | 1 | Brush Holder AssyPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN387374Tennant 387374 | 4 | Spring, BrushPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN41371Tennant 41371 | 1 | BearingPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8002732Replaces Tennant 41368 | 1 | BearingPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | $36.87/EA |
| 6 | TN4043124Replaces Tennant 10925 | 1 | Connector BodyPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | $10.50/EA |
| 7 | TN4035380Replaces Tennant 24537 | 2 | TerminalPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | $3.20/EA |
| 8 | TN4042785Replaces Tennant 00928 | 1 | Key Square 0.25 X 0.25, 01.00LPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | $3.60/EA |
| 9 | TN387372Tennant 387372 | 1 | Gearbox, MotorPart of Motor, Gear, Ele, 1.5hp, 36vdc, 300rpm (Replaced by 387585AM) (See Breakdowns) (386679). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 electric Motor Breakdown, 386811 (component breakdown) parts
The parts Tennant numbers on its electric motor breakdown, 386811 (component breakdown) drawing. Manual page 4-12.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022252Replaces Tennant 386811 | Motor, Ele, TractionComplete assembly. | $2,648.10/EA | |
| 1 | TN8002290Replaces Tennant 48753 | 1 | SealPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $22.42/EA |
| 2 | TN8044890Replaces Tennant 387354 | 1 | Head, Drive EndPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $273.81/EA |
| 3 | TN8002291Replaces Tennant 48754 | 1 | BearingPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $61.91/EA |
| 4 | TN8044891Replaces Tennant 387355 | 1 | Ring, RetainingPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $6.16/EA |
| 5 | TN8046408Replaces Tennant 361966 | 1 | Armature FanPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8044892Replaces Tennant 387356 | 1 | Armature and Fan AssemblyPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $1,106.05/EA |
| 7 | TN8044893Replaces Tennant 387357 | 1 | Frame and Field AssemblyPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $1,096.36/EA |
| 8 | TN8002292Replaces Tennant 48755 | 1 | Spring, BrushPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $23.10/EA |
| 9 | TN8003196Replaces Tennant 385742 | 4 | Brush, Motor, ElePart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $18.10/EA |
| 10 | TN8005881Replaces Tennant 223677 | 1 | Brush PaltePart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $183.00/EA |
| 11 | TN8044894Replaces Tennant 387358 | 1 | Wire Assy, BrushPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $105.70/EA |
| 12 | TN4013984Replaces Tennant 48758 | 1 | BearingPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $21.59/EA |
| 13 | TN8046412Replaces Tennant 361971 | 1 | H-016 Wavy WasherPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $5.15/EA |
| 14 | TN8044895Replaces Tennant 387359 | 1 | Head, Commutator EndPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $255.93/EA |
| 15 | TN8005253Replaces Tennant 361973 | 1 | HeadbandPart of Motor, Ele, Vdc 3.0hp Traction,[201] (See Breakdown) (386811). | $47.57/EA |
Tennant 8300 electric Motor Breakdown, 386687 (component breakdown) parts
Electric Motor Breakdown, 386687 (component breakdown) from Tennant's parts list. Manual page 4-13.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011284Replaces Tennant 386687 | 1 | Motor, Gear, 1.0Hp 36V | $993.70/EA |
| 1 | TN8005967Replaces Tennant 222606 | 1 | Brush KitPart of the assembly above. | $188.70/EA |
| 2 | TN8005972Replaces Tennant 222618 | 1 | BearingPart of the assembly above. | $47.70/EA |
| 3 | TN8005971Replaces Tennant 222617 | 1 | BearingPart of the assembly above. | $48.90/EA |
| 4 | TN4043124Replaces Tennant 10925 | 1 | Connector BodyPart of the assembly above. | $10.50/EA |
| 5 | TN4035380Replaces Tennant 24537 | 2 | TerminalPart of the assembly above. | $3.20/EA |
| 6 | TN4042785Replaces Tennant 00928 | 1 | Key Square 0.25 0.25 01.00 LgPart of the assembly above. | $3.60/EA |
| 7 | TN8004411Replaces Tennant 374005 | 1 | Gearbox, MotorPart of the assembly above. | $996.70/EA |
Tennant 8300 water Pump Breakdown, 387321 (component breakdown) parts
The parts Tennant numbers on its water pump breakdown, 387321 (component breakdown) drawing. Manual page 4-14.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4018078Replaces Tennant 387321 | 1 | Pump kit, Power Wand | $263.55/EA |
| 1 | TN65678Tennant 65678 | 1 | Seal kitPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN8002784Replaces Tennant 65667 | 1 | ScrewPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN8002785Replaces Tennant 65668 | 1 | ScrewPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN8045480Replaces Tennant 370923 | 1 | Cam/bearing\Diaphram KitPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8051604Replaces Tennant 65671 | 1 | PistonPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN4219246Replaces Tennant 65672 | 1 | Diaphram kitPart of the assembly above. | $29.90/EA |
| 7 | TN65673Tennant 65673 | 1 | Check valve assyPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8002786Replaces Tennant 65670 | 1 | Bearing coverPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN8002787Replaces Tennant 65674 | 1 | Switch assyPart of the assembly above. | $117.16/EA |
| 10 | TN8002788Replaces Tennant 65675 | 1 | Pump screwPart of the assembly above. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8051605Replaces Tennant 65676 | 1 | MotorPart of the assembly above. | $213.72/EA |
| 12 | TN8051606Replaces Tennant 65677 | 1 | Brush/rectifier AssyPart of the assembly above. | $70.20/EA |
| – | TN4026208Replaces Tennant 78950 | 2 | Connector assyPart of the assembly above. | $7.90/EA |
| – | TN4026210Replaces Tennant 78951 | 2 | Terminal femalePart of the assembly above. | $0.55/EA |
| – | TN4043117Replaces Tennant 10917 | 2 | Seal connectorPart of the assembly above. | $3.60/EA |
Tennant 8300 metering Solution Pump Breakdown, 386364 (component breakdown) parts
Metering Solution Pump Breakdown, 386364 (component breakdown) from Tennant's parts list. Manual page 4-15.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4021774Replaces Tennant 386364 | 1 | Pump, Metering SolutionComplete assembly. | $789.60/EA |
| 1 | TN8002729Replaces Tennant 63923 | 1 | Connector Kit, TubingPart of Pump, Detgt, 36vdc (See Breakdown) (386364). | $91.36/EA |
| 2 | TN8005913Replaces Tennant 21659 | 1 | Valve Kit, PumpPart of Pump, Detgt, 36vdc (See Breakdown) (386364). | $118.80/EA |
| 3 | TN8005915Replaces Tennant 21661 | 1 | Replacement Kit, BellowsPart of Pump, Detgt, 36vdc (See Breakdown) (386364). | $224.26/EA |
| 4 | TN8006136Replaces Tennant 02430 | 1 | Crank Replacement KitPart of Pump, Detgt, 36vdc (See Breakdown) (386364). | $112.01/EA |
Tennant 8300 hydraulic Powerunit Breakdown, 368704 (component breakdown) parts
Hydraulic Powerunit Breakdown, 368704 (component breakdown) from Tennant's parts list. Manual page 4-16.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4030496Replaces Tennant 386704 | 1 | Powerunit, Hyd, 36VdcComplete assembly. | $3,383.00/EA |
| 1 | TN8044510Replaces Tennant 387597 | 1 | Motor, ElectPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $1,662.97/EA |
| 2 | TN8044511Replaces Tennant 387598 | 1 | Pump assyPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN8044512Replaces Tennant 387599 | 1 | Coupling, FlexiblePart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $117.46/EA |
| 4 | TN387600Tennant 387600 | 1 | Screw, AdjusterPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | TN8044516Replaces Tennant 387607 | 1 | SpringPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8044517Replaces Tennant 387608 | 1 | Ball, CheckPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN8044518Replaces Tennant 387609 | 4 | Screw, MtgPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $5.15/EA |
| 8 | TN8044519Replaces Tennant 387610 | 4 | WasherPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $4.24/EA |
| 9 | TN8002873Replaces Tennant 387602 | 1 | Element, FltrPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $131.91/EA |
| 10 | TN8002874Replaces Tennant 387603 | 1 | Seal, Cup, UpperPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $23.74/EA |
| 11 | TN8002875Replaces Tennant 387604 | 1 | Seal, Cup, LowerPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $36.66/EA |
| 12 | TN8044514Replaces Tennant 387605 | 1 | ReservoirPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | TN8044515Replaces Tennant 387606 | 1 | Cover, ReservoirPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $273.91/EA |
| 14 | TN8044513Replaces Tennant 387601 | 1 | Kit, SealPart of Powerunit, Hyd, 36Vdc (See Breakdowns) (386704). | $119.28/EA |
Tennant 8300 hydraulic Motor Breakdown, 386703 (component breakdown) parts
The parts Tennant numbers on its hydraulic motor breakdown, 386703 (component breakdown) drawing. Manual page 4-17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022238Replaces Tennant 386703 | 1 | Motor, HydComplete assembly. | $707.30/EA |
| 1 | TN8004514Replaces Tennant 37555 | 4 | ScrewPart of Motor, Hyd (See Breakdowns) (386703). | $4.40/EA |
| 2 | TN8001991Replaces Tennant 763504 | 1 | FlangePart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | TN8006045Replaces Tennant 16695 | 1 | Race ThrustPart of Motor, Hyd (See Breakdowns) (386703). | $43.50/EA |
| 4 | TN8002167Replaces Tennant 45628 | 1 | Bearing, ThrustPart of Motor, Hyd (See Breakdowns) (386703). | $15.60/EA |
| 5 | TN8001994Replaces Tennant 763508 | 1 | Shaft, OutputPart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | TN8049086Replaces Tennant 22655 | 1 | HousingPart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | TN373344Tennant 373344 | 1 | Drive, Main ClPart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8049089Replaces Tennant 22658 | 1 | SpacerPart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | TN373343Tennant 373343 | 1 | Geroler S/A ClPart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN8045194Replaces Tennant 373422 | 1 | Cap, EndPart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | TN8048820Replaces Tennant 21958 | 7 | Cap, Screw ClPart of Motor, Hyd (See Breakdowns) (386703). | $3.74/EA |
| 12 | TN8004254Replaces Tennant 373423 | 1 | Kit, Seal, MotorPart of Motor, Hyd (See Breakdowns) (386703). | $65.15/EA |
| 13 | TN8049092Replaces Tennant 22661 | 1 | Instruction, RepairPart of Motor, Hyd (See Breakdowns) (386703). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 hydraulic Solenoid Valve Breakdown, 386705 (component breakdown) parts
Hydraulic Solenoid Valve Breakdown, 386705 (component breakdown) from Tennant's parts list. Manual page 4-18.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4190517Replaces Tennant 386705 | 1 | Valve, Hyd, SolenoidComplete assembly. | $451.27/EA |
| 1 | TN8003685Replaces Tennant 79716 | 1 | Valve StemPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $251.70/EA |
| 2 | TN8003684Replaces Tennant 79711 | 1 | Kit, Seal, Hyd, ValvePart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $35.90/EA |
| 3 | TN8003691Replaces Tennant 79740 | 1 | Kit, Seal, Hyd, ValvePart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $8.80/EA |
| 4 | TN8003688Replaces Tennant 79728 | 1 | NutPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $7.60/EA |
| 5 | TN8003690Replaces Tennant 79739 | 1 | Valve, StemPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $179.01/EA |
| 6 | TN8003684Replaces Tennant 79711 | 1 | Kit, Seal, Hyd, ValvePart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $35.90/EA |
| 7 | TN8003691Replaces Tennant 79740 | 1 | Kit, Seal, Hyd, ValvePart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $8.80/EA |
| 8 | TN8003689Replaces Tennant 79731 | 1 | NutPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $17.20/EA |
| 9 | TN8045193Replaces Tennant 373421 | 2 | Coil 36vPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $129.99/EA |
| 10 | TN8006152Replaces Tennant 13902 | 2 | Plug, O-RingPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $8.40/EA |
| 11 | TN4211313Replaces Tennant 77001 | 1 | Seal, O-Ring,Part of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $3.23/EA |
| 12 | TN4012760Replaces Tennant 74098 | 1 | Plug, O-RingPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $5.00/EA |
| 13 | TN4029251Replaces Tennant 77003 | 1 | Seal, O-Ring, .072 X .35idPart of Valve, Hyd, Solenoid (See Breakdowns) Replaced by 1049212 (386705). | $4.40/EA |
Tennant 8300 hydraulic Solenoid Valve Breakdown, 1049212 (component breakdown) parts
Hydraulic Solenoid Valve Breakdown, 1049212 (component breakdown) from Tennant's parts list. Manual page 4-19.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4190517Replaces Tennant 1049212 | 1 | Valve, Cntrl, Hyd, Solenoid, 36vdc 06gpmComplete assembly. | $451.27/EA |
| 1 | TN8005996Replaces Tennant 1050812 | 1 | Stem, Valve, HydPart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $151.00/EA |
| 2 | TN8005993Replaces Tennant 1050780 | 1 | Seal Kit, CartridgePart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $12.10/EA |
| 3 | TN4041032Replaces Tennant 1052230 | 1 | Stem, Valve, HydPart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $87.67/EA |
| 4 | TN8004270Replaces Tennant 373585 | 1 | Nut, LongPart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $13.70/EA |
| 5 | TN8004269Replaces Tennant 373584 | 1 | Nut, ShortPart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $7.80/EA |
| 6 | TN8005876Replaces Tennant 1052515 | 2 | Solenoid, Valve, Hyd, 36vdcPart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $76.76/EA |
| 7 | TN8046653Replaces Tennant 1050873 | 1 | Fitting, Plug, Om06, ValvePart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $3.74/EA |
| 8 | TN8046651Replaces Tennant 1050869 | 2 | Fitting, Plug, Om04, ValvePart of Valve, Cntrl, Hyd, Solenoid, 36Vdc 06Gpm (See Breakdowns) (1049212). | $2.42/EA |
Tennant 8300 steering Control Valve Breakdown, 373495 (component breakdown) parts
Steering Control Valve Breakdown, 373495 (component breakdown) from Tennant's parts list. Manual page 4-20.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4028406Replaces Tennant 373495 | 4 | Steer-Control, HydComplete assembly. | $554.64/EA |
| 1 | TN8045227Replaces Tennant 373567 | 1 | Screw, CapPart of Steer-Control, Hyd (See Breakdowns) (373495). | $3.74/EA |
| 2 | TN8045228Replaces Tennant 373568 | 1 | Cap, EndPart of Steer-Control, Hyd (See Breakdowns) (373495). | $77.97/EA |
| 3 | TN8045229Replaces Tennant 373569 | 1 | GeroterPart of Steer-Control, Hyd (See Breakdowns) (373495). | $286.34/EA |
| 4 | TN8045230Replaces Tennant 373570 | 1 | SpacerPart of Steer-Control, Hyd (See Breakdowns) (373495). | $22.42/EA |
| 5 | TN8045231Replaces Tennant 373571 | 1 | Plate, WearPart of Steer-Control, Hyd (See Breakdowns) (373495). | $72.82/EA |
| 6 | TN8002121Replaces Tennant 74231 | 1 | Drive, Valve, StrgPart of Steer-Control, Hyd (See Breakdowns) (373495). | $49.94/EA |
| 7 | TN8002122Replaces Tennant 74232 | 1 | Pin, Valve, StrgPart of Steer-Control, Hyd (See Breakdowns) (373495). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN8045232Replaces Tennant 373572 | 1 | PinPart of Steer-Control, Hyd (See Breakdowns) (373495). | $3.74/EA |
| 9 | TN8051375Replaces Tennant 74114 | 1 | Ball, Check, Strg ValvePart of Steer-Control, Hyd (See Breakdowns) (373495). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | TN8002129Replaces Tennant 74243 | 1 | Ring, Retainer, Valve, StrgPart of Steer-Control, Hyd (See Breakdowns) (373495). | $5.96/EA |
| 11 | TN8002130Replaces Tennant 74244 | 1 | Kit, Seal, Hyd, Valve, StrgPart of Steer-Control, Hyd (See Breakdowns) (373495). | $62.30/EA |
| 12 | TN8002114Replaces Tennant 74196 | 1 | Kit, Spring, Valve, StrgPart of Steer-Control, Hyd (See Breakdowns) (373495). | $45.35/EA |
| 13 | TN8005935Replaces Tennant 21935 | 1 | Bearing KitPart of Steer-Control, Hyd (See Breakdowns) (373495). | $39.98/EA |
| 14 | TN8002131Replaces Tennant 74245 | 1 | Instruction, Repair, Valve, StrgPart of Steer-Control, Hyd (See Breakdowns) (373495). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 electric Motor Breakdown, 387585 (component breakdown) parts
Electric Motor Breakdown, 387585 (component breakdown) from Tennant's parts list. Manual page 4-21.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011283Replaces Tennant 387585 | Motor, Gear, Ele, 1.5Hp, 36Vdc, 300RpmComplete assembly. | $1,082.50/EA | |
| 1 | TN8002871Replaces Tennant 387589 | 4 | BrushPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $23.03/EA |
| 2 | TN4018493Replaces Tennant 387590 | 1 | Brush, Board, AssyPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $131.10/EA |
| 3 | TN8002872Replaces Tennant 387592 | 4 | Spring, BrushPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $15.15/EA |
| 4 | TN8002825Replaces Tennant 387587 | 1 | BearingPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $32.93/EA |
| 5 | TN8005971Replaces Tennant 387588 | 1 | BearingPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $48.90/EA |
| 6 | TN4043124Replaces Tennant 10925 | 1 | Connector BodyPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $10.50/EA |
| 7 | TN4035380Replaces Tennant 24537 | 2 | TerminalPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $3.20/EA |
| 8 | TN4042785Replaces Tennant 00928 | 1 | Key Square 0.25 X 0.25, 01.00LPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $3.60/EA |
| 9 | TN8004411Replaces Tennant 374005 | 1 | Gearbox, MotorPart of Motor, Ele, 36vdc 1.50hp 0300rpm, Gear (Heavy Duty) (See Breakdown) (Replaced by 9010161) (387585). | $996.70/EA |
Tennant 8300 ec-H2O Module Assembly Breakdown, 9006270 (component breakdown) parts
The parts Tennant numbers on its ec-h2o module assembly breakdown, 9006270 (component breakdown) drawing. Manual pages 4-22, list 4-23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4014909Replaces Tennant 9006270 | 1 | Module Kit, Replmt [Ec-H2o]Complete assembly. | $2,181.10/EA |
| 1 | TN4021577Replaces Tennant 9007969 | 1 | Controller Kit, Replmt [ec-H2O]Part of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $1,063.00/EA |
| 2 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $2.50/EA |
| – | TN4015302Replaces Tennant 9006325 | 1 | Ec-H2o Kit, Module C, PlumbingPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $2,132.21/EA |
| 3 | TN1050767Tennant 1050767 | 1 | Electrode, 5 Plate, High FlowPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | TN4040417Replaces Tennant 1049489 | 1 | Harness, Main,Controlboard[Ec-H2o 5cell]Part of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $28.50/EA |
| 5 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $18.70/EA |
| 6 | TN4014907Replaces Tennant 9006268 | 1 | Hose, Pvc, Brd, 0.31id 0.53od, 2ft, ClrPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $59.39/EA |
| 7 | TN4038223Replaces Tennant 1053464 | 3 | Clamp, Hose, Wir, .52 - .56, YelPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $2.73/EA |
| 8 | TN4040431Replaces Tennant 1049637 | 1 | Label, Direction [Ec-H2o]Part of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $3.23/EA |
| 9 | TN4040777Replaces Tennant 1051519 | 1 | Housing, Upper, Module, High FlowPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $12.60/EA |
| 10 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $0.25/EA |
| 11 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $2.60/EA |
| 12 | TN4031247Replaces Tennant 33932 | 4 | Nut, Hex, Lock, M4 X 0.70, Nl, SsPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $3.40/EA |
| 13 | TN4042720Replaces Tennant 1046041 | 1 | Label, Module [Nsf, Ec-H2o]Part of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $14.44/EA |
| 14 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, MomPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $7.70/EA |
| 15 | TN4040034Replaces Tennant 1048741 | 1 | Bracket, Valve, LargePart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $12.83/EA |
| 16 | TN4029637Replaces Tennant 578856 | 2 | Screw, Flt, Phl, 10-32 X 0.31Part of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $2.83/EA |
| 17 | TN4036516Replaces Tennant 1062006 | 1 | Electrode, CylindricalPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $753.50/EA |
| 18 | TN4042458Replaces Tennant 1045030 | 1 | Fitting, Brs, Str, Pm02/Pm02Part of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $15.15/EA |
| 19 | TN4040025Replaces Tennant 1048643 | 1 | Valve, Solenoid, 0.25” Orifice, 24vdcPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $131.00/EA |
| 20 | TN4038972Replaces Tennant 1005375 | 1 | Fitting, Plstc, Str, Bm06/Pm02, NylPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $2.25/EA |
| 21 | TN4040769Replaces Tennant 1051268 | 1 | Fitting, Plstc, E90, Bm05/Pm02, NylPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $4.20/EA |
| 22 | TN4021946Replaces Tennant 607775 | 1 | Clamp, Hose, Wir, .63 - .66, BlkPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $4.20/EA |
| 23 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $10.60/EA |
| 24 | TN4040690Replaces Tennant 1050431 | 1 | Grommet, BlindPart of Module Kit, Replmt [ec-H2O] (See Breakdowns) (9006270). | $3.23/EA |
Tennant 8300 ec-H2O Solution Pump Breakdown, 1005866 (component breakdown) parts
ec-H2O Solution Pump Breakdown, 1005866 (component breakdown) from Tennant's parts list. Manual page 4-24.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4039006Replaces Tennant 1005866 | 1 | Pump, Soltn, Ele, 36vdc | $438.90/EA |
| 1 | TN8002945Replaces Tennant 391433 | 1 | Head Kit, Pump, Water, RepairPart of the assembly above. | $162.11/EA |
| 2 | TN4026208Replaces Tennant 78950 | 1 | Connector, Fem, 2cav, Mp280 SealedPart of the assembly above. | $7.90/EA |
| 3 | TN4026210Replaces Tennant 78951 | 1 | Terminal, Fem, Mp280, Sealed, 18-16gaPart of the assembly above. | $0.55/EA |
| 4 | TN4043117Replaces Tennant 10917 | 1 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of the assembly above. | $3.60/EA |
| 5 | TN4026214Replaces Tennant 78952 | 1 | Lock, Secondary, 2cav, Mp280 SealedPart of the assembly above. | $4.20/EA |
Tennant 8300 faST Injector Assembly Breakdown, 1070035 (component breakdown) parts
FaST Injector Assembly Breakdown, 1070035 (component breakdown) from Tennant's parts list. Manual page 4-25.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4030294Replaces Tennant 1070035 | 1 | Injector Assy [Gen Lll]Complete assembly. | $172.83/EA |
| 1 | TN4010353Replaces Tennant 9008890 | 1 | Parts Kit, Ci [Inj Rebld, 7300/8300 Lll]Part of Injector Assy [Gen III] (See Breakdowns) (1070035). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | TN9008848Tennant 9008848 | 1 | Fast Kit, Seal, Injector, Ci [Fast Iii]Part of Injector Assy [Gen III] (See Breakdowns) (1070035). | $4.10/EA |
| 3 | TN4016470Replaces Tennant 9003009 | 1 | Fast Kit, Ci, Injector Filters[Fast Ii+]Part of Injector Assy [Gen III] (See Breakdowns) (1070035). | $71.60/EA |
| 4 | TN4187094Replaces Tennant 1059877 | 1 | Plate Assy, Orifice, 0.010id, PurplePart of Injector Assy [Gen III] (See Breakdowns) (1070035). | $31.92/EA |
| 5 | TN4040674Replaces Tennant 1050336 | 1 | Plug, Orifice, 0.052, Ss [Fast Ii+]Part of Injector Assy [Gen III] (See Breakdowns) (1070035). | $23.94/EA |
| 6 | TN1059234Tennant 1059234 | 1 | Insert, Lrg [Venturi, Fast Iii]Part of Injector Assy [Gen III] (See Breakdowns) (1070035). | $11.80/EA |
| 7 | TN1030444Tennant 1030444 | 1 | Valve, Check, 0002psi [Fast Ii+]Part of Injector Assy [Gen III] (See Breakdowns) (1070035). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | TN1030441Tennant 1030441 | 1 | Valve, Check, 0005psi [Fast Ii+]Part of Injector Assy [Gen III] (See Breakdowns) (1070035). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Tennant 8300 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Parts manualTennant 330630 Rev. 20 (8-2015), North America / International, 360 pages | 8300 | Rev. 20 (8-2015) | 360 pages | Sign in to view or downloadSign in to download |
| Operator manualTennant 8300 operator manual | 8300 | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
