PowerBoss Scrubmaster B175R parts list and diagrams
Every part number in Hako's three spare parts catalogs for the Scrubmaster B175R, with the catalogs' drawings. Troubleshooting, maintenance and specs come from the B175R operating manual. Each part number links to that part in our store.
Online manuals: Operator
Complete list: every parts line in the three Hako spare parts catalogs for the PowerBoss Scrubmaster B175R: the 33C with side broom (SM3346CSB), the 35D (SM3546D) and the 42D (SM4246D), for the B175R ride-on scrubber. Checked .
New to your B175R? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Brush unit width
- Roll brush 33.5 in (850 mm); disk brush 35.4 in (900 mm) or 42.5 in (1080 mm)
- Squeegee width
- 43.3 in (1100 mm); 49.6 in (1260 mm) with the 42.5 in (1080 mm) brush unit
- Solution and waste water tanks
- 46.2 gal (175 L) each
- Voltage and battery
- 36 V; trough battery 36 V/320 Ah PzS wet or 36 V/280 Ah PzV maintenance-free
- Transport speed
- 5.0 mph (8 km/h) forwards; 2.5 mph (4 km/h) in reverse
Wear parts most B175R owners reorder
The operating manual's maintenance plan names the squeegee sealing and slot strips and the fresh water filter for regular checks and replacement. The catalogs also list a highly wear-resistant slot strip for each squeegee. These are the ones on the parts list.
sealing strip 1100mm
$86.73/EAsealing strip 1260mm
$79.92/EAslot strip 1100mm
$69.97/EAslot strip 1260mm
$62.18/EAWater filter
$55.34/EAslot strip, highly wear-resistant 1100mm
$123.70/EAslot strip, highly wear-resistant 1260mm
$115.67/EA
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 67, 83 and 92. SES ref PF-WOFA-ZJ33
Your machine
How to tell which you have
- Find the model number: the type plate is in front of the left front wheel (operating manual page 18). Quote the serial number from it when you order parts. The catalogs print SM3346CSB (7180.39) for the 33C with side broom, SM3546D (7180.29) for the 35D and SM4246D (7180.17) for the 42D.
- Check the brush head: the catalogs list an 850 roll brush head with a side broom for the 33C, a 900 disk brush head for the 35D and a 1080 disk brush head for the 42D. Pick your build above the parts list to see only your lines.
- Same groups show once: where the three catalogs print the same group, you see it once with no tag. Where they differ, the group is split by build, or the lines that differ carry a Fits tag.
How to read this list
Our part numbers are Hako's Part-No with MM in front, so Hako part no. 01372330 is MM01372330. Hako's catalogs print a Part-No and a Material-No on each line; the Material-No is in the note. Where we list a line under its Material-No instead, the note says so. Lines that Hako prints as a pointer to a sub-assembly are not sold separately: their parts are on that group's own drawing. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

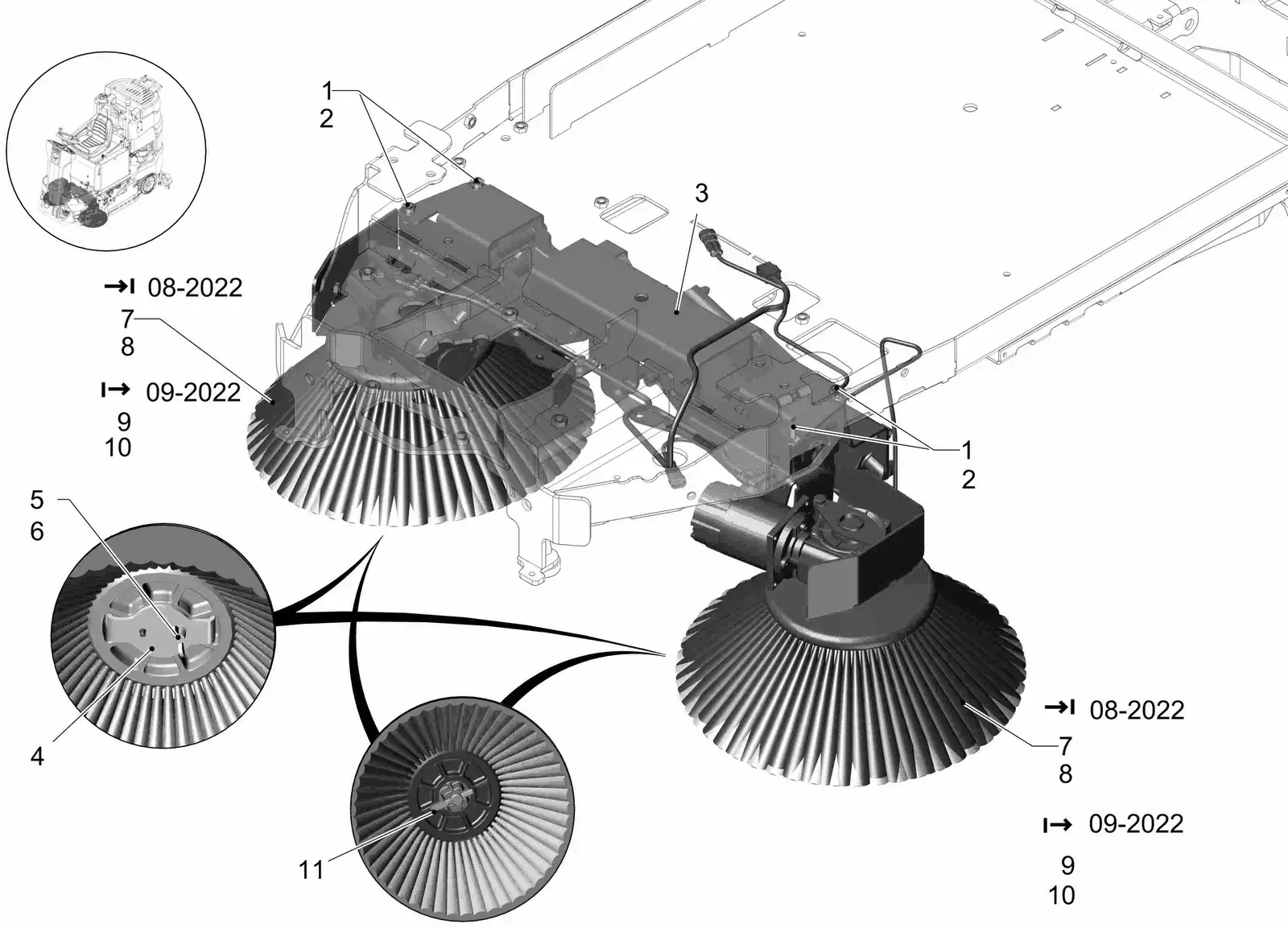

PowerBoss Scrubmaster B175R Side broom equipment (97139174) parts
The side broom drive plate, mounting hardware and spare side brushes. This group is in the 33C catalog only. Manual pages 33C p2, list 33C p3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038197 | 4 | hexagon screw M8x16-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $4.15/EA |
| 2 | MM00740310 | 4 | Washer SKS-8-dacrometisiertFits 1 of 3 versions33C with side broom | $1.05/EA |
| 3 | Not sold separatelyPowerBoss 97178305 | Side broom equipmentFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Side broom equipment (97178305) | |
| 4 | MM01373170 | 2 | drive plateFits 1 of 3 versions33C with side broom | $46.31/EA |
| 5 | MM01380010 | 2 | wing screw M6x16-St-N2 DIN 316Fits 1 of 3 versions33C with side broom | $2.43/EA |
| 6 | MM00730940 | 2 | Detent edged washer SKM-6-dacrometisiertFits 1 of 3 versions33C with side broom | $1.22/EA |
| 7 | MM6348Replaces PowerBoss 99634800 | 2 | Spare side broomFits 1 of 3 versions33C with side broom | $129.90/EA |
| 8 | MM99623700 | 2 | Spare side broomFits 1 of 3 versions33C with side broom | $43.44/EA |
| 9 | MM99651310 | 2 | Side broom PP-PES 400Fits 1 of 3 versions33C with side broom | $97.36/EA |
| 10 | MM99623710PowerBoss 99623710 | 2 | Spare side broom PES 400Fits 1 of 3 versions33C with side broom | Call to confirm part: 800-440-6723 |
| 11 | MM00856500 | 2 | Splint pin 8x42-St A2G DIN 11023Fits 1 of 3 versions33C with side broom | $2.81/EA |

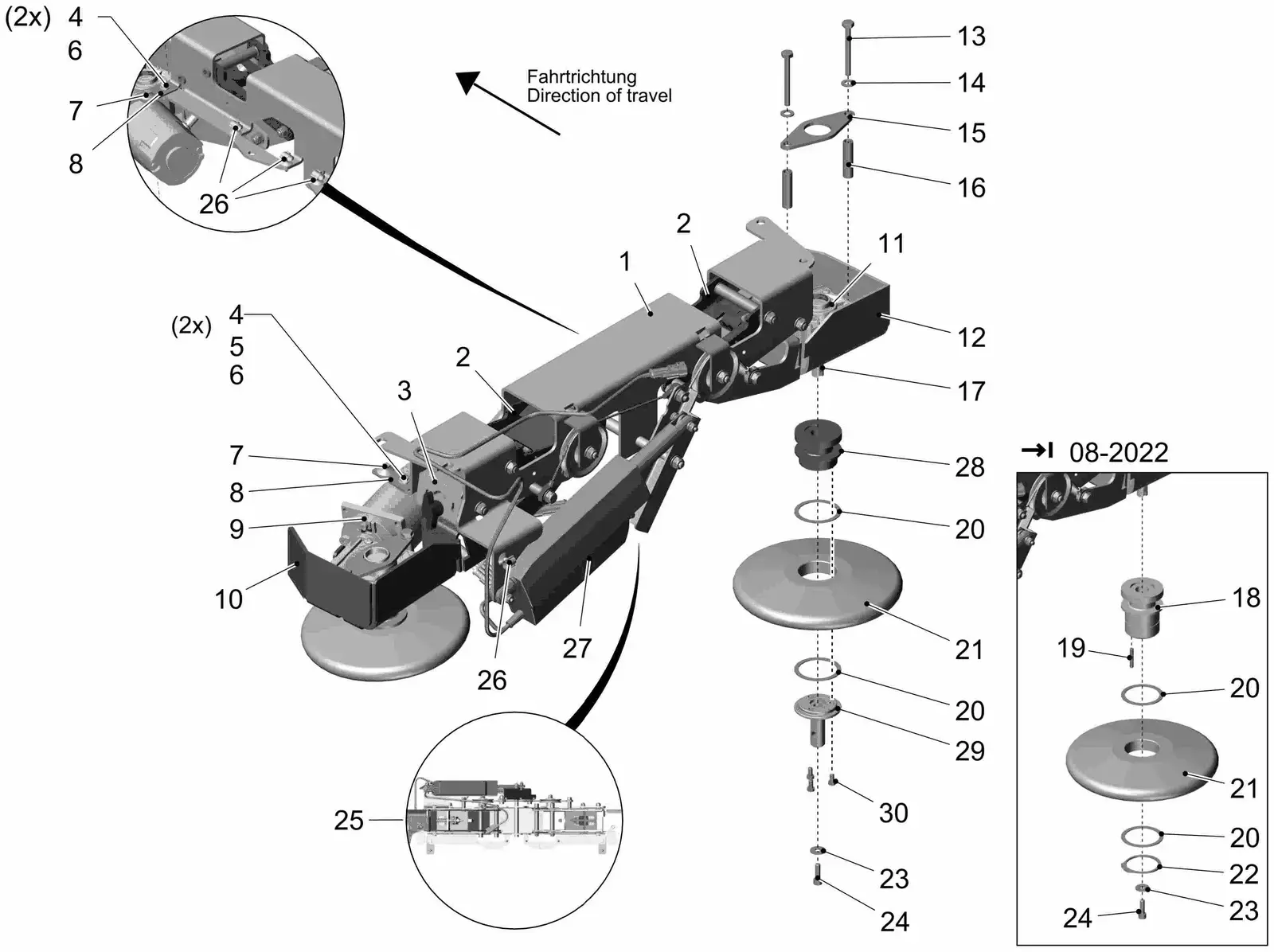

PowerBoss Scrubmaster B175R Side broom equipment (97178305) parts
The side broom base carrier, control arms, motor brackets, drive and wiring clips. This group is in the 33C catalog only. Manual pages 33C p4, list 33C p5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373770 | 1 | base carrierFits 1 of 3 versions33C with side broom | $394.81/EA |
| 2 | MM01373900 | 2 | control arm topFits 1 of 3 versions33C with side broom | $138.08/EA |
| 3 | MM01372980 | 2 | draft linkFits 1 of 3 versions33C with side broom | $112.79/EA |
| 4 | MM00154210 | 2 | hexagon screw M6x18-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 5 | MM12310033 | 8 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 6 | MM12040044 | 4 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 7 | MM01278080 | 2 | Mounting clipFits 1 of 3 versions33C with side broom | $1.05/EA |
| 8 | MM01373310 | 2 | cable holderFits 1 of 3 versions33C with side broom | $5.44/EA |
| 9 | MM01371210 | 1 | drive 36V 50W (P3) L.H.Fits 1 of 3 versions33C with side broom | $486.20/EA |
| 10 | MM01372780 | 1 | motor bracket L.H.Fits 1 of 3 versions33C with side broom | $256.74/EA |
| 11 | MM01371180 | 1 | drive 36V 50W (P3) R.H.Fits 1 of 3 versions33C with side broom | $463.05/EA |
| 12 | MM01373990 | 1 | motor bracket R.H.Fits 1 of 3 versions33C with side broom | $256.74/EA |
| 13 | MM01072300 | 4 | hexagon screw M8x65-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 14 | MM00740310 | 4 | Washer SKS-8-dacrometisiertFits 1 of 3 versions33C with side broom | $1.05/EA |
| 15 | MM01373000 | 2 | plateFits 1 of 3 versions33C with side broom | $20.40/EA |
| 16 | MM01373300 | 4 | distance pieceFits 1 of 3 versions33C with side broom | $6.22/EA |
| 17 | MM00022430 | 2 | Feather key A5x5x18 St50 DIN 6885Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 18 | MM01373180 | 2 | hubFits 1 of 3 versions33C with side broom | $147.47/EA |
| 19 | MM00051130 | 2 | Dowel pin 5x28 DIN 1481Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 20 | MM00105330 | 4 | Adjusting washer 45x55x1 DIN 988Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 21 | MM00563260 | 2 | Rejecting plateFits 1 of 3 versions33C with side broom | $11.39/EA |
| 22 | MM00137910 | 2 | Retaining ring 45x1,75-phos. DIN 471Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 23 | MM00856290 | 2 | Washer 6,4-St A3G DIN 7349Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 24 | MM00022190 | 2 | socket head screw M6x20-8.8-N3 ISO 4762Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 25 | Not sold separatelyPowerBoss 97138309-A | Bottom view of unitFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Bottom view of unit | |
| 26 | MM01493500 | 4 | Retainer NW7,5Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 27 | MM01375050 | 1 | lifting element 24V 750N 70mmFits 1 of 3 versions33C with side broom | $375.33/EA |
| 28 | MM01382560 | 2 | adapter upperFits 1 of 3 versions33C with side broom | $145.70/EA |
| 29 | MM01382470 | 2 | adapter lowerFits 1 of 3 versions33C with side broom | $146.69/EA |
| 30 | MM01131440 | 6 | Socket head cap screwFits 1 of 3 versions33C with side broom | $1.05/EA |

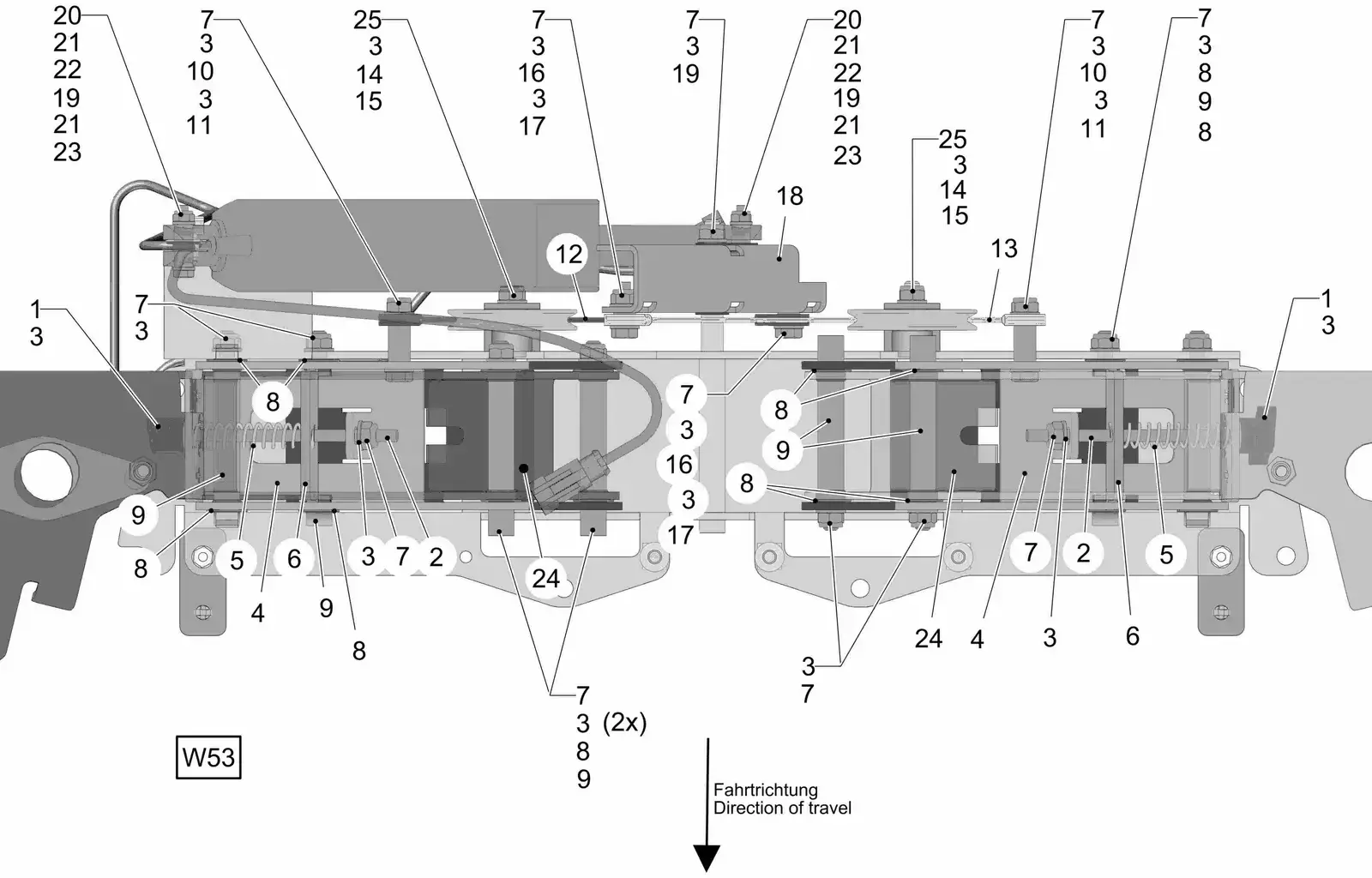

PowerBoss Scrubmaster B175R Bottom view of unit parts
The underside of the side broom unit: links, springs, bearing bushes, pulleys and fixings. This group is in the 33C catalog only. Manual pages 33C p6, list 33C p7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01111970 | 4 | Wing nut M8Fits 1 of 3 versions33C with side broom | $1.67/EA |
| 2 | MM00028550 | 4 | hexagon screw M8x120-A2-70 ISO 4017Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 3 | MM12310041 | 19 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions33C with side broom | $2.75/EA |
| 4 | MM01372980 | 2 | draft linkFits 1 of 3 versions33C with side broom | $112.79/EA |
| 5 | MM01001180 | 2 | Pressure springFits 1 of 3 versions33C with side broom | $2.77/EA |
| 6 | MM01372990 | 2 | thread base plateFits 1 of 3 versions33C with side broom | $29.18/EA |
| 7 | MM12040051 | 15 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions33C with side broom | $4.15/EA |
| 8 | MM01130080 | 16 | Slide bearing bushFits 1 of 3 versions33C with side broom | $1.33/EA |
| 9 | MM01373110 | 8 | boltFits 1 of 3 versions33C with side broom | $18.67/EA |
| 10 | MM01370270 | 2 | spacer sleeveFits 1 of 3 versions33C with side broom | $4.00/EA |
| 11 | MM00133700 | 2 | hexagon screw M8x40-8.8-N2 DIN 933Fits 1 of 3 versions33C with side broom | $1.05/EA |

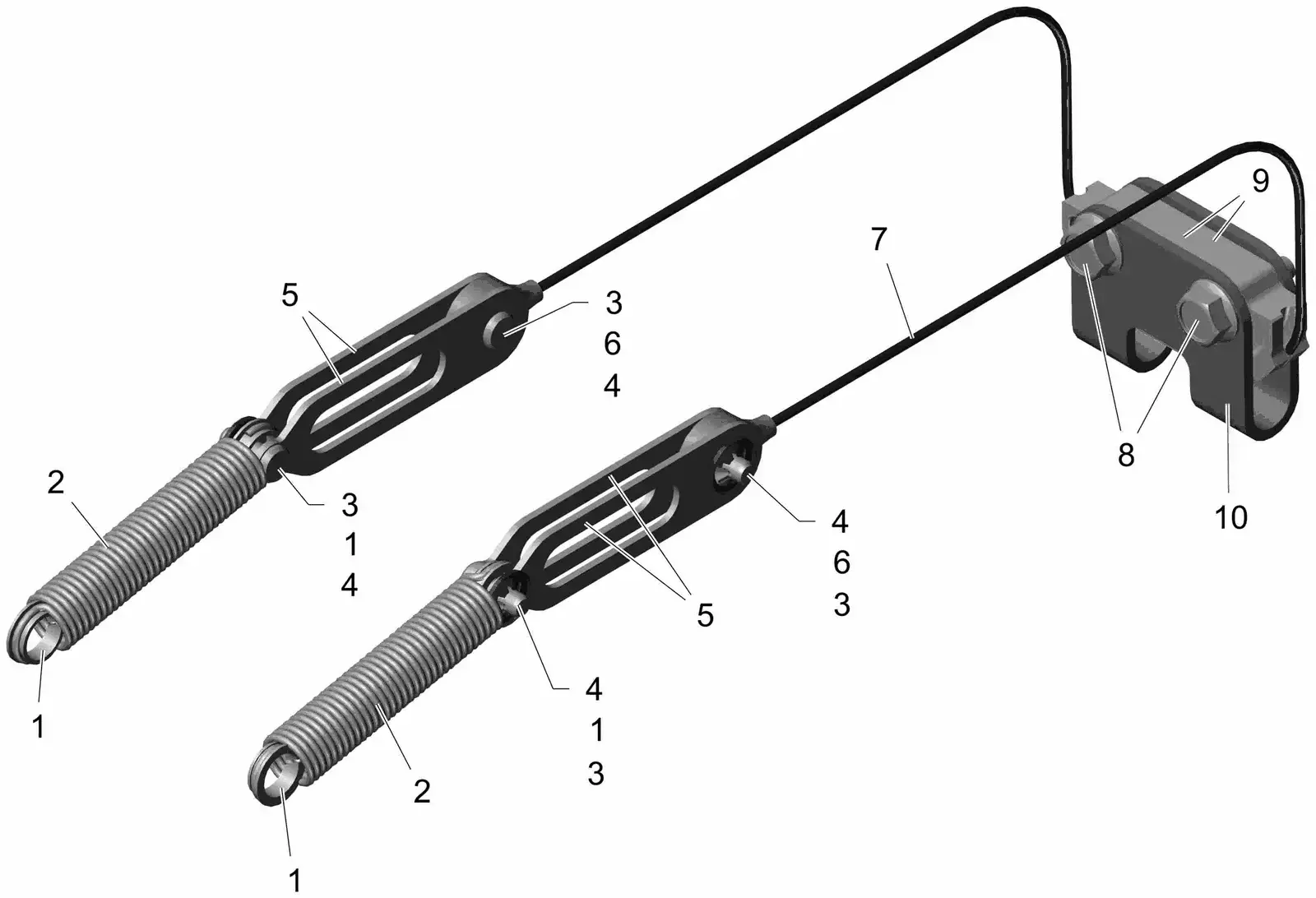

| 12 | MM01372060 | 1 | rope shortFits 1 of 3 versions33C with side broom | $20.40/EA |
| 13 | MM01371970 | 1 | rope longFits 1 of 3 versions33C with side broom | $21.39/EA |
| 14 | MM01373030 | 2 | rope assuranceFits 1 of 3 versions33C with side broom | $23.34/EA |
| 15 | MM00521270 | 2 | RollerFits 1 of 3 versions33C with side broom | $4.50/EA |
| 16 | MM00557730 | 2 | Spreader tubeFits 1 of 3 versions33C with side broom | $1.59/EA |
| 17 | MM11038213 | 2 | hexagon screw M8x20-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $4.15/EA |
| 18 | MM01373020 | 1 | leverFits 1 of 3 versions33C with side broom | $63.21/EA |
| 19 | MM01111140 | 4 | Slide bearing bush GFM-1012-05Fits 1 of 3 versions33C with side broom | $1.39/EA |
| 20 | MM12040044 | 4 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 21 | MM12310033 | 8 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 22 | MM01373040 | 2 | sleeveFits 1 of 3 versions33C with side broom | $14.60/EA |
| 23 | MM11038130 | 2 | hexagon screw M6x35-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $1.25/EA |
| 24 | MM01373900 | 2 | control arm topFits 1 of 3 versions33C with side broom | $138.08/EA |
| 25 | MM12022059 | 2 | Hex. Nut M8-8 A2G DIN 934Fits 1 of 3 versions33C with side broom | $5.51/EA |
| W53 | MM03020470 | 1 | wiring harness W53Fits 1 of 3 versions33C with side broom | $262.54/EA |

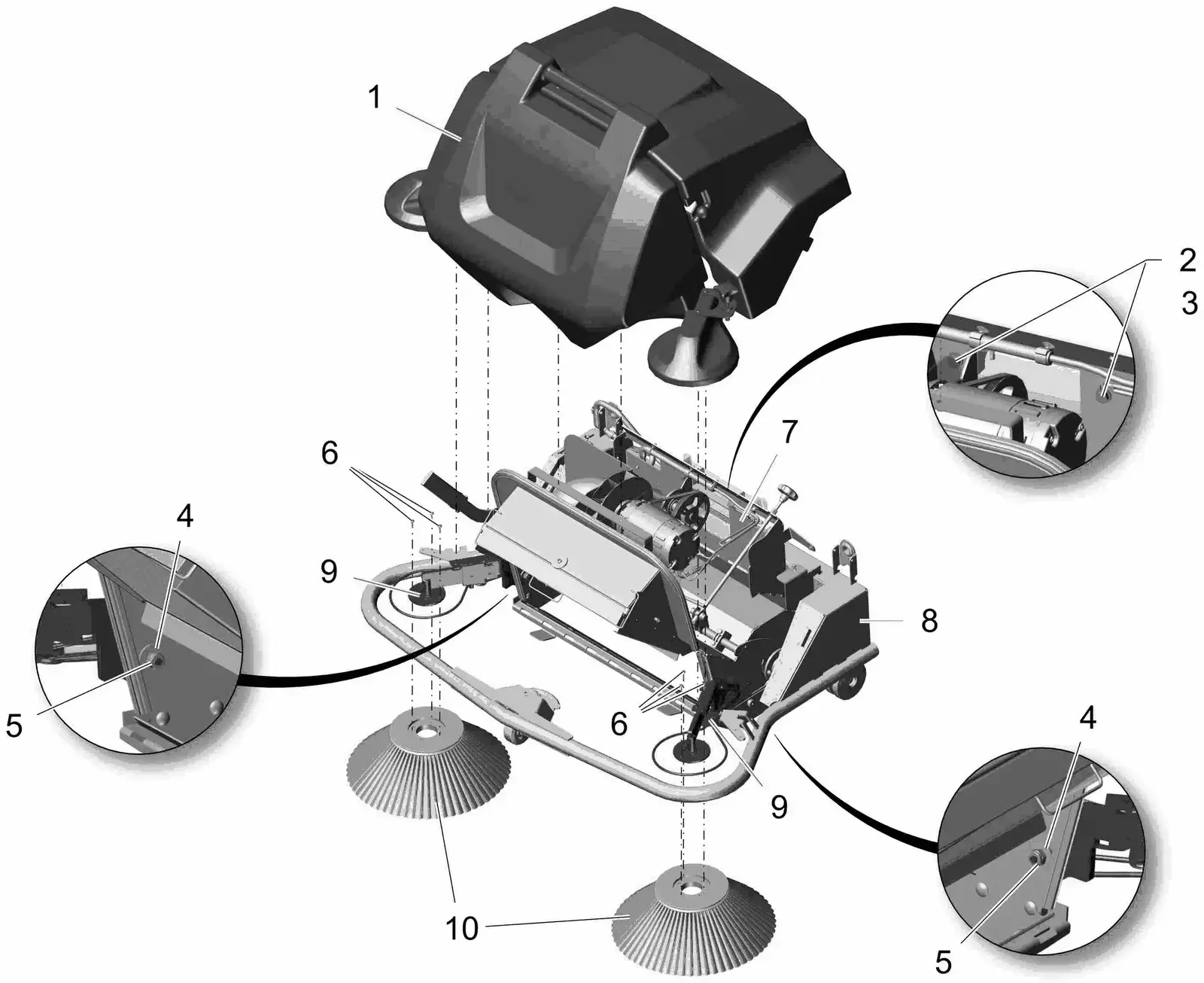

PowerBoss Scrubmaster B175R Pre-sweep unit 1300 parts
The 1300 pre-sweep unit as a whole: covering, sweeper tunnel, change frame and side brushes. It is in the 35D and 42D catalogs. Manual pages 35D p2, list 35D p3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97149645_PB | CoveringFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Covering | |
| 2 | MM718010Replaces PowerBoss 00553690 | 2 | hexagon screw M8x18-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 3 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacFits 2 of 3 versions35D, 42D | $1.22/EA |
| 4 | – | 2 | Spare part on requestFits 2 of 3 versions35D, 42D | |
| 5 | MM12040069 | 2 | Hex. Nut M10-6 A2G DIN 985Fits 2 of 3 versions35D, 42D | $6.92/EA |
| 6 | MM01360490PowerBoss 01360490 | 6 | lens head screw 6x20Fits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 7 | Not sold separatelyPowerBoss 97144265 | Sweeper tunnel - cylindrical broomFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Sweeper tunnel - cylindrical broom | |

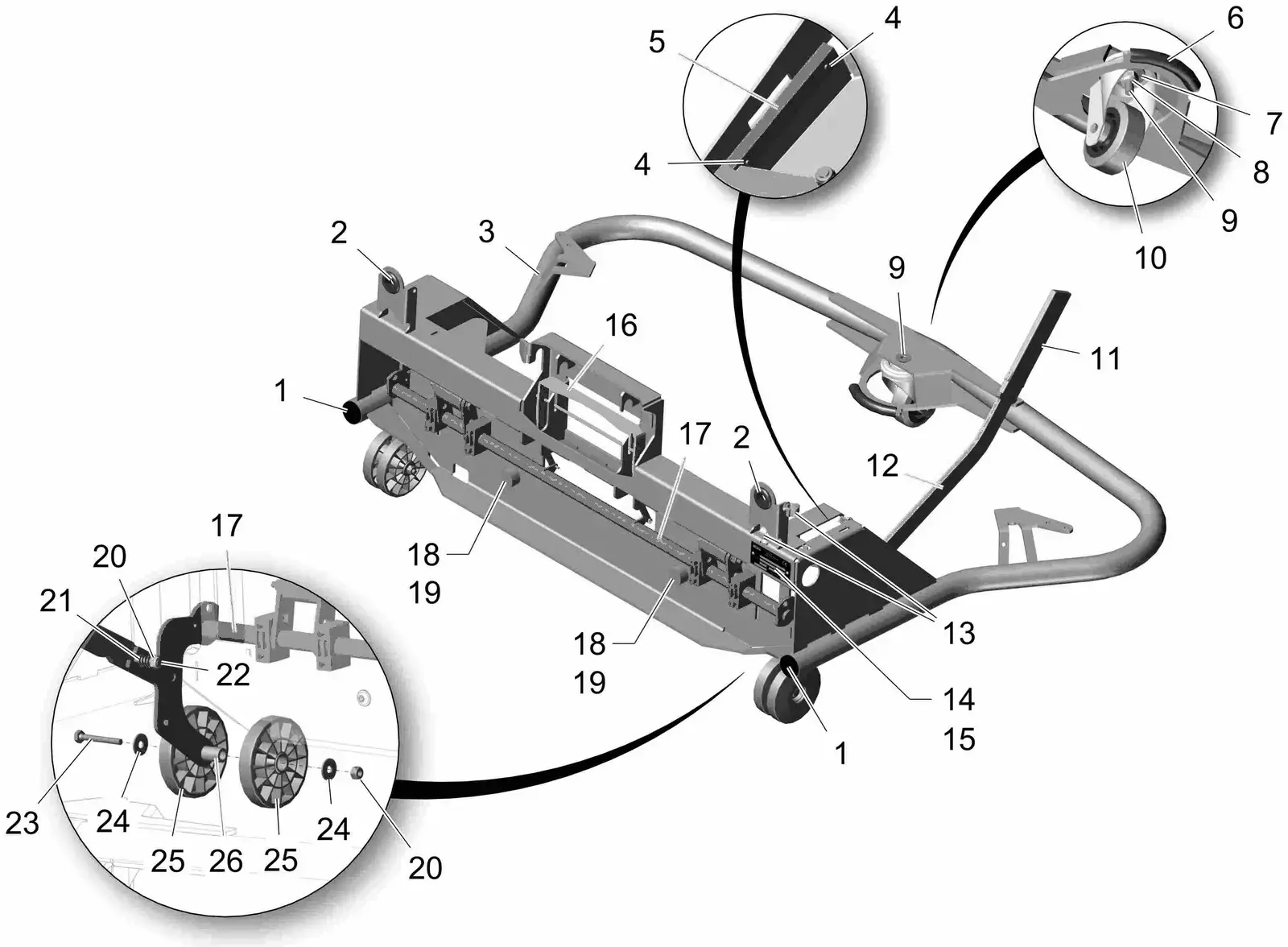

| 8 | Not sold separatelyPowerBoss 97150031 | Change frame 1300Fits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Change frame 1300 | |
| 9 | Not sold separatelyPowerBoss 97150015-97150247 | Side brush L.H and R.H. 1300Fits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Side brush L.H and R.H. 1300 | |
| 10 | MM01270920 | 2 | Side broom PESFits 2 of 3 versions35D, 42D | $88.44/EA |

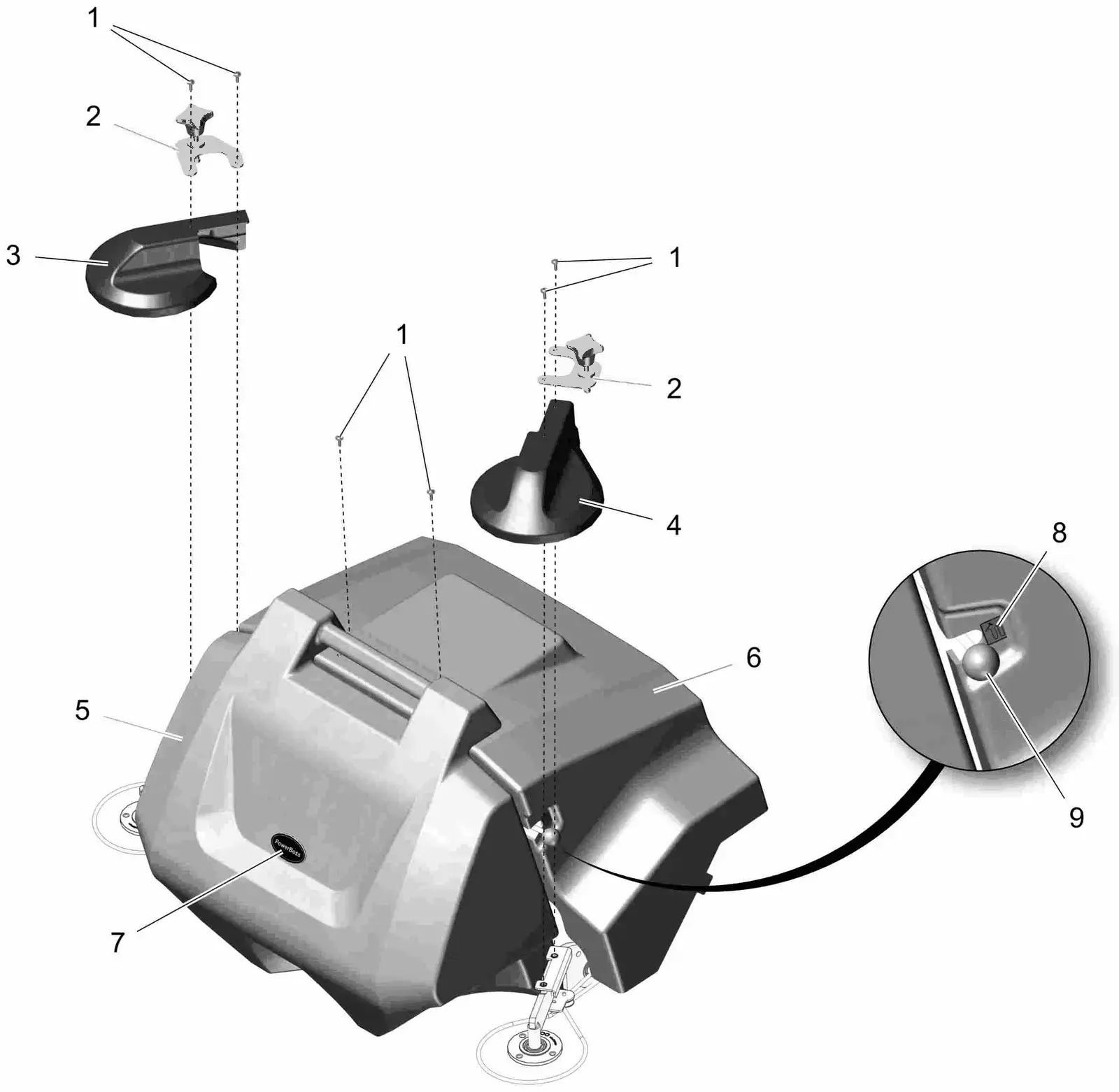

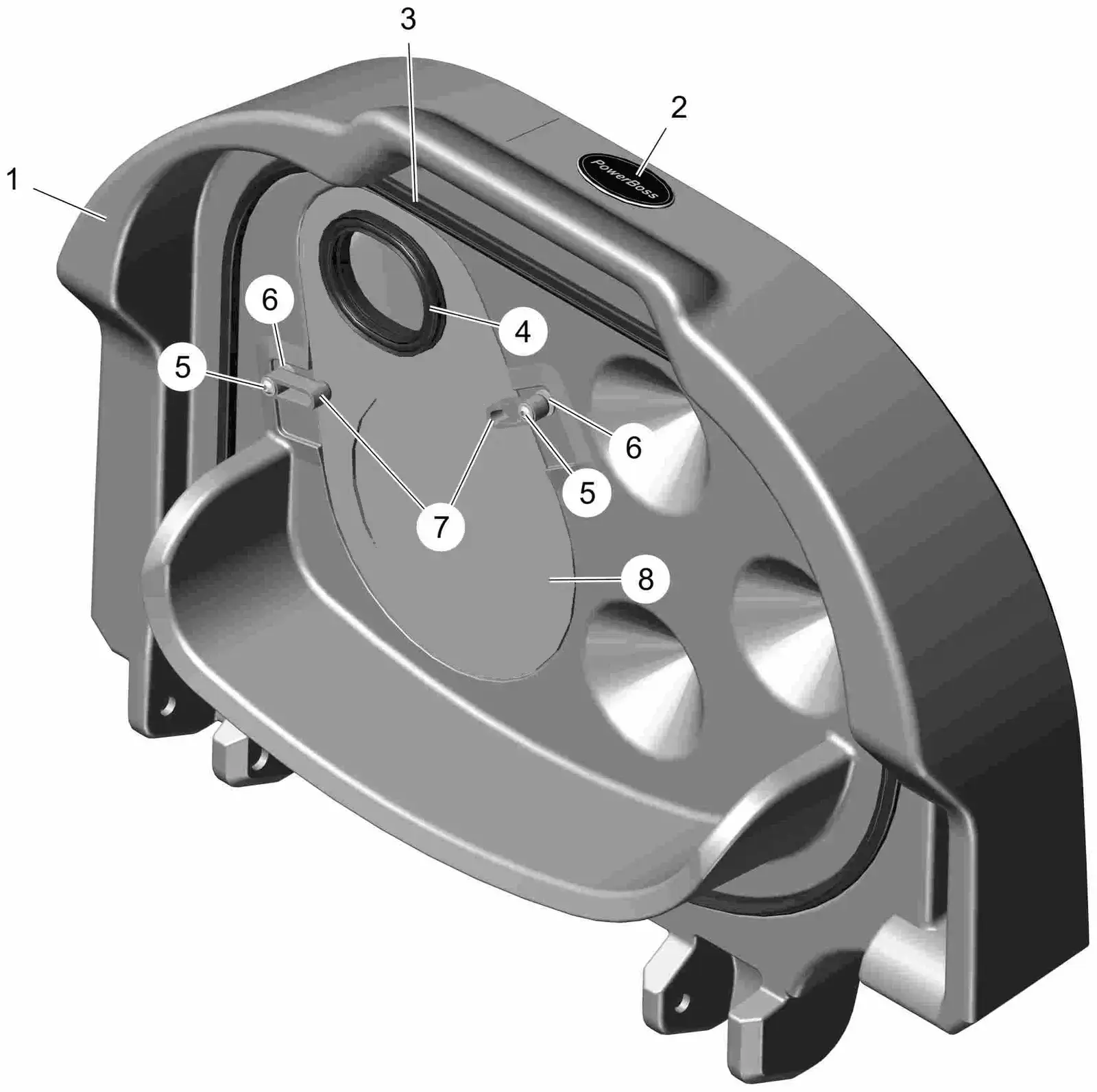

PowerBoss Scrubmaster B175R Covering parts
The pre-sweep unit covering: side brush covers, litter hopper, hood and decals. It is the same in the 35D and 42D catalogs. Manual pages 35D p4, list 35D p5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177060 | 8 | Lens flange screw M6x16-A2-70 ISO7380-2Fits 2 of 3 versions35D, 42D | $2.76/EA |
| 2 | Not sold separatelyPowerBoss 97151419-97151435 | Broom adjustmentFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Broom adjustment | |
| 3 | MM01376840 | 1 | side brush cover R.H.Fits 2 of 3 versions35D, 42D | $215.87/EA |
| 4 | MM01376690 | 1 | side brush cover L.H.Fits 2 of 3 versions35D, 42D | $219.77/EA |
| 5 | MM03021620 | 1 | litter hopperFits 2 of 3 versions35D, 42D | $583.44/EA |
| 6 | MM03021710 | 1 | hoodFits 2 of 3 versions35D, 42D | $641.80/EA |
| 7 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallFits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 8 | MM01270900 | 1 | Decal SHAKINGFits 2 of 3 versions35D, 42D | $2.81/EA |
| 9 | MM00122230 | 1 | Ball button C32-FS DIN 319Fits 2 of 3 versions35D, 42D | $2.25/EA |

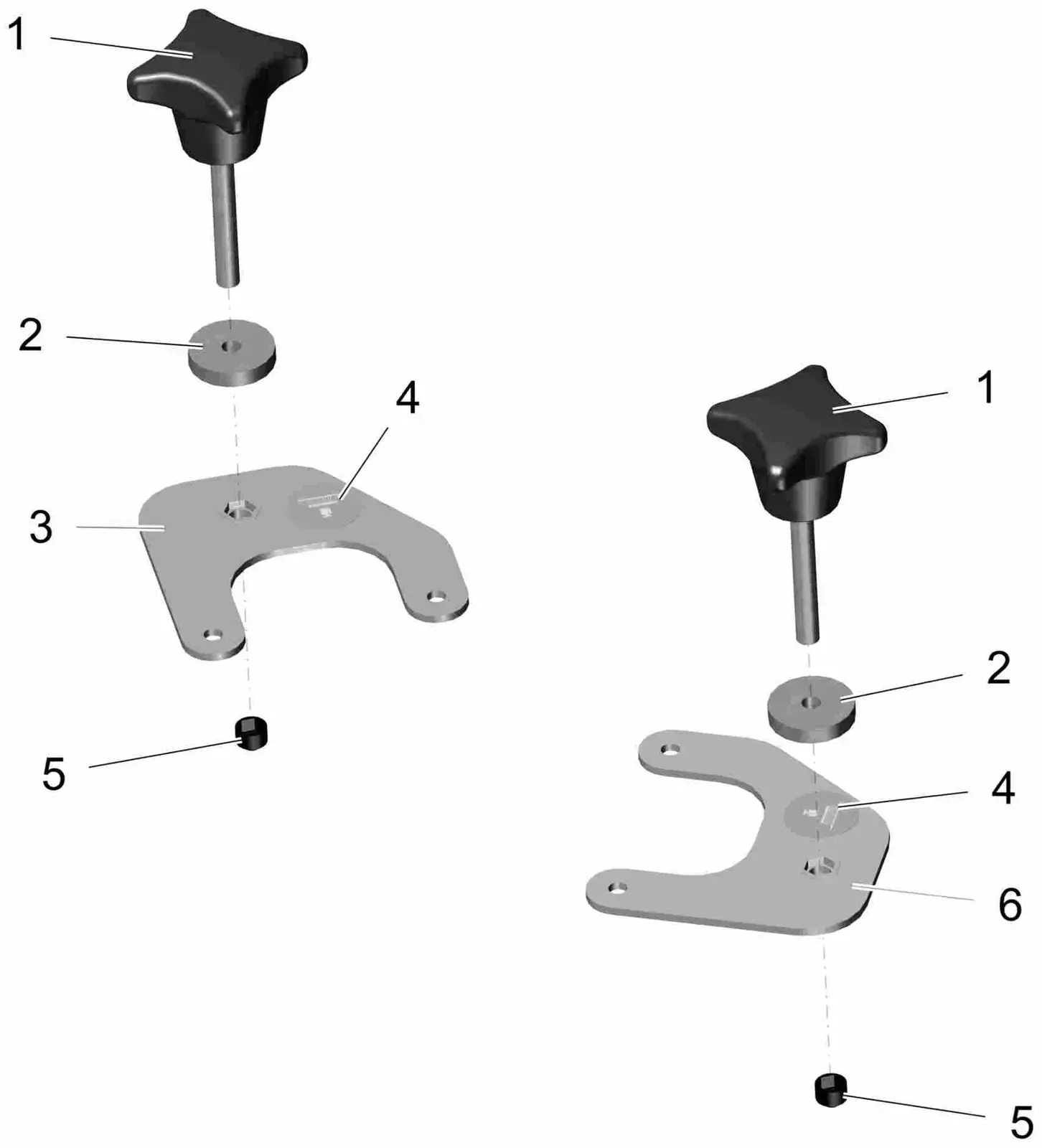

PowerBoss Scrubmaster B175R Broom adjustment parts
The broom adjustment hardware and thrust bearings on the pre-sweep unit. It is the same in the 35D and 42D catalogs. Manual pages 35D p6, list 35D p7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00906050 | 2 | Star-handle bolt M8x60 A2GFits 2 of 3 versions35D, 42D | $2.83/EA |
| 2 | MM00906010 | 2 | Knurled nut F 1016-M8 PA6.6Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 3 | MM01378290 | 1 | broom thrust bearing R.H.Fits 2 of 3 versions35D, 42D | $63.40/EA |
| 4 | MM01130650 | 2 | Decal SIDE BROOM ADJUSTMENTFits 2 of 3 versions35D, 42D | $1.00/EA |
| 5 | MM00705480 | 2 | Lens cap 1000/1068 SWFits 2 of 3 versions35D, 42D | $1.05/EA |
| 6 | MM01378330PowerBoss 01378330 | 1 | broom thrust bearing L.H.Fits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |

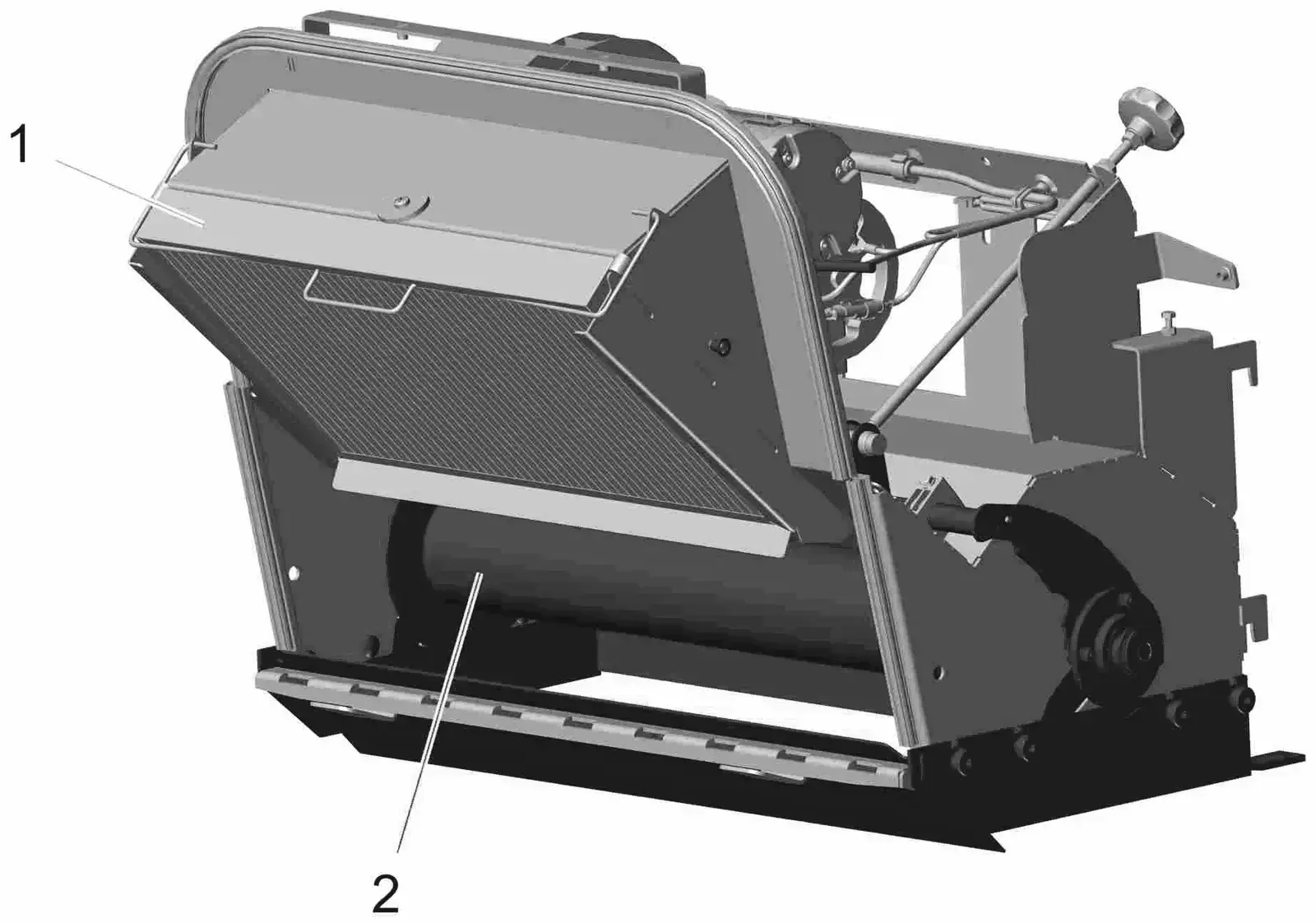

PowerBoss Scrubmaster B175R Sweeper tunnel - cylindrical broom parts
The two groups that make up the pre-sweep sweeper tunnel. It is the same in the 35D and 42D catalogs. Manual pages 35D p8, list 35D p9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97144265-1 | Sweeper tunnel, part 1Fits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Sweeper tunnel, part 1 | |
| 2 | Not sold separatelyPowerBoss 97144265-2 | Sweeper tunnel, part 2 - cylindrical broomFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Sweeper tunnel, part 2 - cylindrical broom |

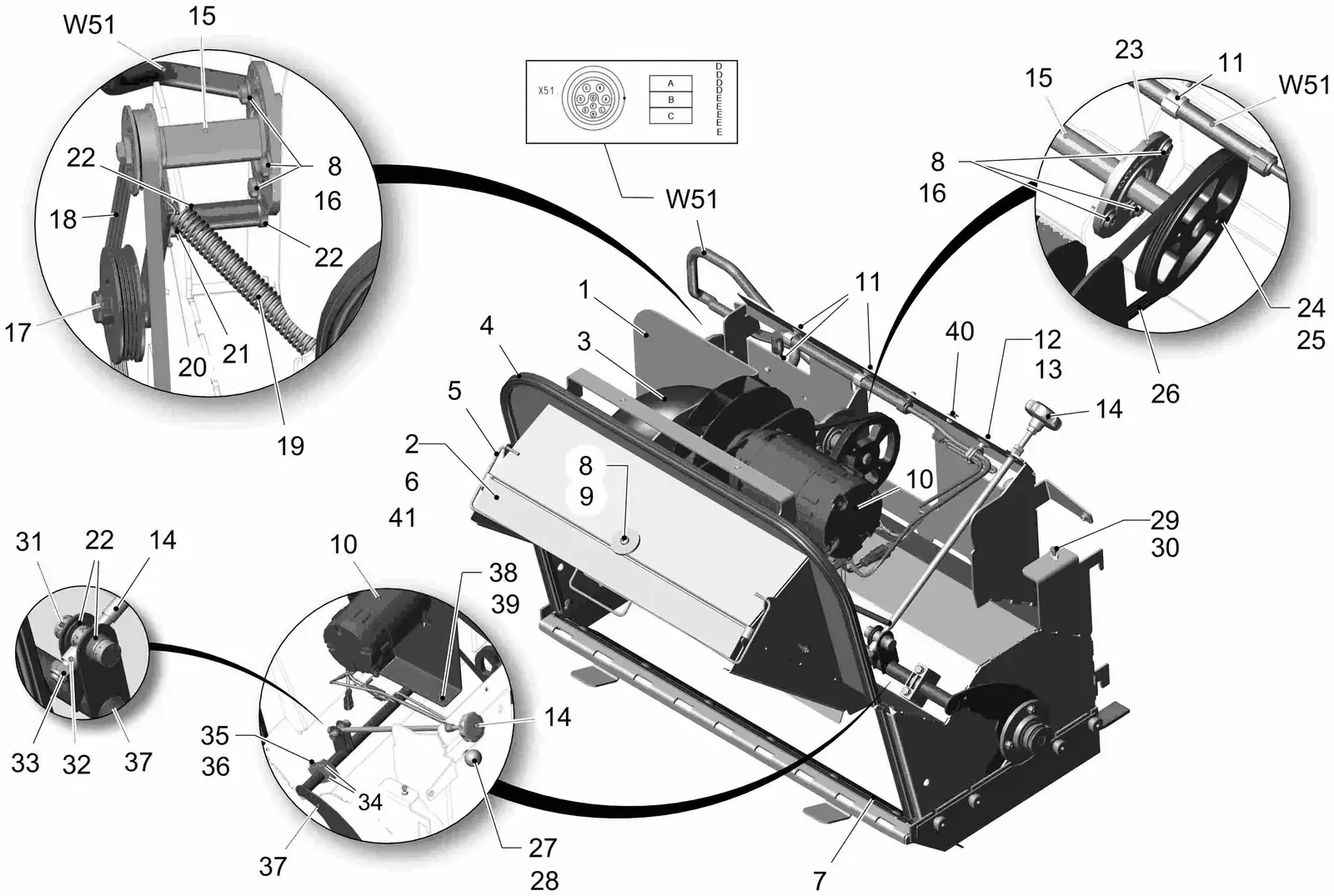

PowerBoss Scrubmaster B175R Sweeper tunnel, part 1
The first part of the sweeper tunnel: plate filter, motor mount, wiring harness W51 and its plug parts. It is in the 35D and 42D catalogs. Manual pages 35D p10, list 35D p11-12.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | 1 | Spare part on requestFits 2 of 3 versions35D, 42D | |
| 2 | MM00911850 | 1 | Plate filterFits 2 of 3 versions35D, 42D | $304.11/EA |
| 3 | – | 1 | Spare part on requestFits 2 of 3 versions35D, 42D | |
| 4 | MM00681570 | 1.13 M | Edge protectionFits 2 of 3 versions35D, 42D | $11.53/EA |
| 5 | MM01386920 | 1 | filter lockingFits 2 of 3 versions35D, 42D | $59.44/EA |
| 6 | MM01007090 | 1 | special plate filterFits 2 of 3 versions35D, 42D | $739.30/EA |
| 7 | MM00681570 | 2x0.21 M | Edge protectionFits 2 of 3 versions35D, 42D | $11.53/EA |
| 8 | MM00539730 | 7 | Screw M6x16-St A3G Kombit. DIN 7500Fits 2 of 3 versions35D, 42D | $1.00/EA |
| 9 | MM01062750 | 1 | WasherFits 2 of 3 versions35D, 42D | $1.84/EA |

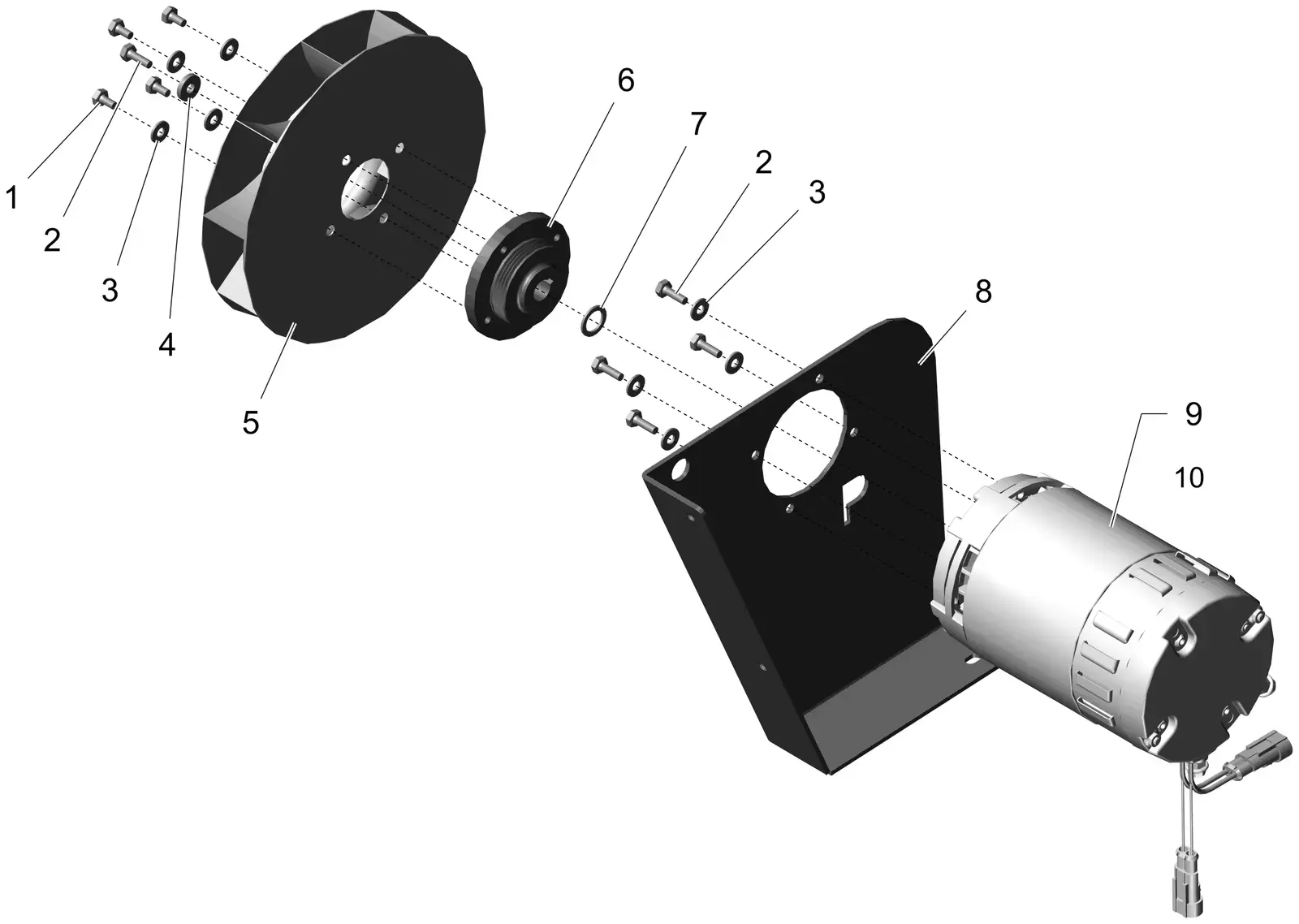

| 10 | Not sold separatelyPowerBoss 97149256 | MotorFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Motor | |
| 11 | MM01370710 | 3 | retainer holder corrugated hose NW 13Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 12 | MM01370250 | 1 | retainer ø13Fits 2 of 3 versions35D, 42D | $1.54/EA |
| 13 | MM01370240 | 1 | mounting feetFits 2 of 3 versions35D, 42D | $1.05/EA |

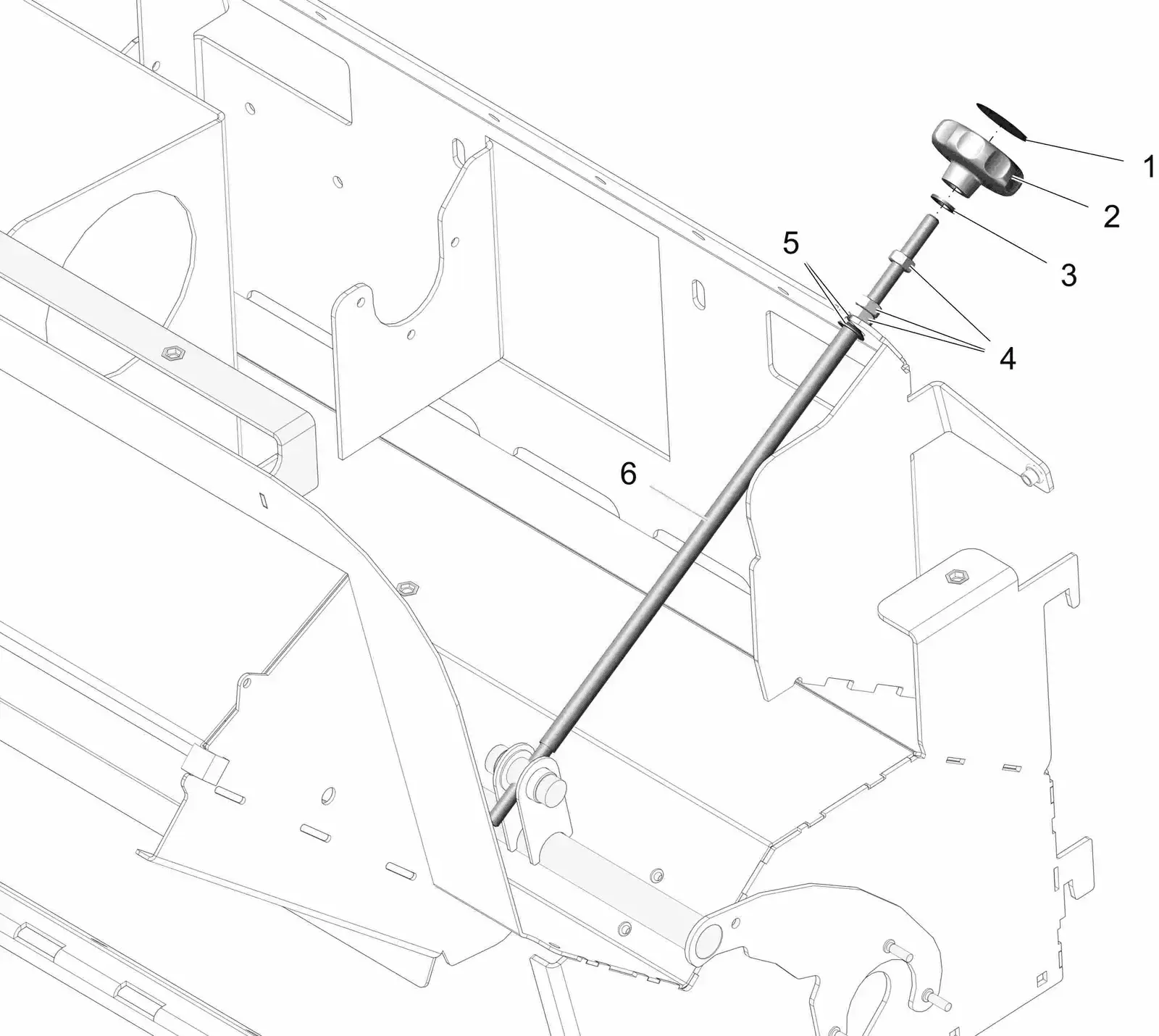

| 14 | Not sold separatelyPowerBoss 97151500 | Abrasion adjustmentFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Abrasion adjustment | |

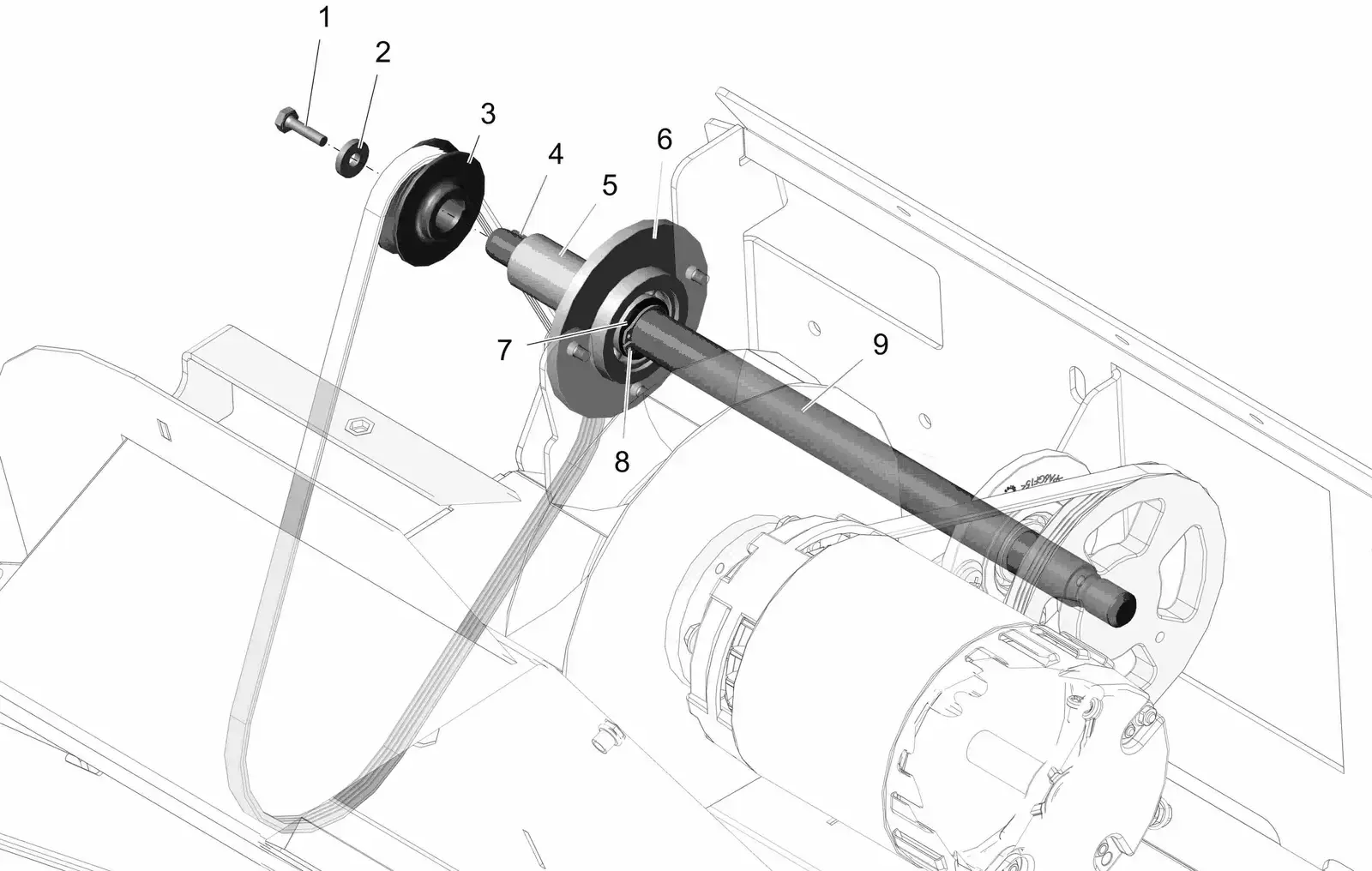

| 15 | Not sold separatelyPowerBoss 97149215 | ShaftFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Shaft | |
| 16 | MM12332011 | 6 | Washer ISO 7093-6-200HV-N2Fits 2 of 3 versions35D, 42D | $4.15/EA |

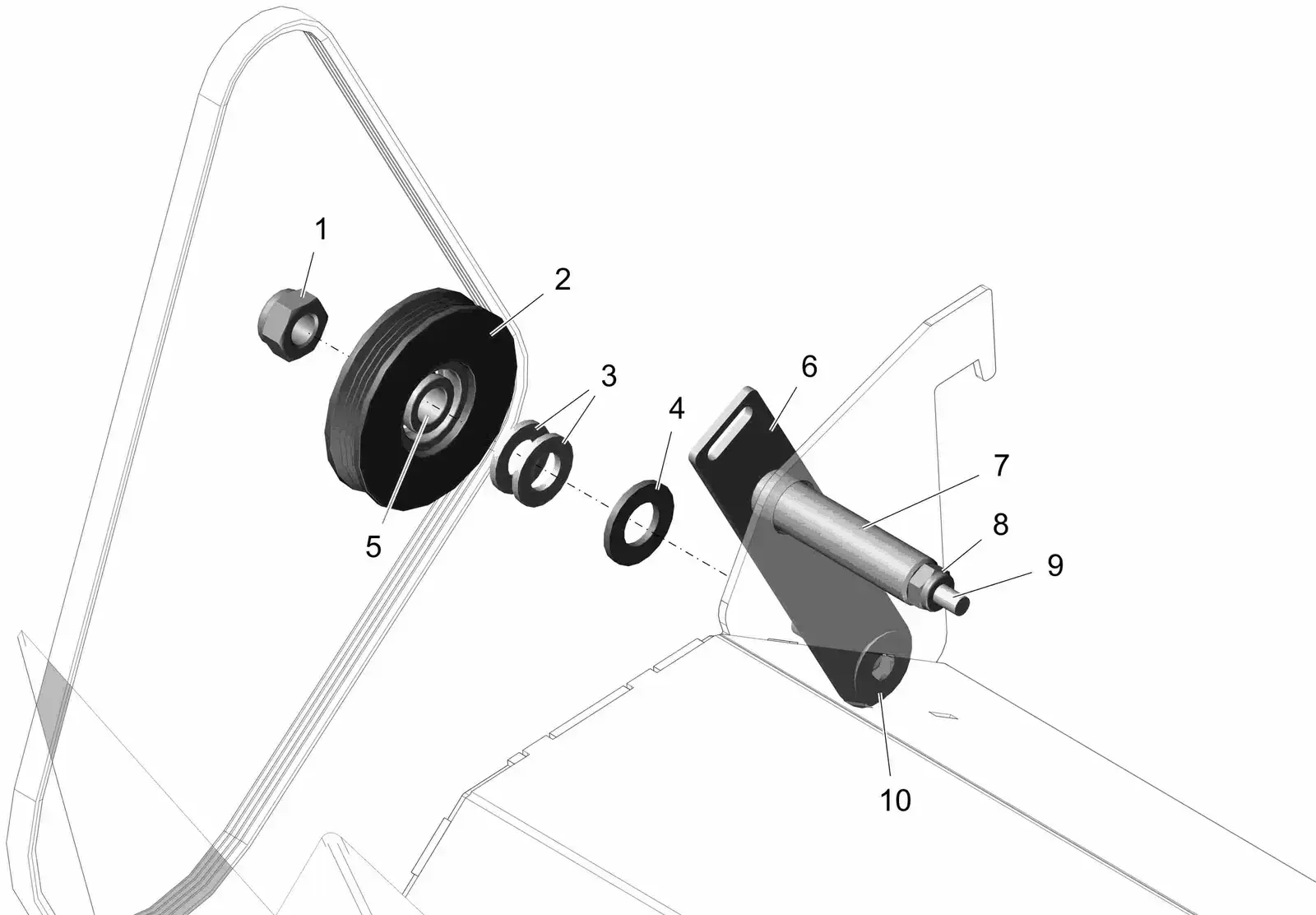

| 17 | Not sold separatelyPowerBoss 97149231 | IdlerFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Idler | |
| 18 | MM01176250 | 1 | Ribbed band 4PJ 800 OptibeltFits 2 of 3 versions35D, 42D | $15.29/EA |
| 19 | MM01371090 | 1 | tension springFits 2 of 3 versions35D, 42D | $24.92/EA |
| 20 | MM01472170 | 1 | Starting disk GTM-1630-015Fits 2 of 3 versions35D, 42D | $3.90/EA |
| 21 | MM00059440 | 1 | BushingFits 2 of 3 versions35D, 42D | $6.83/EA |
| 22 | MM01055290 | 4 | Slide bearing bush GFM-1618-09Fits 2 of 3 versions35D, 42D | $2.61/EA |
| 23 | MM01173010 | 2 | Flange bearingFits 2 of 3 versions35D, 42D | $30.64/EA |
| 24 | MM01179750 | 1 | Belt pulleyFits 2 of 3 versions35D, 42D | $119.78/EA |
| 25 | MM00077460 | 1 | Supporting ring S16x22 DIN 988Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 26 | MM01179730 | 1 | Ribbed band 4EPJ 742 OptibeltFits 2 of 3 versions35D, 42D | $25.57/EA |
| 27 | MM00122230 | 1 | Ball button C32-FS DIN 319Fits 2 of 3 versions35D, 42D | $2.25/EA |
| 28 | MM01133350 | 1 | Lens flange screw M8x12-10.9-N8 ISO7380-2Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 29 | MM00053060 | 1 | hexagon screw M6x50-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 30 | MM12022042 | 1 | Hex. Nut M6-8 A2G DIN 934Fits 2 of 3 versions35D, 42D | $1.08/EA |
| 31 | MM01271370 | 1 | BoltFits 2 of 3 versions35D, 42D | $22.23/EA |
| 32 | MM01278330 | 1 | Spacer sleeveFits 2 of 3 versions35D, 42D | $8.20/EA |
| 33 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 34 | MM01271360 | 4 | Bearing seatFits 2 of 3 versions35D, 42D | $1.36/EA |
| 35 | MM00535110 | 4 | hexagon screw M6x45-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $8.64/EA |
| 36 | MM12310033 | 4 | Washer 6-200HV-N2 ISO 7089Fits 2 of 3 versions35D, 42D | $1.38/EA |
| 37 | MM01136160 | 1 | Broom rockerFits 2 of 3 versions35D, 42D | $164.35/EA |
| 38 | MM00154210 | 3 | hexagon screw M6x18-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 39 | MM00740280 | 3 | Washer SKS-6-dacrometisiertFits 2 of 3 versions35D, 42D | $2.43/EA |
| 40 | MM01278080 | 1 | Mounting clipFits 2 of 3 versions35D, 42D | $1.05/EA |
| 41 | MM01007160 | 1 | special filterFits 2 of 3 versions35D, 42D | $719.57/EA |
| A | MM01475610 | 1 | cord grip, shell size 16Fits 2 of 3 versions35D, 42D | $17.13/EA |
| B | MM01475720 | 1 | plug dust capFits 2 of 3 versions35D, 42D | $35.76/EA |
| C | MM01375910 | 1 | socket for pin contact 9-poleFits 2 of 3 versions35D, 42D | $35.76/EA |
| D | MM01376020 | 4 | tab-cont. RT 2,5mm (2,5-3,5)Fits 2 of 3 versions35D, 42D | $1.54/EA |
| E | MM01475850 | 5 | pin contactFits 2 of 3 versions35D, 42D | $1.54/EA |
| W51 | MM03021420 | 1 | wiring harness W51Fits 2 of 3 versions35D, 42D | $503.74/EA |
PowerBoss Scrubmaster B175R Motor parts
The pre-sweep unit motor with its fan wheel, pulley and carbon brushes. It is the same in the 35D and 42D catalogs. Manual pages 35D p13, list 35D p14.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038056 | 4 | hexagon screw M6x10-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $5.51/EA |
| 2 | MM11038072 | 5 | hexagon screw M6x16-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $1.08/EA |
| 3 | MM00730940 | 8 | Detent edged washer SKM-6-dacrometisiertFits 2 of 3 versions35D, 42D | $1.22/EA |
| 4 | MM00856290 | 1 | Washer 6,4-St A3G DIN 7349Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 5 | MM00661680 | 1 | Fan wheel 200x34Fits 2 of 3 versions35D, 42D | $108.01/EA |
| 6 | MM01270950 | 1 | Belt pulley 4 PJFits 2 of 3 versions35D, 42D | $84.67/EA |
| 7 | MM00020610 | 1 | Supporting ring S14x20 DIN 988Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 8 | – | 1 | Spare part on requestFits 2 of 3 versions35D, 42D | |
| 9 | MM01377170 | 1 | motor 36V 600WFits 2 of 3 versions35D, 42D | $505.65/EA |
| 10 | MM01383600 | 4 | carbon brushFits 2 of 3 versions35D, 42D | $47.25/EA |
PowerBoss Scrubmaster B175R Abrasion adjustment parts
The wear adjustment for the cylindrical broom: hand wheel, washers and nut. It is the same in the 35D and 42D catalogs. Manual pages 35D p15, list 35D p16.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01136250 | 1 | Decal Cyl. broomFits 2 of 3 versions35D, 42D | $3.90/EA |
| 2 | MM00480430 | 1 | Hand wheel 55/M8Fits 2 of 3 versions35D, 42D | $3.34/EA |
| 3 | MM12310041 | 1 | Washer 8-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $2.75/EA |
| 4 | MM12022059 | 3 | Hex. Nut M8-8 A2G DIN 934Fits 2 of 3 versions35D, 42D | $5.51/EA |
| 5 | MM00126070 | 2 | Ball washer C-8.4 DIN 6319Fits 2 of 3 versions35D, 42D | $2.25/EA |
| 6 | MM01380850 | 1 | wearing adjustmentFits 2 of 3 versions35D, 42D | $91.27/EA |
PowerBoss Scrubmaster B175R Shaft parts
The pre-sweep drive shaft with its pulley, bearing, key and retaining rings. It is the same in the 35D and 42D catalogs. Manual pages 35D p17, list 35D p18.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038072 | 1 | hexagon screw M6x16-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $1.08/EA |
| 2 | MM00856290 | 1 | Washer 6,4-St A3G DIN 7349Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 3 | MM01380020 | 1 | belt pulley PJ4 50Fits 2 of 3 versions35D, 42D | $103.17/EA |
| 4 | MM00022430 | 1 | Feather key A5x5x18 St50 DIN 6885Fits 2 of 3 versions35D, 42D | $1.22/EA |
| 5 | MM01389820 | 1 | spacer sleeveFits 2 of 3 versions35D, 42D | $10.77/EA |
| 6 | MM01173010 | 1 | Flange bearingFits 2 of 3 versions35D, 42D | $30.64/EA |
| 7 | MM00136510 | 1 | Supporting ring S20x28 DIN 988Fits 2 of 3 versions35D, 42D | $1.22/EA |
| 8 | MM12610093 | 1 | Retaining ring 20x1,2-phos. DIN 471Fits 2 of 3 versions35D, 42D | $1.22/EA |
| 9 | MM01376650 | 1 | shaftFits 2 of 3 versions35D, 42D | $79.72/EA |
PowerBoss Scrubmaster B175R Idler parts
The belt idler pulley, bearing and bushing on the pre-sweep unit. It is the same in the 35D and 42D catalogs. Manual pages 35D p19, list 35D p20.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040077 | 1 | Hex. Nut M12-6 A3G DIN 985Fits 2 of 3 versions35D, 42D | $3.77/EA |
| 2 | MM01152600 | 1 | PulleyFits 2 of 3 versions35D, 42D | $49.19/EA |
| 3 | MM12310066 | 2 | Washer 12-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 4 | MM00053780 | 1 | Washer 14-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 5 | MM00126330 | 1 | Deep groove ball bearing 6201-2RS DIN 625Fits 2 of 3 versions35D, 42D | $23.10/EA |
| 6 | – | 1 | Spare part on requestFits 2 of 3 versions35D, 42D | |
| 7 | MM01271480 | 1 | Bearing bushFits 2 of 3 versions35D, 42D | $14.67/EA |
| 8 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 9 | MM01110790 | 1 | Countersunk screw M8x90-8.8-N2 ISO 10642Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 10 | MM00734400 | 1 | Countersunk screw M12x35-10.9-N10 ISO 10642Fits 2 of 3 versions35D, 42D | $1.14/EA |

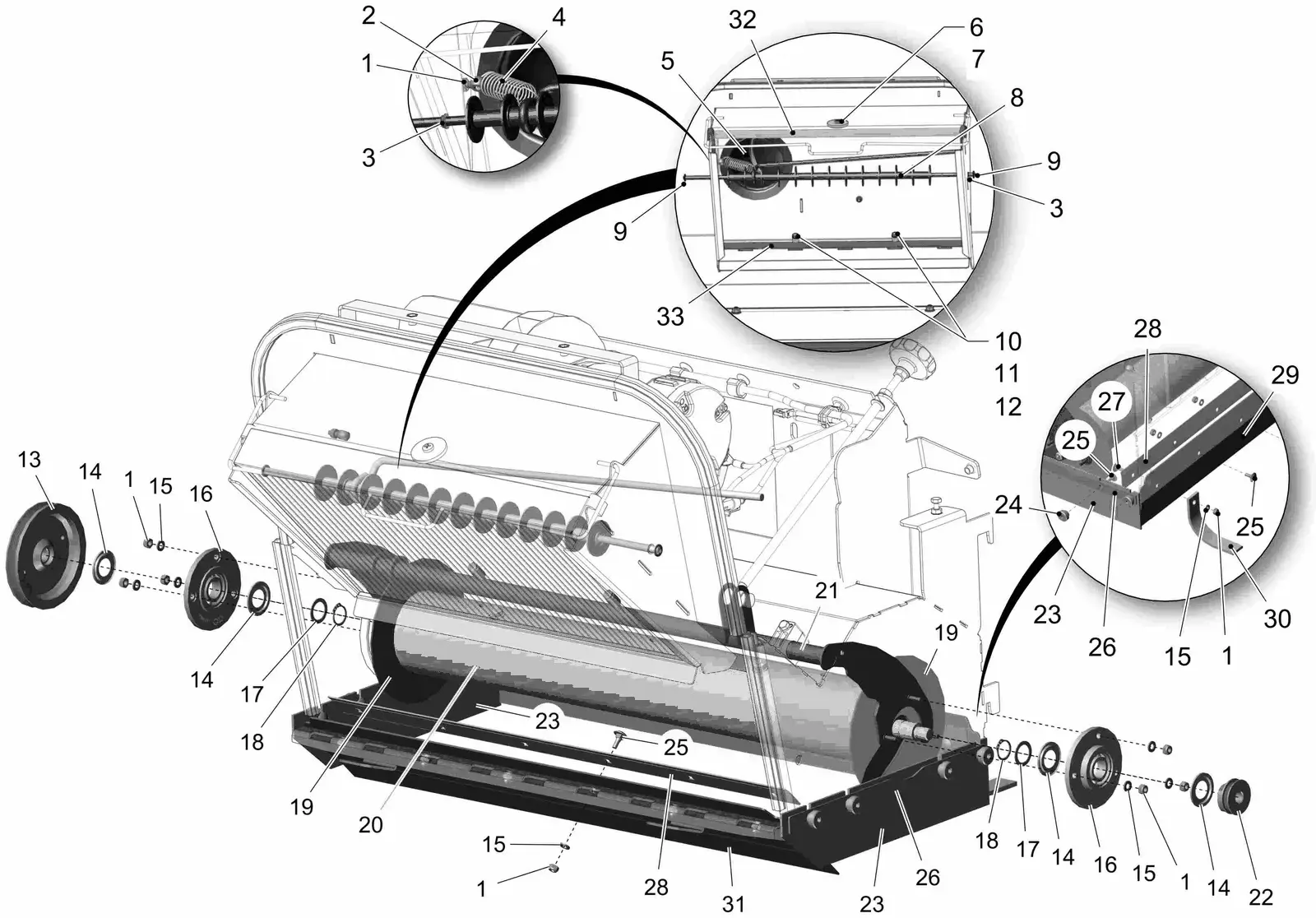

PowerBoss Scrubmaster B175R Sweeper tunnel, part 2 - cylindrical broom
The second part of the sweeper tunnel: tension springs, wiper, sealing strips and terminal strips. It is the same in the 35D and 42D catalogs. Manual pages 35D p21, list 35D p22-23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040044 | 19 | Hex. Nut M6-6 A2G DIN 985Fits 2 of 3 versions35D, 42D | $1.38/EA |
| 2 | MM01111020 | 1 | Eye bolt A M 6x20-4.6 A2G DIN 444Fits 2 of 3 versions35D, 42D | $3.10/EA |
| 3 | MM01271610 | 2 | Slide bearing bush MCM-08-03Fits 2 of 3 versions35D, 42D | $1.19/EA |
| 4 | MM01066220 | 1 | Tension springFits 2 of 3 versions35D, 42D | $4.67/EA |
| 5 | – | 1 | Spare part on requestFits 2 of 3 versions35D, 42D | |
| 6 | MM00539730 | 1 | Screw M6x16-St A3G Kombit. DIN 7500Fits 2 of 3 versions35D, 42D | $1.00/EA |
| 7 | MM01062750 | 1 | WasherFits 2 of 3 versions35D, 42D | $1.84/EA |
| 8 | Not sold separatelyPowerBoss 97144240 | WiperFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Wiper | |
| 9 | MM11177060 | 2 | Lens flange screw M6x16-A2-70 ISO7380-2Fits 2 of 3 versions35D, 42D | $2.76/EA |
| 10 | MM00133130 | 2 | Screw D M6x25-St A2G DIN 7500Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 11 | MM00740280 | 2 | Washer SKS-6-dacrometisiertFits 2 of 3 versions35D, 42D | $2.43/EA |
| 12 | MM00926770 | 2 | Spacer sleeveFits 2 of 3 versions35D, 42D | $1.58/EA |
| 13 | MM01271040 | 1 | Belt pulleyFits 2 of 3 versions35D, 42D | $139.94/EA |
| 14 | MM00537310 | 4 | Ring 16004 AVFits 2 of 3 versions35D, 42D | $4.53/EA |
| 15 | MM12310033 | 19 | Washer 6-200HV-N2 ISO 7089Fits 2 of 3 versions35D, 42D | $1.38/EA |
| 16 | MM01173010 | 1 | Flange bearingFits 2 of 3 versions35D, 42D | $30.64/EA |
| 17 | MM00153700 | 2 | Adjusting washer 20x28x1 DIN 988Fits 2 of 3 versions35D, 42D | $1.22/EA |
| 18 | MM12610093 | 2 | Retaining ring 20x1,2-phos. DIN 471Fits 2 of 3 versions35D, 42D | $1.22/EA |
| 19 | MM01381630PowerBoss 01381630 | 2 | sealing discFits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 20 | Not sold separatelyPowerBoss 97117170 | Broom shaftFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Broom shaft | |
| 21 | MM01136160 | 1 | Broom rockerFits 2 of 3 versions35D, 42D | $164.35/EA |
| 22 | MM01136050 | 1 | Belt pulleyFits 2 of 3 versions35D, 42D | $88.89/EA |
| 23 | MM01376350 | 2 | sealing stripFits 2 of 3 versions35D, 42D | $15.59/EA |
| 24 | MM00903210 | 8 | Knurled nut P 1612012-M6 PA6Fits 2 of 3 versions35D, 42D | $1.22/EA |
| 25 | MM00076540 | 19 | Round head screw M6x16-4.6 A2G DIN 603Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 26 | MM01376360 | 2 | terminal stripFits 2 of 3 versions35D, 42D | $15.59/EA |
| 27 | MM01132310 | 1 | Round head screw M6x20-4.6 A2G DIN 603Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 28 | MM01376420PowerBoss 01376420 | 2 | stripFits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 29 | MM01376530 | 1 | reinforcement stripFits 2 of 3 versions35D, 42D | $34.03/EA |
| 30 | MM01271050 | 1 | ground strapFits 2 of 3 versions35D, 42D | $104.58/EA |
| 31 | MM01375130 | 1 | front apronFits 2 of 3 versions35D, 42D | $62.14/EA |
| 32 | MM00420290 | 0.49 M | Gasket white 15X6 Nr.763/A weißFits 2 of 3 versions35D, 42D | $4.19/EA |
| 33 | MM00420290 | 1.07 M | Gasket white 15X6 Nr.763/A weißFits 2 of 3 versions35D, 42D | $4.19/EA |

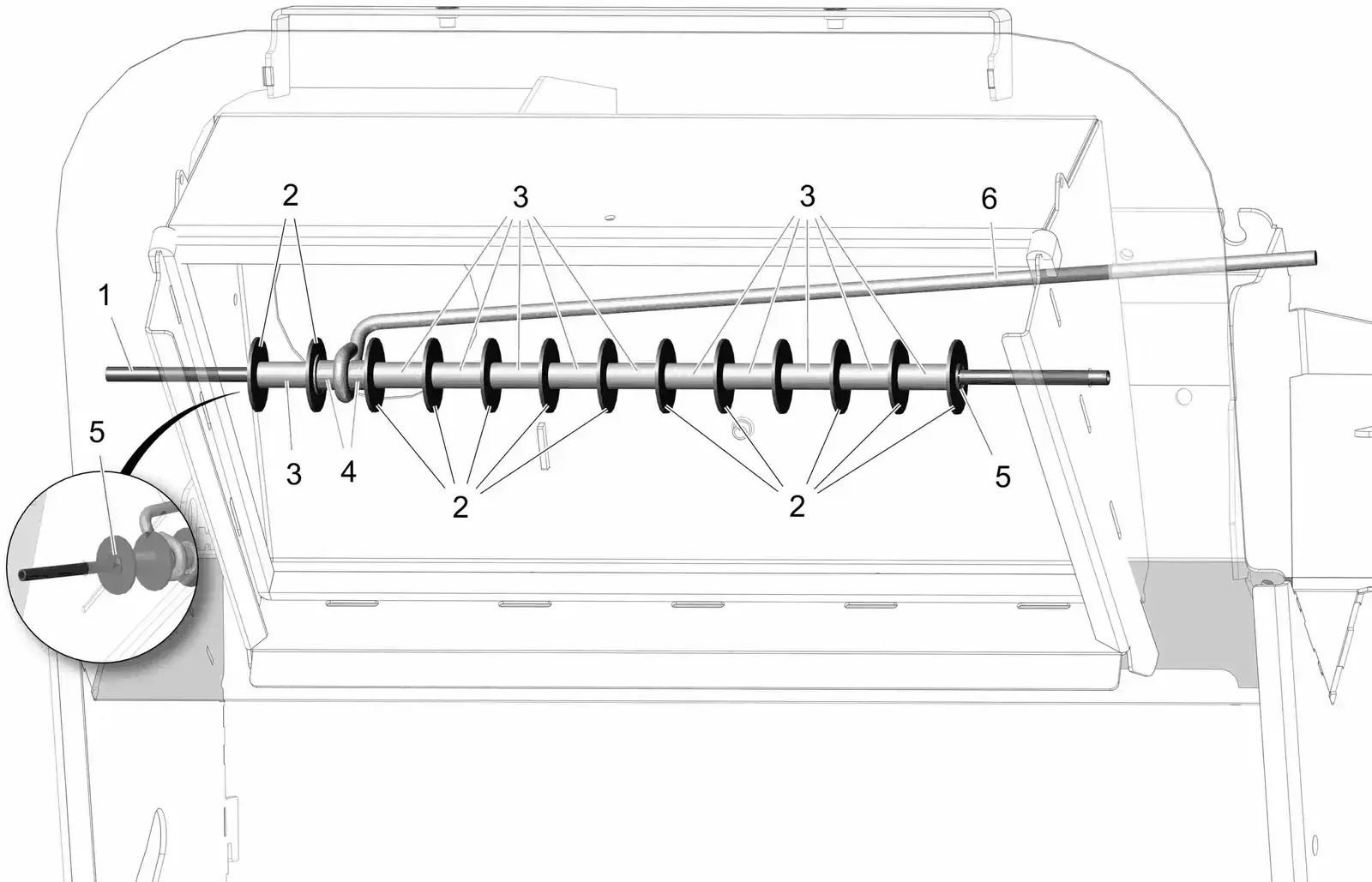

PowerBoss Scrubmaster B175R Wiper parts
The wiper of the cylindrical broom compartment with its bushings and washers. It is the same in the 35D and 42D catalogs. Manual pages 35D p24, list 35D p25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | 1 | Spare part on requestFits 2 of 3 versions35D, 42D | |
| 2 | MM01271680 | 13 | WasherFits 2 of 3 versions35D, 42D | $1.36/EA |
| 3 | MM01271700 | 12 | BushingFits 2 of 3 versions35D, 42D | $1.14/EA |
| 4 | MM01058400 | 2 | Slide bearing bush GFM-1416-12Fits 2 of 3 versions35D, 42D | $2.61/EA |
| 5 | MM00854420 | 2 | Thrust washer 8 verz.Fits 2 of 3 versions35D, 42D | $2.43/EA |
| 6 | – | 1 | Spare part on requestFits 2 of 3 versions35D, 42D |

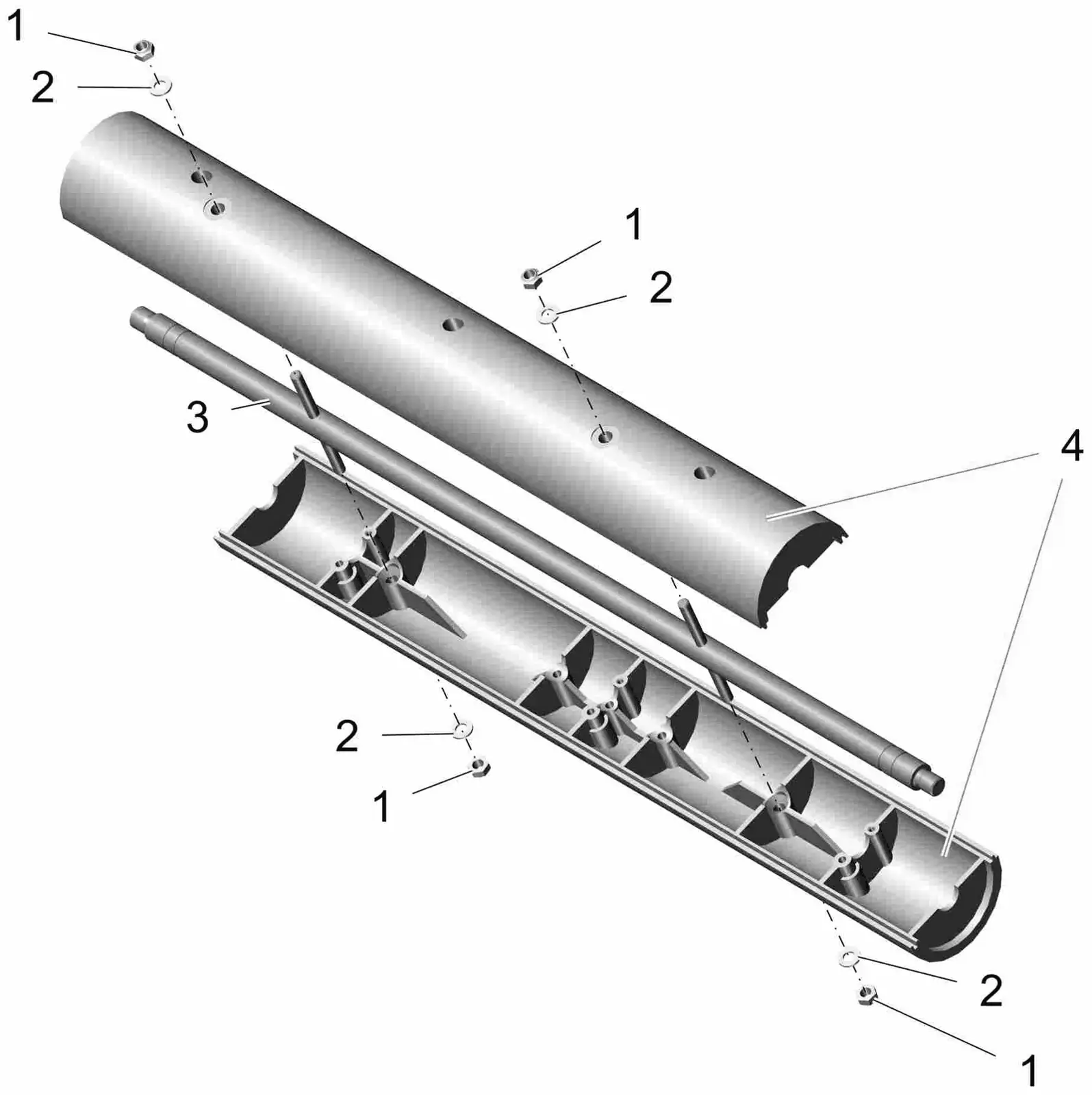

PowerBoss Scrubmaster B175R Broom shaft parts
The cylindrical broom shaft and the sweeper roller. It is the same in the 35D and 42D catalogs. Manual pages 35D p26, list 35D p27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040051 | 4 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 2 | MM12310041 | 4 | Washer 8-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $2.75/EA |
| 3 | MM01136220 | 1 | Broom shaftFits 2 of 3 versions35D, 42D | $106.89/EA |
| 4 | MM01136350 | 1 | Sweeper rollerFits 2 of 3 versions35D, 42D | $212.97/EA |
PowerBoss Scrubmaster B175R Change frame 1300 parts
The 1300 change frame: hoop guard, sliding blocks, hose, plug and lifting handle hardware. It is the same in the 35D and 42D catalogs. Manual pages 35D p28, list 35D p29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01131500 | 2 | PlugFits 2 of 3 versions35D, 42D | $1.05/EA |
| 2 | MM01006640 | 2 | Cable fitting Typ DA 200/280/30Fits 2 of 3 versions35D, 42D | $4.67/EA |
| 3 | MM03020920 | 1 | hoop guard 1300Fits 2 of 3 versions35D, 42D | $1,474.16/EA |
| 4 | MM00905520 | 2 | Round head screw 5x14Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 5 | MM01360780PowerBoss 01360780 | 1 | sliding blockFits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 6 | MM01132510 | 0.1 M | Hose OLNS1 2370 DN10Fits 2 of 3 versions35D, 42D | $60.81/EA |
| 7 | MM00132610 | 1 | Washer 12-200HV-N2 ISO 7093Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 8 | MM12040077 | 1 | Hex. Nut M12-6 A3G DIN 985Fits 2 of 3 versions35D, 42D | $3.77/EA |
| 9 | MM01061010 | 1 | Countersunk screw M12x45-8.8-N2 ISO 10642Fits 2 of 3 versions35D, 42D | $3.90/EA |
| 10 | MM01171780 | 1 | Steering rollerFits 2 of 3 versions35D, 42D | $79.67/EA |
| 11 | MM01376940 | 1 | handleFits 2 of 3 versions35D, 42D | $23.34/EA |
| 12 | MM01376850 | 1 | handleFits 2 of 3 versions35D, 42D | $68.06/EA |
| 13 | MM01370710 | 2 | retainer holder corrugated hose NW 13Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 14 | MM01073780 | 1 | NameplateFits 2 of 3 versions35D, 42D | $2.03/EA |
| 15 | MM01073790 | 2 | Blind rivet A3x8-A-A2 DIN 73372Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 16 | Not sold separatelyPowerBoss 97150627 | Lock bracketFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Lock bracket | |
| 17 | Not sold separatelyPowerBoss 97146930 | Lifting handleFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Lifting handle | |
| 18 | MM00733560 | 2 | Rubber-metal buffer E-30Fits 2 of 3 versions35D, 42D | $9.00/EA |
| 19 | MM01133350 | 2 | Lens flange screw M8x12-10.9-N8 ISO7380-2Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 20 | MM12040051 | 3 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 21 | MM00550410 | 1 | Pressure springFits 2 of 3 versions35D, 42D | $1.67/EA |
| 22 | MM01073500 | 1 | Round head screw M8x40-4.6 A3G DIN 603Fits 2 of 3 versions35D, 42D | $1.00/EA |
| 23 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 24 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Fits 2 of 3 versions35D, 42D | $1.11/EA |
| 25 | MM90548397 | 4 | Deflector rollerFits 2 of 3 versions35D, 42D | $4.29/EA |
| 26 | MM00975110 | 2 | BushingFits 2 of 3 versions35D, 42D | $8.47/EA |

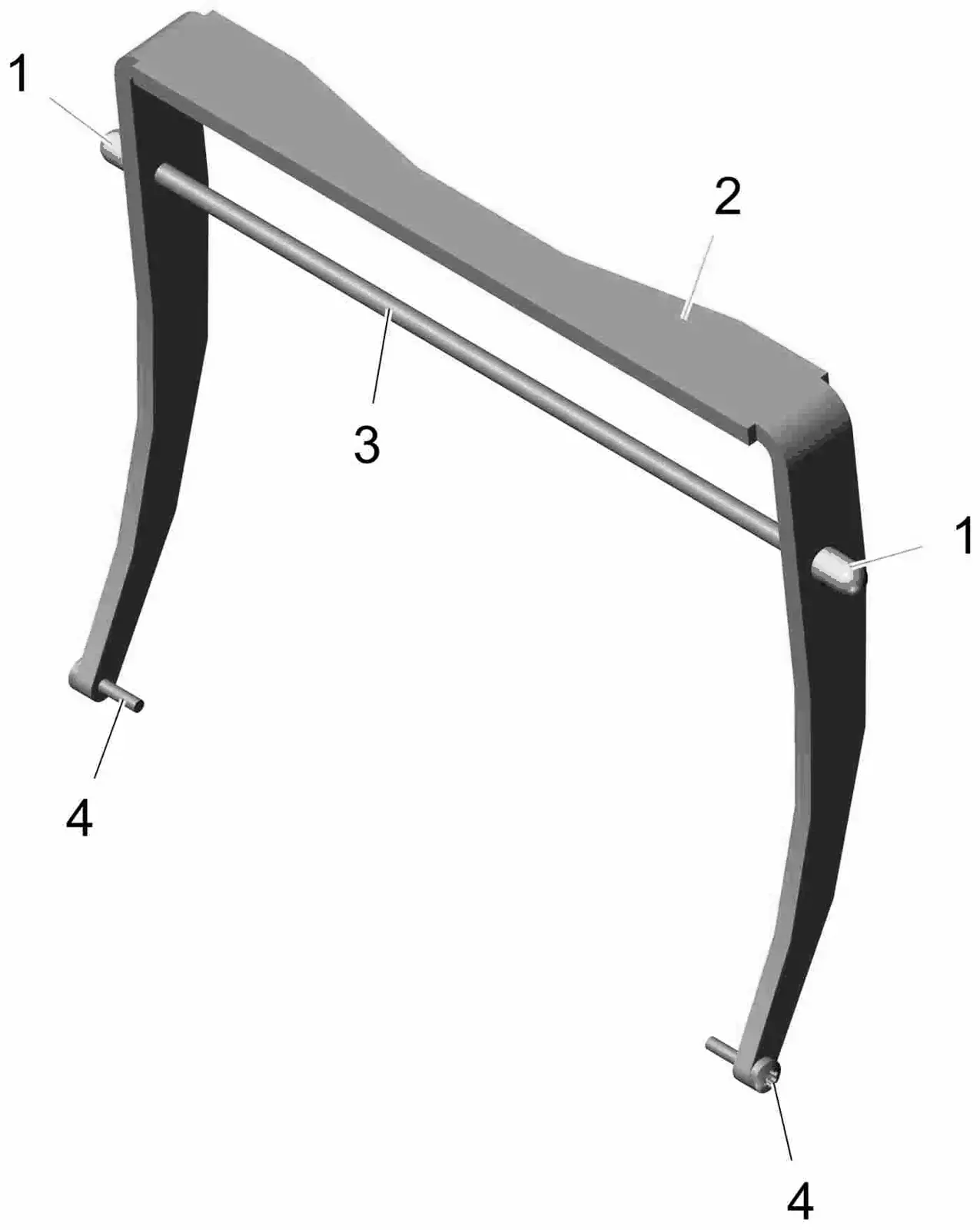

PowerBoss Scrubmaster B175R Lock bracket parts
The locking bracket and rod for the pre-sweep unit. It is the same in the 35D and 42D catalogs. Manual pages 35D p30, list 35D p31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01142450 | 2 | Protection cap Form-Nr.3458 Typ 6Fits 2 of 3 versions35D, 42D | $1.56/EA |
| 2 | MM01375410PowerBoss 01375410 | 1 | locking bracketFits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 3 | MM01375340 | 1 | rodFits 2 of 3 versions35D, 42D | $7.03/EA |
| 4 | MM01272680 | 2 | Screw PE M4x16-St A2L DIN 7500Fits 2 of 3 versions35D, 42D | $1.05/EA |

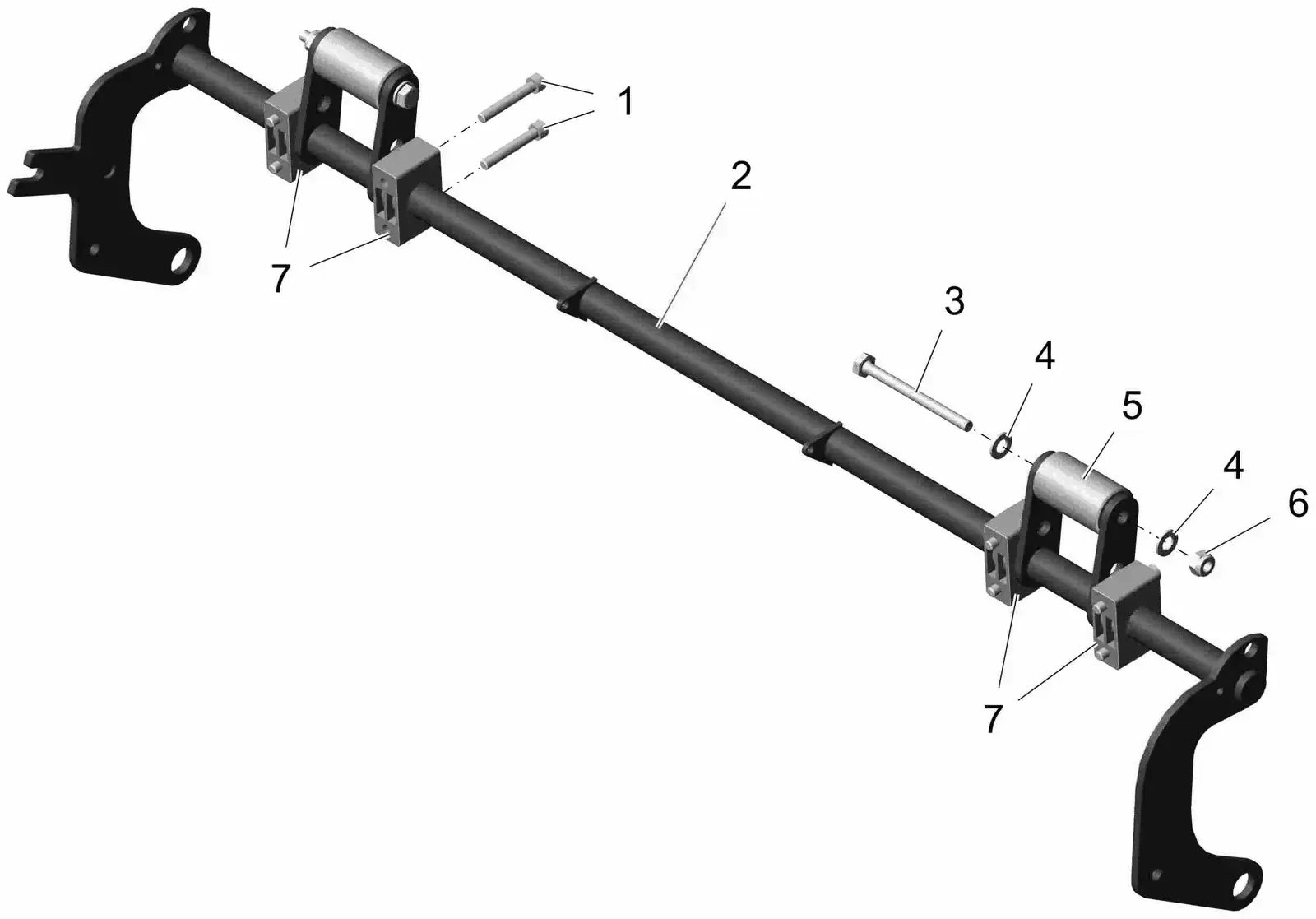

PowerBoss Scrubmaster B175R Lifting handle parts
The pre-sweep lifting handle with its rollers and bearing seats. It is the same in the 35D and 42D catalogs. Manual pages 35D p32, list 35D p33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01383640 | 8 | screw DIN 7500-EE M6x40-ST galZn8Di SPFits 2 of 3 versions35D, 42D | $1.44/EA |
| 2 | MM03021800 | 1 | excavated handleFits 2 of 3 versions35D, 42D | $363.68/EA |
| 3 | MM00020370 | 2 | hexagon screw M8x80-8.8-N3 ISO 4017Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 4 | MM12310041 | 4 | Washer 8-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $2.75/EA |
| 5 | MM01110040 | 2 | RollerFits 2 of 3 versions35D, 42D | $8.25/EA |
| 6 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 7 | MM01271360 | 8 | Bearing seatFits 2 of 3 versions35D, 42D | $1.36/EA |

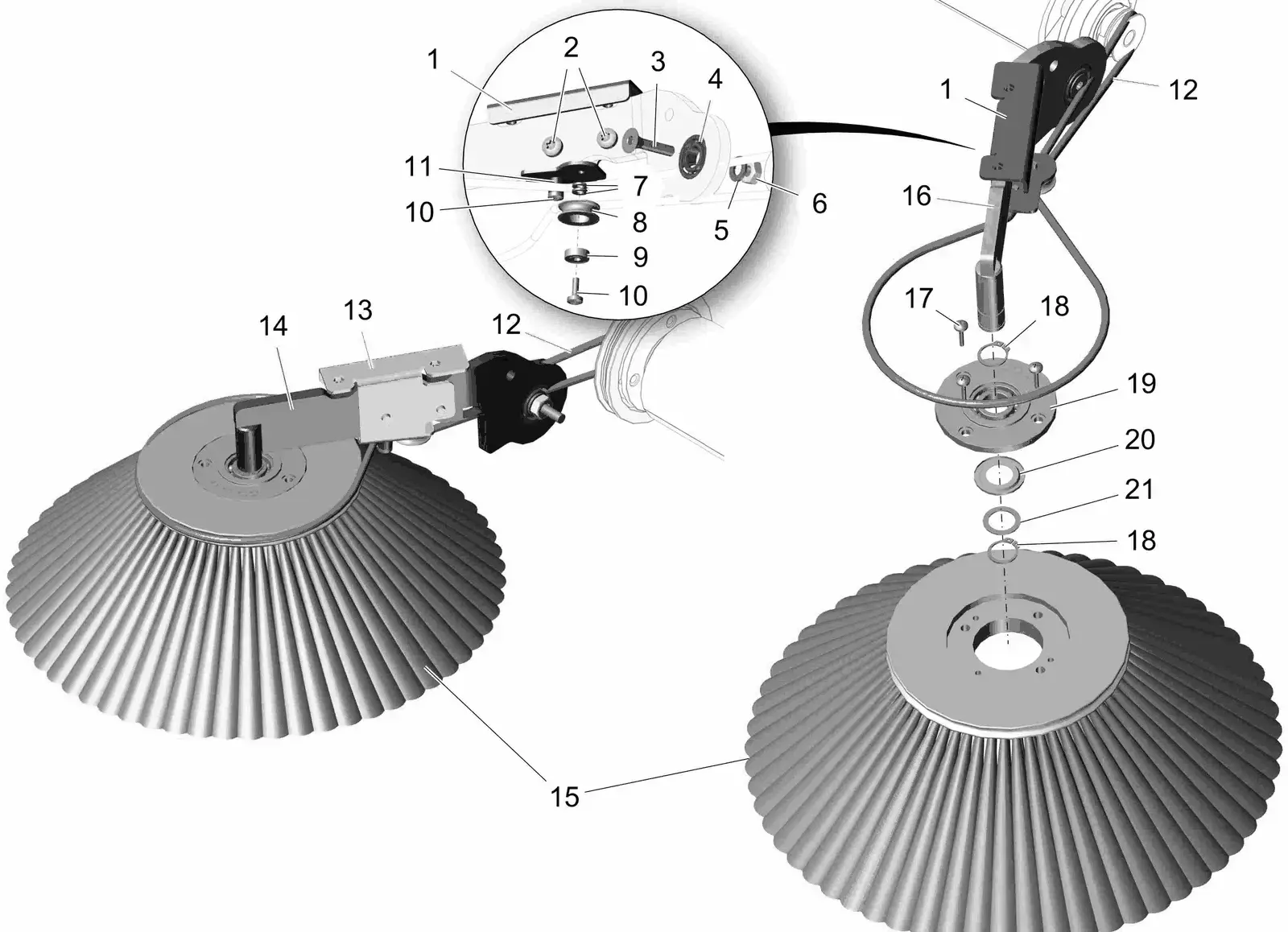

PowerBoss Scrubmaster B175R Side brush L.H and R.H. 1300 parts
The left and right 1300 side brush assemblies: roll holder, deflection rollers and bearings. It is the same in the 35D and 42D catalogs. Manual pages 35D p34, list 35D p35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375230 | 1 | roll holder L.H.Fits 2 of 3 versions35D, 42D | $56.42/EA |
| 2 | MM01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits 2 of 3 versions35D, 42D | $3.90/EA |
| 3 | MM00535850 | 2 | Countersunk screw M10x40-8.8-N10 ISO 10642Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 4 | MM00106300 | 2 | Deep groove ball bearing 6003-2RSH DIN 625Fits 2 of 3 versions35D, 42D | $35.62/EA |
| 5 | MM12310058 | 2 | Washer 10-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 6 | MM12022067 | 2 | Hex. Nut M10-8 A3G DIN 934Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 7 | MM12310033 | 4 | Washer 6-200HV-N2 ISO 7089Fits 2 of 3 versions35D, 42D | $1.38/EA |
| 8 | MM01179700 | 2 | Deflection rollerFits 2 of 3 versions35D, 42D | $21.81/EA |
| 9 | MM01175800 | 2 | Grooved ball bearing 626-2RSH DIN 625Fits 2 of 3 versions35D, 42D | $9.41/EA |
| 10 | MM00539730 | 4 | Screw M6x16-St A3G Kombit. DIN 7500Fits 2 of 3 versions35D, 42D | $1.00/EA |
| 11 | MM01271310 | 2 | BushingFits 2 of 3 versions35D, 42D | $9.81/EA |
| 12 | MM01375190 | 2 | round belt 6x1190-PU rotFits 2 of 3 versions35D, 42D | $41.11/EA |
| 13 | MM01375350 | 1 | roll holder R.H.Fits 2 of 3 versions35D, 42D | $56.42/EA |
| 14 | MM01375570 | 1 | side broom arm cranked R.H.Fits 2 of 3 versions35D, 42D | $208.12/EA |
| 15 | MM01270920 | 2 | Side broom PESFits 2 of 3 versions35D, 42D | $88.44/EA |
| 16 | MM01375420 | 1 | side broom arm cranked L.H.Fits 2 of 3 versions35D, 42D | $208.12/EA |
| 17 | MM01074430 | 6 | Screw B52004-6,0x20-10.9 A2EFits 2 of 3 versions35D, 42D | $1.05/EA |
| 18 | MM12610093 | 4 | Retaining ring 20x1,2-phos. DIN 471Fits 2 of 3 versions35D, 42D | $1.22/EA |
| 19 | MM01173010 | 2 | Flange bearingFits 2 of 3 versions35D, 42D | $30.64/EA |
| 20 | MM00537310 | 2 | Ring 16004 AVFits 2 of 3 versions35D, 42D | $4.53/EA |
| 21 | MM00153700 | 2 | Adjusting washer 20x28x1 DIN 988Fits 2 of 3 versions35D, 42D | $1.22/EA |
PowerBoss Scrubmaster B175R Preliminary parts for pre-sweeping unit
The parts that prepare the machine to take the pre-sweep unit: bracket, flap lid and adapter. It is the same in the 35D and 42D catalogs. Manual pages 35D p36, list 35D p37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375760 | 1 | bracketFits 2 of 3 versions35D, 42D | $114.78/EA |
| 2 | MM12310066 | 2 | Washer 12-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 3 | Not sold separatelyPowerBoss 97153357-97153365 | Preliminary parts for pre-sweeping unit L.H. and R.H.Fits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Preliminary parts for pre-sweeping unit L.H. and R.H. | |
| 4 | MM01103290 | 6 | Round head screw M8x25-4.6 A2G DIN 603Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 5 | MM12310041 | 6 | Washer 8-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $2.75/EA |
| 6 | MM12040051 | 6 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 7 | MM01496210 | 1 | Flap lidFits 2 of 3 versions35D, 42D | $38.78/EA |
| 8 | MM01110570 | 4 | Screw M3x8-St A2B DIN 7500-PEFits 2 of 3 versions35D, 42D | $1.05/EA |
| 9 | MM01375500 | 1 | adapterFits 2 of 3 versions35D, 42D | $10.70/EA |
| 10 | MM01171270 | 2 | Screw M6x12-St A2G DIN 7500-DFits 2 of 3 versions35D, 42D | $1.05/EA |

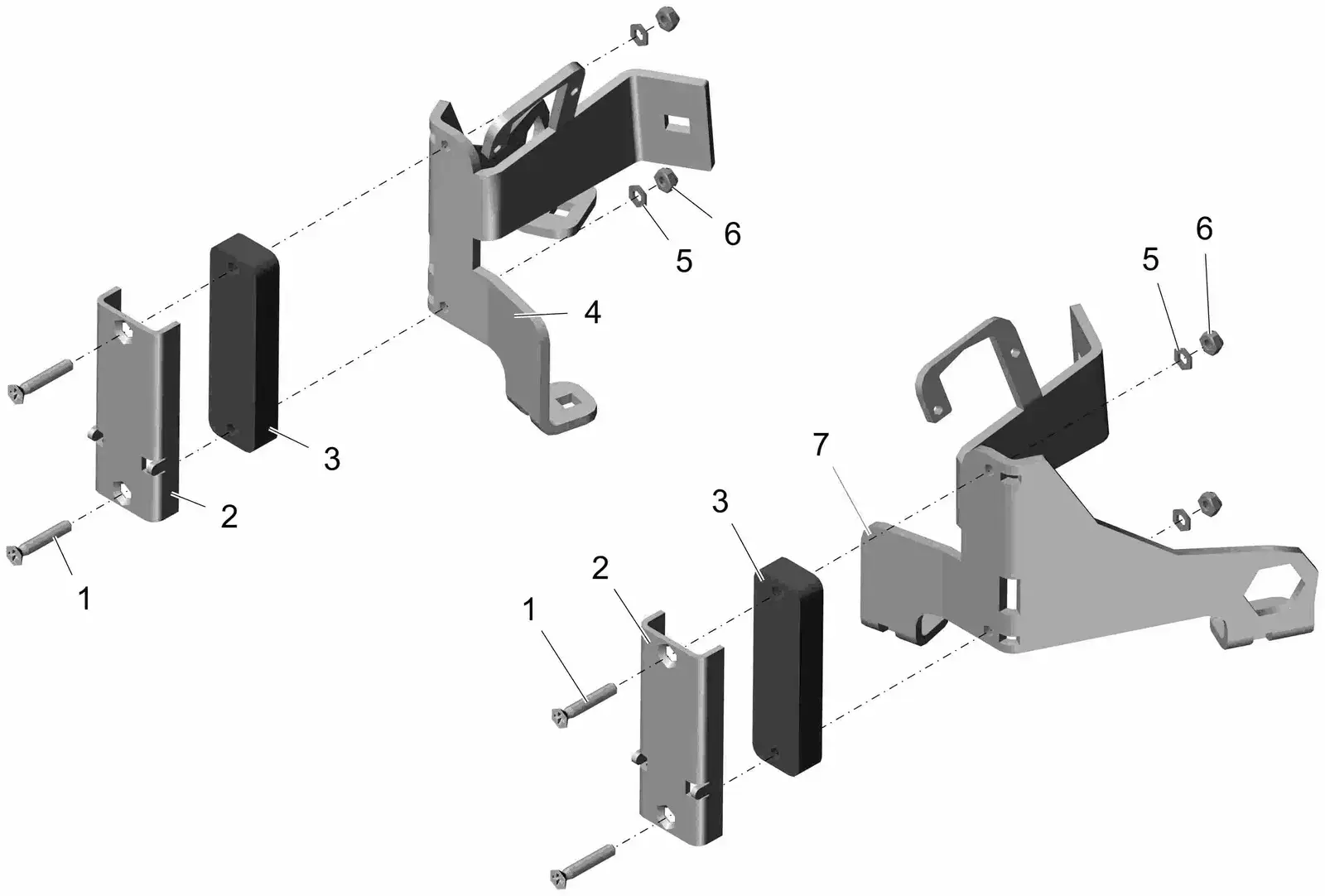

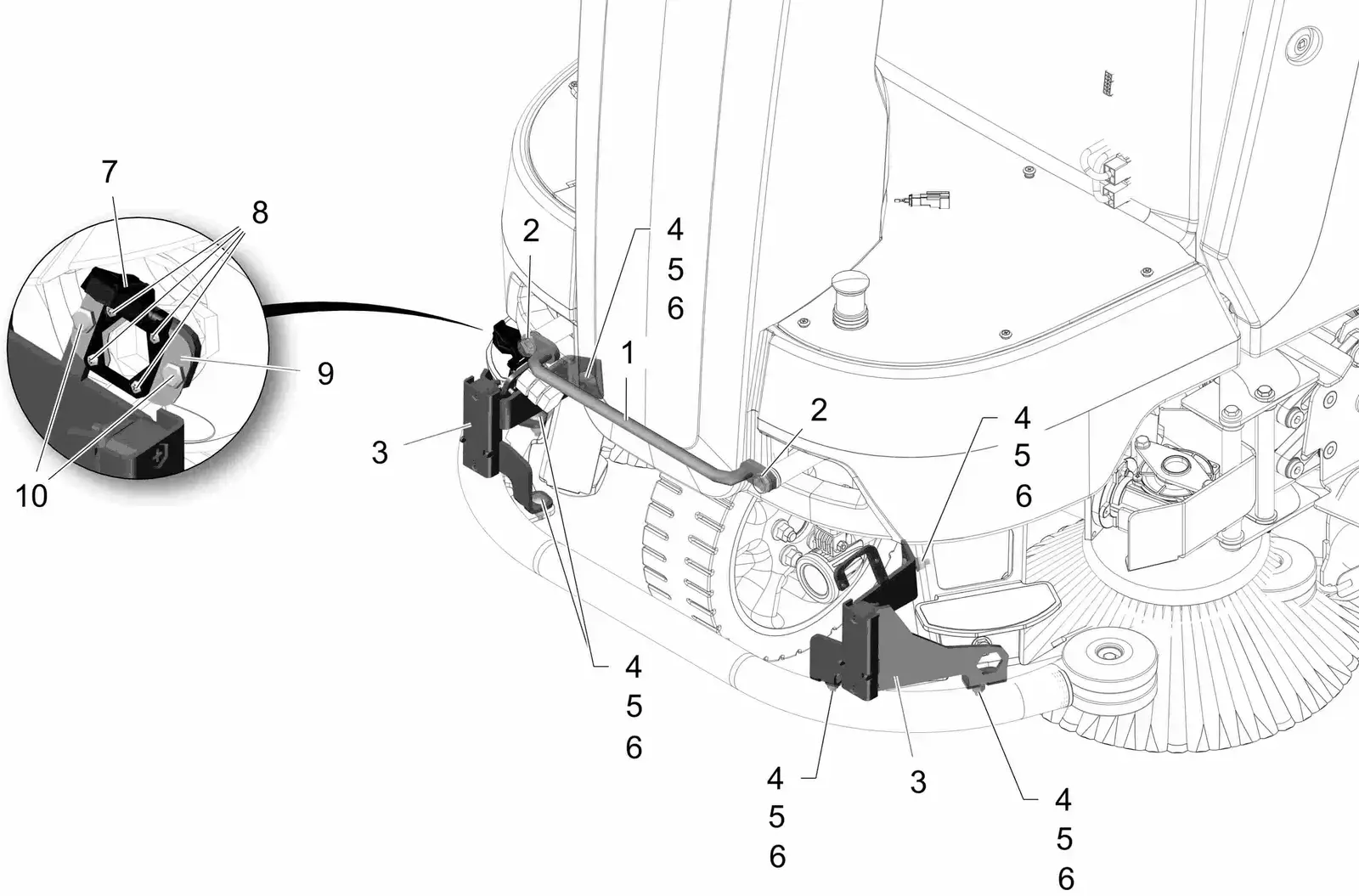

PowerBoss Scrubmaster B175R Preliminary parts for pre-sweeping unit L.H. and R.H.
The left and right supports, buffers and counter bearings for the pre-sweep unit. It is the same in the 35D and 42D catalogs. Manual pages 35D p38, list 35D p39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01508280 | 4 | countersunk screw DIN 965-M6x35-A2-70-HFits 2 of 3 versions35D, 42D | $1.00/EA |
| 2 | MM01375370 | 2 | supportFits 2 of 3 versions35D, 42D | $64.17/EA |
| 3 | MM01372250 | 2 | bufferFits 2 of 3 versions35D, 42D | $23.34/EA |
| 4 | MM01376660PowerBoss 01376660 | 1 | counter bearing R.H.Fits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 5 | MM12310256 | 4 | Washer 6-200HV-A2-70 ISO 7090Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 6 | MM00102140 | 4 | Hex. Nut M6-A2-70 DIN 985Fits 2 of 3 versions35D, 42D | $1.17/EA |
| 7 | MM01376710PowerBoss 01376710 | 1 | counter bearing L.H.Fits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |

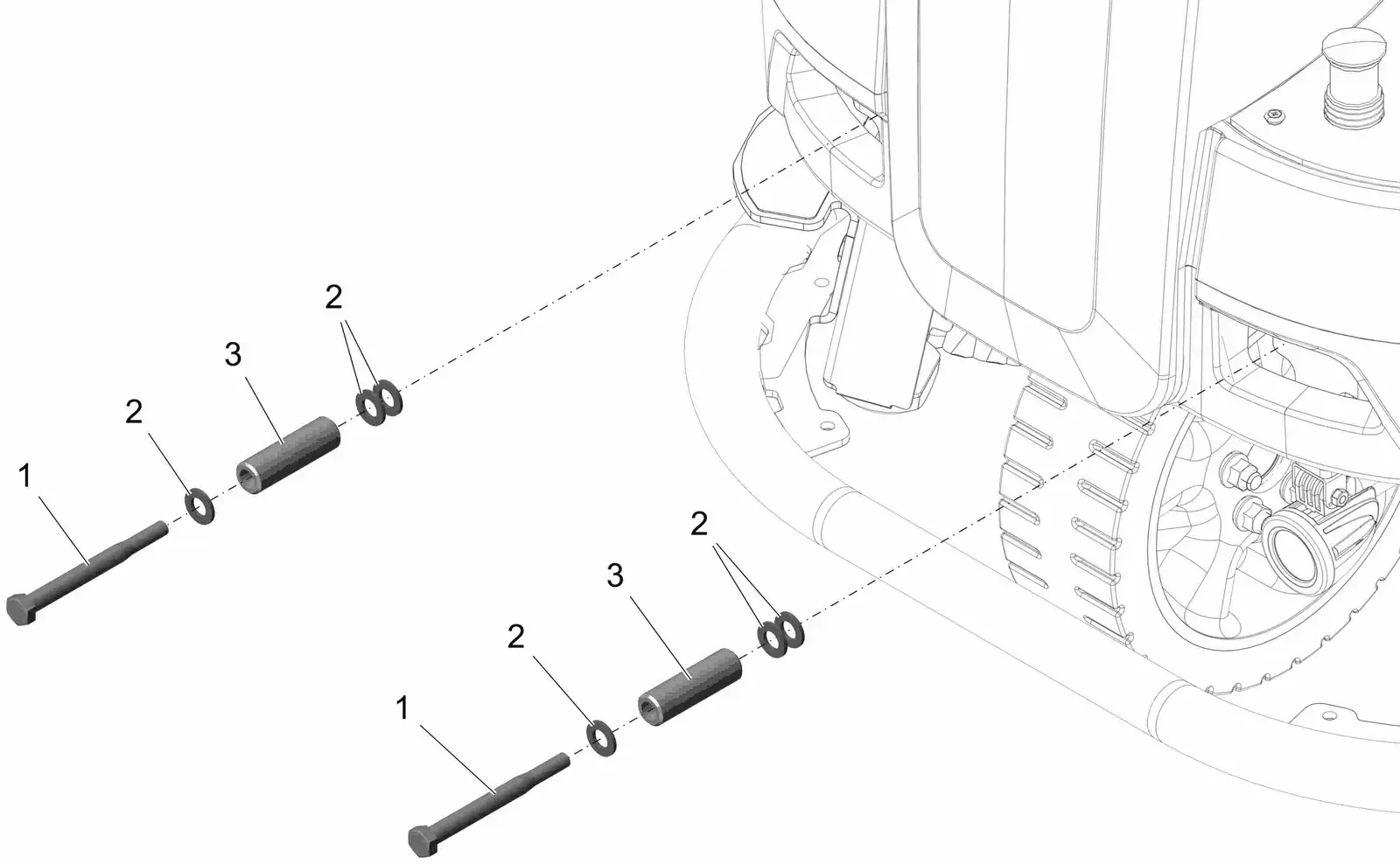

PowerBoss Scrubmaster B175R Preliminary parts for pre-sweeping unit without driver's canopy
The pipe and screws for a pre-sweep unit on a machine without the driver canopy. It is the same in the 35D and 42D catalogs. Manual pages 35D p40, list 35D p41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00025300 | 2 | hexagon screw M12x120-8.8 N2 ISO 4014Fits 2 of 3 versions35D, 42D | $3.22/EA |
| 2 | MM12310066 | 6 | Washer 12-200HV-N3 ISO 7089Fits 2 of 3 versions35D, 42D | $4.15/EA |
| 3 | MM01388770PowerBoss 01388770 | 2 | pipeFits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |

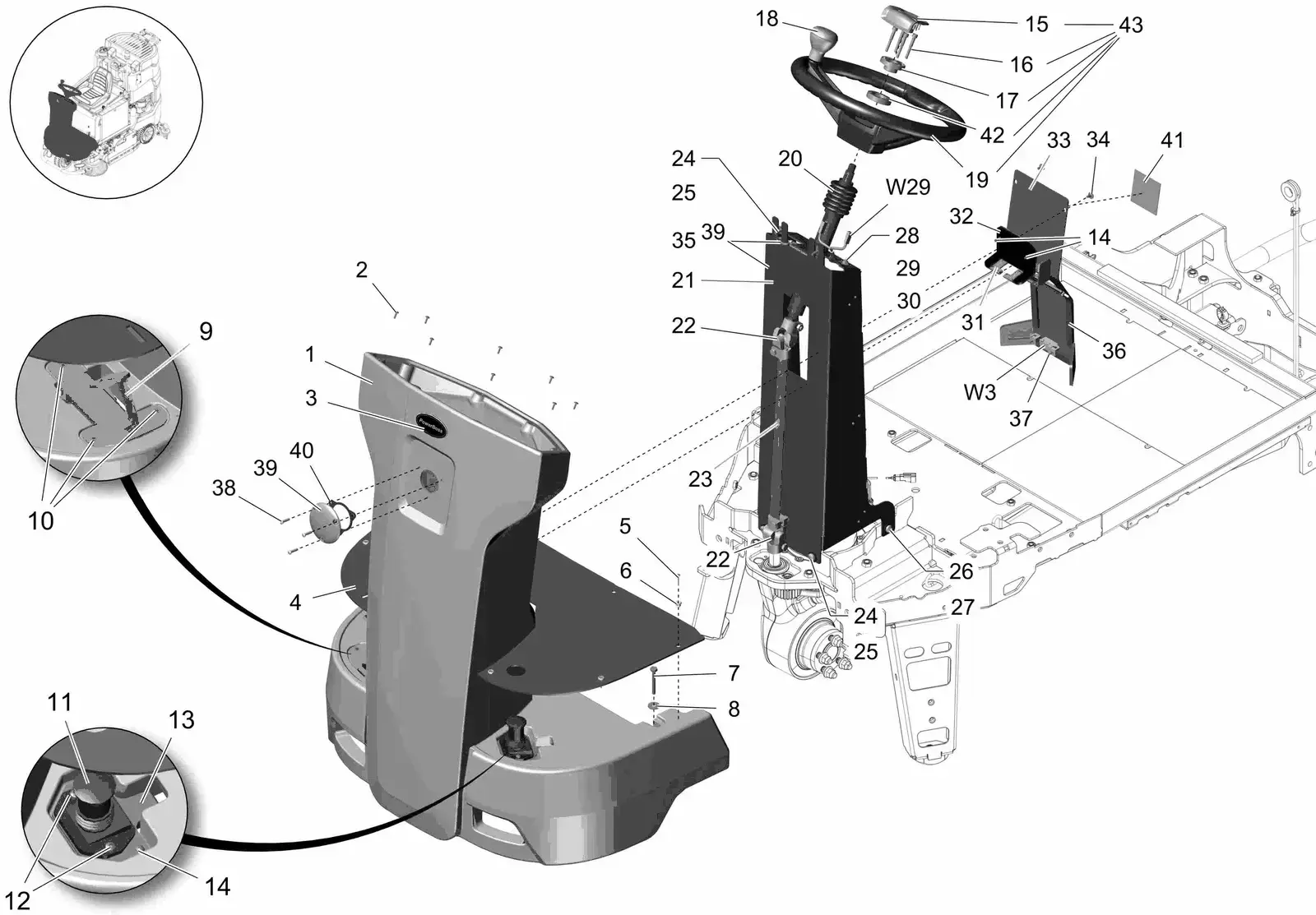

PowerBoss Scrubmaster B175R Control console (97141402_16) parts
The 42D control console: steering column, steering wheel, drive sensor, foot switch, floor mat and gaskets. This version is in the 42D catalog only. Manual pages 42D p42, list 42D p43-44.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03019900 | 1 | steering columFits 1 of 3 versions42D | $863.52/EA |
| 2 | MM01136860 | 8 | Countersunk screw M4x12-4.8-flZnnc ISO 14583Fits 1 of 3 versions42D | $1.05/EA |
| 3 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallFits 1 of 3 versions42D | Call to confirm part: 800-440-6723 |
| 4 | MM01373190 | 1 | floor matFits 1 of 3 versions42D | $64.17/EA |
| 5 | MM01073120 | 6 | Amtec screw B52005-4,0x25-10.9 weiß verz.Fits 1 of 3 versions42D | $1.05/EA |
| 6 | MM01073130 | 6 | KnobFits 1 of 3 versions42D | $3.47/EA |
| 7 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 1 of 3 versions42D | $1.05/EA |
| 8 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions42D | $1.11/EA |
| 9 | Not sold separatelyPowerBoss 01378020 | 1 | drive sensorFits 1 of 3 versions42D | Not sold separately. Its parts are listed under Drive sensor |
| 10 | MM01133380 | 3 | Countersunk screw M5x12-8.8-N2 ISO 10642Fits 1 of 3 versions42D | $1.22/EA |
| 11 | MM90472176 | 1 | Foot switchFits 1 of 3 versions42D | $128.55/EA |
| 12 | MM00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits 1 of 3 versions42D | $1.05/EA |
| 13 | MM01372900 | 1 | plateFits 1 of 3 versions42D | $32.17/EA |
| 14 | MM11709151 | 4 | Screw KA 50x20 WN-1412-1.4301Fits 1 of 3 versions42D | $1.38/EA |
| 15 | MM610001Replaces PowerBoss 01375260 | 1 | steering wheel cab PBFits 1 of 3 versions42D | $10.36/EA |
| 16 | MM01382410 | 1 | socket head screw M6x45-10.9 N2 ISO 4762Fits 1 of 3 versions42D | $1.00/EA |
| 17 | MM01382520 | 1 | flangeFits 1 of 3 versions42D | $77.98/EA |
| 18 | MM01370020 | 1 | knob ACC2102Fits 1 of 3 versions42D | $47.92/EA |
| 19 | MM01371160 | 1 | steering wheelFits 1 of 3 versions42D | $218.14/EA |
| 20 | MM01054880 | 1 | BellowsFits 1 of 3 versions42D | $6.32/EA |
| 21 | Not sold separatelyPowerBoss 97135206 | 1 | Steering systemFits 1 of 3 versions42D | Not sold separately. Its parts are listed under Steering system |
| 22 | MM00746040 | 2 | Cardan jointFits 1 of 3 versions42D | $62.89/EA |
| 23 | MM01373660 | 1 | shaftFits 1 of 3 versions42D | $68.06/EA |
| 24 | MM11038197 | 2 | hexagon screw M8x16-8.8-N3 ISO 4017Fits 1 of 3 versions42D | $4.15/EA |
| 25 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacFits 1 of 3 versions42D | $1.22/EA |
| 26 | MM01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits 1 of 3 versions42D | $3.90/EA |
| 27 | MM00740080 | 4 | Washer SKB-8-dacrometisiertFits 1 of 3 versions42D | $1.22/EA |
| 28 | MM01071890 | 1 | hexagon screw M6x16 CrNi-A2-70 ISO 4017Fits 1 of 3 versions42D | $2.04/EA |
| 29 | MM01072030 | 1 | Toothed washer A 6,4 A3G DIN 6797Fits 1 of 3 versions42D | $1.05/EA |
| 30 | MM00102140 | 1 | Hex. Nut M6-A2-70 DIN 985Fits 1 of 3 versions42D | $1.17/EA |
| 31 | MM01372870 | 1 | connector fixingFits 1 of 3 versions42D | $51.57/EA |
| 32 | MM01372120 | 1 | gasketFits 1 of 3 versions42D | $3.90/EA |
| 33 | MM01372830 | 1 | coverFits 1 of 3 versions42D | $118.63/EA |
| 34 | MM11177179 | 5 | Lens flange screw M6x10-A2-70 ISO7380-2Fits 1 of 3 versions42D | $1.73/EA |
| 35 | MM90156688 | 1 | Cable tie 4,8x360Fits 1 of 3 versions42D | $2.06/EA |
| 36 | MM01372090 | 1 | gasketFits 1 of 3 versions42D | $3.90/EA |
| 37 | MM01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Fits 1 of 3 versions42D | $1.05/EA |
| 38 | MM11709151 | 3 | Screw KA 50x20 WN-1412-1.4301Fits 1 of 3 versions42D | $1.38/EA |
| 39 | MM01375240 | 1 | capFits 1 of 3 versions42D | $2.25/EA |
| 40 | MM01072000 | 1 | SealFits 1 of 3 versions42D | $3.89/EA |
| 41 | – | 1 | Spare part on requestFits 1 of 3 versions42D | |
| 42 | MM01382630 | 1 | ringFits 1 of 3 versions42D | $35.33/EA |
| 43 | MM01382890 | 1 | steering wheel PB, cpl.Fits 1 of 3 versions42D | $474.13/EA |
| W3 | MM03020300 | 1 | wiring harness W3Fits 1 of 3 versions42D | $1,489.70/EA |
| W29 | MM03020450 | 1 | wiring harness W29Fits 1 of 3 versions42D | $51.57/EA |

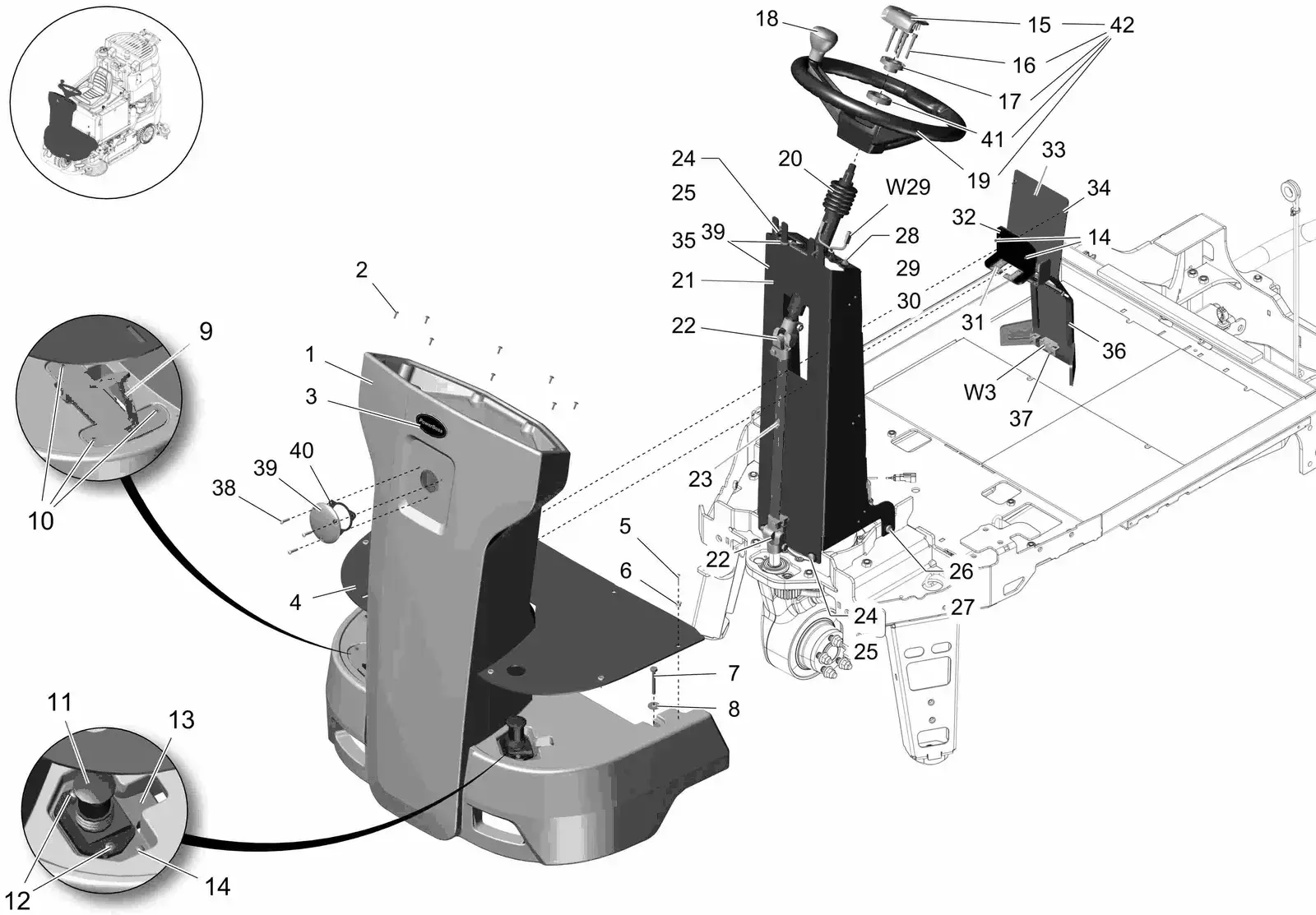

PowerBoss Scrubmaster B175R Control console (97141402_27) parts
The control console for the 33C and 35D: steering column, steering wheel, drive sensor, foot switch, floor mat and gaskets. Its lines are the same in both catalogs. Manual pages 33C p8, list 33C p9-10.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03019900 | 1 | steering columFits 2 of 3 versions33C with side broom, 35D | $863.52/EA |
| 2 | MM01136860 | 8 | Countersunk screw M4x12-4.8-flZnnc ISO 14583Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 3 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallFits 2 of 3 versions33C with side broom, 35D | Call to confirm part: 800-440-6723 |
| 4 | MM01373190 | 1 | floor matFits 2 of 3 versions33C with side broom, 35D | $64.17/EA |
| 5 | MM01073120 | 6 | Amtec screw B52005-4,0x25-10.9 weiß verz.Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 6 | MM01073130 | 6 | KnobFits 2 of 3 versions33C with side broom, 35D | $3.47/EA |
| 7 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 8 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-200HV-N2Fits 2 of 3 versions33C with side broom, 35D | $1.11/EA |
| 9 | Not sold separatelyPowerBoss 01378020 | 1 | drive sensorFits 2 of 3 versions33C with side broom, 35D | Not sold separately. Its parts are listed under Drive sensor |
| 10 | MM01133380 | 3 | Countersunk screw M5x12-8.8-N2 ISO 10642Fits 2 of 3 versions33C with side broom, 35D | $1.22/EA |
| 11 | MM90472176 | 1 | Foot switchFits 2 of 3 versions33C with side broom, 35D | $128.55/EA |
| 12 | MM00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 13 | MM01372900 | 1 | plateFits 2 of 3 versions33C with side broom, 35D | $32.17/EA |
| 14 | MM11709151 | 4 | Screw KA 50x20 WN-1412-1.4301Fits 2 of 3 versions33C with side broom, 35D | $1.38/EA |
| 15 | MM610001Replaces PowerBoss 01375260 | 1 | steering wheel cab PBFits 2 of 3 versions33C with side broom, 35D | $10.36/EA |
| 16 | MM01382410 | 1 | socket head screw M6x45-10.9 N2 ISO 4762Fits 2 of 3 versions33C with side broom, 35D | $1.00/EA |
| 17 | MM01382520 | 1 | flangeFits 2 of 3 versions33C with side broom, 35D | $77.98/EA |
| 18 | MM01370020 | 1 | knob ACC2102Fits 2 of 3 versions33C with side broom, 35D | $47.92/EA |
| 19 | MM01371160 | 1 | steering wheelFits 2 of 3 versions33C with side broom, 35D | $218.14/EA |
| 20 | MM01054880 | 1 | BellowsFits 2 of 3 versions33C with side broom, 35D | $6.32/EA |
| 21 | Not sold separatelyPowerBoss 97135206 | 1 | Steering systemFits 2 of 3 versions33C with side broom, 35D | Not sold separately. Its parts are listed under Steering system |
| 22 | MM00746040 | 2 | Cardan jointFits 2 of 3 versions33C with side broom, 35D | $62.89/EA |
| 23 | MM01373660 | 1 | shaftFits 2 of 3 versions33C with side broom, 35D | $68.06/EA |
| 24 | MM11038197 | 2 | hexagon screw M8x16-8.8-N3 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $4.15/EA |
| 25 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacFits 2 of 3 versions33C with side broom, 35D | $1.22/EA |
| 26 | MM01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits 2 of 3 versions33C with side broom, 35D | $3.90/EA |
| 27 | MM00740080 | 4 | Washer SKB-8-dacrometisiertFits 2 of 3 versions33C with side broom, 35D | $1.22/EA |
| 28 | MM01071890 | 1 | hexagon screw M6x16 CrNi-A2-70 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $2.04/EA |
| 29 | MM01072030 | 1 | Toothed washer A 6,4 A3G DIN 6797Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 30 | MM00102140 | 1 | Hex. Nut M6-A2-70 DIN 985Fits 2 of 3 versions33C with side broom, 35D | $1.17/EA |
| 31 | MM01372870 | 1 | connector fixingFits 2 of 3 versions33C with side broom, 35D | $51.57/EA |
| 32 | MM01372120 | 1 | gasketFits 2 of 3 versions33C with side broom, 35D | $3.90/EA |
| 33 | MM01372830 | 1 | coverFits 2 of 3 versions33C with side broom, 35D | $118.63/EA |
| 34 | MM11177179 | 5 | Lens flange screw M6x10-A2-70 ISO7380-2Fits 2 of 3 versions33C with side broom, 35D | $1.73/EA |
| 35 | MM90156688 | 1 | Cable tie 4,8x360Fits 2 of 3 versions33C with side broom, 35D | $2.06/EA |
| 36 | MM01372090 | 1 | gasketFits 2 of 3 versions33C with side broom, 35D | $3.90/EA |
| 37 | MM01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 38 | MM11709151 | 3 | Screw KA 50x20 WN-1412-1.4301Fits 2 of 3 versions33C with side broom, 35D | $1.38/EA |
| 39 | MM01375240 | 1 | capFits 2 of 3 versions33C with side broom, 35D | $2.25/EA |
| 40 | MM01072000 | 1 | SealFits 2 of 3 versions33C with side broom, 35D | $3.89/EA |
| 41 | MM01382630 | 1 | ringFits 2 of 3 versions33C with side broom, 35D | $35.33/EA |
| 42 | MM01382890 | 1 | steering wheel PB, cpl.Fits 2 of 3 versions33C with side broom, 35D | $474.13/EA |
| W3 | MM03020300 | 1 | wiring harness W3Fits 2 of 3 versions33C with side broom, 35D | $1,489.70/EA |
| W29 | MM03020450 | 1 | wiring harness W29Fits 2 of 3 versions33C with side broom, 35D | $51.57/EA |
PowerBoss Scrubmaster B175R Drive sensor parts
The accelerator pedal, drive sensor, angle sensor, micro switch and their hardware. It is the same in all three catalogs. Manual pages 33C p11, list 33C p12.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00523790 | 1 | hexagon screw M8x50-A4-70 ISO 4017Hako material no. 11039492. | $1.54/EA |
| 2 | MM730609Replaces PowerBoss 00101550 | 1 | Washer 8-200HV-A2-70 ISO 7090Hako material no. 12310264. | $1.08/EA |
| 3 | MM00740190 | 1 | Slide bearing bush GFM-1416-17Hako material no. 14895163. | $3.13/EA |
| 4 | MM00133130 | 2 | Screw D M6x25-St A2G DIN 7500Hako material no. 11702065. | $1.05/EA |
| 5 | MM01064890 | 0.04 M | Hose 6x2x88Hako material no. 25842303. Quantity printed 0,040 M. | $12.35/EA |
| 6 | MM01277850 | 1 | Leg springHako material no. 90666967. | $9.74/EA |
| 7 | MM01380050 | 1 | accelerator pedalHako material no. 92084938. | $30.00/EA |
| 8 | MM01372690 | 1 | clambing bushHako material no. 90657974. | $21.39/EA |
| 9 | MM01055150 | 1 | Slide bearing bush GFM-1416-04Hako material no. 14895205. | $1.65/EA |
| 10 | MM01278080 | 1 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 11 | MM01372700 | 1 | pedal retainerHako material no. 90658055. | $64.17/EA |
| 12 | MM01372160 | 1 | starting diskHako material no. 14898118. | $1.54/EA |
| 13 | MM01372170 | 1 | retainerHako material no. 90667007. | $3.90/EA |
| 14 | MM01473610 | 1 | Threaded plateHako material no. 90646043. til appr. 2016-05. Valid until 2016-05. | $13.23/EA |
| 15 | MM01380110 | 1 | magnet supportHako material no. 96145941. | $66.83/EA |
| 16 | MM00854210 | 1 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 17 | MM01006190 | 6 | Seal 1,4-1,7Hako material no. 19719319. | $1.05/EA |
| 18 | MM01141370 | 0.42 M | insulating tube B6x0,6 sw DIN 40621Hako material no. 25855073. Quantity printed 0,420 M. | $3.90/EA |
| 19 | MM00696680 | 1 | Micro switchHako material no. 90265596. | $55.37/EA |
| 20 | MM03003250 | 1 | Pin housingHako material no. 19719335. | $3.86/EA |
| 21 | MM01006210 | 6 | Pin contact 0,3-0,5Hako material no. 19719293. | $1.05/EA |
| 22 | MM01493500 | 1 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 23 | MM11709244 | 2 | Screw 4x14 verzinkt DIN 7500Hako part no. 01078860. | $1.05/EA |
| 24 | MM01141220 | 2 | lens head screw M2x16-4.8-H-N2 ISO 7045Hako material no. 11175478. til appr. 2016-05. Valid until 2016-05. | $1.00/EA |
| 25 | MM00901550 | 1 | BushingHako material no. 90299074. | $2.32/EA |
| 26 | MM12310033 | 1 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 27 | MM01372180 | 1 | retainerHako material no. 90679820. from appr. 2016-06. Valid from 2016-06. | $3.44/EA |
| 28 | MM00902430 | 1 | Screw KA 35x12 WN-1412-10.9 A2Hako material no. 11709037. from appr. 2016-06. Valid from 2016-06. | $1.05/EA |
| B03 | MM01277740 | 1 | Angle sensorHako material no. 97131882. incl. pos. 17-21. | $280.72/EA |

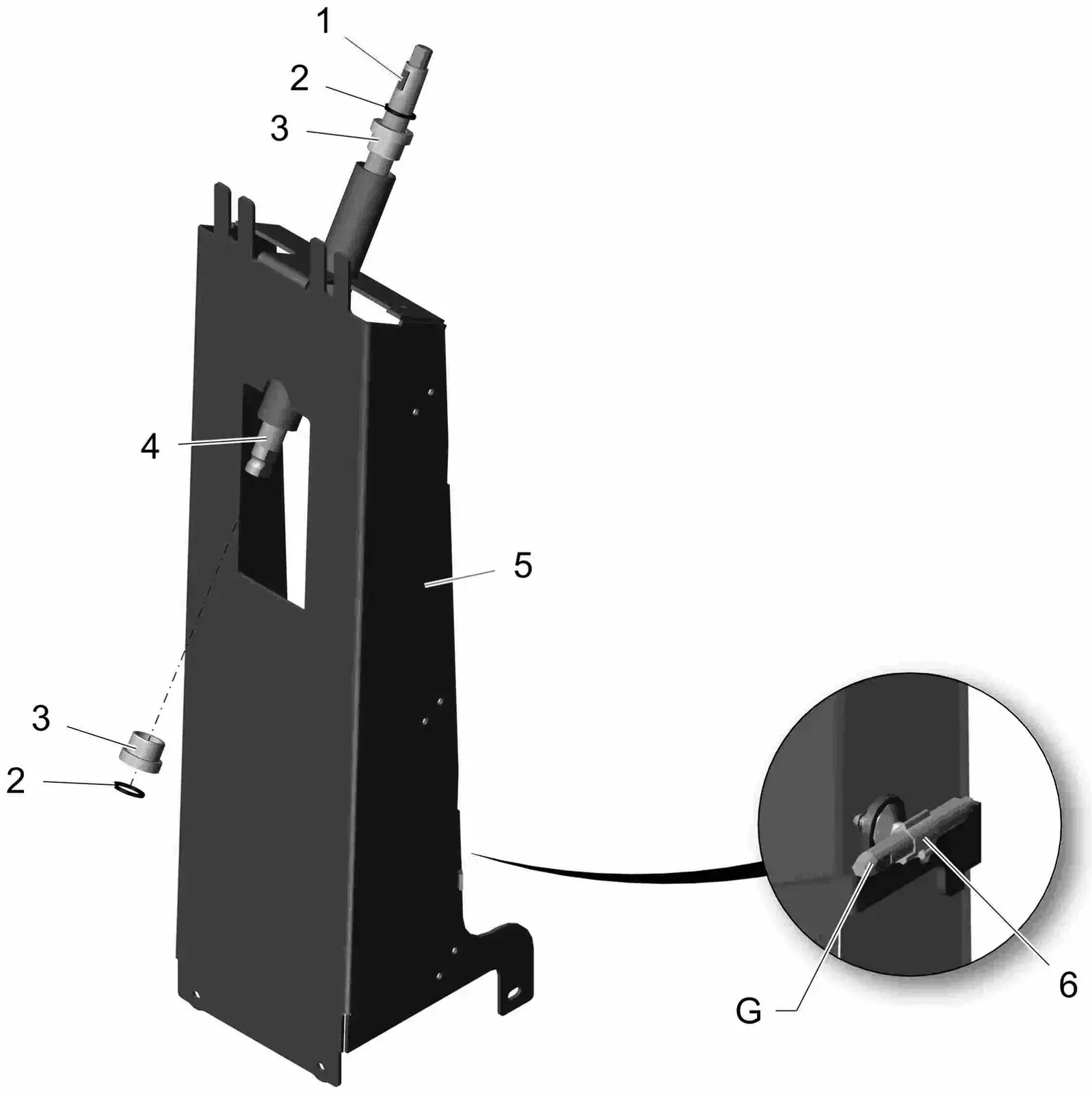

PowerBoss Scrubmaster B175R Steering system parts
The steering shaft, holder, bushing and keys. The steering rod line is printed Not supplied alone. It is the same in all three catalogs. Manual pages 33C p13, list 33C p14.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00701170 | 1 | Woodruff key 5x6,5-St60k DIN 6888Hako material no. 13545082. | $1.05/EA |
| 2 | MM00554400 | 2 | O-ring oil resistant 20x3 80 ShoreHako material no. 15286529. | $1.05/EA |
| 3 | MM00523630 | 2 | BushingHako material no. 90302258. | $26.06/EA |
| 4 | MM01373910 | 1 | shaftHako material no. 90685645. | $72.95/EA |
| 5 | MM03020220 | 1 | steering holderHako material no. 96151659. | $381.17/EA |
| 6 | MM01493500 | 1 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| G | – | Not sold separately. |

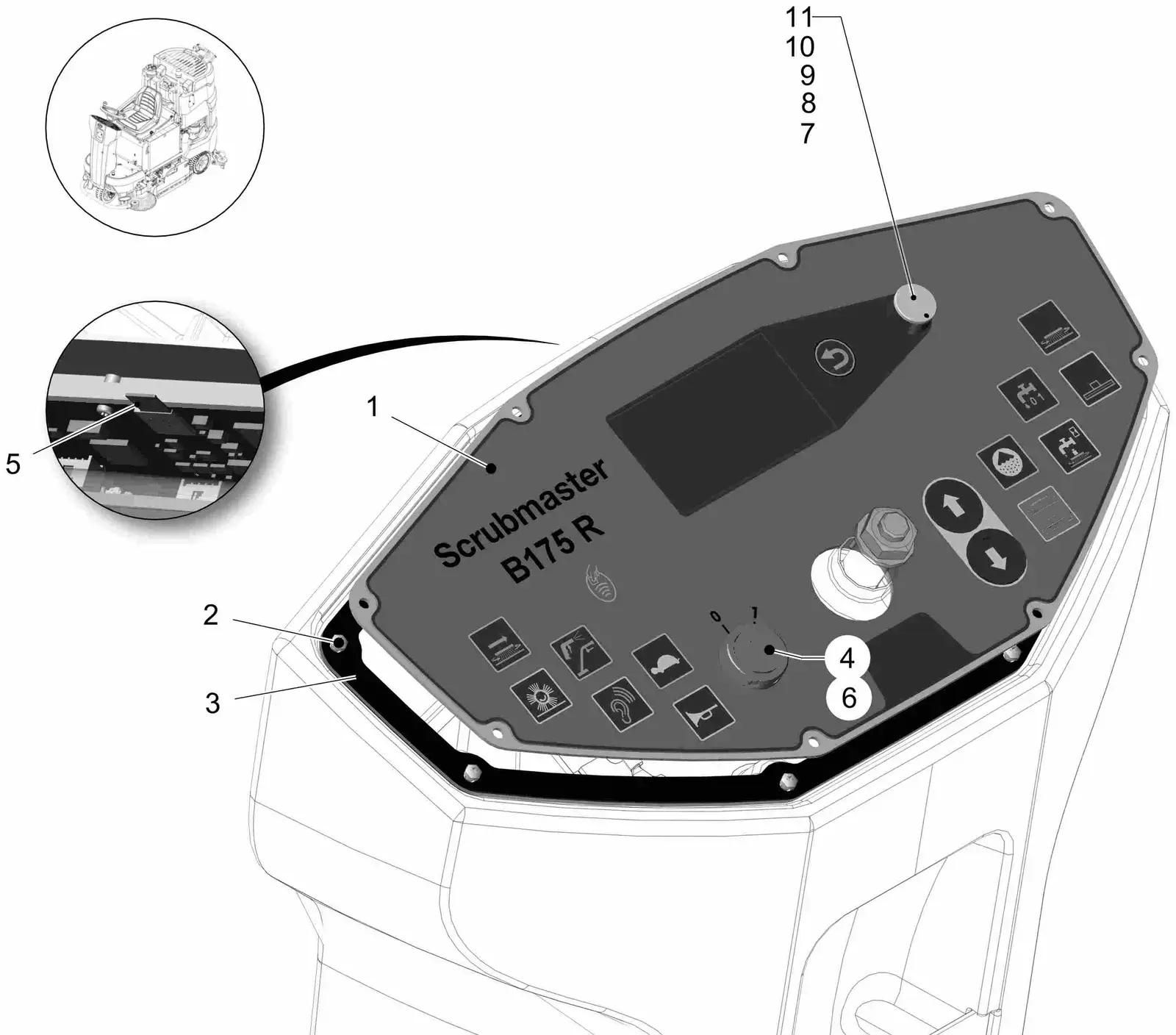

PowerBoss Scrubmaster B175R Control panel parts
The control panel, key switch, smart card, key set and turn-push button. It is the same in all three catalogs. Manual pages 33C p15, list 33C p16.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372030 | 1 | control panelHako material no. 97500706. without smart card. | $1,430.31/EA |
| 2 | MM01136860 | 8 | Countersunk screw M4x12-4.8-flZnnc ISO 14583Hako material no. 11160009. | $1.05/EA |
| 3 | MM01372000 | 1 | gasketHako material no. 92007863. | $35.08/EA |
| 4 | MM90323437 | 1 | Key switchHako part no. 00021710. | $27.66/EA |
| 5 | MM01374870 | 1 | smart cardHako material no. 92034982. | $105.25/EA |
| 6 | MM00745890 | 1 | Set (2pc.) keyUnit PR. | $22.56/EA |
| 7 | MM01379950 | 1 | gasketHako material no. 92022300. | $1.05/EA |
| 8 | MM01379960 | 1 | bushingHako material no. 92020155. | $1.05/EA |
| 9 | MM01379970 | 1 | connection cable DDSHako material no. 92020148. | $5.25/EA |
| 10 | MM01379980PowerBoss 01379980 | 1 | turn-push-buttonHako material no. 92011428. | Call to confirm part: 800-440-6723 |
| 11 | MM01379990 | 1 | turning knobHako material no. 92005826. | $8.49/EA |

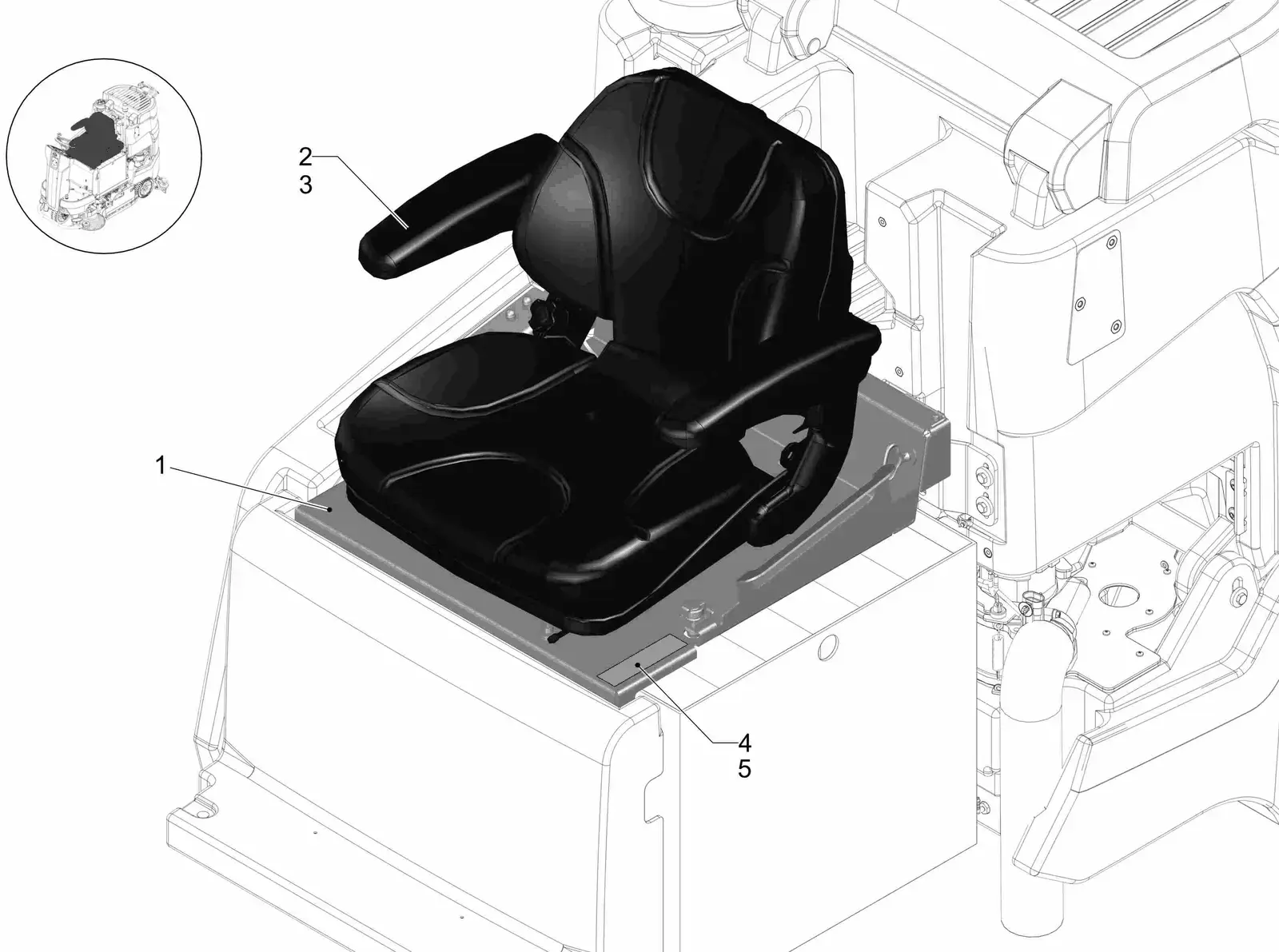

PowerBoss Scrubmaster B175R Seat group parts
The seat plate, the driver seat, the seat contact switch and the slope decals. It is the same in all three catalogs. Manual pages 35D p51, list 35D p52.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97141394 | Seat plateNot sold separately. Has sub-assemblies, listed under Seat plate. | Not sold separately. Its parts are listed under Seat plate | |
| 2 | MM01370010PowerBoss 01370010 | 1 | driver seat MUL2020Hako material no. 92016195. | Call to confirm part: 800-440-6723 |
| 3 | MM01277700 | 1 | Seat contact switch | $77.56/EA |
| 4 | MM01371840 | 1 | decal SIGN_GRADE 6Hako material no. 17268418. 6%. | $6.98/EA |
| 5 | MM01376870 | 1 | decal GRADE 15Hako material no. 17268566. 15%. | $16.32/EA |

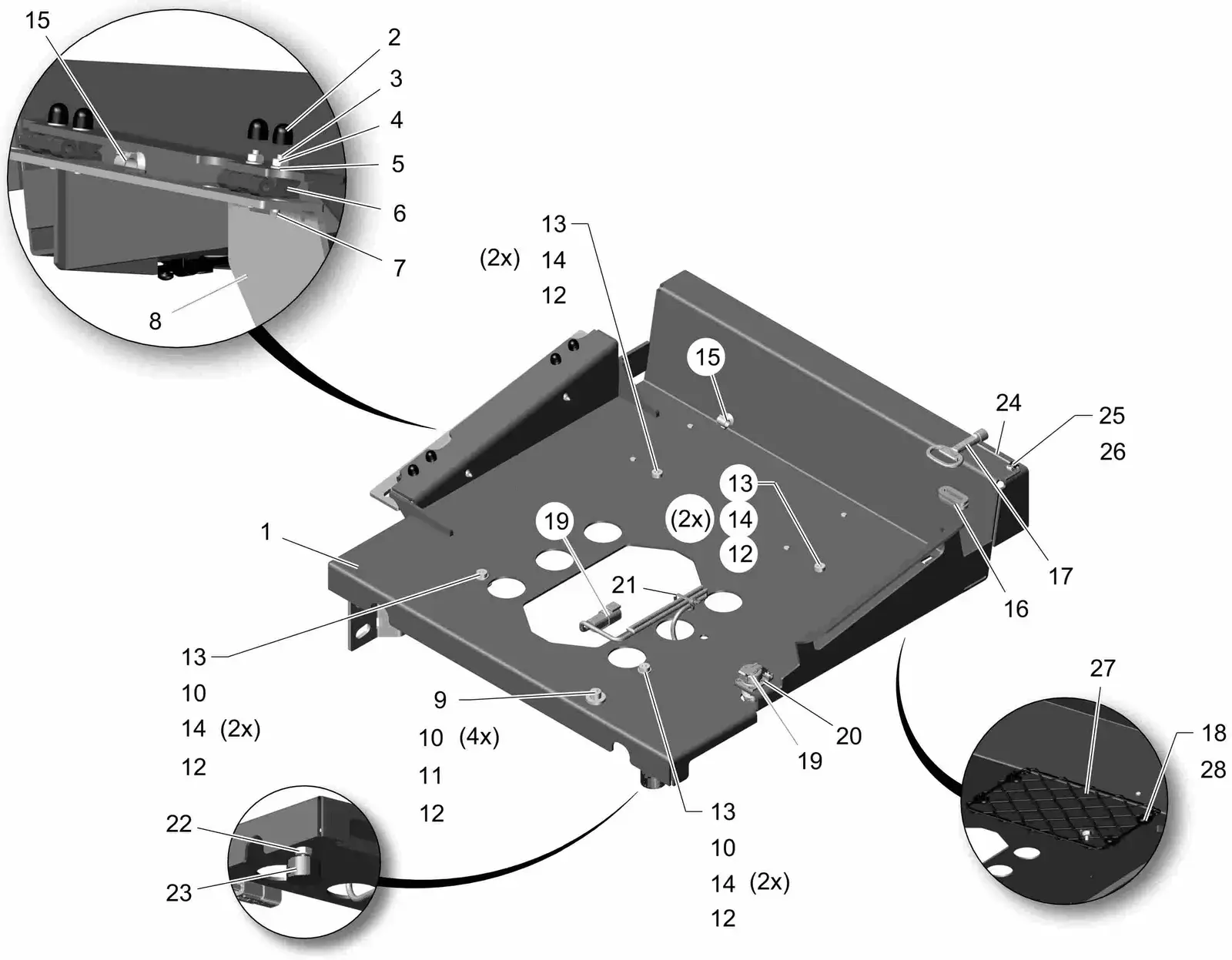

PowerBoss Scrubmaster B175R Seat plate parts
The seat console plate: sheet metal, hinge, bearing plate and fixings. It is the same in all three catalogs. Manual pages 33C p19, list 33C p20.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03020250 | 1 | seat sheet metalHako material no. 96172762. | $721.52/EA |
| 2 | MM00525910 | 4 | Lens cap 1000/1069 SWHako material no. 15592025. | $0.90/EA |
| 3 | MM01271620 | 4 | Countersunk screw M6x20-8.8-N2 ISO 10642Hako material no. 11225681. | $1.00/EA |
| 4 | MM12022042 | 4 | Hex. Nut M6-8 A2G DIN 934Hako part no. 00053330. | $1.08/EA |
| 5 | MM00740280 | 4 | Washer SKS-6-dacrometisiertHako material no. 12520011. | $2.43/EA |
| 6 | MM00740450 | 2 | HingeHako material no. 90342411. | $8.60/EA |
| 7 | MM00872460 | 4 | Countersunk screw M6x16-8.8-N2 ISO 10642Hako material no. 11225273. | $9.31/EA |
| 8 | MM01373720 | 1 | bearing sheet metalHako material no. 92044650. | $184.75/EA |
| 9 | MM00045540 | 1 | socket head screw M8x20-8.8-N3 ISO 4762Hako material no. 11126109. | $1.05/EA |
| 10 | MM12310041 | 6 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 11 | MM00740310 | 1 | Washer SKS-8-dacrometisiertHako material no. 12520029. | $1.05/EA |
| 12 | MM12040051 | 5 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 13 | MM00102790 | 4 | Cylinder head screw M8x25-8.8 A2G DIN 7984Hako material no. 11132057. | $1.00/EA |
| 14 | MM600940Replaces PowerBoss 00042900 | 8 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 15 | MM01493500 | 3 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 16 | MM00028800 | 1 | Socket HV 1607Hako material no. 90135690. | $1.19/EA |
| 17 | MM00071900 | 1 | KeyHako material no. 90329541. | $3.69/EA |
| 18 | MM00051890 | 4 | Countersunk screw M4x16-4.8-H A2G DIN 965Hako material no. 11206075. | $1.05/EA |
| 19 | MM01371470 | 1 | USB charging connectionHako material no. 92005412. | $287.83/EA |
| 20 | MM01110570 | 4 | Screw M3x8-St A2B DIN 7500-PEHako material no. 11702149. | $1.05/EA |
| 21 | MM90156688 | 2 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 22 | MM12022059 | 1 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. | $5.51/EA |
| 23 | MM00538440 | 1 | Buffer Phönix 781073Hako material no. 90221730. | $5.03/EA |
| 24 | MM03023330 | 1 | allen wrench SW4Hako material no. 92017755. | $1.00/EA |
| 25 | MM00903290 | 1 | Tube clamp RSGU1.5/9-W1Hako material no. 17529140. | $1.58/EA |
| 26 | MM00501420 | 1 | Screw C M4x12St A2G DIN 7500Hako material no. 11702057. | $1.05/EA |
| 27 | MM01172540 | 1 | Luggage rackHako material no. 90555848. | $61.49/EA |
| 28 | MM12040028 | 4 | Hex. Nut M4-6 A2G DIN 985Hako part no. 00133830. | $4.15/EA |

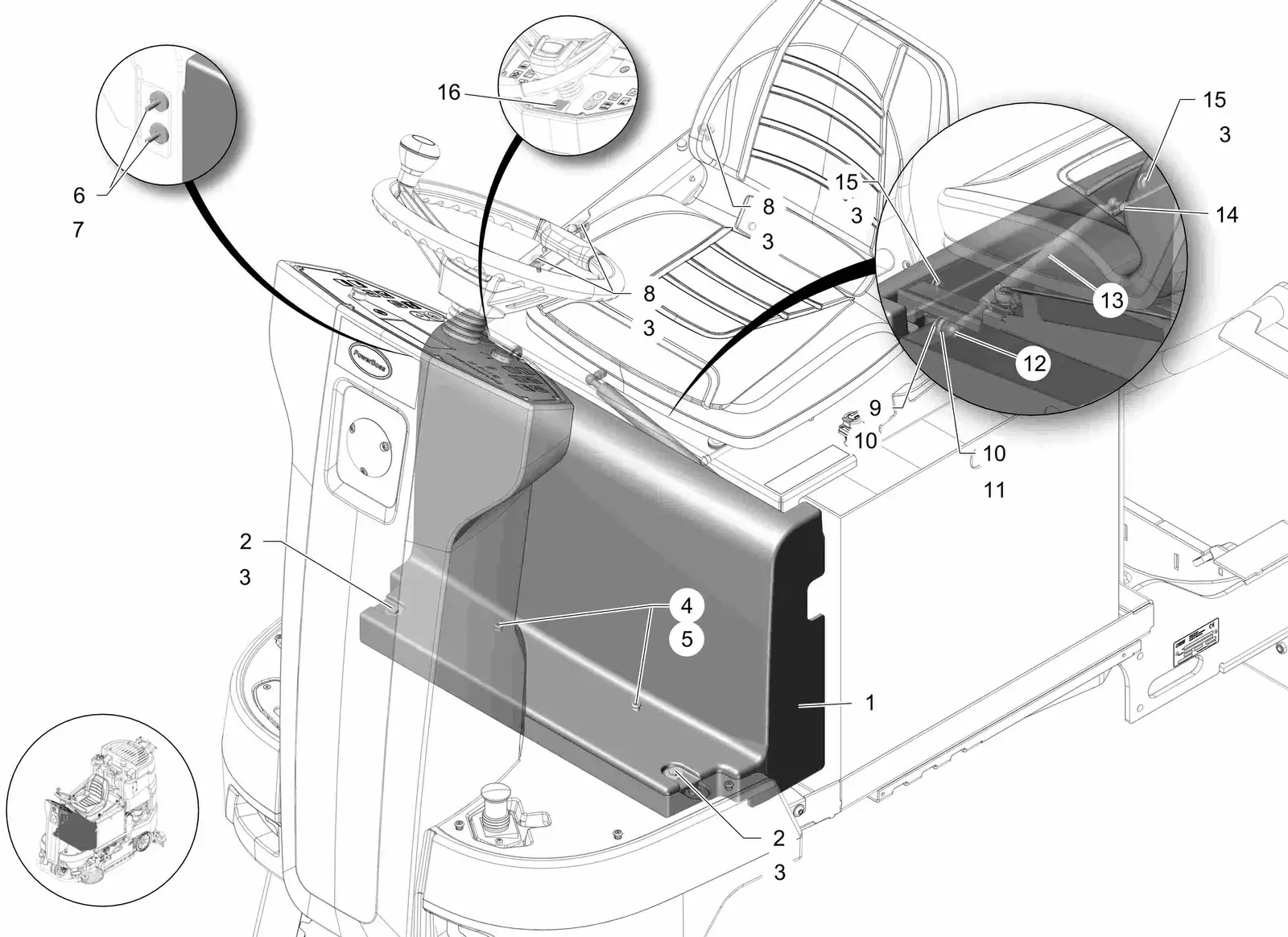

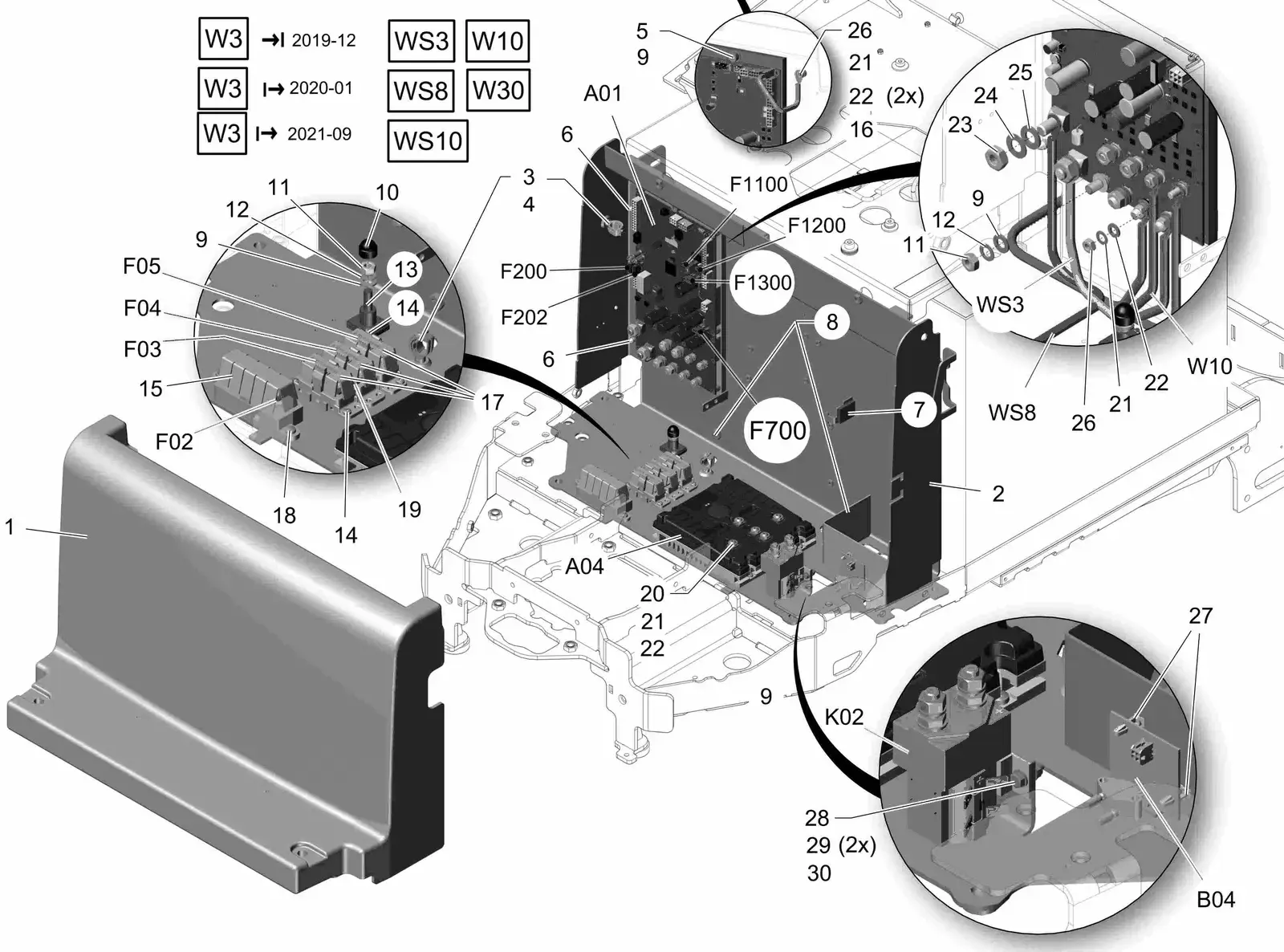

PowerBoss Scrubmaster B175R Operation area - covering for electric equipment parts
The covering over the electrical equipment with its knobs, wheels and bushings. It is the same in all three catalogs. Manual pages 33C p21, list 33C p22.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372210 | 1 | coveringHako material no. 90699992. | $287.83/EA |
| 2 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Hako material no. 11038304. | $1.05/EA |
| 3 | MM600940Replaces PowerBoss 00042900 | 7 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 4 | MM01073130 | 2 | KnobHako material no. 90417007. | $3.47/EA |
| 5 | MM01073120 | 2 | Amtec screw B52005-4,0x25-10.9 weiß verz.Hako material no. 11709210. | $1.05/EA |
| 6 | MM11038247 | 2 | hexagon screw M8x25-8.8-N3 ISO 4017Hako part no. 00053100. | $1.08/EA |
| 7 | MM12515086 | 2 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
| 8 | MM718010Replaces PowerBoss 00553690 | 3 | hexagon screw M8x18-8.8-N3 ISO 4017Hako material no. 11038635. | $1.05/EA |
| 9 | MM01373600 | 1 | bushingHako material no. 92031947. | $12.46/EA |
| 10 | MM711592Replaces PowerBoss 01102770 | 2 | Approach disk 12,5x26x1,5-POMHako material no. 14898019. | Call to confirm part: 800-440-6723 |
| 11 | MM730526Replaces PowerBoss 00902280 | 1 | Washer 8-200HV-A4-70 ISO 7093Hako material no. 12332136. | $1.08/EA |
| 12 | MM00527690 | 1 | Angle joint CS13 A2G DIN 71802Hako material no. 16046021. | $7.21/EA |
| 13 | MM01111640 | 1 | Gas-pressurized springHako material no. 90518721. | $66.78/EA |
| 14 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 15 | MM00704610 | 2 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Hako material no. 11720117. | $1.05/EA |
| 16 | MM03019480 | 1 | adhesive labelHako material no. 17220039. | $1.05/EA |

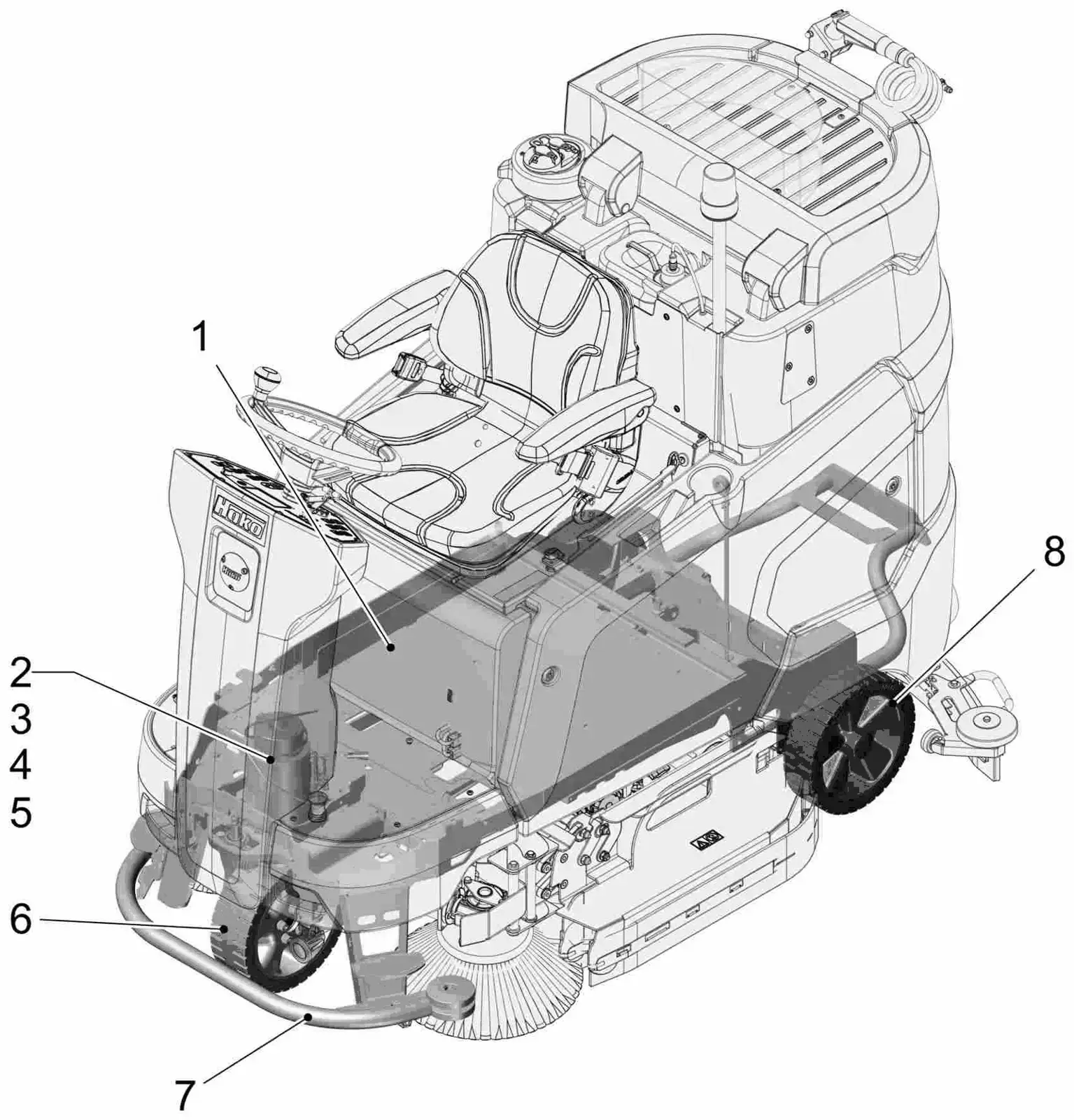

PowerBoss Scrubmaster B175R Chassis (97140578_30) parts
The 33C chassis group: traction drive, sensors, brake repair set, wheel, front bumper and rear axle. Items marked Not available have their own lists. This group is in the 33C catalog only. Manual pages 33C p23, list 33C p24.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97141253 | ChassisFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Chassis (97141253) | |
| 2 | MM01371270 | 1 | traction drive AC 36V 1,9kWFits 1 of 3 versions33C with side broom | $4,033.19/EA |
| 3 | MM01379670 | 1 | temperature sensor, cpl.Fits 1 of 3 versions33C with side broom | $72.22/EA |
| 4 | MM01379880PowerBoss 01379880 | 1 | sensor, cpl.Fits 1 of 3 versions33C with side broom | Call to confirm part: 800-440-6723 |
| 5 | MM01383440 | 1 | repairing set BrakeFits 1 of 3 versions33C with side broom | $543.97/EA |
| 6 | MM01371440 | 1 | wheelFits 1 of 3 versions33C with side broom | $486.19/EA |

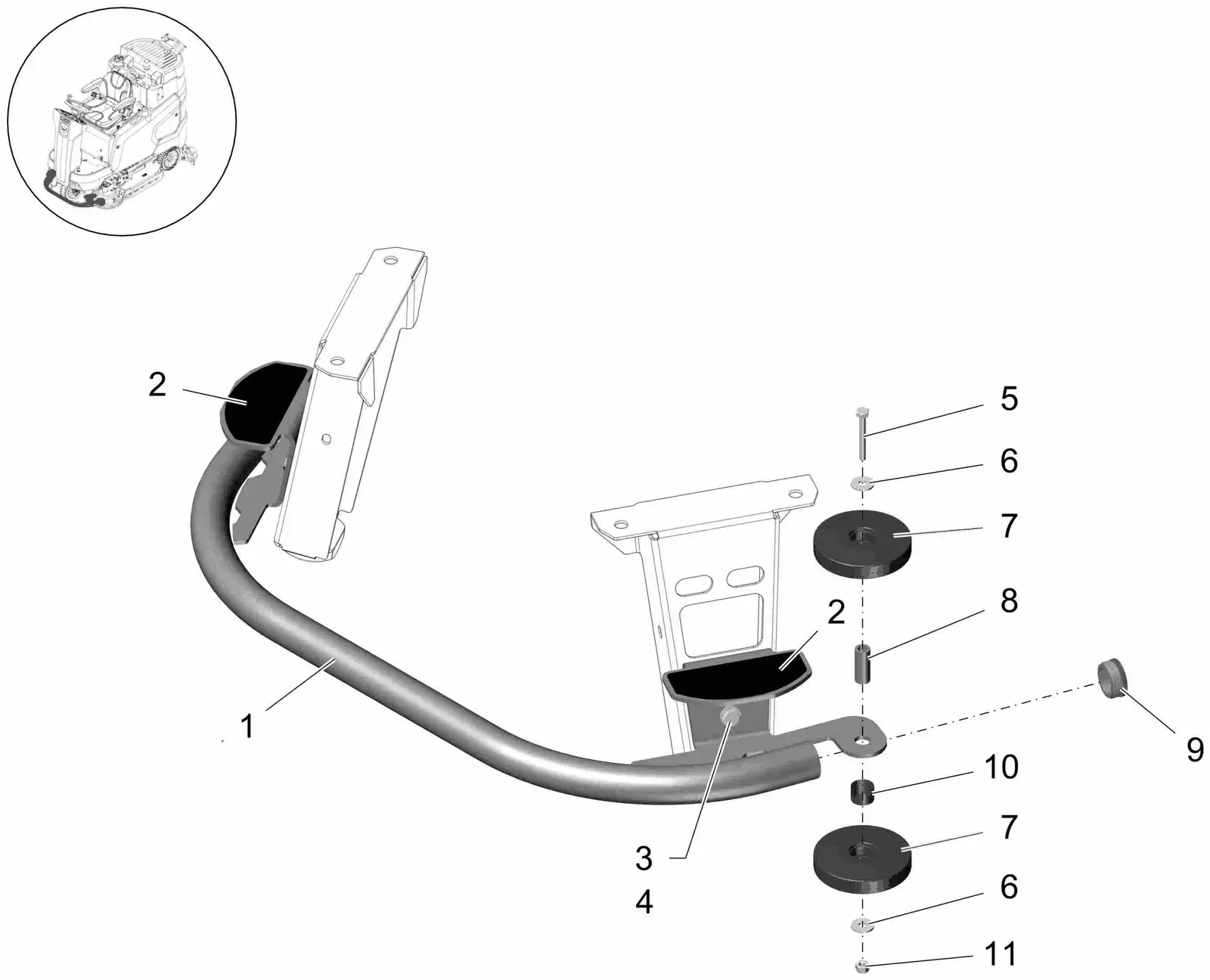

| 7 | Not sold separatelyPowerBoss 97141212 | Front bumper side broomFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Front bumper side broom | |
| 8 | Not sold separatelyPowerBoss 97141246 | Rear axle, not drivenFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Rear axle, not driven |

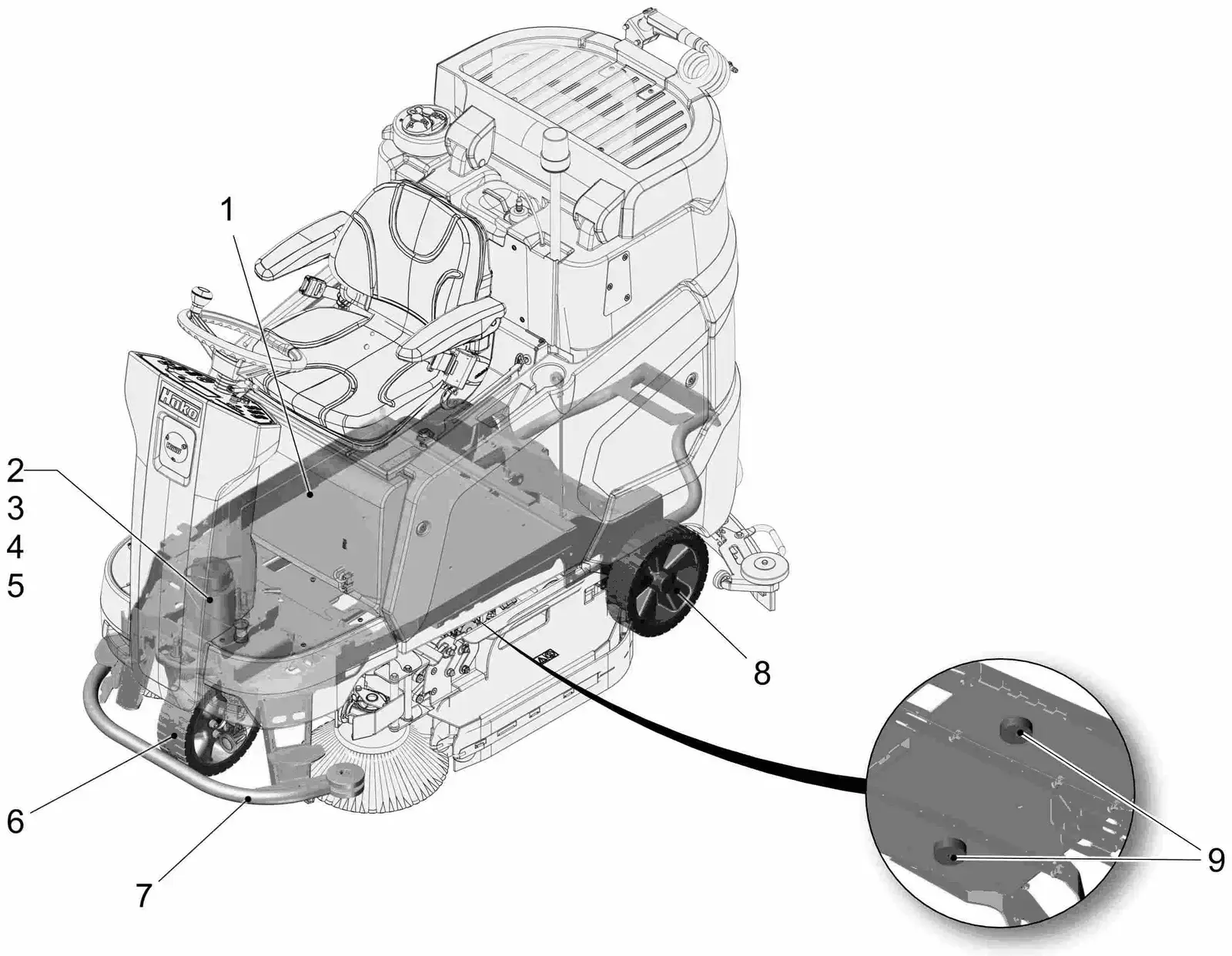

PowerBoss Scrubmaster B175R Chassis (97140578_27) parts
The 35D and 42D chassis group: traction drive, sensors, brake repair set, wheel, buffer, rear axle and the front bumper for each brush head size. Manual pages 35D p57, list 35D p58.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97141253_27 | ChassisFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Chassis (97141253) | |
| 2 | MM01371270 | 1 | traction drive AC 36V 1,9kWFits 2 of 3 versions35D, 42D | $4,033.19/EA |
| 3 | MM01379670 | 1 | temperature sensor, cpl.Fits 2 of 3 versions35D, 42D | $72.22/EA |
| 4 | MM01379880PowerBoss 01379880 | 1 | sensor, cpl.Fits 2 of 3 versions35D, 42D | Call to confirm part: 800-440-6723 |
| 5 | MM01383440 | 1 | repairing set BrakeFits 2 of 3 versions35D, 42D | $543.97/EA |
| 6 | MM01371440 | 1 | wheelFits 2 of 3 versions35D, 42D | $486.19/EA |

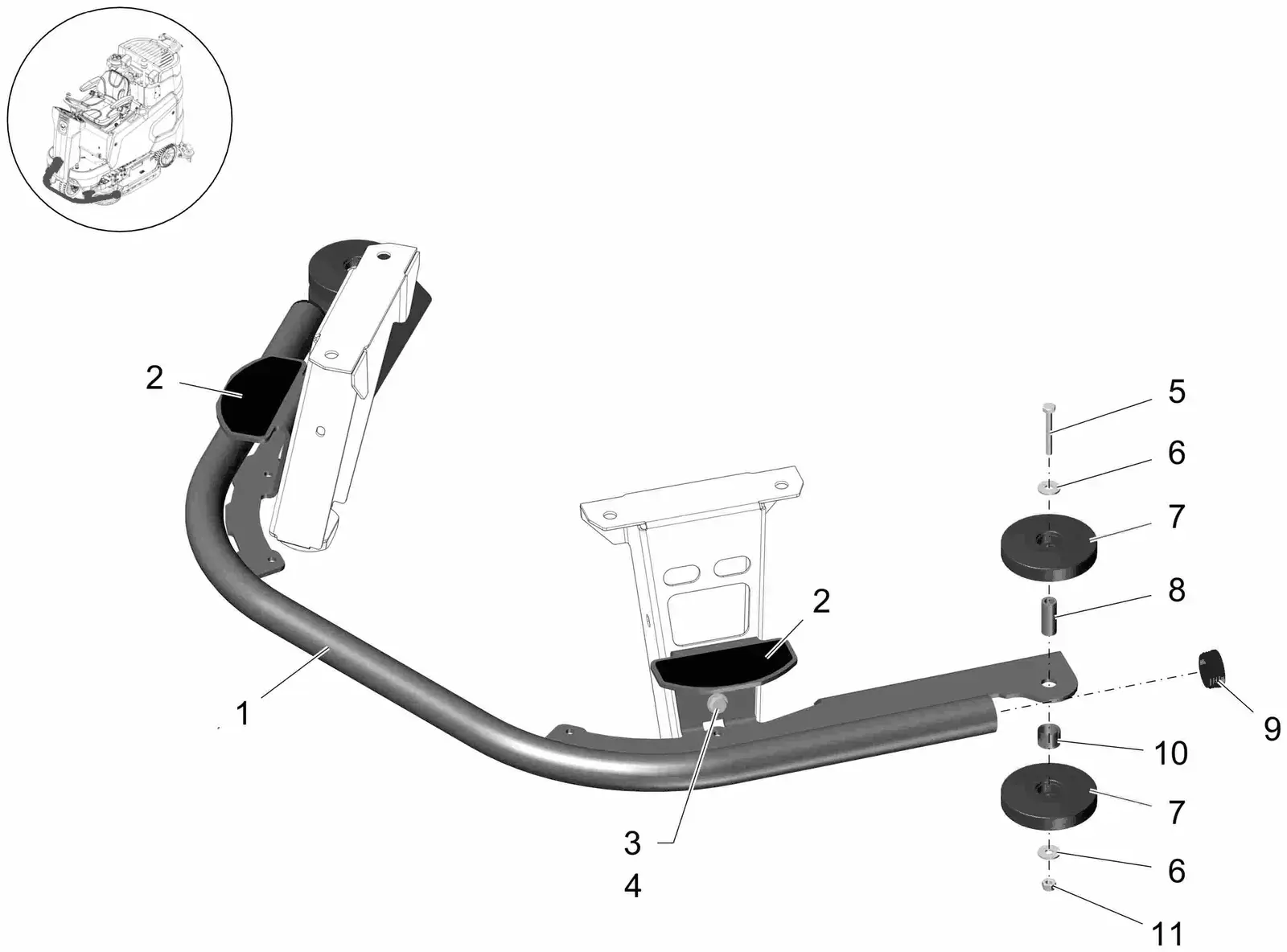

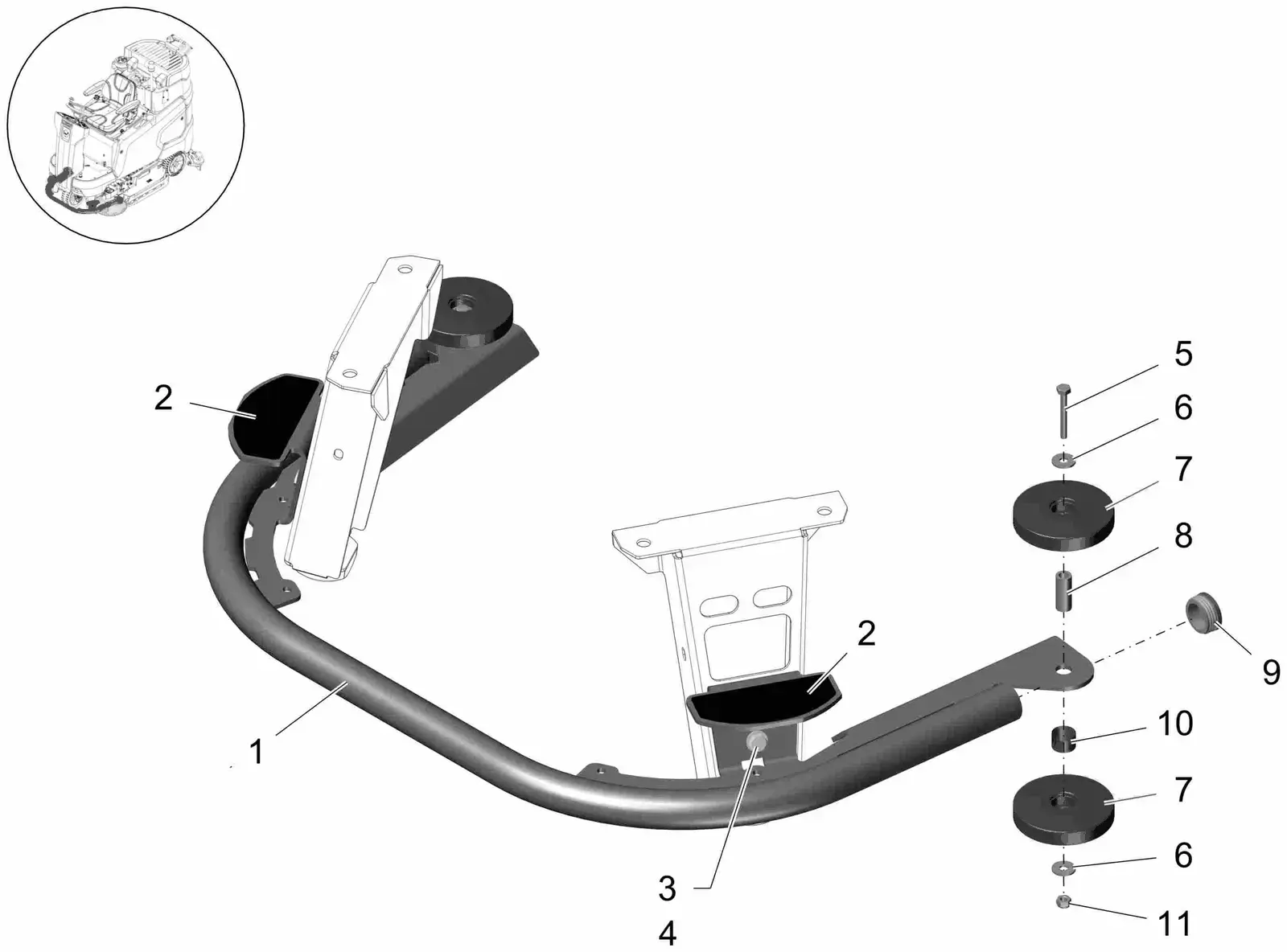

| 7 | Not sold separatelyPowerBoss 97144950 | Front bumper disk brush head 900 / cyl. brush head 850Fits 1 of 3 versions35D | Not sold separately. Its parts are listed under Front bumper disk brush head 900 / cyl. brush head 850 | |
| 7 | Not sold separatelyPowerBoss 97144976 | Front bumper disk brush head 1080Fits 1 of 3 versions42D | Not sold separately. Its parts are listed under Front bumper disk brush head 1080 | |
| 8 | Not sold separatelyPowerBoss 97141246 | Rear axle, not drivenFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Rear axle, not driven | |
| 9 | MM01278160 | 2 | BufferFits 2 of 3 versions35D, 42D | $4.67/EA |

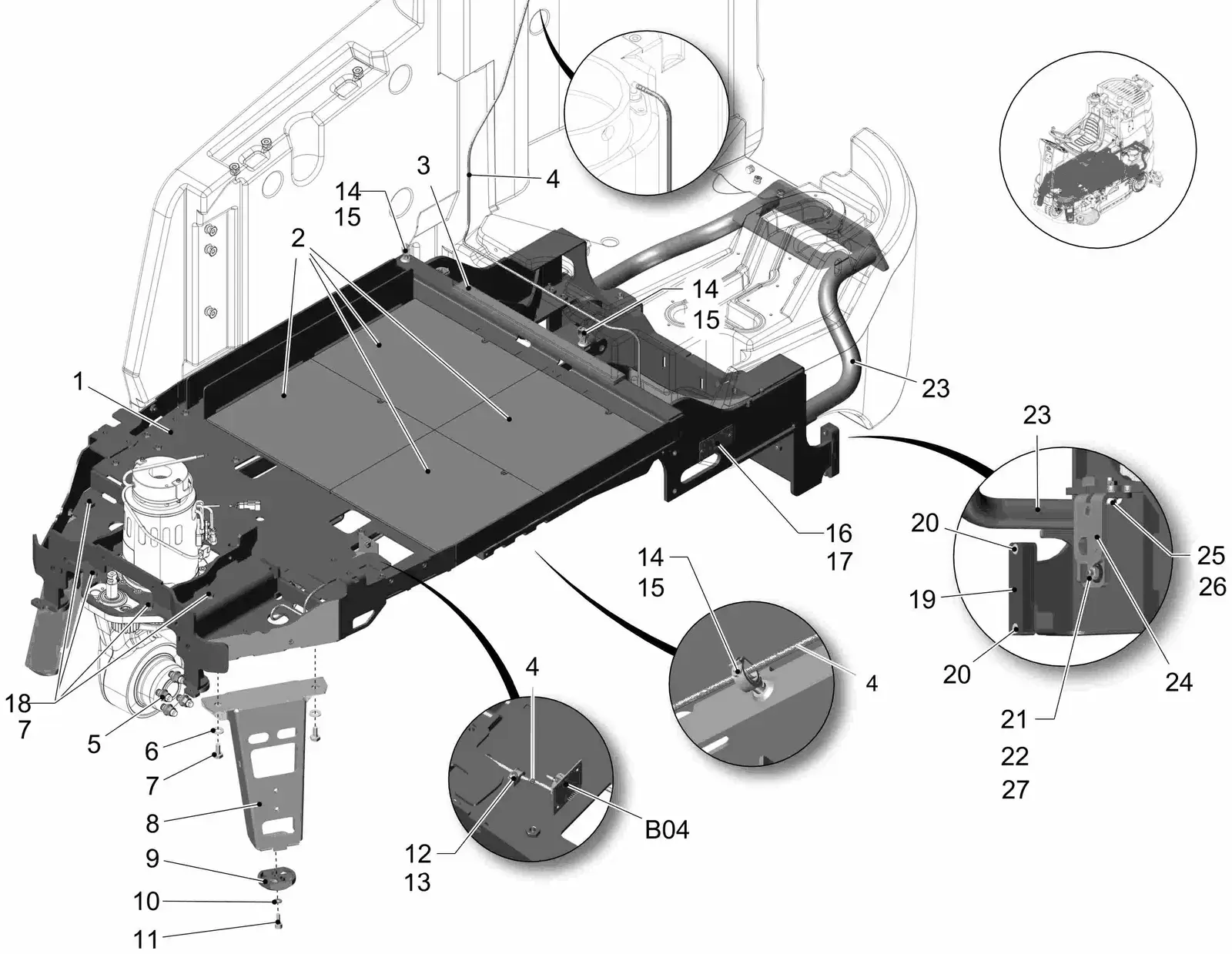

PowerBoss Scrubmaster B175R Chassis (97141253) parts
The chassis frame with its mat, supports, hoses and the spherical collar nuts. It is the same in all three catalogs. Manual pages 33C p25, list 33C p26.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03020230 | 1 | chassisHako material no. 96160239. | $2,456.30/EA |
| 2 | MM01371760 | 4 | matHako material no. 92007541. | $16.51/EA |
| 3 | MM01371730 | 1 | supportHako material no. 90696204. | $19.85/EA |
| 4 | MM01372290 | 2.57 M | hose 4x1 Norflex PUR 401 MHFHako material no. 25842196. Quantity printed 2,570 M. | $7.75/EA |
| 5 | MM00156320 | 5 | Spherical collar nut A12-8 A3G DIN 74361Hako material no. 16552010. With every exchange of wheel exchange the nuts, too, please. | $4.58/EA |
| 6 | MM11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Hako part no. 00021130. | $1.44/EA |
| 7 | MM00740290 | 10 | Detent edged washer SKM-10Hako material no. 12520061. | $1.05/EA |
| 8 | MM01373890 | 2 | supportHako material no. 96155973. | $164.35/EA |
| 9 | MM01371320 | 2 | stayHako material no. 92009976. | $10.56/EA |
| 10 | MM00740310 | 2 | Washer SKS-8-dacrometisiertHako material no. 12520029. | $1.05/EA |
| 11 | MM00045540 | 2 | socket head screw M8x20-8.8-N3 ISO 4762Hako material no. 11126109. | $1.05/EA |
| 12 | MM00100550 | 1 | Clamp A6 NylfixHako material no. 17521014. | $1.05/EA |
| 13 | MM00959220 | 1 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 14 | MM01370250 | 9 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 15 | MM01370240 | 9 | mounting feetHako material no. 17526237. | $1.05/EA |
| 16 | MM01073780 | 1 | NameplateHako material no. 17212103. | $2.03/EA |
| 17 | MM00131600 | 2 | Rivet F3x10-AlHako material no. 13165055. | $1.22/EA |
| 18 | MM00053160 | 6 | hexagon screw M10x30-8.8-N3 ISO 4017Hako material no. 11038379. | $1.05/EA |
| 19 | MM01372250 | 2 | bufferHako material no. 92011311. | $23.34/EA |
| 20 | MM00508990 | 4 | Countersunk screw M6x25-8.8-N2 ISO 10642Hako material no. 11225307. | $1.05/EA |
| 21 | MM12022059 | 2 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. | $5.51/EA |
| 22 | MM00740080 | 2 | Washer SKB-8-dacrometisiertHako material no. 12520087. | $1.22/EA |
| 23 | MM01373940 | 1 | bumperHako material no. 96162250. | $324.80/EA |
| 24 | MM01373760 | 2 | angleHako material no. 96153879. | $36.97/EA |
| 25 | MM11038247 | 2 | hexagon screw M8x25-8.8-N3 ISO 4017Hako part no. 00053100. | $1.08/EA |
| 26 | MM00740090 | 2 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 27 | MM01112000 | 2 | Threaded pin M8x30-45H-A2B ISO 4026Hako material no. 11331063. | $1.05/EA |
| B04 | MM01371480 | 1 | pressure sensorHako material no. 92013481. fresh water sensor; Attention. Sensor must be calibrated. | $277.58/EA |
PowerBoss Scrubmaster B175R Front bumper disk brush head 1080 parts
The front bumper for the 1080 disk brush head, with deflector rollers and sealing plugs. This group is in the 42D catalog only. Manual pages 42D p61, list 42D p62.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372200 | 1 | bumper 1080Fits 1 of 3 versions42D | $307.45/EA |
| 2 | MM01372260 | 2 | decalFits 1 of 3 versions42D | $4.67/EA |
| 3 | MM11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Fits 1 of 3 versions42D | $1.44/EA |
| 4 | MM00740290 | 4 | Detent edged washer SKM-10Fits 1 of 3 versions42D | $1.05/EA |
| 5 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 1 of 3 versions42D | $1.05/EA |
| 6 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions42D | $1.11/EA |
| 7 | MM90548397 | 4 | Deflector rollerFits 1 of 3 versions42D | $4.29/EA |
| 8 | MM00975110 | 2 | BushingFits 1 of 3 versions42D | $8.47/EA |
| 9 | MM01135410 | 2 | sealing plug 40x11,5 1,0-3,0Fits 1 of 3 versions42D | $1.54/EA |
| 10 | MM01228800 | 0.04 M | Hose 18x3Fits 1 of 3 versions42D | $101.55/EA |
| 11 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42D | $4.15/EA |
PowerBoss Scrubmaster B175R Front bumper side broom parts
The front bumper for the side broom machine, with deflector rollers and sealing plugs. This group is in the 33C catalog only. Manual pages 33C p27, list 33C p28.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372320 | 1 | bumperFits 1 of 3 versions33C with side broom | $202.27/EA |
| 2 | MM01372260 | 2 | decalFits 1 of 3 versions33C with side broom | $4.67/EA |
| 3 | MM11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Fits 1 of 3 versions33C with side broom | $1.44/EA |
| 4 | MM00740290 | 4 | Detent edged washer SKM-10Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 5 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 6 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions33C with side broom | $1.11/EA |
| 7 | MM90548397 | 4 | Deflector rollerFits 1 of 3 versions33C with side broom | $4.29/EA |
| 8 | MM00975110 | 2 | BushingFits 1 of 3 versions33C with side broom | $8.47/EA |
| 9 | MM01135410 | 2 | sealing plug 40x11,5 1,0-3,0Fits 1 of 3 versions33C with side broom | $1.54/EA |
| 10 | MM01228800 | 0.04 M | Hose 18x3Fits 1 of 3 versions33C with side broom | $101.55/EA |
| 11 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions33C with side broom | $4.15/EA |
PowerBoss Scrubmaster B175R Front bumper disk brush head 900 / cyl. brush head 850 parts
The front bumper for the 900 disk brush head, with deflector rollers and sealing plugs. This group is in the 35D catalog only. Manual pages 35D p61, list 35D p62.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372130 | 1 | bumperFits 1 of 3 versions35D | $278.09/EA |
| 2 | MM01372260 | 2 | decalFits 1 of 3 versions35D | $4.67/EA |
| 3 | MM11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Fits 1 of 3 versions35D | $1.44/EA |
| 4 | MM00740290 | 4 | Detent edged washer SKM-10Fits 1 of 3 versions35D | $1.05/EA |
| 5 | MM00053130 | 2 | hexagon screw M8x55-8.8-N3 ISO 4017Fits 1 of 3 versions35D | $1.05/EA |
| 6 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-200HV-N2Fits 1 of 3 versions35D | $1.11/EA |
| 7 | MM90548397 | 4 | Deflector rollerFits 1 of 3 versions35D | $4.29/EA |
| 8 | MM00975110 | 2 | BushingFits 1 of 3 versions35D | $8.47/EA |
| 9 | MM01135410 | 2 | sealing plug 40x11,5 1,0-3,0Fits 1 of 3 versions35D | $1.54/EA |
| 10 | MM01228800 | 0.04 M | Hose 18x3Fits 1 of 3 versions35D | $101.55/EA |
| 11 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions35D | $4.15/EA |
PowerBoss Scrubmaster B175R Rear axle, not driven parts
The rear axle: spindle support, wheels, bearings and fixings. It is the same in all three catalogs. Manual pages 33C p29, list 33C p30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038346 | 8 | hexagon screw M10x25-8.8-N3 ISO 4017Hako part no. 00053310. | $1.08/EA |
| 2 | MM00740290 | 8 | Detent edged washer SKM-10Hako material no. 12520061. | $1.05/EA |
| 3 | MM00154410PowerBoss 00154410 | 2 | socket head screw M8x16-8.8-N3 ISO 4762Hako material no. 11126059. | Call to confirm part: 800-440-6723 |
| 4 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 5 | MM01373880 | 2 | spindle supportHako material no. 96155858. | $274.56/EA |
| 6 | MM01371550 | 2 | wheelHako material no. 96161567. | $508.61/EA |
| 7 | MM00022460 | 2 | Retaining ring 25x1,2-phos. DIN 471Hako material no. 12610101. | $1.22/EA |
| 8 | MM01171530 | 2 | CapHako material no. 90548272. | $7.37/EA |
| 9 | MM00281050 | 2 | Deep groove ball bearing 6005-2RS DIN 625Hako material no. 14110225. | $50.09/EA |
PowerBoss Scrubmaster B175R Water system parts
The three groups that make up the 33C water system. This list has no drawing and is in the 33C catalog only. Manual page 33C p31.
No drawing for this list. PowerBoss prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 010 | Not sold separatelyPowerBoss 97140115-3 | Without option onboard solution dosage but with spraying toolsFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Without option onboard solution dosage but with spraying tools | ||
| 020 | Not sold separatelyPowerBoss 97145486 | Preliminary parts for spraying tools on water plateFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Preliminary parts for spraying tools on water plate | ||
| 030 | MM97138200PowerBoss 97138200 | Tank connection water systemFits 1 of 3 versions33C with side broom | Call to confirm part: 800-440-6723 | ||
| 040 | MM97142061PowerBoss 97142061 | Preliminary parts for spraying toolsFits 1 of 3 versions33C with side broom | Call to confirm part: 800-440-6723 |
PowerBoss Scrubmaster B175R Without option onboard solution dosage but with spraying tools parts
The water plate without the on-board dosing option: pump, electrovalve, water filter and hoses. The drawing shows the machines with and without the option. Manual pages 33C p32, list 33C p33-34.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373870 | 1 | sheet metalHako material no. 96155841. | $297.09/EA |
| 2 | MM90330168 | 2 | Screwed angle fittingHako part no. 00154140. | $3.43/EA |
| 3 | MM01389740 | 7 | hose clampHako material no. 17528332. | $2.33/EA |
| 4 | MM00112010 | 0.05 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,050 M. | $11.83/EA |
| 5 | MM00112010 | 0.2 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,200 M. | $11.83/EA |
| 6 | MM01073340 | 1 | Cable tieHako material no. 90436650. | $11.53/EA |
| 7 | MM90329095 | 1 | Pump 24V DCHako part no. 00543750. | $132.57/EA |
| 8 | MM19719517 | 1 | pin housingHako part no. 01135470. | $2.31/EA |
| 9 | MM01063790 | 2 | Pin contact 1,0-1,5Hako material no. 19719152. | $1.05/EA |
| 10 | MM19719145 | 2 | Gasket 1,8-2,4Hako part no. 00903580. | $1.08/EA |
| 11 | MM19724020 | 1 | Flat connector 6,3/1,5-2,5Hako part no. 00903190. | $1.08/EA |
| 12 | MM01052080 | 1 | Valve plate;for options. | $95.77/EA |
| 13 | MM00112010 | 0.12 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,120 M. | $11.83/EA |
| 14 | MM90435595 | 1 | Electrovalve DL6 24V DCHako part no. 01071000. | $126.95/EA |
| 15 | MM01278080 | 2 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 16 | MM90174970 | 2 | Angle socket "WES12R3/8"""Hako part no. 00020020. | $5.06/EA |
| 17 | MM00112010 | 0.32 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,320 M. | $11.83/EA |
| 18 | MM11038965 | 2 | hexagon screw M4x10-8.8-N3 DIN 933Hako part no. 00058580. | $6.92/EA |
| 19 | MM12310017 | 4 | Washer 4-200HV-N3 ISO 7089Hako part no. 00053710. | $1.38/EA |
| 20 | Not sold separatelyPowerBoss 97145486 | Preliminary parts for spraying tools on water plateNot sold separately. Has sub-assemblies, listed under Preliminary parts for spraying tools on water plate. All yellow parts on drawing. | Not sold separately. Its parts are listed under Preliminary parts for spraying tools on water plate | |
| 21 | MM01370250 | 2 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 22 | MM01370240 | 2 | mounting feetHako material no. 17526237. | $1.05/EA |
| 23 | MM01179160 | 1 | Decal yellow pointHako material no. 17267717. | $1.05/EA |
| 24 | MM00112010 | 0.1 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,100 M. | $11.83/EA |
| 25 | MM97113377 | 1 | Water filterHako part no. 01077170. | $55.34/EA |
| 26 | MM90576778 | 1 | Filter coverHako part no. 01177090. | $24.28/EA |
| 27 | MM90542549 | 1 | StrainerHako part no. 01178210. | $8.50/EA |
| 28 | MM15282155 | 1 | O-ring 62x2,5-N-NBR70 DIN 3771Hako part no. 01178130. | $1.28/EA |
| 29 | MM01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 30 | MM00112010 | 0.08 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,080 M. | $11.83/EA |
| 31 | MM90310665 | 2 | screwed plug GES 12 R3/8Hako part no. 00976140. | $2.21/EA |
| 32 | MM00952760 | 1 | Ball tapHako material no. 90315375. | $42.91/EA |
| 33 | MM01371990 | 1 | valve connectorHako material no. 90530635. | $45.53/EA |
PowerBoss Scrubmaster B175R Preliminary parts for spraying tools on water plate
The hose clamps, T-piece and hoses for the spraying tools on the water plate. It is the same in all three catalogs. Manual pages 33C p35, list 33C p36.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01389740 | 9 | hose clampHako material no. 17528332. | $2.33/EA |
| 2 | MM90310681 | 3 | T-piece TS12Hako part no. 00976160. | $5.25/EA |
| 3 | MM01371810 | 1 | recycling stopHako material no. 92032416. | $11.83/EA |
| 4 | MM01372620 | 1 | plain bearing bush GSM-1012-12Hako material no. 14895825. | $1.54/EA |
| 5 | MM00112010 | 0.06 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,060 M. | $11.83/EA |
| 6 | MM00112010 | 0.22 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,220 M. | $11.83/EA |
PowerBoss Scrubmaster B175R Tank connection water system parts
The hoses, clamps and fixings for the tank connection. It is the same in all three catalogs. Manual pages 33C p39, list 33C p40.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038197 | 4 | hexagon screw M8x16-8.8-N3 ISO 4017Hako part no. 00053080. | $4.15/EA |
| 2 | MM00740090 | 4 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 3 | MM01389740 | 3 | hose clampHako material no. 17528332. | $2.33/EA |
| 4 | MM90156688 | 4 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 5 | MM00112010 | 1.61 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 1,610 M. | $11.83/EA |
PowerBoss Scrubmaster B175R Preliminary parts for spraying tools
The hoses and clamps that prepare the machine for the spraying tools. It is the same in all three catalogs. Manual pages 33C p41, list 33C p42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3302144Replaces PowerBoss 01015350 | 1 | Hose clamp A-12-20x 9-W1-2 DIN 3017Hako material no. 17533159. | $5.02/EA |
| 2 | MM00112010 | 2.47 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 2,470 M. | $11.83/EA |
| 3 | MM90156688 | 4 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 4 | MM01389740 | 1 | hose clampHako material no. 17528332. | $2.33/EA |
PowerBoss Scrubmaster B175R Electric equipment parts
The electrical equipment covers, gaskets and the signal horn. Item 13, the electric plate, has a 33C line and a 35D and 42D line; the rest is the same in all three catalogs. Manual pages 33C p43, list 33C p44.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373390 | 1 | splash guard L.H.Hako material no. 92017615. | $44.73/EA |
| 2 | MM01133350 | 4 | Lens flange screw M8x12-10.9-N8 ISO7380-2Hako material no. 11177195. | $1.05/EA |
| 3 | MM01372230 | 1 | gasket L.H.Hako material no. 92021021. | $3.90/EA |
| 4 | MM01373430 | 1 | gasket sheet metalHako material no. 92019363. | $78.76/EA |
| 5 | MM01222400 | 0.51 M | Sealing tape blackHako material no. 25505348. Quantity printed 0,510 M. | $10.88/EA |
| 6 | MM01372340 | 1 | gasket R.H.Hako material no. 92021039. | $3.90/EA |
| 7 | MM00050810 | 1 | Signal horn 40V HellaHako material no. 90194911. | $205.40/EA |
| 8 | MM01373360 | 1 | splash guard R.H.Hako material no. 92015718. | $44.73/EA |
| 9 | MM11038213 | 5 | hexagon screw M8x20-8.8-N3 ISO 4017Hako part no. 00053090. | $4.15/EA |
| 10 | MM00740090 | 6 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 11 | MM00536320 | 1 | hexagon screw M8x14-8.8-N3 ISO 4017Hako material no. 11038874. | $1.05/EA |
| 12 | MM15592033 | 1 | Lens cap 1000/893 SWHako part no. 00131610. | $1.55/EA |
| 13 | Not sold separatelyPowerBoss EL_B175_38 | Electric plate, configurableFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Electric plate, configurable | |
| 13 | Not sold separatelyPowerBoss EL_B175_27 | Electric plate, configurableFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Electric plate, configurable |
PowerBoss Scrubmaster B175R Electric plate, configurable parts
The electric plate variants for the 33C. This list has no drawing and is in the 33C catalog only. Manual page 33C p45.
No drawing for this list. PowerBoss prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 010 | Not sold separatelyPowerBoss 97141907 | Base electric plateFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Base electric plate | ||
| 020 | Not sold separatelyPowerBoss 97159404 | Electric plate without onboard chargerFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Electric plate without onboard charger | ||
| 030 | Not sold separatelyPowerBoss 97141873 | Electric plate without 4-wheel driveFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Electric plate without 4-wheel drive | ||
| 040 | Not sold separatelyPowerBoss 97141857 | Electric plate with option side broom systemFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Electric plate with option side broom system |
PowerBoss Scrubmaster B175R Base electric plate parts
The base electric plate: controller, drive control, fuses, relay, wiring harnesses and cable looms. Harness W3 has three versions by date. It is the same in all three catalogs. Manual pages 33C p46, list 33C p47-48.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372210 | 1 | coveringHako material no. 90699992. | $287.83/EA |
| 2 | MM03020240 | 1 | carrierHako material no. 96166244. | $746.83/EA |
| 3 | MM01370250 | 3 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 4 | MM01370240 | 3 | mounting feetHako material no. 17526237. | $1.05/EA |
| 5 | MM00045540 | 1 | socket head screw M8x20-8.8-N3 ISO 4762Hako material no. 11126109. | $1.05/EA |
| 6 | MM01493500 | 2 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 7 | MM01222400 | 0.03 M | Sealing tape blackHako material no. 25505348. Quantity printed 0,030 M. | $10.88/EA |
| 8 | MM00151810 | 2 | hexagon screw M8x12-8.8-N3 ISO 4017Hako material no. 11038189. | $0.90/EA |
| 9 | MM12310041 | 8 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 10 | MM15592033 | 1 | Lens cap 1000/893 SWHako part no. 00131610. | $1.55/EA |
| 11 | MM12022059 | 5 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. | $5.51/EA |
| 12 | MM00053850 | 5 | Spring washer B8 A2G DIN 137Hako material no. 12510038. | $1.05/EA |
| 13 | MM00744670PowerBoss 00744670 | 1 | Single clamp EKS127AHako material no. 90268657. | Call to confirm part: 800-440-6723 |
| 14 | MM01112160 | 6 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 15 | MM01371390 | 1 | fuse holderHako material no. 19789346. | $20.99/EA |
| 16 | MM00872460 | 1 | Countersunk screw M6x16-8.8-N2 ISO 10642Hako material no. 11225273. | $9.31/EA |
| 17 | MM01473870 | 3 | Fuse holderHako material no. 19789338. | $15.55/EA |
| 18 | MM00959220 | 6 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 19 | MM01376390 | 1 | current barHako material no. 90633553. | $10.11/EA |
| 20 | MM11177179 | 5 | Lens flange screw M6x10-A2-70 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 21 | MM00053840 | 9 | Spring washer B6 A2G DIN 137Hako material no. 12510020. | $2.43/EA |
| 22 | MM12310033 | 10 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 23 | MM12022067 | 2 | Hex. Nut M10-8 A3G DIN 934Hako part no. 00053360. | $4.15/EA |
| 24 | MM00053860 | 2 | Spring washer B10 A3G DIN 137Hako material no. 12510053. | $1.05/EA |
| 25 | MM12310058 | 2 | Washer 10-200HV-N3 ISO 7089Hako part no. 00053760. | $4.15/EA |
| 26 | MM12022042 | 5 | Hex. Nut M6-8 A2G DIN 934Hako part no. 00053330. | $1.08/EA |
| 27 | MM00745840 | 2 | Print plate holder 4,8Hako material no. 19799014. | $1.05/EA |
| 28 | MM11038049 | 2 | hexagon screw M5x16-8.8-N3 ISO 4017Hako part no. 00054410. | $1.08/EA |
| 29 | MM12310025 | 4 | Washer 5-200HV-N2 ISO 7089Hako part no. 00053720. | $1.38/EA |
| 30 | MM12040036 | 2 | Hex. Nut M5-6 A2G DIN 985Hako part no. 00051340. | $2.75/EA |
| A01 | MM01385160 | 1 | controllerHako material no. 97501449. incl. fuses F200, F202, F700, F1100, F1200, F1300. | $2,503.58/EA |
| A04 | MM01371510 | 1 | driving control AC 36V 180AHako material no. 97139570. | $1,568.19/EA |
| B04 | MM01371480 | 1 | pressure sensorHako material no. 92013481. fresh water sensor; Attention. Sensor must be calibrated. | $277.58/EA |
| F02 | MM01371410 | 1 | fuse link 125A Mega 32VDCHako material no. 19731546. machine controller. | $7.79/EA |
| F03 | MM01371300 | 1 | fuse link 150A Midi 58VDCHako material no. 19731561. drive control front. | $4.67/EA |
| F04 | MM01371250 | 1 | fuse link 100A Midi 58VDCHako material no. 19731553. drive control rear. | $4.67/EA |
| F05 | MM01371170 | 1 | fuse link 30A Midi 58VDCHako material no. 19731595. front sweeper / side broom. | $4.67/EA |
| F200 | MM01376830 | 1 | fuse link FKS C3A 80VHako material no. 19731603. content of A1. | $5.44/EA |
| F202 | MM01376830 | 1 | fuse link FKS C3A 80VHako material no. 19731603. content of A1. | $5.44/EA |
| F700 | MM01376770 | 1 | fuse link FKS C25A 80VHako material no. 19731611. content of A1. | $5.44/EA |
| F1100 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Hako material no. 19731256. content of A1. | $4.31/EA |
| F1200 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Hako material no. 19731256. content of A1. | $4.31/EA |
| F1300 | MM00874970 | 1 | Fuse C10A/80V DIN 72581Hako material no. 19731256. content of A1. | $4.31/EA |
| K02 | MM00965060 | 1 | Solenoid switch 120ECS 40V ELMAHako material no. 90267949. | $146.64/EA |
| W3a | MM03020300 | 1 | wiring harness W3Hako material no. 97154264. til appr.2019-12. Valid until 2019-12. | $1,489.70/EA |
| W3b | MM03025870 | 1 | wire harness W3Hako material no. 97160501. from appr.2020-01. Valid from 2019-12. Valid until 2020-01. | $2,530.00/EA |
| W3c | MM03022810PowerBoss 03022810 | 1 | wiring harness W3Hako material no. 97184766. from appr.2021-09. Valid from 2021-09. | Call to confirm part: 800-440-6723 |
| W10 | MM03020410 | 1 | wiring harness W10Hako material no. 97142590. | $187.69/EA |
| W30 | MM03020280 | 1 | wiring harness W30Hako material no. 97140925. | $125.11/EA |
| WS3 | MM03020430 | 1 | cable loom WS3Hako material no. 97142970. | $36.97/EA |
| WS8 | MM03020290 | 1 | cable loom WS8Hako material no. 97140933. | $138.08/EA |
| WS10 | MM03020420 | 1 | cable loom WS10Hako material no. 97142939. | $15.55/EA |
PowerBoss Scrubmaster B175R Electric plate without onboard charger parts
The electric plate parts for a machine without the on-board charger: fuse holder, fuse, solenoid switch and connectors. It is the same in all three catalogs. Manual pages 33C p49, list 33C p50.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00733650 | 3 | Fuse holderHako material no. 19789106. content of wiring harness W2. | $2.06/EA |
| 2 | MM15592033 | 2 | Lens cap 1000/893 SWHako part no. 00131610. | $1.55/EA |
| 3 | MM00552300 | 2 | lens head screw M5x8-4.8-H-N2 ISO 7045Hako material no. 11175163. | $1.22/EA |
| 4 | MM00053830 | 2 | Spring washer A5 A2G DIN 137Hako material no. 12510012. | $1.05/EA |
| 5 | MM12310025 | 2 | Washer 5-200HV-N2 ISO 7089Hako part no. 00053720. | $1.38/EA |
| 6 | MM01373230 | 1 | retainerHako material no. 92010719. | $48.51/EA |
| 7 | MM01112160 | 4 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 8 | MM12310017 | 4 | Washer 4-200HV-N3 ISO 7089Hako part no. 00053710. | $1.38/EA |
| 9 | MM740159Replaces PowerBoss 01075720 | 1 | Connector red SR175Hako material no. 19738327. content of wiring harness W1. | $34.44/EA |
| F01 | MM01371450 | 1 | fuse link 7,5A 80VHako material no. 19731587. controller. | $3.90/EA |
| F19 | MM00874950 | 1 | Fuse C5A/80V-3 DIN 72581Hako material no. 19731272. horn. | $3.90/EA |
| K01 | MM01371500 | 1 | solenoid switch 1pol. 150A SPST / 36VHako material no. 92027176. | $148.18/EA |
| W1 | MM03021550 | 1 | wiring harness W1Hako material no. 97162127. | $359.78/EA |
| W2 | MM03020320 | 1 | wiring harness W2Hako material no. 97141048. | $219.77/EA |
| WS2 | MM03020510 | 1 | cable loom WS2Hako material no. 97141618. | $38.88/EA |
| WS4 | MM03020400 | 1 | cable loom WS4Hako material no. 97142335. | $37.93/EA |
PowerBoss Scrubmaster B175R Electric plate with option side broom system parts
The electric plate parts for the side broom option: relay, fuse, wiring harness and cable loom. This group is in the 33C catalog only. Manual pages 33C p51, list 33C p52.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01380230 | 4 | socket head screw M4x10-8.8-N2 ISO 4762Fits 1 of 3 versions33C with side broom | $1.00/EA |
| 2 | MM12310017 | 4 | Washer 4-200HV-N3 ISO 7089Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 3 | MM01015310 | 1 | socket head screw M5x10-8.8-N3 ISO 4762Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 4 | MM12310025 | 1 | Washer 5-200HV-N2 ISO 7089Fits 1 of 3 versions33C with side broom | $1.38/EA |
| A07 | MM01072710 | 1 | Side brushFits 1 of 3 versions33C with side broom | $709.39/EA |
| F05 | MM01371170 | 1 | fuse link 30A Midi 58VDCFits 1 of 3 versions33C with side broom | $4.67/EA |
| K05 | MM00965030 | 1 | Relay 24V 10A/20AFits 1 of 3 versions33C with side broom | $31.83/EA |
| W52 | MM03025760 | 1 | wiring harness W52Fits 1 of 3 versions33C with side broom | $570.60/EA |
| W52 | MM03020260 | 1 | wiring harness W52Fits 1 of 3 versions33C with side broom | $496.36/EA |
| WS21 | MM03021560 | 1 | cable loom WS21Fits 1 of 3 versions33C with side broom | $31.09/EA |
PowerBoss Scrubmaster B175R Electric plate without 4-wheel drive parts
The drain plug and cable loom WS6 for a machine without 4-wheel drive. It is the same in the 35D and 42D catalogs. Manual pages 35D p81, list 35D p82.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00152850 | 1 | Drain plug F232 WSFits 2 of 3 versions35D, 42D | $1.05/EA |
| WS6 | MM03020460 | 1 | cable loom WS6Fits 2 of 3 versions35D, 42D | $18.49/EA |
PowerBoss Scrubmaster B175R Electric plate with option pre-sweep unit parts
The electric plate parts for the pre-sweep unit option: relay carrier, solenoid switch, fuse and wiring harness. This group is in the 42D catalog only. Manual pages 42D p83, list 42D p84.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375540PowerBoss 01375540 | 1 | relay carrierFits 1 of 3 versions42D | Call to confirm part: 800-440-6723 |
| 2 | MM01380230 | 4 | socket head screw M4x10-8.8-N2 ISO 4762Fits 1 of 3 versions42D | $1.00/EA |
| 3 | MM12310017 | 14 | Washer 4-200HV-N3 ISO 7089Fits 1 of 3 versions42D | $1.38/EA |
| 4 | MM00730930 | 2 | socket head screw M4x8-8.8-N3 ISO 4762Fits 1 of 3 versions42D | $1.05/EA |
| F05 | MM01371170 | 1 | fuse link 30A Midi 58VDCFits 1 of 3 versions42D | $4.67/EA |
| K21 | MM01375590 | 1 | solenoid switch 2-pol. 100A/36VFits 1 of 3 versions42D | $164.35/EA |
| W54 | MM03021380 | 1 | wiring harness W54Fits 1 of 3 versions42D | $591.23/EA |
| WS20 | MM03021660 | 1 | cable loom WS20Fits 1 of 3 versions42D | $36.97/EA |
PowerBoss Scrubmaster B175R Tank group (without tanks) parts
The tank group without the tanks: cover, buffers, seat bearing, suction turbine and hose. The 33C, 35D and 42D catalogs each print the group. Manual pages 33C p53, list 33C p54.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372190 | 1 | coverHako material no. 97136212. | $260.63/EA |
| 2 | MM00733560 | 1 | Rubber-metal buffer E-30Hako material no. 90108705. | $9.00/EA |
| 3 | MM11038197 | 1 | hexagon screw M8x16-8.8-N3 ISO 4017Hako part no. 00053080. | $4.15/EA |
| 4 | MM00740080 | 1 | Washer SKB-8-dacrometisiertHako material no. 12520087. | $1.22/EA |
| 5 | MM01373070 | 1 | seat bearingHako material no. 92002146. | $107.94/EA |
| 6 | MM11038213 | 4 | hexagon screw M8x20-8.8-N3 ISO 4017Hako part no. 00053090. | $4.15/EA |
| 7 | MM12515086 | 8 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
| 8 | MM17267139 | 1 | Decal explosive gazesHako part no. 01174740. | $7.94/EA |
| 9 | MM01371680 | 1 | decal 36 V 8328Hako material no. 17264995. | $7.79/EA |
| 10 | MM01372140 | 1 | suction turbine 36VHako material no. 97142475. | $540.36/EA |
| 10 | MM01381950PowerBoss 01381950 | 2 | carbon brush | Call to confirm part: 800-440-6723 |
| 11 | MM12158028 | 2 | Wing nut M6-5 A2G DIN 315Hako part no. 00054020. | $5.51/EA |
| 12 | MM00903210 | 2 | Knurled nut P 1612012-M6 PA6Hako material no. 12156055. | $1.22/EA |
| 13 | MM00508770 | 2 | Eye bolt BM6x30-4.6 A3G DIN 444Hako material no. 11518149. | $2.69/EA |
| 14 | MM01380070 | 2 | tension springHako material no. 92063775. | $6.56/EA |
| 15 | MM01371800 | 1 | sealing ringHako material no. 92029545. | $7.42/EA |
| 16 | MM01372880 | 1 | clamping sheet metalHako material no. 90696568. | $42.78/EA |
| 17 | MM01071550 | 1 | SealHako material no. 90434812. | $13.97/EA |
| 18 | MM3044112Replaces PowerBoss 00732130 | 1 | Hose clamp A-40-60x 9-W1-2 DIN 3017Hako material no. 17533027. | $1.28/EA |
| 19 | MM00471570 | 1 | HoseHako material no. 90215930. | $61.03/EA |
PowerBoss Scrubmaster B175R Second suction turbine parts
The second suction turbine with its carbon brushes, seal and hose. This group is in the 42D catalog only. Manual pages 42D p87, list 42D p88.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372140 | 1 | suction turbine 36VFits 1 of 3 versions42D | $540.36/EA |
| 1 | MM01381950PowerBoss 01381950 | 2 | carbon brushFits 1 of 3 versions42D | Call to confirm part: 800-440-6723 |
| 2 | MM12158028 | 2 | Wing nut M6-5 A2G DIN 315Fits 1 of 3 versions42D | $5.51/EA |
| 3 | MM00903210 | 2 | Knurled nut P 1612012-M6 PA6Fits 1 of 3 versions42D | $1.22/EA |
| 4 | MM00508770 | 2 | Eye bolt BM6x30-4.6 A3G DIN 444Fits 1 of 3 versions42D | $2.69/EA |
| 5 | MM00109410 | 2 | Tension springFits 1 of 3 versions42D | $5.19/EA |
| 6 | MM01372880 | 1 | clamping sheet metalFits 1 of 3 versions42D | $42.78/EA |
| 7 | MM01071550 | 1 | SealFits 1 of 3 versions42D | $13.97/EA |
| 8 | MM3044112Replaces PowerBoss 00732130 | 1 | Hose clamp A-40-60x 9-W1-2 DIN 3017Fits 1 of 3 versions42D | $1.28/EA |
| 9 | MM00471570 | 1 | HoseFits 1 of 3 versions42D | $61.03/EA |
| 10 | MM01371800 | 1 | sealing ringFits 1 of 3 versions42D | $7.42/EA |
PowerBoss Scrubmaster B175R Foul water tank red parts
The foul water tank group: covers, dirt chute, sealing plugs, hoses and the choice of standard or antibacterial tank. It is the same in all three catalogs. Manual pages 33C p55, list 33C p56-57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97138275-A_27 | Cover (til appr. august 2018)Not sold separately. Has sub-assemblies, listed under Cover (til appr. august 2018). Valid until 2018-08-31. | Not sold separately. Its parts are listed under Cover (til appr. august 2018) | |
| 2 | Not sold separatelyPowerBoss 97138275-B_27 | Cover (from appr. september 2018)Not sold separately. Has sub-assemblies, listed under Cover (from appr. september 2018). Valid from 2018-09-01. | Not sold separately. Its parts are listed under Cover (from appr. september 2018) | |
| 3 | MM01372940 | 2 | cover axleHako material no. 92000116. | $24.86/EA |
| 4 | – | 1 | Spare part on request | |
| 5 | MM01110780 | 2 | Lens flange screw M6x40-10.9-N8 ISO7380-2Hako material no. 11177203. | $1.05/EA |
| 6 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 7 | MM01136440 | 2 | Sealing plug SL 22x1,0-2,5 schwarzHako material no. 15590664. | $1.05/EA |
| 8 | MM01373450 | 1 | dirt chuteHako material no. 92019520. | $56.42/EA |
| 9 | MM11177179 | 6 | Lens flange screw M6x10-A2-70 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 10 | MM01372150 | 1 | boltHako material no. 13328893. | $13.23/EA |
| 11 | MM01370250 | 1 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 12 | MM01370240 | 1 | mounting feetHako material no. 17526237. | $1.05/EA |
| 13 | MM01373560 | 1 | cable supportHako material no. 92029008. | $18.49/EA |
| 14 | MM01373420 | 1 | hinge sheet metalHako material no. 92018936. | $38.88/EA |
| 15 | MM11177128 | 6 | Lens flange screw M8x16-10.9-N3 ISO7380-2Hako part no. 01006820. | $1.08/EA |
| 16 | MM01373640 | connecting angleHako material no. 92040492. No quantity printed. | $65.12/EA | |
| 17 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 18 | MM01375310 | 3 | clipHako material no. 92002286. | $6.44/EA |
| 19 | MM01000850 | 3 | Lens flange screw M6x12-10.9-N11 ISO7380-2Hako material no. 11177094. | $1.05/EA |
| 20 | Not sold separatelyPowerBoss 97146237 | Clamping pieceNot sold separately. Has sub-assemblies, listed under Clamping piece. | Not sold separately. Its parts are listed under Clamping piece | |
| 21 | MM01014640 | 1 | Hose clamp A-120-140x 9-W4 DIN 3017Hako material no. 17533183. | $13.22/EA |
| 22 | MM01372360 | 1 | hose long, cpl.Hako material no. 97170583. Available; has sub-assemblies, listed under Hose long, cpl. Includes item 4 (Hose long, cpl.). | $266.03/EA |
| 23 | MM01372410 | 1 | hose shortHako material no. 97170591. Available; has sub-assemblies, listed under Hose short. Includes item 5 (Hose short). | $241.97/EA |
| 24 | MM01371890 | 1 | suction hoseHako material no. 96156005. | $191.11/EA |
| 25 | Not sold separatelyPowerBoss 97149587 | Height adjustmentNot sold separately. Has sub-assemblies, listed under Height adjustment. | Not sold separately. Its parts are listed under Height adjustment | |
| 26 | Not sold separatelyPowerBoss 97159743 | Cover's put-up hingeNot sold separately. Has sub-assemblies, listed under Cover's put-up hinge. | Not sold separately. Its parts are listed under Cover's put-up hinge | |
| 27 | MM01372920 | 4 | plate t=4mmHako material no. 90699000. (powder-coated) t=4mm. | $26.24/EA |
| 28 | MM01377880 | 1 | foul water tank red (B175) (Available. no.01377880)Hako material no. 97144497. Available; has sub-assemblies, listed under Foul water tank red (B175) (Available. no.01377880). Includes item 1 (Foul water tank red (B175) (available. no.01377880)). | $1,048.87/EA |
| 29 | MM01377970 | 1 | foul water tank red antibacterial (B175) (Available. no.01377970)Hako material no. 97144513. Available; has sub-assemblies, listed under Foul water tank red antibacterial (B175) (Available. no.01377970). Includes item 1 (Foul water tank red antibacterial (B175) (available. no.01377970)). | $2,020.30/EA |
| 30 | MM01170150 | 1 | Decal SOLUTION TANKHako material no. 17264896. | $1.11/EA |
PowerBoss Scrubmaster B175R Cover (til appr. august 2018) parts
The foul water tank cover made up to about August 2018, with its seal, toggle and filter carrier. It is the same in all three catalogs. Manual pages 33C p58, list 33C p59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03019490 | 1 | coverHako material no. 96155411. | $630.16/EA |
| 2 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallHako material no. 17201237. | Call to confirm part: 800-440-6723 |
| 3 | MM25510512 | 1.78 M | Sealing profile 14,8x11 schwarzHako part no. 01071770. Quantity printed 1,780 M. | $2.42/EA |
| 4 | MM00681570 | 0.31 M | Edge protectionHako material no. 25583097. Quantity printed 0,310 M. | $11.53/EA |
| 5 | MM11177161 | 2 | Lens flange screw M6x25-A2-70 ISO7380-2Hako part no. 01082530. | $1.38/EA |
| 6 | MM00854210 | 2 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 7 | MM00968190 | 2 | ToggleHako material no. 90258187. | $4.78/EA |
| 8 | MM01373810 | 1 | filter carrierHako material no. 96154687. | $235.32/EA |
PowerBoss Scrubmaster B175R Cover (from appr. september 2018) parts
The foul water tank cover made from about September 2018, with its seal, toggle and filter carrier. It is the same in all three catalogs. Manual pages 33C p60, list 33C p61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03019490 | 1 | coverHako material no. 96155411. | $630.16/EA |
| 2 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallHako material no. 17201237. | Call to confirm part: 800-440-6723 |
| 3 | MM25510512 | 1.78 M | Sealing profile 14,8x11 schwarzHako part no. 01071770. Quantity printed 1,780 M. | $2.42/EA |
| 4 | MM00681570 | 0.31 M | Edge protectionHako material no. 25583097. Quantity printed 0,310 M. | $11.53/EA |
| 5 | MM11177161 | 2 | Lens flange screw M6x25-A2-70 ISO7380-2Hako part no. 01082530. | $1.38/EA |
| 6 | MM00854210 | 2 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 7 | MM00968190 | 2 | ToggleHako material no. 90258187. | $4.78/EA |
| 8 | MM01376490 | 1 | filter carrierHako material no. 92040658. | $75.85/EA |
| 9 | MM01076740 | 2 | Rivet 5,9x12 schwarzHako material no. 13166087. | $1.22/EA |
| 10 | MM12310256 | 2 | Washer 6-200HV-A2-70 ISO 7090Hako part no. 00102150. | $1.05/EA |
| 11 | MM01375490 | 1 | strainerHako material no. 92040666. | $71.56/EA |
| 12 | MM01090200 | 0.04 M | Hose 6x4 PVC-transp. DIN 16940Hako material no. 25842113. Quantity printed 0,040 M. | $1.52/EA |
PowerBoss Scrubmaster B175R Clamping piece parts
The cover clamping piece, lever, eye bolt and nuts. It is the same in all three catalogs. Manual pages 33C p62, list 33C p63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01371580 | 1 | clamping pieceHako material no. 92022151. | $38.51/EA |
| 2 | MM12040283 | 2 | Hex. Nut M5-A2-70 DIN 985Hako part no. 01017660. | $1.08/EA |
| 3 | MM01372440 | 1 | bushingHako material no. 92031376. | $6.98/EA |
| 4 | MM11518313 | 1 | Eye bolt BM5x40-A4 DIN 444Hako part no. 01077500. | $19.36/EA |
| 5 | MM12022430 | 1 | Hex. Nut M5-A4 DIN 934Hako part no. 00902250. | $9.66/EA |
| 6 | MM01372380 | 1 | threaded pinHako material no. 92025527. | $16.32/EA |
| 7 | MM01372430 | 1 | clamping piece leverHako material no. 92037431. | $45.69/EA |
| 8 | MM11039765 | 2 | hexagon screw M5x30-A2-70 ISO 4017Hako part no. 01079890. | $1.25/EA |
| 9 | MM01372390 | 2 | bushingHako material no. 92025519. | $6.22/EA |
PowerBoss Scrubmaster B175R Hose long, cpl. parts
The long drain hose cover, O-ring and decal. The hose itself is printed Not supplied alone. It is the same in all three catalogs. Manual pages 33C p64, list 33C p65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00142230 | 1 | coverHako material no. 97168355. | $16.08/EA |
| 2 | MM00108650 | 2 | lens head screw M5x12-4.8-H-N2 ISO 7045Hako material no. 11175189. | $1.22/EA |
| 3 | MM01177960 | 1 | O-Ring 42x5 NBR 55 DIN 3771Hako material no. 15286957. | $4.85/EA |
| 4 | – | Part of the hose long, cpl. assembly | Included in kithose long, cpl. · MM01372360 › | |
| 5 | MM03009260 | 1 | LOCTIDE sealing compoundHako material no. 28990018. | $35.76/EA |
PowerBoss Scrubmaster B175R Hose short parts
The short hose cover, O-ring and decal. The hose itself is printed Not supplied alone. It is the same in all three catalogs. Manual pages 33C p66, list 33C p67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00142230 | 1 | coverHako material no. 97168355. | $16.08/EA |
| 2 | MM00108650 | 2 | lens head screw M5x12-4.8-H-N2 ISO 7045Hako material no. 11175189. | $1.22/EA |
| 3 | MM01177960 | 1 | O-Ring 42x5 NBR 55 DIN 3771Hako material no. 15286957. | $4.85/EA |
| 4 | MM17264888 | 1 | Decal FOUL WATERHako part no. 01170060. | $3.66/EA |
| 5 | – | Part of the hose short assembly | Included in kithose short · MM01372410 › |
PowerBoss Scrubmaster B175R Height adjustment parts
The plates and screws for the tank height adjustment. It is the same in all three catalogs. Manual pages 33C p68, list 33C p69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00102270 | 2 | hexagon screw M10x70-8.8-N2 ISO 4017Hako material no. 11038718. | $1.05/EA |
| 2 | MM12310058 | 4 | Washer 10-200HV-N3 ISO 7089Hako part no. 00053760. | $4.15/EA |
| 3 | MM01372920 | 1 | plate t=4mmHako material no. 90699000. (powder-coated) t=4mm. | $26.24/EA |
| 4 | MM12022067 | 2 | Hex. Nut M10-8 A3G DIN 934Hako part no. 00053360. | $4.15/EA |
| 5 | MM01373820 | 2 | plateHako material no. 96154695. | $37.93/EA |
| 6 | MM03009260 | 1 | LOCTIDE sealing compoundHako material no. 28990018. | $35.76/EA |
PowerBoss Scrubmaster B175R Cover's put-up hinge parts
The hinge and bearing for the foul water tank cover. It is the same in all three catalogs. Manual pages 33C p70, list 33C p71.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00102140 | 2 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 2 | MM00854210 | 2 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 3 | MM711592Replaces PowerBoss 01102770 | 4 | Approach disk 12,5x26x1,5-POMHako material no. 14898019. | Call to confirm part: 800-440-6723 |
| 4 | MM01372950PowerBoss 01372950 | 1 | cover put-up hingeHako material no. 92000215. | Call to confirm part: 800-440-6723 |
| 5 | MM01279800 | 2 | bushingHako material no. 90661745. | $7.79/EA |
| 6 | MM01372960 | 2 | put-up hinge bearingHako material no. 92061068. | $37.93/EA |
| 7 | MM00054720 | 2 | Countersunk screw M6x20-A2-70 ISO 10642Hako material no. 11225489. | $1.05/EA |
PowerBoss Scrubmaster B175R Foul water tank red (B175) (available. no.01377880) parts
The standard foul water tank: protective disk, float switch and its connector parts. The tank itself is printed Not supplied alone. Manual pages 33C p72, list 33C p73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | Part of the foul water tank red (b175) (available. no.01377880) assembly | ||
| 2 | MM01373290 | 1 | intake protective diskHako material no. 92049170. | $21.39/EA |
| 3 | MM00959650 | 1 | Float switchHako material no. 90311705. | $81.75/EA |
| 4 | MM01372420 | 1 | pin housing (2 pin)Hako material no. 19730217. | $1.54/EA |
| 5 | MM01372370 | 2 | tab-cont. Mini-Fit Jr. (0,25-1,00)Hako material no. 19725480. | $1.05/EA |
PowerBoss Scrubmaster B175R Foul water tank red antibacterial (B175) (available. no.01377970) parts
The antibacterial foul water tank: protective disk, float switch and its connector parts. This group is in the 33C catalog only. Manual pages 33C p74, list 33C p75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | Part of the foul water tank red antibacterial (b175) (available. no.01377970) assemblyFits 1 of 3 versions33C with side broom | ||
| 2 | MM01373290 | 1 | intake protective diskFits 1 of 3 versions33C with side broom | $21.39/EA |
| 3 | MM00959650 | 1 | Float switchFits 1 of 3 versions33C with side broom | $81.75/EA |
| 4 | MM01372420 | 1 | pin housing (2 pin)Fits 1 of 3 versions33C with side broom | $1.54/EA |
| 5 | MM01372370 | 2 | tab-cont. Mini-Fit Jr. (0,25-1,00)Fits 1 of 3 versions33C with side broom | $1.05/EA |
PowerBoss Scrubmaster B175R Fresh water tank red parts
The fresh water tank group: sensor, valve, gaskets and the choice of standard or Anti Bac tank. It is the same in all three catalogs. Manual pages 33C p76, list 33C p77.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM718010Replaces PowerBoss 00553690 | 1 | hexagon screw M8x18-8.8-N3 ISO 4017Hako material no. 11038635. | $1.05/EA |
| 2 | MM00028470 | 2 | Countersunk screw M6x12-A2-70-H DIN 965Hako material no. 11206430. | $1.05/EA |
| 3 | MM01372790 | 2 | boltHako material no. 90689977. | $9.33/EA |
| 4 | MM11709151 | 14 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 5 | MM01382950 | 1 | bushingHako material no. 92056159. | $8.30/EA |
| 6 | MM01382870 | 1 | sensorHako material no. 96164934. | $62.88/EA |
| 7 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 8 | MM12515086 | 2 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
| 9 | MM00053150 | 1 | hexagon screw M8x110-8.8 N2 ISO 4014Hako material no. 11032281. | $1.05/EA |
| 10 | MM600940Replaces PowerBoss 00042900 | 1 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 11 | MM11032273 | 1 | hexagon screw M8x100-8.8 N2 ISO 4014Hako part no. 00053140. | $2.11/EA |
| 12 | MM01370250 | 3 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 13 | MM01370240 | 3 | mounting feetHako material no. 17526237. | $1.05/EA |
| 14 | MM00054560 | 1 | ValveHako material no. 90329517. | $7.92/EA |
| 15 | MM00733160 | 1 | Hose clamp A-20-32x9-W1-2 DIN 3017Hako material no. 17533035. | $1.82/EA |
| 16 | MM01373830 | 1 | flowing offHako material no. 96154703. | $71.96/EA |
| 17 | MM01371920 | 1 | gasketHako material no. 90696659. | $1.54/EA |
| 18 | MM01178830 | 3 | Socket head screw M5x12-A2-70 ISO 4762Hako material no. 11127073. | $1.22/EA |
| 19 | MM00902270 | 3 | Washer 5-200HV-A4-70 ISO 7090Hako material no. 12310249. | $1.22/EA |
| 20 | MM01371850 | 1 | gasketHako material no. 90696352. | $21.39/EA |
| 21 | MM01373790 | 1 | cover plateHako material no. 96154307. | $295.62/EA |
| 22 | MM01371770 | 1 | tubular support 25862004-12Hako material no. 92011766. | $14.60/EA |
| 23 | MM01371740 | 1 | gasketHako material no. 90696345. | $15.55/EA |
| 24 | MM01374890 | fresh water tank red (available. no.01374890)Hako material no. 97144489. Available; has sub-assemblies, listed under Fresh water tank red (available. no.01374890). Includes item 1 (Fresh water tank red (available. no.01374890)). | $1,612.67/EA | |
| 25 | MM01374930 | fresh water tank red Anti Bac (available. no.01374930)Hako material no. 97144505. Available; has sub-assemblies, listed under Fresh water tank red Anti Bac (available. no.01374930). Includes item 1 (Fresh water tank red anti bac (available. no.01374930)). | $1,579.19/EA | |
| 26 | MM11709151 | 2 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. til appr. 2021-03. Valid until 2021-03. | $1.38/EA |
| 27 | MM01372670 | 1 | screwed socket WES 4 R1/4Hako material no. 18400168. til appr. 2021-03. Valid until 2021-03. | $3.90/EA |
| 28 | MM01373960 | 1 | pipeHako material no. 96163829. til appr. 2021-03. Valid until 2021-03. | $154.36/EA |
PowerBoss Scrubmaster B175R Fresh water tank red (available. no.01374890) parts
The standard fresh water tank with its O-ring and screwed plug. The tank itself is printed Not supplied alone. Manual pages 33C p78, list 33C p79.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | Part of the fresh water tank red (available. no.01374890) assembly | Included in kitfresh water tank red (available. no.01374890) · MM01374890 › | |
| 2 | MM15286149 | 1 | O-ring oil resistant 15x2.5 85Hako part no. 00057720. | $13.25/EA |
| 3 | MM01072180 | 1 | Screwed plugHako material no. 90429788. | $10.77/EA |
PowerBoss Scrubmaster B175R Fresh water tank red anti bac (available. no.01374930) parts
The Anti Bac fresh water tank with its O-ring and screwed plug. This group is in the 33C catalog only. Manual pages 33C p80, list 33C p81.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | Part of the fresh water tank red anti bac (available. no.01374930) assemblyFits 1 of 3 versions33C with side broom | ||
| 2 | MM15286149 | 1 | O-ring oil resistant 15x2.5 85Fits 1 of 3 versions33C with side broom | $13.25/EA |
| 3 | MM01072180 | 1 | Screwed plugFits 1 of 3 versions33C with side broom | $10.77/EA |
PowerBoss Scrubmaster B175R Fresh water cap (variant without automatic filling unit) parts
The fresh water cap for a machine without the automatic filling unit. It is the same in all three catalogs. Manual pages 33C p82, list 33C p83.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01173540 | 1 | Fresh water capHako material no. 96121124. | $29.58/EA |
PowerBoss Scrubmaster B175R Cover (variant without driver canopy) parts
The cover for a machine without the driver canopy, with its screws and decal. It is the same in all three catalogs. Manual pages 33C p84, list 33C p85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373010 | 1 | coverHako material no. 92001676. | $146.82/EA |
| 2 | MM11177179 | 4 | Lens flange screw M6x10-A2-70 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 3 | MM01361930PowerBoss 01361930 | 1 | decal Action Healthy Back SCM B175 R englishHako material no. 17248147. | Call to confirm part: 800-440-6723 |
PowerBoss Scrubmaster B175R Sealing plug (variant without second suction turbine) parts
The seal plug for a machine without the second suction turbine. It is in the 33C and 35D catalogs. Manual pages 33C p86, list 33C p87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01389420 | 1 | seal plugFits 2 of 3 versions33C with side broom, 35D | $6.79/EA |
PowerBoss Scrubmaster B175R Side covering L.H. - separating panel parts
The left side covering and separating panel: sealing profile, holding plate and latch lock. It is the same in all three catalogs. Manual pages 33C p88, list 33C p89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03019520 | 1 | side coveringHako material no. 96157755. | $683.36/EA |
| 2 | MM01384520PowerBoss 01384520 | 0.98 M | Sealing profile 1,0-4,0 schwarzHako material no. 25583279. Quantity printed 0,980 M. | Call to confirm part: 800-440-6723 |
| 3 | MM01373470 | 1 | holding plateHako material no. 92021252. | $95.33/EA |
| 4 | MM00905520 | 11 | Round head screw 5x14Hako material no. 11709060. | $1.05/EA |
| 5 | MM01371380 | 1 | sealing plateHako material no. 92053347. | $23.34/EA |
| 6 | MM11177179 | 3 | Lens flange screw M6x10-A2-70 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 7 | Not sold separatelyPowerBoss 97145783 | Separating plateNot sold separately. Has sub-assemblies, listed under Separating plate. | Not sold separately. Its parts are listed under Separating plate | |
| 8 | MM01380030 | 1 | Latch lockHako material no. 92075779. | $43.23/EA |
| 9 | MM01133350 | 4 | Lens flange screw M8x12-10.9-N8 ISO7380-2Hako material no. 11177195. | $1.05/EA |
| 10 | MM01373340 | 1 | clambing plateHako material no. 92015130. | $126.42/EA |
| 11 | MM00539730 | 2 | Screw M6x16-St A3G Kombit. DIN 7500Hako material no. 11702024. | $1.00/EA |
| 12 | MM00905570 | 2 | BushingHako material no. 90333303. | $1.22/EA |
PowerBoss Scrubmaster B175R Separating plate parts
The separating plate with its sealing tape, mounting clip and feet. It is the same in all three catalogs. Manual pages 33C p90, list 33C p91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01031000 | 0.12 M | Sealing tape 20x6Hako material no. 25505322. Quantity printed 0,120 M. | $5.44/EA |
| 2 | MM01031000 | 0.32 M | Sealing tape 20x6Hako material no. 25505322. Quantity printed 0,320 M. | $5.44/EA |
| 3 | MM01031000 | 0.22 M | Sealing tape 20x6Hako material no. 25505322. Quantity printed 0,220 M. | $5.44/EA |
| 4 | MM01278080 | 1 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 5 | MM01372800 | 1 | separating plateHako material no. 92077304. | $235.32/EA |
| 6 | MM01370240 | 1 | mounting feetHako material no. 17526237. | $1.05/EA |
| 7 | MM01370250 | 1 | retainer ø13Hako material no. 17526245. | $1.54/EA |
PowerBoss Scrubmaster B175R Preliminary parts for spraying tools at tank
The fittings and quick coupling for the spraying tools at the tank. It is the same in all three catalogs. Manual pages 33C p92, list 33C p93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 2 | MM01373100 | 1 | connecting angleHako material no. 92002492. | $51.57/EA |
| 3 | MM01090430 | 1 | Screwed angle fittingHako material no. 90356734. | $4.25/EA |
| 4 | MM01016090 | 1 | Bulkhead union G1/4 LW6Hako material no. 18400028. | $18.28/EA |
| 5 | MM00552590 | 1 | Quick hitch "G1/4"""Hako material no. 90314220. | $39.35/EA |
| 6 | MM03007630 | 0.07 M | Sealing band (spool with 12m) 12x0,1 TeflonHako material no. 25743014. Quantity printed 0,070 M. | $27.10/EA |
PowerBoss Scrubmaster B175R Rough mud strainer parts
The rough dirt strainer. It is the same in all three catalogs. Manual pages 33C p94, list 33C p95.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373950PowerBoss 01373950 | 1 | rough dirt strainerHako material no. 96162896. | Call to confirm part: 800-440-6723 |
PowerBoss Scrubmaster B175R Spraying nozzle parts
The spray pistol with its hose and retainer. It is the same in all three catalogs. Manual pages 33C p96, list 33C p97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00873910 | 2 | Truss head screw 6x16 A2GHako material no. 11709110. | $1.05/EA |
| 2 | MM01372240 | 1 | spray pistol with hoseHako material no. 92010412. | $216.83/EA |
| 3 | Not sold separatelyPowerBoss 97147334 | Retainer spraying nozzleNot sold separately. Has sub-assemblies, listed under Retainer spraying nozzle. | Not sold separately. Its parts are listed under Retainer spraying nozzle |
PowerBoss Scrubmaster B175R Retainer spraying nozzle parts
The retainer, clamps and fixings that hold the spraying nozzle. It is the same in all three catalogs. Manual pages 33C p98, list 33C p99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373710 | 1 | retainerHako material no. 92044338. | $111.84/EA |
| 2 | MM01271540 | 2 | socket head screw M6x60-8.8-N3 ISO 4762Hako material no. 11126851. | $1.19/EA |
| 3 | MM01477410 | 1 | pair of clamping HRGL5KP35PP DIN 3015Hako material no. 17516873. | $6.28/EA |
| 4 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 5 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Hako part no. 00051520. | $1.38/EA |
| 6 | MM00525910 | 2 | Lens cap 1000/1069 SWHako material no. 15592025. | $0.90/EA |
PowerBoss Scrubmaster B175R Lifting brush aggregates parts
The rocker, bolts, hoses and fixings that lift the brush unit. It is the same in all three catalogs. Manual pages 33C p100, list 33C p101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97135271 | RockerNot sold separately. Has sub-assemblies, listed under Rocker. | Not sold separately. Its parts are listed under Rocker | |
| 2 | MM00879630 | 1 | Bolt B12h11x85-St A3G DIN 1444Hako material no. 13328422. | $7.67/EA |
| 3 | MM00744820 | 1 | cotter pin 3,2 A2G DIN 11024Hako material no. 13851043. | $1.22/EA |
| 4 | MM25842055 | 0.08 M | PVC hose 13x3,5 transp. mit Gew.Hako part no. 00200170. Quantity printed 0,080 M. | $6.64/EA |
| 5 | MM01372890 | 1 | boltHako material no. 90696642. | $9.33/EA |
| 6 | MM00740290 | 2 | Detent edged washer SKM-10Hako material no. 12520061. | $1.05/EA |
| 7 | MM11038346 | 2 | hexagon screw M10x25-8.8-N3 ISO 4017Hako part no. 00053310. | $1.08/EA |
| 8 | MM00155830 | 2 | hexagon screw M12x35-10.9-N2 ISO 4017Hako material no. 11038486. | $1.05/EA |
| 9 | MM00132610 | 2 | Washer 12-200HV-N2 ISO 7093Hako material no. 12332045. | $1.05/EA |
| 10 | MM01133780 | 4 | Starting disk GTM-2036-015Hako material no. 14898068. | $2.68/EA |
| 11 | MM01373550 | 2 | bushingHako material no. 92027366. | $11.66/EA |
| 12 | MM12040077 | 2 | Hex. Nut M12-6 A3G DIN 985Hako part no. 00051490. | $3.77/EA |
PowerBoss Scrubmaster B175R Rocker parts
The rocker and brush head guide that lift the brush head. It is in the 33C and 42D catalogs. Manual pages 33C p102, list 33C p103.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01278080 | 2 | Mounting clipFits 2 of 3 versions33C with side broom, 42D | $1.05/EA |
| 2 | MM01373920 | 1 | rockerFits 2 of 3 versions33C with side broom, 42D | $636.81/EA |
| 3 | MM01373840 | 1 | brush head guideFits 2 of 3 versions33C with side broom, 42D | $153.78/EA |
| 4 | MM00155830 | 2 | hexagon screw M12x35-10.9-N2 ISO 4017Fits 2 of 3 versions33C with side broom, 42D | $1.05/EA |
| 5 | MM00132610 | 2 | Washer 12-200HV-N2 ISO 7093Fits 2 of 3 versions33C with side broom, 42D | $1.05/EA |
| 6 | MM01133780 | 4 | Starting disk GTM-2036-015Fits 2 of 3 versions33C with side broom, 42D | $2.68/EA |
| 7 | MM01373550 | 2 | bushingFits 2 of 3 versions33C with side broom, 42D | $11.66/EA |
| 8 | MM12040077 | 2 | Hex. Nut M12-6 A3G DIN 985Fits 2 of 3 versions33C with side broom, 42D | $3.77/EA |
PowerBoss Scrubmaster B175R Lifting cylindrical brush head parts
The pins, bushings and bolts for lifting the cylindrical brush head. This group is in the 33C catalog only. Manual pages 33C p104, list 33C p105.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97138721 | LiftingFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Lifting | |
| 2 | MM01000850 | 2 | Lens flange screw M6x12-10.9-N11 ISO7380-2Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 3 | MM12332011 | 2 | Washer ISO 7093-6-200HV-N2Fits 1 of 3 versions33C with side broom | $4.15/EA |
| 4 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 5 | MM01279660 | 1 | straight pin 12m6x100 DIN 6325Fits 1 of 3 versions33C with side broom | $4.67/EA |
| 6 | MM00706180 | 2 | Thrust washer 12 verz.Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 7 | MM01370680 | 2 | bushingFits 1 of 3 versions33C with side broom | $5.67/EA |
| 8 | MM01078220 | 1 | Bolt B8h11x75-St A3G DIN 1444Fits 1 of 3 versions33C with side broom | $2.98/EA |
| 9 | MM00551150 | 1 | split pin 2x12-St-N2 ISO 1234Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 10 | MM01055930 | 1 | Tension springFits 1 of 3 versions33C with side broom | $2.54/EA |
PowerBoss Scrubmaster B175R Lifting disk brush head parts
The tension spring, pins and bushings for lifting the disk brush head. It is in the 35D and 42D catalogs. Manual pages 35D p128, list 35D p129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97138721 | LiftingFits 2 of 3 versions35D, 42D | Not sold separately. Its parts are listed under Lifting | |
| 2 | MM00861550 | 1 | Cotter pin 4,0 A2G DIN 11024Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 3 | MM01371610 | 1 | tension springFits 2 of 3 versions35D, 42D | $26.24/EA |
| 4 | MM01279660 | 1 | straight pin 12m6x100 DIN 6325Fits 2 of 3 versions35D, 42D | $4.67/EA |
| 5 | MM00706180 | 2 | Thrust washer 12 verz.Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 6 | MM01370680 | 2 | bushingFits 2 of 3 versions35D, 42D | $5.67/EA |
PowerBoss Scrubmaster B175R Lifting parts
The brush lift: guide, rope assembly, lifting element and circlips. It is the same in all three catalogs. Manual pages 33C p106, list 33C p107.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372930 | 1 | recruitment guideHako material no. 92000090. | $171.15/EA |
| 2 | Not sold separatelyPowerBoss 97140479 | Rope assemblyNot sold separately. Has sub-assemblies, listed under Rope assembly. | Not sold separately. Its parts are listed under Rope assembly | |
| 3 | MM01370110 | 1 | lifting element 24V 1200N 200mmHako material no. 92023332. | $651.97/EA |
| 4 | MM01370970 | 1 | hexagon screw M6x110-8.8 N2 ISO 4014Hako material no. 11032711. | $1.54/EA |
| 5 | MM12332011 | 2 | Washer ISO 7093-6-200HV-N2Hako part no. 00135120. | $4.15/EA |
| 6 | MM01015400 | 0.1 M | Pipe 6x8 PAHako material no. 25845025. Quantity printed 0,100 M. | $5.44/EA |
| 7 | MM12022042 | 1 | Hex. Nut M6-8 A2G DIN 934Hako part no. 00053330. | $1.08/EA |
| 8 | MM00072440 | 2 | Circlip 12x1-phos. DIN 471Hako material no. 12610036. | $1.22/EA |
| 9 | MM01370680 | 4 | bushingHako material no. 90698895. | $5.67/EA |
| 10 | MM01072930 | 2 | Slide bearing bush GFM-1214-17Hako material no. 14895296. | $2.61/EA |
| 11 | MM01371000 | 1 | boltHako material no. 90695230. | $34.99/EA |
| 12 | MM00053150 | 1 | hexagon screw M8x110-8.8 N2 ISO 4014Hako material no. 11032281. | $1.05/EA |
| 13 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-200HV-N2Hako material no. 12332029. | $1.11/EA |
| 14 | MM01370980 | 2 | rope assuranceHako material no. 90663303. | $27.24/EA |
| 15 | MM00521270 | 2 | RollerHako material no. 90293044. | $4.50/EA |
| 16 | MM01372810 | 1 | pipeHako material no. 90693748. | $9.58/EA |
| 17 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
PowerBoss Scrubmaster B175R Rope assembly parts
The rope, lug, tension spring and bushings in the lift rope assembly. It is the same in all three catalogs. Manual pages 33C p108, list 33C p109.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00737670 | 2 | Slide bearing Ø=12Hako material no. 14892012. | $1.54/EA |
| 2 | MM01371090 | 2 | tension springHako material no. 92016286. | $24.92/EA |
| 3 | MM00023290 | 4 | Thrust washer 6 verz.Hako material no. 12651113. | $16.25/EA |
| 4 | MM00736570 | 4 | Bolt B6h11x16-St A2G DIN 1444Hako material no. 13328182. | $3.90/EA |
| 5 | MM01371080 | 1 | lugHako material no. 92006246. | $5.44/EA |
| 6 | MM00862430 | 2 | BushingHako material no. 90150798. | $2.25/EA |
| 7 | MM01371060 | 1 | rope 2,5x612Hako material no. 90699323. | $14.83/EA |
| 8 | MM01371040 | 2 | screw M8x25-St Duo-Taptite DIN 7500-DHako material no. 11702115. | $1.05/EA |
| 9 | MM01371070 | 2 | cable guideHako material no. 92000413. | $11.08/EA |
| 10 | MM01371050 | 1 | roller assemblyHako material no. 90684846. | $33.08/EA |
PowerBoss Scrubmaster B175R Disk brush head 1080 parts
The 1080 disk brush head: brush motors, carbon brushes, splash guard, spray tube, disk brushes and pads. This group is in the 42D catalog only. Manual pages 42D p138, list 42D p139-140.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01271070 | 2 | Motor Amer 710W 36VFits 1 of 3 versions42D | $987.97/EA |
| 2 | MM01274230 | 1 | Carbon brushFits 1 of 3 versions42D | $38.88/EA |
| 3 | MM01274300 | 1 | Carbon brush housingFits 1 of 3 versions42D | $353.77/EA |
| 4 | MM01277040 | 1 | Rotary shaft sealFits 1 of 3 versions42D | $22.40/EA |
| 5 | MM01271080 | 4 | Splash guardFits 1 of 3 versions42D | $5.69/EA |
| 6 | MM01170850 | 8 | Screw 4x8 verz.Fits 1 of 3 versions42D | $1.05/EA |
| 7 | MM90311663 | 2 | Spray tubeFits 1 of 3 versions42D | $2.63/EA |
| 8 | MM01171270 | 4 | Screw M6x12-St A2G DIN 7500-DFits 1 of 3 versions42D | $1.05/EA |
| 9 | MM01373540 | 1 | adapterFits 1 of 3 versions42D | $158.51/EA |
| 10 | MM01272710 | 12 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits 1 of 3 versions42D | $3.90/EA |
| 11 | MM01370250 | 2 | retainer ø13Fits 1 of 3 versions42D | $1.54/EA |
| 12 | MM01370240 | 2 | mounting feetFits 1 of 3 versions42D | $1.05/EA |
| 13 | MM00704610 | 10 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Fits 1 of 3 versions42D | $1.05/EA |
| 14 | MM12310041 | 8 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions42D | $2.75/EA |
| 15 | MM01373260 | 1 | plate db 1080Fits 1 of 3 versions42D | $435.68/EA |
| 16 | MM01113660 | 0.2 M | Hose 6,0x13,0Fits 1 of 3 versions42D | $18.67/EA |
| 17 | MM00127470 | 2 | BufferFits 1 of 3 versions42D | $5.39/EA |
| 18 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions42D | $1.38/EA |
| 19 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions42D | $1.38/EA |
| 20 | MM90156688 | 7 | Cable tie 4,8x360Fits 1 of 3 versions42D | $2.06/EA |
| 21 | MM00562480 | 1.06 M | Spiral hose KX3000/Steel-Lw 10Fits 1 of 3 versions42D | $11.94/EA |
| 22 | MM00159550 | 2 | pipe clamp RSGU 1.18/20-W1Fits 1 of 3 versions42D | $3.90/EA |
| 23 | MM01371750 | 1 | covering 1080Fits 1 of 3 versions42D | $369.53/EA |
| 24 | MM90275157 | 1 | T-reducer muff TRS10-13-10Fits 1 of 3 versions42D | $4.41/EA |
| 25 | Not sold separatelyPowerBoss 97111066 | Brush carrier cpl.Fits 1 of 3 versions42D | Not sold separately. Its parts are listed under Brush carrier cpl. | |
| 26 | MM90209537 | 2 | WasherFits 1 of 3 versions42D | $2.29/EA |
| 27 | MM03003000 | 1 | TransparencyFits 1 of 3 versions42D | $1.05/EA |
| 28 | MM99752220 | 2 | disk brush 22(560) PPN 0.5Fits 1 of 3 versions42D | $239.72/EA |
| 29 | MM99752230 | 2 | Disk brush 22(560) K901Fits 1 of 3 versions42D | $274.72/EA |
| 30 | MM99752240 | 2 | Disk brush 22(560) SIC K600Fits 1 of 3 versions42D | $316.10/EA |
| 31 | MM99752210 | 2 | Disk brush 22(560) 5-comp.Fits 1 of 3 versions42D | $204.75/EA |
| 32 | MM99752250 | 2 | Disk brush 22(560) PPN 0.8Fits 1 of 3 versions42D | $231.00/EA |
| 33 | MM99752260 | 2 | Disk brush 22(560) SIC K180Fits 1 of 3 versions42D | $302.90/EA |
| 34 | MM99752270 | 2 | Disk brush 22(560) SIC K120Fits 1 of 3 versions42D | $164.64/EA |
| 35 | MM99766405PowerBoss 99766405 | Super-Pad 22(560) red (5pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 36 | MM99766415PowerBoss 99766415 | Super-Pad 22(560) blue (5pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 37 | MM99766425PowerBoss 99766425 | Super-Pad 22(560) green (5pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 38 | MM99766435PowerBoss 99766435 | Super-Pad 22(560) brown (5pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 39 | MM99766445PowerBoss 99766445 | Super-Pad 22(560) black (5pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 40 | MM99766420PowerBoss 99766420 | Microfibre-Pad 22(560)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 41 | MM99766402PowerBoss 99766402 | Twister-Pad 22(560) white (2pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 42 | MM99766412PowerBoss 99766412 | Twister-Pad 22(560) yellow (2pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 43 | MM99766422PowerBoss 99766422 | Twister-Pad 22(560) green (2pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 44 | MM99766432PowerBoss 99766432 | Twister-Pad 22(560) red (2pcs)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 45 | MM99766430PowerBoss 99766430 | Melamin Super-Pad 22(560)Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 | |
| 46 | MM99766400 | Padholder 22(560)Fits 1 of 3 versions42D | $369.03/EA | |
| 47 | MM00712010 | 1 | Center-lock, cpl.Fits 1 of 3 versions42D | $69.02/EA |
| 48 | MM90364365 | 1 | Center-lock, lower partFits 1 of 3 versions42D | $38.25/EA |
| 49 | MM90364373 | 1 | Center-lock,upper partFits 1 of 3 versions42D | $41.86/EA |
| 50 | MM11709011 | 3 | Screw KB 40x14 WN-1442 1.4301Fits 1 of 3 versions42D | $1.38/EA |
| 51 | MM01377320 | 2 | fitting key 6x6x22 DIN 6885Fits 1 of 3 versions42D | $2.50/EA |
| W4 | MM03020380 | 1 | wiring harness W4Fits 1 of 3 versions42D | $653.17/EA |
PowerBoss Scrubmaster B175R Cylindrical brush head 850 parts
The 850 cylindrical brush head: indicator, dirt container, roll brush head, spring and the sets of brushes. This group is in the 33C catalog only. Manual pages 33C p110, list 33C p111.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373440 | 1 | indicatorFits 1 of 3 versions33C with side broom | $49.58/EA |
| 2 | MM00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 3 | Not sold separatelyPowerBoss 97147946 | Retainer dirt containerFits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Retainer dirt container | |
| 4 | MM01273190 | 1 | Dirt container (Available. No.: 01273190)Fits 1 of 3 versions33C with side broom | $546.64/EA |
| 5 | MM03026630 | 1 | Roll brush headFits 1 of 3 versions33C with side broom | $4,621.07/EA |
| 6 | MM01055930 | 1 | Tension springFits 1 of 3 versions33C with side broom | $2.54/EA |
| 7 | MM00076540 | 2 | Round head screw M6x16-4.6 A2G DIN 603Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 8 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 9 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 10 | MM99768100 | 1 | set of cyl. brushes 850 PA6-0,7Fits 1 of 3 versions33C with side broom | $445.01/EA |
| 11 | MM99768200 | 1 | set of cyl. brushes 850 SIC K500Fits 1 of 3 versions33C with side broom | $721.72/EA |
| 12 | MM99768300 | 1 | set of cyl. brushes 850 SIC K180Fits 1 of 3 versions33C with side broom | $746.54/EA |
PowerBoss Scrubmaster B175R Retainer dirt container parts
The guide bar and guides that hold the dirt container. This group is in the 33C catalog only. Manual pages 33C p112, list 33C p113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372970 | 1 | guide barFits 1 of 3 versions33C with side broom | $208.12/EA |
| 2 | MM01373200 | 1 | dirt container guideFits 1 of 3 versions33C with side broom | $96.29/EA |
| 3 | MM00076540 | 2 | Round head screw M6x16-4.6 A2G DIN 603Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 4 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 5 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions33C with side broom | $1.38/EA |
PowerBoss Scrubmaster B175R Dirt container (available. no.: 01273190) parts
The dirt container with its lock, apron and fixings. This group is in the 33C catalog only. Manual pages 33C p114, list 33C p115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040234 | 13 | Hex. Nut M4-A2 DIN 985Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 2 | MM12310272 | 24 | Washer 4-200HV-A4-70 ISO 7089Fits 1 of 3 versions33C with side broom | $2.75/EA |
| 3 | MM11175452 | 8 | lens head screw M3x14-A2-70-H ISO 7045Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 4 | MM17383191 | 2 | Lock TL-800 DA-1Fits 1 of 3 versions33C with side broom | $27.88/EA |
| 6 | MM90435884 | 2 | PlateFits 1 of 3 versions33C with side broom | $3.45/EA |
| 7 | MM12040374 | 8 | Hex. Nut DIN 985Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 8 | MM01072260 | 13 | lens head screw M4x14-A2-70-H ISO 7045Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 9 | MM01272960 | 1 | Sheet metal apronFits 1 of 3 versions33C with side broom | $87.14/EA |
| 10 | MM01272950 | 1 | Broom railFits 1 of 3 versions33C with side broom | $39.53/EA |
PowerBoss Scrubmaster B175R Roll brush head parts
The 850 roll brush head: motors, toothed belts, pulleys, carrier and sheet metal. This group is in the 33C catalog only. Manual pages 33C p116, list 33C p117-118.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00959220 | 10 | Screw C M5x12-St A2G TORX DIN 7500Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 2 | MM01272860 | 2 | Sheet metalFits 1 of 3 versions33C with side broom | $71.42/EA |
| 3 | MM16423055 | 2 | Toothed belt CXP HTD 500-5M-15Fits 1 of 3 versions33C with side broom | $25.73/EA |
| 4 | MM90409210 | 2 | Toothed belt pulley Z=16Fits 1 of 3 versions33C with side broom | $31.47/EA |
| 5 | MM11038098 | 8 | hexagon screw M6x20-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $1.08/EA |
| 6 | MM12332011 | 8 | Washer ISO 7093-6-200HV-N2Fits 1 of 3 versions33C with side broom | $4.15/EA |
| 7 | MM90409244 | 2 | Toothed belt pulley Z=44Fits 1 of 3 versions33C with side broom | $66.33/EA |
| 8 | MM01072560 | 2 | Carrier, cpl.Fits 1 of 3 versions33C with side broom | $291.25/EA |
| 9 | MM01072550 | 2 | Side cover, cpl.Fits 1 of 3 versions33C with side broom | $259.47/EA |
| 10 | MM01372220 | 2 | motorFits 1 of 3 versions33C with side broom | $815.89/EA |
| 11 | MM01272890 | 2 | LeverFits 1 of 3 versions33C with side broom | $42.92/EA |
| 12 | MM11177179 | 2 | Lens flange screw M6x10-A2-70 ISO7380-2Fits 1 of 3 versions33C with side broom | $1.73/EA |
| 13 | MM90437450 | 2 | BushingFits 1 of 3 versions33C with side broom | $6.42/EA |
| 14 | MM90232372 | 2 | Cyl.compression springFits 1 of 3 versions33C with side broom | $3.69/EA |
| 15 | MM11038072 | 2 | hexagon screw M6x16-8.8-N3 ISO 4017Fits 1 of 3 versions33C with side broom | $1.08/EA |
| 16 | MM12310033 | 10 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions33C with side broom | $1.38/EA |
| 17 | MM00135790 | 4 | Hex. Nut M6-04-N2 ISO 4035Fits 1 of 3 versions33C with side broom | $2.87/EA |
| 18 | MM13540549 | 2 | Feather key AB5x5x16-St50 DIN 6885Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 19 | MM12610069 | 2 | Retaining ring 15x1-phos. DIN 471Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 20 | MM03022950 | 1 | roll brush head 850Fits 1 of 3 versions33C with side broom | $1,114.58/EA |
| 21 | MM01370250 | 2 | retainer ø13Fits 1 of 3 versions33C with side broom | $1.54/EA |
| 22 | MM01370240 | 2 | mounting feetFits 1 of 3 versions33C with side broom | $1.05/EA |
| 23 | MM00552300 | 2 | lens head screw M5x8-4.8-H-N2 ISO 7045Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 24 | MM12022430 | 2 | Hex. Nut M5-A4 DIN 934Fits 1 of 3 versions33C with side broom | $9.66/EA |
| 25 | MM01373700 | 1 | driver L.H.Fits 1 of 3 versions33C with side broom | $77.72/EA |
| 26 | MM00127470 | 2 | BufferFits 1 of 3 versions33C with side broom | $5.39/EA |
| 27 | MM01081260 | 4 | Socket head screw M5x16-A2-70 DIN 912Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 28 | MM00902270 | 4 | Washer 5-200HV-A4-70 ISO 7090Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 29 | MM12040283 | 4 | Hex. Nut M5-A2-70 DIN 985Fits 1 of 3 versions33C with side broom | $1.08/EA |
| 30 | MM01372750 | 1 | driver R.H.Fits 1 of 3 versions33C with side broom | $68.54/EA |
| 31 | MM90310681 | 1 | T-piece TS12Fits 1 of 3 versions33C with side broom | $5.25/EA |
| 32 | MM01389740 | 2 | hose clampFits 1 of 3 versions33C with side broom | $2.33/EA |
| 33 | MM00112010 | 0.49 M | hose 12x3 PVC-weich mit StahlFits 1 of 3 versions33C with side broom | $11.83/EA |
| 34 | MM3302144Replaces PowerBoss 01015350 | 2 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits 1 of 3 versions33C with side broom | $5.02/EA |
| 35 | MM01273130 | 1 | Pipe R.H.Fits 1 of 3 versions33C with side broom | $101.22/EA |
| 36 | MM01273120 | 1 | Pipe L.H.Fits 1 of 3 versions33C with side broom | $99.08/EA |
| 37 | MM90429952 | 2 | Jet 1-8 K5Fits 1 of 3 versions33C with side broom | $24.64/EA |
| 38 | MM01371930 | 1 | decal ABRASIONFits 1 of 3 versions33C with side broom | $9.33/EA |
| 39 | MM00022430 | 2 | Feather key A5x5x18 St50 DIN 6885Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 40 | MM12610234 | 2 | Retaining ring 14x1-phos. DIN 471Fits 1 of 3 versions33C with side broom | $5.51/EA |
| 41 | MM01178180 | 1 | Set carbon brush (casket)Fits 1 of 3 versions33C with side broom | $532.70/EA |
| W4 | MM03020380 | 1 | wiring harness W4Fits 1 of 3 versions33C with side broom | $653.17/EA |
| W35 | MM03020480 | 1 | wiring harness W35Fits 1 of 3 versions33C with side broom | $138.08/EA |
| W36 | MM03020540 | 1 | wiring harness W36Fits 1 of 3 versions33C with side broom | $138.08/EA |
PowerBoss Scrubmaster B175R Carrier, cpl. parts
The roll brush carrier with its bearing, bushing and rings. This group is in the 33C catalog only. Manual pages 33C p119, list 33C p120.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01078820 | 2 | Circlip SP35 DIN 5417Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 2 | MM14110853 | 2 | Grooved ball bearing 6202-2Z-NR DIN 625Fits 1 of 3 versions33C with side broom | $14.19/EA |
| 3 | MM90409665 | 1 | BushingFits 1 of 3 versions33C with side broom | $9.31/EA |
| 4 | MM14678064 | 1 | Ring 6202 ZAVMSFits 1 of 3 versions33C with side broom | $6.89/EA |
| 5 | MM01077550 | 1 | BushingFits 1 of 3 versions33C with side broom | $15.67/EA |
| 6 | MM12610093 | 1 | Retaining ring 20x1,2-phos. DIN 471Fits 1 of 3 versions33C with side broom | $1.22/EA |
| 7 | MM90423666 | 1 | BushingFits 1 of 3 versions33C with side broom | $20.06/EA |
| 8 | MM90416777 | 1 | RetainerFits 1 of 3 versions33C with side broom | $100.67/EA |
PowerBoss Scrubmaster B175R Side cover, cpl. parts
The side cover of the roll brush head with its screws and counter bearing. This group is in the 33C catalog only. Manual pages 33C p121, list 33C p122.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177187 | 1 | Lens flange screw M8x16-A2-70 ISO7380-2Fits 1 of 3 versions33C with side broom | $3.30/EA |
| 2 | MM90464058 | 1 | WasherFits 1 of 3 versions33C with side broom | $12.56/EA |
| 3 | MM11177179 | 3 | Lens flange screw M6x10-A2-70 ISO7380-2Fits 1 of 3 versions33C with side broom | $1.73/EA |
| 4 | MM90454117 | 1 | Side coverFits 1 of 3 versions33C with side broom | $78.68/EA |
| 5 | MM96098264 | 1 | Centering bendFits 1 of 3 versions33C with side broom | $100.17/EA |
| 6 | MM96101985 | 1 | Counter bearingFits 1 of 3 versions33C with side broom | $76.70/EA |
PowerBoss Scrubmaster B175R Side wiper cylindrical brush head 850 parts
The side wiper for the 850 cylindrical brush head: guide, hose and bolts. This group is in the 33C catalog only. Manual pages 33C p123, list 33C p124.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97144695-97144596 | Side wiper R.H. + L.H.Fits 1 of 3 versions33C with side broom | Not sold separately. Its parts are listed under Side wiper R.H. + L.H. (97144695-97144596) | |
| 2 | MM01373380 | 1 | side skimmer guide rightFits 1 of 3 versions33C with side broom | $65.14/EA |
| 3 | MM01132510 | 0.08 M | Hose OLNS1 2370 DN10Fits 1 of 3 versions33C with side broom | $60.81/EA |
| 4 | MM00959230 | 12 | Hex.bolt M8x25 W151-90-flZnncFits 1 of 3 versions33C with side broom | $1.05/EA |
| 5 | MM01373140 | 1 | side squeegee guide L.H.Fits 1 of 3 versions33C with side broom | $65.14/EA |
PowerBoss Scrubmaster B175R Side wiper R.H. + L.H. (97144695-97144596) parts
The right and left side wipers for the 850 cylindrical brush head, with arms, tube, strips and fixings. This group is in the 33C catalog only. Manual pages 33C p125, list 33C p126.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373250 | 1 | swinging arm rightFits 1 of 3 versions33C with side broom | $87.51/EA |
| 2 | MM01372910 | 1 | steady armFits 1 of 3 versions33C with side broom | $67.62/EA |
| 3 | MM01375040 | 2 | hexagon screw M8X180-8.8 N2 ISO 4014Fits 1 of 3 versions33C with side broom | $2.42/EA |
| 4 | MM00695300 | 4 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions33C with side broom | $1.05/EA |
| 5 | MM01373400 | 2 | tubeFits 1 of 3 versions33C with side broom | $21.32/EA |
| 6 | MM00460890 | 0.14 M | Hose 14x20Fits 1 of 3 versions33C with side broom | $17.64/EA |
| 7 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions33C with side broom | $4.15/EA |
| 8 | MM01374100 | 8 | fitting screwFits 1 of 3 versions33C with side broom | $20.22/EA |
| 9 | MM01073860 | 16 | Slide bearing bush JFM-1416-12SFits 1 of 3 versions33C with side broom | $5.33/EA |
| 10 | MM01073870 | 4 | LeverFits 1 of 3 versions33C with side broom | $26.65/EA |
| 11 | MM01074210 | 2 | BushingFits 1 of 3 versions33C with side broom | $4.97/EA |
| 12 | MM01373670 | 2 | hookFits 1 of 3 versions33C with side broom | $33.08/EA |
| 13 | MM12310058 | 8 | Washer 10-200HV-N3 ISO 7089Fits 1 of 3 versions33C with side broom | $4.15/EA |
| 14 | MM12040069 | 8 | Hex. Nut M10-6 A2G DIN 985Fits 1 of 3 versions33C with side broom | $6.92/EA |
| 15 | MM01372840 | 1 | swivel arm L.H.Fits 1 of 3 versions33C with side broom | $84.26/EA |
| 16 | MM01373370 | 1 | squeegee R.H. (circular brush head)Fits 1 of 3 versions33C with side broom | $295.62/EA |
| 17 | MM01373330 | 1 | squeegee L.H. (circular brush head)Fits 1 of 3 versions33C with side broom | $281.55/EA |
| 18 | MM01373930 | 2 | tension band shortFits 1 of 3 versions33C with side broom | $136.12/EA |
| 19 | MM01077050Replaces PowerBoss 01073890 | 2 | squeegee stripFits 1 of 3 versions33C with side broom | $43.06/EA |
| 20 | MM01111970 | 2 | Wing nut M8Fits 1 of 3 versions33C with side broom | $1.67/EA |
| 21 | MM01130080 | 4 | Slide bearing bushFits 1 of 3 versions33C with side broom | $1.33/EA |
| 22 | MM01077050 | 2 | Squeegee stripFits 1 of 3 versions33C with side broom | $43.06/EA |
PowerBoss Scrubmaster B175R Disk brush head 900 parts
The 900 disk brush head: brush motors, carbon brushes, splash guard, spray tube, disk brushes and pads. This group is in the 35D catalog only. Manual pages 35D p134, list 35D p135-137.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01271070 | 2 | Motor Amer 710W 36VFits 1 of 3 versions35D | $987.97/EA |
| 2 | MM01274230 | 1 | Carbon brushFits 1 of 3 versions35D | $38.88/EA |
| 3 | MM01274300 | 1 | Carbon brush housingFits 1 of 3 versions35D | $353.77/EA |
| 4 | MM01277040 | 1 | Rotary shaft sealFits 1 of 3 versions35D | $22.40/EA |
| 5 | MM01271080 | 4 | Splash guardFits 1 of 3 versions35D | $5.69/EA |
| 6 | MM01170850 | 8 | Screw 4x8 verz.Fits 1 of 3 versions35D | $1.05/EA |
| 7 | MM90311663 | 2 | Spray tubeFits 1 of 3 versions35D | $2.63/EA |
| 8 | MM01171270 | 4 | Screw M6x12-St A2G DIN 7500-DFits 1 of 3 versions35D | $1.05/EA |
| 9 | MM01373540 | 1 | adapterFits 1 of 3 versions35D | $158.51/EA |
| 10 | MM01272710 | 12 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits 1 of 3 versions35D | $3.90/EA |
| 11 | MM01370250 | 2 | retainer ø13Fits 1 of 3 versions35D | $1.54/EA |
| 12 | MM01370240 | 2 | mounting feetFits 1 of 3 versions35D | $1.05/EA |
| 13 | MM00704610 | 10 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Fits 1 of 3 versions35D | $1.05/EA |
| 14 | MM12310041 | 9 | Washer 8-200HV-N3 ISO 7089Fits 1 of 3 versions35D | $2.75/EA |
| 15 | MM01373350 | 1 | plate db 900Fits 1 of 3 versions35D | $435.68/EA |
| 16 | MM01113660 | 0.2 M | Hose 6,0x13,0Fits 1 of 3 versions35D | $18.67/EA |
| 17 | MM00127470 | 2 | BufferFits 1 of 3 versions35D | $5.39/EA |
| 18 | MM12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits 1 of 3 versions35D | $1.38/EA |
| 19 | MM12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits 1 of 3 versions35D | $1.38/EA |
| 20 | MM90156688 | 4 | Cable tie 4,8x360Fits 1 of 3 versions35D | $2.06/EA |
| 21 | MM00562480 | 0.82 M | Spiral hose KX3000/Steel-Lw 10Fits 1 of 3 versions35D | $11.94/EA |
| 22 | MM00159550 | 2 | pipe clamp RSGU 1.18/20-W1Fits 1 of 3 versions35D | $3.90/EA |
| 23 | MM01371860 | 1 | covering 900Fits 1 of 3 versions35D | $388.96/EA |
| 24 | MM90275157 | 1 | T-reducer muff TRS10-13-10Fits 1 of 3 versions35D | $4.41/EA |
| 25 | MM00522290 | 1 | Tension springFits 1 of 3 versions35D | $29.66/EA |
| 26 | MM01093230 | 1 | Eye bolt LBM 8x80-4.6 A2G DIN 444Fits 1 of 3 versions35D | $2.17/EA |
| 27 | MM00855570 | 1 | Eye bolt LBM8x65-4.6 A2G DIN 444Fits 1 of 3 versions35D | $4.67/EA |
| 28 | MM00744340 | 1 | Hex. NutFits 1 of 3 versions35D | $1.05/EA |
| 29 | MM00153390 | 1 | Clamping tubeFits 1 of 3 versions35D | $1.31/EA |
| 30 | MM12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions35D | $4.15/EA |
| 31 | Not sold separatelyPowerBoss 97111066 | Brush carrier cpl.Fits 1 of 3 versions35D | Not sold separately. Its parts are listed under Brush carrier cpl. | |
| 32 | MM90209537 | 2 | WasherFits 1 of 3 versions35D | $2.29/EA |
| 33 | MM03003000 | 1 | TransparencyFits 1 of 3 versions35D | $1.05/EA |
| 34 | MM99754415 | 2 | Disk brush 18(460) PPN 0,5Fits 1 of 3 versions35D | $194.25/EA |
| 35 | MM99754715 | 2 | disk brush 18(460) K901Fits 1 of 3 versions35D | $205.97/EA |
| 36 | MM99731715 | 2 | Disk brush 18(460) SIC K600Fits 1 of 3 versions35D | $279.83/EA |
| 37 | MM99768615 | 2 | Disk brush 18(460) 5-comp.Fits 1 of 3 versions35D | $233.39/EA |
| 38 | MM99754315 | 2 | Disk brush 18(460) PPN 0,8Fits 1 of 3 versions35D | $193.64/EA |
| 39 | MM99754515 | 2 | Disk brush 18(460) SIC K180Fits 1 of 3 versions35D | $310.03/EA |
| 40 | MM99754615 | 2 | Disk brush 18(460) SIC K120Fits 1 of 3 versions35D | $288.75/EA |
| 41 | MM99755105 | 1 | Super-pad 18(460) red (5pc)Fits 1 of 3 versions35D | $184.64/EA |
| 42 | MM99787405PowerBoss 99787405 | 1 | Super-pad 18(460) green (5pc)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 43 | MM99754905 | 1 | Super-pad 18(460) brown (5pc)Fits 1 of 3 versions35D | $131.34/EA |
| 44 | MM99755005PowerBoss 99755005 | 1 | Super-pad 18(460) black (5pc)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 45 | MM99708802PowerBoss 99708802 | 2 | Micro-fibre pad 18(460)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 46 | MM99791802PowerBoss 99791802 | 1 | Twister-Pad 18(460) green (2pc)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 47 | MM99791812PowerBoss 99791812 | 1 | Twister-Pad 18(460) yellow (2pc)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 48 | MM99791822PowerBoss 99791822 | 1 | Twister-Pad 18(460) red (2pc)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 49 | MM99791842PowerBoss 99791842 | 1 | Twister-Pad 18(460) white (2pc)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 50 | MM99796181PowerBoss 99796181 | 1 | Melamin Super-Pad 18"" (46 cm)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 51 | MM99754815 | Pad holder 18(460)Fits 1 of 3 versions35D | $262.50/EA | |
| 52 | MM99754865 | Pad holder 18(460) bristlesFits 1 of 3 versions35D | $262.50/EA | |
| 53 | MM00712010 | 1 | Center-lock, cpl.Fits 1 of 3 versions35D | $69.02/EA |
| 54 | MM90364365 | 1 | Center-lock, lower partFits 1 of 3 versions35D | $38.25/EA |
| 55 | MM90364373 | 1 | Center-lock,upper partFits 1 of 3 versions35D | $41.86/EA |
| 56 | MM11709011 | 3 | Screw KB 40x14 WN-1442 1.4301Fits 1 of 3 versions35D | $1.38/EA |
| 57 | MM99769205PowerBoss 99769205 | 1 | Super-pad 18(460) blue (5pc)Fits 1 of 3 versions35D | Call to confirm part: 800-440-6723 |
| 58 | MM01377320 | 2 | fitting key 6x6x22 DIN 6885Fits 1 of 3 versions35D | $2.50/EA |
| W4 | MM03020380 | 1 | wiring harness W4Fits 1 of 3 versions35D | $653.17/EA |
PowerBoss Scrubmaster B175R Brush carrier cpl. parts
The brush carrier and driver for the disk brush heads. It is in the 35D and 42D catalogs. Manual pages 35D p138, list 35D p139.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01172810 | 1 | Brush driverFits 2 of 3 versions35D, 42D | $106.50/EA |
| 2 | MM90541814 | 1 | DriverFits 2 of 3 versions35D, 42D | $13.92/EA |
| 3 | MM12310256 | 3 | Washer 6-200HV-A2-70 ISO 7090Fits 2 of 3 versions35D, 42D | $1.05/EA |
| 4 | MM01170820 | 3 | Socket head screw M6x30-A2 ISO 4762Fits 2 of 3 versions35D, 42D | $1.05/EA |
PowerBoss Scrubmaster B175R Side wiper disk brush head 1080 parts
The side wiper for the 1080 disk brush head: guides, hose, bolts and decal. This group is in the 42D catalog only. Manual pages 42D p143, list 42D p144.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97144661-97138762 | Side wiper R.H. + L.H.Fits 1 of 3 versions42D | Not sold separately. Its parts are listed under Side wiper R.H. + L.H. (97144661-97138762) | |
| 2 | MM00959230 | 12 | Hex.bolt M8x25 W151-90-flZnncFits 1 of 3 versions42D | $1.05/EA |
| 3 | MM00695280 | 1 | Thrust washer 8 verz.Fits 1 of 3 versions42D | $6.22/EA |
| 4 | MM01373620 | 1 | squeegee guide R.H.Fits 1 of 3 versions42D | $92.24/EA |
| 5 | MM01132510 | 0.12 M | Hose OLNS1 2370 DN10Fits 1 of 3 versions42D | $60.81/EA |
| 6 | MM01111880 | 1 | Decal ABBAFits 1 of 3 versions42D | $19.69/EA |
| 7 | MM01373610 | 1 | pipeFits 1 of 3 versions42D | $20.03/EA |
| 8 | MM00711670 | 0.21 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 1 of 3 versions42D | $3.42/EA |
| 9 | MM01142460 | 1 | Protection cap SW10-1-G16 SWFits 1 of 3 versions42D | $1.05/EA |
| 10 | MM01373570 | 1 | squeegee guide L.H.Fits 1 of 3 versions42D | $57.37/EA |
PowerBoss Scrubmaster B175R Side wiper R.H. + L.H. (97144661-97138762) parts
The right and left side wipers for the 1080 disk brush head, with arms, holder, strips and fixings. This group is in the 42D catalog only. Manual pages 42D p145, list 42D p146.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373250 | 1 | swinging arm rightFits 1 of 3 versions42D | $87.51/EA |
| 2 | MM01373680 | 2 | side holderFits 1 of 3 versions42D | $84.26/EA |
| 3 | MM01375040 | 2 | hexagon screw M8X180-8.8 N2 ISO 4014Fits 1 of 3 versions42D | $2.42/EA |
| 4 | MM00695300 | 4 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions42D | $1.05/EA |
| 5 | MM01373400 | 2 | tubeFits 1 of 3 versions42D | $21.32/EA |
| 6 | MM00460890 | 0.14 M | Hose 14x20Fits 1 of 3 versions42D | $17.64/EA |
| 7 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions42D | $4.15/EA |
| 8 | MM01374100 | 8 | fitting screwFits 1 of 3 versions42D | $20.22/EA |
| 9 | MM01073860 | 16 | Slide bearing bush JFM-1416-12SFits 1 of 3 versions42D | $5.33/EA |
| 10 | MM01073870 | 4 | LeverFits 1 of 3 versions42D | $26.65/EA |
| 11 | MM01074210 | 2 | BushingFits 1 of 3 versions42D | $4.97/EA |
| 12 | MM01373670 | 2 | hookFits 1 of 3 versions42D | $33.08/EA |
| 13 | MM12310058 | 10 | Washer 10-200HV-N3 ISO 7089Fits 1 of 3 versions42D | $4.15/EA |
| 14 | MM12040069 | 8 | Hex. Nut M10-6 A2G DIN 985Fits 1 of 3 versions42D | $6.92/EA |
| 15 | MM01372840 | 1 | swivel arm L.H.Fits 1 of 3 versions42D | $84.26/EA |
| 16 | MM01373650 | 1 | skimmer holder rightFits 1 of 3 versions42D | $384.36/EA |
| 17 | MM01373690 | 1 | skimmer supporter leftFits 1 of 3 versions42D | $444.22/EA |
| 18 | MM01373970 | 2 | tension band longFits 1 of 3 versions42D | $175.96/EA |
| 19 | MM01077040Replaces PowerBoss 01074250 | 2 | Squeegee stripFits 1 of 3 versions42D | $53.77/EA |
| 20 | MM01111970 | 2 | Wing nut M8Fits 1 of 3 versions42D | $1.67/EA |
| 21 | MM01130080 | 4 | Slide bearing bushFits 1 of 3 versions42D | $1.33/EA |
| 22 | MM01272760 | 1 | Decal KEEP OFFFits 1 of 3 versions42D | $3.90/EA |
| 23 | MM01077040 | 1 | squeegee stripFits 1 of 3 versions42D | $53.77/EA |
PowerBoss Scrubmaster B175R Side wiper disk brush head 900 parts
The side wiper for the 900 disk brush head: guides, hose, bolts and decal. This group is in the 35D catalog only. Manual pages 35D p140, list 35D p141.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97138754-97144901 | Side wiper R.H. + L.H.Fits 1 of 3 versions35D | Not sold separately. Its parts are listed under Side wiper R.H. + L.H. (97138754-97144901) | |
| 2 | MM00959230 | 12 | Hex.bolt M8x25 W151-90-flZnncFits 1 of 3 versions35D | $1.05/EA |
| 3 | MM00695280 | 1 | Thrust washer 8 verz.Fits 1 of 3 versions35D | $6.22/EA |
| 4 | MM01373620 | 1 | squeegee guide R.H.Fits 1 of 3 versions35D | $92.24/EA |
| 5 | MM01132510 | 0.12 M | Hose OLNS1 2370 DN10Fits 1 of 3 versions35D | $60.81/EA |
| 6 | MM01111880 | 1 | Decal ABBAFits 1 of 3 versions35D | $19.69/EA |
| 7 | MM01373610 | 1 | pipeFits 1 of 3 versions35D | $20.03/EA |
| 8 | MM00711670 | 0.21 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 1 of 3 versions35D | $3.42/EA |
| 9 | MM01142460 | 1 | Protection cap SW10-1-G16 SWFits 1 of 3 versions35D | $1.05/EA |
| 10 | MM01373570 | 1 | squeegee guide L.H.Fits 1 of 3 versions35D | $57.37/EA |
PowerBoss Scrubmaster B175R Side wiper R.H. + L.H. (97138754-97144901) parts
The right and left side wipers for the 900 disk brush head, with arms, strips and fixings. This group is in the 35D catalog only. Manual pages 35D p142, list 35D p143.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01373250 | 1 | swinging arm rightFits 1 of 3 versions35D | $87.51/EA |
| 2 | MM01372910 | 2 | steady armFits 1 of 3 versions35D | $67.62/EA |
| 3 | MM01375040 | 2 | hexagon screw M8X180-8.8 N2 ISO 4014Fits 1 of 3 versions35D | $2.42/EA |
| 4 | MM00695300 | 4 | Washer 8,4-St A3G DIN 7349Fits 1 of 3 versions35D | $1.05/EA |
| 5 | MM01373400 | 2 | tubeFits 1 of 3 versions35D | $21.32/EA |
| 6 | MM00460890 | 0.14 M | Hose 14x20Fits 1 of 3 versions35D | $17.64/EA |
| 7 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 1 of 3 versions35D | $4.15/EA |
| 8 | MM01374100 | 8 | fitting screwFits 1 of 3 versions35D | $20.22/EA |
| 9 | MM01073860 | 16 | Slide bearing bush JFM-1416-12SFits 1 of 3 versions35D | $5.33/EA |
| 10 | MM01073870 | 4 | LeverFits 1 of 3 versions35D | $26.65/EA |
| 11 | MM01074210 | 2 | BushingFits 1 of 3 versions35D | $4.97/EA |
| 12 | MM01373670 | 2 | hookFits 1 of 3 versions35D | $33.08/EA |
| 13 | MM12310058 | 10 | Washer 10-200HV-N3 ISO 7089Fits 1 of 3 versions35D | $4.15/EA |
| 14 | MM12040069 | 8 | Hex. Nut M10-6 A2G DIN 985Fits 1 of 3 versions35D | $6.92/EA |
| 15 | MM01372840 | 1 | swivel arm L.H.Fits 1 of 3 versions35D | $84.26/EA |
| 16 | MM01373530 | 1 | side skimmer right TB 900Fits 1 of 3 versions35D | $340.35/EA |
| 17 | MM01373480 | 1 | side skimmer left TB 900Fits 1 of 3 versions35D | $340.35/EA |
| 18 | MM01373970 | 2 | tension band longFits 1 of 3 versions35D | $175.96/EA |
| 19 | MM01077040Replaces PowerBoss 01074250 | 2 | Squeegee stripFits 1 of 3 versions35D | $53.77/EA |
| 20 | MM01111970 | 2 | Wing nut M8Fits 1 of 3 versions35D | $1.67/EA |
| 21 | MM01130080 | 4 | Slide bearing bushFits 1 of 3 versions35D | $1.33/EA |
| 22 | MM01077040 | 1 | squeegee stripFits 1 of 3 versions35D | $53.77/EA |
PowerBoss Scrubmaster B175R Squeegee linkage group (97139935) parts
The squeegee linkage group with its lifting element and hardware. It is the same in all three catalogs. Manual pages 33C p127, list 33C p128.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM03021740 | 1 | Squeegee linkage groupHako material no. 97134035. Available; has sub-assemblies, listed under Squeegee linkage group (03021740). | $1,409.99/EA |
| 2 | Not sold separatelyPowerBoss 97142525 | Lifting elementNot sold separately. Has sub-assemblies, listed under Lifting element. | Not sold separately. Its parts are listed under Lifting element | |
| 3 | MM11038247 | 4 | hexagon screw M8x25-8.8-N3 ISO 4017Hako part no. 00053100. | $1.08/EA |
| 4 | MM12310041 | 2 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 5 | MM00740090 | 4 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 6 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
PowerBoss Scrubmaster B175R Suction unit 1260mm, cpl. parts
The 1260 mm squeegee: slot strip, sealing strip, deflectors, star handles and rollers. This group is in the 42D catalog only. Manual pages 42D p149, list 42D p150.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM717037Replaces PowerBoss 00059460 | 2 | hexagon screw M8x40-A2-70 ISO 4017Fits 1 of 3 versions42D | $2.00/EA |
| 2 | MM01178290 | 2 | Conical spring washer 75730/01 (5x140=700)**(10x)Fits 1 of 3 versions42D | $4.19/EA |
| 3 | MM01373050 | 2 | pipeFits 1 of 3 versions42D | $25.28/EA |
| 4 | MM01376740 | 4 | slide bearing bush GFM-2527-07Fits 1 of 3 versions42D | $3.90/EA |
| 5 | MM01371490 | 2 | deflector 125mmFits 1 of 3 versions42D | $20.92/EA |
| 6 | MM01373160 | 1 | deflector bow 1260mm R.H.Fits 1 of 3 versions42D | $182.84/EA |
| 7 | MM11039609 | 4 | hexagon screw M8x16-A2-70 ISO 4017Fits 1 of 3 versions42D | $1.38/EA |
| 8 | MM730526Replaces PowerBoss 00902280 | 4 | Washer 8-200HV-A4-70 ISO 7093Fits 1 of 3 versions42D | $1.08/EA |
| 9 | MM717029Replaces PowerBoss 00971400 | 4 | Hex. Nut M8-A4 DIN 934Fits 1 of 3 versions42D | $1.08/EA |
| 10 | MM01371530 | 2 | steering rollerFits 1 of 3 versions42D | $6.98/EA |
| 11 | MM01019860 | 2 | Socket head screw M8x45-A2-70 DIN 912Fits 1 of 3 versions42D | $1.05/EA |
| 12 | MM01228240 | 2 | Washer 12-200HV-A2-70 ISO 7089Fits 1 of 3 versions42D | $1.05/EA |
| 13 | MM00711670 | 0.31 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 1 of 3 versions42D | $3.42/EA |
| 14 | MM01090220PowerBoss 01090220 | 2 | Angle screwing WES8 M10x1Fits 1 of 3 versions42D | Call to confirm part: 800-440-6723 |
| 15 | MM01375180 | 2 | hexagon nut M10x1-A2-40 ISO 4035Fits 1 of 3 versions42D | $1.05/EA |
| 16 | MM01373740 | 1 | suction unit 1260mmFits 1 of 3 versions42D | $948.78/EA |
| 17 | MM01371630 | 2 | star handle yellow M10Fits 1 of 3 versions42D | $41.39/EA |
| 18 | MM01371690 | 1 | T-screwing in connecting piece TES8 R1/4Fits 1 of 3 versions42D | $3.90/EA |
| 19 | MM01185240 | 1 | O-ring 11x2,5 NBR 72 ShoreFits 1 of 3 versions42D | $1.05/EA |
| 20 | MM00711670 | 0.86 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 1 of 3 versions42D | $3.42/EA |
| 21 | MM01371880 | 1 | enclosure 1260 15mmFits 1 of 3 versions42D | $190.59/EA |
| 22 | MM01164420 | 4 | Lens flange screw M8x25-A2-70 ISO7380-2Fits 1 of 3 versions42D | $1.54/EA |
| 23 | MM01371940 | 1 | slot strip 1260mmFits 1 of 3 versions42D | $62.18/EA |
| 23 | MM01372020 | 1 | slot strip, highly wear-resistant 1260mmFits 1 of 3 versions42D | $115.67/EA |
| 24 | MM01371900 | 1 | sealing strip 1260mmFits 1 of 3 versions42D | $79.92/EA |
| 25 | MM01371700 | 1 | tension band front 1260mmFits 1 of 3 versions42D | $145.87/EA |
| 26 | MM01371640 | 1 | tension band rear 1260mmFits 1 of 3 versions42D | $144.19/EA |
| 27 | MM01372820 | 1 | deflector bow 1260mm L.H.Fits 1 of 3 versions42D | $182.84/EA |
| 28 | MM01371540 | 2 | handleFits 1 of 3 versions42D | $44.73/EA |
PowerBoss Scrubmaster B175R Retaining of battery plug parts
The adapter plate and screws that hold the battery plug. This group is in the 42D catalog only. Manual pages 42D p151, list 42D p152.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01000850 | 2 | Lens flange screw M6x12-10.9-N11 ISO7380-2Fits 1 of 3 versions42D | $1.05/EA |
| 2 | MM00730940 | 2 | Detent edged washer SKM-6-dacrometisiertFits 1 of 3 versions42D | $1.22/EA |
| 3 | MM01376620 | 1 | adapter plateFits 1 of 3 versions42D | $29.18/EA |
PowerBoss Scrubmaster B175R Squeegee linkage group (03021740) parts
The squeegee linkage: base plate, steering rollers, joints, springs and fixings. It is in the 33C and 35D catalogs. Manual pages 33C p129, list 33C p130-131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372500 | 1 | base plateFits 2 of 3 versions33C with side broom, 35D | $278.09/EA |
| 2 | MM00074710 | 2 | Hex. Nut M10-04-N2 ISO 4035Fits 2 of 3 versions33C with side broom, 35D | $2.43/EA |
| 3 | MM01389590 | 2 | steering roller 75mmFits 2 of 3 versions33C with side broom, 35D | $49.25/EA |
| 4 | MM01278920 | 2 | Socket head screw M6x35-A2 ISO 4762Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 5 | MM12310256 | 4 | Washer 6-200HV-A2-70 ISO 7090Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 6 | MM01373090 | 1 | jointFits 2 of 3 versions33C with side broom, 35D | $50.94/EA |
| 7 | MM00102140 | 2 | Hex. Nut M6-A2-70 DIN 985Fits 2 of 3 versions33C with side broom, 35D | $1.17/EA |
| 8 | MM01373280 | 2 | bushingFits 2 of 3 versions33C with side broom, 35D | $18.49/EA |
| 9 | MM01375180 | 1 | hexagon nut M10x1-A2-40 ISO 4035Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 10 | MM01373080 | 1 | adjustment bushingFits 2 of 3 versions33C with side broom, 35D | $44.73/EA |
| 11 | MM01380340 | 1 | hexagon nut M10x1-LH-A2-40 ISO 4035Fits 2 of 3 versions33C with side broom, 35D | $15.27/EA |
| 12 | MM01164420 | 8 | Lens flange screw M8x25-A2-70 ISO7380-2Fits 2 of 3 versions33C with side broom, 35D | $1.54/EA |
| 13 | MM01226400 | 8 | Detent edged washer SKS 8-1.4401Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 14 | MM12040259 | 12 | Hex. Nut M8-A2-70 DIN 985Fits 2 of 3 versions33C with side broom, 35D | $1.08/EA |
| 15 | MM01371360 | 4 | hexagon screw M8x80-A2-70 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 16 | MM01373460 | 8 | spacer sleeveFits 2 of 3 versions33C with side broom, 35D | $12.25/EA |
| 17 | MM00077900 | 8 | DU-Drying socket 12x14x15Fits 2 of 3 versions33C with side broom, 35D | $1.59/EA |
| 18 | MM01373730 | 4 | adapterFits 2 of 3 versions33C with side broom, 35D | $84.60/EA |
| 19 | MM01372720 | 1 | shaftFits 2 of 3 versions33C with side broom, 35D | $88.49/EA |
| 20 | MM01372860 | 2 | indicatorFits 2 of 3 versions33C with side broom, 35D | $6.98/EA |
| 21 | MM01077710 | 2 | Tension springFits 2 of 3 versions33C with side broom, 35D | $10.50/EA |
| 22 | MM01377290 | 4 | slide bearing bush AMV-BV-20x23x31-21,5Fits 2 of 3 versions33C with side broom, 35D | $17.54/EA |
| 23 | MM01373240 | 2 | guideFits 2 of 3 versions33C with side broom, 35D | $24.33/EA |
| 24 | MM01373800 | 1 | shaftFits 2 of 3 versions33C with side broom, 35D | $136.12/EA |
| 25 | MM01371600 | 2 | leaf springFits 2 of 3 versions33C with side broom, 35D | $21.61/EA |
| 26 | MM01371520 | 2 | leaf springFits 2 of 3 versions33C with side broom, 35D | $32.50/EA |
| 27 | MM01371560 | 2 | tension springFits 2 of 3 versions33C with side broom, 35D | $80.75/EA |
| 28 | MM01371620 | 1 | fork headFits 2 of 3 versions33C with side broom, 35D | $129.36/EA |
| 29 | MM01371570 | 2 | fork headFits 2 of 3 versions33C with side broom, 35D | $26.24/EA |
| 30 | MM00734550 | 2 | DU-Drying socket 20x23x20Fits 2 of 3 versions33C with side broom, 35D | $2.21/EA |
| 31 | MM01373780 | 1 | stopFits 2 of 3 versions33C with side broom, 35D | $252.84/EA |
| 32 | MM01370230 | 2 | circlip 20x1,2 - 1.4122 DIN 471Fits 2 of 3 versions33C with side broom, 35D | $1.54/EA |
PowerBoss Scrubmaster B175R Lifting element parts
The squeegee lifting element with its rope guide, pin, roller guide and rope. It is in the 33C and 35D catalogs. Manual pages 33C p132, list 33C p133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375050 | 1 | lifting element 24V 750N 70mmFits 2 of 3 versions33C with side broom, 35D | $375.33/EA |
| 2 | MM01373500 | 1 | rope guideFits 2 of 3 versions33C with side broom, 35D | $49.58/EA |
| 3 | MM01373490 | 1 | pinFits 2 of 3 versions33C with side broom, 35D | $13.23/EA |
| 4 | MM01373580 | 2 | roller guideFits 2 of 3 versions33C with side broom, 35D | $24.33/EA |
| 5 | MM14895437 | 2 | Slide bearing bush GFM-1012-17Fits 2 of 3 versions33C with side broom, 35D | $1.41/EA |
| 6 | MM11039765 | 1 | hexagon screw M5x30-A2-70 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $1.25/EA |
| 7 | MM12040283 | 1 | Hex. Nut M5-A2-70 DIN 985Fits 2 of 3 versions33C with side broom, 35D | $1.08/EA |
| 8 | MM01371430 | 1 | ropeFits 2 of 3 versions33C with side broom, 35D | $29.50/EA |
| 9 | MM01373590 | 1 | tension springFits 2 of 3 versions33C with side broom, 35D | $33.08/EA |
| 10 | MM00855380 | 4 | Washer 10,5-St A3G DIN 7349Fits 2 of 3 versions33C with side broom, 35D | $1.22/EA |
| 11 | MM01373520 | 1 | pinFits 2 of 3 versions33C with side broom, 35D | $9.33/EA |
| 12 | MM00103230 | 2 | Retaining ring 10x1-phos. DIN 471Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 13 | MM01373510 | 1 | leverFits 2 of 3 versions33C with side broom, 35D | $50.57/EA |
| 14 | MM11038247 | 2 | hexagon screw M8x25-8.8-N3 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $1.08/EA |
| 15 | MM12310041 | 4 | Washer 8-200HV-N3 ISO 7089Fits 2 of 3 versions33C with side broom, 35D | $2.75/EA |
| 16 | MM12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits 2 of 3 versions33C with side broom, 35D | $4.15/EA |
| 17 | MM01371070 | 2 | cable guideFits 2 of 3 versions33C with side broom, 35D | $11.08/EA |
PowerBoss Scrubmaster B175R Suction unit 1100mm, cpl. parts
The 1100 mm squeegee: slot strip, sealing strip, deflectors, star handles and rollers. It is in the 33C and 35D catalogs. Manual pages 33C p134, list 33C p135.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM717037Replaces PowerBoss 00059460 | 2 | hexagon screw M8x40-A2-70 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $2.00/EA |
| 2 | MM01178290 | 2 | Conical spring washer 75730/01 (5x140=700)**(10x)Fits 2 of 3 versions33C with side broom, 35D | $4.19/EA |
| 3 | MM01373050 | 2 | pipeFits 2 of 3 versions33C with side broom, 35D | $25.28/EA |
| 4 | MM01376740 | 4 | slide bearing bush GFM-2527-07Fits 2 of 3 versions33C with side broom, 35D | $3.90/EA |
| 5 | MM01371490 | 2 | deflector 125mmFits 2 of 3 versions33C with side broom, 35D | $20.92/EA |
| 6 | MM01373130 | 1 | deflector bow 1100mm R.H.Fits 2 of 3 versions33C with side broom, 35D | $150.72/EA |
| 7 | MM11039609 | 2 | hexagon screw M8x16-A2-70 ISO 4017Fits 2 of 3 versions33C with side broom, 35D | $1.38/EA |
| 8 | MM730526Replaces PowerBoss 00902280 | 2 | Washer 8-200HV-A4-70 ISO 7093Fits 2 of 3 versions33C with side broom, 35D | $1.08/EA |
| 9 | MM717029Replaces PowerBoss 00971400 | 4 | Hex. Nut M8-A4 DIN 934Fits 2 of 3 versions33C with side broom, 35D | $1.08/EA |
| 10 | MM01371530 | 2 | steering rollerFits 2 of 3 versions33C with side broom, 35D | $6.98/EA |
| 11 | MM01019860 | 2 | Socket head screw M8x45-A2-70 DIN 912Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 12 | MM01228240 | 2 | Washer 12-200HV-A2-70 ISO 7089Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 13 | MM00711670 | 0.21 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 2 of 3 versions33C with side broom, 35D | $3.42/EA |
| 14 | MM01090220PowerBoss 01090220 | 2 | Angle screwing WES8 M10x1Fits 2 of 3 versions33C with side broom, 35D | Call to confirm part: 800-440-6723 |
| 15 | MM01375180 | 2 | hexagon nut M10x1-A2-40 ISO 4035Fits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 16 | MM01373850 | 1 | suction unit 1100mmFits 2 of 3 versions33C with side broom, 35D | $848.94/EA |
| 17 | MM01371630 | 2 | star handle yellow M10Fits 2 of 3 versions33C with side broom, 35D | $41.39/EA |
| 18 | MM01371690 | 1 | T-screwing in connecting piece TES8 R1/4Fits 2 of 3 versions33C with side broom, 35D | $3.90/EA |
| 19 | MM01185240 | 1 | O-ring 11x2,5 NBR 72 ShoreFits 2 of 3 versions33C with side broom, 35D | $1.05/EA |
| 20 | MM00711670 | 0.76 M | Hose 8x1,5 PVC-transp. DIN 16940Fits 2 of 3 versions33C with side broom, 35D | $3.42/EA |
| 21 | MM01371790 | 1 | enclosure 1100 15mmFits 2 of 3 versions33C with side broom, 35D | $111.84/EA |
| 22 | MM01164420 | 4 | Lens flange screw M8x25-A2-70 ISO7380-2Fits 2 of 3 versions33C with side broom, 35D | $1.54/EA |
| 23 | MM01371780 | 1 | slot strip 1100mmFits 2 of 3 versions33C with side broom, 35D | $69.97/EA |
| 23 | MM01372110 | 1 | slot strip, highly wear-resistant 1100mmFits 2 of 3 versions33C with side broom, 35D | $123.70/EA |
| 24 | MM01372330 | 1 | sealing strip 1100mmFits 2 of 3 versions33C with side broom, 35D | $86.73/EA |
| 25 | MM01371950 | 1 | tension band front 1100mmFits 2 of 3 versions33C with side broom, 35D | $137.12/EA |
| 26 | MM01371830 | 1 | tension band rear 1100mmFits 2 of 3 versions33C with side broom, 35D | $130.32/EA |
| 27 | MM01372850 | 1 | deflector bow 1100mm L.H.Fits 2 of 3 versions33C with side broom, 35D | $150.72/EA |
| 28 | MM01371540 | 2 | handleFits 2 of 3 versions33C with side broom, 35D | $44.73/EA |
New to your PowerBoss Scrubmaster B175R? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your Scrubmaster B175R. Everything here comes from the PowerBoss operating manual, rewritten in plain steps, with the parts you need linked to the list above.
1Get it ready for the first start
- Charge the battery fully with a commissioning charge before you start the machine for the first time. Follow the charger manual and the battery maker's manual.
- Loosen the bolts of the cover with the supplied socket wrench and take the cover off.
- Route the mains plug cable through the opening in the bracket, with the side of the strain relief that has no latch facing the opening. Push the strain relief in from below until all latches engage.
- Push the mains plug straight and firmly into its holder, then refit the cover with its screws.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 48 and 49. SES ref PF-TTP5-4LAS
2Check it and fill it
- Look at the parking area for leaks. Cables and tanks must show no leaks or damage.
- Empty and clean the waste water tank if it needs it.
- Stand the machine on a level surface and fill the solution tank through the filling opening to about 6 in (15 cm) below the maximum level. The water can be up to 122 °F (50 °C).
- Add detergent through the sieve insert. Use only foam-retarded detergent made for automatic machines. If your machine has the on-board dosing system, do not add detergent to the fresh water.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 49, 54 and 77. SES ref PF-TTP5-4LAS
3Sit down and start cleaning
- Adjust the driver's seat while the machine is stopped, so you can reach every control. The seat must click into place.
- Sit on the seat and turn the key switch to 1. The machine starts only when the driver is seated, and the travel drive starts only if your foot is off the accelerator pedal when you turn the machine on.
- Push the driving direction button for forwards or reverse. The top speed in reverse is half the top speed forwards.
- Push the green brush unit and squeegee button. The brush unit and squeegee lower and the suction turbine starts. Press the accelerator pedal and the brush drive and water supply switch on.
- For heavy soil, raise the brush pressure with the Brush pressure soft key in the display, or press the Boost button for 1 minute.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 26, 27, 29, 50 and 52. SES ref PF-TTP5-4LAS
4Stop, empty and clean up
- Slowly bring the accelerator pedal back to zero. The machine slows to a stop and the parking brake applies with an audible click. Use the brake for a harder stop.
- Switch off the cleaning functions, switch the machine off with the key switch and take the key out.
- Drive to a suitable disposal centre and put the drain hose over the floor drain. Take the hose out of its holder, open the drain valve and empty the waste water tank. Close the hose end fully afterwards.
- Clean the waste water tank and drain hose, and check the squeegee sealing strips and suction hose. Do not use a high-pressure cleaner or steam cleaner on the machine.
- Swivel the seat console all the way up and leave it open. Plug the mains plug into a 230 V socket to charge the battery with the on-board charger. Charging starts by itself.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 58, 69, 70 and 80. SES ref PF-TTP5-4LAS
Questions about your B175R? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
PowerBoss Scrubmaster B175R troubleshooting
Problems, likely causes and fixes from the operating manual's service code and charging tables. Turn the machine off and disconnect the battery connector before any service.
| Likely cause | Fix | Part |
|---|---|---|
| Brushes stop (service code 1.2.5.1 or 1.2.5.2) | ||
| Foreign particles between the brush and the shaft | Inspect the brushes for foreign particles and remove them. | |
| Brushes stop (service code 1.2.6.1 or 1.2.6.8) | ||
| Foreign particles block the brush, or the brush is not positioned correctly in the holder | Inspect the brushes and remove foreign particles. Actuate the brush decoupling system. If it keeps happening, call SES service. | |
| Brush lift, brush and suction turbine switched off (service code 1.2.6.3) | ||
| Foreign particles between the brush head and the machine, or the brush head is stuck | Inspect the brush head and remove foreign particles. Release the brush head. | |
| Squeegee lift stops (service code 1.4.6.1) | ||
| Overload from foreign particles, foreign particles between the squeegee and the machine, or the squeegee is jammed | Inspect for foreign particles and remove them. Inspect the lift system. Make the squeegee accessible. | |
| Suction turbine stops (service code 1.4.6.3 or 1.4.6.4) | ||
| Foreign particles in the suction turbine (MM01372140), or a faulty suction turbine | Call SES service. | |
| Rotating cylindrical brush stops (service code 2.2.5.1) | ||
| Foreign particles block the brush | Inspect the cylindrical brush for foreign particles and remove them. | |
| Driving not possible (service code 3.4.1.2 or 3.4.1.3) | ||
| Error in the drive control | Turn the machine off and on with the key switch. If it keeps happening, call SES service. | |
| Cleaning function switches off (service code 3.4.5.1) | ||
| The drive wheel is sluggish from foreign particles, or the drive motor is overheating | Remove the foreign particles. Let the machine cool down for about 15 minutes, then restart it. | |
| Driving and cleaning not possible (service code 3.6.6.4) | ||
| Seat permanently loaded | Relieve the seat. | |
| Batteries are not being charged (service code 5.8.7.1 or 5.8.7.2) | ||
| Mains plug not inserted correctly, cables on the battery poles loose or detached, or the wrong type of battery installed | Insert the mains plug correctly. For loose cables or the wrong battery, call SES service. | |
| Charger warning during charging: temperature too high | ||
| Charger temperature too high, for example from sunshine | Disconnect the mains plug. Move the machine to a cooler, shaded place. Wait half an hour, then continue charging. | |
| Fresh water level not displayed (service code 1.5.5.1) | ||
| Error in the electronics | Call SES service. | |
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 56, 60, 61 and 71. SES ref PF-IUNH-ZFZA
Still stuck? SES services PowerBoss machines. Call 800-440-6723 and have your model and serial number ready.
PowerBoss Scrubmaster B175R maintenance schedule
The operating manual's maintenance plan and care steps. Turn the machine off and disconnect the battery connector before any service. Do not clean the machine with a high-pressure cleaner or steam jet.
| Task | How often | Part |
|---|---|---|
| Empty the waste water tank. Clean the tank, the drain hose, the coarse dirt sieve and the suction filter. | Daily | |
| Check the intake sieve and clean it under running water if needed. Check the seal in the drain valve and the seal in the tank cap. Replace the tank cap seal if it is damaged. | Daily | |
| Check the battery and charge it if needed. | Daily | |
| Check the squeegee for dirt and foreign particles and clean it if needed. | Daily | |
| Clean the brushes under running water. If you have the roller brush unit, empty its dirt hopper. | Daily | |
| If you have the pre-sweep suction unit, clean the cylindrical brush compartment, shake the filter with the shaking system and empty the dirt hopper. | Daily | |
| Clean the solution tank. Check the fresh water filter: close the ball cock, unscrew the filter cover, rinse the sieve under running water or replace it (see the water filter (MM97113377)), then refit it and open the ball cock. | Weekly | |
| Check the brushes or pads and the water retaining ring for fit and wear. Replace them if needed. Check the fresh water supply to the brushes. | Weekly | |
| Check the squeegee sealing strip (MM01372330 / MM01371900) and slot strip (MM01371780 / MM01371940) for wear and damage. Turn or replace a worn strip. Each strip can be used four times before it needs replacing. | Weekly | |
| Check the rubber of the side wiper for wear. Turn it or replace it. It can be used four times. | Weekly | |
| Check the suction hose for a tight fit and damage, and clean it if needed. | Weekly | |
| If the battery has the aquamatic system, check the acid level. The white dot on each cell's float indicator must be at the top and clearly visible. If it is not, refill with demineralised water once charging has finished. | Weekly | |
| Side brush unit: check the side brush for wear. After wear or a change, lower the unit and turn the wing nuts clockwise on both sides until a third of the side brush touches the floor. | Weekly, if fitted | |
| Pre-sweep suction unit: inspect the cylindrical brush, the dirt hopper seal and the side brushes, and replace any that show wear. | Weekly, if fitted | |
| On-board dosing system: check the hose section in the dosing pump, about 0.9 in (23 mm) long, and replace it if needed. | Weekly, if fitted | |
| Replace the seal in the drain valve at the latest after 125 operating hours. Twist the drain valve 90° and swivel it down from the drain hose, change the seal, then grease the seal and cone with Molykote. | Every 125 operating hours | |
| Have an expert check that the machine is in a safe condition. The manual recommends this at least once a year. Call SES service: 800-440-6723. | Yearly |
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 12, 55, 67, 73, 82, 83, 84, 88, 90, 92, 95, 96, 97, 98 and 100. SES ref PF-2IKX-VW2E
PowerBoss Scrubmaster B175R specifications
From the Scrubmaster B175 R operating manual. Where a value differs by build, the build is named.
| Brush unit width | Roll brush 33.5 in (850 mm); disk brush 35.4 in (900 mm) or 42.5 in (1080 mm) |
|---|---|
| Squeegee width | 43.3 in (1100 mm); 49.6 in (1260 mm) with the 42.5 in (1080 mm) brush unit |
| Solution and waste water tanks | 46.2 gal (175 L) each |
| Brush speed | 210 rpm on the disk brush builds; 850 rpm on the roll brush build |
| Brush pressure | 77 to 154 lb (35 to 70 kg) with the 900 mm disk brushes; 84 to 154 lb (38 to 70 kg) with the 1080 mm; 64 to 84 lb (29 to 38 kg) with the 850 mm roll brush |
| Voltage and battery | 36 V; trough battery 36 V/320 Ah PzS wet or 36 V/280 Ah PzV maintenance-free |
| Transport speed | 5.0 mph (8 km/h) forwards; 2.5 mph (4 km/h) in reverse |
| Weight | 970 to 1,058 lb (440 to 480 kg) empty without batteries; 2,227 to 2,425 lb (1,010 to 1,100 kg) ready for use; 2,888 lb (1,310 kg) permissible total |
| Slopes | Standard drive: cleaning up to 6% for 2 minutes, transport up to 10% for 1 minute. X-AC drive: cleaning up to 15% for up to 5 minutes, transport up to 18% for 3 minutes. Ramp angle 16% |
| Length | 74.4 in (1890 mm); 105.1 in (2670 mm) with the pre-sweep unit on the 900 and 1080 builds |
| Height | 57.1 in (1450 mm); 81.9 in (2080 mm) with the overhead guard |
| Turning circle with squeegee | 116.5 to 116.9 in (2,960 to 2,970 mm) |
| Sound pressure at the driver's ear | 68 dB(A); 64 dB(A) in silent operation |
| Pre-sweep suction unit | Working width 51.2 in (1300 mm); dirt hopper 4.2 gal (16 L) with a maximum load of 44 lb (20 kg) |
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 47, 62, 63, 64 and 65. SES ref PF-SYOQ-I4AI
PowerBoss Scrubmaster B175R manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Online manuals
Read the Scrubmaster B175R manuals in your browser, with clickable part numbers. No sign-in needed.
- Scrubmaster B175R operator manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESB175R 33C with side broom parts catalogHako spare parts catalog, 135 pages | 33C with side broom, SM3346CSB (7180.39) | No revision or date printed (this page) | 15.0 MB | Sign in to view or downloadSign in to download |
| PDFby SESB175R 35D parts catalogHako spare parts catalog, 152 pages | 35D, SM3546D (7180.29) | No revision or date printed (this page) | 16.6 MB | Sign in to view or downloadSign in to download |
| PDFby SESB175R 42D parts catalogHako spare parts catalog, 152 pages | 42D, SM4246D (7180.17) | No revision or date printed (this page) | 16.8 MB | Sign in to view or downloadSign in to download |
| PDFby SESB175R operating manualOperator manual, 110 pages | Scrubmaster B175 R, all builds | 88-10-3115 Rev A 04/19 | 3.5 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common PowerBoss Scrubmaster B175R parts questions
How big are the tanks on the PowerBoss Scrubmaster B175R?
The solution tank and the waste water tank each hold 46.2 gal (175 L). The display shows the solution level and warns you when less than 2.6 gal (10 L) is left.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 44 and 63. SES ref PF-KTB4-5JST
What battery does the Scrubmaster B175R use?
It runs on 36 V. The manual lists a 36 V/320 Ah PzS wet trough battery and a 36 V/280 Ah PzV maintenance-free trough battery. A battery management system watches the charge. A different approved battery needs the BMS reset by a workshop PowerBoss has authorised.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, page 47. SES ref PF-KTB4-5JST
How do I charge the B175R?
Stand it on a level surface, turn it off, swivel the seat console all the way up and plug the mains plug into a 230 V socket. Charging starts by itself. Charge no later than when the cleaning functions shut off.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 69 and 70. SES ref PF-KTB4-5JST
How often should I check the battery water on my B175R?
Weekly. On batteries with the aquamatic system, the white dot on each cell's float indicator must be at the top and clearly visible. If it is not, refill with demineralised water once charging has finished.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 67 and 73. SES ref PF-KTB4-5JST
How do I push the B175R when it will not drive?
Only on a level surface. Take off the drive cover with the supplied socket wrench, move the pin from its holder into the ring and pull it up slightly to unlock the parking brake while you push. A pushed machine has no braking effect.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, page 57. SES ref PF-KTB4-5JST
How often do the squeegee strips need changing on the B175R?
Check the sealing strip and slot strip weekly. Turn or replace a worn strip. Each strip can be used four times before it needs replacing.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, page 92. SES ref PF-KTB4-5JST
What slopes can the B175R work on?
With the standard drive, clean on slopes of up to 6%, and drive on slopes of up to 10% only for a limited time. With the X-AC drive, clean on up to 15% for up to 5 minutes and transport on up to 18% for up to 3 minutes.
Source: PowerBoss Scrubmaster B175 R Operating Manual, book number 88-10-3115 Rev A 04/19, pages 11 and 62. SES ref PF-KTB4-5JST
Notes on this parts list
Places where PowerBoss's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- The three catalogs print no revision, date or page numbers. Page labels on this page are the catalog (33C, 35D or 42D) and its PDF page number; the operating manual uses its printed page numbers.
- Hako prints two numbers on most lines, a Part-No and a Material-No. Our number is MM plus the Part-No, with the Material-No in the note. Where only the Material-No is listed in our store, the line uses it and the note gives the Part-No.
- Where all three catalogs print the same group, it appears once with no tag. Groups that differ by build, such as the control console, chassis, front bumpers, brush heads and side wipers, are split by build or have Fits tags on the lines that differ.
- Lines printed Not supplied alone have no part number. The note gives Hako's number for the complete assembly to order; when that assembly is a line on this page, the line links to it.
- Lines printed Not available are assemblies that Hako lists in groups of their own. They are not sold separately; the line links the group on this page that lists their parts.
- Side brush and side wiper assemblies are printed as a range of two numbers, for example 97150015-97150247. They point to the group that lists their parts, like the other sub-assembly lines.
- The operating manual covers the Scrubmaster B175 R in every build and gives its technical data under TB 900, TB 1080, WB 850 and TB 900 X-AC. It does not name the 33C, 35D or 42D. The brush head sizes in the catalogs (850, 900 and 1080) are how this page ties the builds together.
- Operating manual page 11 allows cleaning on slopes of up to 6% with the standard drive. The technical data on page 62 adds a limit of 2 minutes.
- Operating manual page 79 says to drain the waste water tank in step 4 of emptying the solution tank. The step belongs to the solution tank drain hose.
- The 42D catalog prints no quantity for its disk brush head pads and brushes (units BOX and PCK), while the 35D catalog prints 1. The 42D lines are shown without a quantity, as printed.
- The seat group lines are the same in all three catalogs, but the 33C catalog draws a differently shaped seat. This page shows the 35D drawing.
