PowerBoss Scrubmaster B120R parts list and diagrams
Every part number in the Hako spare-parts catalogs for the PowerBoss Scrubmaster B120R ride-on scrubber, for all four deck builds: 28 in and 33 in cylindrical, 30 in and 35 in disc. Drawings, maintenance, troubleshooting and specs come with them. Each part number links to that part in our store.
Complete list: every parts line in Hako's four spare-parts catalogs for the Scrubmaster B120R (SM2832C 7177.45, SM3032D 7177.41, SM3332C 7177.47 and SM3532D 7177.43), with maintenance and specs from the operating manual 88-10-3105. Checked .
New to your Scrubmaster B120R? Start here → Manuals (free sign-in) →
- Brush unit width
- TB 750: 29.5 in (750 mm); TB 900: 35.4 in (900 mm); WB 700: 27.6 in (700 mm); WB 850: 33.5 in (850 mm)
- Squeegee width
- TB 750 and WB 700: 37.4 in (950 mm); TB 900 and WB 850: 43.3 in (1,100 mm)
- Tanks
- Solution tank 31.7 US gal (120 L); waste water tank 31.7 US gal (120 L)
- Weight ready for use
- TB 750: 1,594 lb (723 kg); TB 900: 1,627 lb (738 kg); WB 700: 1,559 lb (707 kg); WB 850: 1,563 lb (709 kg). Permissible total weight 1,918 lb (870 kg)
- Driving speed
- 4.2 mph forward and 2.4 mph reverse (6.7 / 3.9 km/h)
Wear parts most B120R owners reorder
Hako's maintenance schedule has you check the squeegee strips, the wiper rubber, the brushes and the fresh water filter. These are the ones on the parts list.
Sealing strip
$58.04/EASlot strip
$61.59/EASealing strip
$46.18/EASlot strip
$46.18/EASqueegee strip
$53.77/EAFilter
$31.56/EASet of cylindrical brushes PA6-0, 7
Call to confirm part: 800-440-6723set of cyl. brushes 850 PA6-0,7
$445.01/EAdisk brush 15(380) PPN0,5
$106.25/EADisk brush 18(460) PPN0,5
$209.37/EA
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105, pages 56, 58, 66, 72, 78 and 82. SES ref PF-CJPU-ELXB
Your machine
How to tell which you have
- Read the type plate: it is on the right-hand side of the chassis in front of the rear wheel. Match the model number on it to SM2832C, SM3032D, SM3332C or SM3532D.
- Cylindrical or disc: the C builds clean with roller brushes (700 mm and 850 mm). The D builds clean with two disc brushes or pads (750 mm and 900 mm).
- Squeegee width: the 28 in and 30 in builds have a 37.4 in (950 mm) squeegee. The 33 in and 35 in builds have a 43.3 in (1,100 mm) squeegee.
- Many parts fit all four: frame, steering, seat, tanks, electrics and most of the console are the same. Lines tagged with a model fit only that build.
How to read this list
Our part numbers are Hako's Part-No with MM in front, so Hako part no. 01179180 is MM01179180. Hako's catalogs print a Part-No and a Material-No on each line; the Material-No is in the note. Where we list a line under its Material-No instead, the note says so. Lines that Hako prints as a pointer to a sub-assembly are not sold separately: their parts are on that group's own drawing. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

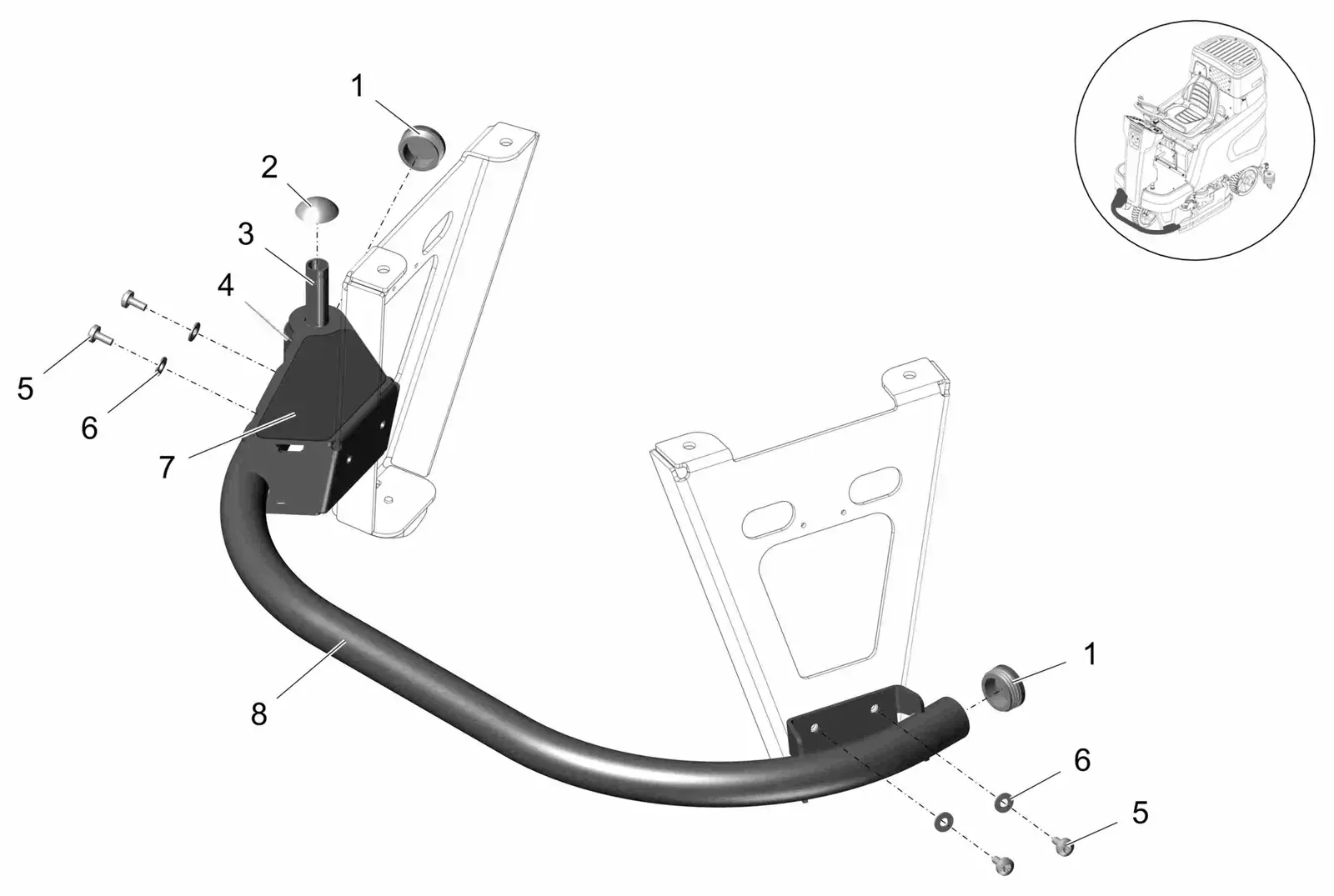

PowerBoss Scrubmaster B120R bumper front 750-700 parts
The front bumper for the 750 mm disc and 700 mm cylindrical decks: tube bow, stay, decal, plugs and screws. Manual pages 28C p2, list 28C p3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01135410PowerBoss 01135410 | 2 | sealing plug 40x11,5 1,0-3,0Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 15590706. | $1.54/EA |
| 2 | MM00072270PowerBoss 00072270 | 1 | Thrust washer 20 verz.Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 12651139. | $3.67/EA |
| 3 | MM00901590PowerBoss 00901590 | 1 | PipeFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 90299264. | $8.89/EA |
| 4 | MM01057290PowerBoss 01057290 | 1 | Rejecting roleFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 90397639. | $18.03/EA |
| 5 | MM01272710PowerBoss 01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 11702172. | $3.90/EA |
| 6 | MM00740090PowerBoss 00740090 | 4 | Detent edged washer SKM-8-8.8 dacFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 12520053. | $1.22/EA |
| 7 | MM01378000PowerBoss 01378000 | 1 | decalFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 92008648. | $12.03/EA |
| 8 | MM01370060PowerBoss 01370060 | 1 | tube bowFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 96154398. | $185.73/EA |

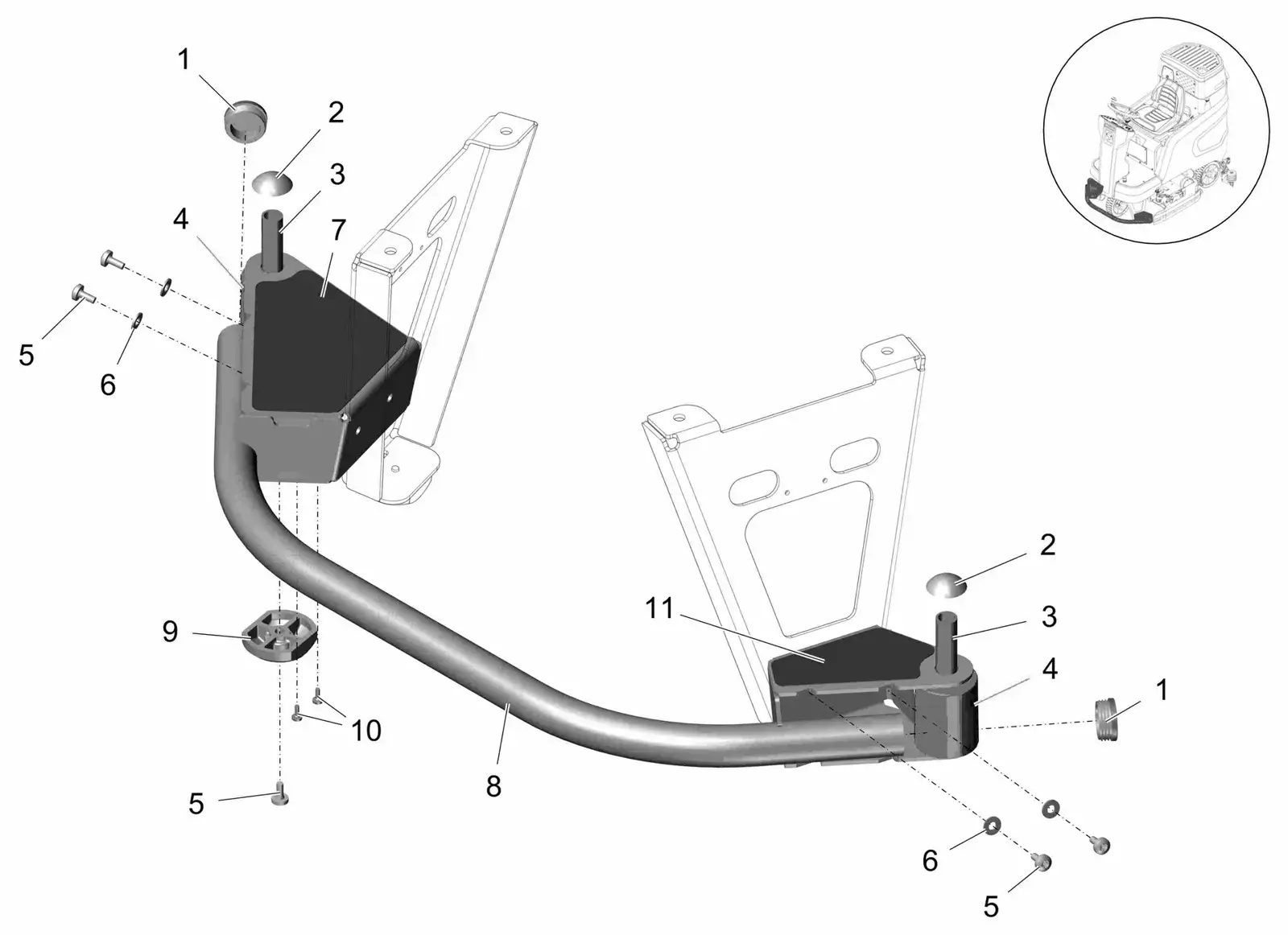

PowerBoss Scrubmaster B120R bumper front TB900-WB850 parts
The front bumper for the 900 mm disc and 850 mm cylindrical decks: tube bow, stays, decal, plugs and screws. Manual pages 33C p2, list 33C p3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01135410PowerBoss 01135410 | 2 | sealing plug 40x11,5 1,0-3,0Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 15590706. | $1.54/EA |
| 2 | MM00072270PowerBoss 00072270 | 2 | Thrust washer 20 verz.Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12651139. | $3.67/EA |
| 3 | MM00901590PowerBoss 00901590 | 2 | PipeFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90299264. | $8.89/EA |
| 4 | MM01057290PowerBoss 01057290 | 2 | Rejecting roleFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90397639. | $18.03/EA |
| 5 | MM01272710PowerBoss 01272710 | 5 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 11702172. | $3.90/EA |
| 6 | MM00740090PowerBoss 00740090 | 4 | Detent edged washer SKM-8-8.8 dacFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12520053. | $1.22/EA |
| 7 | MM01377870PowerBoss 01377870 | 1 | decalFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 92008655. | $26.77/EA |
| 8 | MM01370120PowerBoss 01370120 | 1 | tube bowFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96154877. | $243.11/EA |
| 9 | MM01371320PowerBoss 01371320 | 1 | stayFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 92009976. | $10.56/EA |
| 10 | MM00959220PowerBoss 00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 11702016. | $1.05/EA |
| 11 | MM01377960PowerBoss 01377960 | 1 | decalFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 92008663. | $9.70/EA |

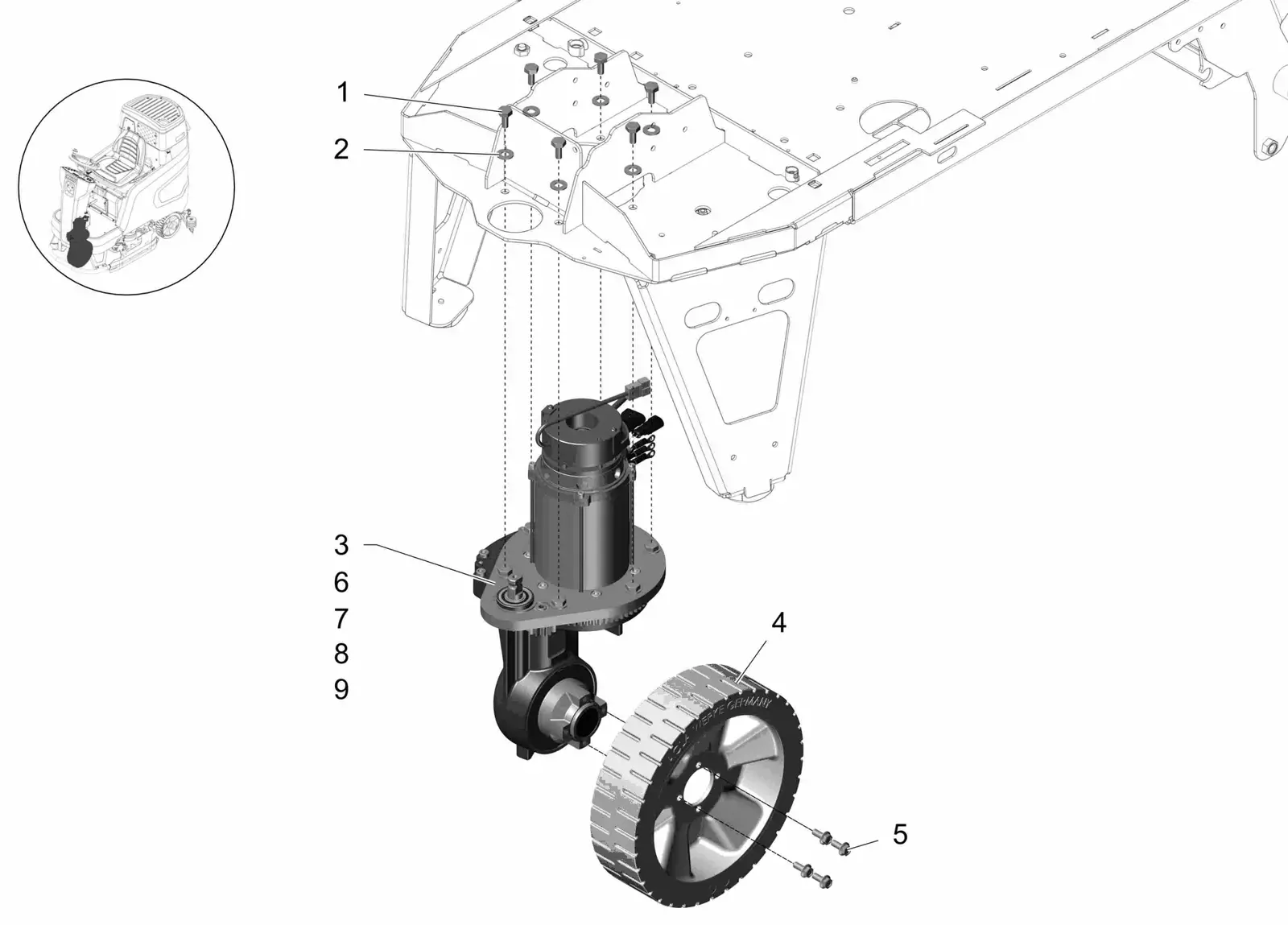

PowerBoss Scrubmaster B120R front wheel drive parts
The 24 V traction drive, the wheel and the repair sets for pinion, gear, speed sensor and brake. Manual pages 28C p4, list 28C p5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038353PowerBoss 11038353 | 6 | hexagon screw M10x20-8.8-N2 ISO 4017Hako part no. 00021130. | $1.44/EA |
| 2 | MM00740290PowerBoss 00740290 | 6 | Detent edged washer SKM-10Hako material no. 12520061. | $1.05/EA |
| 3 | MM01371130PowerBoss 01371130 | 1 | traction drive AC 24V / 550 WHako material no. 90698655. | $4,012.25/EA |
| 4 | MM01371660PowerBoss 01371660 | 1 | wheelHako material no. 96161575. | $526.11/EA |
| 5 | MM11717203PowerBoss 11717203 | 4 | Hexagon screw M8x20 W158-100-flZnncHako part no. 01171260. | $2.25/EA |
| 6 | MM01371110PowerBoss 01371110 | 1 | repairing set pinionincl. pinion, steering pinion, bolt, bearing bush, ball bearing, needle sleeve and circlips. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM01371220PowerBoss 01371220 | 1 | repairing set geargear incl. slewing ring bearing but without oil filling. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | MM01376730PowerBoss 01376730 | 1 | repairing set speed sensor | $501.82/EA |
| 9 | MM01376640PowerBoss 01376640 | 1 | repairing set brake | $490.39/EA |

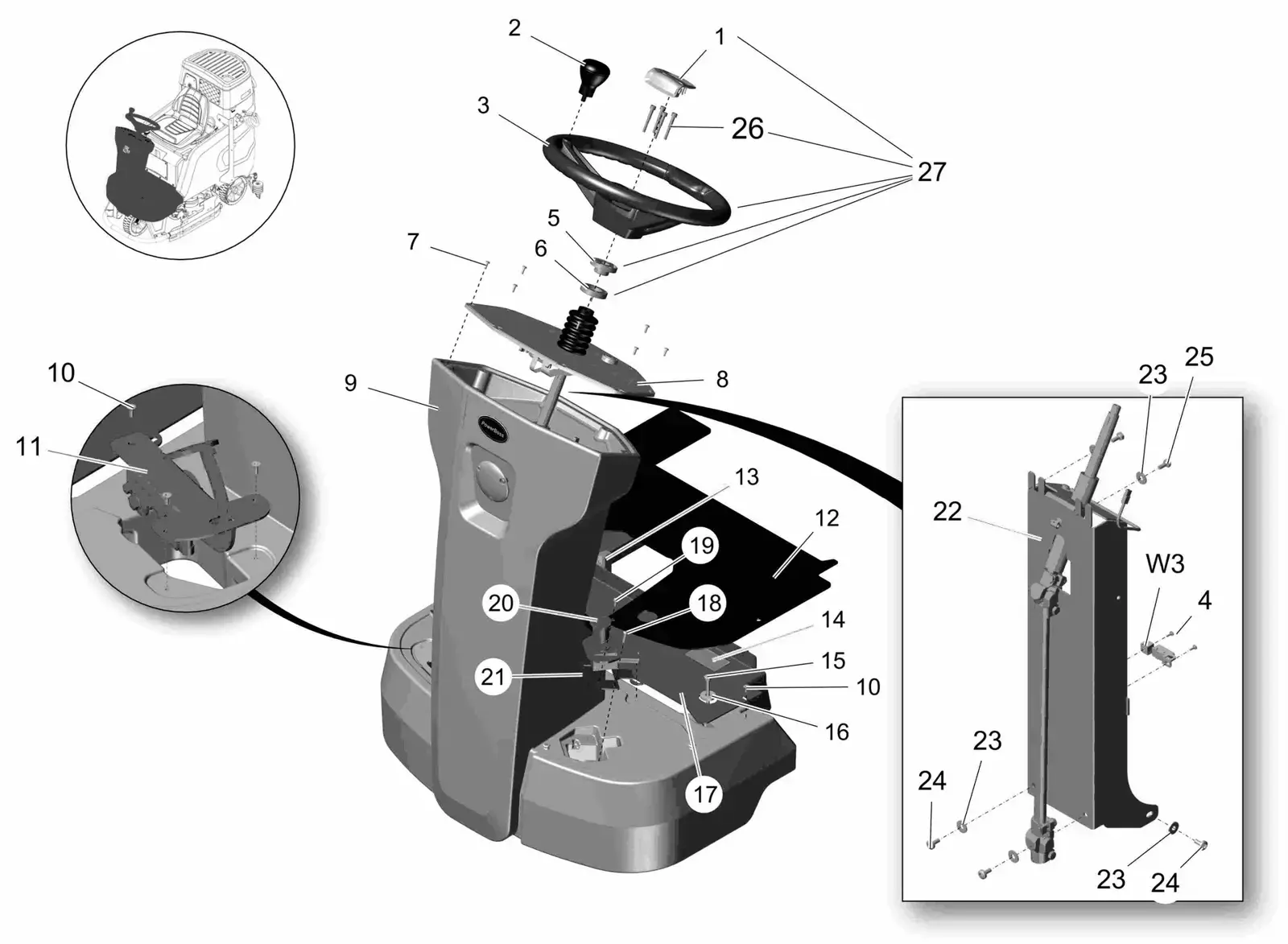

PowerBoss Scrubmaster B120R control console parts
The steering wheel, knob, control panel and steering column fixings on the console. Manual pages 28C p6, list 28C p7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM610001Replaces PowerBoss 01375260 | 1 | steering wheel cab PBHako material no. 96162409; replaces PowerBoss 01375260. | $10.36/EA |
| 2 | MM01370020PowerBoss 01370020 | 1 | knob ACC2102Hako material no. 92022631. | $47.92/EA |
| 3 | MM01371160PowerBoss 01371160 | 1 | steering wheelHako material no. 97164396. incl. threaded cap. | $218.14/EA |
| 4 | MM01112160PowerBoss 01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 5 | MM01382520PowerBoss 01382520 | 1 | flangeHako material no. 92067586. Valid from 2018-06. | $77.98/EA |
| 6 | MM01382630PowerBoss 01382630 | 1 | ringHako material no. 92067594. Valid from 2018-06. | $35.33/EA |
| 7 | MM01136860PowerBoss 01136860 | 8 | Countersunk screw M4x12-4.8-flZnnc ISO 14583Hako material no. 11160009. | $1.05/EA |
| 8 | Not sold separatelyPowerBoss 97143564 | 1 | Control panelNot sold separately. Parts are listed under Control panel. | Not sold separately. Its parts are listed under Control panel |
| 9 | Not sold separatelyPowerBoss 97152334 | Steering columnNot sold separately. Parts are listed under Steering column. No quantity printed. | Not sold separately. Its parts are listed under Steering column | |
| 10 | MM01383260PowerBoss 01383260 | 7 | countersunk screw M5x12-8.8 N3 ISO 14581Hako material no. 11206604. | $1.00/EA |
| 11 | Not sold separatelyPowerBoss 01378020 | 1 | drive sensorHako material no. 97128227. Not sold separately. Parts are listed under Drive sensor. | Not sold separately. Its parts are listed under Drive sensor |
| 12 | MM01372580PowerBoss 01372580 | 1 | floor matHako material no. 90697400. | $77.81/EA |
| 13 | MM90570565Replaces PowerBoss 00461460 | 0.09 M | Edge protection 1,0-3,5Hako material no. 25583105. Quantity printed 0,090 M; replaces PowerBoss 00461460. | $26.91/EA |
| 14 | MM03003000PowerBoss 03003000 | 2 | TransparencyHako material no. 17220021. | $1.05/EA |
| 15 | MM00020370PowerBoss 00020370 | 2 | hexagon screw M8x80-8.8-N3 ISO 4017Hako material no. 11038288. | $1.05/EA |
| 16 | MM90209537PowerBoss 90209537 | 2 | WasherHako part no. 00879170. | $2.29/EA |
| 17 | MM01387720PowerBoss 01387720 | 1 | stepHako material no. 96153804. | $301.10/EA |
| 18 | MM11709151PowerBoss 11709151 | 2 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 19 | MM00959220PowerBoss 00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 20 | MM90472176PowerBoss 90472176 | 1 | Foot switchHako part no. 01145750. | $128.55/EA |
| 21 | MM01372900PowerBoss 01372900 | 1 | plateHako material no. 90697418. | $32.17/EA |
| 22 | Not sold separatelyPowerBoss 97143572 | 1 | SteeringNot sold separately. Parts are listed under Steering. | Not sold separately. Its parts are listed under Steering |
| 23 | MM00740080PowerBoss 00740080 | 6 | Washer SKB-8-dacrometisiertHako material no. 12520087. | $1.22/EA |
| 24 | MM01272710PowerBoss 01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
| 25 | MM11038197PowerBoss 11038197 | 2 | hexagon screw M8x16-8.8-N3 ISO 4017Hako part no. 00053080. | $4.15/EA |
| 26 | MM01382410PowerBoss 01382410 | 1 | socket head screw M6x45-10.9 N2 ISO 4762Hako material no. 11127263. Valid from 2018-06. | $1.00/EA |
| 27 | MM01382890PowerBoss 01382890 | 1 | steering wheel PB, cpl.Hako material no. 97501084. | $474.13/EA |
| W3 | MM03019180PowerBoss 03019180 | 1 | wiring harness W3Hako material no. 97161855. | $1,363.42/EA |

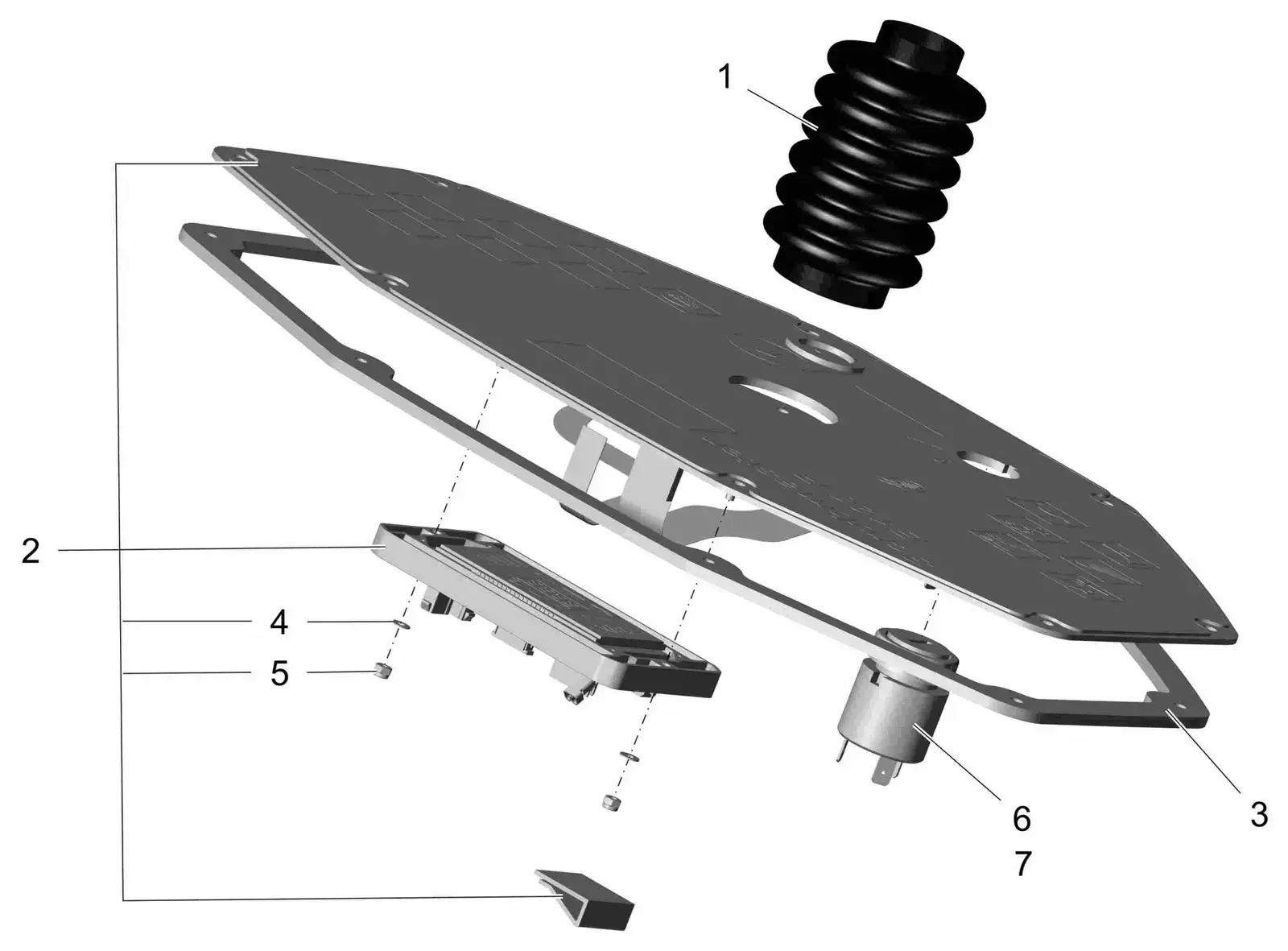

PowerBoss Scrubmaster B120R control panel parts
The control panel bellows, gasket, key switch and key set. Manual pages 28C p8, list 28C p9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01054880PowerBoss 01054880 | 1 | BellowsHako material no. 90392457. | $6.32/EA |
| 2 | MM01370600PowerBoss 01370600 | 1 | control panelHako material no. 97500698. | $1,167.56/EA |
| 3 | MM01372300PowerBoss 01372300 | 1 | gasketHako material no. 90687914. | $34.03/EA |
| 4 | MM12310132PowerBoss 12310132 | 2 | Washer 3-200HV-N3 ISO 7089Hako part no. 00553740. | $1.38/EA |
| 5 | MM00022200PowerBoss 00022200 | 2 | Hex. Nut M3-6 A2G DIN 985Hako material no. 12040101. | $1.05/EA |
| 6 | MM90323437PowerBoss 90323437 | 1 | Key switchHako part no. 00021710. | $27.66/EA |
| 7 | MM00745890PowerBoss 00745890 | 1 PR | Set (2pc.) key | $22.56/EA |

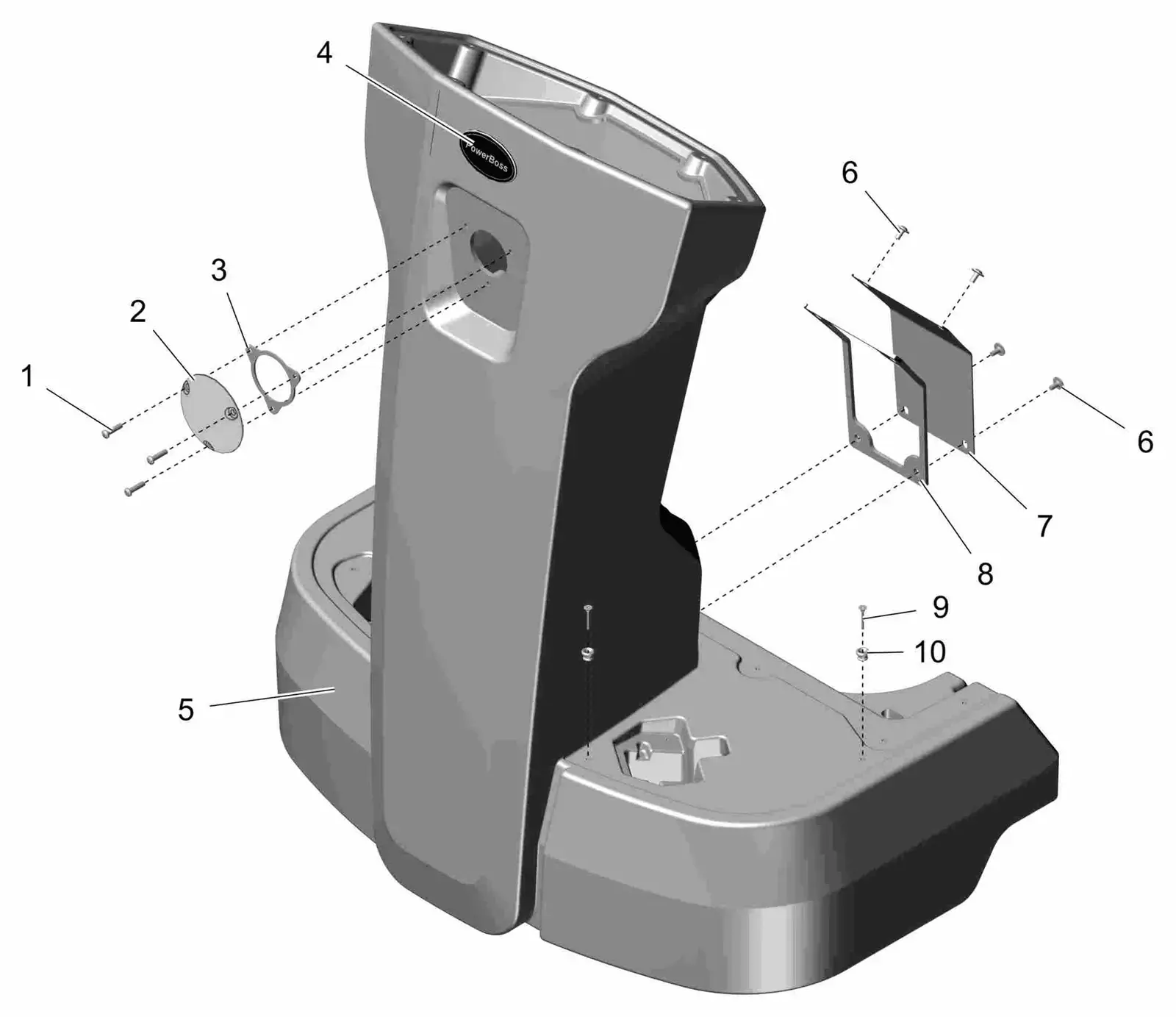

PowerBoss Scrubmaster B120R steering column parts
The steering column, its cap, seal, cover and decal. Manual pages 28C p10, list 28C p11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11709151PowerBoss 11709151 | 3 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 2 | MM01375240PowerBoss 01375240 | 1 | capHako material no. 90535972. | $2.25/EA |
| 3 | MM01072000PowerBoss 01072000 | 1 | SealHako material no. 90429317. | $3.89/EA |
| 4 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallHako material no. 17201237. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | MM03018970PowerBoss 03018970 | 1 | steering columnHako material no. 96153952. | $867.37/EA |
| 6 | MM11177179PowerBoss 11177179 | 4 | Lens flange screw M6x10-A2-70 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 7 | MM01382150PowerBoss 01382150 | 1 | coverHako material no. 90691387. | $39.70/EA |
| 8 | MM01381960PowerBoss 01381960 | 1 | gasketHako material no. 90691551. | $10.97/EA |
| 9 | MM01073120PowerBoss 01073120 | 4 | Amtec screw B52005-4,0x25-10.9 weiß verz.Hako material no. 11709210. | $1.05/EA |
| 10 | MM01073130PowerBoss 01073130 | 4 | KnobHako material no. 90417007. | $3.47/EA |

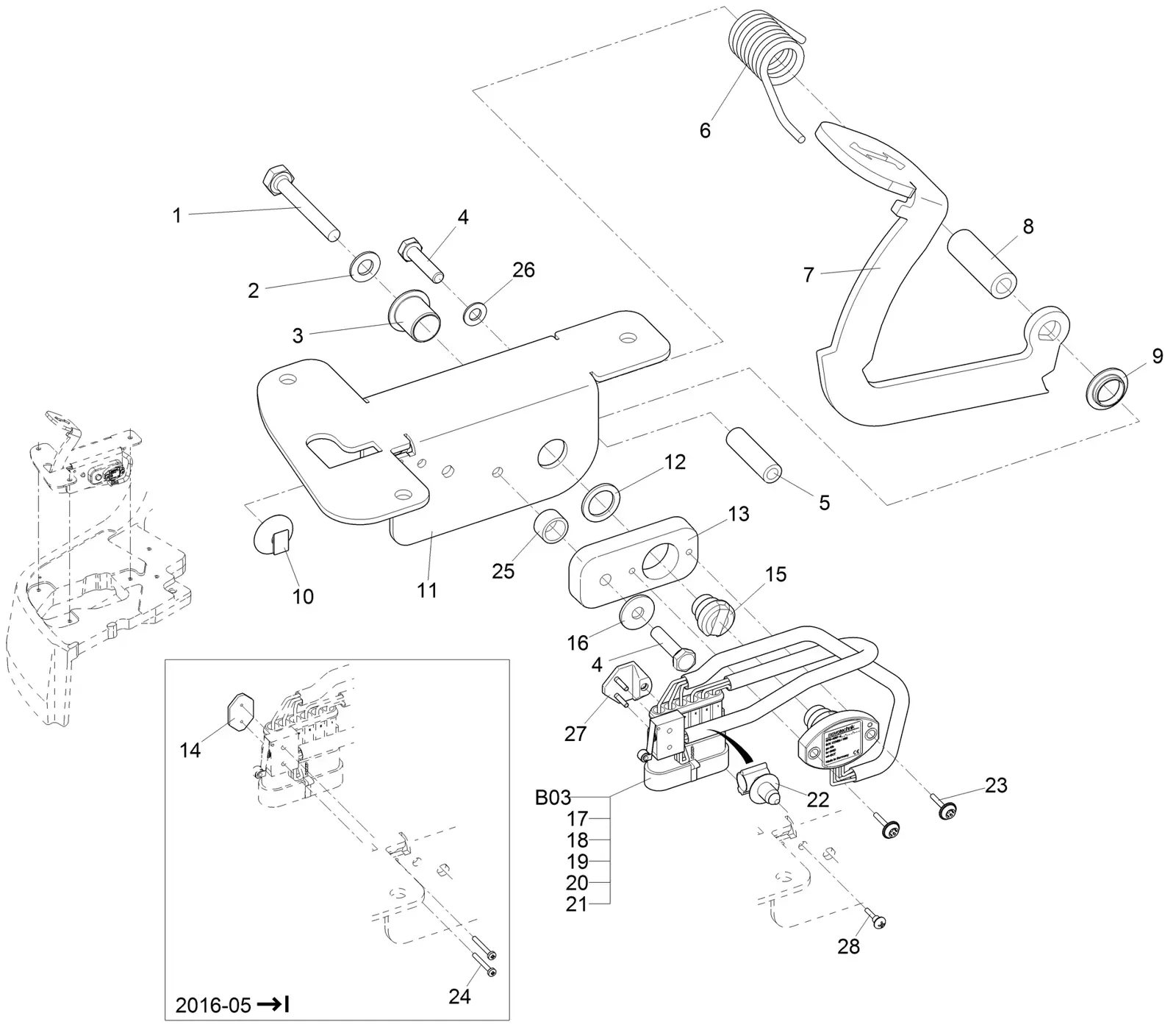

PowerBoss Scrubmaster B120R drive sensor parts
The accelerator pedal, its spring and bearing bushes, the sensor and the hose and screws that hold them. Manual pages 28C p12, list 28C p13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00523790PowerBoss 00523790 | 1 | hexagon screw M8x50-A4-70 ISO 4017Hako material no. 11039492. | $1.54/EA |
| 2 | MM730609Replaces PowerBoss 00101550 | 1 | Washer 8-200HV-A2-70 ISO 7090Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
| 3 | MM00740190PowerBoss 00740190 | 1 | Slide bearing bush GFM-1416-17Hako material no. 14895163. | $3.13/EA |
| 4 | MM00133130PowerBoss 00133130 | 2 | Screw D M6x25-St A2G DIN 7500Hako material no. 11702065. | $1.05/EA |
| 5 | MM01064890PowerBoss 01064890 | 0.04 M | Hose 6x2x88Hako material no. 25842303. Quantity printed 0,040 M. | $12.35/EA |
| 6 | MM01277850PowerBoss 01277850 | 1 | Leg springHako material no. 90666967. | $9.74/EA |
| 7 | MM01380050PowerBoss 01380050 | 1 | accelerator pedalHako material no. 92084938. | $30.00/EA |
| 8 | MM01372690PowerBoss 01372690 | 1 | clambing bushHako material no. 90657974. | $21.39/EA |
| 9 | MM01055150PowerBoss 01055150 | 1 | Slide bearing bush GFM-1416-04Hako material no. 14895205. | $1.65/EA |
| 10 | MM01278080PowerBoss 01278080 | 1 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 11 | MM01372700PowerBoss 01372700 | 1 | pedal retainerHako material no. 90658055. | $64.17/EA |
| 12 | MM01372160PowerBoss 01372160 | 1 | starting diskHako material no. 14898118. | $1.54/EA |
| 13 | MM01372170PowerBoss 01372170 | 1 | retainerHako material no. 90667007. | $3.90/EA |
| 14 | MM01473610PowerBoss 01473610 | 1 | Threaded plateHako material no. 90646043. Valid until 2016-05. til appr. 2016-05. | $13.23/EA |
| 15 | MM01380110PowerBoss 01380110 | 1 | magnet supportHako material no. 96145941. | $66.83/EA |
| 16 | MM00854210PowerBoss 00854210 | 1 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 17 | MM01006190PowerBoss 01006190 | 6 | Seal 1,4-1,7Hako material no. 19719319. | $1.05/EA |
| 18 | MM01141370PowerBoss 01141370 | 0.42 M | insulating tube B6x0,6 sw DIN 40621Hako material no. 25855073. Quantity printed 0,420 M. | $3.90/EA |
| 19 | MM00696680PowerBoss 00696680 | 1 | Micro switchHako material no. 90265596. | $55.37/EA |
| 20 | MM03003250PowerBoss 03003250 | 1 | Pin housingHako material no. 19719335. | $3.86/EA |
| 21 | MM01006210PowerBoss 01006210 | 6 | Pin contact 0,3-0,5Hako material no. 19719293. | $1.05/EA |
| 22 | MM01493500PowerBoss 01493500 | 1 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 23 | MM11709244PowerBoss 11709244 | 2 | Screw 4x14 verzinkt DIN 7500Hako part no. 01078860. | $1.05/EA |
| 24 | MM01141220PowerBoss 01141220 | 2 | lens head screw M2x16-4.8-H-N2 ISO 7045Hako material no. 11175478. Valid until 2016-05. til appr. 2016-05. | $1.00/EA |
| 25 | MM00901550PowerBoss 00901550 | 1 | BushingHako material no. 90299074. | $2.32/EA |
| 26 | MM12310033PowerBoss 12310033 | 1 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 27 | MM01372180PowerBoss 01372180 | 1 | retainerHako material no. 90679820. Valid from 2016-06. from appr. 2016-06. | $3.44/EA |
| 28 | MM00902430PowerBoss 00902430 | 1 | Screw KA 35x12 WN-1412-10.9 A2Hako material no. 11709037. Valid from 2016-06. from appr. 2016-06. | $1.05/EA |
| B03 | MM01277740PowerBoss 01277740 | 1 | Angle sensorHako material no. 97131882. incl. pos. 17-21. | $280.72/EA |

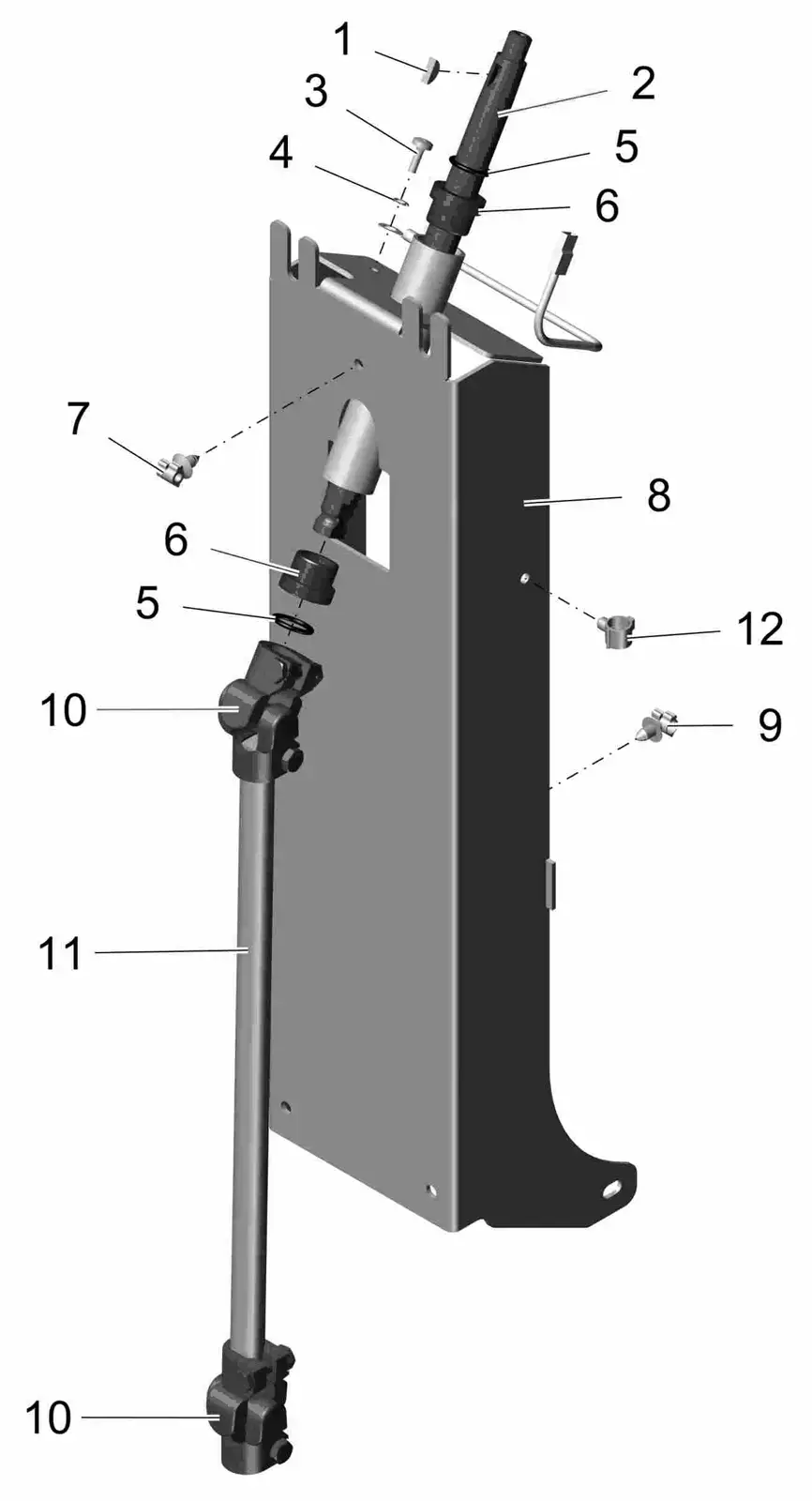

PowerBoss Scrubmaster B120R steering parts
The steering shaft, carrier, bushings, retainers and the seals that go with them. Manual pages 28C p16, list 28C p17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00701170PowerBoss 00701170 | 1 | Woodruff key 5x6,5-St60k DIN 6888Hako material no. 13545082. | $1.05/EA |
| 2 | MM01377370PowerBoss 01377370 | 1 | shaftHako material no. 90688102. | $60.27/EA |
| 3 | MM00539730PowerBoss 00539730 | 1 | Screw M6x16-St A3G Kombit. DIN 7500Hako material no. 11702024. | $1.00/EA |
| 4 | MM01072030PowerBoss 01072030 | 1 | Toothed washer A 6,4 A3G DIN 6797Hako material no. 12515144. | $1.05/EA |
| 5 | MM00554400PowerBoss 00554400 | 2 | O-ring oil resistant 20x3 80 ShoreHako material no. 15286529. | $1.05/EA |
| 6 | MM00523630PowerBoss 00523630 | 2 | BushingHako material no. 90302258. | $26.06/EA |
| 7 | MM01493440PowerBoss 01493440 | 1 | Retainer NW4,5Hako material no. 90639113. | $1.05/EA |
| 8 | MM01383420PowerBoss 01383420 | 1 | steering carrier, cpl.Hako material no. 96152111. | $271.92/EA |
| 9 | MM01493500PowerBoss 01493500 | 1 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 10 | MM00746040PowerBoss 00746040 | 2 | Cardan jointHako material no. 90122177. | $62.89/EA |
| 11 | No number printedPowerBoss no number printed | 1 | Spare part on requestNo part number printed. Remark printed: 90687856 shaft. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM01494500PowerBoss 01494500 | 1 | support NW10Hako material no. 90639139. | $1.05/EA |

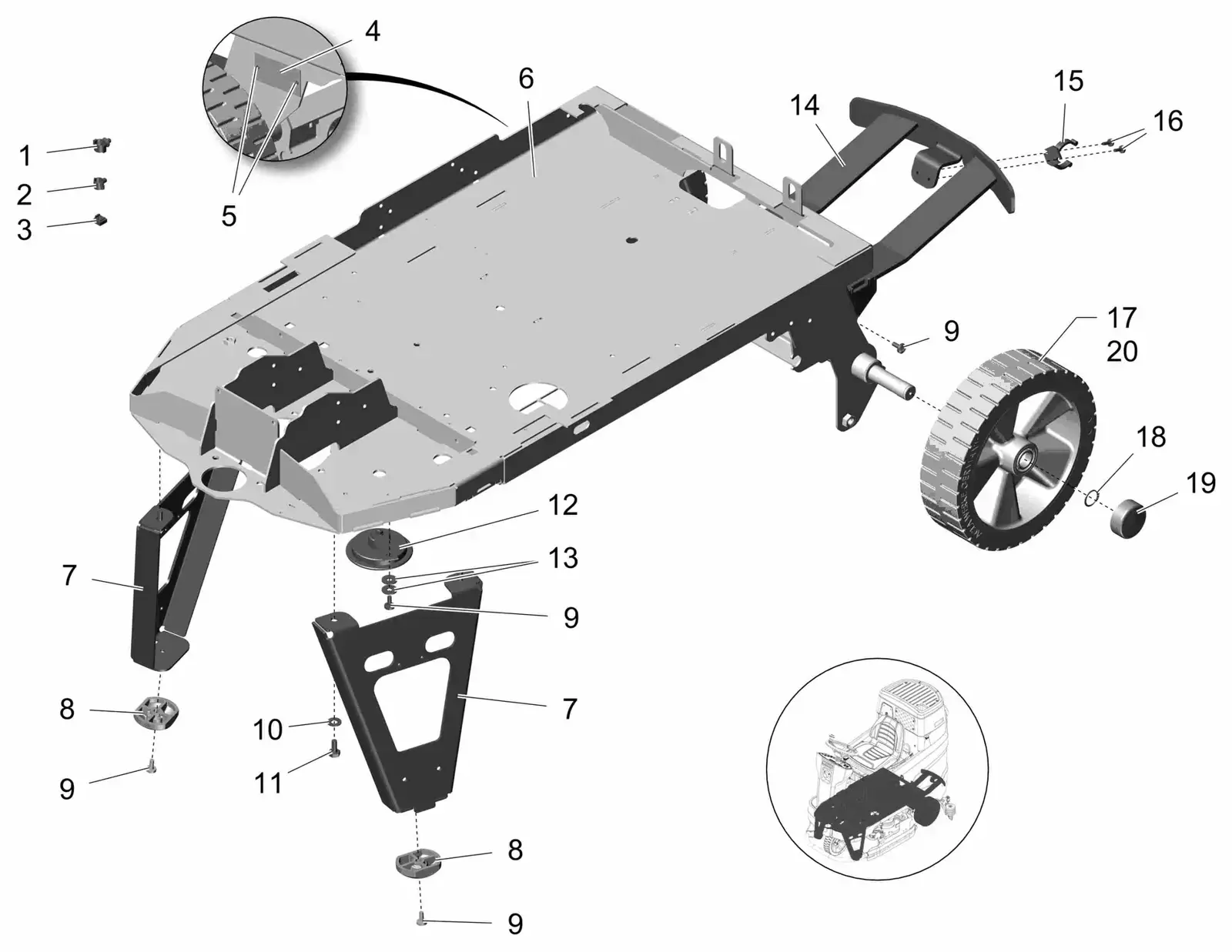

PowerBoss Scrubmaster B120R frame 120 parts
The B120 R chassis, stays, the type plate and the cage nuts and rivets that fix parts to it. Manual pages 28C p14, list 28C p15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370710PowerBoss 01370710 | 9 | retainer holder corrugated hose NW 13Hako material no. 90639147. | $1.05/EA |
| 2 | MM01494500PowerBoss 01494500 | 12 | support NW10Hako material no. 90639139. | $1.05/EA |
| 3 | MM01154830PowerBoss 01154830 | 2 | Cage nut M8-N0Hako material no. 12181152. | $1.05/EA |
| 4 | MM03008410PowerBoss 03008410 | 1 | Type plate POWERBOSSHako material no. 17212186. | $21.53/EA |
| 5 | MM00504370PowerBoss 00504370 | 2 | Blind rivet A3x6-AL-ST-A1P DIN 7337Hako material no. 13165014. | $6.33/EA |
| 6 | MM03021730PowerBoss 03021730 | 1 | chassis B120 RHako material no. 96188727. | $949.07/EA |
| 7 | MM01383760PowerBoss 01383760 | 2 | stayHako material no. 92006204. | $472.17/EA |
| 8 | MM01371320PowerBoss 01371320 | 2 | stayHako material no. 92009976. | $10.56/EA |
| 9 | MM01272710PowerBoss 01272710 | 5 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
| 10 | MM00740290PowerBoss 00740290 | 4 | Detent edged washer SKM-10Hako material no. 12520061. | $1.05/EA |
| 11 | MM11038353PowerBoss 11038353 | 4 | hexagon screw M10x20-8.8-N2 ISO 4017Hako part no. 00021130. | $1.44/EA |
| 12 | MM01133200PowerBoss 01133200 | 1 | HornHako material no. 90422627. | $26.37/EA |
| 13 | MM600940Replaces PowerBoss 00042900 | 2 | Washer ISO 7093-8-2 00HV-N2Hako material no. 12332029; replaces PowerBoss 00042900. | $1.11/EA |
| 14 | MM01374980PowerBoss 01374980 | 1 | bumper rearHako material no. 96154489. | $351.99/EA |
| 15 | MM90503251PowerBoss 90503251 | 1 | Hose supportHako part no. 01078120. | $4.05/EA |
| 16 | MM00539730PowerBoss 00539730 | 2 | Screw M6x16-St A3G Kombit. DIN 7500Hako material no. 11702024. | $1.00/EA |
| 17 | MM01071650PowerBoss 01071650 | 2 | WheelHako material no. 96118823. | $507.11/EA |
| 18 | MM00022460PowerBoss 00022460 | 2 | Retaining ring 25x1,2-phos. DIN 471Hako material no. 12610101. | $1.22/EA |
| 19 | MM01171530PowerBoss 01171530 | 2 | CapHako material no. 90548272. | $7.37/EA |
| 20 | MM00281050PowerBoss 00281050 | 2 | Deep groove ball bearing 6005-2RS DIN 625Hako material no. 14110225. | $50.09/EA |

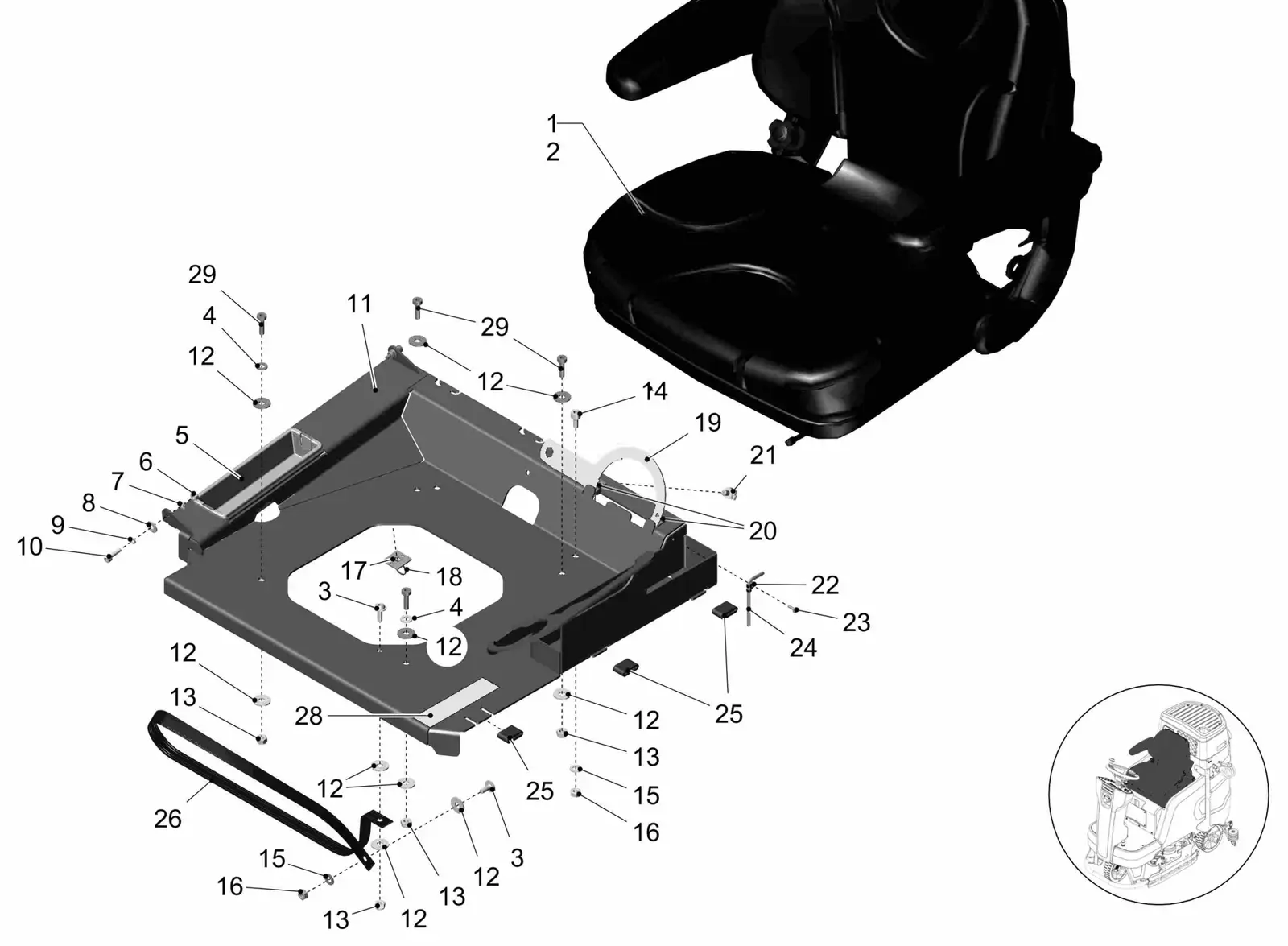

PowerBoss Scrubmaster B120R seat group parts
The driver's seat, the seat contact switch, the storage bowl and the seat fixings. Manual pages 28C p32, list 28C p33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370010PowerBoss 01370010 | 1 | driver seat MUL2020Hako material no. 92016195. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM01277700PowerBoss 01277700 | 1 | Seat contact switch | $77.56/EA |
| 3 | MM11177136PowerBoss 11177136 | 2 | Lens flange screw M8x20-10.9-N3 ISO7380-2Hako part no. 01000670. | $1.97/EA |
| 4 | MM12310041PowerBoss 12310041 | 3 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 5 | MM01169470PowerBoss 01169470 | 1 | storage bowlHako material no. 92005255. | $7.79/EA |
| 6 | MM00102140PowerBoss 00102140 | 2 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 7 | MM12310256PowerBoss 12310256 | 2 | Washer 6-200HV-A2-70 ISO 7090Hako part no. 00102150. | $1.05/EA |
| 8 | MM00854210PowerBoss 00854210 | 2 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 9 | MM00137700PowerBoss 00137700 | 2 | Spring ring 6 A3G DIN 7980Hako material no. 12507059. | $1.05/EA |
| 10 | MM00694790PowerBoss 00694790 | 2 | Socket head screw M6x20-A2-70 DIN 912Hako material no. 11126893. | $1.05/EA |
| 11 | MM03022980PowerBoss 03022980 | 1 | seat sheet metalHako material no. 96165840. | $666.61/EA |
| 12 | MM600940Replaces PowerBoss 00042900 | 7 | Washer ISO 7093-8-2 00HV-N2Hako material no. 12332029; replaces PowerBoss 00042900. | $1.11/EA |
| 13 | MM12040051PowerBoss 12040051 | 5 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 14 | MM00154410PowerBoss 00154410 | 1 | socket head screw M8x16-8.8-N3 ISO 4762Hako material no. 11126059. with comfort seat. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM00740310PowerBoss 00740310 | 2 | Washer SKS-8-dacrometisiertHako material no. 12520029. with comfort seat. | $1.05/EA |
| 16 | MM12022059PowerBoss 12022059 | 2 | Hex. Nut M8-8 A2G DIN 934Hako part no. 00053350. with comfort seat. | $5.51/EA |
| 17 | MM01178010PowerBoss 01178010 | 1 | Attachment baseHako material no. 17526120. | $3.90/EA |
| 18 | MM00121010PowerBoss 00121010 | 1 | Cable tie PLT1M-M 2x110Hako material no. 90114414. | $1.05/EA |
| 19 | MM01277720PowerBoss 01277720 | 1 | KeyHako material no. 90691643. | $48.63/EA |
| 20 | MM00800100PowerBoss 00800100 | 0.04 M | Edge protection 1,0-3,5 schwarzHako material no. 25583030. Quantity printed 0,040 M. | $14.14/EA |
| 21 | MM01493440PowerBoss 01493440 | 1 | Retainer NW4,5Hako material no. 90639113. | $1.05/EA |
| 22 | MM00903290PowerBoss 00903290 | 1 | Tube clamp RSGU1.5/9-W1Hako material no. 17529140. | $1.58/EA |
| 23 | MM00501420PowerBoss 00501420 | 1 | Screw C M4x12St A2G DIN 7500Hako material no. 11702057. | $1.05/EA |
| 24 | MM03023330PowerBoss 03023330 | 1 | allen wrench SW4Hako material no. 92017755. | $1.00/EA |
| 25 | MM00460890PowerBoss 00460890 | 0.06 M | Hose 14x20Hako material no. 27670058. Quantity printed 0,060 M. | $17.64/EA |
| 26 | MM90370792PowerBoss 90370792 | 1 | WebbingHako part no. 01055740. | $9.74/EA |
| 28 | MM01372590PowerBoss 01372590 | 1 | decal REFERENCESHako material no. 17267071. | $7.79/EA |
| 29 | MM00102790PowerBoss 00102790 | 4 | Cylinder head screw M8x25-8.8 A2G DIN 7984Hako material no. 11132057. | $1.00/EA |

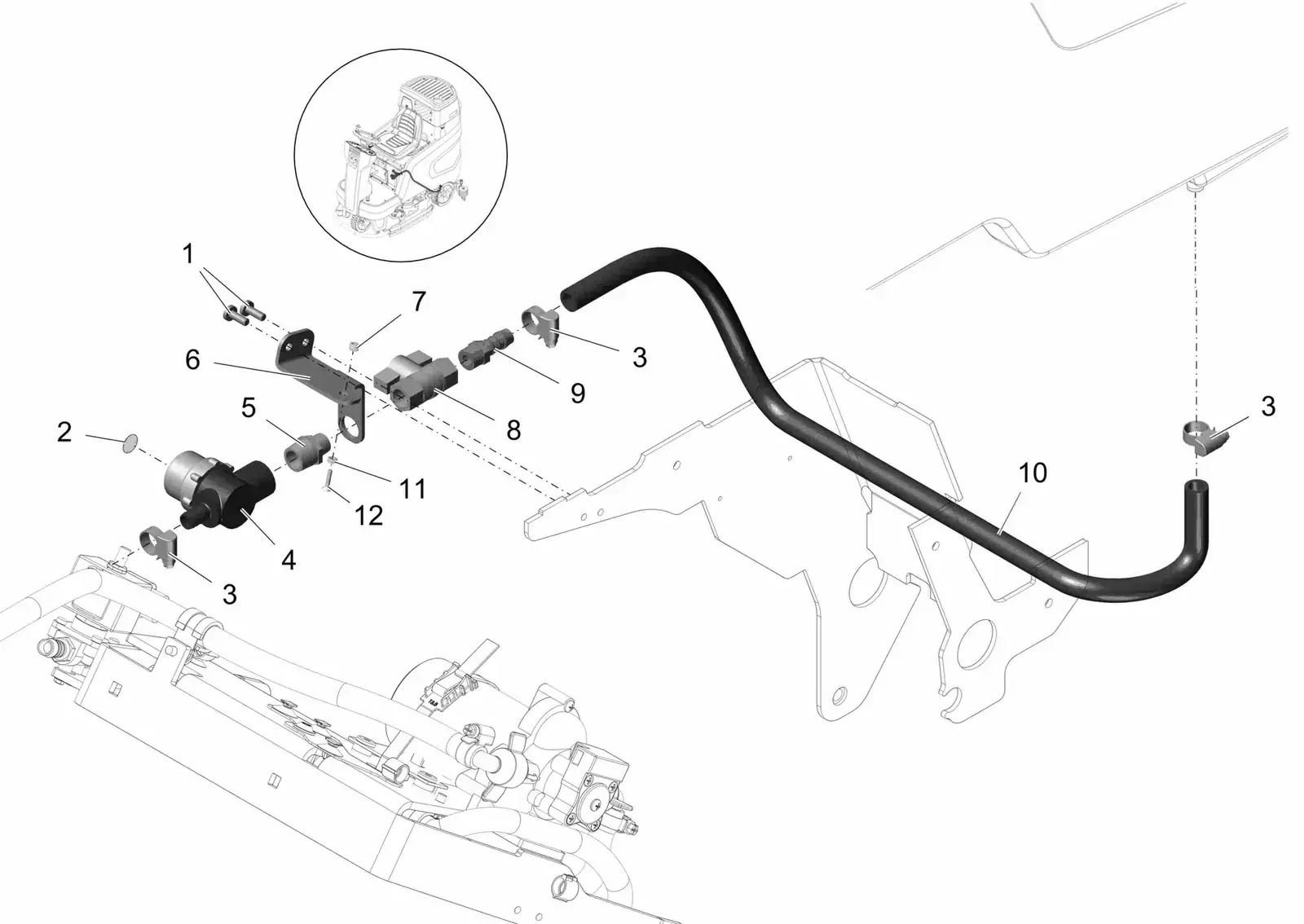

PowerBoss Scrubmaster B120R water filter parts
The fresh water filter, its ball tap, hose clamps, nipples and plug. Manual pages 28C p34, list 28C p35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00539730PowerBoss 00539730 | 2 | Screw M6x16-St A3G Kombit. DIN 7500Hako material no. 11702024. | $1.00/EA |
| 2 | MM01179160PowerBoss 01179160 | 1 | Decal yellow pointHako material no. 17267717. | $1.05/EA |
| 3 | MM3302144Replaces PowerBoss 01015350 | 3 | Hose clamp A-12-20x 9-W1-2 DIN 3017Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 4 | MM01277880PowerBoss 01277880 | 1 | FilterHako material no. 90677428. | $31.56/EA |
| 5 | MM00521140PowerBoss 00521140 | 1 | Double nipple "R1/2""X R3/8"""Hako material no. 18110171. | $17.33/EA |
| 6 | MM01388910PowerBoss 01388910 | 1 | retainerHako material no. 90697335. | $41.67/EA |
| 7 | MM12040028PowerBoss 12040028 | 1 | Hex. Nut M4-6 A2G DIN 985Hako part no. 00133830. | $4.15/EA |
| 8 | MM00952760PowerBoss 00952760 | 1 | Ball tapHako material no. 90315375. | $42.91/EA |
| 9 | MM90310665PowerBoss 90310665 | 1 | screwed plug GES 12 R3/8Hako part no. 00976140. | $2.21/EA |
| 10 | MM00112010PowerBoss 00112010 | 0.78 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,780 M. | $11.83/EA |
| 11 | MM00052810PowerBoss 00052810 | 1 | Hex. Nut M4-8 A2G DIN 934Hako material no. 12022026. | $1.05/EA |
| 12 | MM00051890PowerBoss 00051890 | 1 | Countersunk screw M4x16-4.8-H A2G DIN 965Hako material no. 11206075. | $1.05/EA |
PowerBoss Scrubmaster B120R tools lifting (cylindrical brush) parts
The lifting unit and the clevis pin and cotter pin that go with it, for the cylindrical brush decks. Manual pages 28C p36, list 28C p37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97143374 | Lifting (cylindrical brush)Fits SM2832C 7177.45, SM3332C 7177.47. Not sold separately. Parts are listed under Lifting (cylindrical brush). No quantity printed. | Not sold separately. Its parts are listed under Lifting (cylindrical brush) | |
| 2 | MM00043450PowerBoss 00043450 | 1 | Clevis pin 10h11x30x25-St A2G DIN 1434Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 13328075. | $3.90/EA |
| 3 | MM00744820PowerBoss 00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 13851043. | $1.22/EA |

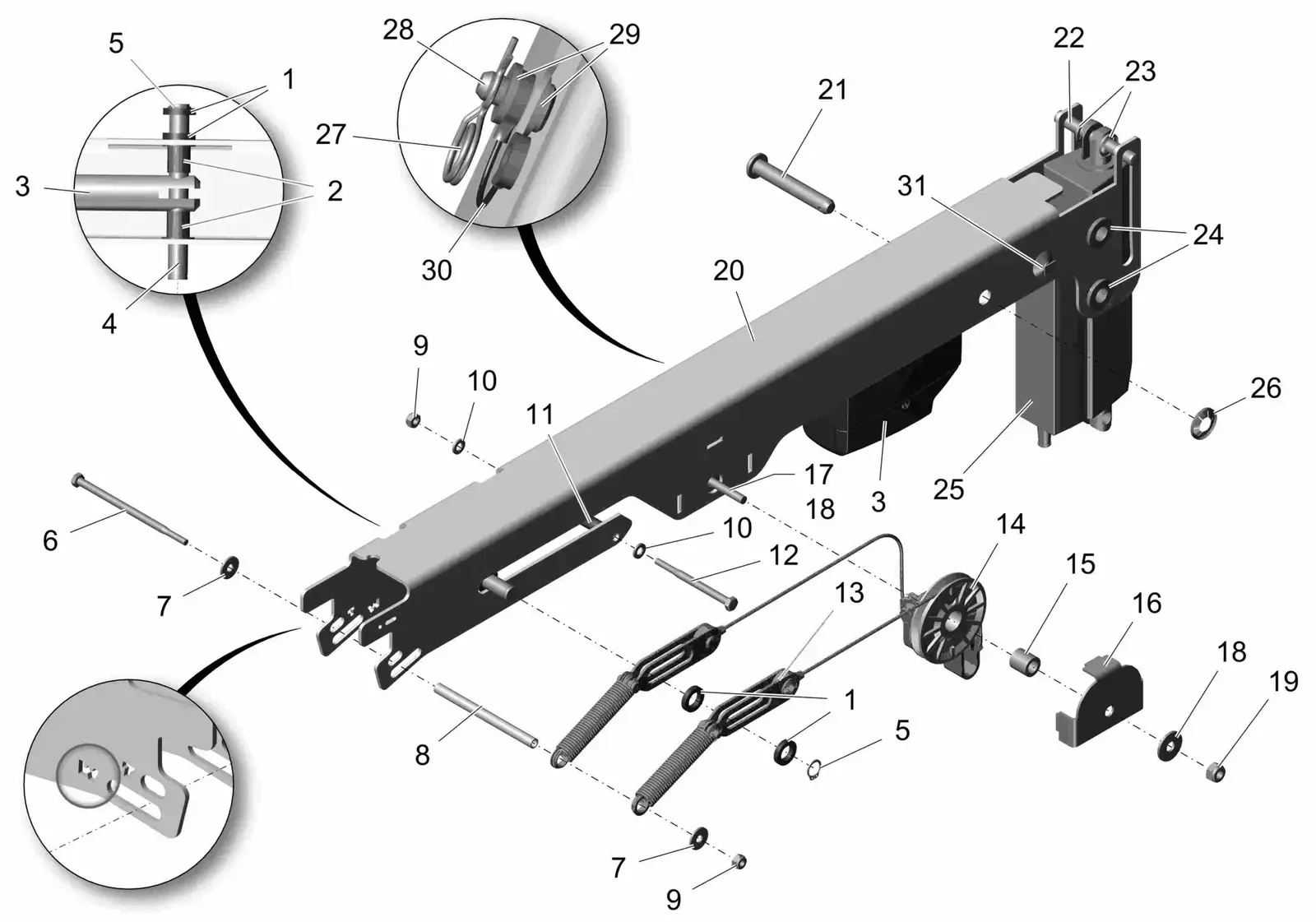

PowerBoss Scrubmaster B120R lifting (cylindrical brush) parts
The 24 V lifting element, bolts, bushings and hardware that raise and lower the cylindrical brush head. Manual pages 28C p38, list 28C p39-40.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370680PowerBoss 01370680 | 4 | bushingFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 90698895. | $5.67/EA |
| 2 | MM01072930PowerBoss 01072930 | 2 | Slide bearing bush GFM-1214-17Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 14895296. | $2.61/EA |
| 3 | MM01370110PowerBoss 01370110 | 1 | lifting element 24V 1200N 200mmFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 92023332. | $651.97/EA |
| 4 | MM01371000PowerBoss 01371000 | 1 | boltFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 90695230. | $34.99/EA |
| 5 | MM00072440PowerBoss 00072440 | 2 | Circlip 12x1-phos. DIN 471Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 12610036. | $1.22/EA |
| 6 | MM01370970PowerBoss 01370970 | 1 | hexagon screw M6x110-8.8 N2 ISO 4014Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 11032711. | $1.54/EA |
| 7 | MM12332011PowerBoss 12332011 | 2 | Washer ISO 7093-6-2 00HV-N2Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 00135120. | $4.15/EA |
| 8 | MM01015400PowerBoss 01015400 | 0.1 M | Pipe 6x8 PAFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 25845025. Quantity printed 0,100 M. | $5.44/EA |
| 9 | MM12040044PowerBoss 12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 00051520. | $1.38/EA |
| 10 | MM12310033PowerBoss 12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 00053730. | $1.38/EA |
| 11 | MM01371030PowerBoss 01371030 | 1 | spacer tubeFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 92024363. | $3.90/EA |
| 12 | MM00555460PowerBoss 00555460 | 1 | hexagon screw M6x75-8.8 N2 ISO 4014Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 11032851. | $1.05/EA |
| 13 | Not sold separatelyPowerBoss 97140479 | Rope assemblyFits SM2832C 7177.45, SM3332C 7177.47. Not sold separately. Parts are listed under Rope assembly. No quantity printed. | Not sold separately. Its parts are listed under Rope assembly | |
| 14 | MM00521270PowerBoss 00521270 | 2 | RollerFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 90293044. | $4.50/EA |
| 15 | MM01371020PowerBoss 01371020 | 2 | bushingFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 92024355. | $3.13/EA |
| 16 | MM01370980PowerBoss 01370980 | 2 | rope assuranceFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 90663303. | $27.24/EA |
| 17 | MM00054690PowerBoss 00054690 | 2 | hexagon screw M8x35-8.8-N3 DIN 933Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 11038262. | $1.05/EA |
| 18 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-2 00HV-N2Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 12332029; replaces PowerBoss 00042900. | $1.11/EA |
| 19 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 00051510. | $4.15/EA |
| 20 | MM01370990PowerBoss 01370990 | 1 | retainerFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 90693730. | $192.57/EA |
| 21 | MM13328851PowerBoss 13328851 | 1 | Bolt B12h11x75-St A3G DIN 1444Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01078040. | $7.77/EA |
| 22 | MM00102390PowerBoss 00102390 | 1 | Cylinder pin 10m6x80 DIN 6325Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 13033238. | $1.90/EA |
| 23 | MM00852380PowerBoss 00852380 | 2 | Thrust washer 10 verz.Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 12651014. | $1.05/EA |
| 24 | MM00156690PowerBoss 00156690 | 4 | Cable sleeve 470 0035Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 15595010. | $3.58/EA |
| 25 | MM01371370PowerBoss 01371370 | 1 | ifting element & adapter cable 24VFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 97500474. Adapter cable is needed for connection to older machines. Not needed for B120 R. | $589.40/EA |
| 26 | MM00706180PowerBoss 00706180 | 1 | Thrust washer 12 verz.Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 12651030. | $1.05/EA |
| 27 | MM00744820PowerBoss 00744820 | 1 | cotter pin 3,2 A2G DIN 11024Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 13851043. | $1.22/EA |
| 28 | MM00901510PowerBoss 00901510 | 1 | Bolt B12h11x25-St A3G DIN 1444Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 13328430. | $3.11/EA |
| 29 | MM00151200PowerBoss 00151200 | 2 | washer 12-St-N2 DIN 1440Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 12322053. | $1.05/EA |
| 30 | MM01371010PowerBoss 01371010 | 1 | rope 2,5x103Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 92010065. | $18.42/EA |
| 31 | MM01278080PowerBoss 01278080 | 1 | Mounting clipFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 90667189. | $1.05/EA |

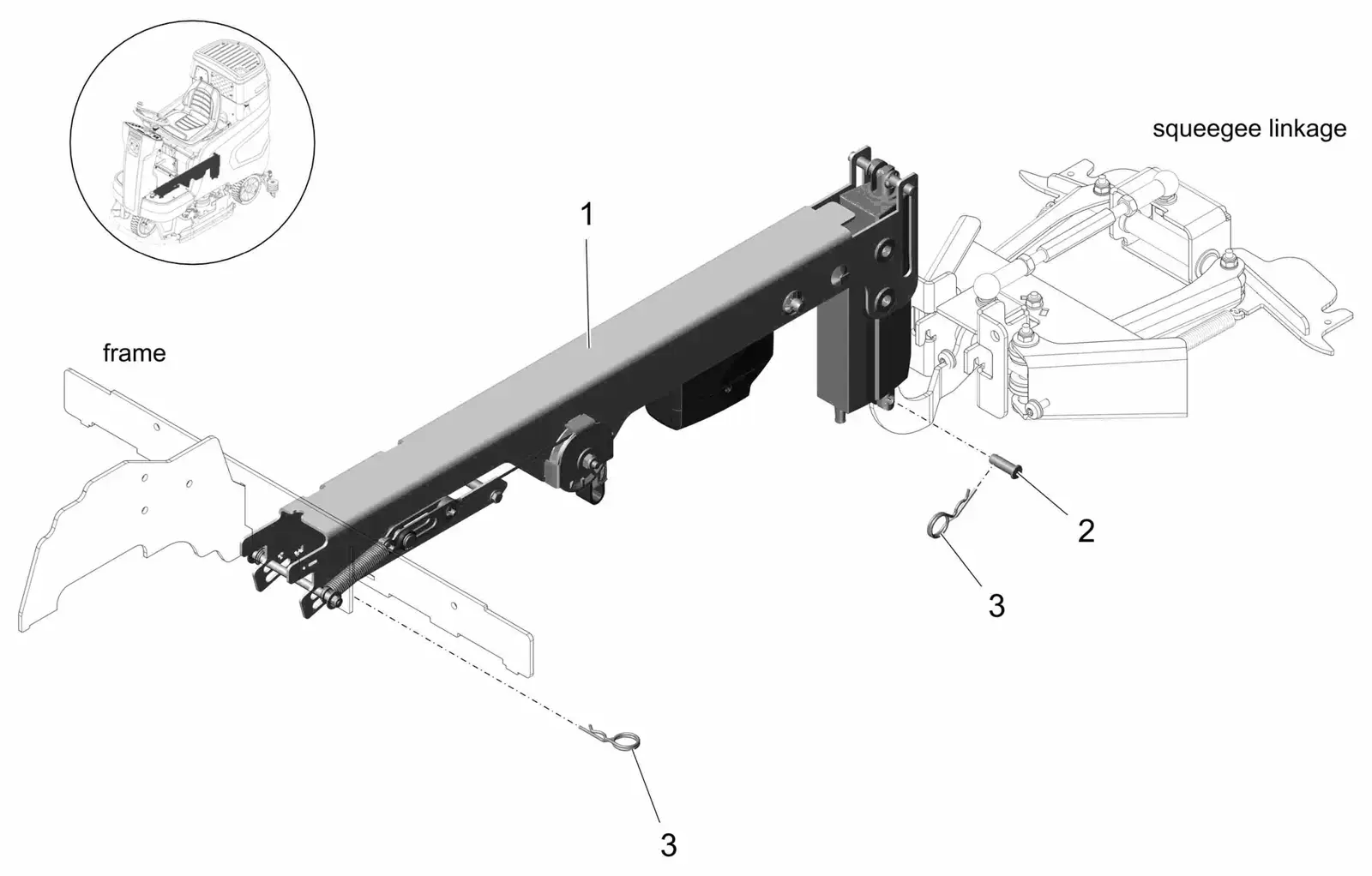

PowerBoss Scrubmaster B120R tools lifting DB parts
The lifting unit and the clevis pin and cotter pin that go with it, for the disc brush decks. Manual pages 30D p22, list 30D p23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97145049 | LiftingFits SM3032D 7177.41, SM3532D 7177.43. Not sold separately. Parts are listed under Lifting. No quantity printed. | Not sold separately. Its parts are listed under Lifting | |
| 2 | MM00043450PowerBoss 00043450 | 1 | Clevis pin 10h11x30x25-St A2G DIN 1434Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 13328075. | $3.90/EA |
| 3 | MM00744820PowerBoss 00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 13851043. | $1.22/EA |

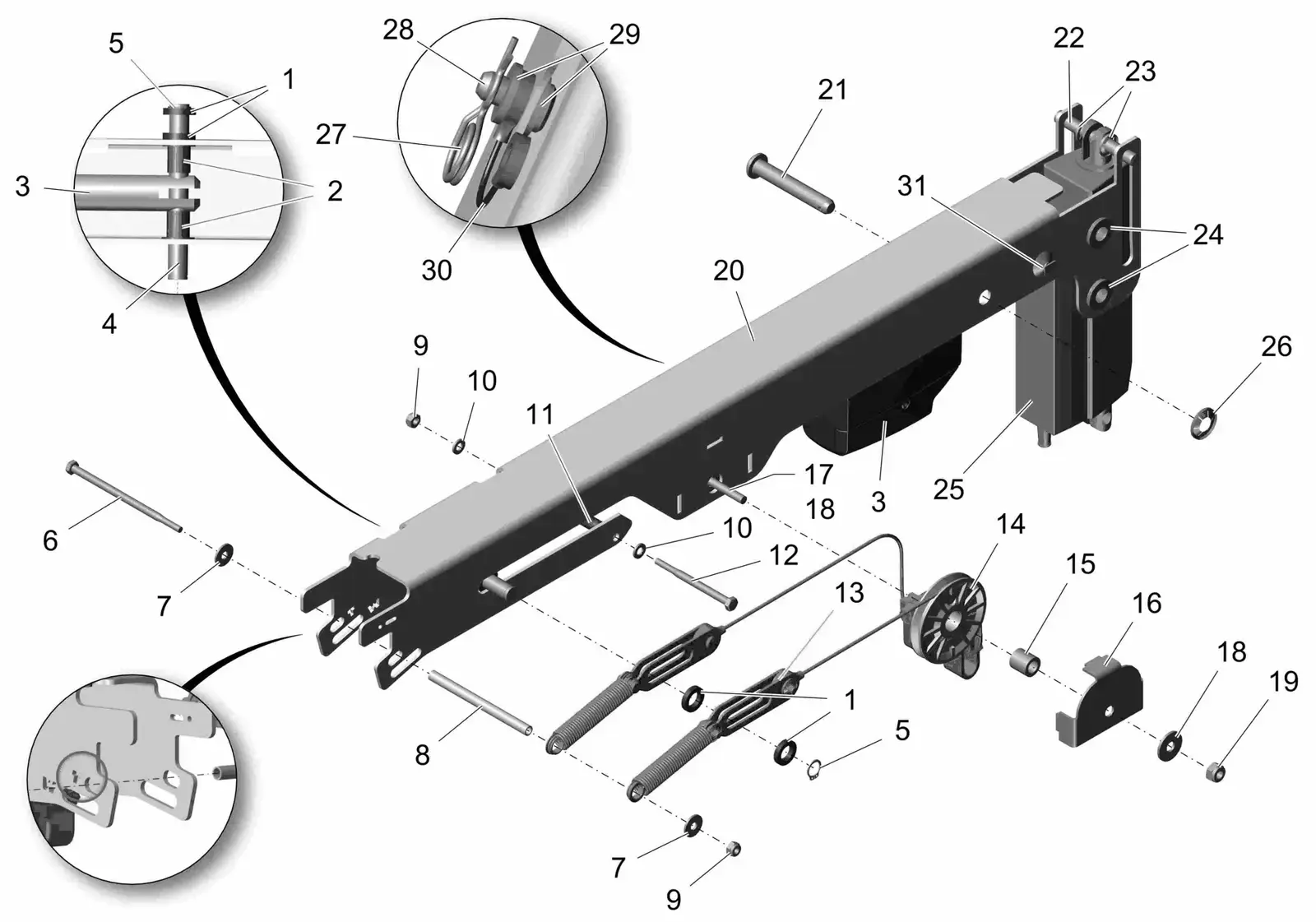

PowerBoss Scrubmaster B120R lifting parts
The 24 V lifting element, bolts, bushings and hardware that raise and lower the disc brush head. Manual pages 30D p24, list 30D p25-26.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370680PowerBoss 01370680 | 4 | bushingFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 90698895. | $5.67/EA |
| 2 | MM01072930PowerBoss 01072930 | 2 | Slide bearing bush GFM-1214-17Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 14895296. | $2.61/EA |
| 3 | MM01370110PowerBoss 01370110 | 1 | lifting element 24V 1200N 200mmFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 92023332. | $651.97/EA |
| 4 | MM01371000PowerBoss 01371000 | 1 | boltFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 90695230. | $34.99/EA |
| 5 | MM00072440PowerBoss 00072440 | 2 | Circlip 12x1-phos. DIN 471Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 12610036. | $1.22/EA |
| 6 | MM01370970PowerBoss 01370970 | 1 | hexagon screw M6x110-8.8 N2 ISO 4014Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 11032711. | $1.54/EA |
| 7 | MM12332011PowerBoss 12332011 | 2 | Washer ISO 7093-6-2 00HV-N2Fits SM3032D 7177.41, SM3532D 7177.43. Hako part no. 00135120. | $4.15/EA |
| 8 | MM01015400PowerBoss 01015400 | 0.1 M | Pipe 6x8 PAFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 25845025. Quantity printed 0,100 M. | $5.44/EA |
| 9 | MM12040044PowerBoss 12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Fits SM3032D 7177.41, SM3532D 7177.43. Hako part no. 00051520. | $1.38/EA |
| 10 | MM12310033PowerBoss 12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits SM3032D 7177.41, SM3532D 7177.43. Hako part no. 00053730. | $1.38/EA |
| 11 | MM01371030PowerBoss 01371030 | 1 | spacer tubeFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 92024363. | $3.90/EA |
| 12 | MM00555460PowerBoss 00555460 | 1 | hexagon screw M6x75-8.8 N2 ISO 4014Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 11032851. | $1.05/EA |
| 13 | Not sold separatelyPowerBoss 97140479 | Rope assemblyFits SM3032D 7177.41, SM3532D 7177.43. Not sold separately. Parts are listed under Rope assembly. No quantity printed. | Not sold separately. Its parts are listed under Rope assembly | |
| 14 | MM00521270PowerBoss 00521270 | 2 | RollerFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 90293044. | $4.50/EA |
| 15 | MM01371020PowerBoss 01371020 | 2 | bushingFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 92024355. | $3.13/EA |
| 16 | MM01370980PowerBoss 01370980 | 2 | rope assuranceFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 90663303. | $27.24/EA |
| 17 | MM00054690PowerBoss 00054690 | 2 | hexagon screw M8x35-8.8-N3 DIN 933Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 11038262. | $1.05/EA |
| 18 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-2 00HV-N2Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 12332029; replaces PowerBoss 00042900. | $1.11/EA |
| 19 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM3032D 7177.41, SM3532D 7177.43. Hako part no. 00051510. | $4.15/EA |
| 20 | MM01370990PowerBoss 01370990 | 1 | retainerFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 90693730. | $192.57/EA |
| 21 | MM13328851PowerBoss 13328851 | 1 | Bolt B12h11x75-St A3G DIN 1444Fits SM3032D 7177.41, SM3532D 7177.43. Hako part no. 01078040. | $7.77/EA |
| 22 | MM00102390PowerBoss 00102390 | 1 | Cylinder pin 10m6x80 DIN 6325Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 13033238. | $1.90/EA |
| 23 | MM00852380PowerBoss 00852380 | 2 | Thrust washer 10 verz.Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 12651014. | $1.05/EA |
| 24 | MM00156690PowerBoss 00156690 | 4 | Cable sleeve 470 0035Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 15595010. | $3.58/EA |
| 25 | MM01371370PowerBoss 01371370 | 1 | ifting element & adapter cable 24VFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 97500474. Adapter cable is needed for connection to older machines. Not needed for B120 R. | $589.40/EA |
| 26 | MM00706180PowerBoss 00706180 | 1 | Thrust washer 12 verz.Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 12651030. | $1.05/EA |
| 27 | MM00744820PowerBoss 00744820 | 1 | cotter pin 3,2 A2G DIN 11024Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 13851043. | $1.22/EA |
| 28 | MM00901510PowerBoss 00901510 | 1 | Bolt B12h11x25-St A3G DIN 1444Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 13328430. | $3.11/EA |
| 29 | MM00151200PowerBoss 00151200 | 2 | washer 12-St-N2 DIN 1440Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 12322053. | $1.05/EA |
| 30 | MM01371010PowerBoss 01371010 | 1 | rope 2,5x103Fits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 92010065. | $18.42/EA |
| 31 | MM01278080PowerBoss 01278080 | 1 | Mounting clipFits SM3032D 7177.41, SM3532D 7177.43. Hako material no. 90667189. | $1.05/EA |

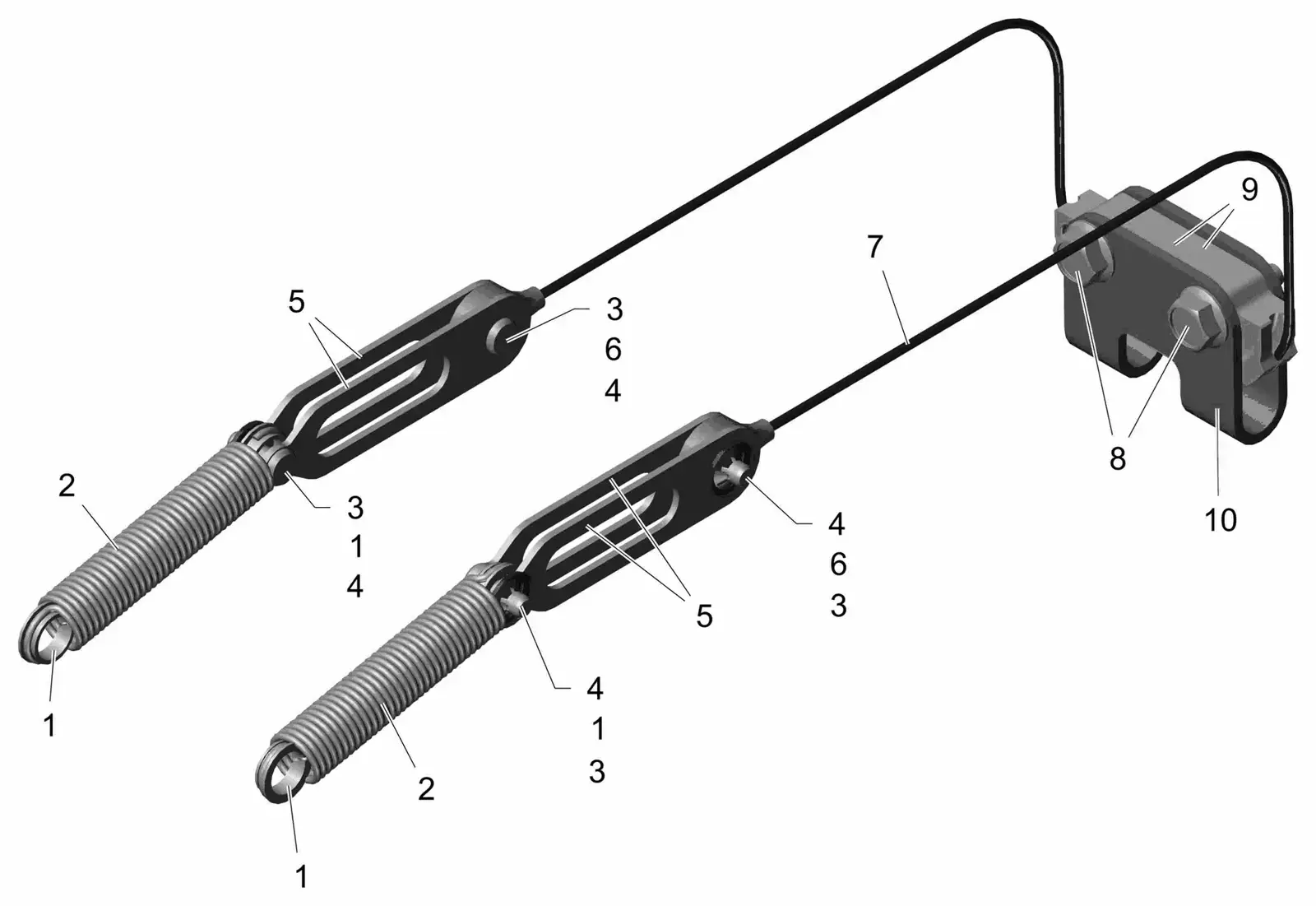

PowerBoss Scrubmaster B120R rope assembly parts
The rope, tension spring, lug, cable guide and bearings in the rope assembly. Manual pages 28C p41, list 28C p42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00737670PowerBoss 00737670 | 2 | Slide bearing Ø=12Hako material no. 14892012. | $1.54/EA |
| 2 | MM01371090PowerBoss 01371090 | 2 | tension springHako material no. 92016286. | $24.92/EA |
| 3 | MM00023290PowerBoss 00023290 | 4 | Thrust washer 6 verz.Hako material no. 12651113. | $16.25/EA |
| 4 | MM00736570PowerBoss 00736570 | 4 | Bolt B6h11x16-St A2G DIN 1444Hako material no. 13328182. | $3.90/EA |
| 5 | MM01371080PowerBoss 01371080 | 1 | lugHako material no. 92006246. | $5.44/EA |
| 6 | MM00862430PowerBoss 00862430 | 2 | BushingHako material no. 90150798. | $2.25/EA |
| 7 | MM01371060PowerBoss 01371060 | 1 | rope 2,5x612Hako material no. 90699323. | $14.83/EA |
| 8 | MM01371040PowerBoss 01371040 | 2 | screw M8x25-St Duo-Taptite DIN 7500-DHako material no. 11702115. | $1.05/EA |
| 9 | MM01371070PowerBoss 01371070 | 2 | cable guideHako material no. 92000413. | $11.08/EA |
| 10 | MM01371050PowerBoss 01371050 | 1 | roller assemblyHako material no. 90684846. | $33.08/EA |

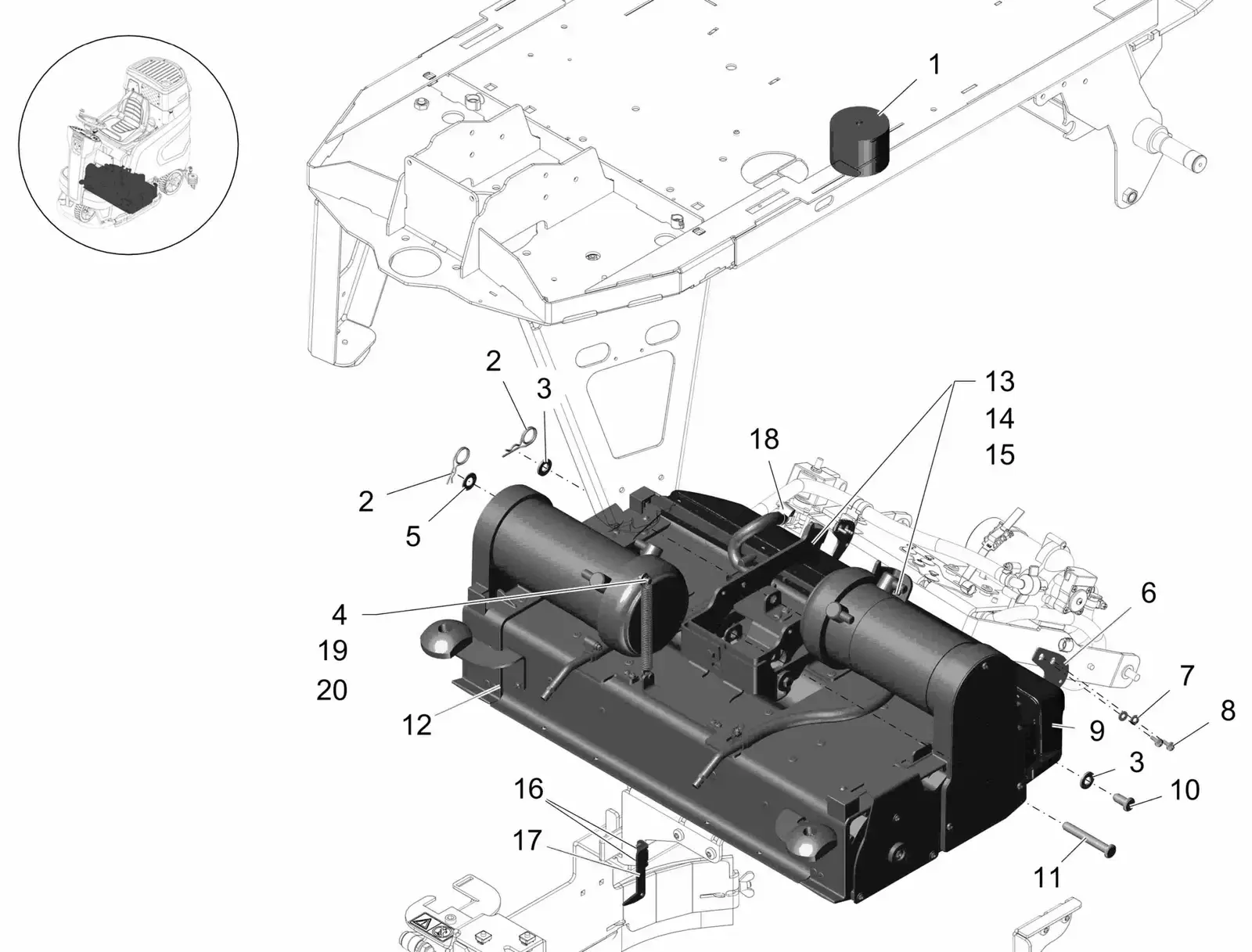

PowerBoss Scrubmaster B120R cylindrical brush head 70 cm parts
The 700 mm cylindrical brush head frame: buffer, guide bar, pins, washers and the dirt container. Manual pages 28C p43, list 28C p44.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01278160PowerBoss 01278160 | 2 | BufferFits SM2832C 7177.45. Hako material no. 90672296. | $4.67/EA |
| 2 | MM00744820PowerBoss 00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits SM2832C 7177.45. Hako material no. 13851043. | $1.22/EA |
| 3 | MM00151200PowerBoss 00151200 | 2 | washer 12-St-N2 DIN 1440Fits SM2832C 7177.45. Hako material no. 12322053. | $1.05/EA |
| 4 | MM00736570PowerBoss 00736570 | 1 | Bolt B6h11x16-St A2G DIN 1444Fits SM2832C 7177.45. Hako material no. 13328182. | $3.90/EA |
| 5 | MM711592Replaces PowerBoss 01102770 | 1 | Approach disk 12,5x26x1,5-POMFits SM2832C 7177.45. Hako material no. 14898019; replaces PowerBoss 01102770. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM01375140PowerBoss 01375140 | 1 | guide barFits SM2832C 7177.45. Hako material no. 96156955. | $187.53/EA |
| 7 | MM00730940PowerBoss 00730940 | 4 | Detent edged washer SKM-6-dacrometisiertFits SM2832C 7177.45. Hako material no. 12520045. | $1.22/EA |
| 8 | MM00539730PowerBoss 00539730 | 4 | Screw M6x16-St A3G Kombit. DIN 7500Fits SM2832C 7177.45. Hako material no. 11702024. | $1.00/EA |
| 9 | MM03011040PowerBoss 03011040 | 1 | Dirt containerFits SM2832C 7177.45. Hako material no. 97079578. Has its own parts list: Dirt container (03011040). Printed: Available. Pos. has sub-assemblies. | $607.06/EA |
| 10 | MM00901510PowerBoss 00901510 | 1 | Bolt B12h11x25-St A3G DIN 1444Fits SM2832C 7177.45. Hako material no. 13328430. | $3.11/EA |
| 11 | MM00879630PowerBoss 00879630 | 1 | Bolt B12h11x85-St A3G DIN 1444Fits SM2832C 7177.45. Hako material no. 13328422. | $7.67/EA |
| 12 | MM03027450PowerBoss 03027450 | 1 | Cylindrical brush head 700Fits SM2832C 7177.45. Hako material no. 97143507. Has its own parts list: Cylindrical brush head 700. Printed: Available. Pos. has sub-assemblies. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | MM01103290PowerBoss 01103290 | 2 | Round head screw M8x25-4.6 A2G DIN 603Fits SM2832C 7177.45. Hako material no. 11620457. | $1.05/EA |
| 14 | MM12310041PowerBoss 12310041 | 2 | Washer 8-200HV-N3 ISO 7089Fits SM2832C 7177.45. Hako part no. 00053750. | $2.75/EA |
| 15 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM2832C 7177.45. Hako part no. 00051510. | $4.15/EA |
| 16 | MM00959220PowerBoss 00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits SM2832C 7177.45. Hako material no. 11702016. | $1.05/EA |
| 17 | MM01360400PowerBoss 01360400 | 1 | indicatorFits SM2832C 7177.45. Hako material no. 92062363. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | MM3302144Replaces PowerBoss 01015350 | 1 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM2832C 7177.45. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 19 | MM12332011PowerBoss 12332011 | 1 | Washer ISO 7093-6-2 00HV-N2Fits SM2832C 7177.45. Hako part no. 00135120. | $4.15/EA |
| 20 | MM00534540PowerBoss 00534540 | 1 | split pin 1,6x10-St-N2 ISO 1234Fits SM2832C 7177.45. Hako material no. 13280276. | $1.22/EA |

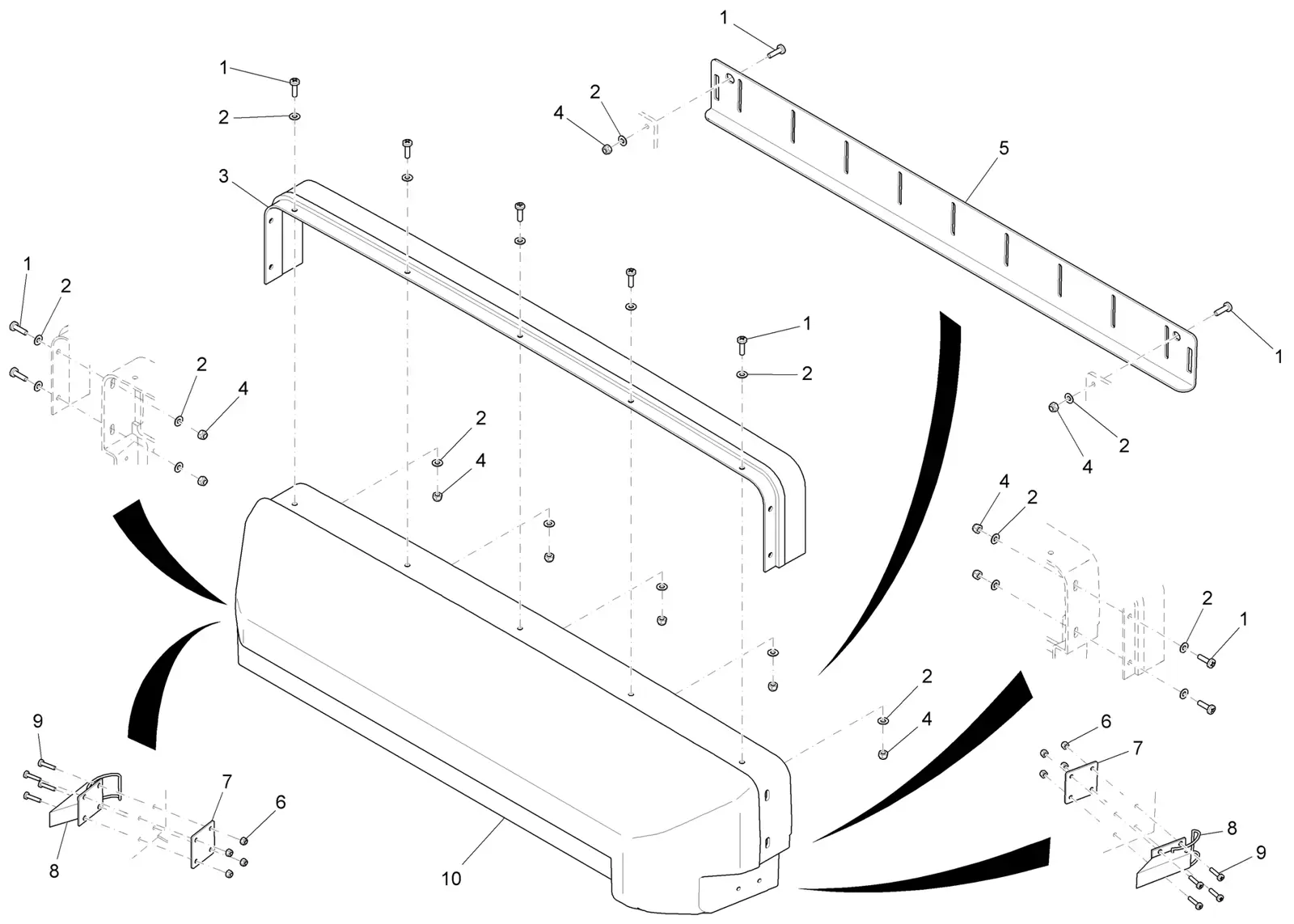

PowerBoss Scrubmaster B120R dirt container (03011040) parts
The dirt container for the 700 mm cylindrical head: broom rail, apron panel, plate, lock and screws. Manual pages 28C p45, list 28C p46.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01072260PowerBoss 01072260 | 11 | lens head screw M4x14-A2-70-H ISO 7045Fits SM2832C 7177.45. Hako material no. 11175445. | $1.05/EA |
| 2 | MM12310272PowerBoss 12310272 | 20 | Washer 4-200HV-A4-70 ISO 7089Fits SM2832C 7177.45. Hako part no. 00874720. | $2.75/EA |
| 3 | MM01072240PowerBoss 01072240 | 1 | Broom railFits SM2832C 7177.45. Hako material no. 90436007. | $34.19/EA |
| 4 | MM12040234PowerBoss 12040234 | 11 | Hex. Nut M4-A2 DIN 985Fits SM2832C 7177.45. Hako part no. 00970190. | $1.38/EA |
| 5 | MM01072250PowerBoss 01072250 | 1 | Panel apronFits SM2832C 7177.45. Hako material no. 90435868. | $84.27/EA |
| 6 | MM12040374PowerBoss 12040374 | 8 | Hex. Nut DIN 985Fits SM2832C 7177.45. Hako part no. 01072270. | $1.22/EA |
| 7 | MM90435884PowerBoss 90435884 | 2 | PlateFits SM2832C 7177.45. Hako part no. 01076250. | $3.45/EA |
| 8 | MM17383191PowerBoss 17383191 | 2 | Lock TL-800 DA-1Fits SM2832C 7177.45. Hako part no. 01072220. | $27.88/EA |
| 9 | MM11175452PowerBoss 11175452 | 8 | lens head screw M3x14-A2-70-H ISO 7045Fits SM2832C 7177.45. Hako part no. 01072230. | $1.22/EA |
| 10 | MM01072210PowerBoss 01072210 | 1 | Dirt hopper, cpl.Fits SM2832C 7177.45. Hako material no. 96097886. | $292.20/EA |

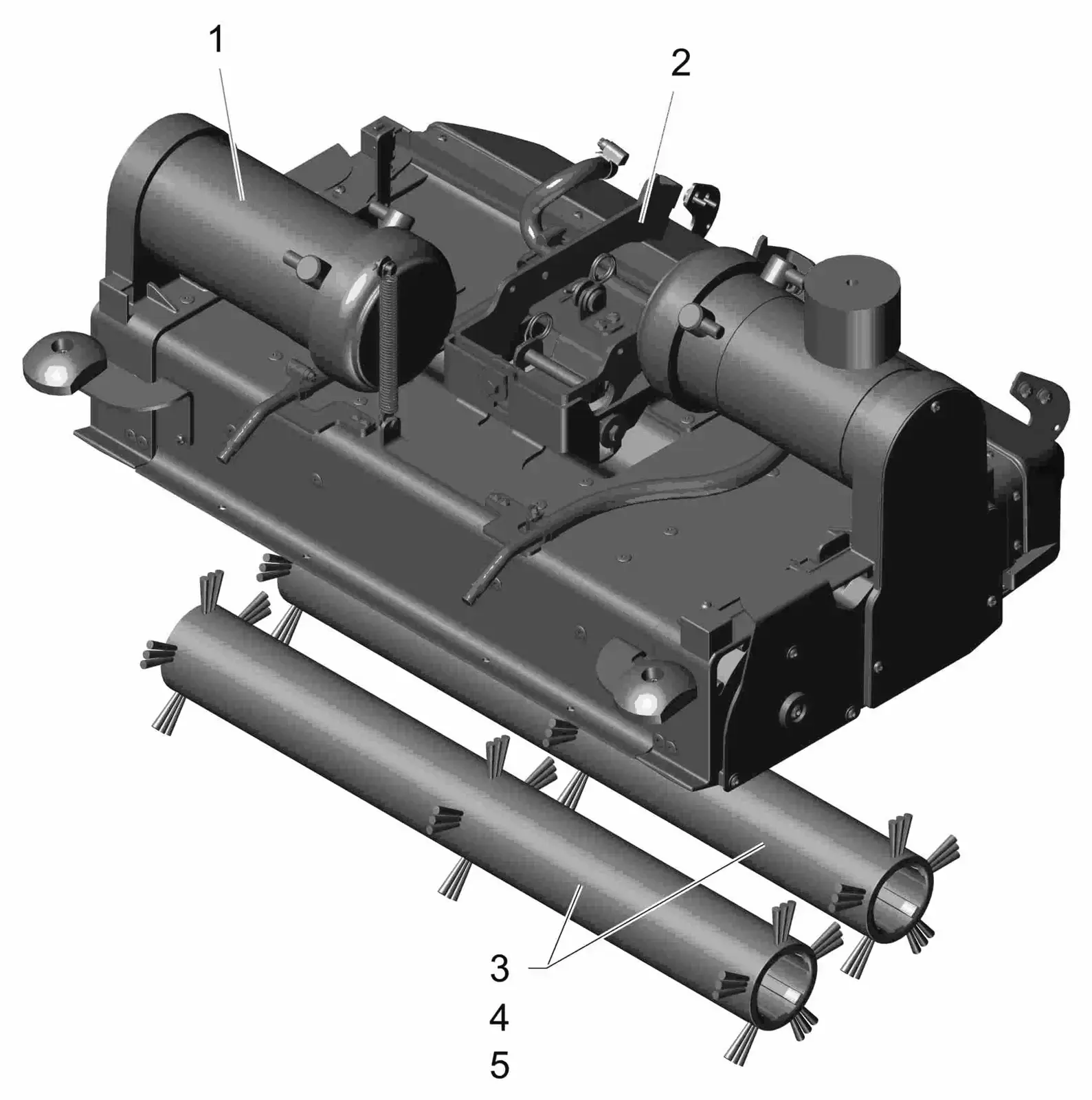

PowerBoss Scrubmaster B120R cylindrical brush head 700 parts
The 700 mm cylindrical brush head overview, with the three brush sets. Manual pages 28C p47, list 28C p48.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97143507-1 | Cylindrical brush head 700, part 1Fits SM2832C 7177.45. Not sold separately. Parts are listed under Cylindrical brush head 700, part 1. No quantity printed. | Not sold separately. Its parts are listed under Cylindrical brush head 700, part 1 | |
| 2 | Not sold separatelyPowerBoss 97143507-2 | Cylindrical brush head 700, part 2Fits SM2832C 7177.45. Not sold separately. Parts are listed under Cylindrical brush head 700, part 2. No quantity printed. | Not sold separately. Its parts are listed under Cylindrical brush head 700, part 2 | |
| 3 | MM99709600PowerBoss 99709600 | 1 | Set of cylindrical brushes PA6-0, 7Fits SM2832C 7177.45. set: 2 pcs. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | MM7099Replaces PowerBoss 99709900 | 1 | Set of cyl. brushes 700 SIC K500Fits SM2832C 7177.45. set: 2 pcs; replaces PowerBoss 99709900. | $827.84/EA |
| 5 | MM7094Replaces PowerBoss 99709400 | 1 | Set of cyl. brushes 700 SIC K180Fits SM2832C 7177.45. set: 2 pcs; replaces PowerBoss 99709400. | $746.17/EA |

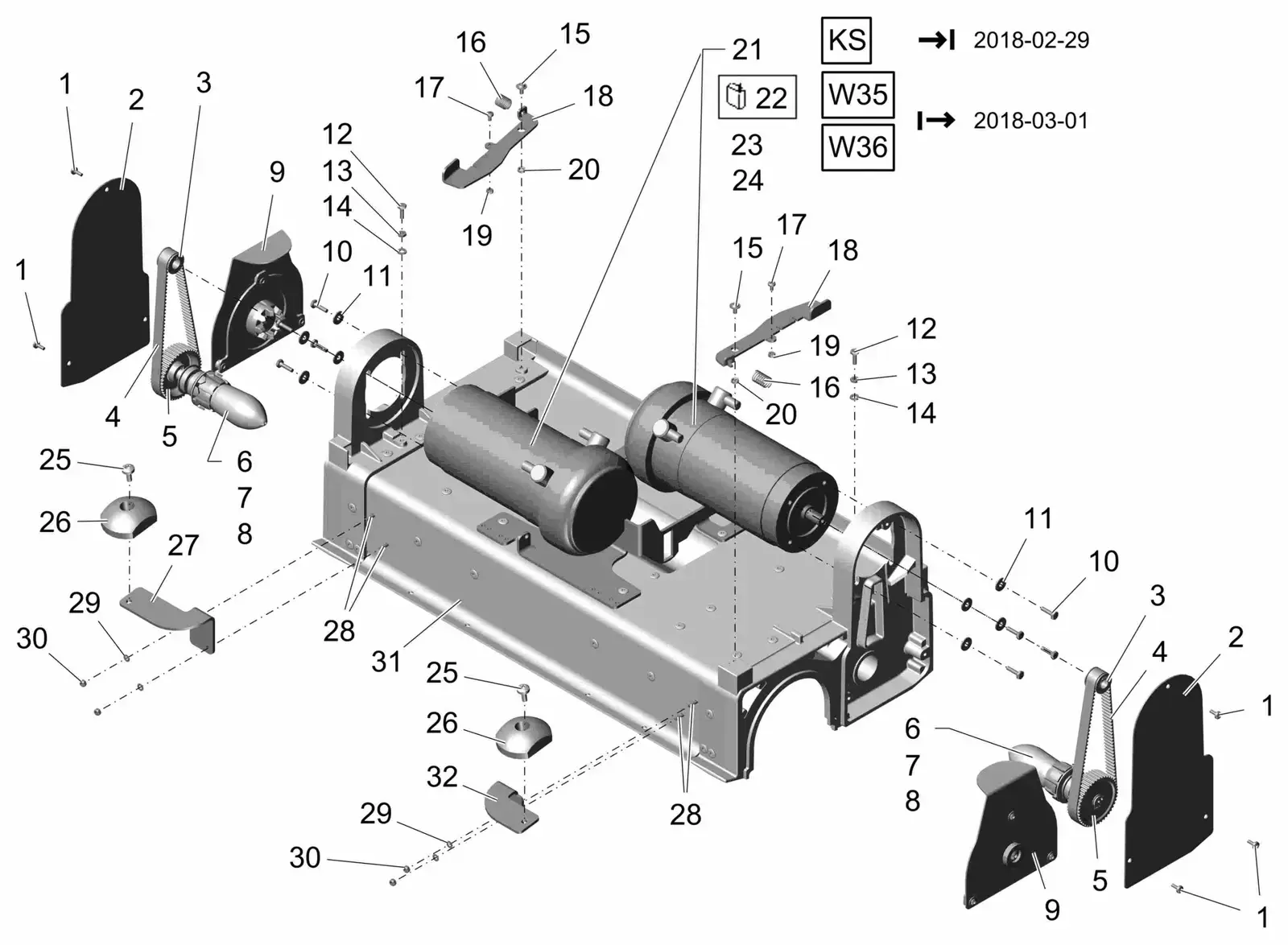

PowerBoss Scrubmaster B120R cylindrical brush head 700, part 1
The 700 mm cylindrical head drive: toothed belts and pulleys, carrier, side cover, carbon brush set and sheet metal. Manual pages 28C p49, list 28C p50-51.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00959220PowerBoss 00959220 | 6 | Screw C M5x12-St A2G TORX DIN 7500Fits SM2832C 7177.45. Hako material no. 11702016. | $1.05/EA |
| 2 | MM01272860PowerBoss 01272860 | 2 | Sheet metalFits SM2832C 7177.45. Hako material no. 90588617. | $71.42/EA |
| 3 | MM90409210PowerBoss 90409210 | 2 | Toothed belt pulley Z=16Fits SM2832C 7177.45. Hako part no. 01072460. | $31.47/EA |
| 4 | MM16423055PowerBoss 16423055 | 2 | Toothed belt CXP HTD 500-5M-15Fits SM2832C 7177.45. Hako part no. 01072540. | $25.73/EA |
| 5 | MM90409244PowerBoss 90409244 | 2 | Toothed belt pulley Z=44Fits SM2832C 7177.45. Hako part no. 01072570. | $66.33/EA |
| 6 | MM01072560PowerBoss 01072560 | 2 | Carrier, cpl.Fits SM2832C 7177.45. Hako material no. 97080014. Has its own parts list: Carrier, cpl. Printed: Available. Pos. has sub-assemblies. | $291.25/EA |
| 7 | MM13540549PowerBoss 13540549 | 2 | Feather key AB5x5x16-St50 DIN 6885Fits SM2832C 7177.45. Hako part no. 01072580. | $1.22/EA |
| 8 | MM12610069PowerBoss 12610069 | 2 | Retaining ring 15x1-phos. DIN 471Fits SM2832C 7177.45. Hako part no. 00022340. | $1.22/EA |

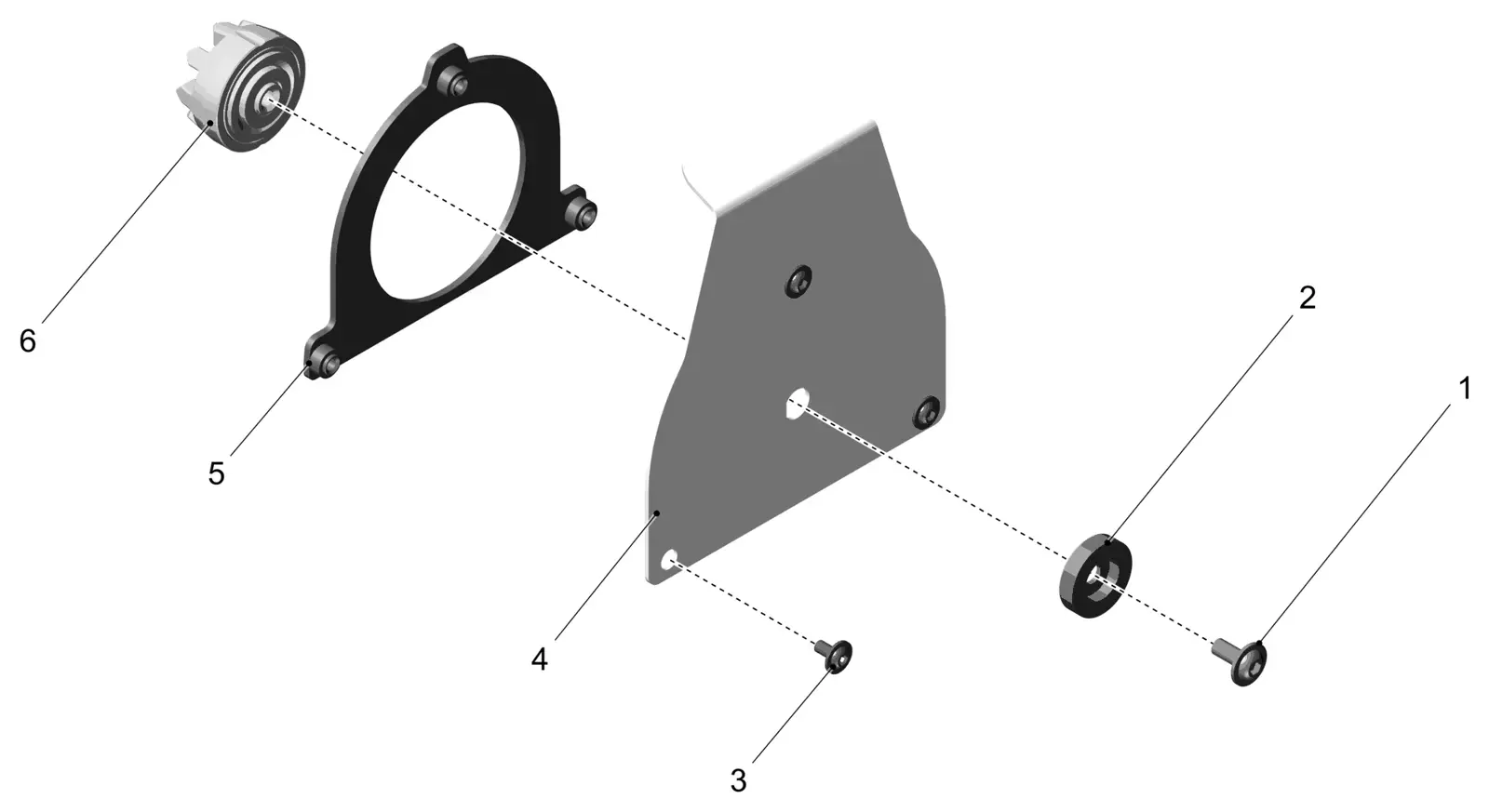

| 9 | MM01072550PowerBoss 01072550 | 2 | Side cover, cpl.Fits SM2832C 7177.45. Hako material no. 97083208. Has its own parts list: Side cover, cpl. Printed: Available. Pos. has sub-assemblies. | $259.47/EA |
| 10 | MM11038098PowerBoss 11038098 | 8 | hexagon screw M6x20-8.8-N3 ISO 4017Fits SM2832C 7177.45. Hako part no. 00053020. | $1.08/EA |
| 11 | MM12332011PowerBoss 12332011 | 9 | Washer ISO 7093-6-2 00HV-N2Fits SM2832C 7177.45. Hako part no. 00135120. | $4.15/EA |
| 12 | MM11038072PowerBoss 11038072 | 2 | hexagon screw M6x16-8.8-N3 ISO 4017Fits SM2832C 7177.45. Hako part no. 00053010. | $1.08/EA |
| 13 | MM00135790PowerBoss 00135790 | 2 | Hex. Nut M6-04-N2 ISO 4035Fits SM2832C 7177.45. Hako material no. 12012035. | $2.87/EA |
| 14 | MM12310033PowerBoss 12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits SM2832C 7177.45. Hako part no. 00053730. | $1.38/EA |
| 15 | MM11177179PowerBoss 11177179 | 2 | Lens flange screw M6x10-A2-70 ISO7380-2Fits SM2832C 7177.45. Hako part no. 01072520. | $1.73/EA |
| 16 | MM90232372PowerBoss 90232372 | 2 | Cyl.compression springFits SM2832C 7177.45. Hako part no. 00550870. | $3.69/EA |
| 17 | MM00552300PowerBoss 00552300 | 2 | lens head screw M5x8-4.8-H-N2 ISO 7045Fits SM2832C 7177.45. Hako material no. 11175163. | $1.22/EA |
| 18 | MM01272890PowerBoss 01272890 | 2 | LeverFits SM2832C 7177.45. Hako material no. 90603044. | $42.92/EA |
| 19 | MM12022430PowerBoss 12022430 | 2 | Hex. Nut M5-A4 DIN 934Fits SM2832C 7177.45. Hako part no. 00902250. | $9.66/EA |
| 20 | MM90437450PowerBoss 90437450 | 2 | BushingFits SM2832C 7177.45. Hako part no. 01073360. | $6.42/EA |
| 21 | MM01072450PowerBoss 01072450 | 2 | Motor 24V 700WFits SM2832C 7177.45. Hako material no. 90529371. | $1,270.55/EA |
| 22 | MM00553060PowerBoss 00553060 | 1 | Set (4pc.) carbon brushFits SM2832C 7177.45. | $590.22/EA |
| 23 | MM00022430PowerBoss 00022430 | 2 | Feather key A5x5x18 St50 DIN 6885Fits SM2832C 7177.45. Hako material no. 13540208. | $1.22/EA |
| 24 | MM12610234PowerBoss 12610234 | 2 | Retaining ring 14x1-phos. DIN 471Fits SM2832C 7177.45. Hako part no. 00022440. | $5.51/EA |
| 25 | MM01272710PowerBoss 01272710 | 2 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM2832C 7177.45. Hako material no. 11702172. | $3.90/EA |
| 26 | MM01371320PowerBoss 01371320 | 2 | stayFits SM2832C 7177.45. Hako material no. 92009976. | $10.56/EA |
| 27 | MM01361430PowerBoss 01361430 | 1 | sheet metal L.H.Fits SM2832C 7177.45. Hako material no. 92003961. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | MM01081260PowerBoss 01081260 | 4 | Socket head screw M5x16-A2-70 DIN 912Fits SM2832C 7177.45. Hako material no. 11126216. | $1.05/EA |
| 29 | MM00902270PowerBoss 00902270 | 4 | Washer 5-200HV-A4-70 ISO 7090Fits SM2832C 7177.45. Hako material no. 12310249. | $1.22/EA |
| 30 | MM12040283PowerBoss 12040283 | 4 | Hex. Nut M5-A2-70 DIN 985Fits SM2832C 7177.45. Hako part no. 01017660. | $1.08/EA |
| 31 | MM03023690PowerBoss 03023690 | 1 | roll brush head 700, cpl.Fits SM2832C 7177.45. Hako material no. 96153564. | $1,381.02/EA |
| 32 | MM01361530PowerBoss 01361530 | 1 | sheet metal R.H.Fits SM2832C 7177.45. Hako material no. 92003656. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| KS | MM03018290PowerBoss 03018290 | 1 | wiring harness brush motor - thermal switchFits SM2832C 7177.45. Hako material no. 97115729. Valid until 2018-02-28. til appr, end of february 2018. | $162.36/EA |
| W35 | MM03020010PowerBoss 03020010 | 1 | wiring harness W35Fits SM2832C 7177.45. Hako material no. 97148183. Valid from 2018-03-01. from appr. begin of march 2018. | $112.79/EA |
| W36 | MM03020120PowerBoss 03020120 | 1 | wiring harness W36Fits SM2832C 7177.45. Hako material no. 97148191. Valid from 2018-03-01. from appr. begin of march 2018. | $112.79/EA |

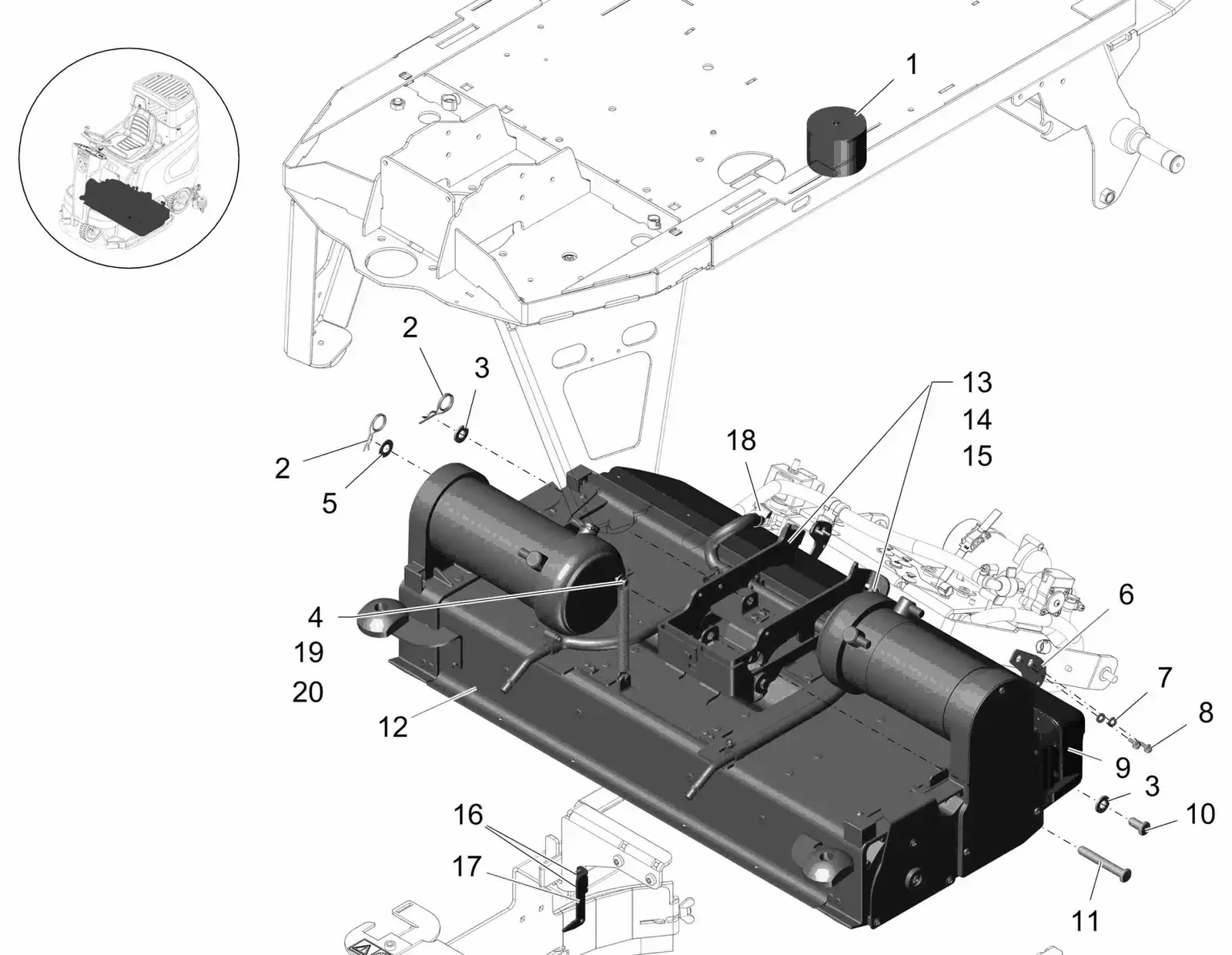

PowerBoss Scrubmaster B120R cylindrical brush head 85 cm parts
The 850 mm cylindrical brush head frame: buffer, guide bar, pins, washers and the dirt container. Manual pages 33C p29, list 33C p30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01278160PowerBoss 01278160 | 2 | BufferFits SM3332C 7177.47. Hako material no. 90672296. | $4.67/EA |
| 2 | MM00744820PowerBoss 00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits SM3332C 7177.47. Hako material no. 13851043. | $1.22/EA |
| 3 | MM00151200PowerBoss 00151200 | 2 | washer 12-St-N2 DIN 1440Fits SM3332C 7177.47. Hako material no. 12322053. | $1.05/EA |
| 4 | MM00736570PowerBoss 00736570 | 1 | Bolt B6h11x16-St A2G DIN 1444Fits SM3332C 7177.47. Hako material no. 13328182. | $3.90/EA |
| 5 | MM711592Replaces PowerBoss 01102770 | 1 | Approach disk 12,5x26x1,5-POMFits SM3332C 7177.47. Hako material no. 14898019; replaces PowerBoss 01102770. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM01375140PowerBoss 01375140 | 1 | guide barFits SM3332C 7177.47. Hako material no. 96156955. | $187.53/EA |
| 7 | MM00730940PowerBoss 00730940 | 4 | Detent edged washer SKM-6-dacrometisiertFits SM3332C 7177.47. Hako material no. 12520045. | $1.22/EA |
| 8 | MM00539730PowerBoss 00539730 | 4 | Screw M6x16-St A3G Kombit. DIN 7500Fits SM3332C 7177.47. Hako material no. 11702024. | $1.00/EA |
| 9 | MM01273190PowerBoss 01273190 | 1 | Dirt container (Available! No.: 01273190)Fits SM3332C 7177.47. Hako material no. 97113708. Has its own parts list: Dirt container (01273190). Printed: Available. Pos. has sub-assemblies. | $546.64/EA |
| 10 | MM00901510PowerBoss 00901510 | 1 | Bolt B12h11x25-St A3G DIN 1444Fits SM3332C 7177.47. Hako material no. 13328430. | $3.11/EA |
| 11 | MM00879630PowerBoss 00879630 | 1 | Bolt B12h11x85-St A3G DIN 1444Fits SM3332C 7177.47. Hako material no. 13328422. | $7.67/EA |
| 12 | Not sold separatelyPowerBoss 97143523 | Cylindrical brush head 850Fits SM3332C 7177.47. Not sold separately. Parts are listed under Cylindrical brush head 850. No quantity printed. | Not sold separately. Its parts are listed under Cylindrical brush head 850 | |
| 13 | MM01103290PowerBoss 01103290 | 2 | Round head screw M8x25-4.6 A2G DIN 603Fits SM3332C 7177.47. Hako material no. 11620457. | $1.05/EA |
| 14 | MM12310041PowerBoss 12310041 | 2 | Washer 8-200HV-N3 ISO 7089Fits SM3332C 7177.47. Hako part no. 00053750. | $2.75/EA |
| 15 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM3332C 7177.47. Hako part no. 00051510. | $4.15/EA |
| 16 | MM00959220PowerBoss 00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits SM3332C 7177.47. Hako material no. 11702016. | $1.05/EA |
| 17 | MM01360400PowerBoss 01360400 | 1 | indicatorFits SM3332C 7177.47. Hako material no. 92062363. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | MM3302144Replaces PowerBoss 01015350 | 1 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM3332C 7177.47. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 19 | MM12332011PowerBoss 12332011 | 1 | Washer ISO 7093-6-2 00HV-N2Fits SM3332C 7177.47. Hako part no. 00135120. | $4.15/EA |
| 20 | MM00534540PowerBoss 00534540 | 1 | split pin 1,6x10-St-N2 ISO 1234Fits SM3332C 7177.47. Hako material no. 13280276. | $1.22/EA |

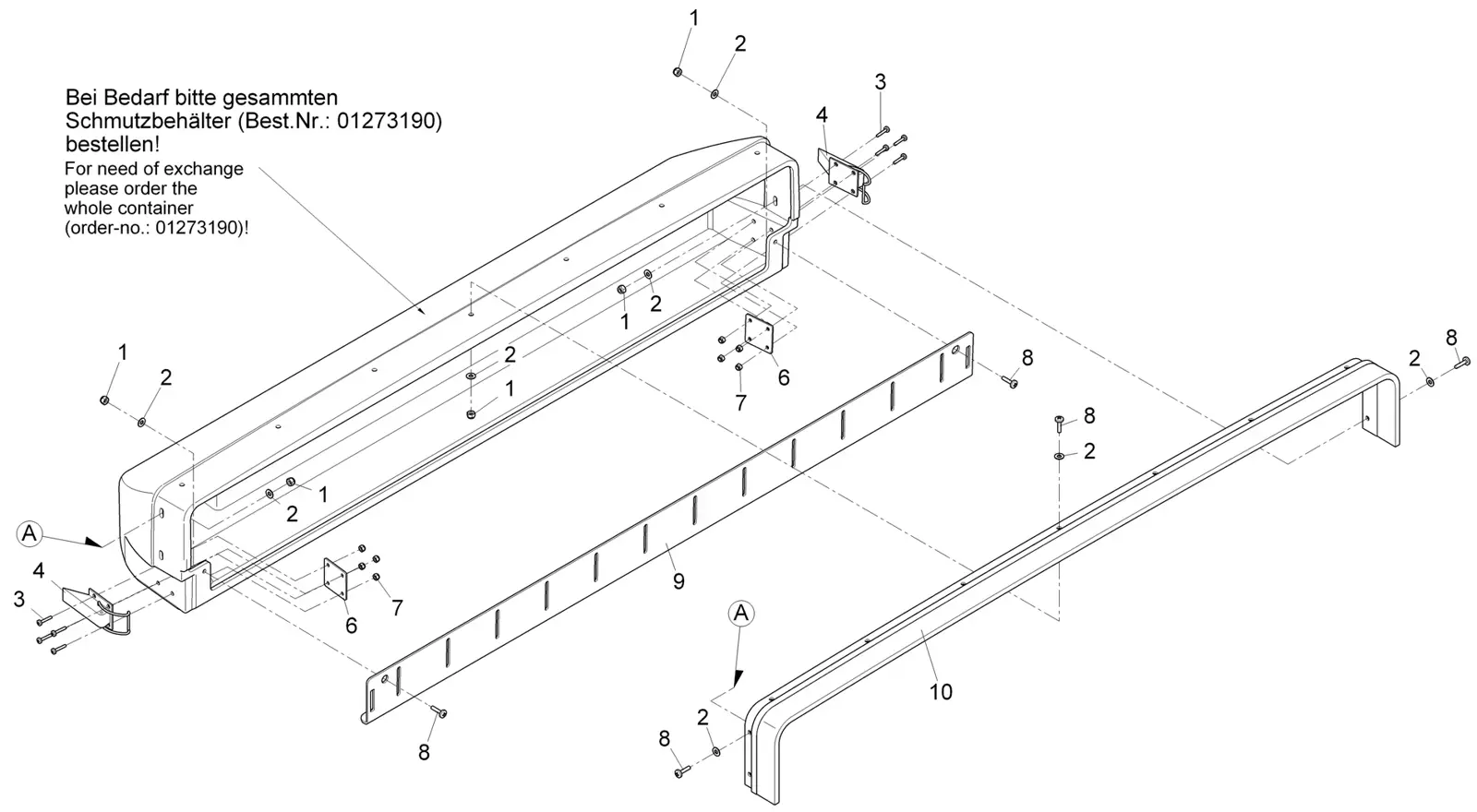

PowerBoss Scrubmaster B120R dirt container (01273190) parts
The dirt container for the 850 mm cylindrical head: broom rail, apron, plate, lock and screws. Manual pages 33C p31, list 33C p32.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040234PowerBoss 12040234 | 13 | Hex. Nut M4-A2 DIN 985Fits SM3332C 7177.47. Hako part no. 00970190. | $1.38/EA |
| 2 | MM12310272PowerBoss 12310272 | 24 | Washer 4-200HV-A4-70 ISO 7089Fits SM3332C 7177.47. Hako part no. 00874720. | $2.75/EA |
| 3 | MM11175452PowerBoss 11175452 | 8 | lens head screw M3x14-A2-70-H ISO 7045Fits SM3332C 7177.47. Hako part no. 01072230. | $1.22/EA |
| 4 | MM17383191PowerBoss 17383191 | 2 | Lock TL-800 DA-1Fits SM3332C 7177.47. Hako part no. 01072220. | $27.88/EA |
| 6 | MM90435884PowerBoss 90435884 | 2 | PlateFits SM3332C 7177.47. Hako part no. 01076250. | $3.45/EA |
| 7 | MM12040374PowerBoss 12040374 | 8 | Hex. Nut DIN 985Fits SM3332C 7177.47. Hako part no. 01072270. | $1.22/EA |
| 8 | MM01072260PowerBoss 01072260 | 13 | lens head screw M4x14-A2-70-H ISO 7045Fits SM3332C 7177.47. Hako material no. 11175445. | $1.05/EA |
| 9 | MM01272960PowerBoss 01272960 | 1 | Sheet metal apronFits SM3332C 7177.47. Hako material no. 90589888. | $87.14/EA |
| 10 | MM01272950PowerBoss 01272950 | 1 | Broom railFits SM3332C 7177.47. Hako material no. 90589854. | $39.53/EA |

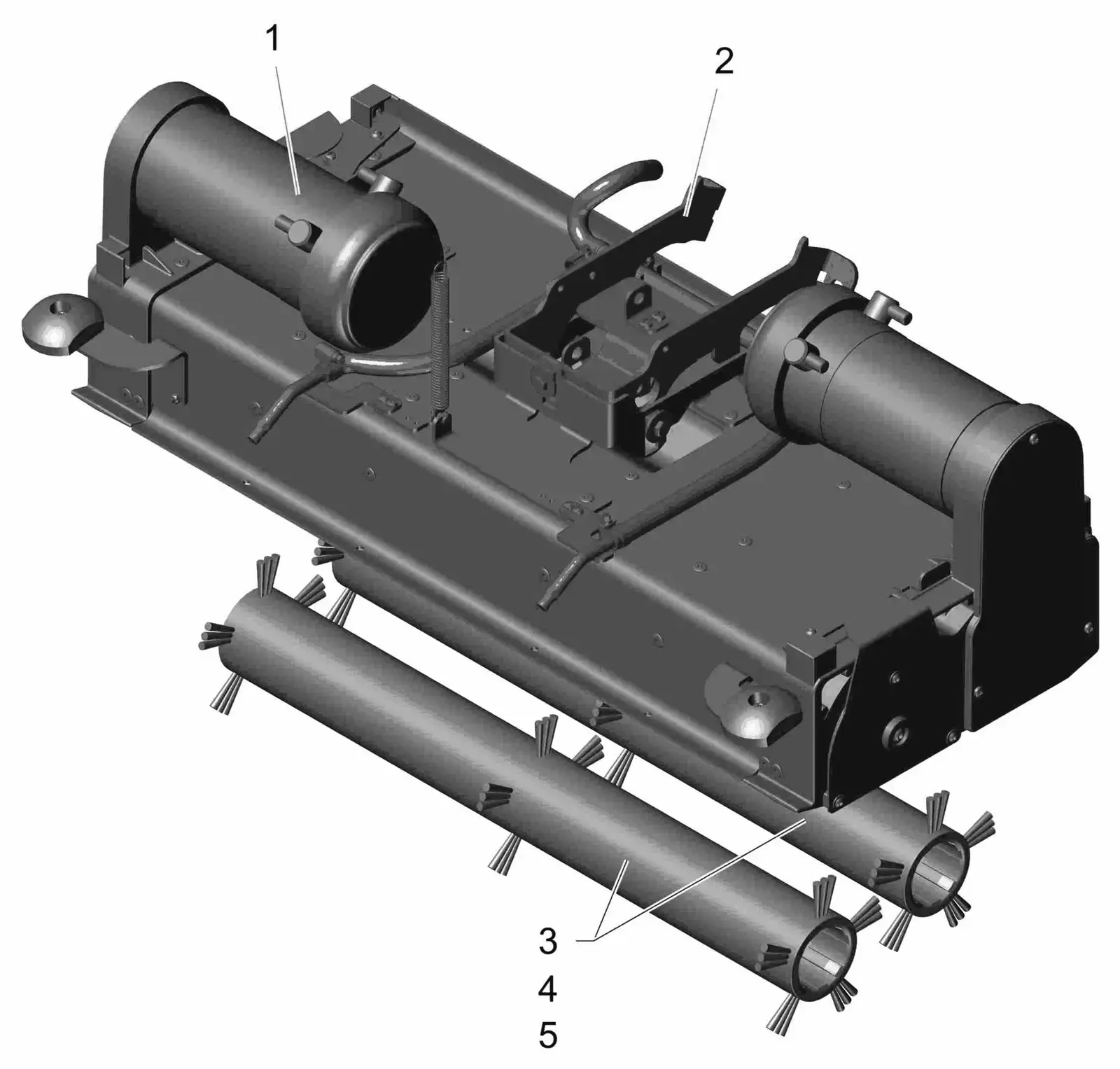

PowerBoss Scrubmaster B120R cylindrical brush head 850 parts
The 850 mm cylindrical brush head overview, with the three brush sets. Manual pages 33C p33, list 33C p34.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97143523-1 | Cylindrical brush head 850, part 1Fits SM3332C 7177.47. Not sold separately. Parts are listed under Cylindrical brush head 850, part 1. No quantity printed. | Not sold separately. Its parts are listed under Cylindrical brush head 850, part 1 | |
| 2 | Not sold separatelyPowerBoss 97143523-2 | Cylindrical brush head 850, part 2Fits SM3332C 7177.47. Not sold separately. Parts are listed under Cylindrical brush head 850, part 2. No quantity printed. | Not sold separately. Its parts are listed under Cylindrical brush head 850, part 2 | |
| 3 | MM99768100PowerBoss 99768100 | 1 | set of cyl. brushes 850 PA6-0,7Fits SM3332C 7177.47. set: 2 pcs. | $445.01/EA |
| 4 | MM99768200PowerBoss 99768200 | 1 | set of cyl. brushes 850 SIC K500Fits SM3332C 7177.47. set: 2 pcs. | $721.72/EA |
| 5 | MM99768300PowerBoss 99768300 | 1 | set of cyl. brushes 850 SIC K180Fits SM3332C 7177.47. set: 2 pcs. | $746.54/EA |

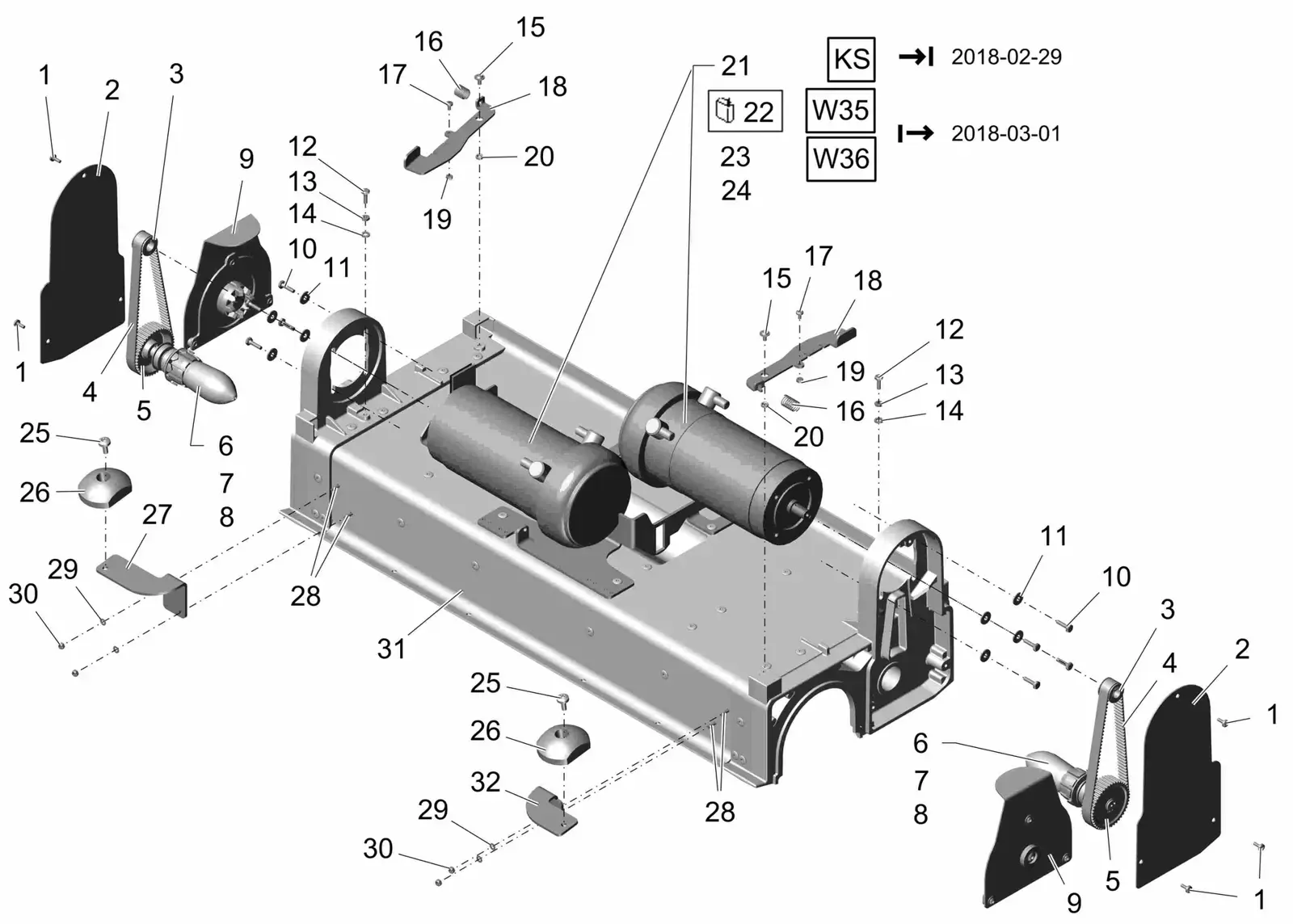

PowerBoss Scrubmaster B120R cylindrical brush head 850, part 1
The 850 mm cylindrical head drive: toothed belts and pulleys, carrier, side cover, carbon brush set and sheet metal. Manual pages 33C p35, list 33C p36-37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00959220PowerBoss 00959220 | 6 | Screw C M5x12-St A2G TORX DIN 7500Fits SM3332C 7177.47. Hako material no. 11702016. | $1.05/EA |
| 2 | MM01272860PowerBoss 01272860 | 2 | Sheet metalFits SM3332C 7177.47. Hako material no. 90588617. | $71.42/EA |
| 3 | MM90409210PowerBoss 90409210 | 2 | Toothed belt pulley Z=16Fits SM3332C 7177.47. Hako part no. 01072460. | $31.47/EA |
| 4 | MM16423055PowerBoss 16423055 | 2 | Toothed belt CXP HTD 500-5M-15Fits SM3332C 7177.47. Hako part no. 01072540. | $25.73/EA |
| 5 | MM90409244PowerBoss 90409244 | 2 | Toothed belt pulley Z=44Fits SM3332C 7177.47. Hako part no. 01072570. | $66.33/EA |
| 6 | MM01072560PowerBoss 01072560 | 2 | Carrier, cpl.Fits SM3332C 7177.47. Hako material no. 97080014. Has its own parts list: Carrier, cpl. Printed: Available. Pos. has sub-assemblies. | $291.25/EA |
| 7 | MM13540549PowerBoss 13540549 | 2 | Feather key AB5x5x16-St50 DIN 6885Fits SM3332C 7177.47. Hako part no. 01072580. | $1.22/EA |
| 8 | MM12610069PowerBoss 12610069 | 2 | Retaining ring 15x1-phos. DIN 471Fits SM3332C 7177.47. Hako part no. 00022340. | $1.22/EA |
| 9 | MM01072550PowerBoss 01072550 | 2 | Side cover, cpl.Fits SM3332C 7177.47. Hako material no. 97083208. Has its own parts list: Side cover, cpl. Printed: Available. Pos. has sub-assemblies. | $259.47/EA |
| 10 | MM11038098PowerBoss 11038098 | 8 | hexagon screw M6x20-8.8-N3 ISO 4017Fits SM3332C 7177.47. Hako part no. 00053020. | $1.08/EA |
| 11 | MM12332011PowerBoss 12332011 | 9 | Washer ISO 7093-6-2 00HV-N2Fits SM3332C 7177.47. Hako part no. 00135120. | $4.15/EA |
| 12 | MM11038072PowerBoss 11038072 | 2 | hexagon screw M6x16-8.8-N3 ISO 4017Fits SM3332C 7177.47. Hako part no. 00053010. | $1.08/EA |
| 13 | MM00135790PowerBoss 00135790 | 2 | Hex. Nut M6-04-N2 ISO 4035Fits SM3332C 7177.47. Hako material no. 12012035. | $2.87/EA |
| 14 | MM12310033PowerBoss 12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits SM3332C 7177.47. Hako part no. 00053730. | $1.38/EA |
| 15 | MM11177179PowerBoss 11177179 | 2 | Lens flange screw M6x10-A2-70 ISO7380-2Fits SM3332C 7177.47. Hako part no. 01072520. | $1.73/EA |
| 16 | MM90232372PowerBoss 90232372 | 2 | Cyl.compression springFits SM3332C 7177.47. Hako part no. 00550870. | $3.69/EA |
| 17 | MM00552300PowerBoss 00552300 | 2 | lens head screw M5x8-4.8-H-N2 ISO 7045Fits SM3332C 7177.47. Hako material no. 11175163. | $1.22/EA |
| 18 | MM01272890PowerBoss 01272890 | 2 | LeverFits SM3332C 7177.47. Hako material no. 90603044. | $42.92/EA |
| 19 | MM12022430PowerBoss 12022430 | 2 | Hex. Nut M5-A4 DIN 934Fits SM3332C 7177.47. Hako part no. 00902250. | $9.66/EA |
| 20 | MM90437450PowerBoss 90437450 | 2 | BushingFits SM3332C 7177.47. Hako part no. 01073360. | $6.42/EA |
| 21 | MM01072450PowerBoss 01072450 | 2 | Motor 24V 700WFits SM3332C 7177.47. Hako material no. 90529371. | $1,270.55/EA |
| 22 | MM00553060PowerBoss 00553060 | 1 | Set (4pc.) carbon brushFits SM3332C 7177.47. | $590.22/EA |
| 23 | MM00022430PowerBoss 00022430 | 2 | Feather key A5x5x18 St50 DIN 6885Fits SM3332C 7177.47. Hako material no. 13540208. | $1.22/EA |
| 24 | MM12610234PowerBoss 12610234 | 2 | Retaining ring 14x1-phos. DIN 471Fits SM3332C 7177.47. Hako part no. 00022440. | $5.51/EA |
| 25 | MM01272710PowerBoss 01272710 | 2 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3332C 7177.47. Hako material no. 11702172. | $3.90/EA |
| 26 | MM01371320PowerBoss 01371320 | 2 | stayFits SM3332C 7177.47. Hako material no. 92009976. | $10.56/EA |
| 27 | MM01361430PowerBoss 01361430 | 1 | sheet metal L.H.Fits SM3332C 7177.47. Hako material no. 92003961. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | MM01081260PowerBoss 01081260 | 4 | Socket head screw M5x16-A2-70 DIN 912Fits SM3332C 7177.47. Hako material no. 11126216. | $1.05/EA |
| 29 | MM00902270PowerBoss 00902270 | 4 | Washer 5-200HV-A4-70 ISO 7090Fits SM3332C 7177.47. Hako material no. 12310249. | $1.22/EA |
| 30 | MM12040283PowerBoss 12040283 | 4 | Hex. Nut M5-A2-70 DIN 985Fits SM3332C 7177.47. Hako part no. 01017660. | $1.08/EA |
| 31 | MM03023580PowerBoss 03023580 | 1 | roll brush head 850, cpl.Fits SM3332C 7177.47. Hako material no. 96153911. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | MM01361530PowerBoss 01361530 | 1 | sheet metal R.H.Fits SM3332C 7177.47. Hako material no. 92003656. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| KS | MM03018290PowerBoss 03018290 | 1 | wiring harness brush motor - thermal switchFits SM3332C 7177.47. Hako material no. 97115729. Valid until 2018-02-28. til appr, end of february 2018. | $162.36/EA |
| W35 | MM03020010PowerBoss 03020010 | 1 | wiring harness W35Fits SM3332C 7177.47. Hako material no. 97148183. Valid from 2018-03-01. from appr. begin of march 2018. | $112.79/EA |
| W36 | MM03020120PowerBoss 03020120 | 1 | wiring harness W36Fits SM3332C 7177.47. Hako material no. 97148191. Valid from 2018-03-01. from appr. begin of march 2018. | $112.79/EA |

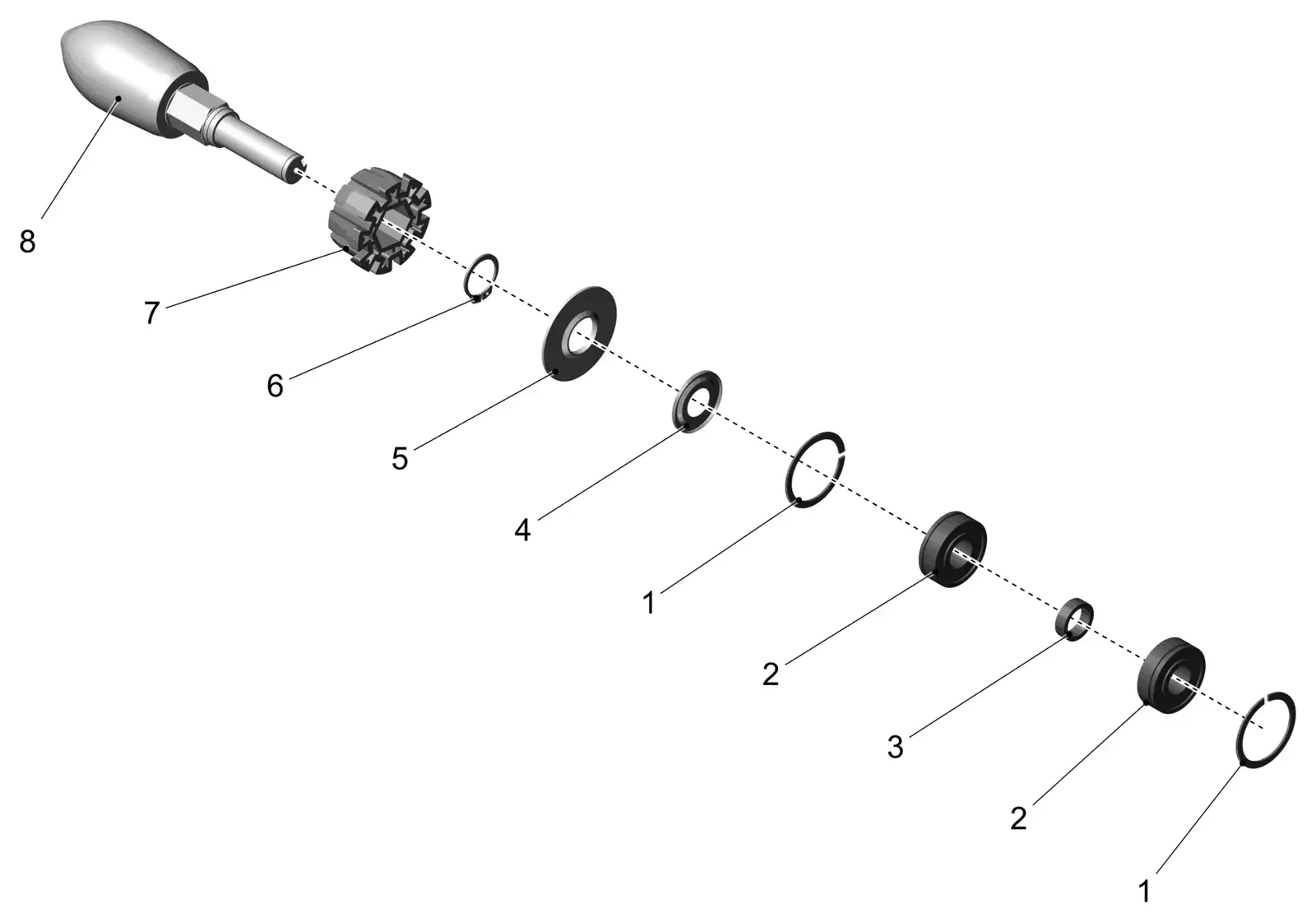

PowerBoss Scrubmaster B120R carrier, cpl. parts
The complete carrier: bearing, bushings, rings and retainers, for both cylindrical head widths. Manual pages 28C p52, list 28C p53.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01078820PowerBoss 01078820 | 2 | Circlip SP35 DIN 5417Fits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 12561031. | $1.22/EA |
| 2 | MM14110853PowerBoss 14110853 | 2 | Grooved ball bearing 6202-2Z-NR DIN 625Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01076560. | $14.19/EA |
| 3 | MM90409665PowerBoss 90409665 | 1 | BushingFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01077520. | $9.31/EA |
| 4 | MM14678064PowerBoss 14678064 | 1 | Ring 6202 ZAVMSFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 00124220. | $6.89/EA |
| 5 | MM01077550PowerBoss 01077550 | 1 | BushingFits SM2832C 7177.45, SM3332C 7177.47. Hako material no. 90436817. | $15.67/EA |
| 6 | MM12610093PowerBoss 12610093 | 1 | Retaining ring 20x1,2-phos. DIN 471Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 00054310. | $1.22/EA |
| 7 | MM90423666PowerBoss 90423666 | 1 | BushingFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01077540. | $20.06/EA |
| 8 | MM90416777PowerBoss 90416777 | 1 | RetainerFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01077530. | $100.67/EA |
PowerBoss Scrubmaster B120R side cover, cpl. parts
The complete side cover: screws, washers, cover, centering bend and counter bearing, for both cylindrical head widths. Manual pages 28C p54, list 28C p55.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177187PowerBoss 11177187 | 1 | Lens flange screw M8x16-A2-70 ISO7380-2Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01074320. | $3.30/EA |
| 2 | MM90464058PowerBoss 90464058 | 1 | WasherFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01074330. | $12.56/EA |
| 3 | MM11177179PowerBoss 11177179 | 3 | Lens flange screw M6x10-A2-70 ISO7380-2Fits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01072520. | $1.73/EA |
| 4 | MM90454117PowerBoss 90454117 | 1 | Side coverFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01078760. | $78.68/EA |
| 5 | MM96098264PowerBoss 96098264 | 1 | Centering bendFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01078770. | $100.17/EA |
| 6 | MM96101985PowerBoss 96101985 | 1 | Counter bearingFits SM2832C 7177.45, SM3332C 7177.47. Hako part no. 01074340. | $76.70/EA |
PowerBoss Scrubmaster B120R cylindrical brush head 700, part 2
The water supply on the 700 mm cylindrical head: hoses, clamps, T-piece, left and right pipes and jets. Manual pages 28C p56, list 28C p57.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00112010PowerBoss 00112010 | 0.26 M | hose 12x3 PVC-weich mit StahlFits SM2832C 7177.45. Hako material no. 25854274. Quantity printed 0,260 M. | $11.83/EA |
| 2 | MM3302144Replaces PowerBoss 01015350 | 5 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM2832C 7177.45. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 3 | MM90310681PowerBoss 90310681 | 1 | T-piece TS12Fits SM2832C 7177.45. Hako part no. 00976160. | $5.25/EA |
| 4 | MM00112010PowerBoss 00112010 | 0.54 M | hose 12x3 PVC-weich mit StahlFits SM2832C 7177.45. Hako material no. 25854274. Quantity printed 0,540 M. | $11.83/EA |
| 5 | MM00112010PowerBoss 00112010 | 0.31 M | hose 12x3 PVC-weich mit StahlFits SM2832C 7177.45. Hako material no. 25854274. Quantity printed 0,310 M. | $11.83/EA |
| 6 | MM00959220PowerBoss 00959220 | 4 | Screw C M5x12-St A2G TORX DIN 7500Fits SM2832C 7177.45. Hako material no. 11702016. | $1.05/EA |
| 7 | MM01273120PowerBoss 01273120 | 1 | Pipe L.H.Fits SM2832C 7177.45. Hako material no. 96130125. | $99.08/EA |
| 8 | MM01273130PowerBoss 01273130 | 1 | Pipe R.H.Fits SM2832C 7177.45. Hako material no. 96130133. | $101.22/EA |
| 9 | MM90429952PowerBoss 90429952 | 2 | Jet 1-8 K5Fits SM2832C 7177.45. Hako part no. 01072640. | $24.64/EA |
| 10 | MM00539730PowerBoss 00539730 | 2 | Screw M6x16-St A3G Kombit. DIN 7500Fits SM2832C 7177.45. Hako material no. 11702024. | $1.00/EA |
| 11 | MM01370740PowerBoss 01370740 | 1 | retainerFits SM2832C 7177.45. Hako material no. 92016294. | $9.33/EA |
| 12 | MM01370710PowerBoss 01370710 | 1 | retainer holder corrugated hose NW 13Fits SM2832C 7177.45. Hako material no. 90639147. | $1.05/EA |
| 13 | MM01384300PowerBoss 01384300 | 1 | rockerFits SM2832C 7177.45. Hako material no. 96153846. | $183.97/EA |
| 14 | MM11038924PowerBoss 11038924 | 3 | hexagon screw M8x30-A2-70 ISO 4017Fits SM2832C 7177.45. Hako part no. 01078690. | $1.22/EA |
| 15 | MM12332152PowerBoss 12332152 | 3 | Washer 10-200HV-A2-70 ISO 7093Fits SM2832C 7177.45. Hako part no. 01161070. | $1.38/EA |
| 16 | MM90492851PowerBoss 90492851 | 3 | Slide blockFits SM2832C 7177.45. Hako part no. 01078700. | $3.25/EA |
| 17 | MM90492869PowerBoss 90492869 | 3 | BushingFits SM2832C 7177.45. Hako part no. 01077730. | $12.97/EA |
| 18 | MM01371930PowerBoss 01371930 | 1 | decal ABRASIONFits SM2832C 7177.45. Hako material no. 17268467. | $9.33/EA |
| 19 | MM01370050PowerBoss 01370050 | 1 | tension springFits SM2832C 7177.45. Hako material no. 92017540. | $6.44/EA |
| 20 | MM00534540PowerBoss 00534540 | 1 | split pin 1,6x10-St-N2 ISO 1234Fits SM2832C 7177.45. Hako material no. 13280276. | $1.22/EA |
| 21 | MM12332011PowerBoss 12332011 | 1 | Washer ISO 7093-6-2 00HV-N2Fits SM2832C 7177.45. Hako part no. 00135120. | $4.15/EA |
| 22 | MM00736570PowerBoss 00736570 | 1 | Bolt B6h11x16-St A2G DIN 1444Fits SM2832C 7177.45. Hako material no. 13328182. | $3.90/EA |
| 23 | MM03007630PowerBoss 03007630 | 0.5 M | Sealing band (spool with 12m) 12x0,1 TeflonFits SM2832C 7177.45. Hako material no. 25743014. Quantity printed 0,500 M. | $27.10/EA |
PowerBoss Scrubmaster B120R cylindrical brush head 850, part 2
The water supply on the 850 mm cylindrical head: hoses, clamps, T-piece, left and right pipes and jets. Manual pages 33C p42, list 33C p43.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00112010PowerBoss 00112010 | 0.26 M | hose 12x3 PVC-weich mit StahlFits SM3332C 7177.47. Hako material no. 25854274. Quantity printed 0,260 M. | $11.83/EA |
| 2 | MM3302144Replaces PowerBoss 01015350 | 5 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM3332C 7177.47. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 3 | MM90310681PowerBoss 90310681 | 1 | T-piece TS12Fits SM3332C 7177.47. Hako part no. 00976160. | $5.25/EA |
| 4 | MM00112010PowerBoss 00112010 | 0.54 M | hose 12x3 PVC-weich mit StahlFits SM3332C 7177.47. Hako material no. 25854274. Quantity printed 0,540 M. | $11.83/EA |
| 5 | MM00112010PowerBoss 00112010 | 0.31 M | hose 12x3 PVC-weich mit StahlFits SM3332C 7177.47. Hako material no. 25854274. Quantity printed 0,310 M. | $11.83/EA |
| 6 | MM00959220PowerBoss 00959220 | 4 | Screw C M5x12-St A2G TORX DIN 7500Fits SM3332C 7177.47. Hako material no. 11702016. | $1.05/EA |
| 7 | MM01273120PowerBoss 01273120 | 1 | Pipe L.H.Fits SM3332C 7177.47. Hako material no. 96130125. | $99.08/EA |
| 8 | MM01273130PowerBoss 01273130 | 1 | Pipe R.H.Fits SM3332C 7177.47. Hako material no. 96130133. | $101.22/EA |
| 9 | MM90429952PowerBoss 90429952 | 2 | Jet 1-8 K5Fits SM3332C 7177.47. Hako part no. 01072640. | $24.64/EA |
| 10 | MM00539730PowerBoss 00539730 | 2 | Screw M6x16-St A3G Kombit. DIN 7500Fits SM3332C 7177.47. Hako material no. 11702024. | $1.00/EA |
| 11 | MM01370740PowerBoss 01370740 | 1 | retainerFits SM3332C 7177.47. Hako material no. 92016294. | $9.33/EA |
| 12 | MM01370710PowerBoss 01370710 | 1 | retainer holder corrugated hose NW 13Fits SM3332C 7177.47. Hako material no. 90639147. | $1.05/EA |
| 13 | MM01384300PowerBoss 01384300 | 1 | rockerFits SM3332C 7177.47. Hako material no. 96153846. | $183.97/EA |
| 14 | MM11038924PowerBoss 11038924 | 3 | hexagon screw M8x30-A2-70 ISO 4017Fits SM3332C 7177.47. Hako part no. 01078690. | $1.22/EA |
| 15 | MM12332152PowerBoss 12332152 | 3 | Washer 10-200HV-A2-70 ISO 7093Fits SM3332C 7177.47. Hako part no. 01161070. | $1.38/EA |
| 16 | MM90492851PowerBoss 90492851 | 3 | Slide blockFits SM3332C 7177.47. Hako part no. 01078700. | $3.25/EA |
| 17 | MM90492869PowerBoss 90492869 | 3 | BushingFits SM3332C 7177.47. Hako part no. 01077730. | $12.97/EA |
| 18 | MM01371930PowerBoss 01371930 | 1 | decal ABRASIONFits SM3332C 7177.47. Hako material no. 17268467. | $9.33/EA |
| 19 | MM01370050PowerBoss 01370050 | 1 | tension springFits SM3332C 7177.47. Hako material no. 92017540. | $6.44/EA |
| 20 | MM00534540PowerBoss 00534540 | 1 | split pin 1,6x10-St-N2 ISO 1234Fits SM3332C 7177.47. Hako material no. 13280276. | $1.22/EA |
| 21 | MM12332011PowerBoss 12332011 | 1 | Washer ISO 7093-6-2 00HV-N2Fits SM3332C 7177.47. Hako part no. 00135120. | $4.15/EA |
| 22 | MM00736570PowerBoss 00736570 | 1 | Bolt B6h11x16-St A2G DIN 1444Fits SM3332C 7177.47. Hako material no. 13328182. | $3.90/EA |
| 23 | MM03007630PowerBoss 03007630 | 0.5 M | Sealing band (spool with 12m) 12x0,1 TeflonFits SM3332C 7177.47. Hako material no. 25743014. Quantity printed 0,500 M. | $27.10/EA |

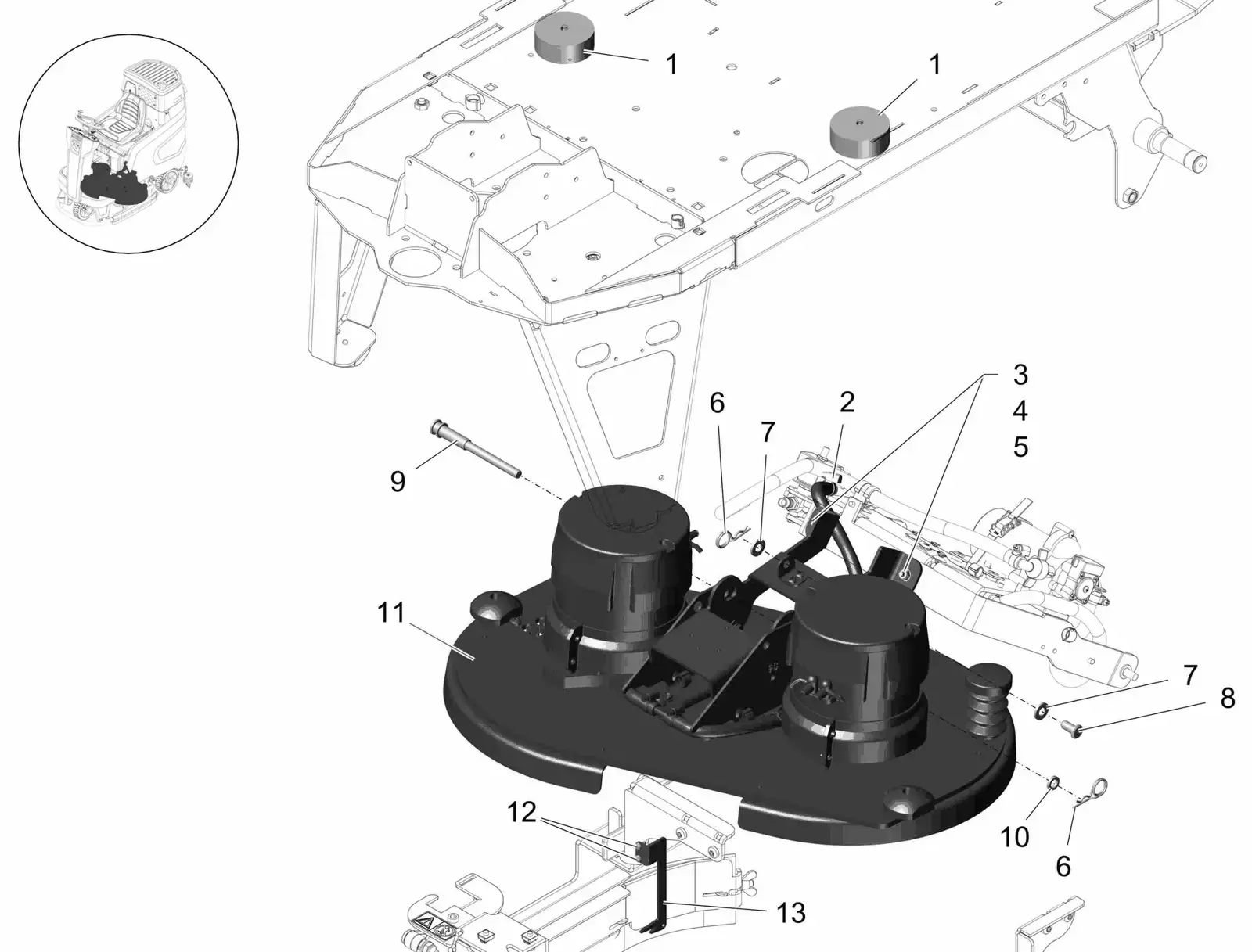

PowerBoss Scrubmaster B120R disk brush head 75cm parts
The 750 mm disc brush head frame: buffer, hose clamp, screws, pins, washers and bolts. Manual pages 30D p29, list 30D p30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01278160PowerBoss 01278160 | 2 | BufferFits SM3032D 7177.41. Hako material no. 90672296. | $4.67/EA |
| 2 | MM3302144Replaces PowerBoss 01015350 | 1 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM3032D 7177.41. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 3 | MM01103290PowerBoss 01103290 | 2 | Round head screw M8x25-4.6 A2G DIN 603Fits SM3032D 7177.41. Hako material no. 11620457. | $1.05/EA |
| 4 | MM12310041PowerBoss 12310041 | 2 | Washer 8-200HV-N3 ISO 7089Fits SM3032D 7177.41. Hako part no. 00053750. | $2.75/EA |
| 5 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM3032D 7177.41. Hako part no. 00051510. | $4.15/EA |
| 6 | MM00744820PowerBoss 00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits SM3032D 7177.41. Hako material no. 13851043. | $1.22/EA |
| 7 | MM00151200PowerBoss 00151200 | 2 | washer 12-St-N2 DIN 1440Fits SM3032D 7177.41. Hako material no. 12322053. | $1.05/EA |
| 8 | MM00901510PowerBoss 00901510 | 1 | Bolt B12h11x25-St A3G DIN 1444Fits SM3032D 7177.41. Hako material no. 13328430. | $3.11/EA |
| 9 | MM01370670PowerBoss 01370670 | 1 | boltFits SM3032D 7177.41. Hako material no. 90693284. | $83.61/EA |
| 10 | MM01370680PowerBoss 01370680 | 1 | bushingFits SM3032D 7177.41. Hako material no. 90698895. | $5.67/EA |
| 11 | Not sold separatelyPowerBoss 97143390 | 1 | Disk brush head 750Fits SM3032D 7177.41. Not sold separately. Parts are listed under Disk brush head 750. | Not sold separately. Its parts are listed under Disk brush head 750 |
| 12 | MM00959220PowerBoss 00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits SM3032D 7177.41. Hako material no. 11702016. | $1.05/EA |
| 13 | MM01370690PowerBoss 01370690 | 1 | indicatorFits SM3032D 7177.41. Hako material no. 92026079. | Call to confirm part: 800-440-6723Call 800-440-6723 |

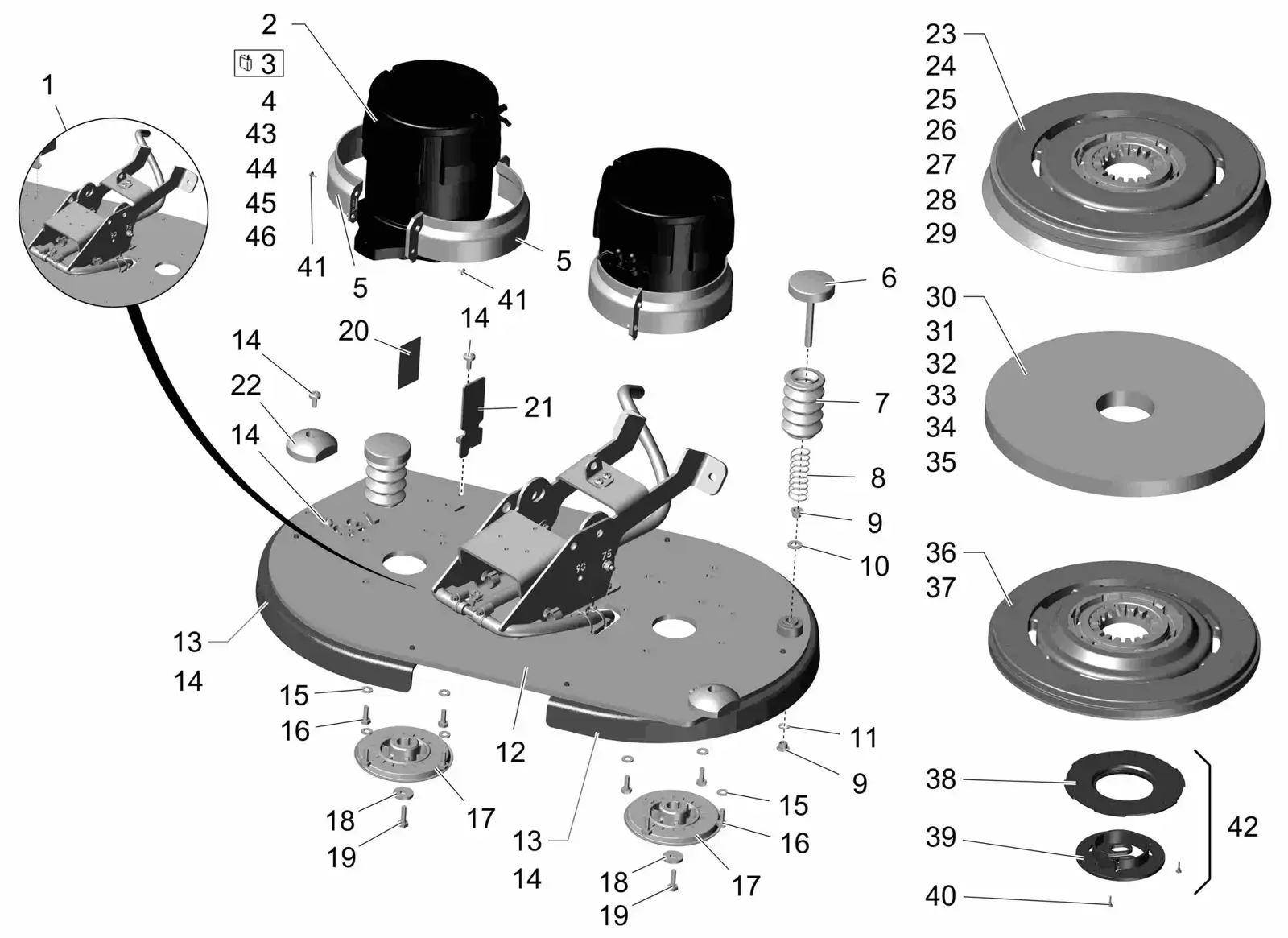

PowerBoss Scrubmaster B120R disk brush head 750 parts
The 750 mm disc head: motors, carbon brush set, splash guards, plate, and the disc brushes, super-pads and pad holders. Manual pages 30D p31, list 30D p32-33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97143390_U1 | Head rockerFits SM3032D 7177.41. Not sold separately. Parts are listed under Head rocker (97143390_U1). No quantity printed. | Not sold separately. Its parts are listed under Head rocker (97143390_U1) | |
| 2 | MM01272060PowerBoss 01272060 | 2 | Motor Amer 710W 24VFits SM3032D 7177.41. Hako material no. 90586645. | $950.10/EA |
| 3 | MM01272100PowerBoss 01272100 | 1 | Set (4pc.) carbon brushFits SM3032D 7177.41. | $121.14/EA |
| 4 | MM01377320PowerBoss 01377320 | 2 | fitting key 6x6x22 DIN 6885Fits SM3032D 7177.41. | $2.50/EA |
| 5 | MM01271080PowerBoss 01271080 | 4 | Splash guardFits SM3032D 7177.41. Hako material no. 90577263. | $5.69/EA |
| 6 | MM96112388PowerBoss 96112388 | 2 | EjectorFits SM3032D 7177.41. Hako part no. 01078000. | $34.31/EA |
| 7 | MM90500232PowerBoss 90500232 | 2 | BellowsFits SM3032D 7177.41. Hako part no. 01078350. | $20.03/EA |
| 8 | MM90500208PowerBoss 90500208 | 2 | Compression spring VD-207 JNFits SM3032D 7177.41. Hako part no. 01078340. | $14.03/EA |
| 9 | MM01130590PowerBoss 01130590 | 4 | Slide bearing bushFits SM3032D 7177.41. Hako material no. 14895312. | $1.05/EA |
| 10 | MM12310058PowerBoss 12310058 | 2 | Washer 10-200HV-N3 ISO 7089Fits SM3032D 7177.41. Hako part no. 00053760. | $4.15/EA |
| 11 | MM12640033PowerBoss 12640033 | 2 | Thrust washer 8 brün. DIN 6799Fits SM3032D 7177.41. Hako part no. 00046280. | $1.22/EA |
| 12 | MM01370770PowerBoss 01370770 | 1 | plate 750Fits SM3032D 7177.41. Hako material no. 96180922. | $470.66/EA |
| 13 | MM01370730PowerBoss 01370730 | 2 | coveringFits SM3032D 7177.41. Hako material no. 92092543. | $118.63/EA |
| 14 | MM01272710PowerBoss 01272710 | 11 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3032D 7177.41. Hako material no. 11702172. | $3.90/EA |
| 15 | MM12310041PowerBoss 12310041 | 8 | Washer 8-200HV-N3 ISO 7089Fits SM3032D 7177.41. Hako part no. 00053750. | $2.75/EA |
| 16 | MM00704610PowerBoss 00704610 | 8 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Fits SM3032D 7177.41. Hako material no. 11720117. | $1.05/EA |
| 17 | MM00512400PowerBoss 00512400 | 2 | Driver;\n Typ 048038Fits SM3032D 7177.41. Hako material no. 90324369. | $78.11/EA |
| 18 | MM90209537PowerBoss 90209537 | 2 | WasherFits SM3032D 7177.41. Hako part no. 00879170. | $2.29/EA |
| 19 | MM00025000PowerBoss 00025000 | 2 | Hex.bolt M8x25-8.8 A2G(selbsts.)Fits SM3032D 7177.41. Hako material no. 11718038. | $1.05/EA |
| 20 | MM01382830PowerBoss 01382830 | 1 | decal abrasion TB_750_900Fits SM3032D 7177.41. Hako material no. 17268491. | $13.47/EA |
| 21 | MM01370720PowerBoss 01370720 | 1 | retainerFits SM3032D 7177.41. Hako material no. 92035039. | $43.77/EA |
| 22 | MM01371320PowerBoss 01371320 | 2 | stayFits SM3032D 7177.41. Hako material no. 92009976. | $10.56/EA |
| 23 | MM99751405PowerBoss 99751405 | 2 | disk brush 15(380) PPN0,5Fits SM3032D 7177.41. Degree of dirt: Light to medium. | $106.25/EA |
| 24 | MM99751805PowerBoss 99751805 | 2 | disk brush 15(380) K901Fits SM3032D 7177.41. Degree of dirt: Light to medium on structured floors. | $111.90/EA |
| 25 | MM99768405PowerBoss 99768405 | 2 | disk brush 15(380) 5-Komp.Fits SM3032D 7177.41. Specially for use on structured car park floors. | $183.75/EA |
| 26 | MM99751605PowerBoss 99751605 | 2 | disk brush 15(380) PPN0,8Fits SM3032D 7177.41. Degree of dirt: Medium to heavy. | $113.56/EA |
| 27 | MM99730805PowerBoss 99730805 | 2 | disk brush 15(380) SIC K600Fits SM3032D 7177.41. Degree of dirt: Medium to heavy, structured floors. | $221.08/EA |
| 28 | MM99752005PowerBoss 99752005 | 2 | disk brush 15" (38cm) SIC K180Fits SM3032D 7177.41. Very heavy dirt and basic cleaning. | $197.22/EA |
| 29 | MM99752205PowerBoss 99752205 | 2 | disk brush 15(380) SIC K120Fits SM3032D 7177.41. Extremely heavy dirt and basic cleaning. | $172.58/EA |
| 30 | MM99752605PowerBoss 99752605 | 1 BOX | Super-pad 15(380) red (5pc)Fits SM3032D 7177.41. Light dirt. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | MM99768905PowerBoss 99768905 | 1 BOX | Super-pad 15(380) blue (5pc)Fits SM3032D 7177.41. Degree of dirt: light to medium, maintenance cleaning. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | MM99787205PowerBoss 99787205 | 1 BOX | Super-pad 15(380) green (5pc)Fits SM3032D 7177.41. Medium dirt and maintenance cleaning. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM99752805PowerBoss 99752805 | 1 BOX | Super-pad 15(380) brown (5pc)Fits SM3032D 7177.41. Maintenance cleaning. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | MM99753005PowerBoss 99753005 | 1 BOX | Super-pad 15(380) black (5pc)Fits SM3032D 7177.41. Basic cleaning and heavy dirt. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM99708602PowerBoss 99708602 | 1 | Micro-fibre-pad 15(380)Fits SM3032D 7177.41. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | MM99752405PowerBoss 99752405 | 2 | pad holder 15(380)Fits SM3032D 7177.41. incl. item 42 (38-40). | $206.51/EA |
| 37 | MM99752455PowerBoss 99752455 | 2 | disk brush 15(380) bristlesFits SM3032D 7177.41. incl. item 42 (38-40). | $274.72/EA |
| 38 | MM90364365PowerBoss 90364365 | 1 | Center-lock, lower partFits SM3032D 7177.41. Hako part no. 00681500. | $38.25/EA |
| 39 | MM90364373PowerBoss 90364373 | 1 | Center-lock,upper partFits SM3032D 7177.41. Hako part no. 00681490. | $41.86/EA |
| 40 | MM11709011PowerBoss 11709011 | 3 | Screw KB 40x14 WN-1442 1.4301Fits SM3032D 7177.41. Hako part no. 00961490. | $1.38/EA |
| 41 | MM01170850PowerBoss 01170850 | 8 | Screw 4x8 verz.Fits SM3032D 7177.41. Hako material no. 11709251. | $1.05/EA |
| 42 | MM00712010PowerBoss 00712010 | 1 | Center-lock, cpl.Fits SM3032D 7177.41. Hako material no. 97054720. incl. items 38-40. | $69.02/EA |
| 43 | MM01279770PowerBoss 01279770 | 1 | carbon brush housing with thermal switchFits SM3032D 7177.41. | $336.13/EA |
| 44 | MM03503140PowerBoss 03503140 | 1 | rotorFits SM3032D 7177.41. | $874.77/EA |
| 45 | MM03503030PowerBoss 03503030 | 1 | gearFits SM3032D 7177.41. | $768.97/EA |
| 46 | MM01372490PowerBoss 01372490 | 1 | plastic coverFits SM3032D 7177.41. | $84.80/EA |

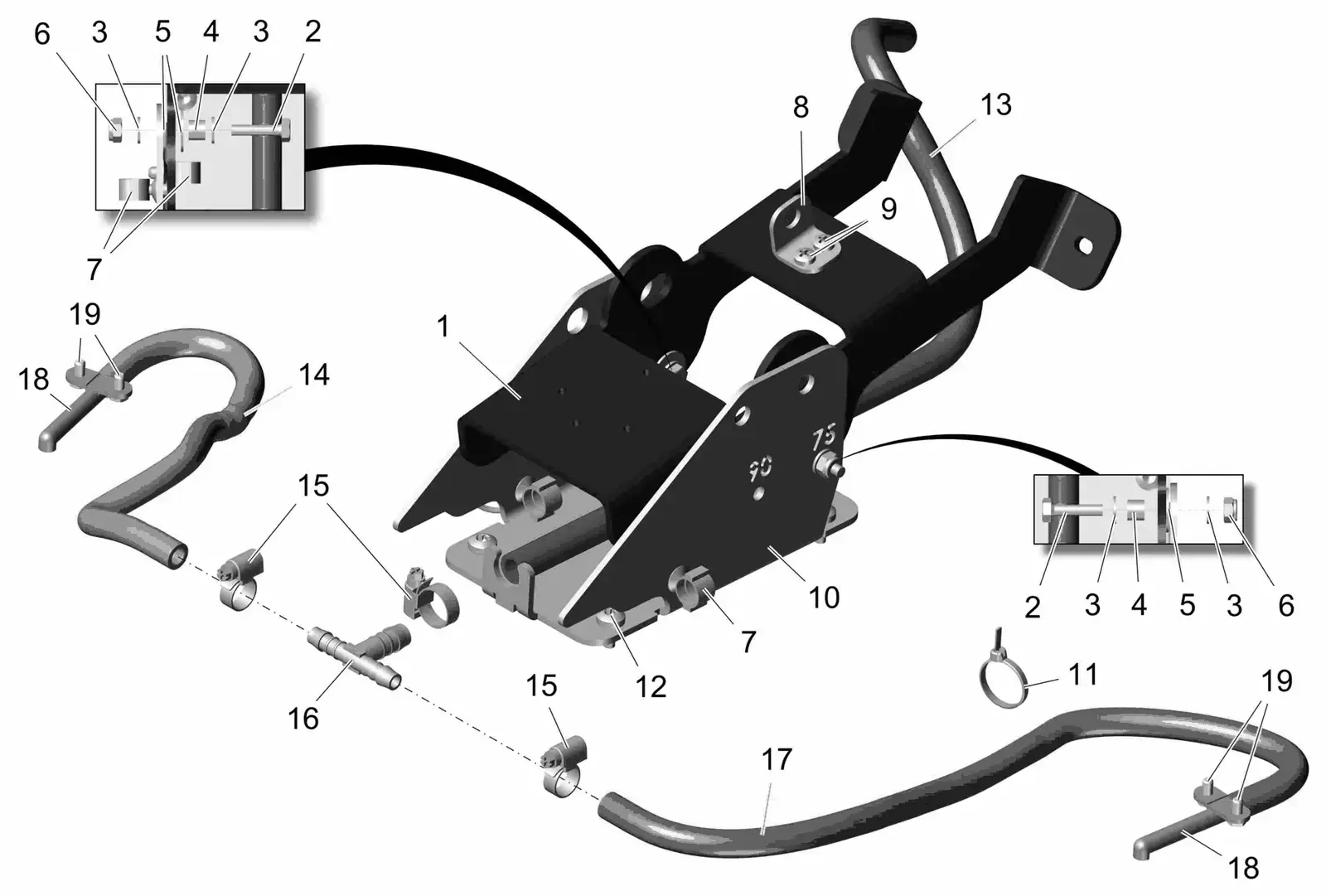

PowerBoss Scrubmaster B120R head rocker (97143390_U1) parts
The head rocker for the 750 mm disc head: rocker, screws, spacer sleeve, retainers and washers. Manual pages 30D p34, list 30D p35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370760PowerBoss 01370760 | 1 | rockerFits SM3032D 7177.41. Hako material no. 92118488. | $163.39/EA |
| 2 | MM11038254PowerBoss 11038254 | 2 | hexagon screw M8x30-8.8-N2 DIN 933Fits SM3032D 7177.41. Hako part no. 00053110. | $1.08/EA |
| 3 | MM12310041PowerBoss 12310041 | 4 | Washer 8-200HV-N3 ISO 7089Fits SM3032D 7177.41. Hako part no. 00053750. | $2.75/EA |
| 4 | MM00733400PowerBoss 00733400 | 2 | Spacer sleeveFits SM3032D 7177.41. Hako material no. 90103045. | $1.83/EA |
| 5 | MM711592Replaces PowerBoss 01102770 | 3 | Approach disk 12,5x26x1,5-POMFits SM3032D 7177.41. Hako material no. 14898019; replaces PowerBoss 01102770. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM3032D 7177.41. Hako part no. 00051510. | $4.15/EA |
| 7 | MM01370710PowerBoss 01370710 | 4 | retainer holder corrugated hose NW 13Fits SM3032D 7177.41. Hako material no. 90639147. | $1.05/EA |
| 8 | MM01370740PowerBoss 01370740 | 1 | retainerFits SM3032D 7177.41. Hako material no. 92016294. | $9.33/EA |
| 9 | MM00539730PowerBoss 00539730 | 2 | Screw M6x16-St A3G Kombit. DIN 7500Fits SM3032D 7177.41. Hako material no. 11702024. | $1.00/EA |
| 10 | MM01370750PowerBoss 01370750 | 1 | metal sheetFits SM3032D 7177.41. Hako material no. 92026046. | $156.56/EA |
| 11 | MM90156688PowerBoss 90156688 | 4 | Cable tie 4,8x360Fits SM3032D 7177.41. Hako part no. 00967760. | $2.06/EA |
| 12 | MM01272710PowerBoss 01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3032D 7177.41. Hako material no. 11702172. | $3.90/EA |
| 13 | MM00112010PowerBoss 00112010 | 0.62 M | hose 12x3 PVC-weich mit StahlFits SM3032D 7177.41. Hako material no. 25854274. Quantity printed 0,620 M. | $11.83/EA |
| 14 | MM00562480PowerBoss 00562480 | 0.38 M | Spiral hose KX3000/Steel-Lw 10Fits SM3032D 7177.41. Hako material no. 25857038. Quantity printed 0,380 M. | $11.94/EA |
| 15 | MM3302144Replaces PowerBoss 01015350 | 3 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM3032D 7177.41. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 16 | MM90275157PowerBoss 90275157 | 1 | T-reducer muff TRS10-13-10Fits SM3032D 7177.41. Hako part no. 00901310. | $4.41/EA |
| 17 | MM00562480PowerBoss 00562480 | 0.54 M | Spiral hose KX3000/Steel-Lw 10Fits SM3032D 7177.41. Hako material no. 25857038. Quantity printed 0,540 M. | $11.94/EA |
| 18 | MM90311663PowerBoss 90311663 | 2 | Spray tubeFits SM3032D 7177.41. Hako part no. 00861700. | $2.63/EA |
| 19 | MM01171270PowerBoss 01171270 | 4 | Screw M6x12-St A2G DIN 7500-DFits SM3032D 7177.41. Hako material no. 11702107. | $1.05/EA |
PowerBoss Scrubmaster B120R disk brush head 90cm parts
The 900 mm disc brush head frame: buffer, hose clamp, screws, pins, washers and bolts. Manual pages 35D p29, list 35D p30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01278160PowerBoss 01278160 | 2 | BufferFits SM3532D 7177.43. Hako material no. 90672296. | $4.67/EA |
| 2 | MM3302144Replaces PowerBoss 01015350 | 1 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM3532D 7177.43. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 3 | MM01103290PowerBoss 01103290 | 2 | Round head screw M8x25-4.6 A2G DIN 603Fits SM3532D 7177.43. Hako material no. 11620457. | $1.05/EA |
| 4 | MM12310041PowerBoss 12310041 | 2 | Washer 8-200HV-N3 ISO 7089Fits SM3532D 7177.43. Hako part no. 00053750. | $2.75/EA |
| 5 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM3532D 7177.43. Hako part no. 00051510. | $4.15/EA |
| 6 | MM00744820PowerBoss 00744820 | 2 | cotter pin 3,2 A2G DIN 11024Fits SM3532D 7177.43. Hako material no. 13851043. | $1.22/EA |
| 7 | MM00151200PowerBoss 00151200 | 2 | washer 12-St-N2 DIN 1440Fits SM3532D 7177.43. Hako material no. 12322053. | $1.05/EA |
| 8 | MM00901510PowerBoss 00901510 | 1 | Bolt B12h11x25-St A3G DIN 1444Fits SM3532D 7177.43. Hako material no. 13328430. | $3.11/EA |
| 9 | MM01370670PowerBoss 01370670 | 1 | boltFits SM3532D 7177.43. Hako material no. 90693284. | $83.61/EA |
| 10 | MM01370680PowerBoss 01370680 | 1 | bushingFits SM3532D 7177.43. Hako material no. 90698895. | $5.67/EA |
| 11 | Not sold separatelyPowerBoss 97143416 | Disk brush head 900Fits SM3532D 7177.43. Not sold separately. Parts are listed under Disk brush head 900. No quantity printed. | Not sold separately. Its parts are listed under Disk brush head 900 | |
| 12 | MM00959220PowerBoss 00959220 | 2 | Screw C M5x12-St A2G TORX DIN 7500Fits SM3532D 7177.43. Hako material no. 11702016. | $1.05/EA |
| 13 | MM01370690PowerBoss 01370690 | 1 | indicatorFits SM3532D 7177.43. Hako material no. 92026079. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Scrubmaster B120R disk brush head 900 parts
The 900 mm disc head: motors, carbon brush set, splash guards, plate, and the disc brushes, super-pads and pad holders. Manual pages 35D p31, list 35D p32-33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97143416_U1 | Head rockerFits SM3532D 7177.43. Not sold separately. Parts are listed under Head rocker (97143416_U1). No quantity printed. | Not sold separately. Its parts are listed under Head rocker (97143416_U1) | |
| 2 | MM01272060PowerBoss 01272060 | 2 | Motor Amer 710W 24VFits SM3532D 7177.43. Hako material no. 90586645. | $950.10/EA |
| 3 | MM01272100PowerBoss 01272100 | 1 | Set (4pc.) carbon brushFits SM3532D 7177.43. | $121.14/EA |
| 4 | MM01377320PowerBoss 01377320 | 2 | fitting key 6x6x22 DIN 6885Fits SM3532D 7177.43. | $2.50/EA |
| 5 | MM01271080PowerBoss 01271080 | 4 | Splash guardFits SM3532D 7177.43. Hako material no. 90577263. | $5.69/EA |
| 6 | MM96112388PowerBoss 96112388 | 2 | EjectorFits SM3532D 7177.43. Hako part no. 01078000. | $34.31/EA |
| 7 | MM90500232PowerBoss 90500232 | 2 | BellowsFits SM3532D 7177.43. Hako part no. 01078350. | $20.03/EA |
| 8 | MM90500208PowerBoss 90500208 | 2 | Compression spring VD-207 JNFits SM3532D 7177.43. Hako part no. 01078340. | $14.03/EA |
| 9 | MM01130590PowerBoss 01130590 | 4 | Slide bearing bushFits SM3532D 7177.43. Hako material no. 14895312. | $1.05/EA |
| 10 | MM12310058PowerBoss 12310058 | 2 | Washer 10-200HV-N3 ISO 7089Fits SM3532D 7177.43. Hako part no. 00053760. | $4.15/EA |
| 11 | MM12640033PowerBoss 12640033 | 2 | Thrust washer 8 brün. DIN 6799Fits SM3532D 7177.43. Hako part no. 00046280. | $1.22/EA |
| 12 | MM01372550PowerBoss 01372550 | 1 | plate 900Fits SM3532D 7177.43. Hako material no. 96180930. | $602.89/EA |
| 13 | MM01370730PowerBoss 01370730 | 2 | coveringFits SM3532D 7177.43. Hako material no. 92092543. | $118.63/EA |
| 14 | MM01272710PowerBoss 01272710 | 11 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3532D 7177.43. Hako material no. 11702172. | $3.90/EA |
| 15 | MM12310041PowerBoss 12310041 | 8 | Washer 8-200HV-N3 ISO 7089Fits SM3532D 7177.43. Hako part no. 00053750. | $2.75/EA |
| 16 | MM00704610PowerBoss 00704610 | 8 | Hex.bolt M8x20-8.8 A2G-Tuflok 180Fits SM3532D 7177.43. Hako material no. 11720117. | $1.05/EA |
| 17 | MM00512400PowerBoss 00512400 | 2 | Driver;\n Typ 048038Fits SM3532D 7177.43. Hako material no. 90324369. | $78.11/EA |
| 18 | MM90209537PowerBoss 90209537 | 2 | WasherFits SM3532D 7177.43. Hako part no. 00879170. | $2.29/EA |
| 19 | MM00025000PowerBoss 00025000 | 2 | Hex.bolt M8x25-8.8 A2G(selbsts.)Fits SM3532D 7177.43. Hako material no. 11718038. | $1.05/EA |
| 20 | MM01382830PowerBoss 01382830 | 1 | decal abrasion TB_750_900Fits SM3532D 7177.43. Hako material no. 17268491. | $13.47/EA |
| 21 | MM01370720PowerBoss 01370720 | 1 | retainerFits SM3532D 7177.43. Hako material no. 92035039. | $43.77/EA |
| 22 | MM01371320PowerBoss 01371320 | 2 | stayFits SM3532D 7177.43. Hako material no. 92009976. | $10.56/EA |
| 23 | MM99754405PowerBoss 99754405 | 2 | Disk brush 18(460) PPN0,5Fits SM3532D 7177.43. Degree of soiling light to medium, bristling PPN0,5 plastic material. | $209.37/EA |
| 24 | MM99754705PowerBoss 99754705 | 2 | Disk brush 18(460) K901Fits SM3532D 7177.43. Degree of soiling light to medium, structured flooring, bristling mixed plastic material K 901. | $230.20/EA |
| 25 | MM99768605PowerBoss 99768605 | 2 | Disk brush 18(460) 5-comp.Fits SM3532D 7177.43. Specifically for use on structured parking garage floors / 5-component brush. | $198.82/EA |
| 26 | MM99754305PowerBoss 99754305 | 2 | Disk brush 18(460) PPN0,8Fits SM3532D 7177.43. Degree of soiling medium to heavy, plastic material PPN 0,8. | $190.86/EA |
| 27 | MM99731705PowerBoss 99731705 | 2 | Disk brush 18(460) SIC K600Fits SM3532D 7177.43. Degree of soiling light to medium, structured flooring, bristling SIC PA 6 grain 600 grey. | $275.97/EA |
| 28 | MM99754505PowerBoss 99754505 | 2 | Disk brush 18(460) SIC K180Fits SM3532D 7177.43. Very heavy soiling and basic cleaning, bristling SIC PA 6 grain 180 gray. | $344.02/EA |
| 29 | MM99754605PowerBoss 99754605 | 2 | Disk brush 18(460) SIC K120Fits SM3532D 7177.43. Extremely heavy soiling and basic cleaning, bristling SIC PA 6.12 grain 120 green. | $300.22/EA |
| 30 | MM99755105PowerBoss 99755105 | 1 BOX | Super-pad 18(460) red (5pc)Fits SM3532D 7177.43. Light soiling, red, in cardboard box à 5 pcs. | $184.64/EA |
| 31 | MM99769205PowerBoss 99769205 | 1 BOX | Super-pad 18(460) blue (5pc)Fits SM3532D 7177.43. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | MM99787405PowerBoss 99787405 | 1 BOX | Super-pad 18(460) green (5pc)Fits SM3532D 7177.43. Medium soiling and maintenance cleaning, green, in cardboard box à 5 pcs. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM99754905PowerBoss 99754905 | 1 BOX | Super-pad 18(460) brown (5pc)Fits SM3532D 7177.43. Maintenance cleaning, brown, in cardboard box à 5 pcs. | $131.34/EA |
| 34 | MM99755005PowerBoss 99755005 | 1 BOX | Super-pad 18(460) black (5pc)Fits SM3532D 7177.43. Basic cleaning and heavy soiling, black, in cardboard box à 5 pcs. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM99708802PowerBoss 99708802 | 2 | Micro-fibre pad 18(460)Fits SM3532D 7177.43. 45 cm. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | MM99754805PowerBoss 99754805 | 2 | Pad holder 18 (460)Fits SM3532D 7177.43. incl. item 42 (38-40). | $279.30/EA |
| 37 | MM99754855PowerBoss 99754855 | 2 | Pad holder 18(460) bristlesFits SM3532D 7177.43. incl. item 42 (38-40). | $280.03/EA |
| 38 | MM90364365PowerBoss 90364365 | 1 | Center-lock, lower partFits SM3532D 7177.43. Hako part no. 00681500. | $38.25/EA |
| 39 | MM90364373PowerBoss 90364373 | 1 | Center-lock,upper partFits SM3532D 7177.43. Hako part no. 00681490. | $41.86/EA |
| 40 | MM11709011PowerBoss 11709011 | 3 | Screw KB 40x14 WN-1442 1.4301Fits SM3532D 7177.43. Hako part no. 00961490. | $1.38/EA |
| 41 | MM01170850PowerBoss 01170850 | 8 | Screw 4x8 verz.Fits SM3532D 7177.43. Hako material no. 11709251. | $1.05/EA |
| 42 | MM00712010PowerBoss 00712010 | 1 | Center-lock, cpl.Fits SM3532D 7177.43. Hako material no. 97054720. incl. items 38-40. | $69.02/EA |
| 43 | MM01279770PowerBoss 01279770 | 1 | carbon brush housing with thermal switchFits SM3532D 7177.43. | $336.13/EA |
| 44 | MM03503140PowerBoss 03503140 | 1 | rotorFits SM3532D 7177.43. | $874.77/EA |
| 45 | MM03503030PowerBoss 03503030 | 1 | gearFits SM3532D 7177.43. | $768.97/EA |
| 46 | MM01372490PowerBoss 01372490 | 1 | plastic coverFits SM3532D 7177.43. | $84.80/EA |
PowerBoss Scrubmaster B120R head rocker (97143416_U1) parts
The head rocker for the 900 mm disc head: rocker, screws, spacer sleeve, retainers and washers. Manual pages 35D p34, list 35D p35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370760PowerBoss 01370760 | 1 | rockerFits SM3532D 7177.43. Hako material no. 92118488. | $163.39/EA |
| 2 | MM11038254PowerBoss 11038254 | 2 | hexagon screw M8x30-8.8-N2 DIN 933Fits SM3532D 7177.43. Hako part no. 00053110. | $1.08/EA |
| 3 | MM12310041PowerBoss 12310041 | 4 | Washer 8-200HV-N3 ISO 7089Fits SM3532D 7177.43. Hako part no. 00053750. | $2.75/EA |
| 4 | MM00733400PowerBoss 00733400 | 2 | Spacer sleeveFits SM3532D 7177.43. Hako material no. 90103045. | $1.83/EA |
| 5 | MM711592Replaces PowerBoss 01102770 | 3 | Approach disk 12,5x26x1,5-POMFits SM3532D 7177.43. Hako material no. 14898019; replaces PowerBoss 01102770. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Fits SM3532D 7177.43. Hako part no. 00051510. | $4.15/EA |
| 7 | MM01370710PowerBoss 01370710 | 4 | retainer holder corrugated hose NW 13Fits SM3532D 7177.43. Hako material no. 90639147. | $1.05/EA |
| 8 | MM01370740PowerBoss 01370740 | 1 | retainerFits SM3532D 7177.43. Hako material no. 92016294. | $9.33/EA |
| 9 | MM00539730PowerBoss 00539730 | 2 | Screw M6x16-St A3G Kombit. DIN 7500Fits SM3532D 7177.43. Hako material no. 11702024. | $1.00/EA |
| 10 | MM01370750PowerBoss 01370750 | 1 | metal sheetFits SM3532D 7177.43. Hako material no. 92026046. | $156.56/EA |
| 11 | MM90156688PowerBoss 90156688 | 4 | Cable tie 4,8x360Fits SM3532D 7177.43. Hako part no. 00967760. | $2.06/EA |
| 12 | MM01272710PowerBoss 01272710 | 4 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3532D 7177.43. Hako material no. 11702172. | $3.90/EA |
| 13 | MM00112010PowerBoss 00112010 | 0530 M | hose 12x3 PVC-weich mit StahlFits SM3532D 7177.43. Hako material no. 25854274. Quantity printed 0530 M (no comma printed). | $11.83/EA |
| 14 | MM00562480PowerBoss 00562480 | 0.38 M | Spiral hose KX3000/Steel-Lw 10Fits SM3532D 7177.43. Hako material no. 25857038. Quantity printed 0,380 M. | $11.94/EA |
| 15 | MM3302144Replaces PowerBoss 01015350 | 3 | Hose clamp A-12-20x 9-W1-2 DIN 3017Fits SM3532D 7177.43. Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 16 | MM90275157PowerBoss 90275157 | 1 | T-reducer muff TRS10-13-10Fits SM3532D 7177.43. Hako part no. 00901310. | $4.41/EA |
| 17 | MM00562480PowerBoss 00562480 | 0.44 M | Spiral hose KX3000/Steel-Lw 10Fits SM3532D 7177.43. Hako material no. 25857038. Quantity printed 0,440 M. | $11.94/EA |
| 18 | MM00133130PowerBoss 00133130 | 2 | Screw D M6x25-St A2G DIN 7500Fits SM3532D 7177.43. Hako material no. 11702065. | $1.05/EA |
| 19 | MM12310033PowerBoss 12310033 | 2 | Washer 6-200HV-N2 ISO 7089Fits SM3532D 7177.43. Hako part no. 00053730. | $1.38/EA |
| 20 | MM01372540PowerBoss 01372540 | 2 | weightFits SM3532D 7177.43. Hako material no. 92015148. | $45.69/EA |
| 21 | MM90311663PowerBoss 90311663 | 2 | Spray tubeFits SM3532D 7177.43. Hako part no. 00861700. | $2.63/EA |
| 22 | MM01171270PowerBoss 01171270 | 4 | Screw M6x12-St A2G DIN 7500-DFits SM3532D 7177.43. Hako material no. 11702107. | $1.05/EA |
PowerBoss Scrubmaster B120R brush head rocker parts
The brush head rocker: starting disk, bushing, washer, screw and rocker. Manual pages 28C p58, list 28C p59.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01133780PowerBoss 01133780 | 2 | Starting disk GTM-2036-015Hako material no. 14898068. | $2.68/EA |
| 2 | MM01370780PowerBoss 01370780 | 2 | bushingHako material no. 90682907. | $10.92/EA |
| 3 | MM12310066PowerBoss 12310066 | 2 | Washer 12-200HV-N3 ISO 7089Hako part no. 00053770. | $4.15/EA |
| 4 | MM00053200PowerBoss 00053200 | 2 | hexagon screw M12x30-8.8-N3 ISO 4017Hako material no. 11038478. | $1.05/EA |
| 5 | Not sold separatelyPowerBoss 97143549 | 1 | RockerNot sold separately. Parts are listed under Rocker. | Not sold separately. Its parts are listed under Rocker |
PowerBoss Scrubmaster B120R rocker parts
The rocker with its electrovalve, angle socket, plug, hose and fixings. Manual pages 28C p60, list 28C p61.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01370790PowerBoss 01370790 | 1 | rockerHako material no. 92010651. | $239.97/EA |
| 2 | MM90435595PowerBoss 90435595 | 1 | Electrovalve DL6 24V DCHako part no. 01071000. | $126.95/EA |
| 3 | MM90174970PowerBoss 90174970 | 1 | Angle socket "WES12R3/8"""Hako part no. 00020020. | $5.06/EA |
| 4 | MM12310017PowerBoss 12310017 | 2 | Washer 4-200HV-N3 ISO 7089Hako part no. 00053710. | $1.38/EA |
| 5 | MM00023080PowerBoss 00023080 | 2 | hexagon screw M4x12-8.8-N3 ISO 4017Hako material no. 11038973. | $1.05/EA |
| 6 | MM90310665PowerBoss 90310665 | 1 | screwed plug GES 12 R3/8Hako part no. 00976140. | $2.21/EA |
| 7 | MM03006960PowerBoss 03006960 | 0.1 | Sealing compound 92 SchwarzHako material no. 28980068. Quantity printed 0,1 PC. | $120.08/EA |
| 8 | MM01370710PowerBoss 01370710 | 1 | retainer holder corrugated hose NW 13Hako material no. 90639147. | $1.05/EA |
| 9 | MM00112010PowerBoss 00112010 | 0.78 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,78 M. | $11.83/EA |
| 10 | MM00112010PowerBoss 00112010 | 0.66 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,66 M. | $11.83/EA |
| 11 | MM00159550PowerBoss 00159550 | 4 | pipe clamp RSGU 1.18/20-W1Hako material no. 17529082. | $3.90/EA |
| 12 | MM01272710PowerBoss 01272710 | 3 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
| 13 | MM01278080PowerBoss 01278080 | 3 | Mounting clipHako material no. 90667189. | $1.05/EA |
| 14 | MM01092910PowerBoss 01092910 | 1 | Lens flange screw M8x25-10.9-N8 ISO7380-2Hako material no. 11177078. | $4.79/EA |
| 15 | MM01370800PowerBoss 01370800 | 1 | retainerHako material no. 92010669. | $29.18/EA |
| 16 | MM12040051PowerBoss 12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 17 | MM01494500PowerBoss 01494500 | 2 | support NW10Hako material no. 90639139. | $1.05/EA |
| 18 | MM3302144Replaces PowerBoss 01015350 | 3 | Hose clamp A-12-20x 9-W1-2 DIN 3017Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 19 | MM90330168PowerBoss 90330168 | 2 | Screwed angle fittingHako part no. 00154140. | $3.43/EA |
| 20 | MM01073340PowerBoss 01073340 | 1 | Cable tieHako material no. 90436650. | $11.53/EA |
| 21 | MM90329095PowerBoss 90329095 | 1 | Pump 24V DCHako part no. 00543750. | $132.57/EA |
| 22 | MM19719145PowerBoss 19719145 | 2 | Gasket 1,8-2,4Hako part no. 00903580. | $1.08/EA |
| 23 | MM19719517PowerBoss 19719517 | 1 | pin housingHako part no. 01135470. | $2.31/EA |
| 24 | MM01063790PowerBoss 01063790 | 2 | Pin contact 1,0-1,5Hako material no. 19719152. | $1.05/EA |
| 25 | MM01371990PowerBoss 01371990 | 1 | valve connectorHako material no. 90530635. | $45.53/EA |
PowerBoss Scrubmaster B120R wiper cylindrical brush 700 parts
The wiper for the 700 mm cylindrical deck: guides, cap, decal, retainers and screws. Manual pages 28C p62, list 28C p63.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01272710PowerBoss 01272710 | 8 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM2832C 7177.45. Hako material no. 11702172. | $3.90/EA |
| 2 | MM01272760PowerBoss 01272760 | 1 | Decal KEEP OFFFits SM2832C 7177.45. Hako material no. 17267857. | $3.90/EA |
| 3 | Not sold separatelyPowerBoss 97143283-97143291 | Wiper RH & LHFits SM2832C 7177.45. Not sold separately. Parts are listed under Wiper RH & LH. No quantity printed. | Not sold separately. Its parts are listed under Wiper RH & LH | |
| 4 | MM01374830PowerBoss 01374830 | 2 | retainerFits SM2832C 7177.45. Hako material no. 92012475. | $142.93/EA |
| 5 | MM01154830PowerBoss 01154830 | 4 | Cage nut M8-N0Fits SM2832C 7177.45. Hako material no. 12181152. | $1.05/EA |
| 6 | MM00740310PowerBoss 00740310 | 4 | Washer SKS-8-dacrometisiertFits SM2832C 7177.45. Hako material no. 12520029. | $1.05/EA |
| 7 | MM11038213PowerBoss 11038213 | 4 | hexagon screw M8x20-8.8-N3 ISO 4017Fits SM2832C 7177.45. Hako part no. 00053090. | $4.15/EA |
| 8 | MM01372470PowerBoss 01372470 | 1 | squeegee guide R.H.Fits SM2832C 7177.45. Hako material no. 92000637. | $113.75/EA |
| 9 | MM90463746PowerBoss 90463746 | 1 | CapFits SM2832C 7177.45. Hako part no. 01074240. | $1.27/EA |
| 10 | MM01375150PowerBoss 01375150 | 1 | angle L.H.Fits SM2832C 7177.45. Hako material no. 92002633. | $32.12/EA |
PowerBoss Scrubmaster B120R wiper cylindrical brush 850 parts
The wiper for the 850 mm cylindrical deck: guides, cap, decal, retainers and screws. Manual pages 33C p48, list 33C p49.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01272710PowerBoss 01272710 | 8 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3332C 7177.47. Hako material no. 11702172. | $3.90/EA |
| 2 | MM01272760PowerBoss 01272760 | 1 | Decal KEEP OFFFits SM3332C 7177.47. Hako material no. 17267857. | $3.90/EA |
| 3 | Not sold separatelyPowerBoss 97143283-97143291 | Wiper RH & LHFits SM3332C 7177.47. Not sold separately. Parts are listed under Wiper RH & LH. No quantity printed. | Not sold separately. Its parts are listed under Wiper RH & LH | |
| 4 | MM01374830PowerBoss 01374830 | 2 | retainerFits SM3332C 7177.47. Hako material no. 92012475. | $142.93/EA |
| 5 | MM01154830PowerBoss 01154830 | 4 | Cage nut M8-N0Fits SM3332C 7177.47. Hako material no. 12181152. | $1.05/EA |
| 6 | MM00740310PowerBoss 00740310 | 4 | Washer SKS-8-dacrometisiertFits SM3332C 7177.47. Hako material no. 12520029. | $1.05/EA |
| 7 | MM11038213PowerBoss 11038213 | 4 | hexagon screw M8x20-8.8-N3 ISO 4017Fits SM3332C 7177.47. Hako part no. 00053090. | $4.15/EA |
| 8 | MM01372470PowerBoss 01372470 | 1 | squeegee guide R.H.Fits SM3332C 7177.47. Hako material no. 92000637. | $113.75/EA |
| 9 | MM90463746PowerBoss 90463746 | 1 | CapFits SM3332C 7177.47. Hako part no. 01074240. | $1.27/EA |
| 10 | MM01374840PowerBoss 01374840 | 1 | angle L.H.Fits SM3332C 7177.47. Hako material no. 92008838. | $99.19/EA |
PowerBoss Scrubmaster B120R wiper disk brush 750 parts
The wiper for the 750 mm disc deck: guides, cap, decal, retainers and screws. Manual pages 30D p40, list 30D p41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01272710PowerBoss 01272710 | 8 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3032D 7177.41. Hako material no. 11702172. | $3.90/EA |
| 2 | MM01272760PowerBoss 01272760 | 1 | Decal KEEP OFFFits SM3032D 7177.41. Hako material no. 17267857. | $3.90/EA |
| 3 | Not sold separatelyPowerBoss 97143283-97143291 | Wiper RH & LHFits SM3032D 7177.41. Not sold separately. Parts are listed under Wiper RH & LH. No quantity printed. | Not sold separately. Its parts are listed under Wiper RH & LH | |
| 4 | MM01374830PowerBoss 01374830 | 2 | retainerFits SM3032D 7177.41. Hako material no. 92012475. | $142.93/EA |
| 5 | MM01154830PowerBoss 01154830 | 4 | Cage nut M8-N0Fits SM3032D 7177.41. Hako material no. 12181152. | $1.05/EA |
| 6 | MM00740310PowerBoss 00740310 | 4 | Washer SKS-8-dacrometisiertFits SM3032D 7177.41. Hako material no. 12520029. | $1.05/EA |
| 7 | MM11038213PowerBoss 11038213 | 4 | hexagon screw M8x20-8.8-N3 ISO 4017Fits SM3032D 7177.41. Hako part no. 00053090. | $4.15/EA |
| 8 | MM01372470PowerBoss 01372470 | 1 | squeegee guide R.H.Fits SM3032D 7177.41. Hako material no. 92000637. | $113.75/EA |
| 9 | MM90463746PowerBoss 90463746 | 1 | CapFits SM3032D 7177.41. Hako part no. 01074240. | $1.27/EA |
| 10 | MM01375150PowerBoss 01375150 | 1 | angle L.H.Fits SM3032D 7177.41. Hako material no. 92002633. | $32.12/EA |
| 11 | MM01142870PowerBoss 01142870 | 8 | Round head screw M6x20-8.8 A2G Din 603Fits SM3032D 7177.41. Hako material no. 11620382. | $1.05/EA |
| 12 | MM01374850PowerBoss 01374850 | 2 | reinforcementFits SM3032D 7177.41. Hako material no. 92008473. | $59.31/EA |
| 13 | MM12310033PowerBoss 12310033 | 8 | Washer 6-200HV-N2 ISO 7089Fits SM3032D 7177.41. Hako part no. 00053730. | $1.38/EA |
| 14 | MM12040044PowerBoss 12040044 | 8 | Hex. Nut M6-6 A2G DIN 985Fits SM3032D 7177.41. Hako part no. 00051520. | $1.38/EA |
PowerBoss Scrubmaster B120R wiper disk brush 900 parts
The wiper for the 900 mm disc deck: guides, cap, decal, retainers and screws. Manual pages 35D p40, list 35D p41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01272710PowerBoss 01272710 | 8 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Fits SM3532D 7177.43. Hako material no. 11702172. | $3.90/EA |
| 2 | MM01272760PowerBoss 01272760 | 2 | Decal KEEP OFFFits SM3532D 7177.43. Hako material no. 17267857. | $3.90/EA |
| 3 | Not sold separatelyPowerBoss 97143283-97143291 | Wiper RH & LHFits SM3532D 7177.43. Not sold separately. Parts are listed under Wiper RH & LH. No quantity printed. | Not sold separately. Its parts are listed under Wiper RH & LH | |
| 4 | MM01374830PowerBoss 01374830 | 2 | retainerFits SM3532D 7177.43. Hako material no. 92012475. | $142.93/EA |
| 5 | MM01154830PowerBoss 01154830 | 4 | Cage nut M8-N0Fits SM3532D 7177.43. Hako material no. 12181152. | $1.05/EA |
| 6 | MM00740310PowerBoss 00740310 | 4 | Washer SKS-8-dacrometisiertFits SM3532D 7177.43. Hako material no. 12520029. | $1.05/EA |
| 7 | MM11038213PowerBoss 11038213 | 4 | hexagon screw M8x20-8.8-N3 ISO 4017Fits SM3532D 7177.43. Hako part no. 00053090. | $4.15/EA |
| 8 | MM01372470PowerBoss 01372470 | 1 | squeegee guide R.H.Fits SM3532D 7177.43. Hako material no. 92000637. | $113.75/EA |
| 9 | MM90463746PowerBoss 90463746 | 1 | CapFits SM3532D 7177.43. Hako part no. 01074240. | $1.27/EA |
| 10 | MM01374840PowerBoss 01374840 | 1 | angle L.H.Fits SM3532D 7177.43. Hako material no. 92008838. | $99.19/EA |
| 11 | MM01142870PowerBoss 01142870 | 8 | Round head screw M6x20-8.8 A2G Din 603Fits SM3532D 7177.43. Hako material no. 11620382. | $1.05/EA |
| 12 | MM01374850PowerBoss 01374850 | 2 | reinforcementFits SM3532D 7177.43. Hako material no. 92008473. | $59.31/EA |
| 13 | MM12310033PowerBoss 12310033 | 8 | Washer 6-200HV-N2 ISO 7089Fits SM3532D 7177.43. Hako part no. 00053730. | $1.38/EA |
| 14 | MM12040044PowerBoss 12040044 | 8 | Hex. Nut M6-6 A2G DIN 985Fits SM3532D 7177.43. Hako part no. 00051520. | $1.38/EA |
PowerBoss Scrubmaster B120R wiper RH & LH parts
The left and right wiper squeegees, swivel arms, levers, tension bands and wiper rubbers. Manual pages 28C p64, list 28C p65.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040051PowerBoss 12040051 | 2 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 2 | MM12310041PowerBoss 12310041 | 4 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 3 | MM01374940PowerBoss 01374940 | 2 | retainerHako material no. 92012483. | $71.96/EA |
| 4 | MM01374820PowerBoss 01374820 | 1 | swivel armHako material no. 92000702. | $75.85/EA |
| 5 | MM01374860PowerBoss 01374860 | 2 | axis of rotationHako material no. 92000678. | $37.93/EA |
| 6 | MM01130080PowerBoss 01130080 | 4 | Slide bearing bushHako material no. 14895338. | $1.33/EA |
| 7 | MM12040069PowerBoss 12040069 | 10 | Hex. Nut M10-6 A2G DIN 985Hako part no. 00051500. | $6.92/EA |
| 8 | MM12310058PowerBoss 12310058 | 12 | Washer 10-200HV-N3 ISO 7089Hako part no. 00053760. | $4.15/EA |
| 9 | MM01073860PowerBoss 01073860 | 16 | Slide bearing bush JFM-1416-12SHako material no. 14895395. | $5.33/EA |
| 10 | MM01073870PowerBoss 01073870 | 4 | LeverHako material no. 90469818. | $26.65/EA |
| 11 | MM01374100PowerBoss 01374100 | 8 | fitting screwHako material no. 90695560. | $20.22/EA |
| 12 | MM01372560PowerBoss 01372560 | 1 | squeegee R.H.Hako material no. 96161849. | $315.08/EA |
| 13 | MM01372570PowerBoss 01372570 | 1 | swivel armHako material no. 92000652. | $53.48/EA |
| 14 | MM01271200PowerBoss 01271200 | 2 | Locking hookHako material no. 90583964. | $11.14/EA |
| 15 | MM00153350PowerBoss 00153350 | 2 | Wing nut M8-5 A2G DIN 315Hako material no. 12158036. | $1.94/EA |
| 16 | MM90463746PowerBoss 90463746 | 4 | CapHako part no. 01074240. | $1.27/EA |
| 17 | MM01372640PowerBoss 01372640 | 1 | squeegee L.H.Hako material no. 96161831. | $244.17/EA |
| 18 | MM11038346PowerBoss 11038346 | 2 | hexagon screw M10x25-8.8-N3 ISO 4017Hako part no. 00053310. | $1.08/EA |
| 19 | MM01074210PowerBoss 01074210 | 2 | BushingHako material no. 90463811. | $4.97/EA |
| 20 | MM01374950PowerBoss 01374950 | 2 | tension bandHako material no. 96163472. | $99.08/EA |
| 21 | MM01077040Replaces PowerBoss 01074250 | 2 | Squeegee stripHako material no. 90468372; replaces PowerBoss 01074250. | $53.77/EA |
| 22 | MM01077040PowerBoss 01077040 | 1 | squeegee stripHako material no. 90512443. variant: highly wear resistant. | $53.77/EA |
PowerBoss Scrubmaster B120R water tank standard red parts
The red water tank, its hinge sheet metal, wheel and fixings. Manual pages 28C p66, list 28C p67.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97152375 | Water tank redNot sold separately. Parts are listed under Water tank red. No quantity printed. | Not sold separately. Its parts are listed under Water tank red | |
| 2 | Not sold separatelyPowerBoss 97146914 | 1 | Hinge sheet metalNot sold separately. Parts are listed under Hinge sheet metal. | Not sold separately. Its parts are listed under Hinge sheet metal |
| 3 | MM12515086PowerBoss 12515086 | 6 | Disk wheel 9,2 A3GHako part no. 00047990. | $7.97/EA |
| 4 | MM11177128PowerBoss 11177128 | 8 | Lens flange screw M8x16-10.9-N3 ISO7380-2Hako part no. 01006820. | $1.08/EA |
| 5 | MM01278230PowerBoss 01278230 | 2 | Detent edged washer SKM-8-1.4401Hako material no. 12520178. | $1.05/EA |
PowerBoss Scrubmaster B120R water tank red parts
The red water tank cover, hinge, plug, hose support, decal and hose. Manual pages 28C p68, list 28C p69.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177187PowerBoss 11177187 | 4 | Lens flange screw M8x16-A2-70 ISO7380-2Hako part no. 01074320. | $3.30/EA |
| 2 | MM01278230PowerBoss 01278230 | 4 | Detent edged washer SKM-8-1.4401Hako material no. 12520178. | $1.05/EA |
| 3 | MM01278390PowerBoss 01278390 | 1 | HingeHako material no. 96148382. | $113.78/EA |
| 4 | Not sold separatelyPowerBoss 97152383 | CoverNot sold separately. Parts are listed under Cover (97152383). No quantity printed. | Not sold separately. Its parts are listed under Cover (97152383) | |
| 5 | MM01370820PowerBoss 01370820 | 1 | plugHako material no. 92014042. | $1.54/EA |
| 6 | MM90618745PowerBoss 90618745 | 1 | Hose supportHako part no. 01275840. | $1.43/EA |
| 7 | MM11177161PowerBoss 11177161 | 2 | Lens flange screw M6x25-A2-70 ISO7380-2Hako part no. 01082530. | $1.38/EA |
| 8 | MM17264888PowerBoss 17264888 | 1 | Decal FOUL WATERHako part no. 01170060. | $3.66/EA |
| 9 | MM01370140PowerBoss 01370140 | 1 | hoseHako material no. 97146997. Has its own parts list: Hose. Printed: Available. Pos. has sub-assemblies. | $168.78/EA |
| 10 | MM03026730PowerBoss 03026730 | 1 | decal PowerBoss oval smallHako material no. 17201237. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM01370150PowerBoss 01370150 | 1 | suction hoseHako material no. 96152954. | $180.94/EA |
| 12 | MM00736200PowerBoss 00736200 | 1 | Hose clamp A-70-90x9-W2-2 DIN 3017Hako material no. 17533019. | $3.34/EA |
| 13 | MM01173540PowerBoss 01173540 | 1 | Fresh water capHako material no. 96121124. | $29.58/EA |
| 14 | MM90503251PowerBoss 90503251 | 1 | Hose supportHako part no. 01078120. | $4.05/EA |
| 15 | MM11177179PowerBoss 11177179 | 2 | Lens flange screw M6x10-A2-70 ISO7380-2Hako part no. 01072520. | $1.73/EA |
| 16 | MM01370530PowerBoss 01370530 | 1 | water tankHako material no. 97139125. Has its own parts list: Water tank. Printed: Available. Pos. has sub-assemblies. | $1,958.45/EA |
| 17 | MM01164420PowerBoss 01164420 | 1 | Lens flange screw M8x25-A2-70 ISO7380-2Hako material no. 11177245. | $1.54/EA |
| 18 | MM730526Replaces PowerBoss 00902280 | 1 | Washer 8-200HV-A4-70 ISO 7093Hako material no. 12332136; replaces PowerBoss 00902280. | $1.08/EA |
| 19 | MM711592Replaces PowerBoss 01102770 | 3 | Approach disk 12,5x26x1,5-POMHako material no. 14898019; replaces PowerBoss 01102770. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM01278330PowerBoss 01278330 | 1 | Spacer sleeveHako material no. 92047075. | $8.20/EA |
| 21 | MM11709151PowerBoss 11709151 | 8 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 22 | MM00058000PowerBoss 00058000 | 8 | Washer 5-200HV-A2-70 ISO 7093Hako material no. 12332144. | $3.17/EA |
| 23 | MM01370830PowerBoss 01370830 | 1 | cover plateHako material no. 90697947. | $91.40/EA |
| 24 | MM01370810PowerBoss 01370810 | 1 | covering lowerHako material no. 92003037. | $79.72/EA |
| 25 | MM01000300PowerBoss 01000300 | 0.11 M | edge protection 1.0-2.0Hako material no. 25583162. Quantity printed 0,110 M. | $20.99/EA |
| 26 | MM01130110PowerBoss 01130110 | 1 | NutHako material no. 12180071. | $1.05/EA |
| 27 | MM00420290PowerBoss 00420290 | 0.26 M | Gasket white 15X6 Nr.763/A weißHako material no. 25740093. Quantity printed 0,260 M. | $4.19/EA |
| 28 | MM00420290PowerBoss 00420290 | 0.22 M | Gasket white 15X6 Nr.763/A weißHako material no. 25740093. Quantity printed 0,220 M. | $4.19/EA |
PowerBoss Scrubmaster B120R cover (97152383) parts
The tank cover with filter cage, connection, sealing profile and sealing tape. Manual pages 28C p70, list 28C p71-72.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01278990PowerBoss 01278990 | 1 | Filter cage ( 2ball )Hako material no. 90603176. Attention..: with 2 balls. | $42.97/EA |
| 1a | MM01383660PowerBoss 01383660 | 1 | filter cage (1 ball)Hako material no. 90603150. Attention..: with 1 ball. | $49.77/EA |
| 2 | MM11709151PowerBoss 11709151 | 10 | Screw KA 50x20 WN-1412-1.4301Hako part no. 01078160. | $1.38/EA |
| 3 | MM00058000PowerBoss 00058000 | 3 | Washer 5-200HV-A2-70 ISO 7093Hako material no. 12332144. | $3.17/EA |
| 4 | MM01278140PowerBoss 01278140 | 1 | ConnectionHako material no. 90667205. | $13.64/EA |
| 5 | MM25510512PowerBoss 25510512 | 1.82 M | Sealing profile 14,8x11 schwarzHako part no. 01071770. Quantity printed 1,820 M. | $2.42/EA |
| 6 | MM01278350PowerBoss 01278350 | 1 | PlugHako material no. 90676834. | $8.20/EA |
| 7 | MM01370930PowerBoss 01370930 | 1 | coverHako material no. 96154109. | $544.47/EA |
| 8 | MM00881980PowerBoss 00881980 | 1.8 M | Sealing tape 12x6 GT3 schwarzHako material no. 25505249. Quantity printed 1,800 M. | $8.80/EA |
| 9 | MM01161220PowerBoss 01161220 | 2 | Screwed plug GES 6 R1/4Hako material no. 90487034. | $3.13/EA |
| 10 | MM00749620PowerBoss 00749620 | 0.27 M | Hose 4x2 Silikon(nach HN25842Hako material no. 25842121. Quantity printed 0,270 M. | $13.53/EA |
| 11 | MM00559430PowerBoss 00559430 | 6 | self-tapping screw ST3,5x25-C-A2-50 ISO7050Hako material no. 11416096. | $1.05/EA |
| 12 | MM01370520PowerBoss 01370520 | 1 | differential pressure switchHako material no. 92000082. | $99.68/EA |
| 13 | MM01370910PowerBoss 01370910 | 1 | sealing socketHako material no. 92013671. | $31.06/EA |
| 14 | MM01370890PowerBoss 01370890 | 1 | sealing ringHako material no. 92013424. | $19.17/EA |
| 15 | MM01370880PowerBoss 01370880 | 1 | sealing ringHako material no. 92013416. | $17.19/EA |
| 16 | MM01278200PowerBoss 01278200 | 1 | suction motor kitHako material no. 97502355. consists of suction motor + 2x O-ring (can be ordered separately; see other similar item). | $449.56/EA |
| 16 | MM01273270PowerBoss 01273270 | 2 | O-ring 37,5x3,55Hako material no. 15286792. part of kit (similar item). | $2.17/EA |
| 17 | Not sold separatelyPowerBoss KB_01079350-01278200 | Carbon brushesNot sold separately. Printed: Not available. Parts are listed under Carbon brushes. Part-No column only, no Material-No printed. No quantity printed. | Not sold separately. Its parts are listed under Carbon brushes | |
| 18 | MM00904050PowerBoss 00904050 | 1 | Toroidal coreHako material no. 90505702. | $4.36/EA |
| 19 | MM01092510PowerBoss 01092510 | 1 | Connector housingHako material no. 19719459. | $3.92/EA |
| 20 | MM01092500PowerBoss 01092500 | 2 | Flat connector Ducon 6.3Hako material no. 19719434. | $1.54/EA |
| 21 | MM3044112Replaces PowerBoss 00732130 | 1 | Hose clamp A-40-60x 9-W1-2 DIN 3017Hako material no. 17533027; replaces PowerBoss 00732130. | $1.28/EA |
| 22 | MM01370920PowerBoss 01370920 | 1 | hoseHako material no. 92016104. | $75.85/EA |
| 23 | MM01370870PowerBoss 01370870 | 1 | sealing ringHako material no. 92013408. | $13.69/EA |
| 24 | MM01164420PowerBoss 01164420 | 4 | Lens flange screw M8x25-A2-70 ISO7380-2Hako material no. 11177245. | $1.54/EA |
| 25 | MM730526Replaces PowerBoss 00902280 | 5 | Washer 8-200HV-A4-70 ISO 7093Hako material no. 12332136; replaces PowerBoss 00902280. | $1.08/EA |
| 26 | MM01370840PowerBoss 01370840 | 1 | coverHako material no. 90695404. | $410.69/EA |
| 27 | MM01375240PowerBoss 01375240 | 1 | capHako material no. 90535972. | $2.25/EA |
| 28 | MM01072000PowerBoss 01072000 | 1 | SealHako material no. 90429317. | $3.89/EA |
| 29 | MM01172540PowerBoss 01172540 | 1 | Luggage rackHako material no. 90555848. | $61.49/EA |
| 30 | MM01370850PowerBoss 01370850 | 1 | screenHako material no. 92000751. | $67.11/EA |
| 31 | MM711592Replaces PowerBoss 01102770 | 3 | Approach disk 12,5x26x1,5-POMHako material no. 14898019; replaces PowerBoss 01102770. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | MM01278330PowerBoss 01278330 | 2 | Spacer sleeveHako material no. 92047075. | $8.20/EA |
| 33 | MM01134740PowerBoss 01134740 | 1 | Filister head flange screw M8x40-10.9-N8 ISO7380-2Hako material no. 11177211. | $1.05/EA |
| 34 | MM01370860PowerBoss 01370860 | 1 | lifting deviceHako material no. 92045210. | $36.97/EA |
| 35 | MM01278070PowerBoss 01278070 | 1 | GasketHako material no. 90662248. | $3.71/EA |
| 36 | MM730609Replaces PowerBoss 00101550 | 1 | Washer 8-200HV-A2-70 ISO 7090Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
| 37 | MM12040051PowerBoss 12040051 | 1 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 38 | MM01370900PowerBoss 01370900 | 1 | insulationHako material no. 92013655. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 39 | MM01493500PowerBoss 01493500 | 1 | Retainer NW7,5Hako material no. 90639121. | $1.05/EA |
| 40 | MM01370250PowerBoss 01370250 | 2 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 41 | MM01370240PowerBoss 01370240 | 2 | mounting feetHako material no. 17526237. | $1.05/EA |
| 42 | MM00865630PowerBoss 00865630 | 0.49 M | Sealing tape 10x3 GT3 schwarzHako material no. 25505199. Quantity printed 0,490 M. | $5.02/EA |
| 43 | MM90463746PowerBoss 90463746 | 1 | CapHako part no. 01074240. | $1.27/EA |
| W10 | MM03019190PowerBoss 03019190 | 1 | wiring harness W10Hako material no. 97137251. | $300.64/EA |
PowerBoss Scrubmaster B120R carbon brushes parts
The two carbon brush parts in this group. Manual pages 28C p73, list 28C p74.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01383540PowerBoss 01383540 | 2 | carbon brush (white) | $48.97/EA |
| 2 | MM01383430PowerBoss 01383430 | 2 | carbon brush | $52.46/EA |
PowerBoss Scrubmaster B120R hose parts
The hose with its cover, O-ring, retaining strap and screws. Manual pages 28C p75, list 28C p76.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01276390PowerBoss 01276390 | 1 | Tapping screw ST3,5x6,5-C A2G DIN 7981Hako material no. 90618661. | $1.05/EA |
| 2 | MM00557150PowerBoss 00557150 | 1 | Washer 4-200HV-N2 ISO 7093Hako material no. 12332060. | $1.22/EA |
| 3 | MM01276370PowerBoss 01276370 | 1 | CoverHako material no. 90618638. | $8.94/EA |
| 4 | MM01276380PowerBoss 01276380 | 1 | O-ring 37,69x3,53 Silikon70 A DIN 3771Hako material no. 90618646. | $5.75/EA |
| 5 | MM01276360PowerBoss 01276360 | 1 | Retaining strapHako material no. 90618620. | $9.92/EA |
| 6 | Not sold separatelyPowerBoss no number printed | 1 | Not supplied alone!No part number printed. Remark printed: If needed order hose cpl. 01370140, please. | Not sold separately. Order hose (MM01370140) |
PowerBoss Scrubmaster B120R water tank parts
The solution tank cover, cable sleeve, angle socket, hose, ball, decal and O-ring. Manual pages 28C p77, list 28C p78.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01072130PowerBoss 01072130 | 1 | CoverHako material no. 96118815. | $20.67/EA |
| 2 | Not sold separatelyPowerBoss no number printed | Not supplied alone!No part number printed. Remark printed: Order water tank complete, please (no.: 01370530).. No quantity printed. | Not sold separately. Order water tank (MM01370530) | |
| 3 | MM00864480PowerBoss 00864480 | 2 | Cable sleeve 470 0038Hako material no. 15594039. | $2.22/EA |
| 4 | MM01278340PowerBoss 01278340 | 2 | Angle socketHako material no. 90674722. | $22.20/EA |
| 5 | MM01278240PowerBoss 01278240 | 0.59 M | Hose 8x1,5 Norflex PUR 401 MHFHako material no. 25842162. Quantity printed 0,590 M. | $31.89/EA |
| 6 | MM01072170PowerBoss 01072170 | 1 | BallHako material no. 90438961. | $1.22/EA |
| 7 | MM01170150PowerBoss 01170150 | 1 | Decal SOLUTION TANKHako material no. 17264896. | $1.11/EA |
| 8 | MM01278250PowerBoss 01278250 | 1 | CoverHako material no. 90653775. | $26.64/EA |
| 9 | MM15286149PowerBoss 15286149 | 1 | O-ring oil resistant 15x2.5 85Hako part no. 00057720. | $13.25/EA |
| 10 | MM90310665PowerBoss 90310665 | 1 | screwed plug GES 12 R3/8Hako part no. 00976140. | $2.21/EA |
| 11 | MM00861620PowerBoss 00861620 | 1 | Float switchHako material no. 90273160. | $70.22/EA |
| 12 | MM01016120PowerBoss 01016120 | 2 | Seal 2,6-3,3Hako material no. 19719327. | $1.05/EA |
| 13 | MM01063790PowerBoss 01063790 | 2 | Pin contact 1,0-1,5Hako material no. 19719152. | $1.05/EA |
| 14 | MM19719517PowerBoss 19719517 | 1 | pin housingHako part no. 01135470. | $2.31/EA |
| 15 | MM01370940PowerBoss 01370940 | 1 | metal sheetHako material no. 92000256. | $8.57/EA |
| 16 | MM01370950PowerBoss 01370950 | 1 | gasketHako material no. 92005271. | $3.13/EA |
| 17 | MM01071890PowerBoss 01071890 | 4 | hexagon screw M6x16 CrNi-A2-70 ISO 4017Hako material no. 11039666. | $2.04/EA |
| 18 | MM12310256PowerBoss 12310256 | 4 | Washer 6-200HV-A2-70 ISO 7090Hako part no. 00102150. | $1.05/EA |
PowerBoss Scrubmaster B120R hinge sheet metal parts
The hinge plate, latch, decals, support and screws. Manual pages 28C p79, list 28C p80.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM17267139PowerBoss 17267139 | 1 | Decal explosive gazesHako part no. 01174740. | $7.94/EA |
| 2 | MM00871160PowerBoss 00871160 | 1 | Decal 24VHako material no. 17264987. | $1.05/EA |
| 3 | MM01370960PowerBoss 01370960 | 1 | hinge plateHako material no. 96160221. | $208.12/EA |
| 4 | MM01278360PowerBoss 01278360 | 1 | LatchHako material no. 90682022. | $10.51/EA |
| 5 | MM12310272PowerBoss 12310272 | 1 | Washer 4-200HV-A4-70 ISO 7089Hako part no. 00874720. | $2.75/EA |
| 6 | MM01112160PowerBoss 01112160 | 1 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 7 | MM01175810PowerBoss 01175810 | 1 | Decal CAUTIONHako material no. 17269746. | $4.89/EA |
| 8 | MM01494500PowerBoss 01494500 | 2 | support NW10Hako material no. 90639139. | $1.05/EA |
PowerBoss Scrubmaster B120R squeegee linkage group parts
The suction unit connection and the washer and screw that fix it. Manual pages 28C p81, list 28C p82.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375210PowerBoss 01375210 | 1 | suction unit connectionHako material no. 97137053. Has its own parts list: Suction unit connection. Printed: Available. Pos. has sub-assemblies. | $851.78/EA |
| 2 | MM00740090PowerBoss 00740090 | 2 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 3 | MM01272710PowerBoss 01272710 | 2 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
PowerBoss Scrubmaster B120R suction unit connection parts
The squeegee linkage: centered sheet metal, stops, trapeze link, shaft, starting disk and screws. Manual pages 28C p83, list 28C p84-85.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040051PowerBoss 12040051 | 3 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 2 | MM600940Replaces PowerBoss 00042900 | 4 | Washer ISO 7093-8-2 00HV-N2Hako material no. 12332029; replaces PowerBoss 00042900. | $1.11/EA |
| 3 | MM01370370PowerBoss 01370370 | 1 | centered sheet metal R.H.Hako material no. 90693052. | $55.42/EA |
| 4 | MM01370430PowerBoss 01370430 | 1 | stopHako material no. 92013887. | $52.52/EA |
| 5 | MM01370410PowerBoss 01370410 | 4 | starting diskHako material no. 90697996. | $6.89/EA |
| 6 | MM01370300PowerBoss 01370300 | 2 | trapeze linkHako material no. 90692658. | $49.58/EA |
| 7 | MM01370310PowerBoss 01370310 | 1 | shaftHako material no. 90692666. | $43.77/EA |
| 8 | MM01370640PowerBoss 01370640 | 1 | stopHako material no. 96153572. | $107.94/EA |
| 9 | MM00746390PowerBoss 00746390 | 2 | hexagon screw M8x90-8.8-N3 ISO 4017Hako material no. 11039062. | $1.05/EA |
| 10 | MM14895361PowerBoss 14895361 | 4 | Slide bearing bushHako part no. 01130470. | $11.93/EA |
| 11 | MM01279810PowerBoss 01279810 | 1 | hinged joint CS16 M10 DIN 71802Hako material no. 16046146. | $20.99/EA |
| 12 | MM12022067PowerBoss 12022067 | 3 | Hex. Nut M10-8 A3G DIN 934Hako part no. 00053360. | $4.15/EA |
| 13 | MM01370360PowerBoss 01370360 | 1 | threaded rodHako material no. 90692732. | $53.48/EA |
| 14 | MM00862550PowerBoss 00862550 | 1 | Hex. Nut M10x1-8 A3G DIN 934Hako material no. 12022257. | $1.05/EA |
| 15 | MM01279750PowerBoss 01279750 | 1 | hinged joint CS16 M10x1 DIN 71802Hako material no. 16046153. | $23.34/EA |
| 16 | MM12310058PowerBoss 12310058 | 2 | Washer 10-200HV-N3 ISO 7089Hako part no. 00053760. | $4.15/EA |
| 17 | MM12310041PowerBoss 12310041 | 2 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 18 | MM00074260PowerBoss 00074260 | 1 | hexagon screw M8x60-8.8 N2 ISO 4014Hako material no. 11032232. | $1.05/EA |
| 19 | MM00870090PowerBoss 00870090 | 2 | Detent edged washer SKS-10-8.8 dacHako material no. 12520037. | $1.05/EA |
| 20 | MM01370380PowerBoss 01370380 | 1 | retainerHako material no. 90693391. | $107.94/EA |
| 21 | MM01370390PowerBoss 01370390 | 1 | leverHako material no. 90693433. | $64.17/EA |
| 22 | MM01370350PowerBoss 01370350 | 1 | centered sheet metal L.H.Hako material no. 90692724. | $60.27/EA |
| 23 | MM01277950PowerBoss 01277950 | 1 | Tension springHako material no. 90642828. | $34.03/EA |
| 24 | MM01130130PowerBoss 01130130 | 2 | Pull springHako material no. 90445925. | $5.69/EA |
| 25 | MM01370400PowerBoss 01370400 | 1 | shaftHako material no. 90692674. | $53.48/EA |
| 26 | MM01370230PowerBoss 01370230 | 2 | circlip 20x1,2 - 1.4122 DIN 471Hako material no. 12610028. | $1.54/EA |
| 27 | MM01370480PowerBoss 01370480 | 1 | base plateHako material no. 96159546. | $208.12/EA |
| 28 | MM12040259PowerBoss 12040259 | 2 | Hex. Nut M8-A2-70 DIN 985Hako part no. 00101540. | $1.08/EA |
| 29 | MM730609Replaces PowerBoss 00101550 | 4 | Washer 8-200HV-A2-70 ISO 7090Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
| 30 | MM01370270PowerBoss 01370270 | 2 | spacer sleeveHako material no. 90640541. | $4.00/EA |
| 31 | MM01370170PowerBoss 01370170 | 2 | hexagon screw M8x45-A4-70 ISO 4014Hako material no. 11033198. | $1.05/EA |
PowerBoss Scrubmaster B120R suction unit 950mm parts
The 950 mm suction unit: body, tension bands, castors, protection caps, star handles and the sealing and slot strips. Manual pages 28C p86, list 28C p87.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040259PowerBoss 12040259 | 3 | Hex. Nut M8-A2-70 DIN 985Fits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 00101540. | $1.08/EA |
| 2 | MM90531112PowerBoss 90531112 | 14 | SpacerFits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01079080. | $1.54/EA |
| 3 | MM01177260PowerBoss 01177260 | 2 | PipeFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 90550252. | $7.22/EA |
| 4 | MM90548397PowerBoss 90548397 | 8 | Deflector rollerFits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01171790. | $4.29/EA |
| 5 | MM01178290PowerBoss 01178290 | 1 | Conical spring washer 75730/01 (5x140=700)**(10x)Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 90551185. | $4.19/EA |
| 6 | MM730526Replaces PowerBoss 00902280 | 2 | Washer 8-200HV-A4-70 ISO 7093Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 12332136; replaces PowerBoss 00902280. | $1.08/EA |
| 7 | MM90546243PowerBoss 90546243 | 1 | Protection cap L.H.Fits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01178320. | $5.19/EA |
| 8 | MM01279920PowerBoss 01279920 | 2 | socket head screw M8x120-A2-70 ISO 4762Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 11127222. | $1.72/EA |
| 9 | MM01274570PowerBoss 01274570 | 2 | Star handle yellow M10Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 97125314. | $8.56/EA |
| 10 | MM97125306PowerBoss 97125306 | 2 | Star handle yellow incl. washer M10Fits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01274760. | $3.18/EA |
| 11 | MM01279270PowerBoss 01279270 | 1 | suction unit body 950 mmFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 90659483. | $189.22/EA |
| 12 | MM717030Replaces PowerBoss 01162510 | 2 | hexagon screw M8x20-A2-70 ISO 4017Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 11038593; replaces PowerBoss 01162510. | $1.08/EA |
| 13 | MM717029Replaces PowerBoss 00971400 | 2 | Hex. Nut M8-A4 DIN 934Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 12022455; replaces PowerBoss 00971400. | $1.08/EA |
| 14 | MM90513094PowerBoss 90513094 | 2 | Fixed castorFits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01077810. | $12.43/EA |
| 15 | MM90546235PowerBoss 90546235 | 1 | Protection cap R.H.Fits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01178310. | $3.40/EA |
| 16 | MM01177300PowerBoss 01177300 | 1 | Bracket 960Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 92001098. | $138.42/EA |
| 17 | MM730609Replaces PowerBoss 00101550 | 1 | Washer 8-200HV-A2-70 ISO 7090Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
| 18 | MM11039567PowerBoss 11039567 | 1 | hexagon screw M8x25-A2-70 ISO 4017Fits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01059530. | $1.11/EA |
| 19 | MM90493560PowerBoss 90493560 | 1 | Slot strip PURFits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01077470. for 95cm squeegee; variant without V-slot. | $47.68/EA |
| 20 | MM01179180PowerBoss 01179180 | 1 | Sealing stripFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 90586538. for 95cm squeegee. | $58.04/EA |
| 21 | MM01179170PowerBoss 01179170 | 1 | Slot stripFits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 90586520. for 95cm squeegee. | $61.59/EA |
| 22 | MM01279360PowerBoss 01279360 | 1 | suction unit body 950mm.Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 96165329. | $154.52/EA |
| 23 | MM90494139PowerBoss 90494139 | 1 | Sealing stripFits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01077480. for 95cm squeegee. | $38.81/EA |
| 24 | MM01279440PowerBoss 01279440 | 1 | tension band L.H. 950mm.Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 96146501. incl.item 25. | $54.17/EA |
| 25 | MM17383209PowerBoss 17383209 | 1 | Lock V951L04-1X2BPFits SM2832C 7177.45, SM3032D 7177.41. Hako part no. 01171810. | $41.91/EA |
| 26 | MM01279520PowerBoss 01279520 | 1 | tension band R.H. 950mm.Fits SM2832C 7177.45, SM3032D 7177.41. Hako material no. 96146527. | $33.39/EA |
PowerBoss Scrubmaster B120R suction unit 1100mm parts
The 1,100 mm suction unit: brackets, deflector roller, pipe, spacers and screws. Manual pages 33C p72, list 33C p73.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01176750PowerBoss 01176750 | 2 | hexagon screw M8x110-A2-50 ISO 4014Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 11033000. | $1.22/EA |
| 2 | MM90531112PowerBoss 90531112 | 4 | SpacerFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01079080. | $1.54/EA |
| 3 | MM01177260PowerBoss 01177260 | 2 | PipeFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90550252. | $7.22/EA |
| 4 | MM90548397PowerBoss 90548397 | 8 | Deflector rollerFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01171790. | $4.29/EA |
| 5 | MM01272830PowerBoss 01272830 | 1 | bracket 110 R.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 92001106. | $122.47/EA |
| 6 | MM730526Replaces PowerBoss 00902280 | 2 | Washer 8-200HV-A4-70 ISO 7093Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12332136; replaces PowerBoss 00902280. | $1.08/EA |
| 7 | MM01272820PowerBoss 01272820 | 1 | Bracket 110 L.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90586371. | $92.17/EA |
| 8 | MM12040259PowerBoss 12040259 | 3 | Hex. Nut M8-A2-70 DIN 985Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 00101540. | $1.08/EA |
| 9 | MM730609Replaces PowerBoss 00101550 | 2 | Washer 8-200HV-A2-70 ISO 7090Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
| 10 | MM01375290PowerBoss 01375290 | 2 | plateFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 92011279. | $12.64/EA |
| 11 | MM97099287PowerBoss 97099287 | 1 | Squeegee 1100 mmFits SM3332C 7177.47, SM3532D 7177.43. Parts are listed under Squeegee 1100 mm. | $912.83/EA |
PowerBoss Scrubmaster B120R squeegee 1100 mm parts
The 1,100 mm squeegee: levers, tension bands, castors, base plate and the sealing and slot strips. Manual pages 33C p74, list 33C p75.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040283PowerBoss 12040283 | 2 | Hex. Nut M5-A2-70 DIN 985Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01017660. | $1.08/EA |
| 2 | MM90610221PowerBoss 90610221 | 1 | Lever 75170/01Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01077580. | $31.24/EA |
| 3 | MM11039765PowerBoss 11039765 | 2 | hexagon screw M5x30-A2-70 ISO 4017Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01079890. | $1.25/EA |
| 4 | MM90514506PowerBoss 90514506 | 2 | BushingFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01077590. | $3.13/EA |
| 5 | MM12022430PowerBoss 12022430 | 1 | Hex. Nut M5-A4 DIN 934Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 00902250. | $9.66/EA |
| 6 | MM90513631PowerBoss 90513631 | 1 | Pressure pieceFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01078090. | $10.53/EA |
| 7 | MM01079870PowerBoss 01079870 | 1 | Front tension bandFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96125950. | $40.57/EA |
| 8 | MM01079880PowerBoss 01079880 | 1 | Front tension bandFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96125943. | $44.07/EA |
| 9 | MM01079790PowerBoss 01079790 | 1 | Slot stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90522251. | $46.18/EA |
| 10 | MM717030Replaces PowerBoss 01162510 | 4 | hexagon screw M8x20-A2-70 ISO 4017Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 11038593; replaces PowerBoss 01162510. | $1.08/EA |
| 11 | MM730609Replaces PowerBoss 00101550 | 10 | Washer 8-200HV-A2-70 ISO 7090Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
| 12 | MM90531112PowerBoss 90531112 | 22 | SpacerFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01079080. | $1.54/EA |
| 13 | MM90513094PowerBoss 90513094 | 4 | Fixed castorFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01077810. | $12.43/EA |
| 14 | MM717029Replaces PowerBoss 00971400 | 4 | Hex. Nut M8-A4 DIN 934Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12022455; replaces PowerBoss 00971400. | $1.08/EA |
| 15 | MM90546243PowerBoss 90546243 | 1 | Protection cap L.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01178320. | $5.19/EA |
| 16 | MM90546235PowerBoss 90546235 | 1 | Protection cap R.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01178310. | $3.40/EA |
| 17 | MM90591199PowerBoss 90591199 | 1 | suction unit body, no longer available!Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01275660. If required the complete squegee (further item 17) could be ordered. | $66.53/EA |
| 17 | MM99756915PowerBoss 99756915 | 1 | Squeegee unit compl.110cm f. replacementFits SM3332C 7177.47, SM3532D 7177.43. Has its own parts list: Squeegee unit compl.110cm f. replacement. Printed: Available. Item has sub-assemblies. | $538.51/EA |
| 18 | MM12040259PowerBoss 12040259 | 5 | Hex. Nut M8-A2-70 DIN 985Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 00101540. | $1.08/EA |
| 19 | MM97125306PowerBoss 97125306 | 2 | Star handle yellow incl. washer M10Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01274760. | $3.18/EA |
| 21 | MM11039328PowerBoss 11039328 | 2 | hexagon screw M10x25-A2-70 ISO 4017Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01019850. | $1.62/EA |
| 22 | MM15592033PowerBoss 15592033 | 2 | Lens cap 1000/893 SWFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 00131610. | $1.55/EA |
| 23 | MM01275640PowerBoss 01275640 | 1 | Base plateFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96131339. | $332.04/EA |
| 24 | MM01079780PowerBoss 01079780 | 1 | Sealing stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90522269. | $46.18/EA |
| 25 | MM01079920PowerBoss 01079920 | 1 | Rear tension bandFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96125968. | $49.25/EA |
| 26 | MM96125976PowerBoss 96125976 | 1 | Rear tension bandFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01079910. | $88.94/EA |
| 27 | MM11518313PowerBoss 11518313 | 1 | Eye bolt BM5x40-A4 DIN 444Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01077500. | $19.36/EA |
| 28 | MM01179200PowerBoss 01179200 | 1 | Sealing stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90586553. | $29.37/EA |
| 29 | MM01179190PowerBoss 01179190 | 1 | Slot stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90586546. | $29.37/EA |
PowerBoss Scrubmaster B120R squeegee unit compl.110cm f. replacement parts
The complete 1,100 mm squeegee unit sold as a replacement. It is one line that points to the Module Squeegee list. Manual page 33C p76.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 010 | MM97160873PowerBoss 97160873 | Module Squeegee 1100mm cplFits SM3332C 7177.47, SM3532D 7177.43. Part-No column only, no Material-No printed. No quantity printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Scrubmaster B120R module squeegee 1100mm cpl parts
The complete 1,100 mm module squeegee: brackets, protection caps, body, star handles and the sealing and slot strips. Manual pages 33C p77, list 33C p78.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01272830PowerBoss 01272830 | 1 | bracket 110 R.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 92001106. | $122.47/EA |
| 2 | MM90546235PowerBoss 90546235 | 1 | Protection cap R.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01178310. | $3.40/EA |
| 3 | MM11039567PowerBoss 11039567 | 2 | hexagon screw M8x25-A2-70 ISO 4017Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01059530. | $1.11/EA |
| 4 | MM730609Replaces PowerBoss 00101550 | 2 | Washer 8-200HV-A2-70 ISO 7090Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
| 5 | MM12040259PowerBoss 12040259 | 4 | Hex. Nut M8-A2-70 DIN 985Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 00101540. | $1.08/EA |
| 6 | MM01274570PowerBoss 01274570 | 2 | Star handle yellow M10Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 97125314. | $8.56/EA |
| 7 | MM01382880PowerBoss 01382880 | 1 | suction unit body 1100mmFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 92061761. | $271.10/EA |
| 8 | MM717030Replaces PowerBoss 01162510 | 4 | hexagon screw M8x20-A2-70 ISO 4017Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 11038593; replaces PowerBoss 01162510. | $1.08/EA |
| 9 | MM90531112PowerBoss 90531112 | 30 | SpacerFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01079080. | $1.54/EA |
| 10 | MM90513094PowerBoss 90513094 | 4 | Fixed castorFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01077810. | $12.43/EA |
| 11 | MM717029Replaces PowerBoss 00971400 | 4 | Hex. Nut M8-A4 DIN 934Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12022455; replaces PowerBoss 00971400. | $1.08/EA |
| 12 | MM90548397PowerBoss 90548397 | 8 | Deflector rollerFits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01171790. | $4.29/EA |
| 13 | MM01177260PowerBoss 01177260 | 2 | PipeFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90550252. | $7.22/EA |
| 14 | MM01272820PowerBoss 01272820 | 1 | Bracket 110 L.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90586371. | $92.17/EA |
| 15 | MM730526Replaces PowerBoss 00902280 | 2 | Washer 8-200HV-A4-70 ISO 7093Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 12332136; replaces PowerBoss 00902280. | $1.08/EA |
| 16 | MM01279920PowerBoss 01279920 | 2 | socket head screw M8x120-A2-70 ISO 4762Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 11127222. | $1.72/EA |
| 17 | MM90546243PowerBoss 90546243 | 1 | Protection cap L.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01178320. | $5.19/EA |
| 18 | MM01382820PowerBoss 01382820 | 1 | tension band 1100mm R.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96167556. | $54.43/EA |
| 19 | MM01382960PowerBoss 01382960 | 1 | tension band 1100mm L.H.Fits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96167564. | $88.20/EA |
| 20 | MM01079780PowerBoss 01079780 | 1 | Sealing stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90522269. | $46.18/EA |
| 21 | MM01383000PowerBoss 01383000 | 1 | suction unit body 1100mmFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 96166459. | $188.10/EA |
| 22 | MM01079790PowerBoss 01079790 | 1 | Slot stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90522251. | $46.18/EA |
| 23 | MM97125306PowerBoss 97125306 | 2 | Star handle yellow incl. washer M10Fits SM3332C 7177.47, SM3532D 7177.43. Hako part no. 01274760. | $3.18/EA |
| 24 | MM01179200PowerBoss 01179200 | 1 | Sealing stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90586553. or 110cm squeegee. | $29.37/EA |
| 25 | MM01179190PowerBoss 01179190 | 1 | Slot stripFits SM3332C 7177.47, SM3532D 7177.43. Hako material no. 90586546. or 110cm squeegee. | $29.37/EA |
PowerBoss Scrubmaster B120R electric system without onboard charger parts
The electric system cover, screws and washers for machines without the on-board charger. Manual pages 28C p88, list 28C p89.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177060PowerBoss 11177060 | 8 | Lens flange screw M6x16-A2-70 ISO7380-2Hako part no. 01017640. | $2.76/EA |
| 2 | MM00854210PowerBoss 00854210 | 8 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 3 | Not sold separatelyPowerBoss 97158547 | Electric system without chargerNot sold separately. Parts are listed under Electric system without charger. No quantity printed. | Not sold separately. Its parts are listed under Electric system without charger | |
| 4 | Not sold separatelyPowerBoss 97146187 | CoverNot sold separately. Parts are listed under Cover (97146187). No quantity printed. | Not sold separately. Its parts are listed under Cover (97146187) | |
| 5 | MM00959220PowerBoss 00959220 | 4 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
PowerBoss Scrubmaster B120R electric system without charger parts
The two electric system assemblies for machines without a charger. Manual pages 28C p90, list 28C p91.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyPowerBoss 97158547-1 | Electric system without charger, part 1Not sold separately. Parts are listed under Electric system without charger, part 1. No quantity printed. | Not sold separately. Its parts are listed under Electric system without charger, part 1 | |
| 2 | Not sold separatelyPowerBoss 97158547-2 | Electric system without charger, part 2Not sold separately. Parts are listed under Electric system without charger, part 2. No quantity printed. | Not sold separately. Its parts are listed under Electric system without charger, part 2 |
PowerBoss Scrubmaster B120R electric system without charger, part 1
The electric system mounting: washers, screws, plate holder, mounting feet, retainers and supports. Manual pages 28C p92, list 28C p93.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12518080PowerBoss 12518080 | 1 | Serrated lock washer A5,3 A2G DIN 6798Hako part no. 00857150. | $1.08/EA |
| 2 | MM00959220PowerBoss 00959220 | 5 | Screw C M5x12-St A2G TORX DIN 7500Hako material no. 11702016. | $1.05/EA |
| 3 | MM00745840PowerBoss 00745840 | 4 | Print plate holder 4,8Hako material no. 19799014. | $1.05/EA |
| 4 | MM01370240PowerBoss 01370240 | 4 | mounting feetHako material no. 17526237. | $1.05/EA |
| 5 | MM01370250PowerBoss 01370250 | 4 | retainer ø13Hako material no. 17526245. | $1.54/EA |
| 6 | MM15592033PowerBoss 15592033 | 6 | Lens cap 1000/893 SWHako part no. 00131610. | $1.55/EA |
| 7 | MM01494500PowerBoss 01494500 | 1 | support NW10Hako material no. 90639139. | $1.05/EA |
| 9 | MM12310041PowerBoss 12310041 | 10 | Washer 8-200HV-N3 ISO 7089Hako part no. 00053750. | $2.75/EA |
| 10 | MM00053850PowerBoss 00053850 | 6 | Spring washer B8 A2G DIN 137Hako material no. 12510038. | $1.05/EA |
| 11 | MM12012019PowerBoss 12012019 | 4 | Hex. Nut M8-04-N2 ISO 4035Hako part no. 00046500. | $5.51/EA |
| 12 | MM12310025PowerBoss 12310025 | 6 | Washer 5-200HV-N2 ISO 7089Hako part no. 00053720. | $1.38/EA |
| 13 | MM00053830PowerBoss 00053830 | 2 | Spring washer A5 A2G DIN 137Hako material no. 12510012. | $1.05/EA |
| 14 | MM00053320PowerBoss 00053320 | 2 | Hex. Nut M5-8 A2G DIN 934Hako material no. 12022034. | $1.05/EA |
| 15 | MM12310033PowerBoss 12310033 | 11 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 16 | MM00053840PowerBoss 00053840 | 8 | Spring washer B6 A2G DIN 137Hako material no. 12510020. | $2.43/EA |
| 17 | MM00135790PowerBoss 00135790 | 3 | Hex. Nut M6-04-N2 ISO 4035Hako material no. 12012035. | $2.87/EA |
| 18 | MM00744670PowerBoss 00744670 | 2 | Single clamp EKS127AHako material no. 90268657. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM01361660PowerBoss 01361660 | 1 | drive controller AC 24V 120AHako material no. 97190862. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM01277790PowerBoss 01277790 | 1 | Solenoid switch 120-ECS-24VHako material no. 90665670. | $194.48/EA |
| 21 | MM00044930PowerBoss 00044930 | 2 | lens head screw M4x6-4.8-H-N2 ISO 7045Hako material no. 11175130. | $1.05/EA |
| 22 | MM12310017PowerBoss 12310017 | 2 | Washer 4-200HV-N3 ISO 7089Hako part no. 00053710. | $1.38/EA |
| 23 | MM01112160PowerBoss 01112160 | 2 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| A01 | MM01382310PowerBoss 01382310 | 1 | controller 2.2Hako material no. 97501142. | $1,766.25/EA |
| F300 | MM00733630PowerBoss 00733630 | 1 | Fuse C10A DIN 72581Hako material no. 19731082. | $1.22/EA |
| F500 | MM00906120PowerBoss 00906120 | 1 | Fuse C5A T3 DIN 72581Hako material no. 19731181. | $1.22/EA |
| F501 | MM00906120PowerBoss 00906120 | 1 | Fuse C5A T3 DIN 72581Hako material no. 19731181. | $1.22/EA |
PowerBoss Scrubmaster B120R electric system without charger, part 2
The electric system components: signal transmitter, connectors, cable ties, electronic plate and fuse holder. Manual pages 28C p94, list 28C p95-96.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12310025PowerBoss 12310025 | 4 | Washer 5-200HV-N2 ISO 7089Hako part no. 00053720. | $1.38/EA |
| 2 | MM00053830PowerBoss 00053830 | 4 | Spring washer A5 A2G DIN 137Hako material no. 12510012. | $1.05/EA |
| 3 | MM01110570PowerBoss 01110570 | 2 | Screw M3x8-St A2B DIN 7500-PEHako material no. 11702149. | $1.05/EA |
| 4 | MM00745850PowerBoss 00745850 | 1 | Signal transmitter 24V DCHako material no. 90333105. | $19.64/EA |
| 5 | MM19724053PowerBoss 19724053 | 2 | Flat connector 6,3/0,5-1,0mm²Hako part no. 00903170. | $1.38/EA |
| 6 | MM19791128PowerBoss 19791128 | 1 | Male-housing 2-pol FASTIN-ON 6,3Hako part no. 00903180. | $1.38/EA |
| 7 | MM00121010PowerBoss 00121010 | 1 | Cable tie PLT1M-M 2x110Hako material no. 90114414. | $1.05/EA |
| 8 | MM01370490PowerBoss 01370490 | 1 | electronic plateHako material no. 96157276. | $445.38/EA |
| 9 | MM01473870PowerBoss 01473870 | 2 | Fuse holderHako material no. 19789338. | $15.55/EA |
| 10 | MM01370330PowerBoss 01370330 | 1 | fuse link 125A Midi 32VDCHako material no. 19731579. power. | $2.21/EA |
| 11 | MM01370260PowerBoss 01370260 | 1 | fuse link 100A Midi 32VDCHako material no. 19731422. drive control. | $3.72/EA |
| 12 | MM01112160PowerBoss 01112160 | 5 | Screw PE M4x10-St A2B DIN 7500Hako material no. 11702131. | $1.05/EA |
| 13 | MM01271830PowerBoss 01271830 | 1 | Relay base 2x5pol.Hako material no. 19729805. | $6.00/EA |
| 14 | MM01271000PowerBoss 01271000 | 1 | Relay 24V 10A/5A m. LöschwiderstandHako material no. 90567777. | $25.50/EA |
| 15 | MM01271780PowerBoss 01271780 | 1 | Retainer 2x5-pol.Hako material no. 19729912. | $1.05/EA |
| 16 | MM01271300PowerBoss 01271300 | 5 | Nut M6 6kt.Senkk.-1-3, 5-St-gal/ZnHako material no. 12180220. | $1.05/EA |
| 17 | MM90570565Replaces PowerBoss 00461460 | 0.09 M | Edge protection 1,0-3,5Hako material no. 25583105. Quantity printed 0,090 M; replaces PowerBoss 00461460. | $26.91/EA |
| 18 | MM01278090PowerBoss 01278090 | 1 | Ribbon cableHako material no. 90680059. | $45.69/EA |
| 19 | MM00733650PowerBoss 00733650 | 3 | Fuse holderHako material no. 19789106. | $2.06/EA |
| 20 | MM01110770PowerBoss 01110770 | 2 | Screw M3x30-St-Z A2B DIN 7500-CHako material no. 11702156. | $1.05/EA |
| F2 | MM00509550PowerBoss 00509550 | 1 | Fuse C7,5A DIN 72581Hako material no. 19731066. control voltage. | $1.22/EA |
| F5 | MM00906120PowerBoss 00906120 | 1 | Fuse C5A T3 DIN 72581Hako material no. 19731181. horn. | $1.22/EA |
| F20 | MM00906120PowerBoss 00906120 | 1 | Fuse C5A T3 DIN 72581Hako material no. 19731181. Fleet-Recorder. | $1.22/EA |
| W1 | MM03022850PowerBoss 03022850 | 1 | wiring harness W1Hako material no. 97158448. Has its own parts list: Wiring harness W1. Printed: Available. Item has sub-assemblies. | $313.22/EA |
| W2 | MM03019200PowerBoss 03019200 | 1 | wiring harness W2Hako material no. 97163026. | $639.86/EA |
| W3 | MM03019180PowerBoss 03019180 | 1 | wiring harness W3Hako material no. 97161855. Valid until 06.03.2025. | $1,363.42/EA |
| W3 | MM03027160PowerBoss 03027160 | 1 | wiring harness W3Hako material no. 97189476. Valid from 06.03.2025. Attention. This cable is only included in the side brush system with the assembly number 97188601. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| W4 | MM03019310PowerBoss 03019310 | 1 | wiring harness W4Hako material no. 97167050. | $315.06/EA |
| W42 | MM03019290PowerBoss 03019290 | 1 | wiring harness W42Hako material no. 97137269. | $104.04/EA |
| WS5 | MM03024150PowerBoss 03024150 | 1 | wiring harness WS5Hako material no. 97130017. | $42.77/EA |
| WS6 | MM03019340PowerBoss 03019340 | 1 | cable loom WS6Hako material no. 97140750. | $162.36/EA |
| WS7 | MM03019420PowerBoss 03019420 | 1 | cable loom WS7Hako material no. 97140768. | $64.17/EA |
PowerBoss Scrubmaster B120R wiring harness W1 parts
The wiring harness W1 retainer, connector and screws. Manual pages 28C p97, list 28C p98.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01378080PowerBoss 01378080 | 1 | retainerHako material no. 92044015. | $12.69/EA |
| 2 | MM740159Replaces PowerBoss 01075720 | 1 | Connector red SR175Hako material no. 19738327; replaces PowerBoss 01075720. | $34.44/EA |
| 3 | MM00053650PowerBoss 00053650 | 2 | Countersunk screw M6x40-4.8-H A2G DIN 965Hako material no. 11206240. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | MM12310033PowerBoss 12310033 | 2 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 5 | MM12040044PowerBoss 12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Hako part no. 00051520. | $1.38/EA |
PowerBoss Scrubmaster B120R cover (97146187) parts
The cover with plate, covering, edge protection, gasket and fixings. Manual pages 28C p99, list 28C p100.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11177060PowerBoss 11177060 | 6 | Lens flange screw M6x16-A2-70 ISO7380-2Hako part no. 01017640. | $2.76/EA |
| 2 | MM01370290PowerBoss 01370290 | 1 | plateHako material no. 90689316. | $77.81/EA |
| 3 | MM01370470PowerBoss 01370470 | 1 | coveringHako material no. 90689290. | $213.93/EA |
| 4 | MM00800100PowerBoss 00800100 | 1.16 M | Edge protection 1,0-3,5 schwarzHako material no. 25583030. Quantity printed 1,160 M. | $14.14/EA |
| 5 | MM01278180PowerBoss 01278180 | 1 | GasketHako material no. 90682501. | $2.32/EA |
| 6 | No number printedPowerBoss no number printed | 1 | Spare part on requestNo part number printed. Remark printed: 90683756 angle. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM00854210PowerBoss 00854210 | 2 | Washer 6-200HV-A2-70 ISO 7093Hako material no. 12332094. | $1.05/EA |
| 8 | MM00102140PowerBoss 00102140 | 2 | Hex. Nut M6-A2-70 DIN 985Hako material no. 12040242. | $1.17/EA |
| 9 | MM01494530PowerBoss 01494530 | 5 | Rivet nut M6 Flachkopf-Al geschl 3-4,5Hako material no. 12180238. | $1.54/EA |
PowerBoss Scrubmaster B120R sprinkle nozzle incl. holder parts
The spray pistol with hose, its holder, clamps, cable ties and spiral coiled tube. Manual pages 28C p101, list 28C p102.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01372240PowerBoss 01372240 | 1 | spray pistol with hoseHako material no. 92010412. | $216.83/EA |
| 2 | MM01376950PowerBoss 01376950 | 1 | retainerHako material no. 92024488. | $30.94/EA |
| 3 | MM01477410PowerBoss 01477410 | 1 | pair of clamping HRGL5KP35PP DIN 3015Hako material no. 17516873. | $6.28/EA |
| 4 | MM11177187PowerBoss 11177187 | 3 | Lens flange screw M8x16-A2-70 ISO7380-2Hako part no. 01074320. | $3.30/EA |
| 5 | MM01278230PowerBoss 01278230 | 3 | Detent edged washer SKM-8-1.4401Hako material no. 12520178. | $1.05/EA |
| 6 | MM717029Replaces PowerBoss 00971400 | 2 | Hex. Nut M8-A4 DIN 934Hako material no. 12022455; replaces PowerBoss 00971400. | $1.08/EA |
| 7 | MM01372600PowerBoss 01372600 | 1 | base retainerHako material no. 96156013. | $221.72/EA |
| 8 | MM828062Replaces PowerBoss 00121150 | 4 | Cable tie T25L 2, 8x240-PA66-naturHako material no. 90114810; replaces PowerBoss 00121150. | $1.38/EA |
| 9 | MM01074650PowerBoss 01074650 | 1.17 M | Spiral coiled tube KX3000/Steel-Lw 8Hako material no. 25857053. Quantity printed 1,170 M. | $10.64/EA |
| 10 | MM17533100PowerBoss 17533100 | 2 | Hose clamp A-8-16x 9-W2-2 DIN 3017Hako part no. 00074300. | $1.56/EA |
| 11 | MM01073020PowerBoss 01073020 | 1 | T-piece TRS 12-8-12Hako material no. 90438946. | $7.68/EA |
| 12 | MM3302144Replaces PowerBoss 01015350 | 9 | Hose clamp A-12-20x 9-W1-2 DIN 3017Hako material no. 17533159; replaces PowerBoss 01015350. | $5.02/EA |
| 13 | MM01272710PowerBoss 01272710 | 1 | self tapping screw D 7500 PE M8x16-St-flZnnc-480Hako material no. 11702172. | $3.90/EA |
| 14 | MM00740090PowerBoss 00740090 | 1 | Detent edged washer SKM-8-8.8 dacHako material no. 12520053. | $1.22/EA |
| 15 | MM00112010PowerBoss 00112010 | 0.31 M | hose 12x3 PVC-weich mit StahlHako material no. 25854274. Quantity printed 0,310 M. | $11.83/EA |
| 16 | MM01371810PowerBoss 01371810 | 1 | recycling stopHako material no. 92032416. | $11.83/EA |
| 17 | MM90310681PowerBoss 90310681 | 2 | T-piece TS12Hako part no. 00976160. | $5.25/EA |
| 18 | MM01372620PowerBoss 01372620 | 1 | plain bearing bush GSM-1012-12Hako material no. 14895825. | $1.54/EA |
| 19 | MM01271540PowerBoss 01271540 | 2 | socket head screw M6x60-8.8-N3 ISO 4762Hako material no. 11126851. | $1.19/EA |
| 20 | MM12310033PowerBoss 12310033 | 2 | Washer 6-200HV-N2 ISO 7089Hako part no. 00053730. | $1.38/EA |
| 21 | MM12040044PowerBoss 12040044 | 2 | Hex. Nut M6-6 A2G DIN 985Hako part no. 00051520. | $1.38/EA |
| 22 | MM00552600PowerBoss 00552600 | 1 | Hose nipple "NW8-G1/4"""Hako material no. 90314238. | $17.44/EA |
| 23 | MM00552590PowerBoss 00552590 | 1 | Quick hitch "G1/4"""Hako material no. 90314220. | $39.35/EA |
PowerBoss Scrubmaster B120R rough mud strainer parts
The rough dirt strainer, guide piece and screws. Manual pages 28C p103, list 28C p104.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM01375840PowerBoss 01375840 | 1 | rough dirt strainerHako material no. 96148457. | $203.61/EA |
| 2 | MM01178830PowerBoss 01178830 | 2 | Socket head screw M5x12-A2-70 ISO 4762Hako material no. 11127073. | $1.22/EA |
| 3 | MM01377400PowerBoss 01377400 | 2 | guide pieceHako material no. 92022672. | $14.69/EA |
| 4 | MM730526Replaces PowerBoss 00902280 | 1 | Washer 8-200HV-A4-70 ISO 7093Hako material no. 12332136; replaces PowerBoss 00902280. | $1.08/EA |
| 5 | MM730609Replaces PowerBoss 00101550 | 1 | Washer 8-200HV-A2-70 ISO 7090Hako material no. 12310264; replaces PowerBoss 00101550. | $1.08/EA |
New to your PowerBoss Scrubmaster B120R? Start here
Set up, run and look after your Scrubmaster B120R. Everything here comes from Hako's operating manual, rewritten in plain steps, with the parts you need linked to the lists above.
1Get it ready before the first start
- Charge the batteries fully and properly before the first start. Hako takes no liability for battery damage from an insufficient first charge.
- Install the country-specific Hako mains cable.
- Mount the brushes and the squeegee.
- Adjust the driver's seat so you can reach all controls easily.
- Fill the solution tank with water no hotter than 122 °F (50 °C). Add detergent as the detergent maker says.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 36, 37, 38 and 68. SES ref PF-OKT5-XWEY
2Start cleaning
- Sit on the driver's seat. The machine only starts when you are seated.
- Turn the key switch to position 1 to switch the electrical system on.
- Push the driving direction button for forward or reverse. Reverse speed is half of forward speed.
- Select the cleaning programme, then press the accelerator pedal. The brushes and the water supply switch on at the last setting you used.
- Set the fresh water quantity with the dosing button. For heavy dirt, increase the brush pressure or hold the boost button for 1 minute.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 26 and 39. SES ref PF-OKT5-XWEY
3Stop and shut down
- Slowly bring the accelerator pedal back to zero. The machine slows to a stop. Apply the brake for a better braking effect.
- At standstill the parking brake engages with an audible click.
- Switch off the cleaning functions, then switch the machine off with the key switch. Remove the key when you leave the machine.
- Empty and clean the waste water tank. Check the fresh water filter, the sealing strips and the suction hose.
- Charge the battery and clean the machine. Do not use a high-pressure cleaner or a steam cleaner.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 46 and 47. SES ref PF-OKT5-XWEY
4Empty the waste water tank
- Drive to a suitable disposal centre. Position the machine so the drain hose reaches the drain in the floor.
- Turn the machine off. Take the drain hose out of its holder and push the suction hose slightly to the side.
- Bend the squeeze nozzle in the front section and remove the cap.
- Return the drain hose to its original position and empty the tank fully.
- Seal the drain hose with the cap when the tank is empty.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 73 and 74. SES ref PF-OKT5-XWEY
Questions about your Scrubmaster B120R? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
PowerBoss Scrubmaster B120R troubleshooting
Service codes, likely causes and fixes from Hako's operating manual. Call SES service for any repair.
| Likely cause | Fix | Part |
|---|---|---|
| Service code 1.2.2.1: brushes or roller stop | ||
| Electrical defects | Call SES service. | |
| Service code 1.2.5.2: brushes stop | ||
| Foreign particles between the brush and the shaft | Inspect the brushes for foreign particles and remove them if necessary. | |
| Service code 1.2.6.1: brushes stop | ||
| Foreign particles block the brush, or the brush is not positioned correctly in the holder | Inspect the brushes for foreign particles and remove them if necessary. Actuate the brush decoupling system. Call SES service if needed. | |
| Service code 1.2.6.3: brush lift system, brush and suction turbine switched off | ||
| Foreign particles between the brush head and the machine, foreign particles between the squeegee and the machine, or a jammed squeegee | Inspect the brush head and the lift system for foreign particles and remove them if necessary. Make the squeegee accessible. | |
| Service code 1.4.6.1: squeegee lift system stops | ||
| Overload due to foreign particles | Inspect for foreign particles and remove them if necessary. | |
| Service code 1.4.6.3: suction turbine stops | ||
| Foreign particles in the suction turbine, or a faulty suction turbine | Call SES service. | |
| Service code 3.2.6.6 shows when you turn the machine on | ||
| The internal back-up battery of the machine control is discharged | Call SES service. | |
| Service codes 5.8.7.0 and 5.8.7.1: batteries are not being charged | ||
| Cables on the battery poles are loose or detached, the wrong battery type is installed, or the mains plug is not inserted correctly | Insert the mains plug correctly. For loose cables or a wrong battery type, call SES service. | |
| Service code 3.4.1.2: driving not possible | ||
| Error in the drive control | Turn the machine off and on. Call SES service if needed. | |
| Service code 3.4.5.1: cleaning function switches off | ||
| The drive wheel is sluggish because of foreign particles, or the drive motor overheats | Remove the foreign particles. Let the motor cool down. | |
| Service code 3.6.6.4: driving and cleaning not possible | ||
| The seat is permanently loaded | Relieve the seat. | |
| Number field flashing: driving not possible | ||
| The seat is not occupied, or the start sequence was not followed | Sit on the seat. Follow the start sequence. | |
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 45, 49 and 50. SES ref PF-EAPA-JZAD
Still stuck? SES services PowerBoss machines. Call 800-440-6723 and have your model and serial number ready.
PowerBoss Scrubmaster B120R maintenance schedule
Hako's maintenance schedule for the B120R. The 250, 500 and 1,000 hour system maintenance is done by an authorised workshop.
| Task | How often | Part |
|---|---|---|
| Empty the waste water tank. Clean the tank, the drain hose, the coarse dirt sieve (option) and the suction filter. | Daily | |
| Check the cover seal of the waste water tank. Clean it if necessary. | Daily | |
| Check the seal at the drain hose. | Daily | |
| Check the battery. Charge it if necessary. | Daily | |
| Check the squeegee. Clean it if necessary. | Daily | |
| Clean the solution tank. | Weekly | |
| Check the sieve insert in the fresh water filter (MM01277880). Clean or replace it if necessary. | Weekly | |
| Check the brushes and the water retaining ring for proper fit and wear. Replace them if necessary. | Weekly | |
| Check the suction performance of the squeegee. Clean or replace the sealing strips (MM01179180 / MM01079780) if necessary. Each strip can be used four times before it needs replacing. | Weekly | |
| Check the rubber of the lateral wiper (MM01077040). Turn or replace it if necessary. | Weekly | |
| Check the battery acid level. Refill demineralised water if necessary. | Weekly | |
| Replace the seal at the drain hose after 125 operating hours at the latest. | Every 125 hours | |
| Hako system maintenance I. An expert of an authorised Hako workshop does this work. Call SES service: 800-440-6723. | Every 250 hours | |
| Check the battery and the charger. Check the battery acid level and acid density. | Every 250 hours | |
| Check the brake for proper functioning. | Every 250 hours | |
| Check the seal at the drain hose and the cover seal of the waste water tank. Replace them if necessary. | Every 250 hours | |
| Check the sealing strip and slot strip of the squeegee. Turn or replace them if necessary. | Every 250 hours | |
| Check the rear wheel mounting screws. Re-tighten if necessary to 31 lb-ft (42 N·m). | Every 250 hours | |
| Hako system maintenance II. An expert of an authorised Hako workshop does this work. Call SES service: 800-440-6723. | Every 500 hours | |
| Do all the work of system maintenance I. | Every 500 hours | |
| Read the error memory and evaluate the error messages. | Every 500 hours | |
| Check the electrical performance of the drive motor, the brush motor and the suction turbine. | Every 500 hours | |
| Replace the backup battery of the electrical control and set the real-time clock. | Every 500 hours | |
| Hako system maintenance III/S (safety check). An expert of an authorised Hako workshop does this work. Call SES service: 800-440-6723. | Every 1,000 hours | |
| Do all the work of system maintenance II. | Every 1,000 hours | |
| Remove coal dust from the brush motors. Check the carbon brushes (MM00553060 / MM01272100) for ease of movement and wear, and replace them if necessary. | Every 1,000 hours |
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 56, 57, 58, 66, 72, 75, 78 and 82. SES ref PF-6IDY-HSGL
PowerBoss Scrubmaster B120R specifications
From Hako's operating manual. The manual lists TB 750, TB 900, WB 700 and WB 850 in separate columns; see the notes above for how they map to the four models.
| Brush unit width | TB 750: 29.5 in (750 mm); TB 900: 35.4 in (900 mm); WB 700: 27.6 in (700 mm); WB 850: 33.5 in (850 mm) |
|---|---|
| Squeegee width | TB 750 and WB 700: 37.4 in (950 mm); TB 900 and WB 850: 43.3 in (1,100 mm) |
| Size with squeegee (L × W × H) | 65.9 × 37.8 × 56.7 in (1,675 × 960 × 1,440 mm) for TB 750 and WB 700; 65.9 × 44.1 × 56.7 in (1,675 × 1,120 × 1,440 mm) for TB 900 and WB 850 |
| Weight, empty, without batteries | TB 750: 750 lb (340 kg); TB 900: 783 lb (355 kg); WB 700: 714 lb (324 kg); WB 850: 719 lb (326 kg) |
| Weight ready for use | TB 750: 1,594 lb (723 kg); TB 900: 1,627 lb (738 kg); WB 700: 1,559 lb (707 kg); WB 850: 1,563 lb (709 kg). Permissible total weight 1,918 lb (870 kg) |
| Driving speed | 4.2 mph forward and 2.4 mph reverse (6.7 / 3.9 km/h) |
| Slopes | Cleaning: 2 %. Transport journey, ready for operation, 1 minute at most: 10 %. Ramp angle 18 % |
| Tanks | Solution tank 31.7 US gal (120 L); waste water tank 31.7 US gal (120 L) |
| Brushes | 2 brushes. Brush speed TB 750 and TB 900: 210 rpm; WB 700 and WB 850: 850 rpm |
| Brush pressure, min / max | TB 750: 82 / 132 lb (37 / 60 kg); TB 900: 110 / 154 lb (50 / 70 kg); WB 700: 57 / 73 lb (26 / 33 kg); WB 850: 62 / 77 lb (28 / 35 kg) |
| Vacuum system | Air quantity 65 cfm (110 m³/h) for TB 750 and WB 700, 69 cfm (118 m³/h) for TB 900 and WB 850. Maximum vacuum 2.5 psi (170 mbar) |
| Electrical system | 24 V. Nominal output (max.) 3,260 W for TB 750 and TB 900, 3,100 W for WB 700 and WB 850. Drive motor 816 W, vacuum motor 528 W, water pump 100 W, brush motors 2 × 960 W (TB) or 2 × 876 W (WB). Protection IPX3, class III |
| On-board charger | 230 V in, 24 V out, nominal output 1,130 W. Protection IP20, class I |
| Batteries | Trough battery 24 V/320 Ah PzS, wet; trough battery 24 V/280 Ah PzS, gel; block battery 6 V/180 Ah GiV, gel; block battery 6 V/240 Ah GiV, gel |
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 51, 52, 53, 59 and 60. SES ref PF-AANI-G2LI
PowerBoss Scrubmaster B120R manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| B120R parts catalog, 28 in cylindricalHako spare-parts catalog, 104 pages | SM2832C 7177.45 | Titles dated 2021-09 and 2021-10 | 10.5 MB | Sign in to view or downloadSign in to download |
| B120R parts catalog, 30 in discHako spare-parts catalog, 82 pages | SM3032D 7177.41 | Titles dated 2021-09 and 2021-10 | 8.3 MB | Sign in to view or downloadSign in to download |
| B120R parts catalog, 33 in cylindricalHako spare-parts catalog, 186 pages | SM3332C 7177.47 | Titles dated 2021-09 and 2021-10 | 19.1 MB | Sign in to view or downloadSign in to download |
| B120R parts catalog, 35 in discHako spare-parts catalog, 89 pages | SM3532D 7177.43 | Titles dated 2021-09 and 2021-10 | 9.1 MB | Sign in to view or downloadSign in to download |
| Scrubmaster B120 R operating manualOperating instructions, 88 pages, English | All four builds | 88-10-3105, valid from 07.2017 | 9.6 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common PowerBoss Scrubmaster B120R parts questions
How do I charge the batteries on the PowerBoss Scrubmaster B120R?
Put the machine on a level surface and turn it off. Plug the on-board charger's mains plug into a 230 V socket. Charging starts on its own. Keep the seat console open while charging. You cannot turn the machine on during charging.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 63 and 64. SES ref PF-7BKS-TDES
How many times can I use the squeegee sealing strips?
Each sealing strip can be used four times before it needs replacing. Check the strips weekly. If the used edge is worn or damaged, turn or replace the strip.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), page 82. SES ref PF-7BKS-TDES
How do I empty the solution tank?
Hako gives three ways: through the fresh water filter, through the maintenance opening, or with the vacuum system. The vacuum method is recommended if no drain is available and the waste water tank is empty.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 70 and 71. SES ref PF-7BKS-TDES
What slope can the Scrubmaster B120R clean on?
Cleaning is limited to a slope of 2 %. Transport journeys on slopes up to 10 % are allowed for 1 minute only, and with special caution.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 10, 11 and 51. SES ref PF-7BKS-TDES
What does the seat contact switch do?
The machine only starts when the driver is seated. If you get up during operation, a warning symbol lights and scrubbing, vacuuming and driving stop. Hako says the switch must not be bypassed.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 10 and 25. SES ref PF-7BKS-TDES
When do I replace the brushes or pads on the rotating brush unit?
Replace them at the latest when the red pointer on the indicator is in the red zone. The brush unit must be lowered to read it. If no brush or pad is fitted, the pointer shows red.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), page 76. SES ref PF-7BKS-TDES
Who should do the 250 hour and 500 hour service?
Hako says an expert of an authorised Hako workshop does the 250, 500 and 1,000 hour system maintenance. Call SES service at 800-440-6723 with your model and serial number.
Source: Hako Scrubmaster B120 R Operating Manual 88-10-3105 (valid from 07.2017), pages 54, 57 and 58. SES ref PF-7BKS-TDES
Notes on this parts list
Places where PowerBoss's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Hako prints two numbers on most lines, a Part-No and a Material-No. Our number is MM plus the Part-No, with the Material-No in the note. Where only the Material-No is listed in our store, the line uses it and the note gives the Part-No.
- The operating manual calls the builds TB 750, TB 900, WB 700 and WB 850. It does not print the SM model numbers. We match them by brush width and squeegee width: TB 750 to SM3032D, TB 900 to SM3532D, WB 700 to SM2832C and WB 850 to SM3332C. Check the type plate if unsure.
- The 33 in catalog PDF has 186 pages because its second half repeats the 35 in catalog. This page uses each group once.
- The 950 mm suction unit lists two pairs of sealing and slot strips (items 19 to 21 and 23), and the 1,100 mm squeegee lists two pairs (items 9, 24, 28 and 29). The wear list and guide link the first pair.
- Item 17 on the 1,100 mm squeegee is printed twice: the suction unit body, marked no longer available, and the complete squeegee unit, which has its own list.
- The catalog line for the wiper rubber says Squeegee strip (Hako part no. 01074250), and the line for the fresh water filter sieve says Filter. The guide matches these to the operating manual's wiper rubber and fresh water filter by name.
- Head rocker (97143416_U1) item 13 prints a quantity of 0530 M. We show it as printed.
- Hako's titles have a few typos, such as ifting and squegee. Descriptions are shown as printed, including German leftovers like PVC-weich.
- Hako's overview photo pages of the machine have no parts list. They are not on this page.
- Lines that Hako prints as a pointer to a sub-assembly (Not available, Pos. has sub-assemblies) have no quantity of their own. They are not sold separately; the line links the group on this page that lists their parts.
- Catalog pages have no printed page numbers. Page labels are the catalog (28C, 30D, 33C or 35D) and its PDF page number; the operating manual uses its printed page numbers.
