PowerBoss Nautilus options, breakdowns and engine parts list and diagrams
Option kits, component breakdowns and engine parts for the PowerBoss Nautilus, from PowerBoss's parts manual, with the manual's drawings. Each part number links to that part in our store, and the standard parts are on a companion page.
Complete list: the options, component breakdowns and engine sections of PowerBoss Nautilus Parts Catalog, form 988749 (Rev. Z 01/25), and PowerBoss Nautilus User Manual, form 988749UM (Rev. L 09/21), 1557 part lines. The standard parts, maintenance items and owner's guide are on the Nautilus parts list page. Checked .
New to your Nautilus? Start here → Standard parts and maintenance items → Manuals (free sign-in) →
- Cleaning path
- 45 in (114 cm); 60 in (152 cm) with the optional side brush
- Main brushes
- Cylindrical: 2 brushes, 12 in (30 cm) diameter, 45 in (114 cm) long, 425 rpm. Disc: 3 brushes, 14 in (35 cm) diameter, 220 rpm
- Solution tank
- 105 gal (397 L)
- Recovery tank
- 105 gal (397 L)
- Weight
- Diesel: 4,047 lb (1,836 kg). Gas and LPG: 4,027 lb (1,826 kg)
Your machine
How to tell which you have
- Read the I.D. plate: the model and serial number are on the I.D. plate on the left side wall of the operator seating area. PowerBoss asks for both when you order parts.
- Engine: the catalog lists diesel, gas and LPG groups. LPG machines run from an LP tank and have no fuel level gauge on the panel; diesel machines have a glow plug position on the throttle switch.
- Scrub system: cylindrical machines have two cylindrical main brushes (12 in, 45 in long). Disc machines have three disc main brushes (14 in).
- Serial breaks: the impeller group and the hydraulic pump group each have one list for machines before serial 22PB1655 and one for serial 22PB1655 and after. The catalog notes cylindrical brushes in standard hubs before serial 18PB1783 and PH hubs from 18PB1783 on.
How to read this list
Our part numbers are the PowerBoss number with MM in front, so PowerBoss 730788 is MM730788. Suffixes such as -PH or -1 stay in the number (MM731295-PH). Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

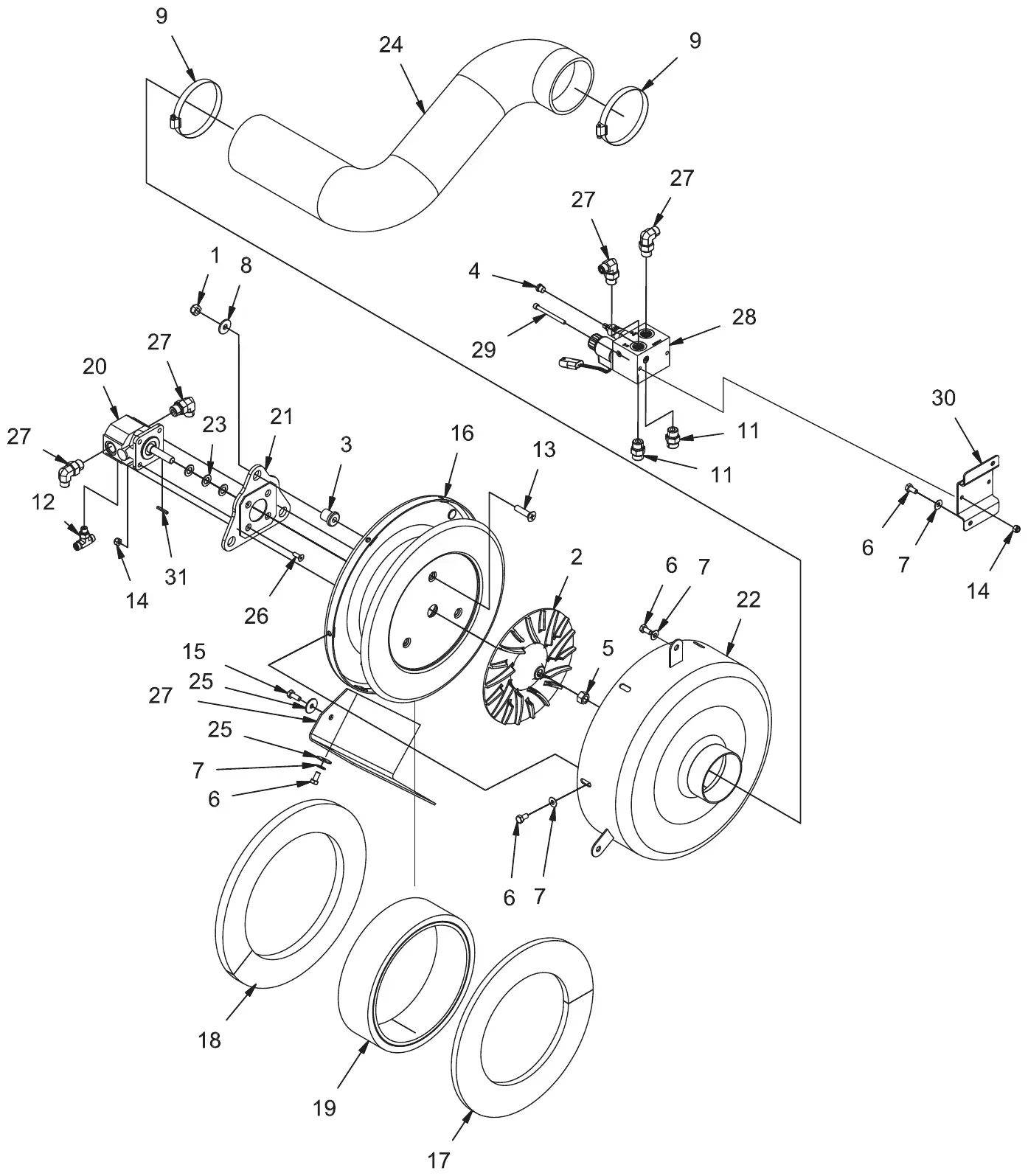

PowerBoss Nautilus impeller group, before serial 22PB1655 parts
The vacuum impeller group for machines before serial 22PB1655. Manual pages 96, list 97.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040069PowerBoss 12040069 | 3 | NUT-NYLOC M10 X 1.5 ZD CLASS 6Before serial 22PB1655. | $6.92/EA |
| 2 | MM3300133PowerBoss 3300133 | 1 | IMPELLER, BALANCED 82/90/NAUTILUSBefore serial 22PB1655. | $298.47/EA |
| 3 | MM3300465PowerBoss 3300465 | 3 | ISOLATOR-RUBBER (.375ID X .81OD)Before serial 22PB1655. | $8.83/EA |
| 4 | MM3331436PowerBoss 3331436 | 1 | FTG-ORFS PLUG-1/4 HEX SOC,ST THDBefore serial 22PB1655. | $1.28/EA |
| 5 | MM3400064PowerBoss 3400064 | 1 | NUT-HEX 1/2-20 ZP GR 5Before serial 22PB1655. | $1.11/EA |
| 6 | MM3400291PowerBoss 3400291 | 11 | SCR-HH M8-1.25 X 16 ZP CLASS 8.8Before serial 22PB1655. | $1.11/EA |
| 7 | MM3400384PowerBoss 3400384 | 11 | WASHER-CONICAL SPRING 5/16Before serial 22PB1655. | $1.08/EA |
| 8 | MM600363PowerBoss 600363 | 3 | WASHER-FLAT .39 X 1.12 X .1 ZPBefore serial 22PB1655. | $1.13/EA |
| 9 | MM620176PowerBoss 620176 | 2 | CLAMP, HOSE, WORM TYPE, 4"Before serial 22PB1655. | $5.08/EA |
| 10 | MM675520PowerBoss 675520 | 4 | FTG-ORFS 90 ELBOW -6 -8 SAEBefore serial 22PB1655. | $11.89/EA |
| 11 | MM675524PowerBoss 675524 | 2 | FTG-ORFS STR THD -8 -8 SAEBefore serial 22PB1655. | $5.75/EA |
| 12 | MM675556PowerBoss 675556 | 1 | FTG-ORFS TEE BRANCH -4 -4 -4 SAEBefore serial 22PB1655. | $13.14/EA |
| 13 | MM710028PowerBoss 710028 | 3 | SCR-FHMS M10-1.50 X 40 SLOTTED ZPBefore serial 22PB1655. | $4.11/EA |
| 14 | MM711373PowerBoss 711373 | 6 | NUT-NYLOC 1/4-20 ZPBefore serial 22PB1655. | $1.10/EA |
| 15 | MM717030PowerBoss 717030 | 1 | SCR-HH M8-1.25 X 20 SSBefore serial 22PB1655. | $1.08/EA |
| 16 | MM730463-1PowerBoss 730463-1 | 1 | IMPELLER HOUSING, MACHINEDBefore serial 22PB1655. | $336.14/EA |
| 17 | MM730466PowerBoss 730466 | 1 | INSULATION, SOUNDBefore serial 22PB1655. | $20.29/EA |
| 18 | MM730467PowerBoss 730467 | 1 | INSULATION, SOUNDBefore serial 22PB1655. | $23.27/EA |
| 19 | MM730468PowerBoss 730468 | 1 | INSULATION, SOUNDBefore serial 22PB1655. | $14.89/EA |
| 20 | MM730470PowerBoss 730470 | 1 | MOTOR, HYD, GEAR BLKBefore serial 22PB1655. | $626.47/EA |
| 21 | MM730471PowerBoss 730471 | 1 | WELDMENT, MOTOR MNT DGBefore serial 22PB1655. | $62.29/EA |
| 22 | MM730474PowerBoss 730474 | 1 | WELDMENT, IMPELLER SHROUDBefore serial 22PB1655. | $280.72/EA |
| 23 | MM730479PowerBoss 730479 | 3 | PRECISION WASHER, .88 D .51 B .060 TBefore serial 22PB1655. | $4.82/EA |
| 24 | MM730501PowerBoss 730501 | 1 | HOSE, 4.00, IMPELLERBefore serial 22PB1655. | $109.06/EA |
| 25 | MM730526PowerBoss 730526 | 2 | WASHER-FENDER M8 X 24 SSBefore serial 22PB1655. | $1.08/EA |
| 26 | MM730562PowerBoss 730562 | 4 | SCR-FHMS 1/4-20 X .75 ZPBefore serial 22PB1655. | $1.11/EA |
| 27 | MM730639PowerBoss 730639 | 1 | FLAP, IMPELLERBefore serial 22PB1655. | $20.67/EA |
| 28 | MM730790-1PowerBoss 730790-1 | 1 | MANIFOLD ASSY, IMPELLERBefore serial 22PB1655. | $607.68/EA |
| 29 | MM730889PowerBoss 730889 | 2 | SCR-SHCS 1/4 -20 X 2.75 ZP CPBefore serial 22PB1655. | $1.55/EA |
| 30 | MM730891PowerBoss 730891 | 1 | BRACKET, MANIFOLD ZPBefore serial 22PB1655. | $23.56/EA |

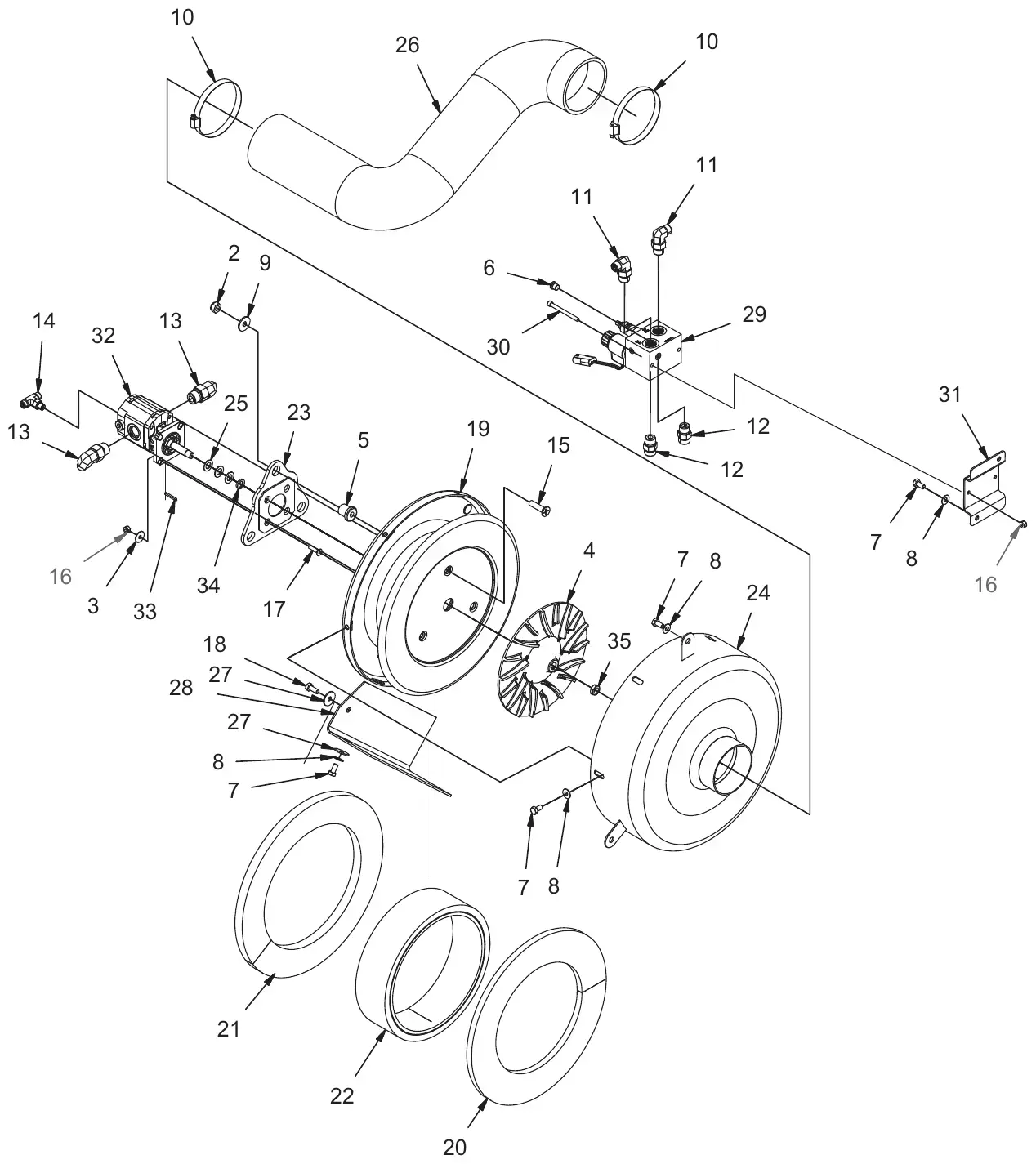

PowerBoss Nautilus impeller group, serial 22PB1655 and after parts
The vacuum impeller group for machines from serial 22PB1655 on. Manual pages 98, list 99.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM000712PowerBoss 000712 | 0.001 | LOCTITE 243 BLUE (50 ML)Serial 22PB1655 and after. | $57.79/EA |
| 2 | MM12040069PowerBoss 12040069 | 3 | NUT-NYLOC M10 X 1.5 ZD CLASS 6Serial 22PB1655 and after. | $6.92/EA |
| 3 | MM173080PowerBoss 173080 | 4 | WASHER-FLAT .266 X .875 X .07 SSSerial 22PB1655 and after. | $1.08/EA |
| 4 | MM3300133PowerBoss 3300133 | 1 | IMPELLER, BALANCED 82/90/NAUTILUSSerial 22PB1655 and after. | $298.47/EA |
| 5 | MM3300465PowerBoss 3300465 | 3 | ISOLATOR-RUBBER (.375ID X .81OD)Serial 22PB1655 and after. | $8.83/EA |
| 6 | MM3331436PowerBoss 3331436 | 1 | FTG-ORFS PLUG-1/4 HEX SOC,ST THDSerial 22PB1655 and after. | $1.28/EA |
| 7 | MM3400291PowerBoss 3400291 | 11 | SCR-HH M8-1.25 X 16 ZP CLASS 8.8Serial 22PB1655 and after. | $1.11/EA |
| 8 | MM3400384PowerBoss 3400384 | 11 | WASHER-CONICAL SPRING 5/16Serial 22PB1655 and after. | $1.08/EA |
| 9 | MM600363PowerBoss 600363 | 3 | WASHER-FLAT .39 X 1.12 X .1 ZPSerial 22PB1655 and after. | $1.13/EA |
| 10 | MM620176PowerBoss 620176 | 2 | CLAMP, HOSE, WORM TYPE, 4"Serial 22PB1655 and after. | $5.08/EA |
| 11 | MM675520PowerBoss 675520 | 2 | FTG-ORFS 90 ELBOW -6 -8 SAESerial 22PB1655 and after. | $11.89/EA |
| 12 | MM675524PowerBoss 675524 | 2 | FTG-ORFS STR THD -8 -8 SAESerial 22PB1655 and after. | $5.75/EA |
| 13 | MM675532PowerBoss 675532 | 2 | FTG-ORFS 90 ELBOW -6 -10 SAESerial 22PB1655 and after. | $17.00/EA |
| 14 | MM675507PowerBoss 675507 | 1 | FTG-ORFS 90 ELBOW -4 -4 SAESerial 22PB1655 and after. | $8.00/EA |
| 15 | MM710028PowerBoss 710028 | 3 | SCR-FHMS M10-1.50 X 40 SLOTTED ZPSerial 22PB1655 and after. | $4.11/EA |
| 16 | MM711373PowerBoss 711373 | 6 | NUT-NYLOC 1/4-20 ZPSerial 22PB1655 and after. | $1.10/EA |
| 17 | MM712153PowerBoss 712153 | 4 | SCR-FHSCS 1/4-20 X 1.00 SSSerial 22PB1655 and after. | $1.08/EA |
| 18 | MM717030PowerBoss 717030 | 1 | SCR-HH M8-1.25 X 20 SSSerial 22PB1655 and after. | $1.08/EA |
| 19 | MM730463-1PowerBoss 730463-1 | 1 | IMPELLER HOUSING, MACHINEDSerial 22PB1655 and after. | $336.14/EA |
| 20 | MM730466PowerBoss 730466 | 1 | INSULATION, SOUNDSerial 22PB1655 and after. | $20.29/EA |
| 21 | MM730467PowerBoss 730467 | 1 | INSULATION, SOUNDSerial 22PB1655 and after. | $23.27/EA |
| 22 | MM730468PowerBoss 730468 | 1 | INSULATION, SOUNDSerial 22PB1655 and after. | $14.89/EA |
| 23 | MM730471PowerBoss 730471 | 1 | WELDMENT, MOTOR MNT DGSerial 22PB1655 and after. | $62.29/EA |
| 24 | MM730474PowerBoss 730474 | 1 | WELDMENT, IMPELLER SHROUDSerial 22PB1655 and after. | $280.72/EA |
| 25 | MM730479PowerBoss 730479 | 3 | PRECISION WASHER, .88 D .51 B .060 TSerial 22PB1655 and after. | $4.82/EA |
| 26 | MM730501PowerBoss 730501 | 1 | HOSE, 4.00, IMPELLERSerial 22PB1655 and after. | $109.06/EA |
| 27 | MM730526PowerBoss 730526 | 2 | WASHER-FENDER M8 X 24 SSSerial 22PB1655 and after. | $1.08/EA |
| 28 | MM730639PowerBoss 730639 | 1 | FLAP, IMPELLERSerial 22PB1655 and after. | $20.67/EA |
| 29 | MM730790-1PowerBoss 730790-1 | 1 | MANIFOLD ASSY, IMPELLERSerial 22PB1655 and after. | $607.68/EA |
| 30 | MM730889PowerBoss 730889 | 2 | SCR-SHCS 1/4 -20 X 2.75 ZP CPSerial 22PB1655 and after. | $1.55/EA |
| 31 | MM730891PowerBoss 730891 | 1 | BRACKET, MANIFOLD ZPSerial 22PB1655 and after. | $23.56/EA |
| 32 | MM770672PowerBoss 770672 | 1 | MOTOR-IMPELLER, CCW ROT (2.8 CC/ROT)Serial 22PB1655 and after. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM770673PowerBoss 770673 | 1 | KEY, 3.18 X 3.18 X 30 MM (SERVICE)Serial 22PB1655 and after. | $3.64/EA |
| 34 | MM770680PowerBoss 770680 | 1 | SPACER, .500 X .750 X .125 STEEL ARBORSerial 22PB1655 and after. | $3.48/EA |
| 35 | MM770681PowerBoss 770681 | 1 | NUT-JAM M12-1.75 ZPSerial 22PB1655 and after. | $1.00/EA |

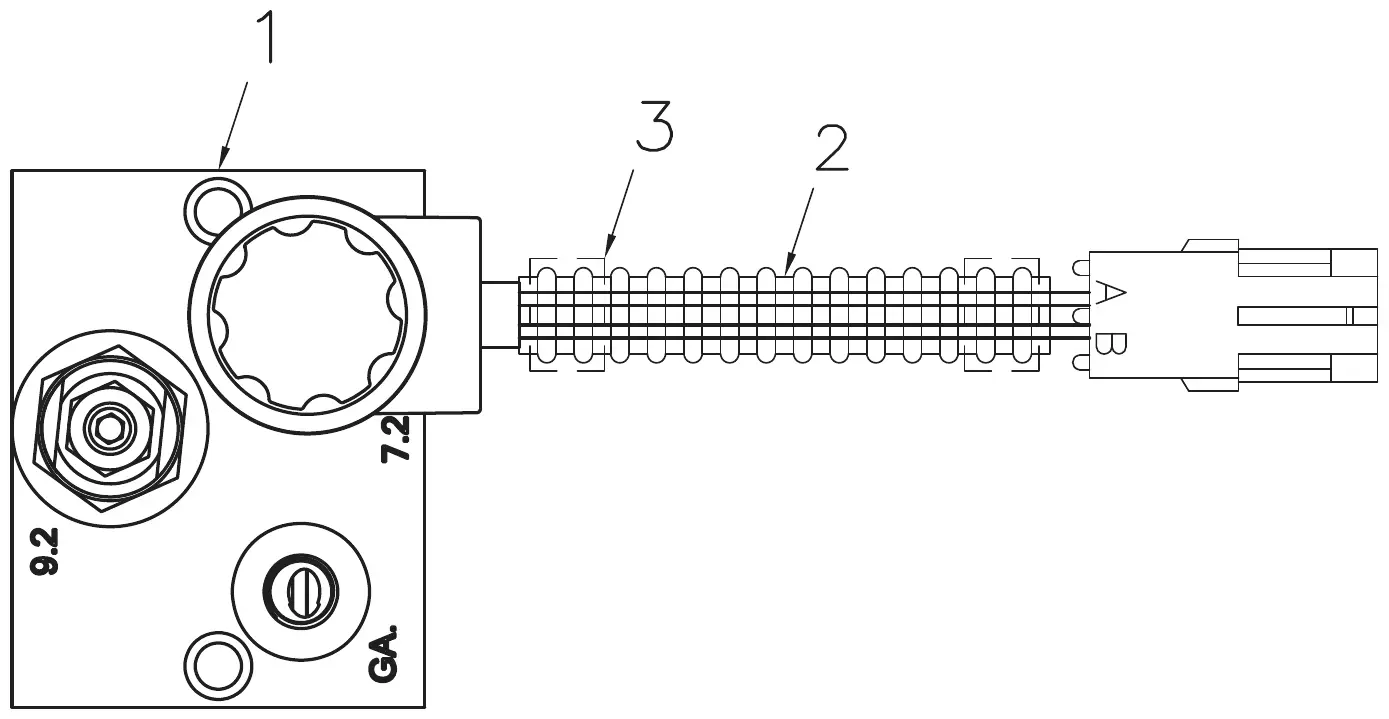

PowerBoss Nautilus impeller hydraulic manifold assembly parts
Catalog page 101 lists 3 parts lines for the impeller hydraulic manifold assembly; the drawing is on page 100. Manual pages 100, list 101.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM730790PowerBoss 730790 | 1 | MANIFOLD-IMPELLER | $593.63/EA |
| 2 | MM741231PowerBoss 741231 | 1 | CONDUIT- SPLIT 1/4 ID | $1.38/EA |
| 3 | MM000727PowerBoss 000727 | 1 | TAPE-ELECTRICAL 3/4" X 60FT ROLL BLACK | $3.17/EA |

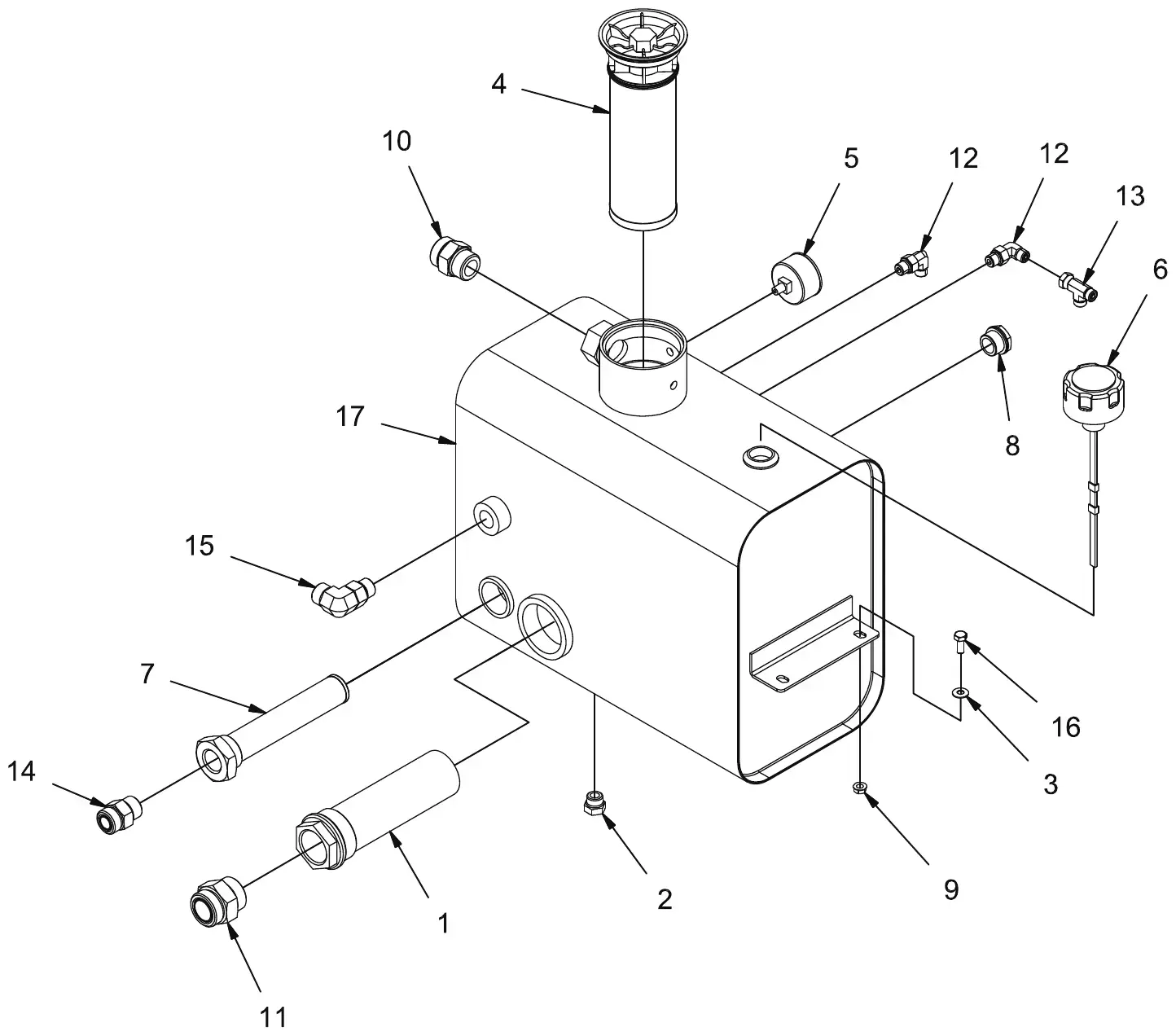

PowerBoss Nautilus hydraulic reservoir group parts
The hydraulic reservoir with its filter element, strainers, pressure gauge, filler-breather and sight gauge. Manual pages 102, list 103.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3343836PowerBoss 3343836 | 1 | STRAINER, HYDRAULIC, 20 | $120.21/EA |
| 2 | MM3400164PowerBoss 3400164 | 1 | FITTING, PLUG, 8 0-RING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM3400384PowerBoss 3400384 | 4 | WASHER, 5/16 BELLEVILLE | $1.08/EA |
| 4 | MM600182PowerBoss 600182 | 1 | FILTER ELEMENT, 10 MIC | $178.51/EA |
| 5 | MM600183PowerBoss 600183 | 1 | GAUGE, 0-60 PSI | $89.12/EA |
| 6 | MM600184PowerBoss 600184 | 1 | FILLER-BREATHER, 10 MIC | $69.81/EA |
| 7 | MM600185PowerBoss 600185 | 1 | STRAINER, 12 | $42.72/EA |
| 8 | MM600531PowerBoss 600531 | 1 | SIGHT GAUGE | $14.17/EA |
| 9 | MM600934PowerBoss 600934 | 4 | NUT, M8-1.25 FLNG | $1.11/EA |
| 10 | MM675505PowerBoss 675505 | 1 | FITTING, STR, 16 ORFS - 16 SAE | $14.44/EA |
| 11 | MM675539PowerBoss 675539 | 1 | FITTING, STR, 20 ORFS - 20 SAE | $15.89/EA |
| 12 | MM675546PowerBoss 675546 | 2 | FITTING, 90, 4 ORFS - 6 SAE | $8.42/EA |
| 13 | MM675549PowerBoss 675549 | 1 | FITTING, RUN TEE, 4 ORFS - 4 SAE | $11.94/EA |
| 14 | MM675534PowerBoss 675534 | 1 | FITTING, STR, 12 ORFS - 12 SAE | $8.53/EA |
| 15 | MM675557PowerBoss 675557 | 1 | FITTING, 90, 10 ORFS - 10 SAE | $11.78/EA |
| 16 | MM717024PowerBoss 717024 | 4 | BOLT, M8-1.25 X 20 HH | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM730309PowerBoss 730309 | 1 | TANK, HYD RESERVOIR | $1,038.59/EA |

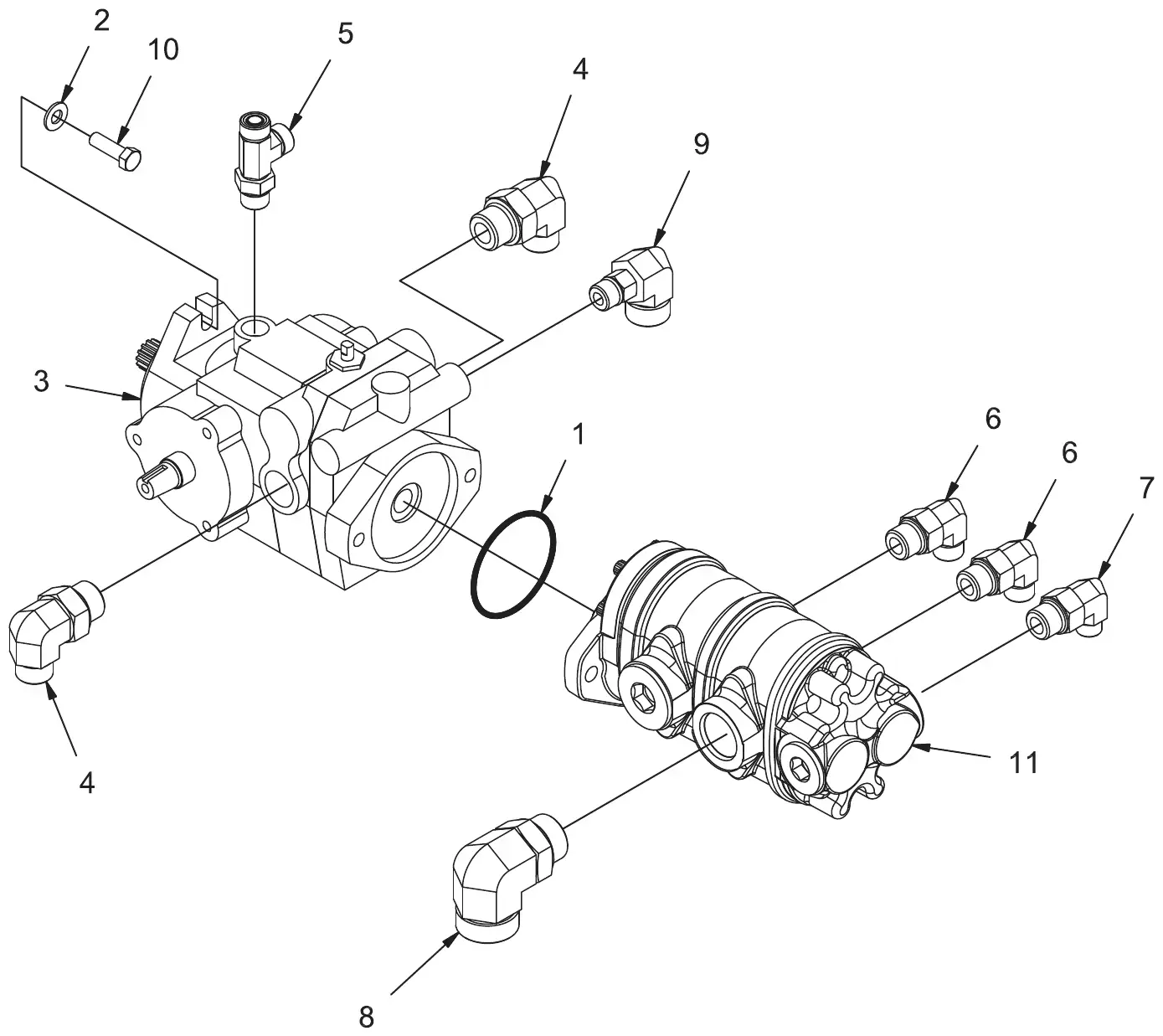

PowerBoss Nautilus hydraulic pump group, before serial 22PB1655 parts
The hydraulic pump group for machines before serial 22PB1655. Manual pages 104, list 105.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3303711PowerBoss 3303711 | 1 | O-RINGBefore serial 22PB1655. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM3400385PowerBoss 3400385 | 2 | WASHER,38,BELLEVILLEBefore serial 22PB1655. | $1.11/EA |
| 3 | MM600215PowerBoss 600215 | 1 | PUMP,PROPULSIONBefore serial 22PB1655. | $1,909.28/EA |
| 4 | MM675500PowerBoss 675500 | 2 | FTG-ELBOW-10ORFSTO-12SAEBefore serial 22PB1655. | $25.86/EA |
| 5 | MM675525PowerBoss 675525 | 1 | FITTING,RUNTEE,8ORFS-8ORFS-8SAEBefore serial 22PB1655. | $15.86/EA |
| 6 | MM675528PowerBoss 675528 | 2 | FITTING,90,-8ORFS-10SAEBefore serial 22PB1655. | $14.33/EA |
| 7 | MM675532PowerBoss 675532 | 1 | FITTING,90,6ORFS-10SAEBefore serial 22PB1655. | $17.00/EA |
| 8 | MM675538PowerBoss 675538 | 1 | FTG-ORFS 90 ELBOW -20 -20 SAEBefore serial 22PB1655. | $64.87/EA |
| 9 | MM675543PowerBoss 675543 | 1 | FITTING,90,12ORFS-8SAEBefore serial 22PB1655. | $28.47/EA |
| 10 | MM713043PowerBoss 713043 | 2 | SCREW,38-16X1.25HHBefore serial 22PB1655. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM730310PowerBoss 730310 | 1 | PUMP,AUXBefore serial 22PB1655. | Call to confirm part: 800-440-6723Call 800-440-6723 |

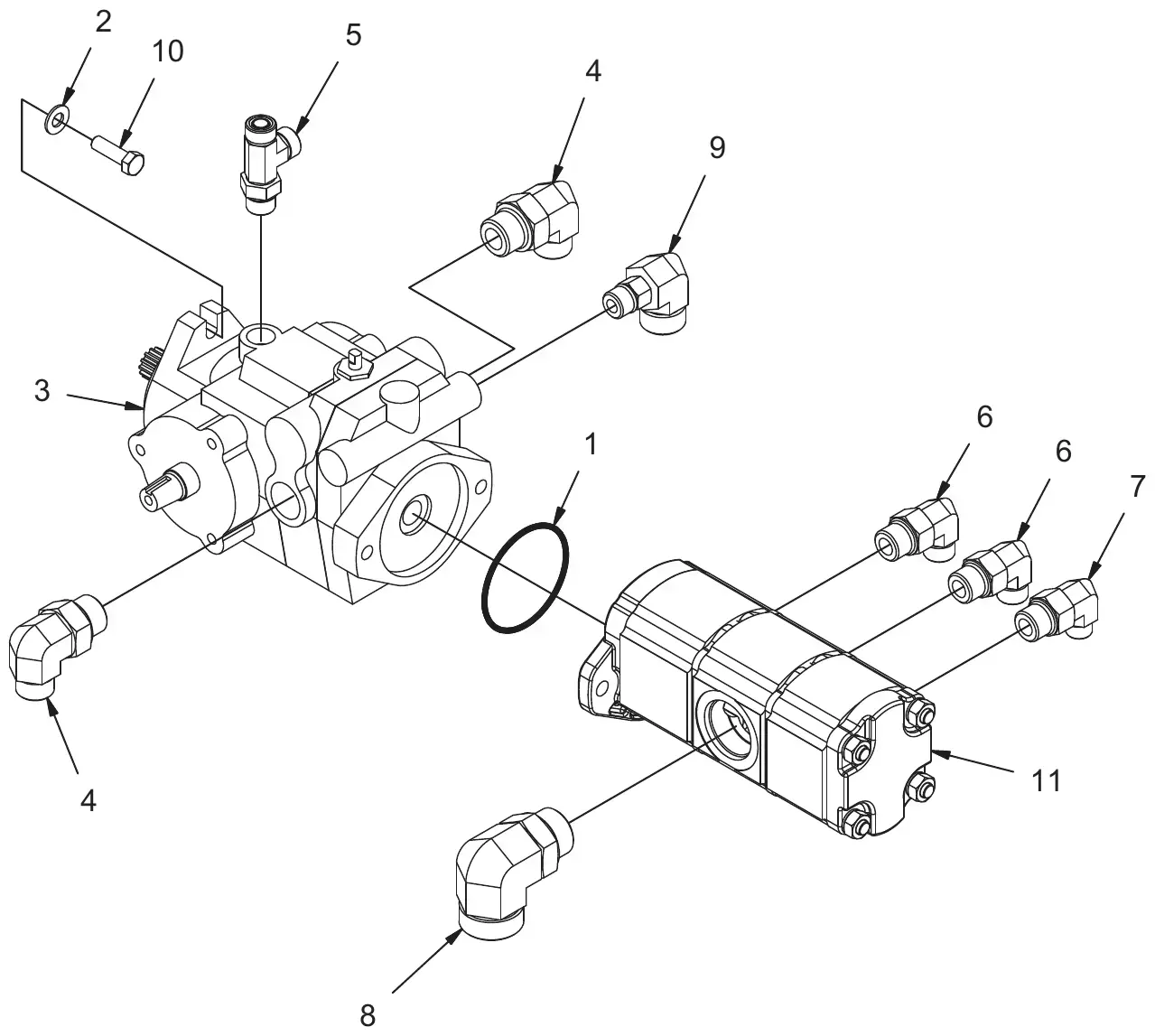

PowerBoss Nautilus hydraulic pump group, serial 22PB1655 and after parts
The hydraulic pump group for machines from serial 22PB1655 on. Manual pages 106, list 107.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3303711PowerBoss 3303711 | 1 | O-RINGSerial 22PB1655 and after. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM3400385PowerBoss 3400385 | 2 | WASHER,38,BELLEVILLESerial 22PB1655 and after. | $1.11/EA |
| 3 | MM600215PowerBoss 600215 | 1 | PUMP,PROPULSIONSerial 22PB1655 and after. | $1,909.28/EA |
| 4 | MM675500PowerBoss 675500 | 2 | FTG-ELBOW-10ORFSTO-12SAESerial 22PB1655 and after. | $25.86/EA |
| 5 | MM675525PowerBoss 675525 | 1 | FITTING,RUNTEE,8ORFS-8ORFS-8SAESerial 22PB1655 and after. | $15.86/EA |
| 6 | MM675528PowerBoss 675528 | 2 | FITTING,90,-8ORFS-10SAESerial 22PB1655 and after. | $14.33/EA |
| 7 | MM675532PowerBoss 675532 | 1 | FITTING,90,6ORFS-10SAESerial 22PB1655 and after. | $17.00/EA |
| 8 | MM675538PowerBoss 675538 | 1 | FTG-ORFS 90 ELBOW -20 -20 SAESerial 22PB1655 and after. | $64.87/EA |
| 9 | MM675543PowerBoss 675543 | 1 | FITTING,90,12ORFS-8SAESerial 22PB1655 and after. | $28.47/EA |
| 10 | MM713043PowerBoss 713043 | 2 | SCREW,38-16X1.25HHSerial 22PB1655 and after. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM770671PowerBoss 770671 | 1 | PUMP,AUXSerial 22PB1655 and after. | $1,732.50/EA |

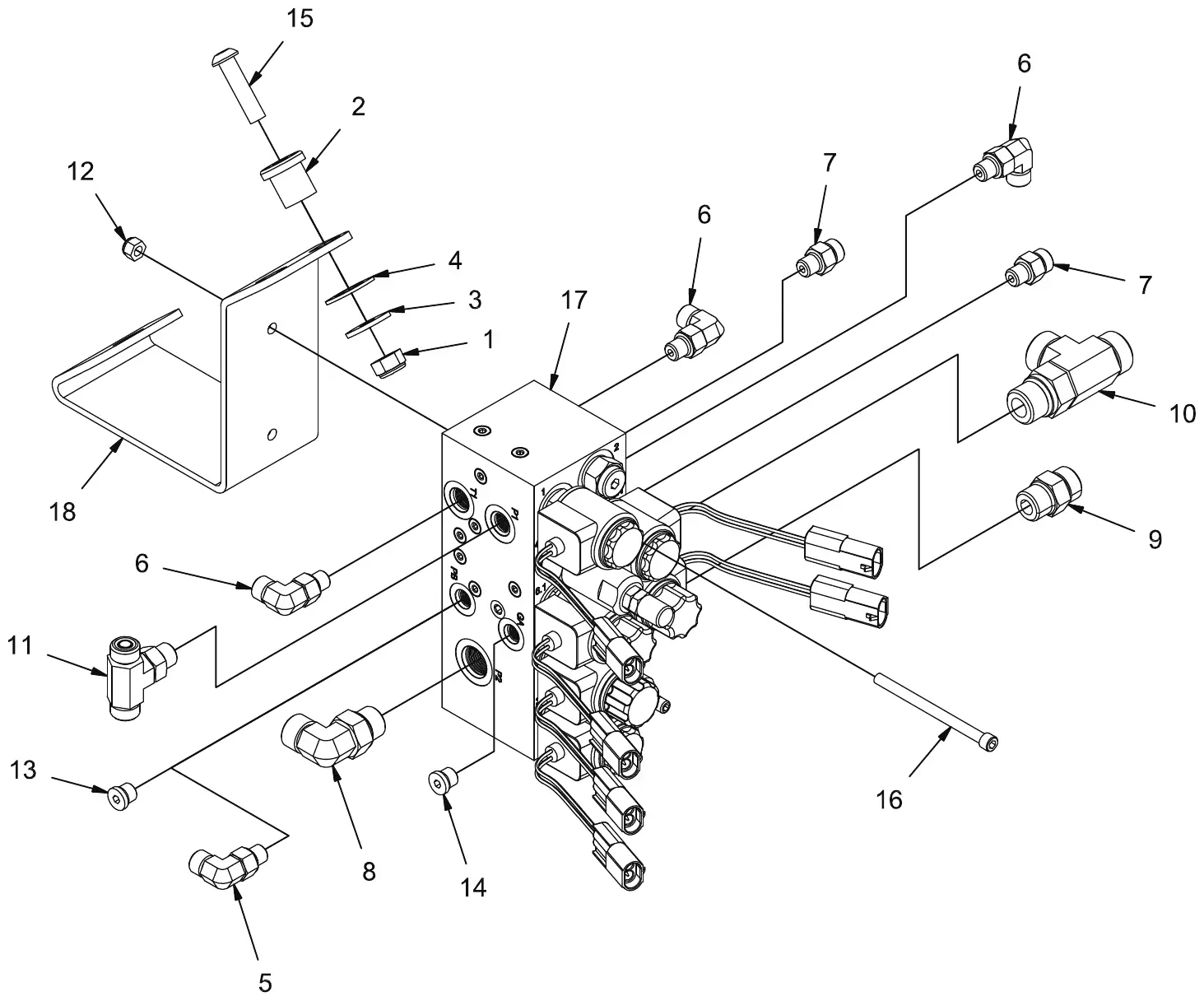

PowerBoss Nautilus hydraulic valve group parts
Catalog page 109 lists 18 parts lines for the hydraulic valve group; the drawing is on page 108. Manual pages 108, list 109.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040069PowerBoss 12040069 | 3 | NUT, M10-1.50 ESN | $6.92/EA |
| 2 | MM3300465PowerBoss 3300465 | 3 | ISOLATOR, VIB | $8.83/EA |
| 3 | MM600363PowerBoss 600363 | 3 | WASHER, ISOLATOR | $1.13/EA |
| 4 | MM66-431-APowerBoss 66-431-A | 3 | WASHER, .77 B 1.25 OD .075 T | $1.59/EA |
| 5 | MM675507PowerBoss 675507 | 1 | FITTING, 90, 4 ORFS - 4 SAE | $8.00/EA |
| 6 | MM675507PowerBoss 675507 | 3 | FITTING, 90, 4 ORFS - 4 SAE | $8.00/EA |
| 7 | MM675508PowerBoss 675508 | 2 | FITTING, STR, 4 ORFS - 4-SAE | $4.83/EA |
| 8 | MM675523PowerBoss 675523 | 1 | FITTING, 90, 8 ORFS - 8 SAE | $12.31/EA |
| 9 | MM675524PowerBoss 675524 | 1 | FITTING, STR, 8 ORFS - 8 SAE | $5.75/EA |
| 10 | MM675540PowerBoss 675540 | 1 | FITTING, RUN TEE, 10 ORFS - 10 SAE | $24.92/EA |
| 11 | MM675555PowerBoss 675555 | 1 | FITTING, TEE 6 ORFS - 6 SAE | $15.31/EA |
| 12 | MM711373PowerBoss 711373 | 2 | NUT, FIBER INSERT 1/4-20 | $1.10/EA |
| 13 | MM3331436PowerBoss 3331436 | 1 | FITTING, PLUG 4 0-RING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM3331436PowerBoss 3331436 | 1 | FITTING, PLUG, 4 0-RING (GAUGE PORT) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM730698PowerBoss 730698 | 3 | BOLT, M10-1.50 X 40 BUTTON HD CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM730699PowerBoss 730699 | 2 | BOLT, 1/4-20 X 3.50 SOC HD CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM730700PowerBoss 730700 | 1 | HYDRAULIC MANIFOLD ASSEMBLY | $2,759.61/EA |
| 18 | MM730711PowerBoss 730711 | 1 | MOUNT, MANIFOLD | $44.31/EA |

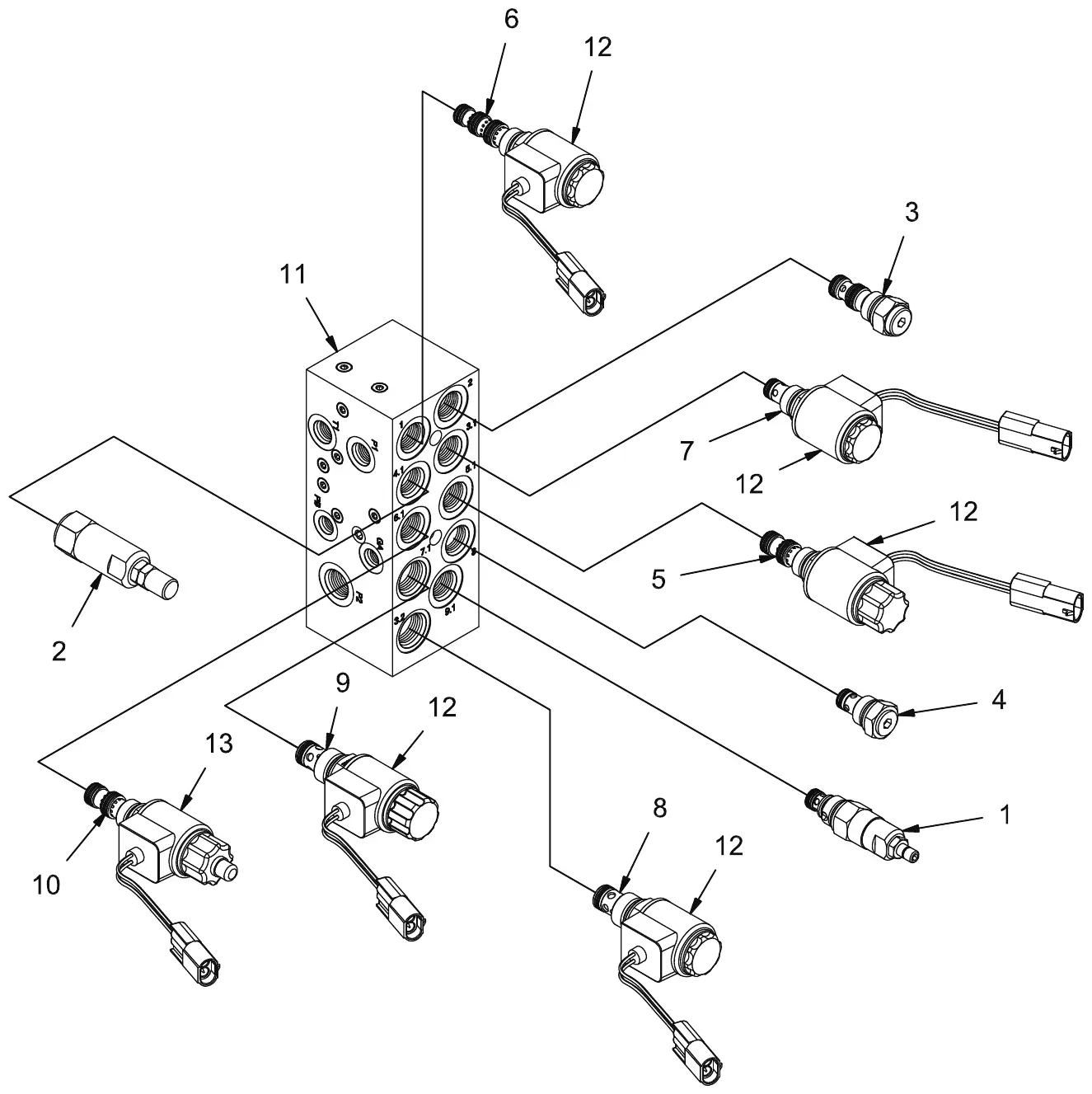

PowerBoss Nautilus hydraulic manifold components group parts
Catalog page 111 lists 13 parts lines for the hydraulic manifold components group; the drawing is on page 110. Manual pages 110, list 111.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM730701PowerBoss 730701 | 1 | PORT 9.1 - RV2 - RELIEF VALVE / RELIEF VALVE, DBOBP-01-C-N-330-V-250 | $118.06/EA |
| 2 | MM730065PowerBoss 730065 | 1 | PORT 4.1 - UP PRESSURE VALVE-600 PSI | $133.75/EA |
| 3 | MM730703PowerBoss 730703 | 1 | PORT 2 - CV2 - P.O. CHECK VALVE / P.O. CHECK VALVE, RPOBA-01-C-N-15-4 | $111.28/EA |
| 4 | MM730704PowerBoss 730704 | 1 | PORT 8 - CV1 - CHECK VALVE / CHECK VALVE, RVOBA-01-C-N-05 | $31.25/EA |
| 5 | MM730705PowerBoss 730705 | 1 | PORT 5.1 - SV5 - MAIN BRUSHES DOWN / SOL. VALVE, WKOBL-01-C-N-O | $93.67/EA |
| 6 | MM730706PowerBoss 730706 | 1 | PORT 1 - SV7 - SQUEEGEE UP-DN / SOL. VALVE, WKOBX-01-C-N-O | $122.64/EA |
| 7 | MM730707PowerBoss 730707 | 1 | PORT 3.1 - SV6 - MAIN BRUSHES UP-LOCK / SOL. VALVE, WSOBZR-01-C-N-O | $89.83/EA |
| 8 | MM730708PowerBoss 730708 | 1 | PORT 3.2 - SV3 - MAIN BRUSHES ON-OFF / SOL. VALVE, WS10ZR-01-C-N-O | $101.67/EA |
| 9 | MM730709PowerBoss 730709 | 1 | PORT 7.1 - SV2 - ALL OFF / SOL. VALVE, WS10Y-01-C-N-O | $144.22/EA |
| 10 | MM730710PowerBoss 730710 | 1 | PORT 6.1 - SV4 - BRUSH FORCE / PROP. RED. VALVE, PDROB-01-M-C-N-070 | $311.11/EA |
| 11 | MM731121PowerBoss 731121 | 1 | MANIFOLD BLOCK, MAIN C961-1 | $1,757.94/EA |
| 12 | MM731122PowerBoss 731122 | 5 | COIL, 12V, 3003124 | $51.68/EA |
| 13 | MM731226PowerBoss 731226 | 1 | COIL, PROPORTIONAL, 12PL-2.2-40-1836 | $46.67/EA |

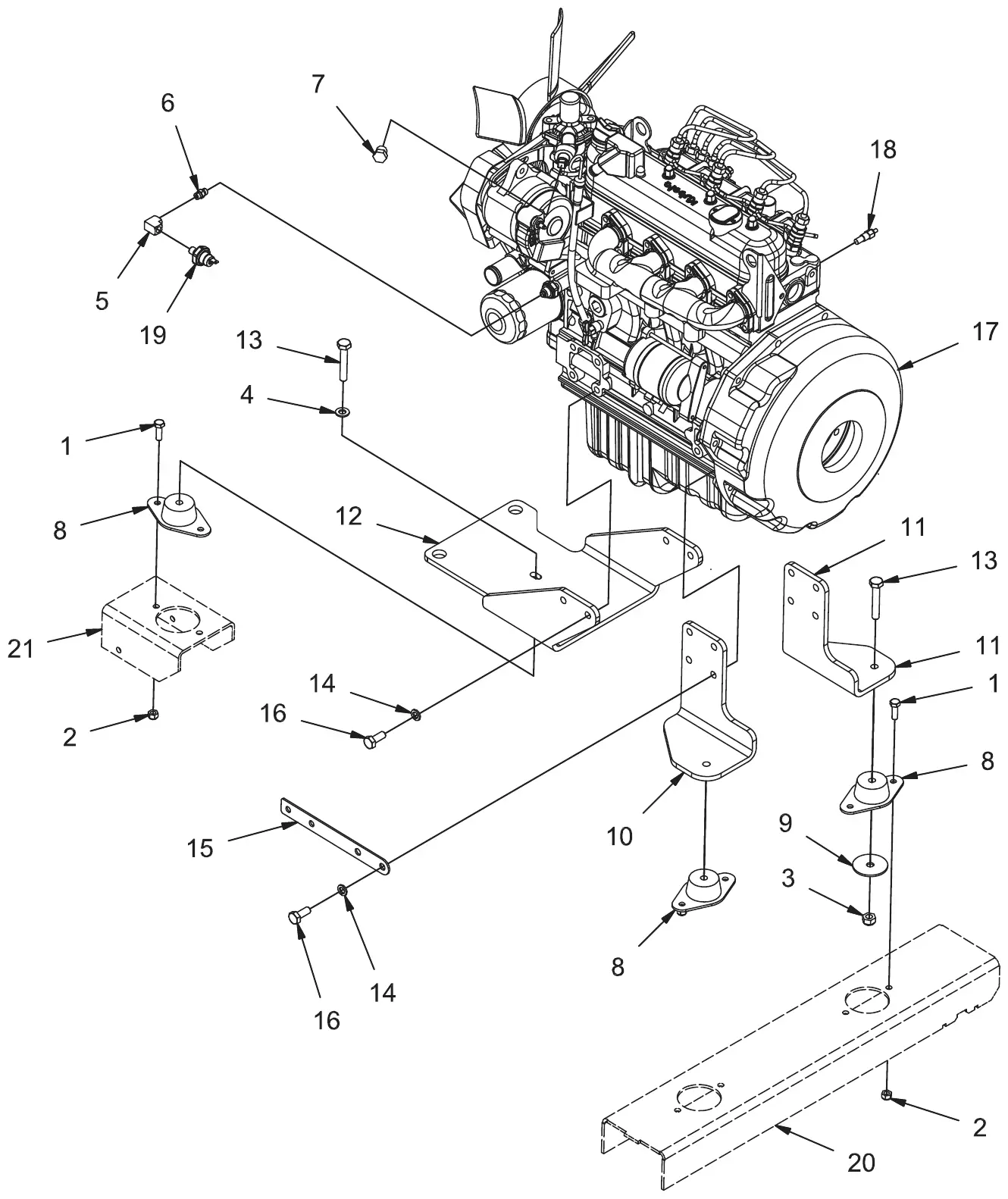

PowerBoss Nautilus engine mount group, diesel parts
Catalog page 113 lists 22 parts lines for the engine mount group, diesel; the drawing is on page 112. Fits diesel machines, cylindrical or disc. Manual pages 112, list 113.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038247PowerBoss 11038247 | 6 | BLT-HH M8-1.25 X 25 STL ZINCFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM12040051PowerBoss 12040051 | 6 | NUT, M8-1.25 ESNFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $4.15/EA |
| 3 | MM12040069PowerBoss 12040069 | 3 | NUT, M10-1.50 ESNFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $6.92/EA |
| 4 | MM12310058PowerBoss 12310058 | 1 | WASHER, M10Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $4.15/EA |
| 5 | MM3301720PowerBoss 3301720 | 1 | FTG, BRASS ELBOW, 1/8 FEMALE NPTFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $6.22/EA |
| 6 | MM3305640PowerBoss 3305640 | 1 | FITTING, NIPPLEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM3400194PowerBoss 3400194 | 1 | PIPE PLUG, BRASS, 3/8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $6.56/EA |
| 8 | MM600212PowerBoss 600212 | 3 | ISOLATOR, VIBRATIONFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $25.73/EA |
| 9 | MM600333PowerBoss 600333 | 3 | WASHER, SAFETYFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $4.25/EA |
| 10 | MM600881PowerBoss 600881 | 1 | MOUNT, REAR OUTER DIESEL ENGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $47.72/EA |
| 11 | MM600882PowerBoss 600882 | 1 | MOUNT, REAR INNER DIESEL ENGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $47.72/EA |
| 12 | MM600899PowerBoss 600899 | 1 | MOUNT, FRONT DIESEL ENGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $141.33/EA |
| 13 | MM600925PowerBoss 600925 | 3 | BOLT, M10-1.50 X 60 HHFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM600945PowerBoss 600945 | 12 | LOCK WASHER, M10Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 15 | MM620081PowerBoss 620081 | 1 | MOUNT, HARNESSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $41.67/EA |
| 16 | MM620082PowerBoss 620082 | 12 | BOLT, M10-1.25 X 25 HH ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM620234FPowerBoss 620234F | 1 | ENGINE, DSL, KUBOTA V1505Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $12,028.21/EA |
| 18 | No number printedPowerBoss no number printed | 1 | SWITCH, WATER TEMP (603000)Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Included in 620234. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | No number printedPowerBoss no number printed | 1 | SWITCH, OIL PRESSURE (603001)Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Included in 620234. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM748535PowerBoss 748535 | 1 | HARNESS ASSY, ENGINE GROUNDFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $26.64/EA |

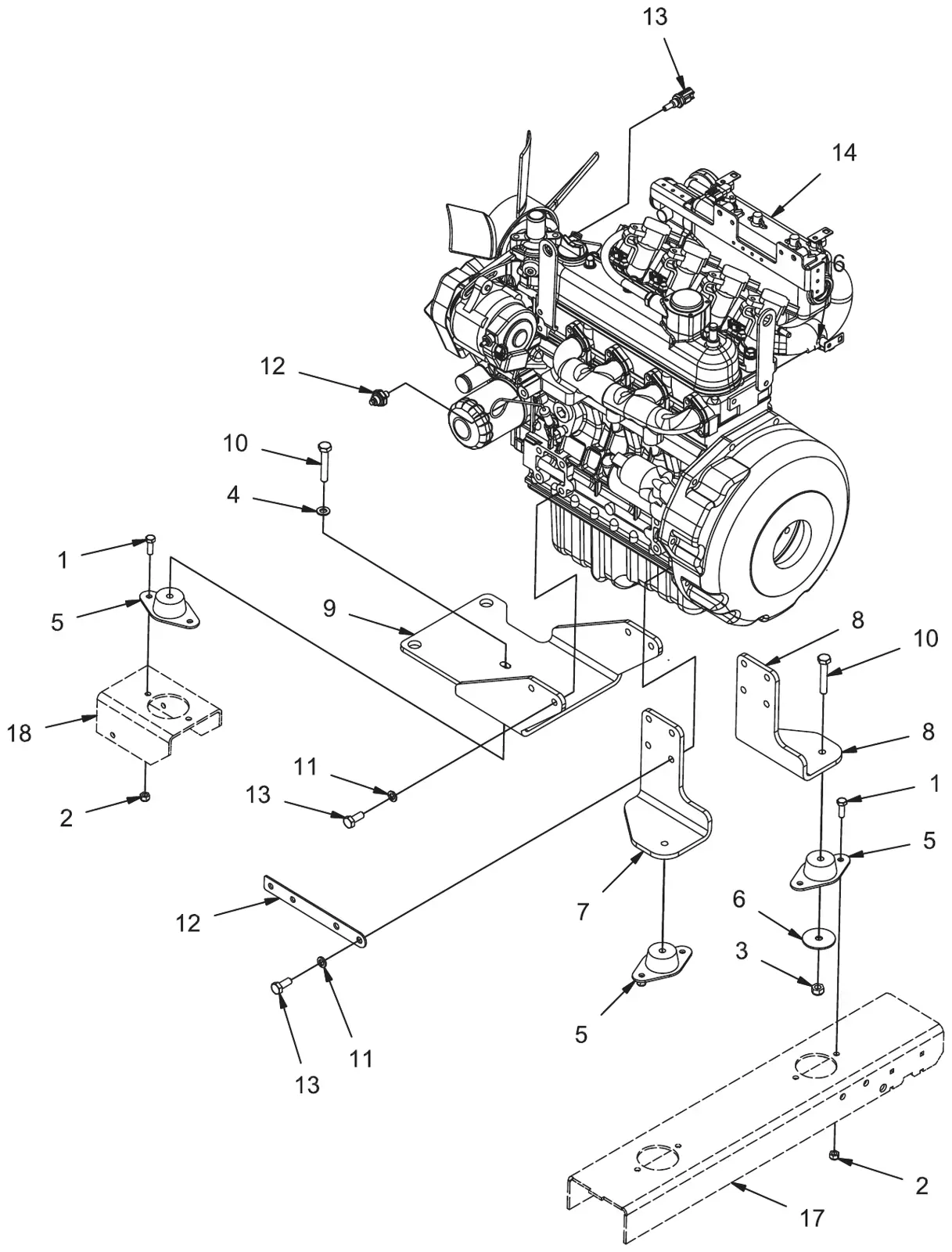

PowerBoss Nautilus engine mount group, gas parts
Catalog page 115 lists 19 parts lines for the engine mount group, gas; the drawing is on page 114. Fits gas machines, cylindrical or disc. Manual pages 114, list 115.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038247PowerBoss 11038247 | 6 | BLT-HH M8-1.25 X 25 STL ZINCFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM12040051PowerBoss 12040051 | 6 | NUT, M8-1.25 ESNFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $4.15/EA |
| 3 | MM12040069PowerBoss 12040069 | 3 | NUT, M10-1.50 ESNFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $6.92/EA |
| 4 | MM12310058PowerBoss 12310058 | 1 | WASHER, M10Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $4.15/EA |
| 5 | MM600212PowerBoss 600212 | 3 | ISOLATOR, VIBRATIONFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $25.73/EA |
| 6 | MM600333PowerBoss 600333 | 3 | WASHER, SAFETYFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $4.25/EA |
| 7 | MM600881PowerBoss 600881 | 1 | MOUNT, REAR OUTER DIESEL ENGFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $47.72/EA |
| 8 | MM600882PowerBoss 600882 | 1 | MOUNT, REAR INNER DIESEL ENGFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $47.72/EA |
| 9 | MM600899PowerBoss 600899 | 1 | MOUNT, FRONT DIESEL ENGFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $141.33/EA |
| 10 | MM600925PowerBoss 600925 | 3 | BOLT, M10-1.50 X 60 HHFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM600945PowerBoss 600945 | 12 | LOCK WASHER, M10Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.11/EA |
| 12 | MM620081PowerBoss 620081 | 1 | MOUNT, HARNESSFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $41.67/EA |
| 13 | MM620082PowerBoss 620082 | 12 | BOLT, M10-1.25 X 25 HH ZPFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM620700PowerBoss 620700 | 1 | KUBOTA GAS ENGINEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $16,999.91/EA |
| 15 | No number printedPowerBoss no number printed | 1 | SWITCH, OIL PRESSURE (603001)Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. Included in 620236. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | No number printedPowerBoss no number printed | 1 | SWITCH, WATER TEMP (603000)Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. Included in 620236. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM748535PowerBoss 748535 | 1 | HARNESS ASSY, ENGINE GROUNDFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $26.64/EA |

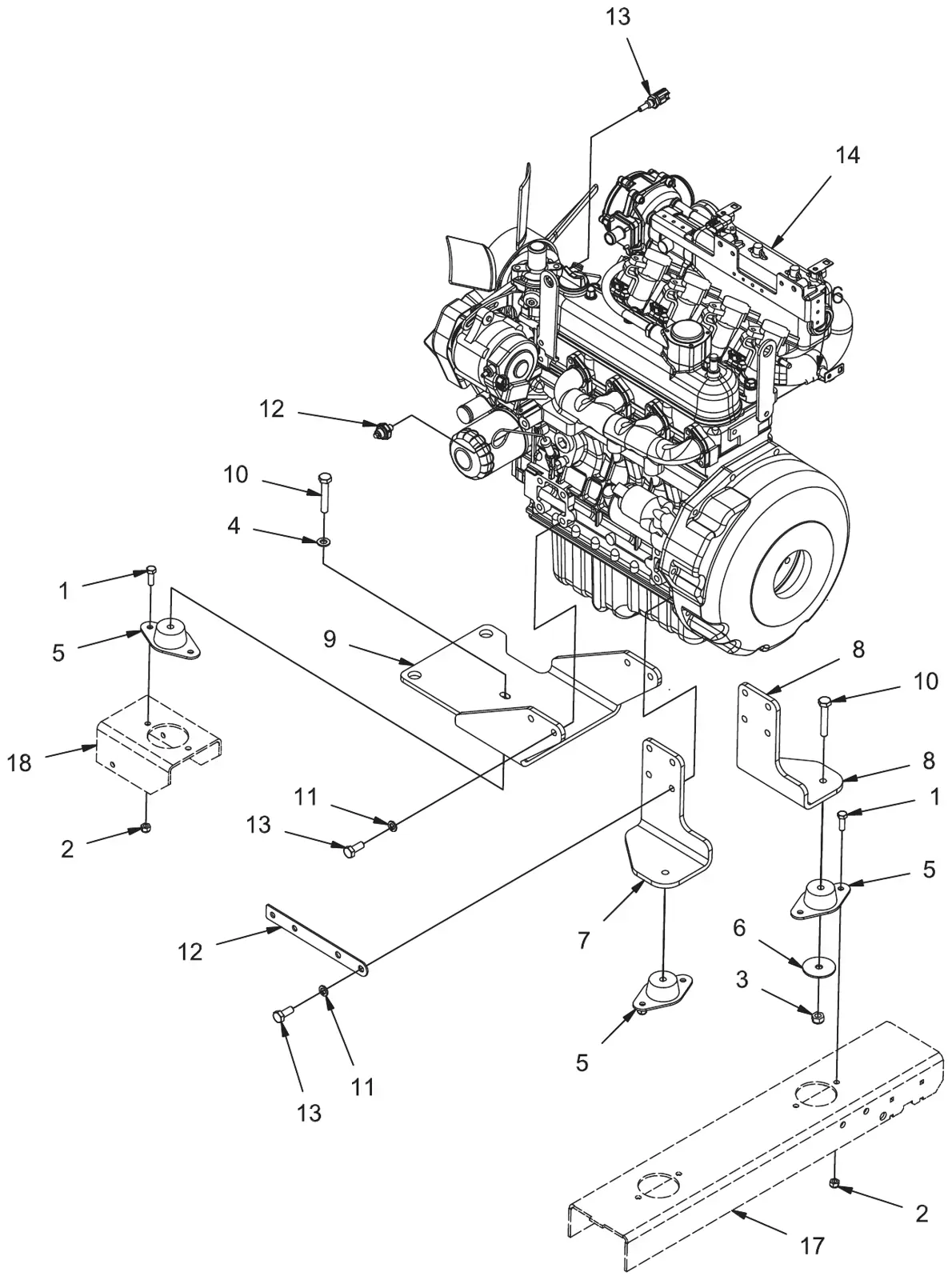

PowerBoss Nautilus engine mount group, LPG parts
Catalog page 117 lists 19 parts lines for the engine mount group, LPG; the drawing is on page 116. Fits LPG machines, cylindrical or disc. Manual pages 116, list 117.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038247PowerBoss 11038247 | 6 | BLT-HH M8-1.25 X 25 STL ZINCFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM12040051PowerBoss 12040051 | 6 | NUT, M8-1.25 ESNFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $4.15/EA |
| 3 | MM12040069PowerBoss 12040069 | 3 | NUT, M10-1.50 ESNFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $6.92/EA |
| 4 | MM12310058PowerBoss 12310058 | 1 | WASHER, M10Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $4.15/EA |
| 5 | MM600212PowerBoss 600212 | 3 | ISOLATOR, VIBRATIONFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $25.73/EA |
| 6 | MM600333PowerBoss 600333 | 3 | WASHER, SAFETYFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $4.25/EA |
| 7 | MM600881PowerBoss 600881 | 1 | MOUNT, REAR OUTER DIESEL ENGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $47.72/EA |
| 8 | MM600882PowerBoss 600882 | 1 | MOUNT, REAR INNER DIESEL ENGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $47.72/EA |
| 9 | MM600899PowerBoss 600899 | 1 | MOUNT, FRONT DIESEL ENGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $141.33/EA |
| 10 | MM600925PowerBoss 600925 | 3 | BOLT, M10-1.50 X 60 HHFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM600945PowerBoss 600945 | 12 | LOCK WASHER, M10Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.11/EA |
| 12 | MM620081PowerBoss 620081 | 1 | MOUNT, HARNESSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $41.67/EA |
| 13 | MM620082PowerBoss 620082 | 12 | BOLT, M10-1.25 X 25 HH ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM620699PowerBoss 620699 | 1 | KUBOTA ENGINEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $18,363.51/EA |
| 15 | No number printedPowerBoss no number printed | 1 | SWITCH, OIL PRESSURE (603001)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. Included in 620235. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | No number printedPowerBoss no number printed | 1 | SWITCH, WATER TEMP (603000)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. Included in 620235. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM748535PowerBoss 748535 | 1 | HARNESS ASSY, ENGINE GROUNDFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $26.64/EA |

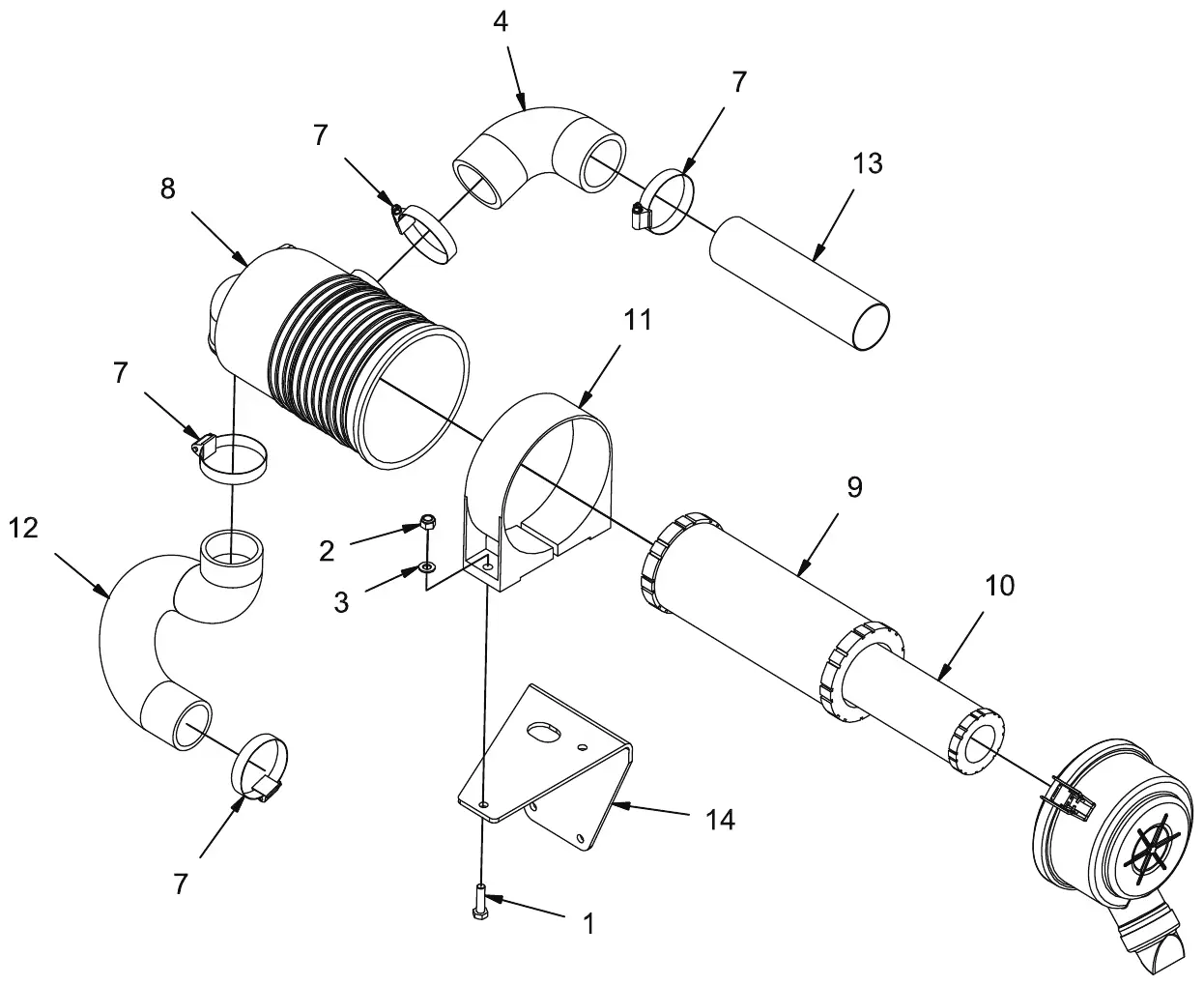

PowerBoss Nautilus air cleaner group, diesel parts
The diesel air cleaner with its primary and safety filter elements. Fits diesel machines. Manual pages 118, list 119.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038254PowerBoss 11038254 | 2 | BOLT, M8-125 X 30 HHFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM12040051PowerBoss 12040051 | 2 | NUT, M8-1.25 ESNFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $4.15/EA |
| 3 | MM12310041PowerBoss 12310041 | 2 | WASHER, M8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $2.75/EA |
| 4 | MM3300396PowerBoss 3300396 | 1 | ADAPTER, 2" 90Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $30.36/EA |
| 5 | MM3303991PowerBoss 3303991 | 1 | INDICATOR, FLTR SERVICEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $75.03/EA |
| 6 | MM3305640PowerBoss 3305640 | 1 | FITTING, NIPPLEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM3312189PowerBoss 3312189 | 4 | CLAMP, HOSE, 2.00Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $5.15/EA |
| 8 | MM3317917PowerBoss 3317917 | 1 | HOUSING, AIR FLTRFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM3321143PowerBoss 3321143 | 1 | ELEMENT, FLTR, PRIMARYFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $77.48/EA |
| 10 | MM3322572PowerBoss 3322572 | 1 | ELEMENT, FLTR, SAFETYFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $44.13/EA |
| 11 | MM600385PowerBoss 600385 | 1 | MOUNTING BAND, AIR CLEANERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $19.71/EA |
| 12 | MM730319PowerBoss 730319 | 1 | HOSE, AIR INTAKE, DIESELFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $40.89/EA |
| 13 | MM730393PowerBoss 730393 | 1 | TUBE, AIR CLEANER INTAKEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $36.83/EA |
| 14 | MM731188PowerBoss 731188 | 1 | MOUNT, AIR CLEANERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $72.57/EA |

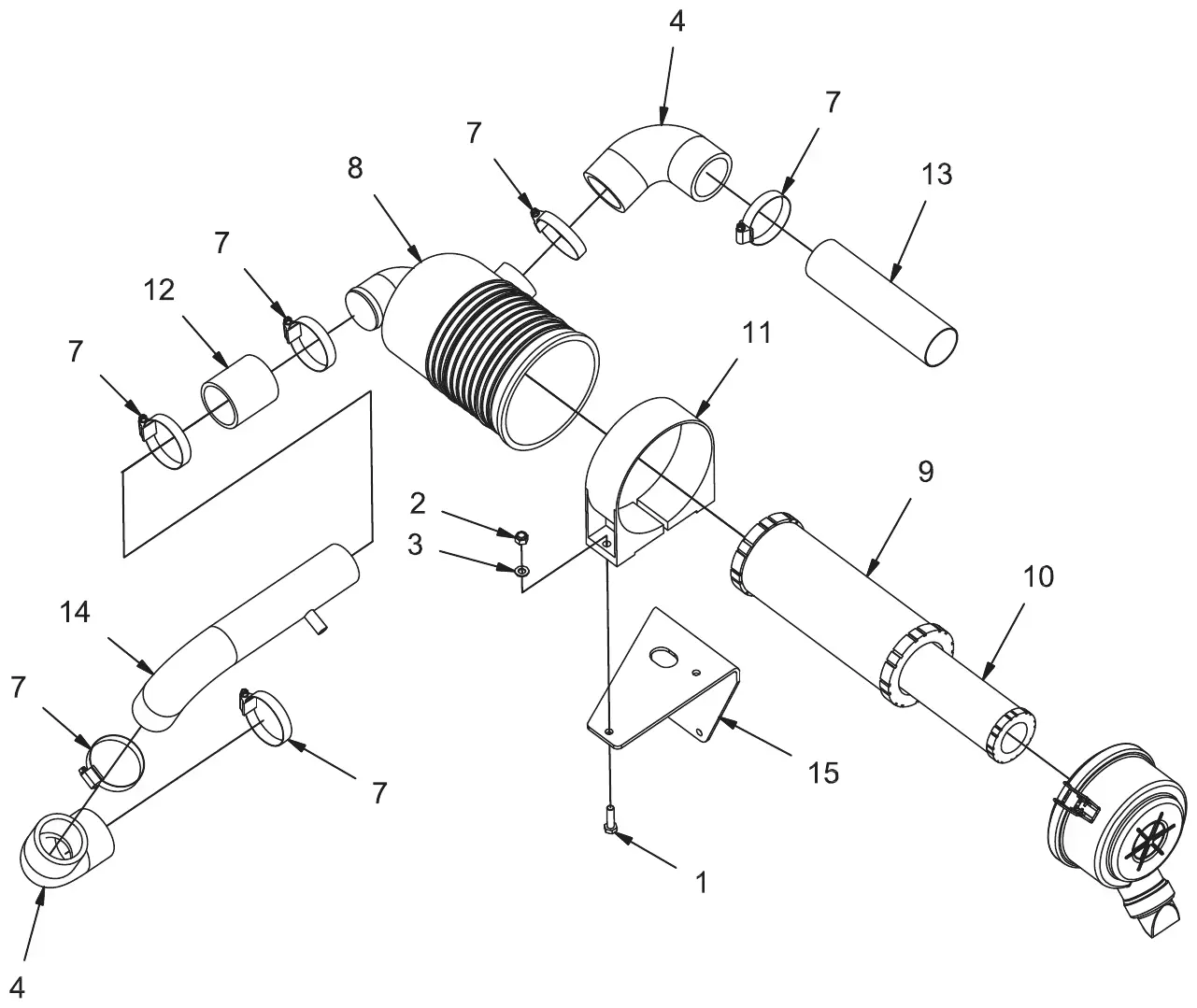

PowerBoss Nautilus air cleaner group, gas parts
The gas air cleaner with its primary and safety filter elements. Fits gas machines. Manual pages 120, list 121.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038254PowerBoss 11038254 | 2 | BOLT, M8-125 X 30 HHFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM12040051PowerBoss 12040051 | 2 | NUT, M8-1.25 ESNFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $4.15/EA |
| 3 | MM12310041PowerBoss 12310041 | 2 | WASHER, M8Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $2.75/EA |
| 4 | MM3300396PowerBoss 3300396 | 2 | ADAPTER, 2" 90Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $30.36/EA |
| 5 | MM3303991PowerBoss 3303991 | 1 | INDICATOR, FLTR SERVICEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $75.03/EA |
| 6 | MM3305640PowerBoss 3305640 | 1 | FITTING, NIPPLEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM3312189PowerBoss 3312189 | 6 | CLAMP, HOSE, 2.00Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $5.15/EA |
| 8 | MM3317917PowerBoss 3317917 | 1 | HOUSING, AIR FLTRFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM3321143PowerBoss 3321143 | 1 | ELEMENT, FLTR, PRIMARYFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $77.48/EA |
| 10 | MM3322572PowerBoss 3322572 | 1 | ELEMENT, FLTR, SAFETYFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $44.13/EA |
| 11 | MM600385PowerBoss 600385 | 1 | MOUNTING BAND, AIR CLEANERFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $19.71/EA |
| 12 | MM730056PowerBoss 730056 | 1 | HOSE, 2.00 X 3.00Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $20.83/EA |
| 13 | MM730393PowerBoss 730393 | 1 | TUBE, AIR CLEANER INTAKEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $36.83/EA |
| 14 | MM731110PowerBoss 731110 | 1 | WELDMENT, GAS AIR INTAKEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $820.56/EA |
| 15 | MM731188PowerBoss 731188 | 1 | MOUNT, AIR CLEANERFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $72.57/EA |

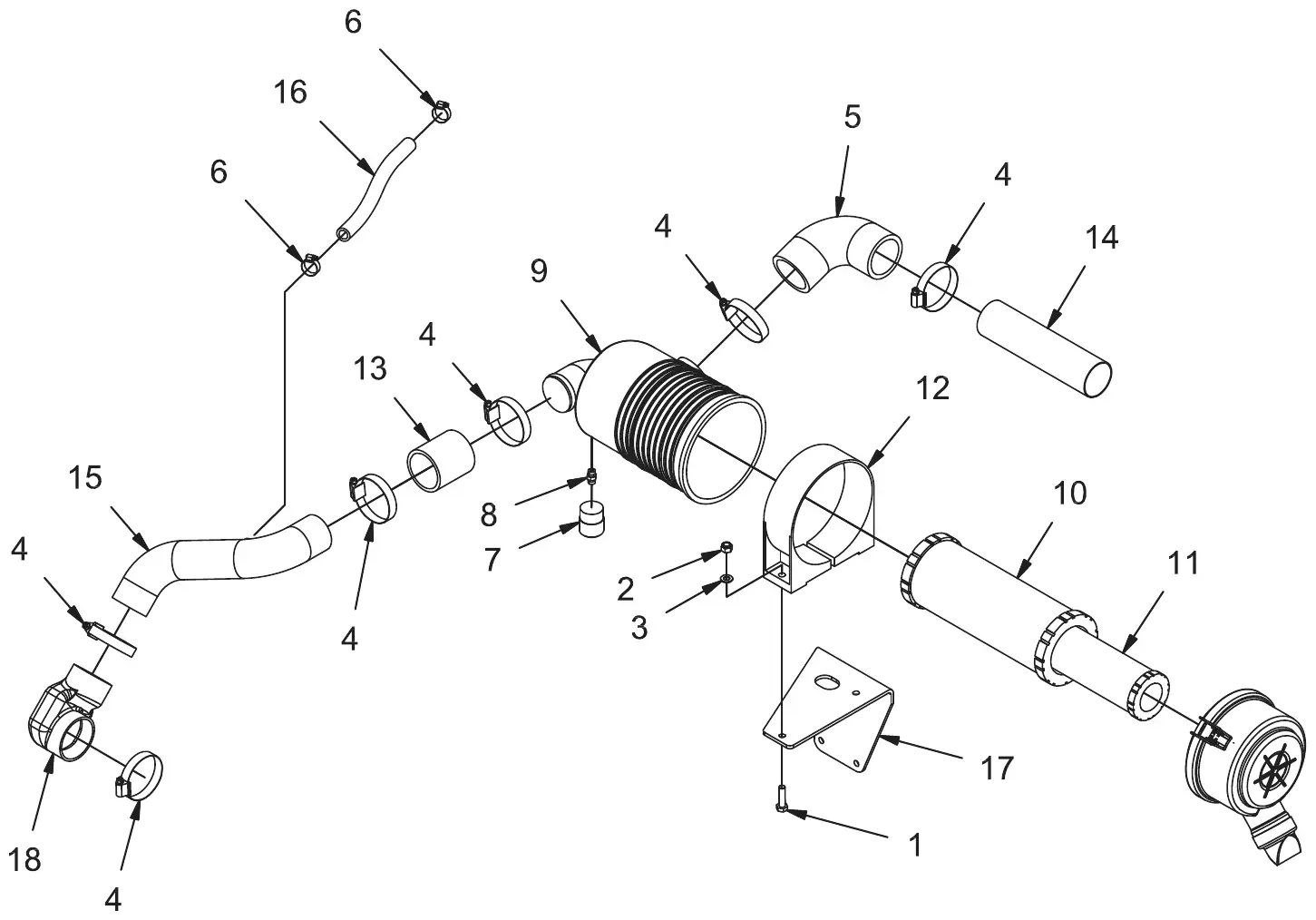

PowerBoss Nautilus air cleaner group, LPG parts
The LPG air cleaner with its restriction indicator and primary and safety elements. Fits LPG machines. Manual pages 122, list 123.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 2 | MM12040051PowerBoss 12040051 | 2 | NUT-NYLOC M8 X 1.25 ZP CLASS 8Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $4.15/EA |
| 3 | MM12310041PowerBoss 12310041 | 2 | WASHER-FLAT M8.4 X 16 X 1.6 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $2.75/EA |
| 4 | MM3044112PowerBoss 3044112 | 6 | CLAMP - SCREW 1.5" to 2.5" DIA 201SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.28/EA |
| 5 | MM3300396PowerBoss 3300396 | 1 | ADAPTER-90 ELL RUBBER H DUTY ACFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $30.36/EA |
| 6 | MM3300535PowerBoss 3300535 | 2 | CLAMP - SCREW .5" to 1.25" DIA 201SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.56/EA |
| 7 | MM3303991PowerBoss 3303991 | 1 | INDICATOR-AIR CLEANER RESTRICTIONFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $75.03/EA |
| 8 | MM3305640PowerBoss 3305640 | 1 | FTG-NIPPLE 1/8BPT-1/8NPT BRASSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $64.42/EA |
| 9 | MM3317917PowerBoss 3317917 | 1 | AIR CLEANER-RADIAL FPG STYLE(PLASTIC)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $103.56/EA |
| 10 | MM3321143PowerBoss 3321143 | 1 | ELEMENT-AIR CLNR/PLASTIC (SP)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $77.48/EA |
| 11 | MM3322572PowerBoss 3322572 | 1 | ELEMENT-AIR CLNR/PLASTIC SAFETY (SP)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $44.13/EA |
| 12 | MM600385PowerBoss 600385 | 1 | MOUNT BAND AIR CLEANERFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $19.71/EA |
| 13 | MM730056PowerBoss 730056 | 1 | HOSE 2.00 ID X 3.00 LGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $20.83/EA |
| 14 | MM730393PowerBoss 730393 | 1 | TUBE, AIR CLEANER INTAKE BLKFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $36.83/EA |
| 15 | MM731128PowerBoss 731128 | 1 | WELDMENT, LPG AIR INTAKEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $313.29/EA |
| 16 | MM731175PowerBoss 731175 | 1 | HOSE, PCV, 16 INFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $12.18/EA |
| 17 | MM731188PowerBoss 731188 | 1 | MOUNT, AIR CLEANER BLKFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $72.57/EA |
| 17 | MM731188PowerBoss 731188 | 1 | MOUNT, AIR CLEANERFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $72.57/EA |

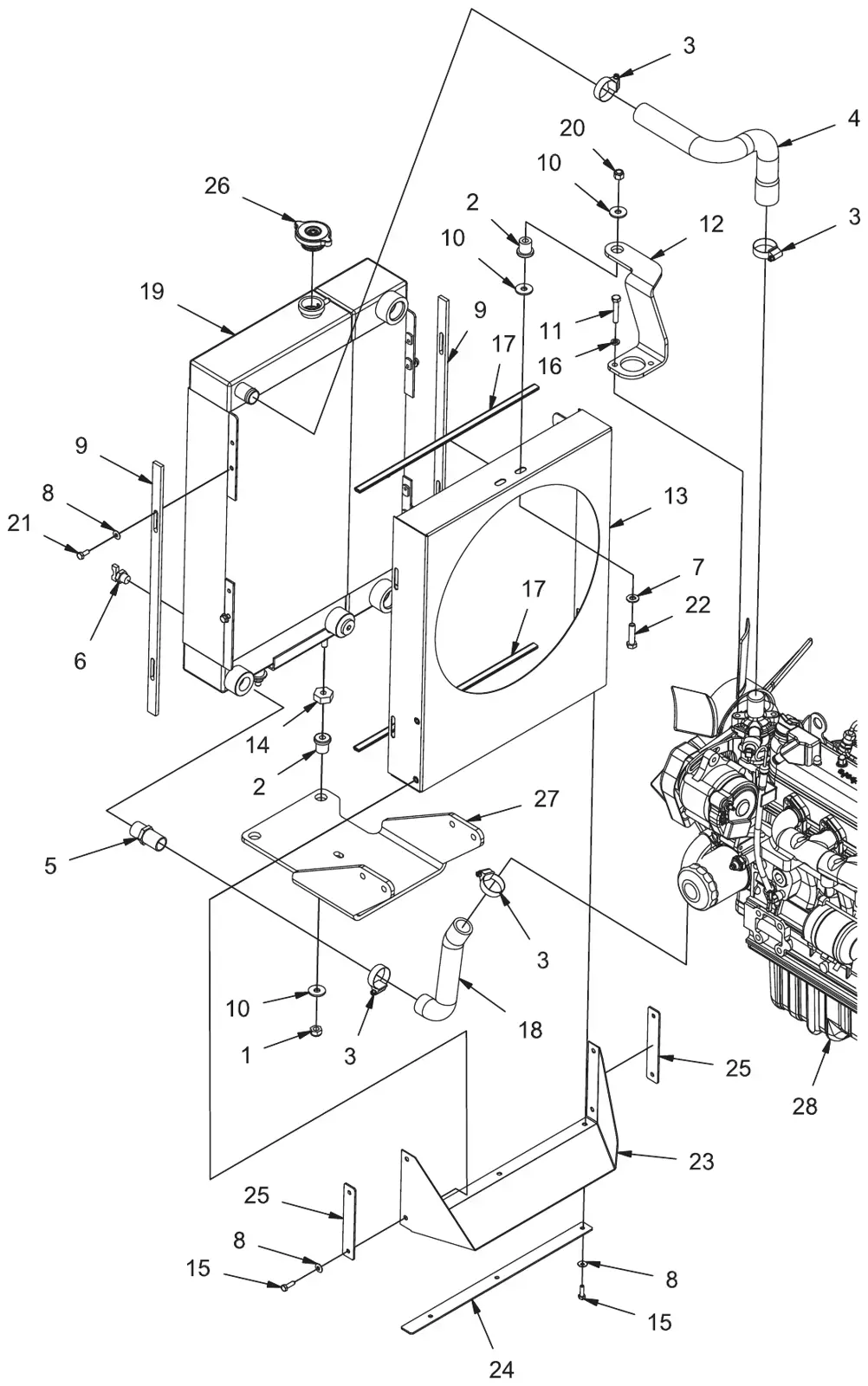

PowerBoss Nautilus radiator group parts
Catalog page 125 lists 28 parts lines for the radiator group; the drawing is on page 124. Manual pages 124, list 125.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040069PowerBoss 12040069 | 2 | NUT, M10-1.50 ESN | $6.92/EA |
| 2 | MM3300465PowerBoss 3300465 | 3 | ISOLATOR, VIB | $8.83/EA |
| 3 | MM3302193PowerBoss 3302193 | 4 | CLAMP, HOSE, .75 - 1.25 | $5.49/EA |
| 4 | MM3332643PowerBoss 3332643 | 1 | HOSE, UPPER RAD, DIESEL | $85.27/EA |
| 5 | MM3344231PowerBoss 3344231 | 1 | FITTING, RADIATOR | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM3344232PowerBoss 3344232 | 1 | PETCOCK | $8.77/EA |
| 7 | MM712301PowerBoss 712301 | 1 | WASHER, 3/8 | $1.08/EA |
| 8 | MM3400383PowerBoss 3400383 | 4 | WASHER, 1/4 BELLEVILLE | $1.08/EA |
| 9 | MM600198PowerBoss 600198 | 2 | SPACER, SHROUD | $54.26/EA |
| 10 | MM600363PowerBoss 600363 | 4 | WASHER, ISOLATOR | $1.13/EA |
| 11 | MM600820PowerBoss 600820 | 2 | BOLT, M8-1.25 X 45 HH | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM600867PowerBoss 600867 | 1 | MOUNT, UPPER SHROUD, DIESEL | $38.83/EA |
| 13 | MM600875-1PowerBoss 600875-1 | 1 | ASSEMBLY, FAN SHROUD, DIESEL | $127.96/EA |
| 14 | MM600884PowerBoss 600884 | 2 | SPACER, ISOLATOR | $11.27/EA |
| 15 | MM600913PowerBoss 600913 | 7 | BOLT, M6-1.00 X 20 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM600959PowerBoss 600959 | 2 | LOCK WASHER, M8 | $1.08/EA |
| 17 | MM620064PowerBoss 620064 | 2 | SEAL, SHROUD | $4.53/EA |
| 18 | MM690020PowerBoss 690020 | 1 | HOSE, LOWER RADIATOR | $29.75/EA |
| 19 | MM690125PowerBoss 690125 | 1 | RADIATOR - OIL COOLER | $1,385.42/EA |
| 20 | MM711380PowerBoss 711380 | 1 | NUT, FIBER INSERT 3/8-16 | $1.08/EA |
| 21 | MM713001PowerBoss 713001 | 4 | SCREW, 1/4-20 X .625 HHC | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM713044PowerBoss 713044 | 1 | SCREW, 3/8-16 X 1.50 HHC | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM731580PowerBoss 731580 | 1 | SHIELD | $32.22/EA |
| 24 | MM731581PowerBoss 731581 | 1 | RETAINER, BOTTOM | $17.04/EA |
| 25 | MM731582PowerBoss 731582 | 2 | RETAINER, SIDE | $8.15/EA |
| 26 | No number printedPowerBoss no number printed | 1 | RADIATOR CAPIncluded in 3336679. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | No number printedPowerBoss no number printed | 1 | FRONT ENGINE MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | No number printedPowerBoss no number printed | 1 | ENGINEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |

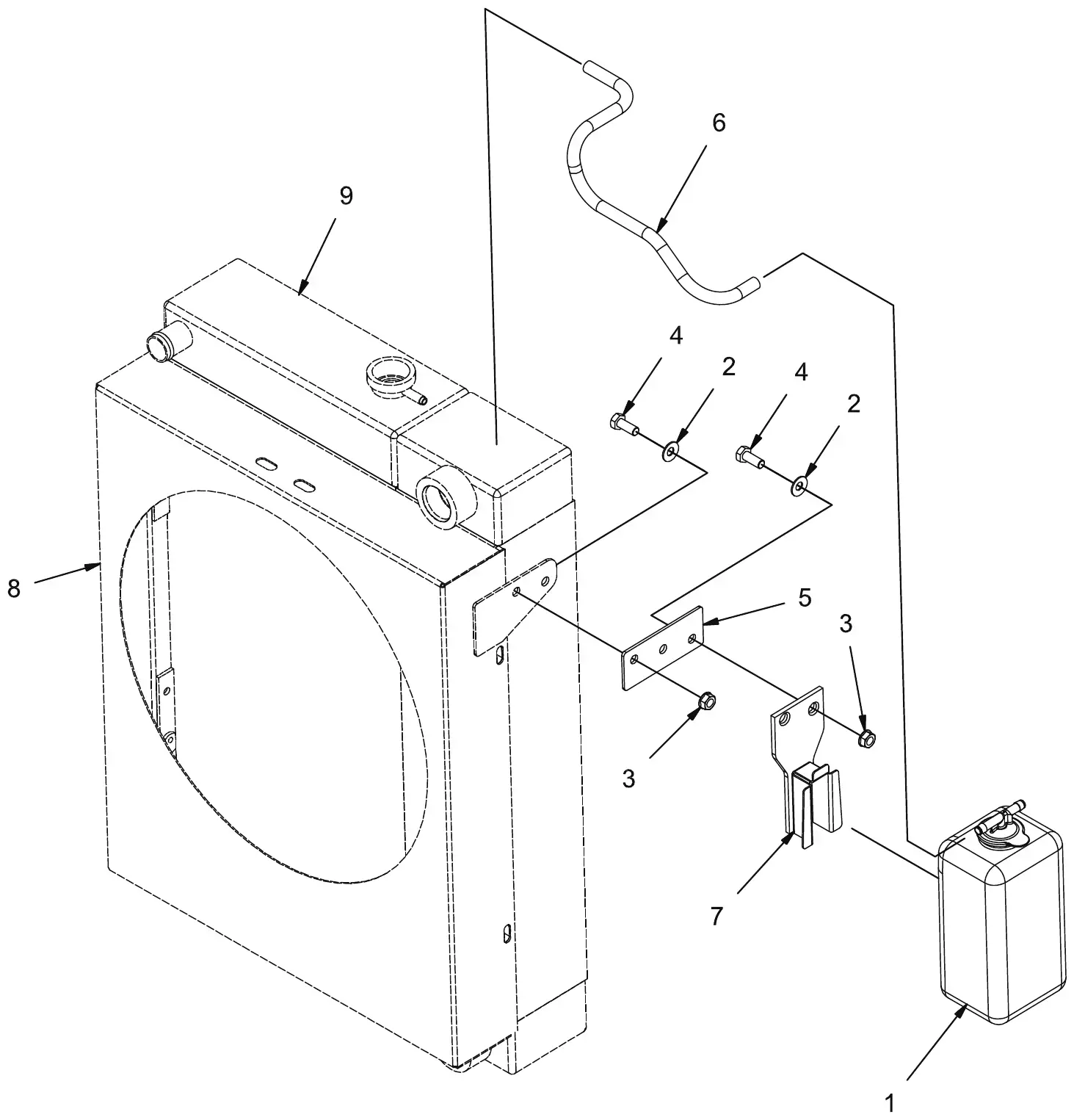

PowerBoss Nautilus radiator overflow bottle group parts
Catalog page 127 lists 9 parts lines for the radiator overflow bottle group; the drawing is on page 126. Manual pages 126, list 127.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3318752PowerBoss 3318752 | 1 | OVERFLOW BOTTLE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM3400384PowerBoss 3400384 | 3 | WASHER, 5/16 BELLEVILLE | $1.08/EA |
| 3 | MM600934PowerBoss 600934 | 3 | NUT, M8-1.25 FLNG | $1.11/EA |
| 4 | MM717024PowerBoss 717024 | 3 | BOLT, M8-1.25 X 20 HH | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | MM731165PowerBoss 731165 | 1 | MOUNT, OVERFLOW BOTTLE | $8.57/EA |
| 6 | No number printedPowerBoss no number printed | 1 | HOSE, OVERFLOWIncluded in 3318752. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | No number printedPowerBoss no number printed | 1 | BRACKET, BOTTLEIncluded in 3318752. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | No number printedPowerBoss no number printed | 1 | FAN SHROUD, DIESELPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | No number printedPowerBoss no number printed | 1 | RADIATORPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |

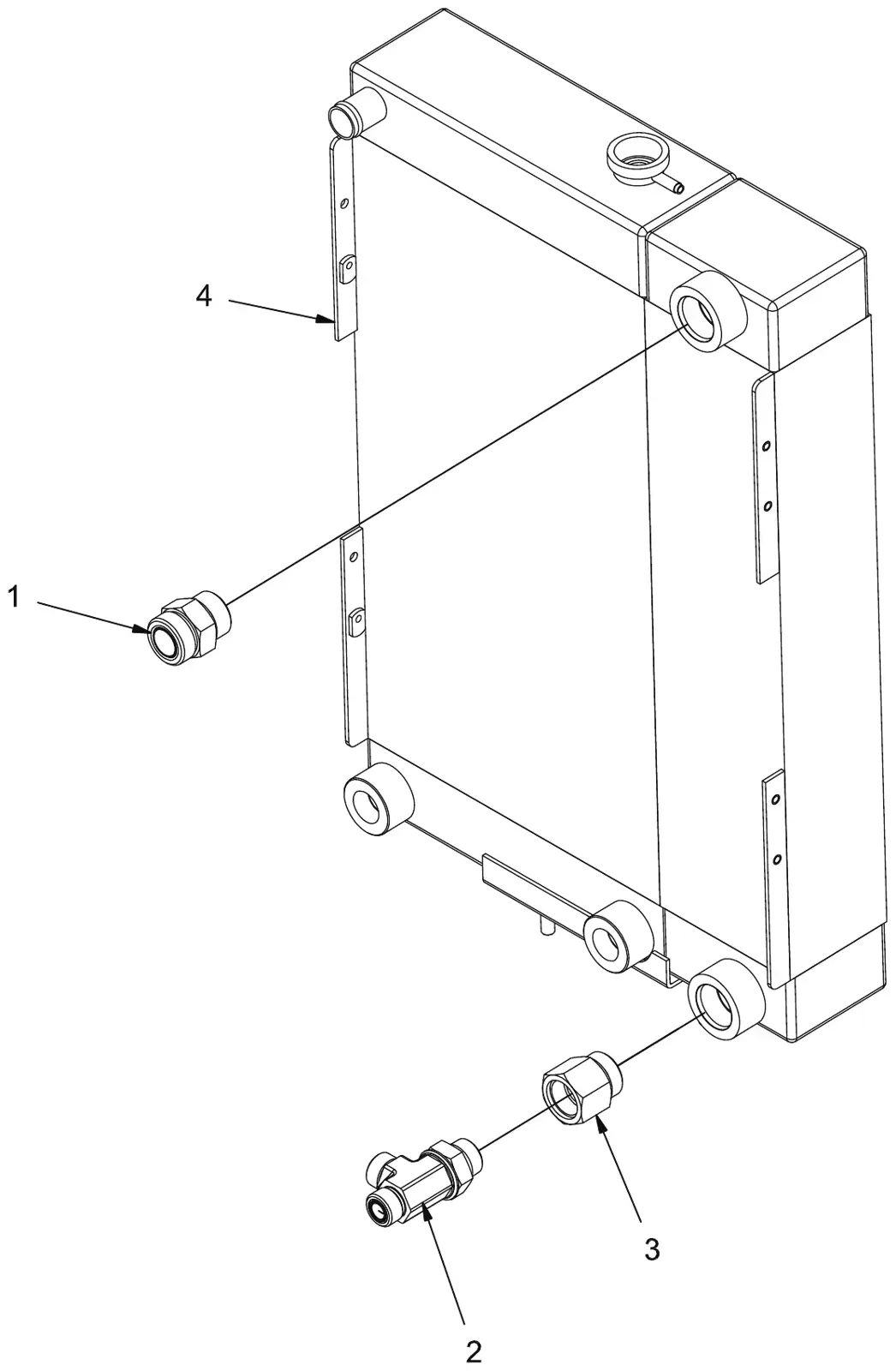

PowerBoss Nautilus oil cooler group parts
Catalog page 129 lists 4 parts lines for the oil cooler group; the drawing is on page 128. Manual pages 128, list 129.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM675505PowerBoss 675505 | 1 | FITTING, STR, 16 ORFS - 16 SAE | $14.44/EA |
| 2 | MM675554PowerBoss 675554 | 1 | FITTING, TEE, 10 ORFS - 12 SAE | $61.56/EA |
| 3 | MM675558PowerBoss 675558 | 1 | FITTING, REDUCER, 16 0-RING TO 12 0-RING | $11.22/EA |
| 4 | No number printedPowerBoss no number printed | 1 | RADIATOR - OIL COOLERPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |

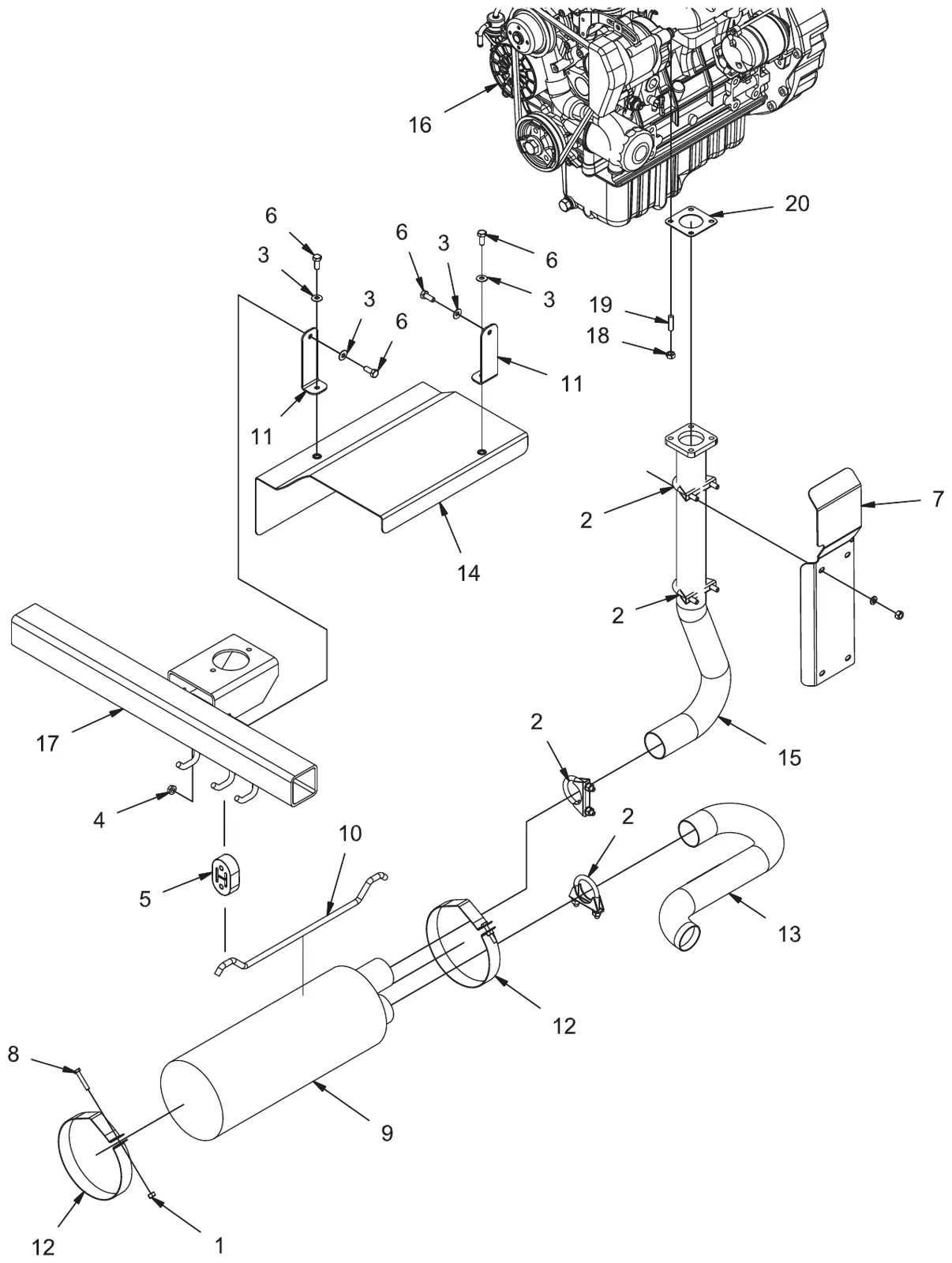

PowerBoss Nautilus exhaust group, diesel parts
Catalog page 131 lists 20 parts lines for the exhaust group, diesel; the drawing is on page 130. Fits diesel machines, cylindrical or disc. Manual pages 130, list 131.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12022042PowerBoss 12022042 | 2 | NUT, M6-1.00 HEXFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 2 | MM3302917PowerBoss 3302917 | 4 | CLAMP, EXHAUST, 2 INFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $19.42/EA |
| 3 | MM3400384PowerBoss 3400384 | 4 | WASHER, 5/16 BELLEVILLEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 4 | MM600934PowerBoss 600934 | 1 | NUT, M8-1.25 FLNGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 5 | MM620205PowerBoss 620205 | 1 | EXHAUST ISOLATORFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $14.44/EA |
| 6 | MM717024PowerBoss 717024 | 4 | BOLT, M8-1.25 X 20 HHFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM730419PowerBoss 730419 | 1 | HEAT SHIELDFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $48.61/EA |
| 8 | MM730508PowerBoss 730508 | 2 | BOLT, M6-1.00 X 35 HH FULL THREAD SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.25/EA |
| 9 | MM731177PowerBoss 731177 | 1 | MUFFLERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $551.94/EA |
| 10 | MM731178PowerBoss 731178 | 1 | HANGER, MUFFLERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $30.52/EA |
| 11 | MM731179PowerBoss 731179 | 2 | MOUNT, HEAT SHIELDFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $25.00/EA |
| 12 | MM731180PowerBoss 731180 | 2 | STRAP, MUFFLERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $29.03/EA |
| 13 | MM731219PowerBoss 731219 | 1 | TAIL PIPEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $119.92/EA |
| 14 | MM731220-1PowerBoss 731220-1 | 1 | ASSEMBLY, HEAT SHIELD - DIESELFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $150.50/EA |
| 15 | MM731222PowerBoss 731222 | 1 | EXHAUST PIPE - DIESELFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $203.40/EA |
| 16 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | No number printedPowerBoss no number printed | 1 | FRAMEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | No number printedPowerBoss no number printed | 1 | NUT, M8-1.25 XXFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as WITH ENGINE; comes with the engine. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | No number printedPowerBoss no number printed | 1 | STUD, M8-1.25Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as WITH ENGINE; comes with the engine. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | No number printedPowerBoss no number printed | 1 | GASKET, EXHAUSTFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as WITH ENGINE; comes with the engine. | Call to confirm part: 800-440-6723Call 800-440-6723 |

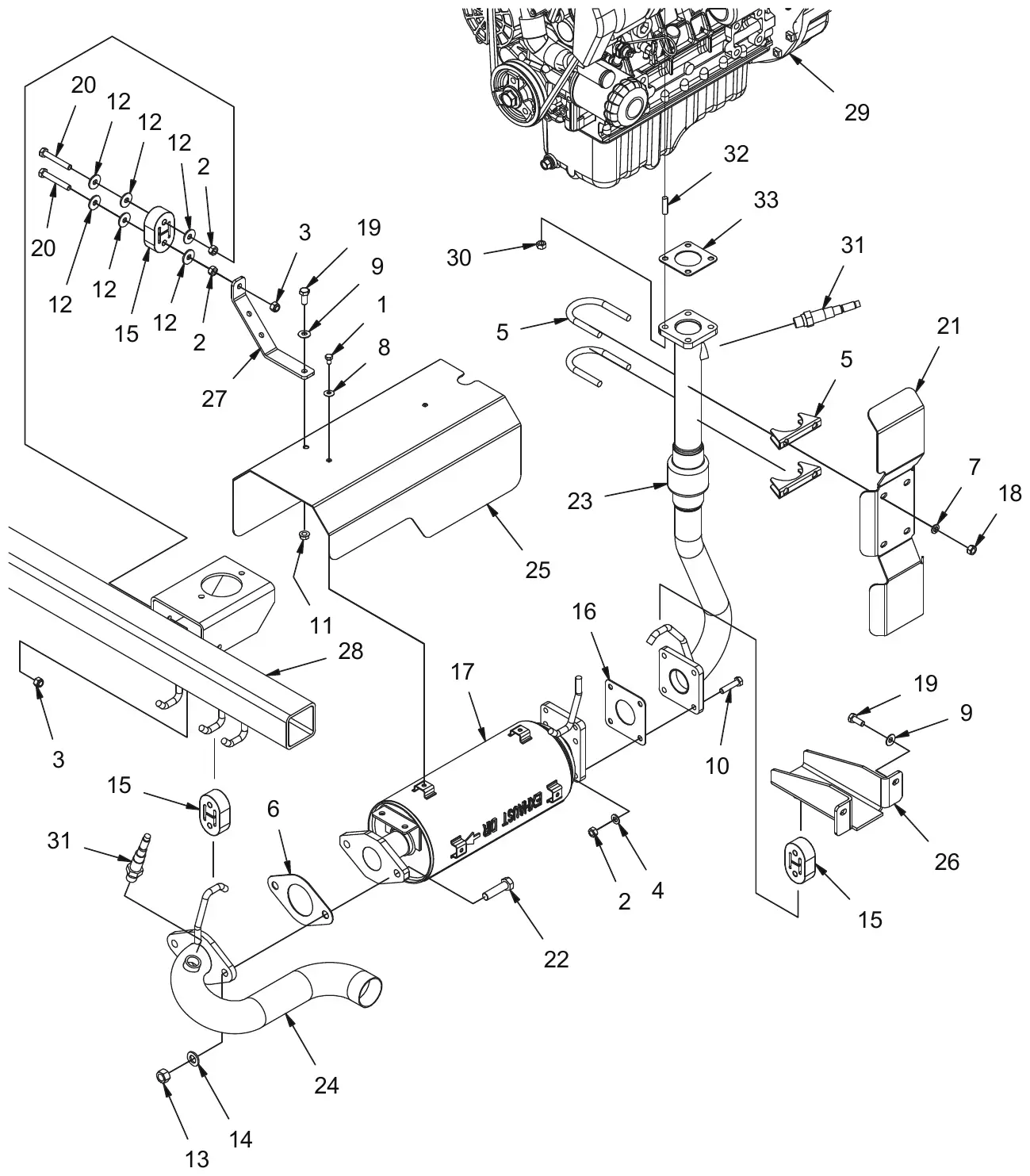

PowerBoss Nautilus exhaust group, gas / LP parts
Catalog page 133 lists 33 parts lines for the exhaust group, gas / LP; the drawing is on page 132. Fits gas and LPG machines, cylindrical or disc. Manual pages 132, list 133.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038056PowerBoss 11038056 | 2 | BLT-HH M6 X 1.0 X 10 STL ZD 8.8 DIN 933Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $5.51/EA |
| 2 | MM12022059PowerBoss 12022059 | 6 | NUT-HEX M8 X 1.25 STL ZD CL8 DIN 934Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $5.51/EA |
| 3 | MM12040051PowerBoss 12040051 | 2 | NUT-NYLOC M8 X 1.25 ZP CLASS 8Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $4.15/EA |
| 4 | MM12310041PowerBoss 12310041 | 4 | WASHER-FLAT M8.4 X 16 X 1.6 ZPFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $2.75/EA |
| 5 | MM3301641PowerBoss 3301641 | 2 | CLAMP-EXHAUST 1 1/2Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $8.32/EA |
| 6 | MM3345028PowerBoss 3345028 | 1 | GASKET-CAT 1605 INLETFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $15.61/EA |
| 7 | MM711545PowerBoss 711545 | 4 | WASHER-LOCK 5/16 SPLIT ZPFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.08/EA |
| 8 | MM3400383PowerBoss 3400383 | 2 | WASHER-CONICAL SPRING 1/4Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.08/EA |
| 9 | MM3400384PowerBoss 3400384 | 3 | WASHER-CONICAL SPRING 5/16Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.08/EA |
| 10 | MM600918PowerBoss 600918 | 4 | SCR-HH M8-1.25 X 35 ZP CLASS 8.8Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.11/EA |
| 11 | MM600934PowerBoss 600934 | 1 | NUT-FLANGE WIZZ M8-1.25 ZPFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.11/EA |
| 12 | MM600940PowerBoss 600940 | 6 | WASHER-FENDER M8 X 24 ZPFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.11/EA |
| 13 | MM600949PowerBoss 600949 | 2 | NUT-HEX M12-1.75 ZP CLASS 8Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.11/EA |
| 14 | MM600950PowerBoss 600950 | 2 | WASHER-FLAT M12 ZPFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.08/EA |
| 15 | MM620205PowerBoss 620205 | 3 | EXHAUST ISOLATORFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $14.44/EA |
| 16 | MM690190PowerBoss 690190 | 1 | GASKET, CATALYST, 4 BOLT - 9X LP/GASFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $20.28/EA |
| 17 | MM690191PowerBoss 690191 | 1 | CATALYTIC CONVERTER, LP-GASFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1,942.22/EA |
| 18 | MM711319PowerBoss 711319 | 4 | NUT-HEX 5/16-18 ZPFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.08/EA |
| 19 | MM717024PowerBoss 717024 | 3 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $1.08/EA |
| 20 | MM730507PowerBoss 730507 | 2 | SCR-HH M8-1.25 X 55 SSFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $2.40/EA |
| 21 | MM730665PowerBoss 730665 | 1 | HEAT SHIELD ALUM, RAWFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $59.72/EA |
| 22 | MM730667PowerBoss 730667 | 2 | SCR-HH M12-1.75 X 45 ZP CLASS 8.8Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $2.64/EA |
| 23 | MM731327PowerBoss 731327 | 1 | WELDMENT, EXHAUST PIPE, GAS - LPGFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $620.39/EA |
| 24 | MM731328PowerBoss 731328 | 1 | WELDMENT, EXHAUST PIPEFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $435.34/EA |
| 25 | MM731432PowerBoss 731432 | 1 | HEAT SHIELDFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $79.17/EA |
| 26 | MM731465PowerBoss 731465 | 1 | WELDMENT, EXHAUST HANGERFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $98.76/EA |
| 27 | MM731483PowerBoss 731483 | 1 | BAR, HANGERFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. | $18.36/EA |
| 28 | No number printedPowerBoss no number printed | 1 | FRAME, ENGINE TUBEFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | No number printedPowerBoss no number printed | 1 | ENGINEFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 30 | No number printedPowerBoss no number printed | 1 | NUT, M8-1.25 SSFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. Printed as WITH ENGINE; comes with the engine. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | No number printedPowerBoss no number printed | 1 | O2 SENSORFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. Printed as WITH ENGINE; comes with the engine. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | No number printedPowerBoss no number printed | 1 | STUD, M8-1.25Fits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. Printed as WITH ENGINE; comes with the engine. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | No number printedPowerBoss no number printed | 1 | GASKET, EXHAUSTFits Nautilus Gas, cylindrical, Nautilus LPG, cylindrical, Nautilus Gas, disc, Nautilus LPG, disc. Printed as WITH ENGINE; comes with the engine. | Call to confirm part: 800-440-6723Call 800-440-6723 |

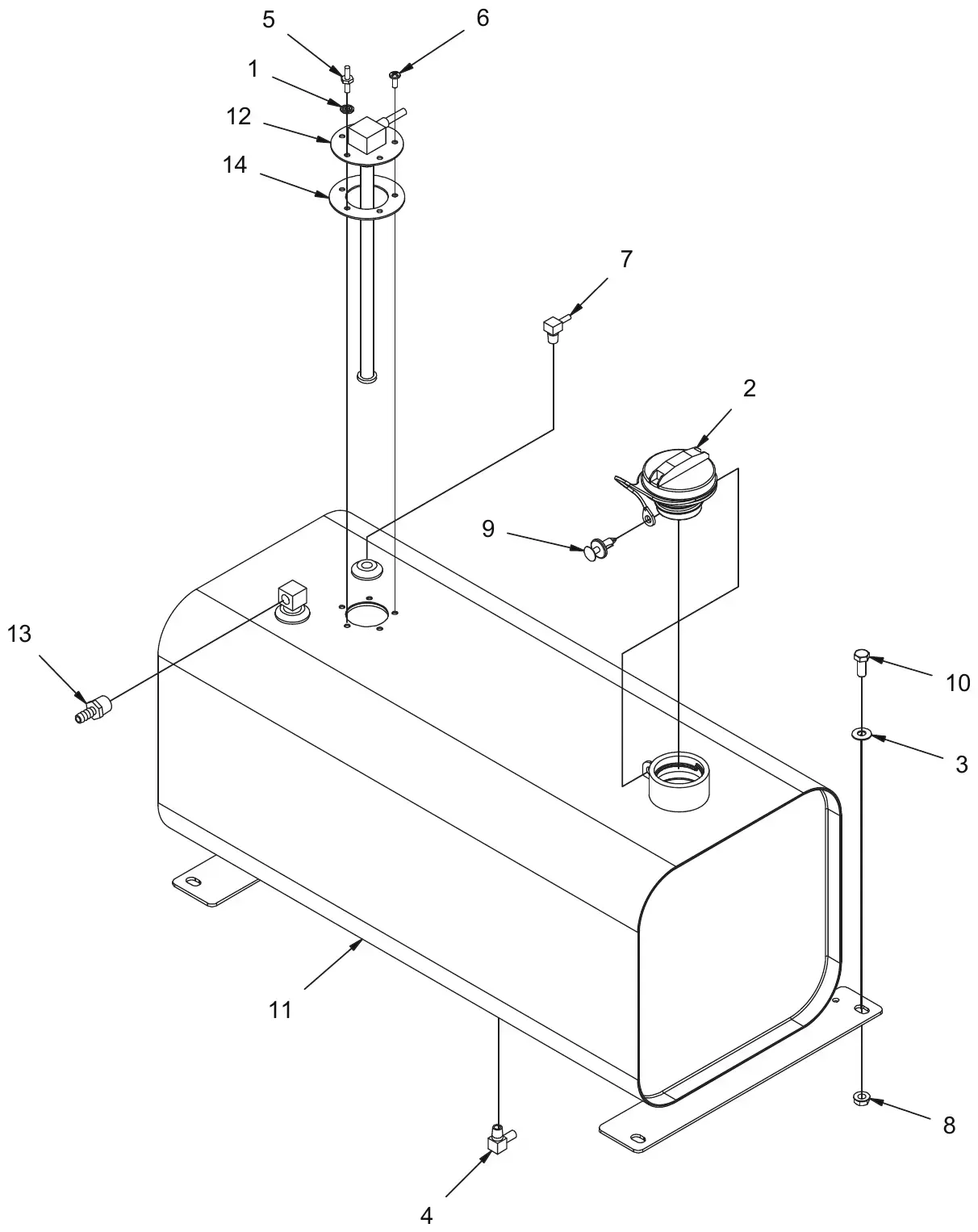

PowerBoss Nautilus fuel tank mount group, diesel parts
Catalog page 135 lists 14 parts lines for the fuel tank mount group, diesel; the drawing is on page 134. Fits diesel machines, cylindrical or disc. Manual pages 134, list 135.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3337019PowerBoss 3337019 | 1 | SEAL - #10 BONDED NITRILE WASHERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $15.25/EA |
| 2 | MM3343413PowerBoss 3343413 | 1 | CAP-FUEL TANKFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $38.58/EA |
| 3 | MM3400384PowerBoss 3400384 | 4 | WASHER-CONICAL SPRING 5/16Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 4 | MM3401445PowerBoss 3401445 | 1 | FTG-HOSE BARB 90? 5/16 X 1/4 NPTFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $12.33/EA |
| 5 | MM3401579PowerBoss 3401579 | 1 | SCR - HEX STANDOFF, 2X 10-32X.50 LGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $24.61/EA |
| 6 | MM3401636PowerBoss 3401636 | 4 | SCR-PHMS 10-32 X .50 SS W/O-RINGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $3.94/EA |
| 7 | MM3402022PowerBoss 3402022 | 1 | FTG-ELBOW 90 1/4 MPT X 1/4 HB BRASSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $2.94/EA |
| 8 | MM600934PowerBoss 600934 | 4 | NUT-FLANGE WIZZ M8-1.25 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 9 | MM600965PowerBoss 600965 | 1 | FASTENER-PUSH TYPE RETAINERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.66/EA |
| 10 | MM717024PowerBoss 717024 | 4 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 11 | MM730313PowerBoss 730313 | 1 | TANK, FUELFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1,091.25/EA |
| 12 | MM731217-1PowerBoss 731217-1 | 1 | SENDING UNIT, FUEL LEVELFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $70.88/EA |
| 13 | MM731387PowerBoss 731387 | 1 | FTG-ADAPTER 3/8 NPT X 5/16 HB BRASSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $6.27/EA |
| 14 | Not sold separatelyPowerBoss no number printed | 1 | GASKETFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Included in 731217-1. | Not sold separately. Order Sending unit, fuel level (MM731217-1) |

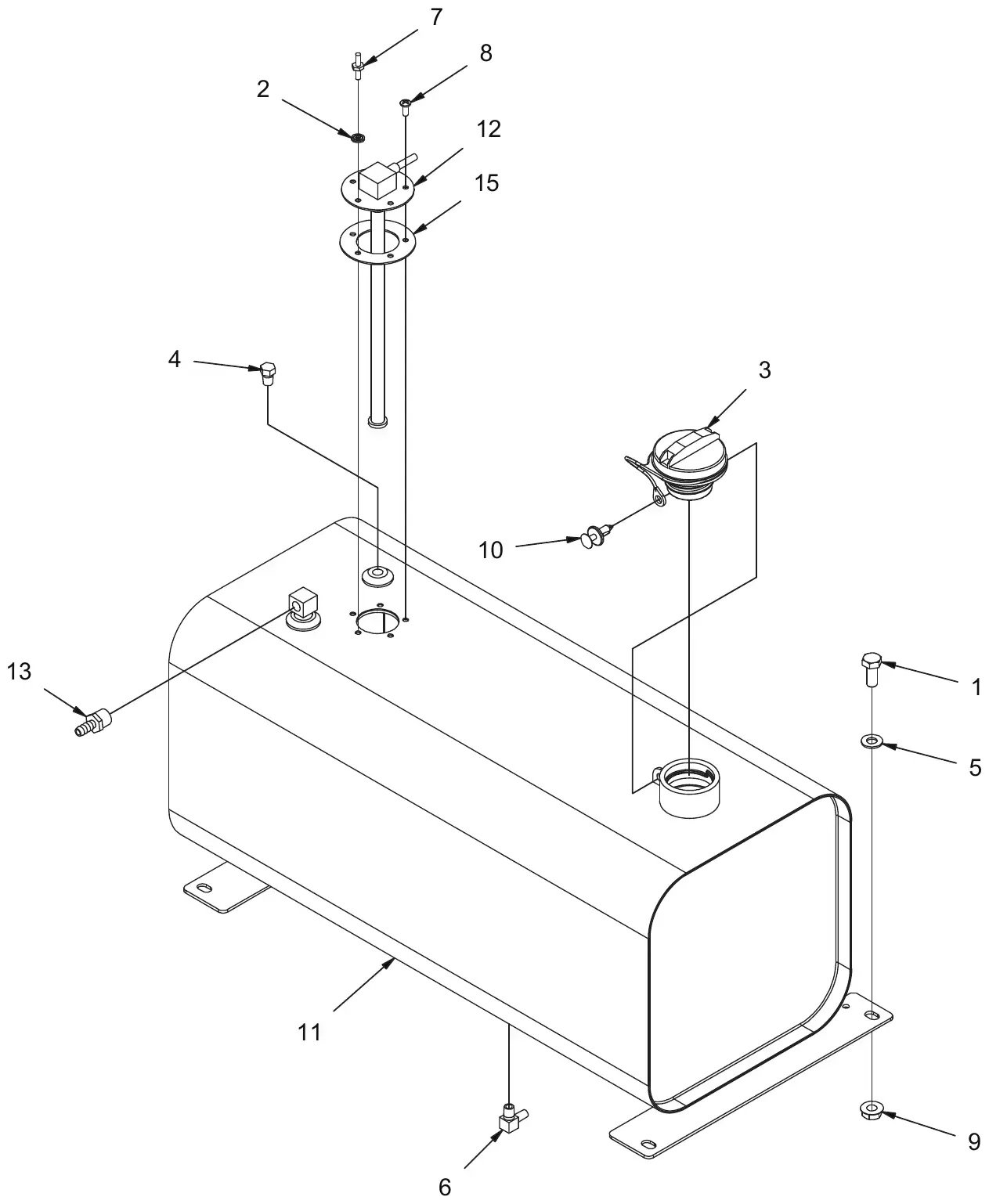

PowerBoss Nautilus fuel tank mount group, gas parts
Catalog page 137 lists 15 parts lines for the fuel tank mount group, gas; the drawing is on page 136. Fits gas machines, cylindrical or disc. Manual pages 136, list 137.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038346PowerBoss 11038346 | 4 | BOLT, M10-1.50 X 25 HHFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM3337019PowerBoss 3337019 | 1 | SEAL, #10Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $15.25/EA |
| 3 | MM3343413PowerBoss 3343413 | 1 | CAP, FUEL TANKFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $38.58/EA |
| 4 | MM3400256PowerBoss 3400256 | 1 | PLUG, 1/4 NPTFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $3.16/EA |
| 5 | MM3400385PowerBoss 3400385 | 4 | WASHER, 3/8, BELLEVILLEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.11/EA |
| 6 | MM3401445PowerBoss 3401445 | 1 | FITTING, 90, 1/4 NPT X 5/16 BARBFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM3401579PowerBoss 3401579 | 1 | SCREW, HEX, STANDOFF, 2X #10-32 X .50Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $24.61/EA |
| 8 | MM3401636PowerBoss 3401636 | 4 | SCR-PHMS 10-32 X .50 SS W/O-RINGFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $3.94/EA |
| 9 | MM600936PowerBoss 600936 | 4 | NUT, M10-1.50 FLNGFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.11/EA |
| 10 | MM600965PowerBoss 600965 | 1 | FASTENER, PRESS-INFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.66/EA |
| 11 | MM730313PowerBoss 730313 | 1 | TANK, FUELFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1,091.25/EA |
| 12 | MM731217-1PowerBoss 731217-1 | 1 | SENDING UNIT, FUEL LEVELFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $70.88/EA |
| 13 | MM731387PowerBoss 731387 | 1 | FITTING, 3/8 NPT - 5/16 HOSE BARBFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM748990-1PowerBoss 748990-1 | 1 | HARNESS, FUEL PUMPFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $45.96/EA |
| 15 | Not sold separatelyPowerBoss no number printed | 1 | GASKETFits Nautilus Gas, cylindrical, Nautilus Gas, disc. Included in 731217-1. | Not sold separately. Order Sending unit, fuel level (MM731217-1) |

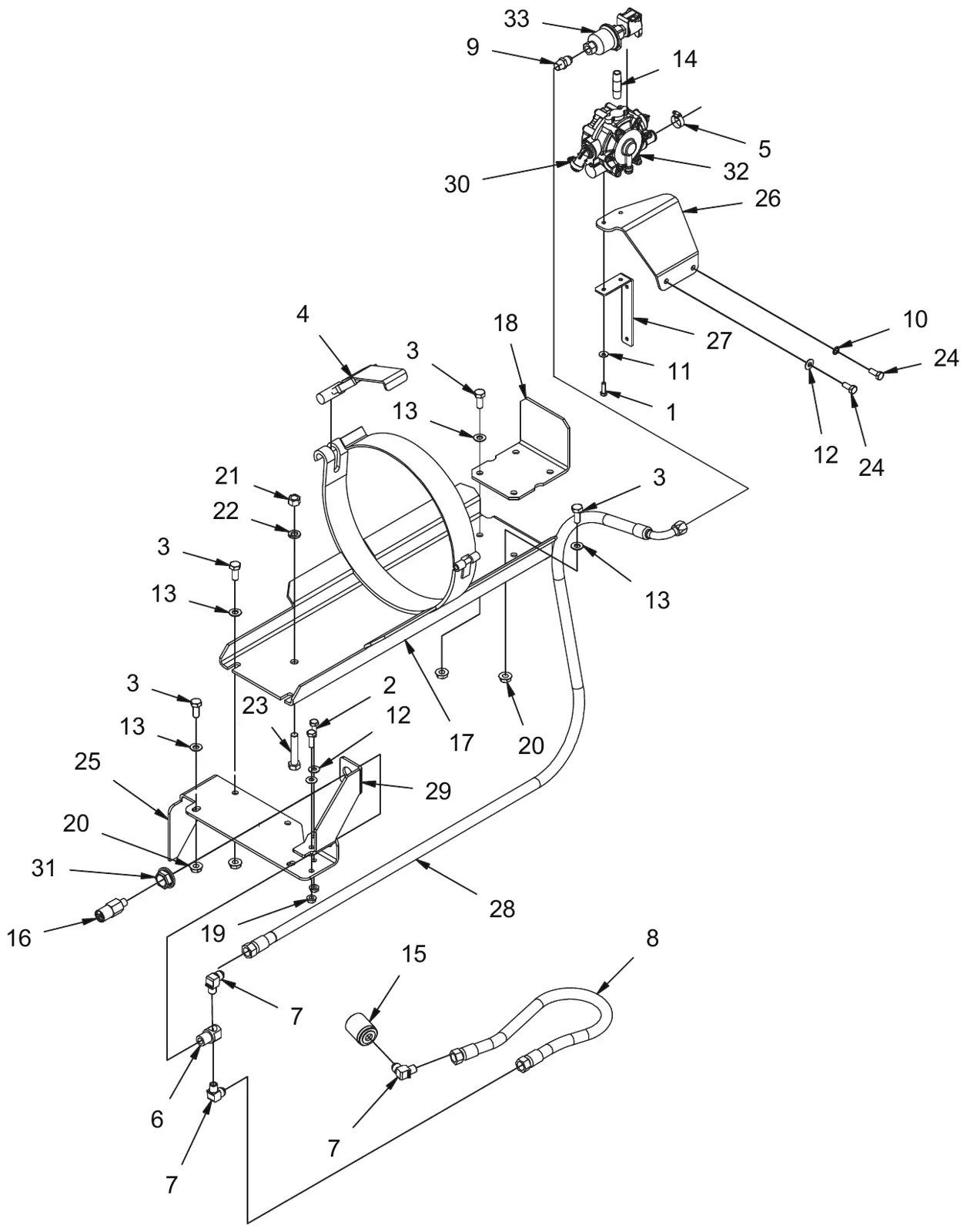

PowerBoss Nautilus cylindrical LPG tank mount group parts
Catalog page 139 lists 33 parts lines for the cylindrical LPG tank mount group; the drawing is on page 138. Fits LPG machines with cylindrical brushes only. Manual pages 138, list 139.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038098PowerBoss 11038098 | 2 | BOLT, M6-100 X 20 HHFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM11038346PowerBoss 11038346 | 8 | BOLT, M10-1.50 X 25 HHFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM220131PowerBoss 220131 | 1 | BUCKLEFits Nautilus LPG, cylindrical. | $26.48/EA |
| 4 | MM3300535PowerBoss 3300535 | 2 | CLAMP, HOSE, .50Fits Nautilus LPG, cylindrical. | $1.56/EA |
| 5 | MM3316511PowerBoss 3316511 | 1 | BODY, VALVE MOUNTFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM3334037PowerBoss 3334037 | 3 | FITTING, 90, BRASS, LPGFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM3335375PowerBoss 3335375 | 1 | HOSE, LPG, TO TANKFits Nautilus LPG, cylindrical. | $59.26/EA |
| 8 | MM3342097PowerBoss 3342097 | 1 | FTG SAE 5/8-18 45 DEGREE FLAREFits Nautilus LPG, cylindrical. | $2.39/EA |
| 9 | MM3400273PowerBoss 3400273 | 1 | WASHER, STAR, .31, INT. ZPFits Nautilus LPG, cylindrical. | $1.08/EA |
| 10 | MM3400383PowerBoss 3400383 | 2 | WASHER, 1/4 BELLEVILLEFits Nautilus LPG, cylindrical. | $1.08/EA |
| 11 | MM3400384PowerBoss 3400384 | 1 | WASHER, 5/16 BELLEVILLEFits Nautilus LPG, cylindrical. | $1.08/EA |
| 12 | MM3400385PowerBoss 3400385 | 8 | WASHER, 3/8, BELLEVILLEFits Nautilus LPG, cylindrical. | $1.11/EA |
| 13 | MM3400860PowerBoss 3400860 | 1 | FTG-LP TANK CONNECTFits Nautilus LPG, cylindrical. | $29.21/EA |
| 14 | MM3400862PowerBoss 3400862 | 1 | LPG RELIEF VALVEFits Nautilus LPG, cylindrical. | $13.50/EA |
| 15 | MM600459-1PowerBoss 600459-1 | 1 | WELDMENT, LPG MNTFits Nautilus LPG, cylindrical. | $303.49/EA |
| 16 | MM600461-1PowerBoss 600461-1 | 1 | ANGLE, LPG STOPFits Nautilus LPG, cylindrical. | $29.65/EA |
| 17 | MM600936PowerBoss 600936 | 8 | NUT, M10-1.50 FLNGFits Nautilus LPG, cylindrical. | $1.11/EA |
| 18 | MM600949PowerBoss 600949 | 1 | NUT, M12-1.75Fits Nautilus LPG, cylindrical. | $1.11/EA |
| 19 | MM600961PowerBoss 600961 | 1 | LOCK WASHER, M12Fits Nautilus LPG, cylindrical. | $1.11/EA |
| 20 | MM620036PowerBoss 620036 | 1 | BOLT, M12-1.75 X 60 HH FULL THREADFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | MM717024PowerBoss 717024 | 2 | BOLT, M8-1.25 X 20 HHFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM730533PowerBoss 730533 | 1 | MOUNT, LPG VALVEFits Nautilus LPG, cylindrical. | $63.33/EA |
| 23 | MM730890PowerBoss 730890 | 1 | BRACKET, VAPORIZERFits Nautilus LPG, cylindrical. | $24.17/EA |
| 24 | MM731164PowerBoss 731164 | 1 | MOUNT, FUSE BOXFits Nautilus LPG, cylindrical. | $27.74/EA |
| 25 | MM731167PowerBoss 731167 | 1 | HOSE, VAPORIZER TO CARBFits Nautilus LPG, cylindrical. | $26.53/EA |
| 26 | MM731173PowerBoss 731173 | 1 | HOSE, COOLANT, 5/8" ID X 15.0" LGFits Nautilus LPG, cylindrical. | $16.28/EA |
| 27 | MM731174PowerBoss 731174 | 1 | HOSE, COOLANT, 5/8" ID X 43.0" LGFits Nautilus LPG, cylindrical. | $14.06/EA |
| 28 | MM731186PowerBoss 731186 | 1 | HOSE, LPG TANK TO VAPORIZERFits Nautilus LPG, cylindrical. | $78.46/EA |
| 29 | MM829129PowerBoss 829129 | 4 | CLAMP, HOSEFits Nautilus LPG, cylindrical. | $3.64/EA |
| 30 | Not sold separatelyPowerBoss no number printed | 1 | NUT, VALVE MOUNTFits Nautilus LPG, cylindrical. Included in 3316511. | Not sold separately. Order Body, valve mount (MM3316511) |
| 31 | No number printedPowerBoss no number printed | 1 | FITTING, NIPPLEFits Nautilus LPG, cylindrical. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | No number printedPowerBoss no number printed | 1 | VAPORIZER (13098-62401)Fits Nautilus LPG, cylindrical. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | No number printedPowerBoss no number printed | 1 | SOLENOID AND LOCK OFF (EG523-46951)Fits Nautilus LPG, cylindrical. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus CE cylindrical LPG tank mount group parts
Catalog page 141 lists 33 parts lines for the CE cylindrical LPG tank mount group; the drawing is on page 140. Fits LPG machines with cylindrical brushes only. Manual pages 140, list 141.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038098PowerBoss 11038098 | 2 | SCR-HH M6-1.0 X 20 ZP CLASS 8.8 DINFits Nautilus LPG, cylindrical. | $1.08/EA |
| 2 | MM11038346PowerBoss 11038346 | 8 | SCR-HH M10-1.5 X 25 ZD CLASS 8.8Fits Nautilus LPG, cylindrical. | $1.08/EA |
| 3 | MM220131PowerBoss 220131 | 1 | BUCKLEFits Nautilus LPG, cylindrical. | $26.48/EA |
| 4 | MM3300535PowerBoss 3300535 | 2 | CLAMP-HOSE 1.00 NOMFits Nautilus LPG, cylindrical. | $1.56/EA |
| 5 | MM3316511PowerBoss 3316511 | 1 | FITTING, BULKHEAD ASSEMBLYFits Nautilus LPG, cylindrical. | $29.86/EA |
| 6 | MM3334037PowerBoss 3334037 | 3 | FTG-MALE ELBOW 49 X 6Fits Nautilus LPG, cylindrical. | $5.38/EA |
| 7 | MM3335375-CEPowerBoss 3335375-CE | 1 | FTG-LP TANK CONNECTFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | MM3342097PowerBoss 3342097 | 1 | 3/8 MALE SAE FLARE X 1/4 NPTFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM3400273PowerBoss 3400273 | 1 | WASHER-INT LOCK 5/16 ZPFits Nautilus LPG, cylindrical. | $1.08/EA |
| 10 | MM3400383PowerBoss 3400383 | 2 | WASHER-CONICAL SPRING 1/4Fits Nautilus LPG, cylindrical. | $1.08/EA |
| 11 | MM3400384PowerBoss 3400384 | 1 | WASHER-CONICAL SPRING 5/16Fits Nautilus LPG, cylindrical. | $1.08/EA |
| 12 | MM3400385PowerBoss 3400385 | 8 | WASHER-CONICAL SPRING 3/8Fits Nautilus LPG, cylindrical. | $1.11/EA |
| 13 | MM3400860PowerBoss 3400860 | 1 | FTG-LP TANK CONNECTFits Nautilus LPG, cylindrical. | $29.21/EA |
| 14 | MM3400862PowerBoss 3400862 | 1 | VALVE-LP RELIEFFits Nautilus LPG, cylindrical. | $13.50/EA |
| 15 | MM600459-1PowerBoss 600459-1 | 1 | WELDMENT, LPG MOUNTFits Nautilus LPG, cylindrical. | $303.49/EA |
| 16 | MM600461-1PowerBoss 600461-1 | 1 | LPG MNT, STOPFits Nautilus LPG, cylindrical. | $29.65/EA |
| 17 | MM600936PowerBoss 600936 | 8 | NUT-FLANGE WIZZ M10-1.50 ZP GR 8Fits Nautilus LPG, cylindrical. | $1.11/EA |
| 18 | MM600949PowerBoss 600949 | 1 | NUT-HEX M12-1.75 ZP CLASS 8Fits Nautilus LPG, cylindrical. | $1.11/EA |
| 19 | MM600961PowerBoss 600961 | 1 | WASHER-LOCK M12 STL ZP CLEARFits Nautilus LPG, cylindrical. | $1.11/EA |
| 20 | MM620036PowerBoss 620036 | 1 | SCR-HH M12-1.75 X 60 ZP CLASS 8.8Fits Nautilus LPG, cylindrical. | $6.22/EA |
| 21 | MM717024PowerBoss 717024 | 2 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus LPG, cylindrical. | $1.08/EA |
| 22 | MM730533PowerBoss 730533 | 1 | MOUNT, LPG VALVE DGFits Nautilus LPG, cylindrical. | $63.33/EA |
| 23 | MM730890PowerBoss 730890 | 1 | BRACKET, VAPORIZER DGFits Nautilus LPG, cylindrical. | $24.17/EA |
| 24 | MM731164PowerBoss 731164 | 1 | MOUNT, FUSE BOXFits Nautilus LPG, cylindrical. | $27.74/EA |
| 25 | MM731167-CEPowerBoss 731167-CE | 1 | FTG-LP TANK CONNECTFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM731173PowerBoss 731173 | 1 | HOSE, COOLANT, 5/8 IN ID X 15.0 IN LGFits Nautilus LPG, cylindrical. | $16.28/EA |
| 27 | MM731174PowerBoss 731174 | 1 | HOSE, COOLANT, 5/8 IN ID X 43.0 IN LGFits Nautilus LPG, cylindrical. | $14.06/EA |
| 28 | MM731186-CEPowerBoss 731186-CE | 1 | FTG-LP TANK CONNECTFits Nautilus LPG, cylindrical. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | MM829129PowerBoss 829129 | 4 | CLAMP-HOSE WORM-DRV8Fits Nautilus LPG, cylindrical. | $3.64/EA |
| 30 | Not sold separatelyPowerBoss no number printed | 1 | NUT, VALVE MOUNTFits Nautilus LPG, cylindrical. Included in 3316511. | Not sold separately. Order Body, valve mount (MM3316511) |
| 31 | No number printedPowerBoss no number printed | 1 | FITTING, NIPPLEFits Nautilus LPG, cylindrical. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | No number printedPowerBoss no number printed | 1 | VAPORIZER (13098-62401)Fits Nautilus LPG, cylindrical. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | No number printedPowerBoss no number printed | 1 | SOLENOID AND LOCK OFF (EG523-46951)Fits Nautilus LPG, cylindrical. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus disc LPG tank mount group parts
Catalog page 143 lists 33 parts lines for the disc LPG tank mount group; the drawing is on page 142. Fits LPG machines with disc brushes only. Manual pages 142, list 143.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038098PowerBoss 11038098 | 2 | SCR-HH M6-1.0 X 20 ZP CLASS 8.8 DINFits Nautilus LPG, disc. | $1.08/EA |
| 2 | MM11038247PowerBoss 11038247 | 2 | SCR-HH M8-1.25 X 25 ZP CLASS 8.8Fits Nautilus LPG, disc. | $1.08/EA |
| 3 | MM11038346PowerBoss 11038346 | 8 | SCR-HH M10-1.5 X 25 ZD CLASS 8.8Fits Nautilus LPG, disc. | $1.08/EA |
| 4 | MM220131PowerBoss 220131 | 1 | BUCKLEFits Nautilus LPG, disc. | $26.48/EA |
| 5 | MM3300535PowerBoss 3300535 | 1 | CLAMP - SCREW .5" to 1.25" DIA 201SSFits Nautilus LPG, disc. | $1.56/EA |
| 6 | MM3316511PowerBoss 3316511 | 1 | FITTING, BULKHEAD ASSEMBLYFits Nautilus LPG, disc. | $29.86/EA |
| 7 | MM3334037PowerBoss 3334037 | 3 | FTG-MALE ELBOW 49 X 6Fits Nautilus LPG, disc. | $5.38/EA |
| 8 | MM3335375PowerBoss 3335375 | 1 | HOSE - 5/16 LP 28.5 SAE 45 ST#6 ST#6Fits Nautilus LPG, disc. | $59.26/EA |
| 9 | MM3342097PowerBoss 3342097 | 1 | 3/8 MALE SAE FLARE X 1/4 NPTFits Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM3400273PowerBoss 3400273 | 1 | WASHER-INT LOCK 5/16 ZPFits Nautilus LPG, disc. | $1.08/EA |
| 11 | MM3400383PowerBoss 3400383 | 2 | WASHER-CONICAL SPRING 1/4Fits Nautilus LPG, disc. | $1.08/EA |
| 12 | MM3400384PowerBoss 3400384 | 3 | WASHER-CONICAL SPRING 5/16Fits Nautilus LPG, disc. | $1.08/EA |
| 13 | MM3400385PowerBoss 3400385 | 8 | WASHER-CONICAL SPRING 3/8Fits Nautilus LPG, disc. | $1.11/EA |
| 14 | MM3400498PowerBoss 3400498 | 1 | FTG-NIPPLE 1/4 NPT X 2.00 LG BRASSFits Nautilus LPG, disc. | $5.63/EA |
| 15 | MM3400860PowerBoss 3400860 | 1 | FTG-LP TANK CONNECTFits Nautilus LPG, disc. | $29.21/EA |
| 16 | MM3400862PowerBoss 3400862 | 1 | VALVE-LP RELIEFFits Nautilus LPG, disc. | $13.50/EA |
| 17 | MM600459-1PowerBoss 600459-1 | 1 | WELDMENT, LPG MOUNTFits Nautilus LPG, disc. | $303.49/EA |
| 18 | MM600461-1PowerBoss 600461-1 | 1 | LPG MNT, STOPFits Nautilus LPG, disc. | $29.65/EA |
| 19 | MM600934PowerBoss 600934 | 2 | NUT-FLANGE WIZZ M8-1.25 ZPFits Nautilus LPG, disc. | $1.11/EA |
| 20 | MM600936PowerBoss 600936 | 8 | NUT-FLANGE WIZZ M10-1.50 ZP CLASS 8Fits Nautilus LPG, disc. | $1.11/EA |
| 21 | MM600949PowerBoss 600949 | 1 | NUT-HEX M12-1.75 ZP CLASS 8Fits Nautilus LPG, disc. | $1.11/EA |
| 22 | MM600961PowerBoss 600961 | 1 | WASHER-LOCK M12 STL ZP CLEARFits Nautilus LPG, disc. | $1.11/EA |
| 23 | MM620036PowerBoss 620036 | 1 | SCR-HH M12-1.75 X 60 ZP CLASS 8.8Fits Nautilus LPG, disc. | $6.22/EA |
| 24 | MM717024PowerBoss 717024 | 2 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus LPG, disc. | $1.08/EA |
| 25 | MM730533PowerBoss 730533 | 1 | MOUNT, LPG VALVE DGFits Nautilus LPG, disc. | $63.33/EA |
| 26 | MM730890PowerBoss 730890 | 1 | BRACKET, VAPORIZER DGFits Nautilus LPG, disc. | $24.17/EA |
| 27 | MM731164PowerBoss 731164 | 1 | MOUNT, FUSE BOXFits Nautilus LPG, disc. | $27.74/EA |
| 28 | MM731186PowerBoss 731186 | 1 | HOSE, LPG, 6 SAE STR - 6 SAE 90Fits Nautilus LPG, disc. | $78.46/EA |
| 29 | MM731966PowerBoss 731966 | 1 | BRKT, DUAL TANK CHECK VALVE SUPPORTFits Nautilus LPG, disc. | $68.15/EA |
| 30 | MM829129PowerBoss 829129 | 4 | CLAMP - SCREW .313" to .875" DIA 301SSFits Nautilus LPG, disc. | $3.64/EA |
| 31 | Not sold separatelyPowerBoss no number printed | 1 | NUT, VALVE MOUNTFits Nautilus LPG, disc. Included in 3316511. | Not sold separately. Order Body, valve mount (MM3316511) |
| 32 | No number printedPowerBoss no number printed | 1 | VAPORIZER (13098-62401)Fits Nautilus LPG, disc. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | No number printedPowerBoss no number printed | 1 | SOLENOID AND LOCK OFF (EG523-46951)Fits Nautilus LPG, disc. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 |

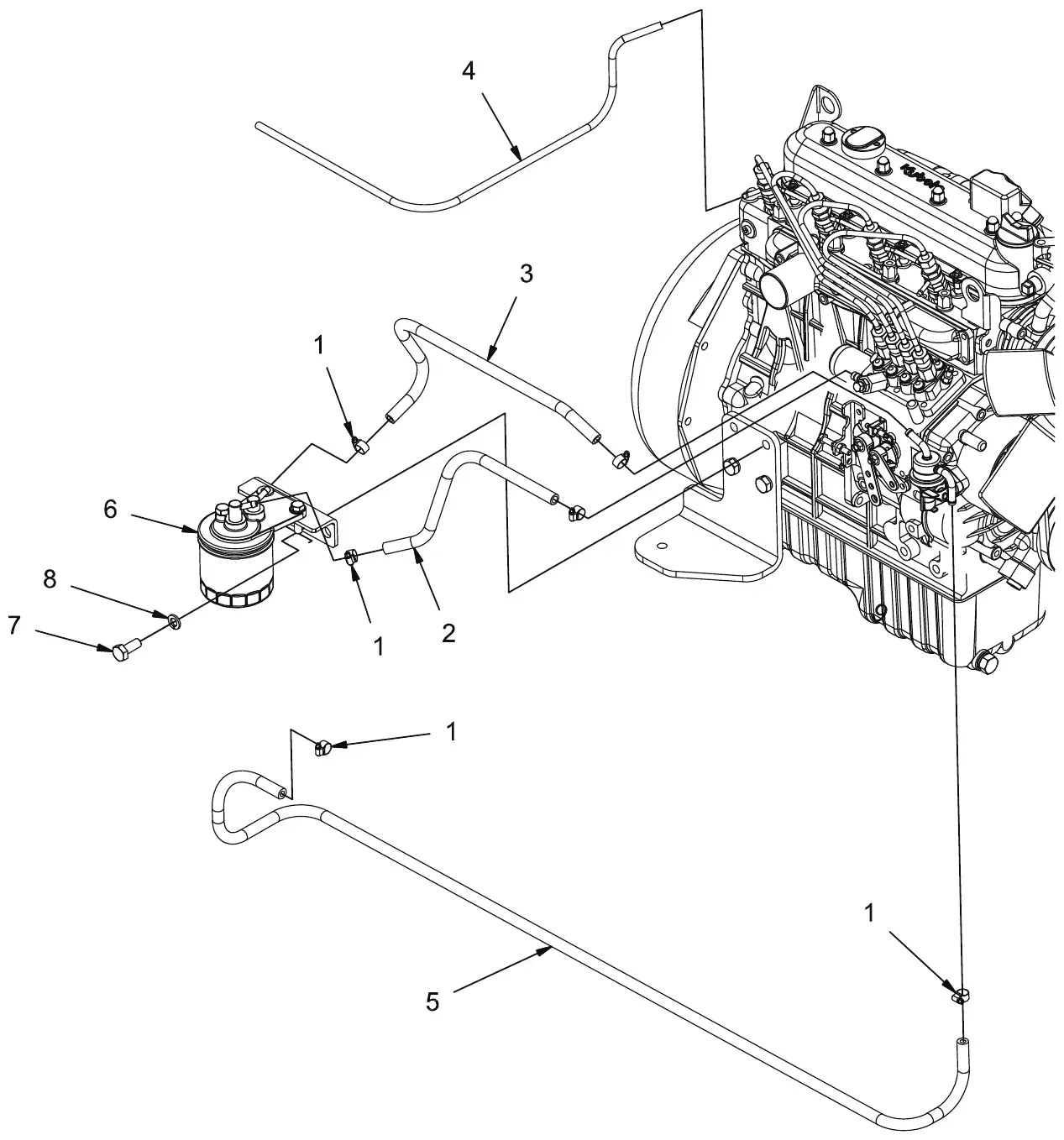

PowerBoss Nautilus fuel line group, diesel parts
Catalog page 145 lists 9 parts lines for the fuel line group, diesel; the drawing is on page 144. Fits diesel machines, cylindrical or disc. Manual pages 144, list 145.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3302338PowerBoss 3302338 | 6 | CLAMP, HOSE, .50Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.79/EA |
| 2 | MM620001PowerBoss 620001 | 1 | HOSE.FUEL, 5/16 ID 12.00 LG, SAE30R7Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $14.03/EA |
| 3 | MM620061PowerBoss 620061 | 1 | HOSE.FUEL, 5/16 ID 18.00 LG, SAE30R7Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $6.28/EA |
| 4 | No number printedPowerBoss no number printed | HOSE, FUEL, 1/8 ID SAE30R7Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 5 | No number printedPowerBoss no number printed | HOSE - FUEL 5/16 ID 18.00 LG SAE30R7Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 6 | No number printedPowerBoss no number printed | FUEL FILTER ASSEMBLYFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Included in ENGINE. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 7 | No number printedPowerBoss no number printed | BOLT, M10-1.50 X 25 HHFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 8 | No number printedPowerBoss no number printed | LOCKWASHER, M10Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 9 | No number printedPowerBoss no number printed | ENGINEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |

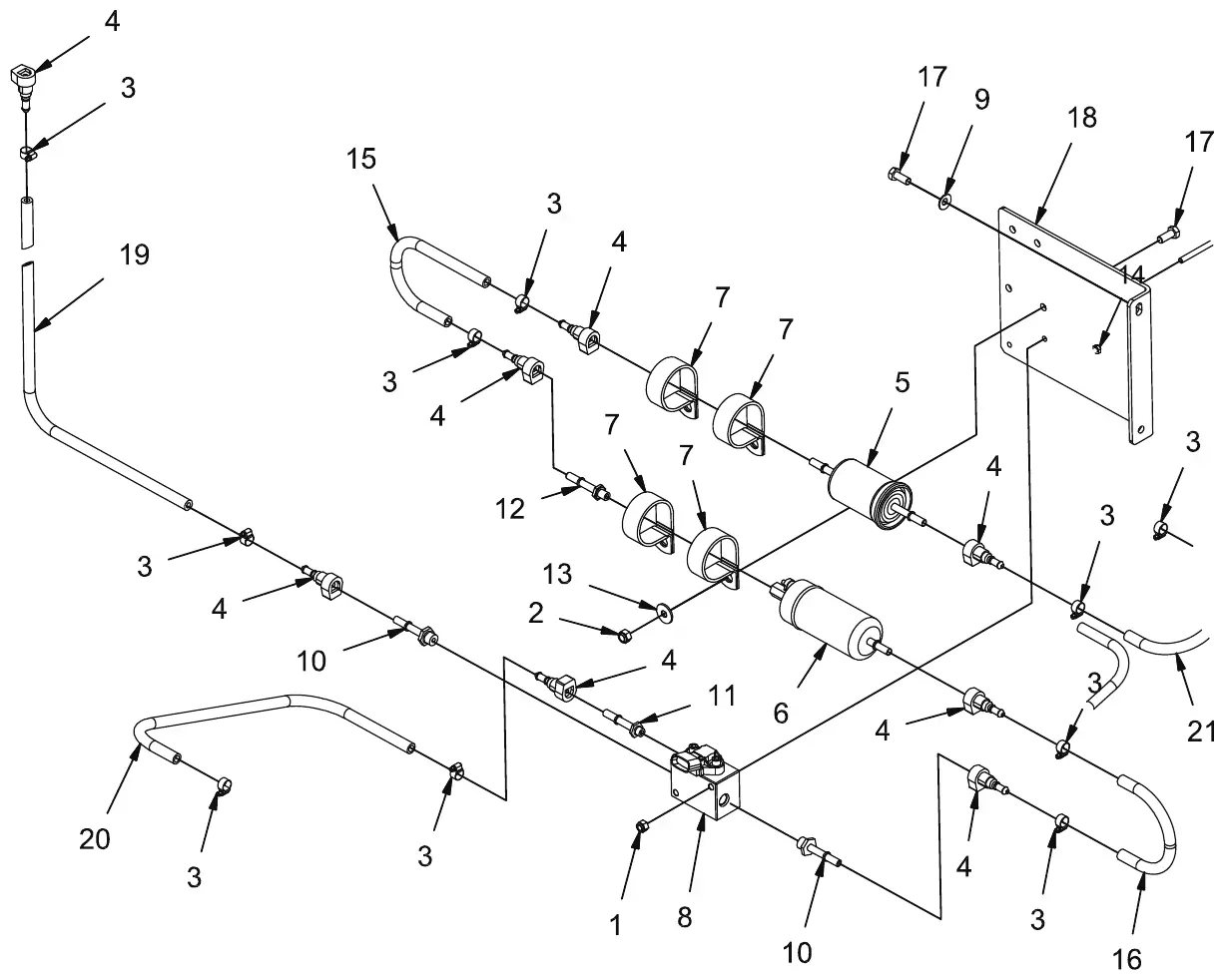

PowerBoss Nautilus fuel component group, gas parts
Catalog page 147 lists 21 parts lines for the fuel component group, gas; the drawing is on page 146. Fits gas machines, cylindrical or disc. Manual pages 146, list 147.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040044PowerBoss 12040044 | 2 | NUT, M6-1.00 ESNFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.38/EA |
| 2 | MM12040051PowerBoss 12040051 | 4 | NUT, M8-1.25 ESNFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $4.15/EA |
| 3 | MM3302338PowerBoss 3302338 | 10 | CLAMP, HOSE, .50Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.79/EA |
| 4 | MM3342207PowerBoss 3342207 | 8 | FITTING, ADAPTER, FUELFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | MM3342209PowerBoss 3342209 | 1 | FILTER, FUELFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $45.06/EA |
| 6 | MM3343536PowerBoss 3343536 | 1 | PUMP, FUELFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $580.10/EA |
| 7 | MM3343539PowerBoss 3343539 | 4 | CLAMP' 2"Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $2.53/EA |
| 8 | MM3343617PowerBoss 3343617 | 1 | MANIFOLD, FUEL PRESSfTEMPFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $400.89/EA |
| 9 | MM3400384PowerBoss 3400384 | 2 | WASHER, 5/16 BELLEVILLEFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.08/EA |
| 10 | MM3401088PowerBoss 3401088 | 2 | FTG-ADAPTER, FUEL 1/2-20 W/0-RINGFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $42.78/EA |
| 11 | MM3401089PowerBoss 3401089 | 1 | FTG-ADAPTER, FUEL 3/8-24 W/0-RINGFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $42.78/EA |
| 12 | MM3401090PowerBoss 3401090 | 1 | FITTING & GASKET FOR FUEL PUMPFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | MM600940PowerBoss 600940 | 4 | WASHER, M8 FENDERFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $1.11/EA |
| 14 | MM600953PowerBoss 600953 | 2 | BOLT, M6-1.00 X 50 HHFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM731158PowerBoss 731158 | 1 | HOSE.FUEL, 5/16 ID X 3.00 LG, SAE30R7Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM620002PowerBoss 620002 | 1 | HOSE,FUEL, 5/16 ID X 10.00 LG, SAE30R7Fits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $12.64/EA |
| 17 | MM717024PowerBoss 717024 | 6 | BOLT, M8-1.25 X 20 HHFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | MM730311PowerBoss 730311 | 1 | MOUNT, FUEL FILTERFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $42.53/EA |
| 19 | MM620249PowerBoss 620249 | 1 | HOSE - FUEL 5/16 ID 40.00 LG, EVAP RATEDFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $46.86/EA |
| 20 | MM620250PowerBoss 620250 | 1 | HOSE - FUEL 5/16 ID 20.00 LG, EVAP RATEDFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $43.22/EA |
| 21 | MM620251PowerBoss 620251 | 1 | HOSE - FUEL 5/16 ID 32.00 LG, EVAP RATEDFits Nautilus Gas, cylindrical, Nautilus Gas, disc. | $37.44/EA |

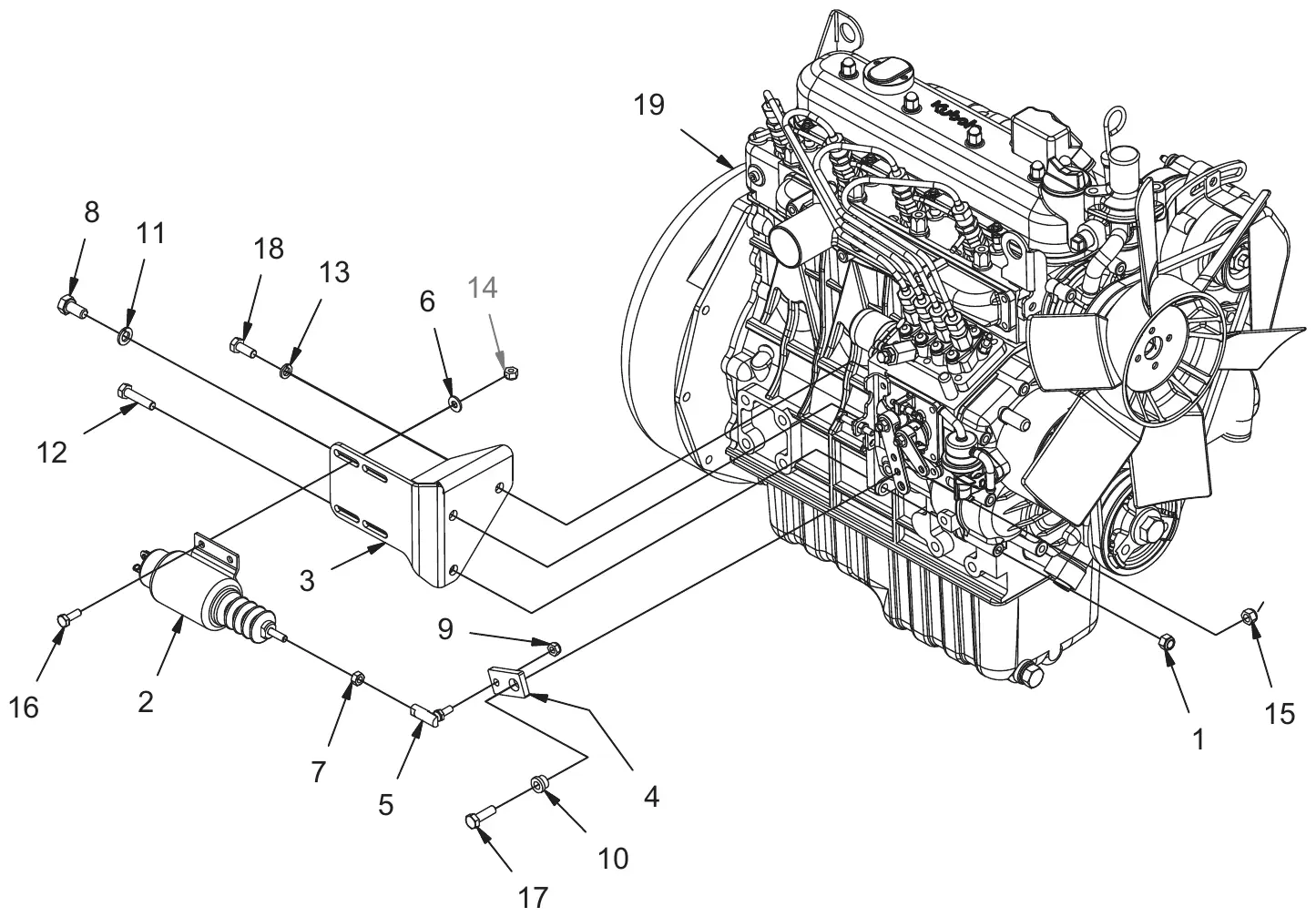

PowerBoss Nautilus throttle solenoid group, diesel parts
Catalog page 149 lists 19 parts lines for the throttle solenoid group, diesel; the drawing is on page 148. Fits diesel machines, cylindrical or disc. Manual pages 148, list 149.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040051PowerBoss 12040051 | 1 | NUT-NYLOC M8 X 1.25 ZP CLASS 8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $4.15/EA |
| 2 | MM3335303PowerBoss 3335303 | 1 | SOLENOID-THROTTLE SOLENOID KIT V1505Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $431.25/EA |
| 3 | MM3335358PowerBoss 3335358 | 1 | BRKT-THROTTLE SOLENOID MOUNTFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $200.06/EA |
| 4 | MM3335364PowerBoss 3335364 | 1 | PLATE- KBA V1505 DSL SOLENOID THRTTLEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $49.04/EA |
| 5 | MM3342225PowerBoss 3342225 | 1 | BALL JOINT 1/4-28 STD LGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $30.56/EA |
| 6 | MM711505PowerBoss 711505 | 4 | WASHER-FLAT 1/4 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 7 | MM3400180PowerBoss 3400180 | 1 | NUT-HEX 1/4-28 ZP GR 5Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 8 | MM3400293PowerBoss 3400293 | 1 | SCR-HH M10-1.25PX20 ZP CLASS 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $3.81/EA |
| 9 | MM3400373PowerBoss 3400373 | 1 | NUT-JAM 1/4-28 ZP NYLOCFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 10 | MM3401071PowerBoss 3401071 | 1 | BUSHING-FLING .312 ID X .50 OD X .375LFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $6.11/EA |
| 11 | MM600945PowerBoss 600945 | 1 | WASHER-LOCK 10MM SPLIT ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 12 | MM600918PowerBoss 600918 | 1 | SCR-HH M8-1.25 X 35 ZP CLASS 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 13 | MM600959PowerBoss 600959 | 2 | WASHER-LOCK M8 ZINC SPLITFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 14 | MM711373PowerBoss 711373 | 4 | NUT-NYLOC 1/4-20 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.10/EA |
| 15 | MM711374PowerBoss 711374 | 1 | NUT-NYLOC 5/16-18 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.10/EA |
| 16 | MM713002PowerBoss 713002 | 4 | SCR-HH 1/4-20 X .75 ZP 5Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.10/EA |
| 17 | MM3400035PowerBoss 3400035 | 1 | SCR-HH 5/16-18 X 1 ZP GR 5Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 18 | MM717024PowerBoss 717024 | 1 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 19 | No number printedPowerBoss no number printed | 1 | ENGINEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |

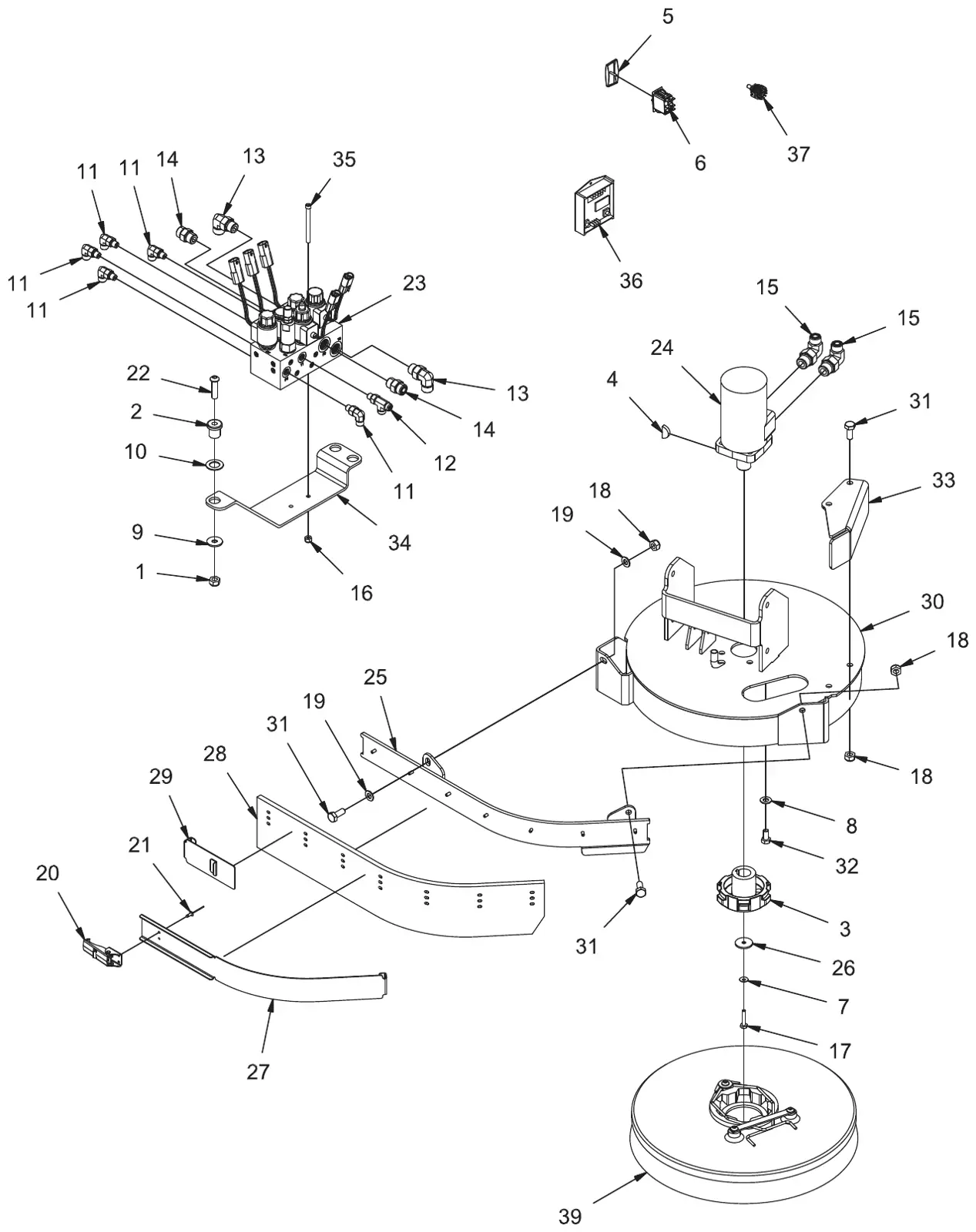

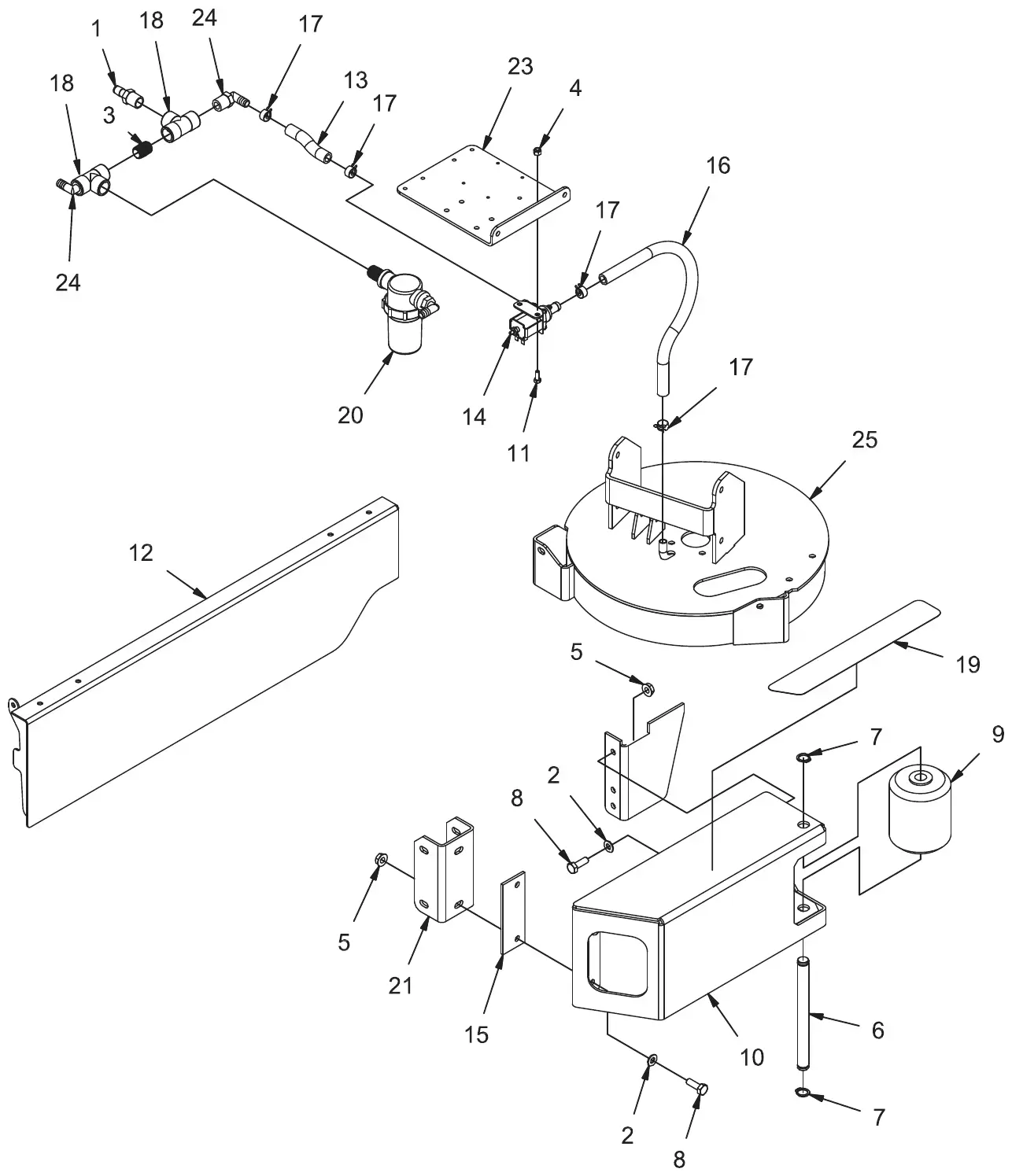

PowerBoss Nautilus side brush group (option) parts
Catalog page 175 lists 39 parts lines for the side brush group (option); the drawing is on page 174. Optional equipment. Manual pages 174, list 175.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040069PowerBoss 12040069 | 3 | NUT, M10-1.50 ESN | $6.92/EA |
| 2 | MM3300465PowerBoss 3300465 | 3 | ISOLATOR, VIB | $8.83/EA |
| 3 | MM3324451PowerBoss 3324451 | 1 | HUB, DRIVE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | MM3330338PowerBoss 3330338 | 1 | KEY, WOODRUFF .25 X .50 | $23.52/EA |
| 5 | MM3344038PowerBoss 3344038 | 1 | COVER-SWITCH ROCKER BLACK NO LENS | $11.31/EA |
| 6 | MM3342705PowerBoss 3342705 | 1 | SWITCH, DPST | $17.79/EA |
| 7 | MM3400383PowerBoss 3400383 | 1 | WASHER, 1/4 BELLEVILLE | $1.08/EA |
| 8 | MM3400385PowerBoss 3400385 | 4 | WASHER, 3/8, BELLEVILLE | $1.11/EA |
| 9 | MM600363PowerBoss 600363 | 3 | WASHER, ISOLATOR | $1.13/EA |
| 10 | MM66-431-APowerBoss 66-431-A | 3 | WASHER, .77 B 1.25 OD .075 T | $1.59/EA |
| 11 | MM675507PowerBoss 675507 | 5 | FITTING, 90, -4 ORFS - 4 SAE | $8.00/EA |
| 12 | MM675509PowerBoss 675509 | 1 | FITTING, RUN TEE -4 ORFS TO -4 SAE | $18.39/EA |
| 13 | MM675523PowerBoss 675523 | 2 | FITTING, 90, -8 ORFS - 8 SAE | $12.31/EA |
| 14 | MM675524PowerBoss 675524 | 2 | FITTING, STR, -8 ORFS - 8 SAE | $5.75/EA |
| 15 | MM675528PowerBoss 675528 | 2 | FITTING, 90, -8 ORFS - 10 SAE | $14.33/EA |
| 16 | MM711373PowerBoss 711373 | 2 | NUT, FIBER INSERT 1/4-20 | $1.10/EA |
| 17 | MM712566PowerBoss 712566 | 1 | SCREW, 1/4-20 X 1.25 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | MM730339PowerBoss 730339 | 4 | NUT, M10-1.50 ESN SS | $2.72/EA |
| 19 | MM730344PowerBoss 730344 | 2 | WASHER, M10 SS | $1.11/EA |
| 20 | MM730652PowerBoss 730652 | 1 | LATCH, UNDER CENTER | $41.21/EA |
| 21 | MM730654PowerBoss 730654 | 2 | RIVET.BLIND, .156 D X .062 - .125 GRIP SS | $1.08/EA |
| 22 | MM730698PowerBoss 730698 | 3 | BOLT, M10-1.50 X 40 BUTTON HD CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM730795-1PowerBoss 730795-1 | 1 | MANIFOLD ASSY, SSB | $1,954.71/EA |
| 24 | MM730892PowerBoss 730892 | 1 | MOTOR, 9.7 DISP | $444.34/EA |
| 25 | MM730927PowerBoss 730927 | 1 | WELDMENT, SSB SQU MNT | $415.75/EA |
| 26 | MM730933PowerBoss 730933 | 1 | WASHER, .28 B, 1.25 OD, .105 T SS | $7.35/EA |
| 27 | MM730938PowerBoss 730938 | 1 | SSB SOU RETAINER | $100.10/EA |
| 28 | MM730939PowerBoss 730939 | 1 | SSB SQUEEGEE | $63.51/EA |
| 29 | MM730940PowerBoss 730940 | 1 | WELDMENT, SSB REAR RET | $28.47/EA |
| 30 | MM730942PowerBoss 730942 | 1 | WELDMENT, SSB MOUNT | $637.75/EA |
| 31 | MM730958PowerBoss 730958 | 4 | BOLT, M10-1.50 X 25 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | MM730959PowerBoss 730959 | 4 | SCREW, 3/8-16 X .750 HHC SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM730963PowerBoss 730963 | 1 | WELDMENT, SSB GUARD | $37.99/EA |
| 34 | MM730964PowerBoss 730964 | 1 | MOUNT, SSB MANIFOLD | $41.02/EA |
| 35 | MM730965PowerBoss 730965 | 2 | BOLT, 1/4-20 X 3.00 SOC HD CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | MM731126PowerBoss 731126 | 1 | PROPORTIONAL VALVE DRIVER - DOUBLE | $1,838.04/EA |
| 37 | MM748796PowerBoss 748796 | 1 | DUAL BRUSH PRESSURE SELECTOR | $107.61/EA |
| 38 | MM748798PowerBoss 748798 | 1 | HARNESS, SIDE BRUSH | $247.15/EA |
| 39 | No number printedPowerBoss no number printed | 1 | SCRUB BRUSHPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side brush lift group (option) parts
Catalog page 177 lists 30 parts lines for the side brush lift group (option); the drawing is on page 176. Optional equipment. Manual pages 176, list 177.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040259PowerBoss 12040259 | 1 | NUT, M8-1.25 ESN SS | $1.08/EA |
| 2 | MM3311977PowerBoss 3311977 | 1 | ROD END, MALE, 1/2-20 | $9.33/EA |
| 3 | MM3400125PowerBoss 3400125 | 4 | RUE-RING, .375 | $1.81/EA |
| 4 | MM600174PowerBoss 600174 | 2 | BEARING, FIBERGLIDE 1.00 ID 1.25 T | $50.14/EA |
| 5 | MM600573PowerBoss 600573 | 2 | PIN, CLEVIS, 3/8 X 1.50 | $2.91/EA |
| 6 | MM600578PowerBoss 600578 | 1 | RUE-RING, .50 | $1.08/EA |
| 7 | MM675507PowerBoss 675507 | 2 | FITTING, 90, -4 ORFS - 4 SAE | $8.00/EA |
| 8 | MM675508PowerBoss 675508 | 2 | FITTING, STR, 4 ORFS - 4-SAE | $4.83/EA |
| 9 | MM711337PowerBoss 711337 | 1 | NUT, HEX JAM 1/2-20 | $1.08/EA |
| 10 | MM717030PowerBoss 717030 | 1 | BOLT, M8-1.25 X 20 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM717040PowerBoss 717040 | 8 | WASHER, FENDER, .413 B 1.18 OD .098 T SS | $1.10/EA |
| 12 | MM730339PowerBoss 730339 | 14 | NUT, M10-1.50 ESN SS | $2.72/EA |
| 13 | MM730345PowerBoss 730345 | 8 | BOLT, M10-1.50 X 35 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM730548PowerBoss 730548 | 2 | CYLINDER, HYD, 1.50 B X 2.88 STK | $341.34/EA |
| 15 | MM730602PowerBoss 730602 | 2 | PIN, CLEVIS, .375 X 2.75 | $3.28/EA |
| 16 | MM730646PowerBoss 730646 | 8 | BEARING, DU, .63 B .72 OD .38 T | $4.53/EA |
| 17 | MM730647PowerBoss 730647 | 16 | WASHER, THRUST, .66 B 1.25 OD .06 T | $18.69/EA |
| 18 | MM730648PowerBoss 730648 | 8 | SPACER, .406 B .624 OD .515 T SS | $11.87/EA |
| 19 | MM730875PowerBoss 730875 | 1 | PIN, CLEVIS 1/2 X 2.50 ZP | $3.20/EA |
| 20 | MM730907PowerBoss 730907 | 1 | WELDMENT, PIN | $56.50/EA |
| 21 | MM730910PowerBoss 730910 | 1 | WELDMENT, SSB ARM | $239.03/EA |
| 22 | MM730923PowerBoss 730923 | 1 | SSB CYL MNT | $45.83/EA |
| 23 | MM730924PowerBoss 730924 | 1 | SSB MNT | $80.56/EA |
| 24 | MM730925PowerBoss 730925 | 1 | SSB ADJ TUBE | $67.18/EA |
| 25 | MM730926-1PowerBoss 730926-1 | 4 | SSB LINK | $40.13/EA |
| 26 | MM730957PowerBoss 730957 | 2 | WASHER, THRUST, 1.03 B 2.00 OD .063 T | $28.61/EA |
| 27 | MM730958PowerBoss 730958 | 6 | BOLT, M10-1.50 X 25 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 30 | No number printedPowerBoss no number printed | 1 | SSB MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side brush solution control group (option) parts
Catalog page 179 lists 25 parts lines for the side brush solution control group (option); the drawing is on page 178. Optional equipment. Manual pages 178, list 179.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3315534PowerBoss 3315534 | 1 | FTG-ADAPTER 1/2 MPT X 1/2 HB PP | $5.52/EA |
| 2 | MM3400385PowerBoss 3400385 | 4 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 3 | MM383465PowerBoss 383465 | 1 | FTG-NIPPLE 1/2 MPT X 1-1/8 LG BRASS | $12.81/EA |
| 4 | MM600933PowerBoss 600933 | 2 | NUT-NYLOC M6-1.00 SS | $1.08/EA |
| 5 | MM600936PowerBoss 600936 | 4 | NUT-FLANGE WIZZ M10-1.50 ZP GR 8 | $1.11/EA |
| 6 | MM730876PowerBoss 730876 | 1 | PIN, ROLLER | $15.53/EA |
| 7 | MM730877PowerBoss 730877 | 2 | RET RING-EXT .750 | $1.11/EA |
| 8 | MM730878PowerBoss 730878 | 4 | SCR-HH M10-1.50 X 30 SS | $3.81/EA |
| 9 | MM730915PowerBoss 730915 | 1 | ROLLER, SUB | $122.93/EA |
| 10 | MM730916PowerBoss 730916 | 1 | WELDMENT, SSB GUARD | $211.93/EA |
| 11 | MM730934PowerBoss 730934 | 2 | SCR-HH M6-1.00 X 16 SS FULL THREAD | $3.13/EA |
| 12 | MM730952PowerBoss 730952 | 1 | WELDMENT, SSB DOOR | $136.36/EA |
| 13 | MM730954PowerBoss 730954 | 1 | TUBING, .50 ID X .13 WALL BRD VINYL 4 IN | $1.19/EA |
| 14 | MM730956PowerBoss 730956 | 1 | VALVE, SOLENOID, 12V, ADJ | $69.97/EA |
| 15 | MM730960PowerBoss 730960 | 1 | SPACER PLT | $10.14/EA |
| 16 | MM730961PowerBoss 730961 | 1 | TUBING, .50 ID X .13 WAL BRA VINYL 16 IN | $8.93/EA |
| 17 | MM730962PowerBoss 730962 | 4 | CLAMP, WIRE HOSE | $1.13/EA |
| 18 | MM730966PowerBoss 730966 | 1 | FTG-TEE FEMALE 1/2 NPT X 1/2 X 1/2 PVC | $13.39/EA |
| 19 | MM3335609PowerBoss 3335609 | 1 | PAD, STEP | $8.61/EA |
| 20 | No number printedPowerBoss no number printed | 1 | FILTER AND STANDARD FITTING COMPONENTSPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | No number printedPowerBoss no number printed | 1 | BRACKET, FILTER MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | MM3315535PowerBoss 3315535 | 2 | FTG-ELEMENT 90 1/2 MPT X 1/2 HB PP | $5.02/EA |
| 25 | No number printedPowerBoss no number printed | 1 | SSB MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side brush hydraulic hose group (option) parts
Catalog page 181 lists 13 parts lines for the side brush hydraulic hose group (option); the drawing is on page 180. Optional equipment. Manual pages 180, list 181.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731079PowerBoss 731079 | 1 | HOSE, 8 STR - 8 90 MED (LH MB TO SSB VALVE P2) | $61.29/EA |
| 2 | MM731081PowerBoss 731081 | 1 | HOSE, 10 STR - 8 45 MED (VALVE T2 TO SSB VALVE T2 | $47.28/EA |
| 3 | MM731082PowerBoss 731082 | 1 | HOSE, 8 STR - 8 90 MED (SSB VALVE SB OUT TO SB R) | $81.25/EA |
| 4 | MM731083PowerBoss 731083 | 1 | HOSE, 8-STR - 8 STR MED (SSB VALVE SB IN TO SB F) | $90.41/EA |
| 5 | MM731084PowerBoss 731084 | 1 | HOSE, 4-STR - 4 STR MED (STR TEE TO SSB VALVE P1) | $72.85/EA |
| 6 | MM731085PowerBoss 731085 | 1 | HOSE, 4 STR - 4 90 MED (VALVE T1 TO SSB VALVE T1) | $64.90/EA |
| 7 | MM731087PowerBoss 731087 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBE B TO EXT CYL R) | $51.23/EA |
| 8 | MM731088PowerBoss 731088 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBL A TO LIFT CYL U) | $48.90/EA |
| 9 | MM731089PowerBoss 731089 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBE A TO EXT CYL L) | $51.18/EA |
| 10 | MM731089PowerBoss 731089 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBL B TO LIFT CYL L) | $51.18/EA |
| 11 | MM731168PowerBoss 731168 | 1 | HOSE, 4 STR - 4 45 MED (LH MB CASE TO SCRUB HEAD TEE) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM675623PowerBoss 675623 | 1 | FTG - BRANCH TEE -10 ORFS TO -10 ORFS TO -10 SAE | $26.72/EA |
| 13 | MM675624PowerBoss 675624 | 1 | FTG - SWIVEL NUT ELBOW -10 ORFS TO -10 ORFS | $19.11/EA |
PowerBoss Nautilus side brush scrub head group (option) parts
Catalog page 182 lists 2 parts lines for the side brush scrub head group (option); the drawing is on page 182. Optional equipment. Manual page 182.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM675541PowerBoss 675541 | 1 | FTG - 45, 4 ORFS - 4 SAE | $8.14/EA |
| 2 | No number printedPowerBoss no number printed | 1 | LEFT SCRUB BRUSH MOTORPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side brush steering column group (option) parts
Catalog page 183 lists 5 parts lines for the side brush steering column group (option); the drawing is on page 183. Optional equipment. Manual page 183.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM675507PowerBoss 675507 | 1 | FTG - 90, -4 ORFS - 4 SAE | $8.00/EA |
| 2 | MM675604PowerBoss 675604 | 1 | FTG - TEE -6 ORFS TO -6 ORFS TO -4 SAE | $46.81/EA |
| 3 | No number printedPowerBoss no number printed | 1 | FTG - .094 ORIFICE ADAPTER -6 ORFS TO -6 ORFSPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | No number printedPowerBoss no number printed | 1 | FTG - STR, 6 ORFS -G SAEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | No number printedPowerBoss no number printed | 1 | STEERING UNITPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus SSB hydraulic manifold group (option) parts
Catalog page 185 lists 9 parts lines for the SSB hydraulic manifold group (option); the drawing is on page 184. Optional equipment. Manual pages 184, list 185.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM730065PowerBoss 730065 | 1 | "PORT 4.2 - RV4 - PRESSURE REDUCTION VALVE / SOL. RED. VALVE, DROB-01-C-N-050-V-45" | $133.75/EA |
| 2 | MM730705PowerBoss 730705 | 1 | "PORT 5.3 - SV10 - SIDE BRUSH DOWN / SOL. VALVE, WKOBL-01-C-N-O" | $93.67/EA |
| 3 | MM730705PowerBoss 730705 | 1 | "PORT 5.2 - SV12 - SIDE BRUSH EXTEND / SOL. VALVE, WKOBL-01-C-N-O" | $93.67/EA |
| 4 | MM730707PowerBoss 730707 | 1 | "PORT 3.2 - SV11 - SIDE BRUSH UP - LOCK / SOL. VALVE, WSOBZR-01-C-N-O" | $89.83/EA |
| 5 | MM730709PowerBoss 730709 | 1 | "PORT 7.2 - SV8 - SIDE BRUSH ON / SOL. VALVE, WS10Y-01-C-N-O" | $144.22/EA |
| 6 | MM730710PowerBoss 730710 | 1 | "PORT 6.2 - SV9 - SIDE BRUSH FORCE / PROP. RED. VALVE, PDR08-01-M-C-N-070" | $311.11/EA |
| 7 | MM731122PowerBoss 731122 | 4 | COIL, 12V, 3003124 | $51.68/EA |
| 8 | MM730700-1PowerBoss 730700-1 | 1 | MANIFOLD BLOCK ASSY, SSB | $2,841.92/EA |
| 9 | MM731226PowerBoss 731226 | 1 | COIL, PROPORTIONAL, 12PL-2.2-40-1836 | $46.67/EA |
PowerBoss Nautilus overhead guard group (option) parts
Catalog page 187 lists 14 parts lines for the overhead guard group (option); the drawing is on page 186. Optional equipment. Manual pages 186, list 187.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038346PowerBoss 11038346 | 12 | BOLT, M10-1.50 X 25 HH | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM12040069PowerBoss 12040069 | 16 | NUT, M10-1.50 ESN | $6.92/EA |
| 3 | MM12310058PowerBoss 12310058 | 14 | WASHER, M10 | $4.15/EA |
| 4 | MM730878PowerBoss 730878 | 4 | SCR-HH M10-1.5 X 30 SS | $3.81/EA |
| 5 | MM730388PowerBoss 730388 | 1 | INSULATION, SOUND, OHG TOP | $45.03/EA |
| 6 | MM730389PowerBoss 730389 | 1 | INSULATION, SOUND, OHG BACK | $34.72/EA |
| 7 | MM730697PowerBoss 730697 | 1 | BRACKET, OHG | $34.27/EA |
| 8 | MM731012PowerBoss 731012 | 1 | WELDMENT, OHG, RH SIDE | $1,441.75/EA |
| 9 | MM731020PowerBoss 731020 | 1 | WELDMENT, OHG, LH SIDE | $1,476.10/EA |
| 10 | MM731024PowerBoss 731024 | 1 | OHG, TOP PLT | $337.19/EA |
| 11 | MM731026PowerBoss 731026 | 1 | PLATE, SPACER | $32.36/EA |
| 12 | MM731027PowerBoss 731027 | 1 | EDGING, 3/16 X 23.62 IN | $5.67/EA |
| 13 | MM731028PowerBoss 731028 | 2 | PLUG, TUBING | $2.47/EA |
| 14 | No number printedPowerBoss no number printed | 1 | CONSOLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus suspension seat group (option) parts
Catalog page 189 lists 33 parts lines for the suspension seat group (option); the drawing is on page 188. Optional equipment. Manual pages 188, list 189.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038098PowerBoss 11038098 | 2 | SCR-HH M6-1.0 X 20 ZP CLASS 8.8 DIN | $1.08/EA |
| 2 | MM11038247PowerBoss 11038247 | 1 | SCR-HH M8-1.25 X 25 ZP CLASS 8.8 | $1.08/EA |
| 3 | MM12022042PowerBoss 12022042 | 2 | NUT-HEX M6 X 1.0 STL ZD CL8 DIN 934 | $1.08/EA |
| 4 | MM12040044PowerBoss 12040044 | 6 | NUT-NYLOC M6 X 1.0 ZP CLASS 6 | $1.38/EA |
| 5 | MM12040051PowerBoss 12040051 | 3 | NUT-NYLOC M8 X 1.25 ZP CLASS 8 | $4.15/EA |
| 6 | MM12310033PowerBoss 12310033 | 5 | WASHER-FLAT M6.4 X 12 X 1.6 ZP | $1.38/EA |
| 7 | MM12310041PowerBoss 12310041 | 2 | WASHER-FLAT M8.4 X 16 X 1.6 ZP | $2.75/EA |
| 8 | MM173080PowerBoss 173080 | 6 | WASHER-FLAT .266 X .875 X .07 SS | $1.08/EA |
| 9 | MM3400035PowerBoss 3400035 | 4 | SCR-HH 5/16-18 X 1.00 ZP GR 5 | $1.11/EA |
| 10 | MM3400384PowerBoss 3400384 | 6 | WASHER-CONICAL SPRING 5/16 | $1.08/EA |
| 11 | MM600138PowerBoss 600138 | 1 | SPACER, .328 B .500 OD .188T, SS | $9.00/EA |
| 12 | MM600194PowerBoss 600194 | 2 | LATCH COVER, ZP CLEAR | $12.43/EA |
| 13 | MM600940PowerBoss 600940 | 4 | WASHER-FENDER M8 X 24 ZP | $1.11/EA |
| 14 | MM600948PowerBoss 600948 | 1 | WASHER-WAVE .500 ID X 1.00 OD X .040 THI | $5.46/EA |
| 15 | MM600963PowerBoss 600963 | 2 | WASHER-WAVE M6 DIN 137 | $1.11/EA |
| 16 | MM623001PowerBoss 623001 | 1 | SEAT, SUSPENSION W/SEAT BELT, RH | $1,029.56/EA |
| 17 | MM711373PowerBoss 711373 | 1 | NUT-NYLOC 1/4-20 ZP | $1.10/EA |
| 18 | MM711374PowerBoss 711374 | 4 | NUT-NYLOC 5/16-18 ZP | $1.10/EA |
| 19 | MM711420PowerBoss 711420 | 4 | NUT-JAM 5/16-18 ZP | $1.08/EA |
| 20 | MM713005PowerBoss 713005 | 1 | SCR-HH 1/4-20 X 1.50 ZP GR 5 PART THRD | $1.08/EA |
| 21 | MM717021PowerBoss 717021 | 2 | SCR-HH M6-1.0 X 30 ZP CLASS 8.8 | $1.11/EA |
| 22 | MM717024PowerBoss 717024 | 4 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8 | $1.08/EA |
| 23 | MM730320PowerBoss 730320 | 1 | WELDMENT, SEAT MOUNT | $246.47/EA |
| 24 | MM730482PowerBoss 730482 | 1 | BRACKET, SEAT STRIKER ZP | $24.31/EA |
| 25 | MM730484PowerBoss 730484 | 1 | PLATE, SEAT LOCK | $18.47/EA |
| 26 | MM730486PowerBoss 730486 | 1 | PLATE, SPACER ZP | $24.97/EA |
| 27 | MM730487PowerBoss 730487 | 1 | SUPPORT, SEAT MOUNT ZP CLR | $37.20/EA |
| 28 | MM730488PowerBoss 730488 | 1 | SLIDE LATCH | $14.06/EA |
| 29 | MM731006PowerBoss 731006 | 2 | SCR-HH M6-1.00 X 25 ZP CLASS 8.8 | $1.08/EA |
| 30 | MM731262PowerBoss 731262 | 1 | RELEASE, LATCH | $19.31/EA |
| 31 | MM731263PowerBoss 731263 | 1 | SPACER, .257 B .313 OD .813 T | $11.57/EA |
| 32 | No number printedPowerBoss no number printed | 1 | COVER PLATEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | No number printedPowerBoss no number printed | 1 | CONSOLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus backup alarm group (option, standard on CE and UK models) parts
Catalog page 191 lists 19 parts lines for the backup alarm group (option, standard on CE and UK models); the drawing is on page 190. Optional; standard on CE and UK models. Manual pages 190, list 191.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038072PowerBoss 11038072 | 2 | BOLT, M6-1.00 X 16 HH | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM11039567PowerBoss 11039567 | 2 | BOLT, M8-1.25 X 25 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM12040044PowerBoss 12040044 | 2 | NUT, M6-1.00 ESN | $1.38/EA |
| 4 | MM12040259PowerBoss 12040259 | 2 | NUT, M8-1.25 ESN SS | $1.08/EA |
| 5 | MM3303002PowerBoss 3303002 | 1 | ALARM, BACKUP | $59.22/EA |
| 6 | MM3342546-1PowerBoss 3342546-1 | 1 | HARNESS, SWITCH, WHISKER | $94.56/EA |
| 7 | MM3400045PowerBoss 3400045 | 2 | SCREW, #8-32 X .625 PAN HD ZP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | MM711372PowerBoss 711372 | 4 | NUT, FIBER INSERT #8-32 | $1.08/EA |
| 9 | MM711502PowerBoss 711502 | 2 | FLATWASHER, #8 | $1.08/EA |
| 10 | MM620136PowerBoss 620136 | 2 | BOLT, #8-32 X 1.25 HH ZP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | No number printedPowerBoss no number printed | 1 | PUMP, AUXILIARYPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM731002PowerBoss 731002 | 1 | MOUNT, REVERSE SWITCH | $13.87/EA |
| 13 | MM731030PowerBoss 731030 | 1 | MOUNT, SAFETY LIGHTS | $71.53/EA |
| 14 | No number printedPowerBoss no number printed | 1 | ADJUSTOR, HYDROBACK W/SW MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | No number printedPowerBoss no number printed | 1 | PUMP ASSEMBLYPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | No number printedPowerBoss no number printed | 1 | SOLUTION TANKPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | No number printedPowerBoss no number printed | 1 | HYDROBACK MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748980PowerBoss 748980 | 1 | HARNESS, SAFETY LT & BACKUP ALARM | $102.69/EA |
| – | MM748719PowerBoss 748719 | 1 | HARNESS ASSEMBLY, BACK UP ALARM | $35.72/EA |
PowerBoss Nautilus chemical metering group (option) parts
Catalog page 193 lists 39 parts lines for the chemical metering group (option); the drawing is on page 192. Optional equipment. Manual pages 192, list 193.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172400PowerBoss 172400 | 1 | FITTING, TEE, .38 X .50 X .50 POLY | $2.78/EA |
| 2 | MM3300526PowerBoss 3300526 | 1 | BUMPER, .25 ID .125 T | $1.55/EA |
| 3 | MM3302338PowerBoss 3302338 | 2 | CLAMP, HOSE, .50 | $1.79/EA |
| 4 | MM3303072PowerBoss 3303072 | 1 | SWITCH, ROTARY, 4-WAY | $17.44/EA |
| 5 | MM3323992PowerBoss 3323992 | 1 | RESISTOR | $37.00/EA |
| 6 | MM3344038PowerBoss 3344038 | 1 | SWITCH CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM711372PowerBoss 711372 | 2 | NUT, FIBER INSERT #8-32 | $1.08/EA |
| 8 | MM711502PowerBoss 711502 | 4 | FLATWASHER, #8 | $1.08/EA |
| 9 | MM3400455PowerBoss 3400455 | 2 | SCREW, 3/8-16 X 1.50 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM600151PowerBoss 600151 | 1 | GROMMET, .63 ID .88 OD .25 T | $2.31/EA |
| 11 | MM600482PowerBoss 600482 | 1 | STRAIN RELIEF | $13.86/EA |
| 12 | MM620137PowerBoss 620137 | 1 | SWITCH BODY, DPST W/GREEN LAMP | $24.47/EA |
| 13 | MM710230PowerBoss 710230 | 2 | SCREW, #8-32 X .62 PAN HD | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM730991PowerBoss 730991 | 3 | NUT, RUBBER EXPANSION | $23.33/EA |
| 17 | MM731106PowerBoss 731106 | 1 | TUBING, .375 ID X .06 WALL VINYL 30 IN | $2.36/EA |
| 18 | MM731107PowerBoss 731107 | 1 | FTG-NIPPLE 3/8 HB X 3/8 HB NYLON | $1.11/EA |
| 19 | MM731111PowerBoss 731111 | 1 | WELDMENT, CHEMICAL PUMP MNT | $101.67/EA |
| 20 | MM731114-1PowerBoss 731114-1 | 1 | ASSEMBLY, PUMP COVER | $40.00/EA |
| 21 | MM731116PowerBoss 731116 | 1 | SCREW, M6-1.00 X 16 BUTTON HD CAP ZP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM731117PowerBoss 731117 | 1 | TUBING, .375 ID X .06 WALL VINYL | $3.44/EA |
| 23 | Not sold separatelyPowerBoss no number printed | 1 | CAP, CHEMICAL CONTAINERIncluded in 731120. | Not sold separately. Order Chemical container (MM731120) |
| 24 | MM731187PowerBoss 731187 | 1 | KNOB | $10.96/EA |
| 25 | MM731213PowerBoss 731213 | 1 | BOLT, 3/8-16 X 2.00 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM731350PowerBoss 731350 | 1 | PUMP ASSY, METERING | $720.33/EA |
| 27 | MM731385PowerBoss 731385 | 1 | SPACER, .406 B 1.125 OD .188 T | $46.18/EA |
| 28 | MM731386PowerBoss 731386 | 1 | SPACER, .406 B 1.125 OD .750 T | $51.21/EA |
| 29 | MM748461PowerBoss 748461 | 1 | HARNESS ASSY, SPRAY PUMP | $40.15/EA |
| 30 | MM748462PowerBoss 748462 | 1 | HARNESS ASSY, SPRAY PUMP | $21.47/EA |
| 31 | MM748463PowerBoss 748463 | 1 | HARNESS ASSY, SPRAY PUMP | $47.69/EA |
| 32 | MM748464PowerBoss 748464 | 1 | WIRE ASSY, ORANGE, 16 AWG | $4.57/EA |
| 33 | Not sold separatelyPowerBoss no number printed | 2 | NUTIncluded in 3303072. | Not sold separately. Order Switch, rotary, 4-way (MM3303072) |
| 34 | No number printedPowerBoss no number printed | 2 | FLAT WASHER, .31Included in 3323983. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | No number printedPowerBoss no number printed | 2 | WASHER, RIDGEIncluded in 3323893. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | No number printedPowerBoss no number printed | 1 | SCREW, #10-32 X 2.63Included in 3323983. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | Not sold separatelyPowerBoss no number printed | 1 | NUT, PLASTICIncluded in 600482. | Not sold separately. Order Strain relief (MM600482) |
| 38 | No number printedPowerBoss no number printed | 2 | NUT, #19-32Included in 3323983. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 39 | No number printedPowerBoss no number printed | 1 | SOLUTION TANKPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 40 | MM731120PowerBoss 731120 | 1 | CHEMICAL CONTAINER | $73.83/EA |
| 41 | No number printedPowerBoss no number printed | 1 | CONSOLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus fire extinguisher group (option) parts
Catalog page 195 lists 4 parts lines for the fire extinguisher group (option); the drawing is on page 194. Optional equipment. Manual pages 194, list 195.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3302769PowerBoss 3302769 | 1 | FIRE EXTINGUISHER | $144.44/EA |
| 2 | MM731099PowerBoss 731099 | 4 | SCREW, M6 X 16 PAN HD ZP FOR PLASTIC | $1.08/EA |
| 3 | Not sold separatelyPowerBoss no number printed | 1 | MOUNT, EXTINGUISHERIncluded in 3302769. | Not sold separately. Order Fire Extinguisher with mount (MM3302769) |
| 4 | No number printedPowerBoss no number printed | 1 | TOP COVERPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus auto fill group (option) parts
Catalog page 197 lists 27 parts lines for the auto fill group (option); the drawing is on page 196. Optional equipment. Manual pages 196, list 197.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM101020PowerBoss 101020 | 1 | INDICATOR-PLATE OFF/ON | $1.08/EA |
| 2 | MM121109PowerBoss 121109 | 1 | SWIVEL-3/4" FGH X 1/2" BRASS | $10.63/EA |
| 3 | MM3302737-1PowerBoss 3302737-1 | 1 | WIRE ASSY, SWITCH-LEVEL LS7 | $98.95/EA |
| 4 | MM3315535PowerBoss 3315535 | 2 | FTG-ELBOW 90 1/2 MPT X 1/2 HB PP | $5.02/EA |
| 5 | MM3400340PowerBoss 3400340 | 1 | NUT-NYLOC 3/8-16 SS | $1.08/EA |
| 6 | MM3400384PowerBoss 3400384 | 1 | WASHER-CONICAL SPRING 5/16 | $1.08/EA |
| 7 | MM3400385PowerBoss 3400385 | 4 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 8 | MM383465PowerBoss 383465 | 1 | FTG-NIPPLE 1/2 MPT X 1-1/8 LG BRASS | $12.81/EA |
| 9 | MM710985PowerBoss 710985 | 3 | SCR-BHSCS 3/8-16 X .625 ZP | $1.67/EA |
| 10 | MM730529PowerBoss 730529 | 1 | SCR-HH 3/8-16 X 1.00 SS | $1.86/EA |
| 11 | MM730959PowerBoss 730959 | 1 | SCR-HH 3/8-16 X .75 SS | $1.55/EA |
| 12 | MM730962PowerBoss 730962 | 2 | CLAMP - UNICLAMP .650 DIA MAGNI 565 | $1.13/EA |
| 13 | MM731042PowerBoss 731042 | 1 | BRACKET, AUTO FILL | $46.98/EA |
| 14 | MM731043PowerBoss 731043 | 1 | FTG-QUICK DISCONNECT 1/2 | $43.94/EA |
| 15 | MM731044PowerBoss 731044 | 1 | FTG- BULKHEAD 1/2 NPT | $30.58/EA |
| 16 | MM731045PowerBoss 731045 | 1 | VALVE, SOLENOID WATER | $172.95/EA |
| 17 | MM731046PowerBoss 731046 | 1 | TUBING, .50 ID X .13 WALL BRAID VINYL | $1.08/EA |
| 18 | MM731048PowerBoss 731048 | 1 | FTG-QUICK DISCONNECT NIPPLE 1/2 FPT | $8.72/EA |
| 19 | MM731049PowerBoss 731049 | 1 | FTG-ELBOW 90 1/2 MPT X 1/2 MPT BRASS | $9.92/EA |
| 20 | MM731383PowerBoss 731383 | 1 | HOSE - COIL .38 X 50 FT | $382.50/EA |
| 21 | MM731615PowerBoss 731615 | 1 | WELDMENT, HOSE CARRIER | $174.89/EA |
| 22 | MM747693-1PowerBoss 747693-1 | 1 | SWITCH ASY, TOGGLE ON-ON SPDT W/ 3P | $79.07/EA |
| 23 | MM748989PowerBoss 748989 | 1 | HARNESS, AUTO FILL | $94.56/EA |
| 24 | Not sold separatelyPowerBoss no number printed | 1 | WASHERIncluded in 731044. | Not sold separately. Order Ftg- bulkhead 1/2 npt (MM731044) |
| 25 | Not sold separatelyPowerBoss no number printed | 1 | NUTIncluded in 731044. | Not sold separately. Order Ftg- bulkhead 1/2 npt (MM731044) |
| 26 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | No number printedPowerBoss no number printed | 1 | SOLUTION TANKPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus spray and vac wand tool group, part 1 (option)
Catalog page 199 lists 19 parts lines for the spray and vac wand tool group, part 1 (option); the drawing is on page 198. Optional equipment. Manual pages 198, list 199.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | No number printedPowerBoss no number printed | 1 | UPPER TUBE - AVAILABLE ON REQUESTPrinted as *** instead of a number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM00054440PowerBoss 00054440 | 1 | FITTING, MALE QUICK DISCONNECT | $17.81/EA |
| 3 | MM00054450PowerBoss 00054450 | 1 | FITTING, HOSE BARB | $23.45/EA |
| 4 | MM00112340PowerBoss 00112340 | 1 | BRUSH STRIP | $109.21/EA |
| 5 | MM00112350PowerBoss 00112350 | 1 | NOZZLE BODY | $331.75/EA |
| 6 | MM00112360PowerBoss 00112360 | 1 | SQUEEGEE BLADE | $214.12/EA |
| 7 | MM00442330PowerBoss 00442330 | 2 | TUBE | $40.81/EA |
| 8 | MM00501580PowerBoss 00501580 | 3 | SPRAY NOZZLE | $78.00/EA |
| 9 | MM00552250PowerBoss 00552250 | 1 | VALVE | $208.56/EA |
| 10 | MM00552410PowerBoss 00552410 | 2 | CLIP, HOSE | $5.22/EA |
| 11 | MM00552440PowerBoss 00552440 | 1 | BRACKET, PIPE | $141.94/EA |
| 12 | MM00704720PowerBoss 00704720 | 1 | HOSE, SOLUTION | $40.14/EA |
| 13 | MM00704730PowerBoss 00704730 | 1 | BLAST PIPE | $286.40/EA |
| 14 | MM03500300PowerBoss 03500300 | 2 | BRACKET, RETAINER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM11126018PowerBoss 11126018 | 2 | BOLT, M6 X 10 AHCS | $1.05/EA |
| 16 | MM11132065Replaces PowerBoss 11126166 | 2 | SCREW, CYL HD, M6 X 16replaces PowerBoss 11126166. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM11405040PowerBoss 11405040 | 2 | SCREW, SELF TAPPING 4,8 X 19 | $1.22/EA |
| 18 | MM12310033PowerBoss 12310033 | 2 | WASHER, M6 | $1.38/EA |
| – | MM99700910BPowerBoss 99700910B | 1 | COMPLETE WAND | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus spray and vac wand hose group, part 2 (option)
Catalog page 201 lists 8 parts lines for the spray and vac wand hose group, part 2 (option); the drawing is on page 200. Optional equipment. Manual pages 200, list 201.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00010670PowerBoss 00010670 | 1 | ASSEMBLY, VACUUM HOSE | $293.00/EA |
| 2 | MM00010670Replaces PowerBoss 00101280 | 1 | HOSE CUFF. FEMALEreplaces PowerBoss 00101280. | $293.00/EA |
| 3 | MM00552380PowerBoss 00552380 | 1 | MALE QUICK DISCONNECT | $21.25/EA |
| 4 | MM00552400PowerBoss 00552400 | 1 | FEMALE QUICK DISCONNECT | $58.47/EA |
| 5 | MM00010670Replaces PowerBoss 00782240 | 1 | HOSE CUFF, MALEreplaces PowerBoss 00782240. | $293.00/EA |
| 6 | MM01074690PowerBoss 01074690 | 1 | ASSEMBLY, PRESSURE HOSE | $146.67/EA |
| 7 | MM17533100PowerBoss 17533100 | 2 | CLAMP, HOSE | $1.56/EA |
| 8 | MM731098PowerBoss 731098 | 1 | ADAPTER, HOSE | $275.42/EA |
PowerBoss Nautilus spray and vac wand mount group (option) parts
Catalog page 203 lists 19 parts lines for the spray and vac wand mount group (option); the drawing is on page 202. Optional equipment. Manual pages 202, list 203.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00560010PowerBoss 00560010 | 4 | CLAMP | $22.65/EA |
| 2 | MM00800100PowerBoss 00800100 | 1 | SEALING STRIP (EACH=METERS) | $14.14/EA |
| 3 | MM01090890PowerBoss 01090890 | 1 | HOSE MOUNT, COVER | $324.83/EA |
| 4 | MM01090900PowerBoss 01090900 | 1 | HOSE MOUNT, HALF SHELL | $204.28/EA |
| 5 | MM11038098PowerBoss 11038098 | 3 | SCR-HH M6-1.0 X 20 ZP CLASS 8.8 DIN | $1.08/EA |
| 6 | MM12040044PowerBoss 12040044 | 3 | NUT-NYLOC M6 X 1.0 ZP CLASS 6 | $1.38/EA |
| 7 | MM12310033PowerBoss 12310033 | 8 | WASHER-FLAT M6.4 X 12 X 1.6 ZP | $1.38/EA |
| 8 | MM0711505PowerBoss 0711505 | 2 | WASHER-FLAT 1/4 ZP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM03400455PowerBoss 03400455 | 2 | SCR-HH 3/8-16 X 1.50 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM600117PowerBoss 600117 | 2 | BUMPER, 1.0 OD, .50 GROMMET, RUBBER | $3.08/EA |
| 11 | MM600933PowerBoss 600933 | 2 | NUT-NYLOC M6-1.00 SS | $1.08/EA |
| 12 | MM710204PowerBoss 710204 | 8 | SCR-PHMS 6-32 X .50 ZP | $1.08/EA |
| 13 | MM711371PowerBoss 711371 | 8 | NUT-NYLOC 6-32 ZP | $1.08/EA |
| 14 | MM730508PowerBoss 730508 | 2 | SCR-HH M6-1.00 X 35 FULL THREAD SS | $1.25/EA |
| 15 | MM730991PowerBoss 730991 | 2 | NUT, RUBBER EXPANSION | $23.33/EA |
| 16 | MM731097PowerBoss 731097 | 1 | BRACKET, HOSE MOUNT | $360.55/EA |
| 17 | No number printedPowerBoss no number printed | 1 | DEMISTERPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | No number printedPowerBoss no number printed | 1 | LOWER VAC WAND ASSEMBLYPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | No number printedPowerBoss no number printed | 1 | UPPER VAC WAND ASSEMBLYPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus spray and vac wand pump group (option) parts
Catalog page 205 lists 21 parts lines for the spray and vac wand pump group (option); the drawing is on page 204. Optional equipment. Manual pages 204, list 205.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM00552590PowerBoss 00552590 | 1 | FEMALE QUICK DISCONNECT | $39.35/EA |
| 2 | MM00552600PowerBoss 00552600 | 1 | FITTING, BARB | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM12040259PowerBoss 12040259 | 2 | NUT, M8-1.25 ESN SS | $1.08/EA |
| 4 | MM12332011PowerBoss 12332011 | 2 | WASHER, FENDER, M6 | $4.15/EA |
| 5 | MM3302338PowerBoss 3302338 | 4 | CLAMP, HOSE, .50 | $1.79/EA |
| 6 | MM3331278PowerBoss 3331278 | 1 | PUMP, SOLUTION | $313.40/EA |
| 7 | MM3344038PowerBoss 3344038 | 1 | SWITCH COVER - BLACK, NO LENS | $11.31/EA |
| 8 | MM3400985PowerBoss 3400985 | 1 | FITTING, PLASTIC, 90, .375 NPT .375 BARB | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM600933PowerBoss 600933 | 2 | NUT, M6-1.00 ESN SS | $1.08/EA |
| 10 | MM620137PowerBoss 620137 | 1 | SWITCH BODY, DPST W/GREEN LAMP | $24.47/EA |
| 11 | MM730969PowerBoss 730969 | 1 | FITTING, TEE, .50 NPT - .50 BARB, NYLON | $1.22/EA |
| 12 | MM731038PowerBoss 731038 | 1 | WELDMENT, PUMP MNT | $23.33/EA |
| 13 | MM731050PowerBoss 731050 | 2 | BOLT, M6-100 X 30 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM731094PowerBoss 731094 | 1 | FITTING, STR, 1/2 BARB X 3/8 MALE NPT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM731095PowerBoss 731095 | 1 | TUBING, .50 ID VINYL | $14.14/EA |
| 16 | MM731096PowerBoss 731096 | 1 | TUBING, .375 ID VINYL | $5.06/EA |
| 17 | MM748797PowerBoss 748797 | 1 | HARNESS, OAW PUMP OPT | $38.82/EA |
| 18 | No number printedPowerBoss no number printed | 1 | INSTRUMENT PANELPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | No number printedPowerBoss no number printed | 1 | VALVE MOUNT PLATEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | No number printedPowerBoss no number printed | 1 | FILTER MOUNT BRACKETPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus urethane squeegee blade group (option) parts
Catalog page 207 lists 6 parts lines for the urethane squeegee blade group (option); the drawing is on page 206. Optional equipment. Manual pages 206, list 207.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731101PowerBoss 731101 | 1 | SQUEEGEE BLADE, FRONT, URETHANE | $99.53/EA |
| 2 | MM731102PowerBoss 731102 | 1 | SQUEEGEE BLADE, REAR, URETHANE | $170.34/EA |
| 3 | MM731103PowerBoss 731103 | 2 | SQUEEGEE, SIDE, URETHANE | $41.08/EA |
| 4 | No number printedPowerBoss no number printed | 1 | LH SQUEEGEE MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | No number printedPowerBoss no number printed | 1 | RH SQUEEGEE MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | No number printedPowerBoss no number printed | 1 | SQUEEGEE WELDMENTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus urethane side brush squeegee group (option) parts
Catalog page 209 lists 2 parts lines for the urethane side brush squeegee group (option); the drawing is on page 208. Optional equipment. Manual pages 208, list 209.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731104PowerBoss 731104 | 1 | SSB SQUEEGEE BLADE, URETHANE | $48.97/EA |
| 2 | No number printedPowerBoss no number printed | 1 | SSB MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus stainless steel hopper group (option) parts
Catalog page 211 lists 4 parts lines for the stainless steel hopper group (option); the drawing is on page 210. Optional equipment. Manual pages 210, list 211.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM730344PowerBoss 730344 | 2 | WASHER, M10 SS | $1.11/EA |
| 2 | MM730815PowerBoss 730815 | 1 | WELDMENT, HOPPER | $2,018.18/EA |
| 3 | MM730835PowerBoss 730835 | 1 | WELDMENT, HANDLE | $55.39/EA |
| 4 | MM730844PowerBoss 730844 | 2 | RETAINING CLIP, .375 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus seat switch (option, standard on CE and UK models) parts
Catalog page 213 lists 17 parts lines for the seat switch (option, standard on CE and UK models); the drawing is on page 212. Optional; standard on CE and UK models. Manual pages 212, list 213.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | MM748456PowerBoss 748456 | 1 | HARNESS, SWITCH BYPASS | $17.24/EA |
| – | MM748444PowerBoss 748444 | 1 | STD SEAT SWITCH HARNESS | $34.97/EA |
| 1 | MM220327PowerBoss 220327 | 1 | GROMMET. 1.25 X 1.00 X .125 | $1.38/EA |
| 2 | MM3400227PowerBoss 3400227 | 1 | SCREW, 1/4-20 X 1.25 HH ZP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM710493PowerBoss 710493 | 2 | SCR-MC RND HD 4-40 X .75 ZP | $1.08/EA |
| 4 | MM711373PowerBoss 711373 | 1 | NUT, FIBER INSERT 1/4-20 | $1.10/EA |
| 5 | MM712348PowerBoss 712348 | 2 | NUT, HEX 4-40 NYLON LOCK, ZP | $1.08/EA |
| 6 | MM731275PowerBoss 731275 | 1 | COVER, TIMER/CONTROLLER | $86.25/EA |
| 7 | MM731276PowerBoss 731276 | 1 | SEAL, CONTROLLER | $18.19/EA |
| 8 | MM748430PowerBoss 748430 | 1 | TIMER | $116.79/EA |
| 10 | MM748445PowerBoss 748445 | 1 | SWITCH - TWIST LOCK (USED WITH STANDARD SEAT ONLY) | $46.15/EA |
| 12 | MM748999PowerBoss 748999 | 1 | SEAT SWITCH HARNESS | $61.18/EA |
| 13 | MM90636234PowerBoss 90636234 | 1 | MICRO-SWITCH | $18.41/EA |
| 14 | No number printedPowerBoss no number printed | 1 | CONSOLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | No number printedPowerBoss no number printed | 1 | OPTIONAL SUSPENSION SEAQTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | No number printedPowerBoss no number printed | 1 | STANDARD SEATPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | No number printedPowerBoss no number printed | 1 | SEAT MOUNTPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side broom group (option) parts
Catalog page 215 lists 37 parts lines for the side broom group (option); the drawing is on page 214. Optional equipment. Manual pages 214, list 215.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12022067PowerBoss 12022067 | 4 | NUT, M10-1.50 HEX | $4.15/EA |
| 2 | MM12040069PowerBoss 12040069 | 2 | NUT, M10-1.50 ESN | $6.92/EA |
| 3 | MM12040259PowerBoss 12040259 | 4 | NUT, M8-1.25 ESN SS | $1.08/EA |
| 4 | MM12310058PowerBoss 12310058 | 4 | WASHER, M10 | $4.15/EA |
| 5 | MM3300376PowerBoss 3300376 | 2 | STUD, 10MM BALL | $3.58/EA |
| 6 | MM3400086PowerBoss 3400086 | 5 | WASHER, 1/2, 1.063 X .531 X .094 | $1.11/EA |
| 7 | MM711545PowerBoss 711545 | 2 | LOCK WASHER, 5/16 HS MED | $1.08/EA |
| 8 | MM3400385PowerBoss 3400385 | 4 | WASHER, 3/8, BELLEVILLE | $1.11/EA |
| 9 | MM730878PowerBoss 730878 | 2 | BOLT, M10-1.50 X 30 HH | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM600217PowerBoss 600217 | 1 | MOTOR, 17.9 DISP | $506.31/EA |
| 11 | MM600303PowerBoss 600303 | 1 | WELDMENT, SB TRAILING ARM | $119.37/EA |
| 12 | MM600322PowerBoss 600322 | 1 | WELDMENT, SB FLANGE | $89.16/EA |
| 13 | MM600325PowerBoss 600325 | 1 | SB LINK | $52.72/EA |
| 14 | MM600327PowerBoss 600327 | 2 | SPACER, .406 B .50 OD .280 T | $11.26/EA |
| 15 | MM600330PowerBoss 600330 | 1 | STRING GUARD | $39.89/EA |
| 16 | MM600566PowerBoss 600566 | 1 | PIN, WIRE LOCK, .313 | $2.76/EA |
| 17 | MM600571PowerBoss 600571 | 2 | PIN, CLEVIS 1/2 X 6.00 | $3.79/EA |
| 18 | MM600578PowerBoss 600578 | 4 | RUE-RING, .50 | $1.08/EA |
| 19 | MM600820PowerBoss 600820 | 4 | BOLT, M8-1.25 X 45 HH | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM600962PowerBoss 600962 | 1 | BOLT, M10-1.50 X 40 HH FULL THRO | $2.65/EA |
| 21 | MM3400166PowerBoss 3400166 | 2 | FITTING, REDUCER -10 SAE -8 SAE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM675606PowerBoss 675606 | 2 | FITTING, LONG ELBOW -8 ORFS -8 SAE | $37.75/EA |
| 23 | MM713041PowerBoss 713041 | 4 | SCREW, 3/8-16 X .750 HHC | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | MM730339PowerBoss 730339 | 4 | NUT, M10-1.50 ESN SS | $2.72/EA |
| 25 | MM730424PowerBoss 730424 | 1 | BOLT, M10-1.50 X 80 HH ALL-THRO | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM730902PowerBoss 730902 | 1 | GAS STRUT, 8.77 EXT, 3.00 STK, 200N | $41.00/EA |
| 27 | MM730904PowerBoss 730904 | 2 | NUT, 5/16-18 HEX JAM SS | $1.11/EA |
| 28 | MM730958PowerBoss 730958 | 4 | BOLT, M10-1.50 X 25 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | MM731274PowerBoss 731274 | 1 | BROOM, SIDE, 20" | $125.72/EA |
| 30 | MM731278PowerBoss 731278 | 1 | MOUNT, SB MOTOR | $129.58/EA |
| 31 | MM731279PowerBoss 731279 | 1 | MOUNT, SB PIVOT | $79.49/EA |
| 32 | MM731280PowerBoss 731280 | 1 | MOUNT, SB GAS STRUT | $18.06/EA |
| 33 | MM731285PowerBoss 731285 | 1 | WELDMENT, SB PIVOT | $153.81/EA |
| 34 | MM731290PowerBoss 731290 | 1 | PIN, RETAINING | $100.66/EA |
| 35 | No number printedPowerBoss no number printed | 1 | SB CABLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side broom lift and adjustment group (option) parts
Catalog page 217 lists 35 parts lines for the side broom lift and adjustment group (option); the drawing is on page 216. Optional equipment. Manual pages 216, list 217.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3400075PowerBoss 3400075 | 1 | NUT-JAM 3/8-24 ZP | $1.11/EA |
| 2 | MM3400086PowerBoss 3400086 | 6 | WASHER-FLAT 1/2 ZP | $1.11/EA |
| 3 | MM712301PowerBoss 712301 | 4 | WASHER-FLAT 3/8 ZP | $1.08/EA |
| 4 | MM711505PowerBoss 711505 | 4 | WASHER-FLAT 1/4 ZP | $1.08/EA |
| 5 | MM3400115PowerBoss 3400115 | 1 | PIN-CLEVIS 3/8 X 3.00 ZP | $3.81/EA |
| 6 | MM3400117PowerBoss 3400117 | 1 | PIN-CLEVIS 3/8 x 1.125 ZP | $1.45/EA |
| 7 | MM3400125PowerBoss 3400125 | 3 | RING-RUE 3/8 | $1.81/EA |
| 8 | MM711375PowerBoss 711375 | 2 | NUT-JAM 3/8-16 ZP NYLOC | $1.08/EA |
| 9 | MM3401063PowerBoss 3401063 | 2 | SCR-HH 1/4-20 X 2.00 SS | $1.58/EA |
| 10 | MM600117PowerBoss 600117 | 1 | BUMPER, 1.0 OD, .50 GROMMET, RUBBER | $3.08/EA |
| 11 | MM600573PowerBoss 600573 | 1 | PIN-CLEVIS 3/8 X 1.50 ZP | $2.91/EA |
| 12 | MM600813PowerBoss 600813 | 1 | CLEVIS 3/8-24 | $44.15/EA |
| 13 | MM600933PowerBoss 600933 | 2 | NUT-NYLOC M6-1.00 SS | $1.08/EA |
| 14 | MM600952PowerBoss 600952 | 2 | SCR-HH M6-1.00 X 35 SS | $1.11/EA |
| 15 | MM620005-1PowerBoss 620005-1 | 1 | ASSY, SOLENOID - 2 POS 4 WAY CROSSOVER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM620008PowerBoss 620008 | 1 | CHECK VALVE | $175.47/EA |
| 17 | MM620009PowerBoss 620009 | 2 | SPACER .391 B .630 OD .250 T | $34.00/EA |
| 18 | MM620110PowerBoss 620110 | 1 | FTG-ORFS STR THD -4 -4 HIGH PRESS | $8.64/EA |
| 19 | MM675507PowerBoss 675507 | 3 | FTG-ORFS 90 ELBOW -4 -4 SAE | $8.00/EA |
| 20 | MM675511PowerBoss 675511 | 2 | FTG-ORFS STR THD -4 -6 SAE | $4.75/EA |
| 21 | MM675523PowerBoss 675523 | 2 | FTG-ORFS 90 ELBOW -8 -8 SAE | $12.31/EA |
| 22 | MM675525PowerBoss 675525 | 1 | FTG-ORFS TEE -8 -8 -8 SAE | $15.86/EA |
| 23 | MM675546PowerBoss 675546 | 1 | FTG-ORFS 90 ELBOW -4 -6 SAE | $8.42/EA |
| 24 | MM675745PowerBoss 675745 | 1 | FTG - PORT ADAPTER -6 ORMS -4 ORFS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | MM712667PowerBoss 712667 | 2 | NUT-NYLOC 1/4-20 SS | $1.10/EA |
| 26 | MM730548PowerBoss 730548 | 1 | CYLINDER-1.5 BORE X 2.88 STROKE | $341.34/EA |
| 27 | MM731277PowerBoss 731277 | 1 | NUT-WING 3/8-24 NYLON | $2.25/EA |
| 28 | MM731281PowerBoss 731281 | 1 | CHANNEL, SB ADJUSTMENT | $36.81/EA |
| 29 | MM731282PowerBoss 731282 | 1 | CLEVIS, CABLE | $28.94/EA |
| 30 | MM731283PowerBoss 731283 | 1 | SB CABLE | $55.21/EA |
| 31 | MM731284PowerBoss 731284 | 1 | ROD, SB ADJUSTMENT | $107.23/EA |
| 32 | MM731291PowerBoss 731291 | 1 | KNOB, 3/8-24 | $8.39/EA |
| 33 | MM731292PowerBoss 731292 | 1 | ASSEMBLY, SOLENOID VALVE 2-POS 3-WAY | $395.99/EA |
| 34 | MM770486PowerBoss 770486 | 1 | MOUNT, SOLENOID | $25.39/EA |
| 35 | No number printedPowerBoss no number printed | 1 | PIVOT ASSEMBLYPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side broom hydraulic hose group (option) parts
Catalog page 219 lists 8 parts lines for the side broom hydraulic hose group (option); the drawing is on page 218. Optional equipment. Manual pages 218, list 219.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731500PowerBoss 731500 | 1 | HOSE,8 STR-8.90 MED (IMP SOL T TO SB MOT | $88.11/EA |
| 2 | MM731057PowerBoss 731057 | 1 | HOSE,8 STR-10 STR MED (IMP SOL T TO COOL | $66.98/EA |
| 3 | MM675470PowerBoss 675470 | 2 | HOSE CHRG T (STR) TO HOP OUT (90) | $55.25/EA |
| 4 | MM675470PowerBoss 675470 | 1 | HOSE CHRG T (STR) TO HOP OUT (90) | $55.25/EA |
| 5 | MM731084PowerBoss 731084 | 1 | HOSE,4 STR-4 STR MED (STR TEE TO SSB VAL | $72.85/EA |
| 6 | MM731075PowerBoss 731075 | 1 | HOSE,4 STR-4 90 MED (VALVE T1 TO RES) | $40.62/EA |
| 7 | MM731085PowerBoss 731085 | 2 | HOSE,4 STR-4 90 MED (VALVE T1 TO SSB VAL | $64.90/EA |
| 8 | MM731085PowerBoss 731085 | 2 | HOSE,4 STR-4 90 MED (VALVE T1 TO SSB VAL | $64.90/EA |
PowerBoss Nautilus side brush hydraulic hose routing (option) parts
Catalog page 221 lists 38 parts lines for the side brush hydraulic hose routing (option); the drawing is on page 220. Optional equipment. Manual pages 220, list 221.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731051PowerBoss 731051 | 1 | HOSE, 20 STR - 20 STR sue (RES TO AUX PUMP IN) | $323.67/EA |
| 2 | MM731052PowerBoss 731052 | 1 | HOSE, 12 STR - 12 STR sue (RES TO VDP CASE) | $98.98/EA |
| 3 | MM731053PowerBoss 731053 | 1 | HOSE, 16 STR - 16 90 RET (COOLER UPPER TO RES) | $173.89/EA |
| 4 | MM731054PowerBoss 731054 | 1 | HOSE, 10 STR - 10 STR RET (VALVE T2 TO COOLER) | $99.28/EA |
| 5 | MM731055PowerBoss 731055 | 1 | HOSE, 10 STR - 8 90 RET (VDP CASE TO RES) | $83.92/EA |
| 6 | MM731079PowerBoss 731079 | 1 | HOSE, 8 STR - 8 90 MED (LH MB TO SSB VALVE P2) | $61.29/EA |
| 7 | MM731057PowerBoss 731057 | 1 | HOSE, 8 STR - 10 STR MED (IMP SOL T TO COOLER) | $66.98/EA |
| 8 | MM731058PowerBoss 731058 | 1 | HOSE, 8 STR - 8 STR MED (AUX PUMP 1 TO IMP SOL P) | $94.81/EA |
| 9 | MM731059PowerBoss 731059 | 1 | HOSE, 8 STR - 8 STR MED (AUX PUMP 2 TO VALVE P2) | $56.34/EA |
| 10 | MM731060PowerBoss 731060 | 1 | HOSE, 8 STR - 8 90 MED (VALVE MB OUT TO MB RIGHT) | $71.64/EA |
| 11 | MM731061PowerBoss 731061 | 1 | HOSE, 8 STR - 8 90 MED (IMP SOL VF OUT TO IMP LEFT) | $44.95/EA |
| 12 | MM731062PowerBoss 731062 | 1 | HOSE, 8 STR - 8 90 MED (IMP RIGHT TO IMP SOL VF IN) | $64.28/EA |
| 13 | MM731063PowerBoss 731063 | 1 | HOSE, 6 STR - 6 90 MED (AUX PUMP 3 TO VALVE P1) | $59.50/EA |
| 14 | MM731064PowerBoss 731064 | 1 | HOSE, 6 STR - 6 90 MED (VALVE P1 TO STR PRESS) | $49.09/EA |
| 15 | MM731065PowerBoss 731065 | 1 | HOSE, 6 STR - 8 STR RET ( STR TANK TO VDP CASE) | $47.93/EA |
| 16 | MM731066PowerBoss 731066 | 1 | HOSE, 6 STR - 6 STR MED (STR LEFT TO CYL F) | $38.03/EA |
| 17 | MM731067PowerBoss 731067 | 1 | HOSE, 6 STR - 6 STR MED ( STR RIGHT TO CYL R) | $78.78/EA |
| 18 | MM731068PowerBoss 731068 | 1 | HOSE, 4 STR - 4 45 MED (VALVE BL A TO SH CYL F) | $41.80/EA |
| 19 | MM731069PowerBoss 731069 | 1 | HOSE, 4 STR - 4 45 MED (VALVE BL A TO SH CYL R) | $42.90/EA |
| 20 | MM731070PowerBoss 731070 | 1 | HOSE, 4 STR - 4 STR MED (VALVE SG B TO SQU CYL F) | $97.41/EA |
| 21 | MM731071PowerBoss 731071 | 1 | HOSE, 4 STR - 4 STR MED (VALVE SG A TO SQU CYL R) | $89.61/EA |
| 22 | MM731072PowerBoss 731072 | 1 | HOSE, 4 STR - 4 45 MED (RH MB CASE TO SCRUB HEAD TEE) | $51.51/EA |
| 23 | MM731073PowerBoss 731073 | 1 | HOSE, 4 STR - 4 90 MED (SCRUB HD TO IMP CASE) | $48.89/EA |
| 24 | MM731074PowerBoss 731074 | 1 | HOSE, 4 STR - 4 90 MED (IMP CASE TO RES) | $48.93/EA |
| 25 | MM731075PowerBoss 731075 | 1 | HOSE, 4 STR - 4 90 MED (SSB VALVE T1 TO RES) | $40.62/EA |
| 26 | MM731076PowerBoss 731076 | 1 | HOSE, 4 STR - 4 45 MED (WHEEL DRIVE CASE TO RES) | $49.72/EA |
| 27 | MM731077PowerBoss 731077 | 1 | HOSE, 8 STR - 8 45 SPCL (VDP L TO WHEEL DRIVE R) | $262.00/EA |
| 28 | MM731078PowerBoss 731078 | 1 | HOSE, 8 STR - 8 45 SPCL (VDP R TO WHEEL DRIVE F) | $257.25/EA |
| 29 | MM731081PowerBoss 731081 | 1 | HOSE, 10 STR - 8 45 MED (VALVE T2 TO SSB VALVE T2 | $47.28/EA |
| 30 | MM731082PowerBoss 731082 | 1 | HOSE, 8 STR - 8 90 MED (SSB VALVE SB OUT TO SB R) | $81.25/EA |
| 31 | MM731083PowerBoss 731083 | 1 | HOSE, 8-STR - 8 STR MED (SSB VALVE SB IN TO SB F) | $90.41/EA |
| 32 | MM731084PowerBoss 731084 | 1 | HOSE, 4-STR - 4 STR MED (STR TEE TO SSB VALVE P1) | $72.85/EA |
| 33 | MM731085PowerBoss 731085 | 1 | HOSE, 4 STR - 4 90 MED (VALVE T1 TO SSB VALVE T1) | $64.90/EA |
| 34 | MM731089PowerBoss 731089 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBE A TO EXT CYL L) | $51.18/EA |
| 35 | MM731087PowerBoss 731087 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBE B TO EXT CYL R) | $51.23/EA |
| 36 | MM731088PowerBoss 731088 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBL A TO LIFT CYL U) | $48.90/EA |
| 37 | MM731089PowerBoss 731089 | 1 | HOSE, 4 STR - 4 STR MED (SSB VALVE SBL B TO LIFT CYL L) | $51.18/EA |
| 38 | MM731168PowerBoss 731168 | 1 | HOSE, 4 STR - 4 45 MED (LH MB CASE TO SCRUB HEAD TEE) | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus spray and wash group (option) parts
Catalog page 223 lists 36 parts lines for the spray and wash group (option); the drawing is on page 222. Optional equipment. Manual pages 222, list 223.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12332011PowerBoss 12332011 | 4 | WASHER-FLAT M6.4 X 18 X 1.6 ZP | $4.15/EA |
| 2 | MM281426PowerBoss 281426 | 1 | COUPLING-3/4" HOSE X 1/2" MPT | $17.02/EA |
| 3 | MM320997PowerBoss 320997 | 1 | BALL VALVE, 1/2" FPT PVC/EPDM | $9.92/EA |
| 4 | MM3300535PowerBoss 3300535 | 6 | CLAMP - SCREW .5" to 1.25" DIA 201SS | $1.56/EA |
| 5 | MM3303388PowerBoss 3303388 | 1 | FTG-ADAPTER 3/4 MPT TO 3/4 HB | $16.06/EA |
| 6 | MM3315536PowerBoss 3315536 | 1 | FTG-ELBOW 90 1/2 MPT X 3/4 HB PP | $3.75/EA |
| 7 | MM3320728PowerBoss 3320728 | 2 | FTG-1/2 MPT - 3/4 HB | $8.35/EA |
| 8 | MM3323501PowerBoss 3323501 | 1 | FILTER-B50 MESH INLINE | $61.35/EA |
| 9 | MM3332264PowerBoss 3332264 | 1 | FILTER ELEMENT - SERVICE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM3342273PowerBoss 3342273 | 1 | COVER-SWITCH, CARLING, BLACK W/LENS | $3.42/EA |
| 11 | MM3400173PowerBoss 3400173 | 4 | SCR-HH 1/4-20 X 1.75 ZP GR 5 PART THRD | $1.11/EA |
| 12 | MM3400291PowerBoss 3400291 | 2 | SCR-HH M8-1.25 X 16 ZP CLASS 8.8 | $1.11/EA |
| 13 | MM3400384PowerBoss 3400384 | 2 | WASHER-CONICAL SPRING 5/16 | $1.08/EA |
| 14 | MM3400385PowerBoss 3400385 | 3 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 15 | MM3401981PowerBoss 3401981 | 2 | BLT-U 1/4-20 X3/4 ZP | $3.68/EA |
| 16 | MM383465PowerBoss 383465 | 1 | FTG-NIPPLE 1/2 MPT X 1-1/8 LG BRASS | $12.81/EA |
| 18 | MM620137PowerBoss 620137 | 1 | SWITCH BASE, ROCKER WITH GREEN LAMP | $24.47/EA |
| 19 | MM710985PowerBoss 710985 | 3 | SCR-BHSCS 3/8-16 X .625 ZP | $1.67/EA |
| 20 | MM712667PowerBoss 712667 | 8 | NUT-NYLOC 1/4-20 SS | $1.10/EA |
| 21 | MM715969PowerBoss 715969 | 1 | DECAL, WASH SYSTEM | $5.43/EA |
| 22 | MM715970PowerBoss 715970 | 1 | DECAL, WASH SWITCH | $11.80/EA |
| 23 | MM731043PowerBoss 731043 | 1 | FTG-QUICK DISCONNECT 1/2 | $43.94/EA |
| 24 | MM731044PowerBoss 731044 | 1 | FTG- BULKHEAD 1/2 NPT | $30.58/EA |
| 25 | MM731048PowerBoss 731048 | 1 | FTG-QUICK DISCONNECT NIPPLE 1/2 FPT | $8.72/EA |
| 26 | MM731365-1PowerBoss 731365-1 | 1 | PUMP ASSY, SOLUTION | $487.76/EA |
| 27 | MM731367PowerBoss 731367 | 1 | BRACKET, PUMP MNT | $49.81/EA |
| 28 | MM731371PowerBoss 731371 | 1 | TUBING, .75 ID X 1.25' WIRE RE HOSE | $20.64/EA |
| 29 | MM731372PowerBoss 731372 | 1 | TUBING, .75 ID X 3.5' VINYL | $13.58/EA |
| 30 | MM731379PowerBoss 731379 | 1 | TUBING, .75 ID X 7' VINYL | $25.36/EA |
| 31 | MM731383PowerBoss 731383 | 1 | HOSE - COIL .38 X 50 FT | $382.50/EA |
| 32 | MM731384PowerBoss 731384 | 1 | NOZZLE - SPRAY | $36.68/EA |
| 33 | MM731460PowerBoss 731460 | 1 | BRACKET, CLAMP | $47.22/EA |
| 34 | MM731463PowerBoss 731463 | 1 | TUBING, 3/4 ID X 28.00 REINF. SILICON | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM731615PowerBoss 731615 | 1 | WELDMENT, HOSE CARRIER | $174.89/EA |
| 36 | Not sold separatelyPowerBoss no number printed | 1 | NUTIncluded in 731044. | Not sold separately. Order Ftg- bulkhead 1/2 npt (MM731044) |
| 37 | No number printedPowerBoss no number printed | 1 | CONSOLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus pressure washer pump group (option) parts
Catalog page 225 lists 39 parts lines for the pressure washer pump group (option); the drawing is on page 224. Optional equipment. Manual pages 224, list 225.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11039567PowerBoss 11039567 | 2 | SCR-HH M8-1.25 X 25 SS | $1.11/EA |
| 2 | MM600933PowerBoss 600933 | 4 | NUT-NYLOC M6-1.00 SS | $1.08/EA |
| 3 | MM3302193PowerBoss 3302193 | 2 | CLAMP - SCREW .69" to 1.5" DIA 201SS | $5.49/EA |
| 4 | MM3302737-1PowerBoss 3302737-1 | 1 | WIRE ASSY, SWITCH-LEVEL LS7 | $98.95/EA |
| 5 | MM3303388PowerBoss 3303388 | 1 | FTG-ADAPTER 3/4 MPT TO 3/4 HB | $16.06/EA |
| 6 | MM3342273PowerBoss 3342273 | 1 | COVER-SWITCH, CARLING, BLACK W/LENS | $3.42/EA |
| 7 | MM3400384PowerBoss 3400384 | 6 | WASHER-CONICAL SPRING 5/16 | $1.08/EA |
| 8 | MM3400959PowerBoss 3400959 | 1 | FTG-ELBOW 90 3/4 MPT X 3/4 HB BRASS | $24.75/EA |
| 9 | MM342430PowerBoss 342430 | 1 | FTG-ADAPTER 3/8 MPT X 3/8 HB BRASS | $3.92/EA |
| 10 | MM3500118PowerBoss 3500118 | 1 | EDGING-VINYL TRIM 1/8" X 250' | $2.87/EA |
| 11 | MM600913PowerBoss 600913 | 2 | SCR-HH M6-1.00 X 20 SS | $1.11/EA |
| 12 | MM600934PowerBoss 600934 | 4 | NUT-FLANGE WIZZ M8-1.25 ZP | $1.11/EA |
| 14 | MM620137PowerBoss 620137 | 1 | SWITCH BASE, ROCKER WITH GREEN LAMP | $24.47/EA |
| 15 | MM675634PowerBoss 675634 | 1 | FTG-ORFS STR THD -6 MPT -6 ORFS SS | $61.03/EA |
| 16 | MM675635PowerBoss 675635 | 1 | FTG-ORFS STR THD -6 -60 FPT | $102.19/EA |
| 17 | MM715970PowerBoss 715970 | 1 | DECAL, WASH SWITCH | $11.80/EA |
| 18 | MM717030PowerBoss 717030 | 4 | SCR-HH M8-1.25 X 20 SS | $1.08/EA |
| 19 | MM3335609PowerBoss 3335609 | 1 | PAD, STEP | $8.61/EA |
| 20 | MM731422PowerBoss 731422 | 1 | MOUNT, PRESSURE WASHER | $91.97/EA |
| 21 | MM731436PowerBoss 731436 | 1 | MOUNT, QUICK DISCONNECT | $8.47/EA |
| 22 | MM731441PowerBoss 731441 | 1 | FTG-QUICK DISCONNECT 3/8 FPT SS | $212.86/EA |
| 23 | MM731454PowerBoss 731454 | 1 | HOSE, 6 STR - 6 90 MED SS ENDS | $188.00/EA |
| 24 | MM731455PowerBoss 731455 | 1 | FTG-GARDEN ADAPTER 3/4 GH X 3/4 FPT BRAS | $13.03/EA |
| 25 | MM731459PowerBoss 731459 | 1 | BRACKET, SWITCH | $78.33/EA |
| 26 | MM731460PowerBoss 731460 | 1 | BRACKET, CLAMP | $47.22/EA |
| 27 | MM731555PowerBoss 731555 | 2 | SCR-HH M6-1.00 X 25 SS | $1.75/EA |
| 28 | MM731601PowerBoss 731601 | 1 | TUBING, .375" ID X 5.75 FT REINFORCED VI | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | MM731606PowerBoss 731606 | 1 | TUBING, .75" ID X 5.75 FT REINFORCED VIN | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 30 | MM731618PowerBoss 731618 | 1 | FTG-HEX NIPPLE, 3/8 NPT, SS | $14.61/EA |
| 31 | MM731619PowerBoss 731619 | 1 | FTG-3/8 ANCHOR COUPLING W/NUT | $221.31/EA |
| 32 | MM731651PowerBoss 731651 | 1 | PLT, SPACER | $35.67/EA |
| 33 | MM731991PowerBoss 731991 | 1 | FTG-ELBOW 90 1/2 MPT X 3/8 HB BRASS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM748735PowerBoss 748735 | 1 | HARNESS ASSY, PRESSURE WASHER | $65.83/EA |
| 36 | MM829129PowerBoss 829129 | 2 | CLAMP - SCREW .313" to .875" DIA 301SS | $3.64/EA |
| 37 | MM829619PowerBoss 829619 | 1 | PLUG-HEX HEAD PIPE 1/4 B | $1.72/EA |
| 38 | Not sold separatelyPowerBoss no number printed | 1 | NUTIncluded in 731619. | Not sold separately. Order Ftg-3/8 anchor coupling w/nut (MM731619) |
| 39 | No number printedPowerBoss no number printed | 1 | TANK, SOLUTIONPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 40 | No number printedPowerBoss no number printed | 1 | PRESSURE WASHERPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 41 | No number printedPowerBoss no number printed | 1 | CONSOLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus pressure washer hose and wand group (option) parts
Catalog page 227 lists 15 parts lines for the pressure washer hose and wand group (option); the drawing is on page 226. Optional equipment. Manual pages 226, list 227.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731441PowerBoss 731441 | 1 | QUICK DISCONNECT, COUPLER (PART OF KIT 731457) | $212.86/EA |
| 2 | MM00560010PowerBoss 00560010 | 2 | CLAMP | $22.65/EA |
| 3 | MM3400385PowerBoss 3400385 | 3 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 4 | MM710204PowerBoss 710204 | 4 | SCR-PHMS 6-32 X .50 ZP | $1.08/EA |
| 5 | MM710985PowerBoss 710985 | 3 | SCR-BHSCS 3/8-16 X .625 ZP | $1.67/EA |
| 6 | MM711371PowerBoss 711371 | 4 | NUT-NYLOC 6-32 ZP | $1.08/EA |
| 7 | MM731437PowerBoss 731437 | 1 | WELDMENT, HOSE BOX | $356.39/EA |
| 8 | MM731440PowerBoss 731440 | 1 | HOSE, PRESSURE WASHER 50 FT (PART OF KIT 731457) | $209.16/EA |
| 9 | MM731442PowerBoss 731442 | 1 | FTG-QUICK DISCONNECT NIPPLE 3/8 FPT | $89.02/EA |
| 10 | MM731443PowerBoss 731443 | 1 | QUICK DISCONNECT, PLUG, 6MPT | $4.05/EA |
| 11 | MM731444PowerBoss 731444 | 1 | TRIGGER GUN | $121.63/EA |
| 12 | MM731445PowerBoss 731445 | 1 | INSULATED LANCE | $34.46/EA |
| 13 | MM731446PowerBoss 731446 | 1 | LANCE | $13.19/EA |
| 14 | MM731447PowerBoss 731447 | 1 | TIP, ADJUSTABLE | $123.64/EA |
| 15 | No number printedPowerBoss no number printed | 1 | SOLUTION TANKPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus pressure washer hydraulic hose group (option) parts
Catalog page 229 lists 27 parts lines for the pressure washer hydraulic hose group (option); the drawing is on page 228. Optional equipment. Manual pages 228, list 229.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM711505PowerBoss 711505 | 2 | WASHER, 1/4 .625 X .281 X .063 | $1.08/EA |
| 2 | MM3400689PowerBoss 3400689 | 1 | FTG, STR THD CONNECTOR -8 ORFS TO -10 SAE | $6.42/EA |
| 3 | MM675520PowerBoss 675520 | 1 | FITTING, ELBOW, 6 ORFS - 8 O-RING | $11.89/EA |
| 4 | MM675521PowerBoss 675521 | 1 | FITTING, STR, -6 ORFS - 8 SAE | $9.14/EA |
| 5 | MM675524PowerBoss 675524 | 1 | FITTING, STR, -8 ORFS - 8 SAE | $5.75/EA |
| 6 | MM675525PowerBoss 675525 | 1 | FITTING, RUN TEE, -8 ORFS - 8 ORFS - 8 SAE | $15.86/EA |
| 7 | MM675537PowerBoss 675537 | 1 | FITTING, 90, -8 ORFS - 12 SAE | $18.47/EA |
| 8 | MM675628PowerBoss 675628 | 1 | FTG - STR THD SWIVEL ELBOW, -8 ORFS TO -8 SAE | $29.72/EA |
| 9 | MM711373PowerBoss 711373 | 4 | NUT, FIBER INSERT 1/4-20 | $1.10/EA |
| 10 | MM712567PowerBoss 712567 | 2 | SCREW, 1/4-20 X 2.00 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM730965PowerBoss 730965 | 2 | BOLT, 1/4-20 X 3.00 SOC HD CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM731292PowerBoss 731292 | 1 | ASSEMBLY, SOLENOID VALVE 2-POS 3-WAY | $395.99/EA |
| 12A | MM731298PowerBoss 731298 | 1 | CARTRIDGE VALVE-SERVICE PART | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12B | MM731299PowerBoss 731299 | 1 | BLOCK, SOLENOID - SERVICE PART | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12C | MM731300PowerBoss 731300 | 1 | COIL, 12 VDC - SERVICE PART | $54.93/EA |
| 13A | MM731414PowerBoss 731414 | MOTOR, PRESSURE WASHER | $1,062.19/EA | |
| 13B | MM731421PowerBoss 731421 | 1 | PUMP, PRESSURE WASHER | $1,323.21/EA |
| 13C | MM731413PowerBoss 731413 | MOTOR/PUMP, PRESSURE WASHER SUB | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 14 | MM731431PowerBoss 731431 | 1 | BRACKET, SOLENOID MOUNT | $22.73/EA |
| 15 | MM731452PowerBoss 731452 | 1 | HOSE, 6 STR - 8 90 MED | $83.83/EA |
| 16 | MM731453PowerBoss 731453 | 1 | HOSE, 6 STR - 8 STR RET | $60.89/EA |
| 17 | No number printedPowerBoss no number printed | 1 | FITTING, -6ORFS TO -8 SAEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | No number printedPowerBoss no number printed | 1 | HOSE 731061-1 (IMP LEFT TO SOL 1)Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | No number printedPowerBoss no number printed | 1 | HOSE 731062-1 (IMP RIGHT TO IMP SOL VF IN)Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | No number printedPowerBoss no number printed | 1 | IMPELLER MOTORPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | No number printedPowerBoss no number printed | 1 | IMPELLER MANIFOLDPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | No number printedPowerBoss no number printed | 1 | MANIFOLD BRACKETPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus low LP indicator group (option) parts
Catalog page 231 lists 11 parts lines for the low LP indicator group (option); the drawing is on page 230. Fits LPG machines, cylindrical or disc. Optional equipment. Manual pages 230, list 231.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3301822-1PowerBoss 3301822-1 | 1 | PLUG, PLASTIC, 2.00 DIA WITH MTG HOLEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $3.53/EA |
| 2 | MM3305535-2PowerBoss 3305535-2 | 1 | TEE, LOW LP INDICATORFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $12.47/EA |
| 3 | MM3305535-3PowerBoss 3305535-3 | 1 | SENSOR, LOW LP INDICATORFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $43.81/EA |
| 4 | MM3305535-4PowerBoss 3305535-4 | 1 | LABEL, LOW LP INDICATORFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.81/EA |
| 5 | MM748770PowerBoss 748770 | 1 | HARNESS ASSY, LOW LP INDICATORFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $60.20/EA |
| 6 | MM748960PowerBoss 748960 | 1 | LIGHT ASSY, INDICATOR LAMP, LOW LPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $23.53/EA |
| 7 | MM831306PowerBoss 831306 | 2 | FTG-ELBOW 90 ST 1/4 MPT X 1/4 FPT BRASSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $4.11/EA |
| 8 | No number printedPowerBoss no number printed | 1 | FRAME WITH PRESSURE RELIEF VALVEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | No number printedPowerBoss no number printed | 1 | INSTRUMENT PANELFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | No number printedPowerBoss no number printed | 1 | LP TANK HOSEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | No number printedPowerBoss no number printed | 1 | RELIEF VALVE MOUNTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus side broom water mist group (option) parts
Catalog page 233 lists 29 parts lines for the side broom water mist group (option); the drawing is on page 232. Optional equipment. Manual pages 232, list 233.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11039567PowerBoss 11039567 | 2 | SCR-HH M8-1.25 X 25 SS | $1.11/EA |
| 2 | MM281041PowerBoss 281041 | 1 | VALVE-CHECK | $19.57/EA |
| 3 | MM3302338PowerBoss 3302338 | 2 | CLAMP-HOSE .22 TO .62 | $1.79/EA |
| 4 | MM3315534PowerBoss 3315534 | 1 | FTG-ADAPTER 1/2 MPT X 1/2 HB PP | $5.52/EA |
| 5 | MM3400044PowerBoss 3400044 | 4 | SCR-HH 10-32 X .75 ZP SERR FLANGE | $1.11/EA |
| 6 | MM3400384PowerBoss 3400384 | 2 | WASHER-CONICAL SPRING 5/16 | $1.08/EA |
| 7 | MM3400385PowerBoss 3400385 | 1 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 8 | MM383465PowerBoss 383465 | 1 | FTG-NIPPLE 1/2 MPT X 1-1/8 LG BRASS | $12.81/EA |
| 9 | MM600934PowerBoss 600934 | 1 | NUT-FLANGE WIZZ M8-1.25 ZP | $1.11/EA |
| 10 | MM717030PowerBoss 717030 | 1 | SCR-HH M8-1.25 X 20 SS | $1.08/EA |
| 11 | MM730962PowerBoss 730962 | 2 | CLAMP, WIRE HOSE | $1.13/EA |
| 12 | MM730966PowerBoss 730966 | 1 | FTG-TEE FEMALE 1/2 NPT X 1/2 X 1/2 PVC | $13.39/EA |
| 13 | MM731242PowerBoss 731242 | 4 | NUT-NYLOC 10-32 18-8 SS | $1.08/EA |
| 14 | MM731538PowerBoss 731538 | 1 | MOUNT, NOZZLE | $15.86/EA |
| 15 | MM731558PowerBoss 731558 | 1 | FTG, ELBOW, 3/8 NPT TO 1/2 BARB, BRASS | $14.25/EA |
| 16 | MM770669PowerBoss 770669 | 1 | TUBING, .25 ID, 16" | $2.00/EA |
| 17 | MM731603PowerBoss 731603 | 1 | FTG, ELBOW, 3/8 NPT TO 1/4 BARB, BRASS | $11.31/EA |
| 18 | MM770648PowerBoss 770648 | 1 | BRACKET, PUMP MNT | $24.92/EA |
| 19 | MM770653PowerBoss 770653 | 1 | PUMP, SOLUTION, 2 GPM, 12 VDC | $292.28/EA |
| 20 | MM770662PowerBoss 770662 | 1 | TUBING, 1/2 ID REINFORCED VINYL | $37.69/EA |
| 21 | MM770666PowerBoss 770666 | 1 | ADAPTER, SPRAY | $11.46/EA |
| 22 | MM770667PowerBoss 770667 | 1 | FITTING, SPECIAL | $19.00/EA |
| 23 | MM770668PowerBoss 770668 | 1 | SPRAY TIP - 11001 | $8.72/EA |
| 24 | MM833141PowerBoss 833141 | 1 | CAP | $10.34/EA |
| 25 | MM833142PowerBoss 833142 | 1 | GASKET-CAP | $3.30/EA |
| 26 | Not sold separatelyPowerBoss no number printed | 1 | NUTIncluded in 770667. | Not sold separately. Order Fitting, special (MM770667) |
| 27 | No number printedPowerBoss no number printed | 1 | EXISTING COMPONENTSPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | No number printedPowerBoss no number printed | 1 | EXISTING COMPONENTSPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus rear squeegee guard (option) parts
Catalog page 235 lists 15 parts lines for the rear squeegee guard (option); the drawing is on page 234. Optional equipment. Manual pages 234, list 235.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040069PowerBoss 12040069 | 6 | NUT-NYLOC M10 X 1.5 ZD CLASS 6 | $6.92/EA |
| 2 | MM3400335PowerBoss 3400335 | 2 | SCR-HH 3/8-16 X .75 SS | $2.57/EA |
| 3 | MM3400385PowerBoss 3400385 | 2 | WASHER, 3/8, BELLEVILLE | $1.11/EA |
| 4 | MM3400484PowerBoss 3400484 | 1 | RIVET, MULTI-GRIP | $1.11/EA |
| 5 | MM730344PowerBoss 730344 | 10 | WASHER, M10 SS | $1.11/EA |
| 6 | MM730958PowerBoss 730958 | 4 | BOLT, M10-1.50 X 25 HH SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM731488PowerBoss 731488 | 1 | TUBE, GUARD | $310.31/EA |
| 8 | MM731491PowerBoss 731491 | 2 | WELDMENT, GUARD MOUNT | $93.94/EA |
| 9 | MM731492PowerBoss 731492 | 2 | BUMPER, URETHANE | $16.53/EA |
| 10 | MM731501PowerBoss 731501 | 1 | LANYARD | $60.72/EA |
| 11 | MM731502PowerBoss 731502 | 2 | PLUG, HOLE, 1.25 | $1.25/EA |
| 12 | MM731462PowerBoss 731462 | 2 | SCR-HH, M10-1.50 X .75 HH P CLASS 8.8 | $7.25/EA |
| 13 | MM731493PowerBoss 731493 | 1 | PIN, CLEVIS, .375, BALL DETENT | $6.61/EA |
| 14 | No number printedPowerBoss no number printed | 1 | REAR BUMPER - HAND DUMPPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | No number printedPowerBoss no number printed | 1 | REAR BUMPER - HIGH DUMPPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus PVC free components (option) parts
List only: replacement part numbers printed on catalog page 236, with no parts table. Manual page 236.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | MM730985-1PowerBoss 730985-1 | LOWER SQUEEGEE HOSE 730985-1 TO BE USED IN PLACE OF 730985 IN SQUEEGEE GROUP 730118Replacement part printed on the drawing page; no parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730984-1PowerBoss 730984-1 | UPPER SQUEEGEE HOSE 730984-1 TO BE USED IN PLACE OF 730984 IN RECOVERY TANK GROUP 730122Replacement part printed on the drawing page; no parts table. | $91.06/EA | |
| – | MM731533-1PowerBoss 731533-1 | RECOVERY TANK DRAIN HOSE 731533-1 TO BE USED IN PLACE OF 731533 IN RECOVERY TANK DRAIN GROUP 730179Replacement part printed on the drawing page; no parts table. | $165.86/EA | |
| – | MM730987-1PowerBoss 730987-1 | SOLUTION TANK DRAIN HOSE 730987-1 TO BE USED IN PLACE OF 730987 IN SOLUTION TANK GROUP 730121Replacement part printed on the drawing page; no parts table. | $133.17/EA | |
| – | MM730970-1PowerBoss 730970-1 | HOSE 730970-1 TO BE USED IN PLACE OF 730970 IN SOLUTION CONTROL GROUP 730123Replacement part printed on the drawing page; no parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730971-1PowerBoss 730971-1 | HOSE 730971-1 TO BE USED IN PLACE OF 730971 IN SOLUTION CONTROL GROUP 730123Replacement part printed on the drawing page; no parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730972-1PowerBoss 730972-1 | HOSE 730972-1 TO BE USED IN PLACE OF 730972 IN SOLUTION CONTROL GROUP 730123Replacement part printed on the drawing page; no parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730973-1PowerBoss 730973-1 | HOSE 730973-1 TO BE USED IN PLACE OF 730973 IN SOLUTION CONTROL GROUP 730123Replacement part printed on the drawing page; no parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM731523PowerBoss 731523 | STAINLESS STEEL SOLUTION DELIVERY BAR 731523 TO BE USED IN PLACE OF 731389 IN SOLUTION CONTROL GROUP 730117Replacement part printed on the drawing page; no parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM3400194PowerBoss 3400194 | 2 | PLUG BOTH ENDS OF SOLUTION DELIVERY BAR 731523 WITH PLUG 3400194 (BRASS 3/8 NPT PIPE PLUG - 2 REQUIRED)Replacement part printed on the drawing page; no parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus tie downs (option) parts
Catalog page 237 lists 3 parts lines for the tie downs (option); the drawing is on page 237. Optional equipment. Manual page 237.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731566PowerBoss 731566 | 3 | TIE DOWN RING | $139.17/EA |
| 2 | MM11038346PowerBoss 11038346 | 18 | SCR-HH M10-1.5 X 25 ZD CLASS 8.8 | $1.08/EA |
| 3 | MM12040069PowerBoss 12040069 | 18 | NUT-NYLOC M10 X 1.5 ZD CLASS 6 | $6.92/EA |
PowerBoss Nautilus front wheel fender (option) parts
Catalog page 239 lists 4 parts lines for the front wheel fender (option); the drawing is on page 238. Optional equipment. Manual pages 238, list 239.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3400385PowerBoss 3400385 | 2 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 2 | MM730506PowerBoss 730506 | 2 | SCR-HH M8-1.25 X 30 SS | $3.33/EA |
| 3 | MM731301-1PowerBoss 731301-1 | 1 | ASSEMBLY, FENDER | $205.41/EA |
| 4 | No number printedPowerBoss no number printed | 1 | STEERING FORKPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus dry sweep pump (option) parts
Catalog page 241 lists 43 parts lines for the dry sweep pump (option); the drawing is on page 240. Optional equipment. Manual pages 240, list 241.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM3400385PowerBoss 3400385 | 2 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 2 | MM730506PowerBoss 730506 | 2 | SCR-HH M8-1.25 X 30 SS | $3.33/EA |
| 3 | MM731301-1PowerBoss 731301-1 | 1 | ASSEMBLY, FENDER | $205.41/EA |
| 4 | No number printedPowerBoss no number printed | 1 | STEERING FORKPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | MM11038098PowerBoss 11038098 | 4 | SCR-HH M6-1.0 X 20 ZP CLASS 8.8 DIN | $1.08/EA |
| 2 | MM11039567PowerBoss 11039567 | 2 | SCR-HH M8-1.25 X 25 SS | $1.11/EA |
| 3 | MM12040044PowerBoss 12040044 | 4 | NUT-NYLOC M6 X 1.0 ZP CLASS 6 | $1.38/EA |
| 4 | MM3302338PowerBoss 3302338 | 7 | CLAMP - SCREW .25" to .625" DIA 301SS | $1.79/EA |
| 5 | MM3315534PowerBoss 3315534 | 1 | FTG-ADAPTER 1/2 MPT X 1/2 HB PP | $5.52/EA |
| 6 | MM3332713PowerBoss 3332713 | 1 | SWITCH-DOUBLE SCRUB BROOM | $58.23/EA |
| 7 | MM3342273PowerBoss 3342273 | 1 | COVER-SWITCH, CARLING, BLACK W/LENS | $3.42/EA |
| 8 | MM3400044PowerBoss 3400044 | 4 | SCR-HH 10-32 X .75 ZP SERR FLANGE | $1.11/EA |
| 9 | MM3400384PowerBoss 3400384 | 2 | WASHER-CONICAL SPRING 5/16 | $1.08/EA |
| 10 | MM3400793PowerBoss 3400793 | 1 | FTG-90 3/8 BARBx1/4 NPT | $4.99/EA |
| 11 | MM342435PowerBoss 342435 | 1 | FTG-ADAPTER 1/4 MPT X 3/8 HB BRASS | $2.95/EA |
| 12 | MM383465PowerBoss 383465 | 1 | FTG-NIPPLE 1/2 MPT X 1-1/8 LG BRASS | $12.81/EA |
| 13 | MM713527PowerBoss 713527 | 2 | CLAMP - WIRE & TUBE .500 DIA STEEL | $1.34/EA |
| 14 | MM715979PowerBoss 715979 | 1 | DECAL, INST PANEL, DS | $53.00/EA |
| 15 | MM730962PowerBoss 730962 | 2 | CLAMP - UNICLAMP .650 DIA MAGNI 565 | $1.13/EA |
| 16 | MM730966PowerBoss 730966 | 1 | FTG-TEE FEMALE 1/2 NPT X 1/2 X 1/2 PVC | $13.39/EA |
| 17 | MM730969PowerBoss 730969 | 1 | FTG-TEE 1/2 NPT X 1/2HB X 1/2 HB NYLON | $1.22/EA |
| 18 | MM731242PowerBoss 731242 | 4 | NUT-NYLOC 10-32 18-8 SS | $1.08/EA |
| 19 | MM731381PowerBoss 731381 | 1 | UNION TEE, 3/8 TO 1/2 BRASS | $16.33/EA |
| 20 | MM731556PowerBoss 731556 | 1 | FTG-ELBOW 90 3/8 MPT X 3/8 HB BRASS | $9.77/EA |
| 21 | MM731558PowerBoss 731558 | 1 | FTG-ELBOW 90 3/8 MPT X 1/2 HB BRASS | $14.25/EA |
| 22 | MM731584PowerBoss 731584 | 1 | CHECK VALVE, BRASS | $100.97/EA |
| 23 | MM731900PowerBoss 731900 | 1 | TUBING, 3/8 ID, 83.50 L, REINF VINYL | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | MM731901PowerBoss 731901 | 1 | TUBING, 3/8 ID, 17.5 L, REINF VINYL | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | MM731902PowerBoss 731902 | 1 | FTG-45 1/4 MPT TO 3/8 HOSE BRB, BRS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM731903PowerBoss 731903 | 1 | MOUNT, CHECK VALVE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | MM770648PowerBoss 770648 | 1 | BRACKET, PUMP MNT | $24.92/EA |
| 28 | MM770649PowerBoss 770649 | 1 | WELDMENT, SQUEEGEE TUBE - DC | $278.47/EA |
| 29 | MM770653-1PowerBoss 770653-1 | 1 | PUMP ASSY, SOLUTION | $298.28/EA |
| 30 | MM770654PowerBoss 770654 | 1 | NOZZLE, 120 DEGREE | $116.92/EA |
| 31 | MM770661PowerBoss 770661 | 1 | SOCKET, SPRAY NOZZLE | $43.14/EA |
| 32 | MM770662PowerBoss 770662 | 1 | TUBING, 1/2 ID REINFORCED VINYL | $37.69/EA |
| 33 | MM770663PowerBoss 770663 | 1 | TUBING, 3/8 ID REINFORCED VINYL | $31.11/EA |
| 34 | MM833906PowerBoss 833906 | 1 | FTG-ELBOW 45 1/4 MPT X 1/4 FPT BRASS | $11.49/EA |
| 35 | No number printedPowerBoss no number printed | 1 | REAR BUMPERPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | No number printedPowerBoss no number printed | 1 | TUBING TO SPRAYERPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | No number printedPowerBoss no number printed | 1 | CONSOLEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 38 | No number printedPowerBoss no number printed | 1 | FILTER ASSEMBLYPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 39 | No number printedPowerBoss no number printed | 1 | FITTING, PLASTIC, 90 PART OF SOL CONT GROUPPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus dry sweep skirt (option) parts
Catalog page 243 lists 20 parts lines for the dry sweep skirt (option); the drawing is on page 242. Optional equipment. Manual pages 242, list 243.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM600913PowerBoss 600913 | 20 | SCR-HH M6-1.00 X 20 SS | $1.11/EA |
| 2 | MM600933PowerBoss 600933 | 36 | NUT-NYLOC M6-1.00 SS | $1.08/EA |
| 3 | MM730934PowerBoss 730934 | 12 | SCR-HH M6-1.00 X 16 SS FULL THREAD | $3.13/EA |
| 4 | MM731555PowerBoss 731555 | 4 | SCR-HH M6-1.00 X 25 SS | $1.75/EA |
| 5 | MM770606PowerBoss 770606 | 1 | SKIRT, DC, RH TIP | $71.37/EA |
| 6 | MM770607PowerBoss 770607 | 1 | SKIRT, DC, RH FRONT | $87.40/EA |
| 7 | MM770608PowerBoss 770608 | 1 | SKIRT, DC, RH REAR | $85.65/EA |
| 8 | MM770609PowerBoss 770609 | 1 | SKIRT, DC, LH FRONT | $95.68/EA |
| 9 | MM770610PowerBoss 770610 | 1 | SKIRT, DC, LH REAR | $89.00/EA |
| 10 | MM770611PowerBoss 770611 | 1 | BAR, SPACER, LH FRONT | $96.30/EA |
| 11 | MM770612PowerBoss 770612 | 1 | BAR, SPACER, RH REAR | $66.90/EA |
| 12 | MM770614PowerBoss 770614 | 1 | SKIRT, DC, REAR | $39.24/EA |
| 13 | MM770615PowerBoss 770615 | 1 | STRAP, REAR SKIRT RETAINER | $58.61/EA |
| 14 | MM770656PowerBoss 770656 | 1 | SKIRT, DC, FRONT | $29.62/EA |
| 15 | MM770657PowerBoss 770657 | 1 | WELDMENT, FRONT SKIRT MNT | $185.44/EA |
| 16 | MM770659PowerBoss 770659 | 1 | SKIRT, FRONT RECERC | $25.16/EA |
| 17 | MM770660PowerBoss 770660 | 1 | STRAP, RETAINER | $64.58/EA |
| 18 | MM770664PowerBoss 770664 | 1 | ANGLE, RETAINER | $72.86/EA |
| 19 | No number printedPowerBoss no number printed | 1 | SCRUB HEADPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | No number printedPowerBoss no number printed | 1 | BRUSH RETAINERPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus dry sweep water mist (option) parts
Catalog page 245 lists 14 parts lines for the dry sweep water mist (option); the drawing is on page 244. Optional equipment. Manual pages 244, list 245.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM281041PowerBoss 281041 | 1 | VALVE-CHECK | $19.57/EA |
| 2 | MM3302338PowerBoss 3302338 | 1 | CLAMP-SCREW - .25" to .625" DIA - 301SS | $1.79/EA |
| 3 | MM3400385PowerBoss 3400385 | 1 | WASHER-CONICAL SPRING 3/8 | $1.11/EA |
| 4 | MM600934PowerBoss 600934 | 1 | NUT-FLANGE WIZZ M8-1.25 ZP | $1.11/EA |
| 5 | MM717030PowerBoss 717030 | 1 | SCR-HH M8-1.25 X 20 SS | $1.08/EA |
| 6 | MM731538PowerBoss 731538 | 1 | MOUNT, NOZZLE | $15.86/EA |
| 7 | MM770666PowerBoss 770666 | 1 | ADAPTER, SPRAY | $11.46/EA |
| 8 | MM770667PowerBoss 770667 | 1 | FITTING, SPECIAL | $19.00/EA |
| 9 | MM770668PowerBoss 770668 | 1 | SPRAY TIP - 11001 | $8.72/EA |
| 10 | MM770669PowerBoss 770669 | 1 | TUBING, .25 ID, 16" | $2.00/EA |
| 11 | MM833141PowerBoss 833141 | 1 | CAP | $10.34/EA |
| 12 | MM833142PowerBoss 833142 | 1 | GASKET-CAP | $3.30/EA |
| 13 | Not sold separatelyPowerBoss no number printed | 1 | NUT, 11/16-16Included in 770667. | Not sold separately. Order Fitting, special (MM770667) |
| 14 | No number printedPowerBoss no number printed | 1 | FRAMEPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus TGT heated solution, LP (option) parts
Catalog page 247 lists 30 parts lines for the TGT heated solution, LP (option); the drawing is on page 246. Fits LPG machines, cylindrical or disc. Optional equipment. Manual pages 246, list 247.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM600933PowerBoss 600933 | 1 | NUT-NYLOC M6-1.00 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 2 | MM690039PowerBoss 690039 | 1 | FTG-TEE 1-1/4 HBX 1-1/4 HB X 3/4 HB BRASFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $108.22/EA |
| 3 | MM711380PowerBoss 711380 | 3 | NUT-NYLOC 3/8-16 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 4 | MM712301PowerBoss 712301 | 3 | WASHER-FLAT 3/8 X .87 X .06 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 5 | MM731006PowerBoss 731006 | 2 | SCR-HH M6-1.00 X 25 ZP CLASS 8.8Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 6 | MM731218PowerBoss 731218 | 1 | CLAMP - WIRE & TUBE .875 DIA STEELFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.70/EA |
| 7 | MM731316PowerBoss 731316 | 1 | ASSY, SOLUTION BAR, SS, HEATEDFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | MM731561PowerBoss 731561 | 1 | HOSE, COOLANT, 5/8"ID X 25"LGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM731562PowerBoss 731562 | 1 | HOSE, COOLANT, 5/8"ID X 15"LGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM731714PowerBoss 731714 | 1 | TUBING, 3/8 ID X 56.00 REINF. SILICONEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM731718PowerBoss 731718 | 1 | TUBING, 3/8 ID X 45.00 REINF. SILICONEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM731719PowerBoss 731719 | 1 | ASSY, BP HEAT EXCHANGER, LPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | MM731753PowerBoss 731753 | 1 | FTG-ADAPTER 3/8 BSPT X 5/8 HB SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM731764PowerBoss 731764 | 1 | BRACKET, UFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM731766PowerBoss 731766 | 1 | BRACKET, MOUNTING, HOSEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM731911PowerBoss 731911 | 1 | ASSY, CONSTANT SOLUTIONFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $865.86/EA |
| 17 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM829129PowerBoss 829129 | 8 | CLAMP - SCREW .313" to .875" DIA 301SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $3.64/EA |
| – | MM3302193PowerBoss 3302193 | 4 | CLAMP - SCREW .69" to 1.5" DIA 201SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $5.49/EA |
| – | MM3300535PowerBoss 3300535 | 4 | CLAMP - SCREW .5" to 1.25" DIA 201SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.56/EA |
| – | MM3500331PowerBoss 3500331 | 1 | SLEEVE-HOSE NYLON 5/8"-3/4"Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $2.89/EA |
| – | MM730202PowerBoss 730202 | 1 | HARNESS ASSY, HEATED SOL/SIDE SCRUBFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $17.64/EA |
| – | MM731999PowerBoss 731999 | 1 | HARNESS ASSY, CONST SOLFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732002PowerBoss 732002 | 1 | WIRE ASSY, RED/BLK, 16 AWGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732003PowerBoss 732003 | 1 | HARNESS, HEATED CONST SOLFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748021PowerBoss 748021 | 1 | CONNECTOR-PACKARD 2 PIN FEMALEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.48/EA |
| – | MM90264672PowerBoss 90264672 | 1 | RELAY-SPDT, 12VDC 30AFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $28.92/EA |
| – | MM715021PowerBoss 715021 | 2 | DECAL, THERMAL GREEN TECHNOLOGYFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $19.08/EA |
| – | MM740099-BPowerBoss 740099-B | 4 | CABLE TIE-SMALL (BLACK)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
PowerBoss Nautilus TGT heated solution, LP with side scrub (option) parts
Catalog page 249 lists 35 parts lines for the TGT heated solution, LP with side scrub (option); the drawing is on page 248. Fits LPG machines, cylindrical or disc. Optional equipment. Manual pages 248, list 249.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM600933PowerBoss 600933 | 1 | NUT-NYLOC M6-1.00 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 2 | MM600934PowerBoss 600934 | 2 | NUT-FLANGE WIZZ M8-1.25 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.11/EA |
| 3 | MM690039PowerBoss 690039 | 1 | FTG-TEE 1-1/4 HBX 1-1/4 HB X 3/4 HB BRASFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $108.22/EA |
| 4 | MM711380PowerBoss 711380 | 3 | NUT-NYLOC 3/8-16 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 5 | MM712301PowerBoss 712301 | 3 | WASHER-FLAT 3/8 X .87 X .06 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 6 | MM717030PowerBoss 717030 | 2 | SCR-HH M8-1.25 X 20 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 7 | MM731006PowerBoss 731006 | 2 | SCR-HH M6-1.00 X 25 ZP CLASS 8.8Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 8 | MM731218PowerBoss 731218 | 1 | CLAMP - WIRE & TUBE .875 DIA STEELFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.70/EA |
| 9 | MM731316PowerBoss 731316 | 1 | ASSY, SOLUTION BAR, SS, HEATEDFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM731409PowerBoss 731409 | 1 | ASSY, HEATED WITH SIDE SCRUBFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM731561PowerBoss 731561 | 11 | HOSE, COOLANT, 5/8"ID X 25"LGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM731562PowerBoss 731562 | 1 | HOSE, COOLANT, 5/8"ID X 15"LGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | MM731714PowerBoss 731714 | 1 | TUBING, 3/8 ID X 56.00 REINF. SILICONEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM731716PowerBoss 731716 | 1 | TUBING, 3/8 ID X 25.00 REINF. SILICONEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM731717PowerBoss 731717 | 1 | TUBING, 3/8 ID X 52.00 REINF. SILICONEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM731719PowerBoss 731719 | 1 | ASSY, BP HEAT EXCHANGER, LPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM731753PowerBoss 731753 | 1 | FTG-ADAPTER 3/8 BSPT X 5/8 HB SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | MM731764PowerBoss 731764 | 1 | BRACKET, UFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM731766PowerBoss 731766 | 1 | BRACKET, MOUNTING, HOSEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM731911PowerBoss 731911 | 1 | ASSY, CONSTANT SOLUTIONFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $865.86/EA |
| 21 | MM731997PowerBoss 731997 | 1 | TUBING, 3/8 ID X 32.00 REINF. SILICONEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM829129PowerBoss 829129 | 8 | CLAMP - SCREW .313" to .875" DIA 301SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $3.64/EA |
| – | MM3302193PowerBoss 3302193 | 4 | CLAMP - SCREW .69" to 1.5" DIA 201SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $5.49/EA |
| – | MM3300535PowerBoss 3300535 | 4 | CLAMP - SCREW .5" to 1.25" DIA 201SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.56/EA |
| – | MM3500331PowerBoss 3500331 | 1 | SLEEVE-HOSE NYLON 5/8"-3/4"Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $2.89/EA |
| – | MM730202PowerBoss 730202 | 1 | HARNESS ASSY, HEATED SOL/SIDE SCRUBFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $17.64/EA |
| – | MM731999PowerBoss 731999 | 1 | HARNESS ASSY, CONST SOLFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732002PowerBoss 732002 | 1 | WIRE ASSY, RED/BLK, 16 AWGFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732003PowerBoss 732003 | 1 | HARNESS, HEATED CONST SOLFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748021PowerBoss 748021 | 1 | CONNECTOR-PACKARD 2 PIN FEMALEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.48/EA |
| – | MM90264672PowerBoss 90264672 | 1 | RELAY-SPDT, 12VDC 30AFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $28.92/EA |
| – | MM715021PowerBoss 715021 | 2 | DECAL, THERMAL GREEN TECHNOLOGYFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $19.08/EA |
| – | MM740099-BPowerBoss 740099-B | 4 | CABLE TIE-SMALL (BLACK)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
PowerBoss Nautilus TGT heated solution, DSL (option) parts
Catalog pages 250 and 251 list 40 parts lines for the TGT heated solution, DSL (option); the drawing is on page 250. Fits diesel machines, cylindrical or disc. Optional equipment. Manual pages 250, list 250-251.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM600933PowerBoss 600933 | 1 | NUT-NYLOC M6-1.00 SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 2 | MM600934PowerBoss 600934 | 1 | NUT-FLANGE WIZZ M8-1.25 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 3 | MM690039PowerBoss 690039 | 1 | FTG-TEE 1-1/4 HBX 1-1/4 HB X 3/4 HB BRASFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $108.22/EA |
| 4 | MM711247PowerBoss 711247 | 1 | SCR-HH 3/8-16 X 2.00 ZP GR 5Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.61/EA |
| 5 | MM711380PowerBoss 711380 | 4 | NUT-NYLOC 3/8-16 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 6 | MM712301PowerBoss 712301 | 3 | WASHER-FLAT 3/8 X .87 X .06 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 7 | MM717024PowerBoss 717024 | 4 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 8 | MM731006PowerBoss 731006 | 2 | SCR-HH M6-1.00 X 25 ZP CLASS 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 9 | MM731040PowerBoss 731040 | 1 | ASSY, BP HEAT EXCHANGER, DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM731041PowerBoss 731041 | 1 | BRACKET, HOSE, BPHE DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM731180PowerBoss 731180 | 1 | STRAP, MUFFLERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $29.03/EA |
| 12 | MM731218PowerBoss 731218 | 1 | CLAMP - WIRE & TUBE .875 DIA STEELFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.70/EA |
| 13 | MM731254PowerBoss 731254 | 1 | FTG-ADAPTER 3/8 BSPT X 3/8 MPTFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM731316PowerBoss 731316 | 1 | ASSY, SOLUTION BAR, SS, HEATEDFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM731561PowerBoss 731561 | 1 | HOSE, COOLANT, 5/8"ID X 25"LGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM731562PowerBoss 731562 | 1 | HOSE, COOLANT, 5/8"ID X 15"LGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM731714PowerBoss 731714 | 1 | TUBING, 3/8 ID X 56.00 REINF. SILICONEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | MM731718PowerBoss 731718 | 1 | TUBING, 3/8 ID X 45.00 REINF. SILICONEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM731764PowerBoss 731764 | 1 | BRACKET, UFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM731768-1PowerBoss 731768-1 | 1 | ASSY, HEAT SHIELD, HEATED SOL., DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | MM731769PowerBoss 731769 | 1 | BRACKET, MUFFLER HANGERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM731770PowerBoss 731770 | 1 | MOUNT, HEAT SHIELD, HEATED SOL, DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM731911PowerBoss 731911 | 1 | ASSY, CONSTANT SOLUTIONFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $865.86/EA |
| 24 | MM3303303PowerBoss 3303303 | 1 | FTG-TEE 3/8 FPTFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $19.92/EA |
| 25 | MM3400384PowerBoss 3400384 | 4 | WASHER-CONICAL SPRING 5/16Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 26 | MM3401634PowerBoss 3401634 | 1 | FTG-ADAPTER 3/8 MPT X 5/8 HB BRASSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $13.34/EA |
| 27 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM829129PowerBoss 829129 | 4 | CLAMP - SCREW .313" to .875" DIA 301SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $3.64/EA |
| – | MM3302193PowerBoss 3302193 | 4 | CLAMP - SCREW .69" to 1.5" DIA 201SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $5.49/EA |
| – | MM3300535PowerBoss 3300535 | 1 | CLAMP - SCREW .5" to 1.25" DIA 201SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.56/EA |
| – | MM3500331PowerBoss 3500331 | 1 | SLEEVE-HOSE NYLON 5/8"-3/4"Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $2.89/EA |
| – | MM730202PowerBoss 730202 | 1 | HARNESS ASSY, HEATED SOL/SIDE SCRUBFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $17.64/EA |
| – | MM731999PowerBoss 731999 | 1 | HARNESS ASSY, CONST SOLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732002PowerBoss 732002 | 1 | WIRE ASSY, RED/BLK, 16 AWGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732003PowerBoss 732003 | 1 | HARNESS, HEATED CONST SOLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748021PowerBoss 748021 | 1 | CONNECTOR-PACKARD 2 PIN FEMALEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.48/EA |
| – | MM90264672PowerBoss 90264672 | 1 | RELAY-SPDT, 12VDC 30AFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $28.92/EA |
| – | MM715021PowerBoss 715021 | 2 | DECAL, THERMAL GREEN TECHNOLOGYFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $19.08/EA |
| – | MM740099-BPowerBoss 740099-B | 4 | CABLE TIE-SMALL (BLACK)Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
PowerBoss Nautilus TGT heated solution, DSL with side scrub (option) parts
Catalog pages 252 and 253 list 42 parts lines for the TGT heated solution, DSL with side scrub (option); the drawing is on page 252. Fits diesel machines, cylindrical or disc. Optional equipment. Manual pages 252, list 252-253.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM600933PowerBoss 600933 | 1 | NUT-NYLOC M6-1.00 SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 2 | MM600934PowerBoss 600934 | 3 | NUT-FLANGE WIZZ M8-1.25 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.11/EA |
| 3 | MM690039PowerBoss 690039 | 1 | FTG-TEE 1-1/4 HBX 1-1/4 HB X 3/4 HB BRASFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $108.22/EA |
| 4 | MM711247PowerBoss 711247 | 1 | SCR-HH 3/8-16 X 2.00 ZP GR 5Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.61/EA |
| 5 | MM711380PowerBoss 711380 | 4 | NUT-NYLOC 3/8-16 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 6 | MM712301PowerBoss 712301 | 3 | WASHER-FLAT 3/8 X .87 X .06 ZPFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 7 | MM717024PowerBoss 717024 | 4 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 8 | MM717030PowerBoss 717030 | 2 | SCR-HH M8-1.25 X 20 SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 9 | MM731006PowerBoss 731006 | 2 | SCR-HH M6-1.00 X 25 ZP CLASS 8.8Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 10 | MM731040PowerBoss 731040 | 1 | ASSY, BP HEAT EXCHANGER, DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM731041PowerBoss 731041 | 1 | BRACKET, HOSE, BPHE DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM731218PowerBoss 731218 | 1 | CLAMP - WIRE & TUBE .875 DIA STEELFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.70/EA |
| 13 | MM731254PowerBoss 731254 | 1 | FTG-ADAPTER 3/8 BSPT X 3/8 MPTFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | MM731316PowerBoss 731316 | 1 | ASSY, SOLUTION BAR, SS, HEATEDFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM731409PowerBoss 731409 | 1 | ASSY, HEATED WITH SIDE SCRUBFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM731561PowerBoss 731561 | 1 | HOSE, COOLANT, 5/8"ID X 25"LGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM731562PowerBoss 731562 | 1 | HOSE, COOLANT, 5/8"ID X 15"LGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | MM731714PowerBoss 731714 | 1 | TUBING, 3/8 ID X 56.00 REINF. SILICONEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM731716PowerBoss 731716 | 1 | TUBING, 3/8 ID X 25.00 REINF. SILICONEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM731717PowerBoss 731717 | 1 | TUBING, 3/8 ID X 52.00 REINF. SILICONEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | MM731764PowerBoss 731764 | 1 | BRACKET, UFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM731768-1PowerBoss 731768-1 | 1 | ASSY, HEAT SHIELD, HEATED SOL., DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM731769PowerBoss 731769 | 1 | BRACKET, MUFFLER HANGERFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | MM731770PowerBoss 731770 | 1 | MOUNT, HEAT SHIELD, HEATED SOL, DSLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | MM731911PowerBoss 731911 | 1 | ASSY, CONSTANT SOLUTIONFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $865.86/EA |
| 26 | MM731997PowerBoss 731997 | 1 | TUBING, 3/8 ID X 32.00 REINF. SILICONEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | MM281090PowerBoss 281090 | 1 | FTG-TEE 3/8 FPT X 3/8 FPT X 3/8 FPT BRASFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $15.95/EA |
| 28 | MM3400384PowerBoss 3400384 | 4 | WASHER-CONICAL SPRING 5/16Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.08/EA |
| 29 | MM3401634PowerBoss 3401634 | 1 | FTG-ADAPTER 3/8 MPT X 5/8 HB BRASSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $13.34/EA |
| 30 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | No number printedPowerBoss no number printed | 1 | LOWER RADIATOR HOSEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM829129PowerBoss 829129 | 8 | CLAMP - SCREW .313" to .875" DIA 301SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $3.64/EA |
| – | MM3300535PowerBoss 3300535 | 4 | CLAMP - SCREW .5" to 1.25" DIA 201SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.56/EA |
| – | MM3302193PowerBoss 3302193 | 4 | CLAMP - SCREW .69" to 1.5" DIA 201SSFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $5.49/EA |
| – | MM730202PowerBoss 730202 | 1 | HARNESS ASSY, HEATED SOL/SIDE SCRUBFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $17.64/EA |
| – | MM3500331PowerBoss 3500331 | 1 | SLEEVE-HOSE NYLON 5/8"-3/4"Fits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $2.89/EA |
| – | MM731999PowerBoss 731999 | 1 | HARNESS ASSY, CONST SOLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732002PowerBoss 732002 | 1 | WIRE ASSY, RED/BLK, 16 AWGFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732003PowerBoss 732003 | 1 | HARNESS, HEATED CONST SOLFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748021PowerBoss 748021 | 1 | CONNECTOR-PACKARD 2 PIN FEMALEFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $1.48/EA |
| – | MM90264672PowerBoss 90264672 | 1 | RELAY-SPDT, 12VDC 30AFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $28.92/EA |
| – | MM715021PowerBoss 715021 | 2 | DECAL, THERMAL GREEN TECHNOLOGYFits Nautilus Diesel, cylindrical, Nautilus Diesel, disc. | $19.08/EA |
PowerBoss Nautilus constant solution (option) parts
Catalog page 255 lists 7 parts lines for the constant solution (option); the drawing is on page 254. Optional equipment. Manual page 255.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | MM731911PowerBoss 731911 | 1 | ASSY, CONSTANT SOLUTION | $865.86/EA |
| – | MM90264672PowerBoss 90264672 | 1 | RELAY-SPDT, 12VDC 30A | $28.92/EA |
| – | MM3322601PowerBoss 3322601 | 1 | FUSE-15 AMP AUTOMOTIVE PUSH IN | $1.11/EA |
| – | MM731999PowerBoss 731999 | 1 | HARNESS ASSY, CONST SOL | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732001PowerBoss 732001 | 1 | HARNESS, CONST SOL PUMP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM732002PowerBoss 732002 | 1 | WIRE ASSY, RED/BLK, 16 AWG | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM731999PowerBoss 731999 | 1 | HARNESS ASSY, CONST SOL | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus constant solution assembly parts
Catalog page 257 lists 26 parts lines for the constant solution assembly; the drawing is on page 256. Manual pages 256, list 257.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12332011PowerBoss 12332011 | 4 | WASHER-FLAT M6.4 X 18 X 1.6 ZP | $4.15/EA |
| 2 | MM3302338PowerBoss 3302338 | 10 | CLAMP - SCREW .25" to .625" DIA 301SS | $1.79/EA |
| 3 | MM3315534PowerBoss 3315534 | 1 | FTG-ADAPTER 1/2 MPT X 1/2 HB PP | $5.52/EA |
| 4 | MM3323501PowerBoss 3323501 | 1 | FILTER-B50 MESH INLINE PP | $61.35/EA |
| 5 | MM3400315PowerBoss 3400315 | 4 | SCR-HH 10-32 X .50 ZP SERR FLANGE | $1.11/EA |
| 6 | MM3401981PowerBoss 3401981 | 2 | BLT-U 1/4-20 X3/4 ZP | $3.68/EA |
| 7 | MM383327PowerBoss 383327 | 1 | FTG-ELBOW 90 1/2 MPT X 3/8 HB PP | $2.95/EA |
| 8 | MM383465PowerBoss 383465 | 2 | FTG-NIPPLE 1/2 MPT X 1-1/8 LG BRASS | $12.81/EA |
| 9 | MM450025PowerBoss 450025 | 1 | FTG-TEE 3/8 MPT X 3/8 HB NYLON | $7.40/EA |
| 10 | MM450040PowerBoss 450040 | 1 | FTG-ELBOW 90 3/8 MPT X 3/8 HB NYLON | $3.93/EA |
| 11 | MM500122PowerBoss 500122 | 1 | FTG-PLUG HEX 1/2 PP | $2.35/EA |
| 12 | MM620278-1PowerBoss 620278-1 | 2 | SOLENOID ASSY, WATER, 1/4 FPT 12V 250PSI | $159.36/EA |
| 13 | MM710030PowerBoss 710030 | 4 | SCR-PHMS 10-32 X 1-3/8 SS | $1.08/EA |
| 14 | MM3400071PowerBoss 3400071 | 4 | NUT-HEX 1/4-20 ZP GR 5 | $1.11/EA |
| 15 | MM711425PowerBoss 711425 | 4 | NUT-FLANGED WIZZ 1/4-20 ZP | $1.08/EA |
| 16 | MM730955PowerBoss 730955 | 1 | BRACKET, FILTER MNT | $52.08/EA |
| 17 | MM730966PowerBoss 730966 | 1 | FTG-TEE FEMALE 1/2 NPT X 1/2 X 1/2 PVC | $13.39/EA |
| 18 | MM731242PowerBoss 731242 | 4 | NUT-NYLOC 10-32 18-8 SS | $1.08/EA |
| 19 | MM731378PowerBoss 731378 | 1 | BALL VALVE, 1/2 IN NPT, BRASS | $31.56/EA |
| 20 | MM731380PowerBoss 731380 | 1 | FTG-ELBOW 90 ST 1/2 FPT X 1/2 FPT BRASS | $17.26/EA |
| 21 | MM731969PowerBoss 731969 | 1 | FTG-WYE 3/8 HB X 3/8 HB 3/8 HB NYLON | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM731982PowerBoss 731982 | 1 | ORIFICE, CONST SOL, .1130 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM731983PowerBoss 731983 | 5 | HOSE-NYL REINF, 3/8 ID, 10.00" | $1.75/EA |
| 24 | MM732012-1PowerBoss 732012-1 | 1 | PUMP ASSY-SOLUTION, 12VDC | $362.18/EA |
| 25 | MM828952PowerBoss 828952 | 2 | FTG-ADAPTER 1/4 MPT X 3/8 HB PP | $7.40/EA |
| 26 | MM833325PowerBoss 833325 | 2 | FTG-ELBOW 90 1/4 MPT X 3/8 HB NYLON | $3.93/EA |
PowerBoss Nautilus magnetic sweeper bar (option) parts
Catalog page 259 lists 11 parts lines for the magnetic sweeper bar (option); the drawing is on page 258. Optional equipment. Manual pages 258, list 259.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM712042PowerBoss 712042 | 1 | SCR-HH 5/16-18 X.62 ZP GR 5 FLANGE | $1.08/EA |
| 2 | MM718015PowerBoss 718015 | 1 | WASHER, .484 B 2.00 OD .179 T | $17.85/EA |
| 3 | MM731919PowerBoss 731919 | 1 | MAGNETIC SWEEPER | $738.92/EA |
| 4 | MM731927PowerBoss 731927 | 1 | SPACER, 1.50 OD, .406 ID, 1.00 THK | $21.89/EA |
| 5 | MM731928PowerBoss 731928 | 1 | SPACER, 1.50 OD, .500 ID, .66 THK | $15.67/EA |
| 6 | MM731929PowerBoss 731929 | 1 | MAGNET, 100LB, 5/16-18 THREAD | $20.58/EA |
| 7 | MM731965PowerBoss 731965 | 1 | SLIDER, MAGNET SWEEPER, UHMWPE | $27.75/EA |
| 8 | MM3400336PowerBoss 3400336 | 1 | WASHER-FLAT 3/8 X 1 X .105 SS | $2.60/EA |
| 9 | MM3400339PowerBoss 3400339 | 1 | SCR-HH 3/8-16 X 2.25 SS PARTIAL THREAD | $5.85/EA |
| 10 | MM3400340PowerBoss 3400340 | 1 | NUT-NYLOC 3/8-16 SS | $1.08/EA |
| 11 | MM11175494PowerBoss 11175494 | 2 | SCR-MC M5X0.8 X 25 DIN7985 SS | $1.08/EA |
PowerBoss Nautilus reserve LPG tank group (option) parts
Catalog page 261 lists 29 parts lines for the reserve LPG tank group (option); the drawing is on page 260. Fits LPG machines, cylindrical or disc. Optional equipment. Manual pages 260, list 261.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038247PowerBoss 11038247 | 2 | SCR-HH M8-1.25 X 25 ZP CLASS 8.8Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 2 | MM12040051PowerBoss 12040051 | 1 | NUT-NYLOC M8 X 1.25 ZP CLASS 8Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $4.15/EA |
| 3 | MM12310256PowerBoss 12310256 | 2 | WSR-FLT 6.4X12X1.6, SS DIN125Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.05/EA |
| 4 | MM220131PowerBoss 220131 | 1 | BUCKLEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $26.48/EA |
| 5 | MM3300465PowerBoss 3300465 | 2 | ISOLATOR-RUBBER (.375ID X .81OD)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $8.83/EA |
| 6 | MM3301158PowerBoss 3301158 | 1 | CLAMP - WIRE & TUBE .687 DIA STEELFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $3.48/EA |
| 7 | MM3334037PowerBoss 3334037 | 1 | FTG-MALE ELBOW 49 X 6Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $5.38/EA |
| 8 | MM3335375PowerBoss 3335375 | 2 | HOSE - 5/16 LP 28.5 SAE 45 ST#6 ST#6Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $59.26/EA |
| 9 | MM3342097PowerBoss 3342097 | 1 | 3/8 MALE SAE FLARE X 1/4 NPTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM3342971PowerBoss 3342971 | 1 | DECAL-WARNING LP (EXPLOSIVE FUEL)Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $6.93/EA |
| 11 | MM3400340PowerBoss 3400340 | 4 | NUT-NYLOC 3/8-16 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 12 | MM3400384PowerBoss 3400384 | 2 | WASHER-CONICAL SPRING 5/16Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 13 | MM3400455PowerBoss 3400455 | 2 | SCR-HH 3/8-16 X 1.50 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $3.05/EA |
| 14 | MM3400860PowerBoss 3400860 | 1 | FTG-LP TANK CONNECTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $29.21/EA |
| 15 | MM600933PowerBoss 600933 | 1 | NUT-NYLOC M6-1.00 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 16 | MM600934PowerBoss 600934 | 2 | NUT-FLANGE WIZZ M8-1.25 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.11/EA |
| 17 | MM600941PowerBoss 600941 | 1 | WASHER-FLAT 5/16 X .688 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.11/EA |
| 18 | MM675744PowerBoss 675744 | 2 | FTG-UNION, FLARE TO FLARE 3/8 TUBEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $7.97/EA |
| 19 | MM717024PowerBoss 717024 | 1 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 20 | MM717040PowerBoss 717040 | 6 | WASHER-FLAT M10.5 X 30 X 2.5 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.10/EA |
| 21 | MM730993PowerBoss 730993 | 1 | WELDMENT, BOLT PLTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $26.19/EA |
| 22 | MM731010PowerBoss 731010 | 1 | WELDMENT, LPG RACKFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $186.00/EA |
| 23 | MM731050PowerBoss 731050 | 1 | SCR-HH M6-1.00 X 30 SSFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.11/EA |
| 24 | MM731186PowerBoss 731186 | 1 | HOSE, LPG, 6 SAE STR - 6 SAE 90Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $78.46/EA |
| 25 | MM731966PowerBoss 731966 | 1 | BRKT, DUAL TANK CHECK VALVE SUPPORTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $68.15/EA |
| 26 | MM731967PowerBoss 731967 | 1 | ASSY, DUAL TANK CHECK VALVEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $180.31/EA |
| 27 | No number printedPowerBoss no number printed | 1 | LPG TANKFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | No number printedPowerBoss no number printed | 1 | SOLUTION TANKFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | No number printedPowerBoss no number printed | 1 | DEMISTERFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus backup alarm group, chemical metering with reserve LPG (option) parts
Catalog page 263 lists 15 parts lines for the backup alarm group, chemical metering with reserve LPG (option); the drawing is on page 262. Fits LPG machines, cylindrical or disc. Optional equipment. Manual pages 262, list 263.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040044PowerBoss 12040044 | 2 | NUT, M6-1.00 ESNFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.38/EA |
| 2 | MM3303002PowerBoss 3303002 | 1 | ALARM, BACKUPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $59.22/EA |
| 3 | MM3342546-1PowerBoss 3342546-1 | 1 | HARNESS, SWITCH, WHISKERFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $94.56/EA |
| 4 | MM3400045PowerBoss 3400045 | 2 | SCREW, #8-32 X .625 PAN HD ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | MM711372PowerBoss 711372 | 4 | NUT, FIBER INSERT #8-32Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 6 | MM711502PowerBoss 711502 | 2 | FLATWASHER, #8Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 7 | MM620136PowerBoss 620136 | 2 | BOLT, #8-32 X 1.25 HH ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | MM730310PowerBoss 730310 | 1 | PUMP, AUXFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM731002PowerBoss 731002 | 1 | MOUNT, REVERSE SWITCHFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $13.87/EA |
| 10 | MM731116PowerBoss 731116 | 2 | SCREW, M6-1.00 X 16 BUTTON HD CAP ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM748980PowerBoss 748980 | 1 | HARNESS, SAFETY LT & BACKUP ALARMFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $102.69/EA |
| 12 | No number printedPowerBoss no number printed | 1 | CHEMICAL PUMP MNTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | No number printedPowerBoss no number printed | 1 | ADJUSTOR, HYDROBACK W/SW MOUNTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | No number printedPowerBoss no number printed | 1 | PUMP ASSEMBLYFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | No number printedPowerBoss no number printed | 1 | HYDROBACK MOUNTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus pressure washer (option) parts
Catalog page 265 lists 8 parts lines for the pressure washer (option); the drawing is on page 264. Optional equipment. Manual pages 264, list 265.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM731421PowerBoss 731421 | 1 | PUMP, PRESSURE WASHER | $1,323.21/EA |
| 2 | MM731440PowerBoss 731440 | 1 | HOSE, PRESSURE WASHER, 50FT | $209.16/EA |
| 3 | MM731448PowerBoss 731448 | 1 | QUICK DISCONNECT, SOCKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | MM731443PowerBoss 731443 | 1 | QUICK DISCONNECT, PLUG, 6MPT | $4.05/EA |
| 5 | MM731444PowerBoss 731444 | 1 | TRIGGER GUN | $121.63/EA |
| 6 | MM731445PowerBoss 731445 | 1 | INSULATED LANCE | $34.46/EA |
| 7 | MM731446PowerBoss 731446 | 1 | LANCE | $13.19/EA |
| 8 | MM731447PowerBoss 731447 | 1 | TIP, ADJUSTABLE | $123.64/EA |
PowerBoss Nautilus dust suppression (option) parts
Catalog page 267 lists 13 parts lines for the dust suppression (option); the drawing is on page 266. Optional equipment. Manual pages 266, list 267.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM600934PowerBoss 600934 | 3 | NUT-FLANGE WIZZ M8-1.25 ZP | $1.11/EA |
| 2 | MM600940PowerBoss 600940 | 10 | WASHER-FENDER M8 X 24 ZP | $1.11/EA |
| 3 | MM620082PowerBoss 620082 | 2 | SCR-HH M10-1.25 X 25 ZP CLASS 8.8 | $1.11/EA |
| 4 | MM717024PowerBoss 717024 | 7 | SCR-HH M8-1.25 X 20 ZP GRADE 8.8 | $1.08/EA |
| 5 | MM717040PowerBoss 717040 | 4 | WASHER-FLAT M10.5 X 30 X 2.5 SS | $1.10/EA |
| 7 | MM731462PowerBoss 731462 | 2 | SCR-HH M10-1.50 X 75 PARTIAL THRD 8.8 ZP | $7.25/EA |
| 8 | MM731474PowerBoss 731474 | 1 | FLAP, DUST SUPRESSION, LH | $93.67/EA |
| 9 | MM731477PowerBoss 731477 | 1 | MOUNT, DUST SUPPRESSION, LH | $80.92/EA |
| 10 | MM731480PowerBoss 731480 | 1 | MOUNT, DUST SUPRESSION, RH | $101.53/EA |
| 11 | MM731862PowerBoss 731862 | 1 | FLAP, DUST SUPRESSION, RH & OIL PAN | $51.25/EA |
| 12 | MM3400384PowerBoss 3400384 | 2 | WASHER-CONICAL SPRING 5/16 | $1.08/EA |
| 13 | MM11038254PowerBoss 11038254 | 2 | SCR-HH M8-1.25 X 30 ZP CLASS 8.8 | $1.08/EA |
| 14 | MM12310058PowerBoss 12310058 | 2 | WASHER-FLAT M10.5 X 20 X 2 ZP | $4.15/EA |
PowerBoss Nautilus light groups on overhead guard (option) parts
Catalog page 269 lists 12 parts lines for the light groups on overhead guard (option); the drawing is on page 268. Optional equipment. Manual pages 268, list 269.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM600581PowerBoss 600581 | 3 | CLAMP, WIRE CLIP | $1.54/EA |
| 2 | MM731029PowerBoss 731029 | 1 | WIRE CHANNEL | $40.28/EA |
| 3 | MM748878PowerBoss 748878 | 1 | ASSEMBLY, BLUE LED LIGHT | $145.89/EA |
| 3 | MM748879PowerBoss 748879 | 1 | ASSEMBLY, RED LED LIGHT | $201.17/EA |
| 3 | MM620073-1PowerBoss 620073-1 | 1 | ASSEMBLY, AMBER LED LIGHT | $156.37/EA |
| 4 | MM711350PowerBoss 711350 | 3 | NUT-JAM 10-32 ZP NYLOC | $1.08/EA |
| 6 | MM3400044PowerBoss 3400044 | 3 | SCR-HH 10-32 X .75 ZP SERR FLANGE | $1.11/EA |
| 7 | No number printedPowerBoss no number printed | 1 | OVERHEAD GUARDPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748871PowerBoss 748871 | 1 | HARNESS, SAFETY LIGHT, OHG | $57.58/EA |
| – | MM730186PowerBoss 730186 | BLUEPrinted below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730187PowerBoss 730187 | REDPrinted below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730189PowerBoss 730189 | AMBERPrinted below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus light groups on solution tank (option) parts
Catalog page 271 lists 13 parts lines for the light groups on solution tank (option); the drawing is on page 270. Optional equipment. Manual pages 270, list 271.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11039567PowerBoss 11039567 | 2 | SCR-HH M8-1.25 X 25 SS | $1.11/EA |
| 2 | MM12040259PowerBoss 12040259 | 2 | NUT-NYLOC M8 X 1.25 SS | $1.08/EA |
| 3 | MM731030PowerBoss 731030 | 1 | MOUNT, SAFETY LIGHTS | $71.53/EA |
| 4 | MM748878PowerBoss 748878 | 1 | LIGHT ASSEMBLY, LED BEACON, BLUE | $145.89/EA |
| 4 | MM748879PowerBoss 748879 | 1 | LIGHT ASSEMBLY, LED BEACON, RED | $201.17/EA |
| 4 | MM620073-1PowerBoss 620073-1 | 1 | LIGHT ASSEMBLY, LED BEACON, AMBER | $156.37/EA |
| 5 | MM3400044PowerBoss 3400044 | 2 | SCR-HH 10-32 X .75 ZP SERR FLANGE | $1.11/EA |
| 6 | MM711350PowerBoss 711350 | 2 | NUT-JAM 10-32 ZP NYLOC | $1.08/EA |
| 7 | No number printedPowerBoss no number printed | 1 | SOLUTION TANKPrinted as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748980PowerBoss 748980 | 1 | HARNESS, SAFETY LIGHT & BACKUP ALARM | $102.69/EA |
| – | MM730186-4PowerBoss 730186-4 | BLUEPrinted below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730187-4PowerBoss 730187-4 | REDPrinted below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730189-4PowerBoss 730189-4 | AMBERPrinted below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus light groups with chemical metering and reserve LPG tank (option) parts
Catalog page 273 lists 15 parts lines for the light groups with chemical metering and reserve LPG tank (option); the drawing is on page 272. Fits LPG machines, cylindrical or disc. Optional equipment. Manual pages 272, list 273.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM12040051PowerBoss 12040051 | 4 | NUT, M8-1.25 ESNFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $4.15/EA |
| 2 | MM3400044PowerBoss 3400044 | 3 | SCR-HEX,#10-32 X 0.75 ZPFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.11/EA |
| 3 | MM711350PowerBoss 711350 | 3 | NUT, 10-32 ESNFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $1.08/EA |
| 4 | MM600151PowerBoss 600151 | 1 | GROMMET, .63 ID .88 OD .25 TFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $2.31/EA |
| 5 | MM620160PowerBoss 620160 | 1 | GROMMET, 1.00 ID .1.375 OD .25 TFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $2.31/EA |
| 6 | MM717024PowerBoss 717024 | 4 | BOLT, M8-1.25 X 20 HHFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM731115-1PowerBoss 731115-1 | 1 | WELDMENT, SAFETY LIGHT MNTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $133.62/EA |
| 8 | MM748879PowerBoss 748879 | 1 | ASSEMBLY, BLUE LED LIGHTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $201.17/EA |
| 8 | MM748879PowerBoss 748879 | 1 | ASSEMBLY, RED LED LIGHTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $201.17/EA |
| 8 | MM620073-1PowerBoss 620073-1 | 1 | ASSEMBLY, AMBER LED LIGHTFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $156.37/EA |
| 9 | No number printedPowerBoss no number printed | 1 | OPTIONAL RESERVE LPT OUNT 730160Fits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed as REFERENCE, no part number. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | MM748980PowerBoss 748980 | 1 | HARNESS, SAFETY LIGHT & BACKUP ALARMFits Nautilus LPG, cylindrical, Nautilus LPG, disc. | $102.69/EA |
| – | MM730186-5PowerBoss 730186-5 | BLUEFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730187-5PowerBoss 730187-5 | REDFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730189-5PowerBoss 730189-5 | AMBERFits Nautilus LPG, cylindrical, Nautilus LPG, disc. Printed below the parts table. | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus miscellaneous additional options parts
List only: additional option parts from catalog page 274, with no drawing. Manual page 274.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | MM730019PowerBoss 730019 | OPT - SOFTSIDE CAB (REPLACEMENT SNAPS 3400412) | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730045PowerBoss 730045 | OPT - PARKING BRAKE | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730046PowerBoss 730046 | OPT - LH SIDE MOUNT | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730062PowerBoss 730062 | OPT - ENGINE SHUTDOWN, DSL | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730165PowerBoss 730165 | OPT - NON MARKING TIRES, NAUTILUS & HD | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM731467PowerBoss 731467 | OPT - NOISE REDUCTION | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | MM730123-HFPowerBoss 730123-HF | OPT - HIGH FLOW SOLUTION CONTROL | Call to confirm part: 800-440-6723Call 800-440-6723 |
PowerBoss Nautilus constant solution (option) drawing
| What it shows | Constant solution (option) drawing, as printed in the manual |
|---|---|
| Manual page | 254 |
PowerBoss Nautilus manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Nautilus parts catalogParts catalog with drawings and parts lists, 292 pages | Nautilus and Nautilus CE, cylindrical and disc, diesel, gasoline and LPG | Rev. Z 01/25, effective serial 24PB11250 (this page) | 10.5 MB | Sign in to view or downloadSign in to download |
| Nautilus user manualUser manual with specifications, operation, maintenance and troubleshooting, 106 pages (English) | Nautilus and Nautilus CE, cylindrical and disc, diesel, gasoline and LPG | Rev. L 09/21 | 2.3 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
