Minuteman E26ECO parts list and diagrams
Every part number in Minuteman's E26/H26 ECO traction drive disc parts manual, with the manual's drawings, plus the brush deck pages from Hako's catalog. Troubleshooting, maintenance and specs come from the E26ECO user manual. Each part number links to that part in our store.
Complete list: every parts line in Minuteman's E26/H26 ECO Floor Scrubber Traction Drive Disc Parts Manual (form 988737 Rev B 08/16) and in the Hako brush deck pages for the 26 in disc deck, for the E26ECO and H26ECO walk-behind scrubbers. Checked .
New to your E26ECO? Start here → Manuals (free sign-in) →
- Cleaning path
- 26 in (65 cm)
- Squeegee width
- 38 in (95 cm)
- Solution and recovery tanks
- 12 gal (45 L) solution, 13 gal (49 L) recovery
- Brushes
- 2 disc brushes at 180 rpm
- Weight
- 370 lb (168 kg) with batteries; 235 lb (107 kg) without
Wear parts most E26ECO owners reorder
Minuteman's maintenance chart and troubleshooting pages name the squeegee blades, brushes, solution filters, screened float, lid gasket and splash guard for regular care or replacement. These are the ones on the parts list.
SQUEEGEE BLADE - FRONT, 950mm
$47.68/EASQUEEGEE BLADE - REAR, 950mm
$38.81/EAcircular brush 13(330) PPN0,5
$131.15/EAcircular brush 13(330) PPN0,8
$71.22/EAcircular brush 13(330) K901
$84.10/EAScreened float
$29.00/EAFilter-solution e1720
$11.99/EAFilter, fill port, es1720
$13.35/EAGasket, lid
$23.45/EASplash guard, 26" deck
$77.82/EA
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 19, 20, 23, 26, 33 and 34. SES ref PF-4PYR-6UXB
Your machine
How to tell which you have
- Check the model name: the parts manual covers the E26ECO and the H26ECO, each also sold as QP, QPG and QPT. The final assembly list has a model decal for each: DECAL, E26ECO and DECAL, H26ECO.
- Five lines change on the H26ECO: the model decal, the recovery tank assembly, the recovery tank, the vacuum manifold and the vacuum motor. Minuteman marks the H26ECO lines HSP VERSION or 36/24V PERIF BYPASS. Pick your model above the parts list to see only your lines.
- Batteries are not tied to a model: the manual prints three battery lines (140Ah wet, 100Ah AGM and 130Ah Trojan wet) with no model marked. Match them to the batteries in your machine.
How to read this list
Our part numbers are the Minuteman number with MM in front, so Minuteman 172132 is MM172132. Each line shows the item number on the drawing. Lines from the Hako brush deck pages show Hako's material number; the note gives Hako's own part number when it differs. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

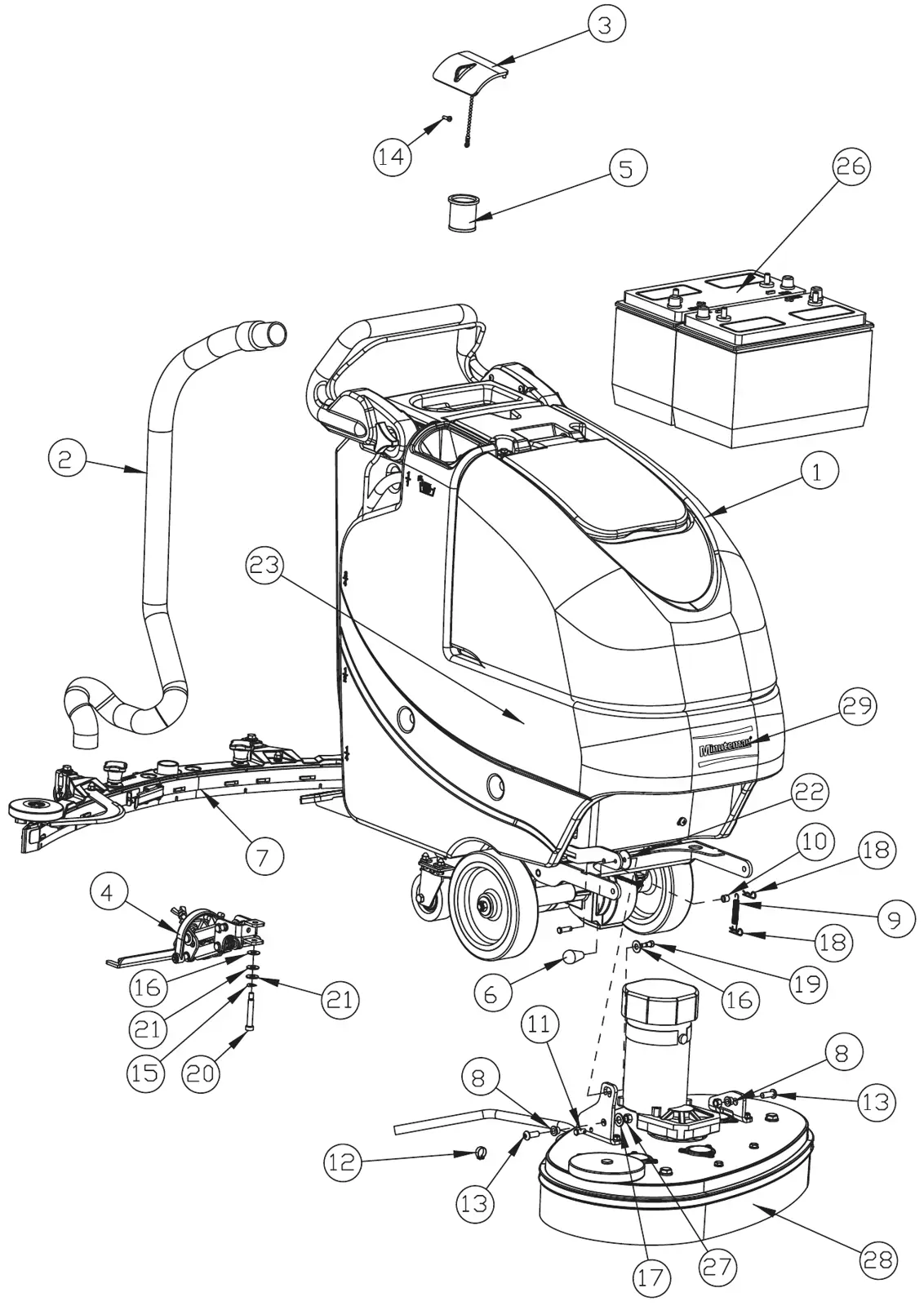

Minuteman E26ECO final assembly parts
The complete machine as Minuteman lists it: base, squeegee lift, 38 in squeegee, batteries, decals and the brush deck. Model decal lines are tagged E26ECO or H26ECO. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM171001-26Minuteman 171001-26 | 1 | BASE ASM | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM172010Minuteman 172010 | 1 | HOSE, CLEAR VAC W/ 90 CUFF | $39.92/EA |
| 3 | MM172018Minuteman 172018 | 1 | SOLUTION TANK LID ASSY | $18.97/EA |
| 4 | MM172150Minuteman 172150 | 1 | SQUEEGEE LIFT MECH ASSY | $214.85/EA |
| 5 | MM172159Minuteman 172159 | 1 | FILTER, FILL PORT, ES1720 | $13.35/EA |
| 6 | MM172423Minuteman 172423 | 1 | KNOB, TAPERED 1/4-20 | $7.19/EA |

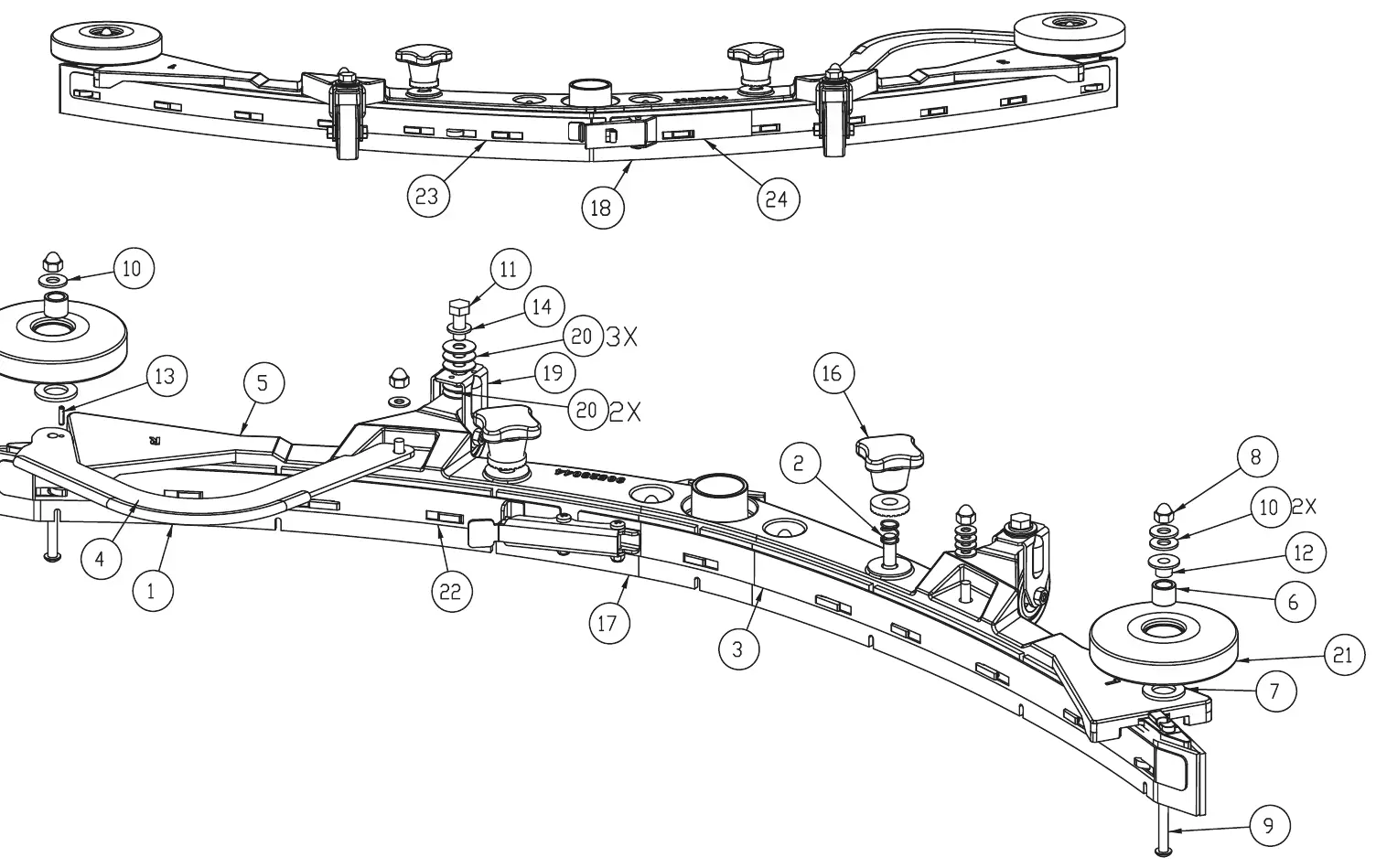

| 7 | MM172538Minuteman 172538 | 1 | 38" SQUEEGEE ASM, E26ECO | $847.99/EA |
| 8 | MM260066Minuteman 260066 | 2 | OILITE BUSHING | $2.92/EA |
| 9 | MM281047Minuteman 281047 | 1 | SPRING, EXTENSION - 2.75" | $5.89/EA |
| 10 | MM370058Minuteman 370058 | 1 | BUSHING, .31 X .48X.385 SS | $2.18/EA |
| 11 | MM450034Minuteman 450034 | 1 | CLEVIS PIN, 5/16 X .75 LG | $1.08/EA |
| 12 | MM450076Minuteman 450076 | 1 | CLAMP-CRIMP 185R SS | $1.38/EA |
| 13 | MM710995Minuteman 710995 | 2 | SCR-SC 3/8-24 X 1.0 BHEAD ST PL | $1.97/EA |
| 14 | MM711118Minuteman 711118 | 1 | SCR-ST-A 10 X .75 SS | $1.08/EA |
| 15 | MM711523Minuteman 711523 | 1 | WSR-WAVE .37X .68 X .08 | $1.08/EA |
| 16 | MM711569Minuteman 711569 | 2 | WSR-FLT .390 X .880 X .062 NYL | $1.08/EA |
| 17 | MM711592Minuteman 711592 | 1 | WSR-FLAT .506 X .9 X .064 NYL | $1.10/EA |
| 18 | MM711808Minuteman 711808 | 2 | COTTER PIN-HAIR #13 | $1.08/EA |
| 19 | MM712041Minuteman 712041 | 1 | BLT-SHLDR .31 X .375 X 1/4-20 | $1.08/EA |
| 20 | MM712143Minuteman 712143 | 1 | BLT-SHLD 3/8 X 2.0, 5/16-18 | $4.69/EA |
| 21 | MM712301Minuteman 712301 | 2 | WSR-FLAT .37 X .87 X .06 | $1.08/EA |
| 22 | MM712759Minuteman 712759 | 1 | WSR-FLT .31 X 1.37 X .06 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM715921Minuteman 715921 | 2 | DECAL, E26ECOFits E26ECO. Not shown. | $5.68/EA |
| 23 | MM715921HSPMinuteman 715921HSP | 2 | DECAL, H26ECOFits H26ECO. Not shown. Printed as item 23H. | $8.61/EA |
| 24 | MM740164-1Minuteman 740164-1 | 1 | JUMPER CABLE ASSY, RED 4G 12"Not shown. | $25.20/EA |
| 25 | MM747649Minuteman 747649 | 1 | CABLE ASSY, BATTERY E17Not shown. | $45.61/EA |
| 26 | MM956704Replaces Minuteman 956140 | 2 | BATTERY, 12V 140AHreplaces Minuteman 956140. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM956157Replaces Minuteman 956100 | 2 | BATTERY-AGM 12V 100AHPrinted as item 26G; replaces Minuteman 956100. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM956704Replaces Minuteman 956753 | 2 | BATTERY WET 12V 130AH TROJANPrinted as item 26T; replaces Minuteman 956753. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | MM3400067Minuteman 3400067 | 2 | NUT-HEX 3/8-24 ZP | $1.08/EA |

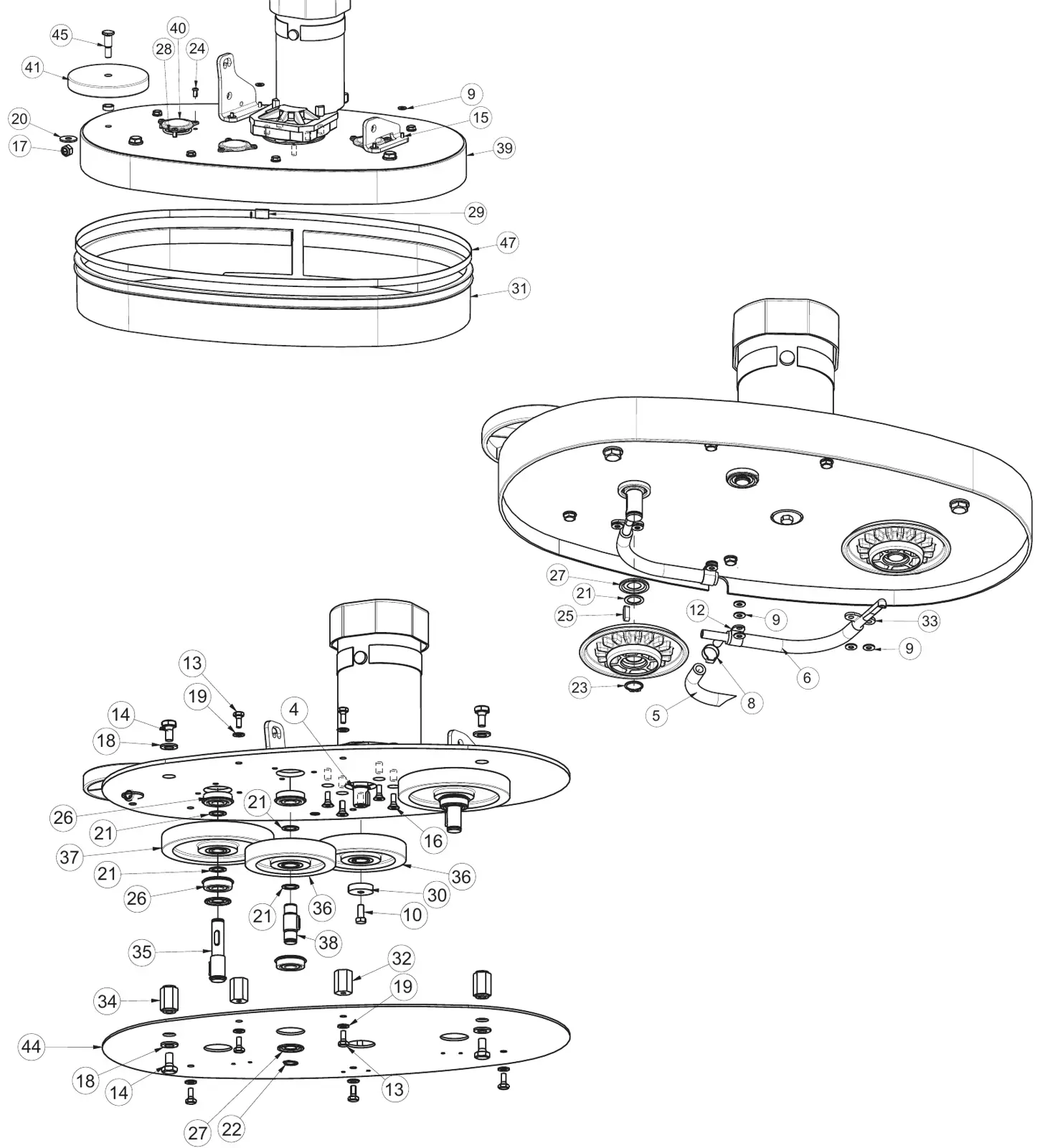

| 28 | MM99711100Minuteman 99711100 | 1 | 26ECO DISC BRUSH DECK | $3,144.82/EA |
| 29 | MM715914WMinuteman 715914W | 1 | DECAL, MINUTEMAN | $4.27/EA |
| 30 | MM172008Minuteman 172008 | 1 | SOLUTION TANK LIDIncluded in SOLUTION TANK LID ASSY 172018 (item 3). | $9.78/EA |
| 31 | MM172123Minuteman 172123 | 1 | CHAIN, BEADED SS W/EYELETSIncluded in SOLUTION TANK LID ASSY 172018 (item 3). | $3.97/EA |
| 32 | MM712145Minuteman 712145 | 1 | SCR-MC 6-32 X .37 PPH SSIncluded in SOLUTION TANK LID ASSY 172018 (item 3). | $1.08/EA |

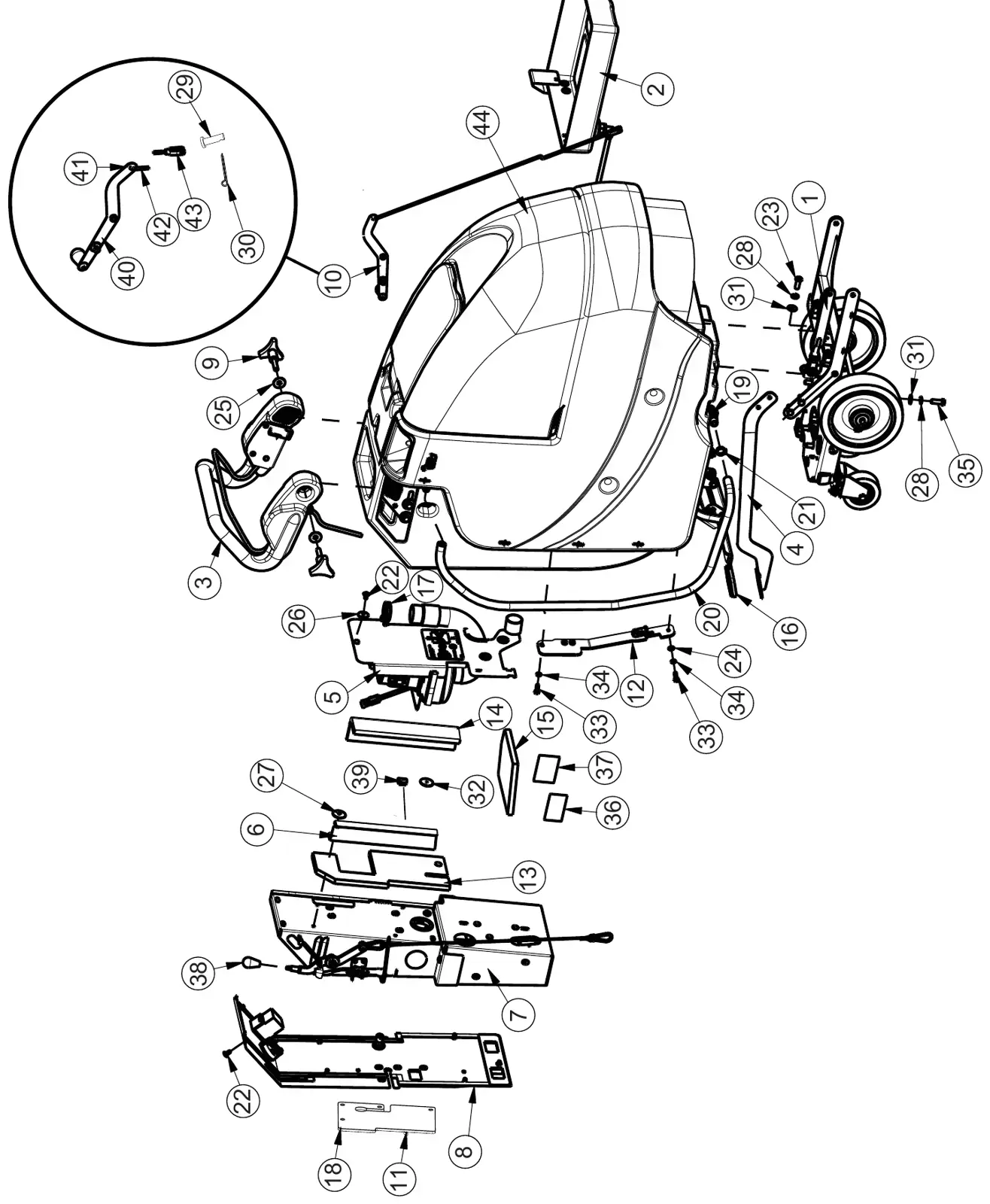

Minuteman E26ECO main assembly parts
The chassis, battery tray, handle, lift pedals, vacuum motor, electrical box, solution control and the covers on the main assembly. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172409Minuteman 172409 | 1 | CHASSIS ASM, E26ECO | $1,720.07/EA |

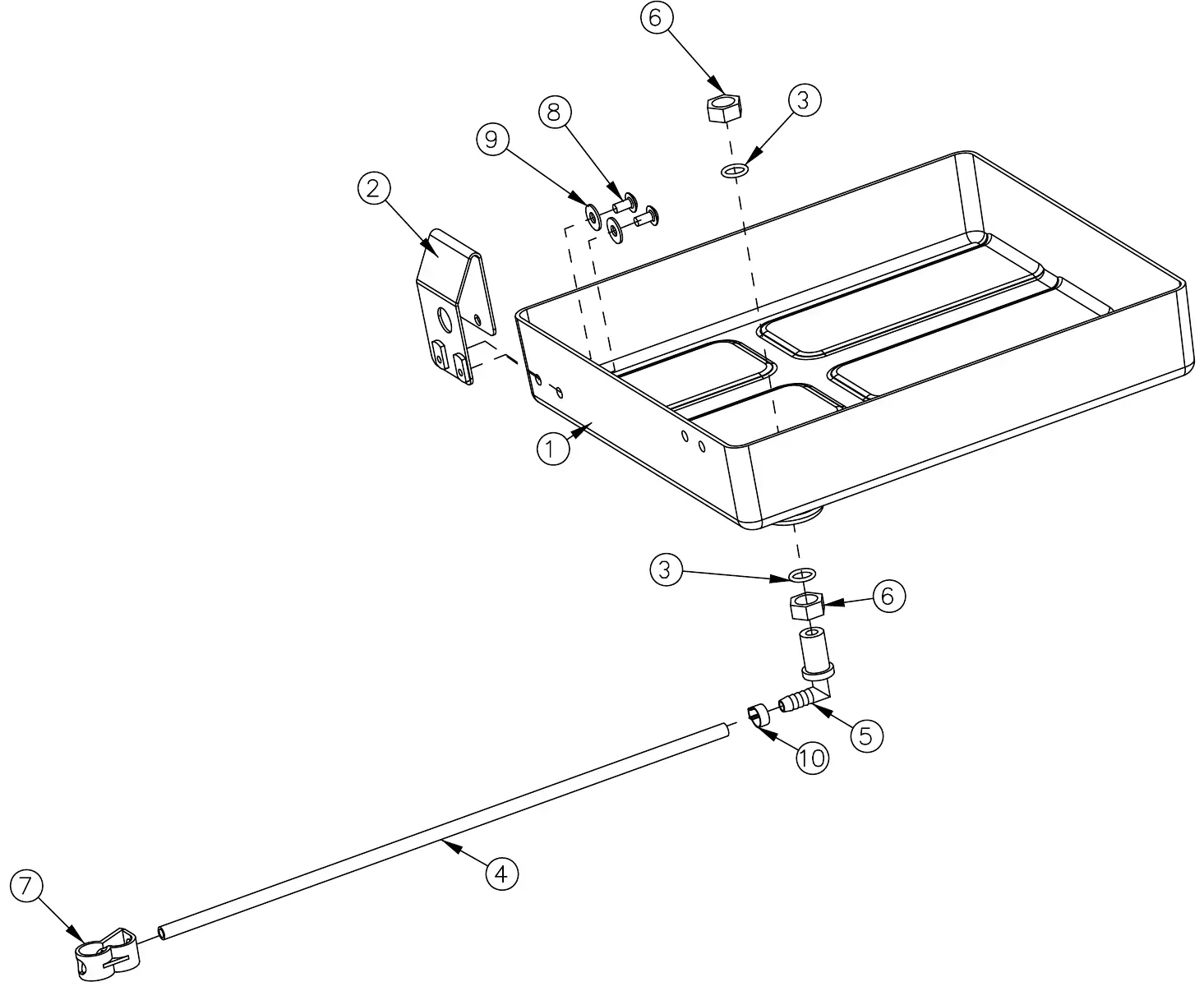

| 2 | MM172012Minuteman 172012 | 1 | BATTERY TRAY ASSY | $54.33/EA |
| 3 | MM172015-26Minuteman 172015-26 | 1 | HANDLE ASSEMBLY, E26ECO | $289.97/EA |
| 4 | MM172032Minuteman 172032 | 1 | LIFT PEDAL WMT | $55.42/EA |

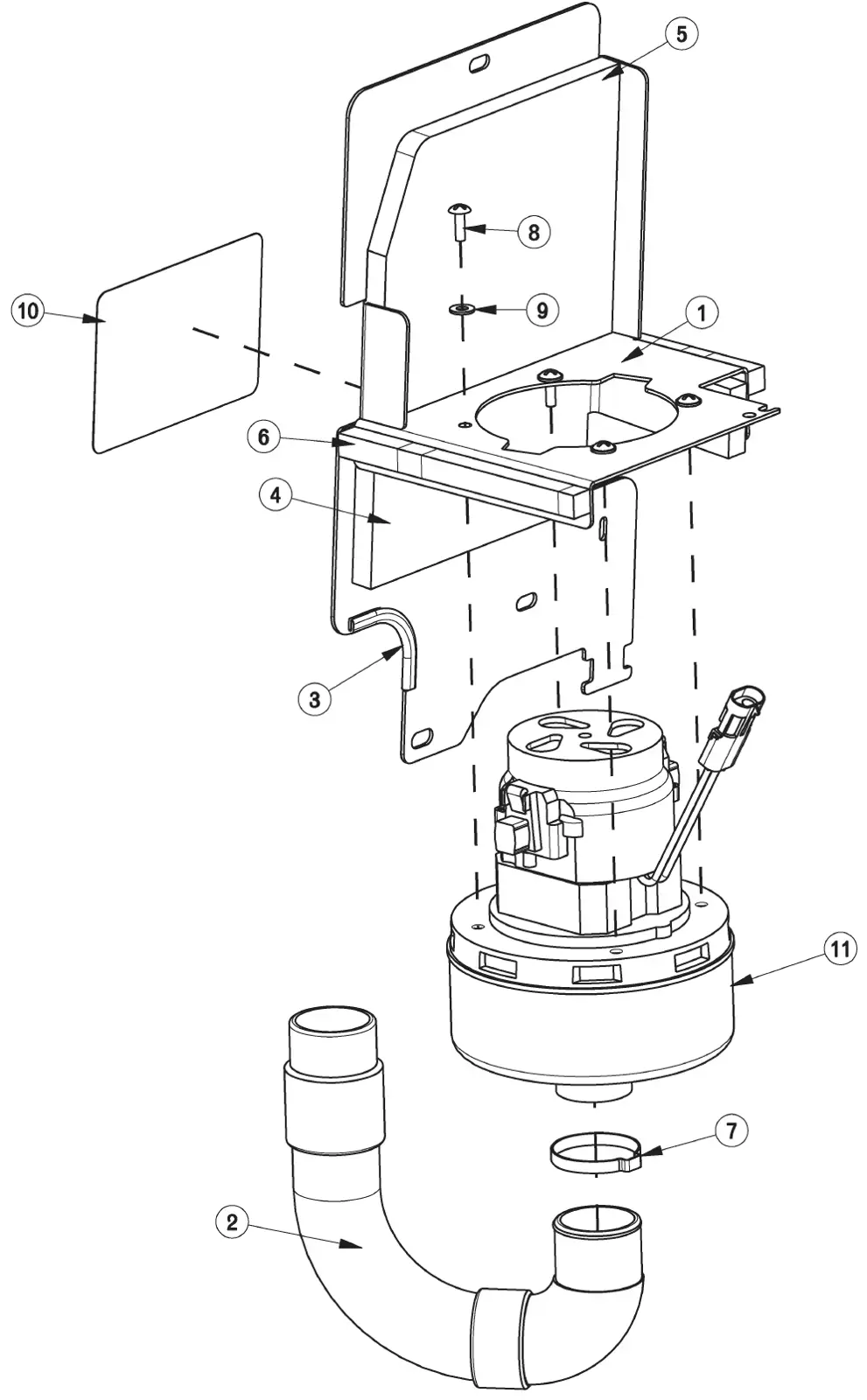

| 5 | MM171022Minuteman 171022 | 1 | VACUUM MOTOR ASSEMBLY | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM172055Minuteman 172055 | 1 | BKT, VAC AREA INSIDE COVER | $16.72/EA |
| 7 | MM171020-ECOMinuteman 171020-ECO | 1 | ELEC BOX ASSY - ECO | $1,588.83/EA |
| 8 | MM172079Minuteman 172079 | 1 | TD COVER WMT | $454.84/EA |
| 9 | MM172085Minuteman 172085 | 2 | KNOB, 3/8-16 STUD, 3 LOBE | $8.04/EA |
| 10 | MM172112Minuteman 172112 | 1 | SOL CONTROL ASSY | $53.92/EA |
| 11 | MM172129Minuteman 172129 | 1 | BKT, PWR CORD MOUNT | $11.81/EA |
| 12 | MM172032Minuteman 172032 | 1 | LIFT PEDAL WMT | $55.42/EA |
| 13 | MM172184Minuteman 172184 | 1 | FOAM COVER, REAR 1 | $6.22/EA |
| 14 | MM172185Minuteman 172185 | 1 | FOAM COVER, REAR 2 | $5.17/EA |
| 15 | MM172187Minuteman 172187 | 1 | FOAM COVER, FRONT 2 | $5.33/EA |
| 16 | MM210142Minuteman 210142 | 1 | PEDAL PAD | $8.44/EA |
| 17 | MM3303255Minuteman 3303255 | 1 | CLAMP-HOSE 1.75 DIA NOM. | $4.10/EA |
| 18 | MM293080Minuteman 293080 | 1 | STRAIN RELIEF-HEYCO 1207 | $1.08/EA |
| 19 | MM342440Minuteman 342440 | 1 | FITTING, TEE 3/4MPT 1/2BARB PP | $1.97/EA |
| 20 | MM430156Minuteman 430156 | 1 | HOSE, 1/2 X 42 CLEAR | $8.06/EA |
| 21 | MM450093Minuteman 450093 | 2 | CRIMP CLAMP 3/4" STEPLESS | $1.94/EA |
| 22 | MM710178Minuteman 710178 | 10 | SCR-MC 1/4-20 X .50 TRUSS STPL | $1.08/EA |
| 23 | MM710985Minuteman 710985 | 2 | SCR-SC 3/8-16 X .62 ST PL | $1.67/EA |
| 24 | MM711504Minuteman 711504 | 2 | WSR-FLAT 1/4 ID SS | $1.10/EA |
| 25 | MM711507Minuteman 711507 | 2 | WSR-FLAT .37 X 1.12 X .06 | $1.08/EA |
| 26 | MM711519Minuteman 711519 | 3 | WSR-FLAT .25 X 1.01 X .06 | $1.08/EA |
| 27 | MM711543Minuteman 711543 | 1 | WSR-HELICAL #10 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | MM711546Minuteman 711546 | 6 | WSR-HELICAL 3/8 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | MM711803Minuteman 711803 | 1 | COTTER PIN-HAIR | $1.08/EA |
| 30 | MM712117Minuteman 712117 | 1 | CLEVIS PIN | $1.08/EA |
| 31 | MM712301Minuteman 712301 | 6 | WSR-FLAT .37 X .87 X .06 | $1.08/EA |
| 32 | MM712312Minuteman 712312 | 2 | WSR-FLAT .187 X 1.25 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM712562Minuteman 712562 | 2 | BOLT-HH 1/4-20X3/4 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | MM712758Minuteman 712758 | 2 | WSR-HELICAL 1/4 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM713042Minuteman 713042 | 4 | BLT-HH 3/8-16 X 1 #5 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | MM715029Minuteman 715029 | 1 | DECAL-NAME PLATE SERIAL | $1.38/EA |
| 37 | MM715047Minuteman 715047 | 1 | DECAL-CLEAR LAMINATE 2X3 | $2.85/EA |
| 38 | MM760592Minuteman 760592 | 1 | KNOB, OVAL TAPERED | $10.34/EA |
| 39 | MM809443Minuteman 809443 | 1 | CLIP-WIRE & CORD | $2.02/EA |
| 40 | MM172115Minuteman 172115 | 1 | SOL CNTRL LEVER ASSY | $34.81/EA |
| 41 | MM172122Minuteman 172122 | 1 | NUT, PUSH-ON WSR CAP, 3/16 | $1.73/EA |
| 42 | MM172069Minuteman 172069 | 1 | ROD, SOL. CTRL, ES1720 | $10.86/EA |
| 43 | MM172062Minuteman 172062 | 1 | YOKE, 3/16 CLEVIS, 10-32, LONG | $3.92/EA |
| 44 | MM171010-ECOMinuteman 171010-ECO | 1 | 17/20 ECO ASSY | $3,752.88/EA |

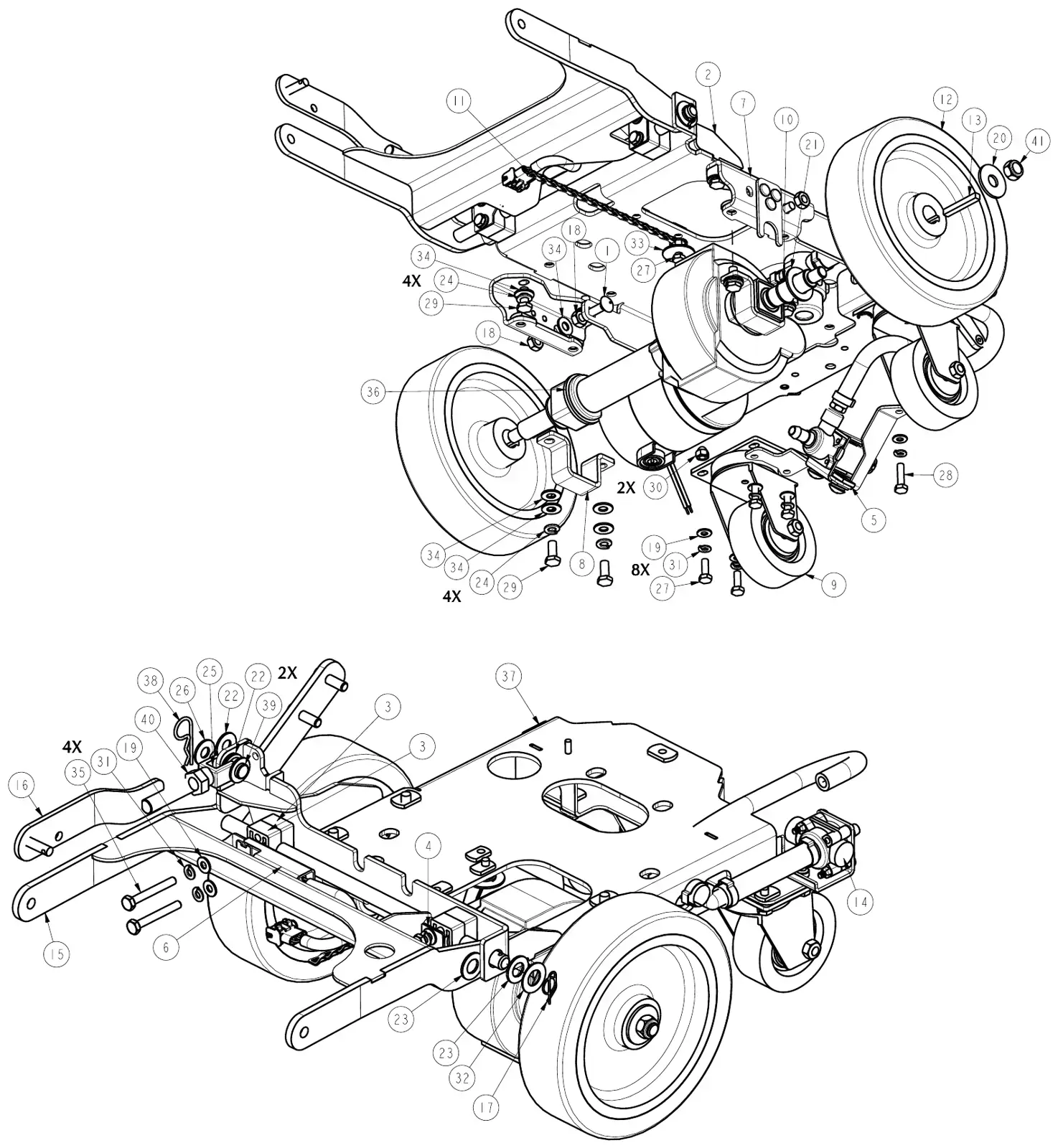

Minuteman E26ECO chassis assembly parts
The main frame, transaxle and its mounts, wheels, casters, lift arms and the solution valve. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM70-516-16Minuteman 70-516-16 | 2 | BLT-CARR 5/16-18 X 1 ZP | $1.08/EA |
| 2 | MM172020Minuteman 172020 | 1 | E1720 MAIN FRAME WMT | $239.99/EA |
| 3 | MM172038Minuteman 172038 | 4 | BEARING BLOCK | $3.30/EA |
| 4 | MM172039Minuteman 172039 | 1 | BEARING BLOCK PLATE | $1.38/EA |

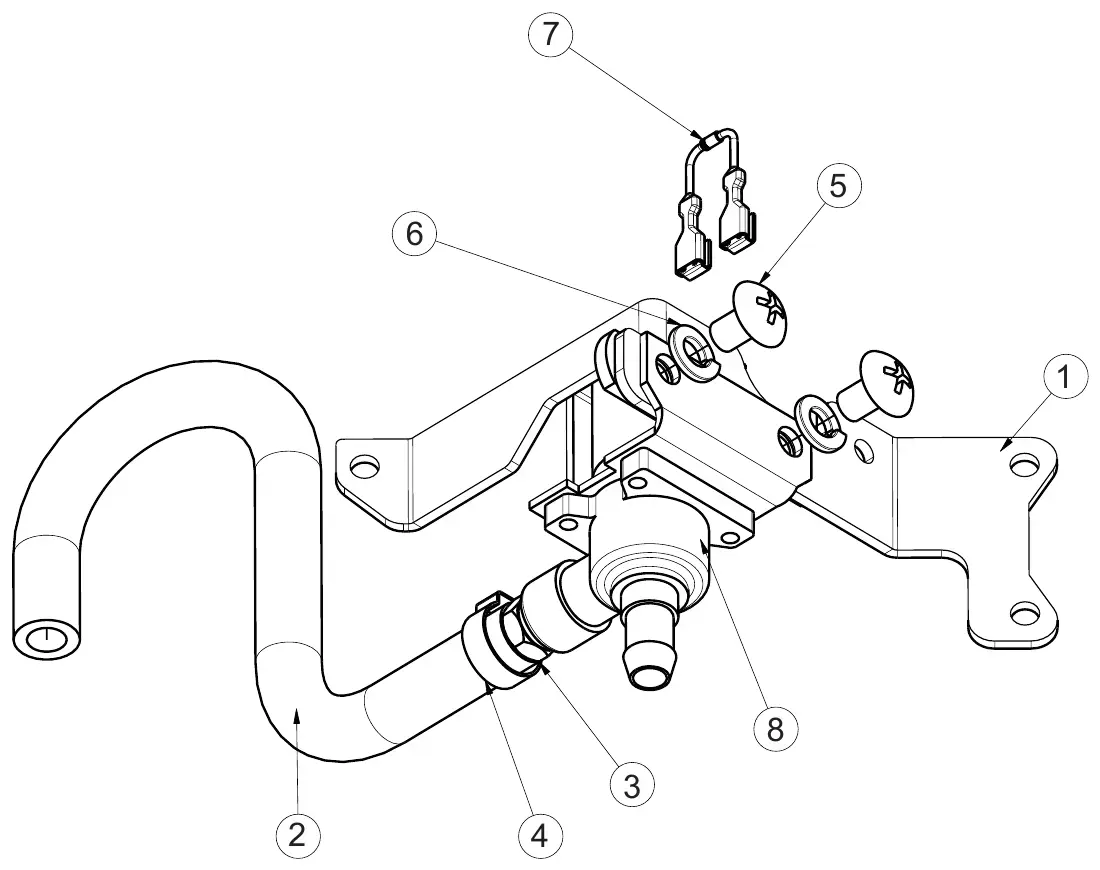

| 5 | MM172104Minuteman 172104 | 1 | SOLENOID MOUNT ASSY | $151.67/EA |
| 6 | MM172110Minuteman 172110 | 1 | DECK SWITCH ASSY | $42.64/EA |
| 7 | MM172113Minuteman 172113 | 2 | BKT, TRANSAXLE MOUNT BASE | $26.25/EA |
| 8 | MM172114Minuteman 172114 | 2 | BKT, TRANSAXLE MOUNT | $9.66/EA |
| 9 | MM172167Minuteman 172167 | 2 | CASTER, 3 1/2" PU WHEEL | $31.43/EA |
| 10 | MM172425Minuteman 172425 | 2 | RING-RET EXT .75/20mm HD | $1.08/EA |
| 11 | MM172516Minuteman 172516 | 1 | DRAG CHAIN, SS, 8" W/ RING | $4.44/EA |
| 12 | MM172518Minuteman 172518 | 2 | WHEEL, 8X2 PU GROOVED | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | MM172519Minuteman 172519 | 2 | KEY-SQUARE 6MM X 45MM | $3.92/EA |

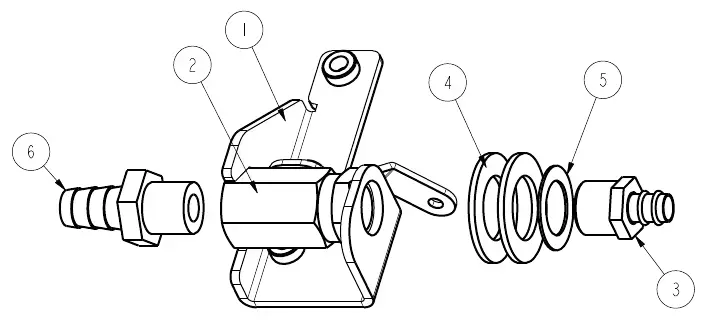

| 14 | MM172571Minuteman 172571 | 1 | ASSY-SOLUTION VALVE E1720 | $113.07/EA |
| 15 | MM245700Minuteman 245700 | 1 | WELDMENT, SH LIFT ARM, 2 DEGREE | $175.33/EA |
| 16 | MM245703Minuteman 245703 | 1 | WELDMENT, UPPER ARM | $58.68/EA |
| 17 | MM600578Minuteman 600578 | 1 | RING-RUE .50 ZP | $1.08/EA |
| 18 | MM711383Minuteman 711383 | 4 | NUT-HEX 5/16-18 ZP REVERSE LOC | $1.08/EA |
| 19 | MM711504Minuteman 711504 | 12 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 20 | MM711510Minuteman 711510 | 2 | WASHER-FLAT 1/2 X 1.37 X .10 ZP | $1.08/EA |
| 21 | MM711512Minuteman 711512 | 2 | WASHER-FLAT 3/4 X 1.37 X .08 ZP | $1.08/EA |
| 22 | MM711569Minuteman 711569 | 3 | WASHER-FLAT .390 X .880 X .062 NYL | $1.08/EA |
| 23 | MM711592Minuteman 711592 | 2 | WASHER-FLAT 1/2 X .90 X .064 NYLON | $1.10/EA |
| 24 | MM712140Minuteman 712140 | 8 | WASHER-LOCK 5/16 SPLIT SS | $1.08/EA |
| 25 | MM712265Minuteman 712265 | 1 | CLEVIS-YOKE, 1/2-20 WITH .375 PIN | $27.72/EA |
| 26 | MM712301Minuteman 712301 | 2 | WASHER-FLAT 3/8 X .87 X .06 ZP | $1.08/EA |
| 27 | MM712562Minuteman 712562 | 8 | SCR-HH 1/4-20 X .75, 18-8 SS | $1.08/EA |
| 28 | MM712564Minuteman 712564 | 1 | SCR-HH 1/4-20 X 1.00 SS | $1.08/EA |
| 29 | MM712575Minuteman 712575 | 8 | SCR-HH 5/16-18 X .75 18-8 SS | $1.08/EA |
| 30 | MM712591Minuteman 712591 | 2 | NUT-ACORN 1/4-20 SS | $1.08/EA |
| 31 | MM712758Minuteman 712758 | 12 | WASHER-LOCK 1/4 SPLIT SS | $1.10/EA |
| 32 | MM712760Minuteman 712760 | 1 | WASHER-FLAT .56 X 1.06 X .04 SS | $1.08/EA |
| 33 | MM712761Minuteman 712761 | 1 | WASHER-FENDER 1/4 X 1.25 X .059 SS | $1.08/EA |
| 34 | MM712772Minuteman 712772 | 14 | WASHER-FLAT .344 X .75 X .06 SS | $1.08/EA |
| 35 | MM713007Minuteman 713007 | 4 | SCR-HH 1/4-20 X 2.00 ZP GR 5 | $1.08/EA |
| 36 | MM747606Minuteman 747606 | 1 | TRANSAXLE, E1720 24V | $898.36/EA |
| 37 | MM809444Minuteman 809444 | 1 | CLIP-CORD | $3.87/EA |
| 38 | MM833374Minuteman 833374 | 1 | PIN-HAIRPIN COTTER 3/8 | $1.08/EA |
| 39 | MM833833Minuteman 833833 | 1 | PIN-CLEVIS 3/8 X 1.25 | $3.43/EA |
| 40 | MM3400449Minuteman 3400449 | 1 | NUT-JAM 1/2-20 ZP | $1.08/EA |
| 41 | MM12040077Minuteman 12040077 | 2 | NUT-NYLOC M12 X 1.75 ZD CLASS 8 | $3.77/EA |

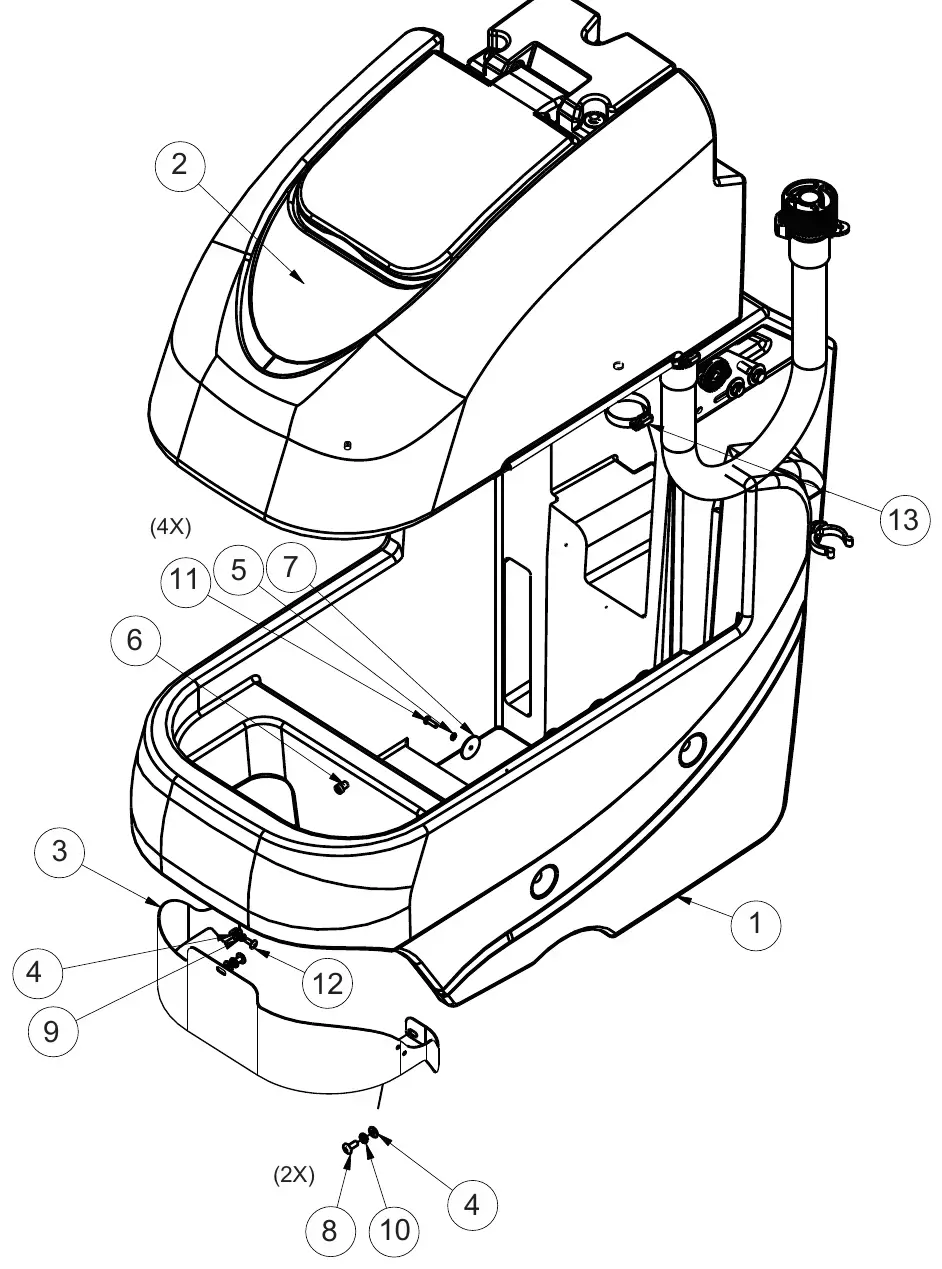

Minuteman E26ECO base assembly parts
The base: solution tank, recovery tank, front panel and hardware. The recovery tank assembly has an E26ECO line and an H26ECO (HSP version) line. Manual page 10.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172013Minuteman 172013 | 1 | SOL TANK ASSY, E1720 | $1,262.56/EA |
| 2 | MM172014Minuteman 172014 | 1 | REC TANK ASSY 1Fits E26ECO. | $945.40/EA |
| 2 | MM172014HSPMinuteman 172014HSP | 1 | REC TANK ASSY-HSP VERSIONFits H26ECO. Printed as item 2H. | $438.08/EA |
| 3 | MM172144Minuteman 172144 | 1 | PANEL, FRONT 1720 | $64.43/EA |
| 4 | MM711504Minuteman 711504 | 3 | WSR-FLAT 1/4 ID SS | $1.10/EA |
| 5 | MM711543Minuteman 711543 | 4 | WSR-HELICAL #10 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM712041Minuteman 712041 | 1 | BLT-SHLDR 1/4-20 X .44 X .37 | $1.08/EA |
| 7 | MM712312Minuteman 712312 | 4 | WSR-FLAT .187 X 1.25 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | MM712565Minuteman 712565 | 2 | SCR-MC 1/4-20X.63 SS TR HD | $1.13/EA |
| 9 | MM712757Minuteman 712757 | 1 | WSR-HELICAL #10 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM712758Minuteman 712758 | 2 | WSR-HELICAL 1/4 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM712812Minuteman 712812 | 4 | SCR-MC 10-24 X .62 PPH ST PL | $1.05/EA |
| 12 | MM712822Minuteman 712822 | 1 | SCR-MC TR HD 10-24 X .50 SS | $1.08/EA |
| 13 | MM3303255Minuteman 3303255 | 1 | CLAMP-HOSE 1.75 DIA NOMINAL | $4.10/EA |

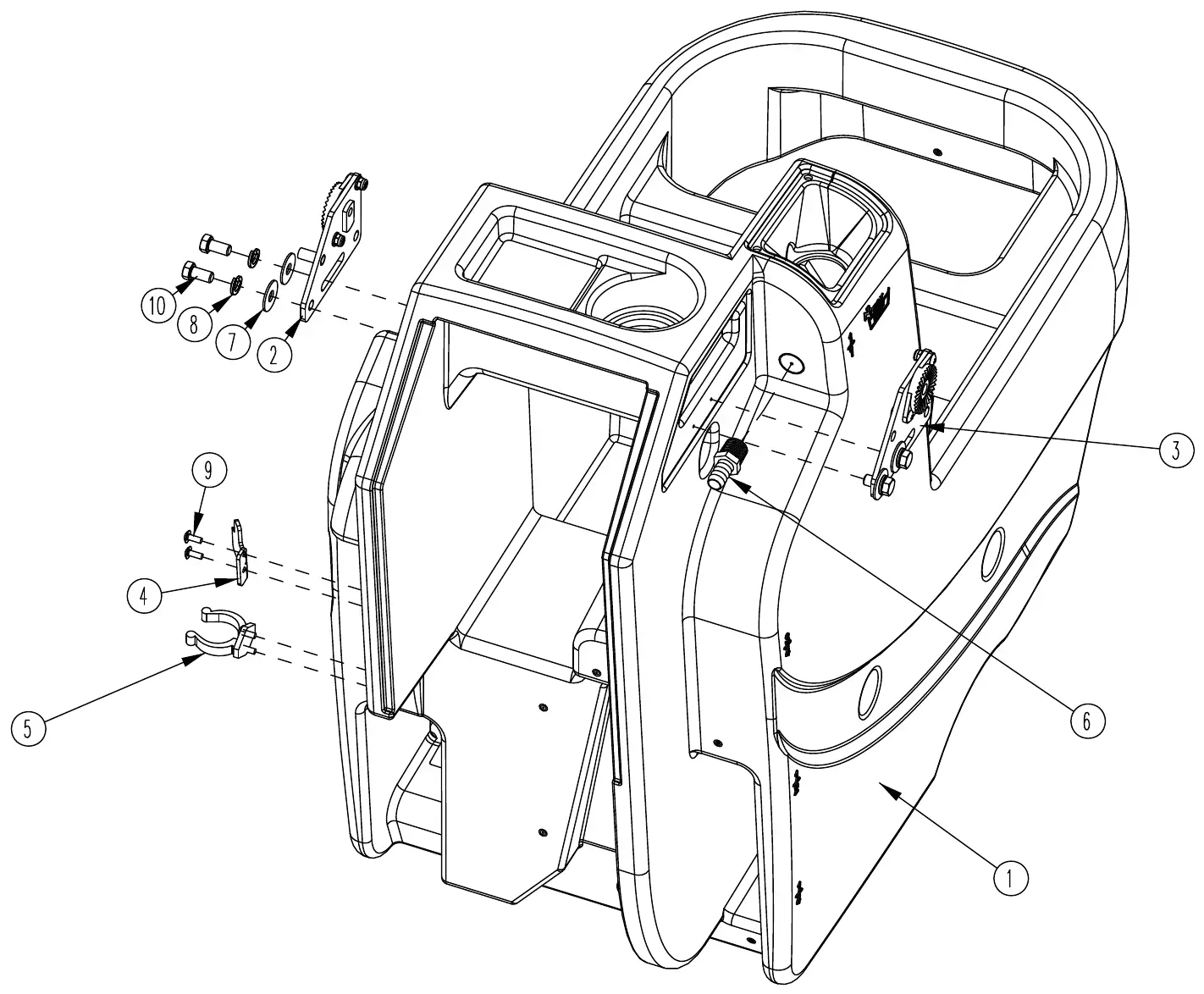

Minuteman E26ECO solution tank assembly parts
The solution tank, handle mounts, drain hose hook and fittings. Manual page 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172003Minuteman 172003 | 1 | SOLUTION TANK | $404.47/EA |
| 2 | MM172080Minuteman 172080 | 1 | HANDLE MOUNT ASSY, LEFT | $18.75/EA |
| 3 | MM172082Minuteman 172082 | 1 | HANDLE MOUNT ASSY, RIGHT | $20.16/EA |
| 4 | MM172341Minuteman 172341 | 1 | HOOK, DRAIN HOSE WITH TWIST VALVE | $10.80/EA |
| 5 | MM260579Minuteman 260579 | 1 | TOOL CLIP, 1.5" HOSE | $7.25/EA |
| 6 | MM342438Minuteman 342438 | 1 | FITTING, 1/2 MPT 1/2 HB BRASS | $5.05/EA |
| 7 | MM711507Minuteman 711507 | 4 | WASHER-FLAT 3/8 X 1.12 X .06 | $1.08/EA |
| 8 | MM711546Minuteman 711546 | 4 | WSR-HELICAL 3/8 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM712822Minuteman 712822 | 4 | SCR-MC TR HD 10-24 X .50 SS | $1.08/EA |
| 10 | MM713041Minuteman 713041 | 4 | BLT-HH 3/8-16 X 3/4 #5 | Call to confirm part: 800-440-6723Call 800-440-6723 |

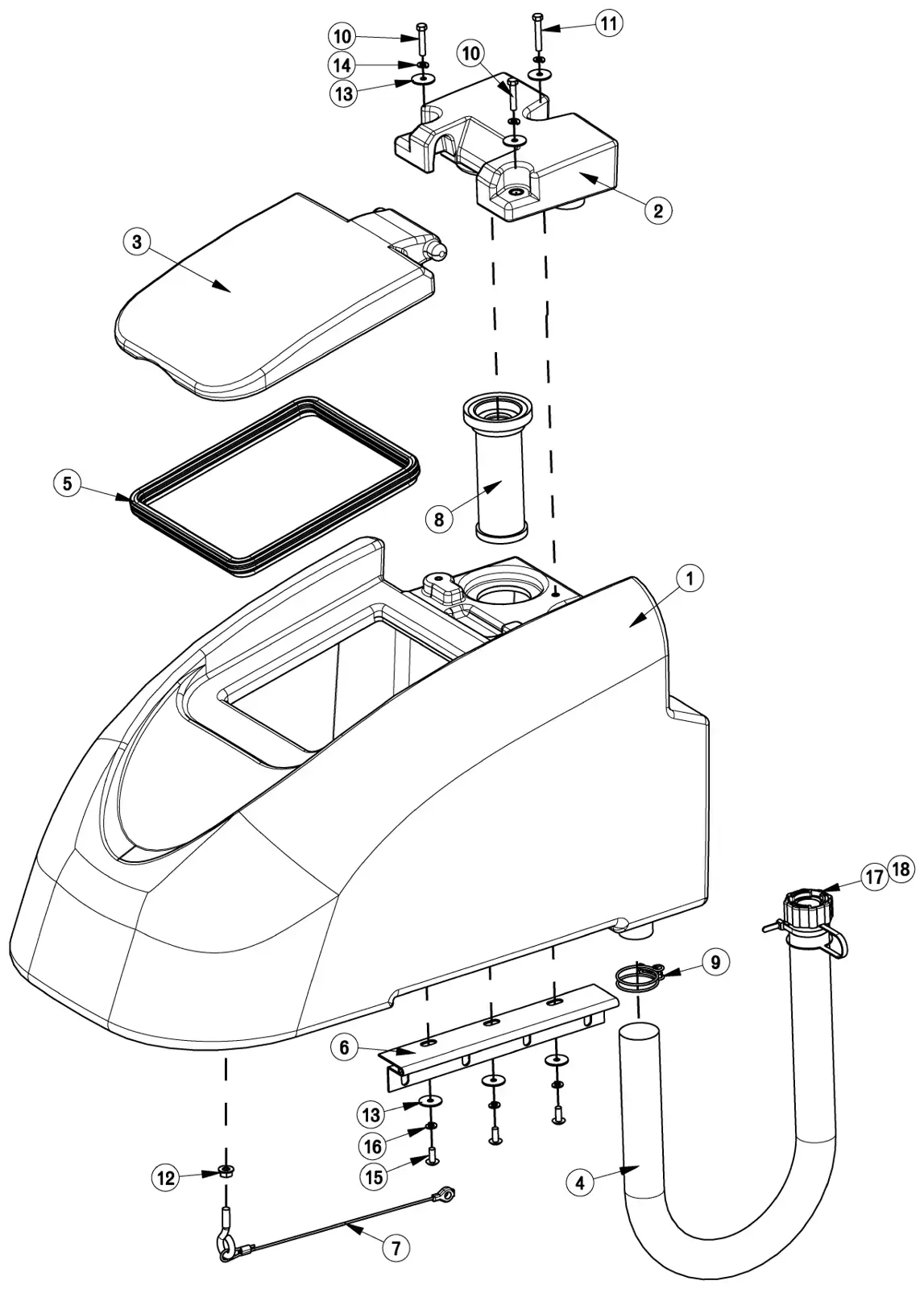

Minuteman E26ECO recovery tank assembly parts
The recovery tank, vacuum manifold, lid, gasket, hinge, screened float and drain hose. The tank and manifold each have an E26ECO line and an H26ECO (HSP version) line. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172004Minuteman 172004 | 1 | RECOVERY TANK 1Fits E26ECO. | $334.24/EA |
| 1 | MM172004HSPMinuteman 172004HSP | 1 | RECOVERY TANK-HSP VERSIONFits H26ECO. Printed as item 1H. | $129.67/EA |
| 2 | MM172005Minuteman 172005 | 1 | VACUUM MANIFOLD 1Fits E26ECO. | $45.19/EA |
| 2 | MM172005HSPMinuteman 172005HSP | 1 | VACUUM MANIFOLD-HSP VERSIONFits H26ECO. Printed as item 2H. | $39.03/EA |
| 3 | MM172007Minuteman 172007 | 1 | LID | $193.97/EA |
| 4 | MM97090096Minuteman 97090096 | 1 | DRAIN HOSE ASSY, RECOVERY TANK INCLUDES ITEMS 17 & 18Includes items 17 and 18. | $90.25/EA |
| 5 | MM172017Minuteman 172017 | 1 | GASKET, LID | $23.45/EA |
| 6 | MM172049Minuteman 172049 | 1 | HINGE, RECOVERY TANK | $34.48/EA |
| 7 | MM172394Minuteman 172394 | 1 | REC TANK CABLE ASSY 11.625 | $14.50/EA |
| 8 | MM172132Minuteman 172132 | 1 | SCREENED FLOAT | $29.00/EA |
| 9 | MM3303255Minuteman 3303255 | 1 | CLAMP-HOSE 1.75 DIA NOMINAL | $4.10/EA |
| 10 | MM711210Minuteman 711210 | 2 | BLT-HH 1/4-20 X 1.25 STPL | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM711212Minuteman 711212 | 1 | BLT-HH 1/4-20 X 1.50 STPL | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM711379Minuteman 711379 | 1 | NUT, FLANGED WIZZ 5/16-18 | $1.08/EA |
| 13 | MM711519Minuteman 711519 | 6 | WSR-FLAT .25 X 1.01 X .06 | $1.08/EA |
| 14 | MM711544Minuteman 711544 | 3 | WSR-HELICAL 1/4 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM712565Minuteman 712565 | 3 | SCR-MC 1/4-20X.63 SS TR HD | $1.13/EA |
| 16 | MM712758Minuteman 712758 | 3 | WSR-HELICAL 1/4 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM15282072Minuteman 15282072 | 1 | REPLACEMENT O-RINGNot shown. | $4.75/EA |
| 18 | MM90304528Minuteman 90304528 | 1 | REPLACEMENT CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |

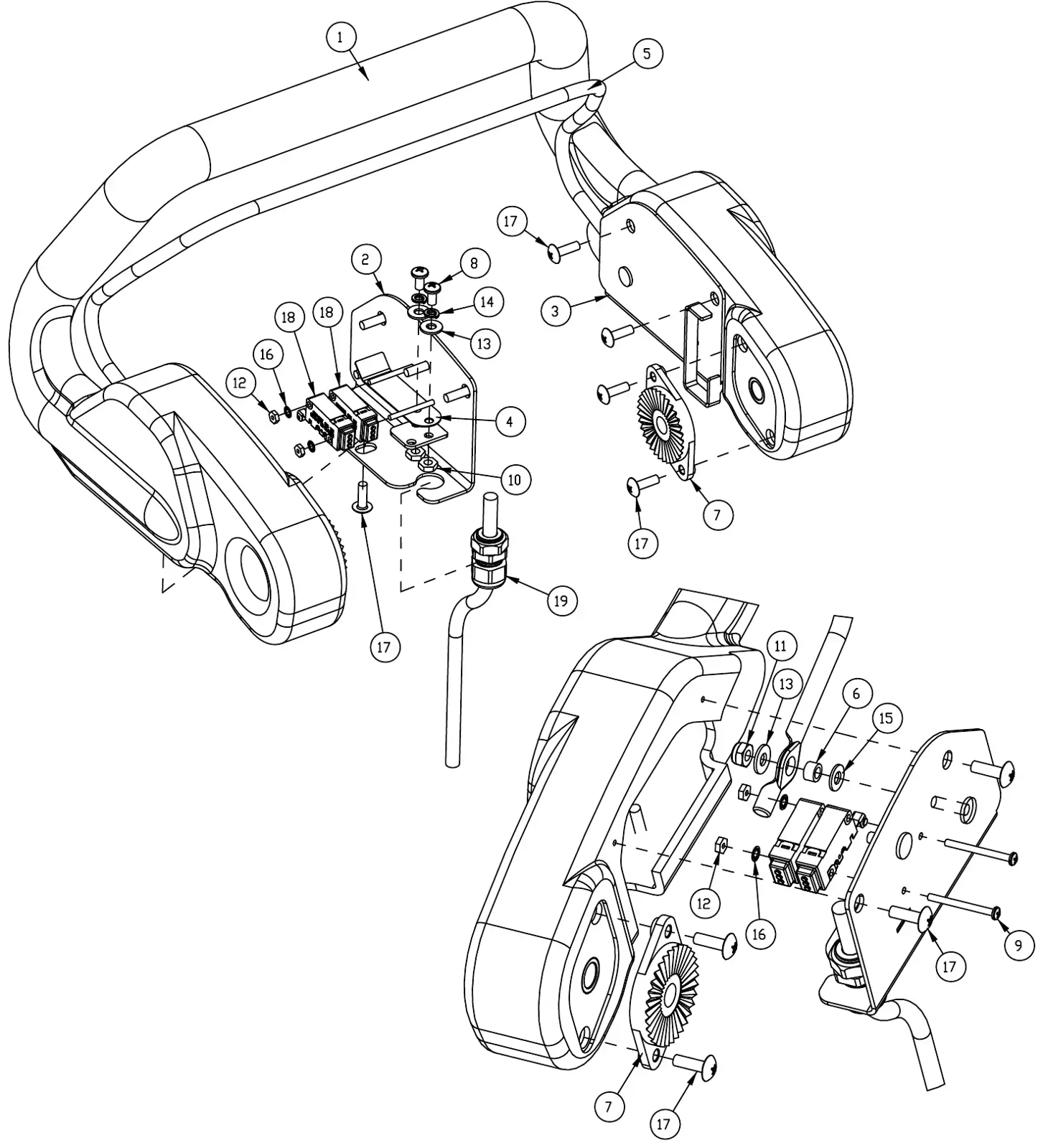

Minuteman E26ECO handle assembly parts
The handle, bail, bail plates, leaf springs and the two micro switches with their cable. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172006Minuteman 172006 | 1 | ES 1720 HANDLE | $326.93/EA |
| 2 | MM172053Minuteman 172053 | 1 | BAIL PLATE WMT RH | $33.89/EA |
| 3 | MM172054Minuteman 172054 | 1 | BAIL PLATE WMT LH | $35.25/EA |
| 4 | MM172057Minuteman 172057 | 2 | ES 1720 LEAF SPRING | $6.55/EA |
| 5 | MM172059Minuteman 172059 | 1 | ES 1720 BAIL, HANDLE | $21.66/EA |
| 6 | MM172074Minuteman 172074 | 2 | SPACER, 5/16 OD X 17 GA, ALUM | $2.63/EA |
| 7 | MM270143Minuteman 270143 | 2 | HANDLE PIVOT JAW | $5.18/EA |
| 8 | MM710353Minuteman 710353 | 4 | SCR-MCRD HD 10-32 X .37 STL | $1.08/EA |
| 9 | MM710495Minuteman 710495 | 2 | SCR-MC 4-40 X 1.25 STL Z | $1.08/EA |
| 10 | MM711310Minuteman 711310 | 4 | NUT, HEX 10-32 ST PL | $1.08/EA |
| 11 | MM711350Minuteman 711350 | 2 | NUT-NYLOC 10-32 | $1.08/EA |
| 12 | MM711428Minuteman 711428 | 2 | NUT-HEX 4-40 | $1.08/EA |
| 13 | MM711503Minuteman 711503 | 6 | WSR, FLAT #10 | $1.08/EA |
| 14 | MM711543Minuteman 711543 | 4 | WSR-HELICAL #10 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM712320Minuteman 712320 | 2 | WSR-NYLON .22 X .45 X .04 | $1.08/EA |
| 16 | MM712326Minuteman 712326 | 2 | WSR-INT LOCK #4 | $1.08/EA |
| 17 | MM712830Minuteman 712830 | 10 | SCR-MC 10-24 X .62 ST LZ TRHD | $1.08/EA |
| 18 | MM747603-3Minuteman 747603-3 | 2 | SWITCH ASY, MICROROLLER w /MATENLOK | $23.65/EA |
| 19 | MM747715-1Minuteman 747715-1 | 1 | CABLE ASY, 5 COND 18 GE1720TD | $74.06/EA |
Minuteman E26ECO solenoid assembly parts
The solution solenoid valve with its bracket, hose, fitting and diode. Manual page 16.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172105Minuteman 172105 | 1 | BKT, SOLENOID MOUNT | $26.94/EA |
| 2 | MM281637Minuteman 281637 | 1 | HOSE-WIRE REINF 3/8 X 11" | $6.55/EA |
| 3 | MM320264Minuteman 320264 | 1 | FTG-ADPTR 1/4 MPT X 1/4 HB BRASS | $3.70/EA |
| 4 | MM450076Minuteman 450076 | 1 | CLAMP-HOSE 5/8 (.590-.791) SS | $1.38/EA |
| 5 | MM710195Minuteman 710195 | 2 | SCR-PHMS 5/16-18 X .50 ZP | $1.08/EA |
| 6 | MM711545Minuteman 711545 | 2 | WASHER-LOCK 5/16 SPLIT ZP | $1.08/EA |
| 7 | MM740482Minuteman 740482 | 1 | DIODE ASY, 1N4007 W/PIGGY | $5.81/EA |
| 8 | MM740493Minuteman 740493 | 1 | VALVE-WATER 24VDC | $111.95/EA |
Minuteman E26ECO old style solution valve assembly parts
The old style brass solution valve. Minuteman marks every line here no longer available. See the page notes for the replacement kit. Manual page 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172563Replaces Minuteman 172513 | 1 | BRKT, SOL VALVE MOUNTNo longer available; replaces Minuteman 172513. | $15.82/EA |
| 2 | MM172515Minuteman 172515 | 1 | BALL VALVE, BRASS, 3/8FNPT, CUST HANDLENo longer available. | $24.19/EA |
| 3 | MM320265Minuteman 320265 | 1 | FTG-ADAPTER 3/8 MPT X 3/8 HB BRASSNo longer available. | $11.97/EA |
| 4 | MM711512Minuteman 711512 | 2 | WASHER-FLAT 3/4 X 1.37 X .08 ZPNo longer available. | $1.08/EA |
| 5 | MM711513Minuteman 711513 | 1 | WASHER-FLAT .689 X 1.06 X .029 SSNo longer available. | $1.10/EA |
| 6 | MM827008Minuteman 827008 | 1 | FTG-ADAPTER 3/8 MPT 1/2 HB BRASSNo longer available. | $8.27/EA |

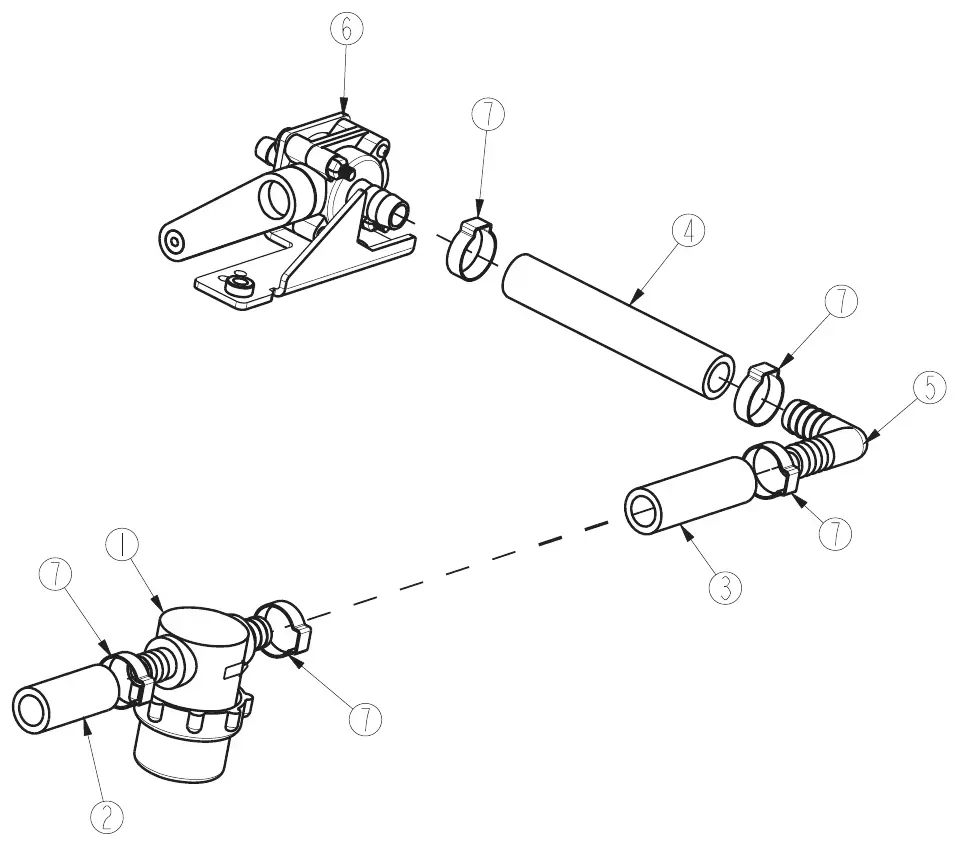

Minuteman E26ECO new style solution valve assembly parts
The new style plastic solution valve with the solution filter, hoses, elbow and clamps. Manual page 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172564Minuteman 172564 | 1 | FILTER-SOLUTION E1720 | $11.99/EA |
| 2 | MM172566Minuteman 172566 | 1 | HOSE-1/2ID X 1.75" NYLOBRAID | $1.37/EA |
| 3 | MM172567Minuteman 172567 | 1 | HOSE-1/2"ID X 2.375" NYLOBRAID | $1.49/EA |
| 4 | MM172568Minuteman 172568 | 1 | HOSE-WIRE REINF 1/2"ID X 4.25" | $2.28/EA |
| 5 | MM172569Minuteman 172569 | 1 | FTG-ELBOW 90 1/2 HB X 1/2 HB NYLON | $1.08/EA |
| 6 | MM172579Minuteman 172579 | 1 | SOLUTION CNTRL VALVE, WITH BRKT | $88.86/EA |
| 7 | MM383347Minuteman 383347 | 5 | CLAMP-CRIMP 1/2 HOSE | $1.38/EA |

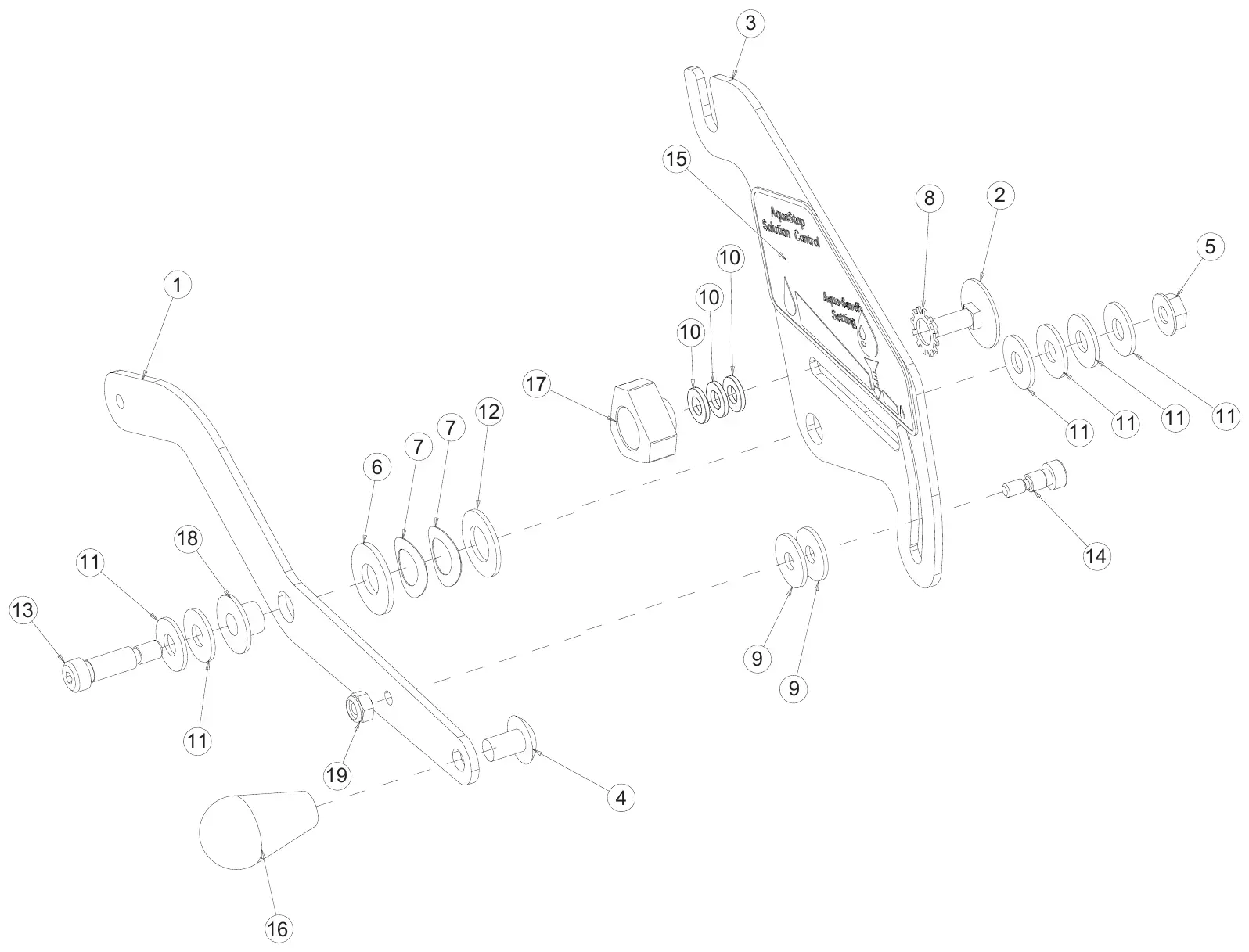

Minuteman E26ECO solution control handle assembly parts
The solution control lever bracket, Aquastop control bracket, knobs, decal and hardware. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172061Minuteman 172061 | 1 | LEVER, SOLUTION CONTROL BRK'T | $26.53/EA |
| 2 | MM172424Minuteman 172424 | 1 | BLT-ELEVATOR 1/4-20 x .75 ZINC | $1.08/EA |
| 3 | MM172575Minuteman 172575 | 1 | BRKT, AQUASTOP SOL CNTRL | $16.08/EA |
| 4 | MM710195Minuteman 710195 | 1 | SCR-PHMS 5/16-18 X .50 ZP | $1.08/EA |
| 5 | MM711425Minuteman 711425 | 1 | NUT-FLANGED WIZZ 1/4-20 ZP | $1.08/EA |
| 6 | MM711508Minuteman 711508 | 1 | WASHER-FLAT 3/8 X 1.00 X .08 ZP | $1.08/EA |
| 7 | MM711524Minuteman 711524 | 2 | WASHER-FLAT 3/8 X 1.00 X .08 ZP | $1.10/EA |
| 8 | MM711539Minuteman 711539 | 1 | WASHER-EXT LOCK 3/8 ZP | $1.08/EA |
| 9 | MM711550Minuteman 711550 | 2 | WASHER-FLAT 1/4 X .75 NYLON | $1.08/EA |
| 10 | MM711566Minuteman 711566 | 3 | WASHER-FLAT #12 X .50 X .065 ZP | $1.08/EA |
| 11 | MM711575Minuteman 711575 | 6 | WASHER-FLAT 1/4 X .75 X .06 ZP | $1.08/EA |
| 12 | MM711592Minuteman 711592 | 1 | WASHER-FLAT 1/2 X .90 X .064 NYLON | $1.10/EA |
| 13 | MM712070Minuteman 712070 | 1 | BLT-SHOULDER 5/16 X .75 LG X 1/4-20 BLK | $1.08/EA |
| 14 | MM713598Minuteman 713598 | 1 | BLT-SHOULDER 1/4 X .313 LG X 10-24 SS | $3.34/EA |
| 15 | MM715690Minuteman 715690 | 1 | DECAL, AQUASTOP SOLUTION CONTROL | $2.80/EA |
| 16 | MM760592Minuteman 760592 | 1 | KNOB-OVAL TAPERED | $10.34/EA |
| 17 | MM833214Minuteman 833214 | 1 | KNOB-3 SIDED 1/4-20 INSERT | $7.93/EA |
| 18 | MM840202Minuteman 840202 | 1 | BUSHING-FLG .31 X .435 X .325 NYL | $1.08/EA |
| 19 | MM712638Replaces Minuteman 3400399 | 1 | NUT-NYLOC 10-24 SSreplaces Minuteman 3400399. | $1.10/EA |
Minuteman E26ECO battery tray assembly parts
The battery box, spacer, drain hose, nozzle fittings and mounting hardware. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172116Minuteman 172116 | 1 | BATTERY BOX | $35.31/EA |
| 2 | MM172213Minuteman 172213 | 1 | BKT, SPACER FOR BATTERIES | $159.80/EA |
| 3 | MM210414Minuteman 210414 | 2 | O RING 2-113 | $1.22/EA |
| 4 | MM260224Minuteman 260224 | 1 | 18" HOSE | $13.31/EA |
| 5 | MM320271Minuteman 320271 | 1 | NOZZLE BODY-ELBOW | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM320272Minuteman 320272 | 2 | NOZZLE BODY LOCKNUT | $1.22/EA |
| 7 | MM320273Minuteman 320273 | 1 | HOSE SHUT-OFF CLAMP | $1.48/EA |
| 8 | MM710178Minuteman 710178 | 2 | SCR-MC 1/4-20 X .50 TRUSS STPL | $1.08/EA |
| 9 | MM711575Minuteman 711575 | 2 | WSR-FLT .31x.75x..06ST | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | MM828490Minuteman 828490 | 1 | CRIMP CLAMP 140R | $1.22/EA |

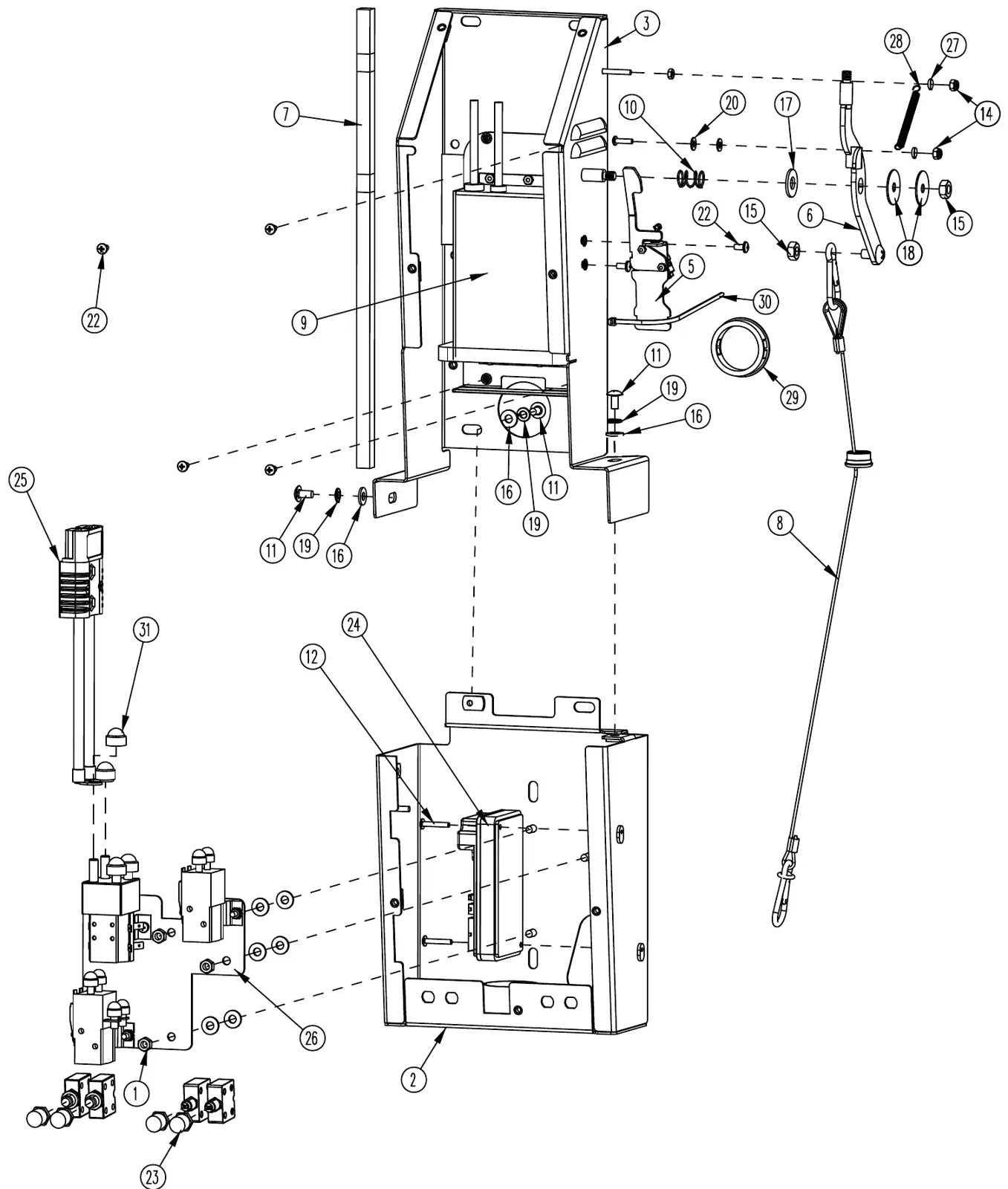

Minuteman E26ECO electrical box assembly parts
The electrical box halves, vacuum switch, charger, motor controller, wiring, springs and hardware. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM369-416Minuteman 369-416 | 3 | NUT-HEX 1/4-20 NYLOC SERATED | $1.08/EA |
| 2 | MM172077Minuteman 172077 | 1 | ELEC BOX-BOT HALF WMT | $127.97/EA |
| 3 | MM172088Minuteman 172088 | 1 | ELEC BOX-TOP HALF WMT | $128.09/EA |
| 5 | MM172141Minuteman 172141 | 1 | VAC SWITCH ASSY | $49.73/EA |
| 6 | MM172152Minuteman 172152 | 1 | VAC LEVER WMT | $54.83/EA |
| 7 | MM172188Minuteman 172188 | 1 | FOAM TAPE, 1/2" SQ X 16.5" | $2.63/EA |
| 8 | MM172381Minuteman 172381 | 1 | CABLE ASSY, SQUEEGEE LIFT | $31.92/EA |
| 9 | MM957761Minuteman 957761 | CHARGER, NEMA 5-15 PLUGNo quantity printed. | $730.73/EA | |
| 10 | MM670093Minuteman 670093 | 1 | SPRING, COMPRESSION | $3.52/EA |
| 11 | MM710178Minuteman 710178 | 3 | SCR-MC 1/4-20 X .50 TRUSS STPL | $1.08/EA |
| 12 | MM710534Minuteman 710534 | 2 | SCR-MC TR HD 8-32 X 1.00 SS | $1.08/EA |
| 13 | MM711305Minuteman 711305 | 1 | NUT, HEX 8-32 BR | $1.08/EA |
| 14 | MM711372Minuteman 711372 | 2 | NUT-NYLOC 8-32 STL ZINC | $1.08/EA |
| 15 | MM711383Minuteman 711383 | 2 | NUT-HEX CLR LOC 5/16-18 | $1.08/EA |
| 16 | MM711505Minuteman 711505 | 9 | 1/4 FLAT WASHER, STEEL | $1.08/EA |
| 17 | MM711508Minuteman 711508 | 1 | WSR-FLAT .44X 1.0X.08 | $1.08/EA |
| 18 | MM711516Minuteman 711516 | 2 | WSR-FLAT .31 X 1.25 X .05 | $1.08/EA |
| 19 | MM711544Minuteman 711544 | 3 | WSR-HELICAL 1/4 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM712320Minuteman 712320 | 2 | WSR-NYLON .22 X .45 X .04 | $1.08/EA |
| 21 | MM712770Minuteman 712770 | 6 | WSR INT LOCK #10A SS | $1.08/EA |
| 22 | MM712810Minuteman 712810 | 6 | SCR-MC 10-24 X .37 ST PL | $1.08/EA |
| 23 | MM742748Minuteman 742748 | 4 | CIRCUIT BREAKER BOOT | $5.95/EA |
| 24 | MM747710Minuteman 747710 | 1 | I-DRIVE,24V 70A PM MOTOR CONTROL | $247.53/EA |
| 25 | MM747637Minuteman 747637 | 1 | WIRE ASY, MACHINE-BATTERY | $65.83/EA |
| 26 | MM747670-26Minuteman 747670-26 | 1 | ELEC PANEL ASSY | $473.64/EA |
| 27 | MM760134Minuteman 760134 | 2 | MOUNT RING | $2.63/EA |
| 28 | MM762084Minuteman 762084 | 1 | SPRING-EXT .25OD X 2" F.L. MUSIC | $4.03/EA |
| 29 | MM762400Minuteman 762400 | 1 | HEYCO BUSHING 2.00" | $1.38/EA |
| 30 | MM828062Minuteman 828062 | 1 | CABLE TIE LARGE | $1.38/EA |
| 31 | MM15592033Minuteman 15592033 | 2 | CAP, SAFETY NUT COVER M8 | $1.55/EA |

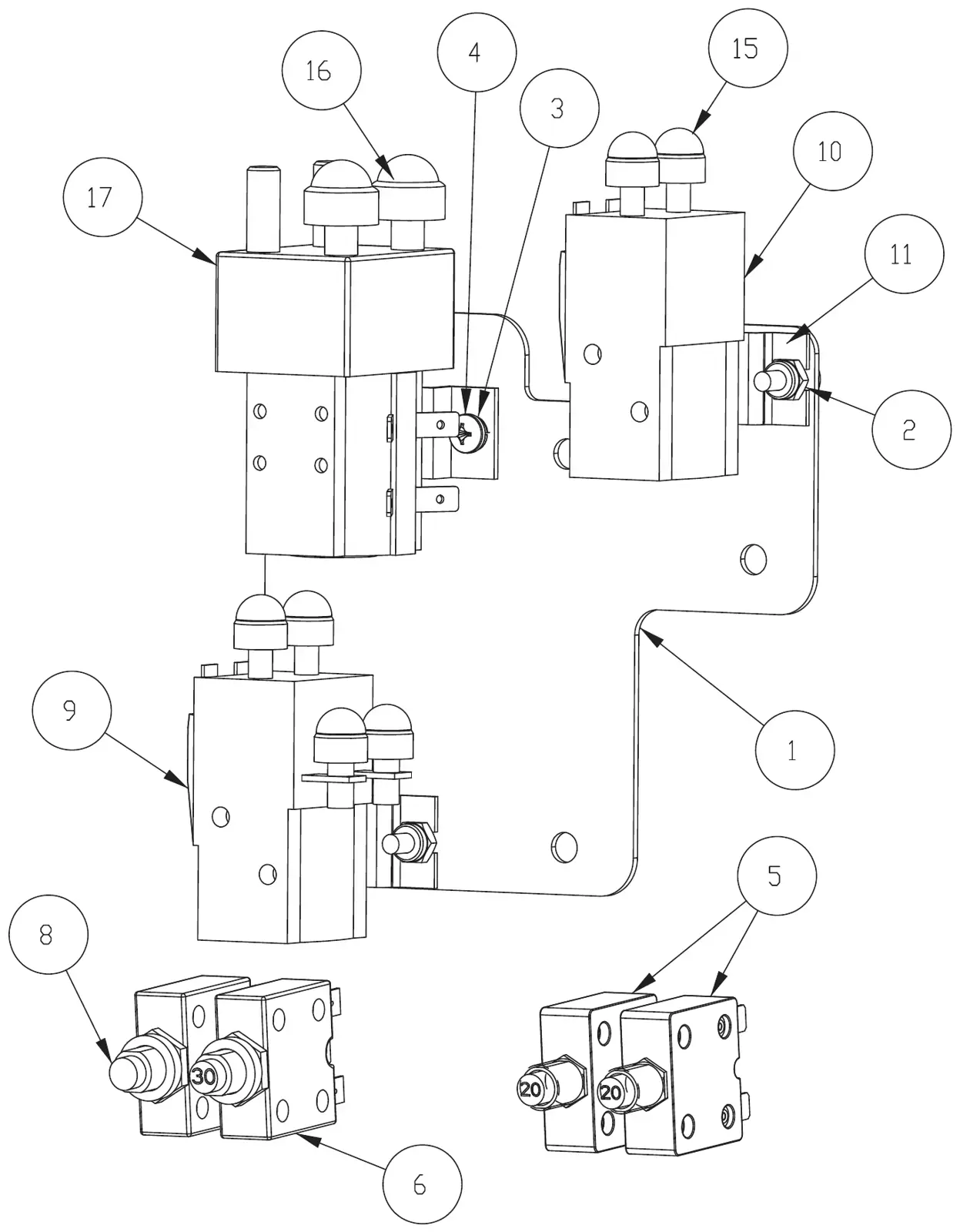

Minuteman E26ECO electrical panel assembly parts
The relay panel with the 4 A, 20 A and 30 A circuit breakers, the relays and the nut covers. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172189Minuteman 172189 | 1 | PANEL, RELAY MOUNT | $30.42/EA |
| 2 | MM711350Minuteman 711350 | 4 | NUT-NYLOC 10-32 | $1.08/EA |
| 3 | MM711543Minuteman 711543 | 2 | WSR-HELICAL #10 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | MM712800Minuteman 712800 | 2 | SCR-MC 10-24 X .25 ST PL | $1.08/EA |
| 5 | MM740220Minuteman 740220 | 2 | CIRCUIT BREAKER-20AMP 2-TERMIN | $5.70/EA |
| 6 | MM740247Minuteman 740247 | 1 | CIRCUIT BREAKER-30AMP PUSH BUT | $6.71/EA |
| 7 | MM740482Minuteman 740482 | 2 | DIODE ASY, 1N4007 W/PIGGYNot shown. | $5.81/EA |
| 8 | MM747609Minuteman 747609 | 1 | CIRCUIT BREAKER-4.0AMP PUSHBUT | $14.40/EA |
| 9 | MM747615Minuteman 747615 | 1 | RELAY, 2 POLE CURTIS (1720) | $63.13/EA |
| 10 | MM747616Minuteman 747616 | 1 | RELAY, 1 POLE CURTIS (1720) | $61.50/EA |
| 11 | MM747619Minuteman 747619 | 2 | BRACKET, RELAY 747615 & 747616 | $4.96/EA |
| 12 | MM747640Minuteman 747640 | 1 | WIRE ASY, 10G RED 13"Not shown. | $3.20/EA |
| 13 | MM747641Minuteman 747641 | 1 | WIRE ASY, 10G RED 7"Not shown. | $2.91/EA |
| 14 | MM747711Minuteman 747711 | 1 | WIRE HARNESS, E1720TD MAINNot shown. | $139.33/EA |
| 15 | MM15592025Minuteman 15592025 | 6 | CAP, SAFETY NUT COVER M6 | $2.64/EA |
| 16 | MM15592033Minuteman 15592033 | 2 | CAP, SAFETY NUT COVER M 8 | $1.55/EA |
| 17 | MM90331026Minuteman 90331026 | 1 | RELAY, 24VDC 2 POLE 100A (HAKO) | Call to confirm part: 800-440-6723Call 800-440-6723 |

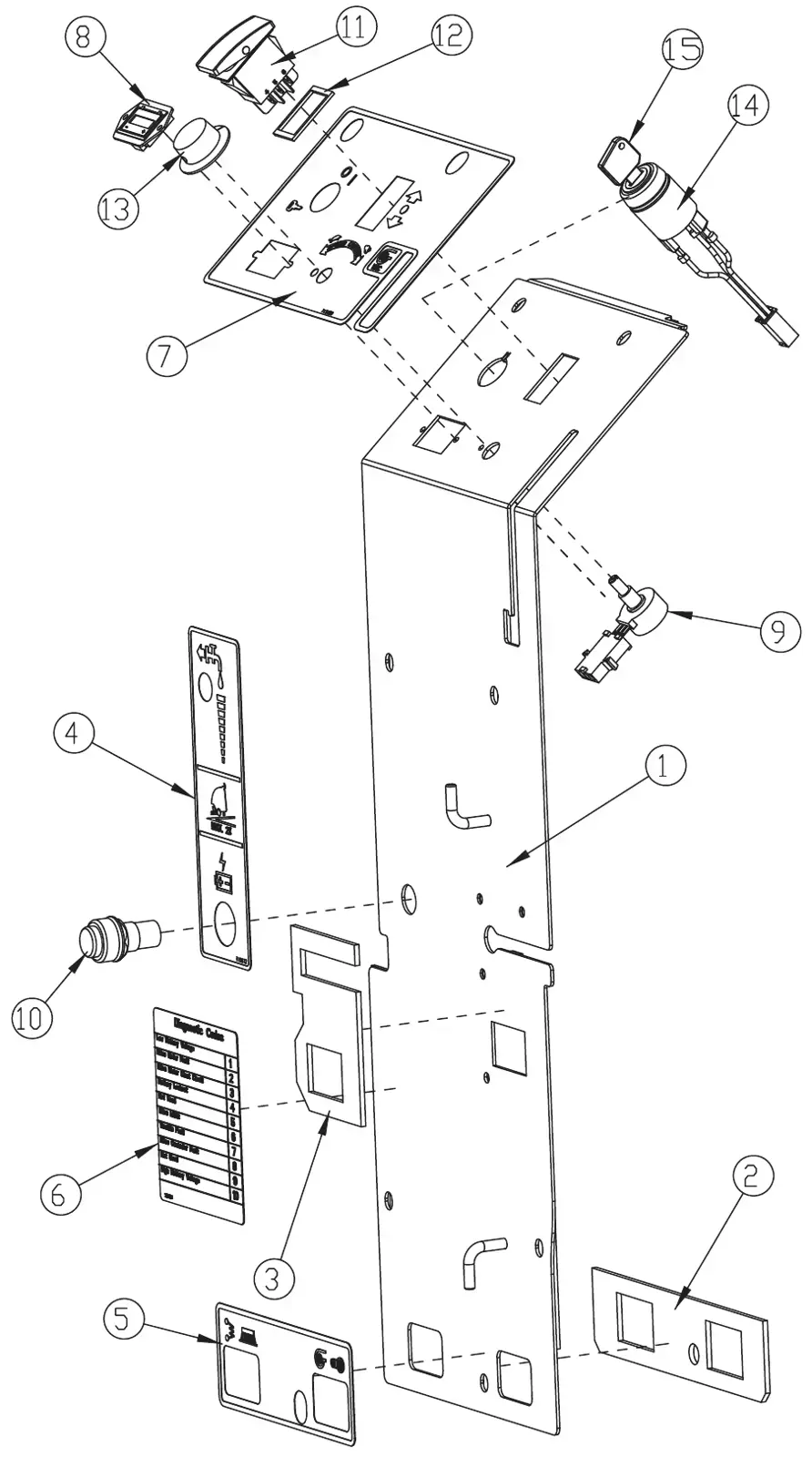

Minuteman E26ECO electrical box cover assembly parts
The electrical box cover with the battery gauge, speed control, charge status indicator, direction switch, key switch and decals. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172182Minuteman 172182 | 1 | TD COVER WMT | $125.29/EA |
| 2 | MM172193Minuteman 172193 | 1 | GASKET, CB OUTLINE | $2.63/EA |
| 3 | MM172194Minuteman 172194 | 1 | GASKET, CHARGER CORD PLATE | $2.63/EA |
| 4 | MM715672Minuteman 715672 | 1 | DECAL, CHARGE STATUS, SOLUTION CTRL | $2.85/EA |
| 5 | MM715674Minuteman 715674 | 1 | DECAL, TD CIRCUIT BREAKER | $2.85/EA |
| 6 | MM715699Minuteman 715699 | 1 | DECAL. DIAGNOSTIC CODES E1720TD | $4.58/EA |
| 7 | MM715680Minuteman 715680 | 1 | DECAL, CYL DASHBOARD | $7.94/EA |
| 8 | MM747011Minuteman 747011 | 1 | BATTERY GAUGE, TRUCHARGE | $78.15/EA |
| 9 | MM747026Minuteman 747026 | 1 | POTENTIOMETER ASSY SPEED CONTROL | $71.47/EA |
| 10 | MM747614Minuteman 747614 | 1 | CHARGE STATUS INDICATOR | $24.94/EA |
| 11 | MM748201Minuteman 748201 | 1 | SWITCH, DPDT ON/OFF/ON | $36.89/EA |
| 12 | MM748209Minuteman 748209 | 1 | GASKET -FOR 2 POLE ROCKER SWITCHES | $2.87/EA |
| 13 | MM809874Minuteman 809874 | 1 | KNOB, SPEED CONTROL | $8.88/EA |
| 14 | MM90323437-1Minuteman 90323437-1 | 1 | KEYSWITCH ASY, SWITCH PLUS WIRES | $43.02/EA |
| 15 | MM00745890Minuteman 00745890 | 1 | KEY SET (2 pc.) -REPLACEMENT FOR 90323437 | $22.56/EA |
Minuteman E26ECO vacuum motor assembly parts
The vacuum motor with its mount, hose, foam covers and clamp. The motor has an E26ECO line and an H26ECO (HSP version) line. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172045Minuteman 172045 | 1 | VAC MOUNT WMT | $83.04/EA |
| 2 | MM172048Minuteman 172048 | 1 | HOSE, STRETCH 13" | $25.64/EA |
| 3 | MM172124Minuteman 172124 | 1 | EDGE TRIM, .063 X 3.0, BLACK | $1.08/EA |
| 4 | MM172186Minuteman 172186 | 1 | FOAM COVER, FRONT 1 | $4.97/EA |
| 5 | MM172187Minuteman 172187 | 1 | FOAM COVER, FRONT 2 | $5.33/EA |
| 6 | MM172188Minuteman 172188 | 2 | FOAM TAPE, 1/2" SQ X 16.5" | $2.63/EA |
| 7 | MM450095Minuteman 450095 | 1 | CRIMP CLAMP, 1.75" | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | MM711160Minuteman 711160 | 4 | #10 X 5/8 HI-LO | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM711503Minuteman 711503 | 4 | WSR, FLAT#10 | $1.08/EA |
| 10 | MM715967Minuteman 715967 | 1 | DECAL, BATT CABLE ROUTE | $2.45/EA |
| 11 | MM747607-1Minuteman 747607-1 | 1 | VAC MOTOR ASY 1Fits E26ECO. | $174.44/EA |
| 11 | MM747665-1Minuteman 747665-1 | 1 | VAC MOTOR ASY, 36/24V PERIF BYPASSFits H26ECO. Printed as item 11H. | $287.56/EA |

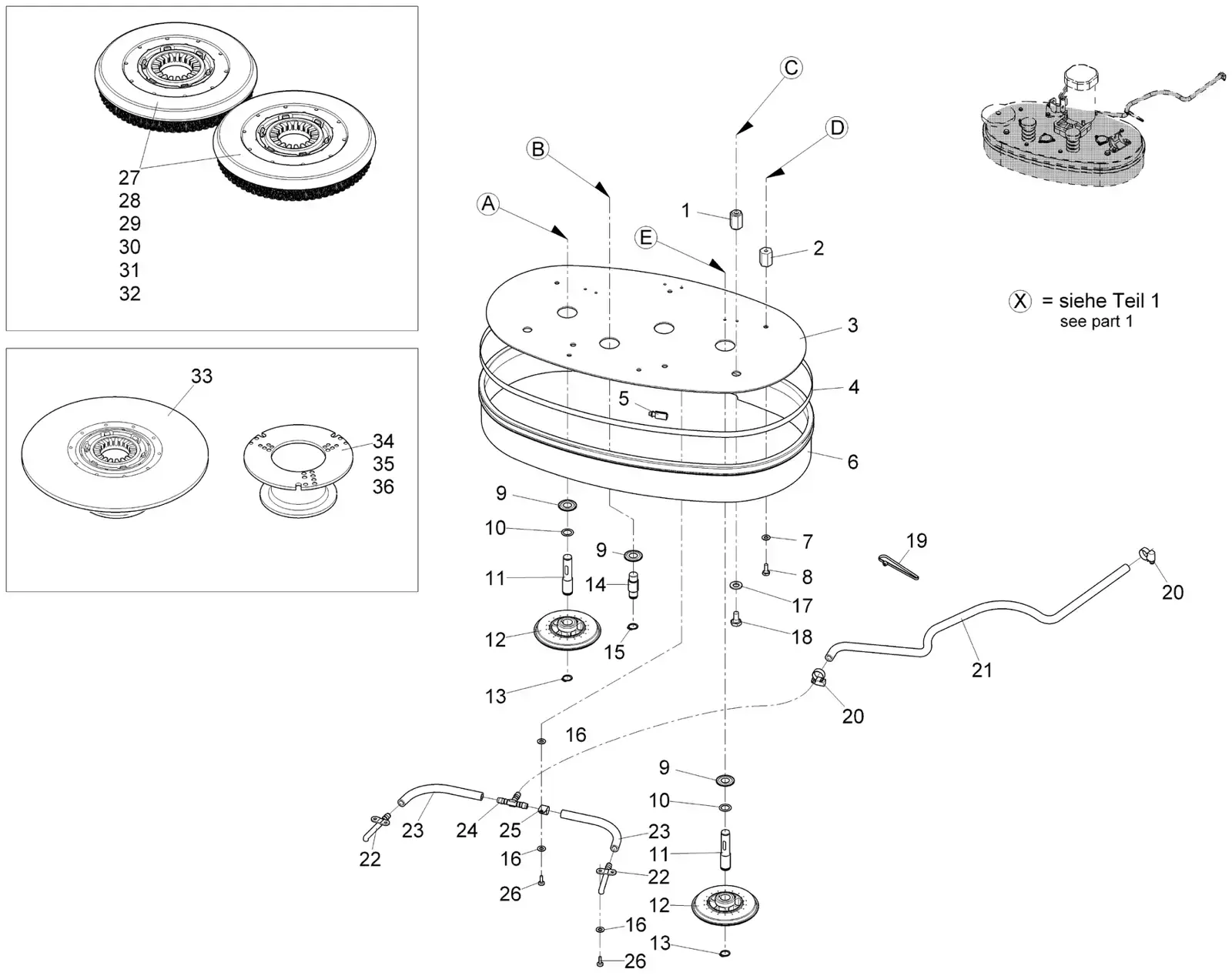

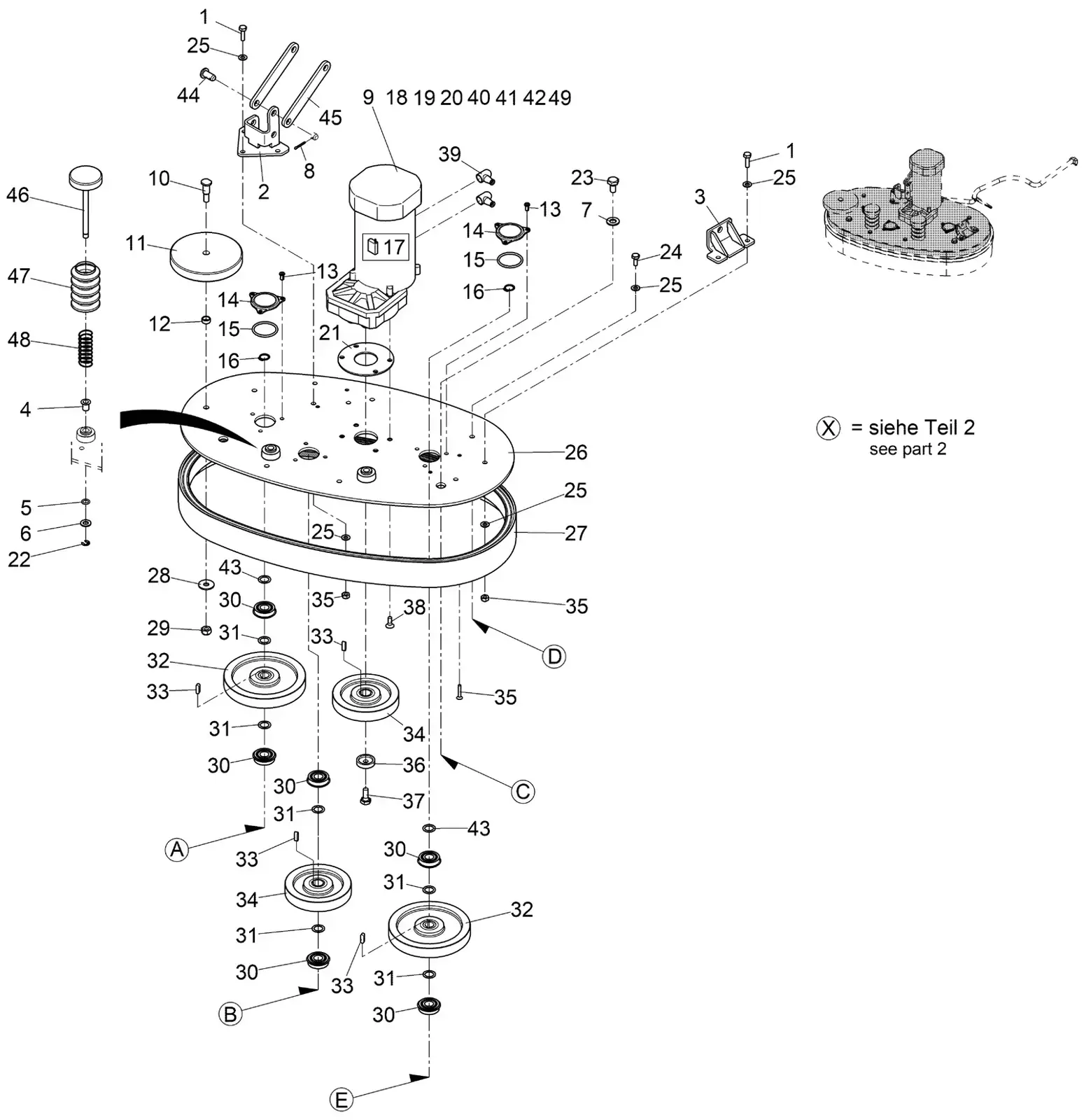

Minuteman E26ECO brush deck parts
Minuteman's list for the 26 in disc brush deck: motor, plates, gears, bearings, shafts, hubs, hoses and splash guard. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM77-81-AMinuteman 77-81-A | 1 | SPACER-.53 X .75 X .25 | $3.30/EA |
| 2 | MM172417Minuteman 172417 | 1 | BKT, DECK MOUNT RIGHT | $21.33/EA |
| 3 | MM172418Minuteman 172418 | 1 | BKT, DECK MOUNT LEFT | $20.70/EA |
| 4 | MM172425Minuteman 172425 | 1 | RING-RET EXT .75/20mm HD | $1.08/EA |
| 5 | MM172426Minuteman 172426 | 1 | HOSE-NYLO REINF 3/8 X 25 | $4.98/EA |
| 6 | MM760302Minuteman 760302 | 2 | HOSE-NYLO REINF 3/8 X 8" | $2.81/EA |
| 7 | MM260178Minuteman 260178 | 1 | FTG-TEE 3/8 HB X 3/8 HB X 1/4 HB PE | $2.83/EA |
| 8 | MM450076Minuteman 450076 | 1 | CLAMP-HOSE 5/8 (.590-.791) SS | $1.38/EA |
| 9 | MM711504Minuteman 711504 | 14 | WASHER-FLAT 1/4 SS | $1.10/EA |
| 10 | MM717030Minuteman 717030 | 1 | SCR-HH M8-1.25 X 20 SS | $1.08/EA |
| 11 | MM747600Minuteman 747600 | 1 | MOTOR, 24VDC PM600W | $675.49/EA |
| 12 | MM00821550Replaces Minuteman 1752903 | 2 | CLAMP-P, 51Dreplaces Minuteman 1752903. | $3.31/EA |
| 13 | MM11038197Minuteman 11038197 | 10 | BLT-HH M8 X 1.25 X 16 STL ZD 8.8 DIN 933 | $4.15/EA |
| 14 | MM11038577Minuteman 11038577 | 4 | BLT-HH M12 X 20 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM11206208Minuteman 11206208 | 4 | SCR-MC FH M6 X 20 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM11225331Minuteman 11225331 | 4 | SCR-FH M8 X 20 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | MM12040069Minuteman 12040069 | 1 | NUT-NYLOC M10 X 1.5 ZD CLASS 6 | $6.92/EA |
| 18 | MM12310066Minuteman 12310066 | 4 | WSR-FLT M13 X 24 X 2.5 STL 140HV ZD DIN | $4.15/EA |
| 19 | MM730609Replaces Minuteman 12310264 | 10 | WSR-FLT M8.4 X 16 X 1.6 A2 SSreplaces Minuteman 12310264. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | MM12332037Minuteman 12332037 | 1 | WSR-FLT M10.5 X 30 X 2.5 STL 140HV ZD DI | $1.50/EA |
| 21 | MM12335063Minuteman 12335063 | 8 | WSR-FLT, 17 X 24 X 1 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM00022230Replaces Minuteman 12610085 | 3 | CIRCLIPreplaces Minuteman 12610085. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM12610093Minuteman 12610093 | 2 | CIRCLIP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | MM01076740Replaces Minuteman 13166087 | 9 | RIVET, PLASTIC PUSH-INreplaces Minuteman 13166087. | $1.22/EA |
| 25 | MM13540182Minuteman 13540182 | 5 | KEY, SQ 6MM X 20 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM14110787Minuteman 14110787 | 6 | BEARING, 6203 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | MM01071860Replaces Minuteman 14678288 | 3 | NILOS-RINGreplaces Minuteman 14678288. | $4.13/EA |
| 28 | MM15282049Minuteman 15282049 | 3 | O-RING, 42.5 X 3 NBR | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | MM17528555Minuteman 17528555 | 1 | TENSION BAND LOCK | $4.20/EA |
| 30 | MM90271511Minuteman 90271511 | 1 | CAP, MOTOR GEAR | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | MM90298845Minuteman 90298845 | 1 | SPLASH GUARD, 26" DECK | $77.82/EA |
| 32 | MM90299371Minuteman 90299371 | 5 | STANDOFF, HEX M8 X 31.5 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM90311663Minuteman 90311663 | 2 | FITTING, WATER NOZZLE W/ MOUNT HOLES | $2.63/EA |
| 34 | MM90347832Minuteman 90347832 | 2 | STANDOFF, HEX M8 X 31.5 W/PILOT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM90347840Minuteman 90347840 | 2 | SHAFT, MAIN GEAR | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | MM90348715Minuteman 90348715 | 2 | GEAR, INNER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | MM90348723Minuteman 90348723 | 2 | GEAR, MAIN | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 38 | MM90399684Minuteman 90399684 | 1 | SHAFT, INNER GEAR | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 39 | MM90493701Minuteman 90493701 | 1 | SIDE COVER, 26" DECK | $229.56/EA |
| 40 | MM90494949Minuteman 90494949 | 3 | COVER, BEARING | $4.81/EA |
| 41 | MM90541319Minuteman 90541319 | 1 | BUMPER WHEEL, 140MM, BLACK | $9.99/EA |
| 42 | MM90542572Minuteman 90542572 | 2 | DRIVE HUB - SCRUBBER, DISK | $59.49/EA |
| 43 | MM90572447Minuteman 90572447 | 1 | TOP PLATE, 26ECO DECK | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 44 | MM01179110Minuteman 01179110 | 1 | BOTTOM PLATE, 26ECO DECK | $236.60/EA |
| 45 | MM90572470Minuteman 90572470 | 1 | BLT-SHLD 12.4 X 22MM X M10 | $11.43/EA |
| 46 | MM90572504Minuteman 90572504 | 1 | SPACER, BRUSH MOTOR | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 47 | MM90572538Minuteman 90572538 | 1 | REATINING BAND, 26" DECK | Call to confirm part: 800-440-6723Call 800-440-6723 |

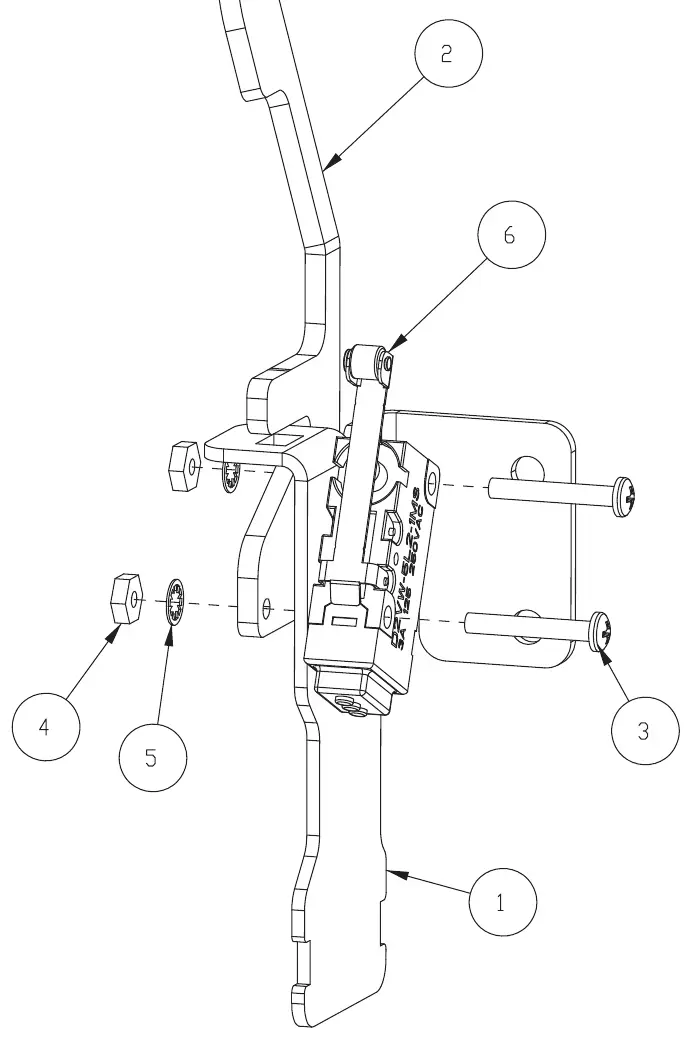

Minuteman E26ECO vacuum switch assembly parts
The vacuum switch: bracket, cover, hardware and roller micro switch. Manual page 32.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172140Minuteman 172140 | 1 | BKT, VAC SWITCH MOUNT | $11.74/EA |
| 2 | MM172337Minuteman 172337 | 1 | COVER, VAC SWITCH | $7.14/EA |
| 3 | MM710493Minuteman 710493 | 2 | SCR-MC 4-40 X .75 PAN HD | $1.08/EA |
| 4 | MM711428Minuteman 711428 | 2 | NUT-HEX 4-40 | $1.08/EA |
| 5 | MM712326Minuteman 712326 | 2 | WSR-INT LOCK #4 | $1.08/EA |
| 6 | MM747603-2Minuteman 747603-2 | 1 | SWITCH ASY, MICRO ROLLER W/PACK/CONDUIT | $29.58/EA |

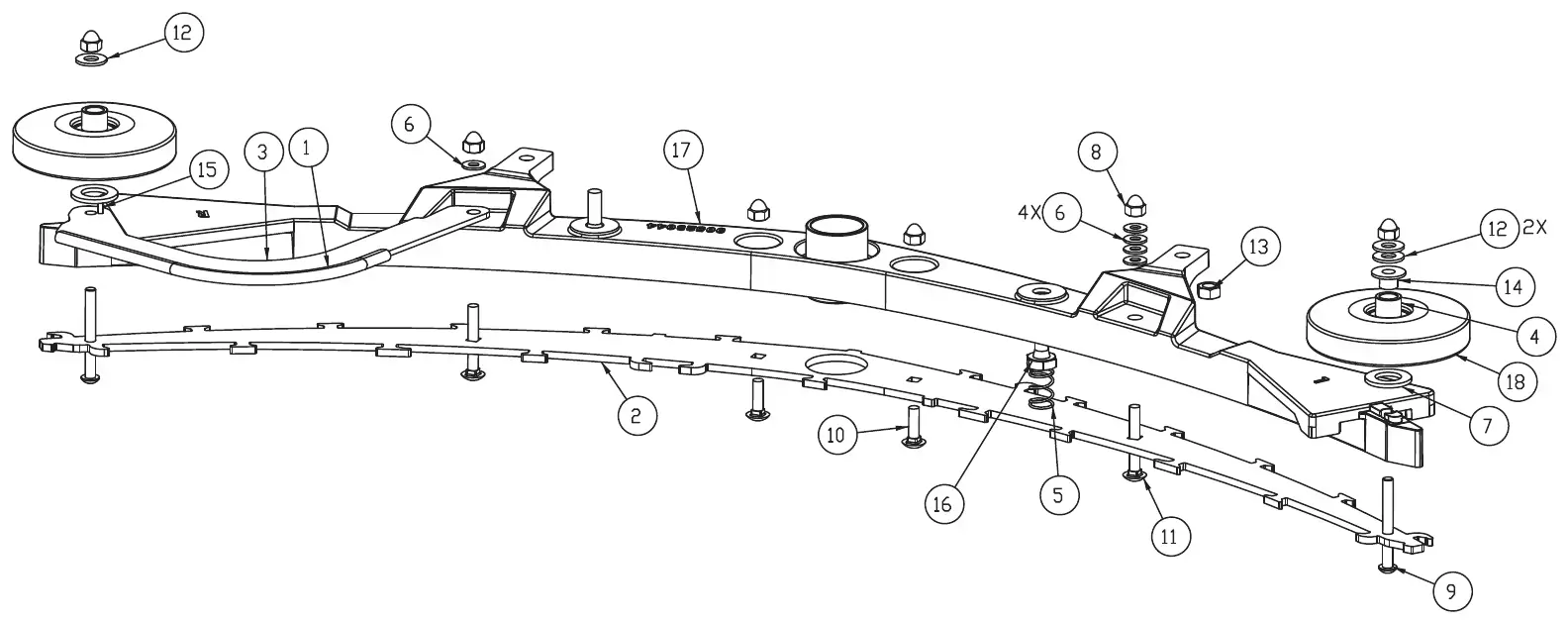

Minuteman E26ECO rear squeegee base assembly parts
The squeegee base: base plate, casting, bumper, rollers and hardware. Manual page 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172274Minuteman 172274 | 1 | EDGE TRIM, 10" BLACK | $16.86/EA |
| 2 | MM172437Minuteman 172437 | 1 | BASE PLATE SS-FOR 950 CASTING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM172450Minuteman 172450 | 1 | BUMPER, 38" SQG | $22.27/EA |
| 4 | MM430322Minuteman 430322 | 2 | BUSHING .435 X .625 X .50 | $6.12/EA |
| 5 | MM670093Minuteman 670093 | 2 | SPRING, COMPRESSION | $3.52/EA |
| 6 | MM711504Minuteman 711504 | 5 | WSR-FLAT 1/4 ID SS | $1.10/EA |
| 7 | MM711527Minuteman 711527 | 2 | WSR-FLAT .63 X 1.12 X .09 | $1.08/EA |
| 8 | MM712591Minuteman 712591 | 6 | NUT, ACORN 1/4-20 SS | $1.08/EA |
| 9 | MM712592Minuteman 712592 | 2 | SCR-MC BHCS, 1/4-20 X 2.25, SS | $1.19/EA |
| 10 | MM712593Minuteman 712593 | 2 | BLT-CARR 1/4-20 X .875 SS | $1.08/EA |
| 11 | MM712594Minuteman 712594 | 2 | BLT-CARR 1/4-20 X 1.75 SS | $1.08/EA |
| 12 | MM712772Minuteman 712772 | 3 | WSR-FLAT .344 x .75 x .06 SS | $1.08/EA |
| 13 | MM717029Minuteman 717029 | 2 | NUT-HEX M8X1.25 SS | $1.08/EA |
| 14 | MM840202Minuteman 840202 | 1 | BUSHING-FLG .31 X .437 X .325 NYL | $1.08/EA |
| 15 | MM3400727Minuteman 3400727 | 1 | PIN-ROLL 1/8 X .50, ZINC | $1.08/EA |
| 16 | MM11039328Minuteman 11039328 | 2 | BLT-HH M10X25 SS DIN 933 | $1.62/EA |
| 17 | MM90523044Minuteman 90523044 | 1 | CASTING, 950MM SQUEEGEE | $67.35/EA |
| 18 | MM90548397Minuteman 90548397 | 2 | ROLLER - 100MM PLASTIC BLACK | $4.29/EA |
Minuteman E26ECO rear squeegee assembly parts
The complete 38 in squeegee: blades, tension bands, base assembly, casters, rollers and star knobs. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172274Minuteman 172274 | 1 | EDGE TRIM, 10" BLACK | $16.86/EA |
| 2 | MM172429Minuteman 172429 | 2 | SPRING, COMPRESSION | $1.58/EA |
| 3 | MM172448Minuteman 172448 | 1 | TENSION BAND ASM - LEFT FRONT, 38" w/LATCH INCL. | $94.67/EA |
| 4 | MM172450Minuteman 172450 | 1 | BUMPER, 38" SQG | $22.27/EA |
| 5 | MM172539Minuteman 172539 | 1 | 38" SQUEEGEE BASE ASM -E2426 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM430322Minuteman 430322 | 2 | BUSHING .435 X .625 X .50 | $6.12/EA |
| 7 | MM711527Minuteman 711527 | 2 | WSR-FLAT .63 X 1.12 X .09 | $1.08/EA |
| 8 | MM712591Minuteman 712591 | 2 | NUT, ACORN 1/4-20 SS | $1.08/EA |
| 9 | MM712592Minuteman 712592 | 2 | SCR-MC BHCS, 1/4-20 X 2.25, SS | $1.19/EA |
| 10 | MM712772Minuteman 712772 | 3 | WSR-FLAT .344 x .75 x .06 SS | $1.08/EA |
| 11 | MM717030Minuteman 717030 | 2 | BOLT-HH M8X1.25 X 20 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM840202Minuteman 840202 | 1 | BUSHING-FLG .31 X .437 X .325 NYL | $1.08/EA |
| 13 | MM3400727Minuteman 3400727 | 1 | PIN-ROLL 1/8 X .50, ZINC | $1.08/EA |
| 14 | MM730609Replaces Minuteman 12310264 | 2 | WSR-FLT M8.4X16X1.6 SSreplaces Minuteman 12310264. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM12515094Minuteman 12515094 | 2 | WSR-CONICAL SERRATED TOOTH, M10.6 | $3.87/EA |
| 16 | MM17133026Minuteman 17133026 | 2 | KNOB, M10 STAR HANDLE | $2.98/EA |
| 17 | MM90493560Minuteman 90493560 | 1 | SQUEEGEE BLADE - FRONT, 950mm | $47.68/EA |
| 18 | MM90494139Minuteman 90494139 | 1 | SQUEEGEE BLADE - REAR, 950mm | $38.81/EA |
| 19 | MM90513094Minuteman 90513094 | 2 | FIXED CASTOR | $12.43/EA |
| 20 | MM90531112Minuteman 90531112 | 10 | WSR-FLT 8.3 X 22 X 1MM SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | MM90548397Minuteman 90548397 | 2 | ROLLER - 100MM PLASTIC BLACK | $4.29/EA |
| 22 | MM96125828Minuteman 96125828 | 1 | TENSION BAND - RIGHT FRONT | $12.86/EA |
| 23 | MM96125844Minuteman 96125844 | 1 | TENSION BAND - LEFT REAR | $26.80/EA |
| 24 | MM96125851Minuteman 96125851 | 1 | TENSION BAND - RIGHT REAR | $31.74/EA |

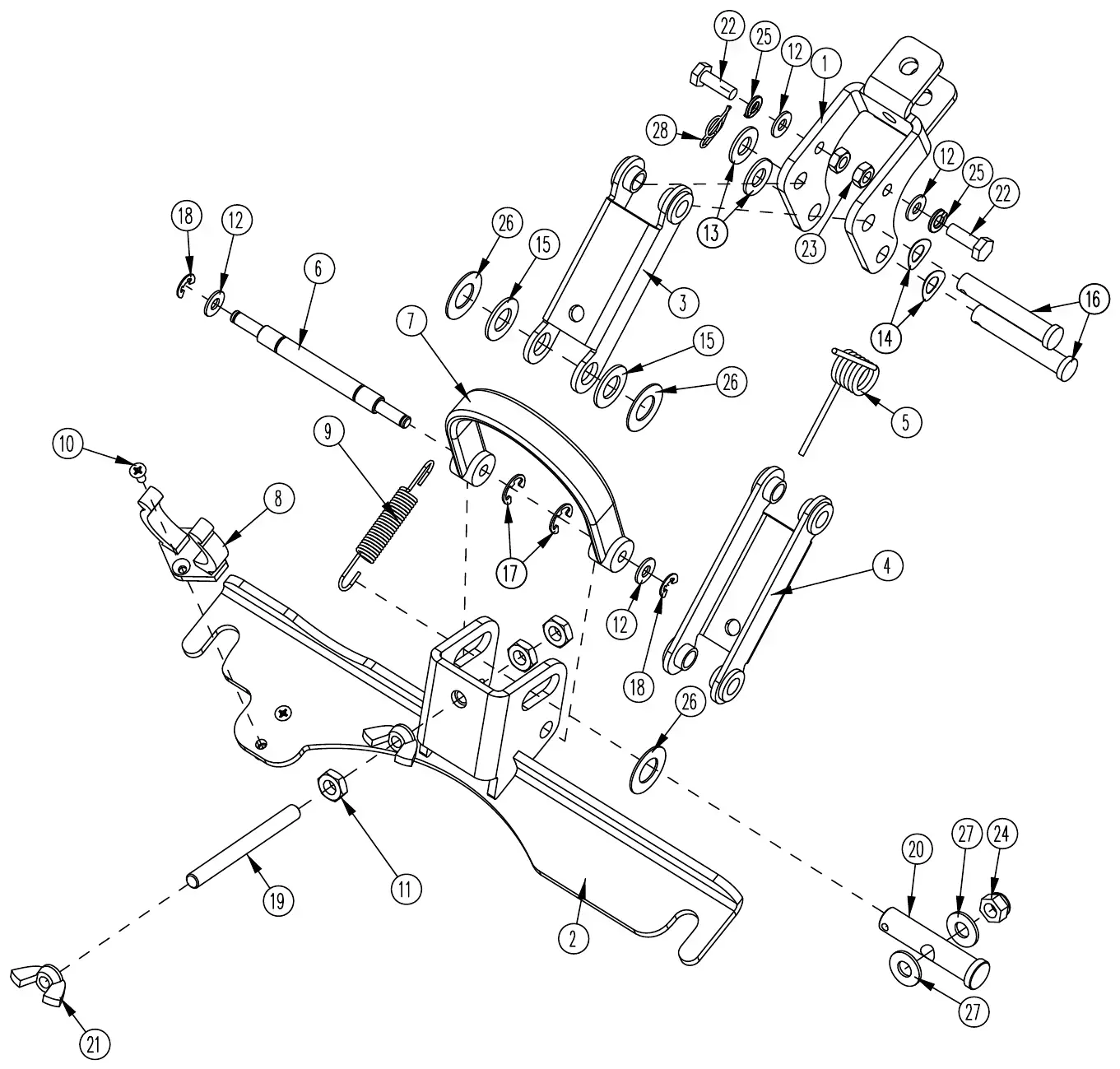

Minuteman E26ECO squeegee mechanism assembly parts
The squeegee lift mechanism: hinge bracket, links, strap, springs, pins and hardware. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM172134Minuteman 172134 | 1 | BKT, MAIN SQUEEGEE HINGE | $23.74/EA |
| 2 | MM172155Minuteman 172155 | 1 | SQUEEGEE MOUNT WMT | $42.64/EA |
| 3 | MM172196Minuteman 172196 | 1 | SQ TOP LINK W/ BUSHING | $24.82/EA |
| 4 | MM172197Minuteman 172197 | 1 | SQ BOT LINK W/ BUSHING | $28.75/EA |
| 5 | MM172261Minuteman 172261 | 1 | TORSION SPRING | $2.47/EA |
| 6 | MM172352Minuteman 172352 | 1 | PIN, 3/8 X 3.0, SQG STRAP | $7.85/EA |
| 7 | MM172357Minuteman 172357 | 1 | STRAP, 9" PU, BLACK | $14.11/EA |
| 8 | MM260579Minuteman 260579 | 1 | TOOL CLIP, 1.5" HOSE | $7.25/EA |
| 9 | MM430051Minuteman 430051 | 1 | RETURN SPRING-3.00" | $3.10/EA |
| 10 | MM710528Minuteman 710528 | 2 | SCR-MC 8-32 X .37 FH - BR | $1.10/EA |
| 11 | MM711420Minuteman 711420 | 3 | NUT-HEX JAM 5/16-18 ST PL | $1.08/EA |
| 12 | MM711504Minuteman 711504 | 4 | WSR-FLAT 1/4 ID SS | $1.10/EA |
| 13 | MM712301Replaces Minuteman 711515 | 2 | WSR-FLAT .406 X .812 X .0625replaces Minuteman 711515. | $1.08/EA |
| 14 | MM711523Minuteman 711523 | 2 | WSR-WAVE .37 X .68 X .08 | $1.08/EA |
| 15 | MM711592Minuteman 711592 | 2 | WSR-FLAT .506 X .9 X .064 NYL | $1.10/EA |
| 16 | MM711678Minuteman 711678 | 2 | CLEVIS PIN 3/8 X 2-1/4 | $1.28/EA |
| 17 | MM711717Minuteman 711717 | 2 | RETAINING RING - E TYPE .37 | $1.08/EA |
| 18 | MM711720Minuteman 711720 | 2 | .25O DIA RETAINING RING - E TYPE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM712147Minuteman 712147 | 1 | ROD-THD 5/16-18 X 3.25 SS | $2.70/EA |
| 20 | MM712148Minuteman 712148 | 1 | CLEVIS PIN, 1/2 x 2.25 W/ HOLE | $11.68/EA |
| 21 | MM712157Minuteman 712157 | 2 | NUT-WING 5/16-18 SS | $1.08/EA |
| 22 | MM712562Minuteman 712562 | 2 | BOLT-HH 1/4-20 X 3/4 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM712665Minuteman 712665 | 2 | NUT-HEX 1/4-20 SS | $1.08/EA |
| 24 | MM712683Minuteman 712683 | 1 | NUT, HEX 5/16-18 NYLOC SS | $1.10/EA |
| 25 | MM712758Minuteman 712758 | 2 | WSR-HELICAL 1/4 SS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM712760Minuteman 712760 | 3 | WSR-FLAT .56X 1.06 X .04 SS | $1.08/EA |
| 27 | MM712772Minuteman 712772 | 2 | WSR-FLAT .344 x .75 x .06 SS | $1.08/EA |
| 28 | MM3400125Minuteman 3400125 | 1 | PIN-COTTER 3/8 RUE RING | $1.81/EA |
Minuteman E26ECO brush deck catalog sheet 1 parts
Hako's catalog sheet for the 650 mm brush head, sheet 1: plates, gears, bearings, the brush motor and its internals, and fasteners. Manual pages BD-1, list BD-2.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM11038247Minuteman 11038247 | 5 | Hexagon screw M8x25-8.8 A2G DIN 933Hako part no. 00053100. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM96137278Minuteman 96137278 | 1 | Bearing blockHako part no. 01276430. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM96137286Minuteman 96137286 | 1 | Bearing blockHako part no. 01276440. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | MM14895437Minuteman 14895437 | 2 | Slide bearing bush GFM-1012-17Hako part no. 01078360. | $1.41/EA |
| 5 | MM15286883Minuteman 15286883 | 2 | O-ring 11x2,5 NBR 72 ShoreHako part no. 01185240. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | MM12310058Minuteman 12310058 | 2 | Washer A10,5-140HV-St A2G DIN 125Hako part no. 00053760. | $4.15/EA |
| 7 | MM12310066Minuteman 12310066 | 1 | Washer A13-140HV-St A2G DIN 125Hako part no. 00053770. | $4.15/EA |
| 8 | MM13280136Minuteman 13280136 | 1 | Cotter pin 3,2x20-St A3G ISO 1234Hako part no. 00553580. | $5.51/EA |
| 9 | MM90507476Minuteman 90507476 | 1 | Motor SCOTT 550WHako part no. 01077180. | $1,034.60/EA |
| 10 | MM90572470Minuteman 90572470 | 1 | ScrewHako part no. 01179060. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM90541319Minuteman 90541319 | 1 | Deflector rollerHako part no. 01172880. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM90572488Minuteman 90572488 | 1 | BushingHako part no. 01179070. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | MM01076740Replaces Minuteman 13166087 | 9 | Rivet 5,9x12 schwarzHako part no. 01076740; replaces Minuteman 13166087. | $1.22/EA |
| 14 | MM90494949Minuteman 90494949 | 3 | CoveringHako part no. 01076750. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM15282049Minuteman 15282049 | 3 | O-ring 42,5x3,55-N-NBR70 DIN 3771Hako part no. 00041540. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | MM00022230Replaces Minuteman 12610085 | 2 | Retaining ring 17x1-phos. DIN 471Hako part no. 00022230; replaces Minuteman 12610085. | $1.22/EA |
| 17 | MM01077240Minuteman 01077240 | 1 | Set (4pc.) Carbon brush | $115.56/EA |
| 18 | MM01077250Minuteman 01077250 | 1 | Spring | $4.56/EA |
| 19 | MM03502970Minuteman 03502970 | 1 | rotor | $528.03/EA |
| 20 | MM01077210Minuteman 01077210 | 1 | Gear | $348.50/EA |
| 21 | MM90642315Minuteman 90642315 | 1 | Sheet metalHako part no. 01179080. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | MM12640033Minuteman 12640033 | 2 | Thrust washer 8 brün. DIN 6799Hako part no. 00046280. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM11038577Minuteman 11038577 | 2 | Hexagon screw M12x20-8.8 A3G DIN 933Hako part no. 00101160. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | MM718010Replaces Minuteman 11038635 | 5 | Hex.bolt M8x18-8.8 A2G DIN 933Hako part no. 00553690; replaces Minuteman 11038635. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | MM12310041Minuteman 12310041 | 10 | Washer A8,4-140HV-St A2G DIN 125Hako part no. 00053750. | $2.75/EA |
| 26 | MM96137468Minuteman 96137468 | 1 | Plate upperHako part no. 01276450. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | MM90493701Minuteman 90493701 | 1 | GasketHako part no. 01076770. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 28 | MM12332152Minuteman 12332152 | 1 | Washer 10,5-140 HV-A2 DIN 9021Hako part no. 01161070. | $1.38/EA |
| 29 | MM12040069Minuteman 12040069 | 1 | Hex. Nut M10-6 A2G DIN 985Hako part no. 00051500. | $6.92/EA |
| 30 | MM14110787Minuteman 14110787 | 6 | Deep groove ball bearing 6203-2RSH-NR DIN 625Hako part no. 00901380. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | MM12335063Minuteman 12335063 | 6 | Adjusting washer 17x24x1 DIN 988Hako part no. 00155180. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | MM90348723Minuteman 90348723 | 2 | Gear wheel Z=50Hako part no. 00712890. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM13540182Minuteman 13540182 | 5 | Feather key A6x6x20 St50 DIN 6885Hako part no. 00121640. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | MM90348715Minuteman 90348715 | 2 | Gear wheel Z=40Hako part no. 00901100. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM12040051Minuteman 12040051 | 5 | Hex. Nut M8-8 A2G DIN 985Hako part no. 00051510. | $4.15/EA |
| 36 | MM90271511Minuteman 90271511 | 1 | WasherHako part no. 00736620. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 37 | MM11038239Minuteman 11038239 | 1 | Hexagon screw M8x22-8.8 A2G DIN 933Hako part no. 00077110. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 38 | MM11225331Minuteman 11225331 | 4 | Countersunk screw M8x20-8.8 A2G DIN 7991Hako part no. 00059080. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 39 | MM746050Replaces Minuteman 90524174 | 2 | Protection capHako part no. 01078070; replaces Minuteman 90524174. | $1.05/EA |
| 40 | MM01077220Minuteman 01077220 | 1 | Circlip | $33.44/EA |
| 41 | MM01178440Minuteman 01178440 | 1 | Set (2pc.) covering of carbon brushes | $88.94/EA |
| 42 | MM01178450Minuteman 01178450 | 1 | Covering fan wheels | $102.77/EA |
| 43 | MM12335329Minuteman 12335329 | 2 | Adjusting washer 17x24x0,2 DIN 988Hako part no. 00742130. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 44 | MM13328430Minuteman 13328430 | 1 | Bolt B12h11x25-St A3G DIN 1444Hako part no. 00901510. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 45 | MM90616046Minuteman 90616046 | 2 | CoupleHako part no. 01276410. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 46 | MM96137476Minuteman 96137476 | 2 | EjectorHako part no. 01276460. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 47 | MM90500232Minuteman 90500232 | 2 | BellowsHako part no. 01078350. | $20.03/EA |
| 48 | MM90500208Minuteman 90500208 | 2 | Compression spring VD-207 JNHako part no. 01078340. | $14.03/EA |
| 49 | MM01178460Minuteman 01178460 | 1 | Bolt | $22.27/EA |
| 50 | MM19719517Minuteman 19719517 | 1 | pin housing plug to wiring harnessHako part no. 01135470. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Minuteman E26ECO brush deck catalog sheet 2 parts
Hako's catalog sheet for the 650 mm brush head, sheet 2: lower plate, shafts, drivers, spray tubes, tension band and the disc brushes. Manual pages BD-3, list BD-4.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | MM90347832Minuteman 90347832 | 2 | Spacer sleeveHako part no. 00959670. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | MM90299371Minuteman 90299371 | 5 | NutHako part no. 00901350. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | MM90618034Minuteman 90618034 | 1 | Plate lowerHako part no. 01276420. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | MM17528548Minuteman 17528548 | 1.88 M | Tension band Nr.5608561003Hako part no. 00712300. Quantity printed 1,880 M. | $22.94/EA |
| 5 | MM17528555Minuteman 17528555 | 1 | Tension band lock G13-W3Hako part no. 00901390. | $4.20/EA |
| 6 | MM90298845Minuteman 90298845 | 1 | Rubber sealing stripHako part no. 00670430. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | MM12310041Minuteman 12310041 | 5 | Washer A8,4-140HV-St A2G DIN 125Hako part no. 00053750. | $2.75/EA |
| 8 | MM718010Replaces Minuteman 11038635 | 5 | Hex.bolt M8x18-8.8 A2G DIN 933Hako part no. 00553690; replaces Minuteman 11038635. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | MM01071860Replaces Minuteman 14678288 | 3 | Ring 6203 ZAVHako part no. 01071860; replaces Minuteman 14678288. | $4.13/EA |
| 10 | MM12335063Minuteman 12335063 | 2 | Adjusting washer 17x24x1 DIN 988Hako part no. 00155180. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | MM90347840Minuteman 90347840 | 2 | ShaftHako part no. 00959680. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | MM00512400Replaces Minuteman 90324369 | 2 | DriverHako part no. 00512400. Take double click on pos.no. for options! Typ 048038; replaces Minuteman 90324369. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | MM12610093Minuteman 12610093 | 2 | Retaining ring 20x1,2-phos. DIN 471Hako part no. 00054310. | $1.22/EA |
| 14 | MM90399684Minuteman 90399684 | 1 | ShaftHako part no. 01071870. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | MM00022230Replaces Minuteman 12610085 | 1 | Retaining ring 17x1-phos. DIN 471Hako part no. 00022230; replaces Minuteman 12610085. | $1.22/EA |
| 16 | MM12310033Minuteman 12310033 | 6 | Washer A6,4-140HV-St A2G DIN 125Hako part no. 00053730. | $1.38/EA |
| 17 | MM12310066Minuteman 12310066 | 2 | Washer A13-140HV-St A2G DIN 125Hako part no. 00053770. | $4.15/EA |
| 18 | MM11038577Minuteman 11038577 | 2 | Hexagon screw M12x20-8.8 A3G DIN 933Hako part no. 00101160. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | MM90156688Minuteman 90156688 | 1 | Cable tie 4,8x360Hako part no. 00967760. | $2.06/EA |
| 20 | MM3302144Replaces Minuteman 17533159 | 2 | Hose clamp A-12-20x 9-W1-2 DIN 3017Hako part no. 01015350; replaces Minuteman 17533159. | $5.02/EA |
| 21 | MM25842014Minuteman 25842014 | 0.75 M | Hose 10x3 PVC-transp. mit GewHako part no. 00180190. Quantity printed 0,750 M. | $6.57/EA |
| 22 | MM90311663Minuteman 90311663 | 2 | Spray tubeHako part no. 00861700. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | MM25842014Minuteman 25842014 | 0.39 M | Hose 10x3 PVC-transp. mit GewHako part no. 00180190. Quantity printed 0,390 M. | $6.57/EA |
| 24 | MM90289141Minuteman 90289141 | 1 | T-piece TS10Hako part no. 00501840. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | MM17529033Minuteman 17529033 | 2 | Tube clamp RS 1.15/15Hako part no. 00821550. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | MM11702024Minuteman 11702024 | 6 | Screw M6x16-St A3G Kombit. DIN 7500Hako part no. 00539730. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | MM99751310Minuteman 99751310 | 2 | circular brush 13(330) PPN0,5Degree of soiling light to medium, bristling PPN0,5 plastic material. | $131.15/EA |
| 28 | MM99751510Minuteman 99751510 | 2 | circular brush 13(330) PPN0,8Degree of soiling medium to heavy, bristling PPN0,8 plastic material. | $71.22/EA |
| 29 | MM99751710Minuteman 99751710 | 2 | circular brush 13(330) K901Degree of soiling light to medium, structured flooring, bristling mixed plastic material K 901. | $84.10/EA |
| 30 | MM99751910Minuteman 99751910 | 2 | circular brush 13(330) SIC K180Very heavy soiling and basic cleaning, bristling SIC PA 6 grain 180 gray. | $146.75/EA |
| 31 | MM99752110Minuteman 99752110 | 2 | circular brush 13(330) SIC K120Extremely heavy soiling and basic cleaning, bristling SIC PA 6.12 grain 120 green. | $195.26/EA |
| 32 | MM99730710Minuteman 99730710 | 2 | circular brush 13(330) SIC K600Degree of soiling medium to heavy, structured flooring, bristling SIC PA 6 Korn 600 grey. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM99752310Minuteman 99752310 | 1 | drive plate 13(330)Includes items 34-37 (printed "incl. pos.34-37"). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 33 | MM99752360Minuteman 99752360 | 1 | drive plate 13(330) bristles | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | MM90364365Minuteman 90364365 | 1 | Center-lock, lower partHako part no. 00681500. Recommended parts for customers with a number of units. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 35 | MM11709011Minuteman 11709011 | 3 | Screw KB 40x14 WN-1442 1.4301Hako part no. 00961490. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | MM90364373Minuteman 90364373 | 1 | Center-lock,upper partHako part no. 00681490. Wear part. | Call to confirm part: 800-440-6723Call 800-440-6723 |
New to your Minuteman E26ECO? Start here
Set up, run and look after your E26ECO. Everything here comes from Minuteman’s E26ECO user manual, rewritten in plain steps, with the parts you need linked to the list above.
1Check it before you start
- Look under the machine for leaks.
- Check the rear squeegee for wear and damage.
- Check the solution tank and recovery tank levels.
- Check the water level in each battery cell. Add distilled water if it is low, to 1/4 to 1/2 in (6 to 13 mm) above the separators. Do not overfill.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 28 and 31. SES ref PF-GLL6-ZKNZ
2Load the brushes
- Lift the handle on the upper lever that joins the brush deck to the machine, tilt the deck up and let go. The lever locks the deck up.
- Push each brush up onto its hub (MM90542572) until it clicks. To take a brush off, pull down on its edge.
- Lift the handle again to bring the deck back to level.
- As the brushes wear, slide the splash guard (MM90298845) down. Loosen the clamp on the back of the deck with a flathead screwdriver or a 9/32 in (7 mm) socket, slide the guard to the height you want and tighten the clamp.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, page 26. SES ref PF-GLL6-ZKNZ
3Start scrubbing
- Turn the key to the on position. Wait about 5 seconds for the battery gauge to stop flashing. If it keeps flashing, use the troubleshooting guide.
- Lower the squeegee. The vacuum motor turns on by itself.
- Lower the scrub deck to the floor: move the brush lift pedal from its home (down) position to the operating (up) position.
- Move the direction switch from neutral to forward or reverse, then set the speed dial. Turning it clockwise speeds the machine up.
- Move the solution lever up to the flow you want and press the bail handle. The brush motor starts, solution flows and the machine moves. Solution stops when you let go of the bail handle. On ramps, avoid sudden stops with full tanks and avoid sharp turns.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 29 and 30. SES ref PF-GLL6-ZKNZ
4Charge, clean up and store
- When the battery gauge reaches the red zone, take the machine to a well-ventilated area. Unwind the charger cord from the electrical box cover and plug it in. After about 10 seconds the charge status indicator comes on. Green means full. Charging gives off explosive gas, so keep flames and sparks away and do not smoke.
- After scrubbing, lift the scrub deck, then the rear squeegee. The vacuum motor turns off after 10 seconds.
- Drain the solution tank through its drain hose and rinse the tank. Flush the recovery tank with a hose and clean the float shut-off screen.
- Take the brushes off, rinse them in warm water and hang them to dry. Take off the rear squeegee and recovery hose and rinse them with warm water.
- Store the machine indoors in a clean, dry place that does not freeze, with both tank lids open. Turn the key off and take it out.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 11, 31 and 32. SES ref PF-GLL6-ZKNZ
Questions about your E26ECO? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Minuteman E26ECO troubleshooting
Problems, likely causes and fixes from Minuteman's troubleshooting pages. Disconnect the red battery connector under the recovery tank before any service.
| Likely cause | Fix | Part |
|---|---|---|
| Poor water pick-up | ||
| Worn or torn squeegee blades | Rotate or replace the blades: front blade (MM90493560) and rear blade (MM90494139). | |
| Recovery tank full, recovery tank drain hose leaking, or lid gasket leaking | Empty the tank. Secure the drain hose cap or replace the drain hose assembly (MM97090096). Replace the lid gasket (MM172017) and fit the lid properly. | |
| Debris caught in the squeegee, or the recovery hose clogged, disconnected or damaged | Clean the squeegee. Remove debris and flush the hose. Reconnect or replace the recovery hose (MM172010). | |
| Poor scrubbing performance | ||
| Worn brushes, debris caught on the brushes, or the wrong brush or cleaning chemical | Rotate or replace the brushes. Remove the debris. For the right brush or chemical, consult Minuteman. | |
| Moving the machine too fast, low battery charge, or not enough solution | Use an appropriate speed. Recharge the batteries. Adjust the solution flow setting. | |
| Inadequate solution flow or no solution to the floor | ||
| Solution tank empty, or the solution lever in the down position | Fill the solution tank. Raise the lever up. | |
| Solution lines or filter clogged, or the brush motor circuit breaker tripped | Flush the lines and clean the solution filter (MM172564). Reset the circuit breaker (MM740247). | |
| Machine does not move | ||
| Directional switch in neutral, squeegee down with the switch in reverse, traction drive circuit breaker tripped, or batteries lost power | Move the switch to forward or reverse. Raise the squeegee when you drive in reverse. Reset the circuit breaker (MM740220). Recharge the batteries. | |
| Machine does not operate | ||
| Control power circuit breaker tripped, key switch off, batteries low, charger still connected, or bail handle pressed too soon after turning the key on | Reset the circuit breaker (MM747609). Turn the key on. Recharge the batteries and unplug the charger when charging is done. If you pressed the bail handle too soon, turn the key off, turn it on and wait until the battery gauge lights up without flashing. | |
| Vacuum motor does not turn on | ||
| Recovery tank full, excessive foaming in the recovery tank, or squeegee in the raised position | Empty the recovery tank. Rinse off the screened float (MM172132). Use less chemical, change chemical or use a de-foaming agent. Lower the squeegee. | |
| Vacuum motor circuit breaker tripped, broken vacuum limit switch, worn carbon brushes, or vacuum switch disconnected | Reset the breaker. Replace the vacuum switch (MM172141). Connect the wiring. For worn carbon brushes, call SES service. | |
| Batteries do not charge | ||
| Charger not plugged into the wall outlet, circuit breaker tripped at the wall outlet, battery disconnected from the machine, or charger malfunction | Plug into the wall outlet. Reset the breaker. Connect the battery to the machine. For a charger (MM957761) that has failed, call SES service. | |
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 34 and 35. SES ref PF-OLPL-2UBZ
Still stuck? SES services Minuteman machines. Call 800-440-6723 and have your model and serial number ready.
Minuteman E26ECO maintenance schedule
Minuteman's maintenance chart and the care steps in the user manual. Stop on a level surface and unplug the red battery connector before any service. Do not clean the machine with a pressure washer.
| Task | How often | Part |
|---|---|---|
| Charge the batteries. | Daily | |
| Check and clean the tanks and hoses. | Daily | |
| Check, clean and rotate the brushes. | Daily | |
| Check and clean the squeegee. | Daily | |
| Check and clean the vacuum shut-off float in the recovery tank. Rinse the screened float (MM172132) with a hose. You do not need to take it out for daily care. | Daily | |
| Inspect the brush deck splash guard (MM90298845) for debris. | Weekly | |
| Inspect and clean the in-line solution filter (MM172564). Unscrew the assembly, rinse the screened washer and screw it back together by hand with the cone facing out toward the rear of the machine. | Weekly | |
| Rinse off the underside of the brush deck. | Weekly | |
| Check the water level in each battery cell. | Weekly | |
| Check the inner and outer squeegee blades for wear. Each blade can be turned for 4 total uses. | Weekly | |
| Grease the 2 rear caster swivel fittings. Add grease until it seeps out around the bearings. | Monthly | |
| Oil the squeegee lift pivot (1 point) and the rear squeegee caster wheel axles (2 points) with lubricant or light machine oil. | Monthly | |
| Take the screened float (MM172132) out, clean it and check the seal and metal screen for damage. Use a 7/16 in socket for the bolts that hold the vacuum manifold to the recovery tank. | Monthly | |
| Check the carbon brushes. | Yearly | |
| Vacuum motor: have a qualified service technician check the carbon brushes once a year or after 300 operating hours. Call SES service: 800-440-6723. | Yearly | |
| Brush motor and transaxle motor: check the carbon brushes every 500 hours or once a year. | Yearly |
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 20, 21, 22, 23 and 33. SES ref PF-UMBG-HLPM
Minuteman E26ECO specifications
From Minuteman's E26ECO user manual.
| Cleaning path | 26 in (65 cm) |
|---|---|
| Squeegee width | 38 in (95 cm) |
| Solution and recovery tanks | 12 gal (45 L) solution, 13 gal (49 L) recovery |
| Brushes | 2 disc brushes at 180 rpm |
| Motors | Brush motor(s) 3/4 HP (550 W); drive motor 1/5 HP (150 W) |
| Speed | 2.7 mph (4.3 km/h) working and transport |
| Productivity | 30,500 ft² per hour (2,830 m² per hour) |
| Vacuum | 65 cfm (110 m³/hr); waterlift 45 in (112 mbar); 0.60 HP (450 W) |
| Power | 24 V from two 12 V batteries; 40 amps maximum |
| Recommended batteries | 140Ah wet or 95Ah maintenance-free gel; do not mix amp-hour sizes |
| Weight | 370 lb (168 kg) with batteries; 235 lb (107 kg) without |
| Size (L × W × H) | 48 × 26.0 × 38.0 in |
| Sound level | 69 dBA |
| Working grade | Up to 2% |
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, page 3. SES ref PF-FOKO-AVEE
Minuteman E26ECO manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| E26/H26 ECO parts manualParts manual with drawings and parts lists, 43 pages | E26ECO and H26ECO traction drive disc | 988737 Rev B 08/16 (this page) | 2.3 MB | Sign in to view or downloadSign in to download |
| E26 brush deck parts pagesHako parts catalog printout, 4 pages | Brush head 650 mm for the 26 in disc deck | Printed 12/19/2019 (this page) | 4.1 MB | Sign in to view or downloadSign in to download |
| E26ECO user manualOperator manual, 40 pages | E26ECO walk-behind scrubber, traction drive disc deck | 988737UM Rev A 08/10 | 1.6 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Minuteman E26ECO parts questions
How big are the tanks on the Minuteman E26ECO?
The solution tank holds 12 gal (45 L) and the recovery tank holds 13 gal (49 L). The machine scrubs a 26 in (65 cm) path and has a 38 in (95 cm) squeegee.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, page 3. SES ref PF-JNSB-IVFK
What batteries does the E26ECO use?
Two 12-volt batteries that make 24 volts. Minuteman recommends 140Ah wet or 95Ah maintenance-free gel batteries and says not to mix amp-hour sizes. Another set must match in size and capacity, and you should contact Minuteman for the charger settings.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 7 and 14. SES ref PF-JNSB-IVFK
How often should I check the battery water on my E26ECO?
Check it before each use. Add distilled water if it is low, to 1/4 to 1/2 in (6 to 13 mm) above the separators, and do not overfill. Minuteman’s maintenance chart also lists a weekly check of each cell.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 31 and 33. SES ref PF-JNSB-IVFK
Why won’t my E26ECO move when I press the bail handle?
Check the direction switch first. In the middle position the brushes and vacuum run but the machine does not move. Also look for a tripped traction drive circuit breaker, run-down batteries, or the squeegee down with the switch in reverse.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 11 and 34. SES ref PF-JNSB-IVFK
What does the flashing battery gauge mean on the E26ECO?
It flashes for about 5 seconds when you turn the key on. If it keeps flashing, it is showing a fault code: one bar means the battery needs charging or has a bad connection, and seven bars means the bail handle was pressed before the machine was on. Restart the key switch for seven bars.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 11, 30, 36 and 37. SES ref PF-JNSB-IVFK
When do the carbon brushes need checking on the E26ECO?
Minuteman’s chart lists a yearly carbon brush check. A qualified technician should check the vacuum motor brushes once a year or after 300 operating hours. The brush motor and transaxle motor brushes are checked every 500 hours or once a year.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, page 33. SES ref PF-JNSB-IVFK
Can I use the E26ECO on a ramp?
Only a gentle one. Minuteman says not to use it on ramps or inclines greater than 2%. On any incline, avoid sudden stops when the tanks are full and avoid sharp turns.
Source: Minuteman E26ECO Walk-Behind Scrubber User Manual, form 988737UM Rev A 08/10, pages 6 and 29. SES ref PF-JNSB-IVFK
Notes on this parts list
Places where Minuteman's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- The manual's two model groups share one list: lines marked HSP VERSION or 36/24V PERIF BYPASS (printed as items 2H, 1H, 11H and 23H) are tagged H26ECO, and the matching plain lines are tagged E26ECO. The parts manual does not state which model the HSP version is; it does by the H26ECO model decal on the HSP line.
- The old style brass solution valve assembly (page 17) is printed NO LONGER AVAILABLE. The manual says swapping it for the new plastic valve assembly needs kit K-172571.
- Main assembly items 4 and 12 are both printed as 172032, LIFT PEDAL WMT.
- The electrical box list (page 23) has no item 4, and item 9 (the charger) has no quantity printed. Lines marked NOT SHOWN have no callout on their drawing.
- The final assembly list prints three battery lines for item 26: 140Ah wet, 100Ah AGM and 130Ah Trojan wet. The manual does not say which model or charger each goes with. The user manual says the gel battery is 95Ah; the parts manual calls the same number AGM 100Ah.
- The brush deck list on page 31 shows a 24 V, 600 W motor (item 11). The user manual and the Hako sheets give 550 W (3/4 HP).
- The two Hako brush deck sheets (BD-1 to BD-4) are a catalog printout dated 12/19/2019. They use Hako's own item numbers, so they do not match the brush deck numbers on page 30. The part number shown is Hako's material number; Hako's own part number is in the note when it differs. Hako also lists the brushes, drive plates and motor internals that the parts manual leaves out.
- Hako item 50 (pin housing plug to wiring harness) has no callout on its drawing.
- The parts manual's wiring part reference list (pages 38 to 41) names parts that no parts list on this page carries, such as the 230 V charger and the key switch, and calls the battery GEL 12V 100AH. Call us for those.
- The user manual gives the productivity as 30,500 ft² per hour; the parts manual gives 30,810. The user manual's size line shows metric values that do not match its inches, so this page shows inches only.
- The user manual's specification page lists models E26ECOQP and E26ECOQPG; the parts manual lists E26ECO, QP, QPG and QPT, and the H26ECO versions.
- The rear squeegee has two parts sections: the base assembly (page 33) and the complete squeegee (pages 34 and 35). Descriptions are copied as Minuteman prints them, including its spellings (for example REATINING BAND).
