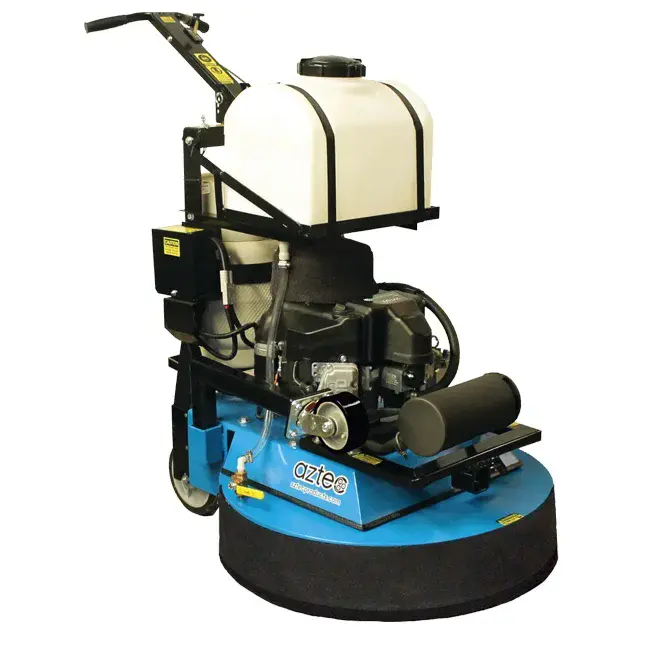

Aztec Refresher parts list and diagrams
Every part number in Aztec's Refresher 30 in propane concrete, terrazzo and VCT restoration machine owner's manual, with the manual's drawings, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Complete list: every parts line in Aztec's Refresher 30” Owner's Manual (11-2025), for the Refresher 30 in with the Kawasaki FS481V PurePowerLPG engine. Checked .
New to your Refresher? Start here → Manuals (free sign-in) →
- Cleaning path
- 30 in (76 cm)
- Engine
- Kawasaki FS481V PurePowerLPG, 603 cc, propane
- Heads
- 3 × 10 in (25 cm)
- Head pressure
- 330 lb (150 kg)
- Weight
- 482 lb (218.6 kg); shipping about 560 lb (250 kg)
Wear parts most Refresher owners reorder
Aztec's warranty names belts, brushes, pulleys, springs and engine tune-up parts as wear items, and its schedule calls for regular filter, oil and spark plug service. These are the ones on the parts list.
Preventative Maintenance Kit for the FS481 engine
$131.83/EAFoam hat filter kw
$34.50/EAPre filter cleaner fs481
$8.09/EAElement air filter fs481
$25.40/EAFilter-oil fs481
$24.37/EASpark plug bpr4es
$5.50/EAEngine belt 38”
$47.35/EATwin power sync belt
$617.28/EATensioner return spring
$14.95/EAStrip brush assemby
$257.00/EA
Source: Aztec Refresher 30” Owner's Manual (11-2025), pages 20, 24, 25, 34, 35, 39, 42 and 44. SES ref PF-GQDD-ZWBJ
Your machine
How to tell which you have
- One model: this manual covers the Refresher 30 in, which cleans a 30 in (76 cm) path with three 10 in (25 cm) heads and runs on the Kawasaki FS481V PurePowerLPG engine.
- Check your serial number for the gearbox: Aztec's gearbox drawing (page 33) is for serial number 0420001058 and up. For lower serial numbers, Aztec asks you to contact them.
How to read this list
Our part numbers are the Aztec number with AZ in front, so Aztec 212-1 is AZ212-1. A few of our part numbers space or hyphenate the number differently from the manual; those lines say how Aztec prints it. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

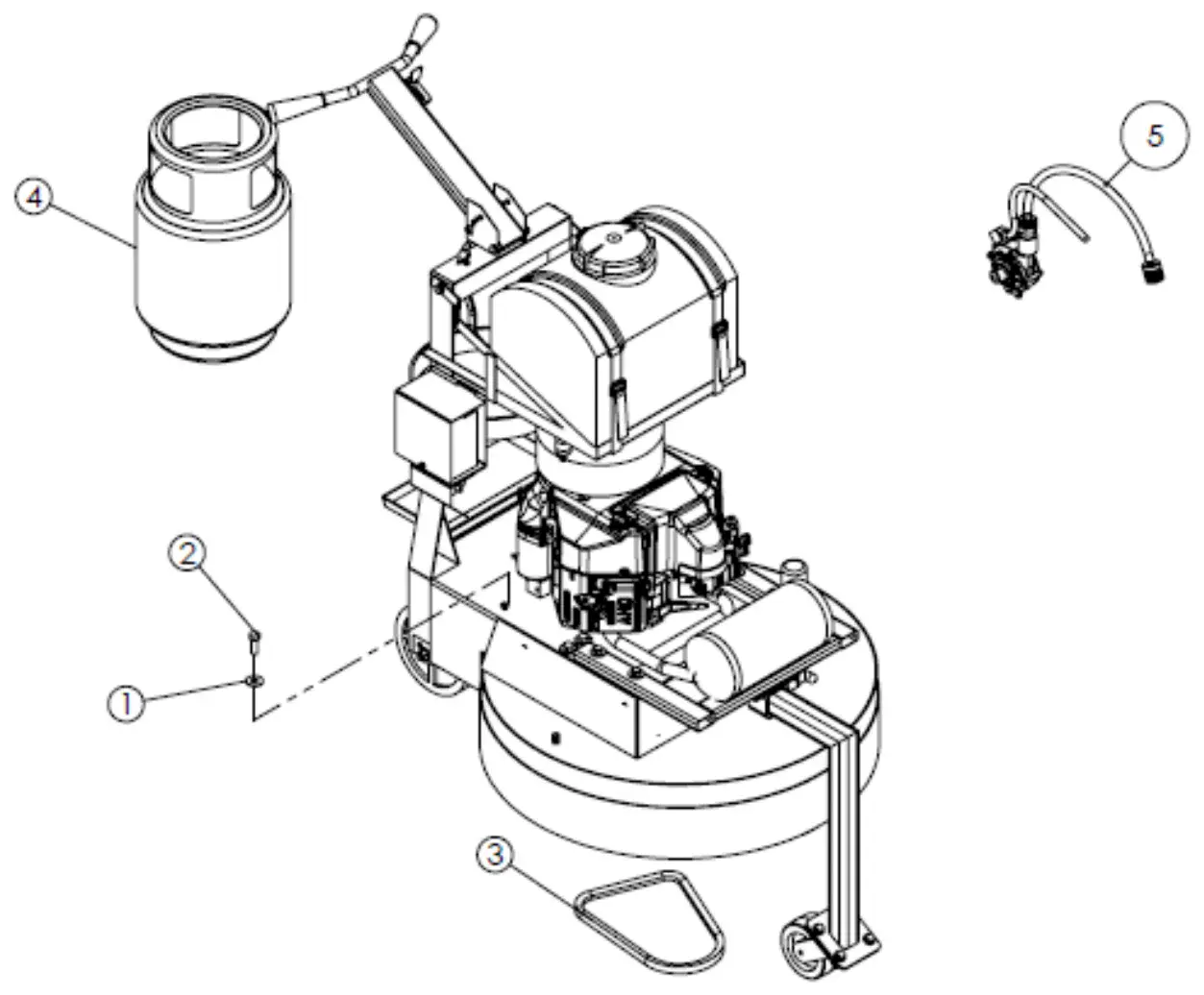

Aztec Refresher regulator, drive belt and propane tank parts
The engine belt, propane tank, regulator assembly and the bolts and washers shown with them. Manual page 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ164-20159Aztec 164-20159 | 3 | ½ USS FLAT WASHER | $1.04/EA |
| 2 | AZ164-10215Aztec 164-10215 | 3 | HEX CAP SCREW ½-13 X 1 1/2 | $1.19/EA |
| 3 | AZ113-L538Aztec 113-L538 | 1 | ENGINE BELT 38” | $47.35/EA |
| 4 | AZ293-20#STLMFAztec 293-20#STLMF | 1 | PROPANE TANK | $349.00/EA |
| 5 | AZ152-1Aztec 152-1 | 1 | REGULATOR ASSEMBLY FOR REFRESHER | $353.13/EA |

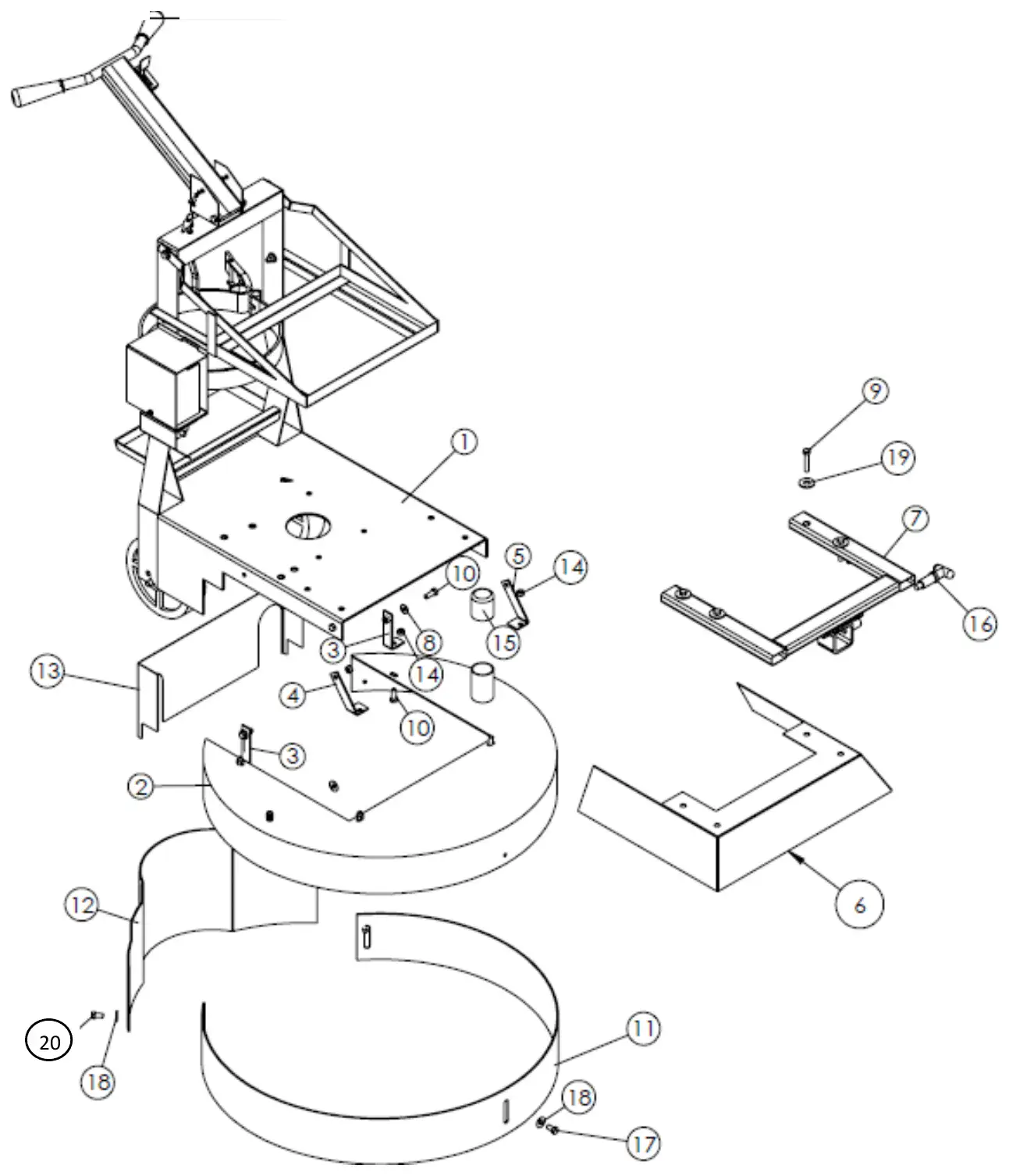

Aztec Refresher deck parts
The body frame, drive cover, belt cover, brackets, kick plate, vacuum port cap, dust skirt and skirt hardware. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ370-042-01Aztec 370-042-01 | 1 | BODY FRAME | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ370-042-02Aztec 370-042-02 | 1 | DRIVE COVER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ283-010-07Aztec 283-010-07 | 2 | REAR BODY BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ283-010-06Aztec 283-010-06 | 1 | FRONT RIGHT BODY BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AZ283-010-05Aztec 283-010-05 | 1 | FRONT LEFT BODY BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AZ370-042-03Aztec 370-042-03 | 1 | BELT COVER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ370-042-05Aztec 370-042-05 | 1 | TRANSPORT WHEEL BODY BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ164-20156Aztec 164-20156 | 2 | 5/16 USS FLAT WASHER | $1.02/EA |
| 9 | AZ164-10123Aztec 164-10123 | 4 | HEX CAP SCREW 3/8-16 X 2 | $1.21/EA |
| 10 | AZ164-10115Aztec 164-10115 | 8 | HEX CAP SCREW 3/8-16 X 1 | $1.15/EA |
| 11 | AZ042-971SAAztec 042-971SA | 1 | DUST SKIRT ASSEMBLY | $248.77/EA |
| 12 | AZ042-971RSAztec 042-971RS | 2.5 FT | REAR SPLASH BELTING (SOLD BY FOOT) | $10.00/EA |
| 13 | AZ283-010-04Aztec 283-010-04 | 1 | KICK PLATE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | AZ164-22004Aztec 164-22004 | 8 | HEX NUT 3/8-16 | $1.03/EA |
| 15 | AZ040-3015Aztec 040-3015 | 1 | VACUUM PORT CAP | $1.17/EA |
| 16 | AZ625-09300088Aztec 625-09300088 | 1 | T-KNOB QUICK RELEASE PIN | $38.23/EA |
| 17 | AZ164-10061Aztec 164-10061 | 1 | 5/16-18 X 3/4 SLOT ROUND HEAD MSSkirt hardware. | $0.30/EA |
| 18 | AZ164-20207Aztec 164-20207 | 3 | 5/16 FENDER WASHERSkirt hardware. | $1.05/EA |
| 19 | AZ164-20159Aztec 164-20159 | 5 | ½ USS FLAT WASHERSkirt hardware. | $1.04/EA |
| 20 | AZ164-10059Aztec 164-10059 | 4 | 5/16-18X3/4 HEXSkirt hardware. | $0.95/EA |
| – | AZ042-971S2Aztec 042-971S2 | 1 | SKIRT – RUBBER OVERLAYNot shown on the drawing. | $63.93/EA |
| – | AZ042-972HAztec 042-972H | 7 FT | VELCRO HOOK (FOR SKIRT- SOLD BY FOOT)Not shown on the drawing. | Call to confirm part: 800-440-6723Call 800-440-6723 |

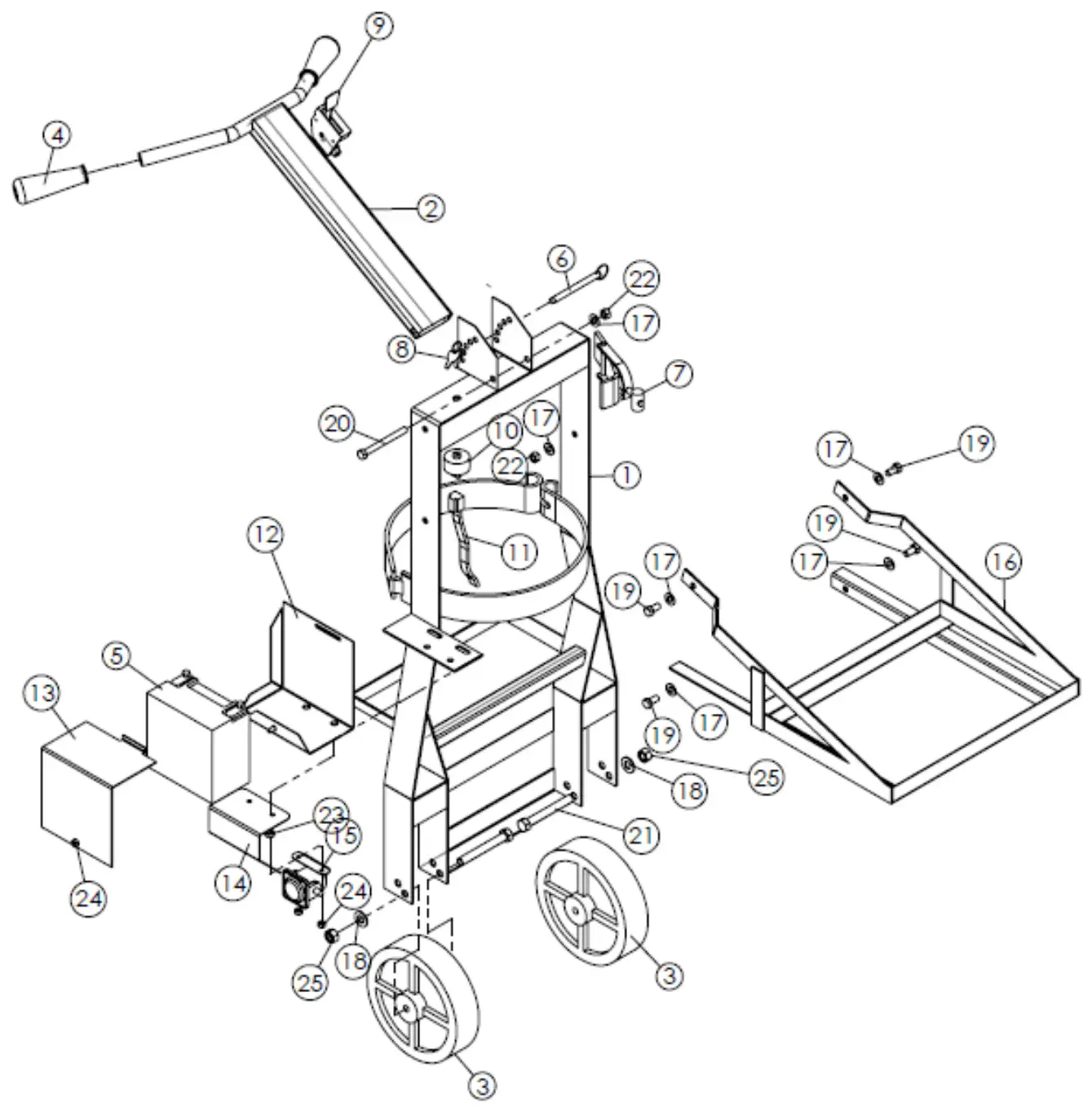

Aztec Refresher handle parts
The handle frame, T-handle, grips, wheels, battery and battery box, key switch, wiring, starter solenoid and solution tank bracket. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ370-010-971CCHAztec 370-010-971CCH | 1 | HANDLE FRAME | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ370-27-25Aztec 370-27-25 | 1 | T-HANDLE | $75.75/EA |
| 3 | AZ156-042Aztec 156-042 | 2 | 8” WHEEL - SOLID | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ224-987319Aztec 224-987319 | 2 | HANDLE GRIP | $5.75/EA |
| 5 | AZ276-GTX14Aztec 276-GTX14 | 1 | BATTERY 12V | $155.07/EA |
| 6 | AZ625-98404A395Aztec 625-98404A395 | 1 | RELEASE PIN – SPRING LOAD | $14.23/EA |
| 7 | AZ284-TB2-60Aztec 284-TB2-60 | 1 | TOGGLE & NUT | $28.13/EA |
| 8 | AZ196-3112932Aztec 196-3112932 | 1 | REPLACEMENT KEY | $5.25/EA |
| 9 | AZ212-1Aztec 212-1 | 1 | THROTTLE CABLE | $27.85/EA |
| 10 | AZ312-308-0385Aztec 312-308-0385 | 1 | KEY SWITCH | $27.72/EA |
| 11 | AZ011-762WHKAztec 011-762WHK | 1 | WIRE HARNESS | $43.75/EA |
| 12 | AZ283-11-2127BAztec 283-11-2127B | 1 | BATTERY BOX BOTTOM COVER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AZ283-11-2127TAztec 283-11-2127T | 1 | BATTERY BOX TOP COVER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | AZ283-11-SCAztec 283-11-SC | 1 | SOLENOID GUARD | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | AZ296-SS581Aztec 296-SS581 | 1 | STARTER SOLENOID | $39.95/EA |
| 16 | AZ370-010-04Aztec 370-010-04 | 1 | SOLUTION TANK BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AZ164-20156Aztec 164-20156 | 7 | 5/16 USS FLAT WASHER | $1.02/EA |
| 18 | AZ156-ZF-0812-39Aztec 156-ZF-0812-39 | 2 | SPANNER BUSHING | $1.77/EA |
| 19 | AZ164-10115Aztec 164-10115 | 4 | HEX CAP SCREW 3/8-16 X 1 | $1.15/EA |
| 20 | AZ164-37C375HCS5ZAztec 164-37C375HCS5Z | 1 | HEX CAP SCREW 3/8-16 X 3 3/4 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | AZ156-ALBZJ085408Aztec 156-ALBZJ085408 | 2 | AXLE NUT & BOLT | $2.31/EA |
| 22 | AZ164-22834Aztec 164-22834 | 3 | 3/8-16 STOVER 10K-NUT | $1.05/EA |
| 23 | AZ164-22002Aztec 164-22002 | 2 | 5/16-18 HEX NUT | $1.01/EA |
| 24 | AZ164-14FNAztec 164-14FN | 3 | FLANGE BUT 1/4-20 | $1.01/EA |

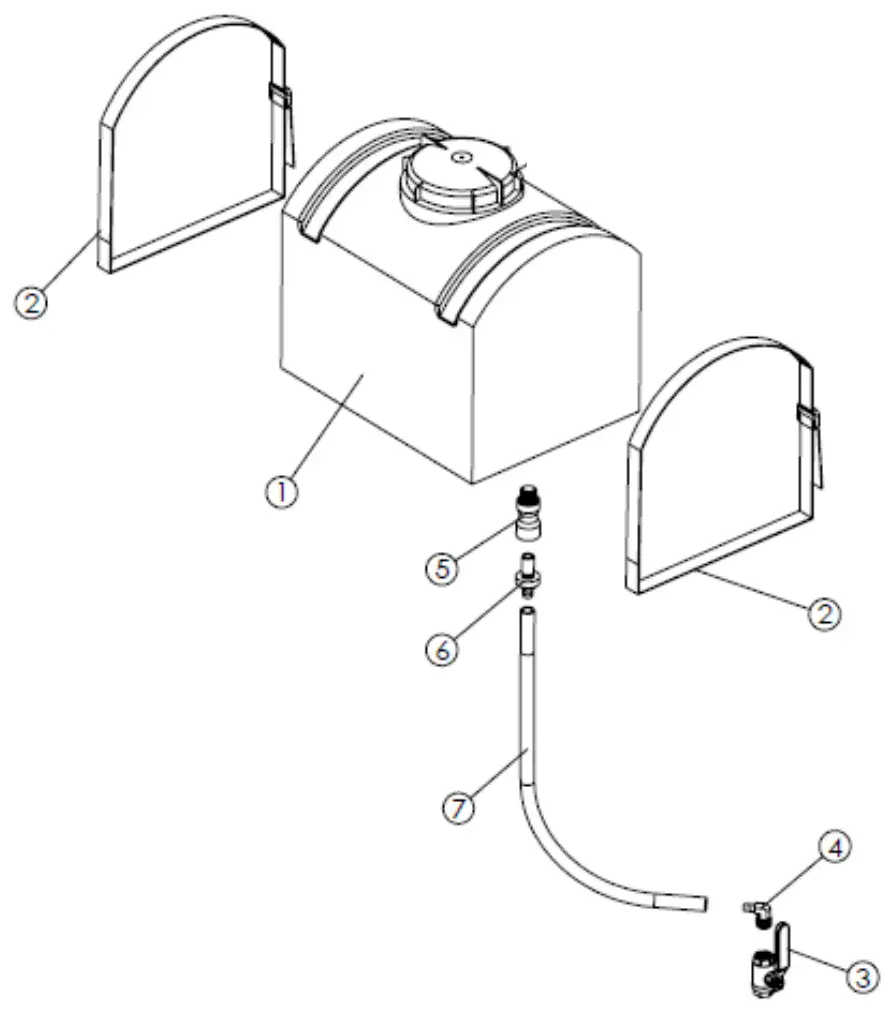

Aztec Refresher solution tank parts
The 8 gallon solution tank, its straps, ball valve, couplings and tubing. Manual page 30.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ010-971MGTAztec 010-971MGT | 1 | 8 GALLON SOLUTION TANK WITH LID | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ010-MG-STRAPAztec 010-MG-STRAP | 2 | SOLUTION TANK STRAP | $16.83/EA |
| 3 | AZ030-20-117Aztec 030-20-117 | 1 | BALL VALVE 1/2” | $109.00/EA |
| 4 | AZ166-EL1412Aztec 166-EL1412 | 1 | ELBOW 1/2 NPT/BARB | $3.03/EA |
| 5 | AZ040-3025Aztec 040-3025 | 1 | QUICK COUPLING FEMALE | $36.54/EA |
| 6 | AZ040-3020Aztec 040-3020 | 1 | QUICK COUPLING MALE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ216-NYC0812Aztec 216-NYC0812 | 1 | FLEXIBLE TUBING 20” | $2.93/EA |

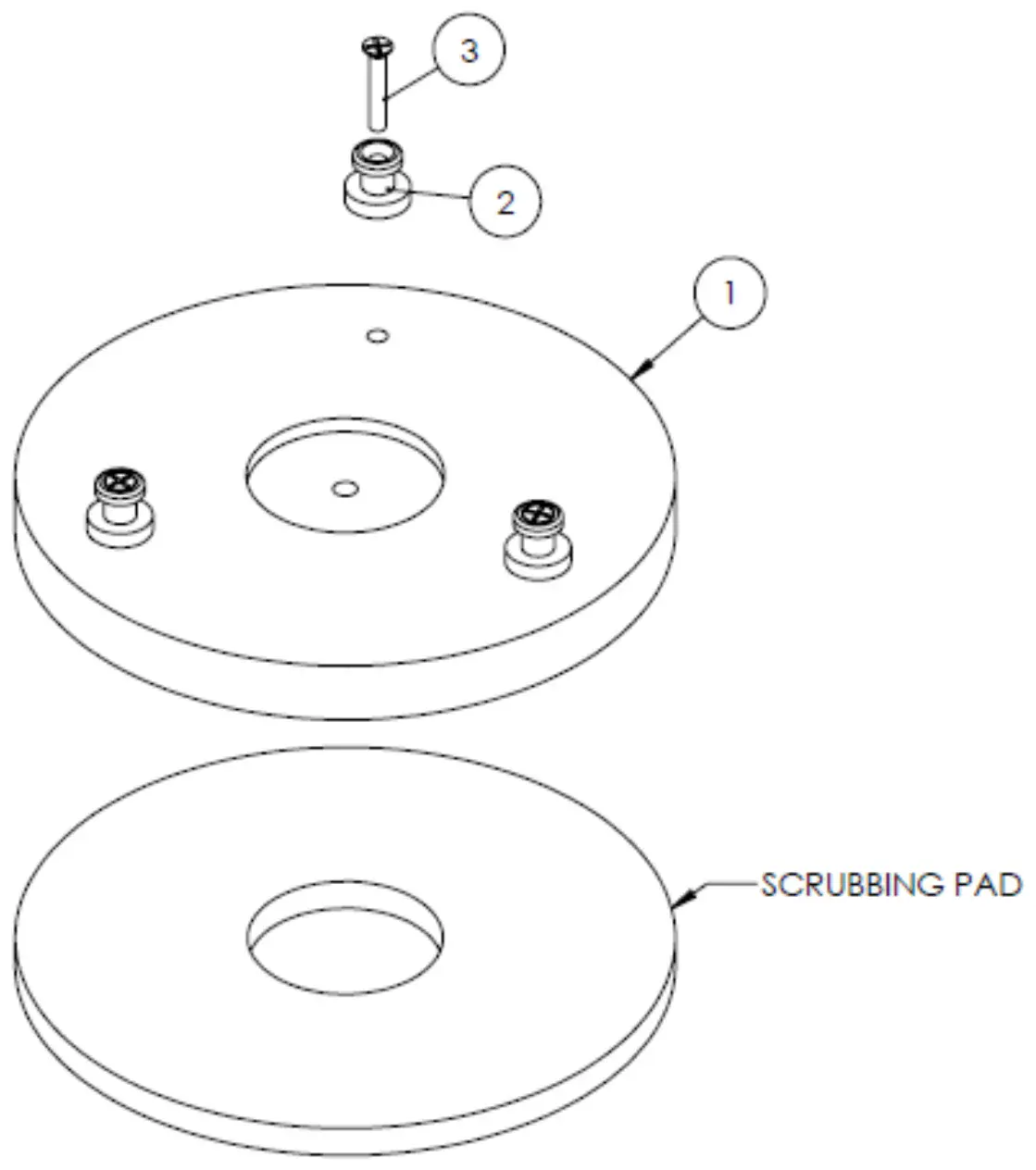

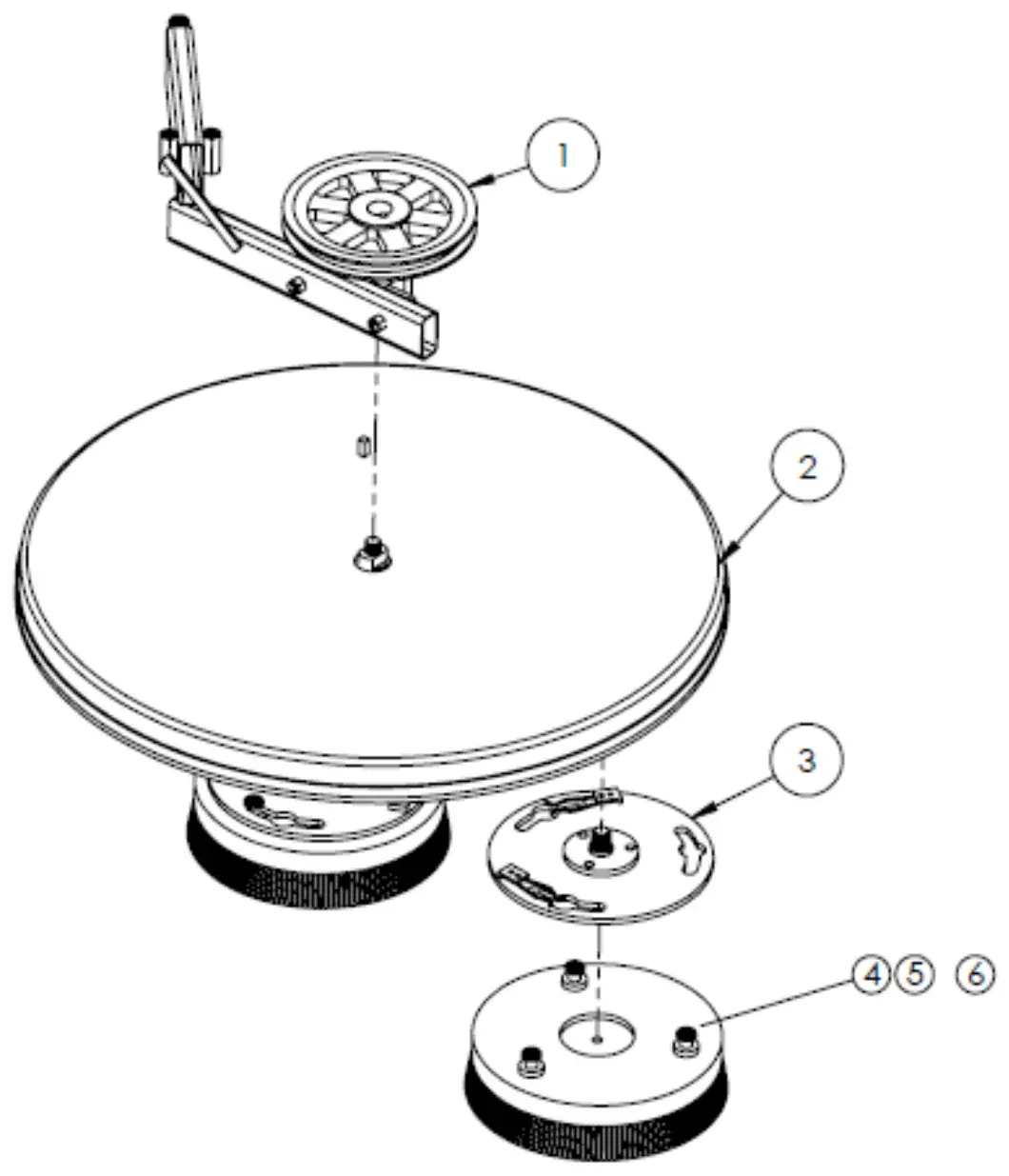

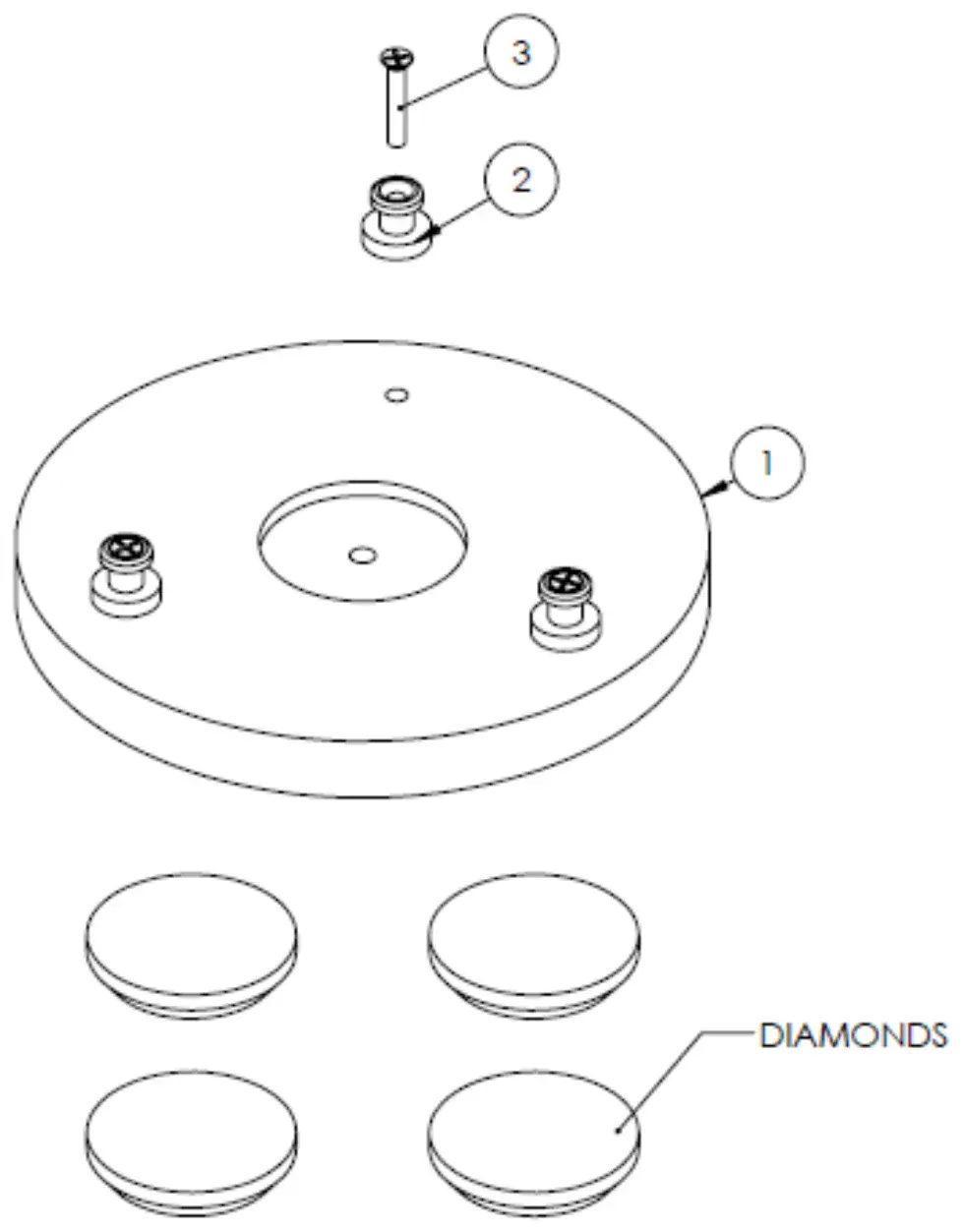

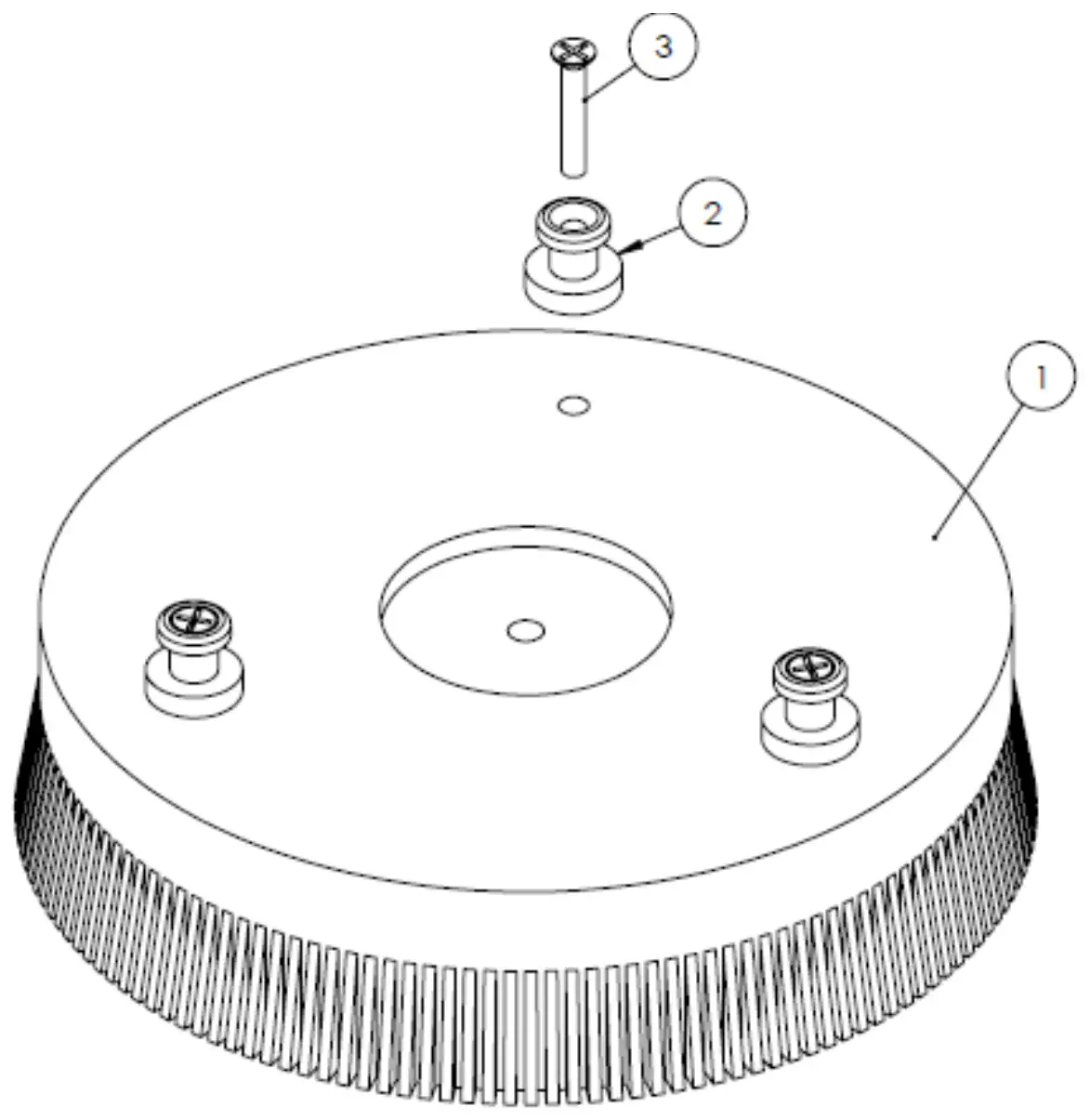

Aztec Refresher drive unit parts
The main drive assemblies: input pulley, drive assembly, drive plates and the three driver types. Manual page 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ042-962S1Aztec 042-962S1 | 1 | INPUT PULLEY ASSEMBLY*Includes items 2, 6, 7, 8 and 9 of the input pulley list (page 32). | $492.63/EA |
| 2 | AZ042-953BAztec 042-953B | 1 | DRIVE ASSEMBLY | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ042-150Aztec 042-150 | 3 | DRIVE PLATE ASSEMBLY | $266.40/EA |
| 4 | AZ042-1-SAztec 042-1-S | 3 | STRIP BRUSH ASSEMBY | $257.00/EA |
| 5 | AZ042-1-PAztec 042-1-P | 3 | PAD DRIVER ASSEMBLY | $334.00/EA |
| 6 | AZ042-1-DAztec 042-1-D | 3 | DIAMOND DRIVER ASSEMBLY | $427.00/EA |

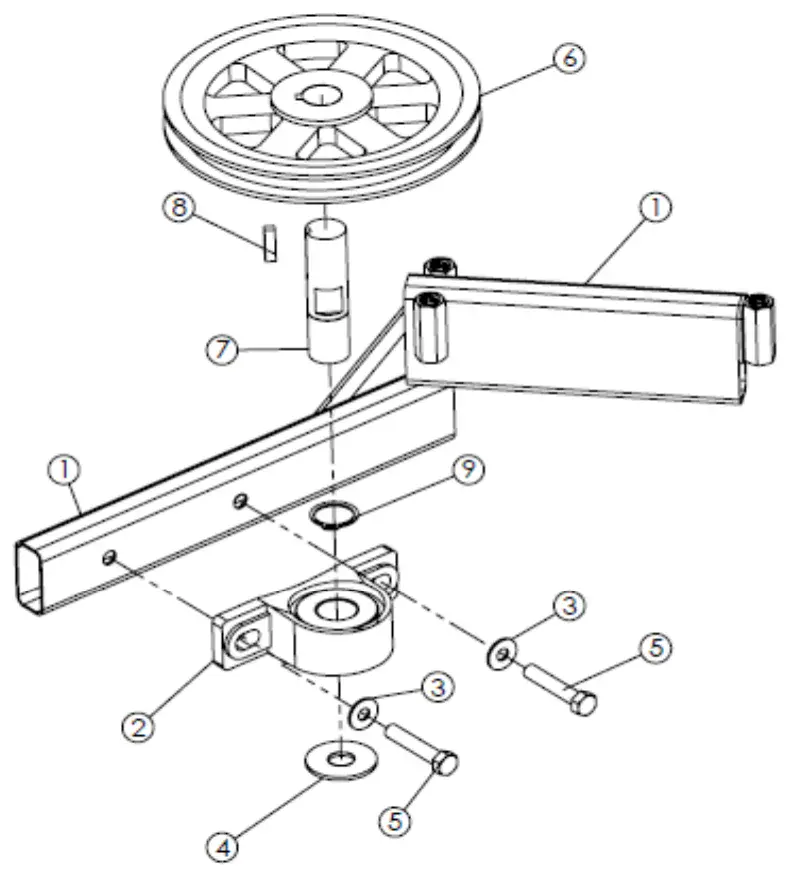

Aztec Refresher input pulley parts
The support boom arm, pillow block bearing, input pulley, shaft, key and hardware. Manual page 32.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ010-962BPFAztec 010-962BPF | 1 | SUPPORT BOOM ARM | $178.93/EA |
| 2 | AZ239-NP-16CAztec 239-NP-16C | 1 | PILLOW BLOCK BEARING | $264.56/EA |
| 3 | AZ164-20156Aztec 164-20156 | 2 | 5/16 USS FLAT WASHER | $1.02/EA |
| 4 | AZ164-58114FAztec 164-58114F | 1 | BOOM WASHER | $5.19/EA |
| 5 | AZ164-10123Aztec 164-10123 | 2 | HEX CAP SCREW 3/8-16 X 2 | $1.21/EA |
| 6 | AZ172-MB78*1Aztec 172-MB78*1 | 1 | PULLEY, MB 78 X 1 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ107-3843Aztec 107-3843 | 1 | INPUT PULLEY SHAFT | $40.00/EA |
| 8 | AZ199-NHNT-SE UNDAztec 199-NHNT-SE UND | 1 | 1/4" KEYAztec prints this number as 199-NHNT-SE UND. | $0.70/EA |
| 9 | AZ164-5100-100Aztec 164-5100-100 | 1 | SNAP RING CENTER SHAFT | $1.05/EA |
| 10 | AZ042-962S1Aztec 042-962S1 | 1 | INPUT PULLEY ASSEMBLY*Complete assembly. Includes items 2, 6, 7, 8 and 9. Not numbered on the drawing. | $492.63/EA |

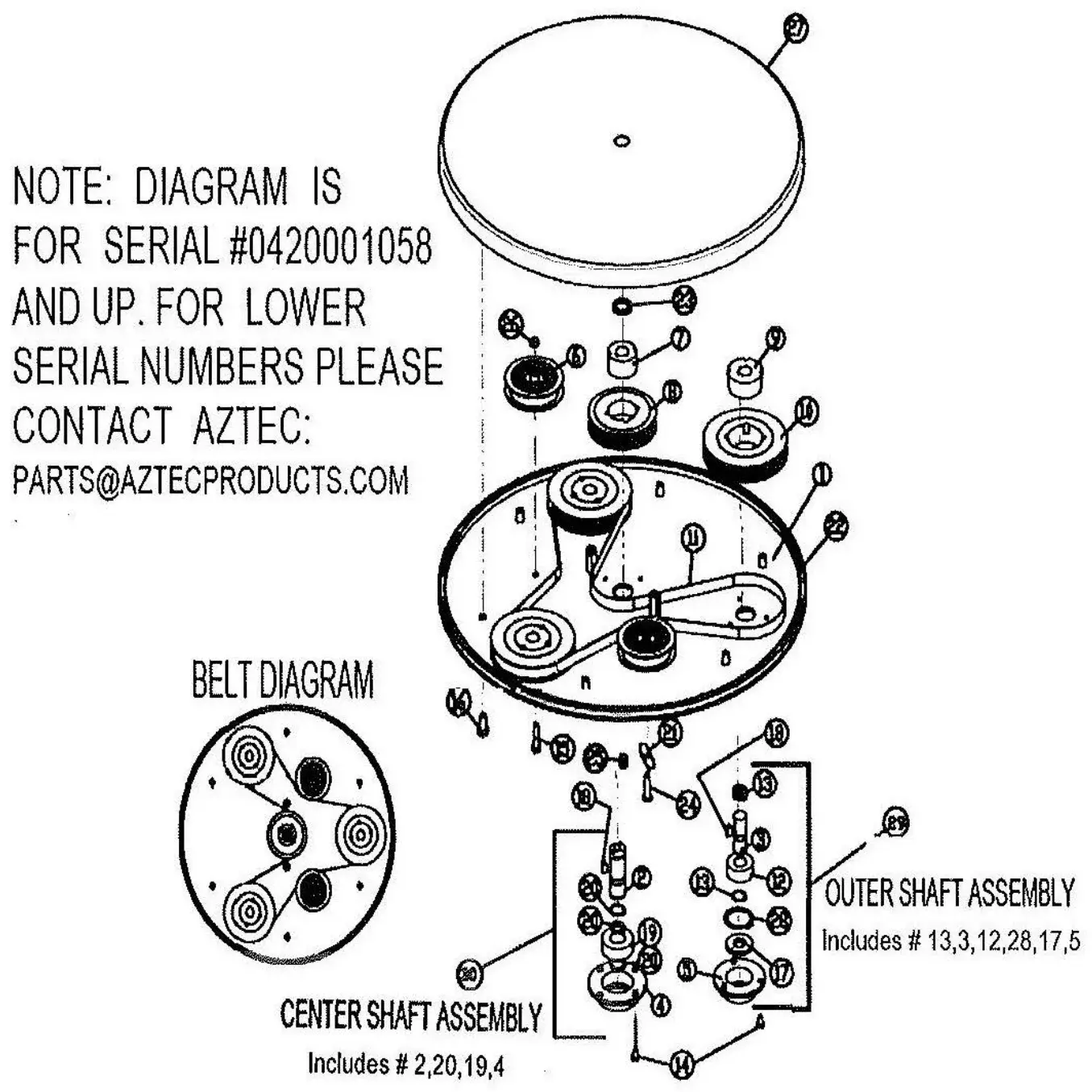

Aztec Refresher gearbox parts
The inside of the planetary drive: plate, shafts, sprockets, taper lock bushings, sync belt, bearings, seals, snap rings and top cover. Aztec's drawing is for serial number 0420001058 and up. Manual pages 33, list 34.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ370-042-50Aztec 370-042-50 | 1 | POWDERCOATED STEEL PLATE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ042-70Aztec 042-70 | 1 | CENTER SHAFT | $166.67/EA |
| 3 | AZ042-60Aztec 042-60 | 3 | OUTER SHAFT | $49.95/EA |
| 4 | AZ042-20Aztec 042-20 | 1 | CENTER CAPTURE | $133.27/EA |
| 5 | AZ042-10Aztec 042-10 | 3 | OUTER CAPTURE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AZ042-210Aztec 042-210 | 2 | FLAT IDLER PULLEY | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ042-110-1Aztec 042-110-1 | 1 | CENTER TAPER LOCK BUSHING 30mm | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ042-110Aztec 042-110 | 1 | CENTER SPROCKET | $320.55/EA |
| 9 | AZ042-120-1Aztec 042-120-1 | 3 | OUTER TAPER LOCK BUSHING 25mm | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | AZ042-120Aztec 042-120 | 3 | OUTER SPROCKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | AZ042-130Aztec 042-130 | 1 | TWIN POWER SYNC BELT | $617.28/EA |
| 12 | AZ239-5205CZZ-W64Aztec 239-5205CZZ-W64 | 3 | OUTPUT SHAFT BEARING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AZ164-5100-100Aztec 164-5100-100 | 9 | OUTER SHAFT SNAP RING | $1.05/EA |
| 14 | AZ164-31C50HCS3Aztec 164-31C50HCS3 | 13 | HEX CAP SCREW 5/16-18 X ½ | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | AZ164-10123Aztec 164-10123 | 1 | HEX CAP SCREW 3/8-16 X 2 | $1.21/EA |
| 16 | AZ164-10211Aztec 164-10211 | 6 | HEX CAP SCREW 1/2-13 X 1 | $1.08/EA |
| 17 | AZ239-00610651Aztec 239-00610651 | 3 | OUTER SHAFT SEAL | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | AZ199-042Aztec 199-042 | 4 | 8MM x 18MM SQUARE END KEY | $3.49/EA |
| 19 | AZ239-5206CZZ-W64Aztec 239-5206CZZ-W64 | 1 | CENTER SHAFT BEARING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | AZ164-5100-118Aztec 164-5100-118 | 3 | CENTER SHAFT SNAP RING | $0.45/EA |
| 21 | AZ042-140Aztec 042-140 | 1 | SLOT SHIELD DUST GUARD | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | AZ179-1645SB3-338Aztec 179-1645SB3-338 | 7.5’ | COVER SEAL | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | AZ042-230Aztec 042-230 | 1 | V-RING SEAL | $20.54/EA |
| 24 | AZ164-37C200BCGZAztec 164-37C200BCGZ | 1 | CARRIAGE BOLT 3/8-16 X 2 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | AZ164-5/8-11*1.5Aztec 164-5/8-11*1.5 | 1 | STUD 5/8-11 X 1½ | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | AZ164-22004Aztec 164-22004 | 2 | HEX NUT 3/8-16 | $1.03/EA |
| 27 | AZ370-042-962MSAztec 370-042-962MS | 1 | DRIVE BELT TOP COVER | $329.50/EA |
| 28 | AZ164-DIN472-052Aztec 164-DIN472-052 | 3 | OUTER CAPTURE SNAP RING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 29 | AZ042-A-2Aztec 042-A-2 | 3 | OUTER SHAFT ASSEMBLYIncludes items 13, 3, 12, 28, 17 and 5. | $852.97/EA |
| 30 | AZ042-A-1Aztec 042-A-1 | 1 | CENTER SHAFT ASSEMBLYIncludes items 2, 20, 19 and 4. | $852.97/EA |

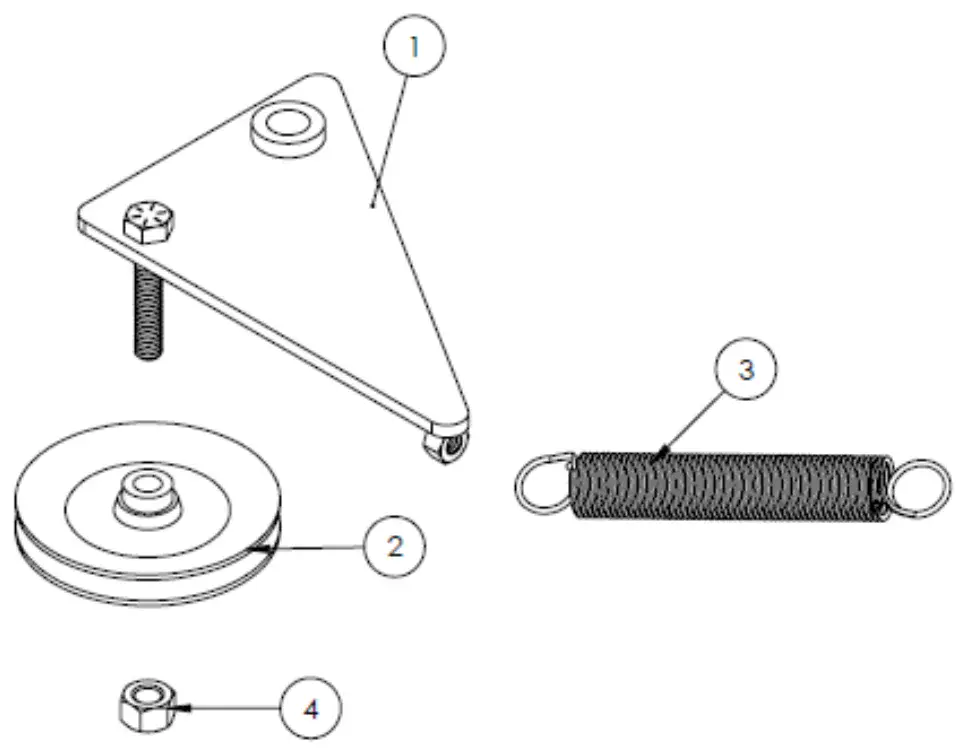

Aztec Refresher belt tensioner parts
The belt tensioner, V-idler pulley, return spring and nut. Manual page 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ042-962iAztec 042-962i | 1 | BELT TENSIONER | $47.71/EA |
| 2 | AZ188-V42BAztec 188-V42B | 1 | V-IDLER PULLEY | $27.52/EA |
| 3 | AZ173-042Aztec 173-042 | 1 | TENSIONER RETURN SPRING | $14.95/EA |
| 4 | AZ164-22004Aztec 164-22004 | 1 | HEX NUT 3/6-16 | $1.03/EA |

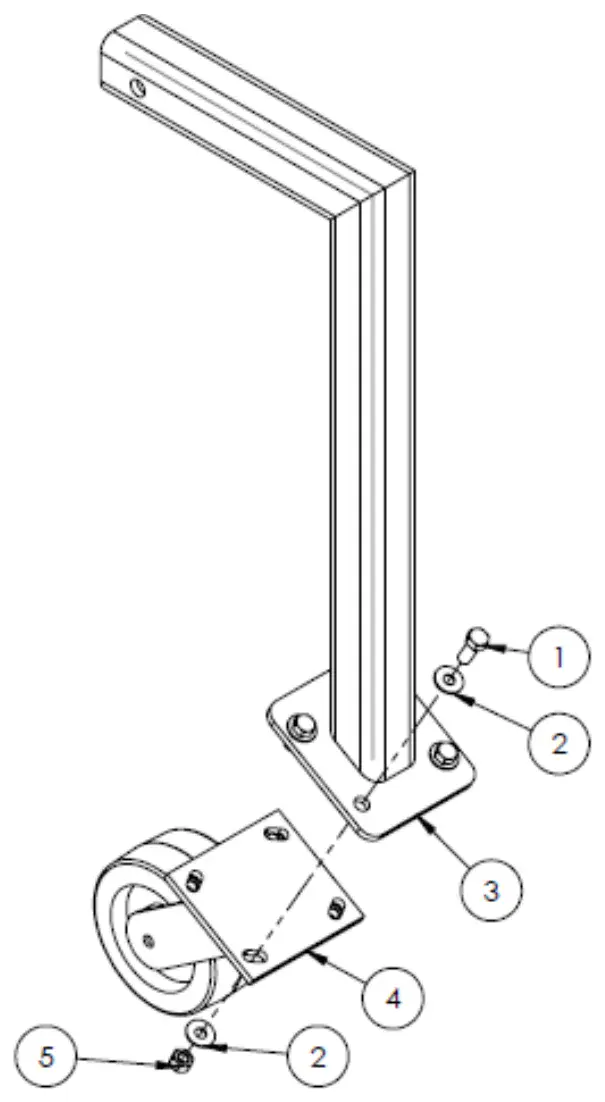

Aztec Refresher transport wheel parts
The transport wheel, its bracket and hardware. Manual page 36.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ164-10115Aztec 164-10115 | 4 | HEX CAP SCREW 3/8-16 X 1 | $1.15/EA |
| 2 | AZ164-20156Aztec 164-20156 | 8 | 5/16 USS FW | $1.02/EA |
| 3 | AZ370-042-04Aztec 370-042-04 | 1 | TRANSPORT WHEEL BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ156-040-1Aztec 156-040-1 | 1 | TRANSPORT WHEEL | $51.50/EA |
| 5 | AZ164-22834Aztec 164-22834 | 4 | 3/8-16 STOVER LOK-NUT | $1.05/EA |

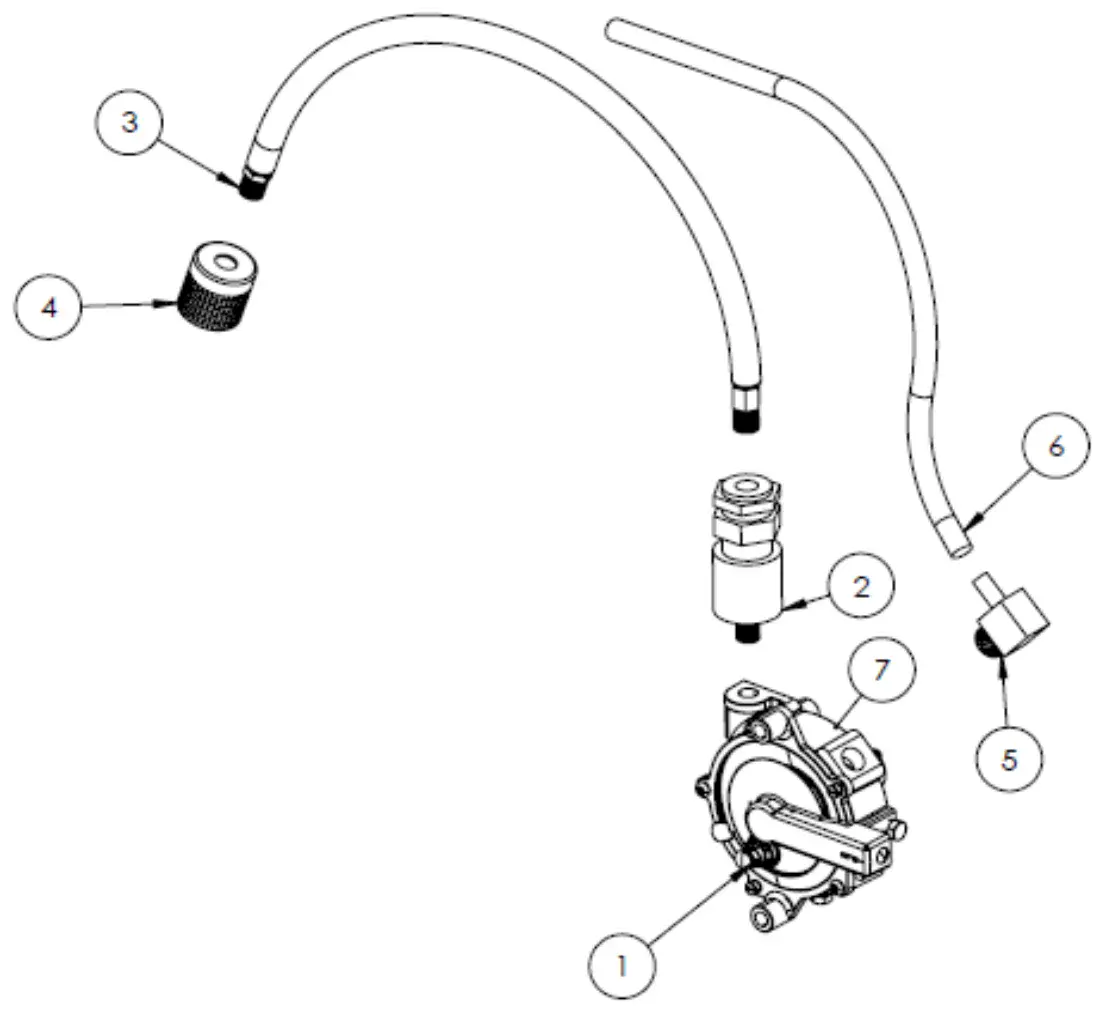

Aztec Refresher regulator parts
The regulator, fuel lock, LP hose, quick coupling, brass elbow and fuel line. Manual page 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ152-500Aztec 152-500 | 1 | REGULATOR | $222.17/EA |
| 2 | AZ152-N3-0173-1Aztec 152-N3-0173-1 | 1 | FUEL LOCK | $47.75/EA |
| 3 | AZ267-P5561-0410Aztec 267-P5561-0410 | 1 | HOSE, LP TANK TO REGULATOR 18”x1/4” | $57.00/EA |
| 4 | AZ152-700Aztec 152-700 | 1 | QUICK COUPLING | $29.17/EA |
| 5 | AZ166-62040-BAztec 166-62040-B | 1 | BRASS ELBOW 3/8 NPT X 1/2” BARB | $10.09/EA |
| 6 | AZ216-7132-50354Aztec 216-7132-50354 | 3 | FUEL LINE 37” (SOLD BY THE FOOT) | $14.39/EA |

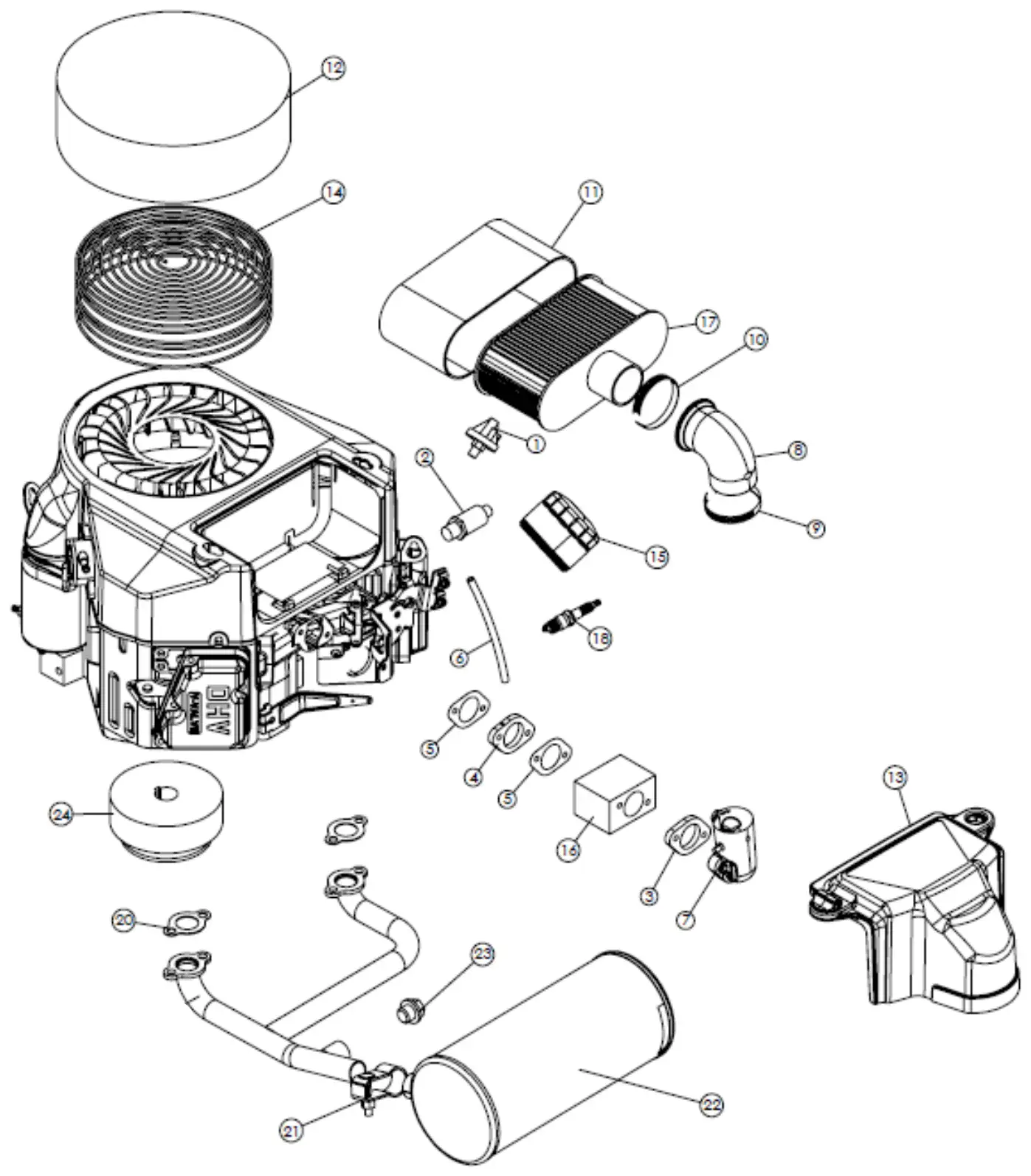

Aztec Refresher PurePowerLPG 603cc FS481V engine parts
The Kawasaki FS481V PurePowerLPG engine parts Aztec lists: filters, gaskets, intake, carburetor, spark plugs, muffler and clutch. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ152-N3-0082Aztec 152-N3-0082 | 1 | OIL PRESSURE SWITCH 17HP | $76.05/EA |
| 2 | AZ312-504-0185Aztec 312-504-0185 | 1 | VALVE OIL DRAIN 14HP/17HP | $19.95/EA |
| 3 | AZ309-11061-7095Aztec 309-11061-7095 | 1 | GASKET AIR FILTER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ309-16073-7007Aztec 309-16073-7007 | 1 | INSULATOR CARB SPACER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AZ309-11061-7096Aztec 309-11061-7096 | 2 | INSULATOR CARB GASKET FS481 | $4.95/EA |
| 6 | AZ309-92192-7164Aztec 309-92192-7164 | 1 | TUBE AIR CLEANER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ309-16060-7036Aztec 309-16060-7036 | 1 | PIPE-INTAKE FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ309-92192-7164Aztec 309-92192-7164 | 1 | TUBE AIR CLEANER FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AZ309-92171-7010Aztec 309-92171-7010 | 1 | PIPE INTAKE CLAMP FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | AZ309-92173-7007Aztec 309-92173-7007 | 1 | HOSE CLAMP FS481 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | AZ309-11013-7046Aztec 309-11013-7046 | 1 | PRE FILTER CLEANER FS481 | $8.09/EA |
| 12 | AZ186-271964Aztec 186-271964 | 1 | FOAM HAT FILTER KW | $34.50/EA |
| 13 | AZ309-11011-7060Aztec 309-11011-7060 | 1 | AIR FILTER COVER FS481 | $45.30/EA |
| 13 | AZ309-92210-7038Aztec 309-92210-7038 | 2 | Air Filter Cover Wing Nut | $1.20/EA |
| 13 | AZ309-92055-7025Aztec 309-92055-7025 | 2 | Air Filter Cover O-Ring | $1.70/EA |
| 14 | AZ309-18540-603Aztec 309-18540-603 | 1 | DEBRIS SCREEN FS481 | $32.00/EA |
| 15 | AZ309-49065-7007Aztec 309-49065-7007 | 1 | FILTER-OIL FS481 | $24.37/EA |
| 16 | AZ152-CARBAztec 152-CARB | 1 | CARB (DOES NOT INCLUDE THROTTLE PLATE, SHAFT OR SEAL) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AZ309-11013-7049Aztec 309-11013-7049 | 1 | ELEMENT AIR FILTER FS481 | $25.40/EA |
| 18 | AZ309-92070-7004Aztec 309-92070-7004 | 2 | SPARK PLUG BPR4ES | $5.50/EA |
| 20 | AZ309-11060-7016Aztec 309-11060-7016 | 2 | EXHAUST GASKET, MANIFOLD FS481 | $3.18/EA |
| 21 | AZ309-92072-7013Aztec 309-92072-7013 | 1 | MUFFLER CLAMP FS481 | $9.95/EA |
| 22 | AZ152-603-BCAztec 152-603-BC | 1 | 1 PIECE CATALYTIC MUFFLER MANIFOLD | $445.00/EA |
| 23 | AZ164-M1815PAztec 164-M1815P | 1 | MANIFOLD PLUG | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | AZ311-180007Aztec 311-180007 | 1 | CENTRIFUGAL CLUTCH | $327.82/EA |
Aztec Refresher diamond driver parts
The 10 in diamond driver, its driver lugs and screws. Diamonds are sold separately. Manual page 40.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ042-1-DAztec 042-1-D | 3 | 10” DIAMOND DRIVER ASSEMBLYDiamonds are sold separately. | $427.00/EA |
| 2 | AZ042-80Aztec 042-80 | 3 EACH | DRIVER LUG | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ164-25C150MXFZAztec 164-25C150MXFZ | 3 EACH | 1/4-20 X 1 1/2 PH FLAT MS | $0.24/EA |
Aztec Refresher pad driver parts
The 10 in pad driver, its driver lugs and screws. Pads are sold separately. Manual page 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ042-1-PAztec 042-1-P | 3 | 10” PAD DRIVER ASSEMBLYPads are sold separately. | $334.00/EA |
| 2 | AZ042-80Aztec 042-80 | 3 EACH | DRIVER LUG | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ164-25C150MXFZAztec 164-25C150MXFZ | 3 EACH | 1/4-20 X 1 1/2 PH FLAT MS | $0.24/EA |
Aztec Refresher strip brush parts
The 10 in strip brush, its driver lugs and screws. Manual page 42.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ042-1-SAztec 042-1-S | 3 | 10” STRIP BRUSH ASSEMBLY | $257.00/EA |
| 2 | AZ042-80Aztec 042-80 | 3 EACH | DRIVER LUG | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ164-25C150MXFZAztec 164-25C150MXFZ | 3 EACH | 1/4-20 X 1 1/2 PH FLAT MS | $0.24/EA |
Aztec Refresher engine preventative maintenance kit
Aztec's preventative maintenance kit for the FS481 engine and the six parts in it. Manual page 24.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AZ309-603-PHAztec 309-603-PH | 1 | Preventative Maintenance Kit for the FS481 engineComplete assembly. KIT. | $131.83/EA |
| – | AZ309-11013-7046Aztec 309-11013-7046 | 1 | Pre Filter (Foam Hat)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $8.09/EA |
| – | AZ309-11013-7049Aztec 309-11013-7049 | 1 | Air Filter (Paper Element)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $25.40/EA |
| – | AZ309-49065-7007Aztec 309-49065-7007 | 1 | Oil FilterPart of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $24.37/EA |
| – | AZ309-92070-7004Aztec 309-92070-7004 | 2 | Spark Plugs (NGK BPR4ES)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $5.50/EA |
| – | AZ119-Oil-QAztec 119-Oil-Q | 2 | 10W30 Quart OilPart of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $19.92/EA |
| – | AZ186-271964Aztec 186-271964 | 1 | Debris Filter (Foam Hat)Part of Preventative Maintenance Kit for the FS481 engine (309-603-PH). | $34.50/EA |
New to your Aztec Refresher? Start here
Set up, run and look after your Refresher. Everything here comes from Aztec’s owner’s manual, rewritten in plain steps, with the parts you need linked to the list above.
1Check it before every start
- Park on a level surface. Turn the engine switch off and close the propane tank valve.
- Look around and under the machine for oil leaks and damage. Clear dirt and debris, especially around the muffler, and make sure all shields, covers, nuts, bolts and screws are in place and tight.
- Check the engine oil level and the air filter element (AZ309-11013-7049). Do the first oil change after the first 8 hours of use.
- Soap-test the LPG tank (AZ293-20#STLMF), lines and connections every time you fill or connect the tank. Repair any leak before you run the machine.
- Connect the high pressure hose to the tank hand tight, never with a tool. Fill the water tank (AZ010-971MGT) if you are working wet.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 10 and 11. SES ref PF-26FC-EDR2
2Change drivers, brushes and pads
- With the engine off and the tank valve closed, tilt the machine back and secure it. Because of its weight, have a second person help.
- To remove a pad driver (AZ042-1-P), diamond driver (AZ042-1-D) or strip brush (AZ042-1-S), turn it about 1/8 turn clockwise to release it from the spring clip.
- To install one, line up the three lugs on top of the driver with the holes in the drive plate. Turn it counterclockwise until it clicks and locks into the spring clip.
- Pull Velcro diamond pucks off from the center out, never from the outside edge. Leave the tape on strip brushes.
- Center each new pad on its driver. Never flip a pad: keep the same side down for its whole life.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 6, 14 and 15. SES ref PF-26FC-EDR2
3Start and run it
- Set the handle to a comfortable position and lock it with the pin.
- Open the LPG tank valve by turning it counterclockwise. Set the throttle to SLOW.
- Start the engine. Don’t run the starter more than 5 seconds at a time: longer overheats the starter motor and can damage it.
- Once it starts, set the throttle to the speed you want and follow the machine straight ahead at a moderate walk. Keep moving: running in one spot damages the floor.
- Wear ear protection, and never tilt the machine back while the engine is running.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 7, 8, 12, 13 and 22. SES ref PF-26FC-EDR2
4Shut down, clean up and store
- Turn the key switch off, then close the propane valve by turning it clockwise.
- Empty the leftover water from the water tank.
- Tilt the machine back, tighten any loose nuts and bolts, and rinse between the top of the brushes and the brush plates, around the splash skirt and the body. Don’t spray water into the brush drive above the large main plate.
- Set it level and run it 2 to 3 minutes to throw off the water.
- Take the propane tank off and store it outside in a secure, well-ventilated area.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 9, 12, 15 and 16. SES ref PF-26FC-EDR2
Aztec Refresher troubleshooting
Problems, likely causes and fixes from Aztec's troubleshooting pages. Turn the engine switch off and close the propane tank valve before any service.
| Likely cause | Fix | Part |
|---|---|---|
| Engine cranks but won’t start | ||
| Propane tank empty or shutoff valve closed | Refill the propane tank (AZ293-20#STLMF) or open the valve. | |
| Fuel or vacuum line clogged, kinked or cut | Clear the line or replace it. | |
| Spark plug lead off, or a faulty ignition coil or kill switch | Reconnect the lead to the spark plug (AZ309-92070-7004). Replace a faulty coil or switch. | |
| Faulty regulator | Replace the regulator (AZ152-500). | |
| Engine starts hard | ||
| Choke or throttle set wrong, or low compression | Set the controls to the right position. For low compression, have a trained technician service the engine. | |
| Engine won’t crank | ||
| Battery run down (a key left ON drains it) | Charge or replace the battery (AZ276-GTX14). Turn the key off whenever the engine is off. | |
| Loose or faulty wires, or a faulty key or starter switch | Take the propane tank and battery box cover off. Tighten, repair or replace wires, clean corroded battery posts, and repair or replace a faulty key switch (AZ312-308-0385). | |
| Engine overheats | ||
| Air intake filter screen or cooling fins clogged | Clean out the debris or replace the filter. | |
| Low oil, or fuel settings wrong | Check the oil and add oil. For fuel settings, have a trained technician service the engine. | |
| Exhaust or propane smell | ||
| Dirty air filter, or loose fittings or clamps, or cracked, cut or leaking hoses | Replace the air filter (AZ309-11013-7049). Tighten or seal fittings, then soap-test them and replace any part that still bubbles. | |
| Engine runs but the drive unit won’t turn | ||
| Belts off the input pulley or clutch, or belt tension spring unhooked | Take the belt cover off and check the tension spring (AZ173-042) is on its mount bolt. Put the engine belt (AZ113-L538) back on; if it comes off again, it is worn or stretched and needs replacing. | |
| Frost on the LPG lines or regulator | ||
| Propane tank overfilled | Stop: running it this way causes damage. Have the excess propane removed safely before you run it again. The regulator may need to defrost before restarting. | |
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 11, 16, 17 and 21. SES ref PF-2IDE-Y6UM
Still stuck? Call 800-440-6723 and have your model and serial number ready. SES stocks Aztec parts and can help you find the cause.
Aztec Refresher maintenance schedule
Aztec's engine maintenance schedule, bearing greasing and clean-up steps. Turn the engine switch off and close the propane tank valve before any service. Aztec requires a maintenance record with service dates, engine hours and work done to keep the warranty.
| Task | How often | Part |
|---|---|---|
| Check the engine oil before starting and add oil if needed. | Daily | |
| Check for loose or missing nuts and screws. | Daily | |
| Check for fuel and oil leaks. | Daily | |
| Check the battery electrolyte level. | Daily | |
| Check or clean the air intake screen. | Daily | |
| Clean the whole machine and empty the water tank. | After every use | |
| Check for loose nuts and bolts and tighten them. | After every use | |
| Take the propane tank off and store it outside. | After every use | |
| Grease the pillow block bearing (AZ239-NP-16C) in the lower brush drive (drawing on page 32). Aztec says skipping this voids the warranty. | Every 10 hours | |
| Clean the air cleaner foam element (AZ309-11013-7046). | Every 25 hours | |
| Change the engine oil. Do the first change after 8 hours, then every 50 hours. Drain it warm through the oil drain valve (AZ312-504-0185). | Every 50 hours | |
| Clean the air cleaner paper element (AZ309-11013-7049). | Every 50 hours | |
| Clean and adjust the valve clearance once, after the first 50 hours. | Every 50 hours | |
| Change the oil filter (AZ309-49065-7007). Turn the new one clockwise until the seal touches, then 3/4 turn more by hand. | Every 100 hours | |
| Replace the air cleaner paper element (AZ309-11013-7049). | Every 100 hours | |
| Clean and gap the spark plugs (AZ309-92070-7004): NGK BPR4ES, gap 0.028 in. | Every 100 hours | |
| Clean dust and dirt from the cylinder and cylinder head fins. | Every 100 hours | |
| Tighten nuts and screws. | Every 100 hours | |
| Clean the combustion chambers. | Every 300 hours | |
| Clean and adjust the valve clearance: 0.004 to 0.006 in (0.10 to 0.15 mm) intake and exhaust. | Every 300 hours | |
| Clean and lap the valve seating surface. | Every 300 hours |
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 7, 15, 16, 18, 19, 20, 21 and 32. SES ref PF-A7BW-AHZY
Aztec Refresher specifications
From Aztec's owner's manual and the Refresher spec sheet.
| Cleaning path | 30 in (76 cm) |
|---|---|
| Engine | Kawasaki FS481V PurePowerLPG, 603 cc, propane |
| Heads | 3 × 10 in (25 cm) |
| Head speed | 1,295 rpm counterclockwise (synchronous drive: 250 rpm clockwise) |
| Head pressure | 330 lb (150 kg) |
| Weight | 482 lb (218.6 kg); shipping about 560 lb (250 kg) |
| Size (L × W × H) | 43.25 × 32 × 42.25 in (110 × 82 × 107 cm) |
| Engine speed | 3,400 rpm high idle, 1,500 rpm low idle |
| Clutch | Centrifugal; disengages below 1,800 rpm |
| Water tank | 8 gal, for wet work; 2 in vacuum port for dry work |
| Propane cylinder | 20 lb (5 gal) vertical vapor-withdrawal cylinder with OPD; full tank no more than 48 lb gross |
| Engine oil | 1.8 US qt (1.7 L) with the filter removed; API SF, SG, SH or SJ |
| Spark plugs | NGK BPR4ES, gap 0.028 in |
| Warranty | Machine 1 year; engine 2 years (spec sheet: 2 years/500 hours) |
Sources: Aztec Refresher spec sheet (05-2026), page 1; Aztec Refresher 30” Owner’s Manual (11-2025), pages 6, 11, 13, 18, 19, 21, 39 and 44. SES ref PF-OXWR-EAX2
Aztec Refresher manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Refresher owner's manualOwner's manual with parts lists, 44 pages | Refresher 30 in | 11-2025 (this page) | 1.7 MB | Sign in to view or downloadSign in to download |
| Refresher spec sheetSpecifications and features | Refresher 30 in | 05-2026 | 0.4 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Aztec Refresher parts questions
How do I take the drivers off an Aztec Refresher?
Tilt the machine back and secure it, then turn the driver about 1/8 turn clockwise to release it from the spring clip. To put one on, line up its three lugs with the holes in the drive plate and turn it counterclockwise until it clicks.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 14 and 15. SES ref PF-E77O-WQBN
Why does my Refresher engine run but the drive unit won’t turn?
Usually the main drive belt or its tension spring. Check whether the belts came off the input pulley or centrifugal clutch, or the spring came off its mount bolt. If the belts keep coming off, they are worn or stretched and need replacing.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), page 17. SES ref PF-E77O-WQBN
How often do I grease the pillow block bearing on the Refresher?
Every 10 hours. The bearing is part of the lower brush drive and is shown on the input pulley drawing. Aztec says skipping it voids the warranty.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 7 and 32. SES ref PF-E77O-WQBN
How often do I change the oil on a Refresher?
After the first 8 hours, then every 50 hours. Change the oil filter every 100 hours. The FS481V engine takes 1.8 US qt (1.7 L) with the filter removed.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 19 and 20. SES ref PF-E77O-WQBN
What propane tank does the Refresher use?
A 20 lb (5 gal) vertical vapor-withdrawal cylinder with an overfill protection device. Aztec says other cylinders, including liquid-withdrawal ones, are dangerous and void the warranty.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), pages 6 and 8. SES ref PF-E77O-WQBN
Which gearbox parts fit my Refresher?
Aztec’s gearbox drawing is for serial number 0420001058 and up. For a lower serial number, Aztec asks you to contact them, so have your serial number ready.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), page 33. SES ref PF-E77O-WQBN
Can I use the Refresher on a slope?
No. Aztec says not to use it on surfaces with a gradient over 2%.
Source: Aztec Refresher 30” Owner’s Manual (11-2025), page 13. SES ref PF-E77O-WQBN
Notes on this parts list
Places where Aztec's drawings, parts lists and text disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Aztec's gearbox drawing (page 33) is marked for serial number 0420001058 and up. For lower serial numbers, Aztec asks you to contact them. Call us with your serial number before ordering gearbox parts.
- The gearbox drawing on page 33 is a low-resolution scan. Two callouts are hard to read: we read the one at the left idler pulley as 26 (HEX NUT 3/8-16) and the one below the drive plate as 25 (STUD 5/8-11 X 1½). Call to confirm before ordering either.
- The handle drawing (page 28) shows callout 25 twice, but the handle parts list on page 29 stops at item 24. There is no line for 25.
- The regulator drawing (page 37) shows callout 7 on the regulator body, but the regulator parts list stops at item 6. There is no line for 7.
- The engine parts list (page 39) skips item 19, and the engine drawing has no callout 19.
- The input pulley assembly 042-962S1 is item 1 on the drive unit list (page 31) and item 10 on the input pulley list (page 32); it has no number on the page 32 drawing. The footnote on page 31 says it includes “Ref #s 2, 6, 7, 8 & 9”: those are item numbers on the page 32 list, not page 31.
- Aztec prints 164-5100-100 as SNAP RING CENTER SHAFT on the input pulley list (page 32) and as OUTER SHAFT SNAP RING on the gearbox list (page 34). The gearbox list's CENTER SHAFT SNAP RING is a different number, 164-5100-118.
- 164-22834 is printed as “3/8-16 STOVER 10K-NUT” on the handle list (page 29) and “3/8-16 STOVER LOK-NUT” on the transport wheel list (page 36).
- The tensioner list (page 35) prints 164-22004 as “HEX NUT 3/6-16”. The deck and gearbox lists (pages 27 and 34) print the same number as HEX NUT 3/8-16.
- Engine list items 6 and 8 are both printed as 309-92192-7164, TUBE AIR CLEANER FS481. Item 13 on the engine drawing covers the air filter cover plus its wing nut and O-ring (2 of each); all three lines are listed.
- Aztec prints 199-NHNT-SE UND with a space and 042-962i with a lower-case i. Our part numbers are AZ199-NHNT-SE UND (space kept) and AZ042-962i.
- Page 8 says running the electric starter more than 5 seconds at a time overheats the starter motor; the starting steps on page 12 say no more than 10 seconds. This page uses 5 seconds.
- The maintenance meter flashes every 25 hours as a lube and oil-change reminder (page 14), but the oil-change steps and schedule (pages 19 and 20) say every 50 hours after the first 8. This page follows the schedule.
- The spec sheet lists the engine warranty as 2 years/500 hours; the owner's manual warranty page says 2 years from the engine manufacturer.
- Aztec names 186-271964 “FOAM HAT FILTER KW” in the engine list and “Debris Filter (Foam Hat)” in the maintenance kit, and 309-11013-7046 “PRE FILTER CLEANER” and “Pre Filter (Foam Hat)”. Both numbers are on this page as printed.
- Descriptions are copied as Aztec prints them, including its spellings (for example STRIP BRUSH ASSEMBY and FLANGE BUT 1/4-20).
