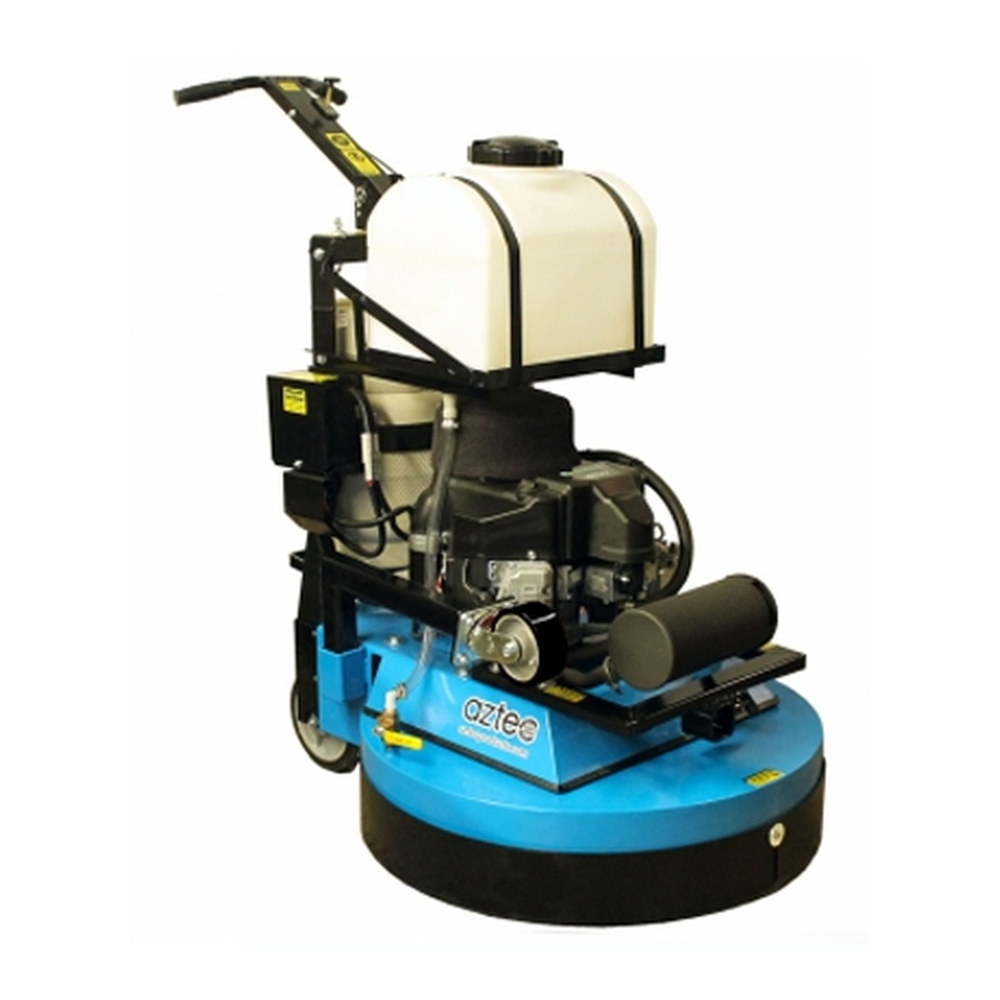

New Aztec 30" Refresher w/ 18 HP Kawasaki
Our Take (from the SES Sales Team)
“The Refresher is a good fit for contractors and in-house teams who take care of polished concrete or terrazzo that has lost its shine, or that someone coated with VCT finish along the way. It is a propane, planetary-driven machine with a 30 in path and three 10 in quick-change heads, and one machine can strip, hone, polish and burnish. Strip brushes take off old finish or sealer, Velcro drivers with hybrid or resin diamonds hone and polish, and Mighty-Lok drivers run burnishing or diamond pads. The gimbaled head follows the floor for an even gloss, and the planetary motion flattens while it polishes. Aztec rates it at up to 10,000 sq ft per hour refreshing and 15,000 stripping. It has 330 lb of head pressure, an 8 gal water tank for wet work and a 2 in vacuum port for dry work. It runs on an 18 hp, 603 cc Kawasaki engine with a centrifugal clutch, so there is no cord or generator to manage on a big floor.”
One propane machine to strip, hone, polish and burnish
The Aztec Refresher is a propane-powered, planetary-driven system for stripping, honing, polishing and burnishing polished concrete, terrazzo and marble floors. It is designed for previously polished concrete and terrazzo, and it also strips and scrubs VCT with strip brushes or pads.
Three 10 in (25 cm) quick-change heads cover a 30 in (76 cm) path with 330 lb (150 kg) of head pressure. A gimbaled head follows the floor for a consistent gloss, and the 8 gal water tank and 2 in vacuum port handle wet or dry work.
Condition: New.
What you get
Built for four jobs
Choosing drive heads
The process
What the Refresher does
| Step | Head | What it does |
|---|---|---|
| Stripping or deep scrubbing | Strip brushes or pads | Removes VCT floor finish, sealer or deeply ground-in soil |
| Honing | Velcro drivers, hybrid diamonds | Removes scratches or sealers. Do not use hybrids on marble. |
| Polishing | Velcro drivers with resin pucks, or Mighty-Lok with diamond pads | Brings the floor back to a polish |
| Burnishing | Mighty-Lok drivers | Apply guard and burnish until the floor reaches 90 F (32 C) |
Features
Heavy enough to hone, easy to move
- ✓Gimbaled head follows the floor for consistent gloss
- ✓Planetary motion flattens the floor while polishing
- ✓Rugged powder-coated US steel frame and body
- ✓Solid-lube multi-directional bearings with Nylos seals
- ✓11-gauge tube extra-heavy transport wheel
Specifications
Aztec Refresher at a glance
| Models | Refresher |
|---|---|
| Path width | 30 in (76 cm) |
| Heads | 3 x 10 in (25 cm), tool-free quick change |
| Head pressure | 330 lb (150 kg) |
| Head speed | 1,295 rpm |
| Synchronous drive speed | 250 rpm |
| Productivity | Up to 10,000 sq ft/hr refreshing; up to 15,000 sq ft/hr stripping |
| Engine | Kawasaki 603 cc propane |
| Clutch | Centrifugal, standard |
| Water tank | 8 gal |
| Vacuum port | 2 in, for dry operations |
| Diamond compatibility | 3 in puck-style and 10 in pad diamonds |
| Height | 42.25 in (107 cm) |
| Length | 43.25 in (110 cm) |
| Width | 32 in (82 cm) |
| Machine weight | 482 lb (218.6 kg) |
| Shipping weight | Approx. 560 lb (250 kg) |
| Available options | Lanyard kill switch, emission auto shutdown, Blue Sky certified engine |
| Green certifications | EPA, LEED, GS-42 |
| Model Numbers | 042-1 (Refresher) |
Technical specs may include optional equipment that is not included with all units.
Questions
Aztec Refresher: common questions
What floors is the Refresher for?
It is designed for previously polished concrete and terrazzo, and for marble with the right diamonds. It also strips and scrubs VCT with strip brushes or pads.
Can I use hybrid diamonds on marble?
No. Aztec says not to use hybrid diamonds on marble floors.
How fast is it?
Aztec rates the Refresher at up to 10,000 sq ft per hour refreshing and up to 15,000 sq ft per hour stripping.
Can it run wet and dry?
Yes. It has an 8 gal water tank for wet operations and a 2 in vacuum port for dry operations.
How do the heads change?
Each set of three heads mounts with tool-free steel lugs, so you can switch between strip brushes, Velcro diamond drivers and Mighty-Lok pad drivers on the job.
Not sure the Refresher fits your floors?
Tell our team about the floor type, its condition and the finish you want, and we will help you plan the right heads and diamonds.
