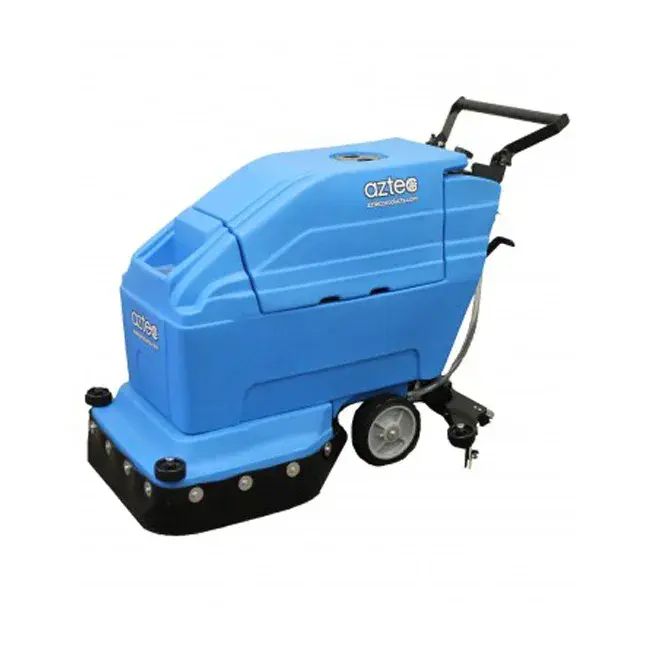

Aztec ProScrub parts list and diagrams
Every part number in Aztec's ProScrub 20 in battery walk-behind autoscrubber owner's manual, with the manual's drawings, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Complete list: every parts line in Aztec's ProScrub 20” Owner's Manual (02-2026), for the 20 in, 24 V battery-powered ProScrub walk-behind autoscrubber. Checked .
New to your ProScrub? Start here → Manuals (free sign-in) →
- Cleaning path
- 20 in (51 cm), 20 in pad or brush
- Scrubbing pressure
- 65 lb (29 kg)
- Solution tank
- 12 gal (45 L)
- Recovery tank
- 15 gal (56.8 L)
- Run time
- About 3 hours on a full charge
Wear parts most ProScrub owners reorder
Aztec's warranty treats squeegees, brushes and pads as wear parts, and its troubleshooting has you replace worn squeegee blades and a worn vacuum hose. These are the ones on the parts list, plus the float screen you clean every day.
Squeegee blade black (front)
$11.06/EASqueegee blade white (rear)
$29.75/EAcomplete squeegee assembly
$671.09/EA20” brush d (not shown)
$223.00/EA20" pad driver
$206.22/EACenter lok pad grab (not shown)
$27.86/EASqueegee vac hose
$2.83/EAHose cuffs
$3.34/EAFloat screen
$21.74/EA
Source: Aztec ProScrub 20” Owner's Manual (02-2026), pages 13, 19, 20, 23 and 25. SES ref PF-WVK4-GRNO
Your machine
How to tell which you have
- One model: this manual covers the 20 in ProScrub, a walk-behind autoscrubber that runs on two 12 V batteries (24 V), with a 20 in (51 cm) pad or brush and a 30 in (76 cm) squeegee.
- Check the size: the ProScrub is 44 in (112 cm) long, 23 in (59 cm) wide and 35 in (89 cm) tall, with a 12 gal solution tank and a 15 gal recovery tank.
- Pad or brush: the drive list has both the 20 in pad driver and the 20 in brush. Pick the one your machine runs.
How to read this list
Our part numbers are the Aztec number with AZ in front, so Aztec 030-20-103 is AZ030-20-103 and Aztec S2-47 is AZS2-47. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

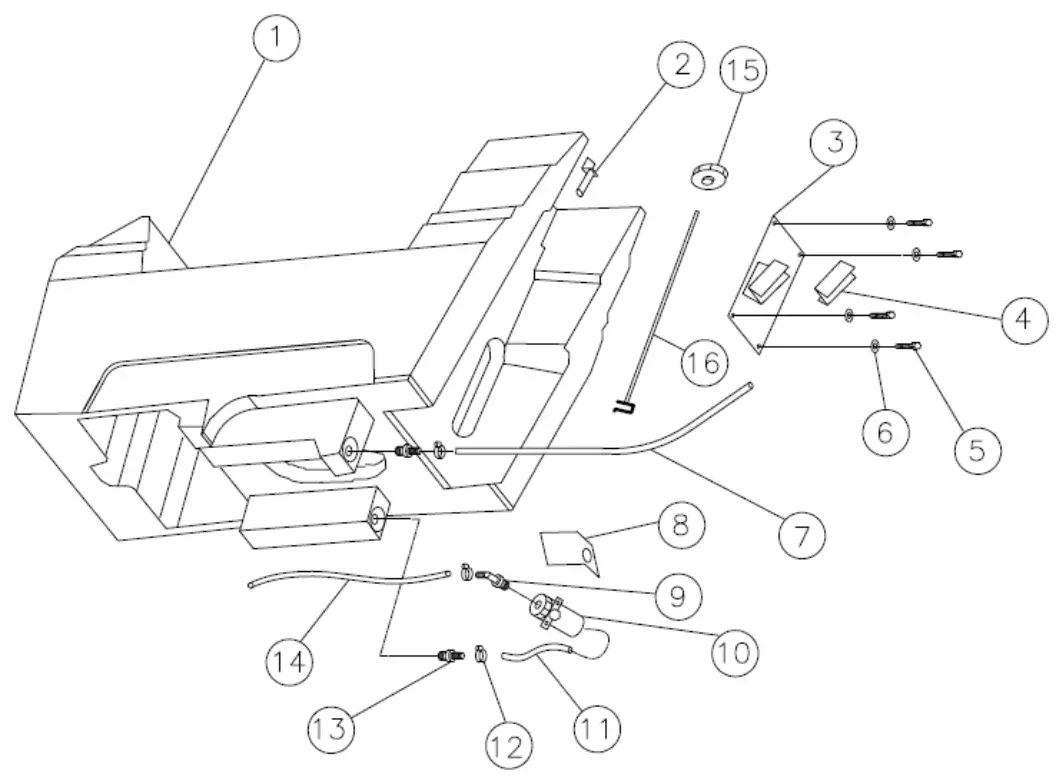

Aztec ProScrub solution tank parts
The solution tank, its hoses, fittings, solution valve, control knob and rod, and the motor lift and foot lever brackets. Manual page 16.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ108-AS-1Aztec 108-AS-1 | 1 | SOLUTION TANK | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ370-030-1000Aztec 370-030-1000 | 1 | DRAIN HOSE BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ370-030-700Aztec 370-030-700 | 1 | MOTOR LIFT ADJUST. BRKT. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ370-030-105Aztec 370-030-105 | 1 | FOOT LEVER ADJUST. BRKT. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AZ164-10111Aztec 164-10111 | 4 | 3/8 - 16*3/4" BOLT | $1.07/EA |
| 6 | AZ164-20156Aztec 164-20156 | 4 | 5/16 USS FLAT WASHER | $1.02/EA |
| 7 | AZ216-NYC0812Aztec 216-NYC0812 | 26” | DRAIN HOSE (SOLUTION TANK)Tubing cut to length: 26 in. Items 11 and 14 use the same part number. | $2.93/EA |
| 8 | AZ370-030-115Aztec 370-030-115 | 1 | BRACKET (SOLUTION VALVE) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AZ166-EL1412Aztec 166-EL1412 | 2 | VALVE FITTING | $3.03/EA |
| 10 | AZ030-20-117Aztec 030-20-117 | 1 | SOLUTION VALVE | $109.00/EA |
| 11 | AZ216-NYC0812Aztec 216-NYC0812 | 5.25” | SOLUTION HOSE PVC TUBINGTubing cut to length: 5.25 in. | $2.93/EA |
| 12 | AZ233-62PO8Aztec 233-62PO8 | 4 | HOSE CLAMP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AZ166-030Aztec 166-030 | 2 | TANK FITTING | $1.95/EA |
| 14 | AZ216-NYC0812Aztec 216-NYC0812 | 25” | SOLUTION HOSE PVC TUBINGTubing cut to length: 25 in. | $2.93/EA |
| 15 | AZ030-20-103Aztec 030-20-103 | 1 | SOLUTION CONTROL KNOB | $38.34/EA |
| 16 | AZ370-030-100Aztec 370-030-100 | 1 | SOLUTION CONTROL ROD | $32.70/EA |

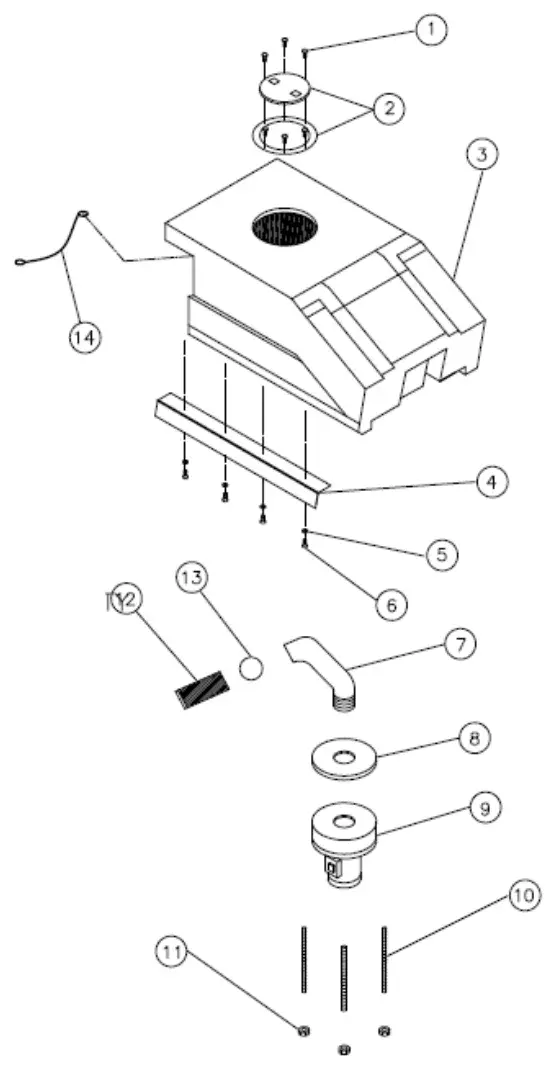

Aztec ProScrub vacuum (recovery) tank parts
The recovery tank, lid, hinge, overflow assembly, vacuum motor and gasket, float screen and ball, plus the drain hose and squeegee vacuum hose. Manual page 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZS2-67Aztec S2-67 | 6 | SCREW | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZS2-04Aztec S2-04 | 1 | 4" LID | $39.42/EA |
| 3 | AZ108-AS-2Aztec 108-AS-2 | 1 | RECOVERY TANK | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ030-20HAztec 030-20H | 1 | HINGE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AZ164-20153Aztec 164-20153 | 7 | WASHER | $1.00/EA |
| 6 | AZ164-10003Aztec 164-10003 | 7 | 1/4 - 20*1/2" BOLT | $1.01/EA |
| 7 | AZ030-20-119Aztec 030-20-119 | 1 | OVERFLOW ASSEMBLY | $39.95/EA |
| 8 | AZS2-20Aztec S2-20 | 1 | VACUUM MOTOR GASKET | $5.95/EA |
| 9 | AZ030-VAC-AAztec 030-VAC-A | 1 | VACUUM MOTOR | $210.00/EA |
| 10 | AZ164-254Aztec 164-254 | 3 | 1/4 – 20 STUD | $1.22/EA |
| 11 | AZ164-22831Aztec 164-22831 | 3 | 1/4 – 20 LOK NUT | $1.01/EA |
| 12 | AZ030-20-112Aztec 030-20-112 | 1 | FLOAT SCREEN | $21.74/EA |
| 13 | AZ030-20-111Aztec 030-20-111 | 1 | FLOAT BALL | $2.98/EA |
| 14 | AZ030-20-116Aztec 030-20-116 | 1 | SUPPORT CABLE | $13.65/EA |
| – | AZ030-20-121Aztec 030-20-121 | 1 | RECOVERY TANK DRAIN HOSENot on this drawing. Aztec prints (SEE PG 8): it is the black drain hose on the page 8 photo. | $56.69/EA |
| – | AZS2-47Aztec S2-47 | 2 FEET | SQUEEGEE VAC HOSENot on this drawing. Aztec prints (SEE PG 8). Sold by the foot (page 8). | $2.83/EA |
| – | AZS2-47-CUFFAztec S2-47-CUFF | 2 | HOSE CUFFSNot on this drawing. Aztec prints (SEE PG 8). | $3.34/EA |

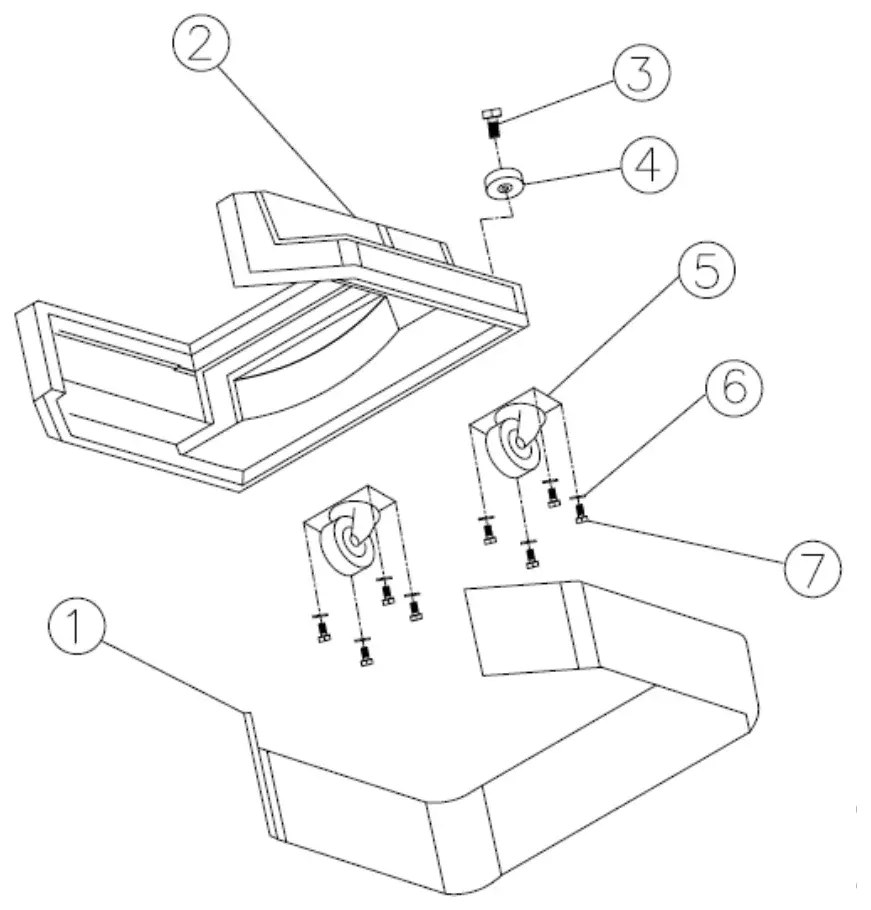

Aztec ProScrub shroud assembly parts
The splash skirt and its hardware, the brush shroud, poly wheels and swivel casters. Manual page 18.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ030-20-118Aztec 030-20-118 | 1 | SPLASH SKIRT | $44.39/EA |
| 1 | AZ164-10007Aztec 164-10007 | 2 | SPLASH SKIRT HARDWARESplash skirt hardware: Aztec prints five numbers under one description in the item 1 row. | $1.02/EA |
| 1 | AZ164-20156Aztec 164-20156 | 2 | SPLASH SKIRT HARDWARESplash skirt hardware, printed in the item 1 row. | $1.02/EA |
| 1 | AZ164-22831Aztec 164-22831 | 2 | SPLASH SKIRT HARDWARESplash skirt hardware, printed in the item 1 row. | $1.01/EA |
| 1 | AZ164-20207Aztec 164-20207 | 12 | SPLASH SKIRT HARDWARESplash skirt hardware, printed in the item 1 row. | $1.05/EA |
| 1 | AZ164-10003-SSAztec 164-10003-SS | 12 | SPLASH SKIRT HARDWARESplash skirt hardware, printed in the item 1 row. | $1.04/EA |
| 2 | AZ108-AS-20Aztec 108-AS-20 | 1 | BRUSH SHROUD | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ196-70212Aztec 196-70212 | 2 | 1 3/4" SHOULDER BOLT | $4.18/EA |
| 4 | AZ156-PB-03041-08Aztec 156-PB03041-08 | 2 | POLY WHEELThe squeegee list (page 19) prints the poly wheel as 156-PB-03041-08. Aztec prints this number as 156-PB03041-08. | $2.95/EA |
| 5 | AZ156-030Aztec 156-030 | 2 | SWIVEL CASTER | $94.70/EA |
| 6 | AZ164-20153Aztec 164-20153 | 8 | FLAT WASHER | $1.00/EA |
| 7 | AZ164-10003Aztec 164-10003 | 8 | 1/4 - 20*1/2" BOLT | $1.01/EA |

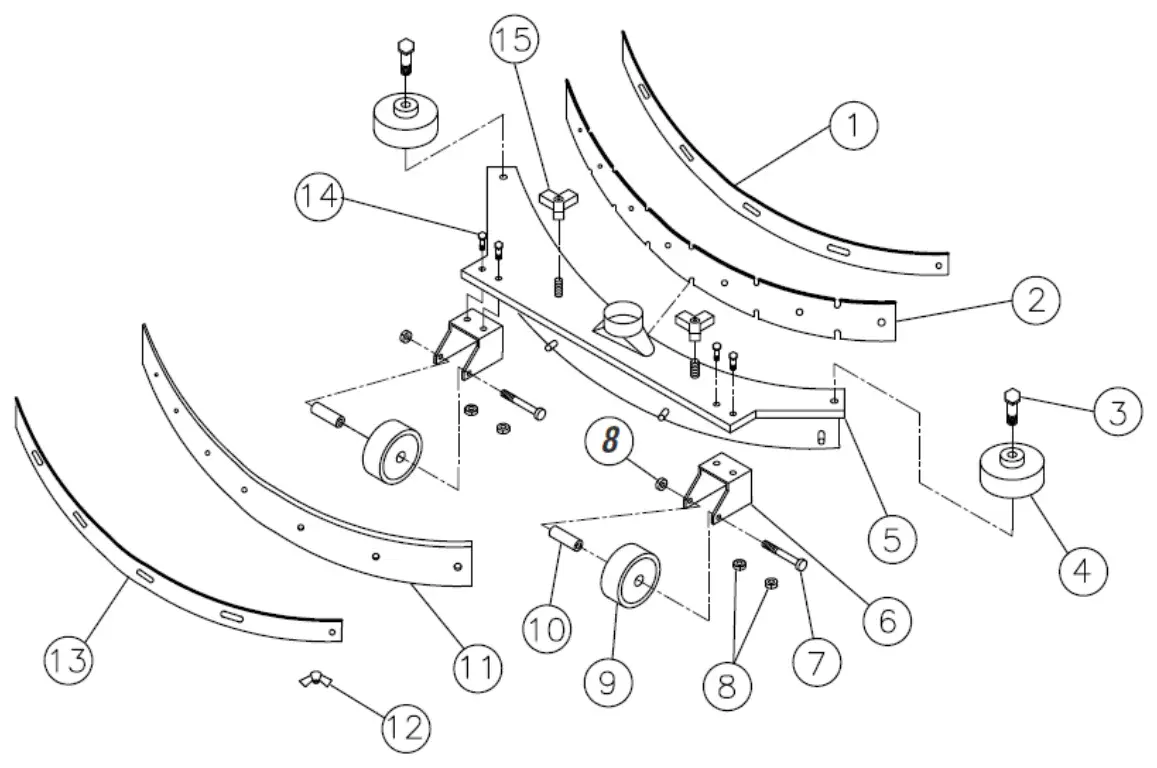

Aztec ProScrub squeegee assembly parts
The squeegee frame, front and rear blades, wheels, brackets, knobs and the complete squeegee assembly. Manual page 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ370-030-235Aztec 370-030-235 | 1 | SQUEEGEE FRONT SUPPORT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AZ030-20-SRFAztec 030-20-SRF | 1 | SQUEEGEE BLADE BLACK (FRONT) | $11.06/EA |
| 3 | AZ196-70208Aztec 196-70208 | 2 | SHOULDER BOLT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AZ156-PB-03041-08Aztec 156-PB-03041-08 | 2 | POLY WHEELThe shroud list (page 18) prints the poly wheel as 156-PB03041-08. | $2.95/EA |
| 5 | AZ370-030-200Aztec 370-030-200 | 1 | SQUEEGEE (WELDED ASSBLY) | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AZ370-030-221Aztec 370-030-221 | 2 | WHEEL BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ164-1129087Aztec 164-1129087 | 2 | WHEEL BOLT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ164-1137015Aztec 164-1137015 | 6 | WHEEL & BRACKET NUT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AZ156-030-1Aztec 156-030-1 | 2 | WHEEL | $9.05/EA |
| 10 | AZ030-20-99Aztec 030-20-99 | 4 | WHEEL BUSHING | $2.45/EA |
| 11 | AZ030-20-SRRAztec 030-20-SRR | 1 | SQUEEGEE BLADE WHITE (REAR) | $29.75/EA |
| 12 | AZ625-6477K58Aztec 625-6477K58 | 8 | WING NUT KNOB – BLACK | $4.28/EA |
| 12 | AZ164-22505Aztec 164-22505 | 8 | KNOB HEX NUTPrinted in the item 12 row with the wing nut knob. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AZ370-030-240Aztec 370-030-240 | 1 | SQUEEGEE REAR SUPPORT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | AZ164-1129061Aztec 164-1129061 | 4 | WHEEL BRACKET BOLT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | AZ030-20-104Aztec 030-20-104 | 2 | SQUEEGEE KNOB | $7.72/EA |
| – | AZ030-1000Aztec 030-1000 | complete squeegee assemblyComplete assembly. Printed as a footnote under the list: to order the complete squeegee assembly, use part # 030-1000. No quantity printed. | $671.09/EA |

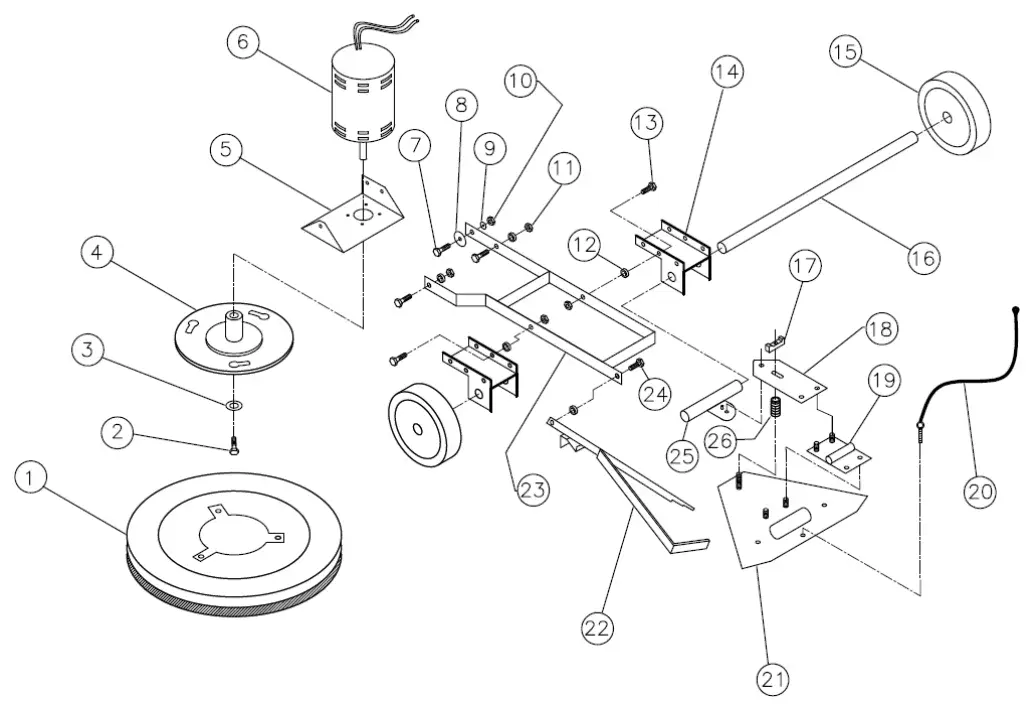

Aztec ProScrub drive assembly parts
The 20 in pad driver and brush, brush motor, chassis, 8 in wheels, axle and the squeegee lift linkage. Manual page 20.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ030-20-262Aztec 030-20-262 | 1 | 20" PAD DRIVER | $206.22/EA |
| 1A | AZ201-L800Aztec 201-L800 | 3 | PAD DRIVER LUGNot called out on the drawing. | $10.92/EA |
| 1B | AZ201-LOKAztec 201-LOK | 1 | CENTER LOK PAD GRAB (NOT SHOWN)Not shown on the drawing. | $27.86/EA |
| 1C | AZ030-BRUSHAztec 030-BRUSH | 1 | 20” BRUSH D (NOT SHOWN)Not shown on the drawing. Brush option. | $223.00/EA |
| 2 | AZ164-10059Aztec 164-10059 | 1 | 5/16 - 18*3/4" BOLT | $0.95/EA |
| 3 | AZ164-20155Aztec 164-20155 | 1 | 1/4" FLAT WASHER | $0.95/EA |
| 4 | AZ370-030-800Aztec 370-030-800 | 1 | MOTOR BRUSH ADAPTER | $134.97/EA |
| 5 | AZ370-030-130Aztec 370-030-130 | 1 | MOTOR SWIVEL PLATE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AZ030-BRUSHMAztec 030-BRUSHM | 1 | BRUSH MOTOR | $1,109.17/EA |
| 7 | AZ164-10063Aztec 164-10063 | 1 | 5/16 - 18*1" BOLT | $1.17/EA |
| 8 | AZ164-20207Aztec 164-20207 | 1 | 5/16" FENDER WASHER | $1.05/EA |
| 9 | AZ164-20156Aztec 164-20156 | 1 | 5/16" USS FLAT WASHER | $1.02/EA |
| 10 | AZ164-22833Aztec 164-22833 | 1 | 5/16 – 18 STOVER LOK NUT | $0.29/EA |
| 11 | AZ164-22836Aztec 164-22836 | 4 | 1/2 - 13 STOVER LOK NUT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | AZ030-20-100Aztec 030-20-100 | 5 | CHASSIS BUSHING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AZ164-12011Aztec 164-12011 | 4 | 1/2 - 13*1" BOLT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | AZ370-030-500Aztec 370-030-500 | 2 | CHASSIS MOUNT BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | AZ156-XA-08251-12Aztec 156-XA-08251-12 | 2 | 8" WHEEL | $42.78/EA |
| 15A | AZ164-10059Aztec 164-10059 | 2 | WHEEL BOLT HARDWARENot called out on the drawing. | $0.95/EA |
| 15B | AZ164-20207Aztec 164-20207 | 2 | WHEEL HARDWARE FENDER WASHERNot called out on the drawing. | $1.05/EA |
| 16 | AZ283-030-280Aztec 283-030-280 | 1 | AXLE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AZ164-14FNAztec 164-14FN | 1 | NUT KNOB | $1.01/EA |
| 18 | AZ370-030-250Aztec 370-030-250 | 1 | SQUEEGEE PIVOT BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | AZ030-20-106Aztec 030-20-106 | 1 | SQUEEGEE PIVOT HINGE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 20 | AZ030-20-115Aztec 030-20-115 | 1 | SQUEEGEE LIFT CABLE | $19.85/EA |
| 21 | AZ370-030-245Aztec 370-030-245 | 1 | SQUEEGEE MOUNT PLATE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | AZ370-030-600Aztec 370-030-600 | 1 | MOTOR LIFT FOOT BRACKET | $53.25/EA |
| 23 | AZ370-030-400Aztec 370-030-400 | 1 | PIVOT CHASSIS | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 24 | AZ164-10111Aztec 164-10111 | 1 | 3/8 - 16*3/4" BOLT | $1.07/EA |
| 25 | AZ370-030-900Aztec 370-030-900 | 1 | AXLE/SQUEEGEE PIVOT BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 26 | AZ030-20-105Aztec 030-20-105 | 1 | SQUEEGEE ADJ. SPRING | $3.80/EA |

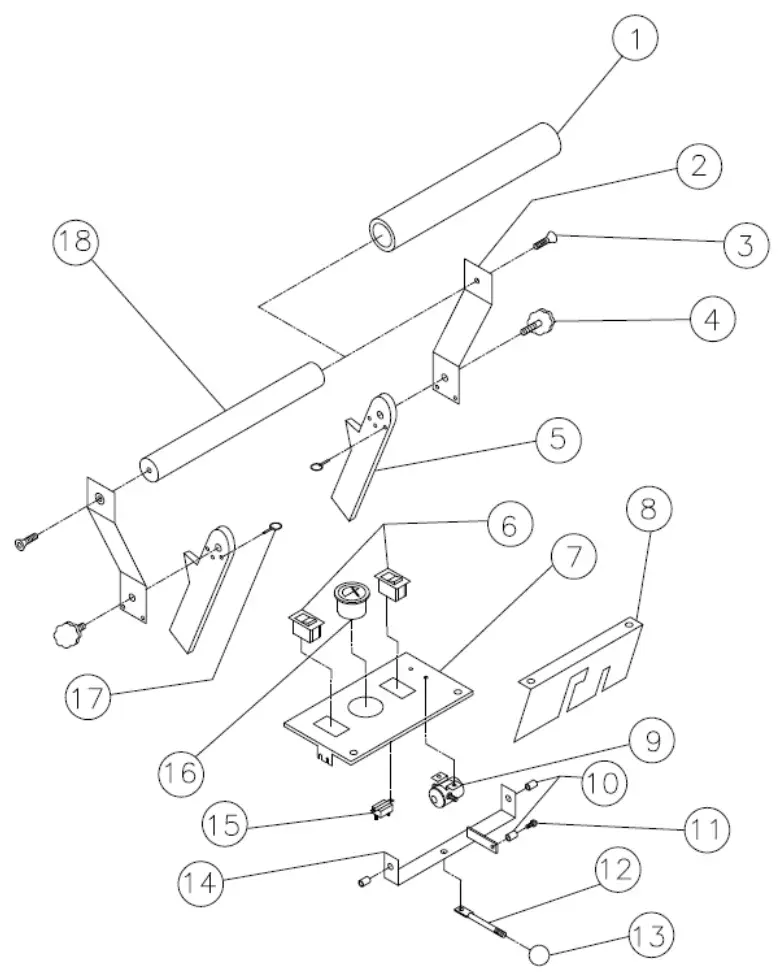

Aztec ProScrub control panel and handle parts
The handle, grips and brackets, rocker switches, solenoid, circuit breaker, battery meter and squeegee lift controls. Manual page 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ030-GRIPAztec 030-GRIP | 1.5 FT | FOAM HANDLE GRIP (SOLD BY THE FOOT)Sold by the foot. | $4.95/EA |
| 2 | AZ370-030-125Aztec 370-030-125 | 2 | HANDLE ADJUSTMENT BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ164-132DA23020PAztec 164-132DA23020P | 2 | HANDLE BOLT | $0.95/EA |
| 4 | AZ030-20-114Aztec 030-20-114 | 2 | HANDLE ADJUSTMENT KNOB | $39.43/EA |
| 5 | AZ370-030-120RAztec 370-030-120R | 1 | HANDLE BASE BRACKET - RIGHT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AZ370-030-120LAztec 370-030-120L | 1 | HANDLE BASE BRACKET - LEFTNo item number printed. Listed on the line after item 5; not called out on the drawing. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AZ030-20-108Aztec 030-20-108 | 2 | ROCKER SWITCH | $18.83/EA |
| 7 | AZ370-030-275Aztec 370-030-275 | 1 | CONTROL PANEL PLATE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AZ283-030-270Aztec 283-030-270 | 1 | SOLENOID COVER PLATE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AZ153-030Aztec 153-030 | 1 | SOLENOID | $69.86/EA |
| 10 | AZ030-20-101Aztec 030-20-101 | 3 | BUSHING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | AZ164-10007Aztec 164-10007 | 1 | BOLT | $1.02/EA |
| 12 | AZ370-030-300Aztec 370-030-300 | 1 | SQUEEGEE LIFT ARM | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | AZ030-20-102Aztec 030-20-102 | 1 | SQUEEGEE LIFT KNOB | $2.59/EA |
| 14 | AZ370-030-1100Aztec 370-030-1100 | 1 | SQUEEGEE LIFT BRACKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | AZ030-20-109Aztec 030-20-109 | 1 | CIRCUIT BREAKER | $9.95/EA |
| 16 | AZ153-314Aztec 153-314 | 1 | BATTERY CONDITION METER | $68.83/EA |
| 17 | AZ030-20-107Aztec 030-20-107 | 2 | HANDLE ADJUSTMENT PIN | $11.40/EA |
| 18 | AZ288-030-1300Aztec 288-030-1300 | 1 | HANDLE BAR (WITH FOAM GRIP INSTALLED) | $38.83/EA |

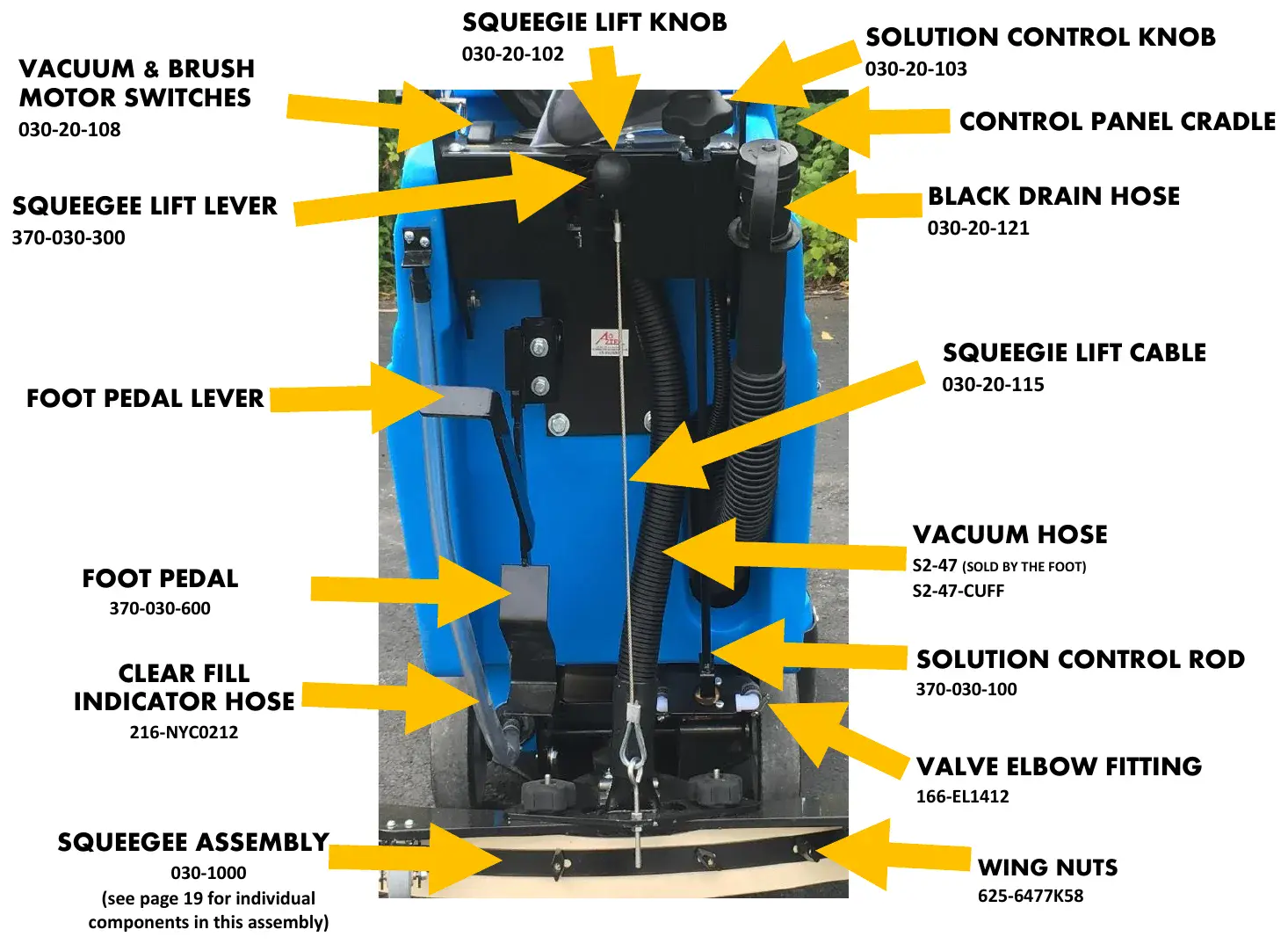

Aztec ProScrub machine overview photo parts
Aztec's labelled photo of the back of the machine: controls, hoses and the squeegee, each with its part number. Manual page 8.
Tap a part number to see that part.
| On drawing | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 030-20-102 | AZ030-20-102Aztec 030-20-102 | SQUEEGIE LIFT KNOB | $2.59/EA | |
| 030-20-103 | AZ030-20-103Aztec 030-20-103 | SOLUTION CONTROL KNOB | $38.34/EA | |
| 030-20-108 | AZ030-20-108Aztec 030-20-108 | VACUUM & BRUSH MOTOR SWITCHES | $18.83/EA | |
| – | No number printedAztec no number printed | CONTROL PANEL CRADLELabelled on the photo. Aztec prints no part number for it. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 370-030-300 | AZ370-030-300Aztec 370-030-300 | SQUEEGEE LIFT LEVER | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 030-20-121 | AZ030-20-121Aztec 030-20-121 | BLACK DRAIN HOSE | $56.69/EA | |
| 030-20-115 | AZ030-20-115Aztec 030-20-115 | SQUEEGIE LIFT CABLE | $19.85/EA | |
| – | No number printedAztec no number printed | FOOT PEDAL LEVERLabelled on the photo. Aztec prints no part number for it. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| S2-47 | AZS2-47Aztec S2-47 | VACUUM HOSESold by the foot. | $2.83/EA | |
| S2-47-CUFF | AZS2-47-CUFFAztec S2-47-CUFF | VACUUM HOSESecond number printed under the VACUUM HOSE label. Page 17 lists S2-47-CUFF as HOSE CUFFS. | $3.34/EA | |
| 370-030-600 | AZ370-030-600Aztec 370-030-600 | FOOT PEDAL | $53.25/EA | |
| 370-030-100 | AZ370-030-100Aztec 370-030-100 | SOLUTION CONTROL ROD | $32.70/EA | |
| 216-NYC0212 | AZ216-NYC0212Aztec 216-NYC0212 | CLEAR FILL INDICATOR HOSE | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 166-EL1412 | AZ166-EL1412Aztec 166-EL1412 | VALVE ELBOW FITTING | $3.03/EA | |
| 030-1000 | AZ030-1000Aztec 030-1000 | SQUEEGEE ASSEMBLYComplete assembly. See the squeegee assembly list (page 19) for its parts. | $671.09/EA | |
| 625-6477K58 | AZ625-6477K58Aztec 625-6477K58 | WING NUTS | $4.28/EA |
New to your Aztec ProScrub? Start here
Set up, run and look after your ProScrub. Everything here comes from Aztec’s owner’s manual, rewritten in plain steps, with the parts you need linked to the list above.
1Check it before every use
- Park on a level surface with the machine switch off.
- Look around and under the machine for leaks and damage. Make sure all covers are in place and all nuts, bolts and screws are tight.
- Review the maintenance schedule and do any maintenance that is due.
- Fix any problem you find, or have your service dealer fix it, before you run the machine.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), pages 6 and 9. SES ref PF-JFWD-K4TT
2Put a pad or brush on
- Empty both tanks before you tip the machine back. Liquid can spill out and damage the floor.
- Get a helper: this is a two-person job. The machine is not stable tipped back, so never leave it unattended in that position.
- For a pad, take the plastic centerlok (AZ201-LOK) off the pad driver (AZ030-20-262), center the pad and put the centerlok back on. Attach the pad before you install the driver on the motor hub.
- For a brush (AZ030-BRUSH), lower the brush head with the pedal and center the squeegee behind the machine. Tilt the machine back onto the squeegee to reach the motor hub.
- Don’t leave it tilted back longer than you need to, or you can damage the squeegee blades.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), page 6. SES ref PF-JFWD-K4TT
3Fill up and start scrubbing
- Drain the recovery tank every time before you refill the solution tank. If you don’t, foam or water gets into the vacuum standpipe, and the warranty does not cover that damage.
- Turn the solution control knob (AZ030-20-103) fully off and fill the solution tank with water and a nonflammable, non-foaming cleaner. Never use water hotter than 140°F (60°C).
- Release the squeegee lift lever (AZ370-030-300) to lower the squeegee, then push the top of the foot pedal lever forward to lower the pad or brush.
- Turn the vacuum switch on, turn the solution knob counterclockwise a little to start the flow, then turn the brush switch on.
- Push the machine forward in a straight line. Don’t stay in one spot for more than a few seconds with the brush turning, or you can damage the floor.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), pages 7, 8 and 9. SES ref PF-JFWD-K4TT
4Finish, drain, charge and store
- Turn the brush and vacuum switches off. Press the bottom of the foot pedal down until it clicks to raise the head, then lift the squeegee lever into its locked, raised position.
- Drain the recovery tank through the black drain hose (AZ030-20-121). After each use, flush both tanks with clean water and drain them completely.
- To charge, turn all switches off and open the recovery tank. Plug the charger into the scrubber first, then into a grounded wall outlet. It shuts off by itself when the batteries are full.
- When the charger has shut off, unplug it from the wall outlet first, then from the scrubber.
- Store the machine upright in a dry place with the pad and squeegee off the floor. Take the recovery tank lid off to let air in.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), pages 7, 10, 11 and 15. SES ref PF-JFWD-K4TT
Aztec ProScrub troubleshooting
Problems, likely causes and fixes from Aztec's troubleshooting page. Turn all switches off and disconnect the batteries or charger before any work.
| Likely cause | Fix | Part |
|---|---|---|
| Nothing runs | ||
| Batteries low, faulty, loose or not connected properly | Charge the batteries. Tighten the cable connections and connect the batteries properly. Replace faulty batteries. | |
| Brush motor doesn’t run | ||
| Machine circuit breaker tripped | Let the motor cool down. The circuit breaker (AZ030-20-109) resets by itself. | |
| Carbon brushes worn | Replace the carbon brushes if they are worn to 3/8 in or less. | |
| Faulty brush switch, wiring, solenoid or brush motor | Call SES service: 800-440-6723. | |
| Vacuum motor doesn’t run | ||
| Worn carbon brushes, or a faulty vacuum switch, wiring or vacuum motor | Replace carbon brushes worn to 3/8 in or less. For the switch, wiring or vacuum motor (AZ030-VAC-A), call SES service: 800-440-6723. | |
| Short run time | ||
| Batteries not fully charged, a bad cell, batteries need maintenance, or a faulty charger | Charge the batteries and follow the battery maintenance steps. Replace a battery with a bad cell, or a faulty charger. | |
| Little or no solution flow with the knob open | ||
| Solution line or solution valve clogged | Take the hose off, blow compressed air through it, then flush it with clean water. Take the solution valve (AZ030-20-117) off and clean it without scratching the inside. | |
| Rod doesn’t turn when the knob is turned | Adjust the solution control knob (AZ030-20-103) with its set screws. | |
| Poor squeegee pickup | ||
| Recovery tank full, float screen clogged, or debris in the squeegee or vacuum | Empty the tank. Take out and clean the float shutoff screen (AZ030-20-112). Clean the debris out of the squeegee and the vacuum. | |
| Worn blades, loose thumbscrews, or a loose, worn or holed vacuum hose | Replace worn front (AZ030-20-SRF) and rear (AZ030-20-SRR) squeegee blades and tighten the screws. Push the vacuum hose (AZS2-47) firmly onto its connections, or replace it if it is worn. | |
| Loose tank lid or vacuum motor, bad tank gasket, or plugged tank water inlet | Tighten the lid. Tighten the vacuum motor down, but don’t over-tighten it. Replace a bad gasket. Empty the recovery tank, tilt it sideways and flush water in to clear the inlet. | |
| Battery charge low | Don’t run the scrubber when the battery meter (AZ153-314) is in the red zone. Charge the batteries. | |
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), page 23. SES ref PF-QLDP-QXEU
Still stuck? Call 800-440-6723 and have your model and serial number ready. SES stocks Aztec parts and can help you find the cause.
Aztec ProScrub maintenance schedule
Aztec's maintenance schedule for the ProScrub. Turn all switches off and disconnect the batteries and charger before any service. Aztec says the warranty is void if the machine is not maintained as the manual says.
| Task | How often | Part |
|---|---|---|
| Take the pad or brush off and clean it. | Daily | |
| Take out the ball float shutoff screen (AZ030-20-112) in the recovery tank and clean the lint off it. | Daily | |
| Drain and rinse both tanks. Clear any debris from the vacuum intake hole in the recovery tank. | Daily | |
| Raise the squeegee and wipe it with a clean, damp cloth. | Daily | |
| Charge the batteries if needed. | Daily | |
| Flush the tanks and solution lines with 1 qt (0.94 L) of vinegar in 3 gal (11.3 L) of water, then rinse with clean water. | Weekly | |
| Clean the battery terminals to prevent corrosion. | Weekly | |
| Check for loose or corroded battery cables. | Weekly | |
| Check the battery fluid level (lead acid batteries only). | Weekly | |
| Check the fluid in lead acid batteries. If it is low, fill with distilled water to the top of the plates. Gel batteries are maintenance free. | Every 10 charges | |
| Grease the axle (AZ283-030-280) and caster (AZ156-030) grease fittings with water-resistant grease. | Monthly | |
| Spray all linkage pivot points with silicone, then coat them with water-resistant grease. | Monthly | |
| Check the scrubber for water leaks and loose nuts or bolts. | Monthly | |
| Check the carbon brushes in the brush motor (AZ030-BRUSHM). Replace them when they are worn to 3/8 in or less. | Every 250 hours | |
| Check the carbon brushes in the vacuum motor (AZ030-VAC-A). Replace them when they are worn to 3/8 in or less. | Every 250 hours |
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), pages 13, 14 and 15. SES ref PF-I25I-ZD6A
Aztec ProScrub specifications
From Aztec's owner's manual and the ProScrub spec sheet.
| Cleaning path | 20 in (51 cm), 20 in pad or brush |
|---|---|
| Scrubbing pressure | 65 lb (29 kg) |
| Brush motor | 3/4 hp, 220 rpm |
| Vacuum motor | 1/2 hp, 2-stage, 24 V |
| Solution tank | 12 gal (45 L) |
| Recovery tank | 15 gal (56.8 L) |
| Squeegee | 30 in (76 cm) reinforced steel |
| Batteries | Two 12 V, 130 Ah deep-cycle lead acid (24 V system); AGM battery package available |
| Run time | About 3 hours on a full charge |
| Charger | 24 V output, 10 to 20 A, automatic shutoff |
| Size (L × W × H) | 44 × 23 × 35 in (112 × 59 × 89 cm) |
| Weight | 330 lb; shipping weight about 360 lb (163 kg) |
| Productivity | Up to 16,000 sq ft (1,486 m²) per hour |
| Warranty | Rotational molded parts 3 years; vacuum and brush motors 1 year; batteries 1 year prorated and charger 3 years from their makers (spec sheet: 1 year) |
Sources: Aztec ProScrub spec sheet (05-2026), page 1; Aztec ProScrub 20” Owner’s Manual (02-2026), pages 5, 15 and 25. SES ref PF-FIWQ-JOY3
Aztec ProScrub manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| ProScrub owner's manualOwner's manual with parts lists, 25 pages | ProScrub 20 in | 02-2026 (this page) | 1.0 MB | Sign in to view or downloadSign in to download |
| ProScrub spec sheetSpecifications and productivity | ProScrub 20 in | 05-2026 | 0.2 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Aztec ProScrub parts questions
How long does the Aztec ProScrub run on a charge?
About 3 hours on fully charged batteries. Recharge when the battery meter drops into the red zone, and don’t keep running after that, or you will damage the batteries.
Sources: Aztec ProScrub spec sheet (05-2026), page 1; Aztec ProScrub 20” Owner’s Manual (02-2026), pages 10 and 15. SES ref PF-U2VN-ZEWA
Why is my ProScrub leaving water behind?
Empty the recovery tank if it is full and clean the ball float shutoff screen. Then check for a clogged squeegee, worn blades, loose thumbscrews and a loose or worn vacuum hose. Turning too sharply can also cause squeegee spillover.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), pages 10 and 23. SES ref PF-U2VN-ZEWA
Why did my ProScrub brush motor stop?
The machine circuit breaker may have tripped. Let the motor cool down; the breaker resets by itself. If it still won’t run, check the carbon brushes and replace them if they are worn to 3/8 in or less.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), page 23. SES ref PF-U2VN-ZEWA
Can I fill the ProScrub with hot water?
Yes, up to 140°F (60°C). Never use boiling water: it damages the tanks, and the warranty does not cover that damage.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), page 7. SES ref PF-U2VN-ZEWA
How do I take the squeegee off without tools?
Lower the squeegee to the floor with the lift lever, unscrew the two squeegee attachment knobs and disconnect the vacuum hose. Then raise the lift lever. For transport, you can set the squeegee in the control panel cradle.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), page 10. SES ref PF-U2VN-ZEWA
What batteries does the ProScrub use?
Two 12 V, 130 Ah deep-cycle lead acid batteries. Aztec also offers an AGM battery package. Check the fluid in lead acid batteries every 10 charges and top up with distilled water to the top of the plates.
Sources: Aztec ProScrub 20” Owner’s Manual (02-2026), pages 5 and 15; Aztec ProScrub spec sheet (05-2026), page 1. SES ref PF-U2VN-ZEWA
Can I use the ProScrub on a slope?
Aztec says not to use it on surfaces with a gradient over 2%. Take extreme care loading it on a ramp, and don’t turn on the ramp.
Source: Aztec ProScrub 20” Owner’s Manual (02-2026), pages 4 and 9. SES ref PF-U2VN-ZEWA
Notes on this parts list
Places where Aztec's drawings, parts lists and text disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- The page 8 photo labels parts with their part numbers but no item numbers, so it has no clickable callouts. Two labels, CONTROL PANEL CRADLE and FOOT PEDAL LEVER, have no part number; call us to confirm those parts.
- The poly wheel is printed two ways: 156-PB03041-08 in the shroud list (page 18) and 156-PB-03041-08 in the squeegee list (page 19). We link both lines to our AZ156-PB-03041-08; call us if the wheel does not match.
- Item 1C in the drive list (page 20) is printed “20” BRUSH D (NOT SHOWN)”; the description looks cut off. Items 1B and 1C are not on the drawing, and items 1A, 15A and 15B have no callout.
- The same part number appears under different names: 370-030-600 is FOOT PEDAL on page 8 and MOTOR LIFT FOOT BRACKET on page 20; 370-030-300 is SQUEEGEE LIFT LEVER on page 8 and SQUEEGEE LIFT ARM on page 21; 625-6477K58 is WING NUTS on page 8 and WING NUT KNOB – BLACK on page 19; 166-EL1412 is VALVE ELBOW FITTING on page 8 and VALVE FITTING on page 16; S2-47-CUFF is printed under VACUUM HOSE on page 8 and as HOSE CUFFS on page 17.
- 216-NYC0812 is printed for three tubing lines on page 16, cut to 26 in (drain hose), 5.25 in and 25 in (solution hose).
- Page 18 prints five splash skirt hardware numbers under item 1 with one description; each is listed here as SPLASH SKIRT HARDWARE.
- Page 21 prints HANDLE BASE BRACKET - LEFT (370-030-120L) with no item number; only the right bracket is called out (5).
- The complete squeegee assembly, 030-1000, is printed as a footnote under the page 19 list with no item number or quantity.
- The squeegee drawing (page 19) shows callout 8 twice, once circled and once as a bold 8. Both open item 8.
- Page 8 says to fill the solution tank with up to 14 gallons, but the specifications (page 5) and spec sheet give the solution tank as 12 gallons.
- The solution tank draining steps (page 8) start with the clear hose at the back, then say to rinse through and reconnect the Black Drain Hose, which is the recovery tank drain hose (030-20-121).
- Troubleshooting (page 23) says to push the solution flow lever forward; the operating steps (page 9) open the flow by turning the Solution Control Knob counterclockwise.
- The wiring diagram (page 22) shows a circuit breaker for the brush motor, one for the vacuum motor and a vac motor relay. The control panel list has one CIRCUIT BREAKER (qty 1) and no relay.
- The spec sheet gives the weight as 330 lbs (163 kg) and the shipping weight as 360 lbs (163 kg). 163 kg matches 360 lb, not 330 lb.
- The warranty (page 25) gives the vacuum and brush motors 1 year but also lists motors among the wear parts it does not cover. The spec sheet lists the warranty as 1 year.
- The batteries and charger are not on the parts lists.
- Descriptions are copied as Aztec prints them, including its spellings (for example SQUEEGIE on page 8 and ASSBLY on page 19).
