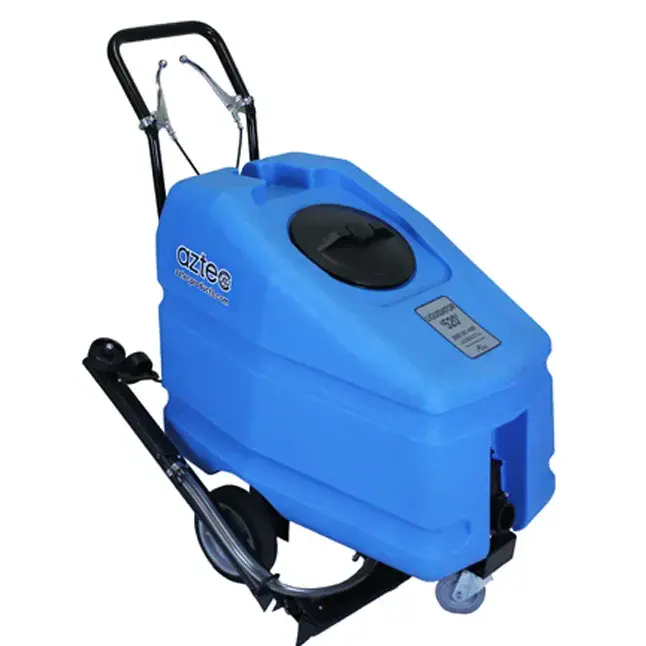

Aztec Liquidator parts list and diagrams
Every part number in Aztec's Liquidator solution applicator owner's manual, with the manual's drawing, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Complete list: every parts line in Aztec's Liquidator Owner's Manual (11-2025), for the Liquidator high speed solution applicator used with the Sidewinder WorkSmart stripping and waxing system. Checked .
New to your Liquidator? Start here → Manuals (free sign-in) →
- Productivity
- Up to 45,000 sq ft (4,180 m²) of solution per hour
- Coverage path
- 26 in (66 cm) in front of the machine; 52 in (132 cm) reach with the right manifold in use
- Tank
- 36 gal (136 L) polyethylene (page 6 says 35 gal)
- Power
- Manual: no batteries and no motor
- Warranty
- 1 year
Wear parts most Liquidator owners reorder
The spreader rubber, valve and manifold parts Aztec's troubleshooting and service pages point to, plus the wheels and caster. These are the ones on the parts list.
Spreader Rubber
$1.51/EAValve Cable
$40.85/EAValve Assembly
$99.95/EAValve Control Lever
$19.15/EAFront Manifold Assembly
$58.11/EARight Manifold Assembly
$56.48/EA4" Swivel Caster
$45.75/EA8" Wheel
$42.78/EAGuide Wheels
$2.95/EA
Source: Aztec Liquidator Owner's Manual (11-2025), pages 6, 7, 8 and 9. SES ref PF-2GAX-RZL2
Your machine
How to tell which you have
- One model: this manual covers the Liquidator high speed solution applicator, a key part of Aztec's Sidewinder WorkSmart VCT floor stripping and waxing system.
- Check the controls: two valve control levers on the handle, a front manifold, and a right manifold on an arm that springs back in narrow areas.
- No engine or battery: it is manually powered, with no batteries and no motor.
How to read this list
Our part numbers are the Aztec number with AZ in front, so Aztec 012-962C is AZ012-962C. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

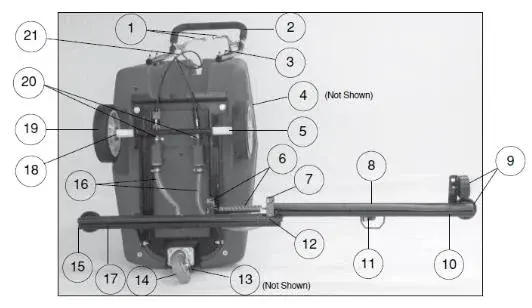

Aztec Liquidator complete machine parts
Every part Aztec lists for the Liquidator: valve control levers, valves and cables, the front and right manifolds, spreader rubber, springs, wheels, caster and tank lid. Manual page 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AZ314-J208PA-L7/8Aztec 314-J208PA-L7/8 | 2 | Valve Control Lever | $19.15/EA |
| 2 | AZ224-LQGZAztec 224-LQGZ | 1 | Handle | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AZ164-22002Aztec 164-22002 | 1 | Hex Nut | $1.01/EA |
| 4 | AZ647-60032Aztec 647-60032 | 1 | 8" Lid and RingMarked Not Shown on the drawing. | $63.93/EA |
| 5 | AZ216-PVC-3/4Aztec 216-PVC-3/4 | 1 | Wheel Spacer | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6A | AZ173-MC080011SSAztec 173-MC080011SS | 1 | Pivot Bolt SpringCallout 6 on the drawing. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6B | AZ173-MXQ11509MWAztec 173-MXQ11509MW | 1 | Arm SpringCallout 6 on the drawing. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AZ196-71200Aztec 196-71200 | 1 | Nylon Bushing | $6.55/EA |
| 8 | AZ012-52-5211RAztec 012-52-5211R | 1 | Right Manifold Assembly | $56.48/EA |
| 9 | AZ156-PB-03041-08Aztec 156-PB-03041-08 | 2 | Guide Wheels | $2.95/EA |
| 10 | AZ175-03125NAztec 175-03125N | 2.5 FT | Spreader RubberSame part number as item 17. | $1.51/EA |
| 11 | AZ166-3EL1234GAztec 166-3EL1234G | 1 | Manifold Fitting | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | AZ012-52-5210FAztec 012-52-5210F | 1 | Front Manifold Assembly | $58.11/EA |
| 13 | AZ150-i7101Aztec 150-i7101 | 1 | 1 1/2 Gate ValveMarked Not Shown on the drawing. | $37.92/EA |
| 14 | AZ156-2-4056-445Aztec 156-2-4056-445 | 1 | 4" Swivel Caster | $45.75/EA |
| 15 | AZ166-3F126Aztec 166-3F126 | 1 | 1/2 MPT End Plug | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | AZ216-0751Aztec 216-0751 | 1 | 3/4 Poly Tubing | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AZ175-03125NAztec 175-03125N | 2.5 FT | Spreader RubberSame part number as item 10. | $1.51/EA |
| 18 | AZ164-76-100Z-WZAztec 164-76-100Z-WZ | 1 | Axle Spacer Washer | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | AZ156-XA-08251-12Aztec 156-XA-08251-12 | 2 | 8" Wheel | $42.78/EA |
| 20 | AZ012-52-5270Aztec 012-52-5270 | 2 | Valve Assembly | $99.95/EA |
| 21 | AZ012-962CAztec 012-962C | 2 | Valve Cable | $40.85/EA |
New to your Aztec Liquidator? Start here
Set up, run and look after your Liquidator. Everything here comes from Aztec’s owner’s manual and spec sheet, rewritten in plain steps, with the parts you need linked to the list above.
1Check it when it arrives
- Inspect the machine for shipping damage or missing parts.
- Check the chassis: the spreader rubber (AZ175-03125N), the manifolds and the wheels.
- Look inside the tank for the handle hardware.
- Report any damage or missing parts to Aztec within seven days of receiving the machine.
Source: Aztec Liquidator Owner’s Manual (11-2025), page 4. SES ref PF-ZW6N-RKON
2Mount the handle
- Thread the studs into the four steel inserts on the back of the tank. Hand tighten only.
- Put a nylon spacer and then a steel washer on each stud.
- Fit the handle (AZ224-LQGZ) onto the studs, then add the other washers.
- Put the side arm hanger bracket on the lower right stud. Fit a hex nut on each stud and tighten it. Don’t overtighten: Aztec warns damage may occur.
- Install the valve control levers (AZ314-J208PA-L7/8) on the handle where the blue tape marks the spot, and tighten them.
Source: Aztec Liquidator Owner’s Manual (11-2025), page 5. SES ref PF-ZW6N-RKON
3Fill it and lay down solution
- Fill the tank with water and add the chemical in the amount its maker specifies. Never fill higher than 1 in (2.5 cm) below the lid opening.
- Squeeze the left valve control lever (AZ314-J208PA-L7/8) to lay a 26 in (66 cm) path in front of the machine. Squeeze the right lever to add another 26 in (66 cm) path from the right manifold (AZ012-52-5211R).
- Set the amount of solution by how far you squeeze the levers and how fast you walk. A normal walking speed works for normal jobs.
- The right arm springs back to fit narrow areas. When you finish, return the right spreader manifold to the transport position.
- Never lift the tank by the lid retainer ring. Never ride on the machine or attach a rider platform: injury and property damage may occur.
Source: Aztec Liquidator Owner’s Manual (11-2025), page 6. SES ref PF-ZW6N-RKON
4Drain, clean, move and store
- Wear eye protection and keep the chemicals off your skin. Lift the “T” handle on the discharge valve at the front of the tank. The solution comes out in a large, steady stream with some pressure.
- Tip the machine forward to drain it fully, taking care not to damage the manifolds or spreader rubber. Dispose of the dirty water and chemicals as the chemical maker recommends.
- Rinse the tank and run clean water through the manifolds. Rest the unit on its handle and rinse the wheels, chassis and spreader rubber (AZ175-03125N).
- Tip it forward and squeeze the valve control levers to drain the last of the water.
- Move it with the front swivel caster (AZ156-2-4056-445) off the ground so the spreader rubber isn’t damaged. Drain and rinse out all liquid before you store or move it in freezing conditions.
Source: Aztec Liquidator Owner’s Manual (11-2025), pages 6 and 7. SES ref PF-ZW6N-RKON
Aztec Liquidator troubleshooting
Problems, likely causes and fixes from Aztec's troubleshooting and service pages. Wear eye protection and avoid skin contact with the chemicals in the tank.
| Likely cause | Fix | Part |
|---|---|---|
| Solution keeps running | ||
| Valve not closing properly | Re-seat the valve. Take the valve cable (AZ012-962C) off the valve control lever, hold the conduit in one hand and the cable in the other, pull the cable out as far as it goes and let it snap back. Do this three times. | |
| Valve not closing properly | Check the lever adjustment. Turn the adjusting nut on the valve control lever (AZ314-J208PA-L7/8) and lock it with the jam nut. About 1/8 in (3 mm) of play is normal. | |
| Valve not closing properly | Clear debris from the valve. Squeeze the valve control lever and force water with a hose through that valve port inside the tank. | |
| Solution not spreading evenly | ||
| Tank running low | Refill the tank. | |
| Torn spreader rubber | Check the spreader rubber (AZ175-03125N) for tears and replace it if needed. | |
| Debris in the valve ports inside the tank | Check the valve ports and clear them. Squeeze that valve control lever and force water with a hose through the port. | |
| Uneven flow from a manifold | Open the valves wide and check each manifold for even flow. To clean a manifold, take off both end caps, flush it with a hose and put the caps back. | |
| Leaks | ||
| Leaking fitting | Remove the fitting, clean and smooth the surface or gasket, apply silicone and reinstall it. | |
| Body leak | Contact Aztec Products at [email protected]. | |
Source: Aztec Liquidator Owner’s Manual (11-2025), pages 6, 7 and 8. SES ref PF-EYQB-ZCOX
Still stuck? Call 800-440-6723 and have your model and serial number ready. SES stocks Aztec parts and can help you find the cause.
Aztec Liquidator maintenance schedule
Aztec's clean-up, storage and service steps. Aztec says failing to clean the Liquidator as directed voids the warranty, and asks you to keep a dated maintenance log.
| Task | How often | Part |
|---|---|---|
| Return the right spreader manifold (AZ012-52-5211R) to the transport position. | When you finish | |
| Drain the tank, then rinse it and run clean water through the manifolds. | When you finish | |
| Rinse the wheels, chassis and spreader rubber (AZ175-03125N). | When you finish | |
| Tip the unit forward and squeeze the valve control levers to drain the excess water. Aztec says failing to clean the Liquidator as directed voids the warranty. | When you finish | |
| Drain and rinse all liquid from the unit before you store or move it in freezing conditions. | Before freezing weather | |
| Check the spreader rubber (AZ175-03125N) for tears and replace it if needed. | As needed | |
| Adjust the valve control levers (AZ314-J208PA-L7/8) with the adjusting nut and lock it with the jam nut. About 1/8 in (3 mm) of play in the lever is normal. | As needed | |
| Clean each manifold: take off both end caps, flush it with a hose and put the caps back. | As needed | |
| Fix a fitting leak: remove the fitting, clean and smooth the surface or gasket, apply silicone and reinstall it. | As needed |
Source: Aztec Liquidator Owner’s Manual (11-2025), pages 6, 7 and 8. SES ref PF-5MQQ-O32I
Aztec Liquidator specifications
From Aztec's owner's manual and the Liquidator spec sheet.
| Productivity | Up to 45,000 sq ft (4,180 m²) of solution per hour |
|---|---|
| Coverage path | 26 in (66 cm) in front of the machine; 52 in (132 cm) reach with the right manifold in use |
| Narrow areas | Swing-away right arm fits areas as narrow as 26 in (66 cm) |
| Tank | 36 gal (136 L) polyethylene (page 6 says 35 gal) |
| Fill limit | No higher than 1 in (2.5 cm) below the lid opening |
| Lid opening | 8 in (20 cm) |
| Power | Manual: no batteries and no motor |
| Frame | Solid steel |
| Size (L × W × H) | 39.5 × 30 × 41 in (100 × 76 × 104 cm), with handle and arm up |
| Wheels | Two 8 in (20 cm) wheels and a 4 in (10 cm) front swivel caster |
| Shipping weight | About 135 lb (62 kg) |
| Shipping size (L × W × H) | 48 × 40 × 35 in (122 × 102 × 89 cm) |
| Recommended floors | Vinyl and ceramic tile; sealed or finished concrete; wood, stone and terrazzo |
| Warranty | 1 year |
Sources: Aztec Liquidator spec sheet (05-2026), page 1; Aztec Liquidator Owner’s Manual (11-2025), pages 4, 6, 9 and 11. SES ref PF-PC6C-6TA5
Aztec Liquidator manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Liquidator owner's manualOwner's manual with parts list, 11 pages | Liquidator | 11-2025 (this page) | 0.5 MB | Sign in to view or downloadSign in to download |
| Liquidator spec sheetSpecifications and productivity | Liquidator | 05-2026 | 0.3 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Aztec Liquidator parts questions
How much floor can the Aztec Liquidator cover in an hour?
Up to 45,000 sq ft (4,180 m²) of solution in less than an hour. The left lever lays a 26 in (66 cm) path in front, and the right lever adds another 26 in (66 cm) path from the right manifold.
Sources: Aztec Liquidator Owner’s Manual (11-2025), pages 4 and 6; Aztec Liquidator spec sheet (05-2026), page 1. SES ref PF-WNNX-Q6E5
How full can I fill the Liquidator tank?
No higher than 1 in (2.5 cm) below the lid opening. Add the chemical in the amount its maker specifies while you fill with water.
Source: Aztec Liquidator Owner’s Manual (11-2025), page 6. SES ref PF-WNNX-Q6E5
Why does solution keep running from my Liquidator?
The valve is not closing properly. Re-seat it: take the cable off the valve control lever, pull the cable out as far as it goes and let it snap back, three times. Also check the lever adjustment; about 1/8 in (3 mm) of play is normal.
Source: Aztec Liquidator Owner’s Manual (11-2025), pages 7 and 8. SES ref PF-WNNX-Q6E5
Why is my Liquidator not spreading solution evenly?
The tank may need refilling. If not, check the spreader rubber for tears, check the valve ports inside the tank for debris, and open the valves wide to check each manifold for even flow.
Source: Aztec Liquidator Owner’s Manual (11-2025), pages 6 and 7. SES ref PF-WNNX-Q6E5
How do I move the Liquidator without damaging it?
Return the right manifold to its transport position, then tip the unit back so the front swivel caster and front spreader are off the ground. This keeps the spreader rubber from being damaged.
Source: Aztec Liquidator Owner’s Manual (11-2025), page 6. SES ref PF-WNNX-Q6E5
Does the Liquidator need batteries or a motor?
No. It is manually powered, with no batteries and no motor.
Source: Aztec Liquidator spec sheet (05-2026), page 1. SES ref PF-WNNX-Q6E5
Can I store the Liquidator in freezing weather?
Drain and rinse all liquid from it first. Aztec says this is very important before you store or transport it in freezing conditions.
Source: Aztec Liquidator Owner’s Manual (11-2025), page 7. SES ref PF-WNNX-Q6E5
Notes on this parts list
Places where Aztec's drawings, parts lists and text disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Items 10 and 17 are both printed as 175-03125N, Spreader Rubber, 2.5 FT each. Both lines are listed.
- Callout 6 on the drawing has two leader lines, and the list splits it into 6A (Pivot Bolt Spring, 173-MC080011SS) and 6B (Arm Spring, 173-MXQ11509MW). The manual does not say which leader is which, so the drawing has a 6A and a 6B hotspot side by side on the one printed callout 6.
- Items 4 (8" Lid and Ring) and 13 (1 1/2 Gate Valve) each have a callout but are marked “(Not Shown)” on the drawing.
- Aztec prints item 13's number with a lowercase i: 150-i7101. It is listed as printed; call us to confirm it.
- The tank capacity is 36 gallons on page 4 and the spec sheet, but the filling step on page 6 says 35 gallons.
- Operation step 5 (page 6) says “See TROUBLESHOOTING on page 6”. Troubleshooting is on page 7.
- Item 3, Hex Nut (164-22002), is listed as qty 1. The handle setup on page 5 puts a hex nut on each of four studs; the manual does not say whether those are the same nut.
- The clean-up steps name a discharge valve with a “T” handle, and manifold service names end caps. The parts list does not use those names, so the guide does not link them to a part.
- The table of contents calls page 9 “Replacement parts and diagram”; the page itself is headed “Repair parts for Liquidator”. The manual calls the machine a solution applicator and the spec sheet calls it a solution dispenser.
- Descriptions are copied as Aztec prints them.
