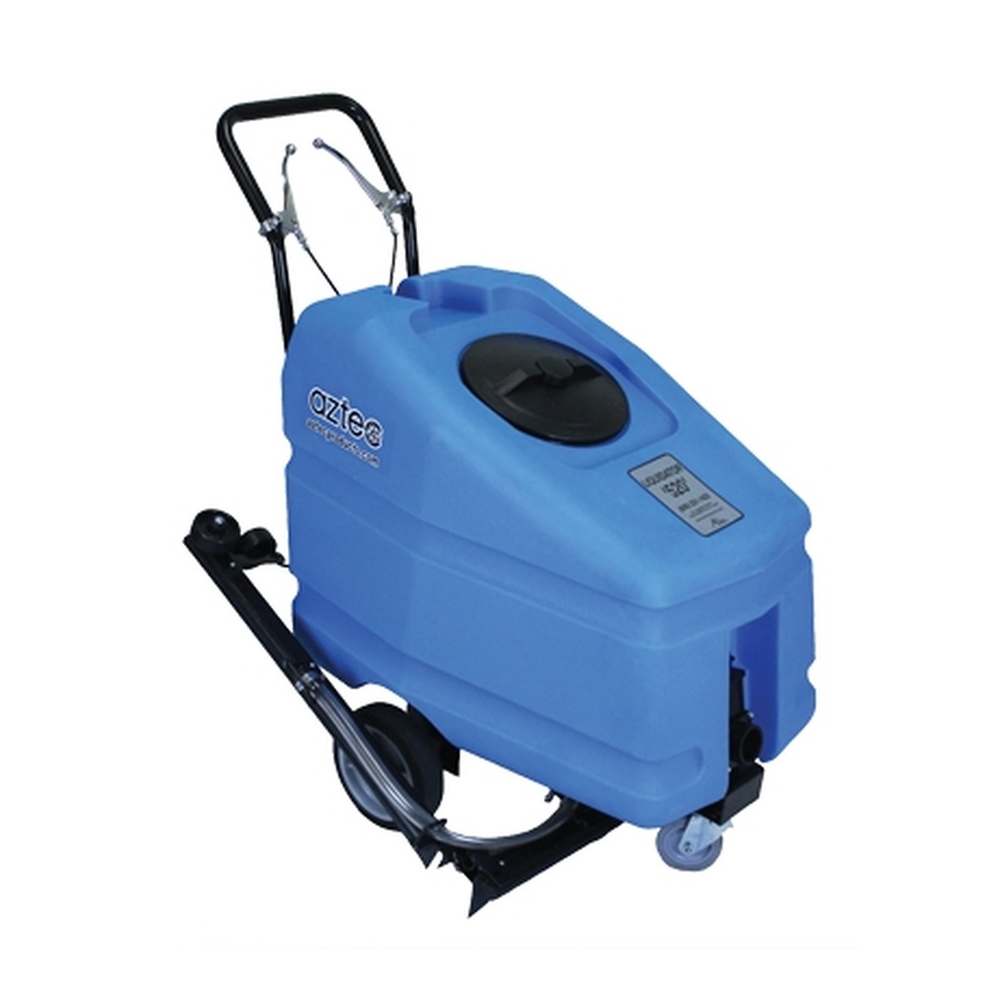

New Aztec Liquidator 520 Solution Applicator
Our Take (from the SES Sales Team)
"Looking for a way to streamline your process of stripping floor finish? The liquidator is one piece of an innovative system that can do so. One of the problems most have is spreading the stripper solution out evenly and safely -- And here is your answer to that problem! The liquidator spreads the stripper solution, the SideWinder takes up the finish and the Guzzler sucks up the nasty sludge to dump down the drain. With a 36-gallon tank, you can dispense liquid at a rate of approximately 45,000 square feet/hour. The Aztec 520 is a user-friendly method of spreading the product to increase your efficiency, and ease your workload. Simplify your process today with this versatile tool. We can order a new or recondition a used unit for you."
A 52-inch, 36-gallon walk-behind stripper applicator.
The Aztec Liquidator 520 (Aztec part 012-52) is a walk-behind, non-powered solution applicator that spreads floor stripper evenly before scrubbing. It applies solution through a 26 in front manifold plus a second 26 in spring-back right arm, for up to 52 in of coverage and up to 45,000 sq ft per hour from a 36 gal tank (35 gal working capacity).
Output is set by two hand valve levers and the operator's walking speed; there are no motors, batteries or cord, and dry weight is 90 lb. Aztec positions it as the first step of the Sidewinder WorkSmart stripping system: apply with the Liquidator, strip with the Sidewinder, pick up slurry with the Guzzler.
Features
- ✓Lays down stripper or other solution up to 52 in wide, at up to 45,000 sq ft per hour
- ✓Two independent valve levers: 26 in front path alone, or add the 26 in right swing arm for full width
- ✓Right arm springs back so the unit fits aisles and openings down to 26 in
- ✓No motors, batteries or cord: nothing to charge or plug in
- ✓36 gal tank (35 gal working fill) means fewer refills on large floors
- ✓90 lb dry weight on 8 in wheels and a front swivel caster
- ✓First step of Aztec's Sidewinder WorkSmart stripping system
Aztec Liquidator 520
Specifications
| Models | Aztec Liquidator 520 |
| Machine type | Walk-behind, non-powered stripping/solution applicator |
| Application width | 26 to 52 in (660 to 1,321 mm), adjustable |
| Front manifold path | 26 in (660 mm), left valve lever |
| Swing-arm manifold path | Additional 26 in (660 mm), right valve lever; arm springs back for narrow areas |
| Coverage rate | Up to 45,000 sq ft/hr (4,181 m²/hr) |
| Solution tank | 36 gal (136 L); 35 gal (132 L) working capacity |
| Flow control | Two hand valve levers; output set by lever and walking speed |
| Power | None (no motors, batteries or power cord) |
| Dry weight | 90 lb (41 kg) |
| Rear wheels | (2) 8 in (203 mm) |
| Front caster | (1) 4 in (102 mm) swivel |
| Tank drain | 1-1/2 in (38 mm) gate valve |
| Recommended floors | Vinyl and ceramic tile; sealed or finished concrete; wood, stone and terrazzo |
| Country of manufacture | United States |
| Model Numbers | 012-52 (Liquidator 520 / LQ520) |
Technical specs may include optional equipment that is not included with all units.
