Advance SC500 parts list and diagrams
Every part number in Advance's SC500 parts list, with the manual's drawings and the troubleshooting, maintenance and specs from the SC500 instructions for use. Each part number links to that part in our store.
Complete list: every parts line in Advance's SC500 Parts List, form no. 9099981000 (11/2014, revised 01/2018), for the SC500 Disc and REV scrubber-dryers, models 9087403020, 9087404020, 9087405020 and the older 9087352020, 9087353020, 9087354020. Checked .
New to your SC500? Start here → Manuals (free sign-in) →
- Cleaning width
- 20 in (530 mm)
- Tank capacity
- Washing water 12 US gal (45 L); recovery 12 US gal (45 L)
- Drive
- 0 to 3.1 mi/h (0 to 5 km/h), variable; 0.27 hp (200 W) drive motor
- Batteries and charger
- 24 V system; two 12 V 105 AhC5 standard batteries; on-board 24 V 13 A charger
- Weight
- 187 lb (85 kg) or 194 lb (88 kg) without batteries and with empty tanks
Wear parts for the SC500
Advance's recommended parts page lists these under Normal wear: the squeegee blades, the carbon brush kits and the elastic band for the extension cable.
Blade squeegee 740mm 29 gum kit
Call to confirm part: 800-440-6723Blade squeegee 730mm 29 pu kit
Call to confirm part: 800-440-6723Blade squeegee 730mm 29 red gum kit
Call to confirm part: 800-440-6723Carbon brushes kit 2 pcs
$97.12/EACarbon brushes kit 4 pcs
$174.60/EABand elastic f extension cable sip
$16.09/EA
Source: Advance SC500 Parts List, form no. 9099981000 (11/2014, revised 01/2018), page 42. SES ref PF-QVMT-X52W
Your machine
How to tell which you have
- Model number: the serial number plate (4) shows the model name, the model number and the year of production. Models 9087403020, 9087404020 and 9087405020 are the newer group. Models 9087352020, 9087353020 and 9087354020 are the older group, which Advance's current operator manual sends you to a previous manual for.
- Disc or REV: a Disc machine has the disc brush deck with a brush or a pad holder and pad. A REV machine has a REV deck with a REV brush or pad, and a REV button on the control panel.
- Model names: the operator manual lists three names, SC500 20D B, SC500 X20D B and SC500 X20R B. Neither manual says which model number goes with which name, so choose Not sure: show all if you can't tell.
- EcoFlex: the EcoFlex detergent tank is not fitted to the SC500 20D B. The EcoFlex lines show for both model groups.
- Many parts fit every build: only lines tagged with a version are limited to it.
How to read this list
Our part numbers are the Advance number with AD in front, so Advance 9100000810 is AD9100000810. Where Advance prints spaces inside a number (909 6380 000), our part number drops them (AD9096380000). Each line shows the item number on the drawing. Many hardware lines print no part number: Advance says to find the kit in the KIT column and order that kit, so the note on the line names the kit. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Advance SC500 general view parts

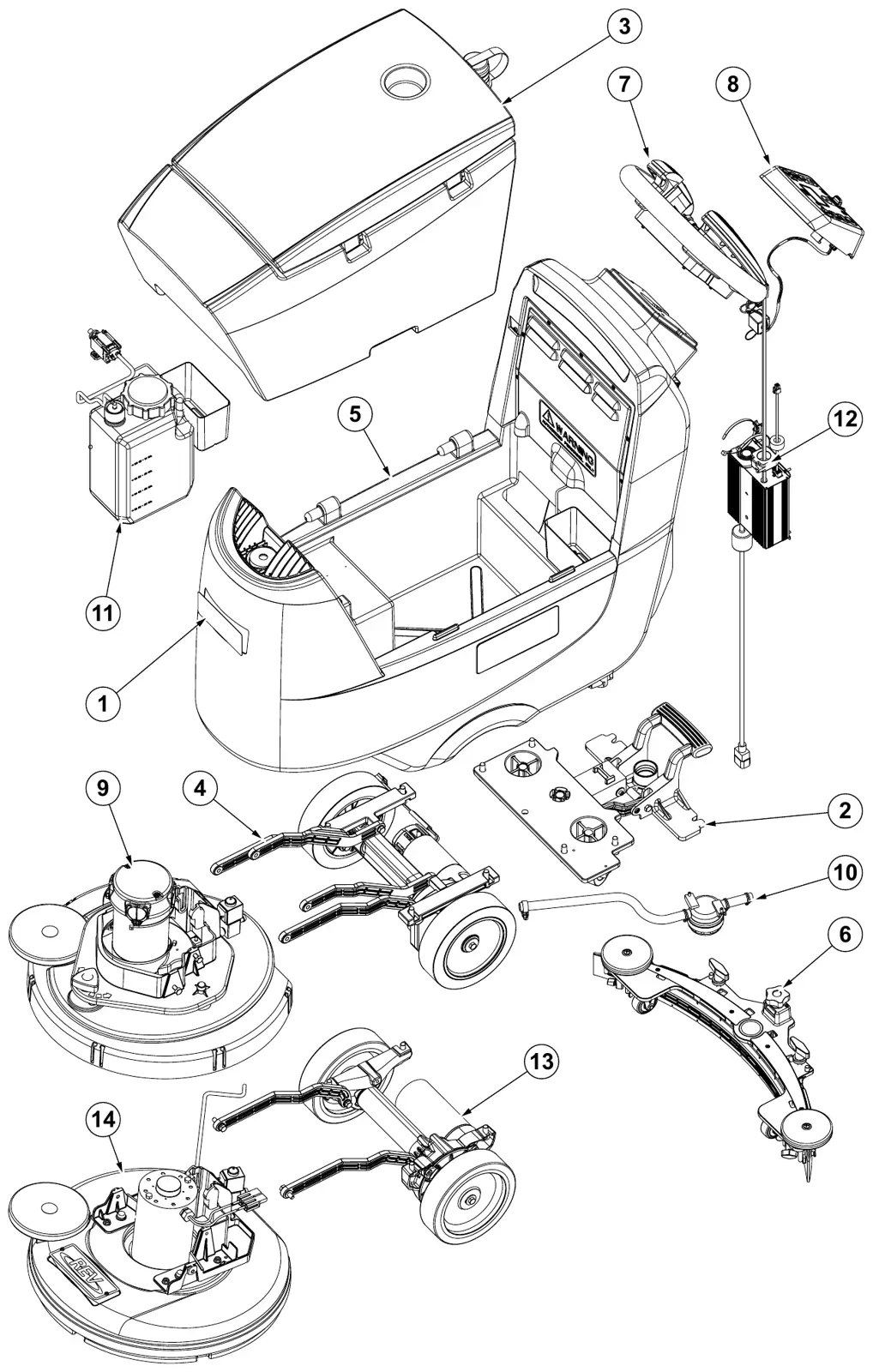

The SC500 broken into its main assemblies. Most lines name an assembly and print no part number, so use the section for that area. Manual pages 2, list 3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100002405Advance 9100002405 | 1 | DECALS ADVANCE SC500 KIT | $96.42/EA |
| 2 | No number printedAdvance no number printed | 1 | WHEELS REAR-SQUEEGEE ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | No number printedAdvance no number printed | 1 | TANK RECOVERY ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | No number printedAdvance no number printed | 1 | MOTOR DRIVE ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | No number printedAdvance no number printed | 1 | TANK SOLUTION ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | No number printedAdvance no number printed | 1 | SQUEEGEE ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | No number printedAdvance no number printed | 1 | PADDLE ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | No number printedAdvance no number printed | 1 | PANEL CONTROL ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | No number printedAdvance no number printed | 1 | DECK BRUSH ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | No number printedAdvance no number printed | 1 | SYSTEM SOLUTION ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |

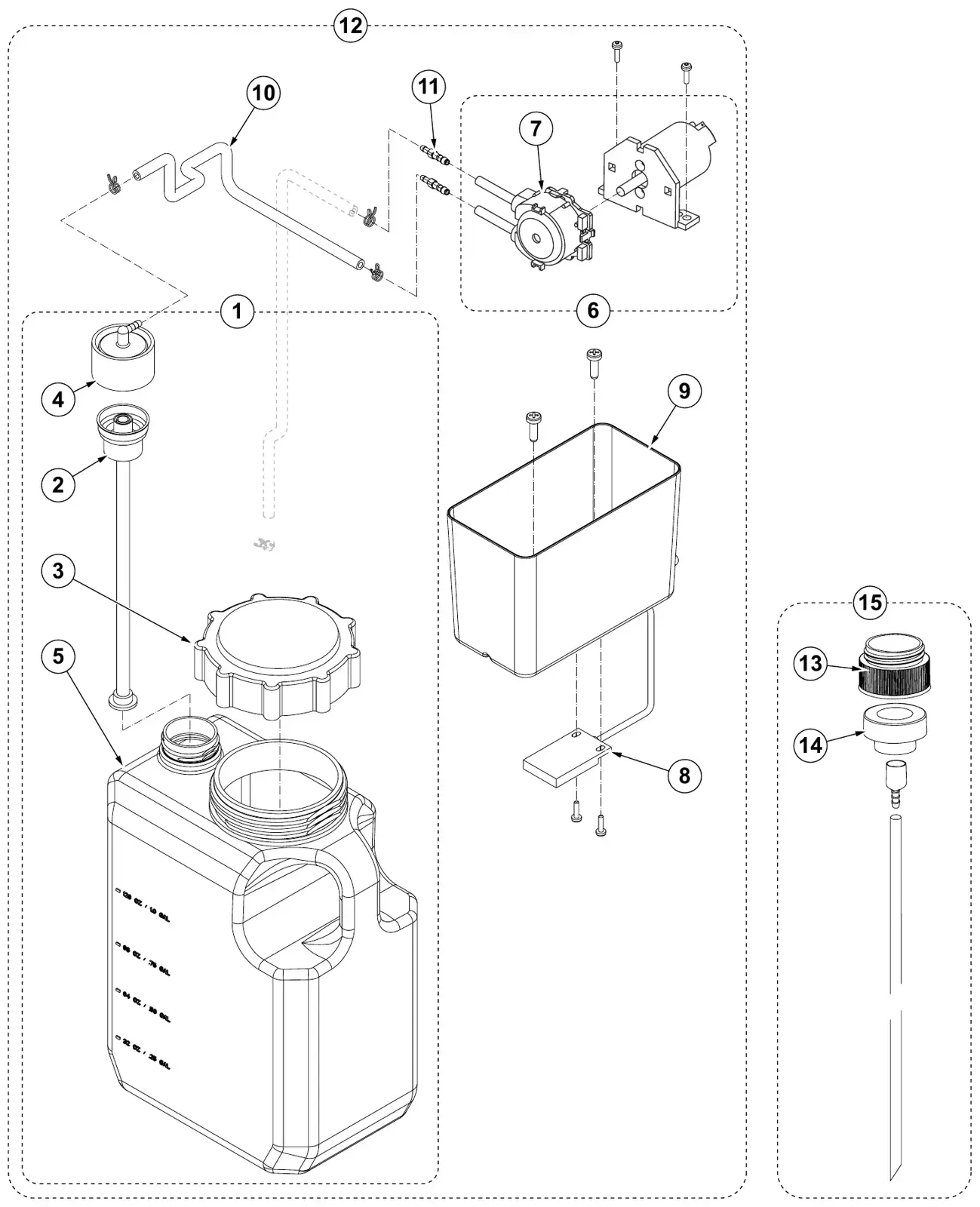

| 11 | No number printedAdvance no number printed | 1 | ECOFLEX ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | No number printedAdvance no number printed | 1 | CHARGER BATTERY ASSEMBLYNo part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 13 | No number printedAdvance no number printed | 1 | REV MOTOR DRIVE ASSEMBLYFits REV version, newer models, REV version, older models. No part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |

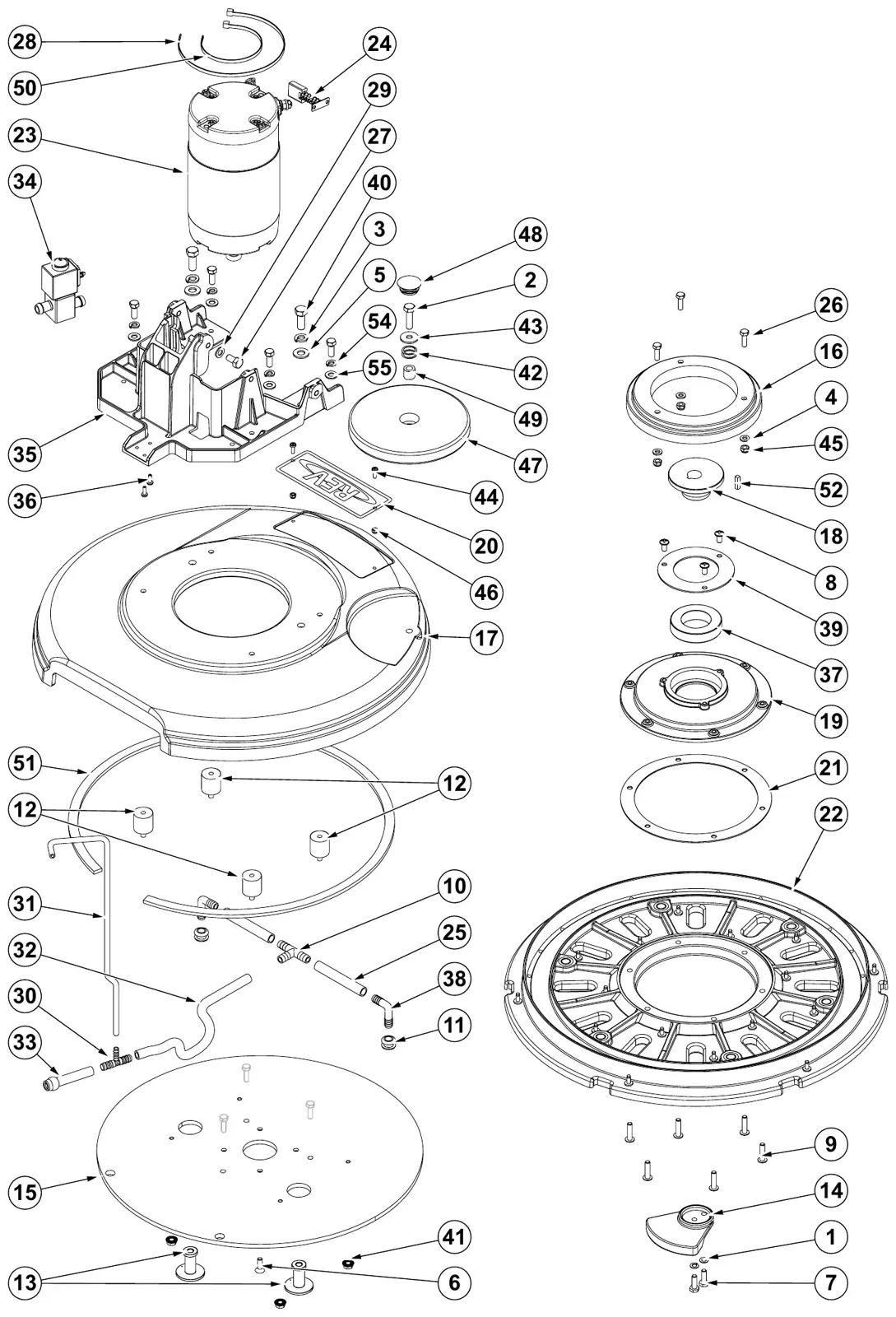

| 14 | No number printedAdvance no number printed | 1 | REV BRUSH ASSEMBLYFits REV version, newer models, REV version, older models. No part number printed (shown as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |

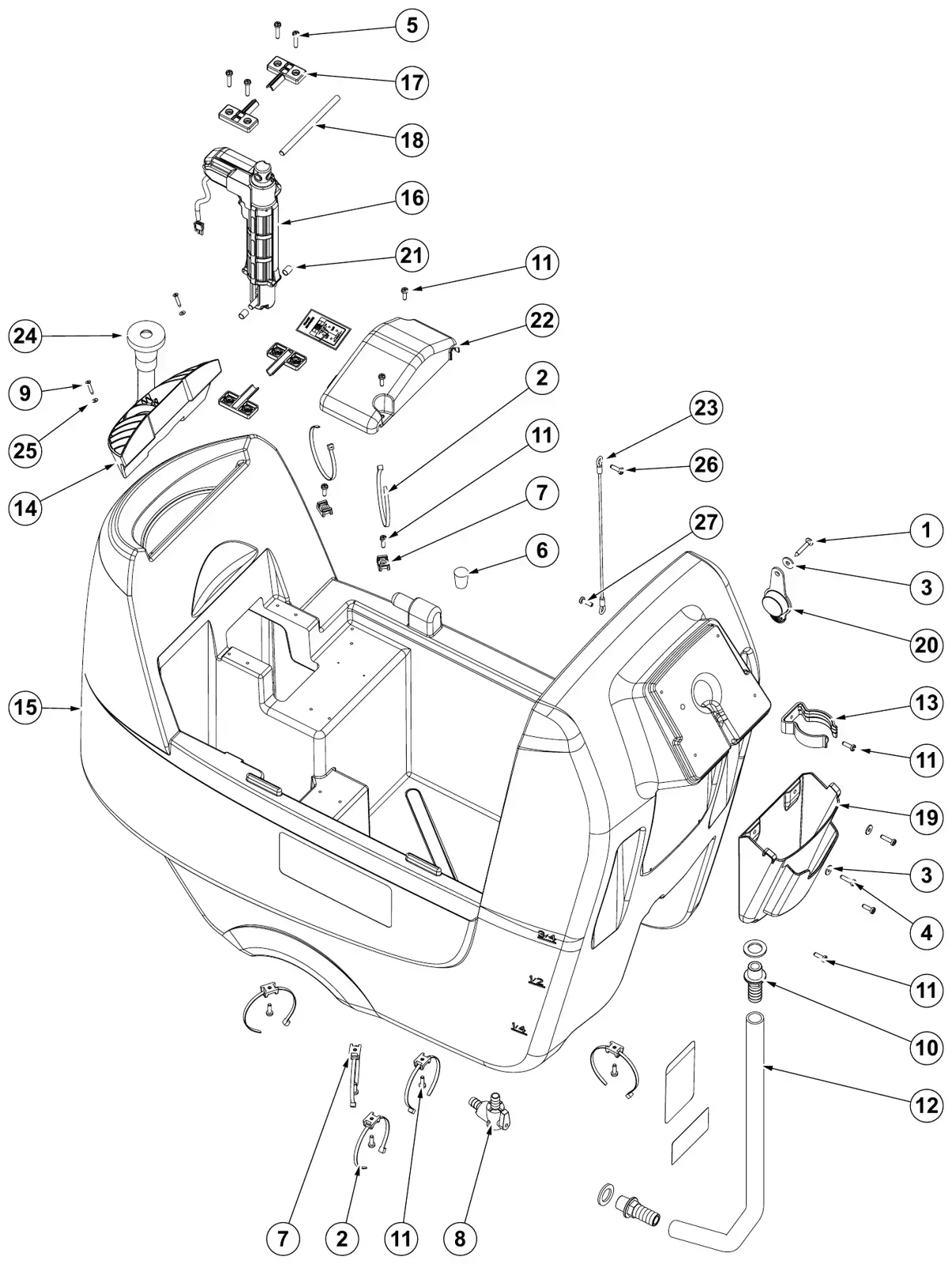

Advance SC500 solution tank system parts
The 40 L solution tank, the brush deck actuator, the water inlet filter, hoses and fittings. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | SCREW 5X35 SELF THD TAPPING AW20 BLACKIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 2 | Not sold separatelyAdvance no number printed | 8 | TIE CABLE 4.8x200 BLACKIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 3 | Not sold separatelyAdvance no number printed | 1 | WASHER 6X18X1.5 UNI6593 SSIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 4 | Not sold separatelyAdvance no number printed | 2 | SCREW CYL HD 5X20 SELF L. PLASTOFASTIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 5 | Not sold separatelyAdvance no number printed | 4 | SCREW CYL HD 5X25 SELF L. PLASTOFASTIncluded in ACTUATOR FIXING KIT 9100000737 (K1); no number printed. | Not sold separately. Order Actuator fixing kit (AD9100000737) |
| 6 | Not sold separatelyAdvance no number printed | 1 | CAP BLACKIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 7 | Not sold separatelyAdvance no number printed | 8 | HOLDER.FLAT TIEIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 8 | AD9100000803Advance 9100000803 | 1 | VALVE ELBOW SIP | $31.05/EA |
| 9 | Not sold separatelyAdvance no number printed | 2 | SCREW 3.9X22 UNI6955 SSIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 10 | AD9100000574Advance 9100000574 | 2 | FITTING STRAIGHT G1/2 D.20 KIT | $10.30/EA |
| 11 | Not sold separatelyAdvance no number printed | 13 | SCREW CYL HD 5X16 SELF L. PLASTOFASTIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 12 | AD9098446000Advance 9098446000 | 1 | HOSE SOLUTION | $8.80/EA |
| 13 | AD9096380000Advance 9096380000 | 1 | CLAMP KIT | $11.69/EA |
| 14 | AD9100000899Advance 9100000899 | 1 | FILTER WATER INLET SIP | $29.53/EA |
| 15 | AD9100000804Advance 9100000804 | 1 | TANK SOLUTION 40 LT GREY SIP | $1,367.22/EA |
| 16 | AD9100000805Advance 9100000805 | 1 | ACTUATOR LINEAR 24V DC STRK 120MM SIPFits Disc version, newer models, Disc version, older models. | $421.71/EA |
| 16 | AD9100000806Advance 9100000806 | 1 | ACTUATOR LINEAR 24V DC STRK 98MM SIPFits REV version, newer models, REV version, older models. | $429.39/EA |
| 17 | Not sold separatelyAdvance no number printed | 4 | PLATE FOR JACK MOTOR RETAINERIncluded in ACTUATOR FIXING KIT 9100000737 (K1); no number printed. | Not sold separately. Order Actuator fixing kit (AD9100000737) |
| 18 | Not sold separatelyAdvance no number printed | 1 | PIN CYLINDR. D.8X140 ISO2338 NO TEMPEREDIncluded in ACTUATOR FIXING KIT 9100000737 (K1); no number printed. | Not sold separately. Order Actuator fixing kit (AD9100000737) |
| 19 | AD9100000807Advance 9100000807 | 1 | BOX F CHARGER CABLE SIP | $27.75/EA |
| 20 | AD9100000808Advance 9100000808 | 1 | RUBBER SOLUTION CAP SIP | $17.46/EA |
| 21 | AD9100002105Advance 9100002105 | 1 | CAP D.9 PLASTIC 10 PCS SETAlso in ACTUATOR FIXING KIT 9100000737 (K1). See TSB-FC-2016-021. | $204.13/EA |
| 22 | AD9100000809Advance 9100000809 | 1 | COVER DETERGENT MIX PUMP SIP | $18.96/EA |
| 23 | Not sold separatelyAdvance no number printed | 1 | CABLE SAFETY F TANKIncluded in CABLE SAFETY F TANK KIT 9100000794 (K3); no number printed. | Not sold separately. Order Cable safety f tank kit (AD9100000794) |
| 24 | AD9100000703Advance 9100000703 | 1 | HOSE FILLING SIPOptional. See TSB-FC-2016-020. | $50.01/EA |
| 25 | Not sold separatelyAdvance no number printed | 2 | WASHER M4 UNI6592 SSIncluded in HARDWARE SOLUTION TANK KIT 9100000738 (K2); no number printed. | Not sold separately. Order Hardware solution tank kit (AD9100000738) |
| 26 | Not sold separatelyAdvance no number printed | 1 | SCREW CYL HD 5X16 SELF L. PLASTOFASTIncluded in CABLE SAFETY F TANK KIT 9100000794 (K3); no number printed. | Not sold separately. Order Cable safety f tank kit (AD9100000794) |
| 27 | Not sold separatelyAdvance no number printed | 1 | SCREW M5X16 UNI7687 SSIncluded in CABLE SAFETY F TANK KIT 9100000794 (K3); no number printed. | Not sold separately. Order Cable safety f tank kit (AD9100000794) |
| – | AD9100000737Advance 9100000737 | 1 | ACTUATOR FIXING KITNot shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $27.75/EA |
| – | AD9100000738Advance 9100000738 | 1 | HARDWARE SOLUTION TANK KITNot shown on the drawing. Kit K2: contains the lines marked K2 in this list. | $11.69/EA |
| – | AD9100000794Advance 9100000794 | 1 | CABLE SAFETY F TANK KITNot shown on the drawing. Kit K3: contains the lines marked K3 in this list. | $24.72/EA |

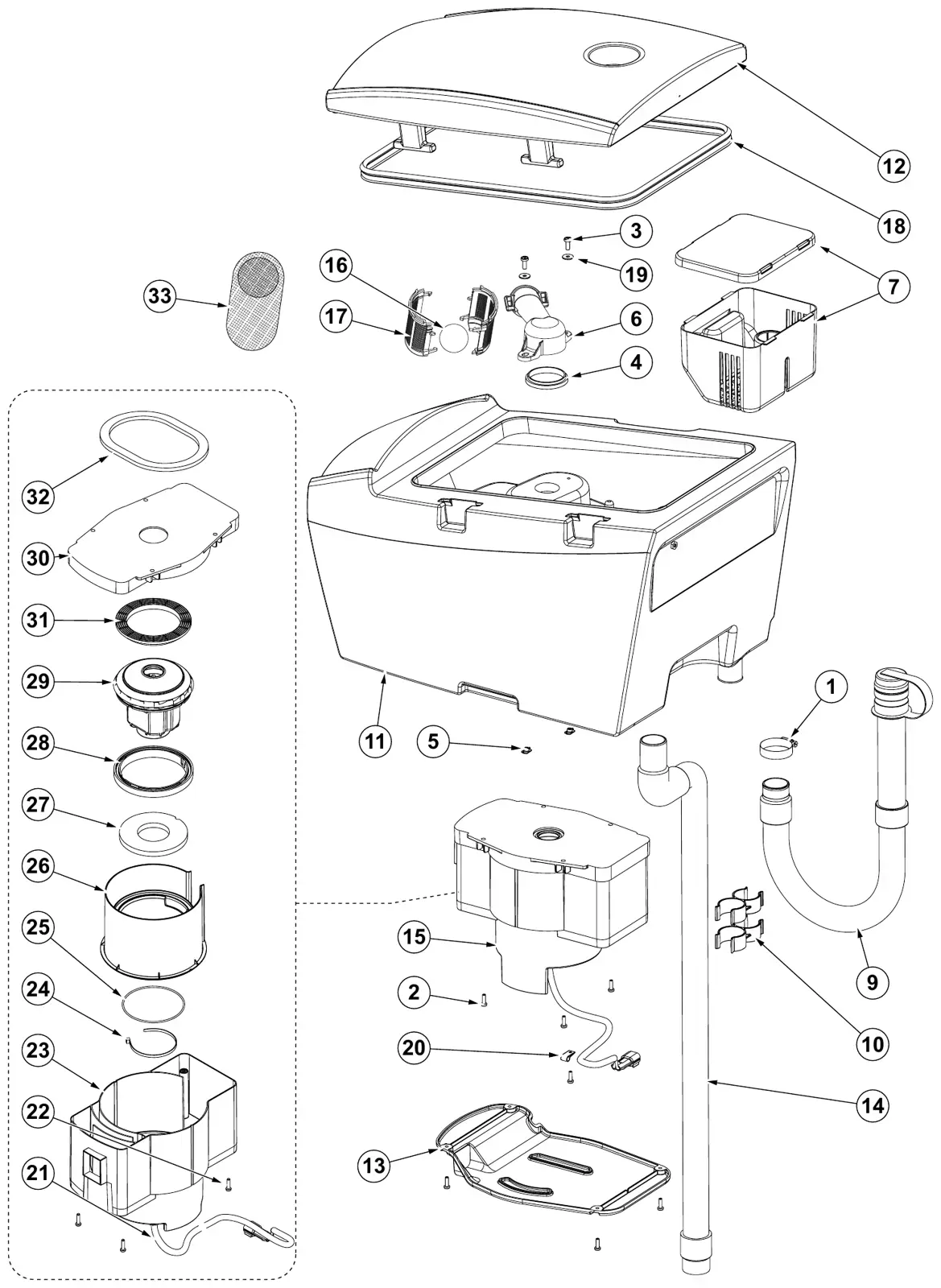

Advance SC500 recovery tank system parts
The recovery tank, its cover, gaskets, the vacuum motor and the float parts. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100001348Advance 9100001348 | 1 | CLAMP 14/32-52 10 PCS SETAlso in HARDWARE RECOVERY TANK KIT 9100000740 (K3). | $29.53/EA |
| 2 | Not sold separatelyAdvance no number printed | 9 | SCREW M5X12 UNI7687Included in HARDWARE RECOVERY TANK KIT 9100000740 (K3); no number printed. | Not sold separately. Order Hardware recovery tank kit (AD9100000740) |
| 3 | Not sold separatelyAdvance no number printed | 2 | SCREW M6X16 UNI7687 SSIncluded in SUPPORT FLOAT KIT 9100001875 (K1); no number printed. | Not sold separately. Order Support float kit (AD9100001875) |
| 4 | AD9100000928Advance 9100000928 | 1 | GASKET FLOAT SUPPORT SIPAlso in SUPPORT FLOAT KIT 9100001875 (K1). | $10.30/EA |
| 5 | Not sold separatelyAdvance no number printed | 2 | NUT JAW M6X6 INOX SSIncluded in HARDWARE RECOVERY TANK KIT 9100000740 (K3); no number printed. | Not sold separately. Order Hardware recovery tank kit (AD9100000740) |
| 6 | Not sold separatelyAdvance no number printed | 1 | CAGE FLOATIncluded in SUPPORT FLOAT KIT 9100001875 (K1); no number printed. | Not sold separately. Order Support float kit (AD9100001875) |
| 7 | AD9100000795Advance 9100000795 | 1 | TRAY DEBRIS KITOptional. Not shown on the drawing. | $35.17/EA |
| 9 | AD9100000812Advance 9100000812 | 1 | HOSE DRAIN BLACK SIP | $84.49/EA |
| 10 | AD9100000889Advance 9100000889 | 1 | CLIP HOSE STOPPING 2 PCS SET | $8.80/EA |
| 11 | AD9100000813Advance 9100000813 | 1 | TANK RECOVERY 40 LT GREY SIP | $458.25/EA |
| 12 | AD9100000814Advance 9100000814 | 1 | COVER TANK GREY SIP | $211.28/EA |
| 13 | AD9100000815Advance 9100000815 | 1 | COVER F VACUUM MOTOR SOUNDPR. SIP | $26.25/EA |
| 14 | AD9100000816Advance 9100000816 | 1 | HOSE SUCTION BLACK SIP | $74.61/EA |
| 15 | AD9100000904Advance 9100000904 | 1 | MOTOR VACUUM 24V 280W CPL KIT | $487.25/EA |
| 15 | AD9100000491Advance 9100000491 | 1 | HIGH POWER VACUUM MOTOR 24V 450W KITOptional. Installation instructions: 9100000753. | $421.71/EA |
| 16 | AD9100000817Advance 9100000817 | 1 | BALL FLOATING SIP | $11.69/EA |
| 17 | AD9100000818Advance 9100000818 | 1 | CAGE FLOAT HALF 2 PCS SET | $17.46/EA |
| 18 | AD9100000819Advance 9100000819 | 1 | GASKET BULB RUBBER L.1670MM SIP | $13.07/EA |
| 19 | Not sold separatelyAdvance no number printed | 2 | WASHER 6X18X1.5 UNI6593 SSIncluded in SUPPORT FLOAT KIT 9100001875 (K1); no number printed. | Not sold separately. Order Support float kit (AD9100001875) |
| 20 | Not sold separatelyAdvance no number printed | 1 | CLAMP CABLE BLACKIncluded in HARDWARE RECOVERY TANK KIT 9100000740 (K3); no number printed. | Not sold separately. Order Hardware recovery tank kit (AD9100000740) |
| 21 | AD9100000820Advance 9100000820 | 1 | HARNESS VACUUM MOTOR SIP | $77.47/EA |
| 22 | Not sold separatelyAdvance no number printed | 4 | SCREW CYL HD 5X20 SELF L. PLASTOFASTIncluded in HARDWARE RECOVERY TANK KIT 9100000740 (K3); no number printed. | Not sold separately. Order Hardware recovery tank kit (AD9100000740) |
| 23 | AD9100000821Advance 9100000821 | 1 | SUPPORT EXT. INSULATION VAC. MOTOR SIP | $70.45/EA |
| 24 | Not sold separatelyAdvance no number printed | 1 | TIE CABLE 4.8x200 BLACKIncluded in HARDWARE RECOVERY TANK KIT 9100000740 (K3); no number printed. | Not sold separately. Order Hardware recovery tank kit (AD9100000740) |
| 25 | Not sold separatelyAdvance no number printed | 1 | O-RING 2.5X109 EPDMIncluded in GASKETS VACUUM MOTOR KIT 9100000739 (K2); no number printed. | Not sold separately. Order Gaskets vacuum motor kit (AD9100000739) |
| 26 | AD9100000822Advance 9100000822 | 1 | SUPPORT INT. INSULATION VAC. MOTOR SIP | $27.75/EA |
| 27 | Not sold separatelyAdvance no number printed | 1 | GASKET COLLECTORIncluded in GASKETS VACUUM MOTOR KIT 9100000739 (K2); no number printed. | Not sold separately. Order Gaskets vacuum motor kit (AD9100000739) |
| 28 | Not sold separatelyAdvance no number printed | 1 | RUBBER SEALING DOMEL UPPERIncluded in GASKETS VACUUM MOTOR KIT 9100000739 (K2); no number printed. | Not sold separately. Order Gaskets vacuum motor kit (AD9100000739) |
| 29 | AD9100000823Advance 9100000823 | 1 | MOTOR VACUUM 24V 280W SIP | $189.43/EA |
| 30 | AD9100000824Advance 9100000824 | 1 | SUPP. UPPER F VAC. MOTOR SOUNDPR. SIP | $26.25/EA |
| 31 | Not sold separatelyAdvance no number printed | 1 | MOTOR GASKET LOWER DOMELIncluded in GASKETS VACUUM MOTOR KIT 9100000739 (K2); no number printed. | Not sold separately. Order Gaskets vacuum motor kit (AD9100000739) |
| 32 | Not sold separatelyAdvance no number printed | 1 | GASKET VACUUM MOTORIncluded in GASKETS VACUUM MOTOR KIT 9100000739 (K2); no number printed. | Not sold separately. Order Gaskets vacuum motor kit (AD9100000739) |
| 33 | AD9095065000Advance 9095065000 | 1 | FILTER ANTIFOAMINGOptional. | $10.30/EA |
| – | AD9100001875Advance 9100001875 | 1 | SUPPORT FLOAT KITNot shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $64.01/EA |
| – | AD9100000739Advance 9100000739 | 1 | GASKETS VACUUM MOTOR KITNot shown on the drawing. Kit K2: contains the lines marked K2 in this list. | $64.01/EA |
| – | AD9100000740Advance 9100000740 | 1 | HARDWARE RECOVERY TANK KITNot shown on the drawing. Kit K3: contains the lines marked K3 in this list. | $26.25/EA |

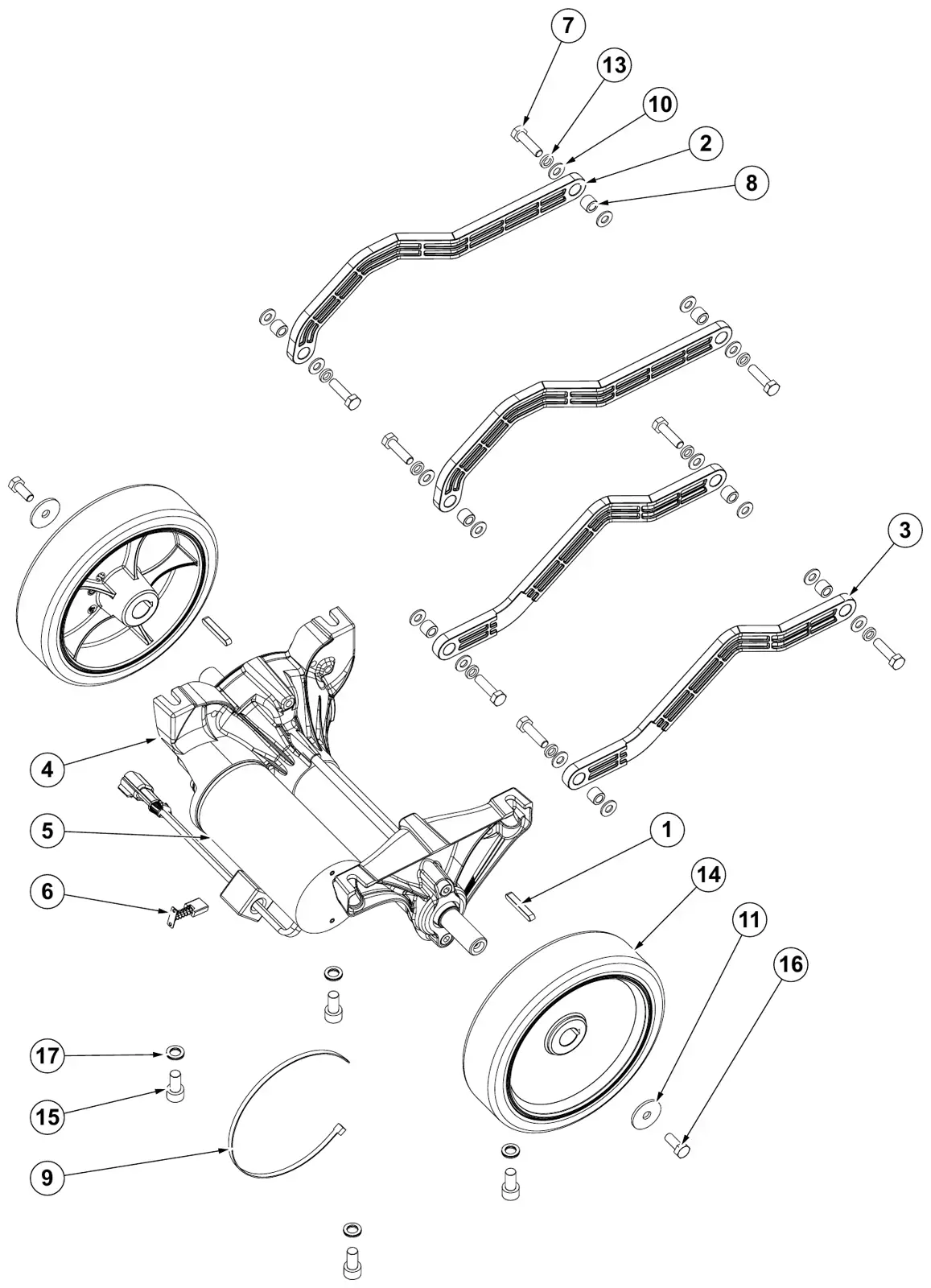

Advance SC500 motor drive system, disc parts
The drive motor, drive wheels and deck lifting levers for the Disc version. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1460769000Advance 1460769000 | 2 | KEY 6X6X40 UNI6604AFits Disc version, newer models, Disc version, older models. Also in HARDWARE DRIVE MOTOR KIT 9100000744 (K1). | $11.69/EA |
| 2 | AD9100000825Advance 9100000825 | 1 | LEVER EXT. FOR DECK LIFTING 2 PCS SETFits Disc version, newer models, Disc version, older models. | $66.90/EA |
| 3 | AD9100000826Advance 9100000826 | 1 | LEVER INT. FOR DECK LIFTING 2 PCS SETFits Disc version, newer models, Disc version, older models. | $57.03/EA |
| 4 | AD9100000827Replaces Advance 9100000743 | 1 | MOTOR DRIVE 200W 24V SIPFits Disc version, newer models, Disc version, older models. replaces Advance 9100000743. | $1,352.37/EA |
| 5 | AD9100000921Advance 9100000921 | 1 | MOTOR ELECTRIC 200W 24VFits Disc version, newer models, Disc version, older models. | $1,396.06/EA |
| 6 | AD9100000922Advance 9100000922 | 1 | CARBON BRUSHES KIT 2 PCSFits Disc version, newer models, Disc version, older models. | $97.12/EA |
| 7 | Not sold separatelyAdvance no number printed | 8 | SCREW M8X30 UNI5739Fits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 8 | Not sold separatelyAdvance no number printed | 8 | SPACER 8.1X13X10.3Fits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 9 | Not sold separatelyAdvance no number printed | 1 | TIE CABLE 4.8X430 WHITEFits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 10 | Not sold separatelyAdvance no number printed | 16 | WASHER M8 UNI6592Fits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 11 | Not sold separatelyAdvance no number printed | 2 | WASHER 8.5X32X2 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 13 | Not sold separatelyAdvance no number printed | 8 | WASHER NORD LOCK M8Fits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 14 | AD9100000830Advance 9100000830 | 2 | WHEEL D.200X50 GREY-BLACK 2 PCS SETFits Disc version, newer models, Disc version, older models. | $176.17/EA |
| 15 | Not sold separatelyAdvance no number printed | 4 | SCREW M10X25 BUTT HEX FLA 10.9 ISO7380-2Fits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 16 | Not sold separatelyAdvance no number printed | 2 | SCREW M8X20 UNI5739 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| 17 | Not sold separatelyAdvance no number printed | 4 | WASHER NORD LOCK M10Fits Disc version, newer models, Disc version, older models. Included in HARDWARE DRIVE MOTOR KIT 9100000744 (K1); no number printed. | Not sold separately. Order Hardware drive motor kit (AD9100000744) |
| – | AD9100000744Advance 9100000744 | 1 | HARDWARE DRIVE MOTOR KITFits Disc version, newer models, Disc version, older models. New or changed item number (#). Not shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $68.96/EA |

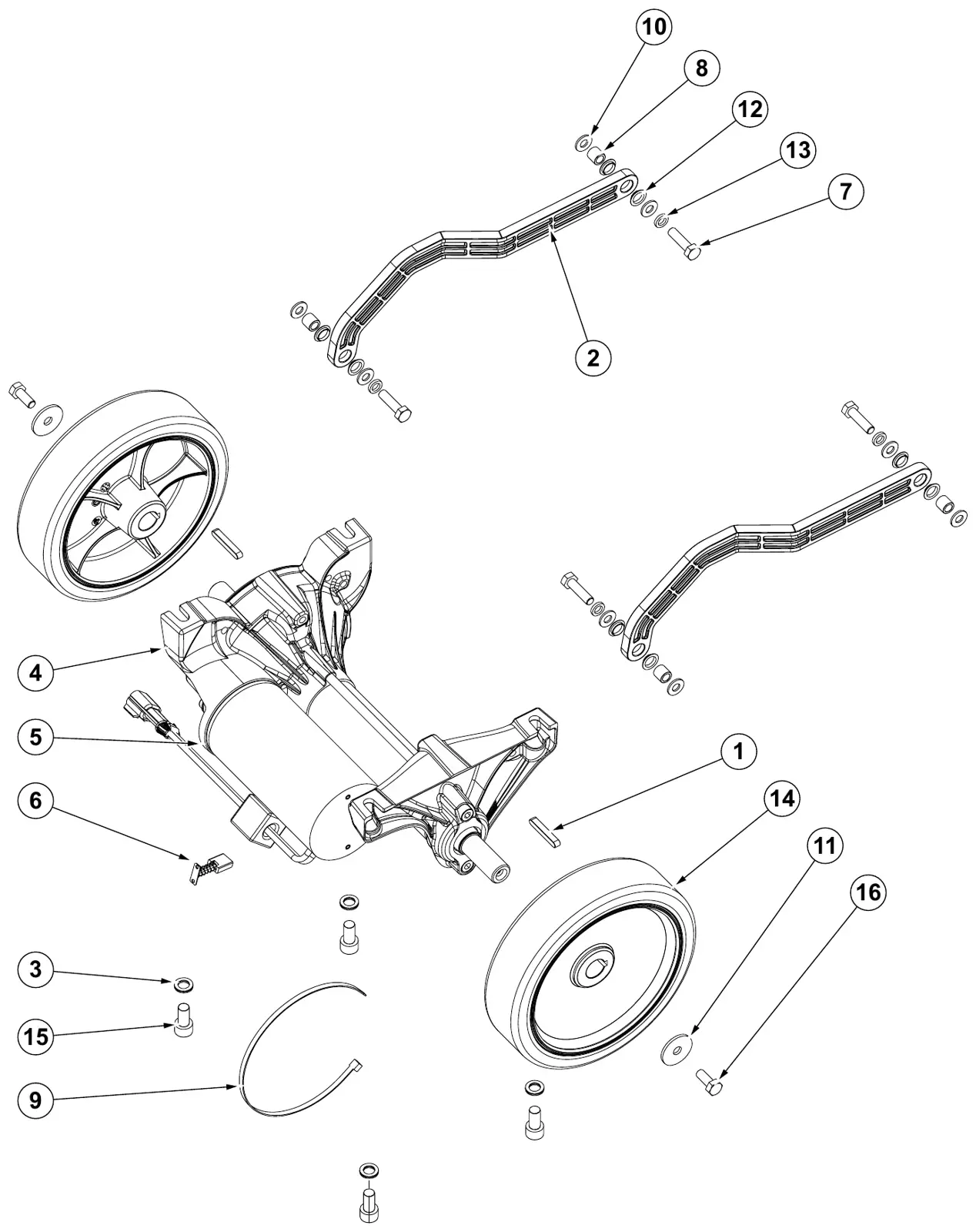

Advance SC500 motor drive system, REV parts
The drive motor, drive wheels and deck lifting lever for the REV version. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1460769000Advance 1460769000 | 2 | KEY 6X6X40 UNI6604AFits REV version, newer models, REV version, older models. Also in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1). | $11.69/EA |
| 2 | AD9100000825Advance 9100000825 | 1 | LEVER EXT. FOR DECK LIFTING 2 PCS SETFits REV version, newer models, REV version, older models. | $66.90/EA |
| 3 | Not sold separatelyAdvance no number printed | 4 | WASHER NORD LOCK M10Fits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 4 | AD9100000827Replaces Advance 9100000743 | 1 | MOTOR DRIVE 200W 24V SIPFits REV version, newer models, REV version, older models. replaces Advance 9100000743. | $1,352.37/EA |
| 5 | AD9100000921Advance 9100000921 | 1 | MOTOR ELECTRIC 200W 24VFits REV version, newer models, REV version, older models. | $1,396.06/EA |
| 6 | AD9100000922Advance 9100000922 | 1 | CARBON BRUSHES KIT 2 PCSFits REV version, newer models, REV version, older models. | $97.12/EA |
| 7 | Not sold separatelyAdvance no number printed | 4 | SCREW M8X30 UNI5739Fits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 8 | Not sold separatelyAdvance no number printed | 4 | SPACER 8.1X12X11.3Fits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 9 | Not sold separatelyAdvance no number printed | 1 | TIE CABLE 4.8X430 WHITEFits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 10 | Not sold separatelyAdvance no number printed | 8 | WASHER M8 UNI6592Fits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 11 | Not sold separatelyAdvance no number printed | 2 | WASHER 8.5X32X2 SSFits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 12 | Not sold separatelyAdvance no number printed | 8 | BEARING FLANGE IGLIDUR GFM-1213-03Fits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 13 | Not sold separatelyAdvance no number printed | 4 | WASHER NORD LOCK M8Fits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 14 | AD9100000830Advance 9100000830 | 2 | WHEEL D.200X50 GREY-BLACK 2 PCS SETFits REV version, newer models, REV version, older models. | $176.17/EA |
| 15 | Not sold separatelyAdvance no number printed | 4 | SCREW M10X25 BUTT HEX FLA 10.9 ISO7380-2Fits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| 16 | Not sold separatelyAdvance no number printed | 2 | SCREW M8X20 UNI5739 SSFits REV version, newer models, REV version, older models. Included in HARDWARE REV US DRIVE MOTOR KIT 9100002079 (K1); no number printed. | Not sold separately. Order Hardware rev us drive motor kit (AD9100002079) |
| – | AD9100002079Advance 9100002079 | 1 | HARDWARE REV US DRIVE MOTOR KITFits REV version, newer models, REV version, older models. Not shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $62.63/EA |

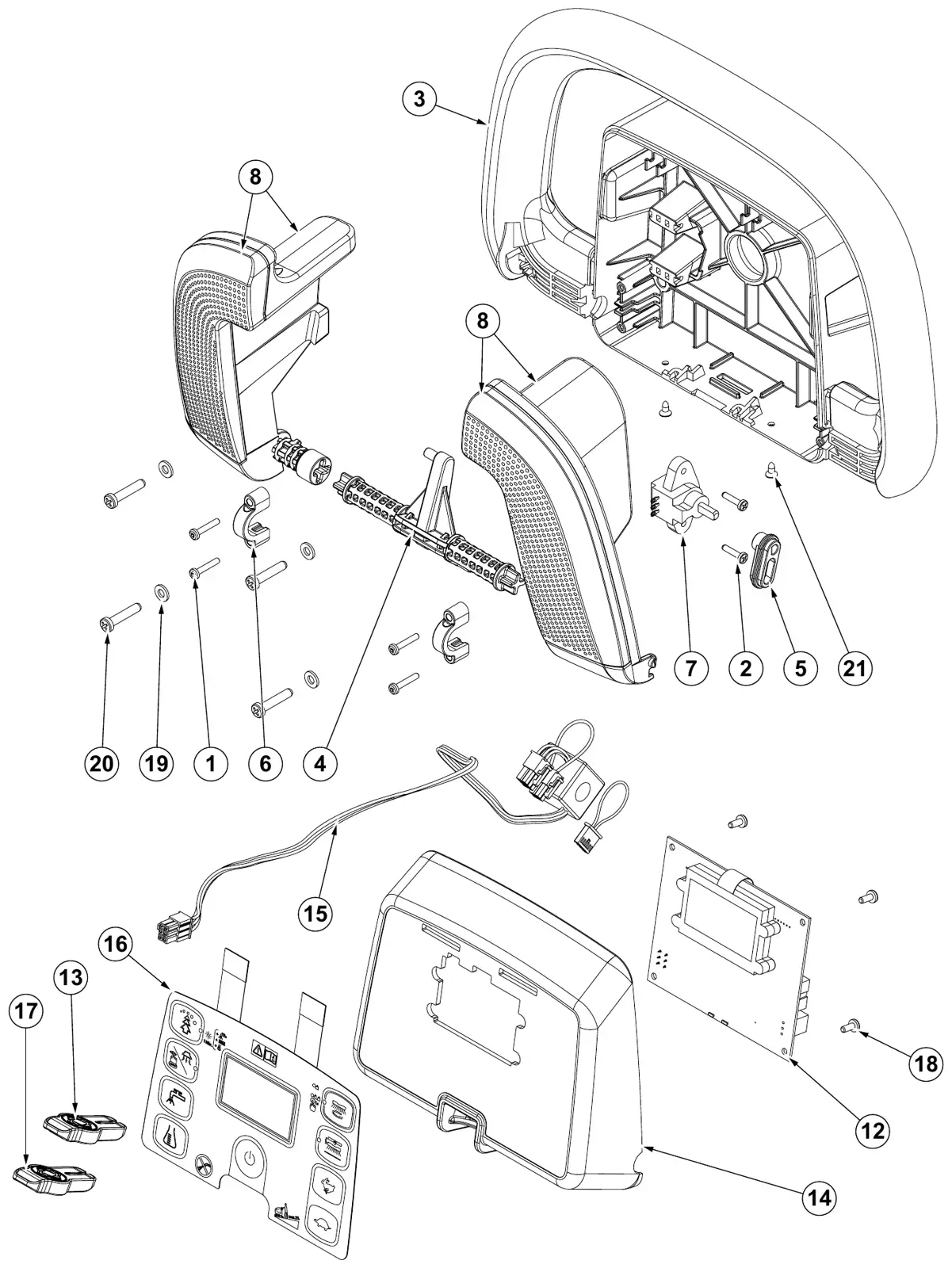

Advance SC500 paddle and dashboard system, older models parts
The handle bar, paddle levers, potentiometer and control panel for models 9087352020, 9087353020 and 9087354020. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 4 | SCREW TORX T20Fits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 2 | Not sold separatelyAdvance no number printed | 2 | SCREW 4.2X19 SELF THD HEX HD ISO10510Fits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 3 | AD9100000835Advance 9100000835 | 1 | HANDLE BAR SIPFits Disc version, older models, REV version, older models. | $189.43/EA |
| 4 | AD9100000836Advance 9100000836 | 1 | SHAFT LEVERS CONNECTION SIPFits Disc version, older models, REV version, older models. | $8.80/EA |
| 5 | Not sold separatelyAdvance no number printed | 1 | ROD POTENTIOMETERFits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 6 | Not sold separatelyAdvance no number printed | 2 | SUPPORT F LEVER CONNECTION SHAFTFits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 7 | AD9100000837Advance 9100000837 | 1 | POTENTIOMETER 5K SIPFits Disc version, older models, REV version, older models. | $141.48/EA |
| 8 | AD9100002167Advance 9100002167 | 1 | LEVERS RT-LT DRIVING PRE-ASSEMBLED SIPFits Disc version, older models, REV version, older models. | $65.52/EA |
| 12 | AD9100000842Advance 9100000842 | 1 | CARD DISPLAY SIPFits Disc version, older models, REV version, older models. | $283.67/EA |
| 13 | AD9100000843Advance 9100000843 | 1 | KEY OPERATOR COMPLETE SIPFits Disc version, older models, REV version, older models. Optional. | $21.85/EA |
| 14 | AD9100000844Advance 9100000844 | 1 | COVER HANDLE BAR SIPFits Disc version, older models, REV version, older models. | $26.25/EA |
| 15 | AD9100000845Advance 9100000845 | 1 | HARNESS CONTROL PANEL SIPFits Disc version, older models, REV version, older models. | $38.06/EA |
| 16 | AD9100000846Advance 9100000846 | 1 | DASHBOARD CONTROL PANEL SIPFits Disc version, older models. | $152.73/EA |
| 16 | AD9100000847Advance 9100000847 | 1 | DASHBOARD CONTROL PANEL SIPFits REV version, older models. | $182.30/EA |
| 17 | AD9100000848Advance 9100000848 | 1 | KEY SERVICE COMPLETE SIPFits Disc version, older models, REV version, older models. Optional. | $21.85/EA |
| 18 | Not sold separatelyAdvance no number printed | 4 | SCREW 3.9X9.5 THD FORMFits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 19 | Not sold separatelyAdvance no number printed | 4 | WASHER M6 UNI6592Fits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 20 | Not sold separatelyAdvance no number printed | 4 | SCREW CYL HD 6X30 SELF L.PLASTFits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 21 | Not sold separatelyAdvance no number printed | 2 | SCREW 3.9X9.5 UNI6955Fits Disc version, older models, REV version, older models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| – | AD9100000745Advance 9100000745 | 1 | PADDLE AND DASHBOARD FIXING KITFits Disc version, older models, REV version, older models. Not shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $18.96/EA |

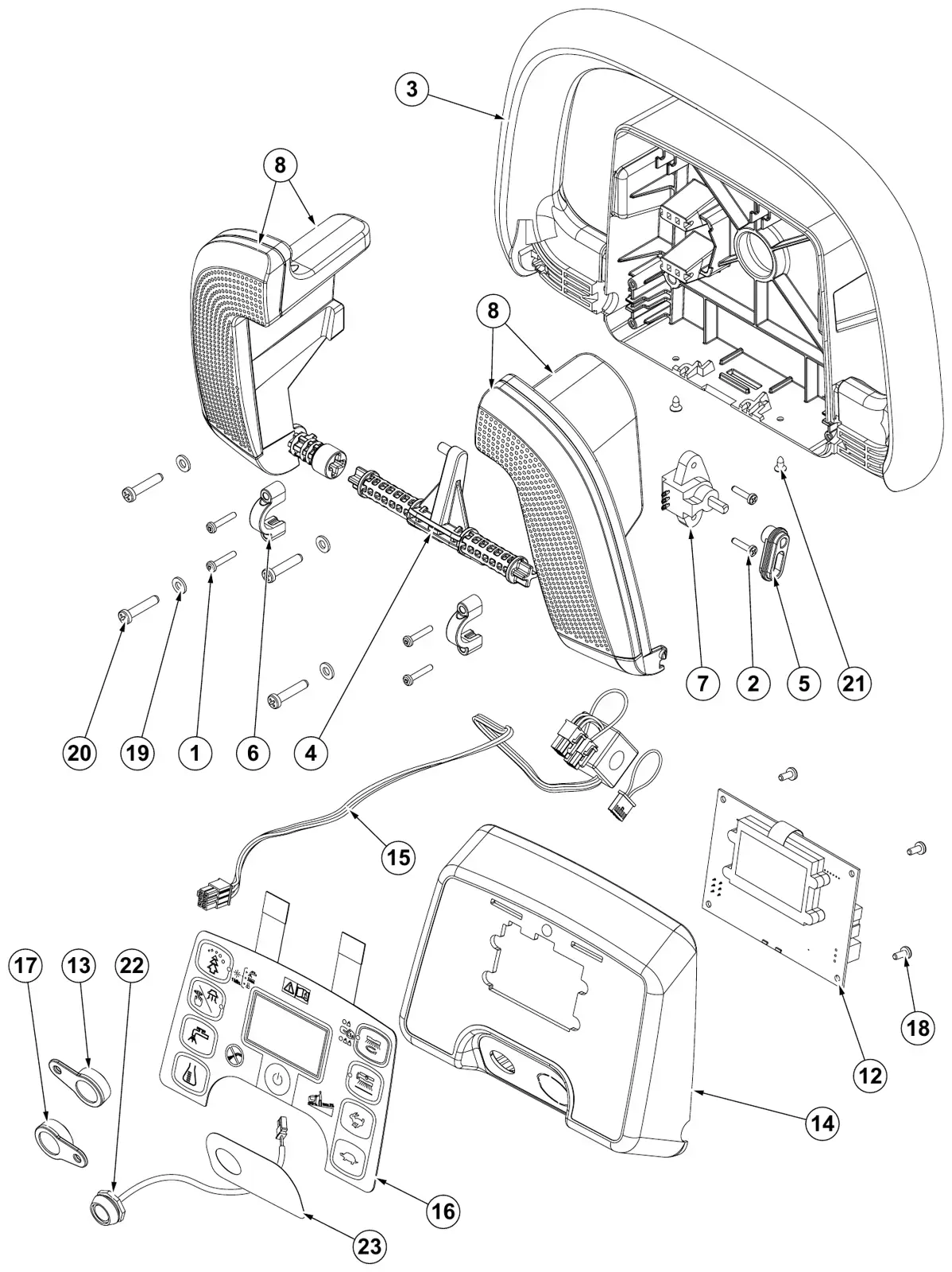

Advance SC500 paddle and dashboard system, newer models parts
The handle bar, paddle levers, potentiometer, smart keys and control panel for models 9087403020, 9087405020 and 9087404020. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 4 | SCREW TORX T20Fits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 2 | Not sold separatelyAdvance no number printed | 2 | SCREW 4.2X19 SELF THD HEX HD ISO10510Fits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 3 | AD9100000835Advance 9100000835 | 1 | HANDLE BAR SIPFits Disc version, newer models, REV version, newer models. | $189.43/EA |
| 4 | AD9100000836Advance 9100000836 | 1 | SHAFT LEVERS CONNECTION SIPFits Disc version, newer models, REV version, newer models. | $8.80/EA |
| 5 | Not sold separatelyAdvance no number printed | 1 | ROD POTENTIOMETERFits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 6 | Not sold separatelyAdvance no number printed | 2 | SUPPORT F LEVER CONNECTION SHAFTFits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 7 | AD9100000837Advance 9100000837 | 1 | POTENTIOMETER 5K SIPFits Disc version, newer models, REV version, newer models. | $141.48/EA |
| 8 | AD9100002167Advance 9100002167 | 1 | LEVERS RT-LT DRIVING PRE-ASSEMBLED SIPFits Disc version, newer models, REV version, newer models. | $65.52/EA |
| 12 | AD9100002391Advance 9100002391 | 1 | CONTROLLER DISPLAY SIPFits Disc version, newer models, REV version, newer models. | $338.54/EA |
| 13 | AD56116518Advance 56116518 | 1 | SMART KEY - USERFits Disc version, newer models, REV version, newer models. Optional. | $42.89/EA |
| 14 | AD9100002390Advance 9100002390 | 1 | COVER PLAST. F HANDLE BAR SIPFits Disc version, newer models, REV version, newer models. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15 | AD9100000845Advance 9100000845 | 1 | HARNESS CONTROL PANEL SIPFits Disc version, newer models, REV version, newer models. | $38.06/EA |
| 16 | AD9100002915Replaces Advance 9100002392 | 1 | CONTROLLER USER INTERFACE SIPFits Disc version, newer models. replaces Advance 9100002392. | $166.91/EA |
| 16 | AD9100002916Replaces Advance 9100002393 | 1 | CONTROLLER USER INTERFACE REV SIPFits REV version, newer models. replaces Advance 9100002393. | $199.17/EA |
| 17 | AD56116519Advance 56116519 | 1 | SMART KEY - SUPERVISORFits Disc version, newer models, REV version, newer models. Optional. | $53.28/EA |
| 18 | Not sold separatelyAdvance no number printed | 4 | SCREW 3.9X9.5 THD FORMFits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 19 | Not sold separatelyAdvance no number printed | 4 | WASHER M6 UNI6592Fits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 20 | Not sold separatelyAdvance no number printed | 4 | SCREW CYL HD 6X30 SELF L.PLASTFits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 21 | Not sold separatelyAdvance no number printed | 2 | SCREW 3.9X9.5 UNI6955Fits Disc version, newer models, REV version, newer models. Included in PADDLE AND DASHBOARD FIXING KIT 9100000745 (K1); no number printed. | Not sold separately. Order Paddle and dashboard fixing kit (AD9100000745) |
| 22 | AD56116477Advance 56116477 | 1 | SMART KEY - PROBEFits Disc version, newer models, REV version, newer models. | $74.61/EA |
| 23 | AD9100002399Advance 9100002399 | 1 | DECAL SMARTKEY AND USB SIPFits Disc version, newer models, REV version, newer models. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000745Advance 9100000745 | 1 | PADDLE AND DASHBOARD FIXING KITFits Disc version, newer models, REV version, newer models. Not shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $18.96/EA |

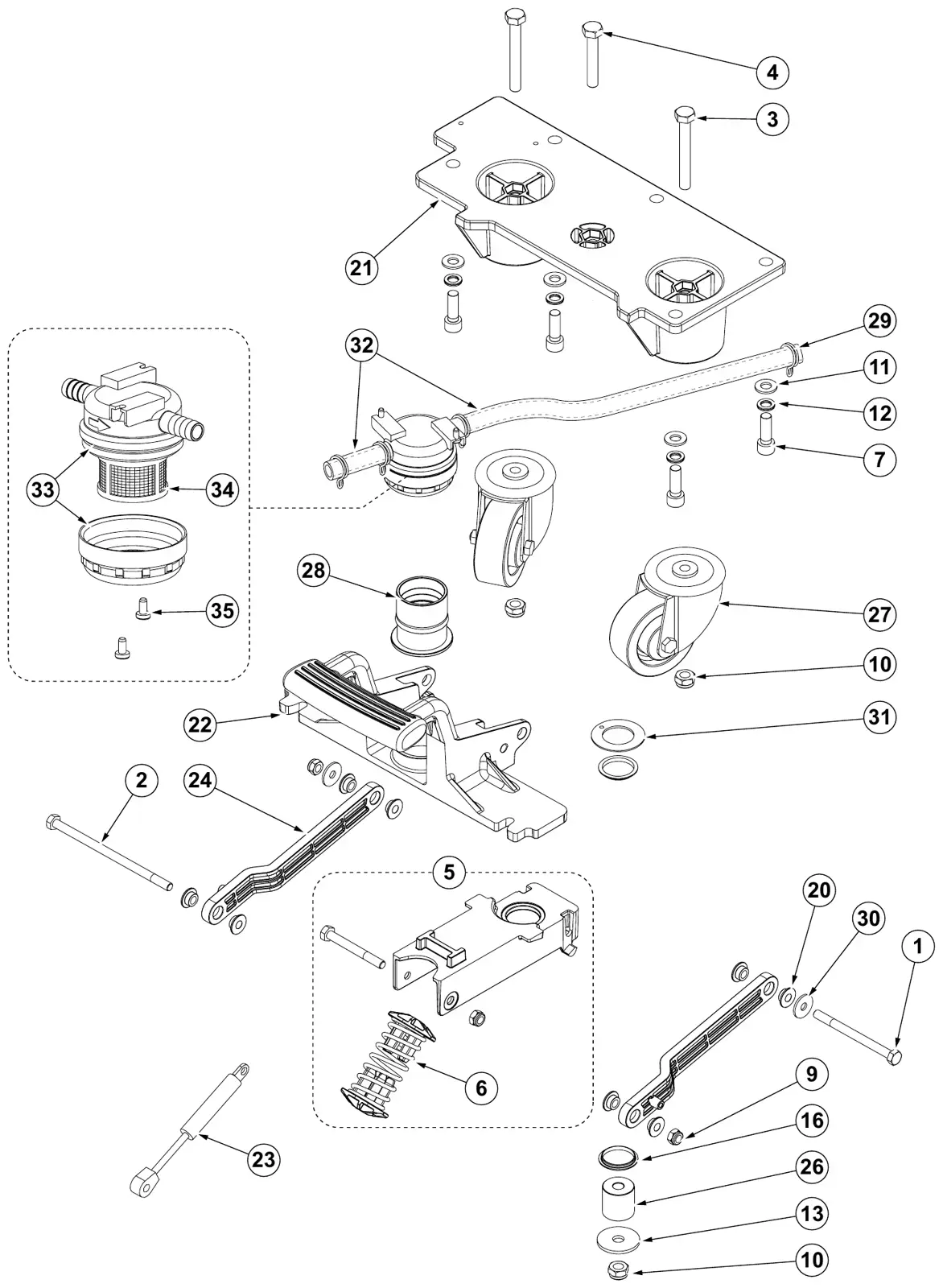

Advance SC500 rear wheels system parts
The rear wheel and squeegee support, squeegee lift lever, gas spring and the washing water filter. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | SCREW M8X100 UNI5737Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 2 | Not sold separatelyAdvance no number printed | 1 | SCREW M8X140 HEX HD ISO4014Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 3 | Not sold separatelyAdvance no number printed | 2 | SCREW M10X80 UNI5739Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 4 | Not sold separatelyAdvance no number printed | 1 | SCREW M10X60 UNI5739Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 5 | AD9100002400Advance 9100002400 | 1 | SUPPORT UPPER F SQUEEGEE KITInstallation instructions: 9100002404. | $74.61/EA |
| 6 | AD9100002401Advance 9100002401 | 1 | SPRING WITH TERMINALS KIT | $31.05/EA |
| 7 | Not sold separatelyAdvance no number printed | 4 | SCREW M10X30 UNI5931Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 9 | Not sold separatelyAdvance no number printed | 2 | NUT SELF L. M8 UNI7474Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 10 | Not sold separatelyAdvance no number printed | 3 | NUT SELF L. M10 UNI7474Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 11 | Not sold separatelyAdvance no number printed | 4 | WASHER M10 UNI6592Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 12 | Not sold separatelyAdvance no number printed | 4 | WASHER NORD LOCK M10Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 13 | Not sold separatelyAdvance no number printed | 1 | WASHER 10X40X2.5 UNI6593Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 16 | AD9100000902Advance 9100000902 | 2 | BEARING FLANGE IGLIDUR 2 PCS SETAlso in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1). | $10.30/EA |
| 20 | Not sold separatelyAdvance no number printed | 8 | BUSHING FLANGEDIncluded in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 21 | AD9100000851Advance 9100000851 | 1 | SUPPORT REAR WHEELS-SQUEEGEE SIP | $88.73/EA |
| 22 | AD9100000853Advance 9100000853 | 1 | SUPPORT LOWER F SQUEEGEE SIP | $66.90/EA |
| 23 | AD9100000855Advance 9100000855 | 1 | SPRING GAS 30 KG SIPFits Disc version, older models, REV version, older models. See TSB-FC-2016-259. | $83.12/EA |
| 24 | AD9100000854Advance 9100000854 | 1 | LEVER SQUEEGEE LIFT 2 PCS SET | $52.74/EA |
| 26 | Not sold separatelyAdvance no number printed | 1 | SPACER 10.5X30X30.3Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 27 | AD9100000856Advance 9100000856 | 1 | WHEEL PIVOTING 2 PCS SET | $85.85/EA |
| 27 | AD9100001581Advance 9100001581 | 1 | WHEEL CASTOR D.80 SS 2PCS SETOptional. | $436.56/EA |
| 28 | AD9100002396Advance 9100002396 | 1 | SLEEVE RUBBER BLACK F SUCTION HOSE SIP | $11.69/EA |
| 29 | Not sold separatelyAdvance no number printed | 4 | CLAMP DOUBLE WIRE SPRING D.18Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 30 | Not sold separatelyAdvance no number printed | 2 | WASHER 8X24X2 FLAT ISO7093Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| 31 | AD9100000903Advance 9100000903 | 1 | WASHER THRUST GTM 3254-015 SIPAlso in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1). | $10.30/EA |
| 32 | AD9100000796Advance 9100000796 | 1 | HOSES SOLUTION SYSTEM KIT | $8.80/EA |
| 33 | AD9100000860Advance 9100000860 | 1 | FILTER WATER SIP | $35.50/EA |
| 34 | AD9100000861Advance 9100000861 | 1 | NET WATER FILTER REINFORCED SIP | $32.34/EA |
| 35 | Not sold separatelyAdvance no number printed | 2 | SCREW M5X10 DIN7500Included in SUPPORT SQUEEGEE FIXING KIT 9100000746 (K1); no number printed. | Not sold separately. Order Support squeegee fixing kit (AD9100000746) |
| – | AD9100000746Advance 9100000746 | 1 | SUPPORT SQUEEGEE FIXING KITNot shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $66.90/EA |

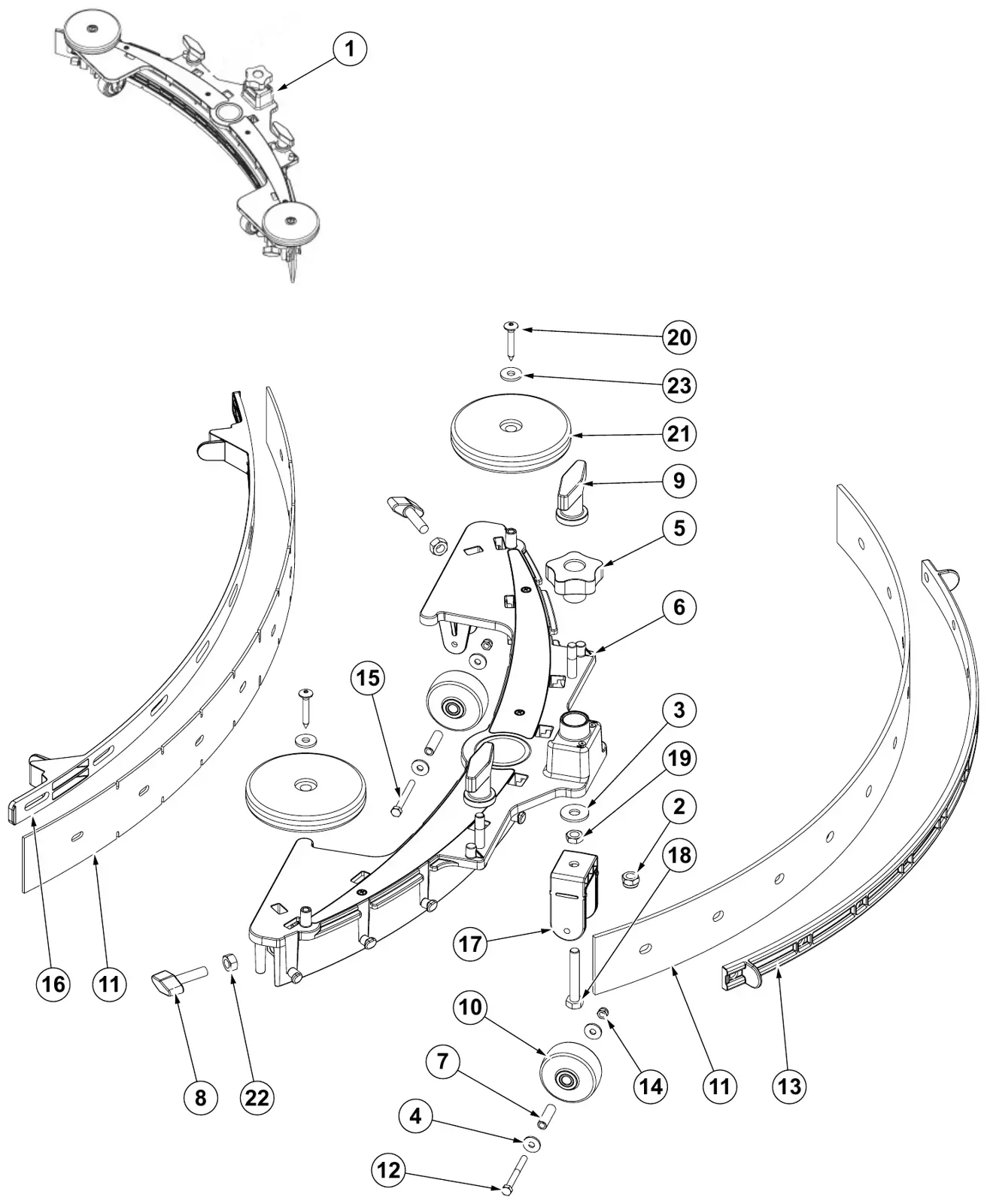

Advance SC500 squeegee system parts
The 730 mm squeegee, its blades, straps, knobs and wheels. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100001366Advance 9100001366 | 1 | SQUEEGEE NON MARKING 730MM/29 KITOptional. | $273.78/EA |
| 2 | Not sold separatelyAdvance no number printed | 1 | NUT SELFLOCKING LOW M8 UNI7474 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 3 | Not sold separatelyAdvance no number printed | 1 | WASHER 8X24 UNI6592 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 4 | Not sold separatelyAdvance no number printed | 6 | WASHER 5X15X1.2 UNI6593 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 5 | AD9100000862Advance 9100000862 | 1 | KNOB LOBES M8 FEMALE SIP | $11.69/EA |
| 6 | AD9100000747Advance 9100000747 | 1 | SQUEEGEE 730MM/29 PRE-ASSEMBLED SIP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AD9100002408Advance 9100002408 | 1 | SPACER 5.1X8X28.5 PLASTIC 3 PCS SETAlso in HARDWARE SQUEEGEE KIT 9100000748 (K1). | $18.96/EA |
| 8 | AD9100000791Advance 9100000791 | 2 | KNOB M8X30 THD STUD SS SIP | $23.35/EA |
| 9 | AD9097637000Advance 9097637000 | 1 | SQUEEGEE FIXING KIT | $36.42/EA |
| 10 | AD9100000559Advance 9100000559 | 3 | WHEEL D.51 GREY SIP | $48.04/EA |
| 11 | AD9100000810Advance 9100000810 | 1 | BLADE SQUEEGEE 740MM 29 GUM KITOptional. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | AD9100000490Advance 9100000490 | 1 | BLADE SQUEEGEE 730MM 29 PU KITOptional. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | AD9100000060Advance 9100000060 | 1 | BLADE SQUEEGEE 730MM 29 RED GUM KITOptional. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | Not sold separatelyAdvance no number printed | 1 | SCREW M5X50 UNI5737 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 13 | AD9100000864Advance 9100000864 | 1 | STRAP ELASTIC F REAR SQUEEGEE BL. SIP | $21.85/EA |
| 14 | Not sold separatelyAdvance no number printed | 3 | NUT SELFLOCKING LOW M5 UNI7474 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 15 | Not sold separatelyAdvance no number printed | 2 | SCREW M5X45 UNI5737 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 16 | AD9100000865Advance 9100000865 | 1 | STRAP FRONT SQUEEGEE BLADE SIP | $14.70/EA |
| 17 | AD9100000866Advance 9100000866 | 1 | SUPPORT SQUEEGEE WHEEL SIP | $10.30/EA |
| 18 | Not sold separatelyAdvance no number printed | 1 | SCREW M8X50 HEX HD F/THD SS ISO4017Included in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 19 | Not sold separatelyAdvance no number printed | 1 | NUT HEX M8 ISO4035 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 20 | Not sold separatelyAdvance no number printed | 2 | SCREW 5X35 SELF THD TAPPING AW20 BLACKIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 21 | AD9100001816Advance 9100001816 | 1 | WHEEL BUMPER D.100 PLASTIC 2 PCS SET | $32.42/EA |
| 22 | Not sold separatelyAdvance no number printed | 2 | NUT HEX M8 UNI5588 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| 23 | Not sold separatelyAdvance no number printed | 2 | WASHER 6X18X1.5 UNI6593 SSIncluded in HARDWARE SQUEEGEE KIT 9100000748 (K1); no number printed. | Not sold separately. Order Hardware squeegee kit (AD9100000748) |
| – | AD9100000748Advance 9100000748 | 1 | HARDWARE SQUEEGEE KITNot shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $51.38/EA |

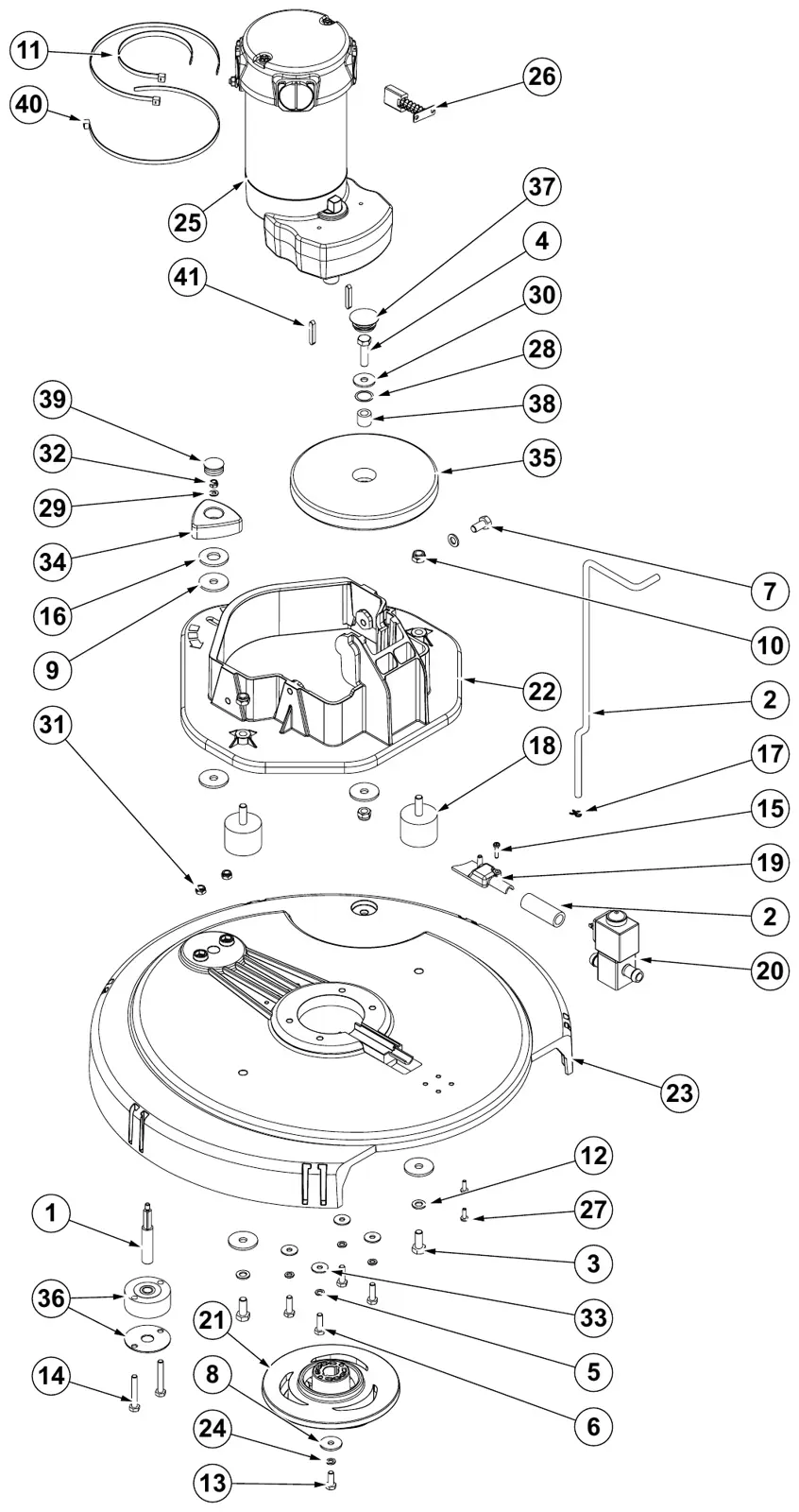

Advance SC500 disc deck system parts
The Disc brush deck: the 450 W reduction gearmotor, hub, brush deck plate and solenoid valve. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | PIN PLATE FIXINGFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 2 | AD9100000797Advance 9100000797 | 1 | HOSES BRUSH DECK KITFits Disc version, newer models, Disc version, older models. | $26.25/EA |
| 3 | Not sold separatelyAdvance no number printed | 2 | SCREW M8X20 UNI5739 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 4 | Not sold separatelyAdvance no number printed | 1 | SCREW M8X30 UNI5739Fits Disc version, newer models, Disc version, older models. Included in ROLLER BUMPER KIT 909 6887 000 (K1); no number printed. | Not sold separately. Order Roller bumper kit (AD9096887000) |
| 5 | Not sold separatelyAdvance no number printed | 5 | WASHER M6 UNI8842A SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 6 | Not sold separatelyAdvance no number printed | 4 | SCREW M6X25 UNI5739 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 7 | Not sold separatelyAdvance no number printed | 3 | NUT SELFLOCKING LOW M8 UNI7474 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 8 | Not sold separatelyAdvance no number printed | 1 | WASHER 6.6X24X2 UNI6593 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 9 | Not sold separatelyAdvance no number printed | 5 | WASHER 8.5X32X2 SSFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 10 | Not sold separatelyAdvance no number printed | 1 | SCREW M8X16 UNI5739 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 11 | Not sold separatelyAdvance no number printed | 1 | TIE CABLE 4.8x200 BLACKFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 12 | Not sold separatelyAdvance no number printed | 3 | WASHER M8 UNI8842A SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 13 | Not sold separatelyAdvance no number printed | 1 | SCREW M6X16 UNI5739 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 14 | Not sold separatelyAdvance no number printed | 2 | SCREW M6X40 UNI5739 SSFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 15 | Not sold separatelyAdvance no number printed | 2 | SCREW 3.5X16 SELF THD PAN PHIL F PLASTICFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 16 | Not sold separatelyAdvance no number printed | 1 | WASHER 10X30X2Fits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 17 | Not sold separatelyAdvance no number printed | 1 | CLAMP 6.6X 7Fits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 18 | AD9100000868Advance 9100000868 | 1 | VIBRATION DAMPING M8 60SH 2 PCS SETFits Disc version, newer models, Disc version, older models. | $47.12/EA |
| 19 | AD9100000869Advance 9100000869 | 1 | COVER SOLUTION HOSE SUPPORT SIPFits Disc version, newer models, Disc version, older models. | $11.69/EA |
| 20 | AD9100000870Advance 9100000870 | 1 | SOLENOID VALVE 24V SIPFits Disc version, newer models, Disc version, older models. | $152.73/EA |
| 21 | AD9100000871Advance 9100000871 | 1 | HUB BRUSH SIPFits Disc version, newer models, Disc version, older models. | $45.74/EA |
| 22 | AD9100000872Advance 9100000872 | 1 | PLATE BRUSH DECK HOLDER SIPFits Disc version, newer models, Disc version, older models. | $145.76/EA |
| 23 | AD9100000873Advance 9100000873 | 1 | DECK BRUSH SIPFits Disc version, newer models, Disc version, older models. | $83.12/EA |
| 24 | Not sold separatelyAdvance no number printed | 1 | WASHER NORD LOCK M6 DIN25201Fits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 25 | AD9100000874Advance 9100000874 | 1 | REDUCTION GEARMOTOR 450W 24V SIPFits Disc version, newer models, Disc version, older models. | $1,453.76/EA |
| 26 | AD9098376000Advance 9098376000 | 1 | CARBON BRUSHES KIT 4 PCSFits Disc version, newer models, Disc version, older models. | $174.60/EA |
| 27 | Not sold separatelyAdvance no number printed | 2 | SCREW PAN HD SELF 4x12 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 28 | Not sold separatelyAdvance no number printed | 1 | WASHER 15Fits Disc version, newer models, Disc version, older models. Included in ROLLER BUMPER KIT 909 6887 000 (K1); no number printed. | Not sold separately. Order Roller bumper kit (AD9096887000) |
| 29 | Not sold separatelyAdvance no number printed | 1 | WASHER M5 UNI6592 SSFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 30 | Not sold separatelyAdvance no number printed | 1 | WASHER 8X24X2 FLAT ISO7093Fits Disc version, newer models, Disc version, older models. Included in ROLLER BUMPER KIT 909 6887 000 (K1); no number printed. | Not sold separately. Order Roller bumper kit (AD9096887000) |
| 31 | Not sold separatelyAdvance no number printed | 2 | NUT SELF L. M6 UNI7474 SSFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 32 | Not sold separatelyAdvance no number printed | 1 | NUT SELFLOCKING LOW M5 UNI7474 SSFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 33 | Not sold separatelyAdvance no number printed | 4 | WASHER 6X18X1.5 UNI6593 SSFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 34 | Not sold separatelyAdvance no number printed | 1 | KNOBFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 35 | Not sold separatelyAdvance no number printed | 1 | ROLLER BUMPER D.160 BLACKFits Disc version, newer models, Disc version, older models. Included in ROLLER BUMPER KIT 909 6887 000 (K1); no number printed. | Not sold separately. Order Roller bumper kit (AD9096887000) |
| 36 | ADL08812780Advance L08812780 | 1 | PLATE FIXING BRUSH KITFits Disc version, newer models, Disc version, older models. | $70.45/EA |
| 37 | Not sold separatelyAdvance no number printed | 1 | CAP. BLACKFits Disc version, newer models, Disc version, older models. Included in ROLLER BUMPER KIT 909 6887 000 (K1); no number printed. | Not sold separately. Order Roller bumper kit (AD9096887000) |
| 38 | Not sold separatelyAdvance no number printed | 1 | SPACER 9X15X13Fits Disc version, newer models, Disc version, older models. Included in ROLLER BUMPER KIT 909 6887 000 (K1); no number printed. | Not sold separately. Order Roller bumper kit (AD9096887000) |
| 39 | Not sold separatelyAdvance no number printed | 1 | CAP FOR KNOBFits Disc version, newer models, Disc version, older models. Included in KNOB BRUSH SPEED ADJUSTM. KIT 9100002483 (K2); no number printed. | Not sold separately. Order Knob brush speed adjustm. kit (AD9100002483) |
| 40 | Not sold separatelyAdvance no number printed | 2 | TIE CABLE 4.8X430 WHITEFits Disc version, newer models, Disc version, older models. Included in HARDWARE BRUSH DECK KIT 9100000751 (K3); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000751) |
| 41 | AD9100000875Advance 9100000875 | 1 | KEY 5X5X30 DIN6885 2 PCS SETFits Disc version, newer models, Disc version, older models. | $8.80/EA |
| – | AD9096887000Advance 9096887000 | 1 | ROLLER BUMPER KITFits Disc version, newer models, Disc version, older models. Not shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $15.02/EA |
| – | AD9100002483Advance 9100002483 | 1 | KNOB BRUSH SPEED ADJUSTM. KITFits Disc version, newer models, Disc version, older models. Not shown on the drawing. Kit K2: contains the lines marked K2 in this list. | $20.48/EA |
| – | AD9100000751Advance 9100000751 | 1 | HARDWARE BRUSH DECK KITFits Disc version, newer models, Disc version, older models. Not shown on the drawing. Kit K3: contains the lines marked K3 in this list. | $29.53/EA |
Advance SC500 REV deck system parts
The REV brush deck: the 350 W motor, housing, eccentric, driver, pad driver and hoses. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | WASHER LK 1/4 REGSSFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 2 | Not sold separatelyAdvance no number printed | 1 | SCREW M8X40 UNI5739Fits REV version, newer models, REV version, older models. Included in ROLLER BUMBER D.160 BLACK KIT 9100000749 (K1); no number printed. | Not sold separately. Order Roller bumber d.160 black kit (AD9100000749) |
| 3 | Not sold separatelyAdvance no number printed | 2 | WASHER M10 UNI1751BFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 4 | Not sold separatelyAdvance no number printed | 3 | WASHER M6 UNI6592 SSFits REV version, newer models, REV version, older models. Included in SPLASH GUARD KIT 9098982000 (K3); no number printed. | Not sold separately. Order Splash guard kit (AD9098982000) |
| 5 | Not sold separatelyAdvance no number printed | 2 | WASHER M10 UNI6592Fits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 6 | Not sold separatelyAdvance no number printed | 4 | SCREW FLT PHIL LOC 1/4-20 X 0.75Fits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 7 | Not sold separatelyAdvance no number printed | 6 | SCREW HEX LOC 1/4 20 X 0.75Fits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 8 | Not sold separatelyAdvance no number printed | 3 | SCREW PAN PHIL LOC SS 1/4 20X.50Fits REV version, newer models, REV version, older models. Included in DRIVER KIT 9098983000 (K5); no number printed. | Not sold separately. Order Driver kit (AD9098983000) |
| 9 | Not sold separatelyAdvance no number printed | 6 | SCREW PAN PHIL LOC SS 1/4-20 X 1.00Fits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 10 | Not sold separatelyAdvance no number printed | 1 | TEE HOSE 3/8X3/8X3/8 PLSTCFits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 11 | Not sold separatelyAdvance no number printed | 2 | GROMMET .500 E00059Fits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 12 | AD56382991Advance 56382991 | 1 | KIT-ISOLATOR BOOST HDFits REV version, newer models, REV version, older models. | $152.73/EA |
| 13 | AD9098979000Advance 9098979000 | 1 | STUD STABILIZER KITFits REV version, newer models, REV version, older models. | $57.03/EA |
| 14 | AD56390002Advance 56390002 | 1 | WEIGHT COUNTERFits REV version, newer models, REV version, older models. | $29.16/EA |
| 15 | AD9100000900Advance 9100000900 | 1 | PLATE F DECK MOTOR SIPFits REV version, newer models, REV version, older models. | $196.45/EA |
| 16 | Not sold separatelyAdvance no number printed | 1 | SHIELD SPLASHFits REV version, newer models, REV version, older models. Included in SPLASH GUARD KIT 9098982000 (K3); no number printed. | Not sold separately. Order Splash guard kit (AD9098982000) |
| 17 | AD56390012Advance 56390012 | 1 | HOUSING BRUSHFits REV version, newer models, REV version, older models. | $48.04/EA |
| 18 | Not sold separatelyAdvance no number printed | 1 | ECCENTRICFits REV version, newer models, REV version, older models. Included in KIT-ECCENTRIC 9098984000 (K4); no number printed. | Not sold separately. Order Kit-eccentric (AD9098984000) |
| 19 | Not sold separatelyAdvance no number printed | 1 | DRIVER MOTORFits REV version, newer models, REV version, older models. Included in DRIVER KIT 9098983000 (K5); no number printed. | Not sold separately. Order Driver kit (AD9098983000) |
| 20 | AD56390037Advance 56390037 | 1 | DECAL-REV EMBOSSEDFits REV version, newer models, REV version, older models. | $21.85/EA |
| 21 | Not sold separatelyAdvance no number printed | 1 | GASKET DRIVERFits REV version, newer models, REV version, older models. Included in DRIVER KIT 9098983000 (K5); no number printed. | Not sold separately. Order Driver kit (AD9098983000) |
| 22 | AD9100002161Advance 9100002161 | 1 | PAD DRIVER CLP SIPFits REV version, newer models, REV version, older models. | $342.18/EA |
| 23 | AD9100001793Advance 9100001793 | 1 | MOTOR ELECTRIC 350W 24V KITFits REV version, newer models, REV version, older models. Until S/N 3510163605523. | $959.51/EA |
| 23 | AD9100001860Advance 9100001860 | 1 | MOTOR ELECTRIC 350W 24V SIPFits REV version, newer models, REV version, older models. Starting from S/N 3510163605524. | $915.96/EA |
| 24 | AD9100001283Advance 9100001283 | 1 | CARBON BRUSHES W/HOLDER SIPFits REV version, newer models, REV version, older models. | $494.93/EA |
| 24 | ADL08603949Advance L08603949 | 1 | CARBON BRUSHES SET 4 PCSFits REV version, newer models, REV version, older models. | $167.59/EA |
| 24 | AD56412287Advance 56412287 | 1 | MOTOR BRUSH/SPRING KITFits REV version, newer models, REV version, older models. Scott Motors Co. Black (56390072). | $211.28/EA |
| 25 | Not sold separatelyAdvance no number printed | 2 | HOSE CLEARFits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 26 | Not sold separatelyAdvance no number printed | 3 | SCREW M6X20 UNI5739 SSFits REV version, newer models, REV version, older models. Included in SPLASH GUARD KIT 9098982000 (K3); no number printed. | Not sold separately. Order Splash guard kit (AD9098982000) |
| 27 | Not sold separatelyAdvance no number printed | 1 | SCREW M8X16 UNI5739 SSFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 28 | Not sold separatelyAdvance no number printed | 1 | TIE CABLE 4.8x200 BLACKFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 29 | Not sold separatelyAdvance no number printed | 1 | WASHER M8 UNI8842A SSFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 30 | Not sold separatelyAdvance no number printed | 1 | HOLDER RUBBER TFits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 31 | Not sold separatelyAdvance no number printed | 1 | HOSE SILICONE D.4X7Fits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 32 | Not sold separatelyAdvance no number printed | 1 | HOSE SILICONE RUBBERFits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 33 | Not sold separatelyAdvance no number printed | 1 | HOSE SILICONE RUBBERFits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 34 | AD9100000870Advance 9100000870 | 1 | SOLENOID VALVE 24V SIPFits REV version, newer models, REV version, older models. | $152.73/EA |
| 35 | AD9100000876Advance 9100000876 | 1 | PLATE BRUSH DECK HOLDER SIPFits REV version, newer models, REV version, older models. | $152.73/EA |
| 36 | Not sold separatelyAdvance no number printed | 2 | SCREW PAN HD SELF 4x12 SSFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 37 | Not sold separatelyAdvance no number printed | 1 | BEARINGBALL OBS-18 6008Fits REV version, newer models, REV version, older models. Included in DRIVER KIT 9098983000 (K5); no number printed. | Not sold separately. Order Driver kit (AD9098983000) |
| 38 | Not sold separatelyAdvance no number printed | 2 | HOSEBARB 3/8 X 90 DEGFits REV version, newer models, REV version, older models. Included in HOSES BRUSH DECK KIT 9100000757 (K6); no number printed. | Not sold separately. Order Hoses brush deck kit (AD9100000757) |
| 39 | Not sold separatelyAdvance no number printed | 1 | RETAINER BEARINGFits REV version, newer models, REV version, older models. Included in DRIVER KIT 9098983000 (K5); no number printed. | Not sold separately. Order Driver kit (AD9098983000) |
| 40 | Not sold separatelyAdvance no number printed | 2 | SCREW 3/8-24 X 1 HEX HEADFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 41 | Not sold separatelyAdvance no number printed | 4 | NUT HEX SERRATED FLANGE1/4-20Fits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 42 | Not sold separatelyAdvance no number printed | 2 | WASHER 15Fits REV version, newer models, REV version, older models. Included in ROLLER BUMBER D.160 BLACK KIT 9100000749 (K1); no number printed. | Not sold separately. Order Roller bumber d.160 black kit (AD9100000749) |
| 43 | Not sold separatelyAdvance no number printed | 1 | WASHER 8X24X2 FLAT ISO7093Fits REV version, newer models, REV version, older models. Included in ROLLER BUMBER D.160 BLACK KIT 9100000749 (K1); no number printed. | Not sold separately. Order Roller bumber d.160 black kit (AD9100000749) |
| 44 | Not sold separatelyAdvance no number printed | 2 | SCREW M4X12 UNI7687Fits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 45 | Not sold separatelyAdvance no number printed | 3 | NUT SELF L. M6 UNI7474 SSFits REV version, newer models, REV version, older models. Included in SPLASH GUARD KIT 9098982000 (K3); no number printed. | Not sold separately. Order Splash guard kit (AD9098982000) |
| 46 | Not sold separatelyAdvance no number printed | 2 | NUT SELF L. M4 UNI7474 SSFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 47 | Not sold separatelyAdvance no number printed | 1 | ROLLER BUMPER D.160 BLACKFits REV version, newer models, REV version, older models. Included in ROLLER BUMBER D.160 BLACK KIT 9100000749 (K1); no number printed. | Not sold separately. Order Roller bumber d.160 black kit (AD9100000749) |
| 48 | Not sold separatelyAdvance no number printed | 1 | CAP. BLACKFits REV version, newer models, REV version, older models. Included in ROLLER BUMBER D.160 BLACK KIT 9100000749 (K1); no number printed. | Not sold separately. Order Roller bumber d.160 black kit (AD9100000749) |
| 49 | Not sold separatelyAdvance no number printed | 1 | SPACER 9X15X13Fits REV version, newer models, REV version, older models. Included in ROLLER BUMBER D.160 BLACK KIT 9100000749 (K1); no number printed. | Not sold separately. Order Roller bumber d.160 black kit (AD9100000749) |
| 50 | Not sold separatelyAdvance no number printed | 1 | TIE CABLE 4.8X430 WHITEFits REV version, newer models, REV version, older models. Included in HARDWARE BRUSH DECK KIT 9100000756 (K2); no number printed. | Not sold separately. Order Hardware brush deck kit (AD9100000756) |
| 51 | AD9100000901Advance 9100000901 | 1 | GASKET ADHESIVE 12X5 L.1090MM SIPFits REV version, newer models, REV version, older models. | $11.69/EA |
| 52 | Not sold separatelyAdvance no number printed | 1 | KEY 3/16 X 3/16 X 3/4 LGFits REV version, newer models, REV version, older models. Included in KIT-ECCENTRIC 9098984000 (K4); no number printed. | Not sold separately. Order Kit-eccentric (AD9098984000) |
| – | AD9100000749Advance 9100000749 | 1 | ROLLER BUMBER D.160 BLACK KITFits REV version, newer models, REV version, older models. Not shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $32.42/EA |
| – | AD9100000756Advance 9100000756 | 1 | HARDWARE BRUSH DECK KITFits REV version, newer models, REV version, older models. Not shown on the drawing. Kit K2: contains the lines marked K2 in this list. | $96.42/EA |
| – | AD9098982000Advance 9098982000 | 1 | SPLASH GUARD KITFits REV version, newer models, REV version, older models. Not shown on the drawing. Kit K3: contains the lines marked K3 in this list. | $35.17/EA |
| – | AD9098984000Advance 9098984000 | 1 | KIT-ECCENTRICFits REV version, newer models, REV version, older models. Not shown on the drawing. Kit K4: contains the lines marked K4 in this list. | $91.42/EA |
| – | AD9098983000Advance 9098983000 | 1 | DRIVER KITFits REV version, newer models, REV version, older models. Not shown on the drawing. Kit K5: contains the lines marked K5 in this list. | $121.15/EA |
| – | AD9100000757Advance 9100000757 | 1 | HOSES BRUSH DECK KITFits REV version, newer models, REV version, older models. Not shown on the drawing. Kit K6: contains the lines marked K6 in this list. | $103.43/EA |

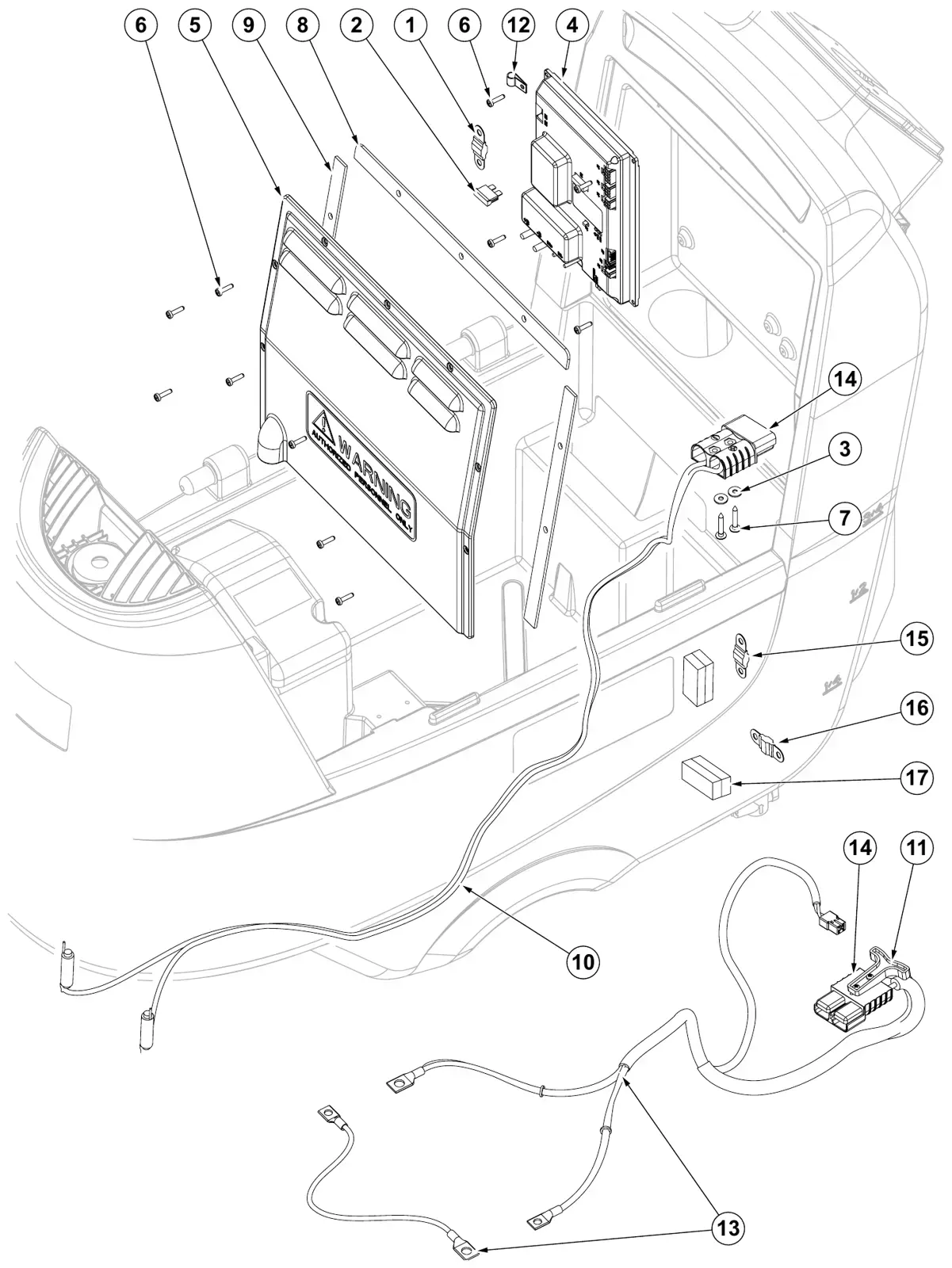

Advance SC500 electrical components system parts
The main controller, fuses, harnesses and battery connector parts. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000877Advance 9100000877 | 1 | FUSE MIDIFUSE 100A SIP | $20.48/EA |
| 2 | AD9100000878Advance 9100000878 | 1 | FUSE BLADE 3A SIP | $17.46/EA |
| 3 | Not sold separatelyAdvance no number printed | 4 | WASHER 5X15X1.5 UNI6593Included in HARDWARE ELECT. COMPONENTS KIT 9100000799 (K2); no number printed. | Not sold separately. Order Hardware elect. components kit (AD9100000799) |
| 4 | AD9100000879Advance 9100000879 | 1 | CONTROLLER MAIN MACHINE SIPFits Disc version, older models, REV version, older models. | $799.75/EA |
| 4 | AD9100002397Advance 9100002397 | 1 | CONTROLLER MAIN MACHINE SIPFits Disc version, newer models, REV version, newer models. | $703.15/EA |
| 5 | AD9100000880Advance 9100000880 | 1 | COVER BOX ELECTRIC COMP. SIP | $42.32/EA |
| 6 | Not sold separatelyAdvance no number printed | 11 | SCREW CYL HD 4X16 SELF L. PLASIncluded in HARDWARE ELECT. COMPONENTS KIT 9100000799 (K2); no number printed. | Not sold separately. Order Hardware elect. components kit (AD9100000799) |
| 7 | Not sold separatelyAdvance no number printed | 3 | SCREW 5X35 SELF THD TAPPING AW20 BLACKIncluded in HARDWARE ELECT. COMPONENTS KIT 9100000799 (K2); no number printed. | Not sold separately. Order Hardware elect. components kit (AD9100000799) |
| 8 | Not sold separatelyAdvance no number printed | 1 | GASKET UPPER ELECTRONIC COVERIncluded in GASKETS COVER KIT 9100000798 (K1); no number printed. | Not sold separately. Order Gaskets cover kit (AD9100000798) |
| 9 | Not sold separatelyAdvance no number printed | 2 | GASKET SIDE ELECTRONIC COVERIncluded in GASKETS COVER KIT 9100000798 (K1); no number printed. | Not sold separately. Order Gaskets cover kit (AD9100000798) |
| 10 | AD9100002232Advance 9100002232 | 1 | HARNESS MACHINE SC500 53B/20B SIPFor all versions. The manual adds: only for REV version, starting from S/N 3510163605524. | $443.56/EA |
| 10 | AD9100001863Advance 9100001863 | 1 | HARNESS MACHINE SC500 20R SIPFits REV version, newer models, REV version, older models. Until S/N 3510163605523. See TSB-FC-2016-009. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | AD9100000885Advance 9100000885 | 1 | HANDLE FOR BATTERY CONNECTOR SIP | $26.25/EA |
| 12 | Not sold separatelyAdvance no number printed | 1 | CLAMP CABLE BLACKIncluded in HARDWARE ELECT. COMPONENTS KIT 9100000799 (K2); no number printed. | Not sold separately. Order Hardware elect. components kit (AD9100000799) |
| 13 | AD9100000887Advance 9100000887 | 1 | HARNESS BATTERY US SIP | $240.12/EA |
| 14 | AD9100002117Advance 9100002117 | 1 | CONNECTOR RED 120A 2 PCS SET | $50.01/EA |
| 15 | AD9100002233Advance 9100002233 | 1 | FUSE BOLT DOWN 30A SIP | $17.46/EA |
| 16 | AD9100002234Advance 9100002234 | 1 | FUSE BOLT DOWN 50A SIP | $17.46/EA |
| 17 | AD9100002235Advance 9100002235 | 2 | HOLDER FUSE SIP | $26.25/EA |
| – | AD9100000798Advance 9100000798 | 1 | GASKETS COVER KITNot shown on the drawing. Kit K1: contains the lines marked K1 in this list. | $13.07/EA |
| – | AD9100000799Advance 9100000799 | 1 | HARDWARE ELECT. COMPONENTS KITNot shown on the drawing. Kit K2: contains the lines marked K2 in this list. | $27.75/EA |

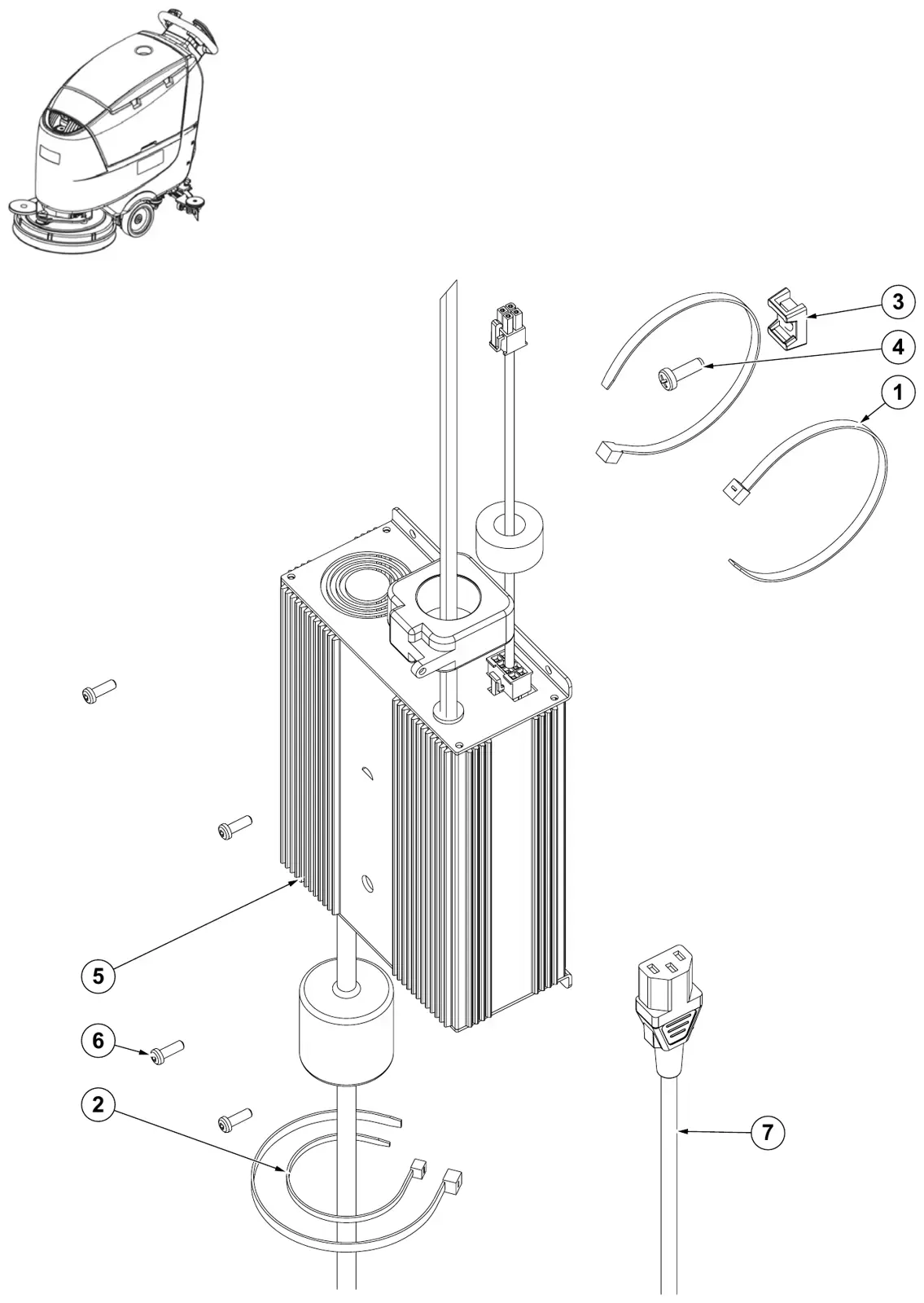

Advance SC500 battery charger system parts
The on-board 24 V 13 A battery charger and its extension cable. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | No number printedAdvance no number printed | 3 | TIE CABLE 4.8x200 BLACKNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | No number printedAdvance no number printed | 1 | TIE CABLE 2.9x130 BLACKNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | No number printedAdvance no number printed | 1 | HOLDER.FLAT TIENo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | No number printedAdvance no number printed | 1 | SCREW CYL HD 5X16 SELF L. PLASTOFASTNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AD9100000888Advance 9100000888 | 1 | CHARGER BATT. O/B 24V 13A 100-230V SIPSee TSB-FC-2016-010. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | No number printedAdvance no number printed | 4 | SCREW 3.5X12No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AD9100000890Advance 9100000890 | 1 | CABLE EXTENSION US PLUG L.2000MM SIP | $29.53/EA |

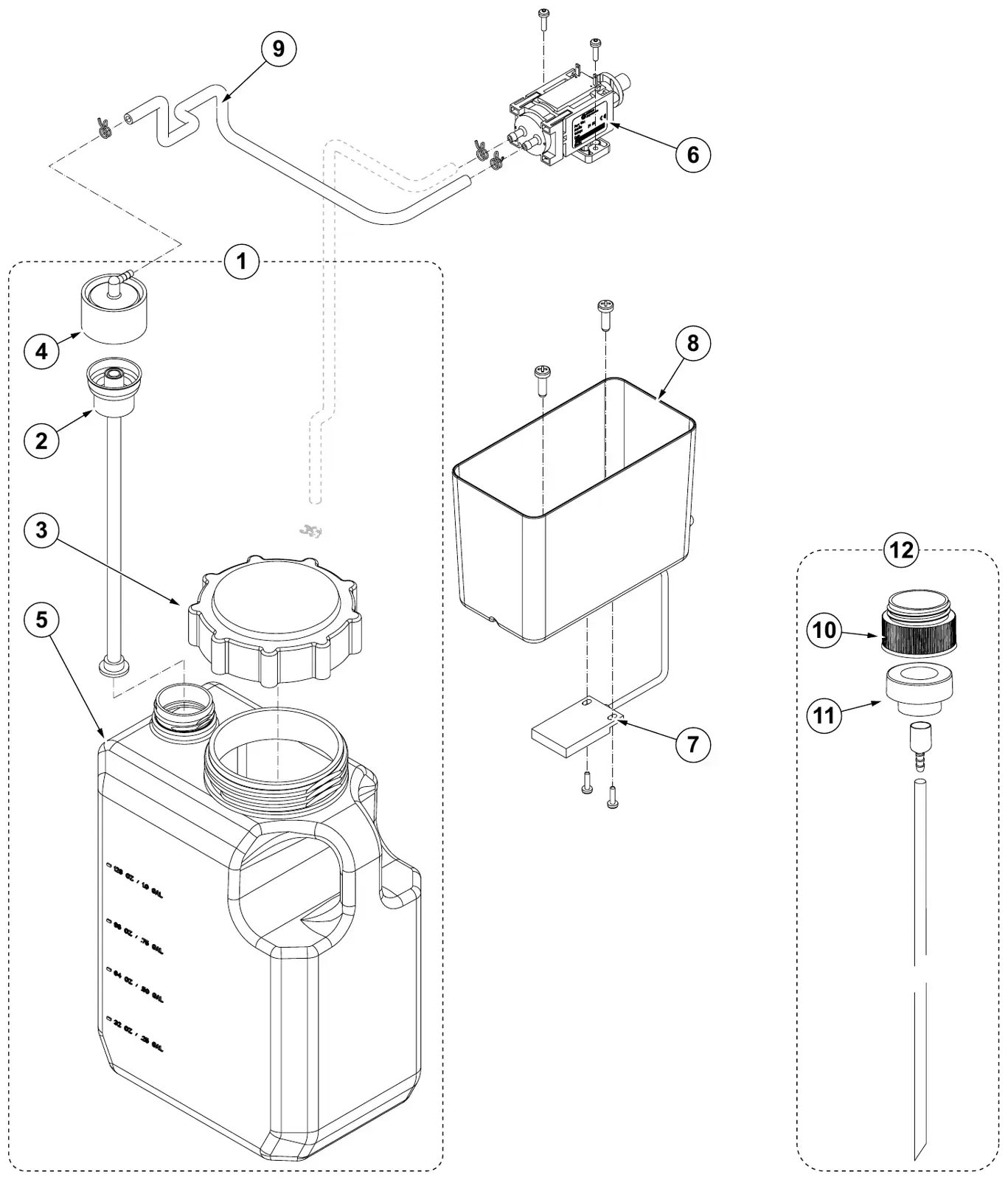

Advance SC500 ecoFlex system, older models parts
The EcoFlex detergent tank, pump and level sensors for models 9087352020, 9087353020 and 9087354020. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56104190Advance 56104190 | 1 | DETERGENT TANKFits Disc version, older models, REV version, older models. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AD56104189Advance 56104189 | 1 | INSERT-DRY BRAKEFits Disc version, older models, REV version, older models. | $5.91/EA |
| 3 | AD9100001817Advance 9100001817 | 1 | CAP PLASTIC F CHEMICAL TANK SIPFits Disc version, older models, REV version, older models. | $14.70/EA |
| 4 | AD56315523Advance 56315523 | 1 | CAP DRY BREAK 1/8 BARBFits Disc version, older models, REV version, older models. | $32.42/EA |
| 5 | AD9100001081Advance 9100001081 | 1 | DETERGENT TANK SIPFits Disc version, older models, REV version, older models. | $38.06/EA |
| 6 | AD9100001819Advance 9100001819 | 1 | PUMP DETERGENT MIX KITFits Disc version, older models, REV version, older models. | $414.70/EA |
| 7 | AD9100000893Advance 9100000893 | 1 | SENSOR WATER LEVEL SIPFits Disc version, older models, REV version, older models. | $96.42/EA |
| 8 | No number printedAdvance no number printed | 1 | SUPPORT WATER LEVEL SENSORFits Disc version, older models, REV version, older models. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AD9100000891Advance 9100000891 | 1 | HOSE SILICONE D.4X7 L.300MM SIPFits Disc version, older models, REV version, older models. | $10.30/EA |
| 10 | AD9097023000Advance 9097023000 | 1 | ADAPTER DETERGENT TANKFits Disc version, older models, REV version, older models. | $11.69/EA |
| 11 | AD9097022000Advance 9097022000 | 1 | SENSOR DETERGENT MIX LEVELFits Disc version, older models, REV version, older models. | $16.09/EA |
| 12 | AD9098025000Advance 9098025000 | 1 | ADAPTER DETERGENT KITFits Disc version, older models, REV version, older models. Optional. | $174.60/EA |
Advance SC500 ecoFlex system, newer models parts
The EcoFlex detergent tank, peristaltic pump and level sensors for models 9087403020, 9087405020 and 9087404020. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56104190Advance 56104190 | 1 | DETERGENT TANKFits Disc version, newer models, REV version, newer models. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AD56104189Advance 56104189 | 1 | INSERT-DRY BRAKEFits Disc version, newer models, REV version, newer models. | $5.91/EA |
| 3 | AD9100001817Advance 9100001817 | 1 | CAP PLASTIC F CHEMICAL TANK SIPFits Disc version, newer models, REV version, newer models. | $14.70/EA |
| 4 | AD56315523Advance 56315523 | 1 | CAP DRY BREAK 1/8 BARBFits Disc version, newer models, REV version, newer models. | $32.42/EA |
| 5 | AD9100001081Advance 9100001081 | 1 | DETERGENT TANK SIPFits Disc version, newer models, REV version, newer models. | $38.06/EA |
| 6 | AD9100002398Advance 9100002398 | 1 | PUMP DETERG. MIX PERISTALTIC 24V SIPFits Disc version, newer models, REV version, newer models. | $196.45/EA |
| 7 | AD9100002388Advance 9100002388 | 1 | HEAD PERISTALTIC PUMP DETERG. SIPFits Disc version, newer models, REV version, newer models. | $115.53/EA |
| 8 | AD9100000893Advance 9100000893 | 1 | SENSOR WATER LEVEL SIPFits Disc version, newer models, REV version, newer models. | $96.42/EA |
| 9 | No number printedAdvance no number printed | 1 | SUPPORT WATER LEVEL SENSORFits Disc version, newer models, REV version, newer models. No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 10 | AD9100000891Advance 9100000891 | 1 | HOSE SILICONE D.4X7 L.300MM SIPFits Disc version, newer models, REV version, newer models. | $10.30/EA |
| 11 | AD9100002402Advance 9100002402 | 1 | BARB HOSE STRAIGHT D.5-D.4 PLAST. 2 PCS SETFits Disc version, newer models, REV version, newer models. | $8.80/EA |
| 12 | AD9100002395Advance 9100002395 | 1 | ECOFLEX DETERGENT KIT SC500Fits Disc version, newer models, REV version, newer models. Optional. Installation instructions: 9100002394. | $435.04/EA |
| 13 | AD9097023000Advance 9097023000 | 1 | ADAPTER DETERGENT TANKFits Disc version, newer models, REV version, newer models. | $11.69/EA |
| 14 | AD9097022000Advance 9097022000 | 1 | SENSOR DETERGENT MIX LEVELFits Disc version, newer models, REV version, newer models. | $16.09/EA |
| 15 | AD9098025000Advance 9098025000 | 1 | ADAPTER DETERGENT KITFits Disc version, newer models, REV version, newer models. Optional. | $174.60/EA |

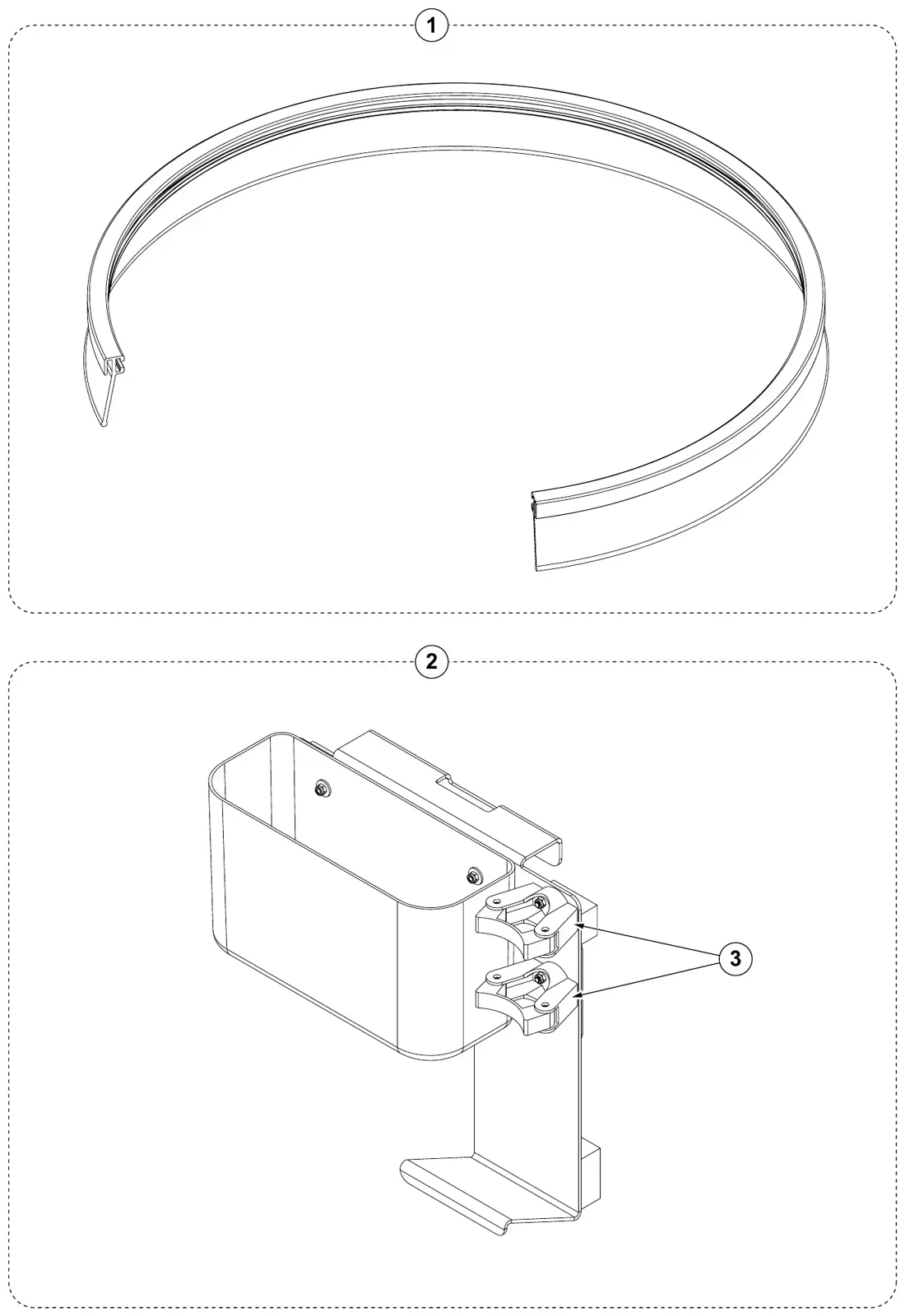

Advance SC500 splash guard, mop and trash parts
The optional splash guard and the mop and trash kit. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100001441Advance 9100001441 | 1 | SPLASH GUARD CPL F BRUSH DECK SIPOptional. | $175.86/EA |
| 2 | AD9100002280Advance 9100002280 | 1 | MOP AND TRASH KITOptional. New or changed item number (#). Installation instructions: 9100002279. | $232.96/EA |
| 3 | AD9100001369Advance 9100001369 | 2 | MOP KIT | $23.35/EA |

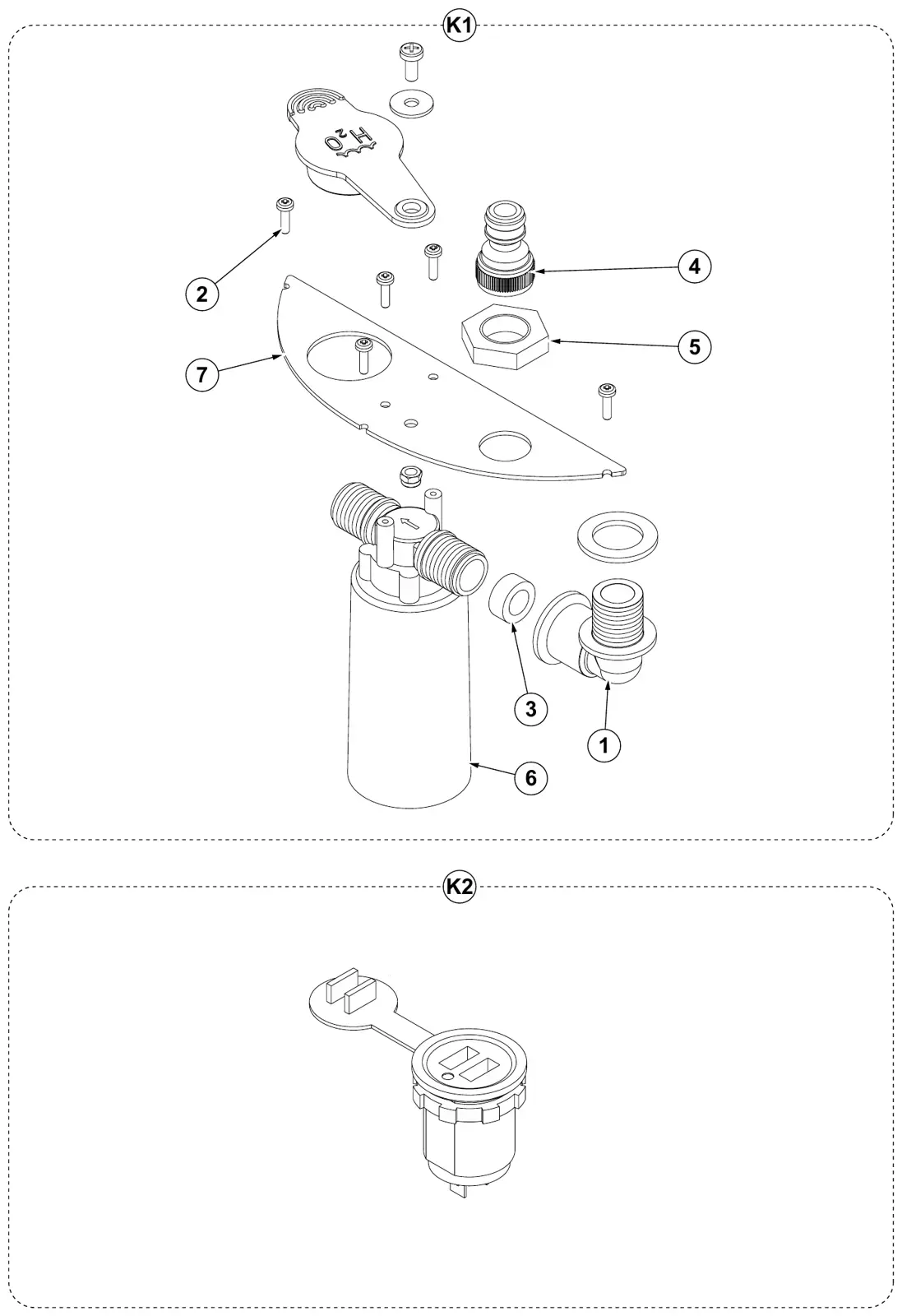

Advance SC500 water filling, USB port parts
The optional automatic water filling kit (K1) and the USB port kit (K2) for the newer models. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000894Advance 9100000894 | 1 | ELBOW CURVED M/F SIPAlso in AUTOMATIC WATER FILLING KIT 9100000005 (K1). | $23.35/EA |
| 8 | Not sold separatelyAdvance no number printed | 5 | SCREW 3.5X10 THD FORMING SSIncluded in AUTOMATIC WATER FILLING KIT 9100000005 (K1); no number printed. | Not sold separately. Order Automatic water filling kit (AD9100000005) |
| 3 | AD9100000622Advance 9100000622 | 1 | GASKET RUBBER D.11.5X19 H8 BLACK SIPAlso in AUTOMATIC WATER FILLING KIT 9100000005 (K1). | $10.30/EA |
| 4 | Not sold separatelyAdvance no number printed | 1 | FITTING QUICK 1/2 GASIncluded in AUTOMATIC WATER FILLING KIT 9100000005 (K1); no number printed. | Not sold separately. Order Automatic water filling kit (AD9100000005) |
| 5 | Not sold separatelyAdvance no number printed | 1 | NUT G 1/2 DIN 431 A SSIncluded in AUTOMATIC WATER FILLING KIT 9100000005 (K1); no number printed. | Not sold separately. Order Automatic water filling kit (AD9100000005) |
| 6 | AD9100000897Advance 9100000897 | 1 | VALVE WATER STOP SIPAlso in AUTOMATIC WATER FILLING KIT 9100000005 (K1). | $349.17/EA |
| 7 | AD9100000898Advance 9100000898 | 1 | SUPPORT WATER STOP SIPAlso in AUTOMATIC WATER FILLING KIT 9100000005 (K1). | $24.72/EA |
| K1 | AD9100000005Advance 9100000005 | 1 | AUTOMATIC WATER FILLING KITOptional. Kit K1: contains the lines marked K1 in this list. | $327.34/EA |
| K2 | AD9100002403Advance 9100002403 | 1 | USB PORT KITFits Disc version, newer models, REV version, newer models. Optional. Kit K2: contains the lines marked K2 in this list. Installation instructions: 9100002406. | Call to confirm part: 800-440-6723Call 800-440-6723 |

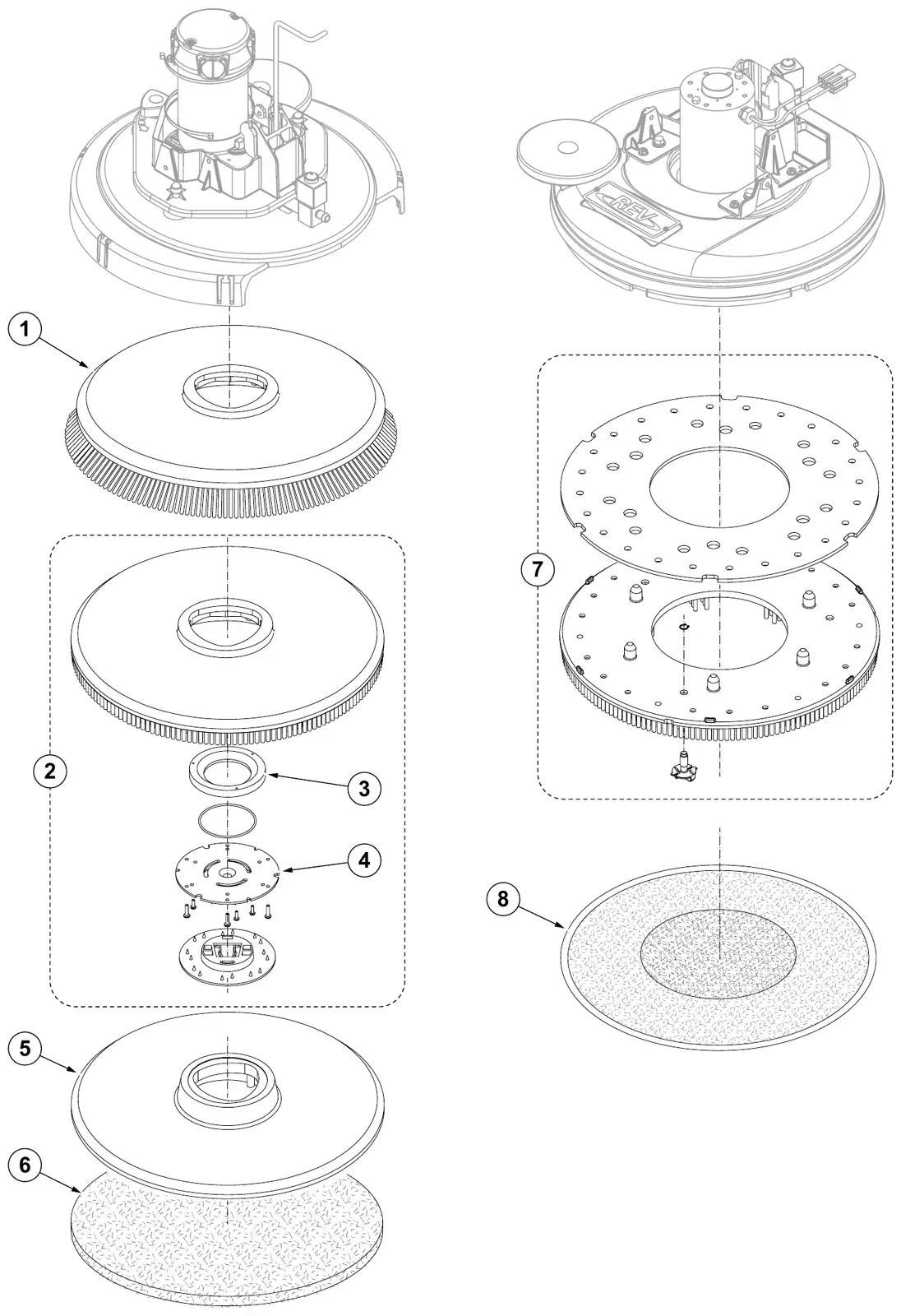

Advance SC500 brushes parts
The optional Disc brushes, pad holders and pads, and the REV brush and microfiber pad. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | ADL08837025Advance L08837025 | 1 | BRUSH DISC 530MM 21 PROLENEFits Disc version, newer models, Disc version, older models. Optional. | $300.36/EA |
| 1 | ADL08837026Advance L08837026 | 1 | BRUSH DISC 530MM 21 PROLITEFits Disc version, newer models, Disc version, older models. Optional. | $159.03/EA |
| 1 | ADL08837027Advance L08837027 | 1 | BRUSH DISC 530MM 21 UNION MIXFits Disc version, newer models, Disc version, older models. Optional. | $281.37/EA |
| 1 | ADL08837028Advance L08837028 | 1 | BRUSH DISC 530MM 21 MIDLITE GRIT 180Fits Disc version, newer models, Disc version, older models. Optional. | $636.07/EA |
| 1 | ADL08837029Advance L08837029 | 1 | BRUSH DISC 530MM 21 MID GRIT 240Fits Disc version, newer models, Disc version, older models. Optional. | $399.92/EA |
| 1 | ADL08837065Advance L08837065 | 1 | BRUSH DISC 530MM 21 MAGNA GRIT 46Fits Disc version, newer models, Disc version, older models. Optional. | $636.99/EA |
| 1 | ADL08837066Advance L08837066 | 1 | BRUSH DISC 530MM 21 DYNA GRIT 80Fits Disc version, newer models, Disc version, older models. Optional. | $565.35/EA |
| 1 | ADL08837067Advance L08837067 | 1 | BRUSH DISC 530MM 21 AGLITE GRIT 500Fits Disc version, newer models, Disc version, older models. Optional. | $477.04/EA |
| 2 | ADL08837018Advance L08837018 | 1 | PAD HOLDER 530MMFits Disc version, newer models, Disc version, older models. Optional. | $245.40/EA |
| 3 | ADL08603966Advance L08603966 | 1 | RING NYLON | $23.35/EA |
| 4 | AD56505195Advance 56505195 | 1 | PAD RETAINER | $30.34/EA |
| 5 | AD9099671000Advance 9099671000 | 1 | PAD HOLDER FLAT 20 508MMFits Disc version, newer models, Disc version, older models. Optional. | $180.42/EA |
| 6 | AD10001955Advance 10001955 | 1 | PAD 20 508MM ECO BLACK 5PCSFits Disc version, newer models, Disc version, older models. Optional. | $81.36/EA |
| 6 | AD10001956Advance 10001956 | 1 | PAD 20 508MM ECO BLUE 5PCSFits Disc version, newer models, Disc version, older models. Optional. | $59.53/EA |
| 6 | AD10001957Advance 10001957 | 1 | PAD 20 508MM ECO BROWN 5PCSFits Disc version, newer models, Disc version, older models. Optional. | $57.45/EA |
| 6 | AD10001958Advance 10001958 | 1 | PAD 20 508MM ECO GREEN 5PCSFits Disc version, newer models, Disc version, older models. Optional. | $59.53/EA |
| 6 | AD10001959Advance 10001959 | 1 | PAD 20 508MM ECO RED 5PCSFits Disc version, newer models, Disc version, older models. Optional. | $57.45/EA |
| 6 | AD10001960Advance 10001960 | 1 | PAD 20 508MM ECO WHITE 5PCSFits Disc version, newer models, Disc version, older models. Optional. | $114.88/EA |
| 6 | AD10002348Advance 10002348 | 1 | PAD 20 508MM ECO BRILLIANCE RED 2PCSFits Disc version, newer models, Disc version, older models. Optional. | $196.45/EA |
| 6 | AD10002349Advance 10002349 | 1 | PAD 20 508MM ECO BRILLIANCE BLUE 2PCSFits Disc version, newer models, Disc version, older models. Optional. | $167.59/EA |
| 6 | AD10002350Advance 10002350 | 1 | PAD 20 508MM ECO BRILL. YELLOW 2PCSFits Disc version, newer models, Disc version, older models. Optional. | $182.30/EA |
| 6 | AD10002351Advance 10002351 | 1 | PAD 20 508MM ECO BRILLIANCE GREEN 2PCSFits Disc version, newer models, Disc version, older models. Optional. | $182.30/EA |
| 7 | AD56390008Advance 56390008 | 1 | BRUSH NYLON REVFits REV version, newer models, REV version, older models. Optional. | $138.95/EA |
| 8 | AD56390079Advance 56390079 | 1 | MICROFIBER PADFits REV version, newer models, REV version, older models. Optional. | $84.50/EA |
Advance SC500 wiring diagram key, older models (9087352020, 9087353020, 9087354020) parts
Wiring diagram key, older models (9087352020, 9087353020, 9087354020) from Advance's parts list. Manual page 39.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| BAT | No number printedAdvance no number printed | 24 V BATTERIESNo part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| C1 | AD9100002117Advance 9100002117 | CONNECTOR RED 120A 2 PCS SET | $50.01/EA | |
| C2 | No number printedAdvance no number printed | BATTERY CHARGER MAIN CONNECTORNo part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| C3 | No number printedAdvance no number printed | BATTERY CHARGER SUB-CONNECTORNo part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| CH | AD9100000888Advance 9100000888 | CHARGER BATT. O/B 24V 13A 100-230V SIP | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| EB1 | AD9100000879Advance 9100000879 | CONTROLLER MAIN MACHINE SIP | $799.75/EA | |
| EB2 | AD9100000842Advance 9100000842 | CARD DISPLAY SIP | $283.67/EA | |
| EB3 | AD9100000846Advance 9100000846 | DASHBOARD CONTROL PANEL SIP FOR DISC VERSION | $152.73/EA | |
| EB3 | AD9100000847Advance 9100000847 | DASHBOARD CONTROL PANEL SIP FOR REV VERSION | $182.30/EA | |
| EV1 | AD9100000870Advance 9100000870 | SOLENOID VALVE 24V SIP | $152.73/EA | |
| F1 | AD9100000877Advance 9100000877 | FUSE MIDIFUSE 100A SIP | $20.48/EA | |
| F2 | AD9100000878Advance 9100000878 | FUSE BLADE 3A SIP | $17.46/EA | |
| F3 | AD9100002233Advance 9100002233 | FUSE BOLT DOWN 30A SIP | $17.46/EA | |
| F4 | AD9100002234Advance 9100002234 | FUSE BOLT DOWN 50A SIP | $17.46/EA | |
| M1 | AD9100000874Advance 9100000874 | REDUCTION GEARMOTOR 450W 24V SIP FOR DISC VERSION | $1,453.76/EA | |
| M1 | AD9100001860Advance 9100001860 | MOTOR 24VDC SIP FOR REV VERSION | $915.96/EA | |
| M2 | AD9100000823Advance 9100000823 | MOTOR VACUUM 24V 280W SIP | $189.43/EA | |
| M3 | AD9100000921Advance 9100000921 | MOTOR ELECTRIC 200W 24V | $1,396.06/EA | |
| M4 | AD9100001819Advance 9100001819 | PUMP DETERGENT MIX KIT | $414.70/EA | |
| M5 | AD9100000805Advance 9100000805 | ACTUATOR LINEAR 24V DC STRK 120MM SIP FOR DISC VERSION | $421.71/EA | |
| M5 | AD9100000806Advance 9100000806 | ACTUATOR LINEAR 24V DC STRK 98MM SIP FOR REV VERSION | $429.39/EA | |
| RV1 | AD9100000837Advance 9100000837 | POTENTIOMETER 5K SIP | $141.48/EA | |
| SW1 | AD9100000893Advance 9100000893 | SENSOR WATER LEVEL SIP | $96.42/EA | |
| TCU | No number printedAdvance no number printed | TRACKUNIT PUSH-BUTTON (OPTIONAL)No part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance SC500 wiring diagram key, newer models (9087403020, 9087405020, 9087404020) parts
Wiring diagram key, newer models (9087403020, 9087405020, 9087404020) from Advance's parts list. Manual page 41.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| BAT | No number printedAdvance no number printed | 24 V BATTERIESNo part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| C1 | AD9100002117Advance 9100002117 | CONNECTOR RED 120A 2 PCS SET | $50.01/EA | |
| C2 | No number printedAdvance no number printed | BATTERY CHARGER MAIN CONNECTORNo part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| C3 | No number printedAdvance no number printed | BATTERY CHARGER SUB-CONNECTORNo part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| CH | AD9100000888Advance 9100000888 | CHARGER BATT. O/B 24V 13A 100-230V SIP | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| EB1 | AD9100002397Advance 9100002397 | CONTROLLER MAIN MACHINE SIP | $703.15/EA | |
| EB2 | AD9100002391Advance 9100002391 | CONTROLLER DISPLAY SIP | $338.54/EA | |
| EB3 | AD9100002915Replaces Advance 9100002392 | CONTROLLER USER INTERFACE SIP FOR DISC VERSIONreplaces Advance 9100002392. | $166.91/EA | |
| EB3 | AD9100002916Replaces Advance 9100002393 | CONTROLLER USER INTERFACE REV SIP FOR REV VERSIONreplaces Advance 9100002393. | $199.17/EA | |
| EV1 | AD9100000870Advance 9100000870 | SOLENOID VALVE 24V SIP | $152.73/EA | |
| F1 | AD9100000877Advance 9100000877 | FUSE MIDIFUSE 100A SIP | $20.48/EA | |
| F2 | AD9100000878Advance 9100000878 | FUSE BLADE 3A SIP | $17.46/EA | |
| F3 | No number printedAdvance no number printed | USB FUSENo part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| F4 | AD9100002233Advance 9100002233 | FUSE BOLT DOWN 30A SIP | $17.46/EA | |
| F5 | AD9100002234Advance 9100002234 | FUSE BOLT DOWN 50A SIP | $17.46/EA | |
| IB | AD56116477Advance 56116477 | SMART KEY - PROBE | $74.61/EA | |
| M1 | AD9100000874Advance 9100000874 | REDUCTION GEARMOTOR 450W 24V SIP FOR DISC VERSION | $1,453.76/EA | |
| M1 | AD9100001860Advance 9100001860 | MOTOR 24VDC SIP FOR REV VERSION | $915.96/EA | |
| M2 | AD9100000823Advance 9100000823 | MOTOR VACUUM 24V 280W SIP | $189.43/EA | |
| M3 | AD9100000921Advance 9100000921 | MOTOR ELECTRIC 200W 24V | $1,396.06/EA | |
| M4 | AD9100002398Advance 9100002398 | PUMP DETERG. MIX PERISTALTIC 24V SIP | $196.45/EA | |
| M5 | AD9100000805Advance 9100000805 | ACTUATOR LINEAR 24V DC STRK 120MM SIP FOR DISC VERSION | $421.71/EA | |
| M5 | AD9100000806Advance 9100000806 | ACTUATOR LINEAR 24V DC STRK 98MM SIP FOR REV VERSION | $429.39/EA | |
| RV1 | AD9100000837Advance 9100000837 | POTENTIOMETER 5K SIP | $141.48/EA | |
| SW1 | AD9100000893Advance 9100000893 | SENSOR WATER LEVEL SIP | $96.42/EA | |
| TCU | No number printedAdvance no number printed | TRACKUNIT PUSH-BUTTON (OPTIONAL)No part number printed (printed as -). | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| USB | AD9100002403Advance 9100002403 | USB PORT KIT | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance SC500 recommended parts: normal wear, ordinary and extra ordinary maintenance
Recommended parts: normal wear, ordinary and extra ordinary maintenance from Advance's parts list. Manual page 42.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9100000829Advance 9100000829 | 1 | BAND ELASTIC F EXTENSION CABLE SIPNormal wear. | $16.09/EA |
| – | AD9100000810Advance 9100000810 | 1 | BLADE SQUEEGEE 740MM 29 GUM KITNormal wear. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000490Advance 9100000490 | 1 | BLADE SQUEEGEE 730MM 29 PU KITNormal wear. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000060Advance 9100000060 | 1 | BLADE SQUEEGEE 730MM 29 RED GUM KITNormal wear. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000922Advance 9100000922 | 1 | CARBON BRUSHES KIT 2 PCSNormal wear. | $97.12/EA |
| – | AD9098376000Advance 9098376000 | 1 | CARBON BRUSHES KIT 4 PCS FOR DISC VERSIONNormal wear. | $174.60/EA |
| – | AD9100000794Advance 9100000794 | 1 | CABLE SAFETY F TANK KITOrdinary maintenance. | $24.72/EA |
| – | AD9100000812Advance 9100000812 | 1 | HOSE DRAIN BLACK SIPOrdinary maintenance. | $84.49/EA |
| – | AD9100000889Advance 9100000889 | 1 | CLIP HOSE STOPPING 2 PCS SETOrdinary maintenance. | $8.80/EA |
| – | AD9100000816Advance 9100000816 | 1 | HOSE SUCTION BLACK SIPOrdinary maintenance. | $74.61/EA |
| – | AD9100000904Advance 9100000904 | 1 | MOTOR VACUUM 24V 280W CPL KITOrdinary maintenance. | $487.25/EA |
| – | AD9100000819Advance 9100000819 | 1 | GASKET BULB RUBBER L.1670MM SIPOrdinary maintenance. | $13.07/EA |
| – | AD9100000921Advance 9100000921 | 1 | MOTOR ELECTRIC 200W 24VOrdinary maintenance. | $1,396.06/EA |
| – | AD9100000823Advance 9100000823 | 1 | MOTOR VACUUM 24V 280W SIPOrdinary maintenance. | $189.43/EA |
| – | AD9100000739Advance 9100000739 | 1 | GASKETS VACUUM MOTOR KITOrdinary maintenance. | $64.01/EA |
| – | AD9100000830Advance 9100000830 | 1 | WHEEL D.200X50 GREY-BLACK 2 PCS SETOrdinary maintenance. | $176.17/EA |
| – | AD9100000843Advance 9100000843 | 1 | KEY OPERATOR COMPLETE SIPOrdinary maintenance; Models No.: 9087352020, 9087353020, 9087354020. | $21.85/EA |
| – | AD56116518Advance 56116518 | 1 | SMART KEY - USEROrdinary maintenance; Models No.: 9087403020, 9087405020, 9087404020. | $42.89/EA |
| – | AD56116477Advance 56116477 | 1 | SMART KEY - PROBEOrdinary maintenance. | $74.61/EA |
| – | AD9100000902Advance 9100000902 | 2 | BEARING FLANGE IGLIDUR 2 PCS SETOrdinary maintenance. | $10.30/EA |
| – | AD9100000855Advance 9100000855 | 1 | SPRING GAS 30 KG SIPOrdinary maintenance. | $83.12/EA |
| – | AD9100000856Advance 9100000856 | 1 | WHEEL PIVOTING 2 PCS SETOrdinary maintenance. | $85.85/EA |
| – | AD9100002396Advance 9100002396 | 1 | SLEEVE RUBBER BLACK F SUCTION HOSE SIPOrdinary maintenance. | $11.69/EA |
| – | AD9100000903Advance 9100000903 | 1 | WASHER THRUST GTM 3254-015 SIPOrdinary maintenance. | $10.30/EA |
| – | AD9100000796Advance 9100000796 | 1 | HOSES SOLUTION SYSTEM KITOrdinary maintenance. | $8.80/EA |
| – | AD9100000861Advance 9100000861 | 1 | NET WATER FILTER REINFORCED SIPOrdinary maintenance. | $32.34/EA |
| – | AD9100000559Advance 9100000559 | 3 | WHEEL D.51 GREY SIPOrdinary maintenance. | $48.04/EA |
| – | AD9100000864Advance 9100000864 | 1 | STRAP ELASTIC F REAR SQUEEGEE BLADE SIPOrdinary maintenance. | $21.85/EA |
| – | AD9100000865Advance 9100000865 | 1 | STRAP FRONT SQUEEGEE BLADE SIPOrdinary maintenance. | $14.70/EA |
| – | AD9100001816Advance 9100001816 | 1 | GUIDE WHEEL 2 PCS SETOrdinary maintenance. | $32.42/EA |
| – | AD9100000797Advance 9100000797 | 1 | HOSES BRUSH DECK KITOrdinary maintenance. | $26.25/EA |
| – | AD9100000870Advance 9100000870 | 1 | SOLENOID VALVE 24V SIPOrdinary maintenance. | $152.73/EA |
| – | AD9100000871Advance 9100000871 | 1 | HUB BRUSH SIPOrdinary maintenance. | $45.74/EA |
| – | AD9100000874Advance 9100000874 | 1 | REDUCTION GEARMOTOR 450W 24V SIP FOR DISC VERSIONOrdinary maintenance. | $1,453.76/EA |
| – | AD9100001860Advance 9100001860 | 1 | MOTOR 24VDC SIP FOR REV VERSIONOrdinary maintenance. | $915.96/EA |
| – | AD9100001283Advance 9100001283 | 1 | CARBON BRUSHES W/HOLDER SIP FOR REV VERSIONOrdinary maintenance. | $494.93/EA |
| – | ADL08603949Advance L08603949 | 1 | CARBON BRUSHES SET 4 PCS FOR REV VERSIONOrdinary maintenance. | $167.59/EA |
| – | AD9100000901Advance 9100000901 | 1 | GASKET ADHESIVE 12X5 L.1090MM SIP FOR REV VERSIONOrdinary maintenance. | $11.69/EA |
| – | AD9100000798Advance 9100000798 | 1 | GASKETS COVER KITOrdinary maintenance. | $13.07/EA |
| – | AD9100000803Advance 9100000803 | 1 | VALVE ELBOW SIPExtra ordinary maintenance. | $31.05/EA |
| – | AD9098446000Advance 9098446000 | 1 | HOSE SOLUTIONExtra ordinary maintenance. | $8.80/EA |
| – | AD9096380000Advance 9096380000 | 1 | CLAMP KITExtra ordinary maintenance. | $11.69/EA |
| – | AD9100000899Advance 9100000899 | 1 | FILTER WATER INLET SIPExtra ordinary maintenance. | $29.53/EA |
| – | AD9100000805Advance 9100000805 | 1 | ACTUATOR LINEAR 24V DC STRK 120MM SIP FOR DISC VERSIONExtra ordinary maintenance. | $421.71/EA |
| – | AD9100000806Advance 9100000806 | 1 | ACTUATOR LINEAR 24V DC STRK 98MM SIP FOR REV VERSIONExtra ordinary maintenance. | $429.39/EA |
| – | AD9100000808Advance 9100000808 | 1 | RUBBER SOLUTION CAP SIPExtra ordinary maintenance. | $17.46/EA |
| – | AD9100000703Advance 9100000703 | 1 | HOSE FILLING SIPExtra ordinary maintenance. | $50.01/EA |
| – | AD9100000827Replaces Advance 9100000743 | 1 | MOTOR DRIVE 200W 24V SIPExtra ordinary maintenance; replaces Advance 9100000743. | $1,352.37/EA |
| – | AD9100000820Advance 9100000820 | 1 | HARNESS VACUUM MOTOR SIPExtra ordinary maintenance. | $77.47/EA |
| – | AD9100001875Advance 9100001875 | 1 | SUPPORT FLOAT KITExtra ordinary maintenance. | $64.01/EA |
| – | AD9100000837Advance 9100000837 | 1 | POTENTIOMETER 5K SIPExtra ordinary maintenance. | $141.48/EA |
| – | AD9100000842Advance 9100000842 | 1 | CARD DISPLAY SIPExtra ordinary maintenance; Models No.: 9087352020, 9087353020, 9087354020. | $283.67/EA |
| – | AD9100002391Advance 9100002391 | 1 | CONTROLLER DISPLAY SIPExtra ordinary maintenance; Models No.: 9087403020, 9087405020, 9087404020. | $338.54/EA |
| – | AD9100000845Advance 9100000845 | 1 | HARNESS CONTROL PANEL SIPExtra ordinary maintenance. | $38.06/EA |
| – | AD9100000846Advance 9100000846 | 1 | DASHBOARD CONTROL PANEL SIP DISC VERSIONExtra ordinary maintenance; Models No.: 9087352020, 9087353020, 9087354020. | $152.73/EA |
| – | AD9100000847Advance 9100000847 | 1 | DASHBOARD CONTROL PANEL SIP REV VERSIONExtra ordinary maintenance. | $182.30/EA |
| – | AD9100002915Replaces Advance 9100002392 | 1 | CONTROLLER USER INTERFACE SIPExtra ordinary maintenance; Models No.: 9087403020, 9087405020, 9087404020; replaces Advance 9100002392. | $166.91/EA |
| – | AD9100002916Replaces Advance 9100002393 | 1 | CONTROLLER USER INTERFACE REV SIPExtra ordinary maintenance; replaces Advance 9100002393. | $199.17/EA |
| – | AD9100000848Advance 9100000848 | 1 | KEY SERVICE COMPLETE SIPExtra ordinary maintenance; Models No.: 9087352020, 9087353020, 9087354020. | $21.85/EA |
Advance SC500 recommended parts: accessories and optionals
Recommended parts: accessories and optionals from Advance's parts list. Manual page 43.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56116519Advance 56116519 | 1 | SMART KEY - SUPERVISORModels No.: 9087403020, 9087405020, 9087404020. | $53.28/EA |
| – | AD9100000860Advance 9100000860 | 1 | FILTER WATER SIP | $35.50/EA |
| – | AD9100000747Advance 9100000747 | 1 | SQUEEGEE 730MM/29 PRE-ASSEMBLED SIP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000868Advance 9100000868 | 1 | VIBRATION DAMPING M8 60SH 2 PCS SET FOR REV VERSION | $47.12/EA |
| – | AD9100000873Advance 9100000873 | 1 | DECK BRUSH SIP FOR DISC VERSION | $83.12/EA |
| – | AD56382991Advance 56382991 | 1 | KIT-ISOLATOR BOOST HD FOR REV VERSION | $152.73/EA |
| – | AD9100000879Advance 9100000879 | 1 | CONTROLLER MAIN MACHINE SIPModels No.: 9087352020, 9087353020, 9087354020. | $799.75/EA |
| – | AD9100002397Advance 9100002397 | 1 | CONTROLLER MAIN MACHINE SIPModels No.: 9087403020, 9087405020, 9087404020. | $703.15/EA |
| – | AD9100002232Advance 9100002232 | 1 | HARNESS MACHINE SC500 53B/20B SIP FOR ALL VERSIONSNOTE ONLY FOR REV VERSION - STARTING FROM S/N 3510163605524. | $443.56/EA |
| – | AD9100001863Advance 9100001863 | 1 | HARNESS MACHINE SC500 20R SIP ONLY FOR REV VERSION - UNTIL S/N3510163605523 - SEE TSB-FC-2016-009. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100002117Advance 9100002117 | 1 | CONNECTOR RED 120A 2 PCS SET | $50.01/EA |
| – | AD9100000888Advance 9100000888 | 1 | CHARGER BATT. O/B 24V 13A 100-230V SIP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100001819Advance 9100001819 | 1 | KIT PUMP DETERGENT MIXModels No.: 9087352020, 9087353020, 9087354020. | $414.70/EA |
| – | AD9100002398Advance 9100002398 | 1 | PUMP DETERG. MIX PERISTALTIC 24V SIPModels No.: 9087403020, 9087405020, 9087404020. | $196.45/EA |
| – | AD9100000893Advance 9100000893 | 1 | SENSOR WATER LEVEL SIP | $96.42/EA |
| – | AD9100000703Advance 9100000703 | 1 | HOSE FILLING SIPAccessories/optional. | $50.01/EA |
| – | AD9100000491Advance 9100000491 | 1 | HIGH POWER VACUUM MOTOR 24V 450W KITAccessories/optional. | $421.71/EA |
| – | AD9100000795Advance 9100000795 | 1 | TRAY DEBRIS KITAccessories/optional. | $35.17/EA |
| – | AD9100000843Advance 9100000843 | 1 | KEY OPERATOR COMPLETE SIPAccessories/optional; Models No.: 9087352020, 9087353020, 9087354020. | $21.85/EA |
| – | AD9100000848Advance 9100000848 | 1 | KEY SERVICE COMPLETE SIPAccessories/optional. | $21.85/EA |
| – | AD56116518Advance 56116518 | 1 | SMART KEY - USERAccessories/optional; Models No.: 9087403020, 9087405020, 9087404020. | $42.89/EA |
| – | AD56116519Advance 56116519 | 1 | SMART KEY - SUPERVISORAccessories/optional. | $53.28/EA |
| – | AD9100002403Advance 9100002403 | 1 | USB PORT KITAccessories/optional. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9095065000Advance 9095065000 | 1 | FILTER ANTIFOAMINGAccessories/optional. | $10.30/EA |
| – | AD9100001366Advance 9100001366 | 1 | SQUEEGEE NON MARKING 730MM/29 KITAccessories/optional. | $273.78/EA |
| – | AD9100000810Advance 9100000810 | 1 | BLADE SQUEEGEE 740MM 29 GUM KITAccessories/optional. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000490Advance 9100000490 | 1 | BLADE SQUEEGEE 730MM 29 PU KITAccessories/optional. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000060Advance 9100000060 | 1 | BLADE SQUEEGEE 730MM 29 RED GUM KITAccessories/optional. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100002395Advance 9100002395 | 1 | ECOFLEX DETERGENT KIT SC500Accessories/optional; Models No.: 9087403020, 9087405020, 9087404020. | $435.04/EA |
| – | AD9098025000Advance 9098025000 | 1 | ADAPTER DETERGENT KITAccessories/optional. | $174.60/EA |
| – | AD9100001441Advance 9100001441 | 1 | SPLASH GUARD 510MM 20 KITAccessories/optional. | $175.86/EA |
| – | AD9100002280Advance 9100002280 | 1 | MOP AND TRASH KIT (9100002279) INSTALLATION INSTRUCTIONSAccessories/optional. | $232.96/EA |
| – | AD9100000005Advance 9100000005 | 1 | AUTOMATIC WATER FILLING KITAccessories/optional. | $327.34/EA |
| – | ADL08837025Advance L08837025 | 1 | BRUSH DISC 530MM 21 PROLENE FOR DISC VERSIONAccessories/optional. | $300.36/EA |
| – | ADL08837026Advance L08837026 | 1 | BRUSH DISC 530MM 21 PROLITE FOR DISC VERSIONAccessories/optional. | $159.03/EA |
| – | ADL08837027Advance L08837027 | 1 | BRUSH DISC 530MM 21 UNION MIX FOR DISC VERSIONAccessories/optional. | $281.37/EA |
| – | ADL08837028Advance L08837028 | 1 | BRUSH DISC 530MM 21 MIDLITE GRIT 180 FOR DISC VERSIONAccessories/optional. | $636.07/EA |
| – | ADL08837029Advance L08837029 | 1 | BRUSH DISC 530MM 21 MID GRIT 240 FOR DISC VERSIONAccessories/optional. | $399.92/EA |
| – | ADL08837065Advance L08837065 | 1 | BRUSH DISC 530MM 21 MAGNA GRIT 46 FOR DISC VERSIONAccessories/optional. | $636.99/EA |
| – | ADL08837066Advance L08837066 | 1 | BRUSH DISC 530MM 21 DYNA GRIT 80 FOR DISC VERSIONAccessories/optional. | $565.35/EA |
| – | ADL08837067Advance L08837067 | 1 | BRUSH DISC 530MM 21 AGLITE GRIT 500 FOR DISC VERSIONAccessories/optional. | $477.04/EA |
| – | ADL08837018Advance L08837018 | 1 | PAD HOLDER 530MM FOR DISC VERSIONAccessories/optional. | $245.40/EA |
| – | AD9099671000Advance 9099671000 | 1 | PAD HOLDER FLAT 20 508MM FOR DISC VERSIONAccessories/optional. | $180.42/EA |
| – | AD10001955Advance 10001955 | 1 | PAD 20 508MM ECO BLACK 5PCS FOR DISC VERSIONAccessories/optional. | $81.36/EA |
| – | AD10001956Advance 10001956 | 1 | PAD 20 508MM ECO BLUE 5PCS FOR DISC VERSIONAccessories/optional. | $59.53/EA |
| – | AD10001957Advance 10001957 | 1 | PAD 20 508MM ECO BROWN 5PCS FOR DISC VERSIONAccessories/optional. | $57.45/EA |
| – | AD10001958Advance 10001958 | 1 | PAD 20 508MM ECO GREEN 5PCS FOR DISC VERSIONAccessories/optional. | $59.53/EA |
| – | AD10001959Advance 10001959 | 1 | PAD 20 508MM ECO RED 5PCS FOR DISC VERSIONAccessories/optional. | $57.45/EA |
| – | AD10001960Advance 10001960 | 1 | PAD 20 508MM ECO WHITE 5PCS FOR DISC VERSIONAccessories/optional. | $114.88/EA |
| – | AD10002348Advance 10002348 | 1 | PAD 20 508MM ECO BRILLIANCE RED 2PCS FOR DISC VERSIONAccessories/optional. | $196.45/EA |
| – | AD10002349Advance 10002349 | 1 | PAD 20 508MM ECO BRILLIANCE BLUE 2PCS FOR DISC VERSIONAccessories/optional. | $167.59/EA |
| – | AD10002350Advance 10002350 | 1 | PAD 20 508MM ECO BRILL. YELLOW 2PCS FOR DISC VERSIONAccessories/optional. | $182.30/EA |
| – | AD10002351Advance 10002351 | 1 | PAD 20 508MM ECO BRILLIANCE GREEN 2PCS FOR DISC VERSIONAccessories/optional. | $182.30/EA |
| – | AD56390008Advance 56390008 | 1 | BRUSH NYLON REV FOR REV VERSIONAccessories/optional. | $138.95/EA |
| – | AD56390079Advance 56390079 | 1 | MICROFIBER PAD FOR REV VERSIONAccessories/optional. | $84.50/EA |
New to your Advance SC500? Start here
Set up, run and look after your SC500. Everything here comes from Advance's instructions for use, rewritten in plain steps, with the parts you need linked to the list above.
1Charge the batteries
- Make sure the red battery connector is connected. With new batteries, run a full charging cycle before you first use the machine.
- Take out the user key. Empty the recovery tank with the drain hose (AD9100000812), close the cover, then lift the tank by its handle.
- With wet batteries, check the electrolyte level and top up if needed. Charge in a well-ventilated area away from naked flames, and keep the tank raised until charging ends.
- Plug the battery charger (AD9100000888) into the mains. The mains voltage and frequency must match the values on the serial number plate.
- Wait until all segments of the battery symbol stay lit. Unplug the charger, put the plug in its holder and lower the tank.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 6, 11 and 19. SES ref PF-INDQ-GDVS
2Fit a brush or pad
- On the Disc version, place the brush, or the pad holder (AD9099671000) with its pad, under the brush deck.
- Put the user key in the key reader and press the start button. Press the turtle button to slow the drive to idle.
- Press the One-Touch button to lower the deck on the brush. Press the paddle, then release it, to engage the brush. Repeat if needed. Press the paddle only slightly, or the machine starts to move.
- To remove a Disc brush, lift the deck with the One-Touch button, then press the release button. Wait until the brush is lowered onto the floor.
- On the REV version, make sure the deck is lifted, turn the machine off and take out the key. Press the pad under the deck until it grips the Velcro of the drive disc, or fit the optional REV brush (AD56390008) with its three mounting screws.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 12 and 13. SES ref PF-INDQ-GDVS
3Fill the tanks
- Make sure the washing water valve is open. Fill the solution tank through the front filler, or open the side filler cap. Leave a few inches from the edge and use the level hose as the reference.
- Without EcoFlex, fill the tank with a solution for the job. Follow the dilution on the chemical's label and keep the solution at or below 104 °F (40 °C).
- Use only low-foam, non-flammable detergents made for automatic scrubbers. Wear suitable gloves and protection when you handle detergent.
- With EcoFlex, fill the solution tank with clean water through the removable filler hose. Keep the water at or below 104 °F (40 °C).
- With EcoFlex, empty the recovery tank, close the cover and lift the tank by its handle. Fill the detergent tank with highly concentrated detergent and leave a few inches from the edge.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 13 and 14. SES ref PF-INDQ-GDVS
4Start and scrub
- Put the user key (AD56116518) in the key reader and press the start button. Check that at least one segment of the battery symbol is on and not flashing.
- Hold the handlebar. Push the paddle forward to go forward or back to reverse. Press it more or less to change speed.
- Lower the squeegee with the pedal. Press the One-Touch button to lower the brush deck and start scrubbing and drying.
- Set the solution flow with the flow button. Turn the brush off when the machine is stationary, to avoid damaging the floor.
- At the end, press the One-Touch button to lift the deck. The vacuum turns off after 10 seconds. Lift the squeegee with the pedal.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 11, 14 and 15. SES ref PF-INDQ-GDVS
Questions about your SC500? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Advance SC500 troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting page. The manual says to do repairs and scheduled maintenance through an authorized Advance service center.
| Likely cause | Fix | Part |
|---|---|---|
| The motors do not run and the display and button LEDs stay off | ||
| The battery connector is disconnected, or the batteries are completely discharged | Connect the connector. Charge the batteries with the battery charger (AD9100000888). | AD9100000888CHARGER BATT. O/B 24V 13A 100-230V SIPCall to confirm part: 800-440-6723Call 800-440-6723 |
| The machine does not move and the display shows WARNING ALARM T3 | ||
| The machine was turned on with the paddle pressed | Release the paddle. If the problem persists, call SES service. | |
| At start-up the One-Touch button LED flashes and the brushes do not work | ||
| The machine was switched off without first raising the brush deck | Wait for the deck to raise before turning the brushes on again with the switch. | |
| The brush does not run, the battery symbol border flashes and the display shows WARNING ALARM G4 | ||
| The batteries are discharged | Charge the batteries. If the problem persists, replace the batteries. | |
| The display shows WARNING ALARM F2 while working | ||
| Brush motor overload, or foreign material such as tangled threads stopping the brush | Use a different or less aggressive brush and avoid extra pressure. Clean the brush hub. | |
| The display shows WARNING ALARM T2 | ||
| Drive motor overload | Turn the machine off and on again. Avoid slopes steeper than the manual allows and very tall obstacles. | |
| The display shows WARNING ALARM C4 or C5 while charging with the on-board charger | ||
| The charger could not recharge the batteries in the maximum time | Run the charging cycle again. If the problem persists, replace the batteries. | |
| The display shows INVALID SMART KEY | ||
| The user key is not enabled | Add the specific user key to the list of enabled keys with the supervisor key (AD56116519). | |
| Dirty water vacuuming is insufficient | ||
| The recovery tank is full, the vacuum grid is clogged or the float is stuck closed, or the debris collection filter container is clogged | Empty the tank. Clean the vacuum grid. Clean the debris container. | |
| The hose is disconnected from the squeegee, the squeegee is dirty or its blades are worn or damaged, or the tank cover is not closed properly or its gasket is damaged | Connect the hose (AD9100000816). Clean the squeegee or overturn or replace the blades (AD9100000810 / AD9100000490 / AD9100000060). Close the cover correctly or clean or replace the gasket. | |
| The solution flow is insufficient | ||
| The washing water tank is empty, the washing water filter is dirty, or the EcoFlex tank is dirty or encrusted | Refill the tank. Clean the filter (AD9100000860). Clean the EcoFlex system with the drain cycle. | |
| The squeegee leaves marks on the floor | ||
| There is debris under the blades, the blades are worn, chipped or torn, or the squeegee is not balanced with the handwheel | Remove the debris. Overturn or replace the blades (AD9100000810 / AD9100000490 / AD9100000060). Adjust the squeegee. | |
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 21 and 27. SES ref PF-EZQA-SZ46
Still stuck? SES is an Advance service center. Call 800-440-6723 and have your model and serial number ready.
Advance SC500 maintenance schedule
Advance's scheduled maintenance table. Do every procedure with the machine off and the battery disconnected. Advance says scheduled or extraordinary maintenance must be done by qualified personnel or an authorized service center, and the intervals can vary with working conditions.
| Task | How often | Part |
|---|---|---|
| Charge the batteries with the battery charger (AD9100000888) when the battery symbol shows one flashing segment, or at the end of the shift. | Daily | AD9100000888CHARGER BATT. O/B 24V 13A 100-230V SIPCall to confirm part: 800-440-6723Call 800-440-6723 |
| Clean the squeegee. Wash it, clean its compartments and vacuum hole, and check the front and rear blades (AD9100000810 / AD9100000490 / AD9100000060) for cuts and tears. | Daily | |
| Clean the brush with water and detergent. Replace it if the bristles are excessively worn. | Daily | |
| Empty and clean the recovery tank with the drain hose (AD9100000812). Clean the vacuum grid and float and the debris tray, and check the cover gasket. | Daily | |
| EcoFlex versions: clean the detergent tank and drain the EcoFlex system. | Weekly | |
| Check the squeegee blades (AD9100000810 / AD9100000490 / AD9100000060). If the front corner of the rear blade is worn, turn the blade to an intact corner. | Weekly | |
| Clean the washing water filter. Close the valve, remove the cover, gasket and strainer, wash them and refit them. See the water filter (AD9100000860). | Weekly | |
| Check the fluid level in wet batteries and top up if needed. | Weekly | |
| Replace the squeegee blades (AD9100000810 / AD9100000490 / AD9100000060). | Every six months | |
| Have an authorized Advance service center check and clean the drive and brush motor vents. Call SES service: 800-440-6723. | Every six months | |
| Have an authorized service center check or replace the brush motor carbon brushes (AD9098376000 / AD9100001283 / ADL08603949 / AD56412287). | Yearly | |
| Have an authorized service center check or replace the drive system motor carbon brushes (AD9100000922). | Yearly | |
| REV version: have an authorized service center replace the brush deck vibration dampers. | Yearly |
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 18, 19, 22, 23, 24, 25 and 26. SES ref PF-Z4BK-WZAD
Advance SC500 specifications
From the technical data in Advance's SC500 instructions for use. Where two values are shown, the first is for the SC500 20D B and X20D B and the second for the SC500 X20R B.
| Models | SC500 20D B, SC500 X20D B and SC500 X20R B |
|---|---|
| Cleaning width | 20 in (530 mm) |
| Brush or pad diameter | 20 in (530 mm brush, 508 mm pad) |
| Tank capacity | Washing water 12 US gal (45 L); recovery 12 US gal (45 L) |
| Size (L × W × H) | 50.3 in (1,277 mm) or 51.2 in (1,302 mm) long; 28.3 in (720 mm) wide with squeegee; 41.8 in (1,063 mm) high |
| Weight | 187 lb (85 kg) or 194 lb (88 kg) without batteries and with empty tanks |
| Brush pressure | Extra pressure off: 33 lb (15 kg) or 49 lb (22 kg); extra pressure on: 66 lb (30 kg) |
| Brush motor | 0.6 hp (450 W) or 0.9 hp (670 W) |
| Drive | 0 to 3.1 mi/h (0 to 5 km/h), variable; 0.27 hp (200 W) drive motor |
| Vacuum motor | 0.37 hp (280 W); 29.9 in H2O (760 mm H2O) circuit capacity |
| Batteries and charger | 24 V system; two 12 V 105 AhC5 standard batteries; on-board 24 V 13 A charger |
| Run time | 3.5 hours with standard batteries, in standard operating conditions |
| Sound level | 63 ± 3 dB(A) or 65 ± 3 dB(A) at the workstation |
| Maximum gradient | 2% |
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), page 9. SES ref PF-WRD3-RCFZ
Advance SC500 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| SC500 parts listParts list with exploded drawings, 46 pages | SC500 models 9087352020, 9087353020, 9087354020, 9087403020, 9087405020, 9087404020 | Form no. 9099981000, 11/2014, revised 01/2018 (this page) | 6.1 MB | Sign in to view or downloadSign in to download |
| SC500 instructions for useOperator manual in English, Spanish, French and Portuguese, 116 pages | SC500 models 9087403020, 9087405020, 9087404020 | Form no. 9099980000, 11/2014, revised 07/2017 (C) | 11.8 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance SC500 parts questions
Which models does the Advance SC500 parts list cover?
Six model numbers: 9087403020, 9087405020 and 9087404020, and the older 9087352020, 9087353020 and 9087354020. Lines that fit only some of them are marked on this page, so choose your version above the parts list.
Source: Advance SC500 Parts List, form no. 9099981000 (11/2014, revised 01/2018), pages 12 and 14. SES ref PF-HSXD-MQQG
How do I tell a Disc SC500 from a REV SC500?
A Disc machine has the disc brush deck. A REV machine has a REV deck with a REV brush or pad, and a REV button on the control panel. The serial number plate shows the model name and number.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 2, 7 and 8. SES ref PF-HSXD-MQQG
How often should I replace the Advance SC500 squeegee blades?
Advance's table says to check the blades weekly and replace them every six months. Clean the squeegee daily. If the front corner of the rear blade is worn, turn the blade to an intact corner before you replace it.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 18 and 22. SES ref PF-HSXD-MQQG
How do I charge the Advance SC500 batteries?
Take out the user key, lift the empty recovery tank and plug in the on-board charger. Charging is finished when all segments of the battery symbol stay lit. Charge when one segment flashes, or at the end of the shift.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), page 19. SES ref PF-HSXD-MQQG
What does alarm F2 mean on my Advance SC500?
Brush motor overload. Use a different or less aggressive brush and avoid extra pressure, and clean the brush hub if something is stopping the brush. After about a minute of continuous overload the brush stops.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), pages 16 and 27. SES ref PF-HSXD-MQQG
What are the blue and yellow keys on the Advance SC500?
A magnetic smart key is required to start the machine. The blue user key is for scrubbing and drying. The yellow supervisor key opens extra features and settings.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), page 11. SES ref PF-HSXD-MQQG
How long does the Advance SC500 run on one charge?
Advance gives an operating time of 3.5 hours with the standard batteries, in standard operating conditions.
Source: Advance SC500 Instructions for Use, form no. 9099980000 (rev. 07/2017), page 9. SES ref PF-HSXD-MQQG
Notes on this parts list
Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- The parts list covers six model numbers but never says which one is Disc, REV or EcoFlex. Its lines are marked only as older models (9087352020, 9087353020, 9087354020), newer models (9087403020, 9087405020, 9087404020), Disc version or REV version. The operator manual names three machines (SC500 20D B, SC500 X20D B, SC500 X20R B) and does not tie them to model numbers.
- Sections the manual prints twice for two model groups (paddle and dashboard, EcoFlex) are titled older models and newer models here. Advance prints the model numbers in the section title.
- The REV deck list (page 23) has a 350 W brush motor (9100001793, 9100001860). The operator manual (page 9) gives 0.9 hp (670 W) for the REV brush motor.
- The REV deck drawing (page 22) has callouts 54 and 55 that have no line in the list on page 23, which ends at item 52. They are kept on the drawing.
- The water filling list (page 35) prints its second line as item 8 (screw 3.5X10, 5 pieces) and has no item 2, while the drawing has a callout 2 and no callout 8. The line is kept as printed, as item 8. The drawing shows K1 and K2 boxes as the kit callouts.
- General view (page 3): lines 2 to 14 print a dash where the part number goes. They name assemblies that are listed on the pages that follow.
- The operator manual's yearly vibration-damper replacement is marked REV only. The only damper in the list, 9100000868 (vibration damping, page 21), is on the Disc deck drawing, and the recommended parts page (43) marks it FOR REV VERSION. The REV deck list has no damper line. It has the isolator kit 56382991, which page 43 also marks FOR REV VERSION.
- Electrical (page 25) item 10: 9100002232 is printed FOR ALL VERSIONS and also says only for REV version, starting from S/N 3510163605524. We kept the wording on the line and did not limit it to one version.
- The Brushes list (page 37) has no version marks. Items 1, 2, 5 and 6 are tagged Disc and items 7 and 8 REV from the marks on the accessories page (43). Items 3 and 4 have no mark on either page.
- Page 42 and 43 repeat parts from the lists above. Only 9100000829 (elastic band for the extension cable) is on page 42 and no drawing, so it has its own section here. Some descriptions differ between pages: 9100001816 is WHEEL BUMPER D.100 PLASTIC on page 19 and GUIDE WHEEL on page 42, and 9100001441 is SPLASH GUARD CPL F BRUSH DECK on page 33 and SPLASH GUARD 510MM 20 KIT on page 43.
- The squeegee blade 9100000810 is printed as 740 mm (BLADE SQUEEGEE 740MM 29 GUM KIT) where the other two blades and the squeegee say 730 mm. The description is copied as printed.
- Descriptions are copied as Advance prints them, including its spellings (for example ROLLER BUMBER).
