Advance SC2000 parts list and diagrams
Every part number in Advance's SC2000 scrubber-dryer parts list, with the manual's drawings, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Online manuals: Operator
Complete list: every parts line in Advance's SC2000 Parts List, form 9100000387 (rev 07/2017), for SC2000 models 9087412020 and 9087361020. Checked .
New to your SC2000? Start here → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Cleaning width
- 21 in (530 mm)
- Tank capacity
- Washing water 18.5 US gal (70 L); recovery 18.5 US gal (70 L)
- Drive
- 0.53 hp (400 W) motor; speed 0 - 3.7 mi/h (0 - 6 km/h), variable
- Batteries
- 24V system; two Discover 12V-105Ah as standard; charger 100-240Vac 50-60Hz, 24Vdc 13A
- Weight
- 267 lb (121 kg) without batteries and with empty tanks; gross vehicle weight 754 lb (342 kg)
Wear parts most SC2000 owners reorder
Advance's recommended parts list names squeegee blades, the brush and the tank cover gasket as normal wear items, and lists filters, carbon brushes and squeegee straps for ordinary maintenance. These are the ones on the parts list.
Blade squeegee 740mm 29 gum kit
$42.49/EABlade squeegee 730mm 29 pu kit
$107.47/EABlade squeegee 730mm 29 red gum kit
$33.25/EABrush disc 530mm 21 prolene
$300.36/EA- No photo yet
Cover recovery tank kit
$57.03/EA Strap elastic f rear squeegee bl. sip
$21.85/EAStrap front squeegee blade sip
$14.70/EA- No photo yet
Filter water sip
$35.50/EA - No photo yet
Carbon brushes kit 4 pcs
$174.60/EA - No photo yet
Carbon brushes kit 4 pcs
$189.43/EA
Source: Advance SC2000 Parts List, form 9100000387 (rev 07/2017), pages 46 and 47. SES ref PF-GZRK-BM5C
Your machine
How to tell which you have
- Model number: the parts list covers two builds, model 9087412020 and model 9087361020, and marks the lines that differ with the model number. Write your model number and serial number on the parts list cover page when you get the machine.
- Data plate: Advance's instructions for use say the serial number and model name are on the plate (item 23, the serial number plate), together with the year of production and the product code. The manuals do not say which line of the plate carries the 10-digit model number, so call us with your serial number if you are unsure.
- Keys: model 9087412020 uses smart keys (user, supervisor and probe). Model 9087361020 uses an operator key and a superuser key. The instructions for use describe the magnetic smart key.
- Parts that differ: the model changes the keys, steering column, footboard harness, display and display cable, main controller, EcoFlex detergent pump and the EcoFlex drawing. Everything else is the same for both.
How to read this list
Our part numbers are the Advance number with AD in front, so Advance 9100000803 is AD9100000803. Where Advance prints spaces inside a number (909 6380 000), our part number drops them (AD9096380000). Each line shows the item number on the drawing. Lines with no item number are kits that Advance lists as not shown, or optional kits. Many small parts have no number of their own: the note names the kit that contains them (K1, K2, K3). Lines tagged with a model number fit only that model; use Your machine above to show your parts. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Advance SC2000 General view parts

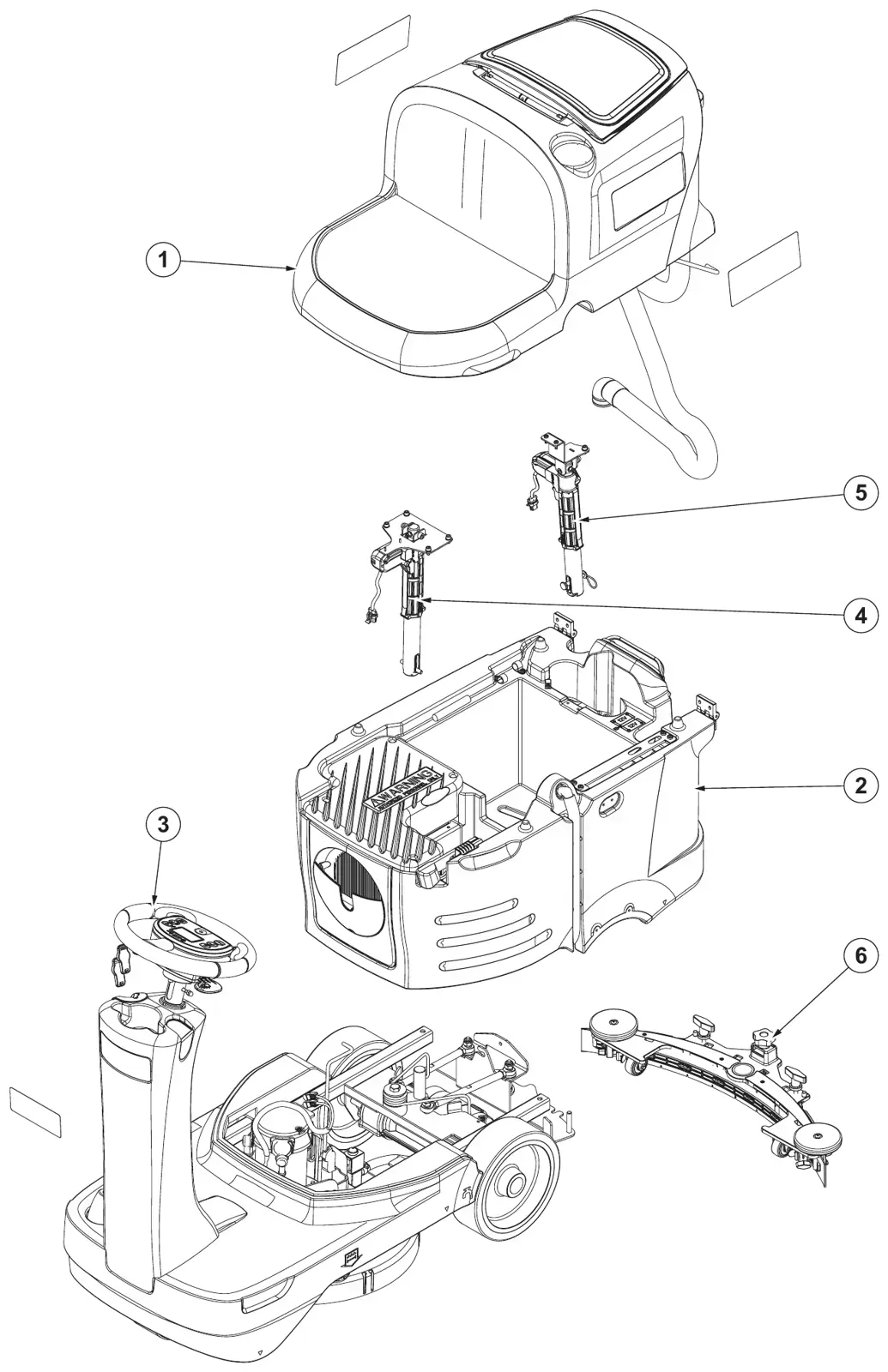

The six main assemblies of the SC2000. Advance prints no part numbers for them; the pages that follow list their parts. Manual pages 2, list 3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | – | 1 | Recovery assembly | |
| 2 | – | 1 | Solution assembly | |
| 3 | – | 1 | Body machine assembly | |
| 4 | – | 1 | Actuator front assembly | |
| 5 | – | 1 | Actuator rear assembly | |
| 6 | – | 1 | Squeegee assembly |

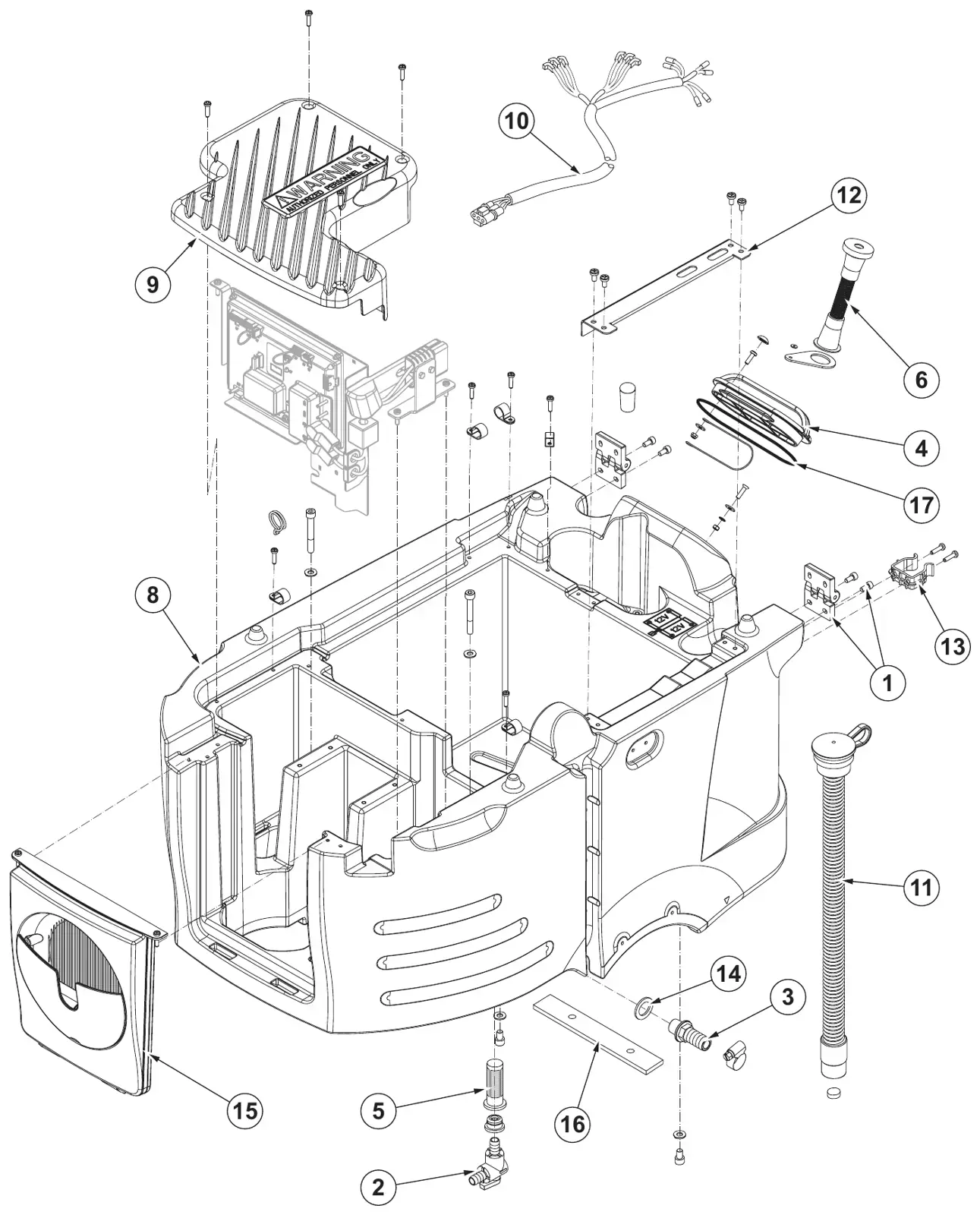

Advance SC2000 Solution tank system parts
The solution tank, its hinges, filter, fill and level hoses, and the cover for the battery charger. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9098329000 | 1 | HINGES KIT | $142.49/EA |
| 2 | AD9100000803 | 1 | VALVE ELBOW SIP | $31.05/EA |
| 3 | AD9100000574 | 1 | FITTING STRAIGHT G1/2 D.20 KIT | $10.30/EA |
| 4 | AD1465355000 | 1 | CAP SOLUTION TANK KIT | $96.42/EA |
| 5 | AD9100001353 | 1 | FILTER SOLUTION TANK SIPOptional. | $33.79/EA |
| 6 | AD9100000952 | 1 | FILLING HOSEOptional. Installation instructions 9100001072. | $62.63/EA |
| 8 | AD9100001753 | 1 | TANK SOLUTION 70 LT PLAST. GREY KITUntil S/N 3510161103624. | $959.51/EA |
| 8 | AD9100001752 | 1 | TANK SOLUTION 70 LT PLAST. GREY SIP | $843.44/EA |
| 9 | AD9100001102 | 1 | COVER BATTERY CHARGER SIP | $36.67/EA |
| 10 | AD9100001120 | 1 | HARNESS TANK SIP | $77.47/EA |
| 11 | AD9100001578 | 1 | HOSE FRESH WATER LEVEL KITInstallation instructions 9100000968. | $66.90/EA |
| 12 | AD9100001129 | 1 | SUPPORT F SAFETY BAR SIP | $23.35/EA |
| 13 | AD9100001164 | 1 | CLAMP HOSE D.40 BLACK KIT | $11.69/EA |
| 14 | AD9100001139 | 2 | GASKET RUBBER D.21X33X2.5 BLACK SIP | $8.80/EA |
| 15 | AD9100001182 | 1 | COVER FUNCTIONS CARD KIT | $65.52/EA |
| 16 | AD9100001150 | 1 | PROTECTION RUBBER ADHESIVE F TANK SIP | $13.07/EA |
| 17 | AD9100001370 | 1 | O-RING F. HEPA/ULPA FILTER SIP | $10.30/EA |

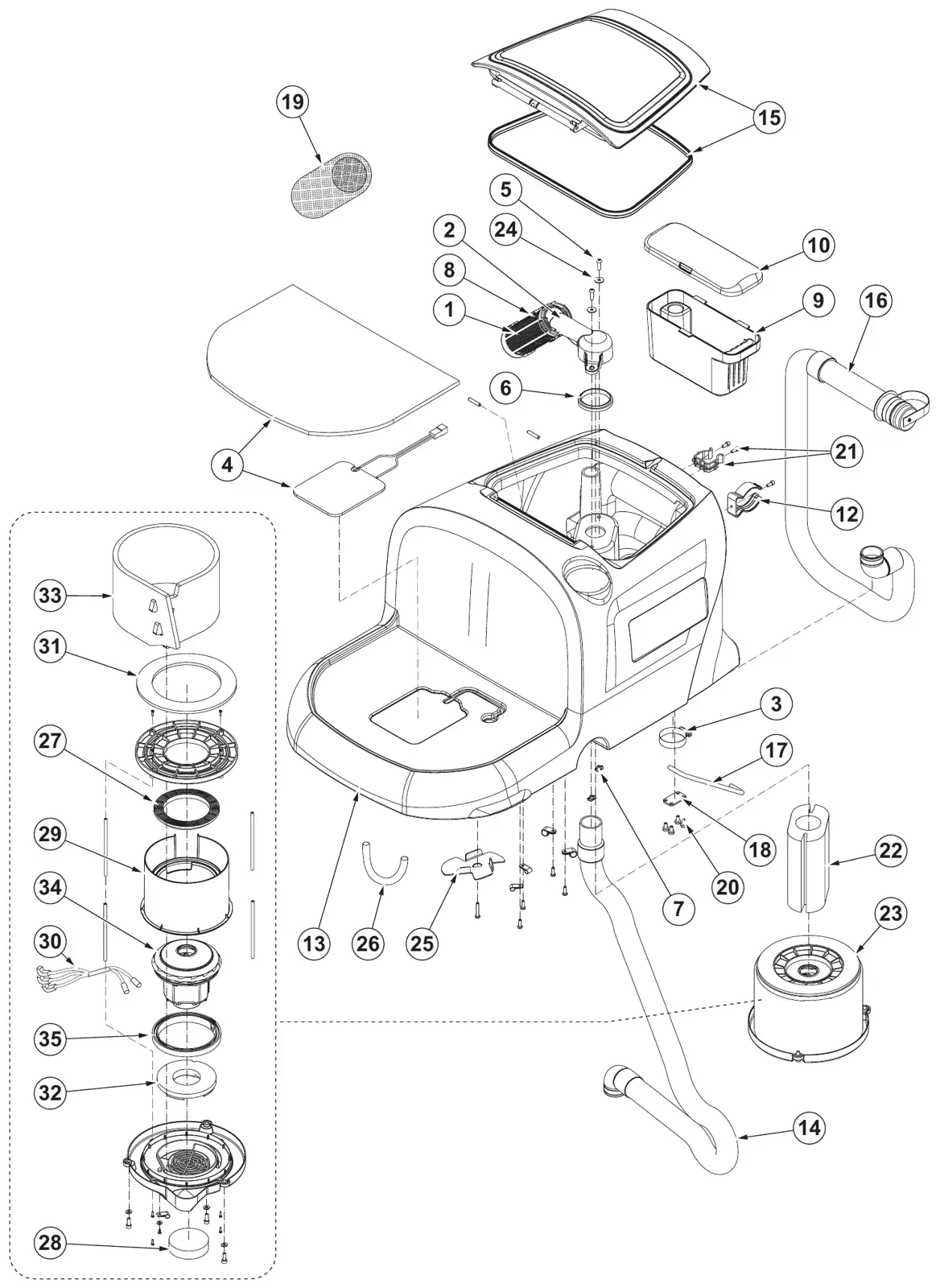

Advance SC2000 Recovery tank system parts
The recovery tank, float, debris tray, tank cover, vacuum motor and their kits. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000817 | 1 | BALL FLOATING SIP | $11.69/EA |
| 2 | K1 | 1 | Cage float | Included in kitSupport float kit · AD9100001875 › |
| 3 | AD9100001348 | 1 | CLAMP 14/32-52 10 PCS SET | $29.53/EA |
| 4 | AD9100001130 | 1 | CUSHION SEAT W. MICROSWITCH SIP | $141.48/EA |
| 5 | K1 | 2 | Screw m6x20 iso7380 ss | Included in kitSupport float kit · AD9100001875 › |
| 6 | AD9100000928 | 1 | GASKET FLOAT SUPPORT SIPAlso included in SUPPORT FLOAT KIT 9100001875 (K1). | $10.30/EA |
| 7 | K1 | 2 | Nut jaw m6x6 inox ss | Included in kitSupport float kit · AD9100001875 › |
| 8 | AD9100000818 | 1 | CAGE FLOAT HALF 2 PCS SET | $17.46/EA |
| 9 | AD9100001091 | 1 | TRAY DEBRISE SIP | $20.48/EA |
| 10 | AD9100001092 | 1 | COVER TRAY DEBRISE SIP | $17.46/EA |
| 12 | AD9096380000 | 1 | CLAMP KIT | $11.69/EA |
| 13 | AD9100001095 | 1 | TANK RECOVERY 70 LT GREY SIP | $625.17/EA |
| 14 | AD9100001106 | 1 | HOSE SUCTION BLACK SIP | $74.61/EA |
| 15 | AD9100001511 | 1 | COVER RECOVERY TANK KIT | $57.03/EA |
| 16 | AD9100001113 | 1 | HOSE DRAIN BLACK SIP | $97.79/EA |
| 17 | K2 | 1 | Bar safety f tank | Included in kitBar safety f tank kit · AD9100001165 › |
| 18 | K2 | 1 | Plate f safety bar | Included in kitBar safety f tank kit · AD9100001165 › |
| 19 | AD9095065000 | 1 | FILTER ANTIFOAMINGOptional. | $10.30/EA |
| 20 | K2 | 4 | Screw m6x12 iso7380 | Included in kitBar safety f tank kit · AD9100001165 › |
| 21 | AD9100001164 | 1 | CLAMP HOSE D.40 BLACK KIT | $11.69/EA |
| 22 | AD9100001143 | 1 | SOUNDPROOFING UPPER VACUUM MOT. SIP | $18.96/EA |
| 23 | AD9100001181 | 1 | MOTOR VACUUM 24V 310W KIT | $632.85/EA |
| 24 | K1 | 2 | Washer 6x18x1.5 uni6593 ss | Included in kitSupport float kit · AD9100001875 › |
| 25 | AD9100001146 | 1 | PLATE HARNESS PROTECTION SIP | $17.46/EA |
| 26 | AD9100001154 | 1 | HOSE CORRUGATED BLACK D.6 L.150MM SIP | $11.69/EA |
| 27 | K3 | 1 | Motor gasket lower domel | Included in kitGaskets vacuum motor kit · AD9100001166 › |
| 28 | K3 | 1 | Filter | Included in kitGaskets vacuum motor kit · AD9100001166 › |
| 29 | AD9100000822 | 1 | SUPPORT INT. INSULATION VAC. MOTOR SIP | $27.75/EA |
| 30 | AD9100001116 | 1 | HARNESS VACUUM MOTOR SIP | $32.42/EA |
| 31 | K3 | 1 | Gasket f vacuum upper cover | Included in kitGaskets vacuum motor kit · AD9100001166 › |
| 32 | K3 | 1 | Gasket f vacuum lower cover | Included in kitGaskets vacuum motor kit · AD9100001166 › |
| 33 | AD9100001142 | 1 | SOUNDPROOFING VACUUM MOTOR SIP | $57.03/EA |
| 34 | AD9100001144 | 1 | MOTOR VACUUM 24V 310W SIP | $211.28/EA |
| 35 | K3 | 1 | Rubber sealing domel upper | Included in kitGaskets vacuum motor kit · AD9100001166 › |
| – | AD9100001875 | 1 | SUPPORT FLOAT KITKit K1. Not shown on the drawing. Contains items 2, 5, 6, 7, 24. Includes items 2, 5, 7, 24. | $64.01/EA |
| – | AD9100001165 | 1 | BAR SAFETY F TANK KITKit K2. Not shown on the drawing. Contains items 17, 18, 20. Includes items 17, 18, 20. | $48.62/EA |
| – | AD9100001166 | 1 | GASKETS VACUUM MOTOR KITKit K3. Not shown on the drawing. Contains items 27, 28, 31, 32, 35. Includes items 27, 28, 31, 32, 35. | $116.90/EA |
Advance SC2000 Footboard, column and key systems parts

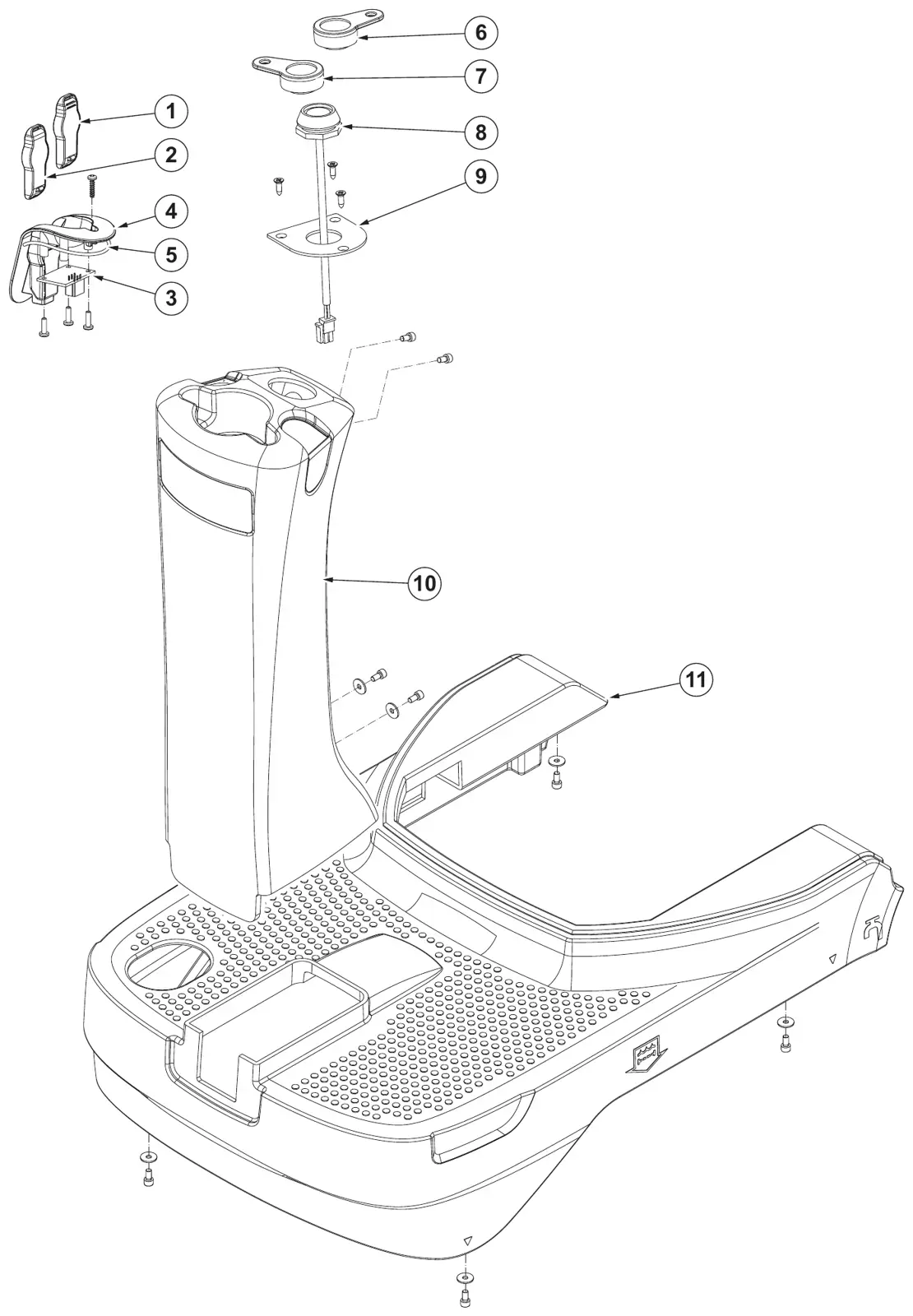

The operator, superuser and smart keys, the steering column and the footboard. Lines tagged with a model number fit only that model. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000843 | 1 | OPERATOR KEYFits 1 of 2 versionsSC2000 model 9087361020 | $21.85/EA |
| 2 | AD9100000848 | 1 | SUPERUSER KEYFits 1 of 2 versionsSC2000 model 9087361020 | $21.85/EA |
| 3 | AD9100001105 | 1 | CARD ELECTRONIC KEY SIPFits 1 of 2 versionsSC2000 model 9087361020 | $93.70/EA |
| 4 | AD9100001127 | 1 | HOUSING OPERATOR KEY SIPFits 1 of 2 versionsSC2000 model 9087361020 | $13.07/EA |
| 5 | AD9100001148 | 1 | GASKET F OPERATOR KEY HOUSING SIPFits 1 of 2 versionsSC2000 model 9087361020 | $11.69/EA |
| 6 | AD56116518 | 1 | SMART KEY - USERFits 1 of 2 versionsSC2000 model 9087412020 | $42.89/EA |
| 7 | AD56116519 | 1 | SMART KEY - SUPERVISORFits 1 of 2 versionsSC2000 model 9087412020 | $53.28/EA |
| 8 | AD56116477 | 1 | SMART KEY - PROBEFits 1 of 2 versionsSC2000 model 9087412020 | $74.61/EA |
| 9 | AD9100002386Advance 9100002386 | 1 | PLATE GALV. F SMARTKEY SIPFits 1 of 2 versionsSC2000 model 9087412020 | Call to confirm part: 800-440-6723 |
| 10 | AD9100001117 | 1 | COLUMN STEERING GREY SIPFits 1 of 2 versionsSC2000 model 9087361020 | $276.66/EA |
| 10 | AD9100002375Advance 9100002375 | 1 | COLUMN STEERING PLAST. GREY SIPFits 1 of 2 versionsSC2000 model 9087412020 | Call to confirm part: 800-440-6723 |
| 11 | AD9100001097 | 1 | FOOTBOARD GREY SIP | $356.18/EA |
Advance SC2000 Chassis system parts

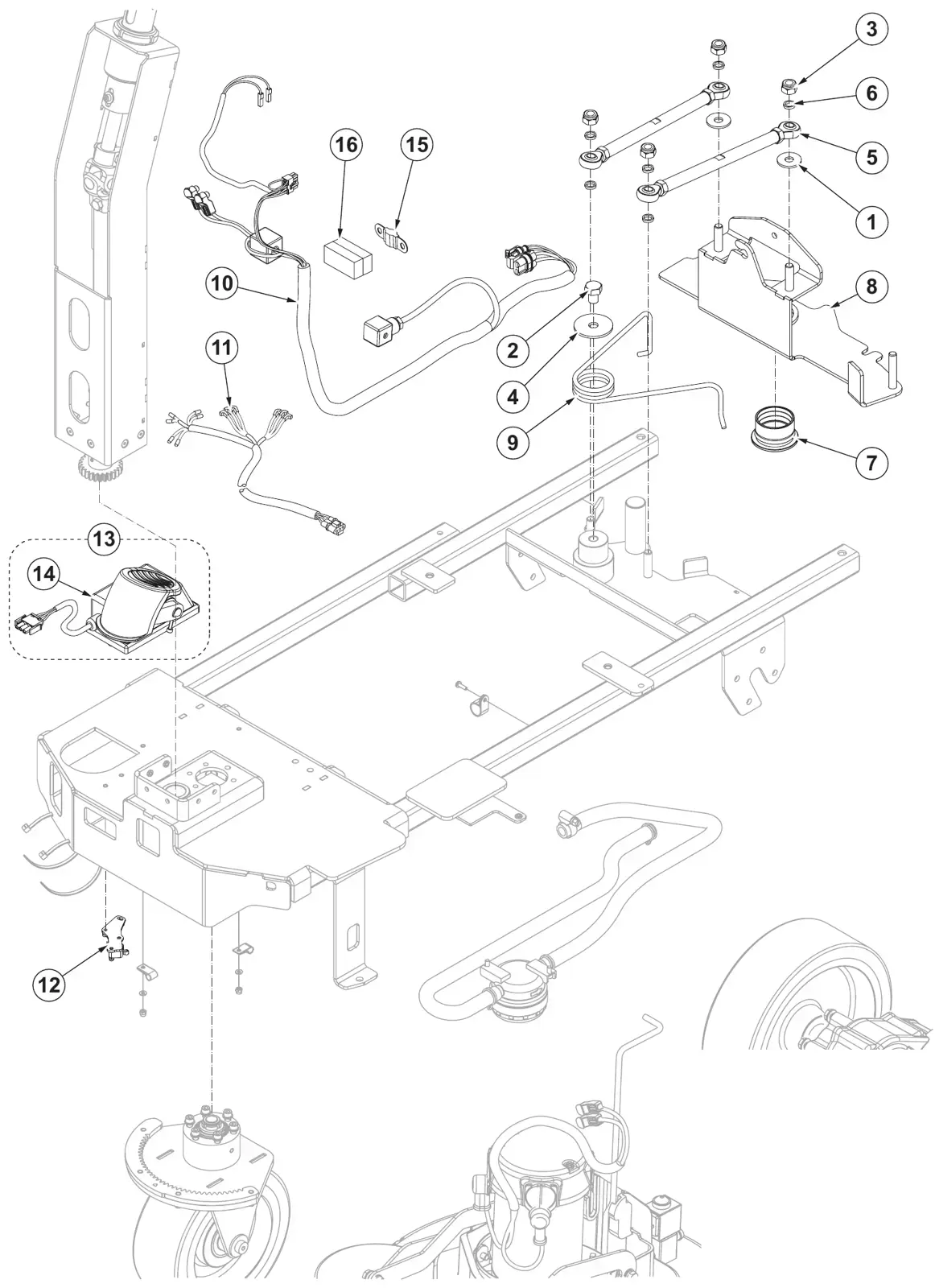

The chassis hardware, harnesses, throttle, microswitch and fuse. The footboard harness differs by model. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | K1 | 2 | Washer 10x30 uni6593 | Included in kitHardware safety bar kit · AD9100001167 › |
| 2 | K2 | 1 | Screw m12x16 uni5739 | Included in kitSpring zero setting squeegee kit · AD9100001168 › |
| 3 | K1 | 4 | Nut self l. m10 uni7473 | Included in kitHardware safety bar kit · AD9100001167 › |
| 4 | K2 | 1 | Washer 12x48x3 uni6593 | Included in kitSpring zero setting squeegee kit · AD9100001168 › |
| 5 | AD9100001090 | 2 | ROD EYE M10 SIP | $56.31/EA |
| 6 | K1 | 6 | Spacer d.10.5x14x3mm | Included in kitHardware safety bar kit · AD9100001167 › |
| 7 | AD9100001096 | 1 | SLEEVE SUCTION HOSE SIP | $14.70/EA |
| 8 | AD9100001108 | 1 | SUPPORT SQUEEGEE SIP | $174.60/EA |
| 9 | K2 | 1 | Spring zero setting squeegee | Included in kitSpring zero setting squeegee kit · AD9100001168 › |
| 10 | AD9100002236 | 1 | HARNESS MACHINE SIP | $182.30/EA |
| 11 | AD9100001121 | 1 | HARNESS FOOTBOARD SIPFits 1 of 2 versionsSC2000 model 9087361020 | $110.58/EA |
| 11 | AD9100003104Replaces Advance 9100002385 | 1 | HARNESS FOOTBOARD F GREY LINE SIPFits 1 of 2 versionsSC2000 model 9087412020 | $139.43/EA |
| 12 | AD9100001183 | 1 | MICROSWITCH KIT | $35.17/EA |
| 13 | AD9100001180 | 1 | THROTTLE KIT | $465.40/EA |
| 14 | AD9100001140 | 1 | THROTTLE ELECTRONIC SIP | $407.56/EA |
| 15 | AD9100002234 | 1 | FUSE BOLT DOWN 50A SIP | $17.46/EA |
| 16 | AD9100002235 | 2 | HOLDER FUSE SIP | $26.25/EA |
| – | AD9100001167 | 1 | HARDWARE SAFETY BAR KITKit K1. Not shown on the drawing. Contains items 1, 3, 6. Includes items 1, 3, 6. | $29.53/EA |
| – | AD9100001168 | 1 | SPRING ZERO SETTING SQUEEGEE KITKit K2. Not shown on the drawing. Contains items 2, 4, 9. Includes items 2, 4, 9. | $31.05/EA |

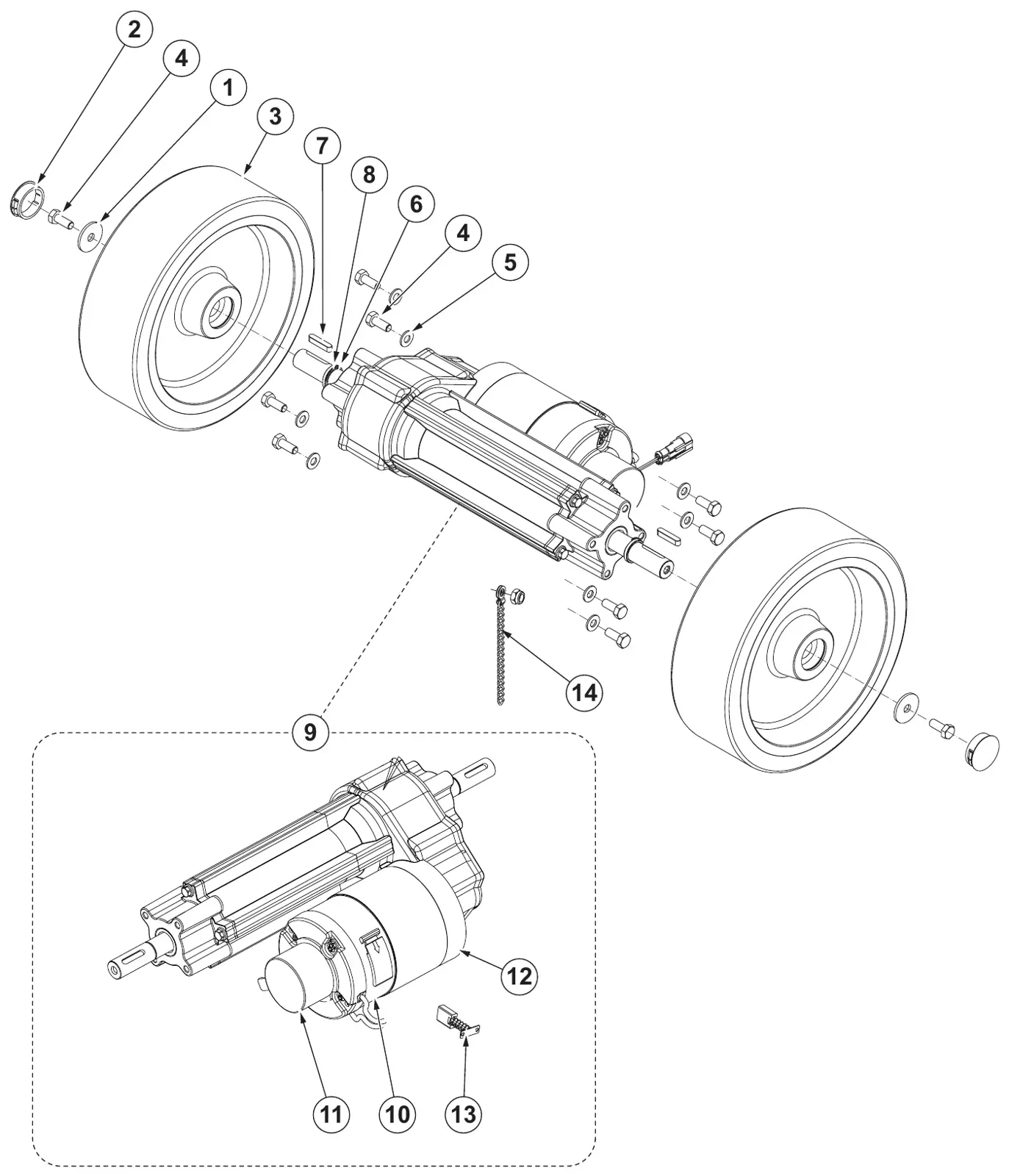

Advance SC2000 Motor drive system parts
The rear drive wheels, drive motor, electromagnetic brake and carbon brushes. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | K1 | 2 | Washer 8.5x32x2 ss | Included in kitHardware wheel d.254x80 kit · AD9100001169 › |
| 2 | K1 | 2 | Cap d.38.1 | Included in kitHardware wheel d.254x80 kit · AD9100001169 › |
| 3 | AD9100001162 | 1 | WHEEL D.254X80 GREY-BLACK 2 PCS SET | $407.56/EA |
| 4 | K1 | 10 | Screw m8x20 uni5739 ss | Included in kitHardware wheel d.254x80 kit · AD9100001169 › |
| 5 | AD9100001351 | 1 | WASHER M8 UNI6592 SS10 PCS SET | $30.21/EA |
| 6 | AD9100001346 | 1 | RING D 20 UNI7435 10 PCS SET | $32.42/EA |
| 7 | AD9100001156 | 1 | KEY JOINT 6X30 UNI6604A 10 PCS SET | $11.69/EA |
| 8 | AD9100001161 | 1 | SPACER 20.5X25X4 10 PCS SET | $45.74/EA |
| 9 | AD9100001099 | 1 | MOTOR DRIVE 400W 24V 125RPM SIP | $2,690.05/EA |
| 10 | AD9100001198 | 1 | BAND METAL F ELECTRIC MOTOR FIXING KIT | $70.45/EA |
| 11 | AD9100001199 | 1 | ELECTROMAGNETIC BRAKE SIP | $523.76/EA |
| 12 | AD9100001200 | 1 | MOTOR ELECTRIC 400W 24V SIP | $1,221.47/EA |
| 13 | AD1464432000 | 1 | CARBON BRUSHES KIT 4 PCS | $189.43/EA |
| 14 | AD9100002418 | 1 | CHAIN ANTISTATIC KITStarting from S/N: see reference on web parts. | $13.07/EA |
| – | AD9100001169 | 1 | HARDWARE WHEEL D.254X80 KITKit K1. Not shown on the drawing. Contains items 1, 2, 4. Includes items 1, 2, 4. | $24.72/EA |
Advance SC2000 Front wheel system parts

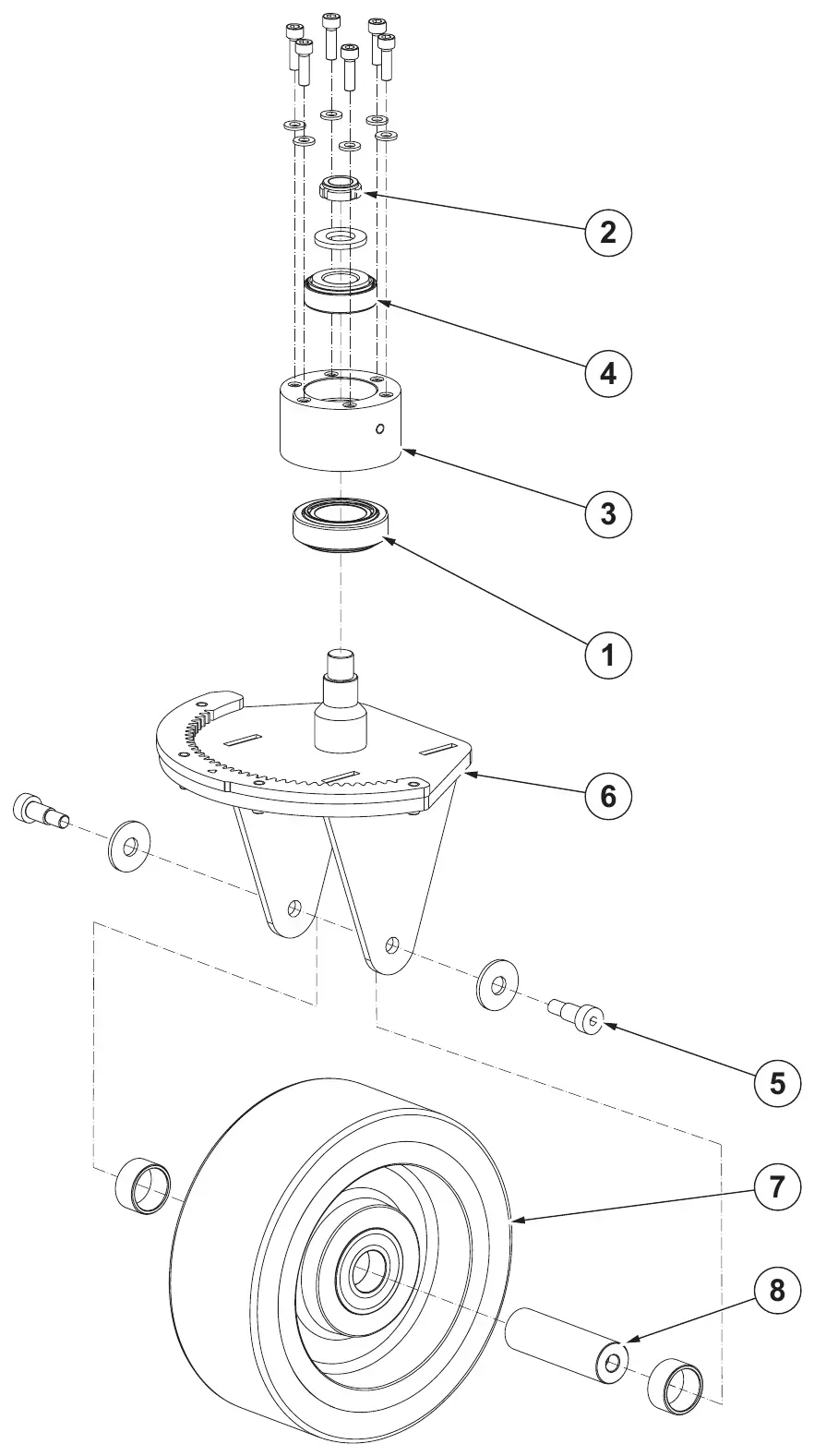

The front steering wheel, bearings and wheel support. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1467636000 | 1 | BEARING TAPER ROLLER 32006 SIP | $37.93/EA |
| 2 | AD9100001349 | 1 | NUT RING M15X1 KMA2 LIGHT S. 10 PCS SET | $29.53/EA |
| 3 | AD9100001734 | 1 | SUPPORT BALL BEARING SIP | $66.90/EA |
| 4 | AD1467639000 | 1 | BEARING TAPER ROLLER 32004X | $33.79/EA |
| 5 | AD9100001160 | 1 | SCREW 10X16 M8 ISO7379 12.9 10 PCS SET | $39.43/EA |
| 6 | AD9100001646 | 1 | SUPPORT FRONT WHEEL ASSEMBLED SIP | $182.30/EA |
| 7 | AD9100002334 | 1 | WHEEL D.200X76 GREY-BLACK SIP | $240.12/EA |
| 8 | AD9100001101 | 1 | PIN WHEEL SIP | $31.05/EA |
Advance SC2000 Steering column system parts

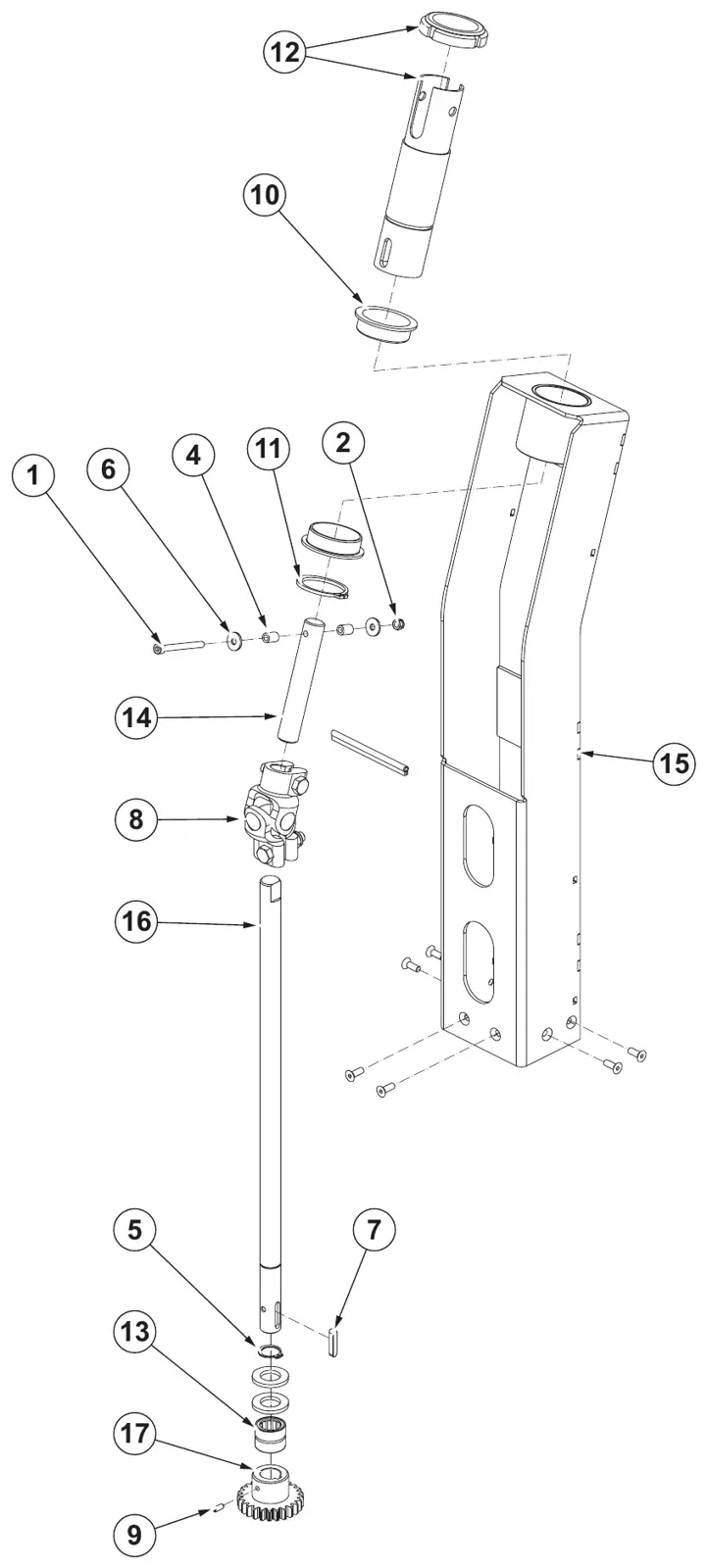

The steering shafts, joint, bearings and column support. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | K1 | 1 | Screw m5x50 uni5931 5x50 | Included in kitHardware steering tube kit · AD9100001170 › |
| 2 | K1 | 1 | Nut self l. m5 uni7474 | Included in kitHardware steering tube kit · AD9100001170 › |
| 4 | K1 | 2 | Spacer d.5x8x11.5 | Included in kitHardware steering tube kit · AD9100001170 › |
| 5 | AD9100001345 | 1 | RING D 17 UNI7435 10 PCS SET | $29.53/EA |
| 6 | K1 | 2 | Washer 5x15x1.5 uni6593 | Included in kitHardware steering tube kit · AD9100001170 › |
| 7 | AD1466146000 | 1 | kEY 5X5X25 UNI6604A SIP | $47.12/EA |
| 8 | AD1466319000 | 1 | JOINT UNIVERSAL D.17 SIP | $135.85/EA |
| 9 | AD9100001350 | 1 | SCREW GRUB M5X10 UNI5929 10 PCS SET | $36.42/EA |
| 10 | AD9100001085 | 2 | BEARING FLANGE IGLIDUR GFM-4044-14 SIP | $20.48/EA |
| 11 | AD9100001087 | 1 | RING D.40 UNI7436 SIP | $10.30/EA |
| 12 | AD9100001450 | 1 | TUBE STEERING KIT | $84.49/EA |
| 13 | AD9100001093 | 1 | BEARING NEEDLE ROLLER NK 17/20 SIPUntil S/N 3510163104804. | $53.48/EA |
| 13 | AD9100001449 | 1 | HARDWARE STEERING SUPPORT KIT | $59.88/EA |
| 13 | AD9100002416 | 1 | BEARING BALL 6203 2RS 2 PCS SETStarting from S/N 3510163104805. | $17.23/EA |
| 14 | AD9100001107 | 1 | SHAFT STEERING UPPER SIP | $20.48/EA |
| 15 | AD9100001109 | 1 | SUPPORT STEERING COLUMN SIP | $320.34/EA |
| 16 | AD9100001110 | 1 | SHAFT STEERING LOWER SIP | $47.12/EA |
| 17 | AD9100001125 | 1 | PINION Z25 SIP | $64.01/EA |
| – | AD9100001170 | 1 | HARDWARE STEERING TUBE KITKit K1. Not shown on the drawing. Contains items 1, 2, 4, 6. Includes items 1, 2, 4, 6. | $13.07/EA |
Advance SC2000 Steering wheel system parts
The steering wheel, levers, covers, display and dashboard. The display parts differ by model. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100001171 | 1 | HARDWARE STEERING WHEEL KIT | $8.80/EA |
| 2 | AD9100001082 | 1 | WHEEL STEERING D.320X281 SIP | $140.12/EA |
| 3 | AD9100001083 | 1 | LEVER RIGHT PA YELLOW SIP | $20.48/EA |
| 4 | AD9100001084 | 1 | LEVER LEFT PA BLACK SIP | $21.85/EA |
| 5 | AD9100001086 | 1 | TUBE ADJUST.STEERING WHEEL SIP | $65.52/EA |
| 6 | AD9100001088 | 1 | GASKET ROUND D.2MM SIP | $14.70/EA |
| 7 | AD9100001157 | 1 | SPRING MOVING BOTTON 10 PCS SET | $17.46/EA |
| 8 | AD9100001158 | 1 | SPRING TORSION FOR STEERING 10 PCS SET | $32.42/EA |
| 9 | AD9100001089 | 1 | COVER LOWER SIP | $39.43/EA |
| 10 | AD9100001104 | 1 | CARD ELECTRONIC DISPLAY SIPFits 1 of 2 versionsSC2000 model 9087361020 | $312.64/EA |
| 10 | AD9100002373 | 1 | CONTROLLER DISPLAY SIPFits 1 of 2 versionsSC2000 model 9087412020 | $331.25/EA |
| 11 | AD9100001114Advance 9100001114 | 1 | COVER STEERING WHEEL SIP | Call to confirm part: 800-440-6723 |
| 12 | AD9100001115 | 1 | CABLE DISPLAY CARD EXTENSION SIPFits 1 of 2 versionsSC2000 model 9087361020 | $31.05/EA |
| 12 | AD9100002372 | 1 | CABLE EXTENSION F CONTROLLER DISPLAY SIPFits 1 of 2 versionsSC2000 model 9087412020 | $35.17/EA |
| 13 | AD9100002913Replaces Advance 9100001123 | 1 | DASHBOARD CONTROL PANEL SIP | $150.00/EA |
Advance SC2000 Solution system parts
The washing water filter, strainer net, solution hoses and clamps. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000860 | 1 | FILTER WATER SIP | $35.50/EA |
| 2 | AD9100000861 | 1 | NET WATER FILTER REINFORCED SIP | $32.34/EA |
| 3 | AD9100001174 | 1 | HOSES SOLUTION KIT | $29.53/EA |
| 4 | AD9100001159 | 1 | CLAMP DOUBLE W. SPRING D.18 10 PCS SET | $11.69/EA |

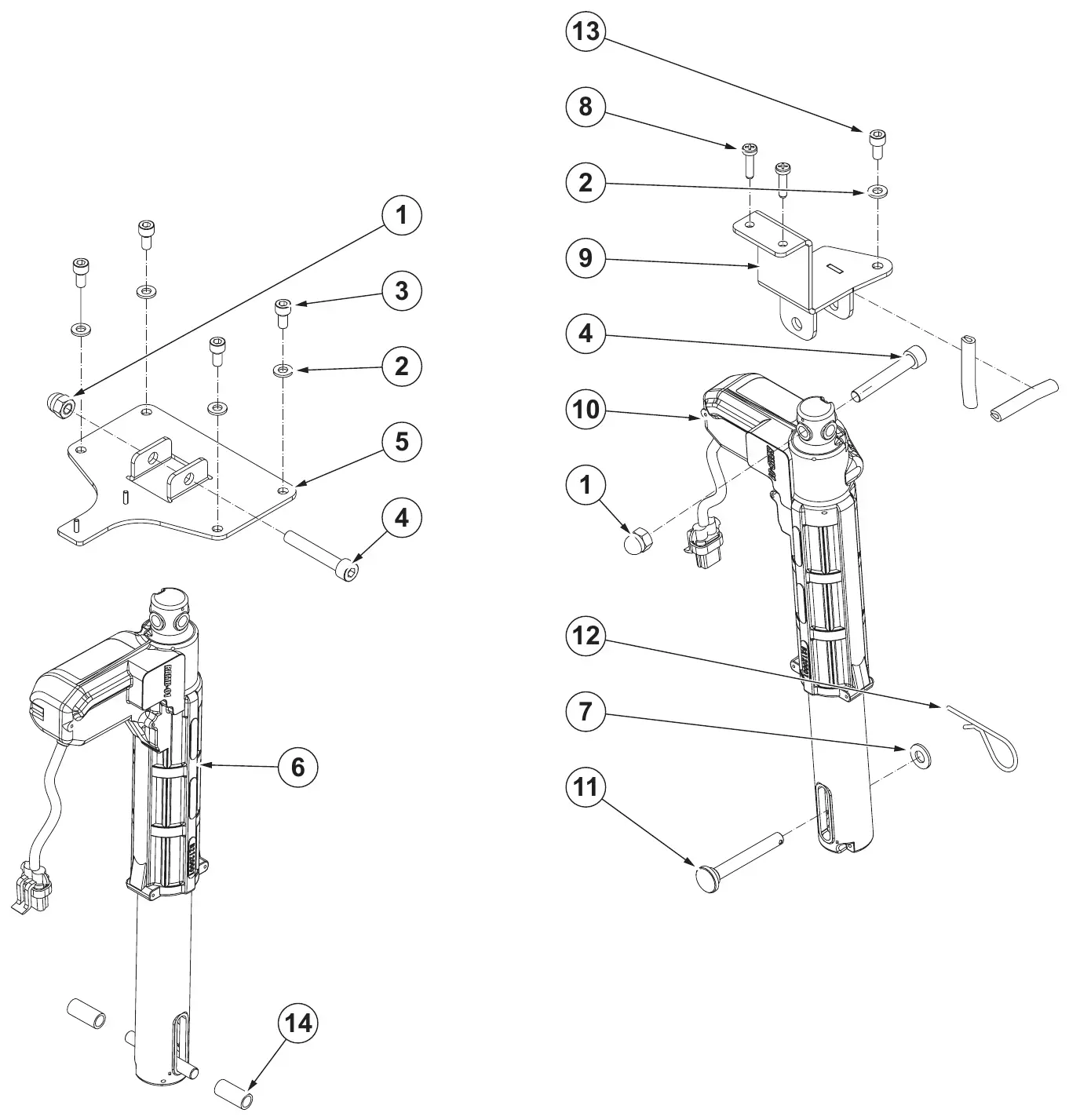

Advance SC2000 Actuators system parts
The brush deck and squeegee actuators and their supports and hardware. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | K2 | 2 | Nut.m8 | Included in kitHardware actuator kit · AD9100001173 › |
| 2 | K1 | 5 | Washer m6 uni6592 | Included in kitHardware actuator support kit · AD9100001663 › |
| 3 | K1 | 5 | Screw m6x12 uni5931 ss | Included in kitHardware actuator support kit · AD9100001663 › |
| 4 | K2 | 2 | Screw m8x50 uni5931 threaded totally | Included in kitHardware actuator kit · AD9100001173 › |
| 5 | AD9100001126 | 1 | SUPPORT DECK ACTUATOR SIP | $24.72/EA |
| 6 | AD9100001131 | 1 | ACTUATOR 24V DC STROKE 98MM SIPSee TSB-FC-2016-007. | $349.17/EA |
| 7 | K2 | 1 | Washer m8 uni6592 | Included in kitHardware actuator kit · AD9100001173 › |
| 8 | K1 | 2 | Screw cyl hd 5x20 self l. plastofast | Included in kitHardware actuator support kit · AD9100001663 › |
| 9 | AD9100001103Advance 9100001103 | 1 | SUPPORT SQUEEGEE ACTUATOR SIPUntil S/N 3510163404520. | Call to confirm part: 800-440-6723 |
| 9 | AD9100001754 | 1 | SUPPORT SQUEEGEE ACTUATOR GALV. SIPStarting from S/N 3510163404521. | $43.68/EA |
| 10 | AD9100001133 | 1 | ACTUATOR 24V DC STROKE 77.5MM SIP | $392.85/EA |
| 11 | K2 | 1 | Pin squeegee actuator | Included in kitHardware actuator kit · AD9100001173 › |
| 12 | K2 | 1 | Pin split 2x50 uni8833 | Included in kitHardware actuator kit · AD9100001173 › |
| 13 | K1 | 1 | Screw m6x12 uni5931 | Included in kitHardware actuator support kit · AD9100001663 › |
| 14 | AD9100002105 | 1 | CAP D.9 PLASTIC 10 PCS SETSee TSB-FC-2016-021. | $204.13/EA |
| – | AD9100001663 | 1 | HARDWARE ACTUATOR SUPPORT KITKit K1. Not shown on the drawing. Contains items 2, 3, 8, 13. Includes items 2, 3, 8, 13. | $17.46/EA |
| – | AD9100001173 | 1 | HARDWARE ACTUATOR KITKit K2. Not shown on the drawing. Contains items 1, 4, 7, 11, 12. Includes items 1, 4, 7, 11, 12. | $24.72/EA |

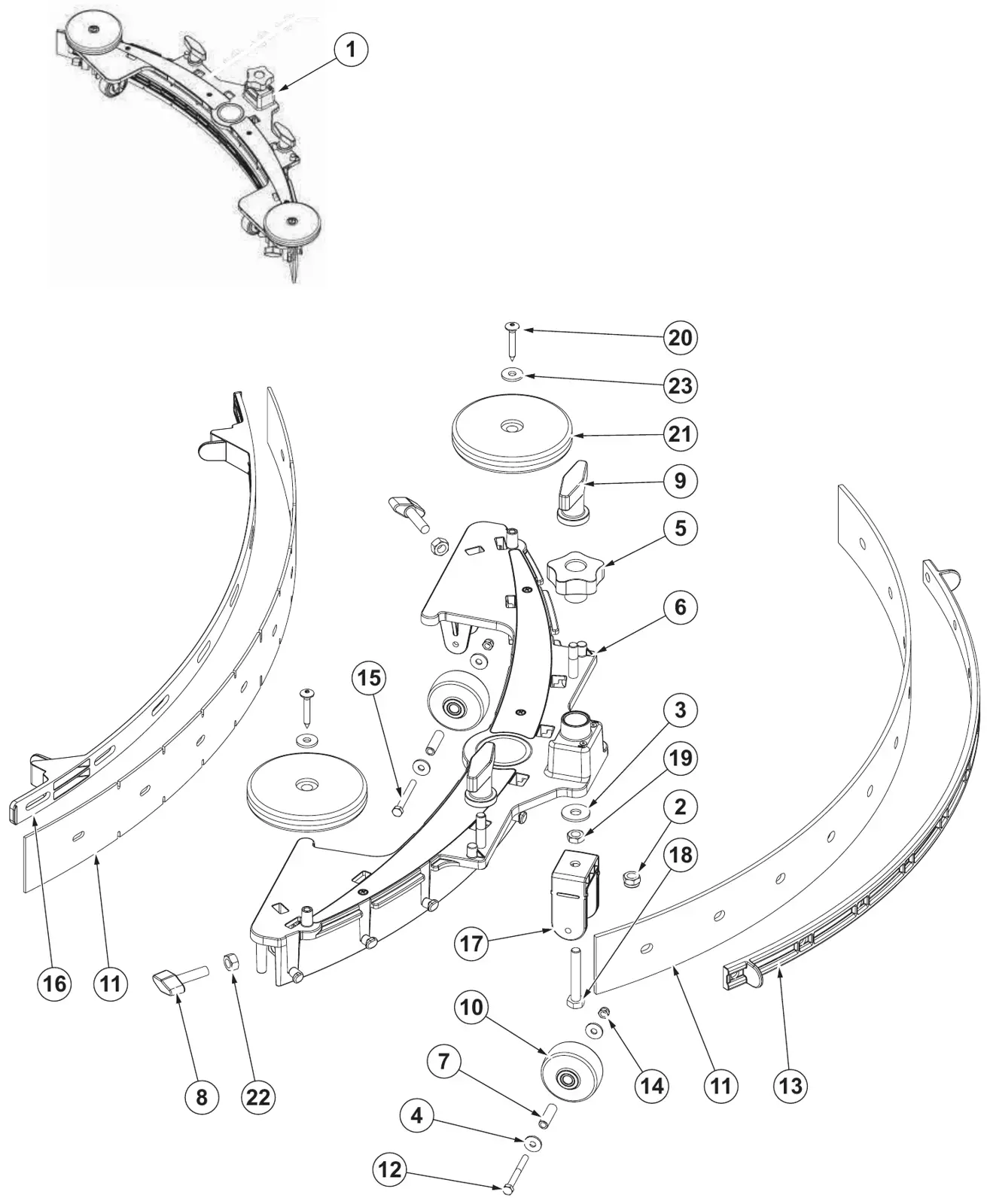

Advance SC2000 Squeegee system parts
The squeegee body, blades, straps, knobs, wheels and hardware. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100001367 | 1 | SQUEEGEE NON MARKING 730MM/29 KITOptional. | $385.85/EA |
| 2 | K1 | 1 | Nut selflocking low m8 uni7474 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 3 | K1 | 1 | Washer 8x24 uni6592 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 4 | K1 | 6 | Washer 5x15x1.2 uni6593 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 5 | AD9100000862 | 1 | KNOB LOBES M8 FEMALE SIP | $11.69/EA |
| 6 | AD9100000747 | 1 | SQUEEGEE 730MM/29 PRE-ASSEMBLED SIP | $113.50/EA |
| 7 | AD9100002408 | 1 | SPACER 5.1X8X28.5 PLASTIC 3 PCS SETAlso included in HARDWARE SQUEEGEE KIT 9100000748 (K1). | $18.96/EA |
| 8 | AD9100000791 | 2 | KNOB M8X30 THD STUD SS SIP | $23.35/EA |
| 9 | AD9097637000 | 1 | SQUEEGEE FIXING KIT | $36.42/EA |
| 10 | AD9100000559 | 3 | WHEEL D.51 GREY SIP | $48.04/EA |
| 11 | AD9100000810 | 1 | BLADE SQUEEGEE 740MM 29 GUM KITOptional. | $42.49/EA |
| 11 | AD9100000490 | 1 | BLADE SQUEEGEE 730MM 29 PU KITOptional. | $107.47/EA |
| 11 | AD9100000060 | 1 | BLADE SQUEEGEE 730MM 29 RED GUM KITOptional. | $33.25/EA |
| 12 | K1 | 1 | Screw m5x50 uni5737 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 13 | AD9100000864 | 1 | STRAP ELASTIC F REAR SQUEEGEE BL. SIP | $21.85/EA |
| 14 | K1 | 3 | Nut selflocking low m5 uni7474 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 15 | K1 | 2 | Screw m5x45 uni5737 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 16 | AD9100000865 | 1 | STRAP FRONT SQUEEGEE BLADE SIP | $14.70/EA |
| 17 | AD9100000866 | 1 | SUPPORT SQUEEGEE WHEEL SIP | $10.30/EA |
| 18 | K1 | 1 | Screw m8x50 hex hd f/thd ss iso4017 | Included in kitHardware squeegee kit · AD9100000748 › |
| 19 | K1 | 1 | Nut hex m8 iso4035 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 20 | K1 | 2 | Screw 5x35 self thd tapping aw20 black | Included in kitHardware squeegee kit · AD9100000748 › |
| 21 | AD9100001816 | 1 | WHEEL BUMPER D.100 PLASTIC 2 PCS SET | $32.42/EA |
| 22 | K1 | 2 | Nut hex m8 uni5588 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| 23 | K1 | 2 | Washer 6x18x1.5 uni6593 ss | Included in kitHardware squeegee kit · AD9100000748 › |
| – | AD9100000748 | 1 | HARDWARE SQUEEGEE KITKit K1. Not shown on the drawing. Contains items 2, 3, 4, 7, 12, 14, 15, 18, 19, 20, 22, 23. Includes items 2, 3, 4, 12, 14, 15, 18, 19, 20, 22, 23. | $51.38/EA |

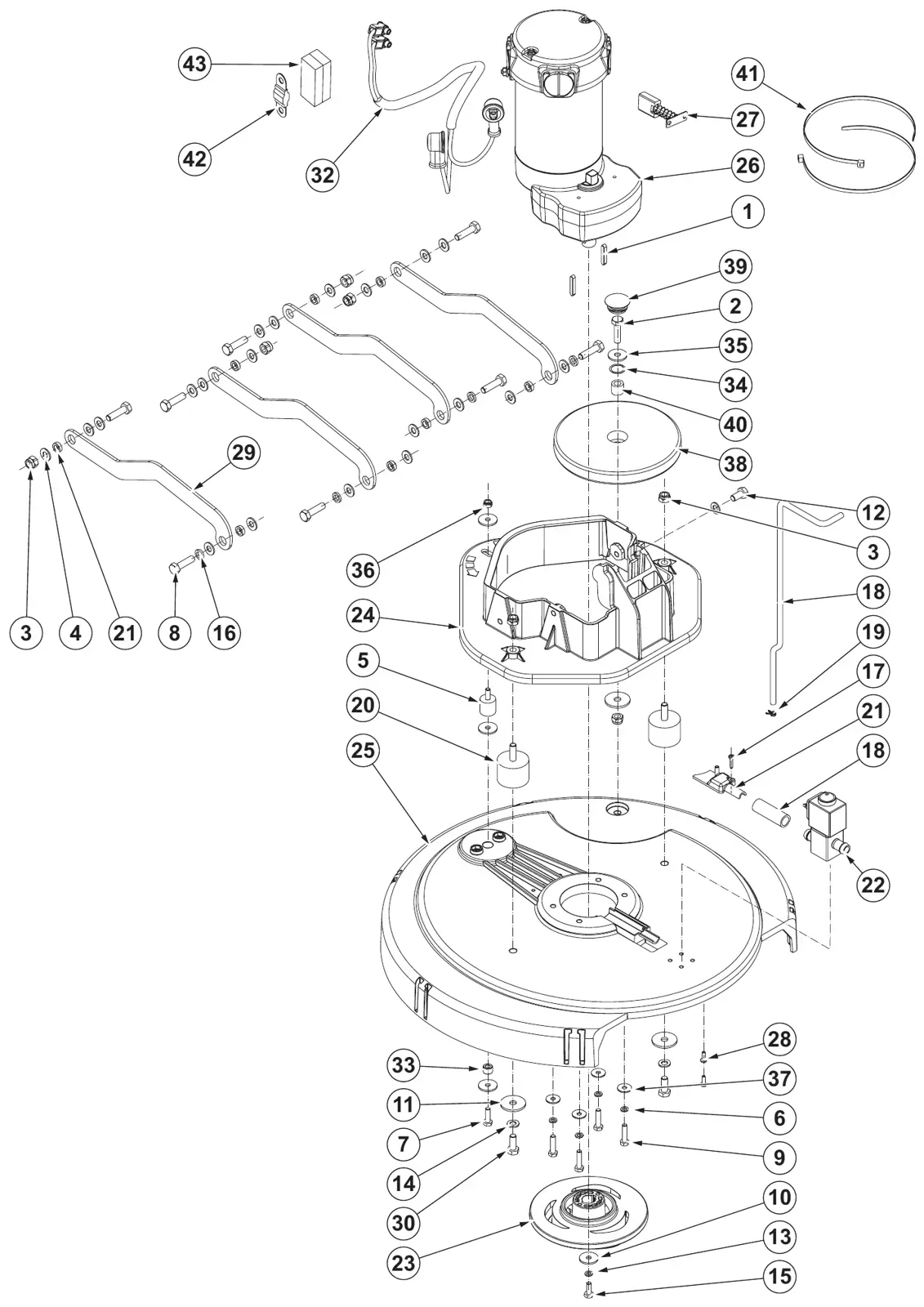

Advance SC2000 Brush deck system parts
The brush deck, brush motor, solenoid valve, hub, lifting arms and hardware. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000875 | 1 | KEY 5X5X30 DIN6885 2 PCS SET | $8.80/EA |
| 2 | K1 | 1 | Screw m8x30 uni5739 | Included in kitRoller bumper kit · AD9096887000 › |
| 3 | K2 | 7 | Nut selflocking low m8 uni7474 ss | Included in kitHardware brush deck lifting arms kit · AD9100001175 › |
| 4 | K2 | 20 | Washer m8 uni6592 ss | Included in kitHardware brush deck lifting arms kit · AD9100001175 › |
| 5 | AD9100001352 | 1 | VIBRATION-DAMPING M6 60SH SIP | $29.53/EA |
| 6 | K3 | 5 | Washer m6 uni8842a ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 7 | AD9100001347 | 1 | SCREW M6X20 UNI5739 SS 10 PCS SET | $36.42/EA |
| 8 | K2 | 8 | Screw m8x25 uni5739 ss | Included in kitHardware brush deck lifting arms kit · AD9100001175 › |
| 9 | K3 | 4 | Screw m6x25 uni5739 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 10 | K3 | 4 | Washer 6.6x24x2 uni6593 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 11 | K3 | 3 | Washer 8.5x32x2 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 12 | K3 | 1 | Screw m8x16 uni5739 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 13 | K3 | 1 | Washer nord lock m6 din25201 | Included in kitHardware brush deck kit · AD9100001176 › |
| 14 | K3 | 3 | Washer m8 uni8842a ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 15 | K3 | 1 | Screw m6x16 uni5739 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 16 | K2 | 4 | Washer nord lock m8 | Included in kitHardware brush deck lifting arms kit · AD9100001175 › |
| 17 | K3 | 1 | Screw 3.5x16 self thd pan phil f plastic | Included in kitHardware brush deck kit · AD9100001176 › |
| 18 | AD9100000797 | 1 | HOSES BRUSH DECK KIT | $26.25/EA |
| 19 | K3 | 1 | Clamp 6.6x 7 | Included in kitHardware brush deck kit · AD9100001176 › |
| 20 | AD9100000868 | 1 | VIBRATION DAMPING M8 60SH 2 PCS SET | $47.12/EA |
| 21 | AD9100000869 | 1 | COVER SOLUTION HOSE SUPPORT SIP | $11.69/EA |
| 22 | AD9100000870 | 1 | SOLENOID VALVE 24V SIP | $152.73/EA |
| 23 | AD9100000871 | 1 | HUB BRUSH SIP | $45.74/EA |
| 24 | AD9100000872 | 1 | PLATE BRUSH DECK HOLDER SIP | $145.76/EA |
| 25 | AD9100000873 | 1 | DECK BRUSH SIP | $83.12/EA |
| 26 | AD9100000874 | 1 | REDUCTION GEARMOTOR 450W 24V SIP | $1,453.76/EA |
| 27 | AD9098376000 | 1 | CARBON BRUSHES KIT 4 PCS | $174.60/EA |
| 28 | K3 | 2 | SCREW PAN HD SELF 4x12 SS | Included in kitHardware brush deck kit · AD9100001176 › |
| 29 | AD9100001163 | 1 | ARM BRUSH DECK LIFTING 4 PCS SET | $65.52/EA |
| 30 | K3 | 2 | Screw m8x20 uni5739 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 31 | K2 | 8 | Bushing d.8.1x13x4.3 | Included in kitHardware brush deck lifting arms kit · AD9100001175 › |
| 32 | AD9100002237Replaces Advance 9100001132 | 1 | HARNESS BRUSH MOTOR SIP | $141.48/EA |
| 33 | K3 | 1 | Spacer d.6x12x8.5 | Included in kitHardware brush deck kit · AD9100001176 › |
| 34 | K1 | 1 | Washer 15 | Included in kitRoller bumper kit · AD9096887000 › |
| 35 | K1 | 1 | Washer 8x24x2 flat iso7093 | Included in kitRoller bumper kit · AD9096887000 › |
| 36 | K3 | 1 | Nut self l. m6 uni7474 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 37 | K3 | 4 | Washer 6x18x1.5 uni6593 ss | Included in kitHardware brush deck kit · AD9100001176 › |
| 38 | K1 | 1 | Roller bumper d.160 black | Included in kitRoller bumper kit · AD9096887000 › |
| 39 | K1 | 1 | Cap. black | Included in kitRoller bumper kit · AD9096887000 › |
| 40 | K1 | 1 | Spacer 9x15x13 | Included in kitRoller bumper kit · AD9096887000 › |
| 41 | K3 | 2 | Tie cable 4.8x500 black | Included in kitHardware brush deck kit · AD9100001176 › |
| 42 | AD9100002234 | 1 | FUSE BOLT DOWN 50A SIP | $17.46/EA |
| 43 | AD9100002235 | 2 | HOLDER FUSE SIP | $26.25/EA |
| – | AD9096887000 | 1 | ROLLER BUMPER KITKit K1. Not shown on the drawing. Contains items 2, 34, 35, 38, 39, 40. Includes items 2, 34, 35, 38, 39, 40. | $15.02/EA |
| – | AD9100001175 | 1 | HARDWARE BRUSH DECK LIFTING ARMS KITKit K2. Not shown on the drawing. Contains items 3, 4, 8, 16, 31. Includes items 3, 4, 8, 16, 31. | $39.43/EA |
| – | AD9100001176 | 1 | HARDWARE BRUSH DECK KITKit K3. Not shown on the drawing. Contains items 3, 6, 9, 10, 11, 12, 13, 14, 15, 17, 19, 28, 30, 33, 36, 37, 41. Includes items 6, 9, 10, 11, 12, 13, 14, 15, 17, 19, 28, 30, 33, 36, 37, 41. | $34.91/EA |

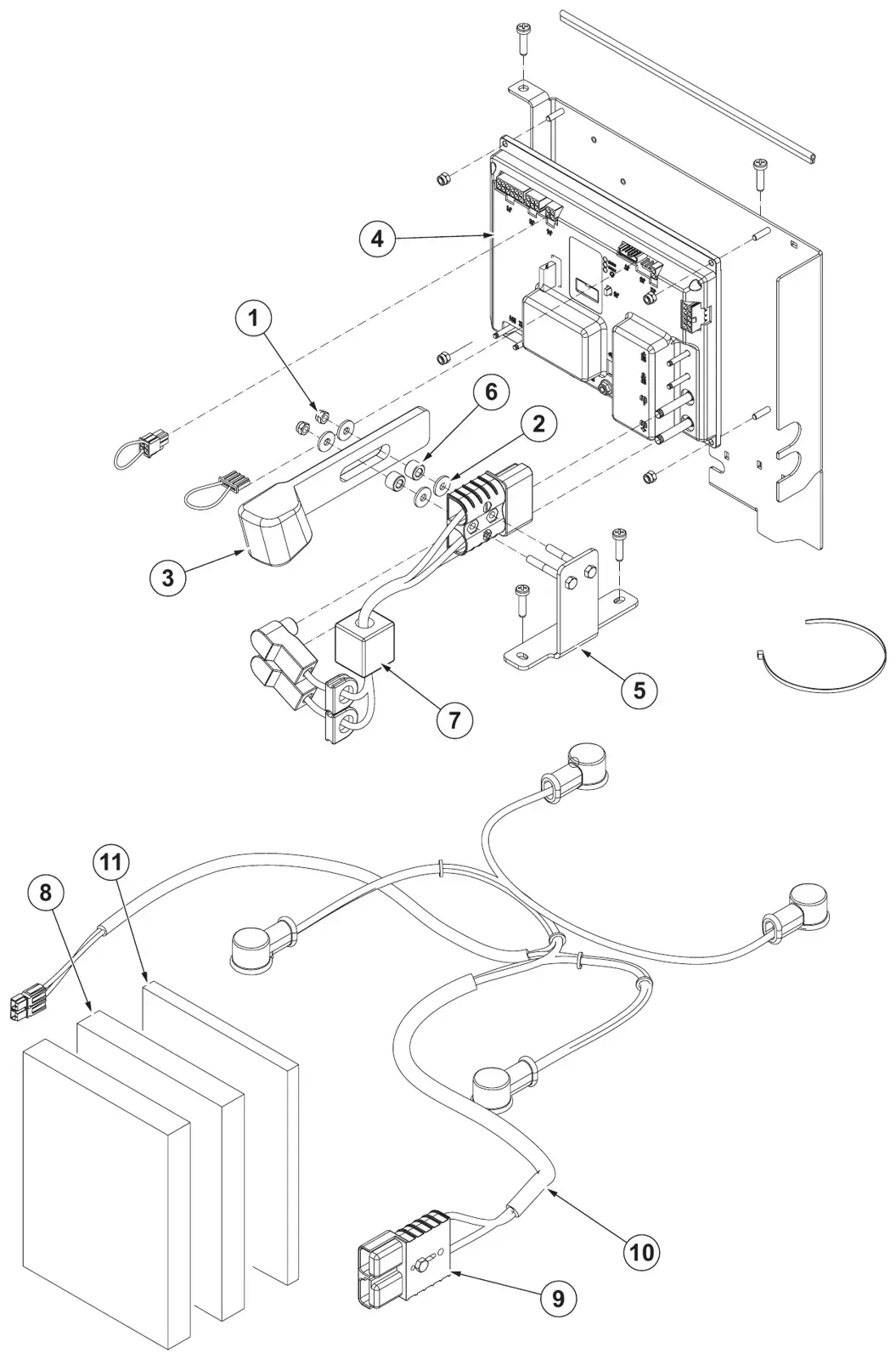

Advance SC2000 Electrical system parts
The main controller, battery connector and the electrical harnesses. The main controller differs by model. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | K2 | 2 | Nut self l. m5 uni7474 | Included in kitLever emergency kit · AD9100001179 › |
| 2 | K2 | 4 | Washer 5x15x1.5 uni6593 | Included in kitLever emergency kit · AD9100001179 › |
| 3 | K2 | 1 | Lever battery connector | Included in kitLever emergency kit · AD9100001179 › |
| 4 | AD9100001122 | 1 | CONTROLLER MAIN MACHINE SIPFits 1 of 2 versionsSC2000 model 9087361020 | $1,424.90/EA |
| 4 | AD9100002376 | 1 | CONTROLLER MAIN MACHINE SIPFits 1 of 2 versionsSC2000 model 9087412020 | $959.51/EA |
| 5 | K2 | 1 | Support f battery connector | Included in kitLever emergency kit · AD9100001179 › |
| 6 | K2 | 2 | Spacer d.6x12x8.5 | Included in kitLever emergency kit · AD9100001179 › |
| 7 | AD9100001141 | 1 | HARNESS F ELECT. COMPONENTS BOX SIP | $167.59/EA |
| 8 | K1 | 2 | Panel insulating | Included in kitPanels insulating kit · AD9100001177 › |
| 9 | AD9100002117 | 1 | CONNECTOR RED 120A 2 PCS SET | $50.01/EA |
| 10 | AD9100001015 | 1 | HARNESS BATTERY US SIP | $160.57/EA |
| 11 | K1 | 1 | Isolant panel | Included in kitPanels insulating kit · AD9100001177 › |
| – | AD9100001177 | 1 | PANELS INSULATING KITKit K1. Not shown on the drawing. Contains items 8, 11. Includes items 8, 11. | $26.25/EA |
| – | AD9100001179 | 1 | LEVER EMERGENCY KITKit K2. Not shown on the drawing. Contains items 1, 2, 3, 5, 6. Includes items 1, 2, 3, 5, 6. | $36.67/EA |

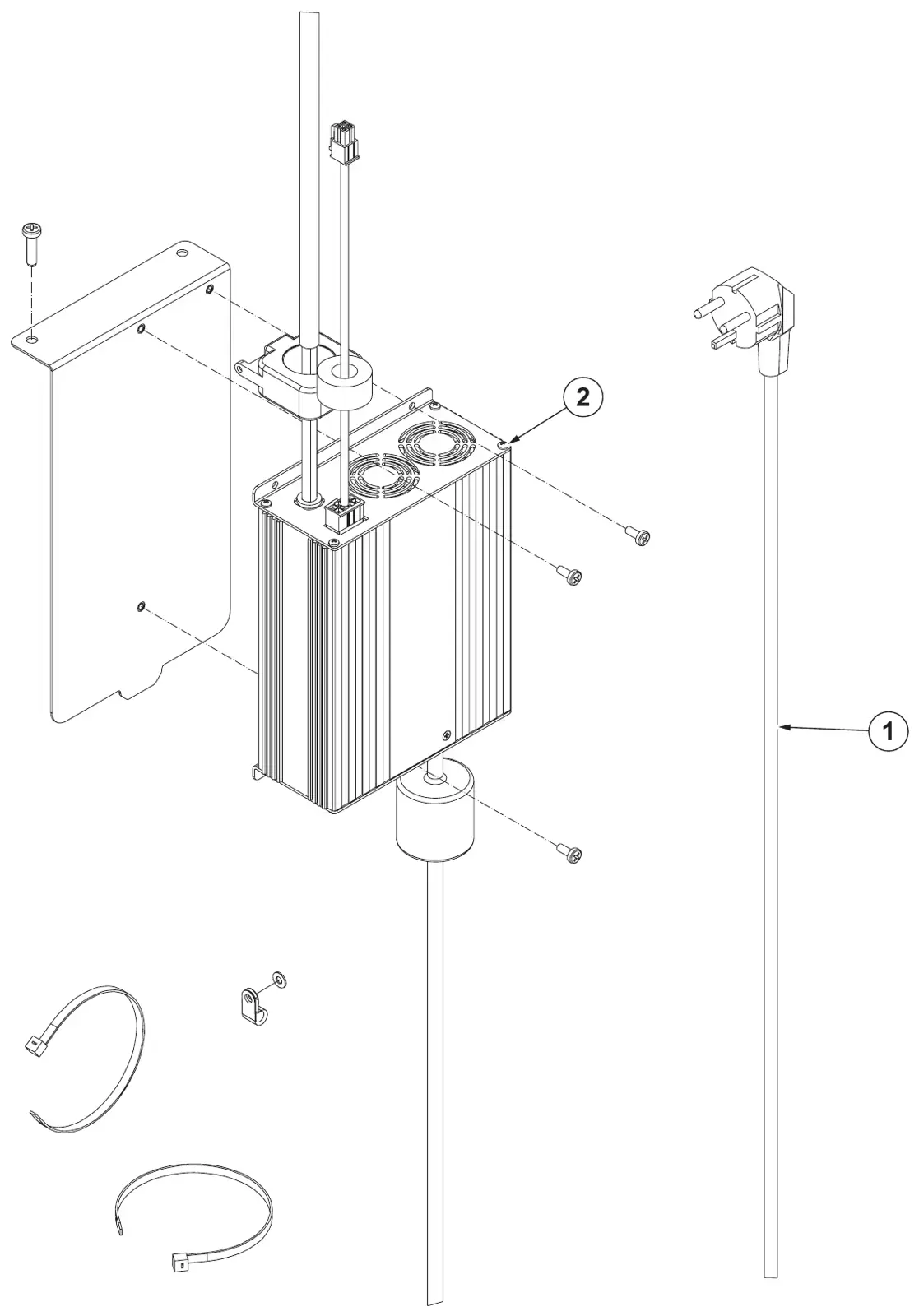

Advance SC2000 Battery charger system parts
The on-board battery charger and its extension cable. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9100000890 | 1 | CABLE EXTENSION US PLUG L.2000MM SIPMarked K1 in the KIT column, but the manual lists no K1 kit line. | $29.53/EA |
| 2 | AD9100001145 | 1 | CHARGER BATT. O/B 24V 13A 100-230V SIPMarked K1 in the KIT column, but the manual lists no K1 kit line. i | $1,003.19/EA |

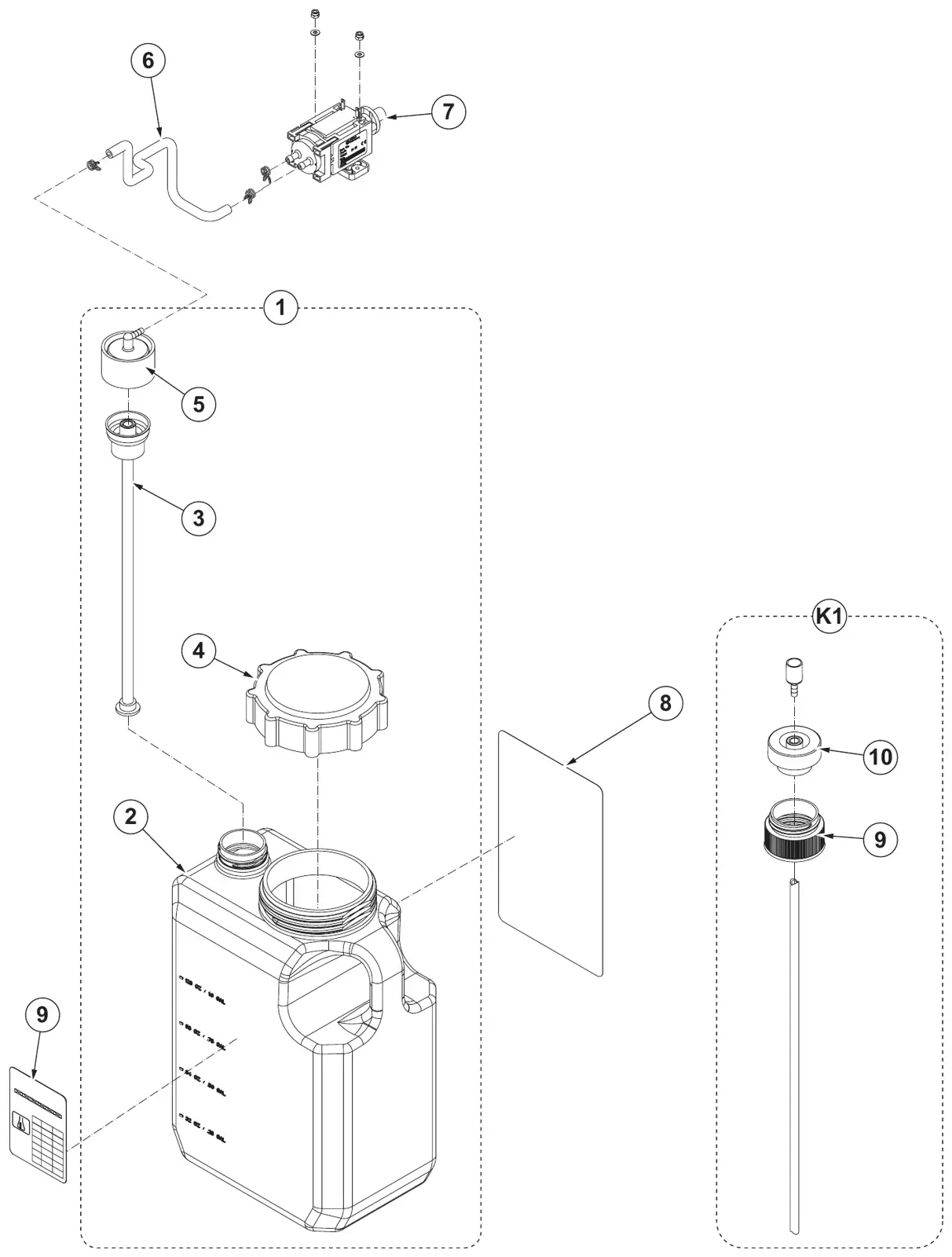

Advance SC2000 EcoFlex system (model no.: 9087361020) parts
The EcoFlex detergent system for model 9087361020: tank, pump, adapter and sensor. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56104190 | 1 | DETERGENT TANKFits 1 of 2 versionsSC2000 model 9087361020 | $196.45/EA |
| 2 | AD9100001081 | 1 | DETERGENT TANK SIPFits 1 of 2 versionsSC2000 model 9087361020 | $38.06/EA |
| 3 | AD56104189 | 1 | INSERT-DRY BRAKEFits 1 of 2 versionsSC2000 model 9087361020 | $5.91/EA |
| 4 | AD56315517 | 1 | CAPFits 1 of 2 versionsSC2000 model 9087361020 | $28.71/EA |
| 5 | AD56315523 | 1 | CAP DRY BREAK 1/8 BARBFits 1 of 2 versionsSC2000 model 9087361020 | $32.42/EA |
| 6 | AD9100000891 | 1 | HOSE SILICONE D.4X7 L.300MM SIPFits 1 of 2 versionsSC2000 model 9087361020 | $10.30/EA |
| 7 | AD9100001819 | 1 | PUMP DETERGENT MIX SIPFits 1 of 2 versionsSC2000 model 9087361020 | $414.70/EA |
| 8 | AD9100002409 | 1 | DECALS ADVANCE SC2000 KITFits 1 of 2 versionsSC2000 model 9087361020 | $78.84/EA |
| 9 | AD9097023000 | 1 | ADAPTER DETERGENT TANKFits 1 of 2 versionsSC2000 model 9087361020 | $11.69/EA |
| 10 | AD9097022000 | 1 | SENSOR DETERGENT MIX LEVELFits 1 of 2 versionsSC2000 model 9087361020 | $16.09/EA |
| K1 | AD9098025000 | 1 | ADAPTER DETERGENT KITFits 1 of 2 versionsSC2000 model 9087361020 | $174.60/EA |

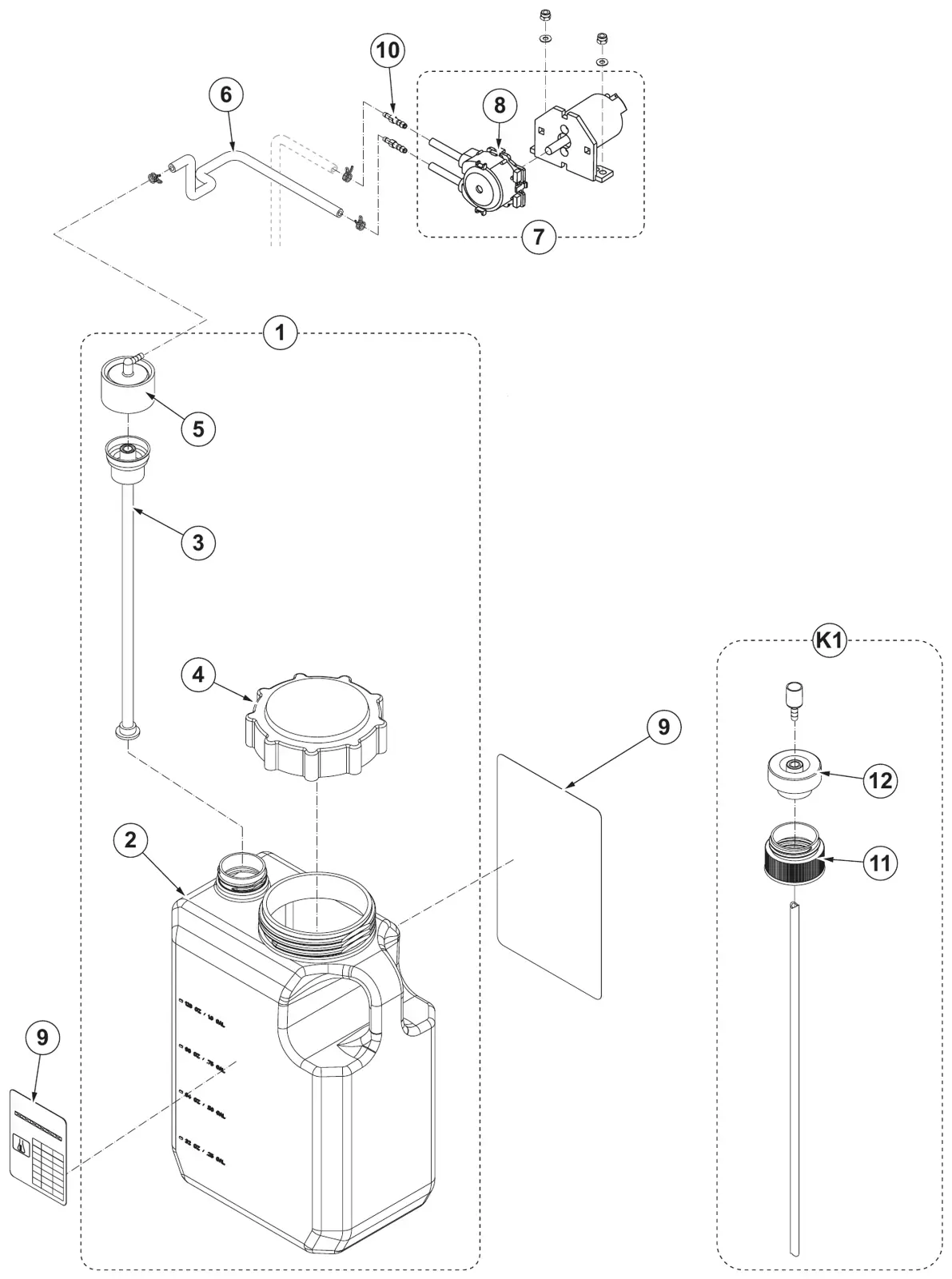

Advance SC2000 EcoFlex system (model no.: 9087412020) parts
The EcoFlex detergent system for model 9087412020: tank, peristaltic pump, adapter and sensor. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56104190 | 1 | DETERGENT TANKFits 1 of 2 versionsSC2000 model 9087412020 | $196.45/EA |
| 2 | AD9100001081 | 1 | DETERGENT TANK SIPFits 1 of 2 versionsSC2000 model 9087412020 | $38.06/EA |
| 3 | AD56104189 | 1 | INSERT-DRY BRAKEFits 1 of 2 versionsSC2000 model 9087412020 | $5.91/EA |
| 4 | AD56315517 | 1 | CAPFits 1 of 2 versionsSC2000 model 9087412020 | $28.71/EA |
| 5 | AD56315523 | 1 | CAP DRY BREAK 1/8 BARBFits 1 of 2 versionsSC2000 model 9087412020 | $32.42/EA |
| 6 | AD9100000891 | 1 | HOSE SILICONE D.4X7 L.300MM SIPFits 1 of 2 versionsSC2000 model 9087412020 | $10.30/EA |
| 7 | AD9100002398 | 1 | PUMP DETERG. MIX PERISTALTIC 24V SIPFits 1 of 2 versionsSC2000 model 9087412020 | $196.45/EA |
| 8 | AD9100002388 | 1 | HEAD PERISTALTIC PUMP DETERG. SIPFits 1 of 2 versionsSC2000 model 9087412020 | $115.53/EA |
| 8 | AD9100002409 | 1 | DECALS ADVANCE SC2000 KITFits 1 of 2 versionsSC2000 model 9087412020 | $78.84/EA |
| 10 | AD9100002402 | 1 | BARB HOSE STRAIGHT D.5-D.4 PLAST. 2 PCS SETFits 1 of 2 versionsSC2000 model 9087412020 | $8.80/EA |
| 11 | AD9097023000 | 1 | ADAPTER DETERGENT TANKFits 1 of 2 versionsSC2000 model 9087412020 | $11.69/EA |
| 12 | AD9097022000 | 1 | SENSOR DETERGENT MIX LEVELFits 1 of 2 versionsSC2000 model 9087412020 | $16.09/EA |
| K1 | AD9098025000 | 1 | ADAPTER DETERGENT KITFits 1 of 2 versionsSC2000 model 9087412020 | $174.60/EA |

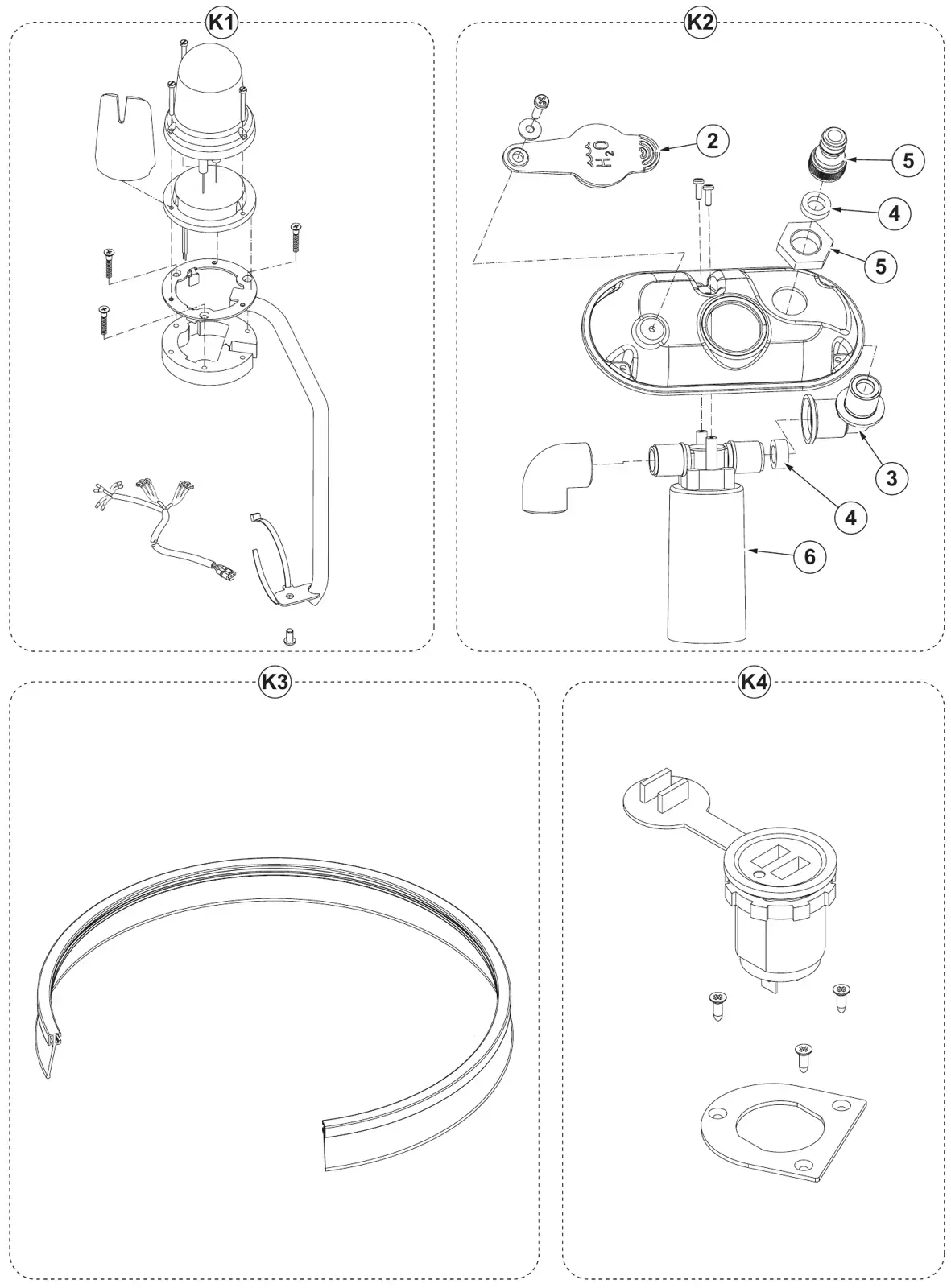

Advance SC2000 Beacon flashing, water filling, splash guard, USB port parts
The optional beacon, water filling kit, splash guard and USB port kits, with the parts of the water filling kit. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD33023155 | 1 | BEACON FLASHING SIP | $356.18/EA |
| K1 | AD9100000663 | 1 | BEACON FLASHING KITOptional. Installation instructions 9100000982. | $523.76/EA |
| 2 | AD9100000808 | 1 | RUBBER SOLUTION CAP SIP | $17.46/EA |
| 3 | AD9100000894 | 1 | ELBOW CURVED M/F SIP | $23.35/EA |
| 4 | AD9100000622 | 2 | GASKET RUBBER D.11.5x19x5 BLACK SIP | $10.30/EA |
| 5 | AD9099675000 | 1 | FITTING QUICK KIT | $39.43/EA |
| 6 | AD9100000897 | 1 | VALVE WATER STOP SIP | $349.17/EA |
| K2 | AD9100000707 | 1 | AUTOMATIC WATER FILLING KITOptional. Installation instructions 9100000984. | $371.04/EA |
| K3 | AD9100001441 | 1 | SPLASH GUARD 510MM 20 KITOptional. | $175.86/EA |
| K4 | AD9100002238 | 1 | USB PORT KITOptional. Installation instructions 9100002239. | $119.51/EA |

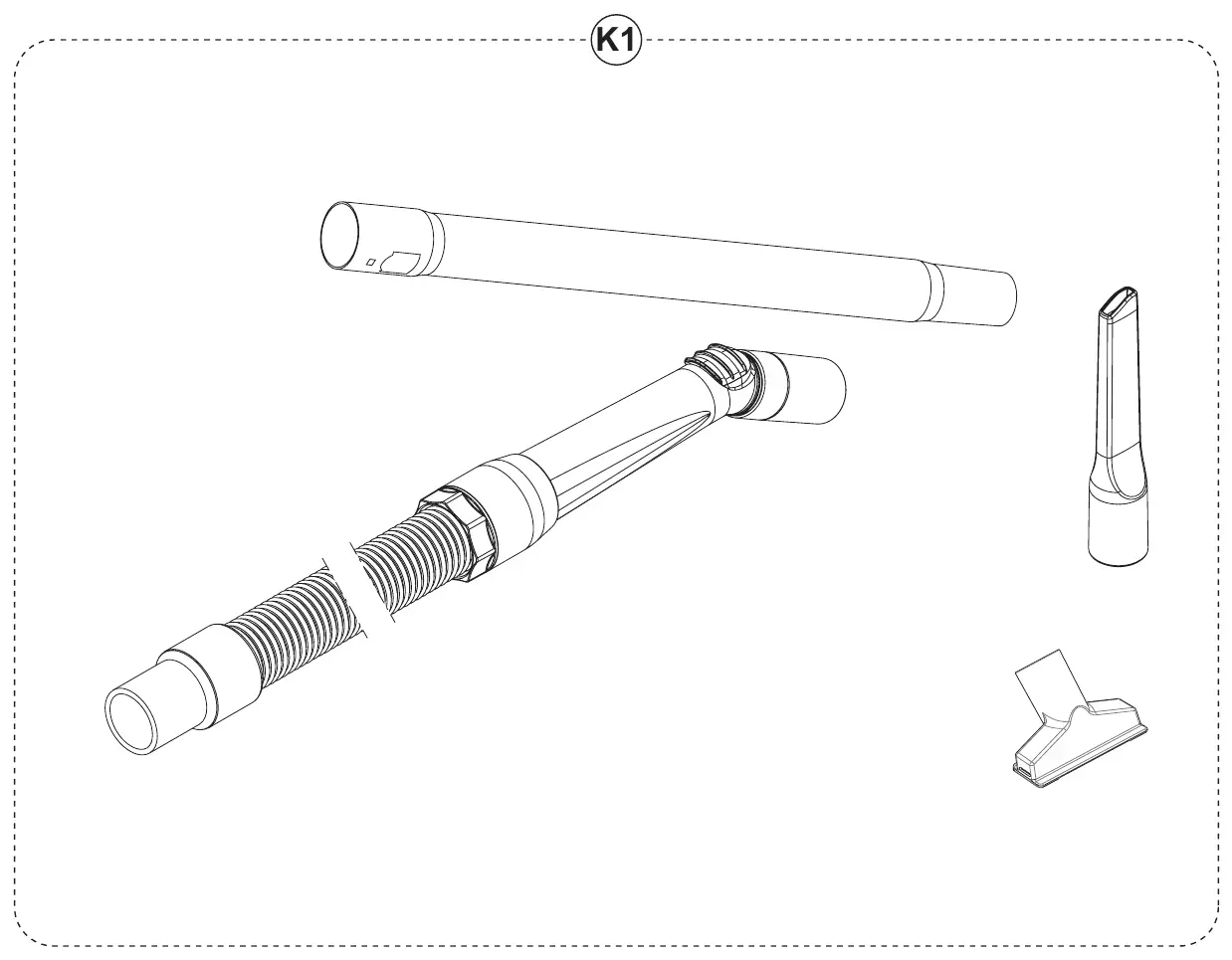

Advance SC2000 Hose suction hand parts
The optional draining hand tool kit. Manual pages 38, list 39.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| K1 | AD9100002205 | 1 | DRAINING HAND TOOLOptional. | $77.47/EA |

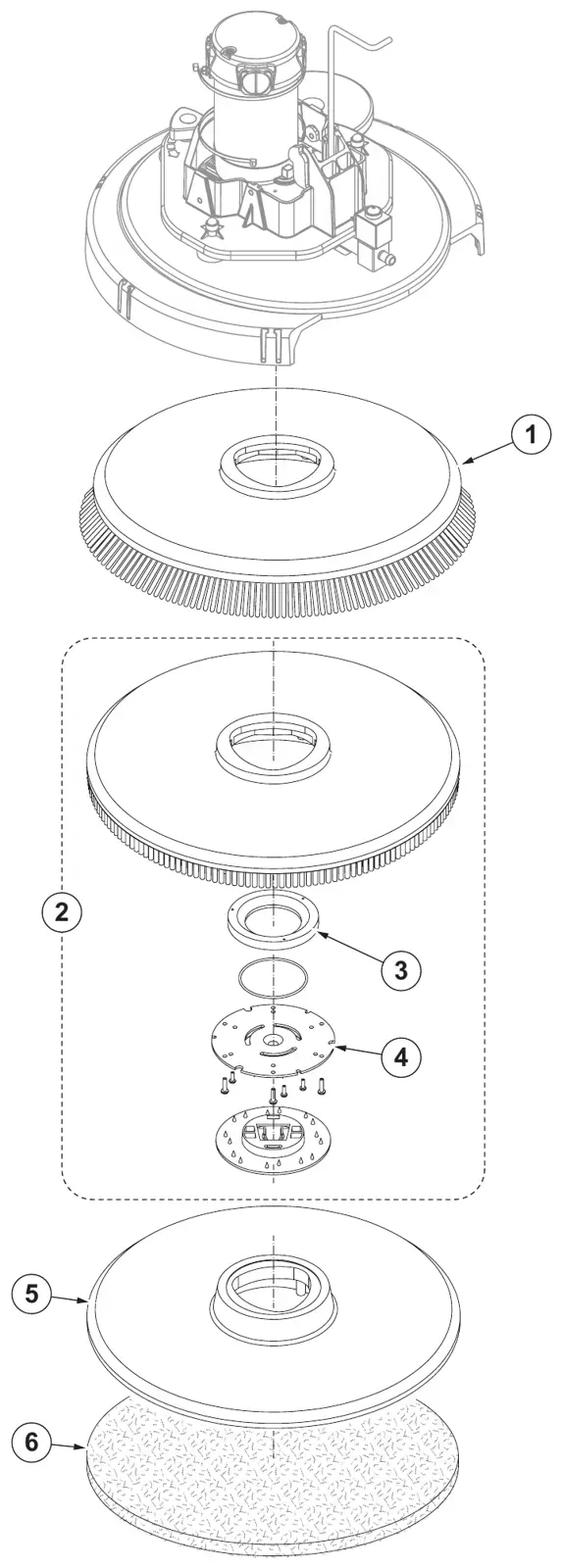

Advance SC2000 Brushes parts
The 21 in brushes, pad holders and pads Advance lists for the SC2000. Manual pages 40, list 41.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | ADL08837025 | 1 | BRUSH DISC 530MM 21 PROLENEOptional. | $300.36/EA |
| 1 | ADL08837026 | 1 | BRUSH DISC 530MM 21 PROLITEOptional. | $159.03/EA |
| 1 | ADL08837027 | 1 | BRUSH DISC 530MM 21 UNION MIXOptional. | $281.37/EA |
| 1 | ADL08837028 | 1 | BRUSH DISC 530MM 21 MIDLITE GRIT 180Optional. | $636.07/EA |
| 1 | ADL08837029 | 1 | BRUSH DISC 530MM 21 MID GRIT 240Optional. | $399.92/EA |
| 1 | ADL08837065 | 1 | BRUSH DISC 530MM 21 MAGNA GRIT 46Optional. | $636.99/EA |
| 1 | ADL08837066 | 1 | BRUSH DISC 530MM 21 DYNA GRIT 80Optional. | $565.35/EA |
| 1 | ADL08837067 | 1 | BRUSH DISC 530MM 21 AGLITE GRIT 500Optional. | $477.04/EA |
| 2 | ADL08837018 | 1 | PAD HOLDER 530MMOptional. | $245.40/EA |
| 3 | ADL08603966 | 1 | RING NYLON | $23.35/EA |
| 4 | AD56505195 | 1 | PAD RETAINER | $30.34/EA |
| 5 | AD9099671000 | 1 | PAD HOLDER FLAT 20 508MMOptional. | $180.42/EA |
| 6 | AD10001955 | 1 | PAD 20 508MM ECO BLACK 5PCSOptional. | $81.36/EA |
| 6 | AD10001956 | 1 | PAD 20 508MM ECO BLUE 5PCSOptional. | $59.53/EA |
| 6 | AD10001957 | 1 | PAD 20 508MM ECO BROWN 5PCSOptional. | $57.45/EA |
| 6 | AD10001958 | 1 | PAD 20 508MM ECO GREEN 5PCSOptional. | $59.53/EA |
| 6 | AD10001959 | 1 | PAD 20 508MM ECO RED 5PCSOptional. | $57.45/EA |
| 6 | AD10001960 | 1 | PAD 20 508MM ECO WHITE 5PCSOptional. | $114.88/EA |
| 6 | AD10002348 | 1 | PAD 20 508MM ECO BRILLIANCE RED 2PCSOptional. | $196.45/EA |
| 6 | AD10002349 | 1 | PAD 20 508MM ECO BRILLIANCE BLUE 2PCSOptional. | $167.59/EA |
| 6 | AD10002350 | 1 | PAD 20 508MM ECO BRILL. YELLOW 2PCSOptional. | $182.30/EA |
| 6 | AD10002351 | 1 | PAD 20 508MM ECO BRILLIANCE GREEN 2PCSOptional. | $182.30/EA |
Advance SC2000 Wiring diagram key (model no.: 9087361020) parts
Advance's wiring diagram key for model 9087361020, with the part number of each component. The wiring drawing is on manual page 42. Manual pages 43, list 43.
Wiring drawing: the manufacturer prints no item numbers on it.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| BAT | – | 24 v batteriesFits 1 of 2 versionsSC2000 model 9087361020 | ||
| BE | AD9100000663 | BEACON FLASHING KITFits 1 of 2 versionsSC2000 model 9087361020 | $523.76/EA | |
| BRK | AD9100001199 | ELECTROMAGNETIC BRAKE SIPFits 1 of 2 versionsSC2000 model 9087361020 | $523.76/EA | |
| C1 | – | Battery connectorFits 1 of 2 versionsSC2000 model 9087361020 | ||
| C2 | – | Charger batt. connectorFits 1 of 2 versionsSC2000 model 9087361020 | ||
| CH | AD9100001145 | CHARGER BATT. O/B 24V 13A 100-230V SETFits 1 of 2 versionsSC2000 model 9087361020 | $1,003.19/EA | |
| EB1 | AD9100001122 | CONTROLLER MAIN MACHINE SIPFits 1 of 2 versionsSC2000 model 9087361020 | $1,424.90/EA | |
| EB2 | AD9100001104 | CARD ELECTRONIC DISPLAY SIPFits 1 of 2 versionsSC2000 model 9087361020 | $312.64/EA | |
| EB3 | AD9100001105 | CARD ELECTRONIC KEY SIPFits 1 of 2 versionsSC2000 model 9087361020 | $93.70/EA | |
| EB4 | AD9100002913Replaces Advance 9100001123 | DASHBOARD CONTROL PANEL SIPFits 1 of 2 versionsSC2000 model 9087361020 | $150.00/EA | |
| EB5 | – | 5v power unit (optional)Fits 1 of 2 versionsSC2000 model 9087361020 | ||
| EV1 | AD9100000870 | SOLENOID VALVE 24V SIPFits 1 of 2 versionsSC2000 model 9087361020 | $152.73/EA | |
| F1 | AD9100000877 | FUSE MIDIFUSE 100A SIPFits 1 of 2 versionsSC2000 model 9087361020 | $20.48/EA | |
| F2 | AD9100000878 | FUSE BLADE 3A SIPFits 1 of 2 versionsSC2000 model 9087361020 | $17.46/EA | |
| F3 | AD9100002234 | FUSE BOLT DOWN 50A SIPFits 1 of 2 versionsSC2000 model 9087361020 | $17.46/EA | |
| F4 | AD9100002234 | FUSE BOLT DOWN 50A SIPFits 1 of 2 versionsSC2000 model 9087361020 | $17.46/EA | |
| M1 | AD9100000874 | REDUCTION GEARMOTOR 450W 24V SIPFits 1 of 2 versionsSC2000 model 9087361020 | $1,453.76/EA | |
| M2 | AD9100001144 | MOTOR VACUUM 24V 310W SIPFits 1 of 2 versionsSC2000 model 9087361020 | $211.28/EA | |
| M3 | AD9100001200 | MOTOR ELECTRIC 400W 24V SIPFits 1 of 2 versionsSC2000 model 9087361020 | $1,221.47/EA | |
| M4 | AD9100001819 | PUMP DETERGENT MIX SIPFits 1 of 2 versionsSC2000 model 9087361020 | $414.70/EA | |
| M5 | AD9100001131 | ACTUATOR 24V DC STROKE 98MM 16MM/S SIPFits 1 of 2 versionsSC2000 model 9087361020 | $349.17/EA | |
| M6 | AD9100001133 | ACTUATOR 24V DC STROKE 77.5MM 16MM/S SIPFits 1 of 2 versionsSC2000 model 9087361020 | $392.85/EA | |
| POT | AD9100001140 | THROTTLE ELECTRONIC SIPFits 1 of 2 versionsSC2000 model 9087361020 | $407.56/EA | |
| S1 | – | Water level sensorFits 1 of 2 versionsSC2000 model 9087361020 | ||
| SW3 | AD9100001130 | CUSHION SEAT W. MICROSWITCH SIPFits 1 of 2 versionsSC2000 model 9087361020 | $141.48/EA | |
| SW4 | AD9100001183 | MICROSWITCH KITFits 1 of 2 versionsSC2000 model 9087361020 | $35.17/EA | |
| TCU | – | Trackclean™ (optional)Fits 1 of 2 versionsSC2000 model 9087361020 | ||
| USB | AD9100002238 | USB PORT KITFits 1 of 2 versionsSC2000 model 9087361020 | $119.51/EA |
Advance SC2000 Wiring diagram key (model no.: 9087412020) parts
Advance's wiring diagram key for model 9087412020, with the part number of each component. The wiring drawing is on manual page 44. Manual pages 45, list 45.
Wiring drawing: the manufacturer prints no item numbers on it.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| BAT | – | 24 v batteriesFits 1 of 2 versionsSC2000 model 9087412020 | ||
| BE | AD9100000663 | BEACON FLASHING KITFits 1 of 2 versionsSC2000 model 9087412020 | $523.76/EA | |
| BRK | AD9100001199 | ELECTROMAGNETIC BRAKE SIPFits 1 of 2 versionsSC2000 model 9087412020 | $523.76/EA | |
| C1 | – | Battery connectorFits 1 of 2 versionsSC2000 model 9087412020 | ||
| C2 | – | Charger batt. connectorFits 1 of 2 versionsSC2000 model 9087412020 | ||
| CH | AD9100001145 | CHARGER BATT. O/B 24V 13A 100-230V SETFits 1 of 2 versionsSC2000 model 9087412020 | $1,003.19/EA | |
| EB1 | AD9100002376 | CONTROLLER MAIN MACHINE SIPFits 1 of 2 versionsSC2000 model 9087412020 | $959.51/EA | |
| EB2 | AD9100002373 | CONTROLLER DISPLAY SIPFits 1 of 2 versionsSC2000 model 9087412020 | $331.25/EA | |
| EB3 | AD9100002913Replaces Advance 9100001123 | DASHBOARD CONTROL PANEL SIPFits 1 of 2 versionsSC2000 model 9087412020 | $150.00/EA | |
| EV1 | AD9100000870 | SOLENOID VALVE 24V SIPFits 1 of 2 versionsSC2000 model 9087412020 | $152.73/EA | |
| F1 | AD9100000877 | FUSE MIDIFUSE 100A SIPFits 1 of 2 versionsSC2000 model 9087412020 | $20.48/EA | |
| F2 | AD9100000878 | FUSE BLADE 3A SIPFits 1 of 2 versionsSC2000 model 9087412020 | $17.46/EA | |
| F3 | AD9100002234 | FUSE BOLT DOWN 50A SIPFits 1 of 2 versionsSC2000 model 9087412020 | $17.46/EA | |
| F4 | AD9100002234 | FUSE BOLT DOWN 50A SIPFits 1 of 2 versionsSC2000 model 9087412020 | $17.46/EA | |
| IB | AD56116477 | SMART KEY - PROBEFits 1 of 2 versionsSC2000 model 9087412020 | $74.61/EA | |
| M1 | AD9100000874 | REDUCTION GEARMOTOR 450W 24V SIPFits 1 of 2 versionsSC2000 model 9087412020 | $1,453.76/EA | |
| M2 | AD9100001144 | MOTOR VACUUM 24V 310W SIPFits 1 of 2 versionsSC2000 model 9087412020 | $211.28/EA | |
| M3 | AD9100001200 | MOTOR ELECTRIC 400W 24V SIPFits 1 of 2 versionsSC2000 model 9087412020 | $1,221.47/EA | |
| M4 | AD9100002398 | PUMP DETERG. MIX PERISTALTIC 24V SIPFits 1 of 2 versionsSC2000 model 9087412020 | $196.45/EA | |
| M5 | AD9100001131 | ACTUATOR 24V DC STROKE 98MM 16MM/S SIPFits 1 of 2 versionsSC2000 model 9087412020 | $349.17/EA | |
| M6 | AD9100001133 | ACTUATOR 24V DC STROKE 77.5MM 16MM/S SIPFits 1 of 2 versionsSC2000 model 9087412020 | $392.85/EA | |
| POT | AD9100001140 | THROTTLE ELECTRONIC SIPFits 1 of 2 versionsSC2000 model 9087412020 | $407.56/EA | |
| S1 | – | Water level sensorFits 1 of 2 versionsSC2000 model 9087412020 | ||
| SW3 | AD9100001130 | CUSHION SEAT W. MICROSWITCH SIPFits 1 of 2 versionsSC2000 model 9087412020 | $141.48/EA | |
| SW4 | AD9100001183 | MICROSWITCH KITFits 1 of 2 versionsSC2000 model 9087412020 | $35.17/EA | |
| TCU | – | Trackclean™ (optional)Fits 1 of 2 versionsSC2000 model 9087412020 | ||
| USB | AD9100002238 | USB PORT KITFits 1 of 2 versionsSC2000 model 9087412020 | $119.51/EA |
Advance SC2000 Recommended parts: normal wear
Advance's recommended parts for normal wear. Manual page 46.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | AD9100000810 | Qty on machine: 1 | BLADE SQUEEGEE 740MM 29 GUM KIT | $42.49/EA | |
| – | AD9100000490 | Qty on machine: 1 | BLADE SQUEEGEE 730MM 29 PU KIT | $107.47/EA | |
| – | ADL08837025 | Qty on machine: 1 | BRUSH DISC 530MM 21 PROLENE | $300.36/EA | |
| – | AD9100000060 | Qty on machine: 1 | BLADE SQUEEGEE 730MM 29 RED GUM KIT | $33.25/EA | |
| – | AD9100001511Advance 9100001511 | Qty on machine: 1 | GASKET RUBBER L.1200MM SIP | Call to confirm part: 800-440-6723 |
Advance SC2000 Recommended parts: ordinary maintenance
Advance's recommended parts for ordinary maintenance. Manual page 46.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | AD9100000864 | Qty on machine: 1 | STRAP ELASTIC F REAR SQUEEGEE BLADE SIP | $21.85/EA | |
| – | AD9100000865 | Qty on machine: 1 | STRAP FRONT SQUEEGEE BLADE SIP | $14.70/EA | |
| – | AD56116518 | Qty on machine: 1 | SMART KEY - USERFits 1 of 2 versionsSC2000 model 9087412020 | $42.89/EA | |
| – | AD9100000559 | Qty on machine: 3 | WHEEL D.51 GREY SIP | $48.04/EA | |
| – | AD9100000871 | Qty on machine: 1 | HUB BRUSH SIP | $45.74/EA | |
| – | AD9100001144 | Qty on machine: 1 | MOTOR VACUUM 24V 310W SIP | $211.28/EA | |
| – | AD9100001353 | Qty on machine: 1 | FILTER SOLUTION TANK SIP | $33.79/EA | |
| – | AD9100001106 | Qty on machine: 1 | HOSE SUCTION BLACK SIP | $74.61/EA | |
| – | AD9100001113 | Qty on machine: 1 | HOSE DRAIN BLACK SIP | $97.79/EA | |
| – | AD9100000843 | Qty on machine: 1 | OPERATOR KEYFits 1 of 2 versionsSC2000 model 9087361020 | $21.85/EA | |
| – | AD56116519 | Qty on machine: 1 | SMART KEY - SUPERVISORFits 1 of 2 versionsSC2000 model 9087412020 | $53.28/EA | |
| – | AD9100002334 | Qty on machine: 1 | WHEEL D.200X76 GREY-BLACK SIP | $240.12/EA | |
| – | AD9100000748 | Qty on machine: 1 | HARDWARE SQUEEGEE KITIncludes items 2, 3, 4, 12, 14, 15, 18, 19, 20, 22, 23 (Squeegee system). | $51.38/EA | |
| – | AD9100000870 | Qty on machine: 1 | SOLENOID VALVE 24V SIP | $152.73/EA | |
| – | AD56116477 | Qty on machine: 1 | SMART KEY - PROBEFits 1 of 2 versionsSC2000 model 9087412020 | $74.61/EA | |
| – | AD9100000861 | Qty on machine: 1 | NET WATER FILTER REINFORCED SIP | $32.34/EA | |
| – | AD9100001816 | Qty on machine: 1 | GUIDE WHEEL 2 PCS SET | $32.42/EA | |
| – | AD9100000803 | Qty on machine: 1 | VALVE ELBOW SIP | $31.05/EA | |
| – | AD9100000574 | Qty on machine: 1 | FITTING STRAIGHT G1/2 D.20 KIT | $10.30/EA | |
| – | AD1465355000 | Qty on machine: 1 | CAP SOLUTION TANK KIT | $96.42/EA | |
| – | AD9100001578 | Qty on machine: 1 | HOSE FRESH WATER LEVEL KIT | $66.90/EA | |
| – | AD9100001139 | Qty on machine: 2 | GASKET RUBBER D.21X33X2.5 BLACK SIP | $8.80/EA | |
| – | AD9100000817 | Qty on machine: 1 | BALL FLOATING SIP | $11.69/EA | |
| – | AD9097587000 | Qty on machine: 1 | CAGE FLOAT | $11.69/EA | |
| – | AD9100000928 | Qty on machine: 1 | GASKET FLOAT SUPPORT SIP | $10.30/EA | |
| – | AD9100000848 | Qty on machine: 1 | SUPERUSER KEYFits 1 of 2 versionsSC2000 model 9087361020 | $21.85/EA | |
| – | AD1464432000 | Qty on machine: 1 | CARBON BRUSHES KIT 4 PCS | $189.43/EA | |
| – | AD9100000860 | Qty on machine: 1 | FILTER WATER SIP | $35.50/EA | |
| – | AD9100000862 | Qty on machine: 1 | KNOB LOBES M8 FEMALE SIP | $11.69/EA | |
| – | AD9100000791 | Qty on machine: 2 | KNOB M8X30 THD STUD SS SIP | $23.35/EA | |
| – | AD9098376000 | Qty on machine: 1 | CARBON BRUSHES KIT 4 PCS | $174.60/EA | |
| – | ADL08812204 | Qty on machine: 1 | ROLLER BUMPER D.160 BLACK | $13.07/EA | |
| – | AD9100000891 | Qty on machine: 1 | HOSE SILICONE D.4X7 L.300MM SIP | $10.30/EA | |
| – | AD9100001819 | Qty on machine: 1 | PUMP DETERGENT MIX SIPFits 1 of 2 versionsSC2000 model 9087361020 | $414.70/EA | |
| – | AD9100002398 | Qty on machine: 1 | PUMP DETERG. MIX PERISTALTIC 24V SIPFits 1 of 2 versionsSC2000 model 9087412020 | $196.45/EA |
Advance SC2000 Recommended parts: extra ordinary maintenance
Advance's recommended parts for extra ordinary maintenance. Manual page 46-47.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | AD9100000868 | Qty on machine: 1 | VIBRATION DAMPING M8 60SH 2 PCS SET | $47.12/EA | |
| – | AD9096887000 | Qty on machine: 1 | ROLLER BUMPER KITIncludes items 2, 34, 35, 38, 39, 40 (Brush deck system). | $15.02/EA | |
| – | AD56315523 | Qty on machine: 1 | CAP DRY BREAK 1/8 BARB | $32.42/EA | |
| – | AD56315523 | Qty on machine: 1 | CAP DRY BREAK 1/8 BARB | $32.42/EA | |
| – | AD9100001130 | Qty on machine: 1 | CUSHION SEAT W. MICROSWITCH SIP | $141.48/EA | |
| – | AD9100001162 | Qty on machine: 1 | WHEEL D.254X80 GREY-BLACK 2 PCS SET | $407.56/EA | |
| – | AD9100001091 | Qty on machine: 1 | TRAY DEBRISE SIP | $20.48/EA | |
| – | AD9100001180 | Qty on machine: 1 | THROTTLE KIT | $465.40/EA | |
| – | AD9100001101 | Qty on machine: 1 | PIN WHEEL SIP | $31.05/EA | |
| – | AD9100001092 | Qty on machine: 1 | COVER TRAY DEBRISE SIP | $17.46/EA | |
| – | AD9100001105 | Qty on machine: 1 | CARD ELECTRONIC KEY SIP | $93.70/EA | |
| – | AD9100001168 | Qty on machine: 1 | SPRING ZERO SETTING SQUEEGEE KITIncludes items 2, 4, 9 (Chassis system). | $31.05/EA | |
| – | AD9100001200 | Qty on machine: 1 | MOTOR ELECTRIC DRIVE SIP | $1,221.47/EA | |
| – | AD9100001734 | Qty on machine: 1 | SUPPORT BALL BEARING SIP | $66.90/EA | |
| – | AD1467639000 | Qty on machine: 1 | BEARING TAPER ROLLER 32004X | $33.79/EA | |
| – | AD9100001160 | Qty on machine: 1 | SCREW 10X16 M8 ISO7379 12.9 10 PCS SET | $39.43/EA | |
| – | AD9100001350 | Qty on machine: 1 | SCREW GRUB M5X10 UNI5929 10 PCS SET | $36.42/EA | |
| – | AD9100001093 | Qty on machine: 1 | BEARING NEEDLE ROLLER NK 17/20 SIPUntil S/N 3510163104804. | $53.48/EA | |
| – | AD9100001449Replaces Advance 9100001848 | Qty on machine: 1 | HARDWARE STEERING SUPPORT KITStarting from S/N 3510163104805. | $59.88/EA | |
| – | AD9100001104 | Qty on machine: 1 | CARD ELECTRONIC DISPLAY SIPFits 1 of 2 versionsSC2000 model 9087361020 | $312.64/EA | |
| – | AD9100002373 | Qty on machine: 1 | CONTROLLER DISPLAY SIPFits 1 of 2 versionsSC2000 model 9087412020 | $331.25/EA | |
| – | AD9100002913Replaces Advance 9100001123 | Qty on machine: 1 | DASHBOARD CONTROL PANEL SIP | $150.00/EA | |
| – | AD9100001174 | Qty on machine: 1 | HOSES SOLUTION KIT | $29.53/EA | |
| – | AD9100001131 | Qty on machine: 1 | ACTUATOR 24V DC STROKE 98MM 16MM/S SIPSee TSB-FC-2016-007. | $349.17/EA | |
| – | AD9100001133 | Qty on machine: 1 | ACTUATOR 24V DC STROKE 77.5MM 16MM/S SIP | $392.85/EA | |
| – | AD9100001173 | Qty on machine: 1 | HARDWARE ACTUATOR KITIncludes items 1, 4, 7, 11, 12 (Actuators system). | $24.72/EA | |
| – | AD9100000797 | Qty on machine: 1 | HOSES BRUSH DECK KIT | $26.25/EA | |
| – | AD9100000874 | Qty on machine: 1 | REDUCTION GEARMOTOR 450W 24V SIP | $1,453.76/EA | |
| – | AD9100001122 | Qty on machine: 1 | CONTROLLER MAIN MACHINE SIPFits 1 of 2 versionsSC2000 model 9087361020 | $1,424.90/EA | |
| – | AD9100002376 | Qty on machine: 1 | CONTROLLER MAIN MACHINE SIPFits 1 of 2 versionsSC2000 model 9087412020 | $959.51/EA | |
| – | AD9100002117 | Qty on machine: 1 | CONNECTOR RED 120A 2 PCS SET | $50.01/EA | |
| – | AD9100001179 | Qty on machine: 1 | LEVER EMERGENCY KITIncludes items 1, 2, 3, 5, 6 (Electrical system). | $36.67/EA | |
| – | AD9100001145 | Qty on machine: 1 | CHARGER BATT. O/B 24V 13A 100-230V SIPi | $1,003.19/EA | |
| – | AD9100001081 | Qty on machine: 1 | DETERGENT TANK SIP | $38.06/EA | |
| – | AD56104189 | Qty on machine: 1 | INSERT-DRY BRAKE | $5.91/EA | |
| – | AD56315517 | Qty on machine: 1 | CAP | $28.71/EA | |
| – | AD9100000891 | Qty on machine: 1 | HOSE SILICONE D.4X7 L.300MM SIP | $10.30/EA | |
| – | AD9098025000 | Qty on machine: 1 | ADAPTER DETERGENT KIT | $174.60/EA |
Advance SC2000 Recommended parts: accessories and optional
Advance's list of accessories and optional parts. Manual page 47.
No drawing for this list. Advance prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | AD9100000810 | Qty on machine: 1 | BLADE SQUEEGEE 740MM 29 GUM KIT | $42.49/EA | |
| – | AD9100000490 | Qty on machine: 1 | BLADE SQUEEGEE 730MM 29 PU KIT | $107.47/EA | |
| – | ADL08837025 | Qty on machine: 1 | BRUSH DISC 530MM 21 PROLENE | $300.36/EA | |
| – | ADL08837018 | Qty on machine: 1 | PAD HOLDER 530MM | $245.40/EA | |
| – | AD9100000060 | Qty on machine: 1 | BLADE SQUEEGEE 730MM 29 RED GUM KIT | $33.25/EA | |
| – | AD56116518 | Qty on machine: 1 | SMART KEY - USERFits 1 of 2 versionsSC2000 model 9087412020 | $42.89/EA | |
| – | AD9100001353 | Qty on machine: 1 | FILTER SOLUTION TANK SIP | $33.79/EA | |
| – | AD9095065000 | Qty on machine: 1 | FILTER ANTIFOAMING | $10.30/EA | |
| – | AD9100000843 | Qty on machine: 1 | OPERATOR KEYFits 1 of 2 versionsSC2000 model 9087361020 | $21.85/EA | |
| – | AD56116519 | Qty on machine: 1 | SMART KEY - SUPERVISORFits 1 of 2 versionsSC2000 model 9087412020 | $53.28/EA | |
| – | ADL08837026 | Qty on machine: 1 | BRUSH DISC 530MM 21 PROLITE | $159.03/EA | |
| – | AD10002348 | Qty on machine: 1 | PAD 20 508MM ECO BRILLIANCE RED 2PCS | $196.45/EA | |
| – | AD9100001366 | Qty on machine: 1 | SQUEEGEE NON MARKING 730MM/29 KIT | $273.78/EA | |
| – | AD9100001441 | Qty on machine: 1 | SPLASH GUARD 510MM 20 KIT | $175.86/EA | |
| – | AD10001960 | Qty on machine: 1 | PAD 20 508MM ECO WHITE 5PCS | $114.88/EA | |
| – | AD10002350 | Qty on machine: 1 | PAD 20 508MM ECO BRILL. YELLOW 2PCS | $182.30/EA | |
| – | AD9100000848 | Qty on machine: 1 | SUPERUSER KEYFits 1 of 2 versionsSC2000 model 9087361020 | $21.85/EA | |
| – | AD9098025000 | Qty on machine: 1 | ADAPTER DETERGENT KIT | $174.60/EA | |
| – | AD9100000663 | Qty on machine: 1 | BEACON FLASHING KIT | $523.76/EA | |
| – | AD9100000707 | Qty on machine: 1 | AUTOMATIC WATER FILLING KIT | $371.04/EA | |
| – | AD9100002238 | Qty on machine: 1 | USB PORT KIT | $119.51/EA | |
| – | ADL08837027 | Qty on machine: 1 | BRUSH DISC 530MM 21 UNION MIX | $281.37/EA | |
| – | ADL08837028 | Qty on machine: 1 | BRUSH DISC 530MM 21 MIDLITE GRIT 180 | $636.07/EA | |
| – | ADL08837029 | Qty on machine: 1 | BRUSH DISC 530MM 21 MID GRIT 240 | $399.92/EA | |
| – | ADL08837065 | Qty on machine: 1 | BRUSH DISC 530MM 21 MAGNA GRIT 46 | $636.99/EA | |
| – | ADL08837066 | Qty on machine: 1 | BRUSH DISC 530MM 21 DYNA GRIT 80 | $565.35/EA | |
| – | ADL08837067 | Qty on machine: 1 | BRUSH DISC 530MM 21 AGLITE GRIT 500 | $477.04/EA | |
| – | AD9099671000 | Qty on machine: 1 | PAD HOLDER FLAT 20 508MM | $180.42/EA | |
| – | AD10001955 | Qty on machine: 1 | PAD 20 508MM ECO BLACK 5PCS | $81.36/EA | |
| – | AD10001956 | Qty on machine: 1 | PAD 20 508MM ECO BLUE 5PCS | $59.53/EA | |
| – | AD10001957 | Qty on machine: 1 | PAD 20 508MM ECO BROWN 5PCS | $57.45/EA | |
| – | AD10001958 | Qty on machine: 1 | PAD 20 508MM ECO GREEN 5PCS | $59.53/EA | |
| – | AD10001959 | Qty on machine: 1 | PAD 20 508MM ECO RED 5PCS | $57.45/EA | |
| – | AD10002349 | Qty on machine: 1 | PAD 20 508MM ECO BRILLIANCE BLUE 2PCS | $167.59/EA | |
| – | AD10002351 | Qty on machine: 1 | PAD 20 508MM ECO BRILLIANCE GREEN 2PCS | $182.30/EA | |
| – | AD9100002205 | Qty on machine: 1 | DRAINING HAND TOOL KIT | $77.47/EA |
Advance SC2000 Electrical: Electrical System
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Electrical System, as printed in the manual |
|---|---|
| Manual page | 29 |
Advance SC2000 Electrical: Wiring Diagram (Model No.: 9087361020)
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Wiring Diagram (Model No.: 9087361020), as printed in the manual |
|---|---|
| Manual page | 42 |
Advance SC2000 Electrical: Wiring Diagram (Model No.: 9087412020)
Wiring drawing: the manufacturer prints no item numbers on it.
| What it shows | Electrical: Wiring Diagram (Model No.: 9087412020), as printed in the manual |
|---|---|
| Manual page | 44 |
New to your Advance SC2000? Start here
Before first use: charge the batteries overnight before you run the machine the first time.
Set up, run and look after your SC2000. Everything here comes from Advance's instructions for use, rewritten in plain steps, with the parts you need linked to the list above.
1Fill the tanks
- Make sure the washing water valve is open.
- Open the cap on the washing water tank and fill it with clean water. Keep the water at or below 104 °F (40 °C).
- Leave a few inches at the top. Use the level hose (AD9100001578) as your reference.
- On an EcoFlex machine, check that the recovery tank is empty and close its cover. Then lift the recovery tank assembly by its handle and fill the detergent tank (AD9100001081) with a highly concentrated detergent. Leave a few inches at the top.
- Use only low-foam, non-flammable detergents made for automatic scrubbers. Wear gloves and protection when you handle detergent.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), page 13. SES ref PF-4S7E-3WEZ
2Fit the brush and squeegee
- Place the brush (ADL08837025) or a pad holder (ADL08837018) with its pad under the brush deck.
- Put the user key in the key reader and press the start/stop button to turn the machine on.
- Make sure nothing is between the deck and the tank assembly. Then press the One-Touch button to lower the deck onto the brush, and press the brush switch to engage it.
- Fit the squeegee and fasten it to its bracket with the handwheels.
- Turn the squeegee knob until the rear blade and the front blade touch the floor.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), pages 12 and 13. SES ref PF-4S7E-3WEZ
3Start and drive
- Put the blue user key in the key reader. If the key is already in, press the start/stop button.
- Check the battery symbol. One or more steady segments means the machine is ready. One flashing segment means the batteries need charging.
- Sit on the driver's seat, hold the steering wheel with both hands and press the drive pedal. The pedal works only while you are seated.
- Pick forward or reverse with the lever at the right of the steering wheel.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), page 14. SES ref PF-4S7E-3WEZ
4Scrub, dry and finish
- Press the One-Touch button to lower the brush deck and the squeegee, then drive and scrub.
- Set the solution flow with the solution flow button to suit the floor.
- Press One-Touch again when you want to stop, and wait for the deck to lift. After 10 seconds the vacuum turns off and the squeegee lifts.
- Remove the brush and the user key. Empty the recovery tank with the drain hose (AD9100001113) and the washing water tank with the level hose, then rinse both with clean water.
- Take off the squeegee, clean it with hot water and hang it on the tank hook. Store the machine in a clean, dry place with the brush and squeegee lifted or removed.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), pages 15 and 17. SES ref PF-4S7E-3WEZ
Questions about your SC2000? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Advance SC2000 troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting page. Turn the machine off, remove the key and disconnect the battery before any work.
| Likely cause | Fix | Part |
|---|---|---|
| Motors don't run and the display and button LEDs stay off | ||
| The battery connector is disconnected, or the batteries are completely discharged | Connect the battery connector, or charge the batteries. | |
| Machine doesn't move and the display shows WARNING ALARM T3 | ||
| The machine was turned on with the drive pedal pressed | Release the drive pedal. If the problem persists, call SES service. | |
| At start-up the One-Touch LED flashes and the brushes don't work | ||
| The machine was switched off without first raising the brush deck | Wait for the deck to raise, then turn the brushes on again with the brush switch. | |
| The brush doesn't run, the battery symbol border flashes and the display shows WARNING ALARM G4 | ||
| The batteries are discharged | Charge the batteries. If the problem persists, replace the batteries. | |
| The display shows WARNING ALARM F2 while you work | ||
| Brush motor overload, or foreign material such as tangled thread keeps the brush from turning | Use a different, less aggressive brush and avoid working with extra pressure on. Clean the brush hub (AD9100000871). | |
| The display shows WARNING ALARM T2 | ||
| Drive motor overload | Turn the machine off and on again. Avoid slopes steeper than the machine's limit and avoid driving over tall obstacles. | |
| The display shows WARNING ALARM C4 or C5 while the on-board charger is charging | ||
| The charger could not recharge the batteries within the maximum time | Run the charging cycle again. If the problem persists, replace the batteries. | |
| The display shows WARNING ALARM with another code (XX) | ||
| The machine's electronic control system is in an alarm condition | Turn the machine off and on again. If the problem persists, call SES service. | |
| The display shows INVALID SMART KEY | ||
| The user key is not enabled | Add that user key to the list of enabled user keys. | |
| Vacuuming is poor | ||
| The recovery tank is full, the vacuum grid is clogged or the float (AD9100000817) is stuck closed, the debris container is clogged, the hose is off the squeegee, the squeegee is dirty or its blades are worn or damaged, or the tank cover is not closed or its gasket (AD9100001511) is damaged | Empty the tank. Clean the vacuum grid and the debris container. Connect the hose. Clean the squeegee, or turn or replace the blades. Close the cover correctly, or clean or replace the gasket. | |
| The solution flow is low | ||
| The washing water tank is empty, the washing water filter (AD9100000860) is dirty, or the EcoFlex tank is dirty or encrusted | Refill the tank. Clean the filter. Clean the EcoFlex system with the drain cycle. | |
| The squeegee leaves marks on the floor | ||
| Debris is under the blades, the blades are worn, chipped or torn, or the squeegee is not balanced with the handwheel | Remove the debris. Turn or replace the blades. Adjust the squeegee. | |
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), page 26. SES ref PF-BUNR-LT4D
Still stuck? SES is an Advance service center. Call 800-440-6723 and have your model and serial number ready.
Advance SC2000 maintenance schedule
Advance's scheduled maintenance table. Do these jobs with the machine off and the battery disconnected. When the service icon shows on the display, call an authorised Advance Service Center for scheduled maintenance.
| Task | How often | Part |
|---|---|---|
| Charge the batteries. | Daily, after using the machine | |
| Clean the squeegee. | Daily, after using the machine | |
| Clean the brush or pad. | Daily, after using the machine | |
| Clean the recovery tank and the debris tray (AD9100001091), and check the tank cover gasket (AD9100001511). | Daily, after using the machine | |
| Clean and drain the EcoFlex system. | Weekly | |
| Check the squeegee blades. | Weekly | |
| Clean the washing water filter (AD9100000860). | Weekly | |
| Check the fluid level of WET batteries. | Weekly | |
| Check the battery charge at least once a week. | Weekly | |
| Replace the squeegee blades (gum (AD9100000810), PU (AD9100000490) or red gum (AD9100000060) kit). | Every six months | |
| Check that the electromagnetic brake (AD9100001199) works. Advance says an authorised Advance Service Center must do this. | Every six months | |
| Check and clean the vents of the drive and brush motors. An authorised Advance Service Center must do this. | Every six months | |
| Check or replace the brush motor carbon brushes (AD9098376000). An authorised Advance Service Center must do this. | Yearly | |
| Check or replace the drive motor carbon brushes (AD1464432000). An authorised Advance Service Center must do this. | Yearly |
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), pages 18, 19, 22, 23, 24 and 25. SES ref PF-YG6K-G5QD
Advance SC2000 specifications
From the technical data in Advance's instructions for use.
| Cleaning width | 21 in (530 mm) |
|---|---|
| Brush or pad diameter | 21 in (530 / 508 mm) |
| Tank capacity | Washing water 18.5 US gal (70 L); recovery 18.5 US gal (70 L) |
| Machine length and height | 50 in (1,270 mm) long; 40.1 in (1,020 mm) high |
| Machine width | 21.6 in (550 mm) without squeegee; 28.3 in (720 mm) with squeegee |
| Drive | 0.53 hp (400 W) motor; speed 0 - 3.7 mi/h (0 - 6 km/h), variable |
| Brush motor | 0.6 hp (450 W), 155 rpm |
| Vacuum motor | 0.4 hp (310 W) |
| Brush pressure | 33 lb (15 kg); 66 lb (30 kg) with extra pressure on |
| Batteries | 24V system; two Discover 12V-105Ah as standard; charger 100-240Vac 50-60Hz, 24Vdc 13A |
| Run time | 2.5 hours with the standard batteries (standard operating conditions) |
| Weight | 267 lb (121 kg) without batteries and with empty tanks; gross vehicle weight 754 lb (342 kg) |
| Maximum gradient when working | 2% |
| Sound pressure level | 68 ± 3 dB(A); 62 ± 3 dB(A) in silent mode |
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), page 9. SES ref PF-BSE6-DEXP
Advance SC2000 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Online manuals
Read the SC2000 manuals in your browser, with clickable part numbers. No sign-in needed.
- SC2000 operator manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESSC2000 parts listParts list with exploded drawings, 50 pages | SC2000 models 9087412020 and 9087361020 | Form 9100000387, 01/2015, revised 07/2017 (this page) | 5.4 MB | Sign in to view or downloadSign in to download |
| PDFby SESSC2000 instructions for useOperator manual, English and other languages, 116 pages | SC2000 | Form 9100000386, 01/2015, revised 07/2017 | 14.8 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance SC2000 parts questions
How wide is the Advance SC2000 cleaning path?
The cleaning width is 21 in (530 mm). It uses a 21 in (530 / 508 mm) brush or pad.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), page 9. SES ref PF-DJ5Y-Z6HJ
What key do I need to start an SC2000?
The machine needs a magnetic smart key. The blue user key is for scrubbing, drying and basic information. The yellow supervisor key opens extra settings.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), page 11. SES ref PF-DJ5Y-Z6HJ
How long does the SC2000 run on a charge?
Advance lists 2.5 hours with the standard batteries under standard operating conditions. Charge the batteries when the battery symbol shows one flashing segment.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), pages 9 and 14. SES ref PF-DJ5Y-Z6HJ
Why did my SC2000 stop vacuuming and get louder?
A float shut-off turns the vacuum off when the recovery tank is full. You hear a sudden rise in vacuum motor noise and the floor stays wet. Empty the recovery tank with the drain hose.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), page 17. SES ref PF-DJ5Y-Z6HJ
How often do I replace the SC2000 squeegee blades?
Advance's schedule checks the blades weekly and replaces them every six months. If a blade is cut or torn, replace it. You can turn the rear blade to an unworn corner first.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), pages 18 and 22. SES ref PF-DJ5Y-Z6HJ
Can I push the SC2000 when the batteries are dead?
Yes. Disengage the electromagnetic brake with its lever and push at no more than 2.5 mi/h (4 km/h). Put the lever back afterward, and never start the machine with the brake disengaged.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), pages 5 and 17. SES ref PF-DJ5Y-Z6HJ
What does INVALID SMART KEY mean on an SC2000?
The user key is not enabled for that machine. Add that key to the list of enabled user keys in the User Key Management screen, which you reach with the yellow supervisor key.
Source: Advance SC2000 Instructions for Use, form 9100000386 (rev 07/2017), pages 21 and 26. SES ref PF-DJ5Y-Z6HJ
Notes on this parts list
Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Many small parts (washers, screws, nuts, spacers, gaskets) have no part number of their own. Advance prints them with a K1, K2 or K3 mark and lists the kit that holds them. Those lines show "No number printed" and the kit name and number in the notes. Order the kit.
- The EcoFlex drawing for model 9087361020 (page 32) labels one decal as item 9, and the adapter detergent tank in kit K1 is also item 9 in the list. The drawing for model 9087412020 (page 34) labels both decals as item 9, and its list has no item 9 (it prints the decals kit as item 8). Both are shown as Advance prints them.
- The model 9087412020 EcoFlex list (page 35) prints item 8 twice: the peristaltic pump head and the decals kit.
- On the battery charger list (page 31) both lines carry a K1 mark, but Advance prints no K1 kit line.
- The recommended parts pages (46 and 47) give numbers that differ from the drawing lists for a few parts: cage float 9097587000 (the recovery tank list prints no number for the cage float in kit K1); hardware steering support kit 9100001848 (the steering column list prints 9100001449); squeegee non-marking kit 9100001366 (the squeegee list prints 9100001367); roller bumper L08812204 (the brush deck list prints no number for the roller bumper in kit K1). Both are shown as printed.
- Advance's recommended list names 9100001511 "gasket rubber L.1200 mm" and the recovery tank list names the same number "cover recovery tank kit". The page keeps both names. Call us to confirm which you receive.
- Item 11 on the chassis list (harness footboard) and several other lines are printed once for each model. The page tags each with its model number. A line with no model tag applies to both models.
- The parts list marks some lines with # (new or modified item) and * (optional). This page shows the optional mark as "Optional" and does not repeat the # mark.
- The wiring key tables list the fuses (F1, F2) and the other electrical parts for each model. Lines that Advance prints with a dash have no part number. The wiring drawings (pages 42 and 44) are not reproduced here.
- The instructions for use describe only the magnetic smart key. The operator key and superuser key on model 9087361020 are not described in it. The operator manual's wiring key calls BE the pivoting light (optional); the parts list calls it the beacon flashing kit.
- Advance's instructions for use call the cover "(29)" in the battery charging and detergent tank cleaning steps where the same steps elsewhere use the cover "(18)". This page follows the steps without the item numbers.
- The chain antistatic kit (page 13, item 14) is printed "starting from S/N see reference on web parts" with no serial number. Call us with your serial number.
- Descriptions are copied as Advance prints them, including its spellings (for example TRAY DEBRISE, kEY, MIDIFUSE).
