Advance SC1500 parts list and diagrams
Every part number in Advance's SC1500 parts list, with the manual's drawings, troubleshooting, maintenance and specs from the instructions for use. Each part number links to that part in our store.
Complete list: every parts line in Advance's SC1500 Parts List, form 56042591 (11/2012, revised 5/2020, REV O), for the SC1500-X20D disc model 56104000 and the SC1500-X20R REV model 56104001 stand-on scrubbers. Checked .
New to your SC1500? Start here → Manuals (free sign-in) →
- Brush or pad size
- 20 in (51 cm)
- Batteries
- 24 V, 260 Ah
- Solution tank
- 12 US gal (45 L)
- Empty weight
- 620 lb (281 kg)
- Gradeability
- Transport 14% (7.1°); cleaning 8.3% (4.75°)
Wear parts most SC1500 owners reorder
Advance's recommended spare parts pages mark squeegee blade kits and squeegee wheels as normal wear, and list brushes, skirt, pad driver, filter, gasket and hose as maintenance spares. They are on this parts list.
Squeegee Kit - Blade Linatex
$61.61/EASqueegee Kit - Blade PU
$117.99/EASqueegee Wheels Kit TSB-FC-2017-025
$132.43/EACarbon Brushes (2)
$58.39/EACarbon Brush Set Of 2 (for 56390072)
$211.28/EAPad Driver Assy
$342.18/EASkirt Brush
$104.96/EASolution Filter Kit
$33.79/EAGasket-Recovery Tank
$29.53/EADrain Hose
$50.01/EA
Source: Advance SC1500 Parts List, form 56042591 (11/2012, rev. O), pages 33 and 34. SES ref PF-JE6S-5YVB
Your machine
How to tell which you have
- Model number: the Model Number and Serial Number are on the nameplate on the machine. The models are 56104000 (SC1500-X20D) and 56104001 (SC1500-X20R).
- Disc or REV: the X20D scrubs with a 20 in (51 cm) disc brush or a pad on a pad holder. The X20R uses the REV system, where a pad presses onto a fixed pad driver.
- Lines with no model tag: Advance's parts list uses one list for both models except the Scrub System-20D and Scrub System-REV drawings, the REV decal kit, and the brush and pad groups in the options and spare parts lists.
How to read this list
Our part numbers are the Advance number with AD in front, so Advance 56104483 is AD56104483. Where Advance prints a letter at the end of a number (for example 51526A), we keep it. Each line shows the item number on the drawing. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Lines marked No number printed are parts Advance prints without a part number. Its ordering instructions say to look in the Kit column and order the service kit that contains the part, and the note on the line names that kit. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

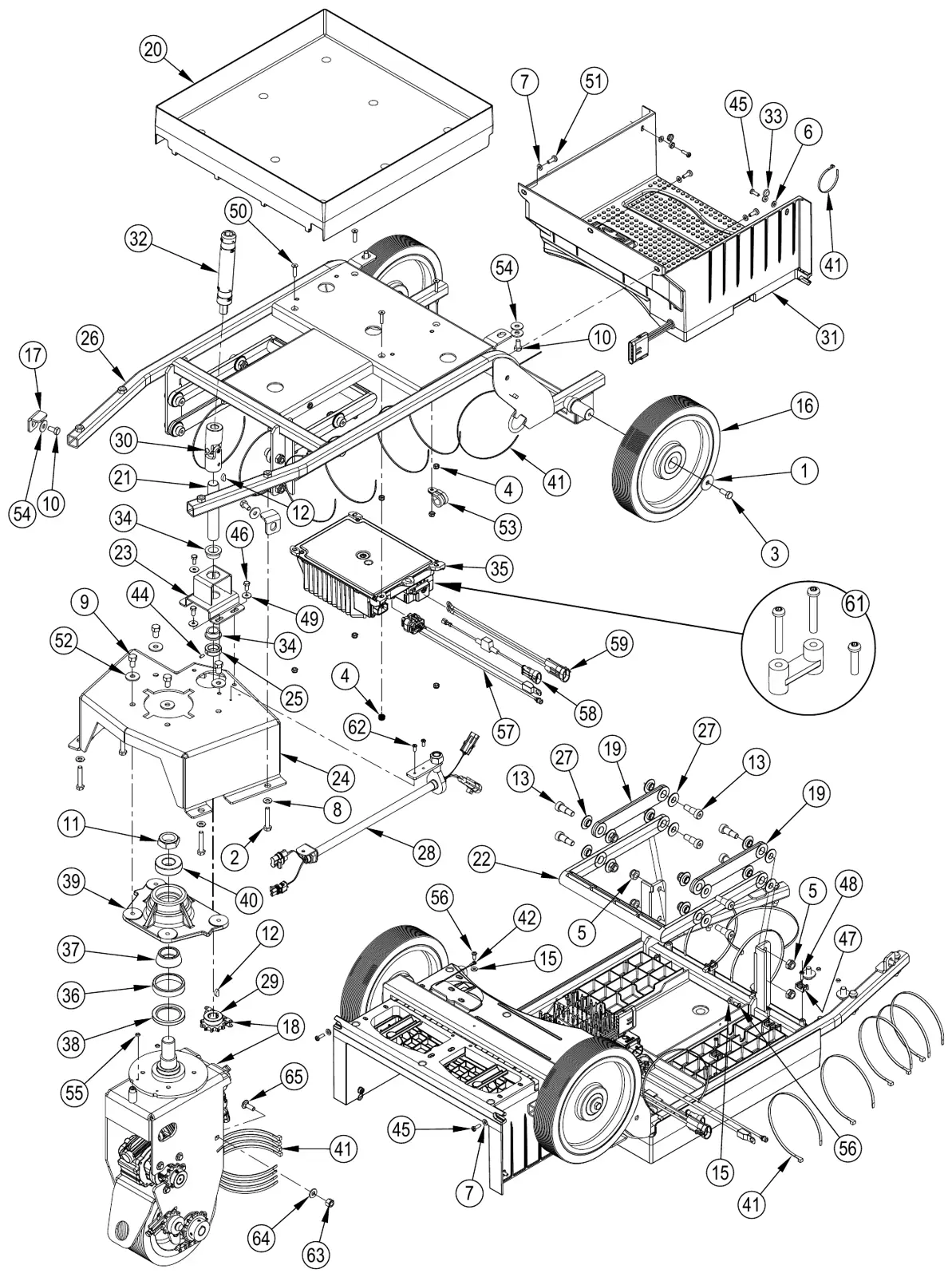

Advance SC1500 chassis system parts
The chassis weldment, steering shaft and linkage, bearing blocks, rear wheels, battery tray, onboard charger and hardware. Many lines are hardware that comes only in a service kit. Manual pages 2, list 3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Washer Flat Xl 9.0 x 32.0 x 2.5Kit part only: order kit K2, Rear Wheel Kit (56104331) or K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Rear Wheel Kit (AD56104331) |
| 2 | Not sold separatelyAdvance no number printed | 4 | Screw, Hex Hd M8 x 45-Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Screw, Hex Thd To Hd M8 x 20 SSKit part only: order kit K2, Rear Wheel Kit (56104331) or K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Rear Wheel Kit (AD56104331) |
| 4 | Not sold separatelyAdvance no number printed | 9 | Nut, Hex Nyl Loc Thin M6Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 5 | Not sold separatelyAdvance no number printed | 8 | Nut, M10-1.5 NylockKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 7 | Not sold separatelyAdvance no number printed | 7 | Washer, Flat 6,4 X 12,5Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 8 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat 8.4 X 16 X 1.6Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 9 | Not sold separatelyAdvance no number printed | 4 | Scr-Hex Hd Loc 3/8-16 x .62Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 10 | Not sold separatelyAdvance no number printed | 4 | Scr-Hex M8-1.25 X 16MMKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc-Thin 1-14Kit part only: order kit K3, Bearing Block Kit (56104332). | Not sold separately. Order Bearing Block Kit (AD56104332) |
| 12 | Not sold separatelyAdvance no number printed | 2 | Key-Wdf 5MM X 6.5MM X 16MMKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 13 | Not sold separatelyAdvance no number printed | 8 | Scr-Soc-Shd-M12X16MMX-M10-1.50Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 15 | Not sold separatelyAdvance no number printed | 2 | Wsh, Int Shprf #10Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 16 | Not sold separatelyAdvance no number printed | 2 | WheelKit part only: order kit K2, Rear Wheel Kit (56104331). | Not sold separately. Order Rear Wheel Kit (AD56104331) |
| 17 | AD56104091Advance 56104091 | 2 | Mounting Tab | $8.80/EA |
| 18 | No number printedAdvance no number printed | 1 | Drive Wheel AssemblyNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | AD56104094Advance 56104094 | 2 | Bar Linkage | $16.17/EA |
| 20 | AD56104105Advance 56104105 | 1 | Battery Tray | $211.28/EA |
| 21 | AD56104130Advance 56104130 | 1 | Steering Shaft | $20.87/EA |
| 22 | AD56104135Advance 56104135 | 1 | Link Bar | $23.91/EA |
| 23 | AD56104148Advance 56104148 | 1 | Steering Shaft Weldt | $50.01/EA |
| 24 | AD56104151Advance 56104151 | 1 | Spindle Mount Weldment | $240.12/EA |
| 25 | AD56104157Advance 56104157 | 1 | Collar | $12.85/EA |
| 26 | AD56104448Advance 56104448 | 1 | Chassis Weldment | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | Not sold separatelyAdvance no number printed | 16 | Bushing Link ArmKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 28 | Not sold separatelyAdvance no number printed | 1 | Harness-Drive Motor KitKit part only: order kit K5, Harness-Drive Motor Kit (56385136). Not shown on the drawing. | Not sold separately. Order Harness-Drive Motor Kit (AD56385136) |
| 29 | AD56104269Advance 56104269 | 1 | Sprocket-11 Tooth | $27.44/EA |
| 30 | Not sold separatelyAdvance no number printed | 1 | Universal JointKit part only: order kit K1, Universal Joint Kit (56104328). | Not sold separately. Order Universal Joint Kit (AD56104328) |
| 31 | No number printedAdvance no number printed | 1 | Platform AssemblyNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | AD56104319Advance 56104319 | 1 | Tube-Steering Assembly TSB-FC-2014-002 | $118.28/EA |
| 33 | Not sold separatelyAdvance no number printed | 2 | Screw CapKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 34 | AD56104267Advance 56104267 | 2 | Bearing Flange | $13.07/EA |
| 35 | AD56383856Advance 56383856 | 1 | Charger-Onboard 24VDC 650W (E2) TSB-FC-2015-007Replaces battery charger 56112544 in production. To replace 56112544 order Onboard Charger Kit 56383872. | $1,206.67/EA |
| 36 | Not sold separatelyAdvance no number printed | 1 | Bearing CupKit part only: order kit K3, Bearing Block Kit (56104332). | Not sold separately. Order Bearing Block Kit (AD56104332) |
| 37 | Not sold separatelyAdvance no number printed | 1 | Bearing ConeKit part only: order kit K3, Bearing Block Kit (56104332). | Not sold separately. Order Bearing Block Kit (AD56104332) |
| 38 | Not sold separatelyAdvance no number printed | 1 | Seal, ShaftKit part only: order kit K3, Bearing Block Kit (56104332). | Not sold separately. Order Bearing Block Kit (AD56104332) |
| 39 | AD56314032Advance 56314032 | 1 | Block, Bearing | $218.25/EA |
| 40 | Not sold separatelyAdvance no number printed | 1 | Bearing BallKit part only: order kit K3, Bearing Block Kit (56104332). | Not sold separately. Order Bearing Block Kit (AD56104332) |
| 41 | Not sold separatelyAdvance no number printed | 14 | Tie, 8” BlackKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 42 | Not sold separatelyAdvance no number printed | 1 | Chain - BallKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 44 | Not sold separatelyAdvance no number printed | 1 | Screw Grub M5 x 10 Uni5929Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 45 | Not sold separatelyAdvance no number printed | 4 | Scr, Pan Phil M5 x 16Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 46 | Not sold separatelyAdvance no number printed | 3 | Screw M6x14 Hex Hd F/Thd ISO4017Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 47 | Not sold separatelyAdvance no number printed | 5 | Flat Tie HolderKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 48 | Not sold separatelyAdvance no number printed | 5 | Thread Rolling Scr 5 X 16Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 49 | Not sold separatelyAdvance no number printed | 3 | Washer, Flat XlKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 50 | Not sold separatelyAdvance no number printed | 4 | Screw Flat Socket Head M6 x 25.0Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 51 | Not sold separatelyAdvance no number printed | 3 | Scr-Pan Phil M6-1 X 16MMKit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 52 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat Xl 9.5 X 27 X 2.5Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 53 | AD9095516000Advance 9095516000 | 1 | Clamp 18 | $11.69/EA |
| 54 | Not sold separatelyAdvance no number printed | 6 | Washer Flat Xl Uni-6593 8 x 24Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 55 | AD9099196000Advance 9099196000 | 2 | Spacer 5.5 X 8 X 3 | $5.91/EA |
| 56 | Not sold separatelyAdvance no number printed | 2 | Scr, Hex Thd Form 10-24 X .50Kit part only: order kit K4, Chassis Hardware Kit (56104333). | Not sold separately. Order Chassis Hardware Kit (AD56104333) |
| 57 | AD56383857Advance 56383857 | 1 | Indicator-Charge Led W/Temp | $121.64/EA |
| 58 | AD56383587Advance 56383587 | 1 | Adapter-Interlock Pin 1 | $36.67/EA |
| 59 | AD56383586Advance 56383586 | 1 | Adapter-Charger Delta-Q Power | $24.72/EA |
| 61 | AD56384043Advance 56384043 | 1 | Strain Relief Kit | $16.09/EA |
| 62 | Not sold separatelyAdvance no number printed | 2 | Scr Pan Phil 10-24 X .50Kit part only: order kit K5, Harness-Drive Motor Kit (56385136). | Not sold separately. Order Harness-Drive Motor Kit (AD56385136) |
| 63 | Not sold separatelyAdvance no number printed | 1 | Nut-Hex Nyl Loc SS.1/4-20Kit part only: order kit K5, Harness-Drive Motor Kit (56385136). | Not sold separately. Order Harness-Drive Motor Kit (AD56385136) |
| 64 | Not sold separatelyAdvance no number printed | 1 | Wsh-Ext-Ser-SS-.25Kit part only: order kit K5, Harness-Drive Motor Kit (56385136). | Not sold separately. Order Harness-Drive Motor Kit (AD56385136) |
| 65 | Not sold separatelyAdvance no number printed | 2 | Scr-Carr-SS-1/4-20X.675Kit part only: order kit K5, Harness-Drive Motor Kit (56385136). | Not sold separately. Order Harness-Drive Motor Kit (AD56385136) |
| 66 | Not sold separatelyAdvance no number printed | 3 | 15.35 in Cable Tie Black NylonKit part only: order kit K5, Harness-Drive Motor Kit (56385136). Not shown on the drawing. | Not sold separately. Order Harness-Drive Motor Kit (AD56385136) |
| – | AD56104328Advance 56104328 | 1 | Universal Joint KitService kit K1. Contains item 30. | $102.07/EA |
| – | AD56104331Advance 56104331 | 1 | Rear Wheel KitService kit K2. Contains items 1, 3, 16. | $320.34/EA |
| – | AD56104332Advance 56104332 | 1 | Bearing Block KitService kit K3. Contains items 11, 36, 37, 38, 40. | $269.64/EA |
| – | AD56104333Advance 56104333 | 1 | Chassis Hardware KitService kit K4. Contains items 1, 2, 3, 4, 5, 7, 8, 9, 10, 12, 13, 15, 27, 33, 41, 42, 44, 45, 46, 47, 48, 49, 50, 51, 52, 54, 56. | $182.30/EA |
| – | AD56385136Advance 56385136 | 1 | Harness-Drive Motor KitService kit K5. Contains items 28, 62, 63, 64, 65, 66. | $254.81/EA |

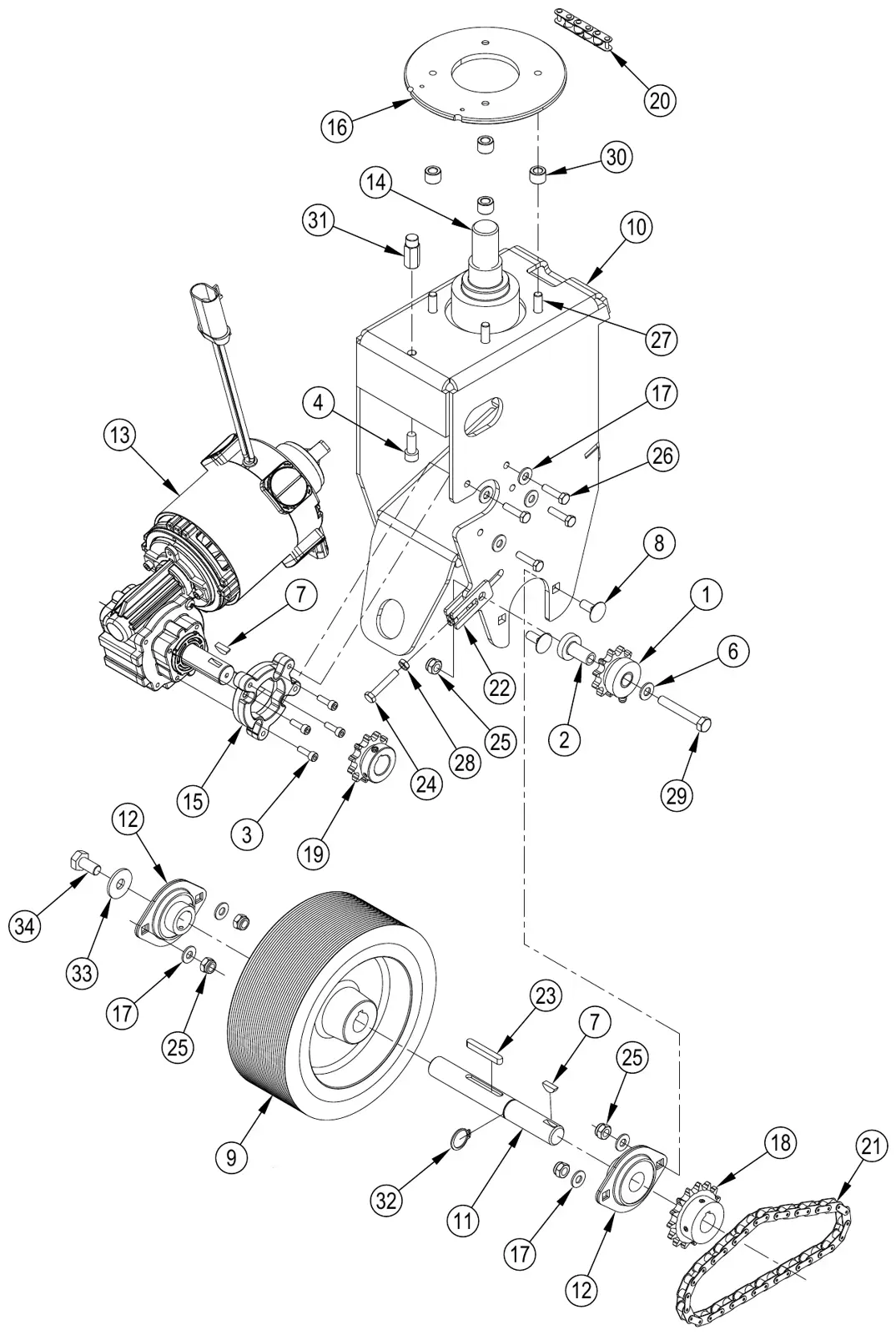

Advance SC1500 drive wheel assembly parts
The drive wheel, frame weldment, axle and bearing, drive wheel motor, sprockets, roller chain, idler and steering stop. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | No number printedAdvance no number printed | 1 | Drive Wheel AssemblyNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | Not sold separatelyAdvance no number printed | 1 | Sprocket Assy TSB-FC-2013-132Kit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Bushing, FlangedKit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339) or K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 3 | Not sold separatelyAdvance no number printed | 4 | Scr, Soc Hd M5Kit part only: order kit K5, Drive Wheel Motor Kit (56104336) or K8, Drive Wheel Hardware Kit (56104340). Revised or new since the last update. | Not sold separately. Order Drive Wheel Motor Kit (AD56104336) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Scr Soc Hd M8 X 20.0Kit part only: order kit K8, Drive Wheel Hardware Kit (56104340) or K10, Stop-Steering Kit (56394286). | Not sold separately. Order Drive Wheel Hardware Kit (AD56104340) |
| 6 | Not sold separatelyAdvance no number printed | 1 | Wsh-Flt SAE Ss 5/16Kit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339) or K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 7 | Not sold separatelyAdvance no number printed | 2 | Key-Wdf 5mmx6.5mmx16mmKit part only: order kit K5, Drive Wheel Motor Kit (56104336) or K6, Wheel And Bearing Kit (56104338) or K7, Sprocket And Chain Kit (56104435 or 56104339). | Not sold separately. Order Drive Wheel Motor Kit (AD56104336) |
| 8 | Not sold separatelyAdvance no number printed | 4 | Scr-Carriage Ss M8-1.25 X 20mmKit part only: order kit K6, Wheel And Bearing Kit (56104338) or K8, Drive Wheel Hardware Kit (56104340) or K9, Front Wheel Bearings Kit (56104384). | Not sold separately. Order Wheel And Bearing Kit (AD56104338) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Drive WheelKit part only: order kit K6, Wheel And Bearing Kit (56104338). | Not sold separately. Order Wheel And Bearing Kit (AD56104338) |
| 10 | AD56104793Advance 56104793 | 1 | Drive Wheel Frame Weldment (used after September 2013)Replaces 56104431. | $144.37/EA |
| 10 | AD56104498Advance 56104498 | 1 | Drive Weldment Kit (used before October 2013) | $480.12/EA |
| 11 | Not sold separatelyAdvance no number printed | 1 | Axle TSB-FC-2014-002Kit part only: order kit K6, Wheel And Bearing Kit (56104338). | Not sold separately. Order Wheel And Bearing Kit (AD56104338) |
| 12 | Not sold separatelyAdvance no number printed | 2 | Axle BearingKit part only: order kit K6, Wheel And Bearing Kit (56104338) or K9, Front Wheel Bearings Kit (56104384). | Not sold separately. Order Wheel And Bearing Kit (AD56104338) |
| 13 | Not sold separatelyAdvance no number printed | 1 | Drive Wheel Motor (M1) TSB-FC-2015-012Kit part only: order kit K5, Drive Wheel Motor Kit (56104336). | Not sold separately. Order Drive Wheel Motor Kit (AD56104336) |
| – | AD56384100Advance 56384100 | 1 | Electromagnetic Brake KitOptional, not included. Can replace Brake-Electromagnetic 56384098 as a separate repair part for the Drive Wheel Motor. | $378.03/EA |
| 14 | AD56104077Advance 56104077 | 1 | Spindle Weldt | $182.30/EA |
| 15 | Not sold separatelyAdvance no number printed | 1 | SpacerKit part only: order kit K5, Drive Wheel Motor Kit (56104336). | Not sold separately. Order Drive Wheel Motor Kit (AD56104336) |
| 16 | AD56104115Advance 56104115 | 1 | Steering Plate | $42.32/EA |
| 17 | Not sold separatelyAdvance no number printed | 8 | Washer, Flat 8x17x1.6 SSKit part only: order kit K5, Drive Wheel Motor Kit (56104336) or K6, Wheel And Bearing Kit (56104338) or K8, Drive Wheel Hardware Kit (56104340) or K9, Front Wheel Bearings Kit (56104384). Revised or new since the last update. | Not sold separately. Order Drive Wheel Motor Kit (AD56104336) |
| 18 | Not sold separatelyAdvance no number printed | 1 | Sprocket-15 Tooth TSB-FC-2013-132Kit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 19 | Not sold separatelyAdvance no number printed | 1 | Sprocket-11 Tooth TSB-FC-2013-132Kit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 20 | AD56104270Advance 56104270 | 1 | Chain-Roller | $50.52/EA |
| 21 | Not sold separatelyAdvance no number printed | 1 | Chain-RollerKit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Weld’t-Idler AdjustKit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 23 | Not sold separatelyAdvance no number printed | 1 | Key, 6mm SqKit part only: order kit K6, Wheel And Bearing Kit (56104338). | Not sold separately. Order Wheel And Bearing Kit (AD56104338) |
| 24 | Not sold separatelyAdvance no number printed | 1 | Screw, Hex Thd To Hd M6x35 SSKit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339) or K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 25 | Not sold separatelyAdvance no number printed | 5 | Nut, Hex Nyl Loc Thin M8 SSKit part only: order kit K5, Drive Wheel Motor Kit (56104336) or K6, Wheel And Bearing Kit (56104338) or K8, Drive Wheel Hardware Kit (56104340) or K9, Front Wheel Bearings Kit (56104384). | Not sold separately. Order Drive Wheel Motor Kit (AD56104336) |
| 26 | Not sold separatelyAdvance no number printed | 4 | Screw, Hex Thd To Hd M6x25 SSKit part only: order kit K5, Drive Wheel Motor Kit (56104336) or K6, Wheel And Bearing Kit (56104338) or K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Drive Wheel Motor Kit (AD56104336) |
| 27 | Not sold separatelyAdvance no number printed | 4 | Screw, Hex Thd To Hd M8x30 SSKit part only: order kit K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Drive Wheel Hardware Kit (AD56104340) |
| 28 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex M6 SsKit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339) or K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 29 | Not sold separatelyAdvance no number printed | 1 | Screw, Hex Thd To Hd M8x55 SSKit part only: order kit K7, Sprocket And Chain Kit (56104435 or 56104339) or K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Sprocket And Chain Kit (used with 56104431) (AD56104435) |
| 30 | Not sold separatelyAdvance no number printed | 4 | SpacerKit part only: order kit K8, Drive Wheel Hardware Kit (56104340). | Not sold separately. Order Drive Wheel Hardware Kit (AD56104340) |
| 31 | Not sold separatelyAdvance no number printed | 1 | Bushing-Stop-SteeringKit part only: order kit K8, Drive Wheel Hardware Kit (56104340) or K10, Stop-Steering Kit (56394286). | Not sold separately. Order Drive Wheel Hardware Kit (AD56104340) |
| 32 | AD33006059Advance 33006059 | 1 | Ring D 20 UNI7435 TSB-FC-2014-002Also in kit K6, Wheel And Bearing Kit (56104338). | $11.69/EA |
| 33 | AD56003959Advance 56003959 | 1 | Wsh-Flt A2 DIN9021 10.5X30X2.5 TSB-FC-2014-002Also in kit K6, Wheel And Bearing Kit (56104338). | $8.80/EA |
| 34 | AD56003533Advance 56003533 | 1 | Scr Hex SS M10-1.50X20MM TSB-FC-2014-002Also in kit K6, Wheel And Bearing Kit (56104338). | $13.07/EA |
| – | AD56104336Advance 56104336 | 1 | Drive Wheel Motor KitService kit K5. Contains items 3, 7, 13, 15, 17, 25, 26. | $2,108.45/EA |
| – | AD56104338Advance 56104338 | 1 | Wheel And Bearing KitService kit K6. Contains items 7, 8, 9, 11, 12, 17, 23, 25, 26, 32, 33, 34. | $727.23/EA |
| – | AD56104435Advance 56104435 | 1 | Sprocket And Chain Kit (used with 56104431)Service kit K7. Contains items 1, 2, 6, 7, 18, 19, 21, 22, 24, 28, 29. | $421.71/EA |
| – | AD56104339Advance 56104339 | 1 | Sprocket And Chain Kit (used with 56104498)Service kit K7. Contains items 1, 2, 6, 7, 18, 19, 21, 22, 24, 28, 29. | $436.56/EA |
| – | AD56104340Advance 56104340 | 1 | Drive Wheel Hardware KitService kit K8. Contains items 2, 3, 4, 6, 8, 17, 24, 25, 26, 27, 28, 29, 30, 31. | $59.88/EA |
| – | AD56104384Advance 56104384 | 1 | Front Wheel Bearings KitService kit K9. Contains items 8, 12, 17, 25. | $261.96/EA |
| – | AD56394286Advance 56394286 | 1 | Stop-Steering KitService kit K10. Contains items 4, 31. | Call to confirm part: 800-440-6723Call 800-440-6723 |

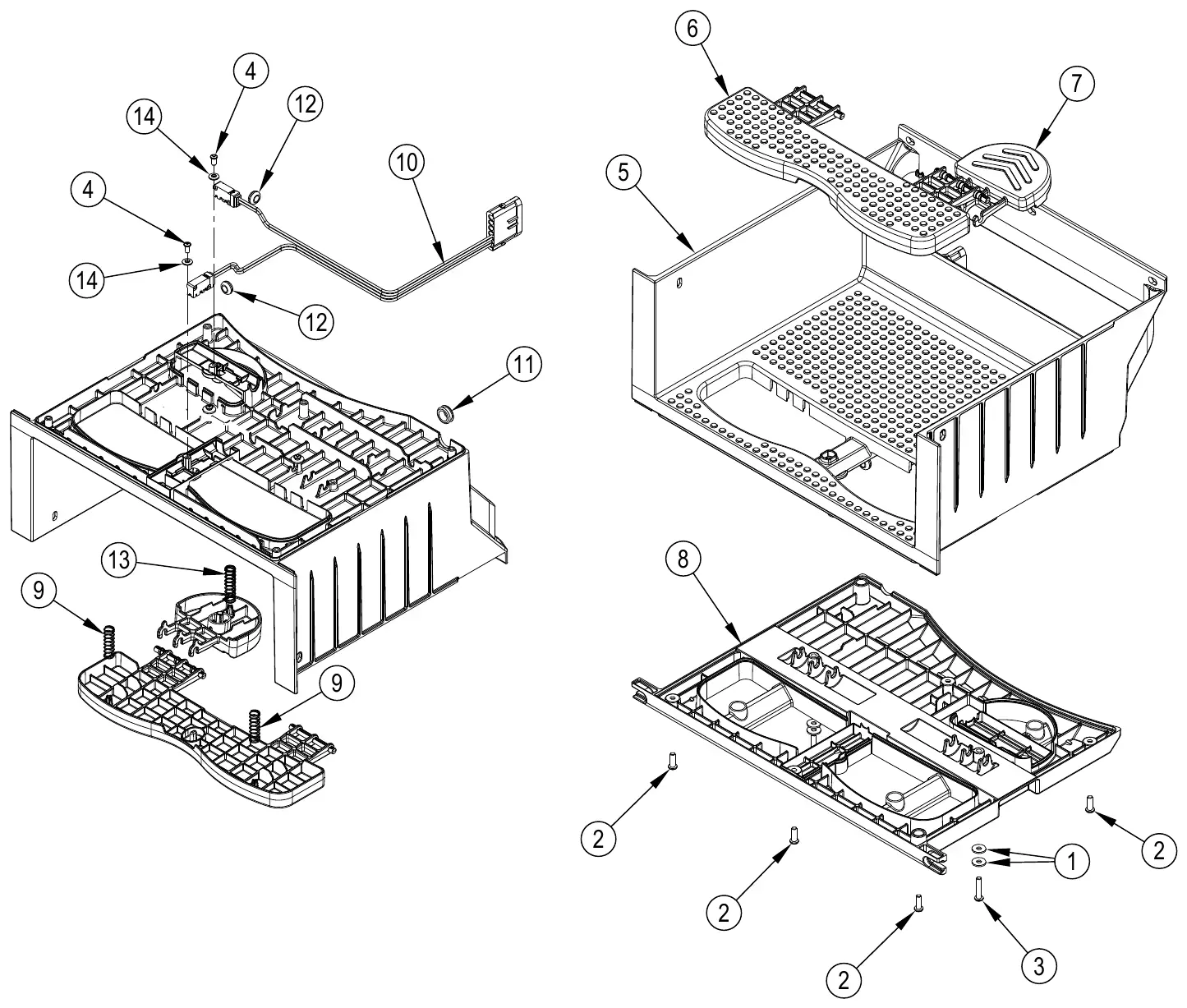

Advance SC1500 platform assembly parts
The upper and bottom platform, safety pedal, foot pedal, springs, switch harness, grommets and hardware. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | No number printedAdvance no number printed | 1 | Platform AssemblyNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 1 | Not sold separatelyAdvance no number printed | 6 | Washer TSB-FC-2014-043Kit part only: order kit K1, Platform Hardware Kit (56104417). Machines built before SN3510144706623: order and install Neoprene Washer 56209261. It has been replaced by Washer 145 1261 000. | Not sold separately. Order Platform Hardware Kit (AD56104417) |
| 2 | Not sold separatelyAdvance no number printed | 6 | Scr Pan Phil Plastit10-14x.62Kit part only: order kit K1, Platform Hardware Kit (56104417). | Not sold separately. Order Platform Hardware Kit (AD56104417) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Scr Pan Phil Plastite 10-14x1Kit part only: order kit K1, Platform Hardware Kit (56104417). | Not sold separately. Order Platform Hardware Kit (AD56104417) |
| 4 | Not sold separatelyAdvance no number printed | 4 | Scr-Pan Phil Plast M5x2.3x10mmKit part only: order kit K1, Platform Hardware Kit (56104417). | Not sold separately. Order Platform Hardware Kit (AD56104417) |
| 5 | AD56104052Advance 56104052 | 1 | Platform-Upper | $167.59/EA |
| 6 | AD56104185Advance 56104185 | 1 | Pedal-Safety | $24.72/EA |
| 7 | AD56384567Advance 56384567 | 1 | Pedal-Foot TSB-FC-2016-265 | $10.30/EA |
| 8 | AD56104187Advance 56104187 | 1 | Platform-Bottom | $77.47/EA |
| 9 | AD56384579Advance 56384579 | 2 | Spring-Compression-M/W-.480 ODMachines built before July 2015: to replace a spring order 2 of 56384579 and 1 of 56384568. Replace all three springs together. | $10.30/EA |
| 10 | AD56104406Advance 56104406 | 1 | Switch Harness (S2, S5) | $167.59/EA |
| 11 | AD56158690Advance 56158690 | 1 | Grommet | $4.67/EA |
| 12 | AD56331006Advance 56331006 | 2 | Grommet | $15.57/EA |
| 13 | AD56384568Advance 56384568 | 1 | Spring-Compression-SS-.480 ODMachines built before July 2015: to replace a spring order 2 of 56384579 and 1 of 56384568. Replace all three springs together. | $8.80/EA |
| 14 | Not sold separatelyAdvance no number printed | 1 | WasherKit part only: order kit K1, Platform Hardware Kit (56104417). | Not sold separately. Order Platform Hardware Kit (AD56104417) |
| – | AD56104417Advance 56104417 | 1 | Platform Hardware KitService kit K1. Contains items 1, 2, 3, 4, 14. | $18.71/EA |

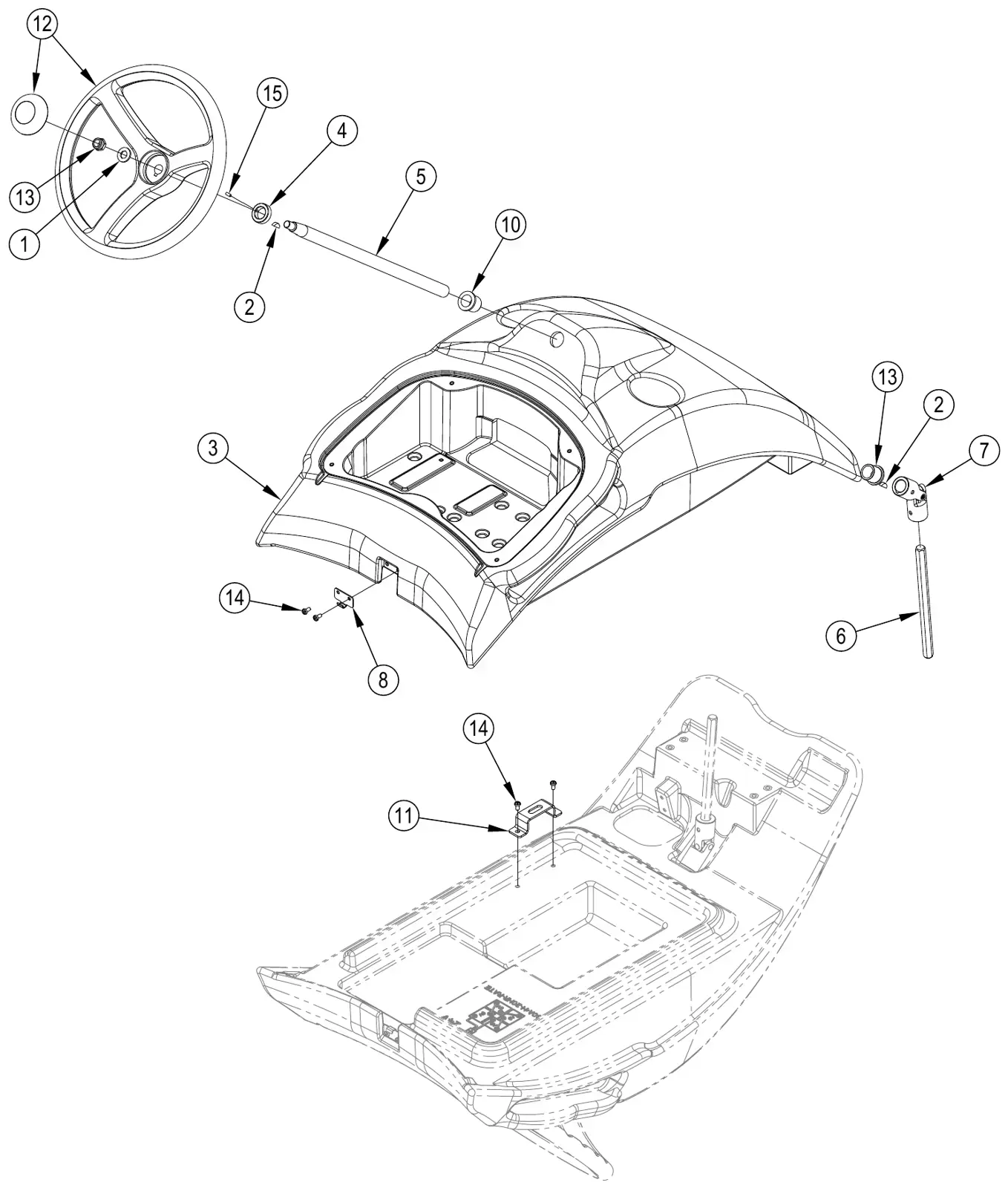

Advance SC1500 control system parts
The control panel, steering shaft, universal joint, hook latch, prop rod bracket, steering wheel and hardware. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Washer, Flat 13X24Kit part only: order kit K3, Control Hardware Kit (56104365). | Not sold separately. Order Control Hardware Kit (AD56104365) |
| 2 | Not sold separatelyAdvance no number printed | 2 | Key-Wdf 5mmX6.5mmX16mmKit part only: order kit K3, Control Hardware Kit (56104365). | Not sold separately. Order Control Hardware Kit (AD56104365) |
| 3 | AD56104053Advance 56104053 | 1 | Control Panel | $799.75/EA |
| 4 | Not sold separatelyAdvance no number printed | 1 | CollarKit part only: order kit K3, Control Hardware Kit (56104365). | Not sold separately. Order Control Hardware Kit (AD56104365) |
| 5 | AD56104196Advance 56104196 | 1 | Shaft Steering | $68.96/EA |
| 6 | AD56104265Advance 56104265 | 1 | Shaft Hex | $12.85/EA |
| 7 | Not sold separatelyAdvance no number printed | 1 | Universal JointKit part only: order kit K1, Universal Joint Kit (56104328). | Not sold separately. Order Universal Joint Kit (AD56104328) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Hook LatchKit part only: order kit K2, Draw Latch Kit (56104352). | Not sold separately. Order Draw Latch Kit (AD56104352) |
| 10 | Not sold separatelyAdvance no number printed | 2 | Bearing-FlangeKit part only: order kit K3, Control Hardware Kit (56104365). | Not sold separately. Order Control Hardware Kit (AD56104365) |
| 11 | AD56104410Advance 56104410 | 1 | Bracket-Prop Rod | $21.85/EA |
| 12 | AD56601060Advance 56601060 | 1 | Steering Wheel | $119.65/EA |
| 13 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M12Kit part only: order kit K3, Control Hardware Kit (56104365). | Not sold separately. Order Control Hardware Kit (AD56104365) |
| 14 | Not sold separatelyAdvance no number printed | 4 | Scr, Pan Phil M5x10 SsKit part only: order kit K2, Draw Latch Kit (56104352) or K3, Control Hardware Kit (56104365). | Not sold separately. Order Draw Latch Kit (AD56104352) |
| 15 | Not sold separatelyAdvance no number printed | 1 | Screw Grub M5x10 Uni5929Kit part only: order kit K3, Control Hardware Kit (56104365). | Not sold separately. Order Control Hardware Kit (AD56104365) |
| – | AD56104328Advance 56104328 | 1 | Universal Joint KitService kit K1. Contains item 7. | $102.07/EA |
| – | AD56104352Advance 56104352 | 1 | Draw Latch KitService kit K2. Contains items 8, 14. | $48.62/EA |
| – | AD56104365Advance 56104365 | 1 | Control Hardware KitService kit K3. Contains items 1, 2, 4, 10, 13, 14, 15. | $43.68/EA |

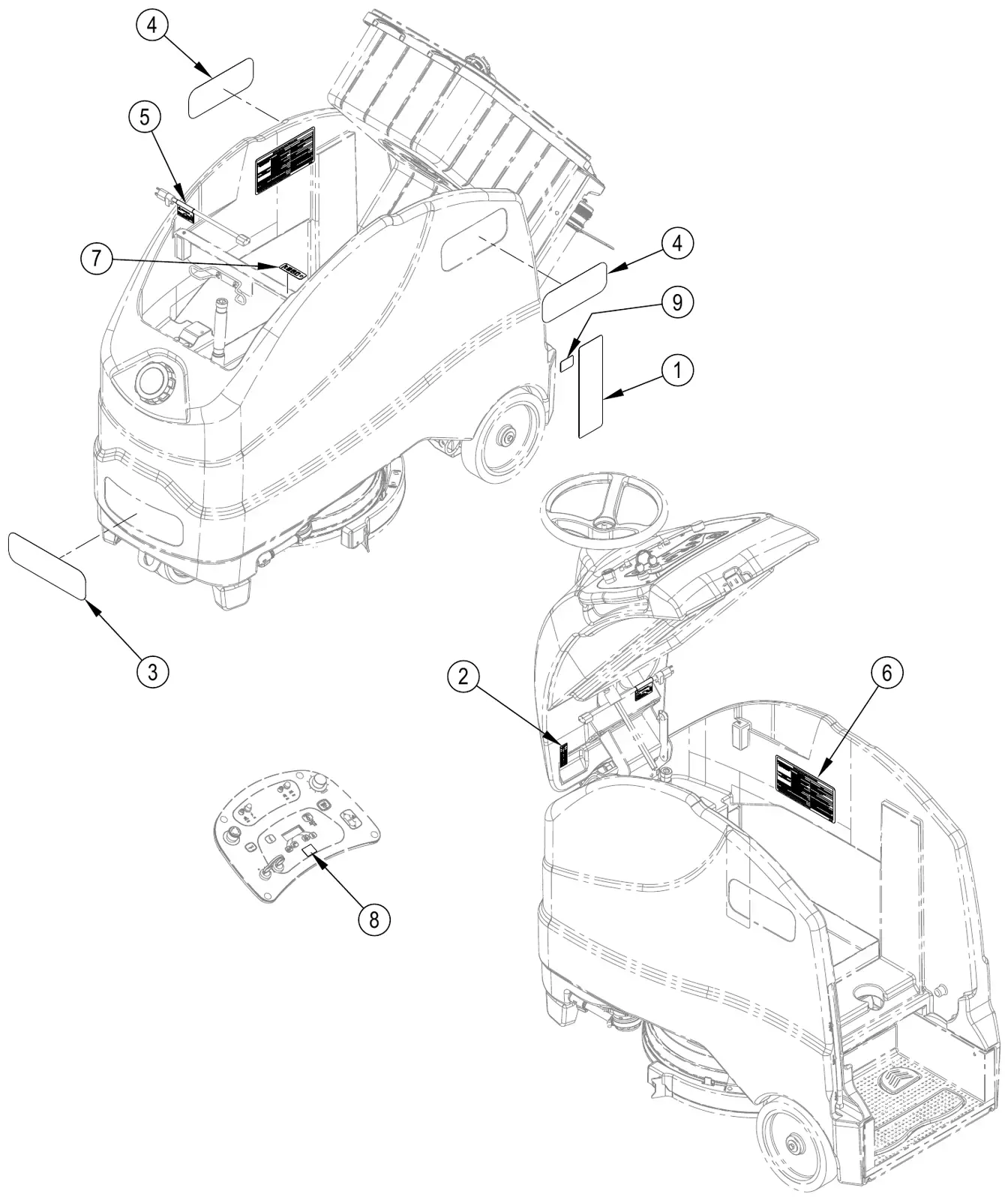

Advance SC1500 decal system parts
The decals and labels on the machine. The REV decal and its kit are tagged to the X20R. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Decal, CautionKit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Decal-Chemical RatioKit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Decal-AdvanceKit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Decal-SC1500Kit part only: order kit K1, SC1500 Decal Kit (56104334). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 4 | Not sold separatelyAdvance no number printed | 2 | Decal-SC1500 RevFits SC1500-X20R. Kit part only: order kit K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 REV Decal Kit (AD56104348) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Decal-Charger CordKit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 6 | Not sold separatelyAdvance no number printed | 1 | Decal-Error CodesKit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 7 | Not sold separatelyAdvance no number printed | 1 | Decal-Charger LEDKit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Decal-SC1500 QR CodeKit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Decal-Prop 65Kit part only: order kit K1, SC1500 Decal Kit (56104334) or K2, SC1500 REV Decal Kit (56104348). | Not sold separately. Order SC1500 Decal Kit (AD56104334) |
| – | AD56104334Advance 56104334 | 1 | SC1500 Decal KitService kit K1. Contains items 1, 2, 3, 4, 5, 6, 7, 8, 9. | $96.42/EA |
| – | AD56104348Advance 56104348 | 1 | SC1500 REV Decal KitFits SC1500-X20R. Service kit K2. Contains items 1, 2, 3, 4, 5, 6, 7, 8, 9. | $65.52/EA |

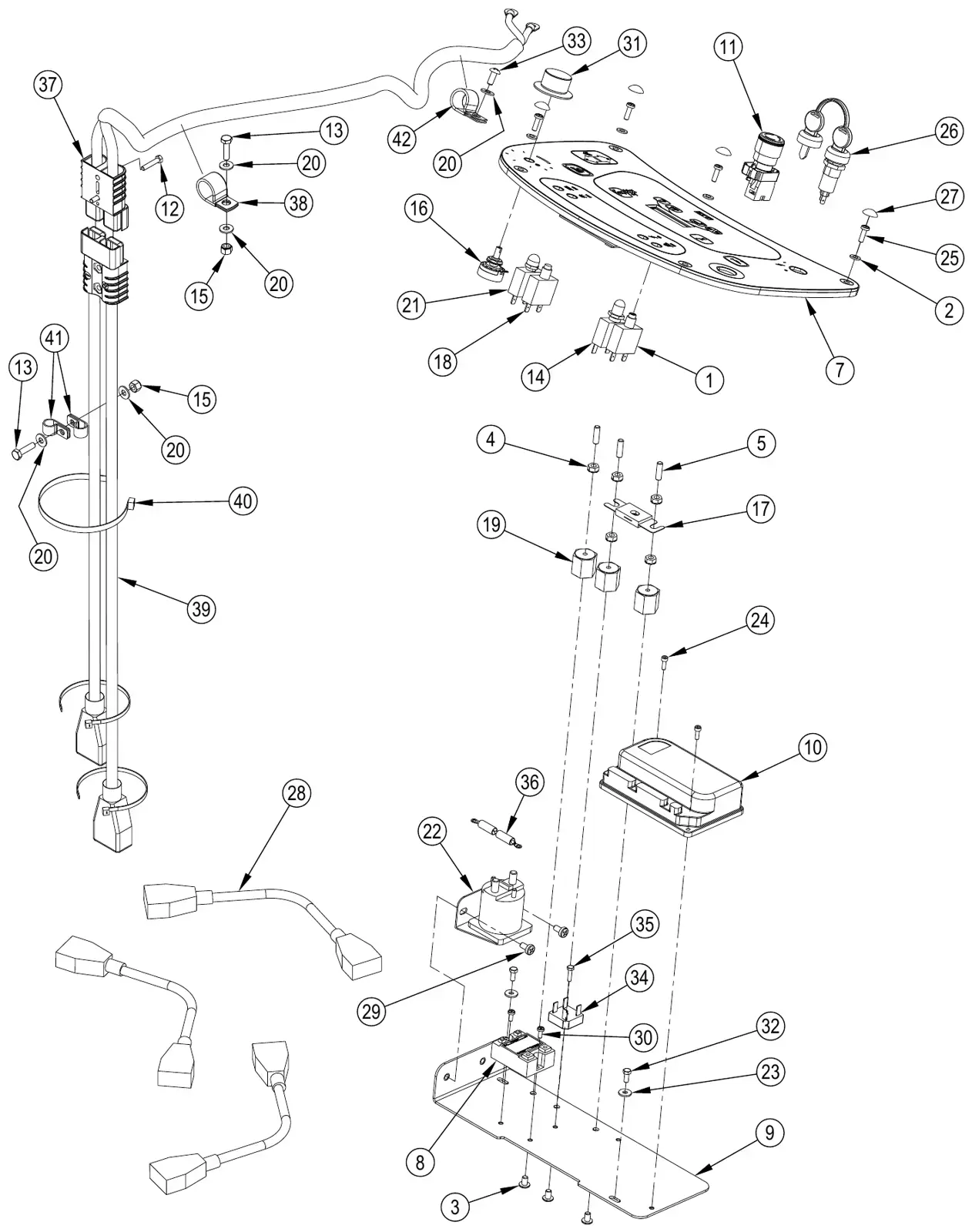

Advance SC1500 electrical system parts
The harnesses, circuit breakers, fuse, contactor, relay, speed controller, rectifiers, key switch, interface panel and hardware. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56104423Advance 56104423 | 1 | Circuit Breaker 50 Amp (CB1) | $57.03/EA |
| 2 | Not sold separatelyAdvance no number printed | 4 | Washer, Flat 6,4x12,5Kit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 3 | Not sold separatelyAdvance no number printed | 3 | Scr-Pan Phil 1/4-20 X .38Kit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 4 | Not sold separatelyAdvance no number printed | 5 | Nut, Hex W/ Shprf 1/4-20Kit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 5 | Not sold separatelyAdvance no number printed | 3 | StudKit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 6 | AD56104444Advance 56104444 | 1 | Harness-MainNot shown on the drawing. | $1,526.96/EA |
| 7 | Not sold separatelyAdvance no number printed | 1 | Interface Panel Assembly (A1)Kit part only: order kit K2, Control Board Kit (56384204). | Not sold separately. Order Control Board Kit (AD56384204) |
| – | Not sold separatelyAdvance no number printed | 1 | Interface Panel KitKit part only: order kit K3, Interface Panel Kit (56104372). Optional, not included. | Not sold separately. Order Interface Panel Kit (AD56104372) |
| 8 | AD56104176Advance 56104176 | 1 | Solid State Relay (K1) | $269.64/EA |
| 9 | AD56104193Advance 56104193 | 1 | Electrical Panel | $83.12/EA |
| 10 | AD56104243Advance 56104243 | 1 | Speed Controller (E1) | $560.45/EA |
| 11 | AD56104247Advance 56104247 | 1 | Disconnect-Emergency | $78.84/EA |
| 12 | AD33003964Advance 33003964 | 2 | Screw M5x25 Hex HD F/THD ISO4017 | $11.69/EA |
| 13 | AD56002093Advance 56002093 | 2 | Scr-Hex 1/4-20 X 1.00 | $12.85/EA |
| 14 | AD56315255Advance 56315255 | 1 | Circuit Breaker, 5 Amp (CB2) | $14.37/EA |
| 15 | AD56002708Advance 56002708 | 2 | Nut, Hex Nyl Loc 1/4-20 | $10.30/EA |
| 16 | No number printedAdvance no number printed | 1 | Potentiometer, 100k (R1 / part of Main harness)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AD56412089Advance 56412089 | 1 | Fuse, 150 Amp (F1) | $19.83/EA |
| 18 | AD56413822Advance 56413822 | 1 | Circuit Breaker, 20 Amp (CB3) | $30.52/EA |
| 19 | AD56469858Advance 56469858 | 3 | Electrical Mount | $13.07/EA |
| 20 | AD56002859Advance 56002859 | 5 | Wsh-Flt SAE SS 1/4 | $10.30/EA |
| 21 | AD56509623Advance 56509623 | 1 | Circuit Breaker-25 Amp (CB4) | $18.96/EA |
| 22 | AD56601183Advance 56601183 | 1 | Contactor 24v, 100 Amp (K2) | $88.73/EA |
| 23 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat Xl 5,5x15x1,2 SSKit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 24 | Not sold separatelyAdvance no number printed | 2 | Viti Tcei/Scr, Soc HdKit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 25 | Not sold separatelyAdvance no number printed | 4 | Scr, Pan Phil M5x16Kit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 26 | AD1462888000Advance 1462888000 | 1 | Switch, Key With Water Proof Cup (S1) | $68.96/EA |
| – | AD1462887000Advance 1462887000 | 1 | Key 2 PCSOptional, not included. | $51.38/EA |
| 27 | Not sold separatelyAdvance no number printed | 4 | Cover For Screw Tcb 4.8mmKit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 28 | AD41217AAdvance 41217A | 3 | Cable, Battery Series | $43.68/EA |
| 29 | Not sold separatelyAdvance no number printed | 2 | Screw, M6 X 1.00 X 10MM Pan HeadKit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 30 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10Kit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 31 | AD50962AAdvance 50962A | 1 | Knob, Speed Control | $47.12/EA |
| 32 | Not sold separatelyAdvance no number printed | 2 | Screw, Hex THD TO HD M5x12Kit part only: order kit K1, Electrical Hardware Kit (56104341). | Not sold separately. Order Electrical Hardware Kit (AD56104341) |
| 33 | AD56009120Advance 56009120 | 1 | Scr Panphil SS Type B 1/4-14 X .62 | $11.69/EA |
| 34 | AD56265103Advance 56265103 | 1 | Rectifier 35 Amp (D2) | $13.07/EA |
| 35 | AD1460497000Advance 1460497000 | 1 | Screw Hex HD M4X16 SS | $11.69/EA |
| 36 | AD56389265Advance 56389265 | 1 | Rectifier Assy. (D1) | $31.05/EA |
| 37 | AD56104281Advance 56104281 | 1 | Cable-Power | $107.18/EA |
| 38 | AD56303651Advance 56303651 | 1 | Clamp, Hose Support | $11.69/EA |
| 39 | AD56385489Advance 56385489 | 1 | Harness-Battery Panel Assy | $106.33/EA |
| 40 | AD56477613Advance 56477613 | 1 | Tie, Cable | $13.07/EA |
| 41 | AD56486112Advance 56486112 | 2 | Clamp-P | $11.69/EA |
| 42 | AD56496276Advance 56496276 | 1 | Clamp, Hose Support | $10.30/EA |
| – | AD56104425Advance 56104425 | 1 | Wire Assy WhiteNot shown on the drawing. | $8.80/EA |
| – | AD56104424Advance 56104424 | 1 | Wire Assy BlackNot shown on the drawing. | $8.80/EA |
| – | AD56090357Advance 56090357 | 1 | Instruction SheetNot shown on the drawing. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56104341Advance 56104341 | 1 | Electrical Hardware KitService kit K1. Contains items 2, 3, 4, 5, 23, 24, 25, 27, 29, 30, 32. | $38.06/EA |
| – | AD56384204Advance 56384204 | 1 | Control Board KitService kit K2. Contains item 7. | $843.44/EA |
| – | AD56104372Advance 56104372 | 1 | Interface Panel KitService kit K3. | $338.22/EA |

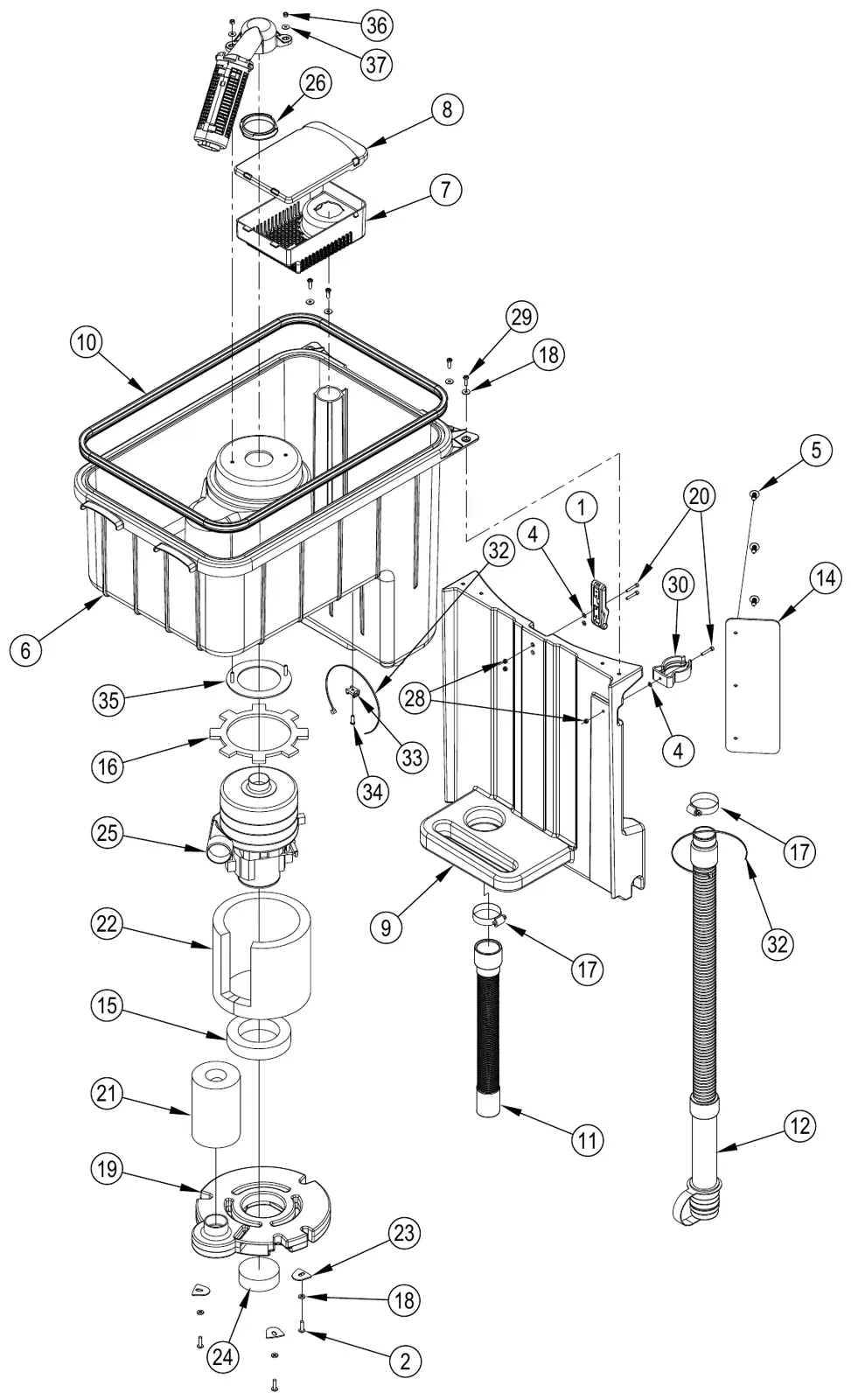

Advance SC1500 recovery system parts
The recovery tank and gasket, debris cage and tray cover, vacuum motor, vac hose, drain hose, float cage and insulation. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Latch, DrawKit part only: order kit K1, Draw Latch Kit (56104352). | Not sold separately. Order Draw Latch Kit (AD56104352) |
| 2 | Not sold separatelyAdvance no number printed | 3 | Screw M6x20 Wn1451 Black ZnKit part only: order kit K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Recovery Hardware Kit (AD56104364) |
| 4 | Not sold separatelyAdvance no number printed | 3 | Washer, Flat 4,3x9Kit part only: order kit K1, Draw Latch Kit (56104352) or K5, Hose Clamp Kit (56104362) or K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Draw Latch Kit (AD56104352) |
| 5 | Not sold separatelyAdvance no number printed | 3 | Rivet, Nylon Tree Push-In (.25)Kit part only: order kit K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Recovery Hardware Kit (AD56104364) |
| 6 | AD56394039Advance 56394039 | 1 | Recovery TankTo replace an old style recovery tank (56104051) order Recovery Tank Kit 56394063. | $325.89/EA |
| 7 | Not sold separatelyAdvance no number printed | 1 | Debris CageKit part only: order kit K4, Debris Cage Kit (56104360). | Not sold separately. Order Debris Cage Kit (AD56104360) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Debris Tray CoverKit part only: order kit K4, Debris Cage Kit (56104360). | Not sold separately. Order Debris Cage Kit (AD56104360) |
| 9 | AD56104158Advance 56104158 | 1 | Back Panel | $530.78/EA |
| 10 | AD56104164Advance 56104164 | 1 | Gasket-Recovery Tank | $29.53/EA |
| 11 | AD56104258Advance 56104258 | 1 | Vac Hose Assy | $68.96/EA |
| 12 | AD56104285Advance 56104285 | 1 | Drain Hose | $50.01/EA |
| 13 | AD56104306Advance 56104306 | 1 | Jumper Harness TSB-FC-2016-266Not shown on the drawing. | $74.61/EA |
| 14 | AD56104443Advance 56104443 | 1 | Guard-Splash-4X12-Poly | $26.25/EA |
| 15 | Not sold separatelyAdvance no number printed | 1 | Gasket, Vacuum MotorKit part only: order kit K8, Vacuum Motor Insulation Kit (56104383). | Not sold separately. Order Vacuum Motor Insulation Kit (AD56104383) |
| 16 | Not sold separatelyAdvance no number printed | 1 | Gasket, Vacuum MotorKit part only: order kit K6, Vacuum Motor Kit (56104363). | Not sold separately. Order Vacuum Motor Kit (AD56104363) |
| 17 | AD9100001348Replaces Advance 1450543000 | 2 | Hose Clamp 14/32-52replaces Advance 1450543000. | $29.53/EA |
| 18 | Not sold separatelyAdvance no number printed | 7 | Washer, Flat Xl 5,5x15x1,2 SSKit part only: order kit K3, Float Cage Kit (56104359) or K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Float Cage Kit (AD56104359) |
| 19 | AD9100001246Advance 9100001246 | 1 | Cover Vacuum Motor | $21.94/EA |
| 20 | Not sold separatelyAdvance no number printed | 3 | Viti Tcei/Scr, Soc HdKit part only: order kit K1, Draw Latch Kit (56104352) or K5, Hose Clamp Kit (56104362) or K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Draw Latch Kit (AD56104352) |
| 21 | Not sold separatelyAdvance no number printed | 1 | Insulation TubeKit part only: order kit K8, Vacuum Motor Insulation Kit (56104383). | Not sold separately. Order Vacuum Motor Insulation Kit (AD56104383) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Panel, Acoustic InsulationKit part only: order kit K8, Vacuum Motor Insulation Kit (56104383). | Not sold separately. Order Vacuum Motor Insulation Kit (AD56104383) |
| 23 | Not sold separatelyAdvance no number printed | 3 | Plate CoverKit part only: order kit K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Recovery Hardware Kit (AD56104364) |
| 24 | AD56344168Advance 56344168 | 1 | Filter | $10.30/EA |
| 25 | Not sold separatelyAdvance no number printed | 1 | Vacuum Motor 3 Stage 24v (M4)Kit part only: order kit K6, Vacuum Motor Kit (56104363). | Not sold separately. Order Vacuum Motor Kit (AD56104363) |
| 26 | Not sold separatelyAdvance no number printed | 1 | Gasket Float SupportKit part only: order kit K3, Float Cage Kit (56104359). | Not sold separately. Order Float Cage Kit (AD56104359) |
| 27 | Not sold separatelyAdvance no number printed | 1 | Float Cage-CompleteKit part only: order kit K3, Float Cage Kit (56104359). | Not sold separately. Order Float Cage Kit (AD56104359) |
| 28 | Not sold separatelyAdvance no number printed | 3 | Nut, Hex Nyl Loc Thin M4 SsKit part only: order kit K1, Draw Latch Kit (56104352) or K5, Hose Clamp Kit (56104362) or K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Draw Latch Kit (AD56104352) |
| 29 | Not sold separatelyAdvance no number printed | 4 | Scr,Pan Phil M5x16 SSKit part only: order kit K3, Float Cage Kit (56104359) or K7, Recovery Hardware Kit (56104364). | Not sold separately. Order Float Cage Kit (AD56104359) |
| 30 | Not sold separatelyAdvance no number printed | 1 | Clamp, Hose D.50Kit part only: order kit K5, Hose Clamp Kit (56104362). | Not sold separately. Order Hose Clamp Kit (AD56104362) |
| 32 | AD56478523Advance 56478523 | 2 | Tie, Cable | $11.69/EA |
| 33 | AD9096595000Advance 9096595000 | 1 | Flat Tie Holder | $11.69/EA |
| 34 | AD9097919000Advance 9097919000 | 1 | Screw Cyl Hd 5X16 Self L. Plas | $5.91/EA |
| 35 | AD56385105Replaces Advance 56385083 | 1 | Tank Support Assemblyreplaces Advance 56385083. | $62.63/EA |
| 36 | AD56003975Advance 56003975 | 2 | Nut Hex Nyl Loc SS M5-0.8 | $5.91/EA |
| 37 | AD56009332Advance 56009332 | 2 | Wsh-Flt SS .202 X .562 X .040 | $5.91/EA |
| – | AD56104352Advance 56104352 | 1 | Draw Latch KitService kit K1. Contains items 1, 4, 20, 28. | $48.62/EA |
| – | AD56104359Advance 56104359 | 1 | Float Cage KitService kit K3. Contains items 18, 26, 27, 29. | $62.63/EA |
| – | AD56104360Advance 56104360 | 1 | Debris Cage KitService kit K4. Contains items 7, 8. | $57.03/EA |
| – | AD56104362Advance 56104362 | 1 | Hose Clamp KitService kit K5. Contains items 4, 20, 28, 30. | $8.80/EA |
| – | AD56104363Advance 56104363 | 1 | Vacuum Motor KitService kit K6. Contains items 16, 25. | $523.76/EA |
| – | AD56104364Advance 56104364 | 1 | Recovery Hardware KitService kit K7. Contains items 2, 4, 5, 18, 20, 23, 28, 29. | $26.25/EA |
| – | AD56104383Advance 56104383 | 1 | Vacuum Motor Insulation KitService kit K8. Contains items 15, 21, 22. | $57.03/EA |

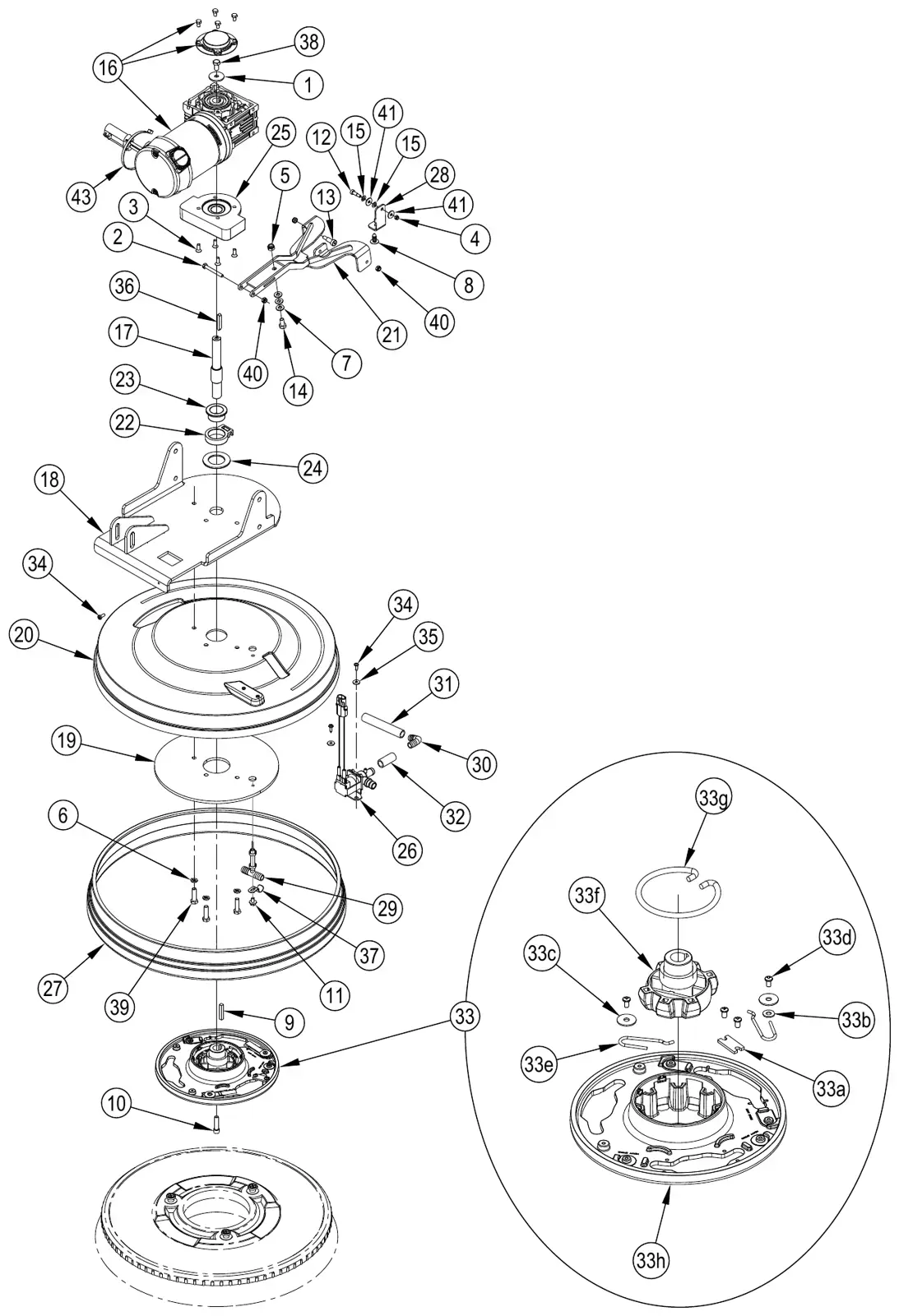

Advance SC1500 scrub system-20D parts
The disc brush deck for the X20D: deck lift plate, lower deck plate, brush housing, brush skirt, solenoid valve, brush plates, springs and hardware. All lines are tagged to the X20D. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Washer 8x32x2.5uni6593 10 PcsFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 2 | Not sold separatelyAdvance no number printed | 1 | Screw, Hex Thd To Hd M6x50Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 3 | Not sold separatelyAdvance no number printed | 4 | Screw, Flat Socket HeadFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M5Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M8Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 6 | Not sold separatelyAdvance no number printed | 3 | Washer M8 Uni1751b 10 Pcs SetFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 7 | Not sold separatelyAdvance no number printed | 3 | Washer, Flat 8.4X16X1.6Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Rivet, Nylon Tree Push-In (.25)Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 9 | Not sold separatelyAdvance no number printed | 1 | Key, Square .25 X 1.44Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Scr-Soc Hd 5/16-18 X 1.25 ZincFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Scr-Hex Thd Form M6 X 10mmFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 12 | Not sold separatelyAdvance no number printed | 1 | Scr-Soc Shd M6x12mm X M5-0.8Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 13 | Not sold separatelyAdvance no number printed | 2 | Scr-Soc Shd M8x16mm X M6-1.00Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 14 | AD56003890Advance 56003890 | 1 | Scr-Hex Plastic M8-1.25 X 16MMFits SC1500-X20D. Also in kit K2, Disc Deck Hardware Kit (56104346). | $10.30/EA |
| 15 | Not sold separatelyAdvance no number printed | 2 | Wsh, Bowed .266X.500X.060Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 16 | AD56104071Advance 56104071 | 1 | Disc Brush Motor (A-F) (M5)Fits SC1500-X20D. Parts A to F: see Disc Brush Motor, page 17. | $1,672.03/EA |
| 17 | AD56104095Advance 56104095 | 1 | Shaft Disc Brush MotorFits SC1500-X20D. | $31.05/EA |
| 18 | AD56104117Advance 56104117 | 1 | Deck Lift Plate WeldmentFits SC1500-X20D. | $174.60/EA |
| 19 | AD56104120Advance 56104120 | 1 | Lower Deck PlateFits SC1500-X20D. | $109.08/EA |
| 20 | AD56104121Advance 56104121 | 1 | Brush HousingFits SC1500-X20D. | $48.62/EA |
| 21 | AD56104126Advance 56104126 | 1 | Squeegee Link WeldmentFits SC1500-X20D. | $87.37/EA |
| 22 | Not sold separatelyAdvance no number printed | 1 | Squeegee Pivot BlockFits SC1500-X20D. Kit part only: order kit K1, Squeegee Pivot Kit (56104344). | Not sold separately. Order Squeegee Pivot Kit (AD56104344) |
| 23 | Not sold separatelyAdvance no number printed | 1 | Bearing FlangeFits SC1500-X20D. Kit part only: order kit K1, Squeegee Pivot Kit (56104344). | Not sold separately. Order Squeegee Pivot Kit (AD56104344) |
| 24 | Not sold separatelyAdvance no number printed | 1 | Squeegee Pivot WasherFits SC1500-X20D. Kit part only: order kit K1, Squeegee Pivot Kit (56104344). | Not sold separately. Order Squeegee Pivot Kit (AD56104344) |
| 25 | AD56104137Advance 56104137 | 1 | Spacer MotorFits SC1500-X20D. | $22.52/EA |
| 26 | AD56104169Advance 56104169 | 1 | Solenoid Valve Assy (L1)Fits SC1500-X20D. | $225.98/EA |
| 27 | AD56104240Advance 56104240 | 1 | Skirt BrushFits SC1500-X20D. | $104.96/EA |
| 28 | AD56104241Advance 56104241 | 1 | Double Scrub BrktFits SC1500-X20D. | $13.07/EA |
| 29 | AD56314983Advance 56314983 | 1 | Tee AssemblyFits SC1500-X20D. | $11.69/EA |
| 30 | AD56386183Advance 56386183 | 1 | Barbed Elbow 90Fits SC1500-X20D. | $10.30/EA |
| 31 | AD56384076Advance 56384076 | 1 | Hose-Pvc-.50x3.50Fits SC1500-X20D. | $7.29/EA |
| 32 | AD56397217Advance 56397217 | 1 | Hose, Pvc ClearFits SC1500-X20D. | $11.69/EA |
| 33 | AD56601733Advance 56601733 | 1 | Brush Plate Assy RtFits SC1500-X20D. Items 33a to 33h are printed indented under this line. | $232.96/EA |
| 33a | AD56366455Advance 56366455 | 1 | Plate, StopFits SC1500-X20D. | $11.69/EA |
| 33b | Not sold separatelyAdvance no number printed | 1 | Wsh, Flt Std #10Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 33c | Not sold separatelyAdvance no number printed | 2 | Wsh, Flt .266 X .906 X .060Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 33d | Not sold separatelyAdvance no number printed | 4 | Scr, Pan Phil Plastite 10-14 X .38Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 33e | AD56109653Advance 56109653 | 2 | Spring RetainerFits SC1500-X20D. | $11.33/EA |
| 33f | AD56112521Advance 56112521 | 1 | Gimbal-Collar AssemblyFits SC1500-X20D. | $63.46/EA |
| 33g | AD56601056Advance 56601056 | 1 | Spring, Brush HolderFits SC1500-X20D. | $18.96/EA |
| 33h | AD56601118Advance 56601118 | 1 | Brush PlateFits SC1500-X20D. | $31.05/EA |
| 34 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Hd Thd FormFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 35 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat Xl 5,5X15X1,2 SsFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 36 | Not sold separatelyAdvance no number printed | 1 | KeyFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 37 | AD9095483000Advance 9095483000 | 1 | Hose HolderFits SC1500-X20D. | $8.80/EA |
| 38 | Not sold separatelyAdvance no number printed | 1 | Screw, Hex Thd To Hd M8x16 LoctiteFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 39 | Not sold separatelyAdvance no number printed | 3 | Screw, Hex Thd To Hd M8x30 SsFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 40 | Not sold separatelyAdvance no number printed | 3 | Nut, Hex Nyl Loc Thin M6 SsFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 41 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat Xl SsFits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 42 | Not sold separatelyAdvance no number printed | 1 | Screw Cyl Hd M5x12Fits SC1500-X20D. Kit part only: order kit K2, Disc Deck Hardware Kit (56104346). | Not sold separately. Order Disc Deck Hardware Kit (AD56104346) |
| 43 | AD79Advance 79 | 1 | Tie 8 Black Weather ResiFits SC1500-X20D. Also in kit K2, Disc Deck Hardware Kit (56104346). | $6.77/EA |
| – | AD56104344Advance 56104344 | 1 | Squeegee Pivot KitFits SC1500-X20D. Service kit K1. Contains items 22, 23, 24. | $54.26/EA |
| – | AD56104346Advance 56104346 | 1 | Disc Deck Hardware KitFits SC1500-X20D. Service kit K2. Contains items 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 33b, 33c, 33d, 34, 35, 36, 38, 39, 40, 41, 42, 43. | $42.32/EA |
Advance SC1500 disc brush motor parts

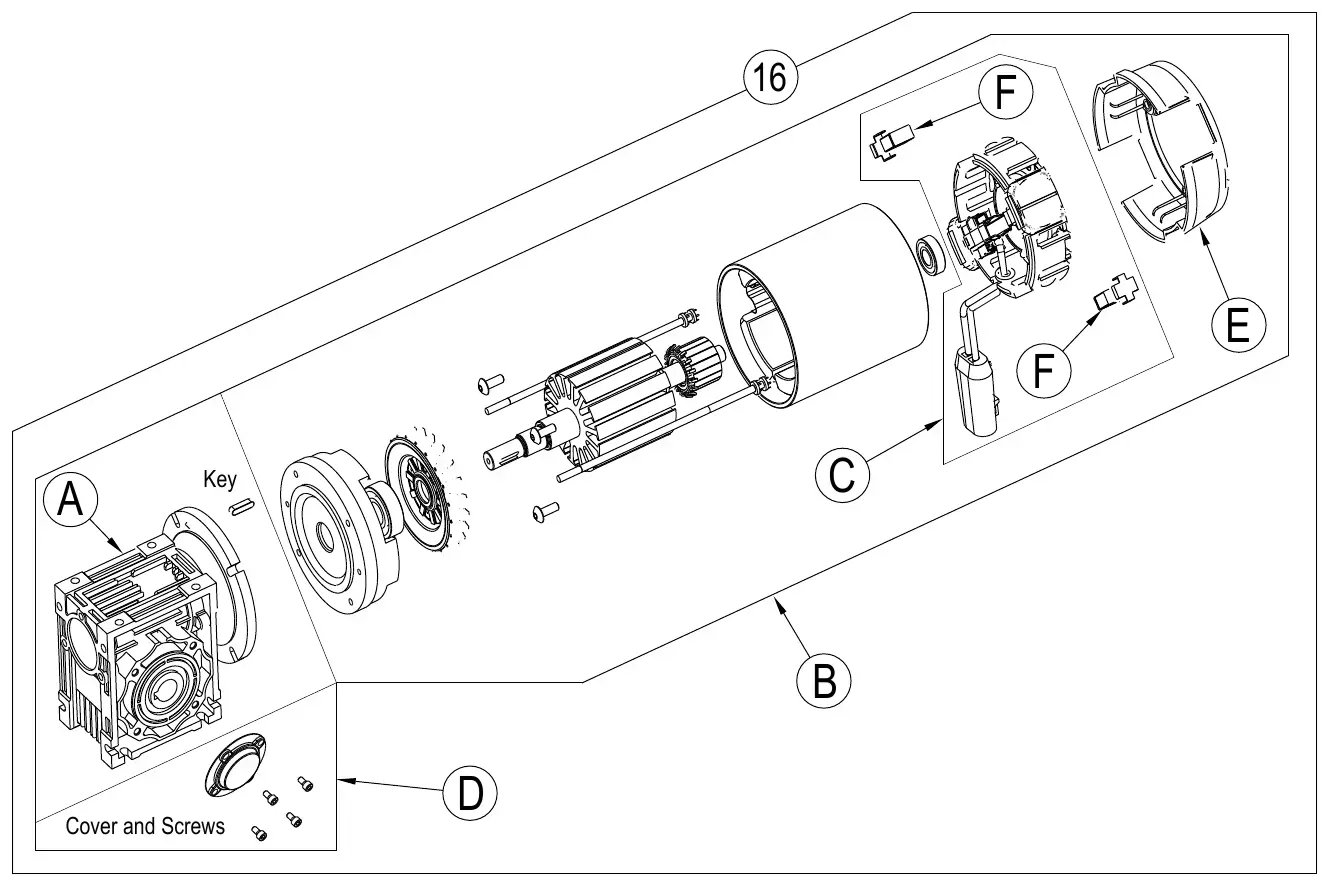

The parts A to F inside item 16, the X20D disc brush motor: gearbox, motor, housing, covers and carbon brushes. Manual page 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| A | AD56104297Advance 56104297 | 1 | Motovario Gearbox 15/1Fits SC1500-X20D. Part of item 16, Disc Brush Motor. | $989.19/EA |
| B | AD56104298Advance 56104298 | 1 | MotorFits SC1500-X20D. Part of item 16, Disc Brush Motor. | $1,526.96/EA |
| C | AD56104300Advance 56104300 | 1 | Brush Housing AssemblyFits SC1500-X20D. Part of item 16, Disc Brush Motor. | $342.18/EA |
| D | AD56601588Advance 56601588 | 1 | Cover And ScrewsFits SC1500-X20D. Part of item 16, Disc Brush Motor. | $11.69/EA |
| E | AD56601508Advance 56601508 | 1 | Plastic CoverFits SC1500-X20D. Part of item 16, Disc Brush Motor. | $14.70/EA |
| F | AD56601534Advance 56601534 | 1 | Carbon Brushes (2)Fits SC1500-X20D. Part of item 16, Disc Brush Motor. | $58.39/EA |
Advance SC1500 scrub system-REV parts

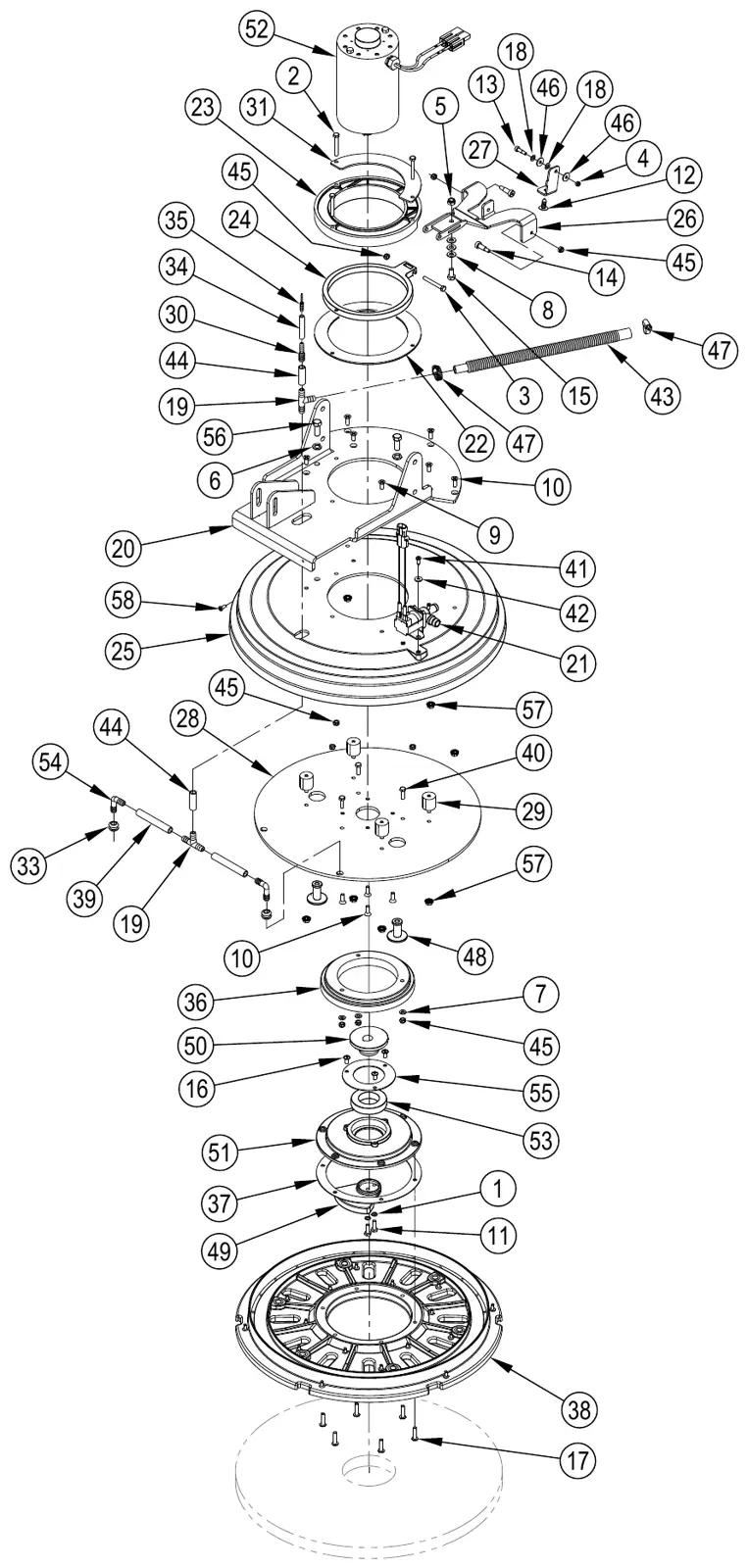

The REV deck for the X20R: lift plate, housing, pad driver, driver motor, solenoid valve, splash shield, hoses and hardware. All lines are tagged to the X20R. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 2 | Washer, Lock 1/4” Helical SpringFits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 2 | Not sold separatelyAdvance no number printed | 3 | Screw, Hex Thd To Hd M6x45Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367) or K2, Squeegee Pivot Rev Kit (56104368). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Screw, Hex Thd To Hd M6x50Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 4 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M5Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M8Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 6 | Not sold separatelyAdvance no number printed | 2 | Washer, Split Lock D.10Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 7 | Not sold separatelyAdvance no number printed | 3 | Washer, Flat 6,4x12,5 S.S.Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 8 | Not sold separatelyAdvance no number printed | 3 | Washer, Flat 8.4x16x1.6Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 9 | Not sold separatelyAdvance no number printed | 4 | Scr-Flt Phil 1/4-20 X .62Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367) or K3, Isolator Kit (56104369). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 10 | Not sold separatelyAdvance no number printed | 7 | Scr-Flt Phil Loc SS 1/4-20 x .75Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 11 | Not sold separatelyAdvance no number printed | 2 | Scr-Hex Hd Loc 1/4-20x.75Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 12 | Not sold separatelyAdvance no number printed | 1 | Rivet, Nylon Tree Push-In (.25)Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 13 | Not sold separatelyAdvance no number printed | 1 | Scr-Soc Shd M6x12mm X M5-0.8Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 14 | Not sold separatelyAdvance no number printed | 2 | Scr-Soc Shd M8x16mm X M6-1.00Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 15 | AD56003890Advance 56003890 | 1 | Scr-Hex Plastic M8-1.25 X 16mmFits SC1500-X20R. Also in kit K1, REV Deck Hardware Kit (56104367). | $10.30/EA |
| 16 | Not sold separatelyAdvance no number printed | 3 | Scr-Pan Phil Loc Ss 1/4-20 X .50Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 17 | Not sold separatelyAdvance no number printed | 6 | Scr-Pan Phil Loc Ss 1/4-20 X 1.00Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 18 | Not sold separatelyAdvance no number printed | 2 | Wsh, Bowed .266x.500x.060Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 19 | Not sold separatelyAdvance no number printed | 2 | Tee, HoseFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 20 | AD56104138Advance 56104138 | 1 | Rev Lift Plate WeldmentFits SC1500-X20R. | $196.45/EA |
| 21 | AD56104169Advance 56104169 | 1 | Solenoid Valve Assy (L1)Fits SC1500-X20R. | $225.98/EA |
| 22 | Not sold separatelyAdvance no number printed | 1 | Washer SqueegeeFits SC1500-X20R. Kit part only: order kit K2, Squeegee Pivot Rev Kit (56104368). | Not sold separately. Order Squeegee Pivot Rev Kit (AD56104368) |
| 23 | Not sold separatelyAdvance no number printed | 1 | Bushing SqueegeeFits SC1500-X20R. Kit part only: order kit K2, Squeegee Pivot Rev Kit (56104368). | Not sold separately. Order Squeegee Pivot Rev Kit (AD56104368) |
| 24 | AD56104201Advance 56104201 | 1 | Plate PivotFits SC1500-X20R. | $44.89/EA |
| 25 | AD56104202Advance 56104202 | 1 | Housing RevFits SC1500-X20R. | $39.43/EA |
| 26 | AD56104203Advance 56104203 | 1 | Squeegee Link WeldmentFits SC1500-X20R. | $70.45/EA |
| 27 | AD56104241Advance 56104241 | 1 | Double Scrub BrktFits SC1500-X20R. | $13.07/EA |
| 28 | AD56104244Advance 56104244 | 1 | Plate MotorFits SC1500-X20R. | $189.43/EA |
| 29 | Not sold separatelyAdvance no number printed | 4 | Isolator-40 Duro 1/4-20Fits SC1500-X20R. Kit part only: order kit K3, Isolator Kit (56104369). | Not sold separately. Order Isolator Kit (AD56104369) |
| 30 | Not sold separatelyAdvance no number printed | 1 | Reducer BarbFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 31 | Not sold separatelyAdvance no number printed | 1 | Brkt-Squeegee BushingFits SC1500-X20R. Kit part only: order kit K2, Squeegee Pivot Rev Kit (56104368). | Not sold separately. Order Squeegee Pivot Rev Kit (AD56104368) |
| 32 | AD56114200Advance 56114200 | 1 | Connector-AdaptorFits SC1500-X20R. Not shown on the drawing. | $71.84/EA |
| 33 | Not sold separatelyAdvance no number printed | 2 | GrommetFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 34 | Not sold separatelyAdvance no number printed | 1 | Hose,Chem Resistant, 2”Fits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 35 | Not sold separatelyAdvance no number printed | 1 | Reducer,BarbFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 36 | AD56390011Advance 56390011 | 1 | Shield SplashFits SC1500-X20R. | $13.76/EA |
| 37 | AD56390038Advance 56390038 | 1 | Gasket DriverFits SC1500-X20R. | $11.69/EA |
| 38 | AD56390044Advance 56390044 | 1 | Pad Driver AssyFits SC1500-X20R. | $342.18/EA |
| 39 | Not sold separatelyAdvance no number printed | 2 | Clear Vinyl HoseFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 40 | Not sold separatelyAdvance no number printed | 3 | Screw, Hex Thd To Hd M6x20 SsFits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 41 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Hd Thd FormFits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 42 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat Xl 5,5x15x1,2 SsFits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 43 | Not sold separatelyAdvance no number printed | 1 | Hose Solution FlexFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 44 | Not sold separatelyAdvance no number printed | 2 | Hose Clear Vinyl 3/8 Id X 11/2Fits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 45 | Not sold separatelyAdvance no number printed | 9 | Nut, Hex Nyl Loc Thin M6 SsFits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367) or K2, Squeegee Pivot Rev Kit (56104368). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 46 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat Xl SsFits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 47 | Not sold separatelyAdvance no number printed | 2 | Clamp, HoseFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 48 | AD56381532Advance 56381532 | 2 | Stud Stablizer ShortFits SC1500-X20R. | $35.17/EA |
| 49 | AD56390002Advance 56390002 | 1 | Weight CounterFits SC1500-X20R. | $29.16/EA |
| 50 | AD56390021Advance 56390021 | 1 | EccentricFits SC1500-X20R. | $55.01/EA |
| 51 | AD56390027Advance 56390027 | 1 | Driver MotorFits SC1500-X20R. | $34.91/EA |
| 52 | AD56390072Advance 56390072 | 1 | Motor 24vdc (M5)Fits SC1500-X20R. | $1,120.10/EA |
| – | AD56412287Advance 56412287 | 1 | Carbon Brush Set Of 2 (for 56390072)Fits SC1500-X20R. Not shown on the drawing. | $211.28/EA |
| 53 | AD50736AAdvance 50736A | 1 | BearingFits SC1500-X20R. | $64.01/EA |
| 54 | Not sold separatelyAdvance no number printed | 2 | Hosebarb, 90 DegreeFits SC1500-X20R. Kit part only: order kit K4, Solution Hose REV Kit (56104370). | Not sold separately. Order Solution Hose REV Kit (AD56104370) |
| 55 | AD61775AAdvance 61775A | 1 | Retainer, BearingFits SC1500-X20R. | $74.35/EA |
| 56 | Not sold separatelyAdvance no number printed | 2 | Screw 3/8-24 X 1 Hex HeadFits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 57 | Not sold separatelyAdvance no number printed | 7 | Nut Hex Serrated 1/4-20Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367) or K3, Isolator Kit (56104369). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| 58 | Not sold separatelyAdvance no number printed | 1 | Screw Cyl Hd M5 x 12Fits SC1500-X20R. Kit part only: order kit K1, REV Deck Hardware Kit (56104367). | Not sold separately. Order REV Deck Hardware Kit (AD56104367) |
| – | AD56104367Advance 56104367 | 1 | REV Deck Hardware KitFits SC1500-X20R. Service kit K1. Contains items 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 40, 41, 42, 45, 46, 56, 57, 58. | $167.59/EA |
| – | AD56104368Advance 56104368 | 1 | Squeegee Pivot Rev KitFits SC1500-X20R. Service kit K2. Contains items 2, 22, 23, 31, 45. | $122.52/EA |
| – | AD56104369Advance 56104369 | 1 | Isolator KitFits SC1500-X20R. Service kit K3. Contains items 9, 29, 57. | $99.32/EA |
| – | AD56104370Advance 56104370 | 1 | Solution Hose REV KitFits SC1500-X20R. Service kit K4. Contains items 19, 30, 33, 34, 35, 39, 43, 44, 47, 54. | $118.28/EA |

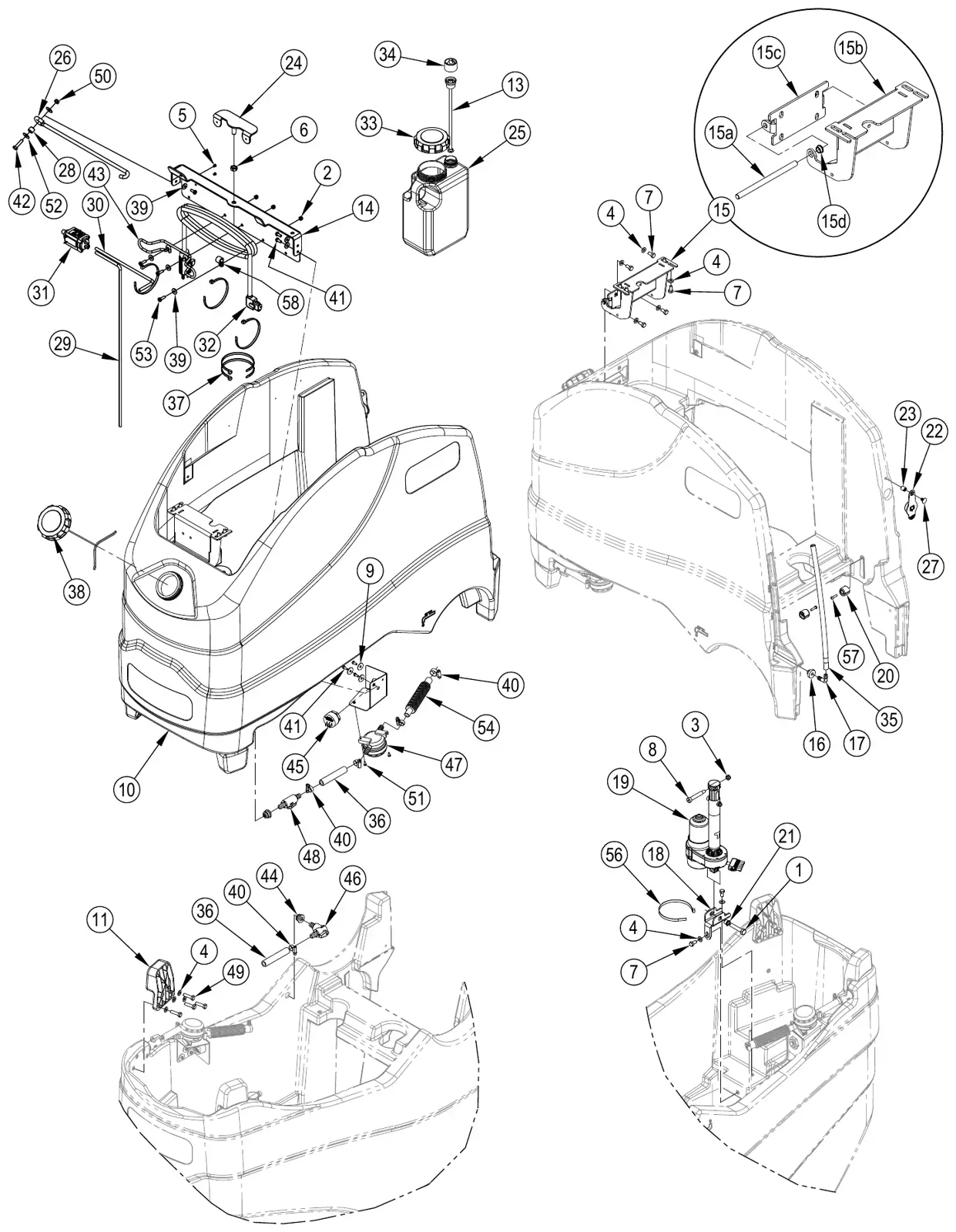

Advance SC1500 solution system parts
The solution tank, hinge, actuator, chemical pump, hoses, ball valves, water filter, buzzer and hardware. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 1 | Screw, Hex Thd To Hd M10 x 50Kit part only: order kit K5, Actuator Kit (56104356) or K7, Solution Hardware Kit (56104358). | Not sold separately. Order Actuator Kit (AD56104356) |
| 2 | Not sold separatelyAdvance no number printed | 3 | Nut, Hex Nyl Loc Thin M5Kit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 3 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M8Kit part only: order kit K5, Actuator Kit (56104356) or K7, Solution Hardware Kit (56104358). | Not sold separately. Order Actuator Kit (AD56104356) |
| 4 | Not sold separatelyAdvance no number printed | 18 | Washer, Flat 8.4x16x1.6Kit part only: order kit K6, Tip Pad Kit (56104357) or K7, Solution Hardware Kit (56104358). | Not sold separately. Order Tip Pad Kit (AD56104357) |
| 5 | Not sold separatelyAdvance no number printed | 2 | Scr M3x7 Self Thrd Torx PlasKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 6 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc-Thin SS 3/8-16Kit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 7 | Not sold separatelyAdvance no number printed | 10 | Scr-Hex M8-1.25 X 16mmKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Scr-Soc Shd M10 x 50mm X M8-1.25Kit part only: order kit K5, Actuator Kit (56104356) or K7, Solution Hardware Kit (56104358). | Not sold separately. Order Actuator Kit (AD56104356) |
| 9 | Not sold separatelyAdvance no number printed | 3 | Wsh, Flt .266 X .906 X .060Kit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 10 | AD56104050Advance 56104050 | 1 | Solution Tank | $1,890.30/EA |
| 11 | Not sold separatelyAdvance no number printed | 2 | Tip PadKit part only: order kit K6, Tip Pad Kit (56104357). | Not sold separately. Order Tip Pad Kit (AD56104357) |
| 12 | AD56104165Advance 56104165 | 1 | Filter Bracket | $31.05/EA |
| 13 | AD56104189Advance 56104189 | 1 | Insert-Dry Break | $5.91/EA |
| 14 | AD56104445Advance 56104445 | 1 | Bracket-Tank Support | $68.96/EA |
| 15 | No number printedAdvance no number printed | 1 | Hinge AssemblyNo part number printed. Items 15a to 15d are printed indented under this line. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 15a | AD56104206Advance 56104206 | 1 | Hinge Pin | $9.68/EA |
| 15b | AD56104207Advance 56104207 | 1 | Hinge Weldment | $78.84/EA |
| 15c | AD56104208Advance 56104208 | 1 | Hinge Bracket | $32.42/EA |
| 15d | AD56104249Advance 56104249 | 2 | Bearing Flange | $8.80/EA |
| 16 | AD56104229Advance 56104229 | 1 | Grommet | $10.30/EA |
| 17 | AD51526AAdvance 51526A | 1 | Hosebarb 3/8 X 90 Deg | $14.70/EA |
| 18 | AD56104234Advance 56104234 | 1 | Actuator Brkt | $29.53/EA |
| 19 | Not sold separatelyAdvance no number printed | 1 | Actuator Assembly (M3) TSB-FC-2016-271Kit part only: order kit K5, Actuator Kit (56104356). | Not sold separately. Order Actuator Kit (AD56104356) |
| 20 | AD56104308Advance 56104308 | 2 | Pivot Block | $8.80/EA |
| 21 | Not sold separatelyAdvance no number printed | 1 | Spacer ActuatorKit part only: order kit K5, Actuator Kit (56104356). | Not sold separately. Order Actuator Kit (AD56104356) |
| 22 | Not sold separatelyAdvance no number printed | 1 | Rubber Solution CapKit part only: order kit K4, Solution Cap Kit (56104354). | Not sold separately. Order Solution Cap Kit (AD56104354) |
| 23 | AD56104390Advance 56104390 | 1 | Insert-Brass M8 | $8.80/EA |
| 24 | AD56104391Advance 56104391 | 1 | Adjustment Pad | $27.75/EA |
| 25 | AD56104408Advance 56104408 | 1 | Chemical Bottle Assembly | $82.53/EA |
| 26 | AD56104409Advance 56104409 | 1 | Prop Rod | $10.30/EA |
| 27 | Not sold separatelyAdvance no number printed | 1 | Clip, PanelKit part only: order kit K4, Solution Cap Kit (56104354). | Not sold separately. Order Solution Cap Kit (AD56104354) |
| 28 | Not sold separatelyAdvance no number printed | 1 | BushingKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 29 | AD56314942Advance 56314942 | 1 | Hose, Chem Resistant | $26.25/EA |
| 30 | AD56314991Advance 56314991 | 1 | Hose, Chem Resistant 14” | $11.69/EA |
| 31 | AD56315241Advance 56315241 | 1 | Pump, Chemical (M2) | $283.67/EA |
| 32 | AD56383866Advance 56383866 | 1 | Cord-AC NEMA IEC320 - Delta-Q | $72.07/EA |
| 33 | AD9100001512Advance 9100001512 | 1 | Cap, Plastic F Chemical Tank | $7.29/EA |
| 34 | AD56315523Advance 56315523 | 1 | Cap, Dry Break, 1/8 Barb | $32.42/EA |
| 35 | AD56393382Advance 56393382 | 1 | Hose-PVC Clear | $11.69/EA |
| 36 | Not sold separatelyAdvance no number printed | 2 | Hose, Spiral .500Kit part only: order kit K1, Solution Drain Kit (56104349) or K2, Solution Hose Kit (56104350). | Not sold separately. Order Solution Drain Kit (AD56104349) |
| 37 | AD56478523Advance 56478523 | 5 | Tie Cable | $11.69/EA |
| 38 | AD56510442Advance 56510442 | 1 | Cap-Extra Vent | $59.88/EA |
| 39 | Not sold separatelyAdvance no number printed | 6 | Washer, Flat Xl 5,5x15x1,2 SSKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 40 | Not sold separatelyAdvance no number printed | 5 | Clamp, HoseKit part only: order kit K1, Solution Drain Kit (56104349) or K2, Solution Hose Kit (56104350). | Not sold separately. Order Solution Drain Kit (AD56104349) |
| 41 | Not sold separatelyAdvance no number printed | 6 | Screw, M5 X 12 P.H.S.S.Kit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 42 | Not sold separatelyAdvance no number printed | 1 | ScrewKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 43 | AD9095149000Advance 9095149000 | 1 | Cable Support | $4.83/EA |
| 44 | Not sold separatelyAdvance no number printed | 2 | GasketKit part only: order kit K1, Solution Drain Kit (56104349) or K2, Solution Hose Kit (56104350). | Not sold separately. Order Solution Drain Kit (AD56104349) |
| 45 | AD9096126000Advance 9096126000 | 1 | Buzzer 5-32v (H1) | $74.61/EA |
| 46 | Not sold separatelyAdvance no number printed | 1 | Ball Valve 90°Kit part only: order kit K1, Solution Drain Kit (56104349). | Not sold separately. Order Solution Drain Kit (AD56104349) |
| 47 | Not sold separatelyAdvance no number printed | 1 | Filter, Water TSB-FC-2013-127Kit part only: order kit K3, Solution Filter Kit (56104351). | Not sold separately. Order Solution Filter Kit (AD56104351) |
| 48 | Not sold separatelyAdvance no number printed | 1 | Ball ValveKit part only: order kit K2, Solution Hose Kit (56104350). | Not sold separately. Order Solution Hose Kit (AD56104350) |
| 49 | Not sold separatelyAdvance no number printed | 8 | Screw, Hex Thd To Hd M8x30 SSKit part only: order kit K6, Tip Pad Kit (56104357) or K7, Solution Hardware Kit (56104358). | Not sold separately. Order Tip Pad Kit (AD56104357) |
| 50 | Not sold separatelyAdvance no number printed | 1 | Nut, Hex Nyl Loc Thin M6 SSKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 51 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10 SSKit part only: order kit K3, Solution Filter Kit (56104351) or K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Filter Kit (AD56104351) |
| 52 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat Xl SSKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 53 | Not sold separatelyAdvance no number printed | 3 | Scr, Pan Phil M5x16 SSKit part only: order kit K7, Solution Hardware Kit (56104358). | Not sold separately. Order Solution Hardware Kit (AD56104358) |
| 54 | Not sold separatelyAdvance no number printed | 1 | Hose, SolutionKit part only: order kit K2, Solution Hose Kit (56104350). | Not sold separately. Order Solution Hose Kit (AD56104350) |
| 55 | ADL08603845Advance L08603845 | 1 | Clamp Cable | $11.69/EA |
| 56 | AD56477613Advance 56477613 | 1 | Cable Tie E00549 Re409s | $13.07/EA |
| 57 | AD80205AAdvance 80205A | 2 | Screw M5-.8 X 20mm P.P.Hd | $11.69/EA |
| – | AD56104349Advance 56104349 | 1 | Solution Drain KitService kit K1. Contains items 36, 40, 44, 46. | $35.17/EA |
| – | AD56104350Advance 56104350 | 1 | Solution Hose KitService kit K2. Contains items 36, 40, 44, 48, 54. | $77.47/EA |
| – | AD56104351Advance 56104351 | 1 | Solution Filter KitService kit K3. Contains items 47, 51. | $33.79/EA |
| – | AD56104354Advance 56104354 | 1 | Solution Cap KitService kit K4. Contains items 22, 27. | $17.46/EA |
| – | AD56104356Advance 56104356 | 1 | Actuator KitService kit K5. Contains items 1, 3, 8, 19, 21. | $712.53/EA |
| – | AD56104357Advance 56104357 | 1 | Tip Pad KitService kit K6. Contains items 4, 11, 49. | $32.42/EA |
| – | AD56104358Advance 56104358 | 1 | Solution Hardware KitService kit K7. Contains items 1, 2, 3, 4, 5, 6, 7, 8, 9, 28, 39, 41, 42, 49, 50, 51, 52, 53. | $62.63/EA |

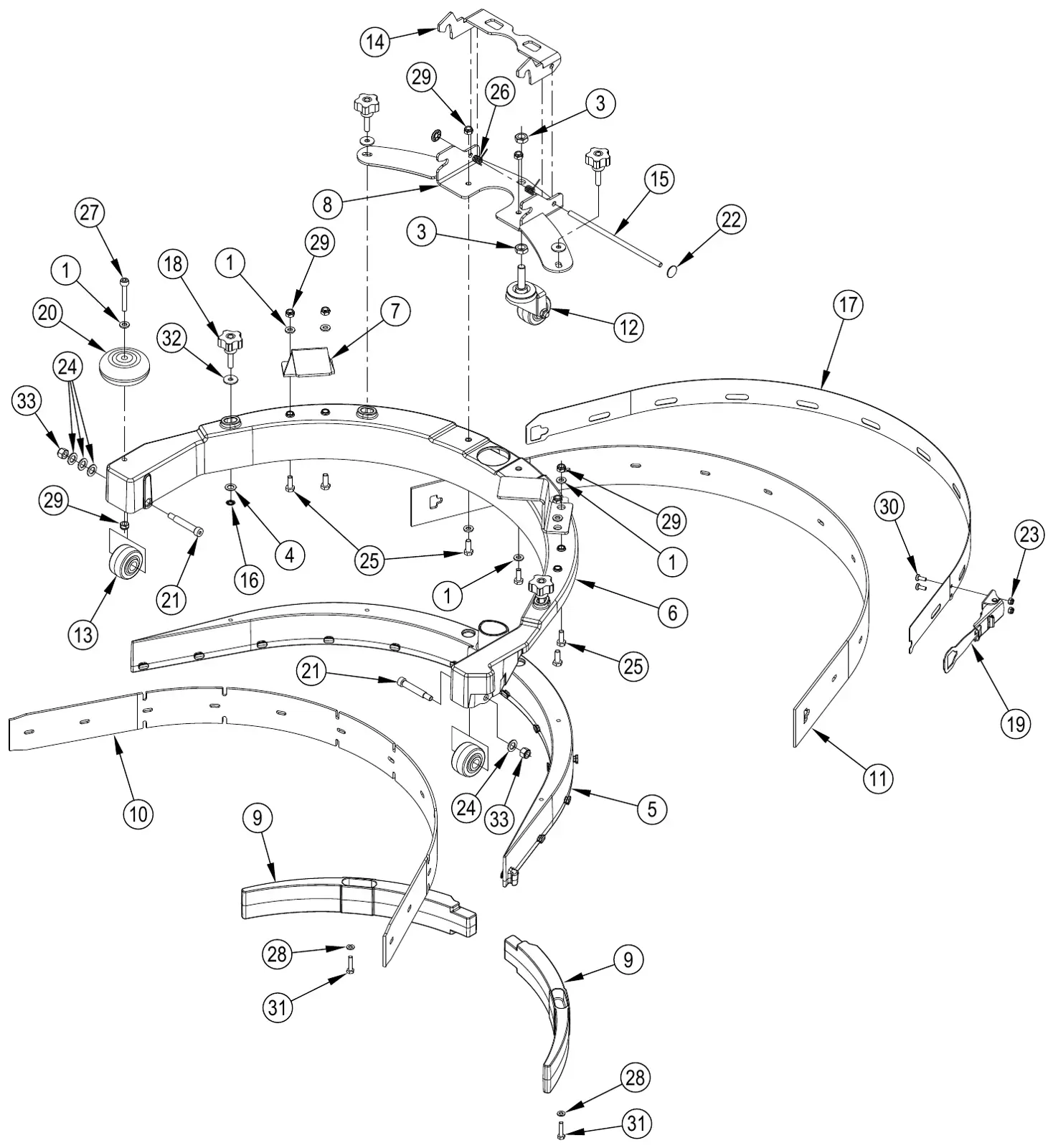

Advance SC1500 squeegee system parts
The squeegee casting, cover, brackets, blades, caster and roller wheels, rear strap, knob, latch and hardware. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | Not sold separatelyAdvance no number printed | 7 | Washer, Flat 6,4X12,5 S.S.Kit part only: order kit K3, Squeegee Hardware Kit (56104327) or K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Hardware Kit (AD56104327) |
| 3 | Not sold separatelyAdvance no number printed | 2 | Nut-Hex Jam Ss 3/8-16Kit part only: order kit K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 4 | Not sold separatelyAdvance no number printed | 4 | Wsh-Flt .328 X .563 X .031Kit part only: order kit K4, Squeegee Assy Kit (56104378) or K5, Squeegee Knobs Kit (56104429). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 5 | Not sold separatelyAdvance no number printed | 1 | Squeegee CastingKit part only: order kit K4, Squeegee Assy Kit (56104378). Not sold separately. To replace it order Squeegee Assy Kit 56104378. | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 6 | AD56104989Advance 56104989 | 1 | Squeegee CoverAlso in kit K4, Squeegee Assy Kit (56104378). | $38.72/EA |
| 7 | Not sold separatelyAdvance no number printed | 2 | Squeegee Lift BracketKit part only: order kit K4, Squeegee Assy Kit (56104378). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 8 | Not sold separatelyAdvance no number printed | 1 | Squeegee Bracket WeldmentKit part only: order kit K4, Squeegee Assy Kit (56104378) or K8, Squeegee Mount Brkt Kit TSB-FC-2016-268 (56104387). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 9 | Not sold separatelyAdvance no number printed | 2 | Squeegee PlateKit part only: order kit K4, Squeegee Assy Kit (56104378). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 10 | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee Linatex FrontKit part only: order kit K2, Squeegee Kit - Blade Linatex (56104483) or K4, Squeegee Assy Kit (56104378). All squeegee blade kits include both front and rear blades. | Not sold separately. Order Squeegee Kit - Blade Linatex (AD56104483) |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee Pu FrontKit part only: order kit K1, Squeegee Kit - Blade PU (56104325). Optional, not included. All squeegee blade kits include both front and rear blades. | Not sold separately. Order Squeegee Kit - Blade PU (AD56104325) |
| 11 | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee Linatex RearKit part only: order kit K2, Squeegee Kit - Blade Linatex (56104483) or K4, Squeegee Assy Kit (56104378). All squeegee blade kits include both front and rear blades. | Not sold separately. Order Squeegee Kit - Blade Linatex (AD56104483) |
| – | Not sold separatelyAdvance no number printed | 1 | Blade-Squeegee Pu RearKit part only: order kit K1, Squeegee Kit - Blade PU (56104325). Optional, not included. All squeegee blade kits include both front and rear blades. | Not sold separately. Order Squeegee Kit - Blade PU (AD56104325) |
| 12 | AD56104231Advance 56104231 | 1 | Caster Wheel TSB-FC-2015-024Also in kit K4, Squeegee Assy Kit (56104378) and K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | $33.79/EA |
| 13 | Not sold separatelyAdvance no number printed | 2 | Roller WheelKit part only: order kit K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 14 | Not sold separatelyAdvance no number printed | 1 | Squeegee Mount BrktKit part only: order kit K4, Squeegee Assy Kit (56104378) or K8, Squeegee Mount Brkt Kit TSB-FC-2016-268 (56104387). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 15 | Not sold separatelyAdvance no number printed | 1 | Pivot PinKit part only: order kit K4, Squeegee Assy Kit (56104378) or K8, Squeegee Mount Brkt Kit TSB-FC-2016-268 (56104387). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 16 | Not sold separatelyAdvance no number printed | 4 | Retaining RingKit part only: order kit K4, Squeegee Assy Kit (56104378) or K5, Squeegee Knobs Kit (56104429). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 17 | Not sold separatelyAdvance no number printed | 1 | Strap-Squeegee RearKit part only: order kit K4, Squeegee Assy Kit (56104378) or K7, Squeegee Strap Kit (56104386). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 18 | Not sold separatelyAdvance no number printed | 4 | KnobKit part only: order kit K4, Squeegee Assy Kit (56104378) or K5, Squeegee Knobs Kit (56104429). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 19 | Not sold separatelyAdvance no number printed | 1 | Latch-T Tab AssyKit part only: order kit K4, Squeegee Assy Kit (56104378) or K7, Squeegee Strap Kit (56104386). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 20 | Not sold separatelyAdvance no number printed | 1 | Roller WheelKit part only: order kit K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 21 | Not sold separatelyAdvance no number printed | 2 | Bolt Shoulder 5/16 X 1 1/2Kit part only: order kit K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 22 | Not sold separatelyAdvance no number printed | 2 | Pin Cover-6mmKit part only: order kit K4, Squeegee Assy Kit (56104378) or K8, Squeegee Mount Brkt Kit TSB-FC-2016-268 (56104387). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 23 | Not sold separatelyAdvance no number printed | 2 | Nut, Hex Nyl Loc Thin M4 SsKit part only: order kit K4, Squeegee Assy Kit (56104378) or K7, Squeegee Strap Kit (56104386). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 24 | Not sold separatelyAdvance no number printed | 3 | Spacer .625x.375x.047 Stl/ZncKit part only: order kit K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 25 | Not sold separatelyAdvance no number printed | 6 | Screw, Hex M6x16 SSKit part only: order kit K3, Squeegee Hardware Kit (56104327) or K4, Squeegee Assy Kit (56104378). Revised or new since the last update. | Not sold separately. Order Squeegee Hardware Kit (AD56104327) |
| 26 | Not sold separatelyAdvance no number printed | 2 | Spring Acc. Lid LhKit part only: order kit K4, Squeegee Assy Kit (56104378) or K8, Squeegee Mount Brkt Kit TSB-FC-2016-268 (56104387). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 27 | Not sold separatelyAdvance no number printed | 1 | Screw Soc. Hd M6X45Kit part only: order kit K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 28 | Not sold separatelyAdvance no number printed | 2 | Washer, Flat 5.3X10X1 SsKit part only: order kit K3, Squeegee Hardware Kit (56104327) or K4, Squeegee Assy Kit (56104378). | Not sold separately. Order Squeegee Hardware Kit (AD56104327) |
| 29 | Not sold separatelyAdvance no number printed | 7 | Nut, Hex Nyl Loc Thin M6 SsKit part only: order kit K3, Squeegee Hardware Kit (56104327) or K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Hardware Kit (AD56104327) |
| 30 | Not sold separatelyAdvance no number printed | 2 | Scr, Pan Phil M4x10 SsKit part only: order kit K4, Squeegee Assy Kit (56104378) or K7, Squeegee Strap Kit (56104386). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| 31 | Not sold separatelyAdvance no number printed | 2 | Screw, Hex Thd To Hd M5x20 SSKit part only: order kit K3, Squeegee Hardware Kit (56104327) or K4, Squeegee Assy Kit (56104378). | Not sold separately. Order Squeegee Hardware Kit (AD56104327) |
| 32 | ADL08603689Advance L08603689 | 4 | Flat Washer M6 X 18 SSAlso in kit K4, Squeegee Assy Kit (56104378) and K5, Squeegee Knobs Kit (56104429). | $11.69/EA |
| 33 | Not sold separatelyAdvance no number printed | 2 | Nut Hex Nyl Loc Ss 1/4-20Kit part only: order kit K4, Squeegee Assy Kit (56104378) or K6, Squeegee Wheels Kit TSB-FC-2017-025 (56104385). | Not sold separately. Order Squeegee Assy Kit (AD56104378) |
| – | AD56104325Advance 56104325 | 1 | Squeegee Kit - Blade PUService kit K1. Contains Blade-Squeegee Pu Front, Blade-Squeegee Pu Rear (not shown on the drawing). | $117.99/EA |
| – | AD56104483Advance 56104483 | 1 | Squeegee Kit - Blade LinatexService kit K2. Contains items 10, 11. | $61.61/EA |
| – | AD56104327Advance 56104327 | 1 | Squeegee Hardware KitService kit K3. Contains items 1, 25, 28, 29, 31. | $13.07/EA |
| – | AD56104378Advance 56104378 | 1 | Squeegee Assy KitService kit K4. Contains items 1, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33. | $1,046.88/EA |
| – | AD56104429Advance 56104429 | 1 | Squeegee Knobs KitService kit K5. Contains items 4, 16, 18, 32. | $40.81/EA |
| – | AD56104385Advance 56104385 | 1 | Squeegee Wheels Kit TSB-FC-2017-025Service kit K6. Contains items 1, 3, 12, 13, 20, 21, 24, 27, 29, 33. | $132.43/EA |
| – | AD56104386Advance 56104386 | 1 | Squeegee Strap KitService kit K7. Contains items 17, 19, 23, 30. | $95.04/EA |
| – | AD56104387Advance 56104387 | 1 | Squeegee Mount Brkt Kit TSB-FC-2016-268Service kit K8. Contains items 8, 14, 15, 22, 26. | $77.78/EA |
Advance SC1500 ladder diagram 1 key, before July 2014 parts
Ladder diagram 1 key, before July 2014 from Advance's parts list. Manual page 25.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| A1 | No number printedAdvance no number printed | Control BoardNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| BT1 | No number printedAdvance no number printed | BatteryNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| CB1 | AD56104423Advance 56104423 | 1 | Circuit Breaker 50A (Drive Wheel) | $57.03/EA |
| CB2 | AD56315255Advance 56315255 | 1 | Circuit Breaker 5 Amp (Control Circuit) | $14.37/EA |
| CB3 | AD56413822Advance 56413822 | 1 | Circuit Breaker 20 Amp (Vacuum Motor) | $30.52/EA |
| CB4 | AD56509623Advance 56509623 | 1 | Circuit Breaker-25 Amp (Brush Motor) | $18.96/EA |
| D1 | AD56389265Advance 56389265 | 1 | Rectifier Assy. | $31.05/EA |
| D2 | AD56265103Advance 56265103 | 1 | Rectifier 35 Amp | $13.07/EA |
| E1 | AD56104243Advance 56104243 | 1 | Speed Controller | $560.45/EA |
| E2 | AD56383856Advance 56383856 | 1 | Battery Charger 24v 25a | $1,206.67/EA |
| F1 | AD56412089Advance 56412089 | 1 | Fuse 150 Amp | $19.83/EA |
| H1 | AD9096126000Advance 9096126000 | 1 | Buzzer 5-32v | $74.61/EA |
| K1 | AD56104176Advance 56104176 | 1 | Solid State Relay | $269.64/EA |
| K2 | AD56601183Advance 56601183 | 1 | Contactor 24v 100 Amp | $88.73/EA |
| L1 | AD56104169Advance 56104169 | 1 | Solenoid Valve Assembly | $225.98/EA |
| M1 | No number printedAdvance no number printed | 1 | Drive Wheel MotorNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M2 | AD56315241Advance 56315241 | 1 | Pump Chemical | $283.67/EA |
| M3 | AD56104356Advance 56104356 | 1 | Actuator Kit (Motor Brush Lift Actuator) | $712.53/EA |
| M4 | AD9097556000Advance 9097556000 | 1 | Motor Vacuum 3st 24v 420w | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M5 | AD56104071Advance 56104071 | 1 | Disc Brush Motor (20D) | $1,672.03/EA |
| R1 | No number printedAdvance no number printed | 1 | Potentiometer 100k (Speed Adjustment / part of Main harness)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| S1 | AD1462888000Advance 1462888000 | 1 | Switch Key with Cap | $68.96/EA |
| – | AD1462887000Advance 1462887000 | 1 | Key 2 PCSOptional, not included (printed *). | $51.38/EA |
| S2 | Not sold separatelyAdvance no number printed | 1 | Switch-Sealed (part of Switch Harness 56104406)No part number printed. | Not sold separately. Order Switch Harness (S2, S5) (AD56104406) |
| S4 | AD56104247Advance 56104247 | 1 | Disconnect-Emergency | $78.84/EA |
| S5 | Not sold separatelyAdvance no number printed | 1 | Switch-Sealed (part of Switch Harness 56104406)No part number printed. | Not sold separately. Order Switch Harness (S2, S5) (AD56104406) |
| Y1 | No number printedAdvance no number printed | Electrical Brake (part of Drive Wheel Motor M1)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance SC1500 ladder diagram 2 key, before July 2014 parts
Ladder diagram 2 key, before July 2014 from Advance's parts list. Manual page 27.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| A1 | No number printedAdvance no number printed | Control BoardNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| BT1 | No number printedAdvance no number printed | BatteryNo part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| CB1 | AD56104423Advance 56104423 | 1 | Circuit Breaker 50A (Drive Wheel) | $57.03/EA |
| CB2 | AD56315255Advance 56315255 | 1 | Circuit Breaker 5 Amp (Control Circuit) | $14.37/EA |
| CB3 | AD56413822Advance 56413822 | 1 | Circuit Breaker 20 Amp (Vacuum Motor) | $30.52/EA |
| CB4 | AD56509623Advance 56509623 | 1 | Circuit Breaker-25 Amp (Brush Motor) | $18.96/EA |
| D1 | AD56389265Advance 56389265 | 1 | Rectifier Assy. | $31.05/EA |
| D2 | AD56265103Advance 56265103 | 1 | Rectifier 35 Amp | $13.07/EA |
| E1 | AD56104243Advance 56104243 | 1 | Speed Controller | $560.45/EA |
| E2 | AD56383856Advance 56383856 | 1 | Battery Charger 24v 25a | $1,206.67/EA |
| F1 | AD56412089Advance 56412089 | 1 | Fuse 150 Amp | $19.83/EA |
| H1 | AD9096126000Advance 9096126000 | 1 | Buzzer 5-32v | $74.61/EA |
| K1 | AD56104176Advance 56104176 | 1 | Solid State Relay | $269.64/EA |
| K2 | AD56601183Advance 56601183 | 1 | Contactor 24v 100 Amp | $88.73/EA |
| L1 | AD56104169Advance 56104169 | 1 | Solenoid Valve Assembly | $225.98/EA |
| M1 | AD56104074Advance 56104074 | 1 | Drive Wheel Motor | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M2 | AD56315241Advance 56315241 | 1 | Pump Chemical | $283.67/EA |
| M3 | AD56104356Advance 56104356 | 1 | Actuator Kit (Motor Brush Lift Actuator) | $712.53/EA |
| M4 | AD9097556000Advance 9097556000 | 1 | Motor Vacuum 3st 24v 420w | Call to confirm part: 800-440-6723Call 800-440-6723 |
| M5 | AD56104071Advance 56104071 | 1 | Disc Brush Motor (20D) | $1,672.03/EA |
| R1 | No number printedAdvance no number printed | 1 | Potentiometer 100k (Speed Adjustment / part of Main harness)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| S1 | AD1462888000Advance 1462888000 | 1 | Switch Key with Cap | $68.96/EA |
| – | AD1462887000Advance 1462887000 | 1 | Key 2 PCSOptional, not included (printed *). | $51.38/EA |
| S2 | Not sold separatelyAdvance no number printed | 1 | Switch-Sealed (part of Switch Harness 56104406)No part number printed. | Not sold separately. Order Switch Harness (S2, S5) (AD56104406) |
| S4 | AD56104247Advance 56104247 | 1 | Disconnect-Emergency | $78.84/EA |
| S5 | Not sold separatelyAdvance no number printed | 1 | Switch-Sealed (part of Switch Harness 56104406)No part number printed. | Not sold separately. Order Switch Harness (S2, S5) (AD56104406) |
| Y1 | No number printedAdvance no number printed | Electrical Brake (part of Drive Wheel Motor M1)No part number printed. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance SC1500 optional kits and accessories parts
Options, accessories, squeegee blade kits, 20 in disc brushes and pads, and REV pads Advance lists for the SC1500. Lines marked * are optional and not included. Manual page 32.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56104374Advance 56104374 | 1 | Shelf Charger US KitOptional, not included. Kit. | $2,326.02/EA |
| – | AD56104437Advance 56104437 | 1 | Shelf Charger Adapter KitOptional, not included. Kit. | $364.02/EA |
| – | AD56384204Advance 56384204 | 1 | Control Board KitOptional, not included. Kit. | $843.44/EA |
| – | AD56104372Advance 56104372 | 1 | Interface Panel KitOptional, not included. Kit. | $338.22/EA |
| – | AD56385105Advance 56385105 | 1 | Tank Support KitOptional, not included. Kit. | $62.63/EA |
| – | AD56394063Advance 56394063 | 1 | Recovery Tank KitOptional, not included. Kit. | $342.18/EA |
| – | AD56104325Advance 56104325 | 1 | Squeegee Kit - Blade PUAll squeegee blade kits include both front and rear blades. Squeegee blade kit. | $117.99/EA |
| – | AD56104483Advance 56104483 | 1 | Squeegee Kit - Blade LinatexOptional, not included. All squeegee blade kits include both front and rear blades. Squeegee blade kit. | $61.61/EA |
| – | AD56397453Advance 56397453 | 1 | Indicator Battery LevelOptional, not included. Accessory. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56383571Advance 56383571 | 1 | Programmer-UserOptional, not included. Accessory. | $1,398.42/EA |
| – | AD56383572Advance 56383572 | 1 | Programmer Cable-MolexOptional, not included. Accessory. | $143.58/EA |
| – | AD56104190Advance 56104190 | 1 | Ecoflex Bottle AssyOptional, not included. Accessory. | $196.45/EA |
| – | AD56044680Replaces Advance 56044628 | 1 | Literature Pack (Used on machines built before July 2014)Optional, not included. Accessory; replaces Advance 56044628. | $20.48/EA |
| – | AD56044680Advance 56044680 | 1 | Literature Pack (Used only on machines built after June 2014)Optional, not included. Accessory. | $20.48/EA |
| – | AD56505790Advance 56505790 | 1 | Pad Holder-20 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $147.99/EA |
| – | AD56505791Advance 56505791 | 1 | Disc Brush-20 Magnagrit 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $464.05/EA |
| – | AD56505792Advance 56505792 | 1 | Disc Brush-20 Dyna Grit 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $339.23/EA |
| – | AD56505793Advance 56505793 | 1 | Disc Brush-20 Aglite 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $388.40/EA |
| – | AD56505794Advance 56505794 | 1 | Disc Brush-20 Prolene 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $123.37/EA |
| – | AD56505795Advance 56505795 | 1 | Disc Brush-20 Prolite 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $207.86/EA |
| – | AD56505796Advance 56505796 | 1 | Disc Brush-20 Union Mix 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $189.43/EA |
| – | AD56505797Advance 56505797 | 1 | Disc Brush-20 Midgrit 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $320.04/EA |
| – | AD56505798Advance 56505798 | 1 | Disc Brush-20 Midlite 3 LugFits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $368.18/EA |
| – | AD976170Advance 976170 | 1 | Pads Cs 20 Black Thin (Qty 5)Fits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $37.03/EA |
| – | AD976070Advance 976070 | 1 | Pads Cs 20 Brown 51 (Qty 5)Fits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $45.74/EA |
| – | AD976069Advance 976069 | 1 | Pads Cs 20 Blue 51 (Qty 5)Fits SC1500-X20D. Optional, not included. 20 in disk scrub brushes. | $45.74/EA |
| – | AD56390045Advance 56390045 | 1 | Velcro 2 Sided 20Fits SC1500-X20R. Optional, not included. REV pads. | $94.27/EA |
| – | AD56390046Advance 56390046 | 1 | Pad-Maroon-20-10/CS (Qty 10 per case) (Americo)Fits SC1500-X20R. Optional, not included. REV pads. | $160.57/EA |
| – | AD56384451Advance 56384451 | 1 | Pad-Maroon-20-10/CS (Qty 10 per case) (3M)Fits SC1500-X20R. Optional, not included. REV pads. | $264.99/EA |
| – | AD56390079Advance 56390079 | 1 | Pad Micro FiberFits SC1500-X20R. Optional, not included. REV pads. | $84.50/EA |
| – | AD976068Advance 976068 | 1 | Pad 20-In Red 5100 (Qty 5)Fits SC1500-X20R. Optional, not included. REV pads. | $48.99/EA |
| – | AD976067Advance 976067 | 1 | Pads Cs 20 White 51 (Qty 5)Fits SC1500-X20R. Optional, not included. REV pads. | $50.10/EA |
Advance SC1500 recommended spare parts
Advance's recommended spare parts: normal wear, ordinary maintenance and extra-ordinary maintenance, by system. Manual page 33-34.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD56385136Advance 56385136 | Harness-Drive Motor KitRecommended spare: Chassis System, ordinary maintenance. | $254.81/EA | |
| – | AD56104269Advance 56104269 | Sprocket-11 ToothRecommended spare: Chassis System, ordinary maintenance. | $27.44/EA | |
| – | AD56104407Advance 56104407 | Bearing-FlangeRecommended spare: Chassis System, ordinary maintenance. | $10.30/EA | |
| – | AD56104331Advance 56104331 | Rear Wheel KitRecommended spare: Chassis System, ordinary maintenance. | $320.34/EA | |
| – | AD56104338Advance 56104338 | Wheel And Bearing KitRecommended spare: Chassis System, ordinary maintenance. | $727.23/EA | |
| – | AD56104435Advance 56104435 | Sprocket And Chain Kit (used w/56104431)Recommended spare: Chassis System, ordinary maintenance. | $421.71/EA | |
| – | AD56104339Advance 56104339 | Sprocket And Chain Kit (used w/56104058)Recommended spare: Chassis System, ordinary maintenance. | $436.56/EA | |
| – | AD56104091Advance 56104091 | Mounting TabRecommended spare: Chassis System, extra-ordinary maintenance. | $8.80/EA | |
| – | AD56104094Advance 56104094 | Bar LinkageRecommended spare: Chassis System, extra-ordinary maintenance. | $16.17/EA | |
| – | AD56104105Advance 56104105 | Battery TrayRecommended spare: Chassis System, extra-ordinary maintenance. | $211.28/EA | |
| – | AD56104130Advance 56104130 | Steering ShaftRecommended spare: Chassis System, extra-ordinary maintenance. | $20.87/EA | |
| – | AD56104135Advance 56104135 | Link BarRecommended spare: Chassis System, extra-ordinary maintenance. | $23.91/EA | |
| – | AD56104148Advance 56104148 | Steering Shaft WeldtRecommended spare: Chassis System, extra-ordinary maintenance. | $50.01/EA | |
| – | AD56104151Advance 56104151 | Spindle Mount WeldmentRecommended spare: Chassis System, extra-ordinary maintenance. | $240.12/EA | |
| – | AD56104157Advance 56104157 | CollarRecommended spare: Chassis System, extra-ordinary maintenance. | $12.85/EA | |
| – | AD56104448Advance 56104448 | Chassis WeldmentRecommended spare: Chassis System, extra-ordinary maintenance. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56314032Advance 56314032 | Block, BearingRecommended spare: Chassis System, extra-ordinary maintenance. | $218.25/EA | |
| – | AD56112544Advance 56112544 | Battery Charger 24v 25aRecommended spare: Chassis System, extra-ordinary maintenance. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56104328Advance 56104328 | Universal Joint KitRecommended spare: Chassis System, extra-ordinary maintenance. | $102.07/EA | |
| – | AD56104332Advance 56104332 | Bearing Block KitRecommended spare: Chassis System, extra-ordinary maintenance. | $269.64/EA | |
| – | AD56104333Advance 56104333 | Chassis Hardware KitRecommended spare: Chassis System, extra-ordinary maintenance. | $182.30/EA | |
| – | AD56104336Advance 56104336 | Drive Wheel Motor KitRecommended spare: Chassis System, extra-ordinary maintenance. | $2,108.45/EA | |
| – | AD56104340Advance 56104340 | Drive Wheel Hardware KitRecommended spare: Chassis System, extra-ordinary maintenance. | $59.88/EA | |
| – | AD56104384Advance 56104384 | Front Wheel Bearings KitRecommended spare: Chassis System, extra-ordinary maintenance. | $261.96/EA | |
| – | AD56104270Advance 56104270 | Chain-RollerRecommended spare: Control System, normal wear. | $50.52/EA | |
| – | AD56104053Advance 56104053 | Control PanelRecommended spare: Control System, extra-ordinary maintenance. | $799.75/EA | |
| – | AD56104196Advance 56104196 | Shaft SteeringRecommended spare: Control System, extra-ordinary maintenance. | $68.96/EA | |
| – | AD56104265Advance 56104265 | Shaft HexRecommended spare: Control System, extra-ordinary maintenance. | $12.85/EA | |
| – | AD56104410Advance 56104410 | Bracket-Prop RodRecommended spare: Control System, extra-ordinary maintenance. | $21.85/EA | |
| – | AD56601060Advance 56601060 | Steering WheelRecommended spare: Control System, extra-ordinary maintenance. | $119.65/EA | |
| – | AD56104498Replaces Advance 56104058 | Drive Wheel Frame WeldtRecommended spare: Control System, extra-ordinary maintenance; replaces Advance 56104058. | $480.12/EA | |
| – | AD56104077Advance 56104077 | Spindle WeldtRecommended spare: Control System, extra-ordinary maintenance. | $182.30/EA | |
| – | AD56104115Advance 56104115 | Steering PlateRecommended spare: Control System, extra-ordinary maintenance. | $42.32/EA | |
| – | AD56104328Advance 56104328 | Universal Joint KitRecommended spare: Control System, extra-ordinary maintenance. | $102.07/EA | |
| – | AD56104352Advance 56104352 | Draw Latch KitRecommended spare: Control System, extra-ordinary maintenance. | $48.62/EA | |
| – | AD56104365Advance 56104365 | Control Hardware KitRecommended spare: Control System, extra-ordinary maintenance. | $43.68/EA | |
| – | AD56104423Advance 56104423 | Circuit Breaker 50 AmpRecommended spare: Electrical System, extra-ordinary maintenance. | $57.03/EA | |
| – | AD56104444Advance 56104444 | Harness-MainRecommended spare: Electrical System, extra-ordinary maintenance. | $1,526.96/EA | |
| – | AD56104176Advance 56104176 | Solid State RelayRecommended spare: Electrical System, extra-ordinary maintenance. | $269.64/EA | |
| – | AD56104193Advance 56104193 | Electrical PanelRecommended spare: Electrical System, extra-ordinary maintenance. | $83.12/EA | |
| – | AD56104243Advance 56104243 | Speed ControllerRecommended spare: Electrical System, extra-ordinary maintenance. | $560.45/EA | |
| – | AD56104247Advance 56104247 | Disconnect-EmergencyRecommended spare: Electrical System, extra-ordinary maintenance. | $78.84/EA | |
| – | AD56104281Advance 56104281 | Cable-PowerRecommended spare: Electrical System, extra-ordinary maintenance. | $107.18/EA | |
| – | AD56112354Advance 56112354 | HandleRecommended spare: Electrical System, extra-ordinary maintenance. | $16.62/EA | |
| – | AD56315255Advance 56315255 | Circuit Breaker, 5 AmpRecommended spare: Electrical System, extra-ordinary maintenance. | $14.37/EA | |
| – | AD56409485Advance 56409485 | Cable, BatteryRecommended spare: Electrical System, extra-ordinary maintenance. | $45.74/EA | |
| – | AD56412089Advance 56412089 | Fuse, 150 AmpRecommended spare: Electrical System, extra-ordinary maintenance. | $19.83/EA | |
| – | AD56413822Advance 56413822 | Circuit Breaker, 20 AmpRecommended spare: Electrical System, extra-ordinary maintenance. | $30.52/EA | |
| – | AD56469858Advance 56469858 | Electrical MountRecommended spare: Electrical System, extra-ordinary maintenance. | $13.07/EA | |
| – | AD56509623Advance 56509623 | Circuit Breaker-25 AmpRecommended spare: Electrical System, extra-ordinary maintenance. | $18.96/EA | |
| – | AD56601172Advance 56601172 | Connector AssyRecommended spare: Electrical System, extra-ordinary maintenance. | $87.37/EA | |
| – | AD56601183Advance 56601183 | Contactor 24v, 100 AmpRecommended spare: Electrical System, extra-ordinary maintenance. | $88.73/EA | |
| – | AD1462888000Advance 1462888000 | Switch, Key With Water Proof CupRecommended spare: Electrical System, extra-ordinary maintenance. | $68.96/EA | |
| – | AD1462887000Advance 1462887000 | Key 2 PCSRecommended spare: Electrical System, extra-ordinary maintenance. | $51.38/EA | |
| – | ADL08812063Advance L08812063 | Terminal Clamp BattRecommended spare: Electrical System, extra-ordinary maintenance. | $14.70/EA | |
| – | ADL08812064Advance L08812064 | Terminal Clamp BattRecommended spare: Electrical System, extra-ordinary maintenance. | $10.30/EA | |
| – | AD50962AAdvance 50962A | Knob, Speed ControlRecommended spare: Electrical System, extra-ordinary maintenance. | $47.12/EA | |
| – | AD2-00-05171Advance 2-00-05171 | Boot, Protective (Red)Recommended spare: Electrical System, extra-ordinary maintenance. | $11.69/EA | |
| – | AD2-00-05173Advance 2-00-05173 | Battery InsulatorRecommended spare: Electrical System, extra-ordinary maintenance. | $13.07/EA | |
| – | AD56372673Advance 56372673 | Boot-Battery PostRecommended spare: Electrical System, extra-ordinary maintenance. | $8.80/EA | |
| – | AD56478246Advance 56478246 | Tie, CableRecommended spare: Electrical System, extra-ordinary maintenance. | $11.69/EA | |
| – | AD41217AAdvance 41217A | Cable Battery Kit 14662B TSB-FC-2015-018Recommended spare: Electrical System, extra-ordinary maintenance. | $43.68/EA | |
| – | AD56104341Advance 56104341 | Electrical Hardware KitRecommended spare: Electrical System, extra-ordinary maintenance. | $38.06/EA | |
| – | AD56384204Advance 56384204 | Control Board KitRecommended spare: Electrical System, extra-ordinary maintenance. | $843.44/EA | |
| – | AD56104372Advance 56104372 | Interface Panel KitRecommended spare: Electrical System, extra-ordinary maintenance. | $338.22/EA | |
| – | AD56104406Advance 56104406 | Switch HarnessRecommended spare: Platform Assembly, ordinary maintenance. | $167.59/EA | |
| – | AD56104052Advance 56104052 | Platform-UpperRecommended spare: Platform Assembly, extra-ordinary maintenance. | $167.59/EA | |
| – | AD56104185Advance 56104185 | Pedal-SafetyRecommended spare: Platform Assembly, extra-ordinary maintenance. | $24.72/EA | |
| – | AD56384567Replaces Advance 56104186 | Foot PedalRecommended spare: Platform Assembly, extra-ordinary maintenance; replaces Advance 56104186. | $10.30/EA | |
| – | AD56104187Advance 56104187 | Platform-BottomRecommended spare: Platform Assembly, extra-ordinary maintenance. | $77.47/EA | |
| – | AD56104277Advance 56104277 | Compression SpringRecommended spare: Platform Assembly, extra-ordinary maintenance. | $8.80/EA | |
| – | AD56158690Advance 56158690 | GrommetRecommended spare: Platform Assembly, extra-ordinary maintenance. | $4.67/EA | |
| – | AD56331006Advance 56331006 | GrommetRecommended spare: Platform Assembly, extra-ordinary maintenance. | $15.57/EA | |
| – | AD56104417Advance 56104417 | Platform Hardware KitRecommended spare: Platform Assembly, extra-ordinary maintenance. | $18.71/EA | |
| – | AD56104164Advance 56104164 | Gasket-Recovery TankRecommended spare: Recovery System, ordinary maintenance. | $29.53/EA | |
| – | AD56104258Advance 56104258 | Vac Hose AssyRecommended spare: Recovery System, ordinary maintenance. | $68.96/EA | |
| – | AD56104285Advance 56104285 | Drain HoseRecommended spare: Recovery System, ordinary maintenance. | $50.01/EA | |
| – | AD9096672000Advance 9096672000 | FilterRecommended spare: Recovery System, ordinary maintenance. | $11.28/EA | |
| – | AD56104051Advance 56104051 | Recovery TankRecommended spare: Recovery System, extra-ordinary maintenance. | $574.47/EA | |
| – | AD56104158Advance 56104158 | Back PanelRecommended spare: Recovery System, extra-ordinary maintenance. | $530.78/EA | |
| – | AD56104306Advance 56104306 | Jumper HarnessRecommended spare: Recovery System, extra-ordinary maintenance. | $74.61/EA | |
| – | AD56104443Advance 56104443 | Guard-Splash-4X12-PolyRecommended spare: Recovery System, extra-ordinary maintenance. | $26.25/EA | |
| – | AD9100001348Replaces Advance 1450543000 | Clamp, Hose 14/32-52Recommended spare: Recovery System, extra-ordinary maintenance; replaces Advance 1450543000. | $29.53/EA | |
| – | AD9100001246Replaces Advance 9096051000 | Cover, VacRecommended spare: Recovery System, extra-ordinary maintenance; replaces Advance 9096051000. | $21.94/EA | |
| – | AD56104352Advance 56104352 | Draw Latch KitRecommended spare: Recovery System, extra-ordinary maintenance. | $48.62/EA | |
| – | AD56104359Advance 56104359 | Float Cage KitRecommended spare: Recovery System, extra-ordinary maintenance. | $62.63/EA | |
| – | AD56104360Advance 56104360 | Debris Cage KitRecommended spare: Recovery System, extra-ordinary maintenance. | $57.03/EA | |
| – | AD56104362Advance 56104362 | Hose Clamp KitRecommended spare: Recovery System, extra-ordinary maintenance. | $8.80/EA | |
| – | AD56104363Advance 56104363 | Vacuum Motor KitRecommended spare: Recovery System, extra-ordinary maintenance. | $523.76/EA | |
| – | AD56104364Advance 56104364 | Recovery Hardware KitRecommended spare: Recovery System, extra-ordinary maintenance. | $26.25/EA | |
| – | AD56104383Advance 56104383 | Vacuum Motor Insulation KitRecommended spare: Recovery System, extra-ordinary maintenance. | $57.03/EA | |
| – | AD9095483000Advance 9095483000 | Hose HolderFits SC1500-X20D. Recommended spare: Scrub System-20D, ordinary maintenance. | $8.80/EA | |
| – | AD56601534Advance 56601534 | Carbon Brushes (2)Fits SC1500-X20D. Recommended spare: Scrub System-20D, ordinary maintenance. | $58.39/EA | |
| – | AD56104071Advance 56104071 | Disc Brush MotorFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $1,672.03/EA | |
| – | AD56104095Advance 56104095 | Shaft Disc Brush MotorFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $31.05/EA | |
| – | AD56104117Advance 56104117 | Deck Lift Plate WeldmentFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $174.60/EA | |
| – | AD56104120Advance 56104120 | Lower Deck PlateFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $109.08/EA | |
| – | AD56104121Advance 56104121 | Brush HousingFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $48.62/EA | |
| – | AD56104126Advance 56104126 | Squeegee Link WeldmentFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $87.37/EA | |
| – | AD56104137Advance 56104137 | Spacer MotorFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $22.52/EA | |
| – | AD56104169Advance 56104169 | Solenoid Valve AssyFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $225.98/EA | |
| – | AD56104240Advance 56104240 | Skirt BrushFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $104.96/EA | |
| – | AD56104241Advance 56104241 | Double Scrub BrktFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $13.07/EA | |
| – | AD56314983Advance 56314983 | Tee AssemblyFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $11.69/EA | |
| – | AD56386183Advance 56386183 | Barbed Elbow 90Fits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $10.30/EA | |
| – | AD56384076Advance 56384076 | Hose-Pvc-.50x3.50Fits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $7.29/EA | |
| – | AD56397217Advance 56397217 | Hose, Pvc ClearFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $11.69/EA | |
| – | AD56601733Advance 56601733 | Brush Plate Assy RtFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $232.96/EA | |
| – | AD56366455Advance 56366455 | Plate, StopFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $11.69/EA | |
| – | AD56109653Advance 56109653 | Spring RetainerFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $11.33/EA | |
| – | AD56112521Advance 56112521 | Gimbal-Collar AssemblyFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $63.46/EA | |
| – | AD56601056Advance 56601056 | Spring, Brush HolderFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $18.96/EA | |
| – | AD56601118Advance 56601118 | Brush PlateFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $31.05/EA | |
| – | AD56104297Advance 56104297 | Motovario Gearbox 15/1Fits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $989.19/EA | |
| – | AD56104298Advance 56104298 | MotorFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $1,526.96/EA | |
| – | AD56104300Advance 56104300 | Brush Housing AssemblyFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $342.18/EA | |
| – | AD56601588Advance 56601588 | Cover And ScrewsFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $11.69/EA | |
| – | AD56601508Advance 56601508 | Plastic CoverFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $14.70/EA | |
| – | AD56104344Advance 56104344 | Squeegee Pivot KitFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $54.26/EA | |
| – | AD56104346Advance 56104346 | Disc Deck Hardware KitFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $42.32/EA | |
| – | AD56104347Advance 56104347 | Disc Deck Assy 20 KitFits SC1500-X20D. Recommended spare: Scrub System-20D, extra-ordinary maintenance. | $2,399.24/EA | |
| – | AD56412287Advance 56412287 | Carbon Brush Set Of 2 (For 56390072)Fits SC1500-X20R. Recommended spare: Scrub System-REV, ordinary maintenance. | $211.28/EA | |
| – | AD56104138Advance 56104138 | Rev Lift Plate WeldmentFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $196.45/EA | |
| – | AD56104169Advance 56104169 | Solenoid Valve AssyFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $225.98/EA | |
| – | AD56104201Advance 56104201 | Plate PivotFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $44.89/EA | |
| – | AD56104202Advance 56104202 | Housing RevFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $39.43/EA | |
| – | AD56104203Advance 56104203 | Squeegee Link WeldmentFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $70.45/EA | |
| – | AD56104241Advance 56104241 | Double Scrub BrktFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $13.07/EA | |
| – | AD56104244Advance 56104244 | Plate MotorFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $189.43/EA | |
| – | AD56114200Advance 56114200 | Connector-AdaptorFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $71.84/EA | |
| – | AD56390011Advance 56390011 | Shield SplashFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $13.76/EA | |
| – | AD56390038Advance 56390038 | Gasket DriverFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $11.69/EA | |
| – | AD56390044Advance 56390044 | Pad Driver AssyFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $342.18/EA | |
| – | AD56381532Advance 56381532 | Stud Stablizer ShortFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $35.17/EA | |
| – | AD56390002Advance 56390002 | Weight CounterFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $29.16/EA | |
| – | AD56390021Advance 56390021 | EccentricFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $55.01/EA | |
| – | AD56390027Advance 56390027 | Driver MotorFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $34.91/EA | |
| – | AD56390072Advance 56390072 | Motor 24vdcFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $1,120.10/EA | |
| – | AD50736AAdvance 50736A | BearingFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $64.01/EA | |
| – | AD61775AAdvance 61775A | Retainer, BearingFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $74.35/EA | |
| – | AD56104366Advance 56104366 | REV Deck Assy KitFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| – | AD56104367Advance 56104367 | REV Deck Hardware KitFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $167.59/EA | |
| – | AD56104368Advance 56104368 | Squeegee Pivot Rev KitFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $122.52/EA | |
| – | AD56104369Advance 56104369 | Isolator KitFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $99.32/EA | |
| – | AD56104370Advance 56104370 | Solution Hose REV KitFits SC1500-X20R. Recommended spare: Scrub System-REV, extra-ordinary maintenance. | $118.28/EA | |
| – | AD56104050Advance 56104050 | Solution TankRecommended spare: Solution System, extra-ordinary maintenance. | $1,890.30/EA | |
| – | AD56104165Advance 56104165 | Filter BracketRecommended spare: Solution System, extra-ordinary maintenance. | $31.05/EA | |
| – | AD56104445Replaces Advance 56104194 | Support BrktRecommended spare: Solution System, extra-ordinary maintenance; replaces Advance 56104194. | $68.96/EA | |
| – | AD56104206Advance 56104206 | Hinge PinRecommended spare: Solution System, extra-ordinary maintenance. | $9.68/EA | |
| – | AD56104207Advance 56104207 | Hinge WeldmentRecommended spare: Solution System, extra-ordinary maintenance. | $78.84/EA | |
| – | AD56104208Advance 56104208 | Hinge BracketRecommended spare: Solution System, extra-ordinary maintenance. | $32.42/EA | |
| – | AD56104249Advance 56104249 | Bearing FlangeRecommended spare: Solution System, extra-ordinary maintenance. | $8.80/EA | |
| – | AD56104229Advance 56104229 | GrommetRecommended spare: Solution System, extra-ordinary maintenance. | $10.30/EA | |
| – | AD51526AAdvance 51526A | Hosebarb 3/8 X 90 DegRecommended spare: Solution System, extra-ordinary maintenance. | $14.70/EA | |
| – | AD56104234Advance 56104234 | Actuator BrktRecommended spare: Solution System, extra-ordinary maintenance. | $29.53/EA | |
| – | AD56104308Advance 56104308 | Pivot BlockRecommended spare: Solution System, extra-ordinary maintenance. | $8.80/EA | |
| – | AD56104390Advance 56104390 | Insert-Brass M8Recommended spare: Solution System, extra-ordinary maintenance. | $8.80/EA | |
| – | AD56104391Advance 56104391 | Adjustment PadRecommended spare: Solution System, extra-ordinary maintenance. | $27.75/EA | |
| – | AD56104409Advance 56104409 | Prop RodRecommended spare: Solution System, extra-ordinary maintenance. | $10.30/EA | |
| – | AD56393382Advance 56393382 | Hose-Pvc ClearRecommended spare: Solution System, extra-ordinary maintenance. | $11.69/EA | |
| – | AD56477613Advance 56477613 | Tie, CableRecommended spare: Solution System, extra-ordinary maintenance. | $13.07/EA | |
| – | AD56601599Advance 56601599 | Cap - Raw With TetherRecommended spare: Solution System, extra-ordinary maintenance. | $19.04/EA | |
| – | AD9096126000Advance 9096126000 | Buzzer 5-32vRecommended spare: Solution System, extra-ordinary maintenance. | $74.61/EA | |
| – | AD56104189Advance 56104189 | Insert-Dry BreakRecommended spare: Solution System, extra-ordinary maintenance. | $5.91/EA | |
| – | AD56104408Advance 56104408 | Chemical Bottle AssemblyRecommended spare: Solution System, extra-ordinary maintenance. | $82.53/EA | |
| – | AD56314942Advance 56314942 | Hose, Chem ResistantRecommended spare: Solution System, extra-ordinary maintenance. | $26.25/EA | |
| – | AD56314991Advance 56314991 | Hose, Chem Resistant 14”Recommended spare: Solution System, extra-ordinary maintenance. | $11.69/EA | |
| – | AD56315241Advance 56315241 | Pump, ChemicalRecommended spare: Solution System, extra-ordinary maintenance. | $283.67/EA | |
| – | AD56383385Advance 56383385 | Cord Charger Yellow USRecommended spare: Solution System, extra-ordinary maintenance. | $28.12/EA | |
| – | AD9100001512Advance 9100001512 | Cap, Plastic F Chemical TankRecommended spare: Solution System, extra-ordinary maintenance. | $7.29/EA | |
| – | AD56315523Advance 56315523 | Cap, Dry Break, 1/8 Barb, 90Recommended spare: Solution System, extra-ordinary maintenance. | $32.42/EA | |
| – | AD9095149000Advance 9095149000 | Cable SupportRecommended spare: Solution System, extra-ordinary maintenance. | $4.83/EA | |
| – | AD56104349Advance 56104349 | Solution Drain KitRecommended spare: Solution System, extra-ordinary maintenance. | $35.17/EA | |
| – | AD56104350Advance 56104350 | Solution Hose KitRecommended spare: Solution System, extra-ordinary maintenance. | $77.47/EA | |
| – | AD56104351Advance 56104351 | Solution Filter KitRecommended spare: Solution System, extra-ordinary maintenance. | $33.79/EA | |
| – | AD56104354Advance 56104354 | Solution Cap KitRecommended spare: Solution System, extra-ordinary maintenance. | $17.46/EA | |
| – | AD56104356Advance 56104356 | Actuator KitRecommended spare: Solution System, extra-ordinary maintenance. | $712.53/EA | |
| – | AD56104357Advance 56104357 | Tip Pad KitRecommended spare: Solution System, extra-ordinary maintenance. | $32.42/EA | |
| – | AD56104358Advance 56104358 | Solution Hardware KitRecommended spare: Solution System, extra-ordinary maintenance. | $62.63/EA | |
| – | AD56104325Advance 56104325 | Squeegee Kit – Blade PURecommended spare: Squeegee System, normal wear. | $117.99/EA | |
| – | AD56104483Advance 56104483 | Squeegee Kit - Blade LinatexRecommended spare: Squeegee System, normal wear. | $61.61/EA | |
| – | AD56104385Advance 56104385 | Squeegee Wheels KitRecommended spare: Squeegee System, normal wear. | $132.43/EA | |
| – | AD56104327Advance 56104327 | Squeegee Hardware KitRecommended spare: Squeegee System, extra-ordinary maintenance. | $13.07/EA | |
| – | AD56104378Advance 56104378 | Squeegee Assy KitRecommended spare: Squeegee System, extra-ordinary maintenance. | $1,046.88/EA | |
| – | AD56104429Advance 56104429 | Squeegee Knobs KitRecommended spare: Squeegee System, extra-ordinary maintenance. | $40.81/EA | |
| – | AD56104386Advance 56104386 | Squeegee Strap KitRecommended spare: Squeegee System, extra-ordinary maintenance. | $95.04/EA | |
| – | AD56104387Advance 56104387 | Squeegee Mount Brkt KitRecommended spare: Squeegee System, extra-ordinary maintenance. | $77.78/EA | |
| – | AD56104334Advance 56104334 | SC1500 Decal KitRecommended spare: Decal System, extra-ordinary maintenance. | $96.42/EA | |
| – | AD56104348Advance 56104348 | SC1500 REV Decal KitRecommended spare: Decal System, extra-ordinary maintenance. | $65.52/EA | |
| – | AD56104374Advance 56104374 | Shelf Charger US KitRecommended spare: Accessory / Options, extra-ordinary maintenance. | $2,326.02/EA |
New to your Advance SC1500? Start here
Set up, run and look after your SC1500. Everything here comes from Advance's instructions for use, rewritten in plain steps, with the parts you need linked to the list above.
1Check and charge the batteries
- Check that the batteries are connected. Turn the key switch on and read the battery charge level indicator. If the gauge is not full, charge the batteries before use.
- If your machine has an onboard charger, check the charger maker's manual for the battery type setting.
- To charge, turn the key switch off. Open the control panel housing and set the prop rod. Empty the recovery tank with its drain hose and tip it back for ventilation.
- Unwind the onboard charger cord near the front of the machine and plug it into a properly grounded outlet. All machine functions are disabled while AC power is applied.
- Watch the battery charge status LED. It flashes green while charging and stays on when charging is complete.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), pages A-10 and A-20. SES ref PF-AVDP-QHY3
2Fill the tank and fit the squeegee
- Fill the solution tank, which holds 12 US gal (45 L), 1/3 full of water. Add the cleaning chemical, then fill the rest of the tank.
- Use only low-foaming, non-flammable liquid detergents made for automatic scrubbers. Keep the water at or below 130 °F (55 °C).
- Squeeze the back of the squeegee mount bracket to open it. Release it once it is over the deck arm pins.
- Connect the recovery hose to the squeegee inlet.
- Lower the scrub deck and squeegee and move ahead slightly. If needed, adjust the rear caster wheel so the rear blade touches the floor evenly across its width and is bent over slightly.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-13. SES ref PF-AVDP-QHY3
3Fit the brush or pad
- Raise the scrub deck. Turn the key switch off and remove the key.
- Rotate the squeegee assembly away from your side of the machine for better access.
- Disc models: lift the scrub deck skirt and slide the brush under the deck. If you use a pad, put it on the pad holder (AD56505790) first. Line up the lugs on the brush with the holes on the mounting plate and turn to lock.
- REV models: slide a daily scrubbing pad (AD976068) or a microfiber pad (AD56390079) under the pad driver (AD56390044), center it and press it up onto the harpoon face.
- REV models: never attach a maroon SPP pad directly to the pad driver. It damages the pad driver. With the optional double-sided Velcro (AD56390045), attach it to the center of the maroon SPP pad, slide that under the red pad, center it and press up.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), pages A-11 and A-12. SES ref PF-AVDP-QHY3
4Scrub the floor
- Step onto the platform so you press the operator's presence pedal. Do not press the go pedal until you are ready to move.
- Turn the key switch on and wait a few seconds for the start-up sequence to finish. Check the battery charge level indicator.
- Push the forward or reverse drive switch to pick a direction, then press the go pedal. Turn the speed adjustment knob clockwise to go faster or counterclockwise to go slower.
- Press the One-Touch scrub switch. The scrub deck and squeegee lower, and the scrub, vacuum, solution and detergent systems start when you press the go pedal.
- Drive forward in a straight line at a safe speed and overlap each path by 2 to 3 in (50 to 75 mm). Start and stop scrubbing only while the machine is moving.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-16. SES ref PF-AVDP-QHY3
Questions about your SC1500? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Advance SC1500 troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting table. Turn the key switch off and remove the key before you open any access panel.
| Likely cause | Fix | Part |
|---|---|---|
| Poor water pick-up | ||
| Worn or torn squeegee blades | Reverse or replace the squeegee blades (AD56104483). | |
| Squeegee out of adjustment | Adjust it so the blades touch the floor evenly across the whole width. | |
| Recovery tank full | Empty the recovery tank. | |
| Recovery tank cover gasket leak | Replace the gasket (AD56104164) or seat the cover properly. | |
| Vacuum set to quiet mode | Set the vacuum to high. | |
| Poor scrubbing performance | ||
| Worn brush or pad | Replace the brush or pad. | |
| Inadequate or no solution flow | ||
| Solution lines, valves or filter clogged | Flush the lines and clean the solution filter (AD56104351). | |
| Solution shutoff valve closed | Open the solution shutoff valve. | |
| Machine does not power on | ||
| Machine battery connector disconnected | Reconnect the battery connectors. | |
| Tripped 5 Amp circuit breaker | Check for an electrical short circuit and reset the breaker (AD56315255). | |
| No forward or reverse wheel drive | ||
| Tripped 50 Amp circuit breaker | Check for drive motor overload. | |
| No detergent flow | ||
| Empty detergent container | Fill the detergent container. | |
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-23. SES ref PF-B77X-FTEK
Still stuck? SES is an Advance service center. Call 800-440-6723 and have your model and serial number ready.
Advance SC1500 maintenance schedule
Advance's after-use steps, maintenance schedule and lubrication notes. Turn the key switch off and remove the key before you change brushes or pads.
| Task | How often | Part |
|---|---|---|
| Press the One-Touch scrub switch to raise and stop all systems, then drive to a service area. | After every use | |
| Empty the solution tank through the solution tank drain hose and rinse it with clean water. | After every use | |
| Empty the recovery tank through its drain hose (AD56104285). Open the cover, empty and inspect the debris catch tray, and rinse the tank with clean water. | After every use | |
| Remove the brush or pad holder. Rinse the brush or pad in warm water and hang it up to dry. | After every use | |
| Remove the squeegee, rinse it with warm water and hang it up to dry. | After every use | |
| Plug in the charger every day and let it run a full charging sequence. This can take 8 to 12 hours. | After every use | |
| Charge the batteries. | Daily | |
| Check and clean the tanks and hoses. | Daily | |
| Check and clean the brushes or pads. | Daily | |
| Check and clean the squeegee. Reverse or replace the squeegee blades (AD56104483) if they are cut, torn, wavy or worn. | Daily | |
| Check and clean the vacuum shut-off float. | Daily | |
| Empty and clean the debris catch tray in the recovery tank. | Daily | |
| Check the water level in each battery cell. Use distilled or demineralized water and do not overfill. | Weekly | |
| Inspect the scrub housing skirt. | Weekly | |
| Inspect and clean the solution filter (AD56104351). | Weekly | |
| Purge the detergent system with a cartridge of clean warm water. | Weekly | |
| Grease the steering chain, the drive wheel chain, the drive chain idler sprocket (grease fitting) and the steering shaft. Use Lubriplate 730-2 or equivalent. | Monthly | |
| Apply light machine oil to the steering shaft universal joints. | Monthly | |
| Have the vacuum motor carbon brushes checked once a year or after 300 operating hours. Call SES service: 800-440-6723. | Yearly | |
| Have the brush and drive motor carbon brushes (AD56601534 / AD56412287) checked every 500 hours or once a year. Call SES service: 800-440-6723. | Yearly |
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), pages A-14, A-18, A-19, A-20 and A-22. SES ref PF-YVVM-PNBJ
Advance SC1500 specifications
From the technical specifications table in Advance's instructions for use. X20D and X20R values differ only where shown.
| Models | SC1500-X20D, model 56104000 (disc); SC1500-X20R, model 56104001 (REV) |
|---|---|
| Brush or pad size | 20 in (51 cm) |
| Batteries | 24 V, 260 Ah |
| Solution tank | 12 US gal (45 L) |
| Detergent cartridge | 1 US gal (4 L) maximum |
| Water temperature | 130 °F (55 °C) maximum |
| Empty weight | 620 lb (281 kg) |
| Gross vehicle weight | 897 lb (407 kg) |
| Maximum wheel floor loading | Center front 160 psi (1.10 N/mm²); right rear 139 psi (0.96 N/mm²); left rear 135 psi (0.93 N/mm²) |
| Gradeability | Transport 14% (7.1°); cleaning 8.3% (4.75°) |
| Sound pressure level | X20D: 63 dB LpA, ±3 dB KpA; X20R: 62 dB LpA, ±3 dB KpA |
| Vibration | Hand controls: X20D 0.17 m/s², X20R 0.82 m/s². Whole body: X20D 0.01 m/s², X20R 0.13 m/s² |
| Protection grade | IPX3 |
Sources: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), pages A-13, A-14 and A-24; Advance SC1500 Parts List, form 56042591 (11/2012, revised 5/2020, rev. O), pages 32 and 35. SES ref PF-LW6J-Z45U
Advance SC1500 manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| SC1500 parts listParts list with 12 drawings, 40 pages | SC1500-X20D and SC1500-X20R | 11/2012, revised 5/2020, REV O (this page) | 6.6 MB | Sign in to view or downloadSign in to download |
| SC1500 instructions for useOperator manual in English, Spanish and French, 80 pages | SC1500-X20D and SC1500-X20R | 5/2014, revised 9/2018, REV F | 12.8 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance SC1500 parts questions
What batteries does the Advance SC1500 use?
The specifications list 24 V and 260 Ah. If your machine shipped without batteries, ask your Advance dealer for the recommended batteries. Advance says batteries should be installed by Advance or a qualified electrician.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), pages A-10 and A-24. SES ref PF-NFKM-GMFA
How do I charge the SC1500 batteries?
Turn the key switch off, open the control panel housing, set the prop rod and plug the onboard charger cord into a grounded outlet. The LED flashes green while charging and stays on when done. All machine functions are disabled while it is plugged in.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-20. SES ref PF-NFKM-GMFA
How long should the SC1500 charger run each day?
Plug the charger in every day after use and let it run through a full charging sequence. Advance says this may take 8 to 12 hours depending on the battery status.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-18. SES ref PF-NFKM-GMFA
What is the difference between the SC1500 X20D and X20R?
The X20D, model 56104000, scrubs with a disc brush or pad holder. The X20R, model 56104001, uses the REV system, with pads pressed onto a fixed pad driver. Their sound and vibration figures also differ.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), pages A-11, A-12 and A-24. SES ref PF-NFKM-GMFA
How much does the SC1500 solution tank hold?
12 US gal (45 L). Fill it 1/3 full of water, add the chemical, then fill the rest. Use only low-foaming, non-flammable detergents, and keep the water at or below 130 °F (55 °C).
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-13. SES ref PF-NFKM-GMFA
How do I reverse or replace the SC1500 rear squeegee blade?
Raise the deck and squeegee, unsnap the rear blade removal latch and remove the tension strap. Slip the blade off the alignment pins. Each blade has 4 working edges, so replace it only when all 4 are nicked, torn or worn to a large radius.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-22. SES ref PF-NFKM-GMFA
How do I purge the SC1500 detergent system?
With the scrub and solution systems off, remove the detergent cartridge and turn the key switch on. Press and hold the detergent switch and the solution switch for 3 seconds. The purge takes at least 10 seconds.
Source: Advance SC1500 Instructions for Use, form 56091120 (5/2014, revised 9/2018, rev. F), page A-14. SES ref PF-NFKM-GMFA
Notes on this parts list
Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Advance's parts list titles the two scrub drawings Scrub System-20D and Scrub System-REV and prints the model numbers only on the cover. We tag the 20D drawing to the SC1500-X20D (disc) and the REV drawing to the SC1500-X20R from the model names in the instructions for use (page A-24).
- Lines with a Kit mark and no part number are printed that way in the parts list. We show them as No number printed and name the service kit in the note. The service kits are listed at the end of each section.
- Drive Wheel Assembly (Chassis System item 18), Platform Assembly (item 31) and Hinge Assembly (Solution System item 15) are printed without a part number. Their parts are listed on their own drawings. The Potentiometer (Electrical System item 16) is printed as part of the main harness.
- Items printed as DELETED or Intentionally Omitted have no number and are not on this page: Chassis System items 6 and 60, Drive Wheel Assembly item 5, Recovery System items 3 and 31, Scrub System-REV item 59 and Squeegee System item 2. Two Deleted lines on the recommended spare parts page are also left out.
- Callouts and lines that do not match: Chassis System callout 6 has no line (item 6 is Intentionally Omitted) and item 66 has no callout. Solution System callout 58 has no line (the list ends at 57), and items 12 and 55 have no callout. Electrical System item 6, Recovery System items 13 and 27, Scrub System-20D item 42 and Scrub System-REV item 32 also have no callout.
- The Scrub System-20D list prints item 16 (Disc Brush Motor 56104071) with parts A to F, which Advance draws on page 17. We list A to F in their own Disc Brush Motor section. Callout 16 on that drawing has no row of its own there; the motor line is in Scrub System-20D.
- Scrub System-20D item 43 (Tie 8 Black Weather Resi) prints 79 in the Ref. No. column. We show 79 as printed. The same tie is also in Disc Deck Hardware Kit 56104346.
- The squeegee blade lists contradict each other on which blade is standard. Squeegee System marks the PU front and rear blades with * (optional, not included) and the Linatex blades without it, while Optional Kits and Accessories marks the Linatex kit 56104483 with * and the PU kit 56104325 without it.
- Chassis System item 35 prints the onboard charger 56383856 with a note that it replaced battery charger 56112544 in production. To replace 56112544, Advance says to order Onboard Charger Kit 56383872. That kit number is not printed as a line on any list.
- The wiring ladder diagram 2 keys (pages 27 and 31) print the drive wheel motor M1 as 56104074; the ladder diagram 1 keys (pages 25 and 29) print it without a number, and no parts list page prints it. It is on this page in the ladder diagram 2 key section. The drive wheel motor is also sold as the Drive Wheel Motor Kit 56104336.
- The recommended spare parts pages list numbers that no drawing list prints, for example 56104407 Bearing-Flange, 56104058 Drive Wheel Frame Weldt, 56112354 Handle, 56104186 Foot Pedal, 56104051 Recovery Tank and 56383385 Cord Charger Yellow US. They are on this page in the Recommended Spare Parts section.
- Drive Wheel Assembly prints two Sprocket And Chain Kits as K7: 56104435 (used with 56104431) and 56104339 (used with 56104498). The spare parts page prints the second as used with 56104058.
- Drive Wheel Assembly item 10 (Drive Wheel Frame Weldment 56104793, used after September 2013) replaces 56104431. The Drive Weldment Kit 56104498 is printed as used before October 2013.
- Platform Assembly: the notes say machines built before July 2015 need 2 of 56384579 and 1 of 56384568 to replace a spring, and that all three springs are replaced together.
- Descriptions are copied as Advance prints them, including its spellings (for example Weather Resi, Wsh-Flt and Scr-Hex).
- The ladder diagram keys for machines built after June 2014 (pages 29 and 31) print the same lines as the keys for machines built before July 2014 (pages 25 and 27), so the keys are shown once. Page 25 prints the buzzer H1 as 909 6126 000 and the other keys as 9096126000; it is the same number.
