Advance AM2400D parts list and diagrams
All 17 parts on the AM2400D air mover, from the owner's manual parts drawing. Tap a number on the drawing to see the part, its price and add it to your cart.
Complete list: every line of the parts list in Advance AM2400D Air Mover Owner's Manual VV78112 Rev. 2016 (07.14), parts list Figures 4 and 5, 17 printed part lines, with the parts numbered on its drawings. Checked .
New to your AM2400D? Start here → Manuals (free sign-in) →
- Voltage
- 120V, 60 Hz
- Motor
- 1/3 hp
- Speeds
- 3: 1,000 / 1,200 / 1,400 rpm
- Airflow
- 2,000 / 2,200 / 2,400 CFM
- Current
- 3.7 / 3.8 / 4.0 A
- Sound level
- 64 / 68 / 72 dBA
- Daisy chain
- Up to 2 more AM2400D units on one circuit
- Shipping weight
- 22 lb (10 kg)
How to read this list
Our part numbers are the Advance number with AD in front, so Advance VV78200 is ADVV78200. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Advance AM2400D air mover parts

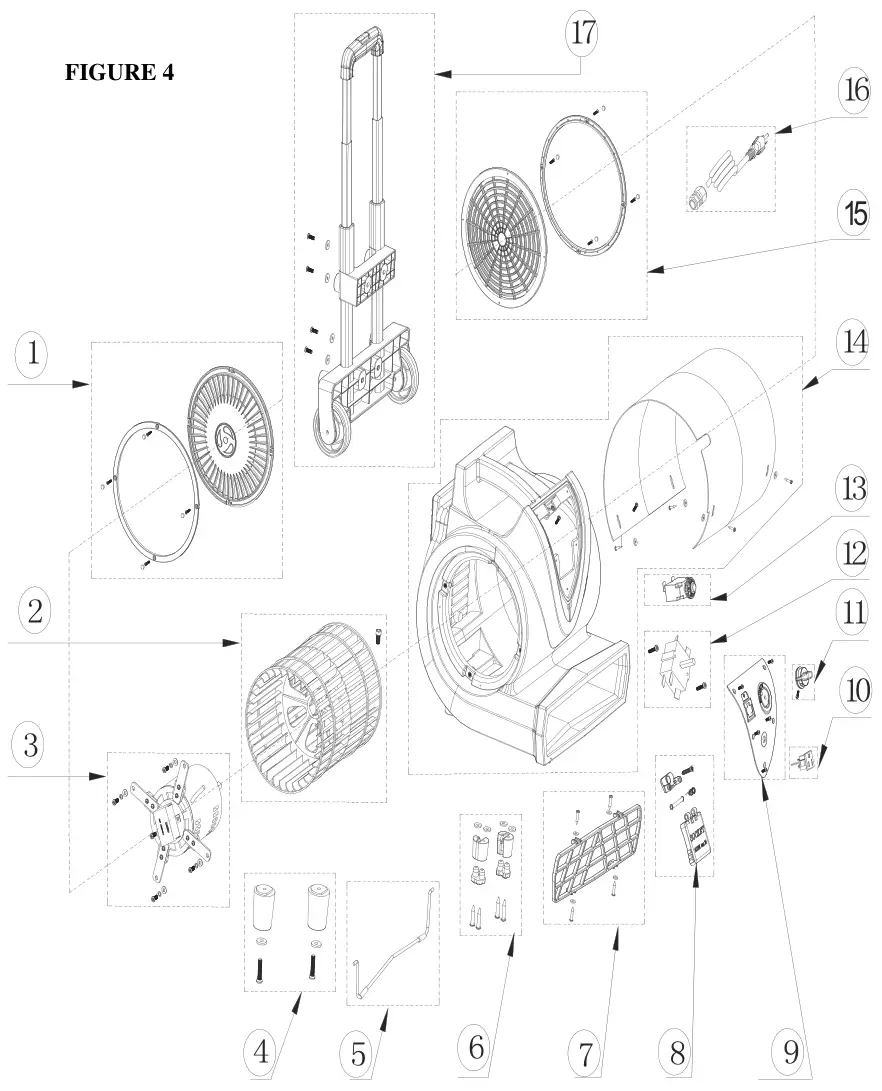

The parts Advance numbers on its air mover parts drawing. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | ADVV78200Advance VV78200 | 1 | MOTOR SIDE VENT COVER KIT | $9.88/EA |
| 2 | ADVV78106Advance VV78106 | 1 | FAN WHEEL KIT | $43.38/EA |
| 3 | ADVV78201Advance VV78201 | 1 | 120V MOTOR ASSEMBLY KIT | $265.65/EA |
| 4 | ADVV78202Advance VV78202 | 1 | REAR RUBBER FOOT KIT | $10.42/EA |
| 5 | ADVV78203Advance VV78203 | 1 | KICK STAND | $10.42/EA |
| 6 | ADVV78204Advance VV78204 | 1 | FRONT SUPPORTING FOOT KIT | $10.42/EA |
| 7 | ADVV78205Advance VV78205 | 1 | FRONT OUTLET VENT KIT | $10.42/EA |
| 8 | ADVV78206Advance VV78206 | 1 | WATERPROOF COVER KIT | $10.42/EA |
| 9 | ADVV78207Advance VV78207 | 1 | CONTROL PLATE KIT | $8.01/EA |
| 10 | ADVV78014Advance VV78014 | 1 | SOCKET | $10.42/EA |
| 11 | ADVV78210Advance VV78210 | 1 | 3 SPEED CONTROL KNOB KIT | $13.76/EA |
| 12 | ADVV78211Advance VV78211 | 1 | 3 SPPED SWITCH | $13.76/EA |
| 13 | ADVV78019Advance VV78019 | 1 | CIRCUIT BREAKER | $10.42/EA |
| 14 | ADVV78212Advance VV78212 | 1 | OUTER HOUSING KIT | $118.46/EA |
| 15 | ADVV78213Advance VV78213 | 1 | FAN WHEEL SIDE VENT COVER KIT | $9.49/EA |
| 16 | ADVV78214Advance VV78214 | 1 | US POWER CORD | $48.04/EA |
| 17 | ADVV78406Advance VV78406 | 1 | TRANSPORT KIT(OPTIONAL PART) | $55.01/EA |
New to your Advance AM2400D? Start here
How to run, chain and care for the AM2400D, from Advance's owner's manual, with the parts linked to the list above.
1Set it up
- Look into the intakes and fan before you start. Anything blocking them cuts airflow and can overheat the motor.
- Pull the unit back to one of its preset positions to aim the air.
- Plug it into a grounded outlet. Don't add an extension cord to the standard cord.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 7. SES ref PF-DRTN-FRF3
2Pick a speed
- Turn the speed knob (ADVV78210): 1 is low, 2 is medium, 3 is high.
- Low gives 2,000 CFM, medium 2,200 CFM and high 2,400 CFM.
- Turn the knob to off to stop. Never push anything into the vents.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), pages 5 and 7. SES ref PF-DRTN-FRF3
3Chain up to three units
- The AM2400D has a daisy-chain outlet: you can plug two more AM2400D units into it and run all three on one circuit.
- If the chain overloads, the built-in circuit breaker (ADVV78019) trips.
- To reset: unplug the units, press the breaker reset button, plug back in and switch on.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 7. SES ref PF-DRTN-FRF3
4When you're done
- Unplug the unit as soon as you're done using it.
- Don't pull it by the cord, and don't unplug it by pulling on the cord.
- The transport kit (ADVV78406) is listed as an optional part (item 17 on the parts drawing).
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), pages 4, 5, 6 and 8. SES ref PF-DRTN-FRF3
Advance AM2400D troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Units in a chain shut off | ||
| The daisy-chain outlet overloaded and the breaker tripped | Unplug, press the breaker reset, and run no more than three units on one circuit. A breaker that won't reset: circuit breaker (ADVV78019). | |
| Weak airflow or hot motor | ||
| Something is blocking the intake or fan | Unplug and clear it. A damaged fan: fan wheel kit (ADVV78106). | |
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 7. SES ref PF-5YZB-NZAG
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Advance AM2400D maintenance schedule
Advance's maintenance schedule for the AM2400D.
| Task | How often | Part |
|---|---|---|
| Unplug it as soon as you're done. | After every use | |
| Lubricate the handle assembly and wheels with a water-resistant lubricant. | Once a month | |
| Check the power cord. Replace a damaged power cord (ADVV78214) right away. | As needed | |
| Check for loose or missing nuts and bolts and replace them. | As needed | |
| Clean the outside with a mild cleaner. | As needed |
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 8. SES ref PF-3C2L-VBXY
Advance AM2400D specifications
From Advance's documents for the AM2400D.
| Voltage | 120V, 60 Hz |
|---|---|
| Motor | 1/3 hp |
| Speeds | 3: 1,000 / 1,200 / 1,400 rpm |
| Airflow | 2,000 / 2,200 / 2,400 CFM |
| Current | 3.7 / 3.8 / 4.0 A |
| Sound level | 64 / 68 / 72 dBA |
| Daisy chain | Up to 2 more AM2400D units on one circuit |
| Shipping size | 15.9 × 15.8 × 18.4 in (405 × 402 × 468 mm) |
| Shipping weight | 22 lb (10 kg) |
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 5. SES ref PF-TRB3-V7BC
Advance AM2400D manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Owner's manualVV78112 Rev. 2016 (07.14), 18 pages, English, French, Spanish, Chinese | AM2400D | Rev. 2016 (07.14) | 18 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance AM2400D parts questions
How many AM2400D air movers can I daisy chain?
Three in total: the first unit plus two more plugged into its daisy-chain outlet, all on one circuit.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 7. SES ref PF-HQIT-S4SE
Why does my AM2400D keep shutting off?
The built-in circuit breaker trips when the daisy-chain outlet is overloaded. Unplug the units, press the breaker reset button, plug back in and switch on. Keep the chain to three units.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 7. SES ref PF-HQIT-S4SE
How much air does the AM2400D move?
2,000 CFM on low, 2,200 on medium and 2,400 on high, from a 1/3 hp motor drawing 3.7 to 4.0 A.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 5. SES ref PF-HQIT-S4SE
Can I use an extension cord with the AM2400D?
Advance says not to use an extension cord with the standard power cord.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 6. SES ref PF-HQIT-S4SE
What maintenance does the AM2400D need?
Unplug it when you're done. Lubricate the handle and wheels with a water-resistant lubricant every month. As needed, check the cord, replace loose or missing nuts and bolts, and wipe it with a mild cleaner.
Source: Advance AM2400D owner's manual VV78112 Rev. 2016 (07.14), page 8. SES ref PF-HQIT-S4SE
