Advance Adgility 6XP parts list and diagrams
Every part in Advance's Adgility spare parts list, matched to our catalog. The list covers the 6XP and the 10XP; the 6XP is picked for you, and the 10XP-only lid, container, bags and outlet cover appear when you switch.
Complete list: every line of the parts list in Advance Adgility 6XP, 10XP Spare Parts List 823 0101 000 Rev. 08-02 (printed Jan 2015), 48 printed part lines, with the parts numbered on its drawings. Checked .
New to your Adgility 6XP? Start here → Manuals (free sign-in) →
- Tank capacity
- 1.5 gal (5.7 L); 10XP: 2.6 gal (9.8 L)
- Power
- 120V, 60 Hz, 1,300 W max; 10 A (12 A max with the power outlet in use)
- Hose and tools
- 1.5 in (38 mm); hose 49 in (1,250 mm)
- Cord
- 50 ft (15 m), 3 × 16 AWG, 125V, SJT or SJO, safety yellow
Maintenance and wear parts for the Adgility 6XP
Advance's recommended maintenance parts for the Adgility 6XP. Keep these on the shelf.
HEPA-filter cpl.
$145.35/EASack filter, for 6XP
$56.03/EASack filter, for 10XP
$55.26/EAExhaust filter
$19.84/EADustbag, for 6XP (1.3 Gallon, 5L)
$24.57/EADustbag, for 10XP (2.6 Gallon, 10 L)
$32.30/EAPrefilter
$11.21/EA
Source: Advance Adgility 6XP, 10XP Spare Parts List 823 0101 000 Rev. 08-02 (printed Jan 2015), page 11. SES ref PF-UDLC-XZOO
Your machine
How to tell which you have
- Adgility 6XP, 1.3 gal (5 L), no power outlet.
- Adgility 10XP, 2.6 gal (10 L), power outlet.
- If you are not sure, pick Not sure and every line stays on the list.
How to read this list
Our part numbers are the Advance number with AD in front. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

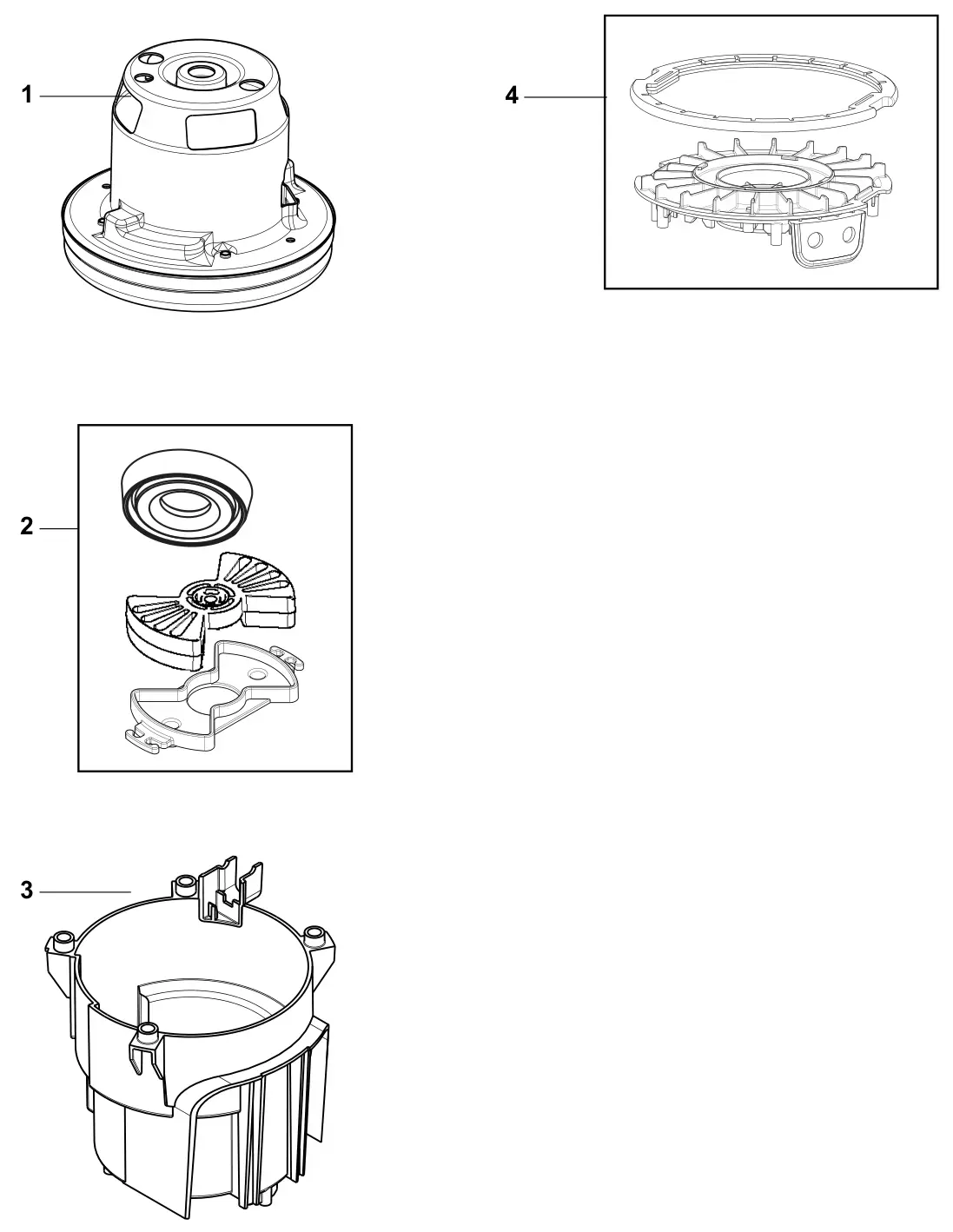

Advance Adgility 6XP motor and motor parts
The parts Advance numbers on its motor and motor parts drawing. Manual pages 2, list 3.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1471109500Advance 147 1109 500 | 1 | Fan unit 100 -120V, 1300W | $282.71/EA |
| 2 | AD1471111500Advance 147 1111 500 | 1 | Motor suspension kit | $65.14/EA |
| 3 | AD1471088510Advance 147 1088 510 | 1 | Motor cover, UL-approved | $130.12/EA |
| 4 | AD1471086510Advance 147 1086 510 | 1 | Chassis, UL-approved | $57.68/EA |

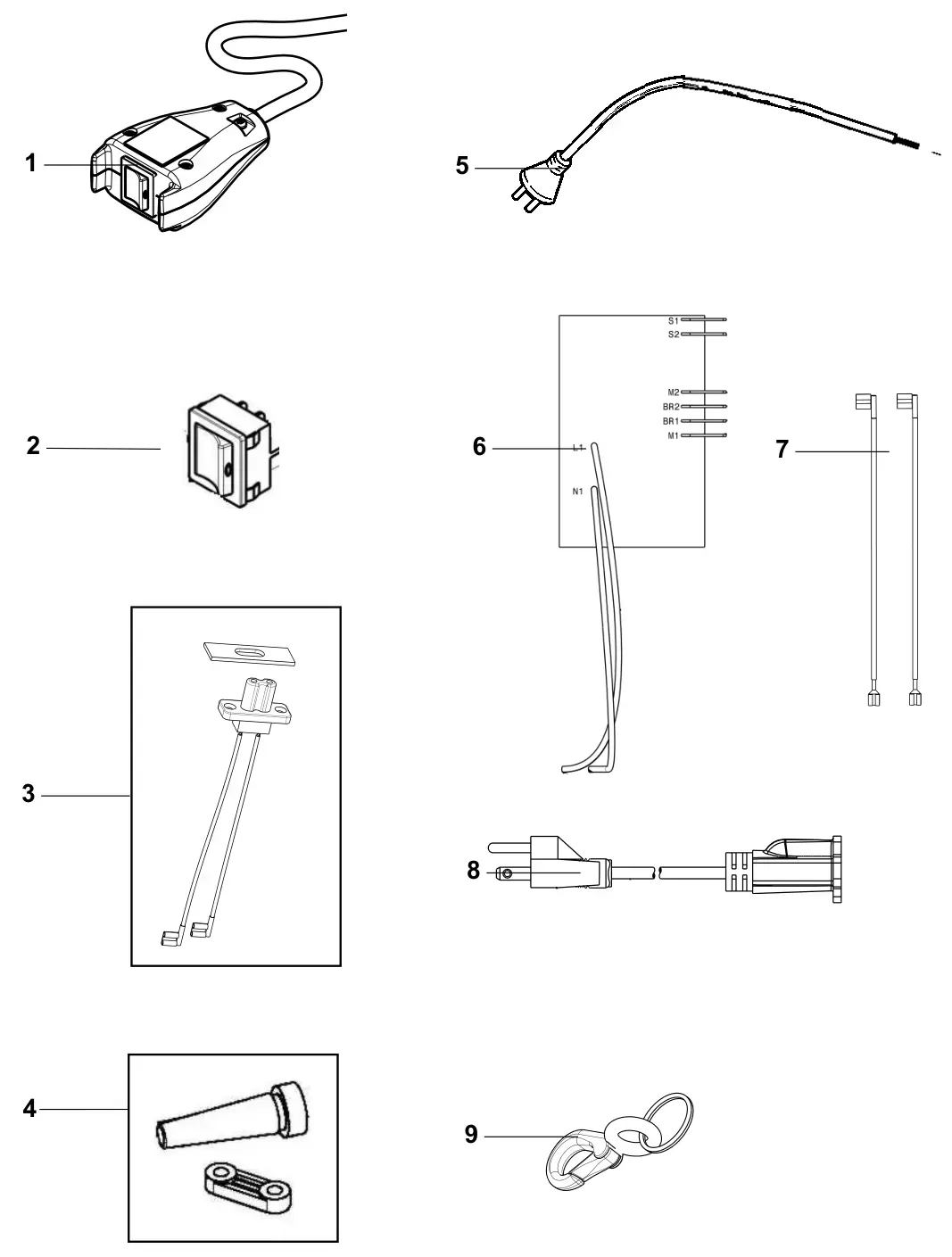

Advance Adgility 6XP electrical parts
The parts Advance numbers on its electrical parts drawing. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD107402274Replaces Advance 147 1105 500 | 1 | Switch cpl.replaces Advance 147 1105 500. | $51.83/EA |
| 2 | AD1405496510Advance 140 5496 510 | 1 | Switch | $26.25/EA |
| 3 | AD1408497530Advance 140 8497 530 | 1 | Connector | $57.58/EA |
| 4 | AD1407035510Advance 140 7035 510 | 1 | Sleeve kitAnti strain clip incl. | $35.17/EA |
| 5 | AD1403859500Advance 140 3859 500 | 1 | Cord set US/TW plug, machine end.1.3 ft (400 mm). | $36.42/EA |
| 6 | AD1471231510Advance 147 1231 510 | 1 | Curcuit board 100-120V | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AD1407042520Advance 140 7042 520 | 1 | Internal wire kit2 Wires incl. | $37.93/EA |
| 8 | AD1471243500Advance 147 1243 500 | 1 | Cord extension50 ft (15.5 m) Colour: Yellow. 16 AWG. | $125.41/EA |
| 9 | AD1471346500Advance 147 1346 500 | 1 | Anti strain snap hook | $20.54/EA |

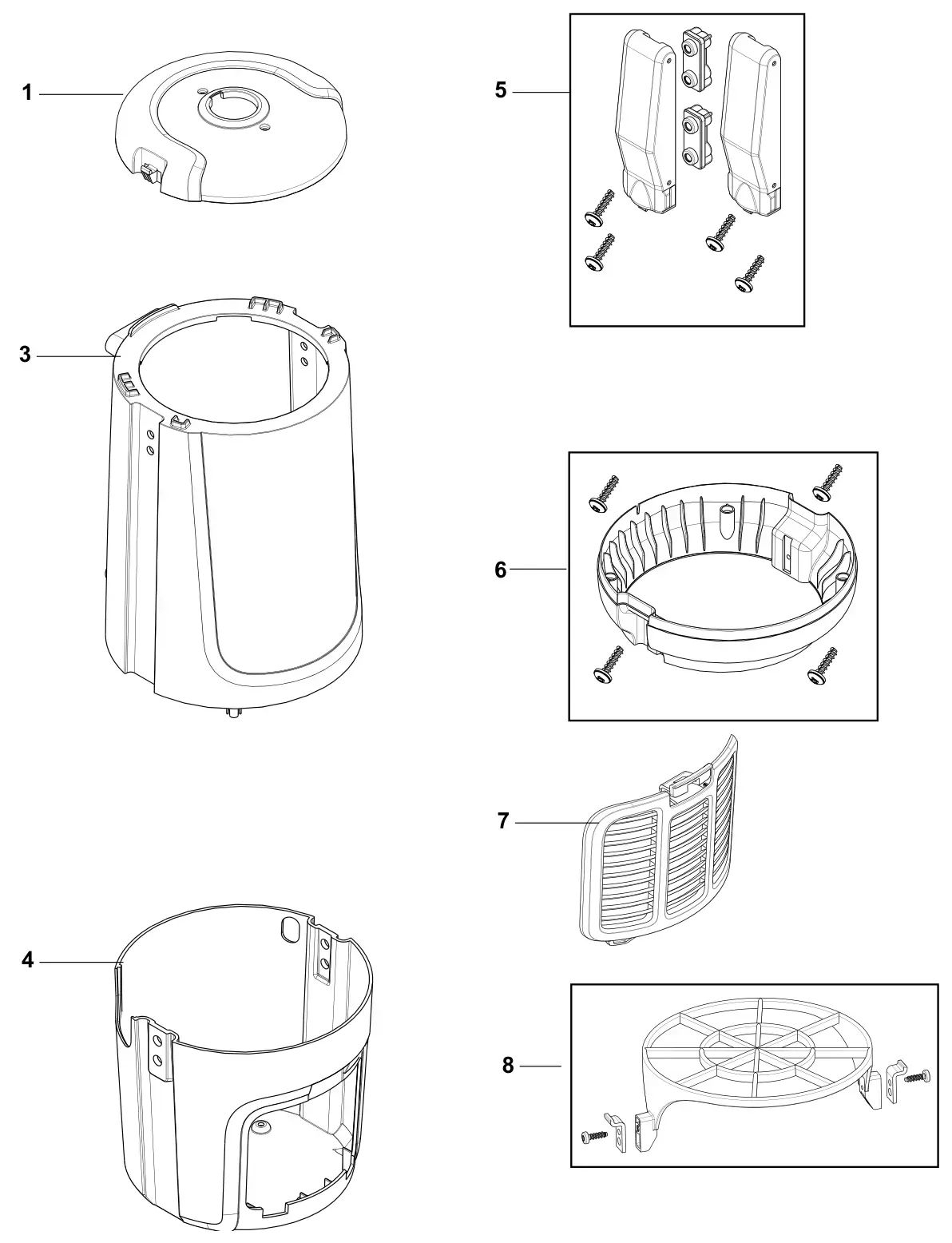

Advance Adgility 6XP container parts
The parts Advance numbers on its container parts drawing. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1471077500Advance 147 1077 500 | 1 | Outer lid, for 6XPFits Adgility 6XP. Grey. | $30.84/EA |
| 1 | AD1471080500Advance 147 1080 500 | 1 | Outer lid, for 10XPFits Adgility 10XP. Grey. | $94.44/EA |
| 3 | AD1471076500Advance 147 1076 500 | 1 | Container, for 6XPFits Adgility 6XP. Grey. | $58.94/EA |
| 3 | AD1471079500Advance 147 1079 500 | 1 | Container, for 10XPFits Adgility 10XP. Grey. | $189.05/EA |
| 4 | AD1471075520Advance 147 1075 520 | 1 | Cover outerFits Adgility 6XP. | $51.83/EA |
| 4 | AD1471075530Advance 147 1075 530 | 1 | Cover outer, power outletFits Adgility 10XP. Gasket incl. | $51.83/EA |
| 5 | AD1471101500Advance 147 1101 500 | 1 | Latch kit2 latches, screws and screw towers. | $94.44/EA |
| 6 | AD1471078500Advance 147 1078 500 | 1 | Adapter, for 10XPFits Adgility 10XP. Screws incl. | $75.85/EA |
| 7 | AD1471082500Advance 147 1082 500 | 1 | Grid exhaust | $37.93/EA |
| 8 | AD1471115500Advance 147 1115 500 | 1 | Basket sack filterHooks and screws incl. | $23.08/EA |

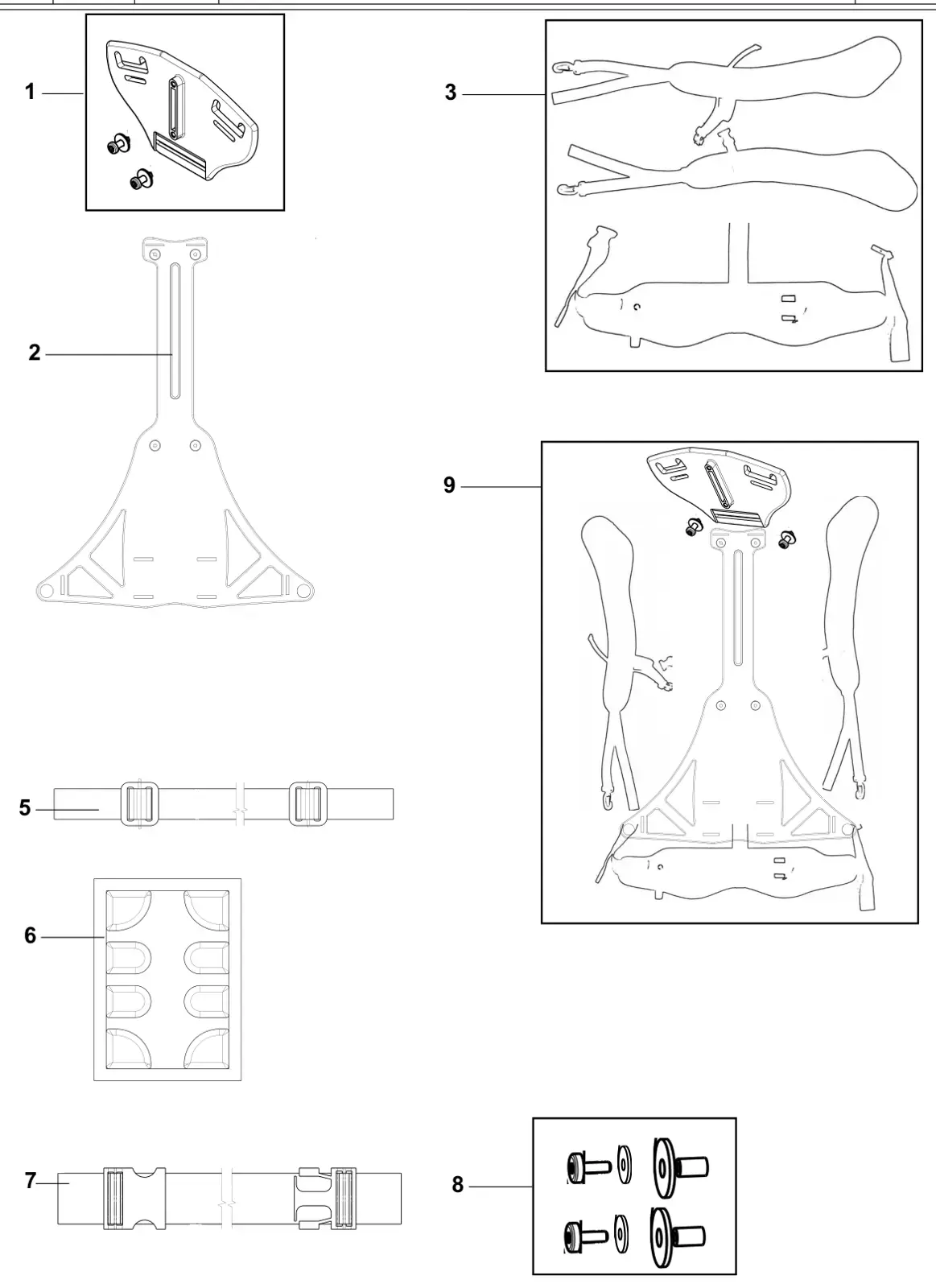

Advance Adgility 6XP straps and harness parts
The parts Advance numbers on its straps and harness drawing. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1471092500Advance 147 1092 500 | 1 | Adjusting plate | $53.48/EA |
| 2 | AD1471246510Replaces Advance 147 1091 500 | 1 | Harness supportreplaces Advance 147 1091 500. | $257.18/EA |
| 3 | AD1471246500Advance 147 1246 500 | 1 | Harness premiumScrews and washers incl. | $311.37/EA |
| 5 | AD1471247500Advance 147 1247 500 | 1 | Lifting strap | $24.03/EA |
| 6 | AD1471248500Advance 147 1248 500 | 1 | Padding, back plate | $30.84/EA |
| 7 | AD1471249500Advance 147 1249 500 | 1 | Extension beltL=400 mm. | $94.44/EA |
| 8 | AD1471246600Advance 147 1246 600 | 1 | Screw kitFor harness premium. | $67.39/EA |
| 9 | AD1471246510Advance 147 1246 510 | 1 | Harness premium cpl. | $257.18/EA |

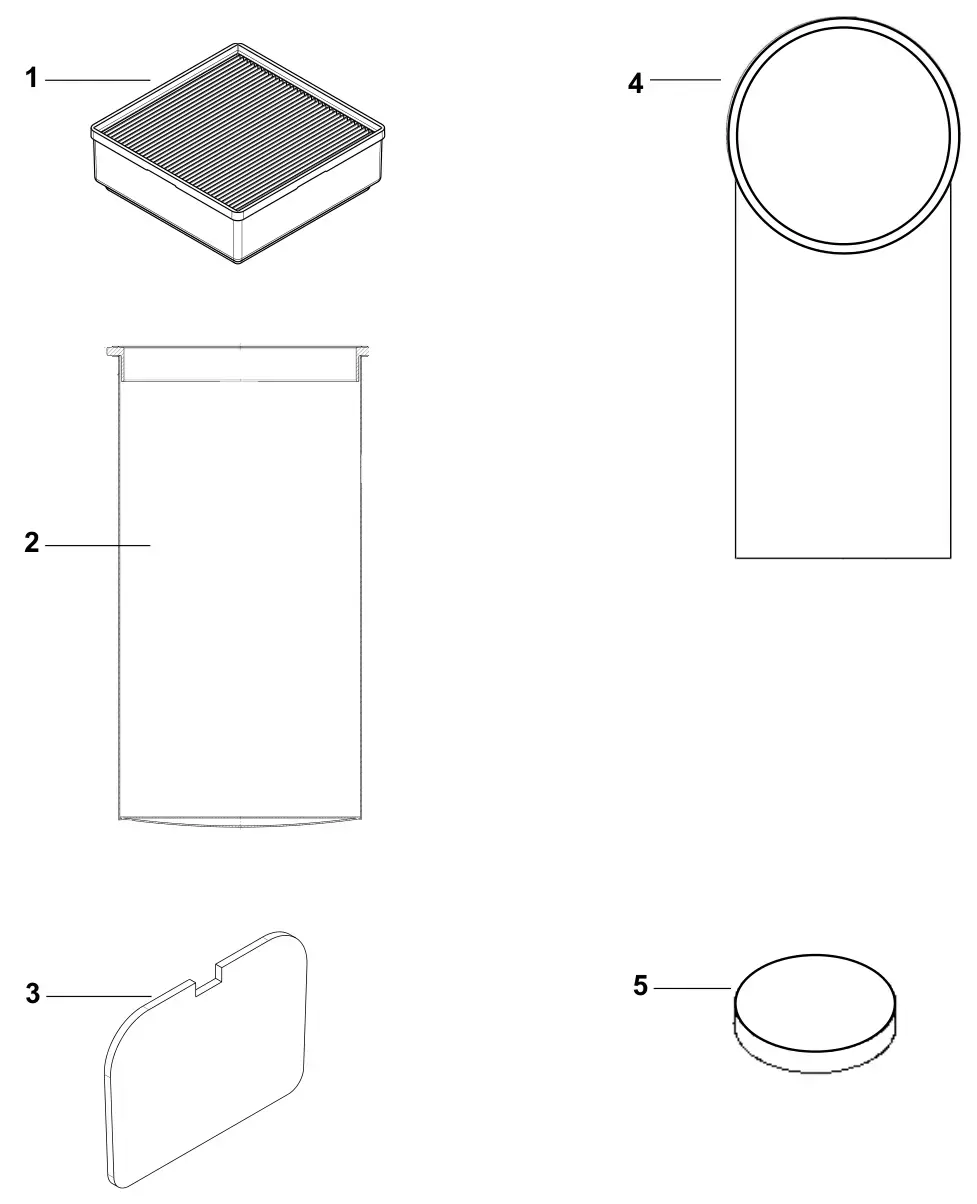

Advance Adgility 6XP filters parts
The parts Advance numbers on its filters drawing. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1471104500Advance 147 1104 500 | 1 | HEPA-filter cpl. | $145.35/EA |
| 2 | AD1471100500Advance 147 1100 500 | 1 | Sack filter, for 6XPFits Adgility 6XP. | $56.03/EA |
| 2 | AD1471099500Advance 147 1099 500 | 1 | Sack filter, for 10XPFits Adgility 10XP. | $55.26/EA |
| 3 | AD1471089500Advance 147 1089 500 | 1 | Exhaust filter3 pcs. | $19.84/EA |
| 4 | AD1471098510Replaces Advance 147 1098 500 | 1 | Dustbag, for 6XP (1.3 Gallon, 5L)Fits Adgility 6XP. 5 pcs.; replaces Advance 147 1098 500. | $24.57/EA |
| 4 | AD1471097510Replaces Advance 147 1097 500 | 1 | Dustbag, for 10XP (2.6 Gallon, 10 L)Fits Adgility 10XP. 5 pcs.; replaces Advance 147 1097 500. | $32.30/EA |
| 5 | AD1471095500Advance 147 1095 500 | 1 | Prefilter3 psc. | $11.21/EA |

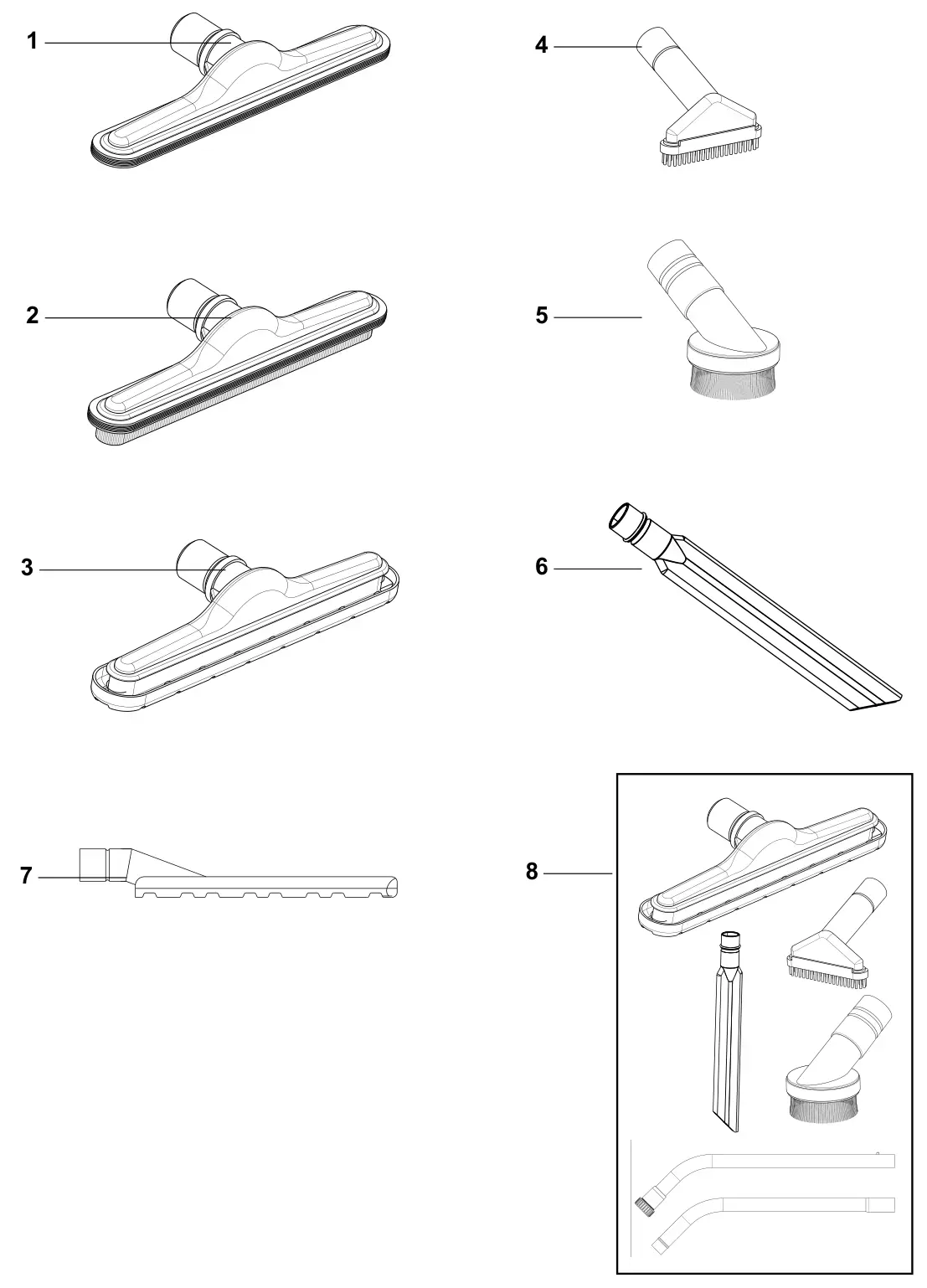

Advance Adgility 6XP tools and nozzles, 1.5 in (38 mm) parts
The parts Advance numbers on its tools and nozzles, 1.5 in (38 mm) drawing. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD56100373Replaces Advance 147 1383 520 | 1 | Scallop carpet floor toolreplaces Advance 147 1383 520. | $43.68/EA |
| 2 | AD1471383510Advance 147 1383 510 | 1 | Hard floor brush tool | $86.74/EA |
| 3 | AD1471383500Advance 147 1383 500 | 1 | Quick-Glide multi surface floor tool | $79.46/EA |
| 4 | AD1471384500Advance 147 1384 500 | 1 | Upholstery tool | $19.78/EA |
| 5 | AD1471385500Advance 147 1385 500 | 1 | Dust tool | $24.50/EA |
| 6 | AD1471386500Advance 147 1386 500 | 1 | Crevice tool | $20.54/EA |
| 7 | AD1407547500Advance 140 7547 500 | 1 | Paddle nozzle | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AD1471388500Advance 147 1388 500 | 5 | Standard accessory kitKit with Item # 3,4,5,6 and a S- wand. | $189.02/EA |

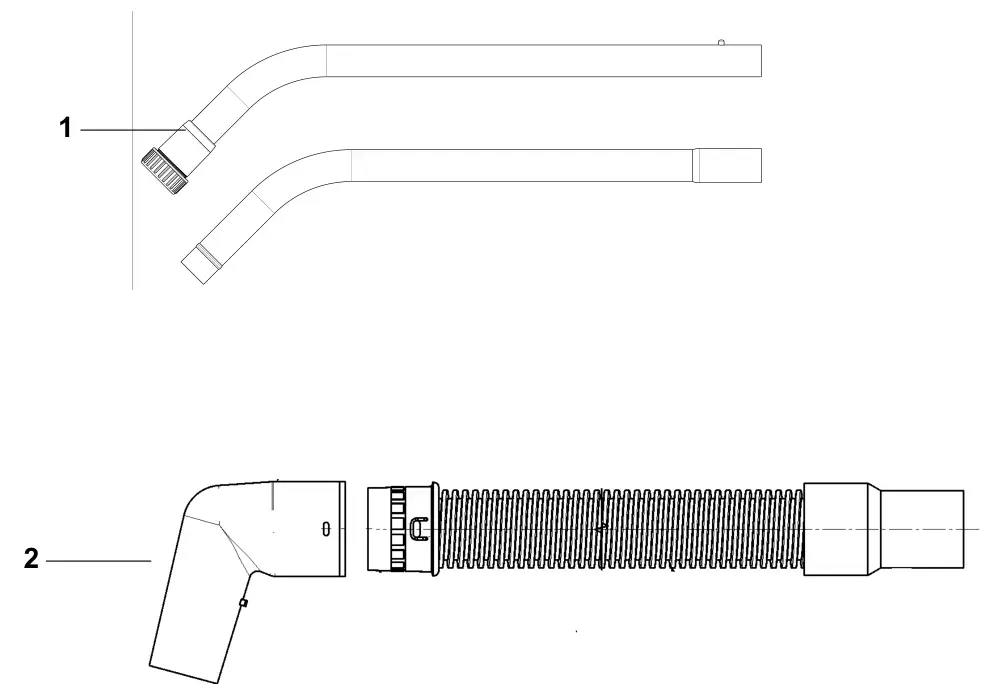

Advance Adgility 6XP wands and hose, 1.5 in (38 mm) parts
The parts Advance numbers on its wands and hose, 1.5 in (38 mm) drawing. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1471387500Advance 147 1387 500 | 1 | S-wandsAluminium. | $100.70/EA |
| 2 | AD1471237500Advance 147 1237 500 | 1 | Hose cpl. 49 in. (1250 mm) | $36.42/EA |

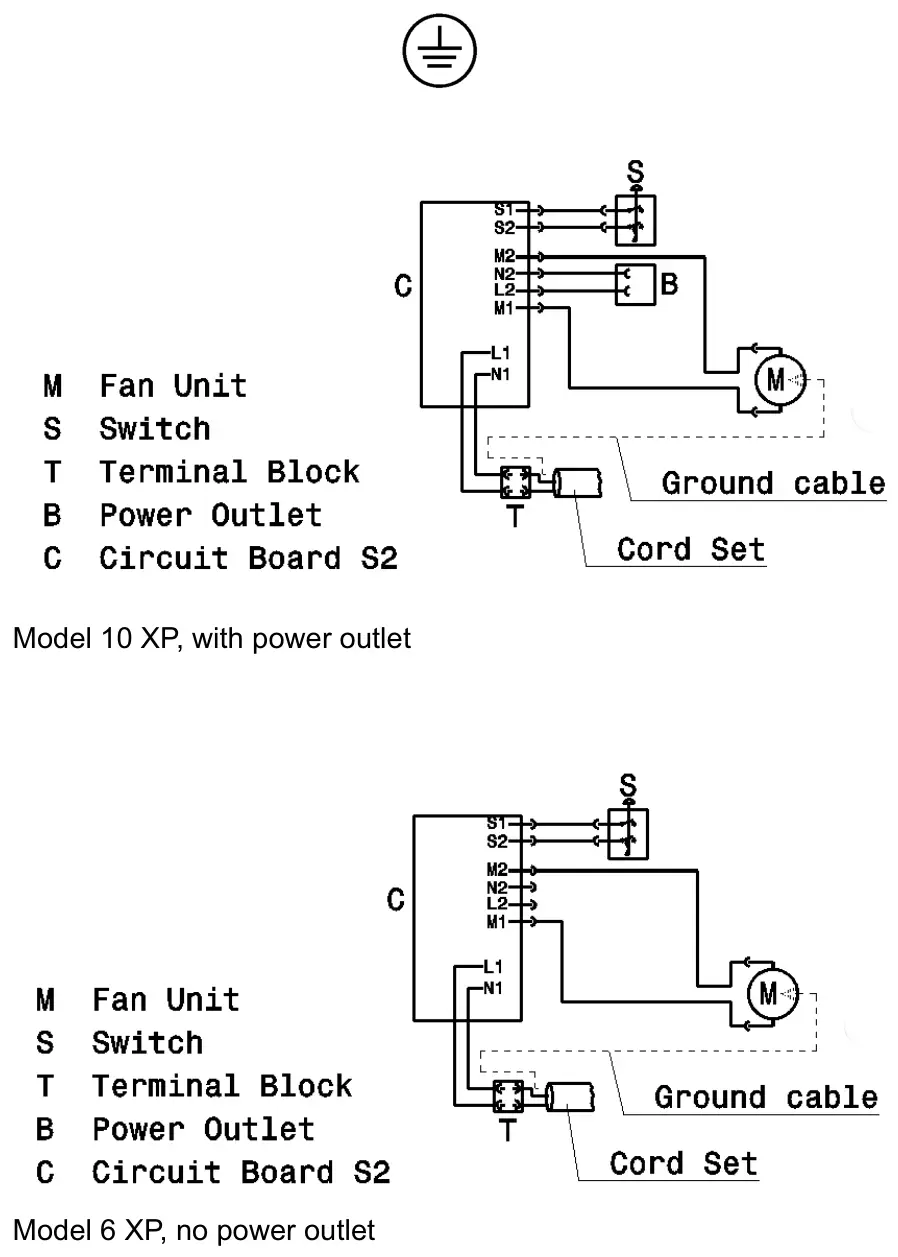

Advance Adgility 6XP wiring diagram
| What it shows | Wiring diagram, as printed in the manual |
|---|---|
| Manual page | 16 |
New to your Advance Adgility 6XP? Start here
Put on, run and look after your Adgility 6XP, from Advance's instructions for use, brochure and parts list, with the parts linked to the list above.
1What's in the box
- 50 ft yellow safety cord (cord (AD1471243500)) and a 1.5 in crush-proof hose (AD1471237500).
- 56 in two-piece S-bend aluminum wand (AD1471387500) and the 14 in Quick-Glide floor tool (AD1471383500).
- Upholstery tool (AD1471384500), round dusting brush (AD1471385500) and crevice tool (AD1471386500).
- Padded, adjustable belt system with accessory loops for the tools.
Source: Advance Adgility 6XP & 10XP brochure, form L3030A (7-17), page 1. SES ref PF-QU3Q-6V4L
2Put it on
- Pick up the vacuum and put your arms through the shoulder straps of the harness (AD1471246500).
- Snap the waist belt clip shut and adjust its length.
- Snap the chest clip shut.
- Pull down on both ties to set the height on your back.
- For a better fit, move the strap's adjustment plate to the inner or outer position and adjust the tension ties.
Source: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), page 16. SES ref PF-QU3Q-6V4L
3Connect the hose and cord
- Fit the hose (AD1471237500) inlet sleeve into the opening on the upper lid. Turn it clockwise about half a turn to lock it.
- Plug the 50 ft extension cord (AD1471243500) into the cord set on the machine. Always use this kind of cord: 3 × 16 AWG, 125V, type SJT or SJO.
- Hook the end of the extension cord into the snap hook on the vacuum, so the hook takes the strain off the plug.
- Plug into a grounded outlet only. Don't use an adapter.
Source: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), page 16. SES ref PF-QU3Q-6V4L
4Turn it on and pick a tool
- The on/off switch is in its own housing on the right side of the waist belt. Tilt it to turn the vacuum on or off.
- Use the round dusting brush (AD1471385500) for furniture and the crevice tool (AD1471386500) for tight spaces such as corners and radiators.
- On the combination floor nozzle, use the brush setting for hard floors and the setting without the brush for rugs.
- Always turn the vacuum off before you connect or disconnect a power nozzle. Only some models have the power nozzle outlet.
Source: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), pages 14 and 16. SES ref PF-QU3Q-6V4L
Advance Adgility 6XP troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting table.
| Likely cause | Fix | Part |
|---|---|---|
| Vacuum stops while you work | ||
| The thermal cut-out switched the motor off to protect it from overheating | Switch it off and unplug it. Check the hose (AD1471237500), dust bag (AD1471098510 / AD1471097510) and filters for anything blocking the airflow. It resets by itself after 5 to 10 minutes. | |
| Suction is weak | ||
| The dust bag is full | Replace the dust bag (AD1471098510 / AD1471097510) and shake clean or replace the main filter (AD1471100500 / AD1471099500) at the same time. | |
| The hose or a tool is blocked | Unplug the vacuum and check the hose (AD1471237500), wand (AD1471387500) and tools for a clog. | |
| Bags or filters that aren't Advance originals are restricting the airflow | Use original Advance dust bags (AD1471098510 / AD1471097510) and filters. Others can restrict the airflow and overload the motor. | |
| Vacuum isn't working right, was dropped, damaged, left outdoors or got wet | ||
| Damage inside the vacuum | Don't use it. Take it to a service center. | |
Source: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), pages 14, 15 and 16. SES ref PF-ANR7-GNXZ
Still stuck? Call 800-440-6723 and have your model and serial number ready.
Advance Adgility 6XP maintenance schedule
Advance's maintenance schedule for the Adgility 6XP.
| Task | How often | Part |
|---|---|---|
| Unplug the vacuum. | After every use | |
| Roll up the extension cord (AD1471243500), starting at the machine end, and strap it to the waist belt with the nylon tie. | After every use | |
| Store the vacuum indoors in a dry place. | After every use | |
| Unplug the vacuum before any maintenance. | As needed | |
| Check the dust bag (AD1471098510 / AD1471097510) often and don't overfill it. Replace it when suction drops. | As needed | |
| Each time you replace the dust bag, shake the main filter (AD1471100500 / AD1471099500) clean, or replace it if it won't come clean. | As needed | |
| Check the motor pre-filter (AD1471095500) often. Never run the vacuum without it. | As needed | |
| Check the HEPA filter (AD1471104500) often and replace it when it is dirty. It can't be cleaned or washed. Hold it by the plastic frame, not the filter. | As needed | |
| Replace the exhaust filter (AD1471089500): press the center tab on the exhaust cover, pull the cover off, fit the new filter and put the cover back. | As needed | |
| Wipe the container with a dry cloth and a little spray polish. | Now and then | |
| Check the cord and plug for damage, especially if the cord was crushed, shut in a door or run over. Don't use the vacuum with a damaged cord or plug. | Now and then | |
| If the cord needs replacing, use the same type of cord the vacuum came with. | Now and then |
Source: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), pages 14, 15 and 16. SES ref PF-SOEF-XXQK
Advance Adgility 6XP specifications
From Advance's documents for the Adgility 6XP.
| Model number | 9060608010 (10XP: 9060705010) |
|---|---|
| Power | 120V, 60 Hz, 1,300 W max; 10 A (12 A max with the power outlet in use) |
| Airflow | 144 CFM |
| Suction (water lift) | 99 in (251 cm) |
| Sound level | 62 dBA |
| Tank capacity | 1.5 gal (5.7 L); 10XP: 2.6 gal (9.8 L) |
| Dust bag capacity | 1.0 gal (3.8 L); 10XP: 1.8 gal (6.8 L) |
| Main filter | 217 sq in, 98.2% filter efficiency; 10XP: 311 sq in |
| Weight without cord | 9.3 lb (4.2 kg); 10XP: 10.8 lb (4.9 kg) |
| Size (L × W × H) | 8.2 × 14.8 × 22.3 in (20.8 × 37.6 × 56.6 cm); 10XP: 10.1 × 14.8 × 23 in (25.7 × 37.6 × 58.4 cm) |
| Cord | 50 ft (15 m), 3 × 16 AWG, 125V, SJT or SJO, safety yellow |
| Hose and tools | 1.5 in (38 mm); hose 49 in (1,250 mm) |
Sources: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), pages 16 and 23; Advance spare parts list 823 0101 000 Rev. 08-02, pages 3, 5, 11 and 15; Advance Adgility 6XP & 10XP brochure, form L3030A (7-17), page 2. SES ref PF-3MMO-7OJL
Advance Adgility 6XP manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Spare parts listAdvance 823 0101 000 Rev. 08-02, 16 pages | Adgility 6XP | Rev. 08-02, | 16 pages | Sign in to view or downloadSign in to download |
| Instructions for useAdvance 823 0100 040 edition P00 (2008-02), 24 pages, English, French, Spanish | Adgility 6XP | 24 pages | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance Adgility 6XP parts questions
What's the difference between the Adgility 6XP and 10XP?
They share the 1,300 W motor, airflow and 62 dBA noise level. The 10XP has a bigger tank (2.6 gal vs 1.5 gal) and dust bag, and weighs 10.8 lb vs 9.3 lb. The outer lid, container, outer cover, adapter, dust bags and sack filter are the parts that differ.
Sources: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), page 23; Advance spare parts list 823 0101 000 Rev. 08-02, pages 7, 11 and 16. SES ref PF-CZCU-HEOL
Are the motors interchangeable between the 6XP and 10XP?
Yes. Advance says the motors are interchangeable between both sizes.
Source: Advance Adgility 6XP & 10XP brochure, form L3030A (7-17), page 1. SES ref PF-CZCU-HEOL
Does the Adgility 6XP have a HEPA filter?
Not as standard. It has four levels of filtration (paper bag, cloth outer bag, motor pre-filter and exhaust filter), and a HEPA filter is an option.
Source: Advance Adgility 6XP & 10XP brochure, form L3030A (7-17), page 1. SES ref PF-CZCU-HEOL
Why did my Adgility 6XP shut off by itself?
Its thermal cut-out stops the motor when it overheats. Switch it off, unplug it and check the hose, dust bag and filters for a blockage. It resets after 5 to 10 minutes.
Source: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), page 15. SES ref PF-CZCU-HEOL
Can the Adgility 6XP pick up water?
No. Advance says it is for dry use only: don't pick up water or other liquids, and don't use it outdoors or on wet surfaces.
Source: Advance Adgility 6XP / 10XP instructions for use 823 0100 040, edition P00 (2008-02), pages 14 and 15. SES ref PF-CZCU-HEOL
What size hose and tools does it use?
1.5 in (38 mm). The hose is 49 in (1,250 mm) long.
Source: Advance spare parts list 823 0101 000 Rev. 08-02, page 15. SES ref PF-CZCU-HEOL
Notes on this parts list
Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- Tank and dust bag size: Instructions for use data sheet: tank 1.5 gal (10XP 2.6 gal), dust bag 1.0 gal (10XP 1.8 gal); Parts list: 5 L and 10 L; Brochure: 6 qt (5.7 L) and 10 qt (9.5 L). This page shows The instructions-for-use values (the parts list's 5 L and 10 L are the tank sizes, about 1.3 and 2.6 gal).
- Height: 22.3 in (10XP 23 in) in the instructions for use; 22.4 in (10XP 22.9 in) in the parts list. This page shows The instructions-for-use size.
- Voltage: 120V, 60 Hz in the instructions for use; 100-120V in the parts list; 110-120V, 60 Hz, 10 A in the brochure. This page shows 120V, 60 Hz from the instructions for use.
