Advance Adfinity 20D / X20D / X20C / X24D parts list and diagrams
Every part number in Advance's Adfinity 20D, X20D, X20C and X24D parts list, with the manual's drawings, recommended spares, troubleshooting, maintenance and specs. Each part number links to that part in our store.
Complete list: every parts line in Advance's Adfinity 20D / X20D / X20C / X24D Parts List (form 9096911000, 2009-10), for the 20D and X20D with one disc brush, the X20C with two cylindrical brushes and the X24D with two disc brushes. Checked .
New to your Adfinity? Start here → Manuals (free sign-in) →
- Brush deck
- 20D, X20D: 1 brush or pad-holder; X20C: 2 cylindrical brushes; X24D: 2 brushes or pad-holders
- Cleaning width
- 20D, X20D: 20.9 in (530 mm); X20C: 20.1 in (510 mm); X24D: 24 in (610 mm)
- Tanks
- Solution or clean water: 15.3 US gal (58 L). Recovery: 15.8 US gal (60 L)
- Weight, empty
- 20D: 229.3 lb (104 kg); X20D and X24D: 231.5 lb (105 kg); X20C: 253.5 lb (115 kg). No batteries, tanks empty
- Batteries
- Standard: WET, 2 x 12 V, 24 V 130 Ah. GEL batteries are an option
Wear parts most Adfinity owners reorder
Advance's maintenance table and cleaning steps name squeegee blades, motor carbon brushes, the vacuum motor filter, the tank cover gasket and the water filter as items to check, clean or replace. These are the matching parts on the parts list.
Blade neoprene front
$48.07/EABlade neoprene rear
$48.07/EABlades squeegee 740mm/29” kit
Call to confirm part: 800-440-6723Blade para rear 840mm/33”
Call to confirm part: 800-440-6723Carbon brush kit
$458.25/EACarbon brush
$40.81/EAFilter
$11.28/EACover tank gasket
Call to confirm part: 800-440-6723Filter complete kit
$43.68/EA
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 21, 23, 24, 25 and 26. SES ref PF-Q4P4-DAZI
Your machine
How to tell which you have
- Read the serial number plate: the machine model and serial number are marked on the plate (34). The model year follows the Date Code on the plate (A06 means January 2006). Write both down before you order.
- Count the brushes: the 20D and X20D have one brush or pad-holder, 20.9 in (530 mm). The X24D has two, 12.0 in (305 mm). The X20C has two cylindrical brushes.
- Look for AXP: only the X20D, X20C and X24D have the AXP detergent system, with the detergent tank and the AXP switch (77). The parts list tells the 20D and X20D apart only on a few lines, such as the control panel decal and the AXP parts.
- Check your serial number: the parts list splits some X24D lines at serial no. 082115832 (squeegee system) and at S/N 080200512 (brush deck lines 5A and 8A). The control panel electronic card changes at S/N 072014255.
How to read this list
Our part numbers are the Advance number with AD in front, so Advance 909 6483 000 is AD9096483000. Where Advance prints spaces inside a number, our part number drops them. Lines with an item number match the numbers on the drawing. The recommended spares and optionals lists have no item numbers. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.
Advance Adfinity 20D / X20D / X20C / X24D solution tank parts

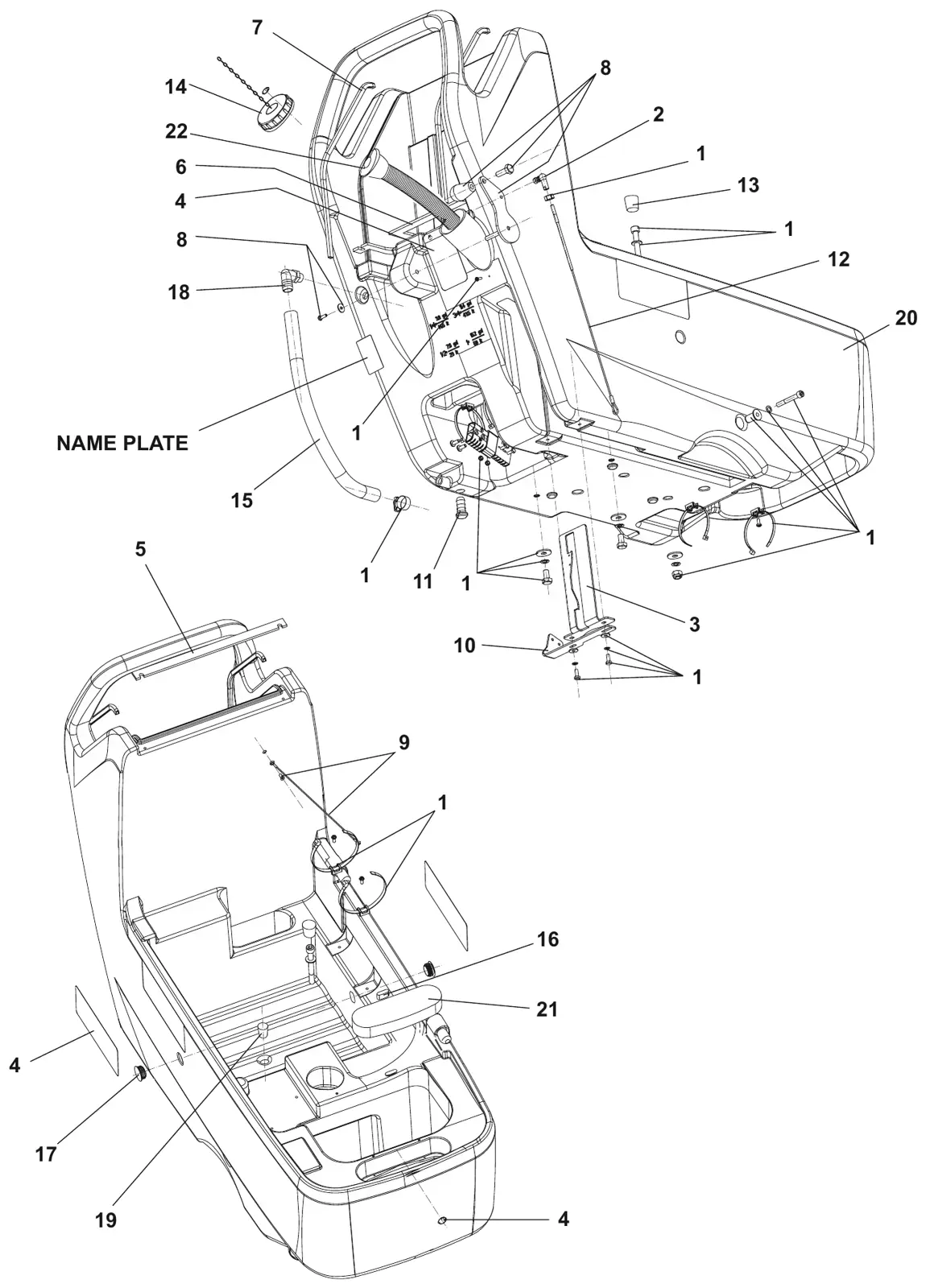

The solution tank, its caps, filling hose, solution hose, gaskets, squeegee lifting cable, decals and hardware kits. Manual pages 4, list 5.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9098265000Advance 9098265000 | 1 | SOLUTION TANK HARDWARE KITModified or new item no. (#). | $261.96/EA |
| 2 | AD1458479000Advance 1458479000 | 1 | DOWEL M6 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AD9096493000Advance 9096493000 | 1 | PEDAL SUPPORT | $55.01/EA |
| 4 | AD9098450000Advance 9098450000 | 1 | DECALS Adfinity™ 20D-X20D-X20C-X24D KITModified or new item no. (#). | $305.51/EA |
| 5 | AD9096596000Advance 9096596000 | 1 | GASKET | $11.69/EA |
| 6 | AD9096597000Advance 9096597000 | 1 | GASKET | $11.69/EA |
| 7 | AD9096892000Advance 9096892000 | 2 | GASKET | $11.69/EA |
| 8 | AD9097630000Advance 9097630000 | 1 | HARDWARE SQUEEGEE LEVER FIXING KITModified or new item no. (#). | $76.09/EA |
| 9 | AD9096874000Advance 9096874000 | 1 | CABLE TANK BLOCK KIT | $119.65/EA |
| 10 | AD9096649000Advance 9096649000 | 1 | BRACKET CONNECTOR SUPPORT | $52.74/EA |
| 11 | AD9097003000Advance 9097003000 | 1 | PLUG (ONLY FOR Adfinity™ X20D-X20C-X24D)Fits Adfinity X20D, Adfinity X20C, Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | AD9098675000Replaces Advance 9096534000 | 1 | SQUEEGEE LIFTING CABLEreplaces Advance 909 6534 000. | $93.70/EA |
| 13 | AD9096673000Advance 9096673000 | 1 | CAP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | AD9096554000Advance 9096554000 | 1 | SOLUTION CAP WITH CHAIN AND GASKET | $24.72/EA |
| 15 | AD9096521000Advance 9096521000 | 1 | SOLUTION HOSE | $32.48/EA |
| 16 | AD9100001364Replaces Advance 9096921000 | 1 | PLUG ANTISPLASHreplaces Advance 9096921000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | ADL08812457Advance L08812457 | 2 | TANK LOCKING CAP | $10.87/EA |
| 18 | AD56264442Advance 56264442 | 1 | FITTING PIPE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | AD9096236000Advance 9096236000 | 1 | BLACK CAP | $10.30/EA |
| 20 | AD9100001363Replaces Advance 9096048000 | 1 | SOLUTION TANKreplaces Advance 909 6048 000. | $1,163.09/EA |
| 21 | AD9096671000Advance 9096671000 | 1 | SPONGE IN-LET FRESH WATER TANK | $11.69/EA |
| 22 | AD9100000703Replaces Advance 9097290000 | 1 | FILLING HOSEOptional (*). Modified or new item no. (#); replaces Advance 9097290000. | $50.01/EA |

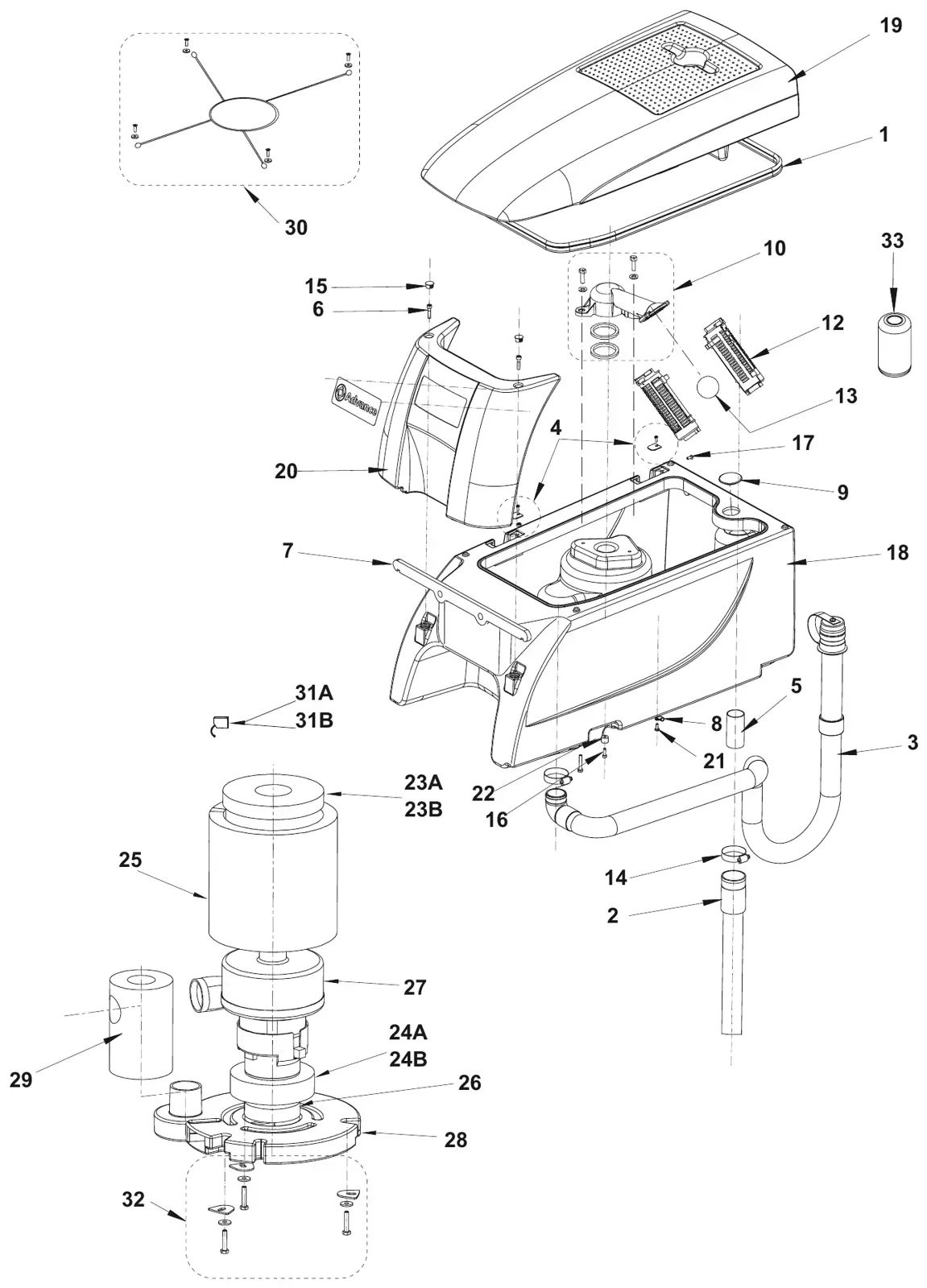

Advance Adfinity 20D / X20D / X20C / X24D recovery tank parts
The recovery tank and cover, float cage and ball, vacuum motor kit, gaskets, filter, hoses and carbon brushes. Manual pages 6, list 7.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1460741000Advance 1460741000 | 1 | COVER TANK GASKET | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AD9096230000Advance 9096230000 | 1 | HOSE SQUEEGEE VACUUM | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AD9100001892Replaces Advance 9096528000 | 1 | DRAIN HOSEreplaces Advance 909 6528 000. | $109.08/EA |
| 4 | AD9097654000Advance 9097654000 | 1 | TANK FIXING KITModified or new item no. (#). | $31.05/EA |
| 5 | AD9099986000Replaces Advance 9096640000 | 1 | ANTI SPLASH SQUEEGEE HOSEreplaces Advance 909 6640 000. | $13.07/EA |
| 6 | AD33004347Advance 33004347 | 2 | SCREW M6X25 | $11.69/EA |
| 7 | AD9097044000Advance 9097044000 | 1 | GASKET, PANEL RECOVERY TANK | $16.09/EA |
| 8 | ADL08603845Advance L08603845 | 1 | CLAMP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 9 | AD1466138000Replaces Advance 9096899000 | 1 | CAP FOR TANK COVERreplaces Advance 909 6899 000. | $51.38/EA |
| 10 | AD9100001875Replaces Advance 9097728000 | 1 | CAGE FLOAT HOLDER KITreplaces Advance 9097728000. | $64.01/EA |
| 11 | AD9097729000Advance 9097729000 | 1 | INSTALLATION INSTRUCTION FOR CAGE FLOAT HOLDER KITNot shown. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | ADL08812259Advance L08812259 | 2 | CAGE, FLOAT COMPLETE | $23.25/EA |
| 13 | ADL08812373Advance L08812373 | 1 | FLOATING BALL | $11.69/EA |
| 14 | AD9100001348Replaces Advance 1450543000 | 2 | CLAMPreplaces Advance 145 0543 000. | $29.53/EA |
| 15 | AD1458008000Advance 1458008000 | 2 | CAP Ø. 18.2 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | AD33004328Advance 33004328 | 1 | SCREW M5X16 | $15.40/EA |
| 17 | AD33005124Advance 33005124 | 1 | SCREW HEX HD 5X12 | $3.85/EA |
| 18 | AD9100000773Replaces Advance 9096049000 | 1 | RECOVERY TANK 55Lreplaces Advance 909 6049 000. | $552.62/EA |
| 19 | AD9096050000Advance 9096050000 | 1 | TANK COVER 55L | $334.36/EA |
| 20 | AD9096224000Advance 9096224000 | 1 | PANEL RECOVERY TANK | $232.96/EA |
| 21 | AD9096337000Advance 9096337000 | 1 | SCREW CYL HD M5X12 | $10.30/EA |
| 22 | AD9096664000Advance 9096664000 | 1 | SPACER D 5,5X15X12 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23A | AD9096489000Advance 9096489000 | 1 | GASKET VACUUM MOTORFor old motor 909 6802 000. | $62.63/EA |
| 23B | AD9098055000Advance 9098055000 | 1 | GASKET VACUUM MOTORFor new motor 9098062000. | $40.81/EA |
| 24A | AD9096490000Advance 9096490000 | 1 | GASKET VACUUM MOTORFor old motor 909 6802 000. | $42.32/EA |
| 24B | AD9097555000Replaces Advance 9098056000 | 1 | GASKET VACUUM MOTORFor new motor 9098062000; replaces Advance 9098056000. | $29.53/EA |
| 25 | AD9096491000Advance 9096491000 | 1 | ACOUSTIC INSULATION PANEL | $16.09/EA |
| 26 | AD9096672000Advance 9096672000 | 1 | FILTER | $11.28/EA |
| 27 | AD9099401000Replaces Advance 9098062000 | 1 | MOTOR VACUUM W/CONNECTOR KITThis is the new motor named in footnote B; replaces Advance 9098062000. | $458.25/EA |
| 28 | AD9100001246Replaces Advance 9096051000 | 1 | VACUUM MOTOR COVERreplaces Advance 909 6051 000. | $21.94/EA |
| 29 | AD9096442000Advance 9096442000 | 1 | ACOUSTIC INSULATION PIPE | $16.09/EA |
| 30 | AD9096734000Advance 9096734000 | 1 | RUBBER BAND KIT | $21.85/EA |
| 31A | AD9095371000Advance 9095371000 | 2 | CARBON BRUSHFor old motor 909 6802 000. | $18.96/EA |
| 31B | ADZD53501AReplaces Advance 9098231000 | 1 | BRUSH CARBON KIT 2PCSFor new motor 9098062000; replaces Advance 9098231000. | $8.63/EA |
| 32 | AD9096877000Advance 9096877000 | 1 | HARDWARE MOTOR FIXING KIT | $142.49/EA |
| 33 | AD9095065000Advance 9095065000 | 1 | FILTER ANTIFOAMING TSB IT 2008-002Optional (*). Modified or new item no. (#). | $10.30/EA |
| 34 | AD9096876000Advance 9096876000 | 1 | HARDWARE OLD TYPE CAGE SUP.FIXING KIT FOR OLD CAGE FLOAT HOLDERNot shown. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance Adfinity 20D / X20D / X20C / X24D chassis system parts

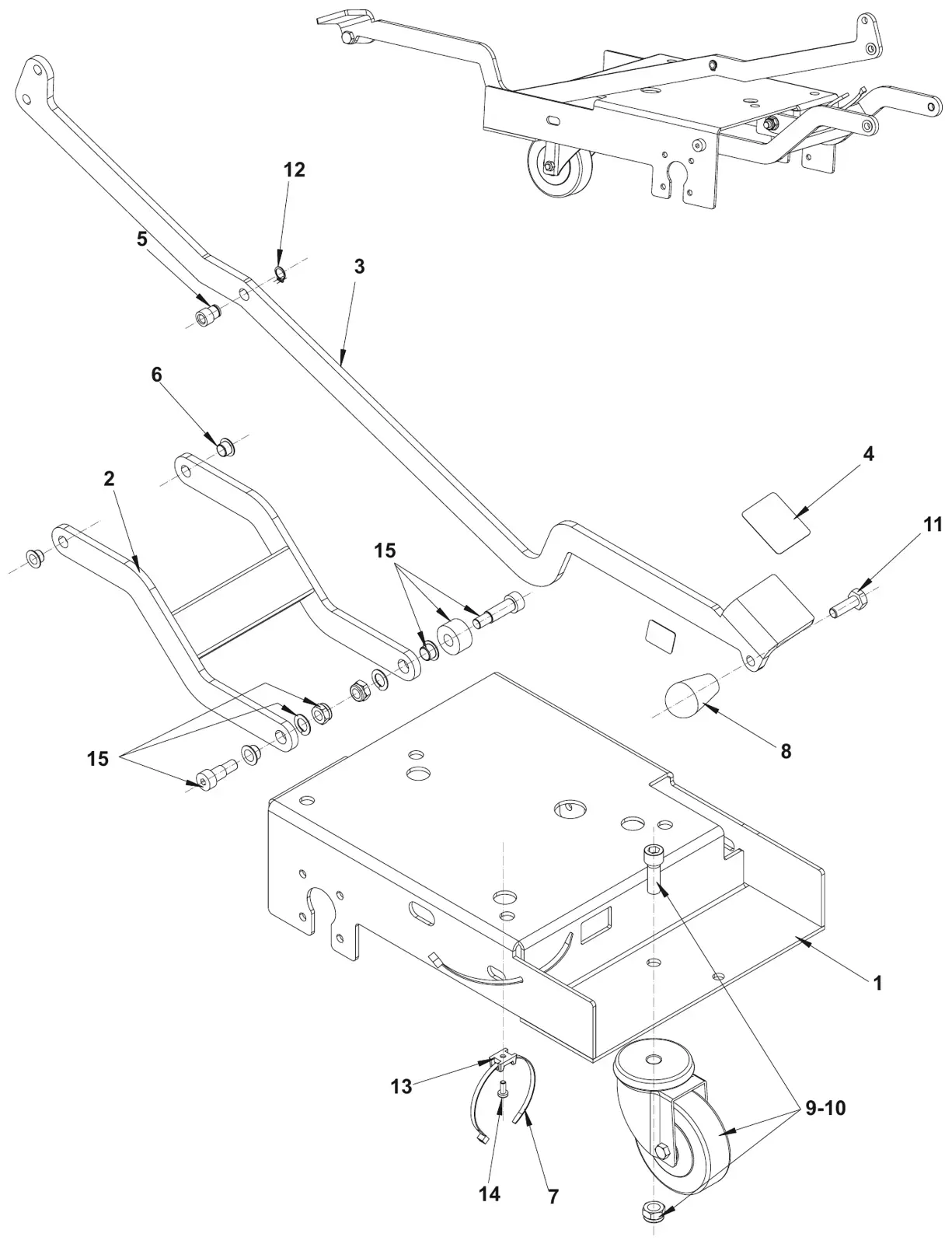

The chassis, deck lifting lever, brush lifting pedal, castor wheel, bushes and hardware kit. Manual pages 8, list 9.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096481000Advance 9096481000 | 1 | CHASSIS 55 LT | $445.31/EA |
| 2 | ADVF85324Replaces Advance 9096486000 | 1 | LEVER DECK LIFTINGreplaces Advance 909 6486 000. | $55.13/EA |
| 3 | AD9096487000Advance 9096487000 | 1 | PEDAL BRUSH LIFTING | $120.48/EA |
| 4 | AD9096539000Advance 9096539000 | 1 | ANTISKID MAT | $11.69/EA |
| 5 | AD9096540000Advance 9096540000 | 1 | BUSH FLANGED | $11.69/EA |
| 6 | AD9096594000Advance 9096594000 | 3 | BUSH FLANGED | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AD1466344000Replaces Advance 1450524000 | 2 | PASSRINGreplaces Advance 145 0524 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AD9096621000Advance 9096621000 | 1 | KNOB | $20.54/EA |
| 9 | AD9096880000Replaces Advance 9096879000 | 1 | WHEEL CASTOR SS KITreplaces Advance 909 6879 000. | $134.62/EA |
| 10 | AD9098947000Replaces Advance 9096900000 | 1 | WHEEL CASTOR SSOptional (*); replaces Advance 909 6900 000. | $218.25/EA |
| 11 | AD33004010Advance 33004010 | 1 | SCREW HEX HD M10X30 | $12.50/EA |
| 12 | AD33006051Advance 33006051 | 1 | RETAINING RING | $11.69/EA |
| 13 | AD9096595000Advance 9096595000 | 2 | FLAT TIE HOLDER | $11.69/EA |
| 14 | AD9096337000Advance 9096337000 | 2 | SCREW CYL HD M5X12 | $10.30/EA |
| 15 | AD9096878000Advance 9096878000 | 1 | HARDWARE CHASSIS FIXING KIT | $125.28/EA |

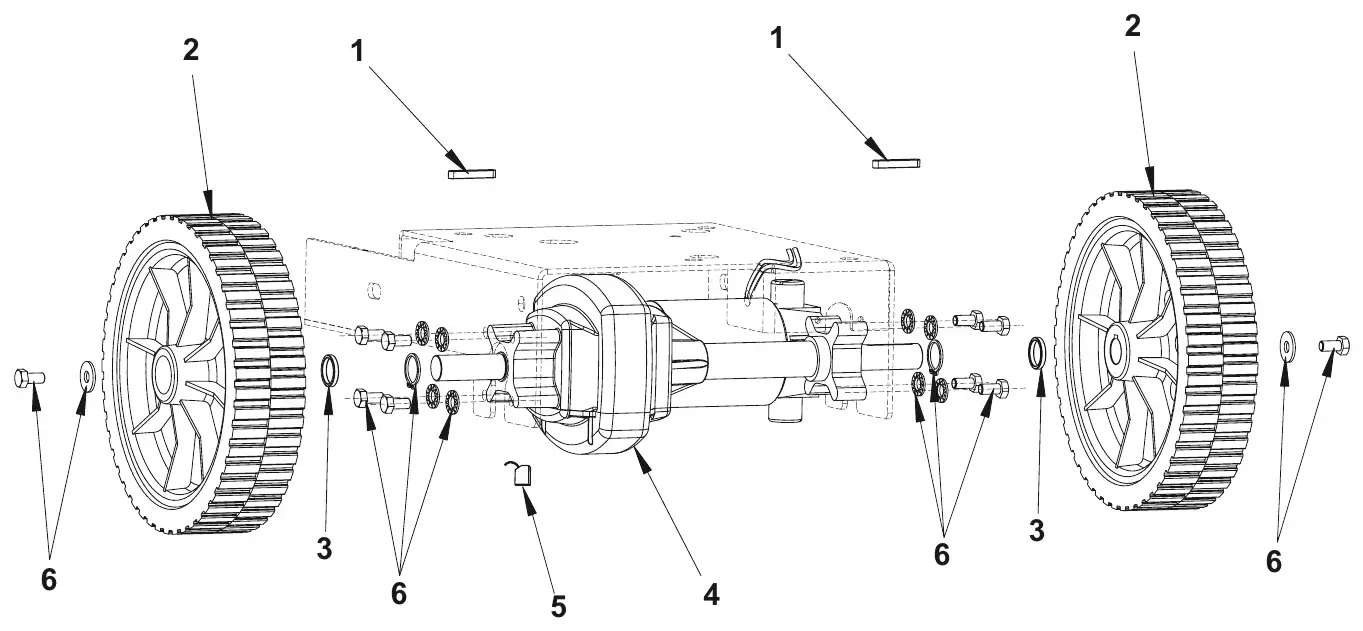

Advance Adfinity 20D / X20D / X20C / X24D wheels and traction parts
The front drive wheels, drive motor 24V 200W, carbon brushes, spacers and hardware kit. Manual pages 10, list 11.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1460769000Advance 1460769000 | 2 | KEY | $11.69/EA |
| 2 | AD9096863000Advance 9096863000 | 2 | WHEEL FRONT D.250 DRIVE | $393.23/EA |
| 2 | AD9097026000Advance 9097026000 | 2 | WHEEL FRONT D.250 DRIVE 65SHSecond part number printed for item 2. | $459.99/EA |
| 3 | AD9100001161Replaces Advance 9096506000 | 2 | SPACER 20,5X25X5replaces Advance 909 6506 000. | $45.74/EA |
| 4 | AD9096548000Advance 9096548000 | 1 | MOTOR DRIVE 24V 200W | $2,180.95/EA |
| 5 | AD1455124000Advance 1455124000 | 2 | CARBON BRUSH | $40.81/EA |
| 6 | AD9098298000Advance 9098298000 | 1 | HARDWARE DRIVE WHEELS KITModified or new item no. (#). | $85.85/EA |
Advance Adfinity 20D / X20D / X20C / X24D handle assembly parts

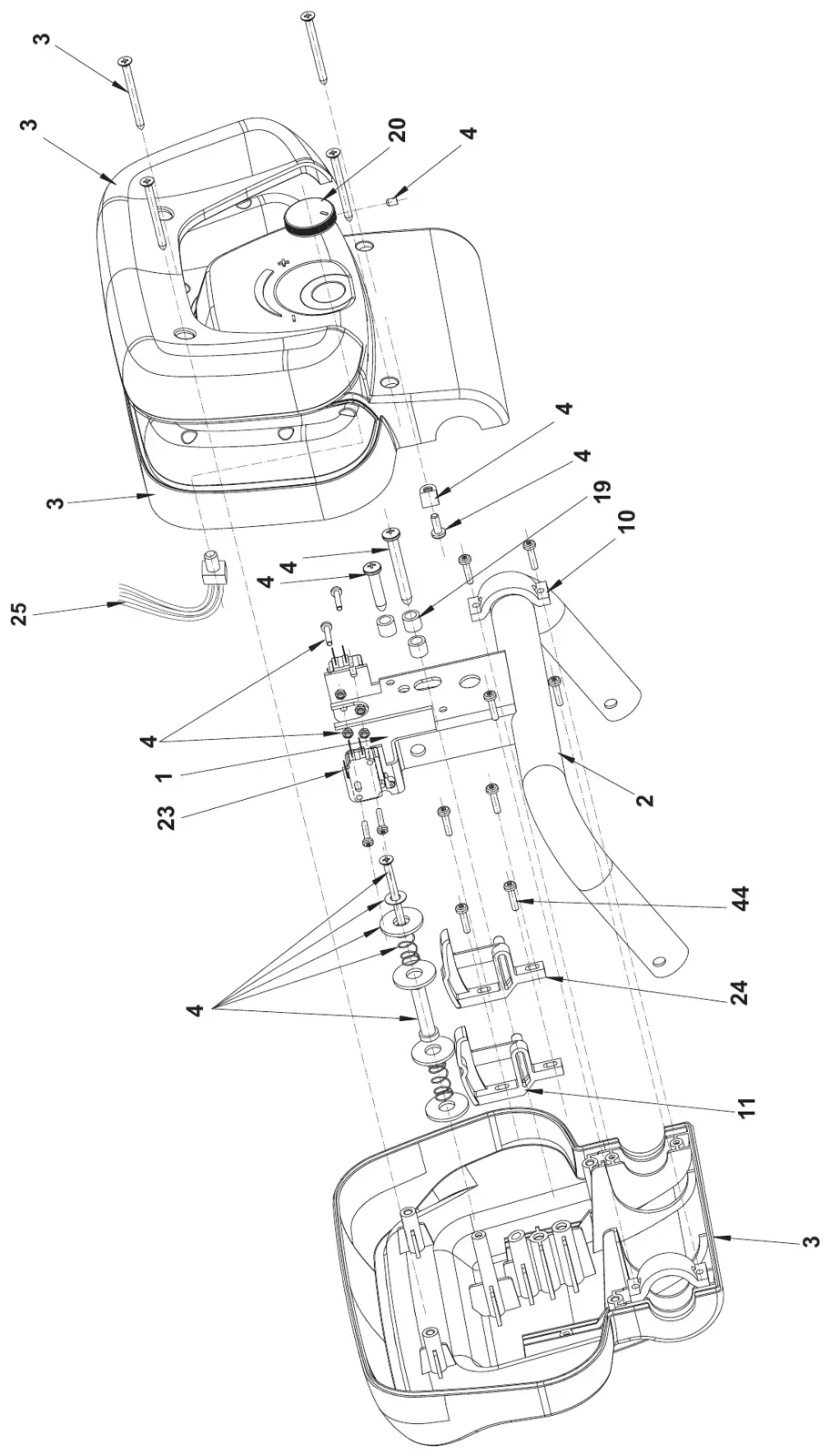

The handle bar, switch housings, microswitches, cam, speed potentiometer harness and hardware kit. Manual pages 12, list 13.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096907000Advance 9096907000 | 1 | HANDLE HARNESS | $132.43/EA |
| 2 | AD9096059000Advance 9096059000 | 1 | HANDLE BAR | $68.96/EA |
| 3 | AD9097622000Advance 9097622000 | 1 | SWITCH HOUSINGS UPPER/LOWER KITModified or new item no. (#). | $133.80/EA |
| 4 | AD9098300000Advance 9098300000 | 1 | HARDWARE HANDLE FIXING KITModified or new item no. (#). | $174.60/EA |
| 10 | ADL08812279Advance L08812279 | 2 | CLAMP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 11 | ADL08812282Advance L08812282 | 1 | CAM HANDLE MICROSWITCH | $14.70/EA |
| 19 | AD1451330000Advance 1451330000 | 3 | SPACER | $11.69/EA |
| 20 | AD9096471000Advance 9096471000 | 1 | POTENTIOMETER KNOB | $14.70/EA |
| 23 | AD9100000792Replaces Advance 9096677000 | 2 | MICROSWITCHreplaces Advance 909 6677 000. | $11.69/EA |
| 24 | AD9096923000Advance 9096923000 | 1 | CAM HANDLE MICROSWITCH | $25.96/EA |
| 25 | AD9096544000Advance 9096544000 | 1 | SPEED POTENTIOMETER HARNESS | $87.37/EA |

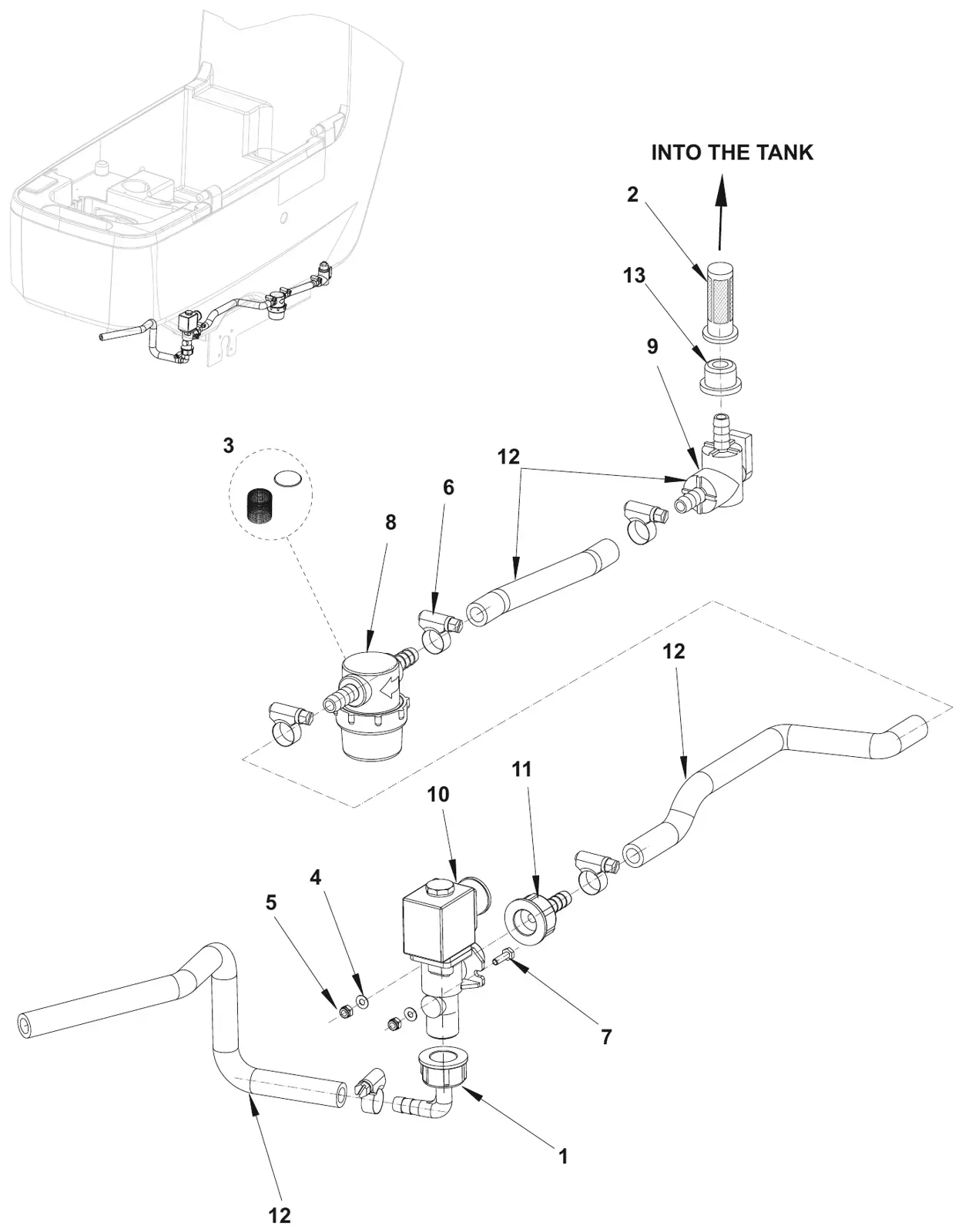

Advance Adfinity 20D / X20D / X20C / X24D solution system parts
The solenoid valve, elbows, filters, rubber holder and hardware kit for the solution system. The page is headed 20D in the manual. Manual pages 14, list 15.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9098777000Replaces Advance 9096637000 | 1 | HOLDER RUBBER 90°replaces Advance 909 6637 000. | $24.72/EA |
| 2 | AD9096916000Advance 9096916000 | 1 | FILTER, SOLUTION TANKOptional (*). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | ADL08603893Advance L08603893 | 1 | NET FILTER WITH GASKET KIT | $22.37/EA |
| 4 | AD9098301000Advance 9098301000 | 1 | HARDWARE SOLUTION SYSTEM KITModified or new item no. (#). | $88.73/EA |
| 8 | AD9097166000Advance 9097166000 | 1 | FILTER COMPLETE KITPrinted 8A in the list; footnote A: TSB IT 2007-021. | $43.68/EA |
| 9 | AD9096994000Advance 9096994000 | 1 | VALVE ELBOW ( SEE VALVE ELBOW WITH PIPES KIT) | $31.05/EA |
| 10 | AD9096555000Advance 9096555000 | 1 | SOLENOID VALVE 24V | $196.45/EA |
| 11 | AD9096636000Advance 9096636000 | 1 | ELBOW T REDUCING | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | AD9096996000Advance 9096996000 | 1 | VALVE ELBOW WITH PIPES KITPrinted 12B in the list; footnote B: TSB IT 2007-027a. | $40.81/EA |
| 13 | AD9095286000Advance 9095286000 | 1 | GASKET | $10.98/EA |
Advance Adfinity 20D / X20D / X20C / X24D AXP eco dosage solution parts

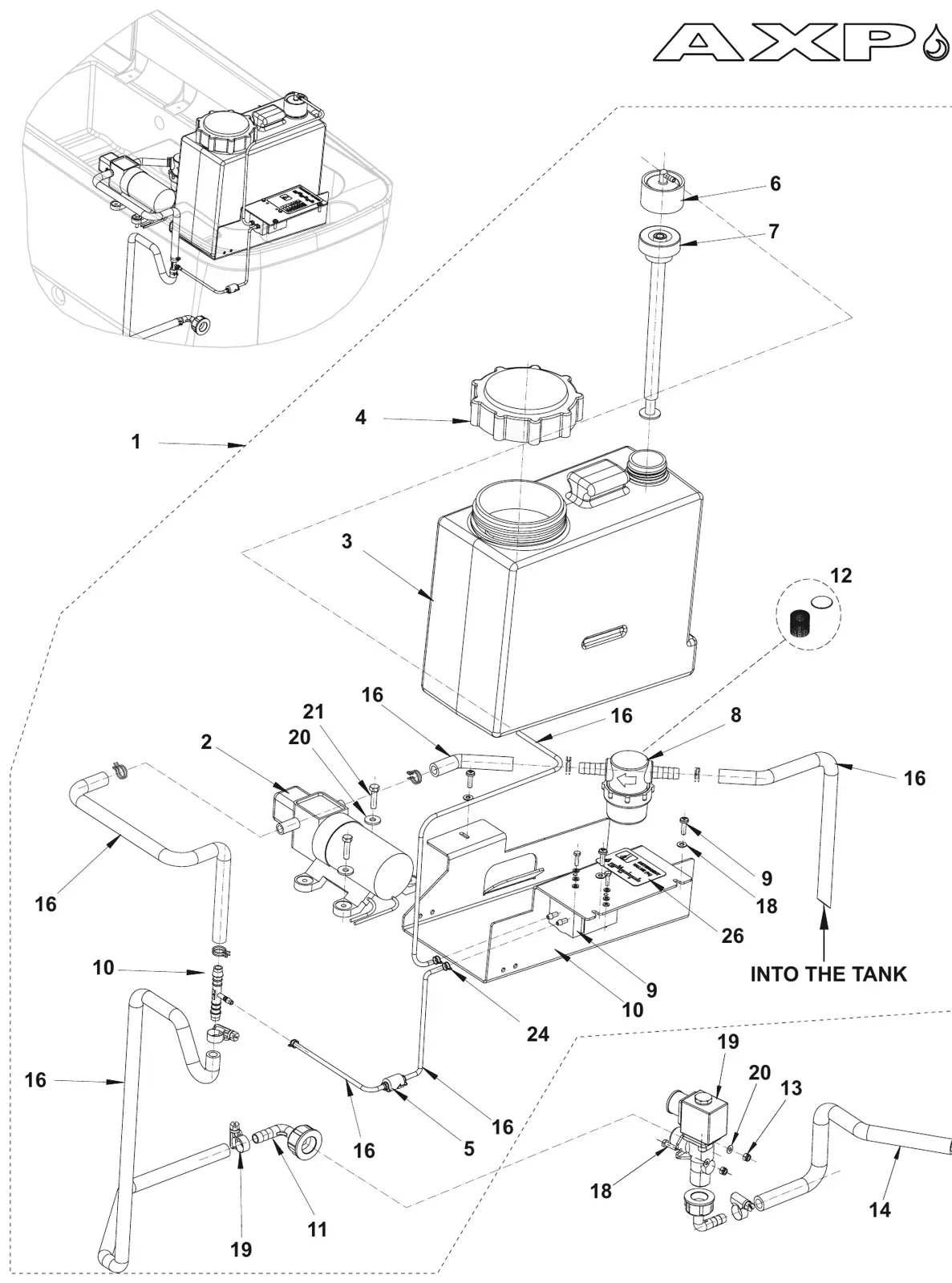

The AXP detergent dosing system: chemical tank, pump, valves, filter, pipes and kit. For the X20D, X20C and X24D. Manual pages 16, list 17.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096744000Advance 9096744000 | 1 | AXP - ECO DOSAGE SOLUTION KITFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $2,035.22/EA |
| 2 | AD56315108Advance 56315108 | 1 | PUMP 24VFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $308.24/EA |
| 3 | AD56315502Replaces Advance 56315500 | 1 | TANK CHEMICALFits Adfinity X20D, Adfinity X20C, Adfinity X24D. replaces Advance 56315500. | $90.82/EA |
| 4 | AD56315517Advance 56315517 | 1 | CAP INLETFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $28.71/EA |
| 5 | AD56315522Advance 56315522 | 1 | VALVE NON RETURNFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $11.69/EA |
| 6 | AD56315523Advance 56315523 | 1 | CAPFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $32.42/EA |
| 7 | AD56315527Advance 56315527 | 1 | INSERTFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $13.07/EA |
| 8 | AD9097166000Advance 9097166000 | 1 | FILTER COMPLETE KITFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $43.68/EA |
| 9 | AD9096183000Advance 9096183000 | 1 | PUMP CHEMICAL MIXFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $500.91/EA |
| 10 | AD9096536000Advance 9096536000 | 1 | FITTINGFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $11.57/EA |
| 11 | AD9098777000Replaces Advance 9096637000 | 1 | HOLDER RUBBERFits Adfinity X20D, Adfinity X20C, Adfinity X24D. replaces Advance 909 6637 000. | $24.72/EA |
| 12 | ADL08603893Advance L08603893 | 1 | KIT NET FILTER WITH GASKETFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $22.37/EA |
| 13 | ADL08603685Advance L08603685 | 2 | NUT HEX SELF LOCK M4 SSFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $12.50/EA |
| 14 | AD9096996000Advance 9096996000 | 1 | VALVE ELBOW WITH PIPES KIT( SEE SOLUTION SYSTEM PAGES 14-15)Fits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $40.81/EA |
| 15 | AD9096187000Advance 9096187000 | 1 | HARNESS PUMPFits Adfinity X20D, Adfinity X20C, Adfinity X24D. Not shown. | $71.84/EA |
| 16 | AD9096807000Advance 9096807000 | 1 | PIPES CHEMICAL MIX KITFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AD9096747000Advance 9096747000 | 1 | INSTALLATION INSTRUCTIONS FOR AXP KITFits Adfinity X20D, Adfinity X20C, Adfinity X24D. Not shown. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | AD1460497000Advance 1460497000 | 2 | SCREW HEX HD M4X14 SS ( SEE SOLUTION SYSTEM PAGES 14-15)Fits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $11.69/EA |
| 19 | AD9096555000Advance 9096555000 | 1 | SOLENOID VALVE 24V ( SEE SOLUTION SYSTEM PAGES 14-15)Fits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $196.45/EA |
| 20 | ADL08200800Replaces Advance 56325716 | 2 | WASHER FLAT 4X9 SS ( SEE SOLUTION SYSTEM PAGES 14-15)Fits Adfinity X20D, Adfinity X20C, Adfinity X24D. replaces Advance 56325716. | $12.50/EA |

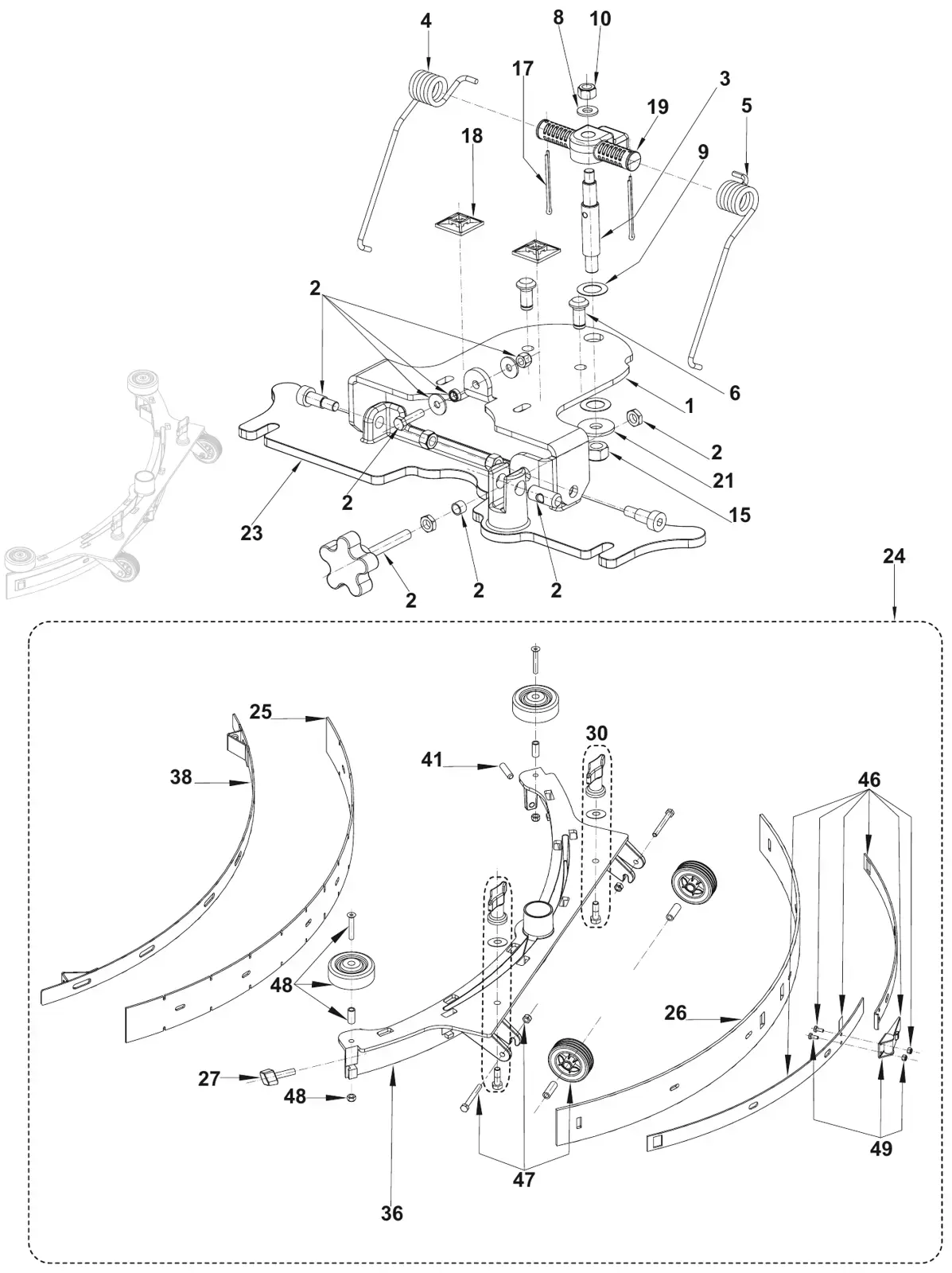

Advance Adfinity 20D / X20D / X20C / X24D squeegee system, 20D / X20D / X20C parts
The squeegee bracket, springs, blades, support and fixing kits for the 20D, X20D and X20C. Manual pages 18, list 19.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096494000Advance 9096494000 | 1 | BRACKET, SQUEEGEE SUPPORTFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $165.01/EA |
| 2 | AD9096885000Advance 9096885000 | 1 | HARDWARE FIXING KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $211.28/EA |
| 3 | AD9096497000Advance 9096497000 | 1 | PIN SQUEEGEEFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $13.76/EA |
| 4 | AD9096537000Advance 9096537000 | 1 | SPRING SQUEEGEE PUSHINGFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $12.50/EA |
| 5 | AD9096538000Advance 9096538000 | 1 | SPRING SQUEEGEE PUSHINGFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $12.50/EA |
| 6 | AD9096543000Advance 9096543000 | 2 | PIN SQUEEGEE FIXINGFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $13.76/EA |
| 8 | AD33023208Replaces Advance 33005915 | 1 | WASHER FLAT 8X17Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance 33005915. | $45.74/EA |
| 9 | ADL08238300Advance L08238300 | 2 | WASHER 15X25Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $10.30/EA |
| 10 | AD33023574Replaces Advance 33005607 | 3 | NUT SELFLOCKING M8Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance 33005607. | $16.09/EA |
| 15 | AD33005608Advance 33005608 | 1 | NUT SELF L. M10 UNI7474Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $11.69/EA |
| 17 | AD33005758Advance 33005758 | 2 | SPLIT PINFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $10.30/EA |
| 18 | AD9096635000Advance 9096635000 | 2 | HOLDER FLAT TIEFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $10.30/EA |
| 19 | AD9096052000Advance 9096052000 | 1 | SPRING SUPPORTFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $12.08/EA |
| 21 | ADL08604251Advance L08604251 | 1 | WASHER FLAT 10X30Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $11.69/EA |
| 23 | AD56384513Replaces Advance 9096045000 | 1 | SQUEEGEE SUPPORTFits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance 909 6045 000. | $154.15/EA |
| 24 | AD9096851000Advance 9096851000 | 1 | SQUEEGEE CPL ALU KIT 30”Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $625.17/EA |
| 25 | AD9100000279Replaces Advance 9096483000 | 1 | BLADE NEOPRENE FRONTFits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance 909 6483 000. | $48.07/EA |
| 26 | AD9100000279Replaces Advance 9096484000 | 1 | BLADE NEOPRENE REARFits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance 909 6484 000. | $48.07/EA |
| 27 | AD9096551000Advance 9096551000 | 1 | KNOB M8X30 SSFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $12.15/EA |
| 30 | AD9098257000Replaces Advance L08603675 | 2 | NUT THUMB SQUEEGEE FIXINGFits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance L08603675. | $12.08/EA |
| 35 | AD9095953000Advance 9095953000 | 2 | SCREW 5/16”X1” UNCFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 36 | AD9096044000Advance 9096044000 | 1 | WELDMENT SQUEEGEE TOOLFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $231.50/EA |
| 38 | AD9096055000Advance 9096055000 | 1 | STRAP, SQUEEGEE FRONTFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $48.04/EA |
| 41 | AD9096600000Advance 9096600000 | 1 | DOWEL M8X30 SSFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $12.50/EA |
| 43 | AD9096682000Advance 9096682000 | 2 | RUBBER WASHERFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $10.98/EA |
| 46 | AD9096882000Advance 9096882000 | 1 | HARDWARE SQUEEGEE FIXING KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $160.57/EA |
| 47 | AD9096883000Advance 9096883000 | 1 | WHEEL SQUEEGEE KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $112.65/EA |
| 48 | AD9096884000Advance 9096884000 | 1 | ROLLER BUMPER SQUEEGEE KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $96.42/EA |
| 49 | AD9096394000Advance 9096394000 | 1 | LATCH SQUEEGEE KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $83.12/EA |
| 50 | AD9096885000Advance 9096885000 | 1 | HARDWARE FIXING KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. Not shown. | $211.28/EA |
| 51 | AD9097548000Advance 9097548000 | 1 | WASHER NYLON SQUEEGEE SUPPORT KIT SEE TSB IT 2007-031Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. Not shown. | $20.48/EA |

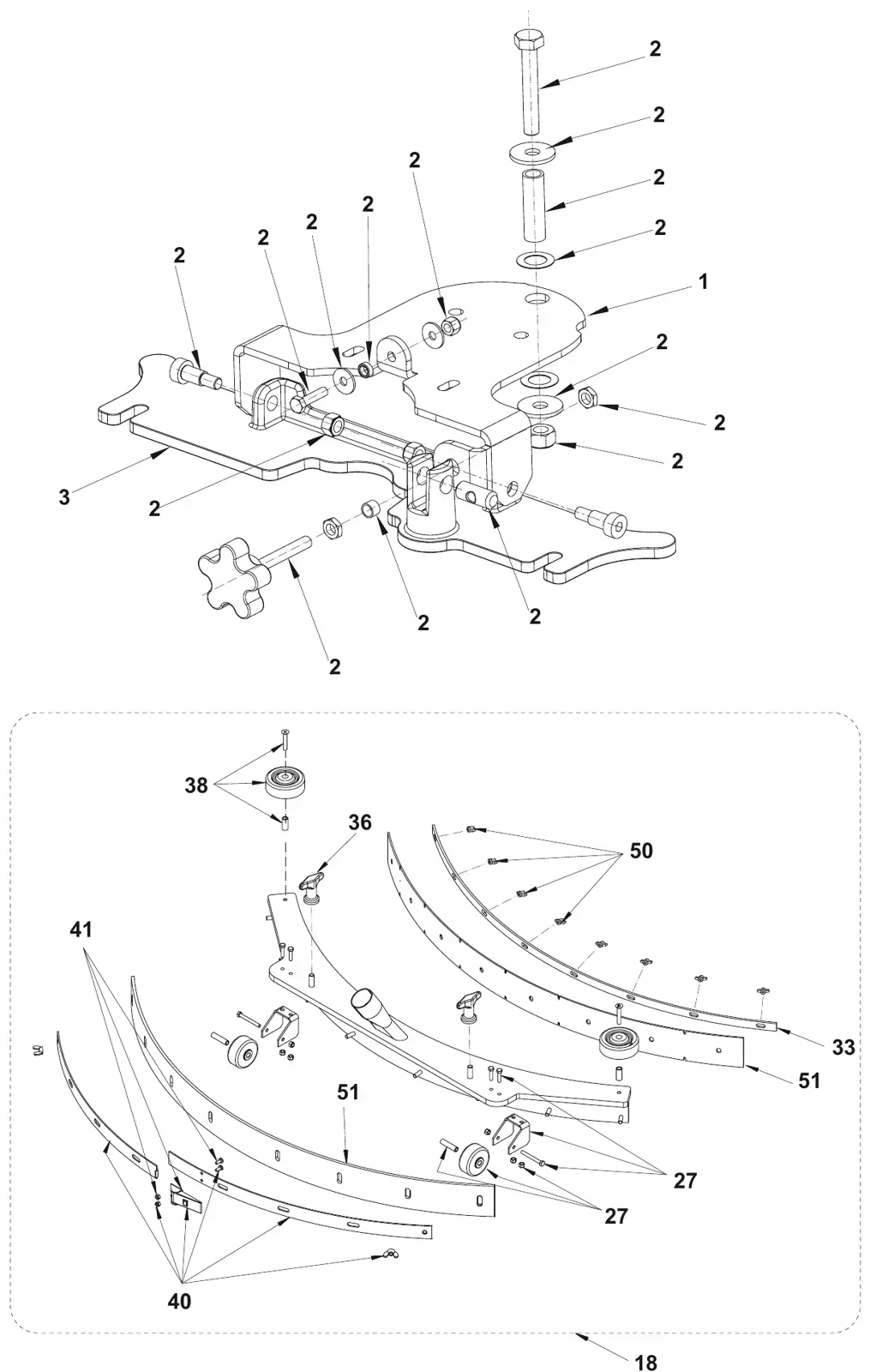

Advance Adfinity 20D / X20D / X20C / X24D squeegee system, X24D before serial no. 082115832 parts
The squeegee bracket, wheels, strap, bumper rollers and blades for the X24D before serial no. 082115832. Manual pages 20, list 21.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096494000Advance 9096494000 | 1 | SQUEEGEE BRACKETFits Adfinity X24D. | $165.01/EA |
| 2 | AD9096886000Advance 9096886000 | 1 | HARDWARE FIXING KITFits Adfinity X24D. | $371.04/EA |
| 3 | AD56384513Replaces Advance 9096045000 | 1 | SQUEEGEE SUPPORTFits Adfinity X24D. replaces Advance 909 6045 000. | $154.15/EA |
| 18 | AD9095372000Advance 9095372000 | 1 | KIT SQUEEGEE REPLACED BY 9097539000 SEE TSB IT 2008-005Fits Adfinity X24D. Use 9097539000 (TSB IT 2008-005). | $901.81/EA |
| 27 | AD9100000573Replaces Advance L08603879 | 1 | WHEEL SQUEEGEE KITFits Adfinity X24D. replaces Advance L08603879. | $142.86/EA |
| 33 | ADL08603831Advance L08603831 | 1 | STRAP FRONTFits Adfinity X24D. | $54.26/EA |
| 36 | AD9098257000Replaces Advance L08603675 | 2 | THUMB NUT SQUEEGEE FIXINGFits Adfinity X24D. replaces Advance L08603675. | $12.08/EA |
| 38 | ADL08603880Advance L08603880 | 1 | ROLLER BUMPER SQUEEGEE KITFits Adfinity X24D. | $13.07/EA |
| 40 | AD9096894000Advance 9096894000 | 1 | HARDWARE SQUEEGEE FIXING KITFits Adfinity X24D. | $254.81/EA |
| 41 | AD9096394000Advance 9096394000 | 1 | LATCH SQUEEGEE KITFits Adfinity X24D. | $83.12/EA |
| 50 | AD9096356000Advance 9096356000 | 2 | WING NUTS KITFits Adfinity X24D. Modified or new item no. (#). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 51 | AD9100000280Replaces Advance 9097499000 | 1 | BLADES SQUEEGEE 740MM/29” KITFits Adfinity X24D. Modified or new item no. (#); replaces Advance 9097499000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 52 | AD9095629000Advance 9095629000 | 1 | BLADE FRONT NON MARKINGFits Adfinity X24D. Not shown. Optional (*). | $54.26/EA |

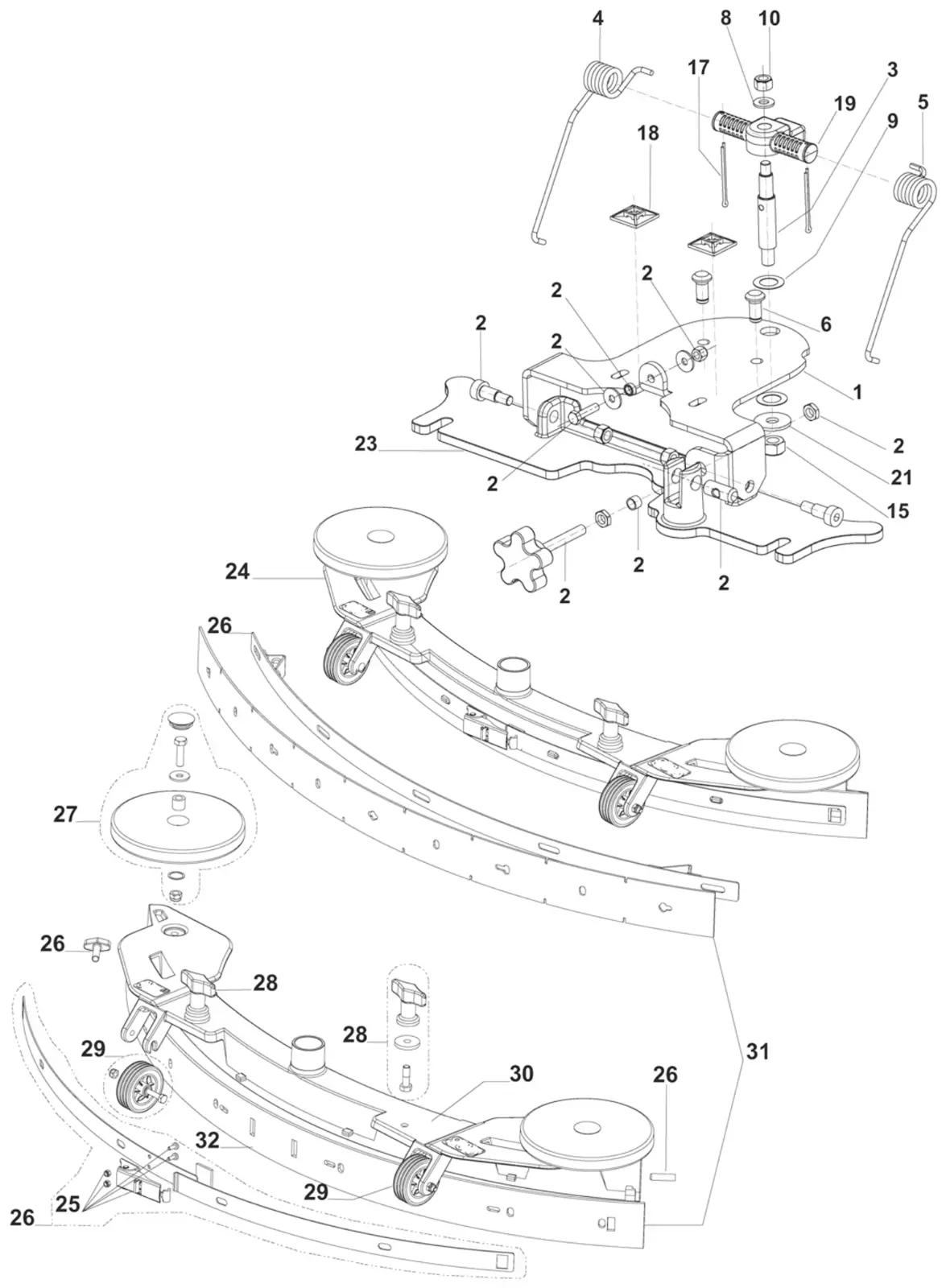

Advance Adfinity 20D / X20D / X20C / X24D squeegee system, X24D after serial no. 082115832 parts
The squeegee bracket, aluminum squeegee, blade kits, rollers and fixing kit for the X24D after serial no. 082115832. Manual pages 22, list 23.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096494000Advance 9096494000 | 1 | BRACKET, SQUEEGEE SUPPORTFits Adfinity X24D. | $165.01/EA |
| 2 | AD9096885000Advance 9096885000 | 1 | HARDWARE FIXING KITFits Adfinity X24D. | $211.28/EA |
| 3 | AD9096497000Advance 9096497000 | 1 | PIN SQUEEGEEFits Adfinity X24D. | $13.76/EA |
| 4 | AD9096537000Advance 9096537000 | 1 | SPRING SQUEEGEE PUSHINGFits Adfinity X24D. | $12.50/EA |
| 5 | AD9096538000Advance 9096538000 | 1 | SPRING SQUEEGEE PUSHINGFits Adfinity X24D. | $12.50/EA |
| 6 | AD9096543000Advance 9096543000 | 2 | PIN SQUEEGEE FIXINGFits Adfinity X24D. | $13.76/EA |
| 8 | AD33023208Replaces Advance 33005915 | 1 | WASHER FLAT 8X17Fits Adfinity X24D. replaces Advance 33005915. | $45.74/EA |
| 9 | ADL08238300Advance L08238300 | 2 | WASHER 15X25Fits Adfinity X24D. | $10.30/EA |
| 10 | AD33023574Replaces Advance 33005607 | 3 | NUT SELFLOCKING M8Fits Adfinity X24D. replaces Advance 33005607. | $16.09/EA |
| 15 | AD33005608Advance 33005608 | 1 | NUT SELF L. M10 UNI7474Fits Adfinity X24D. | $11.69/EA |
| 17 | AD33005758Advance 33005758 | 2 | SPLIT PINFits Adfinity X24D. | $10.30/EA |
| 18 | AD9096635000Advance 9096635000 | 2 | HOLDER FLAT TIEFits Adfinity X24D. | $10.30/EA |
| 19 | AD9096052000Advance 9096052000 | 1 | SPRING SUPPORTFits Adfinity X24D. | $12.08/EA |
| 21 | ADL08604251Advance L08604251 | 1 | WASHER FLAT 10X30Fits Adfinity X24D. | $11.69/EA |
| 23 | AD56384513Replaces Advance 9096045000 | 1 | SQUEEGEE SUPPORTFits Adfinity X24D. replaces Advance 909 6045 000. | $154.15/EA |
| 24 | AD9097539000Advance 9097539000 | 1 | SQUEEGEE CPL. AL. 840MM/33”Fits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 25 | AD9096394000Advance 9096394000 | 1 | LATCH SQUEEGEE KITFits Adfinity X24D. | $83.12/EA |
| 26 | AD9097634000Advance 9097634000 | 1 | BLADES SQUEEGEE FIXING KIT 840MM/33”Fits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 27 | AD9096887000Advance 9096887000 | 2 | ROLLER BUMPER KITFits Adfinity X24D. | $15.02/EA |
| 28 | AD9097637000Advance 9097637000 | 1 | SQUEEGEE FIXING KITFits Adfinity X24D. | $36.42/EA |
| 29 | AD9096883000Advance 9096883000 | 1 | WHEELS SQUEEGEE KITFits Adfinity X24D. | $112.65/EA |
| 30 | AD9097198000Advance 9097198000 | 1 | WELDMENT SQUEEGEE TOOL 840MM/33”Fits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 31 | AD9100000280Replaces Advance 9097499000 | 1 | BLADES RUBBER KIT 840MM/33”Fits Adfinity X24D. replaces Advance 9097499000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 32 | AD9100000280Replaces Advance L08603832 | 1 | BLADE PARA REAR 840MM/33”Fits Adfinity X24D. replaces Advance L08603832. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 34 | AD9097548000Advance 9097548000 | 1 | WASHER NYLON SQUEEGEE SUPPORT KIT SEE TSB IT 2007-031Fits Adfinity X24D. Not shown. | $20.48/EA |

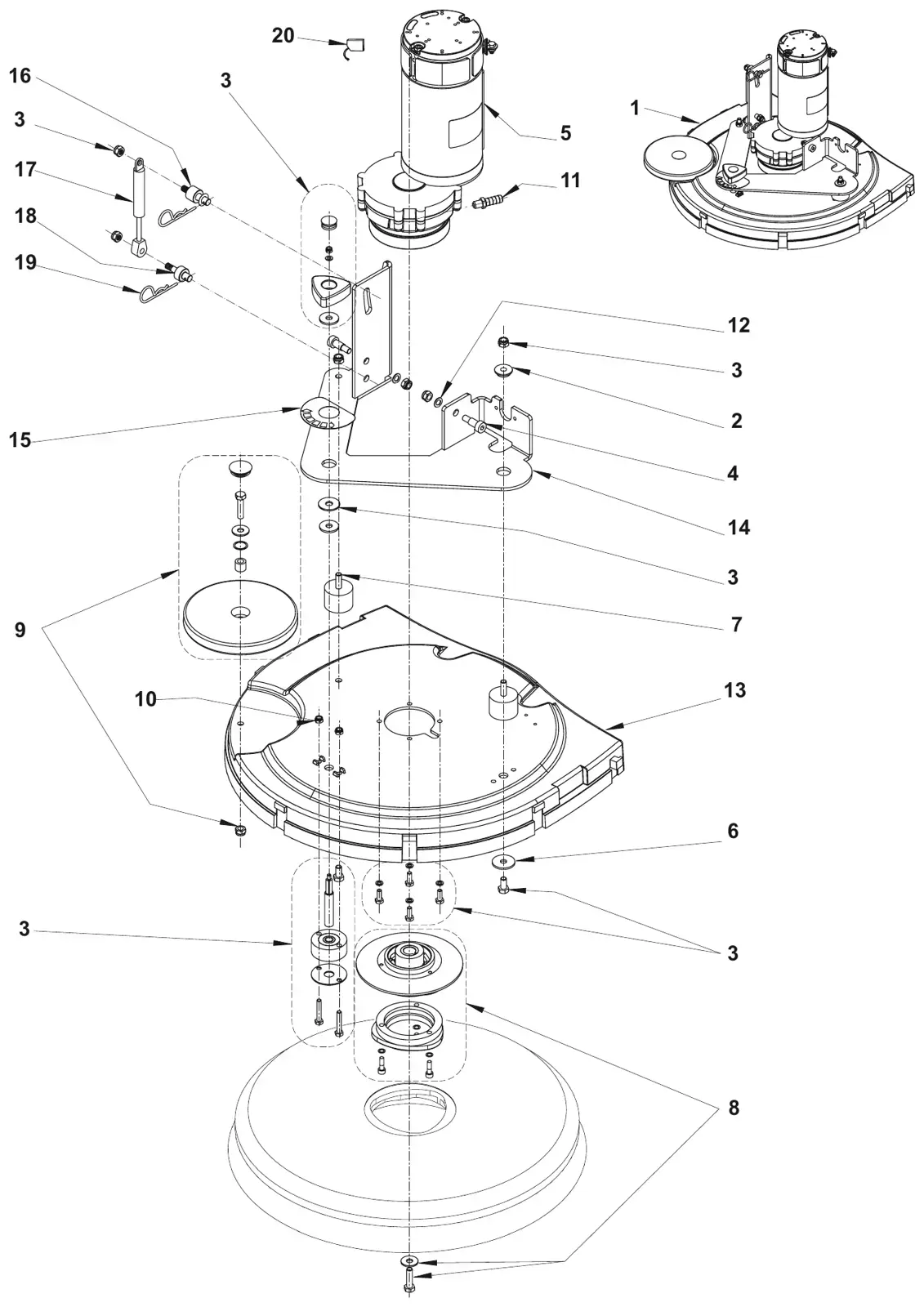

Advance Adfinity 20D / X20D / X20C / X24D brush system, 20D / X20D parts
The disc brush deck for the 20D and X20D: deck, brush motor, gas spring, plates, vibration damping and carbon brush kit. Manual pages 24, list 25.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096853000Advance 9096853000 | 1 | DECK BRUSH 530MM/20” KITFits Adfinity 20D, Adfinity X20D. | $3,344.05/EA |
| 2 | AD9096513000Advance 9096513000 | 1 | BUSHINGFits Adfinity 20D, Adfinity X20D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AD9099419000Replaces Advance 9096888000 | 1 | HARDWARE BRUSH DECK KITFits Adfinity 20D, Adfinity X20D. replaces Advance 909 6888 000. | $150.57/EA |
| 4 | AD9096495000Advance 9096495000 | 2 | SHOULDER BOLT M10X16Fits Adfinity 20D, Adfinity X20D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AD9096546000Advance 9096546000 | 1 | REDUCTION GEARMOTOR CPLFits Adfinity 20D, Adfinity X20D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AD1450494000Advance 1450494000 | 1 | WASHER FLAT 8X32 SSFits Adfinity 20D, Adfinity X20D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 7 | AD9097184000Advance 9097184000 | 1 | VIBRATION DAMPING M8Fits Adfinity 20D, Adfinity X20D. | $15.46/EA |
| 8 | AD9097093000Advance 9097093000 | 1 | HOLDER POLYG.W/FLAGE KITFits Adfinity 20D, Adfinity X20D. | $112.65/EA |
| 9 | AD9096887000Advance 9096887000 | 1 | ROLLER BUMPER KITFits Adfinity 20D, Adfinity X20D. | $15.02/EA |
| 10 | AD33023667Replaces Advance 33005604 | 2 | NUT HEX SELFLOCKING M6Fits Adfinity 20D, Adfinity X20D. replaces Advance 33005604. | $14.70/EA |
| 11 | ADL08601624Replaces Advance 56325648 | 1 | HOLDER RUBBER 1/4Fits Adfinity 20D, Adfinity X20D. replaces Advance 56325648. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 12 | AD33023224Replaces Advance 33005916 | 2 | WASHER FLAT 10Fits Adfinity 20D, Adfinity X20D. replaces Advance 33005916. | $16.09/EA |
| 13 | AD9096042000Advance 9096042000 | 1 | DECK BRUSH 530MM/20”Fits Adfinity 20D, Adfinity X20D. | $182.30/EA |
| 14 | AD9096485000Advance 9096485000 | 1 | PLATE, DECK BRUSH HOLDERFits Adfinity 20D, Adfinity X20D. | $204.13/EA |
| 15 | AD9098450000Advance 9098450000 | 1 | DECAS KITFits Adfinity 20D, Adfinity X20D. Modified or new item no. (#). | $305.51/EA |
| 16 | AD9096515000Advance 9096515000 | 1 | PINFits Adfinity 20D, Adfinity X20D. | $13.07/EA |
| 17 | AD9096514000Advance 9096514000 | 1 | SPRING GASFits Adfinity 20D, Adfinity X20D. | $74.61/EA |
| 18 | AD9096516000Advance 9096516000 | 1 | PINFits Adfinity 20D, Adfinity X20D. | $14.15/EA |
| 19 | AD1467692000Replaces Advance 1458564000 | 2 | PIN SPLIT 3X60Fits Adfinity 20D, Adfinity X20D. replaces Advance 145 8564 000. | $16.09/EA |
| 20 | AD9095380000Advance 9095380000 | 1 | CARBON BRUSH KITFits Adfinity 20D, Adfinity X20D. | $458.25/EA |
| 21 | AD9097599000Advance 9097599000 | 1 | PROTECTION MOTOR KIT SEE TSB IT 2008-004Fits Adfinity 20D, Adfinity X20D. Not shown. Optional (*). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 22 | AD9097600000Advance 9097600000 | 1 | INSTRUCTIONS INSTALLATION PROT.MOT.KITFits Adfinity 20D, Adfinity X20D. Not shown. | Call to confirm part: 800-440-6723Call 800-440-6723 |

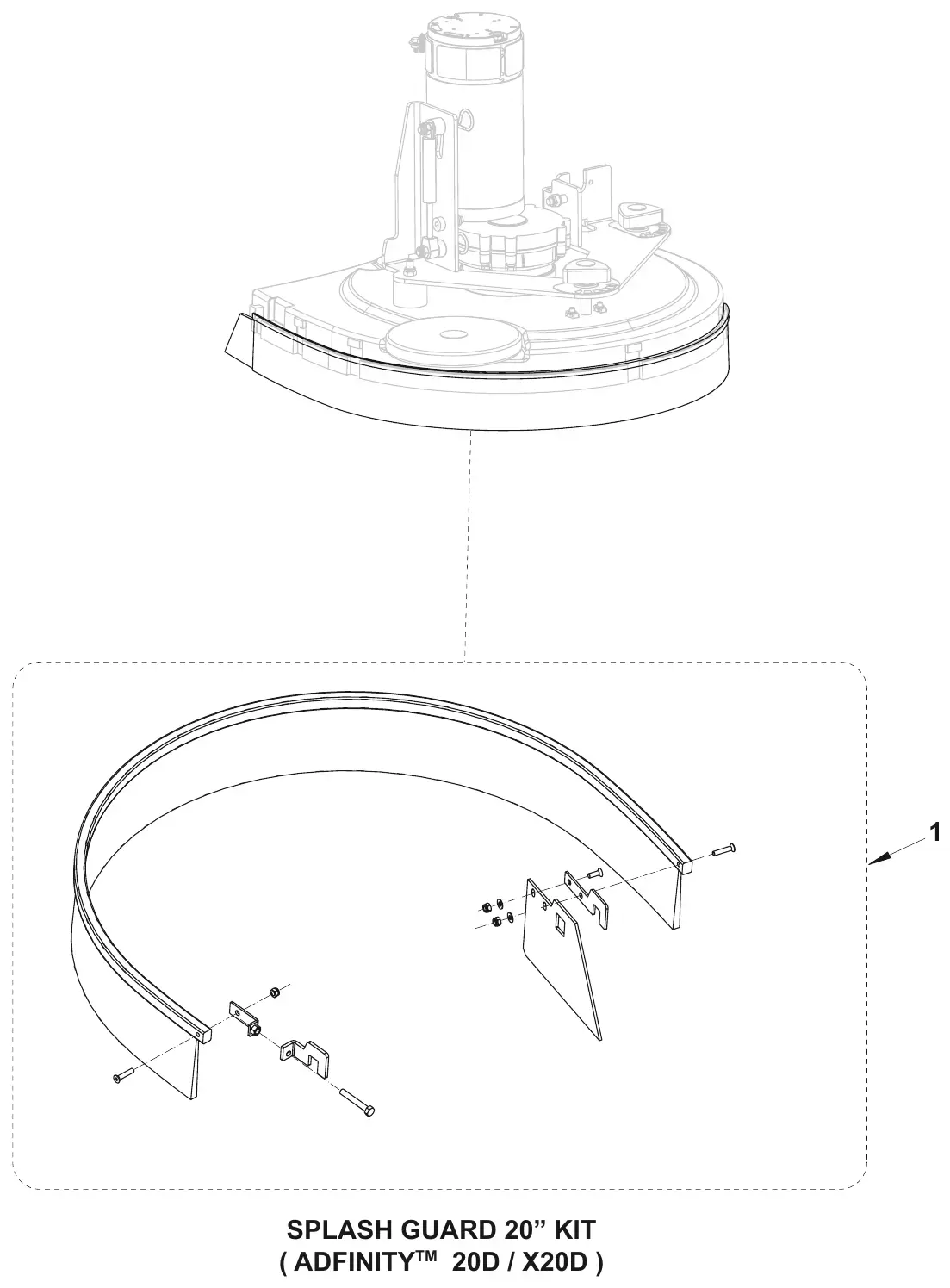

Advance Adfinity 20D / X20D / X20C / X24D splash guard, 20D / X20D parts
The 20 in splash guard kit for the 20D and X20D. Manual pages 26, list 27.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096736000Advance 9096736000 | 1 | SPLASH GUARD 20” KITFits Adfinity 20D, Adfinity X20D. | $239.04/EA |
| 2 | AD9096745000Advance 9096745000 | 1 | INSTALLATION INSTRUCTIONS FOR SPLASH GUARD KITFits Adfinity 20D, Adfinity X20D. Not shown. | Call to confirm part: 800-440-6723Call 800-440-6723 |

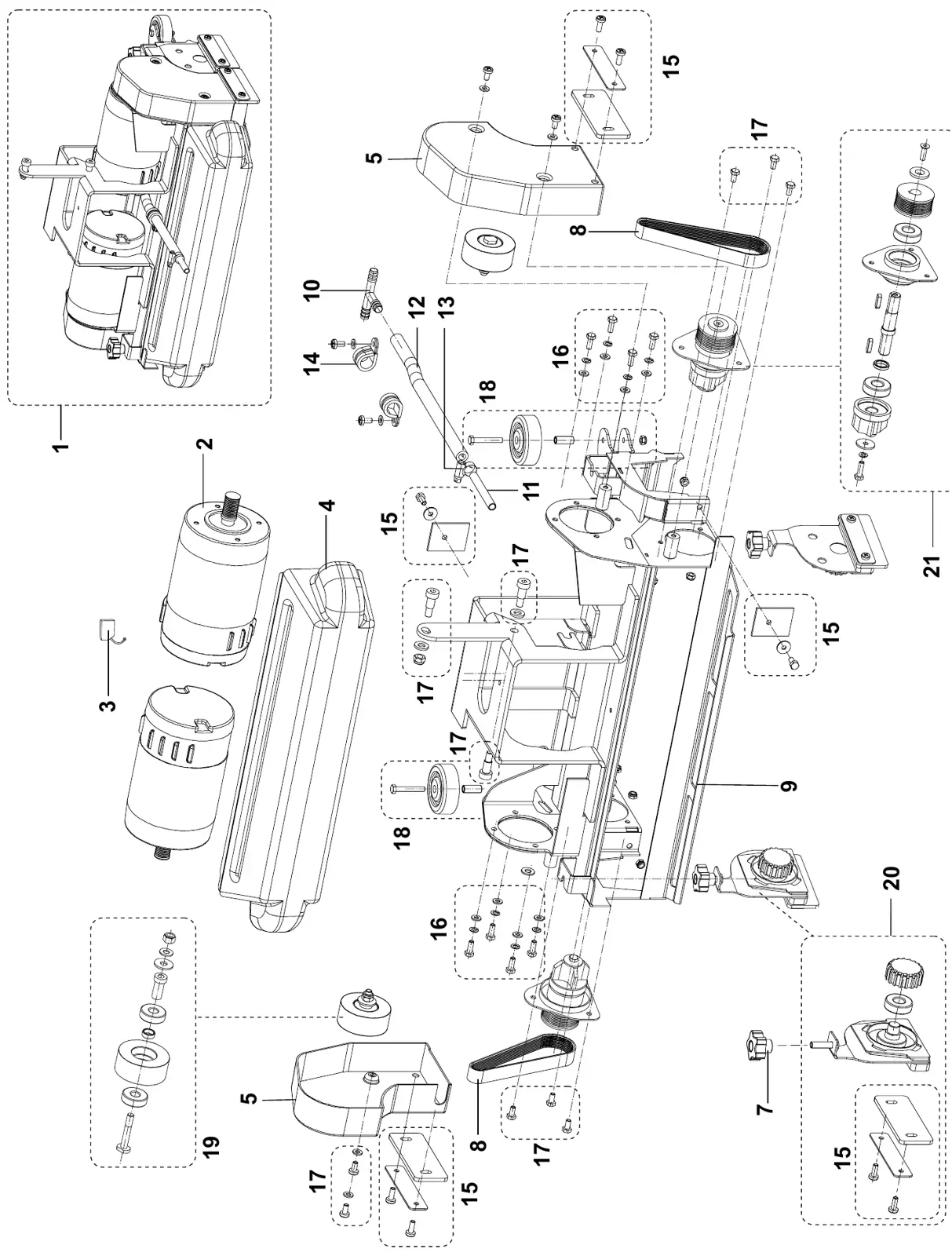

Advance Adfinity 20D / X20D / X20C / X24D brush system, X20C (cylindrical) parts
The cylindrical brush deck for the X20C: deck frame, gearmotors, belts, tensioners, supports, dirt container and splash guards. Manual pages 28, list 29.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096854000Advance 9096854000 | 1 | BRUSH DECK 510MM CYL. KITFits Adfinity X20C. | $6,978.06/EA |
| 2 | AD9096983000Advance 9096983000 | 2 | REDUCTIONGEARMOT. 300WFits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 3 | AD1464432000Replaces Advance 1458360000 | 8 | CARBON BRUSHESFits Adfinity X20C. replaces Advance 145 8360 000. | $189.43/EA |
| 4 | AD9095805000Advance 9095805000 | 1 | CONTAINER DIRTFits Adfinity X20C. | $189.43/EA |
| 5 | AD9095818000Advance 9095818000 | 1 | CRANKCASE BELT PROTECTION LEFTFits Adfinity X20C. | $85.85/EA |
| 6 | AD9095817000Advance 9095817000 | 1 | CRANKCASE BELT PROTECTION RIGHTFits Adfinity X20C. | $83.12/EA |
| 7 | AD1461851000Advance 1461851000 | 2 | KNOB M8Fits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AD9095820000Advance 9095820000 | 2 | BELT POLY-VFits Adfinity X20C. | $95.04/EA |
| 9 | AD9096518000Advance 9096518000 | 1 | FRAME, CYLINDRICAL DECKFits Adfinity X20C. | $1,599.51/EA |
| 10 | AD1454366000Advance 1454366000 | 1 | PIPE HOLDER T Ø12Fits Adfinity X20C. | $11.69/EA |
| 11 | AD9095772000Advance 9095772000 | 1 | HOSE COPPERFits Adfinity X20C. | $11.69/EA |
| 30 | AD9095870000Advance 9095870000 | 1 | HOSE D.10 L=190Fits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | AD1458582000Advance 1458582000 | 1 | CLAMPFits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 19 | AD9095516000Advance 9095516000 | 2 | CLAMP,HOSE D.18Fits Adfinity X20C. | $11.69/EA |
| 15 | AD9098489000Advance 9098489000 | 1 | SPLASH GUARDS KITFits Adfinity X20C. Modified or new item no. (#). | $206.06/EA |
| 16 | AD9098490000Advance 9098490000 | 1 | HARDWARE BELT TENSIONER KITFits Adfinity X20C. Modified or new item no. (#). | $57.03/EA |
| 17 | AD9098491000Advance 9098491000 | 1 | HARDWARE CYLINDRICAL DECK KITFits Adfinity X20C. Modified or new item no. (#). | $104.96/EA |
| 18 | AD9098488000Advance 9098488000 | 1 | ROLLER BUMPERS KITFits Adfinity X20C. Modified or new item no. (#). | $138.74/EA |
| 19 | AD9098485000Advance 9098485000 | 2 | BELT TENSIONER ROLLER KITFits Adfinity X20C. Modified or new item no. (#). | $261.96/EA |
| 20 | AD9098486000Advance 9098486000 | 2 | SUPPORT CYLINDRICAL BRUSH KITFits Adfinity X20C. Modified or new item no. (#). | $312.64/EA |
| 21 | AD9098487000Advance 9098487000 | 2 | SUPPORT PULLEY CYL.BRUSH KITFits Adfinity X20C. Modified or new item no. (#). | $334.36/EA |
| 22 | AD9096620000Advance 9096620000 | 1 | HARNESS CYL.BRUSH DECKFits Adfinity X20C. | $90.82/EA |

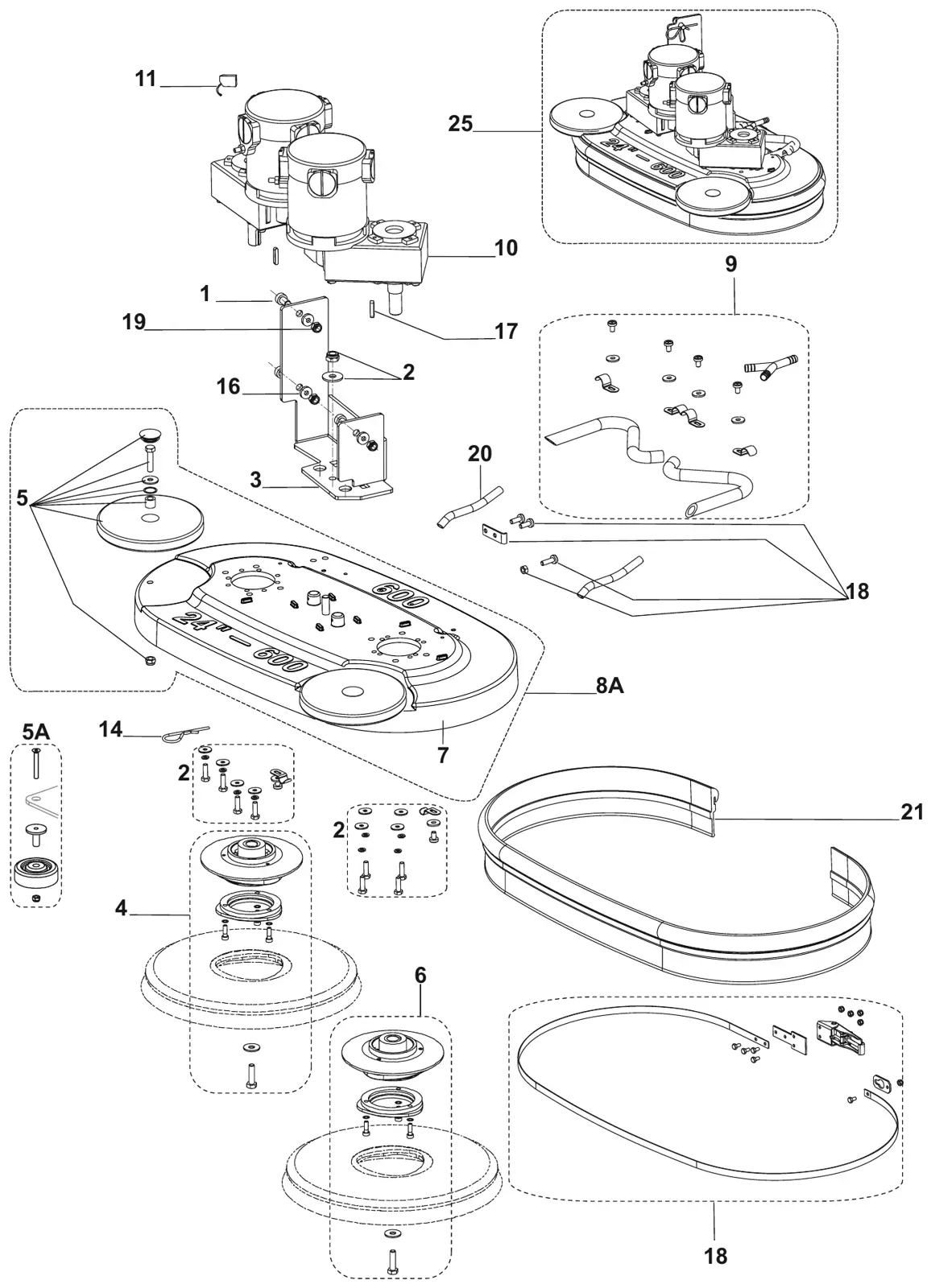

Advance Adfinity 20D / X20D / X20C / X24D brush system, X24D parts
The two-disc brush deck for the X24D: deck, two gearmotors, plates, holders, hoses and splash guard. Manual pages 30, list 31.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096495000Advance 9096495000 | 3 | SHOULDER BOLT M10X16Fits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | AD9098496000Advance 9098496000 | 1 | BRUSH SYSTEM HARDWARE KITFits Adfinity X24D. Modified or new item no. (#). | $167.59/EA |
| 3 | AD9096512000Advance 9096512000 | 1 | PLATE DECK BRUSH HOLDERFits Adfinity X24D. | $87.37/EA |
| 4 | ADL08812589Advance L08812589 | 1 | HOLDERPOLYG.W/FLAGE KITFits Adfinity X24D. | $112.65/EA |
| 5 | AD9096887000Advance 9096887000 | 2 | BUMPER ROLLER KITFits Adfinity X24D. | $15.02/EA |
| 5A | AD9095884000Advance 9095884000 | 1 | BUMPER ROLLER KITFits Adfinity X24D. For machine before S/N 080200512. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 6 | AD9097092000Advance 9097092000 | 1 | HOLDERPOLYG.W/FLAGE KITFits Adfinity X24D. | $116.51/EA |
| 7 | AD9095344000Advance 9095344000 | 1 | BRUSH DECK 600MM/24Fits Adfinity X24D. | $668.85/EA |
| 8A | AD9098525000Advance 9098525000 | 1 | BRUSH DECK UPDATING KITFits Adfinity X24D. Modified or new item no. (#). For machine before S/N 080200512. | $712.53/EA |
| 9 | AD9096891000Advance 9096891000 | 1 | HOSE WATER BRUSH DECK KITFits Adfinity X24D. | $225.98/EA |
| 10 | AD9100000678Replaces Advance 9096727000 | 2 | REDUCTION GEARMOTOR 350W 24VFits Adfinity X24D. replaces Advance 909 6727 000. | $1,424.90/EA |
| 11 | AD9096893000Advance 9096893000 | 2 | CARBON BRUSH KIT (4 PCS)Fits Adfinity X24D. | $225.98/EA |
| 14 | AD1467692000Replaces Advance 1458564000 | 1 | SPLIT PIN 3Fits Adfinity X24D. replaces Advance 145 8564 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 16 | AD33023224Replaces Advance 33005916 | 3 | WASHER M10 UNI6592Fits Adfinity X24D. replaces Advance 33005916. | $16.09/EA |
| 17 | AD1466146000Replaces Advance 1458024000 | 2 | TAB 5X5X25Fits Adfinity X24D. replaces Advance 145 8024 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | AD9095398000Advance 9095398000 | 1 | SPLASH GUARD FIXING KITFits Adfinity X24D. | $141.48/EA |
| 19 | AD33023574Replaces Advance 33005607 | 3 | NUT SELF LOCKING LOW M8 UNI7474Fits Adfinity X24D. replaces Advance 33005607. | $16.09/EA |
| 20 | AD9095228000Advance 9095228000 | 2 | COPPER HOSEFits Adfinity X24D. | $32.71/EA |
| 21 | AD9095224000Advance 9095224000 | 1 | SPLASH GUARDFits Adfinity X24D. | $76.09/EA |
| 25 | AD9096855000Advance 9096855000 | 1 | BRUSH DECK 600MM/24’’ KITFits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 23 | AD9096619000Advance 9096619000 | 1 | HARNESS BRUSH DECKFits Adfinity X24D. Not shown. | $21.85/EA |
| 24 | AD9098091000Advance 9098091000 | 1 | DECALS KITFits Adfinity X24D. Not shown. Modified or new item no. (#). | Call to confirm part: 800-440-6723Call 800-440-6723 |

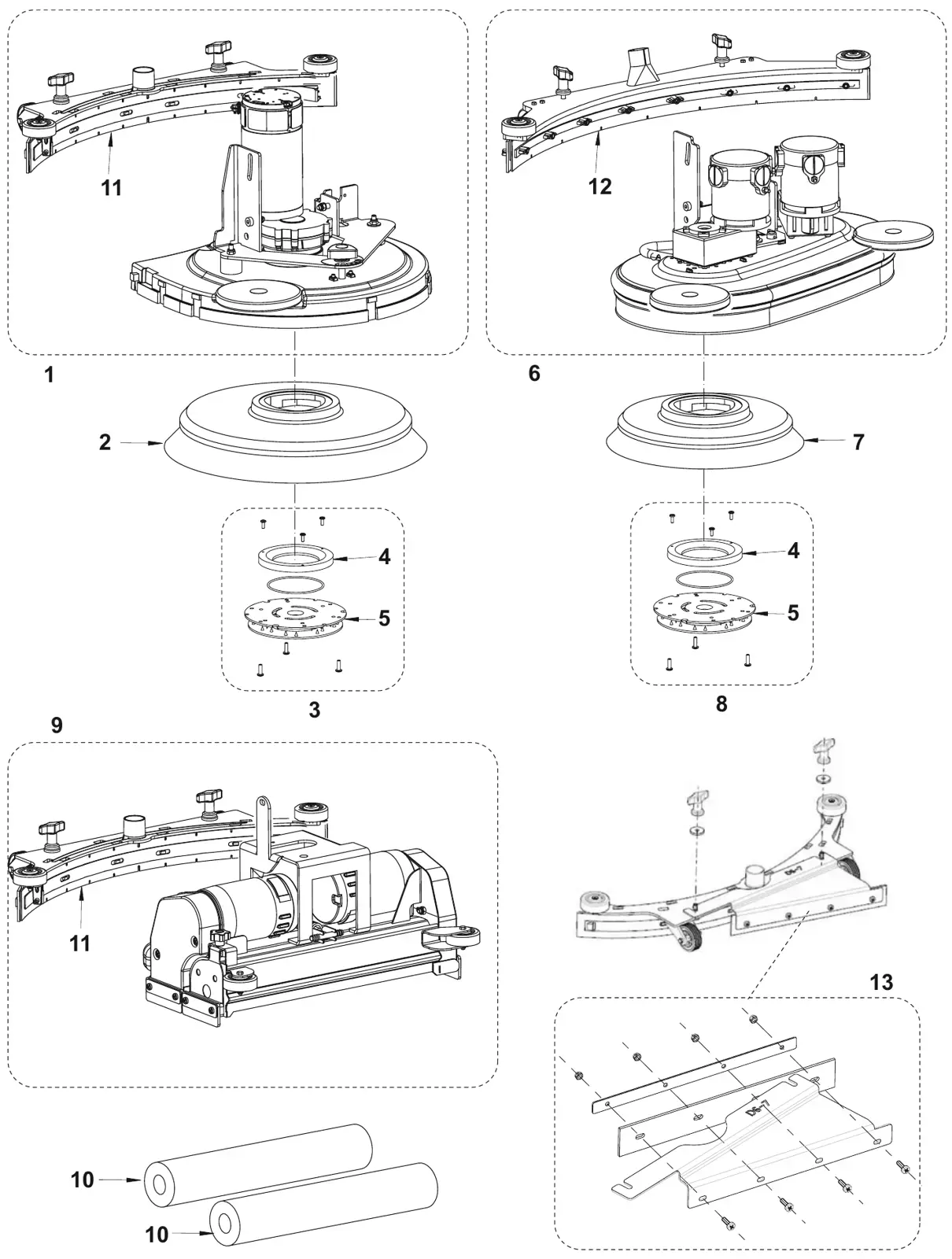

Advance Adfinity 20D / X20D / X20C / X24D accessories parts
Brush decks with squeegee, disc brushes, pad holders, cylindrical brushes, squeegee kits and the third blade kit, grouped by model. Manual pages 32, list 33.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9096848000Advance 9096848000 | 1 | BRUSH DECK 530MM/20” KIT WITH SQUEEGEE L08603878Fits Adfinity 20D, Adfinity X20D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 2 | ADL08837025Advance L08837025 | 1 | BRUSH PROLENEFits Adfinity 20D, Adfinity X20D. | $300.36/EA |
| 2 | ADL08837026Advance L08837026 | 1 | BRUSH PROLITEFits Adfinity 20D, Adfinity X20D. | $159.03/EA |
| 2 | ADL08837027Advance L08837027 | 1 | BRUSH UNION MIXFits Adfinity 20D, Adfinity X20D. | $281.37/EA |
| 2 | ADL08837028Advance L08837028 | 1 | BRUSH MIDLITE GRITFits Adfinity 20D, Adfinity X20D. | $636.07/EA |
| 2 | ADL08837029Advance L08837029 | 1 | BRUSH MID GRIT 240Fits Adfinity 20D, Adfinity X20D. | $399.92/EA |
| 2 | ADL08837065Advance L08837065 | 1 | BRUSH MAGNA GRIT 46Fits Adfinity 20D, Adfinity X20D. | $636.99/EA |
| 2 | ADL08837066Advance L08837066 | 1 | BRUSH DYNA GRIT 80Fits Adfinity 20D, Adfinity X20D. | $565.35/EA |
| 2 | ADL08837067Advance L08837067 | 1 | BRUSH AGLITE GRIT 500Fits Adfinity 20D, Adfinity X20D. | $477.04/EA |
| 3 | ADL08837018Advance L08837018 | 1 | PAD HOLDER KITFits Adfinity 20D, Adfinity X20D. | $245.40/EA |
| 4 | ADL08603966Advance L08603966 | 1 | RING NYLONFits Adfinity 20D, Adfinity X20D. | $23.35/EA |
| 5 | AD56505195Replaces Advance L08837030 | 1 | RETAINER PADFits Adfinity 20D, Adfinity X20D. replaces Advance L08837030. | $30.34/EA |
| 6 | AD9096850000Advance 9096850000 | BRUSH DECK 610MM KIT WITH SQUEEGEEFits Adfinity X24D. Quantity not printed. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 7 | ADL08603842Advance L08603842 | 2 | BRUSH PROLENEFits Adfinity X24D. | $84.49/EA |
| 7 | ADL08603873Advance L08603873 | 2 | BRUSH MIDGRIT 240Fits Adfinity X24D. | $218.25/EA |
| 7 | ADL08603872Advance L08603872 | 2 | BRUSH MIDLITE GRIT 180Fits Adfinity X24D. | $218.25/EA |
| 7 | ADL08603874Advance L08603874 | 2 | BRUSH PROLITEFits Adfinity X24D. | $85.85/EA |
| 7 | ADL08603875Advance L08603875 | 2 | BRUSH UNION MIXFits Adfinity X24D. | $118.28/EA |
| 7 | ADL08603939Advance L08603939 | 2 | PAD HOLDER KITFits Adfinity X24D. | $218.25/EA |
| 8 | ADL08603939Advance L08603939 | 2 | PAD HOLDER KITFits Adfinity X24D. | $218.25/EA |
| 9 | AD9096849000Advance 9096849000 | BRUSH DECK 510MM CYL KIT WITH SQUEEGEE L08603878Fits Adfinity X20C. Quantity not printed. | Call to confirm part: 800-440-6723Call 800-440-6723 | |
| 10 | AD9095823000Advance 9095823000 | 2 | BRUSH CYL PROLITEFits Adfinity X20C. | $153.35/EA |
| 10 | AD9095824000Advance 9095824000 | 2 | BRUSH CYL PROLITE PLUSFits Adfinity X20C. | $247.82/EA |
| 10 | AD9095825000Advance 9095825000 | 2 | BRUSH CYL MIDLITE GRIT 180Fits Adfinity X20C. | $288.34/EA |
| 11 | ADL08603878Advance L08603878 | 1 | SQUEEGEE CPL KIT 30”Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $1,053.50/EA |
| 11 | AD9096851000Advance 9096851000 | 1 | SQUEEGEE CPL ALU KIT 30Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $625.17/EA |
| 12 | AD9097539000Advance 9097539000 | SQUEEGEE CPL KIT 33”Fits Adfinity X24D. Quantity not printed. | $1,223.83/EA | |
| 13 | AD9098343000Advance 9098343000 | 1 | THIRD BLADE KITModified or new item no. (#). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 14 | AD9098337000Advance 9098337000 | 1 | INSTALLATION INSTRUCTIONS FOR THIRD BLADE KITNot shown. Modified or new item no. (#). | Call to confirm part: 800-440-6723Call 800-440-6723 |

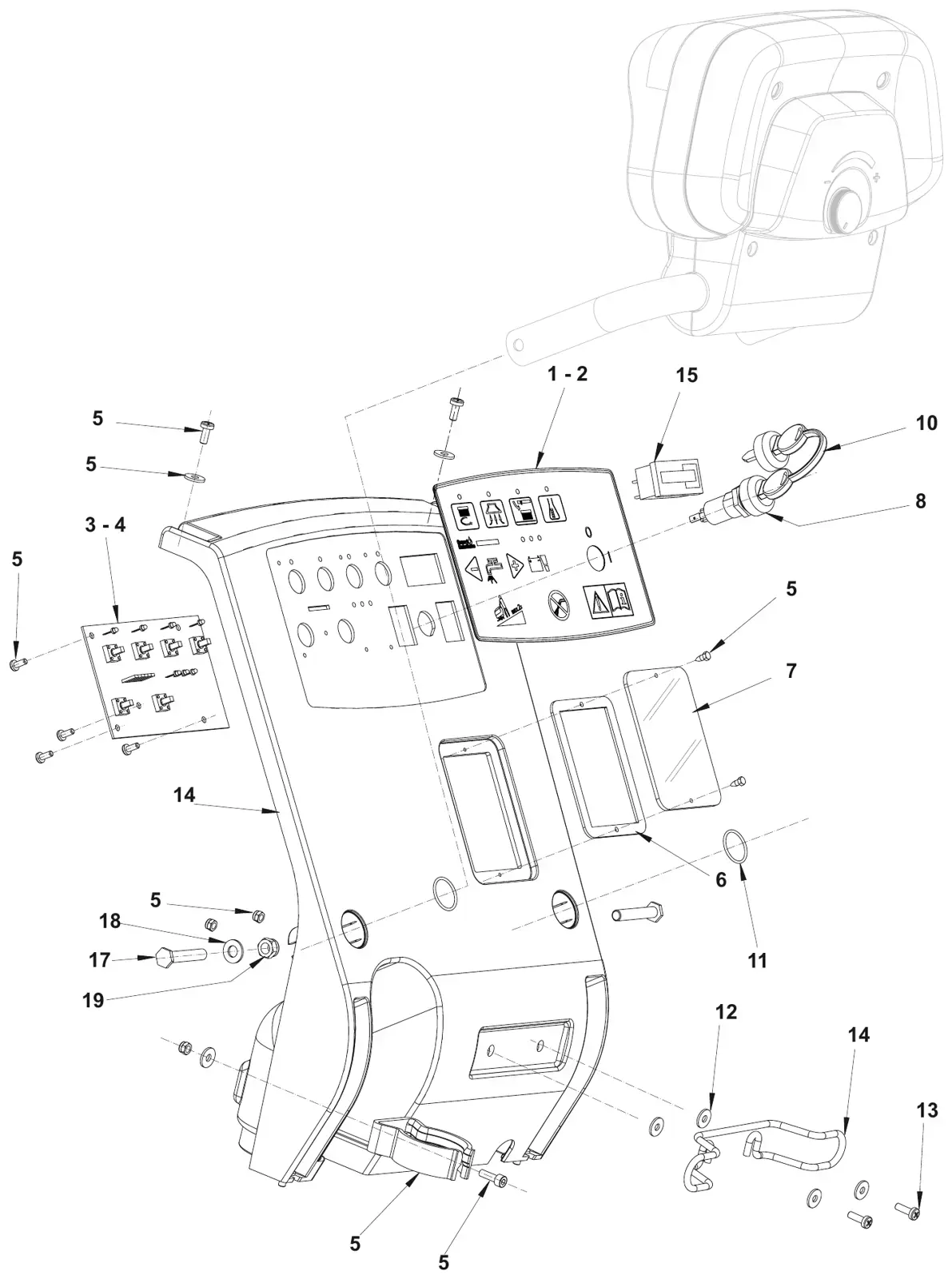

Advance Adfinity 20D / X20D / X20C / X24D control panel system parts
The control panel decals, electronic card, key switch, hour counter, fuses and hardware. Manual pages 34, list 35.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD9098638000Replaces Advance 9097001000 | 1 | DECAL CONTROL PANEL 20 DFits Adfinity 20D. replaces Advance 9097001000. | $37.49/EA |
| 2 | AD9097002000Advance 9097002000 | 1 | DECAL CONTROL PANEL X 20 D, X 20 C, X 24 DFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $44.52/EA |
| 3 | AD9096499000Advance 9096499000 | 1 | CARD ELECTRONIC CONTROL PANEL BEFORE S.NO.072014255Before S/N 072014255. | $451.27/EA |
| 4 | AD9100000175Replaces Advance 9097007000 | 1 | CARD ELECTRONIC CONTROL PANEL STARTING FROM 072014255From S/N 072014255; replaces Advance 9097007000. | $364.02/EA |
| 5 | AD9098302000Advance 9098302000 | 1 | HARDWARE CONTROL PANEL KITModified or new item no. (#). | $120.48/EA |
| 6 | AD9096545000Advance 9096545000 | 1 | GASKET | $20.48/EA |
| 7 | AD9100001064Replaces Advance 9095313000 | 1 | INSPECTION PLATEreplaces Advance 909 5313 000. | $18.96/EA |
| 8 | AD1462888000Advance 1462888000 | 1 | SWITCH KEY WITH CAP | $68.96/EA |
| 9 | AD9097649000Advance 9097649000 | 1 | COVER CONTROL PANEL KITNot shown. | $189.43/EA |
| 10 | AD1462887000Advance 1462887000 | 1 | KEY | $51.38/EA |
| 11 | AD9096675000Advance 9096675000 | 2 | O-RING 132 | $10.30/EA |
| 12 | AD1467686000Replaces Advance 1451261000 | 4 | WASHERreplaces Advance 145 1261 000. | $14.70/EA |
| 13 | AD1462090000Advance 1462090000 | 2 | SCREW CYL HD M5X16 | $11.69/EA |
| 14 | AD9095149000Advance 9095149000 | 1 | SUPPORT CABLE | $4.83/EA |
| 15 | AD9096951000Advance 9096951000 | 1 | COUNTER HOUR 24V KITOptional (*). | $174.60/EA |
| 16 | AD9096952000Advance 9096952000 | 1 | INSTALLATION INSTRUCTIONS FOR COUNTER HOUR KITNot shown. Optional (*). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 17 | AD9096827000Advance 9096827000 | 2 | SCREW HEX HEAD M8X45 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 18 | AD33023208Replaces Advance 33005915 | 2 | WASHER FLAT 8X17replaces Advance 33005915. | $45.74/EA |
| 19 | AD33023574Replaces Advance 33005607 | 2 | NUT HEX SELF LOCK M8replaces Advance 33005607. | $16.09/EA |
| 20 | AD1458368000Advance 1458368000 | 2 | FUSE 3A (PCB FUNCTIONS - PUMP)Not shown. | $10.87/EA |
| 21 | AD9096678000Advance 9096678000 | 1 | FUSE 20A (CLICK ON/OFF - BRUSH)Not shown. | $11.69/EA |

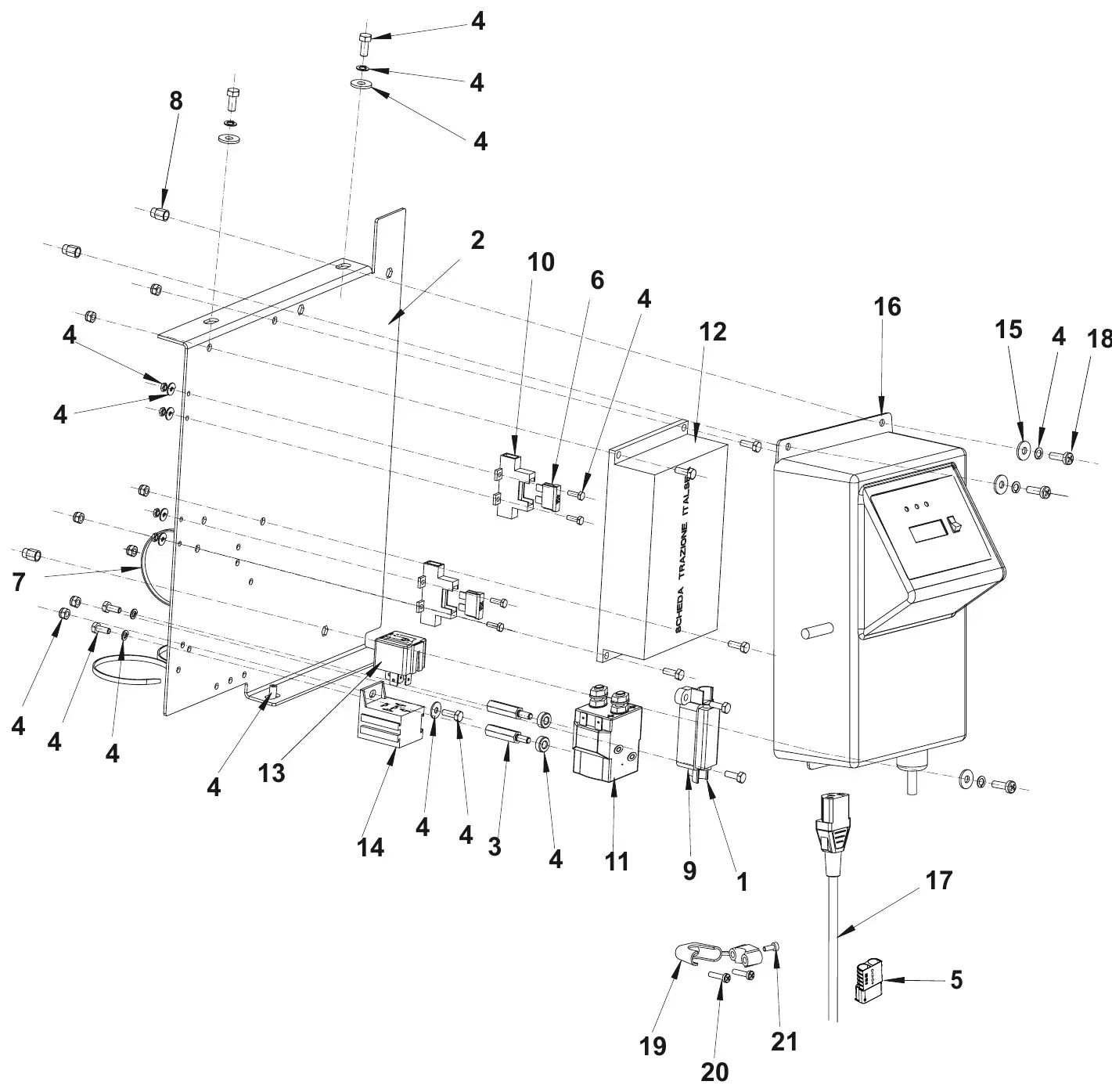

Advance Adfinity 20D / X20D / X20C / X24D electrical components parts
The fuse holder, battery charger, contactors, relay, traction card, connector and harnesses. Manual pages 36, list 37.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | AD1458046000Advance 1458046000 | 1 | HOLDER FUSE | $31.05/EA |
| 2 | AD9096498000Advance 9096498000 | 1 | SUPPORT | $51.38/EA |
| 3 | AD9096676000Advance 9096676000 | 2 | SPACER M4 L=25 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 4 | AD9098303000Advance 9098303000 | 1 | HARDWARE ELECTRIC SYSTEM KITModified or new item no. (#). | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 5 | AD1461986000Advance 1461986000 | 1 | CONNECTOR 120A | $84.49/EA |
| 6 | AD1458513000Advance 1458513000 | 2 | FUSE BLADE 30A ( VACUUM - DRIVE MOTOR) | $11.69/EA |
| 7 | AD1451449000Advance 1451449000 | 3 | CLAMP | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 8 | AD1456132000Advance 1456132000 | 3 | INSERT M5 | $12.50/EA |
| 9 | AD1453824000Advance 1453824000 | 1 | FUSE STRIP 40A (BRUSH MOTOR) | $11.69/EA |
| 10 | AD1460660000Advance 1460660000 | 2 | BLADE FUSE HOLDER | $13.67/EA |
| 11 | AD9097209000Advance 9097209000 | 1 | ELECTROMAGNETIC SWITCH 24V (BRUSH MOTOR CONTACTOR) | $112.65/EA |
| 12 | AD9096908000Advance 9096908000 | 1 | CARD ELECTRONIC TRACTION | $586.20/EA |
| 13 | AD9096622000Advance 9096622000 | 1 | RELAY 24V 40A (VACUUM MOTOR CONTACTOR) | $33.79/EA |
| 14 | AD9096964000Advance 9096964000 | 1 | HARNESS ELECTRIC BOX | $632.85/EA |
| 15 | AD33005912Advance 33005912 | 3 | WASHER M5 UNI6592 | $11.69/EA |
| 16 | AD9100003437Replaces Advance 9096541000 | 1 | BATTERY CHARGER 24V 13Areplaces Advance 909 6541 000. | $423.01/EA |
| 17 | AD9096914000Advance 9096914000 | 1 | CABLE EXTENTION US | $27.19/EA |
| 18 | AD1461711000Advance 1461711000 | 3 | SCREW M5X20 UNI7687 | $11.69/EA |
| 19 | ADL08338600Advance L08338600 | 1 | CABLE HOLDER | $11.69/EA |
| 20 | ADL08603668Advance L08603668 | 2 | SCREW THD FORM | Call to confirm part: 800-440-6723Call 800-440-6723 |
| 21 | AD1461788000Advance 1461788000 | 1 | SCREW M4X12 | $5.91/EA |
| 22 | AD9096962000Advance 9096962000 | 1 | MACHINE HARNESSNot shown. | $479.30/EA |
| 23 | AD9096613000Advance 9096613000 | 1 | HARNESS VACUUM CLEANERNot shown. | $115.53/EA |
| 24 | AD9097565000Advance 9097565000 | 1 | BATTERY HARNESSNot shown. | $274.12/EA |
| 25 | ADL08812093Advance L08812093 | 4 | COVER, BATTERY TERMINALNot shown. | $24.65/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: solution tank parts
Advance's recommended spare parts for the solution tank, from the recommended spares pages. Manual page 39.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096671000Advance 9096671000 | 1 | SPONGE INLET FRESH WATER | $11.69/EA |
| – | AD9096521000Advance 9096521000 | 1 | SOLUTION HOSE | $32.48/EA |
| – | ADL08812457Advance L08812457 | 1 | CAP | $10.87/EA |
| – | AD9096554000Advance 9096554000 | 1 | SOLUTION CAP WITH CHAIN AND GASKET | $24.72/EA |
| – | AD9098675000Replaces Advance 9096534000 | 1 | SQUEEGEE LIFT CABLEreplaces Advance 909 6534 000. | $93.70/EA |
| – | AD9096874000Advance 9096874000 | 1 | TANK CABLE KIT | $119.65/EA |
| – | AD9098265000Advance 9098265000 | 1 | SOLUTION TANK HARDWARE KITMarked # in the manual. | $261.96/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: vacuum and recovery system parts
Recommended spares for the vacuum and recovery system: float, hoses, clamps, vacuum motor, gaskets and hardware kits. Manual page 39.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096230000Advance 9096230000 | 1 | SQUEEGEE HOSE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100001892Replaces Advance 9096528000 | 1 | DRAIN HOSEreplaces Advance 909 6528 000. | $109.08/EA |
| – | ADL08812259Advance L08812259 | 2 | CAGE FLOAT COMPLETEMarked # in the manual. | $23.25/EA |
| – | ADL08812373Advance L08812373 | 1 | BALL FLOATMarked # in the manual. | $11.69/EA |
| – | AD9100001348Replaces Advance 1450543000 | 2 | HOSE CLAMPreplaces Advance 145 0543 000. | $29.53/EA |
| – | AD1466138000Replaces Advance 9096899000 | 1 | CAPreplaces Advance 909 6899 000. | $51.38/EA |
| – | AD9099986000Replaces Advance 9096640000 | 1 | ANTI SPLASH SQUEEGEE HOSEreplaces Advance 909 6640 000. | $13.07/EA |
| – | AD9096877000Advance 9096877000 | 1 | VACUUM MOTOR HARDWARE KIT | $142.49/EA |
| – | AD9096876000Advance 9096876000 | 1 | RECOVERY TANK HARDWARE KIT | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9099401000Replaces Advance 9098062000 | 1 | VACUUM MOTOR 24V 330W COMPLETEreplaces Advance 9098062000. | $458.25/EA |
| – | AD9096491000Advance 9096491000 | 1 | PANEL ACOUSTIC INSULATION | $16.09/EA |
| – | AD9098055000Advance 9098055000 | 1 | GASKET VACUUM MOTOR | $40.81/EA |
| – | AD9097555000Replaces Advance 9098056000 | 1 | GASKET VACUUM MOTORreplaces Advance 9098056000. | $29.53/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: chassis system parts
Recommended spares for the chassis system. Manual page 39.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096880000Replaces Advance 9096879000 | 1 | WHEEL CASTOR SS KITreplaces Advance 909 6879 000. | $134.62/EA |
| – | AD9096878000Advance 9096878000 | 1 | CHASSIS SYSTEM HARDWARE KIT | $125.28/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: drive wheel system parts
Recommended spares for the drive wheel system: wheels, drive motor and carbon brushes. Manual page 39.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096863000Advance 9096863000 | 2 | WHEEL FRONT D.250 DRIVE | $393.23/EA |
| – | AD9096548000Advance 9096548000 | 1 | MOTOR DRIVE 24V 200W | $2,180.95/EA |
| – | AD1455124000Advance 1455124000 | 2 | CARBON BRUSHES FOR DRIVE MOTOR | $40.81/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: handle bar parts
Recommended spares for the handle bar: hardware kit, microswitches and speed potentiometer harness. Manual page 39.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9098300000Advance 9098300000 | 1 | HANDLE ASSEMBLY HARDWARE KITMarked # in the manual. | $174.60/EA |
| – | ADL08812282Advance L08812282 | 1 | CAM HANDLE MICROSWITCHMarked # in the manual. | $14.70/EA |
| – | AD9096544000Advance 9096544000 | 1 | SPEED POTENTIOMETER HARNESS | $87.37/EA |
| – | AD9096923000Advance 9096923000 | 1 | CAM HANDLE MICROSWITCHMarked # in the manual. | $25.96/EA |
| – | AD9100000792Replaces Advance 9096677000 | 2 | MICROSWITCHreplaces Advance 909 6677 000. | $11.69/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: solution system parts
Recommended spares for the solution system: valve elbows, filter kit, solenoid valve and barbs. Manual page 39.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096994000Advance 9096994000 | 1 | VALVE ELBOW | $31.05/EA |
| – | AD9097166000Advance 9097166000 | 1 | KIT, FILTER | $43.68/EA |
| – | AD9096996000Advance 9096996000 | 1 | VALVE ELBOW WITH PIPES KIT | $40.81/EA |
| – | AD9096555000Advance 9096555000 | 1 | ELECTROVALVE | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9096636000Advance 9096636000 | 1 | BARB L=105 | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9098777000Replaces Advance 9096637000 | 1 | BARB L=115replaces Advance 909 6637 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: AXP chemical system parts
Recommended spares for the AXP chemical system on the X20D, X20C and X24D. The list runs over pages 39 and 40. Manual page 39-40.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096744000Advance 9096744000 | 1 | AXP - ECO DOSAGE SOLUTION KITFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $2,035.22/EA |
| – | AD9096807000Advance 9096807000 | 1 | HOSE KITFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $87.37/EA |
| – | AD9098777000Replaces Advance 9096637000 | 1 | BARBFits Adfinity X20D, Adfinity X20C, Adfinity X24D. replaces Advance 909 6637 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD56315108Advance 56315108 | 1 | FLOWJET WATER PUMPFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $308.24/EA |
| – | AD56315502Replaces Advance 56315500 | 1 | CHEMICAL TANKFits Adfinity X20D, Adfinity X20C, Adfinity X24D. replaces Advance 56315500. | $90.82/EA |
| – | AD56315517Advance 56315517 | 1 | REFILLING CAPFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $28.71/EA |
| – | AD56315522Advance 56315522 | 1 | CHECK VALVEFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $11.69/EA |
| – | AD56315523Advance 56315523 | 1 | CAPFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $32.42/EA |
| – | AD56315527Advance 56315527 | 1 | FLOATING SENSORFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | ADL08603893Advance L08603893 | 1 | KIT NET FILTER WITH GASKETFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $22.37/EA |
| – | AD9097166000Advance 9097166000 | 1 | KIT FILTERFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $43.68/EA |
| – | AD9096183000Advance 9096183000 | 1 | CHEMICAL PUMPFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $500.91/EA |
| – | AD9096536000Advance 9096536000 | 1 | TEE FITTINGFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $11.57/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: squeegee system parts
Recommended spares for the squeegee system, with a separate line for the X24D where Advance prints one. Manual page 40.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096055000Advance 9096055000 | 1 | FRONT STRAPFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $48.04/EA |
| – | AD9097634000Advance 9097634000 | 1 | FRONT STRAPFits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9096044000Advance 9096044000 | 1 | WELDMENT SQUEEGEE TOOLFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $231.50/EA |
| – | AD9097198000Advance 9097198000 | 1 | WELDMENT SQUEEGEE TOOLFits Adfinity X24D. | $508.94/EA |
| – | AD9098257000Replaces Advance L08603675 | 2 | NUT THUMB SQUEEGEE FIXINGFits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance L08603675. | $12.08/EA |
| – | AD9096551000Advance 9096551000 | 1 | KNOB 8X30 SSFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $12.15/EA |
| – | AD9100000279Replaces Advance 9096484000 | 1 | BLADE NEOPRENE REARFits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance 909 6484 000. | $48.07/EA |
| – | AD9100000280Replaces Advance L08603832 | 1 | BLADE PARA REARFits Adfinity X24D. replaces Advance L08603832. | $34.92/EA |
| – | AD9100000279Replaces Advance 9096483000 | 1 | BLADE NEOPRENE FRONTFits Adfinity 20D, Adfinity X20D, Adfinity X20C. replaces Advance 909 6483 000. | $48.07/EA |
| – | AD9100000280Replaces Advance 9097499000 | 1 | BLADES RUBBER KIT 32”Fits Adfinity X24D. replaces Advance 9097499000. | $34.92/EA |
| – | AD9096851000Advance 9096851000 | 1 | SQUEEGEE CPL ALU KIT 30”Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $625.17/EA |
| – | AD9097539000Advance 9097539000 | 1 | SQUEEGEE CPL KIT 32”Fits Adfinity X24D. | $1,223.83/EA |
| – | AD9096882000Advance 9096882000 | 1 | FIXING SQUEEGEE KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $160.57/EA |
| – | AD9096894000Advance 9096894000 | 1 | FIXING SQUEEGEE KITFits Adfinity X24D. | $254.81/EA |
| – | AD9096883000Advance 9096883000 | 1 | SQUEEGEE WHEEL KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $112.65/EA |
| – | AD9100000573Replaces Advance L08603879 | 1 | SQUEEGEE WHEEL KITFits Adfinity X24D. replaces Advance L08603879. | $142.86/EA |
| – | AD9096883000Advance 9096883000 | 1 | WHEELS SQUEEGEE KITFits Adfinity X24D. | $112.65/EA |
| – | AD9096884000Advance 9096884000 | 1 | SQUEEGEE BUMPER ROLLER KITFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $96.42/EA |
| – | ADL08603880Advance L08603880 | 1 | SQUEEGEE BUMPER ROLLER KITFits Adfinity X24D. | $13.07/EA |
| – | AD9096887000Advance 9096887000 | 1 | ROLLER BUMPER KITFits Adfinity X24D. | $15.02/EA |
| – | AD9096394000Advance 9096394000 | 1 | KIT LATCH FOR SQUEEGEE | $83.12/EA |
| – | AD9096885000Advance 9096885000 | 1 | SQUEEGEE SUPPORT HARDWARE KIT | $211.28/EA |
| – | AD9096886000Advance 9096886000 | 1 | SQUEEGEE SUPPORT HARDWARE KITFits Adfinity X24D. | $371.04/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: disc scrub deck parts
Recommended spares for the disc scrub deck on the 20D and X20D. Manual page 40.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096042000Advance 9096042000 | 1 | BRUSH DECK 530MM/20”Fits Adfinity 20D, Adfinity X20D. | $182.30/EA |
| – | AD9096546000Advance 9096546000 | 1 | BRUSH MOTOR 480W 24V 135 RPMFits Adfinity 20D, Adfinity X20D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9095380000Advance 9095380000 | 1 | KIT CARBON BRUSHFits Adfinity 20D, Adfinity X20D. | $458.25/EA |
| – | ADL08601624Replaces Advance 56325648 | 1 | FITTING 1/4Fits Adfinity 20D, Adfinity X20D. replaces Advance 56325648. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9097184000Advance 9097184000 | 1 | SHOCK ABSORBERFits Adfinity 20D, Adfinity X20D. | $15.46/EA |
| – | AD1467692000Replaces Advance 1458564000 | 2 | SPLIT PINFits Adfinity 20D, Adfinity X20D. replaces Advance 145 8564 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9096514000Advance 9096514000 | 1 | GAS SPRINGFits Adfinity 20D, Adfinity X20D. | $74.61/EA |
| – | AD9097093000Advance 9097093000 | 1 | HOLDERPOLIG. W/FLAGE KITFits Adfinity 20D, Adfinity X20D. | $112.65/EA |
| – | AD9096887000Advance 9096887000 | 1 | BUMPER ROLLER KITFits Adfinity 20D, Adfinity X20D. | $15.02/EA |
| – | AD9099419000Replaces Advance 9096888000 | 1 | BRUSH SYSTEM HARDWARE KITFits Adfinity 20D, Adfinity X20D. replaces Advance 909 6888 000. | $150.57/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: cylindrical brush deck parts
Recommended spares for the X20C cylindrical brush deck. Manual page 40.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD1454366000Advance 1454366000 | 1 | TEE FITTINGFits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9095772000Advance 9095772000 | 1 | WATER HOSEFits Adfinity X20C. | $11.69/EA |
| – | AD9098489000Replaces Advance 9096890000 | 1 | SPLASH GUARD KITFits Adfinity X20C. replaces Advance 909 6890 000. | $206.06/EA |
| – | AD9095805000Advance 9095805000 | 1 | HOPPER CYLYNDRICAL DECKFits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9096983000Advance 9096983000 | 2 | REDUCTIONGEAR MOTOR 300WFits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD1464432000Replaces Advance 1458360000 | 8 | CARBON BRUSHES (4 PCS EACH MOTOR)Fits Adfinity X20C. replaces Advance 145 8360 000. | $189.43/EA |
| – | AD9095820000Advance 9095820000 | 2 | BELT POLY-VFits Adfinity X20C. | $95.04/EA |
| – | AD9095870000Advance 9095870000 | 1 | HOSEFits Adfinity X20C. | $48.62/EA |
| – | AD9098488000Replaces Advance 9096889000 | 1 | BUMPER ROLLER KITFits Adfinity X20C. replaces Advance 909 6889 000. | $138.74/EA |
| – | AD9098485000Replaces Advance 9096360000 | 1 | BELT TENSIONER KITFits Adfinity X20C. replaces Advance 909 6360 000. | $261.96/EA |
| – | AD9098486000Replaces Advance 9097172000 | 1 | SUPPORT CYL. BRUSH KITFits Adfinity X20C. replaces Advance 9097172000. | $312.64/EA |
| – | AD9098487000Replaces Advance 9097173000 | 1 | SUPPORT PULLEY KITFits Adfinity X20C. replaces Advance 9097173000. | $334.36/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: double disk brush deck parts
Recommended spares for the X24D double disk brush deck. Manual page 41.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD1467692000Replaces Advance 1458564000 | 1 | SPLIT PINFits Adfinity X24D. replaces Advance 145 8564 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000678Replaces Advance 9096727000 | 2 | BRUSH MOTOR 24V 350W 230RPM IP20Fits Adfinity X24D. replaces Advance 909 6727 000. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | ADL08812589Advance L08812589 | 1 | HOLDER POLYG.W/FLANGE RIGHT KITFits Adfinity X24D. | $112.65/EA |
| – | AD9097092000Advance 9097092000 | 1 | HOLDER POLYG.W/FLANGE LEFT KITFits Adfinity X24D. | $116.51/EA |
| – | AD9095398000Advance 9095398000 | 1 | SPLASH GUARD FIT. KITFits Adfinity X24D. | $141.48/EA |
| – | AD9096891000Advance 9096891000 | 1 | HOSES KITFits Adfinity X24D. | $225.98/EA |
| – | AD9096887000Advance 9096887000 | 1 | BUMPER ROLLER KITFits Adfinity X24D. Marked # in the manual. | $15.02/EA |
| – | AD9096893000Advance 9096893000 | 2 | KIT CARBON BRUSHFits Adfinity X24D. | $225.98/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: control panel parts
Recommended spares for the control panel: decals, key switch, PCB and fuses. Manual page 41.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9098638000Replaces Advance 9097001000 | 1 | DECAL CONTROL PANELFits Adfinity 20D. replaces Advance 9097001000. | $37.49/EA |
| – | AD9097002000Advance 9097002000 | 1 | DECAL CONTROL PANELFits Adfinity X20D, Adfinity X20C, Adfinity X24D. | $44.52/EA |
| – | ADL08812967Advance L08812967 | 1 | CLAMP, HOSE D.50 | $11.69/EA |
| – | AD1462888000Advance 1462888000 | 1 | ON/OFF KEY SWITCH WATERPROOF | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9100000175Replaces Advance 9097007000 | 1 | PCB FUNCTIONS 24Vreplaces Advance 9097007000. | $364.02/EA |
| – | AD1458368000Advance 1458368000 | 1 | FUSE 3A | $10.87/EA |
| – | AD9096678000Advance 9096678000 | 1 | FUSE 20A | $11.69/EA |
Advance Adfinity 20D / X20D / X20C / X24D recommended spares: electrical system parts
Recommended spares for the electrical system: card, connector, contactor, relay, fuses and battery charger. Manual page 41.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9096908000Advance 9096908000 | 1 | CARD ELECTRONIC | $586.20/EA |
| – | AD1461986000Advance 1461986000 | 1 | CONNECTOR BATTERY | $84.49/EA |
| – | AD9097209000Advance 9097209000 | 1 | ELECTROMAGNETIC SWITCH | $112.65/EA |
| – | AD9096622000Advance 9096622000 | 1 | RELAY 24V 40A | $33.79/EA |
| – | AD1453824000Advance 1453824000 | 1 | FUSE STRIP 40A | $11.69/EA |
| – | AD1458513000Advance 1458513000 | 2 | FUSE BLADE 30A | $11.69/EA |
| – | AD9100003437Replaces Advance 9096541000 | 1 | BATTERY CHARGER 24V 13A 100-240V 50/60HZreplaces Advance 909 6541 000. | $423.01/EA |
Advance Adfinity 20D / X20D / X20C / X24D optionals: accessories parts
Optional accessories from page 42: remote filling hose, hour counter, wheels, brush decks with squeegee, brushes, pad holders and squeegee blade kits. Manual page 42.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | AD9100000703Replaces Advance 9095327000 | 1 | REMOTE FILLIN HOSEreplaces Advance 909 5327 000. | $50.01/EA |
| – | AD9096916000Advance 9096916000 | 1 | FILTER | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9096951000Advance 9096951000 | 1 | HOUR COUNTER | $174.60/EA |
| – | AD9096734000Advance 9096734000 | 1 | ELASTIC BAND KIT | $21.85/EA |
| – | AD9098947000Replaces Advance 9096900000 | 1 | WHEEL CASTOR SSreplaces Advance 909 6900 000. | $218.25/EA |
| – | AD9097026000Advance 9097026000 | 2 | WHEEL FRONT D.250 DRIVE 65SH | $459.99/EA |
| – | AD9096848000Advance 9096848000 | 1 | BRUSH DECK 530MM/20” WITH SQUEEGEEFits Adfinity 20D, Adfinity X20D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | ADL08837025Replaces Advance 56325504 | 1 | BRUSHES - PROLENEFits Adfinity 20D, Adfinity X20D. replaces Advance 56325504. | $300.36/EA |
| – | ADL08837026Advance L08837026 | 1 | BRUSHES - PROLITEFits Adfinity 20D, Adfinity X20D. | $159.03/EA |
| – | ADL08837027Advance L08837027 | 1 | BRUSHES - UNION MIXFits Adfinity 20D, Adfinity X20D. | $281.37/EA |
| – | ADL08837028Advance L08837028 | 1 | BRUSHES - MIDLITE GRITFits Adfinity 20D, Adfinity X20D. | $636.07/EA |
| – | ADL08837029Advance L08837029 | 1 | BRUSHES - MID GRIT 240Fits Adfinity 20D, Adfinity X20D. | $399.92/EA |
| – | ADL08837065Advance L08837065 | 1 | BRUSHES - MAGNA GRIT 46Fits Adfinity 20D, Adfinity X20D. | $636.99/EA |
| – | ADL08837066Advance L08837066 | 1 | BRUSHES - DYNA GRIT 80Fits Adfinity 20D, Adfinity X20D. | $565.35/EA |
| – | ADL08837067Advance L08837067 | 1 | BRUSHES - AGLITE GRIT 500Fits Adfinity 20D, Adfinity X20D. | $477.04/EA |
| – | ADL08837018Replaces Advance 56325502 | 1 | PAD HOLDER KITFits Adfinity 20D, Adfinity X20D. replaces Advance 56325502. | $245.40/EA |
| – | AD9096849000Advance 9096849000 | 1 | BRUSH DECK 510MM CYL KIT WITH SQUEEGEEFits Adfinity X20C. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9095823000Advance 9095823000 | 2 | BRUSH CYL PROLITEFits Adfinity X20C. | $153.35/EA |
| – | AD9095824000Advance 9095824000 | 2 | BRUSH CYL PROLITE PLUSFits Adfinity X20C. | $247.82/EA |
| – | AD9095825000Advance 9095825000 | 2 | BRUSH CYL MIDLITE GRIT 180Fits Adfinity X20C. | $288.34/EA |
| – | AD9096850000Advance 9096850000 | 1 | BRUSH DECK 610MM KIT WITH SQUEEGEEFits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | ADL08603842Advance L08603842 | 2 | BRUSHES - PROLENEFits Adfinity X24D. | $84.49/EA |
| – | ADL08603873Advance L08603873 | 2 | BRUSHES - MIDGRIT 240Fits Adfinity X24D. | $218.25/EA |
| – | ADL08603872Advance L08603872 | 2 | BRUSHES - MIDLITE GRIT 180Fits Adfinity X24D. | $218.25/EA |
| – | ADL08603874Advance L08603874 | 2 | BRUSHES - PROLITEFits Adfinity X24D. | $85.85/EA |
| – | ADL08603875Advance L08603875 | 2 | BRUSHES - UNION MIXFits Adfinity X24D. | $118.28/EA |
| – | ADL08603939Advance L08603939 | 2 | PAD HOLDER KITFits Adfinity X24D. | $218.25/EA |
| – | ADL08603878Advance L08603878 | 1 | SQUEEGEE CPL KIT 30”Fits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $1,053.50/EA |
| – | AD9096860000Advance 9096860000 | 1 | KIT SQUEEGEE BLADES NEOPRENEFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $24.41/EA |
| – | AD9096858000Advance 9096858000 | 1 | KIT SQUEEGEE BLADES POLYURETANFits Adfinity 20D, Adfinity X20D, Adfinity X20C. | $73.28/EA |
| – | AD9095006000Advance 9095006000 | 1 | WEAR PACK: STD SQU.BLADES, FILTER, PREF.Fits Adfinity X24D. | Call to confirm part: 800-440-6723Call 800-440-6723 |
| – | AD9096859000Advance 9096859000 | 1 | KIT SQUEEGEE BLADES POLYURETANFits Adfinity X24D. | $269.64/EA |
| – | AD9095629000Advance 9095629000 | 1 | NON MARKING FRONT SQUEEGEE BLADEFits Adfinity X24D. | $54.26/EA |
| – | AD9096744000Advance 9096744000 | 1 | AXP - ECO DOSAGE SOLUTION KITFits Adfinity 20D. | $2,035.22/EA |
New to your Advance Adfinity 20D / X20D / X20C / X24D? Start here
Set up, run and look after your Adfinity. Everything here comes from Advance's Instructions for Use, rewritten in plain steps, with the parts you need linked to the lists above.
1Charge the batteries
- Turn the ignition key to I and read the battery lights. Green means the batteries are ready to use. Yellow or red means charge them first.
- Drive the machine to the charging area. Open the cover and check that the recovery tank is empty, then turn the key to 0 and lift the tank by its handle.
- On WET batteries, check the electrolyte level, top up through the caps if needed and leave all the caps open. Charge in a well-ventilated area, away from bare flames. Do not smoke.
- Connect the battery charger (AD9100003437) cable to the mains. The red light on the charger stays on while it charges.
- When the green light on the charger comes on, charging is done. Unplug the cable, wind it round its holder and lower the tank.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 10, 13, 21 and 22. SES ref PF-BBCE-PXA4
2Fill the tanks
- Open the filler neck.
- 20D: fill the tank with a solution for the job. Use only low-foam, non-flammable detergents made for automatic scrubbers, and follow the dilution instructions on the product label.
- X20D, X20C and X24D: fill the tank with clean water.
- Leave a few inches at the top of the tank. The water or solution must not be hotter than +104°F (+40°C).
- X20D, X20C and X24D only: open the cover, check that the recovery tank is empty, lift the tank by its handle, open the plug and fill the detergent tank with a highly concentrated, low-foam, non-flammable detergent. Leave a few inches at the top.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), page 17. SES ref PF-BBCE-PXA4
3Fit the brushes or pads and the squeegee
- Turn the ignition key to 0. Place the brushes, or the pad-holders (ADL08837018 / ADL08603939) with pads, under the deck.
- Lower the deck onto them with the pedal. Turn the key to I and press the brush/pad-holder and vacuum switch.
- Press the paddle forward only slightly, then release it. Repeat until the brushes engage. Do not press the paddle fully or the machine will start.
- Fit the squeegee with its handwheels and connect the vacuum hose to it. Match it to the deck: aluminum, 29.9 in (760 mm) for the 20D, X20D and X20C; steel, 31.9 in (810 mm) for the X24D.
- Turn the balance handwheel until the rear blade touches the floor along its whole length and the front blade is slightly off the floor.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 15 and 17. SES ref PF-BBCE-PXA4
4Start, scrub and stop
- Turn the ignition key to I and check that the green warning light comes on.
- Drive to the work area with your hands on the handlebar. Push the paddle forward to go forward and backward to reverse. Set the top speed with the speed adjuster.
- Lower the squeegee with the lever and lower the deck with the pedal. Press the brush/pad-holder and vacuum switch, then set the washing water flow with the flow switches. Do not let the brushes run while the machine is stopped, or you can damage the floor.
- To stop, release the paddle, press the switches to turn off the brushes and the vacuum, lift the deck with the pedal and lift the squeegee with the lever. Make sure the machine cannot move on its own.
- When the vacuum motor noise suddenly rises in pitch, the recovery tank is full. Empty it with the drain hose and rinse it with clean water.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 4, 18 and 20. SES ref PF-BBCE-PXA4
Questions about your Adfinity? Call 800-440-6723 with your model and serial number.Troubleshooting →Maintenance schedule →
Advance Adfinity 20D / X20D / X20C / X24D troubleshooting
Problems, likely causes and fixes from Advance's troubleshooting page. Advance says the machine cannot operate without the battery charger, and to contact an authorized Service Center if the battery charger malfunctions.
| Likely cause | Fix | Part |
|---|---|---|
| The motors do not work and no warning light comes on | ||
| The battery connector is disconnected, or the batteries are completely discharged | Connect the battery connector (AD1461986000). Charge the batteries. | |
| The machine does not move | ||
| The machine was turned on with the ignition key while the paddle was pressed | Turn the ignition key to 0, then start the machine again without pressing the paddle. | |
| The brushes do not work and the red warning light is on | ||
| The batteries are discharged | Charge the batteries. | |
| Insufficient recovery water vacuuming | ||
| The recovery tank is full, or the hose is disconnected from the squeegee | Empty the tank. Connect the hose. | |
| The vacuum grid is clogged or the float is stuck closed | Clean the grid or check the float (ADL08812373). | |
| The squeegee is dirty or the squeegee blades are worn or damaged | Clean and check the squeegee. | |
| The tank cover is not correctly closed, the gasket is damaged, or the compensation hole is clogged | Close the cover correctly, or replace the gasket (AD1460741000) or clean the compensation hole. | |
| Insufficient solution flow to the brushes | ||
| The solution filter or the clean water filter is dirty | Clean the filter (AD9097166000). | |
| The recovery tank is dirty (the drain hole is clogged) | Clean the tank. | |
| Marks caused by the squeegee | ||
| There is debris under the squeegee blades | Remove the debris. | |
| The squeegee blades are worn, chipped or torn | Replace the blades: front blade (AD9100000279 / AD9100000280), rear blade (AD9100000279 / AD9100000280). | |
| The squeegee has not been balanced with the handwheel | Balance the squeegee with the handwheel. | |
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), page 30. SES ref PF-PC6L-DRFD
Still stuck? SES is an Advance service center. Call 800-440-6723 and have your model and serial number ready.
Advance Adfinity 20D / X20D / X20C / X24D maintenance schedule
Advance's scheduled maintenance table and cleaning steps. Do every procedure with the machine off and the battery disconnected. Advance says scheduled and extraordinary maintenance must be done by qualified personnel or an authorized Service Center.
| Task | How often | Part |
|---|---|---|
| Charge the batteries when the yellow or red warning light comes on, or at the end of every working cycle, with the battery charger (AD9100003437). | Daily, after use | |
| Clean the squeegee. Clean its compartments and the hole in it especially. | Daily, after use | |
| Clean and wash the brushes or pads with water and detergent. Replace them if they are worn too much. | Daily, after use | |
| Wash the cover, both tanks and the vacuum grid with float with clean water. Check the tank cover gasket (AD1460741000). | Daily, after use | |
| Check the squeegee blades. Replace the front blade (AD9100000279 / AD9100000280) and the rear blade (AD9100000279 / AD9100000280) if they are cut or torn. | Weekly | |
| Clean the solution filter (20D) or the clean water filter (X20D, X20C, X24D). Parts: filter kit (AD9097166000). | Weekly | |
| Check that the vacuum system motor pre-filter (AD9096672000) is clean. If needed, clean it with water and compressed air. | Weekly | |
| Check the electrolyte level in WET batteries and top up through the caps. | Weekly | |
| Check the battery charge at least once a week. | Weekly | |
| Check that screws and nuts are tight. Check them again after the first 8 working hours. | Every six months | |
| Have the brush/pad-holder motor carbon brushes (carbon brush kit (AD9095380000 / AD1464432000 / AD9096893000)) checked or replaced. Advance says an authorized Nilfisk-Advance Service Center must do this. Call SES service: 800-440-6723. | Yearly | |
| Have the vacuum system motor carbon brushes checked or replaced. Call SES service: 800-440-6723. | Yearly | |
| Have the drive system motor carbon brushes (carbon brushes (AD1455124000)) checked or replaced. Call SES service: 800-440-6723. | Yearly | |
| Disconnect the battery connector, then check or replace the fuses. F1 (deck) is 40 A (fuse strip (AD1453824000)). F2 (vacuum system) and F3 (drive system) are 30 A (blade fuse (AD1458513000)). F5 (brush/pad-holder release) is 20 A (fuse (AD9096678000)). F4 (signal circuits) and F6 (pump) are 3 A (fuse (AD1458368000)). | As needed |
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 21, 22, 23, 24, 25, 26 and 27. SES ref PF-YJRP-TD22
Advance Adfinity 20D / X20D / X20C / X24D specifications
From Advance's technical data tables and safety pages in the Instructions for Use. Where a value differs by model, the model is named.
| Brush deck | 20D, X20D: 1 brush or pad-holder; X20C: 2 cylindrical brushes; X24D: 2 brushes or pad-holders |
|---|---|
| Cleaning width | 20D, X20D: 20.9 in (530 mm); X20C: 20.1 in (510 mm); X24D: 24 in (610 mm) |
| Squeegee width | 20D, X20D, X20C: 29.9 in (760 mm); X24D: 31.9 in (810 mm) |
| Tanks | Solution or clean water: 15.3 US gal (58 L). Recovery: 15.8 US gal (60 L) |
| Drive | Drive motor 0.26 hp (200 W); speed variable, 0 to 3.5 mph (0 to 5.6 km/h); gradeability 2% |
| Brush motor and speed | 20D, X20D: 0.6 hp (480 W), 153 rpm; X24D: 0.46 hp (350 W), 230 rpm; X20C: 0.54 hp (400 W), 570 rpm |
| Brush pressure | 20D, X20D, X24D: 45.2 lb (20.5 kg), or 61.3 lb (27.8 kg) with extra pressure on; X20C: 58.4 lb (26.5 kg) |
| Weight, empty | 20D: 229.3 lb (104 kg); X20D and X24D: 231.5 lb (105 kg); X20C: 253.5 lb (115 kg). No batteries, tanks empty |
| Weight, maximum | 20D: 555.6 lb (252 kg); X20D and X24D: 557.8 lb (253 kg); X20C: 579.1 lb (263 kg). With batteries and full tanks |
| Size | Height 42.9 in (1,088 mm). Length: 20D, X20D 52.1 in (1,323 mm); X20C 49.3 in (1,253 mm); X24D 51.6 in (1,311 mm). Width without squeegee: 20D, X20D 21.3 in (541 mm); X20C 22.6 in (575.5 mm); X24D 25.4 in (646 mm) |
| Batteries | Standard: WET, 2 x 12 V, 24 V 130 Ah. GEL batteries are an option |
| Vacuum motor and wheels | Vacuum motor 0.4 hp (330 W). Front wheels 9.8 in (250 mm), rear wheel 3.9 in (100 mm) |
| Sound level | 65.8 dB(A) at the operator's position |
| Operating conditions | Temperature +32°F to +104°F (0°C to +40°C); humidity 30% to 95% |
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 4, 10 and 11. SES ref PF-5BQI-5FNW
Advance Adfinity 20D / X20D / X20C / X24D manuals and source documents
The documents this page was built from. Sign in with a free account on our site to view or download them.
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| Adfinity parts listParts list with drawings, recommended spares and optionals (42 printed pages) | Adfinity 20D, X20D, X20C and X24D | 9096911000 (4), 2009-10 (this page) | 9.4 MB | Sign in to view or downloadSign in to download |
| Adfinity instructions for useOperator manual, English, French, Spanish and Portuguese (English: 30 printed pages) | Adfinity 20D, X20D, X20C and X24D | 9096910000 (1), 2006-09 | 6.8 MB | Sign in to view or downloadSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
Common Advance Adfinity 20D / X20D / X20C / X24D parts questions
What is the difference between the Advance Adfinity 20D, X20D, X20C and X24D?
The 20D and X20D have one 20.9 in (530 mm) brush or pad-holder, the X24D has two 12 in (305 mm) ones, and the X20C has two cylindrical brushes. The X20D, X20C and X24D have the AXP detergent system. The 20D does not.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 5, 9 and 11. SES ref PF-RKOH-NSMH
What is AXP on the Adfinity?
AXP is the detergent dosing system on the X20D, X20C and X24D. You fill the tank with clean water and the detergent tank with detergent. The detergent pump sends both to the brushes, and the detergent switch turns AXP on and off and sets the percentage.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 9, 17 and 18. SES ref PF-RKOH-NSMH
How do I charge the Adfinity batteries?
Connect the battery charger cable to the mains. The red charger light stays on while it charges and the green light means it is done. Charge when the yellow or red battery light comes on, or at the end of every working cycle.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 21 and 22. SES ref PF-RKOH-NSMH
What do the battery lights mean on the Adfinity?
Green means charged. Yellow means semi-discharged, with about 10 minutes of work left. Red means discharged: after a few seconds the brushes turn off, while the vacuum and drive stay on so you can finish drying and drive to the charger.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 10 and 19. SES ref PF-RKOH-NSMH
How often do I clean the squeegee on the Adfinity?
Clean it daily, after use, paying special attention to its compartments and the hole. Check the blades weekly and replace them if they are cut or torn.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 21, 22 and 23. SES ref PF-RKOH-NSMH
Why does my Adfinity not pick up the water?
The recovery tank may be full, the vacuum hose may be off the squeegee, the vacuum grid or float may be clogged, the squeegee or its blades may be dirty or worn, or the tank cover, gasket or compensation hole may be at fault.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), page 30. SES ref PF-RKOH-NSMH
Can I use the Adfinity on a slope?
Not steeper than 2%. Advance says not to use the machine on slopes with an inclination higher than 2%.
Source: Advance Adfinity 20D / X20D / X20C / X24D Instructions for Use (form 9096910000, 2006-09), pages 4 and 11. SES ref PF-RKOH-NSMH
Notes on this parts list
Places where Advance's documents disagree, and how this page handles them. If you are unsure, call 800-440-6723 with your serial number.
- The contents page of the parts list gives page numbers that do not match the pages: for example it shows the 20D / X20D brush system on pages 22 to 23 (it is on 24 to 25) and omits the second X24D squeegee pair. This page follows the printed page numbers on each sheet.
- The solution system pages (14 to 15) are headed Adfinity 20D only. The AXP pages (16 to 17) send you to items on them for the X models, and the recommended spares list the same solution system parts for all four models. All lines show for every model.
- Solution system items 8 and 12 are printed 8A and 12B in the list (footnotes A and B, TSB IT 2007-021 and 2007-027a) but 8 and 12 on the drawing. This page shows them as 8 and 12.
- Drawing callouts with no line in the list: solution system 5, 6 and 7; AXP 21, 24 and 26; handle assembly 44; X20C brush system 12 and 13. List lines with no callout on the drawing: squeegee system (20D / X20D / X20C) items 35 and 43; X20C brush system items 6, 22 and 30.
- On the X20C brush system page, item 19 is printed twice (hose clamp 909 5516 000 and belt tensioner roller kit 9098485000) and item 30 is printed between items 11 and 14.
- The Optionals page marks the AXP eco dosage solution kit 909 6744 000 for the 20D only. The AXP pages, the recommended spares and the Instructions for Use limit AXP to the X20D, X20C and X24D.
- Squeegee blade kit 9097499000 is described three ways: blades squeegee 740 mm / 29 in kit (X24D before serial 082115832), blades rubber kit 840 mm / 33 in (after) and blades rubber kit 32 in (recommended spares). The Instructions for Use gives the X24D squeegee width as 31.9 in (810 mm).
- Accessories items 11 and 12 are printed under the X20C heading. The drawing shows item 11 with the 20D / X20D group and the X20C group, and item 12 with the X24D group, so this page tags them that way. Items 13 and 14 (third blade kit) have no model of their own.
- The Instructions for Use names the cylindrical brushes 909 5823 000 polypropylene 0.40, 909 5825 000 hard nylon 0.60 and 909 5824 000 soft nylon 0.45. The parts list calls them Prolite, Midlite Grit 180 and Prolite Plus. It also prints the disc brush numbers without the leading L.
- The troubleshooting table in the Instructions for Use points to the compensation hole as item (33). On the machine drawing item 39 is the compensation hole and item 33 is the fixed retaining plate.
- The recommended spares list prints bumper roller kit 9096887000 for the X24D (marked #). Every other page prints 909 6887 000.
- The recovery tank page refers to an old motor that has no line in the list. Items 23A, 24A and 31A fit the old motor and 23B, 24B and 31B the new motor 9098062000.
- Wheels and traction item 2 has two part numbers (909 6863 000 and 9097026000, 65SH). The list does not say when each applies. The Optionals page lists 9097026000 as an option.
- Quantities are not printed for Accessories items 6, 9 and 12. Descriptions are copied as Advance prints them, including run-together words such as REDUCTIONGEARMOT. and HOLDERPOLYG.W/FLAGE.
- The general view (pages 2 to 3) and the wiring diagram (page 38) have no part numbers and are not on this page.
