Form 9096910000(2), Rev. 2010-03
Advance · Walk-behind floor scrubber

Advance Adfinity 20D / X20D / X20C / X24D Operator Manual

9096910000(2) Rev. 2010-0329 of 116 pages shownAdfinity 20D, X20D, X20C and X24D (Advance models 908 7163 020, 908 7164 020, 908 7165 020, 908 7166 020)
Before first use: charge the batteries overnight before you run the machine the first time.
Free to read, no account neededEvery page has its own linkPart numbers link to the part
COVER

Adfinity™ 20D X20D - X20C - X24D

INSTRUCTIONS FOR USE
Advance models: 908 7163 020 - 908 7164 020
908 7165 020 - 908 7166 020‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​​‌​​​‌​⁠​‌​⁠‍⁠‍‍‌⁠⁠⁠‌‌⁠⁠‌‌‌‌⁠‌‍​‌⁠

9096910000(2)2010-03

Front three-quarter view of the Advance Adfinity 20D walk-behind floor scrubber with handle bar, tank cover, rear wheel, squeegee at the back and the round scrub brush deck at the front; a user manual symbol and a warning symbol appear at the top right of the picture
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 1, used with permission. SES ref PF-4CXJ-OUKK‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​​‌​​​‌​⁠​‌​⁠‍⁠‍‍‌⁠⁠⁠‌‌⁠⁠‌‌‌‌⁠‌‍​‌⁠
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 1 of 116

Page 2 of this manual repeats the instructions in other languages, so it is not shown here. View original PDF

Instructions for use

Table of contents

Section / topicPage
INTRODUCTION2
MANUAL PURPOSE AND CONTENTS2
TARGET2
HOW TO KEEP THIS MANUAL2
IDENTIFICATION DATA2
OTHER REFERENCE MANUALS2
SPARE PARTS AND MAINTENANCE2
CHANGES AND IMPROVEMENTS2
OPERATION CAPABILITIES2
CONVENTIONS2
UNPACKING/DELIVERY3
SAFETY3
SYMBOLS3
GENERAL INSTRUCTIONS3
MACHINE DESCRIPTION5
MACHINE STRUCTURE5
CONTROL PANEL7
BATTERY CHARGER DATA INSPECTION WINDOW7
ACCESSORIES/OPTIONS8
TECHNICAL DATA8

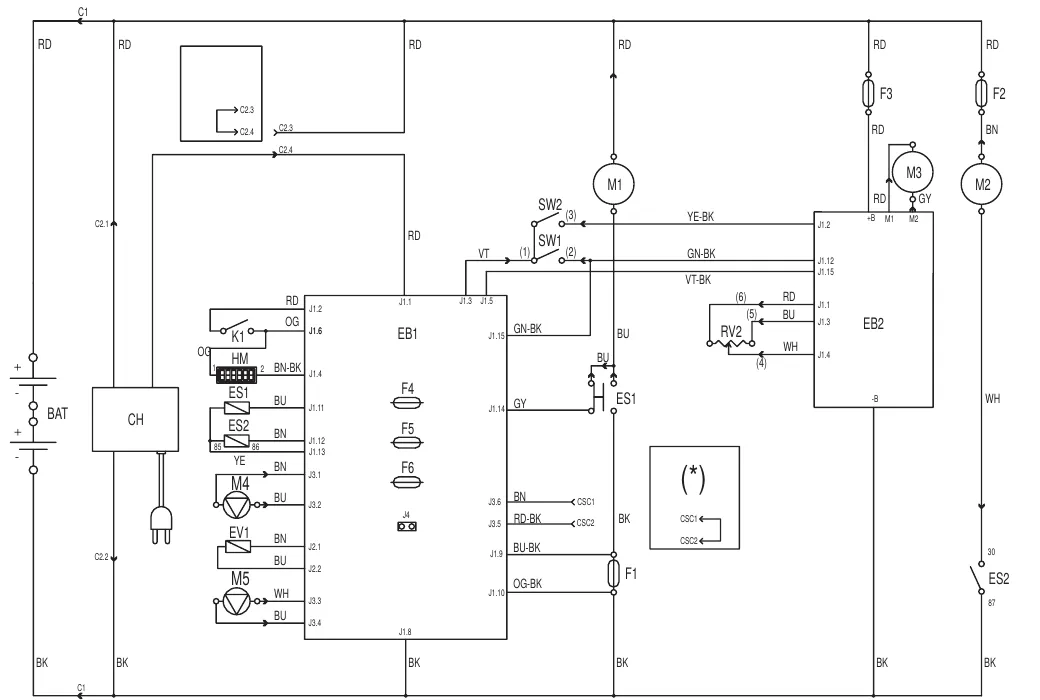

WIRING DIAGRAM10
USE11
BATTERY CHECK/SETTING ON A NEW MACHINE11
BATTERY INSTALLATION AND BATTERY TYPE SETTING (WET OR GEL/AGM)12
BEFORE MACHINE START-UP13
MACHINE START AND STOP16
MACHINE OPERATION (SCRUBBING/DRYING)16
TANK EMPTYING19
AFTER USING THE MACHINE19
MACHINE LONG INACTIVITY19
FIRST PERIOD OF USE19
MAINTENANCE20
SCHEDULED MAINTENANCE TABLE20
CHARGING THE BATTERIES20
MACHINE WORKING HOUR CHECK21
SQUEEGEE CLEANING21
SQUEEGEE BLADE CHECK AND REPLACEMENT22
BRUSH/PAD CLEANING23
TANK AND VACUUM GRID WITH FLOAT CLEANING, AND COVER GASKET CHECK23
VACUUM SYSTEM MOTOR FILTER CLEANING24
SOLUTION FILTER CLEANING24
CLEAN WATER FILTER CLEANING25
FUSE CHECK/REPLACEMENT26
BRUSH/PAD-HOLDER/CYLINDRICAL BRUSH DECK DISASSEMBLY/ASSEMBLY26
DETERGENT TANK CLEANING27
ECOFLEX™ DRAINING27
TROUBLESHOOTING28
SCRAPPING28
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 3, used with permission. SES ref PF-OWNM-FPD7‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​​⁠​​​‌​⁠​‌⁠⁠‌​‍​‌‍⁠‌​⁠​​⁠​​⁠⁠‌‍‌⁠⁠
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 3 of 116
Instructions for use

INTRODUCTION

In short This introduction explains what the manual is for, who it is meant for and how to store it. It also tells you where to find the machine model and serial number, which you need when ordering spare parts, and what the machine may be used for.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌​​​​‌​⁠​‌‍​​‍​‌⁠‌​‍‌‍​‌‌​​‌‍‍⁠‍​‌
NOTE The numbers in brackets refer to the components shown in Machine Description chapter.

Manual purpose and contents

The purpose of this Manual is to provide the operator with all necessary information to use the machine properly, in a safe and autonomous way. It contains information about technical data, safety, operation, storage, maintenance, spare parts and disposal. Before carrying out any procedure on the machine, the operators and qualified technicians must read this Manual carefully. Contact Advance in case of doubts regarding the interpretation of the instructions and for any further information.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌​​​​‌​⁠​‌‍​​‍​‌⁠‌​‍‌‍​‌‌​​‌‍‍⁠‍​‌

TARGET

This Manual is intended for operators and technicians qualified to perform the machine maintenance.
The operators must not carry out procedures reserved for qualified technicians. Advance will not be answerable for damages coming from the non-observance of this prohibition.

How to keep this manual

The Instructions for Use Manual must be kept near the machine, inside an adequate case, away from liquids and other substances that can cause damage to it.

Identification data

The machine model and serial number are marked on the plate (34).
The machine model year is shown after the Date Code on the serial plate (A10 means January 2010).
This information is useful when requiring machine spare parts. Use the following table to write down the machine identification data.

MACHINE model ...............................................................................
MACHINE serial number ...................................................................

Other reference manuals

  • Electronic battery charger Manual to be considered as integral part of this Manual

Moreover, the following Manuals are available:

  • Service Manual (that can be consulted at Advance Service Centers)
  • Spare Parts List (supplied with the machine)

Spare parts and maintenance

All necessary operating, maintenance and repair procedures must be carried out by qualified personnel or by Advance Service Centers. Only original spare parts and accessories must be used.
Contact Advance for service or to order spare parts and accessories, specifying the machine model and serial number.

Changes and improvements

Advance constantly improves its products and reserves the right to make changes and improvements at its discretion without being obliged to apply such benefits to the machines that were previously sold.
Any change and/or addition of accessories must be approved and performed by Advance.

Operation capabilities

These scrubber-dryers are used to clean (scrubbing and drying) smooth and solid floors, in civil or industrial environment, under safe operation conditions by a qualified operator.
The scrubber-dryer cannot be used for moquette and carpet cleaning.

CONVENTIONS

Forward and backward, front and rear, left and right references are intended with the operator in driving position with the hands on the handlebar (2).

Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 4, used with permission. SES ref PF-UCHP-DB6K‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌​​​​‌​⁠​‌‍​​‍​‌⁠‌​‍‌‍​‌‌​​‌‍‍⁠‍​‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 4 of 116
Instructions for use

Unpacking/delivery

In short Follow the packing instructions when unpacking, and check the packing and machine for transport damage. If there is visible damage, keep the packing and call the carrier right away to file a claim. Also confirm the technical documents and fuses are included.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌‌​​​‌​⁠​‌‍‌​​‌‍⁠‍‍‌​‌​​‍⁠‍‍​‍​​⁠⁠

To unpack the machine, carefully follow the instructions on the packing.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌‌​​​‌​⁠​‌‍‌​​‌‍⁠‍‍‌​‌​​‍⁠‍‍​‍​​⁠⁠

When the machine is delivered, check that the packing and the machine were not damaged during transportation. In case of visible damages, keep the packing and have it checked by the carrier that delivered it. Call the carrier immediately to fill in a damage claim.

Check that the machine is equipped with the following features:

  1. Technical documents:
    • Scrubber-dryer Instructions for Use Manual
    • Electronic battery charger Manual
    • Scrubber-dryer Spare Parts List
  2. No. 2 lamellar fuses

SAFETY

In short This section explains the warning symbols used in the manual and lists general danger warnings. Operators should read them carefully and take the precautions described, such as disconnecting the battery connector before maintenance.

The following symbols indicate potentially dangerous situations. Always read this information carefully and take all necessary precautions to safeguard people and property.

The operator’s cooperation is essential in order to prevent injury. No accident prevention program is effective without the total cooperation of the person responsible for the machine operation. Most of the accidents that may occur in a factory, while working or moving around, are caused by failure to comply with the simplest rules for exercising prudence. A careful and prudent operator is the best guarantee against accidents and is essential for successful completion of any prevention program.

SYMBOLS

Danger symbol: a triangle with an exclamation mark
DANGER: It indicates a dangerous situation with risk of death for the operator.
Warning symbol: a triangle with an exclamation mark
WARNING: It indicates a potential risk of injury for people or damage to objects.
Caution symbol: a triangle with an exclamation mark
CAUTION: It indicates a caution related to important or useful functions.
Pay careful attention to the paragraphs marked by this symbol.
Note symbol: a black circle with a white letter i
NOTE It indicates a remark related to important or useful functions.
Consultation symbol: an open book with the letter i

CONSULTATION
It indicates the necessity to refer to the Instructions for Use Manual before performing any operation.

General instructions

Specific warnings and cautions to inform about potential damages to people and machine are shown below.

Danger symbol: a triangle with an exclamation mark
DANGER:
  • Before performing any maintenance, repair, cleaning or replacement procedure disconnect the battery connector and (if equipped) remove the ignition key.
  • This machine must be used by properly trained operators only. Children or disabled people cannot use this machine.
  • Keep the battery away from sparks, flames and incandescent material. During the normal operation explosive gases are released.
  • Do not wear jewelry when working near electrical components.
  • Do not work under the lifted machine without supporting it with safety stands.
  • Do not operate the machine near toxic, dangerous, flammable and/or explosive powders, liquids or vapors: This machine is not suitable for collecting dangerous powders.
  • Battery charging produces highly explosive hydrogen gas. Keep the tanks open during battery charging and perform this procedure in well-ventilated areas and away from bare flames.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 5, used with permission. SES ref PF-WDED-POKB‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌‌​​​‌​⁠​‌‍‌​​‌‍⁠‍‍‌​‌​​‍⁠‍‍​‍​​⁠⁠
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 5 of 116
Instructions for use
WARNING:
  • Carefully read all the instructions before performing any maintenance/repair procedure.
  • Before using the battery charger, ensure that frequency and voltage values, indicated on the machine serial number plate, match the electrical mains voltage.
  • Do not pull or carry the machine by the battery charger cable and never use the battery charger cable as a handle. Do not close a door on the battery charger cable, or pull the battery charger cable around sharp edges or corners. Do not run the machine on the battery charger cable.
  • Keep the battery charger cable away from heated surfaces.
  • Do not use the machine if the battery charger cable or plug is damaged. If the machine is not working as it should, has been damaged, left outdoors or dropped into water, return it to the Service Center.
  • To reduce the risk of fire, electric shock, or injury, do not leave the machine unattended when it is plugged in. Before performing any maintenance procedure, disconnect the battery charger cable from the electrical mains.
  • Do not smoke while charging the batteries.
  • To avoid any unauthorized use of the machine, remove the ignition key (if equipped).
  • Do not leave the machine unattended without being sure that it cannot move independently.
  • Always protect the machine against the sun, rain and bad weather, both under operation and inactivity condition. Store the machine indoors, in a dry place: This machine must be used in dry conditions, it must not be used or kept outdoors in wet conditions.
  • Before using the machine, close all doors and/or covers.
  • Do not allow to be used as a toy. Close attention is necessary when used near children.
  • Use only as shown in this Manual. Use only Advance recommended accessories.
  • Take all necessary precautions to prevent hair, jewelry and loose clothes from being caught by the machine moving parts.
  • Do not use the machine on slopes with a gradient exceeding the specifications.
  • Do not use the machine in particularly dusty areas.
  • While using this machine, take care not to cause damage to people or objects.
  • Do not bump into shelves or scaffoldings, especially where there is a risk of falling objects.
  • Do not lean liquid containers on the machine, use the relevant can holder.
  • The machine operating temperature must be between +32 °F and +104 °F (0 °C and +40 °C).
  • The machine storage temperature must be between +32 °F and +104 °F (0 °C and +40 °C).
  • The humidity must be between 30% and 95%.
  • When using floor cleaning detergents, follow the instructions on the labels of the detergent bottles.
  • To handle floor cleaning detergents, wear suitable gloves and protections.
  • Do not use the machine as a means of transport.
  • Do not allow the brushes to operate while the machine is stationary to avoid damaging the floor.
  • In case of fire, use a powder fire extinguisher, not a water one.
  • Do not tamper with the machine safety guards and follow the ordinary maintenance instructions scrupulously.
  • Do not allow any object to enter into the openings. Do not use the machine if the openings are clogged. Always keep the openings free from dust, hairs and any other foreign material which could reduce the air flow.
  • Do not remove or modify the plates affixed to the machine.
  • When the machine is to be pushed for service reasons (missing or discharged batteries, etc.), the speed must not exceed 4 km/h.
  • This machine cannot be used on roads or public streets.
  • Pay attention during machine transportation when temperature is below freezing point. The water in the recovery tank or in the hoses could freeze and seriously damage the machine.
  • Use the brushes and pads supplied with the machine and those specified in the Instructions for Use Manual. Using other brushes or pads could reduce safety.
  • In case of machine malfunctions, ensure that these are not due to lack of maintenance. Otherwise, request assistance from the authorized personnel or from an authorized Service Center.
  • If parts must be replaced, require ORIGINAL spare parts from an Authorized Dealer or Retailer.
  • To ensure machine proper and safe operation, the scheduled maintenance shown in the relevant chapter of this Manual, must be performed by the authorized personnel or by an authorized Service Center.
  • Do not wash the machine with direct or pressurized water jets, or with corrosive substances.
  • The machine must be disposed of properly, because of the presence of toxic-harmful materials (batteries, etc.), which are subject to standards that require disposal in special centers (see Scrapping chapter).
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 6, used with permission. SES ref PF-RW3B-YK3O‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌‍​​​‌​⁠​‌‍‌‌⁠​‌​‍​​​​‌‌‍⁠⁠‍​‍‌​​⁠
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 6 of 116
Instructions for use

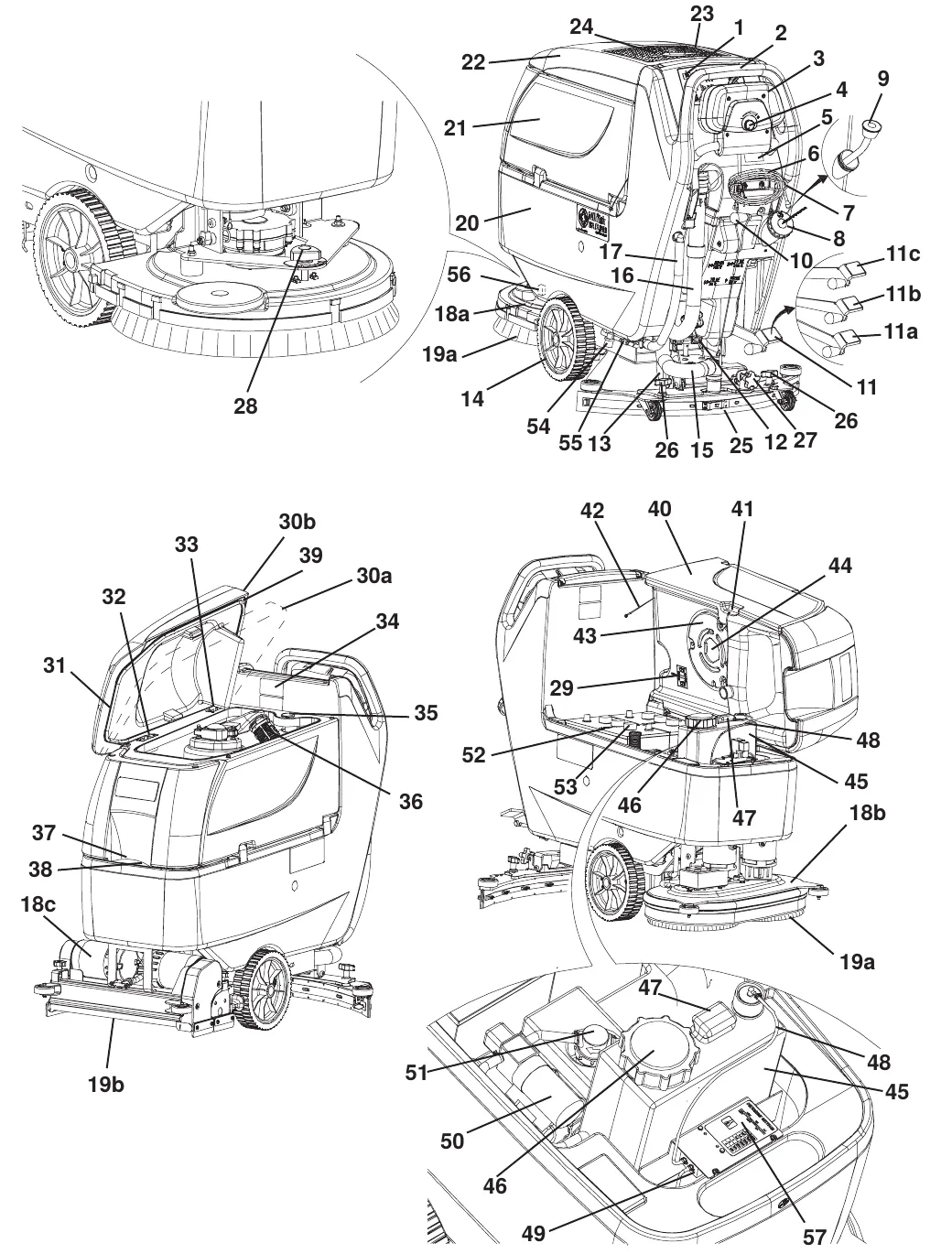

Machine description

Machine structure

In short This section lists the numbered parts of the machine, such as the control panel, handlebar, tanks, squeegee, deck and battery connector. The numbers match the callouts used elsewhere in the manual. Items marked (*) apply only to the Adfinity™ X20D, X20C and X24D.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌⁠​​​‌​⁠​‌​‍⁠⁠⁠‍⁠‍‍‍‌‌‌⁠‌​​​⁠​​‌‌‌

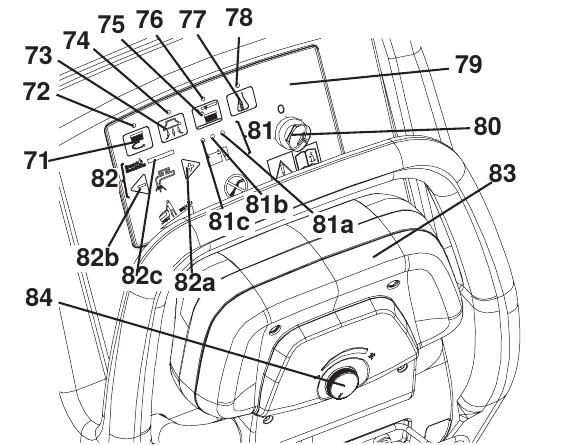

  1. 1. Control panel
  2. 2. Handlebar
  3. 3. Drive paddle
  4. 4. Speed adjuster

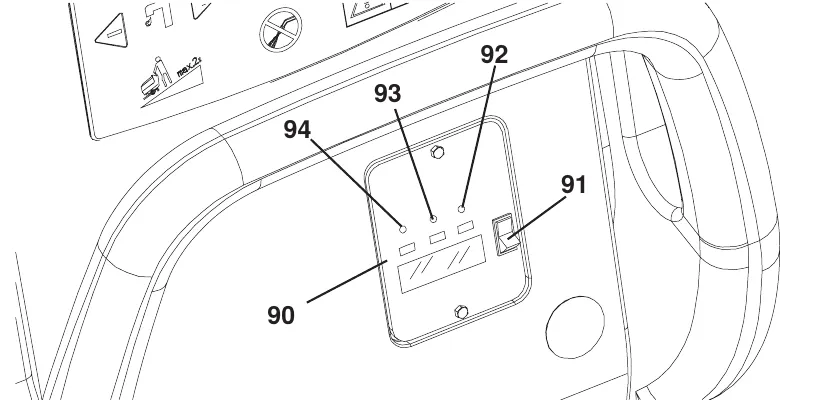

  5. 5. Battery charger data inspection window
  6. 6. Battery charger cable
  7. 7. Battery charger cable holder
  8. 8. Recovery water drain hose plug
  9. 9. Water removable filler hose (optional)
  10. 10. Squeegee lifting/lowering lever
  11. 11. Deck lifting/lowering pedal
  12. 11a. Deck lifting
  13. 11b. Deck lowering
  14. 11c. Extra pressure activation (optional)
  15. 12. Battery connector (red).
    This connector also works as EMERGENCY switch, to stop immediately all functions.
  16. 13. Rear steering wheel
  17. 14. Front wheels on fixed axle
  18. 15. Squeegee vacuum hose
  19. 16. Recovery water drain hose
  20. 17. Solution/clean water drain and level check hose
  21. 18a. Deck with one brush/pad-holder
  22. 18b. Deck with two brushes/pad-holders
  23. 18c. Deck with two cylindrical brushes
  24. 19d. Brush/pad-holder
  25. 19e. Cylindrical brushes
  26. 18. Solution/clean water tank
  27. 19. Recovery water tank
  28. 20. Recovery water tank cover
  29. 21. Can holder
  30. 22. Pocket (optional)
  31. 23. Squeegee
  32. 24. Squeegee mounting handwheels
  33. 25. Squeegee balance adjusting handwheel
  34. 26. Machine straight forward movement adjusting handwheel
  35. 27. Battery connection diagram

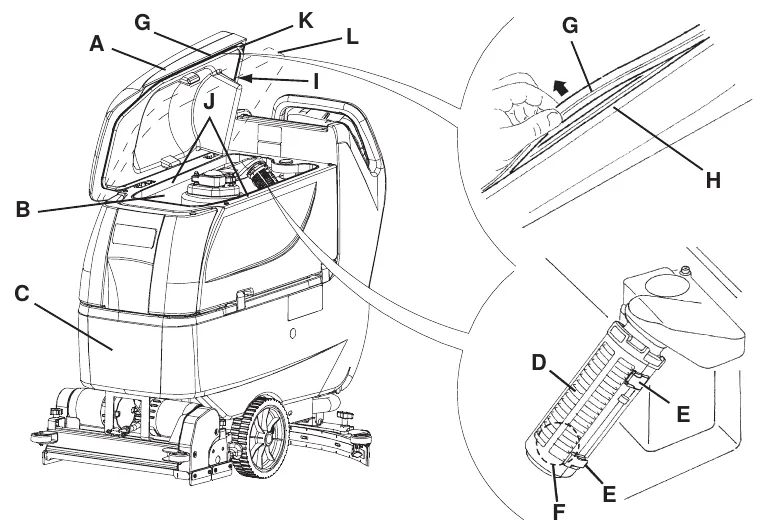

  36. 30a. Recovery water tank cover (opened to be cleaned)
  37. 30b. Recovery water tank cover (completely opened)
  38. 31. Tank cover gasket
  39. 32. Cover movable retaining plate
  40. 33. Cover fixed retaining plate
  41. 34. Serial number plate/technical data
  42. 35. Plug for squeegee vacuum hose cleaning
  43. 36. Vacuum grid with automatic shut-off float
  44. 37. Solution front filler neck
  45. 38. Foam filter
  46. 39. Compensation hole
  47. 40. Recovery water tank (open)
  48. 41. Tank lifting handle
  49. 42. Tank safety cable
  50. 43. Vacuum system motor cover
  51. 44. Vacuum system motor sound-deadening filter
  52. 45. Detergent tank (*)
  53. 46. Detergent tank filling cap (*)
  54. 47. Detergent tank handle (*)
  55. 48. Detergent supply hose to brushes (*)
  56. 49. Detergent pump (*)
  57. 50. Water pump (*)
  58. 51. Clean water filter (*)
  59. 52. Batteries
  60. 53. Battery caps
  61. 54. Solution filter (*)
  62. 55. Solution/clean water tap
  63. 56. Solenoid valve
  64. 57. Reference table for detergent proportioning (*)

(*) Only for Adfinity™ X20D, X20C, X24D.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌⁠​​​‌​⁠​‌​‍⁠⁠⁠‍⁠‍‍‍‌‌‌⁠‌​​​⁠​​‌‌‌

Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 7, used with permission. SES ref PF-TT25-BMAX‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‌⁠​​​‌​⁠​‌​‍⁠⁠⁠‍⁠‍‍‍‌‌‌⁠‌​​​⁠​​‌‌‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 7 of 116
Instructions for use
Detail view of the brush deck seen from the left side with the wheel and the brush; callout 28 points to the brush deck mounting plate
Rear view of the machine with the handlebar, control area, tanks, hoses and squeegee, with callouts 1 to 28, 54, 55 and 56 and 11a, 11b, 11c, 18a and 19a. Item 9 is shown as a separate hose end at the upper right, and 11a to 11c show three detail shapes at the right.
Machine seen from the front-left with the recovery tank cover lifted, with callouts 30a, 30b, 31 to 39, 18c and 19b pointing to the cover, tank, hose and squeegee
Machine seen from the front with the cover open and a detail of the solution tank area, with callouts 40 to 53, 57, 18b and 19a pointing to the control panel, tank, filler and brush deck
S311310
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 8, used with permission. SES ref PF-QUGX-VUP7‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍​​​​‌​⁠​‌‌‍‍‌⁠‌‌⁠​‍⁠‌​​​⁠‍‍‍‌‌‍‍‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 8 of 116
Instructions for use

Control panel

In short This section lists the numbered switches, warning LEDs, indicators and the ignition key on the control panel of the Adfinity 20D and of the X20D, X20C and X24D versions. It also identifies the items in the battery charger data inspection window.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍‌​​​‌​⁠​‌‌‍⁠‌​‌‍​‍‌‍‌⁠‍​‌⁠‌​​‌‌⁠​

Batteries and chargers: make sure your charger is compatible with your batteries, and set its charging algorithm to your battery pack before you use it.

  1. Brush/pad-holder and vacuum system switch
  2. Brush/pad-holder and vacuum system switch warning led
  3. Vacuum system switch
  4. Vacuum system switch warning led
  5. Brush/pad-holder release switch
  6. Brush/pad-holder release switch warning led
  7. Washing detergent flow control switch (*)
  8. Washing detergent flow control switch LED indicator (*)
  9. Hour counter (optional)
  10. Ignition key (0 - I)
  11. Battery charge indicator

81a. Charged battery warning led (green)
81b. Semi-discharged battery warning led (yellow)
81c. Discharged battery warning led (red)‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍‌​​​‌​⁠​‌‌‍⁠‌​‌‍​‍‌‍‌⁠‍​‌⁠‌​​‌‌⁠​

82. Washing detergent flow control switches
82a. Flow increase switch
82b. Flow decrease switch
82c. Washing detergent flow led indicator

83. EcoFlex™ system switch (*)
84. EcoFlex™ system switch led indicator (*)

  • LED on - EcoFlex™ system on
  • LED flashing - EcoFlex™ system override
  • LED off - EcoFlex™ system disabled

85. Detergent concentration level display (*)

(*) Only for Adfinity™ X20D, X20C, X24D

Control panel of the Adfinity 20D with callouts 71 to 76 above the switches, 79 hour counter, 80 ignition key, 81 battery charge indicator, 82 detergent flow switches, and 82b, 82c, 82a, 81c, 81b, 81a below
Adfinity™ 20D (S311311)
Control panel of the Adfinity X20D, X20C and X24D with callouts 71 to 76, 84, 83, 78, 77 above the switches, 79 hour counter, 80 ignition key, 81 battery charge indicator, 82 detergent flow switches, 85 detergent concentration display, and 82b, 82c, 82a, 81c, 81b, 81a below
Adfinity™ X20D - X20C - X24D (S311312)

Battery charger data inspection window

  1. Electronic battery charger
  2. Lead (WET) or gel (GEL/AGM) battery selector
  3. Green warning led (the battery charger is on and batteries are charged)
  4. Yellow warning led (the battery charger is on and batteries are semi-discharged)
  5. Red warning led (the battery charger is on and it is charging the batteries)
Battery charger data inspection window on the machine with callouts 90 electronic battery charger, 91 battery type selector, and 92, 93, 94 warning LEDs
S311313
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 9, used with permission. SES ref PF-K6FG-A4C6‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍‌​​​‌​⁠​‌‌‍⁠‌​‌‍​‍‌‍‌⁠‍​‌⁠‌​​‌‌⁠​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 9 of 116
Instructions for use

Accessories/options

In short This section lists the optional accessories the machine can be equipped with, and tells you to contact an authorized Retailer for more information.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍‍​​​‌​⁠​‌⁠​‍‌‌‌​​​‍‌​​‍​‍⁠‌‍​​⁠‌​

In addition to the standard components, the machine can be equipped with the following accessories/options, according to the machine specific use:‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍‍​​​‌​⁠​‌⁠​‍‌‌‌​​​‍‌​​‍​‍⁠‌‍​​⁠‌​

  1. GEL/AGM batteries
  2. Brushes and cylindrical brushes of different materials
  3. Pads of different materials
  4. Polyurethane squeegee blades
  5. Front and rear wheels of different materials
  6. Hour counter
  7. Solution/clean water removable filler hose
  8. Pocket

For further information concerning the above-mentioned optional accessories, contact an authorized Retailer.

Technical data

In short This section gives the technical specifications of the machine models 20D, X20D, X20C and X24D. The general data table covers dimensions, capacities, motor power, speed, noise, vibration and batteries.

General technical data

Model20D
(1 brush/pad-holder, with drive system)
X20D
(1 brush/pad-holder, with drive system)
X20C
(2 cylindrical brushes, with drive system)
X24D
(2 brushes/pad-holders, with drive system)
Machine height42.9 in (1,088 mm)
Solution/clean water tank capacity15.3 USgal (58 liters)
Recovery water tank capacity15.8 USgal (60 liters)
Front wheel diameter9.8 in (250 mm)
Front wheel specific pressure on the ground2 lbf/in² (1.2 N/mm²)
Rear wheel diameter3.9 in (100 mm)
Vacuum system motor power0.4 HP (330 W)
Drive system motor power0.27 HP (200 W)
Drive speed (variable)0 to 3.5 mph (0 to 5.6 km/h)
Maximum gradient when working2%
Gradeability16%
Sound pressure level at workstation (ISO 11201, ISO 4871) (LpA)65.8 dB(A) ± 3 dB(A)
Machine sound pressure level (ISO 3744, ISO 4871) (LwA)84 dB(A)
Vibration level at the operator’s arms (ISO 5349-1)< 98.4 in/s2 (< 2.5 m/s2)
Standard batteriesWET (2 x 12 V) 24 V 130 Ah
Battery compartment size (width x length x height)13.8 x 13.8 x 11.8 in (350 x 350 x 300 mm)
Vacuum system circuit capacity41.5 in H2O (1,055 mm H2O)
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 10, used with permission. SES ref PF-L2RR-4QKU‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍‍​​​‌​⁠​‌⁠​‍‌‌‌​​​‍‌​​‍​‍⁠‌‍​​⁠‌​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 10 of 116
Instructions for use

Technical data for machines with brush/pad-holder deck

Model20D
(1 brush/pad-holder, with drive system)
X20D
(1 brush/pad-holder, with drive system)
X24D
(2 brushes/pad-holders, with drive system)
Cleaning width20.9 in (530 mm)24 in (610 mm)
Squeegee width29.9 in (760 mm)31.9 in (810 mm)
Machine maximum length52.1 in (1,323 mm)51.6 in (1,311 mm)
Machine width without squeegee21.3 in (541 mm)25.4 in (646 mm)
Brush diameter20.9 in (530 mm)12.0 in (305 mm)
Weight without batteries and with empty tanks229.3 lb (104 kg)231.5 lb (105 kg)
Maximum weight with batteries and full tanks555.6 lb (252 kg)557.8 lb (253 kg)
Brush motor power0.6 HP (480 W)0.27 HP (350 W)
Brush speed153 rpm230 rpm
Brush/pad-holder pressure with extra-pressure deactivated45.2 lb (20.5 kg)
Brush/pad-holder pressure with extra-pressure activated61.3 lb (27.8 kg)

Technical data for machines with cylindrical brush deck

ModelX20C
(2 cylindrical brushes, with drive system)
Cleaning width20.1 in (510 mm)
Squeegee width29.9 in (760 mm)
Machine maximum length49.3 in (1,253 mm)
Machine width without squeegee22.6 in (575.5 mm)
Cylindrical brush size (diameter x length)4.3 x 19.1 in (110 x 485 mm)
Weight without batteries and with empty tanks253.5 lb (115 kg)
Maximum weight with batteries and full tanks579.1 lb (263 kg)
Brush motor power0.27 HP (400 W)
Cylindrical brush rotation speed570 rpm
Cylindrical brush pressure58.4 lb (26.5 kg)
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 11, used with permission. SES ref PF-ISHF-ZC7A‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​‍⁠​​​‌​⁠​‌​‌⁠‌​‍​⁠⁠‌​​⁠​​⁠‌‍⁠​‌​‍​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 11 of 116
Instructions for use

Wiring diagram

In short This page lists the abbreviations used for the electrical components and the wire color codes, followed by the machine's wiring diagram. Use the key and color code to read the diagram.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠​​​​‌​⁠​‌‌‍⁠​​‌‍⁠‌‍​‍‍​⁠‌⁠‍⁠⁠​‍‍‌

Key

CodeDescription
BAT24V battery
C1Battery connector
C2Battery charger connector
CHBattery charger
CSCCylindrical brush deck secondary connector
EB1Function electronic board
EB2Drive system electronic board
ES1Brush electromagnetic switches
ES2Vacuum system relay
EV1Solenoid valve
F1Deck fuse
F2Vacuum system fuse
F3Drive system fuse
F4Signal circuit fuse
F5Brush/pad-holder release fuse
F6Pump fuse
HMHour counter (optional)
K1Ignition key
M1Brush/pad-holder motor
M2Vacuum system motor
M3Drive system motor
M4Water pump (**)
M5Detergent tank (**)
RV2Maximum speed potentiometer
SW1Brush/drive system enabling microswitch
SW2Reverse gear microswitch

(*) Only for machines with cylindrical brush deck
(**) Only for machines with EcoFlex™‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠​​​​‌​⁠​‌‌‍⁠​​‌‍⁠‌‍​‍‍​⁠‌⁠‍⁠⁠​‍‍‌

Color code

CodeColor
BKBlack
BUBlue
BNBrown
GNGreen
GYGrey
OGOrange
PKPink
RDRed
VTViolet
WHWhite
YEYellow
Wiring diagram of the machine showing the 24V battery, battery charger, function electronic board EB1, drive system electronic board EB2, motors M1, M2, M3 and M4, fuses F1 to F6, relay ES2, electromagnetic switches ES1, microswitches SW1 and SW2, speed potentiometer RV2, ignition key K1, hour counter HM, solenoid valve EV1, and the optional cylindrical brush deck connector box marked (*), with wires labeled by color code
S311315
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 12, used with permission. SES ref PF-M2UH-AEDE‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠​​​​‌​⁠​‌‌‍⁠​​‌‍⁠‌‍​‍‍​⁠‌⁠‍⁠⁠​‍‍‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 12 of 116
Instructions for use

USE

WARNING: On some points of the machine there are some adhesive plates indicating:
  • DANGER
  • WARNING
  • CAUTION
  • CONSULTATION
In short Adhesive plates on the machine carry safety symbols that the operator must pay attention to, and the plates must not be covered or left damaged.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠‌​​​‌​⁠​‌​​‍⁠‌‍‌⁠​‍‍‍‌​⁠⁠‌​⁠​​⁠⁠⁠

While reading this Manual, the operator must pay particular attention to the symbols shown on the plates.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠‌​​​‌​⁠​‌​​‍⁠‌‍‌⁠​‍‍‍‌​⁠⁠‌​⁠​​⁠⁠⁠

Do not cover these plates for any reason and immediately replace them if damaged.

Battery check/setting on a new machine

WARNING: The electric components of the machine can be seriously damaged if the batteries are either improperly installed or connected. The batteries must be installed by qualified personnel only. Set the function electronic board and the built-in battery charger according to the type of batteries used (WET or GEL/AGM).
Check the batteries for damage before installation.
Disconnect the battery connector and the battery charger plug.
Handle the batteries with great care.
Install the battery terminal protection caps supplied with the machine.
In short A new machine needs two 12 V batteries, installed by qualified personnel and set for the battery type (WET or GEL/AGM). If batteries are already fitted, check the connector and the ignition key warning led to see whether they are ready or need charging.

Batteries and chargers: make sure your charger is compatible with your batteries, and set its charging algorithm to your battery pack before you use it.

The machine requires two 12 V batteries, connected according to the diagram (29).

The machine can be supplied in one of the following modes:

Batteries (WET or GEL/AGM) already installed and ready to be used

  1. Check that the batteries are connected to the machine with the connector (12).
  2. Insert the ignition key (80) and turn it to “I” position.
    If the green warning led (81a) turns on, the batteries are ready to be used.
    If the yellow or red warning led (81b) or (81c) turns on, the batteries must be charged (see the procedure in the Maintenance chapter).

Without batteries

  1. Buy appropriate batteries (see the Technical Data paragraph).
  2. For battery choice and installation, apply to qualified battery Retailers.
  3. Set the machine and the battery charger according to the type of batteries (WET or GEL/AGM).
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 13, used with permission. SES ref PF-ZW5S-Y7W4‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠‌​​​‌​⁠​‌​​‍⁠‌‍‌⁠​‍‍‍‌​⁠⁠‌​⁠​​⁠⁠⁠
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 13 of 116
Instructions for use

Battery installation and battery type setting (wet or gel/AGM)

In short The machine's electronic board and the battery charger must both be set to match the battery type, WET or GEL/AGM. Check the machine setting by the warning led at start-up, set the charger selector, then install and charge the batteries.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠‍​​​‌​⁠​‌⁠​‍‌​‌​​​‌​⁠​​​‍‌‍​‍‍⁠​​

Batteries and chargers: make sure your charger is compatible with your batteries, and set its charging algorithm to your battery pack before you use it.

According to the type of batteries (WET or GEL/AGM), set the electronic board of the machine and of the battery charger, according to the following procedure:‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠‍​​​‌​⁠​‌⁠​‍‌​‌​​​‌​⁠​​​‍‌‍​‍‍⁠​​

Machine setting

  1. Turn the ignition key (80) to “I” and pay attention to the following in the very first seconds of machine operation:
    • If the green warning led (81a) is flashing, the machine is set to GEL/AGM.
    • If the red warning led (81c) is flashing, the machine is set to WET.
  2. If the setting is to be changed, perform the following procedure.
  3. Turn off the machine by turning the ignition key (80) to “0” position.
  4. Press and hold the switches (71) and (73) at the same time, then turn the ignition key (80) to “I”.
  5. Release the switches (71) and (73) at least 8 seconds after starting the machine.
  6. Within 3 seconds, press the switch (73) again for a few seconds and check that the warning led for the required setting is flashing (as shown in step 1).

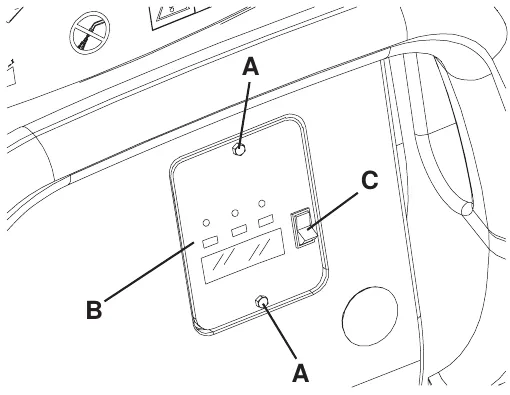

Battery charger setting

  1. Remove the battery charger data inspection window screws (A, Fig. 1).
  2. Remove the window (B).
  3. Turn the battery charger selector (C) to WET position for lead batteries, or to GEL/AGM position for gel batteries.
  4. Install the window (B) and tighten the screws (A).

Battery installation

  1. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
  2. Grasp the handle (41) and carefully lift the tank (40).
  3. Install the batteries.

Battery charging

  1. Charge the batteries (see the procedure in the Maintenance chapter).
Battery charger data inspection panel on the machine body, with two screws labeled A at the top and bottom, the window labeled B at lower left, and the selector switch labeled C at right
Figure 1 (S311316)
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 14, used with permission. SES ref PF-32KO-BRKM‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠‍​​​‌​⁠​‌⁠​‍‌​‌​​​‌​⁠​​​‍‌‍​‍‍⁠​​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 14 of 116
Instructions for use

Before machine start-up

In short This section explains how to get the cleaning deck and the brushes or pad-holders ready before you start the machine. Fit the brushes or pad-holders under the deck, lower the deck, and engage them with a light touch on the paddle.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠⁠​​​‌​⁠​‌​‍​‌⁠‍‌‌‌‌​​⁠‌‌‌‍‍​​‍⁠‌‌

Deck installation/removal

The machine can be equipped with either the brush/pad-holder deck (18a and 18b) or the cylindrical brush deck (18c).‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠⁠​​​‌​⁠​‌​‍​‌⁠‍‌‌‌‌​​⁠‌‌‌‍‍​​‍⁠‌‌

For deck installation/removal see the procedure in the Maintenance chapter.

NOTE When the deck is installed/removed, it may be necessary to change the squeegee too, because they must have the same width. For correct matching of deck and squeegee, see the Squeegee Installation paragraph.

Brush/pad-holder installation/removal

  1. According to the kind of cleaning to be carried out, the machine can be equipped either with brushes (A, Fig. 2) or pad-holders (B) with pads (C) together with the appropriate deck.
  2. Turn the ignition key (80) to “0” position.
    If equipped, turn the speed adjuster (4) to idle by turning it counter-clockwise.
  3. Place the brushes (A) or the pad-holders (B) under the appropriate deck (18a) or (18b).
  4. Lower the deck on the brushes/pad-holders by pressing the pedal (11).
  5. Turn the ignition key (80) to “I” position.
  6. Press the brush/pad-holder and vacuum system switch (71).
  7. Slightly press the paddle (3) forward to engage the brushes/pad-holders, then release it. If necessary, repeat the procedure until the brushes/pad-holders are engaged.

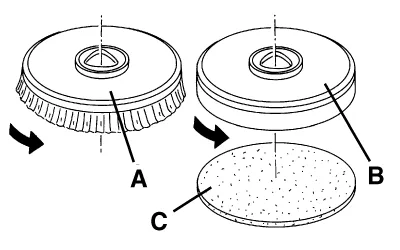

Drawing of a bristle brush (A) on the left and a pad-holder (B) above a round pad (C) on the right, with curved arrows showing the rotation direction of each
Figure 2
WARNING: Do not press the paddle (3) completely, otherwise the machine will start.
A light pressure on the paddle (3) is enough to engage the brushes/pad-holders and activate the brush/pad-holder motors.
  1. To remove the brushes/pad-holders, the deck must be lifted by pressing the pedal (11), then press the switch (75) and wait for the brushes/pad-holders to fall on the floor.
    Turn the ignition key (80) to “0” position.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 15, used with permission. SES ref PF-ERI7-VTVV‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​​⁠⁠​​​‌​⁠​‌​‍​‌⁠‍‌‌‌‌​​⁠‌‌‌‍‍​​‍⁠‌‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 15 of 116
Instructions for use

Types of brush/pad available and application guide (suggestions only)

ModelsMIDLITE GRIT 180MIDGRIT 240PROLENEPROLITEUNION MIX
General cleaning:
ConcreteSuggestedSuggestedSuggested
Terrazzo floorSuggestedSuggestedSuggested
Ceramic tiles/quarrystonesSuggestedSuggestedSuggested
MarbleSuggested
Vinyl tilesSuggestedSuggested
Rubber tilesSuggested
Polishing:
Rubber tilesSuggested
MarbleSuggested
Vinyl tilesSuggested

Cylindrical brush installation/removal

In short This procedure shows how to fit or remove the cylindrical brushes on the cylindrical brush deck. Turn the ignition key to "0", lift the deck with the pedal, then take off the handwheels and lids to change the brushes.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​​​​​‌​⁠​‌‍‍‍‌‍‍‍⁠‌‌‌‌‍⁠​​‍‌⁠‌‍‌‌​
  1. Turn the ignition key (80) to “0” position.
  2. Lift the cylindrical brush deck by pressing the pedal (11).
  3. Remove the handwheels (A, Fig. 3) and the lids (B) by pushing them downwards and pressing on the handwheels.
  4. Install the cylindrical brushes (C).
    The cylindrical brushes can be installed on either sides.
  5. Install the lids (B) and fasten them with the handwheels (A).
  6. To remove the cylindrical brushes, carry out steps 1 to 5 in the reverse order.

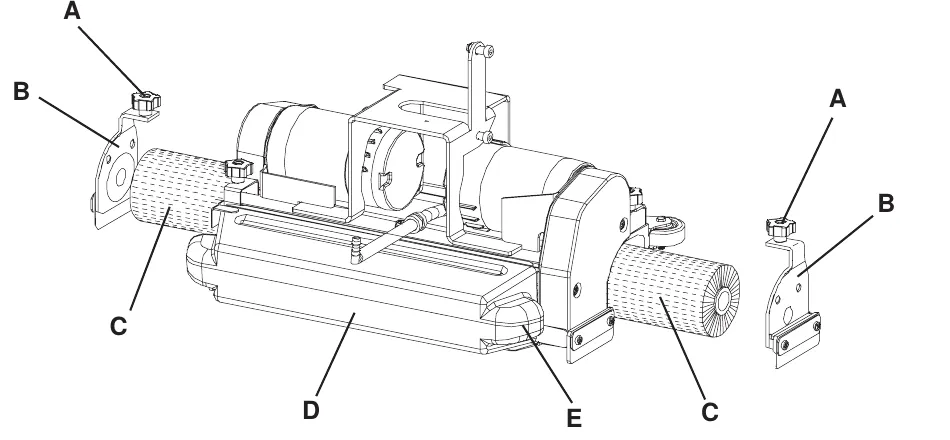

Cylindrical brush deck seen from above with callouts: A handwheels, B lids, C cylindrical brushes on both sides, D deck, E detail at the deck front corner; the lids and handwheels are shown pulled away from the deck on each side
Figure 3
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 16, used with permission. SES ref PF-YDLR-VAUH‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​​​​​‌​⁠​‌‍‍‍‌‍‍‍⁠‌‌‌‌‍⁠​​‍‌⁠‌‍‌‌​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 16 of 116
Instructions for use

Types of cylindrical brushes available and application guide (suggestions only)

ModelsPOLYPROPYLENE 0.40HARD NYLON 0.60SOFT NYLON 0.45
General cleaning:
ConcreteSuggestedSuggested
Terrazzo floorSuggestedSuggestedSuggested
Ceramic tiles/quarrystonesSuggestedSuggestedSuggested
MarbleSuggestedSuggested
Vinyl tilesSuggestedSuggestedSuggested
Rubber tilesSuggested

Squeegee installation

  1. Install the squeegee (25) and fasten it with the handwheels (26), then connect the vacuum hose (15) to the squeegee.
  2. With the handwheel (27), adjust the squeegee so that the rear blade - in all its length - touches the floor and the front blade is slightly detached from the floor.

Guide to match squeegees and brush/pad-holder decks

Deck modelSqueegee model

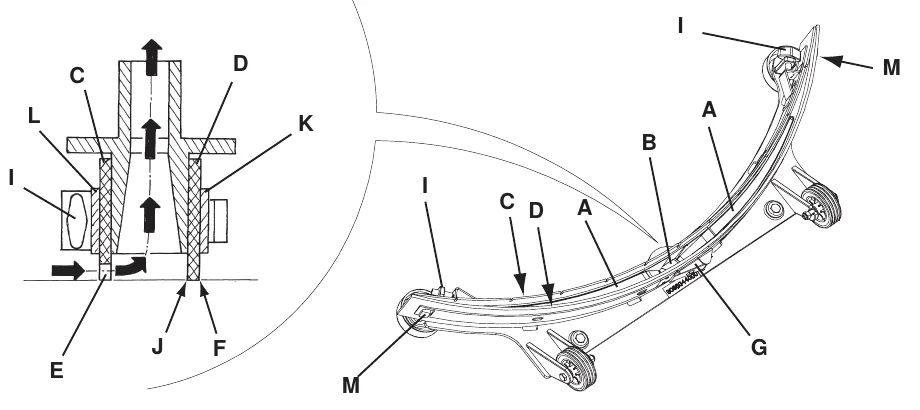

Deck with one brush (18a), brush diameter: 20.9 in (530 mm)Aluminum (Fig. 7), width 29.9 in (760 mm)

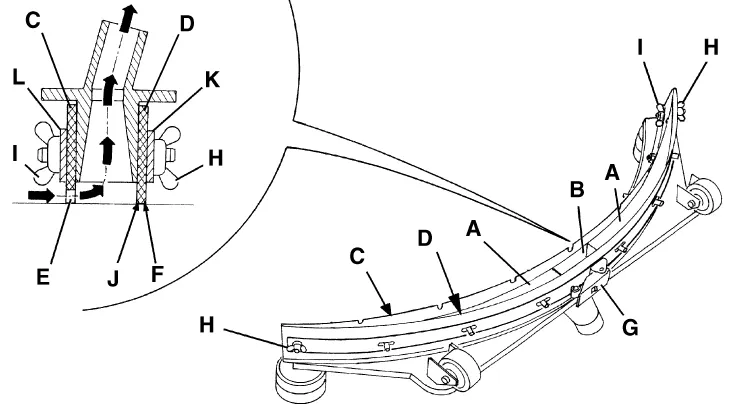

Deck with two brushes (18b), brush diameter: 12.0 in (305 mm)Steel (Fig. 6), width 31.9 in (810 mm)
Deck with two cylindrical brushes (18c), brush length: 19.1 in (485 mm)Aluminum (Fig. 7), width 29.9 in (760 mm)

Solution or washing water tank filling

In short This section explains how to fill the solution or clean water tank, and for the X models the detergent tank. Do not fill tanks completely, keep liquid at or below +104 °F (+40 °C), and use only low-foam, non-flammable detergents.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​‌​​​‌​⁠​‌‌⁠‍‌⁠​⁠​​‍‌‌‍⁠‌‌‍‌‌​‍‌⁠‌
NOTE For Adfinity™ X20D, X20C, X24D: [switch (83 and 77) enabled] pour clean water in the tank.

For Adfinity™ 20D: pour solution.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​‌​​​‌​⁠​‌‌⁠‍‌⁠​⁠​​‍‌‌‍⁠‌‌‍‌‌​‍‌⁠‌

  1. Open the filler neck (8).
  2. (For Adfinity™ 20D)
    Fill the tank (20) with a solution suitable for the work to be carried out.
    Do not fill the solution tank completely, leave few inches from the edge.
    Always follow the dilution instructions on the label of the chemical product used to prepare the solution.
    The solution temperature must not exceed +104 °F (+40 °C).
CAUTION: Use only low-foam and non-flammable detergents, intended for automatic scrubber applications.

(For Adfinity™ X20D, X20C, X24D)
Fill the tank (20) with clean water.
Do not fill the clean water tank completely, leave a few inches from the edge.
The water temperature must not exceed +104 °F (+40 °C).
Detergent tank filling (for Adfinity™ X20D, X20C, X24D)

  1. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
  2. Grasp the handle (41) and carefully lift the tank (40).
  3. Open the plug (46).
  4. Fill the tank (45) with a detergent suitable for the work to be carried out (highly concentrated detergents).
    Do not fill the detergent tank completely, leave a few inches from the edge.
CAUTION: Use only low-foam and non-flammable detergents, intended for automatic scrubber applications.
NOTE If the detergent hose (48) is empty (in case of new system, system emptied for cleaning, etc.), in order to fill the hose quickly, it may be useful to drain the EcoFlex™ once or several times (see the procedure in the Maintenance chapter).
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 17, used with permission. SES ref PF-BNVH-OTZN‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​‌​​​‌​⁠​‌‌⁠‍‌⁠​⁠​​‍‌‌‍⁠‌‌‍‌‌​‍‌⁠‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 17 of 116
Instructions for use

Machine start and stop

In short This section explains how to start the machine, drive it to the work area and begin cleaning, and how to shut it down safely. Starting means turning the ignition key and checking the battery warning led. Stopping means releasing the paddle, switching off the brushes and vacuum, and lifting the deck and squeegee.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​‍​​​‌​⁠​‌‍‌⁠‌⁠​‍​​​⁠​​‌​‍‍⁠​⁠​​​‍

Starting the machine

  1. Prepare the machine as shown in the previous paragraph.
  2. Turn the ignition key (80) to “I” position.
    Check that the green warning led (81a) turns on (charged batteries).
    If the yellow or red warning led (81b or 81c) turns on, turn the ignition switch back to “0” position and charge the batteries (see the procedure in the Maintenance chapter).
  3. Drive the machine to the working area, by keeping the hands on the handlebar (2) and pressing the paddle (3) forward to move forward, and backwards to move in reverse.
    The maximum forward speed can be adjusted with the adjuster (4).
  4. Lower the squeegee (25) with the lever (10).
  5. Lower the brush/pad-holder deck by pressing the pedal (11).
  6. Press the brush/pad-holder and vacuum system switch (71).
  7. Press the washing detergent flow control switches (82) as necessary, depending on the type of cleaning to be carried out.
  8. Start cleaning, by moving the machines as shown in step 3. If necessary, adjust the maximum speed with the adjuster (4).

Stopping the machine

  1. Stop the machine by releasing the paddle (3).
  2. Turn off the brushes/pad-holders and the vacuum system by pressing the switches (71) and (73).
  3. Lift the brush/pad-holder deck by pressing the pedal (11).
  4. Lift the squeegee (25) with the lever (10).
  5. Make sure that the machine cannot move independently.

Machine operation (scrubbing/drying)

In short This section covers scrubbing and drying once the machine is started. Detergent flow, squeegee balance and forward speed can be adjusted as needed, and the machine should be stopped before adjusting the handwheels.
  1. Start the machine as shown in the previous paragraph.
  2. If necessary, press the washing detergent flow control switches (82) as necessary, depending on the type of cleaning to be carried out.
  3. If necessary, stop the machine and adjust the squeegee balancing handwheel (27).
  4. If necessary, stop the machine and turn the adjusting handwheel (28); when turning it clockwise or counter-clockwise the machine forward speed can be adjusted.
NOTE For correct scrubbing/drying of floors at the sides of the walls, Advance suggests to go near the walls with the right side of the machine as shown in figure 4.
Two top-down drawings of an operator driving the machine along a tiled floor next to a wall at the bottom. In view A the machine is angled, moving toward the right with a curved arrow; in view B the machine runs parallel to the wall with its right side next to it and a straight arrow pointing right
Figure 4
CAUTION: To avoid any damage to the floor surface, turn off the brushes/pad-holders when the machine stops in one place, especially when the extra pressure function is on.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 18, used with permission. SES ref PF-YFBS-SRI5‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​‍​​​‌​⁠​‌‍‌⁠‌⁠​‍​​​⁠​​‌​‍‍⁠​⁠​​​‍
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 18 of 116
Instructions for use

Adjustment of the detergent concentration in the solution

In short On the X20D, X20C and X24D, the detergent flow control switch turns on the detergent mixing system, and the display shows the concentration level from 1 to 6. This page explains how to change that level and how to use the EcoFlex™ switch for temporarily stronger washing power.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​⁠​​​‌​⁠​‌​‍​‍‍​⁠⁠‍​‍‍‌‍⁠⁠‌‍‌​​‍⁠‍

(For Adfinity™ X20D, X20C, X24D)‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​⁠​​​‌​⁠​‌​‍​‍‍​⁠⁠‍​‍‍‌‍⁠⁠‌‍‌​​‍⁠‍

The system used to mix the detergent with the washing water can be activated by pressing the detergent flow control switch (A, Fig. 5): when the LED (B) is on, the detergent is added to the washing water.

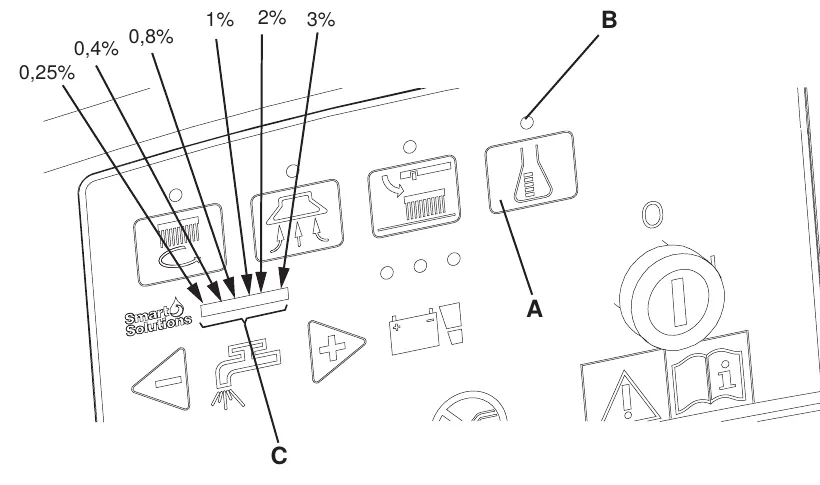

The display (C) shows the detergent concentration level (1 to 6) in the solution: for the related percentage values refer to the table (D).

NOTE The detergent concentration in the solution dispensed from the system always corresponds to level 1.
In order to temporarily obtain a stronger concentration, press the EcoFlex™ switch or disable the EcoFlex™ system (see the relevant paragraph).

EcoFlex™ switch

(For Adfinity™ X20D, X20C, X24D)

Press the EcoFlex™ switch (E, Fig. 5) whenever a stronger washing power is required.
When you press the switch (E) (the led indicator (F) is flashing) the solution flow increases and the detergent concentration in the corresponding solution rises to the set level (moreover, if the detergent mixing function is not activated, it is automatically activated).
The original settings can be restored by pressing the switch (E) once again (the led indicator (F) is ON).

NOTE If the switch (E) is not pressed once again, the original settings are restored automatically after 60 seconds.

In order to change the actual detergent concentration, proceed as follows:

  1. Turn off the detergent flow control switch (A) (the LED (B) must be OFF).
  2. Press and hold the detergent flow control switch (A) until the LED (B) flashes.
  3. Release the switch (A). Press it again shortly to go to the next level shown by the display (C); repeat the operation until the desired setting is reached.
  4. Wait until the LED (B) stops flashing: the new level is now set.
NOTE Detergent percentage setting is stored into memory, even if the machine is turned off.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 19, used with permission. SES ref PF-7OMT-2DWV‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌​⁠​​​‌​⁠​‌​‍​‍‍​⁠⁠‍​‍‍‌‍⁠⁠‌‍‌​​‍⁠‍
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 19 of 116
Instructions for use

EcoFlex™ system disabling procedure

In short This procedure shows how to switch the EcoFlex™ system off temporarily or permanently on the Adfinity™ X20D, X20C and X24D. Hold the EcoFlex™ switch for 2 seconds for a temporary disable, or use the ignition key and switch sequence to disable it permanently.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌​​​​‌​⁠​‌​‍⁠‌‍‍⁠‍‌‍​​⁠​‍⁠​​‌​​‌⁠‌

(For Adfinity™ X20D, X20C, X24D)‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌​​​​‌​⁠​‌​‍⁠‌‍‍⁠‍‌‍​​⁠​‍⁠​​‌​​‌⁠‌

In order to temporarily disable the system, press and hold the EcoFlex™ switch (E, fig. 5) for 2 seconds.
After this procedure, (LED (D) off), the detergent concentration level is the one which has been set.
To enable the system, press the EcoFlex™ switch (E) again.

In order to permanently disable the EcoFlex™ system, proceed as follows:

  1. Turn off the machine by turning the ignition key (80) to “0”.
  2. Press and hold the switch (E), then turn the ignition key (80) to “I”.
  3. Release the switch (E) at least 8 seconds after turning on the machine.

After this procedure, the EcoFlex™ switch cannot be operated again (the led indicator (F) is OFF) and the detergent concentration level is the one which has been set.
In order to re-enable the system, repeat the steps 1 to 3.

NOTE The permanent disabling of the EcoFlex™ system is stored into memory even after the machine is turned off.
Control panel drawing with callout letters: F on the indicator LED above the EcoFlex switch, E on the EcoFlex switch, B and A on the LED and button of the detergent solution switch below it, C on the single-digit display, and D on the detergent concentration table with levels 1 to 6 showing percent, ratio and oz./gal
Figure 5

Working with brush/pad-holder extra pressure function turned on

If the floor proves to be particularly difficult to clean, it is possible to turn on the brush/pad-holder extra pressure function by pressing the pedal (11) to position (11c).

CAUTION: When the cylindrical brush deck (18c) is installed, the extra pressure function is not enabled.
CAUTION: In case of brush/pad-holder motor overload, due to foreign bodies which prevent them from turning, or to excessively aggressive floors/brushes, the safety system stops the motor after about one minute of continuous overload.
The overload is shown by the three warning lights (81a, 81b, 81c) flashing simultaneously.
If the overload takes place when the extra pressure function is on (11c), press the pedal to position (11b). If the overload persists, the brush/pad-holder stops.
To start scrubbing again after a brush/pad-holder stop due to overload, stop the machine by turning the ignition key (80) to “0”. Turn on the machine by turning the ignition key (80) to “I”.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 20, used with permission. SES ref PF-SLTL-34A7‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌​​​​‌​⁠​‌​‍⁠‌‍‍⁠‍‌‍​​⁠​‍⁠​​‌​​‌⁠‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 20 of 116
Instructions for use

Battery discharge during operation‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌‌​​​‌​⁠​‌​‍‍⁠‍‍‍‌⁠⁠​​⁠‍‍‍‍⁠‍‍​⁠​​

  1. Until the green warning led (81a) stays on, the batteries allow the machine to work normally.
    When the green warning led (81a) turns off, and the yellow warning led (81b) turns on, it is advisable to charge the batteries, because the residual autonomy will last for a few minutes (depending on battery characteristics and work to be performed).
    When the red warning led (81c) turns on, the autonomy is over. After a few seconds, the brushes/pad-holders are automatically tuned off, while the vacuum system and the drive system stay on, to finish drying the floor and drive the machine to the appointed recharging area.
CAUTION: Do not use the machine with discharged batteries, to avoid damaging the batteries and reducing the battery life.

Tank emptying

In short When the recovery water tank is full, a float shuts off the vacuum system and you must empty the tank. Stop the machine, lift the deck and squeegee, drive to the disposal area and drain the tanks with their hoses.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌‌​​​‌​⁠​‌​‍‍⁠‍‍‍‌⁠⁠​​⁠‍‍‍‍⁠‍‍​⁠​​

An automatic float shut-off system (36) stops the vacuum system when the recovery water tank (21) is full.

The vacuum system deactivation is signaled by a sudden increase in the vacuum system motor noise frequency, moreover the floor is not dried.

CAUTION: If the vacuum system turns off accidentally (for example, when the float is activated because of a sudden machine movement), to resume the operation: turn off the vacuum system by pressing the switch (73), then open the cover (22) and check that the float inside the grid (36) has gone down to the water level. Then close the cover (22) and turn on the vacuum system by pressing the switch (73).

When the recovery water tank (21) is full, empty it according to the following procedure.

Recovery water tank emptying

  1. Stop the machine.
  2. Lift the brush/pad-holder deck by pressing the pedal (11).
  3. Lift the squeegee (25) with the lever (10).
  4. Drive the machine to the appointed disposal area.
  5. Empty the recovery water tank by means of the hose (16). After working, rinse the tank with clean water. Use the removable hose (9) (if equipped).

Solution/clean water tank emptying

  1. Perform steps 1 to 4.
  2. Empty the solution tank with the hose (17). After working, rinse the tank with clean water.

Cylindrical brush debris container emptying (only for cylindrical brush deck)

  1. Stop the machine.
  2. Lower the cylindrical brush deck and remove the debris container (D, Fig. 3) by pulling it on one side with the handle (E).
  3. Empty and wash the debris container (D), and then install it by engaging it on the retainers.

After using the machine

After working, before leaving the machine:

  1. Remove the brushes/pad-holders according to the procedure shown in the relevant paragraph.
  2. Empty the tanks (20 and 21) and the debris container (D, Fig. 3) as shown in the relevant paragraph.
  3. Perform the daily maintenance procedures (see the Maintenance chapter).
  4. Store the machine in a clean and dry place, with the brushes/pad-holders and the squeegee lifted or removed.

Machine long inactivity

If the machine is not going to be used for more than 30 days, proceed as follows:

  1. Perform the procedures shown in After Machine Use paragraph.
  2. Disconnect the battery connector (12).

First period of use

After the first 8 hours, check the machine fastening and connecting parts for proper tightening and check the visible parts for integrity and leakage.

Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 21, used with permission. SES ref PF-OYHL-UN4R‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌‌​​​‌​⁠​‌​‍‍⁠‍‍‍‌⁠⁠​​⁠‍‍‍‍⁠‍‍​⁠​​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 21 of 116
Instructions for use

MAINTENANCE

In short Regular maintenance keeps the machine safe and long-lived. Maintenance must be done with the machine off and the battery disconnected, by qualified personnel or an authorized Service Center, following the table of intervals.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌‍​​​‌​⁠​‌​⁠‌⁠‌⁠​⁠⁠⁠⁠⁠‍​⁠‌⁠​​⁠​​‍​

The lifespan of the machine and its maximum operating safety are ensured by correct and regular maintenance.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌‍​​​‌​⁠​‌​⁠‌⁠‌⁠​⁠⁠⁠⁠⁠‍​⁠‌⁠​​⁠​​‍​

The following table provides the scheduled maintenance. The intervals shown may vary according to particular working conditions, which are to be defined by the person in charge of the maintenance.

WARNING: The procedures must be carried out with the machine off and the battery disconnected.
Moreover, read carefully the instructions in the Safety chapter before performing any maintenance procedure.

All scheduled or extraordinary maintenance procedures must be performed by qualified personnel, or by an authorized Service Center.
This Manual describes only the easiest and most common maintenance procedures.
For other maintenance procedures shown in the Scheduled Maintenance Table, refer to the Service Manual that can be consulted at any Service Center.

Scheduled maintenance table

ProcedureDaily, after machine useWeeklyEvery six monthsYearly
Battery charging●
Squeegee cleaning●
Brush/pad cleaning●
Tank and vacuum grid with float cleaning, and cover gasket check●
EcoFlex™ system cleaning and draining●
Squeegee blade check and replacement●
Solution/clean water filter cleaning●
Vacuum system motor cleaning●
WET battery fluid level check●
Screw and nut tightening check● (1)
Brush/pad-holder motor carbon brush check or replacement● (2)
Vacuum system motor carbon brush check or replacement● (2)
Drive system motor carbon brush check or replacement● (2)

(1) And after the first 8 working hours.
(2) This maintenance procedure must be performed by an authorized Advance Service Center.

Charging the batteries

NOTE Charge the batteries when the yellow or red warning led (81b or 81c) turns on, or at the end of every working cycle.
CAUTION: Keeping the batteries charged make their life last longer.
CAUTION: When the batteries are discharged, charge them as soon as possible, as that condition makes their life shorter.
Check for battery charge at least once a week.
WARNING: WET battery charging produces highly explosive hydrogen gas. Charge the batteries in well-ventilated areas and away from bare flames. Do not smoke while charging the batteries.
Keep the tank assembly open while charging the batteries.
WARNING: Pay careful attention when charging the batteries as there may be battery fluid leakages. The battery fluid is corrosive. If it comes in contact with skin or eyes, rinse thoroughly with water and consult a physician.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 22, used with permission. SES ref PF-BD5J-KW63‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌‍​​​‌​⁠​‌​⁠‌⁠‌⁠​⁠⁠⁠⁠⁠‍​⁠‌⁠​​⁠​​‍​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 22 of 116
Instructions for use

Preliminary procedures

  1. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
  2. Drive the machine to the appointed recharging area.
  3. Turn the ignition key (80) to “0” position.
  4. Grasp the handle (41) and carefully lift the tank (40).
  5. For WET batteries only:
    • Check the level of electrolyte inside the batteries (52); if necessary, top up through the caps (53).
    • Then leave all the caps (53) open for battery charging.
    • If necessary, clean the upper surface of the batteries.
  6. Charge the batteries according to one of the following procedures, depending on the presence of the battery charger (90).

Battery charging

  1. Connect the battery charger cable (6) to the electrical mains (the electrical mains voltage and frequency must be compatible with the battery charger values shown on the machine serial number plate (34)).
    When the battery charger is connected to the electrical mains, all machine functions are automatically cut off.
    If the red warning led (94) on the battery charger control panel stays on, the battery charger is charging the batteries.
  2. When the green warning led (92) turns on, the battery charging is completed.
  3. When the battery charging is completed, disconnect the battery charger cable (6) from the electrical mains and wind it round its housing (7).
  4. Grasp the handle (41) and carefully lower the tank (40).
NOTE For further information about the operation of the battery charger (90), see the relevant Manual.

Machine working hour check

In short This check lets you read the total scrubbing/drying hours from the hour counter, on machines that have one. Turn the key to “I”, press the switch to read the counter, then press it again and return the key to “0”.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌⁠​​​‌​⁠​‌​‌​⁠​‍​⁠‌‌​‍​‍‌​‍‍‌​⁠‌‌​

(Only if the machine is equipped with hour counter)‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌⁠​​​‌​⁠​‌​‌​⁠​‍​⁠‌‌​‍​‍‌​‍‍‌​⁠‌‌​

  1. Turn the ignition key (80) to “I” position.
  2. Press the switch (73) and read on the hour counter (79) the total number of working hours (scrubbing/drying) performed by the machine.
  3. Press the switch (73) again.
  4. Turn the ignition key (80) to “0” position.

Squeegee cleaning

In short A clean squeegee with blades in good condition is needed for good drying. Remove the squeegee, clean it, check the front and rear blades for damage, then reassemble it in reverse order.
NOTE The squeegee must be clean and its blades must be in good conditions in order to get a good drying.
CAUTION: It is advisable to use protective gloves when cleaning the squeegee because there may be sharp debris.
  1. Drive the machine on a level floor.
  2. Turn the ignition key (80) to “0” position.
  3. Lower the squeegee (25) with the lever (10).
  4. Loosen the handwheels (26) and remove the squeegee (25).
  5. Disconnect the vacuum hose (15) from the squeegee.
  6. Clean the steel squeegee (Fig. 5) or the aluminum squeegee (Fig. 6). Clean the compartments (A, Fig. 5 or 6) and the hole (B) especially. Check the front blade (C) and the rear blade (D) for integrity, cuts and tears; otherwise replace them (see the procedure in the following paragraph).
  7. Assemble the squeegee in the reverse order of disassembly.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 23, used with permission. SES ref PF-XKPC-UXWR‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‌⁠​​​‌​⁠​‌​‌​⁠​‍​⁠‌‌​‍​‍‌​‍‍‌​⁠‌‌​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 23 of 116
Instructions for use

Squeegee blade check and replacement

In short This section explains how to check the front and rear squeegee blades, level them, and replace or overturn them when worn. Afterwards the squeegee is reconnected to the vacuum hose and reinstalled on the machine.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍​​​​‌​⁠​‌‌​​‍⁠​‌‌‌​⁠‍​‍‌⁠​‍​‌​​‍‌
  1. Clean the steel squeegee (Fig. 5) or the aluminum squeegee (Fig. 6), according to the procedure shown in the previous paragraph.
  2. Check that the edges (E, Fig. 5 or 6) of the front blade (C) and the edges (F) of the rear blade (D) lay down on the same level, along their length; otherwise adjust their height according to the following procedure:
    • Release the tie rod (G, Fig. 5 or 6) and loosen the wing nuts (H, Fig. 5), or disengage the retainers (M, Fig. 6) and adjust the rear blade (D, Fig. 5 or 6), then tighten the wing nuts or engage the retainers, and engage the tie rod.
    • Loosen the handwheels (I) and adjust the front blade (C, Fig. 5 or 6), then tighten the handwheels.
  3. Check the front blade (C, Fig. 5 or 6) and rear blade (D) for integrity, cuts and tears; otherwise replace them according to the following procedure. Check that the front corner (J) of the rear blade is not worn; otherwise, overturn the blade to replace the worn corner with an integral one. If the other corners are worn too, replace the blade according to the following procedure:
    • Disengage the tie rod (G), remove the wing nuts (H) or disengage the retainers (M), remove the retaining strip (K) and replace/overturn the rear blade (D).
    • Assemble the blade in the reverse order of disassembly.
    • Unscrew the handwheels (I) and remove the retaining strip (L), then replace the front blade (C).
    Assemble the blade in the reverse order of disassembly.
    After the blade replacement (or overturning), adjust the height as shown in the previous step.
  4. Connect the vacuum hose (15) to the squeegee.
  5. Install the squeegee (25) and screw down the handwheels (26).
  6. If necessary, adjust the squeegee balance adjusting handwheel (27).
Steel squeegee with a cross-section detail at left and an overall view at right. Letters mark the front blade C, rear blade D, retaining strips K and L, handwheels I, wing nuts H, tie rod G, edges E and F, corner J, and parts A and B. Arrows show airflow up through the squeegee.
Figure 5
Aluminum squeegee with a cross-section detail at left and an overall view at right. Letters mark the front blade C, rear blade D, retaining strips K and L, handwheels I, retainers M, tie rod G, edges E and F, corner J, and parts A and B. Arrows show airflow up through the squeegee.
Figure 6
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 24, used with permission. SES ref PF-4U4Y-K3IJ‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍​​​​‌​⁠​‌‌​​‍⁠​‌‌‌​⁠‍​‍‌⁠​‍​‌​​‍‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 24 of 116
Instructions for use

Brush/pad cleaning

In short Clean the brushes or pads with water and detergent, check them for wear and replace them if needed. On machines with the cylindrical brush deck, also empty and wash the debris container.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍‌​​​‌​⁠​‌⁠‌⁠‍​‍‌​⁠‍​‍‌​‍‌‍⁠‌‍‌​​​
CAUTION: It is advisable to use protective gloves when cleaning the brushes/pads/cylindrical brushes because there can be sharp debris.
  1. Remove the brushes/pads from the machine, as shown in the Use chapter.
  2. Clean and wash the brushes/pads with water and detergent.
  3. Check that the brushes/pads are integral and not excessively worn; otherwise replace them.
  4. On the machines equipped with the cylindrical brush deck, remove the debris container (D, Fig. 3) by pulling it on one side with the handle (E).
    Empty and wash the debris container (D), and then install it by engaging it on the retainers.

Tank and vacuum grid with float cleaning, and cover gasket check

In short Wash the cover, the tanks and the vacuum grid with float using clean water, and drain the tanks with the hoses. Check the cover gasket, the bearing surface and the compensation hole, because they help create vacuum in the tank.
  1. Drive the machine to the appointed disposal area.
  2. Turn the ignition key (80) to “0” position.
  3. Open the cover (A, Fig. 7) to washing position (L).
  4. Wash with clean water the cover (A), the tanks (B and C) and the vacuum grid with automatic shut-off float (D).
    Drain the water from the tanks with the hoses (16 and 17).
  5. If necessary, release the retainers (E) and open the grid (D), recover the float (F), clean all the components and then reinstall them.
  6. Check the tank cover gasket (G) for integrity.
NOTE The gasket (G) creates vacuum in the tank that is necessary for vacuuming the recovery water.

If necessary replace the gasket (G) by removing it from its housing (H). When assembling the new gasket, install the joint (I) in the rear central area, as shown in the figure.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍‌​​​‌​⁠​‌⁠‌⁠‍​‍‌​⁠‍​‍‌​‍‌‍⁠‌‍‌​​​

  1. Check that the bearing surface (J) of the gasket (G) is integral and adequate for the gasket itself.
  2. Check the compensation hole (K) for clogging, and clean it if necessary.
NOTE The hole (K), allowing to compensate the air in the cover interspaces, contributes to create vacuum in the tank.
  1. Close the cover (A).
Machine with the tank cover open to washing position, with callouts A to L: cover A, tanks B and C, gasket G, compensation hole K, washing position L, joint I and bearing surface J. Two detail circles show the gasket G in its housing H, and the vacuum grid D with retainers E and float F.
Figure 7
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 25, used with permission. SES ref PF-3BU6-XUL7‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍‌​​​‌​⁠​‌⁠‌⁠‍​‍‌​⁠‍​‍‌​‍‌‍⁠‌‍‌​​​
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 25 of 116
Instructions for use

Vacuum system motor filter cleaning

In short This section explains how to clean the pre-filter of the vacuum system motor. Park on a level floor, turn the ignition key to "0", open the recovery tank, and clean the pre-filter if needed.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍‍​​​‌​⁠​‌⁠⁠‌‍​​​⁠⁠‍​‌​​‌‍‌​⁠​​‍‌‍
  1. Drive the machine on a level floor.
  2. Turn the ignition key (80) to “0” position.
  3. Open the recovery water tank.
  4. If necessary, drain the water from the tank in order to make the filter visible.
  5. Check that the pre-filter is clean. If necessary clean it with water and compressed air, then install it.
  6. Carry out steps 1, 2 and 3 in the reverse order.

Solution filter cleaning

In short This section covers cleaning the solution filter on the Adfinity 20D. Close the solution tap, remove the transparent cover and filter strainer, clean them and reinstall them, then reopen the tap.

(For Adfinity™ 20D)‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍‍​​​‌​⁠​‌⁠⁠‌‍​​​⁠⁠‍​‌​​‌‍‌​⁠​​‍‌‍

  1. Drive the machine on a level floor.
  2. Turn the ignition key (80) to “0” position.
  3. Close the solution tap (A, Fig. 8) under the machine, behind the right rear wheel. The tap (A) is closed when it is on the position (B) and it is open when it is on the position (C).
  4. Remove the transparent cover (D), then remove the filter strainer (E). Clean and install them on the support (F).
NOTE The filter strainer (E) must be correctly positioned on the housing (G) of the support (F).
  1. Open the tap (A).

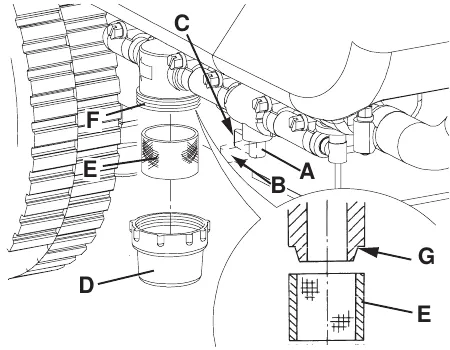

Solution filter assembly under the machine: tap with positions B (closed) and C (open) and tap A, support F holding filter strainer E, transparent cover D below, and a detail view showing the strainer E fitted on housing G
Figure 8
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 26, used with permission. SES ref PF-YUEM-FZCV‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍‍​​​‌​⁠​‌⁠⁠‌‍​​​⁠⁠‍​‌​​‌‍‌​⁠​​‍‌‍
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 26 of 116
Instructions for use

Clean water filter cleaning

In short This procedure cleans the clean water filter on the X20D, X20C and X24D models. You empty the recovery tank, lift the solution tank, remove and clean the filter strainer, then put everything back.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍⁠​​​‌​⁠​‌‍​​​‍‌⁠‍‌‍​​​‌‍‍‍‍‌​‍‍⁠‌

(For Adfinity™ X20D, X20C, X24D)‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍⁠​​​‌​⁠​‌‍​​​‍‌⁠‍‌‍​​​‌‍‍‍‍‌​‍‍⁠‌

  1. Drive the machine on a level floor.
  2. Turn the ignition key (80) to “0” position.
  3. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16).
  4. Grasp the handle (41) and carefully lift the tank (40).
  5. Slightly lift the hoses (A, Fig. 9), then, operating on the clean water filter assembly (F) unscrew the transparent cover (B) and remove the filter strainer (C). Clean and install them on the support (D).
NOTE The filter strainer (C) must be correctly positioned on the housing (E) of the support (D).
  1. Lower the hoses (A) and the filter strainer (F).

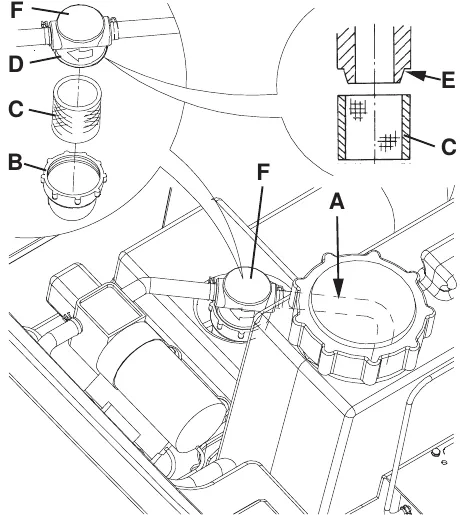

Clean water filter assembly. An exploded view at top left shows the filter assembly (F), the support (D), the filter strainer (C) and the transparent cover (B). A cutaway at top right shows the strainer (C) seated on the housing (E). Below, the tank area shows the filter assembly (F) and an arrow pointing to the hoses (A).
Figure 9
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 27, used with permission. SES ref PF-PWUZ-K4UJ‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌‍⁠​​​‌​⁠​‌‍​​​‍‌⁠‍‌‍​​​‌‍‍‍‍‌​‍‍⁠‌
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 27 of 116
Instructions for use

Fuse check/replacement

In short This section explains how to reach and check or replace the machine's six fuses. You disconnect the battery connector, move aside the panel, check the fuses, then reassemble in reverse order.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠​​​​‌​⁠​‌​⁠⁠‍⁠‌​⁠‌‍⁠⁠‍‌‌⁠‌⁠⁠‍⁠‍​⁠
  1. Disconnect the battery connector (12).
  2. Move aside the recovery water drain hose (16).
  3. Remove the battery charger cable (I, Fig. 10) from the holder (J).
  4. Remove the screws (A) and carefully move aside the panel (B) by disengaging the grommet (K) from its housing on the panel (B).
  5. Check/replace the following fuses:
    • C) F1 fuse, deck: (40 A)
    • D) F2 fuse, vacuum system: (30 A)
    • E) F3 fuse, drive system: (30 A)
    • F) F4 fuse, signal circuits: (3 A)
    • G) F5 fuse, brush/pad-holder release: (20 A)
    • H) F6 fuse, pump: (3 A)
  6. Perform steps 1 to 4 in the reverse order.

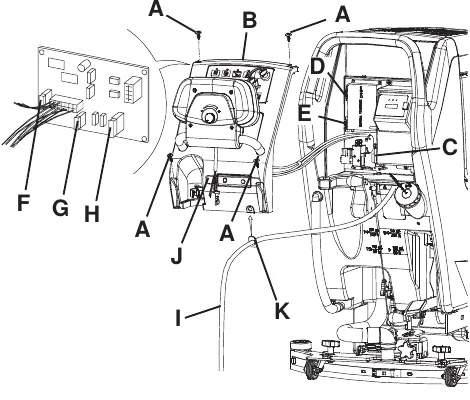

Machine control area with the panel moved aside, showing screws A, panel B, fuses C to H, battery charger cable I in holder J and grommet K
Figure 10

Brush/pad-holder/cylindrical brush deck disassembly/assembly

In short This section covers removing the brush/pad-holder deck or the cylindrical brush deck. The disassembly steps start on a level floor and end with removing the deck screws.

The machine can be equipped with either the brush/pad-holder deck (18a and 18b) or the cylindrical brush deck (18c).‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠​​​​‌​⁠​‌​⁠⁠‍⁠‌​⁠‌‍⁠⁠‍‌‌⁠‌⁠⁠‍⁠‍​⁠

NOTE When the deck is installed/removed, it may be necessary to change the squeegee too, because they must have the same width. For correct matching of deck and squeegee, see the Squeegee Installation paragraph.

Disassembly

  1. Drive the machine on a level floor.
  2. Remove the brushes/pad-holders according to the procedure shown in the relevant paragraph. Do not remove the cylindrical brushes.
  3. Lower the brush/pad-holder deck by pressing the pedal (11).

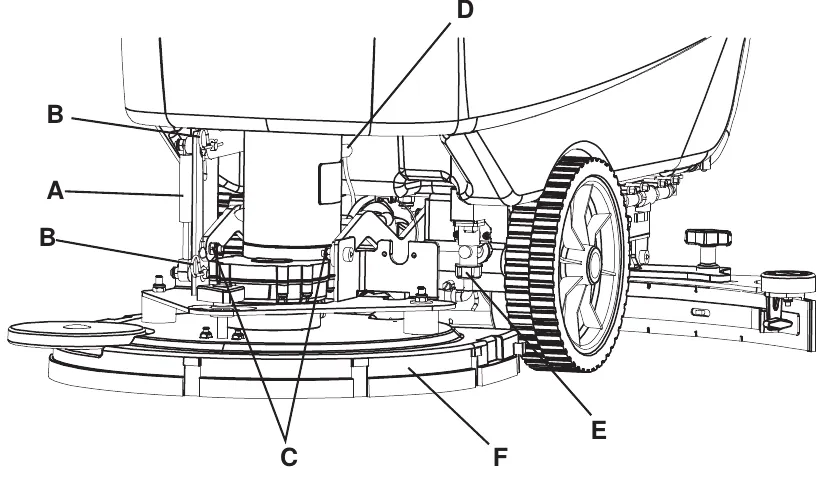

  4. If equipped, remove the cotter pins (B, Fig. 11) and the gas spring (A).
  5. Disconnect the brush/pad-holder motor electrical connection (D).
  6. Disconnect the solution hose (E) from the solenoid valve (F).
  7. Remove the screws (C), then remove the brush/pad-holder deck (F).
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 28, used with permission. SES ref PF-6SE4-D7OC‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠​​​​‌​⁠​‌​⁠⁠‍⁠‌​⁠‌‍⁠⁠‍‌‌⁠‌⁠⁠‍⁠‍​⁠
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 28 of 116
Instructions for use

Assembly‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠‌​​​‌​⁠​‌​​⁠​​⁠⁠‌‍‍​​​‍​‍⁠‌⁠​​⁠⁠‍

  1. Assemble the components in the reverse order of disassembly, and note the following:
    • When the machine is equipped with the cylindrical brush deck (18c), the gas spring (A) must not be installed.
Side view of the underside of the machine near the brush deck with callout letters A to F: A the gas spring, B two points at its ends, C two points at the brush deck, D at the top near the tank, E near the drive wheel, F on the deck skirt
Figure 11

Detergent tank cleaning

In short This procedure explains how to remove and wash the detergent tank on the X20D, X20C and X24D. Afterwards the EcoFlex™ must be drained too.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠‌​​​‌​⁠​‌​​⁠​​⁠⁠‌‍‍​​​‍​‍⁠‌⁠​​⁠⁠‍

(For Adfinity™ X20D, X20C, X24D)

Clean the detergent tank (45) according to the following procedure:

  1. Drive the machine to the appointed disposal area.
  2. Open the cover (22) and check that the recovery water tank (21) is empty, otherwise empty it with the drain hose (16). Close the cover (22).
  3. Grasp the handle (41) and carefully lift the tank (40).
  4. Unscrew the plug and disconnect the hose (48) from the tank (45).
  5. Remove the tank by releasing it from the retainers.
  6. Wash the tank in the appointed disposal area.
  7. Install the tank (45) and connect it to the hose (48).
  8. When the detergent tank has been drained, the EcoFlex™ must be drained too (see the procedure in the following paragraph).

Ecoflex™ draining

In short This procedure empties the detergent left in the hoses and pump of the EcoFlex™ system on the X20D, X20C and X24D. It is done after cleaning the detergent tank, using the switches while the machine is on.

(For Adfinity™ X20D, X20C, X24D)

  1. Clean the detergent tank according to the procedure shown in the previous paragraph. To remove the detergent remained in the hoses and in the pump, perform the following procedure.
  2. Grasp the handle (41) and carefully lower the tank (40).
  3. Turn on the machine by turning the ignition key (80) to “I” position.
  4. Press the switch (77). Check that the switch warning led (78) turns on.
  5. Simultaneously press the switches (77 and 82a), until the switch warning led (78) starts flashing (after about 5 seconds).
  6. Release the switches and wait for the warning led (78) to stop flashing and for the vacuum system to turn on.
  7. Collect the detergent remained on the floor.
  8. Turn the ignition key (80) to “0” position.
  9. Grasp the handle (41) and carefully lift the tank (40), then check that the hose (48) is empty, otherwise perform the steps 3 to 9 again.
NOTE The draining cycle lasts about 30 seconds, then the vacuum function automatically turns on, which allows to remove the detergent remained.
The draining cycle can also be performed with the detergent tank (45) full of water, thus cleaning the system thoroughly.
It is advisable to perform the draining cycle when the EcoFlex™ is really dirty/encrusted because the machine has not been used/cleaned for a long time.
The draining cycle can be performed also to quickly fill the detergent hose when the tank (45) is full but the system is still empty.
If necessary, the discharge can be repeatedly performed.
Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 29, used with permission. SES ref PF-BUWV-I232‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠‌​​​‌​⁠​‌​​⁠​​⁠⁠‌‍‍​​​‍​‍⁠‌⁠​​⁠⁠‍
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 29 of 116
Instructions for use

Troubleshooting

In short This table lists common faults, their possible causes and the remedy for each, such as charging the batteries, cleaning filters or the squeegee, or replacing worn blades. The machine cannot run without the battery charger.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠‍​​​‌​⁠​‌‌⁠‍‍‍‍⁠​⁠‌⁠​​⁠‌⁠​⁠‍⁠⁠⁠​‍

Batteries and chargers: make sure your charger is compatible with your batteries, and set its charging algorithm to your battery pack before you use it.

TroublePossible CauseRemedy
The motors do not work; no warning led turns on.The battery connector is disconnected.Connect.
The batteries are completely discharged.Charge the batteries.
The machine does not move.The machine has been turned on by using the ignition key and by keeping the paddle pressed.Turn the ignition key to “0” position, then try to start the machine without pressing the paddle.
The warning leds (81) flash simultaneously.The deck motor is overloaded.Use less aggressive brushes suitable for the floor to be cleaned or avoid working with extra pressure function turned on.
The brushes do not work, the red warning led is on.The batteries are discharged.Charge the batteries.
Insufficient recovery water vacuuming.The recovery water tank is full.Empty the tank.
The hose is disconnected from the squeegee.Connect.
The vacuum grid is clogged or the float is stuck closed.Clean the grid or check the float.
The squeegee is dirty or the squeegee blades are worn or damaged.Clean and check the squeegee.
The tank cover is not correctly closed, or the gasket is damaged, or the compensation hole is clogged.Close the cover correctly, or replace the gasket or clean the compensation hole.
Insufficient solution flow to the brushes.The solution filter or the clean water filter is dirty.Clean the filter.
The tank is dirty (the drain hole is clogged).Clean.
Dirty/encrusted EcoFlex™ tank.Drain.
Marks caused by the squeegee.There are debris under the squeegee blades.Remove the debris.
The squeegee blades are worn, chipped or torn.Replace the blades.
The squeegee has not been balanced with the handwheel.Balance.
NOTE The machine cannot operate without the battery charger.
In case of battery charger malfunction, contact an authorized Service Center.

For further information, refer to the Service Manual, available at any Advance Service Center.‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠‍​​​‌​⁠​‌‌⁠‍‍‍‍⁠​⁠‌⁠​​⁠‌⁠​⁠‍⁠⁠⁠​‍

SCRAPPING

In short The machine must be scrapped by a qualified scrapper. Before scrapping, remove and separate the batteries, brushes/pads, plastic hoses and components, and electrical and electronic components, and dispose of them according to the Law in force.

Have the machine scrapped by a qualified scrapper.

Before scrapping the machine, remove and separate the following materials, which must be disposed of properly according to the Law in force:

  • Batteries
  • Brushes/pads
  • Plastic hoses and components
  • Electrical and electronic components (*)

(*) Refer to the nearest Advance Center especially when scrapping electrical and electronic components.

Source: Advance Adfinity 20D / X20D / X20C / X24D Operator Manual 9096910000(2) Rev. 2010-03, page 30, used with permission. SES ref PF-VFHX-URD7‌‌​⁠⁠​‌‌‌⁠‌​‌‌‌‌​‌‌‌​​​​​‌⁠‍​​​‌​⁠​‌‌⁠‍‍‍‍⁠​⁠‌⁠​​⁠‌⁠​⁠‍⁠⁠⁠​‍
Adfinity 20D / X20D / X20C / X24D 9096910000(2) (2010-03)Page 30 of 116

Pages 31 to 116 of this manual repeat the instructions in other languages, so they are not shown here. View original PDF

Advance and Nilfisk are trademarks of Nilfisk A/S. Southeastern Equipment & Supply is an independent dealer.

Not Sure Which Machine Fits Your Floors?

Talk to a real SES tech about new, demo or certified reconditioned options, parts and service.

© 2026 Southeastern Equipment and Supply. All Rights Reserved.

Visa Discover AMEX Mastercard
