Tennant M30 Diesel options, breakdowns and engine parts list and diagrams
Option kits, component breakdowns and engine parts for the Tennant M30 Diesel, from Tennant's parts manual, with the manual's drawings. Each part number links to that part in our store, and the standard parts are on a companion page.
Online manuals: Operator
Complete list: the options, component breakdowns and engine sections of Tennant M30 Diesel Parts Manual 9003952 Rev. 16 (5-2016), S/N 000000-007999, 1353 part lines. The standard parts, maintenance items and owner's guide are on the M30 Diesel parts list page. Checked .
New to your M30 Diesel? Start here → Standard parts and maintenance items → Manuals (free sign-in) → How to use PartFinder (3-min video) →
- Cleaning path
- 48 in (1,220 mm); 62 in (1,575 mm) with the scrubbing side brush; 64 in (1,625 mm) with the sweeping side brush
- Solution tank
- 75 gal (284 L)
- Recovery tank
- 95 gal (360 L)
- Hopper
- 7.0 cu ft (198 L), 650 lb (295 kg)
- Engine
- Kubota V1505-TB 4-cylinder turbo diesel, 34 hp (25.4 kW) at 2,800 rpm as governed
How to read this list
Our part numbers are Tennant's current part number with TN in front. Where Tennant has replaced the number printed in the manual, the line says Replaces Tennant and the printed number. The Item column matches the numbers on the drawing, and tapping a number on the drawing highlights the line. Blue part numbers open the part page. Lines marked Call to confirm part are not listed online yet; call 800-440-6723 and we will source them. Prices were current on ; your cart always shows the current price. Have your machine serial number ready when you call.

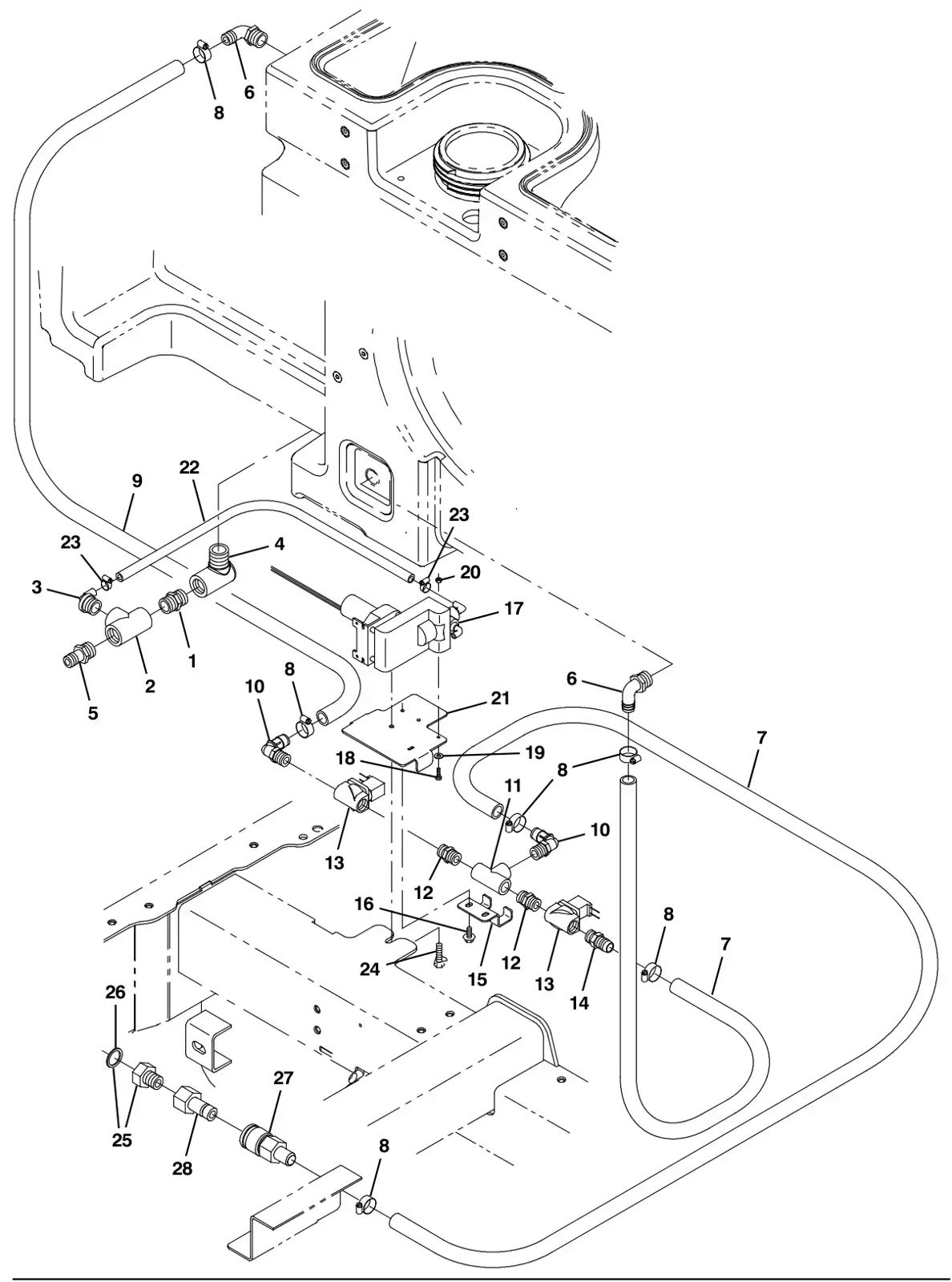

Tennant M30 Diesel ES Pump Group (option) parts
The parts Tennant numbers on its es pump group (option) drawing. Manual pages 174, list 175.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035382Replaces Tennant 24544 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60l | $6.20/EA |
| 2 | TN4017317Replaces Tennant 42133A | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12 | $17.60/EA |
| 3 | TN4026576Replaces Tennant 79484 | 1 | Fitting, Plstc, E90, Bm06/Pm12, Nyl | $7.80/EA |
| 4 | TN4018369Replaces Tennant 69785 | 1 | Fitting, Plstc, E90, Pf12/Pm12 | $11.80/EA |
| 5 | TN4026538Replaces Tennant 79273-2 | 1 | Fitting, Plstc, Str, Bm12/Pm12Serial up to 004690. | $7.90/EA |
| 5 | TN4028471Replaces Tennant 365095 | 1 | Fitting, Plstc, Str, Bm10/Pm12Serial 004691 and later. | $4.20/EA |
| 6 | TN4044360Replaces Tennant 14877 | 2 | Fitting, Plstc, E90, Bm12/Pm12 | $6.20/EA |
| 7 | TN4039303Replaces Tennant 1006410 | 2 | Hose, Afmkt, Pvc, Brd, 0.75id, 03ft, Clr | $14.75/EA |
| 8 | TN4017089Replaces Tennant 63810 | 6 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | $6.80/EA |
| 9 | TN4037985Replaces Tennant 1015045 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, Clr | $83.30/EA |
| 10 | TN4021149Replaces Tennant 63244-2 | 2 | Fitting, Plstc, E90, Bm12/Pm08 | $6.90/EA |
| 11 | TN4026578Replaces Tennant 79497 | 1 | Fitting, Plstc, Tee, Pf08/Pf08/Pf08 | $10.30/EA |
| 12 | TN4021662Replaces Tennant 86508 | 2 | Fitting, Plstc, Str, Pm08/Pm08 | $6.90/EA |
| 13 | TN4016339Replaces Tennant 73433 | 2 | Valve, Water, Solenoid, 12vdc Pf08/Pf08 | $535.70/EA |
| 14 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08, Nyl | $6.20/EA |
| 15 | TN4197702Replaces Tennant 1016837 | 1 | Bracket, Mtg, Valve | $13.03/EA |
| 16 | TN4039851Replaces Tennant 222158 | 2 | Screw, Hex, M6 X 1.00 X 10, Fmg | $3.40/EA |
| 17 | TN4016324Replaces Tennant 73260 | 1 | Pump, Detgt, 14vdc, 150ml/Min 20psi | $792.20/EA |
| 18 | TN4035372Replaces Tennant 24265 | 2 | Screw, Pan, Phl, M4 X 0.70 X 16, Ss | $3.00/EA |
| 19 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | $2.60/EA |
| 20 | TN4031247Replaces Tennant 33932 | 2 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss | $3.40/EA |
| 21 | TN4192827Replaces Tennant 1033792 | 1 | Plate, Hsng [FaST] | No longer available. Call to confirm part: 800-440-6723 |
| 22 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 03ft | $33.10/EA |
| 23 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.250.62d, .31w | $4.20/EA |
| 24 | TN4013943Replaces Tennant 76099 | 1 | Screw, Hex, M8 X 1.25 X 25, Fmg | $4.00/EA |
| 25 | TN4029239Replaces Tennant 375322 | 1 | Fitting Kit, Hose, GardenComplete assembly. | $19.09/EA |
| 26 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrPart of Fitting Kit, Hose, Garden (375322). | $3.50/EA |
| 27 | TN4035365Replaces Tennant 24105 | 1 | Fitting, Brs, Qdc, Bm12/Qf08 | $101.81/EA |
| 28 | TN4030863Replaces Tennant 33295 | 1 | Fitting, Brs, Qdc, Pf08 [Parker Bh3f] | $9.60/EA |

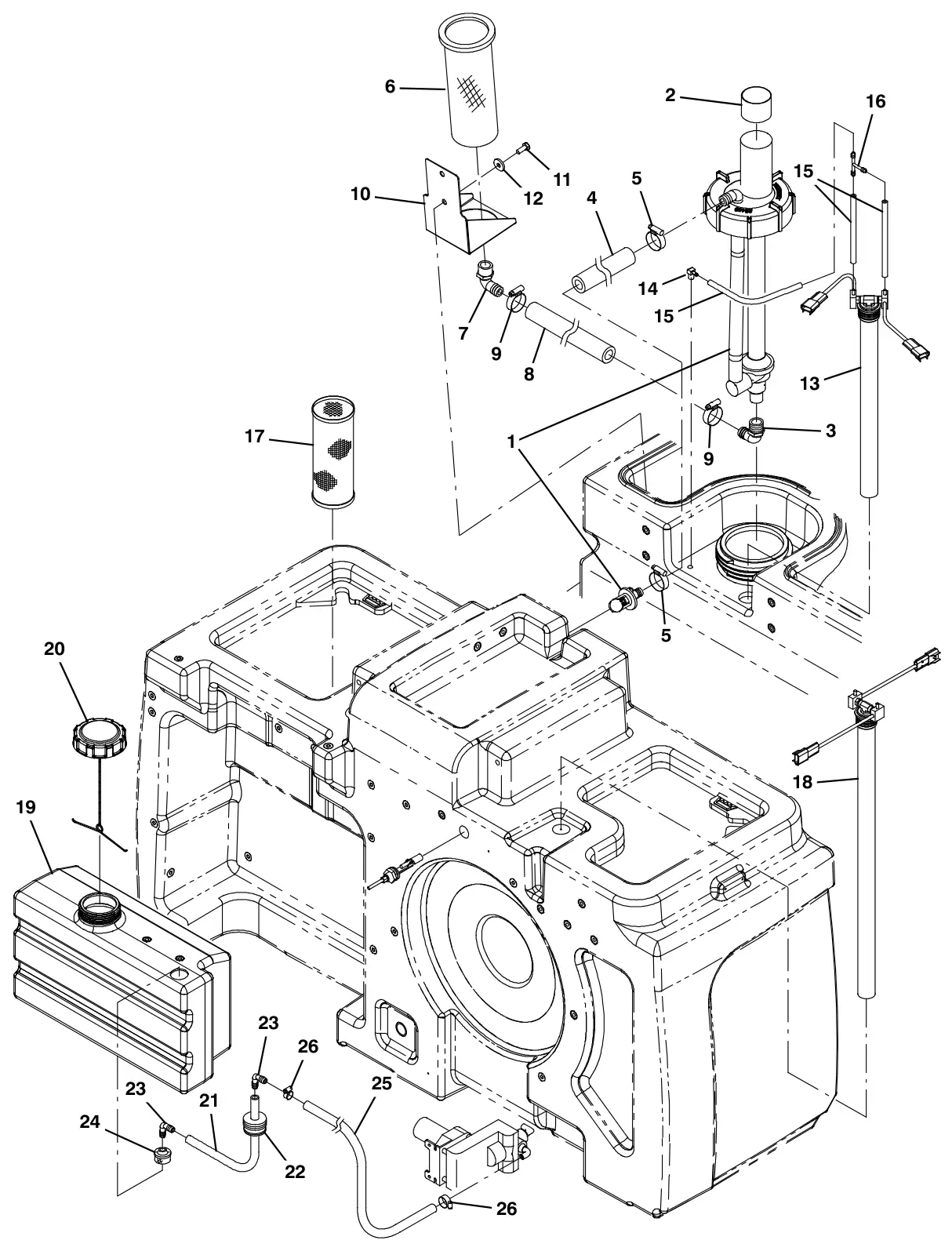

Tennant M30 Diesel ES Tanks Group (option) parts
The parts Tennant numbers on its es tanks group (option) drawing. Manual pages 176, list 177.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

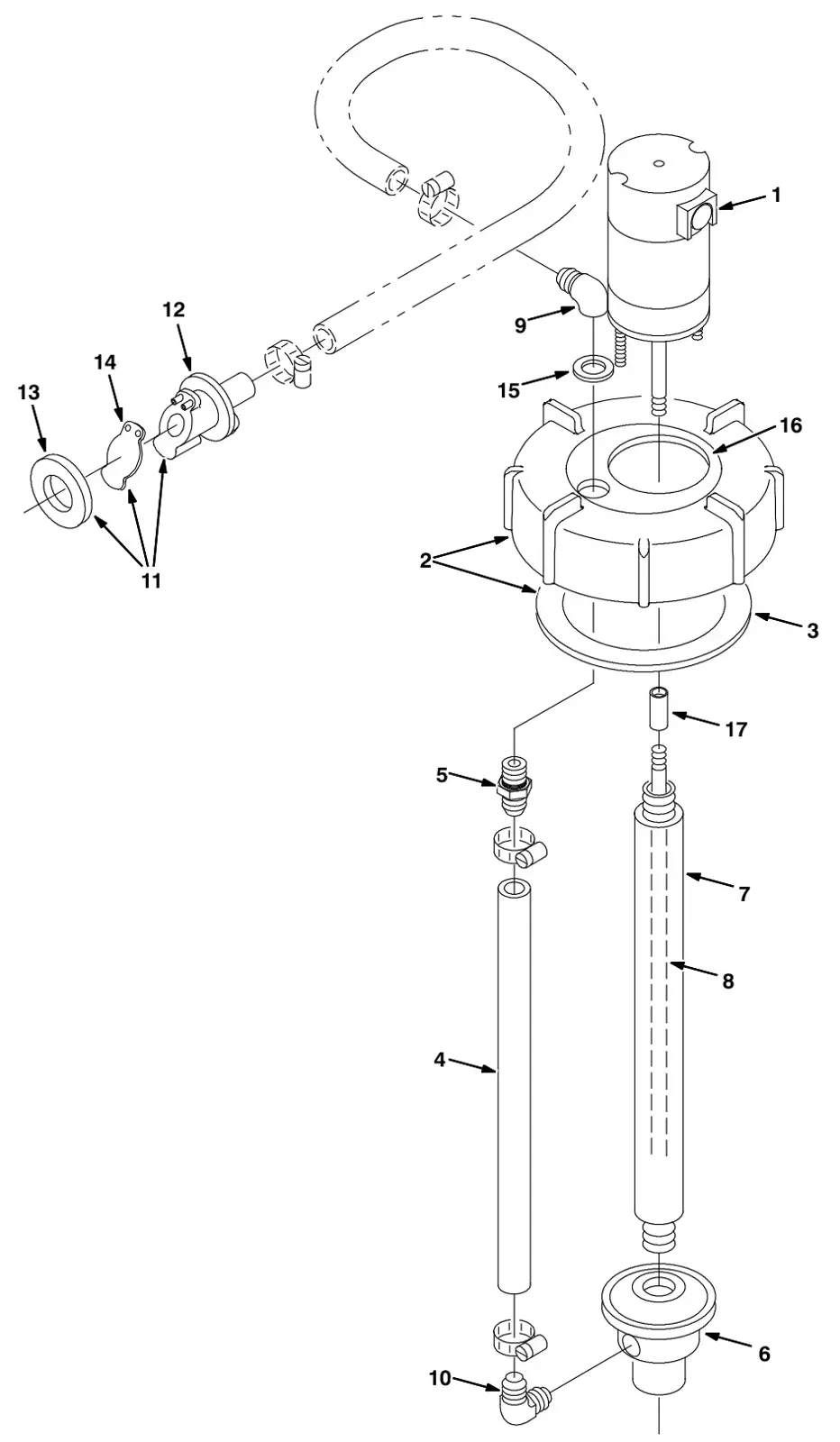

| 1 | TN4036630Replaces Tennant 1021210 | 1 | Pump Assy, Column, Es (See Breakdowns) | $1,762.90/EA |
| 2 | TN4030959Replaces Tennant 1028697 | 1 | Sleeve, Rbr, 3.50b 3.58d 1.8l | $11.01/EA |
| 3 | TN4044360Replaces Tennant 14877 | 1 | Fitting, Plstc, E90, Bm12/Pm12 | $6.20/EA |
| 4 | TN4037982Replaces Tennant 1015033 | 1 | Hose, Afmkt, Pvc, Brd 0.62id 01ft | $60.00/EA |
| 5 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | $6.80/EA |
| 6 | TN4022231Replaces Tennant 386652 | 1 | Strainer, Soltn, 20mesh, Cyl, 3.5d 09.5l | $101.80/EA |
| 7 | TN4035381Replaces Tennant 24543 | 1 | Fitting, Plstc, E90, Bm12/Pf12 | $8.40/EA |
| 8 | TN4037988Replaces Tennant 1015048 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 01ft, Clr | $14.65/EA |
| 9 | TN4043367Replaces Tennant 11399 | 2 | Clamp, Hose, Wormdrive, 0.811.50d, .50w | $5.10/EA |
| 10 | TN4195222Replaces Tennant 1019636 | 1 | Bracket, Mtg, Strainer | $53.53/EA |
| 11 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 12 | TN4035242Replaces Tennant 1017218 | 1 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 13 | TN4031299Replaces Tennant 1072882 | 1 | Switch Assy, Press, Dbl, 17.5l | Call to confirm part: 800-440-6723 |
| 14 | TN4033731Replaces Tennant 32183 | 1 | Fitting, Brs, E90, Bm03/Pm02 | $9.90/EA |
| 15 | TN4032040Replaces Tennant 1031572 | 3 | Hose, Afmkt, Vacuum, 0.16id, 01ft | $12.50/EA |
| 16 | TN4027209Replaces Tennant 59886 | 1 | Fitting, Plstc, Tee, Bm03/Bm03/Bm03 | $9.90/EA |
| 17 | TN4043976Replaces Tennant 1039019 | 1 | Filter, Soltn, 020mesh, Pm12 3.2d 08.0l | $51.50/EA |
| 18 | TN4180567Replaces Tennant 1072883 | 1 | Switch Assy, Press, Dbl, 26.2l | $203.81/EA |
| 19 | TN4032910Replaces Tennant 1022229 | 1 | Tank, Detgt, Trimmed | $341.48/EA |
| 20 | TN4036929Replaces Tennant 1011885 | 1 | Cap, Tank | $69.10/EA |
| 21 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, Clr | $33.10/EA |
| 22 | TN4039117Replaces Tennant 20944 | 1 | Grommet, Pye, 0.37id, F/1.5h, .13 Matl | $27.50/EA |
| 23 | TN4039131Replaces Tennant 20951 | 2 | Fitting, Plstc, E90, Bm06/Bm06 | $4.20/EA |
| 24 | TN4039132Replaces Tennant 20952 | 1 | Screen, Pump | $13.70/EA |
| 25 | TN4037961Replaces Tennant 1014930 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 08ft | $18.40/EA |
| 26 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.250.62d, .31w | $4.20/EA |

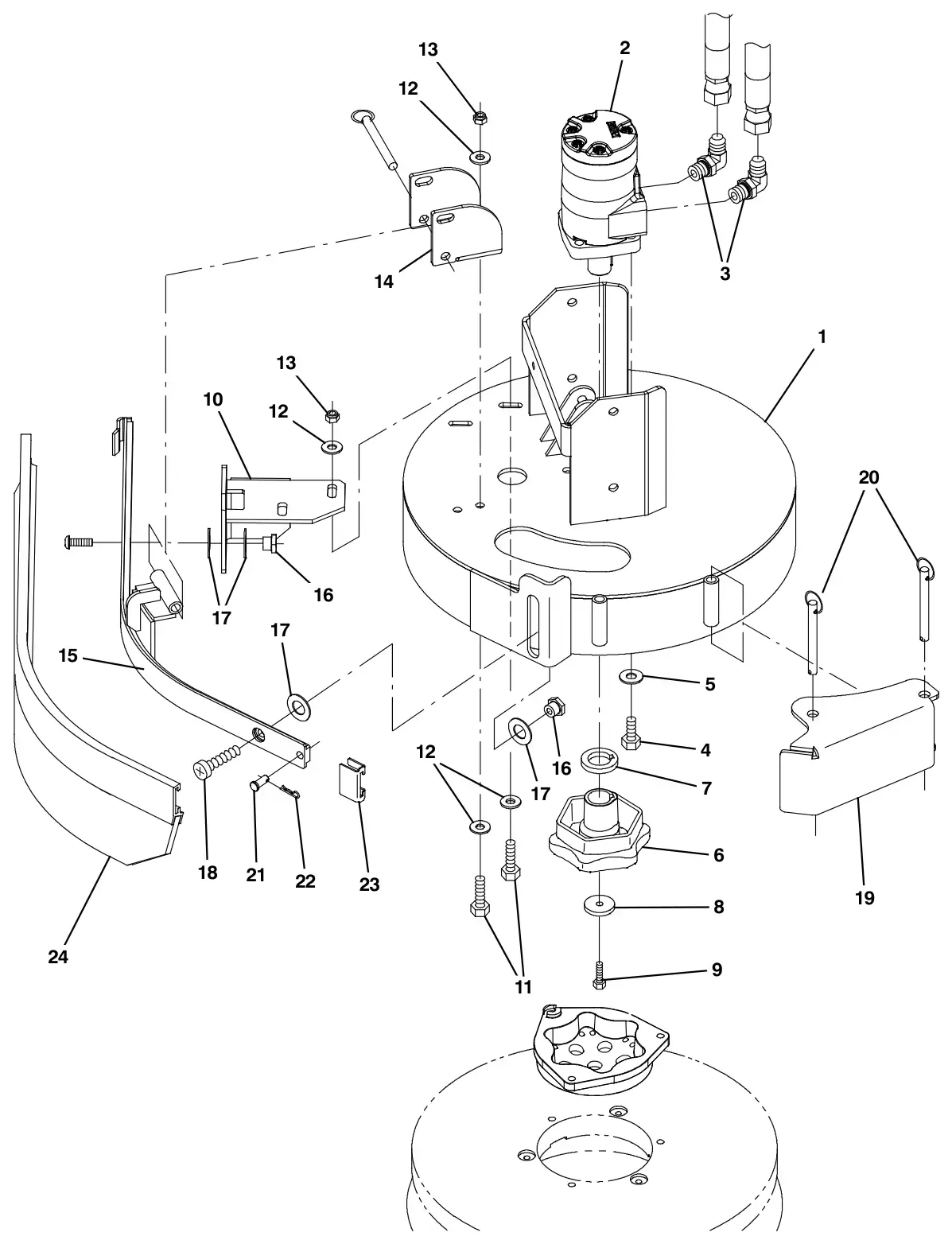

Tennant M30 Diesel Side Brush Motor Group (000000- 001278) (option) parts
The parts Tennant numbers on its side brush motor group (000000- 001278) (option) drawing. Manual pages 178, list 179.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4032844Replaces Tennant 1021794 | 1 | Bracket Wldt, Mtg, Side BrushSerial up to 001278. | $497.50/EA |
| 2 | TN4010444Replaces Tennant 1029379 | 1 | Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns)Serial up to 001278. | $613.20/EA |
| 3 | TN4029149Replaces Tennant 56821 | 2 | Fitting, Hyd, E90, Jm08/Om10Serial up to 001278. | $36.80/EA |
| 4 | TN4042969Replaces Tennant 01762 | 4 | Screw, Hex, .3816 X 0.75, NlSerial up to 001278. | $3.20/EA |
| 5 | TN4034138Replaces Tennant 32492 | 4 | Washer, Flat, 0.38, StdSerial up to 001278. | $2.50/EA |
| 6 | TN4041657Replaces Tennant 377359 | 1 | Hub, Drive, Brush, Disk, 1.00b [6t]Serial up to 001278. | $121.80/EA |
| 7 | TN4035434Replaces Tennant 25611 | 1 | Spacer, Hub, KeyedSerial up to 001278. | $23.50/EA |
| 8 | TN4042424Replaces Tennant 19191 | 1 | SpacerSerial up to 001278. | $9.00/EA |
| 9 | TN4035411Replaces Tennant 25046 | 1 | Screw, Hex, .2520 X 1.00, G5Serial up to 001278. | $3.20/EA |
| 10 | TN4032898Replaces Tennant 1022135 | 1 | Bracket, Mtg, SqgeSerial up to 001278. | $39.02/EA |
| 11 | TN4041943Replaces Tennant 09010 | 4 | Screw, Hex, M8 X 1.25 X 25, SsSerial up to 001278. | $3.30/EA |
| 12 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, SsSerial up to 001278. | $2.60/EA |
| 13 | TN4041929Replaces Tennant 08713 | 4 | Nut, Hex, Lock, M8 X 1.25, Nl, SsSerial up to 001278. | $3.30/EA |
| 14 | TN4032908Replaces Tennant 1022188 | 1 | Bar, RetainerSerial up to 001278. | $21.90/EA |
| 15 | TN4032897Replaces Tennant 1022111 | 1 | Frame Wldt, Sqge, Side BrushSerial up to 001278. | $170.20/EA |
| 16 | TN4032918Replaces Tennant 1022302 | 2 | Nut, T, M8 X 1.25 X 14.50od X 9.5lSerial up to 001278. | $25.10/EA |
| 17 | TN4017115Replaces Tennant 64425 | 4 | Washer, Thrust, 0.61b 1.25d .06, FglSerial up to 001278. | $5.40/EA |
| 18 | TN4037712Replaces Tennant 223470 | 2 | Screw, Btn, M8 X 1.25 X 25, SsSerial up to 001278. | $4.00/EA |
| 19 | TN4032914Replaces Tennant 1022260 | 1 | Bumper Wldt, Brush, SideSerial up to 001278. | $72.00/EA |
| 20 | TN4031918Replaces Tennant 369359 | 3 | Pin, Hitch, .375d X 3.12l, PlSerial up to 001278. | $7.50/EA |
| 21 | TN4013467Replaces Tennant 46800 | 1 | Pin, Clevis, 0.31d X 0.75lSerial up to 001278. | $3.40/EA |
| 22 | TN4041634Replaces Tennant 08179 | 1 | Pin, Cotter, .094 X 1.00Serial up to 001278. | $2.50/EA |
| 23 | TN4022032Replaces Tennant 86759 | 1 | Retainer, SqgeSerial up to 001278. | $11.30/EA |
| 24 | TN4033862Replaces Tennant 1025005 | 1 | Squeegee Assy, Sba, LinatexSerial up to 001278. | $72.00/EA |
| 24 | TN4030647Replaces Tennant 1027716 | 1 | Squeegee Assy, Sba, UreSerial up to 001278. | $169.30/EA |

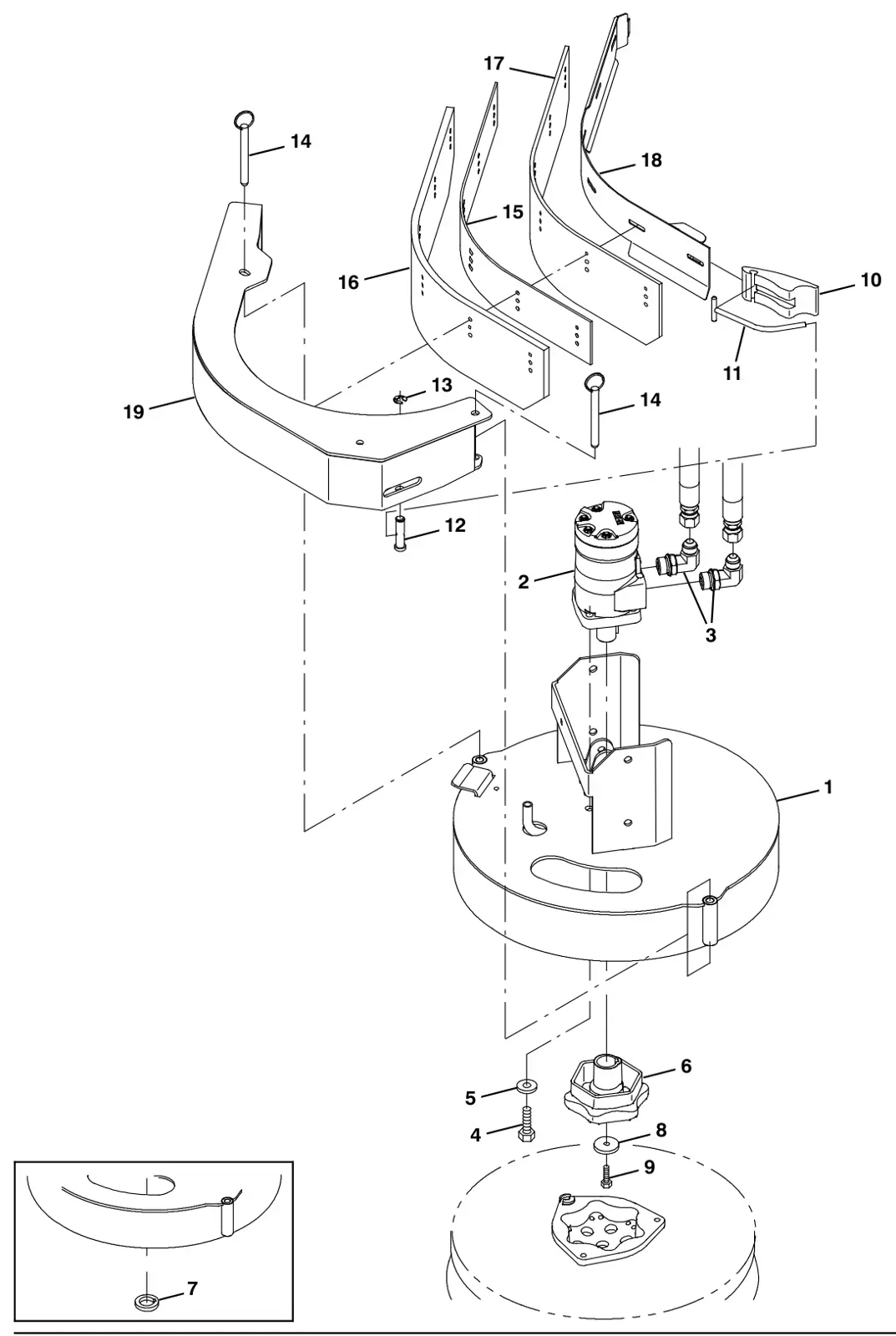

Tennant M30 Diesel Side Brush Motor Group (001279-) (option) parts
The parts Tennant numbers on its side brush motor group (001279-) (option) drawing. Manual pages 180, list 181.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043026Replaces Tennant 1047002 | 1 | Bracket Wldt, Mtg, Side Brush FixedSerial 001279 and later. | $473.90/EA |
| 2 | TN4010444Replaces Tennant 1029379 | 1 | Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns)Serial 001279 to 001966. | $613.20/EA |
| 2 | TN4030083Replaces Tennant 1068812 | 1 | Motor, Hyd, Gear, Int 08.9 BiDir 2500Complete assembly. Serial 001967 and later. | $616.10/EA |
| – | TN8005882Replaces Tennant 22615 | 1 | Seal Kit, Motor [Cl]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (1068812). Serial 001967 and later. | $112.10/EA |
| 3 | TN4029149Replaces Tennant 56821 | 2 | Fitting, Hyd, E90, Jm08/Om10Serial 001279 and later. | $36.80/EA |
| 4 | TN4042969Replaces Tennant 01762 | 4 | Screw, Hex, .3816 X 0.75, NlSerial 001279 and later. | $3.20/EA |
| 5 | TN4034138Replaces Tennant 32492 | 4 | Washer, Flat, 0.38 StdSerial 001279 and later. | $2.50/EA |
| 6 | TN4041657Replaces Tennant 1042968 | 1 | Hub, Drive, Brush, Disk, 1.00b [6t]Serial 001279 and later. | $121.80/EA |
| 7 | TN4035434Replaces Tennant 25611 | 1 | Spacer, Hub, KeyedSerial 001279 to 001966. | $23.50/EA |
| 8 | TN4042424Replaces Tennant 19191 | 1 | SpacerSerial 001279 and later. | $9.00/EA |
| 9 | TN4035411Replaces Tennant 25046 | 1 | Screw, Hex, .2520 X 1.00, 5Serial 001279 and later. | $3.20/EA |
| 10 | TN4039418Replaces Tennant 21601 | 1 | Cam, FrontSerial 001279 and later. | Call to confirm part: 800-440-6723 |
| 11 | TN4021717Replaces Tennant 386298 | 1 | Pin Wldt, FrontSerial 001279 and later. | $40.30/EA |
| 12 | TN4039420Replaces Tennant 21603 | 1 | Pin, Grvd, 0.43d 01.8l [303ss]Serial 001279 and later. | $16.60/EA |
| 13 | TN4035383Replaces Tennant 24555 | 1 | Ring, Retaining, Ext, 0.38d, [ERing]Serial 001279 and later. | $2.40/EA |
| 14 | TN4031918Replaces Tennant 369359 | 2 | Pin, Hitch, .375d X 3.12l, PlSerial 001279 and later. | $7.50/EA |
| 15 | TN4043024Replaces Tennant 1046995 | 1 | Spacer, Sqge, Side Brush, RbrSerial 001279 to 004481. | $20.00/EA |
| 15 | TN4044530Replaces Tennant 1073414 | 1 | Spacer, Sqge, Side Brush, RbrSerial 004482 and later. | $12.80/EA |
| 16 | TN4043022Replaces Tennant 1046980 | 1 | Blade, Sqge, Side Brush, LinatexSerial 001279 to 004481. | $59.89/EA |
| 16 | TN4044528Replaces Tennant 1073412 | 1 | Blade, Sqge, Side Brush, LinatexSerial 004482 and later. | $75.65/EA |
| 16 | TN4036799Replaces Tennant 1059091 | 1 | Blade, Sqge, Side Brush, UrethaneSerial 001279 to 004481. | $91.61/EA |
| 16 | TN4044529Replaces Tennant 1073413 | 1 | Blade, Sqge, Side Brush, UrethaneSerial 004482 and later. | $155.24/EA |
| 17 | TN4043073Replaces Tennant 1047238 | 1 | Blade, Sqge, Side Brush, LinatexSerial 001279 to 004481. | $31.51/EA |
| 17 | TN4044531Replaces Tennant 1073415 | 1 | Blade, Sqge, Side Brush, LinatexSerial 004482 and later. | $97.87/EA |
| 17 | TN4036800Replaces Tennant 1059092 | 1 | Blade, Sqge, Side Brush, UrethaneSerial 001279 to 004481. | $55.85/EA |
| 17 | TN4044532Replaces Tennant 1073416 | 1 | Blade, Sqge, Side Brush, UrethaneSerial 004482 and later. | $103.22/EA |
| 18 | TN4043029Replaces Tennant 1047060 | 1 | Plate Wldt, Retainer, SqgeSerial 001279 to 004481. | $107.80/EA |
| 18 | TN4044527Replaces Tennant 1073411 | 1 | Plate Wldt, Retainer, SqgeSerial 004482 and later. | $85.30/EA |
| 19 | TN4043021Replaces Tennant 1046976 | 1 | Bumper Wldt, Brush, SideSerial 001279 to 004481. | $184.00/EA |
| 19 | TN4044526Replaces Tennant 1073409 | 1 | Bumper Wldt, Brush, SideSerial 004482 and later. | $168.80/EA |

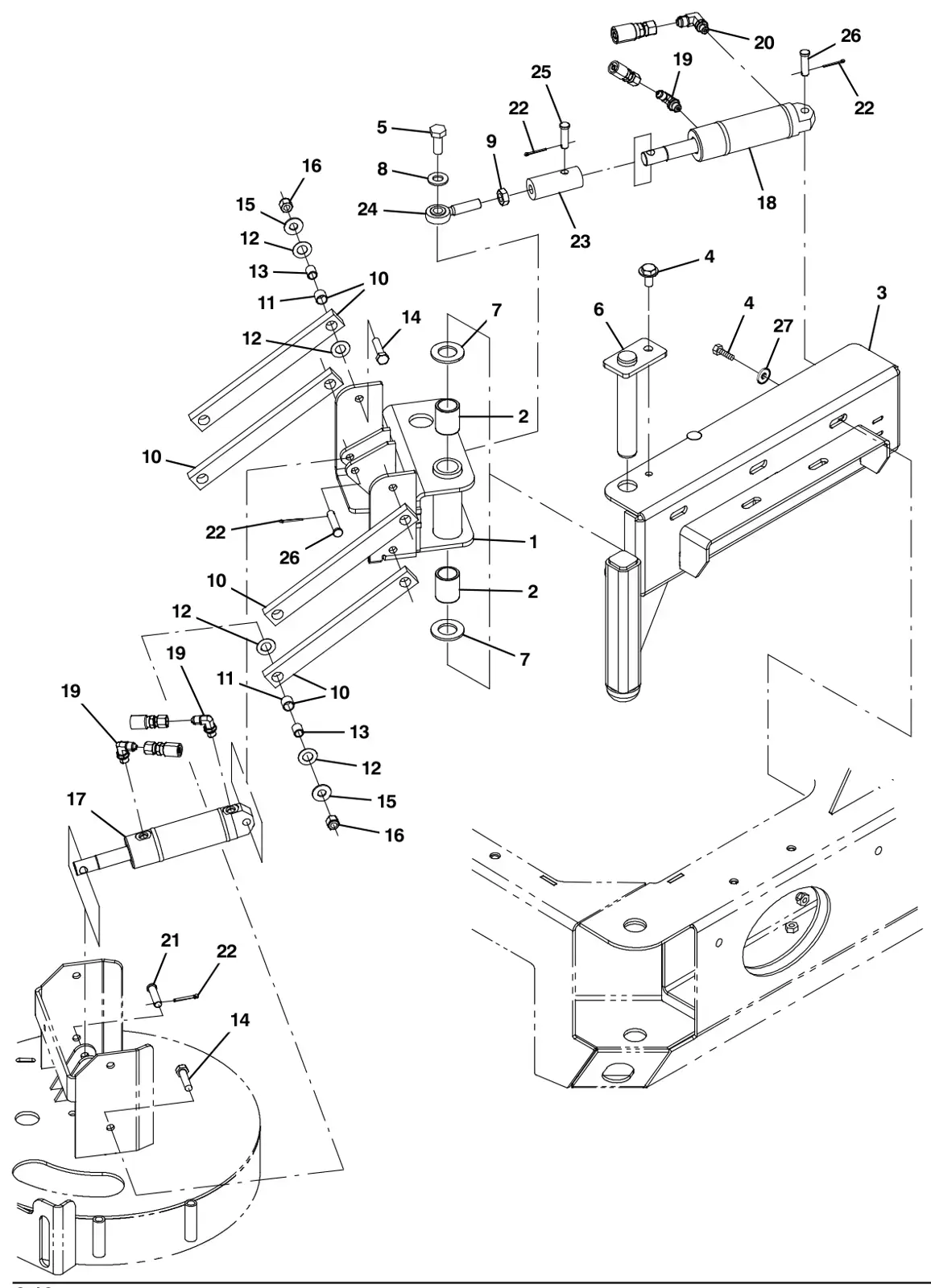

Tennant M30 Diesel Side Brush Lift Group (option) parts
The parts Tennant numbers on its side brush lift group (option) drawing. Manual pages 182, list 183.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4036647Replaces Tennant 1021439 | 1 | Pivot Wldt, Brush, Side | $330.60/EA |
| 2 | TN4015898Replaces Tennant 71868 | 2 | Bushing, Sleeve, 1.00b 1.13d 1.50l, Fgl | $13.70/EA |
| 3 | TN4032801Replaces Tennant 1021473 | 1 | Channel Wldt, Pivot | $329.10/EA |
| 4 | TN4041943Replaces Tennant 09010 | 6 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 5 | TN4016809Replaces Tennant 41346 | 1 | Screw, Hex, M12 X 1.75 X 30, 8.8 | $4.00/EA |
| 6 | TN4032822Replaces Tennant 1021617 | 1 | Pin Wldt | $42.00/EA |
| 7 | TN4015900Replaces Tennant 71869 | 2 | Washer, Thrust, 1.00b 1.75d 0.13, Fbr | $27.10/EA |
| 8 | TN4034135Replaces Tennant 32486 | 1 | Washer, Flat, 0.50, Sae | $2.60/EA |
| 9 | TN4013991Replaces Tennant 48985 | 1 | Nut, Hex, Jam, .5020 | $3.40/EA |
| 10 | TN4021139Replaces Tennant 63175-1 | 4 | Arm, LinkComplete assembly. | $62.20/EA |
| 11 | TN4021144Replaces Tennant 63233 | 2 | Bushing, Sleeve, 0.50b 0.59d 0.50l, BnzPart of Arm, Link (63175-1). | $8.40/EA |
| 12 | TN4026841Replaces Tennant 59633 | 16 | Bearing, Thrust, 0.53b 1.00d 0.03w | $6.30/EA |
| 13 | TN4030655Replaces Tennant 1027926 | 8 | Sleeve, P/M, 0.37b 0.50d 0.6l [430ss] | $4.20/EA |
| 14 | TN4031575Replaces Tennant 36845 | 8 | Screw, Hex, .3816 X 1.50, Ss | $4.00/EA |
| 15 | TN4042902Replaces Tennant 01685 | 8 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 16 | TN4026793Replaces Tennant 59156 | 8 | Nut, Hex, Lock, .3816, Nl, Ss | $4.00/EA |
| 17 | TN4043614Replaces Tennant 1038137 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.80strk 2500 | $388.60/EA |
| 18 | TN4043598Replaces Tennant 1038115 | 1 | Cylinder, Hyd, 1.5b 07.8l 02.75strk 2500 | $223.30/EA |
| 19 | TN4025260Replaces Tennant 77097 | 3 | Fitting, Hyd, E90, Jm04/Om04 | $14.70/EA |
| 20 | TN4025261Replaces Tennant 77098 | 1 | Fitting, Hyd, E90, Jm06/Om04 | $15.50/EA |
| 21 | TN4036075Replaces Tennant 29558 | 1 | Pin, Clevis, 0.37d X 1.50l | $3.90/EA |
| 22 | TN4041634Replaces Tennant 08179 | 4 | Pin, Cotter, .094 X 1.00 | $2.50/EA |
| 23 | TN4032808Replaces Tennant 1021564 | 1 | Adapter, RodEnd, Side Brush | $56.00/EA |
| 24 | TN4015904Replaces Tennant 71874 | 1 | RodEnd, 0.5020rh Mal 0.50b | $42.70/EA |
| 25 | TN4036074Replaces Tennant 29557 | 1 | Pin, Clevis, 0.37d X 1.31l | $3.20/EA |
| 26 | TN4041878Replaces Tennant 17461 | 2 | Pin, Clevis, 0.37d X 1.75l | $4.00/EA |
| 27 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, Std | $2.50/EA |

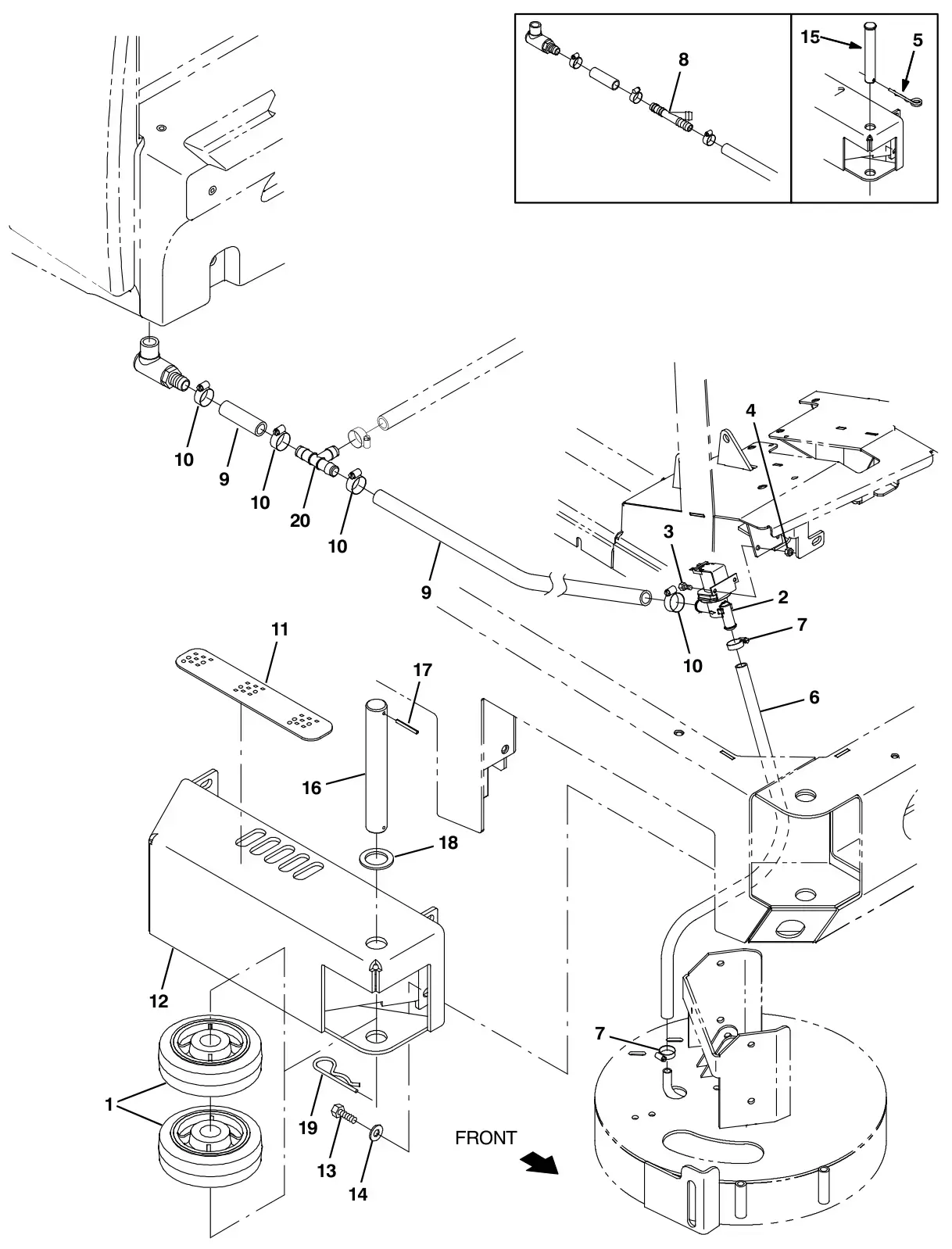

Tennant M30 Diesel Side Brush Solution Control Group (option) parts
The parts Tennant numbers on its side brush solution control group (option) drawing. Manual pages 184, list 185.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034399Replaces Tennant 1060130 | 2 | Wheel, 06.0d 2.00w 1.19b, Gray Rbr | $21.60/EA |
| 2 | TN4032896Replaces Tennant 1022106 | 1 | Valve Assy, Water, Solenoid, 12vdc | Call to confirm part: 800-440-6723 |
| 3 | TN4041990Replaces Tennant 09738 | 2 | Screw, Hex, M5 X 0.80 X 12, Ss | $3.30/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, Ss | $3.30/EA |
| 5 | TN4010707Replaces Tennant 761490 | 1 | Pin, Cotter, Hair, DblSerial up to 001248. | $13.80/EA |
| 6 | TN50178Tennant 50178 | 1 | Hose, Pvc, Clr, 0.50id 0.69od 026.0l | Call to confirm part: 800-440-6723 |
| 7 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.310.88d, .31w | $5.10/EA |
| 8 | TN4019824Replaces Tennant 393255 | 1 | Fitting, Plstc, Tee, Bm12/Bm12/Bm12Serial up to 004690. | $29.40/EA |
| 9 | TN4037985Replaces Tennant 1015045 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrSerial up to 004690. | $83.30/EA |
| 9 | TN4037981Replaces Tennant 1015032 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrSerial 004691 and later. | $80.40/EA |
| 10 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | $6.80/EA |
| 11 | TN4024613Replaces Tennant 82839 | 1 | Tread, NonSkid, 02.2w 11.5l | $6.10/EA |
| 12 | TN4032919Replaces Tennant 1022318 | 1 | Guard Wldt, Brush, Side | $562.80/EA |
| 13 | TN4035960Replaces Tennant 12317 | 4 | Screw, Hex, M10 X 1.50 X 30, Ss | $4.90/EA |
| 14 | TN4042903Replaces Tennant 01686 | 4 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 15 | TN4015303Replaces Tennant 9006334 | 1 | Pin Kit, Wheel, Ci [M20/T20/M30]Serial up to 001248. | $34.00/EA |
| 16 | TN4038392Replaces Tennant 1053838 | 1 | Pin, 30mmd X 215mmlSerial 001249 and later. | $74.40/EA |
| 17 | TN4035025Replaces Tennant 23146 | 1 | Pin, Roll, .187d X 1.62l, .187/.192Serial 001249 and later. | $2.50/EA |
| 18 | TN4013894Replaces Tennant 47719 | 1 | Washer, Flat, 1.26b 1.88d .13, StlSerial 001249 and later. | $4.10/EA |
| 19 | TN4031623Replaces Tennant 34411 | 1 | Pin, Cotter, Hair, 1.00d .178 WirSerial 001249 and later. | $4.00/EA |
| 20 | TN4034918Replaces Tennant 1062116 | 1 | Fitting, Plstc, Tee, Bm10/Bm10/Bm10Serial 004691 and later. | $6.20/EA |

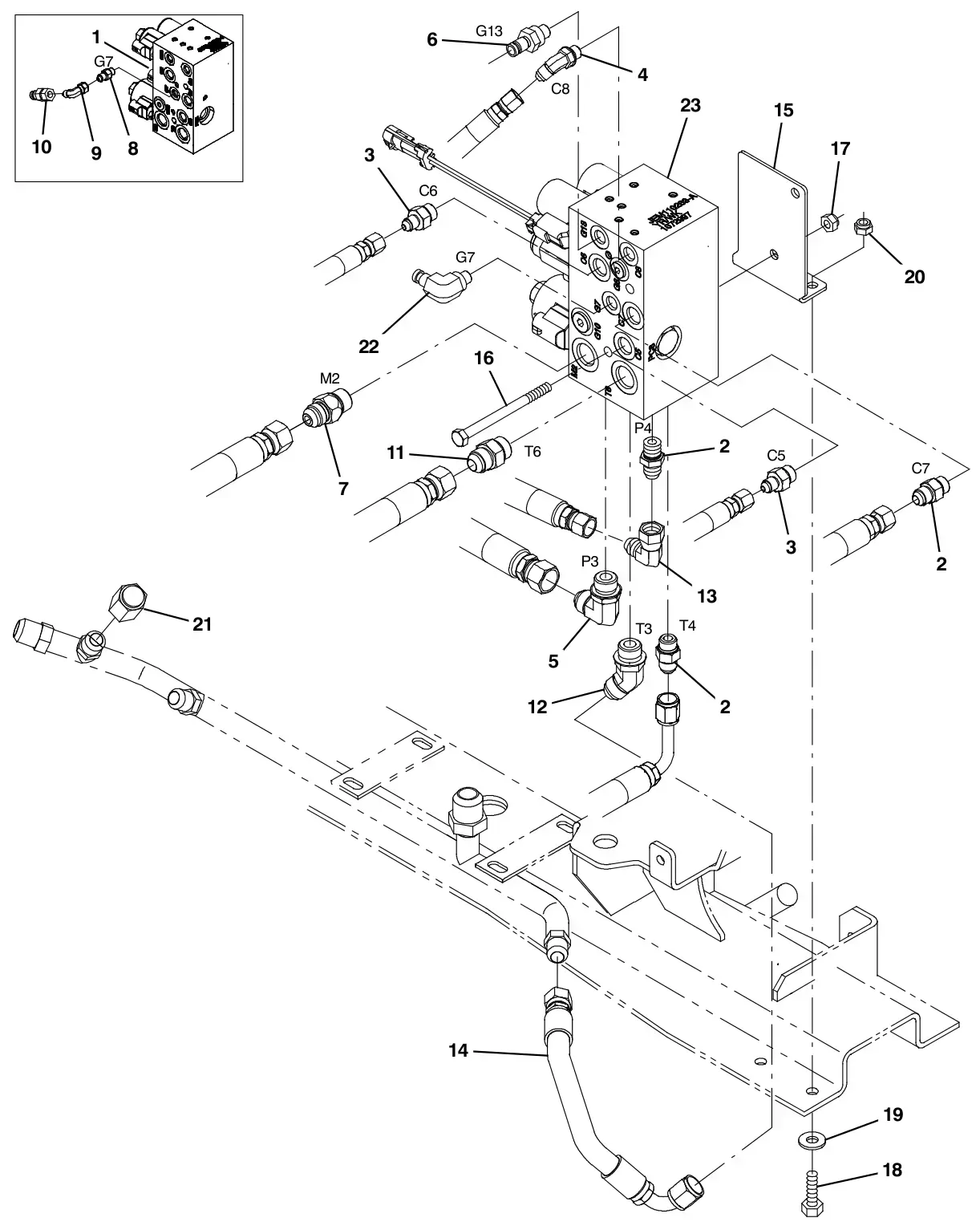

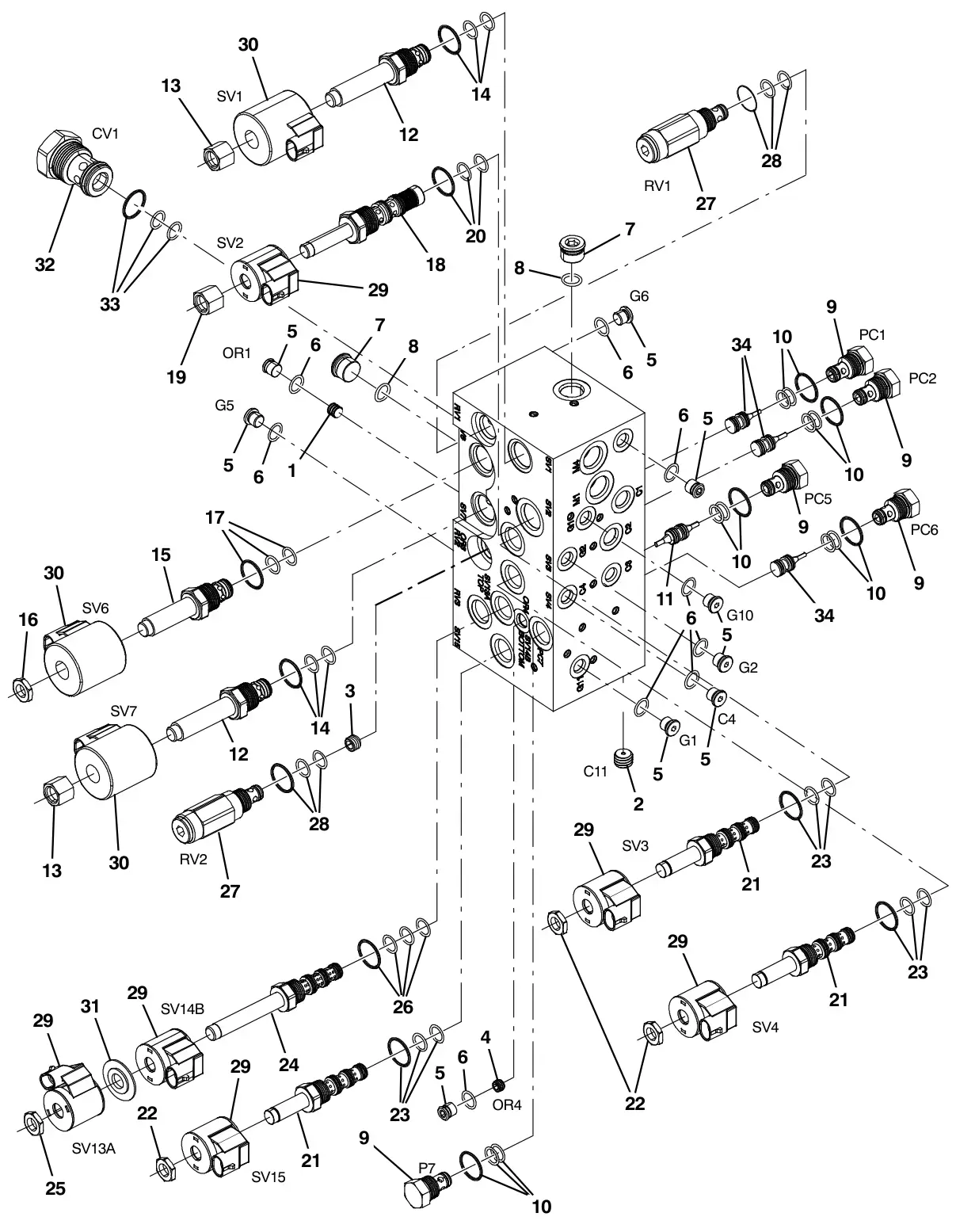

Tennant M30 Diesel Side Brush Hydraulic Valve Group (option) parts
The parts Tennant numbers on its side brush hydraulic valve group (option) drawing. Manual pages 186, list 187.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|

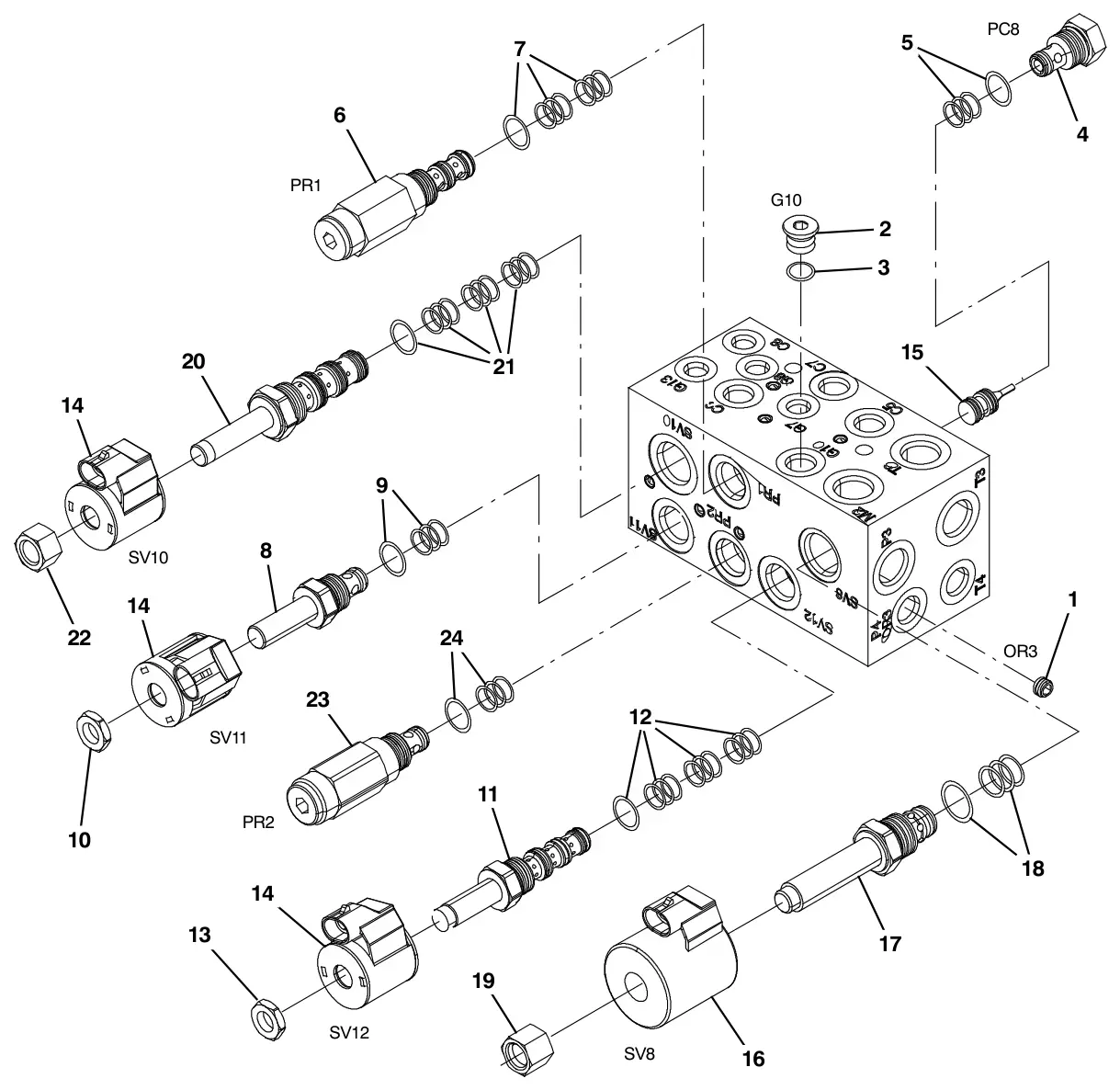

| 1 | TN4045666Replaces Tennant 1037805 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns)Serial up to 004114. | Call to confirm part: 800-440-6723 |
| 2 | TN4029145Replaces Tennant 56690 | 3 | Fitting, Hyd, Str, Jm06/Om06 | $9.60/EA |
| 3 | TN4028732Replaces Tennant 55685 | 2 | Fitting, Hyd, Str, Jm04/Om06 | $7.90/EA |
| 4 | TN4031286Replaces Tennant 34359 | 1 | Fitting, Hyd, E45, Jm04/Om04 | $11.80/EA |
| 5 | TN4017776Replaces Tennant 44868 | 1 | Fitting, Hyd, E90, Jm08/Om08 | $10.30/EA |
| 6 | TN4015806Replaces Tennant 395973 | 1 | Fitting, Hyd, Str, Om04/Qm04 | $26.30/EA |
| 7 | TN4034233Replaces Tennant 1026119 | 1 | Valve, Hyd, Check, 5000psi Jm08/Om08 | $41.50/EA |
| 8 | TN4028729Replaces Tennant 55586 | 1 | Fitting, Hyd, Str, Jm04/Om04Serial up to 001181. | $6.20/EA |
| 9 | TN4019344Replaces Tennant 39210 | 1 | Fitting, Hyd, E90, Jf04/Jm04Serial up to 001181. | $8.70/EA |
| 10 | TN4015822Replaces Tennant 396476 | 1 | Fitting, Hyd, Str, Jf04/Qm04Serial up to 001181. | $19.90/EA |
| 11 | TN4017777Replaces Tennant 44869 | 1 | Fitting, Hyd, Str, Jm08/Om08 | $7.00/EA |
| 12 | TN4017335Replaces Tennant 42226 | 1 | Fitting, Hyd, E45, Jm08/Om08 | $11.80/EA |
| 13 | TN4013494Replaces Tennant 47504 | 1 | Fitting, Hyd, E90, Jf06/Jm06 | $14.90/EA |
| 14 | TN4045589Replaces Tennant 1037011 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08e90, 012.0 | $39.49/EA |
| 15 | TN4042495Replaces Tennant 1045272 | 1 | Bracket, Valve, Sba [M20 AND T20] | $14.45/EA |
| 16 | TN4027793Replaces Tennant 364441 | 2 | Screw, Hex, M8 X 1.25 X 110, Ss | $4.90/EA |
| 17 | TN4041926Replaces Tennant 08709 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl | $2.50/EA |
| 18 | TN4041943Replaces Tennant 09010 | 2 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 19 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, Std | $2.50/EA |
| 20 | TN4041929Replaces Tennant 08713 | 2 | Nut, Hex, Lock, M8 X 1.25, Nl, Ss | $3.30/EA |
| 21 | TN4027429Replaces Tennant 60090 | 1 | Fitting, Hyd, Cap, Jf08 | $7.70/EA |
| 22 | TN4015807Replaces Tennant 395974 | 1 | Fitting, Hyd, E90, Om04/Qm04Serial 001182 and later. | $36.40/EA |

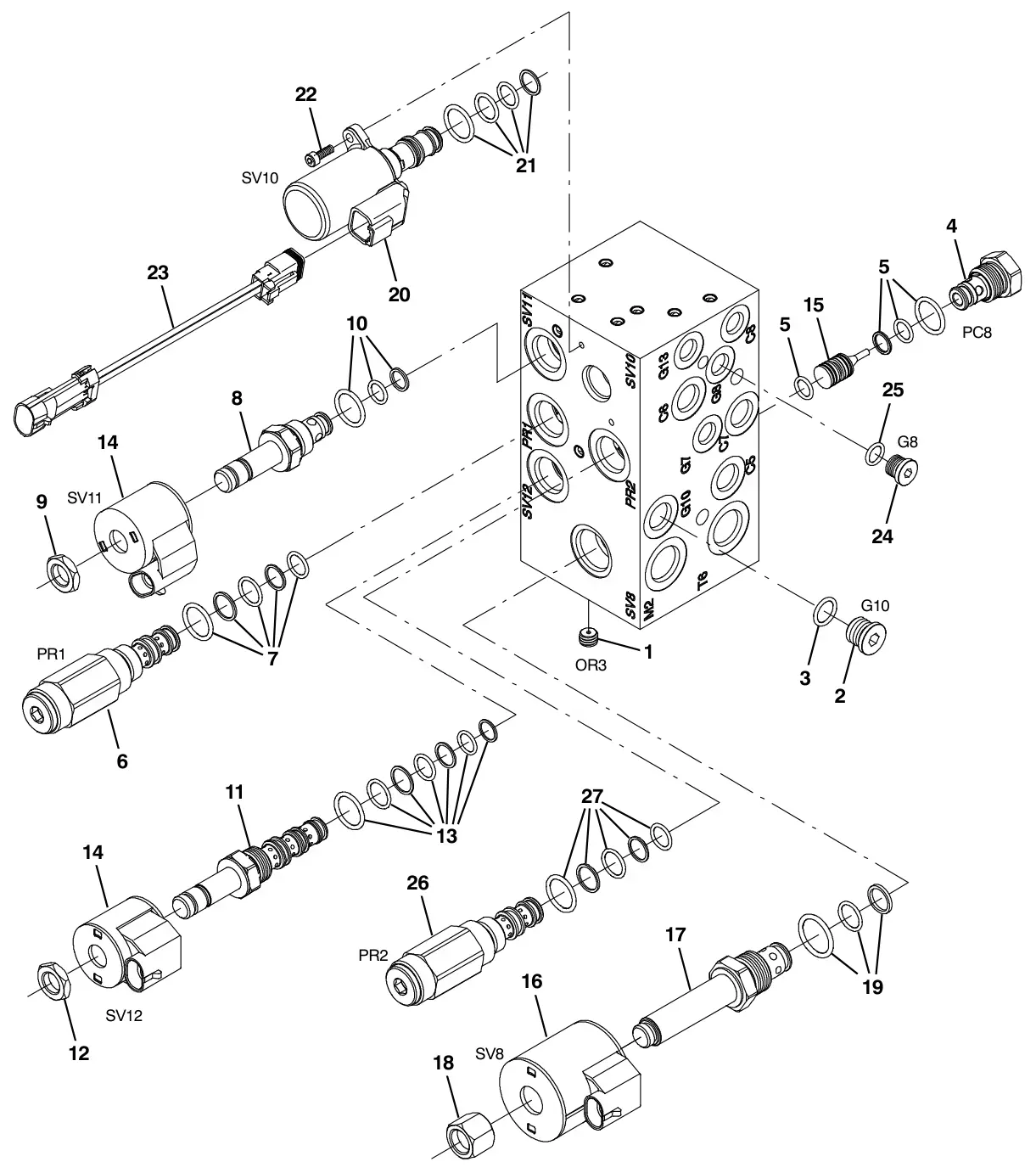

| 23 | TN4031319Replaces Tennant 1072997 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns)Serial 004115 and later. | $1,504.00/EA |

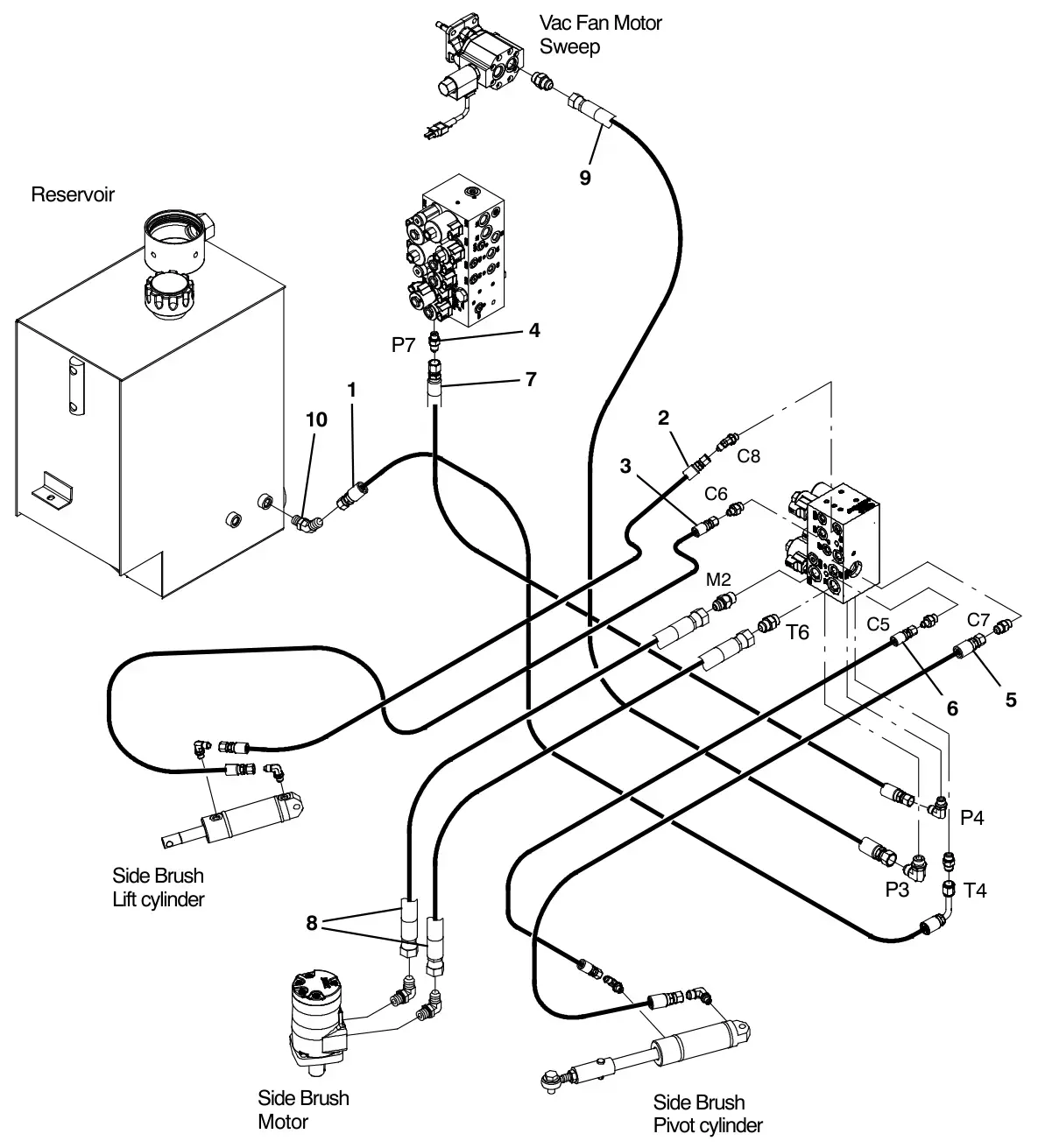

Tennant M30 Diesel Side Brush Hydraulic Hose Group (option) parts
The parts Tennant numbers on its side brush hydraulic hose group (option) drawing. Manual pages 188, list 189.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4029569Replaces Tennant 361047 | 1 | Hose, Hyd, Med06, Jf06e90l/Jf06str,038.0 | $42.00/EA |
| 2 | TN4034220Replaces Tennant 1025990 | 1 | Hose, Hyd, Tc04, Jf04str/Jf04str, 039.0 | $51.70/EA |
| 3 | TN4045570Replaces Tennant 1036901 | 1 | Hose, Hyd, Tc04, Jf04str/Jf04str, 044.0 | $29.90/EA |
| 4 | TN4029145Replaces Tennant 56690 | 1 | Fitting, Hyd, Str, Jm06/Om06 | $9.60/EA |
| 5 | TN4045573Replaces Tennant 1036904 | 1 | Hose, Hyd, Tc06, Jf06str/Jf06str, 028.0 | $28.10/EA |
| 6 | TN4045572Replaces Tennant 1036903 | 1 | Hose, Hyd, Tc04, Jf04str/Jf04str, 025.0 | $25.60/EA |
| 7 | TN4025641Replaces Tennant 377236 | 1 | Hose, Hyd, Tc06, Jf06str/Jf06str, 062.0Serial up to 003999. | $63.02/EA |
| 7 | TN4044481Replaces Tennant 1041389 | 1 | Hose, Hyd, Tc06, Jf06str/Jf06str, 086.0Serial 004000 and later. | $48.50/EA |
| 8 | TN4045571Replaces Tennant 1036902 | 2 | Hose, Hyd, Tc08, Jf08str/Jf08str, 039.0 | $51.10/EA |
| 9 | TN4190720Replaces Tennant 1036907 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 060.0Serial up to 003999. | $62.27/EA |
| 9 | TN4045580Replaces Tennant 1036946 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 084.0Serial 004000 and later. | $54.54/EA |
| 10 | TN4013877Replaces Tennant 47522 | 1 | Fitting, Hyd, E45, Jm06/Om06 | $21.70/EA |

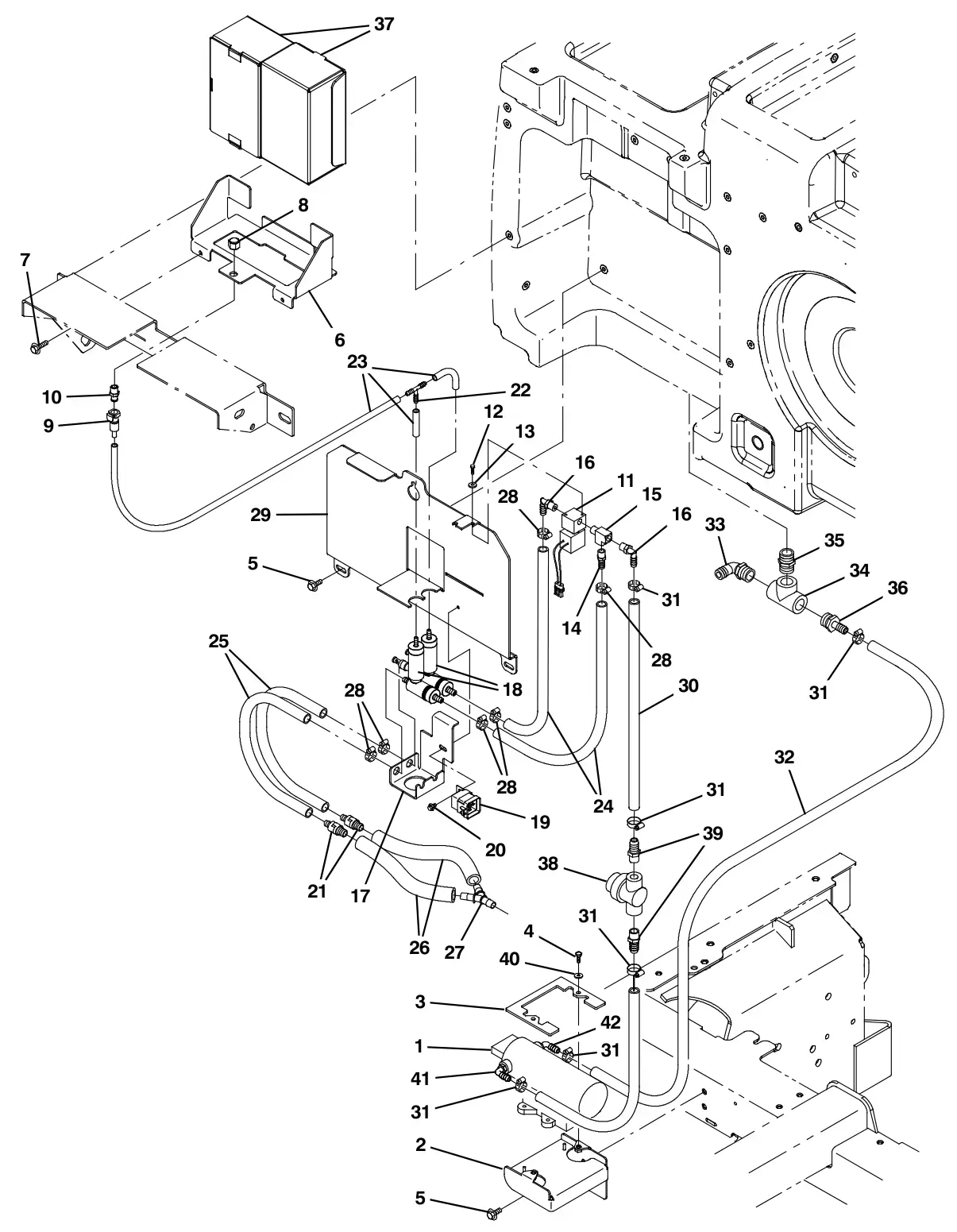

Tennant M30 Diesel FaST Pumps and Detergent Group (option) parts
The parts Tennant numbers on its fast pumps and detergent group (option) drawing. Manual pages 190, list 191.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4045556Replaces Tennant 1036801 | 1 | Pump, Soltn, 13.7vdc, 65psi [FaST Ii+] | No longer available. Call to confirm part: 800-440-6723 |
| 2 | TN1039356Tennant 1039356 | 1 | Bracket, Retainer, Pump | No longer available. Call to confirm part: 800-440-6723 |
| 3 | TN4191121Replaces Tennant 1039357 | 1 | Bracket, Retainer, Pump | No longer available. Call to confirm part: 800-440-6723 |
| 4 | TN4041245Replaces Tennant 15678 | 2 | Screw, Hex, M6 X 1.00 X 16, Ss | No longer available. Call to confirm part: 800-440-6723 |
| 5 | TN4036259Replaces Tennant 1020341 | 7 | Screw, Hex, M8 X 1.25 X 20, Ss, Sems | No longer available. Call to confirm part: 800-440-6723 |
| 6 | TN4192826Replaces Tennant 1033791 | 1 | Bracket, Mtg [FaST] | No longer available. Call to confirm part: 800-440-6723 |
| 7 | TN4013943Replaces Tennant 76099 | 2 | Screw, Hex, M8 X 1.25 X 25, Fmg | No longer available. Call to confirm part: 800-440-6723 |
| 8 | TN4038978Replaces Tennant 1005435 | 1 | Fitting, Plstc, Pipe, Cap, Pf04 | No longer available. Call to confirm part: 800-440-6723 |
| 9 | TN4038929Replaces Tennant 1002898 | 1 | Fitting, Plstc, Str, Bm04, Cplg, Fem | No longer available. Call to confirm part: 800-440-6723 |
| 10 | TN4038930Replaces Tennant 1002899 | 1 | Fitting, Plstc, Str, Pm04, Cplg, Mal | No longer available. Call to confirm part: 800-440-6723 |
| 11 | TN4035534Replaces Tennant 1018098 | 1 | Valve, Water, Solenoid, 12vdc 6.0mm Pf04 | No longer available. Call to confirm part: 800-440-6723 |
| 12 | TN4041965Replaces Tennant 09200 | 2 | Screw, Pan, Phl, M5 X 0.80 X 12, Ss | No longer available. Call to confirm part: 800-440-6723 |
| 13 | TN4042888Replaces Tennant 01683 | 2 | Washer, Flat, 10, Ss | No longer available. Call to confirm part: 800-440-6723 |
| 14 | TN4041118Replaces Tennant 150540 | 1 | Fitting, Plstc, Str, Bm06/Pm04 | No longer available. Call to confirm part: 800-440-6723 |
| 15 | TN4041151Replaces Tennant 150709 | 1 | Fitting, Brs, Tee, Pm04/Pf04/Pf04, Run | No longer available. Call to confirm part: 800-440-6723 |
| 16 | TN4029298Replaces Tennant 57248 | 2 | Fitting, Plstc, E90, Bm06/Pm04, Nyl | No longer available. Call to confirm part: 800-440-6723 |
| 17 | TN4192843Replaces Tennant 1033957 | 1 | Bracket, Mtg [FaST] | No longer available. Call to confirm part: 800-440-6723 |
| 18 | TN4010349Replaces Tennant 9008868 | 2 | FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdown)No longer available from the manufacturer. | No longer available. Call to confirm part: 800-440-6723 |
| 19 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt No | No longer available. Call to confirm part: 800-440-6723 |
| 20 | TN4029864Replaces Tennant 361339 | 1 | Screw, Hex, M6 X 1.00 X 16, Fmg | No longer available. Call to confirm part: 800-440-6723 |
| 21 | TN4045437Replaces Tennant 1035794 | 2 | Valve, Check, 0005psi Bm06/Bm08 | No longer available. Call to confirm part: 800-440-6723 |
| 22 | TN4041153Replaces Tennant 150713 | 1 | Fitting, Plstc, Tee, Bm04/Bm04/Bm04 | No longer available. Call to confirm part: 800-440-6723 |
| 23 | TN4039304Replaces Tennant 1006415 | 1 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ft | No longer available. Call to confirm part: 800-440-6723 |
| 24 | TN4039305Replaces Tennant 1006416 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 03ft | No longer available. Call to confirm part: 800-440-6723 |
| 25 | TN4033588Replaces Tennant 1024237 | 1 | Hose, Afmkt, Pvc, Wir, 0.50id, 03ft, Clr | No longer available. Call to confirm part: 800-440-6723 |
| 26 | TN4037960Replaces Tennant 1014929 | 1 | Hose, Afmkt, Pvc, Clr, 0.38id, 01ft | No longer available. Call to confirm part: 800-440-6723 |
| 27 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, Nyl | No longer available. Call to confirm part: 800-440-6723 |
| 28 | TN4017396Replaces Tennant 43844 | 6 | Clamp, Hose, Wormdrive, 0.250.62d, .31w | No longer available. Call to confirm part: 800-440-6723 |
| 29 | TN1037262Tennant 1037262 | 1 | Plate, Mtg [FaST] | No longer available. Call to confirm part: 800-440-6723 |
| 30 | TN4039301Replaces Tennant 1006400 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 03ft, Clr | No longer available. Call to confirm part: 800-440-6723 |
| 31 | TN4015366Replaces Tennant 54333 | 4 | Clamp, Hose, Wormdrive, 0.310.88d, .31w | No longer available. Call to confirm part: 800-440-6723 |
| 32 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, Clr | No longer available. Call to confirm part: 800-440-6723 |
| 33 | TN4044360Replaces Tennant 14877 | 1 | Fitting, Plstc, E90, Bm12/Pm12Serial up to 004690. | No longer available. Call to confirm part: 800-440-6723 |
| 33 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12Serial 004691 and later. | No longer available. Call to confirm part: 800-440-6723 |
| 34 | TN4017317Replaces Tennant 42133A | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12 | No longer available. Call to confirm part: 800-440-6723 |
| 35 | TN4035382Replaces Tennant 24544 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60l | No longer available. Call to confirm part: 800-440-6723 |
| 36 | TN4026537Replaces Tennant 79273-1 | 1 | Fitting, Plstc, Str, Bm08/Pm12 | No longer available. Call to confirm part: 800-440-6723 |
| 37 | TN4035218Replaces Tennant 1017022 | 2 | Detergent, Pkg, 2 Liter, Sgl [665]No longer available from the manufacturer. | No longer available. Call to confirm part: 800-440-6723 |
| 37 | TN4192855Replaces Tennant 1034126 | 2 | Detergent, Pkg, 2 Liter, Sgl [965, Tco] | No longer available. Call to confirm part: 800-440-6723 |
| 38 | TN4038961Replaces Tennant 1005302 | 1 | Filter, InLine, Pf06/Pf06 080Mesh 02.6L | No longer available. Call to confirm part: 800-440-6723 |
| 39 | TN4044578Replaces Tennant 150538 | 2 | Fitting, Plstc, Str, Bm06/Pm06 | No longer available. Call to confirm part: 800-440-6723 |
| 40 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27B 0.69D .05, Ss | No longer available. Call to confirm part: 800-440-6723 |
| 41 | TN4040112Replaces Tennant 1049254 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10 | No longer available. Call to confirm part: 800-440-6723 |
| 42 | TN4040113Replaces Tennant 1049259 | 1 | Fitting, Nyl, Qdc, E90, Bm06/ Qm10 | No longer available. Call to confirm part: 800-440-6723 |

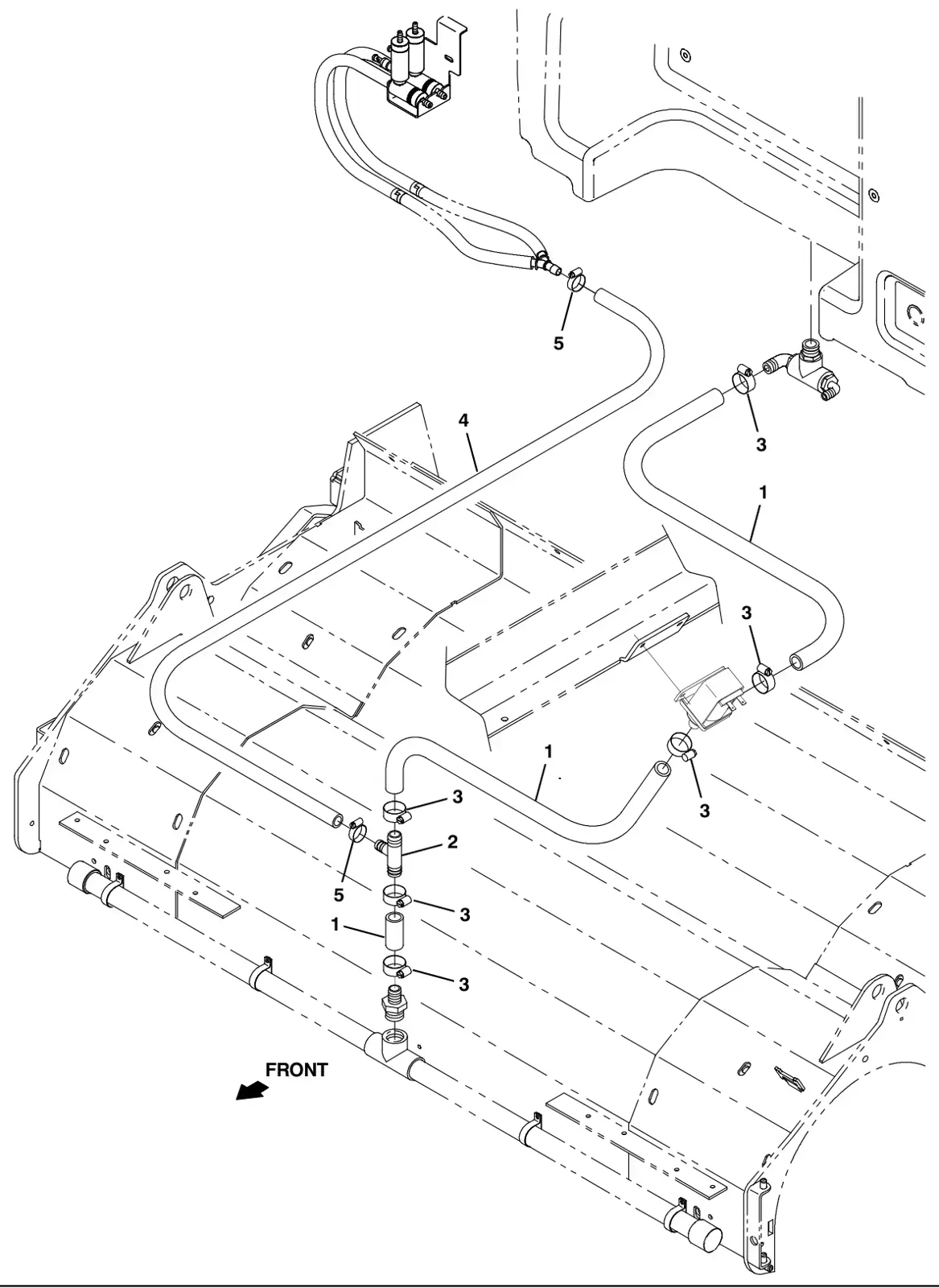

Tennant M30 Diesel FaST Solution Supply Group (option) parts
The parts Tennant numbers on its fast solution supply group (option) drawing. Manual pages 192, list 193.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4037985Replaces Tennant 1015045 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrSerial up to 004690. | No longer available. Call to confirm part: 800-440-6723 |
| 1 | TN4037981Replaces Tennant 1015032 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrSerial 004691 and later. | No longer available. Call to confirm part: 800-440-6723 |
| 2 | TN4021001Replaces Tennant 385644 | 1 | Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrSerial up to 004690. | No longer available. Call to confirm part: 800-440-6723 |
| 2 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 004691 and later. | No longer available. Call to confirm part: 800-440-6723 |
| 3 | TN4017089Replaces Tennant 63810 | 6 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | No longer available. Call to confirm part: 800-440-6723 |
| 4 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, Clr | No longer available. Call to confirm part: 800-440-6723 |
| 5 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.310.88d, .31w | No longer available. Call to confirm part: 800-440-6723 |

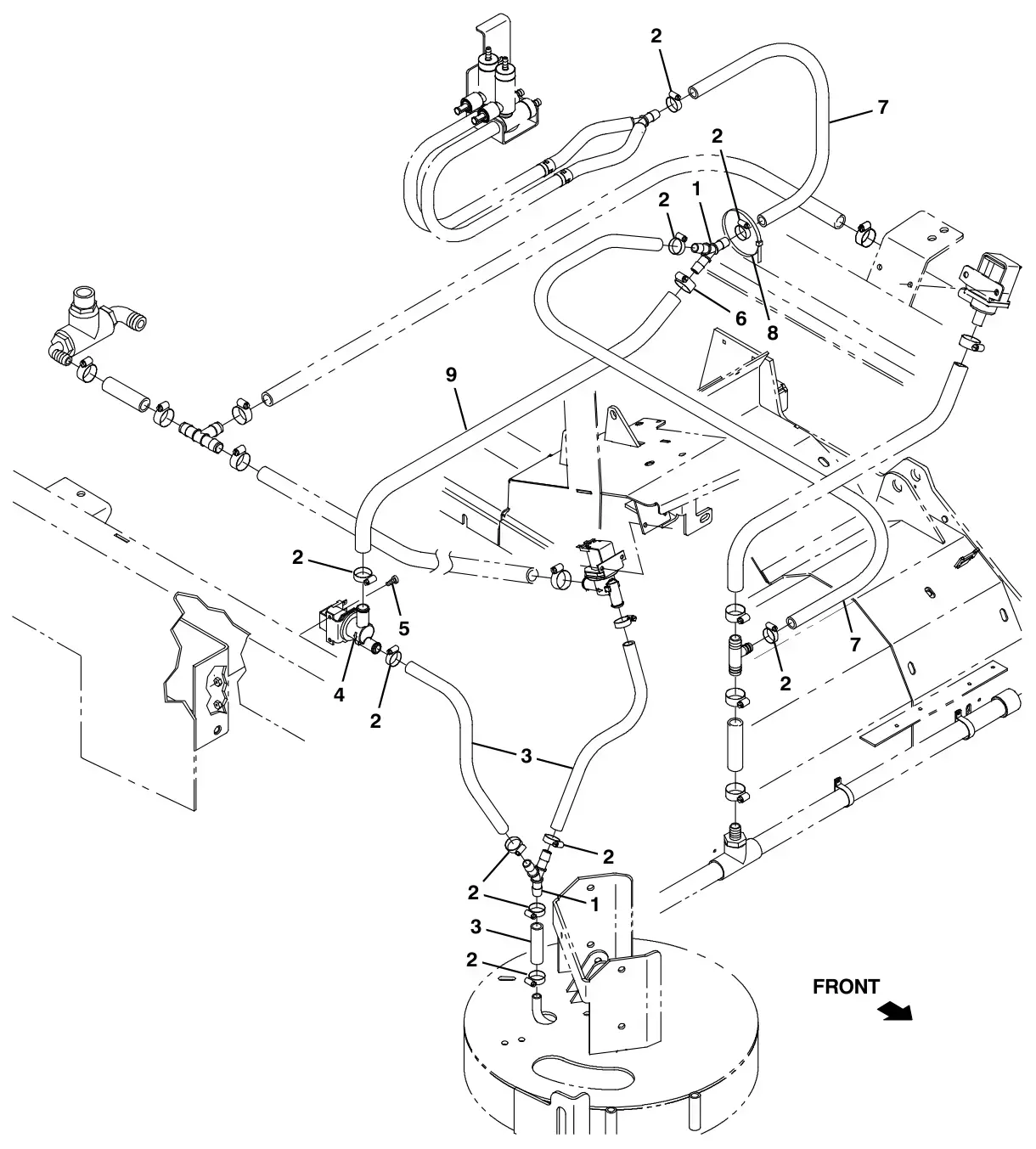

Tennant M30 Diesel FaST Solution Supply Group, Side Brush (option) parts
The parts Tennant numbers on its fast solution supply group, side brush (option) drawing. Manual pages 194, list 195.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375Replaces Tennant 1010668 | 2 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, Nyl | No longer available. Call to confirm part: 800-440-6723 |
| 2 | TN4015366Replaces Tennant 54333 | 10 | Clamp, Hose, Wormdrive, 0.310.88d, .31w | No longer available. Call to confirm part: 800-440-6723 |
| 3 | TN4037991Replaces Tennant 1015067 | 1 | Hose, Afmkt, Pvc, Clr, 0.50id, 08ft | No longer available. Call to confirm part: 800-440-6723 |
| 4 | TN4043533Replaces Tennant 1037825 | 1 | Valve, Solenoid, 12vdc, Water Flow | No longer available. Call to confirm part: 800-440-6723 |
| 5 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, Ss | No longer available. Call to confirm part: 800-440-6723 |
| 6 | TN4017089Replaces Tennant 63810 | 1 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | No longer available. Call to confirm part: 800-440-6723 |
| 7 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, Clr | No longer available. Call to confirm part: 800-440-6723 |
| 8 | TN4011910Replaces Tennant 763116 | 1 | Tie, Cable, Nyl, 15.3l . W 4.5 Max D | No longer available. Call to confirm part: 800-440-6723 |
| 9 | TN4033443Replaces Tennant 31543 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0 | No longer available. Call to confirm part: 800-440-6723 |

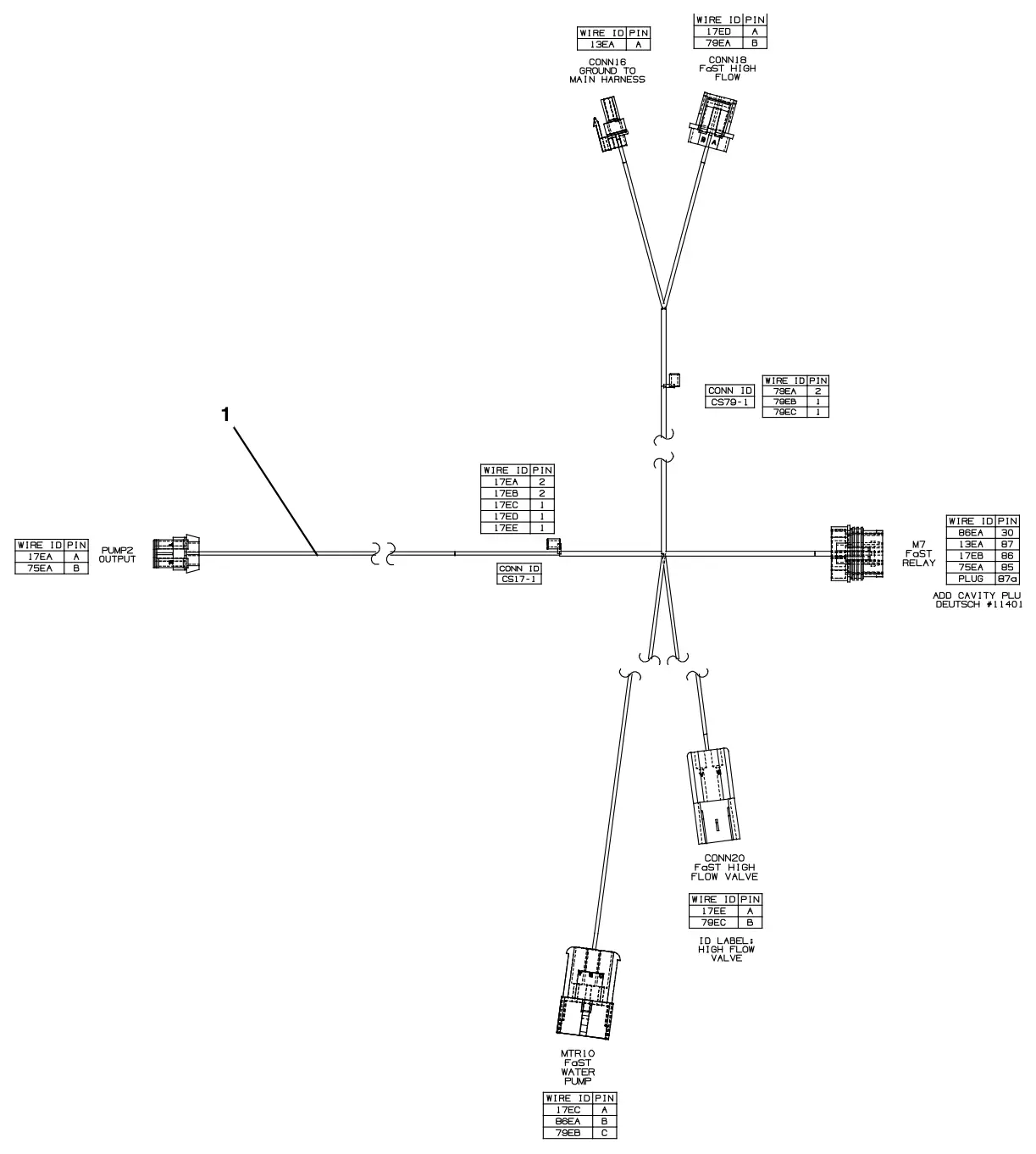

Tennant M30 Diesel FaST Wire Harness Group (option) parts
The parts Tennant numbers on its fast wire harness group (option) drawing. Manual pages 196, list 197.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN1037809Tennant 1037809 | 1 | Harness, Wire [FaST Gen 2] | No longer available. Call to confirm part: 800-440-6723 |

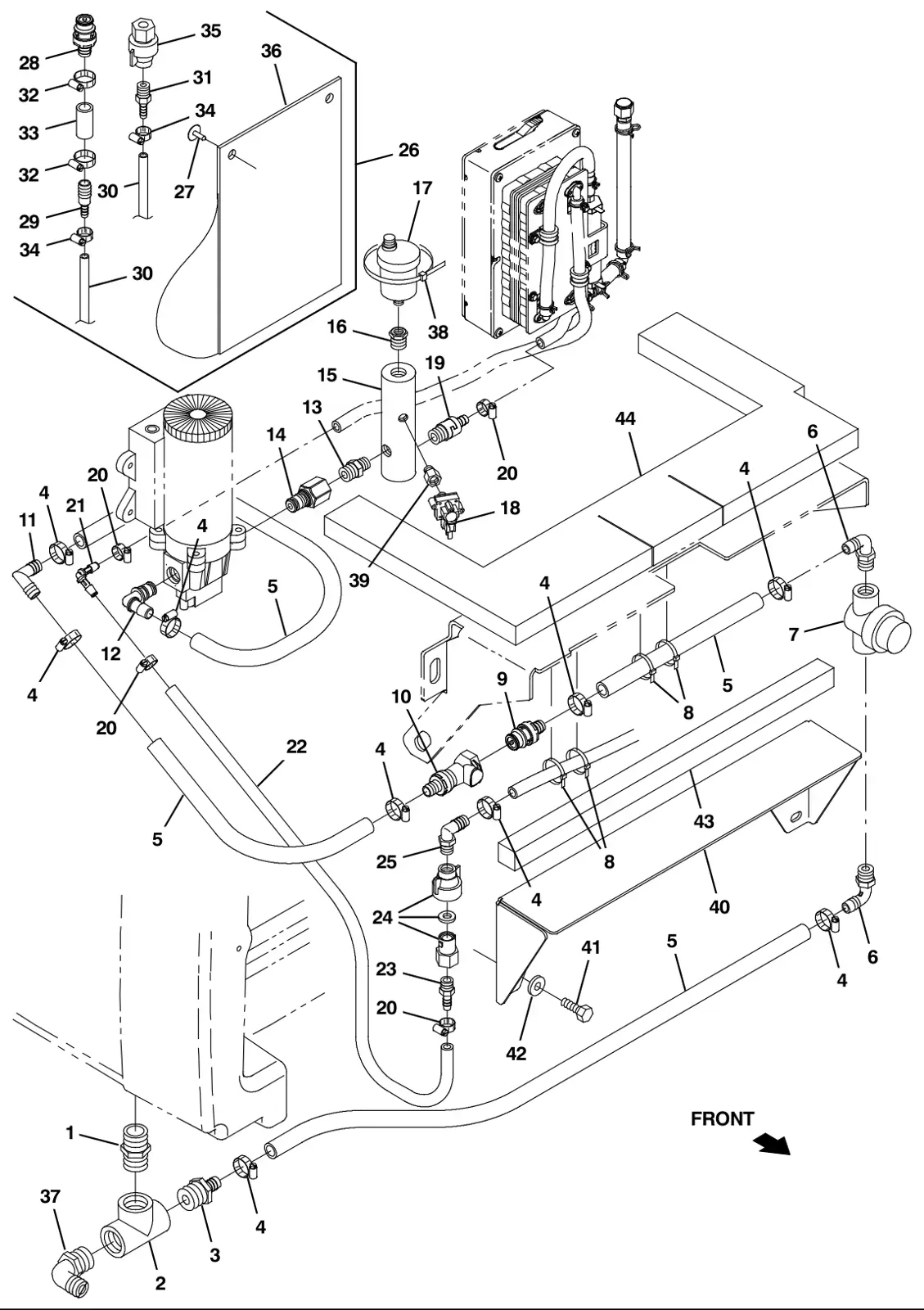

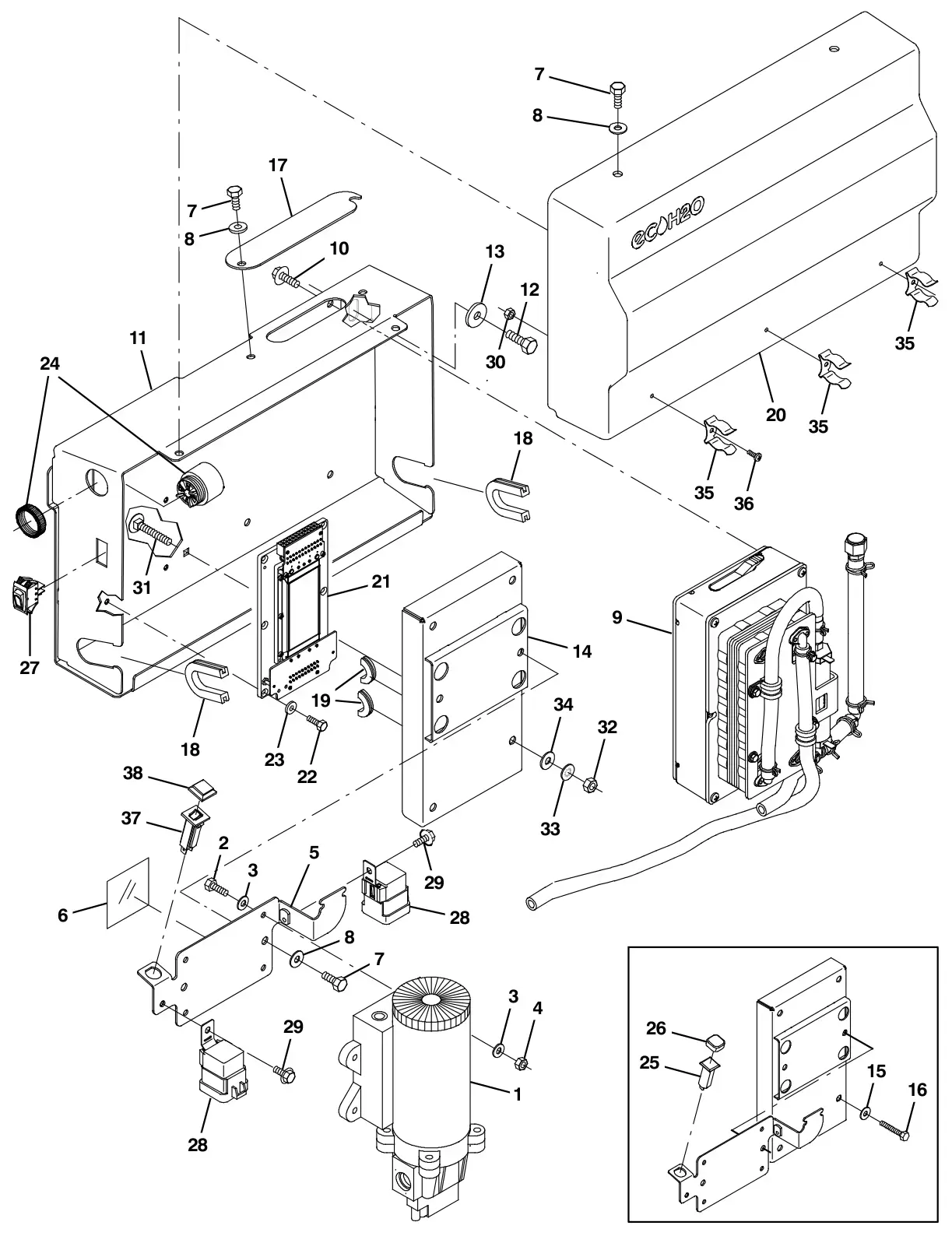

Tennant M30 Diesel ec- H20 Solution Pump Group (option) parts
The parts Tennant numbers on its ec- h20 solution pump group (option) drawing. Manual pages 198, list 199.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4034620Replaces Tennant 1060624 | 1 | Pump, Soltn, Ele, 13.7vdc,12/28psi | $621.40/EA |
| 2 | TN4041970Replaces Tennant 09252 | 4 | Screw, Hex, M5 X 0.80 X 20, 8.8 | $3.40/EA |
| 3 | TN4042244Replaces Tennant 19066 | 8 | Washer, Flat, 10 | $2.50/EA |
| 4 | TN4041004Replaces Tennant 06549 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl | $2.50/EA |
| 5 | TN4187222Replaces Tennant 1060273 | 1 | Plate, Mtg, Pump | $31.31/EA |
| 6 | TN4187047Replaces Tennant 1059677 | 1 | Strip, Rbr, 0.06 03.54w 03.5l [Neo/60] | $2.83/EA |
| 7 | TN4041994Replaces Tennant 09744 | 6 | Screw, Hex, M6 X 1.00 X 12, Ss | $3.40/EA |
| 8 | TN4042901Replaces Tennant 01684 | 6 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |

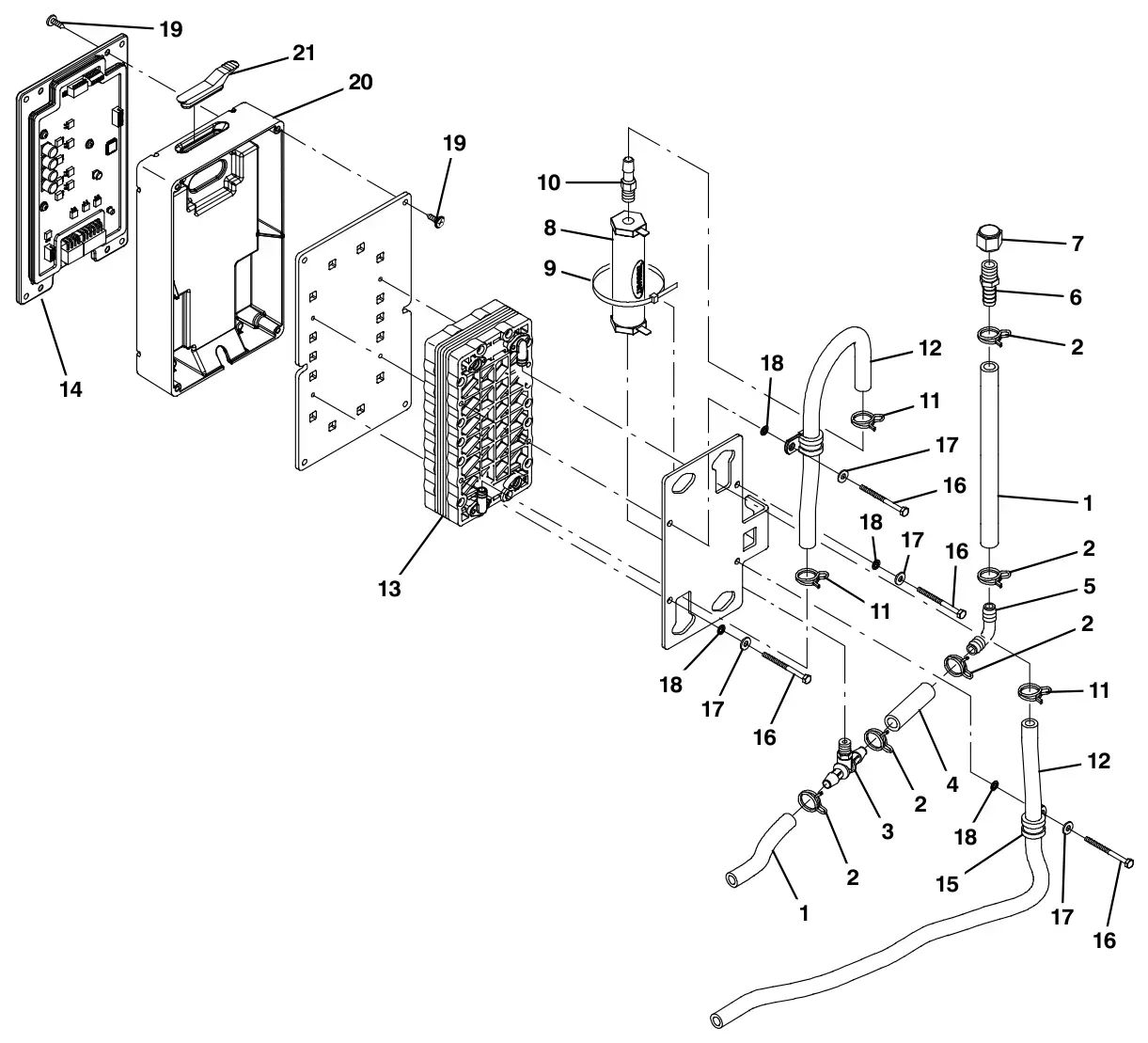

| 9 | TN4012473Replaces Tennant 9007882 | 1 | Module Kit, Replmt [EcH20] (See Breakdowns) | $1,782.70/EA |
| 10 | TN4044400Replaces Tennant 1040467 | 4 | Screw, Hex, M6 X 1.00 X 20, 9.8, Sems | $3.30/EA |
| 11 | TN4187224Replaces Tennant 1060292 | 1 | Plate Wldt, Mtg | $165.64/EA |
| 12 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 13 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 14 | TN4187215Replaces Tennant 1060185 | 1 | Cover Wldt, Power Supply | $68.18/EA |
| 15 | TN4042901Replaces Tennant 01684 | 4 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 16 | TN4041608Replaces Tennant 07805 | 4 | Screw, Hex, M6 X 1.00 X 35, Ss | $3.30/EA |
| 17 | TN4187223Replaces Tennant 1060291 | 1 | Plate, Inspection | $5.96/EA |
| 18 | TN4036241Replaces Tennant 1020168 | 1 | Molding, Afmkt, Trim, Pvc, .08 .11, 01Ft | $44.40/EA |
| 19 | TN4032006Replaces Tennant 10632-4 | 1 | Grommet, Rbr, 0.62id, F/0.9h, .06 Matl | $2.50/EA |
| 20 | TN4034636Replaces Tennant 1060719 | 1 | Cover, Trimmed | $164.73/EA |
| 21 | TN4036779Replaces Tennant 1058963 | 1 | Converter, Ele, 1236 Vdc | Call to confirm part: 800-440-6723 |
| 22 | TN4041967Replaces Tennant 09206 | 4 | Screw, Hex, M4 X 0.70 X 12, 8.8 | $3.30/EA |
| 23 | TN4042243Replaces Tennant 19065 | 4 | Washer, Flat, 08 | $3.20/EA |
| 24 | TN4037707Replaces Tennant 1052726 | 1 | Alarm, 948vdc, 95 Db(A) [EcH20] | $75.90/EA |
| 25 | TN4032584Replaces Tennant 1053078 | 1 | Circuitbreaker, 2.0a, ResetableSerial up to 001645. | $13.40/EA |
| 26 | TN4032601Replaces Tennant 1046173 | 1 | Boot, CircuitbreakerSerial up to 001645. | $12.60/EA |
| 27 | TN4042141Replaces Tennant 1044393 | 1 | Switch, Rocker, Spst, Mom | $7.70/EA |
| 28 | TN4029123Replaces Tennant 56186 | 2 | Relay, 12vdc, 040a, Spdt No | $11.30/EA |
| 29 | TN4037385Replaces Tennant 223198 | 2 | Screw, Hex, M5 X 0.80 X 10, Fmg | $4.00/EA |
| 30 | TN4031247Replaces Tennant 33932 | 3 | Nut, Hex, Lock, M4 X 0.70, Nl, Ss | $3.40/EA |
| 31 | TN4185338Replaces Tennant 1062804 | 4 | Bolt, Carriage, M06 X 1.00 X 40, 4.6 | $1.52/EA |
| 32 | TN4016812Replaces Tennant 41359 | 4 | Nut, Hex, Std, M6 X 1.00, 8 | $3.40/EA |
| 33 | TN4034655Replaces Tennant 32982 | 4 | Washer, Lock, Int, 0.25 | $2.60/EA |
| 34 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, Sae | $2.50/EA |
| 35 | TN4031029Replaces Tennant 1029057 | 3 | Clip, Grip, Finger, 0.881.25d | $5.15/EA |
| 36 | TN4035991Replaces Tennant 12323 | 3 | Screw, Pan, Phl, M4 X 0.70 X 20, Ss | $3.30/EA |
| 37 | TN4032584Replaces Tennant 1064183 | 1 | Circuitbreaker, 02.0a, ResetableSerial 001646 and later. | $13.40/EA |
| 38 | TN4032601Replaces Tennant 1064191 | 1 | Boot, CircuitbreakerSerial 001646 and later. | $12.60/EA |
Tennant M30 Diesel ec- H20 Solution Pump Supply Group (option) parts
The parts Tennant numbers on its ec- h20 solution pump supply group (option) drawing. Manual pages 200, list 201.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4035382Replaces Tennant 24544 | 1 | Fitting, Plstc, Str, Pm12/Pm12 1.60l | $6.20/EA |
| 2 | TN4017317Replaces Tennant 42133A | 1 | Fitting, Plstc, Tee, Pf12/Pf12/Pf12 | $17.60/EA |
| 3 | TN4026537Replaces Tennant 79273-1 | 1 | Fitting, Plstc, Str, Bm08/Pm12 | $8.70/EA |
| 4 | TN4015366Replaces Tennant 54333 | 9 | Clamp, Hose, Wormdrive, 0.310.88d, .31w | $5.10/EA |
| 5 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, Clr | $70.70/EA |
| 6 | TN4017647Replaces Tennant 64778 | 2 | Fitting, Plstc, E90, Bm08/Pm06 | $8.70/EA |
| 7 | TN4038961Replaces Tennant 1005302 | 1 | Filter, InLine, Pf06/Pf06 080mesh 02.6l | $21.10/EA |
| 8 | TN4011910Replaces Tennant 763116 | 4 | Tie, Cable, Nyl, 15.3l . W 4.5 Max D | $3.40/EA |
| 9 | TN4035458Replaces Tennant 1017415 | 1 | Insert, Cplg, Qm, Bm08 | $34.70/EA |
| 10 | TN4035457Replaces Tennant 1017413 | 1 | Housing, Cplg, Qf / Pm08 | $37.90/EA |
| 11 | TN4017096Replaces Tennant 63987-1 | 1 | Fitting, Plstc, E90, Bm08/Bm08 | $7.80/EA |
| 12 | TN4040112Replaces Tennant 1049254 | 1 | Fitting, Nyl, Qdc, E90, Bm08/ Qm10 | $11.80/EA |
| 13 | TN4037143Replaces Tennant 1059372 | 1 | Fitting, Plstc, Str, Pf06/Qm10, Pvc | $13.00/EA |
| 14 | TN4038956Replaces Tennant 1005219 | 1 | Fitting, Plstc, Str, Pm04/Pm06, Nyl | $4.20/EA |
| 15 | TN4034619Replaces Tennant 1060596 | 1 | Manifold, Water | $44.30/EA |
| 16 | TN4035395Replaces Tennant 24698 | 1 | Fitting, Brs, Str, Pf02/Pm06 | $8.70/EA |
| 17 | TN4035456Replaces Tennant 1017386 | 1 | Valve, Vent, Air, Float Type | $64.30/EA |
| 18 | TN4036776Replaces Tennant 1058935 | 1 | Switch, Press, 50 Psi, Pm02 | $115.30/EA |
| 19 | TN4034632Replaces Tennant 1060693 | 1 | Valve, Check, 0005psi Pm04/Bm06 | $55.50/EA |
| 20 | TN4017396Replaces Tennant 43844 | 4 | Clamp, Hose, Wormdrive, 0.250.62d, .31w | $4.20/EA |
| 21 | TN4187030Replaces Tennant 1059391 | 1 | Fitting, Plstc, E90, Bm05/Bm05, Nyl | $4.40/EA |
| 22 | TN4041050Replaces Tennant 1052336 | 2 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, Clr | $48.50/EA |
| 23 | TN4040814Replaces Tennant 1052017 | 1 | Fitting, Plstc, Str, Bm05/Pm04 | $2.60/EA |
| 24 | TN4030539Replaces Tennant 1071280 | 1 | Fitting Assy, Qdc, Pf04 | $8.70/EA |
| 25 | TN4017747Replaces Tennant 65581 | 1 | Fitting, Plstc, E90, Bm08/Pm04 | $2.55/EA |
| 26 | TN4197576Replaces Tennant 9014281 | 1 | ecH2O Kit, Flush, Replmt[M20, M30&T20]Complete assembly. | $99.60/EA |
| 27 | TN4016302Replaces Tennant 72968 | 2 | Rivet, Plstc, .250d X 0.90Part of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $3.20/EA |
| 28 | TN4035458Replaces Tennant 1017415 | 1 | Insert, Cplg, Qm, Bm08Part of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $34.70/EA |
| 29 | TN4020535Replaces Tennant 630164 | 1 | Fitting, Plstc, Str, Bm04/Bm08Part of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $7.90/EA |
| 30 | TN4039304Replaces Tennant 1006415 | 2 | Hose, Afmkt, Pvc, Clr, 0.25id, 03ftPart of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $51.70/EA |
| 31 | TN4014520Replaces Tennant 50901 | 1 | Fitting, Plstc, Str, Bm04/Pm04Part of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $3.60/EA |
| 32 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.310.88d, .31wPart of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $5.10/EA |
| 33 | TN4036839Replaces Tennant 1011403 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 01ft, ClrPart of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $19.40/EA |
| 34 | TN4017396Replaces Tennant 43844 | 2 | Clamp, Hose, Wormdrive, 0.250.62d, .31wPart of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $4.20/EA |
| 35 | TN4030539Replaces Tennant 1071280 | 1 | Fitting Assy, Qdc, Pf04Part of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $8.70/EA |
| 36 | TN4013988Replaces Tennant 48790 | 1 | PouchPart of ecH2O Kit, Flush, Replmt[M20, M30&T20] (9014281). | $32.02/EA |
| 37 | TN4044360Replaces Tennant 14877 | 1 | Fitting, Plstc, E90, Bm12/Pm12Serial up to 004690. | $6.20/EA |
| 37 | TN4016343Replaces Tennant 73468 | 1 | Fitting, Plstc, E90, Bm10/Pm12Serial 004691 and later. | $7.90/EA |
| 38 | TN4014138Replaces Tennant 49266 | 1 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max D | $2.50/EA |
| 39 | TN4035142Replaces Tennant 1062403 | 1 | Fitting, Brs, Snubber, Pm02/Pf02 | $37.10/EA |
| 40 | TN4034413Replaces Tennant 1060290 | 1 | Plate, Sppt | $31.82/EA |
| 41 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, Ss | $3.30/EA |
| 42 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, Ss | $3.40/EA |
| 43 | TN4034644Replaces Tennant 1060845 | 1 | Insulation, Acstc, Rear | $7.88/EA |
| 44 | TN4034571Replaces Tennant 1060386 | 1 | Insulation, Acstc, Adh | $58.38/EA |

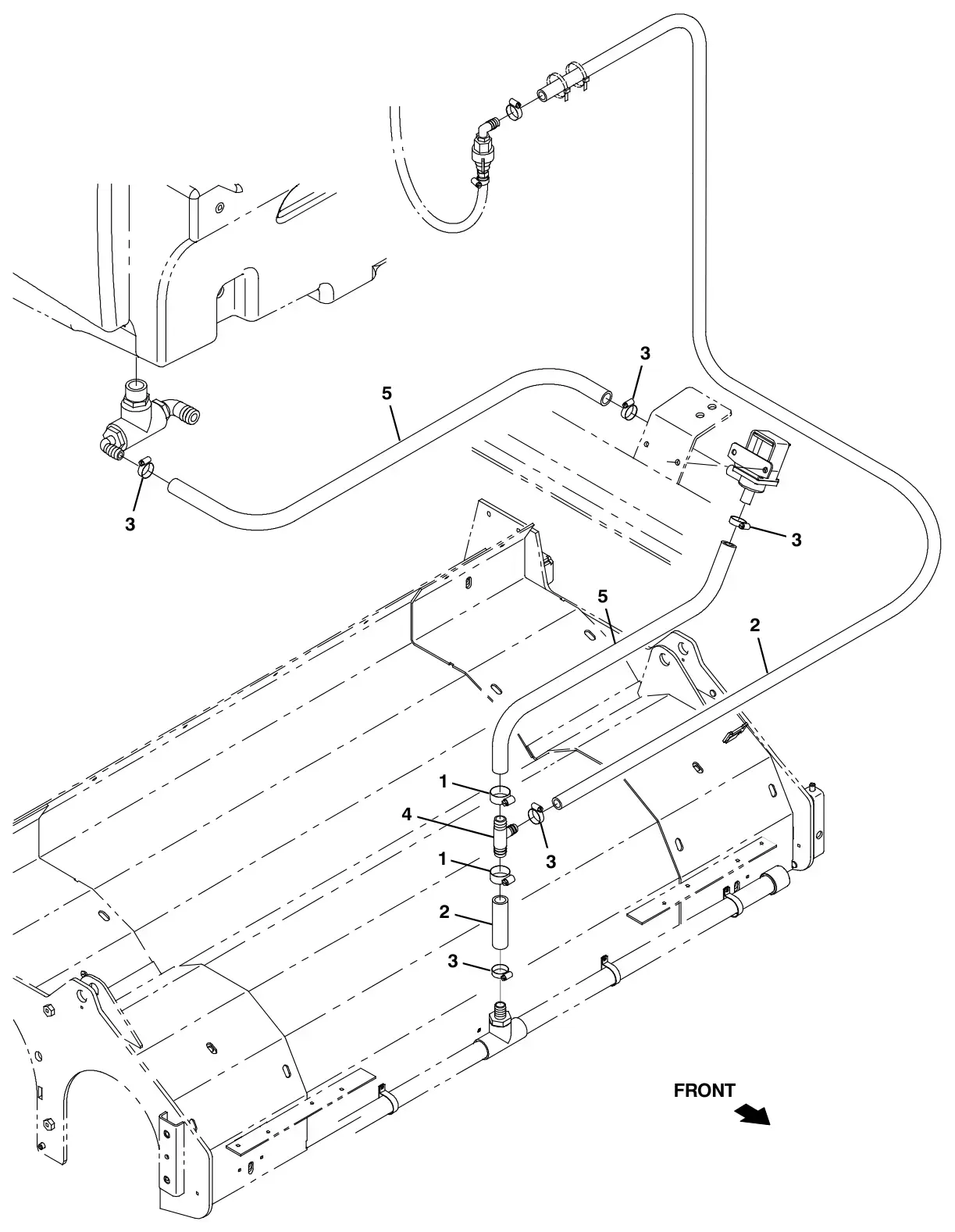

Tennant M30 Diesel ec- H20 Solution Supply Group (option) parts
The parts Tennant numbers on its ec- h20 solution supply group (option) drawing. Manual pages 202, list 203.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4017089Replaces Tennant 63810 | 2 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | $6.80/EA |
| 2 | TN4036916Replaces Tennant 1011837 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 12ft, Clr | $75.50/EA |
| 3 | TN4015366Replaces Tennant 54333 | 5 | Clamp, Hose, Wormdrive, 0.310.88d, .31w | $5.10/EA |
| 4 | TN4021001Replaces Tennant 385644 | 1 | Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrSerial up to 004690. | $9.90/EA |
| 4 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 004691 and later. | $5.30/EA |
| 5 | TN4037985Replaces Tennant 1015045 | 1 | Hose, Afmkt, Pvc, Brd, 0.75id, 08ft, ClrSerial up to 004690. | $83.30/EA |
| 5 | TN4037981Replaces Tennant 1015032 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 08ft, ClrSerial 004691 and later. | $80.40/EA |

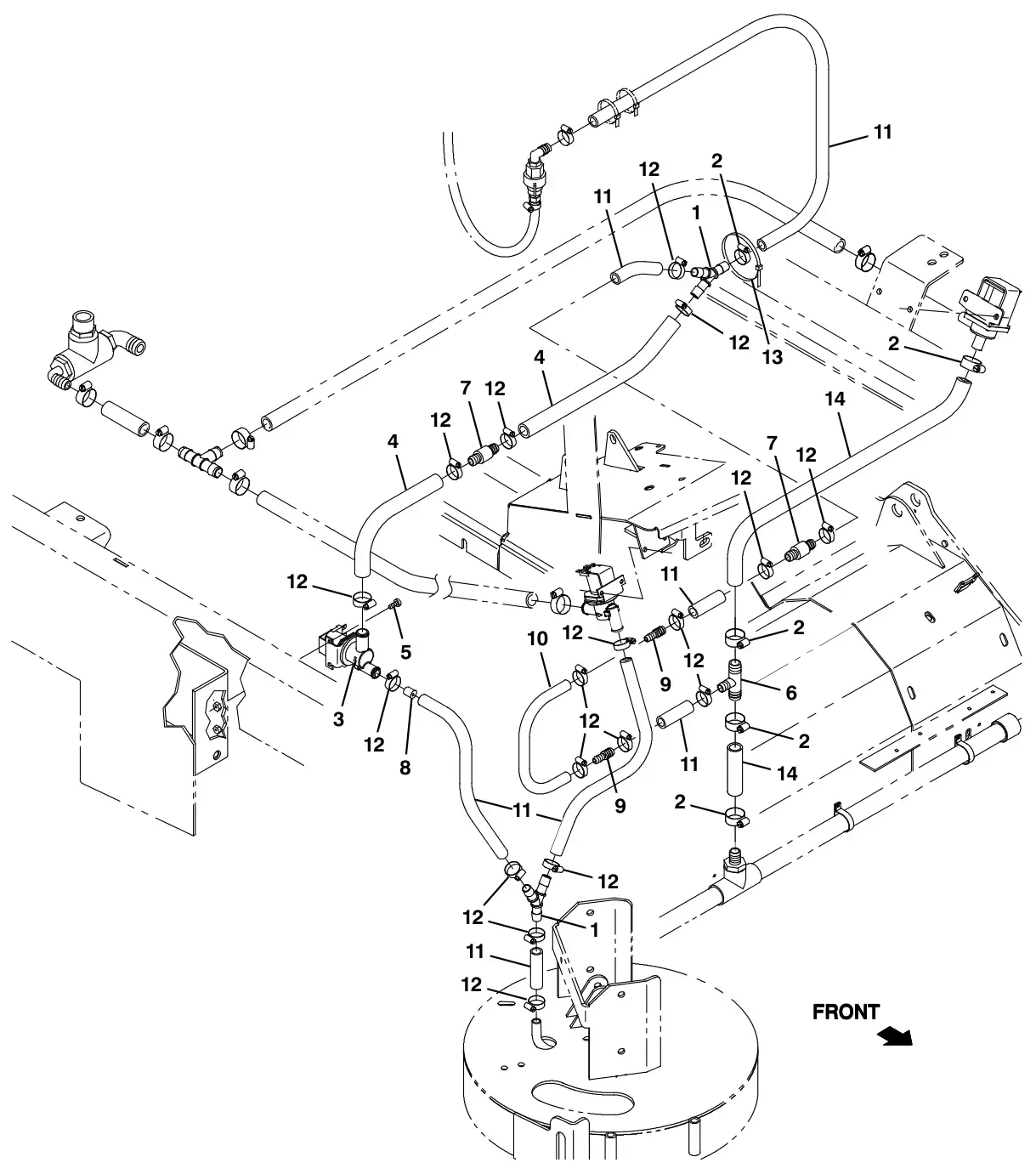

Tennant M30 Diesel ec- H20 Solution Supply Group with Side Brush (option) parts
The parts Tennant numbers on its ec- h20 solution supply group with side brush (option) drawing. Manual pages 204, list 205.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4040375Replaces Tennant 1010668 | 1 | Fitting, Plstc, Y, Bm08/Bm08/Bm08, Nyl | $11.00/EA |
| 2 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | $6.80/EA |
| 3 | TN4043533Replaces Tennant 1037825 | 1 | Valve Assy, Water, Solenoid, 12vdc | Call to confirm part: 800-440-6723 |
| 4 | TN4033443Replaces Tennant 31543 | 1 | Hose, Heater, E90, 0.62id, 24.0 4.0 | $37.40/EA |
| 5 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, Ss | $3.20/EA |
| 6 | TN4021001Replaces Tennant 385644 | 1 | Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrSerial up to 004690. | $9.90/EA |
| 6 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrSerial 004691 and later. | $5.30/EA |
| 7 | TN4040370Replaces Tennant 1010614 | 2 | Valve, Check, 2gpm .5psi Bm08/Bm08 | $55.50/EA |
| 8 | TN4034713Replaces Tennant 1061045 | 1 | Plug, Restrictor | $22.30/EA |
| 9 | TN4040278Replaces Tennant 222375 | 2 | Fitting, Plstc, Str, Bm06/Bm08 | $4.20/EA |
| 10 | TN4037967Replaces Tennant 1014974 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, Clr | $22.40/EA |
| 11 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50id, 08ft, Clr | $70.70/EA |
| 12 | TN4015366Replaces Tennant 54333 | 18 | Clamp, Hose, Wormdrive, 0.310.88d, .31w | $5.10/EA |
| 13 | TN4011909Replaces Tennant 763115 | 1 | Tie, Cable, 6.0l, 1.25d Max | $2.30/EA |
| 14 | TN4037980Replaces Tennant 1015026 | 1 | Hose, Afmkt, Pvc, Brd, 0.62id, 03ft, ClrSerial 004691 and later. | $31.50/EA |

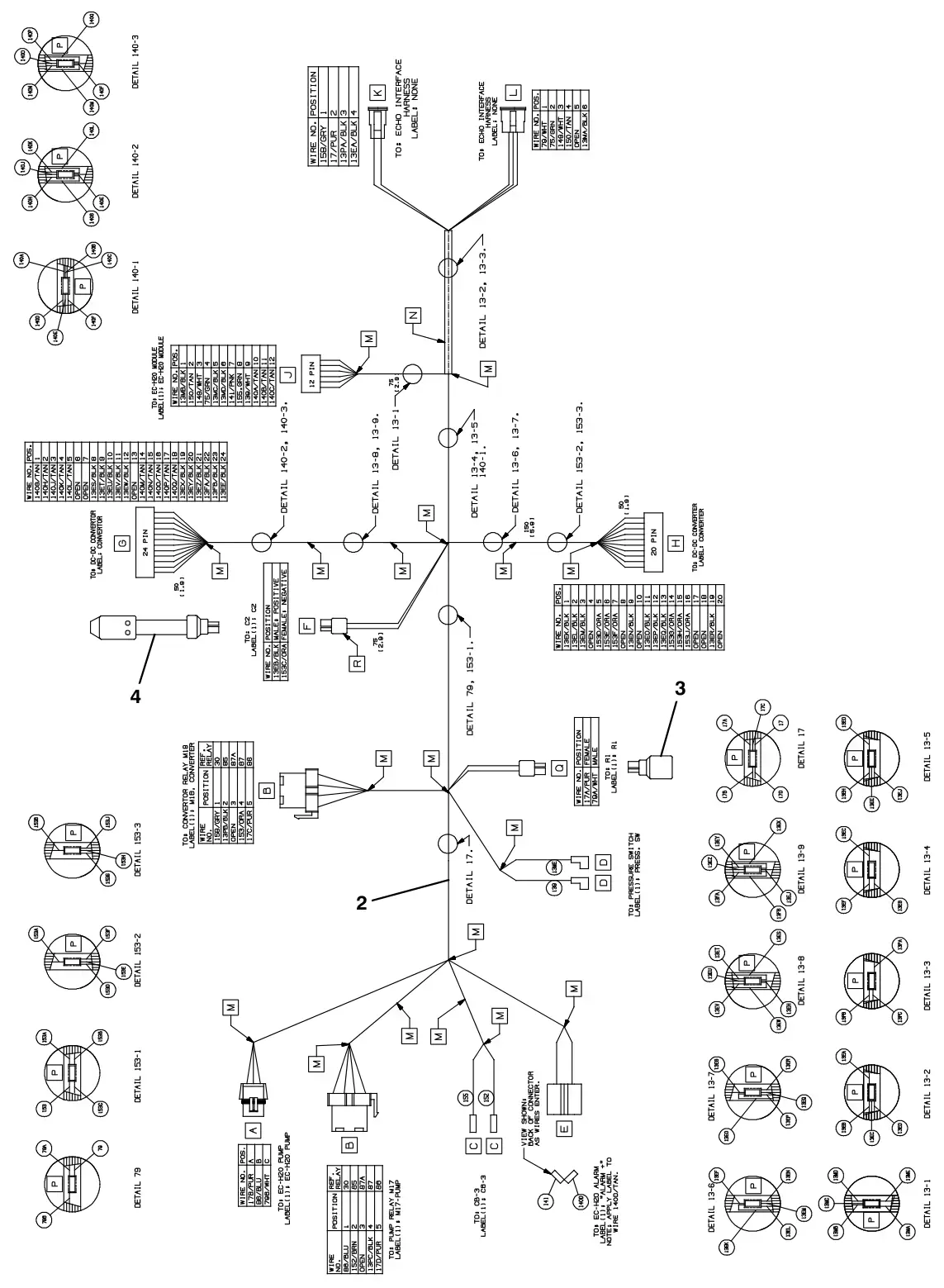

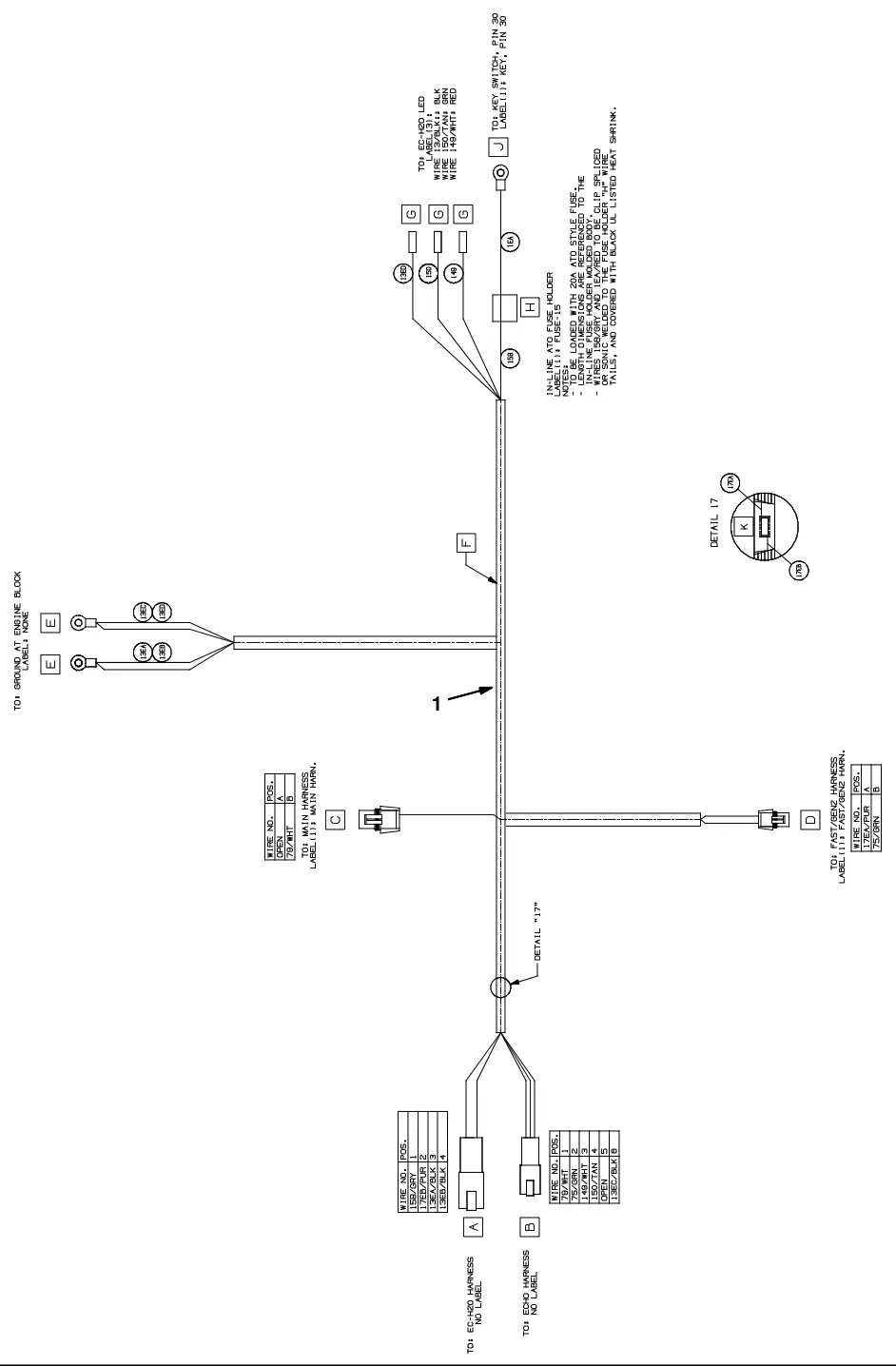

Tennant M30 Diesel ec- H20 Wire Harnesses Group (option) parts
The parts Tennant numbers on its ec- h20 wire harnesses group (option) drawing. Manual pages 207, list 208.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4030887Replaces Tennant 1071947 | 1 | Harness, Wire [EcH2o, Mako, 2.0l & Dsl] | $69.20/EA |
| 2 | TN4034646Replaces Tennant 1060871 | 1 | Harness, Wire [EcH2o] | $240.18/EA |
| 3 | TN4034647Replaces Tennant 1060880 | 1 | Resistor, Ele, Plug [430 , 2w] | $9.49/EA |
| 4 | TN4034648Replaces Tennant 1060881 | 1 | Capacitor, Plug [4700uf, 25v] | $15.35/EA |
Tennant M30 Diesel Backup Alarm Kit (option) parts
Backup Alarm Kit (option) from Tennant's parts list. Manual page 209.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4019666Replaces Tennant 9001321 | Qty on machine: 1 | Alarm Kit, Backup, Ci [M20/T20/M30]Complete assembly. | $349.80/EA | |
| 1 | TN4011838Replaces Tennant 9007131 | Qty on machine: 1 | Alarm Assy, Backup, 12/48VdcPart of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $162.50/EA | |
| 2 | TN4035367Replaces Tennant 24196 | Qty on machine: 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $3.20/EA | |
| 3 | TN4042244Replaces Tennant 19066 | Qty on machine: 2 | Washer, Flat, 10Part of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $2.50/EA | |
| 4 | TN4041991Replaces Tennant 09739 | Qty on machine: 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $3.30/EA | |
| 5 | TN4035919Replaces Tennant 1019445 | Qty on machine: 1 | Bracket, Sppt, Strobe LightPart of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $55.20/EA | |
| 6 | TN4041992Replaces Tennant 09740 | Qty on machine: 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $3.30/EA | |
| 7 | TN4035242Replaces Tennant 1017218 | Qty on machine: 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $3.40/EA | |
| 8 | TN4036226Replaces Tennant 1019971 | Qty on machine: 1 | Harness, Warning / Backup [M20 & T20]Part of Alarm Kit, Backup, Ci [M20/T20/M30] (9001321). | $27.50/EA |

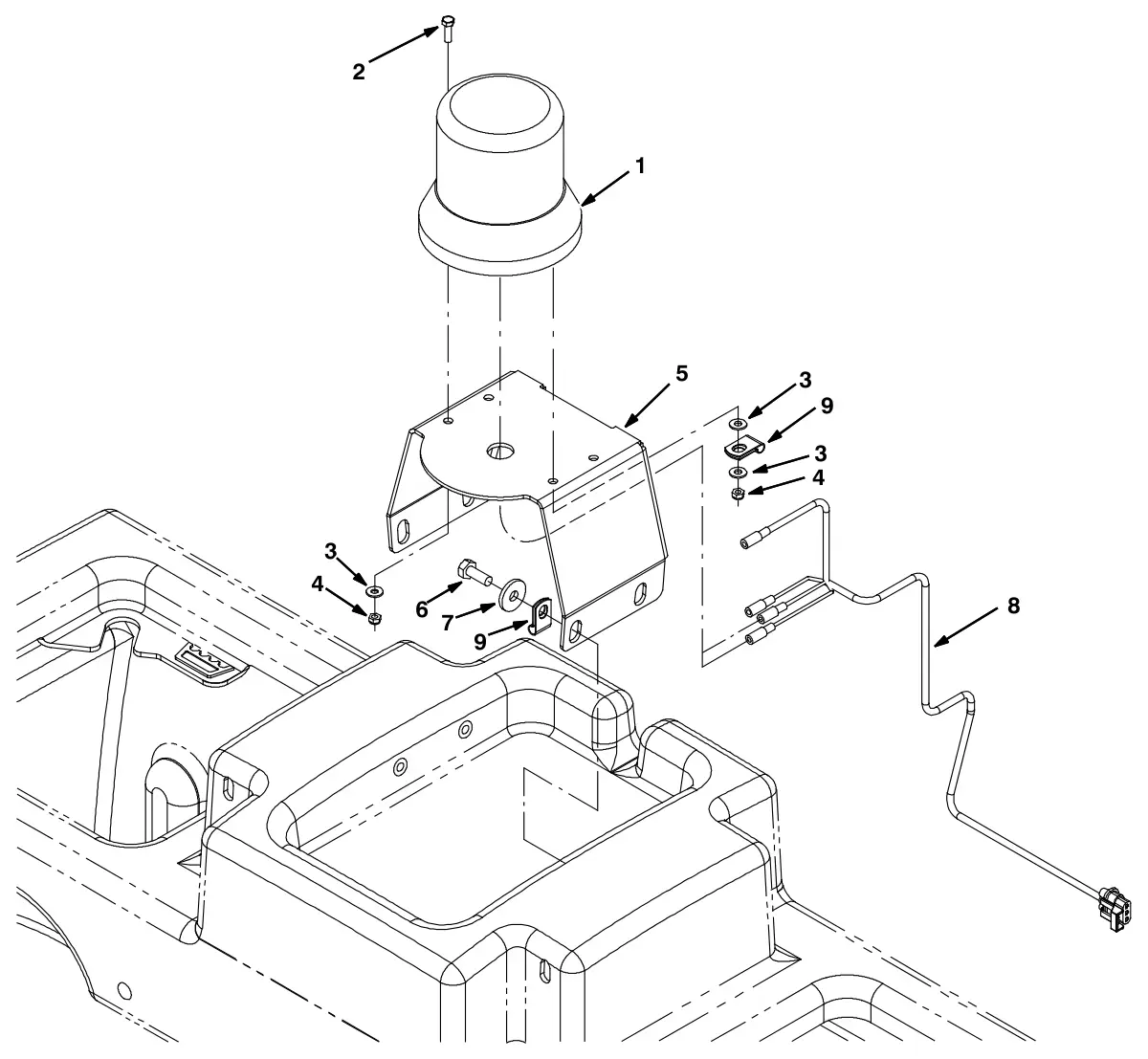

Tennant M30 Diesel Light Kit, Flashing (option) parts
The parts Tennant numbers on its light kit, flashing (option) drawing. Manual pages 210, list 211.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019669Replaces Tennant 9001327 | 1 | Light Kit, Flsh, Ci [M20 / T20 / M30]Complete assembly. | $444.00/EA |
| 1 | TN1017248Tennant 1017248 | 1 | Light, Flsh, Amb, 1248vdcPart of Light Kit, Flsh, Ci [M20 / T20 / M30] (9001327). | Call to confirm part: 800-440-6723 |
| – | TN8002935Replaces Tennant 9000879 | 1 | Lens, Amb, F/ Strobe / Flasher | $34.24/EA |
| – | TN8002933Replaces Tennant 9000846 | 1 | Lamp, Bulb, Flsh | $19.10/EA |
| – | TN4028718Replaces Tennant 55272 | 2 | Terminal, Bullet, Mal, .157d, 12gaPart of the assembly above. | $3.40/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of the assembly above. | $3.20/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 10Part of the assembly above. | $2.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of the assembly above. | $3.30/EA |
| 5 | TN4035919Replaces Tennant 1019445 | 1 | Bracket, Sppt, Strobe LightPart of the assembly above. | $55.20/EA |
| 6 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of the assembly above. | $3.30/EA |
| 7 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of the assembly above. | $3.40/EA |
| 8 | TN4036226Replaces Tennant 1019971 | 1 | Harness, Warning / Backup [M20 & T20]Part of the assembly above. | $27.50/EA |
| 9 | TN4013452Replaces Tennant 46236 | 2 | Clamp, Cable, Stl, 0.25d X 0.56w, 1holePart of the assembly above. | $3.60/EA |
| – | TN4000111Replaces Tennant 1027800 | 1 | Lens, Blu, F/ Strobe / FlasherPart of the assembly above. | $47.37/EA |
| – | TN4000109Replaces Tennant 1027798 | 1 | Lens, Red, F/ Strobe / FlasherPart of the assembly above. | $34.61/EA |
Tennant M30 Diesel Light Kit, Strobe (option) parts
The parts Tennant numbers on its light kit, strobe (option) drawing. Manual pages 212, list 213.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019671Replaces Tennant 9001331 | 1 | Light Kit, Strobe, Ci [M20 / T20 / M30]Complete assembly. | $767.90/EA |
| 1 | TN4035245Replaces Tennant 1017250 | 1 | Light, Strobe, Amb, 1248vdcPart of Light Kit, Strobe, Ci [M20 / T20 / M30] (9001331). | Call to confirm part: 800-440-6723 |
| – | TN8002935Replaces Tennant 9000879 | 1 | Lens, Amb, F/ Strobe / Flasher | $34.24/EA |
| – | TN8002932Replaces Tennant 9000845 | 1 | Lamp, Bulb, Strobe | $44.30/EA |
| – | TN4028718Replaces Tennant 55272 | 2 | Terminal, Bullet, Mal, .157d, 12gaPart of the assembly above. | $3.40/EA |
| 2 | TN4035367Replaces Tennant 24196 | 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of the assembly above. | $3.20/EA |
| 3 | TN4042244Replaces Tennant 19066 | 2 | Washer, Flat, 10Part of the assembly above. | $2.50/EA |
| 4 | TN4041991Replaces Tennant 09739 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of the assembly above. | $3.30/EA |
| 5 | TN4035919Replaces Tennant 1019445 | 1 | Bracket, Sppt, Strobe LightPart of the assembly above. | $55.20/EA |
| 6 | TN4041992Replaces Tennant 09740 | 4 | Screw, Hex, M8 X 1.25 X 20, SsPart of the assembly above. | $3.30/EA |
| 7 | TN4035242Replaces Tennant 1017218 | 4 | Washer, Flat, 0.32b 1.00d .12, SsPart of the assembly above. | $3.40/EA |
| 8 | TN4036226Replaces Tennant 1019971 | 1 | Harness, Warning / Backup [M20 & T20]Part of the assembly above. | $27.50/EA |
| 9 | TN4013452Replaces Tennant 46236 | 2 | Clamp, Cable, Stl, 0.25d X 0.56w, 1holePart of the assembly above. | $3.60/EA |
| – | TN4000111Replaces Tennant 1027800 | 1 | Lens, Blu, F/ Strobe / FlasherPart of the assembly above. | $47.37/EA |
| – | TN4000109Replaces Tennant 1027798 | 1 | Lens, Red, F/ Strobe / FlasherPart of the assembly above. | $34.61/EA |
Tennant M30 Diesel Light Kit, Flashing Overhead Guard (option) parts
Light Kit, Flashing Overhead Guard (option) from Tennant's parts list. Manual page 214.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4019724Replaces Tennant 9001718 | Qty on machine: 1 | Light Kit, Flsh, W/Ohg, Ci[M20/T20/M30]Complete assembly. | $372.90/EA | |
| 1 | TN1017248Tennant 1017248 | Qty on machine: 1 | Light, Flsh, Amb, 1248vdcPart of Light Kit, Flsh, W/Ohg, Ci[M20/T20/M30] (9001718). | Call to confirm part: 800-440-6723 | |
| – | TN8002935Replaces Tennant 9000879 | Qty on machine: 1 | Lens, Amb, F/ Strobe / Flasher | $34.24/EA | |
| – | TN8002933Replaces Tennant 9000846 | Qty on machine: 1 | Lamp, Bulb, Flsh | $19.10/EA | |
| – | TN4028718Replaces Tennant 55272 | Qty on machine: 2 | Terminal, Bullet, Mal, .157d, 12gaPart of the assembly above. | $3.40/EA | |
| 2 | TN4035367Replaces Tennant 24196 | Qty on machine: 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of the assembly above. | $3.20/EA | |
| 3 | TN4042244Replaces Tennant 19066 | Qty on machine: 2 | Washer, Flat, 10Part of the assembly above. | $2.50/EA | |
| 4 | TN4041991Replaces Tennant 09739 | Qty on machine: 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of the assembly above. | $3.30/EA | |
| 5 | TN4036203Replaces Tennant 1019647 | Qty on machine: 1 | Harness, Warning / Ohg [M20]Part of the assembly above. | $23.56/EA | |
| 6 | TN4032000Replaces Tennant 10632-17 | Qty on machine: 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlPart of the assembly above. | $3.20/EA | |
| 7 | TN4011909Replaces Tennant 763115 | Qty on machine: 4 | Tie, Cable, 6.0l, 1.25d MaxPart of the assembly above. | $2.30/EA | |
| 8 | TN4014138Replaces Tennant 49266 | Qty on machine: 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of the assembly above. | $2.50/EA | |
| – | TN4000111Replaces Tennant 1027800 | Qty on machine: 1 | Lens, Blu, F/ Strobe / FlasherPart of the assembly above. | $47.37/EA | |
| – | TN4000109Replaces Tennant 1027798 | Qty on machine: 1 | Lens, Red, F/ Strobe / FlasherPart of the assembly above. | $34.61/EA |
Tennant M30 Diesel Light Kit, Strobe Overhead Guard (option) parts
Light Kit, Strobe Overhead Guard (option) from Tennant's parts list. Manual page 215.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4019723Replaces Tennant 9001717 | Qty on machine: 1 | Light Kit, Strobe, W/ Ohg, Ci[M20/T20/M30]Complete assembly. | $164.46/EA | |
| 1 | TN4035245Replaces Tennant 1017250 | Qty on machine: 1 | Light, Strobe, Amb, 1248vdcPart of Light Kit, Strobe, W/ Ohg, Ci[M20/T20/M30] (9001717). | Call to confirm part: 800-440-6723 | |
| – | TN8002935Replaces Tennant 9000879 | Qty on machine: 1 | Lens, Amb, F/ Strobe / Flasher | $34.24/EA | |
| – | TN8002932Replaces Tennant 9000845 | Qty on machine: 1 | Lamp, Bulb, Strobe | $44.30/EA | |
| – | TN4028718Replaces Tennant 55272 | Qty on machine: 2 | Terminal, Bullet, Mal, .157d, 12gaPart of the assembly above. | $3.40/EA | |
| 2 | TN4035367Replaces Tennant 24196 | Qty on machine: 2 | Screw, Pan, Phl, M5 X 0.80 X 20, SsPart of the assembly above. | $3.20/EA | |
| 3 | TN4042244Replaces Tennant 19066 | Qty on machine: 2 | Washer, Flat, 10Part of the assembly above. | $2.50/EA | |
| 4 | TN4041991Replaces Tennant 09739 | Qty on machine: 2 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of the assembly above. | $3.30/EA | |
| 5 | TN4036203Replaces Tennant 1019647 | Qty on machine: 1 | Harness, Warning / Ohg [M20]Part of the assembly above. | $23.56/EA | |
| 6 | TN4032000Replaces Tennant 10632-17 | Qty on machine: 4 | Grommet, Rbr, 0.50id, F/0.8h, .12 MatlPart of the assembly above. | $3.20/EA | |
| 7 | TN4011909Replaces Tennant 763115 | Qty on machine: 4 | Tie, Cable, 6.0l, 1.25d MaxPart of the assembly above. | $2.30/EA | |
| 8 | TN4014138Replaces Tennant 49266 | Qty on machine: 2 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max DPart of the assembly above. | $2.50/EA | |
| – | TN4000111Replaces Tennant 1027800 | Qty on machine: 1 | Lens, Blu, F/ Strobe / FlasherPart of the assembly above. | $47.37/EA | |
| – | TN4000109Replaces Tennant 1027798 | Qty on machine: 1 | Lens, Red, F/ Strobe / FlasherPart of the assembly above. | $34.61/EA |

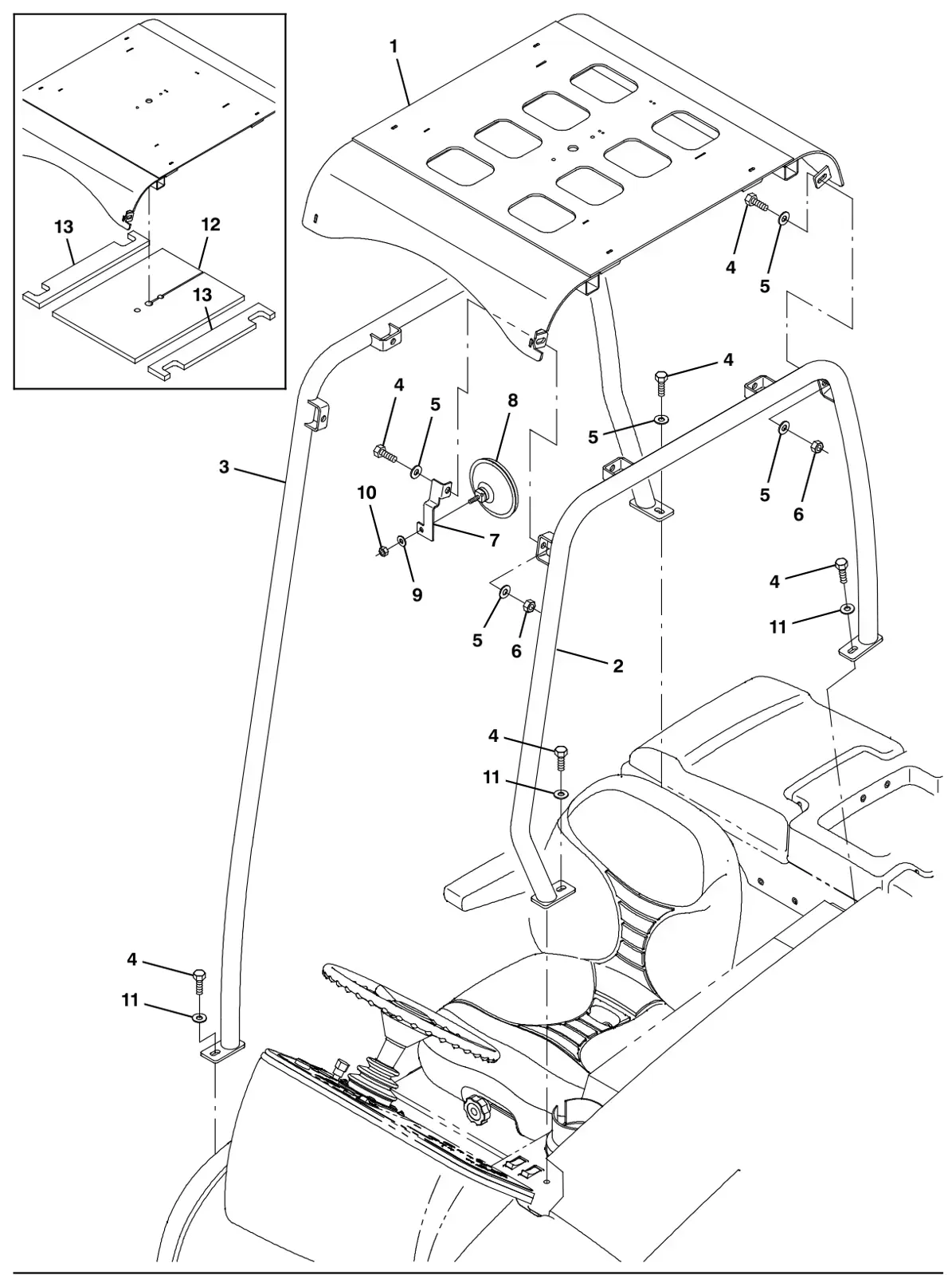

Tennant M30 Diesel Overhead Guard Kit (option) parts
The parts Tennant numbers on its overhead guard kit (option) drawing. Manual pages 216, list 217.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019662Replaces Tennant 9001314 | 1 | Ohg Kit, Ci [M20 And T20]Complete assembly. | $3,559.40/EA |
| 1 | TN4032916Replaces Tennant 1022276 | 1 | Guard Wldt, Top, OhgPart of Ohg Kit, Ci [M20 And T20] (9001314). | $480.30/EA |
| 2 | TN4030100Replaces Tennant 1069241 | 1 | Tube Wldt, Leg, Ohg, Lh, PntdPart of Ohg Kit, Ci [M20 And T20] (9001314). | $299.68/EA |
| 3 | TN4030101Replaces Tennant 1069253 | 1 | Tube Wldt, Leg, Ohg, Rh, PntdPart of Ohg Kit, Ci [M20 And T20] (9001314). | $451.40/EA |
| 4 | TN4043258Replaces Tennant 03192 | 12 | Screw, Hex, M10 X 1.5 X 30, 8.8Part of Ohg Kit, Ci [M20 And T20] (9001314). | $4.00/EA |
| 5 | TN4034138Replaces Tennant 32492 | 17 | Washer, Flat, 0.38 StdPart of Ohg Kit, Ci [M20 And T20] (9001314). | $2.50/EA |
| 6 | TN4016826Replaces Tennant 41430 | 8 | Nut, Hex, Lock, M10 X 1.5, NlPart of Ohg Kit, Ci [M20 And T20] (9001314). | $4.00/EA |
| 7 | TN4033561Replaces Tennant 1023879 | 1 | Bracket, Mtg, Mirror, RearviewPart of Ohg Kit, Ci [M20 And T20] (9001314). | $16.40/EA |
| 8 | TN4040671Replaces Tennant 1050295 | 1 | Mirror, Convex, 0.50DPart of Ohg Kit, Ci [M20 And T20] (9001314). | $27.80/EA |
| 9 | TN4034137Replaces Tennant 32491 | 1 | Washer, Flat, 0.31, StdPart of Ohg Kit, Ci [M20 And T20] (9001314). | $2.50/EA |
| 10 | TN4042533Replaces Tennant 19313 | 1 | Nut, Hex, Std, .3118Part of Ohg Kit, Ci [M20 And T20] (9001314). | $2.50/EA |
| 11 | TN4037922Replaces Tennant 1014563 | 3 | Washer, Flat, 0.40b 1.12d .12, SsPart of Ohg Kit, Ci [M20 And T20] (9001314). | $5.80/EA |
| 12 | TN4192585Replaces Tennant 1032830 | 1 | InsulationSerial up to 004475. | $45.33/EA |
| 13 | TN4192586Replaces Tennant 1032831 | 2 | InsulationSerial up to 004475. | $15.75/EA |

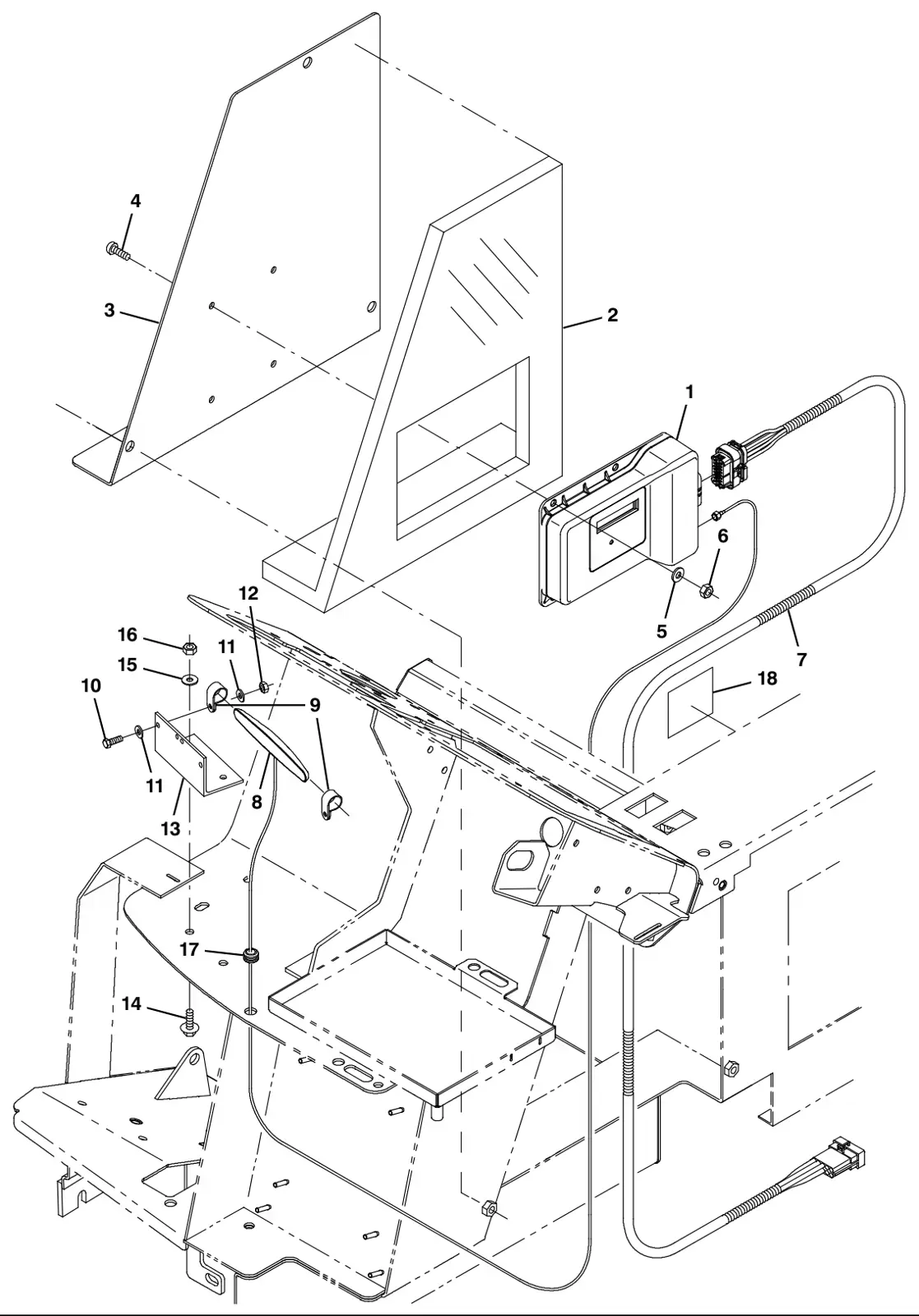

Tennant M30 Diesel Telemetry Group (option) parts
The parts Tennant numbers on its telemetry group (option) drawing. Manual pages 218, list 219.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4019020Replaces Tennant 9010085 | 1 | Control Box Assy Kit, Replmt, Telem[Usa] | $1,809.92/EA |
| 1 | TN4019019Replaces Tennant 9010086 | 1 | Control Box Assy Kit, Replmt, Telem[Can] | Call to confirm part: 800-440-6723 |
| 2 | TN4030276Replaces Tennant 1069761 | 1 | Insulation, FlameRetardant, 0.750.88 | $65.85/EA |
| 3 | TN4030275Replaces Tennant 1069755 | 1 | Panel, Access, Door | $21.92/EA |
| 4 | TN4212738Replaces Tennant 763147 | 4 | Screw, Btn, M6 X 1.0 X 20, 10.9, Blk | $1.40/EA |
| 5 | TN4034133Replaces Tennant 32483 | 4 | Washer, Flat, 0.25, Sae | $2.50/EA |
| 6 | TN4041925Replaces Tennant 08708 | 4 | Nut, Hex, Lock, M6 X 1.00, Nl | $2.50/EA |
| 7 | TN1069662 | 1 | Harness, Extn, Telem [M30] | $53.90/EA |
| 8 | TN4217657Replaces Tennant 1070324 | 1 | Antenna, Telem, 110 In [Gprs] | $81.51/EA |
| 9 | TN4044164Replaces Tennant 140916 | 2 | Clamp, Cable, Nyl, 0.62d, Nat | $3.40/EA |
| 10 | TN4035369Replaces Tennant 24199 | 2 | Screw, Hex, M5 X 0.80 X 16, Ss | $3.00/EA |
| 11 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, Ss | $2.60/EA |
| 12 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, Nl | $2.50/EA |
| 13 | TN4030314Replaces Tennant 1070402 | 1 | Angle, Mtg, Antenna, Telem | $18.69/EA |
| 14 | TN4044400Replaces Tennant 1040467 | 2 | Screw, Hex, M6 X 1.00 X 20, 9.8, Sems | $3.30/EA |
| 15 | TN4042901Replaces Tennant 01684 | 2 | Washer, Flat, 0.27b 0.69d .05, Ss | $2.60/EA |
| 16 | TN4041928Replaces Tennant 08712 | 2 | Nut, Hex, Lock, M6 X 1.00, Nl, Ss | $2.50/EA |
| 17 | TN4031956Replaces Tennant 10632-12 | 1 | Grommet, Rbr, 0.38id, F/0.5h, .12 Matl | $3.30/EA |
| 18 | TN4030121Replaces Tennant 1069580 | 1 | Label, Machine, Telem [Fcc, Usa, 2g/3g] | $4.34/EA |

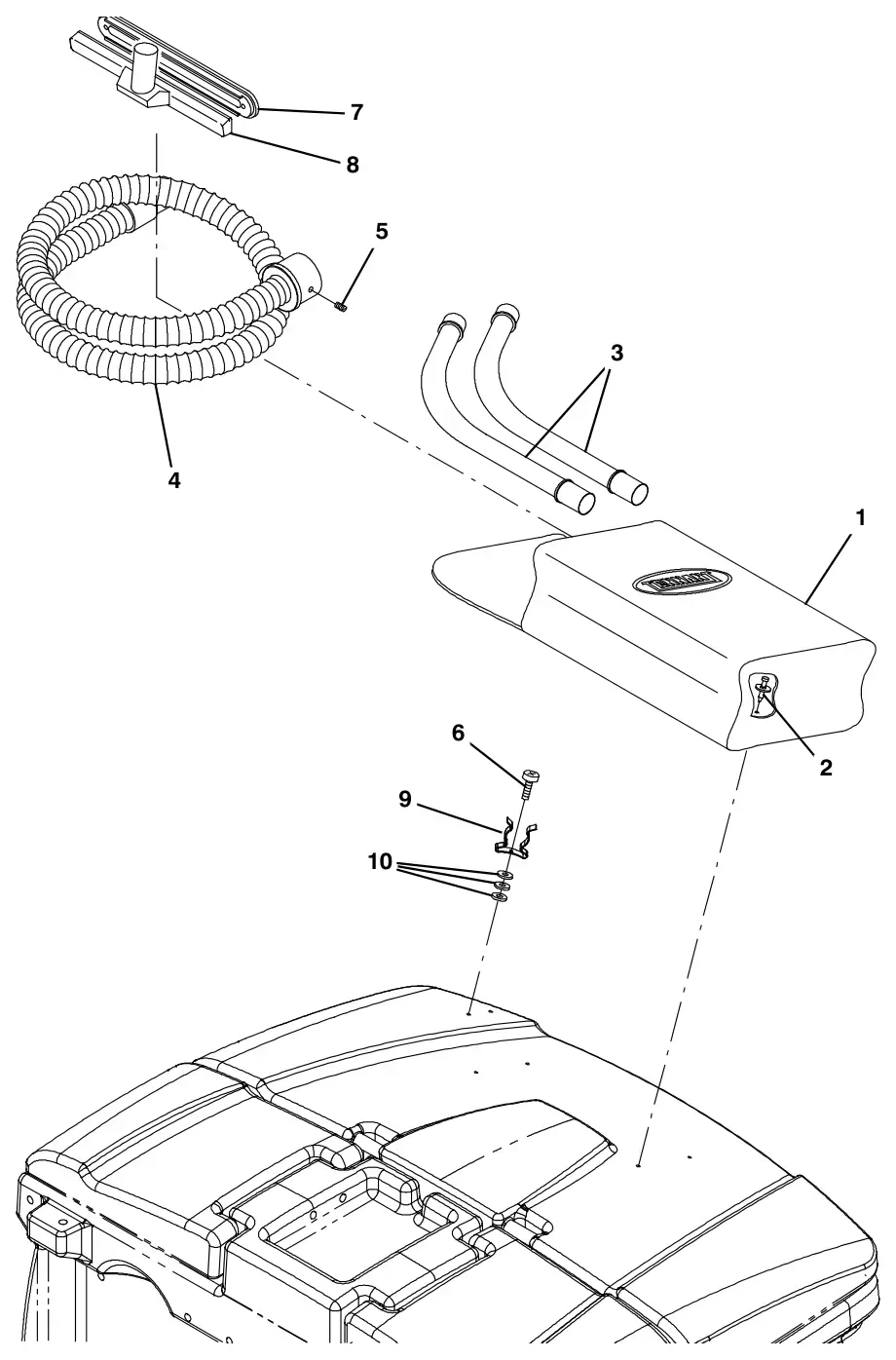

Tennant M30 Diesel Vacuum Wand Kit (option) parts
The parts Tennant numbers on its vacuum wand kit (option) drawing. Manual pages 220, list 221.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017442Replaces Tennant 9004071 | 1 | Wand Kit, Vacuum, Sqge, Ci [M30]Complete assembly. | $911.60/EA |
| 1 | TN4017746Replaces Tennant 65580 | 1 | Bag, PowerPart of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | $159.30/EA |
| 2 | TN4016302Replaces Tennant 72968 | 4 | Rivet, Plstc, .250d X 0.90Part of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | $3.20/EA |
| 3 | TN4017057Replaces Tennant 63448 | 1 | Tube, Wand, Vacuum, MetalPart of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | Call to confirm part: 800-440-6723 |
| 4 | TN4018319Replaces Tennant 69657 | 1 | Hose Assy, W/2cuff, 1.5d 084l [Vacwand]Part of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | $303.60/EA |
| 5 | TN4018360Replaces Tennant 69659 | 1 | PlungerPart of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | $20.65/EA |
| 6 | TN4029085Replaces Tennant 55845 | 2 | Screw, Hex, M5 X 0.80 X 16, FmgPart of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | $4.00/EA |
| 7 | TN4017055Replaces Tennant 63430 | 1 | Shoe, Plstc, Sqge, 14.0Part of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | Call to confirm part: 800-440-6723 |
| 8 | TN4017060Replaces Tennant 63451 | 1 | Nozzle, Wand, Plstc, 14.0lPart of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | Call to confirm part: 800-440-6723 |
| 9 | TN4017922Replaces Tennant 67004 | 2 | Clip, Grip, Finger, 1.001.88d White,VylPart of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | $26.10/EA |
| 10 | TN4042242Replaces Tennant 19064 | 6 | Washer, Flat, 06Part of Wand Kit, Vacuum, Sqge, Ci [M30] (9004071). | $3.40/EA |

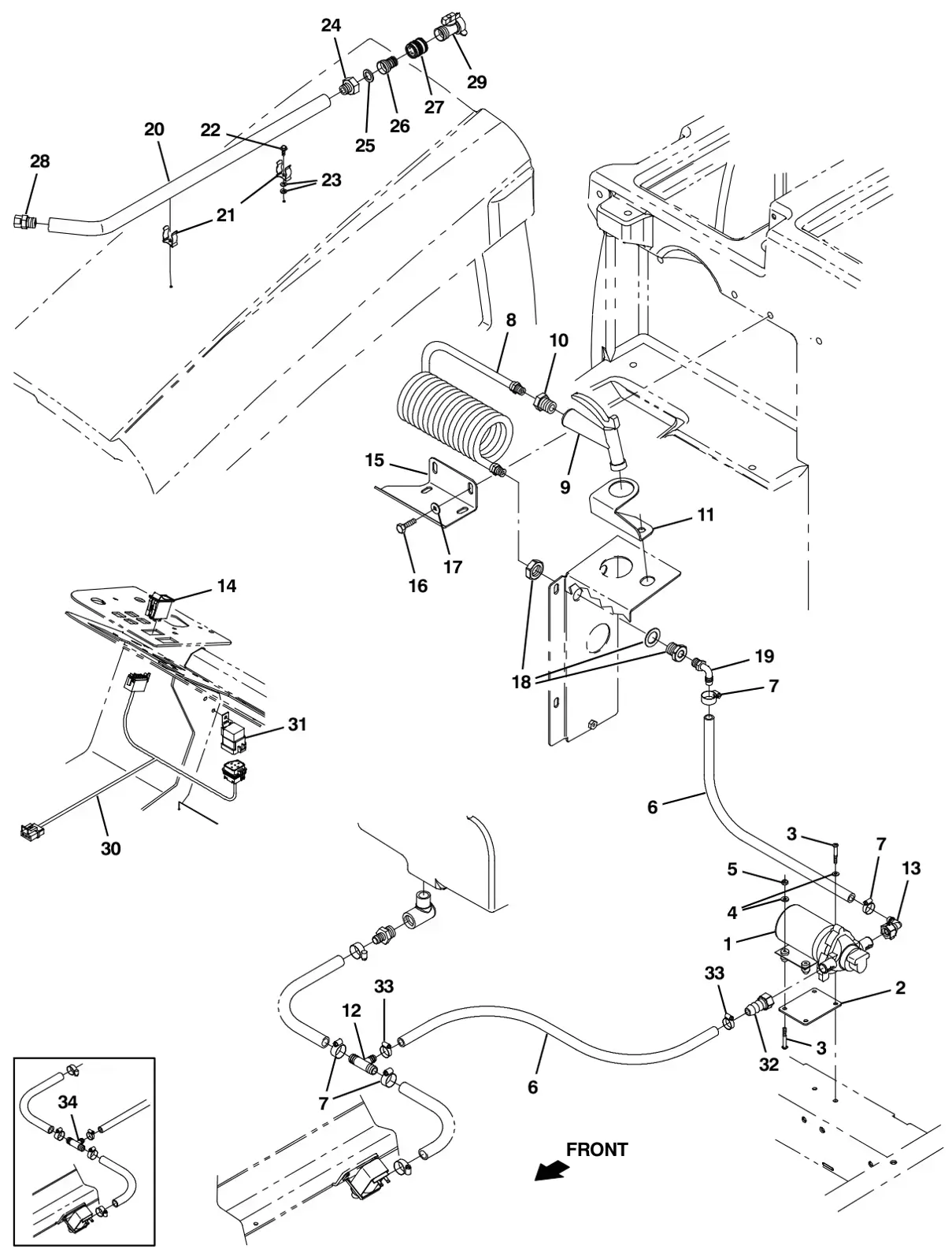

Tennant M30 Diesel Spray Nozzle Kit (option) parts
The parts Tennant numbers on its spray nozzle kit (option) drawing. Manual pages 222, list 223.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017435Replaces Tennant 9004031 | 1 | Nozzle Kit, Spray, Ci [M30]Complete assembly. | $1,236.10/EA |
| 1 | TN4034280Replaces Tennant 1026743 | 1 | Pump, Diaphragm (See Breakdowns)Part of Nozzle Kit, Spray, Ci [M30] (9004031). | $370.80/EA |
| 2 | TN4030606Replaces Tennant 1027007 | 1 | Plate, Mtg, PumpPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $9.60/EA |
| 3 | TN4041268Replaces Tennant 06939 | 4 | Screw, Pan, Phl, M5 X 0.80 X 45, 4.8Part of Nozzle Kit, Spray, Ci [M30] (9004031). | $3.40/EA |
| 4 | TN4042244Replaces Tennant 19066 | 4 | Washer, Flat, 10Part of Nozzle Kit, Spray, Ci [M30] (9004031). | $2.50/EA |
| 5 | TN4041004Replaces Tennant 06549 | 2 | Nut, Hex, Lock, M5 X 0.80, NlPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $2.50/EA |
| 6 | TN4036844Replaces Tennant 1011412 | 1 | Hose, Afmkt, Pvc, Brd, 0.50Id, 08Ft, ClrPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $70.70/EA |
| 7 | TN4017089Replaces Tennant 63810 | 4 | Clamp, Hose, Wormdrive, 0.561.06d, .56wPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $6.80/EA |
| 8 | TN4035902Replaces Tennant 1019250 | 1 | Hose, Water, Coil, 0.38id 0.56odPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $192.50/EA |
| 9 | TN4028980Replaces Tennant 769785 | 1 | Nozzle, Spray, GunPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $90.00/EA |
| 10 | TN4030660Replaces Tennant 1027976 | 1 | Fitting, Brs, Str, Pf06/Pm12Part of Nozzle Kit, Spray, Ci [M30] (9004031). | $11.80/EA |
| 11 | TN4030624Replaces Tennant 1027237 | 1 | Bracket, Mtg, Spray HandlePart of Nozzle Kit, Spray, Ci [M30] (9004031). | $15.30/EA |
| 12 | TN4038303Replaces Tennant 1015486 | 1 | Fitting, Plstc, Tee, Bm08/Bm10/Bm10, BrPart of Nozzle Kit, Spray, Ci [M30] (9004031). Serial 004691 and later. | $5.30/EA |
| 13 | TN4035811Replaces Tennant 1018499 | 1 | Fitting, Plstc, E90, Bm08/Pf08s, SwivelPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $4.20/EA |
| 14 | TN4016537Replaces Tennant 398500 | 1 | Switch, Rocker, Dpdt, On / None / OnPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $45.20/EA |
| 15 | TN4031379Replaces Tennant 1029790 | 1 | Bracket, Mtg, Spray Wand [FaST, Conv]Part of Nozzle Kit, Spray, Ci [M30] (9004031). | No longer available. Call to confirm part: 800-440-6723 |
| 16 | TN4041992Replaces Tennant 09740 | 2 | Screw, Hex, M8 X 1.25 X 20, SsPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $3.30/EA |
| 17 | TN4035242Replaces Tennant 1017218 | 2 | Washer, Flat, 0.32b 1.00d .12, SsPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $3.40/EA |
| 18 | TN4030661Replaces Tennant 1027978 | 1 | Fitting, Brs, Str, Pf06/Pf06 BhPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $23.25/EA |
| 19 | TN4017647Replaces Tennant 64778 | 1 | Fitting, Plstc, E90, Bm08/Pm06Part of Nozzle Kit, Spray, Ci [M30] (9004031). | $8.70/EA |
| 20 | TN4031028Replaces Tennant 1029055 | 1 | Wand, CleanOutPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $176.10/EA |
| 21 | TN4031029Replaces Tennant 1029057 | 2 | Clip, Grip, Finger, .8751.25Part of Nozzle Kit, Spray, Ci [M30] (9004031). | $5.15/EA |
| 22 | TN4039088Replaces Tennant 20394 | 2 | Screw, Hex, 1016 X 0.62, Fmg/Ab, PlPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $3.30/EA |
| 23 | TN4042888Replaces Tennant 01683 | 4 | Washer, Flat, 10, SsPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $2.60/EA |
| 24 | TN4029238Replaces Tennant 375321 | 1 | Fitting, Brs, Str, Pm08/Garden HosePart of Nozzle Kit, Spray, Ci [M30] (9004031). | $10.40/EA |
| 25 | TN4042839Replaces Tennant 01316 | 1 | Washer, Flat, 0.66b 1.00d .12, RbrPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $3.50/EA |
| 26 | TN4031038Replaces Tennant 1029153 | 1 | Fitting, Brs, Spcl [Garden Hose]Part of Nozzle Kit, Spray, Ci [M30] (9004031). | $7.00/EA |
| 27 | TN4031039Replaces Tennant 1029155 | 1 | Coupling, Nozzle, SprayPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $15.40/EA |
| 28 | TN4031040Replaces Tennant 1029156 | 1 | NozzlePart of Nozzle Kit, Spray, Ci [M30] (9004031). | $69.50/EA |
| 29 | TN4031357Replaces Tennant 1029399 | 1 | Valve, ShutoffPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $41.60/EA |
| 30 | TN4195644Replaces Tennant 1021881 | 1 | Harness, Spray, NozzlePart of Nozzle Kit, Spray, Ci [M30] (9004031). | $83.10/EA |
| 31 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt NoPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $11.30/EA |
| 32 | TN4035810Replaces Tennant 1018495 | 1 | Fitting, Plstc, Str, Bm08/Pf08s, SwivelPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $5.30/EA |
| 33 | TN4015366Replaces Tennant 54333 | 2 | Clamp, Hose, Wormdrive, 0.310.88d, .31wPart of Nozzle Kit, Spray, Ci [M30] (9004031). | $5.10/EA |
| 34 | TN4021001Replaces Tennant 385644 | 1 | Fitting, Plstc, Tee, Bm08/Bm12/Bm12, BrSerial up to 004690. | $9.90/EA |

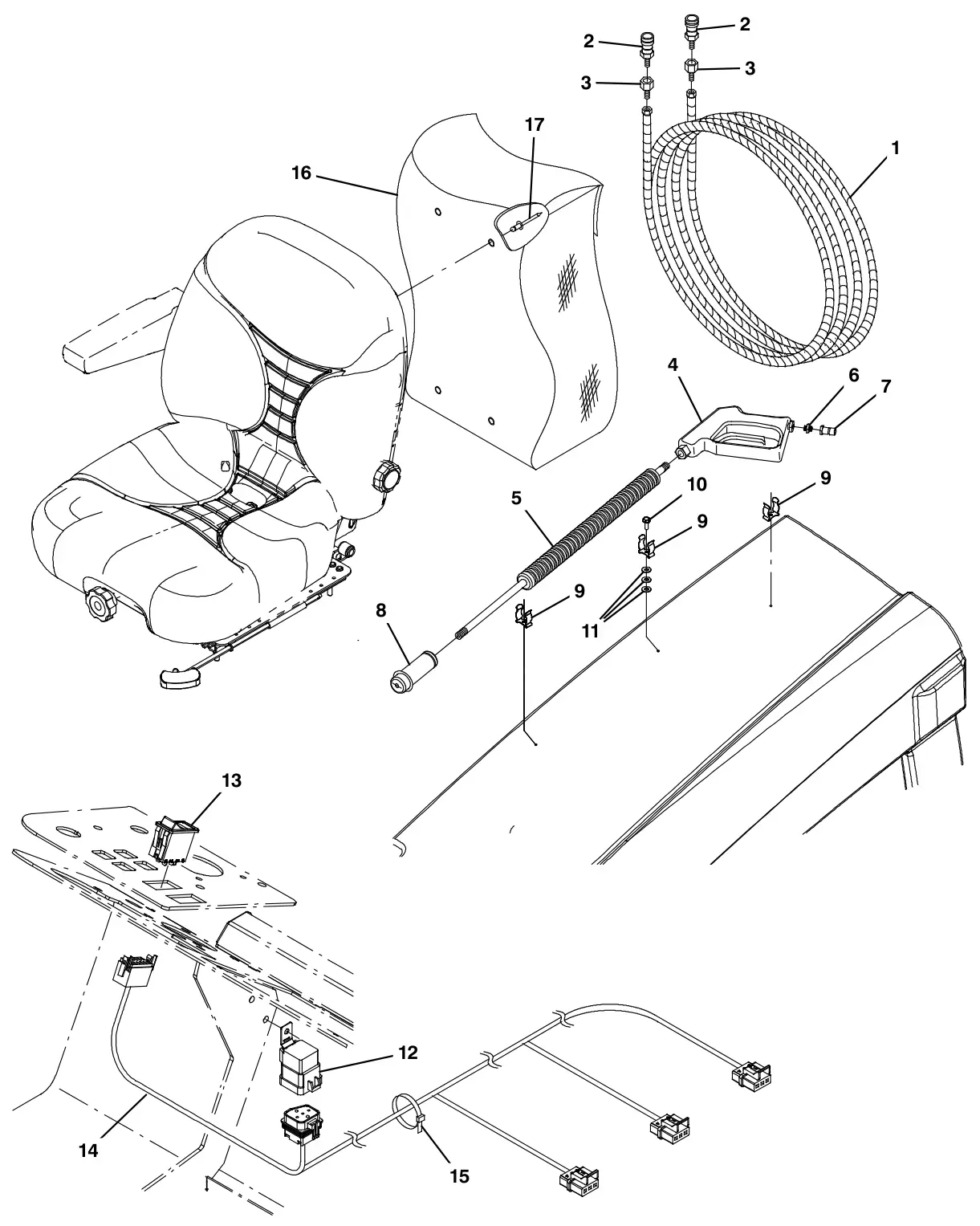

Tennant M30 Diesel Pressure Washer Mount Group (option) parts
The parts Tennant numbers on its pressure washer mount group (option) drawing. Manual pages 224, list 225.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043994Replaces Tennant 1039056 | 1 | Hose, Rbr, 25ft | $124.40/EA |
| 2 | TN4044659Replaces Tennant 1042051 | 2 | Fitting, Ss, Qdc, Fem | $156.60/EA |
| 3 | TN4041066Replaces Tennant 1042772 | 2 | Fitting, Brs, Str, Pf06/Pm04 | $7.00/EA |
| 4 | TN4043990Replaces Tennant 1039042 | 1 | Handle, Gun, Trigger | $124.30/EA |
| 5 | TN4043991Replaces Tennant 1039044 | 1 | Wand, Str, Ss, 28l | $80.80/EA |
| 6 | TN4042150Replaces Tennant 1044428 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp] | $7.00/EA |
| 7 | TN4044669Replaces Tennant 1042191 | 1 | Fitting, Ss, Qdc, Mal | $51.20/EA |
| 8 | TN4044642Replaces Tennant 1041935 | 1 | Nozzle, Spray [Pressure Washer] | $56.90/EA |
| 9 | TN4017922Replaces Tennant 67004 | 3 | Clip, Grip, Finger, 1.001.88d White,Vyl | $26.10/EA |
| 10 | TN4039088Replaces Tennant 20394 | 3 | Screw, Hex, 1016 X 0.62, Fmg/Ab, Pl | $3.30/EA |
| 11 | TN4042888Replaces Tennant 01683 | 12 | Washer, Flat, 10, Ss | $2.60/EA |
| 12 | TN4029123Replaces Tennant 56186 | 1 | Relay, 12vdc, 040a, Spdt No | $11.30/EA |
| 13 | TN4044442Replaces Tennant 1040899 | 1 | Switch, Rocker, Prgrsv | $138.30/EA |
| 14 | TN4191396Replaces Tennant 1040898 | 1 | Harness, Press Wash [M30] | $113.87/EA |
| 15 | TN4014138Replaces Tennant 49266 | 5 | Tie, Cable, Nyl, 07.3l .19w 1.8 Max D | $2.50/EA |
| 16 | TN4017746Replaces Tennant 65580 | 1 | Bag, Power | $159.30/EA |
| 17 | TN4016302Replaces Tennant 72968 | 2 | Rivet, Plstc, .250D X 0.90 | $3.20/EA |

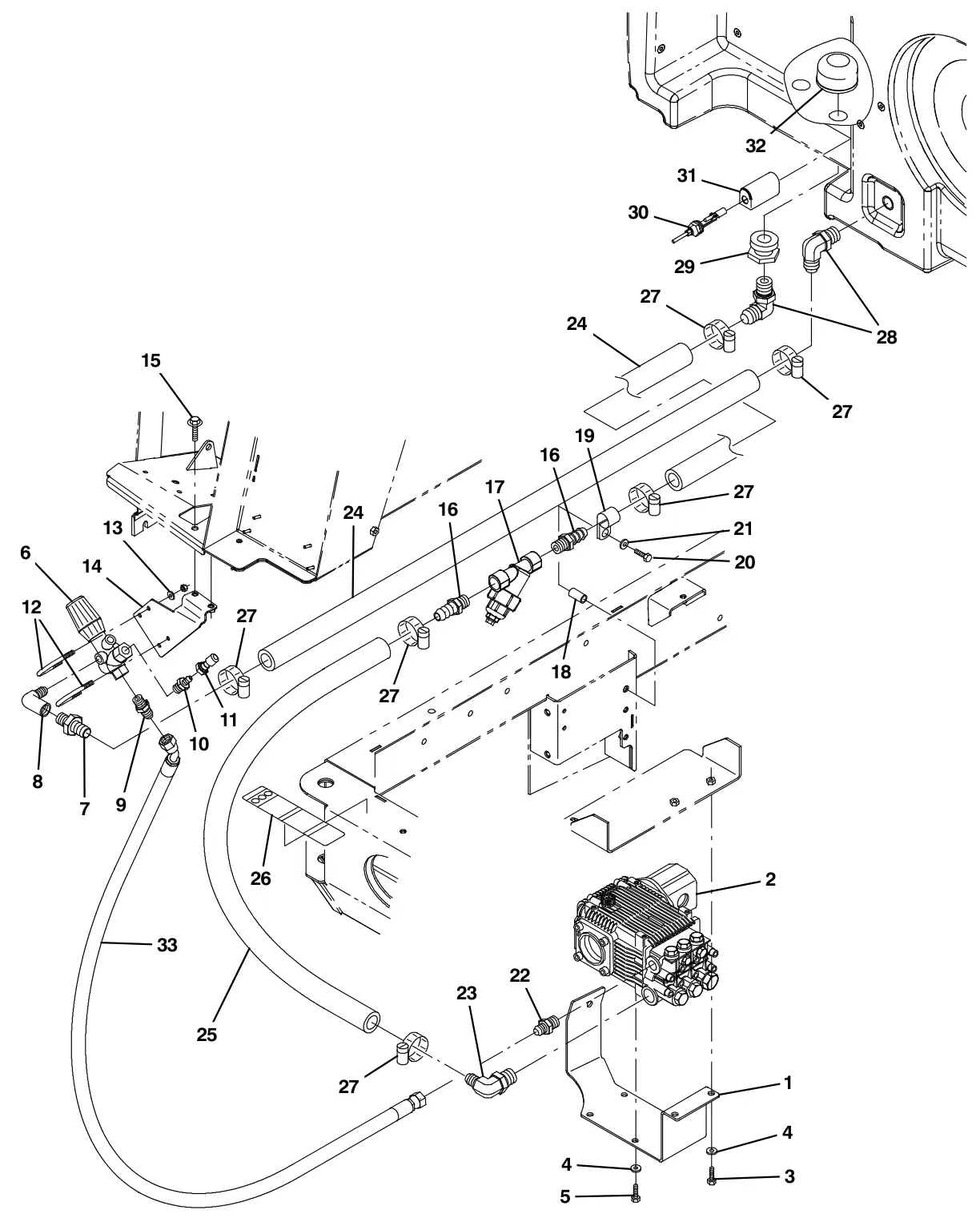

Tennant M30 Diesel Pressure Washer Solution Group (option) parts
The parts Tennant numbers on its pressure washer solution group (option) drawing. Manual pages 226, list 227.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4190874Replaces Tennant 1037634 | 1 | Bracket, Mtg, Motor | $41.51/EA |
| 2 | TN4043950Replaces Tennant 1038855 | 1 | Pump, Hyd, Press Washer (See Breakdowns) | Call to confirm part: 800-440-6723 |
| 3 | TN4041943Replaces Tennant 09010 | 3 | Screw, Hex, M8 X 1.25 X 25, Ss | $3.30/EA |
| 4 | TN4042902Replaces Tennant 01685 | 7 | Washer, Flat, 0.38b 0.88d .08, Ss | $2.60/EA |
| 5 | TN4041243Replaces Tennant 15675 | 4 | Screw, Hex, M8 X 1.25 X 16, Ss | $3.40/EA |
| 6 | TN4043992Replaces Tennant 1039046 | 1 | Valve, Needle | $168.90/EA |
| 7 | TN4041645Replaces Tennant 1042859 | 1 | Fitting, Brs, Str, Bm12/Pm08 | $9.90/EA |
| 8 | TN4191727Replaces Tennant 1042579 | 1 | Fitting, Brs, E90, Pf08/Pm06 | $15.10/EA |
| 9 | TN4042151Replaces Tennant 1044429 | 1 | Fitting, Brs, Str, Pm06/Pm08 [Hp] | $4.00/EA |
| 10 | TN4042150Replaces Tennant 1044428 | 1 | Fitting, Brs, Str, Pm04/Pm06 [Hp] | $7.00/EA |
| 11 | TN4044669Replaces Tennant 1042191 | 1 | Fitting, Ss, Qdc, Mal | $51.20/EA |
| 12 | TN4013414Replaces Tennant 45142 | 2 | Bolt, U, .2520 X 2.00, 1.10id | $5.80/EA |
| 13 | TN4041590Replaces Tennant 07515 | 4 | Washer, Lock, Int, 0.25, Ss | $3.50/EA |
| 14 | TN4044419Replaces Tennant 1040709 | 1 | Bracket, Mtg, Needle | $35.86/EA |
| 15 | TN4045637Replaces Tennant 1037346 | 2 | Screw, Hex, M8 X 1.25 X 25, 9.8, Sems | $2.50/EA |
| 16 | TN4025657Replaces Tennant 377334 | 2 | Fitting, Brs, Str, Bm12/Pm12 | $9.80/EA |
| 17 | TN4043978Replaces Tennant 1039037 | 1 | Filter, Y, Inline, .75 | $108.10/EA |
| 18 | TN4044039Replaces Tennant 1039348 | 1 | Sleeve, 0.49b 0.68d 1.2l [304ss] | $11.80/EA |
| 19 | TN4015029Replaces Tennant 53466 | 1 | Clamp, Cable, Stl, 1.50d X 1.00w, 1hole | $4.20/EA |
| 20 | TN4034478Replaces Tennant 32731 | 1 | Screw, Hex, M10 X 1.50 X 50, Ss | $8.20/EA |
| 21 | TN4042903Replaces Tennant 01686 | 1 | Washer, Flat, 0.44b 1.00d .08, Ss | $3.30/EA |
| 22 | TN4042151Replaces Tennant 1044429 | 1 | Fitting, Brs, Str, Pm06/Pm08 [Hp] | $4.00/EA |
| 23 | TN4013976Replaces Tennant 48697 | 1 | Fitting, Brs, E90, Em12/Pm08 | $8.70/EA |
| 24 | TN4042460Replaces Tennant 1045034 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 08ft, Clr | $65.50/EA |
| 25 | TN4189708Replaces Tennant 1045045 | 1 | Hose, Afmkt, Pvc, Wir, 0.75id, 02ft, Clr | $28.10/EA |
| 26 | TN4191695Replaces Tennant 1041952 | 1 | Label Set, Info/Hzrd, Press Wash | $42.82/EA |
| 27 | TN4017089Replaces Tennant 63810 | 6 | Clamp, Hose, Wormdrive, 0.561.06d, .56w | $6.80/EA |
| 28 | TN4044478Replaces Tennant 1041351 | 2 | Fitting, Brs, E90, Bm12/Pm12 | $19.70/EA |
| 29 | TN4025663Replaces Tennant 377349 | 1 | Fitting, Plstc, Pf12/Pf12, Bh | $22.50/EA |
| 30 | TN4021025Replaces Tennant 385685 | 1 | Sensor, Level, Liq, 14vdc 01a .6211 | $78.50/EA |
| 31 | TN4035907Replaces Tennant 1019285 | 1 | Bracket, Protector, Float Switch | $22.50/EA |
| 32 | TN4030627Replaces Tennant 1027290 | 1 | Filter, Soltn, 20mesh, Pm12 3.1d 02.6l | $20.30/EA |
| 33 | TN4044482Replaces Tennant 1041391 | 1 | Hose, Hyd, Tc08, Jf08E45/JF08Str, 18.0 | $57.80/EA |
Tennant M30 Diesel Pressure Washer Hydraulic Hoses Group (000000- 003999) (option) parts
The parts Tennant numbers on its pressure washer hydraulic hoses group (000000- 003999) (option) drawing. Manual pages 228, list 229.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043680Replaces Tennant 1038571 | 1 | Valve, Hyd, Press WasherSerial up to 003999. | $242.50/EA |
| 2 | TN4191338Replaces Tennant 1040512 | 1 | Bracket, MtgSerial up to 003999. | $11.82/EA |
| 3 | TN4041276Replaces Tennant 06948 | 2 | Screw, Hex, M6 X 1.00 X 60, 8.8Serial up to 003999. | $4.00/EA |
| 4 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, NlSerial up to 003999. | $2.50/EA |
| 5 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flat, 0.25, SaeSerial up to 003999. | $2.50/EA |
| 6 | TN4016768Replaces Tennant 40755 | 2 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, RunSerial up to 003999. | $20.10/EA |
| 7 | TN4015715Replaces Tennant 71741 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 046.0Serial up to 003999. | $79.20/EA |
| 8 | TN4191311Replaces Tennant 1040216 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 029.0Serial up to 003999. | $57.80/EA |
| 9 | TN4027081Replaces Tennant 381858 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 024.0Serial up to 003999. | $38.28/EA |
| 10 | TN4191354Replaces Tennant 1040630 | 1 | Hose, Hyd, Med04, Jf04e90/Jf04str, 022.0Serial up to 003999. | $31.51/EA |
| 11 | TN4017336Replaces Tennant 42227 | 2 | Fitting, Hyd, Str, Jm08/Om12Serial up to 003999. | $15.50/EA |
| 12 | TN4028732Replaces Tennant 55685 | 1 | Fitting, Hyd, Str, Jm04/Om06Serial up to 003999. | $7.90/EA |
| 13 | TN4013891Replaces Tennant 47638 | 1 | Fitting, Hyd, E90, Jm04/Om06Serial up to 003999. | $18.30/EA |
| 14 | TN4045571Replaces Tennant 1036902 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 039.0Serial up to 003999. | $51.10/EA |
| 15 | TN4175108Replaces Tennant 361037 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 027.0Serial up to 003999. | $38.08/EA |
Tennant M30 Diesel Pressure Washer Hydraulic Hoses Group (004000-) (option) parts
The parts Tennant numbers on its pressure washer hydraulic hoses group (004000-) (option) drawing. Manual pages 230, list 231.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN4043680Replaces Tennant 1038571 | 1 | Valve, Hyd, Press WasherSerial 004000 and later. | $242.50/EA |
| 2 | TN4183098Replaces Tennant 1071852 | 1 | Bracket, MtgSerial 004000 and later. | $9.90/EA |
| 3 | TN4041276Replaces Tennant 06948 | 2 | Screw, Hex, M6 X 1.00 X 60, 8.8Serial 004000 and later. | $4.00/EA |
| 4 | TN4041925Replaces Tennant 08708 | 2 | Nut, Hex, Lock, M6 X 1.00, NlSerial 004000 and later. | $2.50/EA |
| 5 | TN4034133Replaces Tennant 32483 | 2 | Washer, Flat, 0.25, SaeSerial 004000 and later. | $2.50/EA |
| 6 | TN4016768Replaces Tennant 40755 | 2 | Fitting, Hyd, Tee, Jm08/Jm08/Om08, RunSerial 004000 and later. | $20.10/EA |
| 7 | TN4028454Replaces Tennant 365007 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 072.0Serial 004000 and later. | $44.54/EA |
| 8 | TN4230321Replaces Tennant 396209 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 054.0Serial 004000 and later. | Call to confirm part: 800-440-6723 |
| 9 | TN4044234Replaces Tennant 1039753 | 1 | Hose, Hyd, Tc08, Jf08e90/Jf08str, 042.0Serial 004000 and later. | $71.40/EA |
| 10 | TN4191354Replaces Tennant 1040630 | 1 | Hose, Hyd, Med04, Jf04e90/Jf04str, 022.0Serial 004000 and later. | $31.51/EA |
| 11 | TN4017336Replaces Tennant 42227 | 2 | Fitting, Hyd, Str, Jm08/Om12Serial 004000 and later. | $15.50/EA |
| 12 | TN4028732Replaces Tennant 55685 | 1 | Fitting, Hyd, Str, Jm04/Om06Serial 004000 and later. | $7.90/EA |
| 13 | TN4013891Replaces Tennant 47638 | 1 | Fitting, Hyd, E90, Jm04/Om06Serial 004000 and later. | $18.30/EA |
| 14 | TN4190729Replaces Tennant 1037072 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 052.0Serial 004000 and later. | $54.15/EA |
| 15 | TN4045571Replaces Tennant 1036902 | 1 | Hose, Hyd, Tc08, Jf08str/Jf08str, 039.0Serial 004000 and later. | $51.10/EA |
| 16 | TN4045640Replaces Tennant 1037354 | 2 | Screw, Hex, M8 X 1.25 X 30, 9.8, SemsSerial 004000 and later. | $2.50/EA |
Tennant M30 Diesel Transport Kit (option) parts
The parts Tennant numbers on its transport kit (option) drawing. Manual pages 232, list 233.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4022696Replaces Tennant 9014867 | 1 | Transport Kit, Ci [M20/M30}Complete assembly. | $219.60/EA |
| 1 | TN4044424Replaces Tennant 1040800 | 2 | Bracket, Latch, CoverPart of Transport Kit, Ci [M20/M30} (9014867). | $31.40/EA |
| 2 | TN4036273Replaces Tennant 1020526 | 2 | Bracket, Retaining, HosePart of Transport Kit, Ci [M20/M30} (9014867). | $57.10/EA |
| 3 | TN4045004Replaces Tennant 1032896 | 2 | Plate, Hook, Latch, [M20]Part of Transport Kit, Ci [M20/M30} (9014867). | $17.50/EA |
| 4 | TN4041994Replaces Tennant 09744 | 8 | Screw, Hex, M6 X 1.00 X 12, SsPart of Transport Kit, Ci [M20/M30} (9014867). | $3.40/EA |
| 5 | TN4042901Replaces Tennant 01684 | 8 | Washer, Flat, 0.27b 0.69d .05, SsPart of Transport Kit, Ci [M20/M30} (9014867). | $2.60/EA |
| 6 | TN4032766Replaces Tennant 360824 | 2 | LatchPart of Transport Kit, Ci [M20/M30} (9014867). | $55.80/EA |
| 7 | TN4041965Replaces Tennant 09200 | 4 | Screw, Pan, Phl, M5 X 0.80 X 12, SsPart of Transport Kit, Ci [M20/M30} (9014867). | $3.40/EA |
| 8 | TN4041991Replaces Tennant 09739 | 4 | Nut, Hex, Lock, M5 X 0.80, Nl, SsPart of Transport Kit, Ci [M20/M30} (9014867). | $3.30/EA |
| 9 | TN4019813Replaces Tennant 393135 | 2 | Screw, Btn, M8 X 1.25 X 20, BlkPart of Transport Kit, Ci [M20/M30} (9014867). | $3.30/EA |
| 10 | TN4034137Replaces Tennant 32491 | 2 | Washer, Flat, 0.31, StdPart of Transport Kit, Ci [M20/M30} (9014867). | $2.50/EA |
Tennant M30 Diesel Squeegee Guard Kit (option) parts
The parts Tennant numbers on its squeegee guard kit (option) drawing. Manual pages 234, list 235.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017434Replaces Tennant 9004029 | 1 | Guard Kit, Sqge, Ci [M30]Complete assembly. | $1,304.00/EA |
| 1 | TN4030640Replaces Tennant 1027560 | 2 | Bracket Wldt, Guard, SqgePart of Guard Kit, Sqge, Ci [M30] (9004029). | $92.00/EA |
| 2 | TN4033860Replaces Tennant 1024977 | 2 | Bumper, Ure, 1.50d 1.25lPart of Guard Kit, Sqge, Ci [M30] (9004029). | $35.00/EA |
| 3 | TN4039391Replaces Tennant 21196 | 2 | Screw, Hex, .3816 X 0.88, G5Part of Guard Kit, Sqge, Ci [M30] (9004029). | $2.50/EA |
| 4 | TN4034138Replaces Tennant 32492 | 10 | Washer, Flat, 0.38, StdPart of Guard Kit, Sqge, Ci [M30] (9004029). | $2.50/EA |
| 5 | TN4188373Replaces Tennant 1056191 | 1 | Guard Wldt, Sqge, Pntd [M30]Part of Guard Kit, Sqge, Ci [M30] (9004029). | $291.60/EA |
| 6 | TN4041290Replaces Tennant 06965 | 2 | Screw, Hex, M10 X 1.50 X 80, 8.8Part of Guard Kit, Sqge, Ci [M30] (9004029). | $6.80/EA |
| 7 | TN4016826Replaces Tennant 41430 | 2 | Nut, Hex, Lock, M10 X 1.5, NlPart of Guard Kit, Sqge, Ci [M30] (9004029). | $4.00/EA |
| 8 | TN4031918Replaces Tennant 369359 | 1 | Pin, Hitch, .375d X 3.12l, PlPart of Guard Kit, Sqge, Ci [M30] (9004029). | $7.50/EA |
| 9 | TN4029376Replaces Tennant 57702 | 1 | Cable, Glv .06d 012.0l .26eye /.26eyePart of Guard Kit, Sqge, Ci [M30] (9004029). | $9.50/EA |
| 10 | TN4041990Replaces Tennant 09738 | 1 | Screw, Hex, M5 X 0.80 X 12, SsPart of Guard Kit, Sqge, Ci [M30] (9004029). | $3.30/EA |
| 11 | TN4042888Replaces Tennant 01683 | 1 | Washer, Flat, 10, SsPart of Guard Kit, Sqge, Ci [M30] (9004029). | $2.60/EA |
| 12 | TN4042522Replaces Tennant 1045444 | 2 | Guard Wldt, SqgePart of Guard Kit, Sqge, Ci [M30] (9004029). | $171.70/EA |
| 13 | TN4034135Replaces Tennant 32486 | 2 | Washer, Flat, 0.50, SaePart of Guard Kit, Sqge, Ci [M30] (9004029). | $2.60/EA |
| 14 | TN4031195Replaces Tennant 368176 | 4 | Screw, Hex, M10 X 1.50 X 35, 10.9Part of Guard Kit, Sqge, Ci [M30] (9004029). | $4.00/EA |
| 15 | TN4019759Replaces Tennant 39284 | 4 | Screw, Hex, M10 X 1.50 X 35, 8.8Part of Guard Kit, Sqge, Ci [M30] (9004029). | $4.00/EA |
Tennant M30 Diesel Fire Extinguisher Kit (option) parts
Fire Extinguisher Kit (option) from Tennant's parts list. Manual page 236.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4019664Replaces Tennant 9001316 | Qty on machine: 1 | Extinguisher Kit, Fire, Ci [M20/T20/M30] | $218.90/EA |
| 1 | TN4035427Replaces Tennant 25312 | Qty on machine: 1 | Extinguisher, Fire, 2.5 Lb Dry | $206.60/EA |
| 2 | TN4027333Replaces Tennant 382320 | Qty on machine: 2 | Screw, Pan, Phl, 1216 X 0.50, F/ Plstc | $2.50/EA |
Tennant M30 Diesel Documentation Group (option) parts
Documentation Group (option) from Tennant's parts list. Manual page 237.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4017041Replaces Tennant 9003948 | Qty on machine: 1 | Manual, Oprtr [M30 Diesel En] | $93.68/EA |
| – | TN4017414Replaces Tennant 9003952 | Qty on machine: 1 | Manual, Parts [M30 Diesel En] | $156.11/EA |
| – | TN4203397Replaces Tennant 9003950 | Qty on machine: 1 | Manual, Oprtr [M30 Diesel Es] | $93.68/EA |
| – | TN4203398Replaces Tennant 9003951 | Qty on machine: 1 | Manual, Oprtr [M30 Diesel Fr] | $93.68/EA |
| – | TN4017040Replaces Tennant 9003947 | Qty on machine: 1 | Manual, Service [M30 En] | $297.91/EA |
| – | TN1042640Tennant 1042640 | Qty on machine: 1 | Video, Oprtr, Dvd [W/ Checklist M30] | Call to confirm part: 800-440-6723 |
| – | TN8049850Replaces Tennant 9004422 | Qty on machine: 1 | Manual, Operator [Ku] | $115.14/EA |
| – | TN9004734Tennant 9004734 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Jp] | Call to confirm part: 800-440-6723 |
| – | TN9004735Tennant 9004735 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Cn] | Call to confirm part: 800-440-6723 |
| – | TN9004736Tennant 9004736 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Pt, Br] | Call to confirm part: 800-440-6723 |
| – | TN4203593Replaces Tennant 9004703 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Cz, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203594Replaces Tennant 9004704 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, De, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203595Replaces Tennant 9004705 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Dk, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203596Replaces Tennant 9004706 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, En, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203597Replaces Tennant 9004707 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Es, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203598Replaces Tennant 9004708 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Fi, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203599Replaces Tennant 9004709 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Fr, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203740Replaces Tennant 9004710 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Gr, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203741Replaces Tennant 9004711 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Hu, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203742Replaces Tennant 9004712 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, It, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203743Replaces Tennant 9004713 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Nl, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203744Replaces Tennant 9004714 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, No, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203745Replaces Tennant 9004715 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Pl, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203746Replaces Tennant 9004716 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Pt, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203747Replaces Tennant 9004717 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Ru, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203748Replaces Tennant 9004718 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Se, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203749Replaces Tennant 9004719 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Tr, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203750Replaces Tennant 9004720 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Ee, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203751Replaces Tennant 9004721 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Lv, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203752Replaces Tennant 9004722 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Lt, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203753Replaces Tennant 9004723 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Sk, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203754Replaces Tennant 9004724 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Si, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203755Replaces Tennant 9004725 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Bg, Ce] | Call to confirm part: 800-440-6723 |
| – | TN4203756Replaces Tennant 9004726 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Ro, Ce] | Call to confirm part: 800-440-6723 |
| – | TN9006257Tennant 9006257 | Qty on machine: 1 | Media, CdRom, Training [ecH2O Tennant] | Call to confirm part: 800-440-6723 |
| – | TN4200406Replaces Tennant 9011429 | Qty on machine: 1 | Manual, Oprtr [M30 Dsl, Hr] | Call to confirm part: 800-440-6723 |
Tennant M30 Diesel Extended Scrub Pump Breakdown, 1021210 (component breakdown) parts
The parts Tennant numbers on its extended scrub pump breakdown, 1021210 (component breakdown) drawing. Manual pages 240, list 241.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4036630Replaces Tennant 1021210 | 1 | Pump Assy, Column, EsComplete assembly. | $1,762.90/EA |
| 1 | TN8002651Replaces Tennant 9002708 | 1 | Motor, Ele, 12vdc, Pump, WaterPart of Pump Assy, Column, Es (See Breakdowns) (1021210). | $856.93/EA |
| – | TN8003651Replaces Tennant 78829 | 1 | Kit, Brush, Motor, Ele | $307.90/EA |
| 2 | TN4035378Replaces Tennant 24358 | 1 | Cap Assy, Tank, DrainPart of the assembly above. | $40.40/EA |
| 3 | TN4032112Replaces Tennant 1031699 | 1 | Gasket, 4.05id 5.29od .19 [Buna] | $9.00/EA |
| 4 | TN8050826Replaces Tennant 78833 | 1 | Tube, Vinyl, Pump, WaterPart of the assembly above. | $66.86/EA |
| 5 | TN4026135Replaces Tennant 78398 | 1 | Fitting, Plstc, Str, Bm12/Pm08, NylPart of the assembly above. | $6.20/EA |
| 6 | TN8003656Replaces Tennant 78843 | 1 | Housing Kit, Pump, WaterPart of the assembly above. | $262.10/EA |
| 7 | TN8003652Replaces Tennant 78836 | 1 | Column, Pump, WaterPart of the assembly above. | $118.57/EA |
| 8 | TN8002652Replaces Tennant 9002709 | 1 | Shaft, Pump, WaterPart of the assembly above. | $257.35/EA |
| 9 | TN8050828Replaces Tennant 78838 | 1 | Fitting, E, GrPart of the assembly above. | $36.66/EA |
| 10 | TN8050829Replaces Tennant 78839 | 1 | Fitting, Plstc, E90, Pf Bm [Es Pump]Part of the assembly above. | $16.87/EA |
| 11 | TN8003655Replaces Tennant 78842 | 1 | Kit, Valve, Check, Pump, WaterPart of the assembly above. | $205.38/EA |
| 12 | TN8003653Replaces Tennant 78840 | 1 | Valve, Check, Pump, Water | $165.50/EA |
| 13 | TN8002662Replaces Tennant 73342 | 1 | Gasket, .25 1.88d 1.0id [Poron] | $3.65/EA |
| 14 | TN8003654Replaces Tennant 78841 | 1 | Flapper, Valve, Pump, Water | $109.82/EA |
| 15 | TN8050825Replaces Tennant 78830 | 1 | Washer, RbrPart of the assembly above. | $20.71/EA |
| 16 | TN8049214Replaces Tennant 22790 | 1 | Insert, Cap, Mount, Es PumpPart of the assembly above. | $82.42/EA |
| 17 | TN8005801Replaces Tennant 23285 | 1 | Sleeve, Pump, WaterPart of the assembly above. | $59.69/EA |
Tennant M30 Diesel Hydraulic Motor Breakdown, 379609 (component breakdown) parts
The parts Tennant numbers on its hydraulic motor breakdown, 379609 (component breakdown) drawing. Manual pages 242, list 243.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4026352Replaces Tennant 379609 | 1 | Motor, Hyd, Gear, [Int], 19.0 X 3000Complete assembly. | Call to confirm part: 800-440-6723 |
| 1 | TN8002102Replaces Tennant 74165 | 1 | Shaft, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $850.20/EA |
| 2 | TN8002103Replaces Tennant 74166 | 1 | Housing, Brg, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $269.47/EA |
| 3 | TN8002104Replaces Tennant 74167 | 1 | Retainer, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $390.90/EA |
| 4 | TN8002105Replaces Tennant 74168 | 8 | Screw, Cap, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $5.90/EA |
| 5 | TN8003621Replaces Tennant 37616 | 1 | Drive, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $111.00/EA |
| 6 | TN8003630Replaces Tennant 37756 | 1 | Geroler, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $592.06/EA |
| 7 | TN8002092Replaces Tennant 74122 | 1 | Plate, Valve, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $349.36/EA |
| 8 | TN4014991Replaces Tennant 52405 | 1 | Valve, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $69.89/EA |
| 9 | TN8002093Replaces Tennant 74123 | 1 | Valve, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $272.20/EA |
| 10 | TN8005491Replaces Tennant 34178 | 2 | Spring, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $4.30/EA |
| 11 | TN8002895Replaces Tennant 38968 | 1 | Ring, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $23.53/EA |
| 12 | TN8002094Replaces Tennant 74125 | 3 | Bolt, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $14.95/EA |
| 13 | TN8003887Replaces Tennant 38255 | 1 | Bolt, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $16.87/EA |
| 14 | TN8045139Replaces Tennant 373297 | 1 | Housing, ValvePart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | Call to confirm part: 800-440-6723 |
| 15 | TN4028397Replaces Tennant 373298 | 1 | PlugPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $43.53/EA |
| 16 | TN8045128Replaces Tennant 373260 | 2 | Plug, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $24.00/EA |
| 17 | TN8045140Replaces Tennant 373299 | 1 | PlugPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | Call to confirm part: 800-440-6723 |
| 18 | TN4028396Replaces Tennant 373291 | 2 | SpringPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $4.70/EA |
| 19 | TN8045105Replaces Tennant 373217 | 1 | Piston, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $25.49/EA |
| 20 | TN8004223Replaces Tennant 373226 | 2 | Poppet, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $7.90/EA |
| 21 | TN8004227Replaces Tennant 373236 | 2 | Sleeve, Dashpo, Pump, Hyd, GearPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | Call to confirm part: 800-440-6723 |
| 22 | TN8002165Replaces Tennant 45622 | 1 | Nut, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $64.70/EA |
| 23 | TN8002166Replaces Tennant 45623 | 1 | Key, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $17.60/EA |
| 24 | TN8003766Replaces Tennant 79828 | 1 | Kit, Seal, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $140.00/EA |
| 25 | TN8005457Replaces Tennant 33580 | 1 | Kit, Seal, Motor, HydPart of Motor, Hyd, Gear, Int 19.0 BiDir 3000 (See Breakdowns) (379609). | $59.50/EA |
| 26 | TN4026637Replaces Tennant 79729 | 1 | Instr, Repair, Motor, Hyd, Gear | $4.00/EA |
Tennant M30 Diesel Hydraulic Pump Breakdown, 1024251 (component breakdown) parts
The parts Tennant numbers on its hydraulic pump breakdown, 1024251 (component breakdown) drawing. Manual pages 244, list 245.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4033592Replaces Tennant 1024251 | 1 | Pump, Hyd, Piston, Var, 1.24 4000, CwComplete assembly. | $1,813.50/EA |
| 1 | TN373681Tennant 373681 | 1 | Shaft, PumpPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723 |
| 2 | TN8045195Replaces Tennant 373427 | 1 | Cover, EndPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $1,326.78/EA |
| 3 | TN8004244Replaces Tennant 373389 | 1 | HousingPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $824.67/EA |
| 4 | TN8006141Replaces Tennant 02706 | 1 | Pump Kit, Hyd, Rotating [Cessna]Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $576.71/EA |
| 5 | TN8045211Replaces Tennant 373493 | 1 | Plate, CamPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723 |
| 6 | TN8002864Replaces Tennant 70096 | 1 | Washer, Flat, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $7.88/EA |
| 7 | TN8051813Replaces Tennant 55926 | 1 | Ring, Retaining, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $5.30/EA |
| 8 | TN8045197Replaces Tennant 373434 | 2 | Ring, RetainingPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $3.33/EA |
| 9 | TN8002118Replaces Tennant 74225 | 1 | Bearing, Thrust, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $12.30/EA |
| 10 | TN8002119Replaces Tennant 74226 | 2 | Race, Brg, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $6.97/EA |
| 11 | TN8045151Replaces Tennant 373327 | 1 | Insert, Plt, Cam, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $42.63/EA |
| 12 | TN8045179Replaces Tennant 373391 | 6 | Washer, Pump, Hyd [En]Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $3.33/EA |
| 13 | TN8045161Replaces Tennant 373346 | 6 | Screw, CapPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $4.44/EA |
| 14 | TN8004260Replaces Tennant 373494 | 1 | Valve, Relief, 4000 PsiPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $486.30/EA |
| 15 | TN8004354Replaces Tennant 373678 | 1 | Valve, Relief, 3000 PsiPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $144.74/EA |
| 16 | TN8004232Replaces Tennant 373317 | 2 | Bearing, Cone, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $42.32/EA |
| 17 | TN8004245Replaces Tennant 373393 | 1 | Plate, CoverPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $1,844.56/EA |
| 18 | TN8004246Replaces Tennant 373394 | 1 | Plate, CoverPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $353.90/EA |
| 19 | TN8002865Replaces Tennant 70100 | 2 | Pin, Dowel, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $4.04/EA |
| 20 | TN8045162Replaces Tennant 373347 | 2 | Screw, CapPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $4.85/EA |
| 21 | TN8045163Replaces Tennant 373348 | 2 | Screw, CapPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723 |
| 22 | TN8002126Replaces Tennant 74237 | 1 | Key, Shaft, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $3.23/EA |
| 23 | TN373679Tennant 373679 | 1 | Coupler, PumpPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723 |
| 24 | TN373680Tennant 373680 | 1 | Ring, LockPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | Call to confirm part: 800-440-6723 |
| 25 | TN8004247Replaces Tennant 373395 | 2 | Bearing, CupPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $28.18/EA |
| 26 | TN8002108Replaces Tennant 74180 | 1 | Plate, Valve, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $215.43/EA |
| 27 | TN8006154Replaces Tennant 13907 | 1 | Fitting, Hyd, Plug, Om08Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $7.60/EA |
| 28 | TN8004250Replaces Tennant 373413 | 1 | Actuator, Valve, ByPass [En]Part of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $170.19/EA |
| 29 | TN8004248Replaces Tennant 373398 | 1 | Seal Kit, Pump, HydPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $236.10/EA |
| 30 | TN8004249Replaces Tennant 373402 | 1 | Shim KitPart of Pump, Hyd, Piston, Var, 1.24 4000, Cw (See Breakdowns) (1024251). | $479.45/EA |
| 31 | TN8004255Replaces Tennant 373429 | 1 | Instr, Repair, Pump | $1.72/EA |
Tennant M30 Diesel Hydraulic Gear Pump Breakdown, 1034448 (component breakdown) parts
The parts Tennant numbers on its hydraulic gear pump breakdown, 1034448 (component breakdown) drawing. Manual pages 246, list 247.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4011842Replaces Tennant 1034448 | 1 | Pump, Hyd, Gear, Ext, 3, 00.85 2500, CwComplete assembly. | $1,168.37/EA |
| 1 | TN8048813Replaces Tennant 21936 | 4 | Pin, Dowel [Bn]Part of Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW (See Breakdowns) (Replaced by 9007143) (1034448). | Call to confirm part: 800-440-6723 |
| 2 | TN8048814Replaces Tennant 21937 | 4 | Pin, Dowel [Bn]Part of Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW (See Breakdowns) (Replaced by 9007143) (1034448). | Call to confirm part: 800-440-6723 |
| 3 | TN8048815Replaces Tennant 21938 | 2 | Plate, Distance, Pump, HydPart of Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW (See Breakdowns) (Replaced by 9007143) (1034448). | Call to confirm part: 800-440-6723 |
| 4 | TN8048816Replaces Tennant 21939 | 1 | Cover, End, Hyd PumpPart of Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW (See Breakdowns) (Replaced by 9007143) (1034448). | Call to confirm part: 800-440-6723 |
| 5 | TN9004473Tennant 9004473 | 4 | Bolt, M10x1.5Part of Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW (See Breakdowns) (Replaced by 9007143) (1034448). | Call to confirm part: 800-440-6723 |
| 6 | TN8048817Replaces Tennant 21942 | 1 | Flange KitPart of Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW (See Breakdowns) (Replaced by 9007143) (1034448). | $181.19/EA |
| 7 | TN8005936Replaces Tennant 21946 | 1 | Seal Kit, Pump, HydPart of Pump, Hyd, Gear, Ext, 3, 00.85 2500, CW (See Breakdowns) (Replaced by 9007143) (1034448). | $166.91/EA |
Tennant M30 Diesel Hydraulic Motor Breakdown, 71729 (component breakdown) parts
Hydraulic Motor Breakdown, 71729 (component breakdown) from Tennant's parts list. Manual page 248.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4015708Replaces Tennant 71729 | Qty on machine: 1 | Motor, Hyd Gear In 4.5 B 1500Complete assembly. | Call to confirm part: 800-440-6723 | |
| 1 | TN8004514Replaces Tennant 37555 | Qty on machine: 4 | ScrewPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $4.40/EA | |
| 2 | TN8005776Replaces Tennant 31354 | Qty on machine: 1 | Flange MountingPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $105.75/EA | |
| 3 | TN8006045Replaces Tennant 16695 | Qty on machine: 1 | Race ThrustPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $43.50/EA | |
| 4 | TN8002167Replaces Tennant 45628 | Qty on machine: 1 | Thrust BearingPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $15.60/EA | |
| 5 | TN8005777Replaces Tennant 31375 | Qty on machine: 1 | Shaft, OutputPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $304.08/EA | |
| 6 | TN8002086Replaces Tennant 74100 | Qty on machine: 1 | HousinglPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $153.62/EA | |
| 7 | TN8005778Replaces Tennant 31379 | Qty on machine: 1 | DrivePart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $52.12/EA | |
| 8 | TN8002085Replaces Tennant 74094 | Qty on machine: 1 | Spacer PlatePart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $52.62/EA | |
| 9 | TN8047405Replaces Tennant 31383 | Qty on machine: 1 | Gerotor SetPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $273.71/EA | |
| 10 | TN8051369Replaces Tennant 74095 | Qty on machine: 1 | End CapPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $101.10/EA | |
| 11 | TN8051596Replaces Tennant 65241 | Qty on machine: 5 | Cap ScrewPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $3.74/EA | |
| 12 | TN4012760Replaces Tennant 74098 | Qty on machine: 1 | Plug #4Part of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $5.00/EA | |
| 13 | TN4012761Replaces Tennant 74099 | Qty on machine: 2 | Plug #10Part of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $4.05/EA | |
| 14 | TN4042771Replaces Tennant 00500-15 | Qty on machine: 1 | KeyWdruff 0.25 1.00Part of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $4.60/EA | |
| 15 | TN4015800Replaces Tennant 39527 | Qty on machine: 1 | NutHxslot .7516 PltdPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $8.00/EA | |
| 16 | TN8002969Replaces Tennant 61490 | Qty on machine: 1 | Seal Replmt KitPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $114.70/EA | |
| 17 | TN8002133Replaces Tennant 74250 | Qty on machine: 1 | Instr. Repair Info, MotorPart of Motor, Hyd, Gear, Int 04.5 BiDir 1500 (See Breakdowns) (71729). | $4.12/EA |
Tennant M30 Diesel Hydraulic Motor Breakdown, 1029379 (component breakdown) parts
Hydraulic Motor Breakdown, 1029379 (component breakdown) from Tennant's parts list. Manual page 249.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4010444Replaces Tennant 1029379 | Qty on machine: 1 | Motor, Hyd, Gear, Int 08.9 BiDir 2500Complete assembly. | $613.20/EA | |
| 1 | TN8004514Replaces Tennant 37555 | Qty on machine: 4 | Screw, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $4.40/EA | |
| 2 | TN8005776Replaces Tennant 31354 | Qty on machine: 1 | Flange, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $105.75/EA | |
| 3 | TN8006045Replaces Tennant 16695 | Qty on machine: 1 | Ace, Thrust, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $43.50/EA | |
| 4 | TN8002167Replaces Tennant 45628 | Qty on machine: 1 | Bearing, ThrustPart of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $15.60/EA | |
| 5 | TN8005827Replaces Tennant 28854 | Qty on machine: 1 | Shaft, Output, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $176.45/EA | |
| 6 | TN8002086Replaces Tennant 74100 | Qty on machine: 1 | Housing, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $153.62/EA | |
| 7 | TN8048818Replaces Tennant 21955 | Qty on machine: 1 | Drive [Cl]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | Call to confirm part: 800-440-6723 | |
| 8 | TN8002085Replaces Tennant 74094 | Qty on machine: 1 | Plate, Spacer, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $52.62/EA | |
| 9 | TN8048819Replaces Tennant 21956 | Qty on machine: 1 | Gerotor Set [Cl]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $283.61/EA | |
| 10 | TN8051591Replaces Tennant 65230 | Qty on machine: 1 | End Cap, Motor, Hyd [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | Call to confirm part: 800-440-6723 | |
| 11 | TN8048820Replaces Tennant 21958 | Qty on machine: 5 | Cap Screw ClPart of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $3.74/EA | |
| 12 | TN4042771Replaces Tennant 00500-15 | Qty on machine: 1 | Key, Woodruff, 0.25 1.00 [Asa#0808]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $4.60/EA | |
| 13 | TN8002969Replaces Tennant 61490 | Qty on machine: 1 | Seal Kit, Motor [Cl]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $114.70/EA | |
| 14 | TN8002133Replaces Tennant 74250 | Qty on machine: 1 | Instr, Motor, Hyd, Repair [En]Part of Motor, Hyd, Gear, Int 08.9 BiDir 2500 (See Breakdowns) (1029379). | $4.12/EA |
Tennant M30 Diesel Hydraulic Steering Valve Breakdown, 1024260 (component breakdown) parts
The parts Tennant numbers on its hydraulic steering valve breakdown, 1024260 (component breakdown) drawing. Manual pages 250, list 251.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4033593Replaces Tennant 1024260 | 1 | SteerControl, Hyd05, 06.1 2030Complete assembly. | $816.30/EA |
| 1 | TN8051403Replaces Tennant 74183 | 7 | Screw, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723 |
| 2 | TN8051405Replaces Tennant 74185 | 1 | Cap, End, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723 |
| 3 | TN8002112Replaces Tennant 74193 | 1 | Spacer, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $17.78/EA |
| 4 | TN8002117Replaces Tennant 74222 | 1 | Plate, Wear, Steering ValvePart of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723 |
| 5 | TN8002122Replaces Tennant 74232 | 1 | Pin, Valve, SteeringPart of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723 |
| 6 | TN8005935Replaces Tennant 21935 | 1 | Bearing Kit [Cl]Part of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $39.98/EA |
| 7 | TN8048811Replaces Tennant 21933 | 1 | Plug Assy [Cl]Part of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $42.32/EA |
| 8 | TN8048812Replaces Tennant 21934 | 1 | Valve Assy, Relief [Cl]Part of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $236.04/EA |
| 9 | TN8002129Replaces Tennant 74243 | 1 | Ring, Retainer, Steering ValvePart of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $5.96/EA |
| 10 | TN8002114Replaces Tennant 74196 | 1 | Spring Kit, Scu [Cl]Part of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $45.35/EA |
| 11 | TN8002130Replaces Tennant 74244 | 1 | Seal Kit, Steering [Cl]Part of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | $62.30/EA |
| 12 | TN8002131Replaces Tennant 74245 | 1 | Instr, Valve, Steering, RepairPart of SteerControl, Hyd05, 06.1 2030 (See Breakdowns) (1024260). | Call to confirm part: 800-440-6723 |
Tennant M30 Diesel Hydraulic Valve Breakdown, 1038566 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1038566 (component breakdown) drawing. Manual pages 252, list 253.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN1038566Tennant 1038566 | 1 | Valve, Hyd, Solenoid, 12vdcComplete assembly. | Call to confirm part: 800-440-6723 |
| 1 | TN8004348Replaces Tennant 373665 | 1 | Plug, Orifice, Valve, Hyd, .046Part of Valve, Hyd, Solenoid, 12vdc (See Breakdowns) (1038566). | $12.52/EA |
| 2 | TN8004284Replaces Tennant 373633 | 1 | Plug, Orifice, Valve, Hyd, .040Part of Valve, Hyd, Solenoid, 12vdc (See Breakdowns) (1038566). | $12.95/EA |
| 3 | TN8004363Replaces Tennant 9004475 | 1 | Plug Orifice, Valve, Hyd, .140Part of Valve, Hyd, Solenoid, 12vdc (See Breakdowns) (1038566). | $9.60/EA |
| 4 | TN8045249Replaces Tennant 373660 | 1 | Plug, Orifice, Valve, Hyd, .030Part of Valve, Hyd, Solenoid, 12vdc (See Breakdowns) (1038566). | $12.52/EA |
| 5 | TN4012760Replaces Tennant 74098 | 9 | Fitting, Hyd, Plug, Om04Part of Valve, Hyd, Solenoid, 12vdc (See Breakdowns) (1038566). | $5.00/EA |
| 6 | TN4029251Replaces Tennant 77003 | 1 | Seal, Org, .072 X 00.35id #04 | $4.40/EA |
| 7 | TN8006153Replaces Tennant 13904 | 2 | Fitting, Plug, Org, #6, Valve [Cec]Part of the assembly above. | $7.60/EA |
| 8 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id #06 | $4.40/EA |
| 9 | TN8004340Replaces Tennant 373656 | 5 | Valve, CheckPart of the assembly above. | $52.60/EA |
| 10 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 11 | TN4171592Replaces Tennant 373688 | 1 | Spool, Pilot, Dual, HydPart of the assembly above. | Call to confirm part: 800-440-6723 |
| 12 | TN8004346Replaces Tennant 373663 | 2 | Valve, Stem, NoPart of the assembly above. | $213.30/EA |
| 13 | TN8045252Replaces Tennant 373670 | 1 | Nut, Solenoid | $6.80/EA |
| 14 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 15 | TN8004350Replaces Tennant 373667 | 1 | Stem, Valve, HydPart of the assembly above. | $144.10/EA |
| 16 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8 | $4.20/EA |
| 17 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 18 | TN8004347Replaces Tennant 373664 | 1 | Cartridge, Psi Cntrl, Valve, HydPart of the assembly above. | $452.70/EA |
| 19 | TN8045253Replaces Tennant 373673 | 1 | Nut, Solenoid | $6.20/EA |
| 20 | TN8004353Replaces Tennant 373672 | 1 | Seal Kit, Cartridge | $18.80/EA |
| 21 | TN8004341Replaces Tennant 373657 | 3 | Stem, Valve, Hyd [4w2p]Part of the assembly above. | $185.50/EA |
| 22 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8 | $4.20/EA |
| 23 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 24 | TN8004288Replaces Tennant 373637 | 1 | Valve, Cntrl, SolenoidPart of the assembly above. | $311.30/EA |
| 25 | TN8004356Replaces Tennant 373684 | 2 | Nut, Coil, Nyl Patch | $3.80/EA |
| 26 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 27 | TN8004349Replaces Tennant 373666 | 2 | Valve, ReliefPart of the assembly above. | $133.50/EA |
| 28 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 29 | TN8004291Replaces Tennant 373640 | 6 | Solenoid, #8, 12vdcPart of the assembly above. | $73.70/EA |
| 30 | TN8004293Replaces Tennant 373642 | 3 | Solenoid, #10, 12vdcPart of the assembly above. | $88.20/EA |
| 31 | TN8004290Replaces Tennant 373639 | 1 | Spacer, Coil, #8Part of the assembly above. | $8.50/EA |
| 32 | TN8004351Replaces Tennant 373668 | 1 | Valve, CheckPart of the assembly above. | $118.80/EA |
| 33 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 34 | TN8004342Replaces Tennant 373658 | 3 | Spool, Pilot, HydPart of the assembly above. | $44.30/EA |
Tennant M30 Diesel Hydraulic Valve Breakdown, 1072995 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1072995 (component breakdown) drawing. Manual pages 254, list 255.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4031317Replaces Tennant 1072995 | 1 | Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpmComplete assembly. | $3,016.30/EA |
| 1 | TN8004348Replaces Tennant 373665 | 1 | Plug, Orifice, Valve, Hyd, .046Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns) (1072995). | $12.52/EA |
| 2 | TN8004284Replaces Tennant 373633 | 1 | Plug, Orifice, Valve, Hyd, .040Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns) (1072995). | $12.95/EA |
| 3 | TN8004363Replaces Tennant 9004475 | 1 | Plug Orifice, Valve, Hyd, .140Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns) (1072995). | $9.60/EA |
| 4 | TN8045249Replaces Tennant 373660 | 1 | Plug, Orifice, Valve, Hyd, .030Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns) (1072995). | $12.52/EA |
| 5 | TN4012760Replaces Tennant 74098 | 9 | Fitting, Hyd, Plug, Om04Part of Valve, Cntrl, Hyd, Solenoid, 12vdc 10gpm (See Breakdowns) (1072995). | $5.00/EA |
| 6 | TN4029251Replaces Tennant 77003 | 1 | Seal, Org, .072 X 00.35id #04 | $4.40/EA |
| 7 | TN8006153Replaces Tennant 13904 | 2 | Fitting, Plug, Org, #6, Valve [Cec]Part of the assembly above. | $7.60/EA |
| 8 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id #06 | $4.40/EA |
| 9 | TN8004340Replaces Tennant 373656 | 5 | Valve, CheckPart of the assembly above. | $52.60/EA |
| 10 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 11 | TN4171592Replaces Tennant 373688 | 1 | Spool, Pilot, Dual, HydPart of the assembly above. | Call to confirm part: 800-440-6723 |
| 12 | TN8004346Replaces Tennant 373663 | 2 | Valve, Stem, NoPart of the assembly above. | $213.30/EA |
| 13 | TN8045252Replaces Tennant 373670 | 1 | Nut, Solenoid | $6.80/EA |
| 14 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 15 | TN8004350Replaces Tennant 373667 | 1 | Stem, Valve, HydPart of the assembly above. | $144.10/EA |
| 16 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8 | $4.20/EA |
| 17 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 18 | TN8004187Replaces Tennant 9011347 | 1 | Valve Assy [Proportional]Part of the assembly above. | $351.30/EA |
| 19 | TN8004184Replaces Tennant 9011343 | 1 | Seal Kit, Valve [Ehpr98] | $26.70/EA |
| 20 | TN8004185Replaces Tennant 9011345 | 2 | Screw, Mtg [Ehpr98] | $3.10/EA |
| 21 | TN8004186Replaces Tennant 9011346 | 1 | Harness, Jumper [Deutsch To Mpack] | $35.00/EA |
| 22 | TN8004341Replaces Tennant 373657 | 3 | Stem, Valve, Hyd [4w2p]Part of the assembly above. | $185.50/EA |
| 23 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8 | $4.20/EA |
| 24 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 25 | TN8004288Replaces Tennant 373637 | 1 | Valve, Cntrl, SolenoidPart of the assembly above. | $311.30/EA |
| 26 | TN8004356Replaces Tennant 373684 | 2 | Nut, Coil, Nyl Patch | $3.80/EA |
| 27 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 28 | TN8004349Replaces Tennant 373666 | 2 | Valve, ReliefPart of the assembly above. | $133.50/EA |
| 29 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 30 | TN8004291Replaces Tennant 373640 | 5 | Solenoid, #8, 12vdcPart of the assembly above. | $73.70/EA |
| 31 | TN8004293Replaces Tennant 373642 | 3 | Solenoid, #10, 12vdcPart of the assembly above. | $88.20/EA |
| 32 | TN8004290Replaces Tennant 373639 | 1 | Spacer, Coil, #8Part of the assembly above. | $8.50/EA |
| 33 | TN8004351Replaces Tennant 373668 | 1 | Valve, CheckPart of the assembly above. | $118.80/EA |
| 34 | TN8004352Replaces Tennant 373671 | 1 | Seal Kit, Cartridge | $46.60/EA |
| 35 | TN8004342Replaces Tennant 373658 | 3 | Spool, Pilot, HydPart of the assembly above. | $44.30/EA |
Tennant M30 Diesel Hydraulic Valve Breakdown, 1037805 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1037805 (component breakdown) drawing. Manual pages 256, list 257.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4045666Replaces Tennant 1037805 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpmComplete assembly. | Call to confirm part: 800-440-6723 |
| 1 | TN8004284Replaces Tennant 373633 | 1 | Plug, Orifice, Valve, Hyd, .040Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1037805). | $12.95/EA |
| 2 | TN8006153Replaces Tennant 13904 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1037805). | $7.60/EA |
| 3 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id 06 | $4.40/EA |
| 4 | TN8004340Replaces Tennant 373656 | 1 | Valve, CheckPart of the assembly above. | $52.60/EA |
| 5 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 6 | TN8004344Replaces Tennant 373661 | 1 | Valve, ReliefPart of the assembly above. | $125.50/EA |
| 7 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 8 | TN8004345Replaces Tennant 373662 | 1 | Stem, Valve, HydPart of the assembly above. | $147.30/EA |
| 9 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 10 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, Nyl Patch | $4.20/EA |
| 11 | TN8004341Replaces Tennant 373657 | 1 | Stem, Valve, Hyd [4w2p]Part of the assembly above. | $185.50/EA |
| 12 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 13 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8 | $4.20/EA |
| 14 | TN8004291Replaces Tennant 373640 | 3 | Solenoid, #8, 12vdcPart of the assembly above. | $73.70/EA |
| 15 | TN8004342Replaces Tennant 373658 | 1 | Spool, Pilot, HydPart of the assembly above. | $44.30/EA |
| 16 | TN8004293Replaces Tennant 373642 | 1 | Solenoid, #10, 12vdcPart of the assembly above. | $88.20/EA |
| 17 | TN8004346Replaces Tennant 373663 | 1 | Valve, Stem, NoPart of the assembly above. | $213.30/EA |
| 18 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, Cartridge | $25.60/EA |
| 19 | TN8045252Replaces Tennant 373670 | 1 | Nut, Solenoid | $6.80/EA |
| 20 | TN8004347Replaces Tennant 373664 | 1 | Cartridge, Psi Cntrl, Valve, HydPart of the assembly above. | $452.70/EA |
| 21 | TN8004353Replaces Tennant 373672 | 1 | Seal Kit, Cartridge | $18.80/EA |
| 22 | TN8045253Replaces Tennant 373673 | 1 | Nut, Solenoid | $6.20/EA |
| 23 | TN8004355Replaces Tennant 373683 | 1 | Valve, ReliefPart of the assembly above. | $153.10/EA |
| 24 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
Tennant M30 Diesel Hydraulic Valve Breakdown, 1072997 (component breakdown) parts
The parts Tennant numbers on its hydraulic valve breakdown, 1072997 (component breakdown) drawing. Manual pages 258, list 259.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4031319Replaces Tennant 1072997 | 1 | Valve, Cntrl, Hyd, Solenoid, 03/16gpmComplete assembly. | $1,504.00/EA |
| 1 | TN8004284Replaces Tennant 373633 | 1 | Plug, Orifice, Valve, Hyd, .040Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $12.95/EA |
| 2 | TN8006153Replaces Tennant 13904 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Part of Valve, Cntrl, Hyd, Solenoid, 03/16gpm (See Breakdowns) (1072997). | $7.60/EA |
| 3 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id 06 | $4.40/EA |
| 4 | TN8004340Replaces Tennant 373656 | 1 | Valve, CheckPart of the assembly above. | $52.60/EA |
| 5 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 6 | TN8004344Replaces Tennant 373661 | 2 | Valve, ReliefPart of the assembly above. | $125.50/EA |
| 7 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 8 | TN8004345Replaces Tennant 373662 | 1 | Stem, Valve, HydPart of the assembly above. | $147.30/EA |
| 9 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, Nyl Patch | $4.20/EA |
| 10 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 11 | TN8004341Replaces Tennant 373657 | 1 | Stem, Valve, Hyd [4w2p]Part of the assembly above. | $185.50/EA |
| 12 | TN8004329Replaces Tennant 373648 | 1 | Nut, Coil, F/#8 | $4.20/EA |
| 13 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
| 14 | TN8004291Replaces Tennant 373640 | 3 | Solenoid, #8, 12vdcPart of the assembly above. | $73.70/EA |
| 15 | TN8004342Replaces Tennant 373658 | 1 | Spool, Pilot, HydPart of the assembly above. | $44.30/EA |
| 16 | TN8004293Replaces Tennant 373642 | 1 | Solenoid, #10, 12vdcPart of the assembly above. | $88.20/EA |
| 17 | TN8004346Replaces Tennant 373663 | 1 | Valve, Stem, NoPart of the assembly above. | $213.30/EA |
| 18 | TN8045252Replaces Tennant 373670 | 1 | Nut, Solenoid | $6.80/EA |
| 19 | TN8004296Replaces Tennant 373646 | 1 | Seal Kit, Cartridge | $25.60/EA |
| 20 | TN8004187Replaces Tennant 9011347 | 1 | Valve Assy [Proportional]Part of the assembly above. | $351.30/EA |
| 21 | TN8004184Replaces Tennant 9011343 | 1 | Seal Kit, Valve [Ehpr98] | $26.70/EA |
| 22 | TN8004185Replaces Tennant 9011345 | 2 | Screw, Mtg [Ehpr98] | $3.10/EA |
| 23 | TN8004186Replaces Tennant 9011346 | 1 | Harness, Jumper [Deutsch To Mpack] | $35.00/EA |
| 24 | TN8006153Replaces Tennant 13904 | 1 | Fitting, Plug, Org, #6, Valve [Cec]Part of the assembly above. | $7.60/EA |
| 25 | TN4029252Replaces Tennant 77005 | 1 | Seal, Org, .078 X 00.47id 06 | $4.40/EA |
| 26 | TN8004355Replaces Tennant 373683 | 1 | Valve, ReliefPart of the assembly above. | $153.10/EA |
| 27 | TN8004297Replaces Tennant 373647 | 1 | Seal Kit, Cartridge | $22.60/EA |
Tennant M30 Diesel Hydraulic Motor Breakdown, 53485 (component breakdown) parts
Hydraulic Motor Breakdown, 53485 (component breakdown) from Tennant's parts list. Manual page 260.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4015031Replaces Tennant 53485 | Qty on machine: 1 | Motor, Hyd, Gear, Ext 0.19 Rh 3000Complete assembly. | Call to confirm part: 800-440-6723 | |
| – | TN8002123Replaces Tennant 74233 | Qty on machine: 1 | Kit, Seal, Motor, Hyd, Gear[Barns]Part of Motor, Hyd, Gear, Ext 0.19 Rh 3000 (See Breakdowns) (53485). | $106.39/EA | |
| 1 | TN4042800Replaces Tennant 00966 | Qty on machine: 1 | Key, Sq, 0.12 X 0.12, 0.75lPart of Motor, Hyd, Gear, Ext 0.19 Rh 3000 (See Breakdowns) (53485). | $1.45/EA | |
| 2 | TN8002440Replaces Tennant 54095 | Qty on machine: 1 | Valve, Hyd Cartridge 10no/- 0Part of Motor, Hyd, Gear, Ext 0.19 Rh 3000 (See Breakdowns) (53485). | $407.70/EA | |
| 3 | TN8003752Replaces Tennant 59378 | Qty on machine: 1 | Valve Stem, N.O.Valve, Hyd | $286.50/EA | |
| 4 | TN8002295Replaces Tennant 48813 | Qty on machine: 1 | Kit, Seal, Valve, Hyd [Cec] | $173.57/EA | |
| 5 | TN8005505Replaces Tennant 35493 | Qty on machine: 1 | Solenoid, 12v, Valve, Hyd [Cec] | $129.70/EA | |
| 6 | TN4006499Replaces Tennant IB3614 | Qty on machine: 1 | Instr, Seal Kit, Motor | Call to confirm part: 800-440-6723 |
Tennant M30 Diesel Metering Solution Pump Breakdown, 73260 (component breakdown) parts
Metering Solution Pump Breakdown, 73260 (component breakdown) from Tennant's parts list. Manual page 261.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4016324Replaces Tennant 73260 | Qty on machine: 1 | Pump, Detgt, 14vdc, 150ml/Min 20psiComplete assembly. | $792.20/EA | |
| 1 | TN8002729Replaces Tennant 63923 | Qty on machine: 1 | Tubing Connctr.Kit, Gorman PmpPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (73260). | $91.36/EA | |
| 2 | TN8005913Replaces Tennant 21659 | Qty on machine: 1 | Valve Kit, Poppet, Gorman RuppPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (73260). | $118.80/EA | |
| 3 | TN8005912Replaces Tennant 21657 | Qty on machine: 1 | Kit, Bellows, Pump, DetgtPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (73260). | $249.77/EA | |
| 4 | TN8003657Replaces Tennant 78875 | Qty on machine: 1 | Motor, Ele, Gear, 14vdc, Pump, DetgtPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (73260). | $540.96/EA | |
| 5 | TN8006136Replaces Tennant 02430 | Qty on machine: 1 | Crank Kit, Pump, F/79323, ReplmtPart of Pump, Detgt, 14vdc, 150ml/Min 20psi (73260). | $112.01/EA |
Tennant M30 Diesel Water Pump Breakdown, 1026743 (component breakdown) parts
Water Pump Breakdown, 1026743 (component breakdown) from Tennant's parts list. Manual page 262.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4034280Replaces Tennant 1026743 | Qty on machine: 1 | Pump, DiaphragmComplete assembly. | $370.80/EA | |
| 1 | TN8005597Replaces Tennant 1031802 | Qty on machine: 1 | Complete Pump Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $251.40/EA | |
| 2 | TN8005598Replaces Tennant 1031803 | Qty on machine: 1 | Hsg & Switch Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $121.04/EA | |
| 3 | TN8005592Replaces Tennant 1031796 | Qty on machine: 1 | Switch Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $83.12/EA | |
| 4 | TN8005593Replaces Tennant 1031797 | Qty on machine: 1 | Chech Valve Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $36.60/EA | |
| 5 | TN8005594Replaces Tennant 1031798 | Qty on machine: 1 | Upper Hsg Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $23.63/EA | |
| 6 | TN8005595Replaces Tennant 1031799 | Qty on machine: 1 | Bypass Valve Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $85.45/EA | |
| 7 | TN8005596Replaces Tennant 1031800 | Qty on machine: 1 | Diaphragm Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $59.59/EA | |
| 8 | TN8047054Replaces Tennant 1031801 | Qty on machine: 1 | Motor Kit, Pump, Repair,Part of Pump, Diaphragm (See Breakdowns) (1026743). | $167.21/EA | |
| 9 | TN4026208Replaces Tennant 78950 | Qty on machine: 1 | Connector, Fem, 02cav, Mp280 SealedPart of Pump, Diaphragm (See Breakdowns) (1026743). | $7.90/EA | |
| 10 | TN4026214Replaces Tennant 78952 | Qty on machine: 1 | Lock, Secondary, 2cav, Mp280 SealedPart of Pump, Diaphragm (See Breakdowns) (1026743). | $4.20/EA | |
| – | TN4026210Replaces Tennant 78951 | Qty on machine: 2 | Terminal, Fem, Mp280, Sealed, 1816gaPart of Pump, Diaphragm (See Breakdowns) (1026743). | $0.55/EA | |
| – | TN4043117Replaces Tennant 10917 | Qty on machine: 2 | Seal, Wire, 14/16ga [Wp / Mp280 Sealed]Part of Pump, Diaphragm (See Breakdowns) (1026743). | $3.60/EA |
Tennant M30 Diesel Water Pump Motor Breakdown, 1038855 (component breakdown) parts
Water Pump Motor Breakdown, 1038855 (component breakdown) from Tennant's parts list. Manual page 263.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4043950Replaces Tennant 1038855 | Qty on machine: 1 | Pump, Hyd, Press WasherComplete assembly. | Call to confirm part: 800-440-6723 | |
| 1 | TN9004290 | Qty on machine: 1 | Valve KitPart of Pump, Hyd, Press Washer (See Breakdowns) (1038855). | $115.00/EA | |
| 2 | TN9004291 | Qty on machine: 1 | Piston KitPart of Pump, Hyd, Press Washer (See Breakdowns) (1038855). | $444.80/EA | |
| 3 | TN9004288Tennant 9004288 | Qty on machine: 1 | Seal Kit [Buna]Part of Pump, Hyd, Press Washer (See Breakdowns) (1038855). | Call to confirm part: 800-440-6723 | |
| 3 | TN9004272 | Qty on machine: 1 | Seal Kit [Vitron]Part of Pump, Hyd, Press Washer (See Breakdowns) (1038855). | $601.00/EA | |
| 4 | TN9004289Tennant 9004289 | Qty on machine: 1 | Seal Kit, OilPart of Pump, Hyd, Press Washer (See Breakdowns) (1038855). | Call to confirm part: 800-440-6723 | |
| 5 | TN9004292Tennant 9004292 | Qty on machine: 1 | Ring Kit, SpptPart of Pump, Hyd, Press Washer (See Breakdowns) (1038855). | Call to confirm part: 800-440-6723 | |
| 6 | TN4026498Replaces Tennant 9014260 | Qty on machine: 1 | Pop ValvePart of Pump, Hyd, Press Washer (See Breakdowns) (1038855). | Call to confirm part: 800-440-6723 |
Tennant M30 Diesel ec- H20 Module Assembly Breakdown, 9007882 (component breakdown) parts
The parts Tennant numbers on its ec- h20 module assembly breakdown, 9007882 (component breakdown) drawing. Manual pages 264, list 265.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4012473Replaces Tennant 9007882 | 1 | Module Kit, Replmt [EcH20]Complete assembly. | $1,782.70/EA |
| 1 | TN4037967Replaces Tennant 1014974 | 2 | Hose, Afmkt, Pvc, Brd, 0.38id, 02ft, ClrPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $22.40/EA |
| 2 | TN4021946Replaces Tennant 607775 | 5 | Clamp, Hose, Wir, .63 - .66, BlkPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $4.20/EA |
| 3 | TN4034613Replaces Tennant 1060517 | 1 | Fitting, Plstc, Tee, Bm06/Pm02/Bm06Part of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $6.20/EA |
| 4 | TN4037966Replaces Tennant 1014971 | 1 | Hose, Afmkt, Pvc, Brd, 0.38id, 01ft, ClrPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $18.70/EA |
| 5 | TN4039131Replaces Tennant 20951 | 1 | Fitting, Plstc, E90, Bm06/Bm06Part of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $4.20/EA |
| 6 | TN4041118Replaces Tennant 150540 | 1 | Fitting, Plstc, Str, Bm06/Pm04Part of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $4.20/EA |
| 7 | TN4038978Replaces Tennant 1005435 | 1 | Fitting, Plstc, Pipe, Cap, Pf04Part of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $4.20/EA |
| 8 | TN4036516Replaces Tennant 1038159 | 1 | Electrode, CylindricalPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $753.50/EA |
| 9 | TN4013410Replaces Tennant 44961 | 1 | Tie, Cable, Nyl, 14.5l .30w 4.0 Max DPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $3.40/EA |
| 10 | TN4187263Replaces Tennant 1060695 | 1 | Fitting, Plstc, Str, Pm02/Bm05Part of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $4.20/EA |
| 11 | TN4038223Replaces Tennant 1053464 | 3 | Clamp, Hose, Wir, .52 - .56, YelPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $2.73/EA |
| 12 | TN4041050Replaces Tennant 1052336 | 1 | Hose, Afmkt, PVC, Brd, 0.31Id, 03Ft, ClrPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $48.50/EA |
| 13 | TN4036516Replaces Tennant 1057637 | 1 | Electrode, 5 Plate, High FlowPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $753.50/EA |
| 14 | TN4012474Replaces Tennant 9007883 | 1 | Controller Kit, Replmt [EcH20]Part of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $544.60/EA |
| 15 | TN4035120Replaces Tennant 1016354 | 2 | Clamp, Cable, Ss, 0.50d X 0.50w [Insul]Part of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $4.10/EA |
| 16 | TN4034147Replaces Tennant 32509 | 4 | Screw, Hex, M4 X 0.70 X 50, SsPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $0.25/EA |
| 17 | TN4016852Replaces Tennant 41579 | 4 | Washer, Flat, 08, SsPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $2.60/EA |
| 18 | TN4043241Replaces Tennant 02938 | 4 | Washer, Lock, Int, 08, SsPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $2.60/EA |
| 19 | TN4035537Replaces Tennant 1018155 | 8 | Screw, Pan, Phl, M5 X 0.80 X 16, Tcut,SsPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $2.50/EA |
| 20 | TN4045590Replaces Tennant 1037032 | 1 | Housing, BottomPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $10.60/EA |
| 21 | TN4038670Replaces Tennant 1054776 | 1 | Grommet, BlindPart of Module Kit, Replmt [EcH20] (See Breakdowns) (9007882). | $5.10/EA |
Tennant M30 Diesel Seat Breakdown, 1072456 (component breakdown) parts
The parts Tennant numbers on its seat breakdown, 1072456 (component breakdown) drawing. Manual pages 266, list 267.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| – | TN4030942Replaces Tennant 1072456 | 1 | SeatComplete assembly. | $1,143.80/EA |
| 1 | TN8003570Replaces Tennant 9012585 | 1 | Track Assy, SlidePart of Seat (See Breakdowns) (1072456). | $187.20/EA |
| 2 | TN8003571Replaces Tennant 9012587 | 1 | Bellows, SeatPart of Seat (See Breakdowns) (1072456). | $49.09/EA |
| 3 | TN8003572Replaces Tennant 9012589 | 1 | Knobs, Adjmt, WeightPart of Seat (See Breakdowns) (1072456). | $30.10/EA |
| 4 | TN8003573Replaces Tennant 9012590 | 1 | SeatbeltPart of Seat (See Breakdowns) (1072456). | $213.20/EA |
| 5 | TN8003574Replaces Tennant 9012591 | 1 | Switch, SeatPart of Seat (See Breakdowns) (1072456). | $25.90/EA |
| 6 | TN8003575Replaces Tennant 9012592 | 1 | ArmrestPart of Seat (See Breakdowns) (1072456). | $121.91/EA |
| 7 | TN8003576Replaces Tennant 9012593 | 1 | Pad, ArmrestPart of Seat (See Breakdowns) (1072456). | $60.60/EA |
| 8 | TN8003577Replaces Tennant 9012594 | 1 | Cover, CushionPart of Seat (See Breakdowns) (1072456). | $147.20/EA |
| 9 | TN8003578Replaces Tennant 9012595 | 1 | Cover, BackrestPart of Seat (See Breakdowns) (1072456). | $164.20/EA |
Tennant M30 Diesel FaST Injector Assembly Breakdown, 9008868 (component breakdown) parts
FaST Injector Assembly Breakdown, 9008868 (component breakdown) from Tennant's parts list. Manual page 268.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| – | TN4010349Replaces Tennant 9008868 | Qty on machine: 1 | FaST Kit, Injector [M20/T20/m30 FaST III}Complete assembly. No longer available from the manufacturer. | No longer available. Call to confirm part: 800-440-6723 | |
| 1 | TN9008757Tennant 9008757 | Qty on machine: 1 | FaST Kit, Ci [inj Rebld, M30/M20 III]Part of FaST Kit, Injector [M20/T20/M30 FaST III] (See Breakdown) (9008868). | No longer available. Call to confirm part: 800-440-6723 | |
| 2 | TN9008848Tennant 9008848 | Qty on machine: 1 | FaST Kit, Seal, injector, Ci [FaST III] | No longer available. Call to confirm part: 800-440-6723 | |
| 3 | TN4016470Replaces Tennant 9003009 | Qty on machine: 1 | FaST Kit, Ci, Injector Filters[FaST Ii+] | No longer available. Call to confirm part: 800-440-6723 | |
| 4 | TN1059878Tennant 1059878 | Qty on machine: 1 | Plate Assy, Orifice, 0.0105Id, Green | No longer available. Call to confirm part: 800-440-6723 | |
| 5 | TN1042710Tennant 1042710 | Qty on machine: 1 | Plug, Orifice, 0.060, Ss [FaST Ii+] | No longer available. Call to confirm part: 800-440-6723 | |
| 6 | TN1059234Tennant 1059234 | Qty on machine: 1 | Insert, :Lrg [Venturi, FaST III] | No longer available. Call to confirm part: 800-440-6723 | |
| 7 | TN1030444Tennant 1030444 | Qty on machine: 1 | Valve, Check, 0002psi [FaST Ii+]No longer available from the manufacturer. | No longer available. Call to confirm part: 800-440-6723 | |
| 8 | TN1030441Tennant 1030441 | Qty on machine: 1 | Valve, Check, 0005psi [FaST Ii+]No longer available from the manufacturer. | No longer available. Call to confirm part: 800-440-6723 |
Tennant M30 Diesel Crankcase Group (engine) parts
The parts Tennant numbers on its crankcase group (engine) drawing. Manual pages 270, list 271.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002762Replaces Tennant 9004335 | 1 | Crankcase, Complt [Ku]Complete assembly. | $11,441.68/EA |
| 2 | TN8002561Replaces Tennant 70998 | 6 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.96/EA |
| 3 | TN8002909Replaces Tennant 39087 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $8.59/EA |
| 4 | TN8002910Replaces Tennant 39088 | 4 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.00/EA |
| 5 | TN8049449Replaces Tennant 9004336 | 1 | Bolt [Ku]Part of Crankcase, Complt [Ku] (9004335). | $85.14/EA |
| 6 | TN8002565Replaces Tennant 71985 | 3 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723 |
| 7 | TN8002902Replaces Tennant 39051 | 2 | Fitting, Pipe, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.25/EA |
| 8 | TN8004840Replaces Tennant 361436 | 3 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $3.33/EA |
| 9 | TN8002566Replaces Tennant 71986 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.45/EA |
| 10 | TN8002567Replaces Tennant 71987 | 2 | Pin, Dowel [Ku]Part of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723 |
| 11 | TN8002568Replaces Tennant 71988 | 2 | Pin, Dowel [Ku]Part of Crankcase, Complt [Ku] (9004335). | $4.24/EA |
| 12 | TN71989 | 2 | Pin, Dowel [Ku]Part of Crankcase, Complt [Ku] (9004335). | $3.70/EA |
| 13 | TN8051525Replaces Tennant 71990 | 2 | Pin, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $10.10/EA |
| 14 | TN8002569Replaces Tennant 71991 | 1 | Tube, Pin [Ku]Part of Crankcase, Complt [Ku] (9004335). | $4.24/EA |
| 15 | TN8002640Replaces Tennant 71992 | 1 | Plug, Cup, Sealing [Ku]Part of Crankcase, Complt [Ku] (9004335). | $8.28/EA |
| 16 | TN8049780Replaces Tennant 9004337 | 1 | Pin, Start, SpringPart of Crankcase, Complt [Ku] (9004335). | $8.89/EA |
| 17 | TN8002641Replaces Tennant 71993 | 1 | Plug, Eng [Ku]Part of Crankcase, Complt [Ku] (9004335). | $20.50/EA |
| 18 | TN8002422Replaces Tennant 70887 | 1 | Bushing, Gear, Gov [Ku]Part of Crankcase, Complt [Ku] (9004335). | $51.51/EA |
| 19 | TN8002903Replaces Tennant 39062 | 1 | Fitting, Plug [Ku]Part of Crankcase, Complt [Ku] (9004335). | $5.15/EA |
| 20 | TN8002588Replaces Tennant 393570 | 1 | GasketPart of Crankcase, Complt [Ku] (9004335). | Call to confirm part: 800-440-6723 |
| 21 | TN8002423Replaces Tennant 70888 | 1 | Fitting, Draincock [Ku] | $22.02/EA |
Tennant M30 Diesel Oil Pan Group (engine) parts
Oil Pan Group (engine) from Tennant's parts list. Manual page 272.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8047600Replaces Tennant 1023144 | Qty on machine: 1 | Pan, Oil, Dsl | $288.66/EA |
| 2 | TN8049781Replaces Tennant 9004338 | Qty on machine: 26 | Bolt [Ku] | $1.72/EA |
| 3 | TN9003888 | Qty on machine: 1 | Filter, Oil [Ku] | $93.10/EA |
| 4 | TN8044761Replaces Tennant 39094 | Qty on machine: 1 | Screw, Hex [Ku] | $1.50/EA |
| 5 | TN8002763Replaces Tennant 9004339 | Qty on machine: 1 | ORing [Ku] | $6.67/EA |
| 6 | TN8049444Replaces Tennant 9003889 | Qty on machine: 1 | Dipstick, Oil [Ku] | $41.81/EA |
| 7 | TN8049445Replaces Tennant 9003890 | Qty on machine: 1 | Gauge Assy, Oil [Ku] | $14.44/EA |
| 8 | TN8004677Replaces Tennant 361366 | Qty on machine: 1 | Seal, Org [Ku] | $3.43/EA |
| 9 | TN8002906Replaces Tennant 39073 | Qty on machine: 1 | Screw, Hex [Ku] | $1.40/EA |
| 10 | TN8049787Replaces Tennant 9004348 | Qty on machine: 1 | Plug, Gauge, Oil [Ku] | $15.76/EA |
Tennant M30 Diesel Cylinder Head Group (engine) parts
Cylinder Head Group (engine) from Tennant's parts list. Manual page 273.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002642Replaces Tennant 71996 | Qty on machine: 1 | Ear, Lifting, Eng [Ku] | $16.77/EA | |
| 2 | TN8002643Replaces Tennant 71997 | Qty on machine: 1 | Ear, Lifting, Eng [Ku] | $19.29/EA | |
| 3 | TN8002906Replaces Tennant 39073 | Qty on machine: 2 | Screw, Hex [Ku] | $1.40/EA | |
| 4 | TN8002764Replaces Tennant 9004340 | Qty on machine: 1 | Head, Cylinder [Ku]Complete assembly. | $1,878.62/EA | |
| 5 | TN8002584Replaces Tennant 393504 | Qty on machine: 1 | Cap, SealingPart of Head, Cylinder [Ku] (9004340). | $11.65/EA | |
| 6 | TN8002910Replaces Tennant 39088 | Qty on machine: 2 | Fitting, Pipe, Plug [Ku]Part of Head, Cylinder [Ku] (9004340). | $5.00/EA | |
| 7 | TN8004160Replaces Tennant 372906 | Qty on machine: 4 | Guide, Valve, InletPart of Head, Cylinder [Ku] (9004340). | $20.75/EA | |
| 8 | TN8004161Replaces Tennant 372907 | Qty on machine: 4 | Guide, Valve, ExhaustPart of Head, Cylinder [Ku] (9004340). | $21.60/EA | |
| 9 | TN361372Tennant 361372 | Qty on machine: 3 | Plug, Cup, Sealing [Ku]Part of Head, Cylinder [Ku] (9004340). | Call to confirm part: 800-440-6723 | |
| 10 | TN8002428Replaces Tennant 70897 | Qty on machine: 18 | Screw, Hex, Head, Cyl [Ku] | $21.25/EA | |
| 11 | TN8002429Replaces Tennant 70898 | Qty on machine: 1 | Bolt | $23.00/EA | |
| 12 | TN8002765Replaces Tennant 9004341 | Qty on machine: 1 | Gasket, Head, Cyl [Ku] | $241.09/EA |
Tennant M30 Diesel Gear Case Group (engine) parts
The parts Tennant numbers on its gear case group (engine) drawing. Manual pages 274, list 275.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8049782Replaces Tennant 9004342 | 1 | Gear, Case [Ku]Complete assembly. | $788.17/EA |
| 2 | TN8046197Replaces Tennant 361401 | 4 | Fitting, Pipe, Plug [Ku]Part of Gear, Case [Ku] (9004342). | $15.86/EA |
| 3 | TN8051510Replaces Tennant 70900 | 1 | Spring, Cmpr, Relief [Ku]Part of Gear, Case [Ku] (9004342). | $4.75/EA |
| 4 | TN8051511Replaces Tennant 70901 | 1 | Tube, Seat, Valve, Oil [Ku]Part of Gear, Case [Ku] (9004342). | $32.12/EA |
| 5 | TN8051512Replaces Tennant 70902 | 1 | Ball, Relief, Oil [Ku]Part of Gear, Case [Ku] (9004342). | $3.23/EA |
| 6 | TN8002491Replaces Tennant 70903 | 1 | Pump, Oil, Eng [Ku]Part of Gear, Case [Ku] (9004342). | $257.15/EA |
| 7 | TN8002766Replaces Tennant 9004343 | 1 | Pump, Oil, Cover [Ku]Part of Gear, Case [Ku] (9004342). | $30.10/EA |
| 8 | TN8049784Replaces Tennant 9004345 | 5 | Screw [Ku]Part of Gear, Case [Ku] (9004342). | $1.31/EA |
| 9 | TN8049783Replaces Tennant 9004344 | 1 | Pin, Straight [Ku]Part of Gear, Case [Ku] (9004342). | $1.31/EA |
| 10 | TN8051529Replaces Tennant 72014 | 1 | Screw, Hex [Ku] | $3.90/EA |
| 11 | TN8051540Replaces Tennant 72015 | 2 | Screw, Hex [Ku] | $1.50/EA |
| 12 | TN8051541Replaces Tennant 72016 | 1 | Bolt | $8.08/EA |
| 13 | TN8049785Replaces Tennant 9004346 | 1 | Stud [Ku] | $3.80/EA |
| 14 | TN8002919Replaces Tennant 39121 | 1 | Nut, Hex [Ku] | $0.55/EA |
| 15 | TN8002905Replaces Tennant 39065 | 1 | Washer, Lock, Split [Ku] | $3.60/EA |
| 16 | TN8004817Replaces Tennant 368055 | 1 | Seal, Oil, Eng [Ku] | $18.20/EA |
| 17 | TN8049786Replaces Tennant 9004347 | 1 | Stud [Ku] | $3.65/EA |
| 18 | TN8051544Replaces Tennant 72019 | 1 | Cover | $15.15/EA |
| 19 | TN8002497Replaces Tennant 70912 | 1 | Gasket, Case, Gear [Ku] | $27.70/EA |
| 20 | TN8051235Replaces Tennant 72993 | 3 | Screw, Hex [Ku] | $2.40/EA |
| 21 | TN8044939Replaces Tennant 384872 | 4 | Bolt | $2.45/EA |
| 22 | TN8002902Replaces Tennant 39051 | 1 | Fitting, Pipe, Plug [Ku] | $5.25/EA |
Tennant M30 Diesel Water Pump Group (engine) parts
Water Pump Group (engine) from Tennant's parts list. Manual page 276.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002805Replaces Tennant 9004402 | Qty on machine: 1 | Pump, Water Assy [Ku]Complete assembly. | $661.80/EA | |
| 2 | TN4203504Replaces Tennant 9004403 | Qty on machine: 1 | Bearing [Ku]Part of Pump, Water Assy [Ku] (9004402). | $86.90/EA | |
| 3 | TN8049828Replaces Tennant 9004404 | Qty on machine: 1 | Seal, Mechanical Assy [Ku]Part of Pump, Water Assy [Ku] (9004402). | $98.48/EA | |
| 4 | TN8049829Replaces Tennant 9004405 | Qty on machine: 1 | Impeller, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $80.75/EA | |
| 5 | TN8004843Replaces Tennant 361440 | Qty on machine: 1 | Fitting, Pipe, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $17.10/EA | |
| 6 | TN8002502Replaces Tennant 70919 | Qty on machine: 1 | Flange, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $63.13/EA | |
| 7 | TN8002503Replaces Tennant 70920 | Qty on machine: 1 | Gasket, Pump, Water [Ku]Part of Pump, Water Assy [Ku] (9004402). | $26.40/EA | |
| 8 | TN8049840Replaces Tennant 9004407 | Qty on machine: 2 | Bolt [Ku] | $3.80/EA | |
| 9 | TN8002806Replaces Tennant 9004406 | Qty on machine: 4 | Bolt [Ku] | $1.90/EA | |
| 10 | TN8005514Replaces Tennant 368317 | Qty on machine: 1 | Hose, Water | $121.82/EA | |
| 11 | TN8002747Replaces Tennant 9003869 | Qty on machine: 1 | Pipe, Water [Kubota] | $38.80/EA | |
| 12 | TN8002748Replaces Tennant 9003870 | Qty on machine: 2 | Clamp [Kubota] | $8.30/EA |
Tennant M30 Diesel Main Bearing Case Group (engine) parts
Main Bearing Case Group (engine) from Tennant's parts list. Manual page 277.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002767Replaces Tennant 9004349 | Qty on machine: 1 | Bearing, Case [Ku] | $258.66/EA |
| 2 | TN8002648Replaces Tennant 72998 | Qty on machine: 8 | Screw, Hex, Case, Brg, Main [Ku] | $22.12/EA |
| 3 | TN8002768Replaces Tennant 9004350 | Qty on machine: 1 | Gasket, Bearing, Case [Ku] | $9.80/EA |
| 4 | TN8002506Replaces Tennant 70923 | Qty on machine: 1 | Cover, Brg Case, Eng [Ku] | $107.97/EA |
| 5 | TN8002769Replaces Tennant 9004351 | Qty on machine: 1 | Seal, Oil [Ku] | $47.01/EA |
| 6 | TN8002508Replaces Tennant 70925 | Qty on machine: 1 | Gasket, Case, Gear [Ku] | $14.75/EA |
| 7 | TN8051237Replaces Tennant 72999 | Qty on machine: 8 | Screw, Hex [Ku] | $3.23/EA |
| 8 | TN8005670Replaces Tennant 371017 | Qty on machine: 9 | Bolt | $3.33/EA |
| 9 | TN9004352 | Qty on machine: 1 | Bearing, Case, Main Assy [Ku] | $44.60/EA |
| 10 | TN8002663Replaces Tennant 73479 | Qty on machine: 3 | Screw, Hex, Case, Brg, Main [Ku] | $31.71/EA |
| 11 | TN8049788Replaces Tennant 9004354 | Qty on machine: 1 | Bearing, Case, Main Assy [Ku] | $284.21/EA |
| 12 | TN9004356 | Qty on machine: 1 | Bearing, Case, Main Assy [Ku] | $257.70/EA |
| 13 | TN8002531Replaces Tennant 70951 | Qty on machine: 1 | Bearing, Cshft, Std [Ku] | $58.98/EA |
| 14 | TN9004353 | Qty on machine: 3 | Crankshaft, Metal [Ku] | $23.90/EA |
Tennant M30 Diesel Head Cover Group (engine) parts
Head Cover Group (engine) from Tennant's parts list. Manual page 278.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002664Replaces Tennant 73480 | Qty on machine: 1 | Cover, Cylinder HeadComplete assembly. | $428.75/EA | |
| 2 | TN8002511Replaces Tennant 70929 | Qty on machine: 1 | Gasket, Head CoverPart of Cover, Cylinder Head (73480). | $31.00/EA | |
| 3 | TN8002665Replaces Tennant 73481 | Qty on machine: 1 | Joint, Breather PipePart of Cover, Cylinder Head (73480). | $17.45/EA | |
| 4 | TN8002512Replaces Tennant 70930 | Qty on machine: 1 | Plate, Element 1Part of Cover, Cylinder Head (73480). | $3.74/EA | |
| 5 | TN8002513Replaces Tennant 70931 | Qty on machine: 1 | Plate, Element 2Part of Cover, Cylinder Head (73480). | $19.95/EA | |
| 6 | TN8002514Replaces Tennant 70932 | Qty on machine: 1 | Element, BreatherPart of Cover, Cylinder Head (73480). | $10.00/EA | |
| 7 | TN8002515Replaces Tennant 70933 | Qty on machine: 1 | Oil Shield, BreatherPart of Cover, Cylinder Head (73480). | $3.74/EA | |
| 8 | TN8002666Replaces Tennant 73482 | Qty on machine: 2 | Screw, With WasherPart of Cover, Cylinder Head (73480). | $0.55/EA | |
| 9 | TN8002667Replaces Tennant 73483 | Qty on machine: 4 | Nut, Cap | $6.85/EA | |
| 10 | TN8002668Replaces Tennant 73484 | Qty on machine: 4 | Gasket | $2.35/EA | |
| 11 | TN8004680Replaces Tennant 361374 | Qty on machine: 1 | Plug, Oil Filler | $22.00/EA | |
| 12 | TN8002498Replaces Tennant 70913 | Qty on machine: 1 | ORing | $10.20/EA | |
| 13 | TN8002669Replaces Tennant 73485 | Qty on machine: 1 | Pipe, Breather | $20.40/EA |
Tennant M30 Diesel Exhaust Manifold Group (engine) parts
Exhaust Manifold Group (engine) from Tennant's parts list. Manual page 279.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002808Replaces Tennant 9004415 | Qty on machine: 1 | Manifold, Exhaust [Ku] | $282.70/EA |
| 2 | TN8002517Replaces Tennant 70935 | Qty on machine: 1 | Gasket, Manifold, Exhaust | $48.40/EA |
| 3 | TN8002671Replaces Tennant 73488 | Qty on machine: 6 | Stud [Ku] | $4.90/EA |
| 4 | TN8002672Replaces Tennant 73489 | Qty on machine: 6 | Nut | $3.25/EA |
| 5 | TN8045927Replaces Tennant 368291 | Qty on machine: 3 | Stud | $1.40/EA |
Tennant M30 Diesel Inlet Manifold Group (engine) parts
Inlet Manifold Group (engine) from Tennant's parts list. Manual page 280.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8049843Replaces Tennant 9004411 | Qty on machine: 1 | Manifold, Inlet Assy [Ku]Complete assembly. | $99.18/EA | |
| 2 | TN8002516Replaces Tennant 70934 | Qty on machine: 1 | Gasket, Manifold, Intake [Ku]Part of Manifold, Inlet Assy [Ku] (9004411). | $26.40/EA | |
| 3 | TN8052077Replaces Tennant 40409 | Qty on machine: 3 | Screw, Hex [Ku] | $3.30/EA | |
| 4 | TN8002646Replaces Tennant 72996 | Qty on machine: 1 | Screw, Hex [Ku] | $4.10/EA | |
| 5 | TN8051236Replaces Tennant 72994 | Qty on machine: 2 | Screw, Hex [Ku] | $2.45/EA | |
| 6 | TN8049844Replaces Tennant 9004412 | Qty on machine: 1 | Pipe, Inlet [Ku] | $13.84/EA | |
| 7 | TN8049845Replaces Tennant 9004413 | Qty on machine: 1 | Pipe, Inlet [Ku] | $43.83/EA | |
| 8 | TN8049846Replaces Tennant 9004414 | Qty on machine: 1 | Pipe, Inlet [Ku] | $30.70/EA | |
| 9 | TN8045923Replaces Tennant 368287 | Qty on machine: 2 | Clamp, Hose | Call to confirm part: 800-440-6723 | |
| 10 | TN8045922Replaces Tennant 368286 | Qty on machine: 2 | Clamp, Hose | Call to confirm part: 800-440-6723 |
Tennant M30 Diesel Valve, Rocker Arm Group (engine) parts
Valve, Rocker Arm Group (engine) from Tennant's parts list. Manual page 281.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002518Replaces Tennant 70936 | Qty on machine: 4 | Valve, Intake [Ku] | $54.60/EA | |
| 2 | TN8002519Replaces Tennant 70937 | Qty on machine: 4 | Valve, Exhaust [Ku] | $58.60/EA | |
| 3 | TN8002807Replaces Tennant 9004408 | Qty on machine: 8 | Spring, Valve [Ku] | $22.55/EA | |
| 4 | TN8002674Replaces Tennant 73492 | Qty on machine: 8 | Retainer, Spring, Valve [Ku] | $4.25/EA | |
| 5 | TN8002675Replaces Tennant 73493 | Qty on machine: 8 | Retainer, Spring [Ku] | $15.50/EA | |
| 6 | TN8002676Replaces Tennant 73494 | Qty on machine: 8 | Seal, Stem, Valve [Ku] | $14.70/EA | |
| 7 | TN8004818Replaces Tennant 361392 | Qty on machine: 8 | Cap, Valve [Ku] | $13.70/EA | |
| 8 | TN8049841Replaces Tennant 9004409 | Qty on machine: 1 | Shaft, Rocker, Arm [Ku]Complete assembly. | $74.64/EA | |
| 9 | TN8002677Replaces Tennant 73496 | Qty on machine: 2 | Screw [Ku]Part of Shaft, Rocker, Arm [Ku] (9004409). | Call to confirm part: 800-440-6723 | |
| 10 | TN8051243Replaces Tennant 73497 | Qty on machine: 4 | Bracket, Mtg, Rocker Arm [Ku] | $60.10/EA | |
| 11 | TN8051244Replaces Tennant 73498 | Qty on machine: 4 | Stud [Ku] | $10.80/EA | |
| 12 | TN8051245Replaces Tennant 73499 | Qty on machine: 4 | Nut, Hex [Ku] | $6.85/EA | |
| 13 | TN8051246Replaces Tennant 73500 | Qty on machine: 4 | Washer, Flat [Ku] | $3.15/EA | |
| 14 | TN8049842Replaces Tennant 9004410 | Qty on machine: 1 | Pin, Spring [Ku] | $1.52/EA | |
| 15 | TN8002678Replaces Tennant 73502 | Qty on machine: 2 | Washer, Shaft, Rocker [Ku] | $4.34/EA | |
| 16 | TN8004897Replaces Tennant 361589 | Qty on machine: 2 | Washer, Flat [Ku] | $4.24/EA | |
| 17 | TN8051248Replaces Tennant 73504 | Qty on machine: 3 | Spring, Cmpr, Rocker [Ku] | $4.14/EA | |
| 18 | TN8043708Replaces Tennant 393598 | Qty on machine: 2 | Bolt | $4.44/EA | |
| 19 | TN8002680Replaces Tennant 73506 | Qty on machine: 8 | Arm, Rocker [Ku]Complete assembly. | $121.00/EA | |
| 20 | TN8051250Replaces Tennant 73507 | Qty on machine: 8 | Screw, Adj, Rocker Arm [Ku]Part of Arm, Rocker [Ku] (73506). | $8.59/EA | |
| 21 | TN8051251Replaces Tennant 73508 | Qty on machine: 8 | Nut, Hex [Ku]Part of Arm, Rocker [Ku] (73506). | $8.59/EA |
Tennant M30 Diesel Camshaft Group (engine) parts
The parts Tennant numbers on its camshaft group (engine) drawing. Manual pages 282, list 283.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN9004358 | 8 | Tappet [Ku] | $26.10/EA |
| 2 | TN8002681Replaces Tennant 73509 | 8 | Rod, Push, Valve [Ku] | $9.90/EA |
| 3 | TN8049789Replaces Tennant 9004359 | 1 | Camshaft Assy [Ku]Complete assembly. | $905.87/EA |
| 4 | TN8044787Replaces Tennant 39197 | 1 | Screw, Set [Ku]Part of Camshaft Assy [Ku] (9004359). | $4.44/EA |
| 5 | TN8051252Replaces Tennant 73511 | 1 | Gear, Camshaft [Ku]Part of Camshaft Assy [Ku] (9004359). | Call to confirm part: 800-440-6723 |
| 6 | TN8051253Replaces Tennant 73512 | 1 | Key [Ku]Part of Camshaft Assy [Ku] (9004359). | $3.43/EA |
| 7 | TN8051254Replaces Tennant 73513 | 1 | Stopper, Cam [Ku]Part of Camshaft Assy [Ku] (9004359). | Call to confirm part: 800-440-6723 |
| 8 | TN8052091Replaces Tennant 41973 | 2 | Bolt, Hex [Ku]Part of Camshaft Assy [Ku] (9004359). | $3.50/EA |
| 9 | TN8051255Replaces Tennant 73514 | 1 | Gear, Idler, Cam [Ku]Complete assembly. | $463.62/EA |
| 10 | TN8002682Replaces Tennant 73515 | 1 | Bushing, Gear, Idler [Ku]Part of Gear, Idler, Cam [Ku] (73514). | $30.10/EA |
| 11 | TN8051256Replaces Tennant 73516 | 1 | Collar, Gear [Ku] | $11.82/EA |
| 12 | TN8051257Replaces Tennant 73517 | 1 | Washer, Collar, Gear [Ku] | $10.10/EA |
| 13 | TN8051258Replaces Tennant 73518 | 1 | Ring, Snap [Ku] | $7.88/EA |
| 14 | TN8051282Replaces Tennant 73519 | 1 | Shaft, Idler, Gear [Ku] | $177.15/EA |
| 15 | TN8052091Replaces Tennant 41973 | 3 | Bolt, Hex [Ku] | $3.50/EA |
Tennant M30 Diesel Piston and Crankshaft Group (engine) parts
The parts Tennant numbers on its piston and crankshaft group (engine) drawing. Manual pages 284, list 285.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002790Replaces Tennant 9004360 | 4 | Piston [Ku] | $347.04/EA |
| 2 | TN8002791Replaces Tennant 9004361 | 4 | Ring, Piston Assy [Ku] | $159.58/EA |
| 3 | TN8002685Replaces Tennant 73522 | 4 | Pin, Piston [Ku] | $19.90/EA |
| 4 | TN8002686Replaces Tennant 73523 | 8 | Ring, Snap, Piston [Ku] | $5.35/EA |
| 5 | TN8002687Replaces Tennant 73524 | 4 | Rod Assy, Connecting [Ku]Complete assembly. | $579.94/EA |
| 6 | TN70940 | 4 | Bushing, Pin, Piston [Ku]Part of Rod Assy, Connecting [Ku] (73524). | $20.60/EA |
| 7 | TN8002688Replaces Tennant 73525 | 8 | Screw, Rod, Connecting [Ku]Part of Rod Assy, Connecting [Ku] (73524). | $15.15/EA |
| 8 | TN9004362 | 4 | Crankpin, Metal [Ku]Part of Rod Assy, Connecting [Ku] (73524). | $46.10/EA |
| 9 | TN8002689Replaces Tennant 73526 | 1 | CrankshaftComplete assembly. | $5,928.20/EA |
| 10 | TN8002523Replaces Tennant 70942 | 1 | Bearing, Cshft [Ku]Part of Crankshaft (73526). | $123.42/EA |
| 11 | TN8051283Replaces Tennant 73527 | 4 | Ball, Cshft [Ku]Part of Crankshaft (73526). | $2.83/EA |
| 12 | TN8002720Replaces Tennant 73528 | 1 | Gear, Cshft [Ku]Part of Crankshaft (73526). | $254.22/EA |
| 13 | TN8002721Replaces Tennant 73529 | 1 | Key [Ku]Part of Crankshaft (73526). | $5.15/EA |
| 14 | TN8002722Replaces Tennant 73530 | 1 | Gear, Pump, Oil [Ku]Part of Crankshaft (73526). | $114.89/EA |
| 15 | TN8002723Replaces Tennant 73532 | 1 | Screw, Hex, Cshft [Ku] | $22.39/EA |
| 16 | TN8002524Replaces Tennant 70943 | 1 | Collar, Crank, Front [Ku] | $84.52/EA |
| 17 | TN8002792Replaces Tennant 9004363 | 1 | Ring [Ku] | $10.40/EA |
| 18 | TN9004364 | 1 | Crankshaft, Metal [Ku] | $55.10/EA |
| 19 | TN8006116Replaces Tennant 10844 | 2 | Bearing, Thrust, Std [Ku] | $22.83/EA |
| 20 | TN8006117Replaces Tennant 10845 | 2 | Bearing, Thrust, Std [Ku] | $30.40/EA |
| 21 | TN8002262Replaces Tennant 9004507 | 1 | Pully, Fan [Ku] | $192.51/EA |
Tennant M30 Diesel Flywheel Group (engine) parts
Flywheel Group (engine) from Tennant's parts list. Manual page 286.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002536Replaces Tennant 70956 | Qty on machine: 1 | Comp. FlywheelComplete assembly. | $1,339.77/EA | |
| 2 | TN8002248Replaces Tennant 9004442 | Qty on machine: 1 | Gear, Ring [Ku]Part of Comp. Flywheel (70956). | $143.02/EA | |
| 3 | TN8002724Replaces Tennant 73533 | Qty on machine: 6 | Bolt, Flywheel | $25.55/EA | |
| 4 | TN8002725Replaces Tennant 73534 | Qty on machine: 8 | Bolt | $3.43/EA |
Tennant M30 Diesel Starter Breakdown, 74405 (engine) parts
Starter Breakdown, 74405 (engine) from Tennant's parts list. Manual page 287.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002147Replaces Tennant 74405 | Qty on machine: 1 | Assy StarterComplete assembly. | $2,482.50/EA | |
| 2 | TN70196 | Qty on machine: 1 | Assy YokePart of Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $731.70/EA | |
| 3 | TN8051485Replaces Tennant 70197 | Qty on machine: 1 | Assy ArmaturePart of Starter, 12vdc [Kubota] (See Engine Breakdown) (74405). | $600.04/EA | |
| 4 | TN8051486Replaces Tennant 70198 | Qty on machine: 1 | Bearing | $66.66/EA | |
| 5 | TN8051487Replaces Tennant 70199 | Qty on machine: 1 | Bearing | $55.05/EA | |
| 6 | TN70200Tennant 70200 | Qty on machine: 1 | Clutch, Over RunningPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 7 | TN8051488Replaces Tennant 70201 | Qty on machine: 1 | Frame, Drive EndPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 8 | TN70202 | Qty on machine: 1 | Assy Switch, MagnetoPart of the assembly above. | $1,173.00/EA | |
| 9 | TN70203 | Qty on machine: 1 | Frame, EndPart of the assembly above. | $227.80/EA | |
| 10 | TN70204Tennant 70204 | Qty on machine: 1 | Assy Holder, BrushPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 11 | TN8051489Replaces Tennant 70205 | Qty on machine: 4 | Spring, Brush | $13.43/EA | |
| 12 | TN70206Tennant 70206 | Qty on machine: 1 | GearPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 13 | TN8051500Replaces Tennant 70207 | Qty on machine: 1 | RetainerPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 14 | TN8051288Replaces Tennant 73545 | Qty on machine: 5 | RollerPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 15 | TN8051501Replaces Tennant 70208 | Qty on machine: 1 | SpringPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 16 | TN8051290Replaces Tennant 73547 | Qty on machine: 1 | BallPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 17 | TN8051502Replaces Tennant 70209 | Qty on machine: 2 | BoltPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 18 | TN8048533Replaces Tennant 20433 | Qty on machine: 2 | ORingPart of the assembly above. | $25.65/EA | |
| 19 | TN8051503Replaces Tennant 70210 | Qty on machine: 2 | BoltPart of the assembly above. | Call to confirm part: 800-440-6723 | |
| 20 | TN8048531Replaces Tennant 20432 | Qty on machine: 2 | Assy BoltPart of the assembly above. | $10.10/EA | |
| 21 | TN70211 | Qty on machine: 1 | CoverPart of the assembly above. | $44.40/EA | |
| 22 | TN8051294Replaces Tennant 73551 | Qty on machine: 1 | Nut, HexagonPart of the assembly above. | $7.68/EA | |
| 23 | TN8051504Replaces Tennant 70212 | Qty on machine: 1 | Nut, HexagonPart of the assembly above. | $9.19/EA | |
| 24 | TN8051505Replaces Tennant 70213 | Qty on machine: 1 | Pipe, DrainPart of the assembly above. | $37.77/EA |
Tennant M30 Diesel Nozzle Holder and Glow Plug Group (engine) parts
The parts Tennant numbers on its nozzle holder and glow plug group (engine) drawing. Manual pages 288, list 289.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8002727Replaces Tennant 73554 | 1 | Pipe, Overflow | $68.36/EA |
| 2 | TN8051297Replaces Tennant 73555 | 1 | Fitting, Fuel [Ku] | $24.70/EA |
| 3 | TN8002710Replaces Tennant 40166 | 1 | Gasket, F/ Bolt [Ku] | $4.30/EA |
| 4 | TN8004679Replaces Tennant 361373 | 1 | Hose, Fuel [Ku]Complete assembly. | $6.80/EA |
| 5 | TN8002800Replaces Tennant 9004390 | 2 | Pipe, Clip [Ku]Part of Hose, Fuel [Ku] (361373). | $3.20/EA |
| 6 | TN8004165Replaces Tennant 372917 | 4 | Housing Assy, NozzleComplete assembly. | $525.80/EA |
| 7 | TN8002539Replaces Tennant 70964 | 1 | Gasket, Nozzle, Injector [Ku]Part of Housing Assy, Nozzle (372917). | $8.90/EA |
| 8 | TN8005897Replaces Tennant 20719 | 1 | Seal, Heat, Nozzle [Ku]Part of Housing Assy, Nozzle (372917). | $18.20/EA |
| 9 | TN8049822Replaces Tennant 9004391 | 1 | Pipe, Injection [Ku] | $82.55/EA |
| 10 | TN8002541Replaces Tennant 70966 | 1 | Tube, Injector, Pipe #2 [Ku] | $82.55/EA |
| 11 | TN8002542Replaces Tennant 70967 | 1 | Tube, Injector, Pipe #32 [Ku] | $82.55/EA |
| 12 | TN8002543Replaces Tennant 70968 | 1 | Pipe, Injector, # 4 | $82.55/EA |
| 13 | TN8048250Replaces Tennant 30131 | 3 | Clamp, Tube, Inj, Pipe #1 [Ku] | $8.20/EA |
| 14 | TN8048251Replaces Tennant 30132 | 3 | Clamp, Tube, Inj, Pipe #21 [Ku] | $6.65/EA |
| 15 | TN8002801Replaces Tennant 9004392 | 4 | Plug, Glow [Ku] | $218.16/EA |
| 16 | TN8002031Replaces Tennant 73560 | 1 | Cord, Ele, Glowplug | $35.10/EA |
| 17 | TN8043682Replaces Tennant 393566 | 3 | Screw, W / Washer | $4.90/EA |
| 18 | TN8002802Replaces Tennant 9004393 | 3 | Nut, Flange [Ku] | $3.45/EA |
Tennant M30 Diesel Injection Pump Group (engine) parts
The parts Tennant numbers on its injection pump group (engine) drawing. Manual pages 290, list 291.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8051299Replaces Tennant 73565 | 1 | Fuel Pump Cover Plate | $15.35/EA |
| 2 | TN8003210Replaces Tennant 84635 | 1 | Assembly Pump, Injection (See Injection Pump Breakdown) | $2,983.20/EA |
| 3 | TN8002545Replaces Tennant 70972 | 1 | Shim, Injection Pump 0.20 mm | $9.80/EA |
| 4 | TN8002546Replaces Tennant 70973 | 2 | Shim, Injection Pump 0.25 mm | $12.63/EA |
| 4 | TN8003213Replaces Tennant 84644 | 1 | Shim, Injection Pump 0.30 mm | $20.40/EA |
| 5 | TN8051298Replaces Tennant 73561 | 3 | Bolt | $4.14/EA |
| 6 | TN8002032Replaces Tennant 73562 | 3 | Stud | $3.65/EA |
| 7 | TN8002033Replaces Tennant 73563 | 3 | Nut, Cap | $27.85/EA |
| 8 | TN8002905Replaces Tennant 39065 | 6 | Washer, Spring | $3.60/EA |
| 9 | TN8002547Replaces Tennant 70974 | 1 | Gasket, Fuel Pump | $14.24/EA |
| 10 | TN8002919Replaces Tennant 39121 | 2 | Nut | $0.55/EA |
| 11 | TN8002905Replaces Tennant 39065 | 2 | Washer, Spring | $3.60/EA |
Tennant M30 Diesel Injection Pump Breakdown (engine) parts
The parts Tennant numbers on its injection pump breakdown (engine) drawing. Manual pages 292, list 293.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8003210Replaces Tennant 84635 | 1 | Assembly Pump, InjectionComplete assembly. | $2,983.20/EA |
| 2 | TN8003214Replaces Tennant 84648 | 4 | Plunger, PumpPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $423.80/EA |
| 3 | TN8002034Replaces Tennant 73567 | 4 | Valve, DeliveryPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $148.57/EA |
| 4 | TN8002035Replaces Tennant 73568 | 4 | Spring, Delivery ValvePart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $20.91/EA |
| 5 | TN8002036Replaces Tennant 73569 | 4 | Gasket, Delivery ValvePart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $14.95/EA |
| 6 | TN8051300Replaces Tennant 73570 | 4 | Holder, Delivery ValvePart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $114.94/EA |
| 7 | TN8002037Replaces Tennant 73571 | 4 | ORingPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $23.43/EA |
| 8 | TN8002038Replaces Tennant 73572 | 4 | Flange, SleevePart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 9 | TN8002039Replaces Tennant 73573 | 4 | Pin, JointPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $14.54/EA |
| 10 | TN8002050Replaces Tennant 73574 | 8 | ORingPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $28.99/EA |
| 11 | TN8002051Replaces Tennant 73575 | 8 | ScrewPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $22.93/EA |
| 12 | TN8051301Replaces Tennant 73576 | 4 | Assembly TappetPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 13 | TN8051302Replaces Tennant 73577 | 4 | Pin, Tappet GuidePart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 14 | TN8051303Replaces Tennant 73578 | 1 | Pin, ClampPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 15 | TN8002052Replaces Tennant 73579 | 4 | Spring, PlungerPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 16 | TN8051304Replaces Tennant 73580 | 4 | Seat, Spring UpperPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $21.51/EA |
| 17 | TN8051305Replaces Tennant 73581 | 4 | Seat, Spring LowerPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $61.11/EA |
| 18 | TN8002053Replaces Tennant 73582 | 1 | ShimPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $6.36/EA |
| 19 | TN8050698Replaces Tennant 84649 | 1 | Rack, ControlPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 20 | TN8050699Replaces Tennant 84650 | 1 | PlatePart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 21 | TN8051308Replaces Tennant 73585 | 5 | ScrewPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $36.97/EA |
| 22 | TN8051309Replaces Tennant 73586 | 4 | Sleeve, ControlPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | Call to confirm part: 800-440-6723 |
| 23 | TN8003215Replaces Tennant 84651 | 1 | Screw, FollowPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $91.10/EA |
| 24 | TN8002054Replaces Tennant 73588 | 2 | GasketPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $3.50/EA |
| 25 | TN8002055Replaces Tennant 73589 | 1 | ScrewPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $24.60/EA |
| 26 | TN8002056Replaces Tennant 73590 | 1 | GasketPart of Assembly Pump, Injection (See Injection Pump Breakdown) (84635). | $3.50/EA |
Tennant M30 Diesel Fuel Camshaft Group (engine) parts
Fuel Camshaft Group (engine) from Tennant's parts list. Manual page 294.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8003211Replaces Tennant 84636 | Qty on machine: 1 | Camshaft | $712.15/EA | |
| 2 | TN8002794Replaces Tennant 9004368 | Qty on machine: 1 | Bearing, Ball [Ku] | $76.66/EA | |
| 3 | TN8002795Replaces Tennant 9004369 | Qty on machine: 1 | Bearing, Ball [Ku] | $76.66/EA | |
| 4 | TN8051311Replaces Tennant 73592 | Qty on machine: 1 | Cam, Fuel [Ku] | Call to confirm part: 800-440-6723 | |
| 5 | TN8051312Replaces Tennant 73593 | Qty on machine: 1 | Nut, Cap, Cam [Ku] | Call to confirm part: 800-440-6723 | |
| 6 | TN8051313Replaces Tennant 73594 | Qty on machine: 1 | Key, Woodruff [Ku] | Call to confirm part: 800-440-6723 | |
| 7 | TN8051314Replaces Tennant 73595 | Qty on machine: 1 | Gear, Pump, Fuel [Ku] | $353.30/EA | |
| 8 | TN8052077Replaces Tennant 40409 | Qty on machine: 3 | Screw, Hex [Ku] | $3.30/EA | |
| 9 | TN8051315Replaces Tennant 73596 | Qty on machine: 1 | Stopper, Fuel [Ku] | Call to confirm part: 800-440-6723 | |
| 10 | TN8052091Replaces Tennant 41973 | Qty on machine: 2 | Bolt, Hex [Ku] | $3.50/EA | |
| 11 | TN8051316Replaces Tennant 73597 | Qty on machine: 1 | Shaft, GovnrComplete assembly. | $1,109.49/EA | |
| 12 | TN8051317Replaces Tennant 73598 | Qty on machine: 1 | Holder, Gear [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723 | |
| 13 | TN8051318Replaces Tennant 73599 | Qty on machine: 1 | Gear, Govnr [Ku]Part of Shaft, Govnr (73597). | $163.78/EA | |
| 14 | TN8051319Replaces Tennant 73600 | Qty on machine: 1 | Holder, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723 | |
| 15 | TN8002057Replaces Tennant 73601 | Qty on machine: 2 | Weight, Comp, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723 | |
| 16 | TN8002058Replaces Tennant 73602 | Qty on machine: 2 | Shaft, Govnr [Ku]Part of Shaft, Govnr (73597). | $35.45/EA | |
| 17 | TN8051518Replaces Tennant 70977 | Qty on machine: 1 | Sleeve, Govnr [Ku]Part of Shaft, Govnr (73597). | Call to confirm part: 800-440-6723 | |
| 18 | TN8051519Replaces Tennant 70978 | Qty on machine: 1 | Washer, Thrust [Ku]Part of Shaft, Govnr (73597). | $11.62/EA | |
| 19 | TN8049802Replaces Tennant 9004373 | Qty on machine: 1 | Bearing, Ball [Ku] | $76.66/EA | |
| 20 | TN8051320Replaces Tennant 73603 | Qty on machine: 1 | Ring, Snap [Ku] | Call to confirm part: 800-440-6723 | |
| 21 | TN8051321Replaces Tennant 73604 | Qty on machine: 1 | Screw, Set [Ku] | $8.08/EA | |
| 22 | TN8049800Replaces Tennant 9004370 | Qty on machine: 1 | Washer [Ku] | $11.31/EA |
Tennant M30 Diesel Idling Group (engine) parts
Idling Group (engine) from Tennant's parts list. Manual page 295.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002550Replaces Tennant 70980 | Qty on machine: 1 | Assembly Apparatus, IdleComplete assembly. | $53.41/EA | |
| 2 | TN8051322Replaces Tennant 73605 | Qty on machine: 1 | Assembly Bolt, AdjustingPart of Assembly Apparatus, Idle (70980). | $36.16/EA | |
| 3 | TN8002059Replaces Tennant 73606 | Qty on machine: 1 | NutPart of Assembly Apparatus, Idle (70980). | $2.90/EA | |
| 4 | TN8004681Replaces Tennant 361375 | Qty on machine: 1 | Nut, CapPart of Assembly Apparatus, Idle (70980). | $4.75/EA | |
| 5 | TN8002710Replaces Tennant 40166 | Qty on machine: 2 | GasketPart of Assembly Apparatus, Idle (70980). | $4.30/EA | |
| 6 | TN8005834Replaces Tennant 30136 | Qty on machine: 1 | CapPart of Assembly Apparatus, Idle (70980). | $9.60/EA | |
| 7 | TN8002060Replaces Tennant 73610 | Qty on machine: 1 | Bolt, Adjusting | $4.85/EA | |
| 8 | TN8049803Replaces Tennant 9004374 | Qty on machine: 1 | Nut | $6.06/EA | |
| 9 | TN8004681Replaces Tennant 361375 | Qty on machine: 1 | Nut, Cap | $4.75/EA | |
| 10 | TN8002710Replaces Tennant 40166 | Qty on machine: 2 | Gasket | $4.30/EA | |
| 11 | TN8005834Replaces Tennant 30136 | Qty on machine: 1 | Cap | $9.60/EA | |
| 12 | TN8002868Replaces Tennant 70188 | Qty on machine: 1 | Cover | $28.31/EA | |
| 13 | TN8049804Replaces Tennant 9004375 | Qty on machine: 1 | Gasket [Ku] | $7.50/EA |
Tennant M30 Diesel Speed Control Plate Group (engine) parts
Speed Control Plate Group (engine) from Tennant's parts list. Manual page 296.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002551Replaces Tennant 70982 | Qty on machine: 1 | Plate, Cntrl, Spd [Ku]Complete assembly. | $386.63/EA | |
| 2 | TN8002061Replaces Tennant 73618 | Qty on machine: 1 | Lever, Cntrl, Spd [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $31.51/EA | |
| 3 | TN8051326Replaces Tennant 73619 | Qty on machine: 2 | Lever, Cntrl, Spd [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $24.24/EA | |
| 4 | TN8002798Replaces Tennant 9004385 | Qty on machine: 1 | ORing [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $4.14/EA | |
| 5 | TN8052076Replaces Tennant 40407 | Qty on machine: 2 | Pin, Spring [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $2.83/EA | |
| 6 | TN8051327Replaces Tennant 73621 | Qty on machine: 2 | Washer, Flat [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $5.96/EA | |
| 7 | TN8051328Replaces Tennant 73622 | Qty on machine: 2 | Nut, Hex [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $4.44/EA | |
| 8 | TN8051329Replaces Tennant 73623 | Qty on machine: 1 | Lever, Plate, Cntrl [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $57.27/EA | |
| 9 | TN8002063Replaces Tennant 73624 | Qty on machine: 1 | Lever, Stop [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $25.55/EA | |
| 10 | TN8002552Replaces Tennant 70983 | Qty on machine: 1 | Seal, Oil [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $11.62/EA | |
| 11 | TN8051330Replaces Tennant 73625 | Qty on machine: 1 | Spring, Tors [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $9.49/EA | |
| 12 | TN8002064Replaces Tennant 73626 | Qty on machine: 1 | Shaft, Lever, Spd [Ku]Part of Plate, Cntrl, Spd [Ku] (70982). | $76.86/EA | |
| 13 | TN8002553Replaces Tennant 70984 | Qty on machine: 1 | Gasket, Cover, Spd [Ku] | $7.88/EA | |
| 14 | TN8052091Replaces Tennant 41973 | Qty on machine: 2 | Bolt, Hex [Ku] | $3.50/EA | |
| 15 | TN9004386 | Qty on machine: 2 | Stud [Ku] | $2.80/EA | |
| 16 | TN8002919Replaces Tennant 39121 | Qty on machine: 2 | Nut, Hex [Ku] | $0.55/EA | |
| 17 | TN8002905Replaces Tennant 39065 | Qty on machine: 2 | Washer, Lock, Split [Ku] | $3.60/EA |
Tennant M30 Diesel Governor Group (engine) parts
Governor Group (engine) from Tennant's parts list. Manual page 297.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8002797Replaces Tennant 9004379 | Qty on machine: 1 | Spring, Start [Ku] | $5.96/EA | |
| 2 | TN8002555Replaces Tennant 70986 | Qty on machine: 1 | Spring, Ext, Govnr [Ku] | $26.77/EA | |
| 3 | TN8049808Replaces Tennant 9004380 | Qty on machine: 1 | Lever, Fork Assy [Ku]Complete assembly. | $338.45/EA | |
| 4 | TN8049809Replaces Tennant 9004381 | Qty on machine: 1 | Lever, Fork [Ku]Part of Lever, Fork Assy [Ku] (9004380). | $481.67/EA | |
| 5 | TN8049820Replaces Tennant 9004382 | Qty on machine: 1 | Lever, Fork, Shaft [Ku]Part of Lever, Fork Assy [Ku] (9004380). | $64.54/EA | |
| 6 | TN8049821Replaces Tennant 9004383 | Qty on machine: 1 | Lever, Fork, Shaft [Ku]Part of Lever, Fork Assy [Ku] (9004380). | $60.20/EA | |
| 7 | TN8051520Replaces Tennant 70989 | Qty on machine: 1 | Bearing, Ball [Ku]Part of Lever, Fork Assy [Ku] (9004380). | Call to confirm part: 800-440-6723 | |
| 8 | TN8002066Replaces Tennant 73631 | Qty on machine: 1 | Cover, Lever, Gov [Ku]Part of Lever, Fork Assy [Ku] (9004380). | $13.64/EA | |
| 9 | TN8004836Replaces Tennant 361430 | Qty on machine: 1 | Gasket, Cover, Gov [Ku]Part of Lever, Fork Assy [Ku] (9004380). | $3.33/EA | |
| 10 | TN8002951Replaces Tennant 39160 | Qty on machine: 2 | Bolt, Hex [Ku] | $3.33/EA | |
| 11 | TN8002557Replaces Tennant 70991 | Qty on machine: 1 | Collar, Govnr [Ku] | $4.44/EA | |
| 12 | TN8002558Replaces Tennant 70992 | Qty on machine: 1 | Bearing, Ball [Ku] | $16.36/EA |
Tennant M30 Diesel Water Flange Group (engine) parts
Water Flange Group (engine) from Tennant's parts list. Manual page 298.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN8005464Replaces Tennant 368090 | Qty on machine: 1 | Comp. Flange, WaterComplete assembly. | $88.48/EA | |
| 2 | TN8003127Replaces Tennant 384859 | Qty on machine: 1 | Pipe, Water Return 1Part of Comp. Flange, Water (368090). | $6.80/EA | |
| 3 | TN8002067Replaces Tennant 73632 | Qty on machine: 2 | Plug | $10.70/EA | |
| 4 | TN8002559Replaces Tennant 70994 | Qty on machine: 1 | Gasket, Water Flange | $8.10/EA | |
| 5 | TN8052091Replaces Tennant 41973 | Qty on machine: 3 | Bolt | $3.50/EA | |
| 6 | TN8002645Replaces Tennant 72995 | Qty on machine: 1 | Bolt | $3.23/EA | |
| 7 | TN8002068Replaces Tennant 73633 | Qty on machine: 1 | Pipe, Water Return 2 | $18.70/EA | |
| 8 | TN8002069Replaces Tennant 73634 | Qty on machine: 2 | Band, Pipe | $10.80/EA | |
| 9 | TN8006119Replaces Tennant 10852 | Qty on machine: 1 | Thermostat, 180deg, 1.7d | $106.70/EA | |
| 10 | TN8006118Replaces Tennant 10851 | Qty on machine: 1 | Gasket, Thermostat | $12.90/EA | |
| 11 | TN8005465Replaces Tennant 368091 | Qty on machine: 1 | Cover, Thermostat | $30.30/EA | |
| 12 | TN8052079Replaces Tennant 40418 | Qty on machine: 2 | Bolt | $2.53/EA |
Tennant M30 Diesel Turbo Charger Group (engine) parts
Turbo Charger Group (engine) from Tennant's parts list. Manual page 299.
No drawing for this list. Tennant prints these parts as a list only, with no exploded view. Parts with a photo are listed first. Tap Details for serial ranges and kit notes.
| Item | Part number | Qty | Description and notes | Price | |
|---|---|---|---|---|---|
| 1 | TN4013719Replaces Tennant 9004508 | Qty on machine: 1 | Turbo Assy, Charger [Ku]Complete assembly. | $4,724.10/EA | |
| 2 | TN8002263Replaces Tennant 9004509 | Qty on machine: 1 | Hose, Turbo, Charger [Ku]Part of Turbo Assy, Charger [Ku] (9004508). | $72.72/EA | |
| 3 | TN8002264Replaces Tennant 9004510 | Qty on machine: 2 | Hose, Clamp [Ku] | $18.08/EA | |
| 4 | TN8002265Replaces Tennant 9004511 | Qty on machine: 1 | Gasket, Turbo [Ku] | $26.87/EA | |
| 5 | TN8002911Replaces Tennant 39096 | Qty on machine: 3 | Nut | $4.10/EA | |
| 6 | TN8002912Replaces Tennant 39097 | Qty on machine: 3 | Washer, Lock, Split [Ku,0451250080] | $4.10/EA | |
| 7 | TN8045932Replaces Tennant 368296 | Qty on machine: 1 | Flange, Muffler | $201.39/EA | |
| 8 | TN9004512 | Qty on machine: 1 | Gasket, Turbo [Ku] | $30.60/EA | |
| 9 | TN8002726Replaces Tennant 73535 | Qty on machine: 3 | Screw, Hex [Ku] | $4.10/EA | |
| 10 | TN8045929Replaces Tennant 368293 | Qty on machine: 1 | Bolt | $3.33/EA | |
| 11 | TN8044776Replaces Tennant 39138 | Qty on machine: 2 | Bolt | $3.33/EA |
Tennant M30 Diesel Oil Cooler Group (engine) parts
The parts Tennant numbers on its oil cooler group (engine) drawing. Manual pages 300, list 301.
Tap a part number to see that part.
| Item | Part number | Qty | Description and notes | Price |
|---|---|---|---|---|
| 1 | TN8049847Replaces Tennant 9004416 | 1 | Pipe, Oil [Ku] | $60.70/EA |
| 2 | TN8045938Replaces Tennant 368305 | 1 | Bolt, Eye | Call to confirm part: 800-440-6723 |
| 3 | TN8005489Replaces Tennant 368300 | 2 | Gasket | $2.35/EA |
| 4 | TN8045935Replaces Tennant 368302 | 1 | Bolt, Eye | $13.64/EA |
| 5 | TN8002809Replaces Tennant 9004417 | 1 | Pipe, Oil [Ku] | $60.70/EA |
| 6 | TN8005511Replaces Tennant 368306 | 1 | Gasket | $4.14/EA |
| 7 | TN8052077Replaces Tennant 40409 | 2 | Screw, Hex [Ku] | $3.30/EA |
| 8 | TN8002810Replaces Tennant 9004418 | 1 | Pipe, Oil [Ku]Complete assembly. | $9.19/EA |
| 9 | TN8005510Replaces Tennant 368301 | 1 | Tube, OilPart of Pipe, Oil [Ku] (9004418). | $18.38/EA |
| 10 | TN8045934Replaces Tennant 368298 | 2 | Clamp, Hose | $4.85/EA |
| 11 | TN8005488Replaces Tennant 368299 | 1 | Clamp, Pipe | Call to confirm part: 800-440-6723 |
| 12 | TN8005512Replaces Tennant 368311 | 1 | Pin, Clamp | Call to confirm part: 800-440-6723 |
| 13 | TN8049848Replaces Tennant 9004419 | 1 | Connector [Ku] | $95.14/EA |
| 14 | TN8049849Replaces Tennant 9004420 | 1 | ORing [Ku] | $16.77/EA |
| 15 | TN8002811Replaces Tennant 9004421 | 1 | Pipe, Oil, Cooler [Ku] | $32.32/EA |
| 16 | TN8002068Replaces Tennant 73633 | 1 | Hose, Water [Ku] | $18.70/EA |
| 17 | TN8002069Replaces Tennant 73634 | 4 | Clamp, Hose, Heater [Ku] | $10.80/EA |
| 18 | TN8045937Replaces Tennant 368304 | 1 | Collar | $18.08/EA |
Tennant M30 Diesel ec- H20 Wire Harnesses Group, drawing 1
| What it shows | ec- H20 Wire Harnesses Group, drawing 1, as printed in the manual |
|---|---|
| Manual page | 206 |
Tennant M30 Diesel manuals and source documents
The documents this page was built from. View any of them in our manual viewer and tap a part number to look it up and add it to the cart. Sign in with a free account to download.
Online manuals
Read the M30 Diesel manuals in your browser, with clickable part numbers. No sign-in needed.
- M30 Diesel operator manual, free to read
Share this pageSend the link to whoever orders your parts.Email me this page
| Document | Covers | Edition | Size | Open |
|---|---|---|---|---|
| PDFby SESParts manualTennant 9003952 Rev. 16 (5-2016), S/N 000000-007999, 330 pages | M30 Diesel | Rev. 16 (5-2016) | 330 pages | ViewSign in to download |
| PDFby SESOperator manualTennant M30 Diesel operator manual, S/N 000000-007999 | M30 Diesel | ViewSign in to download |
Need a manual that isn't listed, or a different serial range? Call 800-440-6723 with your model and serial number.
